EATON CORPORATION www.eaton.com
6
Phase
1 = Single-phase
3 = Three-phase
Panel Type
PRL1A = PRL1a
PRL2A = PRL2a
NEMA 1 Pow-R-Stock Panelboard Trims
EZT 20 36 S
EZT are available laser cut trims used on all PRL1a, PRL2a, and PRL3a panels
Width in inches = 20 Height in inches = 36, 48, 60, or 72
Mounting
S = Surface
F = Flush
NEMA 1 Pow-R-Stock Panelboard Boxes
EZB 20 36 R BS
EZB are available boxes used for all Type 1 PRL1a, PRL2a, and PRL3a panels
Width in inches = 20 Height in inches = 36, 48, 60, or 72
R = Right-hand flange
Main Breaker Kits
BK ED 100 T
Breaker kit
Breaker frame
ED or FD or KD
Trip rating 100, 125 150, 175, 200, 225, 250, 300, 350, 400
Mounting
T = Top
B = Bottom
Bus Type
A = Aluminum bus
C = Copper bus
Main Device
X indicates no main/
use main breaker or
main lug kit
Number of Circuits
18, 30, and 42
PRL1A 1 225 X 42 A S
Catalog numbering system—Pow-R-Stock panelboard
interiors
Bus Amps
100 = 100A
225 = 225A
400 = 400A
Option
S = Short—no TFL or SFB provisions
Special note: This option applies only to
42 circuit 225A interiors.
Note: Top-feed provision for main lugs or
main breaker, no provision for through-feed
lugs or sub-feed breaker.

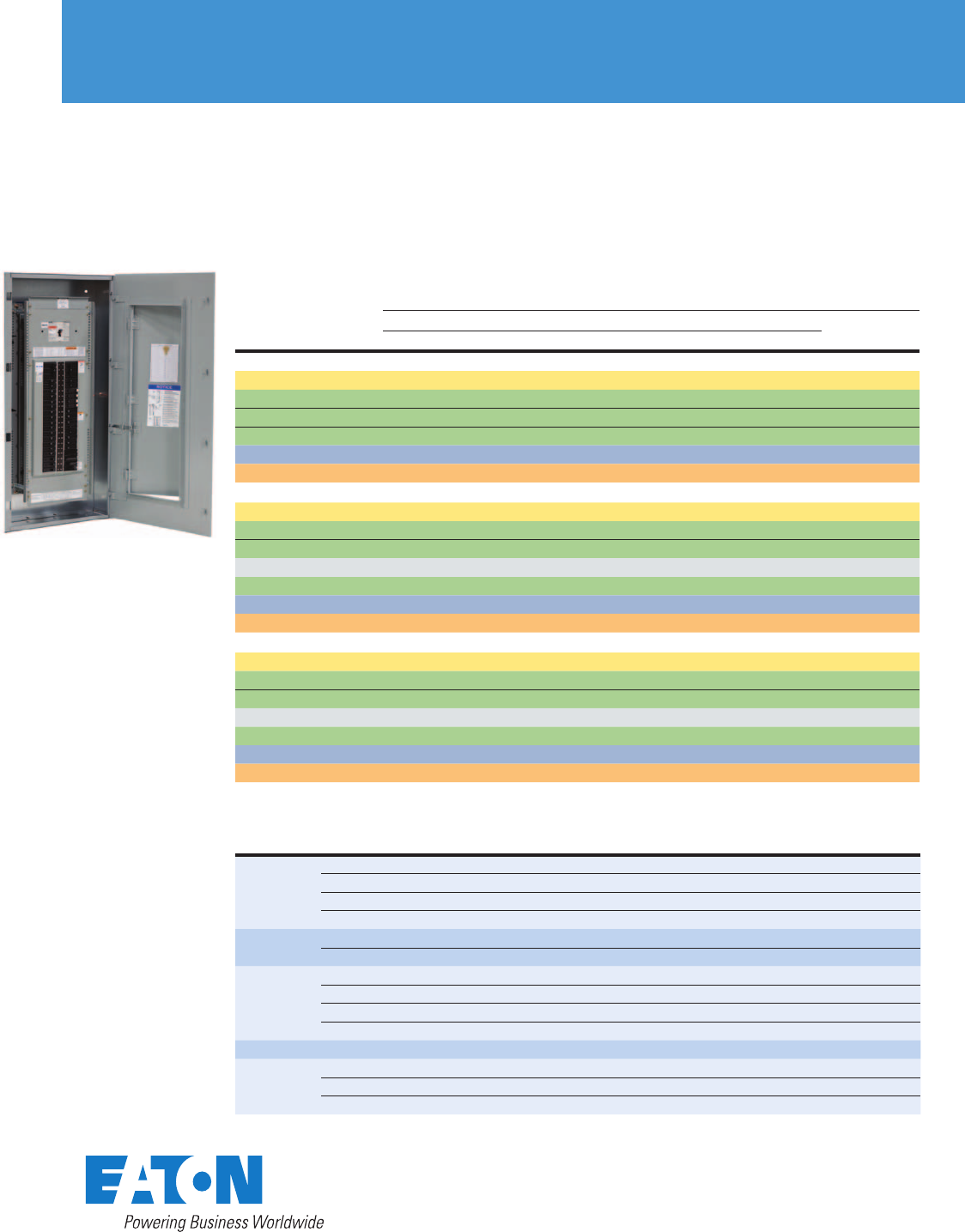

Pow-R-Stock Plus program
reference guide
Unassembled panelboards—EZ BoxE and EZ TrimE
Ampere
Rating
Maximum
Number
of Poles
Catalog Numbers
Interiors (Less Main Device) Boxes Trims (NEMAT 1) NEMA 3R
EnclosuresAluminum Bus Copper Bus NEMA 1 Surface Flush
Single-Phase, Three-Wire, 120/240V
100 18 PRL1A1100X18A PRL1A1100X18C EZB2036R EZT2036S EZT2036F GWPBQ2036PR
100 30 PRL1A1100X30A PRL1A1100X30C EZB2048R EZT2048S EZT2048F GWPBQ2048PR
225 30 PRL1A1225X30A PRL1A1225X30C EZB2048R EZT2048S EZT2048F GWPBQ2048PR
225 42 PRL1A1225X42AS PRL1A1225X42CS EZB2048R EZT2048S EZT2048F GWPBQ2048PR
225 42 PRL1A1225X42A PRL1A1225X42C EZB2060R EZT2060S EZT2060F GWPBQ2060PR
400 42 PRL1A1400X42A PRL1A1400X42C EZB2072R EZT2072S EZT2072F GWPBQ2072PR
Three-Phase, Four-Wire, 208Y/120V
100 18 PRL1A3100X18A PRL1A3100X18C EZB2036R EZT2036S EZT2036F GWPBQ2036PR
100 30 PRL1A3100X30A PRL1A3100X30C EZB2048R EZT2048S EZT2048F GWPBQ2048PR
225 30 PRL1A3225X30A PRL1A3225X30C EZB2048R EZT2048S EZT2048F GWPBQ2048PR
225 42 PRL1A3225L42AS PRL1A3225L42CS EZB2042R EZT2042S EZT2042F GWPBQ2042PR
225 42 PRL1A3225X42AS PRL1A3225X42CS EZB2048R EZT2048S EZT2048F GWPBQ2048PR
225 42 PRL1A3225X42A PRL1A3225X42C EZB2060R EZT2060S EZT2060F GWPBQ2060PR
400 42 PRL1A3400X42A PRL1A3400X42C EZB2072R EZT2072S EZT2072F GWPBQ2072PR
Three-Phase, Four-Wire, 480Y/277V
100 18 PRL2A3100X18A PRL2A3100X18C EZB2036R EZT2036S EZT2036F GWPBQ2036PR
100 30 PRL2A3100X30A PRL2A3100X30C EZB2048R EZT2048S EZT2048F GWPBQ2048PR
225 30 PRL2A3225X30A PRL2A3225X30C EZB2048R EZT2048S EZT2048F GWPBQ2048PR
225 42 PRL2A3225L42AS PRL2A3225L42CS EZB2042R EZT2042S EZT2042F GWPBQ2042PR
225 42 PRL2A3225X42AS PRL2A3225X42CS EZB2048R EZT2048S EZT2048F GWPBQ2048PR
225 42 PRL2A3225X42A PRL2A3225X42C EZB2060R EZT2060S EZT2060F GWPBQ2060PR
400 42 PRL2A3400X42A PRL2A3400X42C EZB2072R EZT2072S EZT2072F GWPBQ2072PR
Summary of branch breakers available
Breaker Poles Ampere
Rating Voltage kAIC
Rating Example Panel
Type
BAB 1 15–60 120V 10 BAB1020 PRL1A
2 15–100 120/240V 10 BAB2020 PRL1A
2 15–100 240V 10 BAB2040H PRL1A
3 15–100 240V 10 BAB3030H PRL1A
QBGF 1 15–30 120V 10 QBGF1020 PRL1A
2 15–40 120/240V 10 QBGF2040 PRL1A
QBHW 1 15–60 120V 22 QBHW1020 PRL1A
2 15–100 120/240V 22 QBHW2020 PRL1A
2 15–100 240V 22 QBHW2040H PRL1A
3 15–100 240V 22 QBHW3030H PRL1A
GHQ 1 15–20 277V 14 GHQ1020 PRL2A
GHB 1 15–100 277V 14 GHB1020 PRL2A
2 15–100 480Y/277V 14 GHB2040 PRL2A
3 15–100 480Y/277V 14 GHB3060 PRL2A
ote:N The colors shown in the table
to the right correspond to the color-
coding on the trim, interior and box
product packaging labels. Be sure
that all three parts match when
delivering to your customer.
Pow-R-Stock
Eaton is a registered trademark
of Eaton Corporation.
All other trademarks are property
of their respective owners.
Eaton Corporation
Electrical Sector
1111 Superior Avenue
Cleveland, OH 44114 USA
Eaton.com
© 2012 Eaton Corporation
All Rights Reserved
Printed in USA
Publication No. SA01413001E / Z13060
December 2012
Circuit breaker kits—unassembled panelboards
Maximum
Voltage Ampere
Rating Service Catalog
Number Breaker
Frame Mounting
Location Wire Range
Al/Cu
Kits—Main Circuit Breaker or Subfeed Circuit Breaker (Includes Circuit Breaker and Terminals)
240V 100 Single- or three-phase BKED100T ED Top (1) #14–1/0
125 Single- or three-phase BKED125T ED Top (1) #4–4/0
150 Single- or three-phase BKED150T ED Top (1) #4–4/0
175 Single- or three-phase BKED175T ED Top (1) #4–4/0
200 Single- or three-phase BKED200T ED Top (1) #4–4/0
225 Single- or three-phase BKED225T ED Top (1) #4–4/0
240V 100 Single- or three-phase BKED100B ED Bottom (1) #14–1/0
125 Single- or three-phase BKED125B ED Bottom (1) #4–4/0
150 Single- or three-phase BKED150B ED Bottom (1) #4–4/0
175 Single- or three-phase BKED175B ED Bottom (1) #4–4/0
200 Single- or three-phase BKED200B ED Bottom (1) #4–4/0
225 Single- or three-phase BKED225B ED Bottom (1) #4–4/0
480V 100 Single- or three-phase BKFD100T FD Top (1) #14–1/0
125 Single- or three-phase BKFD125T FD Top (1) #4–4/0
150 Single- or three-phase BKFD150T FD Top (1) #4–4/0
175 Single- or three-phase BKFD175T FD Top (1) #4–4/0
200 Single- or three-phase BKFD200T FD Top (1) #4–4/0
225 Single- or three-phase BKFD225T FD Top (1) #4–4/0
480V 100 Single- or three-phase BKFD100B FD Bottom (1) #14–1/0
125 Single- or three-phase BKFD125B FD Bottom (1) #4–4/0
150 Single- or three-phase BKFD150B FD Bottom (1) #4–4/0
175 Single- or three-phase BKFD175B FD Bottom (1) #4–4/0
200 Single- or three-phase BKFD200B FD Bottom (1) #4–4/0
225 Single- or three-phase BKFD225B FD Bottom (1) #4–4/0
Kits—Main Circuit Breaker (Includes Circuit Breaker and Terminals)
480V 250 Single- or three-phase BKKD250T KD Top (1) 250–500 kcmil
300 Single- or three-phase BKKD300T KD Top (1) 250–500 kcmil
350 Single- or three-phase BKKD350T KD Top (1) 250–500 kcmil
400 Single- or three-phase BKKD400T KD Top (2) 3/0–250 kcmil
or (1) 3/0–500 kcmil
480V 250 Single- or three-phase BKKD250B KD Bottom (1) 250–500 kcmil
300 Single- or three-phase BKKD300B KD Bottom (1) 250–500 kcmil
350 Single- or three-phase BKKD350B KD Bottom (1) 250–500 kcmil
400 Single- or three-phase BKKD400B KD Bottom (2) 3/0–250 kcmil
or (1) 3/0–500 kcmil
ote:N Order optional lug kit catalog number 3TA225FDK for 175–225A F-Frame three-pole circuit breakers to provide terminations for (1) #6–300 kcmil.
Kits—main lugs or through-feed lugs
Ampere
Rating Service Catalog
Number Wire Range
Al/Cu
100 Single- or three-phase LUGKIT100 (1) #14–1/0
225 Single- or three-phase LUGKIT225 (1) #6–300 kcmil
400 Single- or three-phase LUGKIT400 (2) #2–500 kcmil

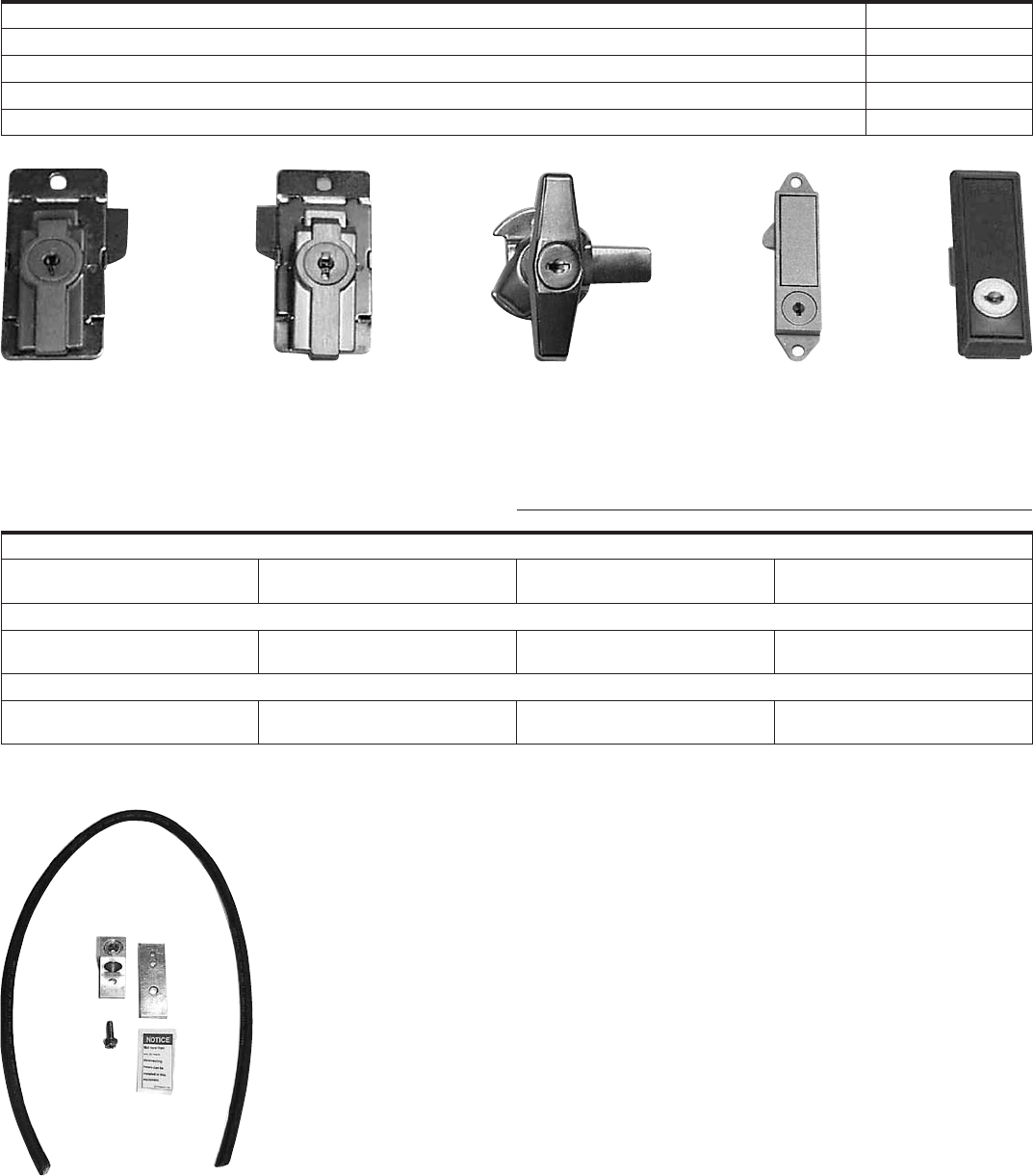

Kits—service entrance
Ampere
Rating Service Catalog
Number Panel Type
100/225 Single- or three-phase SEK1/2 PRL1a or PRL2a
400 Single- or three-phase SEK4/6 PRL1a or PRL2a

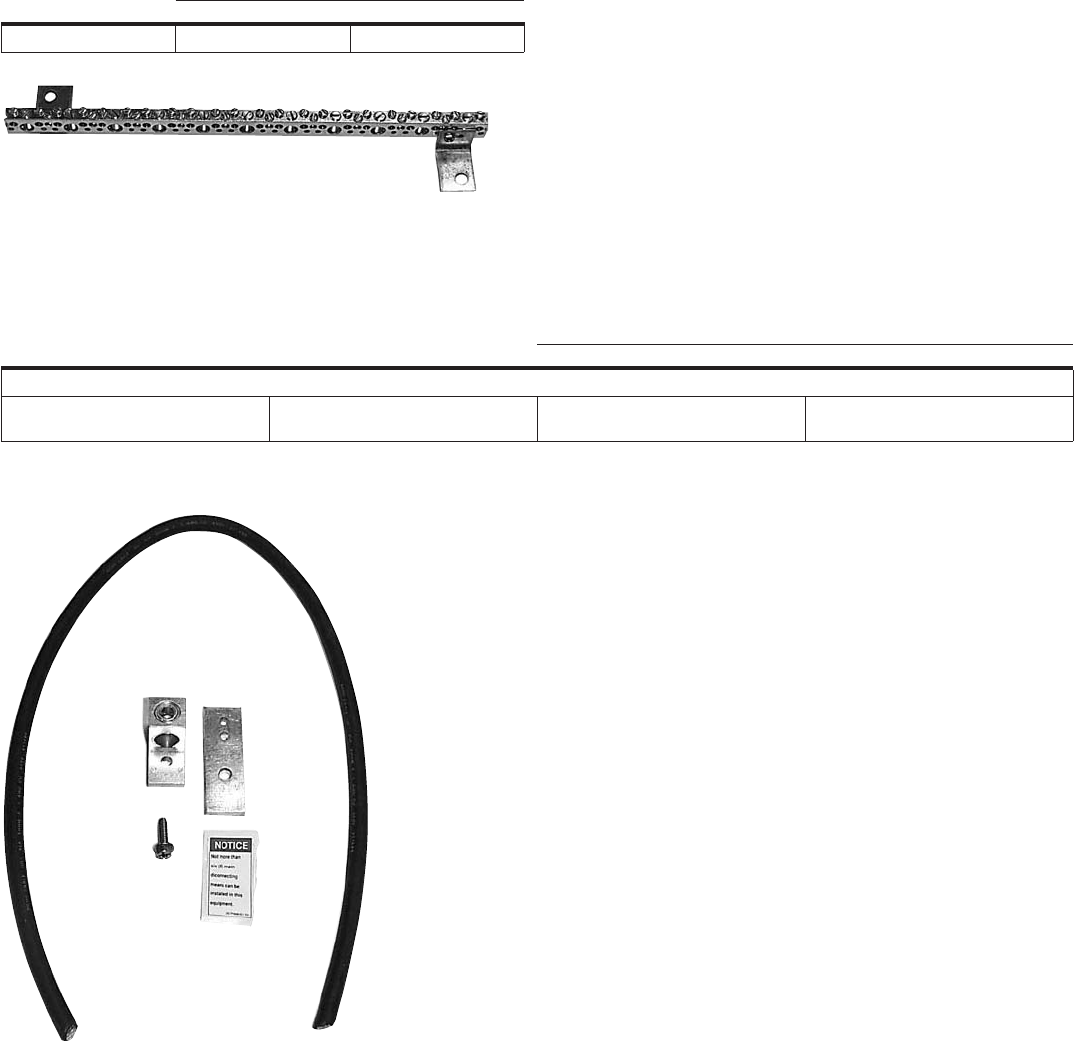

Kits—insulated/isolated ground (carton quantity of ve)
Ampere
Rating Service Catalog
Number Panel Type
—Single- or three-phase ISOGROUND PRL1a or PRL2a
Kits—200% neutral
Ampere
Rating Service Catalog
Number Panel Type
100 Single- or three-phase 2NK100 PRL1a or PRL2a
225 Single- or three-phase 2NK225 PRL1a or PRL2a
Volume 2—Commercial Distribution CA08100003E—December 2010 www.eaton.com 377
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10.3

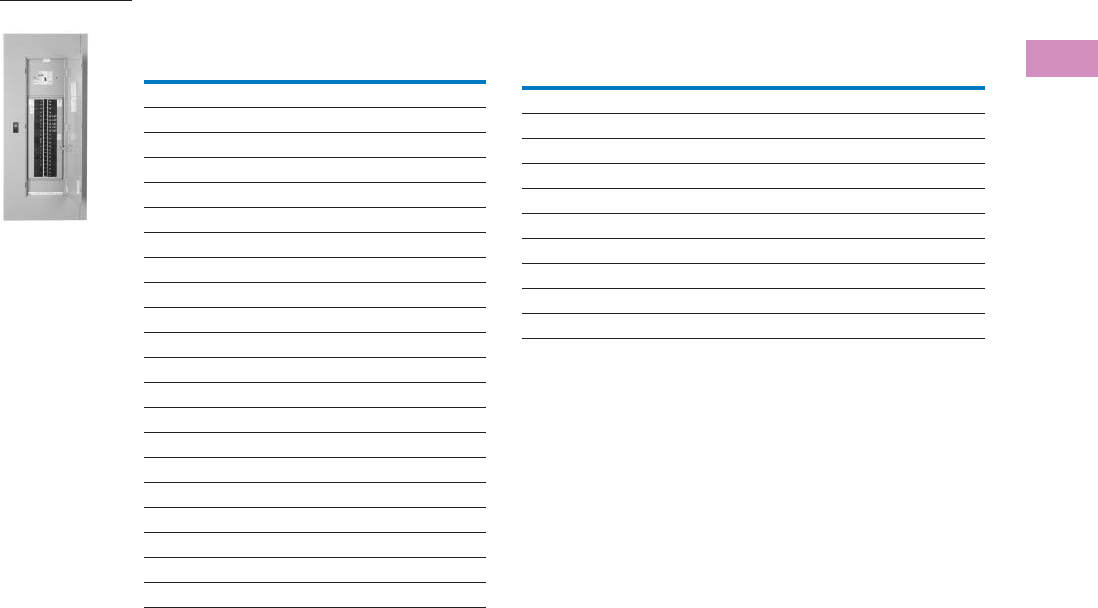

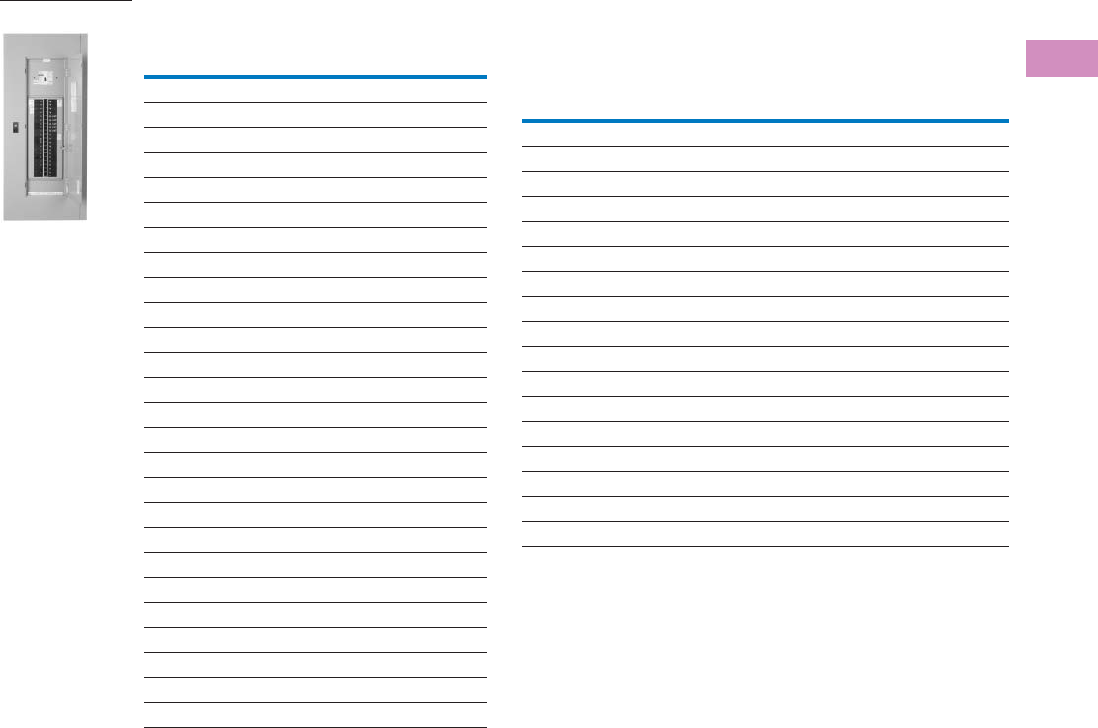

Panelboards and Lighting Control
Pow-R-Line C Panelboards
Product Selection
PRL1a
Ampere
Rating
Interrupting
Rating (kA Sym.)
240 Vac
Breaker
Type
Main Lug Only
100 — —
225 — —
400 — —
Main Breaker
100 10 BAB
100 18 EHD
100 22 QBHW
100 22 EDB
100 42 EDS
100 65 ED
100 65 FD, FDE
100 100 EDH
100 100 HFD, HFDE
225 22 EDB
225 42 EDS
225 65 ED
225 100 EDH
250 65 JD
250 100 HJD
250 200 JDC
400 65 DK
400 65 KD
400 100 HKD
400 100 LHH
400 200 KDC
T
ype PRL1a PRL1a Branch Circuit Breakers
Notes
Single-pole breakers are rated 120 Vac maximum.
50A devices are available as two-pole only.
GFCI for 5 mA personnel protection.
GFP for 30 mA equipment protection.
Arc fault circuit breaker.
HID (High Intensity Discharge) rated breaker.
Switching Neutral Breaker. single-pole device requires two-pole space, two-pole device
requires three-pole space.
Solenoid operated breaker.
Bolt-on = BAB, QBHW, QBGF, QBHGF, QBGFEP, QBHGFEP, QBAF, QBAG, QBHAF, QBHAG
Plug-on = HQP, QPHW, QPGF, QPHGF, QPGFEP, QPHGFEP
Ampere
Rating
Interrupting
Rating (kA Sym.)
240 Vac
Breaker
Type
15–60 10 BAB, HQP
70 10 BAB, HQP
80–100 10 BAB, HQP
15–50 10 QBGF, QPGF
15–50 10 QBGFEP, QPGFEP
15–20 10 QBCAF
15–60 10 BAB-D, HQP-D
15–30 10 BAB-C, HQP-B
15–30 10 BABRP
15–30 10 BABRSP
15–60 22 QBHW, QPHW
70 22 QBHW, QPHW
80–100 22 QBHW, QPHW
15–30 22 QBHGF, QPHGF
15–30 22 QBHGFEP, QPHGFEP
15–20 22 QBHCAF
Provision — —
Volume 2—Commercial Distribution CA08100003E—December 2010 www.eaton.com 379
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10.3
Panelboards and Lighting Control
Pow-R-Line C Panelboards
Approximate Dimensions in Inches (mm)
PRL1a Panelboard Sizing
Note
Smaller panelboard box sizes are available if required. Contact Eaton for application information.
Panelboard
Types
Main Breaker Types
and Mounting Position
(H) = Horizontal
(V) = Vertical
Sub-Feed Breaker Types
and Mounting Position
(H) = Horizontal
(V) = Vertical
Maximum No. of
Branch Circuits
Including
Provisions
Box Dimensions
YS Box
Catalog
Number
LT Trim
Catalog
Number
EZ Box
Catalog
Number
EZ Trim
Catalog
NumberHeight Width Depth
100A
Main breaker BAB, QBHW
(H)
—15
36.00 (914.4) 20.00 (508.0) 5.75 (146.1) YS2036 LT2036S or F EZB2036R EZT2036S or F
—27
48.00 (1219.2) 20.00 (508.0) 5.75 (146.1) YS2048 LT2048S or F EZB2048R EZT2048S or F
—39
48.00 (1219.2) 20.00 (508.0) 5.75 (146.1) YS2048 LT2048S or F EZB2048R EZT2048S or F
—42
60.00 (1524.0) 20.00 (508.0) 5.75 (146.1) YS2060 LT2060S or F EZB2060R EZT2060S or F
Main lugs or
main breaker
EHD
FD, HFD
(V)
—18
36.00 (914.4) 20.00 (508.0) 5.75 (146.1) YS2036 LT2036S or F EZB2036R EZT2036S or F
—30
48.00 (1219.2) 20.00 (508.0) 5.75 (146.1) YS2048 LT2048S or F EZB2048R EZT2048S or F
—42
48.00 (1219.2) 20.00 (508.0) 5.75 (146.1) YS2048 LT2048S or F EZB2048R EZT2048S or F
Main lugs or main
breaker with 100A
through-feed lugs or
sub-feed breaker
EHD
FD
HFD
(V)
EHD
FD
HFD
(V)
18
48.00 (1219.2) 20.00 (508.0) 5.75 (146.1) YS2048 LT2048S or F EZB2048R EZT2048S or F
30
48.00 (1219.2) 20.00 (508.0) 5.75 (146.1) YS2048 LT2048S or F EZB2048R EZT2048S or F
42
60.00 (1524.0) 20.00 (508.0) 5.75 (146.1) YS2060 LT2060S or F EZB2060R EZT2060S or F
225A
Main lugs or
main breaker
EDB, EDS, ED,
EDH, FD, HFD
(V)
—18
36.00 (914.4) 20.00 (508.0) 5.75 (146.1) YS2036 LT2036S or F EZB2036R EZT2036S or F
—30
48.00 (1219.2) 20.00 (508.0) 5.75 (146.1) YS2048 LT2048S or F EZB2048R EZT2048S or F
—42
48.00 (1219.2) 20.00 (508.0) 5.75 (146.1) YS2048 LT2048S or F EZB2048R EZT2048S or F
Main lugs or main
breaker with 225A
throughfeed lugs or
sub-feed breaker
FD, HFD,
EDS, ED,
EDH
(V)
FD, HFD,
EDS, ED,
EDH
(V)
18
48.00 (1219.2) 20.00 (508.0) 5.75 (146.1) YS2048 LT2048S or F EZB2048R EZT2048S or F
30
60.00 (1524.0) 20.00 (508.0) 5.75 (146.1) YS2060 LT2060S or F EZB2060R EZT2060S or F
42
60.00 (1524.0) 20.00 (508.0) 5.75 (146.1) YS2060 LT2060S or F EZB2060R EZT2060S or F
400A
Main breaker DK, KD, HKD,
KDC, LHH
(V)
—18
48.00 (1219.2) 20.00 (508.0) 5.75 (146.1) YS2048 LT2048S or F EZB2048R EZT2048S or F
—30
60.00 (1524.0) 20.00 (508.0) 5.75 (146.1) YS2060 LT2060S or F EZB2060R EZT2060S or F
—42
60.00 (1524.0) 20.00 (508.0) 5.75 (146.1) YS2060 LT2060S or F EZB2060R EZT2060S or F
Main lugs or main
breaker with 225A
through-feed lugs or
sub-feed breaker
DK, KD, HKD,
KDC, LHH
(V)
FD, HFD,
EDS, ED,
EDH
(V)
18
60.00 (1524.0) 20.00 (508.0) 5.75 (146.1) YS2060 LT2060S or F EZB2060R EZT2060S or F
30
60.00 (1524.0) 20.00 (508.0) 5.75 (146.1) YS2060 LT2060S or F EZB2060R EZT2060S or F
42 72.00 (1828.8)
20.00 (508.0) 5.75 (146.1) YS2072 LT2072S or F EZB2072R EZT2072S or F
Main breaker with 400A
through-feed lugs or
sub-feed breaker
DK, KD, HKD,
KDC, LHH
(V)
DK, KD,
HKD, KDC
(V)
18 72.00 (1828.8)
20.00 (508.0) 5.75 (146.1) YS2072 LT2072S or F EZB2072R EZT2072S or F
30 72.00 (1828.8)
20.00 (508.0) 5.75 (146.1) YS2072 LT2072S or F EZB2072R EZT2072S or F
42 90.00 (2286.0)
20.00 (508.0) 5.75 (146.1) YS2090 LT2090S or F EZB2090R EZT2090S or F
Volume 2—Commercial Distribution CA08100003E—December 2010 www.eaton.com 389
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10.3
Panelboards and Lighting Control
Pow-R-Line C Panelboards
Product Selection
PRL2a PRL2a Branch Circuit Breakers
Notes
Interrupting ratings in this column are applicable to 120 Vac for single-pole breakers.
Must be used on 480Y/277V grounded wye systems only.
Remote controllable breaker.
GFP for 30 mA equipment protection. Requires two-pole spaces. 277 Vac only.
HID (High Intensity Discharge) rated breaker.
Ampere
Rating
Interrupting Rating
(kA Symmetrical) Breaker
Type240 Vac 480Y/277 Vac 125/250 Vdc
Main Lug Only
100 — — — —
225 — — — —
400 — — — —
Main Breaker
100 65 14 14 GHB
100 18 14 10 EHD
100 65 35 10 FD, FDE
100 100 65 22 HFD, HFDE
100 200 100 22 FDC
225 65 — — ED
225 65 35 10 FD, FDE
225 100 65 22 HFD, HFDE
225 200 100 22 FDC
250 65 35 10 JD
250 100 65 22 HJD
250 200 100 22 JDC
400 65 35 10 KD
400 100 65 22 HKD
400 100 65 — LHH
400 200 100 22 KDC
T
ype PRL2a
Ampere
Rating
Interrupting Rating
(kA Symmetrical) Breaker
Type240 Vac 480Y/277 Vac 125/250 Vdc
15–20 65 14 — GHQ
15–20 65 14 14 GHB
25–60 65 14 14 GHB
70–100 65 14 14 GHB
15–30 65 25 — HGHB
15–20 65 14 — GHQRSP
15–30 65 14 — GHBS 
15–60 — 14 — GHBGFEP 
15–20 — 14 — GHBHID 
Provision — — — —
Volume 2—Commercial Distribution CA08100003E—December 2010 www.eaton.com 391
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10.3
Panelboards and Lighting Control
Pow-R-Line C Panelboards
Approximate Dimensions in Inches (mm)
PRL2a Panelboard Sizing
Note
Smaller panelboard box sizes are available if required. Contact Eaton for application information.
Panelboard
Types
Main Breaker Types
and Mounting Position
(H) = Horizontal
(V) = Vertical
Sub-Feed Breaker Types
and Mounting Position
(H) = Horizontal
(V) = Vertical
Maximum No. of
Branch Circuits
Including
Provisions
Box Dimensions
YS Box
Catalog
Number
LT Trim
Catalog
Number
EZ Box
Catalog
Number
EZ Trim
Catalog
NumberHeight Width Depth
100A
Main breaker
BAB, QBHW
(H)
—15
36.00 (914.4) 20.00 (508.0) 5.75 (146.1) YS2036 LT2036S or F EZB2036R EZT2036S or F
—27
48.00 (1219.2) 20.00 (508.0) 5.75 (146.1) YS2048 LT2048S or F EZB2048R EZT2048S or F
—39
48.00 (1219.2) 20.00 (508.0) 5.75 (146.1) YS2048 LT2048S or F EZB2048R EZT2048S or F
—42
60.00 (1524.0) 20.00 (508.0) 5.75 (146.1) YS2060 LT2060S or F EZB2060R EZT2060S or F
Main lugs or
main breaker
EHD
FD, HFD, FDE
HFDE
(V)
—18
36.00 (914.4) 20.00 (508.0) 5.75 (146.1) YS2036 LT2036S or F EZB2036R EZT2036S or F
—30
48.00 (1219.2) 20.00 (508.0) 5.75 (146.1) YS2048 LT2048S or F EZB2048R EZT2048S or F
—42
48.00 (1219.2) 20.00 (508.0) 5.75 (146.1) YS2048 LT2048S or F EZB2048R EZT2048S or F
Main lugs or main breaker
with 100A through-feed
lugs or sub-feed breaker
EHD
FD, FDE
HFD, HFDE
(V)
EHD
FD
HFD
(V)
18
48.00 (1219.2) 20.00 (508.0) 5.75 (146.1) YS2048 LT2048S or F EZB2048R EZT2048S or F
30
48.00 (1219.2) 20.00 (508.0) 5.75 (146.1) YS2048 LT2048S or F EZB2048R EZT2048S or F
42
60.00 (1524.0) 20.00 (508.0) 5.75 (146.1) YS2060 LT2060S or F EZB2060R EZT2060S or F
225A
Main lugs or
main breaker
EDB, EDS, ED,
EDH, FD, HFD
FDE, HFDE
(V)
—18
36.00 (914.4) 20.00 (508.0) 5.75 (146.1) YS2036 LT2036S or F EZB2036R EZT2036S or F
—30
48.00 (1219.2) 20.00 (508.0) 5.75 (146.1) YS2048 LT2048S or F EZB2048R EZT2048S or F
—42
48.00 (1219.2) 20.00 (508.0) 5.75 (146.1) YS2048 LT2048S or F EZB2048R EZT2048S or F
JD, HJD
JDC
(V)
—18
60.00 (1524.0) 20.00 (508.0) 5.75 (146.1) YS2060 LT2060S or F EZB2060R EZT2060S or F
—30
60.00 (1524.0) 20.00 (508.0) 5.75 (146.1) YS2060 LT2060S or F EZB2060R EZT2060S or F
— 42 72.00 (1828.8)
20.00 (508.0) 5.75 (146.1) YS2072 LT2072S or F EZB2072R EZT2072S or F
Main lugs or main breaker
with 225A through-feed
lugs or sub-feed breaker
EHD, FD, HFD,
EDB, EDS, ED,
EDH
FDE, HFDE
(V)
EHD, FD, HFD,
EDB, EDS, ED,
EDH (V)
18
48.00 (1219.2) 20.00 (508.0) 5.75 (146.1) YS2048 LT2048S or F EZB2048R EZT2048S or F
30
48.00 (1219.2) 20.00 (508.0) 5.75 (146.1) YS2048 LT2048S or F EZB2048R EZT2048S or F
42
60.00 (1524.0) 20.00 (508.0) 5.75 (146.1) YS2060 LT2060S or F EZB2060R EZT2060S or F
JD, HJD
JDC
(V)
EHD, FD, HFD,
EDB, EDS, ED,
EDH (V)
18
60.00 (1524.0) 20.00 (508.0) 5.75 (146.1) YS2060 LT2060S or F EZB2060R EZT2060S or F
30 72.00 (1828.8)
20.00 (508.0) 5.75 (146.1) YS2072 LT2072S or F EZB2072R EZT2072S or F
42 72.00 (1828.8)
20.00 (508.0) 5.75 (146.1) YS2072 LT2072S or F EZB2072R EZT2072S or F
400A
Main lugs or
main breaker
DK, KD, HKD,
KDC, LHH
(V)
— 18 60.00 (1524.0) 20.00 (508.0) 5.75 (146.1) YS2060 LT2060S or F EZB2060R EZT2060S or F
— 30 60.00 (1524.0) 20.00 (508.0) 5.75 (146.1) YS2060 LT2060S or F EZB2060R EZT2060S or F
—42
72.00 (1828.8)
20.00 (508.0) 5.75 (146.1) YS2072 LT2072S or F EZB2072R EZT2072S or F
Main lugs or main breaker
with 225A through-feed
lugs or sub-feed breaker
DK, KD, HKD,
KDC, LHH
(V)
EHD, FD, HFD,
EDB, EDS, ED,
EDH (V)
18 60.00 (1524.0) 20.00 (508.0) 5.75 (146.1) YS2060 LT2060S or F EZB2060R EZT2060S or F
30
72.00 (1828.8)
20.00 (508.0) 5.75 (146.1) YS2072 LT2072S or F EZB2072R EZT2072S or F
42
72.00 (1828.8)
20.00 (508.0) 5.75 (146.1) YS2072 LT2072S or F EZB2072R EZT2072S or F
Main lugs or main breaker
with 400A through-feed
lugs or sub-feed breaker
DK, KD, HKD,
KDC, LHH
(V)
JD, HJD, JDC,
DK, KD,
HKD, KDC
(V)
18
72.00 (1828.8)
20.00 (508.0) 5.75 (146.1) YS2072 LT2072S or F EZB2072R EZT2072S or F
30
90.00 (2286.0)
20.00 (508.0) 5.75 (146.1) YS2090 LT2090S or F EZB2090R EZT2090S or F
42
90.00 (2286.0)
20.00 (508.0) 5.75 (146.1) YS2090 LT2090S or F EZB2090R EZT2090S or F
5
Renewal Parts Data RP01414001E
Effective January 2011
Panelboard Renewal Parts Supplement
EATON CORPORATION www.eaton.com

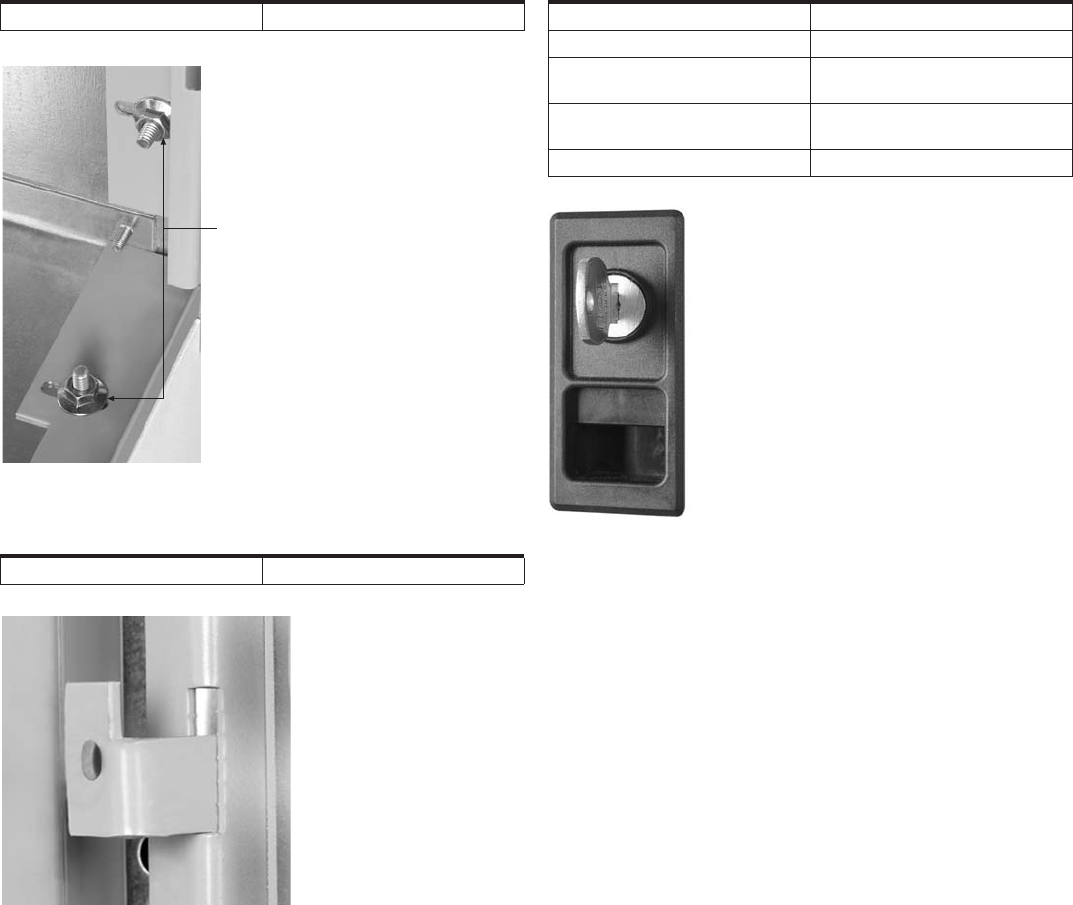

Panelboard Trim Locks
Panelboard trims use different trim locks; see pictures below for styles and part numbers.
Table 8. Panelboard Trim Locks
Description Catalog Number
For use on left-handed door. (Hinged on left side.) K80522
For use on right-handed door. (Hinged on right side.) 8450C62H39
T–Handle lock, at one time used on all trims over 48.00 inches (1219.2 mm) in height. Also used on outdoor NEMA姞 12/3R trims. 0080429
Used on PRL 4 lighting and power panels as standard. 1A32258H03
Used on PRL 1, 2, 3, 1a, 2a, and 3a lighting panels as standard. WEM-2 key. 5155C81G01
K80522

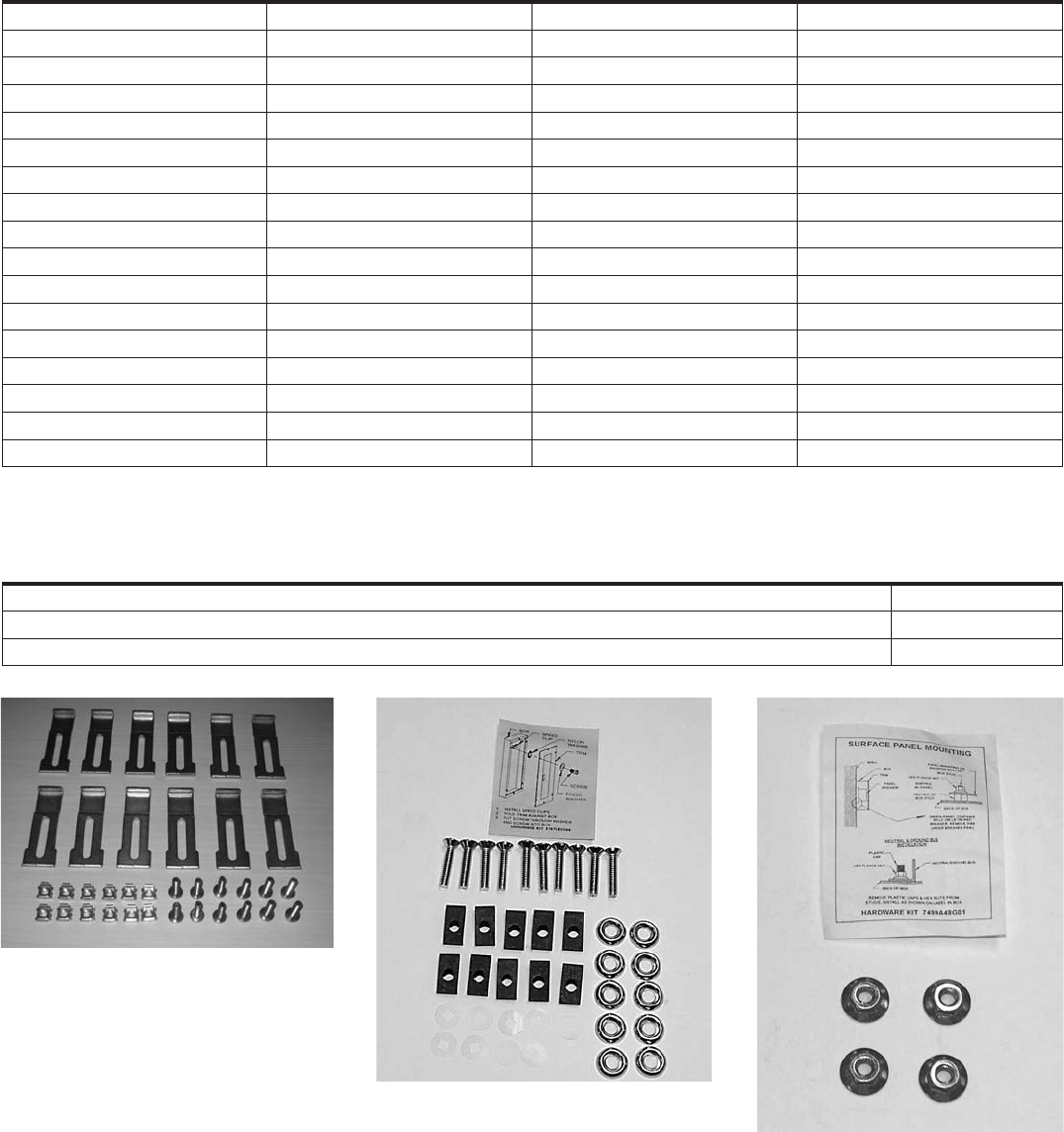

PRL 1a and 2a Service Entrance Kits
Table 9. PRL 1a and 2a Service Entrance Kits
Drawing NumberPanel Ampere Rating
Tin-Plated Aluminum Silver-Plated Copper
Item Number
Mechanical Main Lugs or Main Breakers
4180B62
4180B62
100–225
400
G01
G05
G03
G07
Compression (Crimp) Main Lugs
4180B62
4180B62
100–225
400
G09
G13
G11
G15
Copper Main Lugs
4180B62
4180B62
100–225
400
N/A
N/A
G19
G23
Order the basic drawing number, along with the equivalent G–number that is needed (example: 4180B62G03).
4180B62G01
8450C62H39 0080429 1A32258H03 5155C81G01
6
Renewal Parts Data RP01414001E
Effective January 2011
Panelboard Renewal Parts Supplement
EATON CORPORATION www.eaton.com
PRL 3a Ground Assemblies
Table 10. PRL 3a Ground Assemblies
Material
Standard Isolated
Catalog Number
Aluminum/Copper 5158C05G02 2C11296G02
5158C05G02
PRL 3a Service Entrance Kits
Table 11. PRL 3a Service Entrance Kits
Style NumberPanel Ampere Rating
Tin-Plated Aluminum Silver-Plated Copper
Item Number
Mechanical Main Lugs or Main Breakers
5078A98 100
250–600
G01
G13
G03
G15
When ordering, use complete style number (example: 100 Ampere Tin-Plated Aluminum 5078A98G01).
5078A98G01
7
Renewal Parts Data RP01414001E
Effective January 2011
Panelboard Renewal Parts Supplement
EATON CORPORATION www.eaton.com
PRL 3a Parts
Table 12. 20"- and 28"-Wide
Cover Fills This Height Space Width Part Number
1X Blank Cover 1 3/8" 13" 4176B72H01
2X Blank Cover 2 3/4" 13" 4176B72H02
3X Blank Cover 4 1/8" 13" 4176B72H03
4X Blank Cover 5 1/2" 13" 4176B72H04
5X Blank Cover 6 7/8" 13" 4176B72H05
6X Blank Cover 8 1/4" 13" 4176B72H06
7X Blank Cover 9 5/8" 13" 4176B72H07
8X Blank Cover 11" 13" 4176B72H08
9X Blank Cover 12 3/8" 13" 4176B72H09
10X Blank Cover 13 3/4" 13" 4176B72H10
11X Blank Cover 15 1/8" 13" 4176B72H11
12X Blank Cover 16 1/2" 13" 4176B72H12
Connector Kit Description Additional Information Max Amps Part Number
6-Pole BAB Connector Kit Three-Phase 100 Amp KPRL3ABA06
6-Pole BAB Connector Kit Single-Phase 100 Amp KPRL3ABA06-1
12-Pole BAB Connector Kit Three-Phase 100 Amp KPRL3ABA12
12-Pole BAB Connector Kit Single-Phase 100 Amp KPRL3ABA12-1
18-Pole BAB Connector Kit Three-Phase 100 Amp KPRL3ABA18
18-Pole BAB Connector Kit Single-Phase 100 Amp KPRL3ABA18-1
24-Pole BAB Connector Kit Three-Phase 100 Amp KPRL3ABA24
24-Pole BAB Connector Kit Single-Phase 100 Amp KPRL3ABA24-1
6-Pole GHB Connector Kit Three-Phase 100 Amp KPRL3AGB06
6-Pole GHB Connector Kit Single-Phase 100 Amp KPRL3AGB06-1
12-Pole GHB Connector Kit Three-Phase 100 Amp KPRL3AGB12
12-Pole GHB Connector Kit Single-Phase 100 Amp KPRL3AGB12-1
18-Pole GHB Connector Kit Three-Phase 100 Amp KPRL3AGB18
18-Pole GHB Connector Kit Single-Phase 100 Amp KPRL3AGB18-1
24-Pole GHB Connector Kit Three-Phase 100 Amp KPRL3AGB24
24-Pole GHB Connector Kit Single-Phase 100 Amp KPRL3AGB24-1
2-Pole ED Connector Kit Single-Breaker Mounting 225 Amp KPRL3AED2
3-Pole ED Connector Kit 225 Amp KPRL3AED3
1-Pole FD Connector Kit Twin-Breaker Mounting 150 Amp KPRL3AFD1
2-Pole FD Connector Kit 150 Amp KPRL3AFD2
3-Pole FD Connector Kit 150 Amp KPRL3AFD3
8
Renewal Parts Data RP01414001E
Effective January 2011
Panelboard Renewal Parts Supplement
EATON CORPORATION www.eaton.com
PRL 4 Blank Covers
Table 13. Fits Only 24"-Wide Tub
Cover Fills This Height Space Width Part Number
1X Blank Cover 1 3/8" 17" 6554C01H01
2X Blank Cover 2 3/4" 17" 6554C01H02
3X Blank Cover 4 1/8" 17" 6554C01H03
4X Blank Cover 5 1/2" 17" 6554C01H13
5X Blank Cover 6 7/8" 17" 6554C01H14
6X Blank Cover 8 1/4" 17" 6554C01H04
7X Blank Cover 9 5/8" 17" 6554C01H05
9X Blank Cover 12 3/8" 17" 6554C01H06
10X Blank Cover 13 3/4" 17" 6554C01H07
11X Blank Cover 15 1/8" 17" 6554C01H08
12X Blank Cover 16 1/2" 17" 6554C01H09
13X Blank Cover 17 7/8" 17" 6554C01H10
15X Blank Cover 20 5/8" 17" 6554C01H11
20X Blank Cover 27 1/2" 17" 6554C01H12
Table 14. Fits Only 36"- and 44"-Wide Tubs
Cover Fills This Height Space Width Part Number
1X Blank Cover 1 3/8" 25" 6554C02H01
2X Blank Cover 2 3/4" 25" 6554C02H02
3X Blank Cover 4 1/8" 25" 6554C02H03
4X Blank Cover 5 1/2" 25" 6554C02H13
5X Blank Cover 6 7/8" 25" 6554C02H14
6X Blank Cover 8 1/4" 25" 6554C02H04
7X Blank Cover 9 5/8" 25" 6554C02H05
9X Blank Cover 12 3/8" 25" 6554C02H06
10X Blank Cover 13 3/4" 25" 6554C02H07
11X Blank Cover 15 1/8" 25" 6554C02H08
12X Blank Cover 16 1/2" 25" 6554C02H09
13X Blank Cover 17 7/8" 25" 6554C02H10
15X Blank Cover 20 5/8" 25" 6554C02H11
20X Blank Cover 27 1/2" 25" 6554C02H12
9
Renewal Parts Data RP01414001E
Effective January 2011
Panelboard Renewal Parts Supplement
EATON CORPORATION www.eaton.com
Table 15. PRL 4 Connector Kits
Connector Kit Description Additional Information Max Amps Part Number
3-Pole F-Frame Connector Kit Single- and Twin-Mount 225 Amp KPRL4FD
3-Pole J-Frame Connector Kit Single-Mount 250 Amp KPRL4JDS
3-Pole J-Frame Connector Kit Twin-Mount 250 Amp KPRL4JDT
3-Pole K-Frame Connector Kit Single-Mount 400 Amp KPRL4KDS
3-Pole K-Frame Connector Kit Twin-Mount/44"-Wide Box Min. 400 Amp KPRL4KDT
3-Pole L-Frame Connector Kit Single-Mount/36"-Wide Box Min. 600 Amp KPRL4LD
3-Pole M-Frame Connector Kit Single-Mount/36"-Wide Box Min. 800 Amp KPRL4MD
3-Pole N-Frame Connector Kit Single-Mount/36"-Wide Box Min. 1200 Amp KPRL4ND
Fusible Switch (FDPW) Connector Kit Twin-Mount 60 Amp KPRL44X
Fusible Switch (FDPW) Connector Kit Twin-Mount 100 Amp KPRL45X
Fusible Switch (FDPW) Connector Kit Single-Mount 100 Amp KPRL45XS
Fusible Switch (FDPB) Connector Kit Single-Mount 200 Amp KPRL4B6XS
Fusible Switch (FDPB) Connector Kit Twin-Mount/44"-Wide Box Min. 200 Amp KPRL4B6XT
Fusible Switch (FDPW) Connector Kit Single-Mount 400 Amp KPRL4W9X
Fusible Switch (FDPW) Connector Kit Single-Mount 600 Amp KPRL4W11X
Fusible Switch (FDPW) Connector Kit Single-Mount/44"-Wide Box Min. 800 Amp KPRL4W11X
Fusible Switch (FDPW) Connector Kit Single-Mount/44"-Wide Box Min. 1200 Amp KPRL4W15X
Panelboard Fastrim Clamps and Screw-On Hardware Kits
Table 16. Panelboard Fastrim Clamps and Screw-On Hardware Kits
Description Style Number
Trim Clamps—Used on PRL 1a, 2a, and 3a Fastrims (6 Per Bag). 2C11641G02
Trim Screws—Used on PRL 1a, 2a, 3a, and 4B Standard Trim (10 Per Bag). 5157C83G06
Chassis Mounting Hardware Bag—PRL 1a, 2a, and 3a Panels. 7499A48G04
2C11641G02
5157C83G06
7499A48G04
11
Renewal Parts Data RP01414001E
Effective January 2011
Panelboard Renewal Parts Supplement
EATON CORPORATION www.eaton.com
Table 22. 1/4-20 Flange Mounting Hex Nut
Description Part Number
1/4-20 Flange Mounting Hex Nut 70210AL616
Hex Nut
Table 23. Anti-Lift Slide Bracket
Description Part Number
EZ Trim Anti-Lift Slide Bracket 1A85195H01
EZ Trim Anti-Lift Slide Bracket
Table 24. EZ Trim Locks (Include One Key)
Description Part Number
EZ Trim Lock Keyed to WEM-2 (Standard) 1A85194G01
EZ Trim Lock Keyed to GE75 (Optional) 1A85194G03
EZ Trim Lock Keyed to Corbin WEM-1
(Optional)
1A85194G05
EZ Trim Lock Keyed to Corbin TEU 1
(Optional)
1A85194G09
EZ Trim Lock Keyed to CAT 60 (Optional) 1A85194G10
EZ Trim Lock Mechanism With Standard Keying
1/4-20 Flange
Mounting
Hex Nut
12
Renewal Parts Data RP01414001E
Effective January 2011
Panelboard Renewal Parts Supplement
EATON CORPORATION www.eaton.com
Pow-R-Kit
Table 25. Parts Order Form
Description Style Number Max. Order Quantity Order Quantity
One complete Pow-R-Kit—Initial Orders Only Pow-R-Kit 1
Yearly Pow-R-Stock Renewal Fee Renewal 1
PRL 1a, 2a, and 3a Ground Bar 5158C05G02 2
PRL 1a, 2a, and 3a Isolated Ground Bar 2C11296G03 2
PRL 1a, 2a, and 3a Chassis Mounting Hardware 42C1129H02 2
PRL 1a, 2a, and 3a Trim Mounting Screws and Captive Nuts (LT Trims Only) 5157C83G06 4
PRL 1a, 2a, and 3a DF Assembly Screws (1/4-20 x .75 Square Rec.) 70030KBDBR 12
PRL 1a, 2a, and 3a Breaker Mounting Screws (10-32 x .56 Hex Head) 70010RBB8G 50
PRL 1a, 2a, and 3a DF Mounting Screws (10-32 x .38 Hex Head) 70032SBB8D 10
BAB 1-Pole Lock Off (Non-Padlockable) 1256C42G02 10
BAB 2- and 3-Pole Lock Off (Non-Padlockable) 1256C42G01 5
BAB/GHB 1-Pole Fillers 5155C62H01 20
PRL 3a F-Frame 1-Pole Provision Fillers 4178B06H01 10
Directory Card Envelope 6725D41H30 5
Directory Card 114B361H01 10
Number Tabs (1–42) 267P963H01 10
Number Tabs (43–84) 267P963H02 10
PRL 4 Chassis Mounting Hardware (Nuts and Washers) 5081A08G02 8
PRL 4 Gutter Cover Mounting Hardware (Screws and Captive Nuts) 5081A09G02 2
PRL 4/PRLC Dead Front Cover Screws (1/4-20 x .50) 70010DCBCH 12
PRLC Switchboard Cover Screws (1/4-20 x 1.50) 1A84774H01 12
Standard 1a, 2a, and 3a Trim Lock Assembly for LT Style Trim (Not EZ) 5155C81G01 5
Panelboard and Switchboard Series Rating Manual 1C96944H01 Rev. G 5
EZ Box 1/4-20 Hex Flange Mounting Nut 70210AL616 20
EZ Trim Anti-Lift Slide Bracket 1A85195H01 2
EZ Trim Anti-Lift Slide Bracket 10–32 Screw 70010RBBB8P 5
EZ Trim Lock Keypad to WEM-2 (Standard Lock) 1A85194G01 5
ote:N An order must consist of at least three separate items.
ote:N All orders must have your purchase order number.
Fax completed form to your local Satellite Plant (See Page 13 for Satellite Plant fax numbers).
Purchase Order Number: ______________________________________________
Ship to: ______________________________________________
______________________________________________
______________________________________________
______________________________________________
Attention: ______________________________________________
Date: ______________________________________________

Navigation menu
