WirE TErminaTion

Tools & suppliEs

sTripmasTEr

WirE sTrippErs

TEsT & mEasurEmEnT

DaTaComm/nETWorks

FULL-LINE CATALOG

IDEAL FULL-LINE CATALOG

VISION. PERFORMANCE. SERVICE.

SINCE 1916

Form No. P-070

IDEAL INDUSTRIES, INC.

Becker Place, Sycamore, IL 60178, USA / 815-895-5181 • 800-435-0705 in USA

International offices: Australia • Brazil • Canada • China • Germany • Mexico • Puerto Rico • UK

For complete sales office contact information, visit us at:

www.idealindustries.com

Rev. 1/11

Printed in U.S.A.

13354_CoverSpread_2011catalog.indd 1 11/18/10 4:04:31 PM

Growth Through Acquisitions

FUTURE OUTLOOK

Organic Growth Initiatives

IDEAL has taken an

aggressive growth position

by the acquisition of three

US companies. Western

Forge, based in Colorado

Springs, Colorado, is

considered the American

standard in premier

metal craftsmanship. The

acquisition strengthens the IDEAL hand tool presence

and increases overall manufacturing strength in pliers,

wrenches, and related hand tools. The 345,000 square

foot structure employs over 350 Americans. In addition

to the consumer and professional hand tools, Western

Forge provides casting, annealing, cold forming, plating,

heat treating imprinting and a wide range of other metal

services. Western Forge was originally founded in

Ohio in 1965.

Pratt-Read Tools, LLC includes three divisions.

Pratt-Read, which manufactures screwdrivers, and

American Industrials Manufacturers (AIM), which

produces nutdrivers and bits, have relocated to

Sycamore and the new

Colorado Springs facility.

The third division, A &

L Handles will remain in

Pottstown, Pennsylvania.

The new acquisitions position

IDEAL as one of the largest tool manufacturers in the US.

Pratt-Read has been an American manufacturer since 1789.

S•K Hand Tools, LLC, a premier manufacturer of

wrenches, ratchets, sockets, and various other tools

that serve the automotive and industrial markets.

S•K is one of the most recognizable

tool companies in the US, speciﬁcally

in the automotive market.

Product innovation, performance, ease-of-use and safety have been at the heart of IDEAL since 1916.

As we approach our 100th anniversary, we are focused on continuing our success through several initiatives.

First, expansion into alternative energy markets; second, developing a presence

in the automotive aftermarket leveraging existing relationships formed by

S•K Hand Tools, LLC; third, increased support of electrical apprentices

through our apprentice partnership program, training seminars and

real-time mobile ﬁeld support. These are just a few of many

initiatives IDEAL has planned for completion by 2016.

TABLE OF CONTENTS

Wire Termination

Twist-on Wire Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

WeatherProof™ & UnderGround™ Wire Connectors ................. A-5

PowerPlug® Luminaire Disconnects. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-8

SpliceLine™ In-Line Wire Connectors ............................. A-9

In-Sure™ Push-In Wire Connectors .............................. A-10

Grounding Accessories ........................................ A-11

Crimp Terminals & Splices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-12

Terminal Strips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-17

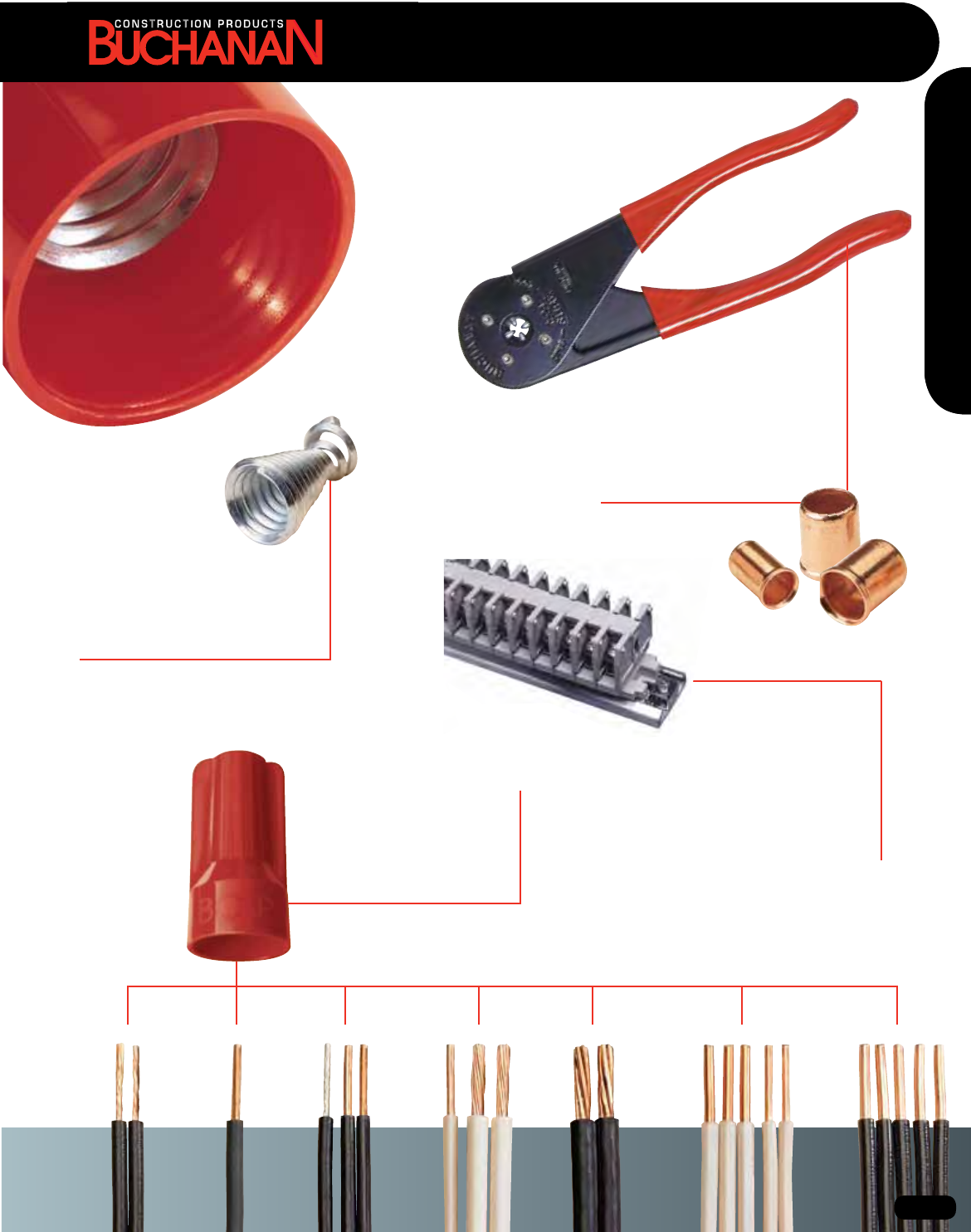

BUCHANAN Wire Connectors ..................................A-22

BUCHANAN Streetlight Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-25

BUCHANAN Tap Connectors ................................... A-28

BUCHANAN Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-29

Tools & Supplies

Fish Tapes & Accessories ....................................... B-2

Fishing Poles .................................................. B-7

Wire Pulling Lubricant & Accessories ............................. B-8

Conduit Benders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-12

Pulling Supplies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-14

Wire Strippers ................................................ B-16

Pliers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-22

Screwdrivers ................................................. B-30

Cable Cutters ................................................. B-38

Miscellaneous Hand Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-40

Hand Tool Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-42

Tool Carriers & Bags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-44

Insulated Hand Tools .......................................... B-48

Cutting & Holemaking Tools .................................... B-52

Cable Ties ................................................... B-64

Cable Staples. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-72

Heat Shrink ...................................................B-74

Heat Guns ................................................... B-78

Wire Markers ................................................. B-79

Switches ..................................................... B-81

Commutator Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-93

Lockout/Tagout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-95

Safety Signs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-106

Safety Tapes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-107

Stripmaster® Wire Strippers

Stripmaster® Wire Strippers ...................................... C-2

Custom Stripmaster® Wire Strippers .............................. C-4

Test & Measurement

Clamp Meters .................................................D-2

Multimeters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-5

Circuit Tracers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-9

Thermal Imagers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-10

Circuit Analyzers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-12

Power Quality ................................................D-14

Insulation Testers .............................................D-15

Voltage Testers ...............................................D-16

Electrical Testers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-18

Specialty Testers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-19

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-20

DataComm/Networks

Testers ........................................................E-2

Compression Tools & Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-9

Crimp Tools ...................................................E-13

Tools .........................................................E-15

Strippers ......................................................E-18

Kits ..........................................................E-22

Fiber Optics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-26

Connectors designed for every application

Twister® Wire Connectors

The industry’s premier wire connector. Just two models accommodate the

majority of common wiring configurations from 22 through 6 AWG. The

ribbed cap provides a secure grip and swept wings offer extra leverage.

A patented square-wire spring provides safe, secure connections.

Wire-Nut® Wire Connectors

The original twist-on wire connector features a positive-grip design

for easy installation. Five color-coded models cover hundreds of wire

combinations from 22 through 8 AWG. The fixed square-wire spring

provides a secure connection that won’t relax over time.

Wing-Nut® Wire Connectors

The next step in IDEAL wire connector innovation. Three models

accommodate a wide range of circuit and fixture wiring combinations

from 18 through 6 AWG. Built-in, contoured wings provide extra leverage

on maximum wire combinations. And the live-action spring expands to

accept a broader range of wire shapes and sizes.

Twister® DB Plus™ Wire Connectors

The smallest wet location/direct burial wire connector. Offers the

widest range of wire combinations from 20 through 12 AWG. Features non-

hardening sealant to ensure safe and moisture-free connections.

UL Listed and CSA Certified for underground and wet locations.

Twister® Al/Cu Wire Connectors

The only aluminum-to-copper twist-on wire connector. Specially

formulated compound reduces corrosion build-up on aluminum

conductors for better conductivity and cooler connections. UL

Listed and CSA Certified for aluminum-to-copper connections.

B-CAP ® Wire Connectors

Contoured Classic Fins™ provide a secure grip for extra torque. Three

models cover a full range of wire sizes from 22 through 6 AWG. The

square-wire spring locks onto conductor for fast, secure connections.

Compact size allows easy handling and installation.

Wire Connectors

www.idealindustries.com 1-800-435-0705 for Customer Service

A-2

Five color-coded models cover wire sizes from 22 to 6 AWG

Fixed, square-wire spring creates its own threads —

maintains a secure positive grip that will not relax over time

No pre-twisting required — positive grip design provides

fast, easy installation

Deep skirt helps protect against flash-over

Reusable for easy circuit changes and additions

Tough, UL94V-2 flame-retardant shell rated at 105oC (221oF)

UL Listed to 486C and CSA certified to C22.2 #188; comply with Federal Specification W-S-610E

Wire-Nut® Wire Connectors

Model Color Wire Combination Range Wire Combination Range (mm) Quantity Cat. No.

71B®Gray

300V

22 to 16 AWG

Min. 2 #22 – Max. 2 #16

300V

,34mm2 to 1,5mm2

Min. 2-,34mm2 Max. 3-1,5mm2

Box of 100 30-071

Carton of 1,000 30-171

Keg of 25,000 (loose pack) 30-271

Barrel of 150,000 30-871

72B®Blue

300V

22 to 14 AWG

Min. 2 #22 – Max. 3 #16

300V

,34mm2 to 2,5mm2

Min. 2-,34mm2 Max. 3-1,5mm2

Box of 100 30-072

Carton of 1,000 30-172

Keg of 10,000 (loose pack) 30-272

Barrel of 85,000 30-872

73B®Orange

600V*

22 to 14 AWG

Min. 1 #18 & 2 #20

Max. 2 #14

600V*

,34mm2 to 2,5mm2

Min. 1-,75mm2 w/1-,50mm2

Max. 4-1,5mm2 w/1-,50mm2

Box of 100 30-073

Jar of 300 30-073J

Carton of 1,000 30-173

Keg of 5,000 (10 bags, 500 ea.) 30-273

Keg of 10,000 (loose pack) 30-673

Barrel of 50,000 30-873

74B®Yellow

600V*

18 to 12 AWG

Min. 2 #18

Max. 4 #14 & 1 #18

600V*

,75mm2 to 4,0mm2

Min. 2-,75mm2

Max. 4-2,5mm2 w/1-,75mm2

Box of 100 30-074

Jar of 175 30-074J

Carton of 1,000 30-174

Keg of 5,000 (10 bags, 500 ea.) 30-274

Keg of 10,000 (loose pack) 30-674

Barrel of 35,000 30-874

76B®Red

600V*

18 to 6 AWG

Min. 2 #14

Max. 4 #12

600V*

,75mm2 to 16,0mm2

Min. 2-2,5mm2

Max. 2-4,0mm2

Box of 100 30-076

Jar of 150 30-076J

Carton of 1,000 30-176

Keg of 2,500 (10 bags, 250 ea.) 30-276

Barrel of 15,000 30-876

*1,000V maximum in fixtures and signs

Wire Combination Wire Combination

Model Color Wire Combination Range Wire Combination Range (mm) Quantity Cat. No.

71B®Black

300V

22 to 16 AWG

Min. 2 #22 Str

Max. 2 #16

300V

,34mm2 to 1,5mm2

Min. 2-,34mm2

Max. 2-1,5mm2

Box of 100 30-3627

Carton of 1,000 30-151

Keg of 25,000 (loose pack) 30-251

Barrel of 150,000 30-801

72B®Black

300V

22 to 14 AWG

Min. 2 #22

Max. 3 #16

300V

,34mm2 to 2,5mm2

Min. 2-,34mm2

Max. 3-1,5mm2

Box of 100 30-3628

Carton of 1,000 30-152

Keg of 10,000 (loose pack) 30-252

Barrel of 85,000 30-802

73B®Black

600V*

22 to 14 AWG

Min. 1 #18 w/1 #20

Max. 4 #16 & 1 #20

600V*

,34mm2 to 2,5mm2

Min. 1-,75mm2 w/1-,50mm2

Max. 4-1,5mm2 w/1-,50mm2

Box of 100 30-3629

Carton of 1,000 30-153

Keg of 10,000 (loose pack) 30-253

Barrel of 50,000 30-803

59B®Black

600V*

22 to 12 AWG

Min. 2 #20

Max. 3 #14

600V*

,34mm2 to 4,0mm2

Min. 2-,5mm2

Max. 3-2,5mm2

Box of 100 30-059

Carton of 1,000 30-159

Keg of 5,000 (loose pack) 30-259

Barrel of 35,000 30-809

*1,000V maximum in fixtures and signs

High Temperature Wire-Nut® Wire Connectors

All of the Wire-Nut® Wire Connector features plus:

Black, thermoplastic shell designed to withstand extreme heat build-up

found in high-wattage light fixtures and signs. UL Listed to 150°C (302°F)

Four models to cover wire ranges from 22 to 12 AWG

Wire Connectors

Wire Termination

1-800-435-0705 for Customer Service www.idealindustries.com A-3

Wing-Nut® Wire Connectors

Three color-coded models cover a full range of wire sizes

from 18 to 6 AWG

Specially designed contoured wings provide a secure

grip for extra leverage on maximum wire combinations

Live-action spring expands to accept wire shape

and size with no pre-twisting required

Square-wire spring threads directly onto

conductors for fast, secure connections

Deep skirt helps protect against flash-over and turned-back

strands for maximum dielectric protection

Tough, UL 94V-2 flame-retardant shell rated at 105°C (221°F)

UL Listed to 486C and CSA Certified to C22.2 #188; comply with Federal Specification W-S-610E

Model Color Wire Combination Range Wire Combination Range (mm) Quantity Cat. No.

451®Yellow

600V*

18 to 10 AWG

Min. 2 #18

Max. 3 #12

600V*

,75mm2 to 6,0mm2

Min. 2-,75mm2

Max. 3-4,0mm2

Box of 100 30-451

Jar of 225 30-451J

Jar of 500 30-651J

Carton of 1,000 30-551

Keg of 5,000 (10 bags, 500 ea.) 30-651

Barrel of 35,000 30-851

452® Red

600V*

18 to 8 AWG

Min. 2 #18

Max. 4 #10

600V*

,75mm2 to 10,0mm2

Min. 2-,75mm2

Max. 4-6,0mm2

Box of 100 30-452

Jar of 300 30-452J

Jar of 500 30-652J

Carton of 1,000 30-552

Keg of 5,000 (10 bags, 500 ea.) 30-652

Barrel of 25,000 30-852

454®Blue

600V*

14 to 6 AWG

Min. 3 #12

Max. 1 #6 & 2 #8

600V*

2,5mm2 to 16,0mm2

Min. 3-4,0mm2

Max. 2-16,0mm2 w/1-4,0mm2

Box of 25 30-454

Carton of 250 30-554

Keg of 1,000 (10 bags, 100 ea.) 30-654

Barrel of 10,000 30-854

*1,000V maximum in fixtures and signs

Greenie® Grounding Wire Connectors

Designed for making ground connections and bonding non-metallic sheathed cable

Contoured wings for maximum leverage

Live-action, square-wire spring provides superior grounding connections

Tough, UL 94V-2 flame-retardant shell

UL Listed to 467 and CSA Certified to C22.2 #188; comply with

Federal Specification W-S-610E

Greenie® Grounding Connector fully meets the intent of the N.E.C. and specifically aids in

compliance with the following:

ARTICLE 250: GROUNDING

250-146 Connecting Receptacle Grounding Terminal to Box

250-148 Continuity and Attachment of Equipment Grounding Conductors to Boxes

(B) Grounding continuity

(D) Nonmetallic boxes

Wire Combination Wire Combination

Model Color Wire Combination Range Wire Combination Range (mm) Quantity Cat. No.

92®Green

14 to 10

Min. 2 #14

Max. 4 #12

2,5mm2 to 6,0mm2

Min. 2-2,5mm2

Max. 2-4,0mm2 w/1-2,5mm2

Box of 100 30-092

Jar of 150 30-092J

Carton of 1,000 30-192

Keg of 5,000 (10 bags, 500 ea.) 30-292

Barrel of 25,000 30-992

Wire Connectors

www.idealindustries.com 1-800-435-0705 for Customer Service

A-4

Twister® Wire Connectors

Exceptional wire-range capacity — three models handle wire combinations from

as small as 22 AWG to as large as 6 AWG

Ribbed cap provides a secure grip and fast fingertip starts

Swept wings offer extra leverage and less effort for large wire

combinations

Hexagonal shape accommodates standard nutdriver for tool installation

Live-action, square-wire spring locks onto wire for

safe, secure connections

Deep skirt helps protect against flash-over and turned-back strands

for maximum dielectric protection

Tough, UL 94V-2 flame-retardant shell rated at 105°C (221°F)

UL Listed to 486C and CSA Certified to C22.2 #188; comply with

Federal Specification W-S-610E

Model Color Wire Combination Range Wire Combination Range (mm) Quantity Cat. No.

340®Lt. Blue

600V*

22 to 10 AWG

Min. 2 #22

Max. 3 #12

600V*

,34mm2 to 4,0mm2

Min. 2-,34mm2

Max. 3-4,0mm2

Box of 100 30-340

Jar of 500 30-640J

Barrel of 35,000 30-840

341® Tan

600V*

22 to 8 AWG

Min. 3 #22

Max. 3 #10

600V*

,34mm2 to 10,0mm2

Min. 3-,34mm2

Max. 3-6,0mm2

Box of 100 30-341

Jar of 400 30-441J

Jar of 750 30-341J

Carton of 1,000 30-541

Keg of 5,000 (10 bags, 500 ea.) 30-641

Barrel of 25,000 30-841

342®Gray

600V*

18 to 6 AWG

Min. 3 #14

Max. 2 #8 w/2 #12

600V*

,75mm2 to 10,0mm2

Min. 3-2,5mm2

Max. 2-10,0mm2 w/2-4,0mm2

Box of 50 30-342

Keg of 2,500 (10 bags, 250 ea.) 30-642

Barrel of 15,000 30-842

*1,000V maximum in fixtures and signs

Wire Connectors

The widest red/yellow wire range in the industry; min. 2 #18 to max. 4 #10

SureGrip™ overmolding provides better grip for improved leverage, more torque and

faster connections

Comfortable swept wings designed to help reduce hand fatigue

Expanding square-wire spring provides a secure connection every time

Tough, UL 94V-2 flame-retardant shell rated at 105°C (221°F)

UL Listed to 486C and CSA Certified to C22.2 #188; comply with Federal Specification W-S-610E

Model Color Wire Combination Range Wire Combination Range (mm) Quantity Cat. No.

344®Red/Yellow

600V*

22 to 8 AWG

Min. 2 #18

Max. 4 #10

600V*

,34mm2 to 10,0mm2

Min. 2-,75mm2

Max. 4,0-6,0mm2

Box od 50 30-144

Jar of 250 30-244J

Jar of 500 30-644J

Barrel of 20,000 30-944

*1,000V maximum in fixtures and signs

Wire Connectors

Wire Termination

1-800-435-0705 for Customer Service www.idealindustries.com A-5

WeatherProof™ and UnderGround™ Wire Connectors

Silicone-based sealant protects against moisture and corrosion

UL Listed to 486D for use in damp/wet locations or direct burial

Easy to apply, pre-filled twist-on wire connectors

Handles wire sizes from #22 to #6 copper conductors

Tough, UL 94V-2 flame-retardant shell rated at 105°C (221°F)

UL Listed to 486C and CSA Certified to C22.2 #188; comply with Federal Specification W-S-610E

The silicone-based sealant protects

electrical connections against harsh

conditions, eliminating the need for

heat-shrink or excessive taping.

WeatherProof™ — suitable for interior and exterior

electrical connections exposed to rain or damp conditions.

UnderGround™ — suitable for use in a wide variety of

direct burial and wet location electrical connections.

WeatherProof™ Wire Connectors

Model Color Wire Combination Range Wire Combination Range (mm) Quantity Cat. No.

61 Blue/Orange

600V*

22 to 14 AWG

Min. 2 #20

Max. 2 #14

600V*

,34mm2 to 4,0mm2

Min. 2-,5mm2

Max. 2-2,5mm2

Card of 6 30-061

Card of 25 30-161

Box of 100 30-261

Box of 1,000 30-361

62 Blue/Red

600V*

18 to 8 AWG

Min. 2 #18

Max. 3 #10

600V*

,75mm2 to 10,0mm2

Min. 2-,75mm2

Max. 3-6,0mm2

Card of 5 30-062

Card of 20 30-162

Box of 100 30-262

Box of 1,000 30-362

63 Blue/Dr. Blue

600V*

16 to 6 AWG

Min. 2 #14

Max. 2 #8 & 1 #10

600V*

1,5mm2 to 16,0mm2

Min. 2-2,5mm2

Max. 2-10,0mm2 w/1-6,0mm2

Card of 3 30-063

Card of 15 30-163

Box of 100 30-263

Box of 1,000 30-363

UnderGround™ Wire Connectors

Model Color Wire Combination Range Wire Combination Range (mm) Quantity Cat. No.

60 Blue/Blue

600V*

20 to 10 AWG

Min. 1 #20 w/1 #18

Max. 1 #10 & 2 #12

600V*

,5mm2 to 6,0mm2

Min. 1-,5mm2 w/1,75mm2

Max. 1-6,0mm2 w/2-4,0mm2

Card of 2 30-060

Card of 10 30-760

Box of 25 30-160

Box of 100 30-260

Box of 1,000 30-360

64 Blue/Dk. Blue

600V*

18 to 8 AWG

Min. 2 #18

Max. 3 #10

600V*

,75mm2 to 10,0mm2

Min. 2-,75mm2

Max. 3-6,0mm2

Card of 2 30-064

Card of 10 30-764

Box of 50 30-264

Box of 1,000 30-364

66 Blue/Dk. Blue

600V*

14 to 6 AWG

Min. 3 #12

Max. 2 #6 w/1 #10

600V*

2,5mm2 to 16,0mm2

Min. 3 - 4,0mm2

Max. 2 - 16,0mm2 w/1-6,0mm2

Card of 2 30-066

Card of 6 30-766

Box of 50 30-266

Wire Connectors

www.idealindustries.com 1-800-435-0705 for Customer Service

A-6

Twister® AI/Cu Wire Connectors

Only aluminum-to-copper twist-on connector specifically designed to guarantee a secure connection while

preventing aluminum corrosion

Specially formulated corrosion-resistant compound penetrates corrosion

build-up on aluminum conductors for increased conductivity and cooler connections

Compact, one-piece design features ribbed cap, swept wings and hexagonal head for

easy installation by hand or with standard nutdriver

Live-action, square-wire spring expands and contracts with aluminum wire

Deep skirt provides maximum dielectric strength

Tough, UL 94V-2 flame-retardant shell rated at 105°C (221°F)

Comply with N.E.C. Section #110-14(b) for aluminum-to-copper connections; UL Listed to 486C and CSA

Certified to C22.2 #188; complies with Federal Specification W-S-610E

UL Listed to 467 for grounding and bonding

Model Color Wire Combination Ranges Quantity Cat. No.

65 Purple

1 #10 Al solid w/1 or 2 #10 Cu solid

1 #10 Al w/1 or 2 #12 Cu

2 #10 Al solid w/1 #12 Cu

1 #10 Al w/1 or 2 #14 Cu

2 #10 Al solid w/1 #14 Cu

2 #12 Al solid w/1 #10 Cu

1 #12 Al solid w/1 or 2 #10 Cu

1 #12 Al stranded w/1 or 2 #10 Cu solid

1 #12 Al w/1 or 2 #12 Cu

2 #12 Al solid w/1 #12 Cu

1 #12 Al w/1 or 2 #14 Cu

2 #12 Al solid w/1 #14 Cu

1 #10 Al w/1 or 2 #18 Cu

2 #10 Al solid w/1 #18 Cu

1 #12 Al w/1 or 2 #16 Cu

2 #12 Al solid w/1 #16 Cu

1 #10 Al w/1 or 2 #16 Cu

2 #10 Al solid w/1 #16 Cu

1 #12 Al w/1 or 2 #18 Cu

2 #12 Al solid w/1 #18 Cu

Card of 2 30-065

Card of 10 30-765

Card of 25 30-165

Box of 100 30-265

Carton of 1,000 30-365

600V maximum building wire; 1,000V signs or light fixtures Wire Connector

also listed as

grounding equipment

Utility Wire Connectors

Connects underground gas tracer lines providing superior protection

Moisture and corrosion resistant, pre-filled with non-hardening, 100% silicone

#20 - 8 AWG wire range capacity

UL Listed to direct burial test standard 486D up to 600V maximum voltage

Model Color Wire Combination Range Wire Combination Range (mm) Quantity Cat. No.

60 Yellow

600V*

20 to 10 AWG

Min. 1 #20 w/1 #18

Max. 1 #10 & 2 #12

600V*

,5mm2 to 6,0mm2

Min. 1-,5mm2 w/1 ,75mm2

Max. 1-6,0mm2 w/2-4,0mm2

Box of 25 30-160Y

Box of 1,000 30-360Y

64 Yellow

600V*

18 to 8 AWG

Min. 2 #18

Max. 3 #10

600V*

,75mm2 to 10,0mm2

Min. 2-,75mm2

Max. 3-6,0mm2

Box of 25 30-164Y

Box of 1,000 30-364Y

FILLED WIRE CONNECTORS

WEATHERPROOF™ WIRE CONNECTORS

UTILITY WIRE CONNECTORS

UNDERGROUND™ WIRE CONNECTORS

UTILITY WIRE CONNECTORS

WARNING:

1. One time use only. Do not reuse connector.

2. Do not use on aluminum to aluminum wire combinations.

3. Wiring must comply with all applicable electrical codes.

4. Contact IDEAL or visit IDEAL website for a complete list of UL Listed wire combinations.

Wire Connectors

Wire Termination

1-800-435-0705 for Customer Service www.idealindustries.com A-7

High-Speed Wire Connector

Chuck

For Connector Models Cat. No.

73B®, 74B® & 76B®H-632

Wire-Nut® Wire

Connector Sockets

Speeds installation of

Wire-Nut® Wire Connectors

Fit any pneumatic or electric

tool with a 1/4 in. chuck or drive socket

Wire-Nut® Wire Connector

Wrench

Speeds installation of

Wire-Nut® Wire Connectors

Excellent leverage helps

reduce fatigue

Speeds installation of Twister® Wire

Connectors

Nickel/chrome plated to resist

rust and corrosion

Cushioned rubber grip

n

Convenient Wire-Nut® Wrench

in end of handle

Wire-looping hole in handle

Vapor-blasted tip prevents

plate chipping

Tough, chrome vanadium steel shank

Precision ground tip provides secure fit in screw slot

Nutmaster® Nutdrivers

Twist-a-Nut™ Pro Electrician’s

Screwdrivers

Spin-Twist® Wire Connector

Socket

7-in-1 Twist-a-Nut™

Screwdriver

9-in-1 Ratch-a-Nut™

Screwdriver

Facilitates installation of connectors

Universal Wire-Nut® Wire

Connector Wrench in handle

Accepts most twist-on connectors

Ratcheting wire connector

wrench speeds installation of

wire connectors

Premium screwdriver ratchet

mechanism can handle high torque

without fatigue

Ratch Wrench

Speeds installation of B-CAP®

Wire Connectors

Either end accepts 1/4-in.

drive for tight-spot wire splicing

Cordless screwdriver adapter

for installing B-CAP®

Wire Connectors

Speeds installation of IDEAL and

BUCHANAN Wire Connectors

For use with electric corded

or cordless drill drivers

1/4 in. chuck fits most drills or drive sockets

For Connector Models Cat. No.

71B®, 71B® Black, 72B® & 72B® Black 30-903

73B® & 73B® Black 30-904

59B®30-905

74B®, 76B® & 59B®30-906

For Connector Models Cat. No.

B1, B2 & B4 BR-5

For Connector Models Cat. No.

B1, B2 & B4 HSC-1

For Connector Models Cat. No.

341®, 5/16 in. Driver 35-292

342®, 7/16 in. Driver 35-295

For Connector Models Cat. No.

#2 x 6 Robertson 30-330

1/4 in. x 4 in. Slotted 30-331

#2 x 4 in. Phillips 30-332

1/4 in. x 6 in. Slotted Cabinet Tip 30-333

For Connector Models Cat. No.

Wire-Nut®, Wing-Nut®, Twister®, B-CAP® & WingTwist™ 30-902

Description Cat. No.

7-in-1 Twist-a-Nut™ Screwdriver 35-908

Description Cat. No.

9-in-1 Ratch-a-Nut™ Screwdriver 35-988

www.idealindustries.com 1-800-435-0705 for Customer Servicewww.idealindustries.com 1-800-435-0705 for Customer Service

A-8

Luminaire Disconnect

Meets new NEC and CEC code changes

for non-residential fluorescent luminaires

Perfect for OEM new lighting installation or

retrofit lighting applications

Meets UL and CSA finger-probe safety

requirements

Allows safe disconnect of hot and neutral

ballast wiring

Wire Connectors

103 3-Pole

6 Amp/600V

102 2-Pole

6 Amp/600V

Patented IDEAL push-in technology quickly locks wires in place

Disconnects safely,

“touch-safe” per UL 2459

All models fit

through 1/2”

knockout

3/8” strip

length indicator

Color-coded ends:

White = Ballast Side

Orange = Line Side

Model Color Electrical Rating Wire Range Line Side Ballast Side Quantity Cat. No.

102

2-wire Orange 6 Amps/600 Volts Max.

Solid #12 – #18 Card of 25 30-372

Stranded #12 – #14 (≤19 str.) Jar of 75 30-382J

Stranded Tin-Bonded

#12 – #14 (≤19 str.)

#16 (≤26 str.)

#18 (≤16 str.)

Jar of 150 30-352J

Box of 1,000 30-102

103

3-Wire Orange

6 Amps/600 Volts Max.

Solid

#12 – #18

#18 Card of 20 30-383X

Stranded #12 – #14 (≤19 str.) None Jar of 50 30-383XJ

Stranded Tin-Bonded

#12 – #14 (≤19 str.)

#16 (≤26 str.)

#18 (≤16 str.)

Jar of 100 30-353XJ

Box of 1,000 30-103X

182

2-wire

Orange

3 Amps 120V

1.3 Amps 277V

1 Amps 347V

0.75 Amps 480V

0.60 Amps 600V

Solid #18

Box of 100 30-082

Box of 2,500 30-682

Box of 1,000

w/6” leads 30-682L

183

3-Wire

Box of 100 30-083

Box of 2,500 30-683

1,000V maximum fixtures and signs.

Luminaire Disconnect

3HME

183 3-Pole

3 Amp/120V

182 2-Pole

3 Amp/120V

PowerPlug® Selection Chart

Application New Installations Retroﬁts

For 1-ballast ﬁxtures 102 102, 182

For 2-ballast, dimming and

switching ﬁxtures 103 103, 183

1-800-435-0705 for Customer Service www.idealindustries.com A-9

Wire Termination

1-800-435-0705 for Customer Service www.idealindustries.com

In-Line Wire Connectors

™

Wire Connectors

Model Color Rating Wire Range Line Side Ballast Side Quantity Cat. No.

42 Orange 600V/20A

105°C

Solid #12 – #20 Card of 10 30-1742

Stranded #12 – #16 (≤19 str.) Box of 100 30-1042

Stranded Tin-

Bonded #14 – #18 (≤19 str.)

Jar of 300 30-1042J

Box of 2,500 30-1642

Transparent polycarbonate

shell allows for visual

inspection of connection

Accepts solid

or stranded

wire

Check port for

continuity testing

Slim design fits

through 1/2”

knockout

A GREAT

PRE-FAB

SOLUTION

FASTER

THAN BUTT SPLICES

NO MORE CRIMPING!

The SpliceLine™ is a crimp-free, push-in wire connector that installs in half the time of a traditional

butt splice. Perfect for lengthening a short wire in a box, for pre-fab operation, or for surface raceway

wiring. SpliceLine™ accepts solid and stranded wire, is UL Listed and is made in the U.S.A.

Crimp-free, push-in butt splice

Easily passes through 1/2 in. knockouts

End-to-end connection ideal for pre-fab operations

Transparent polycarbonate window for visual inspection of connection

Wide wire range of:

12 – 20 AWG solid

12 – 16 AWG stranded

Specifications

Model 32

Red 2-Port

Model 33

Orange

3-Port

Model 34

Yellow

4-Port

Model 87 Gray

5-Port

Model 88

Blue 6-Port

Stacked

Model 90 Black

8-Port

Model 39 Blue

3-Port

Wire Combination

Range

Solid #20 - #12 Solid #20 - #12 Solid #14 - #10

Stranded #16 - #12 (< 19 Strand)

#18 (7 Strand) Stranded

#16 - #14 (< 19 Strand)

#18 (< 7 Strand)

Stranded #12 - #10

(

19 Strand)

Stranded

(Tin Bonded) #18 - #14 (< 19 Strand) Stranded

(Tin Bonded)

#14 - #12 (< 19 Strand)

#16 (< 26 Strand)

#18 (< 16 Strand)

Stranded

(Tin Bonded)

#14 - #10

(

19 Strand)

Wire Connectors

www.idealindustries.com 1-800-435-0705 for Customer Service

A-10

In-Sure™ Push-In Wire Connectors

No-twist connection reduces repetitive motion fatigue

Low insertion force for fast and easy connections

Compact size makes installation easy

Clear shell gives visual verification of connection

Ordering Information

Length Width Height

Model Color Ports In. mm In. mm in. mm Quantity Cat. No.

32 Red 2 0.78 19.81 0.52 13.21 0.38 9.65

Box of 100 30-1032

Jar of 300 30-1032J

Box of 5,000 30-1632

33 Orange 3 0.78 19.81 0.69 17.53 0.38 9.65

Box of 100 30-1033

Jar of 250 30-1033J

Box of 5,000 30-1633

34 Yellow 4 0.78 19.81 0.82 20.83 0.38 9.65

Box of 100 30-1034

Jar of 200 30-1034J

Box of 5,000 30-1634

87 Gray 5 .355 9.02 .907 23.03 .729 18.52

Box of 50 30-087

Jar of 150 30-087J

Box of 1,000 30-187

Box of 5,000 30-687

88 Blue 6

Stacked .607 15.42 .603 15.32 .729 18.52

Box of 50 30-088

Jar of 100 30-088J

Box of 1,000 30-188

Box of 5,000 30-688

90 Black 8 .355 9.02 1.38 35.03 .717 18.21

Box of 50 30-090

Jar of 100 30-090J

Box of 1,000 30-190

Box of 2,000 30-690

39 Blue 3 0.78 19.81 .086 21.84 0.45 11.43

Box of 50

30-1039

Jar of 150

30-1039J

Box of 2,500

30-1639

COPPER TO COPPER ONLY. Do not use on aluminum.

Temperature rating: 105°C (221°F) maximum

600V maximum building wire, 1000V maximum signs or lighting fixtures

UL Listed to 486C and CSA Certified to C22.2 #188

UL 467 Listed for grounding and bonding applications

Tough, UL 94V-2 flame-retardant shell

rated at 105°C (221°F)

Grounding Accessories

Wire Termination

1-800-435-0705 for Customer Service www.idealindustries.com A-11

Grounding Accessories

Solid and stranded pigtail lead wires are convenient for device grounding applications

Grounding screws offer a unique thread-forming, hole-finding feature plus combination hex, Phillips, slotted

and Robertson head

Grounding Tails - Stranded Wire

Grounding Tails -

Solid Wire

Description Quantity Cat. No.

14 AWG stranded 7-3/4 in. tail w/#10 fork &

10 ring and ground screw Bag of 25 30-3183

12 AWG stranded, 7-3/4 in. tail w/#10 fork &

10 ring and ground screw Bag of 25 30-3184

12 AWG stranded, 7-3/4 in. tail w/#10 fork and

#10 ring and ground screw

Plastic Box

of 50 30-3385

12 AWG stranded, 7-3/4 in. tail w/#10 fork &

10 ring and ground screw

Box of 1,000

(bundle of 100) 30-3284

12 AWG solid tail, one stripped end, one end

w/ground screw, joined to 12 AWG stranded

tail at a ring terminal, w/fork terminal on

second end

Box of 500

(Bundle of 25) 30-3286

12 AWG stranded, 2-wire tail joined w/#10

ring and ground screw, one stripped-end tail

and one 10 fork tail

Bag of 25 30-3287

12 AWG stranded, 2-wire tail joined w/#10 ring

and ground screw and two #10 fork tails Bag of 25 30-3288

12 AWG stranded, 3-wire tail joined w/#10 ring

and ground screw, one stripped-end tail and

two 10 fork tails

Bag of 25 30-3289

Description Quantity Cat. No.

14 AWG solid, 8 in. tail w/loop & ground screw

and stripped end Box of 50 30-3390

12 AWG solid, 8 in. tail w/loop & ground screw

and stripped end Box of 50 30-3392

12 AWG solid, 10 in. tail w/loop & ground screw

and stripped end

Box of 500

(Bundles of 50) 30-3394

12 AWG solid, 8 in. tail w/loop & ground screw

and stripped end

Plastic box

of 100 30-3399

12 AWG solid, 7 in. tail w/loop & ground screw

and stripped end Bag of 50 30-3407

12 AWG solid, 10 in. tail w/loop & ground screw

and stripped end Bag of 50 30-3410

12 AWG solid, 8 in. tail w/loop & ground screw

and stripped end

Box of 1,000

(Bundles of 50) 30-3496

Description Qty. Cat. No.

Ground Screw, thread-forming, hole-finding tip combination

hex, Phillips, slotted & Robertson head

Pack of

50 30-3194

Ground Screw, thread-forming, hole-finding tip combination

hex, Phillips, slotted & Robertson head

Bag of

100 30-3294

Grounding clip – accepts 10, 12 or 14 AWG Wire Pack of

100 30-3395

Ground Screw, thread-forming, hole-finding tip combination

hex, Phillips, slotted & Robertson head

Jar of

400 30-3494

Ultra-flexible

lead wire

Heavy-duty

brass terminal

Combo hex head

Thread-forming,

hole-finding

grounding screw

Grounding Clip

Grounding Screw

Grounding Accessories

Ultra-flexible 8-in. lead allows for easy positioning in outlet

box — reduces stress on device, wires and connection

Brass-alloy terminals with locking tabs for fast, efficient device

connection

Pigtail Wire Connectors

Description Wire Color Quantity Cat. No.

12 AWG stranded 8 in. w/#10 fork

& stripped end Black Bag of 25 30-3471

12 AWG stranded 8 in. w/#10 fork

& stripped end White Bag of 25 30-3470

12 AWG stranded 8 in. w/#10 fork

& stripped end Green Bag of 25 30-3480

Crimp Terminals

www.idealindustries.com 1-800-435-0705 for Customer Service

A-12

Vinyl Insulated Ring Terminals

Wire Range Combination Stud Size

In. (mm)

Max. Wire Ins. Dia.

In. (mm) Quantity Cat. No. Quantity Cat. No.

22 – 18 AWG

(0,5–1,0mm2)

6 (3.7mm)

0.157 (4.0mm)

25 83-2121 ——

8 (4.3mm) 25 83-2131 ——

10 (5.3mm) 25 83-2141 ——

1/4 (6.4mm) 25 83-2151 ——

16 – 14 AWG

(1,5–2,5mm2)

6 (3.7mm)

0.177 (4.5mm)

25 83-2221 ——

8 (4.3mm) 25 83-2231 ——

10 (5.3mm) 25 83-2241 1,000 84-2241

1/4 (6.4mm) 25 83-2251 ——

12 – 10 AWG

(4,0–6,0mm2)

8 (4.3mm) 25 83-2331 ——

10 (5.3mm) 25 83-2341 1,000 84-2341

1/4 (6.4mm) 0.248 (6.3mm) 25 83-2351 ——

5/16 (8.4mm) 25 83-2361 ——

3/8 (10.5mm) 25 83-2371 ——

75° C/600 Volts max.

Wire Range Stud Size

In.* (mm**) Quantity Cat. No. Quantity Cat. No.

22 – 18 AWG

(0,5-1,0mm2)

8 (4.3) 25 83-0131 ——

10 (5.3) 25 83-0141 ——

16 – 14 AWG

(1,5-2,5mm2)

6 (3.7) 25 83-0221 ——

8 (4.3) 25 83-0231 ——

10 (5.3) 25 83-0241 1,000 84-0241

12 – 10 AWG

(4,0-6,0mm2)

8 (4.3) 25 83-0331 ——

10 (5.3) 25 83-0341 1,000 84-0341

1/4 (6.4) 25 83-0351 ——

8 AWG

(8,0mm2)

10 (5.3) 25 83-0421 ——

1/4 (6.4) 25 83-0431 ——

5/16 (8.4) 25 83-0441 ——

3/8 (10.5) 25 83-0451 ——

6 AWG

(14,0mm2)

10 (5.3) 20 83-0511 ——

1/4 (6.4) 20 83-0521 ——

5/16 (8.4) 20 83-0531 ——

3/8 (10.5) 20 83-0541 ——

4 AWG

(22,0mm2)

1/4 (6.4) 20 83-0611 ——

5/16 (8.4) 20 83-0621 ——

3/8 (10.5) 20 83-0631 ——

105°C/600 Volts max.

*Plus or minus .020 in.

**Plus or minus .51mm

Butted seam-construction prevents splitting under maximum

pressure

Internal barrel serrations grip wires tightly to resist pull-out and

reduce electrical resistance

Tin-plated brass construction for corrosion resistance

Shouldered barrel insulation quickly positions terminal for

proper crimping

Expanded insulation entry accomodates a wide variety of

insulation diameters and provides additional insulation support

Color-coded insulation and wire range stamped on terminal

for easy identification

See product packaging for recommended crimp tools

Crimp Terminals-Rings, Forks, Disconnects and Splices

Non-Insulated Ring Terminals

774A Listed

Pressure Wire Connector

only

774A Listed

Pressure Wire Connector

only

Crimp Terminals

Wire Termination

1-800-435-0705 for Customer Service www.idealindustries.com

Vinyl Insulated Spade Terminals

Wire Range Stud Size

In. (mm)

Max. Wire Ins. Dia.

In. (mm) Quantity Cat. No. Quantity Cat. No.

22 – 18 AWG

(0,5-1,0mm2)

6 (3.7mm)

0.157 (4.0mm)

25 83-7111 1,000 84-7111

8 (4.3mm) 25 83-7121 ——

10 (5.3mm) 25 83-7131 ——

16 – 14 AWG

(1,5-2,5mm2)

6 (3.7mm)

0.177 (4.5mm)

25 83-7151 ——

8 (4.3mm) 25 83-7161 1,000 84-7161

10 (5.3mm) 25 83-7171 1,000 84-7171

12 – 10 AWG

(4,0-6,0mm2)

6 (3.7mm)

0.248 (6.3mm)

25 83-7201 ——

8 (4.3mm) 25 83-7211 ——

10 (5.3mm) 25 83-7221 500 84-7221

1/4 (6.4mm) 25 83-7231 ——

75° C/600 Volts max.

774A Listed

Pressure Wire Connector

only

Vinyl Insulated Snap Spade Terminals

Wire Range Stud Size

In. (mm)

Max. Wire Ins. Dia.

In. (mm) Quantity Cat. No. Quantity Cat. No.

22 – 18 AWG

(0,5-1,0mm2)

6 (3.7mm)

0.134 (4.0mm)

25 83-7011 ——

8 (4.3mm) 25 83-7021 ——

10 (5.3mm) 25 83-7031 ——

16 – 14 AWG

(1,5-2,5mm2)

6 (3.7mm) 25 83-7051 ——

8 (4.3mm) 0.161 (4.5mm) 25 83-7061 ——

10 (5.3mm) 25 83-7071 ——

12 – 10 AWG

(4,0-6,0mm2)

8 (4.3mm) 25 83-7081 1,000 84-2241

10 (5.3mm) 0.248 (6.3mm) 25 83-7091 ——

1/4 (6.4mm) 25 83-7101 ——

75° C/600 Volts max.

774A Listed

Pressure Wire Connector

only

Non-Insulated Spade Terminals

Wire Range Stud Size

In. (mm) Quantity Cat. No. Quantity Cat. No.

22 – 18 AWG

(0,5-1,0mm2)

6 (3.7mm) 25 83-6111

8 (4.3mm) 25 83-6121 ——

10 (5.3mm) 25 83-6131 ——

16 – 14 AWG

(1,5-2,5mm2)

8 (4.3mm) 25 83-6161 ——

10 (5.3mm) 25 83-6171 1,000 84-6171

12 – 10 AWG

(4,0-6,0mm2)

8 (4.3mm) 25 83-6211 ——

10 (5.3mm) 25 83-6221 ——

1/4 (6.4mm) 25 83-6231 ——

105° C/600 Volts max.

774A Listed

Pressure Wire Connector

only

A-13

Disconnects

www.idealindustries.com 1-800-435-0705 for Customer Service

A-14

Wire Range Tab Size

In. (mm)

Max. Wire Ins. Dia.

In. (mm) Quantity Cat. No. Quantity Cat. No.

22 – 18 AWG (0,5-1,0mm2).110 x .020 (2.8mm x 0.5mm) 0.150 (3.8) 25 83-9511 ——

16 – 14 AWG (1,5-2,5mm2).110 x .020 (2.8mm x 0.5mm) 0.185 (4.7) 25 83-9521 ——

22 – 18 AWG (0,5-1,0mm2).187 x .020 (4.75mm x 0.5mm) 0.150 (3.8) 25 83-9541 ——

16 – 14 AWG (1,5-2,5mm2).187 x .020 (4.75mm x 0.5mm) 0.185 (4.7) 25 83-9551 ——

22 – 18 AWG (0,5-1,0mm2).250 x .032 (6.35mm x 0.8mm) 0.150 (3.8) 25 83-9571 ——

16 – 14 AWG (1,5-2,5mm2).250 x .032 (6.35mm x 0.8mm) 0.185 (4.7) 25 83-9581 500 84-9581

14 – 12 AWG (2,5-4,0mm2).250 x .032 (6.35mm x 0.8mm) 0.244 (6.2) 25 83-9591 ——

12 – 10 AWG (4,0-6,0mm2) .250 x .032 (6.35mm x 0.8mm) 0.244 (6.2) 25 83-9601 ——

75° C/300 Volts max.

Wire Range (AWG) Tab Size

In. (mm)

Max. Wire Ins. Dia.

In. (mm) Quantity Cat. No.

22 – 18 AWG (0,5-1,0mm2).250 x .032 (6.35mm x 0.8mm) 0.150 (3.8) 25 83-9971

16 – 14 AWG (1,5-2,5mm2).250 x .032 (6.35mm x 0.8mm) 0.185 (4.7) 25 83-9981

12 – 10 AWG (4,0-6,0mm2).250 x .032 (6.35mm x 0.8mm) 0.244 (6.2) 25 83-9991

75° C/300 Volts max.

Wire Range Tab Size

In. (mm)

Max. Wire Ins. Dia.

In. (mm) Quantity Cat. No.

22 – 18 AWG (0,5-1,0mm2).250 x .032 (6.35mm x 0.8mm) 0.15 (3.8mm) 25 83-9611

16 – 14 AWG (1,5-2,5mm2).250 x .032 (6.35mm x 0.8mm) 0.185 (4.7mm) 25 83-9621

12 – 10 AWG (4,0-6,0mm2).250 x .032 (6.35mm x 0.8mm) 0.244 (6.2mm) 25 83-9631

75° C/300 Volts max.

Wire Range (AWG) Stud Size

(In.) Quantity Cat. No.

22 – 18 AWG (0,5-1,0mm2).110 x .020 (2.8mm x 0.5mm) 25 83-9411

16 – 14 AWG (1,5-2,5mm2).110 x .020 (2.8mm x 0.5mm) 25 83-9421

22 – 18 AWG (0,5-1,0mm2).187 x .020 (4.75mm x 0.5mm) 25 83-9441

22 – 18 AWG (0,5-1,0mm2).187 x .020 (4.75mm x 0.5mm) 25 83-9451

22 – 18 AWG (0,5-1,0mm2).250 x .032 (6.35mm x 0.8mm) 25 83-9471

16 – 14 AWG (1,5-2,5mm2).250 x .032 (6.35mm x 0.8mm) 25 83-9481

12 – 10 AWG (4,0-6,0mm2).250 x .032 (6.35mm x 0.8mm) 25 83-9501

105° C/300 Volts max.

Vinyl Insulated Multi-Stack Disconnects

Vinyl Insulated Female Disconnects

Vinyl Insulated Male Disconnects

Non-Insulated Female Disconnects

774A Listed

Pressure Wire Connector

only

774A Listed

Pressure Wire Connector

only

774A Listed

Pressure Wire Connector

only

Disconnects

Wire Termination

1-800-435-0705 for Customer Service www.idealindustries.com A-15

Nylon Fully-Insulated Male Disconnects

Nylon Fully-Insulated Female Disconnects

Wire Range Tab Size

In. (mm)

Max. Wire Ins. Dia.

In. (mm) Quantity Cat. No. Quantity Cat. No.

22 – 18 AWG (0,5-1,0mm2).250 x .032 (6.35mm x 0.8mm) 0.15 (3.8mm) 25 83-9771 1,000 84-9771

16 – 14 AWG (1,5-2,5mm2).250 x .032 (6.35mm x 0.8mm) 0.185 (4.7mm) 25 83-9781 1,000 84-9781

12 – 10 AWG (4,0-6,0mm2).250 x .032 (6.35mm x 0.8mm) 0.244 (6.2mm) 25 83-9791 500 84-9791

105° C/300 Volts max.

Wire Range Tab Size

In. (mm)

Max. Wire Ins. Dia.

In. (mm) Quantity Cat. No.

22 – 18 AWG (0,5-1,0mm2).250 x .032 (6.35mm x 0.8mm) 0.150 (3.8mm) 25 83-9911

16 – 14 AWG (1,5-2,5mm2).250 x .032 (6.35mm x 0.8mm) 0.185 (4.7mm) 25 83-9921

12 – 10 AWG (4,0-6,0mm2).250 x .032 (6.35mm x 0.8mm) 0.244 (6.2mm) 25 83-9931

105° C/300 Volts max.

Vinyl Fully-Insulated Receptacle Disconnects

Vinyl Insulated Bullet Disconnects

Wire Range Max. Wire Ins. Dia.

In. (mm) Quantity Cat. No.

22 – 18 AWG (0,5-1,0mm2)0.150 (3.8mm) 25 83-8001

16 – 14 AWG (1,5-2,5mm2)0.185 (4.7mm) 25 83-8011

75° C/300 Volts max.

Wire Range Max. Wire Ins. Dia.

In. (mm) Quantity Cat. No.

22 – 18 AWG (0,5-1,0mm2)0.150 (3.8mm) 25 83-8101

16 – 14 AWG (1,5-2,5mm2)0.185 (4.7mm) 25 83-8111

75° C/300 Volts max.

774A Listed

Pressure Wire Connector

only

774A Listed

Pressure Wire Connector

only

774A Listed

Pressure Wire Connector

only

774A Listed

Pressure Wire Connector

only

Non-Insulated Flag Female Disconnect

Wire Range Tab Size

In. (mm) Quantity Cat. No.

16 – 14 AWG (1,5-2,5mm2).250 x .032 (6.35 x 0.8mm) 25 83-9401

105° C/300 Volts max.

Disconnects/Splices

www.idealindustries.com 1-800-435-0705 for Customer Service

A-16

Disconnect Adapter – Male to Female (2-1)

Non-Insulated Butt Splices

Non-Insulated Parallel Splices

Tab Size

In. (mm) Quantity Cat. No.

.250 x .032 (6.35mm x 0.8mm) 25 83-9801

105° C/300 Volts max.

Wire Range Quantity Cat. No. Quantity Cat. No.

22 – 18 AWG (0,5-1,0mm2) 25 83-9001 ——

16 – 14 AWG (1,5-2,5mm2) 25 83-9011 1,000 84-9011

12 – 10 (4,0-6,0mm2) 25 83-9021 500 84-9021

8 (8,0mm2) 25 83-9031 250 84-9031

6 (14,0mm2) 20 83-9041 ——

4 (22,0mm2) 20 83-9051 ——

105° C/600 Volts max.

Wire Range Quantity Cat. No. Quantity Cat. No.

22 – 18 AWG (0,5-1,0mm2) 25 83-9071 ——

16 – 14 AWG (1,5-2,5mm2) 25 83-9081 1,000 84-9081

12 – 10 (4,0-6,0mm2) 25 83-9091 1,000 84-9091

105° C/600 Volts max.

Tap Splice Connectors

Vinyl Insulated Parallel Splices

Vinyl Insulated Butt Splices

Wire Range Max. Wire Ins. Dia.

In. (mm) Quantity Cat. No. Quantity Cat. No.

22 – 18 AWG (0,5-1,0mm2).157 (4.0mm) 25 83-9281 1,000 84-9281

16 – 14 AWG (1,5-2,5mm2).177 (4.5mm) 25 83-9291 1,000 84-9291

12 – 10 (4,0-6,0mm2).248 (6.3mm) 25 83-9301 500 84-9301

75° C/600 Volts max.

Wire Range Max. Wire Ins. Dia.

In. (mm) Quantity Cat. No.

22 – 18 AWG (0,5-1,0mm2).157 (4.0mm) 1,000 83-9351

16 – 14 AWG (1,5-2,5mm2).177 (4.5mm) 1,000 83-9361

12 – 10 (4,0-6,0mm2).248 (6.3mm) 500 83-9371

75° C/600 Volts max.

Wire Range Color Quantity Cat. No.

22 – 18 AWG (0,5-1,0mm2) Red 25 83-3261

16 – 14 AWG (1,5-2,5mm2)Blue 25 83-3271

12 – 10 (4,0-6,0mm2)Yellow 25 83-3281

75° C/600 Volts max.

774A Listed

Pressure Wire Connector

only

Terminal Strips

Wire Termination

1-800-435-0705 for Customer Service www.idealindustries.com A-17

No. of Poles Center Spacing Wire Range (AWG Cu) Recommended Torque Terminal Screw Size Cat. No.

89-200 Series, 30A/600V UL/CSA (Max. electrical rating 30A/250V when used with optional quick connects)

.562 in. (14.28mm) 22 – 10 16 in. - lb. #8-32 Philslot

Zinc-Plated Steel

89-202

389-203

489-204

689-206

889-208

10 89-210

12 89-212

89-300 Series, 300V/30A UL/CSA (Max. electrical rating 15A/125V when used with optional quick connects)

.375 in. (9.52mm) 22 – 14 9 in. - lb. #6-32 Philslot

Zinc-Plated Steel

89-302

489-304

689-306

889-308

10 89-310

12 89-312

89-400 Series, 30A/300V UL/CSA

.437 in. (11.10mm) 22 – 12 9 in. - lb. #6-32 Philslot

Zinc-Plated Steel

89-402

489-404

689-406

889-408

10 89-410

12 89-412

No. of Poles Center Spacing Wire Range (AWG Cu) Recommended Torque Terminal Screw Size Standard Black

Cat. No.

Shorting Block

Cat. No.

89-500 Series, 60A/600V UL/CSA (Max. electrical rating 60A/600V achieved only when used with #6 AWG copper wire crimped to ring terminal)

.625 in. (15.88mm) 22 – 6 20 in. - lb. #10-32 Slotted

Nickle-Plated Brass

89-504 89-505

689-506 89-507

889-508 89-509

12 89-512 89-513

Terminal Strips

Heavy-duty, corrosion-resistant screws, surface plates and optional hardware

Accessory hardware provides a variety of termination options

Available cover helps prevent contact with live terminals

Rugged polyester thermoplastic base (UL Rated 94V-0)

Operating temperature rated from 130°C (260°F) to -40°C (-40°F)

UL Recognized (E62622) and CSA Certified (LR15364)

Terminal Strips Accessories

www.idealindustries.com 1-800-435-0705 for Customer Service

A-18

No. of

Circuits

For Use with For Use with

89-200 89-300 89-400 89-500

Clear

Cat. No.

Clear

Cat. No.

Clear

Cat. No.

Clear

Cat. No.

289-233 89-334 89-434 —

389-234 — — —

489-235 89-335 89-435 89-514

689-236 89-336 89-436 89-516

889-237 89-337 89-437 89-518

10 89-238 89-338 89-438 —

12 89-239 89-339 89-439 89-520

Covers

Barrier Strips

Helps prevent contact with

live terminals

Quick Connects

Flat - None

Flat - Flat

Allows fast, flexible

circuit changes

For Use with

Terminal Strip

Series

Tab Size

(Inches) Quantity Flat -None

Cat. No.

Flat - Flat

Cat. No.

89-300 .187 x .020 10 89-314 89-317

89-200 & 89-400 .250 x .031 10 89-414 89-417

For Use with

Terminal

Strip

Series

Center

Spacing

(Inches) Quantity

Flat Slip-on

Cat. No.

Over Barrier

Slip-on

Cat. No.

Flat

12-Circuit

Cat. No.

89-200 .562 10 89-229 89-224 —

100 89-230 — —

89-300 .375 10 89-323 89-324 —

100 89-330 — —

89-400 .437 10 89-423 89-424 —

100 89-430 — —

89-500 .625 2 — — 89-525

Jumpers

Flat Slip-on

Provides easy connection

of multiple circuits

Over Barrier

Slip-on

Flat 12-Circuit

n

Recessed screws and tubular contacts provide added

safety and help prevent short circuits

Tubular contacts connect stripped, un-terminated solid or

stranded wire directly to each contact

Integrated wire protectors prevent twisting and breakage

of stranded wire during connection

Modular 12-circuit design can be cut into smaller sections,

or stacked end-to-end

Rugged nylon construction, UL 94V2

Operating temperature rated to 105°C (221°F)

Electrical Ratings Wire Range (AWG) No. of Circuits Torque in.- lb. Model No. Cat. No.

20A/300V UL 22 - 12 12 3.5 PA8DS 89-608

10A/400V CSA 20 - 18

30A/300V UL 22 - 10 12 4.4 PA10DS 89-610

20A/400V CSA 18 - 14

35A/300V UL/CUL 22 - 10 12 7.0 PA12DS 89-612

50A/300V UL/CUL 20 - 8 12 12.0 PA14DS 89-614

Crimp Connectors

Wire Termination

1-800-435-0705 for Customer Service www.idealindustries.com A-19

For Use with

Terminal

Strip

Series

Center

Spacing

(Inches) Quantity

Flat Slip-on

Cat. No.

Over Barrier

Slip-on

Cat. No.

Flat

12-Circuit

Cat. No.

89-200 .562 10 89-229 89-224 —

100 89-230 — —

89-300 .375 10 89-323 89-324 —

100 89-330 — —

89-400 .437 10 89-423 89-424 —

100 89-430 — —

89-500 .625 2 — — 89-525

Crimp Connectors

Designed for making fast, permanent, pressure-type

connections

Long, zinc-plated steel sleeves maximize contact area

with conductors

Will not vibrate loose when securely crimped

UL Listed to 486C and CSA Certified to C22.2 #188;

comply with Federal Specification W-S-610E.

Wrap-Cap® Insulators

Provide high dielectric and physical protection

for UL Listed, non-insulated pressure-type

wire connectors

Cap and loop design

eliminates need for tape

Unique design completely

covers splice — insulates both

around and between wires

Reusable and easy to install

UL Listed to 486C and CSA Certified for 600V maximum

building wiring (1,000V maximum for fixtures and signs);

temperature rated at 75°C (167°F) maximum

Steel Crimp Connectors

IDEAL hand tools U.L. listed for Model 410, 411, 412.

Crimps: 30-425, 30-429, 30-430.

Pre-Insulated Crimp Connectors

Three models cover a wide range of

wire combinations from 22 AWG

stranded through 8 AWG stranded

Compact design fits easily into

tight locations

Flared skirt protects against

turned–back strands

Beveled opening eases wire entry

Tough, UL 94V-2 flame-retardant shell rated at 105°C (221°F)

UL Listed to 486C and CSA Certified for 600V maximum

building wiring (1,000V maximum for fixtures and signs);

temperature rated at 105°C (221°F) maximum

Model

Wire Combination

Range Quantity Cat. No.

410

600V

18 thru 10 AWG

Min. 1 #14 & 1 #18

Max. 2 #10 & 2 #14

Box of 100 30-410

Carton of 1,000 30-510

Keg of 10,000 30-610

411

600V

18 thru 8 AWG

Min. 3 #12

Max. 4 #10

Box of 40 30-401

Box of 50 30-411

Carton of 1,000 30-511

412

600V

18 thru 4 AWG

Min. 1 #14 & 1 #16

Max. 2 #8 & 1 #6

Box of 20 30-402

Box of 50 30-412

Carton of 1,000 30-512

Model Wire Combination Range Quantity Cat. No.

600V*

Min. 2 #22

Max. 1 #14 w/2 #18

1,000 30-245

10,000 30-645

600V*

Min. 1 #22 w/1 #18

Max. 1 #12 w/1 #16

1,000 30-249

10,000 30-649

NC-8

600V*

Min. 4 w/#16

Max. 1 #12 w/4 #14

1,000 30-148

5,000 30-648

*1,000V maximum in fixtures and signs.

Model Description Quantity Cat. No.

415

Insulator Model 410

Connectors can also be

used on Buchanan 2006S

& 2011S Copper Crimps

Box of 100 30-415

Carton of 1,000 30-515

Keg of 10,000 30-615

417

Insulator for Model 411

& 412 Connectors can

also be used on Buchanan

2011S Copper Crimps

Box of 50 30-417

Carton of 1,000 30-517

Wire Connectors

www.idealindustries.com 1-800-435-0705 for Customer Service

A-20

Set-Screw Wire Connectors

Eliminates need for restripping wire each time connection is

disturbed

Solid brass sleeves in three sizes handle 22 through 10

AWG wires

Set-screw easily and securely applies maximum

compression to conductors to ensure a vibration-resistant

splice

Permits fast visual inspection of splice

Tough, flame-retardant shell rated at 150°C (302°F)

UL Listed to 486C and CSA Certified to C22.2 #188 ;

comply with Federal Specification W-S-610E

Set-Screw Holder

Noalox® Anti-Oxidant

Anti-oxidant and anti-seizing compound

improves efficiency and service life

of aluminum electrical applications

Suspended zinc particles penetrate

and cut aluminum oxide

n

Provides additional inner-strand

and inner-conductor current

paths for improved conductivity

and cooler connections

Carrier material excludes air to prevent further oxidation

For use with all types of pressure-type wire connectors

including screw-on, tap, service entrance and split-bolt

Reduces galling and seizing on aluminum conduit joints —

promotes good ground continuity

Convenient tool for holding and

tightening set-screw connectors

Accepts IDEAL

Models 11 and 22

set-screw connectors

Model

Wire Combination

Range Quantity Cat. No.

300V

22 thru 10 AWG

Min. 1 #20 w/1 #22

Max. 2 #14 w/1 #16

Box of 100 30-210

Carton of 1,000 30-310

600V

22 thru 10 AWG

Min. 1 #14 w/1 #20

Max. 3 #14 w/2 #18

Box of 100 30-211

Carton of 1,000 30-311

600V

20 thru 10 AWG

Min. 1 #16 w/3 #18

Max. 2 #10 w/1 #12

Box of 100 30-222

Carton of 1,000 30-322

For Connector Models Cat. No.

11 & 22 K-2422

For Connector Models Cat. No.

1/2-oz. Tube 30-024

4-oz. Squeeze bottle 30-026

8-oz. Squeeze bottle 30-030

8-oz. Brush cap 30-031

1-gal. Bucket 30-032

5-gal. Bucket 30-040

LISTED

Our wedge-edge expanding

spring is specially designed for faster

pull-up and quick connections.

It also accommodates a wide

range of wire gauges.

The B2 B-CAP® Wire Connector

is the universal connector that

accepts the widest range of wire

combinations. Plus, the Classic

Fin™ ergonomic design fits easily

in tight electrical boxes.

(2) #18 stranded

(1) #14 solid

(1) #18 stranded

(2) #14 solid

(1) #14 solid

(2) #12 stranded

(2) #10 stranded

(3) #12 solid

(2) #14 solid

(5) #12 solid

The Buchanan C-24 Crimp Tool

has an iron-clad reputation that’s

up to every job, every time.

A patented four-way crimp ensures

reliable connections, while the

spring-loaded, cam-actuated design

fits a wide range of connectors.

The comprehensive line of

Buchanan sectional

terminal blocks offers a

wide range of block

configurations, mounting

options and contact styles

accommodating wire sizes

from 30 AWG to 250 MCM.

Twist-on Wire Connectors

Wire Termination

A-21

www.idealindustries.com 1-800-435-0705 for Customer Service

A-22 www.idealindustries.com 1-800-435-0705 for Customer Service

A-22

Twist-on Wire Connectors

Three color-coded models cover a full range of wire

sizes from 22 AWG to 6 AWG

Classic FinTM design provides secure grip for extra

leverage on maximum wire combinations

Live-action spring expands to accept wire shape and size – no

pre-twisting required

Square-wire spring threads directly onto conductors for fast, secure connections

Deep skirt protects against flash-over and turned-back strands for maximum dielectric protection

Easily removed for repeat usage on same size or larger wire combinations

n

Tough, UL 94V-2 flame-retardant shell rated at 105oC (221oF)

Green-B® designed for making ground connections and bonding non-metallic sheathed cable

n

UL 486C Listed (Green-B® UL 467 Listed) and CSA 22.2 #188 Certified; comply with Federal Specification -S-610E

*1,000V maximum in fixtures and signs

B-CAP® Wire Connectors

Wire Connectors

Model Color Wire Combination

Range (Inches)

Wire Combination

Range (mm) Quantity/Package Cat. No.

B1 Yellow

600V*

22 to 10 AWG

Min. 3 #20

Max. 3 #12

600V*

,34mm2 to 6,0mm2

Min. 3-,5mm2

Max. 3-4,0mm2

Box of 100 B1-1

Jar of 250 B1-250JR

Jar of 500 B1-500JR

Keg of 10,000 (20 bags, 500 ea.) B1-B

Barrel of 25,000 B1-SK

B2 Red

600V*

22 to 8 AWG

Min. 2 #18

Max. 5 #12

600V*

,34mm2 to 10,0mm2

Min. 2-,75mm2

Max. 5-4,0mm2

Box of 100 B2-1

Jar of 350 B2-350JR

Jar of 500 B2-500JR

Keg of 10,000 (20 bags, 500 ea.) B2-B

Barrel of 25,000 B2-SK

B4 Blue-Gray

600V*

14 to 6 AWG

Min. 2 #12

Max. 2 #6

600V*

2,5mm2 to 16,0mm2

Min. 2-4,0mm2

Max. 2-16,0mm2

Box of 25 B4-1

Keg of 2,500 (10 bags, 250 ea.) B4-B

BGR Green

14 to 10 AWG

Min. 2 #14

Max. 5 #12

2,5mm2 to 6,0mm2

Min. 2-2,5mm2

Max. 5-4,0mm2

Box of 50 BGR-1

Keg of 5,000 (20 bags, 250 ea.) BGR-B

Wide red/yellow wire range;

min. 2 #18 to max. 2 #8

Rounded dial-top provides fast fingertip starts

Square-wire spring provides quick, secure connections

Comfortable swept-wing design with deep skirt to help

protect over-stripped wires

Tough, UL 94V-2 flame-retardant shell

rated at 105°C (221°F)

UL Listed to 486C and CSA Certified to C22.2 #188;

comply with Federal Specification W-S-610E

*1,000V maximum in fixtures and signs

Model Color

Wire

Combination

Range (Inches)

Wire

Combination

Range (mm)

Quantity/

Package Cat. No.

BT2™ Red

600V*

18 to 8 AWG

Min. 2 #18

Max. 2 #8

600V*

Box of 100 BT2-1

Jar of 500 BT2-500JR

Barrel of

25,000 BT2-SK

1-800-435-0705 for Customer Service www.idealindustries.com A-23

Twist-on Wire Connectors

Five color-coded models cover common wire ranges

Ribbed cap provides positive grip for fast, easy installation

Expanding, square-wire spring creates secure connections

Deep skirt protects against flash-over

n

Tough, UL 94V-2 flame-retardant shell (105oC/221oF)

n

UL 486C Listed and CSA 22.2 #188 Certified

WireTwist™ Wire Connectors

Model Color Wire Combination Range (Inches) Wire Combination Range (mm) Quantity / Package Cat. No.

WT1 Gray

300V

22 to 14 AWG

Min. 3 #22

Max. 2 #16

300V

,34mm2 to 2,5mm2

Min. 3-,34mm2

Max. 2-1,5mm2

Box of 100 WT1-1

Bag of 500 WT1-B

Barrel of 50,000 WT1-SK

WT2 Blue

300V

22 to 14 AWG

Min. 3 #20

Max. 3 #16

300V

,34mm2 to 2,5mm2

Min. 3-,50mm2

Max. 3-1,5mm2

Box of 100 WT2-1

Bag of 500 WT2-B

Barrel of 50,000 WT2-SK

WT3 Orange

600V*

22 to 14 AWG

Min. 2 #18

Max. 2 #14

600V*

,34mm2 to 2,5mm2

Min. 2-,75mm2

Max. 2-2,5mm2

Box of 100 WT3-1

Bag of 500 WT3-B

Barrel of 50,000 WT3-SK

WT4 Yellow

600V*

22 to 10 AWG

Min. 3 #20

Max. 2 #12

600V*

,75mm2 to 6,0mm2

Min. 3-,50mm2

Max. 2-4,0mm2

Box of 100 WT4-1

Bag of 500 WT4-B

Barrel of 25,000 WT4-SK

WT6 Red

600V*

20 to 8 AWG

Min. 2 #14

Max. 4 #12

600V*

,50mm2 to 10,0mm2

Min. 2-2,5mm2

Max. 4-4,0mm2

Box of 100 WT6-1

Bag of 250 WT6-B

Barrel of 25,000 WT6-SK

WingTwist™ Wire Connectors

Model Color Wire Combination Range (Inches) Wire Combination Range (mm) Quantity / Package Cat. No.

WT51 Yellow

600V*

18 to 10 AWG

Min. 2 #18

Max. 3 #12

600V*

,75mm2 to 6,0mm2

Min. 2-,75mm2

Max. 3-4,0mm2

Box of 100 WT51-1

Bag of 500 WT51-B

Jar of 500 WT51-500JR

Barrel of 25,000 WT51-SK

WT41 Tan

600V*

22 to 10 AWG

Min. 2 #20

Max. 3 #10 Solid

600V*

,34mm2 to 6,0mm2

Min. 2-0,5mm2

Max. 3-6,0mm2

Box of 100 WT41-1

Bag of 500 WT41-B

Jar of 500 WT41-500JR

Barrel of 25,000 WT41-SK

WT52 Red

600V*

18 to 10 AWG

Min. 2 #14

Max. 5 #12

600V*

,75mm2 to 6,0mm2

Min. 2-2,5mm2

Max. 5-4,0mm2

Box of 100 WT52-1

Bag of 500 WT52-B

Jar of 500 WT52-500JR

Barrel of 25,000 WT52-SK

WT54 Blue

600V*

14 to 6 AWG

Min. 3 #12

Max. 2 #6

600V*

2,5mm2 to 16,0mm2

Min. 3-4,0mm2

Max. 2-16,0mm2

Box of 50 WT54-1

Bag of 100 WT54-B

WGR Green

14 to 10 AWG

Min. 2 #14

Max. 5 #12

2,5mm2 to 6,0mm2

Min. 2-2,5mm2

Max. 5-4,0mm2

Box of 50 WGR-1

Bag of 250 WGR-B

Jar of 500 WGR-500JR

Barrel of 25,000 WGR-SK

WireTwist™ Wire Connectors

Five color-coded models cover common construction

wire ranges and combinations, including grounding

Contoured wing design provides maximum torque

Expanding, square-wire spring creates secure connections

Deep skirt protects against flash-over

Tough, UL 94V-2 flame retardant shell (105°C/221°F)

UL 486C Listed (WGR UL 467 Listed) and CSA C22.2 #188

Certified

WingTwist™ Wire Connectors

*1,000V maximum in fixtures and signs

Wire Termination

www.idealindustries.com 1-800-435-0705 for Customer Service

A-24 www.idealindustries.com 1-800-435-0705 for Customer Service

A-24

Connectors/Crimp Tool

Splice Cap Insulators

Designed for making

fast, permanent,

pressure-type

connections

Solid copper sleeves require

less crimping pressure

Resist corrosion in harsh

environments

Tin-plated steel sleeves also available (pg. A-19)

UL 486C Listed and CSA C22.2 #188 Certified; comply

with Federal Specification W-S-61D

Convenient, safe and

fast installation

Snap-on nylon construction

Rated at 105°C (221°F) –

600V (1,000V maximum in

fixtures and signs)

*1,000V maximum in fixtures and signs

Four-Way Crimp Tool

Patented design ensures even

compression and reliable

connectors

Spring-loaded, cam-actuated

plungers

Fingertip adjustment for

different connector sizes

Splice Cap Crimp Connectors

Description

Wire

Combination

Range (Inches)

Quantity Cat. No.

Copper Crimp

Connector

600V*

18 to 10 AWG

Min. 2 #18

Max. 4 #12

Box of 100 2006S

Bag of 1,000 2006SB

Copper Crimp

Connector

600V*

14 to 4 AWG

Min. 2 #10

Max. 2 #6

Box of 50 2011S

Bag of 500 2011SB

For Connector Model Quantity Cat. No.

2006S Box of 100 2007

Bag of 1,000 2007B

2011S Box of 50 2014

Bag of 500 2014B

Description Cat. No.

Four-Way Crimp Tool C-24

1-800-435-0705 for Customer Service www.idealindustries.com A-25

Wire Termination

1-800-435-0705 for Customer Service www.idealindustries.com A-25

Streetlight Kits

Waterproof Breakaway Steetlight Connector & Splice Insulating Kits

Transformer

82 or 82S for Phase (fuse)

and

83 or 83S for Neutral (common)

Two 82 or 82S for

Phase (fuse)

D65 for Phases (fuse)

and two 84 or 84S

for Taps

End of run

65 Kit for Phase (fuse) and

20 Kit for Neutral (common)

or D65PN Kit

Two 65 or one

D65 to fuse

Tap unnecessary

Two 65 or one D65

to Fuse (Phases)

84 or 84S for Taps

D65PN for Phase

and Neutral

84 or 84S for Tap

Phase

to Phase

Transformer Phase

to Neutral

Phase to Phase

Transformer Phase

to Neutral

End of Run

Safe and easy installation in five minutes or less

No special equipment necessary – requires only a knife, wire stripper and crimp

tool

Unique wire entry port, cut-off design accommodates industry’s widest range of

insulation diameters

n

Fewer parts than competitive brands for better waterproof protection

Built-in break-away design eliminates de-energization of complete circuits

Safely separates upon impact without breaking wires – eliminates potential

danger and electrical shock (breakaway models)

Unique 2-in-1 one-piece crimp barrel accommodates industry’s widest

range of conductors (breakaway models)

Spring-loaded contacts compensate for thermal expansion to maintain

integrity of waterproof connection (breakaway models)

For Poles with Transformer Bases, Standard Bases and Junction Boxes

Configurations Comments

• D65 dual in-line for phases and two 84 or 84S kits for taps Recommended

•Two82or82SY-TapKitsforphasesandtaps Cost-effective

•TwoBTS4B-CAP® Twist & Seal Wire Connectors Non-breakaway, small gauge (8 AWG and above).

See Wire Connector section.

Configurations Comments

• D65PN dual in-line for phase and neutral and Recommended configuration

Two 84 or 84S kits for tap

•One82or82SY-TapKitforphaseandtapand Cost-effective

one 83 or 83S Y-Tap Kit for neutral and tap

•TwoBTS4B-CAP® Twist and Seal Wire Connectors Non-breakaway, small gauge (8 AWG and above).

See Wire Connector section.

For Lights Mounted to Utility Poles, etc...

•TwoB-Tap®InsulationPiercingConnectorsfor Recommendedconfiguration,seeB-Tap®

phase and/or tap (for insulated conductors only) Insulation Piercing Connectors in this catalog.

Underground Feed Phase to Neutral

Underground Feed Phase to Phase

Application

Guide

Examples of Several

Kit Configurations

Overhead Feed

www.idealindustries.com 1-800-435-0705 for Customer Service

A-26 www.idealindustries.com 1-800-435-0705 for Customer Service

A-26

Streetlight Kits

Breakaway In-Line Kits

Application Electrical Ordering Code

Rating

Crimp Splice 150 Amp 84 –

Tap & Run 600 Volt

Set Screw Splice 70 Amp 84S –

Tap & Run 600 Volt

Application Electrical Ordering Code

Rating

In-Line Neutral 30 Amp 20 –

Non-Fused Breakaway 600 Volt

In-Line Phase 1/10-30 Amp 65 –

Fused Breakaway 600 Volt

Dual In-Line Phase 1/10-30 Amp D65 –

Fused Breakaway 600 Volt

Dual In-Line Phase & 1/10-30 Amp Phase D65PN –

Neutral Fused 30 Amp Neutral

Breakaway 600 Volt

Application Electrical Ordering Code

Rating

Crimped Phase 1/10-30 Amp 82 –

Fused Tap & Run 600 Volt

Crimp Neutral 125 Amp Line 83 –

Non-Fused Tap & Run 30 Amp Load

600 Volt

Set Screw Phase 1/10-30 Amp 82S –

Fused Tap & Run 600 Volt

Set Screw Neutral 70 Amp Line 83S –

Non-Fused Tap & Run 30 Amp Load

600 Volt

Breakaway Y-Tap Kits

Y-Splice Kits

MODEL

Ordering Information

Use the following chart and table to determine the correct part number by choosing model, line side, and

load side ordering codes from the shaded columns. See example below, right (Page A-45).

82TM Kit

83TM Kit

82STM Kit 83STM Kit

84TM Kit

84STM Kit

65TM Kit

D65TM Kit

D65PNTM Kit

20TM Kit

Excerpts of the 1996 NEC Tables 5 & 5A

Dimensions of Insulated Conductors and Fixture Wires

Approx. Diameter in Inches for Insulation Types:

Approx. Diameter in Inches for

Size RHH, THHW THHN XHH

Compact AL with Insulation Types:

(AWG) RH RHW-2,RHW TW THW,THW-2 THWN,THWN-2 XHHW,XHHW-2 THW,THHW THHN

XHHW

1/0

0.163

0.182

0.236

0.326

0.364

0.412

0.440

0.472

0.582

0.622

0.193

0.212

0.236

0.326

0.364

0.412

0.440

0.472

0.582

0.622

0.133

0.152

0.176

0.236

0.304

0.352

0.380

0.412

0.492

0.532

0.163

0.182

0.206

0.266

0.304

0.352

0.380

0.412

0.492

0.532

0.111

0.130

0.164

0.216

0.254

0.324

0.352

0.384

0.446

0.486

0.133

0.152

0.176

0.236

0.274

0.322

0.350

0.382

0.442

0.482

–

0.255

0.290

0.335

–

0.390

0.465

0.500

–

0.240

0.305

–

0.360

0.415

0.450

–

0.224

0.260

0.305

–

0.360

0.415

0.450

Line side

Double Ridge

Line side

housing (receptacle)

Line side

housing (receptacle)

Line side

housing (receptacle)

Line side

housing (receptacle)

Line side

housing (receptacle) Y Insert

Assembly

Y Insert

Assembly

Y Insert

Assembly

Line side

housing (receptacle)

Crimp-on

flag

terminals

Crimp-on

flag

terminals

Crimp-on

ring

terminals

Crimp-on

flag

terminals

Nut

and

Bolt

Nut

and

Bolt

Nut

and

Bolt

Line side

insert Load side

housing

(Plug)

Load side

housing

(Plug)

Load side

housing

(Plug)

Load side

housing

(Plug)

Load side

housing

(Plug)

Line Side Insert

Terminal

Block

Line side

insert Load side

housing

(Plug)

Line side

Double Ridge

Line side

Double Ridge

Line side

Double Ridge

Fuse

(not included)

White Band

Pin Contact

Load side

Single Ridge

Load side

Single Ridge

Load side

Single Ridge

Fuse

(not included)

Fuse

(not included)

Load side

Single Ridge

White Band

(Neutral Side)

White Band (Neutral Side)

Metal Pin

Contact

1-800-435-0705 for Customer Service www.idealindustries.com A-27

Streetlight Kits

Wire Termination

1-800-435-0705 for Customer Service www.idealindustries.com A-27

Insulation Stranded* Ordering

Diameter Range Conductor Type Code

(Inches) Size (AWG) (

CHOOSE 1)

12-6 Copper Crimp U –

12-6 Aluminum Crimp UA –

.120-.430

4 or 2 Copper Crimp LC –

4 or 2 Aluminum Crimp LA –

Insulation Ordering Stranded* Ordering

Diameter Range Code Conductor Type Code

(Inches) (

CHOOSE 1)

Size (AWG) (

CHOOSE

10 Copper Crimp 6 –

.155-.430 ADB 8 Copper Crimp 4 –

6 Copper Crimp 3 –

4 Copper Crimp 2 –

.420-.785 EAFB 2 Copper Crimp 1 –

1 Copper Crimp 0 –

1/0 Copper Crimp 10 –

.155-.430 ADB 10 1 –

8 1 –

6 Terminal Block 1 –

4 with Set Screws 1 –

2 Copper or Alum. 1 –

.420-.785 EAFB 1 Conductors 10 –

1/0 10 –

LINE SIDE LOAD SIDE

Insulation Equivalent Conductor Size Ordering

Diameter Range Conductor Size (AWG) Type Code

(Inches) (See Table) (

CHOOSE 1)

10 Copper Crimp 6

8 Copper Crimp 4

.120 -.430 1 6 Copper Crimp 3

4 Copper Crimp 2

2 Copper Crimp 1

1 Copper Crimp 0

Terminal Block

Copper or

.120 -.430 1 10-2 Aluminum N/A

Conductors

NOTE:

Fused kits require a 13/32” x 1 1/2” fuse. DO NOT USE GLASS OR INDICATING TYPES.

Waterproof or direct burial wire is recommended. THHN is NOT recommended.

* For solid wire: 14-4 AWG, use codes U, UA, C, or A. 2 AWG, use codes LC or LA.

75°C / 600 Volts Max.

Example:

A Y-Tap Kit with set screws for a 2 AWG phase line side conductor with a

diameter of .472” and a 10 AWG copper load side conductor is ordered as

an 82S-EAFB1-C.

Insulation Equivalent Stranded* Ordering

Diameter Range Conductor Conductor Type Code

(Inches) (See Table) Size (AWG) (

CHOOSE 1)

12-6 Copper Crimp U

12-6 Aluminum Crimp UA

.120-.430 1

4 or 2 Copper Crimp LC

4 or 2 Aluminum Crimp LA

NOTE: It is not necessary to use the load side ordering code if it is the same

as the line side code, i.e., a 65U-U is ordered as a 65U.

Insulation Equivalent Stranded* Ordering

Diameter Range Conductor Conductor Type Code

(Inches) (See Table) Size (AWG) (

CHOOSE 1)

12-6 Copper Crimp C

.120 -.430 1 12-6 Aluminum Crimp A

4 or 2 Copper Crimp LC

12-6 Copper Crimp C

12-6 Aluminum Crimp A

.120 -.430 1

4 or 2 Copper Crimp LC

4 or 2 Aluminum Crimp LA

Insulation Ordering Stranded* Ordering

Diameter Range Code Conductor Type Code

(Inches) (

CHOOSE 1)

Size (AWG) (

CHOOSE 1)

10 Copper Crimp 6 –

.155-.430 ADB 8 Copper Crimp 4 –

6 Copper Crimp 3 –

4 Copper Crimp 2 –

.420-.785 EAFB 2 Copper Crimp 1 –

1 Copper Crimp 0 –

1/0 Copper Crimp 10 –

.155-.430 ADB 10 1 –

8 1 –

6 Terminal Block

1 –

4 with Set Screws 1 –

2 Copper or Alum. 1 –

.420-.785 EAFB 1 Conductors 10 –

1/0 10 –

LR32565

www.idealindustries.com 1-800-435-0705 for Customer Service

A-28

Tap Connectors

A-28 www.idealindustries.com 1-800-435-0705 for Customer Service

Eliminates split bolts and tape

Easy two-minute installation requires only box/socket wrench

Installs on energized systems eliminating costly power shutdowns

Self-sealing, grease-filled end-cap ensures safe, weather-tight connection

Unique turbo spacer keeps connector wide open for quick and easy installation

Torque-regulating nut breaks off when proper tension is reached

Full-line is 600V dual-rated,194˚F (90˚C)

Conductor Range Voltage Rating

Dimensions (Inches) Socket Size

(Inches)

Torque

(In. Lbs.)

Run Tap A B C No. of Bolts Cat. No.

1/0-8 2-101600V 3.1 1.8 2.2 1/2 80 1 BTC1/0-10

2/0-4 10-142600V 3.1 1.8 2.2 1/2 80 1 BTC2/0-14

4/0-2 4/0-4 600V 4.4 2.4 3.2 1/2 160 1 BTC4/0-2

4/0-3 2-103600V 3.1 1.8 2.2 1/2 125 1 BTC4/0-10

4/0-2 2/0-6 600V 3.5 2.2 2.5 1/2 160 1 BTC4/0-6

250-1 4/0-4 600V 3.5 2.2 2.5 1/2 160 1 BTC250-4

350-1/0 350-1/0 600V 4.5 3 3.9 5/8 330 2 BTC350-1/0

500-2/0 4/0-4 600V 4.5 3 3.9 5/8 330 2 BTC500-4

500-4/0 350-1/0 600V 4.5 3 3.9 5/8 330 2 BTC500-1/0

750-3/0 10-144600V 3.7 2.5 2.2 1/2 80 1 BTC500-14

750-250 500-250 600V 4.7 3.4 4.75 5/8 330 2 BTC750-250

LISTED

B-TAP® Insulation-Piercing Tap Connectors

* Includes BTC 1/0-10, BTC 2/0-14, BTC 4/0-2, BTC 4/0-10, BTC 4/0-6, BTC 250-4, BTC 350-1/0, BTC 500-4 & BTC 500-1/0

1 Tap #2 - #10 Cu solid/stranded; #2 - #10 Al stranded 3 Tap #2 - #10 Cu solid/stranded; #2 - #8 Al stranded

2 Tap #10 - #14 Cu solid/stranded; #10 - #14 Al stranded 4 Tap #10 - #14 Cu solid/stranded; #10 - #12 Al stranded

B-Tap® Wire Range Chart

Wire Stize

Cat. No. 14 12 10 8 6 4 3 2 1 1/0 2/0 3/0 4/0 250 300 350 400 500 750

BTC1/0-10 Main: 1/0 - 8

Tap: 2 - 10

BTC2/0-14 Main: 2/0 - 4

Tap: 10 - 14

BTC4/0-4 Main: 4/0 - 2

Tap: 4/0 - 4

BTC4/0-10 Main: 4/0 - 3

Tap: 2 - 10

BTC4/0-6 Main: 4/0 - 2

Tap: 2/0 - 6

BTC250-4 Main: 250 - 1

Tap: 4/0 - 4

BTC350-1/0 Main: 350 - 1/0

Tap: 350 - 1/0

BTC500-4 Main: 500 - 2/0

Tap: 4/0 - 4

BTC500-1/0 Main: 500 - 4/0

Tap: 350 - 1/0

BTC500-14 Main: 750 - 3/0

Tap: 10 - 14

BTC750-250 Main: 750 - 250

Tap: 500 - 250

1-800-435-0705 for Customer Service www.idealindustries.com A-29

Terminal Blocks

Wire Termination

1-800-435-0705 for Customer Service www.idealindustries.com A-29

WIRE RANGE: Solid or Stranded

Tubular Clamp

1 #12 AWG, 1 #14 AWG, 1 to 3 #16 AWG, 1 to 5 #18 AWG, 1 to 6 #20 AWG,

1 to 7 #22 AWG

100 Series Terminal Blocks - Miniature (High Density)

These miniature terminal blocks fit on a much smaller channel to save valuable panel space or can be surface

mounted directly to the panel. Miniature blocks accept wire as large as 12 AWG.

n No wire crimping required – clamp contacts hold wire from 30 AWG to 12 AWG better than crimp-on terminals

n Saves installation time and cost – tubular clamp contacts supplied with captive screws backed out

n Nylon housing for rugged applications

n Positive stop prevents wire from being inserted too far and prevents screw from being tightened on insulation;

easy access contact provides safe, reliable and cost-effective connection

n Quick installation and change – additional sections may be added or removed without removing channel mounting screw

n Matte-finish area for marking directly on block

Catalog Number -

100 Series 125 115 End Section

130 120

Mounting Style Direct

Mount

(Flat Base)

Channel

Mount

(Dovetail Base)

Direct

Mount

(Flat Base)

Channel

Mount

(Dovetail Base)

Housing Material Nylon

Maximum Service Temperature 125°C (257°F)

Flammability UL94V2

Wire Strip Length (in.) 5/16

Torque (in-lbs.) 6-9

UL Rating 28A @ 300V

Wire Range (AWG) Solid & Stranded 30-12

Pitch (in.) 0.25

Terminals per foot 48

Housing Material Polyester (gray)

Contact Material Copper Alloy, Zinc Plated

Screw Material Steel, Zinc Plated

Maximum Service Temperature 150°C (302°F)

Flammability UL94V-0 Rated

Specifications

Center-to-Center Spacing: .375 in.

Voltage Rating: 600 Volt max., Current: 50 Amp max.

Ampacity: #8 - #22 AWG

WIRE RANGE: Solid or Stranded

Strap Screw – 1 #22 to 1 #14 AWG

Tubular Screw – 1 #8 AWG, 1 #10 AWG, 1 to 3 #12 AWG, 1 to 4 #14 AWG,

1 to 4 #16 AWG, 1 to 5 #18 AWG, 1 to 10 #22 AWG

Tubular Clamp – 1 #10 AWG, 1 or 2 #12 AWG, 1 to 3 #14 AWG,

1 to 4 #16 AWG, 1 to 5 #18 AWG, 1 to 10 #22 AWG

LR25557 E63810

900 Series Terminal Blocks - MEDIUM DUTY

This family of polyester blocks is ideal for high temperature applications.

The rugged material withstands temperatures up to 302°F (150°C)

n Three contact styles cover broad wire range — accept single wire or

combinations from 22 AWG to 8 AWG solid or stranded

n Rated at 15A to 50A per circuit

n Flat base models mount directly to surfaces; dovetail base models

mount on standard channel

n Only one end section needed per block assembly

n Readily identifiable circuits - write directly on matte surface of block

n Sections snap-fit with Heavy Duty, Intermediate Heavy Duty and Fuse blocks

Catalog Number 921 0921 924 0924 925 0925 930 0930

Mounting Style Direct Mount Channel Mount Direct Mount Channel Mount Direct Mount Channel Mount End Section End Section

(Flat Base) (Dovetail Base) (Flat Base) (Dovetail Base) (Flat Base) (Dovetail Base) (Direct Mount) (Channel Mount)

Ampacity 15A 50A 30A — —

Contact Type Strap Screw Tubular Screw Tubular Clamp — —

Screw Type 6-32 10-32 10-32 — —

Combo Head Combo Head Combo Head

Screw Torque 12 in-lbs. 8 in-lbs. 8 in-lbs. — —

Wire Range (AWG) #14 to #22 #8 to #22 #10 to #22 — —

www.idealindustries.com 1-800-435-0705 for Customer Service

A-30 www.idealindustries.com 1-800-435-0705 for Customer Service

A-30

Terminal Blocks

200 Series Terminal Blocks - Nylon HEAVY DUTY

This compact design, heavy-duty line accepts single wire or combinations up to

4 AWG, solid or stranded,; 600V UL and NEMA rating.

n 138 circuits per 6 foot length

n Three contact styles conservatively rated from 35A to 85A per circuit

n Two-way flat-base models surface mount directly to the panel or snap-on

miniature channel; dovetail base models mount on standard channel

n Only one end section needed per block assembly

n Readily identifiable circuits – mark directly on painted surface of block sections or

use removable marking tape

n Nylon housing for more rugged applications

n Sections snap-fit with Phenolic Heavy Duty, Intermediate Heavy Duty and Fuse blocks

Specifications

Center-to-Center Spacing: .50 in. CL: 24 circuits per foot.

Voltage Rating: Blocks meet 600V creepage and clearance

requirements of NEMA, UL and CSA for general industrial

control equipment and panelboards. Withstands voltages greatly

in excess of IEEE switchgear standards for 750V.

Ampacity: For a single 4 AWG wire, the maximum amperage

recommended is 85A.

WIRE RANGE: Solid or Stranded

Strap Screw – 1 #22 to 1 #10 AWG

Tubular Screw – 1 #4 AWG, 1 #6 AWG, 1 or 2 #8 AWG, 1 to 4 #10 AWG,

1 to 5 #12 AWG, 1 to 6 #14 AWG, 1 to 6 #16 AWG, 1 to 8 #18 AWG

Tubular Clamp – 1 #6 AWG, 1 or 2 #8 AWG, 1 to 3 #10 AWG, 1 to 4 #12 AWG,

1 to 4 #14 AWG, 1 to 6 #16 AWG, 1 to 8 #18 AWG

LR25557 E63810

Catalog Number 241

Unpainted

0241

Painted

242

Unpainted

0242

Painted

243

Unpainted

0243

Painted 250 0250

Mounting Style Direct Mount

(Flat Base)

Channel Mount

(Dovetail Base)

Direct Mount

(Flat Base)

Channel Mount

(Dovetail Base)

Direct Mount

(Flat Base)

Channel Mount

(Dovetail Base)

End-Section

(Direct Mount)

End-Section

(Channel Mount)

Ampacity 35A 85A 65A — —

Contact Type Strap Screw Tubular Screw Tubular Clamp — —

Screw Type 10-32 Slotted Binding Head 1/4-28 Slotted Headless 1/4-28 Slotted Headless — —

Wire Range (AWG) #22 to #10 #18 to #4 #18 to #6 — —

Wire Strip Length —1/2 in. 1/2 in. — —

Housing Material Nylon, Type 6/6 unfilled

Contact Material Copper / Copper Alloy

Screw Material Steel Plated

Maximum Service Temperature 125°C (257°F)

Breakdown Voltage AC, 60 Hz 7000V

Dielectric Strength (RH40% at sea level) 470-385 V/mil thickness (per ASTM D149)

UL High Voltage Arc Testing (in./min.) 0.1 - .35

Water Absorption (24 hrs. % weight gain) 1.5%

Flammability 94V-2 (per UL94)

Chemical Resistance Resistant to aromatic hydrocarbons,

strong alkalies

Radiation Resistance (ergs g1 C) 8 X 107

1-800-435-0705 for Customer Service www.idealindustries.com A-31

Wire Termination

1-800-435-0705 for Customer Service www.idealindustries.com A-31

Terminal Blocks

200 Series Terminal Blocks - Phenolic HEAVY DUTY

The family of phenolic heavy duty blocks is ideal for high temperature, high current

applications. The rugged material withstands temperatures up to 302°F (150°C).

n Sturdy block accepts single wire or combinations up to 4 AWG solid or stranded

n 122 circuits per 6 foot length

n Three contact styles conservatively rated to 35A to 85A

n Only one end section needed per block assembly

n Readily identifiable circuits – mark directly on painted marking surface or

use removable marking strip

n Sections snap-fit with Nylon Heavy Duty, Intermediate Heavy Duty

and Fuse Blocks

Specifications

Center-to-Center Spacing: .56 in. CL: 20 circuits per foot.

Voltage Rating: Blocks meet 600V creepage and clearance

requirements of NEMA, UL and CSA for general industrial

control equipment and panelboards. Withstands voltages greatly

in excess of IEEE switchgear standards for 750V.

Ampacity: For a single 4 AWG wire, the maximum amperage

recommended is 85A.

WIRE RANGE: Solid or Stranded

Strap Screw – 1 #18 to 1 #8 AWG

Tubular Screw – 1 #4 AWG, 1 #6 AWG, 1 or 2 #8 AWG, 1 to 4 #10 AWG,

1 to 5 #12 AWG, 1 to 6 #14 AWG, 1 or 6 #16 AWG, 1 to 8 #18 AWG

Tubular Clamp – 1 #6 AWG, 1 or 2 #8 AWG, 1 to 3 #10 AWG, 1 to 4 #12 AWG,

1 to 4 #14 AWG, 1 to 6 #16 AWG, 1 to 8 #18 AWG

Catalog Number 221 0221 222 0222 223 0223 230 0230

Marking Area Painted Painted Painted Painted Painted Painted — —

Mounting Style Direct Mount

(Flat Base)

Channel Mount

(Dovetail Base)

Direct Mount

(Flat Base)

Channel Mount

(Dovetail Base)

Direct Mount

(Flat Base)

Channel Mount

(Dovetail Base)

End-Section

(Direct Mount)

End-Section

(Channel Mount)

Ampacity 35A 85A 65A — —

Contact Type Strap Screw Tubular Screw Tubular Clamp — —

Screw Type 10-32 Slotted Binding Head 1/4-28 Slotted Headless 1/4-28 Slotted Headless — —

Wire Range (AWG) #22 to #10 #18 to #4 #18 to #6 — —

Wire Strip Length —1/2 in. 1/2 in. — —

LR25557 E63810

Housing Material Phenolic, Filled, Flame retardant

Contact Material Copper / Copper Alloy

Screw Material Steel Plated

Maximum Service Temperature 150°C (302°F)

Breakdown Voltage AC, 60 Hz 7000V

Dielectric Strength (RH40% at sea level) 300V/mil thickness (per ASTM D149)

UL High Voltage Arc Testing (in./min.) .49 - .59

Water Absorption (24 hrs. % weight gain) 45% (per ASTM D570)

Flammability 94V-1 (per UL94)

Chemical Resistance Resistant to acids, alkalies, aliphatic

hydrocarbons and ketones (per ASTM D5343)

Radiation Resistance (ergs g1 C) 2 X 108 min.

www.idealindustries.com 1-800-435-0705 for Customer Service

A-32 www.idealindustries.com 1-800-435-0705 for Customer Service

A-32

Terminal Blocks

Nylon INTERMEDIATE HEAVY DUTY Terminal Blocks

The 800 Series line of 600V blocks is conservatively rated up to 150A for a

single 1/0 AWG copper wire.

n Exceptionally compact block accepts single wire or combinations up to 1/0 AWG

n 92 circuits per 6 foot length

n Tubular screw contact style accepts AWG sizes from 12 to 1/0, solid or stranded

n Two-way mounting base fits standard channel or mounts directly to flat surfaces

n Only one end section needed per block assembly

n Readily identifiable circuits – write directly on painted marking surface or use removable vinyl

marking strip

n Nylon housing for rugged applications, 7/16 -20 slotted headless screws

n Snap-fit with Heavy-Duty Nylon and Phenolic and Fuse Blocks

Specifications

Center-to-Center Spacing: .75 in. CL: 16 circuits per foot.

Voltage Rating: Blocks meet 600V creepage and clearance

requirements of NEMA, UL and CSA standards for general

industrial control equipment and panelboards. Withstands

voltages greatly in excess of IEEE switchgear standards for 750V.

Ampacity: For a single 1/0 AWG copper wire, the maximum

amperage recommended is 150A.

WIRE RANGE: Solid or Stranded

Tubular Screw – 1 #1/0 AWG, 1 #1 AWG, 1 #2 AWG, 1 or 2 #4 AWG,

1 to 3 #6 AWG, 2, 3 or 5 #8 AWG, 1 to 6 #10 AWG, 1 to 7 #12 AWG

LR25557 E63810

Housing Material Nylon, Type 6/6 Unfilled

Contact Material Copper

Screw Material Steel, Zinc-Plated

Maximum Service Temperature 125°C (257°F)

Breakdown Voltage AC, 60 Hz 8800V

Dielectric Strength (RH40% at sea level) 470-385V/mil thickness (per ASTM D149)

UL High Voltage Arc Testing (in./min.) .01 - .35

Water Absorption (24 hrs. % weight

gain)

1.5%

Flammability 94V-2

Chemical Resistance Resistant aromatic hydrocarbons,

strong alkalies

Radiation Resistance (ergs g1 C) 8 X 107 min.

Catalog Number 824 830

Marking Area Painted —

Mounting Style Two-Way

Mounting Base End-Section

Ampacity 150A —

Contact Type Tubular Screw —

Screw Type 7/16-20 Slotted Headless —

Wire Range (AWG) 12 to 1/0 —

Wire Strip Length 11/16 in. —

1-800-435-0705 for Customer Service www.idealindustries.com A-33

Wire Termination

1-800-435-0705 for Customer Service www.idealindustries.com A-33

Terminal Blocks

Catalog Number 426 427 430

Marking Area Painted Painted —

Mounting Style Two-Way

Mounting Base

Two-Way

Mounting Base End-Section

Ampacity 175A 255A —

Contact Type Tubular Screw Tubular Screw —

Screw Type 1/2-30 Hex Socket 3/4-16 Hex Socket —

Wire Range (AWG) #12-2//0 #6-250 KCMIL/MCM —

Wire Strip Length 1 in. 1 in. —

Phenolic ULTRA HEAVY DUTY - 250 KCMIL (MCM) Terminal Blocks

This Ultra Heavy Duty line is rated up to 255 amps with a single 250 MCM conductor.

n Compact block accepts wire sizes up to 2/0 or 250 KCMIL (MCM)

n 57 circuits per 6 foot length

n Tubular screw contact style for maximum electrical rating

n Block mounts directly on flat surface or standard channel

n Only one end section needed per block assembly

n Readily identifiable circuits – write directly on painted marking area or use removable vinyl

marking strip

n Hex socket screws allow maximum torque when using large wire sizes

n High current capacity snap-fit sectional blocks do not snap-fit with other block styles

Specifications

Center-to-Center Spacing: 1.19 in. CL: 9 circuits per foot.

Voltage Rating: Blocks meet 600V creepage and clearance

requirements of NEMA, UL and CSA for general industrial

control equipment and panelboards. Withstand voltages greatly

in excess of IEEE switchgear standards for 750V.

Ampacity: For a single 250 KCMIL wire, the maximum

amperage recommended is 255A.

WIRE RANGE: Solid or Stranded

Tubular Screw – 1 #2/0 AWG, 1 #1/0 AWG, 1 #1 AWG, 1 or 2 #2 AWG,

1 to 3 #4 AWG, 1 to 3 #6 AWG, 1 to 4 #8 AWG, 1 to 6 #10 AWG,

2 to 8 #12 AWG

Tubular Screw – 1 #250 KCMIL, 1 $4/0 AWG, 1 #3/0 AWG,

1 or 2 #2/0 AWG, 1 or 2 #1/0 AWG, 1 or 2 #1 AWG, 1 to 3 #2 AWG,

1 to 4 #4 AWG, 1 to 5 #6 AWG

LR25557 E63810

Housing Material Phenolic, Filled, Flame retardant

Contact Material Copper

Screw Material Steel Plated

Maximum Service Temperature 150°C (302°F)

Breakdown Voltage AC, 60 Hz 1000V

Dielectric Strength (RH40% at sea level) 300V/mil thickness (per ASTM D149)

UL High Voltage Arc Testing (in./min.) .49 - .58

Water Absorption (24 hrs. % weight gain) 0.45% (per ASTM D570)

Flammability 94V-1 (per UL94)

Chemical Resistance Resistant to acids, alkalies, aliphatic

hydrocarbons and ketones (per ASTM D5343)

Radiation Resistance (ergs g1 C) 2.7 X 108 min.

www.idealindustries.com 1-800-435-0705 for Customer Service

A-34 www.idealindustries.com 1-800-435-0705 for Customer Service

A-34

Terminal Blocks

Phenolic Fuse Blocks

Specifications

Center-to-Center Spacing: .75 in. CL: 16 circuits per foot.

Voltage Rating: Blocks meet 600V creepage and clearance

requirements of NEMA, UL and CSA for general industrial

control equipment and panelboards. Withstands voltages

greatly in excess of IEEE switchgear standards for 750V.

Ampacity: Fuse blocks, 30A

Fuse Size: Any 13/32 in. x 1-1/2 in. ferrule-type cartridge

fuse up to 30A, indicating or non-indicating, which meets MIL.

Spec. F-15160 is recommended.

WIRE RANGE: Solid or Stranded

Tubular Screw, Cat. No. 362 and 0362 – 1 #4 AWG, 1 #6 AWG,

1 or 2 #8 AWG, 1 to 4 #10 AWG, 1 to 5 #12 AWG, 1 to 6 #14 AWG,

1 to 6 #16 AWG, 1 to 8 #18 AWG

n Provide in-line circuit protection for any circuit or group of circuits

n Three contact styles for terminated or unterminated wire are conservatively rated to 30A

n Remove, check and replace fuses safely and quickly – switch-action fuse blocks open

circuits before fuse can be removed or installed

n Good circuit density when mounted adjacently – 91 circuits per 6 foot length

n Use in high temperature applications – phenolic housing withstands temperatures up to 302°F (150°C)

n Flat base models for surface mounting, dovetail base models for standard channel

n Only one end section needed per block assembly

n Open or close several circuits simultaneously – holes in puller handles allow use of nylon “ganging” rods

n Readily identifiable circuits – mark directly on white, matte-surface puller assembly, marking tab on block or use removable marking tape

n Sections snap-fit with Heavy Duty and Intermediate Heavy Duty Blocks

Catalog Number 351 0351 358 0358 352 0352 330 0330

Mounting Style Direct Mount Channel Mount Direct Mount Channel Mount Direct Mount Channel Mount End-Section End-Section

(Flat Base) (Dovetail Base) (Flat Base) (Dovetail Base) (Flat Base) (Dovetail Base) (Direct Mount) (Channel Mount)

Ampacity 30A 30A 30A — —

Contact Type Strap Screw Strap Clamp Tubular Screw — —

Screw Type 10-32 8-32 Pan 1/4-28 — —

Binding Head Head w/Clamp Set Screw

Wire Range (AWG) #22 to #8 #18 to #8 #18 - #8 — —

Wire Strip Length — 1/2 in. 1/2 in. — —

LR25557 E63810

Housing Material Phenolic, Filled, Flame retardant

Contact Material Copper Alloy

Screw Material Steel Plated

Maximum Service Temperature 150°C (302°F)

Breakdown Voltage AC, 60 Hz 8400V

Dielectric Strength (RH40% at sea level) 300V/mil thickness (per ASTM D149)

UL High Voltage Arc Testing (in./min.) .49 - .58

Water Absorption (24 hrs. % weight gain) 0.45% (per ASTM D570)

Flammability 94V-1 (per UL94)

Chemical Resistance Resistant to acids, alkalies, aliphatic

hydrocarbons and ketones (per ASTM D5343)

Radiation Resistance (ergs g1 C) 2.7 X 107 min.

1-800-435-0705 for Customer Service www.idealindustries.com A-35

Wire Termination

1-800-435-0705 for Customer Service www.idealindustries.com A-35

Terminal Blocks

Phenolic One Piece Terminal Blocks

Traditional standard in the heavy industrial, rail transport, utility and traffic control

industries. The rugged, one-piece construction finds wide application in dirty and

vibration-prone environments.

n Two, four, six, eight and twelve circuit models

n Strap screw contacts accept wire 8 AWG and smaller and are rated to 50 Amps

n Pilot point screws with strap screw contacts speed installation time

n Easily identifiable circuits with use of plain white marking strip

n No assembly required - each block is a single, easily installed unit

Specifications

Center-to-Center Spacing: .63 in. CL

Voltage Rating: Blocks meet 600V creepage and clearance

requirements of NEMA, UL and CSA for general industrial

control equipment and panelboards. Withstands voltages greatly

in excess of IEEE switchgear standards for 750V.

Ampacity: For a single 8 AWG wire, the maximum amperage

recommended is 50A.

WIRE RANGE: Solid or Stranded

Strap Screw – 1 #18 AWG through 1 #8 AWG

LR25557 E63810

Housing Material Phenolic, Filled, Flame retardant

Contact Material Copper / Copper Alloy

Screw Material Steel Plated

Maximum Service Temperature 150°C (302°F)

Dielectric Strength (RH40% at sea level) 300V/mil thickness (per ASTM D149)

UL High Voltage Arc Testing (in./min.) .49 - .58

Water Absorption (24 hrs. % weight gain) 0.45% (per ASTM D570)

Flammability 94V-1 (per UL94)

Chemical Resistance Resistant to acids, alkalies, aliphatic

hydrocarbons and ketones (per ASTM D5343)

Radiation Resistance (ergs g1 C) 2.7 X 107 min.

Catalog Number B102 B104 B106 B108 B112

Number of Circuits 2 4 6 8 12

Ampacity 50A

Contact Type Strap Screw (Steel)

Screw Type 10-32 Slotted Binding Head

Wire Range (AWG) #18 to #F8

www.idealindustries.com 1-800-435-0705 for Customer Service

A-36 www.idealindustries.com 1-800-435-0705 for Customer Service

A-36

Terminal Blocks

#41, 42, 70 #43

Jumpers

Jumper for Tubular Contacts Jumper for Strap Screw

Mounting Channels

Miniature

Channel

Steel Channel Aluminum Channel

(Pre-punched)

Mounting

Channels

Length Cat.

No.

For use with:

Miniature Channel 3 ft. 12 Heavy-Duty (200 Series)

Steel Channel 6 ft.

3 ft.

Medium Duty (900 Series)

Heavy Duty (200 Series)

Intermediate Heavy Duty (800 Series)

Ultra Heavy Duty (400 Series)

Fuse Blocks (300 Series)

Aluminum

Channel

(Pre-punched)

6 ft.

3 ft.

Medium Duty (900 Series)

Heavy Duty (200 Series)

Intermediate Heavy Duty (800 Series)

Ultra Heavy Duty (400 Series)

Fuse Blocks (300 Series)

Description Cat. No. Available for:

Jumpers for

Tubular Contacts

41 Heavy-Duty Phenolic (200 Series)

42 Heavy Duty (200 Series)

43 Heavy-Duty Phenolic (200 Series)

70 Medium Duty (900 Series)

Universal Clamp Screw Clamp

Miniature Clamp

Channel Clamps

Mounting Channels Cat. No. For use with:

Miniature Clamp 11 High Density Miniature (100 Series)

Heavy-Duty (200 Series)

Universal Clamp 68 High Density Miniature (100 Series)

Medium Duty (900 Series)

Heavy Duty (200 Series)

Intermediate Heavy Duty (800 Series)

Ultra Heavy Duty (400 Series)

Fuse Blocks (300 Series)

Screw Clamp 61 High Density Miniature (100 Series)

Medium Duty (900 Series)

Heavy Duty (200 Series)

Intermediate Heavy Duty (800 Series)

Ultra Heavy Duty (400 Series)

Fuse Blocks (300 Series)

Fish Tapes

www.idealindustries.com 1-800-435-0705 for Customer Service

B-2

Tuff-Grip™ Pro...

Industry’s Leading

Fish Tape!

Exceptionally Durable Case

Tuff-Grip™ Handle

Large, comfortable

ergonomically-designed,

grasp from the top or side.

Allows for use with gloves.

Available in:

Blued Steel™

Stainless Steel

Zoom™ Jacketed Stainless

Steel

Gold-Fish® Brass Plated

Steel Coil

S-Class® Nylon Jacketed

Fiberglass

Volt-Guard™ 1000V

Non-Conductive Fiberglass

Full-perimeter handle

band helps keep dirt

and moisture out,

prolonging life.

Tuff-Cuff™ tape retaining

feature keeps tape

properly positioned in

the opening.

Etched in 12” increments

to provide instant conduit

length.

Length marked! Now

laser etched in 12”

increments to provide

instant conduit length.

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-3

Fish Tape Cases and Handles

Fish Tape Materials

n Laser etched in 12” increments to

provide instant conduit length

n Unique finish is non-oily and

resists rust

n Multiple options in width, length

and eyelet for ease of use

n Industry’s straightest wire

n Stiffer for long runs

n Highest grade carbon steel

n Tensile strength 1,600 lbs.

n Laser etched in 12” increments

to provide instant conduit

length

n Won’t rust or corrode in

damp locations or humid

environments

n Super clean finish prevents

marks on walls or carpets

n Great for wet or corrosive work

environment

n Smoother pay-out

n Tensile strength 1,600 lbs.

n Brass-plated coiled steel resists

rust

n No “memory” – hangs straight

after being coiled for long periods

n Kink proof

n Excellent for multiple bends

n Non-conductive to 1000V

n Rectilinear profile for superior

pushing power

n Designed for use around live

circuits

n 19 strands of stainless steel

n Ultra hard nylon jacket adds

slipperiness, protects cables

and user’s hands

n Excellent for corrugated plastic

conduit

n Excellent for multiple bends

or wet/corrosive work

environment

n The only one in the industry

n Non-conductive tape designed for

use around live circuits

n Strong S-Class® core for longer

life and greater pushing power

n Smooth nylon jacket provides

great handling around bends

n Omni-directional pushing

Tuff-Grip™ Pro

n Tuff-Cuff™ tape retaining feature keeps

tape properly positioned in the opening

n Full-perimeter handle band helps keep

dirt and moisture out.

n Superior pull-out and rewind

characteristics.

n Exceptionally durable case and handle

Thumb Winder™

n Convenient 7 in. size can be stored in tool bag

n Durable, impact resistant ABS case

n Easy-to-use thumb-operated rewind

n Great for datacomm and small-sized

conduit applications

Rapid-Pak®

n Inner rotating reel with winding knob

retrieves tape faster than traditional fish

tapes for increased labor savings

n Funneled tape opening reduces kinking

and tape breakage

n Reversible, hinged knob for right or left

handed rewinds

n Stationary handle for extra durability

n Impact-resistant plastic case

Pro Handle

n New vertical grip allows for faster payout and rewind

n Ergonomically designed handle puts less strain on

your wrist

n Large hand opening allows for use with

gloves

n Attached to the exceptionally durable

Tuff-Grip™ Pro Case*

*On select S-Class® and Zoom™ Fish Tape Models.

™

Fish Tapes

19 strand twisted radial steel core

encased in high molecular density

outer jacket.

Fish Tapes

www.idealindustries.com 1-800-435-0705 for Customer Service

B-4

Blued-Steel™ Fish Tapes

Laser etched in 12” increments to

provide instant conduit length

High column strength for longer runs

Non-oily finish resists rust

Stainless Steel Fish Tapes

Laser etched in 12” increments to provide

instant conduit length

Won’t rust or corrode in humid environments

Stainless steel design provides a

smooth pay-out

Length (ft.) Width & Thickness Case

Diameter End Type Tuff-Grip™ Pro Thumb-Winder™ Replacement

Tapes

Blued Steel™

25 1/8 in. x .045 in. 7 in. Formed hook – 31-012 –

50 1/8 in. x .045 in. 7 in. Formed hook – 31-010 –

50 1/8 in. x .060 in. 9 in. Formed hook 31-033 – –

60 1/8 in. x .060 in. 12 in. Formed hook 31-055 – 31-035

120 1/8 in. x .060 in. 12 in. Formed hook – – 31-036

120 1/8 in. x .060 in. 12 in. Formed hook 31-056 – 31-036

240 1/8 in. x .060 in. 12 in. Formed hook – – 31-038

240 1/8 in. x .060 in. 12 in. Formed hook 31-057 – 31-038

50 1/4 in. x .060 in. 12 in. Formed hook 31-059 – 31-051

100 1/4 in. x .060 in. 12 in. Formed hook 31-058 – 31-050

200 1/4 in. x .060 in. None Formed hook – – 31-052

400 1/4 in. x .060 in. None Formed hook – – 31-2128

15,000 1/4 in. x .060 in. None Formed hook – – 31-2982

Length

(ft.) Width & Thickness Case

Diameter End Type Tuff-Grip™ Pro Replacement

Tapes

Stainless Steel

120 1/8 in. x .060 in. 12 in. Formed hook 31-066 31-073

240 1/8 in. x .060 in. 12 in. Formed hook 31-067 31-074

Fish Tapes

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-5

S-Class® Fish Tape

Non-conductive tape for use around

live circuits

Structural glass core gives you

a more durable fiberglass tape

Gold-Fish® Fish Tape

Ultra-flexible tape for hard-to-navigate

areas

Brass-plated coils resist rust

Length (ft.) Width & Thickness Case Diameter End Type Tuff-Grip™ Pro Rapid-Pak®Replacement Tapes

S-Class® Nylon Jacketed Fiberglass

50 3/16 in. diameter 12 in. Leader 31-060 31-187 31-150

50 3/16 in. diameter 12 in. Eyelet 31-062 31-190 31-160

100 3/16 in. diameter 12 in. Leader 31-061 31-186 31-152

100 3/16 in. diameter 12 in. Eyelet 31-063 31-189 31-162

200 3/16 in. diameter 16 in. Leader 31-064 31-207 31-155

200 3/16 in. diameter 16 in. Eyelet 31-065 31-208 31-165

Zoom™ Fish Tapes

Great for hard to navigate conduit

with multiple bends

Nylon jacket protects the steel core

while adding to the slipperiness of Zoom™

Volt-Guard™ Fish Tapes

Non-conductive up to 1000V

Elliptical design gives the Volt-Guard™

greater pushing power

Length (ft.) Width & Thickness Case Diameter End Type Tuff-Grip™ Pro Replacement Tapes

Zoom™ Nylon Jacketed Fiberglass

50 3/16 in. diameter 12 in. Eyelet 31-090 31-091

100 3/16 in. diameter 12 in. Eyelet 31-092 31-093

200 3/16 in. diameter 16 in. Eyelet 31-096 31-097

Length (ft.) Width & Thickness Case Diameter End Type Tuff-Grip™ Pro Replacement Tapes

Fiberglass

60 .1875 in. x .094 in. 12 in. Eyelet 31-542 31-552

120 .1875 in. x .094 in. 12 in. Eyelet 31-544 31-554

Length (ft.) Width & Thickness Case Diameter End Type Tuff-Grip™ Pro Replacement Tapes

Gold-Fish® Brass Plated Steel Coil

50 3/16 in. diameter 12 in. Eyelet 31-144 31-141

Fish Tape Accessories

www.idealindustries.com 1-800-435-0705 for Customer Service

B-6

Description Cat. No.

Field Application Kit includes: Crimpmaster™ Crimp Tool

frame, die set, S-Class® eyelets (2), S-Class® leaders (2),

Zoom™ eyelets (2) & instant adhesive

31-156

Die Set Kit* includes: eyelets (2), leaders (2) & instant adhesive 31-164

Replacement eyelets (4) for S-Class® Fish Tapes 31-158

Replacement eyelets (2) for Zoom™ Fish Tapes 31-094

Replacement leaders (4) for S-Class® Fish Tapes 31-159

Die Set Only 31-166

*For those who already have a Crimpmaster™ Crimp Tool.

Description Cat. No.

Fish Tape Leader for steel or stainless steel tapes 31-148

Fish Tape Leader for S-Class® Fiberglass Fish Tape 31-159

Description Cat. No.

Multi-Wire Pulling Leader – 6-loop 31-146

Multi-Wire Pulling Leader – 4-loop 31-147

Description Cat. No.

Fish Tape Swivel Ball 31-085

Description Cat. No.

Volt-Guard™ Repair Kit 31-541

WARNING

Always use approved safety glasses when using this product.

Do not use near energized equipment. Electrical shock may occur. Make sure all power is off.

Do not use pliers or other tools that may kink, damage, or weaken any round fish tapes such

as S-Class®, Nylon or Zoom™. Use only a fish tape puller designed for this purpose.

While fish tapes made of fiberglass, nylon or other composite materials are non-conductive,

they may have a metal eyelet that is conductive and could be grounded against conduit. Do

not use on live electrical circuits.

Do not attempt to use fish tape that is fractured or has multiple ends.

Keep the fish tape wound in the reel to prevent damage to the tape.

Use this product in a safe work position to prevent loss of balance.

Never remove the screws from case while fish tape is coiled inside the reel.

Failure to follow instructions may result in severe bodily harm or damage to property.

S-Class® Fiberglass and Zoom™ Fish

Tape Field Application Kits

Crimps on new eyelet or leader

in minutes

Dies can be used with

Crimpmaster™ Crimp Tool

Connection guaranteed

to withstand 500 lbs.

Fish Tape Leaders

Fish Tape Swivel Ball

Volt-Guard™ Repair Kit

Multi-Wire Pulling Leaders

Guides fish tape around bends in conduit

Handles up to six 10 AWG bare wires

Pulls up to 500 lbs.

Swivels to prevent wires from

twisting during pull

Designed for use on 1/8 in. steel

or stainless steel tapes

Eyelet holds up to four 10 AWG

bare wires

Includes two eyelets

and adhesive

Easy to apply

Pulls multiple wires at

one time

Staggered connection

points prevent bunching

or hang-ups in tight bends

500 lb. working strength

at main eyelet and up to

150 lbs. with each individual eyelet

31-147

31-146

Fishing Poles

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-7

Description Cat. No.

12 ft. kit with fixed bullet nose and threaded J hook

(3 ea. 4 ft. sections) 31-611

24 ft. kit with fixed bullet nose and threaded bullet nose

(4 ea. 6 ft. sections) 31-612

12 pack of 1/4 in. x 4 ft. Regular Flex Replacement Rods 31-643

12 pack of 1/4 in. x 6 ft. Regular Flex Replacement Rods 31-644

Description Cat. No.

12 ft. kit with fixed bullet nose and threaded J hook

(3 ea. 4 ft. sections) 31-631

30 ft. kit with fixed bullet nose and threaded bullet nose

(5 ea. 6 ft. sections) 31-633

12 pack of 3/16 in. x 4 ft. Extra Flex Glow Replacement Rods 31-647

12 pack of 3/16 in. x 6 ft. Extra Flex Glow Replacement Rods 31-648

Description Cat. No.

3/16 in. Accessory kit 31-651

1/4 in. Accessory kit 31-652

Accessory Kits

Includes replacement

heads, one threaded

bullet nose, one

threaded J hook

and one threaded

wisk

Tuff-Rod™ Fishing Poles

Strong, lightweight, flexible extendable fiberglass rod kits

Use to reach and pull wires over suspended ceilings, in cable trays or through interior walls

Packaged in clear tubes for protection and long-term storage

Ultra smooth gel coat

helps protect hands

from fiberglass.

New crimped edge provides Tuff-Rod™

with exceptional “pull-off” strength for

a durable, long-lasting fish pole.

Fiber reinforced

composite pultrusion for

consistent high quality.

Tuff-Rod™ Regular Flex

1/4 in. white fiberglass

Extra stiffness for added control when maneuvering wires

Tuff-Rod™ Extra Flex Glow

3/16 in. pale green luminescent fiberglass

Glow-in-the-dark material for easy use in attics, basements

and other dim lit areas

White

Glow

Lubricants

www.idealindustries.com 1-800-435-0705 for Customer Service

B-8

Finished

Construction

ClearGlide™

Wire Pulling

Lubricant

Yellow 77®

Wire Pulling

Lubricant

Yellow 77® Plus

Wire Pulling

Lubricant

Aqua-Gel® ll

Wire Pulling

Lubricant

Aqua-Gel® CW

Wire Pulling

Lubricant

Aqua-Gel® IIP

Wire Pulling

Lubricant

Velocity™

Wire Pulling

Lubricant

Color Clear Yellow Yellow Blue Pink Blue Cream

Base Polymer Wax Wax Polymer Polymer Polymer Polymer

Average Coefficient of

Friction* .23 .17 .16 .19 .19 .19 .16

Safe Storage 32°F – 180°F

(0°C – 82°C)

32°F – 130°F

(0°C – 54°C)

32°F – 190°F

(0°C – 88°C)

32°F – 180°F

(0°C – 82°C)

-28°F – 190°F

(-33°C – 82°C)

32°F – 180°F

(0°C – 82°C)

40°F – 140°F

(4°C – 82°C)

Application Temperature

Range

40°F – 100°F

(4°C – 38°C)

40°F – 100°F

(4°C – 38°C)

40°F – 100°F

(4°C – 38°C)

40°F – 100°F

(4°C – 38°C)

-28°F – 40°F

(-33°C – 4°C)

40°F – 100°F

(4°C – 38°C)

25°F – 140°F

(-3.9°C – 60°C)

COMPATIBILITY (Cable Types):

Rubber •••••••

Neoprene •••••••

Nylon •••••••

PVC •••••••

High-density or cross-linked

polyethylene •••••••

Low-density polyethylene • •••••

Semiconducting jacket • •••••

Hypalon •••••••

*Results from NEETRAC, an independent testing laboratory affiliated with The Georgia Institute of Technology.

Wire Pulling Lubricant Selection Guide

Select-a-Lubricant

Commercial Wire Pulling Utility Cable Pulling

New

Construction

New

Construction

Indoors or

Outdoors

Indoors or

Outdoors

Indoors or

Outdoors

Indoors or

Outdoors

ONLY Outdoors

40°F - 120°F

4°C - 49°C

-28°F - 40°F

-33°C - 4°C

40°F - 120°F

4°C - 38°C

Up to 250 ft.

Up to 24 hrs.

Up to 250 ft.

Up to 72 hrs.

Up to 250 ft.

Up to 24 hrs.

Aqua-Gel® II Aqua-Gel®

Aqua-Gel®

IIP

40°F - 120°F

4°C - 49°C

40°F - 120°F

4°C - 49°C

40°F - 120°F

4°C - 49°C

Up to 75 ft.

Up to 8 hrs.

Up to 1,200 ft.

Up to 24 hrs.

Up to 1,200 ft.

Up to 24 hrs.

ClearGlide™

Yellow 77®Yellow 77®

Plus

Indoors or

Outdoors

40°F - 140°F

4°C - 82°C

Up to 250 ft.

Up to 24 hrs.

Velocity™

Lubricants

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-9

Yellow 77® Plus Wire Pulling Lubricant

Rapid Glide™ polytetrafluoroethylene additive

provides greater lubricity than

other wax-based lubricants —

great for tough pulls

Safe to use with all cable

types

Clings to cable throughout

long runs, even where

moisture is present

Remains stable in high

temperatures — usable

from 30°F to 190°F (-1°C to 88°C)

Dries slowly to a thin, non-conductive film that won’t

harden in conduit

Easy to apply by hand or by brush

Creamy texture applies easily and uniformly

Homogeneous blend requires no mixing

Won’t dry out – surface coat forms to control evaporation

Environmentally safe – non-toxic, non-flammable and

non-corrosive LISTED

Description Cat. No.

1-qt. Squeeze bottle 31-398

1-gal. Bucket 31-391

5-gal. Bucket 31-395

5-gal. Bucket – 36 Buckets/Pallet 31-395BP

Description Cat. No.

1-qt. Squeeze bottle 31-358

1-gal. Bucket 31-351

5-gal. Bucket 31-355

55-gal. Drum 31-365

5-gal. Bucket – 36 Buckets/Pallet 31-355BP

Yellow 77® Wire Pulling Lubricant

The #1 brand of wire

pulling lubricant since

1959 — the perfect

general purpose lube

Wax-based formula

provides superior lubricity

Safe to use with most cable

types except low-density

polyethylene and semi-

conducting jackets

Clings to cable throughout long

pulls, even where moisture is present

Won’t break down or separate after repeated exposure to

freezing temperatures

Dries to a thin, non-conductive film

Easy to apply by hand or by brush

Creamy texture applies easily and uniformly

Homogeneous blend requires no mixing

Won’t dry out — surface coat forms to control evaporation

Environmentally safe — non-toxic, non-flammable and

non-corrosive

ClearGlide™ Wire Pulling Lubricant

Clear and colorless for quick and easy clean-up —

great for indoor and retrofit pulls

Exceptional lubricity for

super-fast pulls

Polymer-based formula is

perfect for all electrical and

datacomm applications

Safe to use with all cable types

Controlled evaporation rate is

ideal for shorter runs

Remains stable over wide temperature ranges — usable

from 30°F to 180°F (-1°C to 82°C)

Dries to a semi-fluid film that won’t clog conduit

Easy to apply by hand, brush or pump

Environmentally safe — non-toxic, non-flammable and

non-corrosive LISTED

Description Cat. No.

1-qt. Squeeze bottle 31-388

1-gal. Bucket 31-381

5-gal. Bucket 31-385

5-gal. Bucket – 36 Buckets/Pallet 31-385BP

55-gal. Drum 31-2143

Velocity™ Wire Pulling Lubricant

High cling factor

Maximum friction reduction

Specification grade

Compatible with all popular

cable types

Temperature stable

Non-combustible residue

Environmentally safe — non-toxic,

non-flammable and non-corrosive

LISTED

Description Cat. No.

1-qt. Squeeze bottle 31-276

1-gal. Bucket 31-277

5-gal. Bucket 31-278

1-qt. Bag (12 bags/bucket) 31-282

LISTED

Aqua-Gel® II Cable Pulling Lubricant

Polymer-based formula provides maximum tension

reduction in high-stress electrical and communication

cable-pulling operations

Compatible with all cable

types except composite

rubber

Cleans up easily with soap

and water

Clings to cable throughout

long pulls

Remains stable over wide

temperature range — usable

from 28°F to 180°F (-2°C to 88°C)

Dries to a semi-fluid film that won’t clog conduit

Easy to apply by hand, brush or pump

Environmentally safe – non-toxic, non-flammable and

non-corrosive

For outdoor use only LISTED

Description Cat. No.

1-qt. Squeeze bottle 31-378

1-gal. Bucket 31-371

1-qt. Bag (12 bags/bucket) 31-376

1/2-gal. Bag (6 bags/bucket) 31-377

5-gal. Bucket 31-375

5-gal. Bucket – 36 Buckets/Pallet 31-375BP

55-gal. Drum 31-3855

Lubricants

www.idealindustries.com 1-800-435-0705 for Customer Service

B-10

Recommended Qty. of Lubricant

Formula

Selection & Application Guides

Q = .0015 x L x D

Q = Quantity of recommended lube in gallons

L = Length of pull in feet

D = Nominal ID of conduit in inches

The formula listed above is used as a guideline on estimating the

quantity of lube needed for various jobs. Many factors go into a

cable pull, however this formula is just based on length of the pull

and diameter of the conduit.

Increase quantities for the following troubles:

• Stiff,heavycable • Pullswithseveralbends

• Rough,oldordirtyconduits • Hightemperatures

• Highpercentconduitfill

Web Based Selection & Application Guide:

http:ideal.sdafiles.com

Description Cat. No.

Lubricant Selection Slide Rule P-2710

Aqua-Gel® CW Cable Pulling Lubricant

Features the same excellent qualities as

Aqua-Gel® II Cable Pulling Lubricant

with a lower temperature range for

use outdoors in cold weather

Polymer-based, cold-weather

formula remains stable in storage

from -28°F to 190°F (-33°C to 82°C)

Formulated for exterior use in cold

weather conditions

Cleans up easily with soap and water

Clings to cable throughout long pulls

Well-suited for hand or poured applications

Environmentally safe — non-toxic, non-flammable and

non-corrosive

Description Cat. No.

1-qt. Squeeze bottle 31-298

1-gal. Jug 31-291

5-gal. Bucket 31-295

55-gal. Drum 31-3373

Aqua-Gel® IIP Cable Pulling Lubricant

Features the same

excellent qualities as

Aqua-Gel® II Cable

Pulling Lubricant with a

lower viscosity for easy

pouring and pumping

Pourable formula clings to

cable – eliminates hand

application for a cleaner

and safer job

Compatible with all cable types

Cleans up easily with soap and water

Environmentally safe – non-toxic, non-flammable and

non-corrosive

Description Cat. No.

1-gal. Jug 31-421

5-gal. Bucket 31-425

55-gal. Drum 31-435

LISTED

Accessories

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-11

Noalox® Anti-Oxidant

Anti-oxidant and anti-seizing

compound improves efficiency

and service life of aluminum-

to-aluminum and

aluminum-to-copper

electrical connections

Suspended zinc

particles penetrate and

cut aluminum oxide

n

Provides additional inter-

strand and inter-conductor

current paths for improved conductivity and cooler

connections

Carrier material excludes air to prevent further oxidation

For use with all types of pressure-type wire connectors

including screw-on, tap, service entrance and split-bolt

Reduces galling and seizing and promotes good

ground continuity on aluminum conduit joints

Duct Seal

Seals around junction boxes,

flashings and service

entrances

Permanently soft, non-

toxic compound can

be painted

immediately after

application

Won’t adversely affect

other plastic materials or

corrode metals LISTED

LISTED

Description Cat. No.

1 lb. Block (10/carton) 31-601

5 lb. Block (10/carton) 31-605

Description Cat. No.

1/2-oz. Tube 30-024

4-oz. Squeeze bottle 30-026

8-oz. Squeeze bottle 30-030

8-oz. Brush cap 30-031

1-gal. Bucket 30-032

5-gal. Bucket 30-040

Conduit Benders

www.idealindustries.com 1-800-435-0705 for Customer Service

B-12

Conduit Type and Size Cat. No.

1/2 in. EMT 74-001

3/4 in. EMT, 1/2 in. Rigid & 1/2 in. IMC 74-002

1 in. EMT, 3/4 in. Rigid & 3/4 in. IMC 74-003

1-1/4 in. EMT, 1 in. Rigid & 1 in. IMC 74-006

Conduit Type and Size Cat. No.

1/2 in. EMT 74-046

3/4 in. EMT, 1/2 in. Rigid & 1/2 in. IMC 74-047

Conduit Type and Size Cat. No.

1/2 in. EMT 74-031

3/4 in. EMT, 1/2 in. Rigid & 1/2 in. IMC 74-032

Rugged, steel construction for long-term durability

Baked-on blue enamel finish resists corrosion and enhances visibility

Convenient bending guide for offset bends

Handles for Benders

Exceptional, durable, materials for extra strength

Reinforced at stress points for longer life

Markings are raised and cast into the bender body

on both sides for easy visibility

Deeply serrated step helps prevent slippage

when applying force

Grooved internal hook surface helps

prevent conduit from slipping

Flat hook surface provides stable starting point

Desirable Benfield bending system

Ductile Iron

Withstands a lifetime

of heavy use

Ductile iron material is

stronger than malleable

iron or aluminum

Lightweight aluminum

for easy handling

Strong enough for

every day use

Aluminum

Conduit Benders

Handles for Ductile Iron

Ductile Iron Head & Handle Complete Aluminum Head & Handle Complete

Ductile Iron Head Only Aluminum Head Only

Handles for Aluminum

1/2” EMT 3/4” EMT

1/2” Rigid

1/2” IMC

1” EMT

3/4” Rigid

3/4” IMC

1-1/4” EMT

1” Rigid

1” IMC

Conduit Type and Size Cat. No.

1/2 in. EMT 74-026

3/4 in. EMT, 1/2 in. Rigid & 1/2 in. IMC 74-027

1 in. EMT, 3/4 in. Rigid & 3/4 in. IMC 74-028

1-1/4 in. EMT, 1 in. Rigid & 1 in. IMC 74-034

Conduit Type and Size Cat. No.

1/2 in. EMT 74-019

3/4 in. EMT, 1/2 in. Rigid & 1/2 in. IMC 74-019

1 in. EMT, 3/4 in. Rigid & 3/4 in. IMC 74-020

1-1/4 in. EMT, 1 in. Rigid & 1 in. IMC 74-021

Conduit Type and Size Cat. No.

1/2 in. EMT 74-019

3/4 in. EMT, 1/2 in. Rigid & 1/2 in. IMC 74-019

1 in. EMT, 3/4 in. Rigid & 3/4 in. IMC 74-020

1-1/4 in. EMT, 1 in. Rigid & 1 in. IMC 74-021

Hickeys/Hacksaws

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-13

Rugged, steel construction for

long-term durability

Baked-on blue enamel finish

resists corrosion and enhances

visibility

Convenient bending guide for

offset bends

Handles for Hickeys

Ductile Iron Hickeys

High-strength ductile iron construction

Grooved internal hook helps prevent conduit from slipping

Lifetime replacement guarantee

Pocket Bender Guide

Convenient pocket-sized reference guide

Includes simple, concise bending

techniques for precision stubs,

back-to-back, offset and saddle bends

Request free booklet #P-100

Exceptional, durable, heat treated

materials for extra strength

Reinforced at stress points for

longer life

Grooved internal hook surface

helps prevent conduit from

slipping

Hickeys

Conduit Type and Size

Hickey Only

Cat. No.

1/2 in. EMT 74-010

3/4 in. EMT, 1/2 in. Rigid & 1/2 in. IMC 74-011

1 in. EMT, 3/4 in. Rigid & 3/4 in. IMC 74-012

1-1/4 in. EMT, 1 in. Rigid & 1 in. IMC 74-013

Conduit Type and Size Cat. No.

1/2 in. EMT 74-019

3/4 in. EMT, 1/2 in. Rigid & 1/2 in. IMC 74-019

1 in. EMT, 3/4 in. Rigid & 3/4 in. IMC 74-020

1-1/4 in. EMT, 1 in. Rigid & 1 in. IMC 74-021

Description

Qty./Pack

Cat. No.

12 in. x 18T Blades 10 35-271

12 in. x 24T Blades 10 35-272

12 in. x 32T Blades 10 35-273

12 in. x 18T Blades 100 35-262

12 in. x 24T Blades 100 35-263

12 in. x 32T Blades 100 35-264

Heavy-Duty Hacksaw

Use as conventional hacksaw

or as jab saw to enlarge holes

Rugged frame provides

lightweight rigidity and

exceptional control

Stores up to nine extra blades

Blades can be adjusted to 55° angle for flush cutting and

tensioned to 25,000 psi

Includes 12 in. x 24T bi-metal blade

Ergonomic Hacksaw

Angled handle for easier cutting

Blade can easily be adjusted

for flush cutting

Easy tensioning wing-nut keeps

blades tight for straighter cuts

Cushioned ergonomic grip for performance and comfort

Includes 12 in. x 24T bi-metal blade

Hacksaw Blades

Bi-metal blades provide

strength, flexibility and

longer life

Description Cat. No.

Heavy-Duty Hacksaw 35-260

Description Cat. No.

Ergonomic Hacksaw 35-261

BenderBoot™

Santoprene® tread and hand grip

provides support for saddle and

offset bends

Easy push-on assembly

to any IDEAL Bender

Description Cat. No.

BenderBoot™ 74-037

Pulling Supplies

www.idealindustries.com 1-800-435-0705 for Customer Service

B-14

Description Tensile Strength Cat. No.

Powr-Fish® Pull-Line – 6,500 ft. (bucket) 210 lbs. 31-340

Powr-Fish® Pull-Line – 6,500 ft. (box) 210 lbs. 31-343

Powr-Fish® Pull-Line – 6,500 ft.

(36 buckets/pallet) 210 lbs. 31-340BP

Powr-Fish® Pull-Line – 500 ft. (canister) 210 lbs. 31-348

Description

Tensile Strength

Cat. No.

Valu-Line™ Pull-Line – 6,500 ft. (bucket) 190 lbs. 31-338

Description

Tensile Strength

Cat. No.

Powr-Fish® Pull-Line – 2,200 ft. (bucket) 500 lbs. 31-344

Powr-Fish® Pull-Line

White with blue tracer for easy

identification

Continuous-fiber polyline great

for blowing directly

into conduit

Will not rot

or mildew

Can be left

in conduit for

future use

Description

Qty./Pack

Cat. No.

1/4 in. x 250 ft. Reel 1,125 lbs. 31-839

1/4 in. x 600 ft. Reel 1,125 lbs. 31-840

1/4 in. x 1,000 ft. Reel 1,125 Ibs. 31-841

3/8 in. x 250 ft. Reel†2,430 lbs. 31-844

3/8 in. x 600 ft. Reel†2,430 lbs. 31-845

3/8 in. x 1,200 ft. Reel†2,430 lbs. 31-846

1/2 in. x 250 ft. Reel†3,780 lbs. 31-849

1/2 in. x 600 ft. Reel†3,780 lbs. 31-850

1/2 in. x 1,200 ft. Reel†3,780 Ibs. 31-851

5/8 in. x 600 ft. Reel†5,580 Ibs. 31-853

5/8 in. x 1,200 ft. Reel†5,580 Ibs. 31-854

3/4 in. x 300 ft. Reel†7,650 lbs. 31-855

3/4 in. x 600 ft. Reel†7,650 lbs. 31-856

3/4 in. x 1,200 ft. Reel†7,650 lbs. 31-857

† Eye splice on working end.

Pro-Pull™ Rope

Low-friction polypropylene rope

slides easily through conduit

Non-sliver surface

can be handled

without gloves

Will not rot or

mildew

Rugged, lightweight

construction

Valu-Line™ Pull-Line

White with gray tracer for easy

identification

Continuous-fiber

polyline great for

blowing directly

into conduit

Will not rot

or mildew

Can be left in

conduit for future use

White with red tracer for

easy identification

500 lb. tensile, our highest

tensile-rated pull-line

Continuous-fiber

polyline great for

blowing directly

into conduit

Will not rot

or mildew

Can be left in

conduit for future

use

Standard

Duty

Extra-

Heavy

Duty 500#

Heavy

Duty

Description

Pulling

Strength Length

Cat. No.

3-in-1 Premise MULETAPE®400 lb. 4,500 ft./bucket 31-314

3-in-1 Premise MULETAPE®1,800 lb. 1,300 ft./bucket 31-315

MULETAPE® is a registered trademark of NEPTCO.

3-in-1 Premise MULETAPE®

Reduces installation time

and saves money on

premise jobs

Thread, measure and pull

with single product

Imprinted with sequential

footage or meter markings

Fewer installation steps,

significant material and

labor savings

THREE

functions in

ONE

Pulling Supplies

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-15

Description Cat. No.

Conduit Measuring Tape – 3,000 ft. 31-347

Conduit Measuring

Tape

Provides quick and accurate

measurement of conduit runs

Easy-to-read markings in

sequential one-foot

increments

160 lb. tensile

strength

Pulls rope through raceways without stretching

Dispenser features built-in cutter, handle, non-skid base and

adjustable reel tension

Will not rot or mildew

Foam Carriers

Line Packages

Attach to a suitable line to serve as a piston – clears out

water or debris as they travel through conduit

Durable foam construction for repeated use and long life

For use with any type of blower or vacuum system

One-piece pull line and foam tip unwind as they move

through conduit

One-piece construction for faster, easier use with no knots

or foam carriers to retrieve

Line tensile strength of 17 lbs.

For use with any type of blower or vacuum system

Description Color Cat. No.

Description Color Qty. Cat. No.

Line Package, 1/2 in. x 75 ft. Red 10/bag 31-472

Line Package, 1/2 in. x 150 ft. Red 10/bag 31-473

Line Package, 3/4 in. x 200 ft. Yellow 5/bag 31-475

Line Package, 3/4 in. x 300 ft. Yellow 5/bag 31-476

Line Package, 3/4 in. x 450 ft. Yellow 5/bag 31-477

Line Package, 1 in. x 200 ft. White 5/bag 31-479

Line Package, 1 in. x 300 ft. White 5/bag 31-480

Line Package, 1 in. x 450 ft. White 5/bag 31-481

Description

Qty.

Cat. No.

1/2 in. Foam Carrier 5/bag 31-466

3/4 in. Foam Carrier 5/bag 31-467

1 in. Foam Carrier 5/bag 31-468

1-1/4 in. Foam Carrier 3/bag 31-469

1-1/2 in. Foam Carrier 2/bag 31-470

2 in. Foam Carrier 1/bag 31-471

2-1/2 in. Foam Carrier 1/bag 31-322

3 in. Foam Carrier 1/bag 31-323

3-1/2 in. Foam Carrier 1/bag 31-324

4 in. Foam Carrier 1/bag 31-325

5 in. Foam Carrier 1/bag 31-326

6 in. Foam Carrier 1/bag 31-327

www.idealindustries.com 1-800-435-0705 for Customer Service

B-16

Engineered to strip every wire right

T®-Cutter

14 16 18 20 22 24

16 18 20 22 24 26

24 26 30 3228

12 14 16 18 20

810 12 14 16

10 12 14 16 18

Ergonomic handles with Santoprene™ grip

and Thumb Valley™ make this the premier

wire stripper in the market.

Traditional T®-Stripper Wire Stripper features with

the added convenience of bolt-cutting holes and

locking pawl. Curved comfort-grip handles

accommodate high-volume wire stripping.

6 8 10 12 14

12 14 16 1810

810 12 1614

24 26 28 30

3230282624222018161412108

2826242220181614121086

Solid StrandedHole Size StrandedSolidStrandedSolidStrandedSolidStrandedSolid

45-125

45-121

45-120

45-124

45-123

—

45-318

—

45-315

45-417

45-416

45-415

45-418

45-423

—

45-618

—

45-615

—

45-716

45-715

45-718

—

45-915

45-918

—

#45-400’s #45-600’s #45-700’s #45-900’s

#45-100’s #45-300’s

T®-Stripper Wire Stripper

Reflex™ Premium T®-Stripper Wire Stripper

Reflex™ Super T®-Stripper Wire Stripper

Kinetic™ Super Wire Stripper

Kinetic™ Reflex™ T®-Stripper Wire Stripper

The ergonomic design and patented Santoprene™

grip wicks away perspiration and reduces

muscle fatigue. The Thumb Valley™ guide and

precision stripping holes promote the highest

accuracy in the industry.

Designed for total-comfort and wire stripping.

Ergonomic handles fit an electrician’s natural

grip and reduces hand fatigue. Textured, slip-

resistant sleeves cushion thumb and fingers.

The ergonomic design with curved handles

reduces wrist fatigue. Features 6/32 and 8/32

self-chasing, bolt cutting holes and a locking

pawl for safe storage.

• Straight Handles

• Locking Pawl

• Bolt Cutting

• Comfort

• Curved

Handles

• Extended

Textured

• Ergo Handles

• Locking Pawl

• Bolt Cutting

• Extended

Textured

Comfort

• Ergo Handles

• Thumb Valley™

Protection

• Pocket Locket

Locking Hasp

• Shear Cut

Bolt Cutters

• Santoprene™

• Curved

Handles

• Thumb Valley™

Protection

• Pocket Locket

Locking Hasp

• Shear Cut

Bolt Cutters

• Santoprene™

• Ergo Handles

The industry standard for almost 50 years. Compact,

lightweight and easy to use. Features precision-ground,

knife-type blades, built-in looping holes, wire cutters

and a convenient plier nose.

Super T®-Stripper Wire Stripper

T®-Stripper Wire Stripper Selection Guide

Wire Strippers

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-17

Reflex™ Premium T®-Stripper

Wire Strippers

Ergonomic design for maximum comfort

Curved handles reduce wrist fatigue

Sleeves extend to stripping head to cushion thumb and fingers

Textured, no-slip sleeves provide a sure, easy grip

Reflex™ Super T®-Stripper

Wire Strippers

6/32 and 8/32 self-chasing screw-cutting holes

Locking pawl for safe storage

Ergonomic design for maximum comfort

Curved handles reduce wrist fatigue

Sleeves extend to stripping head to cushion thumb and fingers

Textured sleeves with extra cushioning for added comfort

Kinetic™ Super

Wire Strippers

Non-slip Santoprene™ textured grips

Plier nose for holding and twisting wires

Slide lock for safety and storage

Thumb and finger valley makes stripping easier

and more accurate

Shear-Cut™ bolt cutters

Kinetic™ Reflex™ T®-Stripper

Wire Strippers

Non-slip Santoprene™ textured grips and thumb rest

Plier nose for holding and twisting wires

Slide lock for safety and storage

Thumb and finger valley makes stripping easier and more

accurate

Shear-Cut™ bolt cutters

Description Solid Stranded Cat. No.

Kinetic Super™ Wire Stripper 10-18 12-20 45-715

Kinetic Super™ Wire Stripper 14-24 16-26 45-716

Kinetic Super™ Wire Stripper 6-14 8-16 45-718

Description Solid Stranded Cat. No.

Kinetic™ Reflex™ T®-Stripper Wire Stripper 10-18 12-20 45-915

Kinetic™ Reflex™ T®-Stripper Wire Stripper 6-14 8-16 45-918

Description Solid Stranded Cat. No.

Reflex™ Premium T®-Stripper Wire Stripper 10-18 12-20 45-415

Reflex™ Premium T®-Stripper Wire Stripper 14-24 16-26 45-416

Reflex™ Premium T®-Stripper Wire Stripper 22-30 24-32 45-417

Reflex™ Premium T®-Stripper Wire Stripper 6-14 8-16 45-418

Reflex™ Premium T®-Stripper – Metric 0.5mm2-4.0mm245-425-341

Description Solid Stranded Cat. No.

Reflex™ Super T®-Stripper Wire Stripper 8-16 10-18 45-615

Reflex™ Super T®-Stripper Wire Stripper 8-14 8-16 45-618

Reflex™ Super 12/2 & 14/2 NM Cable

T®-Stripper Wire Stripper

12-2 and

14-2 —45-621

Wire Strippers

www.idealindustries.com 1-800-435-0705 for Customer Service

B-18

Super T®-Stripper Wire Strippers

6-32 and 8-32 self-chasing screw-cutting

holes

Curved, cushion-grip handles

for ergonomic comfort

Locking pawl to keep

stripper in closed

position

Built-in wire cutter

and looping holes

Convenient plier nose for extra gripping strength

Laser-etched wire gauge for easy-to-read visibility

Spring-loaded automatic opening

Tough steel construction, corrosion-resistant, black oxide finish

T®-Stripper Wire Strippers

Form-ground, knife-type blades for

accurate, easy stripping without

nicking insulation

Built-in wire cutter

and looping holes

Convenient plier nose

for extra gripping

strength

Laser-etched wire gauge for easy-to-read visibility

Spring-loaded automatic opening

Corrosion-resistant, black oxide finish

Tough steel construction

NM Cable Dual-Hole T®-Stripper

Wire Stripper

Stripping holes for stripping two

12 AWG or two 14 AWG wires

simultaneously

Ability to strip both

conductor wires of NM

cable at one time

Romex® Cable T®-Stripper Wire

Strippers

Easy, one-step stripping of outer jacket

of NM cable — no slitting required

Versatility to strip, cut and loop

conductor wires with

precision and ease

Stripping holes for

12 or 14 AWG solid wire

Locking pawl for safe storage

Rips Romex® outer jacket cleanly and

quickly

Clips outer sheathing to remove excess Romex® jacket

Strips inner conduit wires

Looping holes loop wire for screw-on connections

Twist-Assist™ tightens most popular sizes of winged twist-on

connectors

Injection molded elastomer grip provides a comfortable, slip

resistant grip

Strip length measuring scale allows for quick and easy measurements

Conveniently fits in your pocket

6/32 and 8/32 self-chasing screw-cutting holes

Locking pawl for safe storage

Ergonomic design for

maximum comfort

Curved handles reduce

wrist fatigue

Sleeves extend to stripping head to cushion thumb and fingers

Textured sleeves with extra cushioning for added comfort

Description Solid Stranded Cat. No.

T®-5 T®-Stripper Wire Stripper 10-18 12-20 45-120

T®-6 T®-Stripper Wire Stripper 14-24 16-26 45-121

T®-7 T®-Stripper Wire Stripper 22-30 24-32 45-125

T®-8 T®-Stripper Wire Stripper 6-14 8-16 45-124

T®-Stripper Wire Stripper – Metric 0.75-6mm245-120-341

T®-Stripper Wire Stripper – Metric 0.5-4mm245-125-341

Description Solid Stranded Cat. No.

Reflex™ Super 12/2 & 14/2 NM

Cable T®-Stripper Wire Stripper

12-2 and

14-2 —45-621

Description Solid Stranded Cat. No.

Super T®-5 T®-Stripper Wire Stripper 8-16 10-18 45-315

Super T®-8 T®-Stripper Wire Stripper 6-14 8-16 45-318

Description Cat. No.

14/2 NM Cable T®-Stripper Wire Stripper 45-248

12/2 NM Cable T®-Stripper Wire Stripper 45-249

Reflex™ Super 12/2 & 14/2 NM Cable T®-Stripper Wire Stripper 45-621

Description Cat. No.

Lil’ Ripper Stripper™ 45-025

Description Wire Range Cat. No.

Premium T®-14 T®-Stripper Wire Stripper 12 or 14 AWG

solid 45-247

Romex® is a registered trademark of Southwire.

Lil’ Ripper Stripper™

Reflex™ Super T®-Stripper Wire

Strippers – Romex®

Wire Strippers

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-19

V-Notch Stripper

Cuts copper or aluminum wire,

solid or stranded

Rotating cam wheel adjusts

to strip 10-24 AWG wire

Looping holes for solid

wire

Locking hasp

7-in-1 Stripper

Versatile, seven-function tool features precision-ground

stripping blades, cushioned grips and plier nose

Strips 8–16 AWG solid and 10–18 AWG stranded wire

Crimps bare and insulated terminals for 10–22 AWG

wire, RG-59 coax connectors and 7 to 8mm auto ignition

connectors

Cuts unhardened wire, bolts and screws (4-40, 6-32,

8-32, 10-24 and 10-32) and reforms threads

Cuts stranded, solid, Romex® and U.F. wire to 8 AWG

Reams and de-burrs conduit

Gauges and loops wire

Description Cat. No.

V-Notch Stripper 45-101

Description Cat. No.

7-in-1 Stripper 45-777

Romex® is a registered trademark of Southwire.

Description Cat. No.

Up to 2-1/2 in. LB-825

2-1/2 in. to 5 in. LB-840

Description Cat. No.

Slug Remover 45-333

Ringer™ Shielded Cable Stripper

Precision stripping for most

non-round cable, including

extruded Teflon®, Kapton®,

Tefzel®, Kynar® and high-

temperature insulations

Spring-loaded head provides even tension

Heat-treated, stainless-steel blades resist wear

Fixed blades are sized to insulation thickness, for accurate

stripping

V-notch jaw automatically positions and holds cable

Wire guide roller maintains stripping head alignment for square,

clean cuts

Replacement Blades

Wire Stops

IDEAL Gripper™

Description Blade Color Cat. No.

Cable Stripper, 5 Mil insulation,

includes blade K-6492 Orange 45-401

Cable Stripper, 8-10 Mil insulation,

includes blade includes blade K-6493 Yellow 45-402

Cable Stripper, Cable diameters up

to 0.12 in.

sold

separately Blue 45-400

Cable Stripper, Cable diameters from

0.12 in. to 0.22 in.

sold

separately Red 45-403

Cable Stripper, w/“deep V” for cable

diameters up to 0.30 in.

sold

separately Green 45-404

Teflon® and Kapton® are registered trademarks of E.I. duPont de Nemours and

Company. Kynar® is a registered trademark of Penwall.

Cutting

Depth Cat. No. Cutting

Depth Cat. No.

.0030 In. K-6491 .0100 in. K-6497 .0180 in. K-6503

.0044 in. K-6492 .0110 in. K-6498 .0200 in. K-6504

.0060 in. K-6493 .0120 in. K-6499 .0220 in. K-6505

.0070 in. K-6494 .0130 in. K-6500 .0250 in. 45-2108-1

.0080 in. K-6495 .0140 in. K-6501

.0090 in. K-6496 .0160 in. K-6502

Wire Cutters

www.idealindustries.com 1-800-435-0705 for Customer Service

B-20

Convenient, four-function tool

features precision-ground

stripping holes and

knife-to-anvil

cutting blades

Crimps bare and

insulated terminals

Strips 8–20 AWG solid and 10–22 AWG stranded wire

Cuts unhardened bolts (4-40, 6-32, 8-32, 10-24 and 10-32)

and reforms threads

T®-Cutter Lite Wire Cutter

In today’s cutting-edge electronic

production and assembly operations,

the T®-Cutter Lite is a “must-have.”

Stranded or solid, copper or

aluminum, this wire cutter

cuts cleanly and accurately.

Knife-type blade provides a

shear-type cut

Lightweight, compact design

Perfect for copper and aluminum wire

Multi-Crimp Strip Tool

Cuts wire

Crimps insulated

and non-insulated

wires

Cuts bolts

Strips 10-22 AWG wire

Data T®-Cutter Wire Cutters

n Cuts round communication cable

and maintains cable geometry for

better cable performance

n Cuts multi-pair cable up

to .500 in. (12.7mm)

and coaxial cable up

to RG-9/U

n Suitable for soft

cables (not ACSR)

n Steel reinforced center conductors can be trimmed with bolt

cutting holes

n Cushioned comfort grip handles

n Locking latch keeps tool closed in pouch

Combo Tool

Coax Strip and Crimp Tool

Precision, form-ground

stripping holes remove

outer jacket

and insulation

from RG-59

and RG-6

coaxial cable

Durable blades

cut copper-coated

steel conductors

Three crimping nests for crimping F-connectors and ring

terminals

T®-Cutter Wire Cutters

Hardened steel, sheer-type blades

Spring-loaded automatic

opening

Convenient plier

nose for extra

gripping strength

Corrosion-resistant,

black oxide finish

Tough steel construction

Locking tab keeps spring

in place

Description Cat. No.

Data T®-Cutter 45-074

Description Cat. No.

Combo Tool 30-428

Description Cat. No.

Multi-Crimp Strip Tool 45-778

Description Cat. No.

Coax Strip & Crimp Tool 30-433

Coax Strip & Crimp Tool w/ten RG-6 F-Connectors 30-433F

Description Cat. No.

T®-Cutter Lite Wire Cutter 45-260

Description Wire Range Cat. No.

T®-Cutter Wire Cutter Up to 1/2 in. O.D. fine-stranded wire and

10 AWG solid wire 45-123

Reflex™ Premium

T®-Cutter Wire Cutter

Up to 1/2 in. O.D. fine-stranded wire

and 10 AWG solid wire 45-423

Wire Strippers

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-21

45-128

Description Cat. No.

Stripmaster® Wire Stripper, 10-22 AWG (Boxed) 45-092

Stripmaster® Wire Stripper, 10-22 AWG (Clamshell) 45-292

Stripmaster® Wire Stripper, Coax RG-6 45-262

See Section C for complete Stripmaster® Wire Stripper line.

Grip-N-Strip™

End Stripper

Self-adjusting stripping blades

automatically select proper position

Strips 12 AWG solid to 20 AWG

stranded PVC insulated wire

Strip-length gauge

Cuts up to 12 AWG solid wire

Lightweight, ergonomic design reduces user fatigue

Reinforced fiberglass construction

Hardened steel blades for extra strength and longer life

Underground Feeder

(UF) Cable Stripper

Self-adjusting stripping blades

automatically select

proper position

Strips 12 AWG solid to

14 AWG Underground

Feeder (UF) Cable

Strips Twin and Earth cable

Open-throat construction allows unlimited strip length

Neatly removes outer cable sheath and inner wire sheathing

to desired lengths

Lightweight, ergonomic design reduces user fatigue

Cable Ripper

Slits cable sheathing before

stripping wires

Quick, clean and easy end or mid-run removal of jacket

Convenient built-in wire gauge

Round Cable Slitting and Ringing Tools

Cuts around cable jacket as

well as slits the length of jacket

for easy removal

Use with single or

multiple conductor

cable up to

1.75 in. O.D.

Blade adjusts for jacket

thicknesses up to .125 in.

Spare blade in handle base

Stripmaster® Wire Strippers

One-step stripping enhances productivity

Spring-action motion increases leverage and

reduces operator fatigue

Precision-ground, knife-type blades provide

clean, accurate stripping

™ Cutter

Handles all common BX, MCAP,

MC and Flex cables

Blade cuts armor without

damage to internal

conductors

Splices cleanly through

casings with only a

few turns

Handle knob stores up

to six replacement

blades

Description Cat. No.

Side Entry Cable Ripper 45-118

Description Cat. No.

Underground Feeder Cable Stripper 45-235

Description Cat. No.

Rotary Armored Cable Cutter 35-782

Replacement blades (5/pack) 35-781

Replacement blades (1/pack) 35-781-1

Description Cat. No.

Cable Stripper for 1/4 in. to 3/4 in. O.D. 45-128

Cable Stripper for 3/4 in. to 1-1/2 in. O.D. 45-129

Replacement Blades for 45-128 and 45-129 (2/pkg.) L-7486

Description Cat. No.

Grip-N-Strip™ End Stripper 45-227

45-129

Hand Tools

www.idealindustries.com 1-800-435-0705 for Customer Service

B-22

Blade Design

LASERedge pliers feature “knife-to-anvil”

cutting blades for long life.

(Ideal for cutting screws, nails, hardened

wire and ACSR)

FastFinder™ letter

identification on the

inside of our handles

provides quick

identification,

even by touch

Cross-hatched jaws

so wires won’t slip

when pulling

Textured Santoprene™

slip resistant grip

Laser-hardened blades

and teeth last four

times longer

Full polish for maximum

corrosion resistance

Custom hardened

tool steel for

durability

Diagonal Long Nose Tongue & Groove Cable Cutter Crimper

LASERedge™ pliers use high carbon, 1080 steel,

which provides extra strength and hardness

without sacrificing flexibility. It is one of the

reasons our tools outperform the competition in

performance and durability. All of our LASERedge

tools have laser-hardened blades and teeth, which

are more precise and provide better durability for

strenuous applications like cutting steel or ACSR.

Hand Tools

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-23

Drop-forged, high-carbon steel construction withstands

toughest applications

Knife-to-anvil blades never need resharpening

Cuts hardened wire, bolts and ACSR

Laser-hardened blades and serrated jaws for long-term durability

High-leverage design provides 40% more cutting power

Unique reverse rivet protects smooth action of plier movement

Vinyl-coated, comfort-grip handles for a secure grip

Description (Smart-Grip™ Plier Handles) Cat. No.

9-1/4 in. New England nose high-leverage w/fish tape puller 35-3012

9-1/4 in. New England nose high-leverage w/crimping die 30-3430

Description (Dipped Handles) Cat. No.

9-1/4 in. New England nose high-leverage w/fish tape puller 35-012

9-1/4 in. New England nose high-leverage w/crimping die 30-430

Side-Cutting Pliers

35-3012

w/Crimping Die w/Fish Tape Puller

35-012

30-3430

Hand Tools

www.idealindustries.com 1-800-435-0705 for Customer Service

B-24

Diagonal-Cutting Pliers

35-029

35-3028

Drop-forged, high-carbon steel construction withstands

toughest applications

Knife-to-anvil blades never need resharpening

Laser-hardened blades cut hardened wire, bolts and ACSR

Vinyl-coated, comfort-grip handles for a secure grip

High-leverage design provides 40% more cutting power

n

Models 35-029 and 35-3029 feature a convenient angled

head for hard-to-reach areas and rocking out nails

Tongue and Groove Pliers

Patented undercut tongue and groove design

ensures solid grip

Patented reinforced flange protects against breakage

Laser-hardened teeth remain sharp longer

Drop-forged, high-carbon steel construction

Vinyl-coated, comfort-grip handles for a secure grip

35-3430 35-440

Narrow profile head designed for working in tight areas

Serrated jaws provide secure gripping surface

Drop-forged, high-carbon steel construction

Knife-to-anvil blades never need resharpening

Laser-hardened blades cut hardened wire, bolts and ACSR

Vinyl-coated, comfort-grip handles for a secure grip

Long-Nose Pliers

35-3038 35-039

Description (Smart-Grip™ Plier Handles) Cat. No.

8 in. High-leverage Diagonal 35-3028

8 in. High-leverage Diagonal w/angled head 35-3029

Description (Dipped Handles) Cat. No.

8 in. High-leverage Diagonal 35-028

8 in. High-leverage Diagonal w/angled head 35-029

Description (Smart-Grip™ Plier Handles) Cat. No.

8-1/2 in. Long Nose w/Cutter 35-3038

Description (Dipped Handles) Cat. No.

6 in. Long Nose w/Cutter 35-036

7-3/4 in. Long Nose w/Cutter 35-037

8-1/2 in. Long Nose w/Cutter 35-038

8-1/2 in. w/Cutter & stripping holes for 12 & 14 AWG wire 35-039

Description (Smart-Grip™ Plier Handles) Jaw Opening

(Inches) Cat. No.

10 in. Tongue & Groove Pliers 235-3430

Description (Dipped Handles) Jaw Opening

(Inches) (Inches)

10 in. Tongue & Groove Pliers 235-430

12 in. Tongue & Groove Pliers 2-1/4 35-440

Hand Tools

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-25

35-3052

Cable Cutters

Drop-forged, high-carbon steel construction

Precision-ground, hardened cutting edges provide accurate cuts

without cable distortion

Designed for maximum leverage with minimum effort

Cuts 2/0 copper and 4/0 aluminum (not for use on ACSR)

Vinyl-coated, comfort-grip handles

35-052

Multi-Crimp Tools

Crimp Tool

Crimps bare or insulated terminals and splices on

10–22 AWG wire

Knife-to-anvil blades never need resharpening

Excellent leverage for easy crimping and cutting

Drop-forged, high-carbon steel construction

Vinyl-coated handles provide a solid, comfortable grip

30-3429

Crimps all IDEAL crimp sleeves

Excellent leverage for right-angle, double-indent crimps

Cuts and twists wire

Vinyl-coated handles provide a solid, comfortable grip

Description (Smart-Grip™ Plier Handles) Cat. No.

9-1/2 in. Cable Cutter 35-3052

Description (Dipped Handles) Cat. No.

9-1/2 in. Cable Cutter 35-052

Description (Smart-Grip™ Plier Handles) Cat. No.

9-3/4 in. Multi-Crimp Tool 30-3429

Description (Dipped Handles) Cat. No.

9-3/4 in. Multi-Crimp Tool 30-429

Description (Smart-Grip™ Handles) Cat. No.

10-1/4 in. Crimp Tool 30-425

30-429

Hand Tools

www.idealindustries.com 1-800-435-0705 for Customer Service

B-26

WireMan™ pliers provide professional results for everyday

use. These tools are the workhorse of electrical pliers; they

are rugged yet precise, providing exceptional durability, easy

cutting and a lifetime of quality use.

Large head for

extra strength

Cross-hatched

jaws so wires

won’t slip when

pulling

FastFinder™ letter

identification on the inside

of our handles provides

quick identification, even

by touch

Blade Design

WireMan pliers feature “knife-to-knife”

cutting blades for easy cuts.

Custom hardened

chrome vanadium

steel for durability

Textured Santoprene™

slip-resistant grip

Diagonal Long Nose Tongue & Groove Cable Cutter Crimper

High leverage rivet requires

less cutting force

Hand Tools

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-27

Side-Cutting Pliers

Diagonal-Cutting Pliers

Custom chrome vanadium steel for durability

High leverage pivot requires less cutting force

Sharp, knife-to-knife blades for easy cutting

Induction hardened teeth for long life

Cross-hatched jaws so wires won’t slip when pulling

Ergonomic handles for comfortable, all-day use

Custom chrome vanadium steel for durability

High leverage pivot requires less cutting force

Sharp, knife-to-knife blades for easy cutting

Induction hardened teeth for long life

Ergonomic handles for comfortable, all-day use

30-4430 35-5012

35-5029

35-4028

Description (Smart-Grip™ Plier Handles) Cat. No.

9-1/4 in. Side-Cutting Pliers 35-4012

9-1/4 in. Side-Cutting Pliers w/crimp and fish tape puller 30-4430

Description (Dipped Handles) Cat. No.

9-1/4 in. Side-Cutting Pliers 35-5012

9-1/4 in. Side-Cutting Pliers w/crimp and fish tape puller 30-5430

Description (Smart-Grip™ Plier Handles) Cat. No.

8 in. Diagonal-Cutting Pliers 35-4028

8 in. Diagonal-Cutting Pliers w/angled head 35-4029

Description (Dipped Handles) Cat. No.

8 in. Diagonal-Cutting Pliers 35-5028

8 in. Diagonal-Cutting Pliers w/angled head 35-5029

Hand Tools

www.idealindustries.com 1-800-435-0705 for Customer Service

B-28

Tongue and Groove Pliers

Custom chrome vanadium steel for durability

Ergonomic handles for comfortable, all-day use

35-4430

Long-Nose Pliers

Custom chrome vanadium steel for durability

High leverage pivot requires less cutting force

Sharp, knife-to-knife blades for easy cutting

Induction hardened teeth for long life

Cross-hatched jaws so wires won’t slip when pulling

Ergonomic handles for comfortable, all-day use

35-4038 35-5036

Description (Smart-Grip™ Plier Handles) Cat. No.

6 in. Long-Nose Pliers 35-4036

8 in. Long-Nose Pliers 35-4038

Description (Dipped Handles) Cat. No.

6 in. Long-Nose Pliers 35-5036

8 in. Long-Nose Pliers 35-5038

Description (Smart-Grip™ Plier Handles) Cat. No.

10 in. Tongue & Groove Pliers 35-4430

Description (Dipped Handles) Cat. No.

10 in. Tongue & Groove Pliers 35-5430

35-5430

Hand Tools

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-29

Multi-Crimp Tools

Custom chrome vanadium steel for durability

High-leverage pivot requires less force

Ergonomic handles for comfortable, all-day use

Cuts, crimps and splices 10 – 22 AWG wire for

insulated and non-insulated crimp connectors

30-4431 35-5431

Cable Cutters

Custom chrome vanadium steel for durability

High-leverage pivot requires less force

Sharp, knife-to-knife blades for easy cutting

Induction hardened teeth for long life

Ergonomic handles for comfortable, all-day use

35-4052

Fits LASERedge™

and WireMan™ Pliers

Not insulated from

electrical shock

Boil in water to

soften for easy

installation onto

handles

Tenite Grips

35-5052

Description (Smart-Grip™ Plier Handles) Cat. No.

9-1/4 in. Multi-Crimp Tool 30-4429

9-1/4 in. Multi-Crimp Tool - Bare Terminals 35-4431

Description (Dipped Handles) Cat. No.

9-1/4 in. Multi-Crimp Tool 30-5429

9-1/4 in. Multi-Crimp Tool - Bare Terminals 35-5431

Description Cat. No.

Replacement grips for 8 in. or 9 in. pliers (one pair) 35-008

Description (Smart-Grip™ Plier Handles) Cat. No.

9 in. 2/0 Cable Cutter 35-4052

Description (Dipped Handles) Cat. No.

9 in. 2/0 Cable Cutter 35-5052

www.idealindustries.com 1-800-435-0705 for Customer Service

B-30

Twist-a-Nut™ Screwdriver/Nutdriver

Textured Santoprene™ grip

provides excellent torque and

resists perspiration, water,

oil and chemicals

Six torsion bars provide

exceptional grip

Accu-Loop™ Wire

Looping Hole

Patented Wire-Nut® Wire

Connector Wrench accepts a

wide variety of connectors.

Accu-Loop™ Wire

looping holes

Multiple bit stoarge unit

(Lifetime warranty

excludes bits)

(Image actual size.)

Wire connector wrench prevents finger fatigue and gets in tight spots

Premium screwdriver ratchet mechanism can handle high torque without failure

Ergonomic, slip-free comfort grip

Multiple bit storage unit and wire-looping hole in handle

Includes: #1 Phillips, #2 Phillips, #3 Phillips, 3/16” slotted, 1/4” slotted,

5/16” slotted, #1 square, #2 square, #15 star, #20 star, #25 star,

#30 star, 3/32” hex, 1/8” hex, 3/16” hex, 5/32” hex, 1/4” nut,

5/16” nut and 7/16” nut

21-in-1 Twist-a-Nut™ Screwdriver

Hand Tools

B-Cap® Wing-Nut®Wire-Nut®Twister®

PREMIUMPREMIUM

RATCHETRATCHET

HIGH TORQUE

Patented Wire-Nut® Wire Connector Wrench

accepts a wide variety of connectors.

All-Metal Ratchet

• Pro-quality,28toothdouble

action, twin-tooth ratchet

• 225lbs.oftorque(stronger

than human wrist can torque)

Description Cat. No.

21-in-1 Twist-a-Nut™ Screwdriver 35-688

Hand Tools

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-31

(Lifetime warranty

excludes bits)

Ratcheting wire connector wrench

prevents finger fatigue and gets in

tight spots

Premium screwdriver ratchet mechanism

can handle high torque without failure

Ergonomic, slip-free comfort grip

Accepts Twist-a-Nut™ replacement bits

Includes: 1/4 in. and 3/16 in. slotted,

#1 & #2 Phillips, 1/4 in., 5/16 in., 7/16 in.

nutdrivers, ratcheting screwdriver end,

ratcheting wire connector wrench and

wire-looping hole in handle

9-in-1 Ratch-a-Nut™

Screwdriver

Replacement Bits (for both Ratch-a-Nut™ and Twist-a-Nut™)

Description Cat. No.

35-098

Description Cat. No.

9-in-1 Ratch-a-Nut™ Screwdriver 35-988

Description Cat. No.

1/4 in. slotted – #2 Phillips 35-911

3/16 in. slotted – #1 Phillips 35-912

1/4 in. slotted – #2 Square Recess 35-913

3/16 in. slotted – #1 Square Recess 35-914

#15 & #10 Torx®35-915

Torx® is a trademark of Camcar division of Textron, Inc.

6-in-1 Twist-a-Nut™ Tapping Tool

Forms new threads, re-forms burred threads

and cleans out obstructions

Reversible, high-carbon tap with

three clearly marked thread

sizes on each end

Handle is interchangeable

with 7-in-1 Screwdriver

(#35-908) and Conduit Deburrer

(#35-083)

Forms new threads, re-forms burred

threads and cleans out obstructions

Reversible, high-carbon tap with

three clearly marked thread

sizes on each end

Handle is interchangeable with 7-in-1 Screwdriver

(#35-908) and Conduit Deburrer (#35-083)

Universal connector wrench in handle helps install twist-on

wire connectors

Description Cat. No.

Twist-a-Nut™ Tapping Tool includes: 6-32, 8-32 & 10-32 on one

tapping side, 10-24, 12-24 & 1/4-20 on the other 35-922

Replacement collar and six taps 35-923

Description Cat. No.

3-in-1 Tap Tool includes handle and three taps 35-412

3-in-1 Twist-a-Nut™ Tap Tool

Includes universal Wire-Nut® Wire

Connector Wrench in handle to

help install twist-on wire

connectors

Includes wire-looping

hole in handle

Includes #1 & #2 Phillips, 1/4 in. & 3/16 in. slotted, 1/4 in. &

5/16 in. Nutdriver

n

#35-909 includes #1 & #2 Square Recess in place of

#1 & #2 Phillips

Handle is interchangeable with conduit deburrer head

(#35-096) and 6-in-1 Tap Tool (#35-922)

7-in-1 Twist-a-Nut™ Screwdriver/

Nutdrivers

Description Cat. No.

7-in-1 Twist-a-Nut™ Screwdriver/Nutdriver 35-908

7-in-1 Twist-a-Nut™ Screwdriver/Nutdriver with square tip 35-909

n

Convenient Wire-Nut® Wire

Connector Wrench in end of handle

Wire-looping hole in handle

Vapor-blasted tip prevents plate

chipping

Tough, chrome vanadium steel shank

Precision ground tip provides secure

fit in screw slot

Description Cat. No.

#2 x 6 in. Robertson 30-330

1/4 in. x 4 in. Slotted 30-331

#2 x 4 in. Phillips 30-332

1/4 in. x 6 in. Slotted Cabinet Tip 30-333

Twist-a-Nut™ Pro Electrician’s

Screwdrivers

AT BOTH ENDSAT BOTH ENDS

RATCHETSRATCHETS

Hand Tools

www.idealindustries.com 1-800-435-0705 for Customer Service

B-32

Includes

– Twist-a-Nut™ Screwdriver (35-908)

– Twist-a-Nut™ Deburring Head - Square Tip (35-098)

– Twist-a-Nut™ Tap Tool Shaft (35-923)

– Three Spare Bits (1/4 in. slotted & #2 square, 3/16 in.

slotted & #1 square, #10 & #15 Torx®)

– 8-Pocket Carrying Pouch (35-927)

Nylon carrying pouch holds all three Twist-a-Nut™ tools plus

room for four replacement bits or taps

Strong easy-slide metal belt clip

Twist-a-Nut™ Conduit Wiring Kit

Description Cat. No.

Twist-a-Nut™ Combo Pack 35-926

Twist-a-Nut™ Carrying Pouch only 35-927

Deburrs inside and outside edges of 1/2 in.,

3/4 in. and 1 in. thin wall conduit

Hooded tip tightens EMT fitting set screws

without slipping

Square tip “seats” much more quickly on fitting

screws than slotted version

Head removes and is interchangeable with

IDEAL 7-in-1 Twist-a-Nut™ Screwdriver

shaft (#35-908)

Head can be used in drill or cordless

screwdriver

Universal Wire-Nut® Wire Connector

Wrench in handle end eases installation

of twist-on connectors

Lifetime guarantee (excludes blades)

Accu-Loop™ wire

looping holes

Twist-a-Nut™ Conduit

Deburring Tools

Description Cat. No.

Conduit Deburring Tool, slotted tip 35-083

Conduit Deburring Tool - head only, slotted tip 35-096

Conduit Deburring Tool - #2 square tip 35-075

Conduit Deburring Tool - head only, #2 square tip 35-098

Replacement Blades (2/pack) 35-097

35-098

Hand Tools

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-33

Cushioned-Grip Screwdrivers

Description Cat. No.

7-Piece Screwdriver Set 35-1298

Special tip treatment for

precise fit

Chrome vanadium steel shank

7-Piece Screwdriver

Set

Includes:

1/4 in. x 4 in. HD Cabinet

Phillips #1 x 3 in.

Phillips #2 x 4 in.

3/16 in. x 6 in. Slotted Cabinet

3/16 in. x 3 in. Slotted Cabinet

5/16 in. x 6 in. HD Slotted w/

Keystone Tip

1/4 in. x 4 in. HD Slotted w/

Keystone Tip

Cushioned-rubber grip

FastFinder™ identification

on the end of handles

Description Cat. No.

8-Piece Screwdriver Set 35-298

8-Piece Screwdriver Set

Includes:

1/4 in. x 6 in. HD Cabinet

1/4 in. x 4 in. Square Shank HD Keystone

1/4 in. x 4 in. HD Keystone

5/16 in. x 6 in. Keystone

3/16 in. x 3 in. Cabinet

3/16 in. x 6 in. Cabinet

Phillips #1 x 3 in.

Phillips #2 x 4 in.

35-193

35-183

35-194

35-164

35-154

35-186

35-151

35-166

5-Piece Screwdriver Set

Includes:

1/4 in. x 6 in. HD Cabinet

1/4 in. x 4 in. Square Shank HD Keystone

5/16 in. x 6 in. Keystone

3/16 in. x 6 in. Cabinet

Phillips #2 x 4 in.

35-194

35-150

35-194

35-154

35-183

35-186

35-156

35-154

35-186

35-151

35-166

Description Cat. No.

5-Piece Screwdriver Set 35-297

35-193

Hand Tools

www.idealindustries.com 1-800-435-0705 for Customer Service

B-34

Slotted Heavy-Duty Keystone Tip

Larger shank for heavy-duty applications

Identification mark on ends

Vapor-blasted tip prevents plate chipping

Precision ground tip provides secure fit in screw slot

Square-shank models offer wrench-assisted turning

Tough, chrome vanadium steel shank

Cushioned rubber grips

Vapor-blasted tip

prevents plate

chipping

Identification mark on ends

Precision ground tip provides secure fit in screw slot

Nickel-chrome plating for corrosion

resistance

Tough, vanadium steel shank with

cushioned rubber grip

Vapor-blasted tip prevents

plate chipping

Identification

mark on ends

Nickel-chrome plating for corrosion

resistance

Tough, chrome vanadium steel shank

with cushioned rubber grip

Square Shank

Blade Length Total Length

Cat. No.

1/4 in. Shank and tip 4 in. 8-3/8 in. 35-154

5/16 in. Shank and tip 6 in. 11 in. 35-156

3/8 in. Shank and tip 8 in. 13 in. 35-158

Round Shank

Blade Length Total Length

Cat. No.

1/4 in. Shank and tip 1 in. 3-3/8 in. 35-161

1/4 in. Shank and tip 4 in. 8-3/8 in. 35-164

5/16 in. Shank and tip 6 in. 11 in. 35-166

3/8 in. Shank and tip 8 in. 13 in. 35-168

Description

Blade Length Total Length

Cat. No.

3/16 in. Shank and tip 3 in. 6-3/4 in. 35-183

3/16 in. Shank and tip 4 in. 7-3/4 in. 35-184

3/16 in. Shank and tip 6 in. 9-3/4 in. 35-186

3/16 in. Shank and tip 8 in. 11-3/4 in. 35-188

3/16 in. Shank and tip 10 in. 13-3/4 in. 35-190

Description

Blade Length Total Length

Cat. No.

#1 Phillips 3 in. 6-3/4 in. 35-193

#2 Phillips 1 in. 3-3/8 in. 35-191

#2 Phillips 4 in. 8-3/8 in. 35-194

#2 Phillips 6 in. 10-3/8 in. 35-195

#3 Phillips 6 in. 11 in. 35-196

Slotted Cabinet Tip

Phillips

Precise tip for square-recess screws

Color-coded handle for

easy identification

Nickel-chrome plating for corrosion

resistance

Tough, chrome vanadium steel shank

with cushioned rubber grip

Square Head

Description

Blade Length For Screw Sizes

Cat. No.

#0 x 4 in. 4 in. 3, 4 35-690

#1 x 4 in. 4 in. 5, 6, 7 35-691

#1 x 8 in. 8 in. 5, 6, 7 35-692

#2 x 4 in. 4 in. 8, 9, 10 35-693

#2 x 8 in. 8 in. 8, 9, 10 35-694

#3 x 4 in. 4 in. 12, 14 35-695

#3 x 8 in. 8 in. 12, 14 35-696

Hand Tools

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-35

4-Piece Mini Cushion-Grip

Screwdriver Set

Description Cat. No.

4-Piece Mini Cushion-Grip Screwdriver Set

Includes: #0 x 3 in. Phillips, 1/16 in. x 2 in. Keystone,

3/32 in. x 3 in. Cabinet and 1/8 in. x 3 in. Cabinet Screwdrivers

35-1301

Quick-Rotating

Ideal for threading screws in

switches, fixtures and anchors

Identification mark on

ends

One-handed crank

action for quick and easy use

Vapor-blasted tip prevents plate chipping

Precision-ground tip provides secure fit in screw slot

Nickel-chrome plating for corrosion resistance

Tough, chrome vanadium steel shank

Cushioned rubber grip

Description

Blade Length Total Length

Cat. No.

3/16 in. Shank and Tip 6 in. 8-3/4 in. 35-200

3/16 in. Shank and #2

Phillips Tip 6 in. 9-3/4 in. 35-203

For use in tight spaces

Description Cat. No.

2-Piece Stubby Nutdriver Set 35-1299

2-Piece Stubby Screwdriver Set 35-1300

2-Piece Stubby Screwdriver/Nutdriver

Sets

35-1300

35-1299

Slim Electronics

Designed for maximum handling

comfort when working in tight areas

Tough, chrome vanadium steel shank

Phosphate tip for longer wear life

Rotating cap for optimum control for precise centering

Color-coded cap for easy identification

36-245

36-243

36-244

36-242

36-241

36-240

36-246

Description

Style Blade Length

Cat. No.

3/32 in. Cabinet Tip 2-1/2 in. 36-240

3/32 in. Cabinet Tip 3 in. 36-241

1/8 in. Cabinet Tip 4 in. 36-242

1/8 in. Cabinet Tip 6 in. 36-243

5/32 in. Cabinet Tip 4 in. 36-244

5/32 in. Cabinet Tip 6 in. 36-245

#0 - 1/8 in. Phillips Head 2-1/2 in. 36-246

7-Piece Set includes one each of 36-240 thru 36-246 36-248

4-Piece Set includes one each of 36-240, -241, -242, & -246 36-249

Grip-n-Screw™ Screwdriver

Holds screw when collar is extended

Holds screw in place when installing in hard-to-reach

locations

Tough, chrome vanadium steel shank and comfort grip

handle

Description

Blade Length Total Length

Cat. No.

3/16 Slotted 6 in. 10 in. 35-406

#2 Phillips 7 in. 11 in. 35-404

11-in-1 Screwdriver/Nutdriver

Hand Tools

www.idealindustries.com 1-800-435-0705 for Customer Service

B-36

2-Piece Hollow-Shaft Nutdriver Set

Includes 1/4 in. & 5/16 in.

Long, hollow shanks handle

longer bolts

Nickel/chrome plated

to resist rust

and corrosion

Long shanks

useful in deep

electrical boxes

Description Cat. No.

2-Piece Nutdriver Set 35-1302

Patented Wire-Nut®

Wire Connector

Wrench in handle.

Contains: 5/16 in. Nutdriver,

#1 Phillips, #2 Phillips,

9/32 in. slotted

and 3/16 in. slotted

Cushion grip for

performance and

comfort

Accu-Loop™ Wire looping holes

6-in-1 Screwdriver/Nutdriver

Includes 1/4 in. slotted, #2 Phillips,

3/16 in. slotted, #1 Phillips,

#1 & #2 square recess,

#15 and #10 Torx® and

5/16 in. & 1/4 in.

Nutdriver

Cushion grip for comfort and

performance

Accu-Loop™ Wire looping holes

Description Cat. No.

11-in-1 Screwdriver/Nutdriver 35-910

Replacement Bits (for 10-in-1 Screwdriver)

Description Cat. No.

1/4 in. slotted - #2 Phillips (2/pack) 35-940

3/16 in. slotted - #1 Phillips (2/pack) 35-941

#1 & #2 Square Recess (2/pack) 35-942

#15 & #10 Torx® (2/pack) 35-943

Torx® is a registered trademark of Camcar division of Textron, Inc.

Awl

Heavy-duty construction for

piercing, punching

and scribing

Identification mark on end

Cushioned rubber grip

Description

Blade Length Total Length

Cat. No.

Awl 3 in. 6-3/4 in. 35-202

Description Cat. No.

6-in-1 Screwdriver/Nutdriver 35-905

Replacement Bits (for 5-in-1 Screwdriver)

Description Cat. No.

#1 Phillips - 3/16 in. slotted LA-4123

#2 Phillips - 9/32 in. slotted LA-4124

Patented Wire-Nut®

Wire Connector

Wrench in handle.

Available

Spring

2011

Available

Spring

2011

Hand Tools

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-37

Nutmaster® Nutdrivers

Long, hollow shank handles

longer bolts

Identification on

ends

Nickel/chrome plated to resist rust

and corrosion

Cushioned rubber grips

Models 35-292 and 35-295 fit

Twister® Wire Connectors

Description

Shaft Length

Cat. No.

3/16 in. 3-1/4 in. 35-290

1/4 in. 3-1/4 in. 35-291

5/16 in. 3-1/4 in. 35-292

11/32 in. 3-1/4 in. 35-293

3/8 in. 3-1/4 in. 35-294

7/16 in. 4 in. 35-295

1/2 in. 4 in. 35-296

Includes:

3/16 in. x 3-1/4 in.

n

1/4 in. x 3-1/4 in.

5/16 in. x 3-1/4 in.

11/32 in. x 3-1/4 in.

3/8 in. x 3-1/4 in.

7/16 in. x 4 in.

1/2 in. x 4 in.

7-Piece Nutdriver Set

Recessed Light Kit

35-290 35-291

35-292

35-293

35-294

35-295

35-296

All the tools needed to install

recessed lights

Long spring tool easily installs

and removes spring

Compact nutdriver is

2-1/4 in. - providing

added clearance in

recess lighting

Cushion grip for

added comfort

Description Cat. No.

7-Piece Nutdriver Set 35-299

Description Cat. No.

Recessed Light Kit 35-698

Cable Cutters

www.idealindustries.com 1-800-435-0705 for Customer Service

B-38

Ratcheting Cable Cutter

Cuts hard drawn copper up to 400 KCMIL (MCM)

and soft copper, aluminum and multiple

conductor cable up to 600 KCMIL (MCM)

Hardened steel blades ensure consistent

cuts and long-term durability

Rounded blade design minimizes cable

distortion during cutting

Quick release mechanism simplifies blade back-out

Locking mechanism keeps handles closed for easy storage

Ratcheting Cable Cutter

750 KCMIL Ratcheting Cable Cutter is designed

to cut 750 KCMIL (MCM) and smaller

hard-drawn copper and aluminum cables

Hardened steel blades ensure

consistent cuts and long-term

durability

Rounded blade design minimizes

cable distortion during cutting

Quick release mechanism simplifies blade back-out

Locking mechanism keeps handles closed for easy storage

Molded-in foot provides stability and leverage when making

multiple cuts

Extremely versatile: fits almost

any drill (12V minimum)

Cuts copper up to 2 in.

diameter or 750 MCM

or aluminum up to 2 in.

diameter or 1000 MCM

Heavy-duty gears

and specially hardened

blades for professional

quality

Rounded blade design minimizes

cable distortion during cutting

No need to mess with battery packs

or special chargers; this tool works

with the drill you already carry!

PowerBlade™ Cable Cutter

Big Kahuna Cable Cutter

ACSR Cable Cutter

(Drill not included)

(Folding handle for storage.)

Description Cat. No.

PowerBlade™ Cable Cutter 35-078

PowerBlade™ Replacement Handle K-8947R

PowerBlade™ Replacement Blades (pair) K-8906R

PowerBlade™ Replacement Torque Arm Assembly K-8909

PowerBlade™ Replacement Carrying Case K-8926

*Max. Jaw Opening - 2 in. Not for cutting steel or ACSR.

Description Cat. No.

400 KCMIL (MCM) Ratcheting Cable Cutter* 35-056

Replacement blade (moveable side only) 35-085

*Max. Jaw Opening - 2 in. Not for cutting steel or ACSR.

Description Cat. No.

750 KCMIL (MCM) Ratcheting Cable Cutter* 35-053

Replacement blade (moveable side only) 35-057

*Max. Jaw Opening - 2 in. Not for cutting steel or ACSR.

Description Cat. No.

Big Kahuna Cable Cutter 35-076

Description Cat. No.

ACSR Cable Cutter 35-077

Cuts copper up to 3-1/4 in.

diameter or 750 MCM or

aluminum up to 3-1/4 in.

or 1000 MCM power

cable

Heavy-duty gears and

specially hardened

blades for long life

Rounded blade

design minimizes

cable distortion

during cutting

Folding handle facilitates cuts in tight

electrical boxes

Comes complete with carrying case

Cuts Tri-plex ACSR power

cable up to 3/4 in.

diameter and 7/16 in.

Guy wire

Heavy-duty gears

and specially

hardened blades

for long life

Rounded blade design minimizes

cable distortion during cutting

Folding handle facilitates cuts in

tight electrical boxes

Comes complete with carrying case

Available

Spring

2011

Available

Spring

2011

Cutter/Crimp Tools

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com

Crimp Tool

Crimps all IDEAL crimp sleeves

Excellent leverage for right-

angle, double-indent crimps

Cuts and twists wire

Vinyl-coated handles

provide a solid,

comfortable

grip

Ratchet Crimp Tool

Crimps insulated or bare

terminals and splices on

10–22 AWG wire

Ratchet action

prevents release prior

to crimp connection —

helps ensure uniform crimps

Vinyl-coated handles provide a solid, comfortable grip

Mechanical Indentor and

Crimp Tool

Use with aluminum (6 AWG to 4/0) and

copper (8 AWG to 250 KCMIL) wires

Adjustable crimping nests

with clearly marked

gauges

Lightweight

and easy to

operate

Rugged cast steel construction for long-term durability

Connections are UL Listed when using this tool with IDEAL

Non-Insulated Terminals (#8 - #4 AWG).

Buchanan Construction Products

Four-Way Crimp Tool

Patented design ensures

even compression and

reliable connections

Spring-loaded, cam-

actuated plungers

Fingertip adjustment for different connector sizes

™ Cutter

Handles all common BX,

MCAP, MC and Flex cables

Blade cuts armor without

damage to internal

conductors

Splices cleanly through

casings with only a few turns

Handle knob stores up to six

replacement blades

Description Cat. No.

Rotary Armored Cable Cutter 35-782

Replacement blades (5/pack) 35-781

Replacement blade (1/pack) 35-781-1

Description Cat. No.

Mechanical Indentor 88-843

Description Cat. No.

10-1/4 in. Crimp Tool 30-425

Description Cat. No.

Four-Way Crimp Tool C24

Description Cat. No.

Ratchet Crimp Tool 83-001

B-39

Long-Arm Cable Cutters

High strength forged blades for

ultimate durability

Precision-ground jaws make

clean cuts with minimal

cable distortion

Replaceable blades

For copper and aluminum only. Not designed for steel or ACSR.

Description

Length

Cat. No.

250 MCM Long-Arm Cable Cutter 14 35-031

500 MCM Long-Arm Cable Cutter 22 35-032

1000 MCM Long-Arm Cable Cutter 32 35-033

Replacement Head - 250 MCM (for 35-031) —35-031B

Replacement Head - 500 MCM (for 35-032) —35-032B

Replacement Head - 1000 MCM (for 35-033) —35-033B

CAUTION: Comfort-grip handles are not designed to for protection

against electrical shock. Do not use on live circuits.

35-033

Description Cat. No.

Straight-Cut Aviation Tin Snips 35-001

Aviation Tin Snips

Chrome-molybdenum steel

forged blades for greater

strength and durability

Serrated edges provide

a stable hold when cutting

Labor-saving design for

easier cutting

Comfortable non-slip

dual durometer grips

Hand Tools

www.idealindustries.com 1-800-435-0705 for Customer Service

B-40

Adjustable Wrenches

Narrow profile head reaches into tight spaces

Tight tolerance on thumbscrew won’t loosen or wobble

with use

Extra wide jaw capacity with standard and metric

markings

Forged steel construction

Tempered and hardened for lifetime service

35-020

35-021

Low-cost, industrial-quality marker quickly and

easily engraves metal, glass, stone, ceramics,

plastics, hard rubber, wood and many

other hard materials

Unique design reduces bouncing

and provides smooth, easy writing

Operates at 7,200 strokes per minute

n

Stroke adjusts to vary depth of mark

n

Includes carbide-tipped point for

normal markings

n

Diamond point available for engraving extra-hard materials

(50 to 64 Rockwell, scale C)

Electric Engraving Tools

Drop-Forged Handled Hammer

One-piece drop-forged, tempered-steel polished

head and handle

Long, straight claws simplify removal of electrical fixtures

Comfortable, perforated anti-vibe grips

Elongated neck for hitting inside boxes

IDEAL Wipes™

The Multi-Purpose Towel

Pre-moistened wipes require no water

Cleans dirt, grease, lube and grime

Durable fabric scrubs without tearing

Infused with natural hand moisturizers

and Vitamin E

Orange citrus scent

Description

Jaw Capacity

Cat. No.

8 in. Adjustable Wrench 1-1/8 in. 35-020

10 in. Adjustable Wrench 1-5/16 in. 35-021

Description Cat. No.

Engraver w/carbide-tipped point — 120V, 60 Hz 11-111

Engraver w/carbide-tipped point & 3-conductor

grounded cord & plug — 120V, 60 Hz 11-113

Carbide-Tipped replacement point 11-200

Diamond replacement point 11-201

Description Cat. No.

IDEAL Wipes™, 12 in. x 9 in. (82/can) 38-500

Description Cat. No.

18 oz. x 12-1/2 in. Drop-Forged Handled Hammer 35-210

25’ Automatic Blade Lock

Measuring Tape

Blade automatically stays out when

extended

Push button for smooth blade retraction

Comfortable, shock-resistant rubber grip

Double-sided tape

30’ Magnetic-Tip

Measuring Tape

30’ length for commercial

conduit installation use

Measurement marks on

both sides of tape

Strong magnets on tip for one-person measurement

Blade automatically stays out when extended

Push button for smooth blade retraction

Comfortable, shock-resistant rubber grip

Description Cat. No.

Auto-Lock™ Tape Measure - 25 ft. 35-242

Description Cat. No.

Mag-Tape™ Tape Measure - 30 ft. 35-238

Hand Tools

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-41

35-286 35-287

Hex-Key Sets

8650 steel construction

Dual-durometer, slip-resistant

grip

Pocket Knives

2-1/4 in. blade locks in position

High-carbon stainless steel blade construction for extra

strength and durability

Durable Buyrate® non-slip handle

Brass liners

Utility Knife

Quick-change retractable blade

system — no disassembly required

Built in pull-line cutter

Includes three blades in

storage compartment

Accurately start drilling

holes on steel surfaces

One-piece construction

Hardened and tempered

for long life

Excellent for fitting

electrical gear on

concrete surfaces

One-piece construction

Hardened and tempered

for long life

Makes fitting J-boxes to

wood studs easier

Use by hand or

mallet

Hardened and

tempered for long life

Torpedo Level

Center Punch

Cold Chisel

Wood Chisel

9 in. aluminum frame with

magnetic and V-grooved

edges

Windows provide

easy reading of plumb

level and 45° mitre in dim lighting

Three rare earth magnets for strong cling to conduit

35-285

35-146

Description Cat. No.

4 in. handle w/nine 3-in. keys (5/64 in., 7/64 in., 1/8 in., 9/64

in., 5/32 in., 3/6 in., 7/32 in. & 1/4 in.) 35-146

5-1/4 in. handle w/five 5-in. keys (3/16 in., 7/32 in., 1/4 in.,

5/16 in. & 3/8 in. 35-147

Description Cat. No.

Electrician’s Knife w/spearpoint and screwdriver blade 35-285

Hawkbill Knife w/curved blade 35-286

Lineman’s Jack Knife w/sheepfoot blade 35-287

Description Cat. No.

Utility Knife 35-300

Replacement blades - Universal (5/pack) 35-301

Description Cat. No.

9 in. Torpedo Level 35-205

Description Cat. No.

Center Punch 35-192

Description Cat. No.

Cold Chisel 35-187

Description Cat. No.

Wood Chisel 35-189

Hand Tool Kits

www.idealindustries.com 1-800-435-0705 for Customer Service

B-42

17-Piece Set -

#35-809

Tool Kits featuring Pliers

Set Includes:

• FourLASERedge™PlierswithSmart-Grip™Handles(#35-3012–

9-1/4” Linesman w/fish tape puller, #35-3038 – 8” Long Nose,

#35-3430 – 10” Tongue and Groove, #35-3052 – 9-1/2” Cable Cutter)

• #45-915–Kinetic™Reflex™T®-Stripper Wire Stripper

• #35-908–7-in-1Twist-A-Nut™Screwdriver

• #FiveCushionGripScrewdrivers(#35-193–#1x3Phillips,

#35-194 – #2 x 4 Phillips, #35-186 – 3/16” x 6 Slotted Cabinet Tip,

#35-164 – 1/4” x 4 Slotted round shank, #35-406 – 3/16” x 6 Screw

holding slotted)

• #35-286–HawkbillKnife

• #35-210–Electrician’sHammer

• #35-242–25’Auto-Lock™TapeMeasure

• #35-205–TorpedoLevel

• #61-086–Vol-Con® XL Voltage/Continuity Tester

• #35-975–Tuff-Tote™PremiumLeatherToolCarrier

Set Includes:

• ThreeLASERedge™PlierswithSmart-Grip™handles(#35-3012–

9-1/4” Linesman w/fish tape puller, #35-3038 – 8” Long Nose,

#35-3430 – 10” Tongue and Groove)

• #45-915–Kinetic™Reflex™T®-Stripper Wire Stripper

• FourCushionGripScrewdrivers(#35-193–#1x3Phillips,

#35-194 – #2 x 4 Phillips, #35-186 – 3/16” x 4 Slotted Cabinet Tip,

#35-164 – 1/4” x 4 Slotted round shank)

• #35-242–25’Auto-Lock™TapeMeasure

• #35-286–HawkbillKnife

• #34-002–MediumSizeFusePuller

• #35-205–TorpedoLevel

• #35-462–JourneymanElectrician’sTote™

16-Piece Set -

#35-800

Set Includes:

• FiveLASERedge™Plierswithdippedgrips(#30-430–9-1/4”Linesman

w/ crimper, #35-029 – 8” Offset Diagonal, #35-038 – 8” Long Nose,

#35-430 – 10” Tongue and Groove, #35-052 – 2/0 Cable Cutter)

• #45-120–PremiumT®-5 T®-Stripper Wire Stripper

• #35-908–7-in-1Twist-A-Nut™Screwdriver

• TwoCushionGripScrewdrivers(#35-194–#2x4Phillips,#35-164–

1/4 x 4 Slotted round shank)

• #35-083–Twist-A-Nut™ConduitDeburringTool

• #35-210–Electrician’sHammer

• #35-242–25’Auto-Lock™TapeMeasure

• #35-285–Electrician’sKnife

• #61-086–Vol-Con® XL Voltage/Continuity Tester

• #61-201–Replacementbattery

• #35-311–Tuff-Tote™LeatherToolPouch

16-Piece Set -

#35-808

Set Includes:

• FourLASERedgePlierswithdippedgrips(#35-012–9-1/4”Linesman

w/fish tape puller, #35-038 – 8” Long Nose, #35-430 – 10” Tongue and

Groove, #35-012 – 9-1/2” Cable Cutter)

• #45-415–Reflex™T®-5 T®-Stripper Wire Stripper

• #30-428–ComboCrimp/StripTool

• FourCushionGripScrewdrivers(#35-193–#1x3Phillips,#35-194–

#2 x 4 Phillips, #35-186 – 3/16” x 6 Slotted Cabinet Tip, #35-164 –

1/4” x 4 Slotted round shank)

• #35-210–Electrician’sHammer

• #35-242–25’Auto-Lock™TapeMeasure

• #34-002–PocketFusePuller

• #35-286–Hawkbillknife

• #35-261–ErgonomicHacksaw

• #35-427–18”LargeMouthBag

13-Piece Set -

#35-790

Hand Tool Kits

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-43

Tool Kits featuring Pliers

Set Includes:

• OneLASERedge™Plierwithdippedgriphandles

(#30-430 – 9-1/4” Linesman w/crimper)

• #45-120–PremiumT®-5 T®-Stripper Wire Stripper

• #35-908–7-in-1Twist-a-Nut™Screwdriver

• #35-242–25’Auto-Lock™TapeMeasure

• #35-300–UtilityKnife

• #35-505–PocketPal™ToolHolster

Set Includes:

• FourLASERedge™Plierswithdippedgriphandles(#35-012–9-1/4”

Linesman w/fish tape puller, #35-028 – 8” Diagonal, #35-038 – 8”

Long Nose, #35-430 – 10” Tongue and Groove)

• #45-120–PremiumT®-5 T®-Stripper Wire Stripper

• FourCushionGripScrewdrivers(#35-193–#1x3Phillips,

#35-194 – #2 x 4 Phillips, #35-186 – 3/16” x 4 Slotted Cabinet Tip,

#35-164 – 1/4” x 4 Heavy-Duty Slotted round shank)

• #35-242–25’Auto-Lock™TapeMeasure

• #10-466–Electrician’sLeatherToolPouch

• #10-398–WebBelt

12-Piece Set -

#35-805

6-Piece Set -

#35-794

Tool Kits featuring Pliers

12-Piece Set -

#35-5805

Set Includes:

• FourWireMan™Plierswithdippedgriphandles(#35-5012 – 9-1/4”

Linesman, #35-5028 – 8” Diagonal, #35-5038 – 8” Long Nose,

#35-5430 – 10” Tongue and Groove)

• #45-120 – Premium T®-5 T®-Stripper Wire Stripper

• FourCushionGripScrewdrivers(#35-193 – #1 x 3 Phillips,

#35-194 – #2 x 4 Phillips, #35-184 – 3/16” x 4 Slotted Cabinet Tip,

#35-164 – 1/4” x 4 Slotted round shank)

• #25’Auto-Lock™TapeMeasure

• #10-466 – Electrician’s Leather Tool Pouch

• #10-398 – Web Belt

5-Piece Set -

35-5792

4-Piece Set -

35-5799

Set Includes:

• OneWireMan™Plierwithdipped

grip handles (#30-5430 – 9-1/4”

Linesman w/crimper)

• #45-120–T®-5 T®-Stripper Wire

Stripper

• TwoScrewdrivers(#35-194–#2x4Phillips,#35-186–3/16”x4

Slotted Cabinet Tip)

• #35-505–PocketPal™ToolHolster

Set Includes:

• #45-120 – T®-5 T®-Stripper

Wire Stripper

• #35-5012–WireMan™9-1/4”

Side-Cutting Pliers

• #35-505–PocketPal™Tool

Holster

• #35-905–5-in-1Screwdriver/Nutdriver

Carriers/Pouches

www.idealindustries.com 1-800-435-0705 for Customer Service

B-44

Fabric Line

Durable, lightweight, portable tool

totes in rugged nylon polyester or

heavyweight canvas provide the

perfect tool storage. Convenient

pockets mean easy access; inner

compartments keep your tools

organized and safe when not

in use.

Standard Leather Line

Leather that stands up to the job like no

other material, these tool carriers are

constructed of top-grain, natural cowhide

and tanned for added strength and

durability. Watch their color age to a

deep tan over the years.

Premium Leather Line

Top of the line tool carriers are

handcrafted from heavy, top-grain

cowhide and slow tanned in

natural oils to enhance the leather’s

inherent strength. Each bag is hand

waxed for lasting protection against

stains and moisture and is

warranted for life. Natural or

black leather – your choice.

Tuff-Tote™ Tool Pouches

Tuff-Tote™ Tool Carriers

Convenient 6 in. x 8 in. tool carrier with

4 center screwdriver slots, 2 interior

compartments, 2 divided outside

pockets and 4 outside tool loops

Exclusive leather grab handle for

carrying comfort

Removable shoulder strap helps relieve

lower back strain

Unique stand-alone design keeps tools

standing upright for easy identification

and access

Rust-resistant, plated-steel hardware and heavy, lock-

stitched nylon thread for long-term durability

Oil and moisture-resistant reinforced bottom

8-pocket, belt-mounted pouch features large utility

compartment with 2 dividers and 6 screwdriver loops, 7

outside pockets, release snaps and tape chain

Exclusive leather grab handle for carrying comfort

Removable shoulder strap helps relieve lower back strain

Rust-resistant, plated-steel hardware and heavy, lock-

stitched nylon thread for long-term durability

Tunnel belt loop accommodates belts up to 2-1/4 in. wide

Tuff-Tote™ Ultimate Tool Carriers

8 in. square tool carrier features 2 divided inside

compartments with 6 screwdriver loops each, 1 large center

compartment, 4 outside pockets and 8 outside tool loops

Exclusive leather-wrapped grab handle for carrying

comfort

Removable shoulder strap helps relieve lower back strain

Unique stand-alone design keeps tools standing upright

for easy identification and access

Rust-resistant, plated-steel hardware and heavy, lock-

stitched nylon thread for long-term durability

Oil and moisture-resistant reinforced bottom

Description Cat. No.

Premium Leather Carrier w/shoulder strap 35-975

Premium Black Leather Carrier w/shoulder strap 35-975BLK

Standard Leather Carrier w/shoulder strap 35-325

Description Cat. No.

Premium Leather Carrier w/shoulder strap 35-969

Description Cat. No.

Premium Leather Pouch w/shoulder strap 35-950

Premium Black Pouch Carrier w/shoulder strap 35-950BLK

Standard Leather Pouch w/shoulder strap 35-311

Hand Tool Pouches

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-45

Description Cat. No.

6-Pocket Hip Holster, Black 35-784BLK

3-Pocket Hip Holster, Standard 35-964

Description Cat. No.

Electrician’s Tool Pouch 10-466

Description Cat. No.

Canvas Tool Bag 35-302

Description Cat. No.

Premium Tan Leather ERGO 35-966

Premium Black Leather ERGO 35-966BLK

Standard Natural Leather ERGO 35-312

Description Cat. No.

Premium Leather Strap 35-965

Standard Leather Strap 35-338

Description Cat. No.

Premium Leather Belt - 2 in. x 48 in. 35-995

Standard Leather Belt - 1-3/4 in. x 46 in. 35-316

Web Belt 10-398

Belts

Nickel-plated hardware for long-term durability and corrosion

resistance

Shoulder Straps

Nickel-plated hardware for long-term durability

and corrosion resistance

2-in. wide shoulder pad for added comfort

Canvas Tool Bag

Ergo Tool Pouches

Extra large 16 in. x 16 in.

tool bag

Reinforced steel

framework

Genuine leather handles

and straps

Heavy-weight canvas

sides with interior pocket

Compact ergonomic design

for versatility and superior

comfort

Large tool holding

capacity

35-316

10-398

35-995

Electrician’s Tool Pouch

7 -pocket tool pouch

Full length belt tunnel

Chain tape lanyard

Hip Holster Tool Pouches

Compact, multi-pocket holsters

Heavy-duty leather construction

Riveted corners for long life

Tape measure holder

Hand Tool Pouches

www.idealindustries.com 1-800-435-0705 for Customer Service

B-46

Pocket Pal™ Tool Holster

Protects pocket from sharp tools

Doubles tool carrying capacity

Can be worn in pocket or on belt

Divider Pouch™ Small Parts Bag

Designed to provide perfect

small parts storage — keeps

parts separate and organized

Six internally divided 5-in.

deep pockets

Convenient drawstring

protects contents from

spillage

Convenient handle loop

Sized to stack in 5-gallon buckets

Durable nylon polyester construction

Bucket Bag Tool Carrier

11-1/2 in. deep bag fits over

the rim of a standard 5-gallon

bucket

Forty-three convenient

pockets — 36 pleated

outside and inside pockets

Rugged nylon polyester

construction

Supplies Apron

Two pockets for connectors and fasteners, each 8 in. x 15 in.

Natural duck construction

Note: Tools sold separately.

Note: Wire Connectors sold separately.

Zipper Pouches

Durable, water resistant material

Heavy duty, self-repairing zippers

Description Cat. No.

Zipper Pouch, 10-1/2 in. long 35-402

Zipper Pouch, 12-1/2 in. long 35-403

Description Cat. No.

Pocket Pal™ Tool Holster 35-505

Description Cat. No.

Divider Pouch™ Small Parts Bag 35-655

Description Cat. No.

Supplies Apron 35-474

Description Cat. No.

Bucket Bag Tool Carrier 35-665

Note: Tools sold separately.

Bags/Totes

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-47

Note: Tools sold separately.

Mechanic’s Tool Bag

Eight narrow inside

pockets designed to

hold small tools

Two side pockets

with closeable snaps

for large tools or loose

items

Double inside liner

and rigid bottom

prevent bag distortion

Durable nylon

polyester construction

Large Mouth Bags

Top opens completely for easy access to large tools —

reinforced to hold itself open

Measures 9 in. wide x 12 in. deep with outside and inside

pockets for convenient hand tool storage

Rugged zipper closure helps prevent tool loss

Removable shoulder strap

Durable multi-ply construction

Journeyman Electrician’s Tote™ Tool Bag

Master Electrician’s Tote™ Tool Bag

Spacious and durable design

Organizes and displays tools for

fast access

Includes removable shoulder

strap

Durable multi-ply

construction

Compact and versatile design

Carry as a hand-tote,

shoulder-tote or tool-belt

Includes removable

shoulder strap and

belt

Durable multi-ply

construction

Description Cat. No.

Large Mouth Bag - 13 in. long 35-410

Large Mouth Bag - 16 in. long 35-418

Large Mouth Bag - 18 in. long 35-427

Description Cat. No.

Journeyman Electrician’s Tote™ 35-462

Description Cat. No.

Master Electrician’s Tote™ 35-441

Description Cat. No.

Mechanic’s Tool Bag 35-535

Insulated Hand Tools

www.idealindustries.com 1-800-435-0705 for Customer Service

B-48

The IDEAL insulated tool line creates a perfect blend of safety, comfort and precision functionality. Each tool features double insulated

Santoprene® handles with a soft, easy-to-grip outer surface. In addition to the ergonomic qualities found in our tools, the insulated coating

process acts as an ‘at-a-glance’ safety check. If the orange outer coating reveals any of the inner yellow surface, an electrician will know that

this tool needs to be replaced.

Meets OSHA requirements for insulated tools

Permanently bonded,

double insulated handles

for added safety

Cutting jaws and edges

are laser hardened

for greater strength

and durability

Non-slip guard

for added safety

High visibility ergonomic

handles for maximum comfort

and control

Textured Santoprene® handles

provide a sure grip and are resistant

to perspiration, water, oil and

chemicals

Tempered chrome vanadium tool

steel blades are super hardened for

maximum quality

High carbon tool

steel for precision

durability

Serrated jaws provide secure

gripping surface

�

Whenever possible, always de-energize lines and equipment

prior to working on or around them. 1000V insulated tools are

designed only to reduce the chance of injury where the tool may make contact with

an energized source. Work around energized circuits should only be done when

absolutely necessary and only by qualified technicians. Property damage, personal

injury or death may result if the following warnings are not heeded:

•Donotuseanyinsulatedtooliftheinsulationcracks,breaksorbecomes

damaged in any way. Destroy all dual-layer tools if the inner yellow layer shows

through the orange outer layer.

•Donottouchtheuninsulatedportionofaninsulatedtooloranyconductiveobject

when either might contact an energized source.

•Toolsmustbekeptcleananddryforproperinsulatingproperties.

•Alwaysinspectinsulatedtoolsbeforeuse.

•Useadditionalprotectionbywearingprotectiveclothingandapprovedeye

protection.

•Alwaysusetoolsthatarespecificallydesignedforthetask.

•ThesetoolsmeetUL22PP,ASTMF1505-01andIEC60900standardsfor

insulated tools.

•AlwaysfollowOSHA1910SandNFPA70Esafetyrequirementswhendoing

electrical work.

REGULATIONS

Testing:

•Every1000Vinsulatedtoolwesellisindividuallytestedtoensurenofailure

when subjected to live current.

UL and VDE Certification:

Listed below are some of the tests we perform in order to pass certification:

 • Tools are immersed in water for 24 hours, then tested under current for 3

minutes to ensure no current leakage or sparkover occurs.

 • After being stored for 168 hours at -40° C (-40° F), tools are dropped to

ensure no damage from impact.

 • After being stored for 168 hours at +70° C (158° F), a tensile load is

applied to ensure the grip is firmly bonded to the tool.

 • Tools are subjected to flame for 10 seconds to ensure no flammability of

the insulating material.

OSHA Regulations:

OSHA 1910.335(a)(2)(i) When working near exposed energized conductors or

circuit parts, each employee shall use insulated tools or handling equipment if

the tools or handling equipment might make contact with such conductors or

parts.

OSHA 1910.335 (a)(1)(i) Employees working in areas where there are potential

electrical hazards shall be provided with, and shall use, electrical protective

equipment that is appropriate for the specific parts of the body to be protected

and for the work to be performed.

Make sure you are in compliance by providing and using IDEAL

insulated tools!

Pliers only

Precision-ground

tips provide secure

fit for less spin-out

Molded on insulation

provides permanent

bonding

™

Insulated Tools

Insulated Hand Tool Kits

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-49

Basic Insulated Kit - #35-9100

Kit Includes:

• #30-9430–Insulated9in.Side

Cutter w/Crimp

• #35-9029–Insulated8in.Offset

Diagonal Cutting Plier

• #35-9038 – Insulated 8-1/2 in.

Long-Nose Plier

• #35-9430 – Insulated 10 in.

Tongue & Groove Plier

• #35-9052 – Insulated 2/0 Cable

Cutter

• #30-9429 – Insulated Multi-

Crimp Tool

• #45-9120 – Insulated T®-5

T®-Stripper Wire Stripper

• #35-9340 – Insulated Knife

• #61-063 – Volt-Sensor® NCV

Tester

• #34-002 – 7-1/2 in. Non-

Conductive Fuse Puller

• #35-9352 – Heavy-Duty Soft Case

Kit Includes:

• #30-9430–Insulated9in.Side

Cutter w/Crimp

• #35-9029–Insulated8in.Offset

Diagonal Cutting Plier

• #35-9038 – Insulated 8-1/2 in.

Long-Nose Plier

• #35-9430 – Insulated 10 in.

Tongue & Groove Plier

• #35-9052 – Insulated 2/0 Cable

Cutter

• #45-9120 – Insulated T®-5

T®-Stripper Wire Stripper

• #35-9340 – Insulated Knife

• #61-063 – Volt-Sensor® NCV

Tester

Kit Includes:

• #30-9430–Insulated9in.Side 

Cutter w/Crimp

• #35-9029–Insulated8in.Offset 

Diagonal Cutting Plier

• #35-9038 – Insulated 8-1/2 in.

Long-Nose Plier

• #35-9052 – Insulated 2/0 Cable Cutter

• #45-9120 – Insulated T®-5

T®-Stripper Wire Stripper

• #34-002 – 7-1/2 in. Non-

Conductive Fuse Puller

• #44-956 – Breaker Lockout,

Tall and Wide

• #44-957 – Breaker Lockout,

Standard and Double

• #44-916 – Red Safety Lock w/key

• SixInsulatedNutdrivers

#35-9290 – 3/16 in. x 5 in.

#35-9291 – 1/4 in. x 5 in.

#35-9292 – 5/16 in. x 5 in.

#35-9294 – 3/8 in. x 5 in.

#35-9295 – 7/16 in. x 5 in.

#35-9296 – 1/2 in. x 5 in.

• SevenInsulatedScrewdrivers

#35-9150 – 1/4 in. x 4 in. Slotted

#35-9151 – 1/4 in. x 4 in. Slotted

#35-9166 – 5/16 in. x 7 in. Slotted

#35-9168 – 3/8 in. x 8 in. Slotted

#35-9193 – #1 x 3-3/16 in. Phillips

#35-9194 – #2 x 4 in. Phillips

#35-9196 – #3 x 6 in. Phillips

• #34-002 – 7-1/2 in. Non-

Conductive Fuse Puller

• #35-9351 – Heavy-Duty Soft Case

• #44-956 – Breaker Lockout,

Tall and Wide

• #44-957 – Breaker Lockout,

Standard and Double

• #44-916 – Red Safety Lock w/key

• FiveInsulatedScrewdrivers

#35-9150 – 1/4 in. x 4 in. Slotted

#35-9151 – 1/4 in. x 4 in. Slotted

#35-9166 – 5/16 in. x 7 in. Slotted

#35-9168 – 3/8 in. x 8 in. Slotted

#35-9193 – #1 x 3-3/16 in. Phillips

• #35-9350 – Heavy-Duty Soft Case

• #44-956 – Breaker Lockout,

Tall and Wide

• #44-957 – Breaker Lockout,

Standard and Double

• #44-916 – Red Safety Lock w/key

• ThreeInsulatedScrewdrivers

#35-9150 – 1/4 in. x 4 in. Slotted

#35-9151 – 1/4 in. x 4 in. Slotted

#35-9154 – #2 x 4 in. Phillips

Standard Insulated Kit - #35-9101

Journeyman Insulated Kit - #35-9102 Available

Spring

2011

Available

Spring

2011

Available

Spring

2011

Description Cat. No.

9-Piece Insulated Screwdriver Kit 35-9103

Kit 35-9103 Includes: Cat. No.

Phillips #1 x 3-3/16 in. Insulated Screwdriver 35-9193

Phillips #2 x 4 in. Insulated Screwdriver 35-9194

Phillips #3 x 6 in. Insulated Screwdriver 35-9196

Square SQ #0 1/4 in. x 4 in. Insulated Screwdriver 35-9690

Slotted 1/4 in. x 4 in. Insulated Screwdriver 35-9150

Slotted 7/32 in. x 5 in. Insulated Screwdriver 35-9147

Slotted 1/4 in. x 6 in. Insulated Screwdriver 35-9151

Slotted 5/16 in. x 7 in. Insulated Screwdriver 35-9166

Slotted 3/8 in. x 8 in. Insulated Screwdriver 35-9168

Description Cat. No.

9-Piece Insulated Screwdriver Kit 35-9103

Kit 35-9103 Includes: Cat. No.

Phillips #1 x 3-3/16 in. Insulated Screwdriver 35-9193

Phillips #2 x 4 in. Insulated Screwdriver 35-9194

Phillips #3 x 6 in. Insulated Screwdriver 35-9196

Square SQ #0 1/4 in. x 4 in. Insulated Screwdriver 35-9690

Slotted 1/4 in. x 4 in. Insulated Screwdriver 35-9150

Slotted 7/32 in. x 5 in. Insulated Screwdriver 35-9147

Slotted 1/4 in. x 6 in. Insulated Screwdriver 35-9151

Slotted 5/16 in. x 7 in. Insulated Screwdriver 35-9166

Slotted 3/8 in. x 8 in. Insulated Screwdriver 35-9168

Description Cat. No.

7-Piece Insulated Nutdriver Kit 35-9104

Kit 35-9104 Includes: Cat. No.

3/16 in. x 5 in. Insulated Nutdriver 35-9290

1/4 in. x 5 in. Insulated Nutdriver 35-9291

5/16 in. x 5 in. Insulated Nutdriver 35-9292

3/8 in. x 5 in. Insulated Nutdriver 35-9294

7/16 in. x 5 in. Insulated Nutdriver 35-9295

1/2 in. x 5 in. Insulated Nutdriver 35-9296

9/16 in. x 5 in. Insulated Nutdriver 35-9297

Insulated Hand Tools

www.idealindustries.com 1-800-435-0705 for Customer Service

B-50

Insulated Pliers

Cases

Insulated Nutdrivers

Insulated Screwdrivers

45-9120

35-9029

35-9038

45-9615

35-9052 35-9430

30-9430

Description Cat. No.

Soft Zipper Case for Basic Kit (35-9300) 35-9350

Soft Zipper Case for Standard Kit (35-9301) 35-9351

Soft Zipper Case for Journeyman Kit (35-9302) 35-9352

Hard Case for Screwdriver Kit (35-9303) & Nutdriver Kit (35-9304) 35-9353

Description Cat. No.

Premium T®-Stripper Wire Stripper 45-9120

8 in. Diagonal Cutting Pliers w/angled head 35-9029

9-1/2 in. High-Leverage Cable Cutter 35-9052

9-1/4 in. Side Cutting Linesman Pliers 30-9430

Description Cat. No.

10 in. Tongue and Groove Pliers 35-9430

9-3/4 in. Multi-Crimp Tool 30-9429

8-1/2 in. Long-Nose Pliers 35-9038

Description Cat. No.

Insulated Electrician’s Skinning Knife 35-9340

Insulated Knife

Insulated Hand Tools

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-51

Description Cat. No.

Small Puller for 250V, 9/32 in. to 1/2 in. dia. fuses; 5 in. long 34-001

Medium Puller for 0 to 100A/250V & 600V, 1/2 in. to 1 in. dia.

fuses; 7-1/2 in. long 34-002

Large Puller for 31 to 600A/250V & 31 to 400A/600V, 3/4 in. to

2-1/2 in. dia. fuses; 11-3/4 in. long 34-003

Description Cat. No.

Fuse Puller & Test Light 34-012

Safe-T-Grip® Fuse Pullers

Maximum efficiency and convenience for removing or

replacing cartridge-type fuses

Three sizes handle fuses ranging from 0 to 600A

Fully insulated, high-dielectric, glass-filled

polypropylene construction

Notched handles provide safe, no-slip grip

Clearly marked amperage ranges

Exceed MIL specifications

Fuse Pullers

Fuse Puller and Test Light

Convenient pocket-sized tool safely

pulls cartridge fuses and checks

electrical connections

Test prods fit parallel and tandem slot

receptacles

Built-in resistors limit current flow to eliminate false indication

For 9/16 in. to 1 in. fuses

n

For use on fuses to 100A/250V and 60A/600V

Test capacity from 100V to 600V AC/DC

Molded of tough, high-impact nylon for greater strength

No-slip gripping surface and protective finger stops for added

safety

Description Cat. No.

Small Puller for 0 to 30A/250V, 1/4 in. to 1/2 in. dia. fuses;

5 in. long 34-015

Large Puller for 0 to 100A/250V & 0 to 60A/600V, 9/16 in. to 1 in.

dia. fuses; 7-1/4 in. long 34-016

Hole Cutters

www.idealindustries.com 1-800-435-0705 for Customer Service

B-52

Introducing the TKO™ Carbide Tipped Hole Cutters from IDEAL INDUSTRIES,

INC. TKO cutters offer the most efficient and clean cutter replacement for

traditional knockouts, by making smooth holes in a fraction of the time at a

fraction of the cost. Specifically designed to cut sheet metal, TKO cutters will

even cut stainless steel with fine grained, carbide tips. The innovative design

includes the exclusive SmoothStart™ replaceable pilot drill, which guides the

cutter to the surface, avoiding cutter damage and providing smoother holes.

An integral overdrill flange prevents cutter penetration beyond the sheet

metal. When it comes to quality, performance and durability, IDEAL is the

professional’s choice for carbide tipped hole cutters.

Carbide Tipped Hole Cutters

Carbide-Tipped Hole Cutters

Hole Size (Inches) Conduit & Pipe Size

(Inches) Cat. No.

7/8 1/2 36-301

1 — 36-302

1-1/8 3/4 36-303

1-1/4 — 36-304

1-3/8 1 36-305

1-7/16 — 36-306

1-1/2 — 36-307

1-3/4 1-1/4 36-308

2 1-1/2 36-309

2-1/2 — 36-310

2-7/8 2-1/2 36-315

3-1/2 3 36-316

4 3-1/2 36-317

4-1/2 4 36-318

Description Cat. No.

SmoothStart™ Replacement Pilot Drill 36-312

Description Cat. No.

4-Piece Carbide Hole Cutter Kit — Includes SmoothStart™

Replacement Tip, 7/8 in. 1-1/8 in., 1-3/8 in. 36-311

Description Cat. No.

Master Electrician’s Kit — Includes two SmoothStart™

Replacement Tips, 7/8 in. 1-1/8 in., 1-3/8 in., 1-3/4 in., 2 in.

and 2-1/2 in.

36-314

4-Piece Kit

Master Electrician’s Kit

Includes the three most

common sizes along with

a spare SmoothStart™

pilot bit and a convenient

carrying case

Includes six common

sizes along with a spare

SmoothStart™ pilot bit and

a convenient carrying case

Exclusive! SmoothStart™ pilot

guides cutter to surface

providing smoother holes

and avoiding cutter

damage.

Integrated overdrill flange prevents penetration

beyond the sheet metal.

IDEAL provides smoother, more precise holes than competitors

(holes cut with 1-1/8 in. cutters)

IDEAL TKO™ Competitor

SmoothStart™ Replacement

Pilot Drill

Carbide Tipped Hole Cutters

See how IDEAL TKO can save time...

Carbide tips cut over 200 holes

through stainless steel, and

outperform HSS cutters and

bi-metal hole saws in sheet steel Integral arbor provides

smoother, more accurate

holes than hole saws or

two-piece carbide-tipped

cutters

Exclusive SmoothStart™

pilot drill guides cutter

Integrated overdrill flange

prevents penetration

beyond the sheet metal

Ejection spring

effortlessly ejects

slug

Total time using the

IDEAL TKO™

30 Seconds

Chuck Cutter

Total time using the

competitors’ knockout tool

More than 6 Minutes

Drill hole

& store

Slug removed,

disassemble

& store

06:20

Assemble

knockout punch

& stud pull

02:00

Ratchet

04:20

Drill Pilot Hole

00:30

Chuck Step

Drill

00:10

00:30

1-800-435-0705 for Customer Service www.idealindustries.com B-53

Hole Cutters

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com

Trust IDEAL step drill bits for precise, repetitive drilling through

the toughest materials including brass, carbon steel, cast iron,

stainless steel, and more. These tough and reliable tools are

constructed with a rugged titanium nitrite exterior coating. Each

step is gradually blended to ease stepping through hole sizes;

reducing the need to keep changing drill bits, which speeds up

the fabrication process. Improved Split-Point tip design elimi-

nates the need for a starter hole or punch and delivers three

times faster starts, saving valuable time. The double-fluted

design provides balanced cuts and cooler operation.

Protective titanium

nitrite coating

Improved

Split-Point

design for

3x faster

starts Radius-blended,

multi-diameter steps

Double-fluted design

35-515

35-516

35-517

35-511

35-512

35-513

35-514

Durable blow-molded case securely

holds and protects bits

Kit includes four step bits (35-511,

35-513, 35-515 and 35-517)

Kit provides a solution for every

electrical hole size between

1⁄8 in. and 1-3⁄8 in.

Split-point tip lasts longer and

starts faster than competition

High speed tool steel

Double-tempered for superior

tip life

Double fluted and blended

radius steps for smooth drilling

1/4” Quick change shank

Drill

Diameter

Sizes (In.)

No. of

Hole

Sizes

Step

Increments

(In.)

Step

Thickness

(In.)

Shank

Dia.

(In.)

Cat.

No.

1/8 to 1/2 13 1/32 1/8 1/4 35-511

1/4 to 3/4 9 1/16 1/8 3/8 35-512

1/4 to 7/8 11 1/16 1/16 3/8 35-513

1/2 to 1 8 1/16 1/8 3/8 35-514*

1/4 to 1-1/8 16 1/16 1/16 3/8 35-515

3/16 to 1/2 6 1/16 3/8 1/4 35-516

1/4 to 1-3/8 10 1/32 1/16 to 1/4 3/8 35-517

*Requires pilot holes.

Drill

Diameter

Sizes (In.)

No. of

Hole

Sizes

Step

Increments

(In.)

Step

Thickness

(In.)

Shank

Dia.

(In.)

Cat.

No.

1/8 to 1/2 13

1/16

1/8

1/4

35-521

1/4 to 7/8 11 1/16 35-522

1/4 to 1-1/8 16 35-523

Description Cat. No.

3-Piece Quick Change Step Bit Kit (35-521, 35-522, 35-523) 35-524

Description Cat. No.

Electrician’s Step Bit Kit 35-520

Step Drill Bits

Electrician’s Step Bit Kit

Quick Change Step Bits

35-521 35-522 35-523

35-524

Step Drill Bits

www.idealindustries.com 1-800-435-0705 for Customer Service

B-54

BEST

GOOD

Impact

Ready!

Hole Saws

Tools & Supplies

Catalog

Number

Hole Size

(in.)

Application

36-367* Spade Bit Wood boring

36-368* Carbide Pilot Abrasive material boring

Massive carbide tips designed to cut wood with

nails, cement board, composite enclosures, ceiling

tile and more!

Faster than self-feed bits in wood

Faster than carbide grip in abrasive materials

Available in all popular sizes

Tri-Bore™ Multi-Purpose Hole Saw

Rugged construction for

extra life

Available in all recessed

lighting sizes!

Deep gullets for

easy plug removal

Carbide teeth for

wood with nails, cement board,

composite enclosures and

other abrasive materials.

Catalog

Number

Hole Size

(in.)

Application

36-350 1-3/8

36-351 2-1/8 1-1/2” Pipe and lock installation

36-352 2-1/4 1-1/2” Pipe with couplings

36-353 2-9/16 2” Pipe

36-354 32” Pipe with couplings

36-355 3-3/8

36-356 3-5/8 3” Pipe

36-357 4

36-358 4-1/4 3” Pipe with couplings, 4" dryer vent

36-359 4-1/8

36-360 4-3/8 Capri®, Halo®, Marco, Mini Juno

36-361 4-5/8 4” pipe

36-362 5-3/8 Capri®, Juno®, Lightolier, Prescolite, Progress

36-363 6-1/4 6” Duct

36-364 6-3/8 Capri®, Halo®

36-365 6-5/8 Juno® and Progress

36-366 6-7/8

Capri

Lightolier, Lithonia, Prescolite, Progress

*Sold separately.

Spade Bit & Carbide Pilot

™

1-800-435-0705 for Customer Service www.idealindustries.com B-55

Hole Saws

www.idealindustries.com 1-800-435-0705 for Customer Service

B-56

IRONMAN™ Bi-metal hole saws from IDEAL INDUSTRIES, INC,

with re-engineered bi-metal construction, a thick “flex-free”

backing plate, and variable sized teeth, IDEAL IRONMAN™ hole

saws will rival the cutting speed and longevity of any in the

industry. The bi-metal construction cuts metal, wood and plastics

including: tool and stainless steel, nail embedded wood, plywood,

and pipe. An extensive list of 51 sizes, effective accessories, and

kits are available to meet all your cutting needs. When it comes

to quality, performance and durability, IDEAL is the professional’s

choice for hole saws.

Hole Saws

Thicker, FLEX

FREE backing

plate for clean

true holes and

longer tool life

Improved bi-metal

construction for long life

and durability

Variable pitch tooth geometry for

fast cutting and reduced vibration

Cuts all types of machinable metal including stainless steel,

wood, nail embedded wood, plastic and fiberboard

1-5/8 in. cutting depth cuts through

2’ x 4’s on the first cut

Threads fit all

standard arbors

Bi-metal construction

combines hardened and

durable tool steel teeth

welded to fatigue resistant

body for long and consis-

tent cutting life

Variable sized

teeth clear chips

away from the work

quickly for faster

cuts and reduced

vibration

New improved solid plate design

resists flexing of the new hole saw

for clean true holes and added

durability

Bi-Metal Hole Saws

Saw Diameter

(Inches)

Pipe Tap Size*

(Inches)

Pipe Entrance

Size* (Inches) Cat. No.

Use Arbor No. 35-391, 35-392 or 35-393

9⁄16

5⁄8

11/16

–

35-340

35-341

35-342

3⁄49

13⁄169

7⁄8

1⁄2

–

3/4

3⁄8

–

1/2

35-343

35-344

35-345

15⁄16

1-1/169

–

35-346

35-347

35-348

1-1⁄89

1-3⁄16

–

3⁄4

–

35-349

35-350

Use Arbor No. 35-394,35-536 or 35-537

3-1/2 – – 36-317

1-1⁄4 – – 35-351

1-5⁄16 – – 35-352

1-3/8 – 1 35-353

1-7⁄16 – – 35-354

1-1⁄2 1-1⁄4 – 35-355

1-9⁄16 – – 35-356

1-5⁄8 – – 35-357

1-11⁄19 – – 35-358

1-3⁄4 1-1⁄2 1-1⁄4 35-359

1-13⁄16 – – 35-360

1-7⁄8 – – 35-361

2 – 1-1⁄2 35-362

2-1⁄16 – – 35-363

2-1⁄8 – – 35-364

2-1⁄4 2 – 35-365

2-5⁄16 – – 35-366

2-3⁄8 – – 35-367

2-1⁄2 – 2 35-368

2-9⁄16 – – 35-369

2-5⁄8 2-1⁄2 – 35-370

2-3⁄4 – – 35-371

2-7⁄8 – – 35-372

Use Arbor No. 35-394, 35-536, 35-537 or 35-538

3 – 2-1⁄2 35-373

3-1⁄8 – – 35-374

3-1⁄4 3 – 35-375

3-3⁄8 – – 35-376

3-1⁄2 – – 35-377

3-5⁄8 – 3 35-378

3-3⁄4 3-1⁄2 – 35-379

3-7⁄8 – – 35-380

4 – – 35-381

4-1⁄8 – 3-1⁄2 35-382

4-1⁄4 4 – 35-383

4-3⁄8 – – 35-384

4-1⁄2 – 4 35-385

4-3⁄4 4-1⁄2 – 35-386

5 – – 35-387

5-1⁄2 – – 35-388

5-3⁄4 – – 35-389

6 – – 35-390

*All pipe sizes listed in the Pipe Tap Size and Pipe Entrance Size columns are standard industry sizes.

All pipes are sized by the nominal inside diameter.

Hole Saws

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-57

For boring jobs that require a longer reach,

arbor extensions add up to 18 in. length

and can be easily connected to

IDEAL hole saw arbors.

Arbor Extension

Durable steel construction means years of long-lasting performance.

Set-screw in body allows easy replacement of the pilot drill. Save

valuable time through this versatile design. Instantly change hole saws

without tools and without having to remove the arbor from the chuck.

Split point pilot drills start on

contact for faster penetration

and less walking.

Hole Saw Arbors

Replacement Pilot Drills for Hole Saw

Arbors

Description Cat. No.

4-1/2 in. x 1/4 in. – Fits 35-391, 35-393, 35-394 & 35-538 arbors 35-397

3-1/4 in. x 1/4 in. – Fits 35-392, 35-536 & 35-537 arbors 35-398

Description Cat. No.

Extension for 7/16 in. Arbors, 12 in. long 35-396

Description Cat. No.

Adjustable Can Light Hole Saw – 10 sizes from 2-1/2 in. to 7 in. 35-598

Adjustable Can Light Hole Saw – 13 sizes from 6-1/4 in. to

10-3/8 in. 35-599

35-391 35-392 35-393 35-394 35-536 35-537

Cuts drywall and ceiling tile

Self-sharpening

carbide coated

cutting blades

Includes two

dust shields to

minimize clean

Adjustable Can Light Hole Saws

Drill not included.

35-538

Shank Size Thread Size Chuck Size Fits Hole Saw

Sizes Cat. No.

1/4 in. Round 1/2 - 20 in. 1/4 in. 9/16 - 1-3/16 in. 35-391

3/8 in. Hex 1/2 - 20 in. 3/8 in. 9/16 - 1-3/16 in. 35-392

7/16 in. Hex 1/2 - 20 in. 1/2 in. 9/16 - 1-3/16 in. 35-393

7/16 in. Hex 5/8 - 18 in. 1/2 in. 1/4 - 6 in. 35-394

7/16 in. Hex 5/8 - 18 in. 1/2 in. 1/4 - 6 in. 35-536

3/8 in. Hex 5/8 - 18 in. 3/8 in. 1/4 - 6 in. 35-537

7/16 in. Hex 5/8 - 18 in. 1/2 in. 2 - 6 in. 35-538

35-397

19-Piece Master Electrician’s

Hole Saw Kit

For electrical, industrial and

all-purpose maintenance

needs

19-piece kit comes in

sturdy durable plastic

case

Plumbing and electrical

sizes for pipe and conduit

through 4 in.

Hole Saw Kits

14-Piece Electrician’s

Hole Saw Kit

Generous 14-piece kit offers

a tremendous selection

 You’ll find electrical sizes

for pipe and conduit

through 4 in.

Sturdy plastic case survives

extra wear and tear

Electrician’s

Hole Saw Kit

Reliable 8-piece kit in a

durable plastic case

Find electrical sizes for

pipe and conduit through 2 in.

Description Cat. No.

Hole Saw sizes 7/8 in., 1-1/8 in., 1-3/8 in., 1-3/4 in., 2 in.

& 2-1/2 in. Also includes arbor models 35-393 & 35-394 35-400

Description Cat. No.

Hole Saw sizes 7/8 in., 1-1/8 in., 1-3/8 in., 1-3/4 in., 2 in.,

2-1/2 in., 3 in., 3-5/8 in., 4-1/8 in., 4-1/2 in. Also includes

arbor models 35-391, 35-393 & 35-394 and extension bar

35-396.

35-401

Description Cat. No.

Hole Saw sizes 3/4 in., 7/8 in., 1 in., 1-1/8 in., 1-3/8 in., 1-1/2

in., 1-3/4 in., 2 in., 2-1/4 in., 2-1/2 in., 3 in., 3-5/8 in., 4-1/8

in. & 4-1/2 in. Also includes arbor models 35-393, 35-394,

pilot drill 35-397 (two pieces) and extension bar 35-396.

35-518

Reciprocating Blades

B-58

Bi-metal blades last up to ten times longer than carbon steel blades

Flexible spring-back provides long blade life

Super-hard, high speed steel teeth for a sharp, long-lasting cutting edge

Shatterproof for tough applications

Fits all reciprocating saws using 1/2 in. universal shank

Reciprocating Blades

www.idealindustries.com 1-800-435-0705 for Customer Service

L/W/TH

(Inches) TPI Material

Blade

Back

Qty. Application Cat. No.

Metal Cutting

6 x 3/4 x .035 14 Bi-metal Straight 5 Pipe, structural steel, stainless steel:

3/32” - 1/4”, Non-ferrous metal: 3/32” - 3/8” 36-059

6 x 3/4 x .035 14 Bi-metal Straight 25 Pipe, structural steel, stainless steel:

3/32” - 1/4”, Non-ferrous metal: 3/32” - 3/8” 36-059B

4 x 3/4 x .035 18 Bi-metal Straight 5 Structural steel, pipe, conduit, stainless steel:

1/16” - 3/16” thick, Non-ferrous metal: 1/16” - 5/16” thick 36-055

6 x 3/4 x .035 18 Bi-metal Straight 5 Structural steel, pipe, conduit, stainless steel:

1/16” - 3/16” thick, Non-ferrous metal: 1/16” - 5/16” thick 36-057

6 x 3/4 x .035 18 Bi-metal Straight 25 Structural steel, pipe conduit, stainless steel:

1/16” - 3/16” thick, Non-ferrous metal: 1/16” - 5/16” thick 36-057B

8 x 3/4 x .035 18 Bi-metal Straight 5 Structural steel, pipe, conduit, stainless steel:

1/16” - 3/16” thick, Non-ferrous metal: 1/16” - 5/16” thick 36-060

6 x 3/4 x .035 24 Bi-metal Straight 5 All metal less than 1/8” thick: Tubing conduit, trim 36-058

6 x 3/4 x .035 24 Bi-metal Straight 25 All metal less than 1/8” thick: Tubing conduit, trim 36-058B

Heavy-Duty Metal Cutting

6 x 3/4 x .050 18 Bi-metal Straight 2 Heavy-duty blade for cutting structural steel, pipe, conduit,

stainless steel: 1/16” to 3/16” thick 36-085

8 x 3/4 x .050 10/14 Bi-metal Straight 2 Heavy-duty blade for cutting structural steel, pipe, conduit,

stainless steel: 1/8” to 1/2” thick 36-086

12 x 3/4 x .050 10/14 Bi-metal Taper 5 Heavy-duty blade for cutting structural steel, pipe, conduit,

stainless steel: 1/8” to 1/2” thick 36-087

Wood w/Nails

6 x 3/4 x .050 6 Bi-metal Taper 5 Fast cutting, roughing-in work, nail-embedded wood,

remodeling 36-065

6 x 3/4 x .050 6 Bi-metal Taper 25 Fast cutting, roughing-in work, nail-embedded wood,

remodeling 36-065B

9 x 3/4 x .050 6 Bi-metal Taper 5 Fast cutting, roughing-in work, nail-embedded wood,

remodeling 36-066

12 x 3/4 x .050 6 Bi-metal Taper 5 Fast cutting, roughing-in work, nail-embedded wood,

remodeling 36-067

Demolition

9 x 7/8 x .062 6 Bi-metal Taper 2 Demolition work in nail-embedded wood, remodeling 36-095

9 x 7/8 x .062 10 Bi-metal Taper 2 Demolition work in wood, metal, pipe and fire and rescue 36-096

General Purpose

6 x 3/4 x .035 10 Bi-metal Straight 5 Nail embedded wood, metal and non-ferrous metal

composition materials & plastics 1/8” - 1/2” 36-075

Specialty Cutting

8 x 3/4 x .050 Grit Tung. Grit Straight 2 Iron pipe, fiberglass, reinforced plastics, ceramic tile,

stone, slate and brick. 36-090

3 x 5/16 x .035 18 Bi-metal Scroll 5 Scroll cutting wood, cast aluminum and non-ferrous

metals 36-054

Plaster/Drywall

6 x 3/4 x .050 6 Bi-metal Taper 2 For plaster, drywall, plaster board & lath.

Bi-directional cutting 36-088

Long-Life Blades L/W/TH

(Inches) TPI Material Blade

Back Qty. Application Cat.

No.

6 x 3/4 x .035 18 Bi-metal Straight 5 Long-Life blade for cutting structural steel, pipe,

conduit, stainless steel, sheet metal: 1/6” - 3/16” thick 36-043

8 x 3/4 x .035 18 Bi-metal Straight 5 Long-Life blade for cutting structural steel, pipe,

conduit, stainless steel, sheet metal: 1/6” - 3/16” thick 36-044

6 x 1 x .042 14 Bi-metal Straight 5 Long-Life blade for cutting rebar, barstock, angle iron

and other heavy gauge metals: 1/8” and thicker 36-046

12 x 1 x .050 14 Bi-metal Straight 5 Long-Life blade for cutting rebar, barstock, angle iron

and other heavy gauge metals: 1/8” and thicker 36-048

Reciprocating Blades

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-59

Engineered to be the longest lasting, metal cutting blades available

Long-life blades perform up to three times as many cuts as similar metal cutting blades

8% cobalt cutting edge for extreme durability

Shatterproof bi-metal design

Longer life for greater value

Long-Life Metal Cutting Reciprocating Blades

Portable Band Saw Blades

Bi-metal construction

Fit all standard portable band saw machines

For pipe, tubing and solids

Cut any machinable metal, including conduit, angle iron, structurals,

rebar and stainless steel tubing

L/W/TH (Inches) TPI Qty./Pack Cat. No.

44-7/8 x 1/2 x .020 10 3 36-070

44-7/8 x 1/2 x .020 14 3 36-071

44-7/8 x 1/2 x .020 18 3 36-072

44-7/8 x 1/2 x .020 24 3 36-073

Specially designed for all purpose cutting

Cut multiple materials without changing blades

Tough bi-metal and HCS construction for long life.

Progressive Tooth Reciprocating Blades

L/W/TH Blade

(Inches) Material Back Qty. Application Cat. No.

6 x 3/4 x .035 Progressive Bi-metal 5 All metal, non-ferrous metal, sheet metal,

pipe and other metal materials 36-056

8 x 3/4 x .050 Progressive Bi-metal 5 For wood, nail-embedded wood, non-ferrous

metals, plastic and fiberglass 36-076

Long-Life Blades

Description Cat. No.

5-1/2 in. extension bar, 1 in., 1-1/4 in., 1-3/8 in., 2 in.,

2-9/16 in. bits 36-266

Description Cat. No.

5-1/2 in. extension bar, 1 in., 1-1/8 in., 1-1/4 in., 1-3/8 in.,

1-1/2 in., 1-3/4 in., 2-1/8 in., 2-9/16 in. bits 36-269

™

Wood Boring Bits

www.idealindustries.com 1-800-435-0705 for Customer Service

B-60

BULZ-EYE™ Self Feed Wood Boring

Bits

Description Diameter

Entrance Size

for Pipe

& EMT

Cat.

1 in. Self-Feed Wood Boring Bit 1 in. 1⁄2 in. 36-250

1-1⁄8 in. Self-Feed Wood Boring Bit 1-1⁄8 in. —36-251

1-1⁄4 in. Self-Feed Wood Boring Bit 1-1⁄4 in. 3⁄4 in. 36-252

1-3⁄8 in. Self-Feed Wood Boring Bit 1-3⁄8 in. 1 in. 36-253

1-1⁄2 in. Self-Feed Wood Boring Bit 1-1⁄2 in. —36-254

1-3⁄4 in. Self-Feed Wood Boring Bit 1-3⁄4 in. 1-1⁄4 in. 36-255

2 in. Self-Feed Wood Boring Bit 2 in. 1-1⁄2 in. 36-256

2-1⁄8 in. Self-Feed Wood Boring Bit 2-1⁄8 in. —36-257

2-1⁄4 in. Self-Feed Wood Boring Bit 2-1⁄4 in. —36-258

2-9⁄16 in. Self-Feed Wood Boring Bit 2-9⁄16 in. 2 in. 36-259

3 in. Self-Feed Wood Boring Bit 3 in. 2-1⁄2 in. 36-260

3-5⁄8 in. Self-Feed Wood Boring Bit 3-5⁄8 in. 3 in. 36-261

4-5⁄8 in. Self-Feed Wood Boring Bit 4-5⁄8 in. 4 in. 36-262

5-1⁄2 in. Extension Bar — — 36-273

18 in. Extension Bar — — 35-819

Replacement Lead Screws

36-271

Extension Bars

Sharpening File

Cuts into hard-to-reach areas

Fits IDEAL Auger Bits

Keeps durable bits working

like new

High-grade sharpener hones

dulled edges quickly and

efficiently

Description Cat. No.

3-pack small replacement lead screws, fits bit sizes 1 in. - 2-9/16 in. 36-271

3-pack small replacement lead screws, fits bit sizes 3 in. - 4-5/8 in. 36-270

Description Cat. No.

Sharpening File 36-272

Description Cat. No.

5-1/2 in. Extension Bar 36-273

18 in. Extension Bar 35-819

36-270

Keeps self-feed bits running fast and true

Easily replaced with hex wrench providing extended

drill life and optimum cost-per-hole value

Kit 36-266 Includes:

Kit 36-269 Includes:

6-Piece Kit

Includes five

different bit sizes, a

5-1/2 in. extension

bar, and a convenient

carrying case, giving you

everything you need for drilling

multiple hole sizes in any wood material.

9-Piece Kit

Includes eight different

bit sizes, a 5-1/2 in.

extension bar, and a

convenient carrying case,

giving you everything you

need for drilling multiple hole

sizes in any wood material.

Robust replaceable

lead screw with

burr-free threads

Black oxide coated,

heat treated and

hardened for

improved durability

Twin cutting

edges for faster, more

balanced drilling and

cleaner holes

Precision machined

shaft eliminates

wobble resulting in

true, accurate holes

Quick change shank design

for fast bit changes and use

with pneumatic drills

Wider precision

ground teeth for

maximum

control

Flexible Drill Bits

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-61

Auger Bit Extensions, 18”

Six flats to fit drill chuck - Allen wrench included

Description

Cat. No.

Auger Bit Extension - 5/16 in. 35-818

Auger Bit Extension - 7/16 in. 35-819

62° cutting angle

reinforces the

cutting edge and

provides greater

durability

Hardened lead screw and cutting edge provide increased

wear resistance and extended life

Secondary relief angle evacuates wood chips quickly and

prevents auger from jamming

Oversized cutting head makes hole larger than body of bit for

easy ejection from work piece

RESI-MASTER™ Heavy-Duty Ship

Augers

Power Ship Augers - Bit

Length = 7-1/2”,

Twist = 5”, Shank = 7/16”

Description

Hole

Diameter

Overall

Length

Twist

Length Cat. No.

5/8 in. Power Ship Auger 5/8 in. 7-1/2 in. 5 in. 35-810

11/16 in. Power Ship Auger 11/16 in. 7-1/2 in. 5 in. 35-811

3/4 in. Power Ship Auger 3/4 in. 7-1/2 in. 5 in. 35-812

13/16 in. Power Ship Auger 13/16 in. 7-1/2 in. 5 in. 35-813

7/8 in. Power Ship Auger 7/8 in. 7-1/2 in. 5 in. 35-814

1 in. Power Ship Auger 1 in. 7-1/2 in. 5 in. 35-815

1-1/8 in. Power Ship Auger 1-1/8 in. 7-1/2 in. 5 in. 35-816

1-1/4 in. Power Ship Auger 1-1/4 in. 7-1/2 in. 5 in. 35-817

Power Ship Augers - Bit

Length = 18”, Twist = 15”,

Shank = 7/16”

Description

Hole

Diameter

Overall

Length

Twist

Length Cat. No.

1/2 in. Power Ship Auger 1/2 in. 18 in. 15 in. 35-820

5/8 in. Power Ship Auger 5/8 in. 18 in. 15 in. 35-821

11/16 in. Power Ship Auger 11/16 in. 18 in. 15 in. 35-822

3/4 in. Power Ship Auger 3/4 in. 18 in. 15 in. 35-823

13/16 in. Power Ship Auger 13/16 in. 18 in. 15 in. 35-824

7/8 in. Power Ship Auger 7/8 in. 18 in. 15 in. 35-825

15/16 in. Power Ship Auger 15/16 in. 18 in. 15 in. 35-826

1 in. Power Ship Auger 1 in. 18 in. 15 in. 35-827

1-1/8 in. Power Ship Auger 1-1/8 in. 18 in. 15 in. 35-828

1-1/4 in. Power Ship Auger 1-1/4 in. 18 in. 15 in. 35-829

Mini™ Augers - Bit Length =

4-3/4”

Twist = 2-1/2”,

Shank = 7/16” Description

Hole

Diameter

Overall

Length

Twist

Length Cat. No.

5/8 in. Mini™ Auger 5/8 in. 4-3/4 in. 2-1/2 in. 35-862

3/4 in. Mini™ Auger 3/4 in. 4-3/4 in. 2-1/2 in. 35-864

7/8 in. Mini™ Auger 7/8 in. 4-3/4 in. 2-1/2 in. 35-866

1 in. Power Ship Auger 1 in. 4-3/4 in. 2-1/2 in. 35-868

Nailbiter™ Premium Ship Auger Bits

Power Ship Augers -

Bit Length = 7-1/2”,

Twist = 5”, Shank = 7/16”

Description

Hole

Diameter

Overall

Length

Twist

Length

Cat.

No.

5/8 in. RESI-MASTER™ Auger 5/8 in. 7-1/2 in. 5 in. 35-892

11/16 in. RESI-MASTER™ Auger 11/16 in. 7-1/2 in. 5 in. 35-730

3/4 in. RESI-MASTER™ Auger 3/4 in. 7-1/2 in. 5 in. 35-893

13/16 in. RESI-MASTER™ Auger 13/16 in. 7-1/2 in. 5 in. 35-731

7/8 in. RESI-MASTER™Auger 7/8 in. 7-1/2 in. 5 in. 35-896

15/16 in. RESI-MASTER™ Auger 15/16 in. 7-1/2 in. 5 in. 35-897

1 in. RESI-MASTER™ Auger 1 in. 7-1/2 in. 5 in. 35-898

1-1/8 in. RESI-MASTER™ Auger 1-1/8 in. 7-1/2 in. 5 in. 35-899

1-1/4 in. RESI-MASTER™ Auger 1-1/4 in. 7-1/2 in. 5 in. 35-732

Power Ship Augers -

Bit Length = 18”,

Twist = 15”, Shank = 7/16”

Description

Hole

Diameter

Overall

Length

Twist

Length

Cat.

No.

1/2 in. RESI-MASTER™ Auger 1/2 in. 18 in. 15 in. 35-726

5/8 in. RESI-MASTER™ Auger 5/8 in. 18 in. 15 in. 35-971

11/16 in. RESI-MASTER™ Auger 11/16 in. 18 in. 15 in. 35-727

3/4 in. RESI-MASTER™ Auger 3/4 in. 18 in. 15 in. 35-972

13/16 in. RESI-MASTER™ Auger 13/16 in. 18 in. 15 in. 35-728

7/8 in. RESI-MASTER™ Auger 7/8 in. 18 in. 15 in. 35-976

15/16 in. RESI-MASTER™ Auger 15/16 in. 18 in. 15 in. 35-977

1 in. RESI-MASTER™ Auger 1 in. 18 in. 15 in. 35-978

1-1/8 in. RESI-MASTER™ Auger 1-1/8 in. 18 in. 15 in. 35-979

1-1/4 in. RESI-MASTER™ Auger 1-1/4 in. 18 in. 15 in. 35-729

Dual-Helix construction with twin cutting edges

provides faster and smoother drilling action, even

through nail-embedded timbers

Full body, dual induction heat treatment

ensures durability, minimizes warping and

delivers long lasting performance

Heavy-duty lead screw designed for

quick gripping power, superior

penetration and extra-long life

Re-sharpenable for extended

tool life

Auger Bit Extensions

*Dual locking screws

Designed to fit between wall

studs when used with

common drills

Eliminates the need for

expensive right angle drills

Mini™ Utility Bit Augers

Best for

WOOD

Best for

WOOD

Best for

light WOOD

& light METAL

Best for

light WOOD

& light METAL

Best for

METAL

Best for

METAL

Best for

MASONRY

Best for

MASONRY

Drill Bits

www.idealindustries.com 1-800-435-0705 for Customer Service

B-62

Fish holes in tip and

shank for easy wire

pulling

Extra durable

braze where

shank meets tip

Premium heat-treated

spring steel

Flexible Drill Bits

Screw Point

Flexible Bits, Type B

Fast and aggressive,

self-starting bit

Ultra-sharp ground threads

provide increased pulling power

through obstructions

Designed for easy to tough

wood drilling

Best for

WOOD

Best for

WOOD

Best for

light WOOD

& light METAL

Best for

light WOOD

& light METAL

Best for

METAL

Best for

METAL

Best for

MASONRY

Best for

MASONRY

Description Shank (in.) Cat. No.

3/8 in. x 54 in. Screw Point Flexible Bit 3/16 90-082

1/2 in. x54 in. Screw Point Flexible Bit 3/16 90-085

9/16 in. x 54 in. Screw Point Flexible Bit 3/16 90-088

3/4 in. x 54 in. Screw Point Flexible Bit 1/4 90-091

Description Length Cat. No.

Installer Bit - 1/4 in. 18 in. 35-870

Installer Bit - 3/8 in. 18 in. 35-871

Installer Bit - 1/2 in. 18 in. 35-872

Description Cat. No.

3/4 in. x 4 in. stubby 36-403

7/8 in. x 4 in. stubby 36-404

1 in. x 4 in. stubby 36-405

1/2 in. 36-413

5/8 in. 36-415

3/4 in. 36-417

7/8 in. 36-419

1 in. 36-421

1-1/8 in. 36-422

1-1/4 in. 36-423

4-pc. Kit with pouch (5/8 in., 3/4 in., 7/8 in., 1 in.) 36-432

Description Shank (in.) Cat. No.

1/4 in. x 54 in. Serrated Combination Flexible Bit 3/16 90-063

3/8 in. x 54 in. Serrated Combination Flexible Bit 3/16 90-067

1/2 in. x 54 in. Serrated Combination Flexible Bit 3/16 90-070

9/16 in. x 54 in. Serrated Combination Flexible Bit 3/16 90-073

Description Cat. No.

Flexible Bit Replacement Tool 90-176

Flexible Bit Replacement

Tool

Serrated Combination Flexible Bits,

Type C

Multi-purpose versatile bit for

clean holes

Designed for easy to medium

wood drilling and light metal

Pressure is needed for starting

and pulling the bit through the wood

Installer Bits

Power-Spade™

Spade Bits

Hole in fluted head

for pulling wires through walls, ceiling and floors

Flutes designed for quick chip removal — no clogging or

binding

Premium quality, extra-hard 52-100 carbon bearing steel

The most innovative

and fastest spade

bit ever!

Smooth and

effortless drilling

Description Shank Cat. No.

3/16 in. x 36 in. Flexible Bit Extension 3/16 90-170

1/4 in. x 36 in. Flexible Bit Extension 1/4 90-173

Flexible Bit Extensions

Connect to chuck end of shaft

to increase the length of the bit

Mini Hacksaw

Hand Tools/Saws

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-63

Description Qty./Pack Cat. No.

12 in. x 18T Blades 10 35-271

12 in. x 24T Blades 10 35-272

12 in. x 32T Blades 10 35-273

12 in. x 18T Blades 100 35-262

12 in. x 24T Blades 100 35-263

12 in. x 32T Blades 100 35-264

Description Cat. No.

Jab Saw 35-275

Replacement Blade 36-088

Description Cat. No.

Heavy-Duty Hacksaw 35-260

Description Cat. No.

Folding Saw 35-274

Description Cat. No.

Straight-Cut Aviation Tin Snips 35-001

Jab Saw

Includes replaceable bi-metal

wallboard blade

Holds all reciprocating blades and

hacksaw blades

Ergonomic grip

Heavy-Duty Hacksaw

Cushioned ergonomic

grip for performance and

comfort

Rugged frame provides

lightweight rigidity and

exceptional control

Stores up to nine extra blades

Blades can be adjusted to

55° angle for flush cutting and

tensioned to 30,000 psi

Includes 12 in. x 24T bi-metal blade

Ergonomic Hacksaw

Angled handle for easier cutting

Blade can easily be adjusted

for flush cutting

Easy tensioning wing-nut

keeps blades tight for straighter cuts

Cushioned ergonomic grip for performance and comfort

Includes 12 in. x 24T bi-metal blade

Heavy-duty die cast

frame

Non-slip rubber comfort grip

Accepts all standard hacksaw blades

Hacksaw Blades

Bi-metal blades

provide strength,

flexibility and longer life

Aviation Tin Snips

Chrome-molybdenum steel

forged blades for greater

strength and durability

Serrated edges provide

a stable hold when cutting

Labor-saving design for

easier cutting

Comfortable non-slip

dual durometer grips

Folding Saw

Light-weight, heavy-duty

die cast construction

Ergonomic rubber comfort grip

Blade safely and conveniently folds down in handle

Accepts all standard 6 in. recip blades

Description Cat. No.

Ergonomic Hacksaw 35-261

Description Cat. No.

Mini Hacksaw 35-259

www.idealindustries.com 1-800-435-0705 for Customer Service

B-64

Cable Ties

www.idealindustries.com 1-800-435-0705 for Customer Service

B-64

IDEAL Cable Tie Catalog Numbering System

Consistent, positive tension

Flush cut-off leaves no

projections to damage nearby

wires or components

Lightweight economy model for

smaller jobs

Standard and heavy-duty models

feature rugged, construction with

comfortable, cushioned grips

Cable-Tie Installation Tools

Keep your cable

ties right where

you need them,

eliminate loss with

this convenient easy-

to-use bag that clips

securely onto your belt

Includes a bag for 8 in. cable ties and a bag for

11 in. cable ties, they easily clip together or can be used

separately

Elastic cord quickly and easily cinches to keep ties securely in

place

Cable Tie Bag

IT - 2 - S - MH - C - 0

Description Cat. No.

Cable Tie Bag IT-BAG

Description Cat. No.

Economy – use w/intermediate & standard ties* BCTT-200

Economy – use w/standard & heavy-duty ties** 41-990

Heavy-Duty – use w/standard & heavy-duty ties** 41-995

*Color may vary

**Not Shown

IT 2 S MH CC O

IT = IDEAL

Powr-Tie™

Cable Ties

Size Tensile Strength Style Qty. Per

Package Color

Approximate

Bundle Diameter

for ties

M = Miniature (18 lbs.)

I = Intermediate (40 lbs.)

S = Standard (50 lbs.)

LH = Light-Heavy Duty (120 lbs.)

H = Heavy Duty (175 lbs.)

EH = Extra Heavy-Duty (250 lbs.)

_ = Standard Tie

MH = Mounting

ID = Identiﬁcation

MB = Mounting Base

LPMB = Low Proﬁle

Mounting Base

MP = Mounting Pad

CCL = Cable Clamp

L = 50

C = 100

D = 500

M = 1000

_ = Natural

0 = UV Black

8 = Gray

30 = Heat Stabilized

Black

35 = Maroon

702 = Halar

1-800-435-0705 for Customer Service www.idealindustries.com B-65

Cable Ties

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-65

UL Listed for Air Handling Ties - Plenum

Plenum Ties

UL Listed nylon 6/6 cable ties are suitable for use in Air Handling Spaces

(Plenum) in accordance with Section 300-22(C) & (D) of the National

Electrical Code and Rules 12-010 (3), (4) and (5) and 12-020 of the

Canadian Electrical Code, Part 1

Standard Ties

Definition of “Air Handling Spaces”

Ducts or plenums used for environmental air and other spaces used for environmental air, such as above hung ceilings or below raised

floors. This does not include plenums used for the removal of dust, loose stock or vapor, or ventilation of commercial-type cooking

equipment.1

1UL 1565 CSA C22.2 4th Edition

Mounting Ties

Description Length Width Thickness Max. Bundle Tensile Strength Mil-Spec Reference Qty./Bag Cat. No.

Burgundy Nylon

7.5 in./190mm .178 in./4.52mm .053 in./1.34mm 1/16 - 1-7/8 in. 50 lbs.

100 IT2S-C35

Natural Nylon MS3367-1-9 100 IT2S-C

Natural Nylon 1000 IT2S-M

UV Black Nylon MS3367-1-0 100 IT2S-C0

UV Black Nylon 1000 IT2S-M0

Burgundy Nylon

11.2 in./284mm .178 in./4.52mm .053 in./1.34mm 1/16 - 3-1/16

in. 50 lbs.

100 IT3S-C35

Natural Nylon MS3367-7-9 100 IT3S-C

Natural Nylon 500 IT3S-D

UV Black Nylon MS3367-7-0 100 IT3S-C0

UV Black Nylon 500 IT3S-D0

Natural Nylon

14.5 in./368mm .178 in./4.52mm .053 in./1.34mm 1/16 - 4-1/8 in. 50 lbs.

MS3367-2-9 100 IT4S-C

Natural Nylon 500 IT4S-D

UV Black Nylon MS3367-2-0 100 IT4S-C0

UV Black Nylon 500 IT4S-D0

Description Length Width Strap Thickness Max. Bundle Tensile Strength Screw Size Qty./Bag Cat. No.

Natural Nylon

8.1 in./206mm .178 in./4.52mm .053 in./1.35mm 1/16 - 1-3/4 in. 50 lbs. No. 10

100 IT2SMH-C

Natural Nylon 1000 IT2SMH-M

UV Black Nylon 100 IT2SMH-C0

www.idealindustries.com 1-800-435-0705 for Customer Service

B-66

Cable Ties

www.idealindustries.com 1-800-435-0705 for Customer Service

B-66

Powr-Tie™ Cable Ties

Intermediate (40 lb.) Ties Natural & UV Black

One-piece design for added strength

Superior locking mechanism

Exceeds industry tensile strength ratings

Tapered thin tip reduces initial friction

Lowest insertion force with the highest

tensile strength

Reduces installation fatigue

Quality Construction

Provides quicker initial insertion

Lowers installation costs

Angled Tail

ROHS Compliant

Natural General Purpose 6/6 Nylon

- Suitable for most applications

- Meets UL 94V-2 flammability ratings

- 85°C/185°F working temperature

UV Black Nylon 6/6

- Suitable for most applications with continuous or extended

exposure to outdoor elements

- Weather-resistant grade, able to endure ultraviolet (UV) light

- Meets UL 94V-2 flammability ratings

- 85°C/185°F working temperature

Heat Stabilized Black Nylon 6/6

- Suitable for most applications with continuous or extended

exposure to high temperatures

- Meets UL standards for electrical applications

- Meets UL 94V-2 flammability ratings

- 125°C/254°F working temperature

Material Selection

Low Insertion Force

Smooth corners provide added safety

Rounded edges eliminate insulation damage

No Burrs or Sharp Edges

Tapered tail grip assures positive

threading

Stepped tail allows for easier grabbing

and tightening once engaged

Stepped Tail Gripper

Miniature (18 lb.) Ties Natural & UV Black

Description Length Width Thickness Max. Bundle Tensile Strength Mil-Spec Reference Qty./Bag Cat. No.

Natural Nylon

4.0 in./102mm .094 in./2.39mm .042 in./1.06mm 1/16 - 7/8 in. 18 lbs. MS3367-4-9 100 IT1M-C

Natural Nylon 1000 IT1M-M

UV Black Nylon MS3367-4-0 100 IT1M-C0

Natural Nylon 6.1 in./154mm .094 in./2.39mm .042 in./1.06mm 1/16 - 3-1/2 in. 18 lbs. —100 IT1_5M-C

UV Black Nylon 100 IT1_5M-C0

Natural Nylon

8.1 in./206mm .094 in./2.39mm .042 in./1.06mm 1/16 - 2-3/16 in. 18 lbs. —

100 IT2M-C

Natural Nylon 1000 IT2M-M

UV Black Nylon 100 IT2M-C0

*IM, 1_5M & 2M Series * *

Description Length Width Thickness Max. Bundle Tensile Strength Mil-Spec Reference Qty./Bag Cat. No.

Natural Nylon

5.7 in./145mm .140 in./3.56mm .049 in./1.24mm 1/16 - 1-7/16 in. 40 lbs.

MS3367-5-9 100 IT1_5I-C

Natural Nylon 1000 IT1_5I-M

UV Black Nylon MS3367-5-0 100 IT1_5I-C0

UV Black Nylon 1000 IT1_5I-M0

Natural Nylon

8.8 in./224mm .140 in./3.56mm .049 in./1.24mm 1/16 - 2-3/8 in. 40 lbs.

MS53367-5-9 100 IT2I-C

Natural Nylon 1000 IT2I-M

UV Black Nylon MS53367-5-0 100 IT2I-C0

UV Black Nylon 1000 IT2I-M0

Natural Nylon 11.5 in./292mm .142 in./3.60mm .055 in./1.40mm 1/16 - 3-3/8 in. 40 lbs. —100 IT3I-C

UV Black Nylon 100 IT3I-C0

Natural Nylon 14.5 in./368mm .142 in./3.60mm .055 in./1.40mm 1/16 - 4 in. 40 lbs. —100 IT4I-C

UV Black Nylon 100 IT4I-C0

*IM, 1_5 & 2I Series * *

1-800-435-0705 for Customer Service www.idealindustries.com B-67

Cable Ties

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-67

Standard (50 lb.) Ties Natural, UV Black & Heat Stabilized Black

Light Heavy-Duty, Heavy-Duty & Extra Heavy-Duty Ties Natural, UV Black & Heat Stabilized Black

Description Length Width Thickness Max. Bundle Tensile Strength Mil-Spec Reference Qty./Bag Cat. No.

Natural Nylon

7.5 in./190mm .178 in./4.52mm .053 in./1.34mm 1/16 - 1-7/8 in. 50 lbs.

MS3367-1-9 100 IT2S-C

Natural Nylon 1000 IT2S-M

UV Black Nylon MS3367-1-0 100 IT2S-C0

UV Black Nylon 1000 IT2S-M0

Natural Nylon

11.2 in./284mm .178 in./4.52mm .053 in./1.34mm 1/16 - 3-1/16 in. 50 lbs.

MS3367-7-9 100 IT3S-C

Natural Nylon 500 IT3S-D

UV Black Nylon MS3367-7-0 100 IT3S-C0

UV Black Nylon 500 IT3S-D0

Natural Nylon

14.5 in./368mm .178 in./4.52mm .053 in./1.34mm 1/16 - 4-1/8 in. 50 lbs.

MS3367-2-9 100 IT4S-C

Natural Nylon 500 IT4S-D

UV Black Nylon MS3367-2-0 100 IT4S-C0

UV Black Nylon 500 IT4S-D0

Natural Nylon 17.0 in./432mm .190 in./4.82mm .053 in./1.34mm 1/16 - 4-3/4 in. 50 lbs. —100 IT5S-C

UV Black Nylon 100 IT5S-CO

*2S, 3S & 4S Series * *

UL Listed Nylon 6/6 cable ties are suitable for use in Air Handling Spaces (Plenums) in accordance with Section 300-22(C) & (D) of the National

Electrical Code and Rules 12-010 (3), (4) & (5) and 12-020 of the Canadian Electrical Code, Part 1.

Description Length Width Thickness Max. Bundle Tensile Strength Mil-Spec Reference Qty./Bag Cat. No.

Natural Nylon 8.7/220.9mm .300 in./7.62mm .076 in./1.93mm 2-1/16 in. 120 lbs. —100 IT2LH-C

UV Black Nylon 100 IT2LH-C0

Natural Nylon 15.1 in./384mm .300 in./7.62mm .075 in./1.90mm 3/16-4-1/16 in. 120 lbs. MS3367-3-9 50 IT4LH-L

UV Black Nylon MS3367-3-0 50 IT4LH-L0

Natural Nylon 17.8 in./451mm .300 in./7.62mm .075 in./1.90mm 3/16-5-1/4 in. 120 lbs. —50 IT5LH-L

UV Black Nylon 50 IT5LH-L0

Natural Nylon 24.2 in./614mm .300 in./7.62mm .075 in./1.90mm 3/16-7 in. 120 lbs. —50 IT7LH-L

UV Black Nylon 50 IT7LH-L0

Natural Nylon 25.3 in./642mm .340 in./8.64mm .090 in./2.29mm 3/16-7-3/16 in. 175 lbs. MS3367-10-9 50 IT7H-L

UV Black Nylon MS3367-10-0 50 IT7H-L0

Natural Nylon 37.1 in./942mm .340 in./8.64mm .090 in./2.29mm 3/16-11 in. 175 lbs. MS3367-13-9 50 IT11H-L

UV Black Nylon MS3367-13-0 50 IT11H-L0

Natural Nylon 47.8 in./

1214mm .340 in./8.64mm .090 in./2.29mm 3/8-14-1/2 in. 175 lbs. MS3367-16-9 50 IT14H-L

UV Black Nylon MS3367-16-0 50 IT14H-L0

UV Black Nylon 22.8 in./579mm .50 in./12.7mm .080 in./2.03mm 3/16-6 in. 250 lbs. — 100 IT6EH-C0

*4LH, 7H, 10H, 11H, 14H Series * *

www.idealindustries.com 1-800-435-0705 for Customer Service

B-68

Cable Ties

www.idealindustries.com 1-800-435-0705 for Customer Service

B-68

Identification Ties

Mounting Head Ties Natural and UV Black

Secures and positions wire bundles,

cables, hoses, etc. to panels or other

surfaces with one fastener to reduce

time and cost

Allows bundling before and after

mounting

Write-on surface

Bundle and identify at the

same time

IT1MID-C

IT2SID-C & IT4SID-C

Description Length Width Thickness Max. Bundle Tensile Strength Screw Size Qty./Bag Cat. No.

Natural Nylon 6.0 in./152mm .140 in./3.55mm .048 in./1.21mm 1/16 - 1-1/4 in. 30 lbs. No. 8 100 IT1_5IMH-C

UV Black Nylon 100 IT1_5IMH-C0

Natural Nylon

8.1 in./206mm .178 in./4.52mm .053 in./1.35mm 1/16 - 1-3/4 in. 50 lbs. No. 10

100 IT2SMH-C

Natural Nylon 1000 IT2SMH-M

UV Black Nylon 100 IT2SMH-C0

Natural Nylon 11.8 in./300mm .189 in./4.80mm .050 in./1.27mm 1/16 - 3 in. 50 lbs. No. 10 100 IT3SMH-C

UV Black Nylon 100 IT3SMH-C0

Natural Nylon 14.5 in./370mm .189 in./4.80mm .060 in./1.52mm 1/16 - 4 in. 50 lbs. No. 10 100 IT4SMH-C

Natural Nylon 15.7 in./398mm .300 in./7.62mm .075 in./1.90mm 3/16 - 4-1/16 in. 120 lbs. 1/4 in. 100 IT4LHMH-C

UV Black Nylon 100 IT4LHMH-C0

*4LH Series; **2S Series ** *

UL Listed Nylon 6/6 cable ties are suitable for use in air handling spaces in accordance with Section 300-22(C) & (D) of the National

Electrical Code.

Description Length Width Thickness Max. Bundle Tensile Strength Pad Size (H X L) Qty./Bag Cat. No.

Natural Nylon 4.0 in./102mm .100 in./2.54mm .044 in./1.12mm 1/16 - 7/8 in. 18 lbs. 5/16 in. x 1 in. 100 IT1MID-C

Natural Nylon 7.8 in./200mm .181 in./4.59mm .055 in./1.40mm 1/16 - 1-7/8 in. 50 lbs. 1-1/8 in. x 1/2 in. 100 IT2SID-C

1-800-435-0705 for Customer Service www.idealindustries.com B-69

Cable Ties

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-69

Screw Mounting Bases - Standard

Screw Mounting Bases - Low Profile

Mounting Pads

Patented stay-in-place tab keeps cable ties from sliding down during

vertical applications

Lead-N-Feature allows easy insertion for hard to reach applications

Four-sided entry slots save time during placement orientation

Smooth radius cradle eliminates possible damage to

cable while providing stable support

Webbed punch through screw hole allows maximum

adhesive surface area, along with easy insertion of

mechanical fasteners

Low Profile is essential in confined spaces

UL recognized, rubber adhesive positioning device

Deep cradle design provides minimum support for larger bundles and

tubing

Recessed screw hole allows cable ties to easily pass over screw head

Perfect for confined space, control panels or other areas

where space is limited

Lead-N-Feature

Webbed Punch

Through Screw Hole

Rubber or Acrylic

Base Adhesives

Low Profile

“Stay-N-Place”

Tab

Smooth Radius

Cradle

4-Sided

Entry

Description Width Height Slot Height Slot Width Screw Size Qty./Bag Cat. No.

Natural Nylon .74 in./19mm .19 in./4.8mm .05 in./1.2mm .20 in./5.1mm No. 4 100 IT750MP-C

UV Black Nylon 100 IT750MP-C0

Natural Nylon .99 in./25mm .20 in./5.0mm .06 in./1.5mm .20 in./5.1mm No. 6 100 IT1000MP-C

UV Black Nylon 100 IT1000MP-C0

Description Length Width Height Slot Height Slot Width Screw Size Qty./Bag Cat. No.

Screw Mount Natural Nylon .590 in./15mm .370 in./9.40mm .270 in./6.86mm .062 in./1.59mm .190 in./4.83mm No. 6 100 IT1SMB-C

Screw Mount UV Black Nylon 100 IT1SMB-C0

Screw Mount Natural Nylon .870 in./22mm .640 in./16.26mm .380 in./9.65mm .125 in./3.18mm .300 in./7.62mm 1/4 in. 100 IT2SMB-C

Screw Mount UV Black Nylon 100 IT2SMB-C0

Description Length Width Height Slot Height Slot Width Screw Size Qty./Bag Cat. No.

Low Profile Mount .750 in./19mm .500 in./12.70mm .120 in./3.04mm .062 in./1.57mm .180 in./4.57mm No. 8 100 IT1LPMB-C

www.idealindustries.com 1-800-435-0705 for Customer Service

B-70

Cable Ties

www.idealindustries.com 1-800-435-0705 for Customer Service

B-70

Clamps

Description Closed Diameter Center to Center Width Thickness Mounting Hole Qty./Bag Cat. No.

Natural Nylon .125 in./3.18mm .343 in./8.71mm 3/8 in. .050 in./1.27mm .203 in./5.16mm 100 IT125CCL-C

Natural Nylon .250 in./6.35mm .421 in./10.69mm 3/8 in. .050 in./1.27mm .203 in./5.16mm 100 IT250CCL-C

UV Black Nylon 100 IT250CCL-C0

Natural Nylon .375 in./9.52mm .500 in./12.70mm 1/2 in. .060 in./1.52mm .203 in./5.16mm 100 IT375CCL2-C

UV Black Nylon 100 IT375CCL2-C0

Natural Nylon .500 in./12.70mm .553 in./14.05mm 1/2 in. .060 in./1.52mm .203 in./5.16mm 100 IT500CCL2-C

Natural Nylon .625 in./15.88mm .625 in./15.88mm 1/2 in. .060 in./1.52mm .203 in./5.16mm 100 IT625CCL2-C

Natural Nylon .750 in./19.05mm .699 in./17.75mm 1/2 in. .060 in./1.52mm .203 in./5.16mm 100 IT750CCL2-C

Natural Nylon 1.000 in./25.40mm .825 in./20.96mm 1/2 in. .060 in./1.52mm .203 in./5.16mm 100 IT1000CCL2-C

Use to secure wires, cables, pipes, tubing and fiber optics

Ultraviolet black nylon clamps available for internal and external use

Use with #10 mounting screw

Flexible polyethylene cuts easily to desired length

Splits open for neat “bundling” of wiring jobs

Snaps shut to create a continuous protective cover

Flexible Tubing*

Description Qty. Cat. No.

3/8 in. Flexible Tubing 10 ft. 772240

1/2 in. Flexible Tubing 1 ft. 772241

1 in. Flexible Tubing 5 ft. 772242

*Buchanan branded

Flange-Type Plastic Anchors

Multi-purpose use in solid materials or hollow walls, will

not fall through

For use with sheet-metal or wood screws

High-impact plastic construction resists moisture,

corrosion and deterioration

Description Screw Size Drill Size Qty. Cat. No.

Yellow – 7/8 in. long 6-8-10 3/16 100 90-041

Red – 1 in. long 10-12 1/4 100 90-042

White – 1-1/2 in. long 14-16 5/16 50 90-044

Flange-Type Plastic Anchor Kits

Kits include flange-type

anchors, slotted/Phillips

head screws and masonry

bit

Convenient plastic storage

container

Contents Cat. No.

100 #6-8-10 x 7/8 in. Flange-type anchors, 100 #8 x 1 in. combo-head,

sheet-metal screws & 1-3/16 in. masonry bit (carbide-tipped) 90-051

100 #10-12 x 1 in. Flange-type anchors, 100 #10 x 1-1/4 in.

combo-combo-head, sheet-metal screws & 1-1/4 in. masonry bit

(carbide-tipped)

90-052

100 #10-12 x 1 in. Flange-type anchors, sheet-metal screws & 1-1/4 in.

masonry bit (carbide-tipped) 90-053

40 #14-16 x 1-1/2 in. Flange-type anchors, 40 #14 x 1-1/2 in. combo-

head, sheet-metal screws 1-5/16 in. masonry bit (carbide-tipped) 90-054

100 #10-12 x 1 in. Flange-type anchors, 100 #10 x 1 in. combo-head,

sheet-metal screws & 1-1/4 in. masonry bit (carbide-tipped) 90-055

Stripmaster® Wire Strippers

1-800-435-0705 for Customer Service www.idealindustries.com B-71

Accessories

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-71

Grommets*

Installs instantly! Flexible

PVC grommets side slotted

1/16 in. for quick installation

Snap into holes in electrical

boxes, sheet metal, auto

firewalls and more

Prevents steel and other

sharp edge chafing of wire

insulation or cording

Black, PVC, flexible, 60

durometer

Universal Metal

Stud Bushings

Non-metallic stud bushing fits

all hole configurations you are

likely to encounter in pre-punched

steel studs

Long pulls of cable slide smoothly through the bushing, make

a difficult job easier

Protects wire without falling out

of the hole

A B C

Common hole configurations

in metal studs.

CODE VIOLATION

SHARP EDGE

NM CABLE

Common hole configurations

in metal studs.

CODE VIOLATION

SHARP EDGE

NM CABLE

Spacer Shims*

Eliminates the need to cut plate

screws for “GFCI” decorator

devices when installing on tile,

marble, etc.

Supports loose outlets

Prevents broken face

plates

Snaps over #6, #8, #10 screws

Also works as a shim

Description A B C D E Qty. Cat. No.

1/4” Grommets 9/16 .37 1/4 .28 3/32 25 774116

3/8” Grommets 43/64 .49 3/8 .28 1/16 25 774137

1/2” Grommets 55/64 .69 1/2 .25 1/16 25 774113

3/4” Grommets 15/64 1.0 3/4 .31 1/16 25 774136

*Buchanan branded

Description Qty. Cat. No.

Catepillar 5 772450

Catepillar 25 172451

Catepillar 500 772451

*Buchanan branded

Description A B C D Qty. Cat. No.

Stud Bushing 5.670 2.50 .505 1.30 25 772271

www.idealindustries.com 1-800-435-0705 for Customer Service

B-72

Cable Staples

www.idealindustries.com 1-800-435-0705 for Customer Service

B-72

Cable Staples

Full line of quality insulated and non-insulated staples to

fit all cabling applications

Packaged to answer electrician’s need for clean, dry,

rust-free staples

Convenient reclosable containers keep staples organized

in the truck and on the job-site

Plastic Insulated Staples

Use with wider cable such as

Romex®, NM and UF

Smooth plastic saddle prevents

damage to cable

Zinc-plated nails resist rust and

corrosion

Description Qty./Package Cat. No.

1/2 in. Insulated

50/Bag BPS2-50

100/Bag BPS2-1

225/Jar BPS2-JRL

400/Jar BPS2B-JR

500/Bag BPS2-5

5,000/Bucket BPS2-5M

30,000/Barrel BPS2-30K

3/4 in. Insulated

50/Bag BPS3-50

100/Bag BPS3-1

200/Jar BPS3-JRL

250/Bag BPS3-2

Romex® is a registered trademark of Southwire.

Description Qty./Package Cat. No.

1/2 in. 2 Cable Stacker 50/Bag BPS2/2-50

Romex® is a registered trademark of Southwire.

Carbon Steel Staples

Use with wider cable such as

Romex®, NM and UF

High-grade carbon steel

construction

Sharp-point legs drive straight

without splitting wood

Resist rust and corrosion

Description Qty./Package Cat. No.

1/2 in. x 1 in.

100/Box BCS1-1

500/Jar BCS1-JR

500/Box BCS1-5

5,000/Bucket BCS1-5M

9/16 in. x 1-1/4 in.

100/Box BCS2-1

400/Jar BCS2-JR

500/Box BCS2-5

5,000/Bucket BCS2-5M

Romex® is a registered trademark of Southwire.

Plastic Insulated Cable Staple

Use with wider cable such as

Romex®, NM and UF

High-grade carbon steel

construction

Smooth plastic saddle prevents

damage to cable

Zinc-plated nails resist rust and

corrosion

Cable Stacker

Perfect for centering multiple

cables on 2 x 4 framing

members in compliance

with NEC 300.4.(2)

Use with cable such as Romex®,

NM and UF

Insulated Staples

Use with wider cable such as

Romex®, NM and UF

High-grade carbon steel with flexible PVC insulation

Sharp-point legs drive straight without splitting wood

Resist rust and corrosion

Description Qty./Package Cat. No.

Cable Stacker 15 BPSTCKR-15

Romex® is a registered trademark of Southwire.

Description Qty./Package Cat. No.

9/16 in. x 1-1/4 in. 125 BICS2-125

Romex® is a registered trademark of Southwire.

1-800-435-0705 for Customer Service www.idealindustries.com B-73

Cable Staples

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-73

Carbon Steel Service Entrance Staples

Use with service entrance cable

and conduit

High-grade carbon steel

construction

Sharp-point legs drive straight

without splitting wood

Resist rust and corrosion

Use with smaller insulated

wire and cord applications

such as lamps, thermostats,

telephones and sound systems

Smooth plastic saddle prevents

damage to wires

Zinc-plated nails resist rust and corrosion

Plastic Insulated Service Entrance

Straps

Use with service entrance cable

and conduit

Smooth plastic saddle

prevents damage to cable

Zinc-plated nails resist rust and

corrosion

Data Cable Staples

Secures Category 3, 5 and other

4-pair twisted wire

Blue plastic saddle prevents

damage to cable

Zinc-plated nails resist rust and

corrosion

Coaxial Cable Straps

Sound Straps

Use with round cable such as

CATV/VCR, RG-5, RG-6 and phone

cables or with plastic and metal tubing

Smooth plastic saddle prevents

damage to cable

Zinc-plated nails resist rust and corrosion

Description Nail Type Qty./Package Cat. No.

1/4 in. White Standard 100/Clamshell 772809

250/Jar BPCXSW-JR

1/4 in. Black

Standard 250/Jar BPCXSB-JR

Roofing 25/Clamshell 772891

200/Jar BPCSRB-JR

Masonry 25/Clamshell 772890

200/Jar BPCXMBJR

7/16 in. White Standard 50/Bag BPS4-50

Description Qty./Package Cat. No.

#6 SER & 1/2 in. EMT 50/Bag BSER6-50

#6 & #8 SEU 50/Bag BSEU6-50

#2 SER & 3/4 in. EMT 25/Bag BSER2-25

#2 SEU 25/Bag BSEU2-25

4/0 SER 5/Bag BSER4/0-5

4/0 SEU 5/Bag BSEU4/0-5

Description Nail Type Qty./Package Cat. No.

Data Staple

Standard 25/Clamshell 772880

Standard 250/Jar BPDATAS-JR

Standard 250/Clamshell 772881

Description Nail Type Qty./Package Cat. No.

3/16 in. White Standard 100/Clamshell 772805

250/Jar BPLVSW-JR

3/16 in. Black Standard 25/Clamshell 772810

250/Jar BPLVSB-JR

3/16 in. Tan Standard 25/Clamshell 772881

3/16 in. White Masonry 250/Clamshell 772813

Description Qty./Package Cat. No.

1-5/16 in. x 3/4 in. 100/Box BMSE150-1

1-1/2 in. x 1-1/16 in. 100/Box BMSE175-1

www.idealindustries.com 1-800-435-0705 for Customer Service

B-74

Heat Shrink

www.idealindustries.com 1-800-435-0705 for Customer Service

B-74

Direct burial rated, underground splice kits

Heavy-wall heat shrink tubing with adhesive liner provides

complete insulation and protection

Connector can be used for aluminum and/or copper cable

Meets the requirements of the 2005 NEC Code 110-14(B)

600V maximum, 105°C rating

UL Listed

Provides a fully-insulated

butt splice

600V Maximum, 105°C rating

Thermo-Shrink® Al/Cu Splice Kits

Thermo-Shrink® Copper Butt Splice Kits

Description Cat. No.

Butt Splice Kit – Copper 14-8 AWG 46-404

Butt Splice Kit – Copper 8-2 AWG 46-405

Heat Shrinkable Tubing

Thermo-Shrink®

UF Splice Kits

Description Cat. No.

UF Splice Kit - 14-8 AWG, Tubing 1.1 in. x 8 in. 46-400

UF Stretcher Kit* - 14-8 AWG, Tubing 1.1 in. x 18 in. 46-410

*Stretcher kit connector is 11.5 in.

Direct burial rated

14/3 with and without

ground thru 8/3 without

ground, UF cable range

Stretcher kit repairs a

7 in. to 10 in. section damaged

or destroyed by a trencher

600V Maximum, 105°C rating

n

Meets the requirements of the 2002 NEC Code

110-14(b) and UL486D

E123896

Description Cat. No.

Underground Splice Kit – 8 to 4 AWG, Tubing 3/4 in. x 6 in. 46-401

Underground Splice Kit – 4 AWG to 1/0, Tubing 1.1 in. x 8 in. 46-402

Underground Splice Kit – 1/0 to 250 KCMIL,

Tubing 1-1/2 in. x 12 in. 46-403

Description Nominal

Size (in.) Color Length (ft.) Cat. No.

Thin Wall Heat Shrink 1/6 Black 4 772-1/16-BL

Thin Wall Heat Shrink 3/32 Black 4 772-3/32-BL

Thin Wall Heat Shrink 1/8 Black 4 772-1/8-BL

Thin Wall Heat Shrink 3/16 Black 4 772-3/16-BL

Thin Wall Heat Shrink 1/4 Black 4 772-1/4-BL

Thin Wall Heat Shrink 3/8 Black 4 772-3/8-BL

Thin Wall Heat Shrink 1/2 Black 4 772-1/2-BL

Thin Wall Heat Shrink 3/4 Black 4 772-3/4-BL

Thin Wall Heat Shrink 1 Black 4 772-1-BL

BUCHANAN Thin-Wall Heat Shrink

Tubing

Electrically insulates and protects in-line

components, terminals and splices

Flame-retardant and flexible

Resistant to common

fluids and solvents

Meets UL 224

125°C VW-1 600V

RoHS compliant

2:1 shrink ratio

Minimum shrink temperature: 70°C

Operating temperature: -55°C to +125°C

1-800-435-0705 for Customer Service www.idealindustries.com B-75

Heat Shrink

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-75

Polyolefin material electrically insulates

and protects in-line components,

disconnect terminals and splices with its

high strength and excellent resilience

Use to bundle wires for very flexible light-duty

harnesses

Highly flame-retardant and flexible

Resistant to common fluids and solvents

Meets UL 486D 125°C VW-1 600V

Material: No PBB’s, PBBE’s, conforms to ROHS

2:1 shrink ratio

Minimum shrink temperature: 70°C

Operating temperature: -55°C to +125°C

Thermo-Shrink® Thin-Wall

Heat Shrinkable Tubing

Normal

Size

(in.)

Expanded I.D.

(Min.)

Nominal

Recovered

I.D. (Max.)

Recovered

Wall

Thickness +/-

10%

Cable

Range

AWG*

Length

(Pkg.) Cat. No.

3/64 0.063”/1.6mm 0.024”/0.6mm 0.013”/0.33mm 22-18 4 ft. (Disk) 46-600

1/16 0.079”/2.0mm 0.031”/0.8mm 0.014”/0.36mm 16 4 ft. (Disk) 46-601

3/32 0.122”/3.1mm 0.047”/1.2mm 0.017”/0.44mm 14-12 4 ft. (Disk) 46-602

1/8 0.146”/3.7mm 0.063”/1.6mm 0.017”/0.44mm 24-20

6 in. (Bag) 46-310

4 ft. (Disk) 46-603

1,000 ft. (Spool) 46-312

3/16 0.205”/5.2mm 0.094”/2.4mm 0.020”/0.50mm 20-14

6 in. (Bag) 46-313

4 ft. (Disk) 46-604

1,000 ft. (Spool) 46-315

1/4 0.268”/6.8mm 0.126”/3.2mm 0.022”/0.56mm 14-8

6 in. (Bag) 46-316

4 ft. (Disk) 46-605

500 ft. (Spool) 46-318

5/16 0.346”/8.8mm 0.157”/4.0mm 0.022”/0.56mm 10-6 4 ft. (Disk) 46-606

3/8 0.421”/10.7mm 0.185”/4.7mm 0.022”/0.56mm 8-4

6 in. (Bag) 46-319

4 ft. (Disk) 46-607

200 ft. (Spool) 46-321

1/2 0.539”/13.7mm 0.252”/6.4mm 0.026”/0.65mm 4-1

6 in. (Bag) 46-322

4 ft. (Disk) 46-608

200 ft. (Spool) 46-324

3/4 0.807”/20.5mm 0.374”/9.5mm 0.027”/0.69mm 2-250

MCM

6 in. (Bag) 46-325

4 ft. (Disk) 46-609

200 ft. (Spool) 46-327

1 1.043”/26.5mm 0.500”/12.7mm 0.031”/0.80mm 2/0-500

MCM

6 in. (Bag) 46-328

4 ft. (Disk) 46-610

100 ft. (Spool) 46-330

*Reference only - Consult the wire manufacturer’s catalog for specific O.D. of wire and insulation.

Technical Data

Property Test Method Typical Data

Tensile strength ASTM D 638 14MPa

Elongation at break ASTM D 638 600%

Elongation after aging at

175°C for 168 hours

UL 224 350%

Flammability UL 224 VW-1 Pass

Heat shock (250°C/4 hours) UL 224 No cracking

Cold bend test (-55°C/4

hours)

UL 224 No cracking

Dielectric strength ASTM D 150 20KV/mm

Volume resistance ASTM D 876 1014Ω.cm

Copper corrosion UL 224 Pass

Chemical resistance UL 224 Pass

Longitudinal shrinkage UL 224 0±5%

Eccentricity UL 224 30%

www.idealindustries.com 1-800-435-0705 for Customer Service

B-76

Heat Shrink

www.idealindustries.com 1-800-435-0705 for Customer Service

B-76

Thermo-Shrink® Heavy-Wall Heat Shrinkable Tubing

TS-46 irradiated cross-linked polyolefin with 3:1 standard shrink ratio

Adhesive liner provides complete insulation and protection to electrical splices

in above-grade, underground or underwater applications

Maximum flame retardancy

Meets UL 486D, CSA C22.2 No. 198.2, ANSI C119.1, Western Underground

Guides Nos. 2.4, 2.5, MIL-DTL-23053/15, IEEE 383 Vertical Flame Test, ANSI

C37.20.2, ICEA S-19-8 and NEMA insulation thickness requirements

Continuous operating temperature from -55°C to 110°C

Rated for 600V, 90°C continuous use

Shrink temperature of 120°C

Model

Expanded

l.D.

(Min.)

(In.)

Recovered

I.D.

(Max.)

(In.)

Nominal

Recovered

Wall Thickness

(In.)

Cable

Range*

Length

(In.)

Cat.

No.

TS-46-400 .400 .150 .060 12-6 AWG

646-343

946-344

48 46-346

TS-46-750 .750 .240 .090 8-1/0 AWG

646-347

946-348

48 46-350

TS-46-1100 1.100 .350 .120 2-4/0 AWG

646-351

946-352

48 46-354

TS-46-1500 1.500 .470 .160 3/0 AWG-

400 KCMIL

946-356

12 46-357

48 46-358

TS-46-2000 2.000 .630 .160 250-750

KCMIL

946-369

18 46-371

48 46-372

*Reference only. Consult the wire manufacturer’s catalog for specific O.D. of wire and insulation.

Properties Heavy Wall

Shrink Temperatures 120°C to 250°C (200°C recommended)

Continuous Operating Temperature -55°C to 110°C

Tensile Strength (PSI) 2,100 PSI min.

Ultimate Elongation 600% min.

Secant Modulus @ 2% Strain 25,000 PSI max.

Specific Gravity 1.20 max.

Heat Aging, 168 hrs. @ 175°C Tensile Strength Elongation 500%

Heat Shock, 4 hrs. @ 225°C No cracks, flowing or dripping

Flammability Self-extinguishing

Low Temperature Brittle Point -55°C

Volume Resistivity 1013ohm-cm min.

Dielectric Strength 500V/mil (20kV/min.)

Corrosive Effect Non-corrosive

Solvent Resistance 24 hrs. Immersion per MIL-DTL-23053 Good to excellent

Water Absorption 0.5%

Fungus Resistance No growth

Longitudinal Change, 3 min. +1%/-10%

All values are typical performance data and are not to be used as design data.

LISTED

1-800-435-0705 for Customer Service www.idealindustries.com B-77

Heat Shrink

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-77

Creates a watertight seal to protect

ends of power and control cords

Protects against oxidation, ozone,

UV radiation, etc.

n

Coated with hot melt adhesive to

ensure environment seal

n

Fits easily over end of cable

n

Protect power cables up to 1000V and telecommunication cable

n

Recommended for both open air and underground power distribution

cables with PVC, lead or XLPE sheaths

Thermally stabilized cross-linked polylelin, coated with specially designed

hot melt adhesive

Thermo-Shrink® Medium-Wall Heat Shrinkable End Caps

Technical Data

Property Test Method Typical Data

Operating Temperature IEC 216 -55°CC to +110°C

Tensile Strength ASTM D 638 >14 MPa

Elongation at break ASTM D 638 >400%

Density ASTM D 792 1.05g/cm3

Elongation of break after aging 150°C, 168 hrs. >300%

Dielectric Strength IEC 243 >15KV/mm

Volume Resistance IEC 93 1014Ω.cm

Expanded

I.D. (Min.)

Recovered

I.D. (Max.)

Recovered Wall

Thickness +/-10% Cable Dia. Range* Length Cat. No.

0.55”/14mm 0.18”/4.5mm 0.079”/2.0mm 0.20”/5mm - 0.47”/12mm 1.77”/ 45mm 46-381

0.98”/25mm 0.31”/8mm 0.091”/2.3mm 0.39”/10mm - 0.71”/18mm 2.76”/ 70mm 46-382

1.38”/35mm 0.59”/15mm 0.118”/3.0mm 0.67”/17mm - 1.18”/30mm 3.35”/ 85mm 46-383

2.95”/75mm 1.38”/35mm 0.138”/3.5mm 1.77”/45mm - 2.76”/70mm 5.12”/ 130mm 46-384

*Consult the wire manufacturer’s catalog for specific O.D. of wire and insulation.

www.idealindustries.com 1-800-435-0705 for Customer Service

B-78

Heat Shrink

www.idealindustries.com 1-800-435-0705 for Customer Service

B-78

Heat Elite Heat Gun Kit

n

Temperature range —

930°F (500°C)

Two-step switch for heat

and air flow adjustments

Double-insulated power

cord

Ergonomical distribution of

weight

Comfortable non-slip handle for ease of use

n

Temperature range —

180°F - 1020°F

(100 - 550°C)

Two-step switch for heat

and air flow adjustments

Double-insulated power

cord

Ergonomical distribution

of weight

Comfortable non-slip handle

for ease of use

Potentiometer for infinitely temperature adjustment

Heat Elite Plus LCD Heat Gun Kit

n

Temperature range —

180°F - 1200°F (80 - 650°C)

Double-insulated power

cord

Ergonomical distribution

of weight

Comfortable non-slip handle

for ease of use

LCD display with memory

functions

Temperature and airflow adjustments

Stand-by mode to minimize the energy consumption

Ceramic heating element ensures long-term coil performance

Heat Elite Pro Heat Gun Kit

Heat Gun Accessories

46-941

46-950

46-951

46-954

46-953 46-952

46-955

46-956

Description Cat. No.

Heat Elite Kit - Includes #46-202 Heat Gun, #46-941 Small

Deflector and #46-954 Wide-Slot Adapter 46-202

Description Cat. No.

Small Deflector, 1-1/4 in. diameter (For use with all Heat Elite Heat

Guns) 46-941

Reduction Adapter (For use with 46-203 and 46-204) 46-950

Glass Protection Adapter (For use with all Heat Elite Heat Guns) 46-951

Welding Adapter (For use with 46-203 and 46-204) 46-952

Solder Reflector Adapter (For use with 46-204) 46-953

Wide-Slot Adapter (For use with all Heat Elite Heat Guns) 46-954

Overlap Adapter (For use with 46-203 and 46-204) 46-955

Pressure Roller (For use with 46-204) 46-956

Description Cat. No.

Heat Elite Pro Kit - Includes #46-203 Heat Gun, #46-941 Small

Deflector, #46-950 Reduction Adapter and #46-954 Wide-Slot Adapter 46-203

Description Cat. No.

Heat Elite Plus LCD Kit - Includes #46-204 Heat Gun, #46-941

Small Deflector, #46-952 Welding Adapter, #46-953 Solder Reflector

Adapter, #46-955 Overlap Welding Adapter, #46-956 Pressure Roller

46-204

Thermo-Shrink®

Heat Shrink Kit

Kit includes:

n

Heat Elite Pro Heat Gun

n

Eleven sizes of thin-wall

heat shrinkable tubing

disks (3/64 in. — 1 in.)

Small deflector

Premium T®-Cutter

Wire Cutter

Description Cat. No.

Kit includes: 46-203, 45-223, 46-941, & 46-600 through 46-610 46-007

1-800-435-0705 for Customer Service www.idealindustries.com B-79

Wire Markers

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-79

Wire Marker Booklets

Convenient pocket-size booklets

Plastic-impregnated cloth construction for long-lasting durability

Resists abrasion, moisture, dirt and oil

Perforated 1/4 in. x 1-1/2 in. markers can be separated into

half-length sizes

Non-smear black legend ensures high visibility

Self-sticking on wire and cable

For applications above or below ground

Legend Qty. Cat. No.

0-9 45 Markers each 44-101

A-Z

0-15

+, –, /

10 Markers each 44-102

1-45 10 Markers each 44-103

46-90 10 Markers each 44-104

1, 2, 3 150 Markers each 44-105

A, B, C 150 Markers each 44-106

A-Z 45 Markers each 44-148***

T1, T2, T3 150 Markers each 44-107

L1, L2, L3 150 Markers each 44-108

1-15

16-90

A-Z

+, –, /, 0

6 Markers each

4 Markers each

2 Markers each

44-109

1, 2, 3

A, B, C

T1, T2, T3

L1, L2, L3

45 Markers each

30 Markers each

44-110

+, –, AC, DC

POS, NEG, GND

NEUT

SPARE, BLANK

45 Markers each

33 Markers each

27 Markers each

21 Markers each

44-111**

Ten pages per booklet with each page bearing the legend assortment indicated.

All booklets (except 44-111) contain 450 wire markers and 450 terminal markers.

**Booklet 44-111 includes 348 wire markers and 348 terminal markers.

***Booklet 44-148 contains 26 pages, one page of 45 markers per letter, 1170 total

markers.

Legend Assortments*

Specifications:

Temperature Range: -40°F to 180°F (-40°C to 82°C)

Adhesion: 45 oz./in. width ultimate

Use for developing personal

identification systems

Surface accepts pen, pencil or

rubber stamp

Write-On Marker Booklets*

Marker Size*

(In.)

Markers per

page

Pages per

book Cat. No.

1 x 2-1/2 6 10 44-151

1 x 5 3 10 44-152

*Write-on area for 2-1/2 in. markers is 3/4 in. x 1 in. Write-on area for 5 in. markers is

1 in. x 1 in.

Adhesion: .25 oz./in. width ultimate

Wire Marker

Booklets

Legend Quantity Cat. No.

0-9 45 each 775101

A-Z, 0-15, +, -, / 10 each 775102

1-45 10 each 775103

46-90 10 each 775104

Ten pages per booklet with each page bearing the legend assortment indicated. All

booklets contain 450 wire and terminal markers.

Self-sticking on wire

and cable

Perforated 1/4” x 1-1/2”

markers

For applications above or

below ground

Resists abrasion, moisture,

dirt and oil

Non-smear black legend ensures high visibility

www.idealindustries.com 1-800-435-0705 for Customer Service

B-80

Wire Markers

www.idealindustries.com 1-800-435-0705 for Customer Service

B-80

Wire Marker Cards

Write-On Marker Cards

Use for developing personal

identification systems

Cloth write-on surface

Accepts most writing instruments

Use for positive identification and keying of wires, terminal blocks, etc.

Convenient pocket-size cards

Bold, easy-to-read black characters

Self-sticking on wire and cable

Polyester film over laminate/cloth construction for long-term durability

Resists abrasion, moisture, dirt and oil

Individual markers measure approximately 1/4 in. x 1-1/2 in.

Specifications:

Temperature Range: -40°F to 180°F (-40°C to 82°C); Adhesion: 45 oz./in. width ultimate

Marking Pen

Fast-drying, permanent ink will not smear

Use on write-on marker cards and write-on cable-tie marker

plates

Convenient pocket-size case holds ten wire marker rolls

Dispenser tab holds tapes firmly in place — allows removal of

proper tape length without waste

Flip top for easy access and refill

Built-in hook for hanging from belt or tool pouch

High-quality adhesive and 3 mil. thickness provide long-

lasting, low-profile application

Each plastic reel holds Tyvek® tape

Wire Marker Dispenser

Specifications:

Temperature Range: -40°F to 180°F (-40°C to 82°C)

Adhesion: 25 oz./in. width ultimate

Description Cat. No.

Marking Pen w/black ink 41-697

Marker Size Qty. Cat. No.

5/8 in. x 1-1/2 in. 14/card 44-753

Description Cat. No.

Dispenser w/0-9 legend rolls 42-301

Refill pack with one each of 0-9 legend rolls 42-399

Legend Markers per

Lenged

Markers per

Card Cat. No.

0-9 (Repeated) 3 30 43-953

Load Centers

Contains common household

legends — bedroom, living

room, dryer, water

heater, security

system, etc.

Description Cat. No.

Load Center Wire Marker Booklet 44-154

1-800-435-0705 for Customer Service www.idealindustries.com B-81

Toggle Switches

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-81

Standard and Heavy-Duty Toggle Switches

Great for power tool and motor control switch applications

Rugged long-wearing solid brass/nickel-plated bushings

1/2 in. diameter mounting hole

Dielectric Strength: 1500V

Mechanical Life: 100,000 cycles

Operating Temperature: 32°F to 185°F (0°C to 85°C)

DC Rating: Factory tested 100,000 cycles to 21 Amp 14.8 VDC

Bulk packaging of 100 available upon request

Rating

Product Description Poles Circuitry Termination

Style

No. of

Terminals

Amps 125

VAC

Amps 227

Vac

HP 125-250

VAC

Dimensions

(L” x W” x H”) Cat. No.

Toggle switch with

On-Off Faceplate

SPST

On-OFF

Screw

2 20 10 3/4 1.13 x .57 x .61

774011

Spade

774008

774008BK†

Toggle Switch

On-OFF Spade 774010

(On)-OFF Screw 774093

774088BK†

Toggle Switch w/

boot SPST On-OFF Spade 2 20 20 3/4 1.18 x .68 x .75

774111

774111BK†

Toggle Switch SPDT On-On Screw 3 20 10 3/4 1.13 x .57 x .61 774012

Toggle Switch SPDT On-On Spade 3 20 10 3/4 1.13 x .57 x .61 774100

Toggle Switch SPDT On-Off-On Screw 3 20 10 3/4 1.13 x .57 x .61 774013

Toggle Switch SPDT On-Off-On Spade 3 20 10 3/4 1.13 x .57 x .61 774027

Toggle Switch SPDT On-Off-(On) Screw 3 20 10 3/4 1.13 x .57 x .61 774094

Toggle Switch SPDT (On)-Off-(On) Screw 3 20 10 3/4 1.13 x .57 x .61 774009

Heavy-Duty Toggle

Switch DPST On-OFF Screw 4 20 10 1-1/2 1.30 x .76 x .80 774014

Heavy-Duty Toggle

Switch DPST On-OFF Spade 4 20 10 1-1/2 1.30 x .76 x .80 774005

Heavy-Duty Toggle

Switch DPST (On)-OFF Screw 4 20 10 1-1/2 1.30 x .76 x .80 774103

( ) denotes momentary action †Bulk Package of 100

www.idealindustries.com 1-800-435-0705 for Customer Service

B-82

Toggle Switches

www.idealindustries.com 1-800-435-0705 for Customer Service

B-82

Rating

Product Description Poles Circuitry Termination

Style

No. of

Terminals

Amps 125

VAC

Amps 227

Vac

HP 125-250

VAC

Dimensions

(L” x W” x H”) Cat. No.

Heavy-Duty

Toggle Switch DPDT On-On Screw 6 20 10 1-1/2 1.30 x .76 x .80

774015

774015BK†

Heavy-Duty

Toggle Switch DPDT (On)-On Screw 6 20 10 1-1/2 1.30 x .76 x .80

774028

774028BK†

Heavy-Duty

Toggle Switch DPDT On-Off-On Screw 6 20 10 1-1/2 1.30 x .76 x .80 774016

Heavy-Duty

Toggle Switch DPDT On-Off-On Spade 6 20 10 1-1/2 1.30 x .76 x .80 774003

774003BK†

Heavy-Duty

Toggle Switch DPDT (On)-Off-(On) Screw 6 20 10 1-1/2 1.30 x .76 x .80 774000

Heavy-Duty

Toggle Switch DPDT (On)-Off-(On) Spade 6 20 10 1-1/2 1.30 x .76 x .80

774115

774115BK†

Toggle Switch 3PDT On-On Screw 9 15 10* 3/4 1.31 x 1.09 x .80

774089

774089BK†

Toggle Switch 3PDT On-Off-On Screw 9 15 10* 3/4 1.31 x 1.09 x .80 774092

Toggle Switch 4PST On-Off Screw 8 15 10* 3/4 1.31 x 1.44 x .80 774108

Toggle Switch 4PDT On-On Screw 12 15 10* 3/4 1.31 x 1.44 x .80 774109

Toggle Switch 4PDT On-Off-On Screw 12 15 10* 3/4 1.31 x 1.44 x .80 774110

*250VAC, Dielectric strength: 1000V ( ) denotes momentary action †Bulk Package of 100 *All spade terminals are 1/4” (.250).

Standard and Heavy-Duty Toggle Switches

1-800-435-0705 for Customer Service www.idealindustries.com B-83

Toggle Switches

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-83

Extra Heavy-Duty AC/DC Toggle Switches

Medium and Light-Duty Toggle Switches

*DC rating not CSA or RU listed

Great for household appliances and equipment

Bat toggle switch, 774007, is ideal for battery-powered equipment including trimmers and lawn mowers

Wire leads are #18 AWG, 6 in. stripped wire

1/2 in. diameter mounting hole

Bulk packaging available upon request

The switch that can handle your heavy-duty requirements

Quick-make/quick-break type switches are ideal for DC voltage applications

Perfect for industrial motor control, with its sturdy metal construction and stiff actuation force, it will

withstand the abuses of virtually any application

Bulk packaging of 100 available upon request

Product Description Poles Circuitry Termination

Style

No. of

Terminals Rating Dimensions

(L” x W” x H”) Cat. No.

Bat Toggle with On-

Off Faceplate SPST On-Off Screw 2 6 Amps 120 VAC, 3 Amps 240 VAC .69 × .55 × .34 774017

Bat Toggle with On-

Off Faceplate SPST On-Off Wire Leads 2 4 Amps 250VAC/DC, 8 Amps 125VAC/DC,

10 Amps 125 VAC, 1/3 HP 125 VAC .98 × .64 × .62 774018

Bat Toggle* SPST On-Term

Ground Spade 1 21 Amps 14 VDC .69 × .55 × .34 774007

Short Ball Toggle

Switch SPST On-Off Screw 2 6 Amps 120 VAC, 3 Amps 240 VAC .69 × .55 × .34 774001

Short Ball Toggle

Switch SPST On-Off Wire Leads 2 6 Amps 125 VAC, 3 Amps 250 VAC .89 × .47 × .55 774002

Rating

Product Description Poles Circuitry Termination

Style

No. of

Terminals

Amps 125

VAC

Amps 227

Vac

HP 125-250

VAC

Dimensions

(L” x W” x H”) Cat. No.

Heavy-Duty Toggle

Switch SPST On-Off Screw 2 16 8 1 1.75 x .84 x .76 774095

Heavy-Duty Toggle

Switch DPST On-Off Screw 4 16 8 1 1.75 x .84 x .76 774096

Heavy-Duty Toggle

Switch DPST On-Off Screw 4 20 10 1-1/2 2.09 x 1.00 x .90 774097

www.idealindustries.com 1-800-435-0705 for Customer Service

B-84

Toggle Switches

www.idealindustries.com 1-800-435-0705 for Customer Service

B-84

Product Description Mounting Dimensions Qty./Card Cat. No.

Toggle Switch Cover 15/32 - 32 NS-2B .93 Height x .62 Base Dia. 2 774020

Push Button Switch Cover

(Clear) 3/8 - 27 NS-2B .59 Height x .60 Base Dia. x .34 I.D. 2 774117

Push Button Switch Cover

(Gray) 15/32 - 32 NS-2B .72 Height x .62 Base Dia. x .42 ID 2 774087

Double Insulated Plastic Toggle Switches

Toggle Switch Accessories

These neoprene covers are great for outdoor

and other environmentally tough conditions. They

screw onto toggle switches to protect switches

from moisture, dust and dirt.

n

Great for outdoor, marine/recreational

equipment, automotive and weather

resistant applications

Double-insulated with an internal “O” ring

design for moisture and dust resistance

n

1/2 in. diameter mounting hole

n

Bulk packaging available upon request

Nickel indicator plate fits easily on most toggle

switches to identify the On-Off positions

Rating

Product Description Poles Circuitry Termination

Style

No. of

Terminals

Amps 125

VAC

Amps 250

VAC

Dimensions

(L” x W” x H”) Cat. No.

Double Insulated, Plastic Toggle

Switch SPST On-Off Screw 2 20 10 1.37 × .76 × .94 774019

Double Insulated, Plastic Toggle

Switch SPDT (On)-Off-

(On) Spade 3 20 10 1.37 × .76 × .94 774004BK†

Double Insulated, Plastic Toggle

Switch DPDT (On)-Off-

(On) Spade 6 20 10 1.37 × .76 × .94 774006

†Bulk Package of 100 ( ) Denotes momentary action

1-800-435-0705 for Customer Service www.idealindustries.com B-85

Rocker Switches

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-85

Rating

Product Description Poles Circuitry Termination

Style

No. of

Terminals

Amps 125

VAC

Amps 227

Vac

HP 110-250

VAC

Dimensions

(L” x W” x H”) Cat. No.

Black Rocker Switch SPST On-Off Spade 2 20 15 2 1.70 x .97 x 1.09

774045

774045BK†

Black Rocker Switch DPST On-(Off) Spade 4 20 15 2 1.70 x .97 x 1.09 774121

Black Rocker Switch DPDT (On)-On Spade 6 20 15 2 1.70 x .97 x 1.09 774122

Black Rocker Switch DPDT On-Off-On Spade 6 20 15 2 1.70 x .97 x 1.09 774040BK†

Black Rocker Switch DPDT (On)-Off-On Spade 6 20 15 2 1.70 x .97 x 1.09 774123

Red Lighted Rocker

Switch*** DPST On-Off Spade 4 15 10* 3/4** 1.70 x .97 x 1.09 774056

Full-Size Rocker Switches

For commercial appliances, industrial controls, automotive and marine applications

Moisture- and dust-resistant

Suitable for low-voltage DC applications

Recommended .830 in. x 1.450 in. mounting hole, .125 in. panel thickness

Operating temperature: 32°F to 185°F (0°C to 85°C)

Bulk packaging available upon request

( ) Denotes momentary action *Amps 250 VAC **HP 125-250VAC †Bulk package of 100

S***

www.idealindustries.com 1-800-435-0705 for Customer Service

B-86

Rocker Switches

www.idealindustries.com 1-800-435-0705 for Customer Service

B-86

Product Description Rocker Poles Circuitry Termination

Style

No. of

Terminals Ratings Dimensions

(L” x W” x H”) Cat. No.

Appliance Rocker

Switch Black

SPST On-Off Spade 2

16 Amp 1/3 HP 125 VAC,

10 Amp 1/2 HP 250 VAC 1.24 x .68 x .77

774038

SPDT On-On Spade 3 774049BK†

SPDT On-Off-On Spade 3

774059

774059BK†

Appliance Rocker

Switch Red Lighted SPST On-Off Spade 3* 16 Amp 1/3 HP 125 VAC,

10 Amp 1/2 HP 250 VAC 1.24 x .68 x .77 774039

Appliance Rocker

Switch**

Visi-Red,

Printed

On-Off

Vertical

SPST On-Off Spade 2 16 Amp, 125 VAC, 10 Amp 250

VAC, 3/4 HP 125-250 VAC 1.24 x .68 x .72 774047

Miniature Rocker

Switch Red Lighted SPST On-Off Spade 3* 16 Amp 1/3 HP 125 VAC,

10 Amp 1/2 HP 250 VAC .83 x .59 x .50 774048

Appliance Rocker Switches

Great for home appliances, computer equipment, automotive and industrial controls

Appliance Rockers fit standard .55 in. × 1.12 in. panel cut outs

Miniature Rockers fit .520 in. × .776 in. panel cut outs

Plain and lighted versions available

Operating temperature: 32°F to 185°F (0°C to 85°C)

*3rd terminal to power lighted rocker

†Bulk Package of 100

1-800-435-0705 for Customer Service www.idealindustries.com B-87

Push-Button Switches

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-87

Product Description Actuator Poles Circuitry Termination

Style

No. of

Terminals Ratings Dimensions

(L” x W” x H”) Cat. No.

Round Body Push-

Button Switch** Black Plastic NPST NC On-(Off) Screw 2 3/4 Amp 125 VAC/DC,

1/4 Amp 250 VAC/DC .66 Dia. x 1.89 774084

Momentary Contact

Push-Button Switch Black Plastic SPST NO (On)-Off Screw 2 6 Amp 120 VAC,

3 Amp 240 VAC .88 x .54 x .35 774022

Momentary Contact

Push-Button Switch Red Plastic NPST NC On-(Off) Screw 2 3 Amp 120 VAC,

1.5 Amp 240 VAC .88 x .54 x .35 774023

Maintained Contact

Push-Button Switch Black Plastic SPST On-Off Wire Leads 2

8 Amp 125 VAC/DC,

4 Amp 250 VAC/DC,

10 Amp 125 VAC,

1/3 HP 125

.98 x .64 x .62 774021

Maintained Contact

Push-Button Switch* Nickel Plated SPST On-Off Wire Leads 2 6 Amp 125 VAC,

3 Amp 250 VAC .97 x .80 x .36 774024

Maintained Contact

Push-Button Switch* Brass Plated SPST On-Off Wire Leads 2 6 Amp 125 VAC,

3 Amp 250 VAC .97 x .80 x .36 774025

Momenary Contact

Push-Button Switch** Nickel Plated SPST NO (On)-Off Screw 2 15 Amp 125 VAC,

10 Amp 250 VAC 1.38 x .58 x .60 774085

Momenary Contact

Push-Button Switch** Nickel Plated SPST NC On-(Off) Screw 2 15 Amp 125 VAC,

10 Amp 250 VAC 1.38 x .58 x .60 774086

Push-Button Switches

Great for household appliances, lamps and motor controls

Available in normally open, normally closed and standard On-Off circuitry

Wire leads are #18 AWG, 6 in. stripped wire

1/2 in. diameter mounting hole

Bulk packaging of 100 available upon request

** *( ) Denotes momentary action

Cord Switches

Place your lighting controls in a convenient location with a lamp cord toggle switch

Available in brown or ivory

www.idealindustries.com 1-800-435-0705 for Customer Service

B-88

Chain/Cord Switches

www.idealindustries.com 1-800-435-0705 for Customer Service

B-88

†Bulk package of 100

Lever and Pull Chain Switches

Use for ceiling fixtures, lamps and fans

Wire leads are #18 AWG, 6 in. stripped wire

Push in connectors for #18 AWG wire

13/32 in. diameter mounting hole

Rating

Product Description Pull-Chain

Color Poles Circuitry Termination

Type Circuit Amps

125 VAC

Amps

250 Vac

Amps

125 VL

Dimensions

(L” x W” x H”) Cat. No.

All-Angle

Lever Switch* Nickel SPST On-Off Wire Leads 2 Pos -

2 Wire 6 3 — 1.50 x 1.28 x .50 774035

Pull Chain Nickel SPST On-Off Wire Leads 2 Pos -

2 Wire 6 3 3 .92 x .88 x .67 774031

Pull Chain Brass SPST On-Off Wire Leads 2 Pos -

2 Wire 6 3 3 .92 x .88 x .67 774032

2-Speed Pull

Chain* Brass SPDT Off-On-On Push-In 3 Pos -

3 WIre 6 3 6 1.43 x 1.25 x .73 774033

3-Speed Pull

Chain* Brass SPTT Off-On-On-On Push-In 4 Pos -

4 WIre 6 3 — 1.43 x 1.25 x .73 774034

3-Speed Pull

Chain Brass SPTT Off-On(A)-

On(B)-On(A+B) Wire Leads 4 Pos -

3 Wire 6 3 — .87 x 1.05 x .65

774037

774037BK†

Product Description Color Poles Circuitry Termination

Style Ratings Dimensions

(L” x W” x H”) Cat. No.

Cord Toggle

Switch Brown SPST On-Off Pass Thru 10 Amp 125VAC, 6 Amp 250VAC 2.50 x .83 x 1.28 774073

Door and Slide Switches

Standard slide switch fits 9/16 in. x 7⁄8 in. opening

Door switches are great for closets, turning the light on when the door is open and off when it is closed

Door switch kit comes with metal box, cover plate and mounting hardware

1-800-435-0705 for Customer Service www.idealindustries.com B-89

Slide/Rotary Switches

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-89

Rotary Switches

Rotary switches are perfect for household appliances, ceiling fixtures and lamps

Single or three-position switches available

#18 AWG, 6 in. stripped wire leads

( ) Denotes momentary action †Bulk package of 25

Product Description Color Poles Circuitry Termination

Style Ratings Dimensions

(L” x W” x H”) Cat. No.

AC/DC Door

Switch Kit White Button SPST Normally On-(Off) Wire Leads 10 Amp 1/3 HP 125/250VAC 1.25 x 2.75 x 2.0 774026K

Door

Replacement

Switch

White Button SPST Normally On-(Off) Wire Leads 10 Amp 1/3 HP 125/250VAC 1.17 x .69 x .98 774026BK†

Product Description Color Poles Circuitry Termination

Style Ratings Dimensions

(L” x W” x H”) Cat. No.

Rotary Swtich Brass Plated SPST On-Off Wire Leads 6 Amp 125VAC, 3 Amp 250VAC .97 x .80 x .39 774061

3-Way Rotary

Swtich Brass Plated SPTT Off-On(A)-On(B)-

On(A+B) Wire Leads 6 Amp 125VAC, 3 Amp 250VAC .86 x 1.03 x .34 774062

Rotary Swtich Black Plastic SPST On-Off Wire Leads 6 Amp 125VAC, 3 Amp 250VAC .89 x .79 x .31 774069

www.idealindustries.com 1-800-435-0705 for Customer Service

B-90

Indicator Lights

www.idealindustries.com 1-800-435-0705 for Customer Service

B-90

*Insulators sold separately

Raised Indicator Lights

Nylon body with raised transparent polycarbonate lens and stainless steel bezel, 94V-2 flammability rating

1/2 in. mounting diameter

Lamp voltage is AC/DC

Operating Temperature: Nylon Body: 140°C

Polycarbonate lens: 135°C

Flush Indicator Lights

Nylon body with flush transparent polycarbonate lens and stainless steel bezel, 94V-2 flammability rating

6 in. wire leads, 1/2 in. mounting diameter

Lamp voltage is AC/DC

Operating Temperature: Nylon Body: 140°C

Polycarbonate lens: 135°C

Base

Bezel

*VDE certified †Bulk Package of 100

Base

Bezel

Lamp

Product Description Lens

Color

Lamp

Voltage Watts Amp

Rating

Average

Life (hrs.) Lamp Type Termination

Style

Height

(Base” x Bezel”) Cat. No.

Raised Indicator Light Red 14V 1.2 .08 50,000 Incandescent 6” Wire Leads .91 x .10 x .20 775111*

Raised Indicator Light Red 28V 1.2 .04 25,000 Incandescent 6” Wire Leads .91 x .10 x .20 776111*

Raised Indicator Light Green 28V 1.2 .04 25,000 Incandescent 6” Wire Leads .91 x .10 x .20 776211*

Raised Indicator Light Amber 28V 1.2 .04 25,000 Incandescent 6” Wire Leads .91 x .10 x .20 776311*

Raised Indicator Light Red 125V 1/3 2mA Max. 25,000 Neon 6” Wire Leads .91 x .10 x .20 777111*

Raised Indicator Light Green 125V 1/3 2mA Max. 15,000 Neon 6” Wire Leads .91 x .10 x .20 777211*

777211BK†

Raised Indicator Light Amber 125V 1/3 2mA Max. 25,000 Neon 6” Wire Leads .91 x .10 x .20 777311*

Raised Indicator Light Red 250V 1/2 2mA Max. 25,000 Neon 6” Wire Leads .91 x .10 x .20 778111*

Raised Indicator Light Green 250V 1/2 2mA Max. 15,000 Neon 6” Wire Leads .91 x .10 x .20 778211*

Raised Indicator Light Green 28V 1.2 .04 25,000 Incandescent .187” Spade 1.09 x .10 x .20 776212BK†

Raised Indicator Light Red 28V 1.2 .04 25,000 Incandescent .187” Spade 1.09 x .10 x .20 776112BK†

Raised Indicator Light Amber 28V 1.2 .04 25,000 Incandescent .187” Spade 1.09 x .10 x .20 776312BK†

Raised Indicator Light Red 125V 1/3 2mA Max. 25,000 Neon .187” Spade 1.09 x .10 x .20 777112

776112BK†

Raised Indicator Light Green 125V 1/3 2mA Max. 15,000 Neon .187” Spade 1.09 x .10 x .20 777212

777212BK†

Raised Indicator Light Amber 125V 1/3 2mA Max. 25,000 Neon .187” Spade 1.09 x .10 x .20 777312BK†

Product Description Lens

Color

Lamp

Voltage Watts Amp

Rating

Average Life

(hrs.) Lamp Type Termination

Style

Height

(Base” x Bezel”) Cat. No.

Flush Indicator Light Red 125V 1/3 2mA Max. 25,000 Neon 6” Wire Leads .91 x .10 777121*

777121BK†

Flush Indicator Light Green 125V 1/3 2mA Max. 15,000 Neon 6” Wire Leads .91 x .10 777221

777221BK†

Flush Indicator Light Amber 125V 1/3 2mA Max. 25,000 Neon 6” Wire Leads .91 x .10 777321

777321BK†

1-800-435-0705 for Customer Service www.idealindustries.com B-91

Indicator Lights/Battery Clips

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-91

Product Description Amps Dimensions

(L”x H”) Jaw Opening Wire Diameter Qty. Cat. No.

Miniature General Purpose Clip 51-17/32 x 15/32 5/16 in. 9/64 in. 2770218L

General Purpose Clip 10 2 x 5/8 1/2 in. 3/16 in. 1 Red/1 Black 170207L

Test and Battery Clip 20 2-1/2 x 5/8 5/8 in. 3/16 in. 1 Red/1 Black 170208L

Test and Battery Clip 30 2-1/2 x 5/8 5/8 in. 3/16 in. 1 Red/1 Black 170209L

Copper Test and Battery Clips* 40 2-7/16 x 11/16 5/8 in. 3/16 in. 2770217L

Copper Test and Battery Clips* 75 3 x 15/16 3/4 in. 9/32 in. 2770216L

Copper Test and Battery Clips* 100 4-7/64 x 19/16 1-1/16 in. 11/30 in. 2770215L

Insulated grips for 770217L —3-1/2 x 3/4 ID — — 1 Red/1 Black 770223L

Insulated grips for 770216L —3-7/8 x 11/64 ID — — 1 Red/1 Black 770219L

Insulated grips for 770215L —5 x 1-13/32 ID — — 1 Red/1 Black 770221L

Battery Clips

Great for testing and many other electrical applications

Insulated grips are color-coded for positive (red) and negative (black) identification

For screw and/or crimp connections

Miniature Indicator Lights

Nylon body with flush transparent polycarbonate lens

6 in. wire leads

5/16 in. mounting diameter

Lamp voltage is AC/DC

Product Description Lens

Color

Lamp

Voltage Watts Amp

Rating

Average

Life (hrs.)

Lamp

Type

Termination

Style

Height

(Base” x Bezel”) Cat. No.

Miniature Indicator

Light Red 125V 1/3 2mA

Max. 25,000 Neon 6 in. Wire Leads 1.43 × .13 777131

Miniature Indicator

Light Green 125V 1/3 2mA

Max. 15,000 Neon 6 in. Wire Leads 1.43 × .13 777231

Miniature Indicator

Light Amber 125V 1/3 2mA

Max. 25,000 Neon 6 in. Wire Leads 1.43 × .13 777331

777331BK†

Base

Bezel

Series Voltage Color Mounting Diameter

Lens Style Terminators

5 - 14V 1 - Red 1 - 1/2 in. Raised 1 - 6 in. Wire Leads

6 - 28V 2 - Green 2 - 1/2 in. Flush 2 - .187 in. Spade

7 - 125V 3 - Amber 3 - 5/16 in. Flush —

8 - 250V 4 - Blue — —

—5 - Clear — —

Indicator Light Part No. System

*Insulators sold separately.

†Bulk Package of 100

www.idealindustries.com 1-800-435-0705 for Customer Service

B-92

Clips/Clamps

www.idealindustries.com 1-800-435-0705 for Customer Service

B-92

Product Description Amps Dimensions

(L” x H”) Jaw Opening Wire Gauge Qty. Cat. No.

Non-Insulated — 2 x 7/16 5/16 in. #22 - #14 2770200L

Insulated

Barrel —2-1/2 x 7/16 5/16 in. #22 - #14 1 Red/1 Black 770204L

Fully Insulated —2-1/2 x 7/16 5/16 in. #22 - #14 1 Red/1 Black 770205L

Product Description Amps Dimensions

(L” x H”) Jaw Opening Wire Dia. Qty. Cat. No.

Plier-Type Battery

Clip, Steel 50 2-7/8 x 2 1-1/8 in. 9/32 in. 1 Red/1 Black 770213L

Plier-Type Battery

Clip, Copper 75 2-7/8 x 2 1-1/8 in. 9/32 in. 1 Red/1 Black 770212L

Plier-Type Battery Clamps

Great for battery charging and test equipment

Insulated grips are color-coded for positive (red) and negative (black) identification

For crimp or solder connections

Alligator Clips

Great for temporary connections, testing wires and troubleshooting projects

Spring-loaded, grab-tight jaws make these clips quick and easy-to-use

For screw and/or crimp connections

1-800-435-0705 for Customer Service www.idealindustries.com B-93

Commutator Maintenance

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-93

Tramway-Handle Resurfacer

Handle shaped to ensure secure grip

10-1/2 in. handle permanently

mounted at 45° angle W

How to Select Resurfacer Grade

Small Motor and Pocket Resurfacers

Grade code letters designate the following grade

combinations:

A Medium/Finish G Coarse/Medium

B Coarse/Finish H Medium/Polish

D Finish/Polish

All Other Resurfacers

Resurfacers for commutators and copper-alloy slip rings are

made in five grades:

X Extra coarse — very fast cutting, for “hogging” off excessive

copper

C Coarse—fast cutting

M Medium—for general use, high mica, small ridges and

burns

F Finish—for use after the three grades above, for periodic

application and for removing small burns and ridges

immediately after their appearance

P Polish— very fine grade (220 aggregate grain) for burnish

finish

For all resurfacers, specify grade by adding the appropriate

letter as a suffix to the catalog number. (Example: 80-475M for

medium grade.)

How to Select Resurfacer Size

Size is always written length x width x thickness (working

face area x depth of stone). For handle types, the handle

is mounted parallel to the first dimension. Always use a

resurfacer with the largest face possible (length x width).

Thickness should be governed by clearance around

commutator or ring.

Commutator Resurfacers

The resurfacer should have a width of approximately 3/4 the

length of the commutator bar and as long as will conveniently

go between the brush riggings. For periodic application,

three or four sizes are generally sufficient. After determining

approximate dimensions, select nearest standard size and

type.

Slip Ring Resurfacers

When space permits, use a resurfacer about 1 in. wider than the

face width of the ring. Length should be at least three times

greater than the longest flat spot to bridge over and ensure

a true ring.

Pencil-Type Resurfacer

Small Motor-Type Resurfacer

For use on fans, signal motors,

auto generators, locomotive

headlight motors and other

fractional horsepower

motors

Different grades of

stone on each end

10 in. handle

For use on small fractional horsepower motors

Tool-Type Resurfacer

For use in lathe-turning

device

Two resurfacers required for

each grinder

Size (In.) Grades Cat. No.

3/4 x 1/2 x 3/8 A, B, D 80-012*

*Add grade letter suffix to Cat. No. Please allow 2-3 weeks for delivery.

Size (In.) Grades Cat. No.

5/8 x 3/8 x 6 C, M, F, P 80-075*

*Add grade letter suffix to Cat. No. Please allow 2-3 weeks for delivery.

Sizes (In.) Grades Cat. No.

3/4 x 3/4 x 3 C80-504*

1 x 1-1/2 x 6-1/2

C, M, F

80-454*

1 x 2 x 8 80-461*

2 x 2 x 8 80-475*

*Add grade letter suffix to Cat. No. Please allow 2-3 weeks for delivery.

Sizes (In.) Grades Cat. No.

2 x 1-1/2 x 2 M, F 80-255*

2 x 2 x 2 C, M, F 80-265*

*Add grade letter suffix to Cat. No. Please allow 2-3 weeks for delivery.

Product Description Amps Dimensions

(L” x H”) Jaw Opening Wire Gauge Qty. Cat. No.

Non-Insulated — 2 x 7/16 5/16 in. #22 - #14 2770200L

Insulated

Barrel —2-1/2 x 7/16 5/16 in. #22 - #14 1 Red/1 Black 770204L

Fully Insulated —2-1/2 x 7/16 5/16 in. #22 - #14 1 Red/1 Black 770205L

Product Description Amps Dimensions

(L” x H”) Jaw Opening Wire Dia. Qty. Cat. No.

Plier-Type Battery

Clip, Steel 50 2-7/8 x 2 1-1/8 in. 9/32 in. 1 Red/1 Black 770213L

Plier-Type Battery

Clip, Copper 75 2-7/8 x 2 1-1/8 in. 9/32 in. 1 Red/1 Black 770212L

Brush Seater and Commutator Cleaner

Gentle acting abrasive for seating carbon brushes and cleaning

commutators and slip rings

Soft, loosely bound grain produces a scouring effect when

held against commutator

Will not remove or scratch copper

Self-cleaning

Available in soft(S), medium(M) and hard(H) grades

Powr-Polish™ Flexible Abrasive

Fine-grain, non-

dusting abrasive

held together by a

flexible bond

Serves as both

commutator cleaner

and burnisher

Removes dirt and grease—imparts super-finished surface

Non-conductive and

non-loading

Commutator Smoothie® Resurfacing

Tool

Midget Precision Grinder

Designed to smooth commutators of auto generators, starting

motors and other similar equipment

8-1/2 in. plastic handle with a 5/16 in. x 7/8 in. x 11/16 in.

resurfacer on each end

Features one polish-grade and one finish-grade resurfacer

Bent handle reaches into any motor frame

Non-conductive for user safety

Right-angle rack and pinion allows for operation in small areas

6 in. base — recommended for commutator widths up to 9-1/4

in. (includes extra 1 in. travel obtained by setting resurfacers at

slight angle)

Includes convenient carrying case

Two tool-type resurfacers required — 80-454 recommended

1-1/4 in.

3 in.

16-1/2 in.

13/16 in. 6 in.

Sizes (In.) Grades Cat. No.

1/4 x 1/4 x 4-3/4 M, H 23-001*

1/2 x 1/4 x 4-3/4 M, H 23-002*

3/8 x 3/8 x 4-3/4 M23-003*

1/2 x 3/8 x 4-3/4 M, H 23-004*

1/2 x 1/2 x 4-3/4 M23-005*

5/8 x 1/2 x 4-3/4 M23-006*

3/4 x 1/2 x 4-3/4 S, M, H 23-007*

1-1/8 x 5/8 x 4-3/4 S, M, H 23-008*

1/2 x 1 x 4-3/4 S, M 23-027*

1 x 1 x 4-3/4 —23-035S

2 x 1 x 4-3/4 —23-036S

3 x 2 x 6 —23-041S

3 x 2 x 8 —23-042S

*Add grade letter suffix to Cat. No. Please allow 2-3 weeks for delivery.

Sizes (In.) Cat. No.

3/8 x 1/2 x 5 82-001

3/8 x 3/4 x 5 82-002

5/8 x 1 x 5 82-003

1 x 2 x 5 82-004

1 x 4 x 5 82-005

1/8 x 1 x 5 82-006

Please allow 2-3 weeks for delivery.

Description Cat. No.

Commutator Smoothie® Resurfacing Tool 80-033

Please allow 2-3 weeks for delivery.

Description Cat. No.

Midget Precision Grinder 24-033

Order tool-type resurfacers and brush arm supports separately.

www.idealindustries.com 1-800-435-0705 for Customer Service

B-94

Commutator Maintenance

www.idealindustries.com 1-800-435-0705 for Customer Service

B-94

Lockout/Tagout Kits

1-800-435-0705 for Customer Service www.idealindustries.com B-95

Basic Lockout/Tagout Kit

Personal Lockout Pouch Kit

n

A great selection of the most popular lockout/tagout

devices

Small nylon zipper pouch features belt loops and d-rings

for easy attachment to belts, tool pouches, tool carts and

Description Cat. No.

Basic Lockout/Tagout Kit 44-970

Kit 44-970 Includes: Qty. Cat. No.

Hinged Single-Pole Breaker Lockouts 244-810

Universal 277V Breaker Lockout/Single Pole 144-809

480/600V Breaker Lockout 144-807

Wall Switch Lockout 144-789

3/4 in. Red Padlock 144-906

1 in. Safety Lockout Hasp 144-800

Lockout Tags – Do Not Operate (striped) 544-849

Universal Multi-Pole Breaker Lockout 144-783

110V Plug Lockout 144-818

Zipper Pouch 1IA-3240

Quantities listed in kit description are for individual pieces, not carded packages.

Starter Lockout/Tagout Kit

n

A starter selection of the lockout/tagout devices every

electrician/maintenance person needs

Small nylon zipper pouch features belt loops and d-rings for

easy attachment to belts, tool pouches, tool carts and more

n

Easy to carry, zippered pouch holds a worker’s personal padlocks and other small devices

Description Cat. No.

Starter Lockout/Tagout Kit 44-973

Kit 44-973 Includes: Qty. Cat. No.

Universal 277V Breaker/Single-Pole Lockout 144-809

Universal Multi-Pole Lockout 144-783

3/4 in. Shackle Red Padlock 144-906

1 in. Safety Lockout Hasp 144-800

Lockout Tags – Do Not Operate (striped) 244-849

110V Plug Lockout 144-818

Zipper Pouch 1IA-3240

Quantities listed in kit description are for individual pieces, not carded packages.

Description Cat. No.

Personal Lockout Pouch Kit 44-969

Kit 44-969 Includes: Qty. Cat. No.

1 in. Safety Lockout Hasp 144-800

Lockout Tags 12 44-833*

Red Safety Padlocks - Keyed Alike 344-916**

Personal Lockout Pouch 1—

*Masterlock equivalent.

**Keyed alike and master keyed padlocks can be special ordered by contacting IDEAL

Customer Service.

Tools & Supplies

Stripmaster® Wire Strippers

www.idealindustries.com 1-800-435-0705 for Customer Service

B-96

Lockout/Tagout Kits

www.idealindustries.com 1-800-435-0705 for Customer Service

B-96

Plant Facility Lockout/Tagout Kit

n

Ideal for plant facility personnel to keep all lockout/tagout

devices in one convenient place

Polypropylene plastic tool box resists oil and chemicals

Standard Lockout/Tagout Kit

n

Excellent selection of lockout/tagout devices, tags and

locks for maintenance workers or contractors

Small nylon zipper pouch features belt loops and d-rings

for easy attachment to belts, tool pouches, tool carts and

Description Cat. No.

Plant Facility Lockout/Tagout Kit 44-972

Kit 44-972 Includes: Qty. Cat. No.

Hinged Single-Pole Breaker Lockouts 544-810

Universal 277V Breaker/Single Pole Lockouts 344-809

480/600V Breaker Lockout 144-807

Wall Switch Lockouts 244-789

110V Plug Lockout 144-818

1 in. Safety Lockout Hasps 344-800

Red Labeled Lockout 144-791

220/550V Plug Lockout 144-819

Lockout Tags – Do Not Operate (striped) 10 44-849

Fuse Blockout 144-815

Fuse Blockout 144-816

Gate Valve Lockout 144-824

Cleat for 277V Breaker Lockout 144-785

Cleat for 480/600V Breaker Lockout 144-786

Universal Multi-Pole Breaker Lockouts 344-783

Tool Box* 1IA-3241

Quantities listed in kit description are for individual pieces, not carded packages.

*Tool box color may vary.

Description Cat. No.

Standard Lockout/Tagout Kit 44-971

Kit 44-971 Includes: Qty. Cat. No.

Hinged Single-Pole Breaker Lockouts 344-810

Universal 277V Breaker Lockouts/Single Pole 244-809

480/600V Breaker Lockout 144-807

Wall Switch Lockout 144-789

110V Small Plug Lockout 144-818

2 in. Shackle Red Padlocks 244-907

1 in. Safety Lockout Hasps 244-800

Lockout Tags – Do Not Operate 544-848

Lockout Tags – Do Not Operate (striped) 544-849

Cleat for 277V Breaker Lockout 144-785

Cleat for 480/600V Breaker Lockout 144-786

Universal Multi-Pole Breaker Lockouts 244-783

Zipper Pouch 1IA-3240

Quantities listed in kit description are for individual pieces, not carded packages.

Group Lock Box

n

Helps ensure maximum security for complex work team situations

Allows up to 13 individuals to personally lock the closed box

Heavy-duty steel construction resists unauthorized entry and job-site abuse

Compact 8-3/4 in. x 3-1/2 in. x 6 in. design

Description Cat. No.

Group Lock Box 44-804

Stripmaster® Wire Strippers

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-97

Lockout/Tagout Kits

1-800-435-0705 for Customer Service www.idealindustries.com B-97

Industrial Lockout/Tagout Kit

n

An industrial selection of lockout/tagout devices

Polypropylene plastic tool box resists oil and chemicals

n

Perfect kit for an individual worker; padlocks are keyed-alike

for added worker convenience

Excellent selection of lockout/tagout devices, tags and keyed-

alike padlocks for most applications

Job Site Lockout/Tagout Kit

Description Cat. No.

Job Site Lockout/Tagout Kit 44-979

Kit 44-979 Includes: Qty. Cat. No.

Circuit Breaker Lockouts - tall and wide toggles 2 44-956

Circuit Breaker Lockouts - standard single and

double toggles 3 44-957

Circuit Breaker Lockout Padlock 1 —

Red Lockout Padlocks 344-916**

1 in. Safety Lockout Hasp 144-800

Red Labeled Lockout 144-791*

Universal Wall Switch Lockout 144-772

Lockout Tags - Do Not Operate (striped) 12 44-833*

Tool Box 1IA-3241*

*Masterlock equivalent.

**Reference part number is keyed-different, keyed-alike and master-keyed products can be

special ordered by contacting IDEAL Customer Service.

Description Cat. No.

Industrial Lockout/Tagout Kit 44-974

Kit 44-974 Includes: Qty. Cat. No.

Hinged Single-Pole Breaker Lockouts 344-810

Universal 277V Breaker/Single Pole Lockouts 244-809

480/600V Breaker Lockout 144-807

Wall Switch Lockout 144-789

110V Small Plug Lockout 144-818

Ball Valve Lockout 144-820

1 in. Safety Lockout Hasps 244-800

Red Labeled Lockout 144-791

220/550V Plug Lockout 144-819

Lockout Tags – Do Not Operate (striped) 10 44-849

Fuse Blockout 144-815

Fuse Blockout 144-816

Gate Valve Lockout 144-824

Cleat for 277V Breaker Lockout 144-785

Cleat for 480/600V Breaker Lockout 144-786

Red Lockout Padlocks 444-916

Universal Multi-Pole Breaker Lockouts 244-783

Tool Box* 1IA-3241

Quantities listed in kit description are for individual pieces, not carded packages.

*Tool Box color may vary.

Tools & Supplies

Stripmaster® Wire Strippers

www.idealindustries.com 1-800-435-0705 for Customer Service

B-98

Lock Stations/Training

www.idealindustries.com 1-800-435-0705 for Customer Service

B-98

Lock Stations

Resilient polycarbonate

material provides twice

the heat resistance and

quadruple the impact

strength of typical stations

Lockable cover prevents

loss of valuable safety products and innovative hinge holds

cover open for easy product selection

Kinds of energy lockout/tagout can control

Lockout/tagout basics

OSHA’s LO/TO Standard

The six steps to lockout/tagout

Removing lockout/tagout devices after a job is complete

Length: 15:00 minutes

Description Cat. No.

Four-Lock Station Kit includes Four-Lock Station Board (44-777),

four red Safety Padlocks (44-916), 12 Heavy-Duty Lockout Tags

and two 1 in. Safety Lockout Hasps (44-800)

44-778*

Ten-Lock Station Kit includes Ten-Lock Station Board (44-805),

ten red Safety Padlocks (44-916), 24 Heavy-Duty Lockout Tags

and two 1 in. Safety Lockout Hasps (44-800)

44-806

*Not shown.

Description Cat. No.

Lockout/Tagout Training 44-941

Industrial Lockout/Tagout Station

n

Large Lockout/Tagout Station can be wall mounted or easily

transported

All metal, lockable cabinets come with two adjustable shelves

(extra shelves available)

Lockout safety tips are conveniently located inside of door for

frequent reminders of proper lockout procedures

Lockout/Tagout Training Programs

and Compliance Manuals

Description Cat. No.

Industrial Lockout/Tagout Station –

16 in. H x 14 in. W x 6 in. D 44-975

Kit 44-975 Includes: Qty. Cat. No.

Hinged Single-Pole Breaker Lockouts 244-810

Universal Single-Pole Breaker Lockouts 244-809

Cleat for Universal Single-Pole Lockouts 244-785

Universal Multi-Pole Breaker Lockouts 244-783

480/600V Breaker Lockout 144-807

Cleat for 480/600V Breaker Lockout 144-786

Wall Switch Lockout 144-789

1 in. Safety Lockout Hasps 344-800

Red Safety Padlocks 444-916

100V Small Plug Lockout 144-818

220/550V Plug Lockout 144-819

Lockout Tags – Do Not Operate 10 44-849

Gate Valve Lockout - 1 in. to 2-1/2 in. 144-824

Gate Valve Lockout - 2-1/2 in. to 5 in. 144-825

Ball Valve Lockout 144-820

Pnuematic Lockout 144-774

Description Qty. Cat. No.

Extra Shelf 1IA-4990

Stripmaster® Wire Strippers

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-99

Lockout/Tagout

1-800-435-0705 for Customer Service www.idealindustries.com B-99

Multi-Pole Breaker Lockout

n

Works with most major multi-pole breakers with tie-bar

type switches including GE, ITE Sylvania, Challenger, Bryant,

Westinghouse, Square D (2/3 poles) and General Switch Co.

Easy to install — thumbscrew secures and locks tie bar in

place; no cable ties or tools required

Please see breaker guide for your application

480/600V Single/Multi-Pole Breaker

Lockouts

n

Use thumbscrew to clamp lockout securely on to switch tongue,

then pull cover over thumbscrew and lock in place to prevent

clamp from being loosened

Blade design provides tighter grip with less torque on

thumbscrew

Large Breaker Lockout

Designed to lockout

large 480/600V breaker

switches up to 2-1/2 in.

wide and 7/8 in. thick

Easy to install — no tools

required

Description Qty. Cat. No.

Multi-Pole Breaker Lockout 144-783

Description Qty. Cat. No.

Large Breaker Lockout 144-823

Description Qty. Cat. No.

480/600V Single/Multi-Pole Lockout 144-807

480/600V Single/Multi-Pole Lockouts 50 44-1807

Cleat for 480/600V Single/Multi-Pole Lockout 144-786

Description Qty. Cat. No.

Oversized Circuit Breaker System –

480-600 Volt 144-822

Oversized Circuit Breaker Lockout

System

n

Unique Lockout system for

oversized 480/600V Circuit

Breakers

System can be permanently

installed into an electrical

panel putting all lockout items

at the point of need

Easy installation of adhesive

mounting rails – no tools

required

Pegs in mounting rails mate with holes in locking arms for

security of arm when lock is in place

Red arms lock off, green arms lock on

Tools & Supplies

Stripmaster® Wire Strippers

www.idealindustries.com 1-800-435-0705 for Customer Service

B-100

Lockout/Tagout

www.idealindustries.com 1-800-435-0705 for Customer Service

B-100

Universal 120/277V Breaker Lockouts

n

Use thumbscrew to clamp lockout securely on to switch

tongue, then pull cover over thumbscrew and lock in

place to prevent clamp from being loosened

New blade design provides tighter grip with less torque

on thumbscrew

n

Hinged single-pole lockout with locking post design, locks

lever in off position to isolate and prevent breaker use

Ideal for applications where panel closure is preferred

Please see breaker guide for your application

Hinged Single-Pole Breaker Lockouts

Circuit Breaker Lockouts

n

Attaches securely to breaker with simple thumb turn and

clamping handle

44-956 is designed for breakers with wide or tall toggles

44-957 fits standard height and tie-bar toggles

The narrow profile permits side-by-side breaker lockout

Description Qty. Cat. No.

Single-Breaker Lockouts 344-809

Cleat for Single-Pole Breaker Lockouts 344-785

Single-Pole Breaker Lockouts 50 44-1809

Description Qty. Cat. No.

Hinged Single-Pole Breaker Lockouts 344-810

Hinged Single-Pole Breaker Lockouts 100 44-1810

Description Cat. No.

Circuit Breaker Lockout, wide & tall toggles 44-956

Circuit Breaker Lockout, standard toggles 44-957

Stripmaster® Wire Strippers

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-101

Lockout/Tagout

1-800-435-0705 for Customer Service www.idealindustries.com

Covers most 120V - 277V

breakers!

Works on wide range of

breakers, including single- and

multi-pole configurations

Makes use of unique lock rail

system, providing the following

benefits:

- Allows panel door to be

closed even when lockouts

are in place

- Accommodates multiple locks,

facilitating group lockout

activity without hasps

- Keeps weight off the

breakers, protecting delicate

electrical components from

damage

- Positions locks and tags

outside the panel, making

sure lockout activity is clearly

visible to anyone in the area

3. Pass plastic key through

lock rail and attach lock,

preventing key from

sliding down cable and

opening lockout device.

4. For group lockouts, run

key through multiple loops

in lock rail and apply

locks. No hasps required!

1. Peel liner off bottom of the

lock rail, exposing super-

bond adhesive. Permanently

affix to any location on the

panel. No drilling required.

2. Attach the lockout device

to the breaker and snap

into locked position.

Circuit Breaker Lockout System

How the System Works

• Lockoutdevicesconstructed

of high-impact Isoplast

polymers

• Cablesare2ft.inlength

• Lockrailsmadeofdurable

isoplast polymers with acrylic

adhesive backing

Technical Information

Especially useful when lockout

devices will be kept at the

panel in accordance with

NEC regulations. Everything you

need to lockout breakers is

kept conveniently right at the

point of need!

“No Shackle” LocksClamp-on

5. Lockout device is

unlocked by inserting

and turning the red

plastic key.

For use on Square

D NQO and other

breakers that have a

hole in the switch

tongue. Just align

pins with hole and

snap closed. Pins

prevent switch from

being thrown.

Snap-on

Perfect when locking out

adjacent breaker lockouts.

For use on

breakers that do

not have a hole in

the switch tongue,

including multiple

breakers with tie

bars. Turn thumb-

screw to clamp lockout

securely onto switch, then

snap the cover closed to

prevent thumbwheel from

being loosened. Description Outer Dimensions (In.) Switch Clearance (In.)

A B C D E

Snap-on 0.90 1.88 0.74 0.40 0.35

Clamp-on 0.95 2.56 0.74 0.35 0.42

Description Qty. Cat. No.

Snap-on lockout for Square D NQO and other

breakers with a hole in the switch tongue

144-768

Clamp-on lockout for breakers without hole in the switch

tongue, including multi-pole breakers with tie bars

144-764

4 in. Lock Rail with seven lock loops 144-769

No shackle lock 1444.001

B-101

Tools & Supplies

Stripmaster® Wire Strippers

www.idealindustries.com 1-800-435-0705 for Customer Service

B-102

Lockout/Tagout

www.idealindustries.com 1-800-435-0705 for Customer Service

B-102

Wall Switch Lockouts

Our patent pending

universal Wall Switch

Lockout locks out

both toggle and

decora wall switches

The universal design

assures switch is

locked on or off. It

also hinges open

for unobstructed

normal switch

operation

n

The standard wall

switch lockout fits most wall-

mounted single or three-

way electrical switches

Plug Lockouts

n

Accommodate a variety

of electrical plug and

cord sizes to prevent

accidental connection or

disconnection

Durable plastic body

resists wear, chemicals

and job-site abuse

Accommodates cable ties

or padlocks (with up to

3/8 in. shackles)

Plug Lockouts

n

Plug lockout, 44-792 works

with high and low voltage

plugs up to 3 in. in diameter

and 5-1/2 in. in length, up to

1-1/4 in. cord diameter

Plug lockout, 44-973 works

with 110V/220V plugs up to

1-3/4 in. in diameter and

2-1/2 in. in length, up to

a 1/2 in. cord diameter

Electric Plug Lockout

n

Slides over cord prongs and

locks in place to prevent cord

from being plugged into an

outlet

Cannot be removed without

key

Works on any 2- or 3-prong

plug

Description Qty. Cat. No.

Universal Wall Switch 144-772

Standard Wall Switch (not shown) 144-789

Description Size Cat. No.

Plug Lockouts - 100V 2 in. x 2 in. x 3-1/2 in. 44-818

Plug Lockouts - 220/550V 3-1/4 in. x 3-1/4 in. x 7 in. 44-819

Description Cat. No.

Plug Lockout - up to 3 in. diameter 44-792

Plug Lockout - 110V/20V 44-793

Description Cat. No.

Electric Plug Lockout 44-782

Stripmaster® Wire Strippers

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-103

Lockout/Tagout

1-800-435-0705 for Customer Service www.idealindustries.com B-103

Description Cat. No.

Cable Lockout, 6 ft. cable 44-829

Ball Valve Lockout Devices

n

Best available

method for locking

out ball valves

Patented design

fits most major

brand ball valves

Designed to lock

in off position only

Complies with

OSHA lockout

standard

Gate Valve Lockouts

n

Unique patent pending

rotating design allows for

easier installation in confined

space applications

Each size rotates into itself

and nests within the next

larger size to save space in

storage

Up to four workers can

apply their personal safety

locks

Complete with high-visibility

permanent safety labels

(English, French & Spanish)

that can be written on to identify the responsible person, then

erased for the next job

Tough, lightweight, dielectric Xenoy thermoplastic bodies

withstand chemicals and perform effectively in extreme

conditions, temperature range: -50°F (-46°C) to +350°F

(177°C)

Adjustable Cable Lockout

n

Infinitely adjustable safety hasp and

cable

Ideal for multiple circuit breaker

panels and side-by-side gate valve

lockouts

Feed the cable end through the

points to be locked out, then back

through the lockout body. Cinch it

tight to remove any slack with the

patented locking feature.

Tough, flexible multi-stranded 6 ft.

1/4 in. dia. steel cable is insulated

with a clear vinyl coating

Tough, lightweight, dielectric Xenoy®

thermoplastic body withstands

chemicals; performs effectively in

extreme conditions

Up to four workers can apply their personal safety locks

Complete with high-visibility, re-usable, write-on

safety labels (English, French & Spanish). Identify

the responsible person, then erase for the next job.

Cable Lockout

44-829 Unique hasp

lockout device accepts up

to six 9/32 in. padlocks

and comes with a 6 ft.

plastic-coated steel cable

Description Cat. No.

Adjustable Cable Lockout 44-808

Valve Size Qty. Cat. No.

1 in. to 3 in. 144-824

2 in. to 5 in. 144-825

Set of five sizes (1 in. to 13 in.) 144-817

Valve Size Max. Shackle Length Material Cat. No.

1/2 to 1-1/4 in. — Polypropylene 44-846

1-1/4 to 3 — Polypropylene 44-847

1/4 to 1 (not shown) 9/32 in. Nylon 44-820

1-1/4 to 3 (not shown) 9/32 in. Heavy Steel 44-821

Tools & Supplies

Stripmaster® Wire Strippers

www.idealindustries.com 1-800-435-0705 for Customer Service

B-104

Lockout/Tagout

www.idealindustries.com 1-800-435-0705 for Customer Service

B-104

Xenoy® Safety Lockout

Padlocks w/Key Retention

Steel Padlocks

n

Rustproofed, steel case with nickel-plated

shackle withstands abuse and

environmental hazards

Includes two keys

1-1/2 in. wide lock with 9/32 in.

shackle diameter

Keyed-alike and Master-

Keyed locks available by

special order

Lock Labels

n

Easy identification of employees’ locks

Write-on, vinyl labels with peel-off adhesive backing

Polyester over laminate protects label

Marking Pen

Fast-drying, permanent ink

will not smear

Use on write-on marker cards

and write-on cable-tie

marker plates

n

Dedicated safety lockout

device reduces

confusion with other

locks

n

Complies with OSHA’s

“1-key, 1-lock”

Non-conductive,

lightweight Xenoy® body

Key retention ensures keys do

not get lost while not in use and

that padlocks are not left untouched

1-1/2 in. shackle clearance

1-1/2 in. wide lock with 1/4 in. shackle

Four colors for easy identification

Keyed-alike, Master-Keyed, 2nd key, additional colors and

engraving available by special order

Bumper Color 3/4 In. Shackle Clearance

Cat. No.

2 In. Shackle Clearance

Cat. No.

Blue 44-900 44-901

Red 44-906 44-907

Bumper Color Cat. No.

Blue 44-912

Black 44-914

Red 44-916

Yellow 44-918

Description Qty. Cat. No.

Lock Labels 8 labels 44-898

Description Cat. No.

Marking Pen w/black ink 41-697

Stripmaster® Wire Strippers

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-105

Lockout/Tagout

1-800-435-0705 for Customer Service www.idealindustries.com B-105

Bilingual Lockout Tags

n

Spanish/English tags provide extra

safety and information in bilingual

situations

High-visibility lettering

Laminated plastic tags with non-

fade legends resist corrosive and

harsh environmental conditions

Write-on tag with 7/8 in. grommet can

be padlocked to device to help prevent

unauthorized removal

Heavy-Duty Lockout Tags

Safety Lockout Hasps

n

Allow up to six workers to lock out a single energy source

Rustproofed, plated and vinyl-coated

Labeled hasps feature anodized aluminum alloy construction

for long-term durability

Permanent “Do Not Operate” labels accept pens, pencils

and permanent markers

Safety Lockout Hasps

Labeled Safety Lockout Hasps

n

High-visibility lettering

Laminated plastic tags have non-fade legends, resist

corrosive and harsh environmental conditions and a

7/8 in. grommet

Vinyl tags are silk screened with a metal grommet;

fastener included

Exceeds OSHA’s 50-lb. pullout requirement

Legend Type Qty. Cat. No.

Do Not Operate

Heavy-Duty Laminated Card of 5 44-830

Heavy-Duty Laminated Box of 100 44-1830

Economy Vinyl Bag of 25 44-848

Do Not Operate -

Electricians at Work

Heavy-Duty Laminated Card of 5 44-832

Economy Vinyl Bag of 25 44-843

Do Not Operate -

(red striped background)

Heavy-Duty Laminated Card of 5 44-833

Heavy-Duty Laminated Box of 100 44-1833

Economy Vinyl Bag of 25 44-849

Legend Qty. Cat. No.

Do Not Operated (striped) 544-841

Jaw Diameter Qty. Cat. No.

1 in. 344-800

1-1/2 in. 244-801

Legend Color Qty. Cat. No.

Do Not Operate

Blue 1 44-790

Red 1 44-791

Red 50 44-1791

Tools & Supplies

Stripmaster® Wire Strippers

www.idealindustries.com 1-800-435-0705 for Customer Service

B-106

Lockout/Tagout Signs

www.idealindustries.com 1-800-435-0705 for Customer Service

B-106

Resistant to both chemicals and abrasion —

protected graphics for indoor and

outdoor use

Lockout Signs Safety Signs

Resistant to both

chemicals & abrasion —

protected graphics for

indoor & outdoor use

National Electric Code 110.16 Flash Protection: Switchboards, panel boards, industrial control panels and motor

control centers, in other than dwelling occupancies, that are likely to require examination, adjustment, servicing or maintenance while

energized, shall be field marked to warn qualified persons of potential electric arc flash hazards. The marking shall be located so as to

be clearly visible to qualified persons before examination, adjustment, servicing or maintenance of the equipment.

Required Labels –

44-892/44-893/44-892BK Recommended Signs –

44-896

Arc Flash Labels

44-894/44-895

Flash Protection Labels and Signs

Legend Material Size (In.) Cat. No.

OSHA Regulation

36 in. clearance

Self-sticking

polyester

3-1/2 x 10 44-877

OSHA Regulation – Bilingual

36 in. clearance

Self-sticking

polyester

7 x 10 44-878

Description Type Size Qty./Bag Cat. No.

NEC Arc Flash, Warning

Self-Sticking Polyester

3-1/2 in. x 5 in. 544-892

NEC Arc Flash, Warning 3-1/2 in. x 5 in. 100 44-892BK

NEC Arc Flash, Warning 5 in. x 7 in. 544-893

NEC Arc Flash, Danger 5 in. x 7 in. 544-894

NEC Arc Flash, Danger 4 in. x 6 in. 544-895

NEC Arc Flash, Warning 7 in. x 10 in. 144-896

Legend Material Size (In.) Cat. No.

Danger – High Voltage Fiberglass 10 x 14 44-862

Danger – High Voltage Self-Sticking

Polyester

7 x 10 44-863

Danger – High Voltage – Keep Out Fiberglass 10 x 14 44-880

Danger – High Voltage – Keep Out Self-Sticking

Polyester

7 x 10 44-881

Danger – High Voltage – Spanish Self-Sticking

Polyester

7 x 10 44-865

Stripmaster® Wire Strippers

Tools & Supplies

1-800-435-0705 for Customer Service www.idealindustries.com B-107

Lockout/Tagout

1-800-435-0705 for Customer Service www.idealindustries.com B-107

Detectable Underground Tapes

Solid aluminum foil core tapes for protection,

location and identification of underground

utility installations

Meets or exceeds industry standards

including the American Public

Works Association (APWA)

color code

Formulated to resist degradation from acid and alkali found in soils

Lead-free pigments and organic lead-free ink

Non-Detectable Underground Tapes

For protection, location and

identification of underground

utility installations

Formulated to resist degradation

from acid and alkali found in soils

Lead-free pigments and organic lead-free ink

Barricade Tapes

n

High-visibility safety yellow or red polyethylene construction

with bold black letters

Meets OSHA specifications Section 1010.144 for marking

physical hazards

Property Method Value

Thickness ASTMD2103 5.0 Mils

Elongation ASTMD882-75B 80%

Composition IDEAL Specs.

Bottom Layer PE

Top layer PET

Foil industry standard

Tensile Strength ASTMD882 35 lbs./in. (15,000 PSI)

Legend Color Size Cat. No.

Caution Buried

Electric Line Below Red 3 in. x 1,000 ft. 42-201

6 in. x 1,000 ft. 42-251

Caution Buried Fiber

Optic Line Below Orange 6 in. x 1,000 ft. 42-252

Property Method Value

Thickness ASTMD2103 4.0 Mils

Elongation ASTMD882-75B 500%

Composition IDEAL Specs. LDPE

Tensile Strength ASTMD882 2,750 PSI

Recommended Burial Depth

3 in. Tape – 4 in. to 6 in.

6 in. Tape – less than 12 in.

Legend Color Size Cat. No.

Caution Buried Electric

Line Below

Red 3 in. x 1,000 ft. 42-101

3 in. x 250 ft. 42-131

Yellow 3 in. x 1,000 ft. 42-102

Caution Buried

Telephone Line Below Orange 3 in. x 1,000 ft. 42-103

Caution Buried Fiber

Optic Line Below Orange 3 in x 1,000 ft. 42-104

Caution Buried Electric

Line Below

Red 6 in. x 1,000 ft. 42-151

Yellow 6 in. x 1,000 ft. 42-152

Property Method Value

Elongation ASTMD882-

75B ≥ 400%

Composition IDEAL Specs. LDPE

Tensile Strength ASTMD882 2,350 PSI TD

1,893 PSI MD

Legend Color Size Thickness Cat. No.

Caution Yellow

3 in. x 1,000 ft.

4.0 Mils 42-001

Caution Do Not

Enter Yellow 4.0 Mils 42-002

Caution High

Voltage Yellow 4.0 Mils 42-003

Danger Red 4.0 Mils 42-051

Danger High

Voltage Keep Out Red 4.0 Mils 42-052

Legend Color Size Thickness Cat. No.

Caution Yellow 3 in. x 250 ft. 2.0 Mils 42-031

Caution Yellow

3 in. x 1,000 ft.

2.0 Mils 42-011

Caution Do Not

Enter Yellow 2.0 Mils 42-012

Danger Red 2.0 Mils 42-015

Tools & Supplies

Stripmaster® Wire Strippers

www.idealindustries.com 1-800-435-0705 for Customer Service

B-108

Lockout/Tagout

www.idealindustries.com 1-800-435-0705 for Customer Service

B-108

Legend Large

Cat. No.

Medium

Cat. No.

Small Cat.

No.

120/280 44-295 44-296 —

277/480V 44-298 44-299 —

120V —44-353 —

208V —44-355 —

240V —45-358 —

277V — — 44-410

480V 44-314 44-364 —

DANGER 44-289 — —

HIGH VOLTAGE 44-292 — —

Python™ Adjustable Locking Cables

Python™ Adjustable Locking Cable secures

anything within its grasp. It’s the only locking

cable that is always the right length for

your application. This exclusive, patented

product holds the flexible steel cable tight at

any position for infinite possibilities.

Infinite Locking Positions – The patented lock

holds the cable tight at any position from

1 ft. (30cm) to 6 ft. (1.8m)

Application Flexibility – Interchangeable cables

Keyed Alike Convenience – Rekeyable cylinder

Cut Resistance – 3/8 in. (10mm), 100% steel braided

cable

Weather Tough – Rust resistant aluminum lock body

Scratch Resistant – Vinyl cable sleeve and lock body

bumper

Other Applications: Bikes, lawn furniture, lawn mowers, job

sites, canoes, boats, skis, snowboards, generators, pickup truck

cargo, spare tire locks and much more.

Description Cat. No.

Master Lock Python Kit with 6 ft. Cable-keyed different 44-990

Master Lock Python Kit with 6 ft. Cable-keyed alike* 44-991

12 ft. (3.7m) x 3/8 in. (10mm) Cable for Python Lock* 44-992

*Special order thru Customer Service.

Large:

1 marker per card

2-1/4 in. x 9 in. each w/1-3/4 in. type

Medium:

4 markers per card

1-1/8 in. x 4-1/2 in. each w/3/4 in. type

Small:

18 markers per card

2-1/4 in. x 1/2 in. each w/5/16 in. type

Voltage and Conduit Markers

Identify junction boxes, switches, circuit breakers,

raceways, pipe and fuse boxes

Non-conductive for user safety

High-adhesion properties with easy removability

Vinyl-impregnated cloth construction provides long-lasting

durability

Resist abrasion, moisture, dirt and oil

Non-smear, black legend on bright orange background

for high visibility

Specifications:

Temperature Range: -40°F to 180°F (-40°C to 82°C)

Adhesion: 45 oz./in. width ultimate

www.idealindustries.com 1-800-324-9571 for Customer Service

Knife-type stripping blades have form-ground

holes which penetrate the insulation like a

knife, giving a clean insulation cut.

Stripmaster® and Stripmaster® Lite

Wire Strippers

One-step stripping enhances productivity

Spring-action motion increases leverage and reduces

operator fatigue

Precision-ground, knife-type blades provide clean,

accurate stripping

Sturdy die-cast frame provides long-term durability

Wire gripper holds wire securely in position

Stripmaster® Lite designed for smaller hands —

3/4 the size of the standard Stripmaster®

Stripmaster® Wire Strippers and

Knife-Type Blades

Stripmaster®

Wire Stripper

Gripper holds the wire securely in position.

Specifications — Stripping Hole Diameter in Inches (mm)

Cat. No.

Replacement

Blades (Pair)

Cat. No.

Replacement

Frame

Cat. No.

Wire Size AWG

6 8 10 12 14 16 18 20 22 24 26 28 30

0.159

(4.0)

.141

(3.6)

.106

(2.7)

45-090* or

45-290** L-4419 L-5620

.144

(3.6)

.105

(2.7)

.085

(2.2)

.073

(1.8)

.073

(1.8) 45-091 L-4420 L-5620

.144

(3.6)

.113

(2.9)

.090

(2.3)

.072

(1.8)

.061

(1.5)

.048

(1.2)

.048

(1.2)

45-092* or

45-292** L-4421 L-5620

.090

(2.3)

.072

(1.8)

.061

(1.5)

.039

(1.0)

.039

(1.0) 45-093 L-4422 L-5620

.230

(2.3)

.198

(1.9) 45-096 L-4453 L-4453

.072

(1.8)

.061

(1.5)

.048

(1.2)

.039

(1.0)

.032

(0.8)

.026

(0.7) 45-097 L-4994 L-5620

.048

(1.2)

.039

(1.0)

.032

(0.8)

.026

(0.7)

.021

(0.5)

.016

(0.4) 45-098 L-5361 L-5620

.198

(5.0)

.167

(4.2)

.062

(1.6)

.055

(1.4) 45-099 L-8763 L-5620

*Boxed ** Blister Card Tolerances +001 - .005

Stripmaster® Lite Wire Strippers and Knife-Type Blades

Specifications — Stripping Hole Diameter (Inches)

Cat. No.

Replacement

Blades (Pair)

Cat. No.

Replacement

Frame Cat. No.

Wire Size AWG

12 14 16 18 20 22 24 26 28 30

.072

(1.8)

.061

(1.5)

.048

(1.2)

.039

(1.0) 45-671 LB-1001 LB-1421

.032

(0.8)

.026

(0.7)

.021

(0.5)

.016

(0.4) 45-672 LB-1002 LB-1421

.113

(209)

.090

(2.3)

.072

(1.8)

.061

(1.5) All stranded wire 45-673 LB-1003 LB-1421

.096

(2.4)

.085

(2.2)

.073

(1.9)

.061

(1.5) 12 & 14 Solid Wire, 16 & 18 Stranded Wire 45-674 LB-1004 LB-1421

Tolerances +001 - .005

Stripmaster® Wire Strippers

C-2

Stripmaster® Lite

Wire Stripper

1-800-324-9571 for Customer Service www.idealindustries.com C-3

Provides uniform stripping length

Protects wire strands by limiting

stripping stroke to 5/32 in.

Retains slug until wire is

ready for terminating

Specifications — Stripping Hole Diameter (mm)

Cat. No.

Replacement

Blades (Pair)

Cat. No.

Replacement

Frame

Cat. No.

Wire Size mm2

0.05 0.1 0.15 0.22 0.34 0.5 0.75 1 1.5 2.5 4 6 8 10

4.3 5.0 45-090-341 L-4419M LA-2358

1.3 1.6 1.9 2.4 3 3.6

45-092-341

45-292-341*

L-4421M LA-2358

0.6 0.7 0.8 0.9 1.0 1.1 45-098-341 L-5361M LA-2358

*Boxed Tolerances +001 - .005

Specifications — Stripping Hole Diameter (mm)

Cat. No.

Replacement

Blades (Pair)

Cat. No.

Replacement

Frame

Cat. No.

Wire Size mm2

0.05 0.1 0.15 0.22 0.34 0.5 0.75 1 1.5

1.0 1.1 1.3 1.6 1.9 45-671-341 LB-1001M H-2909

0.6 0.7 0.8 0.9 45-672-341 LB-1002M H-2909

Free Application Engineering Service available. Contact IDEAL INDUSTRIES, INC. for complete information at 1-800-324-9571 or download application at

www.idealindustries.com/products/wire-processing.

Stripmaster® Wire Strippers and Knife-Type Blades for Metric Wire

Stripmaster® Lite Wire Strippers and Knife-Type Blades for Metric Wire

Coax Stripmaster® Wire Strippers and Blades

Transparent Adjustable Wire Stop Assembly Short Stop Latch

Stripmaster® Wire Strippers with Rectangular

Holes

Specifications — Stripping

Description

Coax Cable

Type (RGU)

Repl. Blade

Cat. No. Cat. No.

Coax Stripmaster® for RG-6 RG-6 LB-740 45-262

Coax Stripmaster® for RG-58 RG-58 LB-742 45-264

Coax Stripmaster® for RG-59 RG-59 LB-743 45-265

Coax Stripmaster® for RG-6

QuadShield

RG-6

QuadShield LA-3953 45-282

Coaxial Cables: two-step strip for termination, jacket and dielectric.

Description Cat. No.

Replacement

Blades (Pair)

Cat. No.

For Flat Telephone Cable (.060 in. or 1.52mm) N/A LB-1155

For European Flat Lamp Cord 45-089 L-8762

For SP-SPT Lamp Cord 45-095* L-4452

*Also strips 2- and 3-conductor low-voltage wire used in E.E. and Touchplate

remote control wiring system.

Stripmaster® Wire Strippers

Optional Accessories Cat. No.

Transparent Adjustable Wire Stop (for Stripmaster®

Wire Strippers)

L-5270

Transparent Adjustable Wire Stop (for Stripmaster® Lite Wire

Strippers)

LB-1195

Replacement Moveable Gripper L-1953

Replacement Frame Assemblies Cat. No.

For Stripmaster® Wire Strippers L-5620

For Stripmaster® Lite Wire Strippers LB-1421

Specifications – Cutting Hole Diameter in Inches (mm)

Counterbore Diameter

www.idealindustries.com 1-800-324-9571 for Customer Service

Stripmaster® Wire Strippers

C-4

Gripper pads hold the wire securely in a

centerline relationship with the blade.

Die-type blades incorporate a counter-bored hole sized to the

insulation and an inner cutting hole sized to the conductor.

This varies depending on insulation type and thickness.

Strips 30 through 10 AWG solid or stranded wire

Mil-spec die-type blades allow precision stripping

Inner cutting hole sized to conductor and counter-bored holes sized to insulation

Replaceable grippers

Optional short stop-latch and transparent wire stop

Cushioned, comfort grip handles

Engineering service and made-to-order blades available.

Contact factory for complete product and blade number listing.

Custom Stripmaster® Wire Strippers

Custom Stripmaster® Wire Strippers and Die-Type Blades

Wire Size AWG

Stripper

Cat. No.

Blade

Only

Cat. No.

10 12 14 16 18 20 22 24 26 28 30

For Type E Teflon® (600V)

.119/.136

(3.02/3.45)

.096/.113

(2.44/2.87)

.076/.0985

(1.93/2.37) 45-176 L-5559

.061/.081

(1.55/2.06)

.052/.070

(1.33/1.78)

.042/.0595

(1.07/1.5)

.034/.052

(.863/1.32)

.028/.043

(.711/1.09)

.026/0.39

(.584/.99) 45-177 L-5560

.023/.039

(.584/.99)

.019/.035

(.482/.889)

.016/.032

(.406/.813) 45-178 L-5561

For Type EE Teflon® (1000V)

.119/.144

(3.02/3.45)

.096/.125

(2.44/3.17)

.076/.104

(1.93/2.64) 45-173 L-5562

.061/.089

(1.55/2.49)

.042/.067

(1.07/1.70)

.034/.0595

(.863/1.50)

.028/.055

(.711/1.39)

.023/.0465

(.584/1.17) 45-174 L-5563

.052/.0785

(1.33/1.99)

.023/.0465

(.584/1.17)

.019/.043

(.482/1.09)

.016/.042

(.406/1.07) 45-175 L-5564

For Other Misc. Insulations

.116/.154

(2.94/3.91)

.0937/.138

(2.38/3.45)

.076/.113

(1.93/2.87) 45-170 L-5210

.062/.096

(1.57/2.44)

.052/.086

(1.33/2.18)

.042/.073

(1.07/1.85)

.035/.0635

(.889/1.61)

.0292/.0595

(.763/1.50)

.022./052

(.560/1.33) 45-171 L-5211

.024/.043

(.609/1.09)

.020/.040

(.508/1.01)

.016/.037

(.406/.940) 45-172 L-5436

Other Thin Insulations

Three identical holes .012./020

(.305./508) 45-179 L-7625

Solid Wires .024/.033

(.609/.838)

.018/.025

(.457/.635)

.014/.023

(.356/.584)

.012/.019

(.305/.508) 45-169 L-9300

Tolerances: Cutter Dia.: ± .001; Counter-bore Dia.: ± .002. The 45-170 Series is a Custom Stripmaster® Wire Stripper frame without the short stop latch and wire stop.

Teflon® is a registered trademark of E.I. du Pont de Nemours and Company.

Custom Stripmaster® Lite Wire Strippers and Die-type Blades

Specifications – Cutting Hole Diameter in Inches (mm)

Counterbore Diameter

1-800-324-9571 for Customer Service www.idealindustries.com C-5

Stripmaster® Wire Strippers

Custom Stripmaster® Lite is 3/4’s the size of Custom Stripmaster® Wire

Stripper and strips 16 through 30 AWG solid or stranded wire

Custom Stripmaster® Lite requires one-third less hand pressure for each

strip actuation

Engineering Service and made-to-order blades available. Contact factory

for complete product and blade number listing.

Custom Stripmaster® Lite Wire Strippers

Stripper

Cat. No.

Blade Only

Cat. No.

16 18 20 22 24 26 28 30

For Type E Teflon® (600V)

.061/.081

(1.55/2.06)

.052/.070

(1.33/1.78)

.042/.0595

(1.07/1.5)

.034/.052

(.863/1.32) 45-638 LB-918

.042/.0595

(1.07/1.5)

.034/.052

(.863/1.32)

.028/.043

(.71/1.09)

.023/.039

(.584/.99) 45-639 LB-919

.028/.043

(.71/1.09)

.023/.039

(.584/.99)

.019/.035

(.482/.89)

.016/.032

(.41/.82) 45-640 LB-920

For Type EE Teflon® (1000V)

.061./089

(1.55/2.26)

.052./0785

(1.32/1.99)

.042./067

(1.07/1.70)

.034/.0595

(.86/1.51) 45-635 LB-915

.042./067

(1.07/1.70)

.034/.0595

(.86/1.51)

.028/.055

(.71/1.40)

.023/.0465

(.58/1.18) 45-636 LB-916

.028/.055

(.71/1.40)

.023/.0465

(.58/1.18)

.019/.043

(.48/1.09)

.016./042

(.41/1.07) 45-637 LB-917

For Other Misc. Insulations

.062./096

(1.57/2.44)

.052./086

(1.32/2.18)

.042./073

(1.07/1.70)

.034/.0595

(.89/1.61) 45-632 LB-912

.042./073

(1.07/1.70)

.034/.0595

(.89/1.61)

.0292/.0595

(.74/1.51)

.022/.052

(.56/1.32) 45-633 LB-913

.024/.033

(.74/1.51)

.018/.025

(.61/1.09)

.020/.040

(.51/1.02)

.016/.037

(.41/0.86) 45-634 LB-914

Other Thin Insulations

.012/.020

(.305./508) 45-641 LB-921

.024/.033

(.61/.84)

.018/.025

(.46/.64)

.014/.023

(.36/.58)

.012/.019

(.30/.48) 45-631 LB-911

Tolerances: Cutter Dia.: ± .001; Counter-bore Dia.: ± .002.

Teflon® is a registered trademark of E.I. du Pont de Nemours and Company.

Stripmaster® Wire Strippers

Description Blade Gap (“x”) vertical height Blade Only Cat. No. Frame & Blade Cat. No.

Custom Steel frame only N/A N/A LB-1091

Flat blade for 26 AWG (.40mm dia.) multi-conductor .022 in. LB-1151 45-890

Flat blade for 24 AWG (.00mm dia.) multi-conductor .030 in. LB-1152 45-891

Flat blade for 22 AWG (.64mm dia.) multi-conductor .038 in. LB-1153 45-892

Flat blade for 20 AWG (.00mm dia.) multi-conductor .050 in. LB-1154 45-893

Flat blade for 18 AWG (1.02mm dia.) multi-conductor .060 in. LB-1155 45-894

Flat blade for 16 AWG (1.29mm dia.) multi-conductor .075 in. LB-1156 45-895

Custom Steel Stripmaster® Wire Strippers and

Special Flat-Blades for Ribbon and Multi-Conductor Cable

For

Short stop-latch protects wire strands by

limiting the stripping stroke to 5/32 in. and

retains the slug until the wire is ready

for terminating.

Transparent wire stop provides

uniform stripping length.

Gripper pads are available in your choice of

either parallel, file or grit-type. File-type pads

may be used on hard-to-grip insulations such as

Kapton® and some Teflon®.

Stationary Gripper for Black

Handle Units

For 16 thru 30 AWG wire.

L-5217

.156

Replacement Frame Assemblies

Optional Accessories

For Custom Stripmaster® and Custom Steel Stripmaster® Wire

Strippers

Surface

Type

Gripper Set*

Cat. No.

Movable Gripper

Cat. No.

Stationary Gripper

(Thickness)

Grit** LB-197 L-5212 L-5215 (.129 in.)

Grit** LB-198 L-5212 L-5217 (.156 in.)

File LB-721 LB-718 LB-719 (.129 in.)

File LB-722‡ LB-718 LB-720 (.156 in.)

Parallel LB-730 LB-727 LB-728 (.129 in.)

Parallel LB-731 LB-727 LB-729 (.156 in.)

For Custom Stripmaster® Lite Wire Strippers

Surface

Type

Gripper Set*

Cat. No.

Movable Gripper

Cat. No.

Stationary Gripper

(Thickness)

Grit* LB-1188 LB-882 LB-883 (.109 in.)

File LB-1189 LB-1184 LB-1185 (.109 in.)

Parallel LB-1190 LB-1186 LB-1187 (.109 in.)

* Gripper Set includes one movable gripper, one stationary gripper.

** Grit pads are standard for most Custom Stripmaster® and Custom

Stripmaster® Lite products.

‡ These are for use on hard-to-grip surfaces such as Kapton® and Teflon®.

Gripper pad selection depends on insulation type and user preference.

Note: For 10-14 AWG, use .129 in. stationary gripper. For 16-30 AWG, use .156 in.

gripper.

Replacement Gripper Pads

Short Stop-Latch Cat. No.

For Custom & Custom Steel Stripmaster® Wire Strippers L-5269

For Custom Stripmaster® Lite Wire Strippers LB-1194

Transparent Adjustable Wire Stop Assembly Cat. No.

For Custom & Custom Steel Stripmaster® Wire Strippers L-5270

For Custom Stripmaster® Lite Wire Strippers LB-1195

For Custom Steel Stripmaster® Wire Strippers Cat. No.

Frame only, 10-14 AWG LB-1091

Frame only, 16-30 AWG LB-1092

Frame only, 10-14 AWG, internal spring (see note) LB-1090

Frame only, 16-30 AWG, internal spring (see note) LB-1089

Note: Frames with internal springs allow additional blade penetration pressure for

difficult and multi-layered insulation types.

For Custom Stripmaster® Lite Wire Strippers Cat. No.

Frame only LB-895

Frame only, Wire Stop and Latch LB-896

For Custom Stripmaster® Wire Strippers Cat. No.

Frame only, 10-14 AWG L-5616

Frame only, 16-30 AWG L-5617

Frame only, 10-14 AWG, Wire Stop and Latch L-5618

Frame only, 16-30 AWG, Wire Stop and Latch L-5619

Frame only, 10-14 AWG, internal spring (see note) L-9039

Frame only, 16-30 AWG, internal spring (see note) L-9038

Note: Frames with internal springs allow additional blade penetration pressure for

difficult and multi-layered insulation types.

www.idealindustries.com 1-800-324-9571 for Customer Service

Stripmaster® Wire Strippers

C-6

Stationary Gripper for Red

Handle Units

For 10, 12 & 14 AWG Wire

L-5215

.129

1-800-324-9571 for Customer Service www.idealindustries.com C-7

Stripmaster® Wire Strippers

Wire Specification Custom Stripmaster® Custom Stripmaster® Lite

Cat. No. Blade Only Cat. No. Wire Gauge Cat. No. Blade Only Cat. No. Wire Gauge

MIL-W-81044/4/5/6

MIL-W-5086/1/7

45-170

45-171

L-5210

L-5211

10-14 AWG

16-26 AWG N/A N/A N/A

MIL-W-81044/8/9/10

MIL-W-16878/5

MIL-W-81381/3/4

45-173

45-174

45-175

L-5562

L-5563

L-5564

10-14 AWG

16-26 AWG

26-30 AWG

45-635

45-637

LB-915

LB-917

16-22 AWG

24-30 AWG

MIL-W-22759/32/33/44/45/46 45-1987

45-1654

45-1987-1

45-1654-1

16-26 AWG

45-2133

45-2132

45-2133-1

45-2132-1

16-24 AWG

MIL-81044/11/12/13

MIL-W-22759/34/35/41/42/43

45-1611

45-2500

45-1987

45-178

45-1611-1

45-2500-1

45-1987-1

L-5561

10-14 AWG

16-26 AWG

26-30 AWG

45-2133

45-2118

45-640

45-2133-1

45-2118-1

LB-920

16-24 AWG

20-26 AWG

24-30 AWG

Raychem 44A021X, 44/051X

MIL-W-16878/4

MIL-W-22759/11/12/22/23

45-176

45-1611

45-177

45-178

L-5559

45-1611-1

L-5560

L-5561

10-14 AWG

16-26 AWG

26-30 AWG 45-640 LB-920 24-30 AWG

MIL-W-81044/16/17 45-1611

45-1610

45-1611-1

45-1610-1

10-14 AWG

16-26 AWG

45-2131 45-2131-1 16-24 AWG

MIL-W-81381/1/2//6/7/8/9/10/17/21 45-1609

45-1551

45-178

45-1609-1

45-1551-1

L-5561

10-14 AWG

16-26 AWG

26-30 AWG 45-640 4LB-920 24-30 AWG

MIL-W-81381/11/12/13/14/22 45-1608

45-1654

45-178

45-1608-1

45-1654-1

L-5561

10-14 AWG

16-26 AWG

26-30 AWG

45-640 4LB-920 24-30 AWG

MIL-W-22759/18/19 45-1608

45-1551

45-1608-1

45-1551-1

10-14 AWG

16-26 AWG N/A N/A N/A

MIL-W-81381/17/21 45-1633 45-1633-1 16-26 AWG 45-2020 45-2020-1 20-26 AWG

MIL-W-81381/18/19/20 45-1609

45-1551

45-1609-1

45-1551-1

10-14 AWG

16-26 AWG N/A N/A N/A

MIL-W-22759/16/17 45-1611

45-1987

45-1611-1

45-1987-1

10-14 AWG

16-26 AWG 45-2133

45-2118

45-2133-1

45-2118-1

16-24 AWG

22-26 AWG

MIL-W-24640/19/22/23/24 45-1957 45-1957-1 14-22 AWG N/A N/A N/A

MIL-W-85485/5/6/7/8 45-1925

45-1924

45-1925-1

45-1924-1

10-14 AWG

16-24 AWG N/A N/A N/A

MIL-W-85485/9/10/11/12

MIL-W-85485/9/10

45-1611

45-1610

45-1611-1

45-1610-1

10-14 AWG

16-24 AWG 45-2131 45-2131-1 16-24 AWG

BMS 1360 Type 1-6, 19-21, 23-27, 33-34 45-2541

45-2543

45-2541-1

45-2543-1

10-14 AWG

16-24 AWG 45-2697 45-2697-1 16-24 AWG

BMS 1360 Type 12-18, 28-32 45-2542

45-2544

45-2542-1

45-2544-1

10-14 AWG

16-24 AWG N/A N/A N/A

BMS 1360 Type 7-12 45-2565

45-2564

45-2565-1

45-2564-1

10-14 AWG

16-26 AWG N/A N/A N/A

MIL-W-22759/80/81/82/91/92 45-2542

45-2544

45-2542-1

45-2544-1

10-14 AWG

16-24 AWG 45-2693

45-2692

45-2693-1

45-2692-1

16-22 AWG

20-26 AWG

MIL-W-22759/83/84/85/86/87/88/89/90 45-2541

45-2543

45-2618

45-2541-1

45-2543-1

45-2618-1

10-14 AWG

16-24 AWG

16-26 AWG

45-2685 45-2685-1 16-24 AWG

Custom Stripmaster® Wire Stripper and Custom Stripmaster® Lite Wire Stripper MIL-spec reference chart

NOTE: The above blades represent the best blade for nominal conductor sizes within the wire spec. tolerance. If the conductor size is over or under the nominal dims. an alternate blade may be

required. Please contact our wire stripping applications engineer at 1-800-324-9571 for alternate blades and for blade numbers for MIL-specs. not listed on this chart.

Application Engineering

www.idealindustries.com 1-800-435-0705 for Customer Service

C-8

Please enclose at least five feet of your wire or cable and answer the

following questions to expedite a reply for your particular application.

1. Method Preference:

A. Hand Type

B. Production Strippers

1. 45-930 STP Stripping System

2. 45-950 Stripmaster® Model 950 Wire Stripper

2. Stripping Tolerance:

A. Precision

B. Non-Precision

3. Present Method:

4. Type of Insulation:

Whatever your particular wire or cable preparation challenge, we’re ready to assist you with practical solutions. Simply send us at least five feet of your wire or

cable and complete the questionnaire below. Copy this form and mail to:

IDEAL INDUSTRIES, INC.

Becker Place, Sycamore, IL 60178

Attn: Wire Stripping Applications Analysis

We’ll quickly recommend a practical stripping or cutting solution designed to meet your needs. Remember, this is a free service that we’re eager to provide

whenever you need it.

For immediate assistance, call our Industrial Support Line at 800-324-9571.

Free Application Engineering Service for Wire Stripping Recommendations

5. Wire Gauge:

6. MIL-Spec:

7. Number of Strips per Day:

5. Remarks:

Free Application Engineering Service

Customer Information

Please enclose business card or complete the following:

Name

Title

Company

Street

City State Zip

Phone Fax

E-mail

Completion of this information is a request for recommended tools or equipment only and does not place the individual or the company inquiring under any

obligation to purchase. This is a free service of IDEAL INDUSTRIES, INC., Sycamore, Illinois.

Coax CableTriaxial Cable

Selection Guide

www.idealindustries.com 1-800-435-0705 for Customer Service

D-2

Clamp Meter Selection Guide

700 Series 740 Series 760 Series 770 Series

CLAMP METER SELECTION GUIDE

61-702

61-704

61-744

61-746

61-763

61-765

61-773

61-775

MEASUREMENT FUNCTIONS

AC Voltage ••••••••

DC Voltage ••••••••

AC Current ••••••••

DC Current • •

Resistance ••••••••

Audible Continuity ••••••••

Diode Test • •

Capacitance •• ••••

Frequency ••••

FEATURES

Display Type (Analog or Digital) DDDDDDDD

AC Current Capacity 200 200 600 600 660 660 1000 1000

DC Current Capacity 660 1000

True RMS • •••••

Auto Ranging • •

Auto/Manual Ranging ••••••

Data Hold • ••••••

Max Hold • •

Peak Hold ••••

Min/Max ••••

DCA Zero • •

Auto Power Off ••••••••

Non-Contact Voltage Indication ••••

Harmonics Indicator • •

Vibration Mode • •

Backlight • ••••

Low Battery Indication ••••••••

High Voltage Warning •• ••••

Overload Protection on all Ranges ••••••••

Conductor Size – Inches

(mm)

1.3”

(33)

1.3”

(33)

1.5”

(38)

1.5”

(38)

1.4”

(36)

1.4”

(36)

2.0”

(51)

2.0”

(51)

Warranty (years) 22222222

CERTIFICATIONS

UL 61010 Listed ••••••••

CAT III, 100V/CAT IV 600V III III III III IV IV IV IV

CE ••••••••

770/760 Series

Test & Measurement

1-800-435-0705 for Customer Service www.idealindustries.com D-3

TightSight® Clamp Meters 1000 & 660 Amp

Description Cat. No.

1000AAC Clamp Meter w/

differentiating features 61-773

1000A AC/DC Clamp Meter 61-775

660AAC Clamp Meter 61-763

660A AC/DC Clamp Meter 61-765

Includes: Carrying Case and Test Leads

w/Alligator Clips.

N12966

TightSight® bottom display

Tapered jaws with hook tip

Measures AC current

True RMS

AC/DC Voltage

Capacitance

Audible continuity

Frequency via clamp head or test leads

Resistance

High frequency rejection*

Peak hold

Max/min hold

Data hold

Selectable audible and visual voltage

alerts on AC/DC voltage functions

Selectable auto power off

Backlit display

Low battery indicator

2-year warranty

*Reads accurately on noisy electrical circuits.

1000A Clamp

(61-773)

660A Clamp

(61-763)

Exclusive TightSight

Display

600V

1000V

61-773 61-775 61-763 61-765

AC Current 0.0-999.9A 0.0-660.0A 2.0%

DC Current — 0.0-999.9A — 0.0-660.0A 2.0%

AC Voltage 0.0-750.0V 1.0%

DC Voltage 0.0-999.9V 1.0%

Resistance 0.0-999.9Ω1.5%

Capacitance 0.0-999.9µF 5.0%

Continuity 0.0-999.9ΩAudible @ <30Ω

Frequency 20.0-400.0Hz 0.5%

Jaw Size 2” (51mm) 1.42” (36mm) —

Specifications Range & Resolution Accuracy

700/740 Series

www.idealindustries.com 1-800-435-0705 for Customer Service

D-4

61-702 & 61-704

AC Voltage 2000m/200.0/750 V 1.2%

DC Voltage 2000m/200.0/1000 V 0.5%

AC Current 200.0 A 3.0%

Resistance 200.0/200.0k Ω 1.0%

Capacitance 200.0µ F 3.0%

Jaw opening is 1.3” (33mm).

61-744 & 61-746

AC Current 40.00/400.0/600A 1.7%

AC Voltage 400.0/600 V 1.2%

DC Voltage 400.0/600 V 0.5%

Resistance 400.0/4.000k/ 40.00k

400.0k/4.000M/40.00M Ω1.0%

Jaw opening is 1.25” (32mm).

4-in-1 Test Tools (700 Series)

Description Cat. No.

4-in-1 Test Tool w/TRMS, Backlight 61-704

4-in-1 Test Tool 61-702

Includes: Carrying Case and Silicone Test Leads.

200AAC current capability

Non-contact voltage (40-600VAC)

Vibration mode to verify AC voltage

Harmonics indicator

Capacitance

Max hold

Continuity

Low battery indication

Integral lead storage

Audible dangerous voltage warning

on all ranges

Auto power off

Ergonomic hourglass shape

Compact clamp head

2-year warranty

1000V

N12966

Clamp-Pro™ Clamp Meters 600 Amp (740 Series)

Description Cat. No.

600A Clamp Meter w/TRMS 61-746

600A Clamp Meter 61-744

Includes: Carrying Case and Test Leads.

Measures up to 600AAC

Non-contact voltage indicator

(70V-600VAC)

Continuity

Tapered jaws with hook tip

Auto/manual ranging

Data hold

Auto power off

Low battery indicator

2-year warranty

600V

N12966

61-744

61-704

Range &

Specifications Resolution Accuracy

Specifications Range & Resolution Accuracy

Compact jaw for use

in tight locations.

Selection Guide

Test & Measurement

1-800-435-0705 for Customer Service www.idealindustries.com D-5

310 Series 340 Series 360 480 Series 490 Series 600 610 Series

MULTIMETER SELECTION GUIDE

61-310

61-312

61-340

61-342

61-361

61-484

61-486

61-497

61-498

61-605

61-610

61-614

MEASUREMENT FUNCTIONS

AC & DC Voltage ••••••••••••

AC Current •••••••••

DC Current ••••••••• ••

Resistance ••••••••••••

LV Resistance ••••

Audible Continuity •••••••••• •

Diode Test •••••• ••••

Capacitance ••••••••

Frequency ••••••••

Temperature •••• •••

Duty Factor • • • •

Battery Test • • •

Decibels • •

Phase Rotation •

FEATURES

Display Type (Digital or Analog) D D D D D D D D D D A A

True RMS ••••••

Auto/Manual Ranging ••• •••••

Non-Contact Voltage Detection • •

Data Hold / Auto Hold D D D D D D A A D

Min/Max •• ••••

Min/Max/Avg •• ••••

Peak Min/Max ••••

Relative Mode • •

High Speed Analog Bar Graph •••• ••

Auto Power Off ••••••••

Backlight •• •••••

Low Battery Indication ••••••••

Dual Display •••

Overload Protection on all Ranges ••••••••••

Data Logging • •

Data Acquisition • •

Memory Storage & Recall • •

Optical USB Interface • •

ProVision™ II Software • •

Warranty (years) 222222222222

CERTIFICATIONS

UL 61010 Listed ••••••••••••

CAT Rating II II III III III IV IV IV IV II II II

CE ••••••••••••

61-702 & 61-704

AC Voltage 2000m/200.0/750 V 1.2%

DC Voltage 2000m/200.0/1000 V 0.5%

AC Current 200.0 A 3.0%

Resistance 200.0/200.0k Ω 1.0%

Capacitance 200.0µ F 3.0%

Jaw opening is 1.3” (33mm).

Description Cat. No.

4-in-1 Test Tool w/TRMS, Backlight 61-704

4-in-1 Test Tool 61-702

Includes: Carrying Case and Silicone Test Leads.

Multimeter Selection Guide

Range &

Specifications Resolution Accuracy

Specifications Range & Resolution Accuracy

490/480 Series

www.idealindustries.com 1-800-435-0705 for Customer Service

D-6

490 Series Industrial-Grade Multimeters

480 Series Commercial-Grade Multimeters

Description Cat. No.

Digital Multimeter, 0.015% DCV Accuracy 61-498

Digital Multimeter, 0.03% DCV Accuracy 61-497

Description Cat. No.

Digital Multimeter w/peak hold,

temperature, includes thermocouple 61-486

Digital Multimeter 61-484

Include: Test Leads & Carrying Case.

N12966

Accessories

Includes

Test Leads w/Alligator Clips TL-497

Magnetic Strap 61-565

USB Cable 61-902

ProVision™ II Software 61-906

K-Type Thermocouple 61-461

Thermocouple Adapter 61-465

Carrying Case C-230

Peak hold

dBm/dB measurement

Relative mode

Min/Max/Avg

Dual display

Duty factor

Auto power off

Auto sensing

backlight

Low battery

indicator

USB cable and

software included

2-year warranty

600V

1000V

True RMS

Data acquisition

Data logging

Data storage

Auto AC/DC voltage

and current mode

w/frequency indication

High voltage indicator

Frequency

Temperature

High frequency

rejection mode*

Auto selection for

resistance/continuity/

diode/capacitance

Auto hold

*Reads accurately on

noisy electrical circuits.

True RMS

Auto AC/DC voltage

detect w/low impedance

(Auto - VLoZ)

n

Capacitance

n

Frequency

Analog bar graph

Min/max

Non-contact voltage detect

Low battery

indication

Auto power off

2-year warranty

61-498

61-486

61-484 61-486 61-484 61-486

AC Voltage

6.000/60.00/600.0/1000.0 V 1.0% 0.80%

AC mV

600.0 mV 1.5% 1.2%

DC Voltage

6.000/60.00/600.0/1000.0 V 0.1% 0.08%

DC mV

600.0 mV 60.00/600.0 mV

AC Current

60.00m/600.0m/6.000/10.00A 1.5% 1.2%

DC Current

60.00m/600.0m/6.000/10.00A 1.0% 0.80%

Resistance 600.0/6.000k/60.00k/600.0k/6.000M/40.00M Ω1.0% 0.80%

Capacitance

1nF to 10.mF 0.1%

Frequency 99.9 to 100.0k Hz 0.1%

Temperature — -40°F to 752°F

(-40°C to 400°C) 1.0%

Specifications Range & Resolution Accuracy

61-497 61-498 61-497 61-498

AC Voltage

40.000m/400.00m/

4.0000/40.000/400.00/1000.0 V

100.000m/1000.00m/

10.0000/100.000/1000.00V ±0.7% ±0.40%

DC Voltage

40.000m/400.00m/

4.0000/40.000/400.00/1000.0 V

100.000m/1000.00m/

10.0000/100.000/1000.00V ±0.03% ±0.015%

AC Current

40.000m/400.00m/10.000 A 10.0000m/100.000m/10.0000A ±0.8% ±0.7%

DC Current

40.000m/400.00m/10.000 A 10.0000m/100.000m/10.0000A ±0.2% ±0.1%

Resistance

400.00/4.0000k/40.000k/400.00k/

4.0000M/40.000M Ω

1000.00/10.0000k/100.000k/1000.00k

10.0000M/40.000M Ω0.6% 0.6%

Capacitance 4.000n/40.00n/400.0n/4.000µ/ 40.00µ/

400.0µ/4.000m/40.00mF

4.000n/40.00n/400.0n/4.000µ/40.00µ/

400.0µ/4.000m/40.00mF 0.9% 0.9%

Diode Test

2.000 V 0.400 V - 0.800 V ±1.5% ±1.5%

Frequency 40.000/400.00/4.0000k/40.000k/400.00k/

4.0000M Hz

40.000/400.00/4.0000k/40.000k/400.00k/

4.0000M Hz ±0.002% ±0.002%

Duty Factor 20% - 80% 20% - 80% ±0.1% ±0.1%

Temperature -328° F to 2192° F (-200° C TO 1200° C) -328° F to 2192° F (-200° C TO 1200° C) ±1.0% +2°F/1°C ±1.0% +2°F/1°C

600V

1000V

360/340 Series

Test & Measurement

1-800-435-0705 for Customer Service www.idealindustries.com D-7

361 Contractor-Grade Multimeter

Phase rotation

Capacitance

Frequency

Voltage

Current

Resistance

Audible continuity

Manual ranging

Rugged construction

Auto power off

Low battery indication

2-year warranty

Description Cat. No.

361 Multimeter w/TRMS 61-361

Includes: Test Leads.

600V

1000V

300V

61-361

AC Voltage 200.0m/2000m/200.0/600 V 2.0%

DC Voltage 200.0m/2000m/20.00/200.0/600 V 1.2%

AC Current 2.000 A 3.0%

DC Current 2.000 A 2.5%

Resistance 200.0/2.000k/20.00k/200.0k/20.00M/200.0M Ω1.0%

Capacitance

20.00µ/200.0µ/2.000m/20.00m F 4.0%

Frequency

10.0-100.0k Hz 0.5%

Phase Rotation

80-500V (50-500Hz) —

N12966

Description Cat. No.

Digital Multimeter w/peak hold,

temperature, includes thermocouple 61-486

Digital Multimeter 61-484

Include: Test Leads & Carrying Case.

340 Series Test-Pro® Multimeters

Capacitance

Frequency

Temperature

Voltage

Current

Resistance

Audible

continuity

Relative mode

Backlight

Min/max

Data hold

Low battery

indicator

Auto power off

2-year warranty

Description Cat. No.

Test-Pro® Multimeter w/TRMS 61-342

Test-Pro® Multimeter 61-340

Includes: Test Leads and Thermocouple.

N12966

600V

1000V

300V

61-340 & 61-342

AC Voltage

4.000/40.00/400.0/600 V 1.5%

DC Voltage

400.0m/4.000/40.00/400.0/600 V 0.5%

Current

400.0µ/4000µ/40.00m/400.0m/4.000/10.00A AC/DC 1.5%

Resistance

400.0/4.000k/40.00k/400.0k/4.000M/40.00M Ω1.0%

Capacitance 40.00n/400.0n/4.000µ/ 40.00µ/400.0µ F 3.0%

Frequency 10.000/100.00/1.000k/10.00k/100.0k/1.000M/4.000M Hz 0.3%

Temperature -4° F to 1382° F (-20° C to 750° C) 3.0%

61-342

61-340

Specifications Range & Resolution Accuracy

310/600 Series

www.idealindustries.com 1-800-435-0705 for Customer Service

D-8

310 Series Residential Meters

Analog Meters

Multi-color analog display with mirrored scale

High-impact

thermoplastic case

Battery test

2-year warranty

Voltage

Current

Resistance

Audible continuity

Temperature

Data hold

Diode test

Large numbers

displayed

2-year warranty

Description Cat. No.

Resi-Pro™ Meter w/Auto Ranging, AC/DC

Current, Capacitance, Frequency, Auto Power

Off, Low Battery Indication

61-312

Resi-Pro™ Meter w/Manual Ranging, Tests

Batteries 61-310

Includes: Test Leads and Thermocouple.

N12966

600V

61-610 61-614

AC Voltage 10/50/250/500 V +/- 4.0% Full Scale 10/50/250/1000 V +/- 4.0% Full Scale

DC Voltage 10/50/250/500 V +/- 3.0% Full Scale 2.5/10/50/250/1000 V +/- 3.0% Full Scale

DC Current 500µ/50m/250mA +/- 3.0% Full Scale 5m/50m/500m/20A +/- 3.0% Full Scale

Resistance 1 M Ω Full Scale

5 k Ω Mid Scale +/- 3.0% Arc Length 10k/100k/10M Ω Full Scale

50/500/50k Ω Mid Scale +/- 3.0% Arc Length

Decibels -20 to +56 dB —-8 to +62 dB —

Battery Test 1.5 , 9.0 VDC —1.5 , 9.0 VDC —

Pocket Meter

Convenient pocket size

Built-in test stand

Audible continuity

Auto power off

Test lead storage

2-year warranty

Description Cat. No.

Pocket Meter 61-605

Includes: Test Leads.

300V

61-605

AC Voltage 200.0m/2.000/20.00/200.0/600 V 4.0%

DC Voltage 200.0m/2.000/20.00/200.0/600 V 2.0%

Resistance 200.0/2.000k/20.00k/200.0k/2.000M/20.00M Ω3.0%

61-310 61-312

AC Voltage 200.0/600 V 1.2% 4.000/40.00/400.0/600 V 1.2%

DC Voltage 200.0m/2.000/20.00/200.0/600 V 0.5% 400.0m/4.000/40.00/400.0/600 V 0.5%

Current 200.0m/10.00 ADC 1.5% 400.0µ/4000µ/40.00m/400.0m/10.00A AC/DC 1.5%

Resistance 200.0/2.000k/20.00k/200.0k/20.00M Ω1.0% 400.0/4.000k/40.00k/400.0k/4.000M/40.00M Ω1.0%

Capacitance — — 40.00n/400.0n/4.000µ/40.00µ/400.0µ F 3.0%

Frequency — — 10.00/100.0/1.000k/10.00k/100.0k/1.000M/10.00M Hz 0.3%

Temperature -4-1382°F (-20-750°C) 2.5% -4-1382°F (-20-750°C) 2.5%

Description Cat. No.

Analog Multimeter w/Audible Continuity, built-in stand 61-614

Analog Multimeter (pocket-size) 61-610

Includes: Test Leads.

1000V

600V

61-614

61-610

N12966

61-310

61-312

61-614

Specifications Range & Resolution Accuracy Range & Resolution Accuracy

Specifications Range & Resolution Accuracy

Circuit Tracers

Test & Measurement

1-800-435-0705 for Customer Service www.idealindustries.com D-9

Description Cat. No.

Resi-Pro™ Meter w/Auto Ranging, AC/DC

Current, Capacitance, Frequency, Auto Power

Off, Low Battery Indication

61-312

Resi-Pro™ Meter w/Manual Ranging, Tests

Batteries 61-310

Includes: Test Leads and Thermocouple.

61-610 61-614

AC Voltage 10/50/250/500 V +/- 4.0% Full Scale 10/50/250/1000 V +/- 4.0% Full Scale

DC Voltage 10/50/250/500 V +/- 3.0% Full Scale 2.5/10/50/250/1000 V +/- 3.0% Full Scale

DC Current 500µ/50m/250mA +/- 3.0% Full Scale 5m/50m/500m/20A +/- 3.0% Full Scale

Resistance 1 M Ω Full Scale

5 k Ω Mid Scale +/- 3.0% Arc Length 10k/100k/10M Ω Full Scale

50/500/50k Ω Mid Scale +/- 3.0% Arc Length

Decibels -20 to +56 dB —-8 to +62 dB —

Battery Test 1.5 , 9.0 VDC —1.5 , 9.0 VDC —

61-310 61-312

AC Voltage 200.0/600 V 1.2% 4.000/40.00/400.0/600 V 1.2%

DC Voltage 200.0m/2.000/20.00/200.0/600 V 0.5% 400.0m/4.000/40.00/400.0/600 V 0.5%

Current 200.0m/10.00 ADC 1.5% 400.0µ/4000µ/40.00m/400.0m/10.00A AC/DC 1.5%

Resistance 200.0/2.000k/20.00k/200.0k/20.00M Ω1.0% 400.0/4.000k/40.00k/400.0k/4.000M/40.00M Ω1.0%

Capacitance — — 40.00n/400.0n/4.000µ/40.00µ/400.0µ F 3.0%

Frequency — — 10.00/100.0/1.000k/10.00k/100.0k/1.000M/10.00M Hz 0.3%

Temperature -4-1382°F (-20-750°C) 2.5% -4-1382°F (-20-750°C) 2.5%

Open/Closed Circuit Tracers

Description Cat. No.

Kit Includes: Rotating Display,

Inductive Clamp and Battery Pack 61-958

Kit Includes: Rotating Display 61-956

Kit Includes: Standard Display 61-954

Identifies breakers and fuses

Pinpoints opens and shorts

Traces wires

“0-99” display of signal strength

Audible intensifies in tone/pitch

Works on energized or de-energized

circuits (0 - 600V AC/DC)

n

Four modes of sensitivity –

search high, search low,

trace and breaker

Peak bar graph

2-year warranty

The only

circuit tracer

with

SwivelDisplay™

Accessories

Includes

Fuse – High-energy, Fast-acting, 1A/1000V C-958

Magnetic Strap 61-565

Tracer Test Lead Set (includes 1-6 below) TL-956

1. Outlet Plug Adapter for Transmitter TLOP-956

2. Blade Prongs for Lead Adapters (2/set) TLBP-956

3. Ground Prong for Lead Adapter TLGP-956

4. Alligator Clips for Lead Adapters (2/set) TLAC-956

5. 3 ft. Lead Adapters for Transmitter (2/set) TLA1-956

6. 25 ft. Lead Adapter for Transmitter TLA2-956

Optional

Cradle for Receiver* CR-958

*Threaded for use on standard extension pole.

Kit Contents 61-954 61-956 61-958

Transmitter TR-958 TR-958 TR-958

Receiver RC-954 RC-958 RC-958

Tracer Test Lead Set TL-956 TL-956 TL-956

Inductive Clamp IC-958

Battery Pack BP-958

Magnetic Hanging Strap 61-565

Hard Carrying Case C-956 C-956 C-958

Batteries • • •

Instruction Manual • • •

CR-958

RC-958

Exclusive Rotating Display

Revolutionary technology in the receiver rotates the

display in 90° increments so that you always receive an

upright reading. Even when the receiver is pointing down,

you can keep up.

Transmitter will work on a de-energized circuit and

won’t affect GFCIs and sensitive equipment on an

energized circuit.

AA batteries provide the

transmitter and receiver

4x the power.

Specifications Range & Resolution Accuracy

61-958

Pictured

N12966

RC-954

TR-958

TL-956

600V

Thermal Imagers Thermal Imagers

Accessories 61-846 61-844

Includes

Removable Battery 61-846BAT —

USB Cable 61-844USB 61-844USB

Camera Handle — 61-844HAN

Carrying Case 61-844CC 61-844CC

Power Supply 61-846PS 61-844PS

ThermalVision™ Software 61-846SW 61-844SW

Optional

Light Shade 61-844LS 61-844LS

Car Charger 61-846CAR 61-844CAR

Desktop Charger 61-846DT —

Hard Transport Case 61-846HC 61-846HC

Thermal Imagers

www.idealindustries.com 1-800-435-0705 for Customer Service

D-10

Blended thermal/digital image (0-100% & PIP)

Hottest/coldest temperature cursors instantly display on

live screen

Sequence image recording activated by alarm settings

Class II laser

Built-in LED light

High and low temperature

alarms

Save images with text and

voice annotation

Adjustable emissivity for

maximum accuracy

Multi-lingual - nine

languages included

Six-hour battery life

Tripod mountable

ThermalVision™ PC

software included

Two-year warranty

N12966 HeatSeeker® Thermal Imaging Camera Specifications

Feature HeatSeeker® (61-844) HeatSeeker® 160 (61-846)

Temperature Range 14°F to 662°F

(-10°C to 350°C)

14°F to 482°F

(-10°C to 250°C)

Temperature Accuracy ±2°C or ±2% of reading

Emissivity Table 0.2 to 1.0 (adjustable)

Cursors Two-movable Four-movable (with

independent emissivity setting)

Image Storage (2 GB micro SD card) 2000 Images

Field of View 20° x 20° 10° x 15°

Thermal Sensitivity < 0.3°C at 30°C < 0.08°C at 30°C

Focal Plane Array 2,209 pixels (47 x 47) 19,200 pixels (160 x 120)

Display 3.5” LCD

Visible Light Camera Resolution 1.0 Megapixels 2.0 Megapixels

Spectral Range 8µm to 12µm 8µm to 14µm

Image Control Eight color palettes (Ironbow, Rainbow, Isotherm, Hot Metal,

High Contrast, Rainbow 16, Black Hot and White Hot)

Focus Manual

Power Internal rechargeable

Li-ion battery

Field replaceable rechargeable

Li-ion battery

Description Cat. No.

HeatSeeker® 160 Thermal Imager, Carrying Case,

Power Supply, Removable-Rechargeable Battery,

ThermalVision™ II PC Software and USB cable

61-846

HeatSeeker® Thermal Imager, Removable Handle,

Carrying Case, Power Supply, ThermalVision™ PC

Software and USB Cable

61-844

™

61-846

Pump Motor Fuse Panel

1-800-435-0705 for Customer Service www.idealindustries.com

Thermal Imagers

HeatSeeker® provides real-time analysis and is ideal for:

Electrical Safety

• Identifies overloaded circuits, loose/corroded

connections and failing breakers in electrical panels

• Identifies blown fuses, overloads,

phase imbalance and harmonics problems

• Identifies hot spots from high resistance connections

Energy Efficiency

• Identifies inefficient heating and cooling transfer

• Identifies draft sources from missing insulation in rafters/

walls/floors

• Identification of problem areas helps reduce heat gain/

loss and carbon footprint

Building Maintenance

• Discovers sources of moisture in roofs and areas behind

walls

• Checks air distribution for blockages in pipes, damaged

duct work and insulation gaps

• Checks fluid distribution for stuck valves and burst pipes

Preventive Maintenance

• Identifies equipment efficiencies/inefficiencies

• Applications include motors, pumps, boilers, radiators,

heaters, chillers and transformers

Microphone

records voice

annotations

Speaker

Easy-to-use

navigation and

set-up keys

USB Connector

Power Port

Micro SD card

Cursors continuously

find hottest and

coldest temperatures 6 hour

battery life

Adjustable LCD brightness

Hot/cold temperatures and difference (∆)

Move cursor to convey real-time

temperature anywhere on screen

Side door allows quick access to

headphone and USB connections,

charging port and removable

Micro SD card

ThermalVision™ PC Software Included

Easy-to-use software allows

image download to PC for

analysis.

Features

• View,editandanalyze

images

• Automaticreport

generating capabilities

• Diskalsoincludesuser

manual

D-11

Test & Measurement

Analyzers

www.idealindustries.com 1-800-435-0705 for Customer Service

D-12

SureTest® Circuit Analyzers

Description Cat. No.

SureTest® Circuit Analyzer - Tests

AFCIs wiring, tests for shared neutrals 61-165

SureTest® Circuit Analyzer 61-164

Measures voltage drop under load*

Hot and neutral conductor impedances

Estimates Load on Line (ELL) up to 15A

Tests GFCIs and EPDs for proper operation

Super-bright display

High accuracies

True RMS

Line voltage

Peak voltage

Frequency

Ground to neutral voltage

Ground impedance

Identifies proper wiring in

3-wire receptacles

Identifies false (bootleg)

grounds

Conducts testing without

disturbing sensitive loads

Verifies isolated grounds

(with 61-176 adapter)

2-year warranty

*12A, 15A, 20A load tests

300V

Accessories

Includes

Carrying Case 61-179

1’ Extension Cord 61-182

Optional

Ground Continuity Adapter 61-175

Isolated Ground Adapter 61-176

Alligator Clip Adapter 61-183

61-160 Series

AC Voltage 85.0 - 265.0 VAC 1.0%

Frequency 45.0 - 65.0 Hz 1.0%

Impedance 0.00 - 1.99 Ω5.0%

Ground-Neutral Voltage 0.0 - 24.0 VAC 2.0%

% Voltage Drop

12A, 15A, 20A load tests 0.1% - 50.0% 5.0%

GFCI Test Current/Time 6.0 - 9.0 mA

0.0 - 6500 mS 2.0%

61-183

61-165

61-175

61-182

61-176

Specifications Range & Resolution Accuracy

Voltage Drop

• NEC recommends no more

than 5% voltage drop

• Higher voltage drop leads to

heat buildup and performance

issues

• <108V is a poor level for voltage load

Line Voltage

• Specification is 120VAC +/-10%

(108 to 132 VAC)

• True RMS ensures accuracy in

harmonic environments

Ground-to-neutral Voltage

• Good circuit has 2VAC or less

• Higher reading indicates loaded

circuit, harmonic distortion or

shared neutral

Ground Impedance

• Ground impedance should be

1 Ω or less (0.25 Ω or less for

sensitive equipment to run

properly)

GFCI

• Applies a 6-9mA fault current

and measures the trip time

• Applies a 30mA fault current to

check for equipment protection

SureTest® Circuit Analyzer Functions

Troubleshoots branch circuit problems

with a variety of tests at the receptacle.

AFCI testing with alligator clips on an

installed device.

Analyzers

Test & Measurement

1-800-435-0705 for Customer Service www.idealindustries.com D-13

61-830

Operating Range 15-265V

Memory 513 Events

Sampling Method Continuous (128 samples per cycle)

Voltage Accuracy 1%

Impulse Detection 6µs, 4kV

Harmonic Distortion 2%, FFT to 51st

Tests AFCIs circuit wiring

Tests GFCIs for proper operation

Tests for shared neutrals

Verifies wiring configuration

Compact size fits comfortably in pocket

1-year warranty

Accessories

Optional

1’ Cord Adapter 61-177

Alligator Clip Adapter (3-wire) 61-184

Alligator Clip Adapter (2-wire) TL-532A

Carrying Case with Belt Clip C-50

Mini AFCI/GFCI Fault Tester

Description Cat. No.

AFCI/GFCI Circuit Tester 61-059

61-179

PA-830

C-50

w/Belt clip

Voltage Performance Monitor

Description Cat. No.

Voltage Performance Monitor 61-830

Real-time TRMS voltage, frequency and harmonics

monitoring

Logs voltage, sags, swells and impulses

Measures %THD and logs periods over 3%

(line to neutral)

Selectable thresholds based on the most accepted

international standards, defaults to ITIC*

Custom programmable event thresholds

Invertible display, when it is necessary to plug in

upside down

2-year warranty

* Captures events that would affect equipment on

branch circuit

300V

Accessories

Includes

Adapters (set of 4) PA-830

Carrying Case 61-179

Optional

Alligator Clip Adapters (2-wire) TL-532A

1 ft. US Extension Cord 61-177

Kit with (1) SureTest® 61-164, (2) VPM

61-830, Soft Case C-2004

61-2003

Kit with (1) SureTest® 61-164, (4) VPM

61-830, Soft Case C-2004

61-2004

N12966

Applications

Monitor voltage near sensitive equipment

• Installation and Service Technicians – Monitor voltage at point of equipment connection

• Electricians – Eliminate guesswork on service calls

• Building Maintenance Technicians – Identify voltage caused equipment failures

• Equipment Manufacturers – Eliminate unnecessary warranty costs

• Hospital/IT Maintenance Engineers – Monitor voltage quality to critical equipment

See voltage through the eyes of your equipment

Poor voltage quality increases facility expenses, warranty costs and downtime plus shortens

the life of equipment. The IDEAL VPM identifies only those voltage conditions that can

damage equipment or cause equipment failure.

Specifications

Power Quality

www.idealindustries.com 1-800-435-0705 for Customer Service

D-14

3-Phase Power Analyzer (800 Series)

Description Cat. No.

Power Analyzer w/four Clamps 61-807

Power Analyzer without Clamps 61-806-X

True RMS

Single- or three-phase measurements

Data logging (1MB memory)

Up to one month of recording time

4-channels for voltage measurements

4-channels for current measurements

Auto ranging

Min/Max/Avg

Energy and Harmonics Program

PowerVision™ Software

Lightweight, portable design

Easy-to-use push-button operation

Backlit display

Customized data collection

Optional FIFO memory

Real-time clock

Programmable trigger-points and start/

stop time

Intelligent battery charging system

Easy set-up

Interactive demo CD

2-year warranty

POWER & ENERGY

MEASUREMENTS

Kilowatts (kW)

Volt-amperes (VA)

Inductive reactive power (kvarL)

Capacitive reactive power (kvarC)

Power factor (PF)

Frequency

Kilowatt hours (kWh)

Reactive power per hour (kvarhL,

kvarhC)

HARMONICS MEASUREMENT

Total harmonic distortion (% THD)

Harmonic factorization (FFT) to 51st

harmonic

Power Analyzer Specifications 61-806-X, 61-807

RANGE & RESOLUTION ACCURACY

AC VOLTAGE 20 to 600 V (phase-neutral)

20 to 866 V (phase-phase)

0.5%

AC CURRENT 10 to 1000A (with supplied clamp adapters) 1.0%

ACTIVE POWER 866 kW (with supplied clamp adapters) 1.0%

REACTIVE POWER 866 kW (with supplied clamp adapters) 1.0%

POWER FACTOR 0.5 to 1.0 1.0%

Accessories

Optional

1000AAC Clamps (set of 3) 61-811

100AAC Neutral Clamp (1) 61-813

5AAC Compact Neutral Clamp (blue) 61-814

2000AAC Clamps (set of 3) 61-810

5AAC Compact Clamps (set of 3) 61-819

100AAC Compact Clamps (set of 3) 61-820

100AAC Compact Neutral Clamp (blue) 61-821

200/2000/20000AAC Flexible Clamp adapters

(set of 3)

61-457

Voltage Leads with Alligator Clips TL-805

Model 807 includes neutral clamp.

600V

1000V

300V

200V

N12966

Standard Equipment 61-806-X 61-807

1000AAC Clamps (61-811) optional •

100AAC Neutral Clamp (61-813) optional •

Voltage leads with Alligator Clips (TL-805) • •

Power supply with RS-232 Interface and cables • •

PowerVision™ Analysis Software • •

Demonstration CD and Instructions • •

100AAC

Neutral Clamp

1000AAC

Clamp Adapters

Test Leads with

Alligator Clips

Power Analyzer

RS-232 Interface/

Power Supply

61-807 pictured

Insulation/Ground Testers

Test & Measurement

D-15

Accessories

Includes (61-795)

Test Leads TL-795

Carrying Case C-795

Includes (61-797)

Test Leads TL-797

Remote Probe TL-797RP

Carrying Case C-230

Insulation Testers

Description Cat. No.

Insulation Meter w/PI, DAR,

Remote Probe 61-797

Insulation Tester 61-795

Checks new installations for

proper insulation

Checks existing installations and

motor windings for breakdowns in

insulation

2-year warranty

600V

660V

1000V

600V

660V

1000V

1-800-435-0705 for Customer Service www.idealindustries.com

61-797

61-795

Ground Resistance Meters

Description Cat. No.

Ground Resistance Clamp Meter 61-920

3-Pole Ground Resistance Tester - includes

TL-796 lead set kit 61-796

Earth Resistance Lead Set Kit TL-796

Auto ranging

Auto power off

Hard case included

2-year warranty

300V

N12966

61-920

61-796

TL-796

N12966

61-795 61-797

Test Voltage 250/500/1000 VDC 50/100/250/500/1000 VDC

Voltage AC/DC 0.1-600.0 V 0.1-600.0 V

Continuity 0.01-20.0 Ω—

Resistance 0-200.0Ω—

Insulation Resistance Up to 4000M ΩUp to 20G Ω

Earth-Bond Resistance — 0.01 Ω to 40.00k Ω

Specifications Range & Resolution

61-920 61-796

Ground Resistance 0/120/1200 Ω1.5% 20.00/200.0/2000 Ω2.0%

Ground Leakage Current 100M/1000M/15/30 A 2.0% — —

Specifications Range & Resolution Accuracy Range & Resolution Accuracy

Voltage Testers

www.idealindustries.com 1-800-435-0705 for Customer Service

D-16

Vol-Con® Elite Digital Voltage Testers

XL-Series Solenoid Voltage Testers

Description Cat. No.

Vol-Con® Elite Digital Voltage Tester

w/vibration mode 61-092

Vol-Con® Elite Digital Voltage Tester 61-090

Description Cat. No.

Vol-Con® XL Voltage/Continuity Tester,

6-600V AC/DC 61-086

Vol-Test® XL Voltage Tester, 80-600V AC/DC 61-085

Tests for AC Voltage from 24-600VAC

Tests for DC Voltage from 6-220VDC

Visual and audible warning

Audible continuity

Non-contact voltage indication

(40-600VAC)

Low impedance to eliminate

ghost voltages

n

Low battery indicator

Replaceable silicone test leads

Integral lead storage

2-year warranty

1000V

Accessories

Includes

Silicone Test Leads TL-102

Optional

Carrying Case C-90

N12966

600V

Rugged and reliable tester

Vibrates when voltage is present

Indicates AC/DC voltage level

Replaceable leads with shielded

probe tips

Bright, long-life LED’s and

neon indicator lamp

Dual voltage indication for

backup safety

Compact size

2-year warranty

AUDIBLEAUDIBLE

N12966

Accessories

Includes

Standard Test Leads TL-80

Optional

Resistor-fused Leads* TL-82

Padded Nylon Case C-90

Leather Case 61-010

*Special, current-limiting resistor in each lead acts as a

fuse to open in a short-circuit situation.

61-092

Solenoid Voltage Testers

Description Cat. No.

Vol-Con® Voltage/Continuity Tester, 5-600V AC/DC 61-076

Vol-Test® Voltage Tester, 100-600V AC/DC 61-065

Extremely rugged and reliable

Vibrates when voltage is present

Indicates AC/DC voltage level

Replaceable leads with shielded

probe tips

Bright, long-life LED’s and neon

indicator lamp

Dual voltage indication for

backup safety

2-year warranty

Accessories

Includes

Standard Test Leads 61-070

Optional

Resistor-fused Leads* 61-072

Padded Nylon Case C-90

Leather Case 61-010

Batteries 61-201

*Special, current-limiting resistor in each lead acts as a

fuse to open in a short- circuit situation

600V

61-076

61-086

Electrical Testers

Test & Measurement

1-800-435-0705 for Customer Service www.idealindustries.com D-17

Description Cat. No.

Vol-Con® Elite Digital Voltage Tester

w/vibration mode 61-092

Vol-Con® Elite Digital Voltage Tester 61-090

Description Cat. No.

Vol-Con® XL Voltage/Continuity Tester,

6-600V AC/DC 61-086

Vol-Test® XL Voltage Tester, 80-600V AC/DC 61-085

Measures 0.9-200AAC

Measures 1.3-750VAC

Measures 2.1-1000VDC

Measures 0.0-9999Ω

Audible continuity

Data hold

Integral lead storage

Replaceable test leads

Auto power off

Low battery indication

2-year warranty

600V

Split-Jaw™ Smart Meter

Description Cat. No.

Split-Jaw™ Smart Meter 61-096

Includes: Test Leads.

Fully automatic operation

Positively identifies circuit breakers

and fuses without service interruption

Self calibrating

Visual and audible indicators

2-year warranty

61-532 61-534

Operating Voltage 100 - 140 VAC 100 - 250 VAC

Operating Frequency 47 - 63 Hz 47 - 63 Hz

Circuit Breaker Finders

Description Cat. No.

Circuit Breaker Finder w/Digital Receiver

& GFCI Circuit Tester 61-534

Circuit Breaker Finder w/Analog Receiver 61-532

N12966

61-534

w/GFCI wiring

tester

TL-532A

61-532

Lighting adapter allows connection to

light fixtures.

Alligator clip adapter allows connections to

exposed wiring.

N12966

1000V

61-096

AC Voltage 1.3 - 750 V 1.5%

DC Voltage 1.8 - 1000 V

-0.6 - 1000 V 1.0%

AC Current 0.6 - 200.0A 3.0%

Resistance 0 - 2000 Ω1.0%

*Note: Jaw opening is 0.6 in. (16mm) - up to

1/0 copper cable.

Specifications

Indicates presence of voltage from 40-1000VAC

Visual indication of voltage

Selectable audible indication of voltage

Sleek, compact design

Green LED indicates power on

Low battery indicator

Battery replacement (AAA size)

2-year warranty

N12966

VoltAware™ Non-Contact Voltage Tester

Description Cat. No.

VoltAware™ Non-Contact Voltage Tester 61-025

1000V

600V

Electrical Testers

www.idealindustries.com 1-800-435-0705 for Customer Service

D-18

Industrial-quality tester checks

voltage from 80V to 600V AC/DC

Neon test lamp at

front of probe

Resistors reduce voltage

reaching leads

24-in. lead — rated 1,000V

1-year warranty

Test-Glo™ Circuit Tester

Description Cat. No.

Test-Glo™ Circuit Tester 61-040

Warns against faulty

wiring in 3-wire

receptacles

For use on 120VAC circuits

1-year warranty

Receptacle Testers

Description Cat. No.

GFCI Receptacle Tester 61-501

Receptacle Tester 61-500

Tests for correct wiring, open ground, reverse

polarity, open hot, open neutral, hot on

neutral, hot and ground reversed with

open hot, and ground fault interruption

in 3-wire, 120VAC circuits

No-slip ergonomic design

maximizes comfort

Premium neon lamps prevent false readings

Tough, impact-resistant case

2-year warranty

E-Z Check® Circuit Testers

Description Cat. No.

E-Z Check® Plus GFCI Circuit Tester 61-051

E-Z Check® Circuit Tester 61-035

61-051

Checks continuity of dead circuits and

ground on conduit systems and

identifies wires in multi-wire cables

Light signal indicates completed circuit

Bulb-in end can serve as flashlight

Pocket clip functions as probe

Removable 4-ft. test lead with alligator clip

1-year warranty

Continuity Tester

Description Cat. No.

Continuity Tester 61-030

Tests for voltage from 40-600VAC

Audible and visual indication

Locates breaks along live

insulated wires

Tests for energized

circuits

Battery replacement (LR44/61-201)

1-year warranty

Volt-Sensor® Non-Contact Voltage

Tester

Description Cat. No.

Volt-Sensor® Non-Contact Voltage Tester 61-063

N12966

600V

61-501

Convenient button turns audible

voltage indication on or off.

Specialty Testers

Test & Measurement

1-800-435-0705 for Customer Service www.idealindustries.com D-19

Infrared Thermometer

Description Cat. No.

Infrared Thermometer 61-685

Includes: Carrying Case.

3-Phase Sequence Tester

Description Cat. No.

3-Phase Sequence Tester 61-520

For use up to 600V

Color-coded insulators over alligator

clips

Shock resistant housing

Easy to read

2-year warranty

Includes carrying case

N12966

600V

1000V

300V

Digital Light Meter

Description Cat. No.

Digital Light Meter 61-686

Includes: Carrying Case.

Auto or manual ranging

Measures in four ranges

up to 20,000 FC or

200,000 Lux

+/- 3% basic accuracy

Data hold mode

Max reading mode

Auto zero adjustment

Low battery indication

Auto power off

Remote sensor with 59 in. (1.5m) cable

N12966

Measurement range: -76°F to 932°F

Distance spot: 12:1

Modes: Ave., Difference, Hi/Lo limits

w/alarm, Max, Min, Lock

Emissivity Range: Adjustable

from 0.1 to 1

Precision K-type thermocouple

(optional)

Backlight

Auto power off

Low battery indicator

2-year warranty

Accessories

Optional

K-type Thermocouple 61-461

3-Phase/Motor Rotation Tester

Description Cat. No.

3-Phase/Motor Rotation Tester 61-521

Identifies three-phase sequence

Indicates motor rotation

Checks for open phases

For use up to 600V

2-year warranty

Includes carrying case

600V

1000V

300V

N12966

61-685

Object Temperature -27 to 932°F (33 to 500°C) +/- 2% or +/- 4°F (+/-2°C)

of reading

whichever is greater

Ambient Temperature 73 +/-5°F (23 +/-3 °C)

Specifications Range & Resolution Accuracy

Accessories

www.idealindustries.com 1-800-435-0705 for Customer Service

D-20

Provides safe, easy measurement

of AC current

Extends the current measurement

capabilities of digital multimeters

AC milli-volt output

(1mVAC = 1mA)

Provides safe, easy measurement

of high AC currents

Large opening and flexible

materials to wrap around

conductors and bus bars

Shape Memory allows

pre-forming before installation

Extends the current measurement

capabilities of digital

multimeters

N12966

Current Clamp Adapter

Flexible Clamp Adapter

Description Cat. No.

600A AC/DC Clamp Adapter - 2 ft. lead length 61-334

Description Cat. No.

300/3000AAC Flexible Clamp

Adapter 61-331

Test Leads

Description Cat. No.

Premium Test Leads w/alligator clips TL-100

Silicone Test Leads TL-102

Test Leads w/large alligator clip TL-104

Fused Test Leads w/alligator clips, 10A/600V, CAT III - 1000V TLF-252

TLF-252

TL-104

TL-100

Magnetic Strap

ProVision™ Software

Frees up hands to help work

safely

Fits 490/480/340 Series

Multimeters

Description Cat. No.

Magnetic Strap 61-565

Description Cat. No.

490 Series ProVision™ II Software 61-906

USB Cable

Description Cat. No.

Optical USB Cable for 490 Series Meters & Software 61-902

61-331

AC Current 300/3000A

DC Current —

Output Signal 1mV/A/10mV/A

Max Conductor Size 8” (19cm)

Sensor Length 36” (91cm)

61-334

AC Current 1 – 600 A

DC Current 1 – 600 A

Output Signal 1mV/A

Max Conductor Size 1.125” (28.5cm)

Specifications

Accessories

Test & Measurement

1-800-435-0705 for Customer Service www.idealindustries.com D-21

Carrying Case Selection Guides

VOLTAGE TESTERS 160 310 340 360 480 490 610 700 740 760 770 830

61-059

61-065

61-076

61-085

61-086

61-090

61-092

61-096

61-164

61-165

61-310

61-312

61-340

61-342

61-361

61-484

61-486

61-497

61-498

61-610

61-614

61-702

61-704

61-744

61-746

61-763

61-765

61-773

61-775

61-830

61-010 Leather Tester Case ••••

61-020 Premium Leather

Tester Case • •

61-179 Nylon Carrying Case • • •

C-50 Nylon Carrying Case •

C-90 Nylon Carrying Case ••••••• ••

C-230 Nylon Carrying Case • •

C-290 Nylon Carrying Case • • • • • • • • • • •

C-700 Nylon Carrying Case • •

C-760 Nylon Carrying Case • •

C-770 Nylon Carrying Case • •

Measures up to 1500˚ F (816˚ C)

K-type thermocouple plugs into digital multimeter

voltage jacks with 61-465 adapter

Thermocouple

Description Cat. No.

Beaded K-type Thermocouple 61-461

Thermocouple Adapter 61-465

Leather Carrying Cases Nylon Carrying Cases

Description Cat. No.

Standard Leather Case – for use with voltage testers 61-010

Premium Leather Case – for use with voltage testers 61-020

Description Cat. No.

Small Nylon Carrying Case w/four pockets 61-445

Nylon Carrying Case - for use with all Vol-Con® and Vol-Test®

Voltage Testers C-90

Nylon Carrying Case - for use with Digital Multimeters C-290

61-465

61-461

Replacement Parts/Safety

www.idealindustries.com 1-800-435-0705 for Customer Service

Safety in the Field The power demands of today’s high-tech world have caused a marked increase in

occurrences and levels of transient overvoltages. The International Electrotechnical

Commission (IEC) has developed a safety standards model for measurement, control

and laboratory use.

Category I – The signal level for telecommunications, electronic and other low-energy

equipment with transient-limiting protection. Peak impulse transient range is 600–4,000

volts with a 30 ohm source.

Category II – The local level for fixed and non-fixed powered devices including

appliances, lighting and portable equipment. Outlets located more than 30 feet from

CAT III sources and 60 feet from CAT IV sources. Peak impulse transient range is from

600–6,000 volts with a 12 ohm source.

Category III – The distribution level for fixed primary feeders or branch circuits.

Circuits that are separated from CAT IV sources by at least one level of transformer

isolation. Peak impulse transient range is 600–8,000 volts with a 2 ohm source.

Category IV (proposed) – The primary supply level for the highest levels of transient

overvoltage. Includes the utility service both outside and at the service entrance,

service drop from the pole to the building, overhead line to remote buildings, and

underground line to a well pump. Peak impulse transient range is 600–12,000 volts

with less than a 1 ohm source.

CAT I

Copiers

• Electronic

equipment

• Low energy

equipment with

transient limiting

protection

CAT II

Appliances,

PCs, TVs

• Outlets and long

branch equipment

• All outlets at more

than 10m (30 ft)

from Category III

source

• All outlets at more

than 20m (60 ft)

from Category IV

source

CAT III

MC Panels

• Feeders and short

branch circuits

• Distribution

panel devices

• Heavy appliance

outlets with “short”

connections to

service entrance

CAT IV

Exterior

Transformers,

Meters

• Outside and

service entrance

• Service drop from

pole to building

• Overhead line to

detached building

• Underground line

to well pump

Service

Entrance

Service

Entrance

Meter

Transformer

Outbuilding

Underground Service

Service

Entrance Outbuilding

Underground Service

Replacement Parts Selection Guide

METER REPACEMENT PARTS

SELECTION GUIDE

090 310 340 360 480 490 600 610 700 710 740 760 770 790

61-096

61-310

61-312

61-340

61-342

61-361

61-484

61-486

61-497

61-498

61-605

61-610

61-614

61-702

61-704

61-710

61-744

61-746

61-763

61-765

61-773

61-775

61-795

61-797

FUSES

F-1 0.5A (250V) 6.35 x 38mm • •

F-102 1A (600V) 6.35 x 38mm

F-103 15A (600V) 6.35 x 38mm

F-105 1A (600V) 10.3 x 35mm •

F-310 250mA (250V) 5 x 20mm • •

F-312 500mA (250V) 5 x 20mm •

F-314 10A (250V) 5 x 20mm •

F-340 0.5A (500V) 6.35 x 32mm • •

F-341 10A (1000V) 10 x 38mm • •

F-497 440mA (1000V) 10 x 35mm • • • •

F-498 11A (1000V) 10 x 38mm • • • •

F-797 315mA (1000V) 5 x 32mm •

LA-3893 2A (600V) 6.35 x 25.4mm •

LA-3896 0.5A (500V) 6.35 x 32mm

LA-3897 10A (600V) 63.5 x 25.4mm

LA-3898 0.25A (500V) 5 x 32mm •

BATTERIES

61-201 1.5V (LR44) •

—1.5V (AA) • • • •

—1.5V (AAA) • • • • •

— 9V • • • • • • • • • • • • • • •

TEST LEADS

TL-34 Leads w/pin connectors •

TL-56 Test leads •

TL-95 Test leads •

TL-100 Test leads w/alligator clips • • • • • • • • • •

TL-102 Silicone test leads • •

TL-104 Test leads w/large alligator clips ••••

TL-310 Test leads • •

TL-795 Test Leads •

TL-797 Test Leads •

Safety in the Field

D-22

Five results with one Autotest, the

fastest ﬁber certiﬁcation solution

available

www.idealindustries.com 1-800-435-0705 for Customer Service

LanTEK® II Series Cable Certifier

Testers

www.idealindustries.com 1-800-435-0705 for Customer Service

E-2

LanTEK® II offers the best speed, performance and price available today. Nine second Cat 5E

and 14 second Cat 6 tests with full performance data plus 10 Gigabit Alien Crosstalk testing, more

than 4x faster than other systems making LanTEK® II the ultimate copper certiﬁcation platform.

The patented universal adapter system lets you certify most cabling with off-the-shelf patch cords

saving time and money by eliminating the need for proprietary permanent link adapters.

The optional FiberTEK® FDX modules provide the world’s only dual wavelength, bi-

directional ﬁber certiﬁcation available. That’s more than 3x faster than existing testers.

Three models provide the needed performance without the added expense; choose

from 350 MHz/Cat 6, 500 MHz/Cat 6A or 1000 MHz/Cat7A all with accuracy

independently veriﬁed by ETL.

LanTEK® II also offers ultimate versatility with options for certiﬁcation of TERA, GG45

and EC7 category 7/7A systems, plus M12 industrial Ethernet and coaxial test adapters.

Best price/performance options - models ranging from 350 MHz to 1000 MHz

Most internal memory available - store over 1700 Category 6/ISO E tests with graphs

Extraordinary fast ﬁber testing with FiberTEK® FDX - the ﬁrst dual wavelength, bidirectional ﬁber certiﬁcation tool

Large, ultra-bright display - 4.3 in. wide screen display with white LED backlighting provides easy viewing of high-frequency data plots

350 MHz & 500 MHz models are fully upgradable to 1000 MHz

Smart lithium-ion battery technology - 18 hour battery life with self calibrating “fuel gauge” for accurate capacity readings

More Ways to Save

Save time and money in more ways than ever with LanTEK® II.

Universal Link Testing

The patented testing process eliminates the need for costly

permanent link adapters. Using universal test adapters for Category

5E through 6A certiﬁcation, patch cords are typically the only item

that needs to be replaced when worn or damaged. This eliminates

the wait and expense of proprietary adapters meaning more time

spent testing and less time searching for replacement parts.

Channel and Permanent Link Testing with One Adapter

LanTEK® II allows permanent link and channel certiﬁcation

without changing adapters. The patented DualMODE™ function

allows cabling to be certiﬁed to two different standards with one

press of the Autotest button; half the time of any other certiﬁer.

Certify cabling to both Category 6 permanent link and Category 6

channel link standards at the same time, satisfying requirements

from cabling manufacturers and end users without costing more

time in the ﬁeld. Or certify cabling to existing current standards and

proposed future standards which eliminates retesting at a later date.

Most Memory Capacity

LanTEK® II has 7x the storage capacity as competitive certiﬁers. Save

an astonishing 1700 Category 6 results with graphs. If the memory

ﬁlls, simply off-load the data to a USB ﬂash drive for portability and

archiving.

Cut the Power Cord

The smart lithium battery technology provides 18 hours of use in

the ﬁeld. The revolutionary battery technology has two charging

modes that offer the best ﬂexibility available. Slow charge the battery

overnight while it is inside the LanTEK® II, or remove the battery and

plug in to its dedicated charging port for a quick ﬁve hour charge.

Plus, the battery’s internal fuel gauge automatically self-adjusts every

time the pack is completely discharged and recharged, providing

accurate charge readings over the life of the battery pack.

FIBERTEK® FDX

The only solution that completely eliminates

the need to swap ﬁbers or modules, allowing

complete one-step certiﬁcation of horizontal

and backbone cabling.

More than 2x as fast as any other

ﬁber certiﬁcation tester

Complies to TIA/ISO/IEC certiﬁcation standards

Real-time power meter to aid in troubleshooting

active equipment

1-800-435-0705 for Customer Service www.idealindustries.com

LanTEK® Series Cable Certifier Specifications

Testers

DataComm/Networks

1-800-435-0705 for Customer Service www.idealindustries.com

LanTEK® II

Handset Dimensions Height/Width/Depth: 10 in. x 5 in. x 2.1 in. (25.4cm/12.7cm/5.3cm)

Handset weight w/battery Display: 2.4lbs/1.1kg; Remote: 2.3lbs/1.0kg

Battery Lithium ion, 7.4VDC, 6.6AH; Input: 12V/2A DC; Typical operating time: 18 hours (new battery running a Cat6 test every 2.5 minutes, full backlight); Charge time:

4 hours quick charge with battery removed from handset, 6 hours inside handset.

Input power Handset: DC 12-15V, 2A; Line/mains power: AC 110-240V, 50/60Hz

Display 4.3” wide screen TFT, 480 x 272 pixel, 95 x 54mm viewable area

Connectivity Adapter port: 168 pin ultra low crosstalk, mini-USB device port, USB host port (display handset only), four pin serial port (service use only), 1/8” talkset jack, power/

charging jack

Frequency range LanTEK II-350: 1-350MHz, LanTEK II-500: 1-500MHz, LanTEK II-1000: 1-1000MHz

Memory Non-volatile ﬂash, storage capacity for 1700 TIA-Cat 6 tests with graphs. Tests can be copied to USB ﬂash drive, up to 64GB.

Measurements Wire map, DC loop resistance length, capacitance, NEXT, insertion loss (formerly attenuation), ACR-N (formerly ACR), return loss, average impedance, propagation delay,

delay skew, power sum NEXT, power sum ACR-N (formerly power sum ACR), ACR-F (formerly ELFEXT), power sum ACR-F (formerly power sum ELFEXT), alien crosstalk

(with optional AXT testing kit)

Length measurement 0-2000 ft.; 1 ft. resolution, +/-(3% + 3 ft.), distance to short/open reported

Supported cable types TIA/EIA Category 3, 4, 5, 5E, 6 and 6A: 100Ω; ISO/IEC Class C, D, E, EA, F, FA: 100Ω

Cat 6/6A Class E/EA RJ-45 permanent link adapters: shielded and un-shielded cable, universal adapters provide channel, permanent link and basic link measurements.

Supported connectors Additional adapters: GG45, ARJ45, TERA, EC7 (MMCPRO3000), Coax 50-75Ω (BNC connector), M12 industrial

Tone generator Integrated into display and remote handset, compatible with standard analog inductive probes, selectable tone (high/low/warble) 500/600 Hz, selectable pin output.

Environmental 0°C to 50°C non-condensing Operating Temperature , -20°C to 70°C, non-condensing Storage Temperature, Vibration - MIL-PRF-28800 F, Class 3

Accuracy Baseline: Certiﬁed by ETL to meet IEC 61935 Level III/IIIe/IV; Channel/Permanent link: TIA 568-B.2-2 and IEC 61935 Level III/IIIe/IV

Warranty) One (1) Year from date of purchase; Batteries and accessories are warranted 90 days from date of purchase ((LanTEK II and FiberTEK FDX)

PC Software Requirements: Microsoft Windows® XP or Vista, (32/64 bit) 512MB RAM, 500MB hard disk + 1GB for every 1,500 Category 6 tests

Cat. No. Description Cat. No. LanTEK® II – Add-on Options

33-993 LanTEK® II-1000: TIA/EIA Cat7A, ISO Class F/FA certiﬁer w/Cat6A adapters 33-990-FA01 Multimode (850/1300nm) kit with LED light sources for standard multi-mode ﬁber

33-992 LanTEK® II-500: TIA/EIA Cat6A, ISO Class EA certiﬁer w/Cat6A adapters 33-990-FA02 Multimode (850/1300nm) kit with VCSEL/laser light sources for laser optimized ﬁber

33-991 LanTEK® II-350: TIA/EIA Cat6, ISO Class E certiﬁer w/Cat6 adapters 33-990-FA03 Single mode (1310/1550nm) kit with laser light sources for single mode ﬁber

33-993-FA01 LanTEK® II-1000 with MM LED FiberTEK FDX Kit 33-990-FA04 Combination MM/SM kit with LED MM sources and laser SM sources

(33-990-FA01 & 33-990-FA03)

33-993-FA02 LanTEK® II-1000 with MM VSCEL/Laser FiberTEK FDX Kit 33-990-FA05 Combination MM/SM kit with VCSEL/laser MM sources and laser SM sources

(33-990-FA02 & 33-990-FA03)

33-993-FA03 LanTEK® II-1000 with SM Laser FiberTEK FDX Kit FDX2-CP-3 Three year Care Plan for FiberTEK FDX, 3 year warranty + annual calibration for FA04

or FA05 kits

33-993-FA04 LanTEK® II-1000 with MM LED & SM Laser FiberTEK FDX Kit FDX-CP-3 Three year Care Plan for FiberTEK FDX, 3 year warranty + annual calibration for

FA01-FA03 kits

33-993-FA05 LanTEK® II-1000 with MM VSCEL & SM Laser FiberTEK FDX Kit LT2-CP-3 Three year Care Plan for LanTEK® II, 3 year warranty + annual calibration and acces-

sory replacement

LANTEK10GBKIT Alien Crosstalk Testing Kit for 10GbE Certiﬁcatioin. Compatible with 33-992

and 33-993.

Contents: LanTEK® II display and remote handset, two smart lithium ion batteries, two 110-240V power adapters with US/EU/UK plugs, lockable semi-rigid carrying case, Cat6A F/FTP patch cords,

USB cable, DataCENTER data management and reporting software, two headsets, hanging straps and ETL accuracy certiﬁcate.

RoHS

N12966

FiberTEK FDX

Compatability LanTEK® II (any model)

Connector User changeable adapter (SC, FC, ST), 2.5mm ferrule

Laser safety Multi-mode 850 VCSEL: class 3, 5mW max; multi-mode 1300 laser: class 3, 5mW max; Single mode 1310 & 1550: class: 3, 5mW max

Power meter accuracy ± .25dB from 0dBm to -40dBm 850-1550nm; system dynamic range 40dB

Length accuracy ±3%; maximum distance measurement 3000m

Display resolution Power/attenuation: 0.1dB, length: 0.1m/0.1ft

Contents: Two FiberTEK FDX modules, lockable semi-rigid carrying case, SC, FC, ST adapters for modules (2 ea.), SC-SC patch cords (MM kits: 3x 62.5µm, 3x 50µm; SM kits: 3x 9um SMF)

compliant to ISO/IEC 14763-3 standard, quick reference guide, and electronic operation manual.

E-3

www.idealindustries.com 1-800-435-0705 for Customer Service

Testers

E-4

10 Gigabit Alien Crosstalk Testing Kit

Perform a standard 6-around-1 cable test with PS ANEXT and PS AACR-F results for both ends of

the cable in as little as 5-1/2 minutes compared to over 20 minutes for some competitive models.

n Add Alien Crosstalk testing capability to any LANTEK® 6A or 7G and LanTEK® II

n Perform PS Alien NEXT and Attenuation to Alien Crosstalk Ratio measurements

n Unique Dual-port AXT adapter allows PSANEXT testing with just one handset for quick

initial site testing

n Dual-handset mode allows complete AXT certification 4 times faster than other AXT

test systems

n No PC required in the field - all test results calculated on-the-fly for instant

pass/fail indication

n Kit includes 2 Dual-port AXT adapters, 12 AXT terminators,

shielded patch cords, manual, firmware update and PC

reporting software

Description Cat. No.

Alien Crosstalk Testing Kit for LANTEK®LANTEK10GBKIT

SIGNALTEK™ Gigabit Ethernet Certifier & SIGNALTEK™-FO

Multimedia Ethernet Certifier

SIGNALTEK™ provides a technically innovative method to test and document performance

of voice, data, video and VoIP applications for cabling installers and network technicians. It

tests the link’s ability to support applications by transmitting Ethernet packets on the wire

and measuring the link performance according to IEEE 802.3ab Gigabit Ethernet standard. By

monitoring transmitted and received data packets, it can report the BERT (Bit Error Rate Test)

for the link.

SIGNALTEK™-FO is the first active ethernet certifier that offers both copper and fiber optic testing;

and SIGNALTEK™-FO does it for less than the price of an Optical Test Set alone.

Simulate real world network traffic with full-duplex gigabit performance testing

User selectable 10/100/1000 Bit Error Rate Testing (BERT) to ensure performance for all

Ethernet devices. Decibel (dB) loss measurements of optical lines.

Smart autotest function detects line condition and automatically chooses

appropriate test to run to allow testing cable that is terminated with a

SIGNALTEK remote, a network device or unterminated

Save time using the remote to perform 10/100 or gigabit service detection

AND initiate an Autotest when main unit is connected

Maximum flexibility with two USB ports. Connect to a computer to upload

test results, connect directly to a printer, or connect a USB memory drive for

unlimited storage

Get maximum coverage with a full two-year warranty

Configure multiple target IP addresses for pinging several network devices

to ensure communications with servers, printers, IP cameras, home

automation controls, etc.

Offers network interrogation tools such as link establishment, port LED blink

and ping

TDR to accurately measure length and locate shorts and opens

ARP test discovers active network devices

Exceeds 100m measurement distance required

by IEE 802.3ab gigabit Ethernet

Dual Wavelength Capability – available in both

850nm and 1300mn wavelengths to support

virtually all LAN and campus fiber applications.

#33-983 – SIGNALTEK™-FO w/850 & 13X0

Modules

#33-974 - SIGNALTEK™ Kit - Copper Only

Description Cat. No.

SIGNALTEK™-FO w/850 Modules 33-981

SINGALTEK™-FO w/13X0 Modules 33-982

SIGNALTEK™-FO w/850 & 13X0 Modules 33-983

SIGNALTEK™-FO w/o Modules (Fiber-Ready) 33-987

SIGNALTEK™ Kit - Copper Only 33-974

Universal 120-240V Power Adapter 4010-00-0136

RJ-45 to 8 Head Alligator Clip K-7920

Pair of 850nm SFP Modules SFP-850

Pair of 13X0nm SFP Modules SFP-13X0

Replacement Cable Accessory Kit - contains

all original cables in SIGNALTEK™ Kit 1219-91-0003

1-800-435-0705 for Customer Service www.idealindustries.com E-5

Testers

1-800-435-0705 for Customer Service www.idealindustries.com

DataComm/Networks

With full In-Line and Endpoint test

capabilities, LanXPLORER PRO

tests not only copper cables but

also active LAN connections over

copper and ﬁber links. In addition, it

liberates the user from cables by

allowing most tests to be conducted through

a wireless connection offering unparalleled

ﬂexibility. With such comprehensive test capability

and ease of use, LanXPLORER PRO is the perfect

tool to meet the needs of professional IT installers

and systems administrators in any enterprise, campus

or industrial Ethernet environment.

Network connectivity and diagnositcs for

10/100/1000Mb Ethernet

Options for dual copper ports for in-line testing,

ﬁber optic SFP port and Wi-Fi

Network mapping to all devices on the network

and group into categories

Save and recall Network Maps to identify changes

in the network such a new or missing devices

List top talkers to identify the source of network

slowness

Power over Ethernet (PoE) testing with load simulation to

fully test PoE power supply equipment and in-line testing to

measure power consumption of PoE devices

Full wire map testing with TDR to located cabling faults

Displays total, average, peak network bandwidth, error

generation and packet size distribution

Monitoring of VoIP calls and quality including RTP Jitter

LanXPLORER PRO

Features

LanXPLORER LanXPLORER

Plus

LanXPLORER

Pro

Display Color, 3.5” QVGA Color, 3.5” QVGA Color, 3.5” QVGA

Touchscreen

Test interfaces 1 x RJ45 1 x RJ45, Wi-Fi 2 x RJ45, Wi-Fi, 1

x SFP

Wiremap with length 4 4 4

PoE and PoE+ tests 4 4 4

Wi-Fi 4 4

SFP ﬁber interface 4

Network detection 4 4 4

Network device mapping 4 4 4

Trafﬁc/Top Ten/Error

counting 4 4 4

PC diagnosis 4

In-line tests 4

VoIP testing 4

Test storage 4 4 4

VLAN / 802.1x support 4 4 4

Loopback mode 4

Description Cat. No.

LanXPLORER Tester

Soft carrying case, 2 x RJ-45 STP patch cords, 1 smart

remote, 6 AAA batteries, printed quick reference guide,

manual on CD

33-940B

LanXPLORER PLUS Premium Kit

Includes tester, soft carrying case, 2 x RJ-45 STP patch

cords, 1 smart remote, printed quick reference guide,

manual on CD, rechargeable battery pack, AC power

supply, inductive cable tracing probe

33-941P

LanXPLORER PRO Premium Kit

Includes tester, soft carrying case, 2 x RJ-45 STP patch

cords, 1 smart remote, printed quick reference guide,

manual on CD, rechargeable battery pack, AC power

supply, inductive cable tracing probe

33-942P

Battery Pack - rechargeable 33-940-BP

Remote #1 33-940-R1

Remote Kit #2 - #12 33-940-R12

RJ-45 Inserts with removal tool 33-940-

RJ45

Power Supply/Battery Charger 33-940-PS

USB interface & internal

memory

WIFI

QVGA 3-1/2” color

touch screen

SFP Fiber

slot

Multifunction

softkeys

Autotest

Cursor keys

Rubber molded

housings

RJ-45 Connection

Exchangeable

RJ-45 interface

In-line test

Mains charger

input

NEW

Ordering Information

www.idealindustries.com 1-800-435-0705 for Customer Service

Testers

www.idealindustries.com 1-800-435-0705 for Customer Service

E-6

SecuriTEST™ PRO CCTV/Security Tester

SecuriTEST™ PRO is the most versatile all-in-one installation and troubleshooting tool for the CCTV professional. CCTV installers often need to

carry a variety of testing tools to complete their work. SecuriTEST™ PRO combines the most-needed tools in one easy-to-carry package. Since

all connections (video/communications/DMM) attach to a single unit, SecuriTEST™ PRO eliminates the need to juggle several devices while on

a ladder or lift, making working conditions safer and increasing productivity.

Features of SecuriTEST™ PRO

IRE video level and sync tests

Sound level test through integrated speaker and on screen level indicator

High capacity lithium ion battery

Support for additional PTZ protocols

Carrying case included

Seven Essential CCTV Tools - Combines a CCTV video tester, PTZ camera controller, Digital Multimeter, UTP cable tester,

video test pattern generator, PTZ protocol analyzer and camera programmer in a single compact package.

Save Time & Money - Test, aim, focus and program cameras when working alone. Save time by not having to walk back to the

control center to verify functionality of each camera.

Compact Design - Combines all the most needed security tools in a lightweight easy-to-carry unit. Sharp, bright 2.5 in. (6.3 cm)

color LCD screen with on-screen displays for PTZ control/diagnostics and DMM readouts.

PTZ Protocol Analyzer - Compatible with 20+ PTZ protocols

to test and program cameras in the field. Decodes and

identifies output from PTZ console to aid in

troubleshooting.

Audio Input

LED Indicators

PTZ Control

Pad

IRE On/Off

Test Lead Ports

UTP Test Port

Description Cat. No.

SecuriTEST™ PRO CCTV/Security Tester only 33-892

1-800-435-0705 for Customer Service www.idealindustries.com E-7

Testers

DataComm/Networks

1-800-435-0705 for Customer Service www.idealindustries.com

VDV Pro Cable Tester

The VDV PRO Cable Tester is an easy-to-use cable testing and verification device that can

quickly test all wiring requirements found throughout today’s residential and commercial

environments.

n Voice – tests 3-pair USOC and 6-position RJ-11/12 jacks for voice cable testing

n Data – tests wire map of shielded and unshielded cable to T568A/B standard

n Video – tests coax cable for opens, shorts and length with F-Connector interface

n Larger backlit LCD screen for better test results readability

n Network link LED blink for visual cable tracing

n Voice testing capability detects RJ-11 (1, 2, or 3 pair)

n Voice test also shows Normal or Reverse for pins 1 through 6

n Length measurement is shown during initial test results for convenience and time savings

n Eight remotes have RJ-45, RJ-11 and Coax F-jacks for increased testing capabilities

n Tests for shield continuity, shorts, opens, miswires, reversals and split pairs with remote connected

n Full dot-matrix LCD display for user convenience to read display results

n One-ended testing for shorts, opens and split pairs (no remote needed)

n Test results displayed in wire map format with message line for shorts and split pairs

Description Cat. No.

VDV PRO w/one remote and terminator 33-770

VDV PRO w/eight remotes and terminators 33-771

VDV Pro (33-770) w/one remote and Ampliﬁer Probe (62-164) 33-780

Description Cat. No.

VDV PRO Eight Remote Replacement Kit (ID 1-8) 33-774

Eight Coax Terminator Kit 33-775

IENet™ Pro Cable Tester for RJ-45 and M-12 Industrial Ethernet

Cable Testing

Description Cat. No.

IENet™ PRO w/single remote 33-772

IENet™ Pro w/eight remotes 33-773

Eight Coax Terminator Kit 33-775

IENet™ Pro Eight Remote Kit (ID 1-8) 33-776

Description Cat. No.

RJ-45 to RJ-11 jack adapter (2/card) LA-4233

RJ-45 to F-Connector adapter (2/card) LA-4234

F to BNC Adapter Kit LA-4173

Ordering Information

Accessories

The IENet™ PRO tester makes it a snap to quickly verify wiring integrity and assure proper terminations for

diverse types of industrial cabling and provides automatic pin conversion between M-12 and RJ-45

connections.

n Simple selection between Voice, 2 and 4 pair Data, and Coax testing functions. Voice and Video/Security

tests via optional adapters

n Tests for opens, shorts, miswires, reversals, split pair (user selectable) and length

n Indicates correct wiremap to T568A/B standards for shielded and unshielded cabling

n Easy-to-read LCD display with “PASS” or “Miswire” indicator for each test

n Identifies presence of voltages on cables

n Tone generator supports four different tones making fault isolation easier

n Network LED blink for visual cable tracing

n Numerical indication for UTP “No Shield” and STP - “Shield” to

comply with industrial ethernet PROFINET® requirements

PROFINET® is a registered trademark of PROFIBUS International.

Testers

www.idealindustries.com 1-800-435-0705 for Customer Service

E-8

TRACETone™ Tone Generator &

Amplifier Probe

n Test continuity and locate

signal of installed wire and cable

n Two selectable tone styles

n Tone Generator & Amplifier

Probe fit together for easy storage

n Adjustable volume control

n RJ-11 Alligator Clip, RJ-11 Cable Assembly included

Description Cat. No.

TRACETone™ Tester 62-140

LinkMaster™ Tester

Description Cat. No.

LinkMaster™ Tester and Remote 62-200

Tests wiring configurations on

UTP/STP cables. Checks for

shorts, miswires, reversals and

split pairs. Debug feature,

automatic shut-off and low

battery LED indication.

n Designed to test installed

twisted pair wiring

n Tests unshielded and shielded

modular plugs

n Main unit and remote allow one

person testing

PRO Amplifier Probe and Tone

Generator

Amplifier Probe

n Identifies and traces wire or cables within a group

n Battery low indicator

Tone Generator

n Emits three different types of tones

n Auto-off after three hours of non-use

n F-Connector port for toning & tracing coaxial CATV cabling

systems

n Tone can be added in any status

Description Cat. No.

Amplifier Probe & Tone Generator Kit - includes 62-164,

62-160, Lead Set, Cable Assembly 33-864

Amplifier Probe 62-164

Tone Generator 62-160

Test-Tone-Trace Kit

n Kit includes the VDV (33-856) and

Amplifier Probe (62-164)

n Tests and traces coax, twisted pair

and telephone cables

Description Cat. No.

Test-Tone-Trace Kit 33-866

Description Cat. No.

Kit with integrated remote and accessories 33-856

VDV MultiMedia Cable Tester

Easy-to-use tester for installers working

with voice, data and video applications.

One tester for all applications!

n Voice — supports 3-pair USOC

and 6-position RJ-11/12 jacks for

telephone cable testing

n Data — supports both shielded and

unshielded cable testing to T568A/B

(RJ-45)

n Video — tests coax cable for opens

and shorts with F-connector interface

n Tests for opens, shorts, miswires,

reversals and split pairs. Also indicates

correct wiremap. Has automatic shut

off (to prolong battery life) and low

battery indicator.

n Easy-to-read LCD display with “PASS or ERROR” indicator after

each test

n Tone generator supports four different tones making fault

isolation easier

n One remote wiremap and testing unit is stored inside tester —

easier to keep all parts together

n Uniquely designed remote accommodates RJ-11, RJ-45 and

F-style connectors

1-800-435-0705 for Customer Service www.idealindustries.com E-9

Compression Tools

DataComm/Networks

1-800-435-0705 for Customer Service www.idealindustries.com

Textured Santoprene™

slip resistant

comfort grip

High strength aluminum

body for durability,

lighter weight

Compresses

F-type, Mini

F-type, RCA,

and Mini RCA

connectors

Universal tip for all

connectors

Spin knob

for fast depth

adjustment

Lock nut holds

adjustments in

place

Convenient handle lock

for easy fit in pouch

For BNC connectors

(Model 30-793)

Spring loaded

handle

OmniSeal™ Pro Compression Tools

OmniSeal™ Pro

30-603

The IDEAL OmniSeal™ Compression Tools now offer additional features and

increased connector compatibility in a smaller, more compact tool designed to meet

the demands of the professional installer. (OmniSeal™ requires no accessory

attachment to terminate IDEAL branded compression connectors.) Most other manufacturers

compression connectors can be terminated with an easy plunger depth adjustment. The simple

intuitive design combined with its size and universal connector acceptance makes this the only

compression tool needed by professional installers.

n Factory preset to work with IDEAL compression connectors

n Compresses F-type, RCA, BNC and Mini connectors

n Adjustable to fit other manufacturer’s connectors —

no accessory adapters required

Description Cat. No.

OmniSeal™ Pro XL Compression Tool 30-793

OmniSeal™ Pro Compression Tool 30-603

OmniSeal™ Pro XL

30-793

BNC F-Type RG-11 RCA Mini Coax

OmniSeal™ Pro XL

30-793

OmniSeal™ Pro

30-603

n Easily compresses series 6 and 59 coax compression F-connectors

n Permanent connection – never comes loose

n Works with most brands of compression connectors

F-Compression Tool

Description Cat. No.

Economy Compression Tool 30-633

Economy Compression Tool Kit - Includes four RG-6

Connectors 33-633

with

adjustment

Compression Connectors

www.idealindustries.com 1-800-435-0705 for Customer Service

E-10

RTQ™ Reg/Tri/Quad & Plenum F-Connectors

• Fits60%regular,tri-shieldandquadshieldcables

• Nickel-plated,brass-constructionforsuperiorcorrosionresistance

• DesignedforusebysatelliteandcableTVcompanies

• Weatherproofforindoorandoutdooruse

• Use30-603,30-793or30-633CompressionTools

OmniCONN™ F-Connectors

• Noncorrosivenickelplatedbrassbodyandpolycarbonatebushing

• Delrin/Nylonadaptersleeveando-ringprovidedoubleprotectionfor

 awatertightseal

• Freespinninghexnutforeaseofinstallationontoall7/16ports

• 75ohmnominalimpedance

• Two-piecepre-assembledconnectors

RCA Connectors

• Constructedofnickelplatedbrassandgoldplatedhead

• 75ohmnominalimpedance

• Bandwidthupto3GHZ

• Compatiblewith30-603and30-793CompressionTools

BNC Connectors

• Nickel-plated,brass-constructionforsuperiorcorrosionresistance

• Moisture-inhibitingdesign

• Use30-793CompressionTool

• 75Ohmnominalimpedance

• Gold-platedpincontactarea

• Availableinplenumversions

RG-11 F-Connectors

• Fits60%regularRG-11cable

• Nickel-plated,brass-constructionforsuperiorcorrosionresistance

• DesignedforusebysatelliteandcableTVcompanies

• Weatherproofforindoorandoutdooruse

• Use30-603or30-793CompressionTools

• Use45-111,1/4”x1/4”RG-11CoaxStripper

Compression Connectors

DataComm/Networks

1-800-435-0705 for Customer Service www.idealindustries.com E-11

Compression Connectors

Compression Port Seals - 1/2 in.

n Used with compression F-connectors

to weatherproof connector by placing

onto the female port. Made from

EPDM for superior sealing.

Connector Type Cable Type Qty. Cat. No.

FRG-6

Reg/Tri/Quad

Card of 4 92-654

Card of 10 92-651

Jar of 50 92-650

Jar of 100 92-656

Box of 1,000 (20 bags of 50 ea.) 92-759

Box of 1,000 bulk 92-659

FRG-6

Plenum

Jar of 50 92-660

Box of 1,000 92-669

FRG-59

Reg/Tri/Quad

Jar of 50 92-610

Box of 1,000 92-619

F RG-11 Card of 10 89-211

Box of 500 89-1211

F RG-6 Jar of 50 89-044

Box of 1,500 89-1544

F Quad Jar of 50 89-045

Box of 1,500 89-1545

BNC RG-6

Card of 4 92-705

Card of 15 89-048

Jar of 35 89-5048

Box of 1,000 (10 bags, 100 ea.) 89-1048

BNC RG-6 Plenum

Card of 15 89-050

Jar of 35 89-5050

Box of 1,000 (10 bags, 100 ea.) 89-1050

BNC RG-59

Card of 4 92-704

Card of 15 89-047

Jar of 35 89-5047

Box of 1,000 (10 bags, 100 ea.) 89-1047

BNC RG-59 Plenum

Card of 15 89-049

Jar of 35 89-5049

Box of 1,000 (10 bags, 100 ea.) 89-1049

RCA* RG-6

Card of 4 92-582

Card of 10 89-582

Jar of 35 89-580

RCA* RG-59

Card of 4 92-572

Card of 10 89-572

Jar of 35 89-570

RCA Mini (21 - 23 AWG) Card of 10 89-014SMRCA

*RCA Connectors include an assortment of color ID bands.

Description Qty. Cat. No.

Long Sleeve Compression F-Connector Port

Seals, 1/2 in. Bag of 100 89-127

45-603

STEP 2

45-603

STEP 2

Compression Connectors

www.idealindustries.com 1-800-435-0705 for Customer Service

E-12

Compression Connector Instructions

Compression F-Connector

Compression RG-11 F-Connector

Compression BNC/RCA Connectors

STEP 2 & 3 1⁄4”

1⁄4”

45-074

STEP 1

1. Use IDEAL Data T®-Cutter (45-074) to cut cable

to desired length.

2. Use IDEAL Coax Stripper (45-603 or 45-526) to

strip coax to proper dimensions.

 • Properstriplengthsettingswillleave1/4”of

center conductor exposed and 1/4” of

braiding (shield) exposed.

 • Afterstripping,makesuretipofcenter

conductor is straight and not bent. Straighten

conductor if necessary.

3. Fold back outer layer of braiding (shield)

against cable jacket. Keep braid strands as

straight and as close to jacket as possible.

 • Note:ForQuadShieldcables(with4layers:

outer braid, outer foil, inner braid, inner foil),

ﬁrst fold back outer braiding. Use 45-074 to

score and remove exposed 1/4” of outer foil.

Remove outer foil, and fold back inner

braiding.

1. Use IDEAL Data T®-Cutter (45-074) to

cut cable to desired length.

2. Use IDEAL Coax Stripper (45-111) to strip

RG-11 coax to proper dimensions.

 • Properstriplengthsettingswillleave1/4”

(minimum) of center conductor exposed

and 1/4” of braiding (shield) exposed.

 • Afterstripping,makesuretipofcenter

conductor is straight and not bent. Straighten

conductor if necessary. Conductor must be

straight to make proper contact with pin

contact inside of connector.

3. Fold back outer layer of braiding (shield) against

cable jacket. Keep braid strands as straight and

as close to jacket as possible.

 • Note:ForQuadShieldcables(with4layers:

outer braid, outer foil, inner braid, inner foil),

ﬁrst fold back outer braiding. Use 45-074

to score and remove exposed 1/4” of outer foil. Remove outer

foil, and fold back inner braiding.

45-111

45-074

STEP 1

1. Use IDEAL Data T®-Cutter (45-074 to cut

cable to desired length.

2. Use an IDEAL coax stripper (45-603 or 45-526)

to strip coax to proper dimensions.

 • Properstriplengthsettingswillleave1/4”

(minimum) of center conductor exposed and

1/4” of braiding (shield) exposed.

 • Afterstripping,makesuretipofcenter

conductor is straight and not bent. Straighten

conductor if necessary. Conductor must be

straight to make proper contact with pin

contact inside of connector.

3. Fold back outer layer of braiding (shield) against

cable jacket. Keep braid strands as straight and

as close to jacket as possible.

 • Note:ForQuadShieldcables(with4layers:

outer braid, outer foil, inner braid, inner foil),

ﬁrst fold back outer braiding. Use 45-074

to score and remove exposed 1/4” of

outer foil. Remove outer foil, and fold

back inner braiding.

45-074

STEP 1 STEP 4

STEP 2 & 3 1⁄4”

1⁄4”

4. Push F connector on to prepared

cable until white center dielectric is

ﬂush with bottom of the nut of the

F connector.

5. Insert connector/cable assembly into

the OmniSeal™ Pro XL compression

tool, squeeze handle completely to

compress ﬁtting. Remove completed

cable assembly.

STEP 4

STEP 5

4. Measure and mark cable insertion length.

Align tip of center conductor with bottom of

hex nut ﬁtting of connector. Mark or lightly

score cable jacket near base of connector.

Connector should be within 1/8” of this mark

after it is pushed on to cable. If it is more than

1/8” away from mark, continue

rocking and guiding connector

on to cable. Approximately

1-1/4” of cable length should

be inserted into connector

prior to compressing the

connector.

5. Insert the connector/cable assembly into

OmniSeal™ Pro XL compression tool (adjust

plunger setting if necessary), squeeze handle

completely to compress ﬁtting. Remove

completed cable assembly.

STEP 2 & 3 1⁄4”

1⁄4”

STEP 4

STEP 5

4. Measure and mark cable insertion length. For

BNC’s, align tip of center conductor with top of

the nut ﬁtting. For RCA’s, align tip of center

conductor with top of retention collar. Mark or

lightly score cable jacket near base of

connector. Connector should be within 1/8” of

this mark after it is pushed on to cable. If it is more than 1/8” away

from the mark, continue rocking and guiding connector on to cable.

Approximately 1-1/4” of cable length should be inserted into the connector

prior to compressing connector for BNC. Approximately 1-1/8” of cable

length should be inserted into connector prior to compressing connector

for the RCA.

5. Insert connector/cable assembly into OmniSeal™ Pro XL compression tool,

squeeze handle completely to compress ﬁtting. Remove completed cable

assembly.

STEP 5

STEP 2

Crimp Tools/Die Sets

DataComm/Networks

1-800-435-0705 for Customer Service www.idealindustries.com E-13

30-556

RJ-11 Crimp Tool for two, four

or six-position modular plugs

Tool w/die N/A

30-559

RJ-45 Eight-position Crimp

Tool for keyed or non-keyed

modular plugs

Tool w/die

30-522

30-560

RJ-45 Eight-position Crimp

Tool for AMP RJ-45 modular

plugs

Tool w/die

30-521

30-570

RG-6, RG-174, Belden-Type

RG-8281 cables (Hex. 0.324

(8.23mm), 0.178 (4.52mm),

0.068 (1.73mm)

Tool w/die N/A

30-573

Cambridge CP-88, CP-89

BNC/TNC coax connectors

with RG-58, RG-59/RG-62

AU cables (Hex 0.305

(7.75mm), 0.068 (1.73mm),

0.228 (5.79mm)

Tool w/die 30-481

30-576

RG-174, Mini 59 BNC/TNC

Connectors (Hex, 0.178

(4.52mm), 0.128 (3.25mm),

0.068 (1.73mm)

Tool w/die 30-485

30-577

N-Series and RG-8/11

Connectors (Hex, 0.429

(10.90mm), 0.100

(2.54mm), 0.080 (2.03mm)

Tool w/die 30-482

Crimpmaster™ Crimp Tools & Die Sets

Dies change quickly and easily

with a screwdriver. Interchangeable

dies provide versatility

in a single tool.

Pressure adjustment

for actuation force.

Ratchet crimp action

provides repeatable and reliable

terminations.

Crimp release provides

operator safety.

High quality ratchet-type crimp tool for electricians, contractors and installers who require guaranteed repeatability of good mechanical

and electrical connections.

30-578

RG-59, RG-6, and 8281 50

and 75 OHM cables (Hex,

0.324 (8.23mm), 0.255

(6.48mm), 0.068 (1.73mm),

0.042 (1.07mm)

Tool w/die 30-483

30-581

RG-58, RG-59/62, BNC/

TNC Coax Connectors (Hex,

0.255 (6.48mm), 0.213

(5.41mm), 0.068 (1.73mm)

Tool w/die 30-502

30-582

F-type CATV RG-59, RG-6

Connectors (Hex, 0.350

(8.89mm), 0.320 (8.13mm),

0.255 6.48mm)

Tool w/die 30-503

30-587

RG-58, RG-174 and

G-8218 for both 50 and

75 ohm cables (Hex 0.213

(5.41mm), 0.178 (4.52mm),

0.068 (1.73mm), 0.042

(1.07mm)

Tool w/die N/A

30-591

Plenum and Non-Plenum

Thinwire Cables RG-58 and

59 (Hex, 0.213 (5.41mm),

0.190 (4.83mm), 0.068

(1.73mm), 0.042 (1.07mm)

Tool w/die N/A

30-593

Mini UHF and BNC/TNC 5

cavity (Hex, 0.052 (1.32mm),

0.068 (1.73mm), 0.100

(2.54mm), 0.213 (5.41mm),

0.255 (6.48mm)

Tool w/die N/A

Also available in these kits:

33-400 33-917

30-572

16-26 AWG (1.31mm2 - .128mm2)

miniature insulated rings, spade

and butt splices

Tool w/die N/A

30-579

22-10 AWG (.324mm

- 5.261mm

)

insulated terminals/color coded

nests

Tool w/die 30-500

30-580

22-8 AWG (.3mm2 - 8mm2)

non-insulated terminals

Tool w/die N/A

30-586

22-12 AWG (.324mm2 - 3.31mm2)

Non Insulated Open Barrel

Connectors, Commercial Type

Tool w/die N/A

30-594

Fully Insulated quick disconnect

terminals with thinner wire

barrels 22-10 AWG

(.324mm2 - 5.261mm2)

Tool w/die N/A

30-599

30-18 AWG (.205mm2 - 2.08mm2)

Open Barrel Pins and Sockets

Tool w/die N/A

30-479 (Tool w/die)

For insulated terminals,

22-10 AWG with built-in

locator

Description Cat. No.

Crimpmaster™ Crimp Frame Tool 30-506

Coaxial Connectors

www.idealindustries.com 1-800-435-0705 for Customer Service

E-14

F-Type Coaxial Connectors

Push-On F-Connectors, RG-6 & RG-59 Twist-On F-Connectors, RG-6 & RG-59

n No terminator tool required

n All brass nickel-plated construction

n Knurled nut for superior grip

n Designed for indoor use

n After cable is stripped, simply twist on connector

n No termination tool required

n Available in two styles, RG-6 and 59

F-Series Connectors utilize threaded couplings and cable conductors as contacts for CATV and other UHF applications.

n Availableinthethreemostpopularstyles,RG-6/6Q/59

n All brass design

n One-piece body design

n Crimp with the Crimpmaster™ 30-503 Crimp Tool

Connector Installation Tools

n Works on compression and hex connectors

n New comfort grip handle aids in

installing and removing

connectors on coax cable

Connector Type Cable Type Termination Type Qty. Cat. No.

F RG-6 Crimp

Card of 4 84-017

Card of 10 85-037

Card of 50 85-017

Box of 100 86-017

FRG-6 Quad Crimp

Card of 4 84-030

Card of 10 85-057

Card of 50 85-030

Box of 100 86-030

F RG-59 Crimp

Card of 4 84-016

Card of 10 85-036

Card of 50 85-016

Description Cat. No.

F & BNC Coax Connector Tool - 8 in. 35-046

F & BNC Coax Connector Tool - 12 in. 35-042

F & BNC Coax Connector Tool - 16 in. 35-043

Connector Type Cable Type Qty. Cat. No.

F RG-6

Card of 4 85-065

Jar of 50 89-165

Box of 1,500 85-1165

FRG-6 Quad

Card of 4 85-066

Jar of 50 85-166

Box of 1,500 85-1166

F RG-59 Card of 4 85-067

Jar of 50 85-167

RCA RG-6 Card of 10 89-500

Description Cat. No.

Coax Connector Kit w/Economy Coax Stripper and four RG-6

Push-on Connectors 33-320

Connector Type Cable Type Qty. Cat. No.

F RG-6

Card of 10 85-053

Card of 50 85-039

Box of 100 86-039

F RG-59 Card of 4 84-018

Card of 10 85-035

35-046

Coax Strip and Crimp Tool

Precision, form-ground stripping

holes remove outer jacket

and insulation from

RG-59 and RG-6

coaxial cable

Durable blades cut

copper-coated steel

conductors

Three crimping nests for

crimping F-connectors

and ring terminals

Cushioned, comfort-grip handles

Description Cat. No.

Coax Strip & Crimp Tool 30-433

Coax Strip & Crimp Tool Kit w/ten RG-6 F-Connectors 30-433F

(Kit includes ten connectors)

Connectors/Tools

DataComm/Networks

1-800-435-0705 for Customer Service www.idealindustries.com E-15

D-Sub/Double-D Service Tool

F-Type Adapters & Terminators

n Nickel-plated brass construction

n For 75Ω applications

Description Qty. Cat. No.

1GHz Female-to-Female F-Type Coaxial Adapter Card of 10 85-031

3GHz F-Splice Adapter, high bandwith, OMHz to 3GHz for standard and high definition applications,

<0.25dB insertion loss, >25dB return loss Card of 4 85-339

Female to RCA Male Adapter – converts female F-connectors to male RCA connectors Card of 2 85-936

Coax Cable F-Terminators - for all open ports on coax wall plates and splitters Card of 10 85-038

90° F-Adapter - F-female to F-male coax adapter Card of 2 85-070

Connector

Type

Cable

Type

Center

Conductor Jacket Connector

Impedance Insulation Qty. Cat. No.

BNC Plug RG-59 20 AWG Solid Non-Plenum 75 Ohm Delrin

Bag of 5 85-502

Box of 100 86-502

Plenum Bag of 5 85-512

BNC Plug RG-6 18 AWG Solid Non-Plenum 75 Ohm Delrin Bag of 5 85-545

BNC Adapter —Jack to Jack —50 Ohm Delrin Bag of 5 85-590

BNC Twist-on Plug RG-59 22-23 AWG Solid Non-Plenum 50 Ohm Delrin Bag of 5 85-480

F to BNC Adapter Kit LA-4173

BNC Connectors

n Connector construction covers both plenum and non-plenum cable jackets

n Captive gold center contacts provide maximum conductivity and minimal resistance

n Nickel plating resists corrosion, tarnish and ensures signal quality

n Meets military specifications. MS39012 and MIL202 where applicable.

n Available in both small and bulk quantities to suit a range of application requirements

4-Way Indent Crimp Tools

Crimps solid barrel contacts for

RS232 interface connectors.

Features four-way indent dies

(per MS22520 specifications),

full cycle ratchet, built-in pin and

socket locator and comfort-grip handles.

n High-grade steel construction for outstanding performance

Description Cat. No.

20-26 AWG (.519 mm2 - .128 mm2) RS232 D-sub

Round Barrel Contacts, Pins or Sockets 35-465

Trompeter BNC Connector Center Pins 35-468

35-465

n Exact replacement of the AMP open-

barrel service tool for stamped

contacts and D-Sub contacts

n Also crimps Double-D,

high density,

miniature contacts

n Includes openings for crimping insulated terminals and cutters

for machine screws

Description Cat. No.

D-Sub/Double-D Service Tool 30-426

Tools

www.idealindustries.com 1-800-435-0705 for Customer Service

E-16

Punch Down Tools

35-492

35-495

110 Blade

35-407

110/66 Blade

35-497

66 Blade

35-478

Krone® Blade

35-479

Bix® Blade

Telemaster™ Telephone Tools

n For paired conductors

n Multi-function telephone

tool cuts, strips and

crimps for easy one-tool

application

n Steel frame for long-term durability. (Crimps primary modular plug

strain relief only)

Modular Plug Tool Kit

n Multi-function telephone/

network tool; cuts, strips

and crimps

n Steel frame construction

for durability

n Interchangeable dies allow

for crimping RJ-45 and

RJ-11 modular plugs

n Tool-less die change for

added convenience

n Spring return handle for

comfort

33-505 33-706

Also available in these kits:

Impact Turn-Lock™ Punch Down Tools Cat. No.

Punchmaster™ II Punch Down Tool - body only 35-483

Punchmaster™ II Punch Down Tool w/110 blade 35-485

Punchmaster™ II Punch Down Tool w/66 blade 35-487

Non-Impact Turn-Lock™ Punch Down Tools Cat. No.

Punch Down Tool w/110 blade 35-492

Economy Punch Down Tool Cat. No.

Non-impact Tool w/permanent non-cut blade 35-185

Removable Blades* Cat. No.

110 Turn-Lock™ blade 35-495

66 Turn-Lock™ blade 35-497

110/66 combo blade w/cutting edges 35-407

Krone® blade 35-478

Bix® blade 35-479

*Not applicable for Economy Punch Down tool.

Bix® is a registered trademark of Nortel. Krone® is a registered trademark of Krone, Inc.

Description

Kit

Cat. No.

Tool Only

Cat. No.

Tool for RJ-11 (1, 2, 3 pair) and RJ-45 (4 pair) Plugs 33-700* 30-496

Tool for RJ-22 (handset) and RJ-11 (1, 2, 3 pair) N/A 30-499

Replacement Cut and Strip Blade Set for Telemaster™ N/A LB-1747

*Kit includes 10 each, RJ-45 8P8C, RJ-11 6P6C and RJ-11 6P4C modular plugs.

Description Cat. No.

Modular Plug Tool Kit - includes ten each RJ-11, 6P4C Telephone

Plugs & RJ-45, CAT 5e Data Plugs, RJ-11 & RJ-45 Die Sets 33-296

n For paired conductors

n Ratchet version of

popular Telemaster™

Tool for RJ-45 and

RJ-11 modular plugs

n Repeatable crimp action for consistent, high quality

connections

Ratchet Telemaster™

Description Cat. No.

Ratchet Telemaster™ 30-696

Replacement Cut & Strip Blade Set for 30-696 LA-4102

RJ-45

RJ-11

Die Set

Replaceable

Blade

Release for

the storage blade

Multi-colored to help

distinguish between

cut & non-cut side

of the blade

Visual indicator for

cut or non-cut side

Adjustment for

Hi/Lo settings

Storage for extra

blade

35-485

Connectors/Modular Plugs

DataComm/Networks

1-800-435-0705 for Customer Service www.idealindustries.com E-17

Description Qty. Cat. No.

UR-I, 3-Wire Butt Splice IDC 25 85-925

UR-I, 2-Wire Butt Splice IDC 100 86-925

UR-I, 3-Wire Butt Splice IDC 1,000 87-925

IDC Combo Pack 25 85-960

UY-I, 2-Wire Butt Splice IDC 25 85-950

UB-I, 2-Wire Tap Splice IDC 25 85-900

IDC connectors create fast splice

and tap connections on solid copper

wires. Designed for low voltage

telecommunication cables.

n Moisture-resistant sealant protects

wires from corrosion

n Use with solid copper single-conductor

wire

n Kinetic Super™ Wire Stripper/Crimper easily cuts and

strips 22 to 24 AWG solid wire

Insulation Displacement

Connectors (IDC)

85-900 85-925

85-950

Description Qty. Cat. No.

Strain Relief Boots for Modular Plugs 25 85-380

Description Qty. Cat. No.

8-Position 8-Contact, RJ-45

25 85-346

50 85-396

100 86-396

250 85-1396

6-Position 6-Contact, RJ-11 25 85-345

100 86-395

6-Position 4-Contact, RJ-11

25 85-344

50 85-394

100 86-394

Modular Plugs

Wiring Configurations for Modular

Plugs

Strain Relief Boots for Modular Plugs

n Plugs are capable of supporting the latest EIA/TIA cable system

performance categories when installed in compliance with

appropriate EIA/TIA standards and methods

n All plugs work with 24 AWG solid or stranded conductors and

round or flat cables.

n Prevents broken connector tabs and

snagging while extending

connector life

n Minimizes cable bends that can

reduce data speed and result

in data loss

n Dampens cable movement and

vibrations that can result in premature connector failure

Description Qty. Cat. No.

CAT 6 RJ-45 Modular Plugs 25 85-366

CAT 6 RJ-45 Modular Plugs

n Unique three-piece design provides

easy installation and optimal

performance

n Crimps with a standard RJ-45

crimp die

n 50 micron gold contacts,

8-position, 8-contact

n Suitable for solid or stranded conductors – 22 – 23 AWG

Kinetic Super™ Wire

Stripper/Crimper

Description Cat. No.

Kinetic Super™ Wire Stripper/Crimper 45-719

Kinetic Super™ Wire Stripper/Crimper Kit – includes 25

IDC connectors (UR-I, 3-Wire Butt Splice) 33-719

n 

Cuts and strips

22 to 24 AWG

n Crimps IDC

Connectors

85-344

RJ-11

85-346

RJ-45

10Base-T

(4 WIRE ETHERNET)

Pair 1 Pair 2

TIP AND RING

DESIGNATIONS

JACK PIN NUMBER

DESIGNATIONS

+ _ + _

T R T R

1 2 3 4 5 6 7 8

Token Ring

DATA

CONNECTOR

STUFFER

CAP

MODULAR

JACK

BLK

RED

GRN

ORN

Te rminals are

not shorted when

connector is mated

USOC

Pair 1

Pair 2

Pair 3

Pair 4

+ + + _ + _ _ _

T T T R T R R R

1 2 3 4 5 6 7 8

POLARITY

T568B (AT&T)

Pair 1

Pair 2

Pair 3

Pair 4

+ _ + _ + _ + _

T R T R T R T R

1 2 3 4 5 6 7 8

T568-A

Pair 1

Pair 3

Pair 2

Pair 4

+ _ + _ + _ + _

T R T R T R T R

1 2 3 4 5 6 7 8

Strippers/Cables

www.idealindustries.com 1-800-435-0705 for Customer Service

E-18

UTP/STP/Coaxial Cable Strippers

n Adjustable blades can be set for any depth to help ensure

nick-free stripping and slitting of cables

45-162 45-163 45-165 45-168

45-164

Description Typical RG

Cables Cat. No.

Coaxial Cable Stripper, up to 1/8 in.

(3.2mm) O.D

RG-174,

RG-187

45-162

(Gray)

Coaxial Cable Stripper, 1/8 in. (3.2mm) to

7/32 in. (5.556mm) O.D.

Mini Coax

RG-58,CB

45-163

(Blue)

Coaxial Cable Stripper, 1/4 in. (6.4mm) to

9/16 in. (14.3mm) O.D. RG-11, RG-8 45-164

(Blue)

Cable Stripper, 3/16 in. (4.8mm) to 5/16 in.

(8mm) O.D.

RG-59/6, UTP

Cable

45-165

(Black)

UTP/STP Ringer Stripper, one blade UTP/STP 45-168

(Black)

Replacement Blade Set* for 45-162, 45-163,

45-165 __ L-9225

Replacement Blade Set* for 45-164 __ L-9226

*A set of blades consists of three straight blades and one round blade.

n Customizable cable

n In-wall rated 16 AWG speaker

wire

n Customizable cable

n CAT 5e solid 4-pair, CMR

rated, 24 AWG, 350 MHz cable

In-Wall Speaker Wire

CAT 5e Cable

Description Cat. No.

In-wall 2-conductor Speaker Wire - 50 ft. 85-770

In-wall 4-conductor Speaker Wire - 100 ft. 85-771

Description Cat. No.

CAT 5e Cable - 100 ft. 85-780

UTP Cable Stripper

n Strips Cat 3, 5, 5e & 6 cables

n One-step stripping

Description Cat. No.

UTP Cable Stripper 45-167

Cyclops® Data Cable Stripper

n Fast, easy removal of outer sheath

insulations (PVC and Plenum types,

UTP & STP)

Description Cat. No.

Data Cable Stripper for unshielded and shielded twisted pair

cable 45-514

Strippers

DataComm/Networks

1-800-435-0705 for Customer Service www.idealindustries.com E-19

• Properstriplengthsettingswillleave1/4”ofthecenter

conductor exposed and 1/4” of the braiding (shield) exposed.

• Afterstripping,makesurethetipofthecenterconductoris

straight and not bent. Straighten the conductor if necessary.

Fold back the outer layer of braiding (shield) against the cable

jacket. Keep the braid strands as straight and as close to the jacket

as possible.

• Note:ForQuadShieldcables(withfourlayers;outerbraid,

outer foil, inner braid, inner foil), first fold back the outer

braiding. Use the 45-074 to score and remove the exposed 1/4”

of outer foil. Remove outer foil and fold back inner braiding.

Description Cat. No. Replacement

Cassette

Coax Stripper - 2 Step

• FormostIDEALcompressionconnectors

and single crimp/twist-on BNC/TNC

• Strips0.250in.or6.35mm

45-526

45-524

(Blue)

Coax Stripper - 3 Step

• ForcrimpBNCandTNCconnectors

• Stripsbraid0.240in.or6mmand

45-520 45-522

(Black)

Coax Stripper - 3 Step

• FordualcrimpBNC/TNCandThinnetBNC

conn.

• For735ABelden® cable

• Stripsbraid0.328in.or8.2mmand

dielectric 0.109 in. or 2.7mm

45-521 45-523

(Brown)

Coax Strippers

n Specific adjustments

needed for each cable

size

Coax Cable Stripper

n ForRG-6,RG-6Quad

and RG-59

n No adjustment required

n Strips center conductor and

cable jacket

Description Cat. No.

Coax Cable Stripper 45-320

Coax Connector Kit w/four Push-On F-Connectors 33-320

33-320

Coax Stripmaster® Wire Strippers

n Provides precision stripping with easy spring

cushion grip

n Knife-type blades feature multiple hole

diameters sized for two step removal of outer

jacket insulation and center conductor

Multi-Strip Coax/UTP Cable Stripper

Cable/Satellite/CCTV Coax Stripper Proper Coax Strip Procedure

n Strips UTP, RG-59 and RG-6 coax cable

n Provides a 1/4 in. (minimum) x 1/4 in.

strip on coax

n Spare cartridge compartment

provided

n Push-on ring for easy

connector termination

n Designed for fast and easy 1/4” x 1/4” strip

lengths

n Blades auto-adjust to different diameter

coax cables

n Spinner ring for fast stripping

n StripsRG-6/6QuadandRG-59

coax cable

Description Cat. No.

Coax/UTP Cable Stripper 45-603

RG-6/59 Replacement Cartridge LB-2726

RG-7/11 Replacement Cartridge LB-2728

UTP Replacement Cartridge LB-2727

Description Cat. No.

Video Coax Stripper 45-321

Description Coax Cable

Type (RGU) Cat. No. Repl. Blade

Cat. No.

Coax Stripmaster® for RG-6 RG-6 45-262 LB-740

Coax Stripmaster® for RG-59 RG-59 45-265 LB-743

Coax Stripmaster® for RG-6 RG-6

Quad Shield 45-282 LA-3953

Coax Stripmaster® for RG-58 RG-58 45-264 —

Coax Stripmaster® for MediaTwist MediaTwist 45-274 —

NEW

1/4 in. x 1/4 in. standard strip.

1/4” 1/4”

RG-11 Coax Stripper

n For use with IDEAL RG-11

compression connectors

(89-211, 89-1211), provides

1/4 in. x 1/4 in. strip

Description Cat. No.

RG-11 Coax Stripper for Compression Connectors 45-111

Cutters/Scissors

www.idealindustries.com 1-800-435-0705 for Customer Service

E-20

n Cuts around cable jacket as well as

slits the length of jacket for

easy removal

n Use with single or multiple

conductor cable up to

1.75 in. O.D.

n Blade adjusts for jacket thicknesses up to .125 in.

n Spare blade in handle base

Round Cable Slitting and Ringing Tool

Description Cat. No.

Round Cable Slitting and Ringing Tool 45-144

Replacement Blades for 45-144 (2/pkg.) LB-1748

Data T®-Cutter

n Ergonomic design gives

added leverage

n Spring-action,

mechanical advantage

increases stripping

leverage and reduces operator fatigue

n Double plated for added rust protection

n Extra-deep serrations grip wire better

Electrician’s Scissors

Cable Splicing Kit

n Cuts round communication cable and

maintains cable geometry for

better cable performance

n Cuts multi-pair cable up

to .500 in. (12.7mm)

and coaxial cable up to

RG-9/U

n Suitable for soft cables (not ACSR)

n Steel reinforced center conductors can be

trimmed with bolt cutting holes

n Locking latch keeps tool closed in pouch

n Designed for use in telephone and

electrical service applications

n Cut up to 16 AWG solid and

12 AWG stranded wire

n Serrated surface on back blade

edge cleans wire

n Stripping notches strip 19 and 23 AWG wire

n Chrome over nickel plating

n Kit designed for use in telephone and

electrical service applications

n High carbon steel blade in

Splicing Knife remains sharp

and cuts easily through many

insulation types

n Kit includes Scissors, Splicing Knife and

Leather Holder

33-917 33-623

Also available in these kits:

Description Cat. No.

Electrician’s Scissors w/stripping notches 35-088

Description Cat. No.

Cable Splicing Kit (Scissors, Splicing Knife, Leather Holder) 35-093

Description Cat. No.

Data T®-Cutter 45-074

Description Cat. No.

Electrician’s Scissors with Stripping Notches 35-087

Lever™ Snips Electrician’s Scissors

with Stripping Notches

Splitters

DataComm/Networks

1-800-435-0705 for Customer Service www.idealindustries.com E-21

Surge Suppression Cable Splitters

Digital Surge Suppression Cable Splitters withstand a one-time surge up to 6KV on cable line

n Bandwidth:5MHz-1GHz

n Impedance:75ohm

n Over 130 dB of RFI Shielding

n Low 8 db Insertion Loss

n Nickel-plated housing

n High-performance impedance - balanced Printed Circuit Board

design

n Bandwidth:5MHz-1GHzImpedance:75Ohm;over120dB

of RFI shielding; Splits signals up to 8 outlets

Diplexer 5 MHz - 2.1 GHz

n Combine or split cable/antenna signals

with satellite signals

n Use two Diplexers per installation,

one to combine and one to split

n High quality PCB design

n Nickel-plated die-cast zinc housing

n Grounding hole for up to 6 AWG wire

Use terminators (85-038) on all

unused ports for optimal performance.

Description Cat. No.

2-Way Surge Suppression Splitter 85-135

4-Way Surge Suppression Splitter 85-137

n Printed Circuit Board Design

n Nickel-plated Housing

n Splits signals up to 4 outlets

n Solid zinc alloy, nickel plated and

chromate finished

n High Performance beryllium

copper contact

n Electrical performance rated 0 - 3 GHz

n Dual grounding holes can accept up to #6 wire

Grounding Block

Description Cat. No.

3 GHz Double Grounding Block 85-311

2.4 GHz Satellite and Digital

TV Splitters

n Designed for easy mounting over cable

n All ports are F female connectors, 75Ω

n Two grounding screws eliminate the need for grounding

block

n All ports power pass

85-332

85-333

85-334

Description Cat. No.

2-Way, 5MHz - 2.4GHz 85-332

3-Way, 5MHz - 2.4GHz 85-333

4-Way, 5MHz - 2.4GHz 85-334

Description Cat. No.

Diplexer, 2.1 GHz, SATV/TV Combiner Splitter - 2 Amp 85-323

1 GHz Splitters

85-133

Description Cat. No.

High Performance Cable Splitter, 5MHz-1GHz, 2-Way 85-132

High Performance Cable Splitter, 5MHz-1GHz, 3-Way 85-133

High Performance Cable Splitter, 5MHz-1GHz, 4-Way 85-134

Digital Cable Splitter, 8-Way 85-138

85-134

85-132

Kits

www.idealindustries.com 1-800-435-0705 for Customer Service

E-22

n This professional kit includes a mix of tools that are needed by anyone who does low

voltage installation or maintenance.

n KitIncludes:

35-427 Large Mouth Bag – 18 in.

30-603 OmniSeal™ Compression Tool

30-696 Ratchet Telemaster™

35-046 F-Connector Tool

35-087 Lever™-Snips Electrician’s

Scissors

35-091 Cable Splicing Knife

35-205 Torpedo Level

35-238 Mag-Tape™ Tape Measure

35-275 Jab Saw

35-407 110/66 Blade

35-430 Tongue & Groove Pliers –

10 in.

Pro Installer Kit - 33-945

35-473 Probe Pic and Spudger

35-485 Punchmaster™ II 110 Blade

only

35-497 66 Blade only

35-908 7-in-1 Twist-a-Nut™

Screwdriver/Nutdriver

35-4038 Long Nose Pliers – 8 in.

45-074 Data T®-Cutter

45-165 UTP/STP Stripper

45-526 Coax Stripper - 2-Step

62-160 Tone Generator

62-164 Amplifier Probe

n Kit allows user to cut, strip, terminate and test data cables.

n KitIncludes:

30-696 Ratchet Telemaster™

35-485 Punchmaster™ II w/110 Blade

35-473 Probe Pic and Spudger

45-165 UTP/STP Stripper

35-093 Electrician’s Scissors

35-497 66 Blade only

62-200 LinkMaster™ Tester

35-908 7-in-1 Twist-a-Nut™ Screwdriver

Master Series Network Service Kit - 33-706

33-864 PRO Amplifier Probe & Tone

Generator Kit

62-096 Smart6™ Modular Tester

45-719 Kinetic Super™ Wire Stripper/

Crimper

85-396 8-Position, RJ-45 Modular Plugs,

qty. 50

35-410 Large Mouth Bag – 13 in.

n This starter kit allows user to terminate jacks and modular plugs as well as coax

connectors.

n KitIncludes:

30-496 Telemaster™ Telephone Tool

30-633 Economy Compression Tool

45-321 Cable/Satellite/CCTV Coax Stripper

35-492 Punch Down Tool w/110 blade

45-074 Data T®-Cutter

Low Voltage Starter Kit - 33-920

35-497 66 Blade only

30-503 Ratchet Crimp Tool

45-168 UTP/STP Ringer Stripper,

one blade

35-535 Mechanic’s Bag

NEW

n This professional kit allows user to crimp or compress coax connectors. Multiple die

sets give the Crimpaster™ Crimp Tool a wide range of connectors it can terminate.

n KitIncludes:

30-793 OmniSeal™ Pro XL

Compression Tool

30-503 Ratchet Crimp Tool

45-526 2-Step Coax Stripper

45-520 3-Step Coax Stripper

45-523 45-521 Replacement Cassette

45-074 Data T®-Cutter

RF Coax Crimp & Compression Kit - 33-410

30-581 58/59, BNC/TNC Die Set

30-573 RG-59 Cambridge-type Die Set

30-576 RG-174, Mini-59 Die Set

92-650 RG-6RTQCompression

F-Connector, 50/jar

35-535 Mechanic’s Bag

NEW

Kits

DataComm/Networks

1-800-435-0705 for Customer Service www.idealindustries.com E-23

Data/Video Kit - 33-917

n Kit includes professional tools to terminate both coax and twisted pair cables. VDV

gives user the ability to test terminated cables.

n KitIncludes:

30-522 Crimpmaster™ Crimp Tool for

RJ-45 Modular Plugs

30-793 OmniSeal™ Pro XL

Compression Tool

33-856 VDV MultiMedia Cable Tester

35-046 Coax Connector Tool -

F & BNC

35-088 Electrician’s Scissors

w/Stripping Notch

35-407 110/66 Blade Combo

Punch Down Blade

35-410 Large Mouth Bag — 13 in.

35-473 Probe Pic and Spudger

35-485 Punchmaster™ II Punch Down

Tool w/110 Blade

35-908 Twist-a-Nut™ 7-in-1

Screwdriver

45-074 Data T®-Cutter

45-165 UTP Stripper

45-526 Coax Stripper w/Replaceable

Cartridge

62-164 Amplifier Probe

n This service kits includes both F and BNC connectors as well as the professional tools to cut,

strip and terminate coax cables. Designed for security and cable/satellite installation.

n KitIncludes:

30-793 OmniSeal™ Pro XL

Compression Tool

45-074 Data T®-Cutter

45-262 Coax Stripmaster® Wire Stripper

for RG-6

89-127 Compression F-Connector Port

Seals, qty. 5

89-047 BNC RG-6 Compression

Connectors, qty. 10

Service Compression Kit - 33-630

89-048 BNC RG-59 Compression

Connectors, qty. 10

92-650 RG-6RTQCompression

Connectors, 50/jar

92-660 RG-6 Plenum Compression

Connectors, qty. 10

LA-3953 Replacement Blade for 45-262

Economy Compression Kit - 33-620

n The 33-620 is a starter kit that includes the tools and connectors to cut, strip and terminate

coax cables.

n KitIncludes:

30-633 Economy Tool

45-074 Data T®-Cutter

45-526 Coax Stripper

92-610 RG-59RTQCompression

Connectors, qty. 10

92-650 RG-6RTQCompression

Connectors, qty. 30

n This basic kit includes tools to cut, strip and terminate coax cables.

n KitIncludes:

45-074 Data T®-Cutter

45-320 Coax Cable Stripper

30-633 Economy Compression Tool

Pouch w/belt clip

Compression Connector Installation

Kit - 33-623

n IDEAL for anyone who is installing security cameras, cable or satellite TV, or working

with general coax compression installations.

n KitIncludes:

30-793 OmniSeal™ Pro XL

Compression Tool

45-074 Data T®-Cutter

Coax Termination Hip Kit - 33-624

45-603 Coax/UTP Cable Stripper

36-240 Cabinet Tip Screwdriver, 1/8 in.

n This foam fitted kit includes the Crimpmaster™ Crimp Tool with an 8-position die set as well as

200 RJ-45 Modular Plugs. Kit allows user to cut, strip and terminate twisted pair cables.

n KitIncludes:

30-506 Crimpmaster™ Crimp Tool Frame

only

30-559 8-Position Die Set for RJ-45 Plugs

Crimpmaster™ 10Base-T RJ-45

Crimping Kit - 33-652

45-074 Data T®-Cutter

45-165 UTP/Coax Stripper

86-396 8-Position RJ-45 Plugs, qty. 200

Kits

PRO Network/Telco Installer Kit - 33-506

Telemaster™ Crimp Kit - 33-700

n This kit is the Telemaster™ tool along with 30 modular plugs.

n KitIncludes:

30-496 Telemaster Tool for RJ-11 (1, 2, 3 pair) and RJ-45 Plugs

85-346 RJ-45 8P8C, qty. 10

86-395 RJ-11 6P6C, qty. 10

85-344 RJ-11 6P4C, qty. 10

n This kit gives the user the ability to terminate modular plugs as well as data blocks or jacks.

n KitIncludes:

30-696 Ratchet Telemaster™

35-485 Punchmaster™ II 110 Blade only

35-473 Probe Pic and Spudger

45-165 UTP/STP Stripper

www.idealindustries.com 1-800-435-0705 for Customer Service

35-088 Electrician’s Scissors w/Stripper

Notches

35-497 66 Blade only

85-396 8-Position, RJ-45 Modular Plugs, qty. 50

35-535 Mechanic’s Bag

E-24

n Kit includes tools to install twisted pair cable on blocks and data jacks.

n KitIncludes:

35-088 Electrician’s Scissors w/

Stripping Notches

35-473 Probe Pic & Spudger

35-485 Punchmaster™ Punch Down

Tool w/110 Blade

Technician’s Service Kit - 33-505

35-497 66 Blade Only

35-908 7-in-1 Twist-a-Nut™

Screwdriver/Nutdriver

45-165 UTP/STP Stripper

62-205 Nylon case

n This TelCom Kit is designed for the user who will terminate RJ-11 and RJ-45 twisted

pair cables.

n KitIncludes:

30-496 Telemaster™ for RJ-11/RJ-45 Plugs

85-344 4-Position, RJ-11 Modular Plugs, qty. 15

85-345 6-Position, RJ-11 Modular Plugs, qty. 15

85-346 8-Position, RJ-45 Modular Plugs, qty. 15

RJ-45/11 Four, Six & Eight-Position

Combination TelCom Termination Kit - 33-704

RJ-45 Termination Kit - 33-750

n This kit is suited for the user who will cut and terminate RJ-45 Modular Plugs. The kit includes 50

modular plugs, enough to make 25 separate cables.

n KitIncludes:

30-496 Telemaster™ for RJ-11/RJ-45 Plugs

45-165 UTP/Coax Stripper

85-346 8-Position, RJ-45 Modular Plugs, qty. 50

NEW

OTDR

DataComm/Networks

1-800-435-0705 for Customer Service www.idealindustries.com E-25

33-960 Series - Micro OTDRs

Designed with installers in mind, 33-960 Series Micro OTDRs offer excellent performance and

ease of use in a truly handheld, lightweight and rugged package. Available as either an 850/

1300 nm (multimode) or 850/1300/1310/1550 nm (multimode and single mode) OTDR, they

are ideally suited for the installation and troubleshooting of LAN, campus and WAN ﬁber

networks. Both models combine high measurement precision with the user friendliness of one-

button operation resulting in accurate characterization of connectors and splices in addition to fast

and reliable fault location.

With the MB option, these OTDRs provide clear PASS/FAIL indications. Distance, loss and ORL for

each event is reported in a trace summary table making full certiﬁcation of the link possible. Each

OTDR is shipped in a kit containing everything you need to get started on the job, including a

ruggedized carrying case, PC software, rechargeable batteries and wall charger.

n Short Attenuation and Event Dead Zones — for accurate location and characterization of events

n Autotest Function — provides simple one-button operation

n Fast Data Acquisition — important for troubleshooting intermittent problems

n Certifying OTDR Option — for tier-2 certification

n Optional Macro Bend detection — accurately detects macro bends in singlemode fiber

Speciﬁcations

Testing 33-960-10 33-960-30

Wavelength [nm] 850,1300 850,1300,1310,1550

Dynamic Range [dB] 24/25 24/25/29/28

Attenuation dead zone [m] 11/11 11/11/11/12

Pulse width [ns] 10,30,100,275,1000,2500,10000

Event dead zone [m] 2.5 worst case

Launch Conditions (MM) ClassCPR1or2

Linearity [dB / dB] ± 0.03

Loss threshold [dB] 0.05

Loss resolution [dB] 0.01

Sampling resolution [m] 0.16to5

Sampling points Upto30000

Typical real time refresh

[1/sec ] 4

Distance uncertainty [m] ±(0.75+0.0025%xdistance+

samplingresolution)

Distance range [km] 0.1 to 40 MM:0.1to40SM:

0.65to160

Stable source output power

[dBm] -1.5 MM:-1.5SM-6.5

Laser Safety 21CFR1040.10andIEC60825-

1:1993+A2:2001/Class1M

Hardware All Models

Memory capacity 500 traces

Data connectivity USBAandUSBB

Size (HxWxD) [mm] 250x125x75(9.8x4.9x2.9in.)

Weight 1kg(2.2lbs.)

Temperature Operating:-18°Cto50°C,Storage:

-40°Cto70°C

Batteries 2xLi-Ion

Power supply (mains) 110–230VAC

Power supply (unit) 9-24VDC,12Watt

Operating time 8hours(perBellcore™

TR-NWT-001138)

Warranty 1year

Kits

33-960-10 MM OTDR Kit 33-960-30 Quad OTDR Kit

MMOTDRwith850/1300nm QuadOTDRwith

850/1300/1310/1550nm

Ruggedizedcarryingcase Ruggedizedcarryingcase

PC-Software PC-Software

CDwithmanualandQuick

ReferenceGuide

CDwithmanualandQuick

ReferenceGuide

Wallcharger Wallcharger

2Li-Ionrechargeablebatteries 2Li-Ionrechargeable

batteries

SCAdapter 1SCand1FCAdapter

33-960-10MB OTDRKitwithTier2

certicationoptionand

macrobenddetection

33-960-30MB

Ordering Information

Description Cat. No.

200xand400xvideoprobew/USBport 33-960-VP

AdapterforFCconnectors 33-961-10

AdapterforSCconnectors 33-961-20

AdapterforSTconnectors 33-961-30

AdapterforE2000connectors 33-961-40

AdapterforDIN47256connectors 33-961-50

AdapterforHMS-10/AGconnectors 33-961-60

CleaningKit 1912-00-1621

Rechargeablebattery 33-960-BP

FoldableUSBKeyboard 33-960-KB

FiberMASTER™ Fiber Optic Test Kit

Measure fiber optic power in milliwatts (mW) and decibel-milliwatts (dBm) to test and troubleshoot

activeLANs.Quicklymeasurecablinglosswiththeautomaticcalibrationfeaturethatstoresreference

power from any light source for quick dB loss calculations. Plus, the 1490nm wavelength

measurement mode is perfect for troubleshooting emerging Fiber-To-The-Home cabling systems.

n Fiber Optic Power Meter & Light Source — Four wavelength power meter for multimode

and single mode testing, and 850nm multimode LED light source.

n Calibration Function — Stores reference power level for quick dB loss measurements

eliminating the need to manually calculate loss.

n Save Time and Money — Power meter features 2.5mm universal and FC adapters, light

source includes ST®, SC and FC adapters to test the most common interfaces.

n Ready for FTTx — 1490nm measurement wavelength for use with nearly all single mode

Fiber-To-The-Home applications.

n Designed for the Field — Unique “docking” light source and easy three-button

operation make this the perfect fiber tester for use in the field.

FiberMASTER™ Kit Includes:

• 33-926Lightsource,850nmLEDwithST®, SC and FC adapters

• 33-927Powermeter,4wavelengthwithuniversal2.5mmandfixedFCadapter

• 2xFC-SC62.5ummultimodecables

• 1SCcalibrationcoupler

• Carryingcase

• English,Spanish,German,French,Portuguese,ItalianandChineseuser’smanual

Description Cat. No.

850NM Fiber light source 33-926

Power meter only 33-927

Power meter with 850NM fiber light source (33-926 & 33-927) 33-928

Four wavelength MM/SM light source only 33-929

Power meter with four wavelength MM/SM light source

(33-927 & 33-929) 33-931

Power Meter Specifications

Wavelength 850, 1300/1310, 1490, 1550nm

Detector InGaAs

Measurement Range -60 to +3dBm

Accuracy ±5%

Display Resolution .01

Connector Universal 2.5mm w/FC adapter

Power Supply AAA Alkaline Battery x 3

Operating Time 360 hours

Operating Temp -10 to +60°C

Storage Temp -25 to +70°C

Light Source Specifications

Wavelength 850, 1300, 1310, 1550nm laser diode

Output Power -6 to -7 dBm Typical

Stability .05dB after 15min, 0.1dB over 8 hrs

Connector 2.5mm w/ST®, SC, FC adapters

Power Supply AAA Alkaline Battery x 3

Operating Time 40 hours

Operating Temp -10 to +60°C

Storage Temp -25 to +70°C

E-26 www.idealindustries.com 1-800-435-0705 for Customer Service

33-929

Fiber Optic Tester

Fiber Optic Tools

DataComm/Networks

E-27

Fiber Inspection Microscope

n 100X magnification for

viewing multimode

connectors

n Includes 2.5mm

connector “Universal

Adapter” for FC, ST®

and SC style connectors

n Oblique illumination provides excellent view of ferrule

cleanliness and core condition

n Rugged, rubberized metal housing, precision glass optics

and a built-in laser safety filter

n White LED illumination delivers 100,000 hours bulb life

n Optional 200X Conversion Eyepiece threads on for viewing

finish/polish of singlemode connectors

Visual Fault Finder

Laser light source used to locate breaks, faulty

splices and crimps

n 2.5mm Universal Adapter for all ST®, SC and

FC connectors

n Useful over a distance of 5km (3 miles)

n Two AA batteries provide over 30 hours

of continuous use

n Slim, pocket-sized tool in rugged solid

aluminum body

n Nylon carrying case with belt loop included

MiniLite-Strip™

Optical Fiber Stripper

n Small strip notch engineered

and precision-ground

to strip 900 micron or

250 micron buffer coatings

from 125 micron fiber

n Larger round strip notch machined to remove the 3mm outer

jacket

n Strip notches pre-set and locked, no field adjustment necessary

Description Cat. No.

MiniLite-Strip™ Optical Fiber Stripper 45-352

Description Cat. No.

Fiber Inspection Microscope w/carrying case 45-332

1.25mm Connector Adapter 45-334

MTRJ-Style Connector Adapter 45-335

200X Conversion Eyepiece for Singlemode Connectors 45-336

Note: ST® is a registered trademark of AT&T.

Lite-Strip™

Optical Fiber Stripper

V-notch blades strip a wide range

of outer cable jacket. Precision-

ground, replaceable knife-

type blades strip tight

buffer tube insulations

(900µm). Also strips

mechanically strippable

coatings from 250 microns

to 900 microns.

n Replaceable precision-ground blades cleanly strip buffer

coatings

n New funneled hole makes cable insertion easier

n Improved spring mounting returns handles to original position

after every application

n One-step, 900 micron stripping hole provides broader

stripping range

n Extra durable to withstand normal drops without requiring

tool realignment

n New gauge color makes fiber and hole identification easier

n Improved comfort-grip handles for an easier, more comfortable

stripping process

Stripmaster® Ribbon Fiber

Jacket Strippers

n Removes jacket from Ribbon Fiber without

damage to the Kevlar® strength member of

the Ribbon Fiber

Note:Frameandblade-setsoldseparately.

Description Fiber Sizes Cat. No.

Lite-Strip™ Optical Fiber Stripper

(900µm/250µm) 125µm, 140µm 45-350

Description Cat. No.

Stripmaster® Wire Stripper Frame only L-5620

Blade-set for use with Corning Plenum and Riser Ribbon

Fiber Cable LB-1152

Blade-set for use with Corning “Fanout” Ribbon Cable LB-1153

Note: Kevlar® is a registered trademark of DuPont.

Description Cat. No.

Visual Fault Finder VFF5

Note: ST® is a registered trademark of AT&T.

1-800-435-0705 for Customer Service www.idealindustries.com

Fiber Optic Tools

www.idealindustries.com 1-800-435-0705 for Customer Service

E-28

n Three professional quality blade styles

to choose from to meet your specific

needs – Ruby, Sapphire, Carbide

n Color-coded handles for quick,

easy identification

Red – Ruby

Blue – Sapphire

Black – Carbide

n 30° single bevel – DualScribe™

reversible blade doubles tool life

n Soft non-slip grip provides precise

control during scribing

n Clear safety cap protects the blades from

damage when not in use

DualScribe™ Double-Ended

Fiber Optic Scribes

Description Handle Color Cat. No.

Ruby Blade Fiber Optic Scribe Red 45-357

Sapphire Blade Fiber Optic Scribe Blue 45-358

Carbide Blade Fiber Optic Scribe Black 45-359

Serrated Cutter (For Kevlar®)

with Breaker Notch

n Two-Step process significantly

increases the life of this rugged tool

n Superior quality high-carbon stainless steel with molybdenum

and vanadium provides the super-hard edges needed to stand

up to the demands of today’s market

n Textured cushioned-grip handles

n Value-priced for contractors, cable assembly houses, fiber

installers/technicians and tool kits

Description Cat. No.

Serrated Cutter w/Breaker Notch (Patent pending) 45-344

Note: Kevlar® is a registered trademark of DuPont.

Polishing Films for Fiber

Optic Connectors

n For optimum connector

polishing results, we

recommend a three-step

procedure using 0.5µm,

3µm and 12µm 3 in. x 6 in.

aluminum oxide polishing

films

n Lot-to-lot consistency in our

films means repeatable connector

finishes on ceramic, stainless steel,

plastic and composite ferrules

n A single sheet will typically yield 10 to 20 connectors when using

the recommended 3-step procedure

Plastic Polishing

Fixture

n Universal fitting accepts all ST®, SC

and FC connectors with 2.5mm

ferrules

n Economically priced

n Grooved face for polishing efficiency

n Precision tool used by manufacturers, contractors and

in tool kits

Stainless Steel Polishing Fixture for

Optical Fiber ST® and

SC Type Connectors

Produces polished fiber optic ST® and

SC type connectors for optimum

connector performance.

n Precision-machined, stainless-steel

disk provides accurate polishing angle

for desired end face finish

n Stainless-steel hardness maintains long life and resists

uneven wear

n Stepped surface reduces drag and friction for easier polishing

45-339

45-338 45-337

Split-Tip Fiber Optic Swabs

n Split-tip design cleans fiber easier

and more efficiently than other

methods

n Tube/handle is pre-loaded

with 99% isopropyl alcohol

n A single swab can be used

for many cleanings or until the

alcohol is gone

Description Qty. Cat. No.

Split-Tip Fiber Optic Swabs Bag of 20 45-360

Description Color Qty. Cat. No.

0.5µm, 3” x 5”, Aluminum Oxide Ivory 20 films/sleeve 45-337

3.0µm, 3” x 5”, Aluminum Oxide Lt. Yellow 20 films/sleeve 45-338

12µm, 3” x 5”, Aluminum Oxide Lt. Red 20 films/sleeve 45-339

Description Cat. No.

Plastic Polishing Fixture 45-342

Note: ST® is a registered trademark of AT&T.

Description Cat. No.

Polishing Fixture for Optical Fiber ST/ST® Type Connectors 45-341

Note: ST® is a registered trademark of AT&T.

Index

Alphabetical Index

1-800-435-0705 for Customer Service www.idealindustries.com A-1

10 Gigabit Alien

Crosstalk............E-4

11-in-1 Screwdriver/

Nutdriver . . . . . . . . . B-36

2-Phase Sequence

Tester ............D-19

21-in-1 Ratch-a-Nut™

Screwdriver . . . . . . . B-30

3-in-1 Twist-a-Nut™ Tap

Tool .............. B-31

3-Phase/Motor Rotation

Tester ............D-19

310 Series

Multimeters . . . . . . . . D-8

340 Series

Multimters .........D-7

4-in-1 Test Tools . . . . . . D-4

480 Series

Multimeters . . . . . . . . D-6

490 Series

Multimeters . . . . . . . . D-6

6-in-1 Screwdriver/

Nutdriver . . . . . . . . . B-36

6-in-1 Twist-a-Nut™

Tapping Tool . . . . . . B-31

7-in-1 Stripper . . . . . . . B-19

7-in-1 Twist-a-Nut™

Screwdriver . . . . . . . B-31

9-in-1 Ratch-a-Nut™

Screwdriver . . . . . . . B-31

Accessories, Stripmaster®

Wire Strippers ..C-3, C-6

Accessories, Terminal

Strip.............. A-18

Adapters, F-Type ......E-15

Adjustable

Wrenches ......... B-40

Alien Crosstalk .........E-4

Alligator Clips........ B-92

Amplifier Probe . . . . . . . .E-8

Analog

Multimeters . . . . . . . . D-8

Analyzers............D-12

Anchors............. B-70

Anti-Oxidant,

Noalox® . . . . . A-20, B-11

Apron............... B-46

Aqua-Gel® CW Cable

Pulling Lubricant....B-8,

B-10

Aqua-Gel® II Cable Pulling

Lubricant . . . . . B-8, B-10

Aqua-Gel® IIP Cable Pulling

Lubricant . . . . . B-8, B-10

Arbor Extension ...... B-57

Arbors . . . . . . . . . . . . . . B-57

ASCR Cable

Cutter ............ B-38

Auger Bits........... B-61

Auto-Lock™ Tape

Measure .......... B-41

Aviation Tin

Snips ........B-39, B-63

Awl................. B-36

B-CAP® Wire

Connectors........A-22

B-TAP® Insulation-Piercing

Tap Connectors....A-28

B-Twist™ Wire

Connectors........A-22

Ball Valve Lockout

Devices .......... B-103

Band Saw Blades..... B-59

Barricade Tapes..... B-107

Barrier Strips.........A-18

Battery Clamps....... B-92

Battery Clips ......... B-91

Belts................ B-45

Bender Handles ...... B-12

BenderBoot™ ........ B-13

Benders ............. B-12

Bi-Metal Hole

Saws . . . . . . . . . . . . . B-56

Big Kahuna Cable

Cutter ............ B-38

Bit Kits .............. B-60

Blades, Hacksaw B-13, B-63

Blades, Reciprocating .B-58,

B-59

Blocks, Terminals..... A-29

thru A-35

Blued Steel™ Fish

Tapes .........B-3, B-4

BNC Connectors . . . . . .E-15

Breaker Lockout

System . . . . . . . . . . . B-99

Breaker Lockouts..... B-99

Bucket Bag Tool

Carrier............ B-46

BULZ-EYE™ Self-Feed

Wood Boring Bits . . B-60

Bushings ............ B-71

Cable ................E-18

Cable Connectors,

NM . . . . . . . . . . . . . . A-24

Cable Cutters ........B-24,

B-28, B-38, B-39

Cable Lockout . . . . . . B-103

Cable Pulling

Lubricants ........ B-10

Cable Ripper......... B-21

Cable Splicing Kit .....E-20

Cable Splitters . . . . . . . .E-21

Cable Staples ........ B-72

Cable Strippers. . E-18, E-19

Cable Tie Bag........ B-64

Cable Ties. . . B-64 thru B-68

Cable-Tie Installation

Tool .............. B-64

Cables . . . . . . . . . . . . . . D-20

Can Light Hole

Saw .............. B-57

Canvas Tool Bag . . . . . B-45

Carriers, Foam . . . . . . . B-15

Carrying Cases.......D-21

CAT 5e Cable .........E-18

Cat 6 Modular

Plugs ..............E-17

CCTV/Security

Testers . . . . . . . . . . . . .E-6

Center Punch ........ B-41

Certification

Testers . . . . . . . . . . . . .E-2

Channel Clamps......A-36

Chisels.............. B-41

Circuit Breaker

Finders . . . . . . . . . . . D-17

Circuit Breaker

Lockout....B-100, B-101

Circuit Tracers . . . . . . . . D-9

Clamp Adapters ......D-20

Clamp Leads.........D-20

Clamp Meter Selection

Guide .............D-2

Clamp Meters.........D-3

Clamp-Pro™ Clamp

Meters.............D-4

Clamps . . . . . . . . . . . . . B-70

Clamps, Battery . . . . . . B-92

Clamps, Channel . . . . . A-36

ClearGlide™ Wire Pulling

Lubricant . . . . . . B-8, B-9

Clips, Alligator . . . . . . . B-92

Clips, Battery ........ B-91

Coax Strip and Crimp

Tool ......... B-20, E-14

Coax Stripmaster® Wire

Strippers . . . . . . . . . .E-19

Coax Strippers. . . E-18, E-19

Coaxial Cable

Strippers ...........E-18

Coaxial

Connectors.........E-14

Cold Chisel .......... B-41

Combo Tool . . . . . . . . . B-20

Commutator

Maintenance. .B-93, B-94

Compression

Connectors. . . E-10, E-11

Port Seals ..........E-11

Tools ...............E-9

Conduit Benders . . . . . B-12

Conduit Markers . . . . B-108

Conduit Measuring

Tape . . . . . . . . . . . . . B-15

Conduit Wiring

Kit . . . . . . . . . . . . . . . B-32

Connector Installation

Tools ..............E-14

Item Page Item Page Item Page Item Page

Index

1-800-435-0705 for Customer Service www.idealindustries.com F-1

www.idealindustries.com 1-800-435-0705 for Customer Servicewww.idealindustries.com 1-800-435-0705 for Customer Service

F-2

Index

Connectors

BNC...............E-15

Coaxial . . . . . . . . . . . .E-14

Compression. . E-10, E-11

Crimp ............A-19

F- .................E-14

Grounding ....A-1, A-20

IDC . . . . . . . . . . . . . . .E-17

Continuity Tester . . . . . D-18

Cord Switches . . . . . . . B-88

Covers

Terminal Blocks. ...A-36

Terminal Strip . . . . . A-18

Crimp Connectors . . .. A-19

Crimp Connectors,

Spice Cap......... A-24

Crimp

Terminals . . . . A-12, A-13

Crimp Tool, 4-Way....A-24

Crimp Tools . . . . . . . . . B-25,

B-39, E-15

Crimpmaster™ Crimp

Tools ..............E-13

Cushioned-Grip

Screwdrivers . . . . . . B-33

Custom Stripmaster® Lite

Wire Strippers . . C-5, C-6

Custom Stripmaster® Wire

Strippers .......C-4, C-6

Cutters, Cable. . . B-24, B-28

Cutters, Wire......... B-20

Cyclops® Data Cable

Stripper............E-18

D-Sub/Double-D Service

Tool ...............E-15

Data T®-Cutter........E-20

Data T®-Cutter Wire

Cutters . . . . . . . . . . . B-20

DataComm

Kits . . . . . .E-22 thru E-24

Strippers ...........E-18

Testers. . ....E-5 thru E-8

Deburring Tool....... B-32

Detectable Underground

Tapes ........... B-107

Diagonal-Cutting

Pliers ........B-23, B-29

Die Sets..............E-13

Digital Light

Meter ............D-19

Digital TV

Splitters............E-21

Diplexer ..............E-21

Disconnects . . . . A-14, A-15

Divider Pouch™ Small

Parts Bag . . . . . . . . . B-46

Drill Bits............. B-54

DualScribe™ Double-Ended

Fiber Optic Scribes ..E-28

Duct Seal............ B-11

E-Z Check® Circuit

Tester ............D-18

Electric Plug

Lockout ......... B-102

Electrical Testers . . . . . D-18

Electrician’s

Scissors............E-20

Electrician’s Screwdrivers,

Twist-a-Nut™ Pro . . . A-7

Engraving Tools ...... B-40

Ergo Tool

Pouches . . . . . . . . . . B-45

Ergonomic

Hacksaw.....B-13, B-63

Ethernet Certifier .......E-4

F-Connectors .........E-14

F-Type Adapters . . . . . .E-15

Fiber Inspection

Microscope . . . . . . . .E-27

Fiber Optic Connector

Polishing Films .....E-28

Fiber Optic Scribes . . . .E-28

Fiber Optics . . . . . . . . . .E-27

Fiber Stripper .........E-27

FiberMASTER™ Fiber

Optic Test Kit .......E-26

FIBERTEK® FDX ........E-2

Field Application

Kits . . . . . . . . . . . . . . . B-6

Fish Tape Leaders ..... B-6

Fish Tape Swivel Ball . . B-6

Fish Tapes.... B-2 thru B-5

Blued Steel™ . . . B-3, B-4

Gold-Fish®.....B-3, B-5

Rapid-Pak® . . . . . . . . B-3

S-Class®.......B-3, B-5

Stainless Steel .. B-3, B-4

Thumb Winder™ . . . . B-3

Tuff-Grip™ Pro...... B-2

Volt-Guard™....B-3, B-5

Zoom™ . . . . . . . . B-3, B-5

Fishing Poles,

Tuff-Rod™ ......... B-7

Flash Protection

Labels ........... B-106

Flexible Drill Bits . . . . . B-62

Flexible Tubing....... B-70

Foam Carriers........ B-15

Folding Saw . . . . . . . . . B-63

Four-Way Crimp

Tool .........A-24, B-39

Four-Way Indent Crimp

Tool ...............E-15

Fuse Pullers . . . . . . . . . B-51

Fuser Puller &

Test Light ......... B-51

Gate Valve

Lockouts......... B-103

Gold-Fish® Fish

Tapes .........B-3, B-5

Greenie® Grounding

Connectors......... A-3

Grin-n-Strip™ End

Stripper........... B-21

Grommets ........... B-71

Ground Resistance

Meter ............D-15

Grounding

Accessories . . . . . . . A-11

Grounding Block . . . . . .E-21

Grounding

Connectors. . . A-11, A-20

Grounding Connectors,

Greenie®........... A-3

Group Lock Box...... B-96

Hacksaw

Blades .......B-13, B-63

Hacksaw,

Ergonomic ........ B-13

Hacksaw,

Heavy-Duty . . . . . . . B-13

Hacksaws . . . . . . . . . . . B-63

Hammer............. B-40

Hand Tool Kits ....... B-42

Hand Tools,

Insulated.....B-50, B-51

Handles, Benders..... B-12

Hasps.............. B-105

Heat Guns........... B-78

Heat Shrinkable

Tubing..... B-74 — B-77

HeatSeeker™ Thermal

Imagers...........D-10

Heavy-Duty Crimp

Tool .............. B-39

Heavy-Duty

Hacksaw.....B-13, B-63

Hex-Key Sets ........ B-41

Hickeys . . . . . . . . . . . . . B-13

High-Speed Wire Connector

Chuck ............. A-7

High-Temperature Wire

Connectors......... A-2

Hip Holster Tool

Pouch ............ B-45

Hole Cutters ......... B-52

Hole Saw Arbors . . . . . B-57

Hole Saw Kits ........ B-57

Hole Saws ......B-52, B-53,

B-55, B-56

IDC Connectors .......E-17

IDEAL Gripper™ Slug

Remover .......... B-19

IDEAL Wipes™ ....... B-40

Identification

Tags.............. B-68

IENet™ Pro Cable

Tester .............D-7

Item Page Item Page Item Page Item Page

Index

Alphabetical Index

1-800-435-0705 for Customer Service www.idealindustries.com F-3

In-Sure™ Push-in Wire

Connectors........A-10

Indicator

Lights .......B-90, B-91

Infrared

Thermometer ......D-19

Installation Tool,

Cable-Tie . . . . . . . . . B-64

Installer Bits . . . . . . . . . B-62

Insulated

Hand Tool Kits..... B-49

Tools .... B-48 thru B-51

Knife . . . . . . . . . . . . . B-50

Nutdrivers......... B-50

Screwdrivers . . . . . . B-50

Insulation Displacement

Connectors.........E-17

Insulation Tester . . . . . D-15

Insulators, Splice

Cap . . . . . . . . . . . . . . A-24

Insulators,

Wrap-Cap® . . . . . . . A-29

IRONMAN™ Bi-Metal Hole

Saws . . . . . . . . . . . . . B-56

Jab Saw............. B-63

Journeyman Electrician’s

Tote™ ............ B-47

Jumpers, Terminal

Block .............A-36

Jumpers, Terminal

Strip.............. A-18

Kinetic Super™ Wire

Stripper/Crimper ....E-17

Kinetic™ Reflex T®-Stripper

Wire Strippers . . . . . B-17

Kinetic™ Super Wire

Strippers .......... B-17

Kits

DataComm. . . E-22, E-23,

E-24

Hand Tool......... B-42

Insulation . . . . . . . . . B-49

Lockout/Tagout.... B-95

Knife, Insulated . . . . . . B-50

Knives . . . . . . . . . . . . . . B-41

Labels, Lock ........ B-104

LanEXPLORER™

PRO ................E-5

LanTEK® II Cable

Certification Testers ..E-2

LaserEdge™ Hand

Tool Kits . . . . . . . . . . B-42

LaserEdge™ Hand

Tools .... B-22 thru B-25

Leaders, Fish Tapes.... B-6

Leads ...............D-20

Level . . . . . . . . . . . . . . . B-41

Lever™-Snips Electrician’s

Scissors............E-20

Lights, Indicators .B-90, B-91

Lil’ Ripper Stripper™ . . B-18

Line Packages . . . . . . . B-15

LinkMaster™ Tester.....E-8

Lite-Strip™ Optical Fiber

Stripper............E-27

Load Centers ........ B-80

Lock and Hasp...... B-108

Lock Box ............ B-96

Lock Labels . . . . . . . . B-104

Lock Stations ........ B-98

Locking Cable . . . . . . B-108

Lockout Signs....... B-106

Lockout Tags ....... B-105

Lockout/Tagout . . B-95 thru

B-103

Lockout/Tagout

Kits . . . . . B-95 thru B-98

Lockout/Tagout Training

Program . . . . . . . . . . B-98

Long-Arm Cable

Cutters . . . . . . . . . . . B-38

Long-Nose

Pliers ........ B-24, B-28

Lubricants, Cable

Pulling............ B-10

Lubricants, Wire

Pulling.....B-8 thru B-10

Luminaire Disconnect,

PowerPlug® . . . . A-8, A-9

Magnetic Strap . . . . . . D-20

Magnetic-Tip

Measuring Tape . . . B-41

Marking Pens. . B-80, B-104

Master Electrician’s

Tote™ ............ B-47

Measuring Tapes..... B-41

Mechanic’s Tool

Bag . . . . . . . . . . . . . . B-47

Mechanical

Indentor . . . . . . . . . . B-39

Microscope...........E-27

Mini Arc Fault Tester . D-13

Mini Cushion Grip

Screwdriver Set .... B-35

Mini Hacksaw........ B-63

MiniLite-Strip™ Optical

Fiber Stripper.......E-27

Mini™ Utility Bit

Augers . . . . . . . . . . . B-61

Modular Plug Tool Kit..E-16

Modular Plugs . . . . . . . .E-17

Mounting Bases...... B-69

Mounting Channels... A-36

Mounting Heat Ties... B-68

Mounting Pads....... B-68

Mudbug® Utility Wire

Connectors......... A-6

MULTETAPE®........ B-14

Multi-Crimp Strip

Tool .............. B-20

Multi-Crimp

Tools ........B-24, B-28

Multi-Pole Breaker

Lockout........... B-99

Multi-Strip Coax/UTP Cable

Stripper............E-19

Multi-Wire Pulling

Leaders............ B-6

Multimeter Selection

Guide .............D-5

MultiMeters . . . . . . . . . . D-6

310 Series..........D-8

340 Series..........D-7

480 Series..........D-6

490 Series..........D-6

Nailbiter™ Premium Ship

Auger Bits ........ B-61

NM Cable

Connectors........A-24

NM Cable T®-Stripper Wire

Strippers .......... B-18

Noalox®

Anti-Oxidant. . A-20, B-11

Non-Contact Voltage

Tester ............D-18

Non-Detectable

Underground

Tapes ........... B-107

Nutdriver Sets . . B-36, B-37

Nutdrivers ........... B-36

Insulated.......... B-50

Nutmaster® . . . A-7, B-37

Nutmaster®

Nutdrivers.....A-7, B-37

OmniSeal™ Pro

Compression Tools ...E-9

OTDR ................E-25

Padlocks ........... B-104

Pads, Mounting . . . . . . B-69

Pens,

Marking . . . . B-80, B-104

Phillips Screwdrivers .. B-34

Pilot Drills . . . . . . . . . . . B-57

Plastic Anchors . . . . . . B-70

Plastic Polishing

Fixture .............E-28

Plenum Cable

Ties . . . . . . . . . . . . . . B-65

Pliers . . . . . . . . . . . . . . . B-24

Plug Lockouts....... B-102

Plugs, Modular........E-17

Pocket Knives........ B-41

Pocket Meter .........D-8

PocketPal™ Tool

Holster . . . . . . . . . . . . . B-46

Polishing Films ........E-28

Item Page Item Page Item Page Item Page

Index

L M

www.idealindustries.com 1-800-435-0705 for Customer Servicewww.idealindustries.com 1-800-435-0705 for Customer Service

F-4

Polishing Fixtures......E-28

Port Seals . . . . . . . . . . . .E-11

Power Analyzer . . . . . . D-14

Power Quality

Analyzer . . . . . . . . . . D-14

PowerBlade™

Cable Cutter....... B-38

PowerPlug® Luminaire

Disconnect .....A-8, A-9

Powr-Fish®

Pull-Line .......... B-14

Powr-Tie™ Cable

Ties . . . . . . . . . B-66, B-67

Pre-Insulated Crimp

Connectors........A-19

PRO Amplifier Probe & Tone

Generator Kit ........E-8

Pro-Pull™ Rope . . . . . . B-14

Pro-Series® Shackless Lock

and Hasp . . . . . . . . B-108

ProVision™ II

Software ..........D-20

Pull-Chain Switches . . B-88

Pull-Line ............ B-14

Pulling Leaders,

Multi-Wire ......... B-6

Punch Down Tools . . . .E-16

Push-Button Switches.B-87

Python™ Locking

Cable............ B-108

Quick Change Step

Bit . . . . . . . . . . . . . . . B-54

Quick Connects, Terminal

Strip.............. A-18

Quick-Rotating

Screwdrivers . . . . . . B-34

Rapid-Pak® Fish

Tapes ............. B-3

Ratch Wrench . . . . . . . . A-7

Ratch-a-Nut™

Screwdriver . . . . . . . . A-7

Ratchet Crimp Tool ... B-39

Ratchet Telemaster™...E-16

Ratcheting Cable

Cutter ............ B-38

Receptacle Testers . . . D-18

Recessed Light Kit.... B-37

Reciprocating

Blades .......B-58, B-59

Reflex™ Premium

T®-Stripper Wire

Strippers .......... B-17

Reflex™ Super

T®-Stripper Wire

Strippers .....B-17, B-18

Replacement

Parts . . . . . . . . . . . . . D-22

RESI-MASTER™ Heavy-Duty

Ship Augers ....... B-61

Resurfacers.....B-93, B-94

RG-11 Coax Stripper ...E-19

Ringer™ Shielded Cable

Stripper........... B-19

Rocker Switches. B-85, B-86

Rope................ B-14

Rotary Switches ...... B-89

Round Cable Slitting and

Ringing Tool. . B-21, E-20

S-Class® Fish

Tapes .........B-3, B-5

Safe-T-Grip® Fuse

Pullers ............ B-51

Safety Lockout

Hasps ........... B-105

Safety Signs . . . . . . . . B-106

Satellite Splitters . . . . . .E-21

Saws . . . . . . . . . . . . . . . B-63

Scissors ..............E-20

Screw Mounting

Bases ............ B-69

Screw-Holding

Screwdrivers . . . . . . B-35

Screwdriver Sets. B-33, B-35

Screwdrivers......... B-33

Screwdrivers,

Insulated.......... B-50

Screwdrivers, Twist-a-Nut™

Pro............... B-32

Scribes...............E-28

SecuriTEST™ CCTV/Security

Tester ..............E-6

SecuriTEST™ PRO CCTV/

Security Tester.......E-6

Selection Guide,

Clamp Meters . . . . . . D-2

Multimeter .........D-5

Serrated Cutter........E-28

Set-Screw Holder.....A-20

Set-Screw Wire

Connectors........A-20

Shims............... B-71

Shoulder Straps ...... B-45

Side-Cutting

Pliers ........B-23, B-29

SIGNALTEK™ Gigabit

Ethernet Certifier.....E-4

SIGNALTEK™-FO

Multimedia Ethernet

Certifier.............E-4

Signs . . . . . . . . . . . . . . B-106

Single-Pole Breaker

Lockout........... B-99

Sir Nickless™ Cable

Cutter .......B-21, B-39

Slide Switches . . . . . . . B-89

Slim Electronics

Screwdrivers . . . . . . B-35

Slotted Screwdrivers . B-34

Slug Remover........ B-19

Software,

ProVision™ II . . . . . . D-20

Sound Straps ........ B-73

Spacer Shims ........ B-71

Spade Bits........... B-62

Speaker Wire .........E-18

Specialty Testers . . . . . D-19

Spin-Twist™ Wire Connector

Socket............. A-7

Splice Cap Crimp

Connectors........A-24

Splice Cap Insulators . A-24

Splice Kits ........... B-74

SpliceLine™ In-Line Wire

Connectors......... A-9

Splices ..............A-16

Split-Jaw™ Tester ....D-17

Splitters ..............E-21

Square-Head

Screwdrivers . . . . . . B-34

Stainless Steel Fish

Tapes .........B-3, B-4

Staples.............. B-73

Stations, Lock........ B-98

Step Bits ............ B-54

Step Drill Bits ........ B-54

Strain Relief

Boots..............E-17

Strap, Magnetic ......D-20

Streetlight

Kits . . . . A-25, A-26, A-27

Stripmaster® Lite Wire

Strippers .......C-2, C-3

Stripmaster® Ribbon Fiber

Jacket Stripper .....E-27

Stripmaster® Wire Stripper

Accessories . . . . C-3, C-6

Stripmaster® Wire Stripper

Mil Specs .......... C-7

Stripmaster® Wire

Strippers ..B-21, C-2, C-3

Strippers,

DataComm.........

E-18

Wire..... B-16 thru B-19

Stubby Screwdriver

Sets .............. B-35

Super T®-Stripper Wire

Strippers .......... B-18

SureTest™ Circuit

Analyzers . . . . . . . . . D-12

Surge Supression

Cable Splitters ......E-21

Switches ...B-81 thru B-92

Swivel Ball, Fish Tape .. B-6

T®-Cutter Wire

Cutters . . . . . . . . . . . B-20

T®-Stripper Wire

Strippers .......... B-18

Tags, Identification ... B-68

Tap Connectors . . . . . . A-28

Tapes .............. B-107

Tapes, Fish . . . B-2 thru B-5

Item Page Item Page Item Page Item Page

Index

Alphabetical Index

1-800-435-0705 for Customer Service www.idealindustries.com F-5

Index

Telemaster™ Telephone

Tools ..............E-16

Telephone Tools.......E-16

Tenite Grips . . . . . . . . . B-29

Terminal Block

Jumpers . . . . . . . . . . A-36

Terminal

Blocks ........A-29 thru

A-35

Terminal Strip

Accessories . . . . . . . A-18

Covers............ A-18

Jumpers . . . . . . . . . . A-18

Quick Connects....A-18

Terminal Strips .......A-17

Terminals,

Crimp .......A-12, A-13

Test Tools . . . . . . . . . . . . D-4

Test-Glo™ Circuit

Tester ............D-18

Test-Pro®

Multimeters . . . . . . . . D-7

Test-Tone-Trace

Kit . . . . . . . . . . . . . . . . D-8

Testers,

DataComm . E-5 thru E-8

Electrical..........D-18

Insulation . . . . . . . . . D-15

Specialty ..........D-19

Thermal Imagers . . . . . D-10

Thermo-Shrink® Heat

Shrink Kit ......... B-77

Thermocouples.......D021

Thermometer ........D-19

Thumb Winder™ Fish

Tapes ............. B-3

TightSight™ Clamp

Meters.............D-3

Tin Snips .......B-39, B-63

TKO™ Carbide-Tipped Hole

Cutters . . . . . . B-52, B-53

Toggle Switches......B-81,

B-82, B-83, B-84

Tone Generator . . . . . . . .E-8

Tongue & Groove

Pliers ........B-24, B-28

Tool Bags . . . . . . B-45, B-47

Tool

Carriers. . B-44 thru B-47

Pouches . . . . . B-44, B-45

Torpedo Level........ B-41

Totes . . . . . . . . . . . . . . . B-47

TRACETone™ Tone

Generator & Amplifier

Probe...............E-8

Training Program,

Lockout/Tagout.... B-98

Tri-Bore™ Hole Saws.. B-55

Tubing, Flexible . . . . . . B-70

Tuff-Grip™ Pro

Fish Tapes ......... B-2

Tuff-Rod™ Fishing

Poles .............. B-7

Tuff-Tote™

Tool Carriers . . . . . . B-44

Tool Pouches ...... B-44

TV Splitters ...........E-21

Twin Lead Voltage

Tester ............D-18

Twist-a-Nut™

Conduit Wiring Kit .B-32

Deburring Tool .... B-32

Screwdrivers . . . . . . . A-7,

B-30 thru B-32

Twist-a-Nut™ Pro

Electrician’s

Screwdrivers . . A-7, B-32

Twister® Al/Cu Wire

Connectors......... A-6

Twister® Pro Wire®

Connectors......... A-4

Twister® Wire

Connectors......... A-4

Underground Feeder Cable

Stripper........... B-21

Underground Tapes. . B-107

UnderGround™ Wire

Connectors......... A-5

Universal Breaker

Lockout.......... B-100

USB Cables..........D-20

Utility Knife .......... B-41

UTP Cable

Stripper . . . . . . . . . . .E-18

UTP/STP/Coaxial Cable

Strippers ...........E-18

V-Notch Stripper ..... B-19

Valu-Line™ Pull-Line.. B-14

VDV Multimedia Cable

Tester ..............E-8

VDV Pro Cable

Tester .............D-7

Velocity™ Wire Pulling

Lubricant . . . . . . B-8, B-9

Video Coax

Stripper............E-19

Visual Fault

Finder .............E-27

Vol-Con® Elite Voltage

Testers . . . . . . . . . . . D-16

Vol-Con® XL Voltage/

Continuity Tester...D-16

Vol-Test® Voltage

Tester ............D-16

Volt-Guard™ Fish

Tapes .........B-3, B-5

Volt-Guard™ Repair

Kit . . . . . . . . . . . . . . . . B-6

Volt-Sensor® Non-Contact

Voltage Tester .....D-18

Voltage Markers . . . . B-108

Voltage Performance

Monitor...........D-13

Voltage Testers . . . . . . D-16

VoltAware™ Non-Contact

Voltage Tester .....D-18

Wall Switch

Lockouts......... B-102

WeatherProof™ Wire

Connectors......... A-5

Wing-Nut® Wire

Connectors......... A-3

WingTwist™ Wire

Connectors........A-23

Wipes............... B-40

Wire Connector Chuck,

High-Speed . . . . . . . . A-7

Wire Connector

Sockets ............ A-7

Wire Connector

Wrench ............ A-7

Wire Connectors,

B-CAP®...........A-22

B-Twist™..........A-22

High-Temperature . . A-2

In-Sure™ Push-In . . A-10

Set-Screw.........A-20

Twister® . . . . . . . . . . . A-4

Twister® Al/Cu...... A-6

Twister® Pro........ A-4

UnderGround™ ..... A-5

Utility.............. A-6

WeatherProof™ ..... A-5

Wing-Nut®......... A-3

WingTwist™ . . . . . . . A-23

Wire-Nut® ......... A-2

WireTwist™........A-23

Wire Cutters ......... B-20

Wire Marker

Booklets . . . . . . . . . . B-79

Cards............. B-80

Dispenser ......... B-80

Wire Markers . . . . . . . . B-79

Wire Pulling

Lubricants. B-8 thru B-10

Wire Stops . . . . . . . . . . B-19

Wire Stripper/

Crimper............E-17

Wire Strippers ....... B-16

Wire Strippers,

Custom

Stripmaster® . . . C-4, C-6

Custom Stripmaster®

Lite . . . . . . . . . . . C-5, C-6

Stripmaster® . . . . . . B-21,

C-2, C-3

Stripmaster® Lite....C-2,

C-3

Wire-Nut® Wire Connector

Sockets ............ A-7

Wrench . . . . . . . . . . . . . . A-7

Wire-Nut® Wire

Connectors......... A-2

Wire, Speaker .........E-18

WireMan™ Hand

Tool Kits . . . . . . . . . . B-42

WireMan™

Pliers ....B-26 thru B-29

Item Page Item Page Item Page Item Page

www.idealindustries.com 1-800-435-0705 for Customer Servicewww.idealindustries.com 1-800-435-0705 for Customer Service

F-6

Index

Item Page Item Page Item Page Item Page

WireTwist™ Wire

Connectors........A-23

Wood Boring Bits..... B-60

Wood Chisel ......... B-41

Wrap-Cap®

Insulators . . . . . . . . . A-19

Wrench, Ratch ........ A-7

Wrenches . . . . . . . . . . . B-40

XL-Series Solenoid Voltage

Testers . . . . . . . . . . . D-16

Yellow 77® Plus

Wire Pulling

Lubricant . . . . . . B-8, B-9

Yellow 77® Wire Pulling

Lubricant . . . . . . B-8, B-9

Zipper Pouches . . . . . . B-46

Zoom™ Fish

Tapes .........B-3, B-5

Index

Numeric Index

1-800-435-0705 for Customer Service www.idealindustries.com F-7

0221 ............. A-31

0222 ............. A-31

0223 ............. A-31

0230 ............. A-31

0241 ............. A-30

0242 ............. A-30

0243 ............. A-30

0250 ............. A-30

0330 ............. A-34

0351 ............. A-34

0352 ............. A-34

0358 ............. A-34

0921 ............. A-29

0924 ............. A-29

11 ............... A-36

12 ............... A-36

41 ............... A-36

42 ............... A-36

43 ............... A-36

60 ............... A-36

61 ............... A-36

63 ............... A-36

64 ............... A-36

67 ............... A-36

68 ............... A-36

70 ............... A-36

115 .............. A-29

120 .............. A-29

125 .............. A-29

130 .............. A-29

221 .............. A-31

222 .............. A-31

223 .............. A-31

230 .............. A-31

241 .............. A-30

242 .............. A-30

243 .............. A-30

250 .............. A-30

330 .............. A-34

351 .............. A-34

352 .............. A-34

358 .............. A-34

426 .............. A-33

427 .............. A-33

430 .............. A-33

444.001. . . . . . . . . . B-101

824 .............. A-32

830 .............. A-32

921 .............. A-29

924 .............. A-29

925 .............. A-29

930 .............. A-29

172451 ........... B-71

2007 ............. A-24

2014 ............. A-24

0925 ............. A-29

0930 ............. A-29

10-398 ........... B-45

10-466 ........... B-45

11-111 ........... B-40

11-113 ........... B-40

11-200 ........... B-40

11-201 ........... B-40

1219-91-0003 .......E-4

170207L .......... B-91

170208L .......... B-91

170209L .......... B-91

1912-00-1621 ......E-25

2006S ............ A-24

2006SB . . . . . . . . . . . A-24

2007B . . . . . . . . . . . . A-24

2011S ............ A-24

2011SB . . . . . . . . . . . A-24

2014B . . . . . . . . . . . . A-24

23-001 ........... B-94

23-002 ........... B-94

23-003 ........... B-94

23-004 ........... B-94

23-005 ........... B-94

23-006 ........... B-94

23-007 ........... B-94

23-008 ........... B-94

23-027 ........... B-94

23-035S .......... B-94

23-036S .......... B-94

23-039S .......... B-94

23-041S .......... B-94

23-042S .......... B-94

24-033 ........... B-94

30-964 ........... B-45

30-987 .............E-4

30-024 ......A-20, B-11

30-026 ......A-20, B-11

30-030 ......A-20, B-11

30-031 ......A-20, B-11

30-032 ........... B-11

30-040 ......A-20, B-11

30-059 ............ A-2

30-060 ............ A-5

30-061 ............ A-5

30-062 ............ A-5

30-063 ............ A-5

30-064 ............ A-5

30-065 ............ A-6

30-066 ............ A-5

30-071 ............ A-2

30-072 ............ A-2

30-073 ............ A-2

30-073J. . . . . . . . . . . . A-2

30-074 ............ A-2

30-074J. . . . . . . . . . . . A-2

30-076 ............ A-2

30-076J. . . . . . . . . . . . A-2

30-082 ............ A-9

30-083 ............ A-9

30-087 ........... A-10

30-087J. . . . . . . . . . . A-10

30-088 ........... A-10

30-088J. . . . . . . . . . . A-10

30-090 ........... A-10

30-090J. . . . . . . . . . . A-10

30-092 ............ A-3

30-092J. . . . . . . . . . . . A-3

30-102 ............ A-8

30-1032 .......... A-10

30-1032J ......... A-10

30-1033 .......... A-10

30-1033J ......... A-10

30-1034 .......... A-10

30-1034J ......... A-10

30-1039 .......... A-10

30-1039J ......... A-10

30-103X ........... A-8

30-1042 ........... A-9

30-1042J .......... A-9

30-144 ............ A-4

30-148 ........... A-19

30-151 ............ A-2

30-152 ............ A-2

30-153 ............ A-2

30-159 ............ A-2

30-160 ............ A-5

30-160Y ........... A-6

30-161 ............ A-5

30-162 ............ A-5

30-163 ............ A-5

30-1632 .......... A-10

30-1633 .......... A-10

30-1634 .......... A-10

30-1639 .......... A-10

30-1642 ........... A-9

30-164Y ........... A-6

30-165 ............ A-6

30-171 ............ A-2

30-172 ............ A-2

30-173 ............ A-2

30-174 ............ A-2

30-1742 ........... A-9

30-176 ............ A-2

30-187 ........... A-10

30-188 ........... A-10

30-190 ........... A-10

30-192 ............ A-3

30-210 ........... A-20

30-211 ........... A-20

30-222 ........... A-20

30-244J. . . . . . . . . . . . A-4

30-245 ........... A-19

30-249 ........... A-19

30-251 ............ A-2

30-252 ............ A-2

30-253 ............ A-2

30-259 ............ A-2

30-260 ............ A-5

30-261 ............ A-5

30-262 ............ A-5

30-263 ............ A-5

30-264 ............ A-5

30-265 ............ A-6

30-266 ............ A-5

30-271 ............ A-2

30-272 ............ A-2

30-273 ............ A-2

30-274 ............ A-2

30-276 ............ A-2

30-292 ............ A-3

30-310 ........... A-20

30-311 ........... A-20

Item Page Item Page Item Page Item Page

Index

www.idealindustries.com 1-800-435-0705 for Customer Servicewww.idealindustries.com 1-800-435-0705 for Customer Service

F-8

30-3183 .......... A-11

30-3184 .......... A-11

30-3194 .......... A-11

30-322 ........... A-20

30-3284 .......... A-11

30-3286 .......... A-11

30-3287 .......... A-11

30-3288 .......... A-11

30-3289 .......... A-11

30-3294 .......... A-11

30-330 ........... B-32

30-331 .......A-7, B-32

30-332 .......A-7, B-32

30-333 .......A-7, B-32

30-3385 .......... A-11

30-3390 .......... A-11

30-3392 .......... A-11

30-3394 .......... A-11

30-3395 .......... A-11

30-3399 .......... A-11

30-340 ............ A-4

30-3407 .......... A-11

30-341 ............ A-4

30-3410 .......... A-11

30-341J. . . . . . . . . . . . A-4

30-342 ............ A-4

30-3429 .......... B-25

30-3430 .......... B-23

30-3470 .......... A-11

30-3471 .......... A-11

30-3480 .......... A-11

30-3494 .......... A-11

30-3496 .......... A-11

30-352J. . . . . . . . . . . . A-8

30-353XJ .......... A-8

30-360 ............ A-5

30-360Y ........... A-6

30-361 ............ A-5

30-362 ............ A-5

30-3627 ........... A-2

30-3628 ........... A-2

30-3629 ........... A-2

30-363 ............ A-5

30-364 ............ A-5

30-364Y ........... A-6

30-365 ............ A-6

30-372 ............ A-8

30-382J. . . . . . . . . . . . A-8

30-383X ........... A-8

30-383XJ .......... A-8

30-401 ........... A-19

30-402 ........... A-19

30-410 ........... A-19

30-411 ........... A-19

30-412 ........... A-19

30-415 ........... A-19

30-417 ........... A-19

30-425 ......B-25, B-39

30-426 ............E-15

30-428 ........... B-20

30-429 ........... B-25

30-430 ........... B-23

30-433 ...... B-20, E-14

30-433F ..... B-20, E-14

30-441J. . . . . . . . . . . . A-4

30-4430 .......... B-27

30-451 ............ A-3

30-451J. . . . . . . . . . . . A-3

30-452 ............ A-3

30-452J. . . . . . . . . . . . A-3

30-454 ............ A-3

30-479 ............E-13

30-481 ............E-13

30-482 ............E-13

30-483 ............E-13

30-485 ............E-13

30-496 ............E-16

30-499 ............E-16

30-500 ............E-13

30-502 ............E-13

30-503 ............E-13

30-506 ............E-13

30-510 ........... A-19

30-511 ........... A-19

30-512 ........... A-19

30-515 ........... A-19

30-517 ........... A-19

30-521 ............E-13

30-522 ............E-13

30-541 ............ A-4

30-5430 .......... B-27

30-551 ............ A-3

30-552 ............ A-3

30-554 ............ A-3

30-559 ............E-13

30-560 ............E-13

30-560Y ........... A-6

30-570 ............E-13

30-572 ............E-13

30-573 ............E-13

30-576 ............E-13

30-577 ............E-13

30-578 ............E-13

30-579 ............E-13

30-580 ............E-13

30-581 ............E-13

30-582 ............E-13

30-586 ............E-13

30-587 ............E-13

30-591 ............E-13

30-593 ............E-13

30-594 ............E-13

30-599 ............E-13

30-603 .............E-9

30-610 ........... A-19

30-615 ........... A-19

30-633 .............E-9

30-640J. . . . . . . . . . . . A-4

30-641 ............ A-4

30-642 ............ A-4

30-644J. . . . . . . . . . . . A-4

30-645 ........... A-19

30-648 ........... A-19

30-649 ........... A-19

30-651 ............ A-3

30-651J. . . . . . . . . . . . A-3

30-652 ............ A-3

30-652J. . . . . . . . . . . . A-3

30-654 ............ A-3

30-673 ............ A-2

30-674 ............ A-2

30-682 ............ A-9

30-682L ........... A-9

30-683 ............ A-9

30-687 ........... A-10

30-688 ........... A-10

30-690 ........... A-10

30-696 ............E-16

30-760 ............ A-5

30-760Y ........... A-6

30-764 ............ A-5

30-765 ............ A-6

30-766 ............ A-5

30-793 .............E-9

30-801 ............ A-2

30-802 ............ A-2

30-803 ............ A-2

30-809 ............ A-2

30-840 ............ A-4

30-841 ............ A-4

30-842 ............ A-4

30-851 ............ A-3

30-852 ............ A-3

30-854 ............ A-3

30-871 ............ A-2

30-872 ............ A-2

30-873 ............ A-2

30-874 ............ A-2

30-876 ............ A-2

30-902 ............ A-7

30-903 ............ A-7

30-904 ............ A-7

30-905 ............ A-7

30-906 ............ A-7

30-9429 .......... B-50

30-9430 .......... B-50

30-944 ............ A-4

30-992 ............ A-3

31-010 .............B-4

31-012 .............B-4

31-033 .............B-4

31-035 .............B-4

31-036 ........B-4, B-4

31-038 ........B-4, B-4

31-050 .............B-4

31-051 .............B-4

31-052 .............B-4

31-055 .............B-4

31-056 .............B-4

31-057 .............B-4

31-058 .............B-4

31-059 .............B-4

31-060 .............B-5

31-061 .............B-5

31-062 .............B-5

31-063 .............B-5

31-064 .............B-5

31-065 .............B-5

Item Page Item Page Item Page Item Page

Index

Numeric Index

1-800-435-0705 for Customer Service www.idealindustries.com F-9

31-066 .............B-4

31-067 .............B-4

31-073 .............B-4

31-074 .............B-4

31-085 .............B-6

31-090 .............B-5

31-091 .............B-5

31-092 .............B-5

31-093 .............B-5

31-094 .............B-6

31-096 .............B-5

31-097 .............B-5

31-141 .............B-5

31-144 .............B-5

31-146 .............B-6

31-147 .............B-6

31-148 .............B-6

31-150 .............B-5

31-152 .............B-5

31-155 .............B-5

31-156 .............B-6

31-158 .............B-6

31-159 ........B-6, B-6

31-160 .............B-5

31-162 .............B-5

31-164 .............B-6

31-165 .............B-5

31-166 .............B-6

31-186 .............B-5

31-187 .............B-5

31-189 .............B-5

31-190 .............B-5

31-207 .............B-5

31-208 .............B-5

31-2128 ............B-4

31-2143 ............B-9

31-276 .............B-9

31-277 .............B-9

31-278 .............B-9

31-282 .............B-9

31-291 ........... B-10

31-295 ........... B-10

31-298 ........... B-10

31-2982 ............B-4

31-314 ........... B-14

31-315 ........... B-14

31-322 ........... B-15

31-323 ........... B-15

31-324 ........... B-15

31-325 ........... B-15

31-326 ........... B-15

31-327 ........... B-15

31-3373 .......... B-10

31-3379 ............B-4

31-338 ........... B-14

31-3380 ............B-4

31-340 ........... B-14

31-340BP . . . . . . . . . B-14

31-343 ........... B-14

31-344 ........... B-14

31-347 ........... B-15

31-348 ........... B-14

31-351 .............B-9

31-355 .............B-9

31-355BP . . . . . . . . . . .B-9

31-358 .............B-9

31-365 .............B-9

31-371 ........... B-10

31-375 ........... B-10

31-375BP . . . . . . . . . B-10

31-376 ........... B-10

31-377 ........... B-10

31-378 ........... B-10

31-381 .............B-9

31-385 .............B-9

31-3855 .......... B-10

31-385BP . . . . . . . . . . .B-9

31-388 .............B-9

31-391 .............B-9

31-395 .............B-9

31-395BP . . . . . . . . . . .B-9

31-398 .............B-9

31-421 ........... B-10

31-425 ........... B-10

31-435 ........... B-10

31-466 ........... B-15

31-467 ........... B-15

31-468 ........... B-15

31-469 ........... B-15

31-470 ........... B-15

31-471 ........... B-15

31-472 ........... B-15

31-473 ........... B-15

31-475 ........... B-15

31-476 ........... B-15

31-477 ........... B-15

31-479 ........... B-15

31-480 ........... B-15

31-481 ........... B-15

31-541 .............B-6

31-542 .............B-5

31-544 .............B-5

31-552 .............B-5

31-554 .............B-5

31-601 ........... B-11

31-605 ........... B-11

31-611 .............B-7

31-612 .............B-7

31-631 .............B-7

31-633 .............B-7

31-643 .............B-7

31-644 .............B-7

31-647 .............B-7

31-648 .............B-7

31-651 .............B-7

31-652 .............B-7

31-839 ........... B-14

31-840 ........... B-14

31-841 ........... B-14

31-844 ........... B-14

31-845 ........... B-14

31-846 ........... B-14

31-849 ........... B-14

31-850 ........... B-14

31-851 ........... B-14

31-853 ........... B-14

31-854 ........... B-14

31-855 ........... B-14

31-856 ........... B-14

31-857 ........... B-14

33-296 ............E-16

33-320 .......E-14, E-19

33-410 ............E-22

33-505 ............E-24

33-506 ............E-24

33-620 ............E-23

33-623 ............E-23

33-624 ............E-23

33-630 ............E-23

33-633 .............E-9

33-652 ............E-24

33-700 .......E-16, E-24

33-704 ............E-24

33-706 ............E-22

33-719 ............E-17

33-745 ............E-22

33-750 ............E-24

33-770 .............E-7

33-771 .............E-7

33-772 .............E-7

33-773 .............E-7

33-774 .............E-7

33-775 .........E-7, E-7

33-776 .............E-7

33-780 .............E-7

33-856 .............E-8

33-864 .............E-8

33-866 .............E-8

33-892 .............E-6

33-917 ............E-23

33-920 ............E-22

33-926 ............E-26

33-927 ............E-26

33-928 ............E-26

33-929 ............E-26

33-931 ............E-26

33-940-BP ..........E-5

33-940-PS ..........E-5

33-940-R1 ..........E-5

33-940-R12 .........E-5

33-940-RJ45 ........E-5

33-940B ............E-5

33-941P ............E-5

33-942P ............E-5

33-960 ............E-25

33-960-BP .........E-25

33-960-KB . . . . . . . . .E-25

33-960-VP .........E-25

33-961-10 .........E-25

33-961-20 .........E-25

33-961-30 .........E-25

33-961-40 .........E-25

33-961-50 .........E-25

33-961-60 .........E-25

33-974 .............E-4

33-981 .............E-4

33-982 .............E-4

33-983 .............E-4

Item Page Item Page Item Page Item Page

Index

www.idealindustries.com 1-800-435-0705 for Customer Servicewww.idealindustries.com 1-800-435-0705 for Customer Service

F-10

33-990-FA01 ........E-3

33-990-FA02 ........E-3

33-990-FA03 ........E-3

33-990-FA04 ........E-3

33-990-FA05 ........E-3

33-991 .............E-3

33-992 .............E-3

33-993 .............E-3

33-993-FA01 ........E-3

33-993-FA02 ........E-3

33-993-FA03 ........E-3

33-993-FA04 ........E-3

33-993-FA05 ........E-3

34-001 ........... B-51

34-002 ........... B-51

34-003 ........... B-51

34-012 ........... B-51

34-015 ........... B-51

34-016 ........... B-51

35-001 ......B-39, B-63

35-008 ........... B-29

35-012 ........... B-23

35-020 ........... B-40

35-021 ........... B-40

35-028 ........... B-24

35-029 ........... B-24

35-031 ........... B-38

35-031B .......... B-38

35-032 ........... B-38

35-032B .......... B-38

35-033 ........... B-38

35-033B .......... B-38

35-036 ........... B-24

35-037 ........... B-24

35-038 ........... B-24

35-039 ........... B-24

35-042 ............E-14

35-043 ............E-14

35-046 ............E-14

35-052 ........... B-25

35-053 ........... B-38

35-056 ......B-38, B-59

35-057 ........... B-38

35-075 ........... B-32

35-076 ........... B-38

35-077 ........... B-38

35-078 ........... B-38

35-083 ........... B-32

35-085 ........... B-38

35-087 ............E-20

35-088 ............E-20

35-093 ............E-20

35-096 ........... B-32

35-097 ........... B-32

35-098 ........... B-32

35-1298 .......... B-34

35-1299 .......... B-35

35-1300 .......... B-35

35-1301 .......... B-35

35-1302 .......... B-36

35-146 ........... B-41

35-147 ........... B-41

35-154 ........... B-34

35-156 ........... B-34

35-158 ........... B-34

35-161 ........... B-34

35-164 ........... B-34

35-166 ........... B-34

35-168 ........... B-34

35-183 ......B-34, B-37

35-184 ......B-34, B-37

35-185 ............E-16

35-186 ......B-34, B-37

35-187 ........... B-41

35-188 ......B-34, B-37

35-189 ........... B-41

35-190 ......B-34, B-37

35-191 ........... B-34

35-192 ........... B-41

35-193 ........... B-34

35-194 ........... B-34

35-195 ........... B-34

35-196 ........... B-34

35-200 ........... B-35

35-202 ........... B-36

35-203 ........... B-35

35-205 ........... B-41

35-210 ........... B-40

35-238 ........... B-40

35-242 ........... B-40

35-259 ........... B-63

35-260 ......B-13, B-63

35-261 ......B-13, B-63

35-262 ......B-13, B-63

35-263 ........... B-13

35-264 ......B-13, B-63

35-271 ......B-13, B-63

35-272 ......B-13, B-63

35-273 ......B-13, B-63

35-274 ........... B-63

35-275 ........... B-63

35-285 ........... B-41

35-286 ........... B-41

35-287 ........... B-41

35-292 ............ A-7

35-297 ........... B-33

35-298 ........... B-33

35-299 ........... B-37

35-300 ........... B-41

35-301 ........... B-41

35-3012 .......... B-23

35-302 ........... B-45

35-3028 .......... B-24

35-3029 .......... B-24

35-3038 .......... B-24

35-3052 .......... B-25

35-311 ........... B-44

35-316 ........... B-45

35-325 ........... B-44

35-330 ............ A-7

35-338 ........... B-45

35-340 ........... B-56

35-341 ........... B-56

35-342 ........... B-56

35-343 ........... B-56

35-3430 .......... B-24

35-344 ........... B-56

35-345 ........... B-56

35-346 ........... B-56

35-347 ........... B-56

35-348 ........... B-56

35-349 ........... B-56

35-350 ........... B-56

35-351 ........... B-56

35-352 ........... B-56

35-353 ........... B-56

35-354 ........... B-56

35-355 ........... B-56

35-356 ........... B-56

35-357 ........... B-56

35-358 ........... B-56

35-359 ........... B-56

35-360 ........... B-56

35-361 ........... B-56

35-362 ........... B-56

35-363 ........... B-56

35-364 ........... B-56

35-365 ........... B-56

35-366 ........... B-56

35-367 ........... B-56

35-368 ........... B-56

35-369 ........... B-56

35-370 ........... B-56

35-371 ........... B-56

35-372 ........... B-56

35-373 ........... B-56

35-374 ........... B-56

35-375 ........... B-56

35-376 ........... B-56

35-377 ........... B-56

35-378 ........... B-56

35-379 ........... B-56

35-380 ........... B-56

35-381 ........... B-56

35-382 ........... B-56

35-383 ........... B-56

35-384 ........... B-56

35-385 ........... B-56

35-386 ........... B-56

35-387 ........... B-56

35-388 ........... B-56

35-389 ........... B-56

35-390 ........... B-56

35-391 ........... B-57

35-392 ........... B-57

35-393 ........... B-57

35-394 ........... B-57

35-396 ........... B-57

35-397 ........... B-57

35-398 ........... B-57

35-400 ........... B-57

35-401 ........... B-57

35-4012 .......... B-27

35-402 ........... B-46

35-4028 .......... B-27

35-4029 .......... B-27

35-403 ........... B-46

35-4036 .......... B-28

Item Page Item Page Item Page Item Page

Index

Numeric Index

1-800-435-0705 for Customer Service www.idealindustries.com F-11

35-4038 .......... B-28

35-404 ........... B-35

35-4052 .......... B-29

35-406 ........... B-35

35-407 ............E-16

35-410 ........... B-47

35-412 ........... B-31

35-418 ........... B-47

35-427 ........... B-47

35-430 ........... B-24

35-440 ........... B-24

35-441 ........... B-47

35-4430 .......... B-28

35-4431 .......... B-29

35-462 ........... B-47

35-465 ............E-15

35-468 ............E-15

35-474 ........... B-46

35-478 ............E-16

35-479 ............E-16

35-483 ............E-16

35-485 ............E-16

35-487 ............E-16

35-492 ............E-16

35-495 ............E-16

35-497 ............E-16

35-5012 .......... B-27

35-5028 .......... B-27

35-5029 .......... B-27

35-5036 .......... B-28

35-5038 .......... B-28

35-505 ........... B-46

35-5052 .......... B-29

35-511 ........... B-54

35-512 ........... B-54

35-513 ........... B-54

35-514 ........... B-54

35-515 ........... B-54

35-516 ........... B-54

35-517 ........... B-54

35-518 ........... B-57

35-520 ........... B-54

35-521 ........... B-54

35-522 ........... B-54

35-523 ........... B-54

35-524 ........... B-54

35-535 ........... B-47

35-536 ........... B-57

35-537 ........... B-57

35-538 ........... B-57

35-5430 .......... B-28

35-5431 .......... B-29

35-5792 .......... B-43

35-5799 .......... B-43

35-5805 .......... B-43

35-598 ........... B-57

35-599 ........... B-57

35-655 ........... B-46

35-665 ........... B-46

35-688 ........... B-30

35-690 ........... B-34

35-691 ........... B-34

35-692 ........... B-34

35-693 ........... B-34

35-694 ........... B-34

35-695 ........... B-34

35-696 . . . . . . . . . . . B-34

35-698 ........... B-37

35-726 ........... B-61

35-727 ........... B-61

35-728 ........... B-61

35-729 ........... B-61

35-730 ........... B-61

35-731 ........... B-61

35-732 ........... B-61

35-781 ......B-21, B-39

35-781-1. . . . . B-21, B-39

35-782 ......B-21, B-39

35-784BLK. . . . . . . . B-45

35-790 ........... B-42

35-794 ........... B-43

35-800 ........... B-42

35-805 ........... B-43

35-808 ........... B-42

35-809 ........... B-42

35-810 ........... B-61

35-811 ........... B-61

35-812 ........... B-61

35-813 ........... B-61

35-814 ........... B-61

35-815 ........... B-61

35-816 ........... B-61

35-817 ........... B-61

35-818 ........... B-61

35-819 ......B-60, B-61

35-820 ........... B-61

35-821 ........... B-61

35-822 ........... B-61

35-823 ........... B-61

35-824 ........... B-61

35-825 ........... B-61

35-826 ........... B-61

35-827 ........... B-61

35-828 ........... B-61

35-829 ........... B-61

35-862 ........... B-61

35-864 ........... B-61

35-866 ........... B-61

35-868 ........... B-61

35-870 ........... B-62

35-871 ........... B-62

35-872 ........... B-62

35-892 ........... B-61

35-893 ........... B-61

35-896 ........... B-61

35-897 ........... B-61

35-898 ........... B-61

35-899 ........... B-61

35-9029 .......... B-50

35-9038 .......... B-50

35-905 ........... B-36

35-9052 .......... B-50

35-908 .......A-7, B-31

35-909 ........... B-31

35-910 ........... B-36

35-9100 .......... B-49

35-9101 .......... B-49

35-9102 .......... B-49

35-9103 .......... B-50

35-9104 .......... B-50

35-911 ........... B-31

35-912 ........... B-31

35-913 ........... B-31

35-914 ........... B-31

35-9147 .......... B-50

35-915 ........... B-31

35-9150 .......... B-50

35-9151 .......... B-50

35-9166 .......... B-50

35-9168 .......... B-50

35-9193 .......... B-50

35-9194 .......... B-50

35-9196 .......... B-50

35-9290 .......... B-50

35-9291 .......... B-50

35-9292 .......... B-50

35-9294 .......... B-50

35-9295 .......... B-50

35-9296 .......... B-50

35-9297 .......... B-50

35-9340 .......... B-50

35-9350 .......... B-50

35-9351 .......... B-50

35-9352 .......... B-50

35-9353 .......... B-50

35-9690 .......... B-50

35-922 ........... B-31

35-923 ........... B-31

35-926 ........... B-32

35-927 ........... B-32

35-940 ........... B-36

35-941 ........... B-36

35-942 ........... B-36

35-943 ........... B-36

35-9430 .......... B-50

35-950 ........... B-44

35-950BLK. . . . . . . . B-44

35-965 ........... B-45

35-969 ........... B-44

35-969BLK. . . . . . . . B-44

35-971 ........... B-61

35-972 ........... B-61

35-975 ........... B-44

35-975BLK. . . . . . . . B-44

35-976 ........... B-61

35-977 ........... B-61

35-978 ........... B-61

35-979 ........... B-61

35-988 .......A-7, B-31

35-995 ........... B-45

36-043 ........... B-59

36-044 ........... B-59

36-046 ........... B-59

36-048 ........... B-59

36-054 ........... B-58

36-055 ........... B-58

36-057 ........... B-58

36-057B .......... B-58

Item Page Item Page Item Page Item Page

Index

www.idealindustries.com 1-800-435-0705 for Customer Servicewww.idealindustries.com 1-800-435-0705 for Customer Service

F-12

36-058 ........... B-58

36-058B .......... B-58

36-059 ........... B-58

36-059B .......... B-58

36-060 ........... B-58

36-065 ........... B-58

36-065B .......... B-58

36-066 ........... B-58

36-067 ........... B-58

36-070 ........... B-59

36-071 ........... B-59

36-072 ........... B-59

36-073 ........... B-59

36-075 ........... B-58

36-076 ........... B-59

36-085 ........... B-58

36-086 ........... B-58

36-087 ........... B-58

36-088 ......B-58, B-63

36-090 ........... B-58

36-095 ........... B-58

36-096 ........... B-58

36-240 ........... B-35

36-241 ........... B-35

36-242 ........... B-35

36-243 ........... B-35

36-244 ........... B-35

36-245 ........... B-35

36-246 ........... B-35

36-248 ........... B-35

36-249 ........... B-35

36-250 ........... B-60

36-251 ........... B-60

36-252 ........... B-60

36-253 ........... B-60

36-254 ........... B-60

36-255 ........... B-60

36-256 ........... B-60

36-257 ........... B-60

36-258 ........... B-60

36-259 ........... B-60

36-260 ........... B-60

36-261 ........... B-60

36-262 ........... B-60

36-265 ........... B-60

36-266 ........... B-60

36-269 ........... B-60

36-270 ........... B-60

36-271 ........... B-60

36-272 ........... B-60

36-273 ........... B-60

36-301 ........... B-52

36-302 ........... B-52

36-303 ........... B-52

36-304 ........... B-52

36-305 ........... B-52

36-306 ........... B-52

36-307 ........... B-52

36-308 ........... B-52

36-309 ........... B-52

36-310 ........... B-52

36-311 ........... B-52

36-312 ........... B-52

36-314 ........... B-52

36-315 ........... B-52

36-316 ........... B-52

36-317 ......B-52, B-56

36-318 ........... B-52

36-350 ........... B-55

36-351 ........... B-55

36-352 ........... B-55

36-353 ........... B-55

36-354 ........... B-55

36-355 ........... B-55

36-356 ........... B-55

36-357 ........... B-55

36-358 ........... B-55

36-359 ........... B-55

36-360 ........... B-55

36-361 ........... B-55

36-362 ........... B-55

36-363 ........... B-55

36-364 ........... B-55

36-365 ........... B-55

36-366 ........... B-55

36-367 ........... B-55

36-368 ........... B-55

36-403 ........... B-62

36-404 ........... B-62

36-405 ........... B-62

36-413 ........... B-62

36-415 ........... B-62

36-417 ........... B-62

36-419 ........... B-62

36-421 ........... B-62

36-422 ........... B-62

36-423 ........... B-62

36-432 ........... B-62

36-819 ........... B-60

38-500 ........... B-40

4010-00-0136 .......E-4

41-697 .....B-80, B-104

41-698 .....B-80, B-104

41-990 ........... B-64

41-995 ........... B-64

42-001 .......... B-107

42-002 .......... B-107

42-003 .......... B-107

42-011 .......... B-107

42-012 .......... B-107

42-015 .......... B-107

42-031 .......... B-107

42-051 .......... B-107

42-052 .......... B-107

42-101 .......... B-107

42-102 .......... B-107

42-103 .......... B-107

42-104 .......... B-107

42-131 .......... B-107

42-151 .......... B-107

42-152 .......... B-107

42-201 .......... B-107

42-251 .......... B-107

42-252 .......... B-107

42-301 ........... B-80

42-399 ........... B-80

43-953 ........... B-80

44-101 ........... B-79

44-102 ........... B-79

44-103 ........... B-79

44-104 ........... B-79

44-105 ........... B-79

44-106 ........... B-79

44-107 ........... B-79

44-108 ........... B-79

44-109 ........... B-79

44-110 ........... B-79

44-111 ........... B-79

44-148 ........... B-79

44-151 ........... B-79

44-152 ........... B-79

44-154 ........... B-80

44-1791 ......... B-105

44-1807 .......... B-99

44-1809 ......... B-100

44-1810 ......... B-100

44-1830 ......... B-105

44-1833 ......... B-105

44-289 .......... B-108

44-292 .......... B-108

44-295 .......... B-108

44-296 .......... B-108

44-298 .......... B-108

44-299 .......... B-108

44-314 .......... B-108

44-353 .......... B-108

44-355 .......... B-108

44-364 .......... B-108

44-410 .......... B-108

44-753 ........... B-80

44-764 .......... B-101

44-768 .......... B-101

44-769 .......... B-101

44-772 .....B-97, B-102

44-774 ........... B-98

44-778 ........... B-98

44-782 .......... B-102

44-783 ......B-95, B-96,

B-97, B-98,

44-785 ...........B-96,

B-97, B-98, B-100

44-786 ......B-96, B-97,

B-98, B-99

44-789 ......B-95, B-96,

B-97, B-98, B-99,

B-98, B-102

44-790 .......... B-105

44-791 ......B-96, B-97,

B-105

44-792 ......B-95, B-96

44-793 .......... B-102

44-800 ......B-95, B-96,

B-97, B-98, B-105

44-801 .......... B-105

44-804 ........... B-96

44-805 ........... B-98

44-806 ........... B-98

44-807 ......B-95, B-96,

Item Page Item Page Item Page Item Page

Index

Numeric Index

1-800-435-0705 for Customer Service www.idealindustries.com F-13

B-97, B-98, B-99

44-808 .......... B-103

44-809 ......B-95, B-96,

B-97, B-98, B-100

44-810 ......B-95, B-96,

B-97, B-98, B-100

44-815 ......B-96, B-97

44-816 ......B-96, B-97

44-817 .......... B-103

44-818 ......B-95, B-96,

B-97, B-98, B-102

44-819 ......B-96, B-97,

B-98, B-102

44-820 B-97, B-98, B-103

44-821 .......... B-103

44-822 ........... B-99

44-823 ........... B-99

44-824 ......B-96, B-97,

B-98, B-103

44-825 .....B-98, B-103

44-829 .......... B-103

44-830 .......... B-105

44-832 .......... B-105

44-833 ......B-95, B-97,

B-105

44-841 .......... B-105

44-843 .......... B-105

44-846 .......... B-103

44-847 .......... B-103

44-848 .....B-96, B-105

44-849 ......B-95, B-96,

B-97, B-98, B-105

44-862 .......... B-106

44-863 .......... B-106

44-865 .......... B-106

44-877 .......... B-106

44-878 .......... B-106

44-880 .......... B-106

44-881 .......... B-106

44-890 .......... B-106

44-892 .......... B-106

44-892BK . . . . . . . . B-106

44-893 .......... B-106

44-894 .......... B-106

44-895 .......... B-106

44-896 .......... B-106

44-898 .......... B-104

44-900 .......... B-104

44-901 .......... B-104

44-906 .....B-95, B-104

44-907 .....B-96, B-104

44-912 .......... B-104

44-914 .......... B-104

44-916 ......B-95, B-97,

B-98, B-104

44-918 .......... B-104

44-956 .....B-97, B-100

44-957 .....B-97, B-100

44-969 ........... B-95

44-970 ........... B-95

44-971 ........... B-96

44-972 ........... B-96

44-973 ........... B-95

44-974 ........... B-97

44-975 ........... B-98

44-979 ........... B-97

44-990 .......... B-108

44-991 .......... B-108

44-992 .......... B-108

45-025 ........... B-18

45-074 ...... B-20, E-20

45-089 ............ C-3

45-090 ............ C-2

45-090-341 . . . . . . . . C-3

45-091 ............ C-2

45-092 .......B-21, C-2

45-092-341 ........ C-3

45-093 ............ C-2

45-095 ............ C-3

45-096 ............ C-2

45-097 ............ C-2

45-098 ............ C-2

45-098-341 . . . . . . . . C-3

45-099 ............ C-2

45-101 ........... B-19

45-111 ............E-19

45-118 ........... B-21

45-120 ......B-16, B-18

45-120-341 ....... B-18

45-121 ......B-16, B-18

45-123 ......B-16, B-20

45-124 ......B-16, B-18

45-125 ......B-16, B-18

45-125-341 ....... B-18

45-128 ........... B-21

45-129 ........... B-21

45-144 ............E-20

45-162 ............E-18

45-163 ............E-18

45-164 ............E-18

45-165 ............E-18

45-167 ............E-18

45-168 ............E-18

45-169 ............ C-4

45-170 ............ C-4

45-171 ............ C-4

45-172 ............ C-4

45-173 ............ C-4

45-174 ............ C-4

45-175 ............ C-4

45-176 ............ C-4

45-177 ............ C-4

45-178 ............ C-4

45-179 ............ C-4

45-2108-1 ........ B-19

45-227 ........... B-21

45-235 ........... B-21

45-247 ........... B-18

45-248 ........... B-18

45-249 ........... B-18

45-260 ........... B-20

45-262 ..B-21, C-3, E-19

45-264 ....... C-3, E-19

45-265 ....... C-3, E-19

45-274 ............E-19

45-282 ....... C-3, E-19

45-290 ............ C-2

45-292 .......B-21, C-2

45-292-341 ........ C-3

45-30 .............E-19

45-315 ......B-16, B-18

45-318 ......B-16, B-18

45-321 ............E-19

45-332 ............E-27

45-333 ........... B-19

45-334 ............E-27

45-335 ............E-27

45-336 ............E-27

45-337 ............E-28

45-338 ............E-28

45-339 ............E-28

45-341 ............E-28

45-342 ............E-28

45-344 ............E-28

45-350 ............E-27

45-352 ............E-27

45-357 ............E-28

45-358 .....B-108, E-28

45-359 ............E-28

45-360 ............E-28

45-400 ........... B-19

45-401 ........... B-19

45-402 ........... B-19

45-403 ........... B-19

45-404 ........... B-19

45-415 ......B-16, B-17

45-416 ......B-16, B-17

45-417 ......B-16, B-17

45-418 ......B-16, B-17

45-423 ......B-16, B-20

45-425-341 ....... B-17

45-514 ............E-18

45-520 ............E-19

45-521 ............E-19

45-522 ............E-19

45-523 ............E-19

45-524 ............E-19

45-526 ............E-19

45-603 ............E-19

45-615 ......B-16, B-17

45-618 ......B-16, B-17

45-621 ......B-17, B-18

45-631 ............ C-5

45-632 ............ C-5

45-633 ............ C-5

45-634 ............ C-5

45-635 ............ C-5

45-636 ............ C-5

45-637 ............ C-5

45-638 ............ C-5

45-639 ............ C-5

45-640 ............ C-5

45-641 ............ C-5

45-671 ............ C-2

45-671-341 ........ C-3

45-672 ............ C-2

45-672-341 ........ C-3

45-673 ............ C-2

45-674 ............ C-2

45-715 ......B-16, B-17

Item Page Item Page Item Page Item Page

Index

www.idealindustries.com 1-800-435-0705 for Customer Servicewww.idealindustries.com 1-800-435-0705 for Customer Service

F-14

45-716 ......B-16, B-17

45-718 ......B-16, B-17

45-719 ............E-17

45-777 ........... B-19

45-778 ........... B-20

45-890 ............ C-5

45-891 ............ C-5

45-892 ............ C-5

45-893 ............ C-5

45-894 ............ C-5

45-895 ............ C-5

45-915 ......B-16, B-17

45-918 ......B-16, B-17

45-9120 .......... B-50

46-007 ........... B-77

46-202 ........... B-78

46-203 ........... B-78

46-204 ........... B-78

46-310 ........... B-75

46-312 ........... B-75

46-313 ........... B-75

46-315 ........... B-75

46-316 ........... B-75

46-318 ........... B-75

46-319 ........... B-75

46-321 ........... B-75

46-322 ........... B-75

46-324 ........... B-75

46-325 ........... B-75

46-327 ........... B-75

46-328 ........... B-75

46-330 ........... B-75

46-343 ........... B-76

46-344 ........... B-76

46-346 ........... B-76

46-347 ........... B-76

46-348 ........... B-76

46-350 ........... B-76

46-351 ........... B-76

46-352 ........... B-76

46-354 ........... B-76

46-356 ........... B-76

46-357 ........... B-76

46-358 ........... B-76

46-369 ........... B-76

46-371 ........... B-76

46-372 ........... B-76

46-381 ........... B-77

46-382 ........... B-77

46-383 ........... B-77

46-384 ........... B-77

46-387 ........... B-77

46-400 ........... B-74

46-401 ........... B-74

46-402 ........... B-74

46-403 ........... B-74

46-404 ........... B-74

46-405 ........... B-74

46-410 ........... B-74

46-600 ........... B-75

46-601 ........... B-75

46-602 ........... B-75

46-603 ........... B-75

46-604 ........... B-75

46-605 ........... B-75

46-606 ........... B-75

46-607 ........... B-75

46-608 ........... B-75

46-609 ........... B-75

46-610 ........... B-75

46-941 ........... B-78

46-950 ........... B-78

46-951 ........... B-78

46-952 ........... B-78

46-953 ........... B-78

46-954 ........... B-78

46-955 ........... B-78

46-956 ........... B-78

61-010 ......D-16, D-21

61-020 ...........D-21

61-025 ...........D-18

61-030 ...........D-18

61-040 ...........D-18

61-051 ...........D-18

61-053 ...........D-18

61-059 ...........D-13

61-063 ...........D-18

61-065 ...........D-16

61-076 ...........D-16

61-085 ...........D-16

61-086 ...........D-16

61-090 ...........D-16

61-092 ...........D-16

61-096 ...........D-17

61-164 ...........D-12

61-165 ...........D-12

61-175 ...........D-12

61-176 ......D-12, D-13

61-177 ...........D-13

61-179 ...........D-12

61-182 ...........D-12

61-183 ...........D-12

61-184 ...........D-13

61-2003 ..........D-13

61-2004 ..........D-13

61-201 ...........D-16

61-310 ............D-8

61-312 ............D-8

61-331 ...........D-20

61-334 .......D-7, D-20

61-340 ............D-7

61-342 ............D-7

61-361 ............D-7

61-445 ...........D-21

61-451 ............D-7

61-457 ...........D-14

61-461 D-6, D-19, D-21

61-465 .......D-6, D-21

61-468 ............D-6

61-484 ............D-6

61-497 ............D-6

61-498 ............D-6

61-500 ...........D-18

61-501 ...........D-18

61-503 ...........D-18

61-520 ...........D-19

61-521 ...........D-19

61-532 ...........D-17

61-534 ...........D-17

61-565 ...D-6, D-7, D-9,

D-20

61-605 ............D-8

61-610 ............D-8

61-614 ............D-8

61-685 ...........D-19

61-686 ...........D-19

61-702 ............D-4

61-704 ............D-4

61-744 ............D-4

61-746 ............D-4

61-763 ............D-3

61-765 ............D-3

61-773 ............D-3

61-775 ............D-3

61-795 ...........D-15

61-796 ...........D-15

61-797 ...........D-15

61-806-X .........D-14

61-807 ...........D-14

61-810 ...........D-14

61-811 ...........D-14

61-813 ...........D-14

61-814 ...........D-14

61-819 ...........D-14

61-820 ...........D-14

61-821 ...........D-14

61-830 ...........D-13

61-844 ...........D-10

61-844CAR .......D-10

61-844CC. . . . . . . . . D-10

61-844HAN .......D-10

61-844LS .........D-10

61-844PS .........D-10

61-844SW ........D-10

61-844USB. . . . . . . . D-10

61-846 ...........D-10

61-902 .......D-6, D-20

61-904 ...........D-20

61-905 ...........D-20

61-906 .......D-6, D-20

61-920 ...........D-15

61-954 ............D-9

61-956 ............D-9

61-958 ............D-9

62-140 .............E-8

62-160 .............E-8

62-164 .............E-8

62-200 .............E-8

74-001 ........... B-12

74-002 ........... B-12

74-003 ........... B-12

74-006 ........... B-12

74-010 ........... B-13

74-011 ........... B-13

74-012 ........... B-13

74-013 ........... B-13

74-019 ......B-12, B-13

74-020 ......B-12, B-13

Item Page Item Page Item Page Item Page

Index

Numeric Index

1-800-435-0705 for Customer Service www.idealindustries.com F-15

74-021 ......B-12, B-13

74-026 ........... B-12

74-027 ........... B-12

74-028 ........... B-12

74-031 ........... B-12

74-032 ........... B-12

74-034 ........... B-12

74-037 ........... B-13

74-046 ........... B-12

74-047 ........... B-12

770200L .......... B-92

770204L .......... B-92

770205L .......... B-92

770212L .......... B-92

770213L .......... B-92

770215L .......... B-91

770216L .......... B-91

770217L .......... B-91

770218L .......... B-91

770219L .......... B-91

770221L .......... B-91

770223L .......... B-91

770225L .......... B-92

772240 ........... B-70

772241 ........... B-70

772242 ........... B-70

772271 ........... B-71

772450 ........... B-71

772451 ........... B-71

772805 ........... B-73

772809 ........... B-73

772810 ........... B-73

772813 ........... B-73

772880 ........... B-73

772881 ........... B-73

772890 ........... B-73

772891 ........... B-73

772-1/16-BL ...... B-74

772-1/8-BL ....... B-74

772-1-BL ......... B-74

772-1/2-BL ....... B-74

772-1/4-BL ....... B-74

772-3/16-BL ...... B-74

772-3/32-BL ...... B-74

772-3/4-BL ....... B-74

772-3/8-BL ....... B-74

774000 ........... B-82

774001 ........... B-83

774002 ........... B-83

774003 ........... B-82

774003BK. . . . . . . . . B-82

774004BK. . . . . . . . . B-84

774005 ........... B-81

774006 ........... B-84

774007 ........... B-83

774008BK. . . . . . . . . B-81

774008 ........... B-81

774009 ........... B-81

774010 ........... B-81

774011 ........... B-81

774012 ........... B-81

774013 ........... B-81

774014 ........... B-81

774015 ........... B-82

774015BK. . . . . . . . . B-82

774016 ........... B-82

774017 ........... B-83

774018 ........... B-83

774019 ........... B-84

774020 ........... B-84

774021 ........... B-87

774022 ........... B-87

774023 ........... B-87

774024 ........... B-87

774026 ........... B-89

774027 ........... B-81

774028BK. . . . . . . . . B-82

774031 ........... B-88

774032 ........... B-88

774033 ........... B-88

774034 ........... B-88

774035 ........... B-88

774037 ........... B-88

774037BK. . . . . . . . . B-88

774038 ........... B-86

774039 ........... B-86

774040BK. . . . . . . . . B-85

774045 ........... B-85

774045BK. . . . . . . . . B-85

774047 ........... B-86

774048 ........... B-86

774049BK. . . . . . . . . B-86

774056 ........... B-85

774059 ........... B-86

774059BK. . . . . . . . . B-86

774061 ........... B-89

774062 ........... B-89

774069 ........... B-89

774073 ........... B-88

774084 ........... B-87

774085 ........... B-87

774086 ........... B-87

774087 ........... B-84

774088BK. . . . . . . . . B-81

774089 ........... B-82

774089BK. . . . . . . . . B-82

774092 ........... B-82

774093 ........... B-81

774094 ........... B-81

774095 ........... B-83

774096 ........... B-83

774097 ........... B-83

774100 ........... B-81

774103 ........... B-81

774108 ........... B-82

774109 ........... B-82

774110 ........... B-82

774111 ........... B-81

774111BK. . . . . . . . . B-81

774113 ........... B-71

774115 ........... B-82

774115BK. . . . . . . . . B-82

774116 ........... B-71

774117 ........... B-84

774121 ........... B-85

774122 ........... B-85

774123 ........... B-85

774136 ........... B-71

774137 ........... B-71

775101 ........... B-79

775102 ........... B-79

775103 ........... B-79

775104 ........... B-79

775111 ........... B-90

776111 ........... B-90

776112BK. . . . . . . . . B-90

776211 ........... B-90

776311 ........... B-90

776312BK. . . . . . . . . B-90

777111 ........... B-90

777112 ........... B-90

777121 ........... B-90

777121BK. . . . . . . . . B-90

777131 ........... B-91

777211 ........... B-90

777211BK. . . . . . . . . B-90

777212 ........... B-90

777212BK. . . . . . . . . B-90

777221 ........... B-90

777221BK. . . . . . . . . B-90

777231 ........... B-91

777311 ........... B-90

777312BK. . . . . . . . . B-90

777321 ........... B-90

777321BK. . . . . . . . . B-90

777331 ........... B-91

777331BK. . . . . . . . . B-91

778111 ........... B-90

778211 ........... B-90

80-012 ........... B-93

80-033 ........... B-94

80-075 ........... B-93

80-255 ........... B-93

80-265 ........... B-93

80-454 ........... B-93

80-461 ........... B-93

80-475 ........... B-93

80-504 ........... B-93

82-001 ........... B-94

82-002 ........... B-94

82-003 ........... B-94

82-004 ........... B-94

82-005 ........... B-94

82-006 ........... B-94

83-001 ........... B-39

83-0131 .......... A-12

83-0141 .......... A-12

83-0221 .......... A-12

83-0231 .......... A-12

83-0241 .......... A-12

83-0331 .......... A-12

83-0341 .......... A-12

83-0351 .......... A-12

83-0421 .......... A-12

83-0431 .......... A-12

83-0441 .......... A-12

83-0451 .......... A-12

83-0511 .......... A-12

Item Page Item Page Item Page Item Page

Index

www.idealindustries.com 1-800-435-0705 for Customer Servicewww.idealindustries.com 1-800-435-0705 for Customer Service

F-16

83-0521 .......... A-12

83-0531 .......... A-12

83-0541 .......... A-12

83-0611 .......... A-12

83-0621 .......... A-12

83-0631 .......... A-12

83-2121 .......... A-12

83-2131 .......... A-12

83-2141 .......... A-12

83-2151 .......... A-12

83-2221 .......... A-12

83-2231 .......... A-12

83-2241 .......... A-12

83-2251 .......... A-12

83-2331 .......... A-12

83-2341 .......... A-12

83-2351 .......... A-12

83-2361 .......... A-12

83-2371 .......... A-12

83-3261 .......... A-16

83-3271 .......... A-16

83-3281 .......... A-16

83-6111 .......... A-13

83-6121 .......... A-13

83-6131 .......... A-13

83-6161 .......... A-13

83-6171 .......... A-13

83-6211 .......... A-13

83-6221 .......... A-13

83-6231 .......... A-13

83-7011 .......... A-13

83-7021 .......... A-13

83-7031 .......... A-13

83-7051 .......... A-13

83-7061 .......... A-13

83-7071 .......... A-13

83-7081 .......... A-13

83-7091 .......... A-13

83-7101 .......... A-13

83-7111 .......... A-13

83-7121 .......... A-13

83-7131 .......... A-13

83-7151 .......... A-13

83-7161 .......... A-13

83-7171 .......... A-13

83-7201 .......... A-13

83-7211 .......... A-13

83-7221 .......... A-13

83-7231 .......... A-13

83-8001 .......... A-15

83-8011 .......... A-15

83-8101 .......... A-15

83-8111 .......... A-15

83-9001 .......... A-16

83-9011 .......... A-16

83-9021 .......... A-16

83-9031 .......... A-16

83-9041 .......... A-16

83-9051 .......... A-16

83-9071 .......... A-16

83-9081 .......... A-16

83-9091 .......... A-16

83-9281 .......... A-16

83-9291 .......... A-16

83-9301 .......... A-16

83-9351 .......... A-16

83-9361 .......... A-16

83-9371 .......... A-16

83-9401 .......... A-15

83-9411 .......... A-14

83-9421 .......... A-14

83-9441 .......... A-14

83-9451 .......... A-14

83-9471 .......... A-14

83-9481 .......... A-14

83-9501 .......... A-14

83-9511 .......... A-14

83-9521 .......... A-14

83-9541 .......... A-14

83-9551 .......... A-14

83-9571 .......... A-14

83-9581 .......... A-14

83-9591 .......... A-14

83-9601 .......... A-14

83-9611 .......... A-14

83-9621 .......... A-14

83-9631 .......... A-14

83-9771 .......... A-15

83-9781 .......... A-15

83-9791 .......... A-15

83-9801 .......... A-16

83-9911 .......... A-15

83-9921 .......... A-15

83-9931 .......... A-15

83-9971 .......... A-14

83-9981 .......... A-14

83-9991 .......... A-14

84-016 ............E-14

84-017 ............E-14

84-018 ............E-14

84-0241 .......... A-12

84-030 ............E-14

84-0341 .......... A-12

84-2241 .....A-12, A-13

84-2341 .......... A-12

84-6171 .....A-13, A-14

84-7111 .......... A-13

84-7161 .......... A-13

84-7171 .......... A-13

84-7221 .......... A-13

84-9011 .......... A-16

84-9021 .......... A-16

84-9031 .......... A-16

84-9081 .......... A-16

84-9091 .......... A-16

84-9281 .......... A-16

84-9291 .......... A-16

84-9301 .......... A-16

84-9581 .......... A-14

84-9771 .......... A-15

84-9781 .......... A-15

84-9791 .......... A-15

85-016 ............E-14

85-017 ............E-14

85-030 ............E-14

85-031 ............E-15

85-035 ............E-14

85-036 ............E-14

85-037 ............E-14

85-038 ............E-15

85-039 ............E-14

85-053 ............E-14

85-057 ............E-14

85-065 ............E-14

85-066 ............E-14

85-067 ............E-14

85-070 ............E-15

85-1165 ...........E-14

85-1166 ...........E-14

85-132 ............E-21

85-133 ............E-21

85-134 ............E-21

85-135 ............E-21

85-137 ............E-21

85-138 ............E-21

85-166 ............E-14

85-167 ............E-14

85-311 ............E-21

85-323 ............E-21

85-332 ............E-21

85-333 ............E-21

85-334 ............E-21

85-339 ............E-15

85-344 ............E-17

85-345 ............E-17

85-346 ............E-17

85-366 ............E-17

85-380 ............E-17

85-394 ............E-17

85-396 ............E-17

85-480 ............E-15

85-502 ............E-15

85-512 ............E-15

85-545 ............E-15

85-590 ............E-15

85-770 ............E-18

85-771 ............E-18

85-780 ............E-18

85-900 ............E-17

85-925 ............E-17

85-936 ............E-15

85-950 ............E-17

85-960 ............E-17

86-017 ............E-14

86-030 ............E-14

86-039 ............E-14

86-394 ............E-17

86-395 ............E-17

86-396 ............E-17

86-502 ............E-15

86-925 ............E-17

87-925 ............E-17

88-846 ........... B-39

89-014SMRCA .....E-10

89-044 ............E-10

89-045 ............E-10

89-047 ............E-10

89-049 ............E-10

Item Page Item Page Item Page Item Page

Index

Numeric Index

1-800-435-0705 for Customer Service www.idealindustries.com F-17

89-1047 ...........E-10

89-1049 ...........E-10

89-1211 ...........E-10

89-127 ............E-10

89-1544 ...........E-10

89-1545 ...........E-10

89-165 ............E-14

89-202 ........... A-17

89-203 ........... A-17

89-204 ........... A-17

89-206 ........... A-17

89-208 ........... A-17

89-210 ........... A-17

89-211 ............E-10

89-212 ........... A-17

89-224 ........... A-18

89-229 ........... A-18

89-230 ........... A-18

89-233 ........... A-18

89-234 ........... A-18

89-235 ........... A-18

89-236 ........... A-18

89-237 ........... A-18

89-238 ........... A-18

89-239 ........... A-18

89-302 ........... A-17

89-304 ........... A-17

89-306 ........... A-17

89-308 ........... A-17

89-310 ........... A-17

89-312 ........... A-17

89-314 ........... A-18

89-317 ........... A-18

89-323 ........... A-18

89-324 ........... A-18

89-330 ........... A-18

89-334 ........... A-18

89-335 ........... A-18

89-336 ........... A-18

89-337 ........... A-18

89-338 ........... A-18

89-339 ........... A-18

89-402 ........... A-17

89-404 ........... A-17

89-406 ........... A-17

89-408 ........... A-17

89-410 ........... A-17

89-412 ........... A-17

89-414 ........... A-18

89-417 ........... A-18

89-423 ........... A-18

89-424 ........... A-18

89-430 ........... A-18

89-434 ........... A-18

89-435 ........... A-18

89-436 ........... A-18

89-437 ........... A-18

89-438 ........... A-18

89-439 ........... A-18

89-500 ............E-14

89-504 ........... A-17

89-5047 ...........E-10

89-5049 ...........E-10

89-505 ........... A-17

89-506 ........... A-17

89-507 ........... A-17

89-508 ........... A-17

89-509 ........... A-17

89-512 ........... A-17

89-513 ........... A-17

89-514 ........... A-18

89-516 ........... A-18

89-518 ........... A-18

89-520 ........... A-18

89-525 ........... A-18

89-570 ............E-10

89-572 ............E-10

89-580 ............E-10

89-582 ............E-10

89-608 ........... A-18

89-610 ........... A-18

89-612 ........... A-18

89-614 ..........A-18

90-041 ........... B-70

90-042 ........... B-70

90-044 ........... B-70

90-051 ........... B-70

90-052 ........... B-70

90-053 ........... B-70

90-054 ........... B-70

90-055 ........... B-70

90-063 ........... B-62

90-067 ........... B-62

90-070 ........... B-62

90-073 ........... B-62

90-082 ........... B-62

90-085 ........... B-62

90-088 ........... B-62

90-091 ........... B-62

90-170 ........... B-62

90-173 ........... B-62

90-176 ........... B-62

92-572 ............E-10

92-582 ............E-10

92-610 ............E-10

92-619 ............E-10

92-650 ............E-10

92-651 ............E-10

92-654 ............E-10

92-659 ............E-10

92-660 ............E-10

92-669 ............E-10

92-704 ............E-10

92-759 ............E-10

B1-1 ............. A-22

B1-250JR . . . . . . . . . A-22

B1-500JR . . . . . . . . . A-22

B1-B ............. A-22

B1-SK . . . . . . . . . . . . A-22

B102 ............. A-35

B104 ............. A-35

B106 ............. A-35

B108 ............. A-35

B112 ............. A-35

B2-1 ............. A-22

B2-350JR . . . . . . . . . A-22

B2-500JR . . . . . . . . . A-22

B2-B ............. A-22

B2-SK . . . . . . . . . . . . A-22

B4-1 ............. A-22

B4-B ............. A-22

BCS1-1 . . . . . . . . . . . B-72

BCS1-5 . . . . . . . . . . . B-72

BCS1-5M . . . . . . . . . B-72

BCS1-JR .......... B-72

BCS2-1 . . . . . . . . . . . B-72

BCS2-5 . . . . . . . . . . . B-72

BCS2-5M . . . . . . . . . B-72

BCS2-JR .......... B-72

BCTT-200 . . . . . . . . . B-64

BGR-1. . . . . . . . . . . . A-22

BGR-B ........... A-22

BICS2-125 ........ B-72

BMSE150-1 ....... B-73

BMSE175-1 ....... B-73

BPCSRB-JR ....... B-73

BPCXMBJR ....... B-73

BPCXSB-JR ....... B-73

BPCXSW-JR. . . . . . . B-73

BPDATAS-JR ...... B-73

BPLVSB-JR ....... B-73

BPLVSW-JR . . . . . . . B-73

BPS2-1 . . . . . . . . . . . B-72

BPS2-30K. . . . . . . . . B-72

BPS2-5 . . . . . . . . . . . B-72

BPS2-50 .......... B-72

BPS2-5M ......... B-72

BPS2-JRL . . . . . . . . . B-72

BPS2/2-50 ........ B-72

BPS2B-JR. . . . . . . . . B-72

BPS3-1 . . . . . . . . . . . B-72

BPS3-2 . . . . . . . . . . . B-72

BPS3-50 .......... B-72

BPS3-JRL . . . . . . . . . B-72

BPS4-50 .......... B-73

BPSTCKR-15 ...... B-72

BR-5 .............. A-7

BSER2-25. . . . . . . . . B-73

BSER4/0-5 . . . . . . . . B-73

BSER6-50. . . . . . . . . B-73

BSEU2-25. . . . . . . . . B-73

BSEU4/0-5 . . . . . . . . B-73

BSEU6-50. . . . . . . . . B-73

BT2-1 ............ A-22

BT2-500JR . . . . . . . . A-22

BT2-SK . . . . . . . . . . . A-22

BTC1/0-10 . . . . . . . . A-28

BTC2/0-14 . . . . . . . . A-28

BTC250-4 . . . . . . . . . A-28

BTC350-1/0 . . . . . . . A-28

BTC4/0-10 . . . . . . . . A-28

BTC4/0-2 ......... A-28

BTC4/0-6 ......... A-28

BTC500-1/0 . . . . . . . A-28

BTC500-14. . . . . . . . A-28

BTC500-4 . . . . . . . . . A-28

BTC750-250. . . . . . . A-28

C24 .........A-24, B-39

Item Page Item Page Item Page Item Page

Index

www.idealindustries.com 1-800-435-0705 for Customer Servicewww.idealindustries.com 1-800-435-0705 for Customer Service

F-18

C-230 ........D-6, D-15

C-290 ........D-7, D-21

C-50 .............D-13

C-795 ............D-15

C-90 D-16, D-17, D-21

C-958 ............. D-9

CR-958 . . . . . . . . . . . . D-9

FDX-CP-3. . . . . . . . . . .E-3

FDX2-CP-3. . . . . . . . . .E-3

H-2909 . . . . . . . . . . . . C-3

H-632 ............. A-7

HSC-1. . . . . . . . . . . . . A-7

IA-3240. . . . . . B-95, B-96

IA-3241. . . . . . B-96, B-97

IA-4990. . . . . . . . . . . B-98

IT-BAG . . . . . . . . . . . B-64

IT-COMBO. . . . . . . . B-64

IT1_5I-C .......... B-66

IT1_5I-C0 . . . . . . . . . B-66

IT1_5I-M .......... B-66

IT1_5I-M0. . . . . . . . . B-66

IT1_5IMH-C . . . . . . . B-68

IT1_5IMH-C0 ...... B-68

IT1_5M-C. . . . . . . . . B-66

IT1_5M-C0. . . . . . . . B-66

IT1000CCL2-C. . . . . B-70

IT1000MP-C. . . . . . . B-69

IT1000MP-C0. . . . . . B-69

IT11H-L .......... B-67

IT11H-L0 ......... B-67

IT125CCL-C . . . . . . . B-70

IT14H-L .......... B-67

IT14H-L0 ......... B-67

IT1LPMB-C ....... B-69

IT1M-C . . . . . . . . . . . B-66

IT1M-C0 .......... B-66

IT1M-M .......... B-66

IT1MID-C . . . . . . . . . B-68

IT1SMB-C ........ B-69

IT1SMB-C0 ....... B-69

IT250CCL-C . . . . . . . B-70

IT250CCL-C0 ...... B-70

IT2I-C ............ B-66

IT2I-C0 ........... B-66

IT2I-M. . . . . . . . . . . . B-66

IT2I-M0. . . . . . . . . . . B-66

IT2LH-C .......... B-67

IT2LH-C0 ......... B-67

IT2M-C . . . . . . . . . . . B-66

IT2M-C0 .......... B-66

IT2M-M .......... B-66

IT2S-C B-64, B-65, B-67

IT2S-C0. . . . . . . . . . . B-65

IT2S-C0. . . . . . . . . . . B-67

IT2S-C35 ......... B-65

IT2S-M . . . . . . B-65, B-67

IT2S-M0 .....B-65, B-67

IT2SID-C .......... B-68

IT2SMB-C ........ B-69

IT2SMB-C0 ....... B-69

IT2SMH-C ...B-65, B-68

IT2SMH-C0 ..B-65, B-68

IT2SMH-M . . . B-65, B-68

IT375CCL2-C ...... B-70

IT375CCL2-C0. . . . . B-70

IT3I-C ............ B-66

IT3I-C0 ........... B-66

IT3S-C. . . . . . . . . . . . B-64

IT3S-C . . . . . . B-65, B-67

IT3S-C0. . . . . . B-65, B-67

IT3S-C35 ......... B-65

IT3S-D ......B-65, B-67

IT3S-D0 .....B-65, B-67

IT3SMH-C ........ B-68

IT3SMH-C0 ....... B-68

IT4I-C ............ B-66

IT4I-C0 ........... B-66

IT4LH-L .......... B-67

IT4LH-L0 ......... B-67

IT4LHMH-C . . . . . . . B-68

IT4LHMH-C0 ...... B-68

IT4S-C. . . . . . . B-65, B-67

IT4S-C0. . . . . . B-65, B-67

IT4S-D ......B-65, B-67

IT4S-D0 .....B-65, B-67

IT4SMH-C ........ B-68

IT500CCL2-C ...... B-70

IT5LH-L .......... B-67

IT5LH-L0 ......... B-67

IT5S-C. . . . . . . . . . . . B-67

IT5S-CO . . . . . . . . . . B-67

IT625CCL2-C ...... B-70

IT6EH-C0 ......... B-67

IT750CCL2-C ...... B-70

IT750MP-C. . . . . . . . B-69

IT750MP-C0. . . . . . . B-69

IT7H-L. . . . . . . . . . . . B-67

IT7H-L0 .......... B-67

IT7LH-L .......... B-67

IT7LH-L0 ......... B-67

K-2422 ........... A-20

K-649 ............ B-19

K-6491 ........... B-19

K-6492 ........... B-19

K-6493 ........... B-19

K-6494 ........... B-19

K-6495 ........... B-19

K-6496 ........... B-19

K-6497 ........... B-19

K-6498 ........... B-19

K-6499 ........... B-19

K-6500 ........... B-19

K-6501 ........... B-19

K-6502 ........... B-19

K-6503 ........... B-19

K-6504 ........... B-19

K-6505 ........... B-19

K-7920 .............E-4

K-8906R .......... B-38

K-8909 ........... B-38

K-8926 ........... B-38

K-8947R .......... B-38

L-1953 ............ C-3

L-4419 ............ C-2

L-4419M. . . . . . . . . . . C-3

L-4420 ............ C-2

L-4421 ............ C-2

L-4421M. . . . . . . . . . . C-3

L-4422 ............ C-2

L-4452 ............ C-3

L-4453 ............ C-2

L-4994 ............ C-2

L-5210 ............ C-4

L-5211 ............ C-4

L-5212 ............ C-6

L-5215 ............ C-6

L-5217 ............ C-6

L-5269 ............ C-6

L-5270 ........C-3, C-6

L-5361 ............ C-2

L-5361M. . . . . . . . . . . C-3

L-5436 ............ C-4

L-5559 ............ C-4

L-5560 ............ C-4

L-5561 ............ C-4

L-5562 ............ C-4

L-5563 ............ C-4

L-5564 ............ C-4

L-5616 ............ C-6

L-5617 ............ C-6

L-5618 ............ C-6

L-5619 ............ C-6

L-5620 ....... C-2, E-27

L-7486 ........... B-21

L-7625 ............ C-4

L-8762 ............ C-3

L-8763 ............ C-2

L-9038 ............ C-6

L-9039 ............ C-6

L-9225 ............E-18

L-9226 ............E-18

L-9300 ............ C-4

LA_4173 ...........E-15

LA-2358 ........... C-3

LA-3953 ...... C-3, E-19

LA-4102 ...........E-16

LA-4123 .......... B-36

LA-4124 .......... B-36

LA-4173 ............E-7

LA-4233 ............E-7

LA-4234 ............E-7

LANTEK10GBKIT E-3, E-4

LB-1001 ........... C-2

LB-1001M ......... C-3

LB-1002 ........... C-2

LB-1002M ......... C-3

LB-1003 ........... C-2

LB-1004 ........... C-2

LB-1089 ........... C-6

LB-1090 ........... C-6

LB-1091 .......C-5, C-6

LB-1092 ........... C-6

LB-1151 ........... C-5

LB-1152 ...... C-5, E-27

LB-1153 ...... C-5, E-27

LB-1154 ........... C-5

LB-1155 .......C-3, C-5

LB-1156 ........... C-5

Item Page Item Page Item Page Item Page

Index

Alphabetical Index

1-800-435-0705 for Customer Service www.idealindustries.com F-19

Index

LB-1184 ........... C-6

LB-1185 ........... C-6

LB-1186 ........... C-6

LB-1187 ........... C-6

LB-1188 ........... C-6

LB-1189 ........... C-6

LB-1190 ........... C-6

LB-1194 ........... C-6

LB-1195 .......C-3, C-6

LB-1421 ........... C-2

LB-1747 ...........E-16

LB-1748 ...........E-20

LB-197 ............ C-6

LB-198 ............ C-6

LB-27238 . . . . . . . . . .E-19

LB-2726 ...........E-19

LB-2727 ...........E-19

LB-718 ............ C-6

LB-719 ............ C-6

LB-720 ............ C-6

LB-721 ............ C-6

LB-722 ............ C-6

LB-727 ............ C-6

LB-728 ............ C-6

LB-729 ............ C-6

LB-730 ............ C-6

LB-731 ............ C-6

LB-740 ....... C-3, E-19

LB-742 ............ C-3

LB-743 ....... C-3, E-19

LB-825 ........... B-19

LB-840 ........... B-19

LB-882 ............ C-6

LB-883 ............ C-6

LB-895 ............ C-6

LB-896 ............ C-6

LB-911 ............ C-5

LB-912 ............ C-5

LB-913 ............ C-5

LB-914 ............ C-5

LB-915 ............ C-5

LB-916 ............ C-5

LB-917 ............ C-5

LB-918 ............ C-5

LB-919 ............ C-5

LB-920 ............ C-5

LB-921 ............ C-5

LT2-CP-3 ...........E-3

P-100 ............ B-13

P-2710 ........... B-10

PA-830 . . . . . . . . . . . D-13

SPF-13X0 . . . . . . . . . . .E-4

SPF-850 ............E-4

TC-340 ............D-7

TL-80 ............D-16

TL-100 ...........D-20

TL-102 ......D-16, D-20

TL-104 ...........D-20

TL-497 ............D-6

TL-532 ...........D-13

TL-532A ..........D-13

TL-795 ...........D-15

TL-796 ...........D-15

TL-797 ...........D-15

TL-797RP . . . . . . . . . D-15

TL-805 ...........D-14

TL-82 ............D-16

TL-95 ............D-17

TL-956 ............D-9

TLA1-956 . . . . . . . . . . D-9

TLA2-956 . . . . . . . . . . D-9

TLAC-956. . . . . . . . . . D-9

TLBP-956 . . . . . . . . . . D-9

TLC-252 ..........D-20

TLGP-956 . . . . . . . . . . D-9

TLOP-956. . . . . . . . . . D-9

VFF5 ..............E-27

WGR-1 ........... A-23

WGR-500JR . . . . . . . A-23

WGR-B . . . . . . . . . . . A-23

WGR-SK .......... A-23

WT1-1. . . . . . . . . . . . A-23

WT1-B ........... A-23

WT1-SK .......... A-23

WT2-1. . . . . . . . . . . . A-23

WT2-B ........... A-23

WT2-SK .......... A-23

WT3-1. . . . . . . . . . . . A-23

WT3-B ........... A-23

WT3-SK .......... A-23

WT4-1. . . . . . . . . . . . A-23

WT4-B ........... A-23

WT4-SK .......... A-23

WT41-1. . . . . . . . . . . A-23

WT41-500JR ...... A-23

WT41-B .......... A-23

WT41-SK ......... A-23

WT51-1. . . . . . . . . . . A-23

WT51-500JR ...... A-23

WT51-B .......... A-23

WT51-SK ......... A-23

WT52-1. . . . . . . . . . . A-23

WT52-500JR ...... A-23

WT52-B .......... A-23

WT52-SK ......... A-23

WT54-1. . . . . . . . . . . A-23

WT54-B .......... A-23

WT6-1. . . . . . . . . . . . A-23

WT6-B ........... A-23

WT6-SK .......... A-23

Item Page Item Page Item Page Item Page

OUR GLOBAL NETWORK OF

OPERATING LOCATIONS.

IDEAL INDUSTRIES, INC.

Corporate Headquarters

Becker Place

Sycamore, IL 60178, USA

ph: 815-895-5181 • 800-435-0705 in USA

fax: 815-895-9470 • 800-533-4483 in USA

email: ideal@idealindustries.com

CUSTOMER SERVICE 800-435-0705

email: ideal@idealindustries.com

QUALITY HOTLINE 800-304-3578

email: quality@idealindustries.com

TECHNICAL HOTLINE 800-338-4495

email: techsupt@idealindustries.com

For a list of global locations, visit us at

idealindustries.com

WirE TErminaTion

Tools & suppliEs

sTripmasTEr

WirE sTrippErs

TEsT & mEasurEmEnT

DaTaComm/nETWorks

FULL-LINE CATALOG

IDEAL FULL-LINE CATALOG

VISION. PERFORMANCE. SERVICE.

SINCE 1916

Form No. P-070

IDEAL INDUSTRIES, INC.

Becker Place, Sycamore, IL 60178, USA / 815-895-5181 • 800-435-0705 in USA

International offices: Australia • Brazil • Canada • China • Germany • Mexico • Puerto Rico • UK

For complete sales office contact information, visit us at:

www.idealindustries.com

Rev. 1/11

Printed in U.S.A.

13354_CoverSpread_2011catalog.indd 1 11/18/10 4:04:31 PM
