Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Contents Pages

Section Overview . . . . . . . . . . . . . . . . . . . . . . . . 11/2 - 11/3

Temperature Monitoring Relays

Overview ....................................11/4

Selection, 3RS10-11, 3RS20-21

Analog with One Threshold Value . . . . . . . . . . . . . . . 11/5

Analog with Two Threshold Values . . . . . . . . . . . . . . 11/5

Digital with Two Threshold Values . . . . . . . . . . . . . . 11/6

Technical Data ................................11/7

Configuration .................................11/8

Functions ....................................11/9

Circuit Diagrams .............................11/10

Dimensions .................................11/11

Thermistor Motor Protection

Overview ...................................11/12

Selection, 3RN10 .............................11/13

Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . 11/14 - 11/15

Functions ...................................11/15

Configuration ................................11/16

Circuit Diagrams . . . . . . . . . . . . . . . . . . . . . . . 11/17 - 11/18

Dimensions .................................11/19

Solid-State Time Relays

Overview ...................................11/20

Selection

Standard Time Relay, 3RP20 . . . . . . . . . . . . . . . . . . 11/21

Narrow Width Time Relays, 3RP15 . . . . . . . . . . . . . 11/21

Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . 11/22 - 11/23

Functions ............................. 11/24 - 11/26

Selection

Timing Relay 7PV ...........................11/27

Circuit Diagrams . . . . . . . . . . . . . . . . . . . . . . . 11/28 - 11/29

Monitoring Relays

For Line, Voltage and Insulation Monitoring

Overview .................................11/30

Selection .................................11/31

Technical Data . . . . . . . . . . . . . . . . . . . . . . . 11/32 - 11/35

For Current, Power Factor Monitoring

Overview .................................11/36

Selection .................................11/37

Technical Data . . . . . . . . . . . . . . . . . . . . . . . 11/38 - 11/41

For Residual Current Monitoring

Overview .................................11/42

Selection .................................11/42

Technical Data . . . . . . . . . . . . . . . . . . . . . . . . 11/43 - 1/44

For Insulation Monitoring of Ungrounded AC Networks

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 11/45 - 11/47

Technical Data . . . . . . . . . . . . . . . . . . . . . . . 11/47 - 11/48

Selection .................................11/49

For Insulation Monitoring of Ungrounded

DC and AC Networks

Overview .................................11/50

Technical Data . . . . . . . . . . . . . . . . . . . . . . . 11/50 - 11/53

Selection .................................11/54

Contents Pages

Monitoring Relays for Non-Electrical Quantities

For Level Monitoring of Conductive Liquids

Selection, 3UG4501 . . . . . . . . . . . . . . . . . . . . . . . . . 11/55

Accessories ...............................11/56

Technical Data . . . . . . . . . . . . . . . . . . . . . . . 11/57 - 11/59

For Underspeed Monitoring

Selection, 3UG4651 . . . . . . . . . . . . . . . . . . . . . . . . . 11/60

Technical Data . . . . . . . . . . . . . . . . . . . . . . . 11/61 - 11/62

Coupling Relays and Interfaces

Coupling Relay Overview . . . . . . . . . . . . . . . . . . . . . . 11/63

Selection, 3TX70 .............................11/64

Interface Relay Overview . . . . . . . . . . . . . . . . . . . . . . 11/65

Selection, 3TX70 .............................11/66

Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . 11/67 - 11/70

Circuit Diagrams . . . . . . . . . . . . . . . . . . . . . . . 11/71 - 11/73

Dimensions .................................11/74

Wide Input Interface Relay

Overview ...................................11/75

Selection, 3RS18 .............................11/75

Dimensions .................................11/75

Interface Converters

Overview ...................................11/76

Selection, 3RS17 .............................11/77

Technical Data ...............................11/78

Configurations ...............................11/79

Circuit Diagrams .............................11/80

Dimension Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . 11/80

Power Relays

Overview ...................................11/81

Selection, 3TG10 .............................11/81

Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . 11/82 - 11/83

Accessories .................................11/84

Circuit Diagrams .............................11/84

Dimensions .................................11/84

Plug-in Relays

Selection, 3TX71 . . . . . . . . . . . . . . . . . . . . . . . 11/85 - 11/89

Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . 11/90 - 11/92

Overview ...................................11/93

Circuit Diagrams . . . . . . . . . . . . . . . . . . . . . . . 11/94 - 11/96

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . 11/97 - 11/105

Siemens / Industrial Controls Previous folio: 11/1

Control Circuit Components

Function Relays, Interfaces and Converters

11/2 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: 11/2

Function Relays, Interfaces and Converters

3RS10/3RS11 temperature

monitoring relays 3RN1 thermistor

motor protection Solid-State Time Relays

Solid-State Time Relays

3RS10/3RS20 temperature

monitoring relay

for RTD or Thermocouple Page

Selection and ordering data

• Overview 11/4

• Screw and Spring-type

connection 11/5

Technical data 11/7

Conﬁguration 11/8

Functions 11/9

Circuit diagrams 11/10

Dimension drawings 11/11

3RN10 thermistor motor protection

for PTC temperature detectors

Page

Selection and ordering data

• Overview 11/12

• Screw and Spring-type

connection 11/13

• Accessories 11/14

Technical data 11/14

Function diagrams 11/15

Functions 11/16

Circuit diagrams 11/17

Dimension drawings 11/19

3RP20/3RP15 solid-state time

relays Page

Selection and ordering data

• Overview 11/20

• Screw and Spring-type

connection 11/21

Technical data 11/22

Function diagrams 11/24

Circuit diagrams 11/28

7PV solid-state

relay Page

Selection and ordering data

• Screw connection 11/27

• Accessories 11/27

Technical data 11/27

Dimension drawings 11/27

3RT19 time delay blocks for

mounting on contactors

Selection and ordering data

• See Section 2

11/3

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: 11/3

Function Relays, Interfaces and Converters

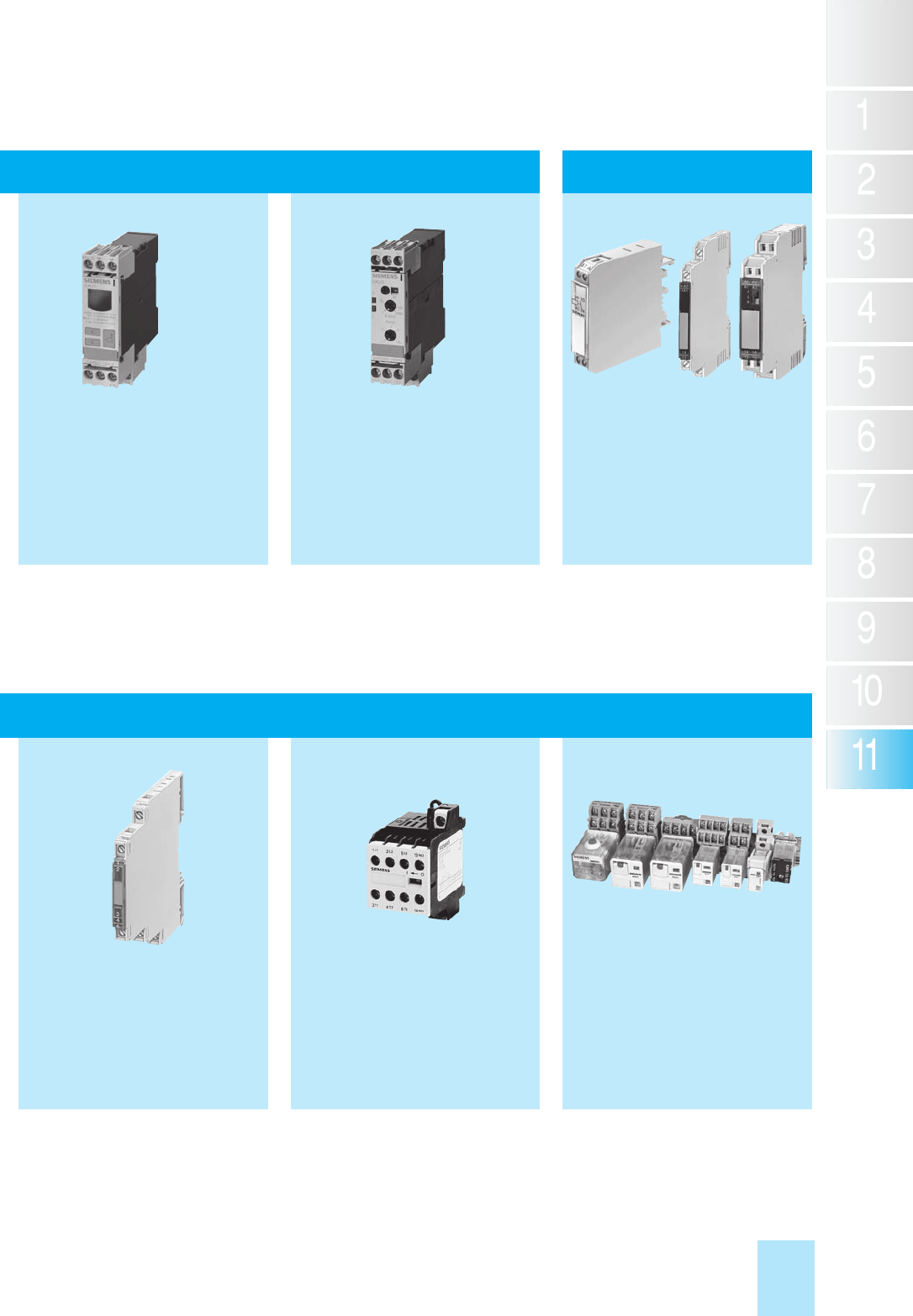

3UG3/4 monitoring relays

Coupling relays and interfaces

For electrical quantities

Page

Selection and ordering data

• Selection Data 11/31

Overview 11/30

Technical data 11/32

Dimension drawings 11/33

For non-electrical quantities

Page

Selection and ordering data

• Selection Data 11/55

Overview 11/55

Technical data 11/57

Dimension drawings 11/58

3TX70 relay and semiconductor

interfaces

Page

Selection and ordering data

• Selection Data 11/64

Overview 11/63

Technical data 11/67

Terminal diagrams 11/71

Position of terminals 11/73

Dimension drawings 11/74

3RS17 interface converter

Page

Selection and ordering data

• Screw and Spring-type 11/77

connection

Overview 11/76

Technical data 11/78

Conﬁguration 11/79

Circuit diagrams 11/80

Dimension drawings 11/80

3TG10 power relay,

20A max. resistance load pole

Page

Selection and ordering data

• AC and DC operation, hum-free

With screw connection or tab

connector 11/81

• Accessories 11/84

Application 11/81

Technical data 11/82

Circuit diagrams 11/84

Position of terminals 11/84

Dimension drawings 11/84

3TX71 general purpose

plug-in relays

Page

Selection and ordering data

• AC and DC operation 11/85

Technical data 11/91

Contact arrangements 11/93

Circuit diagrams 11/94

Dimension drawings 11/97

11/4 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/4

Function Relays, Interfaces and Converters

Temperature Monitoring Relays

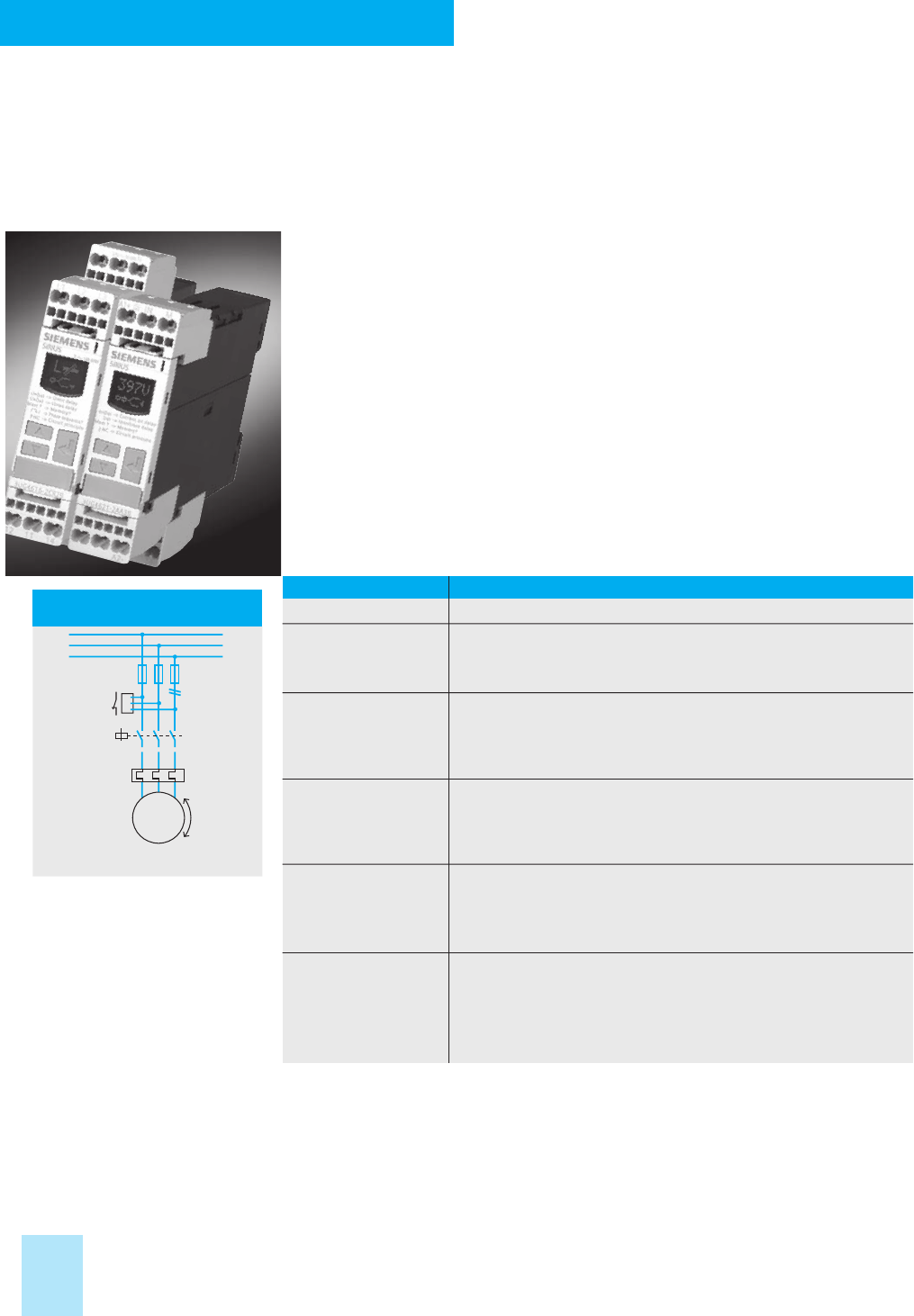

3RS10/3RS11

Overview

The 3RS1/3RS2 SIMIREL tem-

perature monitoring relays can

be used for measuring temper-

atures in solid, liquid and gase-

ous media. The temperature is

acquired by the sensor in the

medium, evaluated by the

device and monitored for over-

shoot, undershoot or within a

range (window function). The

family consists of analog

adjustable devices with one or

two threshold values and digital

devices that represent an

excellent alternative to thermo-

stats in the low-end perform-

ance range. The output relay

picks up and releases at the

threshold values in accord-

ance with the parameter set-

tings.

Analog evaluation units

• Sensor types: PT100/Type J/

Type K

• Measuring principle for 2- and

3-wire sensors

• Electrical isolation between

sensor and supply voltage

(with the exception of AC/DC

24 V devices)

• Separate designs for over-

shoot and undershoot

• Measuring range depending

on the version for

-50 °C to +50 °C,

0 °C to 100 °C,

0 °C to 200 °C,

0 °C to 600 °C or

500 °C to 1000 °C

• Potentiometer for adjustable

limit temperature and hystere-

sis of 2 to 20%

• Closed-circuit principle

• Narrow 22.5 mm enclosure

with 12 terminals

With one threshold value

• Supply voltage for

AC/DC

24 V or AC 110/230 V

• Indication of supply voltage

and relay status via LEDs

• One NO and one NC contact

With two threshold values

• Additional potentiometer for

ϑ2 (hysteresis for second limit

value is 5 % of the measuring

range)

• Supply voltage for

AC/DC

24 V or 24 to 240 V

• LED indication of supply volt-

age and both relay states

• Open-circuit/closed-circuit

principle switchover

• One NO and one CO contact

Digital evaluation units

• High-end evaluation unit for

1 or 1-3 sensor circuits

• Multifunctional digital display

and three LEDs (for threshold

values and Ready)

• Adjustable sensor types

• Adjustable overshoot, under-

shoot or window function

• Switchable open-circuit or

closed-circuit principle

• Hysteresis for both threshold

values (1 to 99 K)

• Memory function can be se-

lected by means of an external

control signal (Y1/Y2)

• One NO and two SPDT con-

tacts

• Adjustable time delay from 0to

999 s

• Wire-break and short-circuit

detection with separate signal-

ling contact (1 NO)

• Non-volatile storage of the set

parameters

• 45 mm housing with

24 supply terminals

• Measuring principle for 2- and

3-wire sensors

• Electrical isolation (with the ex-

ception of AC/DC 24 V devic-

es)

• In the 3-sensor design, the sta-

tus of the individual sensors is

indicated on limit value over-

shoot/undershoot

It clearly displays which of the

connected sensors has overshot

or undershot one or both thresh-

old values.

Advantages

• All devices are with Cage

Clamp terminals

• All devices with the exception

of AC/DC 24 V devices are

electrically isolated

• Variants for the evaluation of

1 to 3 sensors in one unit, e.g.

for multiple monitoring in a

plant or for motor protection

• Easy operation without complex

menu systems

• Graduated product range; the

right device for every applica-

tion

• High-end evaluation units with

digital display – can be used

for a wide temperature range

and for different sensor types

• Adjustable hysteresis

• Rapid fault diagnosis due to

short-circuit monitoring and

sensor wire-break detection

• Power packs with wide range

of input voltage reduce the

number of variants

• Easy configuration for either

two-point or three-point closed-

loop control

Application

The 3RS1/3RS2 SIMIREL tem-

perature monitoring relays can

be used in almost any applica-

tion in which limit tempera-

tures must not be overshot or

undershot, e.g.:

Monitoring of set limit temper-

atures and output of alarm

messages for:

• Motor and plant protection

• Switchgear cabinet tempera-

ture monitoring

• Frost monitoring

• Temperature limits for proc-

ess variables, e.g. in the

packaging industry or galva-

nising equipment

• Control of plants and ma-

chines such as heating, air-

conditioning and ventilation

systems, solar collectors,

heat pumps or warm water

supplies

• Monitoring of servo motors

with KTY sensors

• Bearing and gearbox oil-lev-

el monitoring

• Monitoring of

cooling liquids

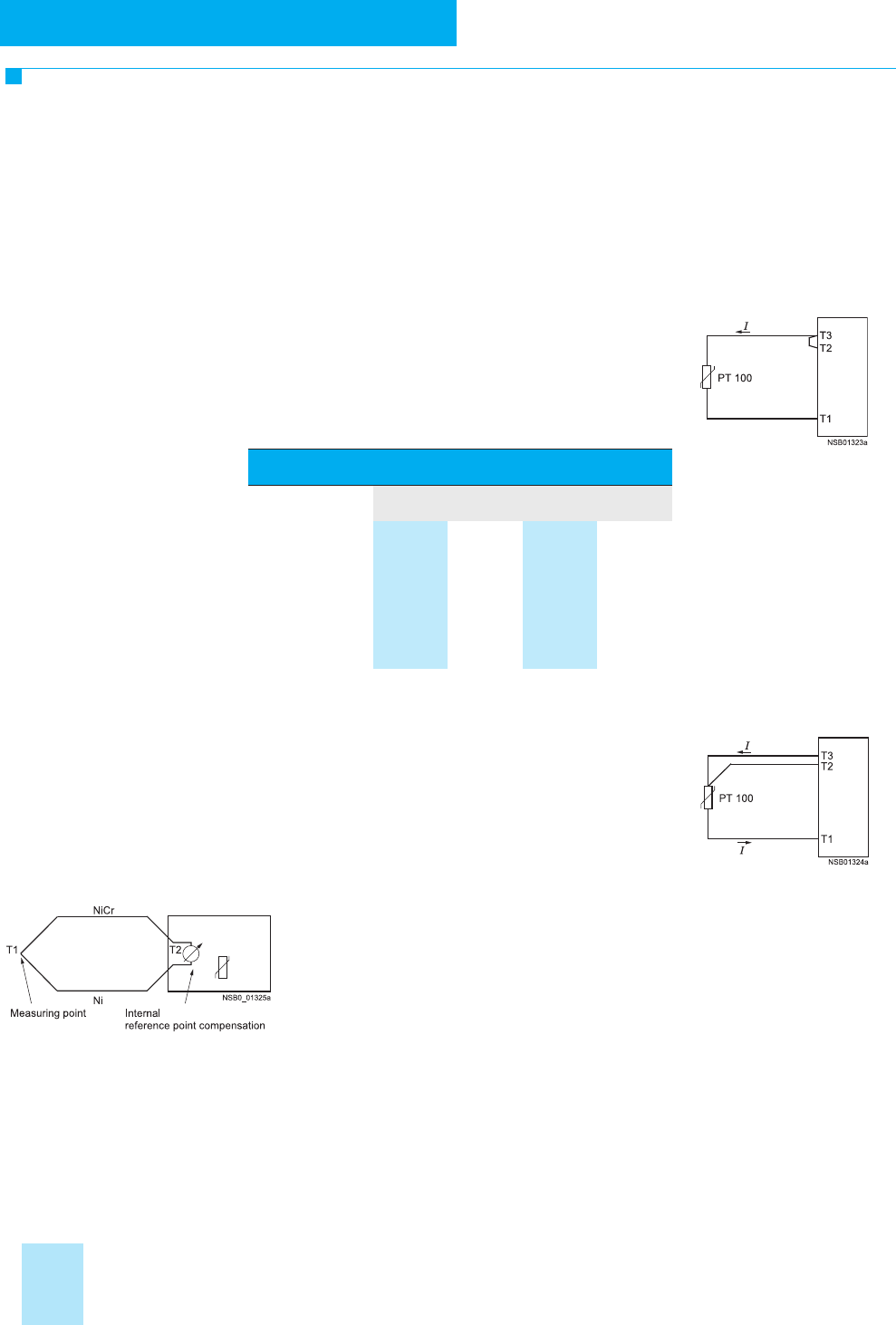

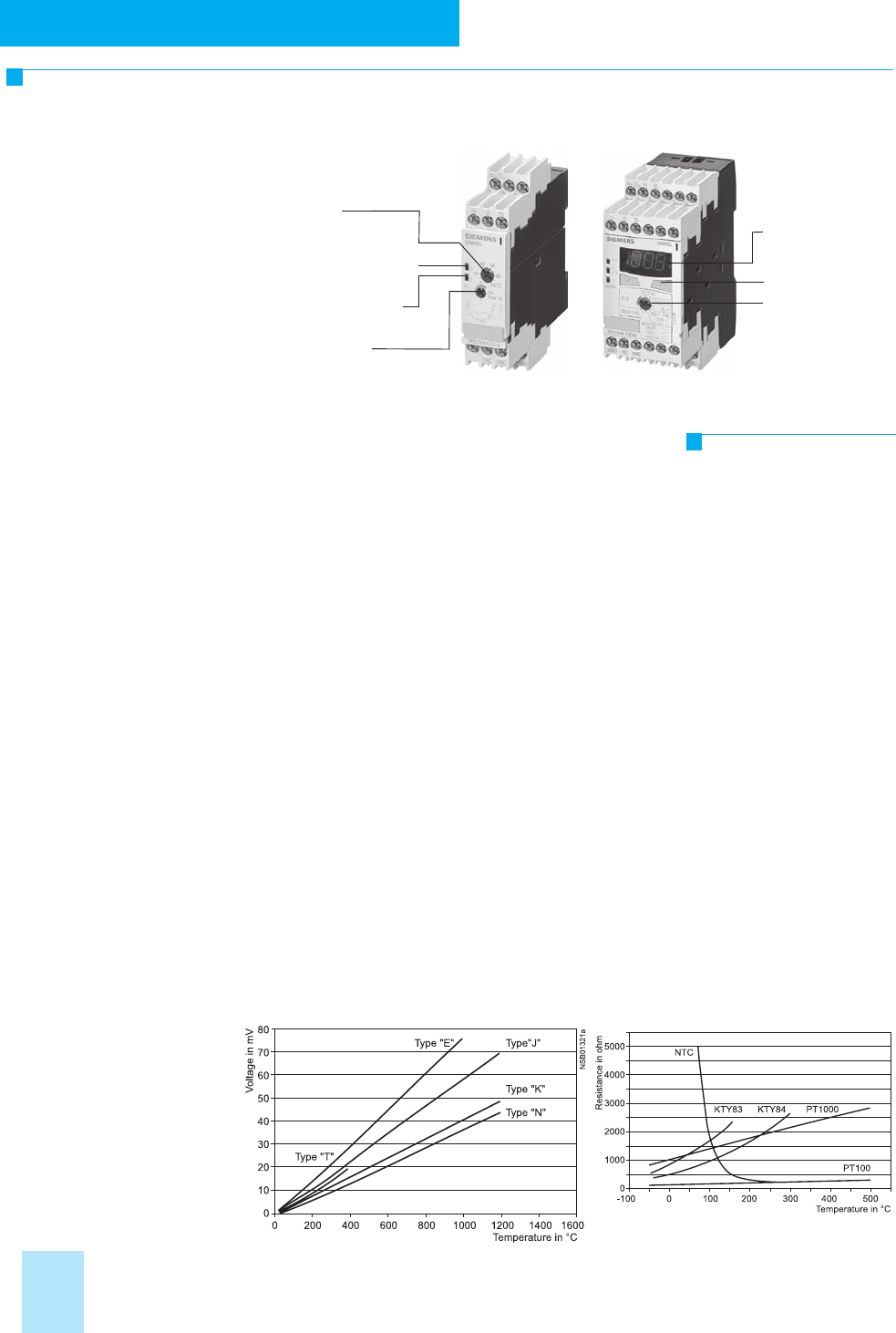

Characteristics for thermocouples and resistance sensors

LED to indicate

"Up and Down"

buttons

Rotary switch for

parameter selection

Temperature

setting

LED "Voltage applied"

LED "Relay switched"

Hysteresis switch

srosnes ecnatsiseRselpuocomrehT

11/5

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Product Category: SMRL

Siemens / Industrial Controls Previous folio: IC10 11/5

Analog setting evaluation devices with one and two

threshold values. For analog setting devices, the

threshold values and the hysteresis from 2 to 20% are

set using a rotary potentiometer. For devices with 2

threshold values, the selectable hysteresis only acts

on threshold value 1. For the second threshold value,

the hysteresis is permanently set to 5%. This series of

products was developed for applications where a setting

accuracy of ± 5% is sufficient.

3RS10/3RS11 Temperature monitoring relays

Sensor Function Measuring range Rated control supply Order No.

voltage Vs

50–60 Hz AC

Analog setting, 1 threshold value, 22.5 mm wide;

analog closed-circuit principle, no holding on supply failure function; 1 NO + 1 NC

PT100 Overrange –50...+50 °C 24 V AC/DC 3RS10 00- CD00

(resistance sensor) 110/230 V AC 3RS10 00- CK00

0...+100 °C 24 V AC/DC 3RS10 00- CD10

110/230 V AC 3RS10 00- CK10

0...+200 °C 24 V AC/DC 3RS10 00- CD20

110/230 V AC 3RS10 00- CK20

Underrange –50...+50 °C 24 V AC/DC 3RS10 10-1CD00

110/230 V AC 3RS10 10-1CK00

0...+100 °C 24 V AC/DC 3RS10 10-1CD10

110/230 V AC 3RS10 10-1CK10

0...+200 °C 24 V AC/DC 3RS10 10-1CD20

110/230 V AC 3RS10 10-1CK20

Typ J Overrange 0...+200 °C 24 V AC/DC 3RS11 00- CD20

(thermocouple) 110/230 V AC 3RS11 00-1CK20

0...+600 °C 24 V AC/DC 3RS11 00-1CD30

110/230 V AC 3RS11 00-1CK30

Typ K Overrange 0...+200 °C 24 V AC/DC 3RS11 01- CD20

(thermocouple) 110/230 V AC 3RS11 01-1CK20

0...+600 °C 24 V AC/DC 3RS11 01-1CD30

110/230 V AC 3RS11 01-1CK30

+500...+1000 °C 24 V AC/DC 3RS11 01-1CD40

110/230 V AC 3RS11 01-1CK40

Analog setting for alarm and trip (2 threshold values), 22.5 mm wide; open-circuit – closed-circuit

current principle can be toggled between; no holding on supply failure function; 1 NO + 1 CO

PT100 Overrange –50...+50 °C 24 V AC/DC 3RS10 20-1DD00

(resistance sensor) 24–240 V AC/DC 3RS10 20-1DW00

0...+100 °C 24 V AC/DC 3RS10 20-1DD10

24–240 V AC/DC 3RS10 20-1DW10

0...+200 °C 24 V AC/DC 3RS10 20-1DD20

24–240 V AC/DC 3RS10 20- DW20

Underrange –50...+50 °C 24 V AC/DC 3RS10 30-1DD00

24–240 V AC/DC 3RS10 30-1DW00

0...+100 °C 24 V AC/DC 3RS10 30-1DD10

24–240 V AC/DC 3RS10 30-1DW10

0...+ 200 °C 24 V AC/DC 3RS10 30- DD20

24–240 V AC/DC 3RS10 30-1DW20

Typ J Overrange 0...+200 °C 24 V AC/DC 3RS11 20- DD20

(thermocouple) 24–240 V AC/DC 3RS11 20-1DW20

0...+600 °C 24 V AC/DC 3RS11 20-1DD30

24–240 V AC/DC 3RS11 20-1DW30

Typ K Overrange 0...+200 °C 24–240 V AC/DC 3RS11 21-1DW20

(thermocouple) 0...+600 °C 24–240 V AC/DC 3RS11 21-1DW30

+500...+1000 °C 24 V AC/DC 3RS11 21-1DD40

24–240 V AC/DC 3RS11 21-1DW40

List

Price $

Screw Terminal 1

Spring-type Terminal

Function Relays, Interfaces and Converters

Temperature Monitoring Relays

3RS10/3RS11

11/6 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Product Category: SMRL

Siemens / Industrial Controls Previous folio: IC10 11/6

Screw Terminal 1

Spring-type Terminal

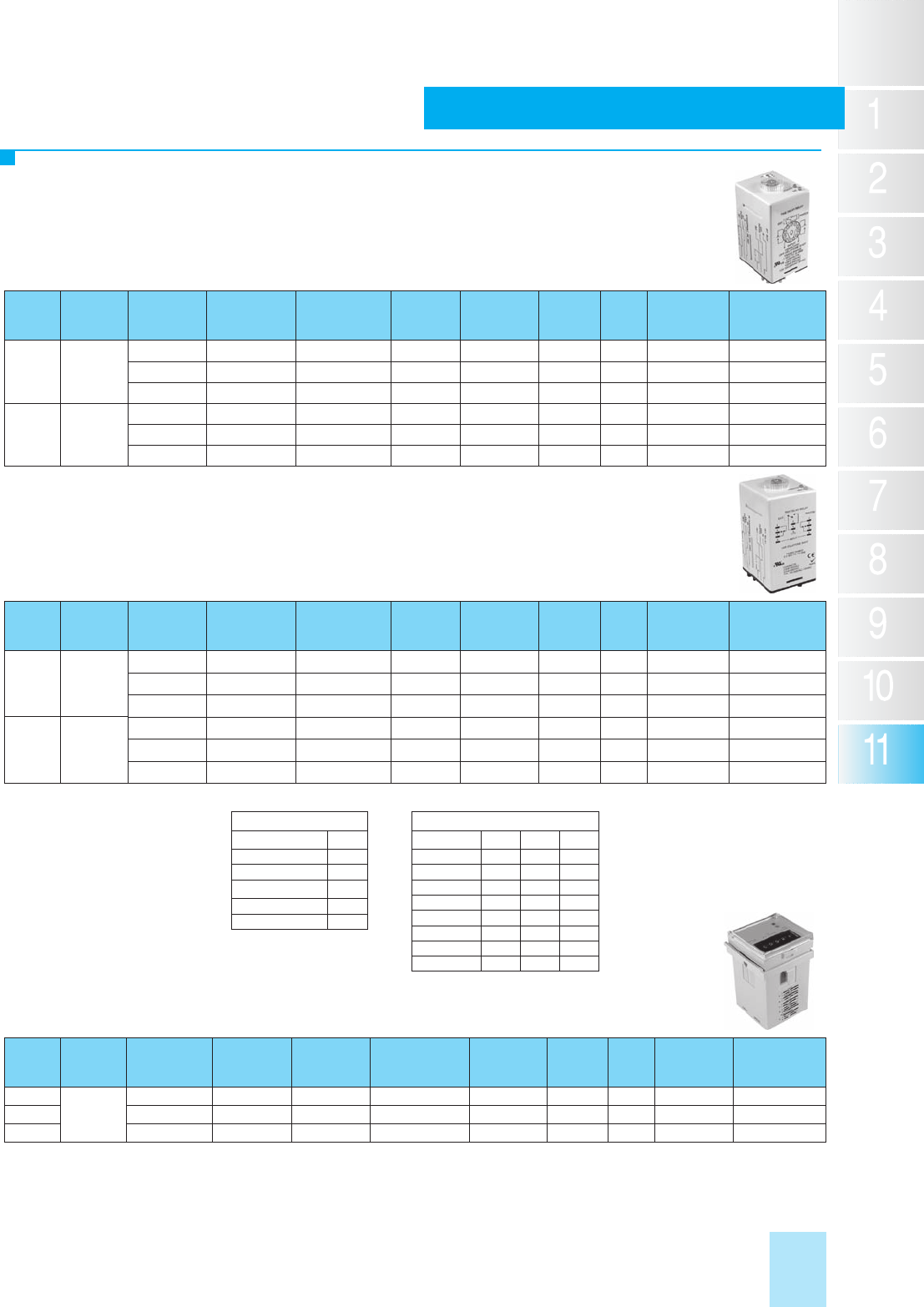

Evaluation units with digital settings

Temperature monitoring relays distinguish themselves

due to the fact that they are extremely easy-to-use.

The actual temperature is always displayed on the three-

digit LED display. A dedicated relay with one NO contact

is integrated to monitor the sensor.

The relay is switched-out in the parameterizing mode.

The following parameters can be set:

• Sensor type

• 2 threshold values J , J

• 1 hysteresis; this acts on both thresholds (0–99 K)

• 1 delay time; this acts on both thresholds (0–9999 s)

• Either the open-circuit/closed-circuit principle can be

selected

• Function: Overtemperature/Undertemperature

(overrange/underrange) or window monitoring within

a defined range

Versions with a wide-range voltage have electrical

isolation.

The temperature ranges are dependant on the sensor

type (refer to the function).

1 2

3RS10/3RS11 Temperature monitoring relays

Sensor Measuring range Rated control supply Order No.

(measuring range limit voltage Vs

depends on the sensor) 50–60 Hz AC

“Temperature monitor” acc. to DIN 3440, digital settings, 2 threshold values, 45 mm wide; 1 CO + 1 CO + 1 NO,

memory function can be enabled using an external jumper. Relay parameters have a holding on supply failure function

–50...+500 °C 24 V AC/DC 3RS10 40- GD50

24–240 V AC/DC 3RS10 40- GW50

–50...+932 °F 24 V AC/DC 3RS20 40- GD50

24–240 V AC/DC 3RS20 40- GW50

–99...+999 °C 24 V AC/DC 3RS11 40- GD60

24–240 V AC/DC 3RS11 40- GW60

–99...+1830 °F 24 V AC/DC 3RS21 40- GD60

24–240 V AC/DC 3RS21 40- GW60

“Temperature limiter” and “temperature monitor” acc. to DIN 3440, digital settings, 2 threshold values, 45 mm wide;

1 CO + 1 CO + 1 NO, tripped state and relay parameters are saved using a holding on supply failure function

–50...+750 °C 24 V AC/DC 3RS10 42- GD70

24–240 V AC/DC 3RS10 42- GW70

–99...+1800 °C 24 V AC/DC 3RS11 42- GD80

24–240 V AC/DC 3RS11 42- GW80

The short-circuit and wire breakage detection, as well as the

measuring range are restricted, depending on the sensor type:

Measuring ranges in °C for thermocouple

Sensor Short- Wire 3RS11 40 3RS11 42

type circuit breakage

measuring range

J – x –99...999 –99...1200

K – x –99...999 –99...1350

T – x –99...400 –99...400

E – x –99...999 –99...999

N – x –99...999 –99...999

S – x – 0...1750

R – x – 0...1750

B – x – 400...1800

Measuring ranges in °C for resistance sensors

Sensor Short- Wire 3RS10 40 3RS10 42

type circuit breakage

measuring range

PT100 x x –50...500 –50...750

PT1000 x x –50...500 –50...500

KTY83-110 x x –50...175 –50...175

KTY84 x x –40...300 –40...300

NTC1) x – 80...160 80...160

1) NTC type: B57227-K333-A1 (100 °C: 1.8 kΩ ; 25 °C: 32.762 kΩ )

Motor monitoring relays, digital settings for up to 3 sensors, 45 mm wide; 1 CO + 1 CO + 1 NO

Sensor No of Measuring range Rated control supply

sensors voltage Vs

Order No.

1 to 3 –50...+500 °C 24–240 V AC/DC 3RS10 41- GW50

sensors –50...+932 °F 24–240 V AC/DC 3RS20 41- GW50

1) NTC type: B57227-K333-A1 (100 °C: 1.8 K; 25 °C: 32.762 K)

PT100/1000;

KTY83/84;

NTC (resistance sensor) 1)

TYPE J, K, T, E, N

(thermocouple)

PT100/1000;

KTY83/84;

NTC (resistance sensor) 1)

TYPE J, K, T, E, N, R, S, B

(thermocouple)

PT100/1000;

KTY83/84;

NTC (resistance sensor) 1)

List

Price $

List

Price $

Function Relays, Interfaces and Converters

Temperature Monitoring Relays

3RS10/3RS11

11/7

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/7

Function Relays, Interfaces and Converters

Temperature Monitoring Relays

3RS10/3RS11

Technical data

1) Not for NTC (B57227-K333-A1

(100 °C:1.8 kΩ; 25 °C:32,762 kΩ).

2) 2-wire connection of resistance sensors

with wire jumper between T2 and T3.

General data

Type 3RS10 00 3RS11 00 3RS11 01 3RS10 20 3RS11 20 3RS11 21 3RS.0 40 3RS.1 40

3RS10 10 3RS10 30 3RS11 30 3RS11 31 3RS.0 41

Sensor type PT100 TC Type J TC Type K PT100 TC Type J TC Type K PT100;

1000

KTY83 / 84;

NTC

TC Type J,

K, T, E, N

Width mm 22.5 45

Operating range V0.85 to 1.1 x Us

Rated power W/VA < 2 / 4 < 4 / 7

Auxiliary circuit

Contacts 1 NO + 1 NC 1 SPDT + 1 NO 1 SPDT + 1 SPDT +

1 NO

Rated operational current Ie

AzH 05 ,V 032 CA ta 51CA 3

AV 42 ta 31CD 1

AV 042 ta 31CD 0.1

Required DIAZED fuse

Utilisation category gL/gG A 4

Electrical endurance AC 15 at 3 A 100,000

Mechanical endurance

Mechanical operating cycles 30 x 106

Tripping unit

Measuring accuracy at 20°C ambient temperature

(T20) typically < ± 5% of upper limit of scale < ± 2K

± 1 digit < ± 5K

± 1 digit

Reference point accuracy – < ± 5 K – < ± 5 K – < ± 5 K

Deviations due to ambient temperature %egnar gnirusaem fo % ni <2 <3 <2 <3 0.05 °C per K

deviation from T20

Measuring cycle ms 500

Hysteresis adjustments

for temperature 1

for temperature 2 2 to 20 % of upper limit of scale

5 % of upper limit of scale 1 to 99 Kelvin, for both

values

Sensor circuit

Typical sensor current

PT100

PT1000 / KTY83 / KTY84 / NTC mA

mA Typically 1

Typically 0.2 –

–Typically 1

Typically

0.2

–

–Typically 1

Typically

0.2

–

Wire-break detection No Yes 1) Yes

Short-circuit detection No Yes No

3-wire connection Yes 2) – Yes 2) – Yes 2) –

Enclosure

Environmental effects

Permissible ambient temperature

Permissible storage temperature

Permissible mounting position

°C

°C – 25° to 60°

– 40° to 80°

any

Degree of protection to EN 60 529 Terminals: IP20; cover: IP40

Rated insulation voltage Ui

(pollution degree 3) AC V 300

Conductor cross-section

Screw terminals M 3.5 (for standard screwdriver Size 2 and Pozidriv 2)

– solid

– finely stranded, with end sleeves

– solid or stranded AWG conductors

– Tightening torque

mm2

AWG

1 x (0.5 to 4) / 2 x (0.5 to 2.5)

1 x (0.5 to 2.5) / 2 x (0.5 to 1.5)

2 x (20 to 14)

0.8 to 1.2

Cage Clamp terminals

– solid

– finely stranded, with end sleeves

– finely stranded, without end-sleeves

– solid or stranded AWG conductors

– corresponding opening tool

mm2

AWG

2 x (0.25 to 1.5)

2 x (0.25 to 1)

2 x (0.25 to 1.5)

2 x (24 to 16)

8WA2 807

Vibration performance IEC 68-2-6 5 to 26 Hz/0.75 mm

Shock resistance IEC 68-2-27 15 g/11 ms

11/8 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/8

Function Relays, Interfaces and Converters

Temperature Monitoring Relays

3RS10/3RS11

Configuration

Specifications

The temperature monitoring

relays correspond to:

• IEC 60 721-3-3 "Environmental

conditions"

• IEC 947-5-1; DIN VDE 0660

"Low-voltage switchgear and

controlgear"

• EN 50 081-2 "Basic technical

standard for emitted interfer-

ence (industry)"

• EN 61 000-6-2 "Basic techni-

cal stand ard for interference

immunity (industry)"

• DIN EN 50 042 "Terminal

marking"

• UL/CSA under application

Specifications

Connection of resistance thermometers

2-wire measurement

When 2-wire temperature sen-

sors are used, the sensor re-

sistance is added to the wire

resistance. The system error

that results must be taken into

account when the parameters

are set for the evaluation unit. A

jumper must be clamped

between terminals T2 an T3.

The following table can be used

to determine the temperature

error when a PT100 is used.

Error due to wiring

The error that arises due to the

wiring is approx. 2.5 Kelvin/

ohm. If the resistance of the wir-

ing is not known and cannot be

measured, the wiring error can

be estimated by means of the

following table.

3-wire measurement

To minimise the effects of the

wiring resistances, a 3-wire cir-

cuit is usually used.

Using the additional wire, it is

possible for two measuring cir-

cuits to be formed of which one

is used as a reference.

The evaluation unit can then

automatically calculate the wir-

ing resistance and take it into

account.

Connection of thermoelements

A differential temperature

measurement is obtained from

the thermo-electrical effect

between the measuring point

and the evaluation unit.

This principle assumes that the

evaluation unit knows the tem-

perature at the terminal (T2).

The 3RS11 temperature moni-

toring relays have a built-in ref-

erence point correction function

that determines this reference

temperature and uses it to gen-

erate the measurement result.

The absolute temperature is

therefore calculated from the

ambient temperature of the

evaluation unit and the temper-

ature difference measured by

the thermoelement.

In this manner, temperature

acquisition (T1) is possible

without knowing the precise

ambient temperature at the ter-

minals of the evaluation unit

(T2).

The connecting lead is only

permitted to be extended using

equalising conductors made

from the same material as the

thermoelement itself. If a differ-

ent type of lead is used, the

measurement will be inaccu-

rate.

Temperature error as a function of conductor length and cross-sec-

tion with PT100 sensors and 20°C ambient temperature, in K

Cable length Cross-section mm2

in m 0.5 0.75 1 1.5

00.0 0.0 0.0 0.0

10 1.8 1.2 0.9 0.6

25 4.5 3.0 2.3 1.5

50 9.0 6.0 4.5 3.0

75 13.6 9.0 6.8 4.5

100 18.1 12.1 9.0 6.0

200 36.3 24.2 18.1 12.1

500 91.6 60.8 45.5 30.2

11/9

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/9

Function Relays, Interfaces and Converters

Temperature Monitoring Relays

3RS10/3RS11

Functions

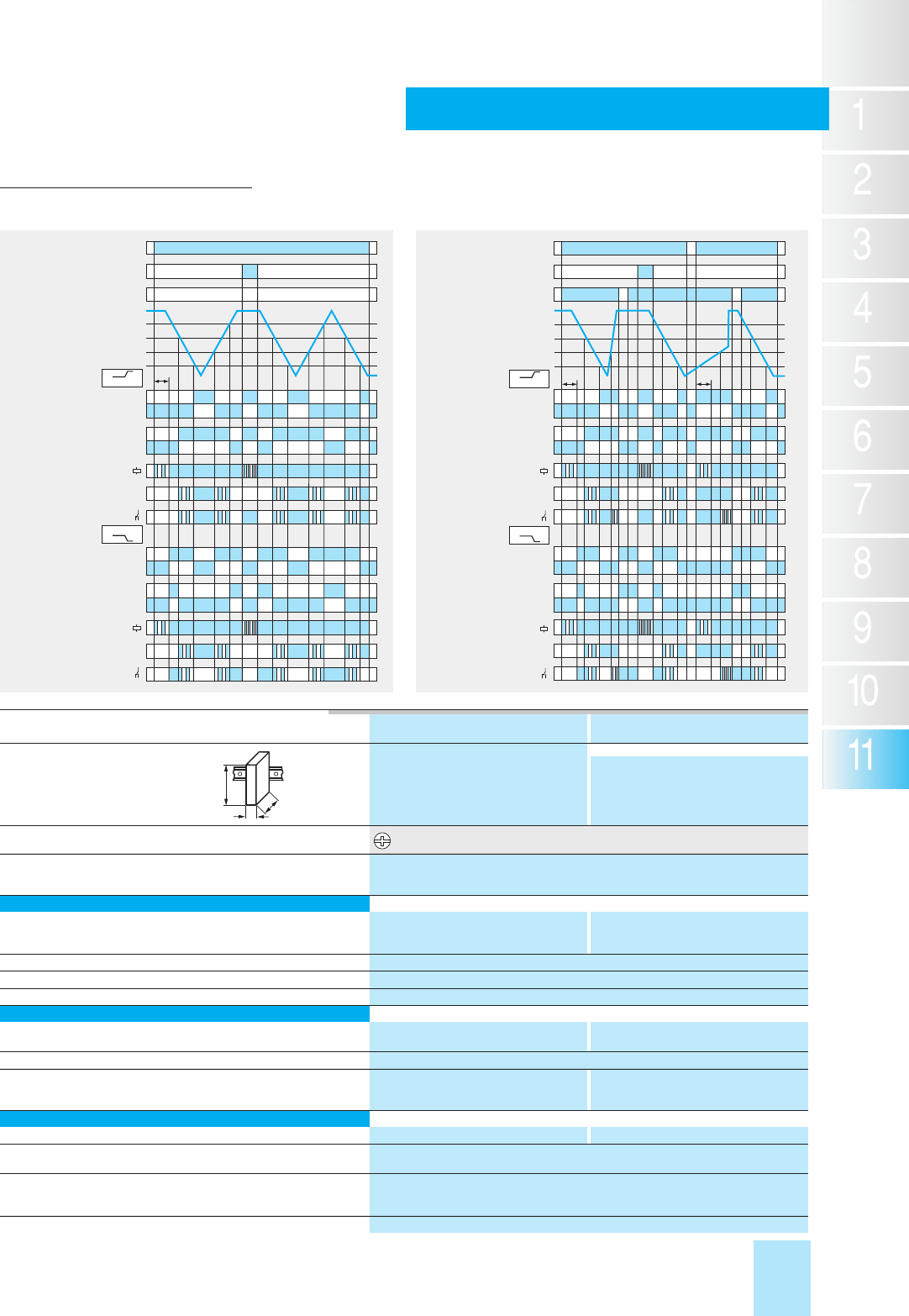

Temperature overshoot

elpicnirp tiucric-desolCelpicnirp tiucric-nepO

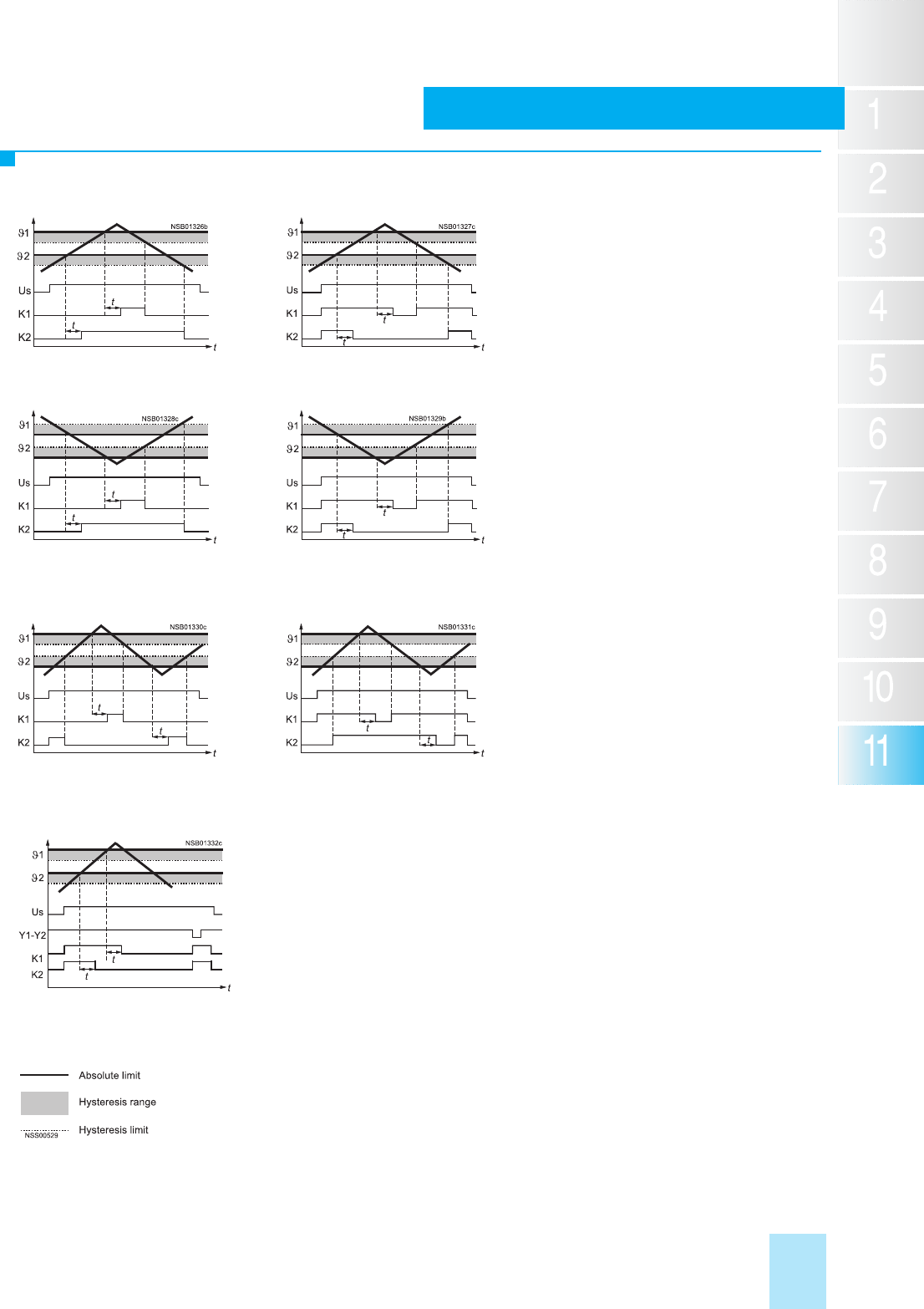

Digital evaluation units:

After the temperature has reached the set

threshold value ϑ1, output relay K1 changes

its switching state appropriately as soon as

the set time t has elapsed (K2 responds to ϑ2

similarly).

Analog evaluation units:

When the set threshold value is reached, out-

put relay K1 changes its switching status. For

devices with 2 threshold values, relay K2

responds to the second set threshold value.

As soon as the temperature reaches the

respective set hysteresis value, the relays

return immediately to the original state.

A time delay cannot be set

(t = 0).

Temperature undershoot

elpicnirp tiucric-desolCelpicnirp tiucric-nepO

Window monitoring

elpicnirp tiucric-desolCelpicnirp tiucric-nepO

When the temperature has reached the upper

threshold ϑ1 and the set delay time t has

elapsed, the output relay K1 changes its

switching state. As soon as the temperature

reaches the respective set hysteresis value,

the relay returns immediately to the original

state.

In the same manner, K2 responds to the lower

threshold value of ϑ2.

Principle of operation with memory function, based on the example of temperature overshoot using the closed-circuit principle

When the temperature has reached the set

threshold ϑ1 and the set delay time t has

elapsed, the output relay K1 changes its

switching state (similarly, K2 responds to

ϑ2.)

The relays will only return to the original state

when the temperature has fallen below the

respective set hysteresis value and the con-

nection Y1-Y2 was briefly interrupted.

11/10 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/10

Function Relays, Interfaces and Converters

Temperature Monitoring Relays

3RS10/3RS11

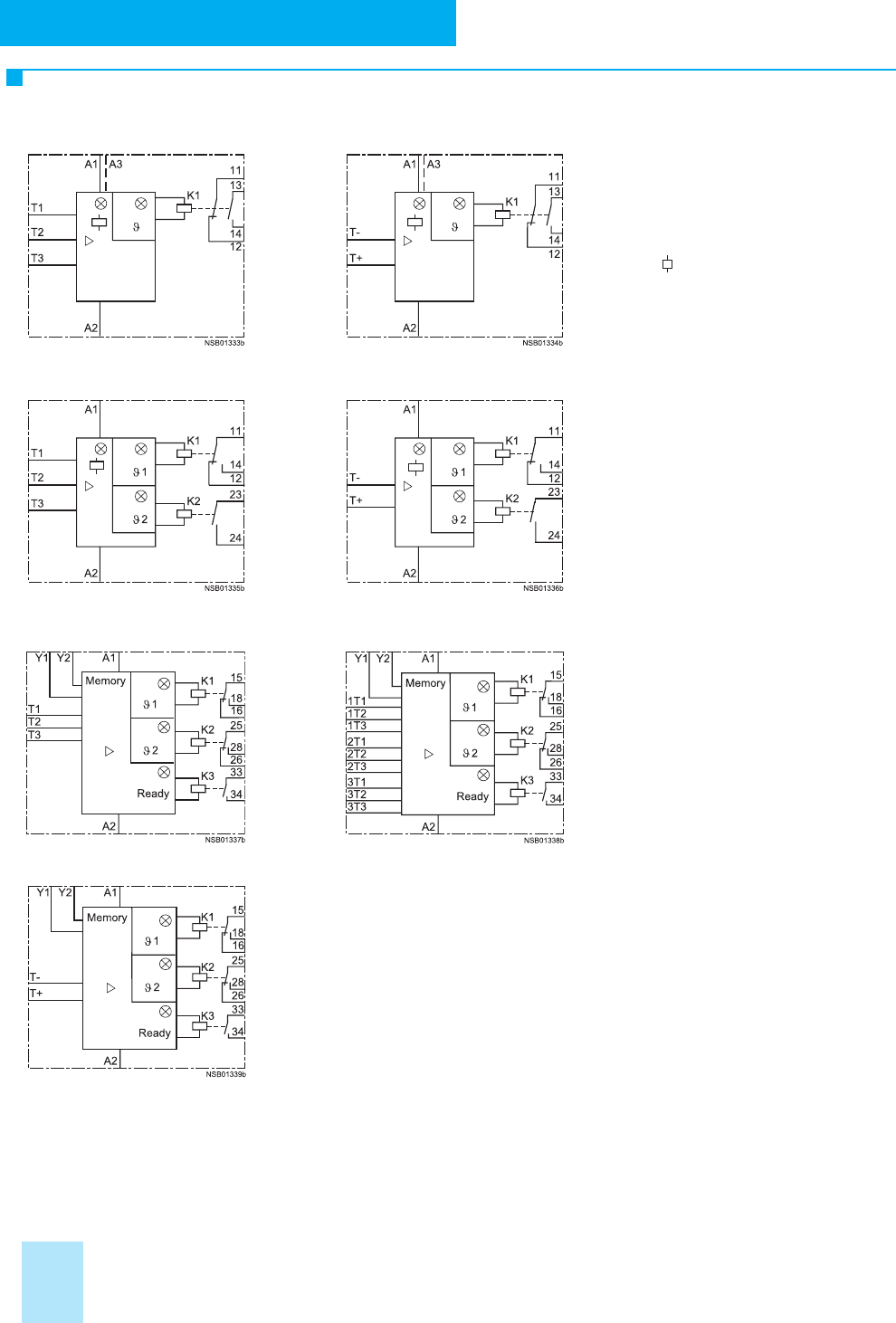

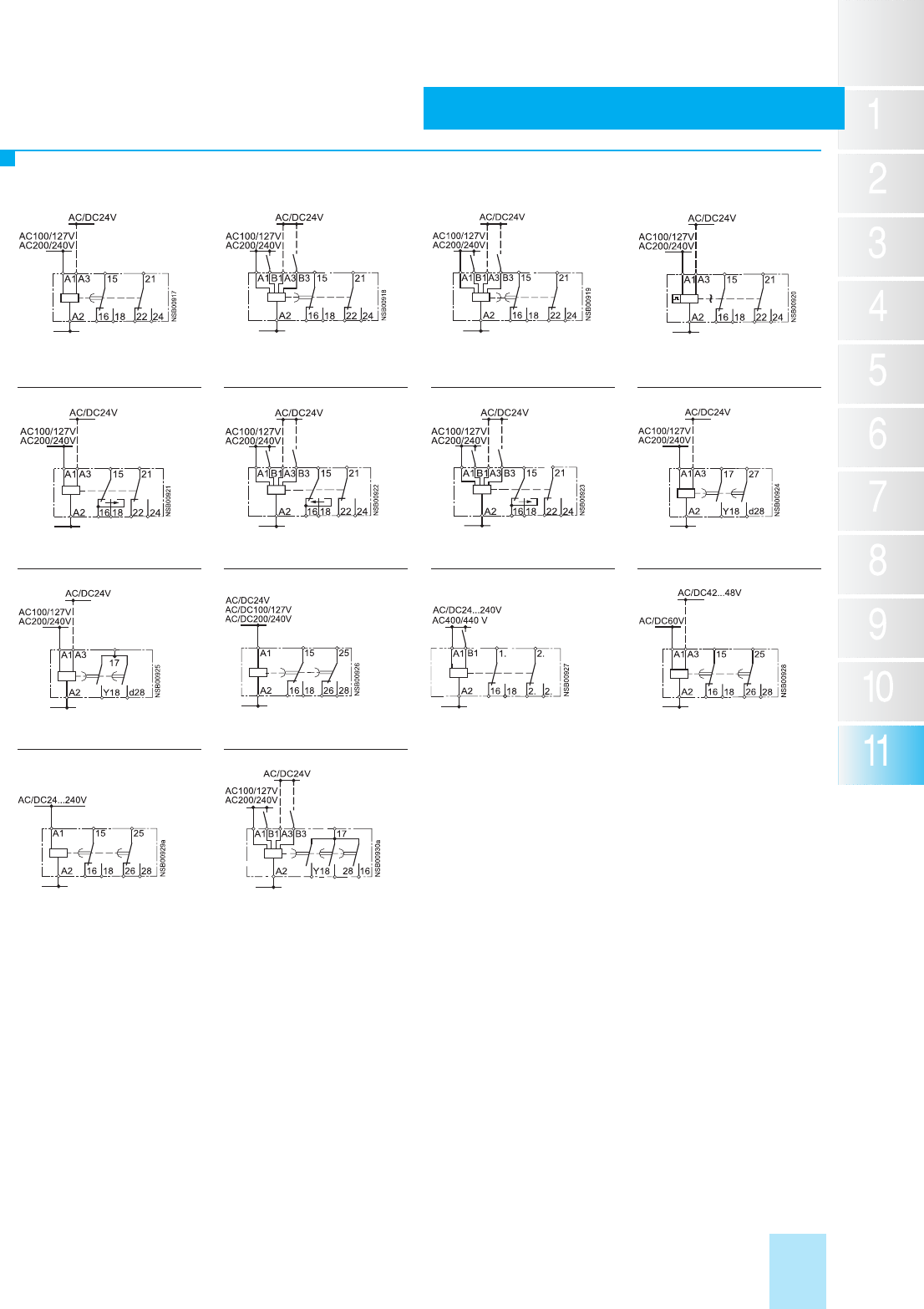

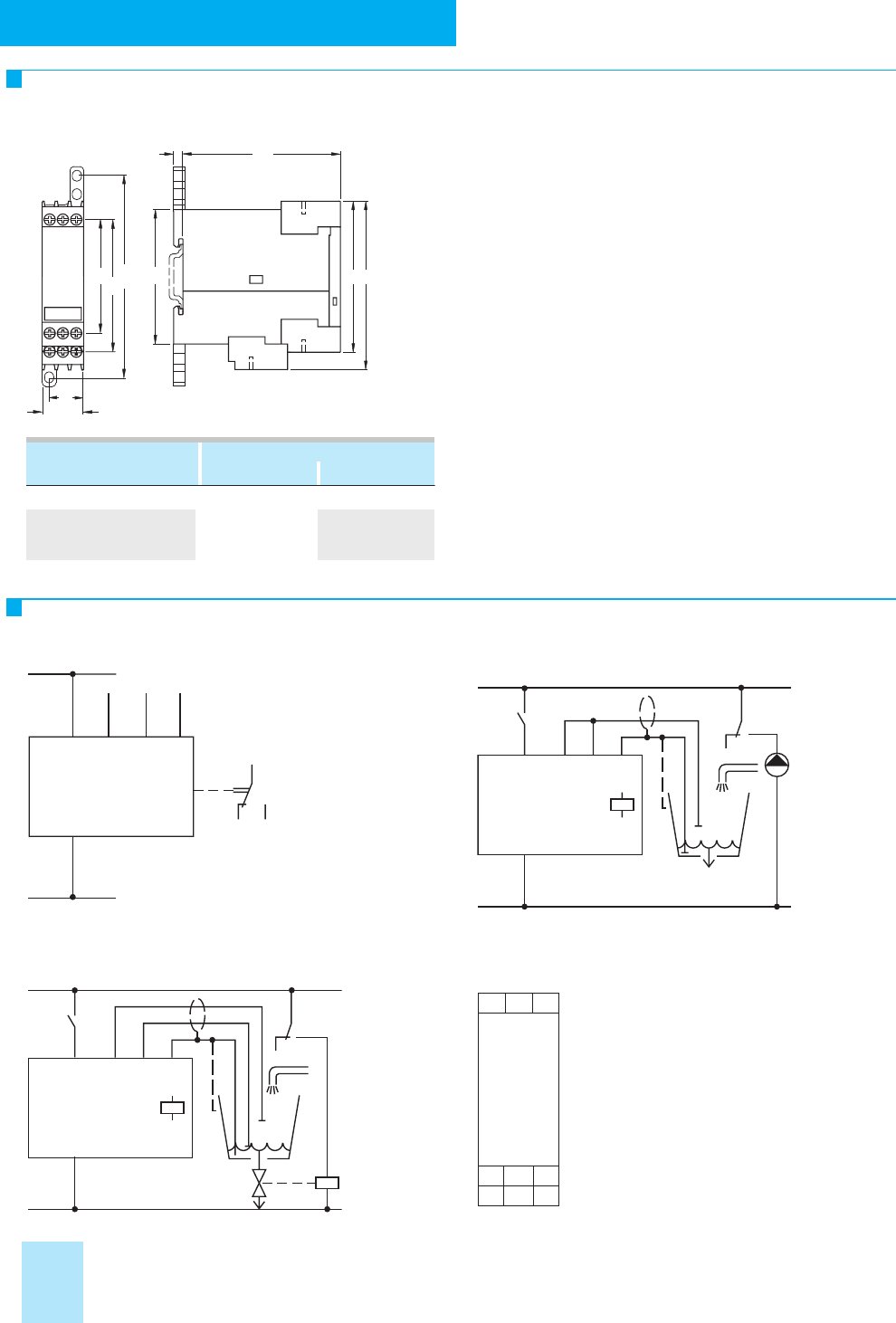

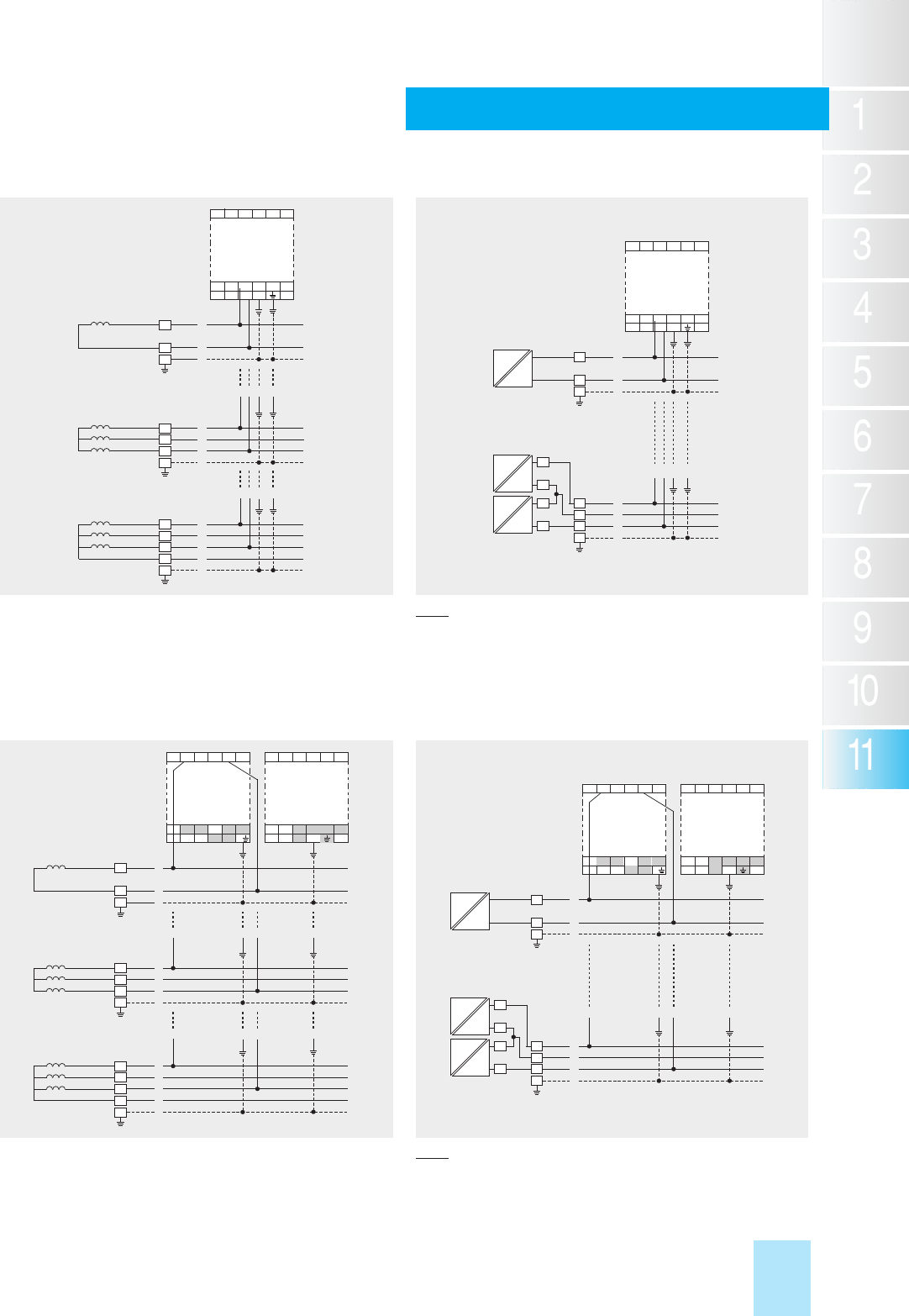

Circuit diagrams

Connection examples

3RS10 00

3RS10 10

3RS11 00

3RS11 01

General equipment designations

A1, A2, A3 Rated control supply volt-

age terminals

K1, K2, K3 Output relays

Equipment designations for:

3RS1000, 3RS1010, 3RS1101, 3RS1100,

3RS1110, 3RS1111, 3RS1020, 3RS1021,

3RS1030, 3RS1031

= LED: "Voltage applied"

ϑ1 = LED: "Relay 1 switched"

ϑ2 = LED: "Relay 2 switched"

T1 to T3 = Terminals for connection of

resistance sensor

T+ / T- = Terminals for connection of

thermoelements

Equipment designations for:

3RS1040, 3RS1140, 3RS2040, 3RS2140

ϑ1 = LED: "Relay 1 switched"

ϑ2 = LED: "Relay 2 switched"

Ready = LED: "Device operating"

T1 to T3 = Terminals for connection of

resistance sensor

T+ / T- = Terminals for connection of

thermoelements

Y1/Y2 Terminals for memory jumper

JBiq

Equipment designations for:

3RS1041, 3RS2041

ϑ1 = LED: "Relay 1 switched"

ϑ2 = LED: "Relay 2 switched"

Ready = LED: "Device operating"

1T1 to 1T3 = Terminals for connection of

resistance sensor 1

2T1 to 2T3 = Terminals for connection of

resistance sensor 2

3T1 to 3T3 = Terminals for connection of

resistance sensor 3

Y1/Y2 Terminals for memory jumper

.Important!

When resistance sensors

are used in a 2-wire con-

nection, a jumper must be

installed between T2 and

T3.

3RS10 20

3RS10 30

3RS11 20/3RS11 30

3RS11 21/3RS11 31

3RS10 40

3RS20 40

3RS10 41

3RS20 41

3RS11 40

3RS21 40

11/11

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/11

Function Relays, Interfaces and Converters

Temperature Monitoring Relays

3RS10/3RS11

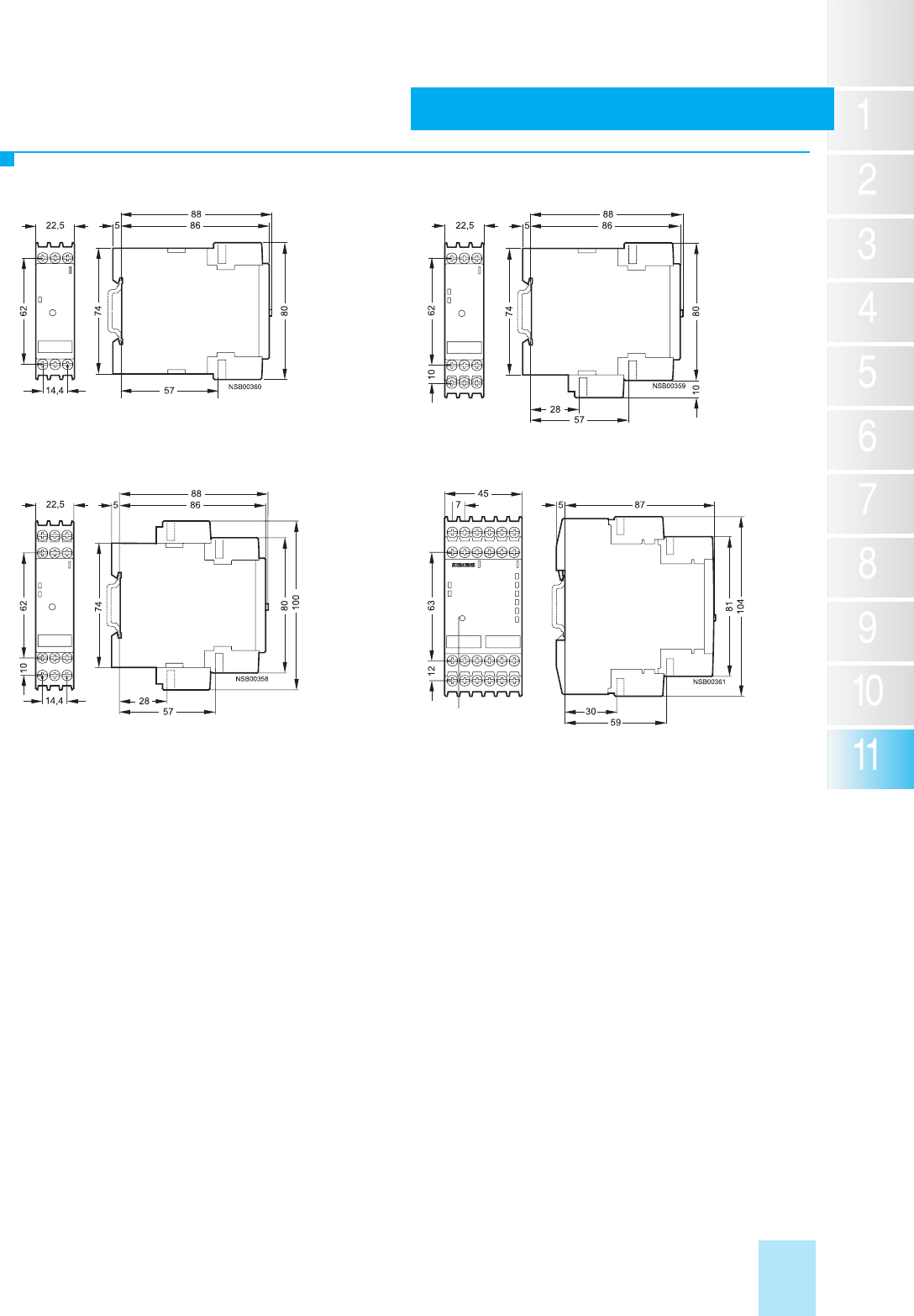

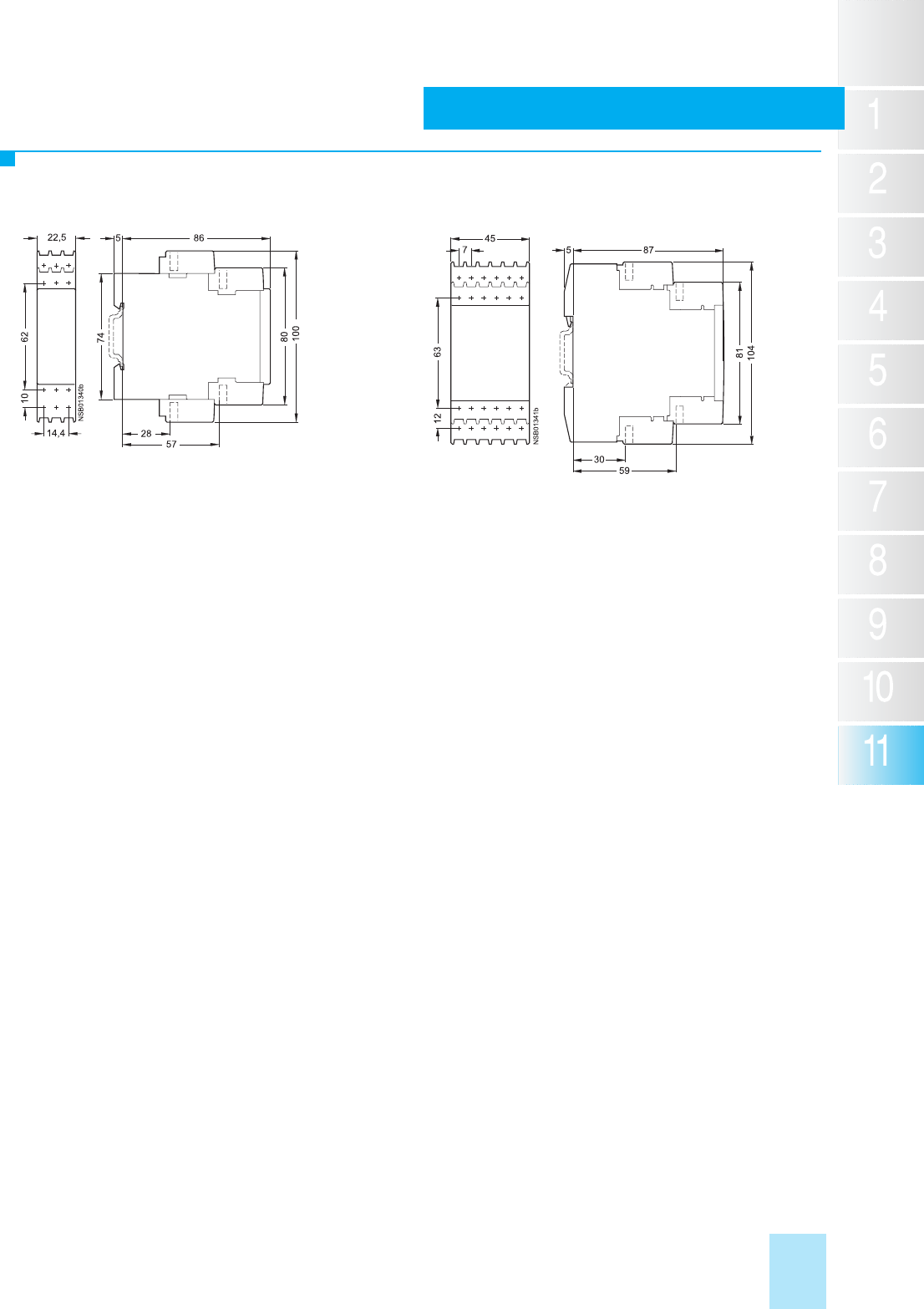

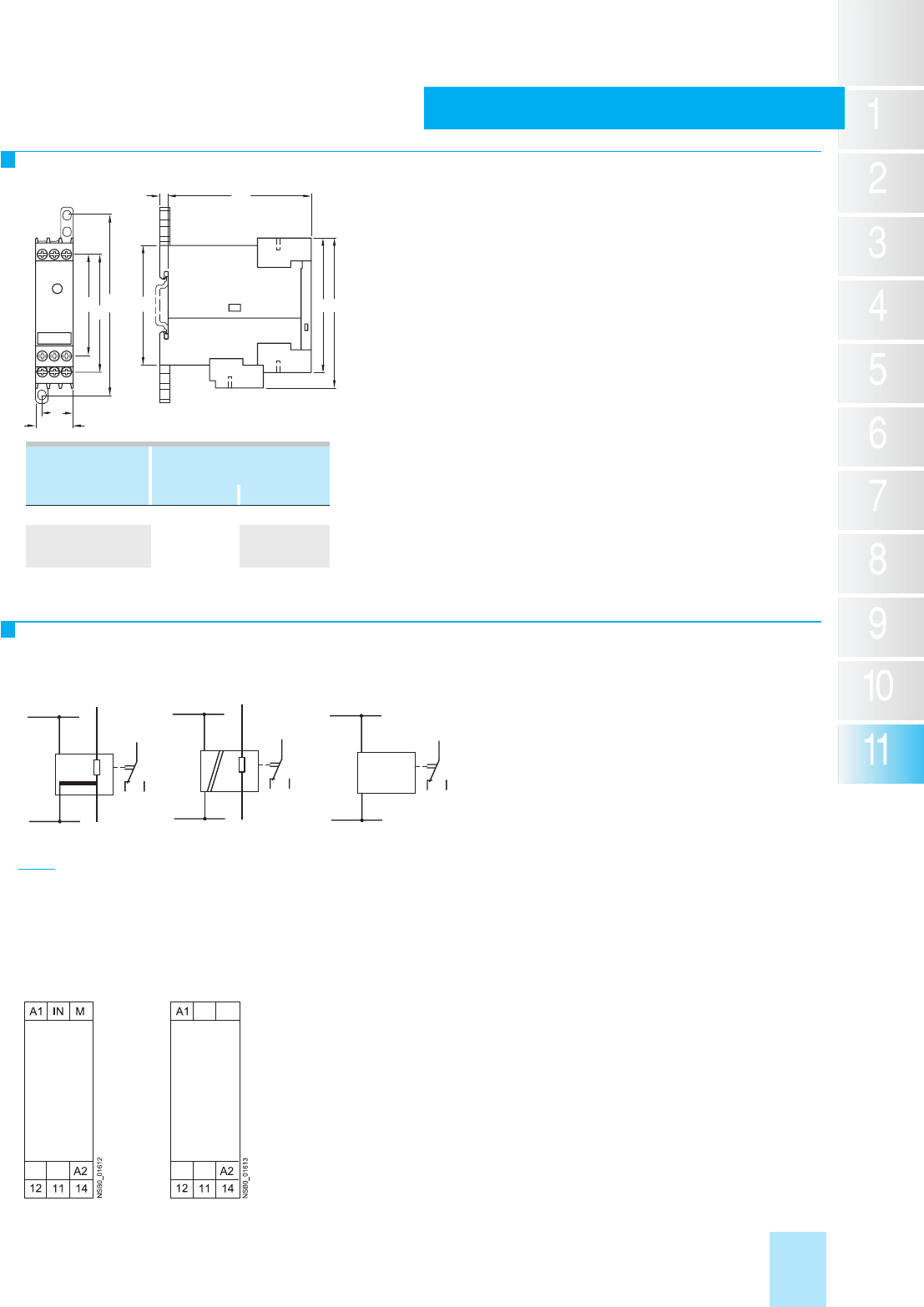

Dimension drawings

Temperature monitoring relay

3RS10/3RS11 . 12SR3/02SR3erusolcne mm 5.22 htiw .

3RS10/3RS11 . . with 45 mm enclosure

11/12 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/12

3RN10 00 compact tripping

unit

The compact unit is equipped

with a red LED (TRIPPED) to indi-

cate tripping and a SPDT con-

tact.

After the device has tripped, it is

reset automatically after the ther-

mistors have cooled down. The

common contact of the SPDT

contact is connected to the con-

trol voltage

This device is particularly suit-

able in circuits in which the con-

trol circuit and signalling circuit

are at the same potential, e.g. in

local control boxes.

3RN10 10, 10 11, 10 12 stan-

dard tripping unit

The standard units are equipped

with two LEDs (READY and

TRIPPED) and with 1NO and

1NC for switch-off and signalling.

They are available with automatic

RESET (3RN1010), manual RE-

SET (3RN1011) or manual/auto-

matic and remote RESET (3RN10

12). The 3RN1012 unit holds on

supply failure. If the control volt-

age fails, a previous trip will be

memorised.

A remote RESET function is im-

plemented by connecting an ex-

ternal pushbutton with an NO

contact to terminals Y1 and Y2. If

terminals Y1 and Y2 are bridged,

tripping is followed by an auto-

matic RESET.

3RN10 13 multifunction trip-

ping unit

In the 3RN10 13 thermistor mo-

tor protection tripping units, the

sensor circuit is also monitored

for a short circuit. Tripping due to

a short circuit is indicated by a

flickering red LED. The

monostable design also indi-

cates a wire-break in the sensor

circuit by flashing of the red LED.

The 3RN10 13 tripping unit is

equipped with manual, remote

and automatic RESET functions.

The TEST/RESET button can be

used to manually reset the trip-

ping unit.

A remote RESET function is im-

plemented by connecting an ex-

ternal pushbutton with an NO

contact to terminals Y1 and Y2. If

terminals Y1 and Y2 are bridged,

tripping is followed by an auto-

matic RESET.

3RN10 22 tripping unit "Warn-

ing and switch-off"

Two sensor circuits can be con-

nected to one 3RN10 22 tripping

unit and act on one output relay

with 1 NO for warning and 1 SPDT

for switch-off. The functions

"Warning" and "Switch-off" are im-

plemented by means of tempera-

ture sensors with different rated

response temperatures TNF. Acti-

vation of the sensor circuit for

"Warning" is indicated by a yellow

LED and for "Switch-off" by a red

LED.

The sensor circuits have different

reset responses:

• "Warning" (terminals 2T1, T2)

automatic RESET only

• "Switch-off" (terminals 1T1, T2);

changeover from manual RE-

SET to automatic RESET by

bridging terminals Y1 and Y2.

A remote RESET function is im-

plemented by connecting an

external pushbutton with an

NO contact.

3RN10 62 tripping unit "Multi-

ple motor protection"

Up to six sensor circuits can be

connected to one 3RN10 62 trip-

ping unit which all act on one out-

put relay. Simultaneous protec-

tion of several motors (up to 6) is

an advantage in the case of

group drives (e.g. if a motor is

overloaded, all motors in the

group can be switched off). Apart

from the red LED "TRIPPED" that

indicates the switching status of

the tripping unit, a LED is as-

signed to each sensor circuit that

is lit when the associated sensor

circuit trips. Sensor circuits that

are not required must be short cir-

cuited.

The reset response of the

3RN10 62 tripping units can be

changed from manual RESET to

automatic RESET by bridging

terminals Y1 and Y2.

A remote RESET function is im-

plemented by connecting an ex-

ternal pushbutton with an NO

contact.

Application

The 3RN1 thermistor motor pro-

tection tripping units are thermal

protective devices that can be

used in conjunction with PTC

thermistors Type A for the tem-

perature monitoring of electrical

drives, transformer windings,

oils, bearings, air, etc.

Principle of operation

The 3RN1 tripping units operate

according to the closed-circuit

principle and therefore monitor

themselves for a wire-break. A

temporary voltage drop of less

than 200 ms (for devices with a

wide input voltage range < 100

ms) will not cause a change in

status of the auxiliary contacts.

The 3RN10 13 multifunction trip-

ping unit also features short-cir-

cuit detection in the sensor cir-

cuit. The unit will trip if a short cir-

cuit arises in the sensor circuit

(resistance in sensor circuit

<20 ). The tripping units feature

electrical isolation between the

3RN10 12-2C...

LED to indicate

"Relay switched"

LED to indicate

"Voltage applied"

Test and Reset buttons

control circuit and sensor circuit

in the case of AC and UC control

supply voltages (for DC control

supply voltage: no electrical iso-

lation). For units with a TEST but-

ton, the function of the device

can be checked by pressing the

button for longer than 2 s.

Safe electrical isolation

All electrical circuits (outputs,

control circuit, sensor and

Reset circuit) of the 3RN1013-

1BW10 multifunction

tripping unit (wide input voltage

range, monostable output

relay and screw terminals) are

safely isolated from each other

up to a rated voltage of 300 V

acc. to DIN VDE 0100 Part 410/

DIN VDE 0106/DIN VDE 0160.

Notes

.For DC-activated tripping

units, electrical isolation must

be provided using a battery

system or a safety isolating

transformer to DIN VDE

0551.

.When tripping units with an

automatic RESET function

are used in EEx e zones, the

control circuit must be de-

signed to ensure that the

monitored machine cannot

restart autonomously.

.In the case of tripping units

without short-circuit detec-

tion, the sensor circuit must

be measured with a suitable

measuring instrument during

commissioning. For resis-

tance < 50 Ohm, the sensor

circuit must be checked for a

short circuit.

.When the 3RN10 00 unit (no

Ready LED) and the

3RN10 13-1BW01 unit (no

change in switching status

for the auxiliary contacts on

control voltage failure) are

used to protect EEx e mo-

tors, separate monitoring of

the control voltage is recom-

mended.

Response of the tripping unit to failure of the control voltage

Holding on supply failure

Response Monostable Monostable Bistable

3RN10 00

3RN10 10

3RN10 11

3RN10 12

3RN10 13-. . . . 0

3RN10 22

3RN10 62

3RN10 13-. . .01

Failure of the

control voltage Device trips Device trips No change in

switching status of

the auxiliary con-

tacts

Control voltage

returns without

previous tripping

Device resets Device resets

Control voltage

returns after trip-

ping

Device resets Device remains

tripped

Overview

Function Relays, Interfaces and Converters

Thermistor Motor Protection

3RN1

for PTC temperature sensors

11/13

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Screw Terminal 1

Spring-type Terminal

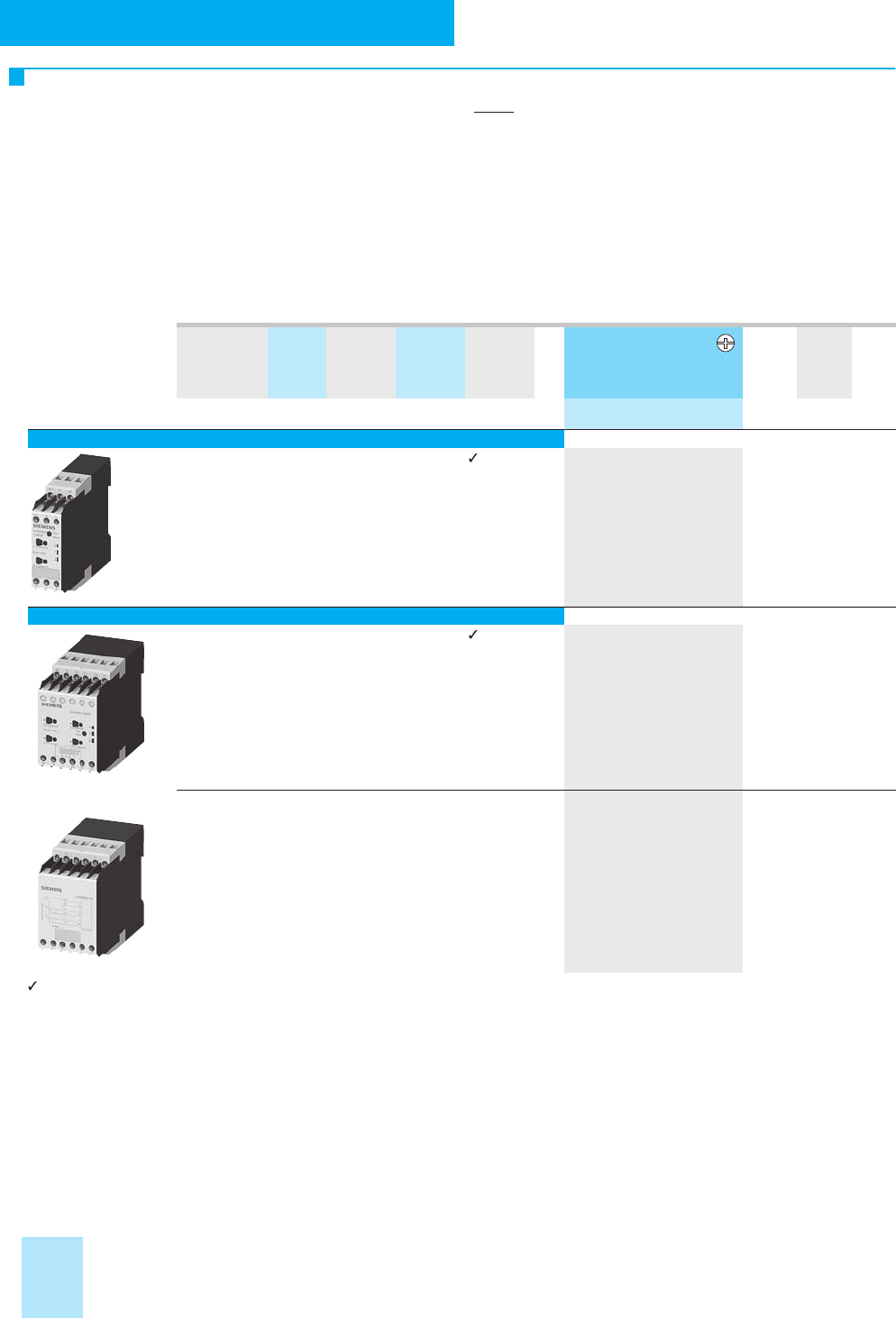

Thermistor motor protection relays for PTC thermistors (type A PTCs)

All of the devices with the exception of 24 V AC/DC have electrical isolation

1) Protective separation up to 300 V according to DIN/VDE 0106

2) Information regarding the holding on supply failure, refer to Catalog LV 1, chapter 7

3) Reset using the reset button or by interrupting the control supply voltage

Version Reset Contacts Control supply

voltage

Compact evaluation units, 22.5 mm wide, monostable, closed-circuit current principle, 1 LED

Auto 1 CO 24 V AC/DC 3RN1000-

Order No.. List

Price $

AB00

110 V AC 3RN1000-

AG00

230 V AC 3RN1000-

AM00

Standard evaluation units, 22.5 mm wide, monostable, closed-circuit current principle, 2 LEDs

Auto 1 NO + 1 NC 24 V AC/DC 3RN1010-

CB00

110 V AC 3RN1010-

CG00

230 V AC 3RN1010-

CM00

24–240 V AC/DC 3RN1010-

CW00

2 CO 24 V AC/DC 3RN1010-

BB00

110 V AC 3RN1010-

BG00

230 V AC 230 V 3RN1010-

BM00

2 CO hard-gold-plated 24 V AC/DC 3RN1010-

GB00

Manual/ 1 NO + 1 NC 24 V AC/DC 3RN1011-

CB00

remote3) 110/230 V AC 3RN1011-

CK00

Short-circuits are detected in the sensor circuit Manual/ 2 CO 24 V AC/DC 3RN1011-

BB00

remote3) 110 V AC 3RN1011-

BG00

230 V AC 3RN1011-

BM00

2 CO hard-gold-plated 24 V AC/DC 3RN1011-

GB00

Holding on supply failure2) Manual/auto/ 1 N + 1 NC 24 V AC/DC 3RN1012-

CB00

remote 110/230 V AC 3RN1012-

CK00

Manual/auto/ 2 CO 24 V AC/DC 3RN1012-

BB00

remote 110 V AC 3RN1012-

BG00

230 V AC 3RN1012-

BM00

2 CO hard-gold-plated 24 V AC/DC 3RN1012-

GB00

Manual/auto/ 2 CO 24 V AC/DC 3RN1013-

BB00

remote 24–240 V AC/DC 3RN1013-1BW10

3RN1013-2BW00

2 CO hard-gold-plated 24–240 V AC/DC 3RN1013-1GW10

3RN1013-2GW00

Evaluation units for 2 sensor circuits, alarm and trip, 22.5 mm wide, monostable, closed-circuit current principle, 3 LEDs

Manual/auto/ 1 NO + 1 NC 24–240 V AC/DC 3RN1022-

DW00

remote

Evaluation units for 6 sensor circuits, multi-motor protection, 45 mm wide, monostable, closed-circuit current principle, 8 LED

Test/reset button, holding on supply failure2) Manual/auto/ 1 NO + 1 NC 24–240 V AC/DC 3RN1062-

CW00

remote

Bistable evaluation units, 22.5 mm wide

Test/reset button, holding on supply failure2), Manual/auto/ 2 CO 24–240 V AC/DC 3RN1013-

short-circuits and wire breakage in the remote

sensor circuit are detected and displayed,

bistable version, not tripped when the

control supply voltage fails

Terminal A1 is connected to the

common of the changeover contact

Holding on supply failure2),

short-circuits are detected in the sensor circuit

Holding on supply failure2), short-circuits

and wire breakage in the sensor circuit are

detected and displayed, wide-range voltage

with screw terminals with protective

separation1)

Test/reset button, holding on supply failure2);

the evaluation circuit for “alarm” uses an NO

contact in the open-circuit principle

BW01

Siemens / Industrial Controls Previous folio: IC10 11/13

Product Category: SMRL

Function Relays, Interfaces and Converters

Thermistor Motor Protection

3RN1

for PTC temperature sensors

11/14 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/14

Function Relays, Interfaces and Converters

Thermistor Motor Protection

3RN1

for PTC temperature sensors

1) See page 11/12.

2) Remote RESET due to interruption of the control voltage.

3) Indication of wire-break only for monostable designs (3RN10 13-. . . . 0).

Accessories

epyt rofngiseD Order No. Weight

approx. Packing

kg Packs

Push-in lugs for panel mounting

2 units are necessary per thermistor motor protection.

1 pack contains 10 units for 5 devices. 3RN1 3RP 1903 0.02 1

Technical data

General data

Compact

devices

Standard devices Multifunct.

dev.

Warning +

switch-off

Multiple

mot. protect.

Type 3RN10 00 3RN10 10 3RN10 11 3RN10 12 3RN10 13 3RN10 22 3RN10 62

Width mm 22.5 45

No. of connectable sensor circuits 1 2 6

Response to failure of the control voltage 1)

Manual RESET No Yes

Automatic RESET Yes No Yes

Remote RESET No Yes2) Yes

TEST button No Yes

Short-circuit detection in sensor circuit No Yes No

Indication of short-circuit and wire-break No Yes3) No

Warning and switch-off in one unit No Yes No

Weight kg 0.120 0.133 0.145 0.145 0.145 0.145 0.260

Tripping unit

Rated insulation voltage Ui

(pollution degree 3)

V300

Permissible ambient temperature

Permissible storage temperature

°C – 25 to + 60

– 40 to + 80

EMC tests EN 50 081-2; IEC 61000-6-3

Class acc. to DIN 19 251, DIN V0801 AK 3

Degree of protection acc. to DIN 40 050 IP 20

Conductor cross-section

Terminal screws M 3.5 (for standard screwdriver Size 2 and Pozidriv 2)

mmdiloS• 21 x (0.5 to 4) / 2 x (0.5 to 2.5)

• Finely stranded with end sleeves mm21 x (0.5 to 2.5) / 2 x (0.5 to 1.5)

• AWG conductor connections, solid or stranded AWG 2 x (20 to 14)

mNeuqrot gninethgiT• 0.8 to 1.2

Cage Clamp terminals

mmdiloS• 22 x (0.25 to 1.5)

• Finely stranded with end sleeves mm22 x (0.25 to 1)

• Finely stranded, without end sleeves mm22 x (0.25 to 1.5)

• AWG wires, solid or stranded AWG 2 x (24 to 16)

• Corresponding opening tool 8WA2 803

Sensor circuit

Circuit burden at RF≤1.5 kΩmW ≤5

Voltage in sensor circuit at RF≤1.5 kΩV≤2

Tripping temperature

(specified by sensor) °C 60 to 180

Coupling time

(due to mounting of sensor) sapprox. 5 s

Total cold resistance RF

(per sensor loop) kΩ≤1.5

Triggering value kΩ3.4 to 3.8

Return value kΩ1.5 to 1.65

Triggering tolerance °C ± 6

11/15

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/15

Function Relays, Interfaces and Converters

Thermistor Motor Protection

3RN1

for PTC temperature sensors

SIMIREL

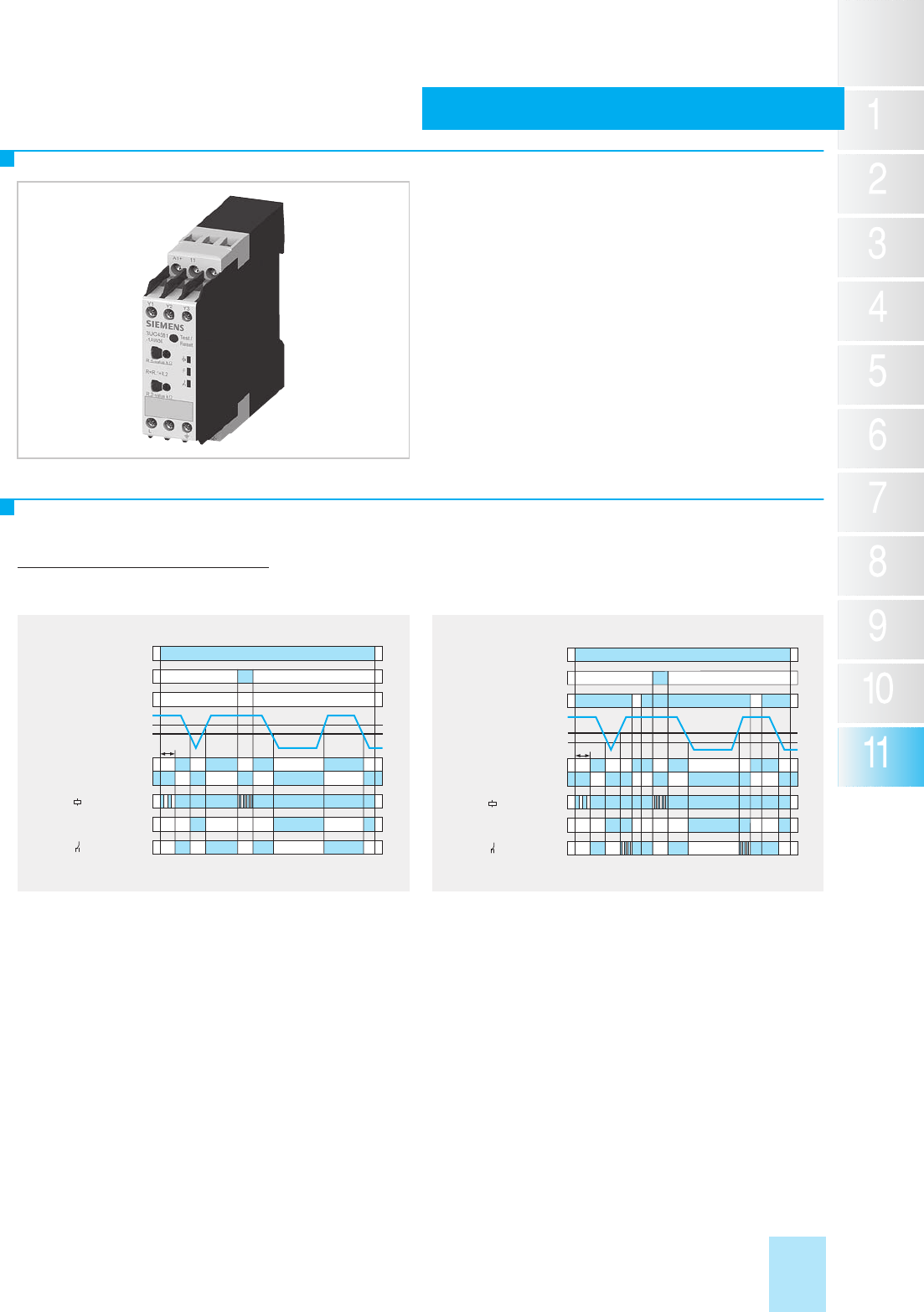

Functions

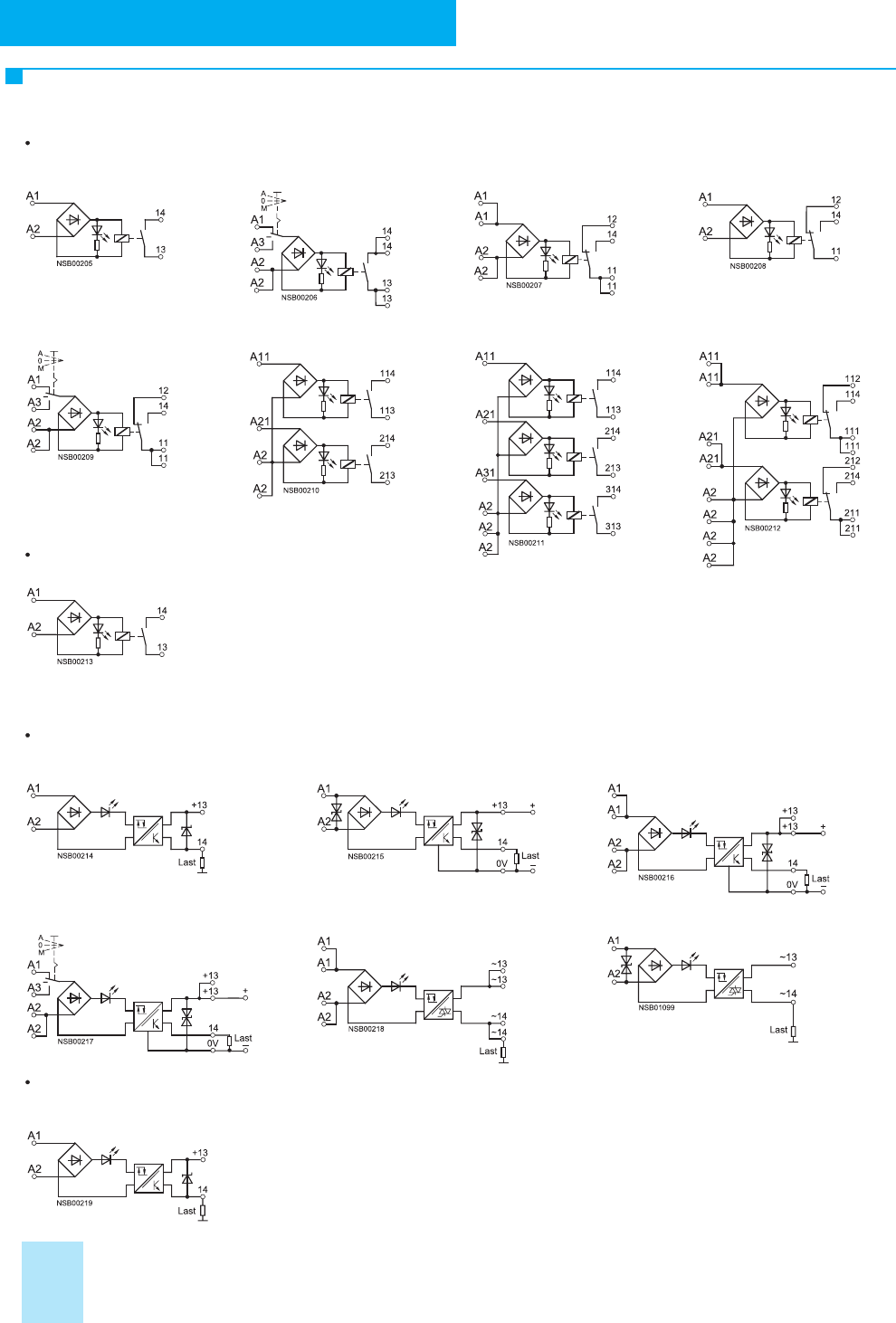

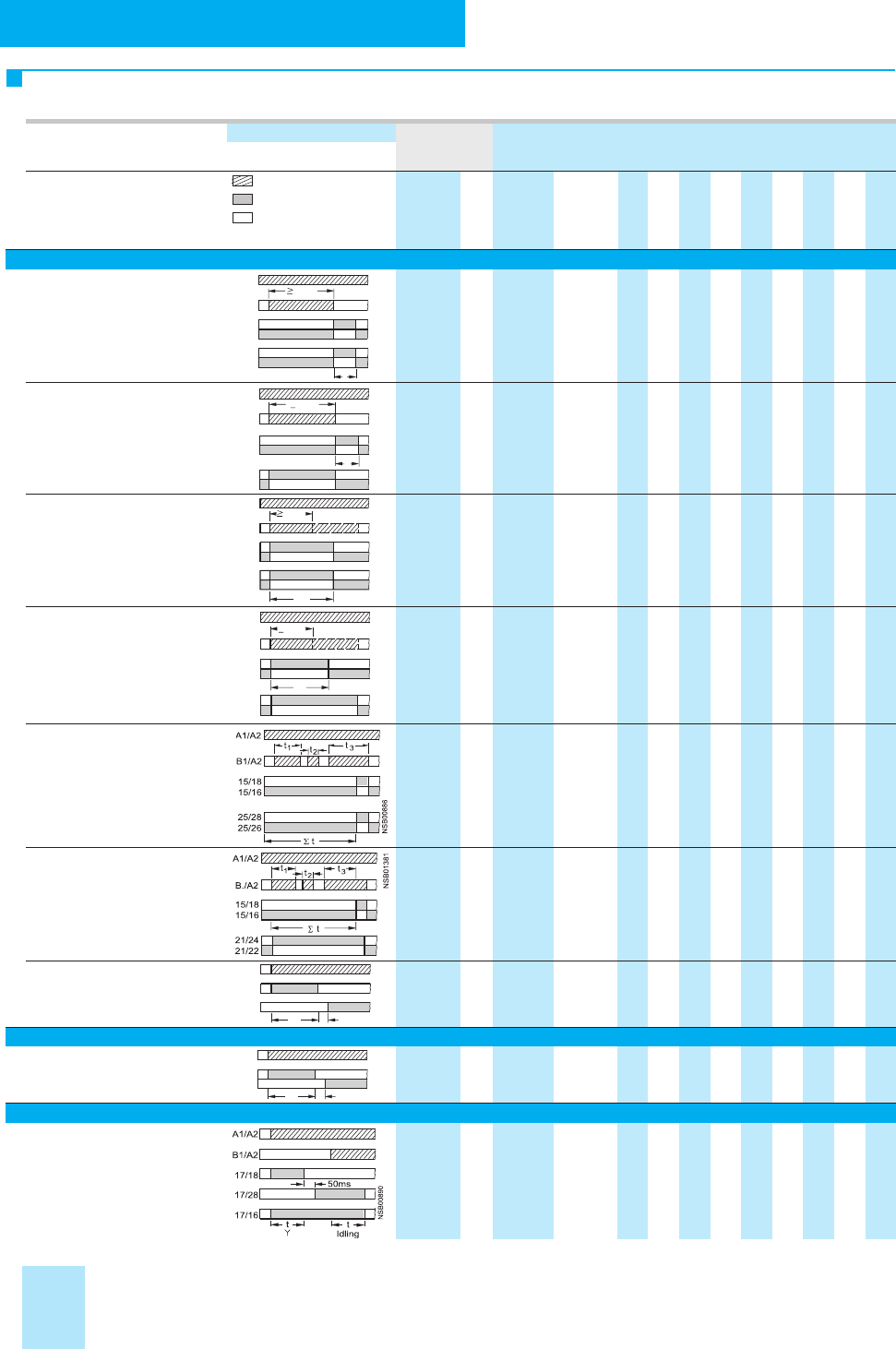

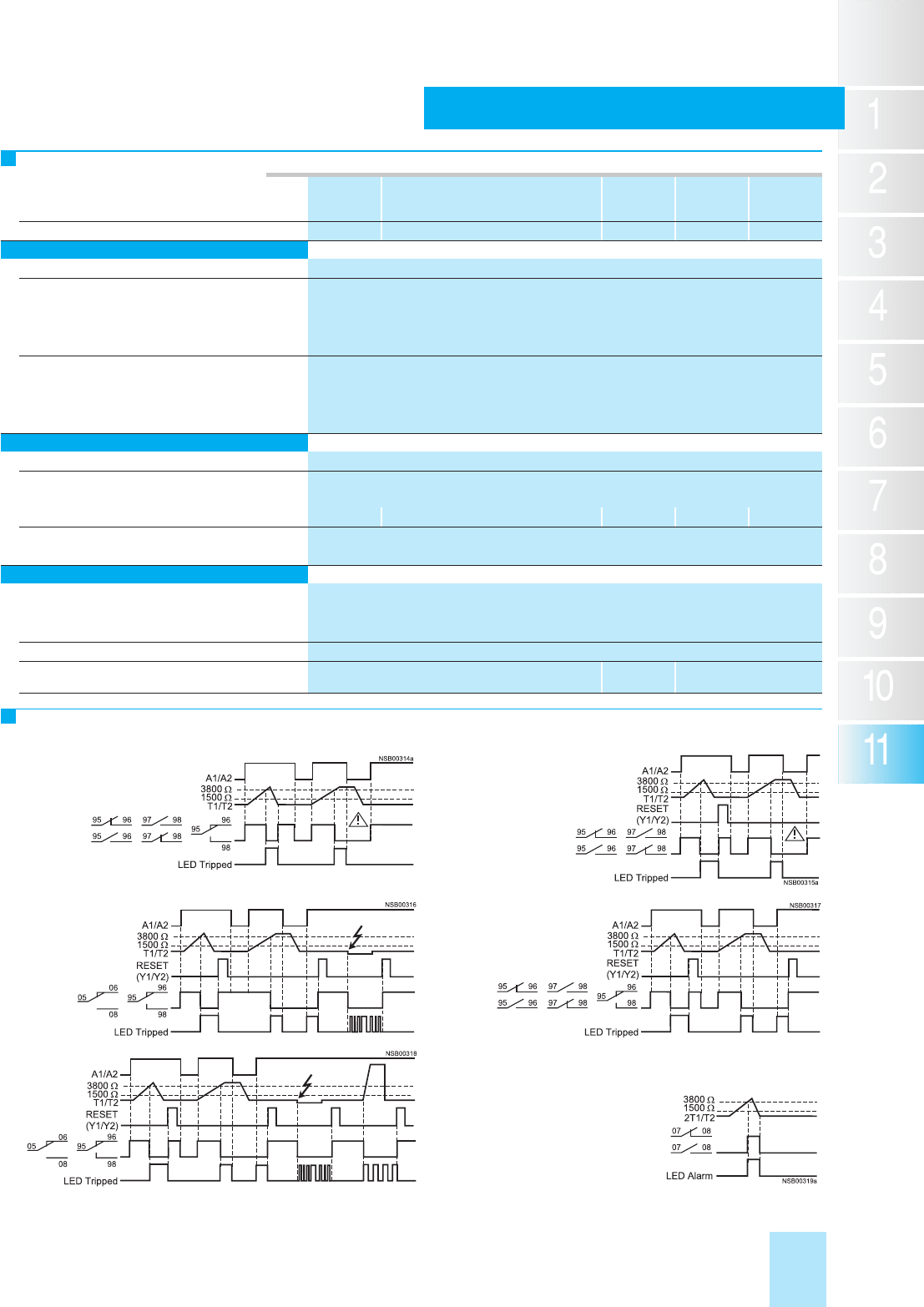

Function diagrams

Technical data

Compact

devices

Standard devices Multi-

function

devices

Warning +

switch-off

Multiple

motor pro-

tection

Type 3RN10 00 3RN10 10 3RN10 11 3RN10 12 3RN10 13 3RN10 22 3RN10 62

Control circuit

Rated control supply voltage Us1)

Operating range

• AC 0.85 to 1.1 x Us

• AC/DC 0.85 to 1.1 x Us

• DC 0.85 to 1.2 x Us

Rated power

• AC W < 2

• AC/DC W < 2

• DC W < 2

Auxiliary circuit

Conventional free-air thermal current Ith A 5

Rated operational current Ie

• AC-15 240 V A 3

• DC-13 24 V A 1 2 12) 1 2

Short-circuit protection acc. to Alpha/Lovag

Utilisation category gL/gG A 6

s and u ratings, control current circuit

Rated control voltage 50/60 Hz

• AC V 300

• DC V 300

Switching capacity R 300/B 300

Safe isolation up to 300 V – 3RN10 13–

1BW10 –

3RN10 13-...0

3RN10 00/3RN10 10

(AUTO RESET) 3RN10 11

3RN10 13-...01

(bistable) 3RN10 12/3RN 1022/3RN10 62

(holding on supply failure)

3RN10 22 only

.See notes on page 11/12.

1) See selection and ordering data, page 11/13

2) For 3RN10 13- . BW01 (bistable output relay) 2 A.

Function Relays, Interfaces and Converters

Thermistor Motor Protection

3RN1

for PTC temperature sensors

11/16 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/16

Function Relays, Interfaces and Converters

Thermistor Motor Protection

3RN1

for PTC temperature sensors

Siemens Energy & Automation, Inc

Industrial Controls Catalog

PTB test report

ATEX certification

The tripping units with AC and

UC operation are available in

conjunction with PTC ther-

mistors acc. to DIN VDE 0660

Parts 302 and 303 and

DIN 44 081/DIN 40 082 for di-

rect temperature monitoring of

explosion-protected motors of

the "Increased safety" EEx e and

EEx d degree of protection and

are marked with the test symbol.

The regulations of

DIN EN 50 019,

DIN VDE 0170/0171,

DIN VDE 0165, the PTB test reg-

ulations DIN V 0801 Class = AK

3 and DIN 19251 apply. For trip-

ping units with DC operation1),

electrical isolation must be im-

plemented by means of a battery

system or a safety isolating

transformer acc. to

DIN VDE 0551.

When the 3RN10 13-. . .01 unit

(no change in switching status

for the auxiliary contacts on con-

trol voltage failure) is used to pro-

tect EEx e and EEx d motors,

separate monitoring of the con-

trol voltage is recommended.

PTB File No. for 3RN1:

PTB 01 ATEX 3218

Cable routing

The measuring circuit cables

must be routed as separate con-

trol cables. It is not permitted to

use cores of the motor supply

cable or other main supply ca-

bles. If extreme inductive or ca-

pacitive interference is expected

to be generated by heavy cur-

rent cables routed in parallel,

shielded control cables must be

used.

Maximum cable length for sen-

sor circuit:

Cross-sec-

tion For tripping units

3RN10 00

3RN10 10

3RN10 11

3RN10 12

3RN10 22

3RN10 62

3RN10 13

mm2

2.5

1.5

0.5

2 x 2800

2 x 1500

2 x 500

m2)

2 x 250

2 x 150

2 x 50

PTC temperature sensor

With the tripping units, tempera-

ture sensors with characteristics

according to DIN VDE 0660 Part

303, DIN 44 081 and DIN 44 082

(e. g. EPCOS AG single and tri-

ple sensors, Type No. B 591.. or

B 593 ..) can be used.

The number of temperature sen-

sors that can be connected in

series is dependent on the total

cold resistance. The total cold

resistance must not exceed

1.5 kΩ.

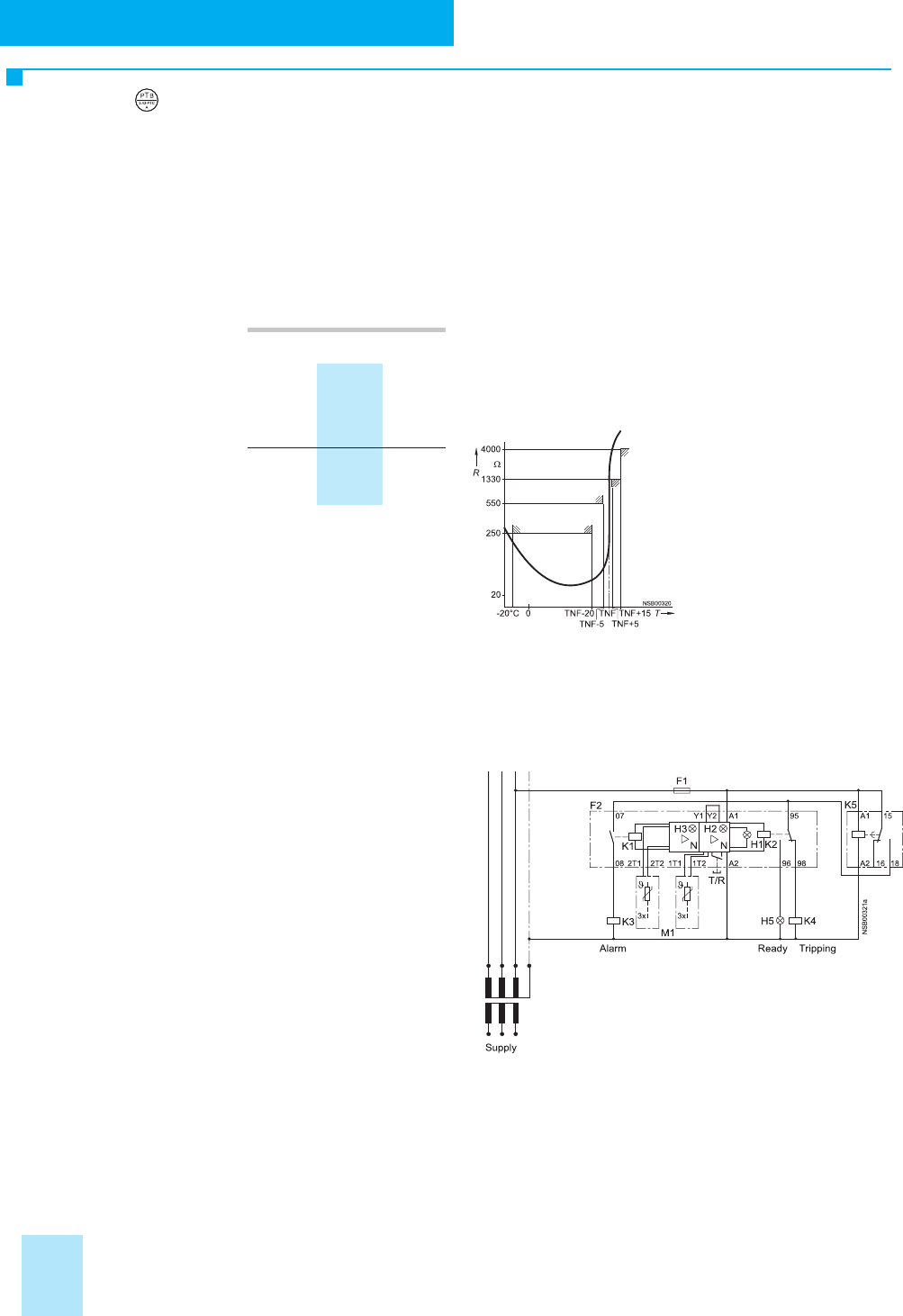

Resistance/temperature char-

acteristic of a PTC thermistor

with a characteristic (Type A)

according to DIN VDE 0660

Part 303

Installation

The 3RN1 tripping units are

suitable for snapping on to

35 mm standard mounting rails

acc. to DIN EN 50 022 or for

screw mounting using adapters.

Any mounting position is possi-

ble.

Specifications

The tripping units are suitable for

use in any climate and safe from

touch to DIN VDE 0106 Part 100.

The 3RN1 tripping units meet the

requirements of the basic techni-

cal standard EN 50 081-2;

IEC 61000-6-2 "Electromagnetic

compatibility of I&C equipment

in industrial process engineer-

ing" and DIN VDE 0660 Parts

302 and 303, IEC 60 034-11-2

Section 1 and 2 "Built-in thermal

protection of rotating electrical

machines, thermal detectors

and tripping units" and "PTC

thermistors and tripping units".

The terminal designations of the

auxiliary contacts complies with

EN 50 005.

Protecting the windings of

three-phase transformers

To protect the windings of three-

phase dry transformers with PTC

thermistors in cases where the

operating voltage of the ther-

mistor motor protection tripping

unit must be tapped from the

mains voltage, a 3RN10 22 ther-

mistor protection unit for warning

and tripping and, for example, a

3RP15 time relay can be used.

The auxiliary contactor K4 oper-

ates on the shunt release of the

high-voltage circuit-breaker.

Working principle for trans-

former protection

When voltage is applied to the

line-side of the transformer, the

voltage on the secondary side

rises to the final value within

1.5 s. The 3RN1 tripping unit

does not trip until 0.8 x Us, so as

long as the operating voltage is

applied to the closed contacts

95-98 on contactor K4, it would

cause breaking of the

circuit-breaker via its shunt re-

lease.

In order to prevent this, the volt-

age is only applied to terminals

07 and 95 once the 3RN1 trip-

ping units have definately

picked up and the auxiliary

switches have switched to the

"Ready" position. The K3 and K4

contactors are not controlled un-

til the respective rated response

temperature TNF of the sensor is

exceeded.

The tripping unit should be

switched to "Automatic RESET"

(jumper must be placed be-

tween terminals Y1 and Y2). This

ensures that the 3RN1 tripping

unit is reset when the transformer

is reconnected following trip-

ping.

The time-delay relay is set to a

delay time of ≥ 1.5 s.

Transformer protection with 3RN10 22

(shown before voltage is applied)

F1 Fuse

F2 3RN10 22

K3, K4 Auxiliary contactors (e. g.

3RH1)

K5 Time relay (e. g. 3RP15)

H5 Indicator light “Protective cir-

cuit ready”

1) Electrical isolation exists with devices with a wide input voltage range of 24

to 240 V UC even in the case of DC operation.

2) Devices with short-circuit detection in the sensor circuit. Up to this maxi-

mum cable length, a short-circuit in the sensor circuit will be detected.

When short-circuit detection is not required, the cable lengths shown on

the left can be used.

Configuration

11/17

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/17

Function Relays, Interfaces and Converters

Thermistor Motor Protection

3RN1

for PTC temperature sensors

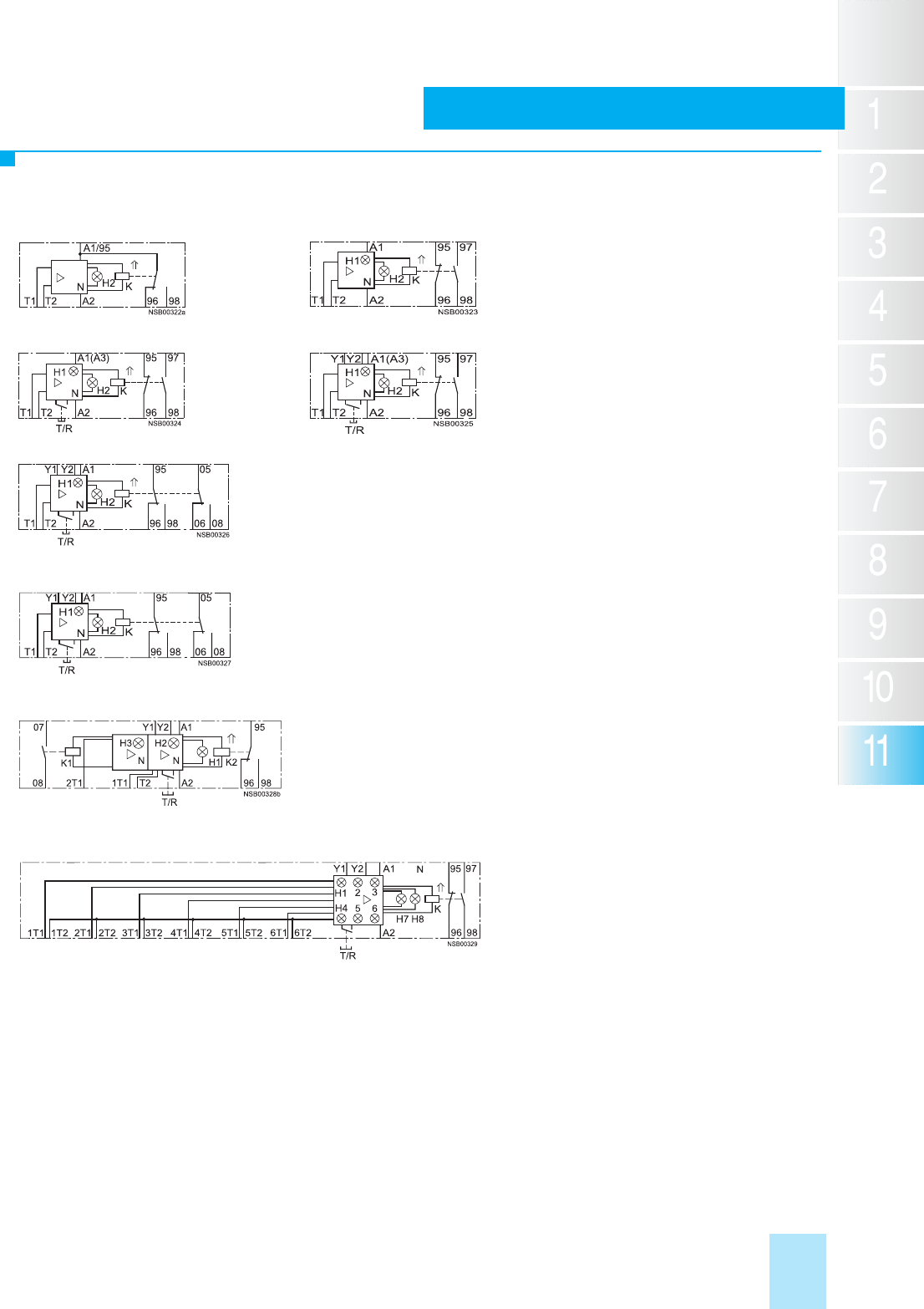

Circuit diagrams

Connection diagrams

Position of the output relay "Ready, not tripped"

01 01NR300 01NR3 General equipment designations

A1, A2 Control voltage termi-

nals

N Amplifier

T/R TEST/RESET button

Y1, Y2 Terminals for remote

RESET (jumpered

= Auto RESET)

⇑The double-headed

arrow indicates an

operating state of the

contact element that

deviates from the stan-

dard presentation

according to

DIN 40 900, Part 7

(In this case: Position of

the contact elements

when the control volt-

age is applied to termi-

nals A1 and A2)

Equipment designations for 3RN10

H1 LED "READY"

H2 LED "TRIPPED"

K Output relay

T1, T2 Terminals of the sensor

loop

Equipment designations for

3RN10 22

H1 LED "READY"

H2 LED "TRIPPED"

H3 LED "ALARM"

K1, K2 Output relay

1T1 and T2 Terminals of the sensor

2T1 and T2 loop

.Sensor circuits that

are not connected

must be short circuit-

ed.

Equipment designations for

3RN10 62

H1 to H6 LEDs for tripped sen-

sor loops

H7 LED "READY"

H8 LED "TRIPPED"

K Output relay

1T1, 1T2 Terminals for

to 1st sensor loop

6T1, 6T2 Terminals for 6th sen-

sor loop

.Sensor circuits that

are not connected

must be short circuit-

ed.

3RN10 111)3RN10 121)

3RN10 13-. . . . 0

3RN10 13-. . . . 1 (bistable)

3RN10 22

3RN10 62

1) For dual voltage devices AC 230 V/110 V

(3RN10 11- . CK00 and 3RN10 12- . CK00):

A1 and A2: AC 230 V,

A3 and A2: AC 110 V.

11/18 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/18

Function Relays, Interfaces and Converters

Thermistor Motor Protection

3RN1

for PTC temperature sensors

Circuit diagrams

Connection examples

3RN10 00 tripping unit

Switching off a three-phase motor via a

contactor, pushbutton control

• The contact elements are shown

for voltage applied to terminals A1

and A2 of the tripping unit

3RN10 11 tripping unit

Switching off a three-phase motor via a

contactor, maintained-contact control

• The contact elements are shown

for voltage applied to terminals A1

and A2 of the tripping unit

3RN10 12 tripping unit

Switching off a three-phase motor via a

contactor, pushbutton control

• The contact elements are shown

for voltage applied to terminals A1

and A2 of the tripping unit

General equipment designations

A1, A2 Control voltage

terminals1)

F4 Back-up fuse

N Amplifier

S0 OFF pushbutton

S1 ON pushbutton

S2 Main switch

S3 Remote RESET button

T/R TEST/RESET button

Y1, Y2 Terminals for remote

RESET (jumpered = Auto

RESET)

⇑The double-headed arrow

indicates an operating

state of the contact ele-

ment that deviates from the

standard presentation

according to

DIN 40 900, Part 7

(In this case: Position of the

contact elements when the

control voltage is applied

to terminals A1 and A2)

Equipment designations for

3RN10

H1 LED "READY"

H2 LED "TRIPPED"

H3 Signalling light

K Output relay

K1 Contactor

1T, T2 Terminals of the sensor

loop

Equipment designations for

3RN10 22

H1 LED "READY"

H2 LED "TRIPPED"

H3 LED "ALARM"

H4 Signalling light

H5 Signalling light "ALARM"

K1, K2 Output relay

K3 Contactor

1T1 and T2 Terminals of the sensor

2T1 and T2 loop

.Sensor circuits that are

not connected must be

short circuited.

Equipment designations for

3RN10 62

H1 to H6 LEDs for tripped sensor

loops

H7 LED "READY"

H8 LED "TRIPPED"

H9 Signalling light

K Output relay

K6 Contactor

1T1, 1T2 Terminals for

to 1st sensor loop

6T1, 6T2 Terminals for

6th sensor loop

.Sensor circuits that are

not connected must be

short circuited.

1) For dual voltage devices

AC 230 V/110 V

(3RN10 11- . CK00 and

3RN10 12- . CK00):

A1 and A2: AC 230 V,

A3 and A2: AC 110 V.

3RN10 13-. . . . 0 tripping unit

Switching off a three-phase motor via a

contactor, pushbutton control

• The contact elements are shown

for voltage applied to terminals A1

and A2 of the tripping unit

3RN10 22 tripping unit (warning + switch-off)

Switching off a three-phase motor via a contactor, warning via output relay,

pushbutton control

• The contact elements are shown for voltage applied to terminals A1

and A2 of the tripping unit

3RN10 62 tripping unit (multiple motor protection)

Switching off 6 three-phase motors via contactors, pushbutton control

• The contact elements are shown for voltage applied to terminals A1 and A2

of the tripping unit

11/19

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/19

Function Relays, Interfaces and Converters

Thermistor Motor Protection

3RN1

for PTC temperature sensors

Dimension drawings

01 01NR300 01NR3

3RN10 11, 3RN10 12, 3RN1 26 01NR322 01NR3 ,31 0

11/20 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/20

Function Relays, Interfaces and Converters

Solid-State Time Relays

3RP20 / 3RP15

Siemens Energy & Automation, Inc

Industrial Controls Catalo

Overview

Function

3RP20 time relay, assembly width 45 mm

Accessories

LED to indicate

time relay

energised (left)

LED to indicate

relay switched

(right) Sealable

cap

Time setting range

selector

Function selector

switch

Operating time

adjuster

Device designation label

3RP15 time relay, assembly width 22.5 mm

LED to indicate

time relay energised Operating time

adjuster

Display window for

selected time setting range

Time setting range selector

Display window for

set function

Function selector switch

Device designation label

Standards, specifications

The time relays comply with:

IEC 60 721-3-3 "Environmen-

tal conditions"

IEC 61 812-1/DIN VDE 0435

Part 2021 "Electrical relays,

time relays"

IEC 61 000-6-2/EN 50 081-1

"Electromagnetic

capability"

IEC 60 947-5-1; DIN VDE

0660 Part 200 "Low-voltage

switchgear and controlgear"

Application

Time relays are used in control,

starting protective and control

circuits for all switching opera-

tions involving time delays.

They guarantee a high level of

functionality and a high repeat

accuracy of timer settings.

Housing design

All time relays are suitable for

snap-on mounting onto 35 mm

standard mounting rails

according to EN 50 022 or for

screw fixing.

Configuration

Changing the time setting

ranges and the functions will

only be effective when being

carried out in de-energised

state

Start input B1 or B3 must only

be triggered when the supply

voltage is applied

The same potential must be

applied to A1 and B1, or A3

and B3

With the two-voltage version,

only one voltage range must

be connected

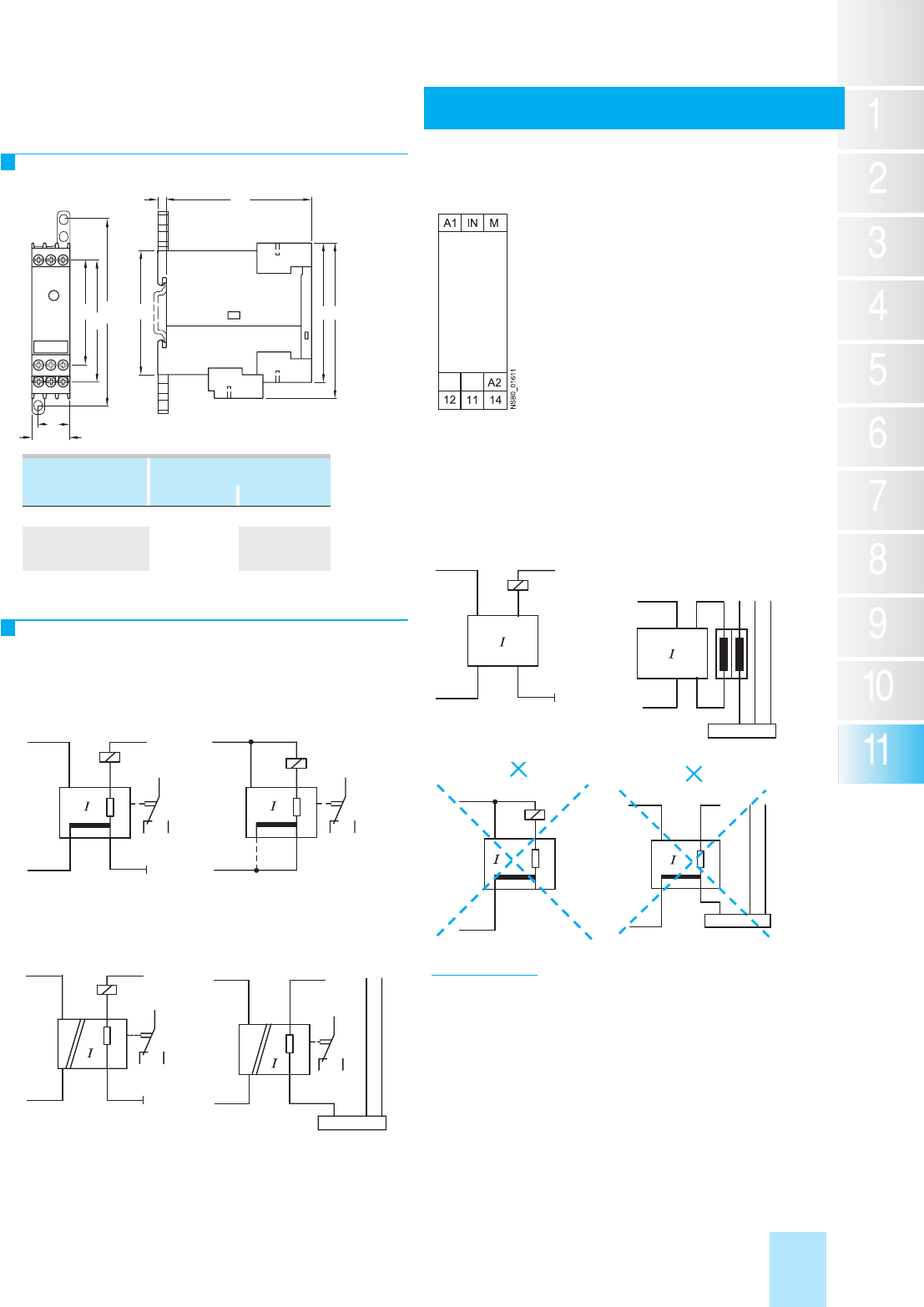

The activation of loads parallel

to the start input is not permis-

sible when using AC control

voltage (see adjacent dia-

grams)

Surge suppression is inte-

grated in the time relay. This

prevents supply voltage

spikes occurring when the

relay switches. No damping

mechanisms have been inte-

grated for the contacts

The 3RP15 05-.R should not

be used near heat sources

>60 °C

Parallel load on

start input

Push-in lugs

for screw fixing

NSB00895

11/21

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Product Category: IEC

Siemens / Industrial Controls Previous folio: IC10 11/21

3RP1/3RP2 Time relays – electronic 3RP20 Time relays in the SIRIUS design, 45 mm

8 functions

16 functions

On delay

On delay, 2-wire

Off delay with auxiliary voltage

Off delay without auxiliary voltage

Function

8 functions

On delay

16 functions

Contact elements

1 CO

(changeover contact)

1 CO

2 CO

Time range

0.05 s–100 h

Control supply voltage

AC/DC 24/100–127 V AC

AC/DC 24/200–240 V AC

AC/DC 24/100–127 V AC

AC/DC 24/200–240 V AC

24–240 V AC/DC

Order No. List

Price $

3RP2005- AQ30

3RP2005- AP30

3RP2025- AQ30

3RP2025- AP30

3RP2005- BW30

1 CO

(changeover contact)

1 CO

2 CO

1 CO

2 CO

1 NO contact, solid-state

1 CO

0.05 s–100 h

0.5–10 s

1.5–30 s

5–100 s

0.05 s–100 h

0.05–240 s

0.5–10 s

1.5–30 s

5–100 s

0.05–600 s

12 V DC

AC/DC 24/100–127 V AC

AC/DC 24/200–240 V AC

24–240 V AC/DC

AC/DC 24/100–127 V AC

AC/DC 24/200–240 V AC

24–240 V AC/DC

400–440 V AC

AC/DC 24/100–127 V AC

AC/DC 24/200–240 V AC

AC/DC 24/100–127 V AC

AC/DC 24/200–240 V AC

AC/DC 24/100–127 V AC

AC/DC 24/200–240 V AC

AC/DC 24/100–127 V AC

AC/DC 24/200–240 V AC

42–48/60 V AC/DC

AC/DC 24/100–127 V AC

AC/DC 24/200–240 V AC

24–240 V AC/DC

24–66 V AC/DC

90–240 V AC/DC

AC/DC 24/100–127 V AC

AC/DC 24/200–240 V AC

AC/DC 24/100–127 V AC

AC/DC 24/200–240 V AC

AC/DC 24/100–127 V AC

AC/DC 24/200–240 V AC

24 V AC/DC

100–127 V AC/DC

3RP1505- AA40

3RP1505- AQ30

3RP1505- AP30

3RP1505- AW30

3RP1505- RW301)

3RP1505- BQ30

3RP1505- BP30

3RP1505- BW30

3RP1505- 1BT202)

3RP1511- AQ30

3RP1511- AP30

3RP1512- AQ30

3RP1512- AP30

3RP1513- AQ30

3RP1513- AP30

3RP1525- AQ30

3RP1525- AP30

3RP1525- BR30

3RP1525- BQ30

3RP1525- BP30

3RP1525- BW30

3RP1527- EC30

3RP1527- EM30

3RP1531- AQ30

3RP1531- AP30

3RP1532- AQ30

3RP1532- AP30

3RP1533- AQ30

3RP1533- AP30

3RP1540- AB31

3RP1540- AJ31

3RP1/3RP2 Time relays – electronic 3RP15 Time relays in an industrial housing, 22.5 mm

Off delay without auxiliary voltage 1 CO 0.05–600 s 200–240 V AC/DC 3RP1540- AN31

Off delay without auxiliary voltage

2 CO

0.05–600 s

24 V AC/DC

100–127 V AC/DC

3RP1540- BB31

3RP1540- BJ31

Off delay without auxiliary voltage 2 CO 0.05–600 s 200–240 V AC/DC 3RP1540- BN31

Off delay without auxiliary voltage 2 CO 0.05–600 s 24–240 V AC/DC 3RP1540- BW31

Clock-pulse relay

Star/delta with run-on function

Star/delta

1 CO

3 x 1 NO contact

1 NO contact + 1 NO contact

0.05 s–100 h

1–20 s, 30–600 s (run-on)

1–20 s

3–60 s

42–48/60 V AC/DC

AC/DC 24/100–127 V AC

AC/DC 24/200–240 V AC

AC/DC 24/100–127 V AC

AC/DC 24/200–240 V AC

AC/DC 24/100–127 V AC

AC/DC 24/200–240 V AC

3RP1555- AR30

3RP1555- AQ30

3RP1555- AP30

3RP1560- SQ30

3RP1560- SP30

3RP1574- NQ30

3RP1574- NP30

3RP1576- NP30

Star/delta

1 NO contact + 1 NO contact

3–60 s AC/DC 24/100–127 V AC 3RP1576- NQ30

1) Positively-driven and hard-gold-plated relay contacts

2) This device is only available with screw terminals Screw Terminal 1

Spring-type Terminal

Off delay without auxiliary voltage 1 CO 0.05–600 s 24–240 V AC/DC 3RP1540- AW31

Function Relays, Interfaces and Converters

Solid-State Time Relays

3RP20 / 3RP15

11/22 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/22

Function Relays, Interfaces and Converters

Solid-State Time Relays

3RP20/3RP15/7PV

Technical data acc. to IEC 61 812-1/DIN VDE 0435 Part 2021

Type 3RP20 05 3RP15 05 3RP15 11 3RP15 40 3RP15 60 3RP15 74 3RP15 27

3RP20 25 3RP15 31 3RP15 12 3RP15 76

3RP15 32 3RP15 13

3RP15 33 3RP15 25

3RP15 55

Rated insulation voltage AC V 300; 500 for 3RP15 05-1BT20

Pollution degree 3

Overvoltage category III acc. to DIN VDE 0110

Working range of excitation 1) 0.85 to 1.1 x Us for AC; 0.8 to 1.25 x Us for DC

0.95 to 1.05 x rated frequency

Rated power W 1 2 2 2 2 2 1

Power consumption at 230 V AC, 50 Hz VA 4 6 6 2 2) 6 6 1

Rated operational current Ie

AC-15 at AC 230 V, 50 Hz A 3 3) –

AC-14; DC-13 – 0.01 to 0.6

DC-13 at 24 V 1 –

DC-13 at 48 V 0.45 –

DC-13 at 60 V 0.35 –

DC-13 at 110 V 0.2 –

DC-13 at 230 V 0.1 –

Required DIAZED fuse 4)

Utilisation category gL/gG A 4 –

Operating frequency

• when loaded with Ie AC 230 V 1/h 2500 5000

• when loaded with 3RT10 16 contactor, AC 230 V 1/h 5000 5000

Recovery time ms 150 5)300 150 50

Minimum ON period ms 35 35 6) – 200 7) –

Off-state current mA ≤5

with non-conducting output

Voltage drop V≤3.5

with conducting output

Short-time loading capacity A 10 (up to

10 ms)

Setting accuracy

referred to upper limit of scale typical ± 5 %

Repeat accuracy ≤v ± 1 %

Mechanical endurance operating cycles 30 x 106100 x 106

Permissible ambient temperature in operation °C – 25 to + 60

when stored °C – 40 to + 85

Degree of protection cover IP 40

acc. to EN 60 529 terminals IP 20

Conductor cross-sections Main conductors,

auxiliary conductors

• Screw connection

(to connect 1 or 2 conductors

for standard screwdriver

size 2 and Pozidriv 2)

solid mm22 x

(0.5 to1.5) 1 x (0.5 ... 4)

2 x

(0.75 to 4) 2 x (0.5 ... 2.5)

finely stranded with

end sleeve mm22 x

(0.5 to 2.5) 1 x (0.5 ... 2.5)

2 x (0.5 ... 1.5)

solid or stranded

AWG conductors AWG 2 x

(18 to 14) 2 x (20 ... 14)

terminal screw M 3 M 3.5

tightening torque Nm 0.8 to 1.2

• Cage Clamp connection

(1 or 2 wire connection;

for 22.5 mm time-delay relay

use screwdriver with

blade width 3 mm or

8WA2 803 opening tool

solid mm22 x (0.25

to 2.5) 2 x (0.25 ... 1.5)

finely stranded

• with end sleeve mm22 x

(0.25 to 1) 2 x (0.25 ... 1)

• without end sleeve mm22 x

(0.25to1.5) 2 x (0.25 ... 1.5)

solid or stranded

AWG conductors AWG 2 x

(24 to 14) 2 x (24 ... 16)

1) If nothing else is stated.

2) Maximum inrush current 1 A/100 ms.

3) For 3RP15 05-.R: NC contact Ie = 1 A

4) Without any welds acc. to IEC 60 947-5-1.

5) With 3RP15 05-.BW30/ .AW30/ .RW30 and

3RP15 25-.BW30, 10 to 250 ms, voltage-

dependent.

6) Minimum ON period with 3RP15 00-. BW30, 150

ms until instantaneous contact has switched.

7) For correct operation, observe minimum ON

period.

11/23

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio:

Siemens / Industrial Controls Previous folio: IC10 11/23

Function Relays, Interfaces and Converters

Solid-State Time Relays

3RP20/3RP15/7PV

Technical data acc. to IEC 61 812-1/DIN VDE 0435 Part 2021

Type 3RP20 05 3RP15 05 3RP15 11 3RP15 40 3RP15 60 3RP15 74 3RP15 27

3RP20 25 3RP15 31 3RP15 12 3RP15 76

3RP15 32 3RP15 13

3RP15 33 3RP15 25

3RP15 55

Permissible mounting position any

Shock resistance g/ms 15/11

Half sine acc. to IEC 60 068-2-27

Vibration performance acc. to IEC 60 068-2-6 Hz/mm 10-55 / 0.35

EMC tests IEC 61 000-6-2 / EN 50 081-1

acc. to basic specification

Type 7PV33 48 7PV41 48 7PV43 48

Rated insulation voltage AC V 250

Overvoltage category C acc. to DIN VDE 0110

Working range of excitation + 10 ...

– 15 %

24 V: – 15 ... + 30 %

115/230 V: – 15 ... + 10 %

Rated power W 1

Power consumption at AC 230 V, 50 Hz VA 11

Rated operational current Ie

AC-1 at AC 230 V, 50 Hz A 8

Operating frequency

• when loaded with Ie, AC 230 V 1/h 600

• when loaded with 3RT10 16 contactor, AC 230 V 1/h

Recovery time ms 50 100

Minimum ON period ms 50 100

Setting accuracy

with reference to upper limit of scale ± 0.03 %,

± 10 ms

± 10 %

Repeat accuracy ± 0.03 %,

± 10 ms

± 2 %

Mechanical endurance operating cycles 5 x 1062 x 107

Permissible ambient temperature in operation °C – 10 ... +60 – 20 ... +60

when stored °C – 30 ... +70 – 25 ... +70

Degree of protection

acc. to EN 60 529 IP 65 IP 50

Permissible mounting position any

11/24 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio:

Siemens / Industrial Controls Previous folio: IC10 11/24

Function Relays, Interfaces and Converters

Solid-State Time Relays

3RP20/3RP15/7PV

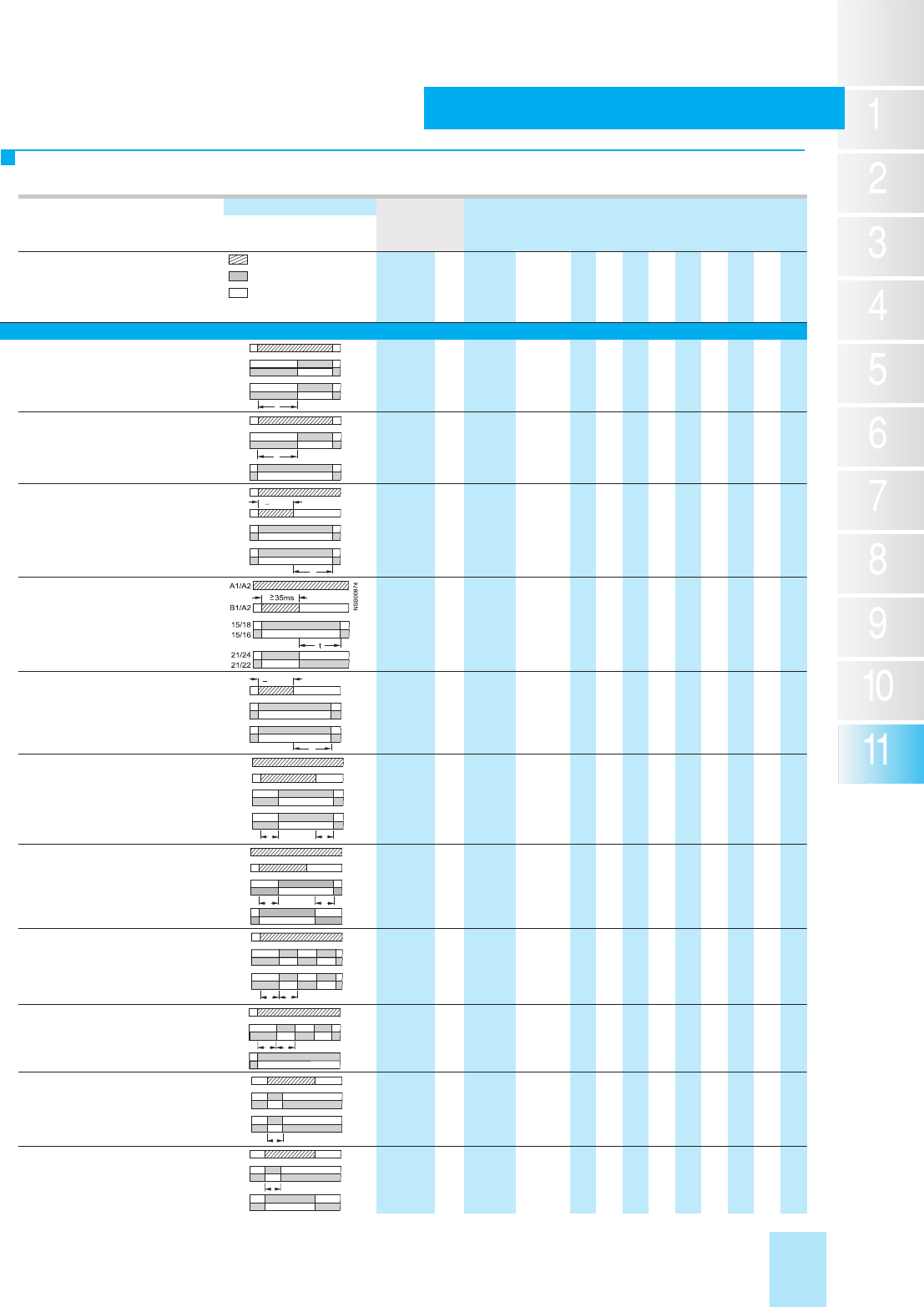

Functions

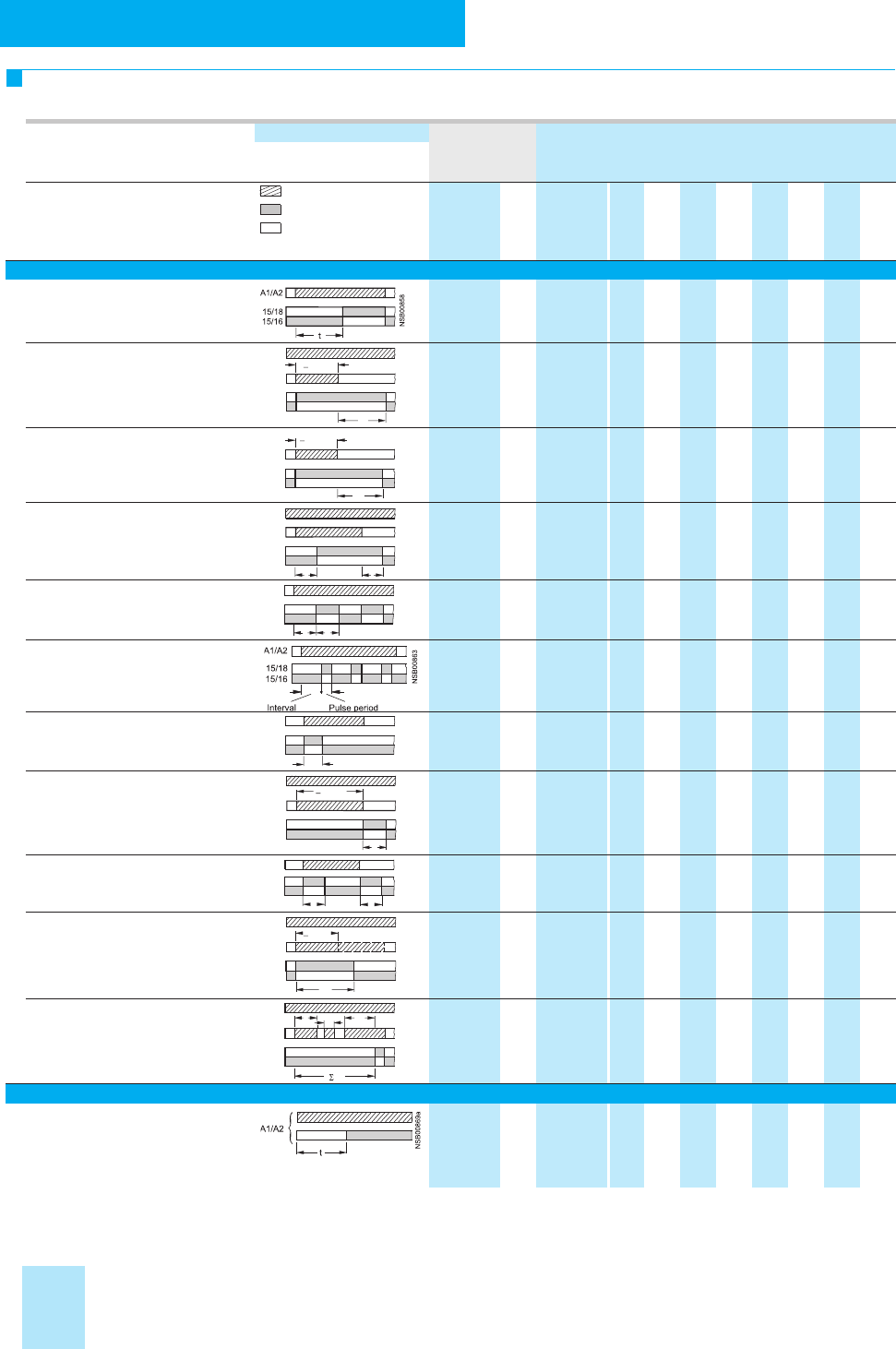

Function table

Function Function diagram 3RP20

time relays

and 7PX9 coding

plug

3RP15 time relays

and 3RP15 19 label set

time relay energised

contact closed

contact open

3RP20 05

7PX9 904

3RP20 25

3RP15 05-.A

3RP19 01-0A

Code

letter

3RP15 1.

3RP15 25

3RP15 27

3RP15 3.

3RP15 40

3RP15 55

3RP15 7.

1 changeover contact

ON-delay 777A7 7

OFF-delay

with auxiliary voltage

7 7 B1)7

OFF-delay

without auxiliary voltage

ON-delay and

OFF-delay with

auxiliary voltage

(t= ton = toff)

7 7 C1)

flashing,

starting with interval

(pulse/interval 1:1)

7 7 D

clock-pulse,

starting with interval

(dead interval, pulse time and time

setting ranges each separately

adjustable)

passing make contact 7 7 E

passing break contact

with auxiliary voltage

7 7 F1)

passing make contact and

passing break contact

pulse shaping with

auxiliary voltage

(pulse generation at the

output does not depend

on duration of energising)

7 7 G1)

additive ON-delay

with auxiliary voltage

7 7 H1)

1 normally open contact (semiconductor)

ON-delay:The two-wire time relay is

connected in series with the load.

Timing begins after application of

the exciting voltage. The semicon-

ductor output then becomes con-

ducting, and the load is energised.

1/A2

15/18

15/16

35 ms

NSB00859

B1/A2

15/16

1/A2

200 ms

15/18

NSB00860

NSB00861

15/16

A1/A2

15/18

B1/A2

NSB00862

t t

15/16

1/A2

15/18

NSB00864

1/A2

15/18

15/16

NSB00865

35 ms

A1/A2

15/18

15/16

B1/A2

15/18

15/16

A1/A2

NSB00866

NSB00867

A1/A2

15/18

15/16

B1/A2

35 ms

NSB00868

A1/A2

15/18

15/16

B1/A2

1) Note on function with start contact: Another control signal at terminal B after the operating time has started resets the operating time to zero.

This does not apply to "G", "G!" and "H", "H!", that cannot be retriggered.

11/25

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio:

Siemens / Industrial Controls Previous folio: IC10 11/25

Function Relays, Interfaces and Converters

Solid-State Time Relays

3RP20/3RP15/7PV

Functions

Function table

Function Function diagram 3RP20

time relays

and 7PX9 cod-

ing plug

3RP15 time relays

and 3RP19 label set

time relay energised

contact closed

contact open

3RP20 05-.B

7PX9 904

3RP20 25

3RP15 05-.B

3RP19 01-0B

3RP15 05-.R

3RP19 01-0A

Code

letter

3RP15 1.

3RP15 25

3RP15 27

3RP15 3.

3RP15 40

3RP15 55

3RP15 60

3RP15 7.

2 changeover contacts

ON-delay 7 7 7 A7

ON-delay

and instantaneous contact

7 7 A!

OFF-delay with

auxiliary voltage

7 7 7 B1)

OFF-delay

with auxiliary voltage

and instantaneous contact

7 7 B!1)

OFF-delay without

auxiliary voltage

7 7

ON-delay and OFF-delay with auxiliary

voltage (t= ton = toff)

7 7 7 C1)

ON-delay and OFF-delay with auxiliary

voltage and instantaneous switching

(t= ton = toff)

7 7 C!1)

flashing,

starting with interval

(pulse/interval 1:1)

7 7 7 D

flashing,

starting with interval

(pulse/interval 1:1)

and instantaneous contact

7 7 D!

passing make contact 7 7 7 E

passing make contact

and instantaneous contact

7 7 E!

NSB00871

A1/A2

15/18

15/16

25/28

25/26

15/18

15/16

A1/A2

NSB00872

21/24

21/22

NSB00873

A1/A2

15/18

15/16

B1/A2

25/28

25/26

35 ms

15/16

A1/A2

200 ms

15/18

25/28

25/26

NSB00875

15/18

15/16

25/28

25/26

A1/A2

B1/A2

NSB00876

15/18

15/16

21/24

21/22

A1/A2

B1/A2

NSB00877

15/18

15/16

A1/A2

25/28

25/26

NSB00878

15/18

15/16

21/24

21/22

NSB00879

A1/A2

t t

15/18

15/16

A1/A2

25/28

25/26

NSB00880

15/18

15/16

21/24

21/22

NSB00881

A1/A2

1) Note on function with start contact: another control signal at terminal B after the operating time has started resets the

operating time to zero. This does not apply to G, G! and H, H!, that cannot be retriggered.

11/26 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/26

Function Relays, Interfaces and Converters

Solid-State Time Relays

3RP20/3RP15/7PV

Functions

Function table

Function Function diagram 3RP20 time

relays and 7PX9

coding plug

3RP15 time relays

and 3RP19 label set

time relay energised

contact closed

contact open

3RP20 05-.B

7PX9 904

3RP20 25

3RP15 05-.B

3RP19 01-0B

3RP15 05-.R

3RP19 01-0A

Code

letter

3RP15 1.

3RP15 25

3RP15 27

3RP15 3.

3RP15 40

3RP15 55

3RP15 60

3RP15 7.

2 changeover contacts

passing break contact

with auxiliary voltage

7 7 7 F1)

passing break contact

with auxiliary voltage

and instantaneous contact

7 7 F!1)

pulse shaping

with auxiliary voltage

(pulse generation at the

output does not depend

on duration of energising)

7 7 7 G1)

pulse shaping

with auxiliary voltage

and instantaneous contact

(pulse generation at the

output does not depend

on duration of energising)

7 7 G!1)

additive ON-delay

with auxiliary voltage

7H1)

additive ON-delay

with auxiliary voltage and

instantaneous contact

7 7 H!1)

star-delta function 7 7 *∆

2 normally open contacts

star-delta function *∆7

3 normally open contacts

star delta function

with overtravel function

(idling)

15/18

15/16

25/28

35ms

NSB00882

25/26

B1/A2

A1/A2

15/18

15/16

35ms

21/24

21/22

NSB00883

A1/A2

B1/A2

15/18

15/16

25/28

25/26

A1/A2

B1/A2

35ms

NSB00884

15/18

15/16

21/24

21/22

A1/A2

B1/A2

NSB00885

35ms

A1/A2

50ms

17/18

27/28

NSB00888

t50 ms

NSB00889

A1/A2

17/18

17/28

1) Note on function with start contact: another control signal at terminal B after the operating time has started resets the

operating time to zero. This does not apply to G, G! and H, H!, that cannot be retriggered.

11/27

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

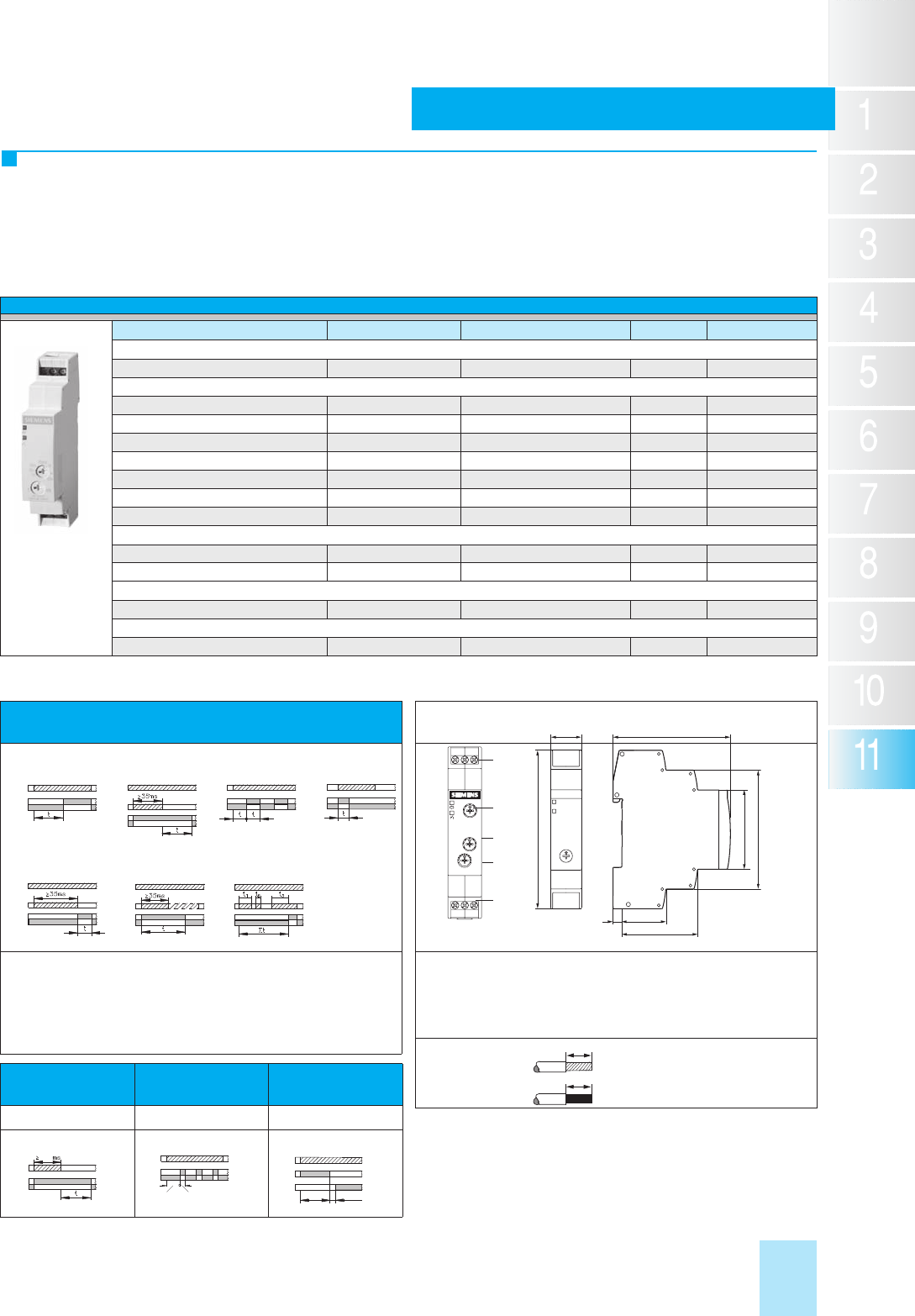

Product Category: SMRL

Siemens / Industrial Controls Previous folio: IC10 11/27

• Wide voltage range 12 ... 240 V AC/DC

• High switching capacity, e.g. AC15 at 230 V, 3 A

• Combination voltage, e.g. 24 V AC/DC and 200 ... 240 V AC

• Changes to the time setting range during operation

• Changes to the function in the de-energized state

• High level of functionality and a high repeat accuracy of

timer settings

• Integrated surge suppressor

• Function charts printed on the side of the device for reliable

device adjustment

Overview

7PV15 electronic timing relays in 17.5 mm enclosure

Function Time setting range Rated control voltage UsContacts * Order No.

Multifunction timing relays

7 functions 0.05 sec–100 h 12–240 V AC/DC 1 CO 7PV1508-1AW30

ON delay timing relays

ON delay 0.5 sec–10 sec AC/DC 24 AC 100–127 V 1 CO 7PV1512-1AQ30

ON delay 0.5 sec–10 sec AC/DC 24 AC 200–240 V 1 CO 7PV1512-1AP30

ON delay 5 sec–100 sec AC/DC 24 AC 100–127 V 1 CO 7PV1513-1AQ30

ON delay 5 sec–100 sec AC/DC 24 AC 200–240 V 1 CO 7PV1513-1AP30

ON delay 0.05 sec–100 h 12–240 V AC/DC 1 CO 7PV1518-1AW30

ON delay 0.05 sec–100 h 90-127V AC/DC 1 CO 7PV1518-1AJ30

ON delay 0.05 sec–100 h 180-240V AC/DC 1 CO 7PV1518-1AN30

OFF delay timing relays

OFF delay with auxiliary voltage 0.05 sec–100 h 12–240 V AC/DC 1 CO 7PV1538-1AW30

OFF delay without auxiliary voltage 0.05 sec–100 sec 12–240 V AC/DC 1 CO 7PV1540-1AW30

Clock generator

Clock generator 0.05 sec–100 h 12–240 V AC/DC 1 CO 7PV1558-1AW30

Star-delta timing relays

Star-delta 0.05 sec–100 h 12–240 V AC/DC 2 CO 7PV1578-1BW30

* CO - changeover contact

Multifunction timing relays with 7 functions

7PV1508-1AW30

A ON delay

B OFF delay with auxiliary voltage

C flashing, starting with interval

D passing make contact function

E passing break contact function with auxiliary voltage

F pulse-forming with auxiliary voltage

G additive ON delay with auxiliary voltage

A1/A2

15/18

15/16 B1/A2

A1/A2

15/18

15/16

A1/A2

15/18

15/16

A1/A2

15/18

15/16

B1/A2

A1/A2

15/18

15/16

B1/A2

A1/A2

15/18

15/16

B1/A2

A1/A2

15/18

15/16

ON DELAY

DA CB

OFF DELAY FLASHER IMPULSE ON

F GE

IMPULSE OFF PULSE-FORMING ADDITIVE ON DELAY

1 Coil connections *

2 Contact terminals *

3 Function selector switch

4 Time selector switch

5 Time potentiometer

* Size PZ0 max. 1.5 mm2

max. 2.5 mm2

OFF delay without

auxiliary voltage

Clock generator Star-delta

7PV1540-1AW30 7PV1558-1AW30 7PV1578-1BW30

OFF DELAY

A1/A2

15/18

15/16

250

CLOCK PULSE

A1/A2

15/18

15/16

Pausenzeit

Interval time

Impulszeit

Impuls time

STAR/DELTA

15/18

25/28

tmax

A1/A2

66,7

67,5

17,5

5 25

66,7

67,5

17,5

5 25

15 16 18

MULTIFUNCT ION

7PV1508-1AW30

100%

(-)

(+) B1

(+)

100h

10h

10min

100s

10s

Function Relays, Interfaces and Converters

Solid-State Time Relays

7PV timing relays

11/28 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/28

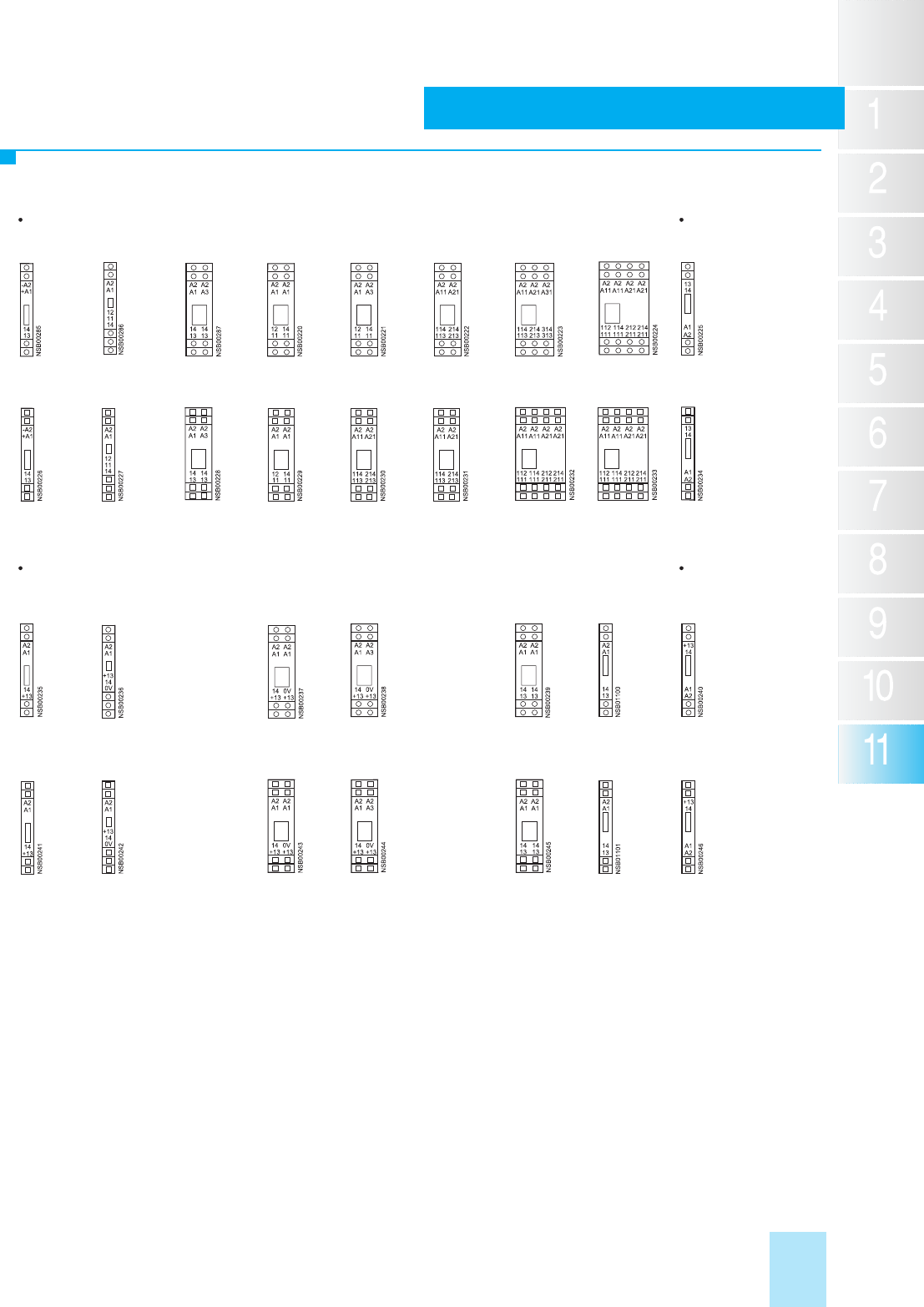

Circuit diagrams

Device circuit diagrams (terminal designations acc. to DIN 46 199, Part 5)

3RP20 05

3RP20 25

3RP15 05-.A

3RP151.

3RP15 25-.A

3RP20 05

3RP15 05-.A

3RP15 3.-.A

3RP20 05

3RP15 05-.A

3RP20 05

3RP15 05-.A

yaled-FFOyaled-NO with auxiliary voltage ON-delay and OFF-delay

with auxiliary voltage Flashing

3RP20 05

3RP15 05-.A

3RP20 05

3RP15 05-.A

3RP20 05

3RP15 05-.A

Passing make contact Passing break contact

with auxiliary voltage Pulse shaping

with auxiliary voltage Additive ON-delay

with auxiliary voltage

3RP15 27

U = AC/DC 24–66 V

AC/DC 90–240 V

03WA.-50 51PR355 51PR3A.-04 51PR3

ON-delay,

two-wire version OFF-delay

without auxiliary voltage yaler noitcnufitluMyaler eslup-kcolC (functions as for 3RP15 05-1A)

B.-50 51PR3B.-50 51PR3B.-50 51PR3B1-52 51PR3 ,B.-50 51PR3

ON-delay, 3RP15 25-1B,

also for 42 to 48/60 V AC/DC

(see page 11/31 3RP15 25-1BR30)

OFF-delay with auxiliary voltage ON-delay and OFF-delay

with auxiliary voltage Flashing

B.-50 51PR3B.-50 51PR3B.-50 51PR3B.-50 51PR3

Passing make contact Passing break contact

with auxiliary voltage Pulse shaping with auxiliary voltage Additive ON-delay

with auxiliary voltage

and instantaneous contact

Function Relays, Interfaces and Converters

Solid-State Time Relays

3RP20/3RP15/7PV

11/29

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/29

Function Relays, Interfaces and Converters

Solid-State Time Relays

3RP20/3RP15/7PV

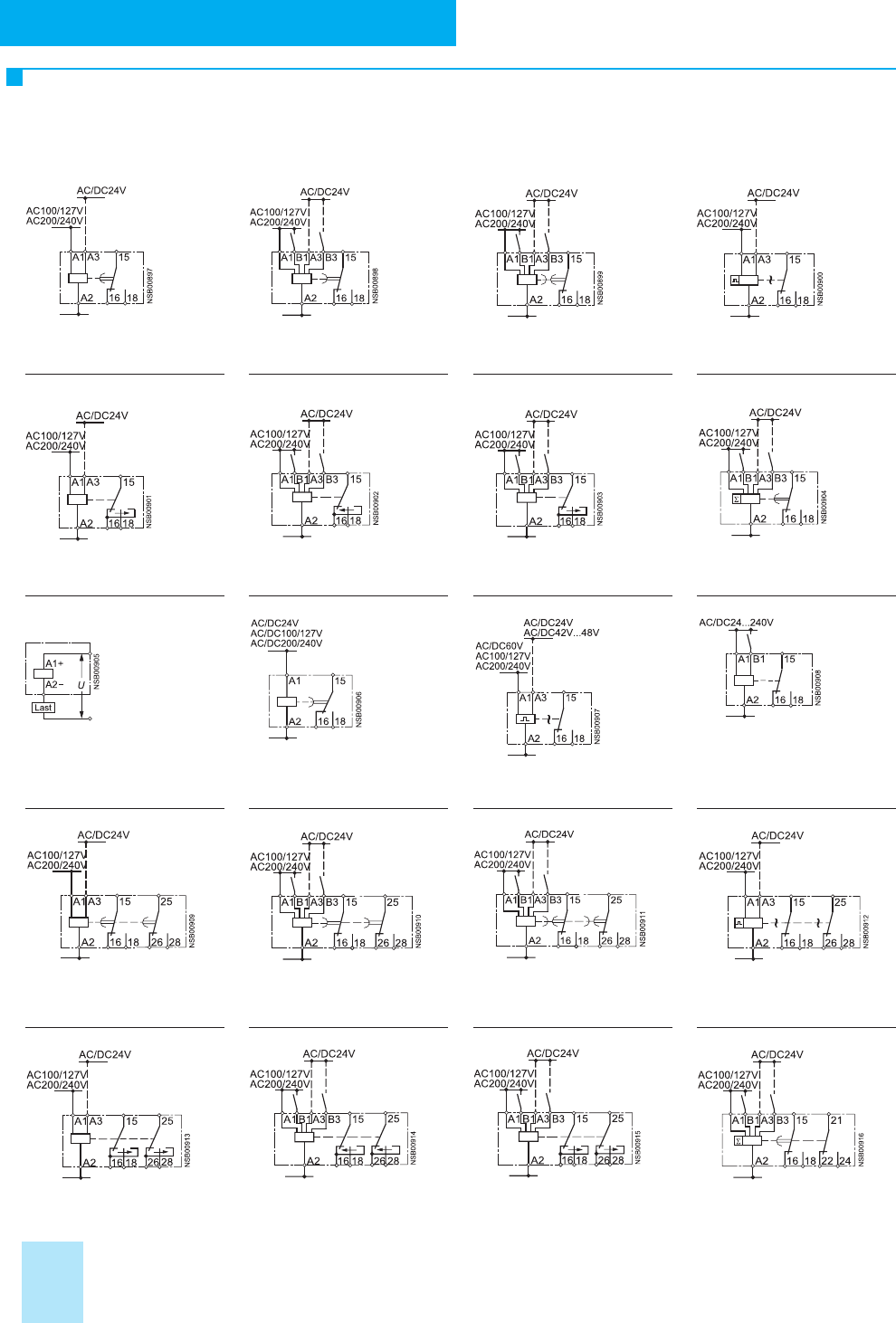

Circuit diagrams

Device circuit diagrams (terminal designations acc. to DIN 46 199, Part 5)

B.-50 51PR3B.-50 51PR3B.-50 51PR3B.-50 51PR3

ON-delay

and instantaneous contact OFF-delay

with auxiliary voltage

and instantaneous contact

ON-delay and OFF-delay with auxil-

iary voltage and instantaneous con-

tact

Flashing

and instantaneous contact

B.-50 51PR3B.-50 51PR3B.-50 51PR3B.-50 51PR3

Passing make contact

and instantaneous contact Passing break contact with auxiliary

voltage and instantaneous contact Pulse shaping with auxiliary voltage

and instantaneous contact Star-delta function

03WR.-/ 02TB1- / 03WB.-50 51PR3B.-04 51PR367 51PR3 ,47 51PR3

3R920 05-.B

3RP15 25-. BR30

star delta time relay OFF-delay

without auxiliary voltage Multifunction relay

(for functions see function table) ON-delay

3RP15 25-. .-06 51PR303WB S

yaler emit atled ratSyaled-NO with overtravel function (idling)

11/30 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/30

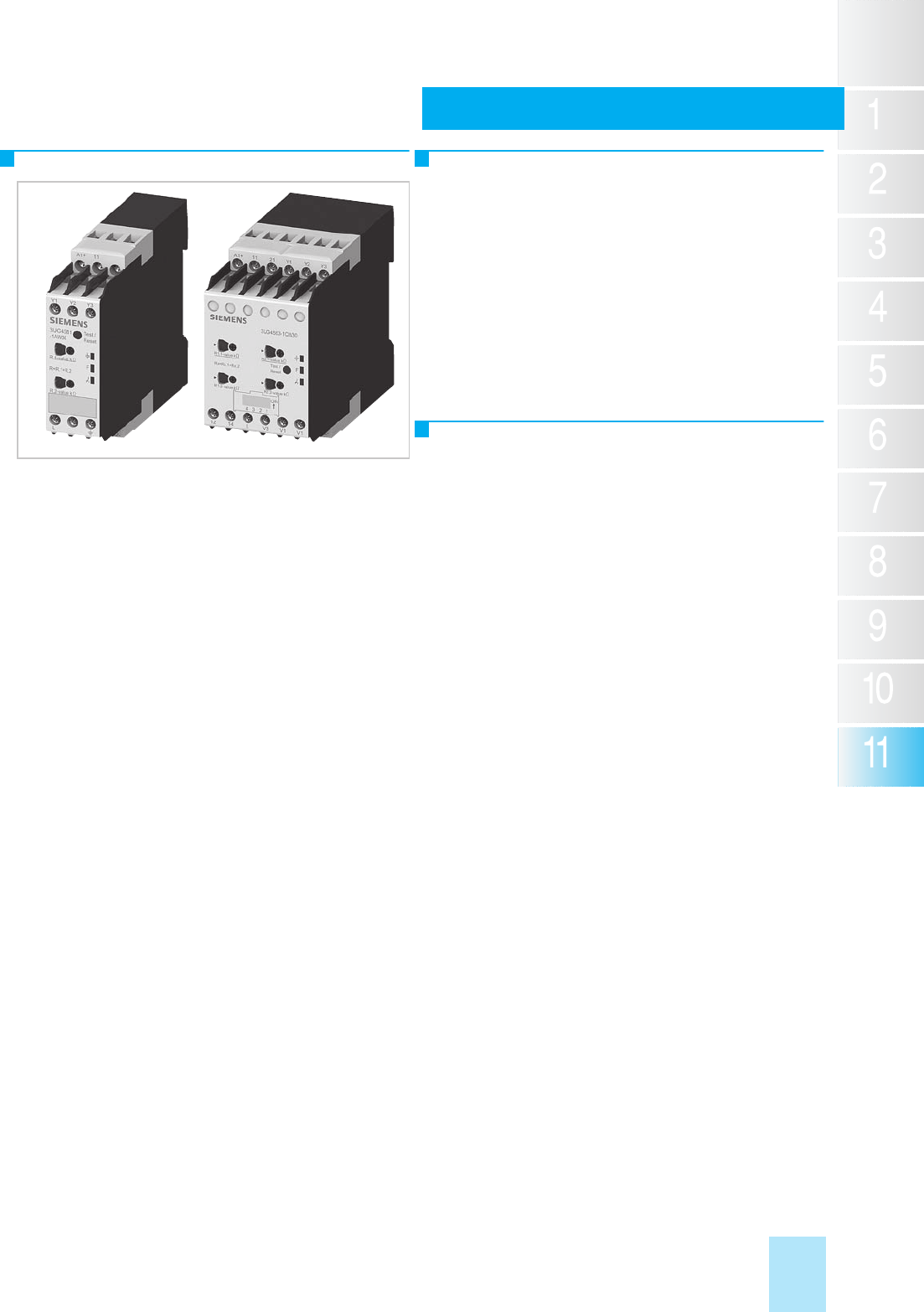

3UG3

monitoring

relay

Configuration of a 3-phase

monitoring function

Phase

failure

Phase

imbalance,

Voltage

Direction of

rotation

contactor

3UG Monitoring Relays

for line, single-phase voltage

and insulation monitoring

The new 3UG4 line monitoring relays permit a

maximum degree of protection to be achieved

for machines, plants and systems. This means

that line and voltage faults can be detected early

on and the appropriate response is initiated before

far more significant subsequent damage can occur.

Measured quantity Possible plant or system fault

Phase sequence • Direction of rotation of the drive

Phase failure • A fuse has blown

• Control supply voltage has failed

• Single-phase operation of a motor with the corresponding overheating

Phase dissymmetry • Motor overheating as a result of non-symmetrical voltages

or phase failure

• Line supplies with non-symmetrical load are detected

• A phase failure is detected in spite of regenerative feedback

Undervoltage • Motor draws an increased current and in turn overheats

• A device is undesirably reset

• Line supply dips, especially when supplied from a battery

• Threshold value switch for analog signals 0 to 10 V

Overvoltage • A plant is protected against destruction due to

supply overvoltages

• A plant or system switches-in above a certain voltage

• Threshold value switch for analog signals 0 to 10 V

Insulation monitoring • The insulation resistance for non-grounded plants and systems is monitored

Your advantages:

• Thanks to the wide voltage range, it can be used on all line

supplies around the world – from 160 V to 690 V – without

an auxiliary voltage

• Can be variably set to above range, below range or window

monitoring

• Freely parameterizable delay times and reset behavior

• Reduced width for all versions for line and voltage monitoring

• For the digital versions, the actual value and fault type are

permanently displayed

• Automatic direction of rotation correction by differentiating

between line faults and incorrect phase sequence

• All versions have removable terminals

• All versions have either screw terminals or alternatively

innovative Cage Clamp terminals

Applications:

The applications are listed in the following table. These tables

indicate the various plant system conditions that can be detected

using the monitoring parameters.

Function Relays, Interfaces and Converters

3UG Monitoring Relays

For line, single-phase voltage

and insulation monitoring

11/31

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Product Category: SMRL

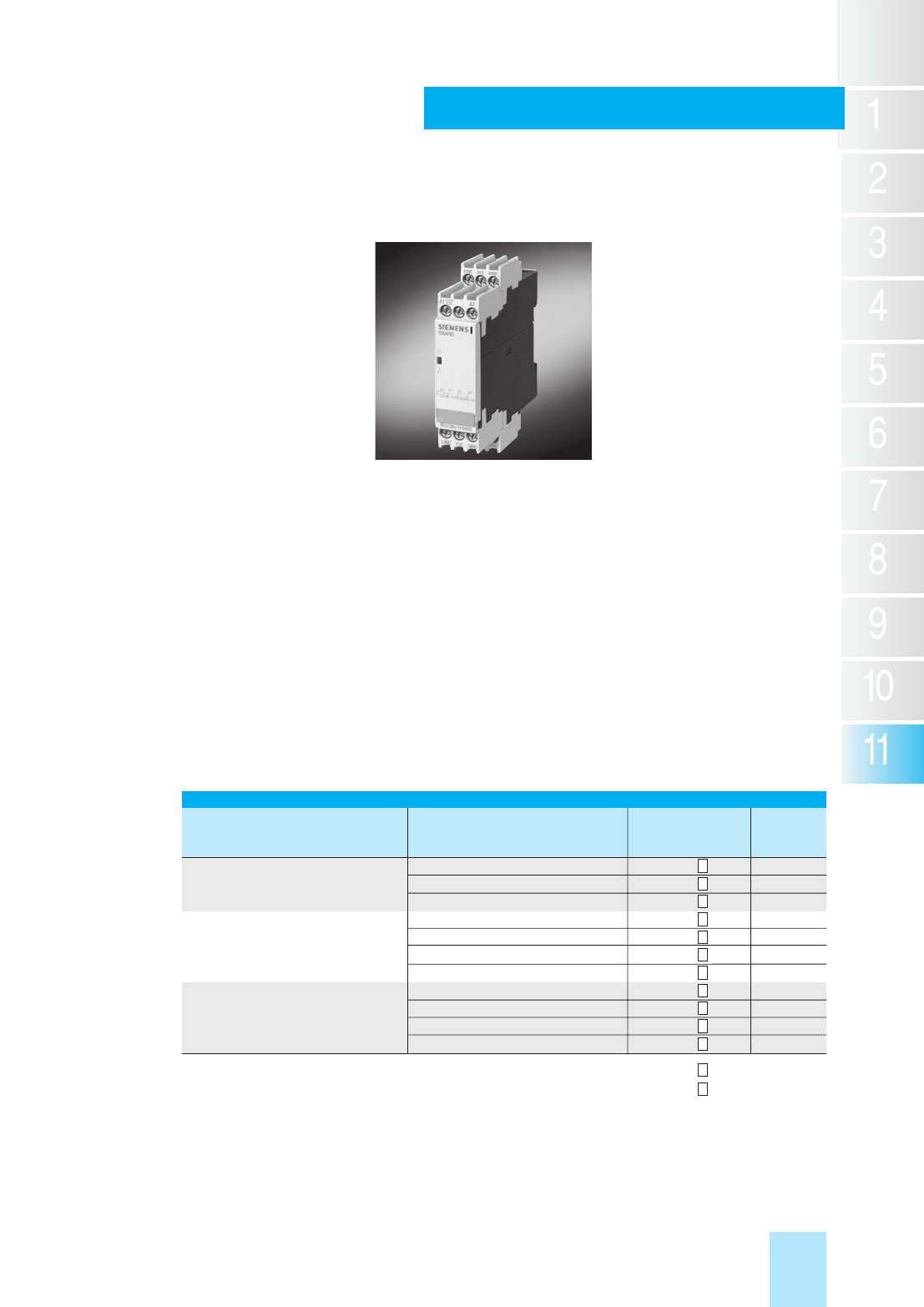

Siemens / Industrial Controls Previous folio: IC10 11/31

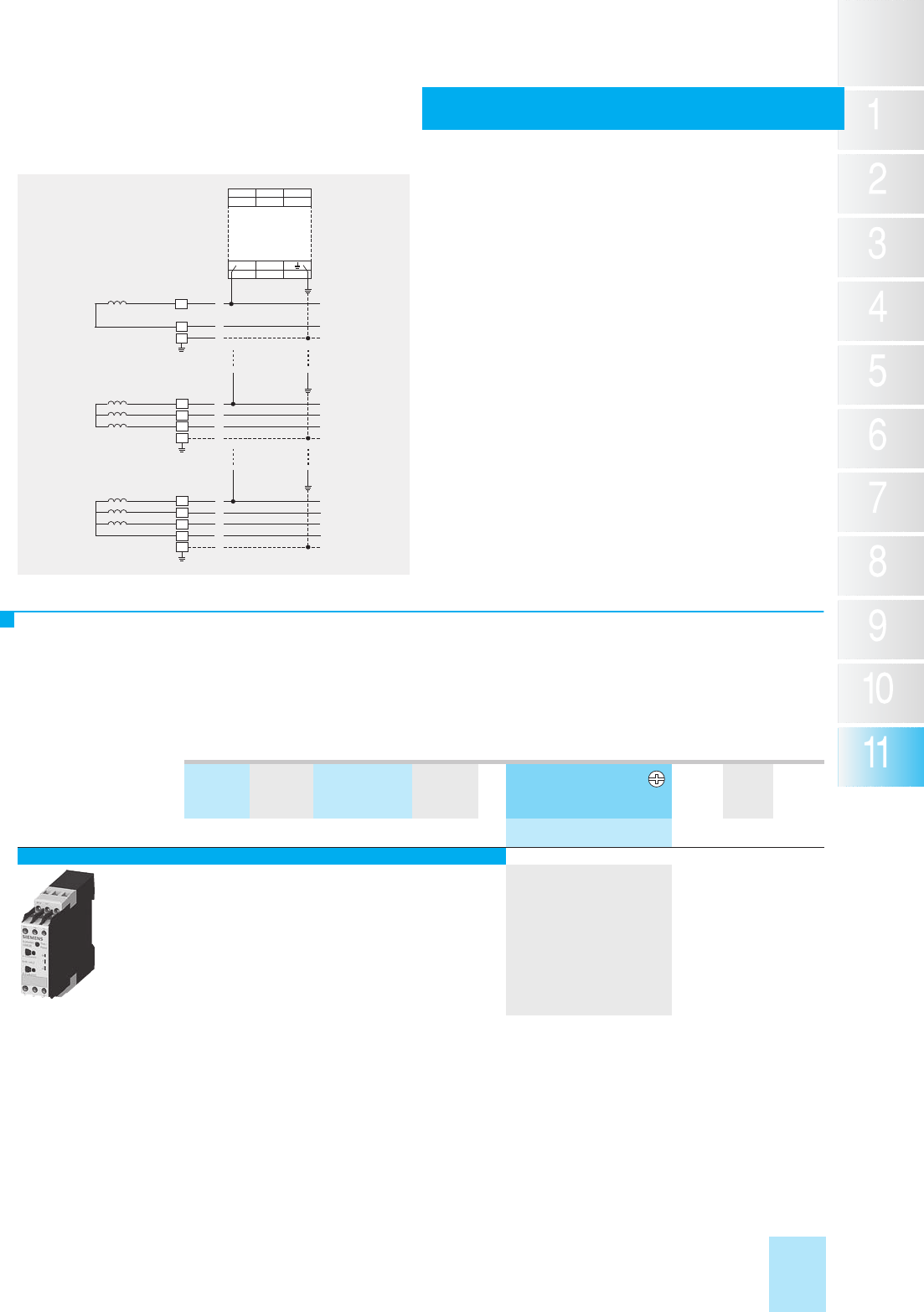

Return voltage due to coupling between the individual phases

Loads connected to the three-phase line supply – such as motor windings,

lamps, transformers – result in a coupling between the individual phases.

As a result of this coupling, there is always a return voltage at the equip-

ment terminal of the phase that has failed.

Insulation monitoring for IT line supplies

Line supply

fault memory

AC 3UG3081-1AK20

24–240 V AC 3UG3081-1AW30

DC 3UG3082-1AW30

Phase Phase N-conduc- Delay time

Line supply

Order No.

sequence

failure

imbalance

voltage

toring

22.5 mm wide

3UG4514 to 3UG3518 can be digitally set, with fault memory and with LCD display

Yes – 3UG4511- AN20

320–500 3UG4511- AP20

420–690 3UG4511- AQ20

2 CO 3UG4511- BN20

320–500 3UG4511- BP20

420–690 3UG4511- BQ20

Yes Yes

10%

– – – – 3UG4512- AR20

2 CO 3UG4512- BR20

Yes Yes

160–690

3UG4513- BR20

Selectable

Yes 3UG4614- BR20

delay 0–20 s

Selectable

Yes min 1CO for Vmin 160–690 3UG4615- CR20

threshold max and Vmax

values

Selectable

Yes min 1 CO for Vmin 160–690 3UG4616- CR20

threshold max and Vmax (90–400

w.r.t. N)

values

Autom. Yes 3UG4617- CR20

correction faults and 1 W

for phase sequence

Autom. Yes 3UG4618- CR20

correction (90–400

w.r.t. N)

for phase sequence

w.r.t. N)

Measuring range Hysteresis

17–275 V AC DC 0.1–150 V 3UG4633- AL30

0.1–60 V AC DC 3UG4631- AA30

24–240 V AC DC 3UG4631- AW30

10–600 V AC DC 3UG4632- AA30

24–240 V AC DC 3UG4632- AW30

Single-phase voltage monitoring

3UG4 Monitoring relays for the line supply and three-phase voltages

Contacts

voltage

List

Price $

1 CO 160–260

160–260

160–690

(90–400

1 CO for line

faults and 1 W

1 CO for line

2 CO

1 CO 160–690

20% 5% 160–690 V – –

– –

–

Off delay 0–20 s

0–20% 1–20 V 160–690 V On and off

Using 1–20 V 160–690 V 160–690 V 0–20 s for V

and V

Using 1–20 V 160–690 V 160–690 V Yes 0–20 s for V

(90–400 and V

w.r.t. N)

0–20% 1–20 V 160–690 V 160–690 V – Off delay 0–20 s

0–20% 1–20 V 160–690 V 160–690 V Yes Off delay 0–20 s

Phase Hysteresis Under- Over-

voltage tor moni

– – – – –

–

Contacts Delay time Auxiliary voltage Order No. List

Price $

1 CO 0–20 s Selfsupplied

0.1–30 V 1 CO 0–20 s 24 V AC DC

0.1–300 V 1 CO 0–20 s 24 V AC DC

Measuring range Auto reset Contacts Width Auxiliary voltage Order No. List

Price $

1–110 k Selectable 1 CO 45 mm 115 230 V AC

10–110 k Selectable 1 CO 45 mm 24–240 V AC

simultaneous monitoring for overvoltage and undervoltage over the complete measuring range

22.5 mm wide, all of the devices can be digitally set and have an LCD display, a fault memory that can be switched-in,

Screw Terminal

Spring-type Terminal

Screw Terminal

Spring-type Terminal

Function Relays, Interfaces and Converters

3UG Monitoring Relays

For line, single-phase voltage

and insulation monitoring

11/32 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Technical specifications

1) Absolute limit values.

2) Important: This is a Class A product. In the household environment this

device may cause radio interference. In this case the user must introduce

suitable measures.

Type 3UG45 11-

..N20

3UG45 11-

..P20

3UG45 11-

..Q20

3UG45 12 3UG45 13 3UG46 14 3UG46 15

3UG46 17

3UG46 16

3UG46 18

General data

Rated control supply voltage Us1) V 160 … 260 320 … 500 420 … 690 160 … 690 90 … 400

Rated frequency Hz 50/60

Rated power, typical AV/WV 032 CA tA• 2/4 -- -- 2/2.5

AV/WV 004 CA tA• -- 2/8 -- 2/3.5

AV/WV 064 CA tA• -- -- 2/8 2/4

Width mm 22.5

RESET Auto-RESET Automatic/manual

Principle of operation Closed-circuit Closed-circuit, open-circuit

(3UG46 17/3UG46 18:

closed-circuit)

Availability time after application of Usms 200 1.000

Response time once a switching threshold is

reached ms Max. 450

Unbalance %-- 10 20 0; 5 ... 20 3UG46 15/3UG46 16:

Through threshold

values

3UG46 17/3UG46 18:

0; 5 ... 20

Adjustable tripping delay time s-- 0.1 ... 20

Adjustable ON-delay time s-- 0.1 … 20 --

Mains buffering time, minimum ms 10 30

Rated insulation voltage Ui

Degree of pollution 3

Overvoltage category III acc. to EN 60664-1

V690

Rated impulse withstand voltage kV 6

Permissible ambient temperature C°noitarepo gniruD• -25 … +60

C°egarots gniruD• -40 … +85

EMC tests2) IEC 60947-/IEC 61000-6-2/IEC 61000-6-4

Degree of protection

• Enclosure IP40

• Terminals IP20

Vibration resistance acc. to IEC 60068-2-6 1 ... 6 Hz: 15 mm; 6 ... 500 Hz: 2 g

Shock resistance acc. to IEC 60068-2-27 12 shocks (half-sine 15 g/11 ms)

Connection type Screw terminals

• Terminal screw M 3 (standard screwdriver, size 2 and Pozidriv 2)

mmdiloS• 21 x (0.5 ... 4)/2 x (0.5 ... 2.5)

• Finely stranded with end sleeve mm21 x (0.5 ... 2.5)/2 x (0.5 ... 1.5)

• AWG cables, solid or stranded AWG 2 x (20 ... 14)

mNeuqrot gninethgiT• 0.8 … 1.2

Connection type Spring-type terminals

mmdiloS• 22 x (0.25 ... 1.5)

• Finely stranded, with end sleeves

acc. to DIN 46228 mm22 x (0.25 ... 1.5)

mmdednarts yleniF• 22 x (0.25 ... 1.5)

• AWG cables, solid or stranded AWG 2 x (24 ... 16)

Measuring circuit

Measuring range AC 50/60 Hz rms value V 160 ... 260 320 ... 500 420 ... 690 160 ... 690

Setting range V200...690 160...690 90...400

Measuring accuracy %-- ±5

Repeat accuracy

At constant parameters %-- ±1

Setting accuracy -- ±10 %

referred to

setting

±1 V

Accuracy of digital display -- ±1 digit

Deviations for temperature fluctuations %/°C -- ±0.1

Hysteresis Vegatlov rof -- 5 % from

setting 1 ... 20 V

Hysteresis %ecnalabnu rof -- (setting - 2) 3UG46 17/3UG46 18:

(setting - 2)

Deviation for frequency fluctuation %-- ±1

Siemens / Industrial Controls Previous folio: IC10 11/32

Function Relays, Interfaces and Converters

3UG Monitoring Relays

Line monitoring

11/33

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

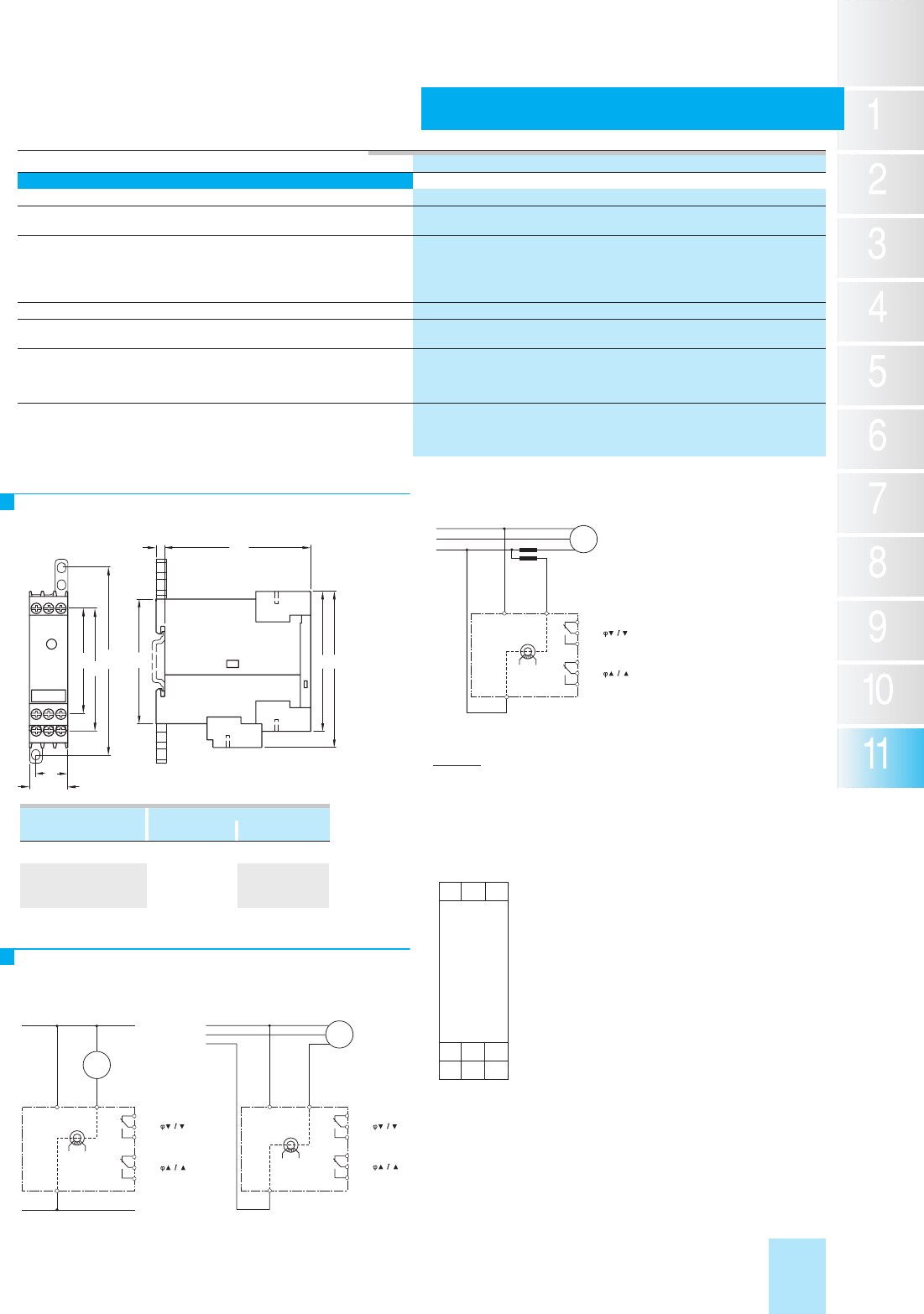

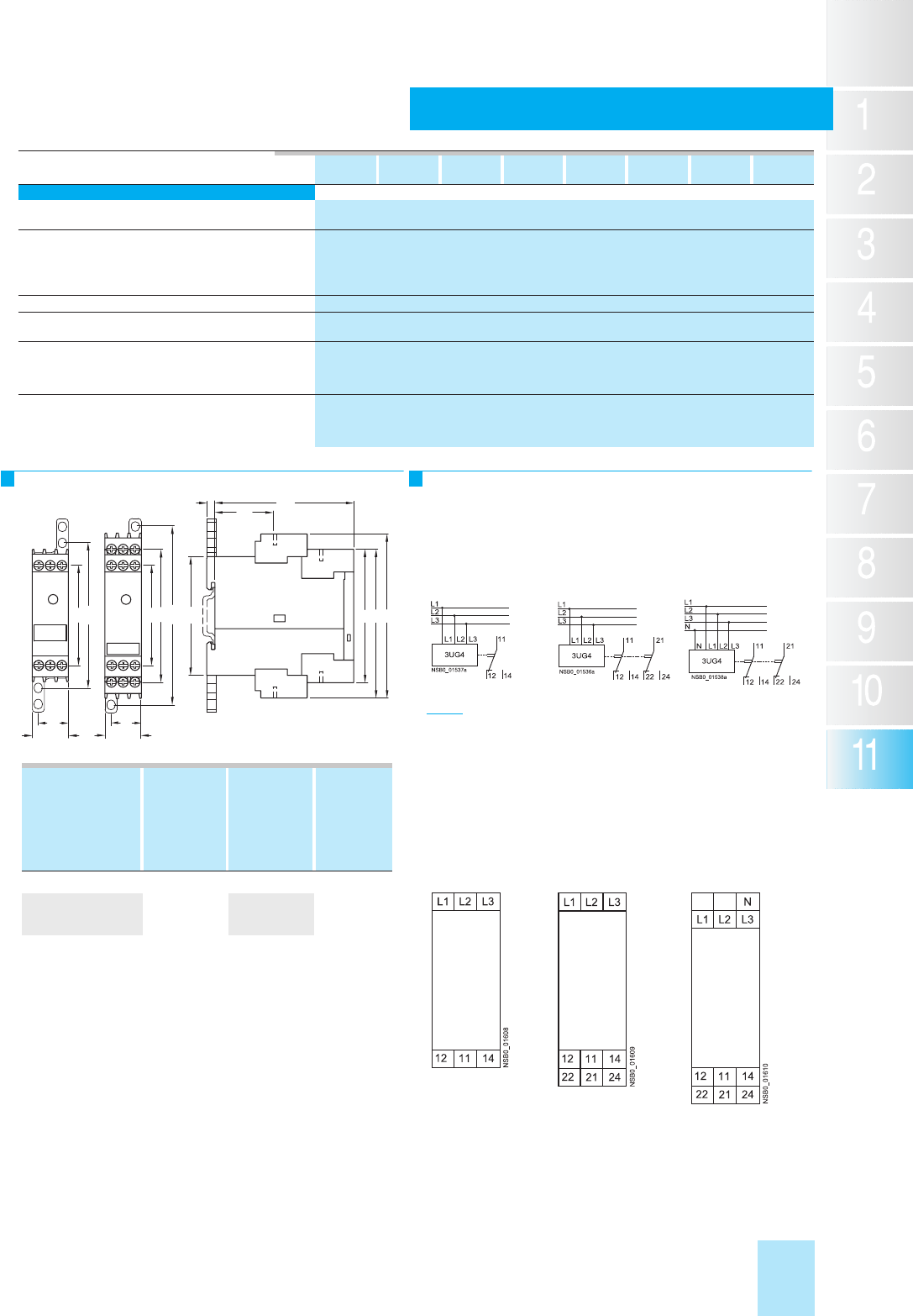

Dimensional drawings Schematics

Note: It is not necessary to protect the measuring circuit for

device protection. The protective device for line protection

depends on the cross-section used.

Position of the terminals

3UG45 11-

..N20

3UG45 11-

..P20

3UG45 11-

..Q20

3UG45 12 3UG45 13 3UG46 14 3UG46 15

3UG46 17

3UG46 16

3UG46 18

Control circuit

Load capacity of the output relay

• Conventional thermal current Ith A 5

Rated operational current Ie at AV004...42/51-CA• 3

AV 42/31-CD• 1

AV 521/31-CD• 0.2

AV 052/31-CD• 0.1

Minimum contact load at 17 V DC mA 5

Output relay with DIAZED fuse

gL/gG operational class A4

Electrical endurance AC-15 Million

oper-

ating

cycles

0.1

Mechanical endurance Million

oper-

ating

cycles

NSB0_01606b

536

22,5

110

22,5

3UG46 16

3UG46 18

3UG45 11-.A

3UG45 12-.A

3UG45 11-.B

3UG45 12-.B

3UG45 13

3UG46 14

3UG46 15

3UG46 17

B CA

92 20138

94 30148

1) For standard mounting rail according to EN 60715.

Screw-type terminal

Spring-loaded terminal

Removable terminal

Type

3UG45 11-.A

3UG45 12-.A

3UG45 11-.B

3UG45 12-.B

3UG45 13

3UG46 14

3UG46 15

3UG46 17

3UG46 16

3UG46 18

3UG45 11-.A

3UG45 12-.A

3UG45 11-.B

3UG45 12-.B

3UG45 13

3UG46 14

3UG46 15

3UG46 17

3UG46 16

3UG46 18

Siemens / Industrial Controls Previous folio: IC10 11/33

Function Relays, Interfaces and Converters

3UG Monitoring Relays

Line monitoring

11/34 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/34

Function Relays, Interfaces and Converters

3UG Monitoring Relays

Voltage monitoring

Technical specifications

1) Absolute limit values. 2) Important: This is a Class A product. In the household environment this

device may cause radio interference. In this case the user must introduce

suitable measures.

3UG46 31-

.AA

3UG46 31-

.AW

3UG46 32-

.AA

3UG46 32-

.AW

3UG46 33

General data

Rated control supply voltage UsV 24 AC/DC 24...240

AC/DC 24 AC/DC 24...240

AC/DC 17 ... 2751)

AC/DC

Rated frequency zHCA rof 50/60 40 ... 500

Operating range V20.4 ... 27.6 20.4 ... 264 20.4 ... 27.6 20.4 ... 264 17...275

Rated power in W/VA VA 2/4

Width mm 22.5

RESET Automatic/manual

Availability time after application of Usms 1000

Response time once a switching threshold is reached ms Max. 450

Adjustable tripping delay time s 0.1 … 20

Adjustable ON-delay time s-- 0.1 ... 20

Mains buffering time, smmuminim 10

Rated insulation voltage Ui

Degree of pollution 3

Overvoltage category III acc. to EN 60664-1

V690

Rated impulse withstand voltage Uimp kV 6

Protective separation acc. to EN 60947-1, Annex N V 300

Permissible ambient temperature C°noitarepo gniruD• -25 … +60

C°egarots gniruD• -40 … +85

EMC tests2) IEC 60947-1/IEC 61000-6-2/IEC 61000-6-4

Degree of protection

• Enclosure IP40

• Terminals IP20

Vibration resistance acc. to IEC 60068-2-6 1 ... 6 Hz: 15 mm; 6 ... 500 Hz: 2 g

Shock resistance acc. to IEC 60068-2-27 12 shocks (half-sine 15 g/11 ms)

Connection type Screw terminals

• Terminal screw M 3 (standard screwdriver, size 2 and Pozidriv 2)

mmdiloS• 21 x (0.5 ... 4)/2 x (0.5 ... 2.5)

mmeveels dne htiw dednarts yleniF• 21 x (0.5 ... 2.5)/2 x (0.5 ... 1.5)

GWAdednarts ro dilos ,selbac GWA• 2 x (20 ... 14)

mNeuqrot gninethgiT• 0.8 … 1.2

Connection type Spring-type terminals

mmdiloS• 22 x (0.25 ... 1.5)

• Finely stranded, with end sleeves acc. to DIN 46228 mm22 x (0.25 ... 1.5)

mmdednarts yleniF• 22 x (0.25 ... 1.5)

GWAdednarts ro dilos ,selbac GWA• 2 x (24 ... 16)

Measuring circuit

Permissible measuring range single-phase AC/DC voltage V 0.1 … 68 10 … 650 17 … 275

Setting range Vegatlov esahp-elgnis 0.1 ... 60 10 ... 600 17 ... 275

Measuring frequency Hz 40 ... 500 40 ... 500

Measuring accuracy %5

Repeat accuracy %sretemarap tnatsnoc ta 1

Accuracy of digital display ±1 digit

Deviations C°/% snoitautculf erutarepmet rof ±0.1

Hysteresis Vegatlov esahp-elgnis rof 0.1 ... 30 0.1 ... 300 0.1 ... 150

Control circuit

Load capacity of the output relay

• Conventional thermal current Ith A 5

Rated operational current Ie at AV004...42/51-CA• 3

AV 42/31-CD• 1

AV 521/31-CD• 0.2

AV 052/31-CD• 0.1

Minimum contact load AmCD V 71 ta 5

Output relay with DIAZED fuse

gL/gG operational class A4

Electrical endurance AC15 Million

operating

cycles

0.1

Endurance with contactor relay Million

operating

cycles

11/35

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/35

Function Relays, Interfaces and Converters

3UG Monitoring Relays

Voltage monitoring

Dimensional drawings

Schematics

Note: It is not necessary to protect the measuring circuit for

device protection. The protective device for line protection

depends on the cross-section used.

Position of the terminals

NSB0_01729a

110

22,5

3UG46 31

3UG46 32

3UG46 33

A B

83 92

84 94

Screw-type terminal

Spring-loaded terminal

Removable terminal

Type

1) For standard mounting rail according to EN 60715.

3UG46 31-.AA30

3UG46 32-.AA30

3UG46 31-.AW30

3UG46 32-.AW30

3UG46 33

NSB0_01532b

A1(+)

IN(+)

A2(–) M(–)

< U >

AC/DC Last

NSB0_01614a

A1(+)

IN(+)

A2(–) M(–)

< U >

AC/DC Last

NSB0_01533b

A1(+)

A2(–)

< U >

AC/DC

3UG46 31

3UG46 32

3UG46 33

11/36 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/36

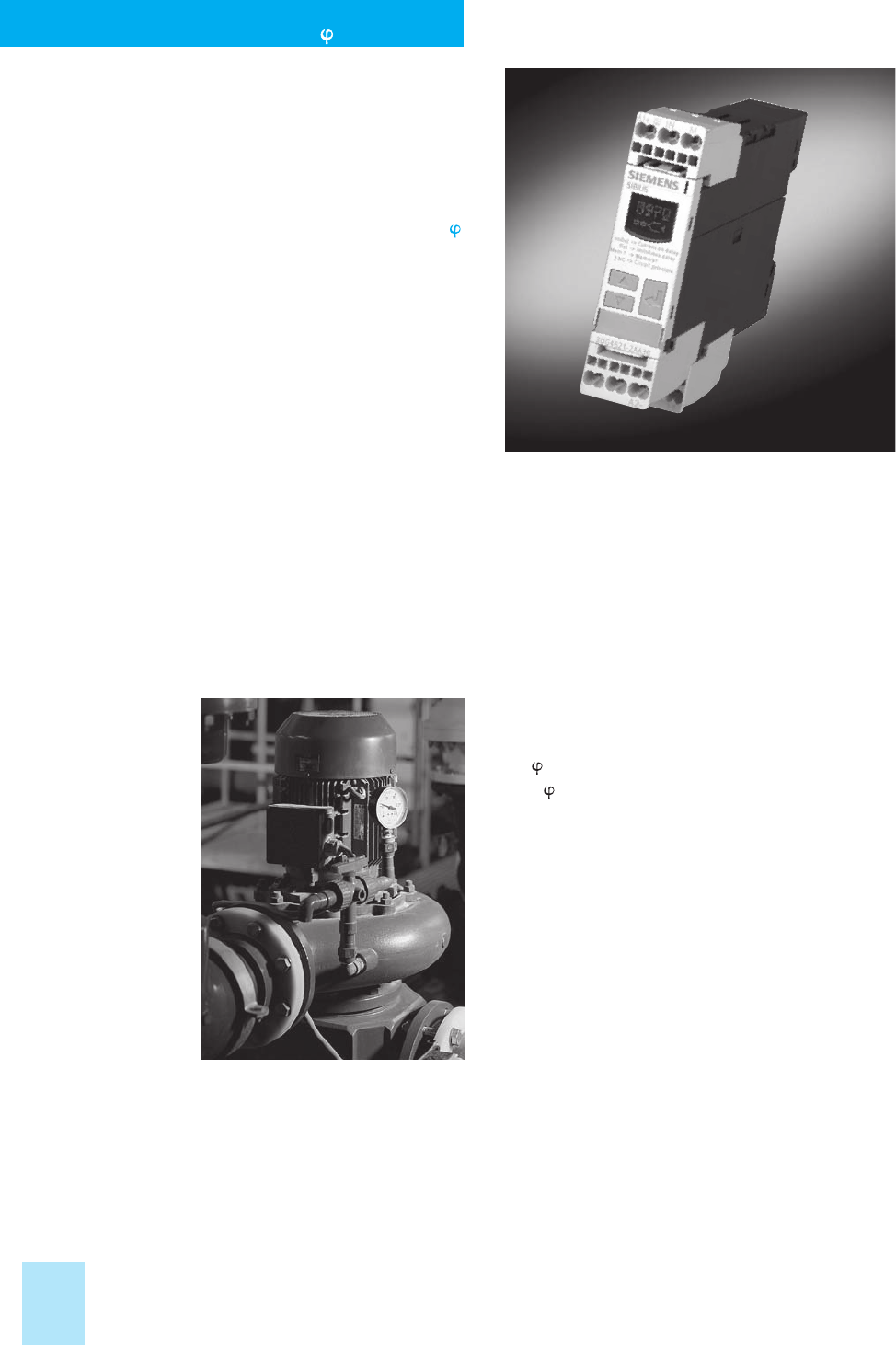

Monitoring the load of motors and the func-

tionality of electronic loads – a clear case for

our 3UG relays that monitor current and cos .

These devices detect the effect of wear and

faults early on. This means that the appropriate

actions can be taken before far more signifi-

cant damage can occur.

3UG Monitoring Relays

for single-phase current

and cos monitoring

Current monitoring:

• Wide-voltage versions reduce stock inventory costs

• Only two versions from 2 mA to 10 A

• Can be variably set to overrange, underrange or

window monitoring

• Freely parameterizable delay times and reset switch

• Actual value and fault type are permanently

displayed

• All of the versions have removable terminals

• All of the versions have screw terminals or,

alternatively, innovative Cage Clamp terminals

cos monitoring:

• cos is monitored for overrange and underrange

• Fault memory that can be switched-in

• Selectable starting bypass and delay time

for threshold value out of range

Applications:

The applications can be seen in the adjacent table.

These tables show the various plant/system states

can be detected using the monitoring parameters.

Your advantages:

• 22.5 mm wide

• Can be digitally set and with LCD display

• Fault memory that can be switched-in

• Simultaneous monitoring for current

overrange/underrange over the complete

measuring range

Function Relays, Interfaces and Converters

3UG Monitoring Relays

For single-phase current and cos monitoring

11/37

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Product Category: SMRL

Siemens / Industrial Controls Previous folio: IC10 11/37

Measuring range Hysteresis Contacts Starting- Off delay

bypass time

2.0 mA AC/DC 0.1 mA–250 mA 1 CO 0–20 s 0–20 s 3UG4621- AA30

up to 500 mA AC/DC 24–240 V AC/DC 3UG4621- AW30

0.05 A AC/DC 0.01 A–5 A 1 CO 0–20 s 0–20 s 3UG4622- AA30

up to 10 A AC/DC 24–240 V AC/DC 3UG4622- AW30

Power factor and active current monitoring

Measuring range

for power factor

0.1–0.99 (cos )

Power factor

hysteresis

0.1(cos )

Measuring range

for active current Ires

0.2–10.0 A

Active current

hysteresis

0.1–2.0 A

On delay

0–99 s

Tripping

delay

0.1–20.0 s

Rated control supply

voltage Vs1)

90–690 V AC

Auxiliary voltage Order No. List

Price $

24 V AC/DC

3UG4641- CS20

Order No. List

Price $

3UG4 Monitoring relays – single-phase current monitoring

22.5 mm wide, all of the devices can be digitally set and have an LCD display, a fault memory that can be switched-in,

simultaneous monitoring for overcurrent and undercurrent over the complete measuring range

Monitoring Plant system states

parameter

Current • Overload monitoring

monitoring • Underload monitoring close to the rated torque

• Monitoring the functionality of electric loads

• Wire breakage monitoring

• Energy management

(phase current monitoring)

• Threshold value switch for analog signals

up to 20 mA

Power factor and • No-load monitoring

active current

monitoring

• Underload monitoring in the

lower power range

• Extremely simple power factor monitoring of

line supplies to control compensation equipment

• Interrupted cable between the cabinet

• Energy management

and the motor

cos 

Motor load

The active current Ires indicates a linear correlation

between the motor load and the measured value over

the entire measuring range.

Rule of thumb:

cos changes significantly below the rated load; the current

increases overproportionally above the rated load.

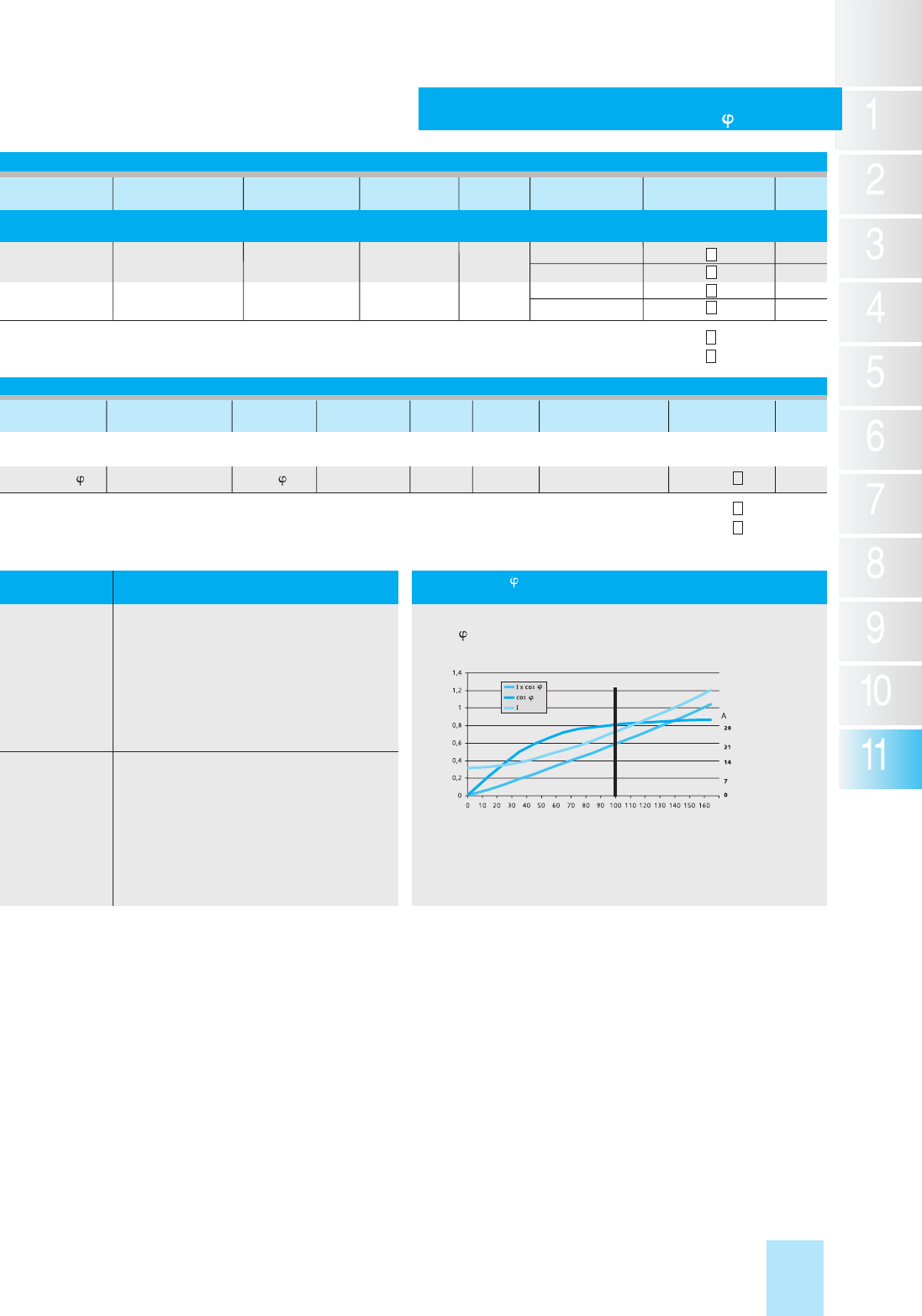

Current and cos as a function of the motor load

22.5 mm wide, all of the devices can be digitally set and have an LCD display, a fault memory that can be switched-in,

1) Absolute limits.

simultaneous power factor and active current monitoring over the entire measuring range

Screw Terminal

Spring-type Terminal

Screw Terminal

Spring-type Terminal

Function Relays, Interfaces and Converters

3UG Monitoring Relays

For single-phase current and cos monitoring

11/38 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/38

Function Relays, Interfaces and Converters

3UG Monitoring Relays

Current monitoring

Technical specifications

1) Important: This is a Class A product. In the household environment this

device may cause radio interference. In this case the user must introduce

suitable measures.

2) With protective separation.

3) With simple separation.

3UG46 21-.AA 3UG46 21-.AW 3UG46 22-.AA 3UG46 22-.AW

General data

Rated control supply voltage UsV 24 24 … 240 24 24 … 240

Rated frequency Hz 50/60

Operating range V20.4 ... 26.4 20.4 ... 264 20.4 ... 26.4 20.4 ... 264

Rated power W/VA 2/4

Width mm 22.5

RESET Automatic/manual

Availability time after application of Usms 1000

Response time once a switching th smdehcaer si dlohser Max. 450

Adjustable tripping delay time/ON-delay time s0.1 … 20

Mains buffering time, smmuminim 10

Rated insulation voltage Ui

Degree of pollution 3; overvoltage category III acc. to EN 60664-1 V690

Rated impulse withstand voltage Uimp kV 6

Protective separation VN xennA ,1-74906 NE ot .cca 300

Permissible ambient temperature C°noitarepo gniruD• -25 … +60

C°egarots gniruD• -40 … +85

EMC tests1) IEC 60947-1/IEC 61000-6-2/IEC 61000-6-4

Degree of protection

• Enclosure IP40

• Terminals IP20

Vibration resistance acc. to IEC 60068-2-6 1 ... 6 Hz: 15 mm; 6 ... 500 Hz: 2 g

Shock resistance acc. to IEC 60068-2-27 12 shocks (half-sine 15 g/11 ms)

Connection type Screw terminals

• Terminal screw M 3 (standard screwdriver, size 2 and Pozidriv 2)

mmdiloS• 21 x (0.5 ... 4)/2 x (0.5 ... 2.5)

mmeveels dne htiw dednarts yleniF• 21 x (0.5 ... 2.5)/2 x (0.5 ... 1.5)

GWAdednarts ro dilos ,selbac GWA• 2 x (20 ... 14)

mNeuqrot gninethgiT• 0.8 … 1.2

Connection type Spring-type terminals

mmdiloS• 22 x (0.25 ... 1.5)

• Finely stranded, with end sl mm82264 NID ot .cca sevee 22 x (0.25 ... 1.5)

mmdednarts yleniF• 22 x (0.25 ... 1.5)

GWAdednarts ro dilos ,selbac GWA• 2 x (24 ... 16)

Measuring circuit

Measuring range for single-phase AC/DC current A 0.003 … 0.6 0.05 … 15

Setting range for single-phase current A0.003 ... 0.5 0.05 ... 10

Load supply voltage V24 Max. 3002)

Max. 5003) 24 Max. 3002)

Max. 5003)

Measuring accuracy % 5

Repeat accuracy %sretemarap tnatsnoc ta 1

Accuracy of digital display ±1 digit

Deviations C°/% snoitautculf erutarepmet rof ±0.1

Hysteresis for single-phase current 0.1 ... 250 mA 0.01 ... 5 A

Permissible overcurrent, continuous A0.6 15

Permissible overcurrent As1< , 5 50

Protection against destruction AGg/Lg DEZAID , 2 16

Measuring circuit internal resistance mtnuhs , Ω500 5

Control circuit

Load capacity of the output relay

• Conventional thermal current Ith A 5

Rated operational current Ie at AV004...42/51-CA• 3

AV42/31-CD• 1

AV521/31-CD• 0.2

AV052/31-CD• 0.1

Minimum contact load AmCD V 71 ta 5

Output relay with DIAZED fuse AGg/Lg 4

Electrical endurance AC15 (million operating cycles) 0.1

Endurance with contactor relay (million operating cycles) 10

11/39

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/39

Function Relays, Interfaces and Converters

3UG Monitoring Relays

Current monitoring

Dimensional drawings

Schematics

Position of the terminals

Wiring diagram for 24 V AC/DC (only 3UG46 2.-.AA30)

From the following circuit diagrams it is clear that loads in mea-

suring circuits have to be in the current flow upstream from the

monitoring relay. Otherwise, the monitoring relay could be de-

stroyed and the short-circuit current could cause damage to the

plant.

Configuring note:

A2 and M are electrically connected internally!

For applications in which the load to be monitored and the mon-

itoring relay are supplied from the same power supply, there is

no need for connection A2!

The load current must always flow through M or the monitoring

relay may be destroyed!

3UG46 21-.AA30

3UG46 22-.AA30

Operation with separate

control circuit and load circuit Operation with joint

control circuit and load circuit

3UG46 21-.AW30

3UG46 22-.AW30

Single-phase operation 3-phase operation

NSB0_01728a

110

22,5

3UG46 21

3UG46 22

A B

83 92

84 94

Screw-type terminal

Spring-loaded terminal

Removable terminal

Type

1) For standard mounting rail according to EN 60715.

< >

NSB0_01534b

A2 M

A1 IN

MLoad

ULoad

24 V AC/DC

Load

< >

NSB0_01708

A2 M

A1 IN

24 V AC/DC

optional

Load

NSB0_01535b

< >

MLoad

AC/DC

Load

ULoad

NSB0_01707

< >

A1 IN

A2 M

L2L1AC/DC

1412

Load

3UG46 21

3UG46 22

< >

NSB0_01199e

A2 M

A1 IN

MLoad

ULoad

AC/DC

Load

NSB0_01200e

A2 M

L1 L2 L3

INA1

< >

o.k.

3UG3

24 V AC/DC

Load

o.k.

< >

A2 M

A1 IN

NSB0_01197e

Load

24 V AC/DC

< >

NSB0_01198e

o.k.

L1 L2 L3

24 V AC/DC

Load

11/40 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/40

Function Relays, Interfaces and Converters

3UG Monitoring Relays

Power factor and active current monitoring

Technical specifications

1) Important: This is a Class A product. In the household environment this

device may cause radio interference. In this case the user must introduce

suitable measures.

Type 3UG46 41

General data

Rated control supply voltage UsV 90 … 690

Rated frequency Hz 50/60

Rated power, typical AVCA V 002 tA• 2.0

AVCA V 004 tA• 2.7

AVCA V 064 tA• 3.1

Width mm 22.5

RESET Automatic/manual

Principle of operation Closed-circuit principle, open-circuit principle

Availability time after application of Usms 1000

Response time once a switching threshold is reached ms Max. 450

Adjustable tripping delay time s0.1 ... 20

Adjustable ON-delay time s0 ... 99

Mains buffering time, smmuminim 10

Rated insulation voltage Ui

Degree of pollution 3

Overvoltage category III acc. to EN 60664-1

V690

Rated impulse withstand voltage kV 6

Permissible ambient temperature C°noitarepo gniruD• -25 … +60

C°egarots gniruD• -40 … +85

EMC tests1) IEC 60947-1/IEC 61000-6-2/IEC 61000-6-4

Degree of protection

• Enclosure IP40

• Terminals IP20

Vibration resistance acc. to IEC 60068-2-6 1 ... 6 Hz: 15 mm; 6 ... 500 Hz: 2 g

Shock resistance acc. to IEC 60068-2-27 12 shocks (half-sine 15 g/11 ms)

Connection type Screw terminals

• Terminal screw M 3 (standard screwdriver, size 2 and Pozidriv 2)

mmdiloS• 21 x (0.5 ... 4)/2 x (0.5 ... 2.5)

mmeveels dne htiw dednarts yleniF• 21 x (0.5 ... 2.5)/2 x (0.5 ... 1.5)

GWAdednarts ro dilos ,selbac GWA• 2 x (20 ... 14)

mNeuqrot gninethgiT•0.8 … 1.2

Connection type Spring-type terminals

mmdiloS• 22 x (0.25 ... 1.5)

• Finely stranded, with end sleeves acc. to DIN 46228 mm22 x (0.25 ... 1.5)

mmdednarts yleniF• 22 x (0.25 ... 1.5)

GWAdednarts ro dilos ,selbac GWA• 2 x (24 ... 16)

Measuring circuit

Measurable active current Ires A 0.2 ... 10

Max. permissible load current A10

Peak current < 1 s A50

Adjustable response value

Phase displacement angle

0.1 ... 0.99

DIAZED protection, gL/gG operational class A16

Measuring accuracy %10

Repeat accuracy %sretemarap tnatsnoc ta 1

Accuracy of digital display ± 1 digit

Deviations C°/% snoitautculf erutarepmet rof ±0.1

Hysteresis

Phase angle 0.10

Hysteresis

Active current monitoring A0.1 ... 2.0

11/41

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/41

Function Relays, Interfaces and Converters

3UG Monitoring Relays

Power factor and active current monitoring

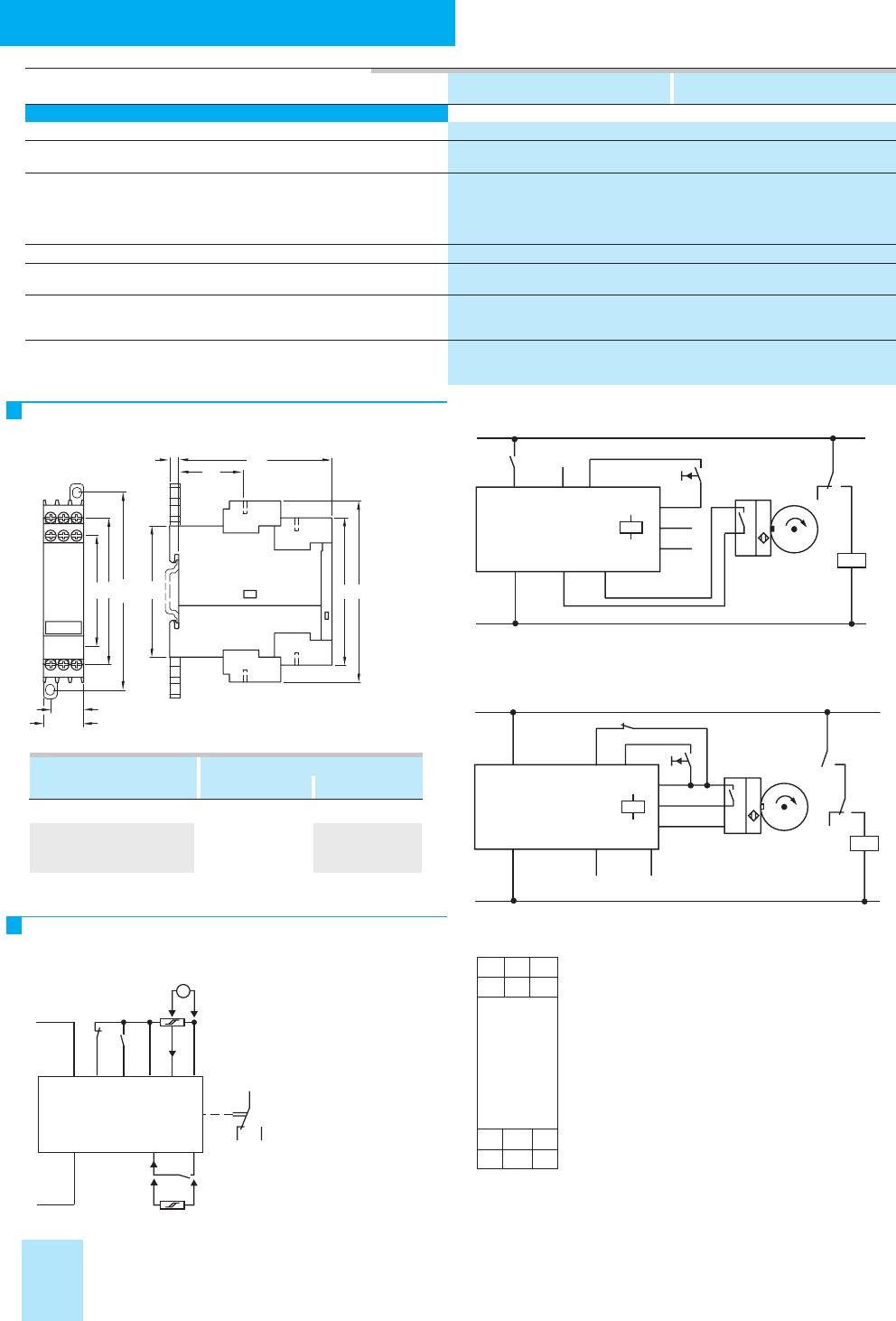

Dimensional drawings

Schematics

Legend

cos ϕ: p. f.

Position of the terminals

Type 3UG46 41

Control circuit

Number of CO contacts for auxiliary contacts 2

Load capacity of the output relay

• Conventional thermal current IthA 5

Rated operational current Ie at AV 004 ... 42/51-CA• 3

AV 42/31-CD• 1

AV 521/31-CD• 0.2

AV 052/31-CD• 0.1

Minimum contact load AmCD V 71 ta 5

Output relay with DIAZED fuse

gL/gG operational class A4

Electrical endurance AC-15 Million

operat-

ing

cycles

0.1

Mechanical endurance Million

operat-

ing

cycles

Single-phase motors 3-phase motors

NSB0_01699b

110

22,5

3UG46 41

A B

83 92

84 94

1) For standard mounting rail according to EN 60715.

Screw-type terminal

Spring-loaded terminal

Removable terminal

Type

Lx IN

N/L

L/N

Ly/N

3UG46 41

cos /

NSB0_01654b

Lx IN

n = 1,2,3

Ly/N

3UG46 41

cos /

NSB0_01655b

3-phase motors with

transformers for currents > 10 A

3UG46 41

Lx IN

Ly/N

3UG46 41

NSB0_01656b

cos /

n = 1,2,3

NSB0_01657

12 14

22 21 24

Ly/N

11/42 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

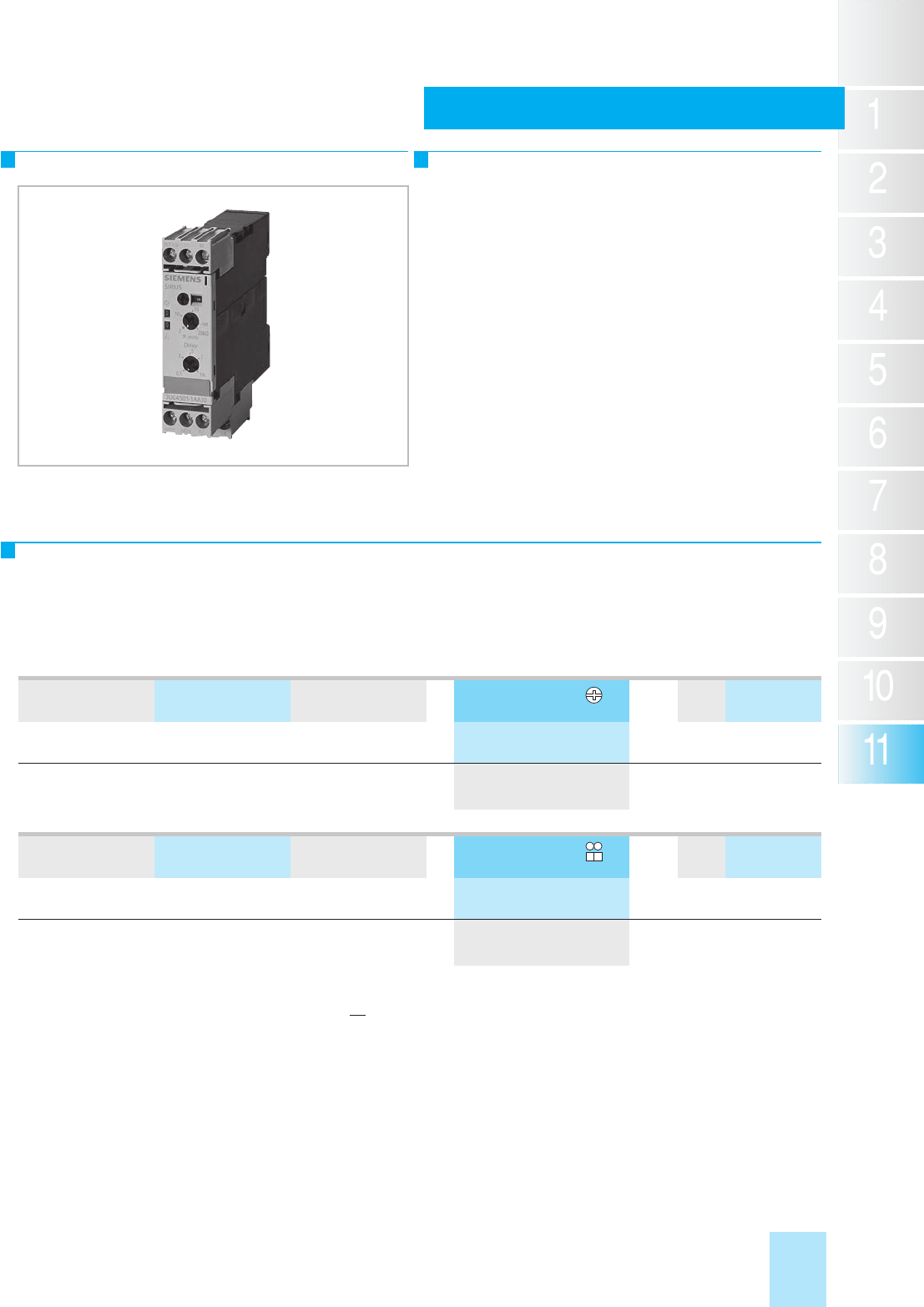

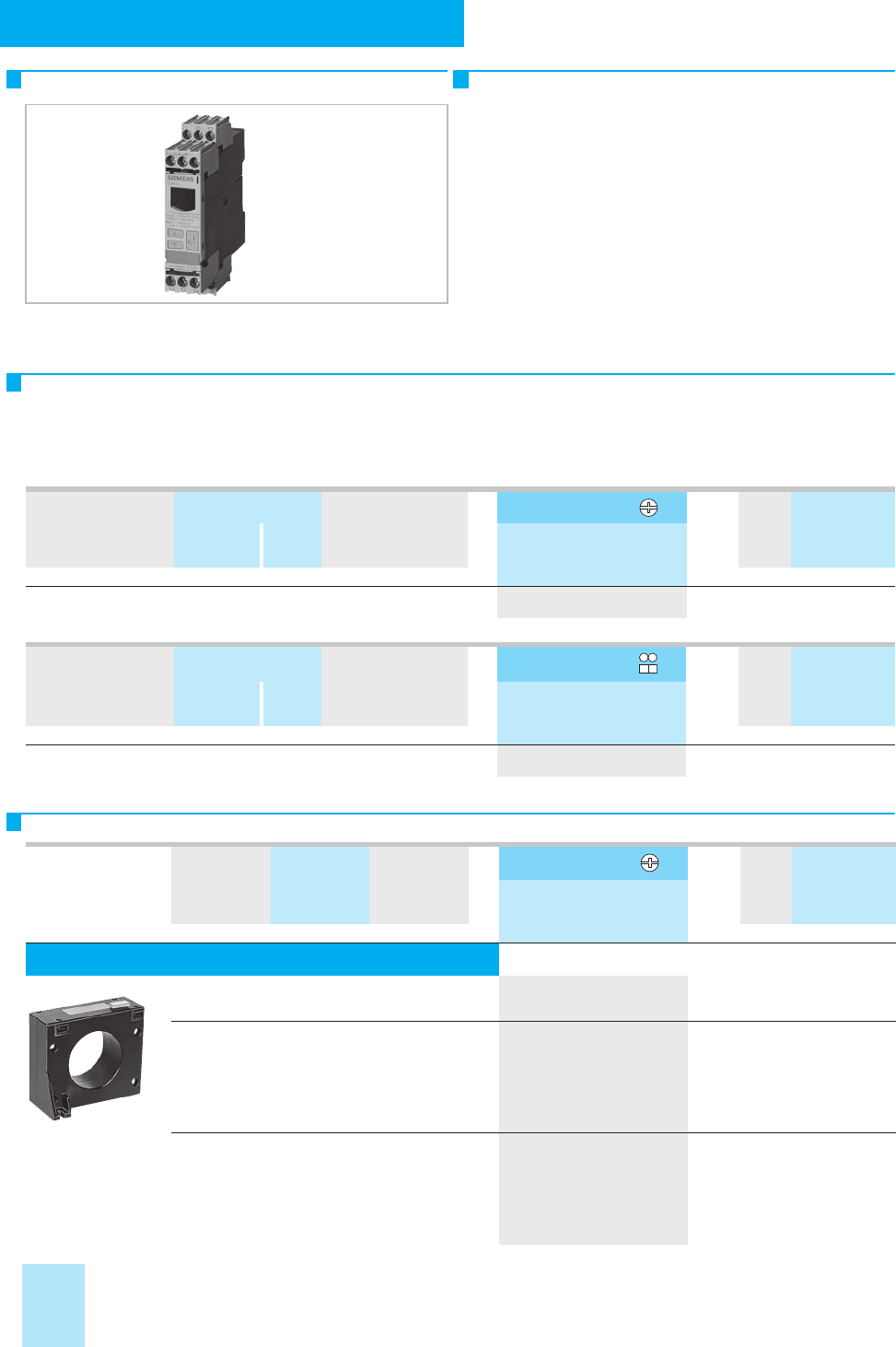

Overview

The 3UG46 24 residual current monitoring relay is used together

with the 3UL22 summation current transformer for plant

monitoring.

Application

• Plant monitoring

Selection and ordering data

• Relay for monitoring residual currents I∆n 0.3 ... 40 A

• For 3UL22 summation current transformers with feed-through

opening 40 ... 120 mm

• Digital adjustable, with illuminated LCD

• Separately adjustable limit value and warning threshold

• Permanent display of actual value and tripping state

• 1 CO contact each for limit violation and warning threshold

• All terminals are removable

• Width 22.5 mm

1) LSB: Smallest adjustable value, transformer-dependent, ≤ 1 % of I∆n.2) Absolute limit values.

Selection and ordering data

Display

range Setting

range Hysteresis ON/trip-

ping

delay

time

Rated control

supply

voltage Us2)

Screw terminals PU

(UNIT,

SET, M)

PS* Weight

per PU

approx.

Limit value Warning

value Order No. List

Price $

per PU

A A A A s V kg

10 ... 120 %

of I∆n

10 ... 100 %

of I∆n

LSB1) up to 50

% of I∆n

5 %

of I∆n

0.1 ... 20 90 ... 690 3UG46 24-1CS20 1 1 unit 0.147

Display

range Setting

range Hysteresis ON/trip-

ping

delay

time

Rated control

supply

voltage Us2)

Spring-type

terminals

(UNIT,

SET, M)

PS* Weight

per PU

approx.

Limit value Warning

value Order No. List

Price $

per PU

A A A A s V kg

10 ... 120 %

of I∆n

10 ... 100 %

of I∆n

LSB1) up to 50

% of I∆n

5 %

of I∆n

0.1 ... 20 90 ... 690 3UG46 24-2CS20 1 1 unit 0.130

Feed-through

opening

diameter

Rated insula-

tion voltage Ui

Rated fault

current I∆n

Screw terminals PU

(UNIT,

SET,

PS* Weight

per PU

approx.

Order No. List

Price $

per PU

mm V A kg

Summation current transformers

(essential accessory for 3UG46 24 or SIMOCODE 3UF)

3UL22

40 690 0.3 3UL22 01-1A 1 1 unit 0.571

0.5 3UL22 01-2A 1 1 unit 0.408

13UL22 01-3A 1 1 unit 0.324

65 690 0.3 3UL22 02-1A 1 1 unit 0.900

0.5 3UL22 02-2A 1 1 unit 0.713

13UL22 02-3A 1 1 unit 0.568

63UL22 02-1B 1 1 unit 0.561

10 3UL22 02-2B 1 1 unit 0.563

16 3UL22 02-3B 1 1 unit 0.573

25 3UL22 02-4B 1 1 unit 0.575

40 3UL22 02-5B 1 1 unit 0.564

120 1000 0.3 3UL22 03-1A 1 1 unit 3.435

0.5 3UL22 03-2A 1 1 unit 2.810

13UL22 03-3A 1 1 unit 1.965

63UL22 03-1B 1 1 unit 1.955

10 3UL22 03-2B 1 1 unit 1.990

16 3UL22 03-3B 1 1 unit 1.917

25 3UL22 03-4B 1 1 unit 1.851

40 3UL22 03-5B 1 1 unit 1.905

Product Category: SMRL

Siemens / Industrial Controls Previous folio: IC10 11/42

Function Relays, Interfaces and Converters

3UG Monitoring Relays

Residual current monitoring:

Residual-current monitoring relays

11/43

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Technical specifications

1) Absolute limit values.

2) Important: This is a Class A product. In the household environment

this device may cause radio interference. In this case the user must take

suitable precautions.

3) LSB: Smallest adjustable value, transformer-dependent, ≤1 % of I∆n.

Type 3UG46 24

General data

Rated control supply voltage UsV 90 … 6901)

Rated frequency Hz 50/60

Rated power, typical AVCA V 09 tA• 2.8

AVCA V 032 tA• 2.4

AVCA V 004 tA• 3.1

AVCA V 064 tA• 3.2

AVCA V 096 tA• 4.7

Width mm 22.5

RESET Automatic/manual

Principle of operation Closed-circuit principle, open-circuit principle

Availability time after application of Usms 1000

Response time once a switching threshold is reached ms Max. 300

Adjustable delay time s0.1... 20

Mains buffering time, smmuminim10

Rated insulation voltage Ui

Degree of pollution 3

Overvoltage category III acc. to EN 60664-1

V690

Rated impulse withstand voltage kV 6

Permissible ambient temperature C°noitarepo gniruD• -25 … +60

C°egarots gniruD• -40 … +85

EMC tests2) IEC 60947-1/IEC 61000-6-2/IEC 61000-6-4

Degree of protection

• Enclosure IP40

• Terminals IP20

Vibration resistance acc. to IEC 60068-2-6 1 ... 6 Hz: 15 mm; 6 ... 500 Hz: 2 g

Shock resistance acc. to IEC 60068-2-27 12 shocks (half-sine 15 g/11 ms)

Connection type Screw terminals

• Terminal screw M3 (for standard screw driver size 2 and Pozidriv 2)

mmdiloS• 21 x (0.5 ... 4)/2 x (0.5 ... 2.5)

mmeveels dne htiw dednarts yleniF• 21 x (0.5 ... 2.5)/2 x (0.5 ... 1.5)

GWAdednarts ro dilos ,selbac GWA• 2 x (20 ... 14)

MNeuqrot gninethgiT• 0.8 … 1.2

Connection type Spring-type terminals

mmdiloS• 22 x (0.25 ... 1.5)

• Finely stranded, with end sleeves acc. to DIN 46228 mm22 x (0.25 ... 1.5)

mmdednarts yleniF• 22 x (0.25 ... 1.5)

GWAdednarts ro dilos ,selbac GWA• 2 x (24 ... 16)

Measuring circuit

Measurable residual current Ires A 10 ... 120 % I∆n(I∆n: rated residual current of the transformer)

Adjustable response value

• Residual current 10 ... 100 % I∆n

• Warning 10 ... 100 % I∆n

Measuring accuracy % ±5

Repeat accuracy %sretemarap tnatsnoc ta ±1

Accuracy of digital display ± 1 digit

Deviations C°/%segnahc erutarepmet rof ±0.1

Hysteresis for residual current LSB3) up to 50 % I∆n

Hysteresis Adlohserht gninraw rof 5 % I∆n

Siemens / Industrial Controls Previous folio: IC10 11/43

Function Relays, Interfaces and Converters

3UG Monitoring Relays

Residual current monitoring:

Residual-current monitoring relays

11/44 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Dimensional drawings

3UG46 24

Schematics

3UG46 24

Note: It is not necessary to protect the measuring circuit for

device protection. The protective device for line protection

depends on the cross-section used.

Circuit example

Position of the terminals

Type 3UG46 24

Control circuit

Number of CO contacts for auxiliary contacts 2

Load capacity of the output relay

Conventional thermal current IthA 5

Rated operational current Ie at AV 004 ... 42/51-CA• 3

AV 42/31-CD• 1

AV 521/31-CD• 0.2

AV 052/31-CD• 0.1

Minimum contact load AmCD V 71 ta 5

Output relay with DIAZED fuse

gL/gG operational class A4

Electrical endurance AC-15 Million

operat-

ing

cycles

0.1

Mechanical endurance Million

operat-

ing

cycles

NSB0_01828

110

22,5

3UG46 24

A B

84 103

83 102

Screw-type terminal

Spring-loaded terminal

Removable terminal

1) For standard mounting rail according to EN 60715.

Type

12 14

Lx C1 C2

Ly/N

3UG46 24

NSB0_01808a

22 24

L1 L2 L3 N

AC 24 V

3UL22

Lx Ly/N

3UG46 24 C1 Z1

C2 Z2

NSB0_01832

Load

220 >3 W --

Type R1 R2

3UL22 0.-1A

3UL22 0.-2A

3UL22 0.-3A

0,3 A

0,5 A

1 A

3UL22 0.-1B

3UL22 0.-2B

3UL22 0.-3B

3UL22 0.-4B

3UL22 0.-5B

6 A

10 A

16 A

25 A

40 A

22 >6 W 22 >6 W

- -

NSB0_01825

C1 C2

Lx Ly/N

22 21 24

12 11 14

Siemens / Industrial Controls Previous folio: IC10 11/44

Function Relays, Interfaces and Converters

3UG Monitoring Relays

Residual current monitoring:

Residual-current monitoring relays

11/45

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Function Relays, Interfaces and Converters

SIRIUS 3UG Monitoring Relays for Stand-Alone Installation

Insulation monitoring

Monitoring Relays

SIRIUS 3UG Monitoring Relays for Stand-Alone Installation

10/85

Siemens IC 10 · 2012

Insulation monitoring

Overview

SIRIUS 3UG45 8. insulation monitor

Isolation monitoring relays are used for monitoring the insulation

resistance between ungrounded single or three-phase AC sup-

plies and a protective conductor.

Ungrounded, i. e. isolated networks (IT networks) are always

used where high demands are placed on the reliability of the

power supply, e. g. emergency lighting systems. IT systems are

supplied via an isolating transformer or by power supplies such

as batteries or a generator. While an initial insulation fault be-

tween a phase conductor and the ground effectively grounds the

conductor, as a result no circuit has been closed, so it is possible

to continue work in safety (single-fault safety). However, the fault

must be rectified as quickly as possible before a second insula-

tion fault occurs (e. g. according to DIN VDE 0100-410). For this

purpose insulation monitoring relays are used, which constantly

measure the resistance to ground of the phase conductor and

the neutral conductor, reporting a fault immediately if insulation

resistance falls below the set value so that either a controlled

shutdown can be performed or the fault can be rectified without

interrupting the power supply.

Two series

•3UG45 81 insulation monitoring relays for ungrounded

AC networks

•3UG45 82, 3UG45 83 insulation monitoring relays for

ungrounded DC and AC networks

Benefits

•Devices for AC and DC systems

•All devices have a wide control supply voltage range

•Direct connection to networks with mains voltages of up to

690 V AC and 1000 V DC by means of a voltage reducer

module

•For AC mains: Frequency range 15 ... 400 Hz

•Monitoring of broken conductors

•Monitoring of setting errors

•Safety in use thanks to integrated system test after startup

•Option of resetting and testing (by means of pushbutton on

front or using control contact)

•New predictive measurement principle allows very fast

response times

Application

IT networks are used for example:

•In emergency power supplies

•In safety lighting systems

•In industrial production facilities with high availability require-

ments (chemical industry, automobile manufacturing, printing

plants)

•In shipping and railways

•For mobile generators (aircraft)

•For renewable energies, such as wind energy and photovol-

taic power plants

•In the mining industry

IC10_10_11.fm Page 85 Thursday, September 19, 2013 5:17 PM

11/46 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Function Relays, Interfaces and Converters

SIRIUS 3UG Monitoring Relays for Stand-Alone Installation

Insulation monitoring

Monitoring Relays

SIRIUS 3UG Monitoring Relays for Stand-Alone Installation

Insulation monitoring

10/86 Siemens IC 10 · 2012

Technical specifications

Available

-- Not available

1) With voltage reducer module.

General data

Type 3UG45 81-1AW30 3UG45 82-1AW30 3UG45 83-1AW30

Setting range for the setpoint response values

•1 ... 100 kΩ

•2 ... 200 kΩ-- --

Rated voltage of the network being monitored

•0 ... 250 V AC -- --

•0 ... 440 V AC --

•0 ... 690 V AC -- -- 1)

•0 ... 300 V DC -- --

•0 ... 600 V DC -- --

•0 ... 1000 V DC -- -- 1)

Max. leakage capacitance of the system

•10µF --

•20µF-- --

Output contacts

•1 CO --

•2 CO or 1 CO + 1 CO, adjustable -- --

Number of limit values

•1 --

•1 or 2, adjustable -- --

Principle of operation Closed-circuit principle Closed-circuit principle Open-circuit/closed-circuit

principle, adjustable

Rated control supply voltage

•24 ... 240 V AC/DC

Rated frequency

•13.5 ... 440 Hz -- --

•45 ... 65 Hz --

Auto or manual RESET Adjustable Adjustable Adjustable

Remote-RESET Via control input Via control input Via control input

Non-volatile error memory -- -- Adjustable

Broken wire detection -- -- Adjustable

Replacement for

Rated control supply

voltage Us Voltage range of the

network being monitored

3UG30 81-1AK20

110 ... 130/220 ... 240 V AC/DC 3 x 230/400 V AC -- --

3UG30 81-1AW30

24 ... 240 V AC/DC 3 x 230/400 V AC -- --

3UG30 82-1AW30

24 ... 240 V AC/DC 24 ... 240 V DC -- --

IC10_10_11.fm Page 86 Thursday, September 19, 2013 5:17 PM

≤

≥

∅

Ω

11/47

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Function Relays, Interfaces and Converters

SIRIUS 3UG Monitoring Relays for Stand-Alone Installation

Insulation monitoring

for ungrounded AC networks

Monitoring Relays

SIRIUS 3UG Monitoring Relays for Stand-Alone Installation

10/87

Siemens IC 10 · 2012

Insulation monitoring

for ungrounded AC networks

Overview

SIRIUS 3UG45 81 insulation monitor

The 3UG45 81 insulation monitoring relays are used to monitor

insulation resistance in accordance with IEC 61557-8 in un-

grounded AC networks with rated voltages of up to 400 V.

These devices can monitor control circuits (single-phase) and

main circuits (three phase).

They measure insulation resistances between system cables

and system ground. If the value falls below the threshold value,

the output relays are switched to fault status.

In the case of 3UG45 81 a higher-level DC measuring signal is

used. The higher-level DC measuring signal and the resulting

current are used to determine the value of the insulation resis-

tance of the network which is to be measured.

Technical specifications

3UG45 81 monitoring relays

With the closed-circuit principle selected

Insulation resistance monitoring without fault storage,

with auto RESET Insulation resistance monitoring with fault storage and

manual RESET

Closed-circuit principle

Threshold value

Hysteresis

Measured value

: yellow LED

: red LED

: green LED

IC01_00074

Y2-Y3

Y1-Y3

A1+/A2-

11-14

11-12

Closed-circuit principle

Threshold value

Hysteresis

Measured value

: yellow LED

: red LED

: green LED

Y2-Y3

Y1-Y3

A1+/A2-

11-14

11-12

IC01_00075

IC10_10_11.fm Page 87 Thursday, September 19, 2013 5:17 PM

≤

≥

∅

Ω

11/48 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Function Relays, Interfaces and Converters

SIRIUS 3UG Monitoring Relays for Stand-Alone Installation

Insulation monitoring

for ungrounded AC networks

Monitoring Relays

SIRIUS 3UG Monitoring Relays for Stand-Alone Installation

Insulation monitoring

for ungrounded AC networks

10/88 Siemens IC 10 · 2012

Circuit diagram

Type 3UG45 81

mm)D x H x W( snoisnemiD 22.5 x 100 x 100

Connection type Screw terminals

mmdiloS•22 x (0.5 ... 4)

mmeveels dne htiw dednarts yleniF•22 x (0.75 ... 2.5)

GWAdednarts ro dilos ,selbac GWA•2 x (20 ... 14)

General data

Rated insulation voltage Ui

Pollution degree 3

Overvoltage category III acc. to IEC 60664

V400 supply circuit/measuring circuit

300 supply circuit/output circuit

Rated impulse withstand voltage kV 6

Rated control supply voltage V24 ... 240 AC/DC

Rated frequency Hz 15 ... 400

Measuring circuit

Rated system voltage of the network being monitored V0 ... 400

Rated frequency of the network being monitored Hz 50 ... 60

Setting range for insulation resistance kΩ1 ... 100

Control circuit

Load capacity of the output relay

•Conventional thermal current th A 4

Rated operational current eat

AV 004 ... 42/51-CA•3

AV 42/31-CD•2

Minimum contact load AmCD V 42 ta 10

Note:

It is not necessary to protect the measuring circuit for device

protection. The protective device for line protection depends

on the cross-section used.

3UG45 81

kΩ

IC01_00141

1412

IC10_10_11.fm Page 88 Thursday, September 19, 2013 5:17 PM

≤

≥

∅

Ω

11/49

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Function Relays, Interfaces and Converters

SIRIUS 3UG Monitoring Relays for Stand-Alone Installation

Insulation monitoring

for ungrounded AC networks

Monitoring Relays

SIRIUS 3UG Monitoring Relays for Stand-Alone Installation

Insulation monitoring

for ungrounded AC networks

10/89

Siemens IC 10 · 2012

* You can order this quantity or a multiple thereof.

Illustrations are approximate

Connection diagrams for networks up to 400 V AC

Selection and ordering data

•Auto or manual RESET

•Closed-circuit principle

•1 CO contact

•Fault memory adjustable using control input (S2-S3)

•Reset by means of pushbutton on front or using control input

(S2-S3)

•Test by means of pushbutton on front or using control input

(S1-S3)

3-wire

4-wire

2-wire

IC01_00076

A1+

Y1 Y2 Y3

A2-14 12

Rated

system

voltage Un

Measuring

range Ue

Rated control

supply voltage Us

System

leakage

capaci-

tance

DT Screw terminals PU

(UNIT,

SET, M)

PS* PG

V AC kΩVµFOrder No. Price

per PU

Insulation monitors for ungrounded AC networks

3UG45 81-1AW30

0 ... 400 1 ... 110 24 ... 240 AC/DC max. 10 B 3UG45 81-1AW30 1 1 unit 41H

IC10_10_11.fm Page 89 Thursday, September 19, 2013 5:17 PM

≤

≥

∅

Ω

11/50 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Function Relays, Interfaces and Converters

SIRIUS 3UG Monitoring Relays for Stand-Alone Installation

Insulation monitoring for ungrounded

DC and AC networks

Monitoring Relays

SIRIUS 3UG Monitoring Relays for Stand-Alone Installation

Insulation monitoring for ungrounded

DC and AC networks

10/90 Siemens IC 10 · 2012

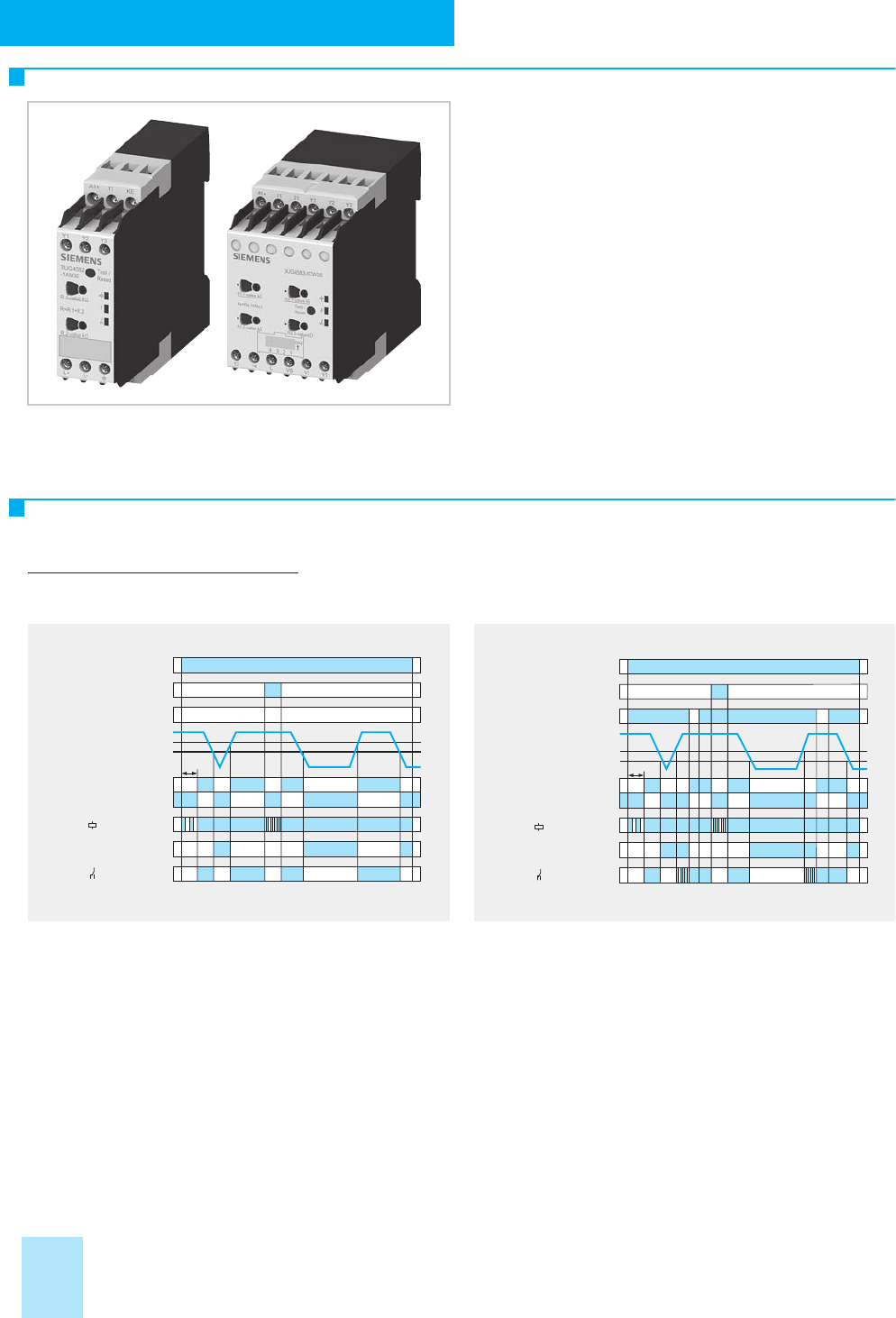

Overview

SIRIUS 3UG45 82 and 3UG45 83 insulation monitors

The 3UG45 82 and 3UG45 83 insulation monitoring relays are

used to monitor insulation resistance in ungrounded IT AC or DC

networks in accordance with IEC 61557-8.

They measure insulation resistances between system cables

and system ground. If the value falls below the threshold value,

the output relays are switched to fault status. With these devices,

which are suitable for both AC and DC networks, a pulsed test

signal is fed into the network to be monitored and the isolation

resistance is determined.

The pulsed test signal changes its form according to insulation

resistance and network loss capacitance. The changed form is

used to predict the changed insulation resistance.

If the predicted insulation resistance matches the insulation re-

sistance calculated in the next measurement cycle, and is lower

than the threshold value, the output relays are activated or deac-

tivated, depending on the device configuration. This measure-

ment principle is also suitable for identifying symmetrical insula-

tion faults.

3UG49 83 voltage reducer modules

The 3UG49 83 passive voltage reducer module can be used to

allow the 3UG45 83 insulation monitoring relay to be used for in-

sulation monitoring of IT networks with rated voltages of up to

690 V AC and 1000 V DC.

Technical specifications

3UG45 82 monitoring relays

With the closed-circuit principle selected

Insulation resistance monitoring without fault storage,

with auto RESET Insulation resistance monitoring with fault storage and

manual RESET

Closed-circuit principle

Threshold value

Hysteresis

Measured value

: yellow LED

: red LED

: green LED

IC01_00074

Y2-Y3

Y1-Y3

A1+/A2-

11-14

11-12

Closed-circuit principle

Threshold value

Hysteresis

Measured value

: yellow LED

: red LED

: green LED

Y2-Y3

Y1-Y3

A1+/A2-

11-14

11-12

IC01_00075

IC10_10_11.fm Page 90 Thursday, September 19, 2013 5:17 PM

11/51

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Function Relays, Interfaces and Converters

SIRIUS 3UG Monitoring Relays for Stand-Alone Installation

Insulation monitoring for ungrounded

DC and AC networks

Monitoring Relays

SIRIUS 3UG Monitoring Relays for Stand-Alone Installation

10/91

Siemens IC 10 · 2012

Insulation monitoring for ungrounded

DC and AC networks

3UG45 83 monitoring relays

With the closed-circuit principle selected

Insulation resistance monitoring without fault storage,

with auto RESET Insulation resistance monitoring with fault storage and

manual RESET

closed

open

Final switch-off

Hysteresis

Prewarning

Hysteresis

Measured Value

Closed-circuit

principle

Open-circuit

principle

IC01_00083

LED

21-24

11-14

11-12

LED

21-22

21-24

11-14

11-12

Y2-Y3

Y1-Y3

A1+/A2-

closed

open

Final switch-off

Hysteresis

Prewarning

Hysteresis

Measured Value

Closed-circuit

principle

Open-circuit

principle

IC01_00084

LED

21-24

11-14

11-12

LED

21-22

21-24

11-14

11-12

Y2-Y3

Y1-Y3

A1+/A2-

tsts

Type 3UG45 82 3UG45 83

mm)D x H x W( snoisnemiD 22.5 x 100 x 100 45 x 100 x 100

Connection type Screw terminals

mmdiloS•22 x (0.5 ... 4)

mmeveels dne htiw dednarts yleniF•22 x (0.75 ... 2.5)

GWAdednarts ro dilos ,selbac GWA•2 x (20 ... 14)

General data

Rated insulation voltage Ui

Pollution degree 3

Overvoltage category III acc. to IEC 60664

V400 supply circuit/measuring circuit

300 supply circuit/output circuit 400 supply circuit/measuring circuit

300 supply circuit/output circuit,

300 output circuit 1/output circuit 2

Rated impulse withstand voltage kV 6

Rated control supply voltage V24 ... 240 AC/DC

Rated frequency Hz 15 ... 400

Measuring circuit

Rated system voltage of the network being monitored V0 ... 250 AC,

0 ... 300 DC 0 ... 300 AC, 0 ... 690 AC with 3UG49 83

0 ... 600 DC, 0 ... 1000 DC with 3UG49 83

Rated frequency of the network being monitored Hz DC or 15 ... 400

Setting range for insulation resistance kΩ1 ... 100 1 ... 100

2 ... 200 for 2nd limit value

(disconnectable)

Control circuit

Number of CO contacts for auxiliary contacts 1 2 or 1 + 1, adjustable

Load capacity of the output relay

•Conventional thermal current th A 4

Rated operational current eat

AV 004 ... 42/51-CA•3

AV 42/31-CD•2

Minimum contact load AmCD V 42 ta 10

IC10_10_11.fm Page 91 Thursday, September 19, 2013 5:17 PM

≤

≥

∅

Ω

11/52 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Function Relays, Interfaces and Converters

SIRIUS 3UG Monitoring Relays for Stand-Alone Installation

Insulation monitoring for ungrounded

DC and AC networks

Monitoring Relays

SIRIUS 3UG Monitoring Relays for Stand-Alone Installation

Insulation monitoring for ungrounded

DC and AC networks

10/92 Siemens IC 10 · 2012

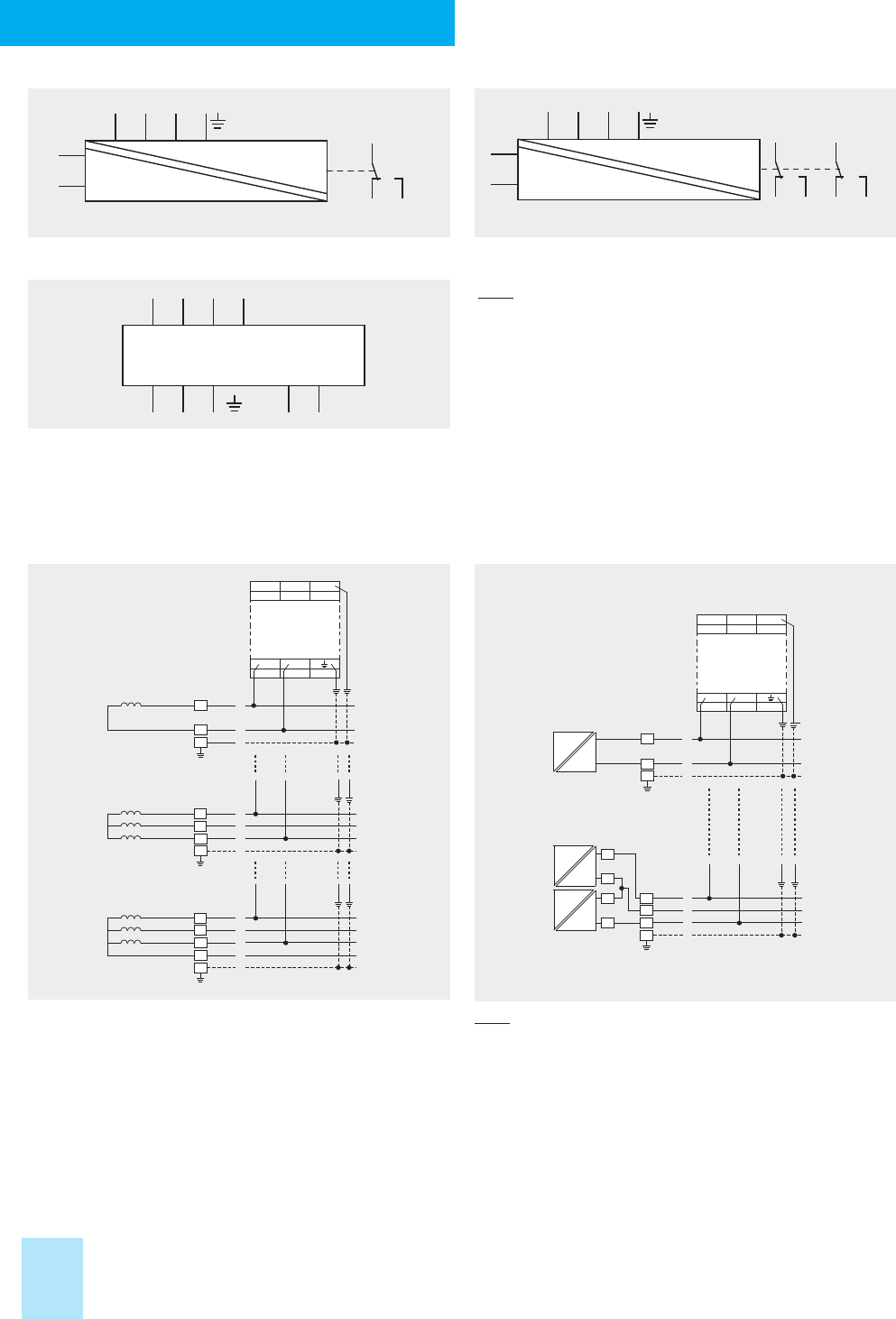

Circuit diagrams

Connection diagrams

3UG45 82

eriw-3 ro eriw-2 ,krowten CDeriw-4 ro eriw-3 ,eriw-2 ,krowten CA

Note:

L+ and L- can be connected to any wire, but each to a different

wire. Un≤ 250 V AC or 300 V DC.

38 54GU328 54GU3

Note:

It is not necessary to protect the measuring circuit for device

protection. The protective device for line protection depends

on the cross-section used.

3UG49 83

kΩ

1412

KEL-L+

IC01_00142

kΩ

24221412

KEL-L+

IC01_00140

kΩ

IC01_00139

L+ L- VEVS

VL+ VL- V1+ V1-

3-wire

4-wire

2-wire

IC01_00077

A1+

Y1 Y2 Y3

KE11

L-L+

A214 12

3-wire

2-wire

IC01_00078

A1+

Y1 Y2 Y3

KE11

L-L+

A214 12

PWM

L+

L-

PWM

L+

L-

L+

L-

IC10_10_11.fm Page 92 Thursday, September 19, 2013 5:17 PM

≤

≥

∅

Ω

11/53

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Function Relays, Interfaces and Converters

SIRIUS 3UG Monitoring Relays for Stand-Alone Installation

Insulation monitoring for ungrounded

DC and AC networks

Monitoring Relays

SIRIUS 3UG Monitoring Relays for Stand-Alone Installation

10/93

Siemens IC 10 · 2012

Insulation monitoring for ungrounded

DC and AC networks

3UG45 83

eriw-3 ro eriw-2 ,krowten CDeriw-4 ro eriw-3 ,eriw-2 ,krowten CA

Note:

L+ and L- can be connected to any wire, but each to a different

wire. Un ≤

400 V AC or 600 V DC.

Use a voltage reducer module to monitor systems with higher

voltages.

3UG49 83 voltage reducer modules

eriw-3 ro eriw-2 ,krowten CDeriw-4 ro eriw-3 ,eriw-2 ,krowten CA

Note:

L+ and L- can be connected to any wire, but each to a different

wire. Un 400 V AC or 600 V DC.

Use a voltage reducer module to monitor systems with higher

voltages.

3-wire

4-wire

2-wire

IC01_00079

A1+ 11 Y2 Y3

21 Y1

L+ VS

12 14

A2-

V1-

V1+

22 24 L- KE

3-wire

2-wire

IC01_00080

PWM

L+

L-

A1+ 11 Y2 Y3

21 Y1

L+ VS

12 14

A2-

V1-

V1+

22 24 L- KE

PWM

L+

L-

L+

L-

3-wire

4-wire

2-wire

IC01_00081

A1+

11 Y2 Y3

21 Y1

L+ VS

12 14

A2-

V1-

V1+

22 24 L- KE

L-

L+

V1-

V1+

3-wire

2-wire

IC01_00082

PWM

L+

L-

A1+

11 Y2 Y3

21 Y1

L+ VS

12 14

A2-

V1-

V1+

22 24 L- KE

L-

L+

V1-

V1+

PWM

L+

L-

L+

L-

IC10_10_11.fm Page 93 Thursday, September 19, 2013 5:17 PM

≤

11/54 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Function Relays, Interfaces and Converters

SIRIUS 3UG Monitoring Relays for Stand-Alone Installation

Insulation monitoring for ungrounded

DC and AC networks

Monitoring Relays

SIRIUS 3UG Monitoring Relays for Stand-Alone Installation

Insulation monitoring for ungrounded

DC and AC networks

10/94 Siemens IC 10 · 2012 * You can order this quantity or a multiple thereof.

Illustrations are approximate

Selection and ordering data

•Auto or manual RESET

•3UG45 82: Open-circuit principle

3UG45 83: Open-circuit or closed-circuit principle, adjustable

•1 or 2 CO contacts

•Fault memory adjustable using control input (S2-S3)

•Reset by means of pushbutton on front or using control input

(S2-S3)

•Test by means of pushbutton on front or using control input

(S1-S3)

•3UG45 83: Non-volatile fault storage can be configured

•3UG45 83: 2 separate limit values (e.g. for warning and

disconnection) or 2 CO contacts for one limit value (e.g. for a

local alarm and signaling to the PLC via separate circuits) can

be configured

Note:

With the 3UG49 83-1A coupling unit, connection to networks

with a voltage of up to 690 V AC and 1000 V DC

is possible, see below.

Available

1) With 3UG49 83-1A voltage reducer module suitable also for the insulation

monitoring of IT networks up to 690 V AC and 1000 V DC.

Rated system

voltage Un

System

leakage

capaci-

tance

Output

relay Measuring

range Ue

Broken wire

detection

in the

measuring

range

DT Screw terminals PU

(UNIT,

SET, M)

PS* PG

VµF kΩOrder No. Price

per PU

SIRIUS 3UG45 82 insulation monitors

3UG45 82-1AW30

0 ... 250 AC max. 10 1 CO 1 ... 110 B3UG45 82-1AW30 1 1 unit 41H

SIRIUS 3UG45 83 insulation monitors

3UG45 83-1AW30

0 ... 400 AC,

0 ... 600 DC 1) max. 20 2 CO or

1 CO + 1

CO, adjust-

able

1 ... 110,

2 ... 200 for

2nd limit

value,

adjustable

adjustable B3UG45 83-1CW30 1 1 unit 41H

3UG45 83 voltage reducer modules

3UG49 83-1A

For extending the mains voltage range to

max. 690 V AC and 1000 V DC B3UG49 83-1A 1 1 unit 41H

IC10_10_11.fm Page 94 Thursday, September 19, 2013 5:17 PM

≤

≥

∅

Ω

11/55

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Product Category: SMRL

Siemens / Industrial Controls Previous folio: IC10 11/49

Function Relays, Interfaces and Converters

3UG Monitoring Relays

Level monitoring:

Level monitoring relays

Overview

The 3UG45 01 level monitoring relay is used together with 2- or

3-pole sensors to monitor the levels of conductive liquids.

Application

• Single-point and two-point level monitoring

• Overflow protection

• Dry run protection

• Leak monitoring

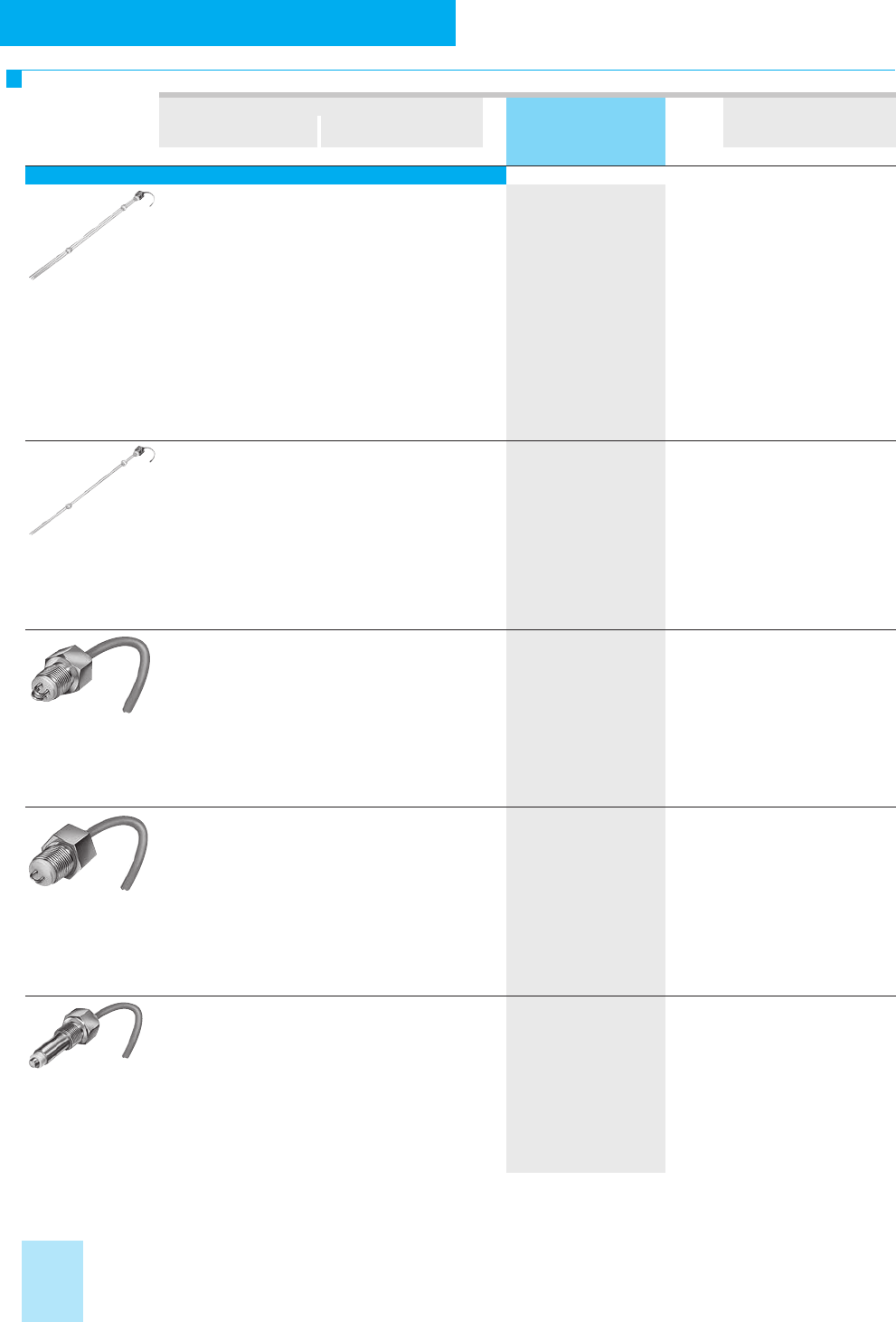

Selection and ordering data

• Level monitoring relay for conductive liquids

• Control principle: inlet or outlet control per rotary switch

• Single-point and two-point control possible

• Analog adjustable sensitivity (specific resistance of the liquid)

• Analog adjustable tripping delay time

• 1 yellow LED for indicating the relay state

• 1 green LED for indicating the applied control supply voltage

• 1 CO contact

• All terminals are removable

• Width 22.5 mm

1) The rated control supply voltage and the measuring circuit are not electri-

cally isolated.

Sensitivity Tripping delay time Rated control supply

voltage Us

Screw terminals PU

(UNIT,

SET, M)

PS* Weight

per PU

approx.

kΩsV

AC/DC Order No. List

Price $

per PU kg

2 ... 200 0.5 ... 10 241) 3UG45 01-1AA30 1 1 unit 0.110

24 ... 240 3UG45 01-1AW30 1 1 unit 0.120

Sensitivity Tripping delay time Rated control supply

voltage Us

Spring-type

terminals

(UNIT,

SET, M)

PS* Weight

per PU

approx.

AC/DC Order No. List

Price $

per PU kg

2 ... 200 0.5 ... 10 241) 3UG45 01-2AA30 1 1 unit 0.110

24 ... 240 3UG45 01-2AW30 1 1 unit 0.120

kΩ

For level monitoring sensors see page 11/56

11/56 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Product Category: SMRL

Siemens / Industrial Controls Previous folio: IC10 11/50

Function Relays, Interfaces and Converters

3UG Monitoring Relays

Level monitoring:

Level monitoring sensors

Selection and ordering data

Version Assignment Application Order No. List

Price $

per PU

(UNIT,

SET, M)

PS* Weight

per PU

approx.

Cable Elec-

trode

Level monitoring sensors (essential accessory)

3UG32 07-3A

Three-pole wire

electrodes

500 mm long, with

Teflon insulation

(PTFE), screw-in

gland width A/F 22,

3/8 inch thread, PVC

connecting cable,

3 x 0.5 mm2,

2 m long, max.

operating tempera-

ture 90 °C, max.

operating pressure

10 bar

Brown Center

elec-

trode

The electrodes can

be cut or bent to

the required length

before or after

installation. The

Teflon insulation

must be removed

over a length of

approx. 5 mm.

Applications: For

2-point liquid level

control in an insu-

lating tank. One

electrode each for

the min. and max.

value and a com-

mon reference

electrode.

3UG32 07-3A 1 1 unit 0.254

White

Green Not

assign-

able

3UG32 07-2A

Two-pole wire

electrodes

500 mm long, with

Teflon insulation

(PTFE), screw-in

gland width A/F 22,

3/8 inch thread, PVC

connecting cable,

3 x 0.5 mm2,

2 m long, max.

operating tempera-

ture 90 °C, max.

operating pressure

10 bar

Brown

White Not

assign-

able

For installation see

3UG32 07-3A

Application: For

alarm indication in

the event of over-

flow or low level

and for 2-point liq-

uid level control,

when the conduc-

tive tank is used as

the reference

electrode.

3UG32 07-2A 1 1 unit 0.230

3UG32 07-2B

Two-pole bow

electrodes

with Teflon insulation

(PTFE), screw-in

gland width A/F 22,

3/8 inch thread, PVC

connecting cable,

3 x 0.5 mm2,

2 m long, max.

operating tempera-

ture 90 °C, max.

operating pressure

10 bar

Brown Gland Thanks to the small

space require-

ments due to lat-

eral fitting, ideal for

use in small con-

tainers and pipes,

as a leak monitor

and level monitor

or for warning of

water entering an

enclosure.

3UG32 07-2B 1 1 unit 0.128

White

Green Not

assign-

able

3UG32 07-1B

Single-pole bow

electrodes for

lateral fitting with

Teflon insulation

(PTFE), screw-in

gland width A/F 22,

3/8 inch thread, PVC

connecting cable,

3 x 0.5 mm2,

2 m long, max.

operating tempera-

ture 90 °C, max.

operating pressure

10 bar

Brown Gland As a max. value

electrode for lateral

fitting or for alarm

indication in con-

ductive tanks or

pipes.

3UG32 07-1B 1 1 unit 0.122

White Elec-

trode

3UG32 07-1C

Single-pole rod

electrodes for

lateral fitting

with Teflon insulation

(PTFE), screw-in

gland width A/F 22,

3/8 inch thread, PVC

connecting cable,

3 x 0.5 mm2, 2 m

long, max. operat-

ing temperature

90 °C, max. operat-

ing pressure 10 bar

Brown Gland For high flow

velocities or for

intensively spar-

kling fluids.

3UG32 07-1C 1 1 unit 0.144

White Elec-

trode

11/57

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/51

Function Relays, Interfaces and Converters

3UG Monitoring Relays

Level monitoring:

Level monitoring sensors

Technical specifications

1) Important: This is a Class A product. In the household environment this

device may cause radio interference. In this case the user must introduce

suitable measures.

2) The sensor cable does not necessarily have to be shielded, but we do not

recommend installing this cable parallel to the power supply lines. It is also

possible to use a shielded cable, whereby the shield has to be connected

to the M terminal.

Type 3UG45 01-1AA30,

3UG45 01-2AA30

3UG45 01-1AW30,

3UG45 01-2AW30

General data

Rated control supply voltage UsV AC/DC 24 24 … 240

Rated frequency Hz 50/60

Operating range V 20.4 ... 26.4 20.4 ... 264

Rated power, max. AVCA V 42 tA• 2 2

AVCA V 042 tA• -- 4

Width mm 22.5

Availability time after application of Usms 500

Response time once a switching threshold is reached ms Max. 300

Adjustable delay time s 0.5 ... 10

Inlet or outlet monitoring function UNDER/OVER selector switch at the front

Mains buffering time, smmuminim 200

Rated insulation voltage Ui

Degree of pollution 3,

Overvoltage category III acc. to EN 60664-1

V300

Rated impulse withstand voltage kV 4

Permissible ambient temperature C°noitarepo gniruD• -25 … +60

C°egarots gniruD• -40 … +80

EMC tests1) IEC 60947-1/IEC 61000-6-2/IEC 61000-6-4

Degree of protection

• Enclosure (acc. to EN 60529) IP40

• Terminals IP20

Vibration resistance acc. to IEC 60068-2-6 1 ... 6 Hz: 15 mm; 6 ... 500 Hz: 2 g

Shock resistance acc. to IEC 60068-2-27 12 shocks (half-sine 15 g/11 ms)

Connection type Screw terminals

• Terminal screw M3 (for standard screwdriver, size 2 and Pozidriv 2)

mmdiloS• 21 x (0.5 ... 4)/2 x (0.5 ... 2.5)

mmeveels dne htiw dednarts yleniF• 21 x (0.5 ... 2.5)/2 x (0.5 ... 1.5)

GWAdednarts ro dilos ,selbac GWA• 2 x (20 ... 14)

mNeuqrot gninethgiT• 0.8 … 1.2

Connection type Spring-type terminals

mmdiloS• 22 x (0.25 ... 1.5)

• Finely stranded, with end sleeves acc. to DIN 46228 mm22 x (0.25 ... 1.5)

mmdednarts yleniF• 22 x (0.25 ... 1.5)

GWAdednarts ro dilos ,selbac GWA• 2 x (24 ... 16)

Measuring circuit

Electrode current, max. Am)zH 07 .pyt( 1

Electrode voltage, max. V)zH 07 .pyt( 15

Sensor feeder cable m Max. 100

Conductor capacity of sensor cable2) nF Max. 10

Adjustable sensitivity kecnatsiseR• Ω2 ... 200

Measuring accuracy % ±20

Repeat accuracy at constant parameters % ±1

Deviations C°/% snoitautculf erutarepmet rof ±1

Control circuit

Number of CO contacts for auxiliary contacts 1

Load capacity of the output relay

Conventional thermal current Ith A 5

Rated operational current Ie at AV 004 ... 42/51-CA• 3

AV 42/31-CD• 1

AV 521/31-CD• 0.2

AV 052/31-CD• 0.1

Minimum contact load AmCD V 71 ta 5

Output relay with DIAZED fuse

gL/gG operational class A 4

Electrical endurance AC-15 Million oper-

ating cycles 0.1

Mechanical endurance Million oper-

ating cycles 10

11/58 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/52

Function Relays, Interfaces and Converters

3UG Monitoring Relays

Level monitoring:

Level monitoring sensors

Dimensional drawings

3UG45 01

Schematics

3UG45 01

Two-point control

with outlet monitoring

Single-point control

with inlet monitoring

Position of the terminals

3UG45 01

A B

84 94

83 92

NSB0_01826

110

22,5

1) For standard mounting rail according to EN 60715.

Screw terminals

Spring-loaded terminals

Removable terminals

Type

C/+U

AC/0V

A1 (+) M

NSB0_01796a

A2 (–)

12 14

3UG45 01

Max Min

A1 (+)

A2 (–)

12 14

AC/+U

AC/0V NSB0_01797a

3UG45 01

Max Min

NSB0_01798a

A1 (+)

A2 (–)

12 14

AC/+U

AC/0V

3UG45 01

Max Min

NSB0_011823

A1+

MIN MAX A2-

12 11 14

11/59

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/53

Function Relays, Interfaces and Converters

3UG Monitoring Relays

Level monitoring:

Level monitoring sensors

Technical specifications

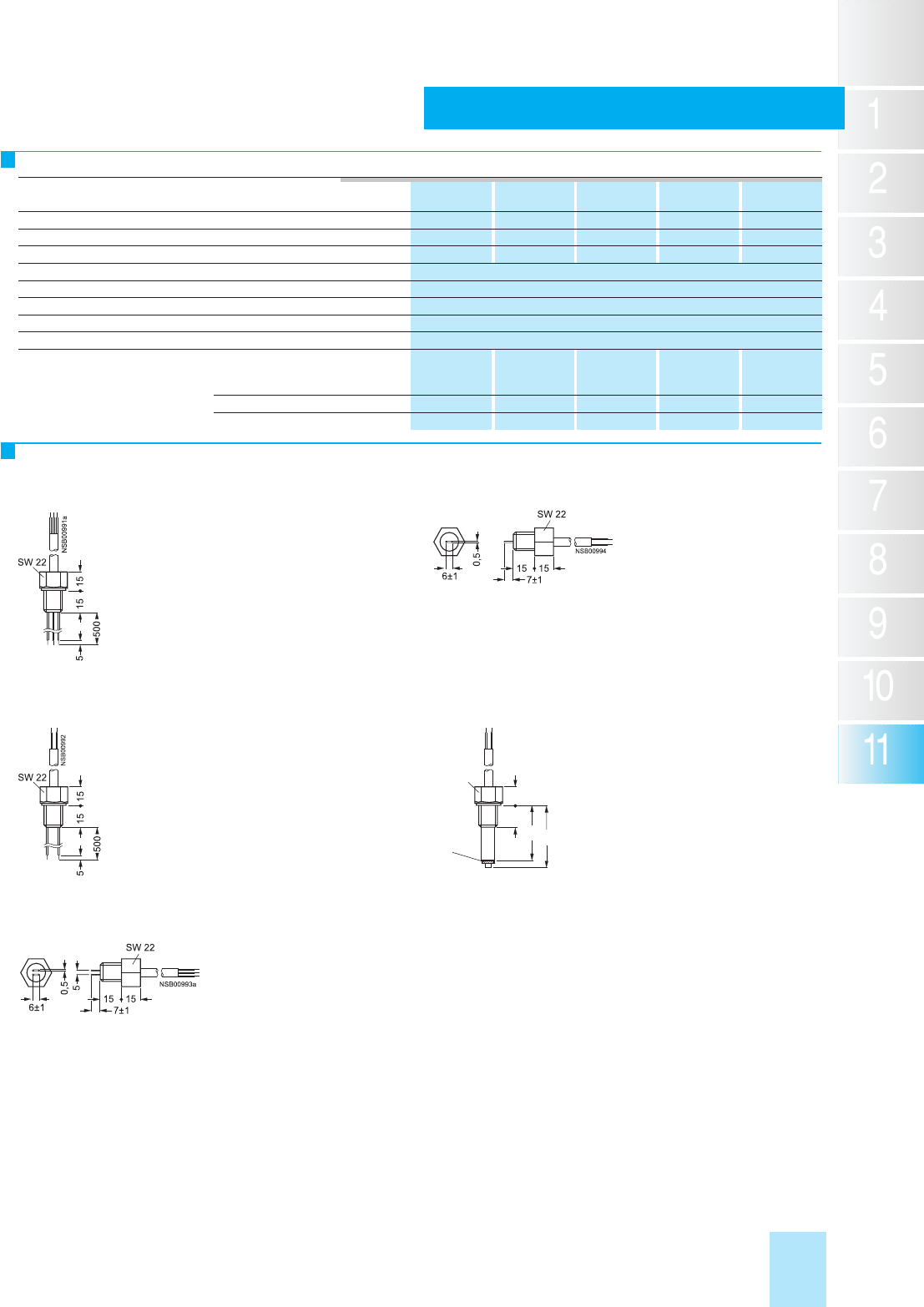

Dimensional drawings

3UG32 07-3A

three-pole wire electrode

3UG32 07-2A

two-pole wire electrode

3UG32 07-2B

two-pole bow electrode

3UG32 07-1B

single-pole bow electrode

3UG32 07-1C

single-pole electrode, rugged version

Type 3UG32 07-3A

three-pole

3UG32 07-2A

two-pole

3UG32 07-2B

two-pole

3UG32 07-1B

single-pole

3UG32 07-1C

single-pole

Length mm 500 500 -- -- --

Insulation Teflon insulation (PTFE) Yes Yes Yes -- Yes

Installation Vertical Vertical Lateral Lateral Lateral

Screw-in gland width A/F 22

Thread inch R 3/8

Connecting cable mm23 x 0.5, 2 m long

Operating temperature °C 90

Operating pressure bar 10

Assignment

nworb elbaC•edortcelE/elbaC Center

electrode Not assignable Gland Gland Gland

• Cable white Not assignable Not assignable Not assignable Electrode Electrode

• Cable green Not assignable -- Not assignable -- --

1515

SW 22

NSB00995

PTFE-

insulation

11/60 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Product Category: SMRL

Siemens / Industrial Controls Previous folio:IC10 11/54

Function Relays, Interfaces and Converters

3UG Monitoring Relays

Speed monitoring

Overview

The 3UG46 51 monitoring relay is used together with a sensor to

monitor drives for overspeed and/or underspeed.

Furthermore, this relay is ideal for all functions where a continu-

ous pulse signal needs to be monitored (e. g. belt travel monitor-

ing, completeness monitoring, passing monitoring, clock-time

monitoring).

Application

• Slip or tear of a belt drive

• Overload monitoring

• Transport monitoring for completeness

Selection and ordering data

• Relay for speed monitoring in min -1 (rpm)

• Two- or three-wire sensor with mechanical or electronic

switching output can be connected

• Two-wire NAMUR sensor can be connected

• Integrated sensor supply 24 V DC/50 mA

• Input frequency 0.1 ... 2200 pulses min -1

(0.0017 ... 36.7 Hz)

• With or without enable signal for the drive to be monitored

• Digital adjustable, with illuminated LCD

• Overshoot, undershoot or range monitoring

• Number of pulses per revolution can be adjusted

• Upper and lower threshold value can be adjusted separately

• Auto, manual or remote RESET options after tripping

• Permanent display of actual value and tripping state

• 1 CO contact

• All terminals are removable

• Width 22.5 mm

1) The rated control supply voltage and the measuring circuit are not electri-

cally isolated.

Measuring

range Hysteresis ON-delay

time Tripping

delay time Pulses

per revo-

lution

Rated control

supply voltage

Screw terminals PU

(UNIT,

SET, M)

PS* Weight

per PU

approx.

AC/DC

rpm rpm s s V Order No. List

Price $

per PU kg

0.1 ... 2200 OFF, 0.1 ... 99.9 0 ... 900 0.1 ... 99.9 1 ... 10 241) 3UG46 51-1AA30 1 1 unit 0.120

24 ... 240 3UG46 51-1AW30 1 1 unit 0.130

Measuring

range Hysteresis ON-delay

time Tripping

delay time Pulses

per revo-

lution

Rated control

supply voltage

Spring-type

terminals

(UNIT,

SET, M)

PS* Weight

per PU

approx.

AC/DC

rpm rpm s s V Order No. Lisat

Price $

per PU kg

0.1 ... 2200 OFF, 0.1 ... 99.9 0 ... 900 0.1 ... 99.9 1 ... 10 241) 3UG46 51-2AA30 1 1 unit 0.120

24 ... 240 3UG46 51-2AW30 1 1 unit 0.130

11/61

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/55

Function Relays, Interfaces and Converters

3UG Monitoring Relays

Speed monitoring

Technical specifications

1) At a distance of > 1 cm to adjacent devices;

if butt-mounted: +50 °C.

2) Important: This is a Class A product. In the household environment this

device may cause radio interference. In this case the user must introduce

suitable measures.

Type 3UG46 51-1AA30,

3UG46 51-2AA30

3UG46 51-1AW30,

3UG46 51-2AW30

General data

Rated control supply voltage UsV AC/DC 24 24 … 240

Rated frequency Hz 50/60

Operating range V 20.4 ... 26.4 20.4 ... 264

Rated power, max. AVCA V 42 tA• 2.5 4

AVCA V 042 tA• -- 9

Width mm 22.5

RESET Automatic/manual

Availability time after application of Usms 500

Response time once a switching threshold is reached ms Max. 300

Adjustable tripping delay time s 0.1 ... 99.9

Adjustable ON-delay time s 1 ... 900

Principle of operation Closed-circuit principle, open-circuit principle

NC/NO contact behavior Adjustable

Mains buffering time, smmuminim 10

Rated insulation voltage Ui

Degree of pollution 3,

Overvoltage category III acc. to EN 60664-1

V300

Rated impulse withstand voltage kV 4

Permissible ambient temperature C°noitarepo gniruD• -25 … +601)

C°egarots gniruD• -40 … +80

EMC tests2) IEC 60947-1, IEC 61000-6-2, IEC 61000-6-4

Degree of protection

• Enclosure (acc. to EN 60529) IP40

• Terminals IP20

Vibration resistance acc. to IEC 60068-2-6 1 ... 6 Hz: 15 mm; 6 ... 500 Hz: 2 g

Shock resistance acc. to IEC 60068-2-27 12 shocks (half-sine 15 g/11 ms)

Connection type Screw terminals

• Terminal screw M3 (for standard screwdriver, size 2 and Pozidriv 2)

mmdiloS• 21 x (0.5 ... 4)/2 x (0.5 ... 2.5)

mmeveels dne htiw dednarts yleniF• 21 x (0.5 ... 2.5)/2 x (0.5 ... 1.5)

GWAdednarts ro dilos ,selbac GWA• 2 x (20 ... 14)

mNeuqrot gninethgiT• 0.8 … 1.2

Connection type Spring-type terminals

mmdiloS• 22 x (0.25 ... 1.5)

• Finely stranded, with end sleeves acc. to DIN 46228 mm22 x (0.25 ... 1.5)

mmdednarts yleniF• 22 x (0.25 ... 1.5)

GWAdednarts ro dilos ,selbac GWA• 2 x (24 ... 16)

Measuring circuit

Sensor supply Am)V0/V42( rosnes eriw-eerht roF• Max. 50

Am)2V8( rosnes RUMAN eriw-2 roF• Max. 8.2

Signal input k1NI• Ω16, three-wire sensor, pnp operation

k2NI• Ω1, floating contact, 2-wire NAMUR sensor

Voltage level V1NI ta 1 level roF• 4.5 ... 30

V1NI ta 0 level roF• 0 ... 1

Current level Am2NI ta 1 level roF• > 2.1

Am2NI ta 0 level roF• < 1.2

Minimum pulse duration of signal ms 5

Minimum interval between 2 pulses ms 5

Adjustable response value rpm rpm 0.1 ... 2200

Hysteresis rpm OFF and 0.1 ... 99.9

Scale 1 ... 10

Measuring accuracy % ±10

Repeat accuracy at constant parameters % ±1

Accuracy of digital display ±1 digit

11/62 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/56

Function Relays, Interfaces and Converters

3UG Monitoring Relays

Speed monitoring

Dimensional drawings

3UG46 51

Schematics

3UG46 51

Circuit example without enable input

Circuit example with enable input

Position of the terminals

Type 3UG46 51-1AA30,

3UG46 51-2AA30

3UG46 51-1AW30,

3UG46 51-2AW30

Control circuit

Number of CO contacts for auxiliary contacts 1

Load capacity of the output relay

Conventional thermal current Ith A 5

Rated operational current Ie at ACD/CA V 004 ... 42/51-CA• 3

AV 42/31-CD• 1

AV 521/31-CD• 0.2

AV 052/31-CD• 0.1

Minimum contact load AmCD V 71 ta 5

Output relay with DIAZED fuse

gL/gG operational class A 4

Electrical endurance AC-15 Million

operating

cycles

0.1

Mechanical endurance Million

operating

cycles

NSB0_01827a

110

22,5

3UG46 51

A B

84 103

83 102

1) For standard mounting rail according to EN 60715.

Screw-type terminal

Spring-loaded terminal

Removable terminal

Type

AC/DC

A1 (+) EN RES 24V IN1

IN2 8V2

+ –

pnp

A2 (–)

3UG46 51

NSB0_01805a

12 14

– +NAMUR

AC/+U

A2 (–) IN2 8V2

RESEN

A1 (+)

24V BN I

AC/0V

12 14

IN1

3UG46 51

NSB0_01806a

NAMUR

Reset

A2 (–) IN2 8V2

A1 (+) EN

RES

3NO

AC/+U

AC/0V

24V

IN1

3UG46 51

NSB0_01807a

DC 24V/

max. 50 mA

Reset

Enable

NSB0_011824

24V IN1

8V2 IN2 A2-

A1+ EN RES

12 11 14

11/63

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/57

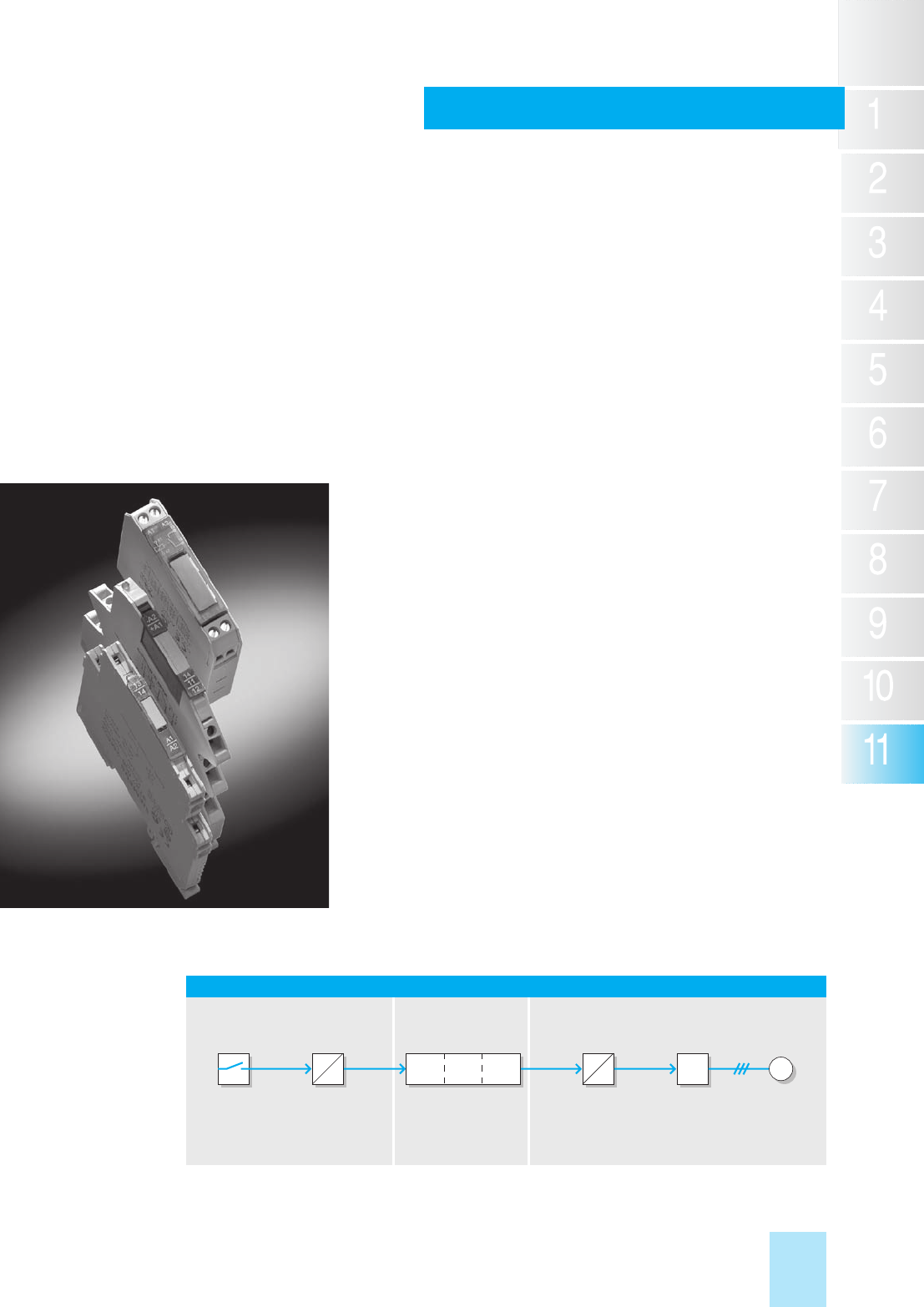

3TX0 interface relays are available in two basic

versions. The 3TX7004/05 is just 6.2 mm wide:

This series means that the interface relays take

up a lot less space in the electrical cabinet.

Then there is our 3TX7002/03 series: These de-

vices are suitable for mounting in small electri-

cal cabinets with a low depth and short distances

between the mounting rails. Both series are

available with an extensive range of input and

output interfaces.

Peripheral devices

Pushbutton,

position switch

Input

interface

Electronic control

Output

interface

Motor

contactors

110 V AC

230 V AC

Actuators

110 V AC

230 V AC 24 V DC 24 V DC M

Input Output

Interface Relays – Narrow Design

3TX70 interface relays

Interface relays as input or output coupler

Your advantages: 3TX7002/03 and 3TX7004/05

• Operating range from 0.7 to 1.25 Vs at 24 V DC

up to 60 °C

• Protective circuit is integrated in the input

• Connection comb and cable to connect voltages at the

same potential

• Manual-0-automatic switch for easier commissioning

Your advantages: 3TX7014 and 3TX7015

• Plug-in relays that can be quickly replaced with

preassembled wiring

• Conductors are introduced and clamped from the front

– therefore shorter wiring times

• Tested, complete devices reduce installation times

• Individual relays are available as spare parts

• Relay version with hard-gold-plated contacts –

therefore achieving a high contact reliability

Applications:

• Electrically isolation

• Voltage conversion – e.g. from 24 V DC to 230 V AC

• Signal amplification

• Contact multiplication

• General relay controls

• Overvoltage and EMC protection of controls

Engineering information:

When selecting the interface for rated control supply volt-

ages of 110 V AC and 230 V AC, the maximum permissible

cable length must be carefully observed. The special

3TX700- 05 relay can be used for longer cables.

Function Relays, Interfaces and Converters

Interface Relays – Narrow Design

3TX70 interface relays

11/64 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/58

Screw Terminal

Spring-type Terminal

Screw Terminal

Spring-type Terminal

Contact Rated control Width Hard-gold-plated

supply voltage Vs

1 NO 24 V DC 6.2 mm – 3TX701 -1AM00

1 CO 24 V DC 6.2 mm – 3TX701 -1BM00

24 V AC/DC 6.2 mm – 3TX701 -1BB00

115 V AC/DC 6.2 mm – 3TX701 -1BE00

230 V AC/DC 6.2 mm – 3TX701 -1BF00

1 CO 24 V DC 6.2 mm yes 3TX701 -1BM02

24 V AC/DC 6.2 mm yes 3TX701 -1BB02

115 V AC/DC 6.2 mm yes 3TX701 -1BE02

230 V AC/DC 6.2 mm yes 3TX701 -1BF02

Connecting comb, 16 pin 3TX7014-7AA00

Potential isolation plate 3TX7014-7CE00

Contact

Rated control supply voltage

Width

1 CO 24 V AC/DC 6.2 mm 3TX700 -1LB00

yes 3TX700 -1LB02

12.5 mm 3TX7004-1BB10

230 V AC/DC 6.2 mm 3TX700 -1LF00

12.5 mm 3TX7004-1BF051)

1 NO 24 V AC/DC 6.2 mm 3TX700 -1MB00

230 V AC/DC 6.2 mm 3TX700 -1MF00

1 NO 230 V AC/DC 6.2 mm 3TX700

-2MF02

110 V AC/DC 6.2 mm 3TX7004

-2ME02

24 V AC/DC 6.2 mm 3TX700

-2MB02

Output Voltage Width Hard-gold-plated

1 NO 24 V AC/DC 11.5 mm – 3TX700

-1AB00

11.5 mm yes 3TX700

-1AB02

1 CO 24 V AC/DC 17.5 mm – 3TX700

-1BB00

230 V AC/DC 17.5 mm – 3TX7002-1BF00

2 NO 24 V AC/DC 22.5 mm – 3TX700

-1CB00

2 CO 24 V AC/DC 22.5 mm yes 3TX700

-1FB02

1 NO 230 V AC/DC 11.5 mm – 3TX700

-2AF00

230 V AC/DC 11.5 mm – 3TX7002-2AF05

110 V AC/DC 11.5 mm – 3TX7002-2AE00

24 V AC/DC 11.5 mm – 3TX7002-2AB00

1 CO 230 V AC/DC 17.5 mm yes 3TX7002-2BF02

Connecting cable with 24 connecting points for 3TX70 3TX7004-8BA00

Connecting comb with 24 connecting points for 3TX7004, 6.2 mm wide 3TX7004-8AA00

3TX701 Interface relay, plug-in

3TX700 relay interfaces, cannot be plugged-in

1) For longer cables up to 350 m

M-0-A switch Order No. List

Price$

–

– –

–

yes –

–yes

Hard-gold-plated M-0-A switch Order No. List Price $

Order No. List Price $

Plug-in socket interface, complete with relay

3TX7004 05 – output interface with relay output

3TX7004 05 – input interface with relay output

3TX7002 03 – for low heights between tiers – output interface with relay output

3TX7002 03 – input interface with relay output

Accessories

Plug-in socket interface relay, complete with relay and hard-gold-plated contacts

Accessories

Screw Terminal

Spring-type Terminal

Product Category: SMRL

Function Relays, Interfaces and Converters

Interface Relays – Narrow Design

3TX70 interface relays

11/65

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/59

Interface modules are available either with relays or

semiconductors. Semiconductor interfaces offer some

significant advantages: The electronic components

are extremely reliable and have an extremely long

service life (refer to the diagram below). The input in-

terface combines the best of both worlds – improved

technical features and a lower price. When consider-

ing output interfaces, the question of “relay or

semiconductor” needs to be taken into account as well

as the making/breaking capacity and the number of

operating cycles. If a relay has to be replaced just once

during the complete lifetime of a machine, then a semi-

conductor interface will already have paid for itself.

Your advantages:

• Favorably priced and reliable: Input interfaces with

semiconductor output

• Graduated series of output interfaces with semiconductors

• Extremely long electrical life

• Extremely high contact reliability

• High DC making/breaking capacity

• Short switching times

Applications:

• Providing electrical isolation, converting voltages

• Switching DC loads

• Switching capacitive loads

• High number of switching cycles

• Overvoltage and EMC protection of controls

Lebensdauervergleich

Interface Relays – Narrow Design

3TX70 semiconductor interfaces

Electronic interface modules have a significantly higher lifetime

than electromechanical devices

Electronic control

Semiconductor

interface

Motor

contactors

Actuators

24 V DC M

Input Output

Use of semiconductor interfaces Comparison of lifetimes

High

Lifetime

Average

Low

e r u l i a f f o y t i l i b a b o r P

Start of wear for

mechanical

components

Probability of

failure for

electronic

components

Function Relays, Interfaces and Converters

Interface Relays – Narrow Design

3TX70 semiconductor interfaces

11/66 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Product Category: SMRL

Siemens / Industrial Controls Previous folio: IC10 11/60

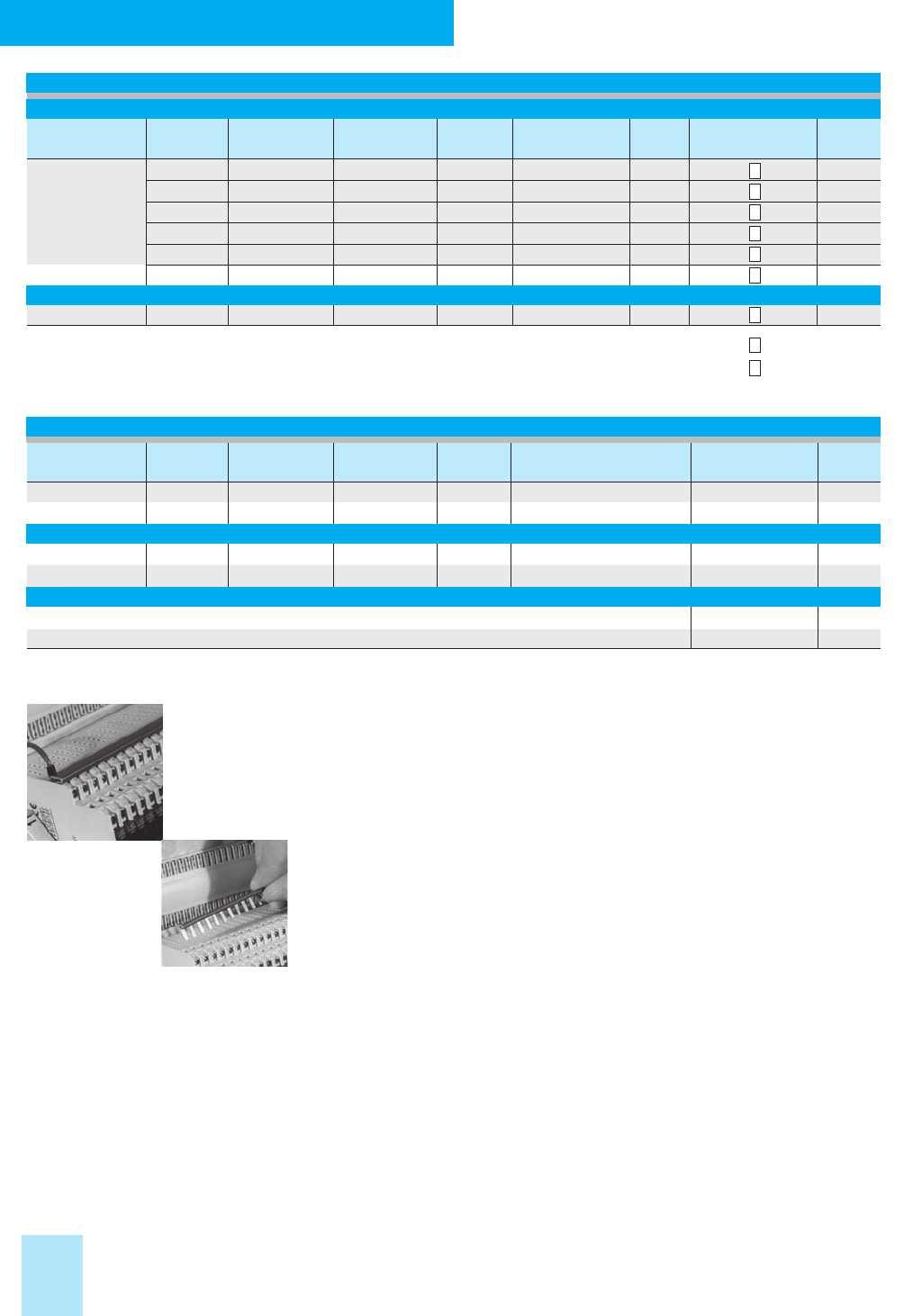

Control supply Width

Max.

switch- Switching Min. load

voltage ing

current voltage current

24 V DC 6.2 mm 0.5 A ≤ 48 V DC – 3TX700

-3AB04

6.2 mm 1.5 A ≤ 30 V DC – Short-circuit proof 3TX700

-3PB54

12.5 mm 5 A ≤ 30 V DC 0.5 A Short-circuit proof 3TX700

-3AC04

12.5 mm 5 A ≤ 30 V DC 0.5 A Short-circuit proof 3TX700

-3AC14

12.5 mm 2 A 24–250 V AC 0.05 A 3TX700

-3AC03

110–230 V AC 6.2 mm 3 A ≤ 30 V DC – Short-circuit proof 3TX700

-3PG74

110–230 V AC 6.2 mm 0.1 A ≤ DC 30 V – 3TX700

-4PG24

Control supply Width

Max.

switch- Switching Min. load

voltage ing current voltage current

24 V DC 12.5 mm 1.8 A 48–264 V AC 0.06 A 3TX7002-3AB00

24 V DC 11.5 mm 1.5 A ≤ 60 V DC – 3TX7002-3AB01

110–230 V AC 12.5 mm 0.1 A ≤ 60 V DC – 3TX7002-4AG00

24 V AC/DC 12.5 mm 0.1 A ≤ 30 V DC – 3TX7002-4AB00

Connecting cable with 24 connecting points for 3TX70 3TX7004-8BA00

Connecting comb with 24 connecting points for 3TX7004, 6.2 mm wide 3TX7004-8AA00

Using the

accessories it

is easy to

insert a jumper

between the

same voltage

levels.

Short-time M-0-A Order No. List

Price $

load capacity switch

1.5 A/20 ms –

–

yes

0.2 A/3 ms

100 A/20 ms

Short-time load capacity Order No. List

Price $

20 A/20 ms

4 A/0.2 ms

1 A/20 ms

3TX70 semiconductor interfaces

3TX7002 – for low tier heights – output coupler with semiconductor output, one NO contact

Input interfaces with semiconductor output, 1 NO contact

Accessories

3TX7004/05 – the narrow space saver – output interfaces with semiconductor output, 1 NO contact

Input interfaces with semiconductor output, 1 NO contact

Screw Terminal

Spring-type Terminal

Function Relays, Interfaces and Converters

Interface Relays – Narrow Design

3TX70 semiconductor interfaces

11/67

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/61

Note: The service life of the coupling relays can be increased by connecting inductive loads.

General data

Rated insulation voltage Ui

(pollution degree 3) V300

Safe isolation

acc. to DIN VDE 0106 Part 101 between coil and contacts AC V up to 300

Degree of protection Connections

Enclosure IP 20

IP 30

Short-circuit protection

(weld-free protection at Ik≥

1 kA)

AGg/Lg yrogetac noitasilitu ,sknil esuF 4

Permissible ambient temperature in operation

when stored °C

°C –25 ... +60

–40 ... +80

Conductor cross-sections

Screw terminals (for 3TX7 004):

solid

finely stranded with or without end sleeves mm2

mm2

1 x (0.25 ... 4)

1 x (0.5 ... 2.5)

Terminal screws M 3

Cage Clamp connections (for 3TX7 005):

solid/finely stranded

finely stranded with end sleeve mm2

mm2

1 x (0.08 ... 2.5)

1 x (0.25 ... 1.5)

Control circuit

Working range at DC 17 to 40 V

at Us = AC/DC 24 V

at Us = AC/DC 110 and 230 V

–

0.7 to 1.25 x Us

0.8 to 1.1 x Us

Power consumption Usapprox. 0.5 W/channel; 3TX7 00 .-...05: 1 W for DC/6 VA for AC

Permissible residual current

of the electronics (with 0 signal)

exception:

Overall width 6.2 mm

Overall w. from 12.5 mm

3TX7 00.-1LH00

3TX7 00.-1BF05

Us = 24 V; 2

Us > 24 V; 0.5

2.5

1.5

5 (Us = AC 230 V)

0.5 (Us = DC 230 V)

Operating times at Us

ON-delay

OFF-delay ms

ms < 8

< 15

Status indication Yellow LED

Max. permissible cable lengths

(min. cross-section: 0.75 mm 2)3TX7 00 .-1 . F00

-2ME02

-2MF02

3TX7 00 . -1 . B . .

-2MB02

3TX7 00 . -1 . H0. 3TX7 00 .-1BF05

DC m

m40

2000 400

2000 on request 350

2000

Load side

Rated operational current 1)

Conventional thermal current Ith A3TX7 00 .-1A/-1B/-1C/-1H/-1G

63TX7 00 .-. L/- .M

Rated operational current Ie

acc. to utilisation category

(DIN VDE 0660)

AC-15 DC-13 AC-15 DC-13

at 24 V

110 V

230 V

1.0

0.2

0.1

1.0

0.2

0.1

Switching current

with resistive load

acc. to DIN VDE 0435

(relay standard)

and DIN VDE 0660

AC-12 DC-12 AC-12 DC-12

at 24 V

110 V

230 V

0.3

0.2

0.3

0.2

Min. contact loading for 3TX7 00 . -1. . . 0/5 AC/DC 17 V, 5 mA AC/DC 17 V, 5 mA

Min. contact loading for 3TX7 00 . -. . . 02 (hard gold-plated) AC/DC 1 V, 0.1 mA AC/DC 1 V, 0.1 mA

Output limit for hard gold-plating 30 V/20 mA 30 V/20 mA

Switching voltage AC/DC 17 to 250 V AC/DC 17 to 250 V

Mechanical endurance 20 x 106 operating cycles 20 x 106 operating cycles

Electrical endurance at Ie1 x 105 operating cycles 0.5 × 105 operating cycles

Operating frequency 1/h 5000 operating cycles 5000 operating cycles

1) Capacitive loads can result in micro-welding at

the contacts.

≤

≥

∅

Ω

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TX7 004/005 relay and

semiconductor interfaces

11/68 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/62

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TX7 004/005 relay and

semiconductor interfaces

General data

Rated insulation voltage Ui

(pollution degree 3) V300

Safe isolation

acc. to DIN VDE 0884 V up ... 300

Permissible ambient tempera-

ture

in operation

when stored °C

°C –20 ... +60

–40 ... +80

Conductor cross-sections

Screw terminals (for 3TX7 004):

solid

finely stranded with or without end sleeves mm2

mm2

1 x (0.25 ... 4)

1 x (0.5 ... 2.5)

Terminal screws M 3

Cage Clamp connections (for 3TX7 005):

solid/finely stranded

finely stranded with end sleeve mm2

mm2

1 x (0.08 ... 2.5)

1 x (0.25 ... 2.5)

/-400 7XT3epyT

3TX7 005-

3AB04/

4AB04

3AC.4 3AC03 3PB54 4PG24

Control circuit

Working range V 11 ... 30 DC 11 ... 30 DC 11 ... 30 DC 11 ... 30 DC 110 ... 230 AC/DC

Power consumption

at 24 V DC

AC 230 V W

W≤ 0.5

–≤ 0.5

–≤ 0.25

–≤ 0.2

––

≤ 1.5

Release voltage V656920

Permissible residual current of the electronics

(with 0 signal) mA 2.3 2.6 1.5 1.5 0.4

Operating times

ON-delay

OFF-delay ms

ms 2.5

80.3

410

10 0.3

0.3 1

Status indication Yellow LED Yellow LED Yellow LED Yellow LED Yellow LED

Max. permissible cable lengths

(min. cross-section: 0.75 mm 2)m1700 2000 2000 2000 40

/-400 7XT3epyT

3TX7 005-

3P . 74 3PB41 3RB43

Working range V 110 ... 230 AC/DC 11 ... 30 DC 18 ... 30 DC

Power consumption

at 24 V DC

AC 230 V W

W–

≤ 1.5 ≤ 0.5

–≤ 0.3

–

Release voltage V 25 5 12

Permissible residual current of the electronics

(with 0 signal) mA 1 1.5 4

Operating times

ON-delay

OFF-delay ms

ms 1.5

75 4

60.2

Status indication Yellow LED Yellow LED Yellow LED

Max. permissible cable lengths

(min. cross-section: 0.75 mm 2)m40 2000 2000

Technical data

11/69

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/63

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TX7 004/005 relay and

semiconductor interfaces

/-400 7XT3epyT

3TX7 005-

3AB04/

4AB04

3AC.4 3AC03 3PB54

Load side

Switching voltage

Switching current

A≤ DC 48

0.5 ≤ DC 30

5AC 24 ... 250

2≤ DC 30

1.5

Short-time load rating A

ms 1.5

20 Short-circuit

proof 1)100

20 Short-circuit

proof 2)

Contacts 1 NO

transistor 1 NO

Triac 1 NO

transistor

Minimum load current mA – 500 3) 50 –

Conductive voltage drop V≤ 1 ≤ 0.5 ≤ 1.6 ≤ 0.5

Residual current of the electronics (with 0 signal) mA < 0.1 < 0.1 < 6 < 0.1

Operating frequency

with resistive load Hz 50 50 1 500

/-400 7XT3epyT

3TX7 005-

3P . 74 3PB41 3RB43 4P.24

Switching voltage

Switching current

A≤ DC 30

3≤ DC 200

0.75 AC 24 ... 250

0.5 ≤ DC 30

0.1

Short-time load rating A

ms Short-circuit

proof 2)3

20.8

30.2

Contacts 1 NO

transistor 1 NO

Triac 1 NO

transistor

Mininum load current mA – – 10 –

Conductive voltage drop V≤ 0.5 ≤ 2 ≤ 1.5 ≤ 1.5

Residual current of the electronics (with 0 signal) mA ≤ 0.1 ≤ 0.1 ≤ 1 ≤ 0.1

Operating frequency

with resistive load Hz 10 50 50 500

Technical data

1) The semiconductor output switches off in the

case of a short-circuit or overload. Before the

device can be operated again, it must be dis-

connected briefly from the supply voltage.

2) The current is limited by the semiconductor out-

put in the case of a short-circuit or overload. 3) Below the minimum load current, the built-in

semiconductor detects a wire-break in the load

circuit. To reset this, the control circuit must be

briefly deactivated.

11/70 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/64

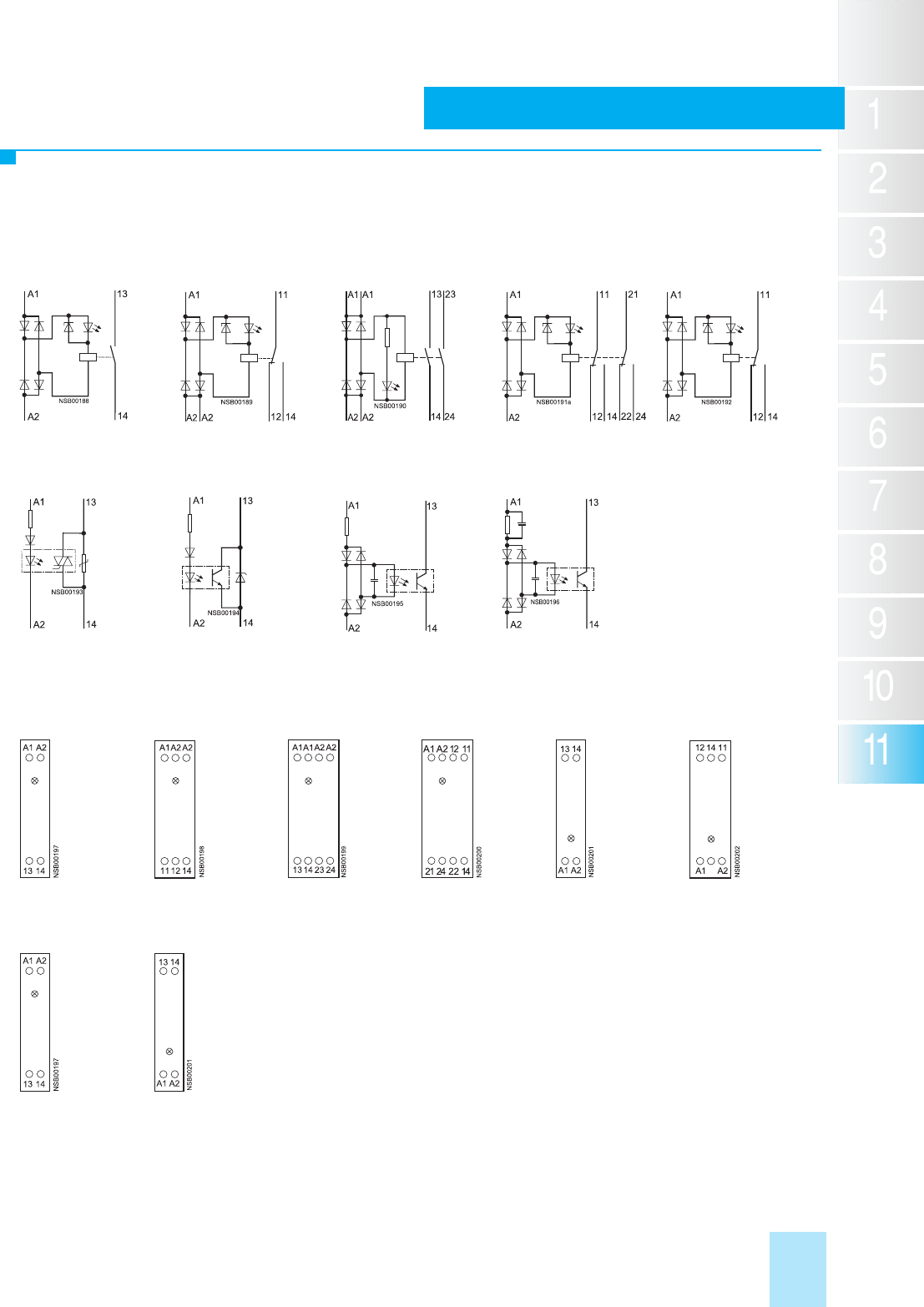

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TX7 004/005 relay and

semiconductor interfaces

DC operation

DIN VDE 0110 Part 1,

DIN VDE 0435, DIN VDE 0660

and EN 50 005

Optocoupler: DIN VDE 0884

DIN VDE 0411 Part 500,

IEC 61 131-2 (programmable

logic controllers)

In the case of coupling ele-

ments in double-tier design, the

terminals are arranged in two

tiers and the devices are

extremely narrow. Connection

technique: Screw terminal or

Cage Clamp. Versions with

Manual-0-Automatic switches

are available for test purposes.

The input and output coupling

devices differ with regard to the

location of the connections and

LEDs. For equipment identifica-

tion purposes, each coupling

device has a blank legend

plate.

Similar to the technical data of

the solid-state systems, the

devices have a low power con-

sumption.

Mounting instructions

Snap-on mounting onto hori-

zontal and vertical standard

rails is possible. For a vertical

rail and closely mounted devic-

es, the permissible ambient

temperature is

Tu = 40°C. Any service position

is possible.

When the permissible upper

limit of rated control supply volt-

age is fully exploited as well as

the highest permissible ambi-

ent temperature, and the de-

vice operates with a continuous

24-hour (100%) ON period, it is

recommended that no devices

of a similar type or other devic-

es with a high external temper-

ature are mounted adjacently

without appropriate gaps; oth-

erwise the service life of the

coupler can be reduced.

A gap of > 10 mm on the left-

hand and right-hand sides of

the device reduces the risk of

premature failure under these

conditions of application.

Optocouplers switch by means

of semiconductors. These are

not subject to wear, so welding

of contacts is not possible.

The 6.2 mm wide optocouplers

have an opening on the right-

hand side of the enclosure.

They can be – like the relay

couplers – mounted in a row

without gaps.

Surge suppression

The coupling devices are

tested with 1 x 105 operating

cycles in AC-15 operation with

the values specified in the tech-

nical data. The service life of

the relay connector can be

increased by connecting induc-

tive loads.

Note

When capacitive loads are

switched in the absence of

components (series resistors)

that limit the brief peak cur-

rents, this can cause micro

welding of the relay contacts.

To guarantee shock hazard protection in modules of the 6.2 mm series

with enclosure opening (e. g. 3TX7 004-3AB04), the individual module or

the final module in a row must be fitted with an end plate.

Connecting a cable to the Cage Clamp

Application

Construction

Functions

11/71

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/66

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TX70 relay and

semiconductor interfaces

Terminal diagrams

Relay interfaces

Terminal designations according to EN 50 005

3TX7 002 - . A . 00

-1AB02

-2AF05

20FB2-20BF1-00BC1-00 . B1-

00BC1-00 . B1-00 . A .-300 7XT3

Semiconductor interfaces

Terminal designations according to EN 50 005

00GA4-00BA4-10BA3-00BA3-200 7XT3

Position of terminals

Relay interfaces

Output interfaces Input interfaces

3TX7 002-1AB0 .

3TX7 003-1AB00

-1B . 00

-1CB00

-1FB02 3TX7 002-2A . 0 .

3TX7 003-2A . 0 .

-2BF02

Semiconductor interfaces

Output interfaces Input interfaces

3TX7 002-3AB0 . 3TX7 002-4A . 0 .

Circuit diagrams

11/72 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/67

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TX70 relay and

semiconductor interfaces

Terminal diagrams

Relay interfaces

Output interfaces

00BB1-. 00 7XT301BA1-. 00 7XT300 . M1-. 00 7XT3

-1BF05

3TX7 00 .-1L . 0.

00BG1-. 00 7XT300BH1-. 00 7XT300BC1-. 00 7XT301BB1-. 00 7XT3

Input interfaces

3TX7 00 .-2M . 02

Semiconductor interfaces

Output interfaces

3TX7 00 . -3AB04

-3PB41

3TX7 00 . -3PB54

-3PG74

3TX7 00 . -3AC04

34BR3-. 00 7XT330CA3-. 00 7XT341CA3-. 00 7XT3

Input interfaces

3TX7 00 . -4AB04

-4P . 24

Circuit diagrams

A = Automatic

0 = Neutral

M = Manual

11/73

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/68

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TX70 relay and

semiconductor interfaces

Position of terminals

Relay interfaces

Output interfaces Input interfaces

3TX7 004

-1M . 00 -1L . 0 . -1AB10 -1B . 0 . -1BB10 -1CB00 -1HB00 -1GB00

3TX7 004-2M...

3TX7 005

-1M . 00 -1L . 0 . -1AB10 -1BB00 -1BB10 -1CB00 -1HB00 -1GB00

3TX7 005-2M...

Semiconductor interfaces

Output interfaces Input interfaces

3TX7 004

-3AB04,

-3PB41

-3PB54,

-3PG74

34BR3-30CA3-41CA3-40CA3-

3TX7 004 -4AB04

-4P . 24

3TX7 005

-3AB04,

-3PB41

-3PB54,

-3PG74

34BR3-30CA3-41CA3-40CA3-

3TX7 005 -4AB04

-4P . 24

Circuit diagrams

11/74 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/69

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TX70 relay and

semiconductor interfaces

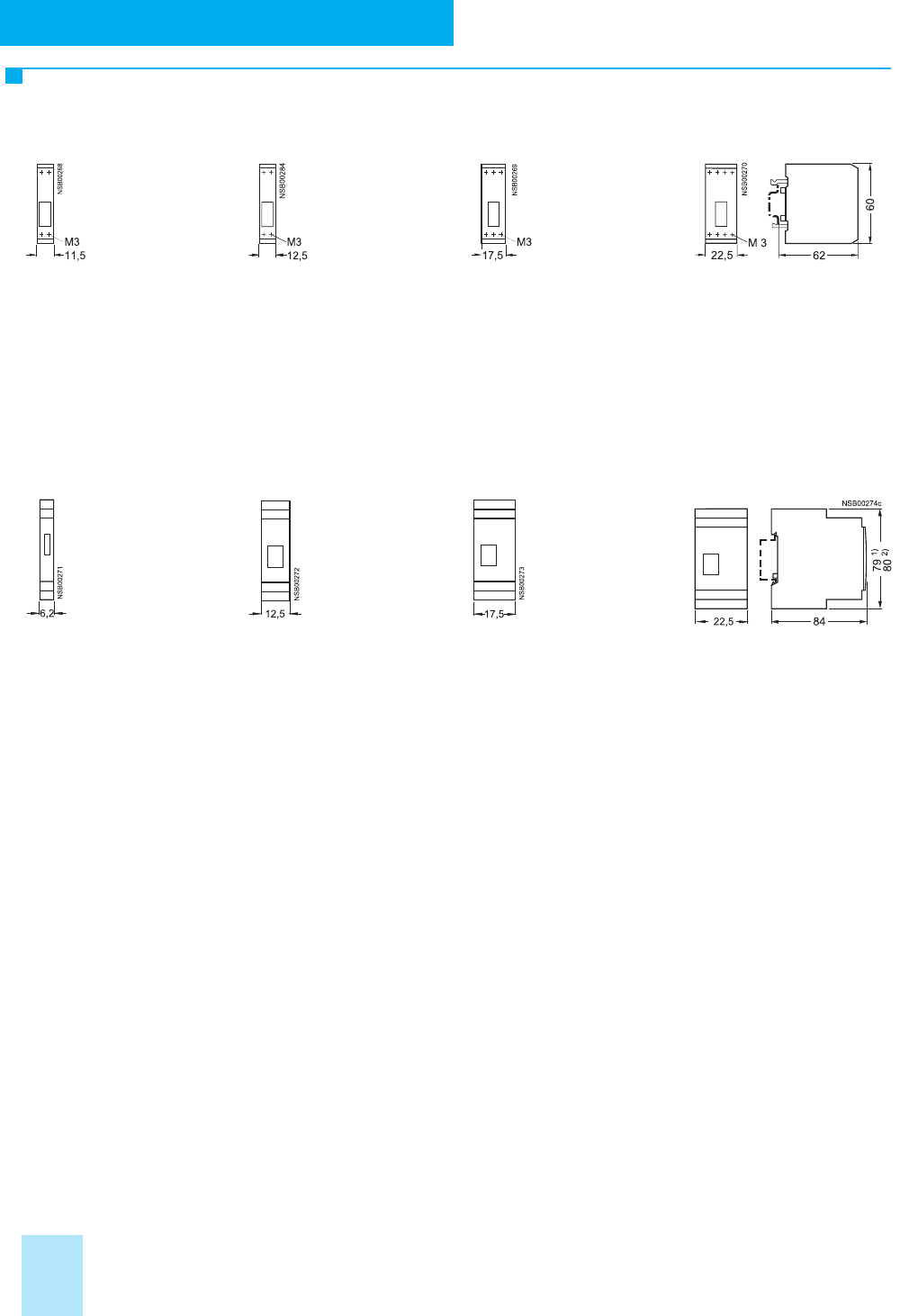

3TX7 002, 3TX7 003 interfaces in modular terminal block design

3TX7 00 .-1AB . .,

3TX7 00 .-2A . . .,

3TX7 002-3AB01

3TX7 002-3AB00,

3TX7 002-4A . . .

3TX7 00 .-1BB00,

3TX7 00 .-1BF00,

3TX7 002-2BF02

3TX7 00 .-1CB00,

3TX7 002-1BF02

3TX7 004, 3TX7 005 interfaces in double-tier design

Relay coupling devices

3TX7 00 .-1MB00,

3TX7 00 .-1MF00,

3TX7 00 .-1L . 0 .,

3TX7 00 .-2M . . .

Relay coupling devices

3TX7 00 .-1AB10,

3TX7 00 .-1BB00,

3TX7 00 .-1BB10,

3TX7 00 .-1CB00,

3TX7 00 .-1BF05

Relay interfaces

3TX7 00 .-1HB00

Relay interfaces

3TX7 00 .-1GB00

Semiconductor interfaces

3TX7 00 .-3AB04,

3TX7 00 .-4AB04,

3TX7 00 .-3PB . .,

3TX7 00 .-3PG74,

3TX7 00 .-3RB43,

3TX7 00 .-4P . 24

Semiconductor interfaces

3TX7 00 .-3AC04,

3TX7 00 .-3AC14,

3TX7 00 .-3AC03

1) Dimension for 3TX7 004 interfaces (screw connections).

2) Dimension for 3TX7 005 interfaces (Cage Clamp connections).

Dimension drawings

11/75

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/65

Wide-range voltage

24–240 V AC/DC

Combination voltage

24 V AC/DC and

110–120 V AC

24 V AC/DC and

220–240 V AC

The new 3RS18 interface relays set new stand-

ards: They have a wide-range voltage extending

from 24 V AC DC to 240 V. This makes them abso-

lutely unique in the interface market. All of these

devices are accommodated in a well-proven, rug-

ged 22.5 mm wide enclosure. Relays with 1, 2

and 3 changeover contacts are available in both

screw and Cage Clamp terminal versions. Not only

this, also in combination and wide-range voltage

with hard-gold-plated contacts for an especially

high contact reliability – even at low current lev-

els. Thanks to the well-proven, rugged enclo-

sure, you can enjoy the benefits of user-friendly

connection systems, including Cage Clamp termi-

nals – just the same as delete our time relays.

2 conductors can be connected at each terminal

point.

Interface Relays in a Rugged

Industrial Enclosure

3RS18 relay interfaces

Rated control supply voltage VsContact

versions

50 60 Hz

2 CO 3RS18 00- BW00

3 CO 3RS18 00- HW00

3 CO hard-gold-plated 3RS18 00- HW01

1 CO 3RS18 00- AQ00

2 CO 3RS18 00- BQ00

3 CO 3RS18 00- HQ00

3 CO hard-gold-plated 3RS18 00- HQ01

1 CO 3RS18 00- AP00

2 CO 3RS18 00- BP00

3 CO 3RS18 00- HP00

3 CO hard-gold-plated 3RS18 00- HP01

Your advantages:

• New, worldwide: One device for all voltages

• Lower costs due to fewer versions

• User-friendly wiring

• Especially high contact reliability even at low currents

Applications:

• Everywhere that contacts which are electronics-

compatible are required and where devices with wide-

range voltage are used

• Thanks to the hard-gold-plated contacts, predestined for

PLC I/O

Order No. List

Price $

3RS18 interface relays in a rugged, industrial enclosure 22.5 mm wide

Screw Terminal

Spring-type Terminal

Product Category: SMRL

Function Relays, Interfaces and Converters

Interface Relays in a Rugged Industrial Enlosure

3RS18 relay interfaces

11/76 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/70

Overview

Application

In automation and closed-loop

control, working with analog

signals is unavoidable. Inter-

faces of 0 to 10 V and 0/4 to 20

mA have become established

in this field. Interface convert-

ers load the coupling function

for analog signals on the input

side as well as on the output

side. They are indispensible

where analog values are pro-

cessed with electronic con-

trols. In the harsh industrial

environment, signals often have

to be transferred over large dis-

tances. Electrical isolation is

necessary due to the various

different power supplies. Poten-

tial differences and losses due

to cable resistance must be

prevented. Electromagnetic

disturbances and overvoltages

can affect the signals espe-

cially at the input end and even

destroy the analog modules.

With regard to the output, short-

circuit protection is of particular

importance.

The devices are EMC-tested

acc. to EN 50081 (emission)

and EN 61000-6-2 (immunity).

The analog signals correspond

to IEC 60 381-1/2.

Converters are used in analog

signal processing for:

• Electrical isolation

• Conversion of normalised and

non-normalised signals

• Amplification, impedance

adjustment

• Conversion to frequency for

processing by a digital input

• Overvoltage and

EMC protection

• Short-circuit protection

of the outputs

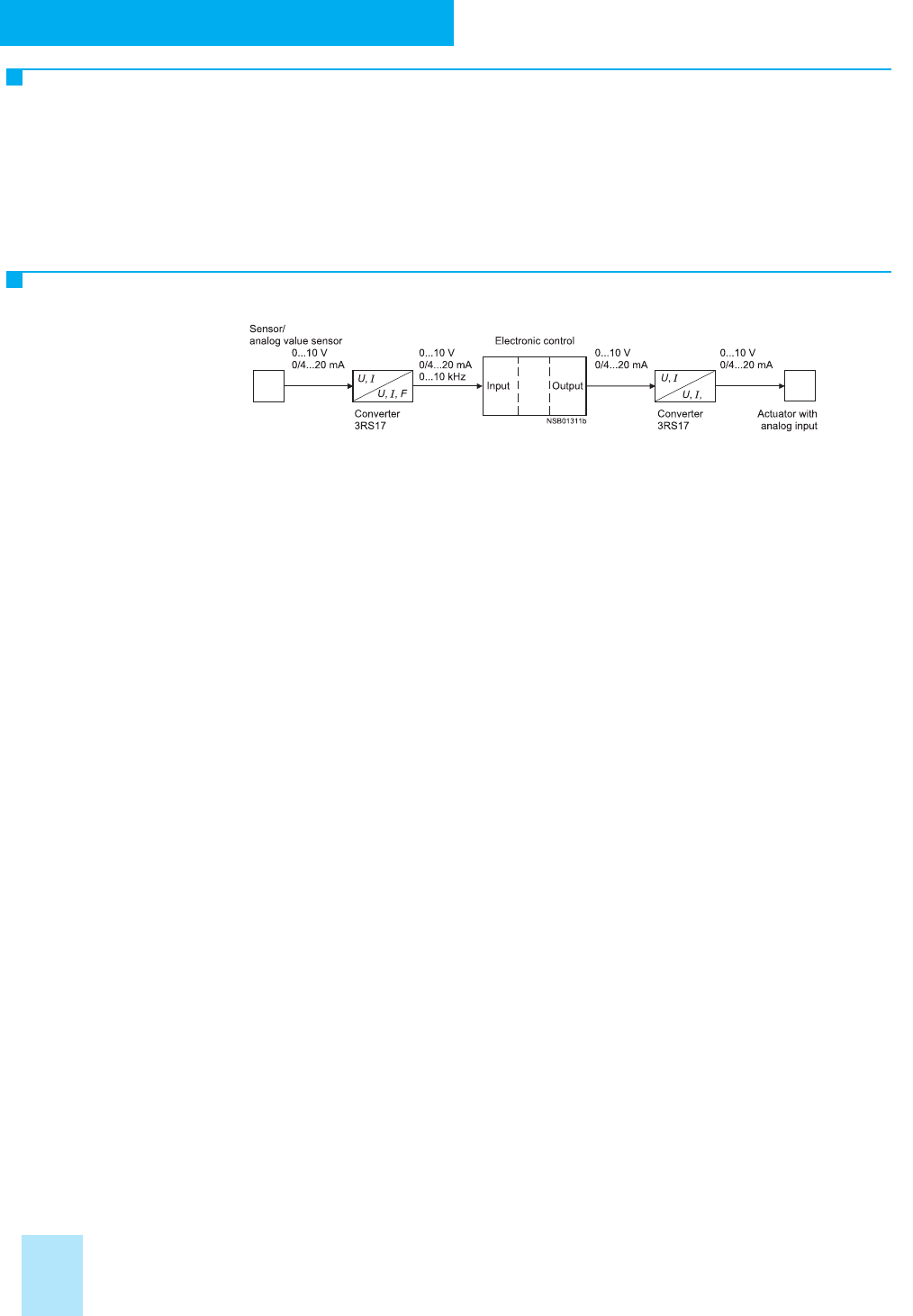

Example for application: Interface converter in analog signal evaluation

Function Relays, Interfaces and Converters

Interface Converters

3RS17

11/77

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Product Category: SMRL

Siemens / Industrial Controls Previous folio: IC10 11/71

Function Relays, Interfaces and Converters

Interface Converters

3RS17

Selection and ordering data

Screw and Spring-type Terminal Connection

All converters with the exception of the passive individ-

ual interface converters are equipped with a yellow LED

for indication of "Voltage applied".

Input Output Width Supply volt-

age Electrical

isolation Screw terminals Spring-type terminals List

Price $

Weight

approx.

Order No. Order No.

mm V kg

Individual interface converters, active

0 ... 10 V 0 ... 10 V 6.2 AC/DC 24 2 way

3 way

0.03

0 ... 10 V 0 ... 20 mA 6.2 AC/DC 24 2 way

3 way

0.03

0 ... 10 V 4 ... 20 mA 6.2 AC/DC 24 2 way

3 way

0.03

0 ... 20 mA 0 ... 10 V 6.2 AC/DC 24 2 way

3 way

0.03

0 ... 20 mA 0 ... 20 mA 6.2 AC/DC 24 2 way

3 way

0.03

0 ... 20 mA 4 ... 20 mA 6.2 AC/DC 24 2 way

3 way

0.03

4 ... 20 mA 0 ... 10 V 6.2 AC/DC 24 2 way

3 way

0.03

4 ... 20 mA 0 ... 20 mA 6.2 AC/DC 24 2 way

3 way

0.03

4 ... 20 mA 4 ... 20 mA 6.2 AC/DC 24 2 way

3 way

3RS17 03-1DD00

3RS17 03-1DE00

3RS17 03-2DD00

3RS17 03-2DE00

0.03

Multi-range converters, selectable

0 ... 10 V

0 ... 20 mA

4 ... 20 mA

selectable

0 ... 10 V

0 ... 20 mA

4 ... 20 mA

selectable

6.2 AC/DC 24 2 way 3RS17 05-1FD00 3RS17 05-2FD00 0.03

17.5 AC/DC 24

to 240 3 way 3RS17 05-1FW00 3RS17 05-2FW00 0.1

0 ... 10 V

0 ... 20 mA

4 ... 20 mA

selectable

0 ... 50 Hz

0 ... 100 Hz

0 ... 1 kHz

0 ... 10 kHz

selectable

6.2 AC/DC 24 2 way 3RS17 05-1KD00 3RS17 05-2KD00 0.1

17.5 AC/DC 24

to 240 3 way 3RS17 05-1KW00 3RS17 05-2KW00 0.1

Universal converters, selectable

0 ... 60 mV

0 ... 100 mV

0 ... 300 mV

0 ... 500 mV

0 ... 1 V

0 ... 2 V

0 ... 5 V

0 ... 10 V

0 ... 20 V

2 ... 10 V

0 ... 5 mA

0 ... 10 mA

0 ... 20 mA

4 ... 20 mA

± 5 mA

± 20 mA

selectable

0 ... 10 V

0 ... 20 mA

4 ... 20 mA

selectable

17.5 AC/DC 24 2 way 3RS17 06-1FD00 3RS17 06-2FD00 0.1

3 way 3RS17 06-1FE00 3RS17 06-2FE00 0.1

AC/DC 24

to 240 3 way 3RS17 06-1FW00 3RS17 06-2FW00 0.1

Multi-range converters,selectable, with Manual/Automatic switch and set-

ting potentiometer as manual analog signal encoder

0 ... 10 V

0 ... 20 mA

4 ... 20 mA

selectable

0 ... 10 V

0 ... 20 mA

4 ... 20 mA

selectable

17.5 AC/DC 24 2 way 3RS17 25-1FD00 3RS17 25-2FD00 0.1

AC/DC 24

to 240 3 way 3RS17 25-1FW00 3RS17 25-2FW00 0.1

Input Output Width Number of

channels Electrical

isolation Screw terminals Spring-type terminals List

Price $

Weight

approx.

Order No. Order No.

mm kg

Individual interface converters, passive

0/4 ... 20

mA 0/4 ... 20

mA 6.2 1-channel 2 way 3RS17 20-1ET00 3RS17 20-2ET00 0.05

0/4 ... 20

mA 0/4 ... 20

mA 12.5 1-channel 2 way 3RS17 21-1ET00 3RS17 21-2ET00 0.05

0/4 ... 20

mA 0/4 ... 20

mA 12.5 2-channel 2 way 3RS17 22-1ET00 3RS17 22-2ET00 0.05

3RS17 00-1AD00

3RS17 00-1AE00

3RS17 00-2AD00

3RS17 00-2AE00

3RS17 00-1CD00

3RS17 00-1CE00

3RS17 00-2CD00

3RS17 00-2CE00

3RS17 00-2DD00

3RS17 00-2DE00

3RS17 00-1DD00

3RS17 00-1DE00

3RS17 02-1AD00

3RS17 02-1AE00

3RS17 02-2AD00

3RS17 02-2AE00

3RS17 02-1CD00

3RS17 02-1CE00

3RS17 02-2CD00

3RS17 02-2CE00

3RS17 02-1DD00

3RS17 02-1DE00

3RS17 02-2DD00

3RS17 02-2DE00

3RS17 03-1AD00

3RS17 03-1AE00

3RS17 03-2AD00

3RS17 03-2AE00

3RS17 03-1CD00

3RS17 03-1CE00

3RS17 03-2CD00

3RS17 03-2CE00

11/78 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/72

Function Relays, Interfaces and Converters

Interface Converters

3RS17

Technical data

General data

Type AC/DC 24 V AC/DC 24 to 240 V

Supply voltage range DC: 0.7 to 1.25 Un

AC: 0.8 to 1.2 Un

DC: 0.7 to 1.1 Un

AC: 0.8 to 1.1 Un

Rated power (own requirements) W Typically 0.3 Typically 0.75

Electrical isolation input/output Active disconnector:

1500 V, 50 Hz, 1 min

Passive disconnector:

500 V, 50 Hz, 1 min

4000 V, 50 Hz, 1 min

Rated insulation voltage

Pollution degree 2, overvoltage category III V0110 EDV NID ot .cca 50 300

Ambient temperature for operation

for storage °C

°C – 20 ... + 60

– 40 ... + 85

Conductor cross-sections

Screw connections

solid

finely stranded with or without end sleeves

Terminal screws

Cage Clamp terminals

solid/finely stranded

finely stranded with end sleeve

mm2

1 x (0.25 ... 4)

1 x (0.5 ... 2.5)

M 3

1 x (0.08 ... 2.5)

1 x (0.25 ... 1.5)

Enclosure degree of protection IEC 529 IP 30

Terminal degree of protection IEC 529 IP 20

Permissible mounting position any

Mounting onto standard rails EN 50 022 mm 35

Vibration performance IEC 68-2-6 10– 55 Hz/0.35 mm

Shock resistance IEC 68-2-27 15 g/11 ms

Input

Voltage

inputs Current inputs

active Current inputs

passive

Input impedance 330 kΩ100 Ω–

Max. input voltage AC/DC V 30 30 –

Response current µA – – 100/250 (6.2 mm overall width

Voltage drop – – 2.7 V at 20 mA

Output

0 to 10 V 0/4 to 20 mA

active 0 to 20 mA

passive Frequency

Output impedance Ω55 – – –

Max. output load Ω– 400 1000 at 20 mA

400 at 20 mA

(6.2 mm overall width)

2400

Max. output current mA 21 – – 10

Short-circuit current mA 40 – Corresponds to the

input current 15

Protection of the outputs Short-circuit proof Short-circuit proof Short-circuit proof Short-circuit proof

Max. overvoltage at output AC/DC V 30 30 – 30

Accuracy

Active disconnector

(U, I) Active disconnector

(frequency) Passive disconnector

Total error at 23 °C % 0.1 0.1 –

Linearity error % 0.02 0.02 –

Deviation due to ambient temperature 0 to 10 V: 1.5 mV/K

0/4 to 20 mA: 3 µA/K 0 to 50 Hz; 7.5 mHz/K

0 to 100 Hz; 15 mHz/K

0 to 1 KHz; 0.15 Hz/K

0 to 10 KHz; 1.5 Hz/K

Load < 600 Ω:

< 50 ppm/K from measured value

Load < = 600 Ω:

< 175 ppm/K from measured value

Transmission error %– – 0.1

Load error from measured value – – 0.06%/100 Ω

Limit frequency 3 dB Hz 30 30 50

Rise time (10 to 90 %) ms 10 10 + 1 periods –

Settling time to 1 %

accuracy, typically

ms 30 30 + 1 periods –

Residual ripple mV rms < 5 – < 8

Unless stated otherwise, the accuracy is specified with reference to the upper range limit

11/79

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/73

Function Relays, Interfaces and Converters

Interface Converters

3RS17

Configuration

Active interface converters

Active interface converters offer

the widest application flexibility

due to the use of an external

supply voltage. Project engi-

neering with active interface

converters is easy, because

input and output resistances

and voltage drops are bal-

anced by the auxiliary power.

They provide pure electrical

isolation as well as conversion

between the different signal

types or amplification. The load-

ing on the encoder is negligible.

Passive interface converters

Passive interface converters do

not require an external supply

voltage. This advantage can

only be utilised in the case of

current signals that are trans-

ferred 1:1. Amplification or

conversion is not possible.The

converters are used for clear

electrical isolation of signals

and for protecting the inputs

and outputs. Passive discon-

nectors do not operate reac-

tion free, i.e.any load on the

output affects the input signal

to the same degree. When the

passive converter is used, an

analysis of the output power of

the encoder and the input

resistance of the analog input

must be performed. For pure

currentis being used more and

more.

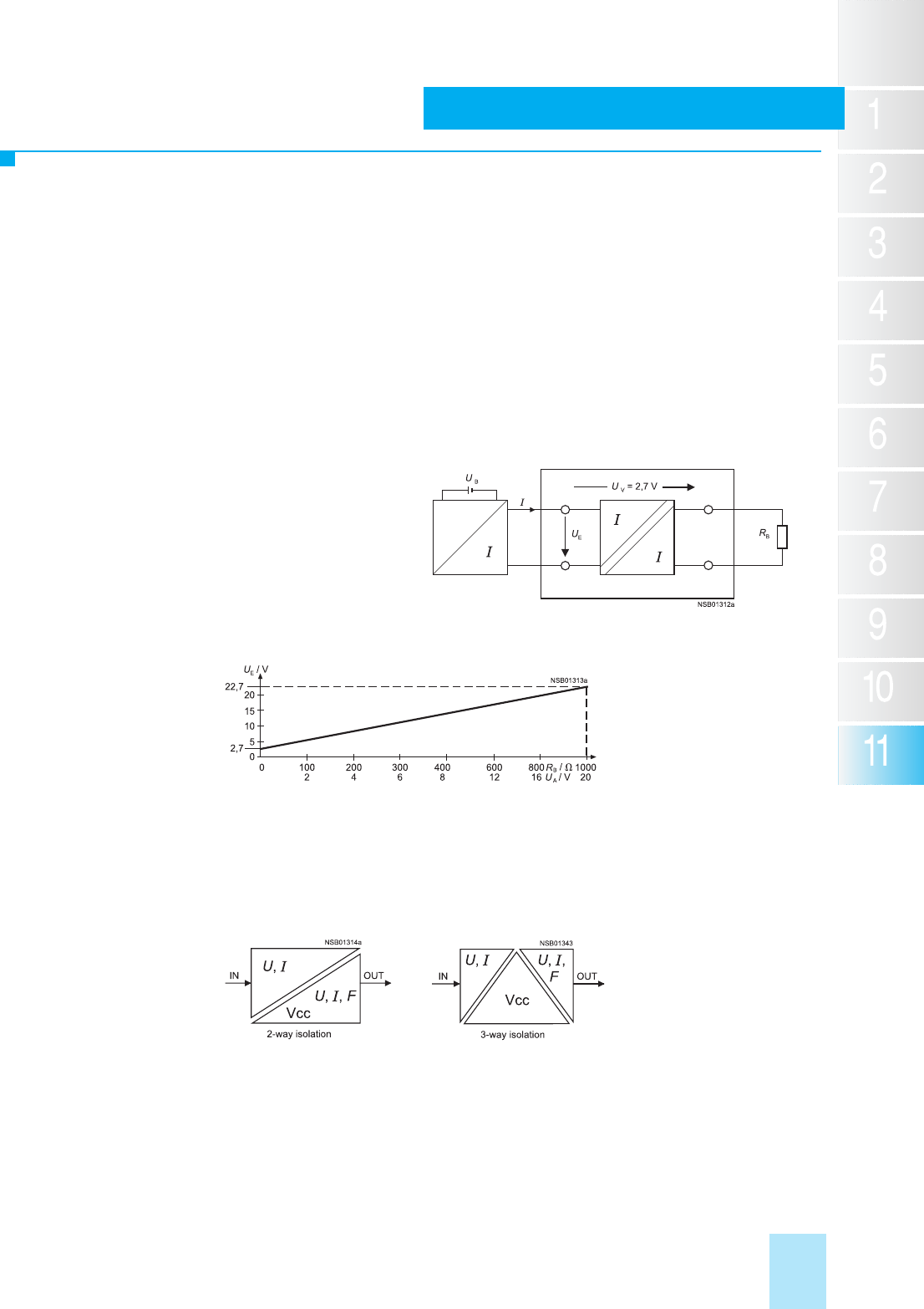

Calculation aid for passive converters

.Important:

When passive disconnectors

are used, it is important to note

that:

The current-driving voltage of

the measuring transmitter UE

must be sufficient to drive the

maximum current of 20 mA

through the passive disconnec-

tor with a voltage drop of UV =

2.7 V and the resistive load RB.

This means that:

UB≥ UE = 2.7 V + 20 mA x RB

Voltage splitting with passive disconnectors

The following diagram shows

the input voltage UE as a func-

tion of the resistive load RB tak-

ing into account the voltage

drop UV

. If the resistive load is

known, the minimum voltage

that the current source has to

produce in order to drive the

maximum current of 20 mA via

the passive disconnector and

resistive load can be read off

the Y-axis.

Input voltage

as a function of resistive load at IA = 20 mA

Current-carrying capacity of

the outputs

A maximum output load is

specified in the case of current

signals. This resistance value

specifies the maximum input

resistance for the subsequent

device for which the output of

the converter is adequate.

For voltage signals, the maxi-

mum current that can be drawn

from the output is the decisive

factor.

2-way isolation

In the case of 2-way isolation,

the input is electrically isolated

from the output. The "zero

potential" for the supply volt-

age is the same as that on

which the analog output signal

is referenced.

3-way isolation

In the case of 3-way isolation,

each circuit is electrically iso-

lated from the others, i.e. the

input, output and supply volt-

age have no common potential.

11/80 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/74

Function Relays, Interfaces and Converters

Interface Converters

3RS17

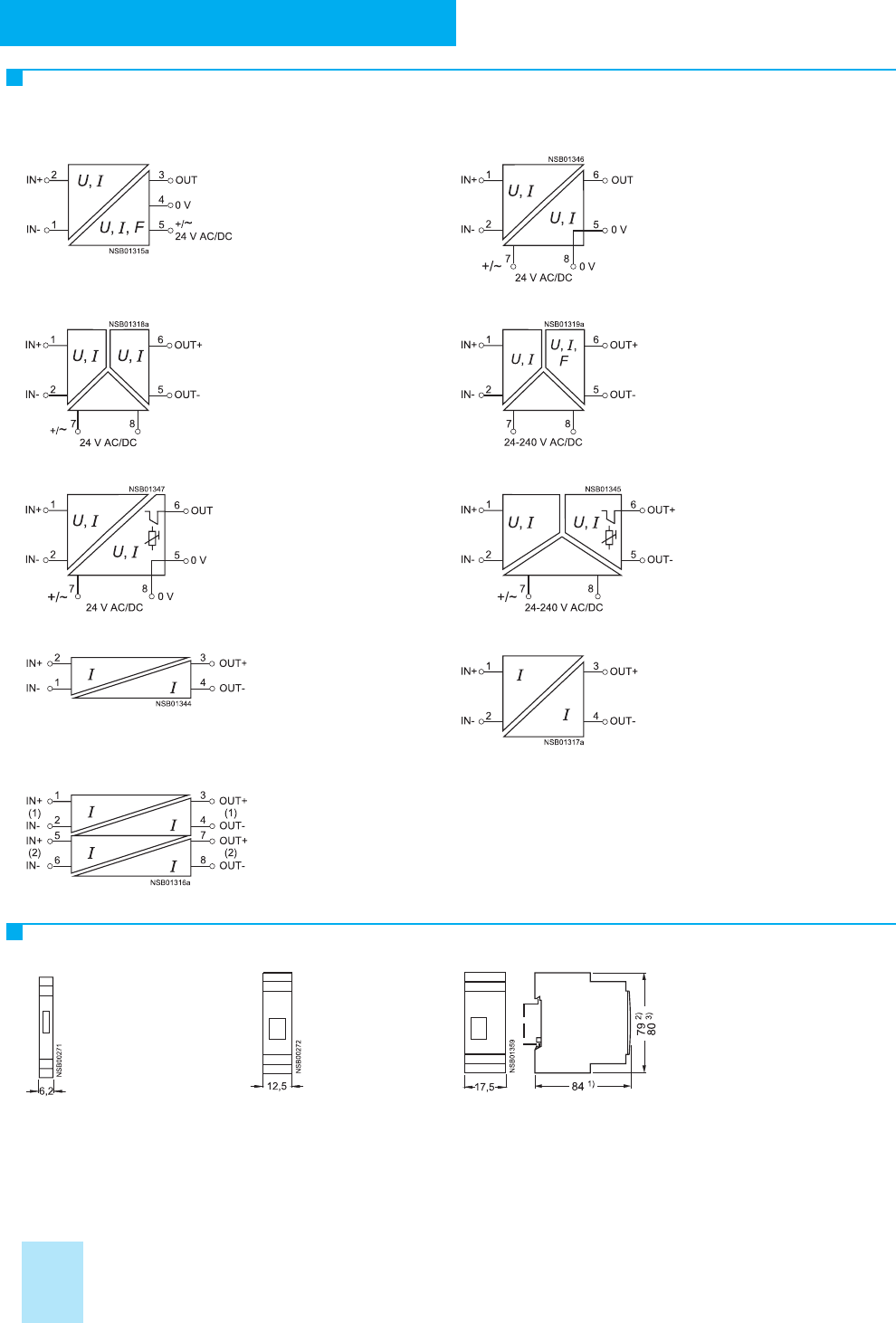

Circuit diagrams

Dimension drawings

1) Overall depth for 3RS17 25 is approx. 90 mm.

2) Dimension for screw connection.

3) Dimension for Cage Clamp connection.

3RS17 00- . . D . .

3RS17 02- . . D . .

3RS17 03- . . D . .

3RS17 05- . . D . -60 71SR3. . FD00

3RS17 06- . 0 71SR300EF .- . .W00

3RS17 25- . -52 71SR300DF . FW00

3RS17 20- . -12 71SR300TE . ET00

3RS17 22- . ET00

6.2 mm type: 12.5 mm type: 17.5 mm type:

11/81

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Product Category: SMRL

Siemens / Industrial Controls Previous folio: IC10 11/75

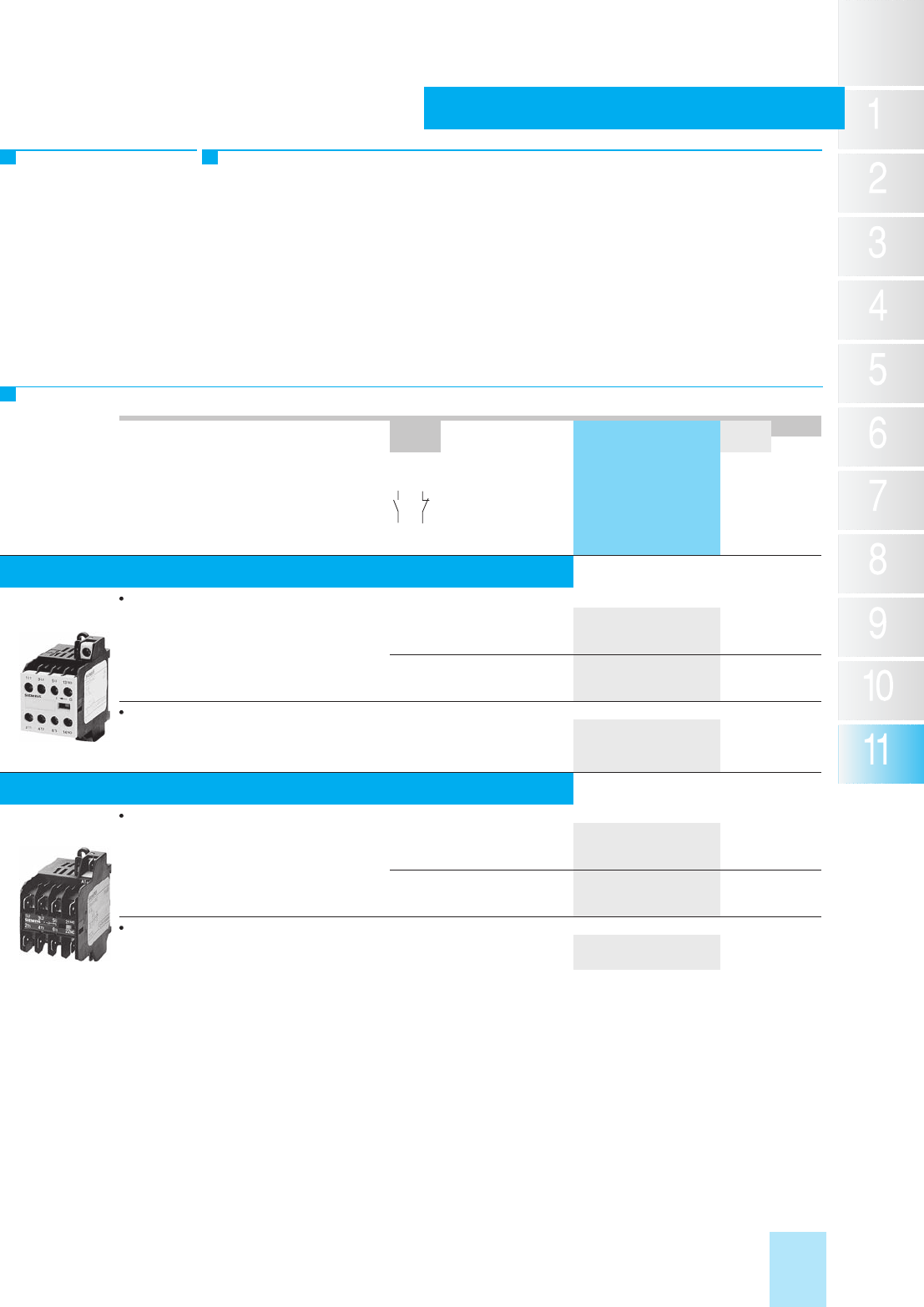

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TG10 power relays

Version

The 3TG10 contactors with 4

main contacts are available

with screw-type terminals or

with 6.3 mm to 0.8 mm tab con-

nectors. The designs with

screw-type terminals are suit-

able for use in any climate and

safe from touch to

DIN VDE 0106 Part 100.

The 3TG10 contactors have a

compact design. Their overall

width is 36 mm.

They are suitable for use in

household appliances as well as

for distribution boards in offices

and residential buildings, owing

to their hum-free construction.

They can further be used in all

areas where there is only a lim-

ited amount of space available,

e.g. in air conditioners, heating

systems, pumps and fans - basi-

cally in all simple electrical con-

trols.

AC and DC operation

EN 60 947-4-1

(VDE 0660 Part 102).

Surge suppression

The 3TG10 contactors are fitted

with an integrated protective cir-

cuit for damping opening

surges.

Overload and short-circuit pro-

tection

The 3UA7 overload relay can be

used for overload protection

(see NS E catalogue, available

in German). This applies both

for contactor mounting and for

mounting as a single unit.

The data for short-circuit protec-

tion of the contactors without

using an overload relay are pro-

vided in the technical data.

Ratings Main Rated control

supply voltage Us

Order No. Weight Pack

Utilization category contacts approx.

AC-1

maximum

resistive

load

Horsepower

ratings of

three-phase

loads at

50 Hz 400 V

AC-3

maximum

inductive

current

Design

CNONAWkA kg Units

With screw connections, 4-pin

for screwing and snapping onto 35 mm standard mounting rail · hum-free

AC operation

zH 054–54 ,V 032–44.8502 3TG10 10-0AL2 0.15 10

110 V, 45–450 Hz 3TG10 10-0AG2

24 V, 45–450 Hz 3TG10 10-0AC2

3 1 230 V, 45–450 Hz 3TG10 01-0AL2 0.15 10

110 V, 45–450 Hz 3TG10 01-0AG2

24 V, 45–450 Hz 3TG10 01-0AC2

DC operation

V 42 CD–44.8502 3TG10 10-0BB4 0.15 10

3 1 DC 24 V 3TG10 01-0BB4

With tab connectors 6.3 x 0.8 mm, 4-pin

for screwing and snapping onto 35 mm standard mounting rail · hum-free

AC operation

zH 054–54 ,V 032–44.8561 3TG10 10-1AL2 0.14 10

110 V, 45–450 Hz 3TG10 10-1AG2

24 V, 45–450 Hz 3TG10 10-1AC2

3 1 230 V, 45–450 Hz 3TG10 01-1AL2 0.14 10

110 V, 45–450 Hz 3TG10 01-1AG2

24 V, 45–450 Hz 3TG10 01-1AC2

DC operation

V 42 CD–44.8561 3TG10 10-1BB4 0.14 10

3 1 DC 24 V 3TG10 01-1BB4

Overview Application

Selection and ordering data

3TG10 ..-0

3TG10 ..-1

1) The links for paralleling can be reduced by one

pole. The rated operational currents are valid for

each pole. The links for paralleling are insu-

lated.

List

Price $

11/82 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/76

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TG10 power relays

General data

Mechanical endurance operating

cycles 3 mill.

Electrical endurance at Ieoperating

cycles AC-1

AC-3 0.1 million

0.4 million

Rated insulation voltage UiV)3 eerged noitullop( 400

Rated impulse withstand voltage Uimp kV 4

Safe isolation acc. to DIN VDE 0106 Part 101 and A1 (draft 2/89)

between coil and contacts Vup to 300

Permissible ambient temperature in operation1)

when stored °C

°C –25 ... +55

–50 ... +80

Degree of protection acc. to IEC 60 947-1 and IEC 60 529 (VDE 0470 Part 1) IP 00, coil system IP 20

Power consumption of the coils (with coil in cold state and 1.0 x Us)

AC operation 45 – 450 Hz

p.f.

DC operation

4.4

0.9 (hum-free)

Coil voltage tolerance 0.85 to 1.1 x Us

Operating times (break-time = opening time + arcing time) AC operation DC operation

Closing closing time

opening time NO

NC ms

ms 10 ... 50

5 ... 45 11 ... 50

5 ... 45

Opening opening time

closing time NO

NC ms

ms 20 ... 30

20 ... 30 19 ... 35

21 ... 39

smemit gnicrA 10 to 15

Shock resistance noitarepo CD dna CAeslup ralugnatcer g/ms 5.1/5 and 3.5/10

noitarepo CD dna CAeslup enis g/ms 7.9/5 and 5.2/10

Operating frequency zin operating cycles per hour ycneuqerf .po daol-oNnoitarepo detaR for AC-1

for AC-2

for AC-3

1/h

10000

1000

500

1000

Short-circuit protection

Fuse links

Utilisation category gL/gG NH Type 3NA

DIAZED

NEOZED Type 5SB

Type 5SE

acc. to IEC 60 947-4-1 Type of coordination "1"

(DIN VDE 0660 Part 102) Type of coordination "2" A

A25

Miniature circuit-brea Acitsiretcarahc-Crek 10

Load ratings with AC

AC-1 utilisation category, switching resistive load

Rated operational current Ie at 55 °C to 400 V 1)

with screw connection

with tab connector A

A20

Ratings UeV1 = .f.p sdaol esahp-eerht fo 400 230/220

with screw connection

with tab connector kW

kW 13

10 7.5

6.0

Minimum conductor cross-section with Ie load mm22.5

Technical data

1) If the three main conducting paths are loaded

with 20 A and I > 10 A for the fourth conducting path: the permissible ambient temperature is

40 °C.

11/83

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/77

Function Relays, Interfaces and Converters

3TG10 power relays

SIMIREL

Load ratings with AC

AC-2 and AC-3 utilisation categories

Rated operational currents Ie up to 400 V A 8.4

Ratings of motors with slipring or squirrel-cage rotor at

50 Hz and 60 Hz and at 400 V kW 4

AC-5a utilisation category (permissible supply impedance: 0.5

Switching gas discharge lamps

per main conducting path at 50 Hz 230 V Uncorrected Lead-lag

Rating per lamp W 18 36 58 18 36 58

Rated operational current per lamp A 0.37 0.43 0.67 2 x 0.11 2 x 0.21 2 x 0.32

Number of lamps unit 43 37 24 2 x 81 2 x 42 2 x 28

Switching gas discharge lamps with correction, electronic ballast

per main conducting path at 50 Hz 230 V Parallel correction Electr. ballast, 1 lamp Electr. ballast, 2 lamps

Rating per lamp W 18 36 58 18 36 58 18 36 58

Capacitor F 4.5 4.5 7 6.8 6.8 10 10 10 22

Rated operational current per lamp A 0.11 0.21 0.32 0.10 0.18 0.27 0.18 0.35 0.52

Number of lamps unit 15 15 10 39 39 26 2 x26 2 x 26 2 x1

AC-5b utilisation category, switching incandescent lamps

per main conducting path at 50 Hz 230 V kW 1.6

Load ratings with DC

DC-1 utilisation category, switching resistive load ( 1 ms)

Rated operational current IeConducting paths connected in series 1 2 3 4

up to 24 V

60 V A

A16

616

16 18

18 20

110 V

220 V/240 V A

0.8 6

1.6 16

620

DC-3 and DC-5 utilisation categories,

shunt and series motors ( 15 ms)

Rated operational current IeConducting paths connected in series 1 2 3 4

up to 24 V

60 V A

A10

0.5 16

516

16 18

110 V

220 V/240 V A

A0.15

–0.35

–10

1.75 10

Conductor cross-sections for designs

with screw connections

Screw connection

Finely stranded with end sleeve (DIN 46 228, style A/D/C)

Solid mm2

mm2

2 x (0.75 to 2.5)

2 x (1 to 2.5)

1 x 4

with tab connectors

Finely stranded

When using push-on contact acc. to DIN 46 245/46 247 6.3 to 1

6.3 to 2.5 mm2

mm2

0.5 to 1

1 to 2.5

s and u ratings (screw connection)

Rated insulation voltage AC V 600

Conventional thermal

current

Free air and enclosed A 20

Maximum horsepower ratings

(s and u-approved values)

Ratings of three-phase motors

at 60 Hz

1-phase 3-phase

at 115 V

200 V

230 V

460 V/575 V

600 V

1/2

11/2

–

Technical data

----

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TG10 power relays

11/84 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Product Category: SIRIUS Contactors, OL’s, MSP’s

Siemens / Industrial Controls Previous folio: IC10 11/78

Function Relays, Interfaces and Converters

3TG10 power relays

SIMIREL

For contactor Design Order No. Weight Pack

approx.

Max. rated operational

currents

Ie/AC-1 (at 55 °C)

of contactors

Max.

conductor

cross-sections

Type A mm2PG 101 kg Units

Links for paralleling (star jumpers)

3-pole without terminal 1)2)

3TG10 16

Star jumpers can be

reduced by one pole

–3RT1 916-4BA31 0.004 1

3-pole with terminal 1)3)

3TG10 40 25 3RT1 916-4BB31 0.013 1

4-pole with terminal 1)4)

3TG10 50 25 3RT1 916-4BB41 0.02 1

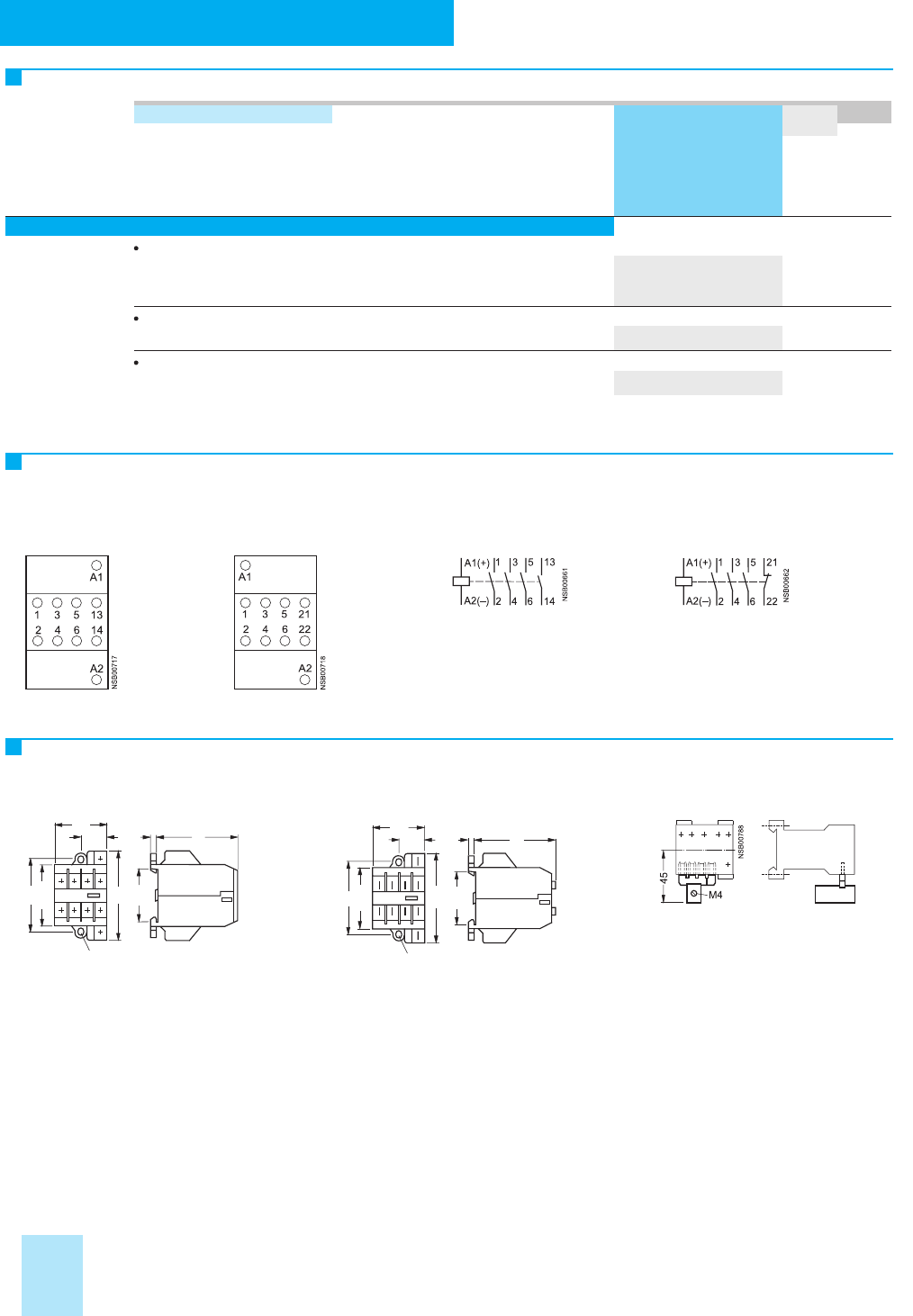

Position of terminals Internal circuit diagram

3TG10 10

1 NO 3TG10 01

1 NC 3TG10 10

1 NO

Ident. 10E

3TG10 01

1 NC

01E

AC and DC operation Accessories for 3TG10

3TG10 ..-0..

with screw connections 3TG10 ..-1..

with tab connectors 3RT19 16-4BB41 links for paralleling,

4-pole, with terminal

Accessories

Circuit diagrams

Dimension drawings

42,5

3,5x4,7

NSB00785a

42,5

5x4

NSB00786a

The links for paralleling can be reduced by

one pole.

1) The links for paralleling can be reduced by one

pole. The rated operational currents are valid for

each pole. The links for paralleling are insu-

lated.

2) Replacement type for 3TX44 90-2C.

3) Replacement type for 3TX44 90-2A.

4) Replacement type for 3TX44 90-2B.

5) Can be snapped onto 35 mm standard mount-

ing rails.

List

Price $

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TG10 power relays

11/85

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

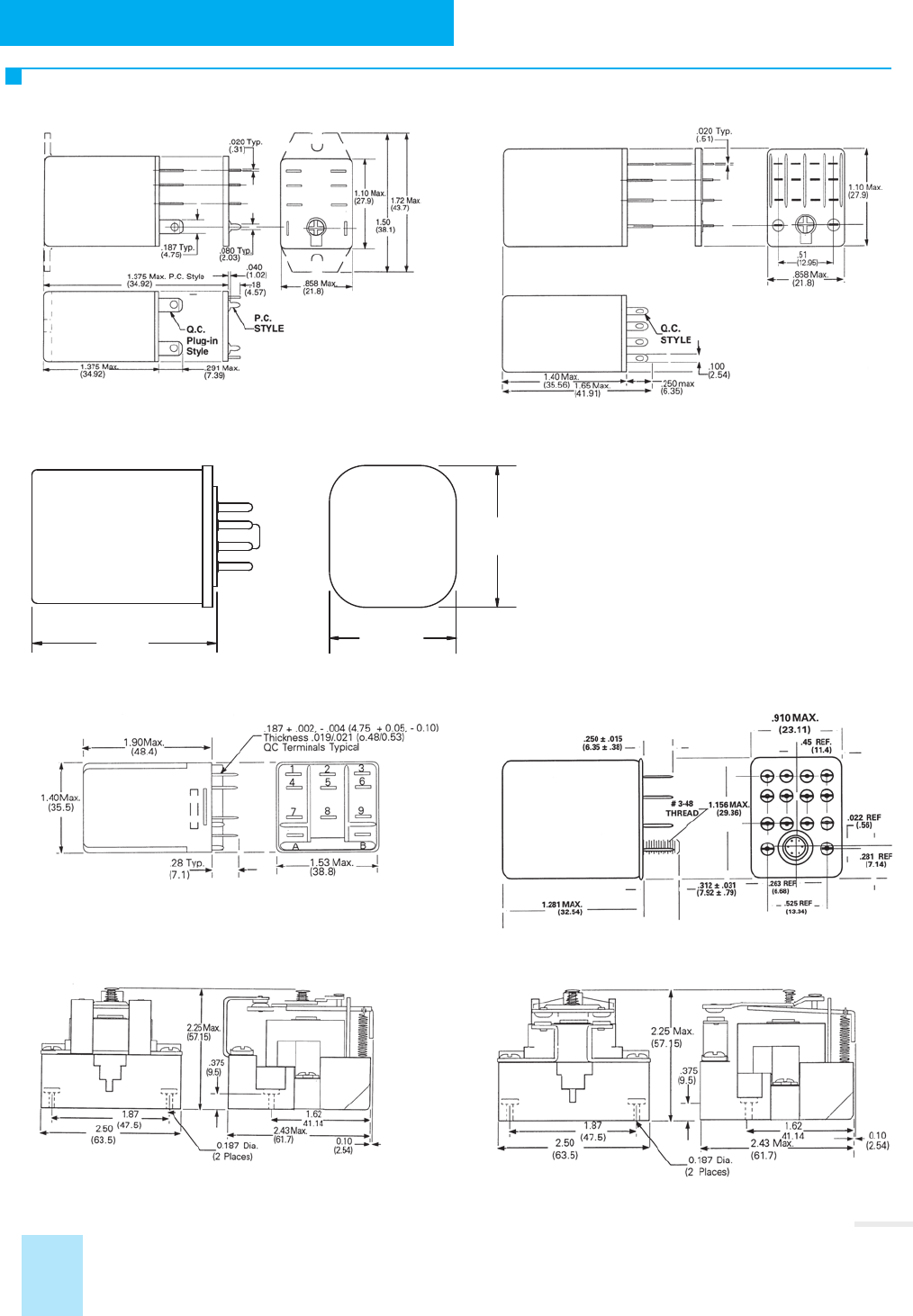

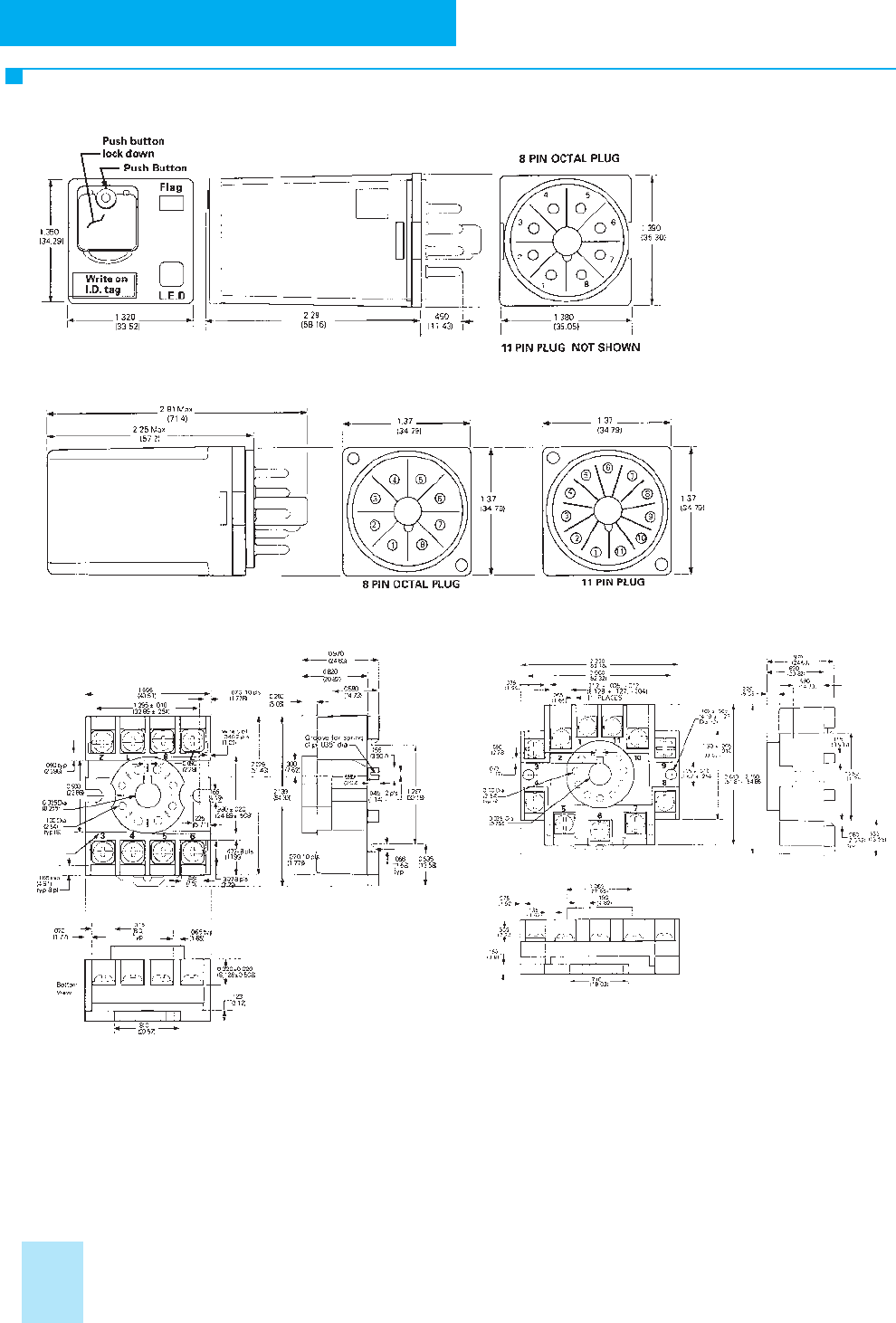

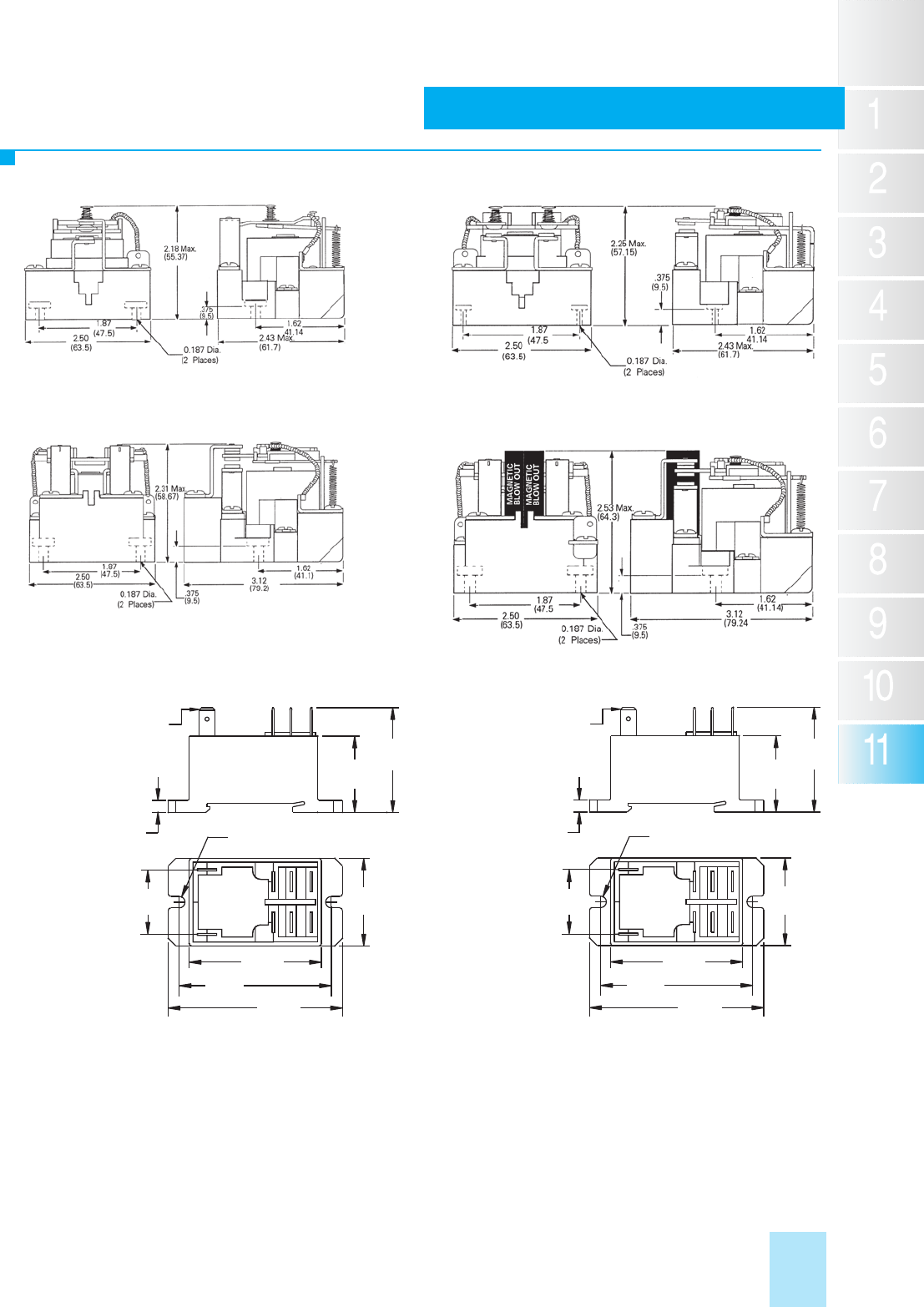

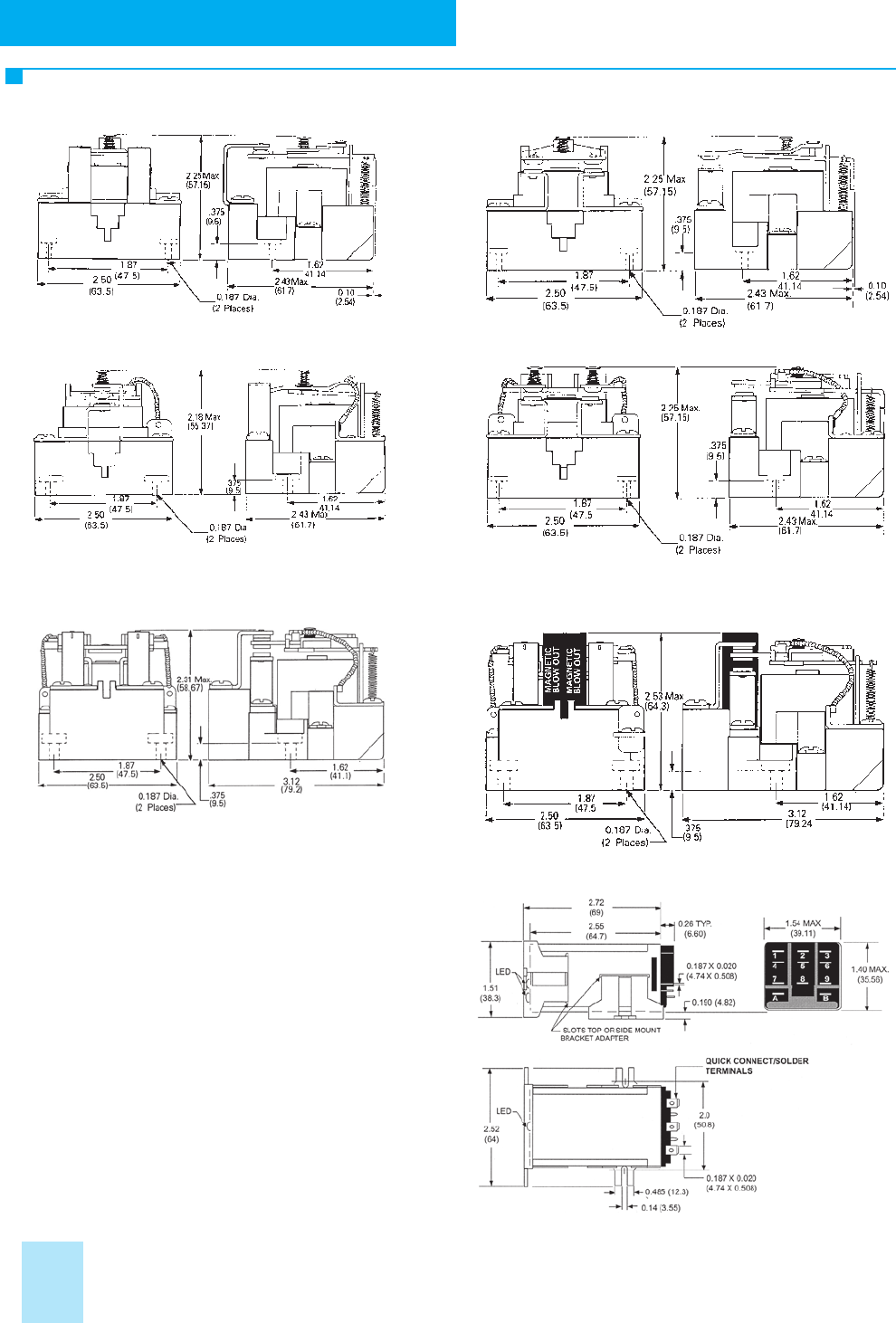

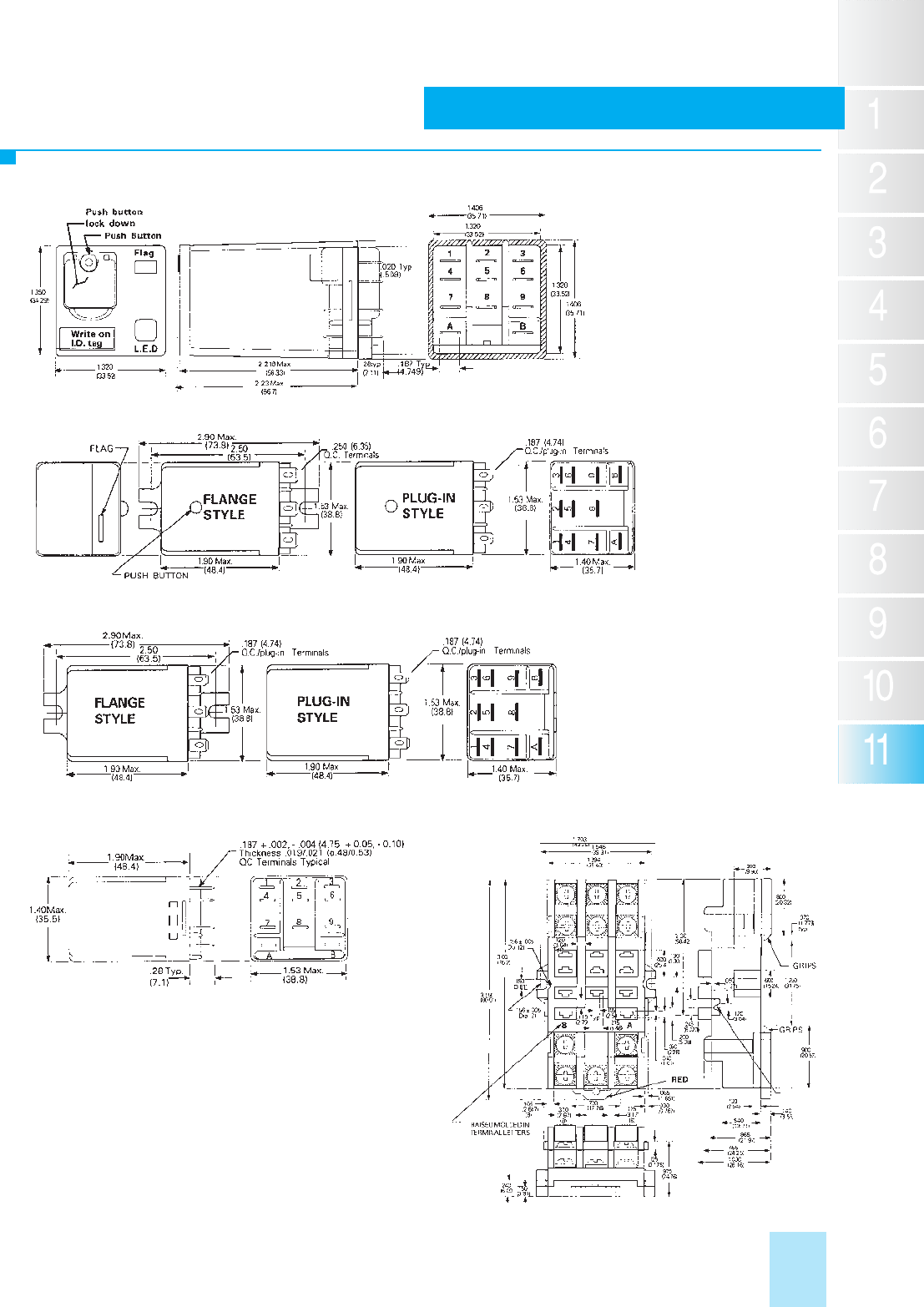

Siemens offers a wide range of plug-in relays to meet your indus-

trial needs. Basic style relays are the most economical and are

equipped with a mechanical flag indicator only . Premium style

relays are full featured with LED and mechanical flag indication,

push to test button and typically a latching hold down door which

provides a method of activating the contacts without applying

power to the coil. This feature is very handy during comissioning

and troubleshooting. Premium Bifurcated style relays are ideal

for low minimum holding current requirements on the contacts.

Typical minimum holding current for bifurcated contacts is 3mA

instead of 100mA.

Relays are divided up by the following functions for selection:

• Base style

• Contact Arrangement

• Contact Rating

• Coil Voltage

• Optional Features (Basic, Premium and Premium Bifurcated)

Product Category: SMRL

Siemens / Industrial Controls Previous folio: IC10 11/79

Selection and ordering data

Square Base (Narrow)

Contacts Contact

Rating (A)

Coil

Voltage Basic Relay Premium Relay Premium

Bifurcated

Uses Socket

3TX7144-

Uses Clip

3TX7144-

Socket

Access

Set

Panel Mount

Adaptor

3TX7144-

DIN Rail Mount

Adaptor

3TX7144-

SPDT

20A for Basic

and Premium

and 3A for

Bifurcated

24 VDC 3TX7110-5BC03C 3TX7110-5JC03 3TX7110-5JC03B 3TX7144-4E7 1L7 B 3L5 3L4

24 VAC 3TX7110-5BC13C 3TX7110-5JC13 3TX7110-5JC13B 3TX7144-4E7 1L7 B 3L5 3L4

120 VAC 3TX7110-5BF13C 3TX7110-5JF13 3TX7110-5JF13B 3TX7144-4E7 1L7 B 3L5 3L4

Square Base (Standard)

Contacts Contact

Rating (A)

Coil

Voltage Basic Relay Premium Relay Premium

Bifurcated

Uses Socket

3TX7144-

Uses Clip

3TX7144-

Socket

Access

Set

Panel Mount

Adaptor

3TX7144-

DIN Rail Mount

Adaptor

3TX7144-

SPDT 20

12 VDC 3TX7109-5BB03C 3TX7109-5JB03 — 3TX7144-4E6 1L6 B 3L7 3L6

24 VDC 3TX7109-5BC03C 3TX7109-5JC03 — 3TX7144-4E6 1L6 B 3L7 3L6

24 VAC 3TX7109-5BC13C 3TX7109-5JC13 — 3TX7144-4E6 1L6 B 3L7 3L6

120 VAC 3TX7109-5BF13C 3TX7109-5JF13 — 3TX7144-4E6 1L6 B 3L7 3L6

DPDT

10A for Basic

and Premium

and 3A for

Bifurcated

24 VDC 3TX7111-3DC03C 3TX7111-3LC03 — 3TX7144-4E5 1L6 B 3L7 3L6

24 VAC 3TX7111-3DC13C 3TX7111-3LC13 — 3TX7144-4E5 1L6 B 3L7 3L6

120 VAC 3TX7111-3DF13C 3TX7111-3LF13 — 3TX7144-4E5 1L6 B 3L7 3L6

DPDT 15

12 VDC 3TX7114-5DB03C 3TX7114-5LB03 — 3TX7144-4E6 1L6 B 3L7 3L6

24VDC 3TX7114-5DC03C 3TX7114-5LC03 — 3TX7144-4E6 1L6 B 3L7 3L6

24VAC 3TX7114-5DC13C 3TX7114-5LC13 — 3TX7144-4E6 1L6 B 3L7 3L6

110 VDC — 3TX7114-5LF03 — 3TX7144-4E6 1L6 B 3L7 3L6

120 VAC 3TX7114-5DF13C 3TX7114-5LF13 — 3TX7144-4E6 1L6 B 3L7 3L6

240 VAC 3TX7114-5DH13C 3TX7114-5LH13 — 3TX7144-4E6 1L6 B 3L7 3L6

DPDT 16

12 VDC 3TX7115-5DB03C — — 3TX7144-4E4 1L12 A — —

24VDC 3TX7115-5DC03C 3TX7115-5LC03 — 3TX7144-4E4 1L12 A — —

24VAC 3TX7115-5DC13C 3TX7115-5LC13 — 3TX7144-4E4 1L12 A — —

120 VAC 3TX7115-5DF13C 3TX7115-5LF13 — 3TX7144-4E4 1L12 A — —

DPDT

Note: No Lock

Down Door on

Premium Style

12 VDC — 3TX7119-5LB03 — 3TX7144-4E4 1L12 A — —

24VDC — 3TX7119-5LC03 — 3TX7144-4E4 1L12 A — —

24VAC — 3TX7119-5LC13 — 3TX7144-4E4 1L12 A — —

120 VAC — 3TX7119-5LF13 — 3TX7144-4E4 1L12 A — —

240 VAC — 3TX7119-5LH13 — 3TX7144-4E4 1L12 A — —

Note: See page 11/90 for socket accessories.

Option Basic Premium Premium Bifurcated

Mechanical Flag

uuu

Push To Test

u u

Lock Down Door

u u

LED

u u

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TX71 plug-in relays

11/86 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Product Category: SMRL

Siemens / Industrial Controls Previous folio: IC10 11/80

Square Base (Standard)

Contacts Contact

Rating (A)

Coil

Voltage Basic Relay Premium Relay Premium

Bifurcated

Uses Socket

3TX7144-

Uses Clip

3TX7144-

Socket

Access

Set

Panel Mount

Adaptor

3TX7144-

DIN Rail Mount

Adaptor

3TX7144-

3PDT 15

24VDC 3TX7116-5FC03C 3TX7116-5NC03 — 3TX7144-4E8 1L9 A 1M3 1M4

120 VAC 3TX7116-5FF13C 3TX7116-5NF13 — 3TX7144-4E8 1L9 A 1M3 1M4

3PDT 16

12 VDC 3TX7115-5FB03C 3TX7115-5NB03 — 3TX7144-4E4 1L12 A — —

24VDC 3TX7115-5FC03C 3TX7115-5NC03 — 3TX7144-4E4 1L12 A — —

24VAC 3TX7115-5FC13C 3TX7115-5NC13 — 3TX7144-4E4 1L12 A — —

120 VAC 3TX7115-5FF13C 3TX7115-5NF13 — 3TX7144-4E4 1L12 A — —

240 VAC 3TX7115-5FH13C 3TX7115-5NH13 — 3TX7144-4E4 1L12 A — —

4PDT

10A for Basic

and Premium

and 3A for

Bifurcated

24VDC 3TX7111-3HC03C 3TX7111-3PC03 3TX7111-5PC03B 3TX7144-4E5 1L6 B 3L7 3L6

24VAC 3TX7111-3HC13C 3TX7111-3PC13 3TX7111-5PC13B 3TX7144-4E5 1L6 B 3L7 3L6

120 VAC 3TX7111-3HF13C 3TX7111-3PF13 3TX7111-5PF13B 3TX7144-4E5 1L6 B 3L7 3L6

4PDT 15

24VDC 3TX7117-5HC03C 3TX7117-5PC03 — 3TX7144-4E9 1L10 A 1M5 1M6

24VAC 3TX7117-5HC13C 3TX7117-5PC13 — 3TX7144-4E9 1L10 A 1M5 1M6

120 VAC 3TX7117-5HF13C 3TX7117-5PF13 — 3TX7144-4E9 1L10 A 1M5 1M6

Selection and ordering data

Note: See page 11/90 for socket accessories.

Specialty Relay

Contacts Contact

Rating (A)

Coil

Voltage Basic Relay Premium Relay Premium

Bifurcated

Uses Socket

3TX7144-

Uses Clip

3TX7144-

Socket

Access

Set

Panel Mount

Adaptor

3TX7144-

DIN Rail Mount

Adaptor

3TX7144-

DPDT

Latching 16

24 VDC 3TX7137-5DC03 — — 3TX7144-1E4 1L12 — — —

24 VAC 3TX7137-5DC13 — — 3TX7144-1E4 1L12 — — —

120 VAC 3TX7137-5DF13 — — 3TX7144-1E4 1L12 — — —

Function Relays, Interfaces and Converters

3TX71 plug-in relays

Option Basic Premium Premium Bifurcated

Mechanical Flag

uuu

Push To Test

u u

Lock Down Door

u u

LED

u u

11/87

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Product Category: SMRL

Siemens / Industrial Controls Previous folio: IC10 11/81

Standard Octal Base

Contacts Contact

Rating (A)

Coil

Voltage Basic Relay Premium Relay Premium

Bifurcated

Uses Socket

3TX7144-

Uses Clip

3TX7144-

Socket

Access

Set

Panel Mount

Adaptor

3TX7144-

DIN Rail Mount

Adaptor

3TX7144-

DPDT 16

12 VDC 3TX7112-1DB03C 3TX7112-1LB03 — 3TX7144-4E2 1L14 A — —

24VDC 3TX7112-1DC03C 3TX7112-1LC03 — 3TX7144-4E2 1L14 A — —

24VAC 3TX7112-1DC13C 3TX7112-1LC13 — 3TX7144-4E2 1L14 A — —

110 VDC 3TX7112-1DF03C 3TX7112-1LF03 — 3TX7144-4E2 1L14 A — —

120 VAC 3TX7112-1DF13C 3TX7112-1LF13 — 3TX7144-4E2 1L14 A — —

3PDT 16

12 VDC 3TX7112-1FB03C 3TX7112-1NB03 — 3TX7144-4E3 1L14 A — —

24VDC 3TX7112-1FC03C 3TX7112-1NC03 — 3TX7144-4E3 1L14 A — —

24VAC 3TX7112-1FC13C 3TX7112-1NC13 — 3TX7144-4E3 1L14 A — —

110 VDC — 3TX7112-1NF03 — 3TX7144-4E3 1L14 A — —

120 VAC 3TX7112-1FF13C 3TX7112-1NF13 — 3TX7144-4E3 1L14 A — —

220/230 VAC — 3TX7112-1NG13 — 3TX7144-4E3 1L14 A — —

Selection and ordering data

Hermetically Sealed

Contacts Contact

Rating (A)

Coil

Voltage Basic Relay Premium Relay Premium

Bifurcated

Uses Socket

3TX7144-

Uses Clip

3TX7144-

Socket

Access

Set

Panel Mount

Adaptor

3TX7144-

DIN Rail Mount

Adaptor

3TX7144-

DPDT 12

12 VDC 3TX7127-5HB00 — — 3TX7144-4E2 1L12 A — —

24 VDC 3TX7127-5HC00 — — 3TX7144-4E2 1L12 A — —

110 VDC 3TX7127-5HF00 — — 3TX7144-4E2 1L12 A — —

120 VAC 3TX7127-5HF10 — — 3TX7144-4E2 1L12 A — —

4PDT 3

24VDC 3TX7127-3HC00 — — 3TX7144-4E5 1L11 B — —

24VAC 3TX7127-3HC10 — — 3TX7144-4E5 1L11 B — —

120 VAC 3TX7127-3HF10 — — 3TX7144-4E5 1L11 B — —

4PDT 5

12 VDC 3TX7127-3HB03 — — 3TX7144-4E5 1L11 B — —

24VDC 3TX7127-3HC03 — — 3TX7144-4E5 1L11 B — —

120 VAC 3TX7127-3HF13 — — 3TX7144-4E5 1L11 B — —

Note: See page 11/90 for socket accessories.

Function Relays, Interfaces and Converters

3TX71 plug-in relays

Option Basic Premium Premium Bifurcated

Mechanical Flag

uuu

Push To Test

u u

Lock Down Door

u u

LED

u u

11/88 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Product Category: SMRL

Siemens / Industrial Controls Previous folio: IC10 11/82

Selection and ordering data

Enclosed Power Relays

Contacts Contact

Rating (A)

Coil

Voltage Basic Relay

DPST-NO 30

24VAC 3TX7131-4CC13

120 VAC 3TX7131-4CF13

230 VAC 3TX7131-4CH13

DPDT 30 NO/3 NC

12 VDC 3TX7131-4DB03

24 VDC 3TX7131-4DC03

24VAC 3TX7131-4DC13

120 VAC 3TX7131-4DF13

230 VAC 3TX7131-4DH13

SPDT 30 NO/15 NC

5 VDC 3TX7132-6BA03

12 VDC 3TX7132-6BB03

24 VDC 3TX7132-6BC03

120 VAC 3TX7132-6BF13

Note: See page 11/90 for socket accessories.

Open Power Relays

Contacts Contact

Rating (A)

Coil

Voltage Basic Relay Metal Cover

7144-

SPST NO-DM

24VAC 3TX7130-0AC13 1M0

SPST NO-DM 120 VAC 3TX7130-0AF13 1M0

SPST NO-DM 240 VAC 3TX7130-0AH13 1M0

SPST NC-DM 240 VDC 3TX7130-0AC03 1M0

SPST NC-DM

120 VAC 3TX7130-0QF13 1M0

SPDT 24 VAC 3TX7130-0BC13 1M0

SPDT 120 VAC 3TX7130-0BF13 1M0

SPDT 240 VAC 3TX7130-0BH13 1M0

SPDT 277 VAC 3TX7130-0BS13 1M0

DPDT 40

24 VAC 3TX7130-0DC13 1M0

120 VAC 3TX7130-0DF13 1M0

240 VAC 3TX7130-0DH13 1M0

277 VAC 3TX7130-0DS13 1M0

12 VDC 3TX7130-0DB03 1M0

24 VDC 3TX7130-0DC03 1M0

48 VDC 3TX7130-0DD03 1M0

110 VDC 3TX7130-0DF03 1M0

DPST NO 40

24 VAC 3TX7130-0CC13 1M0

120 VAC 3TX7130-0CF13 1M0

240 VAC 3TX7130-0CH13 1M0

277 VAC 3TX7130-0CS13 1M0

12 VDC 3TX7130-0CB03 1M0

24 VDC 3TX7130-0CC03 1M0

48 VDC 3TX7130-0CD03 1M0

110 VDC 3TX7130-0CF03 1M0

DPDT

(Mag Blowout) 40

120 VAC 3TX7130-0RF13 1M0

12 VDC 3TX7130-0RB03 1M0

24 VDC 3TX7130-0RC03 1M0

48 VDC 3TX7130-0RD03 1M0

110 VDC 3TX7130-0RF03 1M0

Function Relays, Interfaces and Converters

3TX71 plug-in relays

11/89

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

11/89

Product Category: SMRL

Siemens / Industrial Controls Previous folio: IC10 11/83

Selection and ordering data

Octal Based Timers

Contacts Contact

Rating (A)

Coil

Voltage Basic Relay Time Range Function Uses Socket

3TX7144-

Uses Clip

3TX7144-

Socket

Access

Set

Panel Mount

Adaptor

3TX7144-

DIN Rail Mount

Adaptor

3TX7144-

DPDT 12

24 V AC/DC OND-DFOB-24 0.1S - 10h A, C 3TX7144-4E2 1L8 A — —

120 V AC/DC OND-DFOB-120 0.1S - 10h A, C 3TX7144-4E2 1L8 A — —

240 VAC OND-DFOB-240 0.1S - 10h A, C 3TX7144-4E2 1L8 A — —

DPDT 12

24V AC/DC OFD-DFOB-24 0.1S - 10h D, E 3TX7144-4E3 1L8 A — —

120 V AC/DC OFD-DFOB-120 0.1S - 10h D, E 3TX7144-4E3 1L8 A — —

240 VAC OFD-DFOB-240 0.1S - 10h D, E 3TX7144-4E3 1L8 A — —

Square Based Timers

Contacts Contact

Rating (A)

Coil

Voltage Basic Relay Time Range Function Uses Socket

3TX7144-

Uses Clip

3TX7144-

Socket

Access

Set

Panel Mount

Adaptor

3TX7144-

DIN Rail Mount

Adaptor

3TX7144-

DPDT 12

24V AC/DC OND-DFSB-24 0.1S - 10h A, C 3TX7144-1E4 1L8 — — —

120 V AC/DC OND-DFSB-120 0.1S - 10h A, C 3TX7144-1E4 1L8 — — —

240 VAC OND-DFSB-240 0.1S - 10h A, C 3TX7144-1E4 1L8 — — —

DPDT 12

24V AC/DC OFD-DFSB-24 0.1S - 10h D, E 3TX7144-1E4 1L8 — — —

120 V AC/DC OFD-DFSB-120 0.1S - 10h D, E 3TX7144-1E4 1L8 — — —

240 VAC OFD-DFSB-240 0.1S - 10h D, E 3TX7144-1E4 1L8 — — —

Front Panel Timers

Contacts Contact

Rating (A)

Coil

Voltage Basic Relay Time Range Function Uses Socket

3TX7144-

Uses Clip

3TX7144-

Socket

Access

Set

Panel Mount

Adaptor

3TX7144-

DIN Rail Mount

Adaptor

3TX7144-

DPDT

12-240V AC/DC OFD-DFPR-00 0.1S - 9990h A,B,C,D,E,F,G,H,I,J 3TX7144-4E3 1L25 — — —

SPDT 12-240V AC/DC OND-DFPR-01 0.1S - 9990h A,B,C,D,E,F,G,H,I,J 3TX7144-4E2 1L25 — — —

DPDT 12-240V AC/DC OND-DFPR-02 0.1S - 9990h A,B,C 3TX7144-4E2 1L25 — — —

Selecting Time Range

Time Range SW II SW III SW IV

0.1s - 1 s OFF OFF OFF

1s - 10s OFF OFF ON

10s - 100s OFF ON OFF

0.1m - 1m OFF ON ON

1m - 10m ON OFF OFF

10m - 100m ON OFF ON

0.1h - 1h ON ON OFF

1h - 10h ON ON ON

Selecting Function

Function for OND SW I

On Delay OFF

Interval ON

Function for OFD SW I

Off Delay OFF

One Shot ON

Note: See page 11/90 for socket accessories.

Function Relays, Interfaces and Converters

3TX71 plug-in relays

11/90 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Product Category: SMRL

Siemens / Industrial Controls Previous folio: IC10 11/84

Multifunction Timer Modes

Function Name Description

AOn Delay

(Power On)

When input voltage U is applied, timing delay t begins. Relay contacts R change state after the time delay is complete. Contacts R return to their shelf state when

input voltage U is removed. Trigger switch is not used in this function.

BRepeat Cycle

(Starting Off)

When input voltage U is applied, time delay t begins. When time delay t is complete, relay contacts R change state for time delay t. This cycle will repeat until input

voltage U is removed. Trigger switch is not used in this function.

CInterval

(Power On)

When input voltage U is applied, relay contacts R change state immediately and timing cycle begins. When time delay is complete, contacts return to shelf state.

When input voltage U is removed, contacts will also return to their shelf state. Trigger switch is not used in this function.

DOff Delay

(S Break)

Input voltage U must be applied continuously. When trigger switch S is closed, relay contacts R change state. When trigger switch S is opened, delay t begins.

When delay t is complete, contacts R return to their shelf state. If trigger switch S is closed before time delay t is complete, then time is reset. When trigger switch

S is opened, the delay begins again, and relay contacts R remain in their energized state. If input voltage U is removed, relay contacts R return to their shelf state.

ERetrigerable

One Shot

Upon application of input voltage U, the relay is ready to accept trigger signal S. Upon application of the trigger signal S, the relay contacts R transfer and the pre-

set time t begins. At the end of the preset time t, the relay contacts R return to their normal condition unless the trigger switch S is opened and closed prior to time

out t (before preset time elapses). Continuous cycling of the trigger switch S at a rate faster than the preset time will cause the relay contacts R to remain closed. If

input voltage U is removed, relay contacts R return to their shelf state.

FRepeat Cycle

(Starting On)

When input voltage U is applied, relay contacts R change state immediately and time delay t begins. When time delay t is complete, contacts return to their shelf

state for time delay t. This cycle will repeat until input voltage U is removed. Trigger switch is not used in this function.

GPulse

Generator

Upon application of input voltage U, a single output pulse of 0.5 seconds is delivered to relay after time delay t. Power must be removed and reapplied to repeat

pulse. Trigger switch is not used in this function.

H One Shot Upon application of input voltage U, the relay is ready to accept trigger signal S. Upon application of the trigger signal S, the relay contacts R transfer and the pre-

set time t begins. During time-out, the trigger signal S is ignored. The relay resets by applying the trigger switch S when the relay is not energized.

IOn/Off Delay

(S Make/Break)

Input voltage U must be applied continuously. When trigger switch S is closed, time delay t begins. When time delay t is complete, relay contacts R change state

and remain transferred until trigger switch S is opened. If input voltage U is removed, relay contacts R return to their shelf state.

JMemory Latch

(S Make)

Input voltage U must be applied continuously. Output changes state with every trigger switch S closure. If input voltage U is removed, relay contacts R return to

their shelf state.

Access.

Series MOV MOV R/C R/C Diode

24VAC/DC 120VAC/DC 6-24VAC/DC 110-240VAC/DC 6-250VDC

A 3TX7144-H1 3TX7144-H2 3TX7144-H4 3TX7144-H5 3TX7144-H6

B 3TX7144-H9 3TX7144-H17 — — 3TX7144-H12

Socket Accessories

Function Relays, Interfaces and Converters

3TX71 plug-in relays

11/91

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/85

Contact Characteristics Units 3TX7109 3TX7110 3TX7111

Number and Type of Contacts SPDT SPDT SPDT DPDT DPDT 4PDT 4PDT

Contact Material Silver Alloy Silver Alloy Silver Alloy Silver Alloy Silver Alloy Silver Alloy Silver Alloy

Thermal (Carrying) Current A 20 20 3 (Bifurcated) 10 3 (Bifurcated) 10 3 (Bifurcated)

Maximum Switching Voltage V 300 300 300 300 300 300 300

Switching Current at Voltage Resistive 16A @240V 20A @240V 3A @240V 8A @240V 3A @240V 8A @240V 3A @240V

Resistive 16A @120V 20A @120V — 10A @120V 3A @120V 10A @120V 3A @120V

Resistive 16A @ 28 20A @ 28 — 8A @ 28 3A @ 30 8A @ 28 3A @ 30

HP 1/2 @ 120VAC 1/2 @ 120VAC — 1/3 @ 120VAC 1/16 @ 120VAC 1/3 @ 120VAC 1/16 @ 120VAC

HP 1 @ 240VAC 1 @ 240VAC — 1 @ 240VAC — 1 @ 240VAC —

Pilot Duty B300 B300 — B300 — B300 —

Minimum Switching Requirement mA 100 @ 5VDC (.5W) 100 @ 5VDC (.5W) 3 @ 17VDC (.4W) 100 @ 5VDC (.5W) 3 @ 17VDC (.4W) 100 @ 5VDC (.5W) 3 @ 17VDC (.4W)

Coil Characteristics

Voltage Range AC V 6…240 6…240 6…240 6…240 6…240 6…240 6…240

DC V 6…125 6…125 6…125 6…125 6…125 6…125 6…125

Operating Range AC % 85 to 110 85 to 110 85 to 110 85 to 110 85 to 110 85 to 110 85 to 110

DC % 80 to 110 80 to 110 80 to 110 80 to 110 80 to 110 80 to 110 80 to 110

Average Consumption AC VA 1.2 0.9 0.9 1.2 1.2 1.2 1.2

DC W 0.9 0.7 0.7 0.9 0.9 0.9 0.9

Drop-out Voltage Threshold AC % 15 15 15 15 15 15 15

DC % 10 10 10 10 10 10 10

Performance Characteristics

Electrical Life (UL508) Operations @ Rated Current (Resistive) 100,000 100,000 100,000 200,000 200,000 200,000 200,000

Mechanical Life Unpowered 10,000,000 10,000,000 10,000,000 10,000,000 10,000,000 10,000,000 10,000,000

Operating Time (response time) ms 20 20 20 20 20 20 20

Dialectric Strength Between Coil and Contact V(rms) 2500 2500 2500 2500 2500 2500 2500

Between Poles V(rms) 1500 1500 1500 1500 1500 1500 1500

Between Contacts V(rms) 1500 1500 1500 1500 1500 1500 1500

Environment

Product Certifications Standard Version UL,RoHS UL,RoHS UL,RoHS UL,RoHS UL,RoHS UL,RoHS UL,RoHS

Ambient Air Temperature Storage °C -40…+85 -40…+85 -40…+85 -40…+85 -40…+85 -40…+85 -40…+85

around the Device Operational °C -40…+55 -40…+55 -40…+55 -40…+55 -40…+55 -40…+55 -40…+55

Vibration Resistance Operational g-n 3, 10 - 55 Hz 3, 10 - 55 Hz 3, 10 - 55 Hz 3, 10 - 55 Hz 3, 10 - 55 Hz 3, 10 - 55 Hz 3, 10 - 55 Hz

Shock Resistance g-n 10 10 10 10 10 10 10

Degree of Protection IP40 IP40 IP40 IP40 IP40 IP40 IP40

Weight grams 36 29 29 36 36 36 36

Contact Characteristics Units 3TX7112 3TX7114 3TX7115 3TX7116 3TX7117

Number and Type of Contacts DPDT 3PDT DPDT DPDT 3PDT 3PDT 4PDT

Contact Material Silver Alloy Silver Alloy Silver Alloy Silver Alloy Silver Alloy Silver Alloy Silver Alloy

Thermal (Carrying) Current A 16 16 15 16 16 15 15

Maximum Switching Voltage V 300 300 300 300 300 300 300

Switching Current at Voltage Resistive 16A @240V 16A @240V 12A @277V 16A @277V 16A @277V 12A @277V 12A @277V

Resistive 16A @120V 16A @120V 15A @120V 16A @120V 16A @120V 15A @120V 15A @120V

Resistive 16A @ 28 16A @ 28 12A @ 28 16A @ 28 16A @ 28 12A @ 28 12A @ 28

HP 1/3 @ 120VAC 1/3 @ 120VAC 1/2 @ 120VAC 1/3 @ 120VAC 1/3 @ 120VAC 1/2 @ 120VAC 1/2 @ 120VAC

HP 1/2 @ 240VAC 1/2 @ 240VAC 1 @ 240VAC 1/2 @ 240VAC 1/2 @ 240VAC 3/4 @ 240VAC 3/4 @ 240VAC

Pilot Duty B300 B300 B300 B300 B300 B300 B300

Minimum Switching Requirement mA 100 @ 5VDC (.5W) 100 @ 5VDC (.5W) 100 @ 5VDC (.5W) 100 @ 5VDC (.5W) 100 @ 5VDC (.5W) 100 @ 5VDC (.5W) 100 @ 5VDC (.5W)

Coil Characteristics

Voltage Range AC V 6…240 6…240 6…240 6…240 6…240 6…240 6…240

DC V 6…125 6…125 6…125 6…125 6…125 6…125 6…125

Operating Range AC % 85 to 110 85 to 110 85 to 110 85 to 110 85 to 110 85 to 110 85 to 110

DC % 80 to 110 80 to 110 80 to 110 80 to 110 80 to 110 80 to 110 80 to 110

Average Consumption AC VA 1.2 1.2 1.2 1.2 1.2 1.5 1.5

DC W 0.9 0.9 0.9 0.9 0.9 1.4 1.5

Drop-out Voltage Threshold AC % 15 15 15 15 15 15 15

DC % 10 10 10 10 10 10 10

Performance Characteristics

Electrical Life (UL508) Operations @ Rated Current (Resistive) 200,000 200,000 100,000 100,000 100,000 200,000 200,000

Mechanical Life Unpowered 10,000,000 10,000,000 10,000,000 10,000,000 10,000,000 10,000,000 10,000,000

Operating Time (response time) ms 20 20 20 20 20 20 20

Dialectric Strength Between Coil and Contact V(rms) 2500 2500 2500 2500 2500 2500 2500

Between Poles V(rms) 1500 1500 1500 1500 1500 2500 2500

Between Contacts V(rms) 1500 1500 1500 1500 1500 1500 2500

Environment

Product Certifications Standard Version UL,RoHS UL,RoHS UL,RoHS UL,RoHS UL,RoHS UL,RoHS UL,RoHS

Ambient Air Temperature Storage °C -40…+85 -40…+85 -40…+85 -40…+85 -40…+85 -40…+85 -40…+85

around the Device Operational °C -40…+55 -40…+55 -40…+55 -40…+55 -40…+55 -40…+55 -40…+55

Vibration Resistance Operational g-n 3, 10 - 55 Hz 3, 10 - 55 Hz 3, 10 - 55 Hz 3, 10 - 55 Hz 3, 10 - 55 Hz 3, 10 - 55 Hz 3, 10 - 55 Hz

Shock Resistance g-n 10 10 10 10 10 10 10

Degree of Protection IP40 IP40 IP40 IP40 IP40 IP40 IP40

Weight grams 89 89 36 88 88 60 60

General specifications

Function Relays, Interfaces and Converters

3TX71 plug-in relays

11/92 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/86

General specifications

Contact Characteristics Units 3TX7119 3TX7127 3TX7130

Number and Type of Contacts DPDT DPDT 4PDT 4PDT All

Contact Material Silver Alloy Silver Alloy Fine Silver Silver Alloy Silver Alloy

Thermal (Carrying) Current A 20 12 3 5 40

Maximum Switching Voltage V 600 300 300 300 600

Switching Current at Voltage Resistive 20A @300V 12A @240V 3A @240V 12A @240V 40A @277V

Resistive — 12A @120V 3A @120V —

Resistive 20A @ 28 12A @ 28 3A @ 30 40A @ 28

HP 1/3 @ 120VAC 1/3 @ 120VAC 1/16 @ 120VAC — —

HP 1/2 @ 600VAC 1/2 @ 240VAC 1/10 @ 240VAC — —

Pilot Duty B600 B300 — — —

Minimum Switching Requirement mA 100 @ 5VDC (.5W) 100 @ 5VDC (.5W) 10 @ 5VDC (.5W) 100 @ 5VDC (.5W) 1000 @ 12VAC/DC

Coil Characteristics

Voltage Range AC V 6…240 6…240 6…240 6…240 6…600

DC V 6…125 6…125 6…125 6…125 6…600

Operating Range AC % 85 to 110 85 to 110 85 to 110 85 to 110 85 to 110

DC % 80 to 110 80 to 110 80 to 110 80 to 110 80 to 110

Average Consumption AC VA 2.75 1.2 1.2 1.2 10

DC W 2 0.9 0.9 0.9 4

Drop-out Voltage Threshold AC % 15 15 15 15 10

DC % 10 10 10 10 10

Performance Characteristics

Electrical Life (UL508) Operations @ Rated Current (Resistive) 100,000 100,000 100,000 100,000 100,000

Mechanical Life Unpowered 10,000,000 10,000,000 10,000,000 10,000,000 1,000,000

Operating Time (response time) ms 20 20 20 20 30

Dialectric Strength Between Coil and Contact V(rms) 2000 1,500 1240 1240 2200

Between Poles V(rms) 2000 1,500 1240 1240 2200

Between Contacts V(rms) 1500 1500 500 500 1500

Environment

Product Certifications Standard Version UL UL,RoHS UL,RoHS UL,RoHS UL

Ambient Air Temperature Storage °C -40…+85 -40…+85 -40…+85 -40…+85 -40…+85

around the Device Operational °C -40…+55 -40…+55 -40…+70 -40…+70 -40…+70

Vibration Resistance Operational g-n 3, 10 - 55 Hz 3, 10 - 55 Hz 3, 10 - 55 Hz 3, 10 - 55 Hz 3, 10 - 55 Hz

Shock Resistance g-n 10 10 10 10 —

Degree of Protection IP40 IP67 IP67 IP67 Open

Weight grams 88 130 45 45 227 to 312

Contact Characteristics Units 3TX7131 3TX7132 3TX7136 3TX7137

Number and Type of Contacts DPST-NO DPDT DPDT SPDT SPDT DPDT DPDT

Contact Material Silver Alloy Silver Alloy Silver Alloy Silver Alloy Silver Alloy Silver Alloy Silver Alloy

Thermal (Carrying) Current A 30 30 DPDT-NO 3 DPDT-NC 30 SPDT-NO 3 DPDT-NC 12 16

Maximum Switching Voltage V 600 300 300 300 300 300 300

Switching Current at Voltage Resistive 20A @300V 30A @277V 3A @277V 30A @277V 3A @277V 12A @240V 16A @277V

Resistive — — — — — — 16A @120V

Resistive 20A @ 28 20A @ 28 3A @ 28 10A @ 28 3A @ 28 12A @ 28 16A @ 28

HP 1/3 @ 120VAC 1 @ 120VAC — 1 @ 120VAC — 1/2 @ 120VAC 1/2 @ 120VAC

HP 1/2 @ 600VAC 3 @ 240VAC — 2 @ 240VAC — 1/3 @ 240VAC 1/3 @ 240VAC

Pilot Duty — — — — — B300 B300

Minimum Switching Requirement mA 500 @ 12VAC/DC 500 @ 12VAC/DC 500 @ 12VAC/DC 1000 @ 12VAC/5VDC 500 @ 12VAC/DC 100 @ 5VDC (.5W) 100 @ 5VDC (.5W)

Coil Characteristics

Voltage Range AC V 12…240 12…240 12…240 12…277 12…277 12…120 6…240

DC V 6…110 6…110 6…110 5…110 5…110 12…110 6…125

Operating Range AC % 85 to 120 85 to 120 85 to 120 85 to 120 85 to 120 85 to 110 85 to 110

DC % 75 to 120 75 to 120 75 to 120 75 to 120 75 to 120 80 to 110 80 to 110

Average Consumption AC VA 4 4 4 2.8 2.8 1.8 3

DC W 1.7 1.7 1.7 1 1 1.8 1.4

Drop-out Voltage Threshold AC % 10 10 10 10 10 15 15

DC % 10 10 10 10 10 10 10

Performance Characteristics

Electrical Life (UL508) Operations @ Rated Current (Resistive) 100,000 100,000 100,000 100,000 100,000 100,000 100,000

Mechanical Life Unpowered 5,000,000 5,000,000 5,000,000 10,000,000 10,000,000 10,000,000 5,000,000

Operating Time (response time) ms 15 15 15 15 15 35 20

Dialectric Strength Between Coil and Contact V(rms) 4000 4000 4000 2500 2500 1500 1500

Between Poles V(rms) 2000 2000 2000 1500 1500 500 1500

Between Contacts V(rms) 1500 1500 1500 1500 1500 1500 1500

Environment

Product Certifications Standard Version UL UL UL UL UL UL UL

Ambient Air Temperature Storage °C -40…+85 -40…+85 -40…+85 -40…+85 -40…+85 -40…+85 -40…+85

around the Device Operational °C -40…+55 -40…+55 -40…+55 -40…+55 -40…+55 -40…+70 -40…+70

Vibration Resistance Operational g-n 3, 10 - 55 Hz 3, 10 - 55 Hz 3, 10 - 55 Hz 3, 10 - 55 Hz 3, 10 - 55 Hz 3, 10 - 55 Hz 3, 10 - 55 Hz

Shock Resistance g-n 10 10 10 10 10 10 10

Degree of Protection — — — — — IP40 IP40

Weight grams 86 86 86 33 33 110 87

Function Relays, Interfaces and Converters

3TX71 plug-in relays

11/93

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio:

Siemens / Industrial Controls Previous folio: IC10 11/87

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TX71 plug-in relays

Contact arrangement - throws

Contact arrangement - break

Contact arrangements overview

Single-Pole

Single-Throw

Single-Break

Double-Pole

Single-Throw

Single-Break

Single-Pole

Single-Throw

Double-Break

Double-Pole

Single-Throw

Double-Break

Single-Pole

Double-Throw

Single-Break

Double-Pole

Double-Throw

Single-Break

Single-Pole

Double-Throw

Double-Break

Double-Pole

Double-Throw

Double-Break

Overview

Throw is the number of different closed contact positions per

pole. In other words a throw describes the total number of differ-

ent circuits each pole controls.

The following abbreviations are used to indicate contact config-

urations:

SPST Single-pole, single-throw

SPDT Single-pole, double-throw

DPST Double-pole, single-throw

DPDT Double-pole, double-throw

Break is the number of separate contacts the switch uses to

open or close an individual circuits. If the relay breaks the cir-

cuit in one place, then it is a single break relay. If the relay

breaks the circuit in two places, then it is a double break relay.

This illustration shows various contact arrangement types.

11/94 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Circuit diagrams

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TX71 plug-in relays

11/95

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

11/90 Siemens Industry, Inc.

Industrial Controls Catalog

Siemens / Industrial Controls Previous folio:

3TX71 plug-in relays

Circuit diagrams

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces SIRIUS

RELAYS

3TX7119 (DPDT) 3TX7119 (3PDT)

3TX7127 (DPDT)

3TX7130 (DPDT)

3TX7127 (3PDT)

3TX7131 (DPST-NO) (AC)

3TX7130

SPST-NO

3TX7130

DPST-NO

3TX7130

SPDT

3TX7130

SPST-NC

3TX7130

DPDT

3TX7121

DPDT, 3PDT

3TX7125

DPDT

3TX7116

3PDT

3TX7126/ 3TX7127

4PDT

3TX7117

4PDT

10IC11_79-100.indd 90 3/2/11 4:28 PM

•Revised •

03/21/2011

Circuit diagrams

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TX71 plug-in relays

11/96 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TX71 plug-in relays

11/91

Siemens Industry, Inc.

Industrial Controls Catalog

3TX71 plug-in relays

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

SIRIUS

RELAYS

Circuit diagrams

OND-DFOB (DPDT) OND-DFSB (DPDT)OFD-DFOB (DPDT) OFD-DFSB (DPDT)

OFD-DFPR-00 (DPDT) OND-DFPR-01 (SPDT) OND-DFPR-02 (DPDT)

3TX7131 (DPDT) (AC)

3TX7131 (DPST-NO) (DC) 3TX7132 (SPDT) (AC)3TX7131 (DPDT) (DC)

3TX7132 (SPDT) (DC) 3TX7137 (DPDT) (DC)3TX7137 (DPDT) (AC)3TX7136

DPDT

•Revised •

03/21/2011

Circuit diagrams

11/97

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TX71 plug-in relays

11/92 Siemens Industry, Inc.

Industrial Controls Catalog

3TX71 plug-in relays

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces SIRIUS

RELAYS

Dimension drawings

3TX7110 SPDT

3TX7111 4PDT

3TX7111 DPDT

3TX7109 (SPDT) (clear cover)

0.83

(21)

1.1

(27.9)

0.187

(4.8)

0.02

(0.5)

0.29

(7.4)

1.4

(35.5)

3TX7109 (SPDT) (full feature)

0.83

(21)

1.1

(27.9)

1.54

(39.1)

0.29

(7.4)

0.02

(0.5)

0.187

(4.8)

0.27

(7)

3TX7112 DPDT

•Revised •

03/21/2011

Dimension drawings

11/98 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TX71 plug-in relays

Dimension drawings

11/93

Siemens Industry, Inc.

Industrial Controls Catalog

3TX71 plug-in relays

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

SIRIUS

RELAYS

Dimension drawings

3TX7116 3PDT

3TX7114 DPDT

3TX7117 4PDT

3TX7115 (DPDT) (clear cover)

1.97

(50) 1.37

(34.9)

1.4

(35.4)

3TX7115 (DPDT) (full feature)

0.2

(6.1) 1.37

(34.9)

1.4

(35.4)

2.1

(53.1)

3TX7115 3PDT

•Revised •

03/21/2011

11/99

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TX71 plug-in relays

Dimension drawings

11/94 Siemens Industry, Inc.

Industrial Controls Catalog

3TX71 plug-in relays

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces SIRIUS

RELAYS

Dimension drawings

3TX7120

3TX7119 DPDT

3TX7121/3TX7122 3TX7123

3TX7119 (3PDT)

6 5 4

8 9

1 2 3

1.40

(35.5)

0.156

(3.9)

1.53

(38.8)

1.90

(48.4)

2.90

(73.8) 2.50

(63.5)

0.187 Quick Connects

•Revised •

03/21/2011

11/100 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TX71 plug-in relays

Dimension drawings

11/95

Siemens Industry, Inc.

Industrial Controls Catalog

3TX71 plug-in relays

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

SIRIUS

RELAYS

Dimension drawings

3TX7127 3PDT

3TX7126

3TX7123

3TX7127 4PDT

3TX7127 (DPDT)

2.1

(50.3)

1.61 MAX

(40.9)

1.44 MAX

(36.6)

3TX7130 SPST NC 3TX7130 SPST NO

•Revised •

03/21/2011

11/101

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TX71 plug-in relays

Dimension drawings

11/96 Siemens Industry, Inc.

Industrial Controls Catalog

3TX71 plug-in relays

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces SIRIUS

RELAYS

Dimension drawings

3TX7130 SPDT

3TX7130 DPDT

3TX7130 DPST NO

3TX7130 DPDT with magnetic

blowout

3TX7131 (DPST-NO)

1.18

(29.8)

1.35

(34.25)

(25.2)

2.04

(51.65)

2.34

(59.4) 2.68

(68.05)

1.61

(40.9)

0.19

(4.65)

R0.09

(R2.25)

FOR #8 SCREWS

0.25 X 0.032 (6.35 X 0.81)

QUICK CONNECT TERMINALS

WITH SOLDER HOLE

3TX7131 (DPDT)

1.18

(29.8)

1.35

(34.25)

(25.2)

2.04

(51.65)

2.34

(59.4) 2.68

(68.05)

1.61

(40.9)

0.19

(4.65)

R0.09

(R2.25)

FOR #8 SCREWS

0.25 X 0.032 (6.35 X 0.81)

QUICK CONNECT TERMINALS

WITH SOLDER HOLE

•Revised •

03/21/2011

11/102 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TX71 plug-in relays

Dimension drawings

11/97

Siemens Industry, Inc.

Industrial Controls Catalog

3TX71 plug-in relays

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

SIRIUS

RELAYS

Dimension drawings

3TX7136

3TX7144-1E4

3TX7144-1E2

3TX7144-1E3

3TX7136 (DPDT Alternating)

1.40

(35.6)

1.54

(39.1)

2.63

(66.8)

0.187 QUICK CONNECTS

CONTACTS

7 & 4

7 & 1

CLOSED

9 & 6

9 & 3

INDICATING LEDS

3TX7137 (DPDT)

1.53

(38.8)

1.4

(35.5)

1.9

(48.4)

0.032

(0.812)

0.1875 QUICK

CONNECTS

•Revised •

03/21/2011

11/103

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TX71 plug-in relays

Dimension drawings

11/98 Siemens Industry, Inc.

Industrial Controls Catalog

3TX71 plug-in relays

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces SIRIUS

RELAYS

Dimension drawings

3TX7144-1E6

3TX7144-1E7

3TX7144-1E5

3TX7144-4E1

3TX7144-4E3

3TX7144-4E2

•Revised •

03/21/2011

11/104 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TX71 plug-in relays

11/99

Siemens Industry, Inc.

Industrial Controls Catalog

3TX71 plug-in relays

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

SIRIUS

RELAYS

Dimension drawings

3TX7144-4E53TX7144-4E4

3TX7144-4E6

3TX7144-4E9

3TX7144-4E8

3TX7144-4E7

11/105

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TX71 plug-in relays

11/100 Siemens Industry, Inc.

Industrial Controls Catalog

3TX71 plug-in relays

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces SIRIUS

RELAYS

Dimension drawings

OND-DFOB (DPDT)

1.73

(44)

0.13

(3.3)

0.7

(17)

1.4

(36)

(2.0)

0.8 (65)

2.6

(86)

3.4

OND-DFSB (DPDT)

1.73

(44)

1.42

(36)

(77)

3.0

0.13

(3.3)

0.7

(17)

(2)

0.8 (65)

2.6

OFD-DFPR-00 (DPDT)

(109.2)

4.3

(36)

1.4

(5.1)

0.2

1.1

(28)

4 1

(72)

2.9

(37)

1.45

INPUT

(76)

3.0

(40)

1.6

(30)

1.2

NEMA:

IEC:

(48)

1.9

(48)

1.9

(6)

0.23

0.06

(1.52)

(72)

2.8

(6.35)

0.25

(38)

1.5

(81)

3.18

(40)

1.6

(34.2)

1.35

INPUT

NEMA:

IEC:

OND-DFPR-02 (DPDT)

(109.2)

4.3

(36)

1.4

(5.1)

0.2

1.1

(28)

4 1

(72)

2.9

(37)

1.45

INPUT

(76)

3.0

(40)

1.6

(30)

1.2

NEMA:

IEC:

(48)

1.9

(48)

1.9

(6)

0.23

0.06

(1.52)

(72)

2.8

(6.35)

0.25

(38)

1.5

(81)

3.18

(40)

1.6

(34.2)

1.35

INPUT

NEMA:

IEC:

OFD-DFOB (DPDT)

1.73

(44)

0.13

(3.3)

0.7

(17)

1.4

(36)

(2.0)

0.8 (65)

2.6

(86)

3.4

OFD-DFSB (DPDT)

1.73

(44)

1.42

(36)

(77)

3.0

0.13

(3.3)

0.7

(17)

(2)

0.8 (65)

2.6

OND-DFPR-01 (SPDT)

(109.2)

4.3

(36)

1.4

(5.1)

0.2

1.1

(28)

4 1

(72)

2.9

(37)

1.45

INPUT

(76)

3.0

(40)

1.6

(30)

1.2

NEMA:

IEC:

(48)

1.9

(48)

1.9

(6)

0.23

0.06

(1.52)

(72)

2.8

(6.35)

0.25

(38)

1.5

(81)

3.18

(40)

1.6

(34.2)

1.35

INPUT

NEMA:

IEC:

11/106 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/88

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TX71 plug-in relays

4117XT31117XT31117XT30117XT3

TDPDTDP4TDPDTDPS

7217XT3/6217XT37117XT36117XT3

TDP4TDP4TDP3

L1-2117XT32117XT32117XT3 F1- ,N1-2117XT3D1- ,

TDP3TDPDTDP3TDPD

Bracketed values: Socket designations.

Without brackets: Contact/coil designations.

Circuit diagrams

11/107

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/89

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TX71 plug-in relays

0317XT30317XT30317XT30317XT3

CN-TSPSON-TSPDTDPSON-TSPS

5117XT35117XT31217XT30317XT3

TDP3TDPDTDP3 ,TDPDTDPD

6317XT35217XT33117XT3

TDPDTDPDTDP3 ,TSP3 ,TDPD

Circuit diagrams

11/108 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/90

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TX71 plug-in relays

3TX7110 3TX7111 DPDT

4117XT3TDP4 1117XT3

5E1-4417XT37E1-4417XT3

Dimension drawings

11/109

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/91

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TX71 plug-in relays

3TX7116 3TX7117

6217XT36E1-4417XT3

3TX7127 3TX7123

Dimension drawings

11/110 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/92

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TX71 plug-in relays

3TX7112

3TX7120

3E1-4417XT32E1-4417XT3

Dimension drawings

11/111

Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/93

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TX71 plug-in relays

3TX7115

3217XT32217XT3/1217XT3

3TX7127 3TX7144-1E4

Dimension drawings

3TX7119

11/112 Siemens Industry, Inc.

Industrial Controls Catalog

SIRIUS

RELAYS

Siemens / Industrial Controls Previous folio: IC10 11/94

Function Relays, Interfaces and Converters

Coupling Relays and Interfaces

3TX71 plug-in relays

ON TSPS 0317XT3CN TSPS 0317XT3

3TX7130 SPDT 3TX7130 DPST NO

3TX7130 DPDT 3TX7130 DPDT with magnetic

blowout

3TX7136

Dimension drawings

143238 Catalog

Navigation menu

Versions of this User Manual:

Views

Navigation
