2015 CATALOG

SWITCHES, DIMMERS,

OUTLETS, & ACCESSORIES

WALL PLATES

UNDER-CABINET

LIGHTING SYSTEM

WIRELESS SYSTEMS

FOR THE HOME

Legrand, North America

60 Woodlawn Street

West Hartford, CT 06110

1.877.BY.LEGRAND (295.3472)

www.legrand.us

570 Applewood Crescent

Vaughan, Ontario L4K 4B4

905.738.9195

www.legrand.ca

©2014 Legrand. All Rights Reserved. PN CT1797 52M - KP -12/14

®

®

16 SWITCHES, DIMMERS, OUTLETS, & ACCESSORIES

02 INTRO TO ADORNE

TABLE OF CONTENTS

40 WALL PLATES

52 UNDER-CABINET LIGHTING SYSTEM

62 WIRELESS SYSTEMS FOR THE HOME

70 MORE INFORMATION

• Overview

• Hubbardton Forge®

• Cast Metals

• Real Materials

• Plastics

• Overview

• Switches & Dimmers

• Outlets

• Illumination Accessories

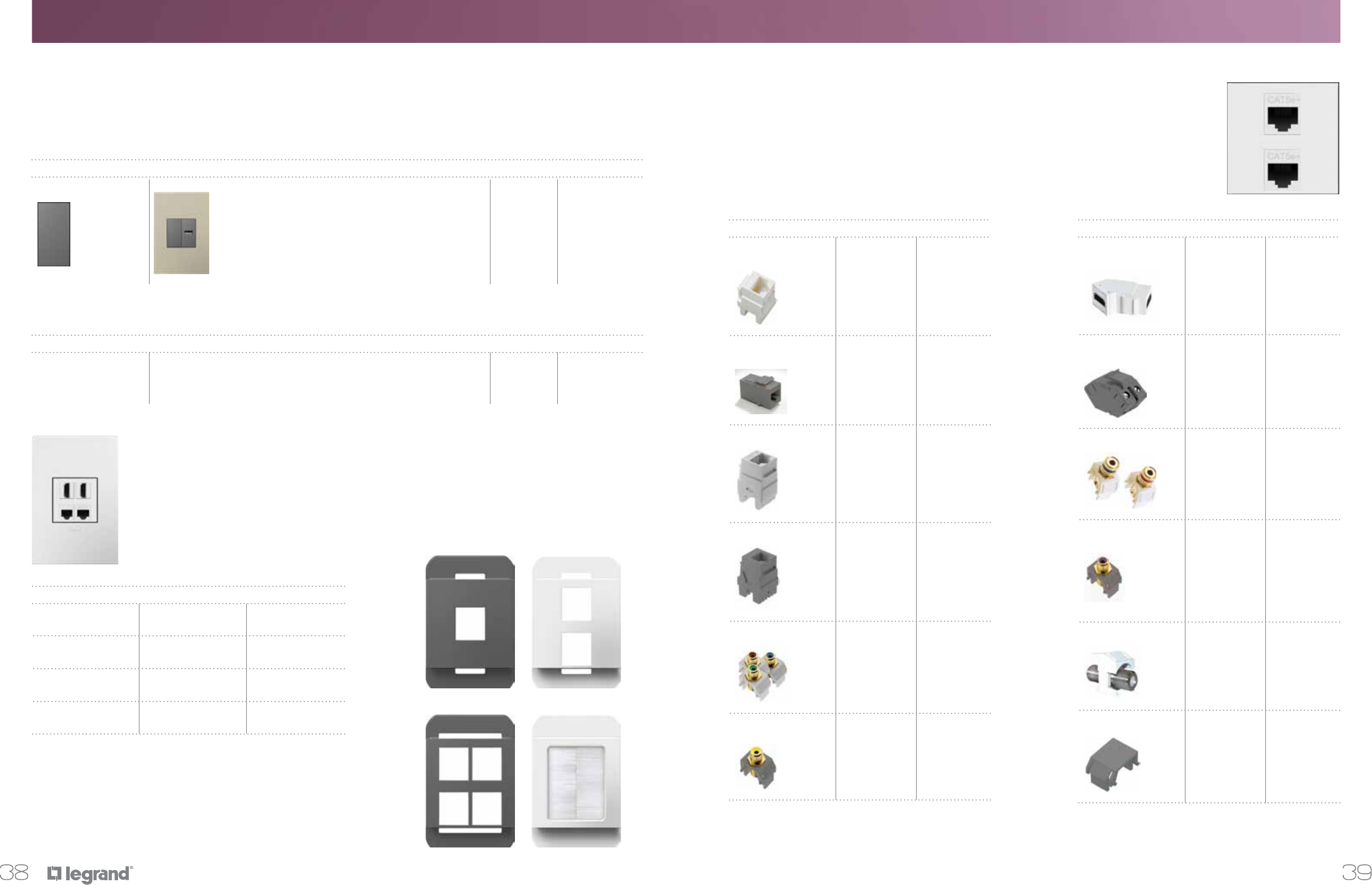

• Connectivity

• Design Inspiration

• Product Overview

• Overview

• Modular Tracks

• Control Boxes

• Lighting

• Accessories

• Overview

• Wireless Video Intercom

• Wireless Whole-House Lighting Controls

• Accessories

• Customer Tools and Support

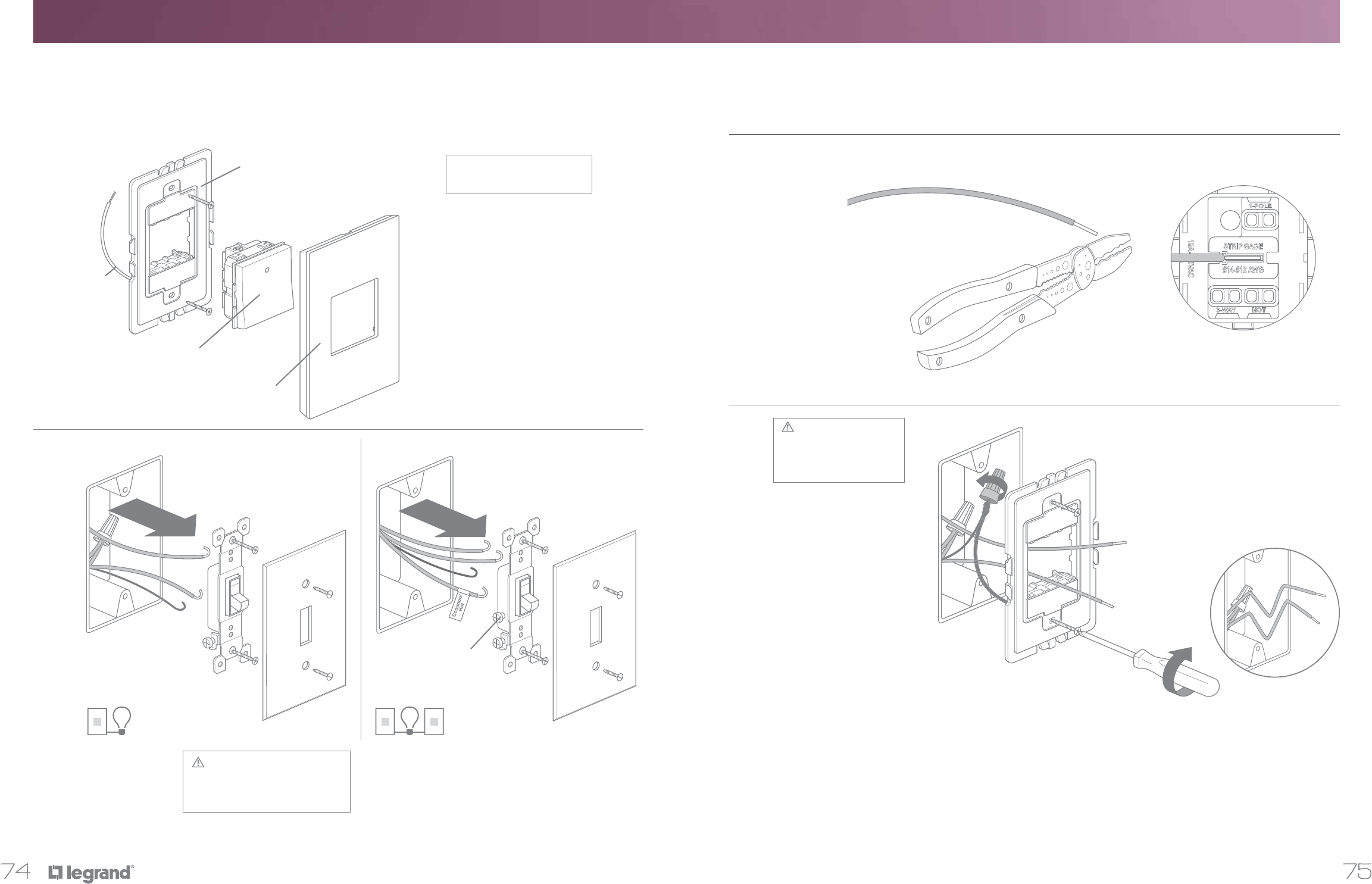

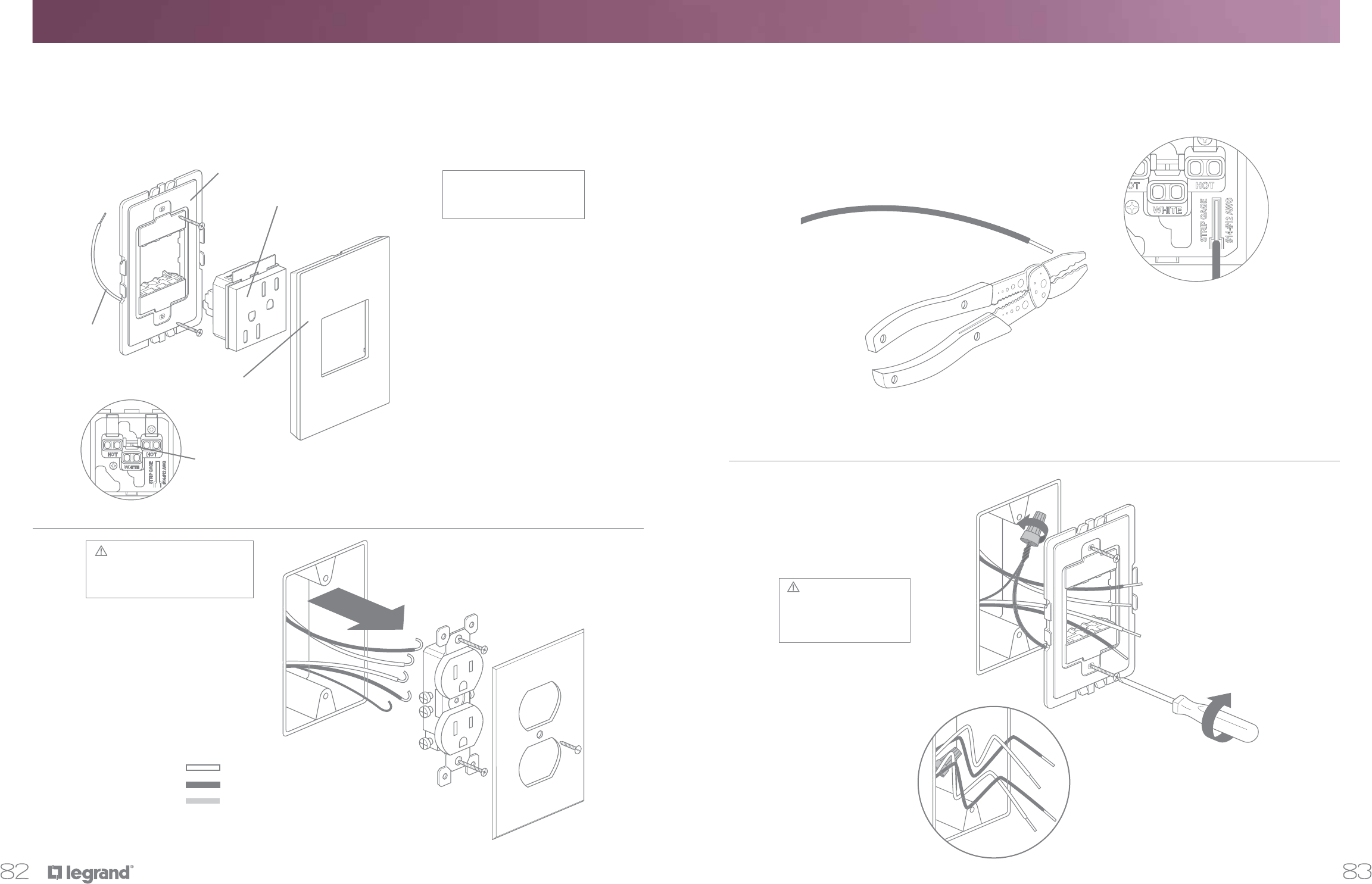

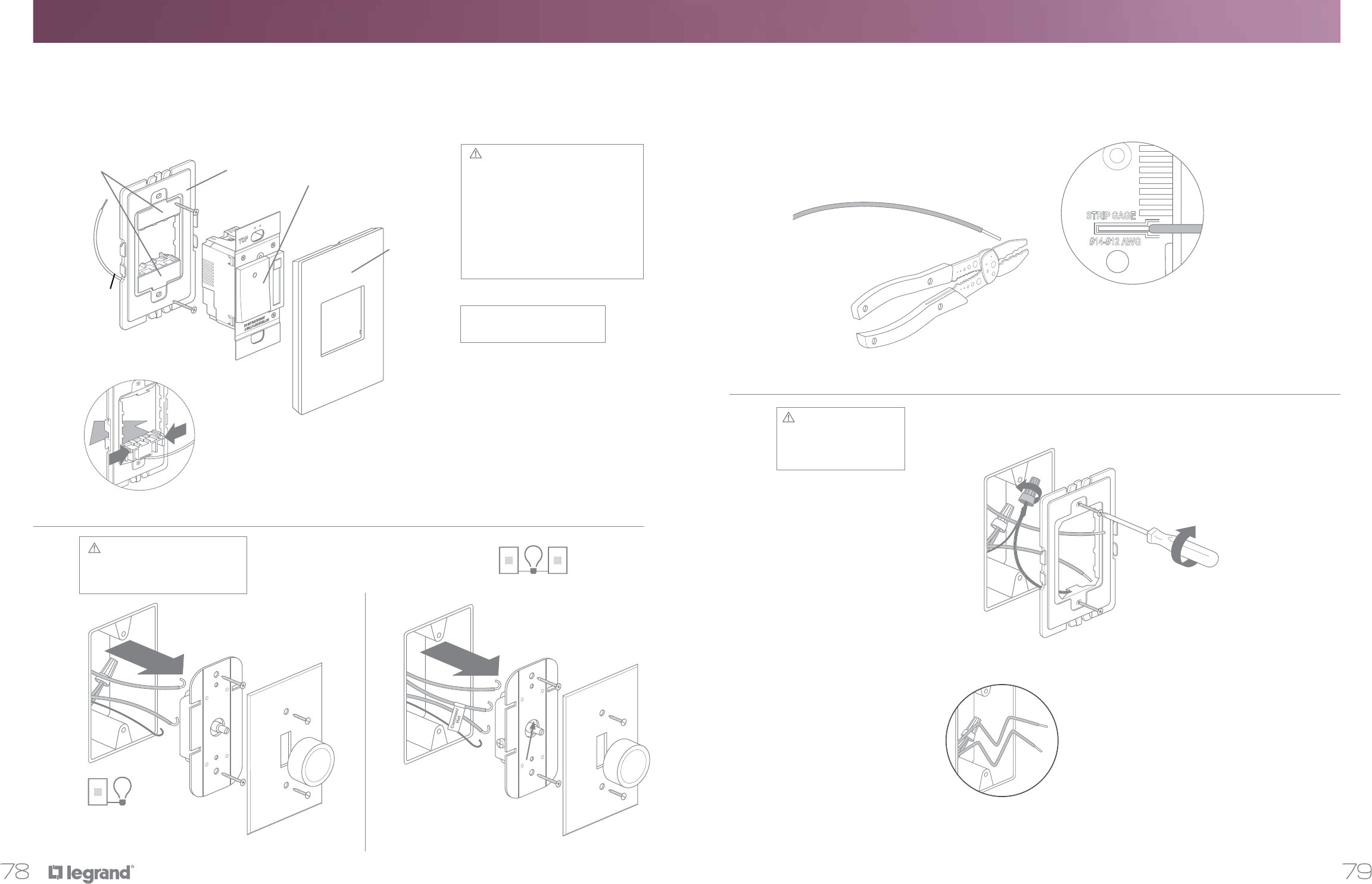

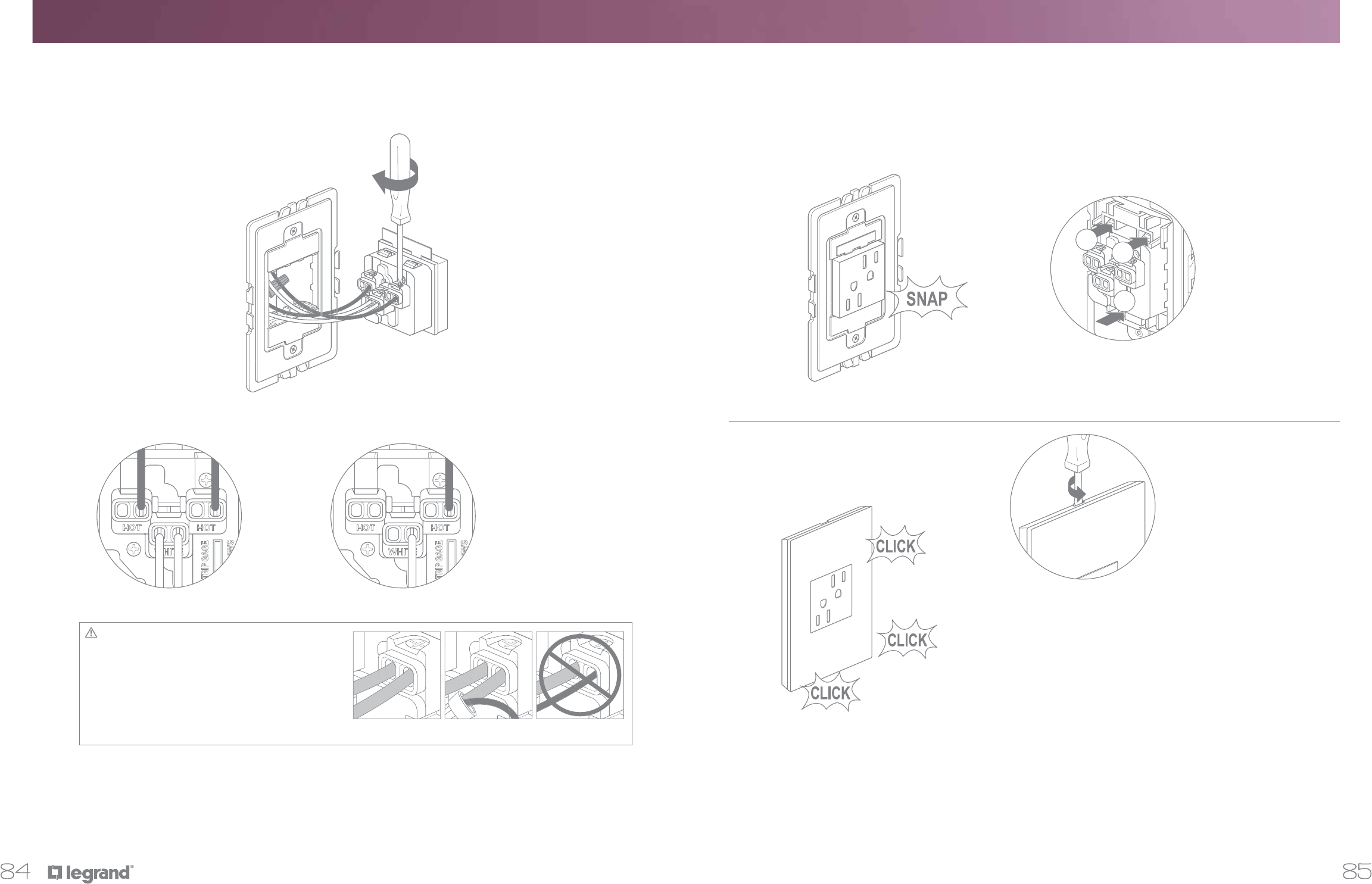

• Installation Guidelines

• Index

IT’s JUST A

LIGHT SWITCH.

LIKE PARIS

IS JUST A CITY.

01

The adorne collection makes life simply beautiful. It starts with

stylishly smart switches, dimmers, outlets, and wall plates that

merge an awe-inspiring array of styles and finishes with a high

tech wow factor that’s easy to get used to. You’ll soon discover why

adorne makes it a delight to hit the lights.

adorne’s under-cabinet lighting solution seamlessly blends

lighting, power, and music into a simple recipe for a state

of the art, clutter-free kitchen. See how to keep every

modern convenience (like our innovative iPad and iPhone

USB chargers) close at hand but ingeniously tucked away.

Bluetooth connectivity, hidden power outlets, and a plug and

play music system are just a few of the key ingredients for

your infinitely flexible kitchen.

Finally, the adorne collection brings wireless control to video

intercom, music, and room-to-room or whole house lighting

with its range of home system solutions. It’s the kind of

innovation that at first seems luxurious, but soon makes you

wonder how you ever lived without.

Simply put, the adorne collection brings a new world of convenience — and a stylish

finishing touch — to any space.

02 03

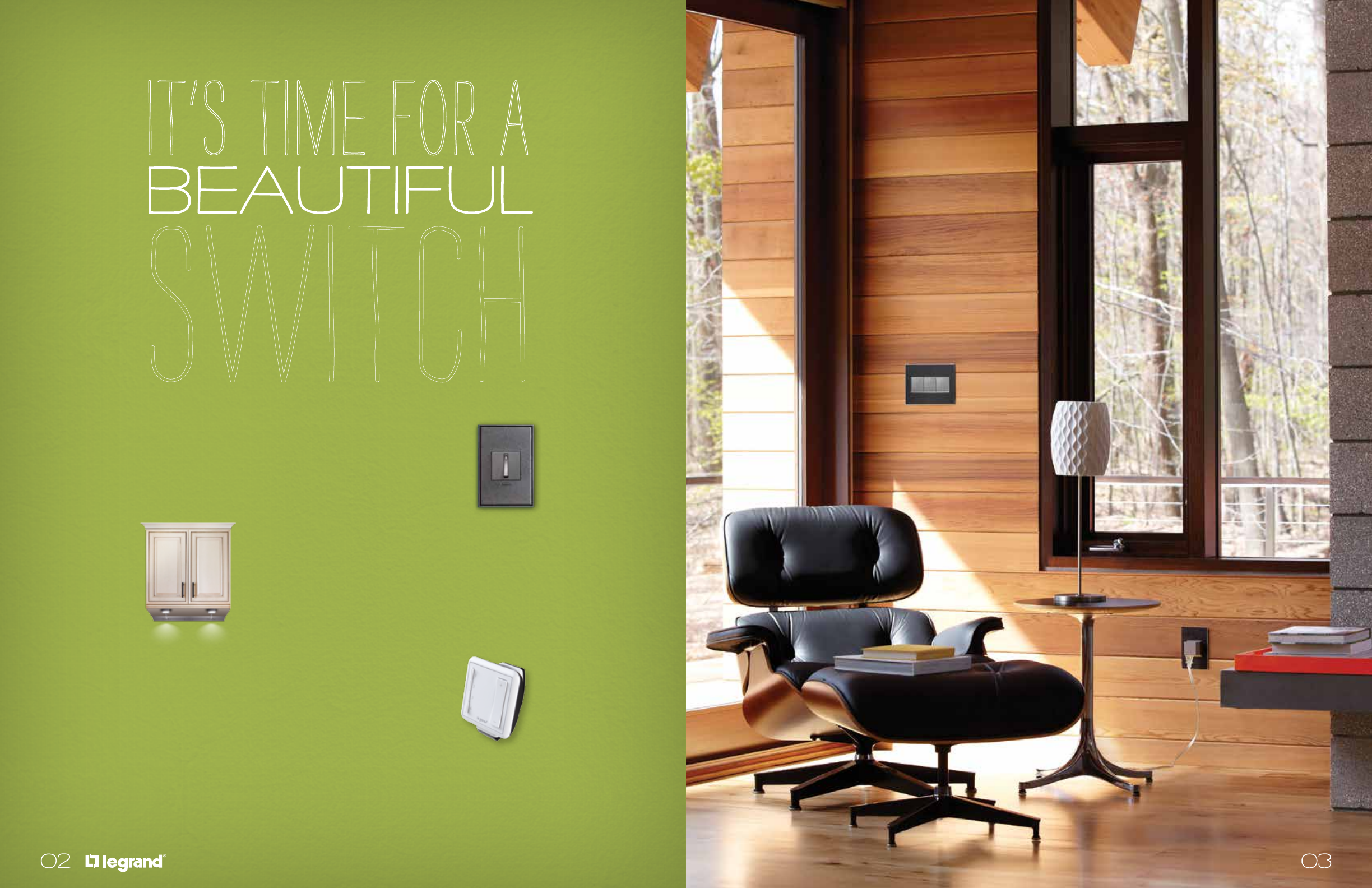

it’s time for a

beautiful

switch

The adorne collection offers solutions to match any taste — finishes

to fit any personality. Whether you favor the clean lines of modern

design, or cozy, cottage-style comfort, or even the classic elegance

of a more traditional style, adorne is built to fit.

Take your pick of white or magnesium switches, dimmers, and

outlets, and match them with a wide array of wall plate options. You’ll

find everything from lush natural woods, metals, and leather to a

brilliant spectrum of colorful solids. Watch these usually forgotten

finishing touches transform your walls from blah to breathtaking,

letting the personality of your design shine through.

And how about the kitchen? Striking the right balance between

practicality and style is always a challenge—whether traditional,

contemporary, cottage, or otherwise. By tucking modular power

outlets, lighting options, and music under the cabinets, adorne

keeps counters and backsplashes uncluttered and puts the kitchen

of your dreams in the most flattering light.

The adorne collection’s range of high tech, high style solutions

combines accessible, flexible, and smart designs to inspire creativity

and enliven your living spaces to a whole new level.

05

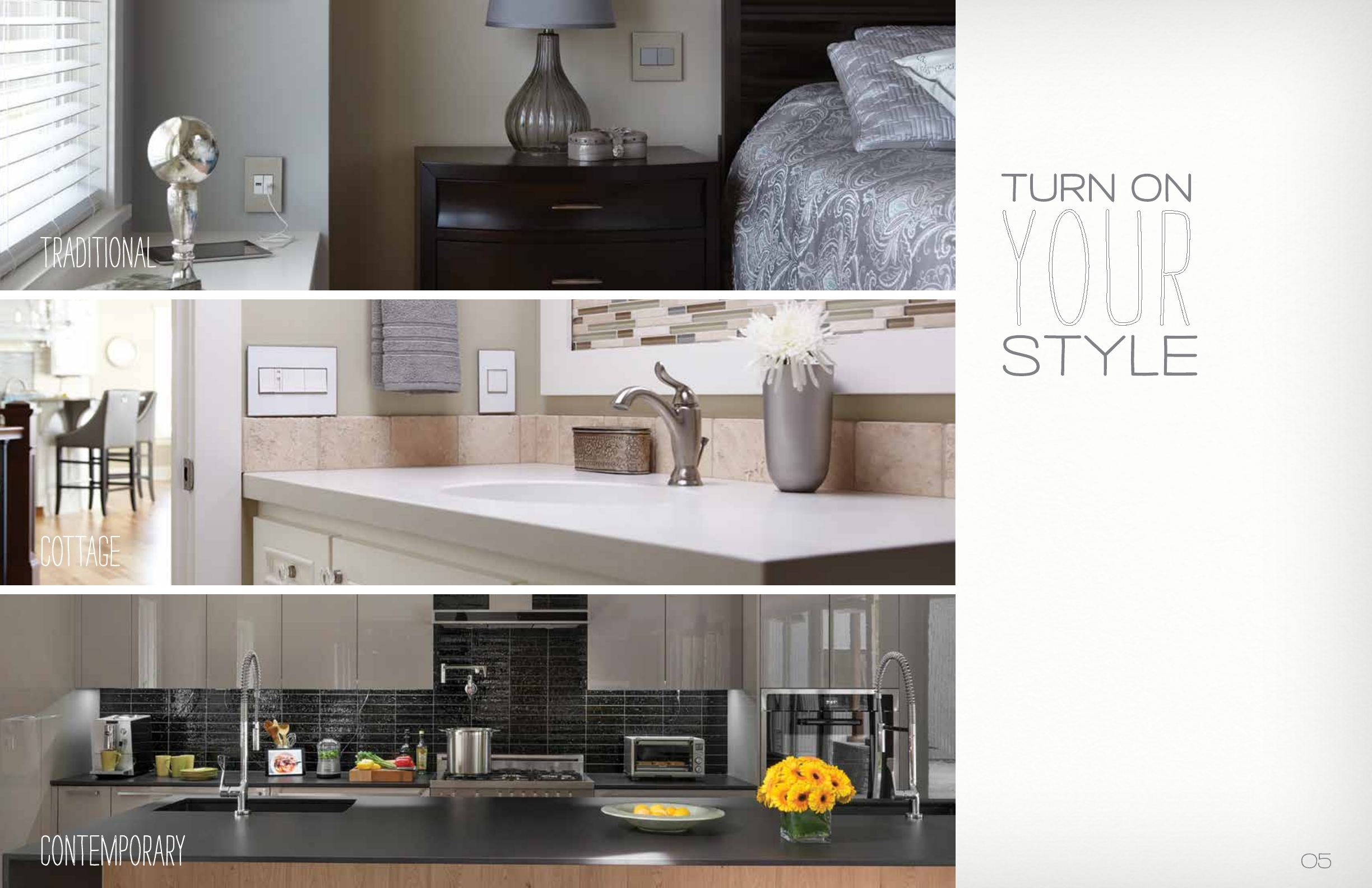

Traditional

cottage

contemporary

Turn on

your

Style

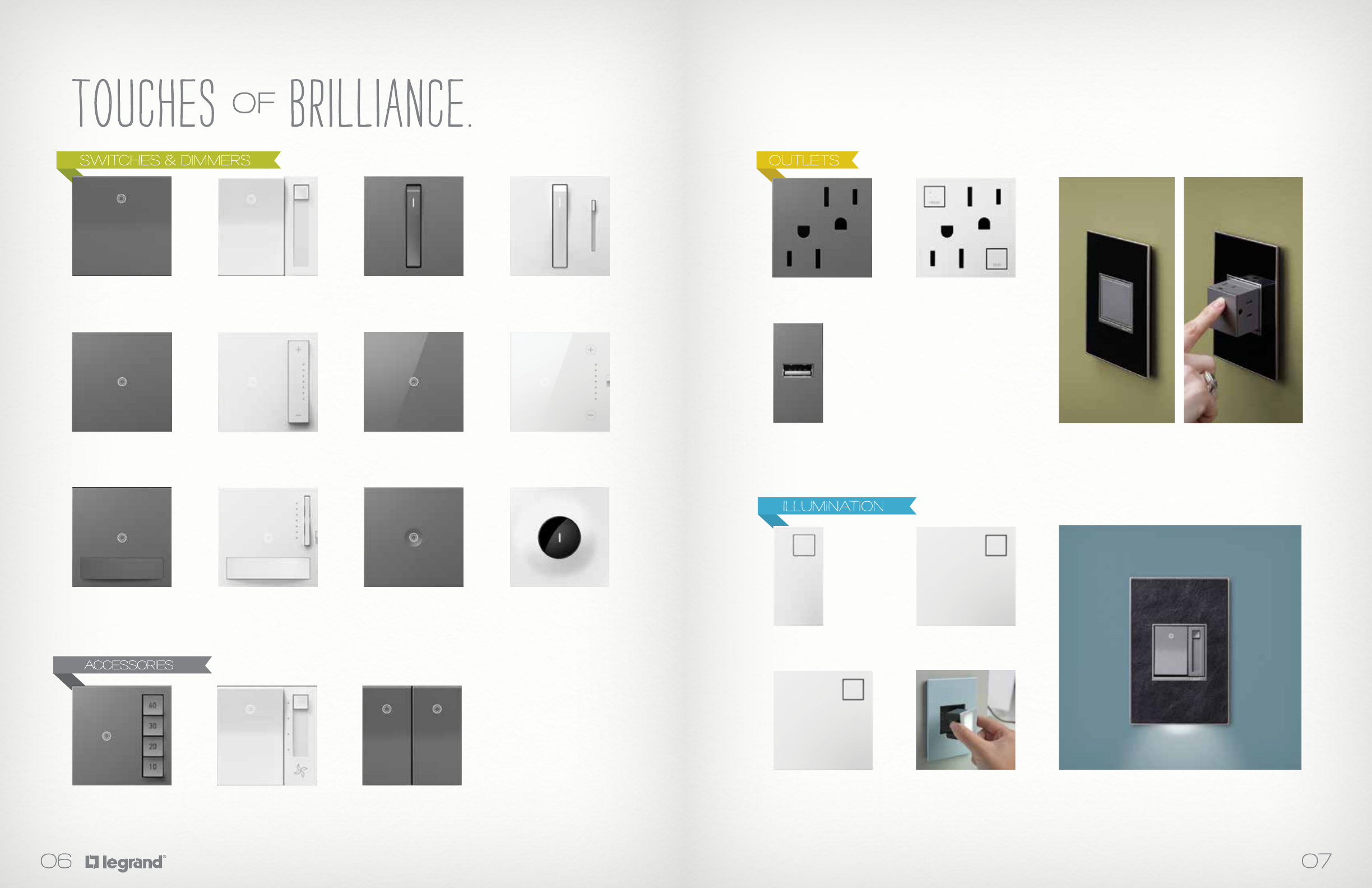

Touches of brilliance.

Switches, dimmers, outlets, and accessories are the heart of the adorne collection. Whether you favor

a simple touch (like on your smart phone), a satisfying click, or even the simple wave of a hand, adorne

makes it a delight to hit the lights. All products are available in white or magnesium.

0706

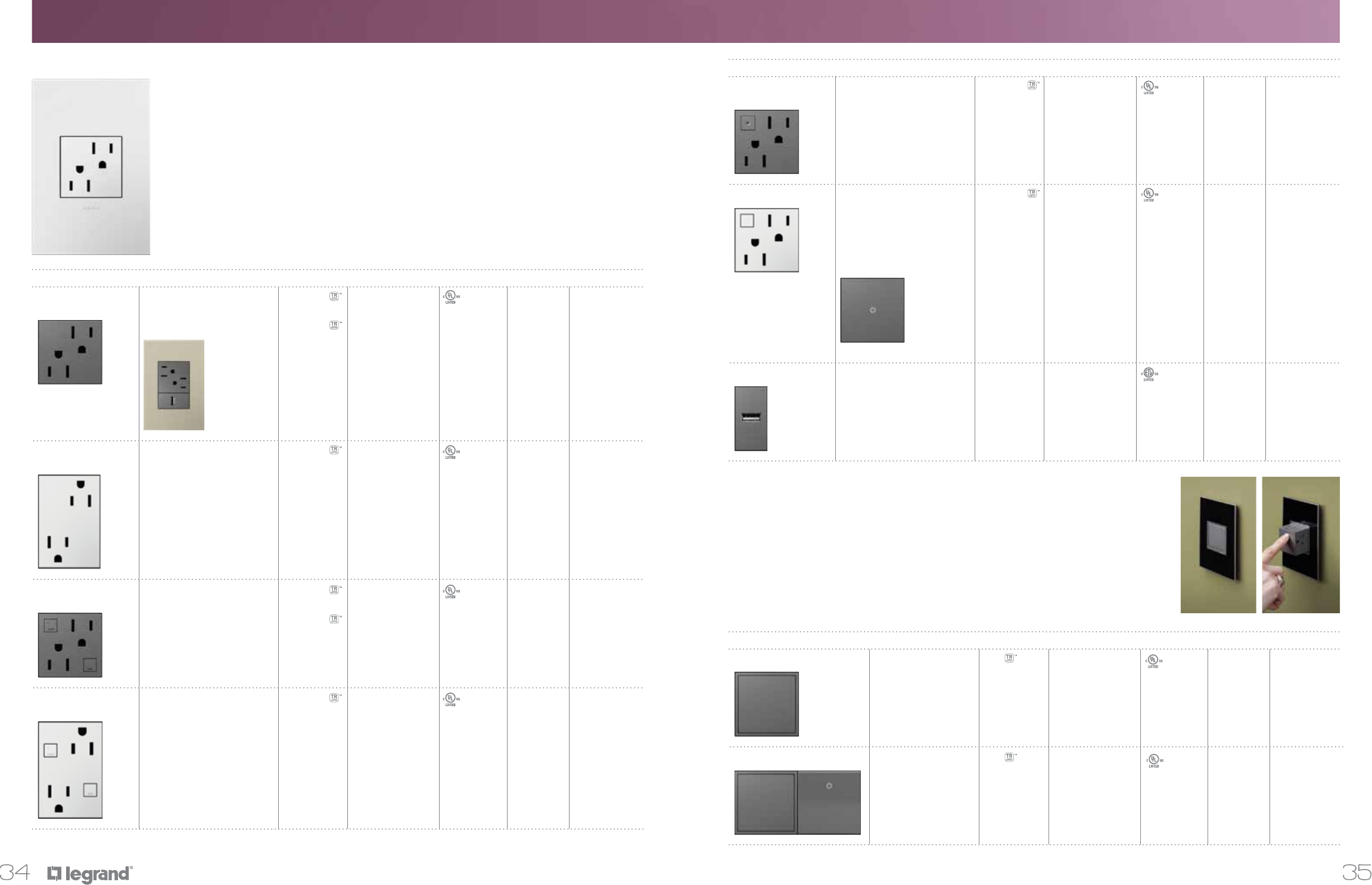

Tamper-Resistant GFCI Outlet

USB Outlet

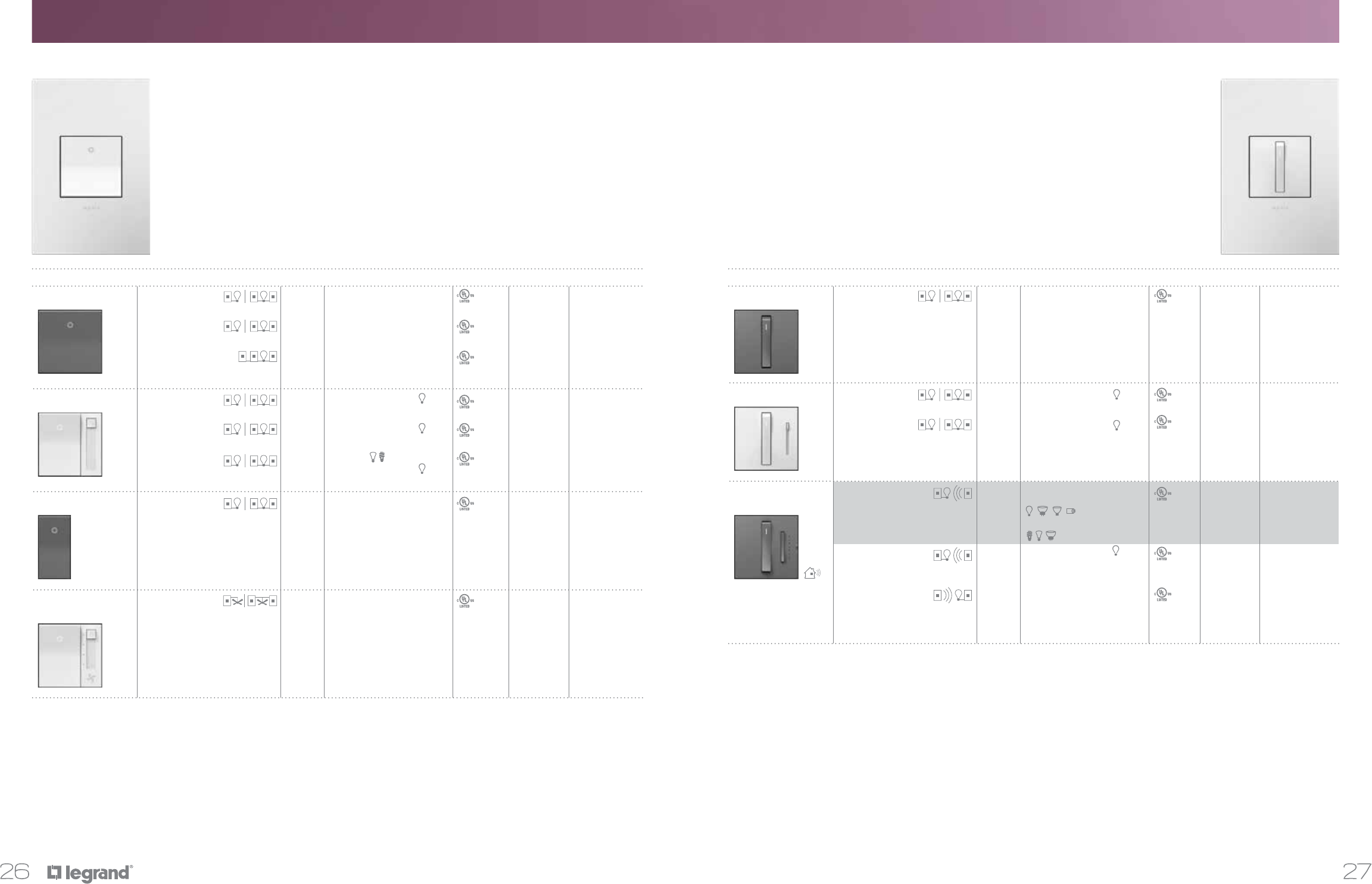

1-Module Paddle™ Switch:

Provides two switches in the

space of one.

Portable Nightlight/Flashlight

Paddle™ Fan Speed Control

2-Module Nightlight

Pop-Out™ Outlet

Accent Nightlight

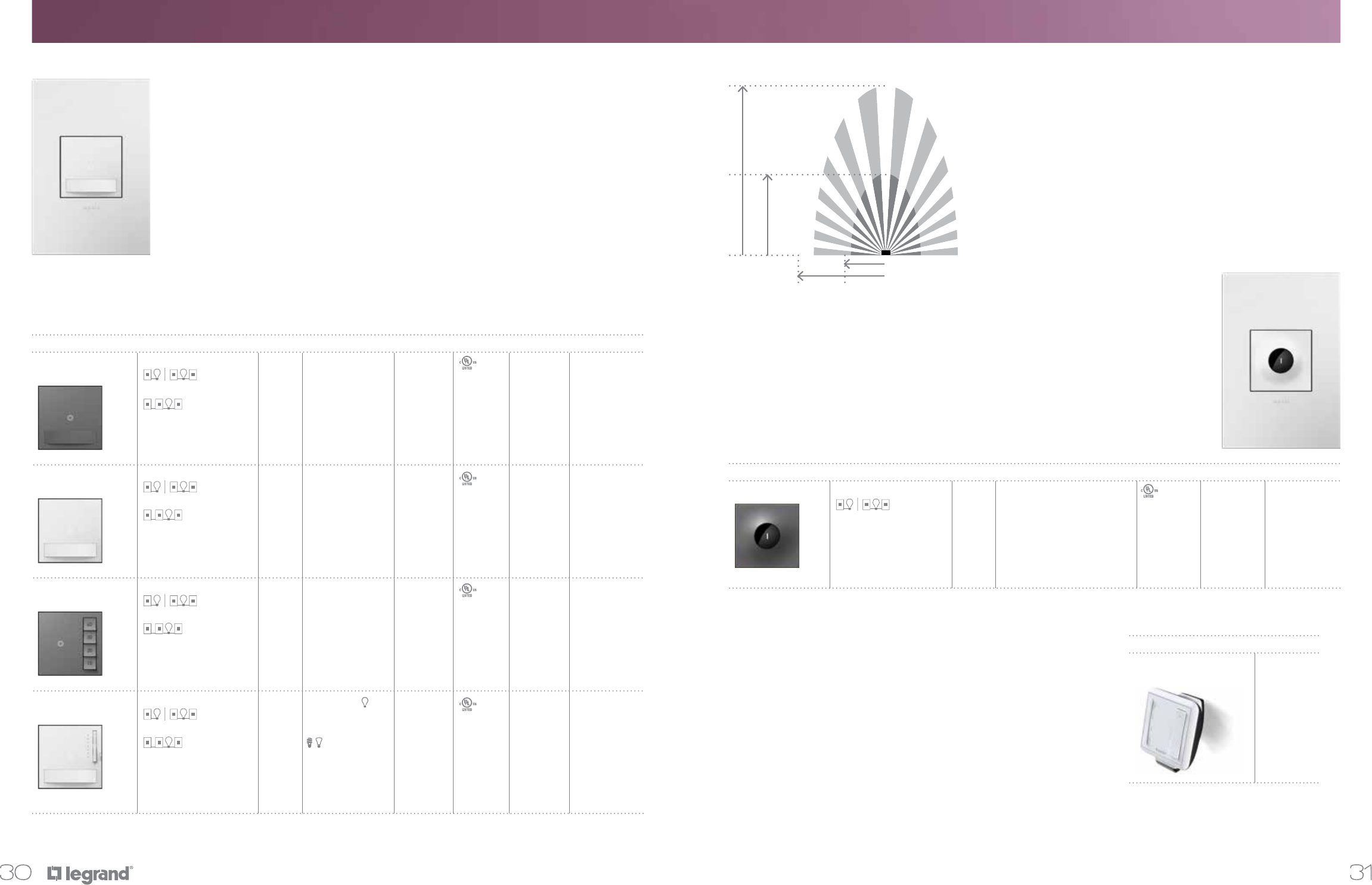

SensaSwitch™: Sensor turns

lights on when you enter a room

and off when you leave. (Also

available in Manual-On/Auto-Off

format.)

SensaDimmer™

Touch™ Dimmer

Paddle™ Dimmer Whisper™ Switch: A smart

design that features elegant lines

and a quiet, fluid motion.

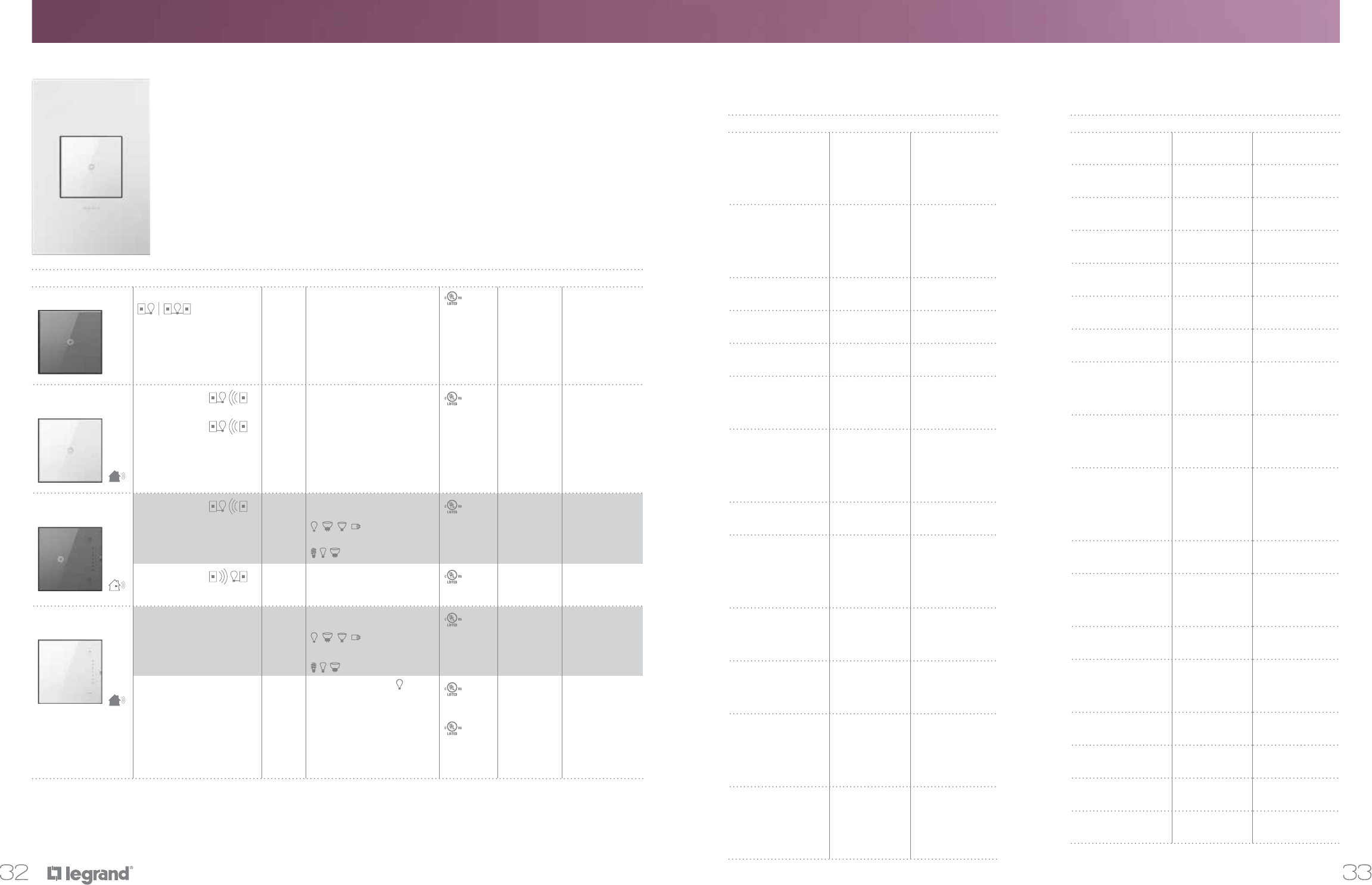

Touch™ Switch: A stunning

translucent face works just like

an iPhone® — simply touch your

finger on the circle to turn lights

on and off.

Whisper™ Dimmer

sofTap™ Switch: Designed with

an innovative micro-movement

that turns lights on and off with

just a soft “tap” of the finger.

Push™ Switch: A tactile,

fingersized impression lets you

turn lights on and off with a

simple push-button motion.

Wave™ Switch: Smart technology

combined with sleek, modern

design. Simply wave your hand

to turn lights on and off.

SofTap™ Dimmer

switches & dimmers outlets

ACCESSORIES

ILLUMINATION

Paddle™ Switch: A wide, graceful

curve works with a simple up-and

down motion, allowing you to turn

lights on and off with ease.

SensaSwitch™ Manual-ON/

Timed-OFF

1-Module Nightlight

Tamper-Resistant Outlet

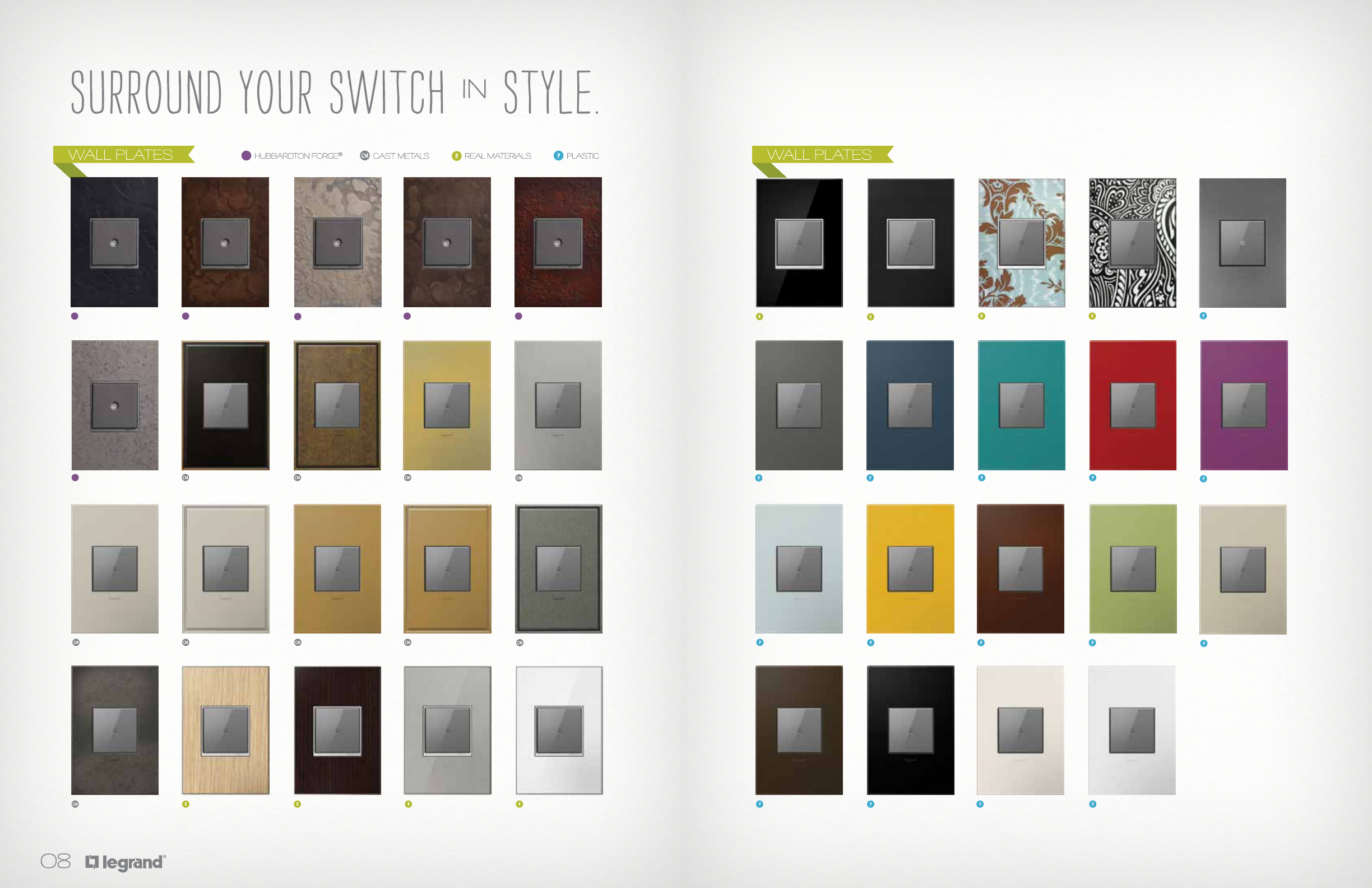

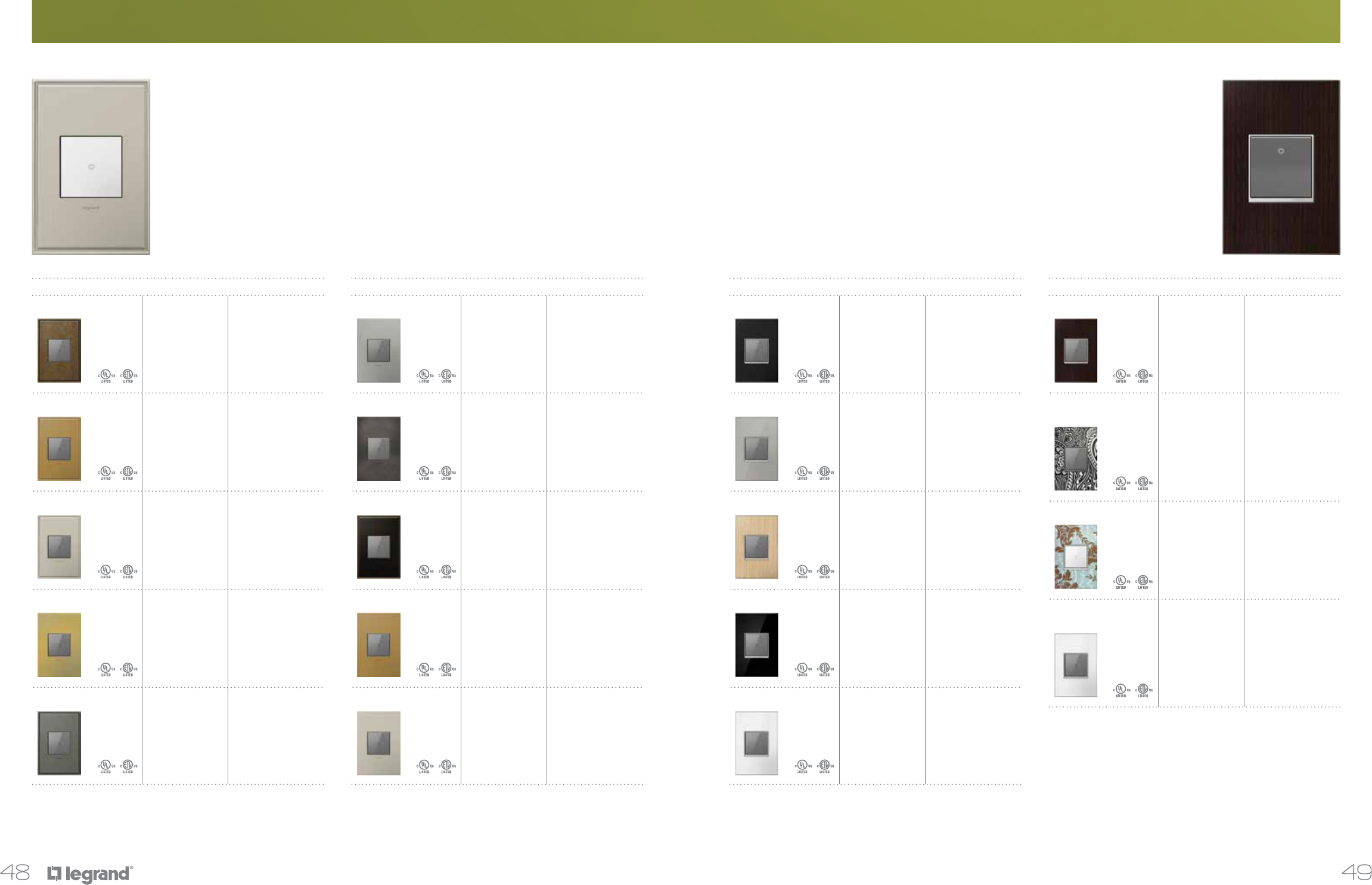

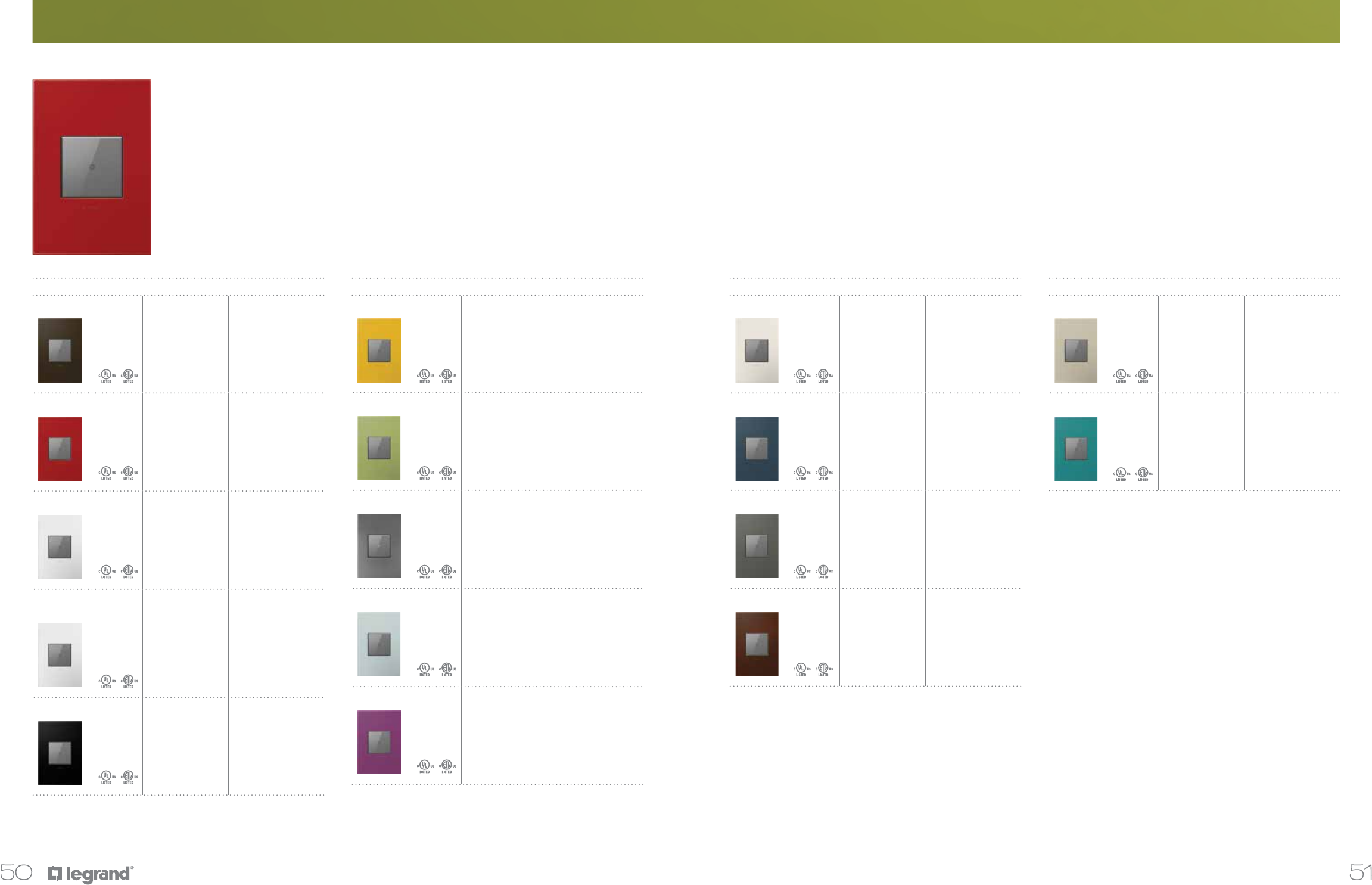

Surround your switch in style. Say bye-bye to bland and hello to the possibilities with adorne wall plates. Dozens of options await —

including genuine, rich wood finishes, lush cast metals, and an array of vivid colors.

08

wall plates wall plates

cast metals RREAL MATERIALS PPLASTIC

HF Hubbardton Forge®

Brushed Stainless Steel

Brushed Brass

Aged BrassOil-Rubbed Bronze

RCustom with White Trim

Soft Touch Moss Grey Plum

CherryTurquoise Blue

Lichen GreenSoft Touch RussetHoney Titanium

Pale Blue

Satin Light Almond Gloss WhiteGraphiteBronze

Soft Touch Felt Green

Custom with

Magnesium Trim

Satin Nickel Brushed Pewter

Brushed Stainless Mirror White

Mirror Black Black Leather

Dark Burnished Pewter French Oak Wenge Wood

Antique Nickel Satin Bronze Antique Bronze

Bronze

HF Dark Smoke

HF

Burnished Steel

HF Mahogany

HF

Natural Iron

HF

Black

HF Magnesium

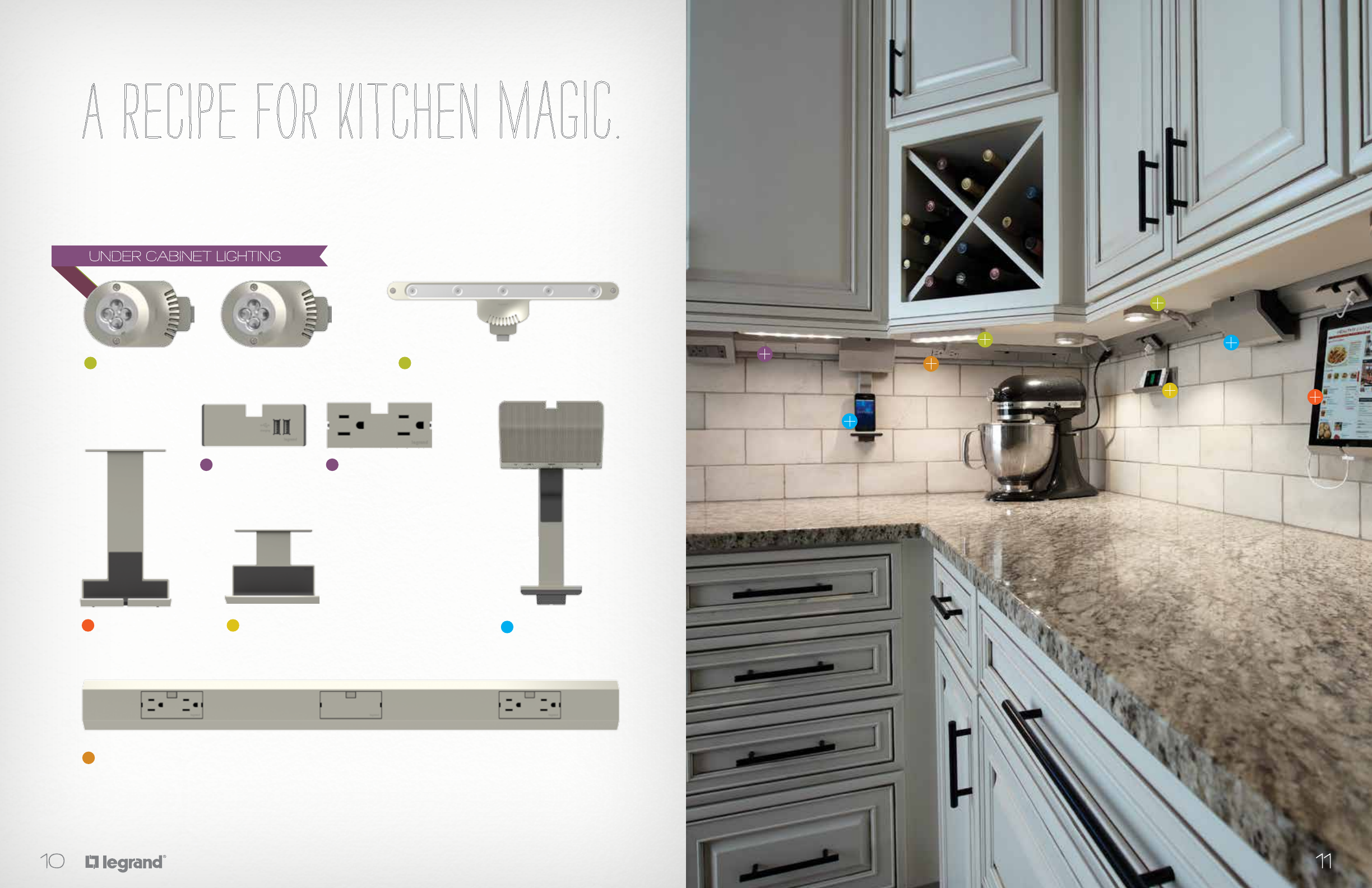

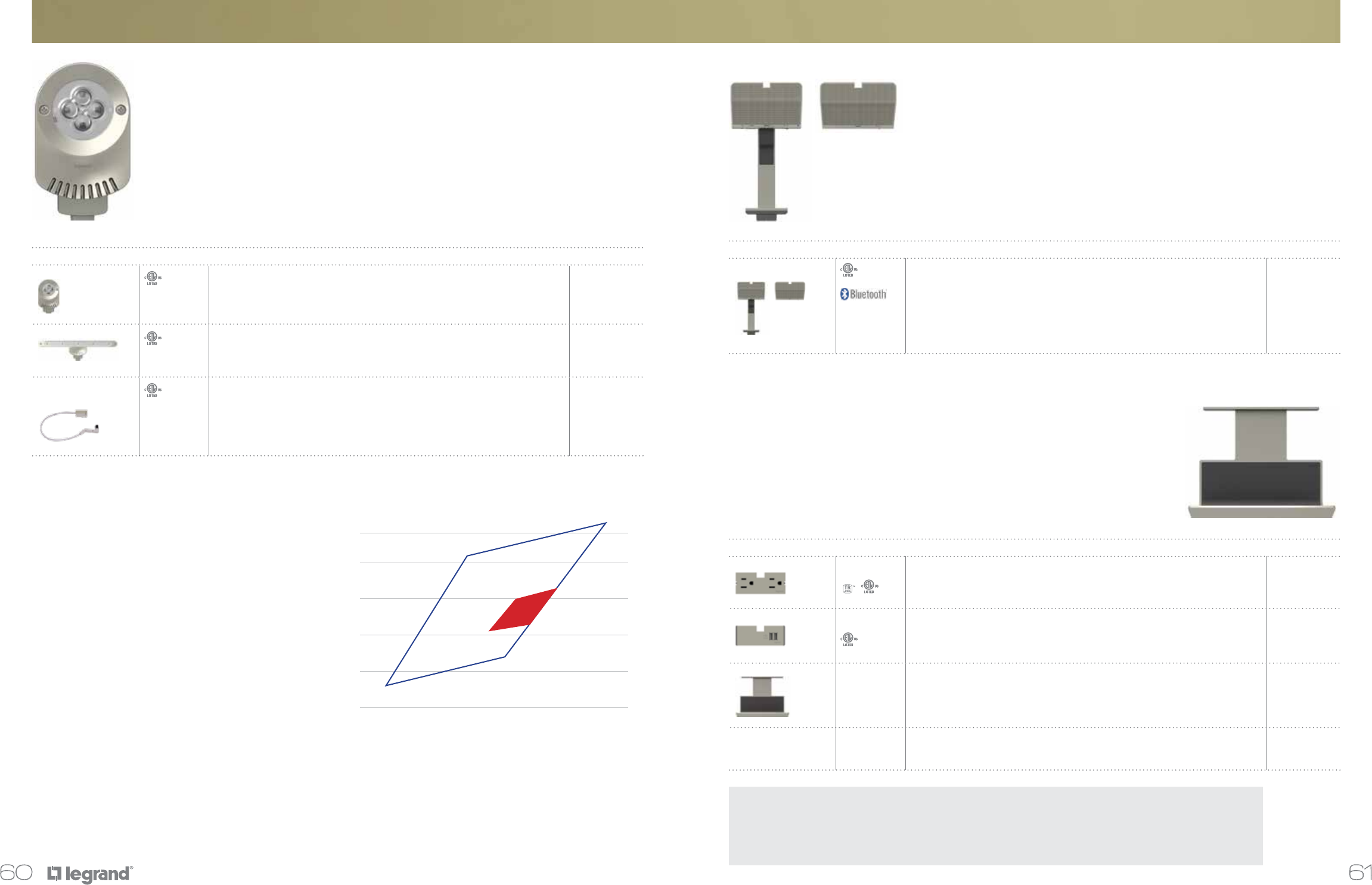

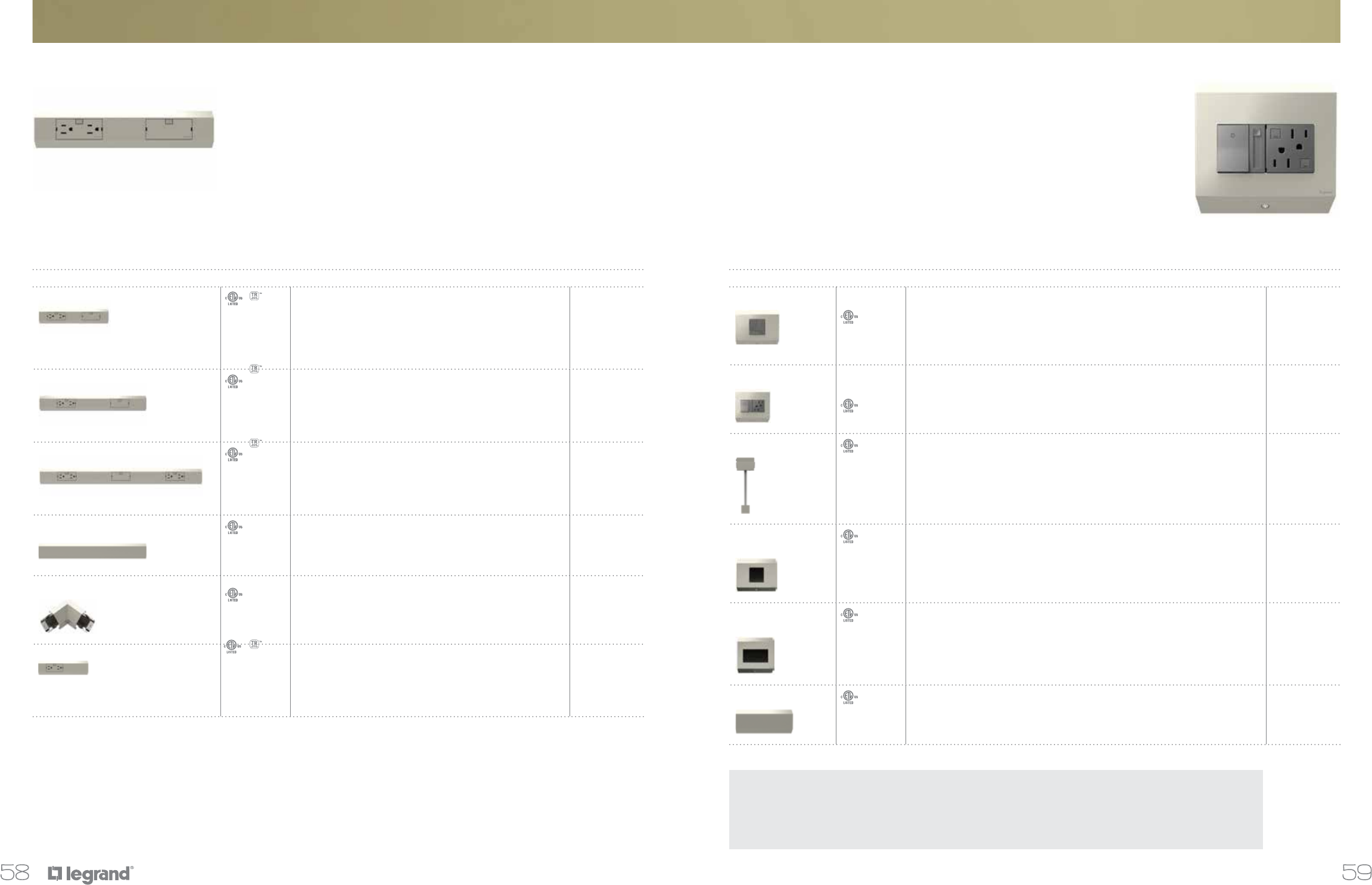

under cabinet lighting

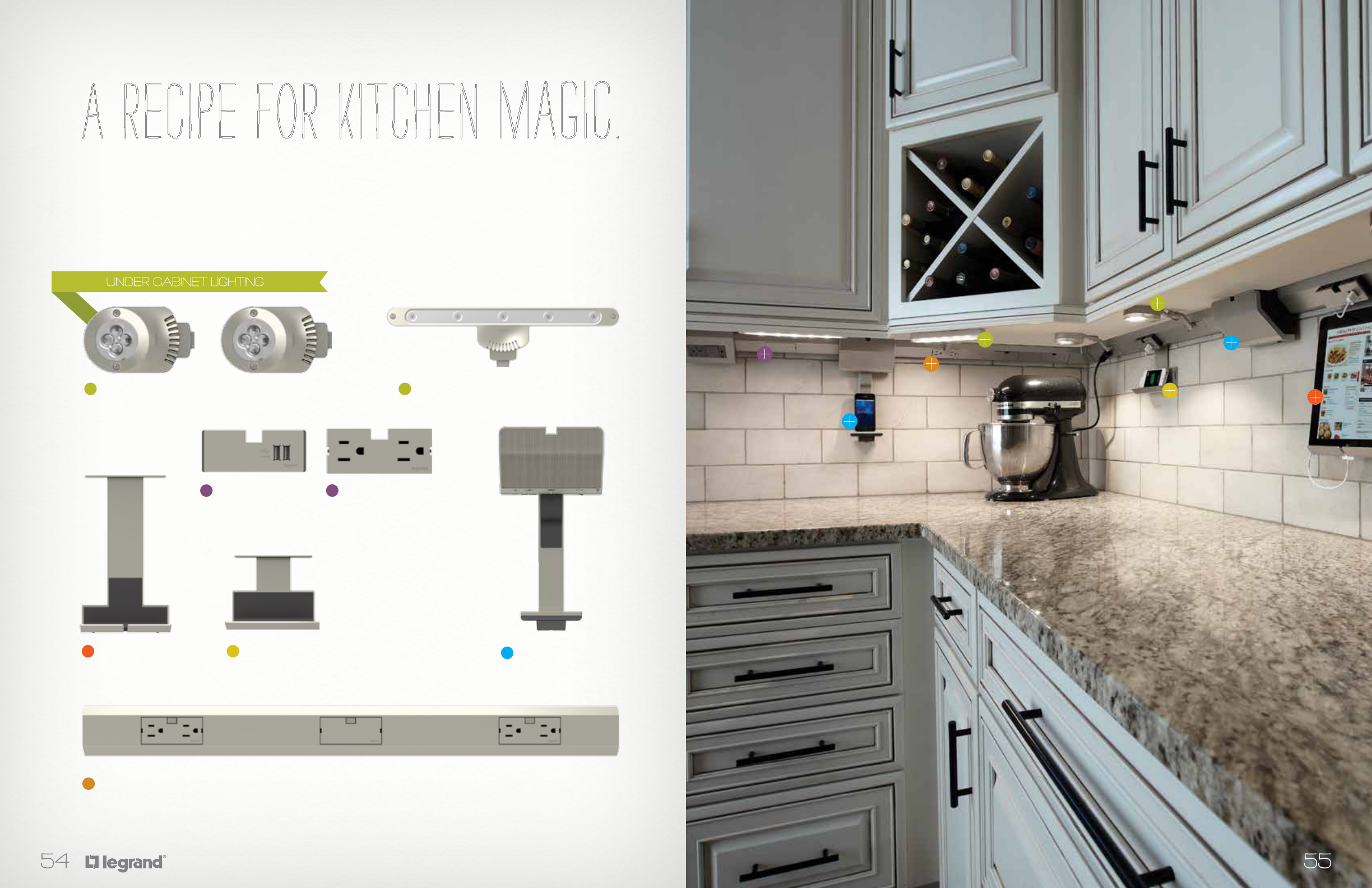

A RECIPE FOR KITCHEN MAGIC.

The adorne Under-Cabinet Lighting System brings an array of modular components that swap out so easily,

you’ll want to reconfigure whenever the mood strikes. From speakers and smart phone docks to lighting and

outlets, there’s a world of possibilities to choose from with these high-tech, highly convenient building blocks.

Puck Lights: For a spectacular spotlighted look.

USB Module:

A handy outlet to power

today’s devices.

Tablet Cradle:

Puts apps and the internet

where you need them.

Mobile Cradle:

Because recharging doesn’t

have to look sloppy.

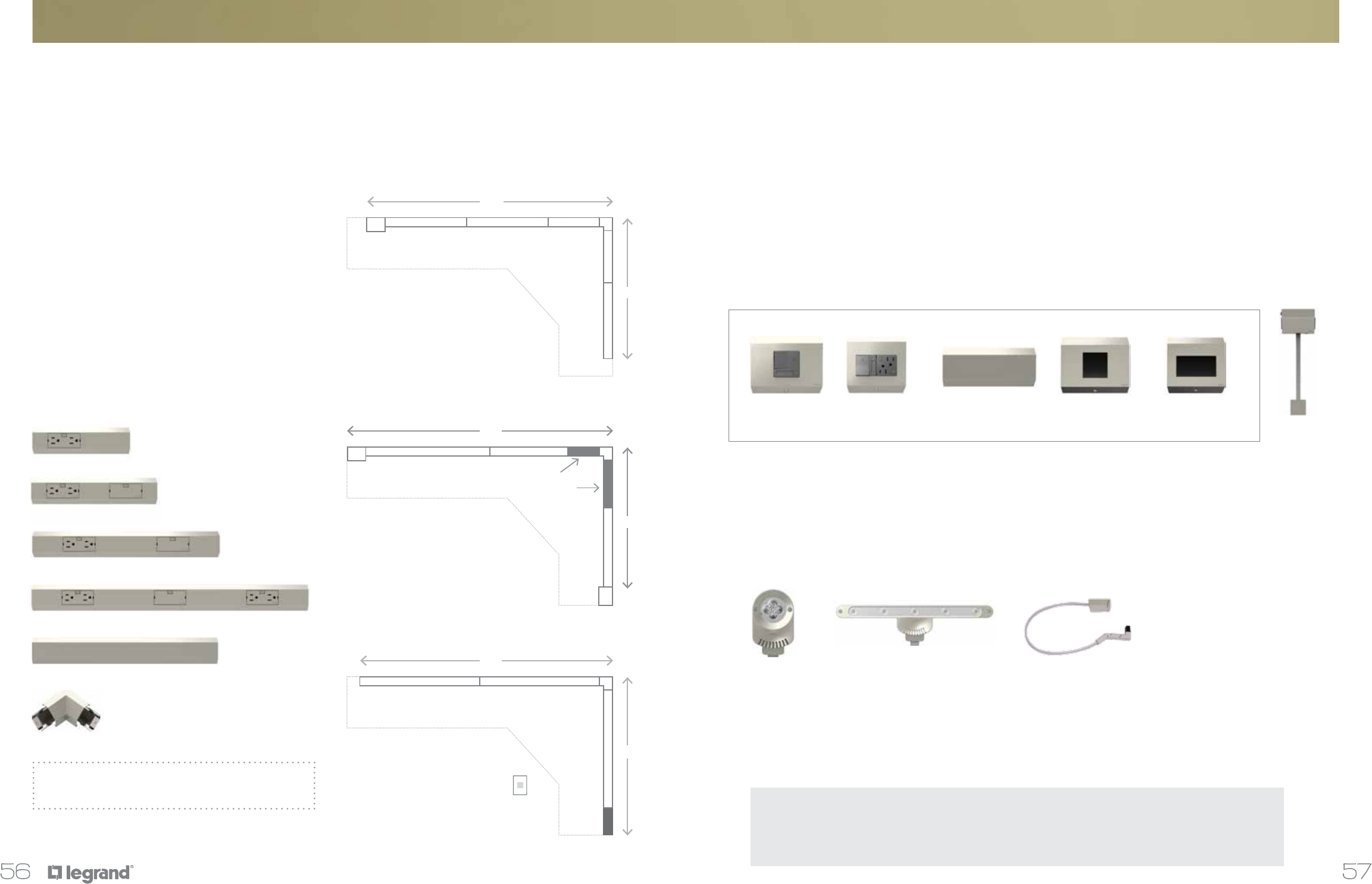

Modular Tracks: The nerve center that tucks away out of sight. Available in four sizes.

Music System:

Plug and play your

favorites—wirelessly.

Tamper-Resistant

Outlet Module:

Convenient power snaps

in where you need it.

Linear Lights: For a consistent, continuous light.

1110

12

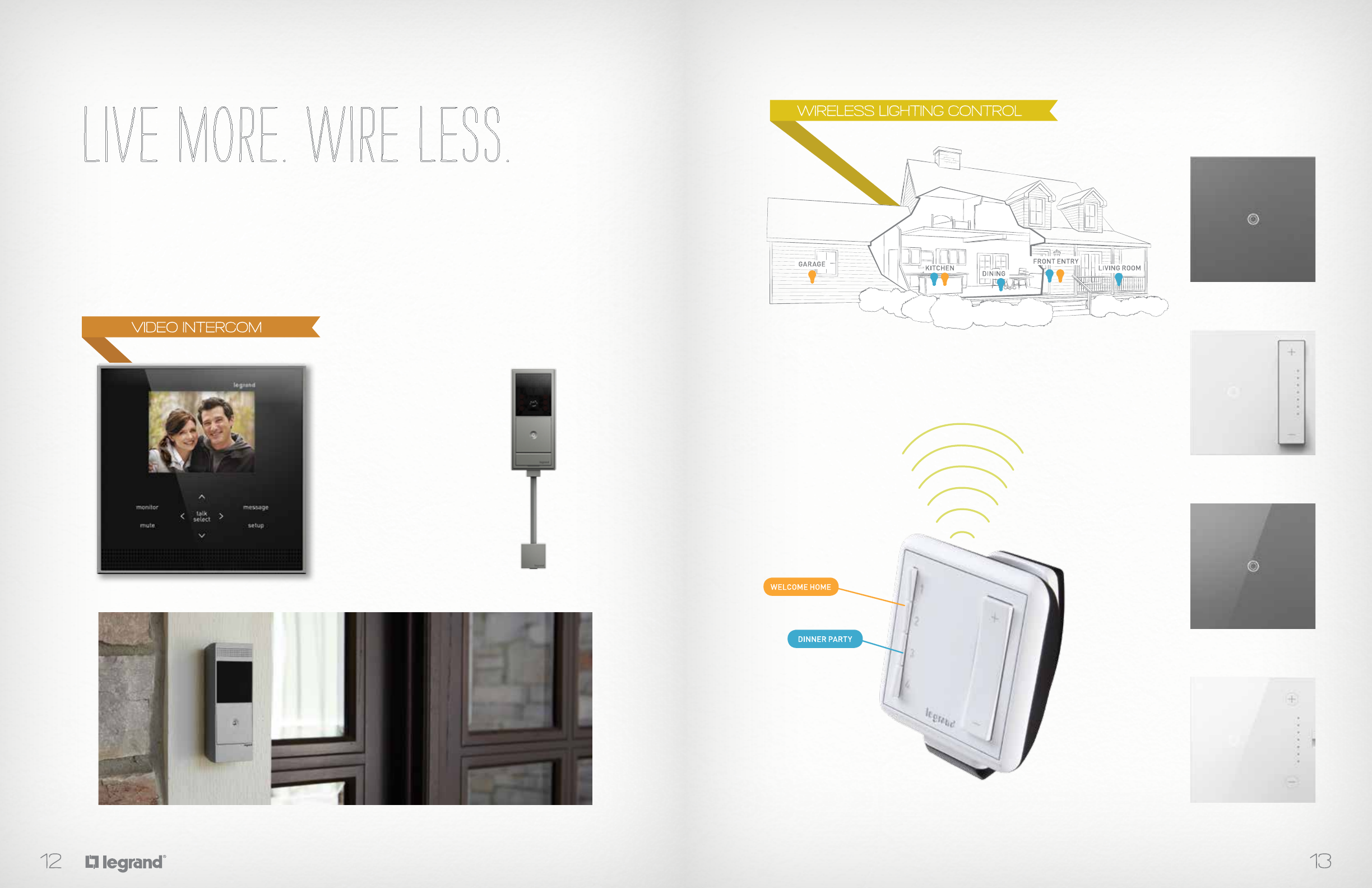

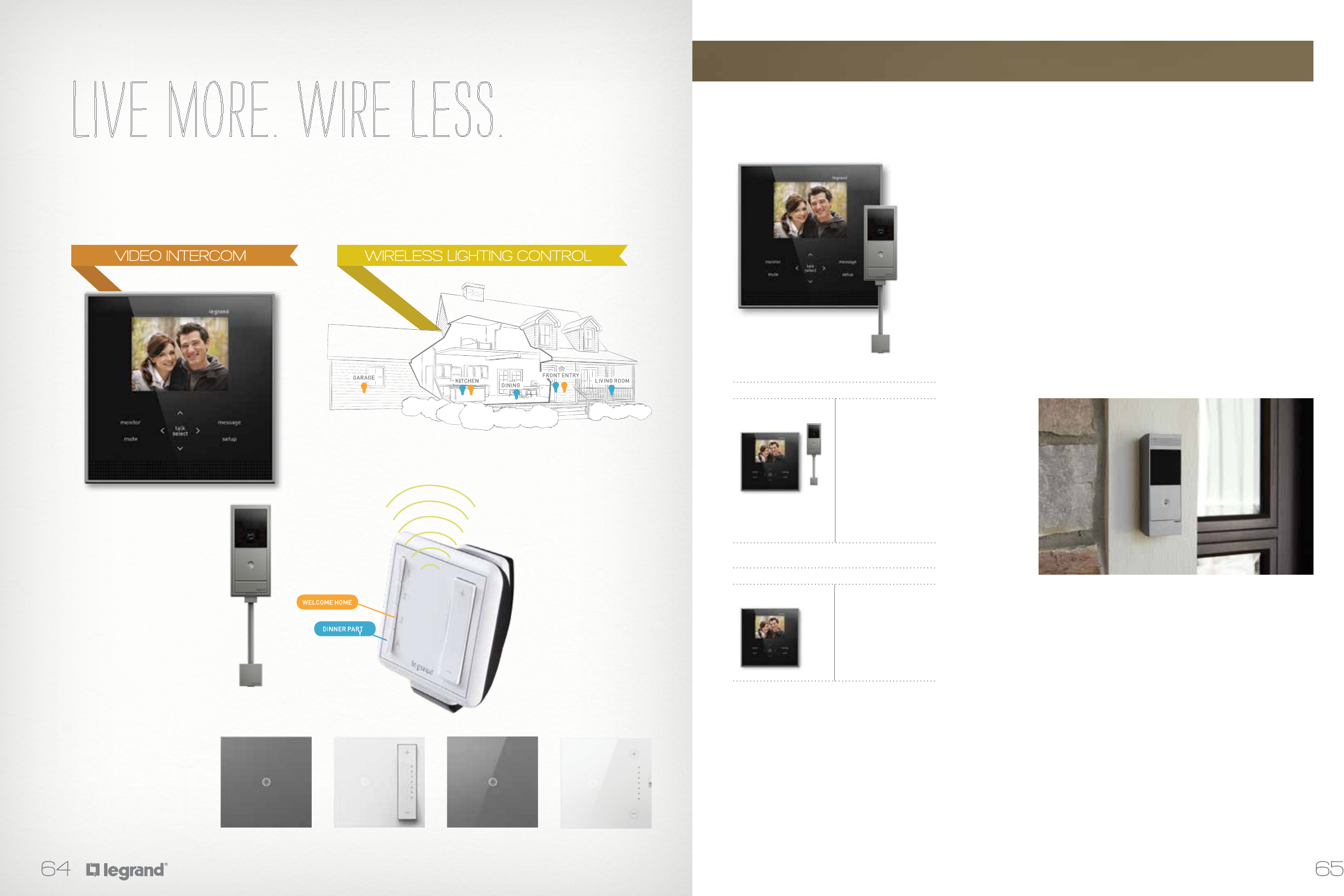

Live more. Wire less.

Enjoy the living space of the future without rewiring the entire house. Ingenious solutions from adorne

let you control devices via wireless remote. adorne also lets devices wirelessly “talk” to each other,

helping you create lighting “scenes” that put your home in the very best light.

Let there be lights!

Creating the perfect setting for dinner guests? Turn on your favorite lights and save the settings.

Want specific lights to turn on when you come home? Custom create your own “Welcome Home”

light setting — adorne’s wireless system gives you complete flexibility.

Convenience in hand

Define up to four unique presets and control your entire home lighting environment with the touch of

adorne’s handy wireless remote. Or, use our app, and your iPhone® becomes a remote, allowing you to

access your presets — even while away.

Wireless Switches and

Dimmers

sofTap™ Switch

sofTap™ Dimmer

Touch™ Switch

Touch™ Dimmer

13

Face to face communication

This video monitor not only shows

who’s at the door, it connects to

other stations in your house as a

true audio intercom.

Seeing eye

It’s a doorbell. It’s a camera.

It’s your new video door station —

a wonderful way to see visitors

from the convenient spot of

your choosing.

PART NUMBERING SYSTEMPART NUMBERING SYSTEM

1514

Example for: Outlets and Accessories

Tamper-Resistant Outlet, 15A, 2-Module

A R TR 15 2 M 8

adorne

Product category:

• A = Accessories

• C = Connectivity

• GF = GFCI Outlets

• R = Receptacles

Product name:

• AL = Accent Light

• BK = Blank

• FN = Fan Control

• LSL = Locator Light

• MHRM = Handheld Remote

• NL = Nightlight

• PS = Power-Saving

• PTR = Pop-Out Outlet

• RNL = Portable Nightlight

• TR = Tamper-Resistant Outlet

• USB = USB Outlet

Modules:

• 1 = 1-Module

• 2 = 2-Module

• 3 = 3-Module

Carton quantity

Finish Name:

• M = Magnesium

• W = White

Example for: Under-Cabinet Lighting System & Wireless Systems for the Home

18” Modular Track

A P MT 18 TM 4

adorne

Product category:

• A = Accessories

• I = Intercom

• L = Lighting

• P = Power

• U = Audio

Product name:

• BK = Blank Module

• CB = Control Box

• CC = Corner Connector

• DM = Digital Music

• DWC = Direct Wire Connector

• EXT = Light Extender

• PC = Phone Cradle

• PK = Puck Light

• LN = Linear Light

• ME = Modular Track Extender

• MT = Modular Track

• TC = Tablet Cradle

• TR = Outlet Module

• USB = USB Outlet Module

Specifications:

• 1/2/3/4/5 = Control Box Number

• 2 = 2.1 A

• 12 = 12” Track

• 15 = 15 Amp

• 18 = 18” Track

• 27 = 27” Track

• 6000/6100 = Video Intercom

• 6526 = Wi-Fi Music

Carton quantity

Finish Name:

TM = Titanium

Specifications:

• 15 = 15 Amp

• 20 = 20 Amp

• 4S16A = 4-Speed, 1.6 Amp

• 1G = 1-Gang

• 2G = 2-Gang

• 3G = 3-Gang

• 4G = 4-Gang

• RF2 = Wireless

Example for: Wall Plates

Satin Nickel 1-Gang, 2-Module Wall Plate

A W C 1G2 SN 4

adorne

Product category:

• W = Wall Plates

Finish category:

• C = Cast Metals

• M = Real Materials

• P = Plastics

Plate size:

• 1G2 = 1-Gang, 2-Module

• 1G3 = 1-Gang, 3-Module

• 2G = 2-Gang

• 3G = 3-Gang

• 4G = 4-Gang

Carton quantity

Finish Name:

• AB = Aged Brass

• BR = Bronze

• AN = Antique Nickel

• BB = Brushed Brass

• BL = Pale Blue

• BP = Brushed Pewter

• BS = Brushed Stainless

Steel

• CH = Cherry

• DP = Dark Burnished Pewter

• FG = Soft Touch Felt Green

• FH = French Oak

• GR = Graphite

• HY = Honey

• LA = Satin Light Almond

• LE = Black Leather

• LG = Lichen Green

• M = Custom with

Magnesium Trim

• MB = Mirror Black

• MO = Soft Touch Moss Grey

• MS = Brushed Stainless

• MW = Mirror White

• NB = Antique Bronze

• OB = Oil-Rubbed Bronze

• PL = Plum

• RS = Soft Touch Russet

• SB = Satin Bronze

• SN = Satin Nickel

• TB = Turquoise

• TM = Titanium

• W = Custom with White Trim

• WE = Wenge Wood

• WH = Gloss White

The adorne Collection features an intelligent part numbering structure to aid in product selection. Each character in

the part number represents a specific product feature. All adorne part numbers begin with the letter A to indicate that

they are part of the adorne collection.

Example for: Switches and Dimmers

Paddle Switch, 2-Module, 15A, Magnesium

A S PD 153 2 M 4

adorne

Product category:

• D = Dimmers

• S = Switches

Interface name:

• OS = Occupancy Sensor

• PD = Paddle

• PU = Push

• SM = SensaDimmer

• TH = Touch

• TM = Timer

• TP = sofTap

• VS = Vacancy Sensor

• WR = Whisper

• WV = Wave

Specifications:

• 153 = 15 Amp, Single-Pole/3-Way

• 203 = 20 Amp, Single-Pole/3-Way

• 204 = 20 Amp, 4-Way

• 453 = 450 Watt, Single-Pole/3-Way

• 703 = 700 Watt, Single-Pole/3-Way

• 700MM = 700 Watt, Multi-Location

Wireless Master

• 700MR = 700 Watt, Multi-Location

Wireless Remote

• 700RM = 700 Watt, Whole-House

Wireless Master

• 700RR = 700 Watt, Whole-House

Wireless Remote

• 1103 = 1100 Watt, Single-Pole/3-Way

Carton quantity

Modules or Load Type:

• 1 = 1-Module

• 2 = 2-Module

• H = Incandescent/Halogen

• L = CFL/LED

• TU = Tru-Universal (Incandescent, Halogen,

Fluorescent, MLV, Forward + Reverse-Phase

ELV, CFL, LED)

Finish Name:

• M = Magnesium

• W = White

SOME switches

light rooms.

Others, your

imagination.

Switches, Dimmers,

Outlets, & Accessories

18 Overview

26 Switches & Dimmers

34 Outlets

36 Illumination Accessories

38 Connectivity

1716

SWITCHES, DIMMERS, OUTLETS, AND ACCESSORIESSWITCHES, DIMMERS, OUTLETS, AND ACCESSORIES

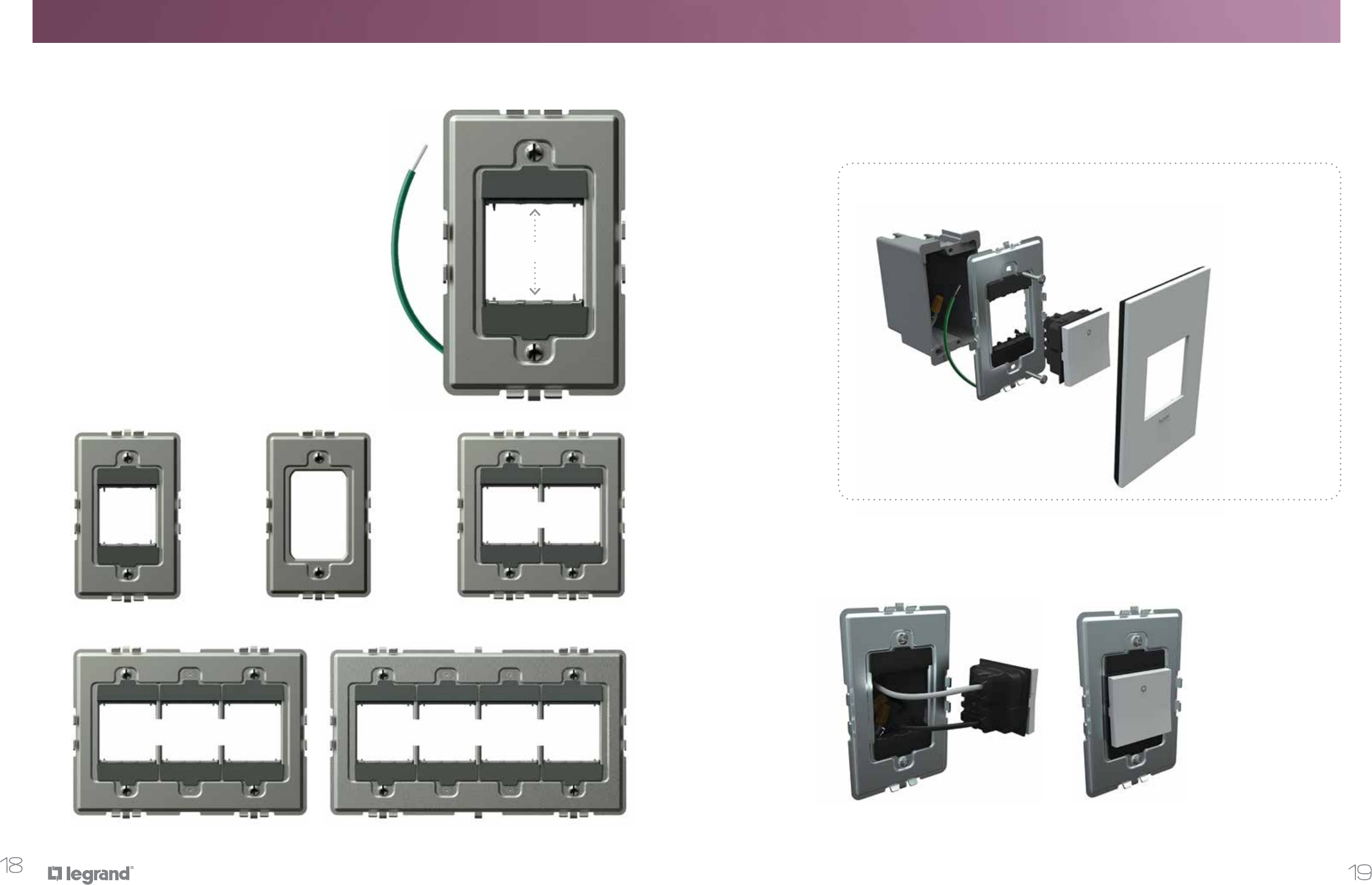

The adorne Frame System

The frame is the foundation upon which the adorne

modular system is built. It is manufactured with high-

strength galvanized metal and includes a ground wire.

Frames include plastic spacers. The spacers remain in

place for devices with 2-Module backbodies. They must be

removed for devices with 3-Module backbodies, such as

dimmers and GFCI outlets.

The frame completes the enclosure, providing a safe

installation during the construction phase and allowing

the wall plate to be installed at the end of the project.

Each frame includes a leaded ground that supports the

full adorne system. Most switches, outlets, and wall

plates (including cast metals) are automatically grounded

to the frame, saving time and ensuring a safe and reliable

ground path.

Devices simply snap into the frame from the front. During installation, screw the frame

to the box, then pull the wires through the frame and wire the device. Then, simply

snap the device into the frame.

1-Gang, 2-Module

with Spacers

2-Gang with Spacers1-Gang, 3-Module

without Spacers

3-Gang with Spacers

The adorne Modular System

Complete versatility and unmatched flexibility

adorne fits in all existing

NEMA-approved wallboxes.*

* Does not apply to Pop-Out Outlet.

** Does not apply to Pop-Out Outlet,

20A Outlet, or 20A GFCI Outlet.

The frame is grounded. Device snaps into the frame and is

automatically grounded**.

It self-aligns without any screws.

Wall plate snaps onto

frame; no screws required.

Modular system solves

device alignment problems,

improving fit and finish in

multi-gang installations.

Standard

Wallbox

Frame Device

Wall Plate

Spacers

4-Gang with Spacers

19

18

Ground Wire

Also available in 5 and 6-Gang with Spacers.

SWITCHES, DIMMERS, OUTLETS, AND ACCESSORIESSWITCHES, DIMMERS, OUTLETS, AND ACCESSORIES

Modular Unit Dimensions

1-Module Dimensions 2-Module Dimensions

Optional Configurations

• The basic building block of the system

is a 1-Module unit (45mm x 22.5mm).

• All devices have either 1-module or

2-module front faces.

• Devices also have either 1-module,

2-module, or 3-module backbodies.

• Most switches, dimmers, and outlets are

in the 2-module format (45mm x 45 mm).

This is the standard adorne proprietary

“45” opening.

45mm

(1.77”)

45mm

(1.77”)

22.5mm (.89”) 45mm (1.77”)

1-Gang, 2-Module

1-Module

Paddle Switch

1-Module

Paddle Switch

1-Gang

1-Gang, 2-Module

1-Module

Nightlight

1-Module

Paddle Switch

1-Gang

1-Gang, 3-Module

1-Module

USB Outlet

2-Module

Outlet

1-Gang

2-Gang

2-Module

Paddle Switch

2-Module

Outlet 2-Gang

3-Gang

2-Module

Paddle Switch

2-Module

Paddle Switch

2-Module

Paddle

Dimmer 3-Gang

4-Gang

2-Module

Paddle Switch

2-Module

Paddle Switch

2-Module

Paddle

Dimmer

2-Module

Paddle Fan

Speed Control 4-Gang

Paddle Switch, 2-Module 2-Module 2-Module

Paddle Switch, 1-Module 1-Module 1-Module

Whisper Switch 2-Module 2-Module

Push Switch 2-Module 2-Module

sofTap Switch 2-Module 3-Module

SensaSwitch 2-Module 3-Module

Touch 2-Module 3-Module

Wave 2-Module 3-Module

Tamper-Resistant Outlet, 2-Module 2-Module 2-Module

Tamper-Resistant Outlet, 3-Module 3-Module 3-Module

GFCI Outlet, 2-Module 2-Module 3-Module

GFCI Outlet, 3-Module 3-Module 3-Module

Energy-Saving ON/OFF Outlet 2-Module 2-Module

USB Outlet 1-Module 1-Module

Paddle 2-Module 3-Module

Whisper 2-Module 3-Module

sofTap 2-Module 3-Module

SensaDimmer 2-Module 3-Module

Touch 2-Module 3-Module

Paddle Fan Speed Control 2-Module 3-Module

Nightlight, 1-Module 1-Module 1-Module

Nightlight, 2-Module 2-Module 2-Module

Portable Nightlight/Flashlight 2-Module 3-Module

Front Face and Backbody Modular Sizes

NAME FRONT FACE SIZE BACKBODY SIZE NAME FRONT FACE SIZE BACKBODY SIZE

SWITCHES OUTLETS

DIMMERS

ILLUMINATION

2120

SWITCHES, DIMMERS, OUTLETS, AND ACCESSORIESSWITCHES, DIMMERS, OUTLETS, AND ACCESSORIES

Single-Pole/3-Way

15A

20A

600W

4-Way 20A

600W

Multi-Location Wireless

Whole-House Wireless

Single-Pole/3-Way

Multi-Location Wireless

Multi-Location

Whole-House Wireless Whole-House

Incandescent/Halogen

600W

700W

1100W

CFL/LED 450W

Fluorescent 700W

Electronic Low Voltage

Forward-Phase 700W

Reverse-Phase 450W

Magnetic Low Voltage

700W

Fan Speed Control 1.6A

SWITCHES RATING PADDLE (Page 26) WHISPER (Page 27)

DIMMERS RATING PADDLE (Page 26) WHISPER (Page 27)

PUSH (Page 29) SOFTAP (Page 28) SENSASWITCH (Page 30) TOUCH (Page 32) WAVE (Page 31)

SOFTAP (Page 28) SENSADIMMER (Page 30) TOUCH (Page 32)

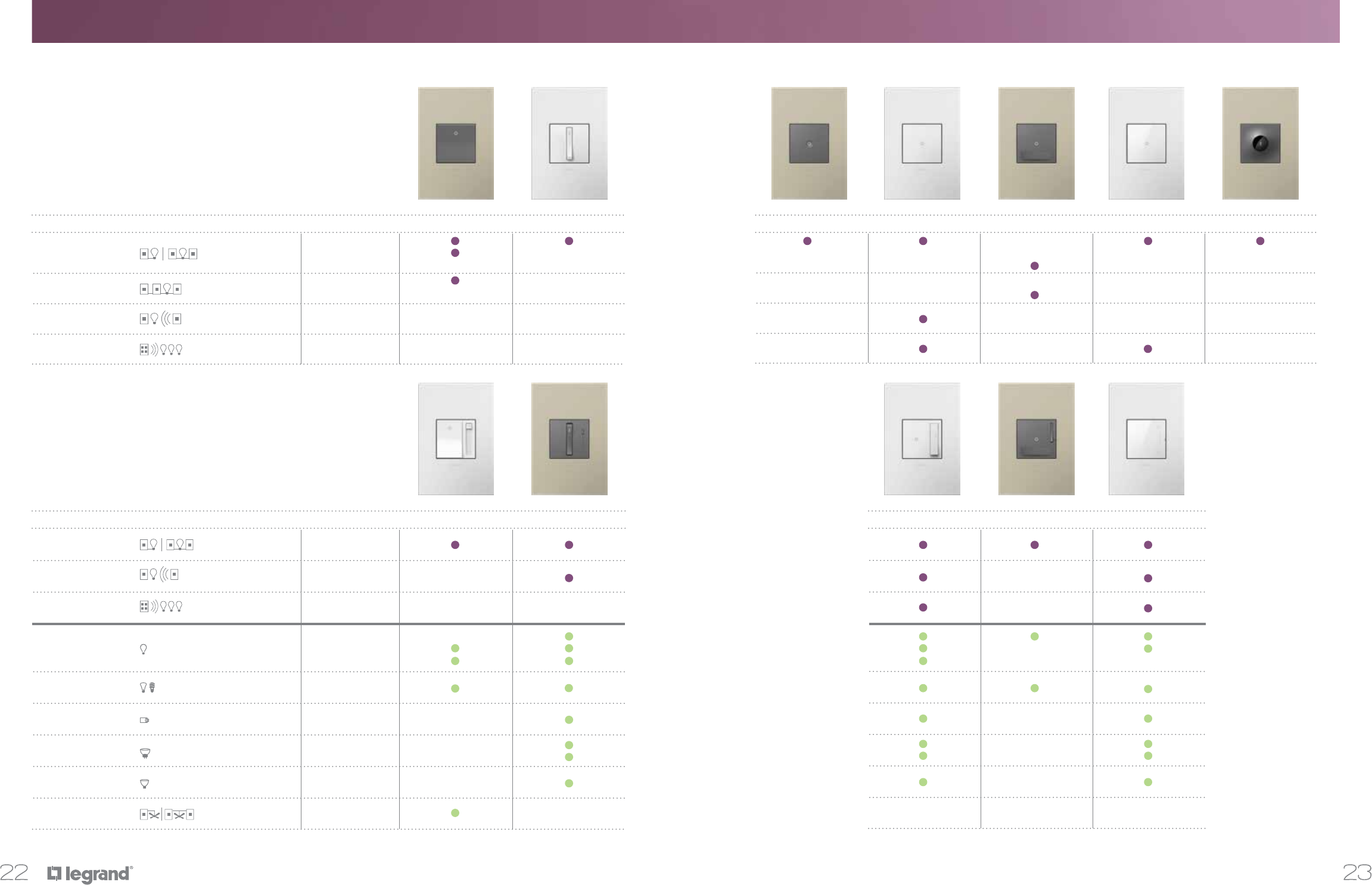

Switch and Dimmer Capabilities

2322

Switch

Dimmer

Incandescent/Halogen

CFL/LED

Fluorescent

Forward-Phase Electronic Low Voltage

Reverse-Phase Electronic Low Voltage

Magnetic Low Voltage

SWITCHES, DIMMERS, OUTLETS, AND ACCESSORIESSWITCHES, DIMMERS, OUTLETS, AND ACCESSORIES

adorne Wireless Lighting Controls

The adorne Collection offers both multi-location and whole-house lighting control options using the Legrand-patented

Topdog™ radio frequency technology. Each of the systems features switches and dimmers in multiple adorne interface types.

adorne Multi-Location Wireless

System range:

• 40 feet

• Supports up to nine devices grouped together

The Single-Room or Multi-Location system provides multi-location dimming without the need to run any additional wires. It is ideal for

small to large remodeling projects in which you would like to control a light from more than one location without rewiring. You can even

pair a wireless switch or dimmer with an adorne wireless outlet to control a plug load quickly and easily.

Using the robust and reliable Topdog radio frequency protocol, switches, dimmers, and outlets can communicate seamlessly together,

eliminating the need to run new traveler wires from device to device. It is no longer necessary to tear into sheetrock to enjoy the

ambiance, convenience, and energy-savings that lighting controls offer.

Switch

Dimmer

Incandescent/Halogen

CFL/LED

Fluorescent

Forward-Phase Electronic Low Voltage

Reverse-Phase Electronic Low Voltage

Magnetic Low Voltage

WHISPER (Page 27) SOFTAP (Page 28) TOUCH (Page 32)

adorne Whole-House Wireless

System range:

• More than 100 feet (up to 300 feet with use of repeater MRR2-G)

• Supports up to 100 devices

The Whole-House system provides unrivaled convenience, security, and energy-savings for both remodel projects and new construction.

The ability to set scenes allows you to create the perfect lighting environment in multiple rooms or the entire house, all at the touch

of a single button.

Convenience

• Coordinated control of lights, lamps, ceiling fans, and small appliances

• One-touch scene selection

• Easy grouping of dimmers and switches for flexible control

• Smart phone, tablet, and computer control options to give you access to your home’s lighting from anywhere in the world

Security and Safety

• Control as many lights in the home as desired from anywhere in the home or with your smart phone

• One-touch whole-house on/off

• Welcome home scenes that illuminate pathways and garages for a safe arrival

• Timed events make the home look occupied, even when you are away

• Easily integrates with alarm and fire systems*

• Turns off fans in the event of a fire*

SOFTAP (Page 28) TOUCH (Page 32)

*Requires integration of RS232 to RF Interface device (MR232). See Page 68.

Installation

Replacing existing devices with adorne wireless devices is as simple as a standard device installation – all switches, dimmers, and

outlets fit in your existing electrical box. Just install a wireless master device directly connected to the load, and then install a wireless

remote device anywhere within the system range. Then, follow included instructions to easily pair them together.

Scene Selection

You can also pair your devices with the adorne Wireless Lighting Remote Control for even more system

flexibility, allowing you to program lighting scenes that can be accessed at the touch of a button, such as

Welcome Home, Entertain, and Goodnight.

2524

SWITCHES, DIMMERS, OUTLETS, AND ACCESSORIESSWITCHES, DIMMERS, OUTLETS, AND ACCESSORIES

Paddle Switch, 2-Module Single-Pole/3-Way

Single-Pole/3-Way

4-Way

(Must be paired with

two 3-way switches.)

15A,

120 VAC

20A,

120 VAC

20A,

120 VAC

All Loads

All Loads

All Loads

White

Magnesium

White

Magnesium

White

Magnesium

ASPD1532W4

ASPD1532M4

ASPD2032W4

ASPD2032M4

ASPD2042W4

ASPD2042M4

Paddle Dimmer Single-Pole/3-Way

2-Wire

Single-Pole/3-Way

2-Wire

Single-Pole/3-Way

2-Wire

25W -

700W

25W -

1100W

25W -

450W

Incandescent, Halogen

Incandescent, Halogen

CFL, LED

Incandescent, Halogen

White

Magnesium

White

Magnesium

White

Magnesium

ADPD703HW4

ADPD703HM4

ADPD1103HW4

ADPD1103HM2

ADPD453LW2

ADPD453LM2

Paddle Switch, 1-Module Single-Pole/3-Way 15A,

120 VAC

All Loads White

Magnesium

ASPD1531W4

ASPD1531M4

Paddle Fan Speed

Control

4-Speed De-hummer 1.6A,

120 VAC

Paddle-Type Ceiling Fan White

Magnesium

AAFN4S16AW4

AAFN4S16AM4

Whisper Switch Single-Pole/3-Way 15A,

120 VAC

All Loads White

Magnesium

ASWR1532W4

ASWR1532M4

Whisper Dimmer Single-Pole/3-Way

2-Wire

Single-Pole/3-Way

2-Wire

25W -

700W

25W -

1100W

Incandescent, Halogen

Incandescent, Halogen

White

Magnesium

White

Magnesium

ADWR703HW4

ADWR703HM4

ADWR1103HW4

ADWR1103HM4

Whisper Dimmer,

Multi-Location Wireless

Wireless Master,

Multi-Location

Tru-Universal

3-Wire

Wireless Master,

Multi-Location

2-Wire

Wireless Remote

Dimmer, Multi-Location

6W -

700W

6W -

450W

25W -

600W

Incandescent, Halogen, Forward-

Phase ELV, MLV, Fluorescent

CFL, LED, Reverse-Phase ELV

Incandescent, Halogen

White

Magnesium

White

Magnesium

White

Magnesium

ADWR700MMTUW2

ADWR700MMTUM2

ADWR600MMHW2

ADWR600MMHM2

ADWRMRUW2

ADWRMRUM2

NAME SPECIFICATIONS RATING COMPATIBLE LOADS COMPLIANCE FINISH OPTIONS PART NUMBER NAME SPECIFICATIONS RATING COMPATIBLE LOADS COMPLIANCE FINISH OPTIONS PART NUMBER

Paddle™

The Paddle design features a simple up and down motion, allowing you to turn lights on and off

with ease. Dimmers include a slider for dimming or brightening lights.

Pair with a Locator Status Light to add illumination to your Paddle switch or dimmer.

See page 37.

See pages 74 & 78 for switch and dimmer installation instructions.

Whisper™

The Whisper design features classic, elegant lines and a fluid motion. Whisper dimmers include

a slide for dimming or brightening lights.

Pair with a Locator Status Light to add illumination to your Whisper switch or dimmer.

See page 37.

See pages 74 & 78 for switch and dimmer installation instructions.

2726

sofTap Dimmer,

Multi-Location Wireless

Wireless Master,

Multi-Location

Tru-Universal

3-Wire

6W -

700W

6W -

450W

Incandescent, Halogen, Forward-

Phase ELV, MLV, Fluorescent

CFL, LED, Reverse-Phase ELV

White

Magnesium

ADTP700MMTUW2

ADTP700MMTUM2

Wireless Master,

Multi-Location

2-Wire

Wireless Remote

Dimmer, Multi-Location

25W -

600W

Incandescent, Halogen White

Magnesium

White

Magnesium

ADTP600MMHW2

ADTP600MMHM2

ADTPMRUW2

ADTPMRUM2

sofTap Dimmer,

Whole-House Wireless

Wireless Master,

Whole-House

Tru-Universal

3-Wire

Wireless Master,

Whole-House

2-Wire

Wireless Remote,

Whole-House

6W -

700W

6W -

450W

60W -

600W

Incandescent, Halogen, Forward-

Phase ELV, MLV, Fluorescent

CFL, LED, Reverse-Phase ELV

Incandescent, Halogen

White

Magnesium

White

Magnesium

White

Magnesium

ADTP

700RMTUW1

ADTP

700RMTUM1

ADTP6

00RMHW1

ADTP6

00RMHM1

ADTPRRW1

ADTPRRM1

Push Switch Single-Pole/3-Way 15A,

120 VAC

All Loads White

Magnesium

ASPU1532W4

ASPU1532M4

Push™

The Push Switch allows you to turn lights on and off with a simple push-button motion.

Pair with a Locator Status Light to add illumination to your Push switch. See page 37.

See pages 74 & 78 for switch and dimmer installation instructions.

sofTap™

The sofTap design features an innovative micro-movement that turns lights on and off with

just a soft “tap” of the finger. Dimmers include a unique paddle to adjust light levels.

See pages 74 & 78 for switch and dimmer installation instructions.

NAME SPECIFICATIONS RATING COMPATIBLE LOADS COMPLIANCE FINISH OPTIONS PART NUMBER

NAME SPECIFICATIONS RATING COMPATIBLE LOADS COMPLIANCE FINISH OPTIONS PART NUMBER

SWITCHES, DIMMERS, OUTLETS, AND ACCESSORIESSWITCHES, DIMMERS, OUTLETS, AND ACCESSORIES

Tru-Universal

Our Tru-Universal technology enables a dimmer to control all load types. Dimmers marked as Tru-Universal,

such as the sofTap Dimmer below, automatically adapt to any load or combination of loads attached to them -

Incandescent/Halogen, Magnetic Low Voltage, Electronic Low Voltage in Forward or Reverse Phase, CFL/LED

bulbs, etc. They eliminate the flickering, early dropout, or “pop-on’ deficiencies which can plague other non-

adaptive dimmers.

The adorne Tru-Universal dimmer is the ultimate solution to dimming difficult loads. Simply pair it with any

fixture and you’re done!

2928

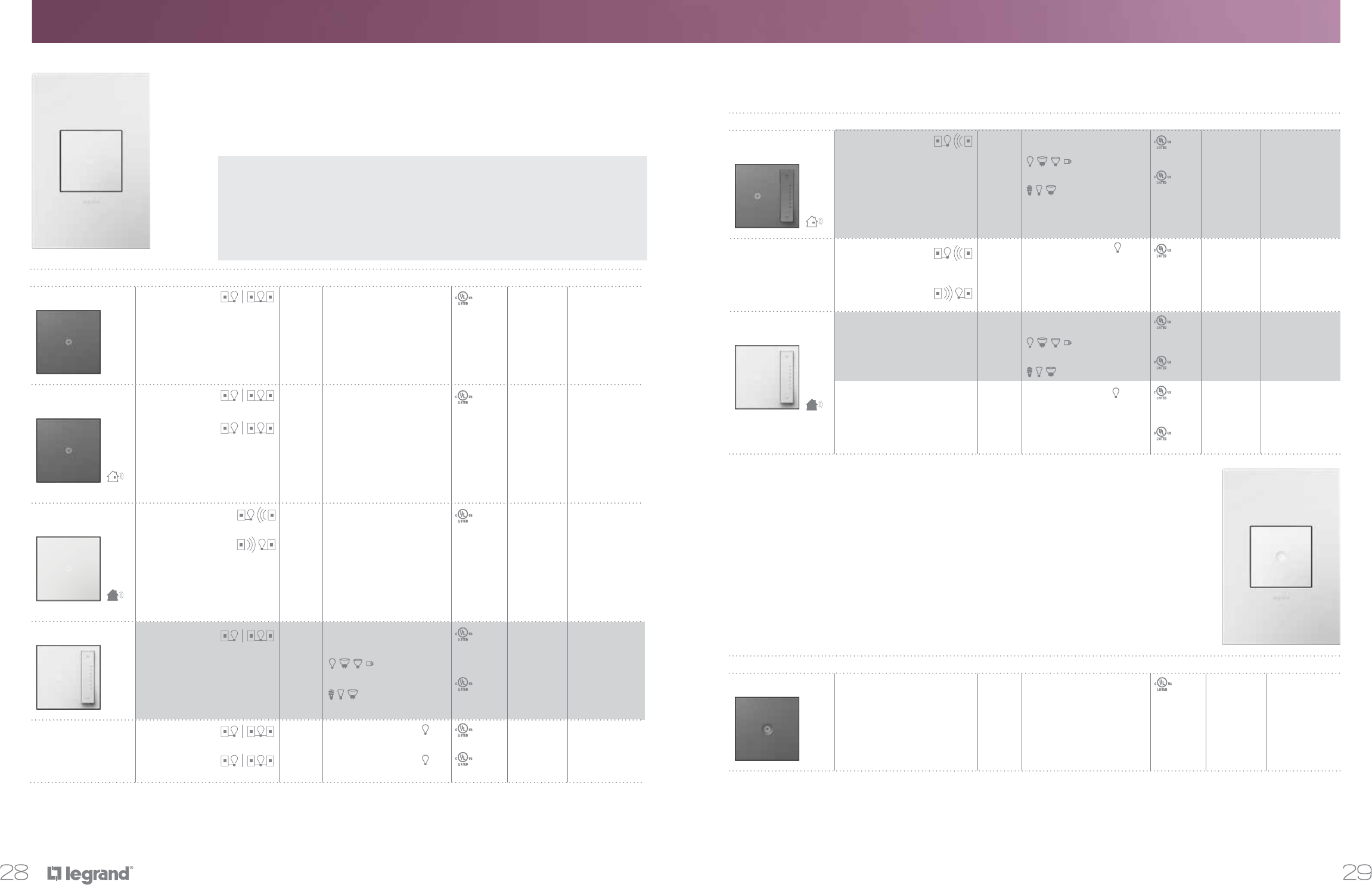

sofTap Switch Single-Pole/3-Way 15A,

120 VAC,

1/2 Hp

All Loads White

Magnesium

ASTP1532W4

ASTP1532M4

sofTap Switch,

Multi-Location Wireless

Wireless Master,

Multi-Location

Wireless Remote,

Multi-Location

All Loads White

Magnesium

White

Magnesium

ASTPRF2W2

ASTPRF2M2

ASTPRFR2W2

ASTPRFR2M2

sofTap Switch,

Whole-House Wireless

Wireless Master,

Whole-House

Wireless Remote,

Whole-House

All Loads White

Magnesium

White

Magnesium

ASTP155RMW1

ASTP155RMM1

ASTPRRW1

ASTPRRM1

sofTap Dimmer Single-Pole/3-Way

Tru-Universal

3-Wire

6W -

700W

6W -

450W

Incandescent, Halogen,

Forward-Phase ELV, MLV,

Fluorescent

CFL, LED, Reverse-Phase ELV

White

Magnesium

ADTP703TUW4

ADTP703TUM4

Single-Pole/3-Way

2-Wire

Single-Pole/3-Way

2-Wire

25W -

700W

25W -

1100W

Incandescent, Halogen

Incandescent, Halogen

White

Magnesium

White

Magnesium

ADTP703HW2

ADTP703HM2

ADTP1103HW4

ADTP1103HM4

NAME SPECIFICATIONS RATING COMPATIBLE LOADS COMPLIANCE FINISH OPTIONS PART NUMBER

SensaSwitch, Auto-ON/

Auto-OFF

Single-Pole/3-Way

4-Way

Occupancy Sensor

(Must be paired with

another SensaSwitch

or SensaDimmer)

600W,

120VAC,

60 Hz,

1/6 Hp

All Loads 5 minutes –

30 minutes

White

Magnesium

ASOS32W4

ASOS32M4

SensaSwitch, Manual-

ON/Auto-OFF

Single-Pole/3-Way

4-Way

Vacancy Sensor

(Must be paired with

another SensaSwitch

or SensaDimmer)

600W,

120VAC,

60 Hz,

1/6 Hp

All Loads 5 minutes –

30 minutes

CA Title 24

White

Magnesium

ASVS12W4

ASVS12M4

SensaSwitch, Manual-

ON/Timed-OFF

Single-Pole/3-Way

4-Way

Timer

(Must be paired with

another SensaSwitch

or SensaDimmer)

600W,

120VAC,

60 Hz,

1/6 Hp

All Loads White

Magnesium

ASTM2W2

ASTM2M2

SensaDimmer, Auto-ON/

Auto-OFF

Single-Pole/3-Way

4-Way

Dimming Occupancy Sensor

3-Wire

(Must be paired with

another SensaSwitch

or SensaDimmer)

25W -

700W

25W -

450W

Incandescent,

Halogen

CFL/LED

5 minutes –

30 minutes

White

Magnesium

ADSM703HW2

ADSM703HM2

SWITCHES, DIMMERS, OUTLETS, AND ACCESSORIESSWITCHES, DIMMERS, OUTLETS, AND ACCESSORIES

SensaSwitch™ + SensaDimmer™

SensaSwitches include passive infrared (PIR) sensor technology, automatically turning lights

on or off when you enter or leave a room. The design features an innovative micro-movement

that allows you to also manually turn on lights with a soft touch of the finger. SensaSwitches

are available in three models:

• Auto-ON/Auto-OFF: Automatically turns lights on when you enter a room and off when

you leave. (Occupancy Sensor)

• Manual-ON/Auto-OFF: Allows you to turn lights on when you enter a room and

automatically turns them off when you leave. (Vacancy Sensor)

• Manual-ON/Timed-OFF: Allows you to turn lights on when you enter a room and select

a time for lights to turn off (options include 10, 20, 30, and 60 minutes). (Timer)

SensaSwitches are perfect for kitchens, bathrooms, garages, and pantries. The SensaDimmer

turns lights on when you enter a room and off when you leave, but can be adjusted to become

Manual-ON/Auto-OFF if desired. The chart to the right provides an overview of the sensor

coverage area.

SensaSwitch™ + SensaDimmer™

Coverage Area

The Occupancy Sensor, Vacancy Sensor, and SensaDimmer each have a

maximum coverage range of 180 degrees and a coverage area of 600 sq. ft.

The sensor must have a clear and unobstructed view of the coverage area.

Objects blocking the sensor’s lens may prevent detection thereby causing

the light to turn off even though someone is in the area. Windows, glass

doors, and other transparent barriers will obstruct the sensor’s view and

prevent detection.

NAME SPECIFICATIONS RATING COMPATIBLE LOADS TIME DELAY COMPLIANCE FINISH OPTIONS PART NUMBER

Major Motion

35’ (10.6 m)

Minor Motion

20’ (6 m)

7.5’ (2.2 m)

15’ (4.5 m)

Wave Switch Single-Pole/3-Way 15A,

120 VAC,

1/2 Hp

All Loads White

Magnesium

ASWV1532W2

ASWV1532M2

Wave™

The Wave switch features innovative technology combined with sleek, contemporary design. Simply

wave your hand in front of the switch to turn lights on and off.

With its touch-free motion, the Wave is ideal for countertop areas in kitchens and bathrooms.

It has a preset sensor distance of approximately 4”. However, this can be easily adjusted to sense

movement from 1” to 6” in front of switch. See pages 74 & 78 for switch installation instructions.

NAME SPECIFICATIONS RATING COMPATIBLE LOADS COMPLIANCE FINISH OPTIONS PART NUMBER

Wireless Lighting

Remote Control

ADMHRM4

NAME PART NUMBER

Wireless Lighting Remote Control

This unique remote allows you to control your wireless switches and dimmers from

anywhere in the home as well as create lighting scenes.

The remote is easy to program and is compatible with adorne multi-location

wireless lighting controls. It allows up to four lighting scenes, as well as one-

touch dimming or brightening of your lights.

3130

Touch Switch Single-Pole/3-Way 15A,

120 VAC,

1/2 Hp

All Loads White

Magnesium

ASTH1532W2

ASTH1532M2

Touch Switch,

Whole-House Wireless

Wireless Master,

Whole-House

Wireless Remote,

Whole-House

All Loads White

Magnesium

White

Magnesium

ASTH155RMW1

ASTH155RMM1

ASTHRRW1

ASTHRRM1

Touch Dimmer,

Multi-Location Wireless

Wireless Master,

Multi-Location

Tru-Universal

3-Wire

Wireless Remote,

Multi-Location

6W -

700W

6W -

450W

Incandescent, Halogen, Forward-

Phase ELV, MLV, Fluorescent

CFL, LED, Reverse-Phase ELV

White

Magnesium

White

Magnesium

ADTH700MMTUW2

ADTH700MMTUM2

ADTHMRUW2

ADTHMRUM2

Touch Dimmer,

Whole-House Wireless

Wireless Master,

Whole-House

Tru-Universal

3-Wire

Wireless Master,

Whole-House

2-Wire

Wireless Remote,

Whole-House

6W -

700W

6W -

450W

60W -

600W

Incandescent, Halogen, Forward-

Phase ELV, MLV, Fluorescent

CFL, LED, Reverse-Phase ELV

Incandescent, Halogen

White

Magnesium

White

Magnesium

White

Magnesium

ADTH700RMTUW1

ADTH700RMTUM1

ADTH600RMHW1

ADTH600RMHM1

ADTHRRW1

ADTHRRM1

Paddle Switch,

2-Module

ASPD1531W4

ASPD1532M4

ASPD2032W4

ASPD2032M4

ASPD2042W4

ASPD2042M4

1.77” x 1.77” x 1.5”

1.77” x 1.77” x 1.59”

1.77” x 1.77” x 1.72”

Paddle Dimmer ADPD703HW4

ADPD703HM4

ADPD1103HW4

ADPD1103HM2

ADPD453LW2

ADPD453LM2

4.20” x 1.77” x 1.62”

4.20” x 2.51” x 1.62”

4.20” x 1.77” x 1.62”

Paddle Switch,

1-Module

ASPD1531W4

ASPD1531M4

1.77” x 0.89” x 1.5”

Paddle Fan Speed

Control

AAFN4S16AW4

AAFN4S16AM4

2.66” x 1.77” x 1.85”

Whisper Switch ASWR1532W4

ASWR1532M4

1.77” X 1.77” x 1.63”

Whisper Dimmer ADWR703HW4

ADWR703HM4

ADWR1103HW4

ADWR1103HM4

4.20” x 1.77” x 1.77”

4.20” x 2.51” x 1.77”

Whisper Dimmer,

Multi-Location Wireless

ADWR700MMUW2

ADWR700MMUM2

ADWR700MMHW2

ADWR700MMHM2

ADWRMRUW2

ADWRMRUM2

4.20” x 1.77” x 1.79”

4.20” x 1.77” x 1.79”

4.20” x 1.77” x 1.79”

sofTap Switch ASTP1532W4

ASTP1532M4

2.66” x 1.77” x 1.63”

sofTap Dimmer ADTP703HW2

ADTP703HM2

ADTP1103HW4

ADTP1103HM4

ADTP703UW2

ADTP703UM2

4.20” x 1.77” x 1.79”

4.20” x 2.51” x 1.79”

4.20” x 1.77” x 1.79”

sofTap Switch,

Multi-Location Wireless

ASTPRF2W2

ASTPRF2M2

ASTPRFR2W2

ASTPRFR2M2

2.66” x 1.77” x 1.63”

2.66” x 1.77” x 1.63”

sofTap Switch,

Whole-House Wireless

ASTP155RMW1

ASTP155RMM1

ASTPRRW1

ASTPRRM1

2.66” x 1.77” x 1.63”

2.66” x 1.77” x 1.63”

sofTap Dimmer,

Multi-Location Wireless

ADTP700MMUW2

ADTP700MMUM2

ADTP700MMHW2

ADTP700MMHM2

ADTPMRUW2

ADTPMRUM2

4.20” x 1.77” x 1.79”

4.20” x 1.77” x 1.79”

4.20” x 1.77” x 1.79”

sofTap Dimmer,

Whole-House Wireless

ADTP700RMHW1

ADTP700RMHM1

ADTP700RMUW1

ADTP700RMUM1

ADTPRRW1

ADTPRRM1

4.20” x 1.77” x 1.79”

4.20” x 1.77” x 1.79”

4.20” x 1.77” x 1.79”

Push Switch ASPU1532W4

ASPU1532M4

1.77” X 1.77” x 1.82”

SensaSwitch, Auto-ON/

Auto-OFF

ASOS32W4

ASOS32M4

2.66” x 1.77” x 1.85”

SensaSwitch, Manual-

ON/Auto-OFF

ASVS12W4

ASVS12M4

2.66” x 1.77” x 1.85”

SensaSwitch, Manual-

ON/Timed-OFF

ASTM2W2

ASTM2M2

2.66” x 1.77” x 1.85”

SensaDimmer, Auto-

ON/Auto-OFF

ADSM703HW2

ADSM703HM2

4.20” x 1.77” x 1.85”

Wave Switch ASWV1532W2

ASWV1532M2

2.66” x 1.77” x 1.71”

Touch Switch ASTH1532W2

ASTH1532M2

2.66” x 1.77” x 1.63”

Touch Switch,

Whole-House Wireless

ASTH155RMW1

ASTH155RMM1

ASTHRRW1

ASTHRRM1

2.66” x 1.77” x 1.63”

2.66” x 1.77” x 1.63”

Touch Dimmer,

Multi-Location Wireless

ADTH700MMUW2

ADTH700MMUM2

ADTHMRUW2

ADTHMRUM2

4.20” x 1.77” x 1.79”

4.20” x 1.77” x 1.79”

Touch Dimmer,

Whole-House Wireless

ADTH700RMHW1

ADTH700RMHM1

ADTH700RMUW1

ADTH700RMUM1

ADTHRRW1

ADTHRRM1

4.20” x 1.77” x 1.79”

Blank, 1-Module AABK1W4

AABK1M4

1.77” X 0.89” x 0.96”

Tamper-Resistant

Outlet, 2-Module

ARTR152W4

ARTR152M4

ARTR202W4

ARTR202M4

2.12” x 1.77” x 1.73”

2.12” x 1.77” x 1.73”

Tamper Resistant Out-

let, 3-Module

ARTR153W4

ARTR153M4

3” x 1.77” x 1.48”

Tamper-Resistant GFCI,

2-Module

AGFTR152W4

AGFTR152M4

AGFTR202W4

AGFTR202M4

2.66” x 1.77” x 1.82”

2.66” x 1.77” x 1.82”

Tamper-Resistant GFCI,

3-Module

AGFTR153W4

AGFTR153M4

3.00” x 1.76” x 1.82”

Energy-Saving ON/OFF

Outlet

ARPS152W4

ARPS152M4

2.66” x 1.77” x 1.73”

Wireless Outlet ARPS15RF2W4

ARPS15RF2M4

2.66” x 1.76” x 1.82”

USB Outlet, 1-Module ARUSBW4

ARUSBM4

1.77” X 0.89” x 1.81”

SWITCHES, DIMMERS, OUTLETS, AND ACCESSORIESSWITCHES, DIMMERS, OUTLETS, AND ACCESSORIES

Touch™

The Touch design features a stunning translucent face and operates just like an iPhone® -

simply touch your finger on the circle to turn lights on and off, or use the arrows on the right

to dim them (Touch dimmer only).

The white Touch interface is created using a unique translucent material. In multi-gang

installations, we recommend pairing white Touch switches and dimmers for optimal

consistency.

See pages 74 & 78 for switch and dimmer installation instructions.

Dimensions

iPhone® is a registered trademark of Apple, Inc.

NAME SPECIFICATIONS RATING COMPATIBLE LOADS COMPLIANCE FINISH OPTIONS PART NUMBER

NAME PART NUMBER DIMENSIONS (H x W x D) NAME PART NUMBER DIMENSIONS (H x W x D)

3332

SWITCHES, DIMMERS, OUTLETS, AND ACCESSORIESSWITCHES, DIMMERS, OUTLETS, AND ACCESSORIES

Tamper-Resistant Outlet,

2-Module

Pair with a 1-Module Nightlight,

Paddle Switch, or USB Outlet for

greater functionality in a 1-Gang,

3-Module Wall Plate.

15A, 125V

20A, 125V

5-15R

5-20R

White

Magnesium

White

Magnesium

ARTR152W4

ARTR152M4

ARTR202W4

ARTR202M4

Tamper-Resistant Outlet,

3-Module

Compatible with 1-Gang, 3-Module

Wall Plates only. Cannot be used

in multi-gang installations.

15A, 125V 5-15R White

Magnesium

ARTR153W4

ARTR153M4

Tamper-Resistant GFCI,

2-Module

GFCIs protect against serious

injury due to electric shock. They

are required by National Electrical

Code in kitchens and bathrooms.

15A, 125V

20A, 125V

5-15R

5-20R

White

Magnesium

White

Magnesium

AGFTR152W4

AGFTR152M4

AGFTR202W4

AGFTR202M4

Tamper-Resistant GFCI,

3-Module

GFCIs protect against serious

injury due to electric shock. They

are required in kitchens and

bathrooms.

Compatible with 1-Gang, 3-Module

Wall Plates only. Cannot be used

in multi-gang installations.

15A, 125V 5-15R White

Magnesium

AGFTR153W4

AGFTR153M4

Energy-Saving ON/OFF

Outlet

On/off switch allows you to save

energy and stop the flow of power

without unplugging your device.

Perfect for kitchens, bathrooms,

and computer rooms.

15A, 125V 5-15R White

Magnesium

ARPS152W4

ARPS152M4

Wireless ON/OFF Outlet Lets you control a plug load from

a new location without running

additional wires when paired with

the adorne sofTap Wireless Master

Switch (page 28). On/off switch

also allows you to save energy and

stop the flow of power to the outlet

without unplugging your device.

Wireless sofTap Switch

15A, 125V 5-15R White

Magnesium

ARPS15RF2W4

ARPS15RF2M4

USB Outlet, 1-Module Perfect for charging mobile devices

such as phones and tablets.

Pair with a switch or outlet in a

1-Gang, 3-Module plate for more

functionality in one box.

2.1A,

5 VDC,

11W

White

Magnesium

ARUSBW4

ARUSBM4

Pop-Out Outlet, 1-Gang Includes 1-gang frame for

installation. Cannot be

paired with other switches,

dimmers, outlets,

or accessories.

15A 5-15R White

Magnesium

ARPTR151GW2

ARPTR151GM2

Pop-Out Outlet, 2-Gang Includes one Pop-Out

Outlet and 2-gang frame

for installation. Select this

option to pair your Pop-Out

Outlet with another adorne

switch, dimmer, outlet,

or accessory.

15A 5-15R White

Magnesium

ARPTR152GW2

ARPTR152GM2

Outlets (Receptacles)

All adorne outlets include a tamper-resistant design featuring a patented shutter system,

keeping children safe by preventing them from pushing small objects into the

outlet. The shutters are painted a dark color so that they fade into the background while

keeping users safe. Outlets and GFCIs are available in 2- and 3-module versions.

Pop-Out™ Outlet (Receptacle)

The Pop-Out Outlet lets you hide an outlet when not in use. Simply push on the outlet and it

disappears into the wall. When you’re ready to plug something in, just push on the box and the

outlets will “pop out,” enabling easy access to power.

Pop-Out Outlets require a special frame (included in package) and are not compatible with

those used with adorne wall plates. They require a deep box, such as Pass & Seymour SI22R,

for installation.

See specifications below to select the correct outlet for your installation. Each outlet includes

capacity for three plugs.

NAME DESCRIPTION RATINGS NEMA CONFIGURATION COMPLIANCE FINISH OPTIONS PART NUMBER

NAME DESCRIPTION RATINGS NEMA CONFIGURATION COMPLIANCE FINISH OPTIONS PART NUMBER

NAME DESCRIPTION RATINGS NEMA CONFIGURATION COMPLIANCE FINISH OPTIONS PART NUMBER

3534

Accent Nightlight

The Accent Nightlight is a stunning addition to any adorne product and is

compatible with any* 1- through 4-Gang wall plate. The device is invisible once

installed, but can be activated by placing a finger under the wall plate. This

will cause the light to cycle through several light level options, as depicted in

the chart below.

SWITCHES, DIMMERS, OUTLETS, AND ACCESSORIESSWITCHES, DIMMERS, OUTLETS, AND ACCESSORIES

Nightlight, 1-Module Features a soft, glowing LED light.

Pair with a switch or outlet in a 1-Gang,

3-Module Plate for added flexibility.

Light levels include:

Always Off

Low

Medium

High

AANLM14

Nightlight, 2-Module Features a soft, glowing LED light.

Light levels include:

Always Off

Low

Medium

High

AANLM24

Portable Nightlight/

Flashlight

Simply push on this innovative nightlight to remove it from the wall

and use it as a flashlight. Device recharges while mounted in

wall and operates for up to 10 hours during a power failure.

Includes light level options listed above, as well as Flashlight Mode,

which is activated only when device is removed from the wall.

AARNL2

Accent Nightlight, 1-Gang AAAL1G4

Accent Nightlight, 2-Gang AAAL2G2

Accent Nightlight, 3-Gang AAAL3G2

Accent Nightlight, 4-Gang AAAL4G2

Auto-OFF (1)

Always ON (2)

High

Medium

Low

Ultra-Low

OFF (3)

Locator Status Light Add a stylish, small locator light to your Paddle,

Whisper, or Push switch or dimmer and you’ll

never again have to slide your hand across the

wall trying to find that switch.

The locator light is a standard feature of all

other switches and dimmers. It can be disabled

if desired.

Locator light is on when the load is off and off

when the load is on.

AALSL6

NAME DESCRIPTION COMPLIANCE PART NUMBER

NAME COMPLIANCE PART NUMBER

DAYTIME NIGHT TIME

NAME DESCRIPTION COMPLIANCE PART NUMBER

Illumination

You’ve never seen a nightlight that hides itself so cleverly, yet responds so elegantly to

a simple touch. Or one that can be lifted from its home on your wall to double as a carry-

around flashlight. When it comes to brilliant solutions, adorne really shines.

All nightlights include ambient light level sensors. Each features a range of settings,

including: Always Off, Low, Medium, and High. If set to Low, Medium, or High, the

nightlight’s LED will only be visible when the ambient room is dark. To change the selected

setting, simply push on the square in the upper right-hand corner of the nightlight.

Locator Status Light: Find Us in the Dark

Light Level Settings

The Accent Nightlight will cycle through these options, allowing you to select

the setting you prefer. Auto-OFF indicates that the light will automatically

turn on when the room is dark and off when the room is light.

Paddle Whisper Push sofTap SensaSwitch Touch Wave

Optional Optional Optional Standard Standard Standard Standard

Accessory Accessory Accessory Feature Feature Feature Feature

In-wall nightlight function Press on nightlight to remove from wall Portable flashlight function

3736

1. Light turns off automatically when room is light.

2. Light remains on when room is light.

3. Light remains off when room is dark.

* Please note, the Accent Nightlight will not work

with the Pop-Out Outlet.

SWITCHES, DIMMERS, OUTLETS, AND ACCESSORIESSWITCHES, DIMMERS, OUTLETS, AND ACCESSORIES

1-Port Frame White

Magnesium

AC1PFW1

AC1PFM1

2-Port Frame White

Magnesium

AC2PFW1

AC2PFM1

4-Port Frame White

Magnesium

AC4PFW1

AC4PFM1

In-Wall Cable Access Port White

Magnesium

ACBRSTPW1

ACBRSTPM1

HDMI Keystone Coupler White

Magnesium

ACHDMIW1

ACHDMIM1

Single Keystone Speaker

Connector

White

Magnesium

ACSSIW1

ACSSIM1

Speaker Binding Posts White

Magnesium

ACABPW1

ACABPM1

Subwoofer RCA to

F-Connector

White

Magnesium

ACPRCAFW1

ACPRCAFM1

Video F-Connector White

Magnesium

ACNRFCW1

ACNRFCM1

Blank Keystone Insert

(4-Pack)

White

Magnesium

ACBLKW4

ACBLKM4

Cat 5e RJ45 Data/Phone

Insert

White

Magnesium

AC5ERJ45W1

AC5ERJ45M1

Cat 5e RJ45 Data Coupler

Insert

White

Magnesium

AC5ERJ45CW1

AC5ERJ45CM1

Cat 6 RJ45 Data Insert White

Magnesium

AC6RJ45W1

AC6RJ45M1

RJ25 Phone Jack White

Magnesium

ACRJ25W1

ACRJ25M1

Component Video RCA

to F Kit

White

Magnesium

ACRGBRCAFW1

ACRGBRCAFM1

Composite Video RCA to

F-Connector

White

Magnesium

ACYRCAFW1

ACYRCAFM1

NAME FINISH OPTIONS PART NUMBER

NAME FINISH OPTIONS PART NUMBER NAME FINISH OPTIONS PART NUMBER

Keystone Frames

For a consistent look throughout the project, select an adorne keystone frame to enable audio, video, and

data connectivity in an adorne wall plate. Simply pair a 1-port, 2-port, or 4-port frame with any keystone

inserts shown on the next page and then mount in an adorne wall plate for a complete installation.

Keystone Inserts

1-Port Frame

4-Port Frame

2-Port Frame

In-Wall Cable Access Port

Accessories: Blank Module

Use this blank insert to give your project a complete, finished look. Pair it with other

1-module devices, like the Nightlight, Paddle Switch, or USB, in a 1-gang wall plate.

Blank, 1-Module White

Magnesium

AABK1W4

AABK1M4

NAME FINISH OPTIONS PART NUMBER

3938

Accessories: Mounting Frames

1-Gang Mounting Frame

2-Gang Mounting Frame

3-Gang Mounting Frame

4-Gang Mounting Frame

AF1G

AF2G

AF3G

AF4G

NAME FINISH OPTIONS PART NUMBER

42 Overview

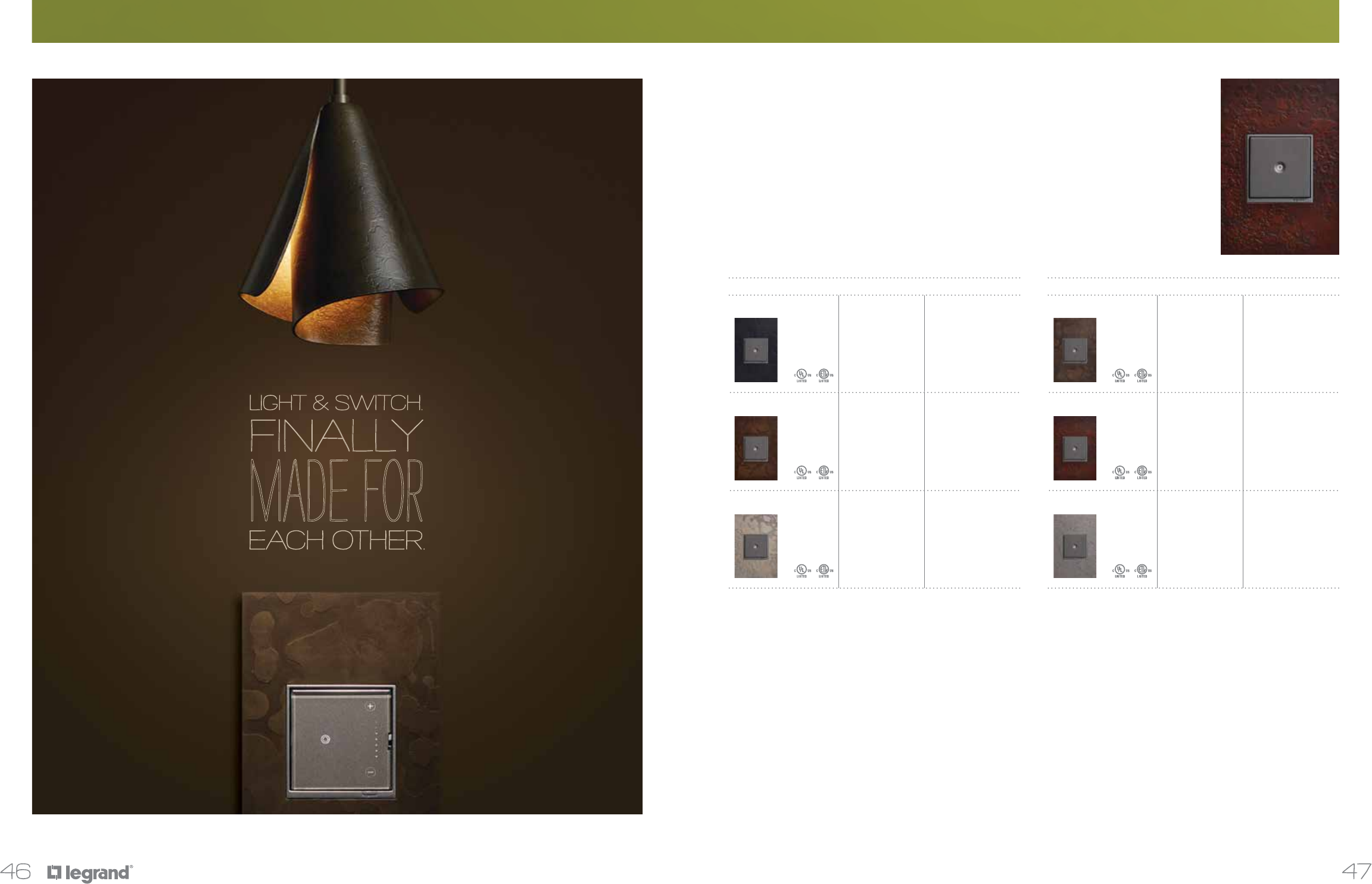

46 The Hubbardton Forge® Line

48 Cast Metals

49 Real Materials

50 Plastics

choose a style

as interesting

as yours

WALL PLATES

4140

WALL PLATESWALL PLATES

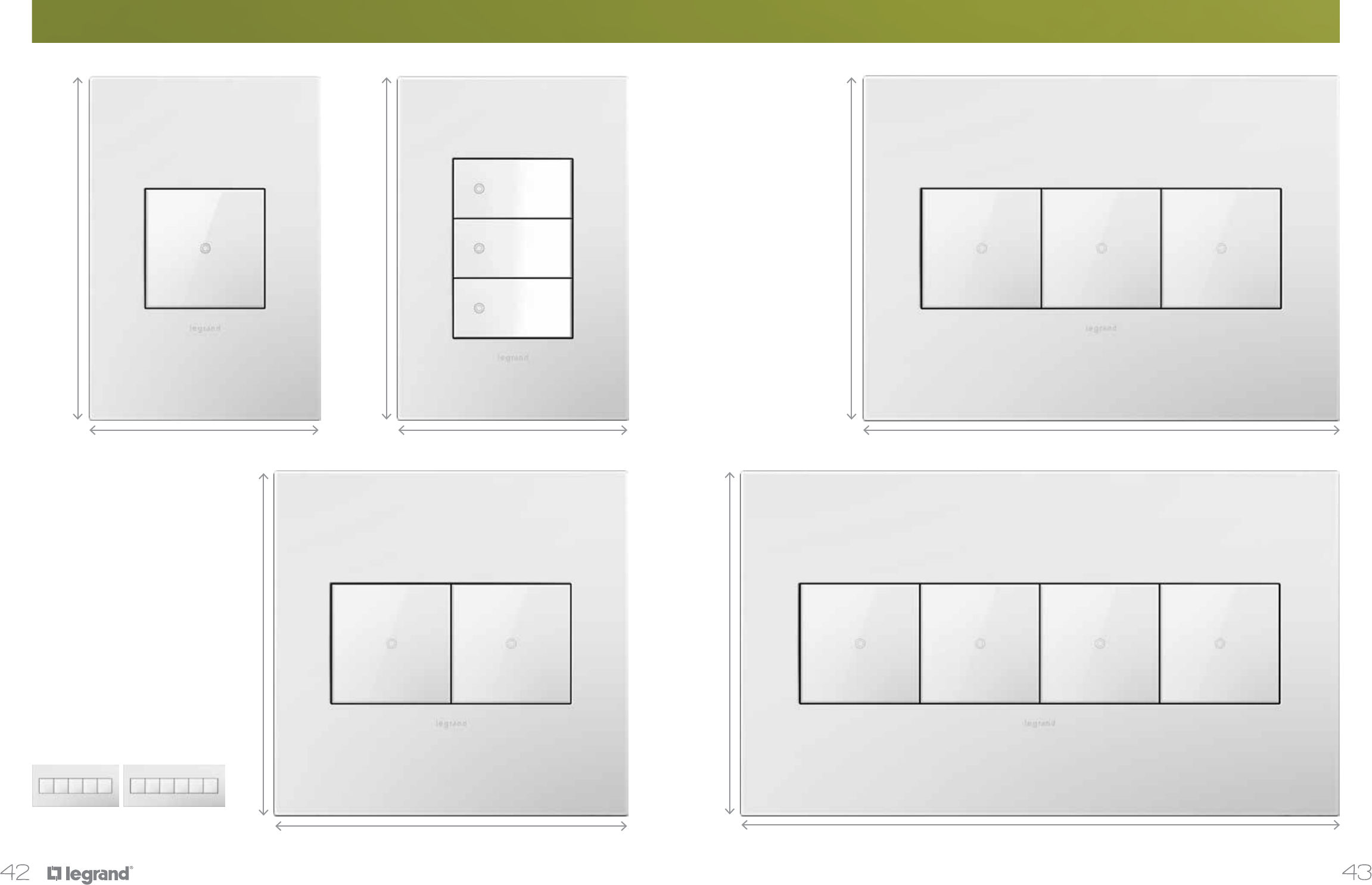

1-Gang, 2-Module 1-Gang, 3-Module 3-Gang

4-Gang2-Gang

Wall Plates

Available in six gang sizes, adorne wall

plates provide the perfect complement to

adorne switches, dimmers, outlets, and

accessories. The collection includes a

variety of finishes, from cast metals like

Satin Nickel and Oil-Rubbed Bronze to

real materials such as Leather and Wood.

In addition, the collection includes a full

offering of plastic plates in contemporary

and classic colors, as well as three

innovative Soft Touch finishes.

Each wall plate is packaged with a

metal frame to enable easy installation

when paired with a device. All plates

are screwless and simply snap onto the

included metal frame. See page 18 for more

information on the adorne frame system.

All adorne wall plates are UL and

ETL-approved. 5- and 6-Gang wall plates

are not available in all colors.

5.13” 5.13”

5.13” 5.13”

5.13”

3.45” 3.45”

5.29” 8.88”

7.06”

4342

5-Gang 6-Gang

Mahogany

HF

WALL PLATESWALL PLATES

4544

Brushed Stainless Steel

Brushed Brass

Aged BrassOil-Rubbed Bronze

RCustom with White Trim

Soft Touch Moss Grey Plum

CherryTurquoise Blue

Lichen GreenSoft Touch RussetHoney Titanium

Pale Blue

Satin Light Almond Gloss WhiteGraphiteBronze

Soft Touch Felt Green

Custom with

Magnesium Trim

Satin Nickel Brushed Pewter

Brushed Stainless Mirror White

Mirror Black Black Leather

Dark Burnished Pewter French Oak Wenge Wood

Antique Nickel Satin Bronze Antique Bronze

Magnesium

cast metals RREAL MATERIALS PPLASTIC

HF Hubbardton Forge®

Bronze

HF Dark Smoke

HF

Burnished Steel

HF

Natural Iron

HF

Black

HF

WALL PLATES

47

Dark Smoke 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

AWM1G2HFDS4

AWM2GHFDS1

AWM3GHFDS1

AWM4GHFDS1

AWM1G3HFDS1

Mahogany 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

AWM1G2HFMH4

AWM2GHFMH1

AWM3GHFMH1

AWM4GHFMH1

AWM1G3HFMH1

Natural Iron 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

AWM1G2HFFE4

AWM2GHFFE1

AWM3GHFFE1

AWM4GHFFE1

AWM1G3HFFE1

NAME GANGS PART NUMBER

The Hubbardton Forge® Line

What happens when you combine a 6,000 year-old art with leading edge, touch-

sensitive technology? Introducing the Hubbardton Forge line by Legrand, as

part of the adorne® collection. Six lustrous metal plates, forged by fire to make

adorne’s simply elegant switches and outlets a perfect match with Hubbardton

Forge’s rich array of metal textures and finishes. It’s a partnership forged in the

fires of creativity and passion.

Black 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

AWM1G2HFBK4

AWM2GHFBK1

AWM3GHFBK1

AWM4GHFBK1

AWM1G3HFBK1

Bronze 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

AWM1G2HFBR4

AWM2GHFBR1

AWM3GHFBR1

AWM4GHFBR1

AWM1G3HFBR1

Burnished Steel 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

AWM1G2HFBS4

AWM2GHFBS1

AWM3GHFBS1

AWM4GHFBS1

AWM1G3HFBS1

NAME GANGS PART NUMBER

WALL PLATES

46

Photo & Features to come

light & switch.

FINALLY

MADE FOR

Each other.

HUBBARDTON FORGE®

LEGRAND®

Variations in finish appearance are a normal and desired result of the process rendering each piece an individual and unique work of art.

WALL PLATESWALL PLATES

Aged Brass 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

AWC1G2AB4

AWC2GAB4

AWC3GAB4

AWC4GAB4

AWC1G3AB4

Antique Bronze 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

AWC1G2NB4

AWC2GNB4

AWC3GNB4

AWC4GNB4

AWC1G3NB4

Antique Nickel 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

AWC1G2AN4

AWC2GAN4

AWC3GAN4

AWC4GAN4

AWC1G3AN4

Brushed Brass 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

AWC1G2BB4

AWC2GBB4

AWC3GBB4

AWC4GBB4

AWC1G3BB4

Brushed Pewter 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

AWC1G2BP4

AWC2GBP4

AWC3GBP4

AWC4GBP4

AWC1G3BP4

Black Leather 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

AWM1G2LE4

AWM2GLE4

AWM3GLE4

AWM4GLE4

AWM1G3LE4

Brushed Stainless 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

AWM1G2MS4

AWM2GMS4

AWM3GMS4

AWM4GMS4

AWM1G3MS4

French Oak 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

AWM1G2FH4

AWM2GFH4

AWM3GFH4

AWM4GFH4

AWM1G3FH4

Mirror Black 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

AWM1G2MB4

AWM2GMB4

AWM3GMB4

AWM4GMB4

AWM1G3MB4

Mirror White 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

AWM1G2MW4

AWM2GMW4

AWM3GMW4

AWM4GMW4

AWM1G3MW4

Brushed Stainless Steel 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

AWC1G2BS4

AWC2GBS4

AWC3GBS4

AWC4GBS4

AWC1G3BS4

Dark Burnished Pewter 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

AWC1G2DP4

AWC2GDP4

AWC3GDP4

AWC4GDP4

AWC1G3DP4

Oil-Rubbed Bronze 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

AWC1G2OB4

AWC2GOB4

AWC3GOB4

AWC4GOB4

AWC1G3OB4

Satin Bronze 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

AWC1G2SB4

AWC2GSB4

AWC3GSB4

AWC4GSB4

AWC1G3SB4

Satin Nickel 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

AWC1G2SN4

AWC2GSN4

AWC3GSN4

AWC4GSN4

AWC1G3SN4

Wenge Wood 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

AWM1G2WE4

AWM2GWE4

AWM3GWE4

AWM4GWE4

AWM1G3WE4

Custom with

Magnesium Trim

1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

AWM1G2M4

AWM2GM4

AWM3GM4

AWM4GM4

AWM1G3M4

Custom with White Trim 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

AWM1G2W4

AWM2GW4

AWM3GW4

AWM4GW4

AWM1G3W4

Mirror White,

White-on-White

1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

AWM1G2MWW4

AWM2GMWW4

AWM3GMWW4

AWM4GMWW4

AWM1G3MWW4

NAME GANGS PART NUMBER NAME GANGS PART NUMBERNAME GANGS PART NUMBER NAME GANGS PART NUMBER

Cast Metals

adorne Cast Metal wall plates are hand-crafted by artisans, making them unique and

distinctive. These slight variations in finish and color add to the rich beauty of the

adorne Cast Metal offering.

Real Materials

adorne Real Material wall plates are created with natural materials such as leather and

wood. Each wall plate is hand-crafted by artisans and no two are exactly alike. These slight

variations in finish and color add to the unique beauty of the adorne Real Material line.

4948

Titanium 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

5-Gang

6-Gang

AWP1G2TM6

AWP2GTM4

AWP3GTM4

AWP4GTM4

AWP1G3TM4

AWP5GTM1

AWP6GTM1

Turquoise 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

5-Gang

6-Gang

AWP1G2TB4

AWP2GTB4

AWP3GTB4

AWP4GTB4

AWP1G3TB4

AWP5GTB4

AWP6GTB4

WALL PLATESWALL PLATES

Bronze 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

5-Gang

6-Gang

AWP1G2BR6

AWP2GBR4

AWP3GBR4

AWP4GBR4

AWP1G3BR4

AWP5GBR1

AWP6GBR1

Cherry 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

5-Gang

6-Gang

AWP1G2CH4

AWP2GCH4

AWP3GCH4

AWP4GCH4

AWP1G3CH4

AWP5GCH1

AWP6GCH1

Gloss White 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

5-Gang

6-Gang

AWP1G2WH6

AWP2GWH4

AWP3GWH4

AWP4GWH4

AWP1G3WH4

AWP5GWH1

AWP6GWH1

Gloss White,

White-on-White

1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

5-Gang

6-Gang

AWP1G2WHW10

AWP2GWHW10

AWP3GTM4

AWP4GWHW4

AWP1G3WHW4

AWP5GWHW1

AWP6GWHW1

Graphite 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

5-Gang

6-Gang

AWP1G2GR6

AWP2GGR4

AWP3GGR4

AWP4GGR4

AWP1G3GR4

AWP5GGR1

AWP6GGR1

Satin Light Almond 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

AWP1G2LA6

AWP2GLA4

AWP3GLA4

AWP4GLA4

AWP1G3LA4

Soft Touch Felt Green 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

5-Gang

6-Gang

AWP1G2FG6

AWP2GFG4

AWP3GFG4

AWP4GFG4

AWP1G3FG4

AWP5GFG1

AWP6GMO1

Soft Touch Moss Grey 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

5-Gang

6-Gang

AWP1G2MO6

AWP2GMO4

AWP3GMO4

AWP4GMO4

AWP1G3MO4

AWP5GMO1

AWP6GMO1

Soft Touch Russet 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

5-Gang

6-Gang

AWP1G2RS6

AWP2GRS4

AWP3GRS4

AWP4GRS4

AWP1G3RS4

AWP5GRS1

AWP6GRS1

Honey 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

5-Gang

6-Gang

AWP1G2HY6

AWP2GHY4

AWP3GHY4

AWP4GHY4

AWP1G3HY4

AWP5GHY1

AWP6GHY1

Lichen Green 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

5-Gang

6-Gang

AWP1G2LG6

AWP2GLG4

AWP3GLG4

AWP4GLG4

AWP1G3LG4

AWP5GLG1

AWP6GLG1

Magnesium 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

5-Gang

6-Gang

AWP1G2MG6

AWP2GMG4

AWP3GMG4

AWP4GMG4

AWP1G3MG4

AWP5GMG1

AWP6GMG1

Pale Blue 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

5-Gang

6-Gang

AWP1G2BL6

AWP2GBL4

AWP3GBL4

AWP4GBL4

AWP1G3BL4

AWP5GBL1

AWP6GBL1

Plum 1-Gang, 2-Module

2-Gang

3-Gang

4-Gang

1-Gang, 3-Module

5-Gang

6-Gang

AWP1G2PL4

AWP2GPL4

AWP3GPL4

AWP4GPL4

AWP1G3PL4

AWP5GPL1

AWP6GPL1

NAME GANGS PART NUMBER NAME GANGS PART NUMBERNAME GANGS PART NUMBER NAME GANGS PART NUMBER

Plastics

Available in a variety of classic and contemporary colors, adorne Plastic wall plates provide

the perfect finishing touch to any installation.

5150

a fresh

idea

for cooking light

5352

Under-Cabinet LIGHTING SYSTEM

54 Overview

58 Modular Tracks

59 Control Boxes

60 Lighting

61 Modules and Accessories

under cabinet lighting

A RECIPE FOR KITCHEN MAGIC.

The adorne Under-Cabinet Lighting System brings an array of modular components that swap out so easily, you’ll want to

reconfigure whenever the mood strikes. From speakers and smart phone docks to lighting and outlets, there’s a world of

possibilities to choose from with these high-tech, highly convenient building blocks.

Puck Lights: For a spectacular spotlighted look.

USB Module:

A handy outlet to power

today’s devices.

Tablet Cradle:

Puts apps and the internet

where you need them.

Mobile Cradle:

Because recharging doesn’t

have to look sloppy.

Modular Tracks: The nerve center that tucks away out of sight. Available in four sizes.

Music System:

Plug and play your

favorites—wirelessly.

Tamper-Resistant

Outlet Module:

Convenient power snaps

in where you need it.

Linear Lights: For a consistent, continuous light.

5554

UNDER-CABINET LIGHTING SYSTEMUNDER-CABINET LIGHTING SYSTEM

How to Specify the System

The adorne Under-Cabinet Lighting System is a fully customizable and modular solution for eliminating kitchen clutter. It is compatible

with any kitchen layout, such as a galley, L-shaped, or U-shaped, as well as with any home wiring. In order to ensure you have specified

the correct products for your system, we recommend you follow the steps outlined below.

2. Selecting the Control Box and Power Options

Next, select the type of lighting and power connection you’d like to include. For a simple install, the Plug-In Control Box provides

the easiest solution. For a hardwired installation, there are five options to choose from which enable expanded lighting control

options such as dimming:

• Control Box with Paddle Dimmer

• Control Box with Paddle Dimmer and GFCI protection

• Control Box, 1-Gang (No Devices)

• Control Box, 2-Gang (No Devices)

• Direct Wire Connector

For hardwired installations, there must be three separate circuits from the electrical panel:

• Receptacle Circuit: 20 Amps; GFCI-protected; Use #12 wire

• Lighting Circuit: 15 Amps; Use #12 or #15 wire

• Accessory Circuit: 15 Amps; Use #12 or #14 wire

Compatible with all adorne 2-module devices. The CFL/LED Paddle Dimmer (ADPD453LM2) is recommended for use with the adorne system.

3. Selecting the LED Lights

The adorne Under-Cabinet Lighting System is only compatible with adorne LED lights. These are available in Puck and Linear

versions. Recommended placement for lights is every 18” along Modular Track.

You can select any combination of Puck and Linear lights to complete your system. In addition, if you are mounting a light under the

cabinet and wish to move it further to the front of the counter, you can use the LED Light Extender. This enables you to increase the

length of any light from the Modular Track from a standard 11” to up to 22”. This is especially useful in corner installations.

4. Choosing Accessories to Complete the System

The final step is to select the accessories to perfectly complement your system. adorne offers a range of options, including USB

charging ports, mobile and tablet cradles, and a Digital Music Kit. Each of these accessories provides flexibility in that it can be

added or removed at any time – simply swap it with an existing outlet or blank module to increase your system capabilities. For

more detail on accessories, see page 59.

1. Planning Your System Layout

First, determine where you want to install the system.

Then measure your cabinets to determine the length of

Modular Track required:

• Measure each cabinet length at back of cabinet.

• For installations with a corner, allow 3” on each side

for Corner Connector.

• When totaling up the length of required Modular Track,

be sure to include the length of the desired Control Box or

Direct Wire Connector. For a 1-gang box, allow 5”.

For a 2-gang box, allow 5.25”. For Direct Wire Connector,

allow 6”. For more detail on Control Box options, see page 58.

• If your selection of Modular Tracks does not match the exact

length of your cabinets, you can use a Modular Track Extender

to complete the track. This piece can be cut down to 6”.

Standard 12”, 18”, and 27” Modular Tracks cannot

be shortened.

2G

1G

1G

18

27

27

18

27

18

12

EX

12 EX DWC27 2718

c

c

c

(cut to 6.75”)

(cut to 9.75”)

12” Modular Track

18” Modular Track

18” Modular Track Extender

2-Gang Control Box

with Paddle Dimmer

and 15A GFCI

Modular Track Corner Connector

1-Gang Control Box

with Paddle Dimmer

Direct Wire Connector

27” Modular Track

Plug-In

Control Box

Control Box,

No Devices, 1-Gang*

Control Box,

No Devices, 2-Gang*

LED Puck Light LED Linear Light Light Extender

• One 2-Gang Control Box is placed at

one end of system for hardwired power

connection and lighting control

• Total length of cabinets can be exactly

matched with combination of standard

Modular Tracks

• As needed, Control Boxes can be placed

anywhere in system

• 1-Gang Control Boxes are placed

at both ends of the system for hardwired

power connection and lighting control

• Modular Track Extender is custom-cut

to match exact length of cabinets

• Direct Wire Connector is placed at

one end of system for hardwired

power connection

• Light control located in nearby wallbox

• GFCI circuit breaker located in

electrical panel

*

Sample Installation: Length of cabinets is equal to

combined length of standard Modular Tracks

Sample Installation: Length of cabinets is greater than

combined length of standard Modular Tracks

Sample Installation: Direct wire with system controls

in a remote location

56”

57”

60”

42”

36”

36”

Visit www.adornemyhome.com to watch planning and

installation videos.

5756

Hardwired Control Boxes

9” Modular Track

We’re here to help!

We have a dedicated project services team on staff to help you plan your projects, including supplying a full takeoff

based on your floor plans.

Give us a call at 315.468.8413 or email us your project info at adornemyproject@legrand.us.

UNDER-CABINET LIGHTING SYSTEMUNDER-CABINET LIGHTING SYSTEM

12” Modular Track Includes one Tamper-Resistant Outlet Module and one Blank Module.

Can support up

to two LED lights.

Provides 120V power via 15A outlet modules and 20A pass-through.

Module openings are 6” on-center.

APMT12TM2

18” Modular Track Includes one Tamper-Resistant Outlet Module and one Blank Module.

Can support up to two LED lights.

Provides 120V power via 15A outlet modules and 20A pass-through.

Module openings are 9” on-center.

APMT18TM4

27” Modular Track Includes two Tamper-Resistant Outlet Modules and one Blank Module.

Can support up to three LED lights.

Provides 120V power via 15A outlet modules and 20A pass-through.

Module openings are 9” on-center.

APMT27TM2

18” Modular Track Extender Enables a perfect fit for any kitchen. Simply cut to length (minimum of

6”) and attach to end of Modular Track.

Does not include any module openings.

APME18TM2

Modular Track Corner Connector Use with installations that include a right-angle corner to connect two

Modular Tracks.

Allow 3” on each side for installations with Corner Connectors.

APCCTM4

Short Modular Track Includes one Tamper-Resistant Outlet Module. Intended for use on short

cabinet sections. 10” in length but can be cut to 8”.

Enables direct wire connection to wiring behind the wall.

Cannot be combined with any other track section.

APST9TM1

Control Box

with Paddle Dimmer

450W Connects to existing in-wall wiring. Fits onto end of Modular Track, adding 5” onto

system length.

Includes adorne 450W CFL/LED Paddle Dimmer ( ADPD453LM2).

GFCI protection must be provided at the electrical panel

APCB1TM4

Control Box with Paddle

Dimmer and 15A GFCI

450W

15A

Connects to existing in-wall wiring. Fits onto end of Modular Track, adding 5.25” onto

system length.

Includes adorne 450W CFL/LED Paddle Dimmer (ADPD453LM2) and 15A Tamper-Resistant

GFCI Outlet (AGFTR152M4).

APCB2TM2

Plug-In Control Box Snaps into any module opening on the track and plugs into an existing outlet to provide

system power. Cord length of 24” can easily be shortened to match the distance from outlet to

Modular Track.

APCB3TM4

Control Box, No Devices,

1-Gang

Connects to existing in-wall wiring. Fits onto end of Modular Track, adding 5” onto

system length. Customize with your preference of adorne dimmers, switches, or outlets.

APCB4TM1

Control Box, No Devices,

2-Gang

Connects to existing in-wall wiring. Fits onto end of Modular Track, adding 5.25” onto

system length. Customize with your preference of adorne dimmers, switches, or outlets.

APCB5TM1

Direct Wire Connector Enables direct wire feed of power from in-wall wiring, eliminating need for a Control Box.

Connector is 6” in length.

APDWCTM1

Modular Tracks

The adorne system is a flexible and modular solution designed to eliminate kitchen clutter.

Fully customizable, you can select from several types of modules and modify your system

in minutes. Simply pop out an existing module and replace it with a new module at any time.

The Modular Tracks listed below simply plug together to create a full system custom-

designed for any kitchen. They form the base of the system, housing all of the wiring

that connects the modules.

Each system must include a Control Box or Direct Wire Connector that is hardwired to

existing wiring or plugged into an outlet on the backsplash.

See page 54 for more information.

Control Boxes

Every Under-Cabinet Lighting System must include one of the below Control Boxes or Direct

Wire Connector. These boxes connect to existing in-wall wiring or plug into an outlet on the

backsplash to provide system power.

Control Boxes include system end caps, ensuring a clean finish on the left and right edges

of the installed system.

Hardwired installations require three circuits from the electrical panel.

NAME COMPLIANCE SPECIFICATIONS PART NUMBER NAME COMPLIANCE SPECIFICATIONS PART NUMBER

5958

We’re here to help!

We have a dedicated project services team on staff to help you plan your projects, including supplying a full takeoff

based on your floor plans.

Give us a call at 315.468.8413 or email us your project info at adornemyproject@legrand.us.

UNDER-CABINET LIGHTING SYSTEMUNDER-CABINET LIGHTING SYSTEM

LED Puck Light • 7W

• 240 lumens

• correlated color temperature: 3000 kelvin color rendering index: 95

ALPKLEDTM4

LED Linear Light • 8W

• 280 lumens

• correlated color temperature: 3000 kelvin color rendering index: 95

ALLNLEDTM4

Light Extender Enables adorne LED lights to be mounted up to 22” from backsplash by extending cord length

beyond default 11”. Ideal for corner cabinet installations.

ALEXTLEDTM4

Lighting

adorne Puck and Linear LED Lights are designed for use with the adorne system only.

They can be paired with the adorne CFL/LED Paddle Dimmer (ADPD453L) to enable dimming.

Lights easily plug into a connection port on any system module. Optimal positioning is one light for every

18” of Modular Track. Lights can be added or removed as needed.

NAME COMPLIANCE SPECIFICATIONS PART NUMBER

15A Outlet Module 15A, 120V

Provides two power outlets by snapping into any module opening. Tamper-resistant outlet is

designed with a patented shutter system.

Included with short, 12”, 18”, and 27” Modular Tracks.

APTR15TM4

USB Outlet Module 2.1A, 5V Provides two USB charging ports for devices such as mobile phones and tablets by snapping

into any module opening.

Charging cable not included.

APUSB2TM4

Mobile Phone Cradle Attaches anywhere along track to hold a mobile phone. Perfect for use with USB Outlet Module

while charging devices.

AAPCTM4

Tablet Cradle Attaches anywhere along track to hold a tablet. Perfect for use with USB Outlet Module while

charging devices.

AATCTM4

Modules and Accessories

adorne system modules are designed to fit in any module opening, and can be easily added

or removed by using the included module tool. Simply fit the tool into either end of the

module and pop it out of the track.

Cradles do not occupy a module opening. Instead, they save space by resting on the back

edge of the track.

NAME COMPLIANCE SPECIFICATIONS PART NUMBER

Digital Music Kit 2” (50mm) full range drivers

Digital signal processing for full, rich sound

BLUETOOTH wireless technology is A2DP compatible

Includes USB charging capability

AUDMTM1

Digital Music Kit

The Digital Music Kit adds high performance sound to your adorne Under-Cabinet Lighting

System. It includes two speakers and a detachable dock for smart phones or MP3 players.

Simply fit the main speaker into one module opening and then place the second speaker in

any other module location. Speakers can be easily removed and relocated at any time by

simply pushing on the sides of the modules and popping them out of the track.

The system features BLUETOOTH® wireless technology to enable streaming of music from

your devices. It also includes a 3.5mm cable to manually connect devices.

NAME COMPLIANCE SPECIFICATIONS PART NUMBER

Bluetooth® is a registered trademark of Bluetooth SIG, Inc. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks (licensee name) is under license.

Other trademarks and trade names are those of their respective owners.

6160

System specifications:

• OSRAM OSLON® Color Champ LED

• Nominal 3000K Correlated Color Temperature (CCT)

warm light output

• Color Rendering Index (CRI) of 95

• Excellent range of color differentiation and rendering

of the important red color (think red meat and apples)

and skin tones

• A bright lumen light output (Puck = 240 lumens/Linear =

280 lumens) provides optimized lighting for the under-

cabinet environment

• Efficient driver design integrated in each fixture results in:

- Reliable and smooth dimming

- ENERGY STAR certification

- Rated for 40,000 hours of high performance

• LED quality control uses a “fine bin system” based on

a three-step MacAdams ellipse to ensure color consistency

adorne individual LEDs are specifically selected to ensure fixture

output CCT uniformity within a range of less than 100. This tight

manufacturing assurance process ensures that variations inherent

in the LED chip manufacturing process do not compromise reliable

light quality.

.425

.415

.405

.395

.385

.375

.41 .415 .42 .425 .43 .435 .44 .445 .45 .455

.46

ANSI Chromaticy Color

Bin for 3000K

Legrand adorne LED

Fixture Chromaticy Color

Bin for 3000K

The adorne system is optimized to provide a premium under-cabinet lighting solution by utilizing the latest innovations in lighting

research and LED technologies.

We’re here to help!

We have a dedicated project services team on staff to help you plan your projects, including supplying a full takeoff

based on your floor plans.

Give us a call at 315.468.8413 or email us your project info at adornemyproject@legrand.us.

64 Overview

65 Wireless Video Intercom

66 Wireless Whole-House Lighting Controls

68 Accessories

You get the

GROCERIES.

LET YOUR HOUSE

GET THE LIGHTS.

6362

WIRELESS SYSTEMS FOR THE HOME

WIRELESS SYSTEMS FOR THE HOME WIRELESS SYSTEMS FOR THE HOME

Wireless Video Intercom

Kit

AI6100M1

NAME PART NUMBER

Interior Intercom Unit AI6000M1

NAME PART NUMBER

Wireless Video Intercom

The adorne Wireless Video Intercom System allows you to see who’s at the front door from

multiple locations in the home. The kit includes one exterior video doorbell camera and one

interior intercom unit to receive camera images. Additional interior intercom units can be

added to the system and connected wirelessly to existing units.

The video doorbell camera transmits images from the front door to every intercom unit

throughout the home, and each interior unit can communicate with other interior units via

audio. System limit is three interior intercom units per system.

The camera can be powered via its long-life battery unit, but can also use existing doorbell

wiring. It includes an extender cable to allow you to easily mount the unit at camera height and

connect it to wiring in the doorbell opening.

The interior unit includes a power cable and must be plugged into an existing outlet. It can be

surface-mounted to the wall, or placed on a tabletop through use of the integrated easel back..

65

Wireless Switches

and Dimmers

sofTap™ Switch sofTap™ Dimmer Touch™ Switch Touch™ Dimmer

Let there be lights!

Creating the perfect setting for dinner guests? Turn on your favorite lights and save

the settings. Want specific lights to turn on when you come home? Custom create

your own “Welcome Home” light setting — adorne’s wireless system gives you

complete flexibility.

Convenience in hand

Define up to four unique

presets and control your

entire home lighting

environment with the touch

of adorne’s handy wireless

remote. Or, use our app,

and your iPhone® becomes

a remote, allowing you to

access your presets — even

while away.

64

Live more. Wire less.

Enjoy the living space of the future without rewiring the entire house. Ingenious solutions from adorne

let you control devices via wireless remote. adorne also lets devices wirelessly “talk” to each other,

helping you create lighting “scenes” that put your home in the very best light.

Face to face communication

This video monitor not only shows

who’s at the door, it connects to

other stations in your house as a

true audio intercom.

Seeing eye

It’s a doorbell. It’s a camera.

It’s your new video door station —

a wonderful way to see visitors

from the convenient spot of

your choosing.

WIRELESS SYSTEMS FOR THE HOMEWIRELESS SYSTEMS FOR THE HOME

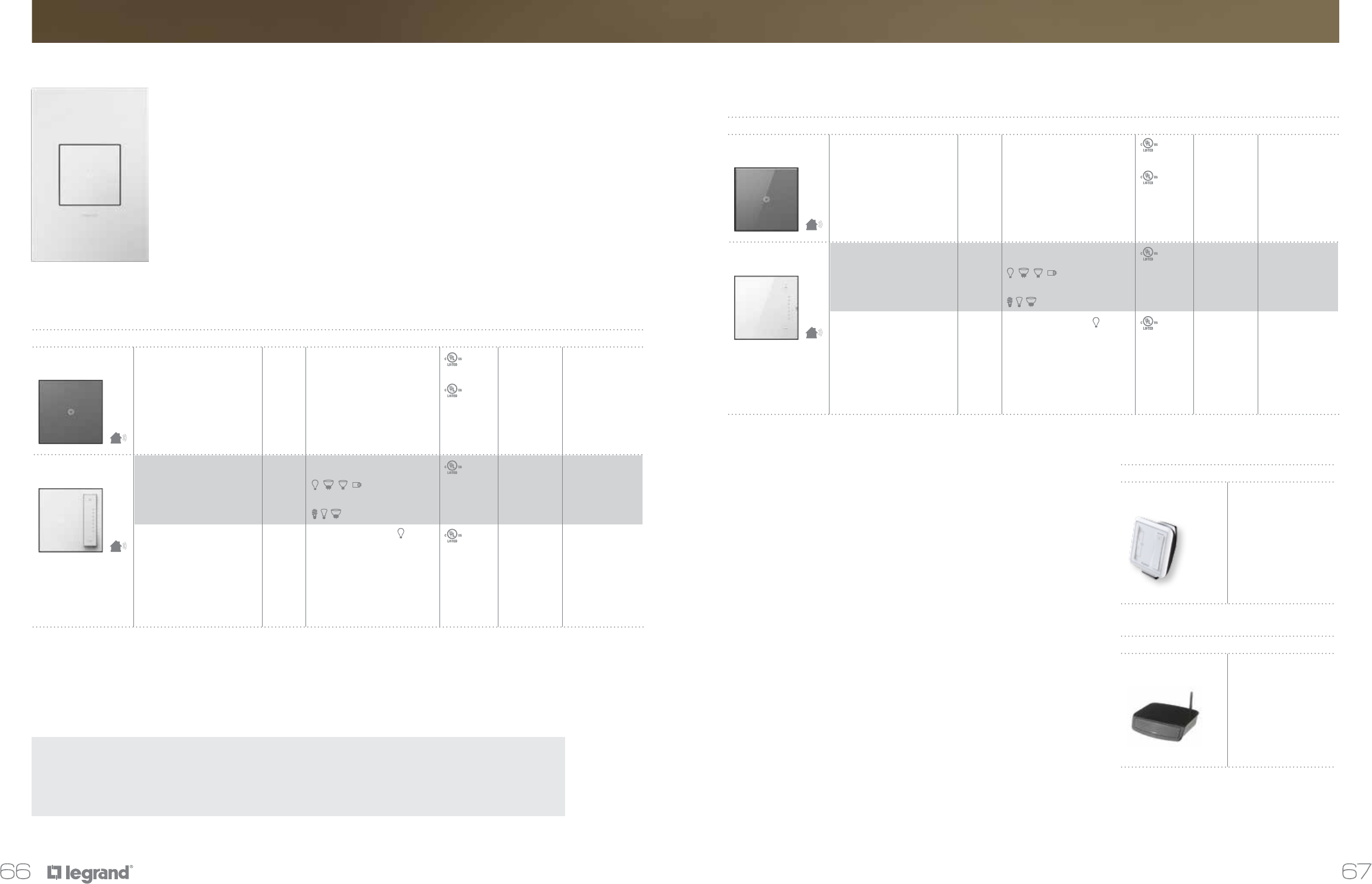

Wireless Whole-House Lighting Controls

The adorne Whole-House lighting system provides unrivaled convenience, security, and energy-savings

for both remodel projects and new construction. The ability to set scenes allows you to create the

perfect lighting environment in multiple rooms or the entire house, all at the touch of a single button.

For more details on setting up and pairing whole-house controls, visit www.adornemyhome.com/install

to access system instruction sheets or check out our how-to videos.

Wireless Lighting Remote Control

This unique remote allows you to control your wireless switches and dimmers from

anywhere in the home as well as create lighting scenes.

The remote is easy to program and is compatible with adorne whole-house

wireless lighting controls. It allows up to four lighting scenes, as well as one-touch

dimming or brightening of your lights. Remote includes a magnetic wall-mount

cradle for easy storage.

Whole-House Mobile

Interface Controller

The adorne Mobile Interface Controller allows you to program and select home

lighting scenes from your smart phone, tablet, or PC. In addition, it allows you

to schedule lighting events based on time-of-day, such as turning on the exterior

lights at sunset.

Simply place this box anywhere in the home and follow instructions to pair it with

your adorne wireless lighting devices. Controller is compatible with adorne whole-

house lighting devices, as well as Legrand Miro, LightSense, Enspire, and RF

Lighting Control devices.

Compatible with iPhone, iPad, Android, and Blackberry 6 devices.

sofTap Switch,

Whole-House Wireless

Wireless Master, Whole-House

Wireless Remote, Whole-House

All Loads White

Magnesium

White

Magnesium

ASTP155RMW1

ASTP155RMM1

ASTPRRW1

ASTPRRM1

sofTap Dimmer,

Whole-House Wireless

Wireless Master, Whole-House

(3-Wire)

Tru-Universal

Wireless Master, Whole-House

(2-Wire)

Wireless Remote, Whole-House

6W -

700W

6W -

450W

60W -

600W

Incandescent, Halogen, Forward-

Phase ELV, MLV, Fluorescent

CFL, LED, Reverse-Phase ELV

Incandescent, Halogen

White

Magnesium

White

Magnesium

ADTP700RMTUW1

ADTP700RMTUM1

ADTP600RMHW1

ADTP600RMHM1

ADTPRRW1

ADTPRRM1

Touch Switch,

Whole-House Wireless

Wireless Master, Whole-House

Wireless Remote, Whole-House

All Loads White

Magnesium

White

Magnesium

ASTH155RMW1

ASTH155RMM1

ASTHRRW1

ASTHRRM1

Touch Dimmer,

Whole-House Wireless

Wireless Master, Whole-House

(3-Wire)

True Universal

Wireless Master, Whole-House

(2-Wire)

Wireless Remote, Whole-House

6W -

700W

6W -

450W

60W -

600W

Incandescent, Halogen, Forward-

Phase ELV, MLV, Fluorescent

CFL, LED, Reverse-Phase ELV

Incandescent, Halogen

White

Magnesium

White

Magnesium

ADTH700RMTUW1

ADTH700RMTUM1

ADTH600RMHW1

ADTH600RMHM1

ADTHRRW1

ADTHRRM1

NAME SPECIFICATIONS RATING COMPATIBLE LOADS COMPLIANCE FINISH OPTIONS PART NUMBER

NAME SPECIFICATIONS RATING COMPATIBLE LOADS COMPLIANCE FINISH OPTIONS PART NUMBER

sofTap™

Touch™

Wireless Lighting

Remote Control

ADWHRM4

NAME PART NUMBER

NAME PART NUMBER

6766

Whole-House Mobile

Interface Controller

LC6001

We’re here to help!

We have a dedicated project services team on staff to help you plan your projects, including supplying a full takeoff

based on your floor plans.

Give us a call at 315.468.8413 or email us your project info at adornemyproject@legrand.us.

Repeater & Away Emulator Black Provides extra security when you’re on vacation. Records the normal

usage of lights throughout a 24-hour period and then plays them back

when you’re not at home. Also expands the range of the wireless system

from 100’ to 300’.

MRR2-G

Room Scene Interface Black Connects the adorne Whole-House Lighting System with other devices,

such as sensors or a security system, at a room level.

MRRC3-G

Home Scene Interface Black Connects the adorne Whole-House Lighting System with other whole-

house devices, such as sensors or a security system.

MRHC3-G

IR to RF Interface

Black Enables control of lighting and audio/video products via universal

remotes. Includes IR Programming Remote.

MRIR1

Handheld Room Scene Controller Black Convenient remote control enables selection of up to ten lighting scenes

and control of individual loads. Single room control only.

MRH6-G

Whole-House Scene Controller Black Convenient remote control enables selection of up to ten lighting scenes

and control of individual loads throughout the home. Also includes a

panic button to turn all lights on or flash them in a desired sequence.

MRH5-G

In-Wall/Ceiling Wireless Access Point White With connection speeds of up to 300Mbps, this wireless access point

flawlessly supports even the most bandwidth-intensive applications,

such as streaming video services and online gaming. Unique design

enables in-ceiling or in-wall mounting. Includes power supply and

Power over Ethernet (POE) injector

DA1011

Plug-In Lamp Module White Allows remote control of table or floor lamps up to 300W when used with

the adorne Whole-House Lighting System. Simply plug the module into

any grounded, 120V outlet and then plug the lamp into the module.

MRP6-W

Plug-In Small Appliance Module

White Allows remote control of small appliances such as coffeemakers, radios,

and TVS when used with the adorne Whole-House Lighting System.

Simply plug the module into any grounded, 120V outlet and then plug the

appliance into the module.

MRP7-W

Wireless Key Fob Black Access lighting scenes from a remote location, such as the driveway.

Keyfob includes a mounting holster for in-car storage. Must be paired

with the adorne Whole-House Lighting System.

MKFOB

RS232 to RF Interface Black Enables integration of a third party control system with the adorne

Whole-House Lighting System. Features a two-wire interface from other

control systems and two operating modes (maintained or momentary

type inputs). Includes power supply.

MR232-G

Event Controller Plug-In Kit Black Kit includes the Mobile Interface Controller and a pair of

Plug-In Lamp Modules.

LC6401

In-Wall 2000W Box Dimmer Black Supports the addition of large lighting loads to the adorne

Whole-House Lighting System.

MR2000

NAME COLOR SPECIFICATIONS PART NUMBER

WIRELESS SYSTEMS FOR THE HOMEWIRELESS SYSTEMS FOR THE HOME

Accessories

6968

Accessories

NAME COLOR SPECIFICATIONS PART NUMBER

We’re here to help!

We have a dedicated project services team on staff to help you plan your projects, including supplying a full takeoff

based on your floor plans.

Give us a call at 315.468.8413 or email us your project info at adornemyproject@legrand.us.

72 Customer Tools and Support

74 Installation Guidelines

86 Index

7170

More information

Consumer Brochure This short collection overview provides a consumer-

friendly look at the adorne product line. Perfect for

small tradeshows and take-with materials in lighting

showrooms.

View online or contact your Legrand sales

representative.

Lookbook Beautiful, full-color overview of adorne collection.

Includes in-depth looks at product design, finish

offerings, and home decor pairings.

View online or contact your Legrand sales

representative.

Lighting Showroom Displays Interactive displays showcasing adorne switches,

dimmers, wall plates, and the under-cabinet lighting

system. Displays are 3’ wide and can sit side-by-side

or back-to-back. A third display is available for home

systems products.

All adorne showroom partners who have placed a stock

order qualify for device and under-cabinet displays.

Contact your Legrand sales representative.

Countertop Displays Convenient displays feature powered switches and

dimmers, as well as the under-cabinet lighting

system. Device display also includes the Pop-Out

Outlet.

adorne Authorized Distributor Partners qualify for

countertop displays. In addition, these are an alternative

option to the larger, free-standing lighting showroom

displays for showrooms that want a smaller footprint.

Contact your Legrand sales representative.

7372

CUSTOMER TOOLS AND SUPPORT CUSTOMER TOOLS AND SUPPORT

Customer Support Tools

Legrand offers a wealth of support materials for customers interested in selling or specifying adorne. From printed sales materials

aimed at consumers to interactive tools designed to aid in project specification, there are a range of options available to support the

adorne collection.

Marketing Materials

Technical Support/Project Assistance

We’re here to help! Our Technical Support staff has in-depth knowledge of our products and can assist you with your

installations. Simply give us a call at the number below, or visit www.adornemyhome.com/install and select “Customer

Support” to email your question to a member of our team.

877.By.Legrand (877.295.3472) - 8:00 a.m. - 5:00 p.m. EST

Interactive Support

www.adornemyhome.com

On the site, you can find:

• Short, engaging consumer-focused videos

• Inspiration gallery of adorne products used in cottage, traditional, and contemporary homes

• Product Visualizer Tool and App link (see below for more information)

• Product details, including imagery, technical specs, features and benefits, and dimensions

• Under-Cabinet Lighting System Configurator – allows you to easily plan your under-cabinet system,

including exact modular track lengths needed, and delivers a bill of materials by part number which

can be emailed or saved to your desktop

• Where-to-buy information

• Contact information and issue submittal for technical support

• Easy-to-understand how-to-videos

• Full, searchable library of instruction sheets and product documentation

Product Visualizer

Available as an online tool or as a tablet or smart phone app, the adorne visualizer

allows you to view the full range of plate finishes and combine them with a selection of

adorne switches, dimmers, and outlets. Simply select a wall plate size, and then swipe

through the wall plate finishes to find the one that’s right for you. Then, choose white

or magnesium switches, dimmers, or outlets to complete your project. You can even

demo the different types of switches and dimmers, dimming and brightening a light.

And, you can select a background wall color or even take a picture of your wall to

perfectly visualize how adorne will look when your project is finished. Then, choose to

save or share your project if you’d like to remember the combination you selected.

You can find the visualizer at www.adornemyhome.com or simply download it from

iTunes for your iPhone or iPad.

Filled with helpful planning tools, in-depth product

details, and beautiful, inspirational shots of adorne

installed in a variety of homes, the adorne website

is your number one resource for support.

7574

INSTALLATION GUIDELINESINSTALLATION GUIDELINES

INSTALLATION INSTRUCTIONS

Please read these instructions completely

before you begin.

adorne® switches are designed for installa-

tion in standard electrical boxes. However,

some of the installation methods vary

slightly from traditional methods. If you do

not understand these instructions or are

unsure of your abilities, seek the assis-

tance of a qualified electrician.

Frame

Paddle Switch

Wall Plate

1

3-Way

In a 3-Way circuit, identify

the Common/Hot wire —

connected to the terminal

marked Common or the odd-

colored terminal screw.

Single Pole

WARNING

To prevent severe shock or electrocu-

tion, always disconnect power at the

service panel before beginning work.

When replacing existing switches,

label wires before disconnecting.

Disconnect old switch.

Ground Wire

Common/Hot

Use only with Legrand adorne® system.

For more information and helpful

how-to videos, visit

www.adornemyhome.com/install.

Sample Installation: Paddle Switch, 2-Module | Catalog Number: ASPD1532

1-POLE

3-WAY

STRIP GAGE

#14-#12 AWG

15A-120VAC

2If necessary, cut wires and strip

insulation using stripping guide on

back of switch.

3

Connect frame ground wire to

bare ground wire in box. Fold

ground wires into back of box.

Mount frame to wall box with

screws provided. Tighten screws

just enough to hold frame in

place. Do NOT over-tighten.

TIPS

• Pre-fold wires into wall box

to make it easier to fit them

in the box when switch is

connected.

• Use caution to avoid mar-

ring wall surface with the

metal frame.

WARNING

Failure to connect the

ground wire will result in an

unsafe installation that could

lead to personal injury.

7776

INSTALLATION GUIDELINESINSTALLATION GUIDELINES

4Connect new switch as shown.

Make sure the terminal holes are

clear. Insert wires into terminals

and tighten screws securely.

NOTE - If you are installing mul-

tiple switches in the frame, wire

all devices before snapping them

into the frame.

Single Pole

• Connect one wire to 1-POLE.

• Connect other wire to HOT.

• Do NOT use 3-WAY.

3-Way

• Connect the wire identified as

Common/Hot in Step 1 to HOT.

• Connect one of the other wires

to 1-POLE.

• Connect remaining wire to 3-WAY.

NOTE - If you have purchased an

adorne® Locator Light or Accent

Nightlight, please refer to those

instructions at this step.

WARNING: Do not pair different size wires in the same

terminal. If you have different size wires, use a wire nut to add a

6 inch pigtail of the same gauge wire to the smaller gauge wire.

Same size. Different size.Different size with pigtail.

NOTE – If you need to remove

switch after snapping into frame,

first remove frame from wall box

to access the three locking tabs

on the back of the switch. Insert

a flat screwdriver to depress tabs

as you apply pressure to push

switch out.

NOTE – To remove wall plate,

insert a small, flat screwdriver in

notches on wall plate and twist

gently to pry from frame.

5Carefully fold wires into box.

Snap switch into frame.

6Snap wall plate to frame.

There are three click-stops to

adjust the fit of the wall plate to

the switch and the wall.

12

3

Never apply cleaner directly to the

switch or wall plate. Apply to a soft

cloth and use cloth to remove any

smudges from the product.

Sample Installation: Paddle Switch, 2-Module | Continued

7978

INSTALLATION GUIDELINESINSTALLATION GUIDELINES

1When replacing existing dimmers, label

wires before disconnecting.

Disconnect old dimmer.

DO NOT USE

PLATE INSTALLED

WITHOUT A WALL

TOP

Remove spacers from the frame. Since

this dimmer fills the frame completely,

you will not need the spacers. From the

back of the frame, pinch the tabs on the

spacer to release.

Common/Hot

DO NOT USE WITHOUT

A WALL PLATE INSTALLED

TOP

Frame

Paddle Dimmer

Wall Plate

Ground Wire

Spacers

WARNING

To prevent severe shock or electrocu-

tion, always disconnect power at the ser-

vice panel before beginning work.

3-Way

In a 3-Way circuit, identify the

Common/Hot wire — connected to

the terminal marked Common or

the odd-colored terminal screw.

Single Pole

For more information and helpful

how-to videos, visit

www.adornemyhome.com/install.

Use only with Legrand adorne® system.

INSTALLATION INSTRUCTIONS

Please read these instructions

completely before you begin. adorne®

dimmers are designed for installation

in standard electrical boxes. However,

some of the installation methods vary

slightly from traditional methods. If you

do not understand these instructions

or are unsure of your abilities, seek the

assistance of a qualified electrician.

CAUTIONS

To reduce the risk of overheating and

possible damage to other equipment,

do not install incandescent dimmer to

control a receptacle, a fluorescent light

or bulb, a motor-operated appliance, or a

transformer-supplied appliance.

Do NOT use dimmer with incandescent

lamps whose power requirements exceeds

maximum wattage of the dimmer.

Do NOT connect dimmer to power source

other than 120VAC, 60 Hz.

2If necessary, cut wires and strip

insulation using stripping guide on back of dimmer.

STRIP GAGE

3

TIPS

• Pre-fold wires into wall box to

make it easier to fit them in the

box when dimmer is connected.

• Use caution to avoid marring

wall surface with the metal frame.

WARNING

Failure to connect the ground

wire will result in an unsafe

installation that could lead to

personal injury.

Connect frame ground wire to bare ground

wire in box. Fold ground wires into back of

box. Mount frame to wall box with screws

provided. Tighten screws just enough to

hold frame in place. Do NOT over-tighten.

(to 10 in. lbs.)

Sample Installation: Paddle Dimmer | Catalog Number: ADPD703H

8180

INSTALLATION GUIDELINESINSTALLATION GUIDELINES

3-WAY

STRIP GAGE

1-POLE

HOT

3-WAY

STRIP GAGE

1-POLE

HOT

1-P

-PO

1

1-P

-PO

1

3-WAY

STRIP GAGE

1-POLE

HOT

3-WAY

STRIP GAGE

1-POLE

HOT

1-P

-PO

1

1-P

-PO

1

Carefully fold wires into box.

Snap dimmer into frame.

3-WAY

STRIP GAGE

1-POLE

HOT

3-WAY

STRIP GAGE

1-POLE

HOT

DO NOT USE WITHOUT

A WALL PLATE INSTALLED

TOP

STRIP

1-POLE

T

T

OT

T

O

O

O

O

O

H

56NOTE – If you need to remove

dimmer after snapping into frame,

first remove frame from wall box

to access the four locking tabs on

the back of the dimmer. Insert a

flat screwdriver to depress tabs

as you apply pressure to push

dimmer out.

DO NOT USE WITHOUT

A WALL PLATE INSTALLED

TOP

STRIP

1-POLE

T

T

OT

T

O

O

O

O

O

H

12

3

4

3-WAY

STRIP GAGE

1-POLE

HOT

3-WAY

STRIP GAGE

1-POLE

HOT

Connect new dimmer as shown. Make sure

the terminal holes are clear. Insert wires

into terminals and tighten screws securely.

Do NOT over-tighten. (to 10 in. lbs.)

NOTE - No multi-gang derating required.

Single Pole

• Connect one wire to 1-POLE.

• Connect other wire to HOT.

• Do NOT use 3-WAY.

3-Way

• Connect the wire identified as Common/Hot in Step 1 to HOT.

• Connect one of the other wires to 1-POLE.

• Connect remaining wire to 3-WAY.

NOTE - In a 3-Way installation, use one dimmer

and one switch. Do NOT use two dimmers.

NOTE - If you have purchased an

adorne Locator Light or Accent

Nightlight, please refer to those

instructions at this step.

WARNING: Do not pair different

size wires in the same

terminal. If you have different size

wires, use a wire nut to add a

6 inch pigtail of the same gauge wire

to the smaller gauge wire.

Same size. Different size.Different size with pigtail.

8NOTE – To remove wall plate, insert a small,

flat screwdriver in notches on wall plate and

twist gently to pry from frame.

Snap wall plate to frame.

There are three click-stops to adjust the fit of

the wall plate to the dimmer and the wall.

7High end light level adjustment

The dimmer is pre-set so its

highest setting provides maximum

brightness. To reduce maximum

brightness and save energy, you

can adjust the high end light level.

Remove cover assembly by pressing

bottom center snap and lifting cover.

Rotate wheel downward

to reduce output voltage.

Maximum adjustment

reduces output by 10%.

Replace cover assembly. Hook at the

top and rotate down to snap into place.

Note: Sliders need to be in the same

position during cover re-assembly.

Wipe the dimmer with a damp, clean cloth.

DO NOT clean dimmer with chemicals or

cleaning solutions.

DO NOT USE WITHOUT

A WALL PLATE INSTALLED

TOP

DO NOT USE WITHOUT

A WALL PLATE INSTALLED

TOP

DO NOT USE WITHOUT

A WALL PLATE INSTALLED

TOP

1

DO NOT USE WITHOUT

A WALL PLATE INSTALLED

TOP

DO NOT USE WITHOUT

A WALL PLATE INSTALLED

TOP

DO NOT USE WITHOUT

A WALL PLATE INSTALLED

TOP

2

DO NOT USE WITHOUT

A WALL PLATE INSTALLED

TOP

DO NOT USE WITHOUT

A WALL PLATE INSTALLED

TOP

DO NOT USE WITHOUT

A WALL PLATE INSTALLED

TOP

3

Sample Installation: Paddle Dimmer | Continued

8382

WARNING

To prevent severe shock or electrocu-

tion, always disconnect power at the ser-

vice panel before beginning work.

INSTALLATION INSTRUCTIONS

Please read these instructions com-

pletely before you begin. adorne®

outlets are designed for installa-

tion in standard electrical boxes.

However, some of the installation

methods vary slightly from tradi-

tional methods. If you do not under-

stand these instructions or are

unsure of your abilities, seek the

assistance of a qualified electrician.

1

When replacing existing outlets,

label wires before disconnecting.

Disconnect old outlet.

Split Circuit Tab

Neutral (White)

Hot (Black)

Ground (Bare)

Frame

Outlet

Wall Plate

Ground Wire

For more information and helpful

how-to videos, visit

www.adornemyhome.com/install.

Use only with Legrand adorne® system.

HOT

WHITE

2If necessary,cut wires and strip

insulation using stripping guide on

back of outlet.

3Connect frame ground wire to

bare ground wire in box. Fold

ground wires into back of box.

Mount frame to wall box with

screws provided. Tighten screws

just enough to hold frame in

place. Do NOT over-tighten.

TIPS

• Pre-fold wires into wall box to

make it easier to fit them in the

box when outlet is connected.

• Use caution to avoid marring

wall surface with the metal frame.

WARNING

Failure to connect the ground

wire will result in an unsafe

installation that could lead to

personal injury.

INSTALLATION GUIDELINESINSTALLATION GUIDELINES

Sample Installation: Tamper-Resistant Outlet | Catalog Number: ARTR152

8584

4Connect new outlet as shown.

Make sure the terminal holes

are clear. Insert wires into

terminals and tighten screws

securely.

NOTE - If you are installing

multiple outlets in the frame, wire

all devices before snapping them

into the frame.

5Carefully fold wires into box.

Snap outlet into frame.

NOTE – If you need to remove outlet after snapping into frame, first

remove frame from wall box to access the three locking tabs on the

back of the outlet. Insert a flat screwdriver to depress tabs as you

apply pressure to push outlet out.

6NOTE – To remove wall plate, insert a small,

flat screwdriver in notches on wall plate and

twist gently to pry from frame.

HOTHOT

STRIP GAGE

#14-#12 AWG

WHITE

HOTHOT

STRIP GAGE

#14-#12 AWG

WHITE

If you have four wires plus a ground wire If you have two wires plus a ground wire

HOTHOT

STRIP GAGE

#14-#12 AWG

WHITE

HOTHOT

STRIP GAGE

#14-#12 AWG

WHITE

12

3

Snap wall plate to frame.

There are three click-stops to adjust the fit

of the wall plate to the outlet and the wall.

Never apply cleaner directly to the outlet or

wall plate. Apply to a soft cloth and use cloth to

remove any smudges from the product.

WARNING: Do not pair different size wires in the same

terminal. If you have different size wires, use a wire nut to add a

6 inch pigtail of the same gauge wire to the smaller gauge wire.

Same size. Different size.Different size with pigtail.

INSTALLATION GUIDELINESINSTALLATION GUIDELINES

Sample Installation: Tamper-Resistant Outlet | Continued

8786

INDEX BY PART NUMBERINDEX BY PART NUMBER

A

AAAL1G4 37, 86

AAAL2G2 37, 86

AAAL3G2 37

AAAL4G2 37

AABK1M4 33, 38

AABK1W4 33, 38

AAFN4S16AM4 26, 33

AAFN4S16AW4 26, 33

AALSL6 37

AANLM14 36

AANLM24 36

AAPCTM4 61

AARNL2 36

AATCTM4 61

AC1PFM1 38

AC1PFW1 38

AC2PFM1 38

AC2PFW1 38

AC4PFM1 38

AC4PFW1 38

AC5ERJ45CM1 39

AC5ERJ45CW1 39

AC5ERJ45M1 39

AC5ERJ45W1 39

AC6RJ45M1 39

AC6RJ45W1 39

ACABPM1 39

ACABPW1 39

ACBLKM4 39

ACBLKW4 39

ACBRSTPM1 38

ACBRSTPW1 38

ACHDMIM1 39

ACHDMIW1 39

ACNRFCM1 39

ACNRFCW1 39

ACPRCAFM1 39

ACPRCAFW1 39

ACRGBRCAFM1 39

ACRGBRCAFW1 39

ACRJ25M1 39

ACRJ25W1 39

ACSSIM1 39

ACSSIW1 39

ACYRCAFM1 39

ACYRCAFW1 39

ADMHRM4 31

ADPD453LM2 26, 33, 57, 59

ADPD453LW2 26, 33

ADPD703HM4 26, 33

ADPD703HW4 26, 33

ADPD1103HM2 26, 33

ADPD1103HW4 26, 33

ADSM703HM2 30, 33

ADSM703HW2 30, 33

ADTH600RMHM1 32, 67

ADTH600RMHW1 32, 67

ADTH700MMTUM2 32

ADTH700MMTUW2 32

ADTH700RMTUM1 32, 67

ADTH700RMTUW1 32, 67

ADTHMRUM2 32, 33

ADTHMRUW2 32, 33

ADTHRRM1 32, 33, 67

ADTHRRW1 32, 33, 67

ADTP600MMHM2 29

ADTP600MMHW2 29

ADTP600RMHM1 29, 66

ADTP600RMHW1 29, 66

ADTP700MMTUM2 29

ADTP700MMTUW2 29

ADTP700RMTUM1 29, 66

ADTP700RMTUW1 29, 66

ADTP703HM2 28, 33

ADTP703HW2 28, 33

ADTP703TUM4 28

ADTP703TUW4 28

ADTP1103HM4 28, 33

ADTP1103HW4 28, 33

ADTPMRUM2 29, 33

ADTPMRUW2 29, 33

ADTPRRM1 29, 33, 66

ADTPRRW1 29, 33, 66

ADWHRM4 67

ADWR600MMHM2 27

ADWR600MMHW2 27

ADWR700MMTUM2 27

ADWR700MMTUW2 27

ADWR703HM4 27, 33

ADWR703HW4 27, 33

ADWR1103HM4 27

ADWR1103HW4 27, 33

ADWRMRUM2 27, 33

ADWRMRUW2 27, 33

AF1G 38

AF2G 38

AF3G 38

AF4G 38

AGFTR152M4 33, 34, 59

AGFTR152W4 33, 34

AGFTR153M4 33, 34

AGFTR153W4 33, 34

AGFTR202M4 33, 34

AGFTR202W4 33, 34

AI6000M1 65

AI6100M1 65

ALEXTLEDTM4 60

ALLNLEDTM4 60

ALPKLEDTM4 60

APCB1TM4 59

APCB2TM2 59

APCB3TM4 59

APCB4TM1 59

APCB5TM1 59

APCCTM4 58

APDWCTM1 59

APME18TM2 58

APMT12TM2 58

APMT18TM4 58

APMT27TM2 58

APST9TM1 58

APTR15TM4 61

APUSB2TM4 61

ARPS15RF2M4 33, 35

ARPS15RF2W4 33, 35

ARPS152M4 33, 35

ARPS152W4 33, 35

ARPTR151GM2 35

ARPTR151GW2 35

ARPTR152GM2 35

ARPTR152GW2 35

ARTR152M4 33, 34

ARTR152W4 33, 34

ARTR153M4 33, 34

ARTR153W4 33, 34

ARTR202M4 33, 34

ARTR202W4 33, 34

ARUSBM4 33, 35

ARUSBW4 33, 35

ASOS32M4 30, 33

ASOS32W4 30, 33

ASPD1531M4 26, 33

ASPD1531W4 26, 33

ASPD1532M4 26, 33

ASPD2032M4 26, 33

ASPD2032W4 26, 33

ASPD2042M4 26, 33

ASPD2042W4 26, 33

ASPU1532M4 29, 33

ASPU1532W4 29, 33

ASTH155RMM1 32, 33, 67

ASTH155RMW1 32, 33, 67

ASTH1532M2 32, 33

ASTH1532W2 32, 33

ASTHRRM1 32, 33, 67

ASTHRRW1 32, 33, 67

ASTM2M2 30, 33

ASTM2W2 30, 33

ASTP155RMM1 28, 33, 66

ASTP155RMW1 28, 33, 66

ASTP1532M4 28, 33

ASTP1532W4 28, 33

ASTPRF2M2 28, 33

ASTPRF2W2 28, 33

ASTPRFR2M2 28, 33

ASTPRFR2W2 28, 33

ASTPRRM1 28, 33, 66

ASTPRRW1 28, 33, 66

ASVS12M4 30, 33

ASVS12W4 30, 33

ASWR1532M4 27, 33

ASWR1532W4 27, 33

ASWV1532M2 31, 33

ASWV1532W2 31, 33

AUDMTM1 61

AWC1G2AB4 48

AWC1G2AN4 48

AWC1G2BB4 48

AWC1G2BP4 48

AWC1G2BS4 48

AWC1G2DP4 48

AWC1G2NB4 48

AWC1G2OB4 48

AWC1G2SB4 48

AWC1G2SN4 48

AWC1G3AB4 48

AWC1G3AN4 48

AWC1G3BB4 48

AWC1G3BP4 48

AWC1G3BS4 48

AWC1G3DP4 48

AWC1G3NB4 48

AWC1G3OB4 48

AWC1G3SB4 48

AWC1G3SN4 48

AWC2GAB4 48

AWC2GAN4 48

AWC2GBB4 48

AWC2GBP4 48

AWC2GBS4 48

AWC2GDP4 48

AWC2GNB4 48

AWC2GOB4 48

AWC2GSB4 48

AWC2GSN4 48

AWC3GAB4 48

AWC3GAN4 48

AWC3GBB4 48

AWC3GBP4 48

AWC3GBS4 48

AWC3GDP4 48

AWC3GNB4 48

AWC3GOB4 48

AWC3GSB4 48

AWC3GSN4 48

AWC4GAB4 48

AWC4GAN4 48

AWC4GBB4 48

AWC4GBP4 48

AWC4GBS4 48

AWC4GDP4 48

AWC4GNB4 48

AWC4GOB4 48

AWC4GSB4 48

AWC4GSN4 48

AWM1G2FH4 49

AWM1G2HFBK4 47

AWM1G2HFBR4 47

AWM1G2HFBS4 47

AWM1G2HFDS4 47

AWM1G2HFFE4 47

AWM1G2HFMH4 47

AWM1G2LE4 49

AWM1G2M4 49

AWM1G2MB4 49

AWM1G2MS4 49

AWM1G2MW4 49

AWM1G2MWW4 49

AWM1G2W4 49

AWM1G2WE4 49

AWM1G3FH4 49

AWM1G3HFBK1 47

AWM1G3HFBR1 47

AWM1G3HFBS1 47

AWM1G3HFDS1 47

AWM1G3HFFE1 47

AWM1G3HFMH1 47

AWM1G3LE4 49

AWM1G3M4 49

AWM1G3MB4 49

AWM1G3MS4 49

AWM1G3MW4 49

AWM1G3MWW4 49

AWM1G3W4 49

AWM1G3WE4 49

AWM2GFH4 49

AWM2GHFBK1 47

AWM2GHFBR1 47

AWM2GHFBS1 47

AWM2GHFDS1 47

AWM2GHFFE1 47

AWM2GHFMH1 47

AWM2GLE4 49

AWM2GM4 49

AWM2GMB4 49

AWM2GMS4 49

AWM2GMW4 49

AWM2GMWW4 49

AWM2GW4 49

AWM2GWE4 49

AWM3GFH4 49

AWM3GHFBK1 47

AWM3GHFBR1 47

AWM3GHFBS1 47

AWM3GHFDS1 47

AWM3GHFFE1 47

AWM3GHFMH1 47

AWM3GLE4 49

AWM3GM4 49

AWM3GMB4 49

AWM3GMS4 49

AWM3GMW4 49

AWM3GMWW4 49

AWM3GW4 49

AWM3GWE4 49

AWM4GFH4 49

AWM4GHFBK1 47

AWM4GHFBR1 47

AWM4GHFBS1 47

AWM4GHFDS1 47

AWM4GHFFE1 47

AWM4GHFMH1 47

AWM4GLE4 49

AWM4GM4 49

AWM4GMB4 49

AWM4GMS4 49

AWM4GMW4 49

AWM4GMWW4 49

PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO.

88

INDEX BY PART NUMBER

AWM4GW4 49

AWM4GWE4 49

AWP1G2BL6 50

AWP1G2BR6 50

AWP1G2CH4 50

AWP1G2FG6 51

AWP1G2GR6 50

AWP1G2HY6 50

AWP1G2LA6 51

AWP1G2LG6 50

AWP1G2MG6 50

AWP1G2MO6 51

AWP1G2PL4 50

AWP1G2RS6 51

AWP1G2TB4 51

AWP1G2TM6 51

AWP1G2WH6 50

AWP1G2WHW10 50

AWP1G3BL4 50

AWP1G3BR4 50

AWP1G3CH4 50

AWP1G3FG4 51

AWP1G3GR4 50

AWP1G3HY4 50

AWP1G3LA4 51

AWP1G3LG4 50

AWP1G3MG4 50

AWP1G3MO4 51

AWP1G3PL4 50

AWP1G3RS4 51

AWP1G3TB4 51

AWP1G3TM4 51

AWP1G3WH4 50

AWP1G3WHW4 50

AWP2GBL4 50

AWP2GBR4 50

AWP2GCH4 50

AWP2GFG4 51

AWP2GGR4 50

AWP2GHY4 50

AWP2GLA4 51

AWP2GLG4 50

AWP2GMG4 50

AWP2GMO4 51

AWP2GPL4 50

AWP2GRS4 51

AWP2GTB4 51

AWP2GTM4 51

AWP2GWH4 50

AWP2GWHW10 50

AWP3GBL4 50

AWP3GBR4 50

AWP3GCH4 50

AWP3GFG4 51

AWP3GGR4 50

AWP3GHY4 50

AWP3GLA4 51

AWP3GLG4 50

AWP3GMG4 50

AWP3GMO4 51

AWP3GPL4 50

AWP3GRS4 51

AWP3GTB4 51

AWP3GTM4 50, 51

AWP3GWH4 50

AWP4GBL4 50

AWP4GBR4 50

AWP4GCH4 50

AWP4GFG4 51

AWP4GGR4 50

AWP4GHY4 50

AWP4GLA4 51

AWP4GLG4 50

AWP4GMG4 50

AWP4GMO4 51

AWP4GPL4 50

AWP4GRS4 51

AWP4GTB4 51

AWP4GTM4 51

AWP4GWH4 50

AWP4GWHW4 50

AWP5GBL1 50

AWP5GBR1 50

AWP5GCH1 50

AWP5GFG1 51

AWP5GGR1 50

AWP5GHY1 50

AWP5GLG1 50

AWP5GMG1 50

AWP5GMO1 51

AWP5GPL1 50

AWP5GRS1 51

AWP5GTB4 51

AWP5GTM1 51

AWP5GWH1 50

AWP5GWHW1 50

AWP6GBL1 50

AWP6GBR1 50

AWP6GCH1 50

AWP6GGR1 50

AWP6GHY1 50

AWP6GLG1 50

AWP6GMG1 50

AWP6GMO1 51

AWP6GPL1 50

AWP6GRS1 51

AWP6GTB4 51

AWP6GTM1 51

AWP6GWH1 50

AWP6GWHW1 50

D

DA1011 69

L

LC6001 67

LC6401 68

M

MKFOB 68

MR232-G 68

MR2000 68

MRH5-G 69

MRH6-G 69

MRHC3-G 69

MRIR1 69

MRP6-W 68

MRP7-W 68

MRR2-G 25, 69

MRRC3-G 69

PART NO. PAGE NO. PART NO. PAGE NO.
