GE Control Table of Contents/Introduction
Section 1: NEMA Full Voltage Power Devices
Section 2: Reduced Voltage Starters
Section 3: Lighting Contactors
Section 4: Definite Purpose Controls
Section 5: IEC Power Devices
Section 6: IEC Manual Motor Starters
Section 7: Miniature Circuit Breakers
Section 8: IEC Switches and Disconnects
Section 9: Pilot and Signaling Devices
Section 10: Logic Control
Section 11: Terminal Blocks
Section 12: Enclosures
Section 13: Control Renewal Parts
Section 14: Transformers
Section 15: Drives
Section 16: GE Publication Index
Section 17: Product Index

www.geindustrial.com Control Catalog 5-1

IEC Power Devices

Rev. 4/16

Prices and data subject to

change without notice

Section 5

Contactors Overview (C-2000) ...................................................5-2

Mini Contactors (C-2000)

Overview.........................................................................................................5-4

Features and Benefits..............................................................................5-4

Accessory Features...................................................................................5-5

Product Offering..........................................................................................5-6

Product Number Selection Instructions...........................................5-6

Product Descriptions.................................................................................5-7

AC 3-Pole, Up to 230 VAC Coil, Nonreversing ...............................5-8

AC 3-Pole, Up to 600 VAC Coil, Nonreversing ...............................5-9

AC 3-Pole, Up to 250 VDC Coil, Nonreversing............................5-10

AC 4-Pole, Up to 600 VAC Coil, Nonreversing.............................5-11

AC 4-Pole, Up to 250 VDC Coil, Nonreversing............................5-12

AC 3-Pole, Up to 600 VAC Coil, Reversing ....................................5-13

AC 3-Pole, Up to 250 VDC Coil, Reversing....................................5-14

AC 3-Pole, Up to 24 VDC Coil, Nonreversing...............................5-15

Accessories.................................................................................................5-16

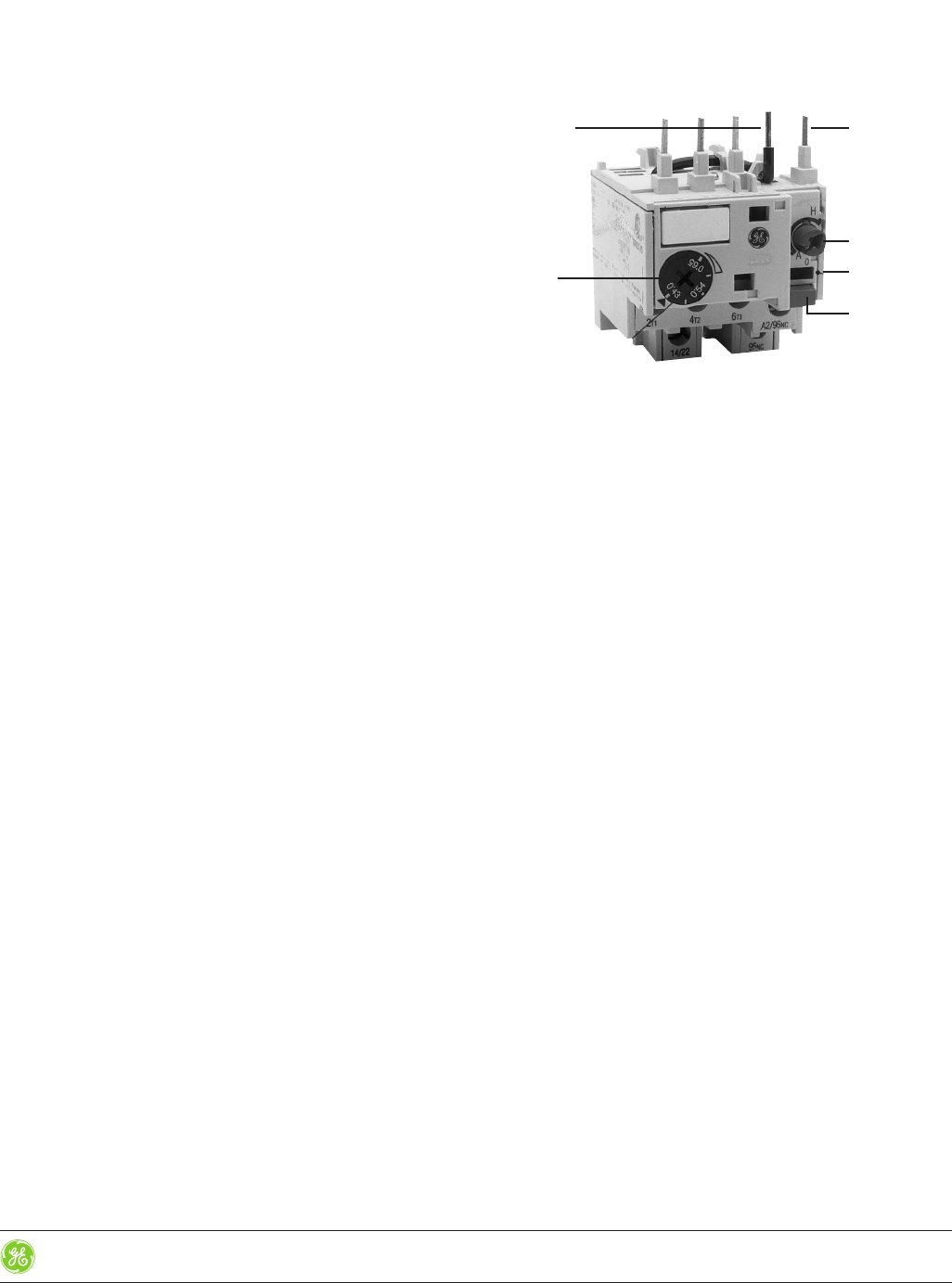

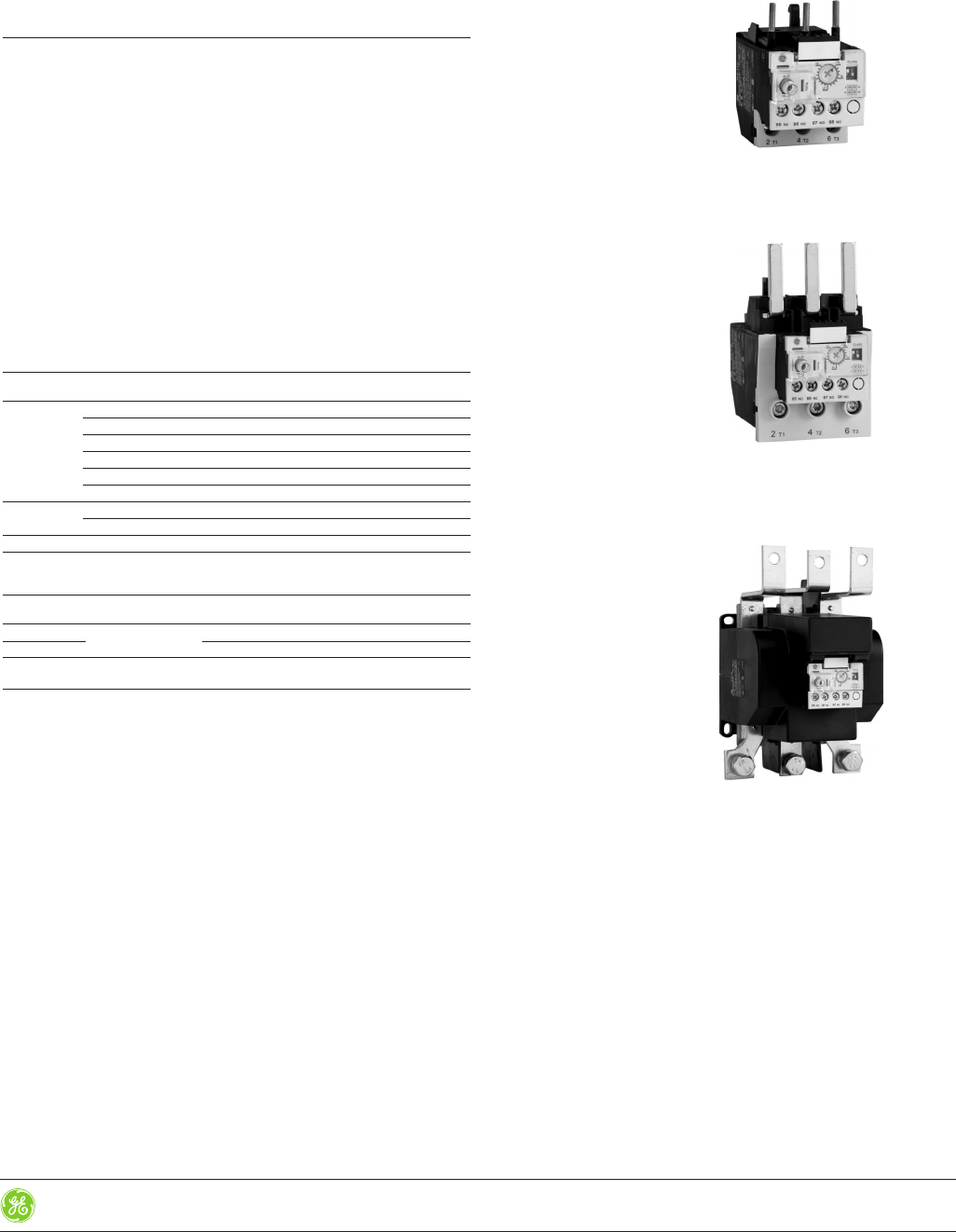

Overload Relays........................................................................................5-20

Overload Relays Accessories .............................................................5-20

Control Relays............................................................................................5-21

Control Relay Accessories ...................................................................5-23

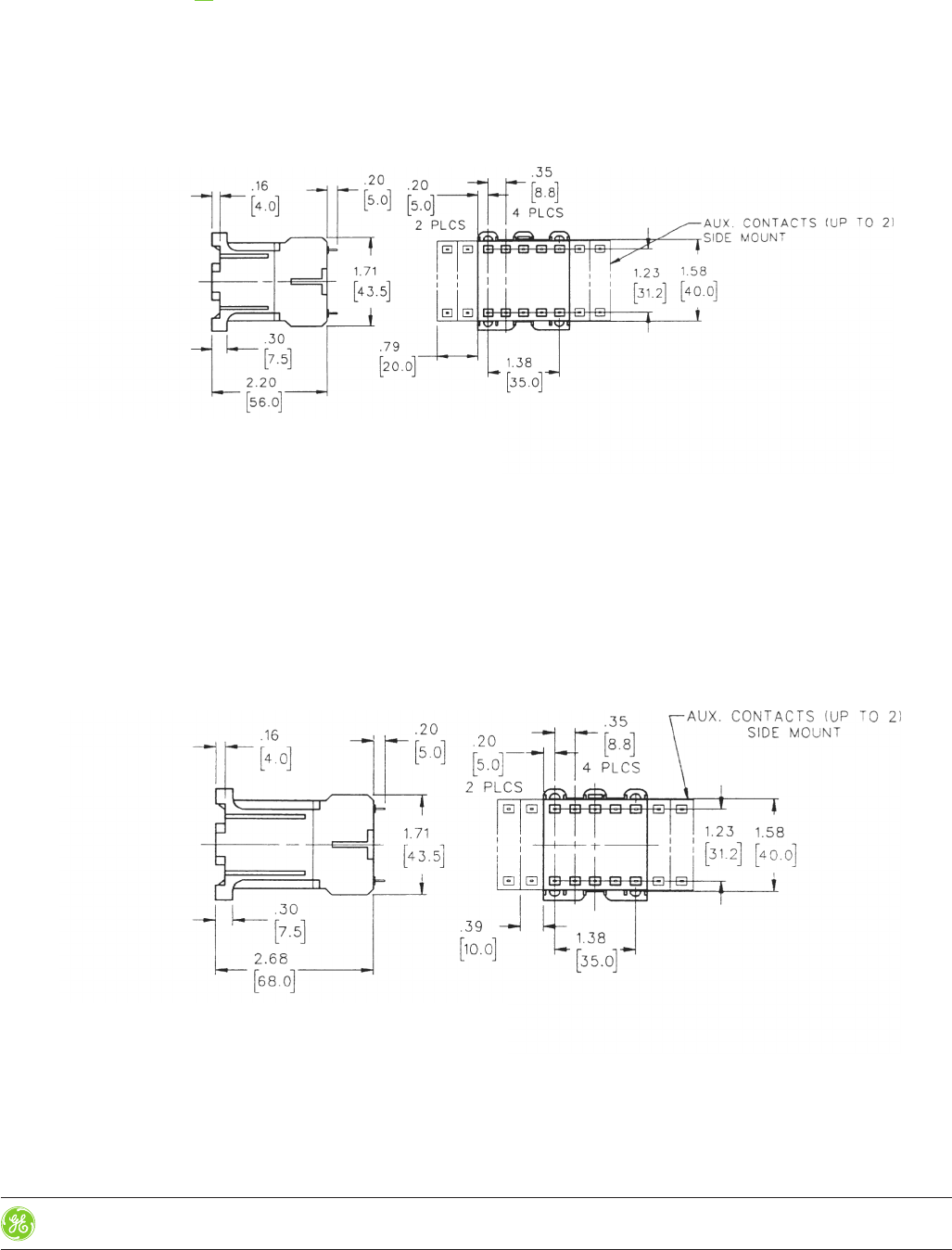

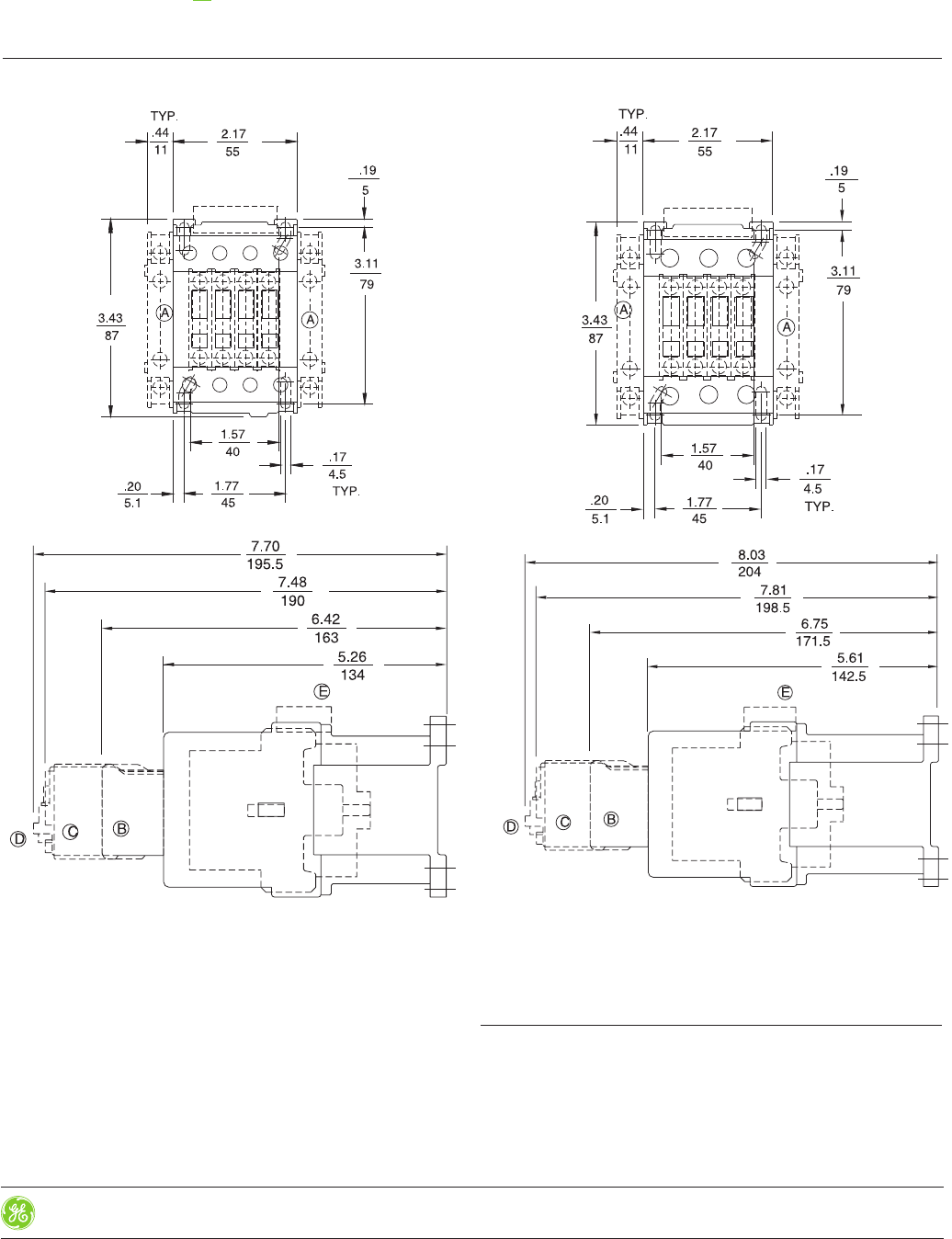

Outlines and Dimensions.....................................................................5-24

Technical Information............................................................................5-31

Application Information .......................................................................5-34

Application Information -

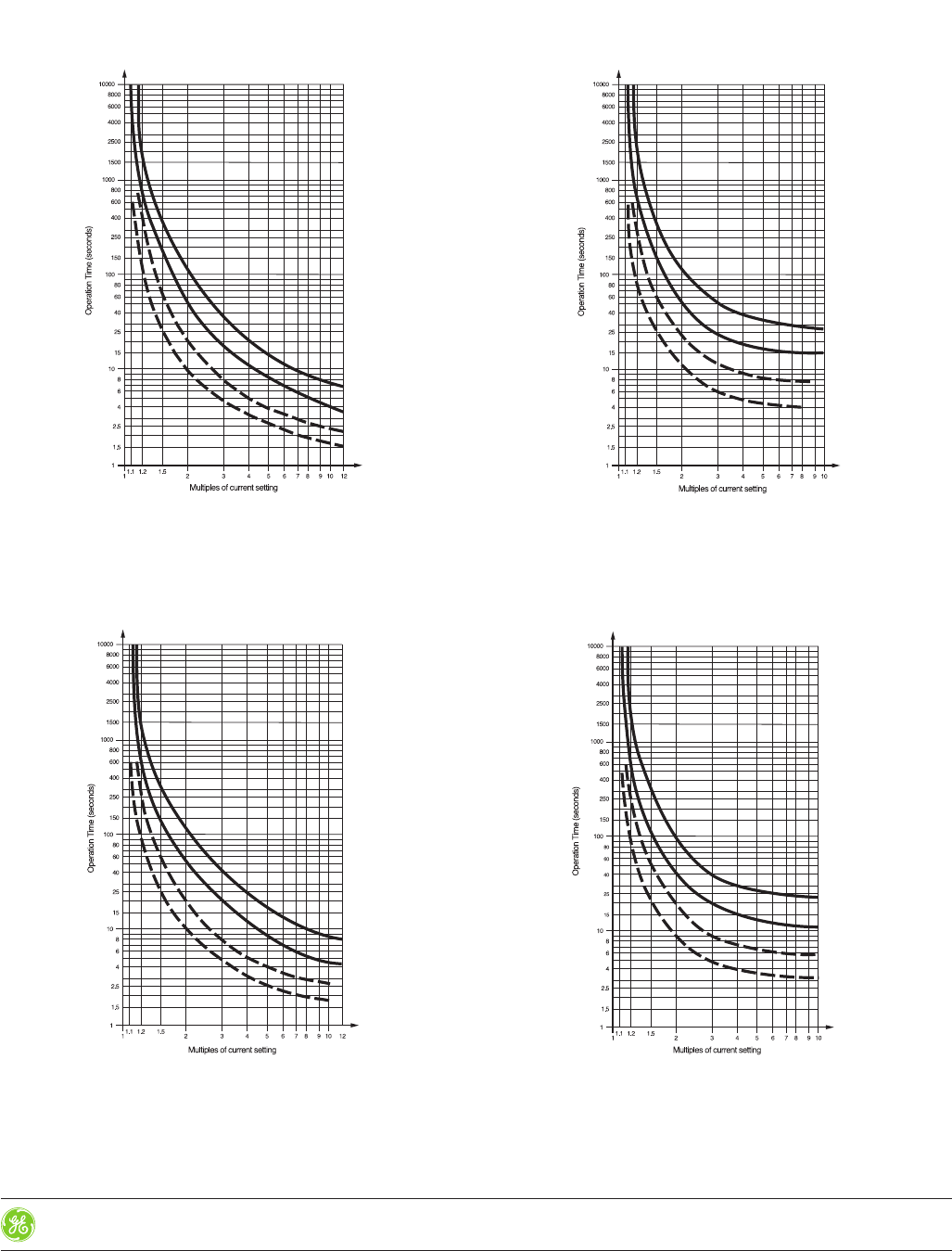

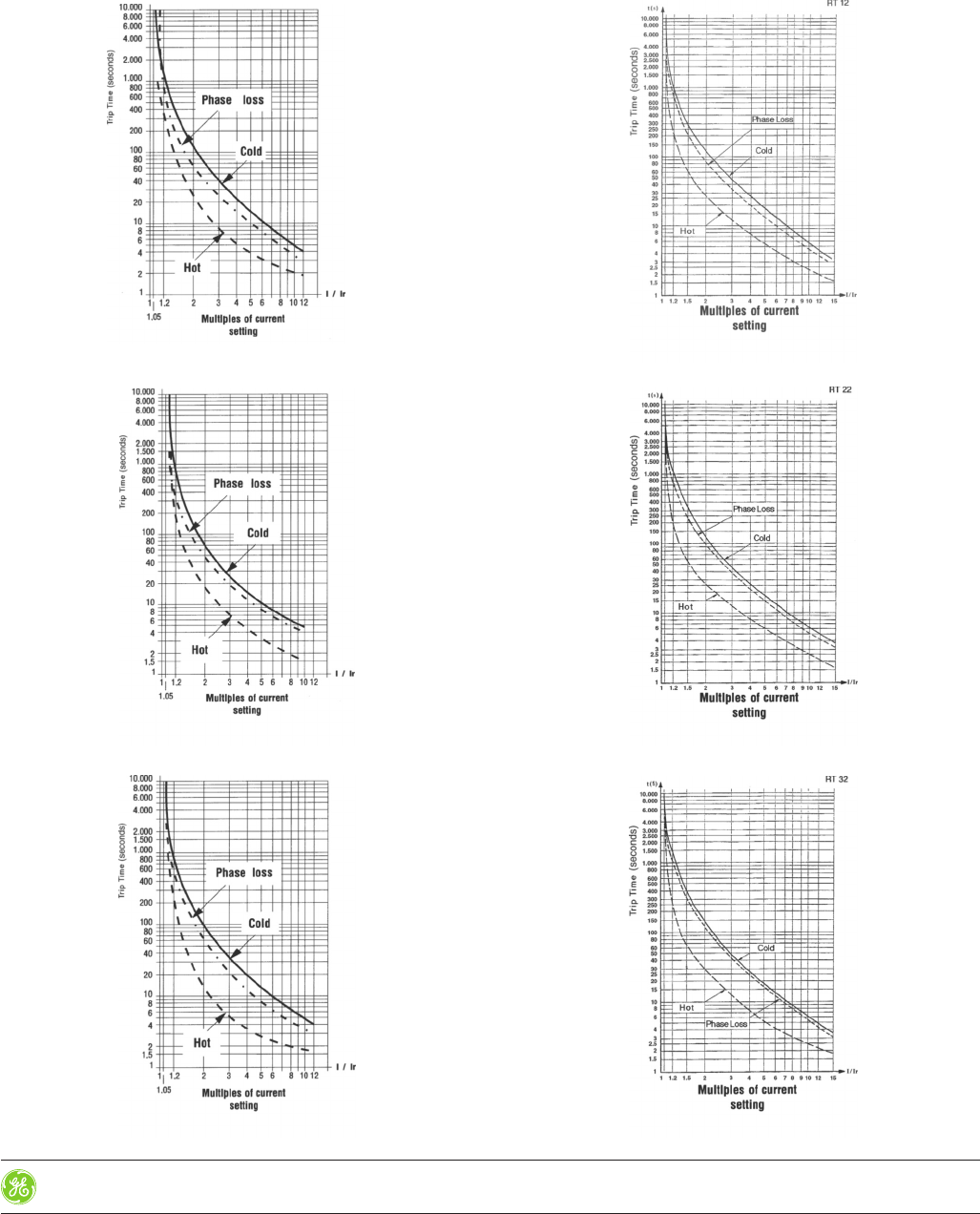

Overload Relay Performance Curves..........................................5-35

Contactors and Starters (C-2000)

Introduction................................................................................................5-36

Product Number Selection Instructions........................................5-37

Contactors with Electronic Modules Overview..........................5-38

Contactors - Nonreversing and Reversing,

AC Controlled, 3-Pole ..........................................................................5-40

Contactors - Nonreversing and Reversing,

DC Controlled, 3-Pole..........................................................................5-41

Contactors - Nonreversing and Reversing,

AC/DC Controlled, 3-Pole ..................................................................5-42

Contactors - Nonreversing, AC, DC,

AC/DC Controlled, 4-Pole ..................................................................5-44

Contactors - Nonreversing, AC/DC Controlled, 4-Pole...........5-45

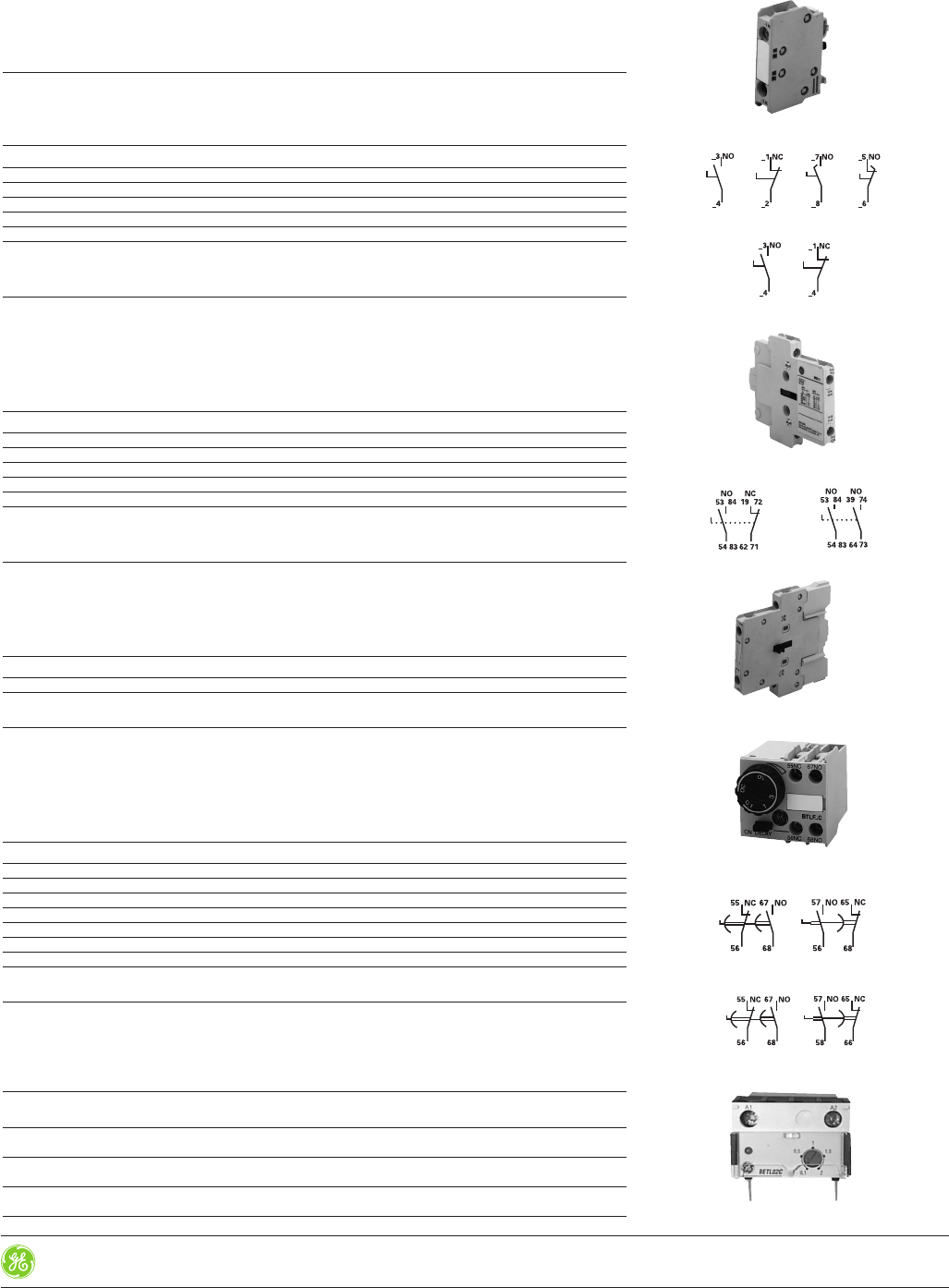

Contactors Accessories ........................................................................5-46

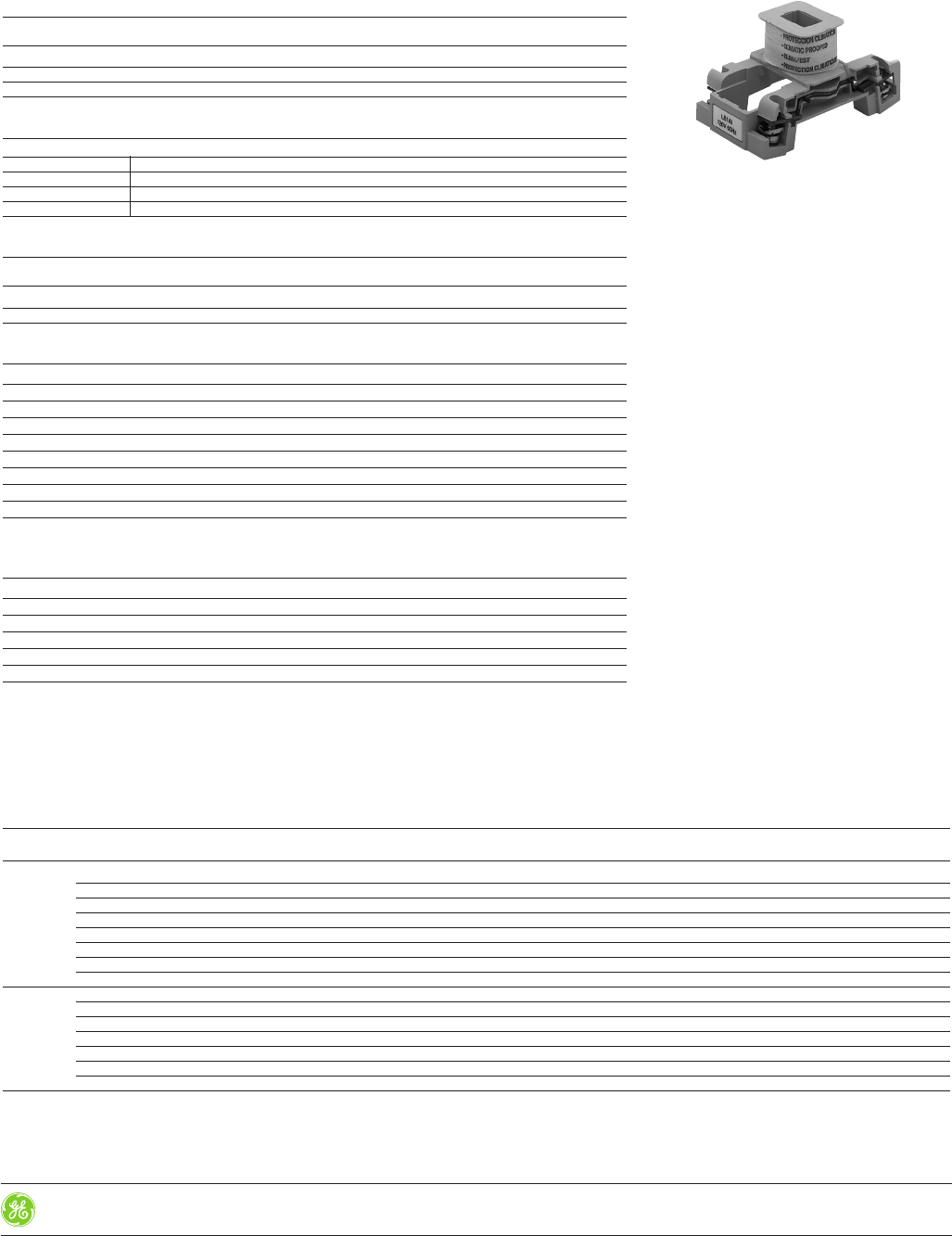

Contactor Coils..........................................................................................5-50

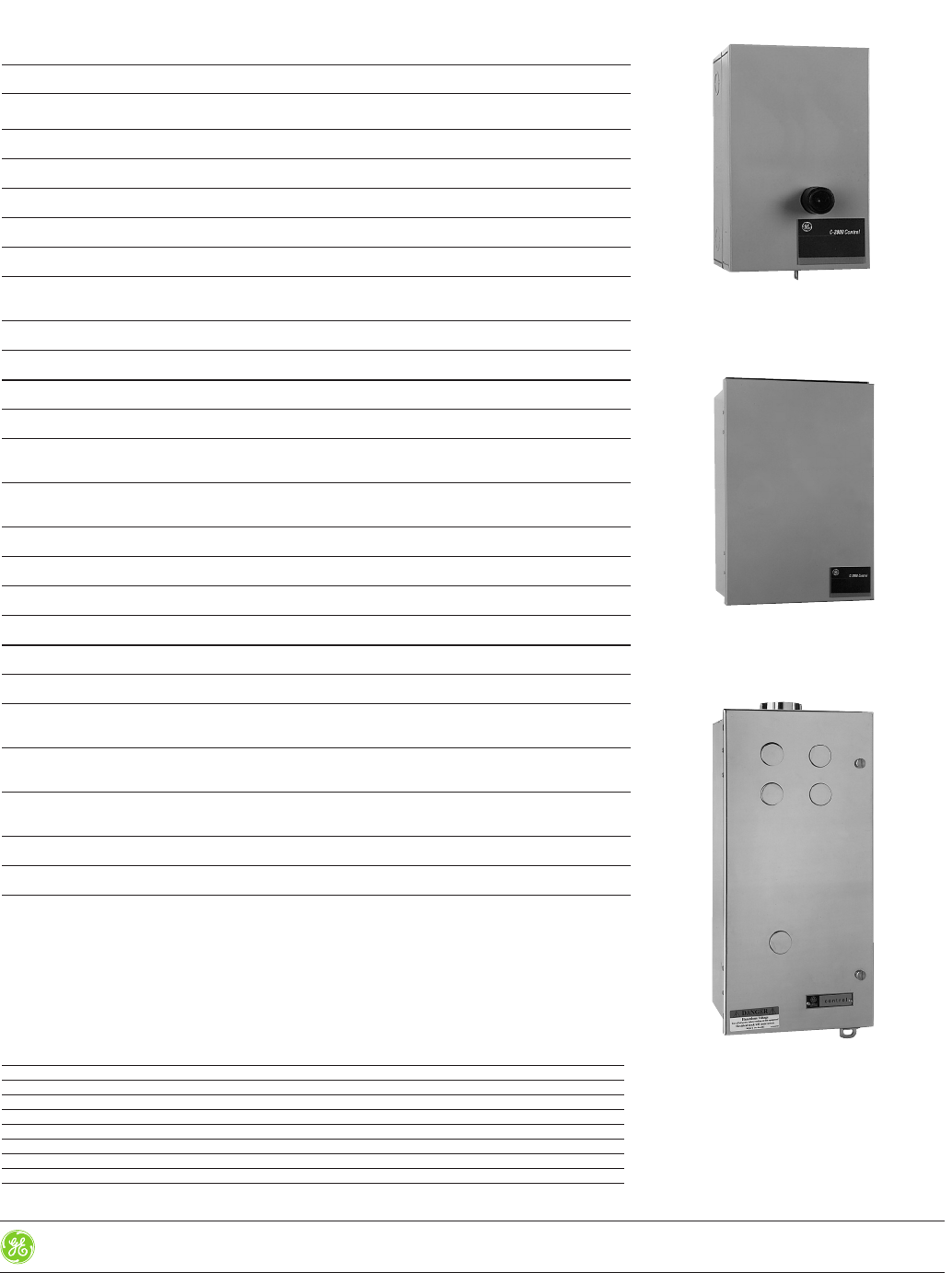

Contactor Enclosures.............................................................................5-51

Contactor Enclosure Accessories.....................................................5-52

Contactors Thermal Overload Relays............................................5-53

Contactors Thermal Overload Relays Accessories..................5-57

Contactors Thermal Overload Relays

Technical Characteristics..................................................................5-58

Contactors Electronic Overload Relays.........................................5-59

Control Relays Selection Guide .........................................................5-63

Control Relays Accessories .................................................................5-64

Contactors for Capacitors Switching CSCN Series..................5-67

Specifications - Contactors, Starters, and Relays....................5-72

Contactors Technical Data..................................................................5-73

Overload Relays Technical Data.......................................................5-76

Contactors Accessories Technical Data .......................................5-77

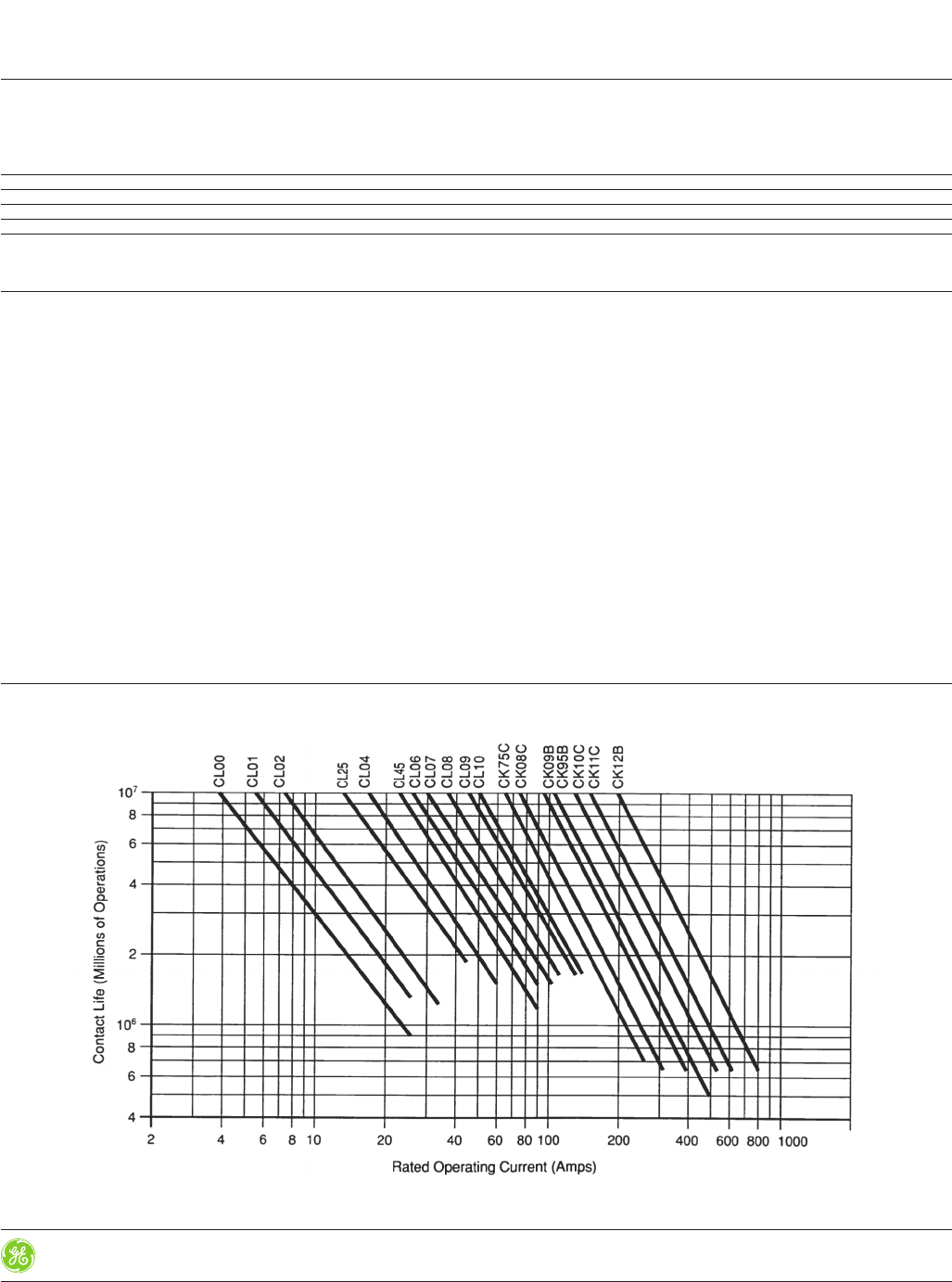

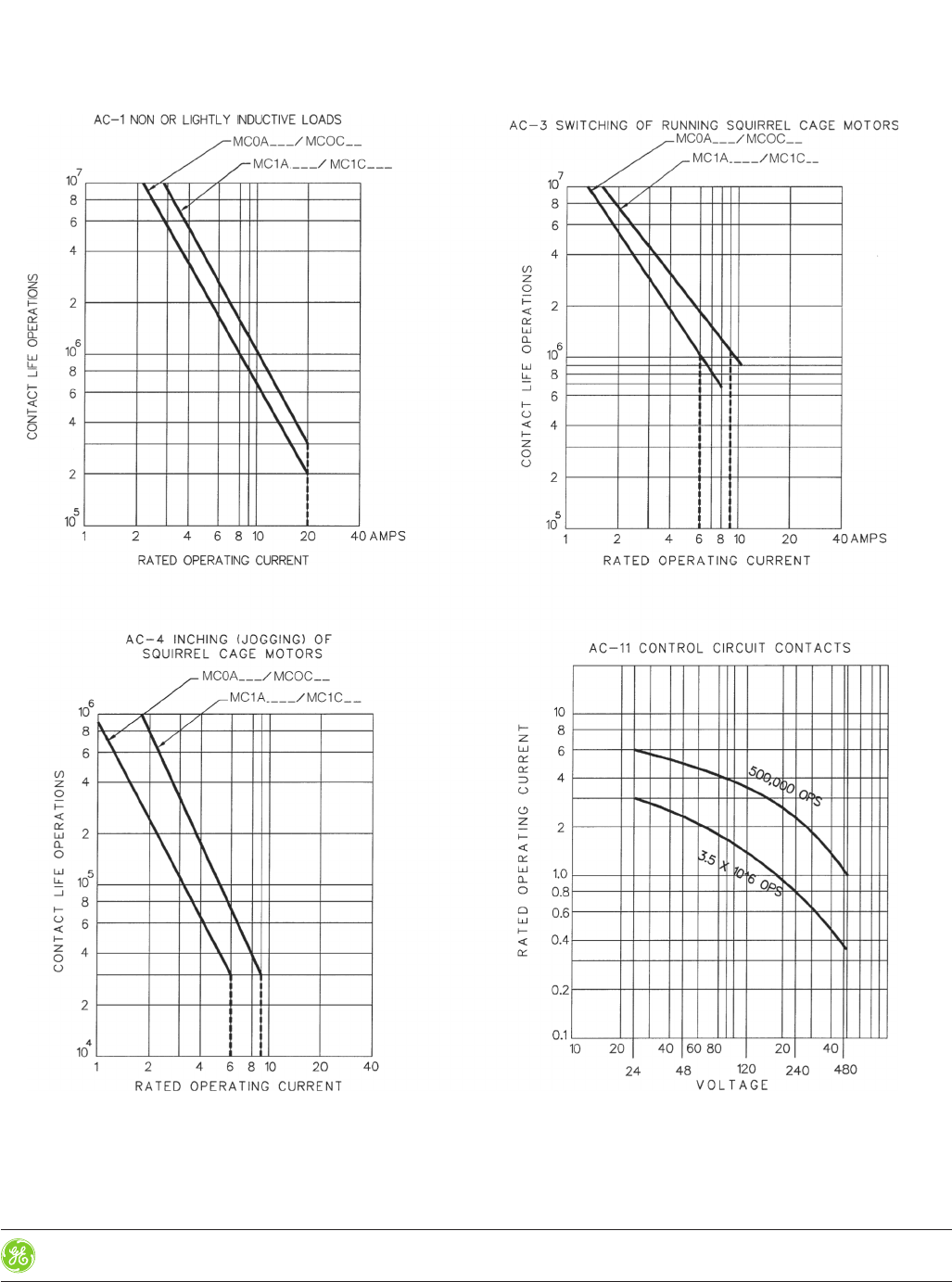

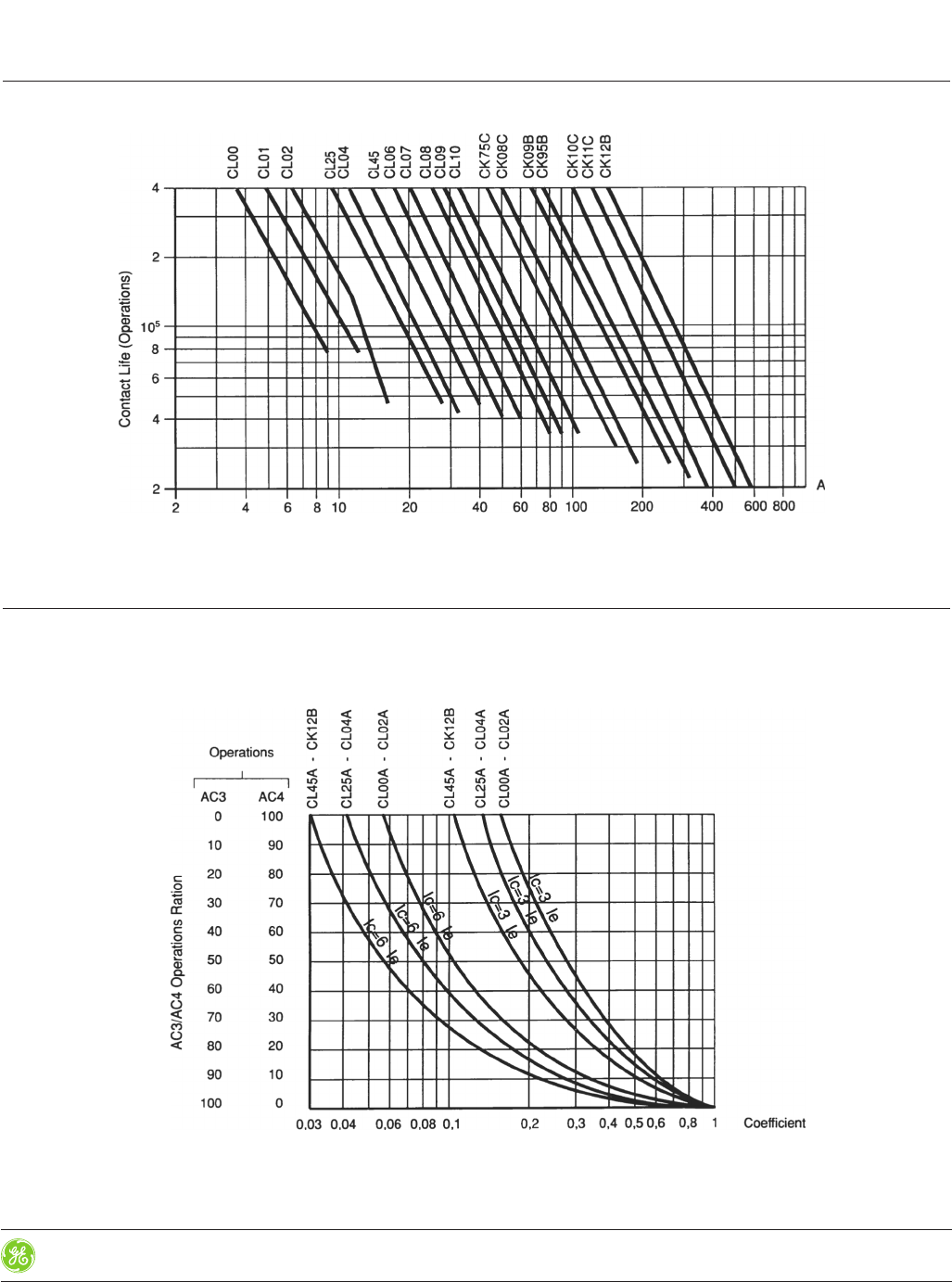

Contactors Lifetime Curves ................................................................5-78

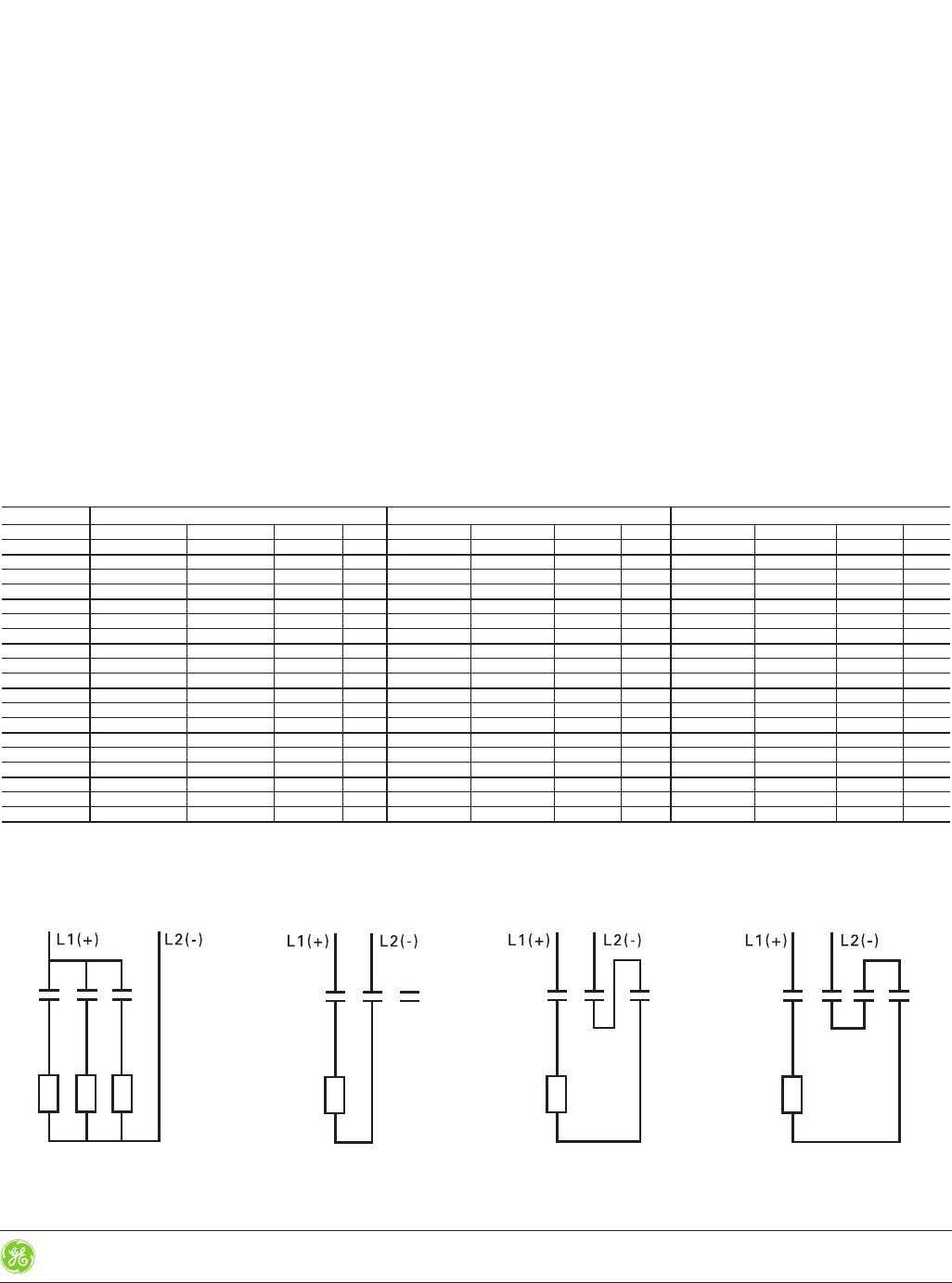

Contactors Application Ratings-DC ................................................5-81

Contactors Application Ratings-AC.................................................5-82

Contactors Application Ratings-KVA..............................................5-83

Contactors and Starters Type 2 Coordination...........................5-84

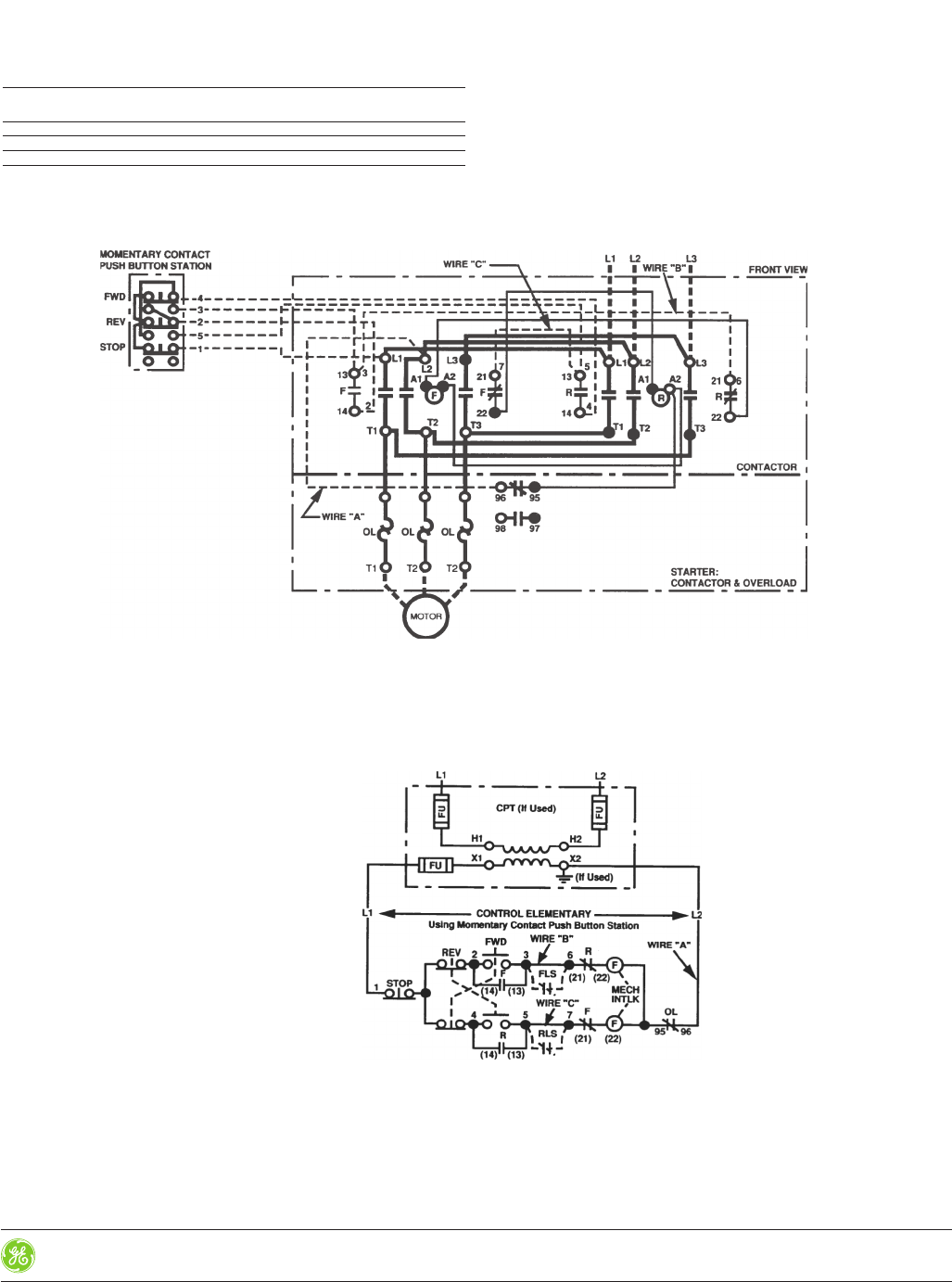

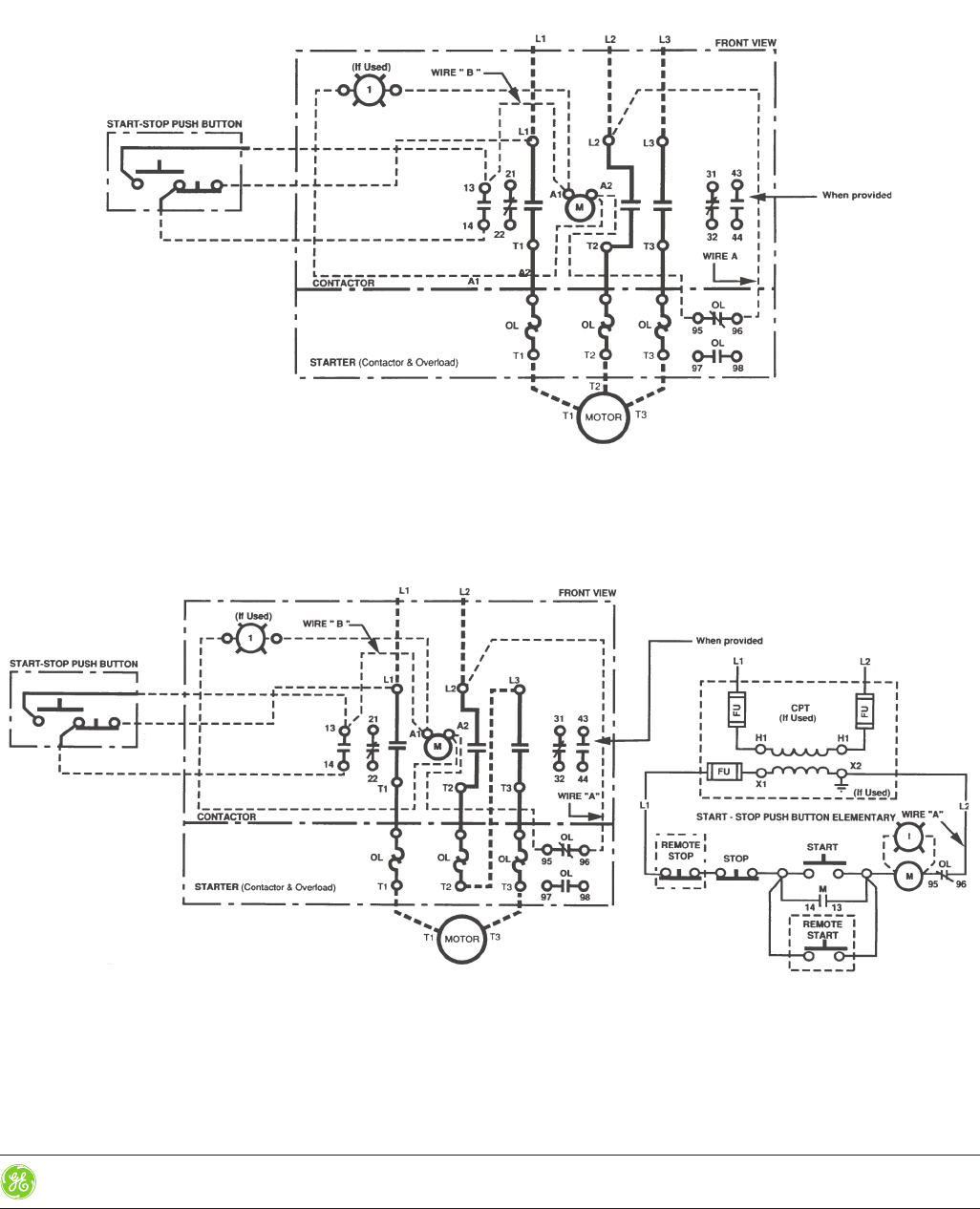

Contactors and Starters Wiring Diagrams..................................5-85

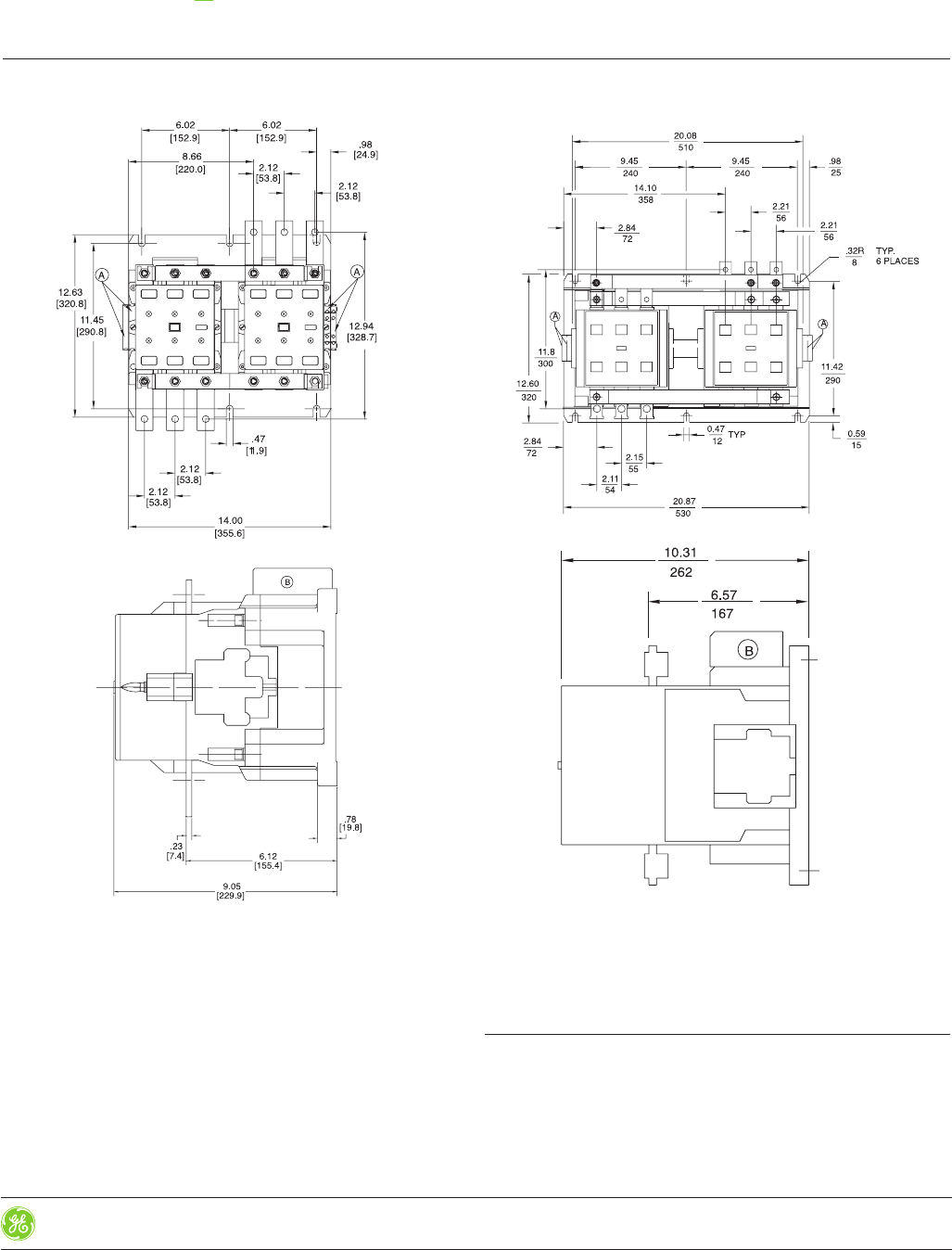

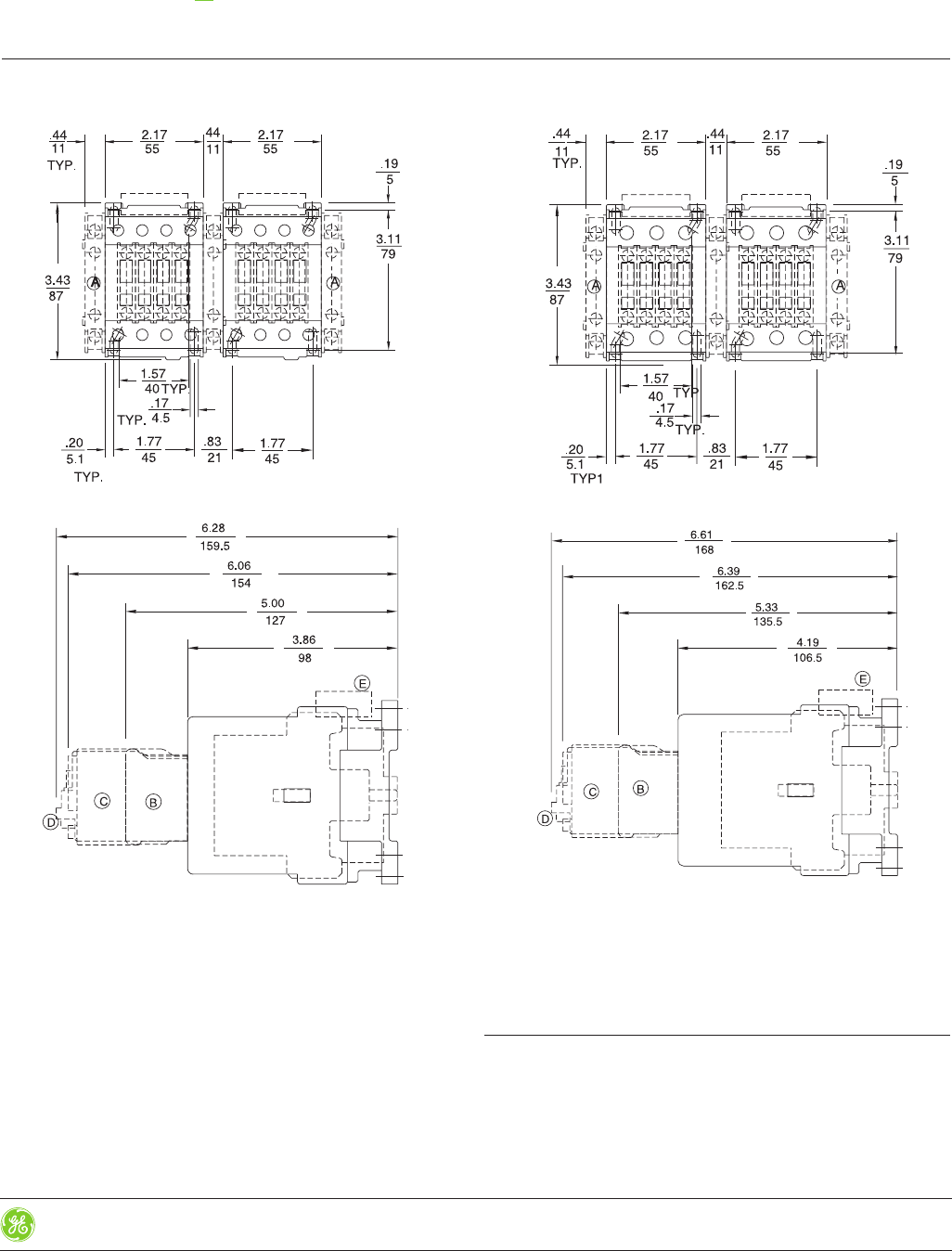

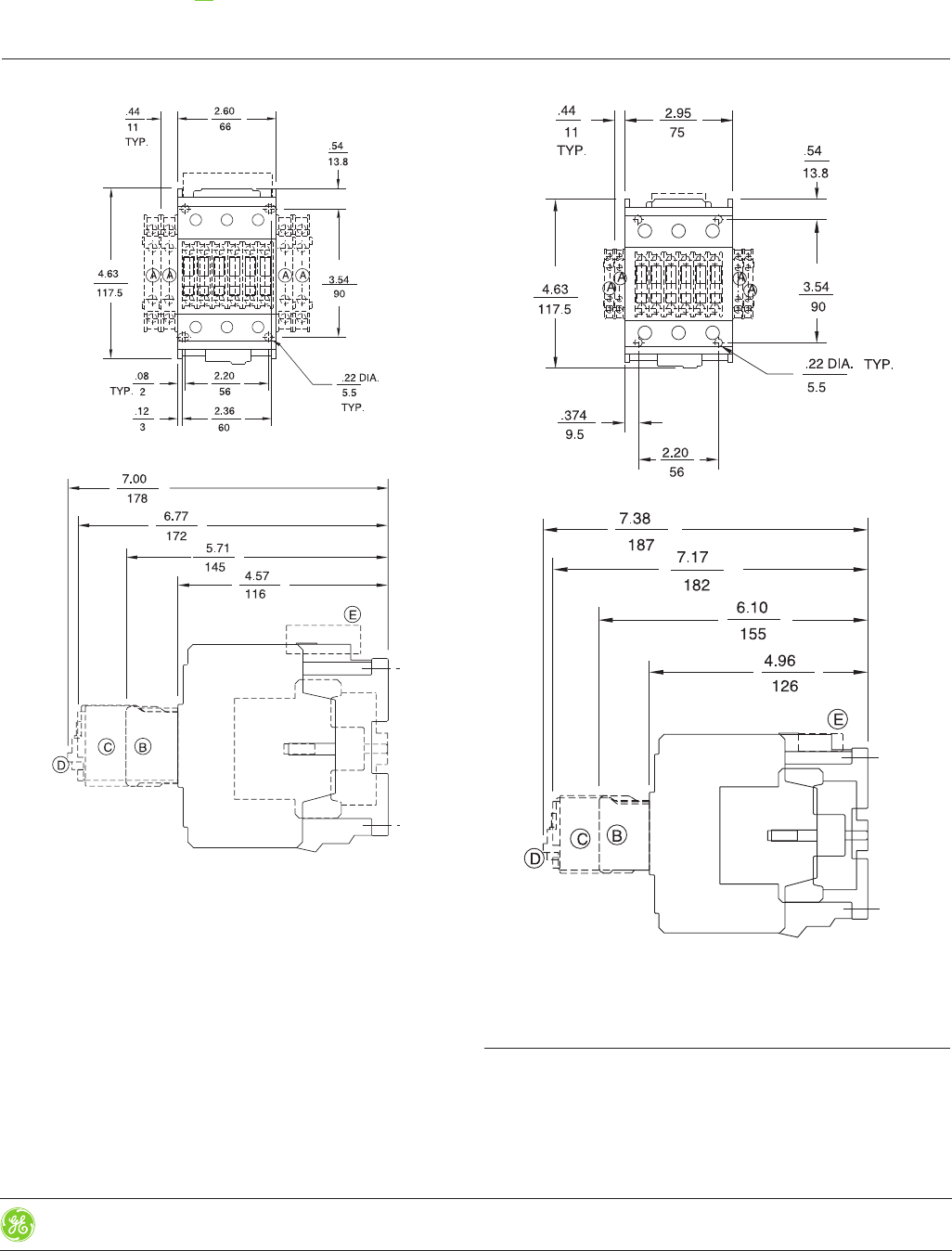

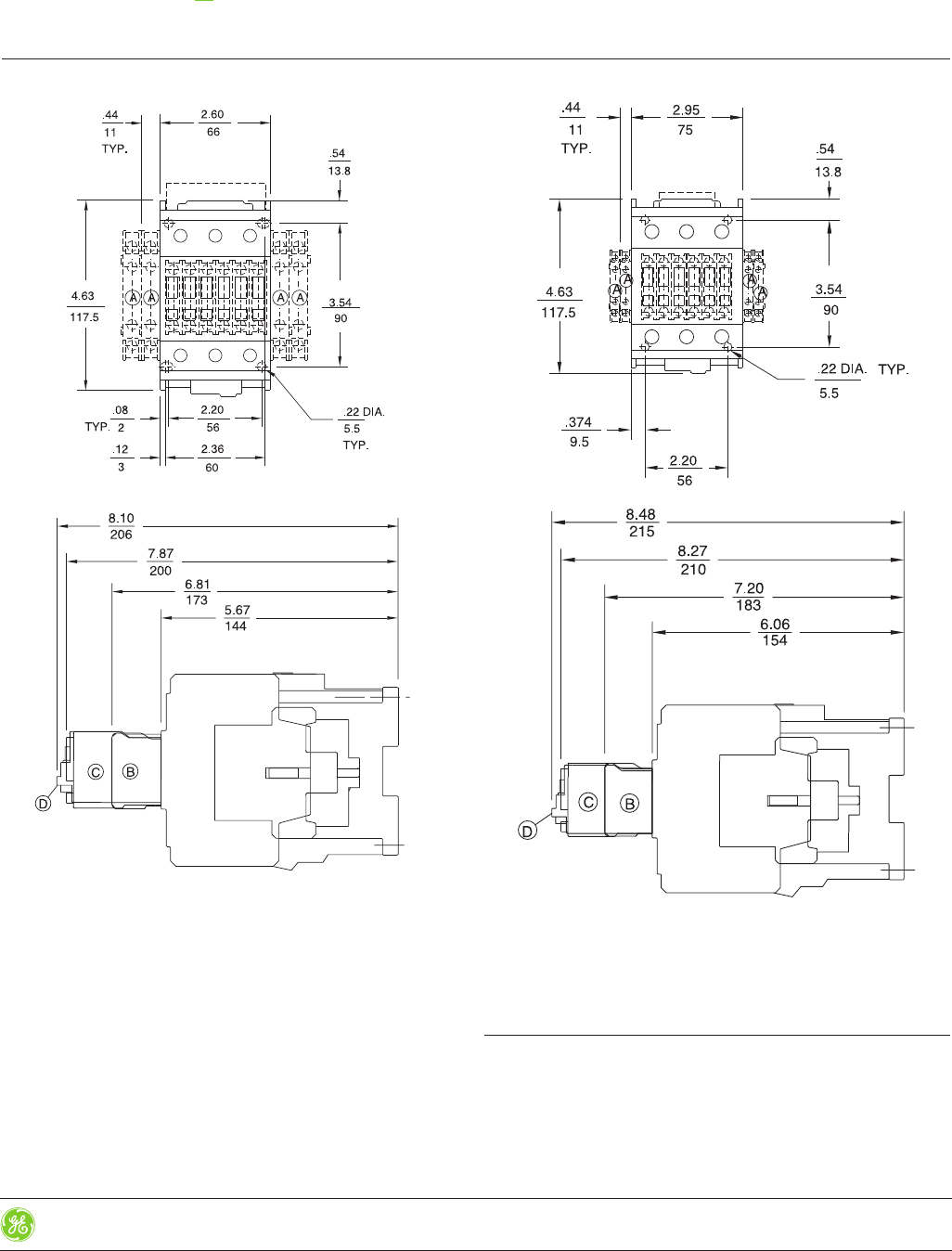

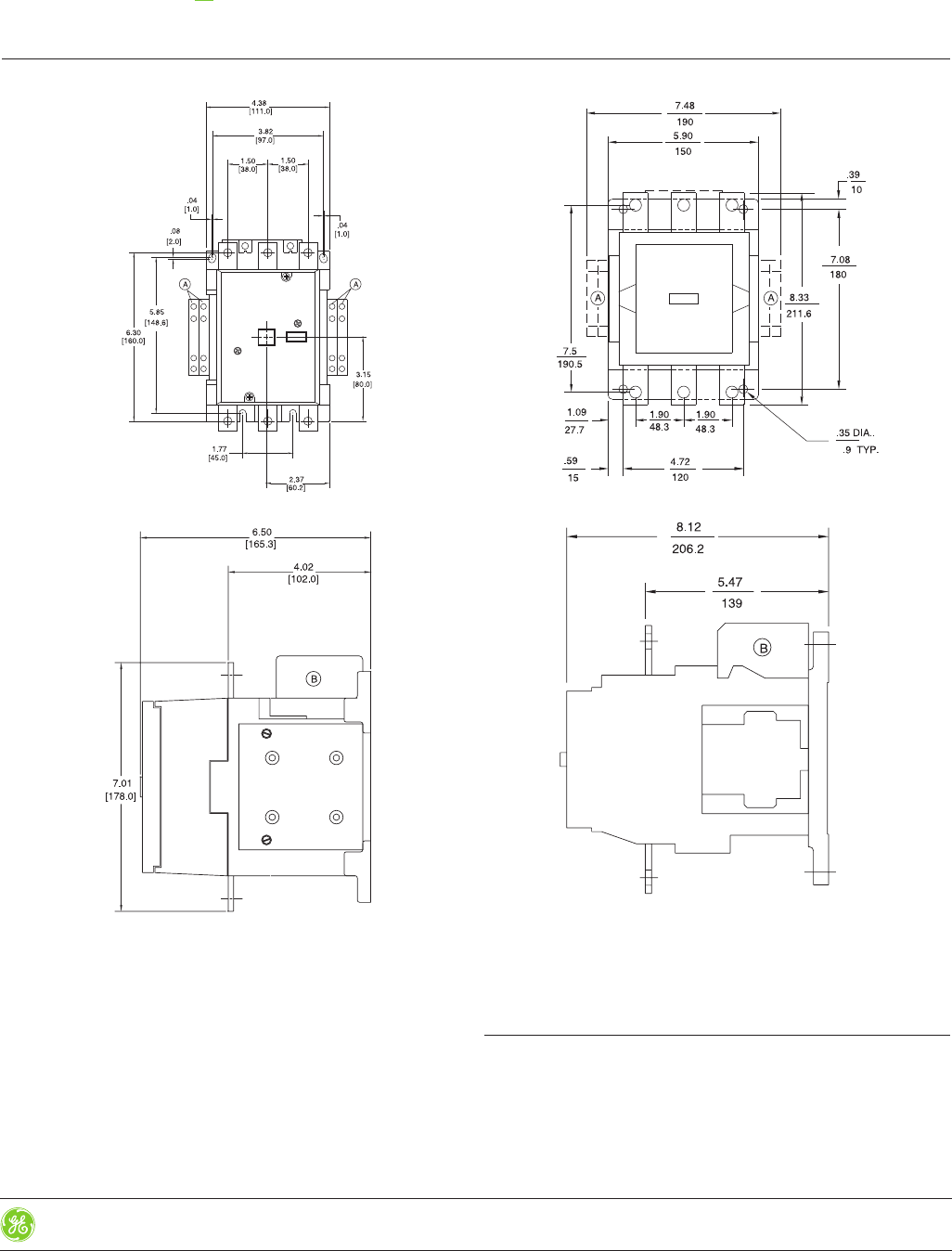

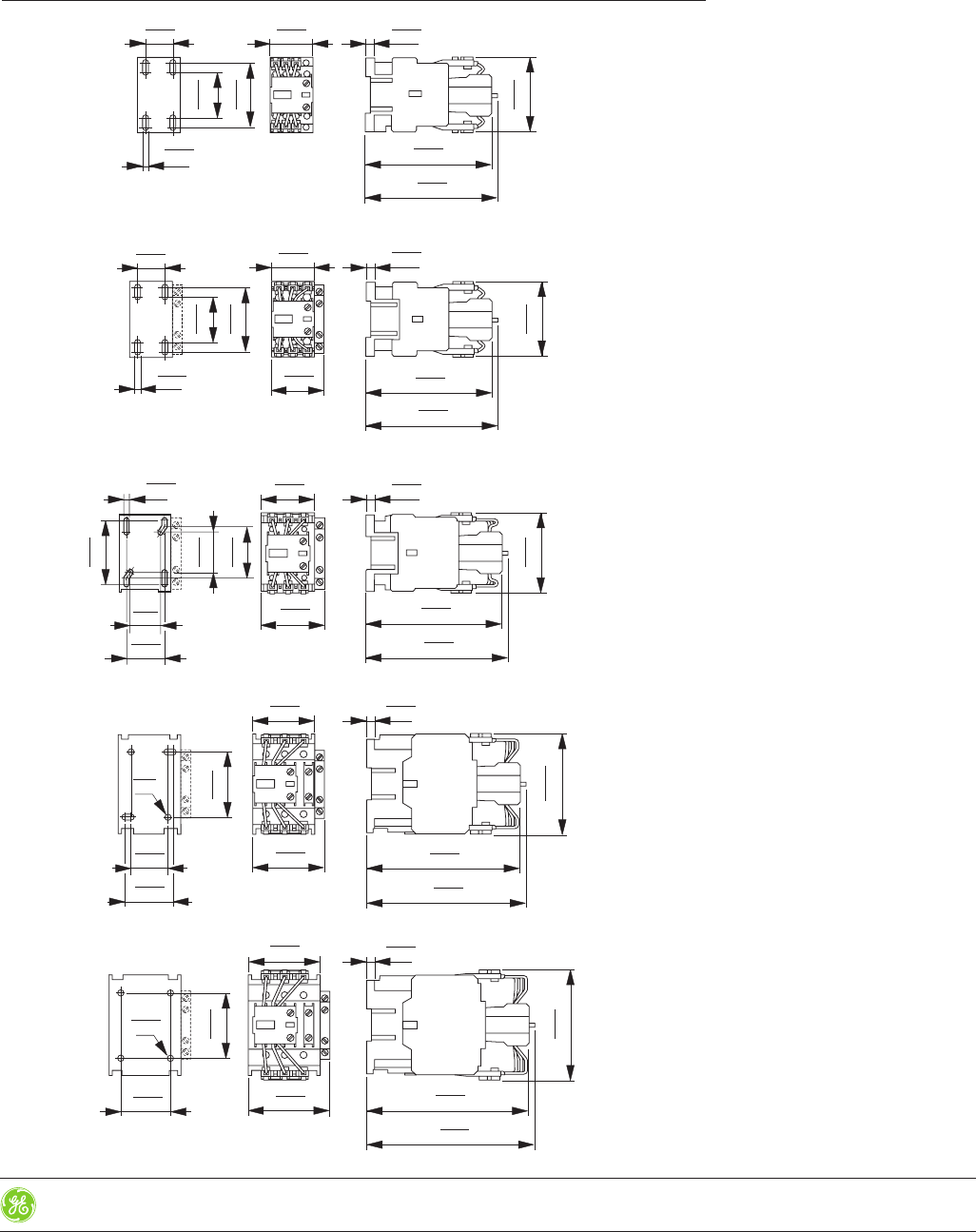

Contactors Dimensions ........................................................................5-86

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-2

IEC Power Devices

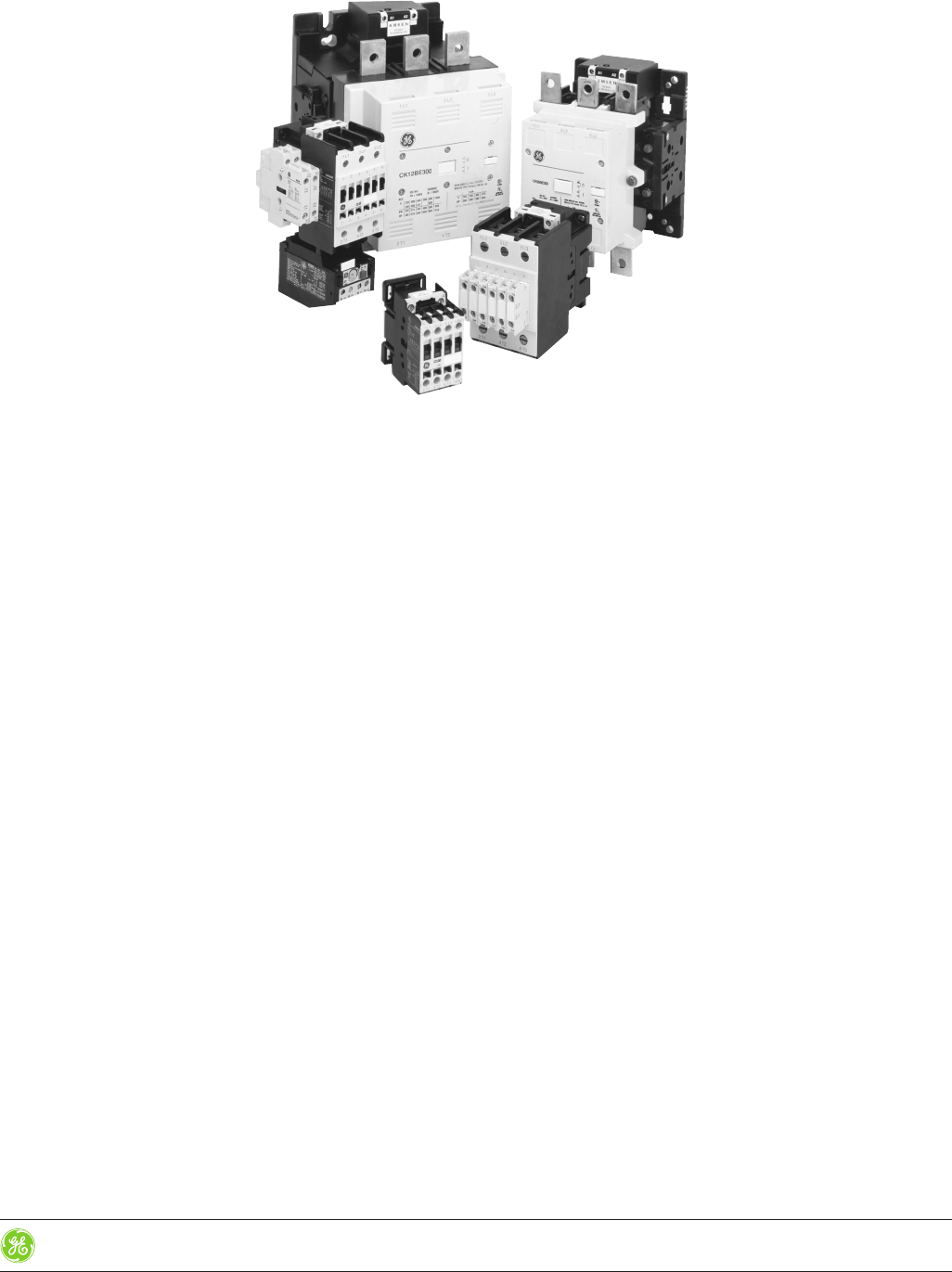

Contactor Overview Section 5

This Control Catalog section brings together products that con-

form to the International Electrical Commission (IEC) standards for

worldwide markets. GE provides several complementary lines to

meet the requirements of these standards:

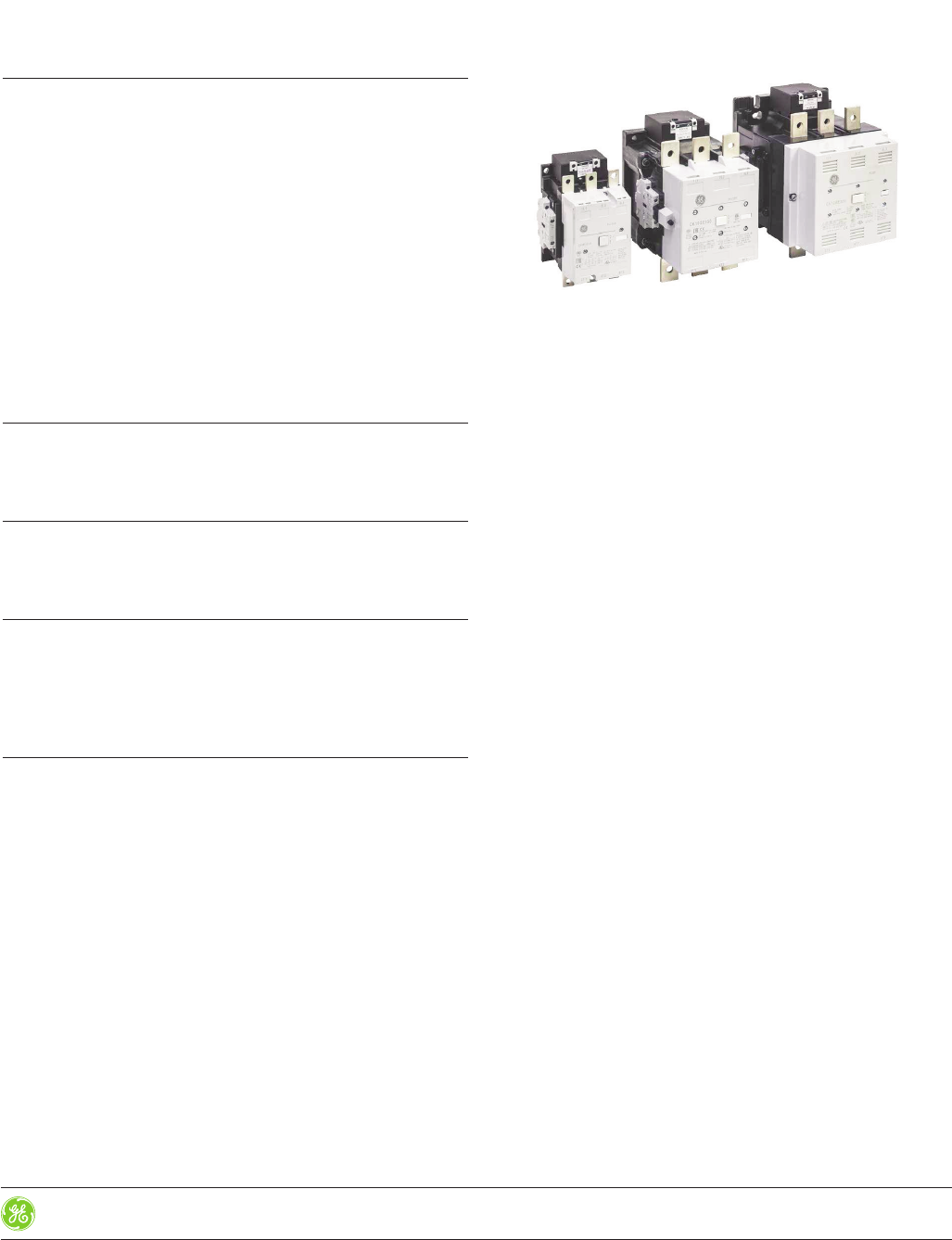

C-2000 Control Contactors and Starters

GE’s C-2000 Control Contactors and Starters offer a wide array

of contactors, relays, accessories, enclosures, and assembled

starters to give you greater design versatility. C-2000 compo-

nents are loaded with features that make them easier to install,

allow more flexible configurations, lower inventory requirements,

and make better use of panelboard space. These components

conform to international standards (UL, cUL and IEC-947) and

have dual (U.S./European) markings to ensure global acceptance.

A single nomenclature system allows simple sourcing worldwide.

AC coils (both 50 Hertz and 60 Hertz versions) and dc coils are

available for a wide range of voltages for flexibility.

Mini-Contactors

GE’s C-2000 Control Mini-Contactors are compact, convenient

and compatible with most installation requirements. Various con-

figurations can be created by combining the MC contactors and

MCR control relays with a wide selection of modular accessories.

The high-performance Mini-Contactors are ideal for even highly

demanding conditions. With a mechanical life rated at 10 million

operations, and electrical life (AC-3) rated in excess of 1 million

operations at rated current, they are ideal for many applications

including pumps, fans, hoists, conveyors, and irrigation systems.

Positive Guided Contacts

All GE C-2000 contactors and relays offer positive guided con-

tacts. This complies with the requirements of EH 60947-5-1.

Except for auxiliary contacts BCLF10G and BCLF01G, NO and NC

auxiliary contacts and main contacts will not overlap. BCLF10G

and BCLF01G are intentionally designed to be overlapping.

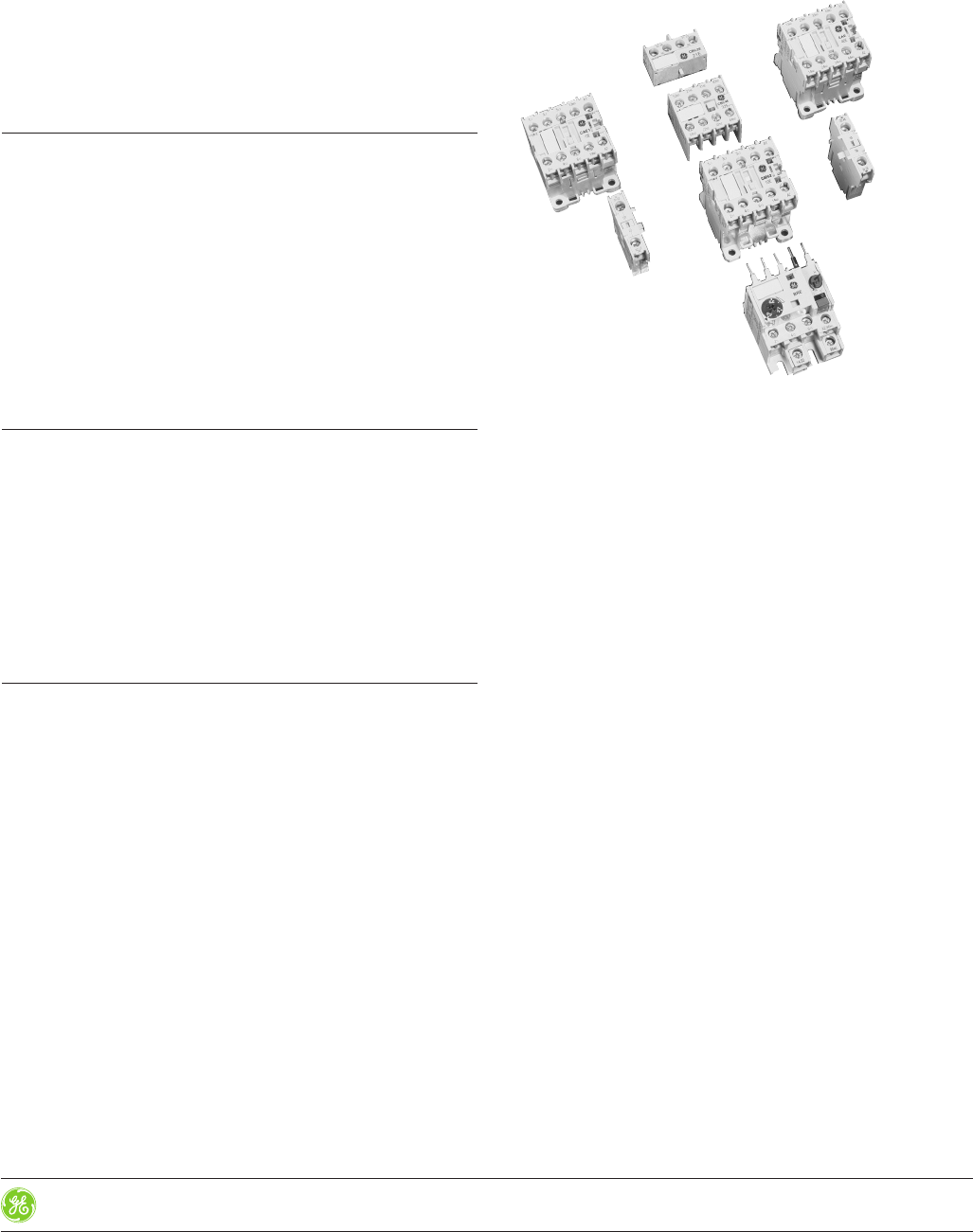

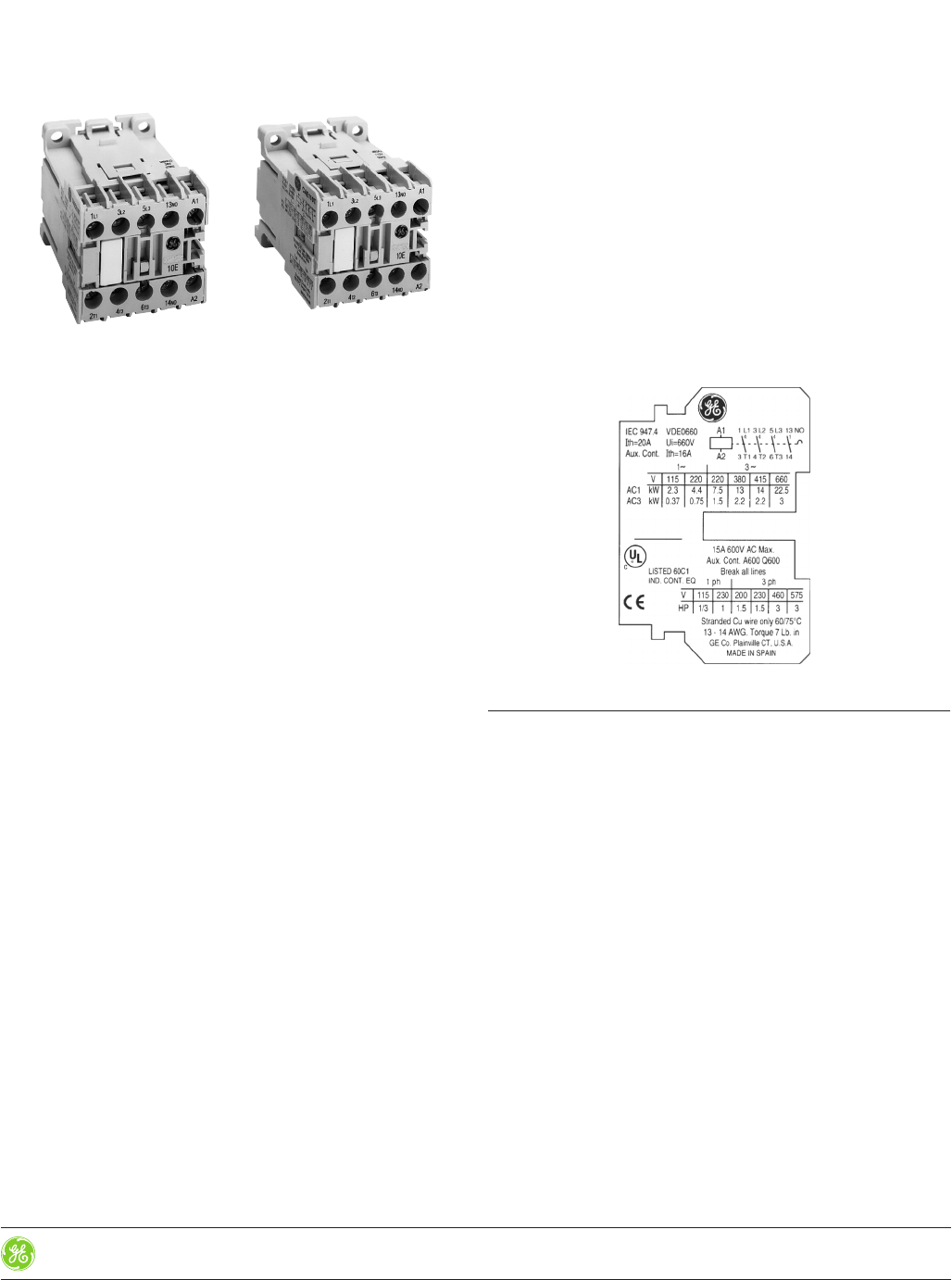

C-2000 Mini-Contactors

C-2000

www.geindustrial.com Control Catalog 5-3

Rev. 4/16

Prices and data subject to

change without notice

Section 5

IEC Power Devices

Mini Contactors Overview

C-2000

Application

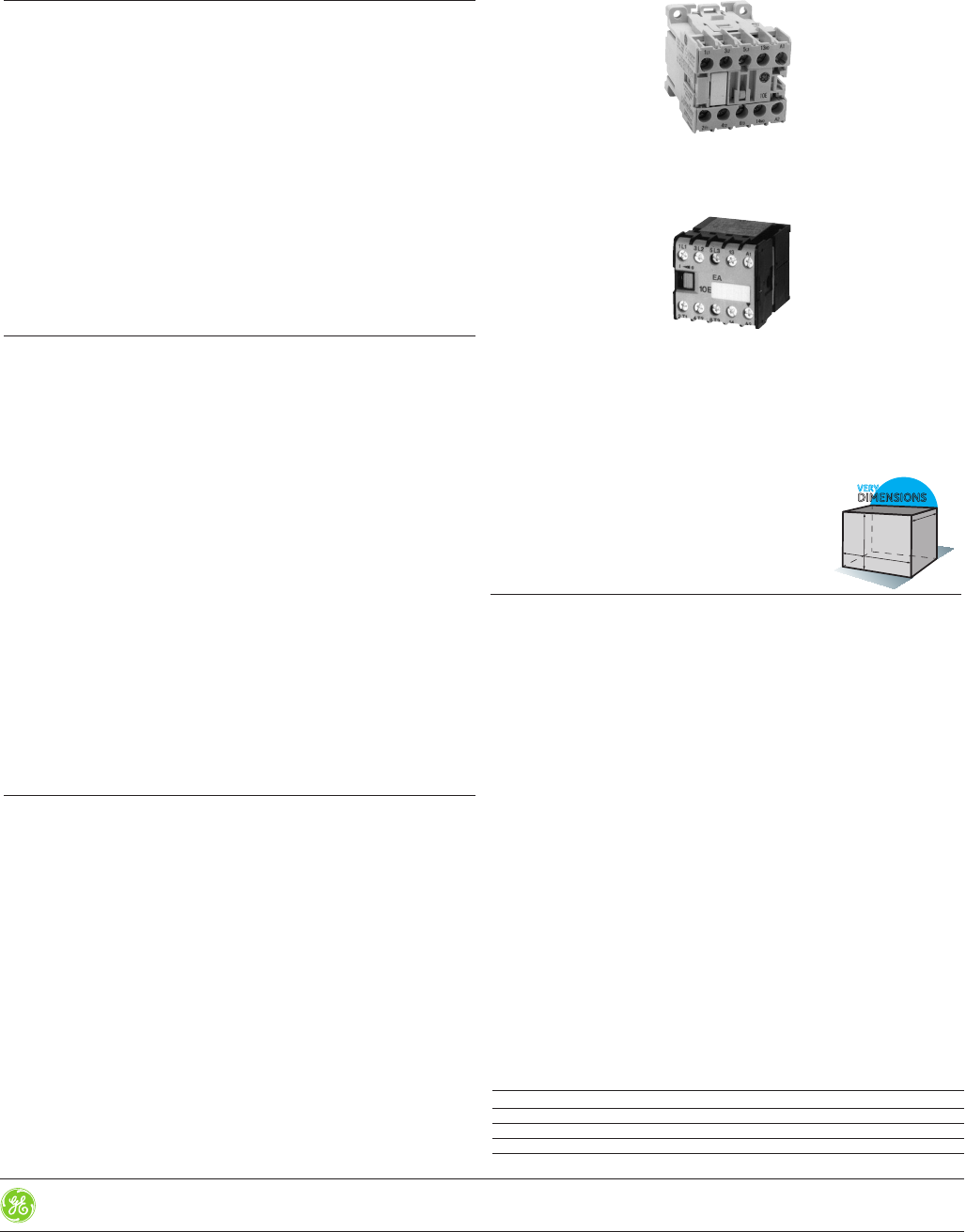

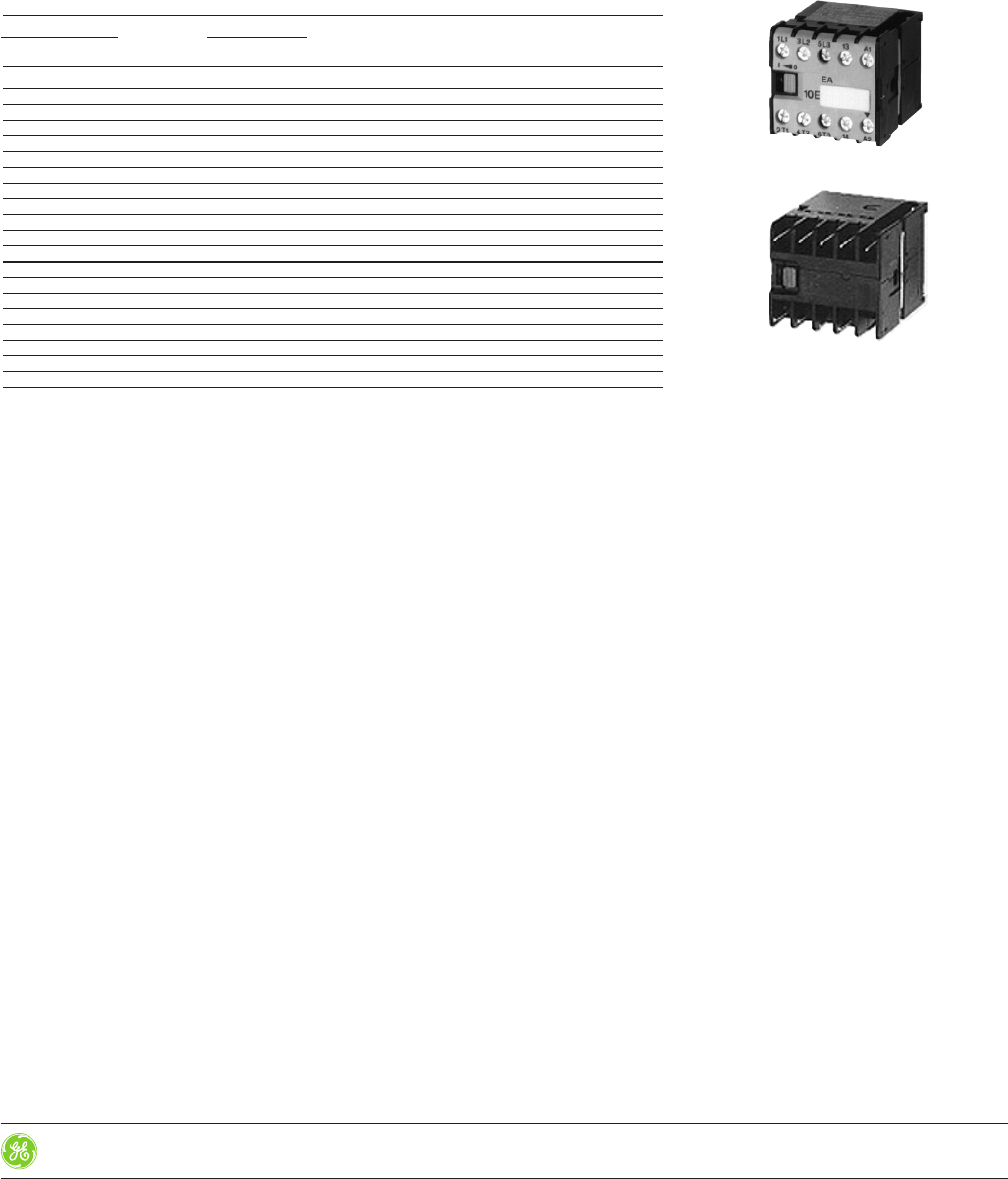

The MC family of mini-contactors and the MCR family of control

relays offer the user and equipment designer a compact, reliable

and versatile solution to today’s demanding requirement of high

performance in a confined space. In such applications, PLC

compatibility is playing an ever increased role.

Contactors and control relays are available in either ac or dc

controlled forms, and offer application flexibility through a wide

variety of modular accessories. These devices are CE Marked and

dual-rated for worldwide acceptance by complying to UL, cUL,

and IEC 947 standards. Contactors and control relays may be

conveniently mounted using a 35mm DIN rail or by affixing with

screws to a base plate.

Featuring a conveniently compact size, a mechanical life rated at

10 million operations, and an electrical life (AC-3) rated in excess

of 1 million operations at rated current, the MC/MCR mini-contac-

tor family is suitable for a wide variety of applications—including

pumps, fans, door operators, hoists, conveyers, commercial

laundry equipment, machine tools, food mixing equipment,

irrigation systems, and other utilizations.

Low coil power consumption greatly expands application flexi -

bility. Standard ac coils require only 1.4 watts and standard dc

coils require 3 watts; this translates into low control power supply

requirements and low heat losses inside the enclosure. Two

special 24 volt PLC interface coil versions are also available to

allow coils to be directly operated by PLC outputs.

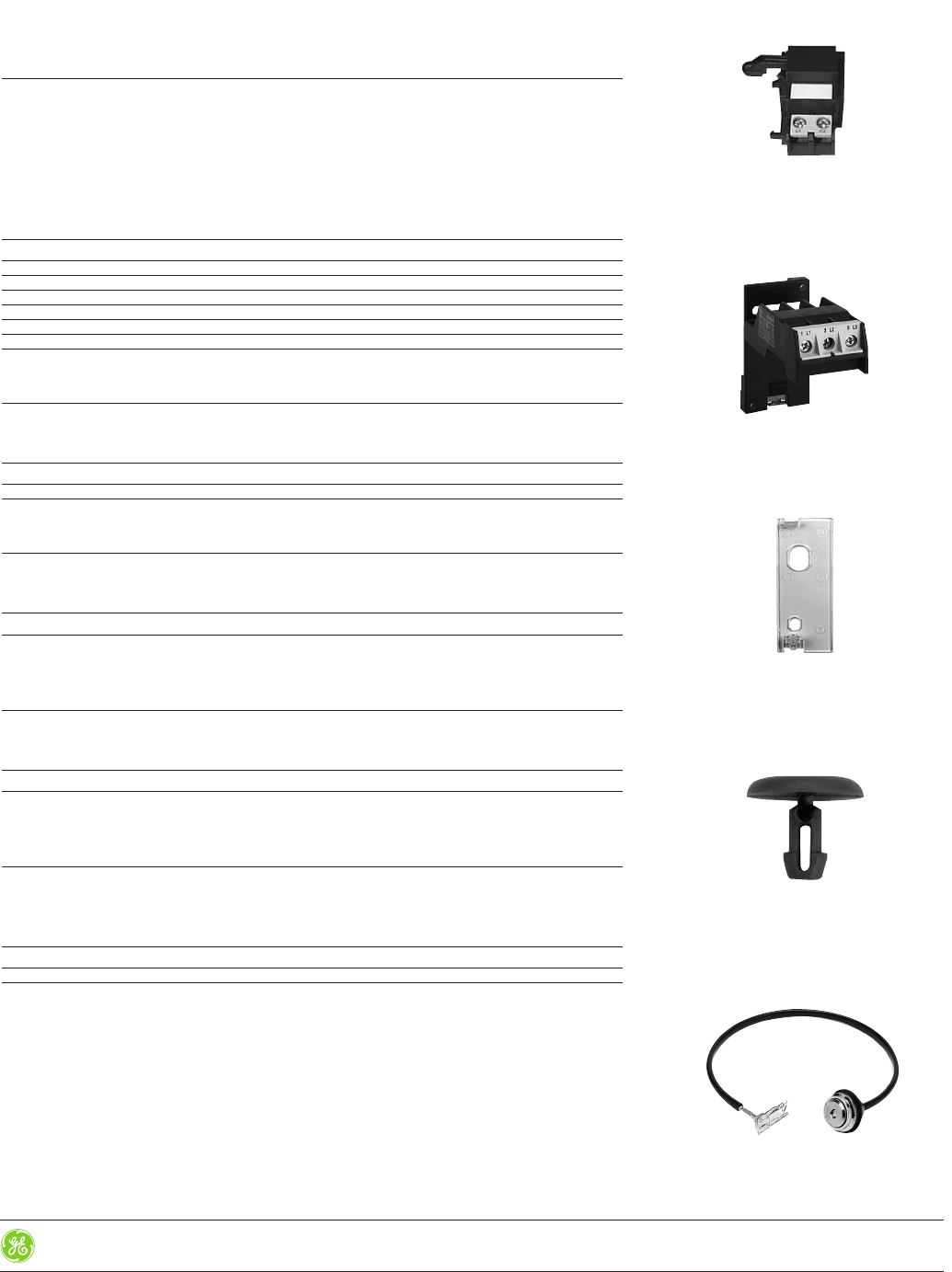

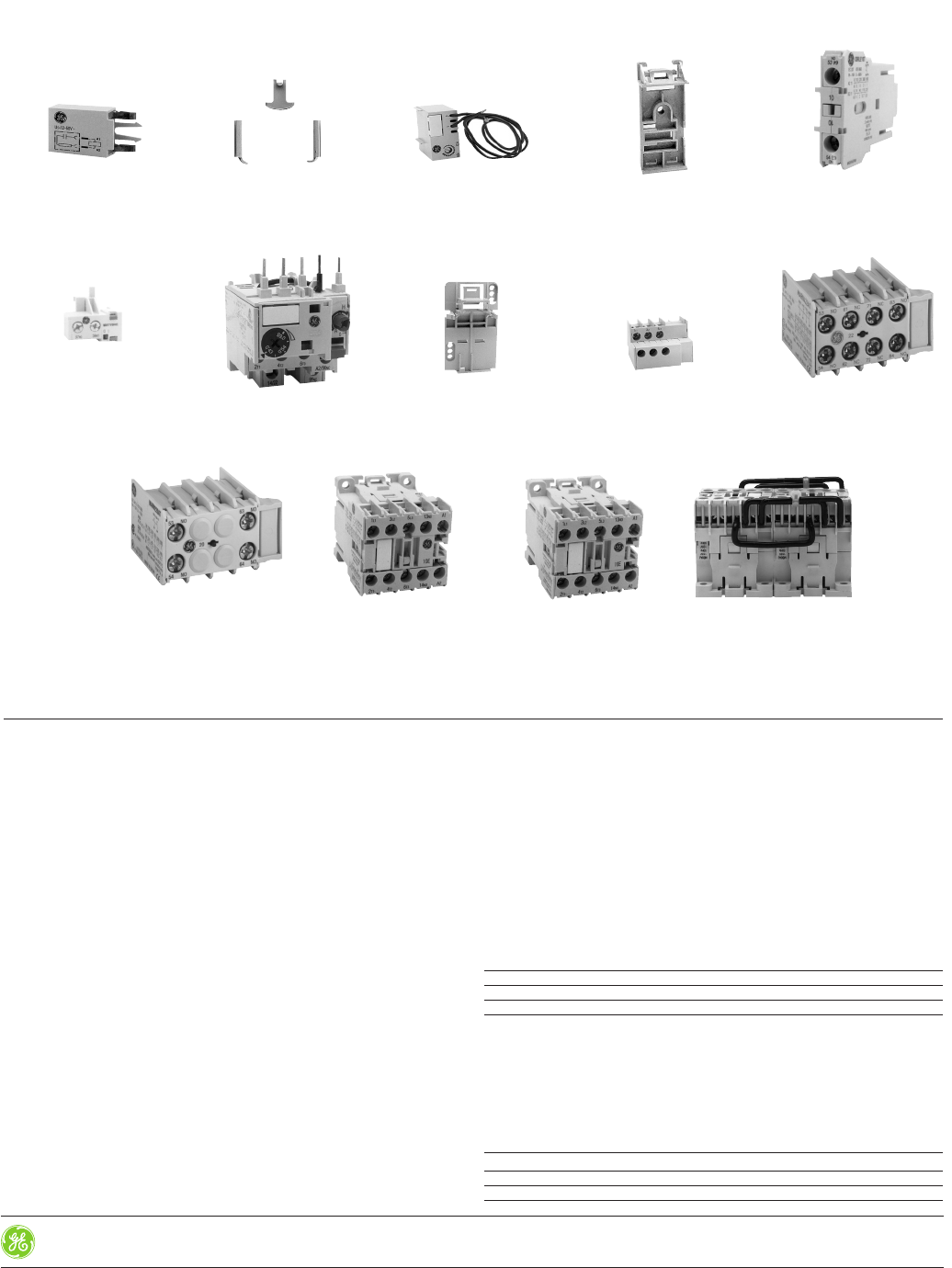

Accessories

A wide variety of accessories allows application flexibility to meet

most installation requirements. Accessories include:

—overload relays,

—overload relay signal contact,

—overload relay separate mounting base,

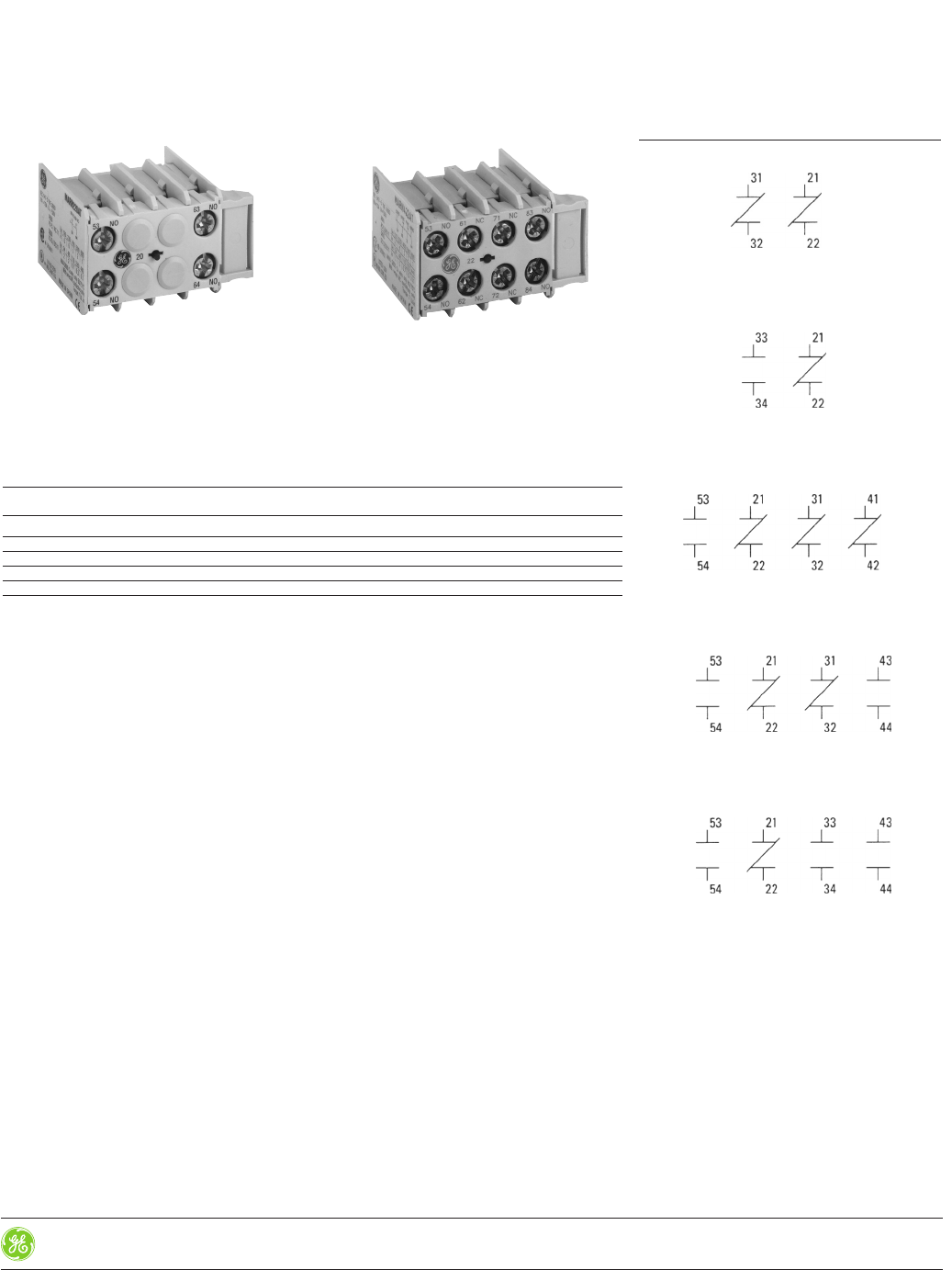

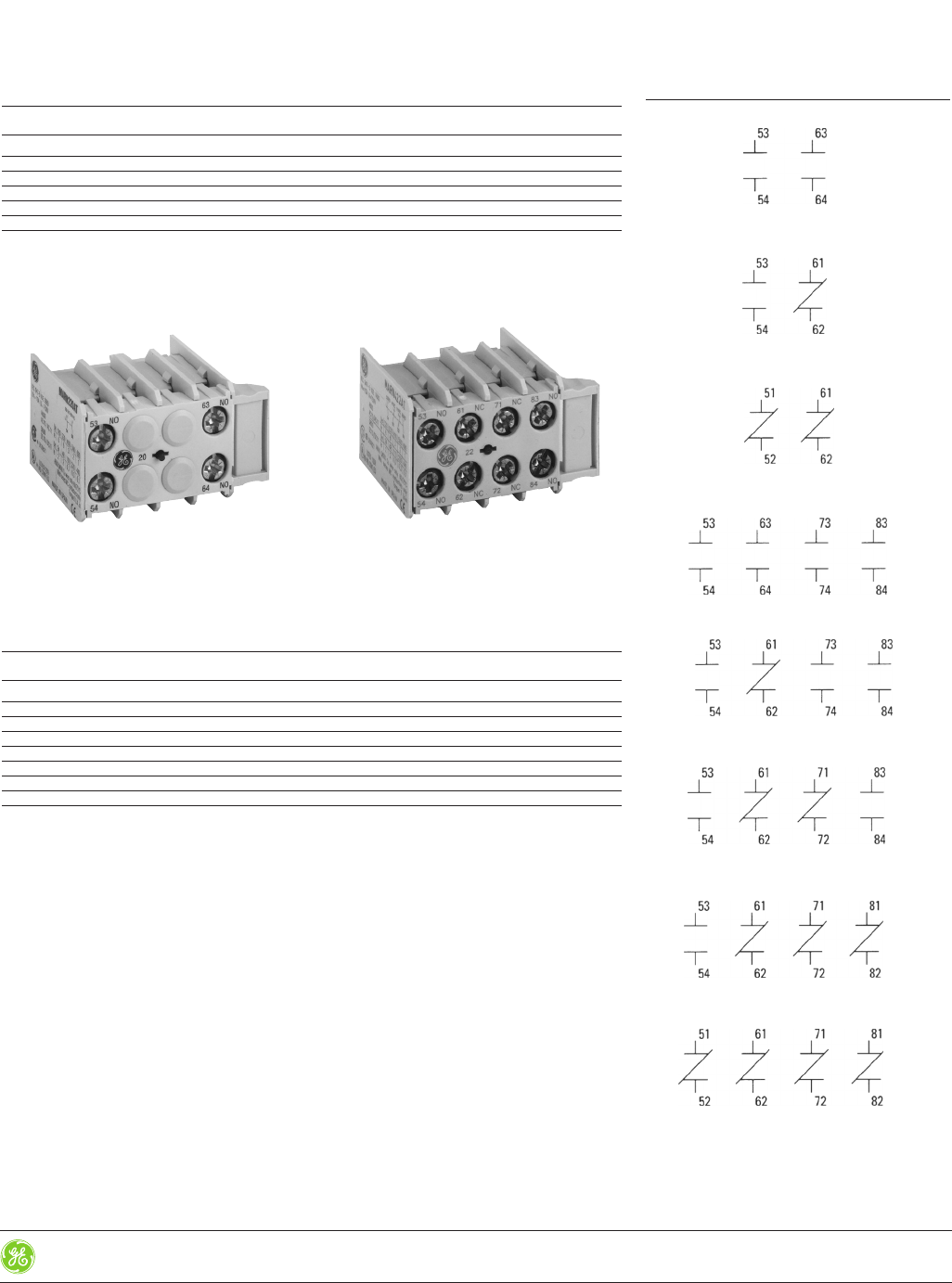

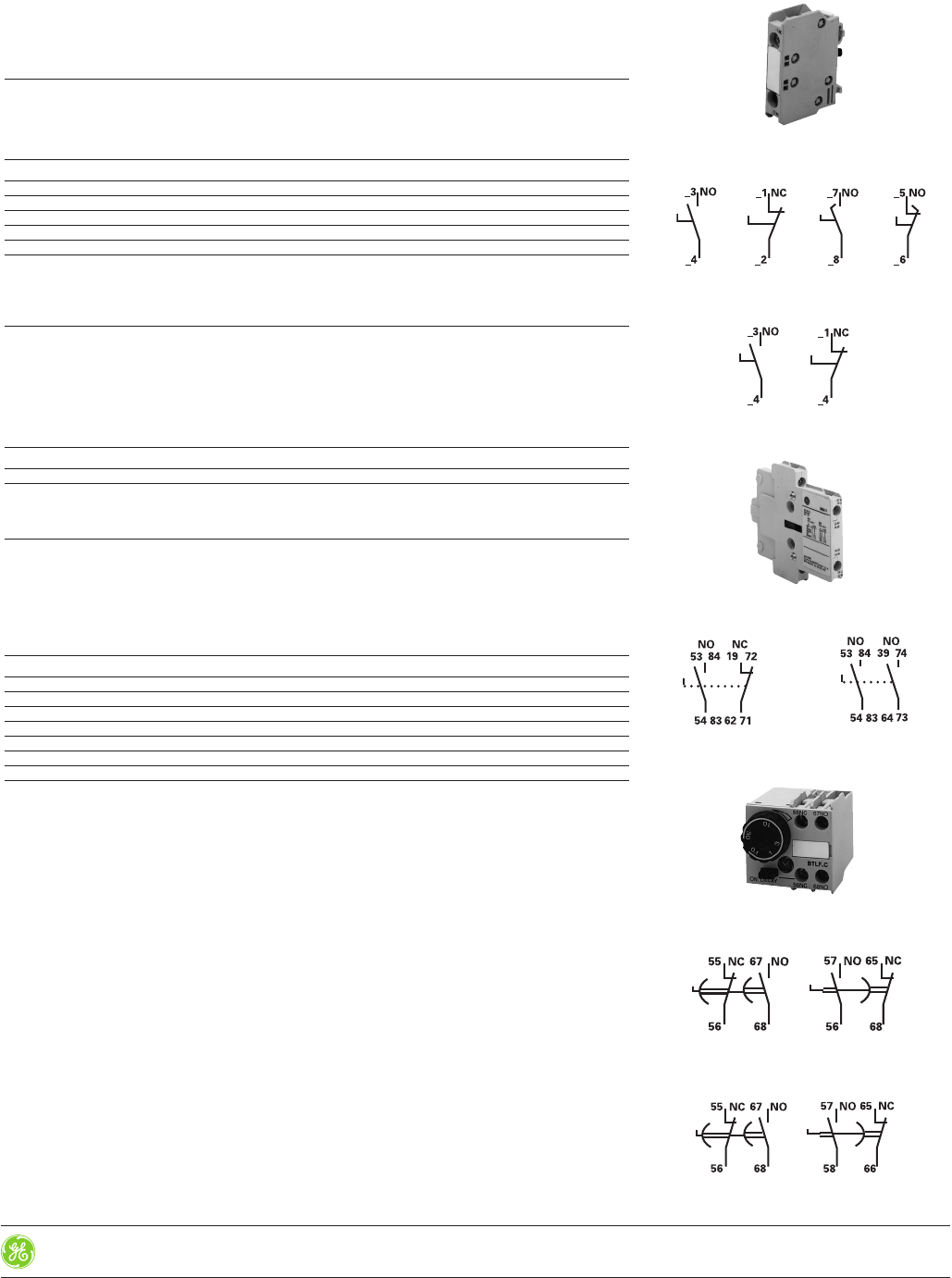

—2-pole front auxiliary contacts,

—4-pole front auxiliary contacts,

—1-pole side auxiliary contacts,

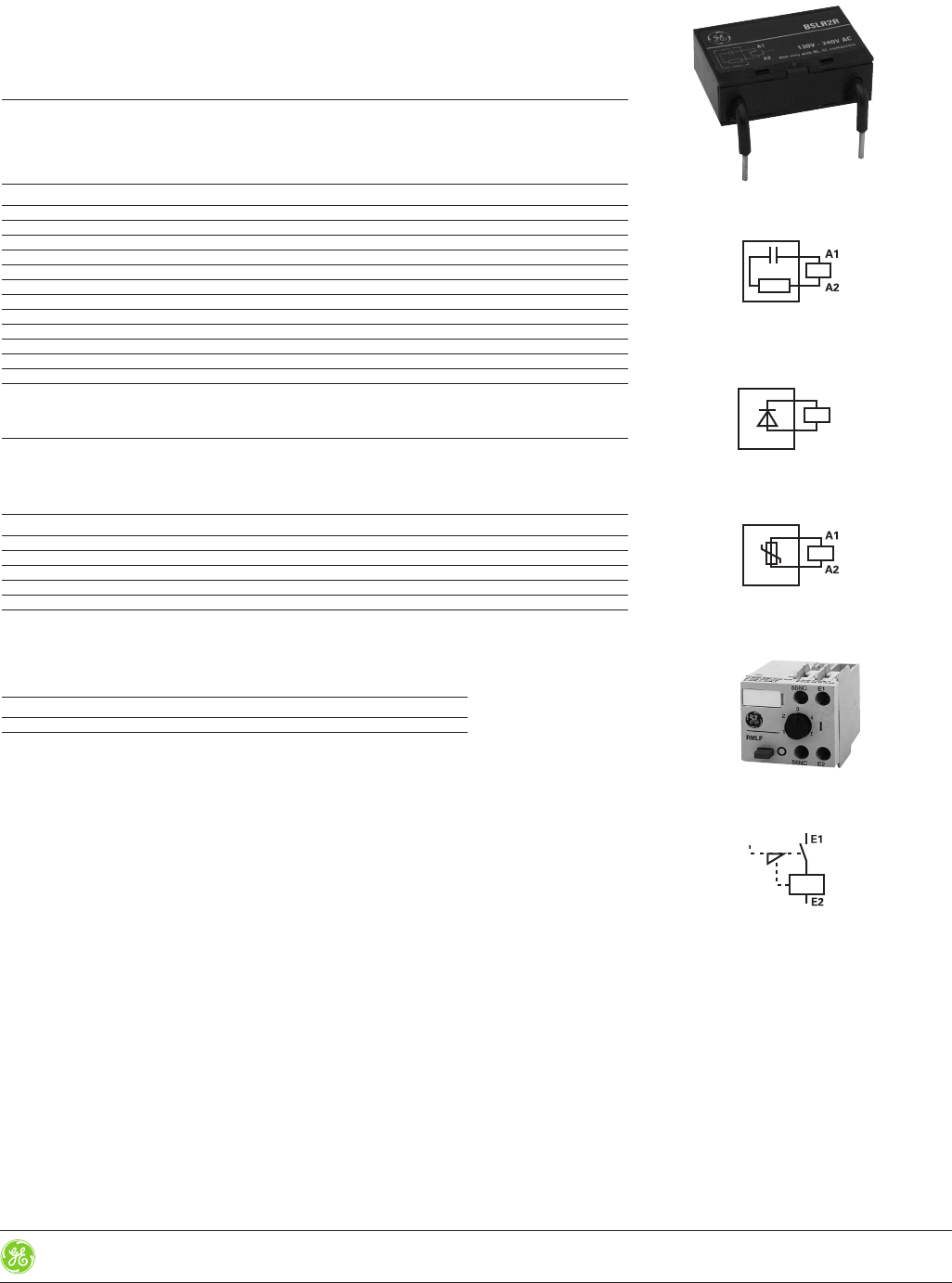

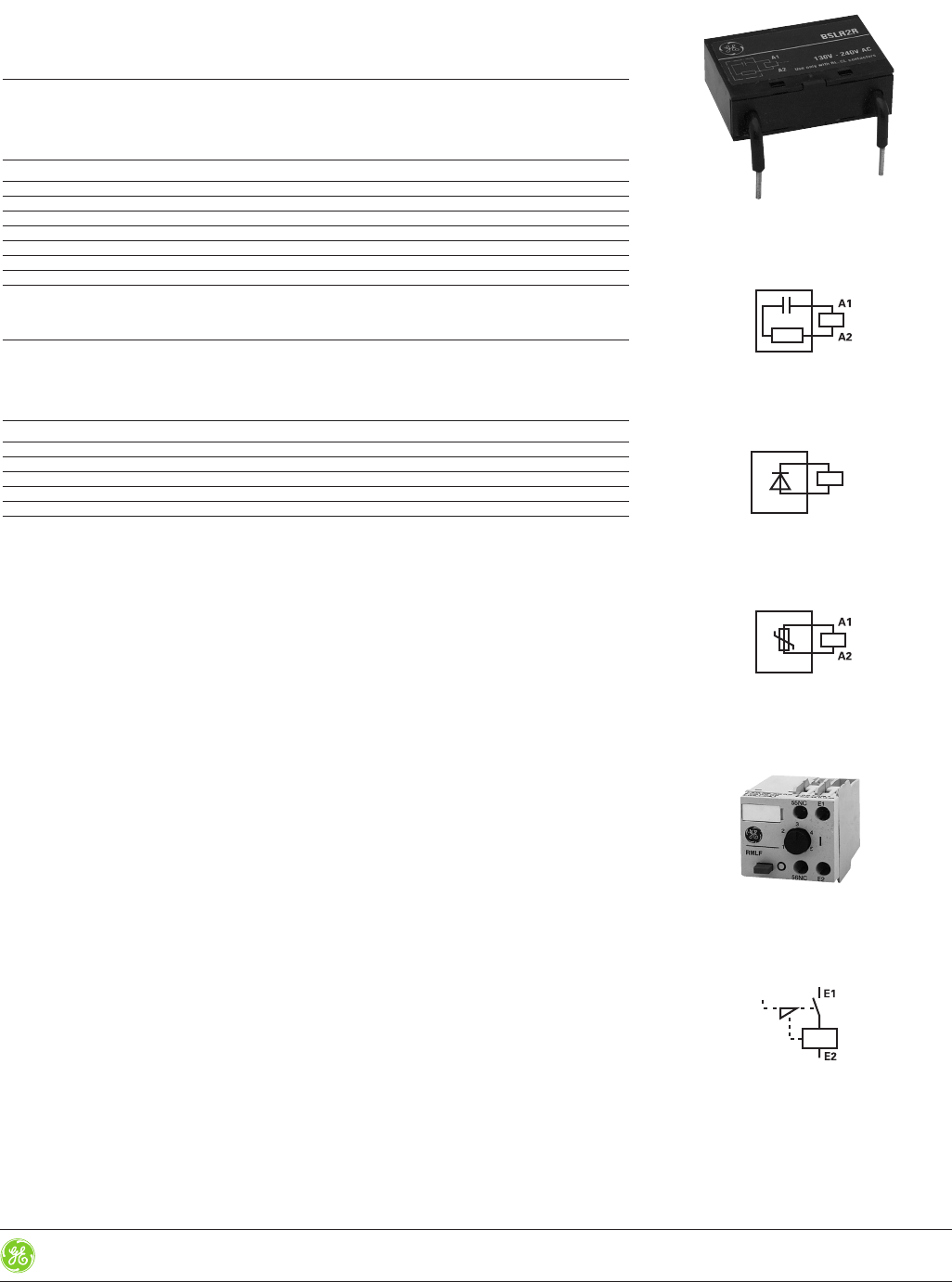

—surge suppressor,

—mechanical interlock,

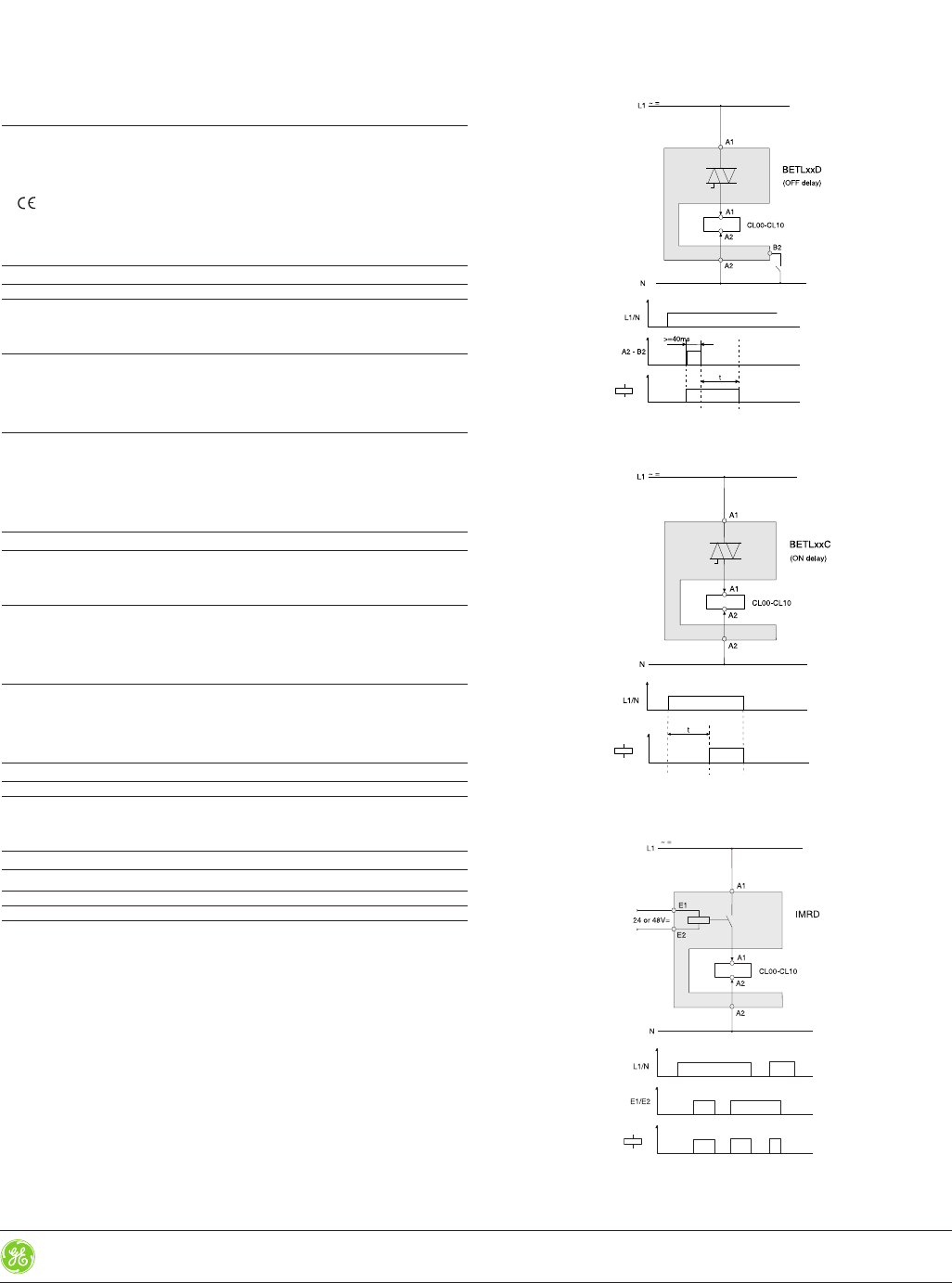

—electronic timer

Accessories are designed for quick and easy installation to either

the front or side of the contactors or control relays.

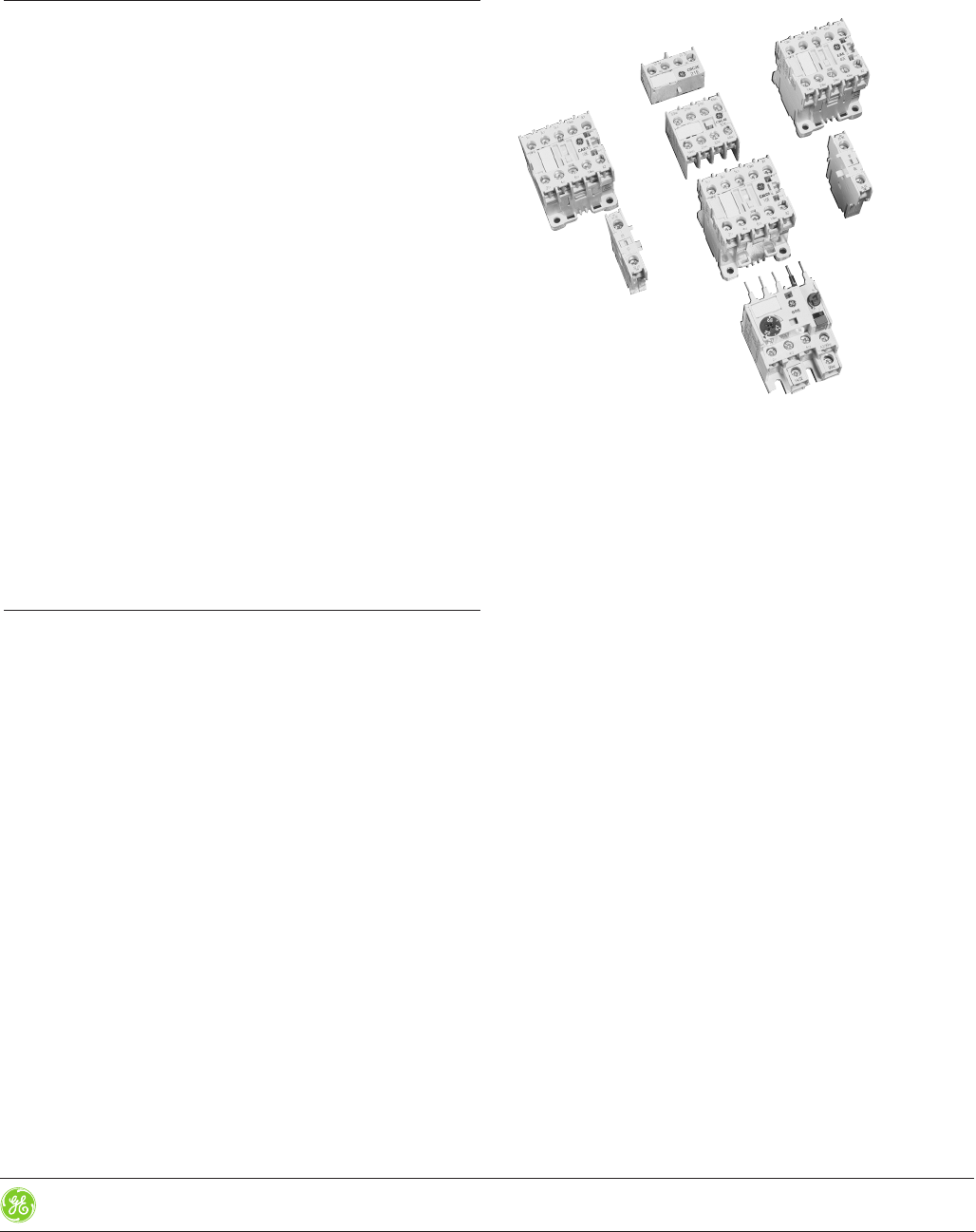

The MC/MCR family of contactors and control

relays offers compact size, performance and

features typically found in larger contactors

and relays. This combination expands

application flexibility which is only limited

by the imagination of the designer.

IEC Power Devices

Mini Contactors Features and Benefits

Product Number Selection Instructions: See page 5-6

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-4

Section 5

C-2000

Modular Design—One of the most attractive features of this

product family is its modularity. Various configurations can be

created by combining the MC contactors and MCR control relays

with the wide selection of available accessories.

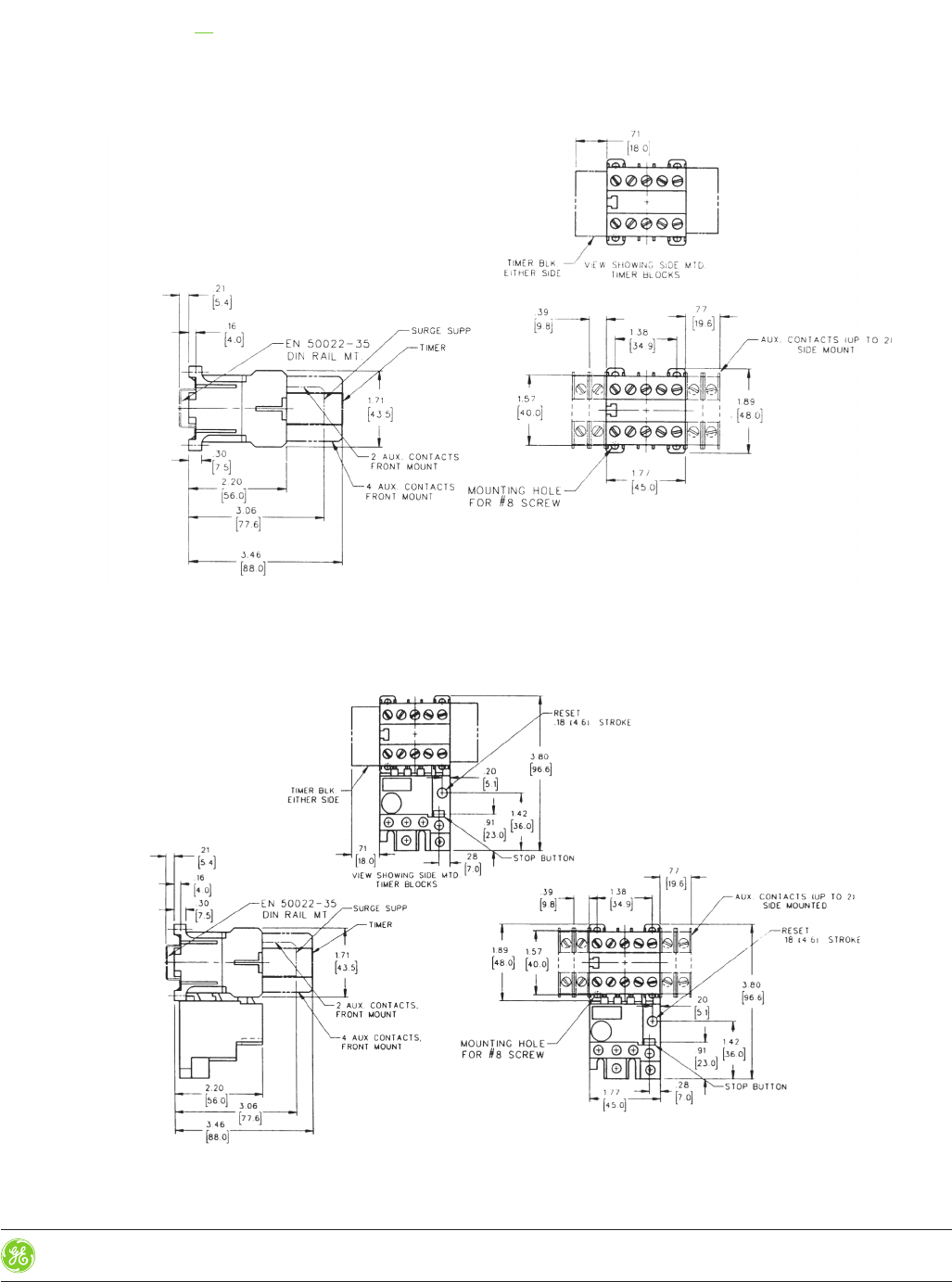

Compact Size—The contactor/relay mounting profile is approxi-

mately 1 3/4” x 1 7/8”.

Long Life—The MC/MCR family of contactors and relays offers

superior performance. Mechanical life is rated at 10,000,000

operations. Contactor motor ratings (AC-3) are in excess of

1,000,000 electrical operations.

Reliable Operation—These products are manufactured with the

latest advancements in materials technology and designed to

ensure long, dependable operation. (Coils are designed for pro-

tection against burnout during demanding brownout conditions.)

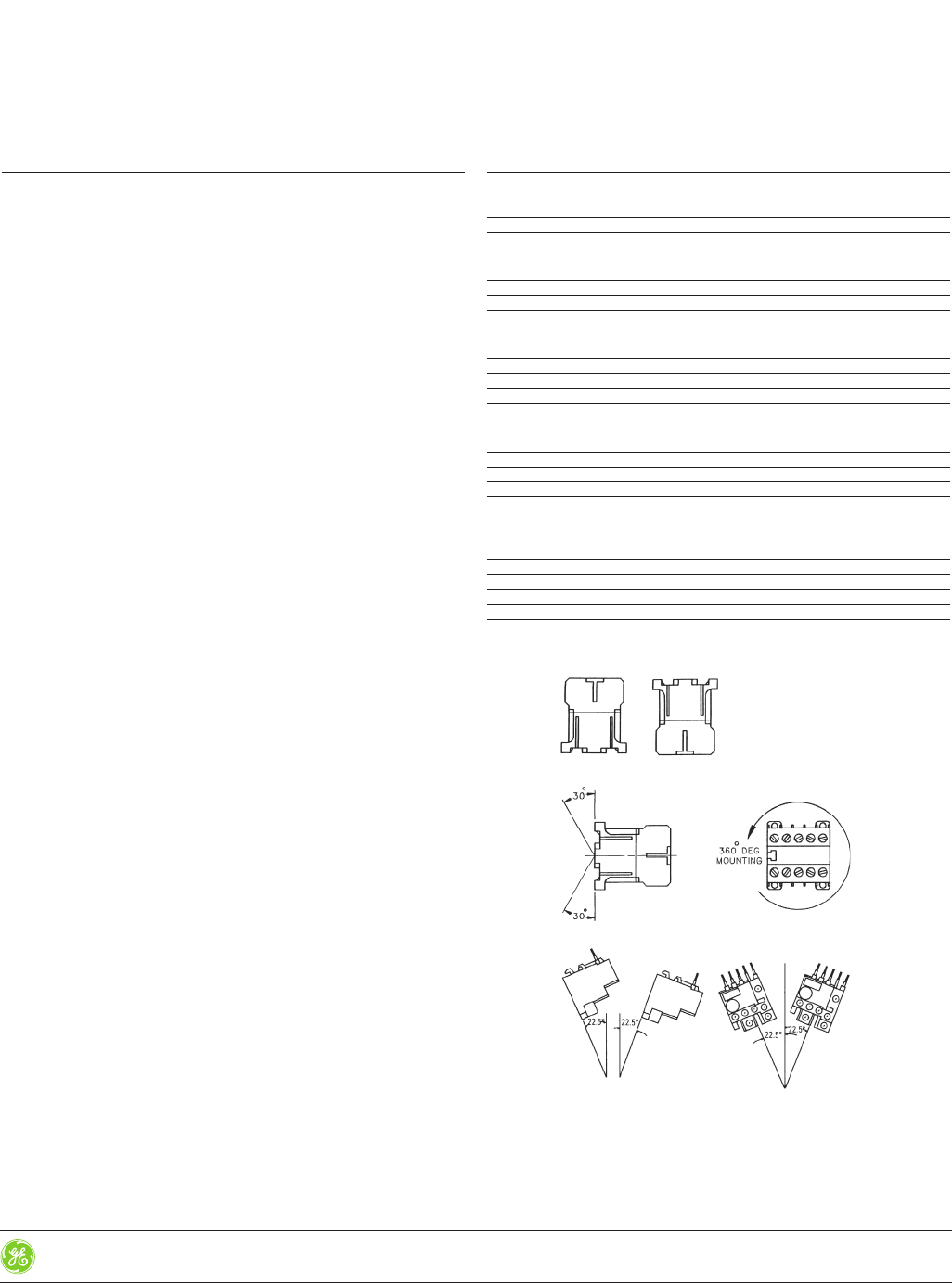

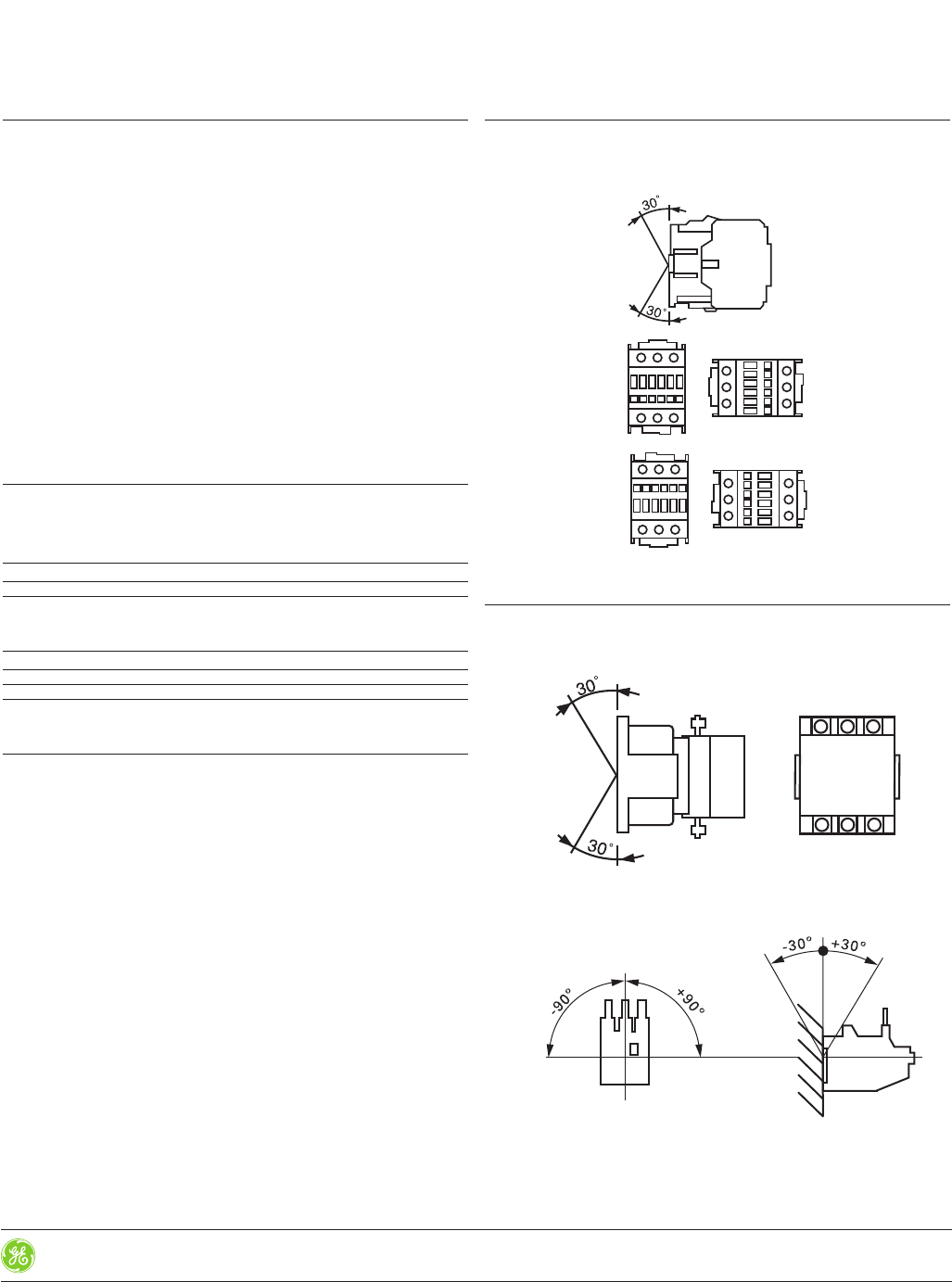

Flexible Mounting—Mounting is not restricted for contactor and

relay applications; contactors may be horizontal-, tabletop-, or

ceiling-mounted. Mounting flexibility is provided by a dual

mounting system using either 35mm DIN rail or two #8 screws

in opposite diagonal corners. The DIN rail release is located at

the top, providing easy access when configured as a starter.

Accessories are easily assembled to the MC/MCR contactors

and relays, saving time while affording maximum versatility.

High Short Circuit Current Ratings for UL508A—MC/MCR family

of contactors UL rated to withstand 50,000 AIC fault when

protected by Class H, L, J, CC or RK-5 fuses providing added

performance to use within UL508A control panels.

Easy Installation—Captive universal slot screws are standard on

all contactors, relays, overloads, and accessories allowing instal-

lation with flat, star, and Phillips screwdrivers. All terminals are in

the open position for production line and installation efficiency.

Accessories are designed for fast installation on either contactors

or relays.

Safety Features—Finger and back-of-hand protection are provid-

ed. All screw and quick-connect type terminals are clearly

marked with dual markings where applicable, for easy identifica-

tion and wiring convenience.

International Acceptance—Devices are listed and certified to

international standards. Nameplate carries both IEC and North

American standards.

Dual markings are provided.

Special Orders—For OEMs and higher-volume applications,

special terminal configurations are available, including

quick-connect terminals (one 6.3mm Faston or two Faston

2.8mm) and pin terminals for printed circuit boards. Four-pole

contactors with 4NO, 2NO/2NC or 4NC contacts can be ordered.

Lower wattage 1.2w 24 Vdc and 2w 24 Vdc PLC contactor/relay

versions also are available. (See Special PLC-Compatible

Products, page 5-15.)

Bulk pack—In order to save time in higher volume applications,

stock management and facilitate the shipments, bulk packs are

available.

www.geindustrial.com Control Catalog 5-5

Rev. 4/16

Prices and data subject to

change without notice

Section 5

IEC Power Devices

Mini Contactors Accessory Features

C-2000

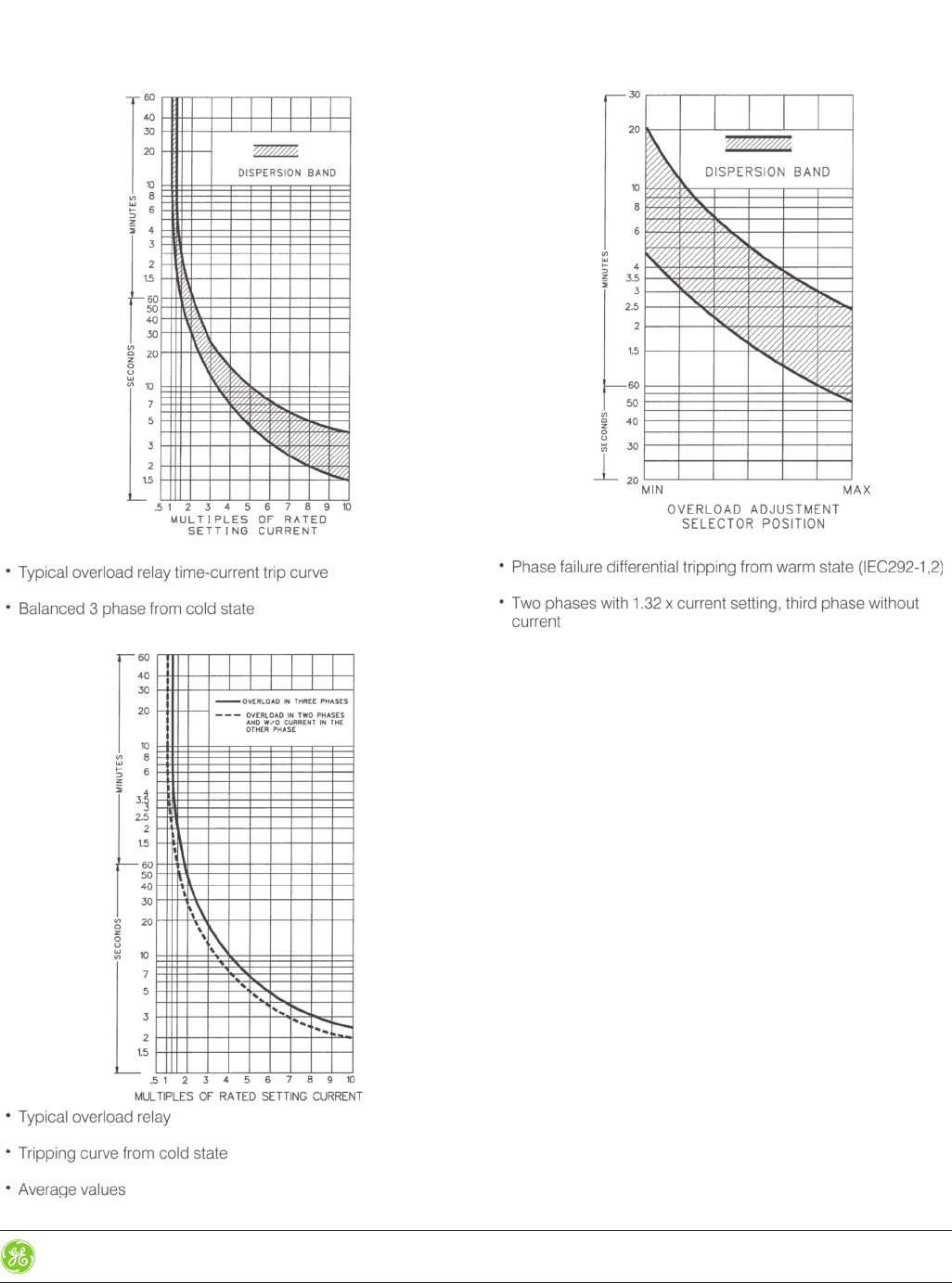

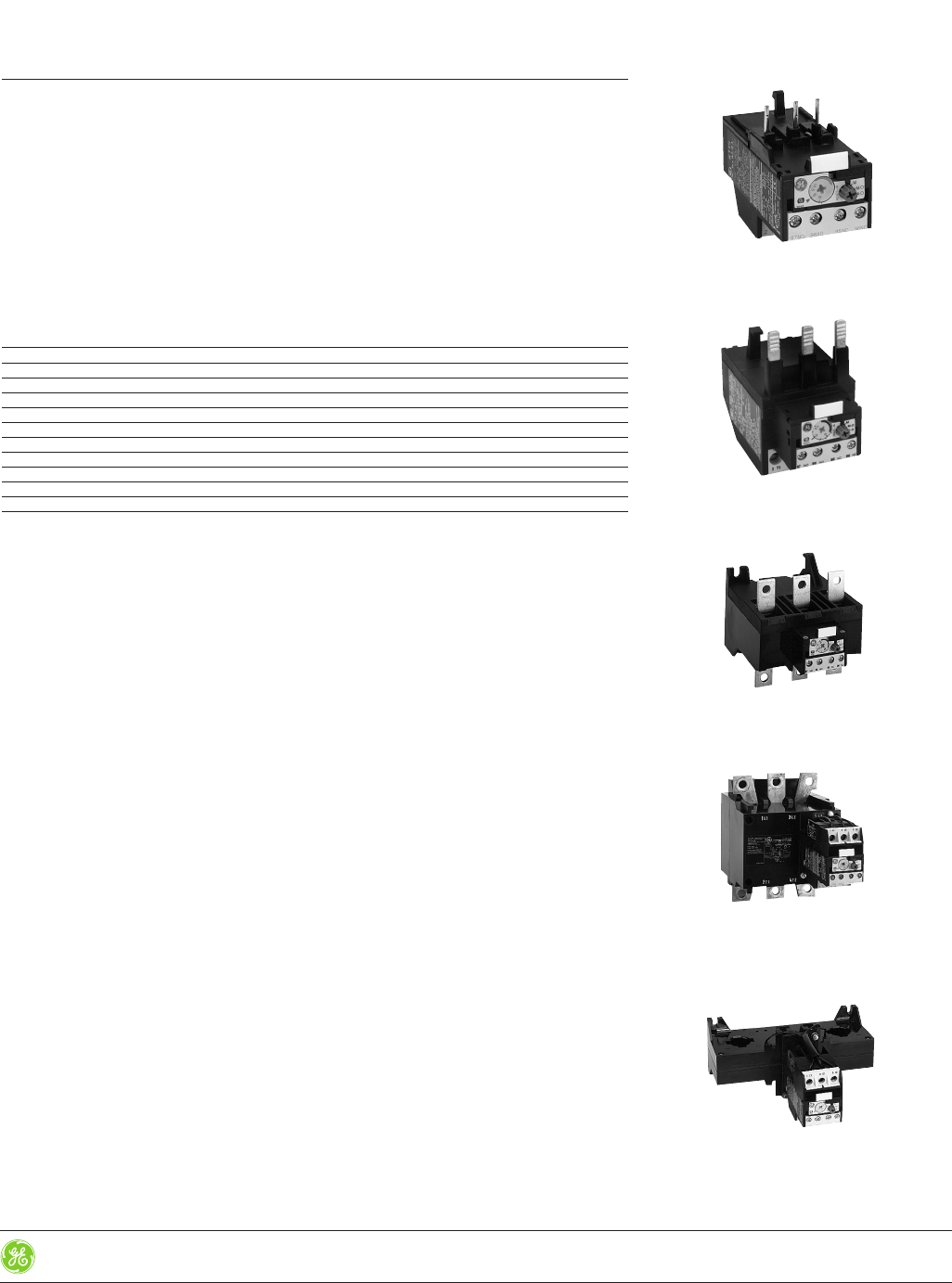

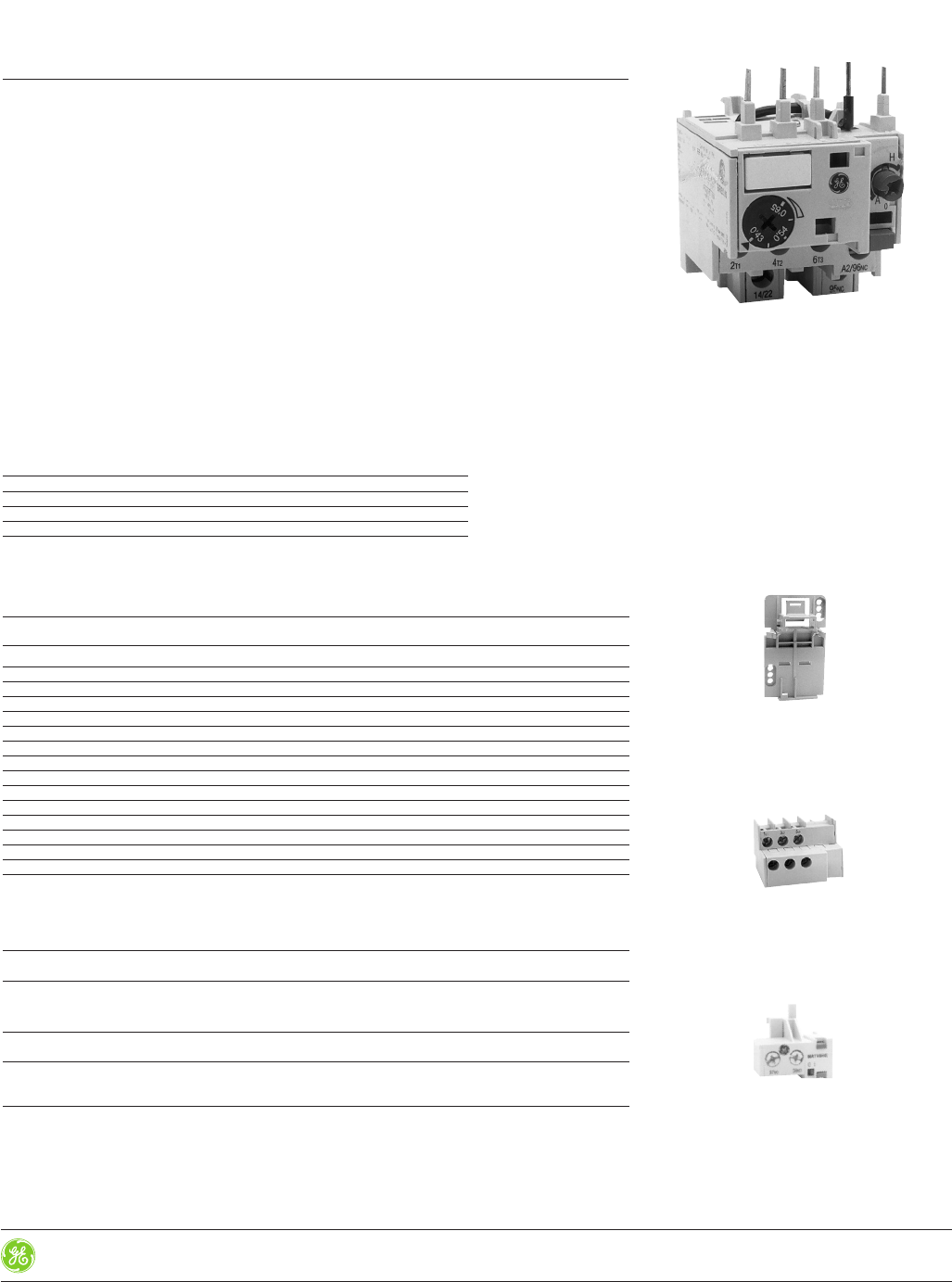

Overload Relays—The Class 10 overload relay features include

loss of phase sensitivity, ambient temperature compensation,

choice of automatic or manual reset, trip indication (tripped “O”,

operational “I”), trip test, separate stop (red), and reset (blue)

buttons. Installation and wiring is simplified; the contactor coil

connection A2 is fed directly into terminal 96 (NC contact) of the

overload relay, making external coil/contact connecting wire

unnecessary. The contactor holding interlock terminal (14) is fed

through the overload relay for additional wiring convenience and

simplification.

Optional overload relay accessories include an addable snap-on

NO signaling contact and a separate mount base/terminal

assembly for applications where in-line installation is not conven-

ient. The separate mounting base is suitable for either screw or

DIN rail mounting.

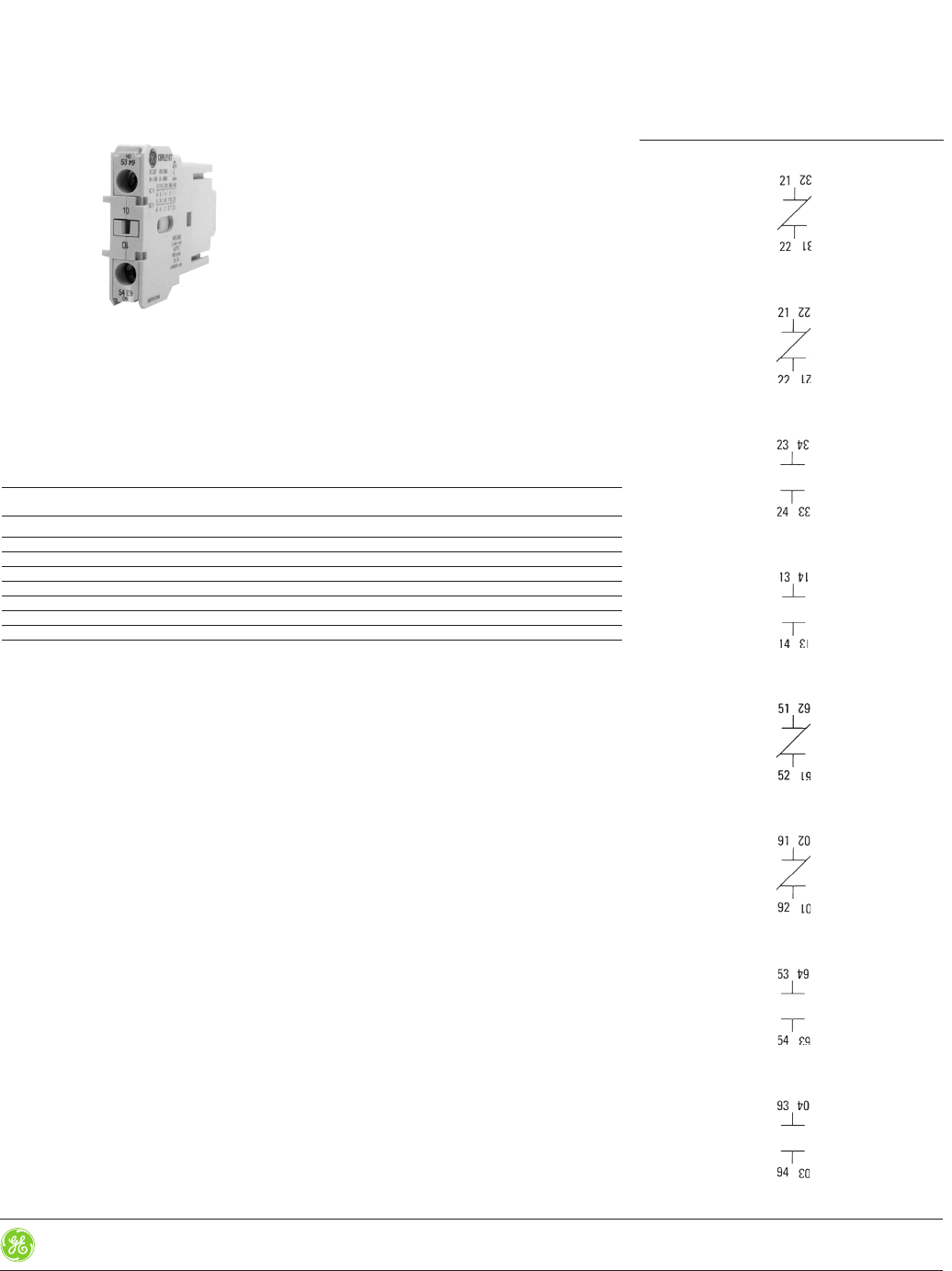

Auxiliary Contact Blocks—Front-mounted auxiliary blocks easily

snap on the front of the MC/MCR contactors and relays. Front-

mounted auxiliary contact blocks are available in either 3- or

4-pole versions. When mounting depth is critical, side auxiliary

contact blocks may be easily assembled to each side of the con-

tactor or control relay, using unique U-shaped keys. Up to two

side auxiliary contact blocks may be added to each side of the

contactor or relay. This unique family of front and side auxiliary

contact blocks allows installation flexibility and also convenient

mounting of additional accessories such as timers and surge

suppressors. Control relays may be assembled with up to a

maximum of ten contacts by using both front and side auxiliary

contacts. Three-pole contactors may be assembled with up to

seven auxiliary contacts, including the NO holding interlock.

Surge Suppressor—Affords transient spike protection and

assures proper control circuit operations through suppression

of unwanted noise. Easily plugs into the contactor/relay front,

making a wireless connection with the coil circuit. Quick, simple

installation.

Mechanical Interlock—Designed for either ac or dc contactors.

Allows field assembly of components into reversing contactors or

starters. The mechanical interlock design is simple, easy to install,

and allows a quick two-step conversion of components into

reversing configurations.

Electronic Timer—Adjustable from 0.5-60 seconds. The timer is

available with wide ac/dc voltage (24-240 V) range, and is wired

in series with the contactor or control relay coil. The electronic

timer provides accurate, repeatable time delay upon energiza-

tion. The timer block easily snaps onto the front of the contactor

or relay, or may be fitted on the side, or may be panel/DIN rail

mounted using the optional mounting base. Quick, efficient,

simple and versatile.

Coils—AC and DC coils may be changed to accommodate vari-

ous voltages at distributor, OEM and user locations to allow

inventory management and flexibility to serve a wide range of

voltage/frequency requirements.

Interlock feed-

through wire

Setting dial

Coil connection

Auto/manual

reset button

Trip Indicator

Trip Test

Stop Button

IEC Power Devices

Mini Contactors Product Offering

Product Number Selection Instructions: See page 5-6

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-6

Section 5

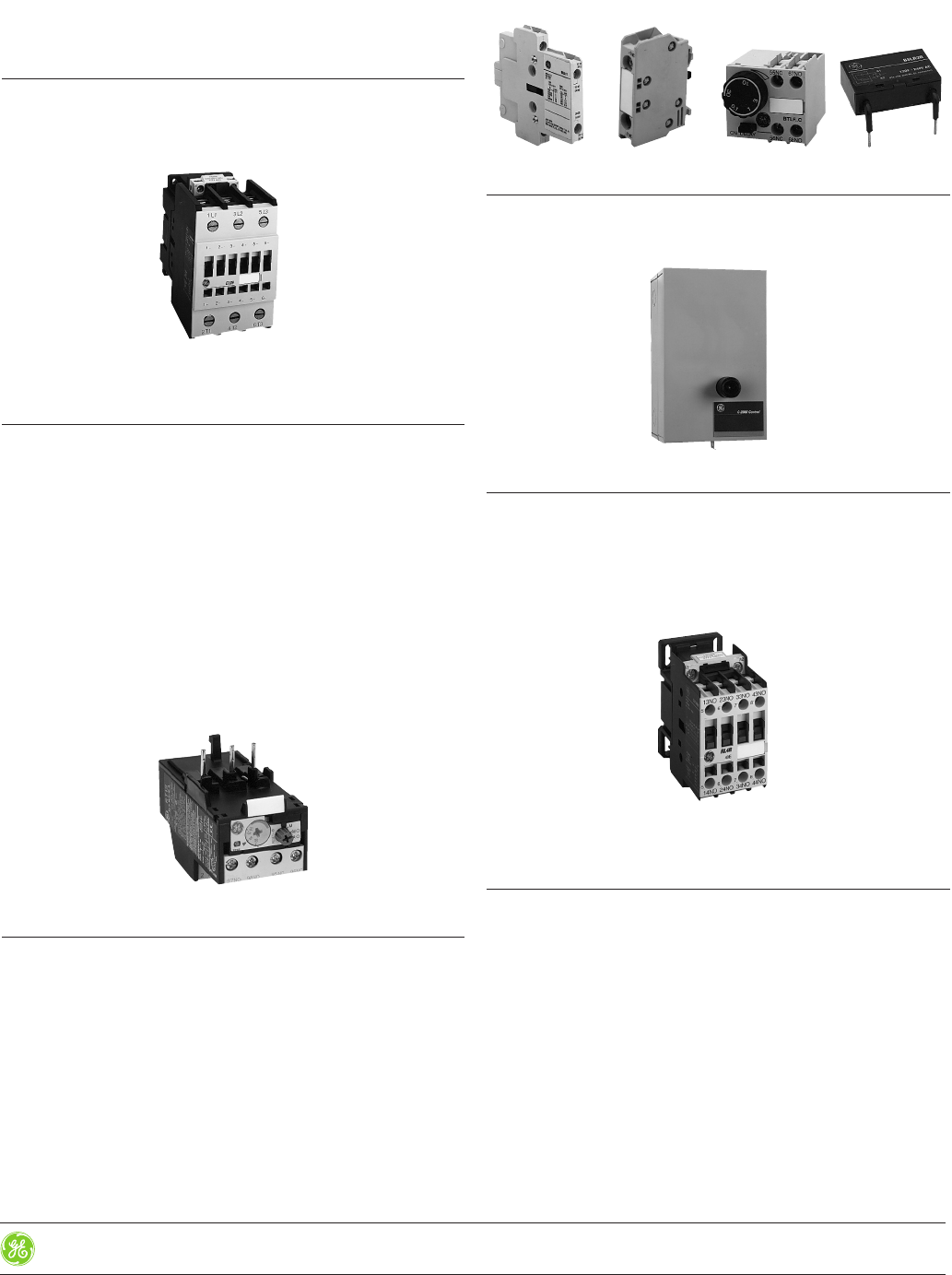

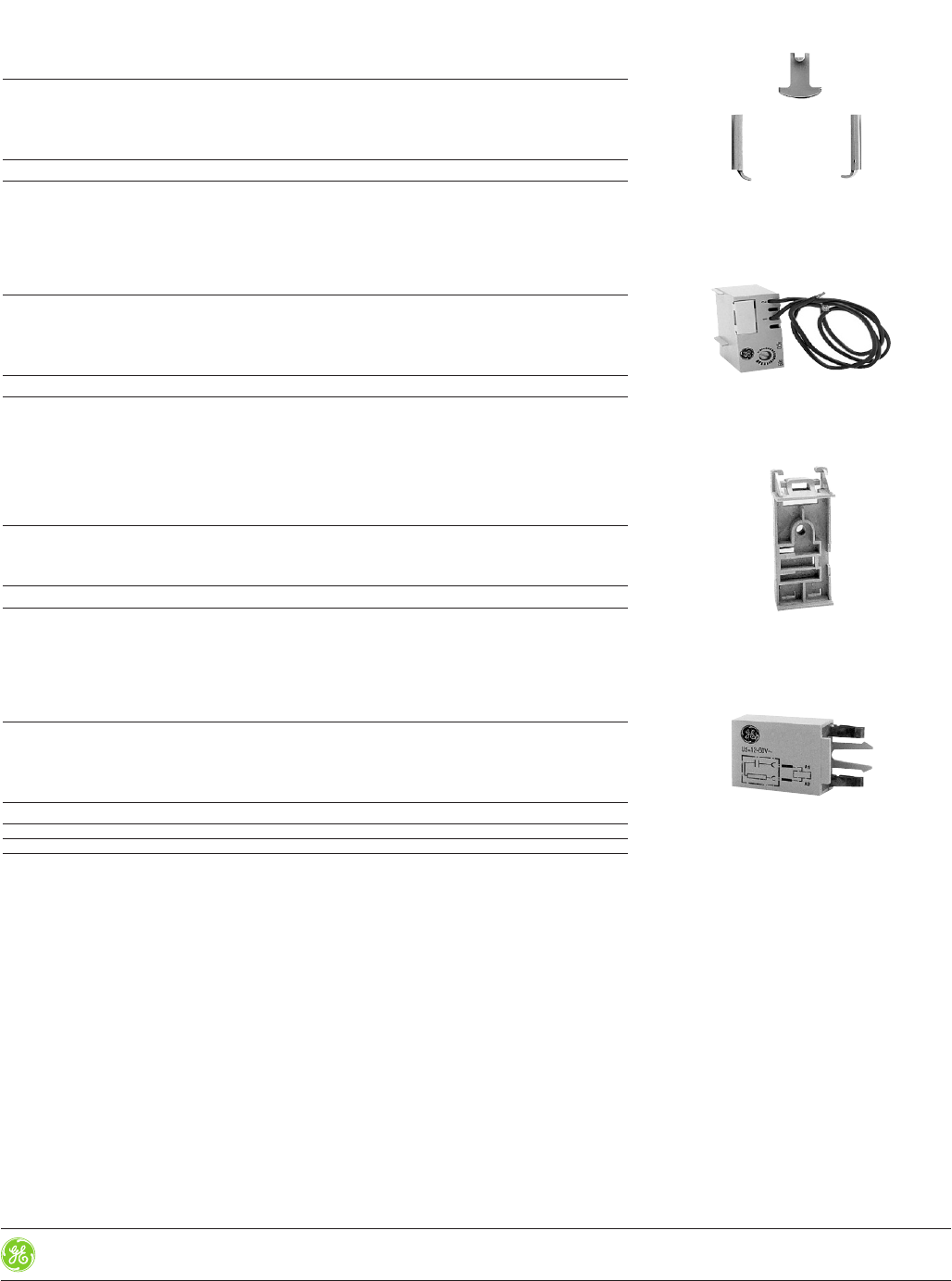

Surge Suppressor

MP0AAE

Mechanical Interlock

MMH0

Electronic Timer

MREB

Optional Timer Base

MVB0R

2-Pole, Front-Mounted

Auxiliary Contact Block

MARN2/MACN2

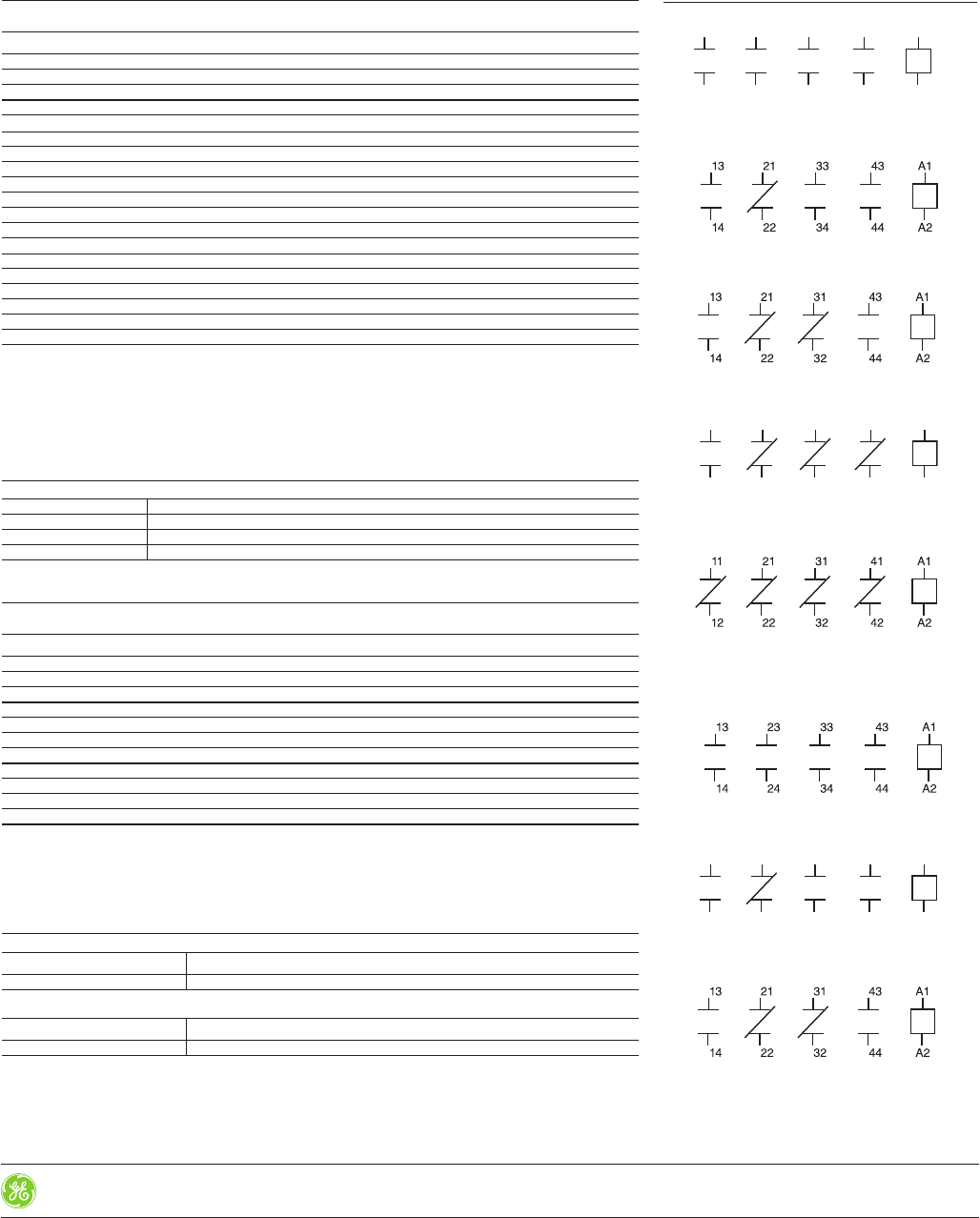

Control Relay

MCR

4-Pole, Front-Mounted

Auxiliary Contact Block

MARN4/MACN4

Contactor 5hp @ 460V

MC1

1-Pole, Side-Mounted

Auxiliary Contact Block

MARL/MACL

Input Terminals for

Separate Mount MVE0T

Base For Separate Mount

MVB0T

Overload Relay

MT0

Auxiliary Contact

MATV10AT

C-2000

Pages 5-7 to 5-35 in this catalog include ordering and pricing

information for the following product offerings, with G0-10A1

discount schedule:

Contactors, AC- or DC-controlled,

Overload relays,

Reversing contactors,

Control relays,

Accessories, including:

—Contactor auxiliary contact adder blocks,

—Control relay auxiliary contact adder blocks,

—Overload relay auxiliary contact adder blocks,

—Mechanical interlock,

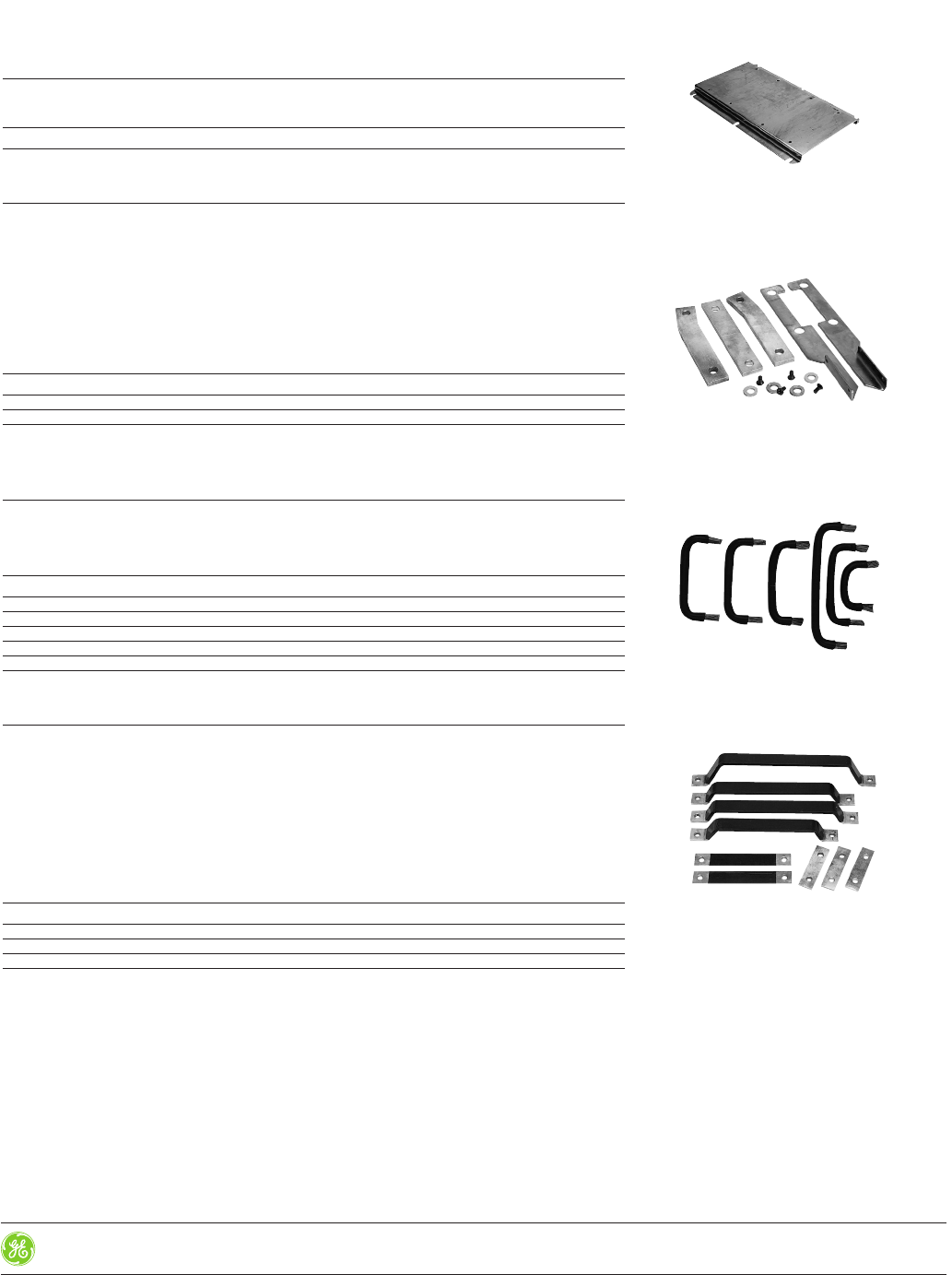

—Reverser power wiring kit,

—Electronic timing element,

—Mounting adapter for electronic timing element,

—Surge suppressors.

Information includes product numbers, list prices, package

quantities, and applicable rating data for proper selection.

1. Be sure to include coil suffix letter in product number where

indicated for contactors, reversing contactors, and control

relays.

2. For motor starter requirements, select the proper contactor

and overload relay to meet your needs.

3. Order by complete product number. Example: For a 3.0 hp,

460 V, 3-phase, 60 Hertz motor with full-load amperes, AC-3

type duty current of 4.4 amperes and 120V control power...

select open contactor with 120 V, 60 Hertz coil, MC0A310ATJ

and overload relays MT03L. For an extra NO auxiliary contact

on the overload, also order MATV10AT adder block.

MC0A310ATJ1 $40.00 ea. GO-10A1

MT03L $40.00 ea. GO-10A1

MATV10AT $ 8.00 ea. GO-10A1

1J was added to the end of the product number to get a 120 V coil.

4. Contactors and accessories are packaged in multiple quanti-

ties for handling convenience. Order in quantities of 10

whenever possible.

Additional Information

Field-Installed Accessories pages 5-16

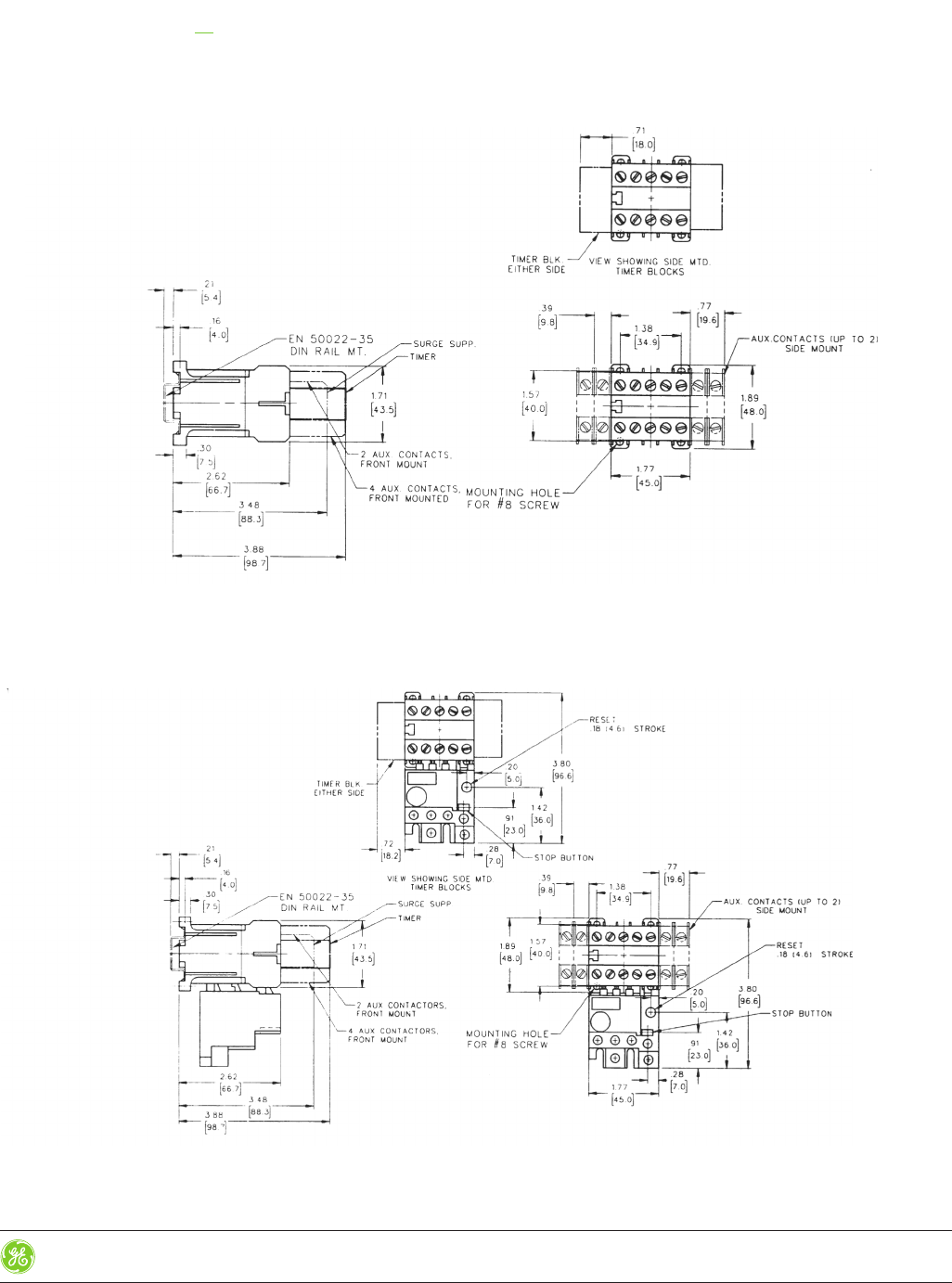

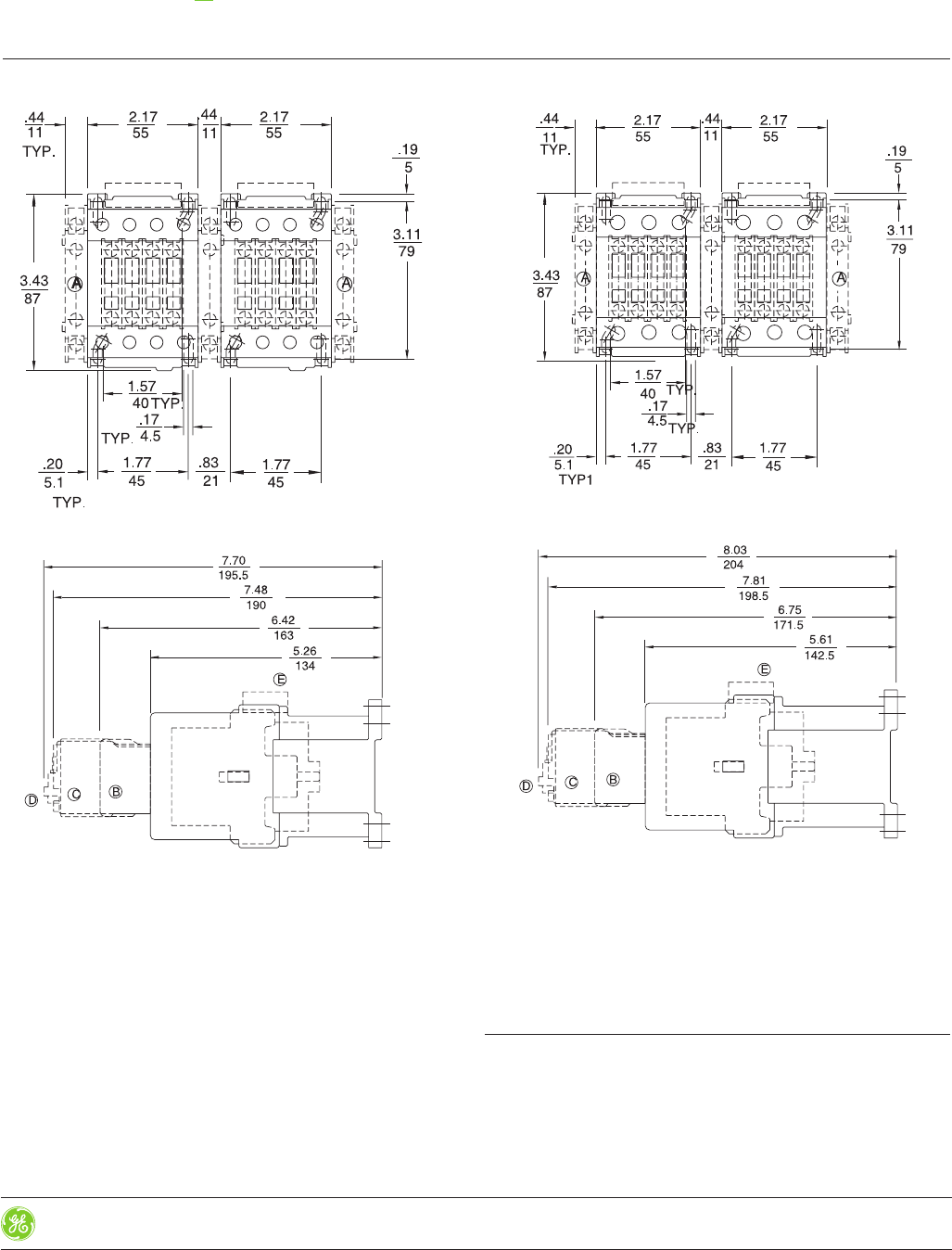

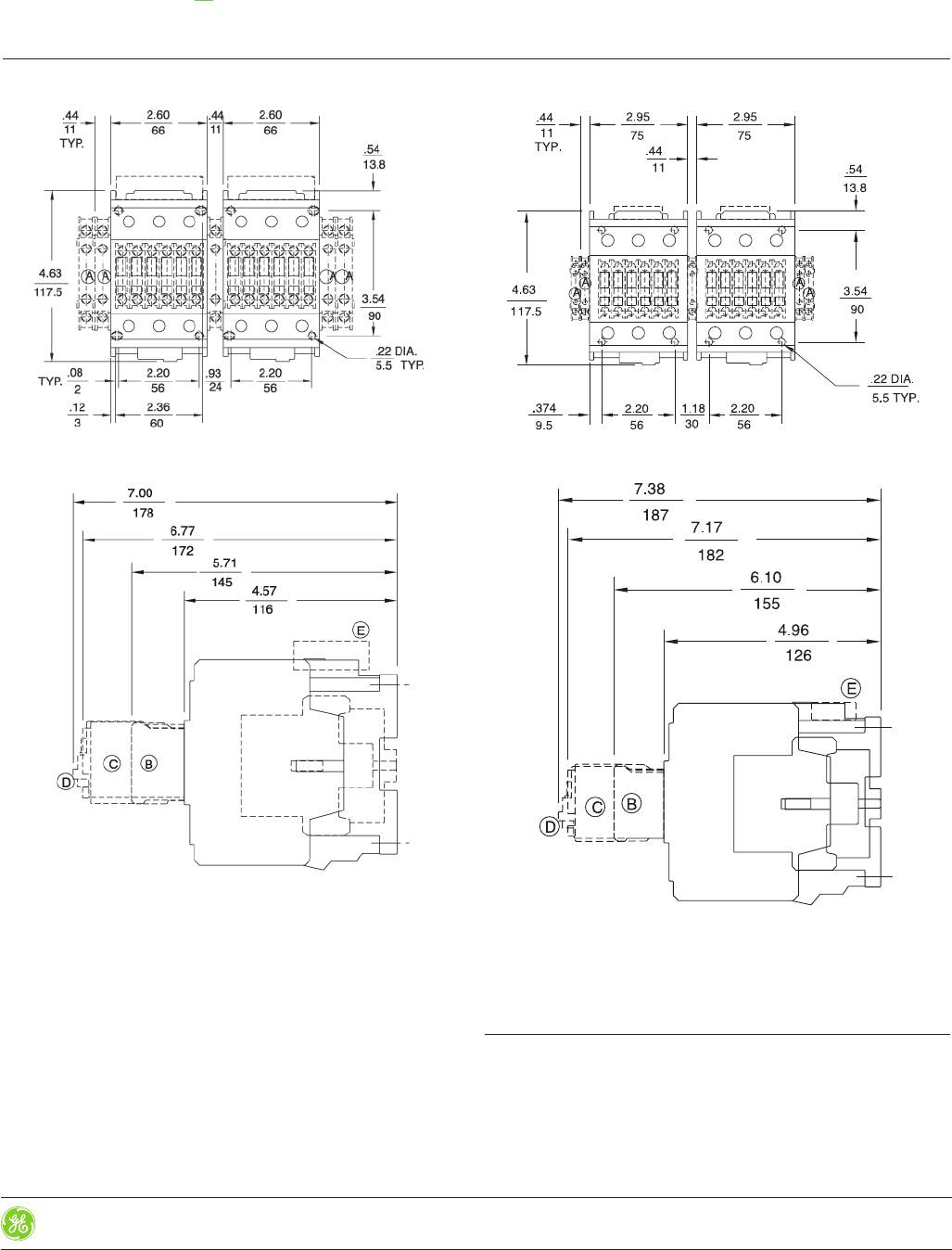

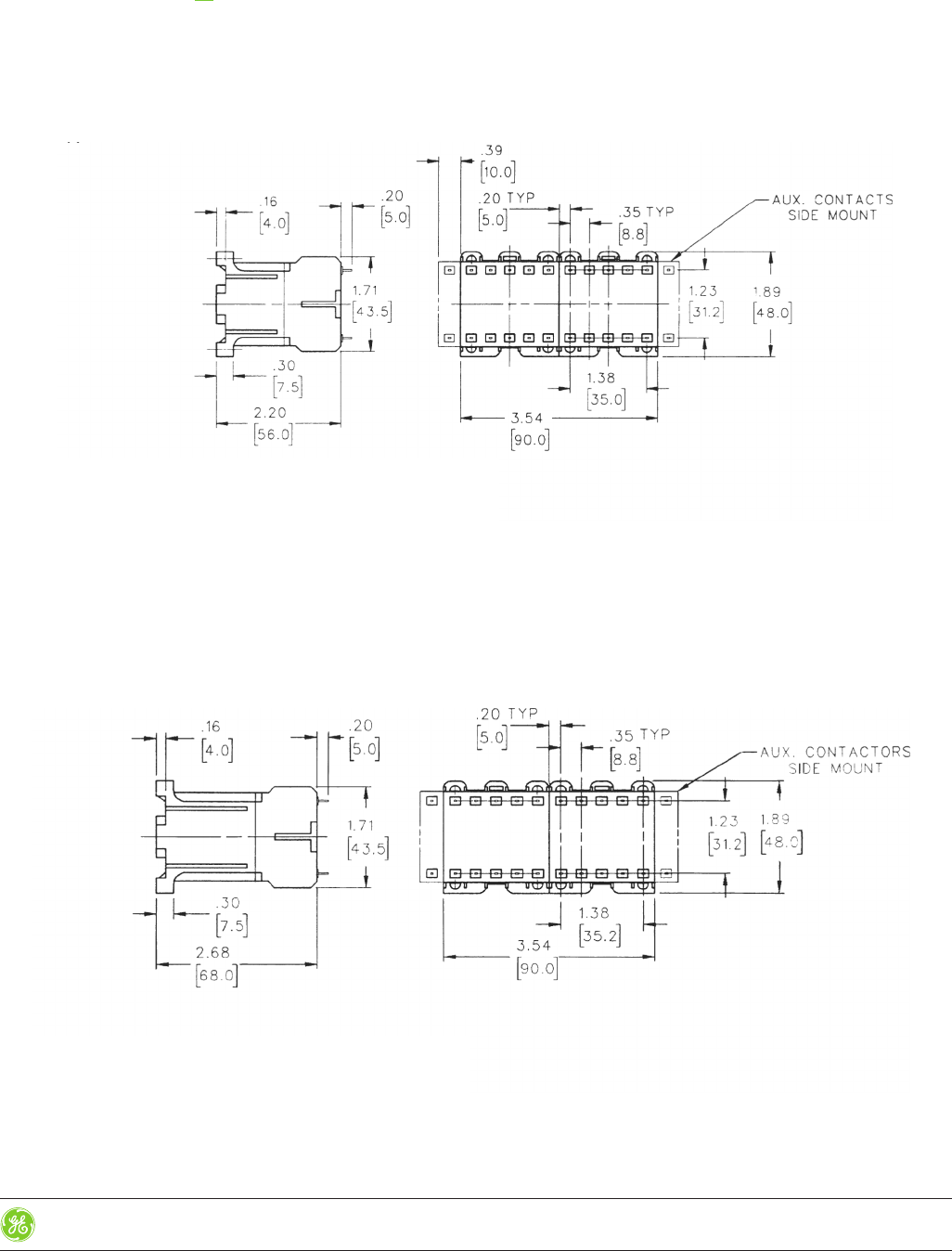

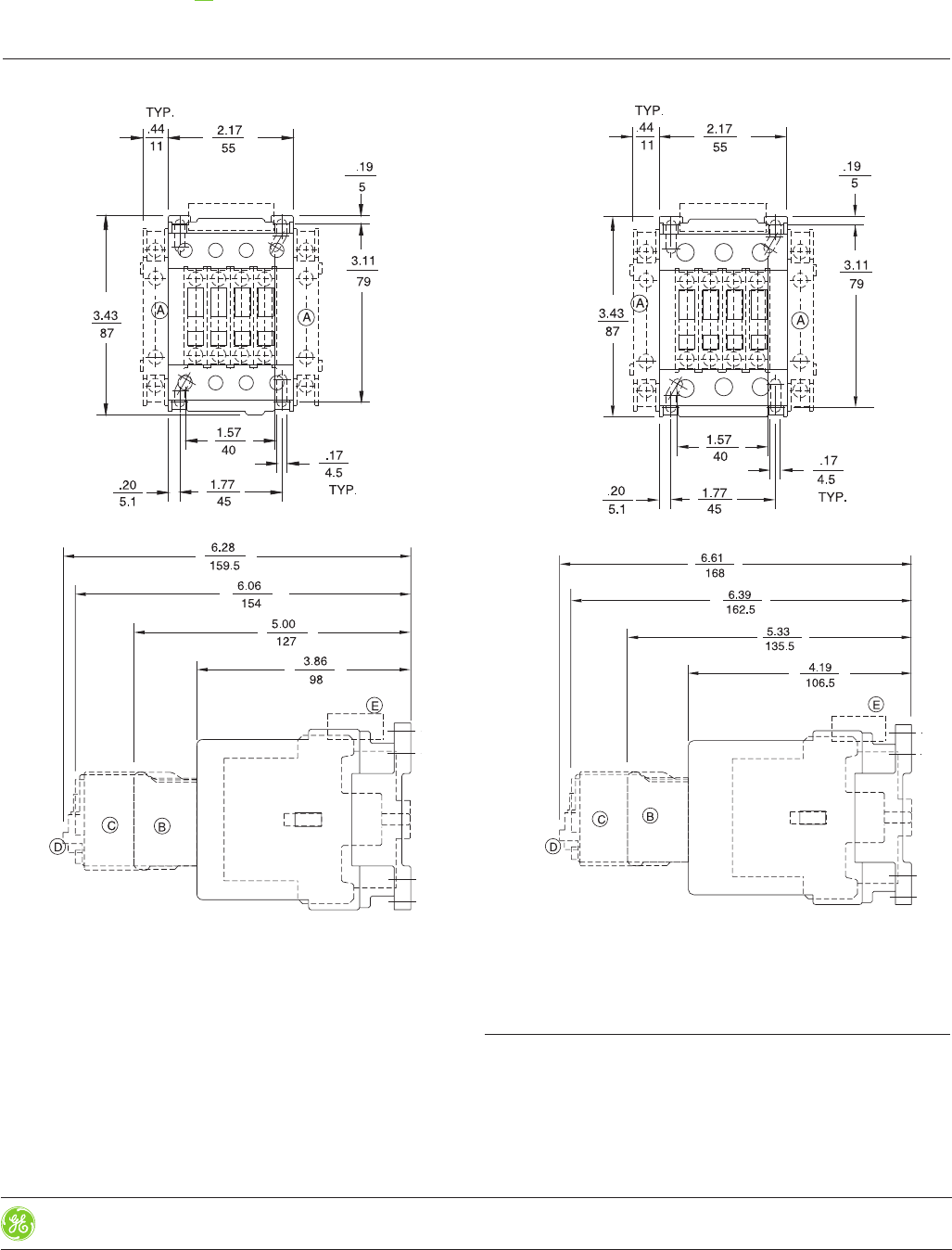

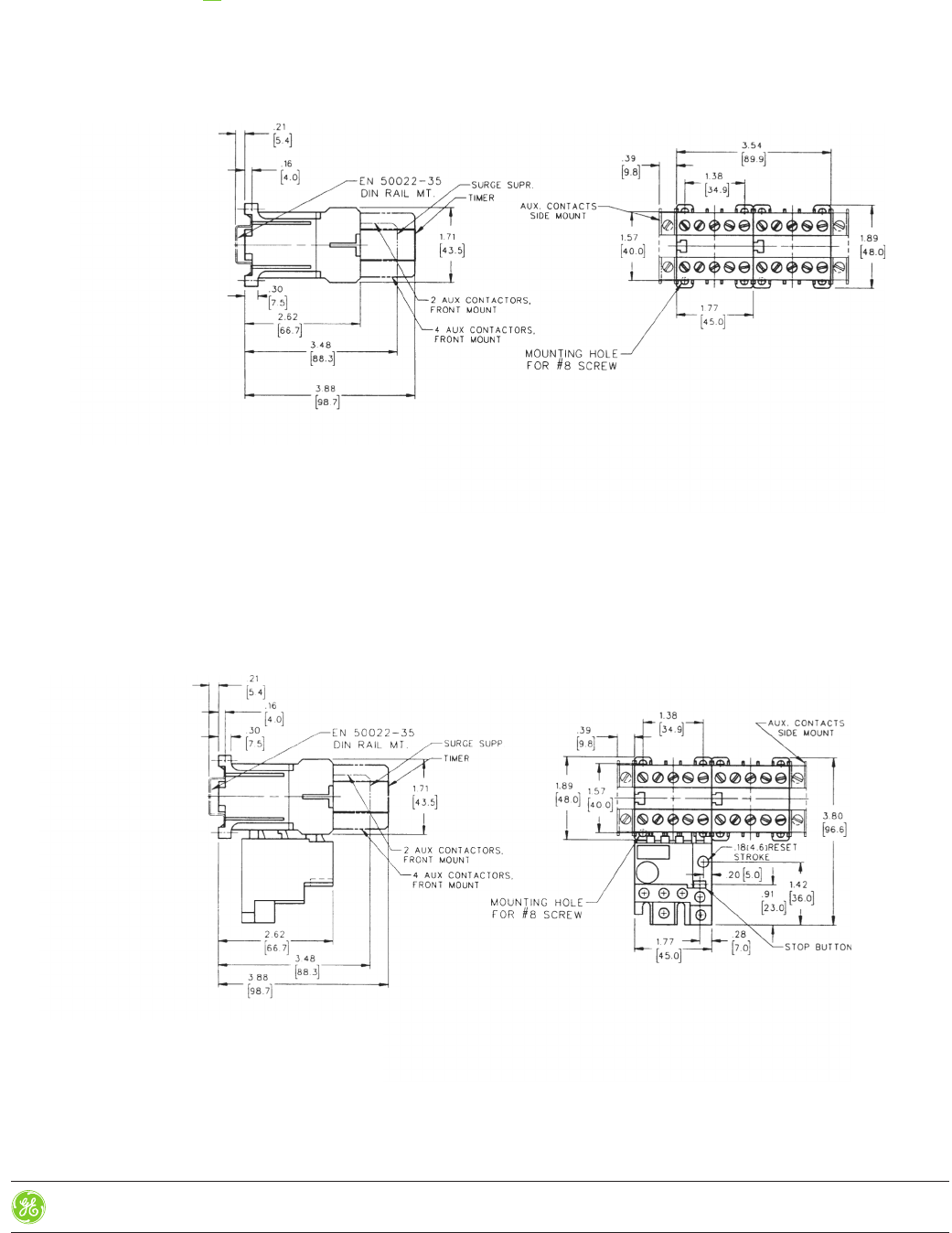

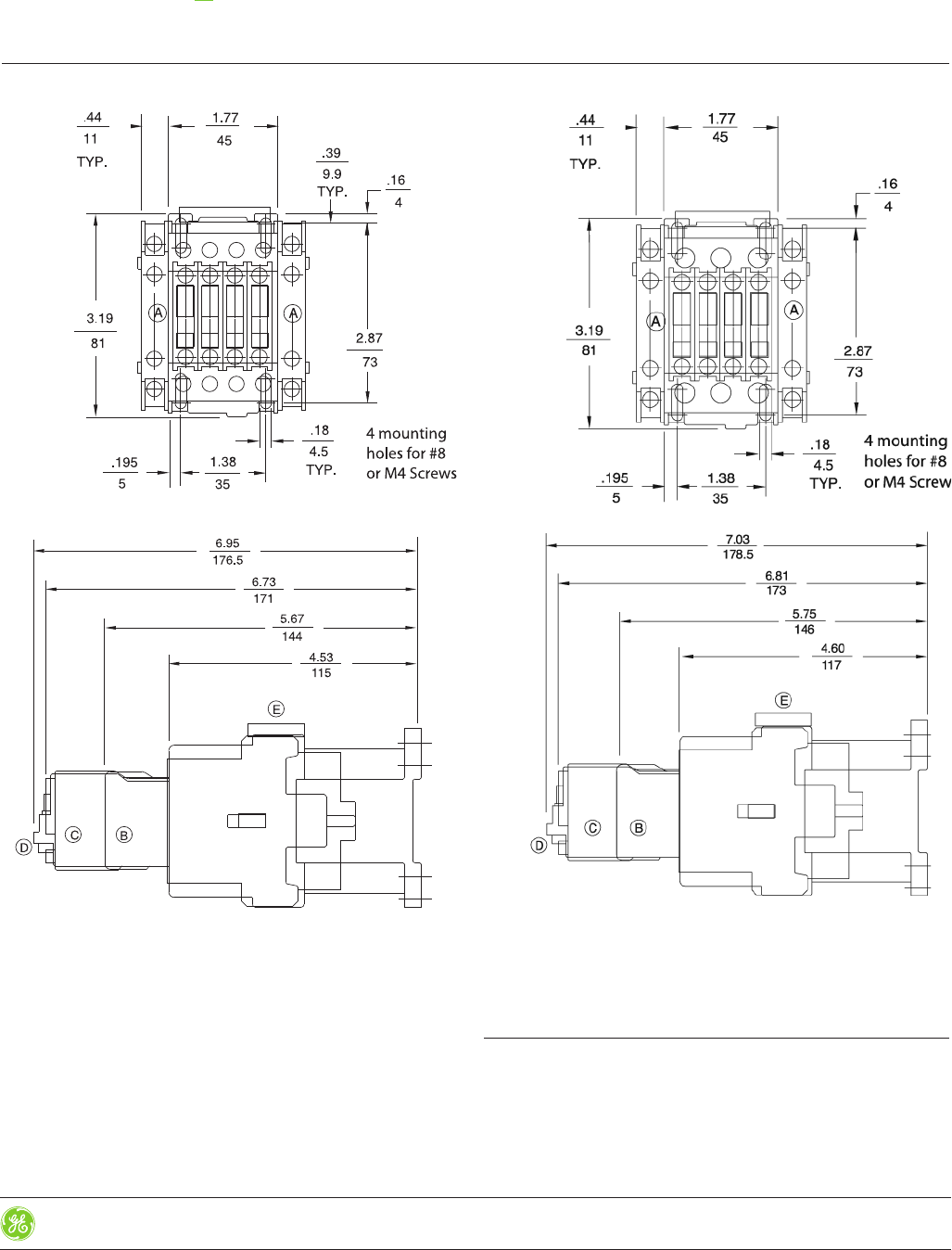

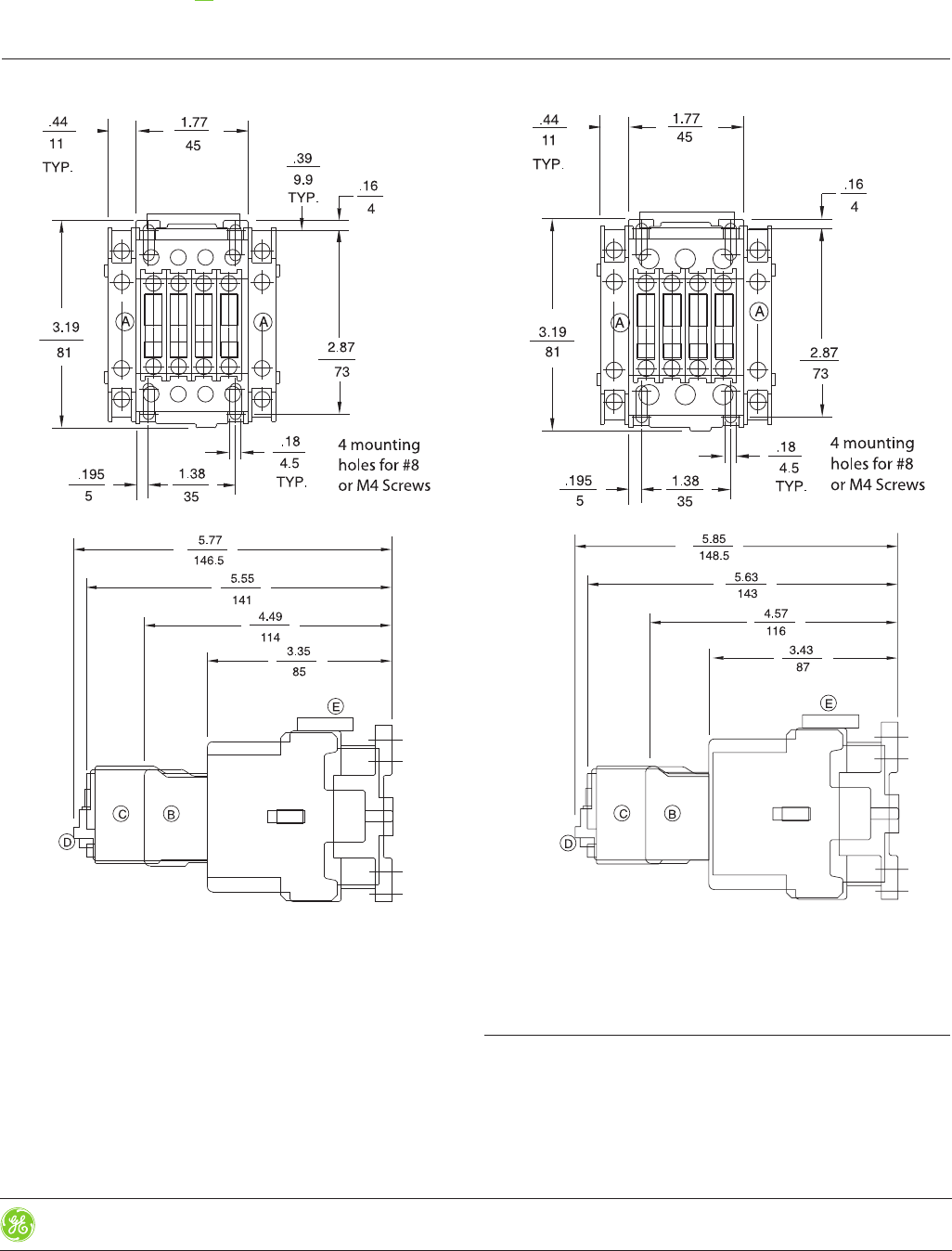

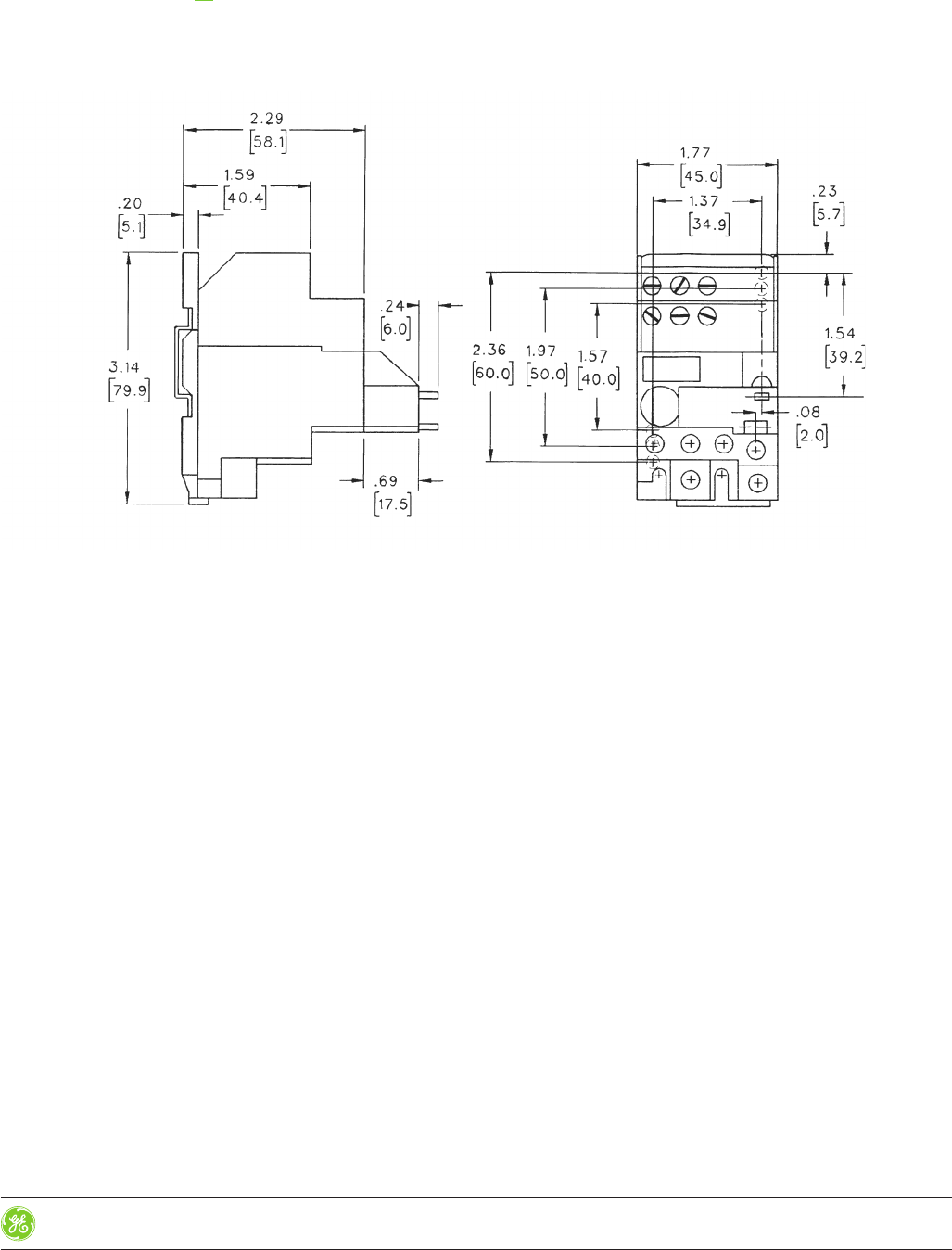

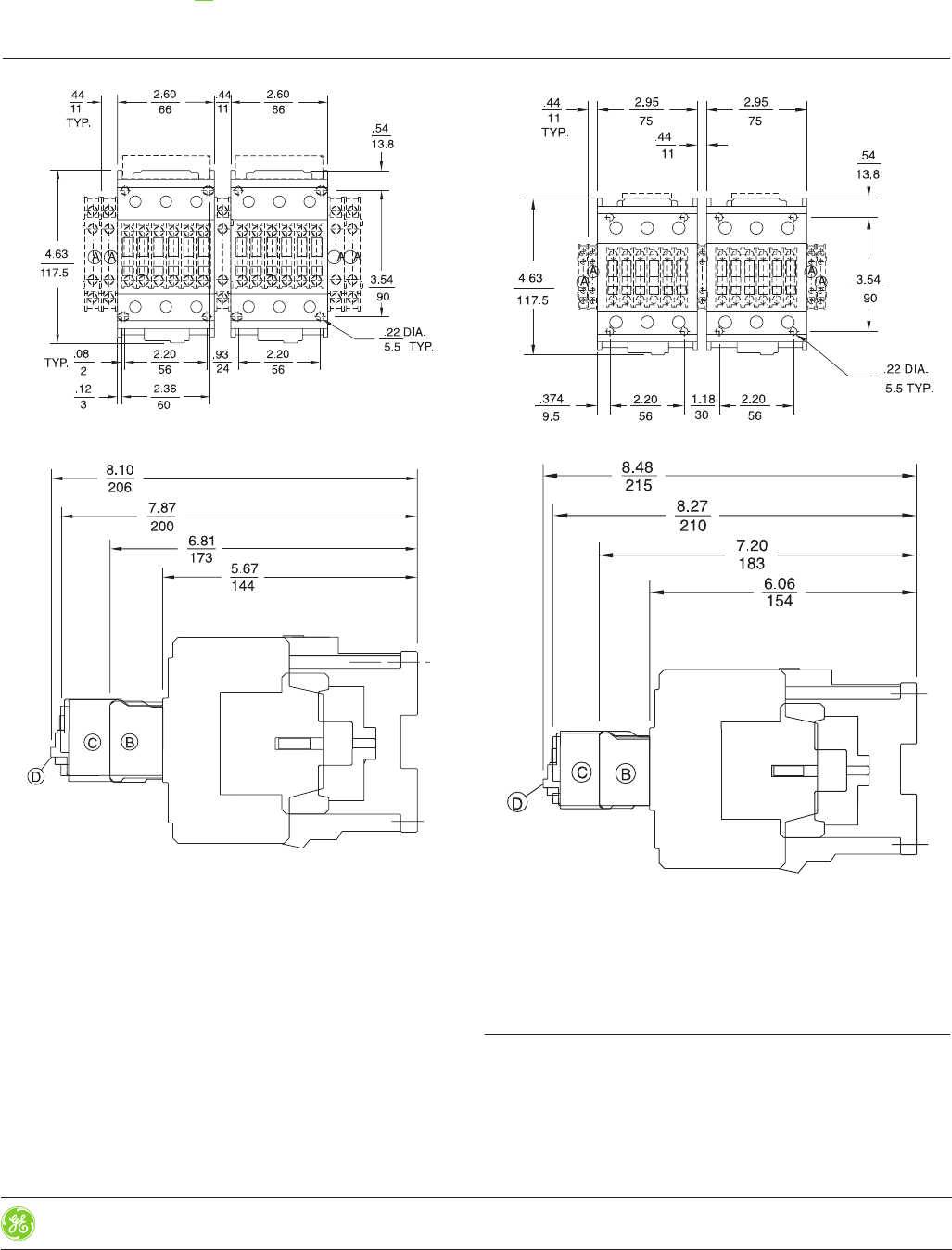

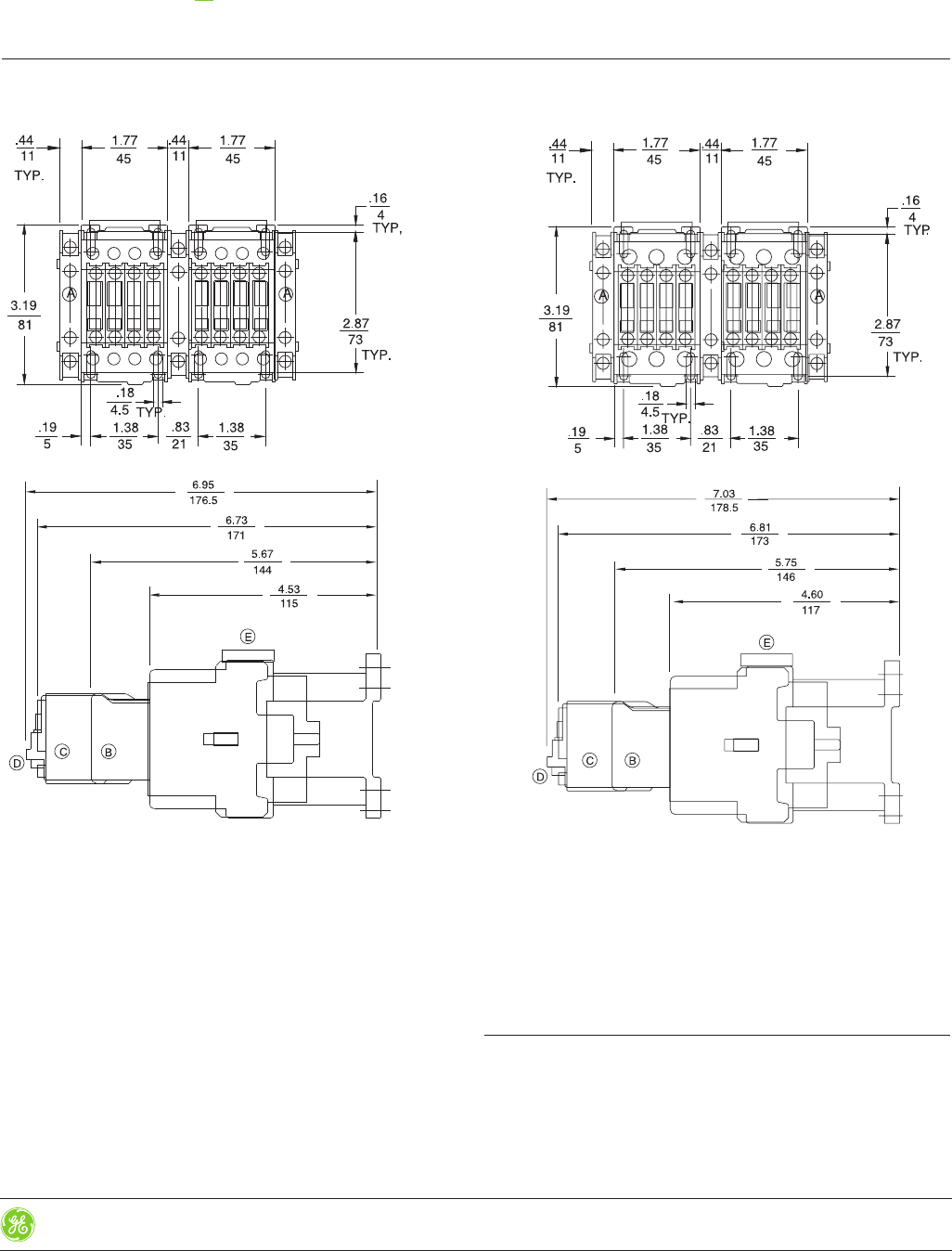

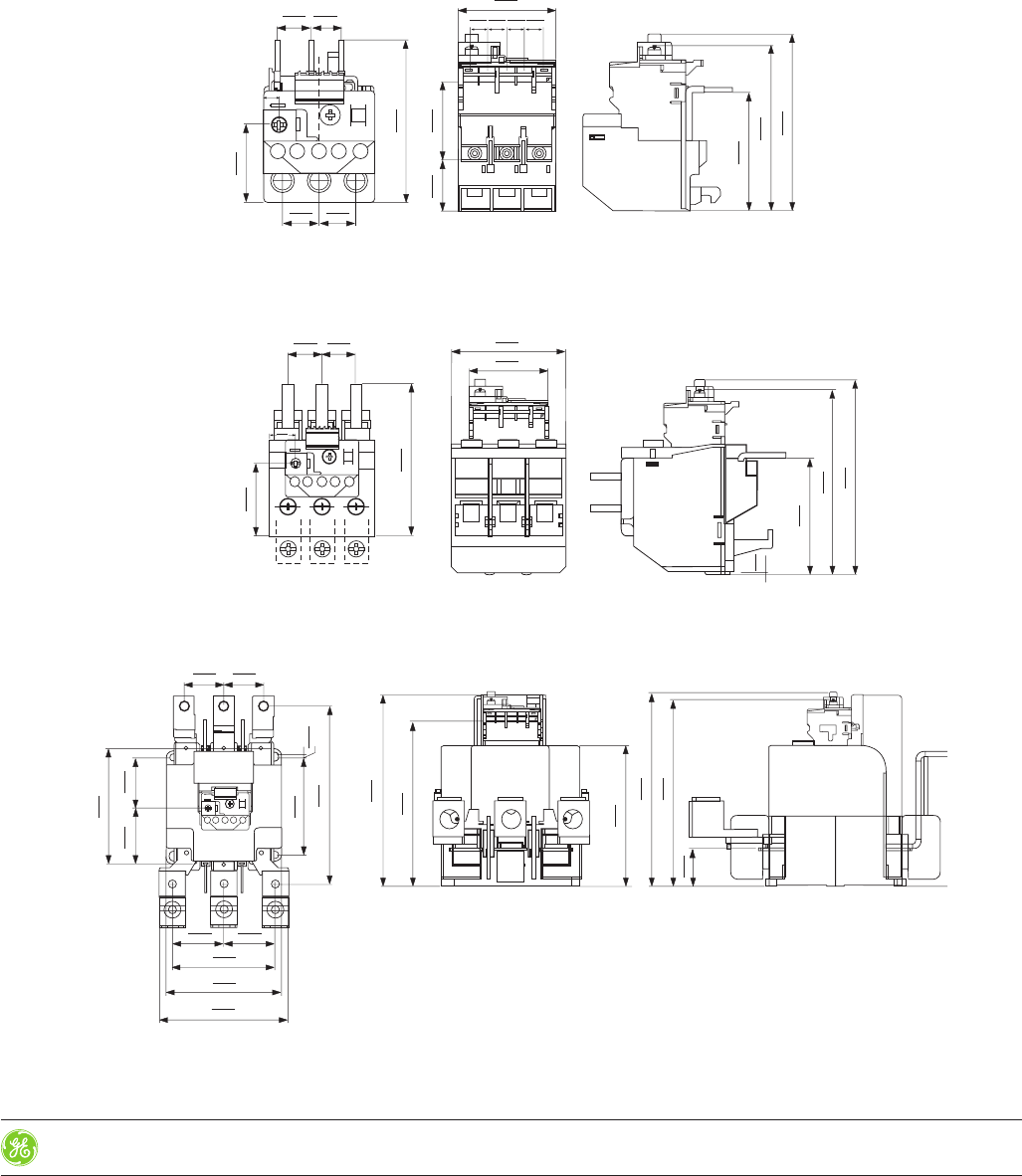

Outlines and Dimensions pages 5-24

Technical Information pages 5-31

Mini-Contactors (up to 5 HP) Product Number Selection Instructions

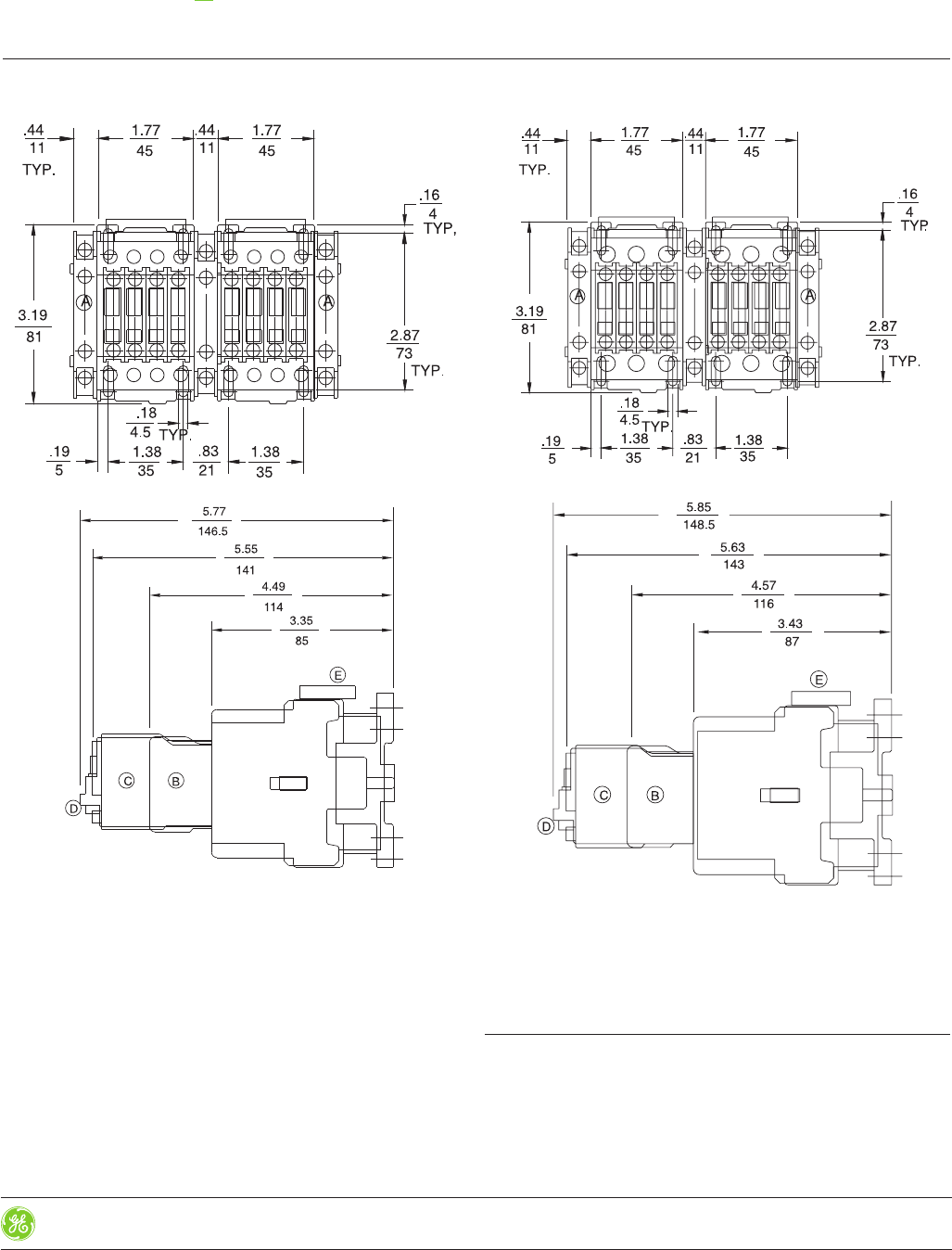

Reversing Mini

Contactor

www.geindustrial.com Control Catalog 5-7

Rev. 4/16

Prices and data subject to

change without notice

Section 5

IEC Power Devices

Mini Contactors Product Descriptions

C-2000

Full Voltage Mini Contactors - Nonreversing

—Contactors are suitable for use on alternating current (ac) control

circuits up to 600 volts and dc control circuits up to 240 volts.

—All terminals are dual marked in accordance to EN50012, and

U.S. marking standards.

—Contactor may be mounted on 35mm DIN rail EN50022-35, or

may be panel-mounted using two #8 screws in diagonal corners.

—Screw and quick-connect terminals are protected against acci-

dental contact in accordance with VDE0106T.100 and VBG4.

—Low-coil wattage requirement makes contactors ideal for most

applications. 24 Vdc PLC interface versions are available. (See

Special PLC-Compatible Products, page 5-15.)

—A wide range of accessories, including front-mounted auxiliary

contact blocks, side-mounted auxiliary contact blocks, timer,

and surge suppressors, are easily installed on contactors.

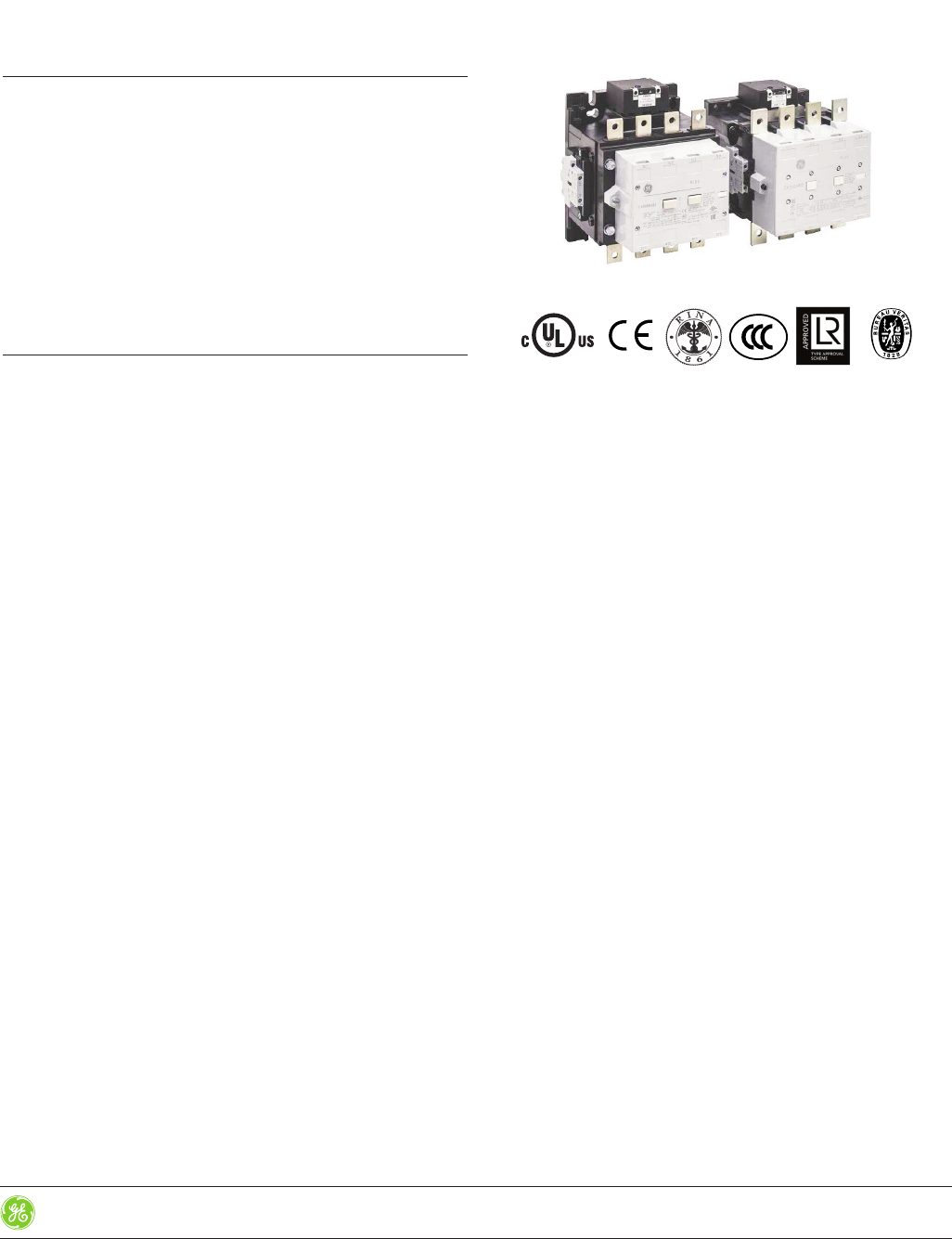

Full Voltage Mini Contactors - Reversing

—Reversing contactor configuration includes two 3-pole contac-

tors, mechanical interlock, power wiring, with a 1NO or 1NC

auxiliary contact on each contactor. An optional auxiliary

contact block for each contactor may be required for holding

interlock or cross electrical interlock, depending upon the control

circuit. Side auxiliary NO contacts may be easily added in the

field. These must be added as a separate item, when required.

—Reversing contactors are suitable for use on alternating current

(ac) control circuits up to 600 volts, and dc control circuits up to

240 volts.

—All terminals are dual marked in accordance to EN50012, and

U.S. marking standards.

—Reversing contactor may be mounted on 35mm DIN rail

EN50022-35, or may be panel-mounted using two #8 screws in

diagonal corners.

—Optional quick-connect type or PC board terminal configura-

tions are available.

—Screw and quick-connect terminals are protected against

accidental contact in accordance with VDE0106T.100 and VBG4.

—A wide range of accessories are available.

Full Voltage Mini Contactors - PLC Compatible

Three-Pole—Low Coil Wattage Contactors

While the standard line of MC0C dc operated contactors requires

only 3 watts coil holding current, some PLC applications require

lower wattage coils to efficiently interface with the PLC. Special

contactors are available with 24 VDC coils, which only require 1.2

or 2 watts for pull in and holding. These contactors are available

with screw terminal configuration.

—All terminals are dual marked in accordance to EN50012, and

U.S. marking standards.

—Contactor may be mounted on 35mm DIN rail EN50022-35, or

may be panel mounted using two #8 screws in diagonal corners.

—Screw-type terminals are protected against accidental contact

in accordance with VDE0106T.100 and VBG4.

—Timer and surge suppressors are easily installed on contactors.

A maximum of two auxiliary contacts are permissible on the 2

volt PLC version. Auxiliary contacts may not be utilized on the

1.2 watt version.

Nonreversing Mini Contactor

Screw Terminal EA07

EA07 is a more compact Mini Contactor without

accessories that provides alternative solutions

capabilities for equipment design when space

is the major constraint.

Reference Publications

Instructions

GEH-5475 MC Mini-Contactor/MT0 Thermal-Overload Relay. U.S. version.

GEH-5931 MC Mini-Contactor Global Instructions

GEH-5932 MT0 Thermal-Overload Relay Global Instructions

Three Pole Minicontactors - EA07 Series

7A (AC3)

16A (AC1)

—Control circuit:

Alternating current up to 230VAC at 50/60Hz

Direct current up to 110VDC

—Low consumption:

Only 1.2 WDC

2.4 VA In AC

—Power circuit: Up to 400VAC

—Very reduced dimensions: 42/45/44mm (HxWxD)

—Lateral carrier

—Terminal numbering in accordance with EN 50012

—Fixing by clipping onto 35mm DIN rail (EN 50022-35)

or by screws

—Terminal versions:

Screws as standard

Solder pin for circuit board application

—Integrated one auxiliary contact block: 1NO or 1NC

—No accessories

No available additional auxiliary contacts

Stand-alone thermal protection

—cULus approval

42mm

45mm

VERY REDUCED

DIMENSIONS

Product Number Selection Instructions: See page 5-6

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-8

IEC Power Devices

Mini Contactors Section 5

Series EA

AC 3-Pole, Up to 230 VAC Coil

Nonreversing

AC Contactors

Power rating AC3(KW) Auxiliary contacts

List Price

230V 400V Terminal Poles NO NC Control circuit Voltage Product Number GO-10A1 Pack

1.5 3 Screw 3 1 0 AC 24 EA07A310S024 $34.00 10

1.5 3 Screw 3 0 1 AC 24 EA07A301S024 $34.00 10

1.5 3 Screw 3 1 0 AC 48 EA07A310S048 $34.00 10

1.5 3 Screw 3 0 1 AC 48 EA07A301S048 $34.00 10

1.5 3 Screw 3 1 0 AC 110 EA07A310S110 $34.00 10

1.5 3 Screw 3 0 1 AC 110 EA07A301S110 $34.00 10

1.5 3 Screw 3 1 0 AC 230 EA07A310S230 $34.00 10

1.5 3 Screw 3 0 1 AC 230 EA07A301S230 $34.00 10

1.5 3 Screw 3 1 0 DC 24 EA07D310S024 $34.00 10

1.5 3 Screw 3 0 1 DC 24 EA07D301S024 $34.00 10

1.5 3 Screw 3 1 0 DC 110 EA07D310S110 $34.00 10

1.5 3 Screw 3 0 1 DC 110 EA07D301S110 $34.00 10

0.75 1.5 Solder pin 3 1 0 AC 24 EA07A310I024 $34.00 10

0.75 1.5 Solder pin 3 0 1 AC 24 EA07A301I024 $34.00 10

0.75 1.5 Solder pin 3 1 0 DC 24 EA07D310I024 $34.00 10

0.75 1.5 Solder pin 3 0 1 DC 24 EA07D301I024 $34.00 10

0.75 1.5 Solder pin 3 1 0 DC 110 EA07D310I110 $34.00 10

0.75 1.5 Solder pin 3 0 1 DC 110 EA07D301I110 $34.00 10

0.75 1.5 Solder pin 3 1 0 AC 230 EA07A310I230 $34.00 10

0.75 1.5 Solder pin 3 0 1 AC 230 EA07A301I230 $34.00 10

Note: All alternating current coils are bi-frequency (50/60Hz)

www.geindustrial.com Control Catalog 5-9

IEC Power Devices

Mini Contactors

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

AC 3-Pole, Up to 600 VAC Coil

Nonreversing

Line Voltage - 600 VAC Maximum

HP Ratings AC-3 Duty

Standard Screw-Type Terminals

Maximum Current 3-Phase HP 3-Phase HP, 3-Phase HP 3-Phase HP kW @ 50 Hz, 1-Phase HP 1-Phase HP Auxiliary List Price Approx. Weight

@ 460 V (A) @60 Hz, 200-208V @60 Hz, 220-240V @60 Hz, 460-480V @60 Hz, 550-600V 380/415V @60 Hz, 115V @60 Hz, 230V Contacts Product Number1GO-10A1 Each

6.0A 1.5 1.5 33 2.2 1/3 1 1NC MC0A301AT* $40.00 6 oz.

6.0A 1.5 1.5 33 2.2 1/3 1 1NO MC0A310AT* $40.00 6 oz.

9.0A 335541/2 1.5 1NC MC1A301AT* $44.00 6 oz.

9.0A 335541/2 1.5 1NO MC1A310AT* $44.00 6 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 1NO MC2A310AT* $51.00 6 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 1NC MC2A301AT* $51.00 6 oz.

Faston (2 x 2.8 mm) Quick Connection Terminals

Maximum Current 3-Phase HP 3-Phase HP, 3-Phase HP 3-Phase HP kW @ 50 Hz, 1-Phase HP 1-Phase HP Auxiliary List Price Approx. Weight

@ 460 V (A) @60 Hz, 200-208V @60 Hz, 220-240V @60 Hz, 460-480V @60 Hz, 550-600V 380/415V @60 Hz, 115V @60 Hz, 230V Contacts Product Number1GO-10A1 Each

6.0A 1.5 1.5 33 2.2 1/3 1 1NC MC0A301AF* $43.00 6 oz.

6.0A 1.5 1.5 33 2.2 1/3 1 1NO MC0A310AF* $43.00 6 oz.

9.0A 335541/2 1.5 1NC MC1A301AF* $47.00 6 oz.

9.0A 335541/2 1.5 1NO MC1A310AF* $47.00 6 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 1NO MC2A310AF* $54.00 6 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 1NC MC2A301AF* $54.00 6 oz.

Faston (1 x 6.3 mm) Quick Connection Terminals

Maximum Current 3-Phase HP 3-Phase HP, 3-Phase HP 3-Phase HP kW @ 50 Hz, 1-Phase HP 1-Phase HP Auxiliary List Price Approx. Weight

@ 460 V (A) @60 Hz, 200-208V @60 Hz, 220-240V @60 Hz, 460-480V @60 Hz, 550-600V 380/415V @60 Hz, 115V @60 Hz, 230V Contacts Product Number1GO-10A1 Each

6.0A 1.5 1.5 33 2.2 1/3 1 1NC MC0A301AH* $43.00 6 oz.

6.0A 1.5 1.5 33 2.2 1/3 1 1NO MC0A310AH* $43.00 6 oz.

9.0A 335541/2 1.5 1NC MC1A301AH* $47.00 6 oz.

9.0A 335541/2 1.5 1NO MC1A310AH* $47.00 6 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 1NO MC2A310AH* $54.00 6 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 1NC MC2A301AH* $54.00 6 oz.

Printed Circuit Board Terminals

Maximum Current 3-Phase HP 3-Phase HP, 3-Phase HP 3-Phase HP kW @ 50 Hz, 1-Phase HP 1-Phase HP Auxiliary List Price Approx. Weight

@ 460 V (A) @60 Hz, 200-208V @60 Hz, 220-240V @60 Hz, 460-480V @60 Hz, 550-600V 380/415V @60 Hz, 115V @60 Hz, 230V Contacts Product Number1GO-10A1 Each

6.0A 1.5 1.5 33 2.2 1/3 1 1NC MC0A301AI* $43.00 6 oz.

6.0A 1.5 1.5 33 2.2 1/3 1 1NO MC0A310AI* $43.00 6 oz.

9.0A 335541/2 1.5 1NC MC1A301AI* $47.00 6 oz.

9.0A 335541/2 1.5 1NO MC1A310AI* $47.00 6 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 1NO MC2A310AI* $54.00 6 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 1NC MC2A301AI* $54.00 6 oz.

1Complete product number reference by replacing the “*” with the letter corresponding to the voltage and frequency of the control circuit.

(Replace asterisk (*) in product number with coil product

number suffix.)

Mini Contactors Coil Voltage Selection

AC Coil Voltages

50/60Hz 24 42 48 110-115 220-230 240

50 Hz 115-127 380-400 415-440 500

60Hz 120 208 440 480 600

Product Number Suffix 129 J K M 6 7 U W Y

(Replace asterisks (**) in product number with coil product

number suffix.)

Coil Voltage Selection

DC Coil Voltages

Voltage DC 12 24 48 110 125 250

Product Number Suffix BDGJ LS

DC Wide Range Coil Voltages

Voltage DC 24 48 72 110

Product Number Suffix WD WG WI WJ

Product Number Selection Instructions: See page 5-6

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-10

IEC Power Devices

Mini Contactors Section 5

C-2000

AC 3-Pole, Up to 250 VDC Coil

Nonreversing

Line Voltage - 600 VAC Maximum

HP Ratings AC-3 Duty

Standard Screw-Type Terminals

Maximum Current 3-Phase HP 3-Phase HP, 3-Phase HP 3-Phase HP kW @ 50 Hz, 1-Phase HP 1-Phase HP Auxiliary List Price Approx. Weight

@ 460 V (A) @60 Hz, 200-208V @60 Hz, 220-240V @60 Hz, 460-480V @60 Hz, 550-600V 380/415V @60 Hz, 115V @60 Hz, 230V Contacts Product Number1GO-10A1 Each

6.0A 1.5 1.5 33 2.2 1/3 1 1NC MC0C301AT** $50.00 8 oz.

6.0A 1.5 1.5 33 2.2 1/3 1 1NO MC0C310AT** $50.00 8 oz.

9.0A 335541/2 1.5 1NC MC1C301AT** $54.00 8 oz.

9.0A 335541/2 1.5 1NO MC1C310AT** $54.00 8 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 1NO MC2C310AT* $61.00 8 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 1NC MC2C301AT* $61.00 8 oz.

Faston (2 x 2.8 mm) Quick Connection Terminals

Maximum Current 3-Phase HP 3-Phase HP, 3-Phase HP 3-Phase HP kW @ 50 Hz, 1-Phase HP 1-Phase HP Auxiliary List Price Approx. Weight

@ 460 V (A) @60 Hz, 200-208V @60 Hz, 220-240V @60 Hz, 460-480V @60 Hz, 550-600V 380/415V @60 Hz, 115V @60 Hz, 230V Contacts Product Number1GO-10A1 Each

6.0A 1.5 1.5 33 2.2 1/3 1 1NC MC0C301AF** $53.00 8 oz.

6.0A 1.5 1.5 33 2.2 1/3 1 1NO MC0C310AF** $53.00 8 oz.

9.0A 335541/2 1.5 1NC MC1C301AF** $57.00 8 oz.

9.0A 335541/2 1.5 1NO MC1C310AF** $57.00 8 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 1NO MC2C310AF* $64.00 8 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 1NC MC2C301AF* $64.00 8 oz.

Faston (1 x 6.3 mm) Quick Connection Terminals

Maximum Current 3-Phase HP 3-Phase HP, 3-Phase HP 3-Phase HP kW @ 50 Hz, 1-Phase HP 1-Phase HP Auxiliary List Price Approx. Weight

@ 460 V (A) @60 Hz, 200-208V @60 Hz, 220-240V @60 Hz, 460-480V @60 Hz, 550-600V 380/415V @60 Hz, 115V @60 Hz, 230V Contacts Product Number1GO-10A1 Each

6.0A 1.5 1.5 33 2.2 1/3 1 1NC MC0C301AH** $53.00 8 oz.

6.0A 1.5 1.5 33 2.2 1/3 1 1NO MC0C310AH** $53.00 8 oz.

9.0A 335541/2 1.5 1NC MC1C301AH** $57.00 8 oz.

9.0A 335541/2 1.5 1NO MC1C310AH** $57.00 8 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 1NO MC2C310AH* $64.00 8 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 1NC MC2C301AH* $64.00 8 oz.

Printed Circuit Board Terminals

Maximum Current 3-Phase HP 3-Phase HP, 3-Phase HP 3-Phase HP kW @ 50 Hz, 1-Phase HP 1-Phase HP Auxiliary List Price Approx. Weight

@ 460 V (A) @60 Hz, 200-208V @60 Hz, 220-240V @60 Hz, 460-480V @60 Hz, 550-600V 380/415V @60 Hz, 115V @60 Hz, 230V Contacts Product Number1GO-10A1 Each

6.0A 1.5 1.5 33 2.2 1/3 1 1NC MC0C301AI** $53.00 8 oz.

6.0A 1.5 1.5 33 2.2 1/3 1 1NO MC0C310AI** $53.00 8 oz.

9.0A 335541/2 1.5 1NC MC1C301AI** $57.00 8 oz.

9.0A 335541/2 1.5 1NO MC1C310AI** $57.00 8 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 1NO MC2C310AI* $64.00 8 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 1NC MC2C301AI* $64.00 8 oz.

1Complete product number reference by replacing the “**” with the letter corresponding to the voltage and frequency of the control circuit.

www.geindustrial.com Control Catalog 5-11

IEC Power Devices

Mini Contactors

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

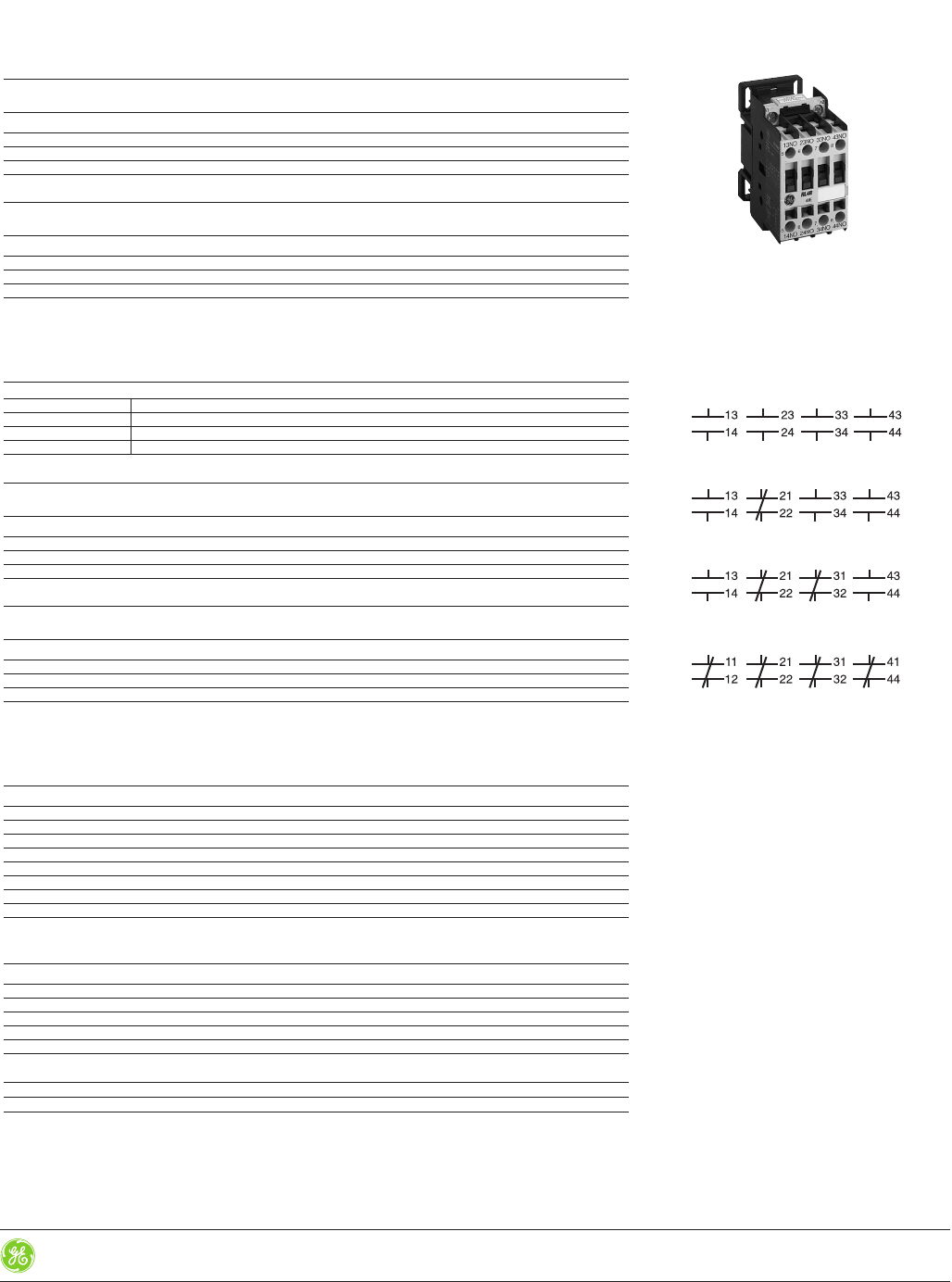

AC 4-Pole, Up to 600 VAC Coil

Nonreversing

Line Voltage - 600 VAC Maximum

HP Ratings AC-3 Duty

Standard Screw-Type Terminals

Maximum Current 3-Phase HP 3-Phase HP, 3-Phase HP 3-Phase HP kW @ 50 Hz, 1-Phase HP 1-Phase HP Auxiliary List Price Approx. Weight

@ 460 V (A) @60 Hz, 200-208V @60 Hz, 220-240V @60 Hz, 460-480V @60 Hz, 550-600V 380/415V @60 Hz, 115V @60 Hz, 230V Contacts Product Number1GO-10A1 Each

6.0A 1.5 1.5 33 2.2 1/3 1 4NO MC0A400AT* $40.00 6 oz.

6.0A 1.5 1.5 33 2.2 1/3 1 4NC MC0AA00AT* $45.00 6 oz.

6.0A 1.5 1.5 33 2.2 1/3 1 2NO-2NC MC0AB00AT* $44.00 6 oz.

9.0A 335541/2 1.5 4NO MC1A400AT* $44.00 6 oz.

9.0A 335541/2 1.5 4NC MC1AA00AT* $49.00 6 oz.

9.0A 335541/2 1.5 2NO-2NC MC1AB00AT* $48.00 6 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 4NO MC2A400AT* $56.00 6 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 2NO-2NC MC2AB00AT* $56.00 6 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 4NC MC2AA00AT* $56.00 6 oz.

Faston (2 x 2.8 mm) Quick Connection Terminals

Maximum Current 3-Phase HP 3-Phase HP, 3-Phase HP 3-Phase HP kW @ 50 Hz, 1-Phase HP 1-Phase HP Auxiliary List Price Approx. Weight

@ 460 V (A) @60 Hz, 200-208V @60 Hz, 220-240V @60 Hz, 460-480V @60 Hz, 550-600V 380/415V @60 Hz, 115V @60 Hz, 230V Contacts Product Number1GO-10A1 Each

6.0A 1.5 1.5 33 2.2 1/3 1 4NO MC0A400AF* $43.00 6 oz.

6.0A 1.5 1.5 33 2.2 1/3 1 4NC MC0AA00AF* $48.00 6 oz.

6.0A 1.5 1.5 33 2.2 1/3 1 2NO-2NC MC0AB00AF* $47.00 6 oz.

9.0A 335541/2 1.5 4NO MC1A400AF* $47.00 6 oz.

9.0A 335541/2 1.5 4NC MC1AA00AF* $52.00 6 oz.

9.0A 335541/2 1.5 2NO-2NC MC1AB00AF* $51.00 6 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 4NO MC2A400AF* $59.00 6 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 2NO-2NC MC2AB00AF* $59.00 6 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 4NC MC2AA00AF* $59.00 6 oz.

Faston (1 x 6.3 mm) Quick Connection Terminals

Maximum Current 3-Phase HP 3-Phase HP, 3-Phase HP 3-Phase HP kW @ 50 Hz, 1-Phase HP 1-Phase HP Auxiliary List Price Approx. Weight

@ 460 V (A) @60 Hz, 200-208V @60 Hz, 220-240V @60 Hz, 460-480V @60 Hz, 550-600V 380/415V @60 Hz, 115V @60 Hz, 230V Contacts Product Number1GO-10A1 Each

6.0A 1.5 1.5 33 2.2 1/3 1 4NO MC0A400AH* $43.00 6 oz.

6.0A 1.5 1.5 33 2.2 1/3 1 4NC MC0AA00AH* $48.00 6 oz.

6.0A 1.5 1.5 33 2.2 1/3 1 2NO-2NC MC0AB00AH* $47.00 6 oz.

9.0A 335541/2 1.5 4NO MC1A400AH* $47.00 6 oz.

9.0A 335541/2 1.5 4NC MC1AA00AH* $52.00 6 oz.

9.0A 335541/2 1.5 2NO-2NC MC1AB00AH* $51.00 6 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 4NO MC2A400AH* $59.00 6 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 2NO-2NC MC2AB00AH* $59.00 6 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 4NC MC2AA00AH* $59.00 6 oz.

Printed Circuit Board Terminals

Maximum Current 3-Phase HP 3-Phase HP, 3-Phase HP 3-Phase HP kW @ 50 Hz, 1-Phase HP 1-Phase HP Auxiliary List Price Approx. Weight

@ 460 V (A) @60 Hz, 200-208V @60 Hz, 220-240V @60 Hz, 460-480V @60 Hz, 550-600V 380/415V @60 Hz, 115V @60 Hz, 230V Contacts Product Number1GO-10A1 Each

6.0A 1.5 1.5 33 2.2 1/3 1 4NO MC0A400AI* $43.00 6 oz.

6.0A 1.5 1.5 33 2.2 1/3 1 4NC MC0AA00AI* $48.00 6 oz.

6.0A 1.5 1.5 33 2.2 1/3 1 2NO-2NC MC0AB00AI* $47.00 6 oz.

9.0A 335541/2 1.5 4NO MC1A400AI* $47.00 6 oz.

9.0A 335541/2 1.5 4NC MC1AA00AI* $52.00 6 oz.

9.0A 335541/2 1.5 2NO-2NC MC1AB00AI* $51.00 6 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 4NO MC2A400AI* $59.00 6 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 2NO-2NC MC2AB00AI* $59.00 6 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 4NC MC2AA00AI* $59.00 6 oz.

1Complete product number reference by replacing the “*” with the letter corresponding to the voltage and frequency of the control circuit.

(Replace asterisk (*) in product number with coil product

number suffix.)

Mini Contactors Coil Voltage Selection

AC Coil Voltages

50/60Hz 24 42 48 110-115 220-230 240

50 Hz 115-127 380-400 415-440 500

60Hz 120 208 440 480 600

Product Number Suffix 129 J K M 6 7 U W Y

Product Number Selection Instructions: See page 5-6

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-12

IEC Power Devices

Mini Contactors Section 5

C-2000

AC 4-Pole, Up to 250 VDC Coil

Nonreversing

Line Voltage - 600 VAC Maximum

HP Ratings AC-3 Duty

Standard Screw-Type Terminals

Maximum Current 3-Phase HP 3-Phase HP, 3-Phase HP 3-Phase HP kW @ 50 Hz, 1-Phase HP 1-Phase HP Auxiliary List Price Approx. Weight

@ 460 V (A) @60 Hz, 200-208V @60 Hz, 220-240V @60 Hz, 460-480V @60 Hz, 550-600V 380/415V @60 Hz, 115V @60 Hz, 230V Contacts Product Number1GO-10A1 Each

6.0A 1.5 1.5 33 2.2 1/3 1 4NO MC0C400AT** $50.00 8 oz.

6.0A 1.5 1.5 33 2.2 1/3 1 2NO-2NC MC0CB00AT** $54.00 8 oz.

9.0A 335541/2 1.5 4NO MC1C400AT** $54.00 8 oz.

9.0A 335541/2 1.5 2NO-2NC MC1CB00AT** $58.00 8 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 4NO MC2C400AT* $65.00 8 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 2NO-2NC MC2CB00AT* $65.00 8 oz.

Faston (2 x 2.8 mm) Quick Connection Terminals

Maximum Current 3-Phase HP 3-Phase HP, 3-Phase HP 3-Phase HP kW @ 50 Hz, 1-Phase HP 1-Phase HP Auxiliary List Price Approx. Weight

@ 460 V (A) @60 Hz, 200-208V @60 Hz, 220-240V @60 Hz, 460-480V @60 Hz, 550-600V 380/415V @60 Hz, 115V @60 Hz, 230V Contacts Product Number1GO-10A1 Each

6.0A 1.5 1.5 33 2.2 1/3 1 4NO MC0C400AF** $53.00 8 oz.

6.0A 1.5 1.5 33 2.2 1/3 1 2NO-2NC MC0CB00AF** $57.00 8 oz.

9.0A 335541/2 1.5 4NO MC1C400AF** $57.00 8 oz.

9.0A 335541/2 1.5 2NO-2NC MC1CB00AF** $61.00 8 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 4NO MC2C400AF* $68.00 8 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 2NO-2NC MC2CB00AF* $68.00 8 oz.

Faston (1 x 6.3 mm) Quick Connection Terminals

Maximum Current 3-Phase HP 3-Phase HP, 3-Phase HP 3-Phase HP kW @ 50 Hz, 1-Phase HP 1-Phase HP Auxiliary List Price Approx. Weight

@ 460 V (A) @60 Hz, 200-208V @60 Hz, 220-240V @60 Hz, 460-480V @60 Hz, 550-600V 380/415V @60 Hz, 115V @60 Hz, 230V Contacts Product Number1GO-10A1 Each

6.0A 1.5 1.5 33 2.2 1/3 1 4NO MC0C400AH** $53.00 8 oz.

6.0A 1.5 1.5 33 2.2 1/3 1 2NO-2NC MC0CB00AH** $57.00 8 oz.

9.0A 335541/2 1.5 4NO MC1C400AH** $57.00 8 oz.

9.0A 335541/2 1.5 2NO-2NC MC1CB00AH** $61.00 8 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 4NO MC2C400AH* $68.00 8 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 2NO-2NC MC2CB00AH* $68.00 8 oz.

Printed Circuit Board Terminals

Maximum Current 3-Phase HP 3-Phase HP, 3-Phase HP 3-Phase HP kW @ 50 Hz, 1-Phase HP 1-Phase HP Auxiliary List Price Approx. Weight

@ 460 V (A) @60 Hz, 200-208V @60 Hz, 220-240V @60 Hz, 460-480V @60 Hz, 550-600V 380/415V @60 Hz, 115V @60 Hz, 230V Contacts Product Number1GO-10A1 Each

6.0A 1.5 1.5 33 2.2 1/3 1 4NO MC0C400AI** $53.00 8 oz.

6.0A 1.5 1.5 33 2.2 1/3 1 2NO-2NC MC0CB00AI** $57.00 8 oz.

9.0A 335541/2 1.5 4NO MC1C400AI** $57.00 8 oz.

9.0A 335541/2 1.5 2NO-2NC MC1CB00AI** $61.00 8 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 4NO MC2C400AI* $68.00 8 oz.

12.0A 337.5 7.5 5.5 1/2 2.0 2NO-2NC MC2CB00AI* $68.00 8 oz.

1Complete product number reference by replacing the “**” with the letter corresponding to the voltage and frequency of the control circuit.

(Replace asterisks (**) in product number with coil product

number suffix.)

Coil Voltage Selection

DC Coil Voltages

Voltage DC 12 24 48 110 125 250

Product Number Suffix BDGJ LS

DC Wide Range Coil Voltages

Voltage DC 24 48 72 110

Product Number Suffix WD WG WI WJ

www.geindustrial.com Control Catalog 5-13

IEC Power Devices

Mini Contactors

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

AC 3-Pole, Up to 600 VAC Coil

Reversing

Line Voltage - 600 VAC Maximum

HP Ratings AC-3 Duty

Standard Screw-Type Terminals

Maximum Current 3-Phase HP 3-Phase HP, 3-Phase HP 3-Phase HP kW @ 50 Hz, 1-Phase HP 1-Phase HP Auxiliary List Price Approx. Weight

@ 460 V (A) @60 Hz, 200-208V @60 Hz, 220-240V @60 Hz, 460-480V @60 Hz, 550-600V 380/415V @60 Hz, 115V @60 Hz, 230V Contacts Product Number1GO-10A1 Each

6.0A 1.5 1.5 33 2.2 1/3 1 1NO TLIE1T* $112.00 13 oz.

6.0A 1.5 1.5 33 2.2 1/3 1 1NC TLIE1U* $112.00 13 oz.

9.0A 335541/2 1.5 1NO TLIE2T* $120.00 13 oz.

9.0A 335541/2 1.5 1NC TLIE2U* $120.00 13 oz.

Faston (2 x 2.8 mm) Quick Connection Terminals

Maximum Current 3-Phase HP 3-Phase HP, 3-Phase HP 3-Phase HP kW @ 50 Hz, 1-Phase HP 1-Phase HP Auxiliary List Price Approx. Weight

@ 460 V (A) @60 Hz, 200-208V @60 Hz, 220-240V @60 Hz, 460-480V @60 Hz, 550-600V 380/415V @60 Hz, 115V @60 Hz, 230V Contacts Product Number1GO-10A1 Each

6.0A 1.5 1.5 33 2.2 1/3 1 1NC TLIE1E* $118.00 13 oz.

6.0A 1.5 1.5 33 2.2 1/3 1 1NO TLIE1F* $118.00 13 oz.

9.0A 335541/2 1.5 1NC TLIE2E* $126.00 13 oz.

9.0A 335541/2 1.5 1NO TLIE2F* $126.00 13 oz.

Faston (1 x 6.3 mm) Quick Connection Terminals

Maximum Current 3-Phase HP 3-Phase HP, 3-Phase HP 3-Phase HP kW @ 50 Hz, 1-Phase HP 1-Phase HP Auxiliary List Price Approx. Weight

@ 460 V (A) @60 Hz, 200-208V @60 Hz, 220-240V @60 Hz, 460-480V @60 Hz, 550-600V 380/415V @60 Hz, 115V @60 Hz, 230V Contacts Product Number1GO-10A1 Each

6.0A 1.5 1.5 33 2.2 1/3 1 1NC TLIE1G* $118.00 13 oz.

6.0A 1.5 1.5 33 2.2 1/3 1 1NO TLIE1H* $118.00 13 oz.

9.0A 335541/2 1.5 1NC TLIE2G* $126.00 13 oz.

9.0A 335541/2 1.5 1NO TLIE2H* $126.00 13 oz.

Printed Circuit Board Terminals

Maximum Current 3-Phase HP 3-Phase HP, 3-Phase HP 3-Phase HP kW @ 50 Hz, 1-Phase HP 1-Phase HP Auxiliary List Price Approx. Weight

@ 460 V (A) @60 Hz, 200-208V @60 Hz, 220-240V @60 Hz, 460-480V @60 Hz, 550-600V 380/415V @60 Hz, 115V @60 Hz, 230V Contacts Product Number1GO-10A1 Each

6.0A 1.5 1.5 33 2.2 1/3 1 1NO TLIE1I* $118.00 13 oz.

6.0A 1.5 1.5 33 2.2 1/3 1 1NC TLIE1J* $118.00 13 oz.

9.0A 335541/2 1.5 1NO TLIE2I* $126.00 13 oz.

9.0A 335541/2 1.5 1NC TLIE2J* $126.00 13 oz.

1Complete product number reference by replacing the “*” with the letter corresponding to the voltage and frequency of the control circuit.

(Replace asterisk (*) in product number with coil product

number suffix.)

Mini Contactors Coil Voltage Selection

AC Coil Voltages

50/60Hz 24 42 48 110-115 220-230 240

50 Hz 115-127 380-400 415-440 500

60Hz 120 208 440 480 600

Product Number Suffix 129 J K M 6 7 U W Y

Product Number Selection Instructions: See page 5-6

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-14

IEC Power Devices

Mini Contactors Section 5

C-2000

AC 3-Pole, Up to 250 VDC Coil

Reversing

Line Voltage - 600 VAC Maximum

HP Ratings AC-3 Duty

Standard Screw-Type Terminals

Maximum Current 3-Phase HP 3-Phase HP, 3-Phase HP 3-Phase HP kW @ 50 Hz, 1-Phase HP 1-Phase HP Auxiliary List Price Approx. Weight

@ 460 V (A) @60 Hz, 200-208V @60 Hz, 220-240V @60 Hz, 460-480V @60 Hz, 550-600V 380/415V @60 Hz, 115V @60 Hz, 230V Contacts Product Number1GO-10A1 Each

6.0A 1.5 1.5 33 2.2 1/3 1 1NO TLICE1T** $132.00 16 oz.

6.0A 1.5 1.5 33 2.2 1/3 1 1NC TLICE1U** $132.00 16 oz.

9.0A 335541/2 1.5 1NO TLICE2T** $140.00 16 oz.

9.0A 335541/2 1.5 1NC TLICE2U** $140.00 16 oz.

Faston (2 x 2.8 mm) Quick Connection Terminals

Maximum Current 3-Phase HP 3-Phase HP, 3-Phase HP 3-Phase HP kW @ 50 Hz, 1-Phase HP 1-Phase HP Auxiliary List Price Approx. Weight

@ 460 V (A) @60 Hz, 200-208V @60 Hz, 220-240V @60 Hz, 460-480V @60 Hz, 550-600V 380/415V @60 Hz, 115V @60 Hz, 230V Contacts Product Number1GO-10A1 Each

6.0A 1.5 1.5 33 2.2 1/3 1 1NC TLICE1E** $138.00 16 oz.

6.0A 1.5 1.5 33 2.2 1/3 1 1NO TLICE1F** $138.00 16 oz.

9.0A 335541/2 1.5 1NC TLICE2E** $146.00 16 oz.

9.0A 335 541/2 1.5 1NO TLICE2F** $146.00 16 oz.

Faston (1 x 6.3 mm) Quick Connection Terminals

Maximum Current 3-Phase HP 3-Phase HP, 3-Phase HP 3-Phase HP kW @ 50 Hz, 1-Phase HP 1-Phase HP Auxiliary List Price Approx. Weight

@ 460 V (A) @60 Hz, 200-208V @60 Hz, 220-240V @60 Hz, 460-480V @60 Hz, 550-600V 380/415V @60 Hz, 115V @60 Hz, 230V Contacts Product Number1GO-10A1 Each

6.0A 1.5 1.5 33 2.2 1/3 1 1NC TLICE1G** $138.00 16 oz.

6.0A 1.5 1.5 33 2.2 1/3 1 1NO TLICE1H** $138.00 16 oz.

9.0A 335541/2 1.5 1NC TLICE2G** $146.00 16 oz.

9.0A 335541/2 1.5 1NO TLICE2H** $146.00 16 oz.

Printed Circuit Board Terminals

Maximum Current 3-Phase HP 3-Phase HP, 3-Phase HP 3-Phase HP kW @ 50 Hz, 1-Phase HP 1-Phase HP Auxiliary List Price Approx. Weight

@ 460 V (A) @60 Hz, 200-208V @60 Hz, 220-240V @60 Hz, 460-480V @60 Hz, 550-600V 380/415V @60 Hz, 115V @60 Hz, 230V Contacts Product Number1GO-10A1 Each

6.0A 1.5 1.5 33 2.2 1/3 1 1NO TLICE1I** $138.00 16 oz.

6.0A 1.5 1.5 33 2.2 1/3 1 1NC TLICE1J** $138.00 16 oz.

9.0A 335541/2 1.5 1NO TLICE2I** $146.00 16 oz.

9.0A 335541/2 1.5 1NC TLICE2J** $146.00 16 oz.

1Complete product number reference by replacing the “**” with the letter corresponding to the voltage and frequency of the control circuit.

(Replace asterisks (**) in product number with coil product

number suffix.)

Coil Voltage Selection

DC Coil Voltages

Voltage DC 12 24 48 110 125 250

Product Number Suffix BDGJ LS

DC Wide Range Coil Voltages

Voltage DC 24 48 72 110

Product Number Suffix WD WG WI WJ

www.geindustrial.com Control Catalog 5-15

IEC Power Devices

Mini Contactors

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

AC 3-Pole, Up to 24 VDC Coil

Nonreversing

Line Voltage - 600 VAC Maximum

HP Ratings AC-3 Duty

24 VDC PLC Contactors Standard Screw Type Terminals

Maximum Current 3-Phase HP 3-Phase HP, 3-Phase HP 3-Phase HP kW @ 50 Hz, 1-Phase HP 1-Phase HP Contact Coil Product List Price

@ 460 V (A) @60 Hz, 200-208V @60 Hz, 220-240V @60 Hz, 460-480V @60 Hz, 550-600V 380/415V @60 Hz, 115V @60 Hz, 230V Configuration Wattage Number GO-10A1

6.0A 1.5 1.5 33 2.2 1/3 1 1NO 1.2w MC0I310ATD $50.00

6.0A 1.5 1.5 33 2.2 1/3 1 1NC 1.2w MC0I301ATD $50.00

6.0A 1.5 1.5 33 2.2 1/3 1 1NO 2w MC0K310ATD $50.00

6.0A 1.5 1.5 33 2.2 1/3 1 1NC 2w MC0K301ATD $50.00

9.0A 335541/2 1.5 1NO 1.2w MC1I310ATD $54.00

9.0A 335541/2 1.5 1NC 1.2w MC1I301ATD $54.00

9.0A 335541/2 1.5 1NO 2w MC1K310ATD $54.00

9.0A 335541/2 1.5 1NC 2w MC1K301ATD $54.00

Minimum order is 140 pieces. Packaged in multiples of 10 units. Each product number represents one unit.

Select the Mini-Contactor product number that corresponds to the desired Contactor Rating.

Product Number Selection Instructions: See page 5-6

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-16

IEC Power Devices

Mini Contactors Accessories Section 5

C-2000

Contact Rating A600, Q300

2-Pole Front-Mounted Auxiliary Contact

Block MARN2/MACN2

Contact Arrangement/

Terminal Numbers per EN 50005

4-Pole Front-Mounted Auxiliary Contact

Block MARN4/MACN4

MACN211AT

MACN413AT

MACN422AT

MACN431AT

Front-Mounted Auxiliary Contact Blocks

List Price

Contact Configuration For Use With Product Number GO-10A1 Approx. Weight Each

2NC Contactors MACN202AT $12.00 1 oz.

1NO-1NC Contactors MACN211AT $12.00 1 oz.

1NO-3NC Contactors MACN413AT $22.00 2 oz.

2NO-2NC Contactors MACN422AT $22.00 2 oz.

3NO-1NC Contactors MACN431AT $22.00 2 oz.

Packaged in multiples of 10 units. Each product number represents one unit.

Front-mounted contacts may be combined with side auxiliary contacts for a total maximum number of six added

auxiliary contacts.

MACN202AT

www.geindustrial.com Control Catalog 5-17

IEC Power Devices

Mini Contactors Accessories

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

Contact Rating A600, Q300

MACL101AT

MACL101ATS

MACL110AT

MACL110ATS

MARL101AT

MARL101ATS

MARL110AT

MARL110ATS

Contact Arrangement/

Terminal Numbers per EN 50005

Side-Mounted Auxiliary Contact Blocks

List Price

Contact Configuration For Use With Product Number GO-10A1 Approx. Weight Each

1NC Contactors MACL101AT $8.00 1 oz.

1NC Reversers MACL101ATS $8.00 1 oz.

1NO Contactors MACL110AT $8.00 1 oz.

1NO Reversers MACL110ATS $8.00 1 oz.

1NC Not Used in Combination w/ Top Auxiliary MARL101AT $8.00 1 oz.

1NC In Combination w/ Top Auxiliary MARL101ATS $8.00 1 oz.

1NO Not Used in Combination with Top Auxiliary MARL110AT $8.00 1 oz

1NO In Combination w/ Top Auxiliary MARL110ATS $8.00 1 oz.

Packaged in multiples of 10 units. Each product number represents one unit.

For quick-connect version 2 x 2.8 mm, replace the “T” with an “F” and add $2.00 (GO-10A1) to the list price.

Up to four side auxiliary contacts may be installed on contactors or relays with standard coils with a maximum of

two contacts per side. Optimum performance is obtained when the contact configuration is balanced.

Side contacts may be combined with front-mount auxiliary contacts for a total maximum number of six added

auxiliary contacts.

Side-Mounted Auxiliary Contact Block

Product Number Selection Instructions: See page 5-6

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-18

IEC Power Devices

Mini Contactors Accessories Section 5

C-2000

Mechanical Interlock

Used for field assembly of reversing contactors and starters. Kit contains operating lever

and 2 keys for joining either AC or DC contactors.

List Price

Product Number GO-10A1 Approx. Weight Each Packing Quantity (No. Per Set)

MMH0 $8.00 0.1 oz. 10

Electronic Timer

Attaches either to the top or side of contactor or relay. Wired in series with the coil. May

be used either with AC or DC coils. Timer operation range .5-60 seconds.

List Price

Coil Voltage Product Number GO-10A1 Approx. Weight Each Packing Quantity (No. Per Set)

24-240V MREBC10AC2 $75.00 2 oz. 10

Electronic Timer Base

Allows timer to be either DIN rail- or panel-mounted.

List Price

Product Number GO-10A1 Approx. Weight Each Packing Quantity (No. Per Set)

MVB0R $10.00 0.2 oz. 10

Surge Suppressor

Used to protect control circuits from voltage transients. Plugs into front of contactor, no

external wiring required. RC type for AC and diode for DC.

List Price

Coil Voltage Range Product Number GO-10A1 Approx. Weight Each Packing Quantity (No. Per Set)

12-60V 50/60 Hz MP0AAE1 $16.00 0.5 oz. 10

72-240V 50/60 Hz MP0AAE2 $16.00 0.5 oz. 10

6-240 Vdc MP0CAE3 $16.00 0.5 oz. 10

Mechanical Interlock

Electronic Timer

Electronic Timer Base

Surge Suppressor

www.geindustrial.com Control Catalog 5-19

IEC Power Devices

Mini Contactors Accessories

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

AC Replacement Coils for Contactors and Control Relays

List Price

Coil Voltage @ 50/60Hz Coil Voltage @ 50Hz Coil Voltage @ 60Hz Product Number GO-10A1 Approx. Weight Each Packing Quantity

24 MBOA1 $14.00 2 oz. 10

42 MBOA2 $14.00 2 oz. 10

48 MBOA9 $14.00 2 oz. 10

110-115 MBOAJ $14.00 2 oz. 10

220-230 MBOA6 $14.00 2 oz. 10

240 MBOA7 $14.00 2 oz. 10

115-127 MBOAK $14.00 2 oz. 1

380-400 MBOAU $14.00 2 oz. 1

415-440 MBOAW $14.00 2 oz. 1

500 MBOAY $14.00 2 oz. 1

120 MBOAJ $14.00 2 oz. 1

208 MBOAM $14.00 2 oz. 1

440 MBOAU $14.00 2 oz. 1

480 MBOAW $14.00 2 oz. 1

600 MBOAY $14.00 2 oz. 1

DC Replacement Coils for Contactors and Control Relays

List Price

DC Coil Voltage Coil Power Consumption Product Number GO-10A1 Approx. Weight Each Packing Quantity (minimum/multiples)1

12 3 MBOCB $18.00 3 oz. 1

24 3 MBOCD $18.00 3 oz. 1

48 3 MBOCG $18.00 3 oz. 1

110 3 MBOCJ $18.00 3 oz. 10

125 3 MBOCL $18.00 3 oz. 1

250 3 MBOCS $18.00 3 oz. 1

1Coils listed in package quantities of 10 are available in minimum quantities of 10 and in multiples of 10.

DC Wide Range Coil Voltage

List Price

DC Coil Voltage Coil Power Consumption Product Number GO-10A1 Approx. Weight Each Packing Quantity (minimum/multiples)1

24 3 MBOCWD $18.00 3 oz. 1

48 3 MBOCWG $18.00 3 oz. 1

72 3 MBOCWI $18.00 3 oz. 1

110 3 MBOCWJ $18.00 3 oz. 1

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-20

IEC Power Devices

Mini Contactors Overload Relays Section 5

C-2000

Overload Relays

Fixed Heater

C2000 overload relays provide motor overload protection through fixed bimetal heaters.

These relays are ambient compensated and utilize a differential mechanism for single-

phase sensitivity. The trip setting is adjustable for the range listed.

Overload relays may be set for 2 different operational modes—manual reset only or

automatic reset only. Stop is initiated by pushing the red stop button.

—Class 10A trip

—Ambient temperature compensation

—Differential phase loss sensitivity

—Trip indication

—Manual trip test

—Stop button (red)

—Reset button (blue), two positions: manual (H) and automatic (A)

—Pre-wired coil and NC contact connection

—Auxiliary contact feed-through wire, to facilitate installation

—Direct mounting or panel mount with base

Mini Contactor Overload Relay

Overload Relays

Current Range Maximum Fuse Maximum Fuse Product List Price Approx.

Amps (min-max) Rating HRC11 Rating K5 Number GO-10A1 Weight Each

0.11-0.17 MT03A $40.00 4 oz.

0.17-0.26 MT03B $40.00 4 oz.

0.26-0.43 21MT03C $40.00 4 oz.

0.43-0.65 41MT03D $40.00 4 oz.

0.65-1.0 63MT03E $40.00 4 oz.

0.85-1.3 63MT03F $40.00 4 oz.

1.1-1.6 10 6 MT03G $40.00 4 oz.

1.35-2.0 10 6 MT03H $40.00 4 oz.

1.7-2.4 16 6 MT03I $40.00 4 oz.

2.2-3.2 16 10 MT03J $40.00 4 oz.

3.0-4.7 16 15 MT03K $40.00 4 oz.

4.0-6.3 20 20 MT03L $40.00 4 oz.

5.5-8.0 25 30 MT03M $40.00 4 oz.

7.5-10.5 35 40 MT03N $40.00 4 oz.

10.0-14.0 50 50 MT03P $40.00 4 oz.

Fixed Heater With Differential Protection for Direct Mounting to Contactor. Packaged in multiples of 10 units.

Each product number represents one unit.

Overload Relay Accessories

List Price

Type Product Number GO-10A1 Approx. Weight Each Packing Quantity1

Base for Separate Panel/Rail MVB0T $3.00 1 oz. 5

Mount of Overload Relay

(Requires Power Input Terminals)

Power Input Terminals Used in MVE0T $9.00 2 oz. 5

Conjunction with Base

Instantaneous Auxiliary MATV10AT2$8.00 1 oz. 10

Contact Block for Relay,

1NO Contact

1Pack quantity multiples. Each product number represents one unit. May be ordered in quantities less than 10.

2Adder block may be used with manual operation only.

Reference Publications

Instructions

GEH-5475 MC Mini-Contactor/MT03 Thermal-Overload Relay. U.S. version.

GEH-5931 MC Mini-Contactor Global Instructions

GEH-5932 MT03 Thermal-Overload Relay Global Instructions

Base

Instantaneous Auxiliary Contact Block

Power Input Terminal

www.geindustrial.com Control Catalog 5-21

IEC Power Devices

Mini Control Relays Overview

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

Contact Rating A600, Q300

Control Relays

—Relays are suitable for use on alternating current (ac) control

circuits up to 600 volts, and dc control circuits up to 240 Volts.

—All terminals are marked in accordance to EN50011.

—Control relays may be mounted on 35mm DIN rail EN50022-

35, or may be panel-mounted using two or four #8 screws in

diagonal corners.

—Screw and quick-connect terminals are protected against

accidental contact in accordance with VDE0106T.100 and

VBG4.

—Low-coil wattage requirement makes relay ideal for most

applications. (24 Vdc PLC interface versions are available.)

—A wide range of accessories, including front-mounted auxiliary

contact blocks, side-mounted auxiliary contact blocks, a timer,

and surge suppressors, are easily installed on relays.

PLC Compatible Control Relays

Low Coil Wattage Control Relays

While the standard line of MCRC dc operated relays requires

only 3 watts coil holding current, some PLC applications require

lower wattage coils to efficiently interface with the PLC. Special

relays are available with 24 Vdc coils which only require 1.2 or 2

watts for pull in and holding. These relays are available with

screw terminal configuration.

—All terminals are dual marked in accordance to EN50012, and

U.S. marking standards.

—Relay may be mounted on 35mm DIN rail EN50022-35, or may

be panel-mounted using two #8 screws in diagonal corners.

—Screw-type terminals are protected against accidental contact

in accordance with VDE0106T.100 and VBG4.

Reference Publications

Instructions

GEH-5475 MC Mini-Contactor/MT0 Thermal-Overload Relay. U.S. version.

GEH-5931 MC Mini-Contactor Global Instructions

GEH-5932 MT0 Thermal-Overload Relay Global Instructions

AC Operated Control Relay

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-22

IEC Power Devices

Mini Control Relays Selection Section 5

4 NO

3 NO - 1 NC

2 NO - 2 NC

1 NO - 3 NC

4 NC

4 NO

3 NO - 1 NC

2 NO - 2 NC

Contact Arrangement/

Terminal Numbers per EN 50011

C-2000

Contact Rating A600, Q300

AC Operated Control Relays

List Price

Contact Configuration Mounting Type Product Number1,2 GO-10A1 Approx. Weight Each

4NO Standard Screw MCRA040AT* $38.00 6 oz.

4NO 2x2.8mm Faston MCRA040AF* $41.00 6 oz.

4NO 1x6.3mm Faston MCRA040AH* $41.00 6 oz.

4NO PC Board MCRA040AI* $41.00 6 oz.

3NO-1NC Standard Screw MCRA031AT* $38.00 6 oz.

3NO-1NC 2x2.8mm Faston MCRA031AF* $41.00 6 oz.

3NO-1NC 1x6.3mm Faston MCRA031AH* $41.00 6 oz.

3NO-1NC PC Board MCRA031AI* $41.00 6 oz.

2NO-2NC Standard Screw MCRA022AT* $38.00 6 oz.

2NO-2NC 2x2.8mm Faston MCRA022AF* $41.00 6 oz.

2NO-2NC 1x6.3mm Faston MCRA022AH* $41.00 6 oz.

2NO-2NC PC Board MCRA022AI* $41.00 6 oz.

1NO-3NC Standard Screw MCRA013AT* $38.00 6 oz.

1NO-3NC 2x2.8mm Faston MCRA013AF* $41.00 6 oz.

1NO-3NC 1x6.3mm Faston MCRA013AH* $41.00 6 oz.

1NO-3NC PC Board MCRA013AI* $41.00 6 oz.

4NC Standard Screw MCRA004AT* $38.00 6 oz.

4NC 2x2.8mm Faston MCRA004AF* $41.00 6 oz.

4NC 1x6.3mm Faston MCRA004AH* $41.00 6 oz.

4NC PC Board MCRA004AI* $41.00 6 oz.

1Complete product number reference by replacing the “*” with the letter corresponding to the voltage and

frequency of the control circuit.

2Packaged in multiples of 20 units. Each product number represents one unit.

(Replace asterisk (*) in product number with coil product

number suffix.)

Mini Contactors Coil Voltage Selection

AC Coil Voltages

50/60Hz 24 42 48 110-115 220-230 240

50 Hz 115-127 380-400 415-440 500

60Hz 120 208 440 480 600

Product Number Suffix 129 J K M 6 7 U W Y

DC Operated Control Relays

List Price

Contact Configuration Mounting Type Product Number2,3 GO-10A1 Approx. Weight Each

4NO Standard Screw MCRC040AT** $48.00 6 oz.

4NO 2x2.8mm Faston MCRC040AF** $51.00 6 oz.

4NO 1x6.3mm Faston MCRC040AH** $51.00 6 oz.

4NO PC Board MCRC040AI** $51.00 6 oz.

3NO-1NC Standard Screw MCRC031AT** $48.00 6 oz.

3NO-1NC 2x2.8mm Faston MCRC031AF** $51.00 6 oz.

3NO-1NC 1x6.3mm Faston MCRC031AH** $51.00 6 oz.

3NO-1NC PC Board MCRC031AI** $51.00 6 oz.

2NO-2NC Standard Screw MCRC022AT** $48.00 6 oz.

2NO-2NC 2x2.8mm Faston MCRC022AF** $51.00 6 oz.

2NO-2NC 1x6.3mm Faston MCRC022AH** $51.00 6 oz.

2NO-2NC PC Board MCRC022AI** $51.00 6 oz.

2Packaged in multiples of 20 units. Each product number represents one unit.

3Complete product number reference by replacing the “**” with the letter corresponding to the voltage and

frequency of the control circuit.

(Replace asterisks (**) in product number with coil product number suffix.)

Coil Voltage Selection

DC Coil Voltages

Voltage DC 12 24 48 110 125 250

Product Number Suffix BDGJL S

DC Wide Range Coil Voltages

Voltage DC 24 48 72 110

Product Number Suffix WD WG WI WJ

www.geindustrial.com Control Catalog 5-23

IEC Power Devices

Mini Control Relays and Accessories

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

Contact Rating A600, Q300

PLC Control Relays—Standard Screw Type Terminals

List Price

Contact Configuration Coil Voltage Coil Wattage Product Number GO-10A1

2NO-2NC 24 VDC 1.2w MCRI022ATD $48.00

3NO-1NC 24 VDC 1.2w MCRI031ATD $48.00

4 NO 24 VDC 1.2w MCRI040ATD $48.00

2NO-2NC 24 VDC 2w MCRK022ATD $48.00

3NO-1NC 24 VDC 2w MCRK031ATD $48.00

4NO 24 VDC 2w MCRK040ATD $48.00

Minimum order is 140 pieces. Packaged in multiples of 10 units. Each product number represents one unit.

Front-Mounted Auxiliary Contact Blocks

List Price

Contact Configuration For Use With Product Number GO-10A1 Approx. Weight Each

2NO Relays MARN220AT $12.00 1 oz.

1NO-1NC Relays MARN211AT $12.00 1 oz.

2NC Relays MARN202AT $12.00 1 oz.

4NO Relays MARN440AT $22.00 2 oz.

3NO-1NC Relays MARN431AT $22.00 2 oz.

2NO-2NC Relays MARN422AT $22.00 2 oz.

1NO-3NC Relays MARN413AT $22.00 2 oz.

4NC Relays MARN404AT $22.00 2 oz.

Packaged in multiples of 10 units. Each product number represents one unit.

Front-mounted contacts may be combined with side auxiliary contacts for a total maximum number of six

added auxiliary contacts.

2-Pole Front-Mounted Auxiliary Contact

Block MARN2/MACN2

MARN220AT

MARN211AT

MARN202AT

MARN440AT

MARN431AT

MARN422AT

MARN413AT

MARN404AT

4-Pole Front-Mounted Auxiliary Contact

Block MARN4/MACN4

Contact Arrangement/

Terminal Numbers per EN 50005

Product Number Selection Instructions: See page 5-6

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-24

IEC Power Devices

Mini Contactors Dimensions Section 5

C-2000

Outlines and Dimensions ( in.

mm) For Estimating Only

Open-Type, AC-Controlled Contactors and Control Relays, STD and Quick-Connect Terminal

Open-Type, AC-Controlled Starter, STD and Quick-Connect Terminal

www.geindustrial.com Control Catalog 5-25

IEC Power Devices

Mini Contactors Dimensions

Rev. 4/16

Prices and data subject to

change without notice

Section 5

Open-Type, DC-Controlled Starter, STD and Quick-Connect Terminal

Open-Type, DC-Controlled Contactors and Control Relays, STD and Quick-Connect Terminal

C-2000

Outlines and Dimensions ( in.

mm) For Estimating Only

Product Number Selection Instructions: See page 5-6

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-26

IEC Power Devices

Mini Contactors Dimensions Section 5

Open-Type, AC-Controlled Reversing Contactors, STD and Quick-Connect Terminal

Open-Type, AC-Controlled Reversing Starter, STD and Quick-Connect Terminal

C-2000

Outlines and Dimensions ( in.

mm) For Estimating Only

www.geindustrial.com Control Catalog 5-27

IEC Power Devices

Mini Contactors Dimensions

Rev. 4/16

Prices and data subject to

change without notice

Section 5

Open-Type, DC-Controlled Reversing Contactors, STD and Quick-Connect Terminal

Open-Type, DC-Controlled Reversing Starter, STD and Quick-Connect Terminal

C-2000

Outlines and Dimensions ( in.

mm) For Estimating Only

Product Number Selection Instructions: See page 5-6

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-28

IEC Power Devices

Mini Contactors Dimensions Section 5

Open-Type, AC-Controlled Contactors and Control Relays, PC Board Terminals

Open-Type, DC-Controlled Contactors and Control Relays, PC Board Terminals

C-2000

Outlines and Dimensions ( in.

mm) For Estimating Only

www.geindustrial.com Control Catalog 5-29

IEC Power Devices

Mini Contactors Dimensions

Rev. 4/16

Prices and data subject to

change without notice

Section 5

Open-Type, AC-Controlled Reversing Contactors, PC Board Terminals

Open-Type, DC-Controlled Reversing Contactors, PC Board Terminals

C-2000

Outlines and Dimensions ( in.

mm) For Estimating Only

Product Number Selection Instructions: See page 5-6

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-30

IEC Power Devices

Mini Contactors Dimensions Section 5

Panel-Mount O verload Relay

C-2000

Outlines and Dimensions ( in.

mm) For Estimating Only

www.geindustrial.com Control Catalog 5-31

IEC Power Devices

Mini Contactors Technical Information

Rev. 4/16

Prices and data subject to

change without notice

Section 5

Standards and Listings

International Certification Marks: In addition to stating the

product number, the contactor nameplate also lists the interna-

tional certification marks. All contactors, control relays, overload

relays, and accessories are UL and cUL listed.

Contactors and relays also conform to International Standards:

—UL listed (Underwriters Laboratories, U.S. -UL 508, cUL);

—CE Mark;

—IEC 947-1,4 (International Electrotechnical Commission);

—BS 5424 (British Standards, UK);

—VDE 0660 (Verband Deutscher Elektotechniker, Federal

Republic of Germany);

—(S) (SEV, Switzerland-SEV 10254);

—(D) (DEMCO, Denmark);

—(N) (NEMCO, Norway);

—(FI) (SETI, Finland);

plus other specifications approvals...

—CEI 17-3, 17-7 (Comitato Electrotechnico Italiano, Italy);

—Bureau Veritas, France;

—SEMKO, Sweden.

Operating Characteristics/Technical Data:

Contactors and Control Relays

Ambient Conditions

Operating Temperature –20 to +55°C (–4 to +131°F)

Storage Temperature –30 to +80°C (–22 to +176°F)

Altitude

Derating Up to 10,000 ft. (3,000 m) Rated current

Derating 10,000 to 13,200 ft. (3,000 to 4,000 m) .9 x’s rated current

Derating 13,200 to 16,000 ft. (4,000 to 5,000 m) .8 x’s rated current

Shock Resistance (All Axis)

Closed 80% voltage - Admissible accel. 30g

Closed 80% voltage - Impulse duration 11 ms

Open no voltage - Admissible acceleration 10g

Open no voltage - Impulse duration 11 ms

Vibration Resistance

Closed 80% voltage-Admissible accel. 10g

Closed 80% voltage - Sweep between 10-200 hz

Open No voltage-Admissible accel. 5g

Open No voltage - Impulse duration 10-200 hz

Terminal Capacity

Screw Terminal Wire size (2) #14-18 AWG max.

Screw Terminal Wire temperature class 60°C/75°C wire

Quick connect (Faston 2.8mm) Wire size (2) 1mm2

Quick connect (Faston 2.8mm) Max. thermal current 8 amps

Printed circuit terminal - Hole size 1.8mm

Tightening Torque 7 inch lbs.

C-2000

Mini Contactors and Control Relays

Operating Position

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-32

IEC Power Devices

Mini Contactors Technical Information Section 5

Main Contacts Data - Contactors

Rated insulation voltage (IEC 947-1) 660V

Rated thermal current (UL 508) 16 amps

Frequency limits 25-400 Hz

Impedance per pole 1.76 m ohm

Power dissipation AC-1 0.7 W

Power dissipation AC-3 .13W

Insulation resistance >10 m ohm

No overlap between NO and NC contacts - Space 1mm

No overlap between NO and NC contacts - Time >2ms

Main Contacts Data - Control Relays

Rated insulation voltage (IEC 947-1) 660V

Rated thermal current (UL 508) 10 amps

Contact Rating A600, Q600

Frequency limits 25-400 Hz

Impedance per pole 2.4 m ohm

No overlap between NO and NC contacts - Space 1.1mm

No overlap between NO and NC contacts - Time >2ms

Instantaneous Auxiliary Contact Data

Rated insulation voltage (IEC 947-1) 660V

Rated thermal current (UL 508) 10 amps

Contact Rating A600, Q600

Frequency limits 25-400 Hz

Impedance per pole 2.4 m ohm

Insulation resistance >10 m ohm

No overlap between NO and NC contacts - Space 1mm

No overlap between NO and NC contacts - Time >2ms

Overload Relay Auxiliary Contact Data

Rated insulation voltage (IEC 947-1) 660V

Rated thermal current (UL 508) 6 amps

Contact Rating B600, R300

Frequency limits 25-400 Hz

Control Circuit Ratings

120 Vac, 125 Vdc

Carry Continuous Make Momentary

Time Rating Amperes Amperes Break Amperes

A600 AC 10 60 6

B600 AC 5 30 3

Q600 DC 2.5 0.55 0.55

R300 DC 1.0 0.22 0.22

For other voltages, reference NEMA ICS 3-125 or contact your nearest GE Energy

Representative.

Control Circuit Data: Pickup/Dropout % Coil Voltage

Type Coil Pick-up Drop-out

AC Controlled 80%-110% 35%-55%

DC Controlled 80%-110% 20%-40%

PLC interface (1.2w) 80%-125% 20%-30%

PLC interface (2w) 70%-125% 20%-35%

C-2000

Opening/Closing Time

Making (on Energization) (ms) Breaking (on De-energization) (ms)

Type Coil Voltage NO Contact NC Contact NO Contact NC Contact

AC Controlled (ms) +10-15% 6-13 8-16 5-11 6-13

Nominal 7-12 8-16 6-10 6-13

DC Controlled (ms) +10-15% 22-36 9-12 18-27 5-7

Nominal 24-27 9-11 20-26 5-8

PLC Interface (1.2w) (ms) +25-20% 30-70 9-16 20-45 5-9

Nominal 25-45 9-16 25-35 5-9

PLC Interface (2w) (ms) +25-30% 20-50 9-16 18-35 5-9

Nominal 25-40 9-16 20-30 5-9

Maximum Operating Rate

Operations per Hour

No load 9000 OPS/H

AC1 and AC3 at rated power 1200 OPS/H

AC4 at rated power 300 OPS/H

Coil Consumption

Pick-up Pick-up Holding Holding Power Dissipation

Type Coil (Watts) (VA) (Watts) (VA) (Watts)

AC Controlled 26 4 1.4

DC Controlled 33

PLC Interface (1.2w) 1.2 1.2

PLC Interface (2w) 22

www.geindustrial.com Control Catalog 5-33

IEC Power Devices

Mini Contactors Technical Information

Rev. 4/16

Prices and data subject to

change without notice

Section 5

Operating Characteristics/Technical Data: Electronic Timer

For use with all AC- and DC-controlled mini contactors and control relays.

Time Setting 0.5-60 seconds (adjustable)

Reset Time <100 milliseconds

Repeatability ± 1 percent

Voltage Range (AC/DC) 24-240V

Voltage Operating Limits 80-110%

Ambient Operating Temperature -20°C to +55°C (-4°F to +131°F)

Ambient Storage Temperature -30°C to +80°C (-22°F to +176°F)

Voltage Drop 3 volts maximum

Load Current 10 mA minimum

Load (maximum) @ 20º C .9 amps

Load (maximum) @ 40º C .72 amps

Load (maximum) @ 60º C .55 amps

Leakage Current <5mA@240 volts

Performance Characteristics

Contactor Electrical Life Utilization Categories

Utilization categories are used to describe the type of motor load

and duty cycle. Life/Load curves are then used to estimate elec-

trical life of a specific controller.

The most common utilization categories are described below.

(Each category has full-load current ratings defined to meet IEC

standard requirements.)

—AC-1-noninductive or slightly inductive loads, e.g., resistance

furnaces.

—AC-2-starting of slip ring motors without plugging.

—AC-3-starting and stopping of squirrel-cage motors, i.e., this

utilization category is typical of the standard type of motor

duty encountered in most industrial applications.

—AC-4-starting of squirrel-cage motors in inching, plugging,

and reversing applications, i.e., this means continuous inch-

ing, plugging, and reversing.

—AC-11-control circuit contact characteristics.

Life/Load Curves

Life/Load curves are used to estimate contact electrical life

(millions of operations), based on rated operating current.

First, determine the appropriate utilization category for which the

contactor will be used. Select appropriate mini-contactor, based

on motor horsepower, voltage, and full-load current to meet

application needs. Estimated contact life (millions of operations)

can then be determined by locating the point of intersection on

the appropriate contactor curve of the rated operating current

and contact life axes. (Curves are valid for up to 600 volt, 600 Hz

operation.)

C-2000

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-34

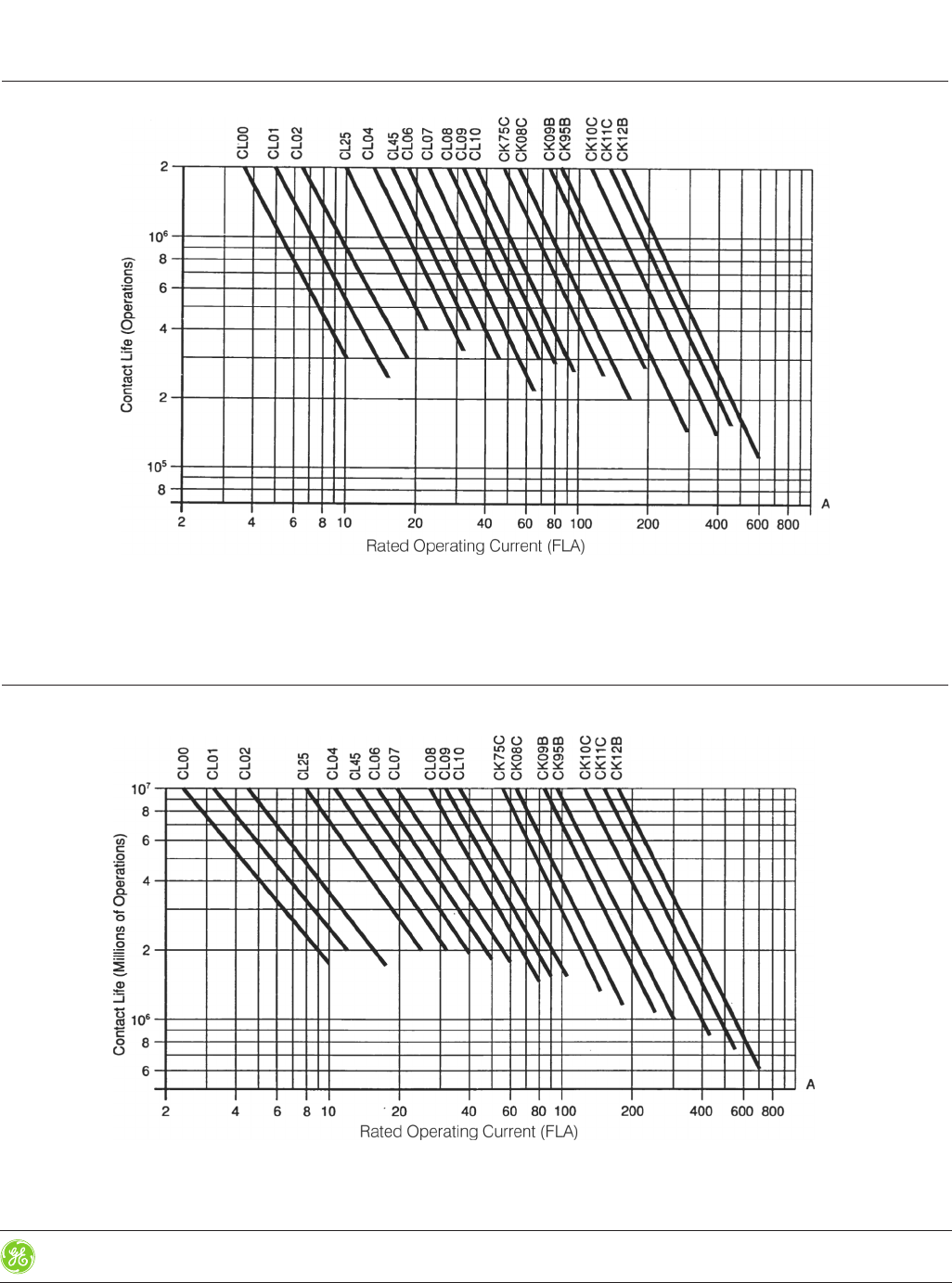

IEC Power Devices

Mini Contactors Application Information Section 5

C-2000

www.geindustrial.com Control Catalog 5-35

IEC Power Devices

Mini Contactors Application Information

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

Overload Relay Performance Curves

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-36

IEC Power Devices

Contactors & Starters Introduction Section 5

C-2000

Broad Line

A wide array of contactors, relays, accessories, enclosures, and

assembled starters give you greater design versatility.

Broad Features

C-2000 Control components are loaded with features that make

them easier to install, allow more flexible configurations, lower

inventory requirements, and make better use of panel space. And

their performance is second to none.

Broad Applications

C-2000 components conform to international standards (UL, cUL,

and IEC-947) and have dual (U.S./European) markings to ensure

global acceptance. A single nomenclature system allows simple

sourcing worldwide. AC coils (both 50 Hz and 60 Hz versions) and

DC coils are available for a wide range of voltages for flexibility.

For more information, refer to these other publications:

DEA-016 Promotional Brochure

DEP-070 Selection Guide

DET-034 Technical Information

www.geindustrial.com Control Catalog 5-37

IEC Power Devices

Contactors & Starters Selection Instructions

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

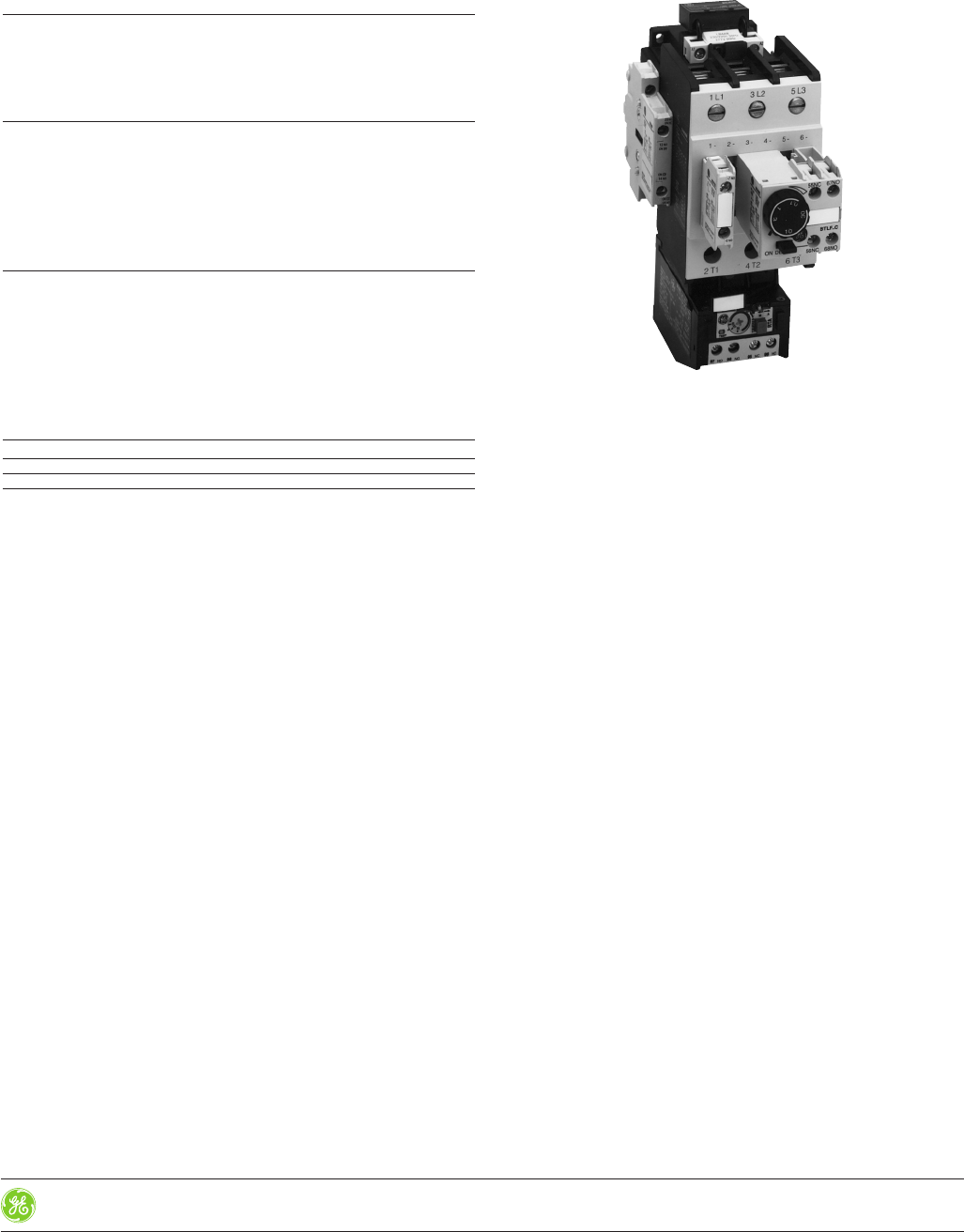

Components

The C-2000 Starters & Contactors line offers ordering flexibility.

Below are detailed instructions for ordering individual compo-

nents—contactors, overloads, control relays, and accessories.

Contactors

When the phase, horsepower, voltage, frequency, and full-load

amps have been established (assuming AC-3 motor duty

category1), use the following steps as a guide to ordering:

Step 1. Refer to contactor selection tables on pages 5-38 to 5-45.

Select the correct table based upon number of poles (3 or

4), nonreversing or reversing, and coil operation (ac or dc).

Step 2. Using the above motor characteristics, select the appro-

priate contactor product number.

Step 3. Select correct coil suffix digit or letter from corresponding

Coil Selection table.

Step 4. To complete product number, replace asterisk (*) or

crosshatch (#) with the selected coil suffix.

1If the motor duty is other than category AC-3, refer to the application life curves on

pages 5-78 to 5-80 for selection of contactor.

Overload Relays

Step 1. Using the Overload Relay selection tables on pages 5-54

to 5-56, select the correct Overload Relay based on the

following criteria:

Manual/Automatic with/without Stop or Manual Only

Class 10, 20, or Class 30

Contactor frame size

Motor full-load amps (Select the overload in which the

motor FLA falls within the overload current range.)

Step 2. Select necessary accessories from the Accessories

section, page 5-57.

Accessories

Select any required accessories from the Accessories section,

pages 5-46 to 5-50.

Enclosures

For field installation of an enclosed contactor or starter, select the

proper enclosure from the Enclosures section (pages 5-51 to 5-52)

based on the following criteria:

—Type of enclosure: NEMA 1, NEMA 12/3R, or NEMA 4

—Contactor frame size

Control Relays

Step 1. Select control relay from selection table on page 5-63.

Selection is based upon:

—Contact arrangement (number of normally open and

normally closed contacts)

—AC or DC coil controlled

Step 2. Select correct coil suffix symbol from corresponding Coil

Selection table.

Step 3. To complete product number, replace asterisk (*) with the

selected coil suffix.

Step 4. Select control relay accessories from Control Relay

Accessories section on pages 5-64 to 5-66.

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-38

IEC Power Devices

IEC Contactors Section 5

C-2000

Three and four poles contactors with electronic modules

150 to 780A (AC3) - 200 to 1000A (AC1)

Introduction

The focus of GE Industrial Solutions’ engineers when upgrading

the electronic module for CK was Reliability and Simplification.

They collected all field experience of the successful CK contactor

range to keep improving specifications and performance in the

most demanding applications for contactors.

Cover a greater range with less references. With only 4 coils the

new electronic module covers a range from 24V -30% up to 500V

+10% (AC 50/60Hz and DC). The 4 new coils cover the same

range that was previously done with 20. This means a reduction

in stock, easier management of inventory for distributors and

better service which will ensure increased availability to the

end customer. The electronic module has been designed to

support customer requests to perform successfully in the most

difficult applications.

24-60V (AC 50/60Hz and DC):

With special reinforce of the lower range (-30%) solving typical

application issues when using big contactors with 24V supply.

48-130V (AC 50/60Hz and DC):

Covers the most common voltages used in transportation

segment with only one contactor.

100-250V (AC 50/60Hz and DC):

This range replaces the most popular automation voltages;

110-120VAC, 125VDC (MV application) and 220-240VAC, allowing

OEM, Distributors and PB to optimize their stocks and service the

end customer.

250-500V (AC 50/60Hz and DC):

Typical voltage for Power Switching application. This contactor

helps OEMs in UPS, Data Centers and Power Quality applications

to standardize their machines to be sold worldwide.

www.geindustrial.com Control Catalog 5-39

IEC Power Devices

IEC Contactors

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

Three and four poles contactors with electronic modules

150 to 780A (AC3) - 200 to 1000A (AC1)

Application

The new electronic module redesign from GE provides much

better reliability versus any previous electronic modules or

pure mechanical systems. This will help customers to reduce

production shortages and keep maintenance downtimes to a

minimum. This new range will be the preferred solution for

Original Equipment Manufacturers because they can standardize

the Bill Of Materials of their machines to be used worldwide.

The CK contactor series with electronic module is the perfect fit

for OEMs working on Renewals (Wind, Solar, ATS, UPS), HVAC,

Marine, Medium Voltage, Oil & Gas and Transportation.

CK is approved UL, CCC and CE.

Features and Benefits

—Increases mechanical life of the contactor improving

reliability of end customer equipment

—Suitable for weak networks application by including a

protecting software to avoid chattering and contactor

coil burning

—Better performance in high vibration application; wind,

marine, transportation

—Increased contact pressure reduces resistance per phase

and thermal load

—Noise reduction even in hard environments with dust

and corrosion

—Transient voltage suppressor built-in

—Wider temperature range operation: -40º to +70ºC

—Application up to 3000m without derating

—Conversion kit for installed CK base with electronic module

—No dimensions change to facilitate exchange of products

—Energy efficiency: reduce on hold consumption

—Compliant with REACH and RoHS directives

cULus CE RINA Lloyd’s Bureau

Product Number Selection Instructions: See page 5-37

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-40

IEC Power Devices

IEC Contactors Section 5

C-2000

Nonreversing and Reversing

AC Controlled, 3-Pole

HP Ratings AC-3 Duty

5-75 Hp (460V) Nonreversing Standard Terminals

Maximum Current 1-Phase HP 1-Phase HP 3-Phase HP 3-Phase HP 3-Phase HP 3-Phase HP kW @ 50 Hz, Auxiliary List Price

@ 460 V (A) AC-3 @60 Hz, 115V @60 Hz, 230V @60 Hz, 200V @60 Hz, 230V @60 Hz, 460V @60 Hz, 575V 380/415V Contacts Product Number1GO-10C2

10A 0.5 1.5 3357.5 4 1NO CL00A310T* $86.00

13.8A 0.75 2337.5 10 5.5 1NO CL01A310T* $109.00

17.5A 13 5 5 10 15 7.5 1NO CL02A310T* $124.00

22A 1.5 357.5 15 15 11 1NO CL25A300T* $138.00

32A 25 10 10 20 25 16 1NO CL04A310M* $157.00

34A 35 10 10 25 25 18.5 1NO CL45A300M* $173.00

48A 3 7.5 15 15 30 40 22 1NO-1NC CL06A300M* $200.00

62A 5 10 20 20 40 50 30 1NO-1NC CL07A300M* $240.00

68A 5 15 20 25 50 60 37 1NO-1NC CL08A300M* $295.00

80A 7.5 15 25 30 60 75 45 1NO-1NC CL09A300M* $333.00

96A 10 20 30 40 75 75 55 1NO-1NC CL10A300M* $475.00

1To complete the contactor product number, replace * in the product number with the appropriate digit from the Coil Selection table.

5-75 Hp (460V) Reversing Standard Terminals

Maximum Current 1-Phase HP 1-Phase HP 3-Phase HP 3-Phase HP 3-Phase HP 3-Phase HP kW @ 50 Hz, Auxiliary List Price

@ 460 V (A) AC-3 @60 Hz, 115V @60 Hz, 230V @60 Hz, 200V @60 Hz, 230V @60 Hz, 460V @60 Hz, 575V 380/415V Contacts Product Number1GO-10C2

10A 0.5 1.5 3357.5 4 1NO LAR00A* $247.00

13.8A 0.75 2337.5 10 5.5 1NO LAR01A* $293.00

17.5A 13 5 5 10 15 7.5 1NO LAR02A* $323.00

22A 1.5 357.5 15 15 11 1NO LAR25A*2$351.00

32A 25 10 10 20 25 16 1NO LAR04A* $419.00

34A 35 10 10 25 25 18.5 1NO LAR45A*2$451.00

48A 3 7.5 15 15 30 40 22 1NO-1NC LAR06A*3$545.00

62A 5 10 20 20 40 50 30 1NO-1NC LAR07A*3$625.00

68A 5 15 20 25 50 60 37 1NO-1NC LAR08A*3$735.00

80A 7.5 15 25 30 60 75 45 1NO-1NC LAR09A*3$861.00

96A 10 20 30 40 75 75 55 1NO-1NC LAR10A*3$1145.00

1To complete the contactor product number, replace * in the product number with the appropriate digit from the Coil Selection table.

2Reversing contactors with prefixes LAR25 and LAR45 supplied with 1NO front-mounted holding interlock mounted on each contactor.

3Reversing contactors with prefixes LAR06, LAR07, LAR08, LAR09, and LAR10 supplied with 1NO and 1NC front-mounted auxiliary on each contactor.

t(Replace asterisk (*) in product number with coil product

number suffix.)

CL Contactor Coil Selection Table

AC Coil Voltages

50/60Hz 24 42 48 110-115 220-230 240

50 Hz 127 380-400 500

60Hz 120 208 277 480 600

Product Number Suffix 129 J K L 6 N7 U Y

Note: Additional coils available, see page 5-50.

www.geindustrial.com Control Catalog 5-41

IEC Power Devices

IEC Contactors

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

Nonreversing and Reversing

DC Controlled, 3-Pole

HP Ratings AC-3 Duty

5-25 Hp (460V) Nonreversing Standard Terminals

Maximum Current 1-Phase HP 1-Phase HP 3-Phase HP 3-Phase HP 3-Phase HP 3-Phase HP kW @ 50 Hz, Auxiliary List Price

@ 460 V (A) AC-3 @60 Hz, 115V @60 Hz, 230V @60 Hz, 200V @60 Hz, 230V @60 Hz, 460V @60 Hz, 575V 380/415V Contacts Product Number1GO-10C2

10A 0.5 1.5 3357.5 4 1NO CL00D310T# $109.00

13.8A 0.75 2337.5 10 5.5 1NO CL01D310T# $133.00

17.5A 13 5 5 10 15 7.5 1NO CL02D310T# $147.00

22A 1.5 357.5 15 15 11 1NO CL25D300T# $166.00

32A 25 10 10 20 25 16 1NO CL04D310M# $195.00

34A 35 10 10 25 25 18.5 1NO CL45D300M# $252.00

1To complete the contactor product number, replace the # in the product number with the appropriate digit from the Coil Selection table.

5-25 Hp (460V) Reversing2Standard Terminals

Maximum Current 1-Phase HP 1-Phase HP 3-Phase HP 3-Phase HP 3-Phase HP 3-Phase HP kW @ 50 Hz, Auxiliary List Price

@ 460 V (A) AC-3 @60 Hz, 115V @60 Hz, 230V @60 Hz, 200V @60 Hz, 230V @60 Hz, 460V @60 Hz, 575V 380/415V Contacts Product Number1GO-10C2

10A 0.5 1.5 3357.5 4 1NO LDR00A# $290.00

13.8A 0.75 2337.5 10 5.5 1NO LDR01A# $337.00

17.5A 13 5 5 10 15 7.5 1NO LDR02A# $366.00

22A 1.5 357.5 15 15 11 1NO LDR25A#3$399.00

32A 25 10 10 20 25 16 1NO LDR04A# $495.00

34A 35 10 10 25 25 18.5 1NO LDR45A#3$609.00

1To complete the contactor product number, replace the # in the product number with the appropriate digit from the Coil Selection table.

2Reversing contactor consists of two (2) contactors, a mechanical interlock (BEL02) with built-in NC cross electrical contact, power wiring and cross electrical wiring and

holding interlock.

3Reversing contactors with prefixes LDR25A and LDR45A supplied with 1NO front-mounted holding interlock mounted on each contactor.

(Replace crosshatch (#) in product number with appropriate digit

from table below.)

CL Contactors Coil Selection Table

(CL00, CL01, CL02, CL25, CL04, CL45)

DC Voltage #Coil Suffix

12 B

24 D

48 G

60 H

110 J

125 K

220 N

250 T

Note: Additional coils available, see page 5-50.

DC Wide Range Voltage #Coil Suffix

24 WD

33 WE

48 WG

72 WI

110 WJ

Product Number Selection Instructions: See page 5-37

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-42

IEC Power Devices

IEC Contactors Section 5

(Replace dagger (†) in product number with appropriate digit from

table below.)

Coil Selection Table

(CL06, CL07, CL08, CL09, CL10)

AC/DC Voltage †Coil Suffix

24-28 D

110-127 J

220-250 N

Wide Range AC/DC Voltage †Coil Suffix

72 WH

110 WJ

C-2000

Nonreversing and Reversing

AC/DC Controlled, 3-Pole

HP Ratings AC-3 Duty

30-75 Hp (460V) Nonreversing Standard Terminals

Maximum Current 1-Phase HP 1-Phase HP 3-Phase HP 3-Phase HP 3-Phase HP 3-Phase HP kW @ 50 Hz, Auxiliary List Price

@ 460 V (A) AC-3 @60 Hz, 115V @60 Hz, 230V @60 Hz, 200V @60 Hz, 230V @60 Hz, 460V @60 Hz, 575V 380/415V Contacts Product Number1GO-10C2

48A 3 7.5 15 15 30 40 22 1NO 1NC CL06E300M†2$265.00

62A 5 10 20 20 40 50 30 1NO 1NC CL07E300M†2$279.00

68A 5 15 20 25 50 60 37 1NO 1NC CL08E300M†2$364.00

80A 7.5 15 25 30 60 75 45 1NO 1NC CL09E300M†2$404.00

96A 10 20 30 40 75 75 55 1NO 1NC CL10E300M†2$520.00

1To complete the contactor product number, replace the † in the product number with the appropriate digit from the Coil Selection table.

2Nonreversing: A 1NO and 1NC front-mounted auxiliary contact block are supplied (unassembled) with contactors that begin with CL06, CL07, CL08, CL09 and CL10.

30-75 Hp (460V) Reversing Standard Terminals

Maximum Current 1-Phase HP 1-Phase HP 3-Phase HP 3-Phase HP 3-Phase HP 3-Phase HP kW @ 50 Hz, Auxiliary List Price

@ 460 V (A) AC-3 @60 Hz, 115V @60 Hz, 230V @60 Hz, 200V @60 Hz, 230V @60 Hz, 460V @60 Hz, 575V 380/415V Contacts Product Number1GO-10C2

48A 3 7.5 15 15 30 40 22 1NO 1NC LER06A†3$675.00

62A 5 10 20 20 40 50 30 1NO 1NC LER07A†3$703.00

68A 5 15 20 25 50 60 37 1NO 1NC LER08A†3$873.00

80A 7.5 15 25 30 60 75 45 1NO 1NC LER09A†3$1003.00

96A 10 20 30 40 75 75 55 1NO 1NC LER10A†3$1235.00

1To complete the contactor product number, replace the † in the product number with the appropriate digit from the Coil Selection table.

3Reversing: Reversing contactors with prefixes LER06, LER07, LER08, LER09, and LER10 supplied with 1NO and 1NC front-mounted auxiliary on each contactor.

www.geindustrial.com Control Catalog 5-43

IEC Power Devices

IEC Contactors

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

Nonreversing and Reversing

AC/DC Controlled, 3-Pole

HP Ratings AC-3 Duty

Three Pole Contactors with Electronic Module - Nonreversing

Electrical

Max. oper.current Power AC3 endurance Control circuit voltage: AC (50/60Hz)/DC

Noninductive Motors 220V 380V 415V 440V 500V

loads <440V,3 ~ 50/60Hz 230V 400V 440V Cat.

AC1 AC3 kW kW kW kW kW AC3 24-60 V 48-130 V 100-250 V 250-500 V List Price

A A HP HP HP HP HP Operations Product Number Product Number Product Number Product Number GO-10C2

250 150 45 75 80 80 100 1.7x106CK75CE311W24-60 CK75CE311W48-130 CK75CE311W100-250 CK75CE311W250-500 $725.00

60 100 108 108 135

250 185 55 90 100 100 110 1.2x106CK08CE311W24-60 CK08CE311W48-130 CK08CE311W100-250 CK08CE311W250-500 $945.00

75 125 135 135 150

315 205 65 110 125 125 132 1.7x106CK85BE311W24-60 CK85BE311W48-130 CK85BE311W100-250 CK85BE311W250-500 $1115.00

88 150 170 170 180

315 250 75 132 132 132 160 1.5x106CK09BE311W24-60 CK09BE311W48-130 CK09BE311W100-250 CK09BE311W250-500 $1325.00

100 180 180 180 220

450 309 90 160 160 185 200 1.1x106CK95BE311W24-60 CK95BE311W48-130 CK95BE311W100-250 CK95BE311W250-500 $1800.00

125 220 220 250 270

600 420 125 220 230 230 300 1x106CK10CE311W24-60 CK10CE311W48-130 CK10CE311W100-250 CK10CE311W250-500 $2700.00

170 300 312 312 405

700 550 160 280 315 315 400 0.8x106CK11CE311W24-60 CK11CE311W48-130 CK11CE311W100-250 CK11CE311W250-500 $4200.00

220 380 425 425 540

1000 700 220 375 400 425 480 0.7x106CK12BE311W24-60 CK12BE311W48-130 CK12BE311W100-250 CK12BE311W250-500 $5700.00

300 510 540 580 650

100-500 Hp (460V) Reversing1Bus Bar Terminals without Lugs

3-Phase HP

Maximum Current @60 Hz, @60 Hz, @60 Hz, @60 Hz, kW @ 50 Hz, Auxiliary 24-60 V 48-130 V 100-250 V 250-500 V List Price

@ 460 V (A) AC-3 200V 230V 460V 575V 380/415V Contacts2Product Number Product Number Product Number Product Number GO-10C2

140A 40 50 100 125 75 1NO-1NC KAR75CD KAR75CF KAR75CJ KAR75CY $2035.00

156A 50 60 125 125 90 1NO-1NC KAR08CD KAR08CF KAR08CJ KAR08CY $2475.00

192A 60 75 150 150 132 1NO-1NC KAR09BD KAR09BF KAR09BJ KAR09BY $3105.00

302A 100 100 250 300 160 1NO-1NC KAR95BD KAR95BF KAR95BJ KAR95BY $4165.00

398A 125 150 300 400 220 1NO-1NC KAR10CD KAR10CF KAR10CJ KAR10CY $6365.00

398A 125 150 300 400 220 1NO-1NC KAR10BD KAR10BF KAR10BJ KAR10BY $6905.00

480A 150 200 400 500 280 1NO-1NC KAR11CD KAR11CF KAR11CJ KAR11CY $9365.00

480A 150 200 400 500 280 1NO-1NC KAR11BD KAR11BF KAR11BJ KAR11BY $10205.00

602A 200 250 500 600 375 1NO-1NC KAR12BD KAR12BF KAR12BJ KAR12BY $12665.00

1Reversing contactor consists of two (2) contactors, a mechanical interlock, baseplate, power bus bars, cross electrical wiring, and 1NO/1NC side-mounted auxiliary contact

for cross electrical and holding interlock. Completely assembled. Note: KAR09 and KAR95 baseplate not suitable for starter assembly.

2NO-1NC side auxiliary contact shipped unassembled (A600, Q600).

Product Number Selection Instructions: See page 5-37

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-44

IEC Power Devices

IEC Contactors Section 5

C-2000

Nonreversing

AC, DC, AC/DC Controlled, 4-Pole

HP Ratings AC-3 Duty

7.5-60 Hp (460 V) Standard Terminals AC Controlled

Maximum Current 1-Phase HP 1-Phase HP 3-Phase HP 3-Phase HP 3-Phase HP 3-Phase HP Auxiliary Coil Contact List Price

@ 460 V (A) AC-3 @60 Hz, 115V @60 Hz, 230V @60 Hz, 200V @60 Hz, 230V @60 Hz, 460V @60 Hz, 575V Contacts Type Configuration Product Number1GO-10C2

13.8A 0.75 23 3 7.5 10 None AC 4NO CL01A400T* $109.00

13.8A 0.75 23 3 7.5 10 None AC 2NO-2NC CL01AB00T* $109.00

17.5A 13 5 5 10 15 None AC 4NO CL02A400T* $143.00

17.5A 13 5 5 10 15 None AC 2NO-2NC CL02AB00T* $143.00

25A 237.5 7.5 15 20 None AC 4NO CL03A400M* $176.00

25A 237.5 7.5 15 20 None AC 2NO-2NC CL03AB00M* $176.00

32A 2510 10 20 25 None AC 4NO CL04A400M* $225.00

32A 2510 10 20 25 None AC 2NO-2NC CL04AB00M* $225.00

42A 3 7.5 10 15 30 30 None AC 4NO CL05A400M* $340.00

42A 3 7.5 10 15 30 30 None AC 2NO-2NC CL05AB00M* $340.00

62A 5 10 20 20 40 50 None AC 4NO CL07A400M* $425.00

62A 5 10 20 20 40 50 None AC 2NO-2NC CL07AB00M* $425.00

68A 5 10 20 25 50 60 None AC 2NO-2NC CL08AB00M* $447.00

80A 7.5 15 25 30 60 75 None AC 4NO CL09A400M* $475.00

(Replace asterisk (*) in product number with appropriate digit from table below.)

CL Contactor Coils

AC Coil Voltages

50/60Hz 24 42 48 110 220-230 240

50 Hz 127 380-400 500

60Hz 120 208 277 480 600

Product Number Suffix 12 9JK L6N 7U Y

Additional Coils Available, see page 5-50.

7.5-20 Hp (460 V) Standard Terminals DC Controlled

Maximum Current 1-Phase HP 1-Phase HP 3-Phase HP 3-Phase HP 3-Phase HP 3-Phase HP Auxiliary Coil Contact List Price

@ 460 V (A) AC-3 @60 Hz, 115V @60 Hz, 230V @60 Hz, 200V @60 Hz, 230V @60 Hz, 460V @60 Hz, 575V Contacts Type Configuration Product Number1GO-10C2

13.8A 0.75 23 3 7.5 10 None DC 4NO CL01D400T# $132.00

13.8A 0.75 23 3 7.5 10 None DC 2NO-2NC CL01DB00T# $132.00

17.5A 13 5 5 10 15 None DC 4NO CL02D400T# $166.00

17.5A 13 5 5 10 15 None DC 2NO-2NC CL02DB00T# $166.00

25A 237.5 7.5 15 20 None DC 4NO CL03D400M# $232.00

25A 237.5 7.5 15 20 None DC 2NO-2NC CL03DB00M# $232.00

32A 2510 10 20 25 None DC 4NO CL04D400M# $263.00

32A 2510 10 20 25 None DC 2NO-2NC CL04DB00M# $263.00

(Replace crosshatch (#) in product number with appropriate digit from table below.)

CL Contactors Coil Selection Table

DC Voltage #Coil Suffix

12 B

24 D

48 G

60 H

110 J

125 K

220 N

250 T

30-60 Hp (460 V) Standard Terminals AC/DC Controlled

Maximum Current 1-Phase HP 1-Phase HP 3-Phase HP 3-Phase HP 3-Phase HP 3-Phase HP Auxiliary Coil Contact List Price

@ 460 V (A) AC-3 @60 Hz, 115V @60 Hz, 230V @60 Hz, 200V @60 Hz, 230V @60 Hz, 460V @60 Hz, 575V Contacts Type Configuration Product Number1GO-10C2

48A 3 7.5 10 15 30 30 None AC/DC 4NO CL05E400M† $405.00

48A 3 7.5 10 15 30 30 None AC/DC 2NO-2NC CL05EB00M† $405.00

62A 5 10 20 20 40 50 None AC/DC 4NO CL07E400M† $484.00

62A 5 10 20 20 40 50 None AC/DC 2NO-2NC CL07EB00M† $484.00

68A 5 10 20 25 50 60 None AC/DC 2NO-2NC CL08EB00M† $516.00

80A 7.5 15 25 30 60 75 None AC/DC 4NO CL09E400M† $544.00

(Replace dagger (†) in product number with appropriate digit from table below.)

Coil Selection Table

AC/DC Voltage †Coil Suffix

24-28 D

110-127 J

220-250 N

Wide Range AC/DC Voltage †Coil Suffix

72 WH

110 WJ

1To complete the contactor product number, replace the *, # or † in the product number

with the appropriate digit from the Coil Selection table. Auxiliary contact shipped unassembled.

DC Wide Range Voltage #Coil Suffix

24 WD

33 WE

48 WG

72 WI

110 WJ

www.geindustrial.com Control Catalog 5-45

IEC Power Devices

IEC Contactors

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

Nonreversing

AC/DC Controlled, 4-Pole

HP Ratings AC-3 Duty

Four Pole Contactors with Electronic Module

Electrical

Max. oper.current Power endurance Control circuit: Alternating current

Noninductive AC3 AC1

loads 380V 220V 380V 415V 440V 500V Cat.

AC1 400V 230V 400V AC3 24-60V 48-130V 100-250V 250-500V List Price

A kW A kW kW kW kW kW Operations Product No. Product No. Product No. Product No. GO-10C2

200 55 105 76 131 143 151 173 1x106CK07BE411W24-60 CK07BE411W48-130 CK07BE411W100-250 CK07BE411W250-500 $920.00

325 100 185 123 214 233 247 281 0.6x106CK08BE411W24-60 CK08BE411W48-130 CK08BE411W100-250 CK08BE411W250-500 $1375.00

400 132 250 152 263 287 304 346 0.6x106CK09BE411W24-60 CK09BE411W48-130 CK09BE411W100-250 CK09BE411W250-500 $1750.00

500 160 309 191 329 359 380 415 0.6x106CK95BE411W24-60 CK95BE411W48-130 CK95BE411W100-250 CK95BE411W250-500 $2250.00

600 220 408 228 395 431 456 519 0.5x106CK10CE411W24-60 CK10CE411W48-130 CK10CE411W100-250 CK10CE411W250-500 $3520.00

700 280 530 266 460 503 533 606 0.4x106CK11CE411W24-60 CK11CE411W48-130 CK11CE411W100-250 CK11CE411W250-500 $5250.00

1000 375 680 381 658 719 762 866 0.4x106CK12BE411W24-60 CK12BE411W48-130 CK12BE411W100-250 CK12BE411W250-500 $6900.00

Product Number Selection Instructions: See page 5-37

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-46

IEC Power Devices

IEC Contactors Accessories Section 5

C-2000

Front-Mount Auxiliary Contact Blocks

Front-mount auxiliary contact blocks clip onto front face of contactor.

Contact Rating: A600, Q600. List Price

For Use With Terminal Type Contact Configuration Product Number GO-10C2

CL Contactors Standard 1NO BCLF10 $11.00

CL Contactors Standard 1NC BCLF01 $11.00

CL Contactors Standard 1NO BCLF10G1$15.00

CL Contactors Standard 1NC BCLF01G1$15.00

CL Contactors Ring 1NO BCRF10 $13.00

CL Contactors Ring 1NC BCRF01 $13.00

1Overlapping contacts.

Side-Mount Auxiliary Contact Blocks

Side-mount auxiliary contact blocks can be mounted on either left or right sides of con-

tactor. Positive displacement contacts are designed to prevent simultaneous closing of

NO and NC contacts to avoid overlapping between opposing functions. Contact Rating:

A600, Q600.

List Price

For Use With Terminal Type Type Contact Configuration Product Number GO-10C2

CL/CK Contactors Standard Base Block 1NO-1NC BCLL11 $19.00

CL/CK Contactors Standard Base Block 1NO-1NC BCLL11-K2$19.00

CL/CK Contactors Standard Base Block 2NO BCLL20 $19.00

CL/CK Contactors Standard Adder Block 1NO-1NC BRLL11 $19.00

CL/CK Contactors Standard Adder Block 2NO BRLL20 $19.00

CL/CK Contactors Standard Adder Block 2NC BRLL02 $19.00

2For high shock/vibration environments.

Mechanical Interlock

Mechanical interlocks, used for horizontal interlocking of two contactors mounted side-

by-side, prevent the closing of one contactor (as long as the other remains closed).

BEL02 includes two built-in NC contacts. Contact Rating: A600, Q600.

List Price

For Use With Product Number GO-10C2

5-75 Hp contactors (All CL Contactors) BELA02 $35.00

100-500 Hp contactors (All CK Contactors) BEKH $65.00

Pneumatic Timer

Pneumatic timers are adjustable time-delayed auxiliary contacts. They come equipped

with two time-delayed contacts: 1NO and 1NC, electrically separated. Setting is scaled

over a 350° rotation by means of a knurled knob with timing guide marks. To mount a

pneumatic timer, simply clip it on front face of contactor. Contact Rating: A600, Q600.

Contact List Price

For Use With Terminal Type Type Time range Configuration Product Number GO-10C2

CL Contactors Standard Time Delay On 1-30 sec 1NO-1NC BTLF30C $120.00

CL Contactors Standard Time Delay On 1-60 sec 1NO-1NC BTLF60C $120.00

CL Contactors Standard Time Delay Off 1-30 sec 1NO-1NC BTLF30D $120.00

CL Contactors Standard Time Delay Off 1-60 sec 1NO-1NC BTLF60D $120.00

CL Contactors Ring Time Delay On 1-30 sec 1NO-1NC BTRF30C $124.00

CL Contactors Ring Time Delay On 1-60 sec 1NO-1NC BTRF60C $124.00

CL Contactors Ring Time Delay Off 1-30 sec 1NO-1NC BTRF30D $124.00

CL Contactors Ring Time Delay Off 1-60 sec 1NO-1NC BTRF60D $124.00

Electronic Timers

Time-on delay and time-off delay modules for sequencing control of contactors. They

deliver high repeatability, ±3% in ambient temperatures from 32° to 104°F. A red LED

provides indication during time-delay operation. List Price

For Use With Type Time-Delay Range Product Number GO-10C2

CL00-CL10 with ac coils 24-250 V On delay 0.1-2 s BETL02C $75.00

CL00-CL10 with dc coils 24-250 V

CL00-CL10 with ac coils 24-250 V On delay 1.5-45 s BETL45C $75.00

CL00-CL10 with dc coils 24-250 V

CL00-CL10 with ac coils 24-250 V Off delay 0.1-2 s BETL02D $85.00

CL00-CL10 with dc coils 24-250 V

CL00-CL10 with ac coils 24-250 V Off delay 1.5-45 s BETL45D $85.00

CL00-CL10 with dc coils 24-250 V

Mechanical Interlock

Front-Mounted Block

BCLF10/BCLF01/BCLF10G/BCLF01G

Side-Mounted Block

BRLL11/BRLL20

Pneumatic Timer

Electronic Timer

BTLF30C/BTLF60C BTLF30D/BTLF60D

BCRF10/BCRF01

BTRF30C/BTRF60C/BTRF30D/BTRF60D

www.geindustrial.com Control Catalog 5-47

IEC Power Devices

IEC Contactors Accessories

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

Surge Suppressor

For suppression of disturbances in circuit voltage occurring upon opening of the contac-

tor. Mounts directly on the top of the coil.

Note: Surge suppression is built into CK electronic coil module.

List Price

For Use With Surge Suppressor Type Voltage Product Number GO-10C2

CL00, CL01, CL02, CL25, CL04, CL45 RC 24-48 VAC BSLR2G $24.00

CL00, CL01, CL02, CL25, CL04, CL45 RC 50-127 VAC BSLR2K $24.00

CL00, CL01, CL02, CL25, CL04, CL45 RC 130-240 VAC BSLR2R $24.00

CL06, CL07, CL08, CL09, CL10 RC 24-48 VAC BSLR3G $24.00

CL06, CL07, CL08, CL09, CL10 RC 50-127 VAC BSLR3K $24.00

CL06, CL07, CL08, CL09, CL10 RC 130-240 VAC BSLR3R $24.00

All CL contactors Diode 12-600 VDC BSLDZ $24.00

All CL contactors Varistor 24-48 VAC, DC BSLV3G $24.00

All CL contactors Varistor 50-127 VAC, DC BSLV3K $24.00

All CL contactors Varistor 130-250 VAC, DC BSLV3R $24.00

All CL contactors Varistor 380-500 VAC, DC BSLV3U $32.00

CK75CE Varistor 250-500 VAC/DC BSLV4U $32.00

CK08CE-CK12BE Varistor 250-500 VAC/DC BSLV5U $35.00

Mechanical Latch Block

Mechanical latch block is used to convert a standard contactor into a latched contactor.

Easy to mount, it clips onto front face of contactor. Contact Rating: A600, Q600.

List Price

For Use With Voltage Application Release Voltage Range Product Number GO-10C2

All CL Contactors 50/60 Hz and DC 24-32 RMLFD $70.00

All CL Contactors 50/60 Hz and DC 42-48 RMLFG $70.00

All CL Contactors 50/60 Hz and DC 110-125 RMLFJ $70.00

All CL Contactors 50/60 Hz and DC 208-277 RMLFN $70.00

All CL Contactors 50/60 Hz and DC 380-480 RMLFU $70.00

All CL Contactors 50/60 Hz and DC 500-600 RMLFY $70.00

Unlatching coil is rated for intermittent duty. The latch block features an integral coil contact to clear the circuit

after unlatching.

Mechanical Latch Block

Surge Suppressor

A1+

BSLR _ _RC

BSLDZ Diode

BLSV_ _Varistor

RMLF

References

Instructions

GEH-5517 Amplifier CLXA01

Product Number Selection Instructions: See page 5-37

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-48

IEC Power Devices

IEC Contactors Accessories Section 5

C-2000

Starter Mounting Base

For use with overload requiring jumpers. List Price

For Use With Overload Product Number GO-10C2

CK08, CK09, CK95 contactors RT4, RT4L CKXB01 $40.00

Overload Jumpers

Overload jumpers allow an overload to be mounted to a contactor. Each product

number

represents a set of three overload jumpers.

CKXJ02 consists of three insulated bus bar straps. Overloads and contactors are panel

mounted.

CKXJ10/CKXJ11 consist of three insulated bus bar straps, mounting brackets and

mounting bracket hardware.

List Price

For Use With Overload Packing Quantity (No. Per Set) Product Number GO-10C2

CK09B, CK95B contactors RT4 3 CKXJ021$50.00

CK10C, CK11C contactors RT5 3 CKXJ10 $60.00

CK10B, 11B, 12B contactors RT5 3 CKXJ11 $60.00

1CK95B uses 2 straps per terminal (2x CKXJ02) above 192 Amps.

Reversing Wiring Kits

These kits provide interconnecting power wires for 3-phase squirrel-cage reversing

contactors.

List Price

For Use With Product Number GO-10C2

CL00, CL01, CL02 contactors CLXC01 $18.00

CL25 contactors CLXC11 $20.00

CL04 contactors CLXC21 $30.00

CL45 contactors CLXC31 $32.00

CL06, CL07, CL08 contactors CLXC41 $48.00

CL09, CL10 contactors CLXC51 $60.00

Reversing Bus Bar Kits

Connection set for main power poles for assembly of reversing contactors.

Note: The CKXC01, CKXC04, CKXC10, and CKCX11 are universal reversing contactor and

starter bus bar kits consisting of three (3) line side and three (3) load side insulated bus

bars plus six (6) power terminal extenders with bolts and hardware. When assembling

reversing starters only three (3) power terminal extenders are required. Three (3) load

side terminal extenders are replaced by overload connection straps purchased sepa-

rately.

List Price

For Use With Product Number GO-10C2

CK75C, CK08C contactors CKXC04 $105.00

CK09B, CK95B contactors CKXC01 $125.00

CK10C, CK11C contactors CKXC10 $195.00

CK12B contactors CKXC11 $205.00

Starter Mounting Base

Overload Jumper

Reversing Wiring Kit

Reversing Bus Bar Kit

www.geindustrial.com Control Catalog 5-49

IEC Power Devices

IEC Contactors Accessories

Rev. 4/16

Prices and data subject to

change without notice

Section 5

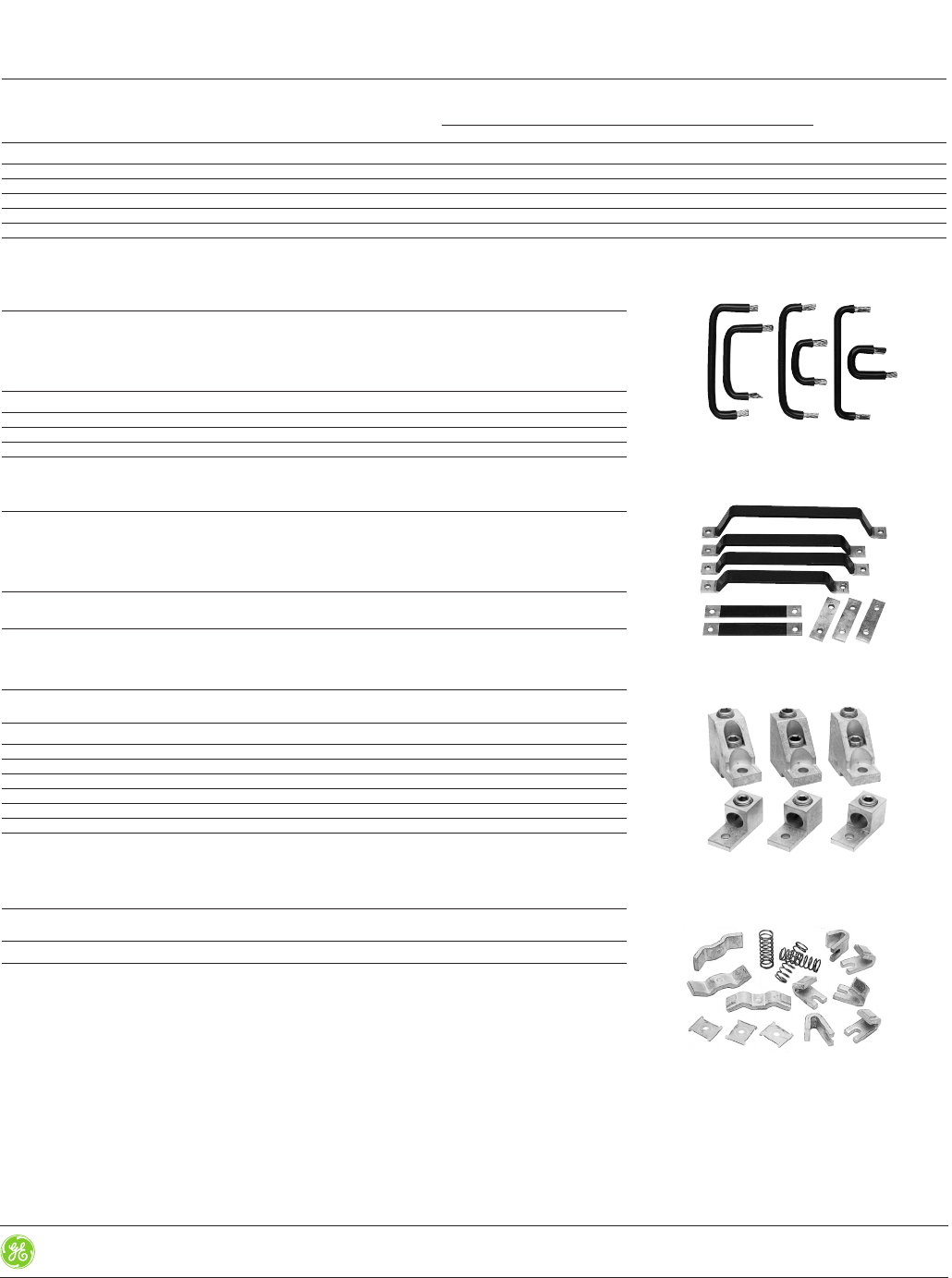

Wye-Delta Bus Bar Kits

Connection set for main power poles for assembling wye-delta starters. Includes straps

for connection to overload relay.

List Price

For Use With Product Number GO-10C2

CK75C, CK08C contactors, with RT3 overload CKXC05 $150.00

CK09B, CK95B contactors, with RT4 overload CKXC03 $180.00

CK10C, CK11C contactors, with RT5 overload CKXC13 $255.00

CK10B, CK11B, CK12B contactors, with RT5 overload CKXC12 $295.00

Lugs

Connector lugs with anti-turn feature. Suitable for copper wire only. Each lug kit contains

three lugs.

List Price

For Use With Wire Size Product Number GO-10C2

CK10, CK11, CK12 contactors 6-500 kcmil 2/0-600 kcmil CKX01 $80.00

w/wo RT5 Overload (2 wire lug)

Contact Sets

List Price

For Use With Packing Quantity (No. of Contact Sets) Contact Configuration Product Number GO-10C2

CK75C contactors 3 NO V31175CA $242.00

CK08C contactors 3 NO V31108CA $380.00

CK09B, CK08B contactors 3 NO V31109BA $450.00

CK95B contactors 3 NO V31195BA $620.00

CK10C contactors 3 NO V31110CA $900.00

CK11C contactors 3 NO V31111CA $1300.00

CK12B, CK10B, CK11B contactors 3 NO V31112BA $1925.00

Each set consists of 2 fixed contacts, 1 moving contact, and accessory parts.

Pole Terminal Protection

List Price

For Use With Product Number GO-10C2

CK75 - CK08 PTPCK75 $120.00

Wye-Delta Wiring Kit

Wye-Delta Bus Bar Kit

Lugs

C-2000

Wye-Delta Wiring Kits

Wiring kit consists of incoming terminal block and power wires.

Motor Hp - 60 Hz, Three-Phase List Price

Delta Contactor M1 Delta Contactor M2 Wye Contactor S1 Product Number 200-208 230 460 575 GO-10C2

CL01, CL02 CL01, CL02 CL00, CL01 CLXC02 ––15 20 $58.00

CL25 CL25 CL01 CLXC12 ––25 25 $63.00

CL04 CL04 CL04 CLXC22 15 20 40 50 $63.00

CL06 CL06 CL04 CLXC42 25 30 60 75 $125.00

CL07 CL07 CL06 CLXC43 30 40 75 100 $125.00

CL09, CL10 CL09, CL10 CL07 CLXC52 40, 60 50, 60 100, 125 125 $160.00

Contact Set

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-50

IEC Power Devices

IEC Contactor Coils Section 5

Product Number Selection Instructions: See page 5-37

C-2000

AC Coils

List Price

For Use With Coil Frequency Product Number GO-10C2

CL00, CL01, CL02, CL25 contactors AC LB1A* $24.00

CL04, CL45 contactors AC LB3A* $33.00

CL06, CL07, CL08, CL09, CL10 contactors AC LB4A* $38.00

AC Voltage Selection

AC Coil Voltages

50/60Hz 24 42 48 110-115 220-230 240

50 Hz 127 380-400 500

60Hz 120 208 277 480 600

Product Number Suffix 12 9 J K L 6 N 7 U Y

DC Coils

List Price

For Use With Coil Frequency Product Number GO-10C2

CL00, CL01, CL02, CL25 contactors DC LB1D# $36.00

CL04, CL45 contactors DC LB3D# $50.00

DC Voltage Selection

DC Voltage #Coil Suffix

12 B

24 D

48 G

60 H

110 J

125 K

220 N

250 T

Note: Additional coils available, see page 5-50.

DC Wide Range Voltage Selection

DC Wide Range Voltage #Coil Suffix

24 WD

33 WE

48 WG

72 WI

110 WJ

To complete coil product number, replace the *, or # with the appropriate “Designation Letter/Digit” (from AC

Voltage Selection and DC Voltage Selection tables above) corresponding to the voltage and frequency of the

control circuit.

Special order coils (shaded in gray):

Minimum order, LB1A*: 20 units; all others: 10 units

Coil

Conversion Kit: Electronic Module and Coil

W24-60 List Price W48-130 List Price W100-250 List Price W250-500 List Price

Product Number GO-10C2 Product Number GO-10C2 Product Number GO-10C2 Product Number GO-10C2

CK75CE311 KKIT4E24-60 $472.00 KKIT4E48-130 $553.00 KKIT4E100-250 $650.00 KKIT4E250-500 $718.00

CK08CE311 KKIT4E24-60 $472.00 KKIT4E48-130 $553.00 KKIT4E100-250 $650.00 KKIT4E250-500 $718.00

CK85BE311 KKIT5E24-60 $472.00 KKIT5E48-130 $553.00 KKIT5E100-250 $650.00 KKIT5E250-500 $718.00

3 poles CK09BE311 KKIT5E24-60 $472.00 KKIT5E48-130 $553.00 KKIT5E100-250 $650.00 KKIT5E250-500 $718.00

CK95BE311 KKIT5E24-60 $472.00 KKIT5E48-130 $553.00 KKIT5E100-250 $650.00 KKIT5E250-500 $718.00

CK10CE311 KKIT7E24-60 $472.00 KKIT7E48-130 $553.00 KKIT7E100-250 $650.00 KKIT7E250-500 $718.00

CK11CE311 KKIT7E24-60 $472.00 KKIT7E48-130 $553.00 KKIT7E100-250 $650.00 KKIT7E250-500 $718.00

CK12BE311 KKIT8E24-60 $472.00 KKIT8E48-130 $553.00 KKIT8E100-250 $650.00 KKIT8E250-500 $718.00

CK07BE411 KKIT5E24-60 $472.00 KKIT5E48-130 $553.00 KKIT5E100-250 $650.00 KKIT5E250-500 $718.00

CK08BE411 KKIT8E24-60 $472.00 KKIT8E48-130 $553.00 KKIT8E100-250 $650.00 KKIT8E250-500 $718.00

CK09BE411 KKIT8E24-60 $472.00 KKIT8E48-130 $553.00 KKIT8E100-250 $650.00 KKIT8E250-500 $718.00

4 poles CK95BE411 KKIT8E24-60 $472.00 KKIT8E48-130 $553.00 KKIT8E100-250 $650.00 KKIT8E250-500 $718.00

CK10CE411 KKIT7E24-60 $472.00 KKIT7E48-130 $553.00 KKIT7E100-250 $650.00 KKIT7E250-500 $718.00

CK11CE411 KKIT7E24-60 $472.00 KKIT7E48-130 $553.00 KKIT7E100-250 $650.00 KKIT7E250-500 $718.00

CK12BE411 KKIT8E24-60 $472.00 KKIT8E48-130 $553.00 KKIT8E100-250 $650.00 KKIT8E250-500 $718.00

www.geindustrial.com Control Catalog 5-51

IEC Power Devices

IEC Contactor Enclosures

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

NEMA Enclosures1

List Price

Enclosure type For Use With Contactor Size Product Number GO-10C2

NEMA Type 1 Contactors and Starters, CL00, CL01, CL02, CL25, CLXE1A $42.00

No CPT, Lift-Off Cover CL04, CL45 contactors

NEMA Type 1 Contactors and Starters, CL06, CL07, CL08 contactors CLXE1B $60.00

No CPT, Lift-Off Cover

NEMA Type 1 Contactors and Starters, CL09, CL10 contactors CLXE1C $96.00

No CPT, Lift-Off Cover

NEMA Type 1 Contactors and Starters, CL00, CL01, CL02, CL25, CLXE1D $29.00

With CPT2, Lift-Off Cover CL04, CL45 contactors

NEMA Type 1 Contactors and Starters, CL06, CL07, CL08 contactors CLXE1E $47.00

With CPT, Lift-Off Cover

NEMA Type 1 Contactors and Starters CL09, CL10 contactors CLXE1F $69.00

With CPT2, Lift-Off Cover

NEMA Type 1 Reversing Contactors and CL00, CL01, CL02, CL25, CLXE1G $140.00

Starters, Wye-Delta Starters With/ CL04, CL45 contactors

Without CPT2, Hinged Cover

NEMA Type 1 Reversing Contactors and Starters CL06, CL07, CL08, CLXE1H $192.00

With/Without CPT2, Hinged Cover CL09, CL10 contactors

NEMA Type 1 Wye-Delta Starters With/ CL06, CL07, CL08, CLXE1L $268.00

Without CPT2, Hinged Cover CL09, CL10 contactors

NEMA Type 12/3R3Contactors and Starters CL00, CL01, CL02, CL25, CLXE2A $90.00

No CPT, Lift-Off Cover CL04, CL45 contactors

NEMA Type 12/3R3Contactors and Starters CL06, CL07, CL08, CLXE2B $122.00

No CPT, Lift-Off Cover CL09, CL10 contactors

NEMA Type 12/3R3Contactors and Starters With CPT CL00, CL01, CL02, CL25, CLXE2C $142.00

Hinged Cover, Reversing Contactors and CL04, CL45 contactors

Starters No CPT, Hinged Cover

NEMA Type 12/3R3Contactors and Starters With CL06, CL07, CL08, CLXE2D $168.00

CPT Hinged Cover, Reversing Contactors CL09, CL10 contactors

and Starters No CPT, Hinged Cover

NEMA Type 12/3R3Reversing Contactors and CL00, CL01, CL02, CL25, CLXE2E $159.00

Starters With CPT, Hinged Cover CL04, CL45 contactors

NEMA Type 12/3R3Reversing Contactors and CL06, CL07, CL08, CLXE2F $213.00

Starters With CPT, Hinged Cover CL09, CL10 contactors

NEMA Type 12/3R3Wye-Delta Starters With/ CL00, CL01, CL02, CL25, CLXE2G $211.00

Without CPT, Hinged Cover CL04, CL45 contactors

NEMA Type 12/3R3Wye-Delta Starters With/ CL06, CL07, CL08, CLXE2H $388.00

Without CPT, Hinged Cover CL09, CL10 contactors

NEMA Type 4 Contactors and Starters CL00, CL01, CL02, CL25, CLXE4A $326.00

No CPT, Hinged Cover CL04, CL45 contactors

NEMA Type 4 Contactors and Starters CL06, CL07, CL08, CLXE4B $346.00

No CPT, Hinged Cover CL09, CL10 contactors

NEMA Type 4 Contactors and Starters With CPT CL00, CL01, CL02, CL25, CLXE4C $343.00

Hinged Cover, Reversing Contactors CL04, CL45 contactors

and Starters No CPT, Hinged Cover

NEMA Type 4 Contactors and Starters With CPT CL06, CL07, CL08, CLXE4D $478.00

Hinged Cover, Reversing Contactors CL09, CL10 contactors

and Starters No CPT, Hinged Cover

NEMA Type 4 Reversing Contactors and Starters CL00, CL01, CL02, CL25, CLXE4E $537.00

With CPT Hinged Cover, Wye-Delta Starters, CL04, CL45 contactors

With/Without CPT2, Hinged Cover

NEMA Type 4 Reversing Contactors and CL06, CL07, CL08, CLXE4F $589.00

Starters With CPT2, Hinged Cover CL09, CL10 contactors

NEMA Type 4 Wye-Delta Starters With/ CL06, CL07, CL08, CLXE4H $994.00

Without CPT2, Hinged Cover CL09, CL10 contactors

1Enclosures are suitable for AC controlled contactors, starters and reversers, and wye-delta starters. For devices

with front-mounted accessories and DC control, contact GE Customer Service at 1-800-GE-1-STOP. Enclosures

are not sized for front-mounted accessories. Includes externally operated reset button kit to be field installed as

required.

2Standard capacity (50 VA) product number CR308XT1**A and extra capacity (150 VA) product number

CR308XT1**B (listed on page 5-52)

3Type 12/3R enclosures have hole locators for both pilot devices and reset. For 3R, application plug must be

removed.

Reference Publications

Instructions

GEH-5521 Enclosures CLXE1G-CLXE1L

GEH-5522 NEMA 1 Lift-Off Enclosures

GEH-5523 CLXR11, 12 Reset Push Button

GEH-5524 CLXR21, CKXR11, 12 Reset Button

GEH-5525 CLXP-B, C Start/Stop Push Button

GEH-5526 CL NEMA 12/3R Enclosures

GEH-5527 CL NEMA 4 Enclosures

NEMA Type 1

NEMA Type 12/3R

NEMA Type 4

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-52

IEC Power Devices

Contactor Enclosures Accessories Section 5

Product Number Selection Instructions: See page 5-37

C-2000

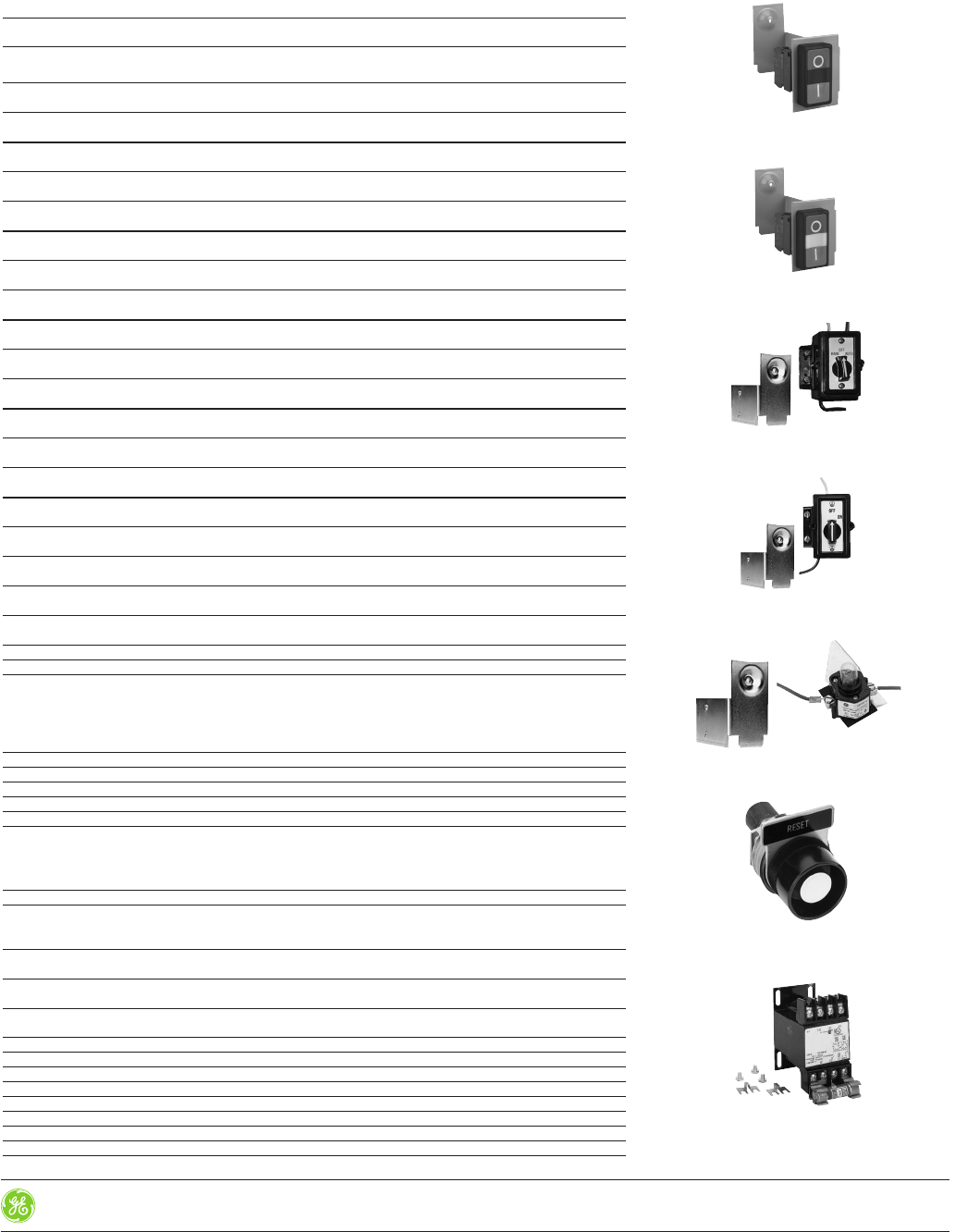

Enclosure Accessories

List Price

Enclosure Accessory Type For Use With Product Number GO-10C2

Start-Stop Push Button Without Light CL00, CL01, CL02, CL25, CL04, CL45 CLXP1B $39.00

starters with or without CPT

Start-Stop Push Button Without Light CL06, CL07, CL08 starters CLXP2B $39.00

with or without CPT

Start-Stop Push Button Without Light CL09, CL10 starters CLXP3B $39.00

with or without CPT

Start/Stop Push Button With Light CL00, CL01, CL02, CL25, CL04, CL45 CLXP1C* $112.00

starters with or without CPT

Start/Stop Push Button With Light CL06, CL07, CL08 starters CLXP2C* $112.00

with or without CPT

Start/Stop Push Button With Light CL09, CL10 starters CLXP3C* $112.00

with or without CPT

H-O-A Switch CL00, CL01, CL02, CL25, CL04, CL45 CLXP1D $39.00

starters with or without CPT

H-O-A Switch CL06, CL07, CL08 starters CLXP2D $39.00

with or without CPT

H-O-A Switch CL09, CL10 starters CLXP3D $39.00

with or without CPT

On-off Switch CL00, CL01, CL02, CL25, CL04, CL45 CLXP1E $39.00

starters with or without CPT

On-off Switch CL06, CL07, CL08 starters CLXP2E $39.00

with or without CPT

On-off Switch CL09, CL10 starters CLXP3E $39.00

with or without CPT

Red Indicating Light CL00, CL01, CL02, CL25, CL04, CL45 CLXP1F $67.00

starters with or without CPT

Red Indicating Light CL06, CL07, CL08 starters CLXP2F $67.00

with or without CPT

Red Indicating Light CL09, CL10 starters CLXP3F $67.00

with or without CPT

Reset Kit CL00-45 Starters with and without CLXR11 $8.00

CPT, Type 1 (CLXE1A, 1D)

Reset Kit CL05-10 Starters, CL00-10 Reverser and CLXR12 $8.00

Wye-Delta Type 1 (CLXE1B-1C, CLXE1E-1L)

Reset Kit CL00-10 Starters, Reverser and Wye-Delta CLXR21 $8.00

Type 12/3R and 4 (CLXE2A-2H, CLXE4A-4H)

Reset Kit CK75-12 Starters, Reverser CKXR11 $10.00

and Wye-Delta Type 1

Reset Kit CK75-12 Starter, Reverser and CKXR12 $10.00

Wye-Delta Type 12/3R and 4

Control Power Transformer (CPT) Standard capacity (50 VA) CR308XT1**A $108.00

Control Power Transformer (CPT) Extra capacity (150 VA) CR308XT1**B $180.00

Replace asterisk (*) in product number for Start/Stop Push Button With Light with

appropriate voltage code.

Voltage Selection*

*Code Voltage

1 115 Volts

2 230 Volts

4 460 Volts

5 575 Volts

**To complete product number, replace ** with the appropriate digits from below:

Control Power Transformer Voltage Selection**

Digit Voltage Frequency

04 Dual Primary Reconnectable 60 Hz

220/230/240 and 440/460/480 Volt Primary,

110/115/120 Volt Secondary

05 550/575/600 Volt Primary, 60 Hz

110/115/120 Volt Secondary

23 200/208 Volt Primary, 60 Hz

115/120 Volt Secondary

Reference Publications

Instructions

GEH-5521 Enclosures CLXE1G-CLXE1L

GEH-5522 NEMA 1 Lift-Off Enclosures

GEH-5523 CLXR11, 12 Reset Push Button

GEH-5524 CLXR21, CKXR11, 12 Reset Button

GEH-5525 CLXP-B, C Start/Stop Push Button

GEH-5526 CL NEMA 12/3R Enclosures

GEH-5527 CL NEMA 4 Enclosures

Start/Stop Push Button without Light

Start/Stop Push Button with Light

H-O-A Switch

On-Off Switch

Red Indicating Light

Reset Kit

Control Power Transformer

www.geindustrial.com Control Catalog 5-53

IEC Power Devices

IEC Contactors Thermal Overload Relays

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

Overload Relays

Fixed Heater

C2000 RT overload relays provide motor overload protection through fixed bimetal

heaters. These relays are ambient compensated and utilize a differential mechanism

for single-phase sensitivity. The trip setting is adjustable for the range listed.

Overload relays may be set for 4 different operational modes—manual reset only,

automatic reset only, manual reset/stop, or automatic reset/stop. Stop is initiated by push-

ing the reset button which interrupts the holding circuit in the latter two listed modes.

Overload relays feature visible trip indication, reset on the upstroke, weld check, and

trip test.

Reference Publications

Instructions

GEH-6237 RT1* (Class 10) Overload

DEH-040 RT12* (Class 20) Overload

GEH-6238 RT2* (Class 10) Overload

DEH-041 RT22* (Class 20) Overload

GEH-6239 RT3* (Class 10) Overload

DEH-042 RT32* (Class 20) Overload

GEH-6240 RT4* (Class 10, 30) Overload

GEH-6241 RT5* (Class 10, 30) Overload

GEH-5520 RT5 Overload Connection Kit

DEH-055 Remote Electrical Reset

RT1 Overload Relay

RT2 Overload Relay

RT3 Overload Relay

RT4 Overload Relay

RT5 Overload Relay

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-54

IEC Power Devices

IEC Contactors Thermal Overload Relays Section 5

Product Number Selection Instructions: See page 5-37

C-2000

RT1 - Direct Mount Manual

Overload Relay for use Current Range Maximum Fuse Maximum Circuit Breaker List Price

with Contactors1Amps (min-max) Reset Type Trip Class Rating Amps Rating Amps Product Number GO-10C2

CL00, CL01, CL02, CL25, CL04, CL45 0.16-0.26 Manual Class 10 1 15 RTN1B $55.00

CL00, CL01, CL02, CL25, CL04, CL45 0.25-0.41 Manual Class 10 1 15 RTN1C $55.00

CL00, CL01, CL02, CL25, CL04, CL45 0.4-0.65 Manual Class 10 3 15 RTN1D $55.00

CL00, CL01, CL02, CL25, CL04, CL45 0.65-1.1 Manual Class 10 6 15 RTN1F $55.00

CL00, CL01, CL02, CL25, CL04, CL45 1-1.5 Manual Class 10 6 15 RTN1G $55.00

CL00, CL01, CL02, CL25, CL04, CL45 1.3-1.9 Manual Class 10 6 15 RTN1H $55.00

CL00, CL01, CL02, CL25, CL04, CL45 1.8-2.7 Manual Class 10 10 15 RTN1J $55.00

CL00, CL01, CL02, CL25, CL04, CL45 2.5-4.1 Manual Class 10 15 15 RTN1K $55.00

CL00, CL01, CL02, CL25, CL04, CL45 4-6.3 Manual Class 10 20 15 RTN1L $55.00

CL00, CL01, CL02, CL25, CL04, CL45 5.5-8.5 Manual Class 10 25 15 RTN1M $57.00

CL00, CL01, CL02, CL25, CL04, CL45 8.0-12.0 Manual Class 10 40 30 RTN1N $57.00

CL01, CL02, CL25, CL04, CL45 10.0-16.0 Manual Class 10 50 35 RTN1P $57.00

CL02, CL25, CL04, CL45 14.5-18 Manual Class 10 60 40 RTN1S $57.00

CL25, CL04, CL45 17.5-22 Manual Class 10 70 50 RTN1T $57.00

CL04, CL45 21-26 Manual Class 10 80 60 RTN1U $57.00

CL04, CL45 25-32 Manual Class 10 100 80 RTN1V $65.00

CL45 30-40 Manual Class 10 100 80 RTN1W $78.00

RT1 - Direct Mount Manual/Auto

Overload Relay for use Current Range Maximum Fuse Maximum Circuit Breaker List Price

with Contactors1Amps (min-max) Reset Type Trip Class Rating Amps Rating Amps Product Number GO-10C2

CL00, CL01, CL02, CL25, CL04, CL45 0.16-0.26 Manual/Auto w/wo stop Class 10 1 15 RT1B $55.00

CL00, CL01, CL02, CL25, CL04, CL45 0.25-0.41 Manual/Auto w/wo stop Class 10 1 15 RT1C $55.00

CL00, CL01, CL02, CL25, CL04, CL45 0.4-0.65 Manual/Auto w/wo stop Class 10 3 15 RT1D $55.00

CL00, CL01, CL02, CL25, CL04, CL45 0.65-1.1 Manual/Auto w/wo stop Class 10 6 15 RT1F $55.00

CL00, CL01, CL02, CL25, CL04, CL45 1-1.5 Manual/Auto w/wo stop Class 10 6 15 RT1G $55.00

CL00, CL01, CL02, CL25, CL04, CL45 1.3-1.9 Manual/Auto w/wo stop Class 10 6 15 RT1H $55.00

CL00, CL01, CL02, CL25, CL04, CL45 1.8-2.7 Manual/Auto w/wo stop Class 10 10 15 RT1J $55.00

CL00, CL01, CL02, CL25, CL04, CL45 2.5-4.1 Manual/Auto w/wo stop Class 10 15 15 RT1K $55.00

CL00, CL01, CL02, CL25, CL04, CL45 4-6.3 Manual/Auto w/wo stop Class 10 20 15 RT1L $55.00

CL00, CL01, CL02, CL25, CL04, CL45 5.5-8.5 Manual/Auto w/wo stop Class 10 25 15 RT1M $57.00

CL00, CL01, CL02, CL25, CL04, CL45 8.0-12.0 Manual/Auto w/wo stop Class 10 40 30 RT1N $57.00

CL01, CL02, CL25, CL04, CL45 10.0-16.0 Manual/Auto w/wo stop Class 10 50 35 RT1P $57.00

CL02, CL25, CL04, CL45 14.5-18 Manual/Auto w/wo stop Class 10 60 40 RT1S $57.00

CL25, CL04, CL45 17.5-22 Manual/Auto w/wo stop Class 10 70 50 RT1T $57.00

CL04, CL45 21-26 Manual/Auto w/wo stop Class 10 80 60 RT1U $57.00

CL04, CL45 25-32 Manual/Auto w/wo stop Class 10 100 80 RT1V $65.00

CL45 30-40 Manual/Auto w/wo stop Class 10 100 80 RT1W $78.00

CL00, CL01, CL02, CL25, CL04, CL45 0.4-0.65 Manual/Auto w/wo stop Class 20 3 15 RT12D $55.00

CL00, CL01, CL02, CL25, CL04, CL45 0.65-1.1 Manual/Auto w/wo stop Class 20 6 15 RT12F $55.00

CL00, CL01, CL02, CL25, CL04, CL45 1-1.5 Manual/Auto w/wo stop Class 20 6 15 RT12G $55.00

CL00, CL01, CL02, CL25, CL04, CL45 1.3-1.9 Manual/Auto w/wo stop Class 20 6 15 RT12H $55.00

CL00, CL01, CL02, CL25, CL04, CL45 1.8-2.7 Manual/Auto w/wo stop Class 20 15 15 RT12J $55.00

CL00, CL01, CL02, CL25, CL04, CL45 2.5-4.1 Manual/Auto w/wo stop Class 20 15 15 RT12K $55.00

CL00, CL01, CL02, CL25, CL04, CL45 4-6.3 Manual/Auto w/wo stop Class 20 20 15 RT12L $55.00

CL00, CL01, CL02, CL25, CL04, CL45 5.5-8.5 Manual/Auto w/wo stop Class 20 25 15 RT12M $57.00

CL00, CL01, CL02, CL25, CL04, CL45 8.0-12.0 Manual/Auto w/wo stop Class 20 40 30 RT12N $57.00

CL01, CL02, CL25, CL04, CL45 10.0-16.0 Manual/Auto w/wo stop Class 20 50 35 RT12P $57.00

CL02, CL25, CL04, CL45 14.5-18 Manual/Auto w/wo stop Class 20 60 40 RT12S $57.00

CL25, CL04, CL45 17.5-22 Manual/Auto w/wo stop Class 20 70 50 RT12T $57.00

CL04, CL45 21-26 Manual/Auto w/wo stop Class 20 80 60 RT12U $57.00

CL04, CL45 25-32 Manual/Auto w/wo stop Class 20 100 80 RT12V $65.00

CL45 30-40 Manual/Auto w/wo stop Class 20 100 80 RT12W $78.00

1Do not exceed contactor current rating when selecting and adjusting overload relays. For panel mount use base adapter RTXP.

www.geindustrial.com Control Catalog 5-55

IEC Power Devices

IEC Contactors Thermal Overload Relays

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

RT2 - Direct Mount Manual

Overload Relay for use Current Range Maximum Fuse Maximum Circuit Breaker List Price

with Contactors1Amps (min-max) Reset Type Trip Class Rating Amps Rating Amps Product Number GO-10C2

CL06, CL07, CL08, CL09, CL10 11.5-15 Manual Class 10 35 25 RTN2A $98.00

CL06, CL07, CL08, CL09, CL10 14.5-19 Manual Class 10 50 45 RTN2B $98.00

CL06, CL07, CL08, CL09, CL10 18.5-25 Manual Class 10 70 60 RTN2C $98.00

CL06, CL07, CL08, CL09, CL10 24-32 Manual Class 10 90 80 RTN2D $98.00

CL06, CL07, CL08, CL09, CL10 30-43 Manual Class 10 100 100 RTN2E $98.00

CL06, CL07, CL08, CL09, CL10 42-55 Manual Class 10 150 125 RTN2G $98.00

CL07, CL08, CL09, CL10 54-65 Manual Class 10 175 150 RTN2H $98.00

CL08, CL09, CL10 64-82 Manual Class 10 225 200 RTN2J $117.00

CL10 78-97 Manual Class 10 225 225 RTN2L $143.00

CL10 90-110 Manual Class 10 225 250 RTN2M $143.00

RT2 - Direct Mount Manual/Auto

Overload Relay for use Current Range Maximum Fuse Maximum Circuit Breaker List Price

with Contactors1Amps (min-max) Reset Type Trip Class Rating Amps Rating Amps Product Number GO-10C2

CL06, CL07, CL08, CL09, CL10 11.5-15 Manual/Auto w/wo stop Class 10 35 25 RT2A $98.00

CL06, CL07, CL08, CL09, CL10 14.5-19 Manual/Auto w/wo stop Class 10 50 45 RT2B $98.00

CL06, CL07, CL08, CL09, CL10 18.5-25 Manual/Auto w/wo stop Class 10 70 60 RT2C $98.00

CL06, CL07, CL08, CL09, CL10 24-32 Manual/Auto w/wo stop Class 10 90 80 RT2D $98.00

CL06, CL07, CL08, CL09, CL10 30-43 Manual/Auto w/wo stop Class 10 100 100 RT2E $98.00

CL06, CL07, CL08, CL09, CL10 42-55 Manual/Auto w/wo stop Class 10 150 125 RT2G $98.00

CL07, CL08, CL09, CL10 54-65 Manual/Auto w/wo stop Class 10 175 150 RT2H $98.00

CL08, CL09, CL10 64-82 Manual/Auto w/wo stop Class 10 225 200 RT2J $117.00

CL10 78-97 Manual/Auto w/wo stop Class 10 225 225 RT2L $143.00

CL10 90-110 Manual/Auto w/wo stop Class 10 225 250 RT2M $143.00

CL06, CL07, CL08, CL09, CL10 24-32 Manual/Auto w/wo stop Class 20 90 80 RT22D $98.00

CL06, CL07, CL08, CL09, CL10 30-43 Manual/Auto w/wo stop Class 20 100 100 RT22E $98.00

CL06, CL07, CL08, CL09, CL10 42-55 Manual/Auto w/wo stop Class 20 150 125 RT22G $98.00

CL07, CL08, CL09, CL10 54-65 Manual/Auto w/wo stop Class 20 175 150 RT22H $98.00

CL08, CL09, CL10 64-82 Manual/Auto w/wo stop Class 20 225 200 RT22J $117.00

CL10 78-97 Manual/Auto w/wo stop Class 20 225 225 RT22L $143.00

CL10 90-110 Manual/Auto w/wo stop Class 20 225 250 RT22M $143.00

1Do not exceed contactor current rating when selecting and adjusting overload relays. For panel mount use base adapter RT2XP.

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-56

IEC Power Devices

IEC Contactors Thermal Overload Relays Section 5

Product Number Selection Instructions: See page 5-37

C-2000

RT3 - Direct or Panel Mount

Overload Relay for use Current Range Maximum Fuse Maximum Circuit Breaker List Price

with Contactors1Amps (min-max) Reset Type Trip Class Rating Amps Rating Amps Product Number GO-10C2

CK75, CK08 55-80 Manual Class 10 225 200 RTN3B $185.00

CK75, CK08 63-90 Manual Class 10 250 225 RTN3C $185.00

CK75, CK08 90-120 Manual Class 10 350 300 RTN3D $185.00

CK75, CK08 110-140 Manual Class 10 400 350 RTN3E $225.00

CK08 140-190 Manual Class 10 450 500 RTN3F $225.00

CK75, CK08 55-80 Manual/Auto Class 10 225 200 RT3B $185.00

CK75, CK08 63-90 Manual/Auto Class 10 250 225 RT3C $185.00

CK75, CK08 90-120 Manual/Auto Class 10 350 300 RT3D $185.00

CK75, CK08 110-140 Manual/Auto Class 10 400 350 RT3E $225.00

CK08 140-190 Manual/Auto Class 10 450 500 RT3F $225.00

CK75, CK08 63-90 Manual/Auto Class 20 250 225 RT32C $185.00

CK75, CK08 90-120 Manual/Auto Class 20 350 300 RT32D $185.00

CK75, CK08 110-140 Manual/Auto Class 20 400 350 RT32E $225.00

CK08 140-190 Manual/Auto Class 20 450 500 RT32F $225.00

1Do not exceed contactor current rating when selecting and adjusting overload relays.

RT4 - Separate Mount

Overload Relay for use Current Range Terminal Maximum Fuse Maximum Circuit Breaker List Price

with Contactors1Amps (min-max) Reset Type Trip Class Type Rating Amps Rating Amps Product Number GO-10C2

CK09, CK95 120-190 Manual Class 10 Bus bar2600 500 RTN4N $285.00

CK09, CK95 175-280 Manual Class 10 Bus bar2800 700 RTN4P $285.00

CK95 200-310 Manual Class 10 Bus bar2900 800 RTN4R $380.00

CK09, CK95 120-190 Manual/Auto Class 10 Bus bar2600 500 RT4N $285.00

CK09, CK95 175-280 Manual/Auto Class 10 Bus bar2800 700 RT4P $285.00

CK95 200-310 Manual/Auto Class 10 Bus bar2900 800 RT4R $380.00

CK09, CK95 45-70 Manual/Auto Class 30 Clamp 225 175 RT4LK $285.00

CK09, CK95 60-90 Manual/Auto Class 30 Clamp 300 225 RT4LL $285.00

CK09, CK95 80-125 Manual/Auto Class 30 Clamp 400 350 RT4LM $285.00

CK09, CK95 120-190 Manual/Auto Class 30 Bus bar2600 500 RT4LN $285.00

CK09, CK95 175-280 Manual/Auto Class 30 Bus bar2800 700 RT4LP $285.00

CK95 200-310 Manual/Auto Class 30 Bus bar2900 800 RT4LR $380.00

1Do not exceed contactor current rating when selecting and adjusting overload relays.

2Can be mounted to contactor with Overload Jumpers (listed on page 5-48) and Base Plate (CKXB01) (listed on page 5-48).

RT5 - Separate Mount2

Overload Relay for use Current Range Maximum Fuse Maximum Circuit Breaker List Price

with Contactors1Amps (min-max) Reset Type Trip Class Rating Amps Rating Amps Product Number GO-10C2

CK10, CK11, CK12 175-280 Manual Class 10 1200 700 RTN5B3$641.00

CK10, CK11, CK12 250-400 Manual Class 10 1200 1000 RTN5C3$641.00

CK10, CK11, CK12 315-500 Manual Class 10 1200 1200 RTN5D3$903.00

CK11, CK12 4 30-650 Manual Class 10 1200 1200 RTN5E3$903.00

CK10, CK11, CK12 120-190 Manual/Auto Class 10 800 500 RT5A $641.00

CK10, CK11, CK12 175-280 Manual/Auto Class 10 1200 700 RT5B3$641.00

CK10, CK11, CK12 250-400 Manual/Auto Class 10 1200 1000 RT5C3$641.00

CK10, CK11, CK12 315-500 Manual/Auto Class 10 1200 1200 RT5D3$903.00

CK11, CK12 4 30-650 Manual/Auto Class 10 1200 1200 RT5E3$903.00

CK10, CK11, CK12 120-190 Manual/Auto Class 30 800 500 RT5LA $641.00

CK10, CK11, CK12 175-280 Manual/Auto Class 30 1200 700 RT5LB $641.00

CK10, CK11, CK12 250-400 Manual/Auto Class 30 1200 1000 RT5LC $641.00

CK10, CK11, CK12 315-500 Manual/Auto Class 30 1200 1200 RT5LD $903.00

CK11, CK12 430-650 Manual/Auto Class 30 1200 1200 RT5LE $903.00

1Do not exceed contactor current rating when selecting and adjusting overload relays.

2Can be mounted to contactor with Overload Jumpers (listed on page 5-48).

3Maximum fuse rating of 1000 amps/maximum circuit breaker rating of 600 amps when used with CK10CE or CK11CE contactors. Use CK10BE or CK11BE with higher rated

protective devices indicated. CK12BE suitable for all ratings listed.

www.geindustrial.com Control Catalog 5-57

IEC Power Devices

IEC Contactors Thermal Overload Relays Accessories

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

Remote Electrical Reset

Remote electrical resets are used in applications where the motor starter is inaccessible

or in automated control systems where it is required to reset the overload relay remotely

after the fault has been cleared. Electrical reset coils are rated for intermittent duty and

for use with momentary contacts. Minimum time .2 sec. on for reliable operation.

Maximum time 1 sec. on/30 sec. off, 5 sec. on/90 sec. off, 10 sec. on/180 sec. off. Power

consumption is 100VA/100 watts.

List Price

For Use With Voltage 50/60 Hz AC or DC Product Number GO-10C2

All RT overload relays 12 RTXRRB $55.00

All RT overload relays 24 RTXRRD $55.00

All RT overload relays 48 RTXRRG $55.00

All RT overload relays 110-120 RTXRRJ $55.00

All RT overload relays 220-240 RTXRRN $55.00

All RT overload relays 380-415 RTXRRU $55.00

All RT overload relays 440-480 RTXRRX $55.00

Overload Base Adapter

Permits mounting of RT1 or RT2 overload on panel or DIN rail.

List Price

For Use With Product Number GO-10C2

RT1 RTXP $12.00

RT2 RT2XP $24.00

Transparent Cover for Range Adjustment Dial

Deters tampering with dial.

List Price

For Use With Product Number GO-10C2

All Overload Relays RTX31$19.00

1Product number represents a quantity of 10 pieces.

Locking Plug for Manual/Auto Selector

Prevents changing reset mode after installation.

List Price

For Use With Product Number GO-10C2

All Overload Relays RTXL1$10.00

1Product number represents a quantity of 10 pieces.

Flexible Cable Reset Button

Allows manual reset of overload when overload is mounted in a special or inaccessible

position. Fits standard 22.5 mm panel hole.

List Price

For Use With Cable Length Product Number GO-10C2

All Overloads .5 meter RTXS $55.00

All Overloads 1.0 meter RTXSL $80.00

RTXRR_ _Remote Electrical Reset

RT_ _ _Overload Base Adapter

RTX3 Transparent Cover

RTXL Locking Plug

RTXS Flexible Cable Reset Button

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-58

IEC Power Devices

IEC Contactors Thermal Overload Relays

Technical Characteristics

Section 5

Product Number Selection Instructions: See page 5-37

C-2000

Class 10 RT1

Class 10 RT2

Class 10 RT3

Class 20 RT12

Class 20 RT22

Class 20 RT32

www.geindustrial.com Control Catalog 5-59

IEC Power Devices

IEC Contactors Electronic Overload Relays

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

Features

—Self powered

—Great accuracy

—Full reliability

—Phase unbalance protection

—Direct mount to IEC contactors, C-2000

—Panel mount adapter for NEMA contactors

—Interchangeable with thermal overload relay

—Multiple trip class selection; class 5-10-20-30

—Manual / Auto reset

—Setting range from 0.1 up to 150A

—Thermal memory

—Phase loss protection

—Increased flexibility; fewer product numbers; less stock required

—UL 508 certified

Electronic Overload Relays

Setting Range (A) Product Reference List Price

Min. Max. Number Number GO-10GS

0.1 0.5 RE1D 101866 $155.00

0.4 2 RE1H 101867 $155.00

15 RE1K 101868 $155.00

Frame 1 1.6 8 RE1M 101869 $155.00

6.4 32 RE1S 101870 $155.00

9 45 RE1W 101871 $155.00

15 75 RE2H 101872 $275.00

Frame 2 22 110 RE2M 101873 $275.00

Frame 3 30 150 RE3E 101874 $450.00

Accessories

Product Reference List Price

Size Description Number Number GO-10GS

Size 1 RE1XP 247302 $24.00

Size 2 Panel Mount Adapter RE2XP 247303 $24.00

Remote Reset RETC 247795 $4.00

Button Cover

Frame 3

Frame 2

Frame 1

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-60

IEC Power Devices

IEC Contactors Electronic Overload Relays Section 5

38 38

110

123

110

151.7

131.2

111.7

154.2

148.7

92.5

170

47.953.6

1.50 1.50

1.93 1.93

3.86

4.33

4.84

4.33

1.892.11

3.64

6.69

0.12

5.97

5.17

4.40

6.07

5.85

1.18

14.1

0.56

0.59 0.59

1.77

0.31 0.35 0.31 0.35

0.47

0.24

8989

24.7 37.8

57.5

79.9

85.5

1.30

2.72

1.490.97

2.26

3.15

3.37

Frame 1

Frame 2

Frame 3

2 T1 4 T2 6 T3

21 65

44.5

1.5

83.5

107

111.5

0.83 0.83 2.56

1.77

1.75

3.29

0.06

2.64

4.21

4.39

0.63

C-2000

Outlines, Dimensions ( in.

mm)

www.geindustrial.com Control Catalog 5-61

IEC Power Devices

IEC Contactors Electronic Overload Relays

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

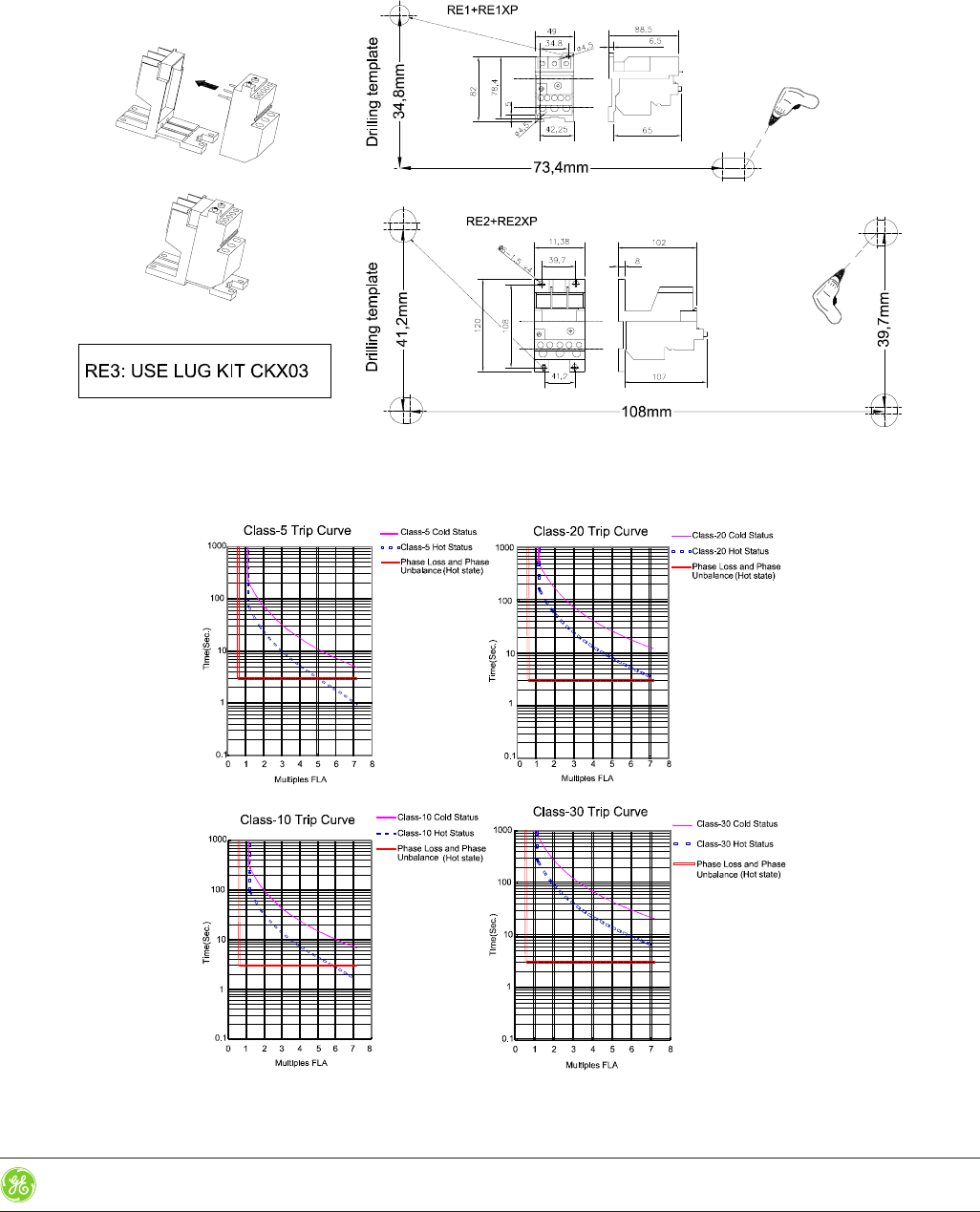

Outlines, Dimensions in. (mm), Trip Curves

Panel Mount

Trip Curves

IEC Power Devices

IEC Contactors Thermal Overload Relays

Technical Characteristics

C-2000

RT4 RT4L

RT5 RT5L

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-62

Section 5

www.geindustrial.com Control Catalog 5-63

Rev. 4/16

Prices and data subject to

change without notice

Section 5

IEC Power Devices

IEC Control Relays Selection Guide

C-2000

AC Operated Standard Terminals

List Price

Contact Configuration Product Number GO-10C2

4NO RL4RA040T* $57.00

3NO-1NC RL4RA031T* $57.00

2NO-2NC RL4RA022T* $57.00

4NC RL4RA004T* $57.00

AC Operated with Ring Terminal Capacity

List Price

Contact Configuration Product Number GO-10C2

4NO RL4RA040R* $65.00

3NO-1NC RL4RA031R* $65.00

2NO-2NC RL4RA022R* $65.00

4NC RL4RA004R* $65.00

To complete the product number, replace the asterisk (*) with the appropriate digit from

the Coil Selection table. Contact Rating: A600, P600.

AC Coil Selection

AC Coil Voltages

50/60Hz 24 42 48 110 220-230 240

50 Hz 127 380-400 500

60Hz 120 208 277 480 600

Product Number Suffix 129J K L 6 N 7 U Y

DC Operated Standard Terminals

List Price

Contact Configuration Product Number GO-10C2

4NO RL4RD040T# $100.00

3NO-1NC RL4RD031T# $100.00

2NO-2NC RL4RD022T# $100.00

4NC RL4RD004T# $100.00

DC Operated with Ring Terminal Capacity

List Price

Contact Configuration Product Number GO-10C2

4NO RL4RD040R# $108.00

3NO-1NC RL4RD031R# $108.00

2NO-2NC RL4RD022R# $108.00

4NC RL4RD004R# $108.00

To complete the product number, replace the crosshatch (#) with the appropriate digit

from the Coil Selection table. Contact Rating: A600, P600.

DC Coil Selection

DC Voltage #Coil Suffix

12 B

24 D

48 G

60 H

110 J

125 K

220 N

250 T

Note: Additional coils available, see page 5-50.

DC Wide Range Voltage Selection

DC Wide Range Voltage #Coil Suffix

24 WD

33 WE

48 WG

72 WI

110 WJ

Reference Publications

Instructions

GEH-6248 RL Relay

Control Terminal Relay Markings

RL4R_040_

RL4R_031_

Control Relay

RL4R_004_

RL4R_022_

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-64

Section 5

IEC Power Devices

IEC Control Relays Accessories

C-2000

Front-Mount Auxiliary Contact Blocks

Front-mount auxiliary contact blocks clip onto front face of relay.

Contact Rating: A600, Q600.

List Price

For Use With Terminal Type Contact Configuration Product Number GO-10C2

RL Control Relays Standard 1NO BCLF10 $11.00

RL Control Relays Standard 1NC BCLF01 $11.00

RL Control Relays Standard 1NO BCLF10G1$15.00

RL Control Relays Standard 1NC BCLF01G1$15.00

RL Control Relays Ring 1NO BCRF10 $13.00

RL Control Relays Ring 1NC BCRF01 $13.00

1Overlapping contacts.

Side-Mount Auxiliary Contact Blocks

Side-mount auxiliary contact blocks can be mounted on either left or right sides of relay.

Positive displacement contacts are designed to prevent simultaneous closing of NO and

NC contacts to avoid overlapping between opposing functions. Contact Rating: A600,

Q600.

List Price

For Use With Terminal Type Type Contact Configuration Product Number GO-10C2

RL4 Control Relays Standard Adder Block 1NO-1NC BRLL11 $19.00

RL4 Control Relays Standard Adder Block 2NO BRLL20 $19.00

Pneumatic Timer

Pneumatic timers are adjustable time-delayed auxiliary contacts. They come equipped

with two time-delayed contacts: 1NO and 1NC, electrically isolated. Setting is scaled over

a 350° rotation by means of a knurled knob with timing guide marks. To mount a pneu-

matic timer, simply clip it on front face of contactor. Contact Rating: A600, Q600.

Contact List Price

For Use With Terminal Type Type Time range Configuration Product Number GO-10C2

RL4 Control Relays Standard Time Delay On 1-30 sec 1NO-1NC BTLF30C $120.00

RL4 Control Relays Standard Time Delay On 1-60 sec 1NO-1NC BTLF60C $120.00

RL4 Control Relays Standard Time Delay Off 1-30 sec 1NO-1NC BTLF30D $120.00

RL4 Control Relays Standard Time Delay Off 1-60 sec 1NO-1NC BTLF60D $120.00

RL4 Control Relays Ring Time Delay On 1-30 sec 1NO-1NC BTRF30C $124.00

RL4 Control Relays Ring Time Delay On 1-60 sec 1NO-1NC BTRF60C $124.00

RL4 Control Relays Ring Time Delay Off 1-30 sec 1NO-1NC BTRF30D $124.00

RL4 Control Relays Ring Time Delay Off 1-60 sec 1NO-1NC BTRF60D $124.00

Front-Mounted Block

BCLF10/BCLF01/BCLF10G/BCLF01G

Side-Mounted Block

BRLL11/BRLL20

Pneumatic Timer

BTLF30C/BTLF60C BTLF30D/BTLF60D

BCRF10/BCRF01

BTRF30C/BTRF60C/BTRF30D/BTRF60D

www.geindustrial.com Control Catalog 5-65

Rev. 4/16

Prices and data subject to

change without notice

Section 5

IEC Power Devices

IEC Control Relays Accessories

C-2000

Surge Suppressor

For suppression of disturbances in circuit voltage occurring upon opening of the relay.

Mounts directly on the top of the coil.

List Price

For Use With Terminal Type Surge Suppressor Type Voltage Product Number GO-10C2

RL4 Control Relays Standard and Ring RC 24-48 VAC BSLR2G $24.00

RL4 Control Relays Standard and Ring RC 50-127 VAC BSLR2K $24.00

RL4 Control Relays Standard and Ring RC 130-240 VAC BSLR2R $24.00

RL4 Control Relays Standard and Ring Diode 12-600 VDC BSLDZ $24.00

RL4 Control Relays Standard and Ring Varistor 24-48 VAC, DC BSLV3G $24.00

RL4 Control Relays Standard and Ring Varistor 50-127 VAC, DC BSLV3K $24.00

RL4 Control Relays Standard and Ring Varistor 130-250 VAC, DC BSLV3R $24.00

RL4 Control Relays Standard and Ring Varistor 380-500 VAC, DC BSLV3U $32.00

Mechanical Latch Block

Mechanical latch block is used to convert a standard relay into a latched relay. Easy to

mount, it clips onto front face of contactor. Contact Rating: A600, Q600.

List Price

For Use With Terminal Type Voltage Application Coil Voltage Range Product Number GO-10C2

RL4 Control Relays Standard 50/60 Hz and DC 24-32 Vdc RMLFD $70.00

RL4 Control Relays Standard 50/60 Hz and DC 42-48 Vdc RMLFG $70.00

RL4 Control Relays Standard 50/60 Hz and DC 110-125 Vdc RMLFJ $70.00

RL4 Control Relays Standard 50/60 Hz and DC 208-277 Vdc RMLFN $70.00

RL4 Control Relays Standard 50/60 Hz and DC 380-480 Vdc RLMFU $70.00

RL4 Control Relays Standard 50/60 Hz and DC 500-600 Vdc RMLFY $70.00

A1+

BSL_ _ _Surge Suppressor

RMLF_Mechanical Latch Block

BSLR _ _RC

BSLDZ Diode

BLSV_ _Varistor

RMLF_

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-66

Section 5

IEC Power Devices

IEC Control Relays Accessories

C-2000

Electronic Timer and Interface Modules

These modules add flexibility to C-2000 relays, providing time-delay functions, and

interface for low voltage PLC applications or contactor-mounted manual-auto functions.

Easily installed, these modules plug right into the contactor coil terminals. All modules

include a status indicating LED and accept plug-in voltage surge suppressors.

Timers

Time-on delay and time-off delay modules for sequencing control of contactors. They

deliver high repeatability, ±3% in ambient temperatures from 32° to 104°F. A red LED

provides indication during time-delay operation.

List Price

For Use With Type Time-Delay Range Product Number GO-10C2

All RL4 Control Relays On delay 0.1-2 s BETL02C $75.00

All RL4 Control Relays On delay 1.5-45 s BETL45C $75.00

All RL4 Control Relays Off delay 0.1-2 s BETL02D $85.00

All RL4 Control Relays Off delay 1.5-45 s BETL45D $85.00

Interface Modules

Interface modules allow relay operation from 24 Volt sources (such as a PLC output).

Current consumption is 15 mA @ 24 Vdc. A red LED provides indication when voltage is

applied to E1-E2.

List Price

For Use With Input Voltage Type Product Number GO-10C2

All RL4 Control Relays 24 VDC Relay IMRD $50.00

Voltage Surge Suppressors

Voltage surge suppressors plug into timer, interface, or auto-stop-manual modules.

List Price

Coil Voltage Surge Suppressor Type Product Number GO-10C2

24-48 VAC Resistive/Capacitive (R/C) IMRC2G $24.00

50-127 VAC Resistive/Capacitive (R/C) IMRC2K $24.00

130-240 VAC Resistive/Capacitive (R/C) IMRC2R $24.00

24-48 VAC Resistive/Capacitive (R/C) IMRC3G $24.00

130-240 VAC Resistive/Capacitive (R/C) IMRC3R $24.00

24-48 VAC or DC Varistor IMV3G $24.00

50-127 VAC or DC Varistor IMV3K $24.00

BETL_ _ _Timer

IM_ _Interface Module

IM_ _ _Voltage Surge Suppressor

www.geindustrial.com Control Catalog 5-67

IEC Power Devices

Rev. 4/16

Prices and data subject to

change without notice

Section 5

IEC Contactors

Series CSCN

Contactors for Capacitors Switching

With built-in resistance to switch three phase capacitor banks

Introduction

“CSCN” contactors incorporate a front block with three early-make auxiliary contacts

together with 6 quick discharge resistors (two per phase) through which the capacitors

are switched to the network, reducing the current peak. Once the resistors have

damped the current peak, the main contacts short- circuit the resistors,

carrying the uninterrupted current.

A few miliseconds later the early-make auxiliary contact closes to guarantee that all

current flows through the main contacts.

Standards

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 60947-5-1

EN 50005

UL 508

CSA C22.2/14

CENELEC HD 419

VDE 0660/102

NFC 63-110

ASE 1025

UNE 20109

Approvals/Marking

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-68

IEC Power Devices Section 5

IEC Contactors

Series CSCN

Contactors for Capacitors Switching

Ith Ambient Temperature Contacts

ϴ≤ 55°C ϴ≤ 70°C

230V 400V 415V 500V 660V 230V 400V 415V 500V 660V

240V 240V 690V 240V 690V Fuse List Price

A kvar kvar kvar kvar kvar kvar kvar kvar kvar kvar gl - gG Product Number GO-10C2

25 7.5 12.5 13 16 15 3.7 7.5 8 9.5 10 25 20 CSCN12A320† $92.00

1 1 CSCN12A311† $92.00

02 CSCN12A302† $92.00

32 10 16.7 17 21 20 5 10 11 12.5 12.5 35 20 CSCN16A320† $116.00

1 1 CSCN16A311† $116.00

02 CSCN16A302† $116.00

45 12.5 20 21 25 25 7.5 12.5 13 16 15 40 10 CSCN20A310† $135.00

0 1 CSCN20A301† $135.00

21 CSCN20A321† $135.00

12 CSCN20A312† $135.00

45 15 25 26 31 30 10 15 16 18 20 50 10 CSCN25A310† $153.00

01 CSCN25A301† $153.00

21 CSCN25A321† $153.00

1 2 CSCN25A312† $153.00

60 20 30 31 38 35 16 22 23 27 25 63 10 CSCN30A310† $231.00

01 CSCN30A301† $231.00

21 CSCN30A321† $231.00

1 2 CSCN30A312† $231.00

90 25 45 47 56 55 20 35 36 44 40 80 10 CSCN45A310† $379.00

01 CSCN45A301† $379.00

2 0 CSCN45A320† $379.00

11 CSCN45A311† $379.00

12 CSCN45A312† $379.00

110 35 55 57 69 65 30 45 47 56 50 125 10 CSCN55A310† $453.00

01 CSCN55A301† $453.00

20 CSCN55A320† $453.00

1 1 CSCN55A311† $453.00

12 CSCN55A312† $453.00

140 45 70 73 88 85 35 60 62 75 70 160 10 CSCN70A310† $547.00

0 1 CSCN70A301† $547.00

20 CSCN70A320† $547.00

11 CSCN70A311† $547.00

12 CSCN70A312† $547.00

Spare Coils

List Price

Description Product Number GO-10C2

For series CSCN12 ... CSCN25 LB1A† $24.00

For series CSCN30 LB3A† $33.00

For series CSCN45 ... CSCN70 LB4A† $38.00

To complete the Product Number, replace the dagger (†) with the code corresponding

to the voltage and frequency of the control circuit, other voltages on request.

CL Contactor Coils

AC Coil Voltages

50/60Hz 24 42 48 110-115 220-230 240

50 Hz 127 380-400 500

60Hz 120 208 277 480 600

Product Number Suffix 129 J K L 6 N 7 U Y

•1

•2

•3

•4

www.geindustrial.com Control Catalog 5-69

IEC Power Devices

Rev. 4/16

Prices and data subject to

change without notice

Section 5

IEC Contactors Technical Information

Series CSCN

Technical Characteristics

Main Circuit (poles) CSCN12 CSCN16 CSCN20 CSCN25 CSCN30 CSCN45 CSCN55 CSCN70

Rated operational voltage (V) 690 690 690 690 690 690 690 690

Rated insulation voltage according to IEC947 (V) 1000 1000 1000 1000 1000 1000 1000 1000

Rated thermal current (A) 25 32 45 45 60 90 110 140

Max. power utilization 230/240V (kvar) 7.5 10 12.5 15 20 25 35 45

at 55ºC 380/400V (kvar) 12.5 16.7 20 25 30 45 55 70

660/690V (kvar) 15 20 25 30 35 55 65 85

Electrical endurance (ops.) 280,000 280,000 280,000 250,000 200,000 150,000 120,000 90,000

Max. ops./hour (ops./hour) 350 350 350 240 240 150 150 150

Control Circuit

Standard voltages 50Hz (V) 24-690 24-690 24-690 24-690 24-690 24-690 24-690 24-690

60Hz (V) 24-600 24-600 24-600 24-600 24-600 24-600 24-600 24-600

Consumption

Single frequency Mar. circuit open (VA) 45 45 48 48 88 191 191 198

Mar. circuit closed (VA) 66 77 9 15.5 15.5 17

Dual frequency Mar. circuit open (VA) 54 54 58 58 125 245 245 250

50Hz Mar. circuit closed (VA) 77 8811.5 20 20 23

Dual frequency Mar. circuit open (VA) 35 35 39 39 110 215 215 220

60Hz Mar. circuit closed (VA) 55 6611 15 15 19

Instantaneous Auxiliary Contact Blocks

Rated insulation voltage Ui (V) 1000

Rated thermal current Ith (A) 10

Ambient Conditions

Storage temperature (ºC) -50 ... +80

Operating temperature (ºC) -25 to +55 (without derating)

Altitude up to 3000m Nominal values

Mounting positions Vertical mounting +/- 30º

Terminal Capacity and Tightening Torque

CSCN12 CSCN16 CSCN20 CSCN25 CSCN30 CSCN45 CSCN55 CSCN70

Solid, stranded and finely stranded 1 x 0.5 ... 2.5 1 x 0.5 ... 2.5 –––

without end sleeve (mm2) 1 x 2.5 ... 6 1 x 2.5 ... 10 –––

Finely stranded with or 1 x 1 ... 2.5 1 x 1 ... 2.5 –––

without end sleeve (mm2) 1 x 2.5 ... 6 1 x 2.5 ... 10 –––

AWG wires 1 x 20 ... 12 1 x 20 ... 8 –––

Tightening torque (Nm) 1.6 2.2 –––

(Lb x in.) 15 20 –––

Solid, stranded and finely stranded

without end sleeve (mm2)– – 0.75 ... 16 1 ... 35 1.5 ... 50

Finely stranded with end sleeve (mm2)– – 0.75 ... 16 1 ... 35 1.5 ... 50

Finely stranded without end sleeve (mm2)– – 1 ... 16 1 ... 35 1.5 ... 50

AWG wires ––18 ... 6 16 ... 2 16 ... 2

Tightening torque (Nm) ––1.8 4 5.6

(Lb x in.) ––16 35 50

Solid (mm2)– – 0.75 ... 16 1 ... 16 4 ... 35

Stranded (mm2)– – 0.75 ... 16 1 ... 25 4 ... 35

Finely stranded without end sleeve (mm2)– – 0.75 ... 16 1 ... 25 4 ... 35

Finely stranded with end sleeve (mm2)– – 1 ... 16 1 ... 25 4 ... 35

AWG wires ––18 ... 6 16 ... 4 10 ... 1

Tightening torque (Nm) ––1.8 4 5.6

(Lb x in.) ––16 35 50

Solid, stranded and finely stranded ––Max. 16 Max. 50 ... 4 Max. 35

without end sleeve (mm2)– – Max. 25 ... 16 50 ... 35

Finely stranded without end sleeve (mm2)– – Max. 16 Max. 35 ... 2.5 Max. 35

Max. 25 ... 16

Finely stranded with end sleeve (mm2)– – Max. 16 Max. 35 ... 16 Max. 35

Max. 25 ... 25

AWG wires ––Max. 6 Max. 2 ... 12 Max. 1

–– Max 4 ... 4

Tightening torque (Nm) ––1.8 4 5.6

(Lb x in.) ––16 35 50

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-70

IEC Power Devices Section 5

IEC Contactors Technical Information

Series CSCN

Standard Contactors

Series “CL“ and “CK“ Contactors, to Switch Three-Phase Capacitor Banks

Electrical endurance: >100,000 operations

Contactor ϴ ≤ 55ºC ϴ ≤ 70ºC

Type1Ith 220V 400V 415V 500V 690V 220V 400V 415V 500V 690V Fuse I max.

230V 660V 230V 660V gl - gG (peak)

240V 240V

A kvar kvar kvar kvar kvar kvar kvar kvar kvar kvar AA

CL00A 25 355.5 6.5 5.7 2.4 4 4.5 5.2 4.5 10 1000

CL01A 25 4.5 9.5 10.5 12.5 11 3.6 6 6.5 10 7 16 1000

CL02A 32 6.5 11 12 14.5 12.5 5.2 8.5 9 11.5 10 25 1000

CL25A 45 7.5 12.5 14 16 15 6.5 10 11 13 12 25 1000

CL03A 45 9 15 16.5 20 17.5 7.2 12 13 16 14 35 2500

CL04A 60 12.5 21 23 27.5 24 10 17 18 22 19.5 40 2500

CL45A 60 16.5 25 27 32 30 13 20 22 25 22 50 2500

CL06A 90 22 40 43 52 50 17 30 33 41 35 80 3500

CL07A 110 25 45 48 58 65 19 35 37 46 40 125 3500

CL08A 110 30 50 54 65 70 22 40 43 52 50 125 3500

CL09A 140 40 65 70 85 95 35 58 62 75 85 160 3500

CL10A 140 50 80 85 105 120 43 70 75 90 105 160 3500

CK75C 250 60 110 118 145 150 48 88 94 116 120 250 5000

CK08C 250 70 125 135 162 170 56 100 107 130 136 250 5000

CK85B 315 80 150 160 195 200 64 120 130 156 160 315 5000

CK09B 315 95 165 177 215 230 85 148 160 192 205 315 5000

CK95B 450 105 190 205 250 288 95 175 188 230 265 450 5500

CK10C 600 135 260 280 340 370 120 235 252 375 330 630 10000

CK11C 700 190 325 350 425 450 152 260 280 340 360 800 10000

CK12B 1000 250 400 430 520 600 200 320 344 416 480 1000 12000

CK13B 1250 315 525 565 685 650 252 420 452 548 520 1250 15000

1To complete contactor reference, see pages 5-40 to 5-42 for CL and pages 5-43 and 5-45 for CK.

www.geindustrial.com Control Catalog 5-71

IEC Power Devices

Rev. 4/16

Prices and data subject to

change without notice

Section 5

IEC Contactors Dimensions

Series CSCN

Outlines and Dimensions ( in.

mm) For Estimating Only

Contactors for Capacitors Switching

7.5

4.5

85.5

133

139.5

7.5

90.5

144

150.5

4.5

118.5

162

168.5

5.5

128.5

172

178.5

5.5

1.38

0.18 2.20 5.24

5.49

1.77 0.30

1.97

2.87

3.37

1.77 5.93

5.67

2.60

1.57

0.18 2.17 0.03

1.97

3.11

2.36

3.56

0.22

2.60 0.35

6.38

6.63

3.03

2.20

2.36

3.54

4.67

0.22

6.77

3.39

2.20

2.95 0.35

7.03

5.06

3.54

82.5

131

137.5

45 7.5

1.38

4.5

1.77 0.30

5.16

5.41

0.18

1.97

2.87

3.25

CSCN12..., CSCN16...

CSCN20..., CSCN25...

CSCN30...

CSCN45..., CSCN55...

CSCN70...

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-72

IEC Power Devices

Specifications Section 5

C-2000

Contactors, Starters and Relays

Standards And Listings

—IEC 947-1

—BS 5424

—IEC 947-4

—BS 775

—EN 50005

—IEC 158-1

—CEI 17-3/252

—UNE 20109

—CENELEC HD419

—ASE 1025

—VDE 0660/102

—NFC 63-110

—UL 508, cUL

—CE Mark

—ZH1/457 (Positive Guided Contacts)

Pending Standards And Listings

—SEMKO, NEMKO, DEMKO, Lloyds Register

Ambient Temperature

Operating –13° to +131°F/–25° to +55°C

Storage 58° to +176°F/50° to 80°C

Altitude Derating

Up to 10,000 ft. (3,000 m) Nominal Values

10,000 to 13,200 ft. (3,000 to 4,000 m) 90% rated current

13,2000 to 16,000 ft. (4,000 to 5,000 m) 80% rated current

Rated Insulation Voltage

—600 Vac. UI= 1000V (per IEC 947)

Mounting Position—3-Pole and 4-Pole CL Contactors (5-75 Hp)

and RL4 Relays

To maintain operating integrity, the contactor must be mounted in one of the

positions shown below:

3-Pole and 4-Pole CK Contactors (100-55 Hp)

The contactor must be installed vertically or tilted a maximum of 30° from

vertical, as shown below:

Overload Relays Mounting Positions

www.geindustrial.com Control Catalog 5-73

IEC Power Devices

IEC Contactors Technical Data

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

CL/CK Contactors

CL00A310**, CL01A310**, CL02A310**, CL25A310**, CL04A310**, CL45A310**,

CL00D310**, CL01D310**, CL02D310**, CL25D310**, CL04D310**, CL45D310**,

LAR00A*, LAR01A*, LAR02A*, LAR25A*, LAR04A*, LAR45A*,

LDR00A* LDR01A* LDR02A* LDR25A* LDR04A* LDR45A*

Main Contacts

Continuous Amp Rating (UL508) 25 25 32 32 54 55

AC-1 Amps (IEC 947) 25 25 32 45 60 60

AC-2/AC3 FLA (max) 200 Volts 10 13.8 17.5 22 32 34

460 Volts 10 13.8 17.5 22 32 34

575 Volts 10 13.8 17.5 17.5 32 27

AC-2/AC-3 HP(max) 1 Phase 115 Volts 0.5 0.75 1 1.5 23

230 Volts 1.5 23355

AC-2/AC-3 HP(max) 3 Phase 200 Volts 335510 10

230 Volts 3357.5 10 10

460 Volts 5 7.5 10 15 20 25

575 Volts 7.5 10 15 15 25 25

AC2/3 kW 380/400 Volts 4 5.5 7.5 11 16 18.5

AC2/3 Amps IEC 947 380/400 Volts 9 12 18 25 32 40

AC-4 HP (max) 3 Phase 200 Volts 335510 10

230 Volts 3357.5 10 10

460 Volts 5 7.5 10 15 20 25

575 Volts 7.5 10 15 15 25 25

Maximum Operational Current AC-1 < 300 ops/hour 25 25 32 32 54 55

460V and below AC-1 < 600 ops/hour 25 25 32 32 54 55

AC-1 < 1200 ops/hour 25 25 32 32 54 55

AC-1 3000 ops/hour 12.5 12.5 16 16 27 27.5

AC-3 < 300 ops/hour 10 13.8 17.5 22 32 34

AC-3 < 600 ops/hour 10 13.8 17.5 22 32 34

AC-3 < 1200 ops/hour 10 13.8 17.5 22 32 34

AC-3 3000 ops/hour 3.5 4.8 6.1 7.7 11.2 11.9

AC-4 200 ops/hour max 10 13.8 17.5 22 32 34

AC-4 300 ops/hour max 10 13.8 17.5 22 32 34

AC-4 360 ops/hour max 10 13.8 17.5 22 32 34

Wire size - Power Terminals 14-10 AWG 14-10 AWG 14-10 AWG 14-10 AWG 14-10 AWG 14-10 AWG

75C(Cu)

Torque (Main) in.-lb. 15 15 15 20 16 16

Terminal Type Clamp Clamp Clamp Clamp Clamp Clamp

Terminal Hole Diameter ------

(Contactor Bar) Bolt Size ------

Noise dba 25 25 25 25 25 35

Coil and Switching Data Coil Burden

Inrush (AC Voltage) 45 va 45 va 45 va 45 va 88 va 88 va

Holding (AC Voltage) 6 va 6 va 6 va 6 va 9 va 9 va

Inrush (DC Voltage) 5.5 w 5.5 w 5.5 w 5.5 w 7.5 w 7.5 w

Holding (DC Voltage) 5.5 w 5.5 w 5.5 w 5.5 w 7.5 w 7.5 w

Inrush (AC/DC Module)

Holding (AC/DC Module)

Pick-up (% coil voltage) AC Voltage 85-110 85-110 85-110 85-110 85-110 85-110

DC Voltage 80-110 80-110 80-110 80-110 80-110 80-110

AC/DC Module ------

Drop-out (% coil voltage) AC Voltage 40-55 40-55 40-55 40-55 40.55 40.55

DC Voltage 20-40 20-40 20-40 20-40 15-30 15-30

AC/DC Module ------

Switching Delay ON (ms) AC Voltage (at rated voltage) 8-20 8-20 8-20 8-20 10-19 10-19

AC Voltage (at +10% to -20%) 6-25 6-25 6-25 6-25 7-25 7-25

DC Voltage (at rated voltage) 40-50 40-50 40-50 40-50 40-65 40-65

DC Voltage (at +10% to -20%) 35-65 35-65 35-65 35-65 35-70 35-70

AC/DC Module (at rated voltage) ------

AC/DC Module (at +10% to -20%) ------

Switching Delay OFF (ms) AC Voltage (at rated voltage) 6-13 6-13 6-13 6-13 5-25 5-25

AC Voltage (at +10% to -20%) 6-13 6-13 6-13 6-13 5-25 5-25

DC Voltage (at rated voltage) 30-60 30-60 30-60 30-60 40-65 40-65

DC Voltage (at +10% to -20%) 30-60 30-60 30-60 30-60 40-65 40-65

AC/DC Module (at rated voltage) ------

AC/DC Module (at +10% to -20%) ------

Maximum Operations per Hour AC Voltage (No Load) 9000 9000 9000 9000 9000 9000

AC Voltage (Rated Load -AC1, AC3) 1200 1200 1200 1200 1200 1200

AC Voltage (Rated Load -AC4) 360 360 360 360 360 360

DC Voltage (No Load) 3600 3600 3600 3600 3600 3600

DC Voltage (Rated Load -AC1, AC3) 1200 1200 1200 1200 1200 1200

DC Voltage (Rated Load -AC4) 360 360 360 360 360 360

AC/DC(Module) Voltage (No Load) ------

AC/DC(Module) Module (Rated Load -AC1, AC3) ------

AC/DC(Module) Module (Rated Load -AC4) ------

Mechanical Life (millions of Operations) 20 20 20 20 20 20

Aux. Contacts Std Product Rating A600, Q300 1NO (Built-in) 1NO (Built-in) 1NO (Built-in) 1NO Front 1NO (Built-in) 1NO Front

Aux. Contacts Maximim Number of Aux. Contacts 444466

Maximum Aux. Block Configuration 4 front or 1 4 front or 1 4 front or 1 4 front or 1 4 front plus 1 4 front plus 1

side-mount side-mount side-mount side-mount side or 2 front side or 2 front

each side each side each side each side plus 1 side mount plus 1 side mount

each side each side

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-74

IEC Power Devices

IEC Contactors Technical Data Section 5

C-2000

CL/CK Contactors

CL06A311**, CL07A311**, CL08A311**, CL09A311**, CL10A311**,

CL06E311**, CL07E311**, CL08E311**, CL09E311**, CL10E311**,

LAR06A*, LAR07A*, LAR08A*, LAR09A*, LAR10A*, CK75CE311*,

LER06A* LER07A* LER08A* LER09A* LER10A* KAR75C*

Main Contacts

Continuous Amp Rating (UL508) 80 100 110(O),102(E) 140(O),120(E) 140(O),120(E) 150

AC-1 Amps (IEC 947) 80 100 110 140 140 200

AC-2/AC3 FLA (max) 200 Volts 48 62 68 80 104 140

460 Volts 48 62 68 80 96 140

575 Volts 48 62 68 80 80 140

AC-2/AC-3 HP(max) 1 Phase 115 Volts 3357.5 10 10

230 Volts 7.5 7.5 15 15 20 25

AC-2/AC-3 HP(max) 3 Phase 200 Volts 15 20 20 25 30 40

230 Volts 15 20 25 30 40 50

460 Volts 30 40 50 60 75 100

575 Volts 40 50 60 75 75 125

AC2/3 kW 380/400 Volts 22 30 37 45 55 75

AC2/3 Amps IEC 947 380/400 Volts 50 65 80 95 105 150

AC-4 HP (max) 3 Phase 200 Volts 15 20 20 25 30 40

230 Volts 15 20 25 30 40 50

460 Volts 30 40 50 60 75 100

575 Volts 40 50 60 75 75 125

Maximum Operational Current AC-1 < 300 ops/hour 80 100 110

460V and below AC-1 < 600 ops/hour 80 100 110 120 140(O), 120(E) 150

AC-1 < 1200 ops/hour 80 100 110 96 112(O), 96(E) 125

AC-1 3000 ops/hour 40 50 55 48 56(O), 48(E) 50

AC-3 < 300 ops/hour 48 62 68

AC-3 < 600 ops/hour 48 62 68 80 96 140

AC-3 < 1200 ops/hour 48 62 68 60 72 100

AC-3 3000 ops/hour 16.8 21.7 23.8 20 24 30

AC-4 200 ops/hour max 48 62 68 80 96 140

AC-4 300 ops/hour max 48 62 68 ---

AC-4 360 ops/hour max 48 62 68 ---

Wire size - Power Terminals 14-10 AWG 14-10 AWG 14-10 AWG 10-2/0 AWG 10-2/0 AWG 6 AWG - 250kcmil

75C(Cu)

Torque (Main) in.-lb. 40 40 40 60 60 275

Terminal Type Box Lug Box Lug Box Lug Box Lug Box Lug Optional Lug

CKX03

Terminal Hole Diameter -----0.32

(Contactor Bar) Bolt Size -----M-8

Noise dba 45 45 45 45 45 45

Coil and Switching Data Coil Burden

Inrush (AC Voltage) 191 va 191 va 191 va 191 va 191 va

Holding (AC Voltage) 17 va 17 va 17 va 17 va 17 va

Inrush (DC Voltage)

Holding (DC Voltage)

Inrush (AC/DC Module) 125 w 125 w 125 w 125 w 125 w 230 va

Holding (AC/DC Module) 2.5 w 2.5 w 2.5 w 2.5 w 2.5 w 2.8 va

Pick-up (% coil voltage) AC Voltage 85-110 85-110 85-110 85-110 85-110

DC Voltage ------

AC/DC Module 80-110 80-110 80-110 80-110 80-110 80-110

Drop-out (% coil voltage) AC Voltage 40-60 40-60 40-60 40-60 40-60

DC Voltage ------

AC/DC Module 40-60 40-60 40-60 40-60 40-60 40-60

Switching Delay ON (ms) AC Voltage (at rated voltage) 15-30 15-30 15-30 15-30 15-30 -

AC Voltage (at +10% to -20%) 9-35 9-35 9-35 9-35 9-35 -

DC Voltage (at rated voltage) ------

DC Voltage (at +10% to -20%) ------

AC/DC Module (at rated voltage) 50-60 50-60 50-60 55-60 55-60 60-70

AC/DC Module (at +10% to -20%) 60-80 60-80 60-80 40-50 40-50 -

Switching Delay OFF (ms) AC Voltage (at rated voltage) 9-15 9-15 9-15 9-15 9-15 -

AC Voltage (at +10% to -20%) 9-15 9-15 9-15 9-15 9-15 -

DC Voltage (at rated voltage) 55-60 -----

DC Voltage (at +10% to -20%) 40-50 -----

AC/DC Module (at rated voltage) 55-60 55-60 55-60 55-60 55-60 13-17

AC/DC Module (at +10% to -20%) 40-50 40-50 40-50 40-50 40-50

Maximum Operations per Hour AC Voltage (No Load) 9000 9000 9000 5000 5000 -

AC Voltage (Rated Load -AC1, AC3) 1200 1200 1200 1200 1200 -

AC Voltage (Rated Load -AC4) 200 200 200 200 200 -

DC Voltage (No Load) ------

DC Voltage (Rated Load -AC1, AC3) ------

DC Voltage (Rated Load -AC4) ------

AC/DC(Module) Voltage (No Load) 2500 2500 2500 2500 2500 1200

AC/DC(Module) Module (Rated Load -AC1, AC3) 1200 1200 1200 1200 1200 600

AC/DC(Module) Module (Rated Load -AC4) 200 200 200 200 200 150

Mechanical Life (millions of Operations) 15 15 15 15 15 10

Aux. Contacts Std Product Rating A600, Q300 1NO, 1NC Front 1NO, 1NC Front 1NO, 1NC Front 1NO, 1NC Front 1NO, 1NC Front 1NO,1NC Side

Aux. Contacts Maximim Number of Aux. Contacts 888888

Maximum Aux. Block Configuration 6 front plus 1 6 front plus 1 6 front plus 1 6 front plus 1 6 front plus 1 2 side mount

side mount or 2 side mount or side mount or side mount or side mount or each side

side mount 2 side mount 2 side mount 2 side mount 2 side mount

each side each side each side each side each side

www.geindustrial.com Control Catalog 5-75

IEC Power Devices

IEC Contactors Technical Data

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

CL/CK Contactors

CK08CE311*, CK09BE311*, CK95BE311*, CK10CE311*, CK11CE311*, CK12BE311*,

KAR08C* KAR09B* KAR95B* KAR10C* KAR11C* KAR12B*

Main Contacts

Continuous Amp Rating (UL508) 175 200 310 500 600 750 (O), 650(E)

AC-1 Amps (IEC 947) 250 315 500 600 700 1000

AC-2/AC3 FLA (max) 200 Volts 156 192 302 398 480 602

460 Volts 156 192 302 398 480 602

575 Volts 156 192 302 398 480 602

AC-2/AC-3 HP(max) 1 Phase 115 Volts 15

230 Volts 30

AC-2/AC-3 HP(max) 3 Phase 200 Volts 50 60 100 125 150 200

230 Volts 60 75 100 150 200 250

460 Volts 125 150 250 300 400 500

575 Volts 150 150 300 400 500 600

AC2/3 kW 380/400 Volts 90 132 160 220 280 375

AC2/3 Amps IEC 947 380/400 Volts 185 250 310 420 550 700

AC-4 HP (max) 3 Phase 200 Volts 50 60 100 125 150 200

230 Volts 60 75 100 150 200 250

460 Volts 125 150 250 300 400 500

575 Volts 150 150 250 400 500 600

Maximum Operational Current AC-1 < 300 ops/hour 500 600 810

460V and below AC-1 < 600 ops/hour 175 200 310 400 500 648

AC-1 < 1200 ops/hour 140 160 250 ---

AC-1 3000 ops/hour 70 80 120 ---

AC-3 < 300 ops/hour 398 480 602

AC-3 < 600 ops/hour 156 192 302 299 360 452

AC-3 < 1200 ops/hour 115 144 227 ---

AC-3 3000 ops/hour 39 48 76 ---

AC-4 200 ops/hour max 156 192 302 398 480 602

AC-4 300 ops/hour max ---398 480 602

AC-4 360 ops/hour max ------

Wire size - Power Terminals 6 AWG - 250kcmil 6 AWG - 350kcmil 6 AWG - 350kcmil 2 AWG -500kcmil ; 2 AWG -500kcmil ; 2 AWG -500kcmil ;

75C(Cu) 2/0 AWG -600kcmil 2/0 AWG -600kcmil 2/0 AWG -600kcmil

Torque (Main) in.-lb. 275 200 200 375 375 375

Terminal Type Optional Lug Optional Lug Optional Lug Optional Lug Optional Lug Optional Lug

CKX03 CKX02 CKX02 CKX01 CKX01 CKX01

Terminal Hole Diameter 0.32 0.43 0.43 0.43 0.43 0.43

(Contactor Bar) Bolt Size M-8 M-10 M-10 M-10 M-10 M-10

Noise dba 45 45 45 45 45 45

Coil and Switching Data Coil Burden

Inrush (AC Voltage)

Holding (AC Voltage)

Inrush (DC Voltage)

Holding (DC Voltage)

Inrush (AC/DC Module) 230 va 360 va 360 va 570 va 570 va 560 va

Holding (AC/DC Module) 2.8 va 5.3 va 5.3 va 8.8 va 8.8 va 6.7 va

Pick-up (% coil voltage) AC Voltage

DC Voltage ------

AC/DC Module 80-110 80-110 80-110 80-110 80-110 80-110

Drop-out (% coil voltage) AC Voltage

DC Voltage ------

AC/DC Module 40-60 40-60 40-60 40-60 40-60 40-60

Switching Delay ON (ms) AC Voltage (at rated voltage) ------

AC Voltage (at +10% to -20%) ------

DC Voltage (at rated voltage) ------

DC Voltage (at +10% to -20%) ------

AC/DC Module (at rated voltage) 60-70 60-70 60-70 110-115 110-115 70-80

AC/DC Module (at +10% to -20%) ------

Switching Delay OFF (ms) AC Voltage (at rated voltage) ------

AC Voltage (at +10% to -20%) ------

DC Voltage (at rated voltage) ------

DC Voltage (at +10% to -20%) ------

AC/DC Module (at rated voltage) 13-17 13-17 13-17 70-80 70-80 70-80

AC/DC Module (at +10% to -20%)

Maximum Operations per Hour AC Voltage (No Load) ------

AC Voltage (Rated Load -AC1, AC3) ------

AC Voltage (Rated Load -AC4) ------

DC Voltage (No Load) ------

DC Voltage (Rated Load -AC1, AC3) ------

DC Voltage (Rated Load -AC4) ------

AC/DC(Module) Voltage (No Load) 1200 1200 1200 900 900 900

AC/DC(Module) Module (Rated Load -AC1, AC3) 600 600 600 300 300 300

AC/DC(Module) Module (Rated Load -AC4) 150 150 150 120 120 120

Mechanical Life (millions of Operations) 10 10 10 10 10 10

Aux. Contacts Std Product Rating A600, Q300 1NO,1NC Side 1NO,1NC Side 1NO,1NC Side 1NO,1NC Side 1NO,1NC Side 1NO,1NC Side

Aux. Contacts Maximim Number of Aux. Contacts 888888

Maximum Aux. Block Configuration 2 side mount 2 side mount 2 side mount 2 side mount 2 side mount 2 side mount

each side each side each side each side each side each side

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-76

IEC Power Devices

IEC Overload Relays Technical Data Section 5

C-2000

RT Overload Relays

RT1 RT2 RT3 RT4 Suffix K-M RT4 Suffix N-R RT5

Trip Class 10/20 10/20 10/20 10/30 10/30 10/30

Contactor Size CL00 CL06 CK75 CK09 CK09 CK10

CL01 CL07 CK08 CK95 CK95 CK11

CL02 CL08 CK12

CL25 CL09

CL04 CL10

CL45

Rated Insulation Voltage 690V 1000V 1000V 1000V 1000V 1000V

Frequency Limits 50-60 Hz 50-60 Hz 50-60 Hz 50-60 Hz 50-60 Hz 50-60 Hz

Terminal Capacity 14-8 AWG 14-1/0 AWG 6 AWG-250kcmil 14-2/0 AWG 6 AWG-350kcmil 8 AWG-500 kcmil

2/0 AWG-600 kcmil

Terminal Type Clamp Box Optional Lug Box Optional Lug Optional Lug

CKX03 CKX02 CKXC01

Torque (in.-lb.) 24-14 50 275 105 200 375

Auxiliary Contact 1NO-1NC B660/Q600 B660/Q600 B660/Q600 B660/Q600 B660/Q600 B660/Q600

Terminal Capacity 22-12 AWG 22-12 AWG 22-12 AWG 22-12 AWG 22-12 AWG 22-12 AWG

Terminal Torque (lb.-in.) 7-12 AWG 7-12 AWG 7-12 AWG 7-12 AWG 7-12 AWG 7-12 AWG

solid or stranded solid or stranded solid or stranded solid or stranded solid or stranded solid or stranded

75°C copper wire 75°C copper wire 75°C copper wire 75°C copper wire 75°C copper wire 75°C copper wire

www.geindustrial.com Control Catalog 5-77

IEC Power Devices

IEC Contactors Accessories Technical Data

Rev. 4/16

Prices and data subject to

change without notice

Section 5

Full

Voltage

Standard

Contactors

C-2000

Electronic Timer and Interface Modules

Wiring Diagrams/Operation Characteristics

Standards

—UL508, UL listed

—cUL listed

—IEC 60947-1, 60947-5-1

— Marked, EMC and LV Directives

Ambient Temperature

Operating –13°F to 140°F

Storage –40°F to 176°F

Relative Humidity

—95% without condensation

Wire Size/Torque

14-10 AWG, Cu wire

60°-75°C/Torque 7 lbs./in.

Voltage Input

IMRD 17-30 Vdc

Switching Rate (200 VA @ 50% PF)

—1000 ops/hr

Minimum Pulse BETL *D

—40ms

Electrical Endurance (200 VA @ 50% PF)

BETL* 15 million operations

IMR* 3 million operations

Reference Publications

Instructions

Interface Modules (IMR*) DEH-174

Surge Suppressors (IMRC*, IMV*) DEH-175

Timers (BETL*) DEH-175

Time Delay On

Time Delay Off

Interface Module Relay Type

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-78

IEC Power Devices

IEC Contactors Lifetime Curves Section 5

C-2000

Utilization Categories

Utilization categories are used to describe the type of motor load and duty cycle. Each category has a unique life/load curve which is

used to estimate expected electrical life of a specific controller.

Following are descriptions of the most common ac utilization categories:

Utilization Category Description

AC-1 Noninductive or slightly inductive loads, such as resistance furnaces.

AC-2 Starting of slip-ring motors without plugging.

AC-3 Starting and stopping of squirrel-cage motors. This utilization category is typical of the standard type of motor duty encountered in most industrial applications.

AC-4 Starting of squirrel-cage motors in inching, plugging, and reversing applications.

Life Curves . . . how to use

To determine estimated electrical life for a specific contactor, follow these guidelines:

1. Determine appropriate utilization category. The illustrations below show typical life curves for C-2000 contactors, which will operate

the AC-1 utilization categories. AC-2, AC-3, AC-4, and AC-3/AC-4 (mixed-duty) life curves are shown on pages 5-79, 5-80.

2. Once the appropriate utilization category has been determined, then using the appropriate curve, it is easy to determine the

expected contactor’s life by reading the figure (in millions of operations) to the left of the intersection of the rated operating current

and the contactor curve.

Example: Using a motor duty cycle of starting and stopping (standard) for a three-phase squirrel-cage motor rated 15 horsepower at

460 V with an operating current of 19.6 amperes, choose utilization curve AC-3 and take the following action:

A. Locate rated operating current on bottom (horizontal) scale and draw a vertical line to intersect the first heavy line which will indi-

cate contactor size. In this example, the drawn vertical line for 19.6 amperes will intersect the CL25 contactor line.

B. Reading the vertical scale to the left of the intersection point denotes an expected life of approximately 3 million operations for the

selected size of contactor (CL25).

C. If greater contactor life is required, continue the drawn vertical line to intersect with a larger size contactor line.

Caution note: Do not apply a contactor for use on a motor which has greater horsepower rating than shown in the Data Summary

table on pages 5-73 through 5-75.

Life Curves

AC-1: Noninductive, or lightly inductive loads, e.g., resistance furnaces

www.geindustrial.com Control Catalog 5-79

IEC Power Devices

IEC Contactors Lifetime Curves

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

AC-2: Starting of Slip-Ring Motors Without Plugging

AC-3: Interruption of Running Squirrel-Cage Motors

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-80

IEC Power Devices

IEC Contactors Lifetime Curves Section 5

C-2000

AC-4: Inching (Jogging) of Squirrel-Cage Motors

AC-3/AC-4: Mixed-Duty with Squirrel-Cage Motors

To calculate mixed AC-3/AC-4 life: Find the ratio of AC-3/AC-4 operations on the left side, read across to the appropriate curve for the

contactor and breaking current expected (3 times FLA or 6 times FLA). Then read corresponding coefficient from the bottom of the

curve. The product of this coefficient and the AC-3 life from the previous page is the expected life under mixed AC-3/AC-4 conditions.

www.geindustrial.com Control Catalog 5-81

IEC Power Devices

IEC Contactors Application Ratings-DC

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000 Controls can be used as DC contactors in many industrial

applications. These include: DC load banks, loop contactors and

dynamic braking contactors in adjustable speed DC drives and

other special motor control applications. Contact the motor

manufacturer as to the starting requirements of a particular

motor. Only small motors can be started at full voltage. Medium

and large-sized DC motors require resistance in series with

armature during acceleration when connected to a constant

potential DC system.

AC contactors are conditionally suitable for switching DC. The

switching capacity for DC, using AC contactors, is decreased as the

voltage increases, and also as inductance is added to the circuit.

Utilization Categories have been assigned to the more popular

loads where contactors are required. They include:

DC-1

DC-1 applications involve switching noninductive loads such as

resistive load banks.

DC-2

DC-2 applications involve starting and switching off shunt wound

DC motors. Shunt wound DC motors are those most frequently

used in adjustable voltage, adjustable speed DC drives. Even DC

motors with permanent magnet fields are usually considered to

be shunt wound.

DC-3

DC-3 applications involve starting, stopping, plugging and jog-

ging shunt wound DC motors. Jogging is an inexpensive and

frequently ordered DC drive modification. Care must be taken to

determine when jogging is required, since it is more severe than

duties covered by category DC-2.

DC-4 and DC-5

DC-4 and DC-5 applications cover use with series wound, trac-

tion-type DC motors. Traction motor requirements are

application intensive and should involve factory review.

Ratings for DC Applications (AMPS)

DC-1 (LR ≤ 15 ms) DC-3 (LR ≤ 2.5 ms) DC-5 (LR ≤ 15 ms)

Rated Voltage Ue 24V 125V 220V 440V 24V 125V 220V 440V 24V 125V 220V 440V

Poles in Series 12 34 1234 234 34 1234 1234 234 34 1234 1234 234 34

CL00 18 25 25 —618 25 — 7.5 25 —8—12 18 18 —210 15 —212 — 1.5 — 12 18 18 — 0.8 5 15 — 0.8 3— 0.5 —

CL01 18 25 25 25 6 18 25 25 7.5 25 25 8 15 12 18 18 18 2 10 15

—

12 15 6 1.5 6 12 18 18 18 0.8 5 15 15 0.8 3 10 0.5 2

CL02 18 32 32 32 6 18 25 32 7.5 25 32 8 15 12 18 18 18 2 12 18 18 2 12 18 1.5 6 12 18 18 18 0.8 5 15 18 0.8 3 10 0.5 2

CL25 25 45 45 —825 32 —832 — 10 — 18 25 25 —218 25

—

2 18

—

1.5

—

18 25 25

—

0.8 5 20

—

0.8 3

—

0.5

—

CL04 32 60 60 60 8 45 60 60 8 50 60 10 25 25 40 40 40 3 25 32 32 2 25 32 36 25 40 40 32 1.2 5 25 32 0.8 3 15 0.7 4

CL45 40 60 60 —845 60 —850 — 10 — 32 40 40 —332 40

—

2 32

—

32 40 40

—

1.2 5 32

—

0.8 3

—

0.7

—

CL06 50 90 90 — 16 80 90 — 20 90 — 15 — 40 65 65 —350 65

—

7 50

—

40 65 65

—

1.2 50 60

—

CL07 65 110 110 110 16 90 110 110 20 110 110 15 90 50 80 80 80 3 60 80 80 7 65 80 3 65 50 80 80 80 1.2 60 70 80 3775 1 50

CL08 65 110 110 — 16 90 110 — 20 110 — 15 — 50 80 80 —360 80

—

7 65

—

50 80 80

—

1.2 60 70

—

CL09 80 140 140 140 16 110 140 140 20 140 140 15 110 65 105 105 105 3 80 105 105 7 95 150 3 75 65 105 105 105 1.2 85 95 105 4795 1 60

CL10 80 140 140 — 16 110 140 — 20 140 — 15 — 65 105 105 —380 105

—

7 95

—

65 105 105

—

1.2 85 95

—4

—

CK75 200 250 250 — 25 200 250 — 110 250 250 120 — 150 150 150 — 25 150 150

—

60 150

—

150 150 150

—

20 95 150

— 50

—

CK08 200 250 250 250 25 200 250 250 110 250 250 120 200 185 185 185 185 25 185 185 185 70 185 185 55 105 185 185 185 185 20 105 185 185 55 105

185

40 95

CK09 250 315 315 315 30 250 315 315 150 315 315 150 250 250 250 250 250 30 250 250 250 85 250 250 70 185 250 250 250 250 25 185 250 250 70 185 250 50 150

CK95 350 450 450 450 50 300 500 500 200 500 500 180 315 309 309 309 309 50 309 309 309 95 309 309 80 205 309 309 309 309 40 205 309 309 80 205 309 60 185

CK10 500 600 600 600 60 400 600 600 250 600 600 240 400 420 420 420 420 60 420 420 420 140 420 420 120 250 420 420 420 420 50 250 420 420 120 250 420 90 205

CK11 600 700 700 700 70 500 700 700 250 700 700 300 500 550 550 550 550 70 550 550 550 185 550 550 150 300 550 550 550 550 60 300 550 550 150 300 500 100 250

CK12 800 1000 1000 1000 100 600 1000 1000 300 1000 1000 400 700 700 700 700 700 100 700 700 700 225 700 700 180 400 700 700 700 700 80 400 700 700 180 400 700 100 300

Single-pole operation Two poles in series Three poles in series Four poles in series

C-2000

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-82

IEC Power Devices

IEC Contactors Application Ratings-AC Section 5

C-2000

Maximum Three-Phase KVAR Rating for Switching Capacitors

10,000 Amp RMS 22,000 Amp RMS

Maximum Available Fault Current Maximum Available Fault Current

Product Number 200V 230V 460V 575V 200V 230V 460V 575V

CL00 3355.7 1.5 1.5 2.5 2.8

CL01 4.5 4.5 9.5 11 2.2 2.2 4.5 5.5

CL02 6.5 6.5 11 12.5 3.2 3.2 5.5 6.2

CL25 9915 17.5 4.5 4.5 7.5 8.2

CL04 12.5 12.5 21 24 6.2 6.2 10.5 12

CL45 17 17 30 35 8.5 8.5 15 17.5

CL06 22 22 40 50 11 11 20 25

CL07 25 25 45 65 12.5 12.5 22.5 32.5

CL08 30 30 50 70 15 15 25 35

CL09 40 40 65 95 20 20 32.5 47.5

CL10 50 50 80 120 25 25 40 60

CK75 60 60 100 150 60 60 100 150

CK08 70 70 130 175 70 70 130 175

CK09 95 95 165 230 95 95 165 230

CK95 105 105 190 288 105 105 190 288

CK10 135 135 260 370 135 135 260 370

CK11 190 190 325 450 190 190 325 450

CK12 250 250 400 600 250 250 400 600

Utilization in Category AC-1, General Use

3-Pole Contactors CL Contactors CK Contactors

Max. operational 00 01 02 25 04 45 06 07 08 09 10 75 08 09 95 10 11 12

current at ambient 40°C A 25 25 32 32 54 55 80 100 102 120 120 150 175 200 310 500 600 650

temperature of: 55°C A 25 25 32 32 54 55 80 100 102 120 120 150 175 200 310 425 510 546

(for all voltages) 70°C A 20 20 25 25 41 44 62 78 81 80 80 130 155 175 270 335 432 468

4-Pole Contactors CL Contactors CK Contactors

Max. operational 01 02 03 04 06 07 08 09 08 09 95 10 11 12

current at ambient 40°C A 25 32 40 54 70 100 110 120 175 200 310 500 550 650

temperature of: 55°C A 25 32 40 54 70 100 110 120 175 200 310 425 462 543

(for all voltages) 70°C A 20 25 28 41 52 78 88 80 155 175 270 335 462 468

UL/cUL Elevator Duty Rating

Max Hp (1-phase) Max Hp (3-phase)

Product Number Maximum FLA 115 Volts HP (A) 230 Volts HP (A) 200 Volts HP (A) 230 Volts HP (A) 480 Volts HP (A)

CL00 7.8 0.33 (7.2) 0.75 (6.9) 2 (7.8) 2 (6.8) 5 (7.6)

CL01 11 0.5 (9.8) 1.5 (10) 3 (11) 3 (9.6) 7.5 (11)

CL02 15.2 0.75 (13.8) 2 (12) 3 (11) 3 (15.2) 10 (14)

CL25 22 1.5 (20) 3 (17) 5 (17.5) 7.5 (22) 15 (21)

CL04 27 2 (24) 3 (17) 7.5 (25) 7.5 (22) 20 (27)

CL06 34 3 (34) 5 (28) 10 (32) 10 (28) 25 (34)

CL07 42 3 (34) 7.5 (40) 10 (32) 15 (42) 30 (40)

CL08 56 5(56) 10 (50 15 (48) 20 (54) 40 (52)

CL09 65 5 (56) 10 (50) 20 (62) 20 (54) 50 (65)

www.geindustrial.com Control Catalog 5-83

IEC Power Devices

IEC Contactors Application Ratings-KVA

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

Maximum KVA of Transformer for Primary Switching (50/60 Hz)

Product Max. Peak Inrush = 20 x Normal Inrush = 40 x Normal

Number Closing Current Phase 120V 208V 240V 480V 600V 120V 208V 240V 480V 600V

CL00 450 Amps 1 0.6 1 1.2 1.7 2.1 0.3 0.5 0.6 0.8 1

CL00 450 Amps 3 1.1 1.9 2.2 3.1 3.8 0.5 0.9 1.1 1.5 1.9

CL01 450 Amps 1 0.8 1.4 1.7 2.4 3.0 0.4 0.7 0.8 1.2 1.5

CL01 450 Amps 3 1.5 2.6 3.0 4.2 5.2 0.7 1.3 1.5 2.1 2.6

CL02 450 Amps 1 1.2 2.0 2.5 3.5 4.4 0.6 1.0 1.2 1.7 2.2

CL02 450 Amps 3 2.2 3.8 4.5 6.3 7.7 1.1 1.9 2.2 3.1 3.8

CL25 550 Amps 1 1.8 3.1 3.7 5.2 6.4 0.9 1.5 1.8 2.6 3.2

CL25 550 Amps 3 3.2 5.5 6.5 9.1 11.2 1.6 2.7 3.2 4.5 5.6

CL04 550 Amps 1 2.2 3.8 4.5 6.3 7.8 1.1 1.9 2.2 3.1 3.9

CL04 550 Amps 3 4.0 7.0 8.0 11.2 13.7 2.0 3.5 4.0 5.6 6.8

CL45 550 Amps 1 2.8 4.8 5.7 8.0 9.7 1.4 2.4 2.8 4.0 4.8

CL45 550 Amps 358.6 10 14.0 17 2.5 4.3 5 7.0 8.5

CL06 1000 Amps 1 3.4 5.9 6.8 9.5 12 1.7 2.9 3.4 4.7 6

CL06 1000 Amps 3610.4 12 16.8 21 3 5.2 6 8.4 10.5

CL07 1000 Amps 1 4.2 7.2 8.5 12 14.2 2.1 3.6 4.2 6.0 7.1

CL07 1000 Amps 3 7.5 13 15 21 25 3.7 6.5 7.5 10.5 12.5

CL08 1000 Amps 1 5.7 10 11.4 16 20 2.8 5.0 5.7 8.0 10

CL08 1000 Amps 3 10 17.3 20 28 35 5 8.6 10 14 16

CL09 1280 Amps 1 7.1 12.3 14.2 20 22.8 3.5 6.1 7.1 10 11.4

CL09 1280 Amps 3 12.5 21.6 25 35 40 6.2 10.8 12.5 17.5 20

CL10 1280 Amps 1 8.5 14.7 17.1 24 28.5 4.2 7.3 8.5 12 14.2

CL10 1280 Amps 3 15 26 30 42 50 7.5 13 15 21 25

CK75 1850 Amps 1 10 17.2 20 28 31.3 5 8.6 10 14 15.6

CK75 1850 Amps 3 17.5 30.3 35 49 55 8.75 15.1 17.5 24.5 27.5

CK08 1850 Amps 1 11.4 19.7 22.8 32 34.2 5.7 9.8 11.4 16 17.1

CK08 1850 Amps 3 20 34.6 40 56 60 10 17.3 20 28 30

CK09 2500 Amps 1 14.2 24.6 28.5 40 48.5 7.1 12.3 14.2 20 24.2

CK09 2500 Amps 3 25 43.3 50 70 85 12.5 21.6 25 35 42.5

CK95 3700 Amps 1 18.5 32.0 37.1 52 62.8 9.2 16.0 18.5 26 31.4

CK95 3700 Amps 3 32 55.4 65 91 110 16 27.7 32 45 55

CK10 7000 Amps 1 22.8 39.5 45.7 64 85.7 11.4 19.7 22.8 32 42.8

CK10 7000 Amps 3 40 69.3 80 112 150 20 34.6 40 56 75

CK11 7000 Amps 1 28.5 49.4 57.1 80 97.1 14.2 24.7 28.5 40 48.5

CK11 7000 Amps 3 50 86.6 100 140 170 25 43.3 50 70 85

CK12 8400 Amps 1 45.7 79.2 91.4 128 160 22.8 39.6 45.7 64 80

CK12 8400 Amps 3 80 138.6 160 224 280 40 69.3 80 112 140

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-84

IEC Power Devices

IEC Contactors & Starters

Type 2 Coordination

Section 5

C-2000 Contactors

Product Type Maximum Amps Type LPJ-SP or AJT Maximum Fuse

CL00 10 25

CL01 13.8 35

CL02 17.5 40

CL25 22 45

CL03 25 60

CL04 32 60

CL45 34 70

CL05 42 90

CL06 48 100

CL07 62 125

CL08 68 125

CL09 80 150

CL10 104 200

CK08 156 300

CK09 192 400

CK95 302 450

CK10 398 800

CK11 480 900

CL12 602 1000

C-2000 Starters

Overload Type Maximum Amps Type LPJ-SP or AJT Maximum Fuse

RT1F 0.65 - 1.1 1.5

RT1G 1 - 1.5 2

RT1H 1.3 - 1.9 4

RT1J 1.8 - 2.7 4

RT1K 2.5 - 4.1 8

RT1L 4 - 6.3 10

RT1M 5.5 - 8.5 12

RT1N 8 - 12 20

RT1P 10 - 16 25

RT1S 14.5 - 18 35

RT1T 17.5 - 22 45

RT1U 21 - 26 45

RT1V 25 - 35 60

RT1W 30 - 40 70

RT2A 11.5 - 15 30

RT2B 14.5 - 19 35

RT2C 18.5 - 25 45

RT2D 24 - 32 60

RT2E 30 - 43 70

RT2G 42 - 45 100

RT2H 54 - 65 125

RT2J 64 - 82 150

RT2L 78 - 97 200

RT2M 90 - 110 200

RT3B 55 - 80 125

RT3C 63 - 90 150

RT3D 90 - 120 200

RT3E 110 - 140 250

RT3F 140 - 190 300

RT4N 120 - 190 350

RT4P 175 - 280 450

RT4R 200 - 310 450

RT5A 120 - 190 400

RT5B 175 - 280 600

RT5C 250 - 400 800

RT5D 315 - 500 900

RT5E 430 - 650 1000

C-2000

C-2000 contactors and starters have been tested and certified to

meet IEC 947.4 Type 2 coordination when protected with the type

“J” fuses shown in tables.

“Type 2 coordination requires that, under short-circuit conditions,

the contactor or starter shall cause no danger to persons or

installation and shall be suitable for further use. The risk of con-

tact welding is recognized, in which case the manufacturer shall

indicate the measures to be taken as regards the maintenance of

the equipment.” (IEC 947.4)

Short Circuit Test Condition...................100,000 Amps (maximum)

Fuse Type ............................................................................................................J

Fuse Manufacturer Product Number or Type

Bussmann................................................................................................LPJ-SP

Gould Shawmut..........................................................................................AJT

Note: Use of short circuit protective device not in compliance

with the above manufacturer’s type may invalidate the

coordination.

Type 2 - Maintenance Procedure, C-2000 Products

Before working on contactor/starter, make sure all electrical

power is turned off, including the control voltage.

Step 1. Tighten down all terminals, on the CL00 thru CL45,

(including 4th pole auxiliary contacts), securing them

in place.

Step 2. Remove outer cover, with screwdriver:

CL Products: The cover has a snap fit design. Pry the ends of the

cover loose from the contactor with screwdriver, releasing the

snaps.

CK Products: The cover is held with two screws. Loosen the

screws and remove.

Step 3. Remove inner cover, CL03 thru CL10 only, which is held

by 2 or 4 screws. Loosen screws and remove.

Step 4. Examine contacts for welding. If a contact is welded,

gently pry the contacts apart using a screwdriver.

Step 5. Reassemble by reversing the above procedure

(Steps 4, 3, 2).

To ensure contactor is operating correctly, operate at least ten

times with main power off. Confirm that all poles are correctly

opening and closing with a continuity meter.

www.geindustrial.com Control Catalog 5-85

IEC Power Devices

IEC Contactors & Starters Wiring Diagrams

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

Typical Schematic Diagram For C-2000 Three-Phase AC Motor Starters/Contactors Showing Start-Stop Push Button Connections

Notes: Holding interlock is numbered 13 and 14 on some forms and the normally closed auxiliary contact is not standard on all forms.

Typical Schematic Diagram For C-2000 Single-Phase AC Motor Starters/ Start-Start Push Button/Control

Contactors Showing Start-Stop Push Button Connections Transformer Elementary

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-86

IEC Power Devices

IEC Contactors & Starters Wiring Diagrams Section 5

C-2000

Legend

F and R Forward and Reverse Line Contactors, Mechanically and

Electronically Interlocked

FLS Forward Limit Switch

RLS Reverse Limit Switch

OL Thermal Overload Relay

Notes: Cross Electrical interlocks may be marked 01 and 02.

Wires “B” and “C” are omitted. These wires must be added if limit

switches are not used.

lFactory wired terminals

mField wired terminals

Momentary Contact Push Button Station/Control Transformer Elementary

Typical Schematic Drawing for C-2000 Three-Phase AC Reversing Motor Starter/

Contactors Showing Momentary Contact Push Button Station Connections

www.geindustrial.com Control Catalog 5-87

IEC Power Devices

IEC Contactors Dimensions

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

Outlines and Dimensions ( in.

mm) For Estimating Only

Contactor Front View and AC Contactor Side View

CL25A310T*CL00A310T, CL01A310T, CL02A310T and RL4 Relays

Legend and Notes

A Extra Auxiliary Contacts, Side Mounted (if used)

B Extra Auxiliary Contacts, Front Mounted (if used)

C Pneumatic Timer (if used)

D Mechanical Latch (if used)

E Transient Voltage Suppressor

Add 1/2 inch for electrical clearance to enclosure.

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-88

IEC Power Devices

IEC Contactors Dimensions Section 5

C-2000

Outlines and Dimensions ( in.

mm) For Estimating Only

Contactor Front View and AC Contactor Side View

CL45A310M*CL04A310M*

Legend and Notes

A Extra Auxiliary Contacts, Side Mounted (if used)

B Extra Auxiliary Contacts, Front Mounted (if used)

C Pneumatic Timer (if used)

D Mechanical Latch (if used)

E Transient Voltage Suppressor

Add 1/2 inch for electrical clearance to enclosure.

www.geindustrial.com Control Catalog 5-89

IEC Power Devices

IEC Contactors Dimensions

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

Outlines and Dimensions ( in.

mm) For Estimating Only

Contactor Front View and AC Contactor Side View

CL09A311M*, CL10A311M*

CL06A311M*, CL07A311M*, CL08A311M*

Legend and Notes

A Extra Auxiliary Contacts, Side Mounted (if used)

B Extra Auxiliary Contacts, Front Mounted (if used)

C Pneumatic Timer (if used)

D Mechanical Latch (if used)

E Transient Voltage Suppressor

Add 1/2 inch for electrical clearance to enclosure.

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-90

IEC Power Devices

IEC Contactors Dimensions Section 5

C-2000

Outlines and Dimensions ( in.

mm) For Estimating Only

Reversing Contactor Front View and AC Contactor Side View

LAR25*LAR00A*, LAR01A*, LAR02A*

Legend and Notes

A Extra Auxiliary Contacts, Side Mounted (if used)

B Extra Auxiliary Contacts, Front Mounted (if used)

C Pneumatic Timer (if used)

D Mechanical Latch (if used)

E Transient Voltage Suppressor

Add 1/2 inch for electrical clearance to enclosure.

www.geindustrial.com Control Catalog 5-91

IEC Power Devices

IEC Contactors Dimensions

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

Outlines and Dimensions ( in.

mm) For Estimating Only

Contactor Front View and DC Contactor Side View

LAR45A*LAR04A*

Legend and Notes

A Extra Auxiliary Contacts, Side Mounted (if used)

B Extra Auxiliary Contacts, Front Mounted (if used)

C Pneumatic Timer (if used)

D Mechanical Latch (if used)

E Transient Voltage Suppressor

Add 1/2 inch for electrical clearance to enclosure.

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-92

IEC Power Devices

IEC Contactors Dimensions Section 5

C-2000

Outlines and Dimensions ( in.

mm) For Estimating Only

Contactor Front View and DC Contactor Side View

LAR09A*, LAR10A*LAR06A*, LAR07A*, LAR08A*

Legend and Notes

A Extra Auxiliary Contacts, Side Mounted (if used)

B Extra Auxiliary Contacts, Front Mounted (if used)

C Pneumatic Timer (if used)

D Mechanical Latch (if used)

E Transient Voltage Suppressor

Add 1/2 inch for electrical clearance to enclosure.

www.geindustrial.com Control Catalog 5-93

IEC Power Devices

IEC Contactors Dimensions

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

Outlines and Dimensions ( in.

mm) For Estimating Only

Contactor Front View and DC Contactor Side View

CL25D310T*CL00D310T*, CL01D310T*, CL02D310T*

Legend and Notes

A Extra Auxiliary Contacts, Side Mounted (if used)

B Extra Auxiliary Contacts, Front Mounted (if used)

C Pneumatic Timer (if used)

D Mechanical Latch (if used)

E Transient Voltage Suppressor

Add 1/2 inch for electrical clearance to enclosure.

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-94

IEC Power Devices

IEC Contactors Dimensions Section 5

C-2000

Outlines and Dimensions ( in.

mm) For Estimating Only

Contactor Front View and DC Contactor Side View

CL45D310M*CL04D310M*

Legend and Notes

A Extra Auxiliary Contacts, Side Mounted (if used)

B Extra Auxiliary Contacts, Front Mounted (if used)

C Pneumatic Timer (if used)

D Mechanical Latch (if used)

E Transient Voltage Suppressor

Add 1/2 inch for electrical clearance to enclosure.

www.geindustrial.com Control Catalog 5-95

IEC Power Devices

IEC Contactors Dimensions

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

Outlines and Dimensions ( in.

mm) For Estimating Only

Reversing Contactor Front View and DC Contactor Side View

LDR25A*LDR00A*, LDR01A*, LDR02A*

Legend and Notes

A Extra Auxiliary Contacts, Side Mounted (if used)

B Extra Auxiliary Contacts, Front Mounted (if used)

C Pneumatic Timer (if used)

D Mechanical Latch (if used)

E Transient Voltage Suppressor

Add 1/2 inch for electrical clearance to enclosure.

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-96

IEC Power Devices

IEC Contactors Dimensions Section 5

C-2000

Outlines and Dimensions ( in.

mm) For Estimating Only

Reversing Contactor Front View and DC Contactor Side View

LDR45A*LDR04A*

Legend and Notes

A Extra Auxiliary Contacts, Side Mounted (if used)

B Extra Auxiliary Contacts, Front Mounted (if used)

C Pneumatic Timer (if used)

D Mechanical Latch (if used)

E Transient Voltage Suppressor

Add 1/2 inch for electrical clearance to enclosure.

www.geindustrial.com Control Catalog 5-97

IEC Power Devices

IEC Contactors Dimensions

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

Outlines and Dimensions ( in.

mm) For Estimating Only

Contactor Front View and AC/DC Contactor Side View

CL09E311M†, CL010E311M†CL06E311M† CL07E311M†, CL08E311M†

Legend and Notes

A Extra Auxiliary Contacts, Side Mounted (if used)

B Extra Auxiliary Contacts, Front Mounted (if used)

C Pneumatic Timer (if used)

D Mechanical Latch (if used)

E Transient Voltage Suppressor

Add 1/2 inch for electrical clearance to enclosure.

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-98

IEC Power Devices

IEC Contactors Dimensions Section 5

C-2000

Outlines and Dimensions ( in.

mm) For Estimating Only

Reversing Contactor Front View and AC/DC Contactor Side View

LER09A†, LER010A†LER06A†, LER07A†, LER08A†

Legend and Notes

A Extra Auxiliary Contacts, Side Mounted (if used)

B Extra Auxiliary Contacts, Front Mounted (if used)

C Pneumatic Timer (if used)

D Mechanical Latch (if used)

E Transient Voltage Suppressor

Add 1/2 inch for electrical clearance to enclosure.

www.geindustrial.com Control Catalog 5-99

IEC Power Devices

IEC Contactors Dimensions

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

Outlines and Dimensions ( in.

mm) For Estimating Only

Contactor Front View and AC Contactor Side View

CK09BE311*, CK95BE311*CK75CE311*, CK08CE311*

Legend and Notes

A Extra Auxiliary Contacts, Side Mounted (if used) (1 Standard)

B Electronic Actuator Modulator

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-100

IEC Power Devices

IEC Contactors Dimensions Section 5

C-2000

Outlines and Dimensions ( in.

mm) For Estimating Only

Contactor Front View and AC Contactor Side View

CK12BE311*CK10CE311*, CK10BE311*, CK11CE311*, CK11BE311*

Legend and Notes

A Extra Auxiliary Contacts, Side Mounted (if used) (1 Standard)

B Electronic Actuator Modulator

www.geindustrial.com Control Catalog 5-101

IEC Power Devices

IEC Contactors Dimensions

Rev. 4/16

Prices and data subject to

change without notice

Section 5

C-2000

Outlines and Dimensions ( in.

mm) For Estimating Only

Legend and Notes

A Extra Auxiliary Contacts, Side Mounted (if used) (1 Standard)

B Electronic Actuator Modulator

Contactor Front View and AC Contactor Side View

KAR09B*, KAR95B*KAR75C*, KAR08C*

www.geindustrial.com Rev. 4/16

Prices and data subject to

change without notice

Control Catalog

5-102

IEC Power Devices

IEC Contactors Dimensions Section 5

C-2000

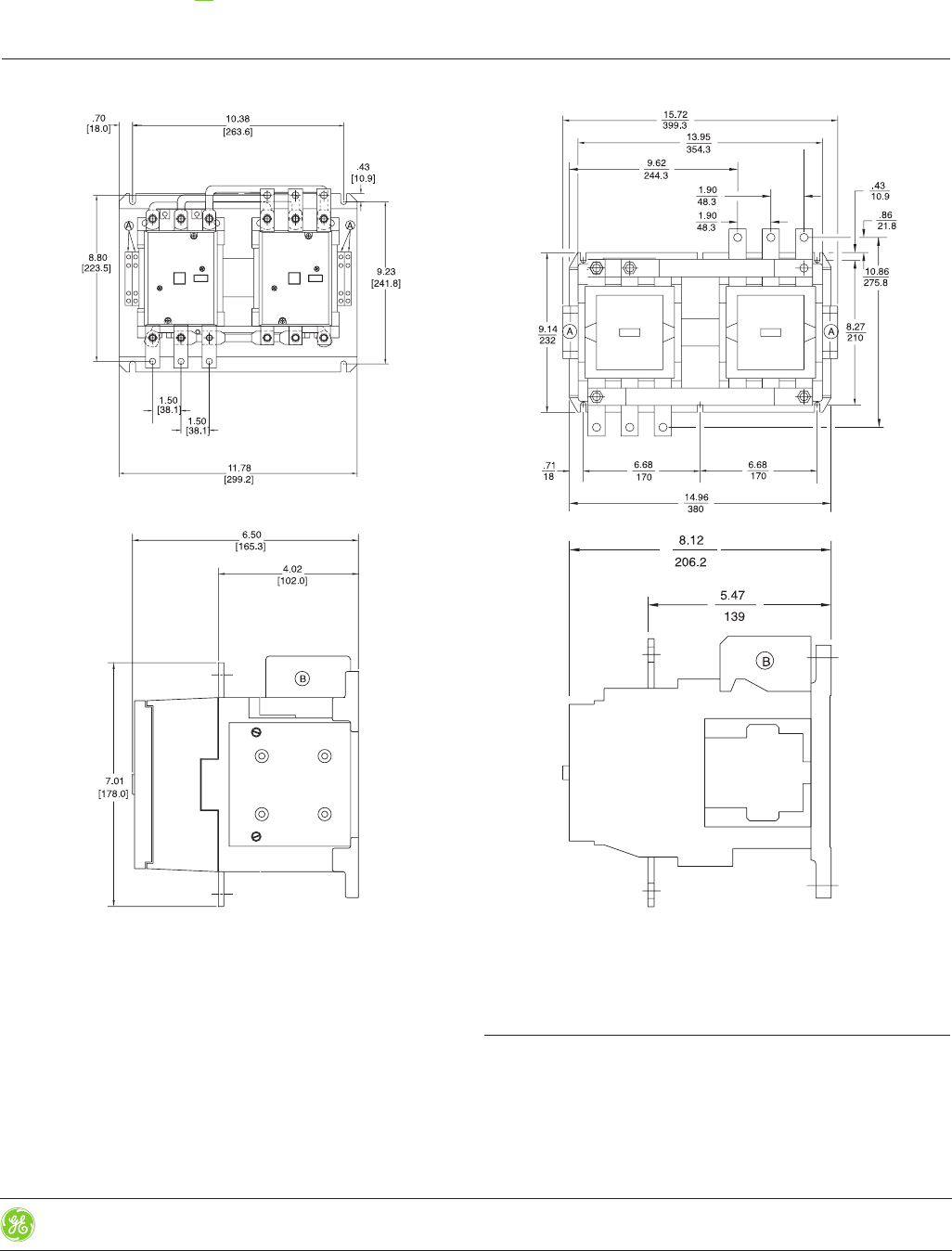

Outlines and Dimensions ( in.

mm) For Estimating Only

Legend and Notes

A Extra Auxiliary Contacts, Side Mounted (if used) (1 Standard)

B Electronic Actuator Modulator

Contactor Front View and AC Contactor Side View

KAR12B*KAR10C*, KAR10B*, KAR11C*, KAR11B*

GE Control Catalog Section 5 145378

159045-Catalog 159045-Catalog 159045-Catalog B4 unilog cesco-content

1000269491-Catalog 1000269491-Catalog 1000269491-Catalog B5 unilog cesco-content

1000385752-Catalog 1000385752-Catalog 1000385752-Catalog B5 unilog cesco-content

1000472598-Brochure 1000472598-Brochure 1000472598-Brochure B5 unilog cesco-content

133061-Catalog 133061-Catalog 133061-Catalog B5 unilog cesco-content

Navigation menu

Versions of this User Manual:

Views

Navigation
