- Screw-Cover Type 1 Pull Boxes and Accessories
- Type 3R
- Telephone Cabinets
- Current Transformer Cabinets and Terminal Boxes
- Electrical Utility
- Canadian Cabinets and Splitters
- Canadian Cabinets
- Canadian Splitters
- Splitter Trough, Type 1
- Splitter Box, Type 1
- Flush Covers
- Flush-Mount Door Frames
- Type 1 Locking Window Pull Box Accessory
- Locking T Handle
- Panel Mounting Kit
- Mounting Bracket Kit
- 19-in. Fixed Wall-Mount Rack
- Insect Screens
- Fan Shroud Kits
- Critical Parameters (lower temperature limits)
- Panel
- Rear Covers
- Gland Plate
- Impeller
- Replacement Tumbler Lock
- Locking T Handle
- Current Transformer, Type 3R, Overview
- Screw Cover with Steel Foot Mount Panel
- Lift-Off Cover with Wood Panel
- Hinged Screw Cover with Steel Panel
- Hinged Double-Door with Three-Point Latch and Wood Panel
- 400- and 800-Amp Bar-Type Mount with Line/Load Lugs
- Vented Double Door
- Interchangeable Bolt-on Hub
- Lug Assembly
- Splitter Block Assemblies Overview
- Splitter Box Block Assemblies
- Splitter Trough Block Assemblies
- Ground Splitter (Ground Bar)
![](asset-1.png)
1
:
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
PH (763) 422-2211
FX (763) 422-2600
![](asset-2.png)
2
ContractorType 1:
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
ContractorType 1
Chapter Contents
Screw-Cover Type 1 Pull Boxes and Accessories
Screw-Cover, Type 1 ...............................................3
Type 1 Pull Box Perforated Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

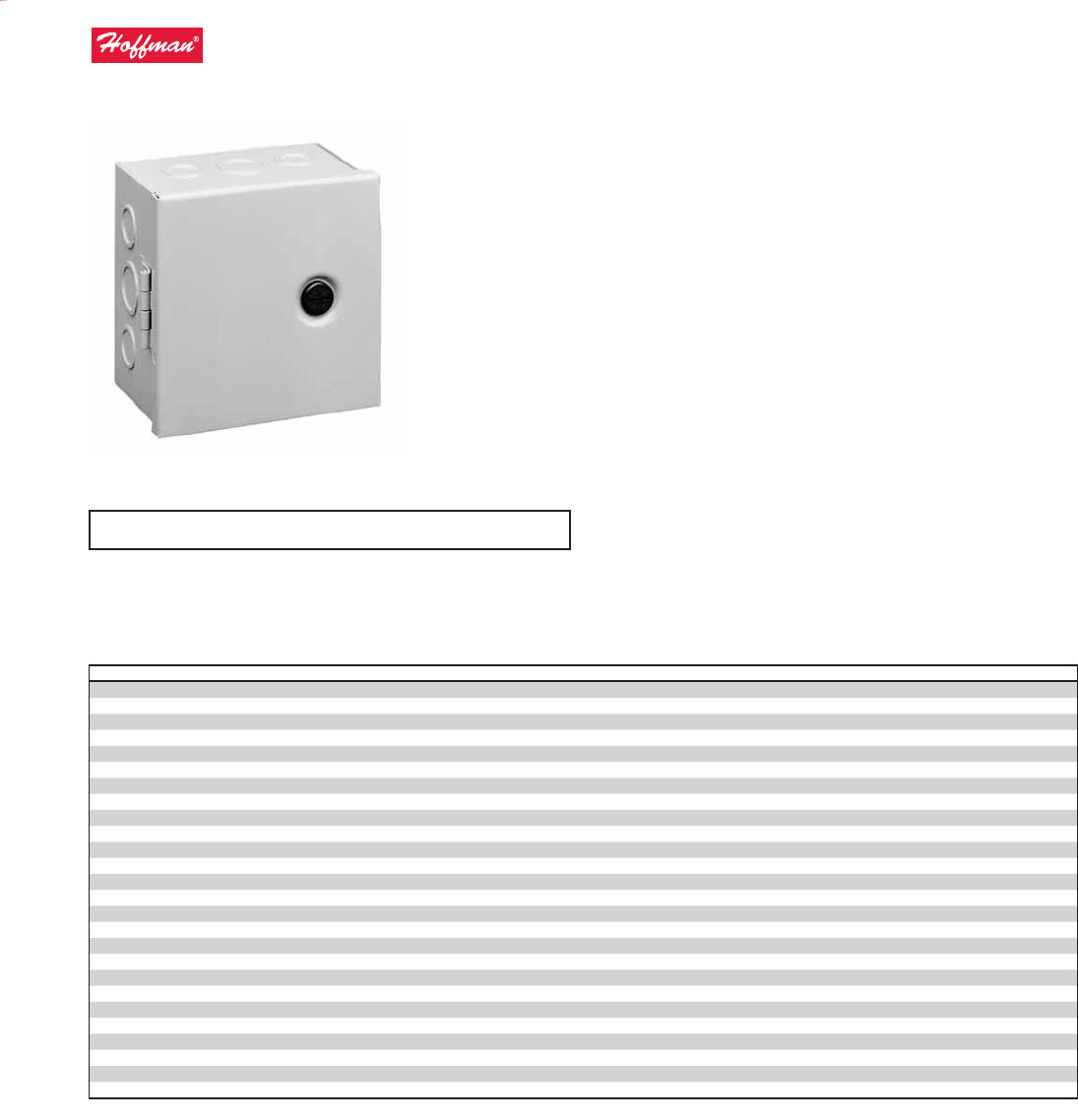

Hinged-Cover Type 1 Boxes, Enclosures and Accessories

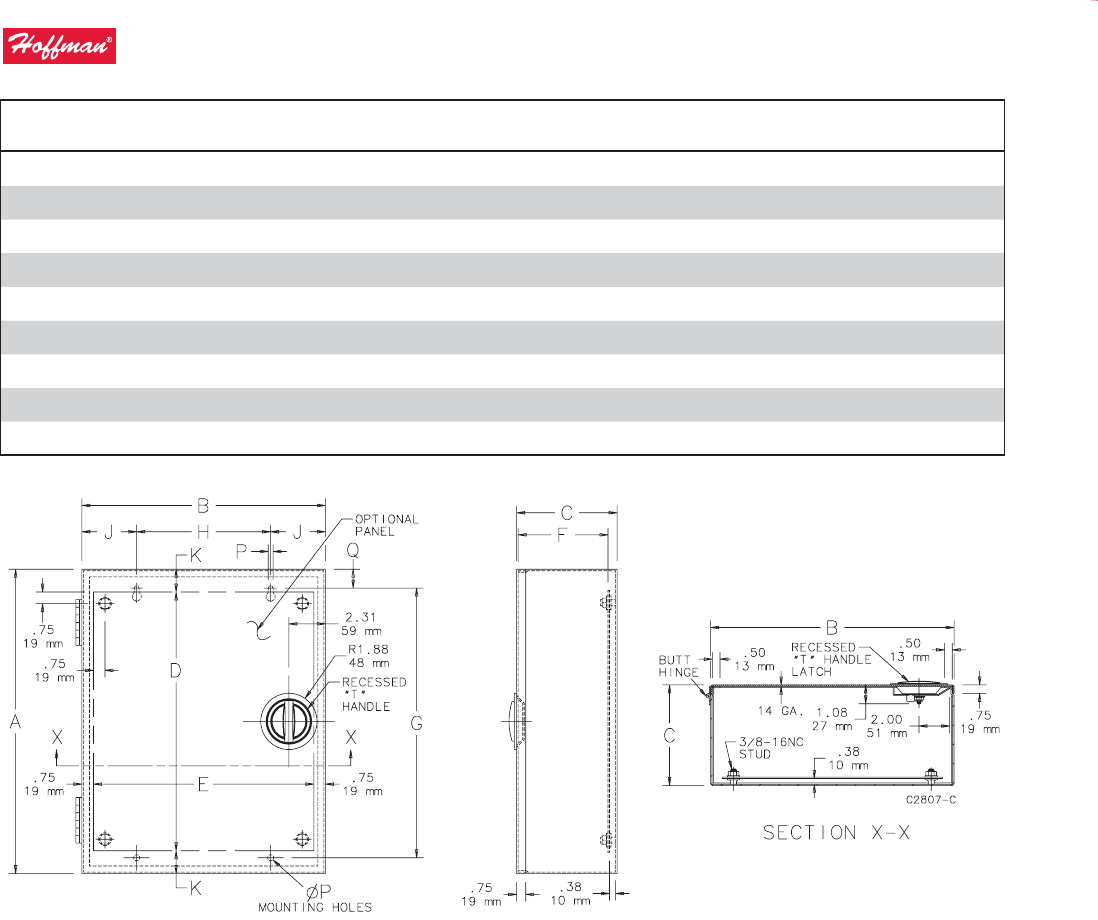

Hinged-Cover with Recessed Handle, Type 1 . . . . . . . . . . . . . . . . . . . . . . 11

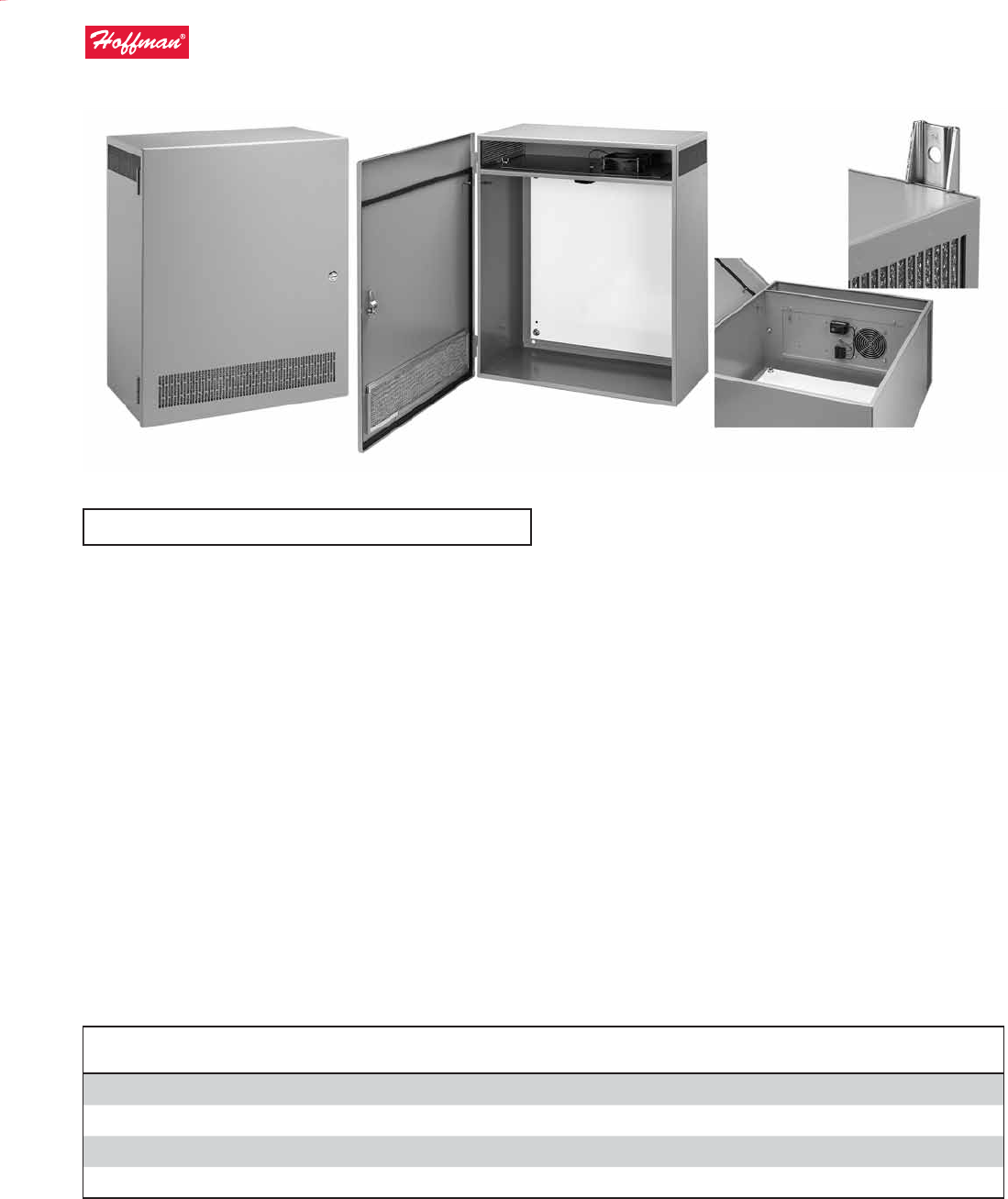

T1FLO® Vented Enclosure with Fan, Type 1 . . . . . . . . . . . . . . . . . . . . . . . . . 13
Hinged-Cover, Type 1 .............................................15
Small, Type 1 .....................................................17
Medium, Type 1 ..................................................19
Large, Type 1 .....................................................21

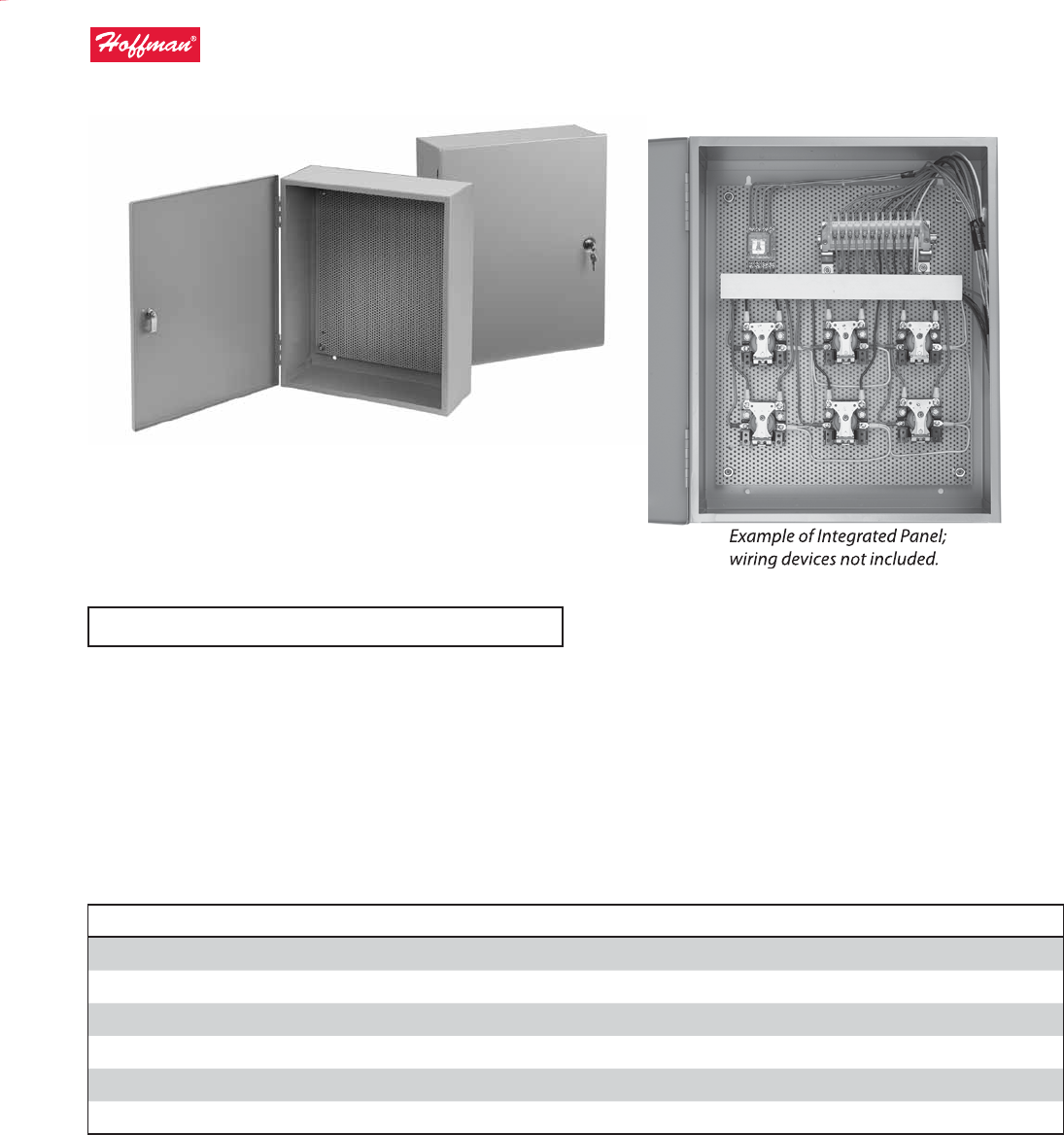

Locking Integrated Perforated Panel Enclosure, Type 1 . . . . . . . . . . . .23
Locking Utility Cabinets, Type 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Type 3R
Screw-Cover Type 3R Boxes and Enclosures
Horizontal-Mount, Type 3R .......................................28
Screw-Cover, Type 3R .............................................30
Screw-Cover Gasketed, Type 3 ....................................34
Screw-Cover Galvanized, Type 3R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Hinge-Cover Type 3R Enclosures
Hinge-Cover, Small, Type 3R ......................................38
Hinge-Cover, Medium, Type 3R ...................................40
Hinge-Cover Lift-O Type 3R Enclosures and Accessories

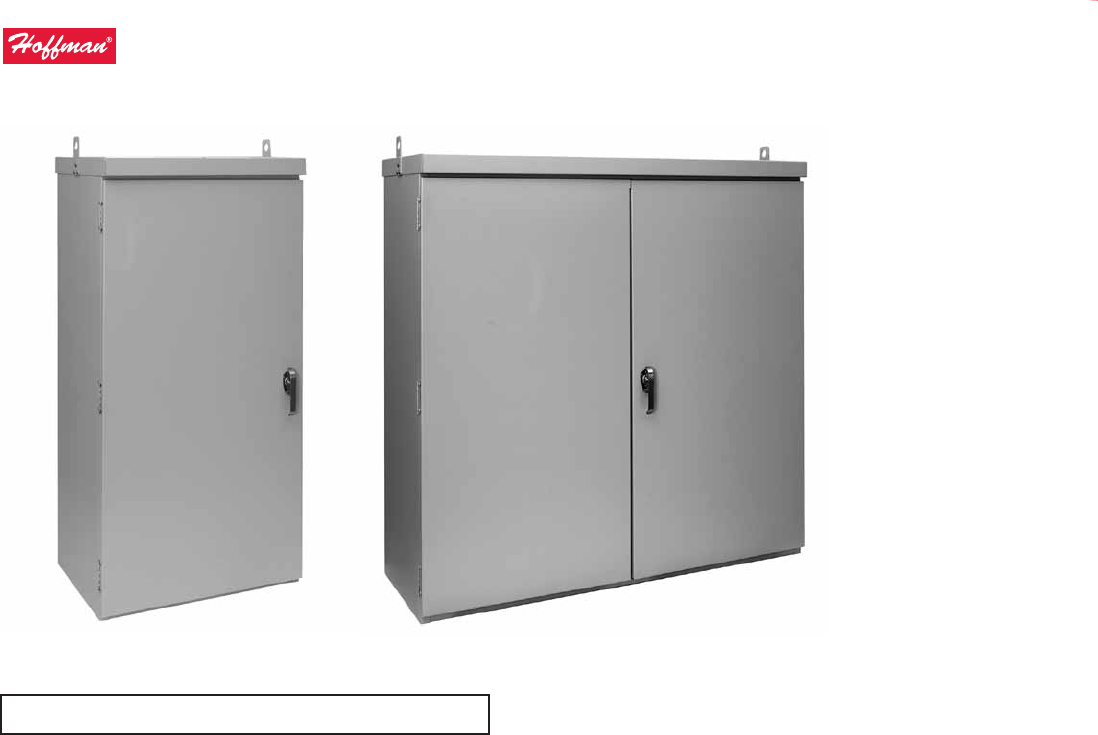

Hinge-Cover Lift-O, Type 3R .....................................42
Pad-Mount Type 3R Enclosures and Accessories
WEATHERPRO® Outdoor Pad Mount, Type 3R . . . . . . . . . . . . . . . . . . . . . .44
19-in. Hinged Wall-Mount Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
WEATHERFLO® Type 3R Vented Enclosures

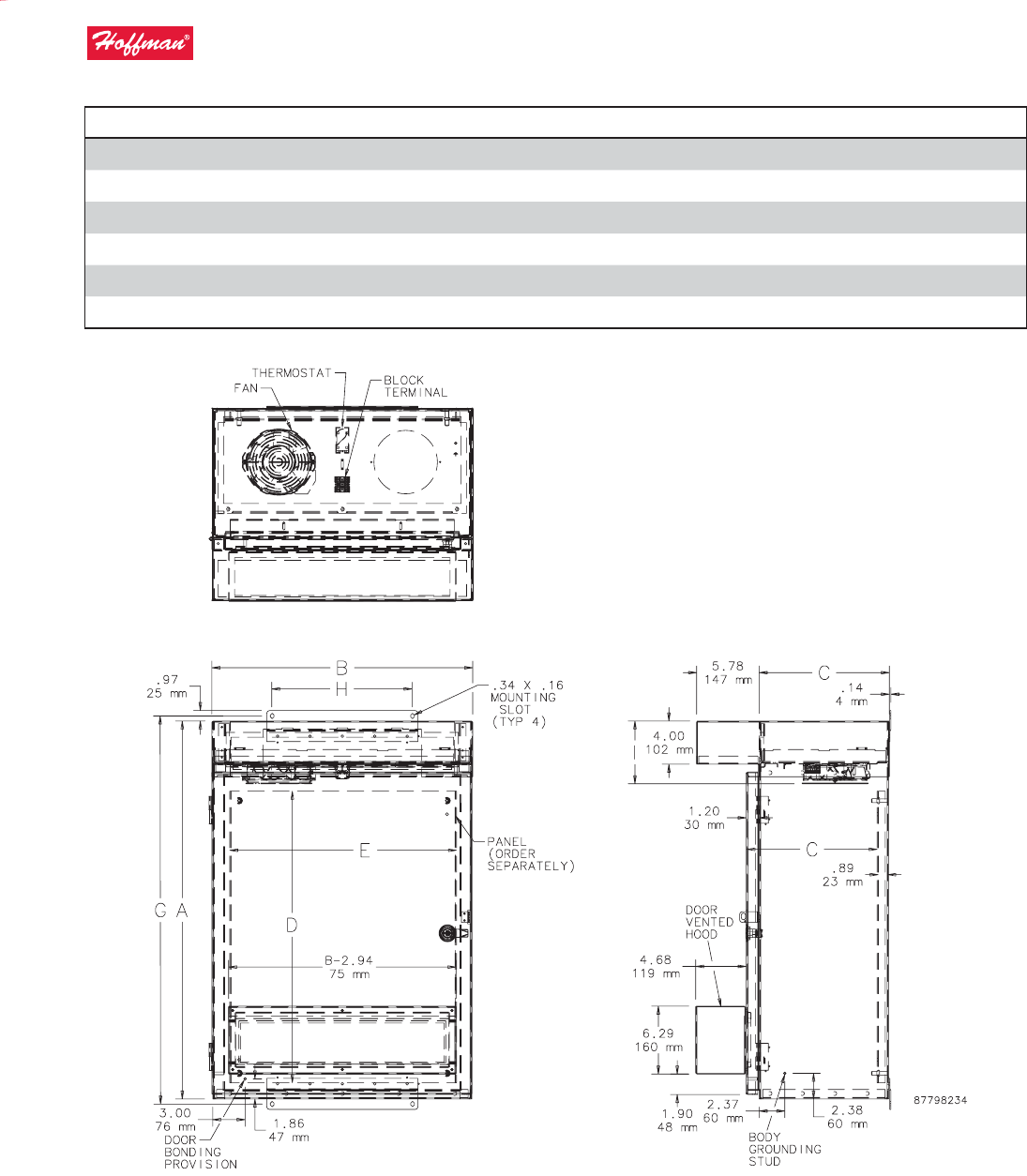

WEATHERFLO® with Fan, Type 3R ..................................50
Technical Information .............................................52

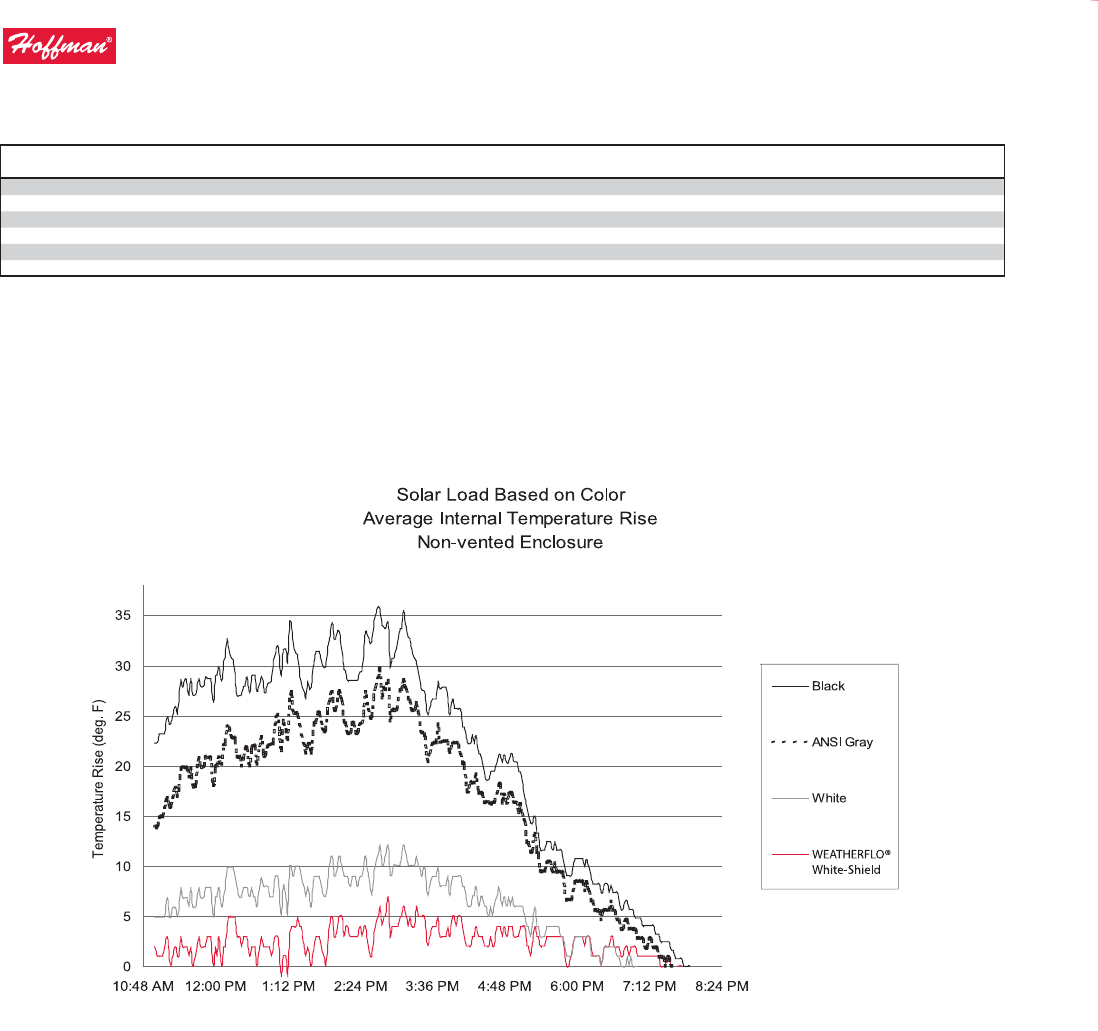

Solar Consideration ...............................................52
Critical Parameters (upper temperature limits) . . . . . . . . . . . . . . . . . . . .53
WEATHERFLO® HD
WEATHERFLO® HD Enclosures .....................................54
Tops ..............................................................55
Bases .............................................................56
Joining Kit ........................................................57
CFM Performance Chart ...........................................57
Product Selection Matrix ..........................................57
Telephone Cabinets
Telephone Cabinets and Accessories

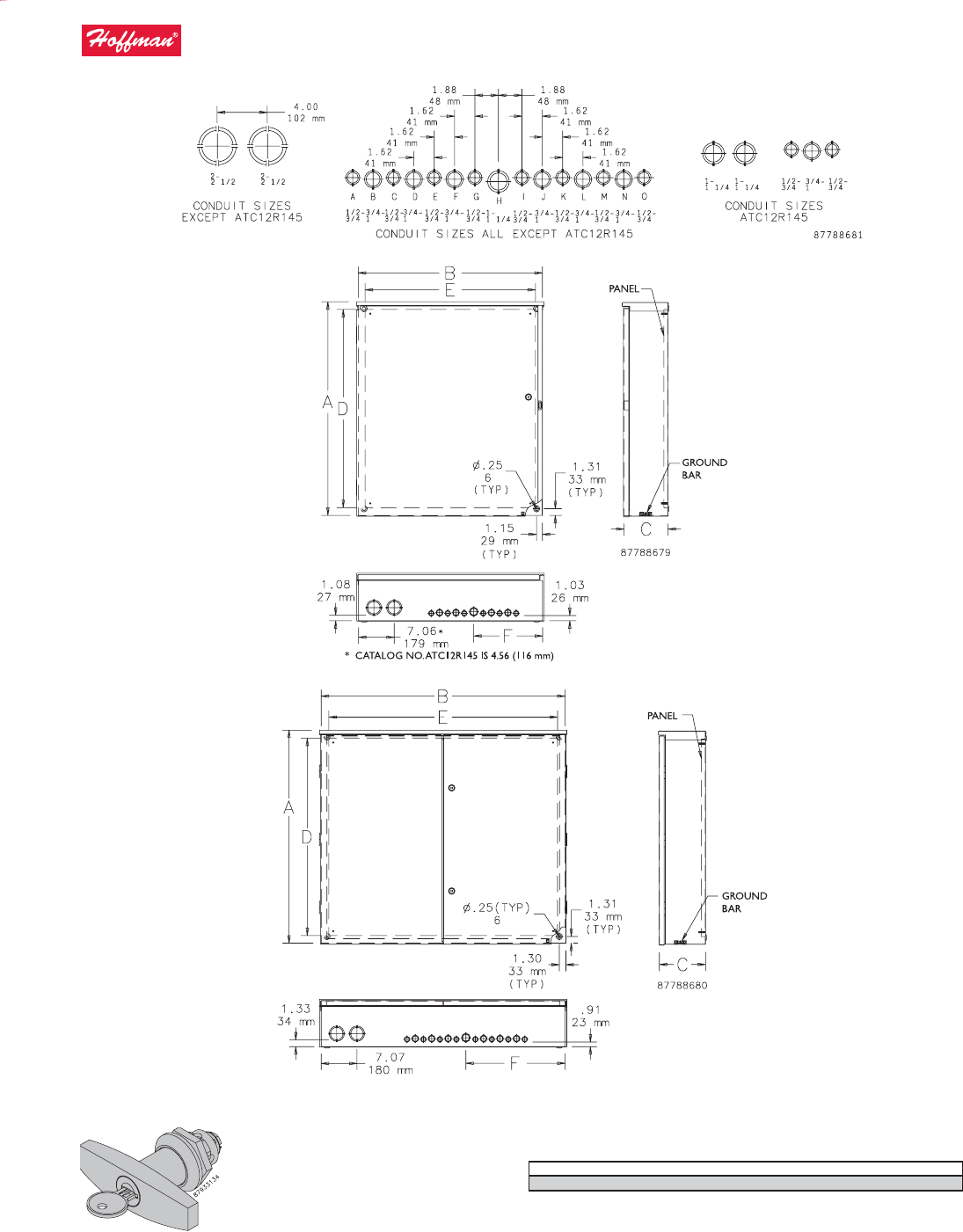

Telephone Cabinet, Type 1 .......................................58
T3-Box Telephone Cabinet, Type 3R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

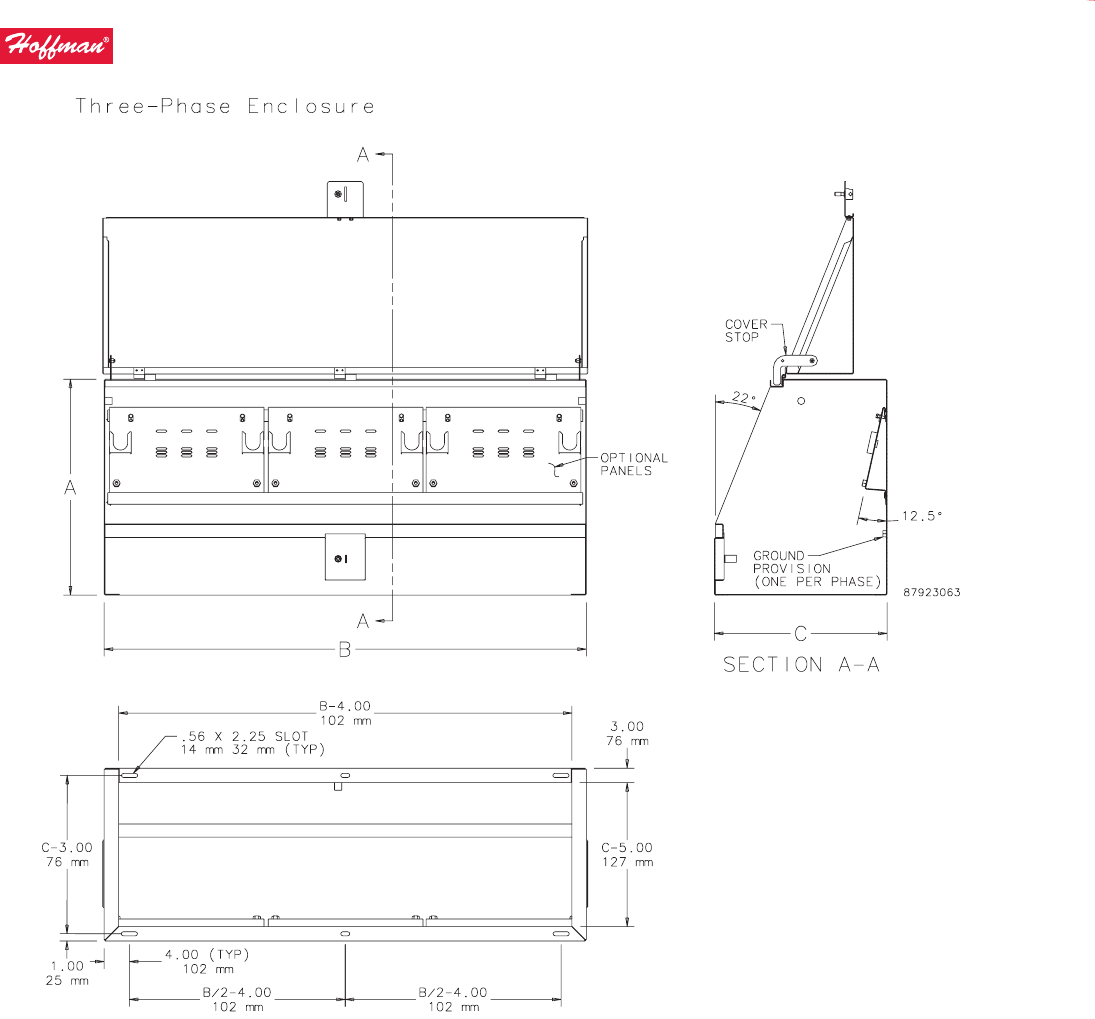

Current Transformer Cabinets and Terminal Boxes
Current Transformer Cabinets
Current Transformer, Screw Cover, Type 3R . . . . . . . . . . . . . . . . . . . . . . . .62
Current Transformer, Hinged Cover, Type 3R . . . . . . . . . . . . . . . . . . . . . . .64

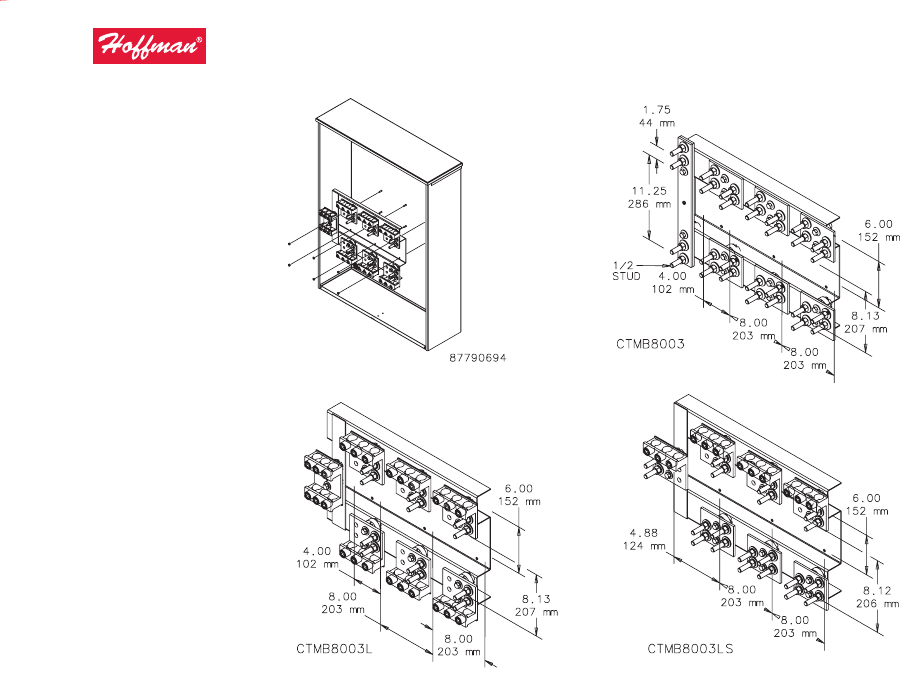

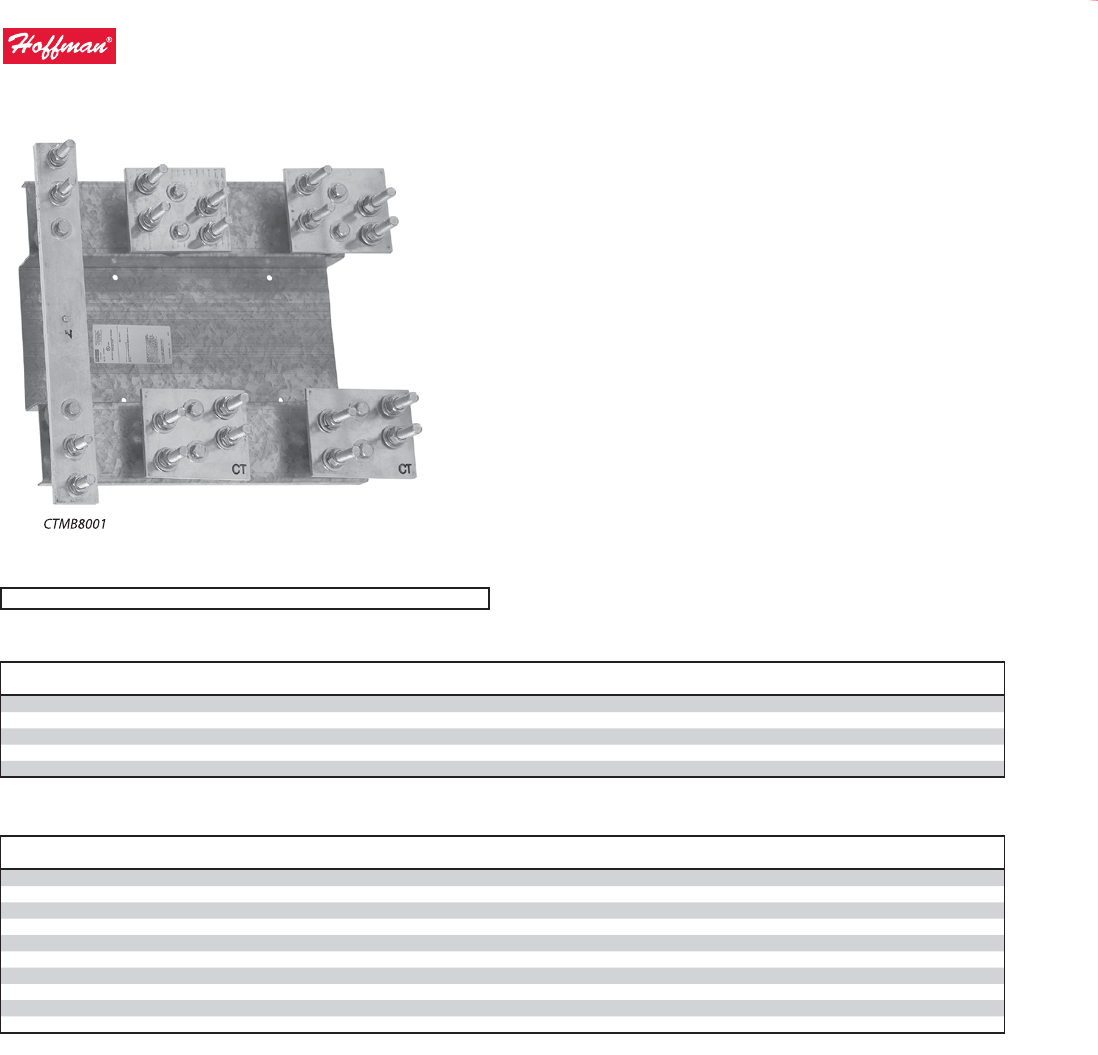

CT Mounting Base ................................................66

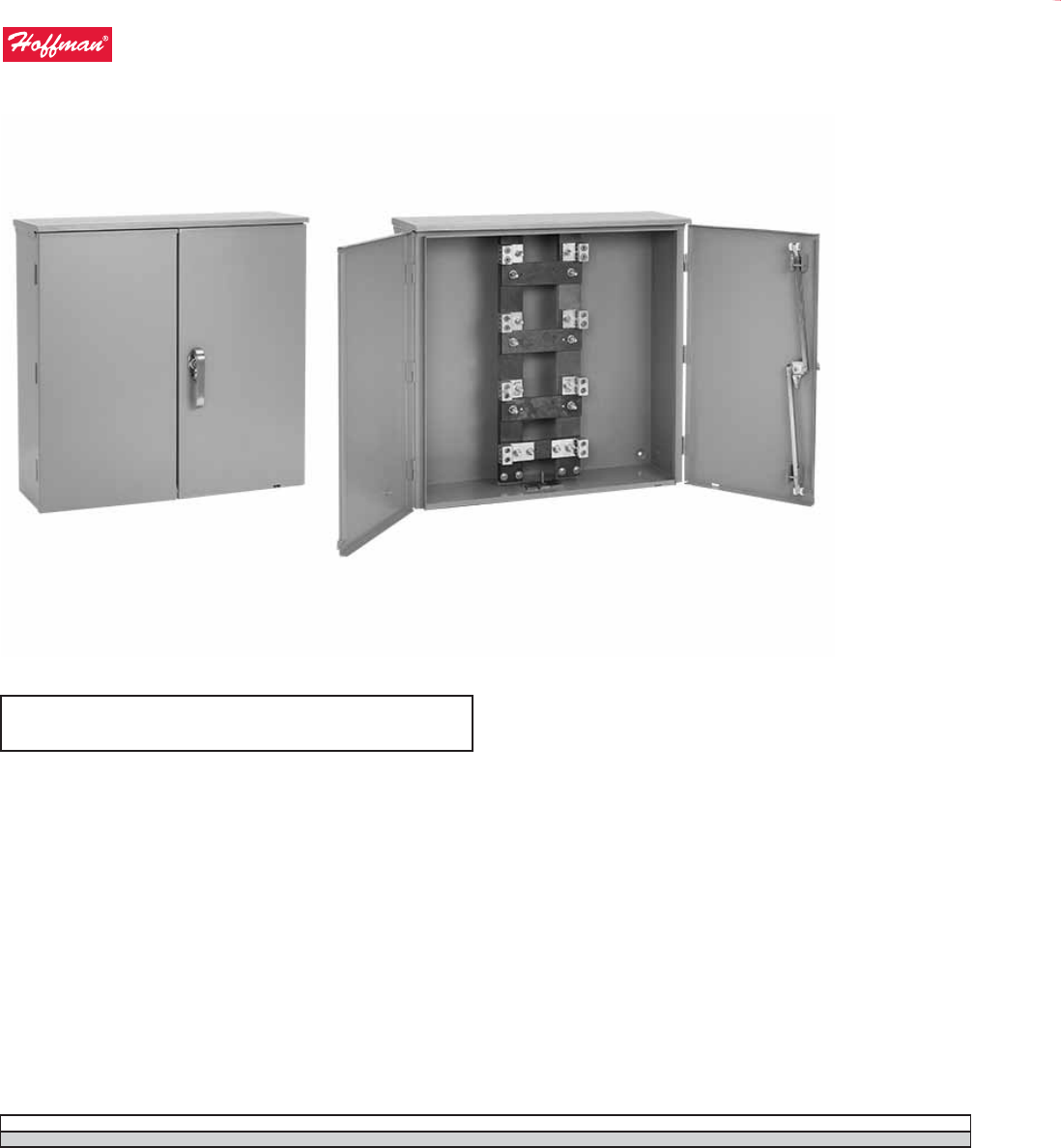

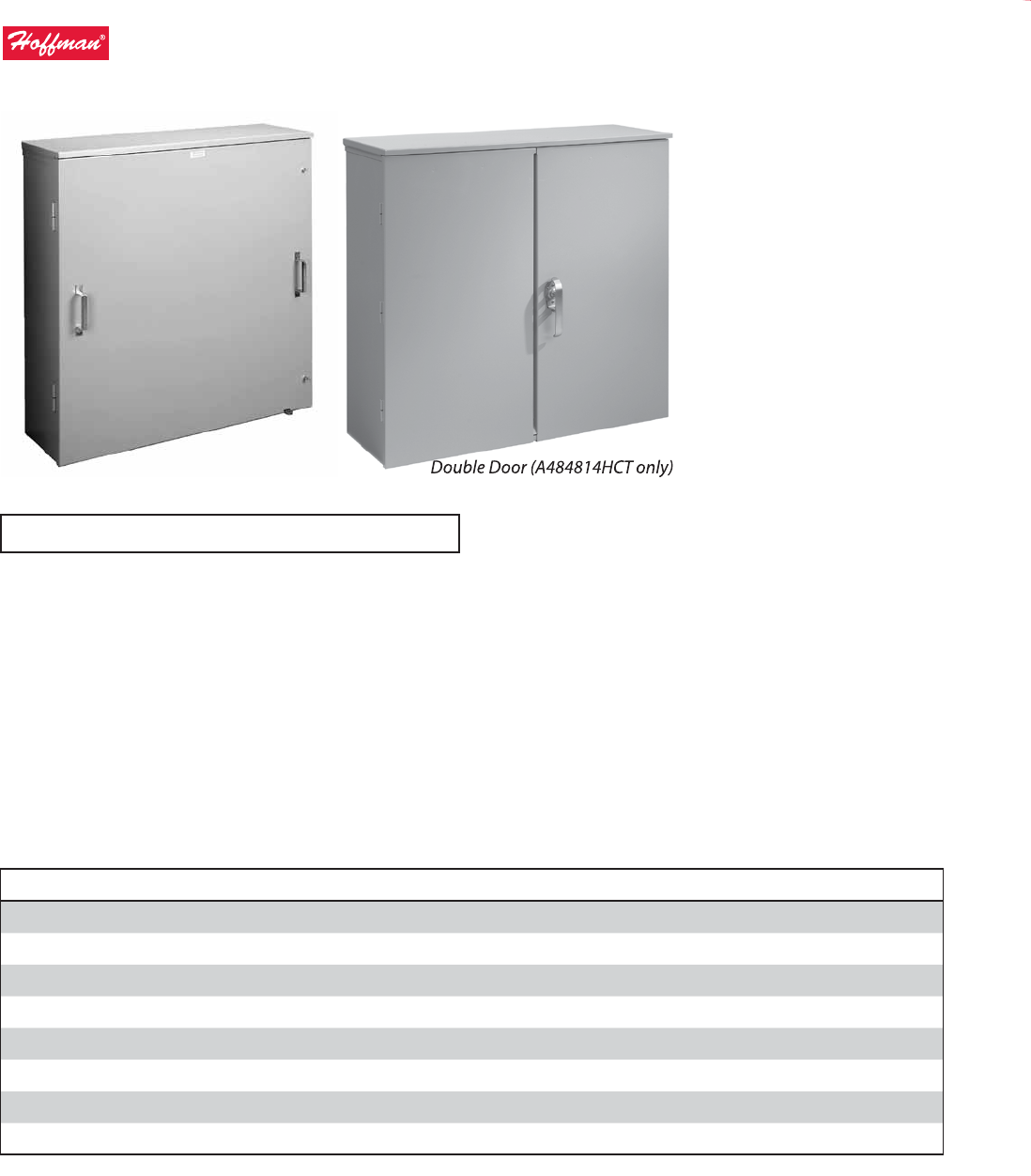

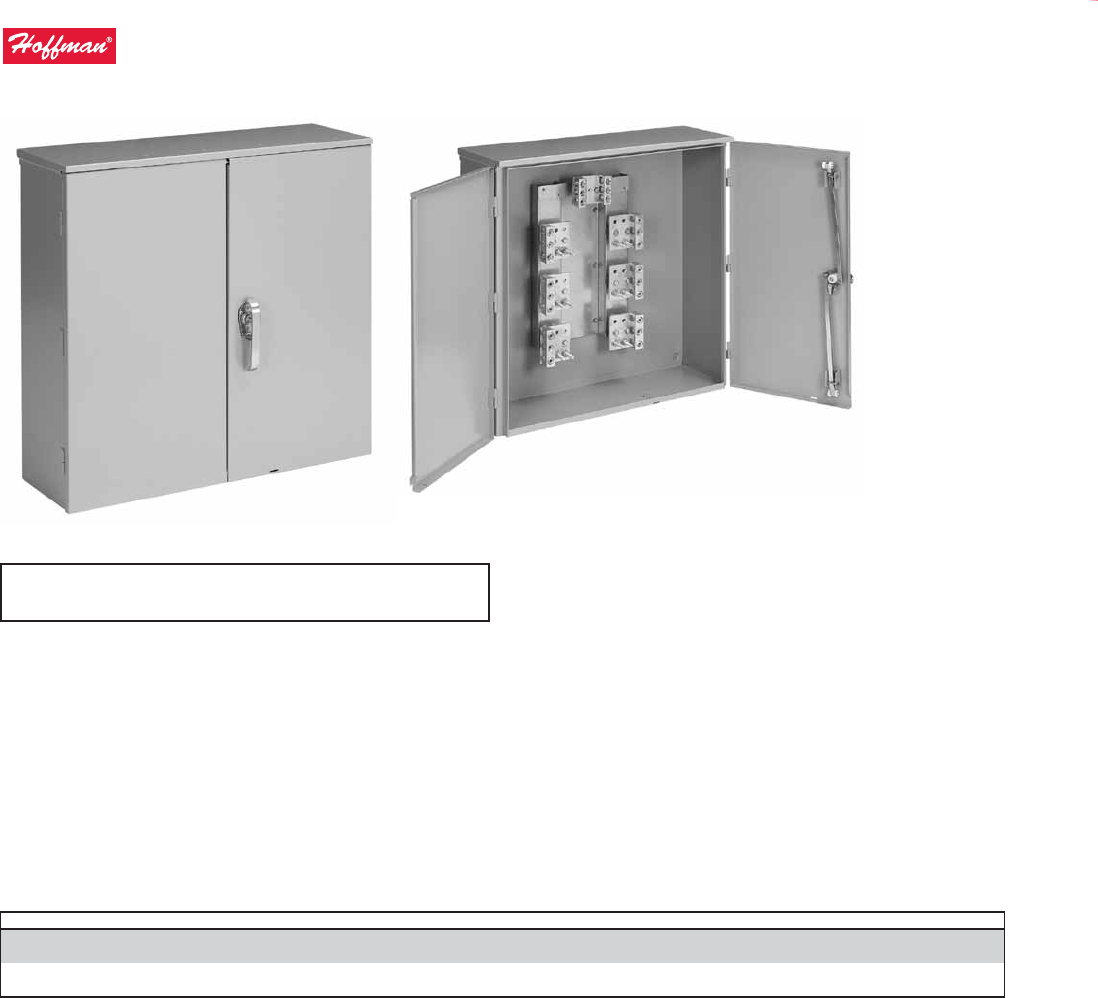

Current Transformer Cabinets, 400-800 Amp, Type 3R . . . . . . . . . . . . .68

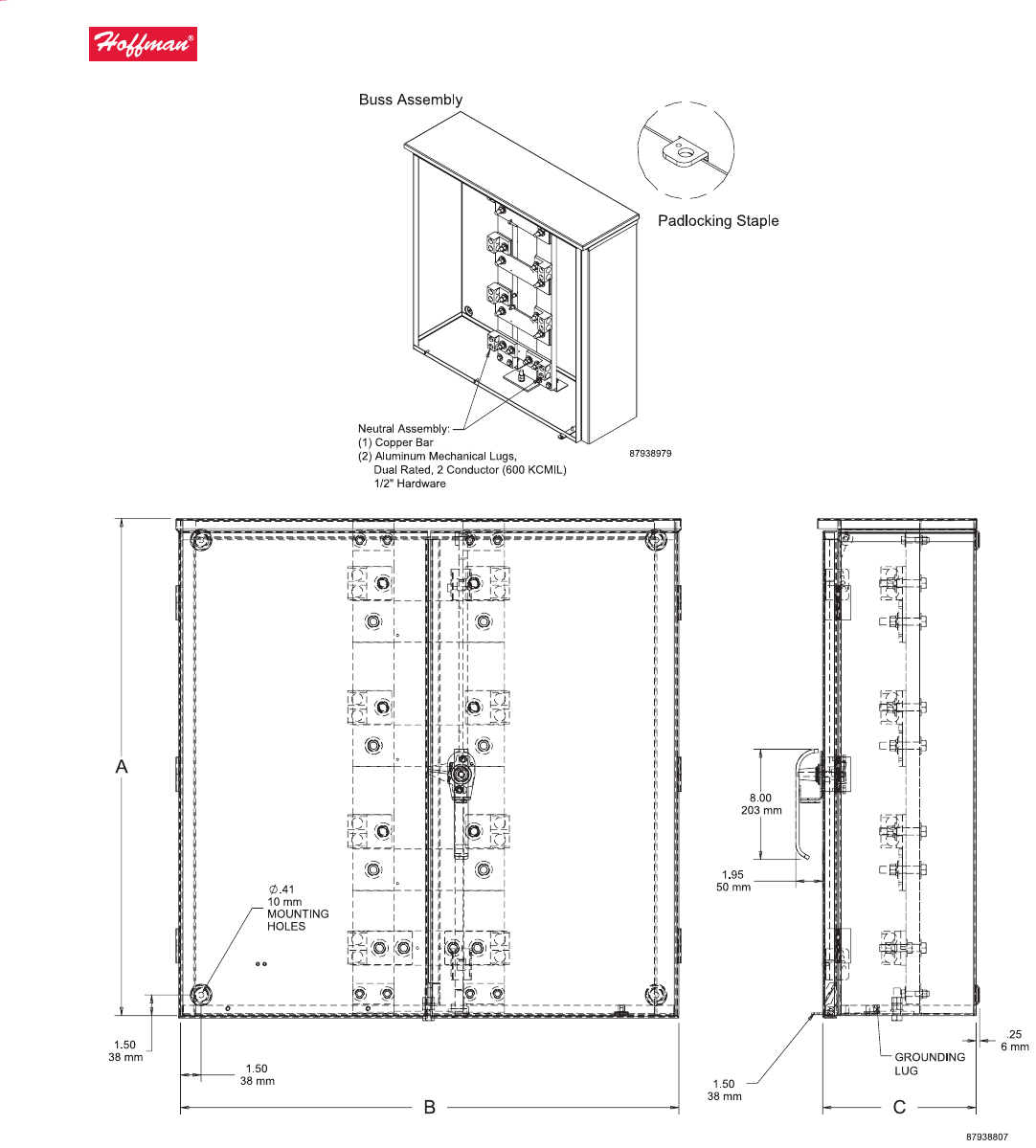

3-Phase 400-1200 Amp with Mechanical Lugs, Type 3R . . . . . . . . . . . .70
Type 3R Terminal Box and Accessories

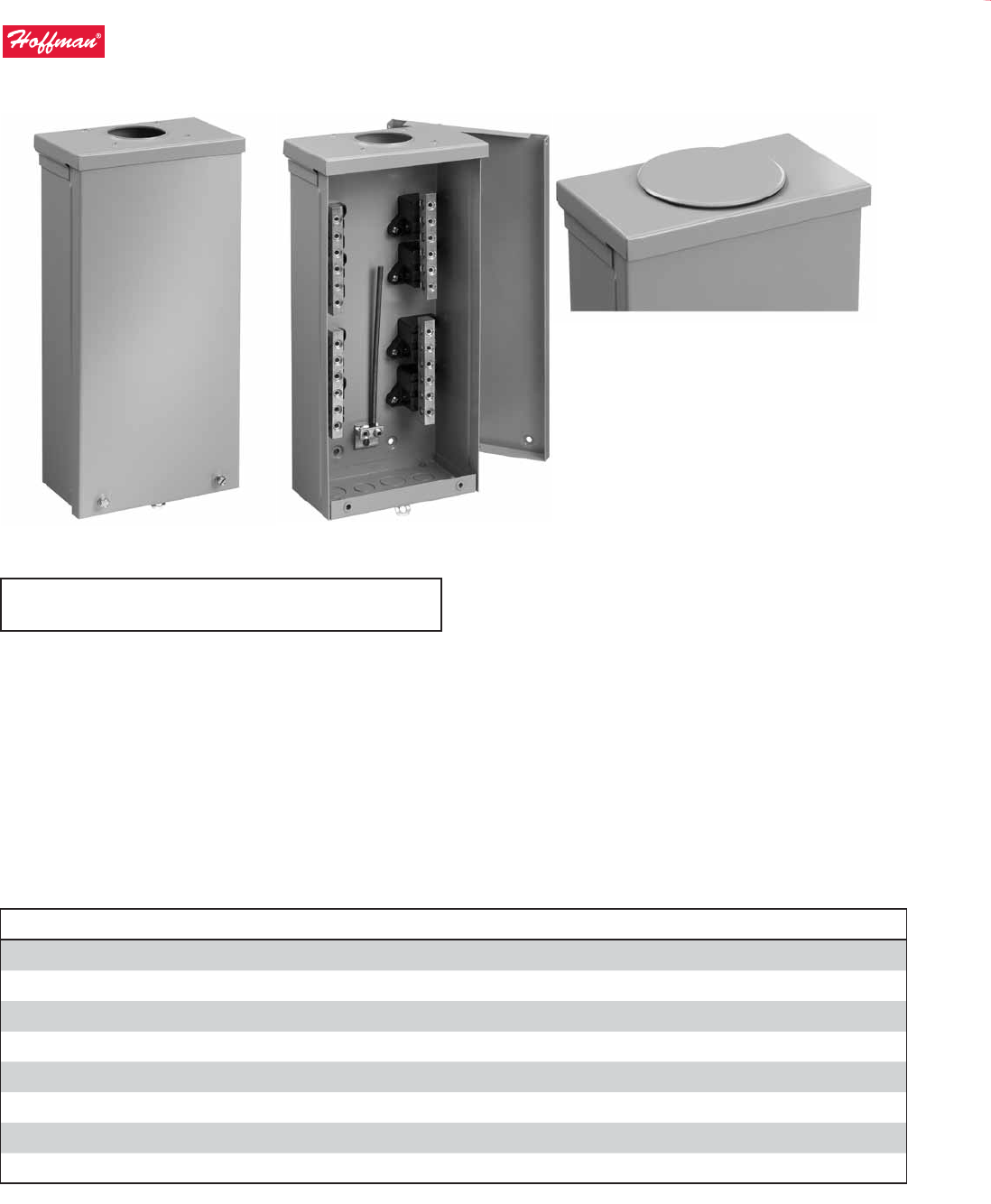

Terminal Box, Type 3R ............................................74
Electrical Utility
Sectionalizing
Utility Junction (UJ) Cabinets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
Canadian Cabinets and Splitters
Canadian Cabinets
Metering, Type 1 ..................................................80
Canadian Splitters

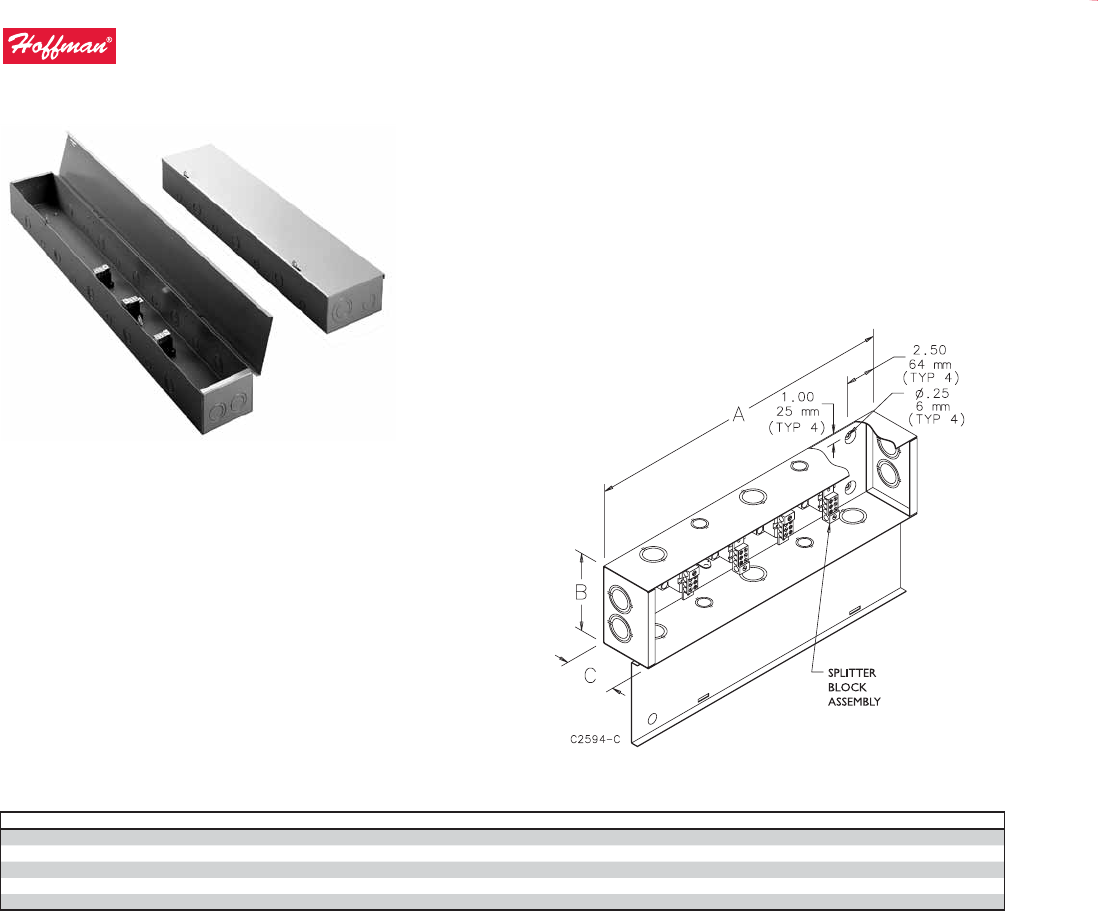

Splitter Trough, Type 1 ...........................................82

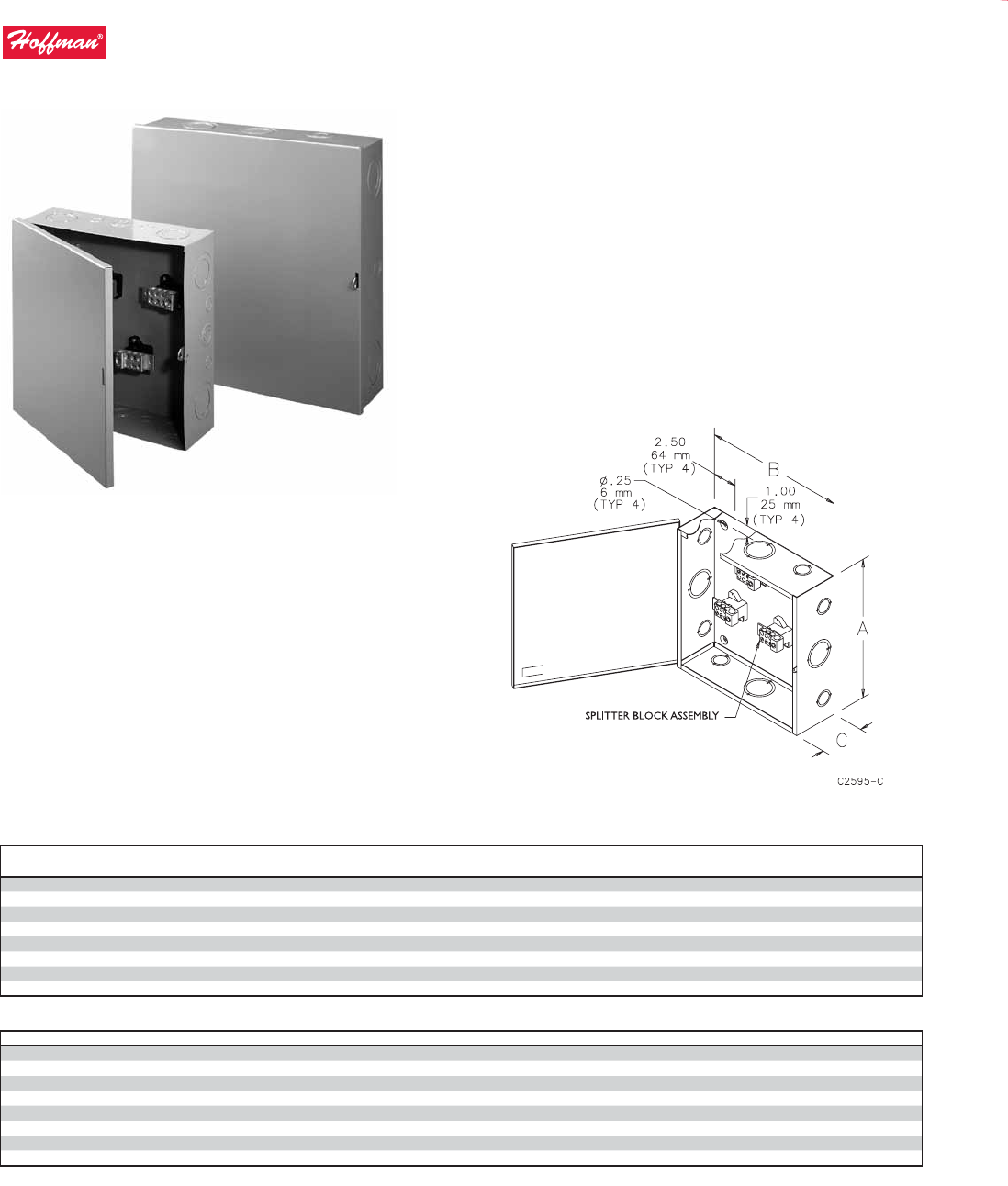

Splitter Box, Type 1 ...............................................84

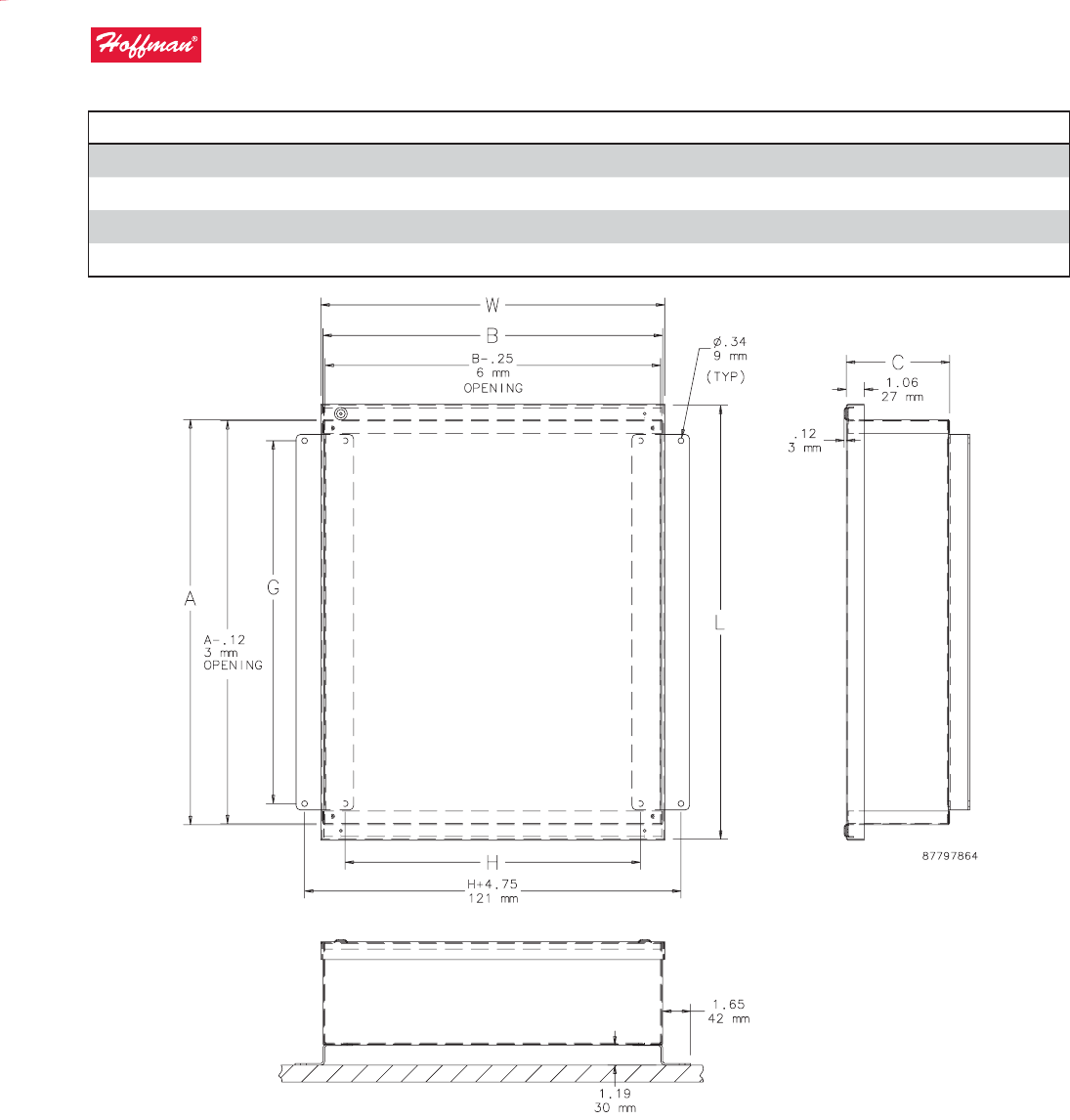

Flush Covers .......................................................7
Flush-Mount Door Frames .........................................8
Type 1 Locking Window Pull Box Accessory . . . . . . . . . . . . . . . . . . . . . . . . 9
Locking T Handle .................................................14
Panel Mounting Kit ...............................................43
Mounting Bracket Kit .............................................43

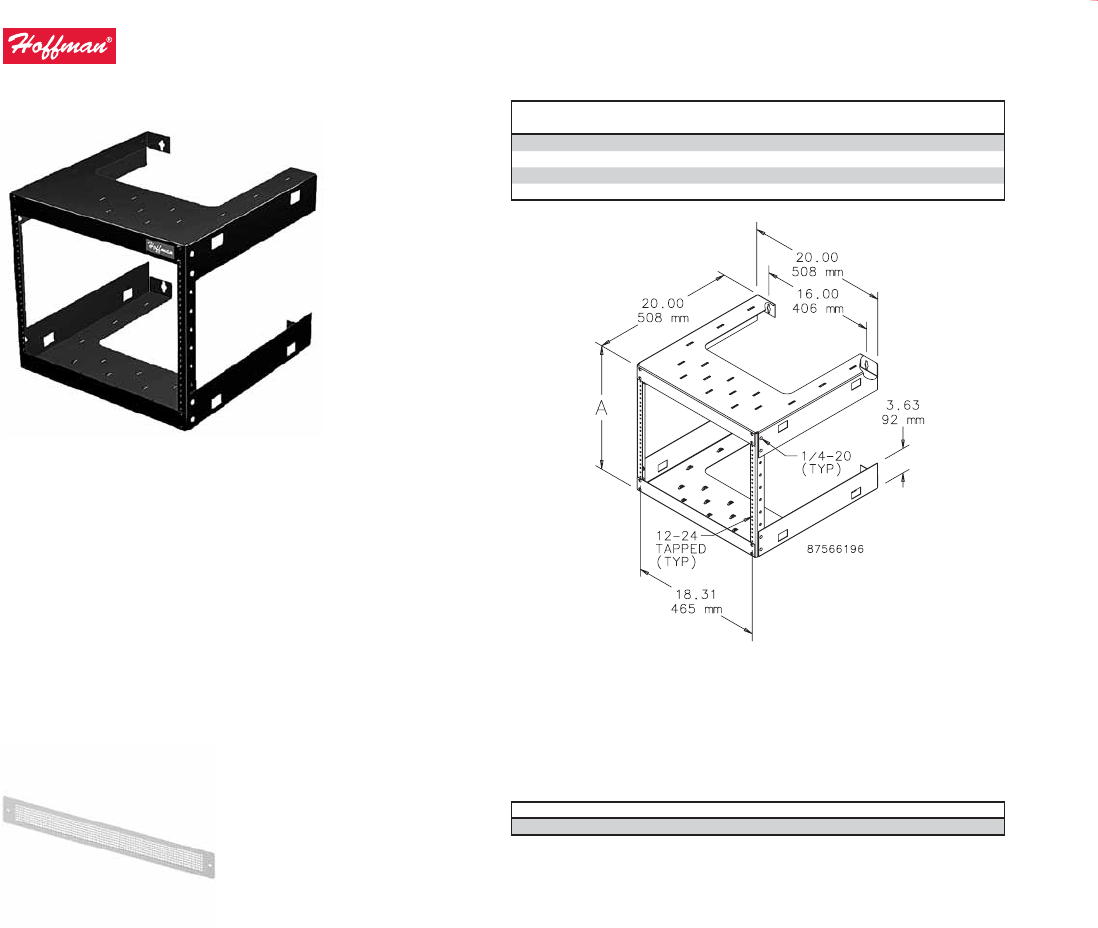

19-in. Fixed Wall-Mount Rack .....................................48
Insect Screens ....................................................48
Fan Shroud Kits ...................................................49
Critical Parameters (lower temperature limits) . . . . . . . . . . . . . . . . . . . . .53
Panel .............................................................56
Rear Covers .......................................................56
Gland Plate .......................................................57
Impeller ..........................................................57
Replacement Tumbler Lock .......................................59
Locking T Handle .................................................61
Current Transformer, Type 3R, Overview . . . . . . . . . . . . . . . . . . . . . . . . . . .72
Screw Cover with Steel Foot Mount Panel . . . . . . . . . . . . . . . . . . . . . . . . .72
Lift-O Cover with Wood Panel ...................................72
Hinged Screw Cover with Steel Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Hinged Double-Door with Three-Point Latch and Wood Panel . . . . .73
400- and 800-Amp Bar-Type Mount with Line/Load Lugs . . . . . . . . . .73

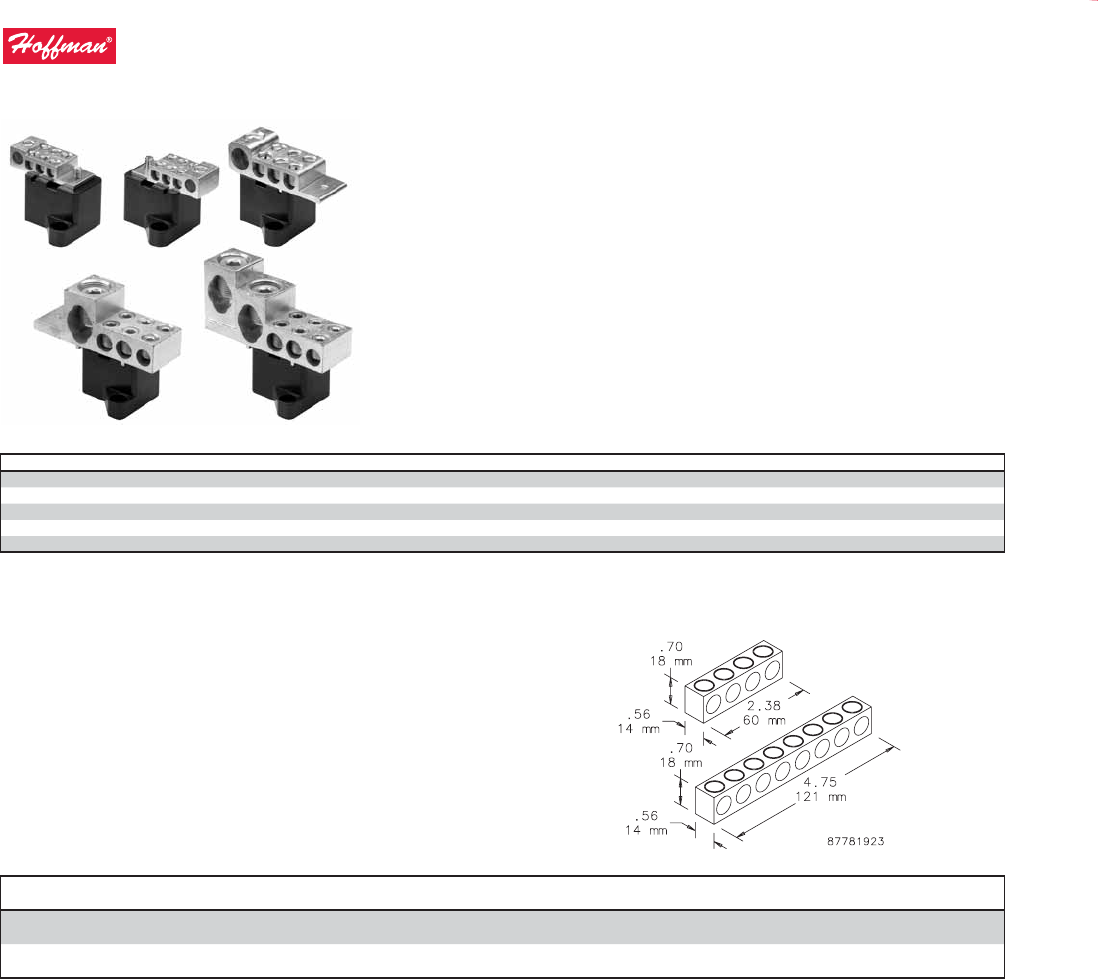

Vented Double Door ..............................................73
Interchangeable Bolt-on Hub .....................................75
Lug Assembly ....................................................75
Splitter Block Assemblies Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
Splitter Box Block Assemblies .....................................85
Splitter Trough Block Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
Ground Splitter (Ground Bar) ......................................86
![](asset-3.png)
3
ContractorType 1:
Screw-Cover Type 1 Pull Boxes and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Screw-Cover Type 1 Pu ll Boxes and A ccessorie s

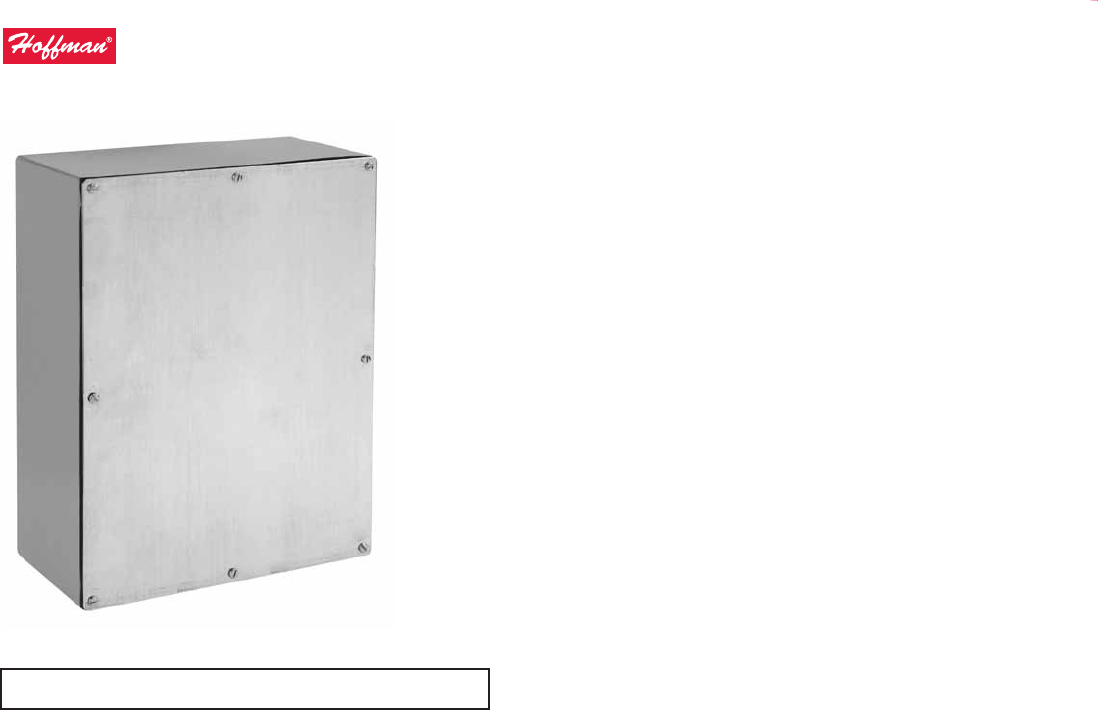

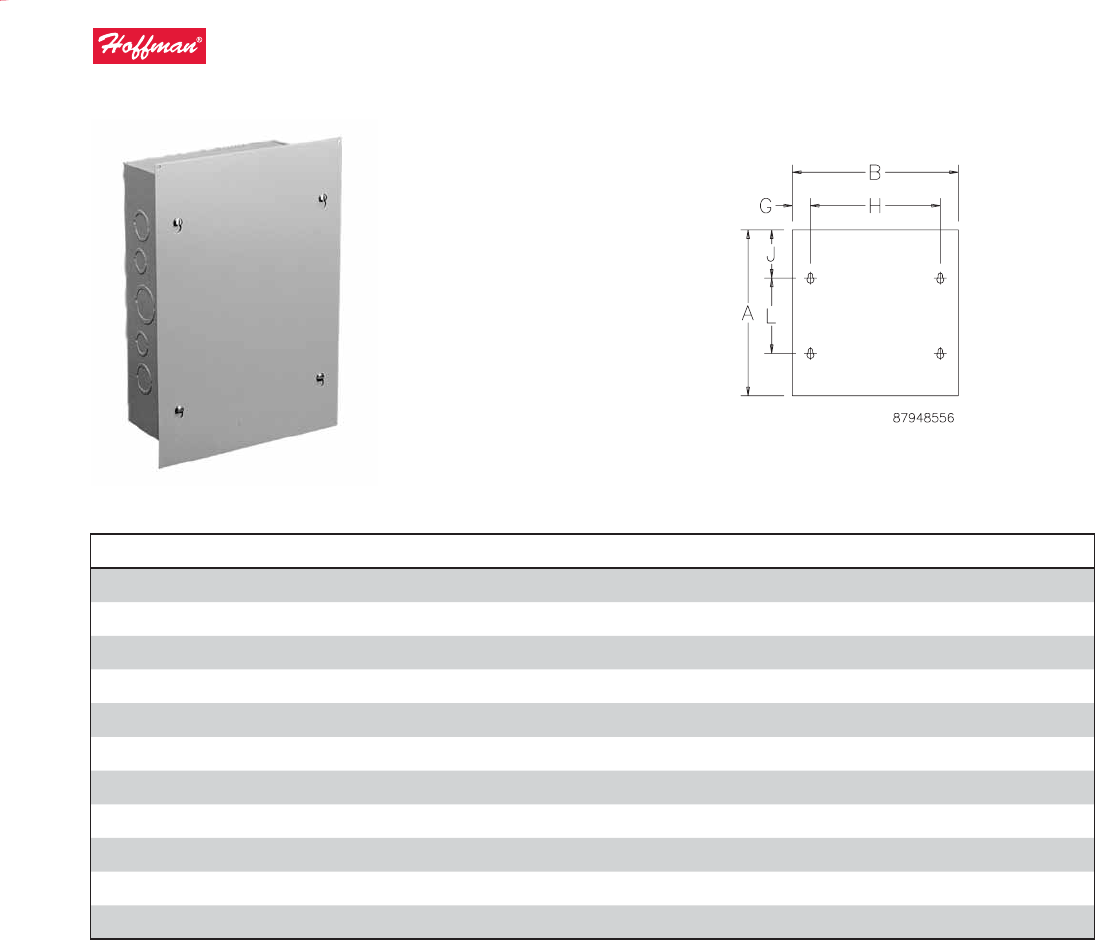

Screw-Cover, Type 1
Industry Standards
UL 50, 50E Listed; Type 1; File No. E27525
cUL Listed per CSA C22.2 No 40; Type 1; File No. E27525
NEMA/EEMAC Type 1
IEC 60529, IP30
Application
Use this enclosure in commercial and general industrial applications
that require a junction or pull box. For ush installations, order ush
covers and door frames separately.
Features
• Unique keyhole screw slots in the cover
• Available with or without knockouts. Various sizes of easy-to-
remove concentric knockouts on all four sides of standard boxes
with knockouts.
• Optional ush-mounted door frame available
• Optional ush covers
• Flat, removable covers fastened with plated steel screws
• Provision for grounding
• Mounting holes on back of box
Specications
• 16, 14 or 12 gauge steel or plated steel
Finish
ANSI 61 gray polyester powder paint nish inside and out. Unless
otherwise specied, all custom pull boxes are nished with ANSI 61
gray polyester powder paint.
Accessories
[s-3191]
[s-3192]
[s-3458]
[s-67174]
[s-3428]
Bulletin: A90P1

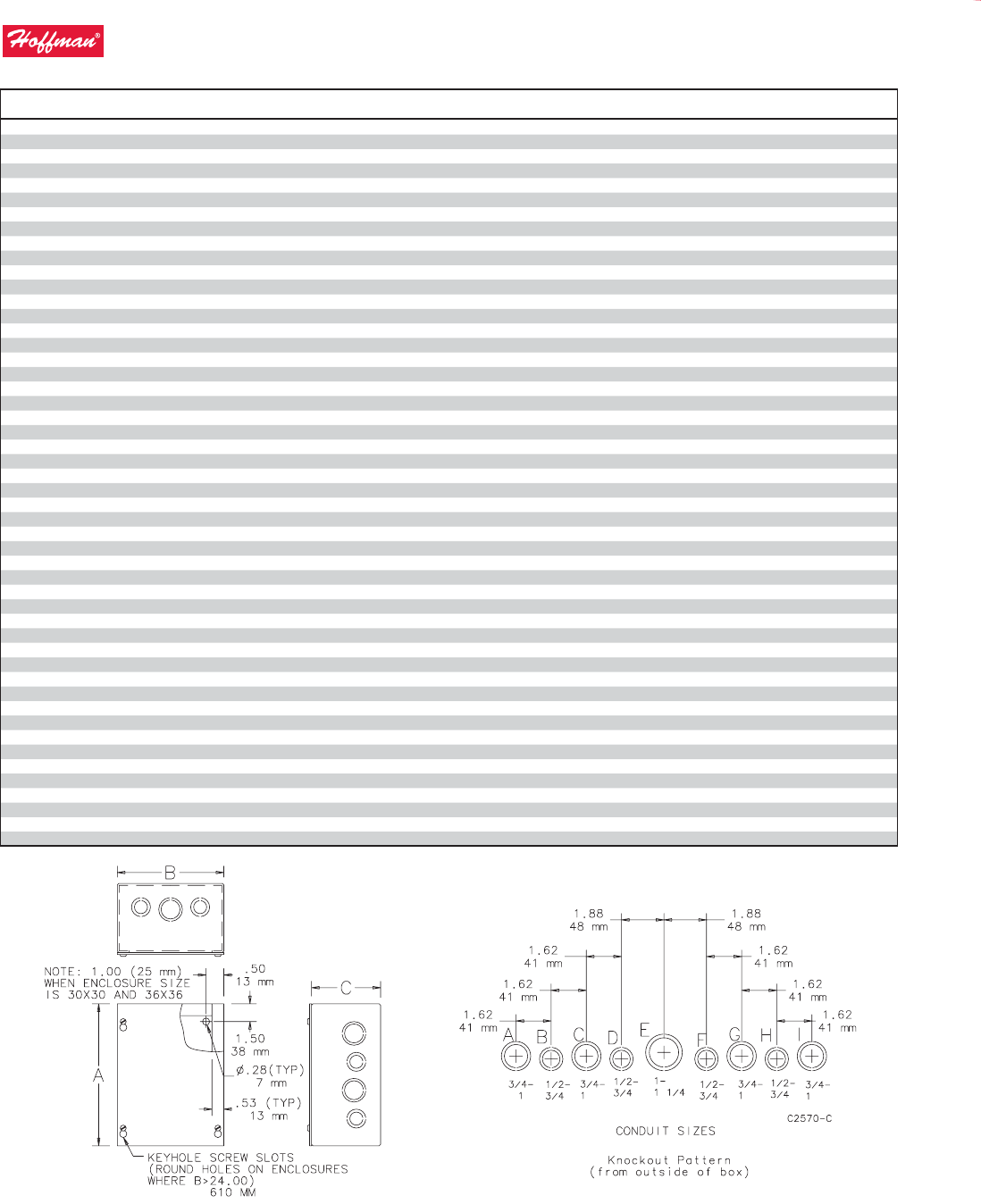

Standard Product Screw-Cover Type 1 Pull Boxes with Knockouts
Catalog Number AxBxC in. AxBxC mm Style
Number of
Cover Screws
Knockout Pattern
Along “A” Sides
Knockout Pattern
Along “B” Sides
ASE4X4X3 4.00 x 4.00 x 3.00 102 x 102 x 76 Painted 2 B-C B-C
ASG4X4X3 4.00 x 4.00 x 3.00 102 x 102 x 76 Galvanized 2 B-C B-C
ASE6X6X3 6.00 x 6.00 x 3.00 152 x 152 x 76 Painted 2 B-C-D B-C-D
ASG6X6X3 6.00 x 6.00 x 3.00 152 x 152 x 76 Galvanized 2 B-C-D B-C-D
ASE8X6X3 8.00 x 6.00 x 3.00 203 x 152 x 76 Painted 2 F-G-H-I B-C-D
ASG8X6X3 8.00 x 6.00 x 3.00 203 x 152 x 76 Galvanized 2 F-G-H-I B-C-D
ASE16X14X3 16.00 x 14.00 x 3.00 406 x 356 x 76 Painted 4 B-C-D-E-F-G-H B-C-D-E-F-G-H
ASE18X14X3 18.00 x 14.00 x 3.00 457 x 356 x 76 Painted 4 A-B-C-D-E-F-G-H-I B-C-D-E-F-G-H
ASE4X4X4 4.00 x 4.00 x 4.00 102 x 102 x 102 Painted 2 B-C B-C
ASG4X4X4 4.00 x 4.00 x 4.00 102 x 102 x 102 Galvanized 2 B-C B-C
ASE6X4X4 6.00 x 4.00 x 4.00 152 x 102 x 102 Painted 2 B-C-D B-C
ASG6X4X4 6.00 x 4.00 x 4.00 152 x 102 x 102 Galvanized 2 B-C-D B-C
ASE6X6X4 6.00 x 6.00 x 4.00 152 x 152 x 102 Painted 2 B-C-D B-C-D
ASG6X6X4 6.00 x 6.00 x 4.00 152 x 152 x 102 Galvanized 2 B-C-D B-C-D
ASE8X6X4 8.00 x 6.00 x 4.00 203 x 152 x 102 Painted 2 F-G-H-I B-C-D
ASG8X6X4 8.00 x 6.00 x 4.00 203 x 152 x 102 Galvanized 2 F-G-H-I B-C-D
ASE8X8X4 8.00 x 8.00 x 4.00 203 x 203 x 102 Painted 4 F-G-H-I F-G-H-I
ASG8X8X4 8.00 x 8.00 x 4.00 203 x 203 x 102 Galvanized 4 F-G-H-I F-G-H-I
ASE10X8X4 10.00 x 8.00 x 4.00 254 x 203 x 102 Painted 4 F-G-H-I F-G-H-I
ASG10X8X4 10.00 x 8.00 x 4.00 254 x 203 x 102 Galvanized 4 F-G-H-I F-G-H-I
ASE10X10X4 10.00 x 10.00 x 4.00 254 x 254 x 102 Painted 4 F-G-H-I C-D-E-F-G
ASG10X10X4 10.00 x 10.00 x 4.00 254 x 254 x 102 Galvanized 4 F-G-H-I C-D-E-F-G
ASE12X8X4 12.00 x 8.00 x 4.00 305 x 203 x 102 Painted 4 C-D-E-F-G F-G-H-I
ASG12X8X4 12.00 x 8.00 x 4.00 305 x 203 x 102 Galvanized 4 C-D-E-F-G F-G-H-I
ASE12X10X4 12.00 x 10.00 x 4.00 305 x 254 x 102 Painted 4 C-D-E-F-G C-D-E-F-G
ASG12X10X4 12.00 x 10.00 x 4.00 305 x 254 x 102 Galvanized 4 C-D-E-F-G C-D-E-F-G
ASE12X12X4 12.00 x 12.00 x 4.00 305 x 305 x 102 Painted 4 C-D-E-F-G C-D-E-F-G
ASG12X12X4 12.00 x 12.00 x 4.00 305 x 305 x 102 Galvanized 4 C-D-E-F-G C-D-E-F-G
ASE16X12X4 16.00 x 12.00 x 4.00 406 x 305 x 102 Painted 4 B-C-D-E-F-G-H C-D-E-F-G
ASG16X12X4 16.00 x 12.00 x 4.00 406 x 305 x 102 Galvanized 4 B-C-D-E-F-G-H C-D-E-F-G
ASE18X12X4 18.00 x 12.00 x 4.00 457 x 305 x 102 Painted 4 A-B-C-D-E-F-G-H-I C-D-E-F-G
ASG18X12X4 18.00 x 12.00 x 4.00 457 x 305 x 102 Galvanized 4 A-B-C-D-E-F-G-H-I C-D-E-F-G
ASE18X18X4 18.00 x 18.00 x 4.00 457 x 457 x 102 Painted 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASG18X18X4 18.00 x 18.00 x 4.00 457 x 457 x 102 Galvanized 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE24X12X4 24.00 x 12.00 x 4.00 610 x 305 x 102 Painted 4 A-B-C-D-E-F-G-H-I C-D-E-F-G
ASE24X24X4 24.00 x 24.00 x 4.00 610 x 610 x 102 Painted 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASG24X24X4 24.00 x 24.00 x 4.00 610 x 610 x 102 Galvanized 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE30X24X4 30.00 x 24.00 x 4.00 762 x 610 x 102 Painted 6 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE6X6X6 6.00 x 6.00 x 6.00 152 x 152 x 152 Painted 2 B-C-D B-C-D
![](asset-4.png)
4
ContractorType 1:
Screw-Cover Type 1 Pull Boxes and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Catalog Number AxBxC in. AxBxC mm Style
Number of
Cover Screws
Knockout Pattern
Along “A” Sides
Knockout Pattern
Along “B” Sides
ASG6X6X6 6.00 x 6.00 x 6.00 152 x 152 x 152 Galvanized 2 B-C-D B-C-D
ASE8X6X6 8.00 x 6.00 x 6.00 203 x 152 x 152 Painted 4 F-G-H-I B-C-D
ASE8X8X6 8.00 x 8.00 x 6.00 203 x 203 x 152 Painted 4 F-G-H-I F-G-H-I
ASG8X8X6 8.00 x 8.00 x 6.00 203 x 203 x 152 Galvanized 4 F-G-H-I F-G-H-I
ASE10X8X6 10.00 x 8.00 x 6.00 254 x 203 x 152 Painted 4 F-G-H-I F-G-H-I
ASG10X8X6 10.00 x 8.00 x 6.00 254 x 203 x 152 Galvanized 4 F-G-H-I F-G-H-I
ASE10X10X6 10.00 x 10.00 x 6.00 254 x 254 x 152 Painted 4 F-G-H-I C-D-E-F-G
ASG10X10X6 10.00 x 10.00 x 6.00 254 x 254 x 152 Galvanized 4 F-G-H-I C-D-E-F-G
ASE12X10X6 12.00 x 10.00 x 6.00 305 x 254 x 152 Painted 4 C-D-E-F-G C-D-E-F-G
ASG12X10X6 12.00 x 10.00 x 6.00 305 x 254 x 152 Galvanized 4 C-D-E-F-G C-D-E-F-G
ASE12X12X6 12.00 x 12.00 x 6.00 305 x 305 x 152 Painted 4 C-D-E-F-G C-D-E-F-G
ASG12X12X6 12.00 x 12.00 x 6.00 305 x 305 x 152 Galvanized 4 C-D-E-F-G C-D-E-F-G
ASE16X12X6 16.00 x 12.00 x 6.00 406 x 305 x 152 Painted 4 B-C-D-E-F-G-H C-D-E-F-G
ASG16X12X6 16.00 x 12.00 x 6.00 406 x 305 x 152 Galvanized 4 B-C-D-E-F-G-H C-D-E-F-G
ASE16X16X6 16.00 x 16.00 x 6.00 406 x 406 x 152 Painted 4 B-C-D-E-F-G-H B-C-D-E-F-G-H
ASG16X16X6 16.00 x 16.00 x 6.00 406 x 406 x 152 Galvanized 4 B-C-D-E-F-G-H B-C-D-E-F-G-H
ASE18X12X6 18.00 x 12.00 x 6.00 457 x 305 x 152 Painted 4 A-B-C-D-E-F-G-H-I C-D-E-F-G
ASG18X12X6 18.00 x 12.00 x 6.00 457 x 305 x 152 Galvanized 4 A-B-C-D-E-F-G-H-I C-D-E-F-G
ASE18X18X6 18.00 x 18.00 x 6.00 457 x 457 x 152 Painted 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASG18X18X6 18.00 x 18.00 x 6.00 457 x 457 x 152 Galvanized 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE24X18X6 24.00 x 18.00 x 6.00 610 x 457 x 152 Painted 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASG24X18X6 24.00 x 18.00 x 6.00 610 x 457 x 152 Galvanized 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE24X24X6 24.00 x 24.00 x 6.00 610 x 610 x 152 Painted 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASG24X24X6 24.00 x 24.00 x 6.00 610 x 610 x 152 Galvanized 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE30X24X6 30.00 x 24.00 x 6.00 762 x 610 x 152 Painted 6 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASG30X24X6 30.00 x 24.00 x 6.00 762 x 610 x 152 Galvanized 6 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE36X24X6 36.00 x 24.00 x 6.00 914 x 610 x 152 Painted 6 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE8X8X8 8.00 x 8.00 x 8.00 203 x 203 x 203 Painted 4 F-G-H-I F-G-H-I
ASE12X12X8 12.00 x 12.00 x 8.00 305 x 305 x 203 Painted 4 C-D-E-F-G C-D-E-F-G
ASG12X12X8 12.00 x 12.00 x 8.00 305 x 305 x 203 Galvanized 4 C-D-E-F-G C-D-E-F-G
ASE16X12X8 16.00 x 12.00 x 8.00 406 x 305 x 203 Painted 4 B-C-D-E-F-G-H C-D-E-F-G
ASE18X12X8 18.00 x 12.00 x 8.00 457 x 305 x 203 Painted 4 A-B-C-D-E-F-G-H-I C-D-E-F-G
ASE24X12X8 24.00 x 12.00 x 8.00 610 x 305 x 203 Painted 4 A-B-C-D-E-F-G-H-I C-D-E-F-G
ASE24X18X8 24.00 x 18.00 x 8.00 610 x 457 x 203 Painted 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE24X24X8 24.00 x 24.00 x 8.00 610 x 610 x 203 Painted 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE36X24X8 36.00 x 24.00 x 8.00 914 x 610 x 203 Painted 6 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE18X12X10 18.00 x 12.00 x 10.00 457 x 305 x 254 Painted 4 A-B-C-D-E-F-G-H-I C-D-E-F-G
ASE18X18X10 18.00 x 18.00 x 10.00 457 x 457 x 254 Painted 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE24X18X10 24.00 x 18.00 x 10.00 610 x 457 x 254 Painted 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE24X24X10 24.00 x 24.00 x 10.00 610 x 610 x 254 Painted 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE36X24X10 36.00 x 24.00 x 10.00 914 x 610 x 254 Painted 6 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE24X12X12 24.00 x 12.00 x 12.00 610 x 305 x 305 Painted 4 A-B-C-D-E-F-G-H-I C-D-E-F-G
ASE18X18X12 18.00 x 18.00 x 12.00 457 x 457 x 305 Painted 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE24X18X12 24.00 x 18.00 x 12.00 610 x 457 x 305 Painted 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE24X24X12 24.00 x 24.00 x 12.00 610 x 610 x 305 Painted 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE30X24X12 30.00 x 24.00 x 12.00 762 x 610 x 305 Painted 6 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE36X24X12 36.00 x 24.00 x 12.00 914 x 610 x 305 Painted 6 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
Standard Product Screw-Cover Type 1 Pull Boxes without Knockouts
Catalog Number AxBxC in. AxBxC mm Style
Number of
Cover Screws
ASE4X4X3NK 4.00 x 4.00 x 3.00 102 x 102 x 76 Painted 2
ASG4X4X3NK 4.00 x 4.00 x 3.00 102 x 102 x 76 Galvanized 2
ASE6X6X3NK 6.00 x 6.00 x 3.00 152 x 152 x 76 Painted 2
ASG6X6X3NK 6.00 x 6.00 x 3.00 152 x 152 x 76 Galvanized 2
ASE8X6X3NK 8.00 x 6.00 x 3.00 203 x 152 x 76 Painted 2
ASG8X6X3NK 8.00 x 6.00 x 3.00 203 x 152 x 76 Galvanized 2
ASE16X14X3NK 16.00 x 14.00 x 3.00 406 x 356 x 76 Painted 4
ASE20X14X3NK 20.00 x 14.00 x 3.00 508 x 356 x 76 Painted 4
ASE4X4X4NK 4.00 x 4.00 x 4.00 102 x 102 x 102 Painted 2
ASG4X4X4NK 4.00 x 4.00 x 4.00 102 x 102 x 102 Galvanized 2
ASE6X4X4NK 6.00 x 4.00 x 4.00 152 x 102 x 102 Painted 2
ASG6X4X4NK 6.00 x 4.00 x 4.00 152 x 102 x 102 Galvanized 2
ASE6X6X4NK 6.00 x 6.00 x 4.00 152 x 152 x 102 Painted 2
ASG6X6X4NK 6.00 x 6.00 x 4.00 152 x 152 x 102 Galvanized 2
ASE8X6X4NK 8.00 x 6.00 x 4.00 203 x 152 x 102 Painted 2
ASG8X6X4NK 8.00 x 6.00 x 4.00 203 x 152 x 102 Galvanized 2
ASE8X8X4NK 8.00 x 8.00 x 4.00 203 x 203 x 102 Painted 4
ASG8X8X4NK 8.00 x 8.00 x 4.00 203 x 203 x 102 Galvanized 4
ASE10X6X4NK 10.00 x 6.00 x 4.00 254 x 152 x 102 Painted 4
ASG10X6X4NK 10.00 x 6.00 x 4.00 254 x 152 x 102 Galvanized 4
ASE10X8X4NK 10.00 x 8.00 x 4.00 254 x 203 x 102 Painted 4
ASG10X8X4NK 10.00 x 8.00 x 4.00 254 x 203 x 102 Galvanized 4
ASE10X10X4NK 10.00 x 10.00 x 4.00 254 x 254 x 102 Painted 4
ASG10X10X4NK 10.00 x 10.00 x 4.00 254 x 254 x 102 Galvanized 4
ASE12X6X4NK 12.00 x 6.00 x 4.00 305 x 152 x 102 Painted 4
ASG12X6X4NK 12.00 x 6.00 x 4.00 305 x 152 x 102 Galvanized 4
ASE12X8X4NK 12.00 x 8.00 x 4.00 305 x 203 x 102 Painted 4
![](asset-5.png)
5
ContractorType 1:
Screw-Cover Type 1 Pull Boxes and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Catalog Number AxBxC in. AxBxC mm Style
Number of
Cover Screws
ASG12X8X4NK 12.00 x 8.00 x 4.00 305 x 203 x 102 Galvanized 4
ASE12X10X4NK 12.00 x 10.00 x 4.00 305 x 254 x 102 Painted 4
ASG12X10X4NK 12.00 x 10.00 x 4.00 305 x 254 x 102 Galvanized 4
ASE12X12X4NK 12.00 x 12.00 x 4.00 305 x 305 x 102 Painted 4
ASG12X12X4NK 12.00 x 12.00 x 4.00 305 x 305 x 102 Galvanized 4
ASE15X15X4NK 15.00 x 15.00 x 4.00 381 x 381 x 102 Painted 4
ASG15X15X4NK 15.00 x 15.00 x 4.00 381 x 381 x 102 Galvanized 4
ASE16X12X4NK 16.00 x 12.00 x 4.00 406 x 305 x 102 Painted 4
ASG16X12X4NK 16.00 x 12.00 x 4.00 406 x 305 x 102 Galvanized 4
ASE18X12X4NK 18.00 x 12.00 x 4.00 457 x 305 x 102 Painted 4
ASG18X12X4NK 18.00 x 12.00 x 4.00 457 x 305 x 102 Galvanized 4
ASE18X15X4NK 18.00 x 15.00 x 4.00 457 x 381 x 102 Painted 4
ASE18X18X4NK 18.00 x 18.00 x 4.00 457 x 457 x 102 Painted 4
ASG18X18X4NK 18.00 x 18.00 x 4.00 457 x 457 x 102 Galvanized 4
ASE24X12X4NK 24.00 x 12.00 x 4.00 610 x 305 x 102 Painted 4
ASE24X18X4NK 24.00 x 18.00 x 4.00 610 x 457 x 102 Painted 4
ASG24X18X4NK 24.00 x 18.00 x 4.00 610 x 457 x 102 Galvanized 4
ASE24X24X4NK 24.00 x 24.00 x 4.00 610 x 610 x 102 Painted 4
ASG24X24X4NK 24.00 x 24.00 x 4.00 610 x 610 x 102 Galvanized 4
ASE30X24X4NK 30.00 x 24.00 x 4.00 762 x 610 x 102 Painted 6
ASE30X30X4NK 30.00 x 30.00 x 4.00 762 x 762 x 102 Painted 8
ASE6X6X6NK 6.00 x 6.00 x 6.00 152 x 152 x 152 Painted 2
ASG6X6X6NK 6.00 x 6.00 x 6.00 152 x 152 x 152 Galvanized 2
ASE8X6X6NK 8.00 x 6.00 x 6.00 203 x 152 x 152 Painted 2
ASG8X6X6NK 8.00 x 6.00 x 6.00 203 x 152 x 152 Galvanized 2
ASE8X8X6NK 8.00 x 8.00 x 6.00 203 x 203 x 152 Painted 4
ASG8X8X6NK 8.00 x 8.00 x 6.00 203 x 203 x 152 Galvanized 4
ASE10X8X6NK 10.00 x 8.00 x 6.00 254 x 203 x 152 Painted 4
ASG10X8X6NK 10.00 x 8.00 x 6.00 254 x 203 x 152 Galvanized 4
ASE10X10X6NK 10.00 x 10.00 x 6.00 254 x 254 x 152 Painted 4
ASG10X10X6NK 10.00 x 10.00 x 6.00 254 x 254 x 152 Galvanized 4
ASE12X6X6NK 12.00 x 6.00 x 6.00 305 x 152 x 152 Painted 4
ASE12X8X6NK 12.00 x 8.00 x 6.00 305 x 203 x 152 Painted 4
ASG12X8X6NK 12.00 x 8.00 x 6.00 305 x 203 x 152 Galvanized 4
ASE12X10X6NK 12.00 x 10.00 x 6.00 305 x 254 x 152 Painted 4
ASG12X10X6NK 12.00 x 10.00 x 6.00 305 x 254 x 152 Galvanized 4
ASE12X12X6NK 12.00 x 12.00 x 6.00 305 x 305 x 152 Painted 4
ASG12X12X6NK 12.00 x 12.00 x 6.00 305 x 305 x 152 Galvanized 4
ASE16X12X6NK 16.00 x 12.00 x 6.00 406 x 305 x 152 Painted 4
ASG16X12X6NK 16.00 x 12.00 x 6.00 406 x 305 x 152 Galvanized 4
ASE16X16X6NK 16.00 x 16.00 x 6.00 406 x 406 x 152 Painted 4
ASG16X16X6NK 16.00 x 16.00 x 6.00 406 x 406 x 152 Galvanized 4
ASE18X12X6NK 18.00 x 12.00 x 6.00 457 x 305 x 152 Painted 4
ASG18X12X6NK 18.00 x 12.00 x 6.00 457 x 305 x 152 Galvanized 4
ASE18X18X6NK 18.00 x 18.00 x 6.00 457 x 457 x 152 Painted 4
ASG18X18X6NK 18.00 x 18.00 x 6.00 457 x 457 x 152 Galvanized 4
ASE24X12X6NK 24.00 x 12.00 x 6.00 610 x 305 x 152 Painted 4
ASG24X12X6NK 24.00 x 12.00 x 6.00 610 x 305 x 152 Galvanized 4
ASE24X18X6NK 24.00 x 18.00 x 6.00 610 x 457 x 152 Painted 4
ASG24X18X6NK 24.00 x 18.00 x 6.00 610 x 457 x 152 Galvanized 4
ASE24X20X6NK 24.00 x 20.00 x 6.00 610 x 508 x 152 Painted 4
ASG24X20X6NK 24.00 x 20.00 x 6.00 610 x 508 x 152 Galvanized 4
ASE24X24X6NK 24.00 x 24.00 x 6.00 610 x 610 x 152 Painted 4
ASG24X24X6NK 24.00 x 24.00 x 6.00 610 x 610 x 152 Galvanized 4
ASE30X24X6NK 30.00 x 24.00 x 6.00 762 x 610 x 152 Painted 6
ASG30X24X6NK 30.00 x 24.00 x 6.00 762 x 610 x 152 Galvanized 6
ASE30X30X6NK 30.00 x 30.00 x 6.00 762 x 762 x 152 Painted 8
ASG30X30X6NK 30.00 x 30.00 x 6.00 762 x 762 x 152 Galvanized 8
ASE36X24X6NK 36.00 x 24.00 x 6.00 914 x 610 x 152 Painted 6
ASG36X24X6NK 36.00 x 24.00 x 6.00 914 x 610 x 152 Galvanized 6
ASE36X30X6NK 36.00 x 30.00 x 6.00 914 x 762 x 152 Painted 8
ASE36X36X6NK 36.00 x 36.00 x 6.00 914 x 914 x 152 Painted 8
ASG36X36X6NK 36.00 x 36.00 x 6.00 914 x 914 x 152 Galvanized 8
ASE8X8X8NK 8.00 x 8.00 x 8.00 203 x 203 x 203 Painted 4
ASG8X8X8NK 8.00 x 8.00 x 8.00 203 x 203 x 203 Galvanized 4
ASE10X10X8NK 10.00 x 10.00 x 8.00 254 x 254 x 203 Painted 4
ASG10X10X8NK 10.00 x 10.00 x 8.00 254 x 254 x 203 Galvanized 4
ASE12X10X8NK 12.00 x 10.00 x 8.00 305 x 254 x 203 Painted 4
ASE12X12X8NK 12.00 x 12.00 x 8.00 305 x 305 x 203 Painted 4
ASG12X12X8NK 12.00 x 12.00 x 8.00 305 x 305 x 203 Galvanized 4
ASE16X12X8NK 16.00 x 12.00 x 8.00 406 x 305 x 203 Painted 4
ASE18X12X8NK 18.00 x 12.00 x 8.00 457 x 305 x 203 Painted 4
ASG18X12X8NK 18.00 x 12.00 x 8.00 457 x 305 x 203 Galvanized 4
ASE18X18X8NK 18.00 x 18.00 x 8.00 457 x 457 x 203 Painted 4
ASG18X18X8NK 18.00 x 18.00 x 8.00 457 x 457 x 203 Galvanized 4
ASE24X12X8NK 24.00 x 12.00 x 8.00 610 x 305 x 203 Painted 4
ASG24X12X8NK 24.00 x 12.00 x 8.00 610 x 305 x 203 Galvanized 4
ASE24X18X8NK 24.00 x 18.00 x 8.00 610 x 457 x 203 Painted 4
ASG24X18X8NK 24.00 x 18.00 x 8.00 610 x 457 x 203 Galvanized 4
ASE24X20X8NK 24.00 x 20.00 x 8.00 610 x 508 x 203 Painted 4
![](asset-6.png)
6
ContractorType 1:
Screw-Cover Type 1 Pull Boxes and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Catalog Number AxBxC in. AxBxC mm Style
Number of
Cover Screws
ASG24X20X8NK 24.00 x 20.00 x 8.00 610 x 508 x 203 Galvanized 4
ASE24X24X8NK 24.00 x 24.00 x 8.00 610 x 610 x 203 Painted 4
ASG24X24X8NK 24.00 x 24.00 x 8.00 610 x 610 x 203 Galvanized 4
ASE30X24X8NK 30.00 x 24.00 x 8.00 762 x 610 x 203 Painted 6
ASG30X24X8NK 30.00 x 24.00 x 8.00 762 x 610 x 203 Galvanized 6
ASE30X30X8NK 30.00 x 30.00 x 8.00 762 x 762 x 203 Painted 8
ASG30X30X8NK 30.00 x 30.00 x 8.00 762 x 762 x 203 Galvanized 8
ASE36X24X8NK 36.00 x 24.00 x 8.00 914 x 610 x 203 Painted 6
ASG36X24X8NK 36.00 x 24.00 x 8.00 914 x 610 x 203 Galvanized 6
ASE36X36X8NK 36.00 x 36.00 x 8.00 914 x 914 x 203 Painted 8
ASG36X36X8NK 36.00 x 36.00 x 8.00 914 x 914 x 203 Galvanized 8
ASE12X12X10NK 12.00 x 12.00 x 10.00 305 x 305 x 254 Painted 4
ASG12X12X10NK 12.00 x 12.00 x 10.00 305 x 305 x 254 Galvanized 4
ASE18X12X10NK 18.00 x 12.00 x 10.00 457 x 305 x 254 Painted 4
ASE18X18X10NK 18.00 x 18.00 x 10.00 457 x 457 x 254 Painted 4
ASG18X18X10NK 18.00 x 18.00 x 10.00 457 x 457 x 254 Galvanized 4
ASE24X12X10NK 24.00 x 12.00 x 10.00 610 x 305 x 254 Painted 4
ASE24X18X10NK 24.00 x 18.00 x 10.00 610 x 457 x 254 Painted 4
ASE24X24X10NK 24.00 x 24.00 x 10.00 610 x 610 x 254 Painted 4
ASG24X24X10NK 24.00 x 24.00 x 10.00 610 x 610 x 254 Galvanized 4
ASE30X24X10NK 30.00 x 24.00 x 10.00 762 x 610 x 254 Painted 6
ASE30X30X10NK 30.00 x 30.00 x 10.00 762 x 762 x 254 Painted 8
ASG30X30X10NK 30.00 x 30.00 x 10.00 762 x 762 x 254 Galvanized 8
ASE36X24X10NK 36.00 x 24.00 x 10.00 914 x 610 x 254 Painted 6
ASG36X24X10NK 36.00 x 24.00 x 10.00 914 x 610 x 254 Galvanized 6
ASE36X36X10NK 36.00 x 36.00 x 10.00 914 x 914 x 254 Painted 8
ASG36X36X10NK 36.00 x 36.00 x 10.00 914 x 914 x 254 Galvanized 8
ASE12X12X12NK 12.00 x 12.00 x 12.00 305 x 305 x 305 Painted 4
ASG12X12X12NK 12.00 x 12.00 x 12.00 305 x 305 x 305 Galvanized 4
ASE24X12X12NK 24.00 x 12.00 x 12.00 610 x 305 x 305 Painted 4
ASG24X12X12NK 24.00 x 12.00 x 12.00 610 x 305 x 305 Galvanized 4
ASE18X18X12NK 18.00 x 18.00 x 12.00 457 x 457 x 305 Painted 4
ASG18X18X12NK 18.00 x 18.00 x 12.00 457 x 457 x 305 Galvanized 4
ASE24X18X12NK 24.00 x 18.00 x 12.00 610 x 457 x 305 Painted 4
ASE24X24X12NK 24.00 x 24.00 x 12.00 610 x 610 x 305 Painted 4
ASG24X24X12NK 24.00 x 24.00 x 12.00 610 x 610 x 305 Galvanized 4
ASE30X24X12NK 30.00 x 24.00 x 12.00 762 x 610 x 305 Painted 6
ASE30X30X12NK 30.00 x 30.00 x 12.00 762 x 762 x 305 Painted 8
ASG30X30X12NK 30.00 x 30.00 x 12.00 762 x 762 x 305 Galvanized 8
ASE36X24X12NK 36.00 x 24.00 x 12.00 914 x 610 x 305 Painted 6
ASG36X24X12NK 36.00 x 24.00 x 12.00 914 x 610 x 305 Galvanized 6
ASE36X36X12NK 36.00 x 36.00 x 12.00 914 x 914 x 305 Painted 8
ASG36X36X12NK 36.00 x 36.00 x 12.00 914 x 914 x 305 Galvanized 8
ASE48X48X12NK 48.00 x 48.00 x 12.00 1219 x 1219 x 305 Painted 12
ASG48X48X12NK 48.00 x 48.00 x 12.00 1219 x 1219 x 305 Galvanized 12
ASE30X30X16NK 30.00 x 30.00 x 16.00 762 x 762 x 406 Painted 8
ASE36X36X16NK 36.00 x 36.00 x 16.00 914 x 914 x 406 Painted 8
ASG36X36X16NK 36.00 x 36.00 x 16.00 914 x 914 x 406 Galvanized 8
ASE48X48X16NK 48.00 x 48.00 x 16.00 1219 x 1219 x 406 Painted 12
ASG48X48X16NK 48.00 x 48.00 x 16.00 1219 x 1219 x 406 Galvanized 12
![](asset-7.png)
7
ContractorType 1:
Screw-Cover Type 1 Pull Boxes and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Flush Covers Designed to mount on enclosure for ush installations. Cover is 16 or
14 gauge steel nished with ANSI 61 gray polyester powder paint.
Bulletin: A90P1
Standard Product
Catalog Number AxB in./mm
Fits Box Size A x B
in./mm
G
in./mm
H
in./mm
J
in./mm
L
in./mm
Cover
Gauge
AFE6X6 7.50 x 7.50
191 x 191
6.00 x 6.00
152 x 152
1.03
26
5.44
138
3.75
95
—
—
16
AFE8X6 9.50 x 7.50
241 x 191
8.00 x 6.00
203 x 152
1.03
26
5.44
138
4.75
121
—
—
16
AFE8X8 9.50 x 9.50
241 x 241
8.00 x 8.00
203 x 203
1.03
26
7.44
189
2.77
70
4.31
109
16
AFE10X8 11.50 x 9.50
292 x 241
10.00 x 8.00
254 x 203
1.03
26
7.44
189
2.77
70
6.31
160
16
AFE10X10 11.50 x 11.50
292 x 292
10.00 x 10.00
254 x 254
1.03
26
9.44
240
2.77
70
6.31
160
16
AFE12X8 13.50 x 9.50
343 x 241
12.00 x 8.00
305 x 203
1.03
26
7.44
189
2.77
70
8.31
211
16
AFE12X12 13.50 x 13.50
343 x 343
12.00 x 12.00
305 x 305
1.03
26
11.44
291
2.77
70
8.31
211
16
AFE18X12 19.50 x 13.50
495 x 343
18.00 x 12.00
457 x 305
1.03
26
11.44
291
2.77
70
14.31
363
16
AFE18X18 19.50 x 19.50
495 x 495
18.00 x 18.00
457 x 457
1.03
26
17.44
443
2.77
70
14.31
363
16
AFE24X18 25.50 x 19.50
648 x 495
24.00 x 18.00
610 x 457
1.05
27
17.41
442
2.77
70
20.31
516
14
AFE24X24 25.50 x 25.50
648 x 648
24.00 x 24.00
610 x 610
1.05
27
23.41
595
2.77
70
20.31
516
14
![](asset-8.png)
8
ContractorType 1:
Screw-Cover Type 1 Pull Boxes and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Flush-Mount Door Frames
Use in Screw-Cover Pull Box telephone cabinet installations or in
communication wiring and signal systems. Also as a junction or pull
box and switch enclosure.
• Continuous hinge
• Rugged black composite slide latch
• Optional tamper-resistant lock kit includes cylinder lock, tamper-
resistant screws and special driver bit.
• Lock Kit: ACLFDF
•
14 gauge steel door frame has ANSI 61 gray polyester powder paint
nish
Bulletin: A90P1
Standard Product
Catalog Number
Frame Size
A x B
in./mm
Door
Size T
in./mm
Door
Size S
in./mm
Fits Box Size
A x B
in./mm
G
in./mm
H
in./mm
J
in./mm
K
in./mm
L
in./mm
AFDF0606P 8.00 x 8.00
203 x 203
3.00
76
3.00
76
6.00 x 6.00
152 x 152
1.28
32
5.44
138
N/A
N/A
4.00
102
N/A
N/A
AFDF1212P 14.00 x 14.00
356 x 356
9.00
229
9.00
229
12.00 x 12.00
305 x 305
1.28
32
11.44
291
2.84
72
7.00
178
8.31
211
AFDF1812P 20.00 x 14.00
508 x 356
15.00
381
9.00
229
18.00 x 12.00
457 x 305
1.28
32
11.44
291
2.84
72
10.00
254
14.31
364
AFDF1818P 20.00 x 20.00
508 x 508
15.00
381
15.00
381
18.00 x 18.00
457 x 457
1.28
32
17.44
443
2.84
72
10.00
254
14.31
364
AFDF2418P 26.00 x 20.00
660 x 508
21.00
533
15.00
381
24.00 x 18.00
610 x 457
1.28
32
17.44
443
2.84
72
13.00
330
20.31
516
AFDF2424P 26.00 x 26.00
660 x 660
21.00
533
21.00
533
24.00 x 24.00
610 x 610
1.30
33
23.41
595
2.84
72
13.00
330
20.31
516
AFDF3024P 32.00 x 26.00
813 x 660
27.00
686
21.00
533
30.00 x 24.00
762 x 610
1.30
33
23.41
595
2.84
72
16.00
406
26.31
668
![](asset-9.png)
9
ContractorType 1:
Screw-Cover Type 1 Pull Boxes and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products

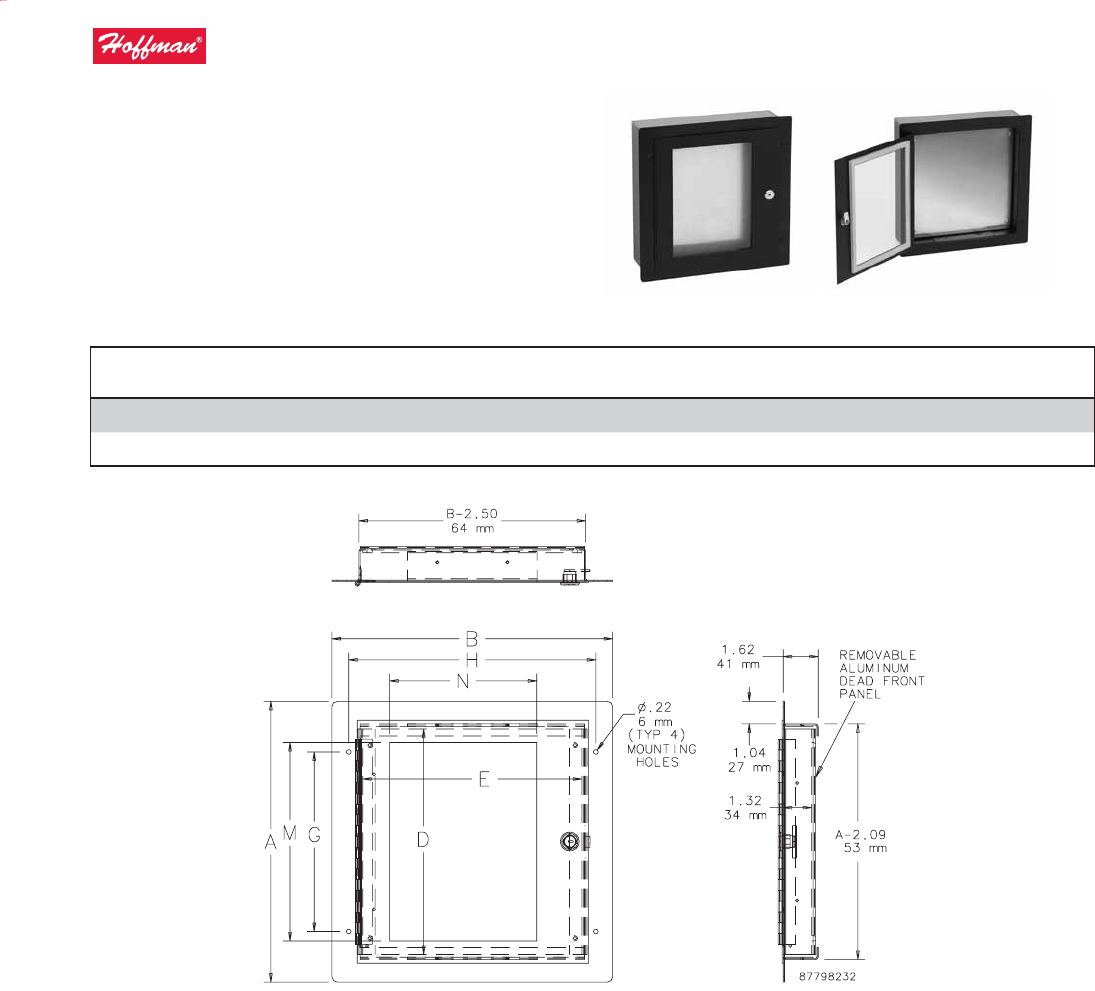

Type 1 Locking Window Pull Box Accessory
Flush- or surface-mount accessory ts Screw Cover, Type 1, boxes to
prevent public access to lighting switches and controls. Includes a
removable aluminum dead-front mounting surface for component
cutouts and four torx-head screws for securing to enclosure.
Bulletin: A90P1
Standard Product
Catalog Number AxB in./mm
Dead Front Panel
Size D x E
in./mm
Mounting Holes
G x H
in./mm
Window Size
M x N
in./mm Fits Pull Box
ALDF88W 9.00 x 9.00
229 x 293
6.00 x 6.14
152 x 99
4.31 x 7.44
109 x 189
6.25 x 3.88
164 x 156
ASE8X8X4
ALDF1212W 13.00 x 13.00
330 x 330
10.00 x 10.14
254 x 200
8.31 x 11.44
211 x 291
10.25 x 7.88
265 x 258
ASE12X12X4
A x B = Frame Size
![](asset-a.png)
10
ContractorType 1:
Screw-Cover Type 1 Pull Boxes and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Type 1 Pull Box Perforated Panel
Panel is formed to provide 7/16-in. space o back of pull box for component mounting screw clearance and includes a grounding hole to
terminate equipment grounding conductors. Ideal for mounting components that require infrequent access such as control transformers,
terminals and contactors.
Bulletin: PNLP
Standard Product
Catalog Number
Panel
Gauge
Panel Size
D x E (in.)
Panel Size
D x E (mm) Fits Pull Box
PB66PP 16 4.40 x 5.50 112 x 140 ASE6X6X__
PB88PP 16 6.40 x 7.50 163 x 191 ASE8X8X__
PB1212PP 16 10.40 x 11.50 264 x 292 ASE12X12X__
PB1818PP 16 16.40 x 17.50 417 x 445 ASE18X18X__
PB2424PP 16 22.40 x 23.50 569 x 597 ASE24X24X__
PB1818PP and PB2424PP are anged on all four sides.
![](asset-b.png)
11
ContractorType 1:
Hinged-Cover Type 1 Boxes, Enclosures and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Hinged-Cove r Type 1 Boxes, En closures a nd Accesso ries

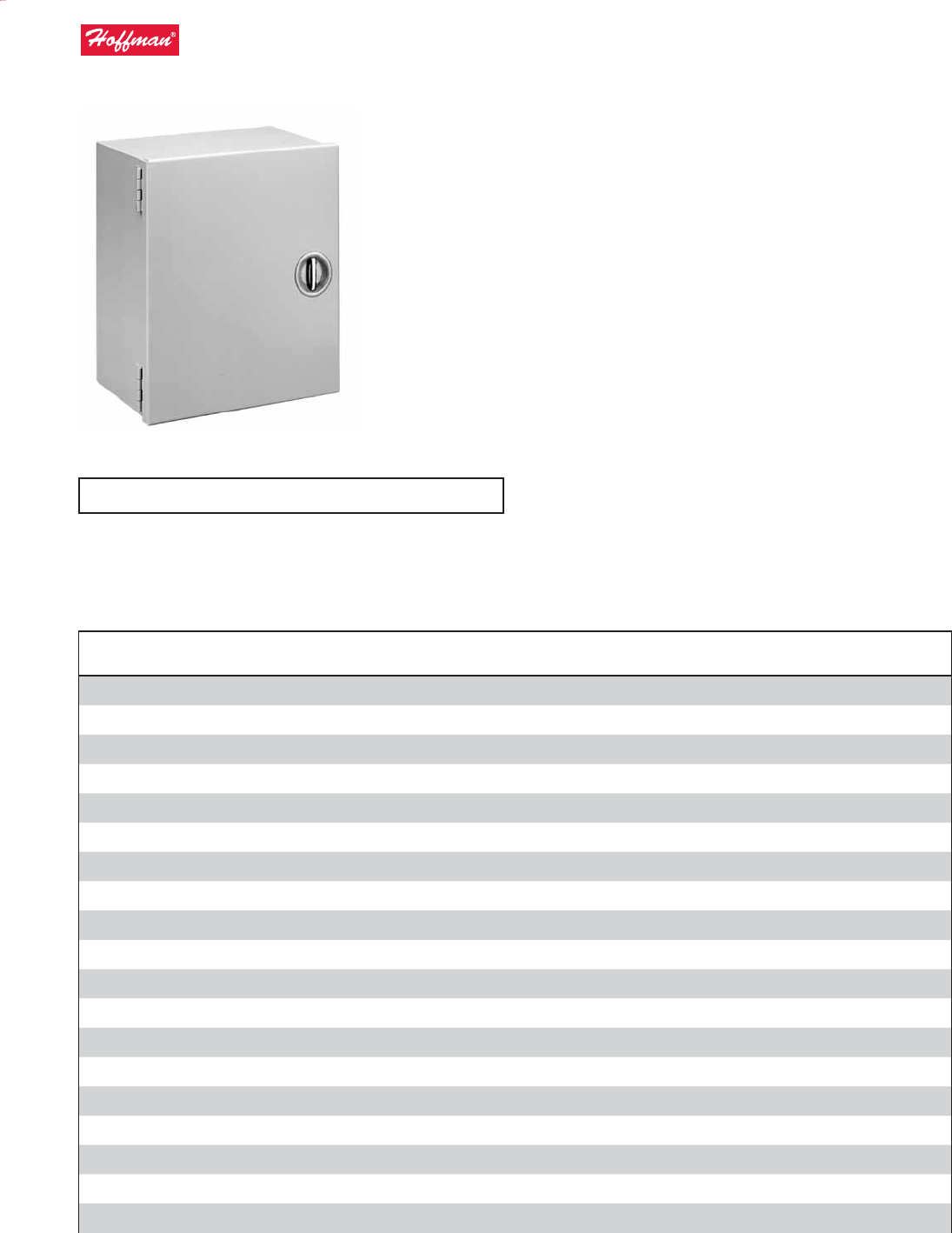

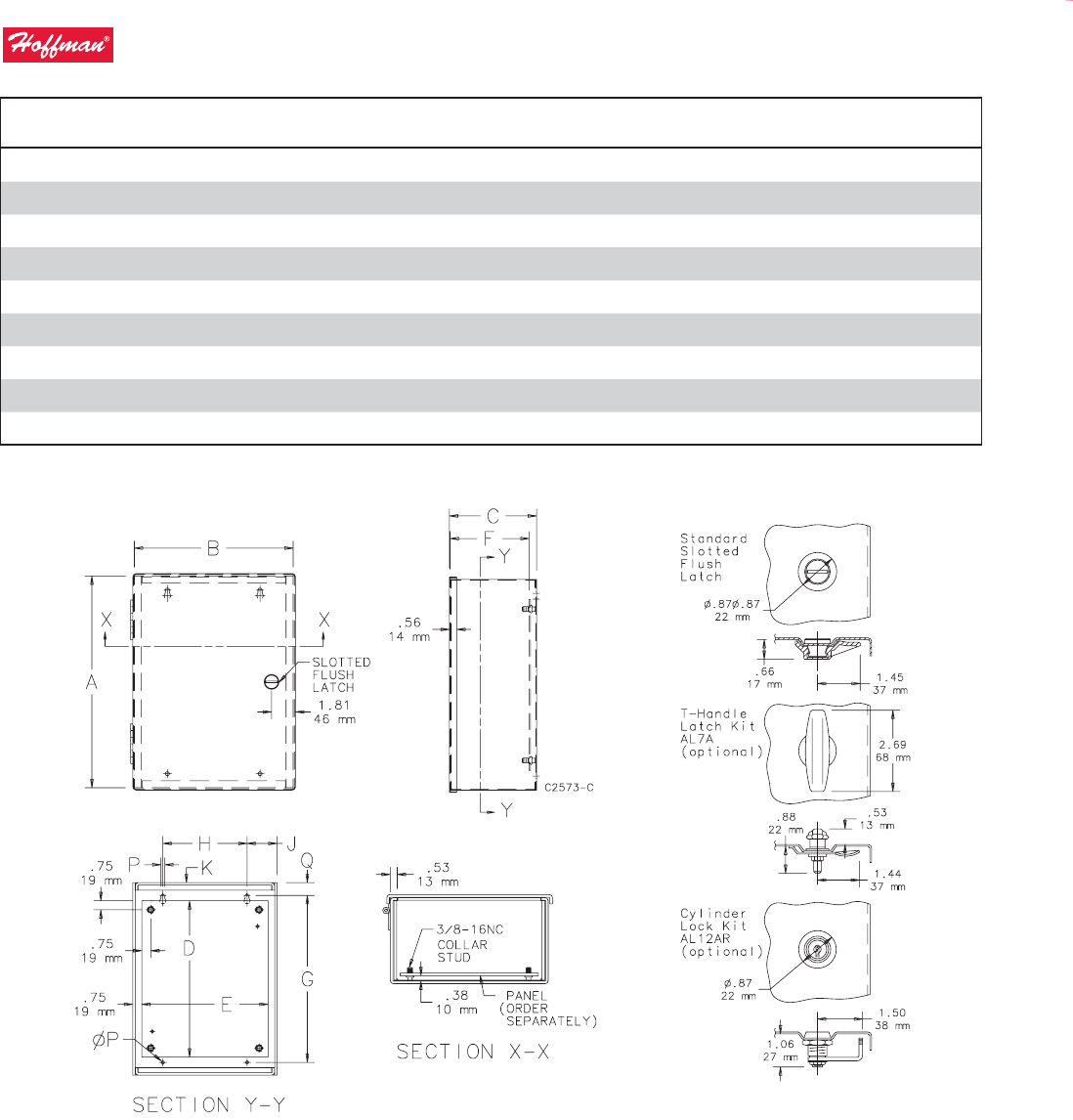

Hinged-Cover with Recessed Handle, Type 1
Industry Standards
UL 50, 50E Listed; Type 1; File No. E27567
cUL Listed per CSA C22.2 No. 40; Type 1; File No. E27567
NEMA/EEMAC Type 1
CSA, File No. 42184: Type 1
IEC 60529, IP30
Application
These enclosures have an easy-to-open recessed T-handle and
meet basic functionality requirements for housing controls and
instrumentation.
Features
• Removable doors have butt hinges
• Mounting holes on back of enclosure
• Recessed T-handle latch is ush with door
• Flush cover and oset body
Specications
• 16 or 14 gauge steel
Finish
ANSI 61 gray polyester powder paint inside and out
Accessories
[s-3559]
[s-3458]
[s-3400]
[s-2541]
[s-3385]
Modication and Customization
Homan excels at modifying and customizing products to your
specications. Contact your local Homan sales oce or distributor
for complete information.
Bulletin: A1M
Standard Product
Catalog Number AxBxC in./mm Gauge Panel
Panel Size
D x E
in./mm
Panel
Gauge
Number
of Studs
Mounting
G x H
in./mm
J
in./mm
Q
in./mm
P
in./mm
F
in./mm
K
in./mm
A16N126LP 16.00 x 12.00 x 6.62
406 x 305 x 168
16 A16N12MP 13.00 x 10.50
330 x 267
14 4 13.88 x 7.00
353 x 178
2.50
64
1.06
27
0.31
8
6.00
152
1.50
38
A20N126LP 20.00 x 12.00 x 6.62
508 x 305 x 168
16 A20N12MP 17.00 x 10.50
432 x 267
14 4 17.88 x 7.00
454 x 178
2.50
64
1.06
27
0.31
8
6.00
152
1.50
38
A16N166LP 16.00 x 16.00 x 6.62
406 x 406 x 168
16 A16N16MP 13.00 x 14.50
330 x 368
14 4 13.88 x 11.00
353 x 279
2.50
64
1.06
27
0.31
8
6.00
152
1.50
38
A16N206LP 16.00 x 20.00 x 6.62
406 x 508 x 168
16 A16N20MP 13.00 x 18.50
330 x 470
14 4 13.88 x 15.00
353 x 381
2.50
64
1.06
27
0.31
8
6.00
152
1.50
38
A20N166LP 20.00 x 16.00 x 6.62
508 x 406 x 168
16 A20N16MP 17.00 x 14.50
432 x 368
14 4 17.88 x 11.00
454 x 279
2.50
64
1.06
27
0.31
8
6.00
152
1.50
38
A20N206LP 20.00 x 20.00 x 6.62
508 x 508 x 168
16 A20N20MP 17.00 x 18.50
432 x 470
14 4 17.88 x 15.00
454 x 381
2.50
64
1.06
27
0.31
8
6.00
152
1.50
38
A24N166LP 24.00 x 16.00 x 6.62
610 x 406 x 168
16 A24N16MP 21.00 x 14.50
533 x 368
14 4 21.88 x 11.00
556 x 279
2.50
64
1.06
27
0.31
8
6.00
152
1.50
38
A24N206LP 24.00 x 20.00 x 6.62
610 x 508 x 168
16 A24N20MP 21.00 x 18.50
533 x 470
14 4 21.88 x 15.00
556 x 381
2.50
64
1.06
27
0.31
8
6.00
152
1.50
38
A24N246LP 24.00 x 24.00 x 6.62
610 x 610 x 168
14 A24N24MP 21.00 x 22.50
533 x 572
12 4 21.88 x 19.00
556 x 483
2.50
64
1.06
27
0.31
8
6.00
152
1.50
38
A30N206LP 30.00 x 20.00 x 6.62
762 x 508 x 168
14 A30N20MP 26.00 x 18.50
660 x 470
12 6 27.50 x 12.75
699 x 324
3.62
92
1.25
32
0.44
11
6.00
152
2.00
51
A30N246LP 30.00 x 24.00 x 6.62
762 x 610 x 168
14 A30N24MP 26.00 x 22.50
660 x 572
12 6 27.50 x 16.75
699 x 425
3.62
92
1.25
32
0.44
11
6.00
152
2.00
51
A36N246LP 36.00 x 24.00 x 6.62
914 x 610 x 168
14 A36N24MP 32.00 x 22.50
813 x 572
12 6 33.50 x 16.75
851 x 425
3.62
92
1.25
32
0.44
11
6.00
152
2.00
51
A36N306LP 36.00 x 30.00 x 6.62
914 x 762 x 168
14 A36N30MP 32.00 x 28.50
813 x 724
12 8 33.50 x 22.75
851 x 578
3.62
92
1.25
32
0.44
11
6.00
152
2.00
51
A16N128LP 16.00 x 12.00 x 8.62
406 x 305 x 219
16 A16N12MP 13.00 x 10.50
330 x 267
14 4 13.88 x 7.00
353 x 178
2.50
64
1.06
27
0.31
8
8.00
203
1.50
38
A20N168LP 20.00 x 16.00 x 8.62
508 x 406 x 219
16 A20N16MP 17.00 x 14.50
432 x 368
14 4 17.88 x 11.00
454 x 279
2.50
64
1.06
27
0.31
8
8.00
203
1.50
38
A24N168LP 24.00 x 16.00 x 8.62
610 x 406 x 219
16 A24N16MP 21.00 x 14.50
533 x 368
14 4 21.88 x 11.00
556 x 279
2.50
64
1.06
27
0.31
8
8.00
203
1.50
38
A20N208LP 20.00 x 20.00 x 8.62
508 x 508 x 219
16 A20N20MP 17.00 x 18.50
432 x 470
14 4 17.88 x 15.00
454 x 381
2.50
64
1.06
27
0.31
8
8.00
203
1.50
38
A24N208LP 24.00 x 20.00 x 8.62
610 x 508 x 219
16 A24N20MP 21.00 x 18.50
533 x 470
14 4 21.88 x 15.00
556 x 381
2.50
64
1.06
27
0.31
8
8.00
203
1.50
38
A24N248LP 24.00 x 24.00 x 8.62
610 x 610 x 219
14 A24N24MP 21.00 x 22.50
533 x 572
12 4 21.88 x 19.00
556 x 483
2.50
64
1.06
27
0.31
8
8.00
203
1.50
38
![](asset-c.png)
12
ContractorType 1:
Hinged-Cover Type 1 Boxes, Enclosures and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products

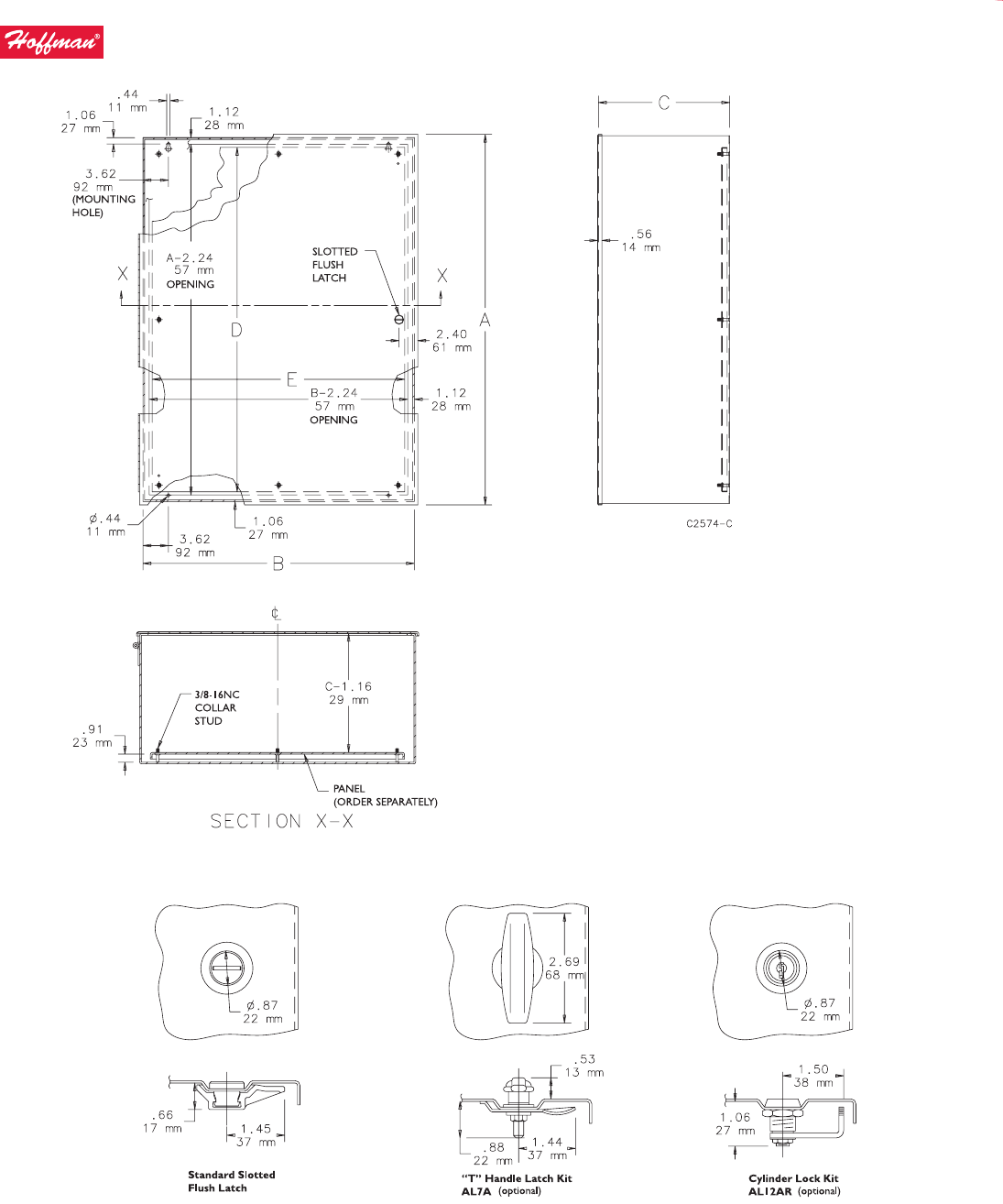

Catalog Number AxBxC in./mm Gauge Panel
Panel Size
D x E
in./mm
Panel
Gauge
Number
of Studs
Mounting
G x H
in./mm
J
in./mm
Q
in./mm
P
in./mm
F
in./mm
K
in./mm
A30N208LP 30.00 x 20.00 x 8.62
762 x 508 x 219
14 A30N20MP 26.00 x 18.50
660 x 470
12 6 27.50 x 12.75
699 x 324
3.62
92
1.25
32
0.44
11
8.00
203
2.00
51
A30N248LP 30.00 x 24.00 x 8.62
762 x 610 x 219
14 A30N24MP 26.00 x 22.50
660 x 572
12 6 27.50 x 16.75
699 x 425
3.62
92
1.25
32
0.44
11
8.00
203
2.00
51
A30N308LP 30.00 x 30.00 x 8.62
762 x 762 x 219
14 A30N30MP 26.00 x 28.50
660 x 724
12 8 27.50 x 22.75
699 x 578
3.62
92
1.25
32
0.44
11
8.00
203
2.00
51
A36N248LP 36.00 x 24.00 x 8.62
914 x 610 x 219
14 A36N24MP 32.00 x 22.50
813 x 572
12 6 33.50 x 16.75
851 x 425
3.62
92
1.25
32
0.44
11
8.00
203
2.00
51
A36N308LP 36.00 x 30.00 x 8.62
914 x 762 x 219
14 A36N30MP 32.00 x 28.50
813 x 724
12 8 33.50 x 22.75
851 x 578
3.62
92
1.25
32
0.44
11
8.00
203
2.00
51
A24N2010LP 24.00 x 20.00 x 10.62
610 x 508 x 270
16 A24N20MP 21.00 x 18.50
533 x 470
14 4 21.88 x 15.00
556 x 381
2.50
64
1.06
27
0.31
8
10.00
254
1.50
38
A24N2412LP 24.00 x 24.00 x 12.62
610 x 610 x 321
14 A24N24MP 21.00 x 22.50
533 x 572
12 4 21.88 x 19.00
556 x 483
2.50
64
1.06
27
0.31
8
12.00
305
1.50
38
A30N2412LP 30.00 x 24.00 x 12.62
762 x 610 x 321
14 A30N24MP 26.00 x 22.50
660 x 724
12 6 27.50 x 16.75
699 x 425
3.62
92
1.25
32
0.44
11
12.00
305
2.00
51
A36N3012LP 36.00 x 30.00 x 12.62
914 x 762 x 321
14 A36N30MP 32.00 x 28.50
813 x 724
12 8 33.50 x 22.75
851 x 578
3.62
92
1.25
32
0.44
11
12.00
305
2.00
51
Purchase panels separately.
![](asset-d.png)
13
ContractorType 1:
Hinged-Cover Type 1 Boxes, Enclosures and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products

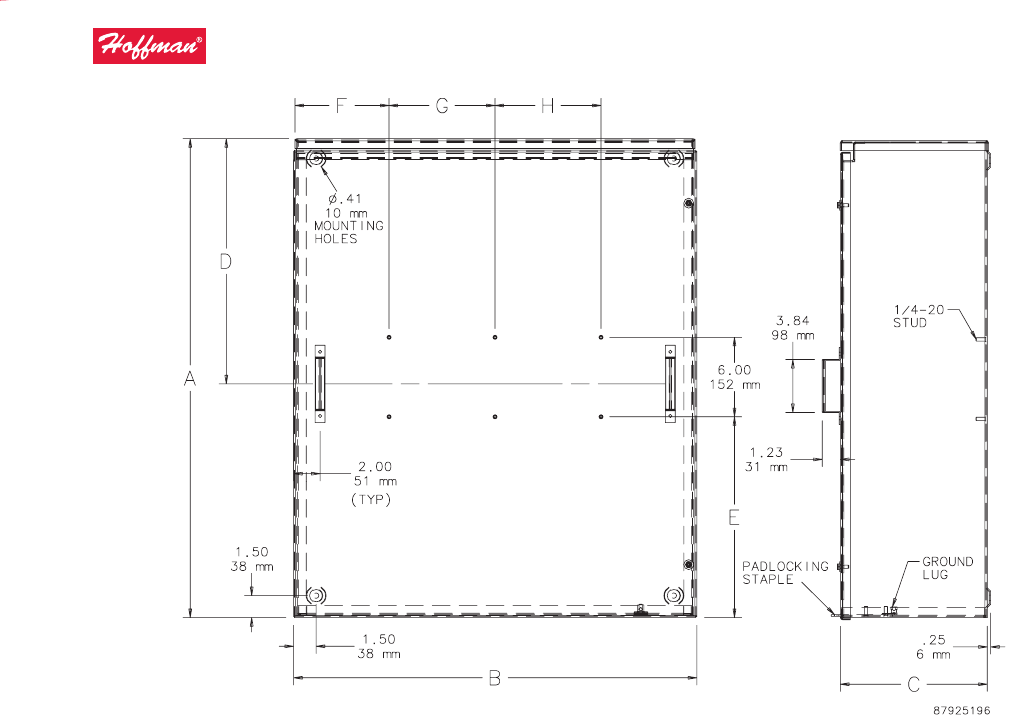

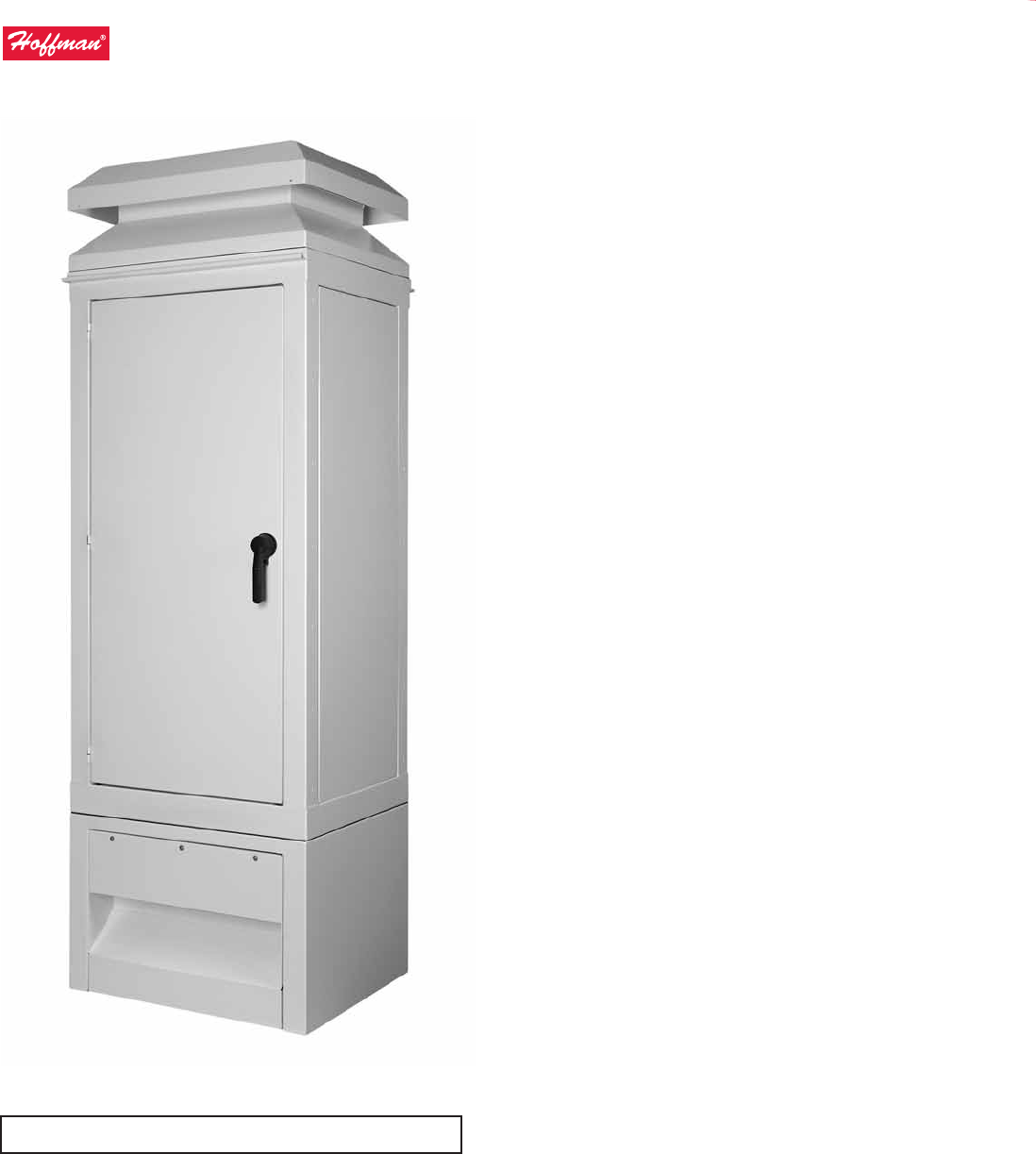

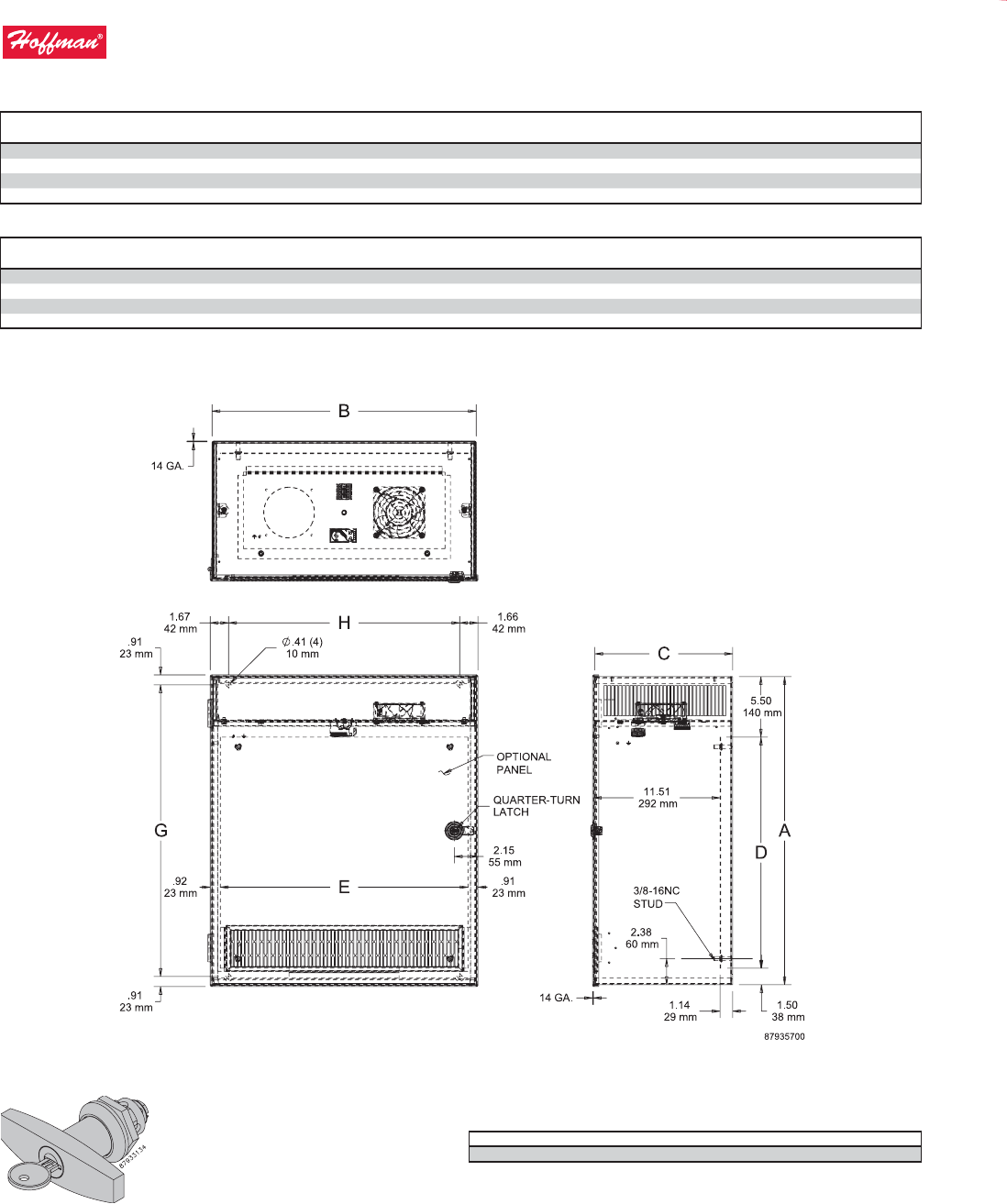

T1FLO® Vented Enclosure with Fan, Type 1
Industry Standards
UL 508A Listed; Type 1; File No. E61997
cUL Listed per CSA C22.2 No. 94; Type 1; File No. E61997
NEMA/EEMAC Type 1
IEC 60529, IP20
Application
These enclosures have a thermostatically controlled forced-air
ventilation system for the removal of heat. Ideal for control systems
in HVAC or industrial environments that have a combination of heat-
sensitive electronics with high heat producing components such as
(VFD) drives, inverters, PLCs and non-hardened processors.
Features
• Active cooling ventilation system with factory installed,
thermostatically controlled fan (115 VAC) and lter
• Terminal block power connection for fan
• Washable expanded metal lter
• Lift-o hinged door
• Slotted quarter-turn latch
• Collar studs for mounting optional panel
• Grounding provision on door and body
• Mounting holes on back of enclosure
• Accepts optional mounting foot kit
• Door gasket
Specications
• 14 gauge steel
Finish
ANSI 61 gray polyester powder paint nish inside and out over
pretreated surfaces. Optional solid panels are white; optional
perforated panels are gray.
Accessories
[s-3403]
[s-3559]
[s-3420]
[s-3458]
[s-3466]
[s-3440]
[s-3507]
[s-3556]
[s-3403]
[s-3428]
[s-3385]
Notes
Required Airow
The following equation is used to calculate the airow required
in a forced-air system to remove heat and maintain enclosure
temperature a given amount above the ambient temperature.
CFM = WT x 3.16 / Tint - Tamb
Where:
CFM = Required airow (ft.3 / min.)
WT = Total heat dissipated in enclosure (watts)
Tamb = Ambient or external Temperature (degrees F)
Tint = Desired internal Temperature (degrees F)
Bulletin: A1DR
Standard Product
Catalog Number AxBxC in./mm System CFM
Suggested
HP Solid Panel Perforated Panel
Panel Size
D x E
in./mm
Panel
Gauge
G
in./mm
H
in./mm
Fan Size
in./mm
T1F80LP 28.00 x 24.00 x 12.75
711 x 610 x 324
80 3 A24P24 A24P24PP 21.00 x 21.00
533 x 533
12 26.50
673
21.00
533
4
T1F130LP 34.00 x 24.00 x 12.75
864 x 610 x 324
130 Up to 20 A30P24 A30P24PP 27.00 x 21.00
686 x 533
12 32.50
826
21.00
533
4 (2x)
T1F200LP 40.00 x 24.00 x 12.75
1016 x 610 x 324
200 40 A36P24 A36P24PP 33.00 x 21.00
838 x 533
12 38.50
978
21.00
533
6
T1F350LP 54.00 x 30.00 x 12.75
1372 x 762 x 324
350 Up to 75 A48P30 N/A 45.00 x 27.00
1143 x 686
12 52.50
1334
27.00
656
6 (2x)
![](asset-e.png)
14
ContractorType 1:
Hinged-Cover Type 1 Boxes, Enclosures and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Sample Values
Catalog Number Airow (CFM)
Max. Internal Heat Load
(W) 5 F Temp. Rise
Max. Internal Heat Load
(W) 10 F Temp. Rise
Max. Internal Heat Load
(W) 20 F Temp. Rise
Max. Internal Heat Load
(W) 30 F Temp. Rise
T1F80LP 80 127 253 506 759
T1F130LP 130 206 411 823 1234
T1F200LP 200 316 633 1266 1899
T1F350LP 350 554 1108 2215 3323
Sample Values in a VFD Drive Application
Catalog Number
(with enough air ow) Drive HP Heat from Drive (W) Total Heata (W) Airow (CFM) to Maintain 15 F Temp. Rise
T1F80LP 10 246 307 65
T1F130LP 20 492 615 129
T1F200LP 30 738 922 194
T1F350LP 50 1229 1536 324
aTotal heat load factors 25 percent greater than VFD for passive components
Assumptions: Specic values and physical sizes must be veried.
Typical motor eciency is 91 percent; typical drive eciency is 97 percent.

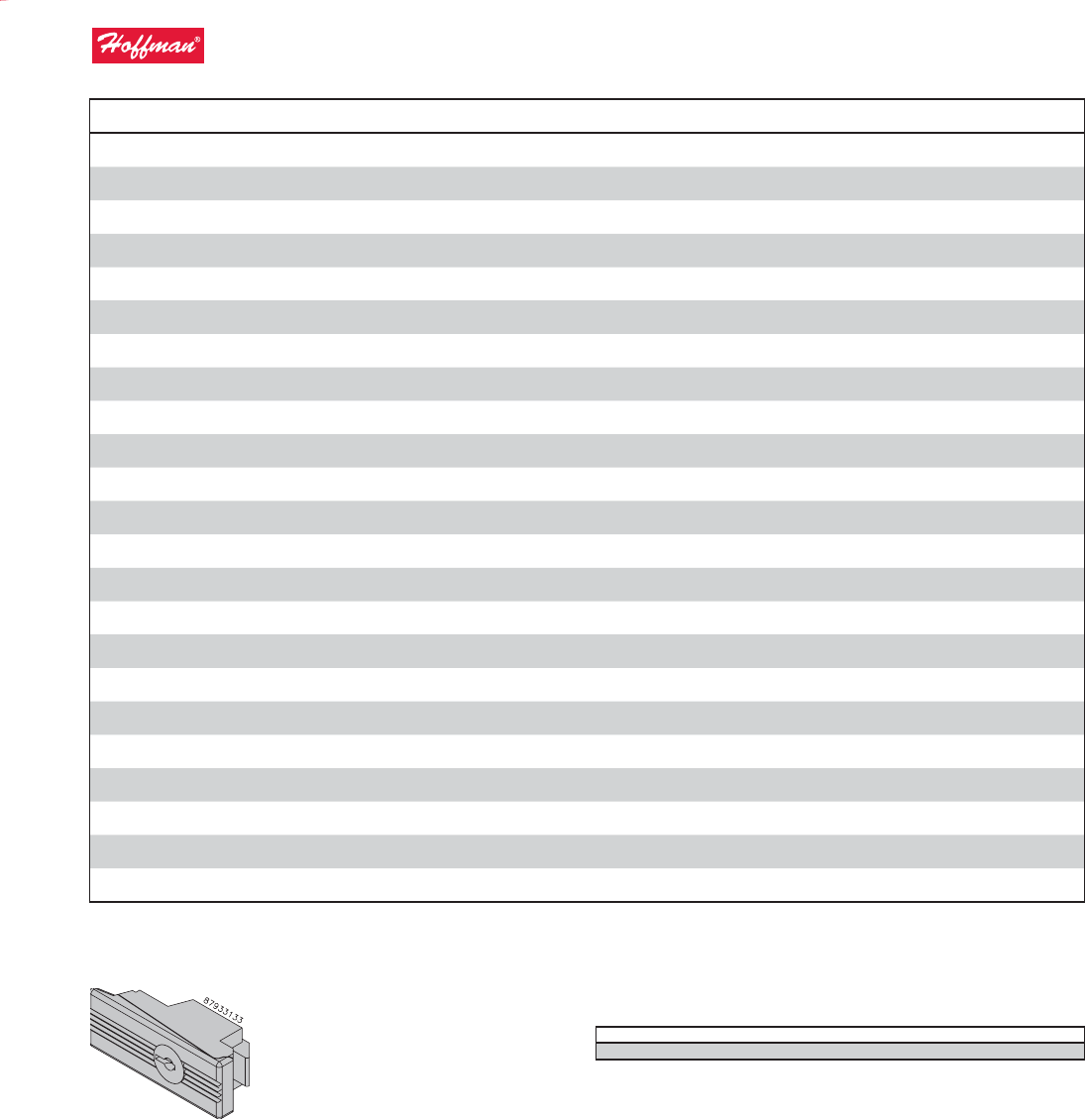

Locking T Handle Optional locking T-Handle available for replacement of the quarter-
turn latch (order separately).
Bulletin: T90R3
Catalog Number Description
ALTC3R Available for replacement of the quarter-turn latch
![](asset-f.png)
15
ContractorType 1:
Hinged-Cover Type 1 Boxes, Enclosures and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products

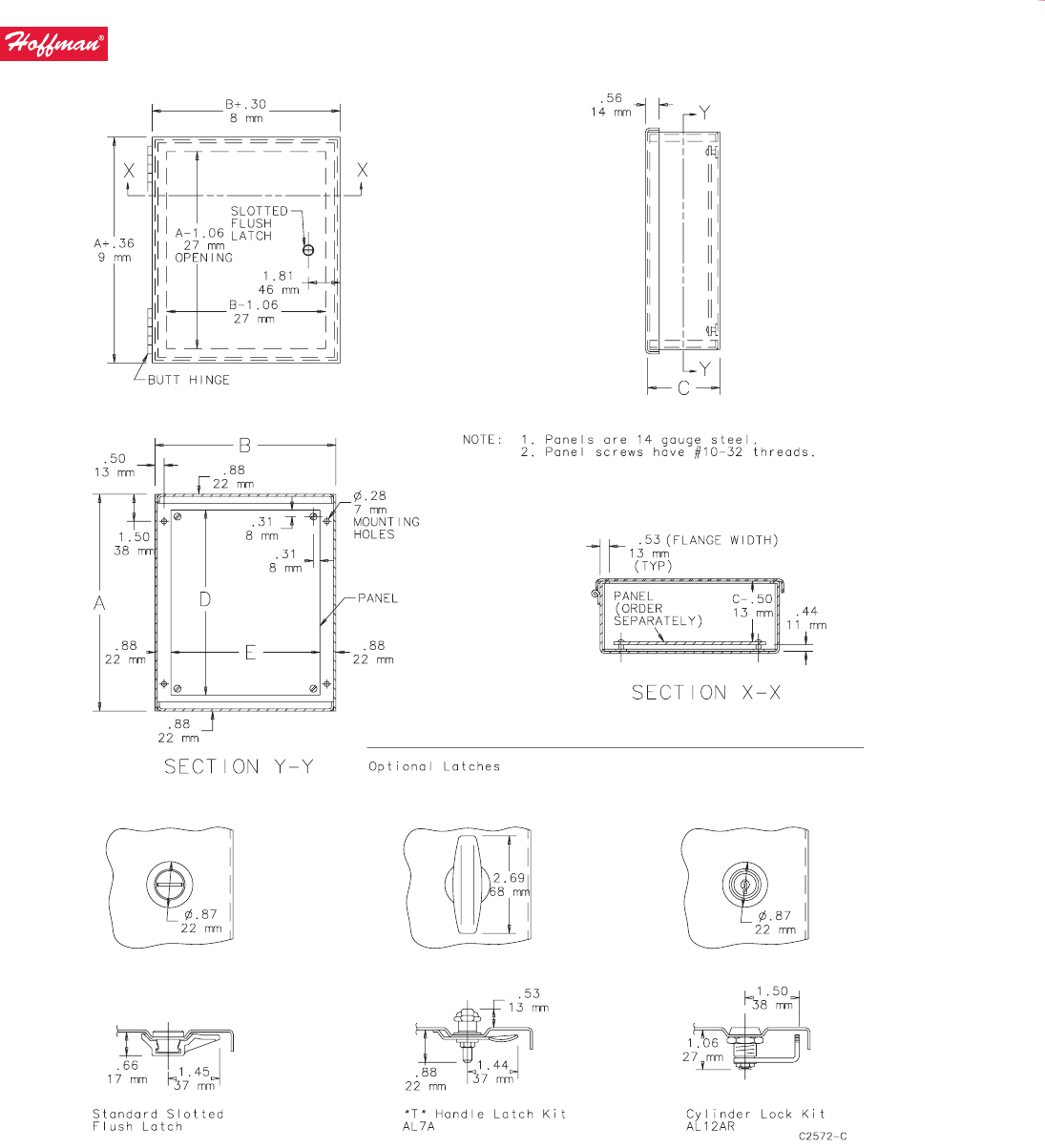

Hinged-Cover, Type 1
Industry Standards
UL 50, 50E Listed; Type 1; File No. E27567
cUL Listed per CSA C22.2 No 40; Type 1; File No. E27567
NEMA/EEMAC Type 1
CSA, File 42184: Type 1
IEC 60529, IP30
Application
These boxes feature a recessed, slotted ush latch for security as
well as knockouts on all four sides, making them suitable for a wide
variety of applications.
Features
• Various sizes of easily removable concentric knockouts on all four
sides
• Butt hinges
• Mounting holes on back of box
• Provision for grounding
Specications
• 16 or 14 gauge steel
Finish
ANSI 61 gray polyester powder paint nish inside and out over
pretreated surfaces. Unless otherwise specied, all custom cutout
boxes are nished with ANSI 61 gray polyester paint.
Accessories
[s-3403]
[s-3458]
[s-3403]
[s-3428]
Bulletin: A90HC
Standard Product

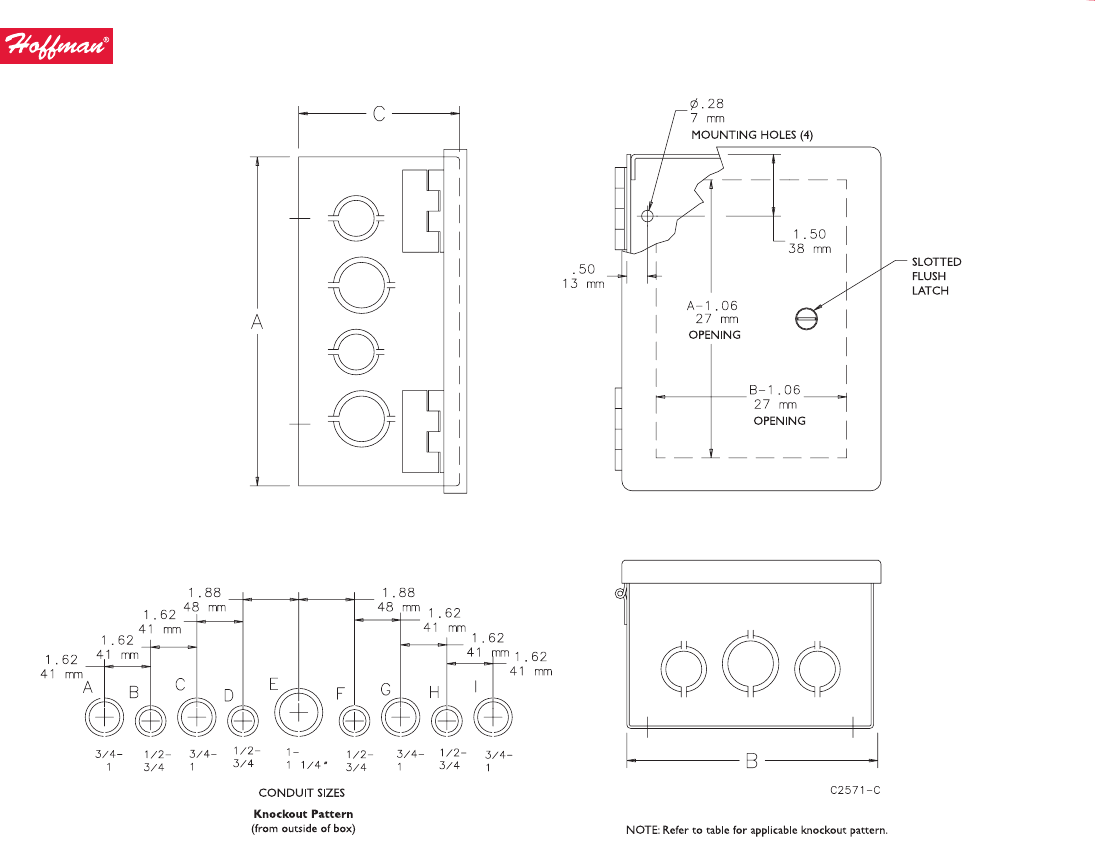

Catalog Number AxBxC in. AxBxC mm Knockout Pattern along “A” Sides Knockout Pattern along “B” Sides
AHE6X4X4 6.00 x 4.00 x 4.00 152 x 102 x 102 B-C-D B-C
AHE6X6X4 6.00 x 6.00 x 4.00 152 x 152 x 102 B-C-D B-C-D
AHE8X6X4 8.00 x 6.00 x 4.00 203 x 152 x 102 F-G-H-I B-C-D
AHE8X8X4 8.00 x 8.00 x 4.00 203 x 203 x 102 F-G-H-I F-G-H-I
AHE10X8X4 10.00 x 8.00 x 4.00 254 x 203 x 102 F-G-H-I F-G-H-I
AHE10X10X4 10.00 x 10.00 x 4.00 254 x 254 x 102 F-G-H-I C-D-E-F-G
AHE12X8X4 12.00 x 8.00 x 4.00 305 x 203 x 102 C-D-E-F-G F-G-H-I
AHE12X10X4 12.00 x 10.00 x 4.00 305 x 254 x 102 C-D-E-F-G C-D-E-F-G
AHE12X12X4 12.00 x 12.00 x 4.00 305 x 305 x 102 C-D-E-F-G C-D-E-F-G
AHE16X12X4 16.00 x 12.00 x 4.00 406 x 305 x 102 B-C-D-E-F-G-H C-D-E-F-G
AHE18X12X4 18.00 x 12.00 x 4.00 457 x 305 x 102 A-B-C-D-E-F-G-H-I C-D-E-F-G
AHE6X6X6 6.00 x 6.00 x 6.00 152 x 152 x 152 B-C-D B-C-D
AHE8X8X6 8.00 x 8.00 x 6.00 203 x 203 x 152 F-G-H-I F-G-H-I
AHE10X8X6 10.00 x 8.00 x 6.00 254 x 203 x 152 F-G-H-I F-G-H-I
AHE10X10X6 10.00 x 10.00 x 6.00 254 x 254 x 152 F-G-H-I C-D-E-F-G
AHE12X10X6 12.00 x 10.00 x 6.00 305 x 254 x 152 C-D-E-F-G C-D-E-F-G
AHE12X12X6 12.00 x 12.00 x 6.00 305 x 305 x 152 C-D-E-F-G C-D-E-F-G
AHE16X12X6 16.00 x 12.00 x 6.00 406 x 305 x 152 B-C-D-E-F-G-H C-D-E-F-G
AHE16X16X6 16.00 x 16.00 x 6.00 406 x 406 x 152 B-C-D-E-F-G-H B-C-D-E-F-G-H
AHE18X12X6 18.00 x 12.00 x 6.00 457 x 305 x 152 A-B-C-D-E-F-G-H-I C-D-E-F-G
AHE18X18X6 18.00 x 18.00 x 6.00 457 x 457 x 152 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
AHE24X18X6 24.00 x 18.00 x 6.00 610 x 457 x 152 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
AHE24X24X6 24.00 x 24.00 x 6.00 610 x 610 x 152 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
AHE30X24X6 30.00 x 24.00 x 6.00 762 x 610 x 152 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
AHE36X24X6 36.00 x 24.00 x 6.00 914 x 610 x 152 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
AHE36X24X8 36.00 x 24.00 x 8.00 914 x 610 x 203 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
![](asset-10.png)
16
ContractorType 1:
Hinged-Cover Type 1 Boxes, Enclosures and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
![](asset-11.png)
17
ContractorType 1:
Hinged-Cover Type 1 Boxes, Enclosures and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Small, Type 1
Industry Standards
UL 50, 50E Listed; Type 1; File No. E27567
cUL Listed per CSA C22.2 No 40; Type 1; File No. E27567
NEMA/EEMAC Type 1
CSA, File 42184: Type 1
IEC 60529, IP30
Application
These enclosures have a size range of 6 x 6 x 4-in. to 14 x 12 x 8-in. and
meet basic functionality requirements for applications that do not
require oil- or dust-tight enclosures.
Features
• Flush slotted latch operated with a screwdriver; optional latches
available
• Weldnuts provided for mounting optional panels
• Butt hinges
• Mounting holes on back of enclosure
Specications
• 16 gauge steel
Finish
ANSI 61 gray polyester powder paint nish inside and out over
pretreated surfaces. Optional solid panels are white and optional
perforated panels are gray.
Accessories
[s-3403]
[s-3458]
[s-3436]
[s-3403]
[s-3428]
[s-3385]
Bulletin: A1SM
Standard Product
Catalog Number AxBxC in./mm Panel Perforated Panel
Panel Size D x E
in./mm
A6N64 6.00 x 6.00 x 4.00
152 x 152 x 102
A6N6P A6N6PP 4.25 x 4.25
108 x 108
A8N64 8.00 x 6.00 x 4.00
203 x 152 x 102
A8N6P A8N6PP 6.25 x 4.25
159 x 108
A8N84 8.00 x 8.00 x 4.00
203 x 203 x 102
A8N8P A8N8PP 6.25 x 6.25
159 x 159
A10N84 10.00 x 8.00 x 4.00
254 x 203 x 102
A10N8P A10N8PP 8.25 x 6.25
210 x 159
A10N104 10.00 x 10.00 x 4.00
254 x 254 x 102
A10N10P A10N10PP 8.25 x 8.25
210 x 210
A12N104 12.00 x 10.00 x 4.00
305 x 254 x 102
A12N10P A12N10PP 10.25 x 8.25
260 x 210
A12N124 12.00 x 12.00 x 4.00
305 x 305 x 102
A12N12P A12N12PP 10.25 x 10.25
260 x 260
A14N124 14.00 x 12.00 x 4.00
356 x 305 x 102
A14N12P A14N12PP 12.25 x 10.25
311 x 260
A8N66 8.00 x 6.00 x 6.00
203 x 152 x 152
A8N6P A8N6PP 6.25 x 4.25
159 x 108
A8N86 8.00 x 8.00 x 6.00
203 x 203 x 152
A8N8P A8N8PP 6.25 x 6.25
159 x 159
A10N86 10.00 x 8.00 x 6.00
254 x 203 x 152
A10N8P A10N8PP 8.25 x 6.25
210 x 159
A10N106 10.00 x 10.00 x 6.00
254 x 254 x 152
A10N10P A10N10PP 8.25 x 8.25
210 x 210
A12N106 12.00 x 10.00 x 6.00
305 x 254 x 152
A12N10P A12N10PP 10.25 x 8.25
260 x 210
A12N126 12.00 x 12.00 x 6.00
305 x 305 x 152
A12N12P A12N12PP 10.25 x 10.25
260 x 260
A14N126 14.00 x 12.00 x 6.00
356 x 305 x 152
A14N12P A14N12PP 12.25 x 10.25
311 x 260
A16N126 16.00 x 12.00 x 6.00
406 x 305 x 152
A16N12P A16N12PP 14.25 x 10.25
362 x 260
A20N126 20.00 x 12.00 x 6.00
508 x 305 x 152
A20N12P A20N12PP 18.25 x 10.25
464 x 260
A12N128 12.00 x 12.00 x 8.00
305 x 305 x 203
A12N12P A12N12PP 10.25 x 10.25
260 x 260
A14N128 14.00 x 12.00 x 8.00
356 x 305 x 203
A14N12P A14N12PP 12.25 x 10.25
311 x 260
Purchase panels separately.
![](asset-12.png)
18
ContractorType 1:
Hinged-Cover Type 1 Boxes, Enclosures and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
![](asset-13.png)
19
ContractorType 1:
Hinged-Cover Type 1 Boxes, Enclosures and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Medium, Type 1
Industry Standards
UL 50, 50E Listed; Type 1; File No. E27567
cUL Listed per CSA C22.2 No 40; Type 1; File No. E27567
NEMA/EEMAC Type 1
CSA, File 42184: Type 1
IEC 60529, IP30
Application
These enclosures have a size range of 16 x 12 x 6-in. to 36 x 30 x 12-in.
and meet basic functionality requirements for applications that do
not require oil- or dust-tight enclosures.
Features
• Doors have butt hinges
• Collar studs provided for mounting optional panel
• Slotted ush latches; optional latches available
• Mounting holes on back of enclosure
Specications
• 14 or 12 gauge steel
Finish
ANSI 61 gray polyester powder paint nish inside and out over
pretreated surfaces. Optional solid panels are white and optional
perforated panels are gray.
Accessories
[s-3403]
[s-3559]
[s-3420]
[s-3458]
[s-3437]
[s-3507]
[s-3403]
[s-3428]
[s-3385]
Bulletin: A1M
Standard Product
Catalog Number AxBxC in./mm Panel Perforated Panel
Panel Size
D x E
in./mm
Panel
Gauge
G
in./mm
H
in./mm
J
in./mm
Q
in./mm
P
in./mm
F
in./mm
K
in./mm
A16N12ALP 16.00 x 12.00 x 6.62
406 x 305 x 168
A16N12MP A16N12MPP 13.00 x 10.50
330 x 267
14 13.88
353
7.00
178
2.50
64
1.06
27
0.31
8
6.00
152
1.50
38
A16N16ALP 16.00 x 16.00 x 6.62
406 x 406 x 168
A16N16MP A16N16MPP 13.00 x 14.50
330 x 368
14 13.88
353
11.00
279
2.50
64
1.06
27
0.31
8
6.00
152
1.50
38
A16N20ALP 16.00 x 20.00 x 6.62
406 x 508 x 168
A16N20MP A16N20MPP 13.00 x 18.50
330 x 470
14 13.88
353
15.00
381
2.50
64
1.06
27
0.31
8
6.00
152
1.50
38
A20N16ALP 20.00 x 16.00 x 6.62
508 x 406 x 168
A20N16MP A20N16MPP 17.00 x 14.50
432 x 368
14 17.88
454
11.00
279
2.50
64
1.06
27
0.31
8
6.00
152
1.50
38
A20N20ALP 20.00 x 20.00 x 6.62
508 x 508 x 168
A20N20MP A20N20MPP 17.00 x 18.50
432 x 470
14 17.88
454
15.00
381
2.50
64
1.06
27
0.31
8
6.00
152
1.50
38
A24N16ALP 24.00 x 16.00 x 6.62
610 x 406 x 168
A24N16MP A24N16MPP 21.00 x 14.50
533 x 368
14 21.88
556
11.00
279
2.50
64
1.06
27
0.31
8
6.00
152
1.50
38
A24N20ALP 24.00 x 20.00 x 6.62
610 x 508 x 168
A24N20MP A24N20MPP 21.00 x 18.50
533 x 470
14 21.88
556
15.00
381
2.50
64
1.06
27
0.31
8
6.00
152
1.50
38
A24N24ALP 24.00 x 24.00 x 6.62
610 x 610 x 168
A24N24MP A24N24MPPa21.00 x 22.50
533 x 572
12 21.88
556
19.00
483
2.50
64
1.06
27
0.31
8
6.00
152
1.50
38
A30N24ALP 30.00 x 24.00 x 6.62
762 x 610 x 168
A30N24MP A30N24MPPa26.00 x 22.50
660 x 572
12 27.50
699
16.75
425
3.62
92
1.25
32
0.44
11
6.00
152
2.00
51
A36N24ALP 36.00 x 24.00 x 6.62
914 x 610 x 168
A36N24MP A36N24MPPa32.00 x 22.50
813 x 572
12 33.50
851
16.75
425
3.62
92
1.25
32
0.44
11
6.00
152
2.00
51
A36N30ALP 36.00 x 30.00 x 6.62
914 x 762 x 168
A36N30MP A36N30MPPa32.00 x 28.50
813 x 724
12 33.50
851
22.75
578
3.62
92
1.25
32
0.44
11
6.00
152
2.00
51
A16N12BLP 16.00 x 12.00 x 8.62
406 x 305 x 219
A16N12MP A16N12MPP 13.00 x 10.50
330 x 267
14 13.88
353
7.00
178
2.50
64
1.06
27
0.31
8
8.00
203
1.50
38
A20N12BLP 20.00 x 12.00 x 8.62
508 x 305 x 219
A20N12MP A20N12MPP 17.00 x 10.50
432 x 267
14 17.88
454
7.00
178
2.50
64
1.06
27
0.31
8
8.00
203
1.50
38
A20N16BLP 20.00 x 16.00 x 8.62
508 x 406 x 219
A20N16MP A20N16MPP 17.00 x 14.50
432 x 368
14 17.88
454
11.00
279
2.50
64
1.06
27
0.31
8
8.00
203
1.50
38
A20N20BLP 20.00 x 20.00 x 8.62
508 x 508 x 219
A20N20MP A20N20MPP 17.00 x 18.50
432 x 470
14 17.88
454
15.00
381
2.50
64
1.06
27
0.31
8
8.00
203
1.50
38
A24N20BLP 24.00 x 20.00 x 8.62
610 x 508 x 219
A24N20MP A24N20MPP 21.00 x 18.50
533 x 470
14 21.88
556
15.00
381
2.50
64
1.06
27
0.31
8
8.00
203
1.50
38
A24N24BLP 24.00 x 24.00 x 8.62
610 x 610 x 219
A24N24MP A24N24MPPa21.00 x 22.50
533 x 572
12 21.88
556
19.00
483
2.50
64
1.06
27
0.31
8
8.00
203
1.50
38
A30N20BLP 30.00 x 20.00 x 8.62
762 x 508 x 219
A30N20MP A30N20MPPa26.00 x 18.50
660 x 470
12 27.50
699
15.00
381
2.50
64
1.25
32
0.44
11
8.00
203
2.00
51
A30N24BLP 30.00 x 24.00 x 8.62
762 x 610 x 219
A30N24MP A30N24MPPa26.00 x 22.50
660 x 572
12 27.50
699
16.75
425
3.62
92
1.25
32
0.44
11
8.00
203
2.00
51
![](asset-14.png)
20
ContractorType 1:
Hinged-Cover Type 1 Boxes, Enclosures and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Catalog Number AxBxC in./mm Panel Perforated Panel
Panel Size
D x E
in./mm
Panel
Gauge
G
in./mm
H
in./mm
J
in./mm
Q
in./mm
P
in./mm
F
in./mm
K
in./mm
A30N30BLP 30.00 x 30.00 x 8.62
762 x 762 x 219
A30N30MP A30N30MPPa26.00 x 28.50
660 x 724
12 27.50
699
22.75
578
3.62
92
1.25
32
0.44
11
8.00
203
2.00
51
A36N24BLP 36.00 x 24.00 x 8.62
914 x 610 x 219
A36N24MP A36N24MPPa32.00 x 22.50
813 x 572
12 33.50
851
16.75
425
3.62
92
1.25
32
0.44
11
8.00
203
2.00
51
A36N30BLP 36.00 x 30.00 x 8.62
914 x 762 x 219
A36N30MP A36N30MPPa32.00 x 28.50
813 x 724
12 33.50
851
22.75
578
3.62
92
1.25
32
0.44
11
8.00
203
2.00
51
A18N18CLP 18.00 x 18.00 x 10.62
441 x 441 x 270
A18N18MP A18N18MPP 15.00 x 16.50
381 x 419
14 15.88
403
13.00
330
2.50
64
1.06
27
0.31
8
10.00
254
1.50
38
A24N20CLP 24.00 x 20.00 x 10.62
610 x 508 x 270
A24N20MP A24N20MPP 21.00 x 18.50
533 x 470
14 21.88
556
15.00
381
2.50
64
1.06
27
0.31
8
10.00
254
1.50
38
A30N24CLP 30.00 x 24.00 x 10.62
762 x 610 x 270
A30N24MP A30N24MPPa21.00 x 22.50
533 x 572
12 27.50
699
16.75
425
3.62
92
1.25
32
0.44
11
10.00
254
2.00
51
A24N24DLP 24.00 x 24.00 x 12.62
610 x 610 x 321
A24N24MP A24N24MPPa21.00 x 22.50
533 x 572
12 21.88
556
19.00
483
2.50
64
1.06
27
0.31
8
12.00
305
1.50
38
A30N24DLP 30.00 x 24.00 x 12.62
762 x 610 x 321
A30N24MP A30N24MPPa26.00 x 22.50
660 x 724
12 27.50
699
16.75
425
3.62
92
1.25
32
0.44
11
12.00
305
2.00
51
A36N30DLP 36.00 x 30.00 x 12.62
914 x 762 x 321
A36N30MP A36N30MPPa32.00 x 28.50
813 x 724
12 33.50
851
22.75
578
3.62
92
1.25
32
0.44
11
12.00
305
2.00
51
Purchase panels separately.
aFlanged on all four sides
![](asset-15.png)
21
ContractorType 1:
Hinged-Cover Type 1 Boxes, Enclosures and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products

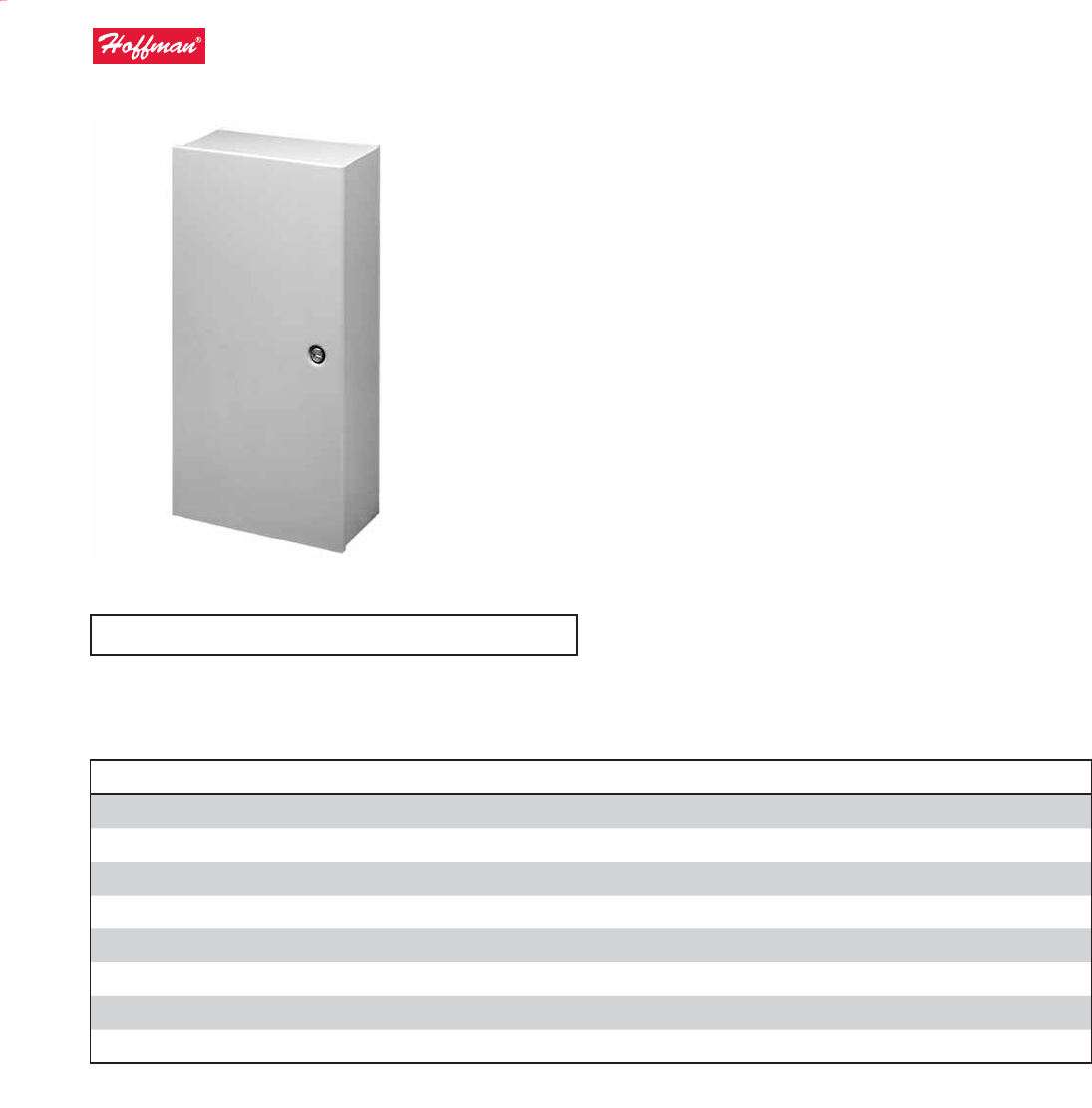

Large, Type 1
Industry Standards
UL 50, 50E Listed; Type 1; File No. E27567
cUL Listed per CSA C22.2 No 40; Type 1; File No. E27567
NEMA/EEMAC Type 1
CSA, File 42184: Type 1
IEC 60529, IP30
Application
These enclosures have a size range of 42 x 30 x 9-in. to 48 x 36 x 17-in.
and meet basic functionality requirements for applications that do
not require oil- or dust-tight enclosures.
Features
• Continuous hinge on door
• Slotted ush latch; optional latches available
• Collar studs provided for mounting optional panels
• Mounting holes on back of enclosure; optional mounting bracket
kit is available (AMFLN1)
Specications
• 14 gauge steel
Finish
ANSI 61 gray polyester powder paint nish inside and out over
pretreated surfaces. Optional panels are white.
Accessories
[s-3403]
[s-3559]
[s-3420]
[s-3458]
[s-3437]
[s-3450]
[s-106445]
[s-3428]
[s-3385]
Bulletin: A1L
Standard Product
Catalog Number AxBxC in./mm Panel
Panel Size D x E
in./mm Mounting Bracket Kit
A42N3009 42.00 x 30.00 x 9.25
1067 x 762 x 235
A42P30 39.00 x 27.00
991 x 686
AMFLN1
A42N3609 42.00 x 36.00 x 9.25
1067 x 914 x 235
A42P36 39.00 x 33.00
991 x 838
AMFLN1
A48N3609 48.00 x 36.00 x 9.25
1219 x 914 x 235
A48P36 45.00 x 33.00
1143 x 838
AMFLN1
A48N3611 48.00 x 36.00 x 11.25
1219 x 914 x 286
A48P36 45.00 x 33.00
1143 x 838
AMFLN1
A42N3013 42.00 x 30.00 x 13.25
1067 x 762 x 337
A42P30 39.00 x 27.00
991 x 686
AMFLN1
A42N3613 42.00 x 36.00 x 13.25
1067 x 914 x 337
A42P36 39.00 x 33.00
991 x 838
AMFLN1
A48N3613 48.00 x 36.00 x 13.25
1219 x 914 x 337
A48P36 45.00 x 33.00
1143 x 838
AMFLN1
A48N3617 48.00 x 36.00 x 17.25
1219 x 914 x 438
A48P36 45.00 x 33.00
1143 x 838
AMFLN1
Purchase panels separately. Optional aluminum panels are available for most sizes.
Mounting Bracket Kit must be ordered separately.
![](asset-16.png)
22
ContractorType 1:
Hinged-Cover Type 1 Boxes, Enclosures and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
![](asset-17.png)
23
ContractorType 1:
Hinged-Cover Type 1 Boxes, Enclosures and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Locking Integrated Perforated Panel Enclosure, Type 1
Industry Standards
UL 50, 50E Listed; Type 1; File No. E27567
cUL Listed per CSA C22.2 No 40; Type 1; File No. E27567
NEMA/EEMAC Type 1
IEC 60529, IP30
Application
The perforated panel that ships inside these enclosures accepts self-
tapping screws and eliminates the need to measure, mark and drill
when mounting components, which results in labor and time savings.
Features
• Door has key lock quarter-turn latch; two keys included
• Select models have concentric knockouts on four sides
Specications
• 14 and 16 gauge steel
• Includes removable 16 gauge gray perforated panel
Finish
ANSI 61 gray polyester powder paint nish inside and out over
pretreated surfaces.
Accessories
[s-3428]
Bulletin: A1PP
Standard Product
Catalog Number AxBxC in./mm
Panel Size D x E
in./mm
Mounting Holes G x H
in./mm Knockout Pattern A-Sides Knockout Pattern B-Sides
A12126T1PP 12.00 x 12.00 x 6.00
305 x 305 x 152
10.25 x 10.25
260 x 260
9.00 x 11.00
229 x 279
C-D-E-F-G C-D-E-F-G
A16126T1PP 16.00 x 12.00 x 6.00
406 x 305 x 152
14.25 x 10.25
362 x 260
13.00 x 11.00
330 x 279
B-C-D-E-F-G-H C-D-E-F-G
A2016AT1PP 20.00 x 16.00 x 6.62
508 x 406 x 168
17.00 x 14.50
432 x 368
17.88 x 11.00
454 x 279
A-B-C-D-E-F-G-H-I B-C-D-E-F-G-H
A2420AT1PP 24.00 x 20.00 x 6.62
610 x 508 x 168
21.00 x 18.50
533 x 470
21.88 x 15.00
556 x 381
A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
A3624AT1PP 36.00 x 24.00 x 6.62
914 x 610 x 168
32.00 x 22.50
813 x 572
33.50 x 16.75
851 x 425
— —
A3630AT1PP 36.00 x 30.00 x 6.62
914 x 762 x 168
32.00 x 31.50
813 x 800
33.50 x 22.75
851 x 578
— —
![](asset-18.png)
24
ContractorType 1:
Hinged-Cover Type 1 Boxes, Enclosures and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
![](asset-19.png)
25
ContractorType 1:
Hinged-Cover Type 1 Boxes, Enclosures and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Locking Utility Cabinets, Type 1
Industry Standards
UL 50, 50E Listed; Type 1; File Number E27567
cUL Listed per CSA C22.2 No 40; Type 1; File Number E27567
NEMA/EEMAC Type 1
IEC 60529, IP30
Application
Key hook and shelf models of this cabinet protect fuses and other
components and can be equipped with a combination lock for
applications that require security.
SHELF MODELS A242412UC, A302412UC, A362412UC, A363012UC
Shelf cabinets provide a level of security for storage of equipment,
fuses, and other components. Two shelves included with shelf
models are easily adjusted without tools by placing tabs in slots
located on enclosure sides.
KEY HOOK MODELS A24244UC, A12122UC
Use as key cabinets or a hanging locker to organize items that require
a level of security. Key hook models have integral hooks assembled in
door and back of enclosure.
Features
• Four mounting keyholes in back of enclosure
• Removable door with reversible hinge; door can hinge from either
left or right side and can be changed without tools
• Door has quarter-turn key lock; two keys included
• Combination lock is available as an accessory and is
interchangeable with standard cutout and latch cam
• Retractable spring hinge
• No gasketing
Specications
• 16 or 14 gauge steel
Finish
ANSI 61 gray polyester powder paint nish inside an out
Accessories
[s-2919]
[s-3428]
Bulletin: A1UC, DWS12
Standard Product
Catalog Number AxBxC in./mm Description
Mounting Holes G
in./mm
Mounting Holes H
in./mm
Maximum No. Shelf
Locations/Hooks
A242412UC 24.00 x 24.00 x 12.00
610 x 610 x 305
Shelf Model 16.00
406
18.00
457
3 Shelves
A302412UC 30.00 x 24.00 x 12.00
762 x 610 x 305
Shelf Model 22.00
558
18.00
457
4 Shelves
A363012UC 36.00 x 30.00 x 12.00
914 x 762 x 305
Shelf Model 28.00
711
24.00
610
5 Shelves
A12122UC 12.00 x 12.00 x 2.00
305 x 305 x 51
Hook Model 7.00
178
7.25
184
52 Hooks
Accessories
Catalog Number AxBxC in./mm Description
A30S12UC 0.00 Shelf
PTLCMB3B 0.00 Combination Lock
![](asset-1a.png)
26
ContractorType 1:
Hinged-Cover Type 1 Boxes, Enclosures and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
![](asset-1b.png)
27
ContractorType 1:
Hinged-Cover Type 1 Boxes, Enclosures and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
![](asset-1c.png)
28
ContractorType 1: Type 3R
Screw-Cover Type 3R Boxes and Enclosures
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Type 3R
Screw-Cover Type 3R B oxes and Enc losures
Horizontal-Mount, Type 3R
Industry Standards
Maintains Type 3R rating when mounted horizontally. Maintains Type 1
rating when mounted vertically.
UL 50, 50E Listed; Type 3R; File No. E27525
cUL Listed per CSA C22.2 No 94; Type 3R; File No. E27525
NEMA/EEMAC Type 3R
IEC 60529, IP32
Application
Use this enclosure as a wiring, junction or pull box for outside
horizontal mounting applications such as rooftops or pads. Vertical
structure for mounting is not required.
Features
• The screw cover is the drip shield providing 3/4-in. overhang on
each side for outdoor protection
• No gasketing
• Screw locations on cover are embossed
• Enclosure body ange is formed outward
• Mounting holes on back for direct mounting through the back
to strut or mounting surface; vertical structure for mounting not
required
•
Optional mounting brackets (included) provide a 1-in. clearance o
surface for protection against pooling water
Specications
• 16 or 12 gauge galvanized steel
Finish
ANSI 61 gray polyester powder paint nish inside and out over
pretreated surfaces.
Accessories
[s-3428]
Bulletin: A90RH
![](asset-1d.png)
29
ContractorType 1: Type 3R
Screw-Cover Type 3R Boxes and Enclosures
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Standard Product
Catalog Number AxBxC in./mm
G
in./mm
H
in./mm
L
in./mm
W
in./mm
A8R84HM 8.00 x 8.00 x 4.00
203 x 203 x 102
5.50
140
5.50
140
9.83
250
8.83
213
A10R104HM 10.00 x 10.00 x 4.00
254 x 254 x 102
5.50
140
7.50
191
11.83
300
10.38
264
A12R126HM 12.00 x 12.00 x 6.00
305 x 305 x 152
5.50
140
9.50
241
13.83
351
12.38
314
A24R206HM 24.00 x 20.00 x 6.00
610 x 508 x 152
21.50
546
17.50
445
25.83
656
20.38
518
![](asset-1e.png)
30
ContractorType 1: Type 3R
Screw-Cover Type 3R Boxes and Enclosures
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Screw-Cover, Type 3R
Industry Standards
UL 50, 50E Listed; Type 3R; File No. E27525
cUL Listed per CSA C22.2 No 94; Type 3R; File No. E27525
NEMA/EEMAC Type 3R
IEC 60529, IP32
Application
Use this enclosure with or without knockouts in outdoor applications
as a wiring or junction box.
Features
• Drip shield top and seam-free sides, front and back
• Slip-on removable cover fastened with plated steel screws along
bottom edge
• Handles on larger sizes (see table)
• Embossed mounting holes on back of enclosure
• Knockouts in bottom of 16 and 14 gauge enclosures
• Provision for padlocking
• No gasketing
Specications
• 16, 14 or 12 gauge galvanized steel
Finish
ANSI 61 gray polyester powder paint nish inside and out over
pretreated surfaces.
Accessories
[s-3433]
[s-3559]
[s-3458]
[s-3242]
[s-3428]
Bulletin: A90S3
Standard Product
Catalog Number AxBxC in./mm Body Style
D
in./mm
Mounting H
in./mm
Mounting J
in./mm Knockout Pattern
A4R44 4.00 x 4.00 x 4.00
102 x 102 x 102
A —
—
1.88
48
2.00
51
B-C
A6R44 6.00 x 4.00 x 4.00
152 x 102 x 102
A —
—
1.88
48
1.06
27
B-C
A12R44 12.00 x 4.00 x 4.00
305 x 102 x 102
A —
—
1.88
48
1.06
27
B-C
A6R64 6.00 x 6.00 x 4.00
152 x 152 x 102
A —
—
2.25
57
1.06
27
B-C-D
A8R64 8.00 x 6.00 x 4.00
203 x 152 x 102
A —
—
2.25
57
1.06
27
B-C-D
A8R84 8.00 x 8.00 x 4.00
203 x 203 x 102
A —
—
2.25
57
1.06
27
F-G-H-I
A10R84 10.00 x 8.00 x 4.00
254 x 203 x 102
A —
—
2.25
57
1.06
27
F-G-H-I
A12R84 12.00 x 8.00 x 4.00
305 x 203 x 102
A —
—
2.25
57
1.06
27
F-G-H-I
A10R104 10.00 x 10.00 x 4.00
254 x 254 x 102
A —
—
2.25
57
1.06
27
C-D-E-F-G
A12R104 12.00 x 10.00 x 4.00
305 x 254 x 102
A —
—
2.25
57
1.06
27
C-D-E-F-G
A12R124 12.00 x 12.00 x 4.00
305 x 305 x 102
A —
—
2.25
57
1.06
27
C-D-E-F-G
A18R124 18.00 x 12.00 x 4.00
457 x 305 x 102
A —
—
2.25
57
1.06
27
C-D-E-F-G
A18R184 18.00 x 18.00 x 4.00
457 x 457 x 102
B —
—
13.00
330
1.12
28
A-B-C-D-E-F-G-H-I
A6R66 6.00 x 6.00 x 6.00
152 x 152 x 152
A —
—
2.25
57
1.06
27
B-C-D
A8R86 8.00 x 8.00 x 6.00
203 x 203 x 152
A —
—
2.25
57
1.06
27
F-G-H-I
A10R86 10.00 x 8.00 x 6.00
254 x 203 x 152
A —
—
2.25
57
1.06
27
F-G-H-I
A10R106 10.00 x 10.00 x 6.00
254 x 254 x 152
A —
—
2.25
57
1.06
27
C-D-E-F-G
A12R86 12.00 x 8.00 x 6.00
305 x 203 x 152
A —
—
2.25
57
1.06
27
F-G-H-I
A12R106 12.00 x 10.00 x 6.00
305 x 254 x 152
A —
—
2.25
57
1.06
27
C-D-E-F-G
A12R126 12.00 x 12.00 x 6.00
305 x 305 x 152
A —
—
2.25
57
1.06
27
C-D-E-F-G
A15R126 15.00 x 12.00 x 6.00
381 x 305 x 152
A —
—
2.25
57
1.06
27
C-D-E-F-G
![](asset-1f.png)
31
ContractorType 1: Type 3R
Screw-Cover Type 3R Boxes and Enclosures
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Catalog Number AxBxC in./mm Body Style
D
in./mm
Mounting H
in./mm
Mounting J
in./mm Knockout Pattern
A16R126 16.00 x 12.00 x 6.00
406 x 305 x 152
A —
—
2.25
57
1.06
27
C-D-E-F-G
A18R126 18.00 x 12.00 x 6.00
457 x 305 x 152
A —
—
2.25
57
1.06
27
C-D-E-F-G
A18R186 18.00 x 18.00 x 6.00
457 x 457 x 152
B —
—
13.00
330
1.12
28
A-B-C-D-E-F-G-H-I
A24R126 24.00 x 12.00 x 6.00
610 x 305 x 152
B —
—
13.00
330
1.12
28
C-D-E-F-G
A24R186 24.00 x 18.00 x 6.00
610 x 457 x 152
B —
—
13.00
330
1.12
28
A-B-C-D-E-F-G-H-I
A24R246 24.00 x 24.00 x 6.00
610 x 610 x 152
B —
—
13.00
330
1.12
28
A-B-C-D-E-F-G-H-I
A8R88 8.00 x 8.00 x 8.00
203 x 203 x 203
A —
—
2.25
57
1.06
27
F-G-H-I
A12R128 12.00 x 12.00 x 8.00
305 x 305 x 203
A —
—
2.25
57
1.06
27
C-D-E-F-G
A15R128 15.00 x 12.00 x 8.00
381 x 305 x 203
A —
—
2.25
57
1.06
27
C-D-E-F-G
A18R128 18.00 x 12.00 x 8.00
457 x 305 x 203
A —
—
2.25
57
1.12
28
C-D-E-F-G
A24R168 24.00 x 16.00 x 8.00
610 x 407 x 203
B —
—
13.00
330
1.12
28
C-D-E-F-G
A18R188 18.00 x 18.00 x 8.00
457 x 457 x 203
B —
—
13.00
330
1.12
28
A-B-C-D-E-F-G-H-I
A24R188 24.00 x 18.00 x 8.00
610 x 457 x 203
B —
—
13.00
330
1.12
28
A-B-C-D-E-F-G-H-I
A24R208 24.00 x 20.00 x 8.00
610 x 508 x 203
B —
—
13.00
330
1.12
28
A-B-C-D-E-F-G-H-I
A24R248 24.00 x 24.00 x 8.00
610 x 610 x 203
C 12.19
310
13.00
330
1.12
28
A-B-C-D-E-F-G-H-I
A30R248 30.00 x 24.00 x 8.00
762 x 610 x 203
C 15.19
386
13.00
330
1.12
28
A-B-C-D-E-F-G-H-I
A48R368 48.00 x 36.00 x 8.00
1219 x 914 x 203
C 24.19
614
33.00
838
1.50
38
A-B-C-D-E-F-G-H-I
A18R1810 18.00 x 18.00 x 10.00
457 x 457 x 254
B —
—
13.00
330
1.12
28
A-B-C-D-E-F-G-H-I
A24R1810 24.00 x 18.00 x 10.00
610 x 457 x 254
B —
—
13.00
330
1.12
28
A-B-C-D-E-F-G-H-I
A24R2410 24.00 x 24.00 x 10.00
610 x 610 x 254
C 12.19
310
13.00
330
1.12
28
A-B-C-D-E-F-G-H-I
A30R2410 30.00 x 24.00 x 10.00
762 x 610 x 254
C 15.19
386
13.00
330
1.50
38
A-B-C-D-E-F-G-H-I
A24R2412 24.00 x 24.00 x 12.00
610 x 610 x 305
C 12.19
310
13.00
330
1.12
28
A-B-C-D-E-F-G-H-I
A30R3012 30.00 x 30.00 x 12.00
762 x 762 x 305
C 15.19
386
27.00
686
1.50
38
A-B-C-D-E-F-G-H-I
A36R3012 36.00 x 30.00 x 12.00
914 x 762 x 305
C 18.19
462
27.00
686
1.50
38
A-B-C-D-E-F-G-H-I
A36R3612 36.00 x 36.00 x 12.00
914 x 914 x 305
C 18.19
462
33.00
838
1.50
38
A-B-C-D-E-F-G-H-I
A30R3016 30.00 x 30.00 x 16.00
762 x 762 x 406
C 15.19
386
27.00
686
1.50
38
A-B-C-D-E-F-G-H-I
A48R3616 48.00 x 36.00 x 16.00
1219 x 914 x 406
C 24.19
614
33.00
838
1.50
38
A-B-C-D-E-F-G-H-I
A4R44NK 4.00 x 4.00 x 4.00
102 x 102 x 102
A —
—
1.88
48
2.00
51
—
A6R64NK 6.00 x 6.00 x 4.00
152 x 152 x 102
A —
—
2.25
57
1.06
27
—
A8R64NK 8.00 x 6.00 x 4.00
203 x 152 x 102
A —
—
2.25
57
1.06
27
—
A8R84NK 8.00 x 8.00 x 4.00
203 x 203 x 102
A —
—
2.25
57
1.06
27
—
A10R84NK 10.00 x 8.00 x 4.00
254 x 203 x 102
A —
—
2.25
57
1.06
27
—
A12R84NK 12.00 x 8.00 x 4.00
305 x 203 x 102
A —
—
2.25
57
1.06
27
—
A10R104NK 10.00 x 10.00 x 4.00
254 x 254 x 102
A —
—
2.25
57
1.06
27
—
A12R104NK 12.00 x 10.00 x 4.00
305 x 254 x 102
A —
—
2.25
57
1.06
27
—
A12R124NK 12.00 x 12.00 x 4.00
305 x 305 x 102
A —
—
2.25
57
1.06
27
—
A18R184NK 18.00 x 18.00 x 4.00
457 x 457 x 102
B —
—
13.00
330
1.12
28
—
A6R66NK 6.00 x 6.00 x 6.00
152 x 152 x 152
A —
—
2.25
57
1.06
27
—
![](asset-20.png)
32
ContractorType 1: Type 3R
Screw-Cover Type 3R Boxes and Enclosures
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Catalog Number AxBxC in./mm Body Style
D
in./mm
Mounting H
in./mm
Mounting J
in./mm Knockout Pattern
A18R66NK 18.00 x 6.00 x 6.00
457 x 152 x 152
A —
—
2.25
57
1.06
27
—
A8R86NK 8.00 x 8.00 x 6.00
203 x 203 x 152
A —
—
2.25
57
1.06
27
—
A10R86NK 10.00 x 8.00 x 6.00
254 x 203 x 152
A —
—
2.25
57
1.06
27
—
A10R106NK 10.00 x 10.00 x 6.00
254 x 254 x 152
A —
—
2.25
57
1.06
27
—
A12R106NK 12.00 x 10.00 x 6.00
305 x 254 x 152
A —
—
2.25
57
1.06
27
—
A12R126NK 12.00 x 12.00 x 6.00
305 x 305 x 152
A —
—
2.25
57
1.06
27
—
A15R126NK 15.00 x 12.00 x 6.00
381 x 305 x 152
A —
—
2.25
57
1.06
27
—
A16R126NK 16.00 x 12.00 x 6.00
406 x 305 x 152
A —
—
2.25
57
1.06
27
—
A18R126NK 18.00 x 12.00 x 6.00
457 x 305 x 152
A —
—
2.25
57
1.06
27
—
A18R186NK 18.00 x 18.00 x 6.00
457 x 457 x 152
B —
—
13.00
330
1.12
28
—
A24R186NK 24.00 x 18.00 x 6.00
610 x 457 x 152
B —
—
13.00
330
1.12
28
—
A24R246NK 24.00 x 24.00 x 6.00
610 x 610 x 152
B —
—
13.00
330
1.12
28
—
A8R88NK 8.00 x 8.00 x 8.00
203 x 203 x 203
A —
—
2.25
1.06
1.06
27
—
A24R88NK 24.00 x 8.00 x 8.00
610 x 203 x 203
A —
—
2.25
1.06
1.06
27
—
A12R128NK 12.00 x 12.00 x 8.00
305 x 305 x 203
A —
—
2.25
57
1.06
27
—
A15R128NK 15.00 x 12.00 x 8.00
381 x 305 x 203
A —
—
2.25
57
1.06
27
—
A18R128NK 18.00 x 12.00 x 8.00
457 x 305 x 203
A —
—
2.25
57
1.12
28
—
A18R188NK 18.00 x 18.00 x 8.00
457 x 457 x 203
B —
—
13.00
330
1.12
28
—
A24R188NK 24.00 x 18.00 x 8.00
610 x 457 x 203
B —
—
13.00
330
1.12
28
—
A24R208NK 24.00 x 20.00 x 8.00
610 x 508 x 203
B —
—
13.00
330
1.12
28
—
A24R248NK 24.00 x 24.00 x 8.00
610 x 610 x 203
C 12.19
310
13.00
330
1.12
28
—
A30R248NK 30.00 x 24.00 x 8.00
762 x 610 x 203
C 15.19
386
13.00
330
1.12
28
—
A48R368NK 48.00 x 36.00 x 8.00
1220 x 915 x 203
C 24.19
614
33.00
838
1.50
38
—
A24R2410NK 24.00 x 24.00 x 10.00
610 x 610 x 254
C 12.19
310
13.00
330
1.12
28
—
A24R2412NK 24.00 x 24.00 x 12.00
610 x 610 x 305
C 12.19
310
13.00
330
1.12
28
—
A30R3012NK 30.00 x 30.00 x 12.00
762 x 762 x 305
C 15.19
386
27.00
686
1.50
38
—
A36R3012NK 36.00 x 30.00 x 12.00
914 x 762 x 305
C 18.19
462
27.00
686
1.50
38
—
A36R3612NK 36.00 x 36.00 x 12.00
914 x 914 x 305
C 18.19
462
33.00
838
1.50
38
—
A30R3016NK 30.00 x 30.00 x 16.00
762 x 762 x 406
C 15.19
386
27.00
686
1.50
38
—
A48R3616NK 48.00 x 36.00 x 16.00
1219 x 915 x 406
C 24.19
614
33.00
838
1.50
38
—

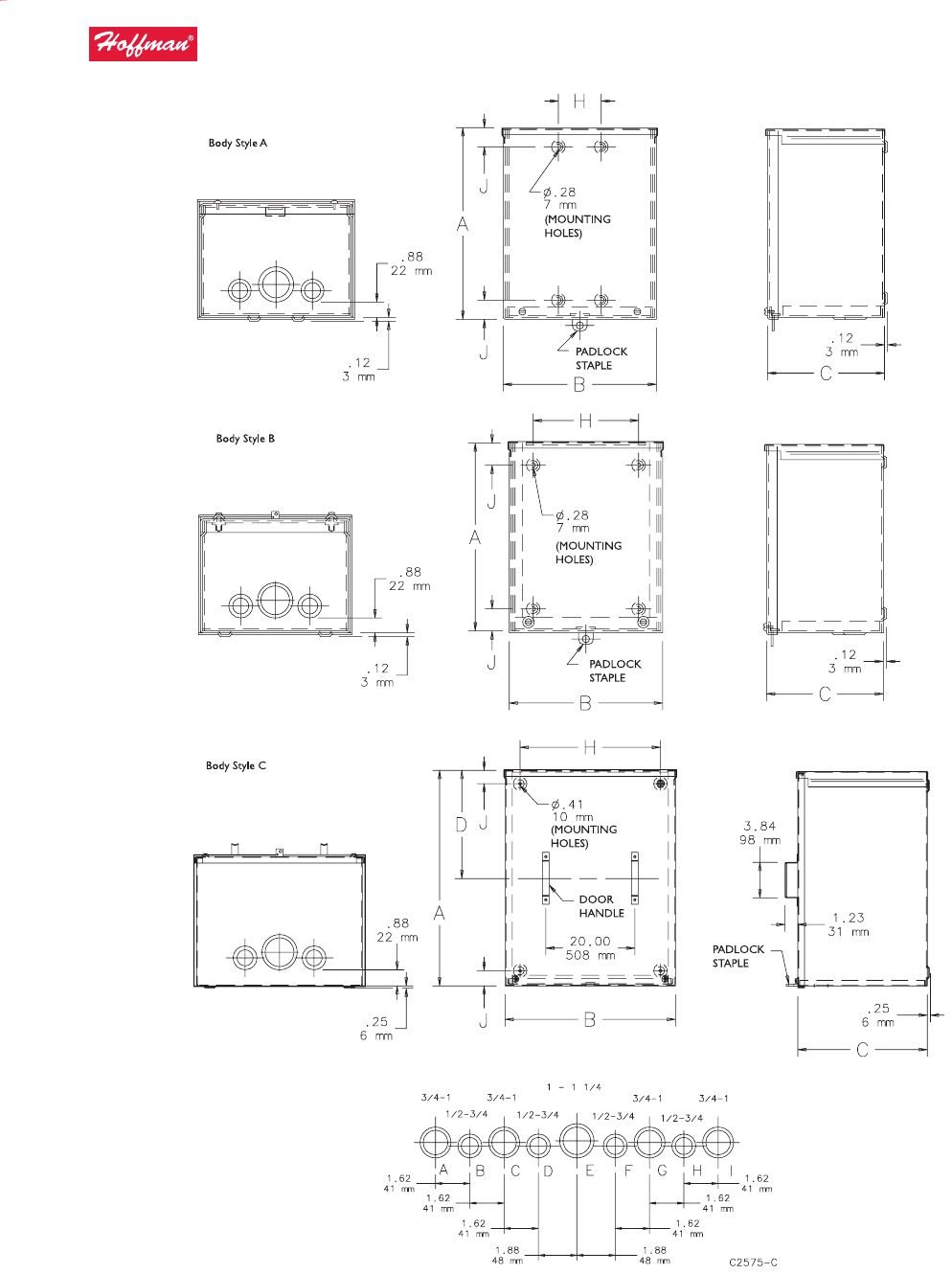

![](asset-21.png)
33
ContractorType 1: Type 3R
Screw-Cover Type 3R Boxes and Enclosures
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
![](asset-22.png)
34
ContractorType 1: Type 3R
Screw-Cover Type 3R Boxes and Enclosures
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Screw-Cover Gasketed, Type 3
Industry Standards
UL 508A Listed; Type 3, 12; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 3, 12; File No. E61997
NEMA/EEMAC Type 3 and 12 (except for mounting provisions)
CSA, File 42184: Type 4 and 12
IEC 60529, IP66
Application
Use this enclosure as a wiring, junction, pull or terminal box in
applications subject to windblown dust and/or rain.
Features
• Captivated stainless steel cover screws thread into sealed wells
• Oil-resistant gasket and adhesive
• Seams continuously welded and ground smooth
• No holes or knockouts
• Grounding stud on inside back of box
Specications
• 14 or 12 gauge G-90 grade galvanized steel bodies
• 12 or 10 gauge G-90 grade galvanized steel covers
Finish
Cover has galvanized nish. Body nish is ANSI 61 gray polyester
powder inside and out over plated steel.
Accessories
[s-3433]
[s-3559]
[s-3458]
[s-3242]
Bulletin: A90GS
![](asset-23.png)
35
ContractorType 1: Type 3R
Screw-Cover Type 3R Boxes and Enclosures
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Standard Product
Catalog Number AxBxC in. AxBxC mm Body Gauge Cover Gauge Number of Cover Screws
A664GSC 6.00 x 6.00 x 4.00 152 x 152 x 102 14 12 4
A864GSC 8.00 x 6.00 x 4.00 203 x 152 x 102 14 12 4
A884GSC 8.00 x 8.00 x 4.00 203 x 203 x 102 14 12 4
A1084GSC 10.00 x 8.00 x 4.00 254 x 203 x 102 14 12 6
A10104GSC 10.00 x 10.00 x 4.00 254 x 254 x 102 14 12 8
A12124GSC 12.00 x 12.00 x 4.00 305 x 305 x 102 14 12 8
A666GSC 6.00 x 6.00 x 6.00 152 x 152 x 152 14 12 4
A886GSC 8.00 x 8.00 x 6.00 203 x 203 x 152 14 12 4
A10106GSC 10.00 x 10.00 x 6.00 254 x 254 x 152 14 12 8
A12106GSC 12.00 x 10.00 x 6.00 305 x 254 x 152 14 12 8
A12126GSC 12.00 x 12.00 x 6.00 305 x 305 x 152 14 12 8
A16126GSC 16.00 x 12.00 x 6.00 406 x 305 x 152 14 12 8
A16166GSC 16.00 x 16.00 x 6.00 406 x 406 x 152 14 10 8
A18186GSC 18.00 x 18.00 x 6.00 457 x 457 x 152 14 10 8
A20166GSC 20.00 x 16.00 x 6.00 508 x 406 x 152 14 10 8
A24246GSC 24.00 x 24.00 x 6.00 610 x 610 x 152 14 10 12
A888GSC 8.00 x 8.00 x 8.00 203 x 203 x 203 14 12 4
A10108GSC 10.00 x 10.00 x 8.00 254 x 254 x 203 14 12 8
A12128GSC 12.00 x 12.00 x 8.00 305 x 305 x 203 14 12 8
A16168GSC 16.00 x 16.00 x 8.00 406 x 406 x 203 14 10 8
A20208GSC 20.00 x 20.00 x 8.00 508 x 508 x 203 14 10 8
A24208GSC 24.00 x 20.00 x 8.00 610 x 508 x 203 14 10 10
A24248GSC 24.00 x 24.00 x 8.00 610 x 610 x 203 14 10 12
A30248GSC 30.00 x 24.00 x 8.00 762 x 610 x 203 14 10 12
A242410GSC 24.00 x 24.00 x 10.00 610 x 610 x 254 14 10 12
A121212GSC 12.00 x 12.00 x 12.00 305 x 305 x 305 14 12 8
A161612GSC 16.00 x 16.00 x 12.00 406 x 406 x 305 14 10 8
A202012GSC 20.00 x 20.00 x 12.00 508 x 508 x 305 14 10 8
A242412GSC 24.00 x 24.00 x 12.00 610 x 610 x 305 14 10 12
A303012GSC 30.00 x 30.00 x 12.00 762 x 762 x 305 12 10 12
A363612GSC 36.00 x 36.00 x 12.00 914 x 914 x 305 12 10 16

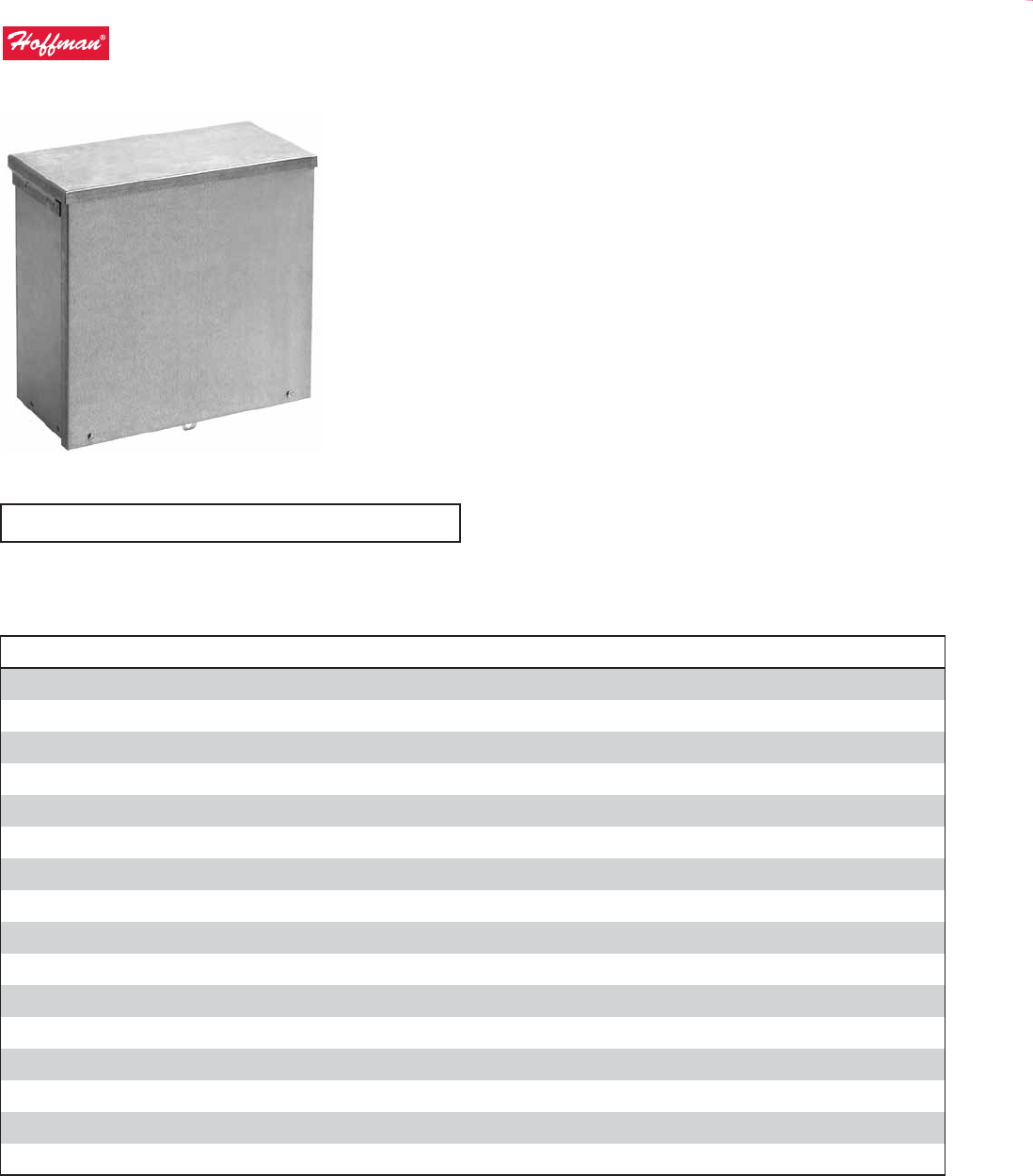

![](asset-24.png)
36
ContractorType 1: Type 3R
Screw-Cover Type 3R Boxes and Enclosures
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Screw-Cover Galvanized, Type 3R
Industry Standards
UL50, 50E Listed; Type 3R; File No. E27525
cUL Listed per CSA C22.2 No 94; Type 3R; File No. E27525
NEMA/EEMAC Type 3R
IEC 60529, IP32
Application
Use this enclosure as a wiring or junction box to protect controls in
outdoor applications requiring galvanized steel.
Features
• Drip-shield top and seam-free sides, front and back
• Slip-on removable cover fastened with plated steel screws along
bottom edge
• Door handles on larger sides (body style C; see table)
• Embossed mounting holes on back of enclosure
• See table for knockout pattern
• Provision for padlocking
• No gasketing
Specications
• 16 or 14 gauge galvanized steel
Finish
Unpainted galvanized steel
Accessories
[s-3433]
[s-3559]
[s-3458]
[s-3242]
Bulletin: A90G3
Standard Product
Catalog Number AxBxC in./mm Body Style
D
in./mm
Mounting H
in./mm
Mounting J
in./mm Knockout Pattern
A4R44GV 4.00 x 4.00 x 4.00
102 x 102 x 120
A —
—
1.88
48
2.00
51
B-C
A6R64GV 6.00 x 6.00 x 4.00
152 x 152 x 102
A —
—
1.8
48
1.06
27
B-C-D
A8R84GV 8.00 x 8.00 x 4.00
203 x 203 x 102
A —
—
2.25
57
1.06
27
B-C-D
A10R104GV 10.00 x 10.00 x 4.00
254 x 254 x 102
A —
—
2.25
57
1.06
27
C-D-E-F-G
A12R124GV 12.00 x 12.00 x 4.00
305 x 305 x 102
A —
—
2.25
57
1.06
27
C-D-E-F-G
A6R66GV 6.00 x 6.00 x 6.00
152 x 152 x 152
A —
—
2.25
57
1.06
27
B-C-D
A8R86GV 8.00 x 8.00 x 6.00
203 x 203 x 152
A —
—
2.25
57
1.06
27
F-G-H-I
A10R106GV 10.00 x 10.00 x 6.00
254 x 254 x 152
A —
—
2.25
27
1.06
27
C-D-E-F-G
A12R126GV 12.00 x 12.00 x 6.00
305 x 305 x 152
A —
—
2.25
27
1.06
27
C-D-E-F-G
A18R186GV 18.00 x 18.00 x 6.00
457 x 457 x 152
B —
—
13.00
330
1.12
28
A-B-C-D-E-F-G-H-I
A8R88GV 8.00 x 8.00 x 8.00
203 x 203 x 203
A —
—
2.25
57
1.06
27
F-G-H-I
A8R88GVNK 8.00 x 8.00 x 8.00
203 x 203 x 203
A —
—
2.25
57
1.06
27
—
A10R108GVNK 10.00 x 10.00 x 8.00
254 x 254 x 203
A —
—
2.25
57
1.06
27
—
A12R128GV 12.00 x 12.00 x 8.00
305 x 305 x 203
A —
—
2.25
57
1.06
27
C-D-E-F-G
A24R248GV 24.00 x 24.00 x 8.00
610 x 610 x 203
C 12.19
310
13.00
330
1.12
28
A-B-C-D-E-F-G-H-I
A24R2410GV 24.00 x 24.00 x 10.00
610 x 610 x 254
C 12.19
310
13.00
330
1.12
28
A-B-C-D-E-F-G-H-I
![](asset-25.png)
37
ContractorType 1: Type 3R
Screw-Cover Type 3R Boxes and Enclosures
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
![](asset-26.png)
38
ContractorType 1: Type 3R
Hinge-Cover Type 3R Enclosures
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Hinge-Cover Typ e 3R Enclosu res
Hinge-Cover, Small, Type 3R
Industry Standards
UL 50, 50E Listed; Type 3R; File No. E27567
cUL Listed per CSA C22.2 No 94; Type 3R File No. E27567
NEMA/EEMAC Type 3R
IEC 60529, IP32
Application
These enclosures have a size range of 6 x 4 x 4-in. to 12 x 12 x 10-in.
and meet basic functionality requirements for applications that
require protection from rain, sleet, snow or dripping water.
Features
• Drip-shield top and seam-free sides, front and back
• Plated steel hinge has stainless steel pin
• Weldnuts provided for mounting optional panels
• Provisions for padlocking on zinc-plated draw-pull catch
• Knockouts on bottom of enclosure
• No gasketing
Specications
• 16 gauge galvanized steel
Finish
ANSI 61 gray polyester powder paint nish inside and out over
galvanized steel. Optional solid panels are white and optional
perforated panels are gray.
Accessories
[s-3433]
[s-3458]
[s-3436]
[s-3428]
Bulletin: A3SM
Standard Product
Catalog Number AxBxC in./mm Panel Perforated Panel
Panel Size D x E
in./mm
Mounting G
in./mm
Overall L x W
in./mm Knockout Pattern
A6R44HCR 6.00 x 4.00 x 4.00
152 x 102 x 102
A6N4P A6N4PP 4.25 x 2.25
108 x 57
7.00
178
8.00 x 4.81
203 x 122
B-C-D
A6R64HCR 6.00 x 6.00 x 4.00
152 x 152 x 102
A6N6P A6N6PP 4.25 x 4.25
108 x 108
7.00
178
8.00 x 6.81
203 x 173
B-C-D
A8R64HCR 8.00 x 6.00 x 4.00
203 x 152 x 102
A8N6P A8N6PP 6.25 x 4.25
159 x 108
9.00
229
10.00 x 6.81
254 x 173
B-C-D
A8R86HCR 8.00 x 8.00 x 6.00
203 x 203 x 152
A8N8P A8N8PP 6.25 x 6.25
159 x 159
9.00
229
10.00 x 8.81
254 x 224
F-G-H-I
A10R86HCR 10.00 x 8.00 x 6.00
254 x 203 x 152
A10N8P A10N8PP 8.25 x 6.25
210 x 159
11.0
279
12.00 x 8.81
305 x 224
F-G-H-I
A12R106HCR 12.00 x 10.00 x 6.00
305 x 254 x 152
A12N10P A12N10PP 10.25 x 8.25
260 x 210
13.0
330
14.00 x 10.81
356 x 275
C-D-E-F-G
A12R126HCR 12.00 x 12.00 x 6.00
305 x 305 x 152
A12N12P A12N12PP 10.25 x 10.25
260 x 260
13.0
330
14.00 x 12.81
356 x 325
C-D-E-F-G
A12R1210HCR 12.00 x 12.00 x 10.00
305 x 305 x 254
A12N12P A12N12PP 10.25 x 10.25
260 x 260
13.00
330
14.00 x 12.81
356 x 325
C-D-E-F-G
Purchase panels separately.
Purchase perforated panels separately.

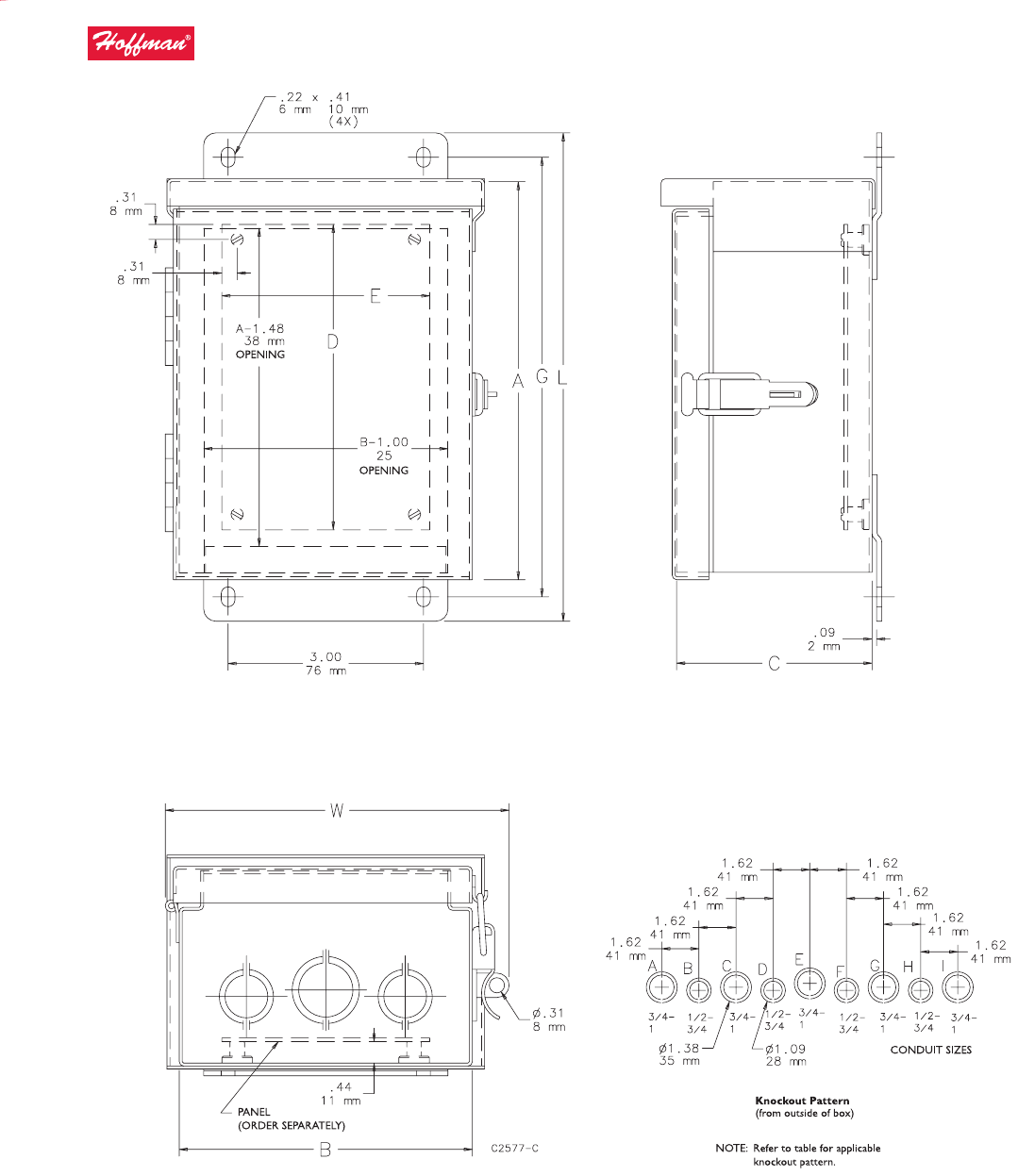

![](asset-27.png)
39
ContractorType 1: Type 3R
Hinge-Cover Type 3R Enclosures
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
![](asset-28.png)
40
ContractorType 1: Type 3R
Hinge-Cover Type 3R Enclosures
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Hinge-Cover, Medium, Type 3R
Industry Standards
UL 50, 50E Listed; Type 3R; File No. E27567
cUL Listed per CSA C22.2 No 94; Type 3R File No. E27567
NEMA/EEMAC Type 3R
IEC 60529, IP32
Application
These enclosures have a size range of 16 x 12 x 6-in. to 48 x 36 x 16-
in. and meet basic functionality requirements for applications that
require protection from rain, sleet, snow or dripping water.
Features
• Drip shield top and seam-free sides, front, and back protect from
rain, snow, or sleet
• 16 gauge plated steel continuous hinge has stainless steel pin
• Cover fastened securely with captive plated steel screws
• Collar studs provided for mounting optional panels
• Hasp and staple provided for padlocking
• No gasketing or knockouts
Specications
• 16 or 14 gauge galvanized steel
Finish
ANSI 61 gray polyester powder paint nish inside and out over
galvanized steel. Optional solid panels are white.
Accessories
[s-3433]
[s-3559]
[s-3458]
[s-3445]
[s-3440]
[s-3507]
[s-106445]
[s-3428]
[s-3385]
Bulletin: A3M
Standard Product
Catalog Number AxBxC in. AxBxC mm Panel Perforated Panel Panel Size D x E (in.) Panel Size D x E (mm) Mounting G x H (in.) Mounting G x H (mm) Overall L (in.) Overall L (mm)
A16R126HCR 16.00 x 12.00 x 6.00 406 x 305 x 152 A16P12 A16P12PP 13.00 x 9.00 330 x 229 17.00 x 3.00 432 x 76 18.00 457
A16R166HCR 16.00 x 16.00 x 6.00 406 x 406 x 152 A16P16 A16P16PP 13.00 x 13.00 330 x 330 17.00 x 13.00 432 x 330 18.00 457
A18R186HCR 18.00 x 18.00 x 6.00 457 x 457 x 152 A18P18 A18P18PP 15.00 x 15.00 381 x 381 19.00 x 13.00 483 x 330 20.00 508
A20R166HCR 20.00 x 16.00 x 6.00 508 x 406 x 152 A20P16 A20P16PP 17.00 x 13.00 432 x 330 21.00 x 13.00 533 x 330 22.00 559
A20R208HCR 20.00 x 20.00 x 8.00 508 x 508 x 203 A20P20 A20P20PP 17.00 x 17.00 432 x 432 21.00 x 13.00 533 x 330 22.00 559
A24R208HCR 24.00 x 20.00 x 8.00 610 x 508 x 203 A24P20 A24P20PP 21.00 x 17.00 533 x 432 25.00 x 13.00 635 x 330 26.00 660
A24R248HCR 24.00 x 24.00 x 8.00 610 x 610 x 203 A24P24 A24P24PP 21.00 x 21.00 533 x 533 25.00 x 13.00 635 x 330 26.00 660
A30R248HCR 30.00 x 24.00 x 8.00 762 x 610 x 203 A30P24 A30P24PP 27.00 x 21.00 686 x 533 31.00 x 13.00 787 x 330 32.00 813
A18R1810HCR 18.00 x 18.00 x 10.00 457 x 457 x 254 A18P18 A18P18PP 15.00 x 15.00 381 x 381 19.00 x 13.00 483 x 330 20.00 508
A30R308HCR 30.00 x 30.00 x 8.00 762 x 762 x 203 A30P30 A30P30PP 27.00 x 27.00 686 x 686 31.00 x 27.00 787 x 686 32.00 813
A24R2410HCR 24.00 x 24.00 x 10.00 610 x 610 x 254 A24P24 A24P24PP 21.00 x 21.00 533 x 533 25.00 x 13.00 635 x 330 26.00 660
A30R2410HCR 30.00 x 24.00 x 10.00 762 x 610 x 254 A30P24 A30P24PP 27.00 x 21.00 686 x 533 31.00 x 13.00 787 x 330 32.00 813
A36R3610HCR 36.00 x 36.00 x 10.00 914 x 914 x 254 A36P36 A36P36PP 33.00 x 33.00 838 x 838 37.00 x 30.00 940 x 762 38.00 965
A30R3012HCR 30.00 x 30.00 x 12.00 762 x 762 x 305 A30P30 A30P30PP 27.00 x 27.00 686 x 686 31.00 x 27.00 787 x 686 32.00 813
A36R2412HCR 36.00 x 24.00 x 12.00 914 x 610 x 305 A36P24 A36P24PP 33.00 x 21.00 838 x 533 37.00 x 13.00 940 x 330 38.00 965
A36R3012HCR 36.00 x 30.00 x 12.00 914 x 914 x 305 A36P30 A36P30PP 33.00 x 27.00 838 x 686 37.00 x 27.00 940 x 686 38.00 965
A42R3012HCR 42.00 x 30.00 x 12.00 1067 x 914 x 305 A42P30 — 39.00 x 27.00 991 x 686 43.00 x 27.00 1092 x 686 44.00 1118
A36R3612HCR 36.00 x 36.00 x 12.00 914 x 914 x 305 A36P36 A36P36PP 33.00 x 33.00 838 x 838 37.00 x 27.00 940 x 686 38.00 965
A42R3612HCR 42.00 x 36.00 x 12.00 1067 x 914 x 305 A42P36 — 39.00 x 33.00 991 x 838 43.00 x 27.00 1092 x 686 44.00 1118
A48R3612HCR 48.00 x 36.00 x 12.00 1219 x 914 x 305 A48P36 — 45.00 x 33.00 1143 x 838 49.00 x 27.00 1245 x 686 50.00 1270
A60R3612HCR 60.00 x 36.00 x 12.00 1524 x 914 x 305 A60P36 — 57.00 x 33.00 1448 x 838 61.00 x 27.00 1549 x 686 62.00 1575
A30R3016HCR 30.00 x 30.00 x 16.00 762 x 762 x 406 A30P30 A30P30PP 27.00 x 27.00 686 x 686 31.00 x 27.00 787 x 686 32.00 813
A48R3616HCR 48.00 x 36.00 x 16.00 1219 x 914 x 406 A48P36 — 45.00 X 33.00 1143 X 838 49.00 X 27.00 1245 X 686 50.00 1270
Purchase panels separately. Optional aluminum panels are available for most sizes.
Purchase perforated panels separately.
Flanged on all four sides.
![](asset-29.png)
41
ContractorType 1: Type 3R
Hinge-Cover Type 3R Enclosures
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
![](asset-2a.png)
42
ContractorType 1: Type 3R
Hinge-Cover Lift-O Type 3R Enclosures and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Hinge-Cover L ift-O Type 3R E nclosur es and Acces sories
Hinge-Cover Lift-O, Type 3R
Industry Standards
UL 50, 50E Listed; Type 3R; File No. E27567
cUL Listed per CSA C22.2 No 94; Type 3R File No. E27567
NEMA/EEMAC Type 3R
CSA, File 42184: Type 3R
IEC 60529, IP32
Application
Featuring a removable cover for easy mounting and access, these
enclosures protect components in applications subject to rain, sleet,
snow or dripping water.
Features
• Drip-shield top and seam-free sides, front and back
• Galvanized steel lift-o hinges with stainless steel pins
• Provisions for padlocking on each draw pull catch
• Embossed mounting holes on back of enclosure
• Gasketing along top of door
• No knockouts
Specications
• 16 or 14 gauge galvanized steel
• 16 gauge cover fastened securely with draw pull catch
Finish
ANSI 61 gray polyester powder paint nish inside and out over
galvanized steel. Optional panels are white.
Accessories
[s-3433]
[s-3559]
[s-3458]
[s-3242]
[s-3241]
[s-3445]
[s-3440]
[s-3450]
[s-106445]
[s-3428]
[s-3385]
Bulletin: A3LO
Standard Product
Catalog Number AxBxC in./mm
Body
Guage Panela
Panel Size
D x E
in./mm
Mounting G
in./mm
Overall
L x W
in./mm Panel Mounting KitbMounting Bracket Kitb
Bracket
Gauge
Overall Widthof Bracket
in./mm
Hole Spacing
For Bracket
in./mm
A8R64HCLO 8.00 x 6.00 x 4.00
203 x 152 x 102
16 A6P6 4.88 x 4.88
124 x 124
9.12
232
10.12 x 7.25
257 x 184
APMK3RLO16 AMFK3RLO16 14 5.00
127
4.00
102
A8R86HCLO 8.00 x 8.00 x 6.00
203 x 203 x 152
16 A8P6 6.75 x 4.88
171 x 124
9.12
232
10.12 x 9.25
257 x 235
APMK3RLO16 AMFK3RLO16 14 5.00
127
4.00
102
A10R86HCLO 10.00 x 8.00 x 6.00
254 x 203 x 152
16 A8P8 6.75 x 6.88
171 x 175
11.12
282
12.12 x 9.25
308 x 235
APMK3RLO16 APMK3RLO16 14 5.00
127
4.00
102
A12R106HCLO 12.00 x 10.00 x 6.00
305 x 254 x 152
16 A10P10 8.75 x 8.88
222 x 226
13.12
333
14.12 x 11.25
359 x 286
APMK3RLO16 AMFK3RLO16 14 5.00
127
4.00
102
A12R126HCLO 12.00 x 12.00 x 6.00
305 x 305 x 152
16 A12P10 10.75 x 8.88
273 x 226
13.12
333
14.12 x 13.25
359 x 337
APMK3RLO16 AMFK3RLO16 14 5.00
127
4.00
102
A16R126HCLO 16.00 x 12.00 x 6.00
406 x 305 x 152
16 A14P12 12.75 x 10.88
324 x 276
17.12
435
18.12 x 13.25
460 x 337
APMK3RLO16 AMFK3RLO16 14 5.00
127
4.00
102
A16R166HCLO 16.00 x 16.00 x 6.00
406 x 406 x 152
16 A16P16 13.00 x 13.00
330 x 330
17.31
440
18.31 x 17.25
465 x 438
APMK3RLO14 AMFK3RLO14 12 14.00
356
13.00
330
A20R166HCLO 20.00 x 16.00 x 6.00
508 x 406 x 152
16 A20P16 17.00 x 13.00
432 x 330
21.31
541
22.31 x 17.25
567 x 438
APMK3RLO14 AMFK3RLO14 12 14.00
356
13.00
330
A20R208HCLO 20.00 x 20.00 x 8.00
508 x 508 x 203
14 A20P20 17.00 x 17.00
432 x 432
21.31
541
22.31 x 21.25
567 x 540
APMK3RLO14 AMFK3RLO14 12 14.00
356
13.00
330
A24R208HCLO 24.00 x 20.00 x 8.00
610 x 508 x 203
14 A24P20 21.00 x 17.00
533 x 432
25.31
643
26.31 x 21.25
668 x 540
APMK3RLO14 AMFK3RLO14 12 14.00
356
13.00
330
A24R248HCLO 24.00 x 24.00 x 8.00
610 x 610 x 203
14 A24P24 21.00 x 21.00
533 x 533
25.31
643
26.31 x 25.25
668 x 641
APMK3RLO14 AMFK3RLO14 12 14.00
356
13.00
330
A30R248HCLO 30.00 x 24.00 x 8.00
762 x 610 x 203
14 A30P24 27.00 x 21.00
686 x 533
31.31
795
32.31 x 25.25
821 x 641
APMK3RLO14 AMFK3RLO14 12 14.00
356
13.00
330
a Purchase panels separately.
b Panel Mounting Kit and Mounting Bracket Kit must be ordered separately. (A Panel Mounting Kit must be ordered to install panel.)
![](asset-2b.png)
43
ContractorType 1: Type 3R
Hinge-Cover Lift-O Type 3R Enclosures and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Panel Mounting Kit A panel mounting kit (order separately) is required in order to install
a panel.
Bulletin: A3LO
Catalog Number Description
APMK3RL014 Required to install panel
APMK3RL016 Required to install panel
Mounting Bracket Kit Optional external mounting bracket kit available for installing
enclosure (order separately).
Bulletin: A3LO
Catalog Number Foot Gauge
Overall Bracket Width
in./mm
Hole Spacing for Bracket
in./mm
AMFK3RL014 12 14.00
356
13.00
330
AMFK3RL016 14 5.00
127
4.00
102
![](asset-2c.png)
44
ContractorType 1: Type 3R
Pad-Mount Type 3R Enclosures and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Pad-Mount Type 3R E nclosure s and Access ories
WEATHERPRO® Outdoor Pad Mount, Type 3R
Industry Standards
UL 508A Listed; Type 3R; File No. E61997
cUL/CSA C22.2 No. 94 Listed; Type 3R; File No. E61997
NEMA/EEMAC Type 3R
IEC 60529, IP32
Application
WEATHERPRO® Outdoor Pad Mount Enclosures protect controls,
drives, power distribution components or contactors in outdoor
commercial or industrial power distribution and control applications.
The overlapping two-door models with no center post allow full-
width access to enclosure interior.
Features
• 3-point latching system with heavy duty handle
• Padlock provision in handle
• Open bottom with pre-punched mounting hole ange
• Drip edge overhang on top
• Louvered overhang with a closure plate
• Studs included for mounting optional panels on threaded bolts
• Welded body construction
• Sturdy 7 gauge lifting tabs
• Overlapping doors with no center post on two-door models
• Bonding provision on each door
• Bolted hinges on doors
Specications
• 14 gauge galvanized steel
Finish
RAL 7035 light-gray polyester powder paint inside and outside.
Optional panels are white.
Accessories
[s-3247]
[s-3733]
[s-3731]
[s-3246]
Modication and Customization
Homan excels at modifying and customizing products to your
specications. Contact your local Homan sales oce or distributor
for complete information.
Bulletin: A3PM
![](asset-2d.png)
45
ContractorType 1: Type 3R
Pad-Mount Type 3R Enclosures and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Standard Product WEATHERPRO Outdoor Pad-Mount Type 3R Single Door Enclosures
Catalog Number AxBxC in./mm Panel
Panel Size D x E
in./mm
Mounting Dimensions F x G
in./mm
A60R2518FSLP 60.00 x 25.00 x 18.00
1524 x 635 x 457
A49P21N 49.16 x 21.50
1249 x 546
4.90 x 7.40
124 x 188
A60R2524FSLP 60.00 x 25.00 x 24.00
1524 x 635 x 610
A49P21N 49.16 x 21.50
1249 x 546
7.90 x 7.40
201 x 188
A72R2518FSLP 72.00 x 25.00 x 18.00
1829 x 635 x 457
A61P21N 61.16 x 21.50
1553 x 546
4.90 x 7.40
124 x 188
A60R3618FSLP 60.00 x 36.00 x 18.00
1524 x 914 x 457
A49P32N 49.16 x 32.00
1249 x 813
4.90 x 12.90
124 x 328
A72R3618FSLP 72.00 x 36.00 x 18.00
1829 x 914 x 457
A61P32N 61.16 x 32.00
1553 x 813
4.90 x 12.90
124 x 328
A72R3624FSLP 72.00 x 36.00 x 24.00
1829 x 914 x 610
A61P32N 61.16 x 32.00
1553 x 813
7.90 x 12.90
201 x 328
Purchase panels separately.
![](asset-2e.png)
46
ContractorType 1: Type 3R
Pad-Mount Type 3R Enclosures and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Standard Product WEATHERPRO Outdoor Pad-Mount Type 3R Two-Door Enclosures
Catalog Number AxBxC in./mm Panel
Panel Size D x E
in./mm
Mounting Dimensions F x G
in./mm
A60R5218FSLP 60.00 x 52.00 x 18.00
1524 x 1321 x 457
A49P48N 49.16 x 48.00
1249 x 1219
4.90 x 20.90
124 x 531
A60R5224FSLP 60.00 x 52.00 x 24.00
1524 x 1321 x 610
A49P48N 49.16 x 48.00
1249 x 1219
7.90 x 20.90
201 x 531
A60R7224FSLP 60.00 x 72.00 x 24.00
1524 x 1829 x 610
A49P68N 49.16 x 68.00
1249 x 1727
7.90 x 30.90
201 x 785
A72R7218FSLP 72.00 x 72.00 x 18.00
1829 x 1829 x 457
A61P68N 61.16 x 68.00
1553 x 1727
4.90 x 30.90
124 x 785
A72R7224FSLP 72.00 x 72.00 x 24.00
1829 x 18290 x 610
A61P68N 61.16 x 68.00
1553 x 1727
7.90 x 30.90
201 x 785
Purchase panels separately.
![](asset-2f.png)
47
ContractorType 1: Type 3R
Pad-Mount Type 3R Enclosures and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
19-in. Hinged Wall-Mount Panel
Industry Standards
UL 1863 Listed; File No. E230874
cUL Listed per CSA C22.2 No. 182.4; File No. E230874
EIA 310-D
Application
The 19-in. Hinged Panel provides a solution for smaller network
equipment, punch-downs and patch panels in areas where oor
space is at a premium. Easy access facilitates component installation
and future expansion without disturbing existing equipment or
cabling. Can be mounted with hinges on left or right side.
Features
• Open design oers unrestricted airow
• Large cable exit holes on back surface
• Keyhole mounting slots on 16-in. centers accommodate up to 3/8-
in. dia. mounting fasteners (not supplied)
• Heavy duty hinges are welded to frame
• Hinge provided for every two rack unit spacing
• One rack unit model has half-size hinge
• Provides access to rear of equipment
• 12-24 rack mounting screws (package of 20) included with
assembly
• Wall mounting hardware not included
Specications
• Made of 12 gauge steel
• EIA universal 5/8, 5/8, 1/2 in. spaced 12-24 tapped holes. EIA
spacing provides 1.75 in. per rack unit.
Finish
Finish is RAL 9005 black low-gloss polyester powder paint
Bulletin: DOFRW
Standard Product
Catalog Number A (in.) A (mm) Load Rating (lb.) Load Rating (kg) Rack Units
E19HPM1U 1.75 44 25 11.3 1
E19HPM2U 3.50 89 50 22.7 2
E19HPM4U 8.00 203 100 45.4 4
E19HPM6U 10.50 267 150 68.0 6
E19HPM8U 14.00 356 200 90.7 8
![](asset-30.png)
48
ContractorType 1: Type 3R
Pad-Mount Type 3R Enclosures and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
19-in. Fixed Wall-Mount Rack
Economical solution for banks of small networking equipment.
Integral VELCRO® cable tiedown slots facilitate cable routing. Made
of 16 gauge steel, nished with RAL 9005 low gloss black polyester
powder paint. Shipped in four easy-to-assemble sections.
VELCRO is a trademark of Velcro Industries B.V.
Bulletin: DOFRW
Catalog Number A (in.) A (mm)
Load
Rating (lb.)
Load
Rating (kg)
Rack
Units
E19FWM12U20 23.00 584 150 68.0 12
E19FWM20U20 37.00 940 150 68.0 20
E19FWM25U20 45.75 1162 150 68.0 25
E19FWM32U20 58.00 1473 150 68.0 32
Insect Screens Fastens over ventilation slot with two screws provided. Requires one
for single-door enclosure and two for two-door enclosure. Purchase
insect screens separately.
Bulletin: A3PM
Catalog Number Description Requires
A3PMIS Insect Screen One for one-door enclosure and two for two-door enclosure
![](asset-31.png)
49
ContractorType 1: Type 3R
Pad-Mount Type 3R Enclosures and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Fan Shroud Kits
Fan shroud kits are available for outdoor enclosure applications
requiring Type 3R ventilation protection from falling rain, sleet and
snow.
Bulletin: D85
Catalog Number Material Height x Width (in.) Height x Width (mm)
T4S3R Steel 6.00 x 6.00 152 x 152
T6S3R Steel 8.00 x 8.00 203 x 203
T10S3R Steel 12.00 x 12.00 305 x 305
T4S3RSS Stainless Steel 6.00 x 6.00 152 x 152
T6S3RSS Stainless Steel 8.00 x 8.00 203 x 203
T10S3RSS Stainless Steel 12.00 x 12.00 305 x 305
![](asset-32.png)
50
ContractorType 1: Type 3R
WEATHERFLO® Type 3R Vented Enclosures
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
WEATHERFLO® Type 3R Vent ed Enclosu res
WEATHERFLO® with Fan, Type 3R
Industry Standards
UL 508A Listed; Type 3R; File Number E61997
cUL Listed per CSA C22.2 No 94; Type 3R; File Number E61997
NEMA/EEMAC Type 3R
IEC 60529, IP32
Application
WEATHERFLO® Enclosures feature a forced-air ventilation system for
cooling drives or other high-heat producing equipment in outdoor
applications.
Features
• White polyester powder nish with low solar absorption
• Integrated solar shield top and intake cover
• Gasket and lter
• Adjustable thermostat (70-140 F)
• Active cooling ventilation system with factory-installed fan and
lter (115 VAC)
• Terminal power connection for fan
• Easily accessible and washable metal lter
• Top front hood exhaust and door
• Lift-o hinged door
• Quarter-turn latch
• External mounting brackets
• Collar studs provided to mount the optional panel
• Grounding provision on door and body
• Gasketed door
Specications
• 16 and 14 gauge galvanized steel
• Largest two sizes constructed of aluminum
Finish
RAL 9003 white polyester powder texturized nish inside and out.
Accessories
[s-3556]
[s-3559]
[s-3440]
[s-3450]
Bulletin: A3RD
![](asset-33.png)
51
ContractorType 1: Type 3R
WEATHERFLO® Type 3R Vented Enclosures
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Standard Product
Catalog Number AxBxC in./mm
Drive
Horsepower (hp) Panel
Panel Size D x E
in./mm
Mounting Holes G x H
in./mm
I
in./mm
WF3LP 29.00 x 24.00 x 12.00
737 x 610 x 305
3 A24P24 21.00 x 21.00
533 x 533
29.94 x 13.00
760 x 330
5.59
142
WF10LP 35.00 x 24.00 x 12.00
889 x 610 x 305
10 A30P24 27.00 x 21.00
686 x 533
35.94 x 13.00
913 x 330
5.81
148
WF25LP 41.00 x 24.00 x 12.00
1041 x 610 x 305
25 A36P24 33.00 x 21.00
838 x 533
41.94 x 13.00
1065 x 330
5.81
148
WF40LP 47.00 x 24.00 x 14.00
1194 x 610 x 356
40 A42P24 39.00 x 21.00
991 x 533
47.94 x 13.00
1218 x 330
5.81
148
WF75LP 56.00 x 36.00 x 16.00
1422 x 914 x 406
75 A48P36 45.00 x 33.00
1143 x 838
55.94 x 27.00
1421 x 686
7.43
189
WF100LP 67.00 x 36.00 x 16.00
1702 x 914 x 406
100 A60P36 57.00 x 33.00
1448 x 838
67.94 x 27.00
1726 x 686
7.43
189
Purchase panels separately.
![](asset-34.png)
52
ContractorType 1: Type 3R
WEATHERFLO® Type 3R Vented Enclosures
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Technical Information
This information is for guidance only; user is responsible for load values to evaluate the system.
Catalog
Number
Drive
Horsepower (hp) Fan
Fan Size
in./mm Fan VAC
Fan Amps
(50/60 Hz)
System
CFM
Replacement
Filter
WF3LP 3 A4AXFN 4 115 .26/.21 75 WFF1
WF10LP 10 A6AXFN 6 115 .45/.36 160 WFF1
WF25LP 25 A6AXFN 6 115 .45/.36 160 WFF1
WF40LP 40 A6AXFN 6 (2x) 115 .90/.72 200 WFF1
WF75LP 75 A10EFN 10 115 .58/.70 400 WFF2
WF100LP 100 A10EFN 10 (2x) 115 1.16/1.40 500 WFF2
Solar Consideration
The WEATHERFLO® Enclosure’s glossy white nish and solar shield top shroud minimize the heat load caused by the sun. If the allowable
temperature rise is greater than 5 F, the solar load can be neglected because the transmitted load of the illuminated sides would be equal to
the energy dissipated on the sides not exposed to the sun.
![](asset-35.png)
53
ContractorType 1: Type 3R
WEATHERFLO® Type 3R Vented Enclosures
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products

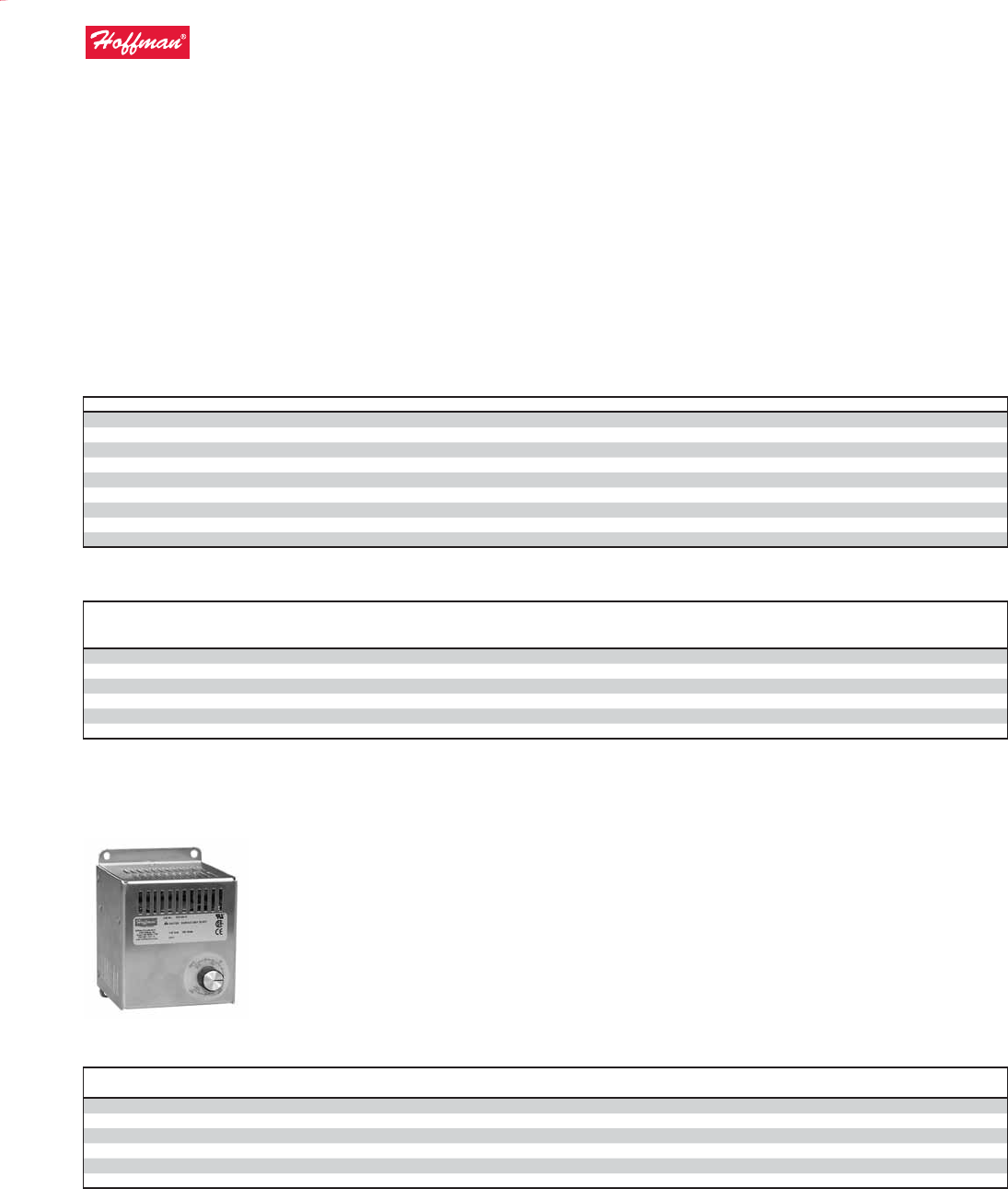

Critical Parameters (upper temperature limits)
Enclosure Heat Load Calculations
Drive heat:
WD = [(HP x 745.7 Watts/HP) / EM] x (I-ED) [Watts]
Total heat:
Estimate an additional 25%a for wire connections and other
components.
WT = WD x 1.25a [Watts]
Required airow:
CFM = (WT x 3.16) / (Tint - Tamb) [ft.3 / min.]
a
This is an estimated factor. Further investigation is necessary to
obtain actual total heat dissipated in enclosure.
Variables
Variable Descriptions Variables Typical Values
Maximum ambient temperature Tamb 104 F
Maximum internal temperature Tint 122 F
Typical temperature rise (Tint - Tamb) 15 F
Full-load drive power HP —
Motor eciencybEM.80-.96
Drive eciencybED.96-.98
Drive heat loss WD—
Total heat loss WT—
Required airow CFM —
bUse full-load eciency. Motor and drive eciency will vary based on HP and voltage.
Sample Values
Drive
HorsePower
(hp)
Typical Full Load
Rating - Motor Eciency
Typical Full Load
Rating - Drive Eciency
Drive Heat
Loss WD (W)
Additional Heat
Lossa(W)
Total Heat
Loss WT(W)
Airow when
tint - Tamb = 15 F
(CFM)
3 .86 .97 78 20 98 21
10 .90 .97 249 62 311 65
25 .91 .97 615 154 768 162
40 .92 .98 648 162 811 171
75 .93 .98 1203 301 1503 317
100 .94 .98 1587 397 1983 418
aAdditional Heat Loss - This is an estimated factor. Further investigation is necessary to obtain actual total heat dissipated in enclosure.
Critical Parameters (lower temperature limits) Determine the ambient operating temperature range of the drive. A
typical operating range is from 14 to 122 F (-10 to 50 C). For outdoor
assemblies in northern climates, the lower operating temperature
may be below the lower temperature limit. To ensure that cold starts
are not below the low limit temperature, the addition of a heater is
recommended.
Homan has 100-, 200-, 400-, and 800-W heaters available with
adjustable thermostats from 0-100 F. For additional information, see
the Thermal Management chapter.
WEATHERFLO
Catalog Number Recommended Heater (115 VAC) Recommended Heater (230 VAC) Heater Size (W)
Estimated Temperature
Rise Above Ambient (ºF)
WF3LP DAH2001A DAH2002A 200 55
WF10LP DAH2001A DAH2002A 200 46
WF25LP DAH2001A DAH2002A 200 40
WF40LP DAH2001A DAH2002A 200 33
WF75LP DAH4001A DAH4002A 400 41
WF100LP DAH4001A DAH4002A 400 37
![](asset-36.png)
54
ContractorType 1: Type 3R
WEATHERFLO® HD
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
WEATHERFLO® HD
WEATHERFLO® HD Enclosures
Industry Standards
UL 508A Listed; Type 3R; File Number E61997
cUL Listed per CSA C22.2 No 94; Type 3R; File Number E61997
NEMA/EEMAC Type 3R
IEC 60529, IP22
Application
WEATHERFLO® HD Enclosures are designed to protect and cool
100-500 HP variable frequency drives. These enclosures provide an
integrated cooling solution for your VFD application needs.
Features
• Optional impeller packages provide 840 actual CFM per impeller
• Easy-to-install back panel with exible installation methods
• Painted white polyester powder nish with low solar absorption
• Selectable bases and tops, designed to meet your specic needs
• Gangable; enclosures can be joined to one another
• Easy-to-change lter (not included)
Specications
• Frames, bases and gland plates constructed of .125-in. aluminum
• Tops and fan housing constructed of .080-in. aluminum
• Sides and standard rear cover constructed of .100-in. aluminum
• Gasketed door, top and base
• Panels and heavy-duty rear cover constructed of 12 gauge mild
steel
• Three-point latches operated by patented padlocking handle
• Grounding provisions on door and body
Finish
RAL 9003 white polyester powder paint nish inside and outside,
including panels, tops, covers and bases.
Accessories
[s-57050]
[s-239171]
[s-3395]
[s-174698]
[s-3385]
Ordering
For your specic needs please identify and order each individual
component.
1. Select frame
2. Select top, dependent on cooling solution
3. Select base, dependent on cooling solution
4. Select panel
5. Select rear cover, HD rear cover designed for applications
when the drive is mounted on rear cover instead of the panel
6. Select number of Impellers (if needed), room for two
impellers per door
Please see Product Selection Matrix on page 4.
Modication and Customization
Homan excels at modifying and customizing products to your
specications. Modication options for WEATHERFLO HD include: size
changes, custom paint, and holes and cut-outs. Contact your local
Homan sales oce or distributor for complete information.
Bulletin: A3RD
![](asset-37.png)
55
ContractorType 1: Type 3R
WEATHERFLO® HD
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Standard ProductOne- and Two-Door Frames
Catalog Number AxBxC in./mm Description
WFHD3E723630 74.14 x 36.00 x 30.00
1883 x 914 x 762
One-Door Frame
WFHD3E726830 74.14 x 68.56 x 30.00
1883 x 1741 x 762
Two-Door Frame
Includes frame, door(s), two sides and four lifting eyes.
%
=
=
:)+'(
==
:)+'(
Tops
Pagoda tops are designed to be used with Homan’s Impeller packages. Pagoda tops include a stainless steel mesh to prevent the ingress of
debris. Solid tops are designed to be used with a closed-loop cooling solution.
Bulletin: A3RD
Catalog Number AxBxC in./mm Description
WFHD3PT3630 15.53 x 36.00 x 33.42
394 x 914 x 849
Pagoda Top, One-Door
WFHD3ST3630 5.50 x 36.26 x 33.42
140 x 921 x 849
Solid Top, One-Door
WFHD3PT6830 15.53 x 68.89 x 33.42
394 x 1750 x 849
Pagoda Top, Two-Door
WFHD3ST6830 5.50 x 68.89 x 33.42
140 x 1750 x 849
Solid Top, Two-Door
$
%
&
$
%
&
![](asset-38.png)
56
ContractorType 1: Type 3R
WEATHERFLO® HD
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products

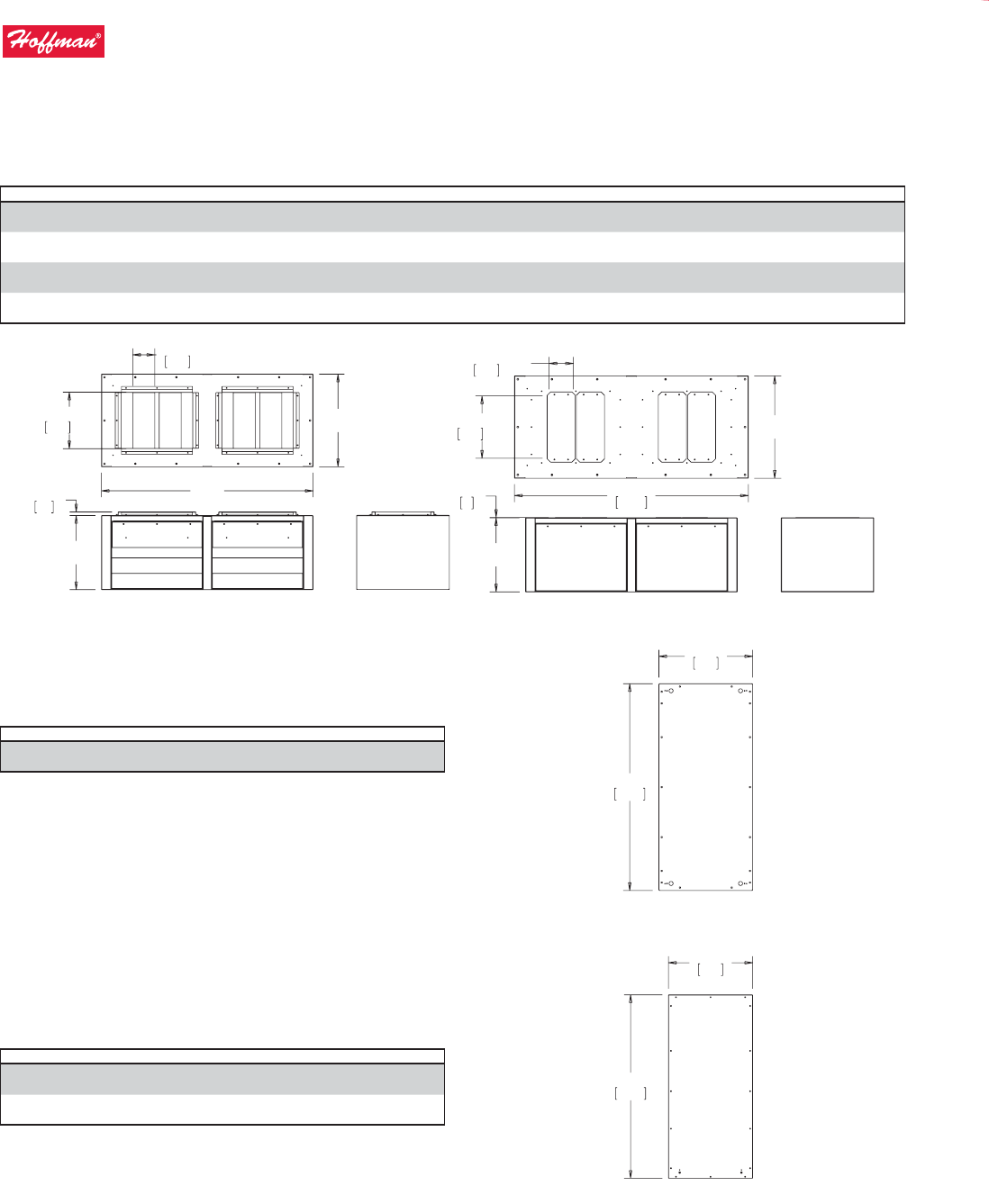

Bases
Vented bases are designed to be used with Homan’s Impeller packages and include a stainless steel mesh to prevent the ingress of debris.
The vented bases have a provision to easily install a standard furnace lter. If vented bases are used, a maximum airow furnace lter is
recommended. Filters are not provided. Solid bases are designed to be used with a closed-loop cooling solution.
Bulletin: A3RD
Catalog Number AxBxC in./mm Description Gland Plate Openings
WFHD3B3630 24.00 x 36.00 x 30.00
610 x 914 x 762
Solid Base, One-Door 2
WFHD3VB3630 24.00 x 36.00 x 30.00
610 x 914 x 762
Vented Base, One-Door 2
WFHD3B6830 24.00 x 68.56 x 30.00
610 x 1741 x 762
Solid Base, Two-Door 4
WFHD3VB6830 24.00 x 68.56 x 30.00
610 x 1741 x 762
Vented Base, Two-Door 4
$
%
&
7<3
7<3
$
7<3
7<3
&
Panel
The panel size and openings are the same regardless of frame size.
Select a panel for each door.
Bulletin: A3RD
Catalog Number AxBxC in./mm Description
WFHDP7236 63.77 x 28.93 x 1.12
1620 x 735 x 28
Panel
Rear Covers
The heavy-duty rear cover is designed for those applications when
the drive is mounted directly to the rear cover of the enclosure
instead of to the panel. Select a rear cover for each door.
Bulletin: A3RD
Catalog Number AxBxC in./mm Description Material
WFHD3RC7236 63.69 x 29.25 x 1.29
1618 x 743 x 33
Aluminum Rear Cover .100-in. Aluminum
WFHD3RCH7236 63.69 x 29.25 x 1.29
1618 x 743 x 33
Heavy-Duty Rear Cover 12 Ga. Mild Steel
![](asset-39.png)
57
ContractorType 1: Type 3R
WEATHERFLO® HD
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products

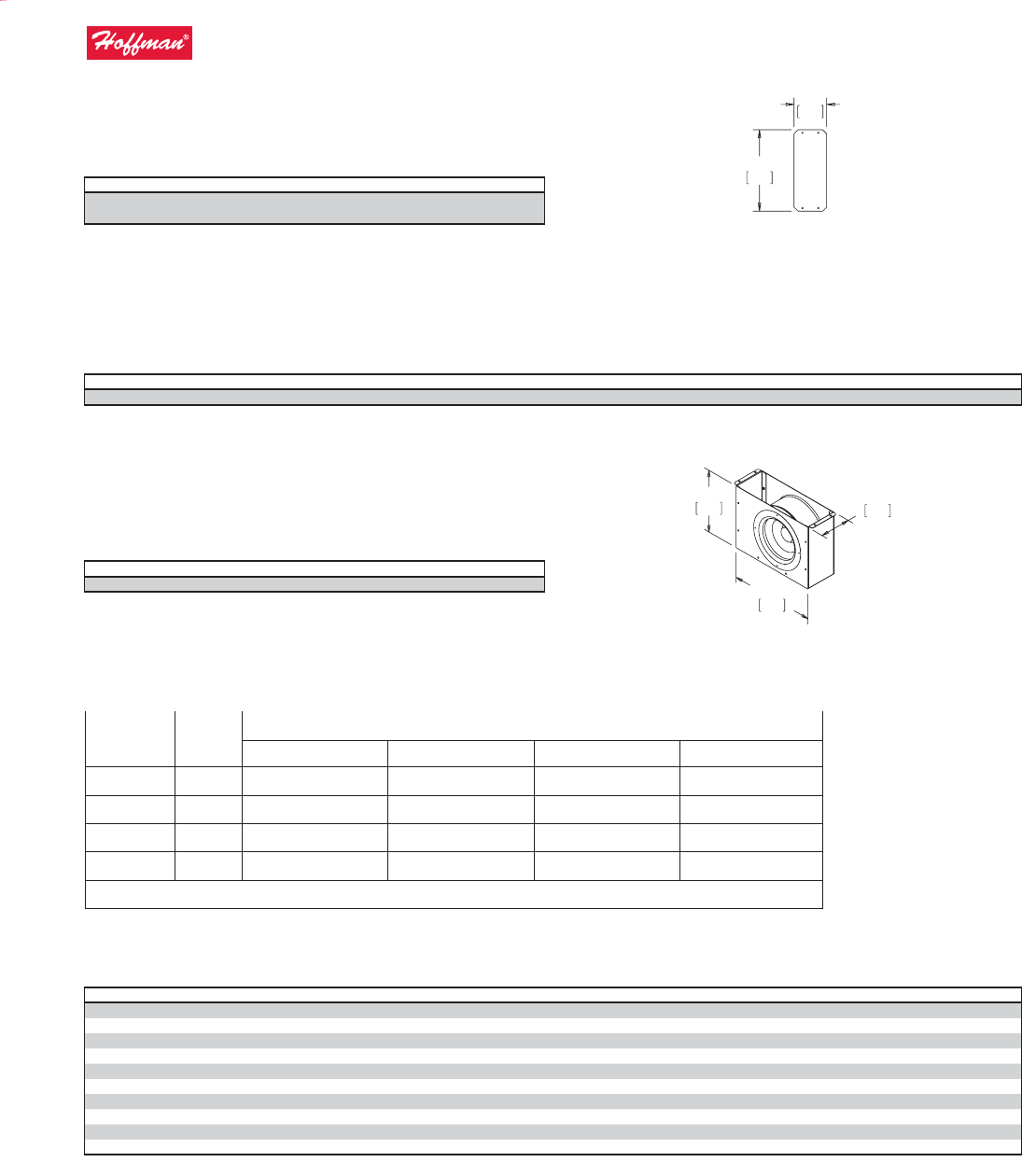

Gland Plate
The gland plate is intended for use in combination with the vented
base to cover unused impeller locations.
Bulletin: A3RD
Catalog Number AxB in./mm Description
WFHD3GP 20.60 x 8.24
523 x 209
Gland Plate
Joining Kit
The joining kit will work on either one- or two-door models. The kit includes hardware and instructions. Enclosures should be joined/ganged
at the application site, as the kit is not designed to be used while the enclosures are in transit.
Catalog Number Description
WFHDJK Joining Kit
Impeller
Each Impeller package includes one high-performance, 115 VAC 60
Hz, shielded impeller and an aluminum housing. Each vented base
has a provision for two impellers per door.
Please see performance chart below.
Catalog Number Description Impeller Qty.
WFHDFP Impeller Package 1
CFM Performance Chart
1
3
2
4
CFM
NO. OF
IMPELLERS
MAX HEAT DISSIPATION (IN WATTS) AT:
10° Delta T 20° Delta T 30° Delta T 40° Delta T
Calculated using the following equation: Watts = .316 x CFM x ΔT
2,654 5,309 7,963 10,618
5,309 10,618 15,926 21,235
7,963 15,926 23,890 31,853
10,618 21,235 31,853 42,470
840
1680
2520
3360
Product Selection Matrix
One-Door Enclosure Two-Door Enclosure
Frame WFHD723630 WFHD3E723630
Solid Top WFHD3ST3630 WFHD3ST6830
Pagoda Top WFHD3PT3630 WFHD33PT6830
Solid Base WFHD3B3630 WFHD3B6830
Vented Base WFHD3VB3630 WFHD3VB6830
Panel WFHDP7236 WFHDP7236
Rear Cover WFHD3RC7236 WFHD3RC7236
Heavy-Duty Rear Cover WFHD3RCH7236 WFHD3RCH7236
Gland Plate WFHD3GP WFHD3GP
Impeller WFHDFP WFHDFP
Two-Door enclosures require two rear covers and two panels.
![](asset-3a.png)
58
ContractorType 1: Telephone Cabinets
Telephone Cabinets and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Telephone Cabin ets
Telephone Cabin ets and Acce ssories
Telephone Cabinet, Type 1
Industry Standards
UL 50, 50E Listed; Type 1; File No. E27567
cUL Listed per CSA C22.2 No 40; Type 1; File No. E27567
NEMA/EEMAC Type 1
IEC 60529, IP30
Application
Telephone Cabinets house telephone and communication cable
terminations as well as electrical controls and instruments in indoor
applications.
Features
• Continuous hinge
• Tumbler lock with key
• Flush or surface mounting
• 3/4-in.-thick plywood mounting panel included
Specications
• 16, 14 or 12 gauge galvanized steel body, mild steel door
Finish
• ANSI 61 gray polyester powder paint on front only
Accessories
[s-3213]
Bulletin: T90
Standard Product
Catalog Number AxBxC in./mm Mount
Panel Size D x E
in./mm
Nominal Door Size F
in./mm
Nominal Door Size G
in./mm
ATC10104S 10.00 x 10.00 x 4.00
254 x 254 x 102
Surface 7.00 x 7.00
178 x 178
6.80
173
6.75
171
ATC10104F 10.00 x 10.00 x 4.00
254 x 254 x 102
Flush 7.00 x 7.00
178 x 178
6.80
173
6.75
171
ATC12124S 12.00 x 12.00 x 4.00
305 x 305 x 102
Surface 9.00 x 9.00
229 x 229
8.30
211
8.25
210
ATC12124F 12.00 x 12.00 x 4.00
305 x 305 x 102
Flush 9.00 x 9.00
229 x 229
8.30
211
8.25
210
ATC18124S 18.00 x 12.00 x 4.00
455 x 305 x 102
Surface 15.00 x 9.00
381 x 229
14.30
363
8.25
210
ATC18124F 18.00 x 12.00 x 4.00
455 x 305 x 102
Flush 15.00 x 9.00
381 x 229
14.30
363
8.25
210
ATC18184S 18.00 x 18.00 x 4.00
455 x 455 x 102
Surface 15.00 x 15.00
381 x 381
14.30
363
14.25
362
ATC18184F 18.00 x 18.00 x 4.00
455 x 455 x 102
Flush 15.00 x 15.00
381 x 381
14.30
363
14.25
362
ATC24184S 24.00 x 18.00 x 4.00
610 x 455 x 102
Surface 21.00 x 15.00
533 x 381
20.30
516
14.25
362
ATC24184F 24.00 x 18.00 x 4.00
610 x 455 x 102
Flush 21.00 x 15.00
533 x 381
20.30
516
14.25
362
ATC24244S 24.00 x 24.00 x 4.00
610 x 610 x 102
Surface 21.00 x 21.00
533 x 533
19.30
490
19.14
486
ATC24244F 24.00 x 24.00 x 4.00
610 x 610 x 102
Flush 21.00 x 21.00
533 x 533
19.30
490
19.14
486
ATC30244S 30.00 x 24.00 x 4.00
762 x 610 x 102
Surface 27.00 x 21.00
686 x 533
25.30
643
19.14
486
ATC30244F 30.00 x 24.00 x 4.00
762 x 610 x 102
Flush 27.00 x 21.00
686 x 533
25.30
643
19.14
486
ATC30304S 30.00 x 30.00 x 4.00
762 x 762 x 102
Surface 27.00 x 27.00
686 x 686
25.30
643
25.14
639
ATC36244S 36.00 x 24.00 x 4.00
914 x 610 x 102
Surface 33.00 x 21.00
838 x 533
31.30
795
19.14
486
ATC36244F 36.00 x 24.00 x 4.00
914 x 610 x 102
Flush 33.00 x 21.00
838 x 533
31.30
795
19.14
486
![](asset-3b.png)
59
ContractorType 1: Telephone Cabinets
Telephone Cabinets and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Catalog Number AxBxC in./mm Mount
Panel Size D x E
in./mm
Nominal Door Size F
in./mm
Nominal Door Size G
in./mm
ATC36364S 36.00 x 36.00 x 4.00
914 x 914 x 102
Surface 33.00 x 33.00
838 x 838
31.30
795
31.14
791
ATC36364F 36.00 x 36.00 x 4.00
914 x 914 x 102
Flush 33.00 x 33.00
838 x 838
31.30
795
31.14
791
ATC12126S 12.00 x 12.00 x 6.00
305 x 305 x 152
Surface 9.00 x 9.00
229 x 229
8.30
211
8.25
210
ATC12126F 12.00 x 12.00 x 6.00
305 x 305 x 152
Flush 9.00 x 9.00
229 x 229
8.30
211
8.25
210
ATC18126S 18.00 x 12.00 x 6.00
455 x 305 x 152
Surface 15.00 x 9.00
381 x 229
14.30
363
8.25
210
ATC18126F 18.00 x 12.00 x 6.00
455 x 305 x 152
Flush 15.00 x 9.00
381 x 229
14.30
363
8.25
210
ATC18186S 18.00 x 18.00 x 6.00
455 x 455 x 152
Surface 15.00 x 15.00
381 x 381
14.30
363
14.25
362
ATC18186F 18.00 x 18.00 x 6.00
455 x 455 x 152
Flush 15.00 x 15.00
381 x 381
14.30
363
14.25
362
ATC24186S 24.00 x 18.00 x 6.00
610 x 455 x 152
Surface 21.00 x 15.00
533 x 381
20.30
516
14.25
362
ATC24186F 24.00 x 18.00 x 6.00
610 x 455 x 152
Flush 21.00 x 15.00
533 x 381
20.30
516
14.25
362
ATC24246S 24.00 x 24.00 x 6.00
610 x 610 x 152
Surface 21.00 x 21.00
533 x 533
19.30
490
19.14
486
ATC24246F 24.00 x 24.00 x 6.00
610 x 610 x 152
Flush 21.00 x 21.00
533 x 533
19.30
490
19.14
486
ATC30246S 30.00 x 24.00 x 6.00
762 x 610 x 152
Surface 27.00 x 21.00
686 x 533
25.30
643
19.14
486
ATC30306S 30.00 x 30.00 x 6.00
762 x 762 x 152
Surface 27.00 x 27.00
686 x 686
25.30
643
25.14
639
ATC30306F 30.00 x 30.00 x 6.00
762 x 762 x 152
Flush 27.00 x 27.00
686 x 686
25.30
643
25.14
639
ATC36246S 36.00 x 24.00 x 6.00
914 x 610 x 152
Surface 33.00 x 21.00
838 x 533
31.30
795
19.14
486
ATC36246F 36.00 x 24.00 x 6.00
914 x 610 x 152
Flush 33.00 x 21.00
838 x 533
31.30
795
19.14
486
ATC36306S 36.00 x 30.00 x 6.00
914 x 762 x 152
Surface 33.00 x 27.00
838 x 686
31.30
795
25.14
639
ATC36306F 36.00 x 30.00 x 6.00
914 x 762 x 152
Flush 33.00 x 27.00
838 x 686
31.30
795
25.14
639
ATC36366S 36.00 x 36.00 x 6.00
914 x 914 x 152
Surface 33.00 x 33.00
838 x 838
31.30
795
31.14
791
ATC36366F 36.00 x 36.00 x 6.00
914 x 914 x 152
Flush 33.00 x 33.00
838 x 838
31.30
795
31.14
791
ATC36308S 36.00 x 30.00 x 8.00
914 x 762 x 203
Surface 33.00 x 27.00
838 x 686
31.30
795
25.14
639
ATC36308F 36.00 x 30.00 x 8.00
914 x 762 x 203
Flush 33.00 x 27.00
838 x 686
31.30
795
25.14
639
Replacement Tumbler Lock Tumbler lock including key available for replacement of door latch
(order separately).
Bulletin: T90
Catalog Number Description
ATCL Keyed Tumbler Lock
![](asset-3c.png)
60
ContractorType 1: Telephone Cabinets
Telephone Cabinets and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
T3-Box Telephone Cabinet, Type 3R
Industry Standards
UL 50, 50E Listed; Type 3R; File No. E27567
UL 497 / 1863 Listed; File No. E230874
cUL Listed per CSA C22.2 No 94; Type 3R; File No. E27567
NEMA Type 3R
IEC 60529 IP32
Application
Use T-3 Box Telephone Cabinets to mount and protect telephone
terminations, telecommunications circuit accessories, cross-connect
terminal block assemblies, maintenance terminal modules, cable-
splice enclosures, network interface devices, wire-guide assemblies
and telephone protectors in outdoor applications.
Features
• Lift-o hinges
• 4-position grounding bar #14-2/0
• Tamper-resistant quarter-turn latch
• 7-mm square drive; use key accessory CLKSM7 or 5/16 12-point
socket
• Padlock hasp
• Standard knockouts
Specications
• 16 or 14 gauge galvanized steel
• 3/4-in.-thick plywood panel
Finish
ANSI 61 gray polyester powder paint inside and outside.
Accessories
[s-3231]
[s-3398]
[s-3523]
[s-3428]
Bulletin: T90R3
Standard Product
Catalog Number AxBxC in./mm Door
F
in./mm
Panel Size D x E
in./mm Conduit Pattern
ATC12R145 12.00 x 14.00 x 5.00
305 x 356 x 127
Single 4.00
102
9.00 x 11.00
229 x 279
G-H-I
ATC36R366 36.00 x 36.00 x 6.00
914 x 914 x 152
Single 13.50
343
33.00 x 33.00
838 x 838
C-D-E-F-G-H-I-J-K-L-M
ATC26R248 26.00 x 24.00 x 8.00
660 x 610 x 203
Single 7.50
191
23.00 x 21.00
584 x 533
E-F-G-H-I-J-K
ATC36R248 36.00 x 24.00 x 8.00
914 x 610 x 203
Single 7.50
191
33.00 x 21.00
838 x 533
E-F-G-H-I-J-K
ATC36R308 36.00 x 30.00 x 8.00
914 x 763 x 203
Single 10.50
267
33.00 x 27.00
838 x 686
D-E-F-G-H-I-J-K-L
ATC36R369 36.00 x 36.00 x 9.00
914 x 914 x 229
Single 13.50
343
33.00 x 33.00
838 x 838
C-D-E-F-G-H-I-J-K-L-M
ATC42R369 42.00 x 36.00 x 9.00
1066 x 914 x 229
Double 13.50
343
39.00 x 33.00
911 x 838
C-D-E-F-G-H-I-J-K-L-M
ATC48R369 48.00 x 36.00 x 9.00
1220 x 914 x 229
Double 13.50
343
45.00 x 33.00
1143 x 838
C-D-E-F-G-H-I-J-K-L-M
ATC48R489 48.00 x 48.00 x 9.00
1219 x 1219 x 229
Double 19.50
495
45.00 x 45.00
1143 x 1143
A-B-C-D-E-F-G-H-I-J-K-L-M-O
ATC36R3612 36.00 x 36.00 x 12.00
914 x 914 x 305
Single 13.50
343
33.00 x 33.00
838 x 838
C-D-E-F-G-H-I-J-K-L-M
![](asset-3d.png)
61
ContractorType 1: Telephone Cabinets
Telephone Cabinets and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Locking T Handle Optional locking T-Handle available for replacement of the quarter-
turn latch (order separately).
Bulletin: T90R3
Catalog Number Description
ALTC3R Available for replacement of the quarter-turn latch
![](asset-3e.png)
62
ContractorType 1: Current Transformer Cabinets and Terminal Boxes
Current Transformer Cabinets
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Current Transfo rmer Cabine ts and Termina l Boxes
Current Transfo rmer Cabine ts
Current Transformer, Screw Cover, Type 3R
Industry Standards
UL 50, 50E Listed; Type 3R; File No. E27525
cUL Listed per CSA C22.2 No 94; Type 3R; File No. E27525
NEMA Type 3R
IEC 60529, IP32
Application
Current Transformer Cabinets provide outdoor protection and
security for instrument current transformers, which are frequently
required for transformer-rated watt-hour metering. Cabinets can also
be used as junction or service boxes and house meter, transformer,
relay or terminal assemblies.
Features
• Dripshield top and seam-free sides, front and back
• Slip-on removable cover fastened with captivated plated steel
screws along bottom edge
• Mounting studs on enclosure body
• Mounting holes on back of enclosure
• Door handles provided
• Provisions for padlocking
• No gasketing or knockouts
• Ground lug
Specications
• 16, 14 or 12 gauge plated steel
Finish
ANSI 61 gray polyester powder paint nish inside and out over plated
surfaces.
Accessories
[s-3433]
[s-3458]
[s-3428]
Bulletin: A90CT
Standard Product
Catalog Number AxBxC in./mm
D
in./mm
E
in./mm
F
in./mm
G
in./mm
H
in./mm
A242411CT 24.00 x 24.00 x 11.00
610 x 610 x 279
12.19
310
9.00
229
8.00
203
8.00
203
—
—
A303011CT 30.00 x 30.00 x 11.00
762 x 762 x 279
15.19
386
12.00
305
7.00
178
8.00
203
8.00
203
A363011CT 36.00 x 30.00 x 11.00
914 x 762 x 279
18.19
462
15.00
381
7.00
178
8.00
203
8.00
203
A363611CT 36.00 x 36.00 x 11.00
914 x 914 x 279
18.19
462
15.00
381
10.00
254
8.00
203
8.00
203
A483611CT 48.00 x 36.00 x 11.00
1219 x 914 x 279
24.19
614
21.00
533
10.00
254
8.00
203
8.00
203
![](asset-3f.png)
63
ContractorType 1: Current Transformer Cabinets and Terminal Boxes
Current Transformer Cabinets
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
![](asset-40.png)
64
ContractorType 1: Current Transformer Cabinets and Terminal Boxes
Current Transformer Cabinets
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products

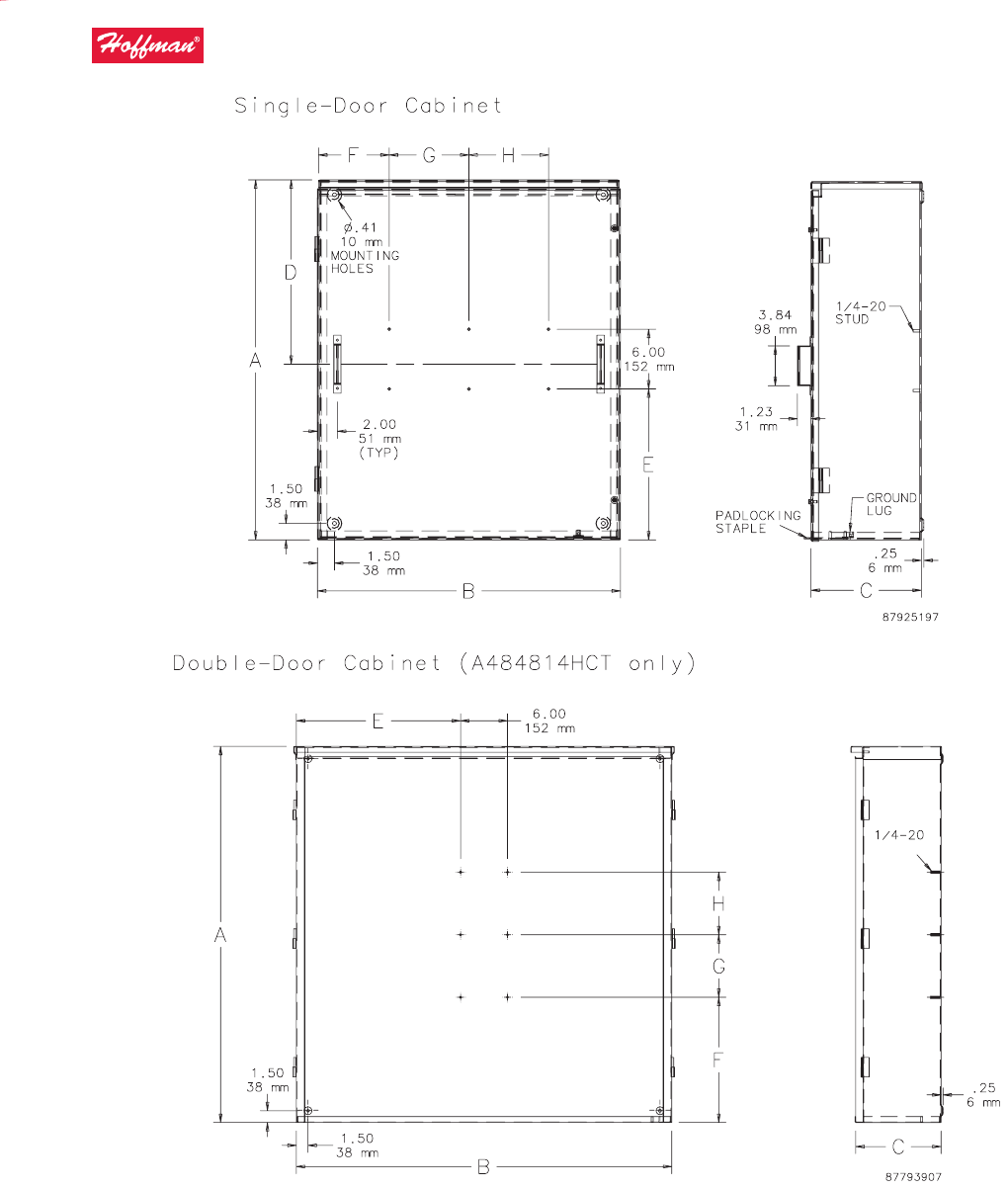

Current Transformer, Hinged Cover, Type 3R
Industry Standards
UL 50, 50E Listed; Type 3R; File No. E27525
cUL Listed per CSA C22.2 No 94; Type 3R; File No. E27525
NEMA Type 3R
IEC 60529, IP32
Application
Current Transformer Cabinets provide outdoor protection and
security for instrument current transformers, which are frequently
required for transformer-rated watt-hour metering. Cabinets can also
be used as junction or service boxes and house meter, transformer,
relay or terminal assemblies.
Features
• Dripshield top and seam-free sides, front and back
• Mounting holes on back of enclosure
• Mounting studs are provided on the enclosure body
• Cover is removable in the open position
• Door handles provided
• Provisions for padlocking
• No gasketing or knockouts
• Ground lug
• Mounting provisions for optional door stop
Specications
• 14 or 12 gauge galvanized steel
Finish
ANSI 61 gray polyester powder paint nish inside and out over
galvanized surfaces.
Accessories
[s-3433]
[s-3458]
[s-3428]
[s-3398]
Bulletin: A90CT
Standard Product
Catalog Number AxBxC in./mm Gauge
D
in./mm
E
in./mm
F
in./mm
G
in./mm
H
in./mm
A362011HCT 36.00 x 20.00 x 11.00
914 x 508 x 279
14 18.75
476
15.00
381
6.67
169
8.00
203
—
—
A302411HCT 30.00 x 24.00 x 11.00
762 x 610 x 279
14 15.75
400
12.00
305
8.00
203
8.00
203
—
—
A482411HCT 48.00 x 24.00 x 11.00
1219 x 610 x 279
14 24.75
629
21.00
533
8.00
203
8.00
203
—
—
A363011HCT 36.00 x 30.00 x 11.00
914 x 762 x 279
12 18.75
476
15.00
381
7.00
178
8.00
203
8.00
203
A483011HCT 48.00 x 30.00 x 11.00
1219 x 762 x 279
12 24.75
629
21.00
533
7.00
178
8.00
203
8.00
203
A363611HCT 36.00 x 36.00 x 11.00
914 x 914 x 279
12 18.75
476
15.00
381
10.00
254
8.00
203
8.00
203
A483611HCT 48.00 x 36.00 x 11.00
1219 x 914 x 279
12 24.75
629
21.00
533
10.00
254
8.00
203
8.00
203
A484814HCT 48.00 x 48.00 x 14.00
1220 x 1220 x 356
12 —
—
21.00
533
16.00
406
8.00
203
8.00
203
A484814HCT is a double-door cabinet.
![](asset-41.png)
65
ContractorType 1: Current Transformer Cabinets and Terminal Boxes
Current Transformer Cabinets
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
![](asset-42.png)
66
ContractorType 1: Current Transformer Cabinets and Terminal Boxes
Current Transformer Cabinets
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
CT Mounting Base
Industry Standards
UL 414 Listed; File E240312
Application
Available in three variations of conductor connection styles to match
your application: 1/2-in. studs on 1-3/4-in. centers, a model with
mechanical lugs and a model with lugs on one side and studs on the
other to accommodate the preference dierence between line and
load connections. Pre-punched mounting base holes align with the
studs in a CT enclosure.
Features
• Spacing for bar-type current transformer that conforms to ANSI
12.11
• Conductor provisions: either mechanical lugs or 1/2-in. bolt on
1-3/4-in. centers with nut, spring and at washer
• Neutral bar with 10-32 tap screw
Specications
• 12-gauge galvanized formed base has electrically isolated mount/
termination platform
Finish
Galvanized (mounting plate only)
Bulletin: A90CM
Standard Product CT Mounting Base
Catalog Number A.I.C. Rating Ampacity
Voltage
Max. VAC Service Type
No. of CT
Provisions Connection
CTMB8001 50,000 400-800 600 1Ø3W 2 Studs
CTMB8003 50,000 400-800 600 3Ø4W 3 Studs
CTMB4001L 50,000 400 600 1Ø3W 2 Lugsa
CTMB8003L 50,000 800 600 3Ø4W 3 Lugsa
CTMB4001LS 50,000 400 600 1Ø3W 2 Lugs and Studsa
aWire range per phase: (3) 750MCM to 1/0 or (6) 250MCM to 1/0
Wire Bend Space
Catalog Number
CTMB8001,
CTMB4001LS (in.)
CTMB8001,
CTMB4001LS (mm) CTMB8003 (in.) CTMB8003 (mm) CTMB4001L (in.) CTMB4001L (mm) CTMB8003L (in.) CTMB8003L (mm)
A303011CT 6.75 171 6.75 171 7.25 184 7.25 184
A363011CT 9.75 248 9.75 248 10.25 260 10.25 260
A363611CT 9.75 248 9.75 248 10.25 260 10.25 260
A483611CT 15.75 400 15.75 400 16.25 413 10.25 260
A302411HCT 6.75 171 n/a n/a 7.25 184 n/a n/a
A482411HCT 15.75 400 n/a n/a 16.25 413 n/a n/a
A363011HCT 9.75 248 9.24 235 10.25 260 10.25 260
A483011HCT 15.75 400 15.75 400 16.25 413 16.25 413
A363611HCT 9.75 248 9.75 248 10.25 260 10.25 260
A483611HCT 15.75 400 15.75 400 16.25 413 16.25 413
Consult UL414 for minimum space requirements based on the wire size and the number of wires per terminal.
![](asset-43.png)
67
ContractorType 1: Current Transformer Cabinets and Terminal Boxes
Current Transformer Cabinets
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
![](asset-44.png)
68
ContractorType 1: Current Transformer Cabinets and Terminal Boxes
Current Transformer Cabinets
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Current Transformer Cabinets, 400-800 Amp, Type 3R
Industry Standards
UL 414 Listed; Type 3R; File No. E240312
UL 50, 50E Listed; Type 3R; File No. E27525
cUL Listed per CSA C22.2 No 94; Type 3R; File No. E27525
NEMA Type 3R
IEC 60529, IP32
Application
These Current Transformer Cabinets (for Window-Type Current
Transformers) provide Type 3R protection and a factory-installed
wiring buss for 400-800 Amp, 600 VAC current transformers. The
assembly has a 50 k AIC rating.
Features
• Overlapping double-door model with 3-point latch and lift-o
hinges
• Door stop provision included
• Includes padlock provisions in handle
• Mild steel hinges
• Use with window-type current transformer
• Drip-shield top and seam-free sides, front and back
• Three removable copper buss bars
• Buss bar cross section 3.00 in. x .25 in. (76 mm x 6 mm)
• Neutral bar
• Aluminum mechanical lugs dual rated (Cu/Al), two conductor
• Maximum conductor size 600 kcmil
• Insulating bar mounting bracket 12 gauge painted steel
• Mounting holes on back of enclosure
• No gasketing or knockouts
• Ground stud provided
Specications
14 gauge galvanized steel
Finish
ANSI 61 gray polyester powder paint
Electrical Specications
400-800 Amp, 50 k AIC, 600 VAC
Accessories
[s-3428]
Bulletin: A90CT
Standard Product
Catalog Number AxBxC in. AxBxC mm Style
A800HCT1R 36.00 x 36.00 x 11.00 914 x 914 x 305 Hinged double-door
![](asset-45.png)
69
ContractorType 1: Current Transformer Cabinets and Terminal Boxes
Current Transformer Cabinets
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
![](asset-46.png)
70
ContractorType 1: Current Transformer Cabinets and Terminal Boxes
Current Transformer Cabinets
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
3-Phase 400-1200 Amp with Mechanical Lugs, Type 3R
Industry Standards
UL 414 Listed; Type 3R; File No. E240312
UL 50, 50E Listed; Type 3R; File No. E27525
cUL Listed per CSA C22.2 No 94; Type 3R; File No. E27525
NEMA Type 3R
IEC 60529, IP 32
Application
Used in indoor or outdoor applications, these cabinets provide an
assembly solution for three-phase service from 400-1200 amp line
load terminations for each phase and neutral. Hardware to mount a
bar-style current transformer is included.
Features
• Double door with 3-point latch includes padlock feature
• Lift-o hinges for removable doors
• Mechanical lugs provided for three-phase line-load connections
plus neutral
• Gound lug
• Catalog no. A1200NECT includes panel-mounting provisions for
voltage transformer (VT)
• Embossed mounting holes
• No gasketing or knockouts
Specications
• Enclosure body and cover constructed of galvanized steel
Finish
ANSI 61 gray polyester powder paint nish inside and out.
Accessories
[s-3428]
Bulletin: ARCT
Standard Product
Catalog Number AxBxC in./mm Service Mechanical Lug Capacity

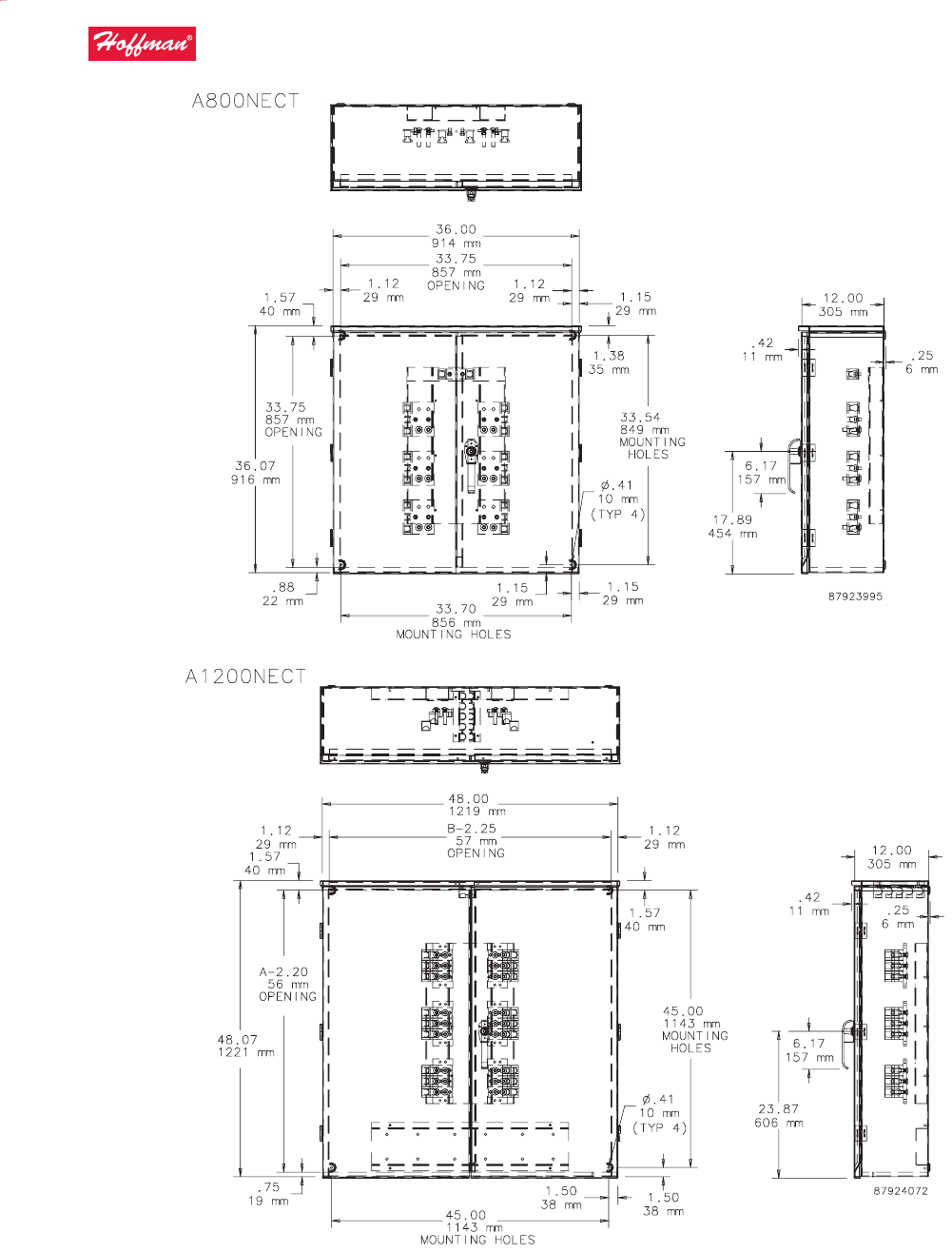

A800NECT 36.00 x 36.00 x 12.00
914 x 914 x 305
208Y/120-400 and 800 Amp Each Phase (3) 750MCM-1/0
A1200NECT 48.00 x 48.00 x 12.00
1219 x 1219 x 305
208Y/120-480Y/277-800 and 1200 Amp Each Phase (6) 750MCM-1/0
![](asset-47.png)
71
ContractorType 1: Current Transformer Cabinets and Terminal Boxes
Current Transformer Cabinets
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
![](asset-48.png)
72
ContractorType 1: Current Transformer Cabinets and Terminal Boxes
Current Transformer Cabinets
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products

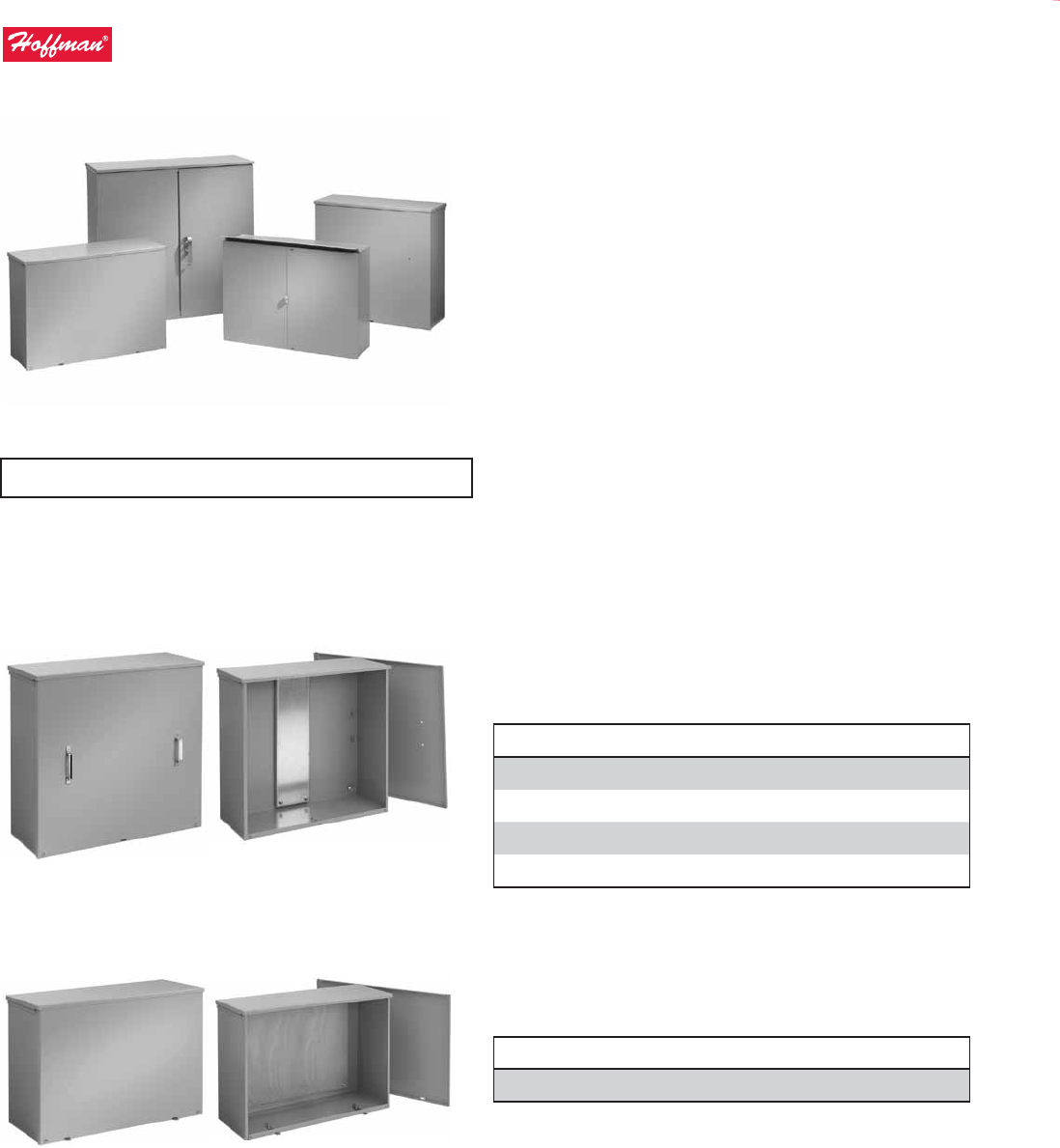

Current Transformer, Type 3R, Overview
Industry Standards
UL 50, 50E Listed; Type 3R; File No. E27525, E27567
cUL Listed per CSA C22.2 No 94; File No. E27525, E27567
NEMA Type 3R
IEC 60529, IP32
Models with termination lugs also have UL414, File No. E240312
Application
These cabinets are available in a variety of sizes, models and
instrument current transformer mounting methods to t a wide
range of applications.
Features
• Drip-shield top and seam-free sides, front and back
• Welded-in collar studs supply provisions for mounting panel
• Provision for padlocking
• Ground lug on body
• Mounting holes on back of enclosure
• No gasketing or knockouts
Specications
• 14 gauge galvanized steel enclosure body and cover
• Enclosure bottom of 16 gauge galvanized steel
Finish
ANSI 61 gray polyester power paint inside and out over pretreated
surfaces.
Screw Cover with Steel Foot Mount Panel Features
• Cover with handles and captivated screws
• 12 gauge plated mounting panel
• Panel studs allow for either vertical or horizontal panel mounting
Bulletin: A90CT
Catalog Number AxBxC in./mm
CT Panel D x E
in./mm
A303012CTCJ 30.07 x 30.00 x 12.00
764 x 762 x 305
29.00 x 7.25
737 x 184
A363614CTCJ 36.07 x 36.00 x 14.00
916 x 914 x 356
35.00 x 7.25
889 x 184
A424214CTCJ 42.07 x 42.00 x 14.00
1069 x 1067 x 356
41.00 x 7.25
1041 x 184
A484814CTCJ 46.81 x 48.00 x 14.00
1189 x 1219 x 356
45.73 x 7.25
1162 x 184
Lift-O Cover with Wood Panel Features
• Includes 3/4-in. plywood panel
• Screw cover with two padlock or sealing locations
Bulletin: A90CT
Catalog Number AxBxC in./mm
CT Panel D x E
in./mm
A243212CTDP 24.32 x 32.50 x 13.00
618 x 826 x 330
21.00 x 21.00
533 x 533
![](asset-49.png)
73
ContractorType 1: Current Transformer Cabinets and Terminal Boxes
Current Transformer Cabinets
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Hinged Screw Cover with Steel Panel Features
• Includes steel panel
• Center sealing locations
Bulletin: A90CT
Catalog Number AxBxC in./mm
CT Panel D x E
in./mm
A243210CTC 24.00 x 32.00 x 10.00
610 x 813 x 254
21.00 x 29.25
533 x 743
A304410CTC 30.00 x 44.00 x 10.00
762 x 1118 x 254
27.00 x 41.25
686 x 1048
Hinged Double-Door with Three-Point Latch
and Wood Panel
Features
• Includes 3/4-in. plywood panel
• Three-point latch with seal or padlock
Bulletin: A90CT
Catalog Number AxBxC in./mm
CT Panel D x E
in./mm
A404014CTDP 40.07 x 40.00 x 14.00
1018 x 1016 x 356
33.00 x 27.00
838 x 686
400- and 800-Amp Bar-Type Mount with Line/
Load Lugs
Features
• Lift-o hinges
• Doorstop
• Line and load lugs
• Staple for seal or padlock
• Quarter-turn latch
Bulletin: A90CT
Catalog Number AxBxC in./mm Phase Wire Range per Phase
A400HCTB 48.07 x 30.00 x 11.00
1221 x 762 x 279
3Ø (1) 1/0-750MCM or (2) 1/0-250MCM
A800HCTB 48.07 x 30.00 x 11.00
1221 x 762 x 279
3Ø (3) 1/0-750MCM or (6) 1/0-250MCM
Vented Double Door Features
• Double door with 3-point latch that includes padlock feature
• Lift-o hinges for removable doors
• Ventilating louvers with insect barrier
• Welded 1.625 x 1.625 in. mounting channel
Bulletin: A90CT
Catalog Number AxBxC in./mm Construction
A203012BGECT 20.00 x 30.00 x 12.00
508 x 762 x 305
Galvanized; spot-welded
A364214BGECT 36.00 x 42.00 x 14.00
914 x 1067 x 356
Aluminum; riveted
A423614BGECT 42.00 x 36.00 x 14.00
1067 x 914 x 356
Aluminum; riveted
![](asset-4a.png)
74
ContractorType 1: Current Transformer Cabinets and Terminal Boxes
Type 3R Terminal Box and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Type 3R Terminal Box an d Accessori es
Terminal Box, Type 3R
Industry Standards
UL 1773 Listed; Type 3R; File No. E256098
UL 50, 50E Listed; Type 3R; File No. E27525
cUL Listed per CSA C22.2 No 94; Type 3R; File No. E27525
NEMA/EEMAC Type 3R
IEC 60529, IP32
Application
These Terminal Boxes are wire-splice boxes for outdoor commercial
and industrial applications that have a feeder tap to branch circuits.
Boxes are available in three- or four-wire congurations in sizes up to
400 A.
Features
• Drip-shield top and seam-free sides, front and back
• Removable cover
• Distribution lugs installed (see table for sizes)
• Hub opening at top with cover
• Provisions for padlocking or seal
• Knockouts on bottom of enclosure
• Grounding provisions
Specications
• 16 gauge galvanized steel
Finish
ANSI 61 gray polyester powder paint nish inside and out over
galvanized steel.
Accessories
[s-3428]
[s-55664]
[s-55669]
Bulletin: S90B3
Standard Product
Catalog Number AxBxC in./mm Volts Phase Amps
Number
of Bars Wire Range
G
in./mm
H
in./mm
TB3R101 18.00 x 10.75 x 4.50
457 x 273 x 114
120/240 1Ø 100 3 (6) #14-2/0 15.00
381
3.88
99
TB3R103 18.00 x 10.75 x 4.50
457 x 273 x 114
600 3Ø 100 4 (6) #14-2/0 15.00
381
3.88
99
TB3R103240 18.00 x 8.00 x 114.00
457 x 203 x 5
120/240 3Ø 100 4 (6) #14-2/0 15.00
381
3.88
99
TB3R201 23.00 x 14.00 x 4.50
584 x 356 x 114
120/240 1Ø 200 3 (6) #6-350MCM 20.00
508
5.50
140
TB3R203 23.00 x 14.00 x 4.50
584 x 356 x 114
600 3Ø 200 4 (6) #6-350MCM 20.00
508
5.50
140
TB3R203240 23.00 x 12.00 x 114.00
584 x 305 x 5
120/240 3Ø 200 4 (6) #6-350MCM 20.00
508
5.50
140
TB3R401 27.00 x 20.50 x 6.00
686 x 521 x 152
120/240 1Ø 400 3 (6) #4-600MCM 24.00
610
8.75
222
TB3R403 27.00 x 20.50 x 6.00
686 x 521 x 152
600 3Ø 400 4 (6) #4-600MCM 24.00
610
8.75
222
TB3R401 is UL and cUL for copper conductor only
![](asset-4b.png)
75
ContractorType 1: Current Transformer Cabinets and Terminal Boxes
Type 3R Terminal Box and Accessories
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Interchangeable Bolt-on Hub Bulletin: S90B3
Catalog Number Fits Conduit Size (in.) Fits Conduit Size (mm)
TBHUB10 1.00 25
TBHUB12 1.25 32
TBHUB15 1.50 38
TBHUB20 2.00 51
TBHUB25 2.50 64
Lug Assembly Bulletin: S90B3
Catalog Number Wire Range
TBL100 (6) #14-2/0
TBL200 (6) #6-350 MCM
TBL400 (6) #4-600 MCM
![](asset-4c.png)
76
ContractorType 1: Electrical Utility
Sectionalizing
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Electrical U tility
Sectionali zing

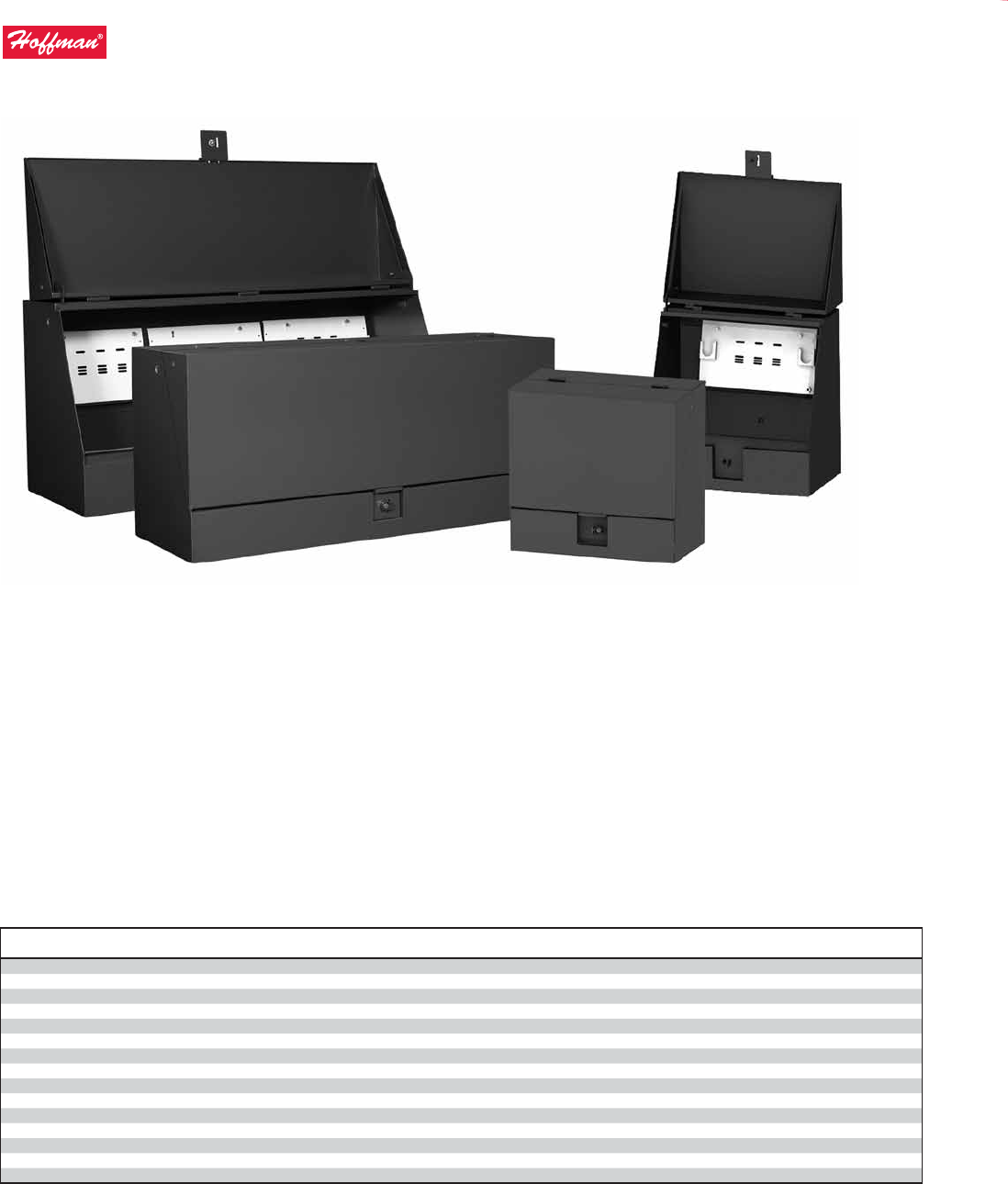

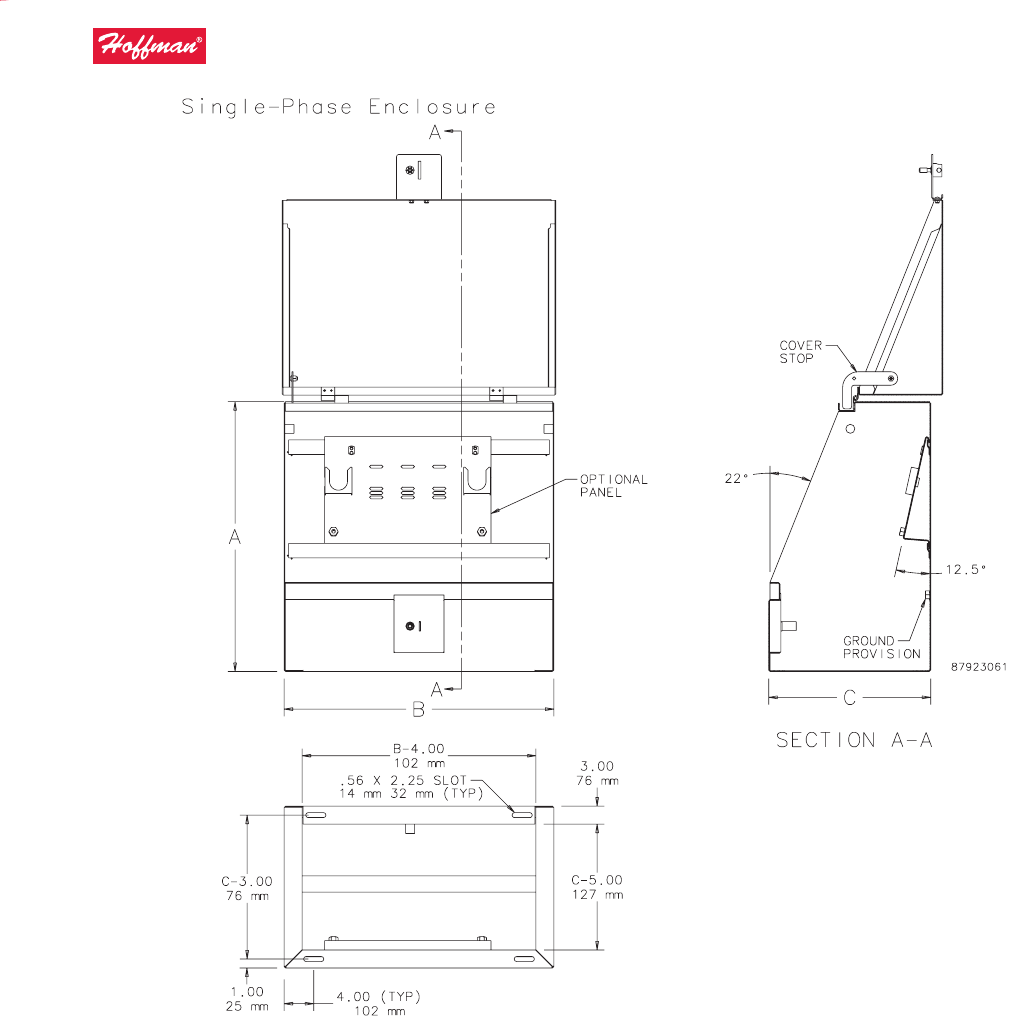

Utility Junction (UJ) Cabinets
Industry Standards
ANSI C57.12.28 Pad-Mounted Equipment Enclosure Integrity
RUS Approved
Application
Enclosures provide sectionalizing and tap-point functionality for
underground distribution systems. Available in a wide variety of
single- and three-phase models, these enclosures are rated 15 and 25
KV at 200 or 600 amperes and will accept two-, three- and four-way
junctions from all manufacturers.
Features
• Recessed stainless steel penta-head bolt with padlock security
system standard on all models
• 5/8-11 threaded lifting provisions
• Wind stop standard on all models (two stops provided if B
dimension is greater than or equal to 42-in.)
• Ground nut for each phase
• Full range of modications available on request
Specications
• Welded 12 gauge steel or .125 aluminum construction (stainless
steel available as a modication)
• When ordering UJ cabinets, customer may specify multiple
mounting panel options, including mild steel, galvanized and
stainless steel (panels must be purchased separately)
Finish
• Munsell Green 7GY3.29/1.5 polyester powder paint nish inside
and out over pretreated surfaces
• Mounting panels have white polyester powder paint over
pretreated surfaces
Bulletin: UJ
Standard ProductEnclosures
Catalog Number AxBxC in. AxBxC mm Material
Recommended
Panel Qty.
Recommended
Panel Style
UJ303018M2 30.00 x 30.00 x 18.00 762 x 762 x 457 Steel 1 B or D
UJ303019M2 30.00 x 30.00 x 19.00 762 x 762 x 483 Steel 1 B or D
UJ303023M2 30.00 x 30.00 x 23.00 762 x 762 x 584 Steel 1 B or D
UJ303024M2 30.00 x 30.00 x 24.00 762 x 762 x 610 Steel 1 B or D
UJ304824M2 30.00 x 48.00 x 24.00 762 x 1219 x 610 Steel 2 B or D
UJ306018M2 30.00 x 30.00 x 18.00 762 x 762 x 457 Steel 3 A or C
UJ306424M2 30.00 x 64.00 x 24.00 762 x 1626 x 610 Steel 1, 2 A or C, B or D
UJ306623M2 30.00 x 66.00 x 23.00 762 x 1676 x 584 Steel 1, 2 A or C, B or D
UJ306724M2 30.00 x 67.00 x 24.00 762 x 1702 x 610 Steel 3 B or D
UJ307424M2 30.00 x 74.00 x 24.00 762 x 1880 x 610 Steel 3 B or D
UJ307622M2 30.00 x 76.00 x 22.00 762 x 1930 x 559 Steel 3 B or D
UJ482618M2 48.00 x 26.00 x 18.00 1219 x 660 x 457 Steel 1 B or D
UJ303018A 30.00 x 30.00 x 18.00 762 x 762 x 457 Aluminum 1 B or D
UJ306018A 30.00 x 60.00 x 18.00 762 x 1524 x 457 Aluminum 3 A or C
UJ306723A 30.00 x 67.00 x 23.00 762 x 1702 x 584 Aluminum 3 B or D
![](asset-4d.png)
77
ContractorType 1: Electrical Utility
Sectionalizing
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
![](asset-4e.png)
78
ContractorType 1: Electrical Utility
Sectionalizing
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
![](asset-4f.png)
79
ContractorType 1: Electrical Utility
Sectionalizing
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products

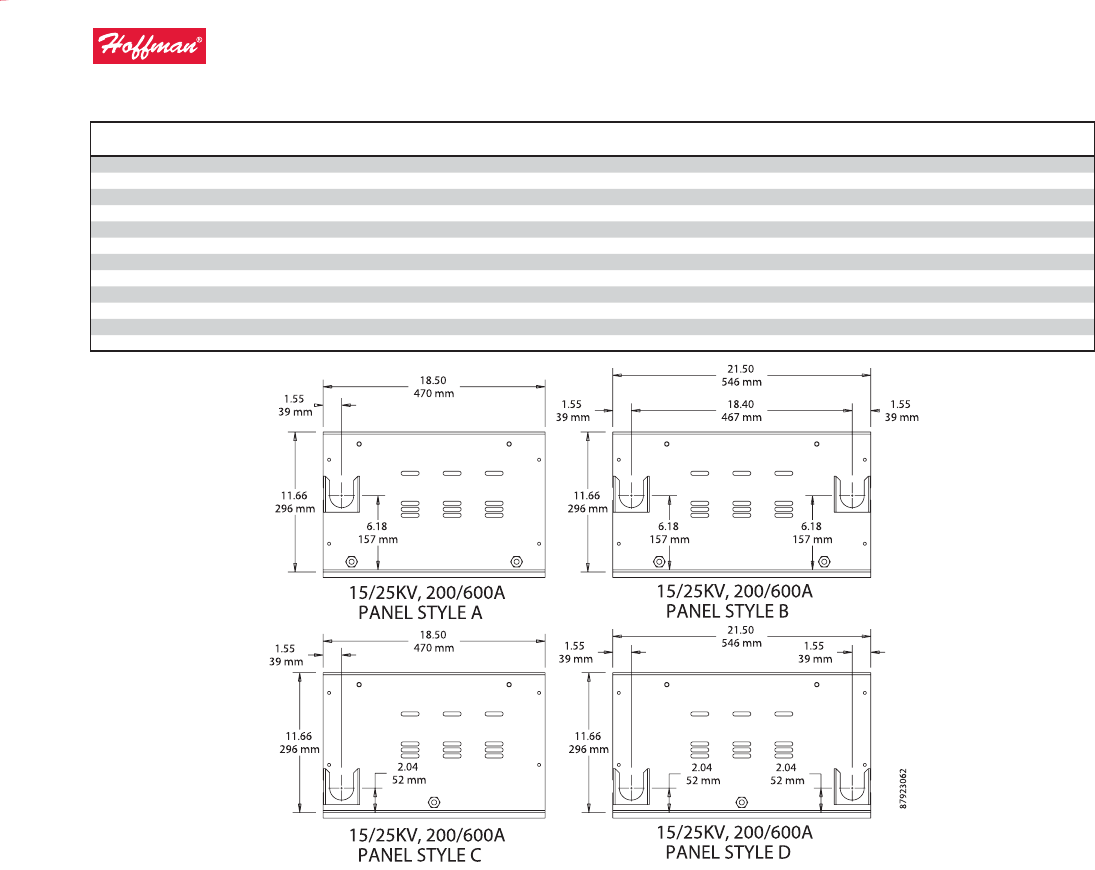

Standard Panels
Catalog Number AxBxC in. AxBxC mm Panel Material Style
No. of
Parking Stands
UJP1M 11.66 x 18.50 296 x 470 Mild Steel A 1
UJP2M 11.66 x 21.50 296 x 546 Mild Steel B 2
UJP1MOFF 11.66 x 18.50 296 x 470 Mild Steel C 1
UJP2MOFF 11.66 x 21.50 296 x 546 Mild Steel D 2
UJP1G 11.66 x 18.50 296 x 470 Galvanneal A 1
UJP2G 11.66 x 21.50 296 x 546 Galvanneal B 2
UJP1GOFF 11.66 x 18.50 296 x 470 Galvanneal C 1
UJP2GOFF 11.66 x 21.50 296 x 546 Galvanneal D 2
UJP1SS 11.66 x 18.50 296 x 470 Stainless Steel A 1
UJP2SS 11.66 x 21.50 296 x 546 Stainless Steel B 2
UJP1SSOFF 11.66 x 18.50 296 x 470 Stainless Steel C 1
UJP2SSOFF 11.66 x 21.50 296 x 546 Stainless Steel D 2
![](asset-50.png)
80
ContractorType 1: Canadian Cabinets and Splitters
Canadian Cabinets
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Canadian Cabi nets and Spl itters
Canadian Cabi nets

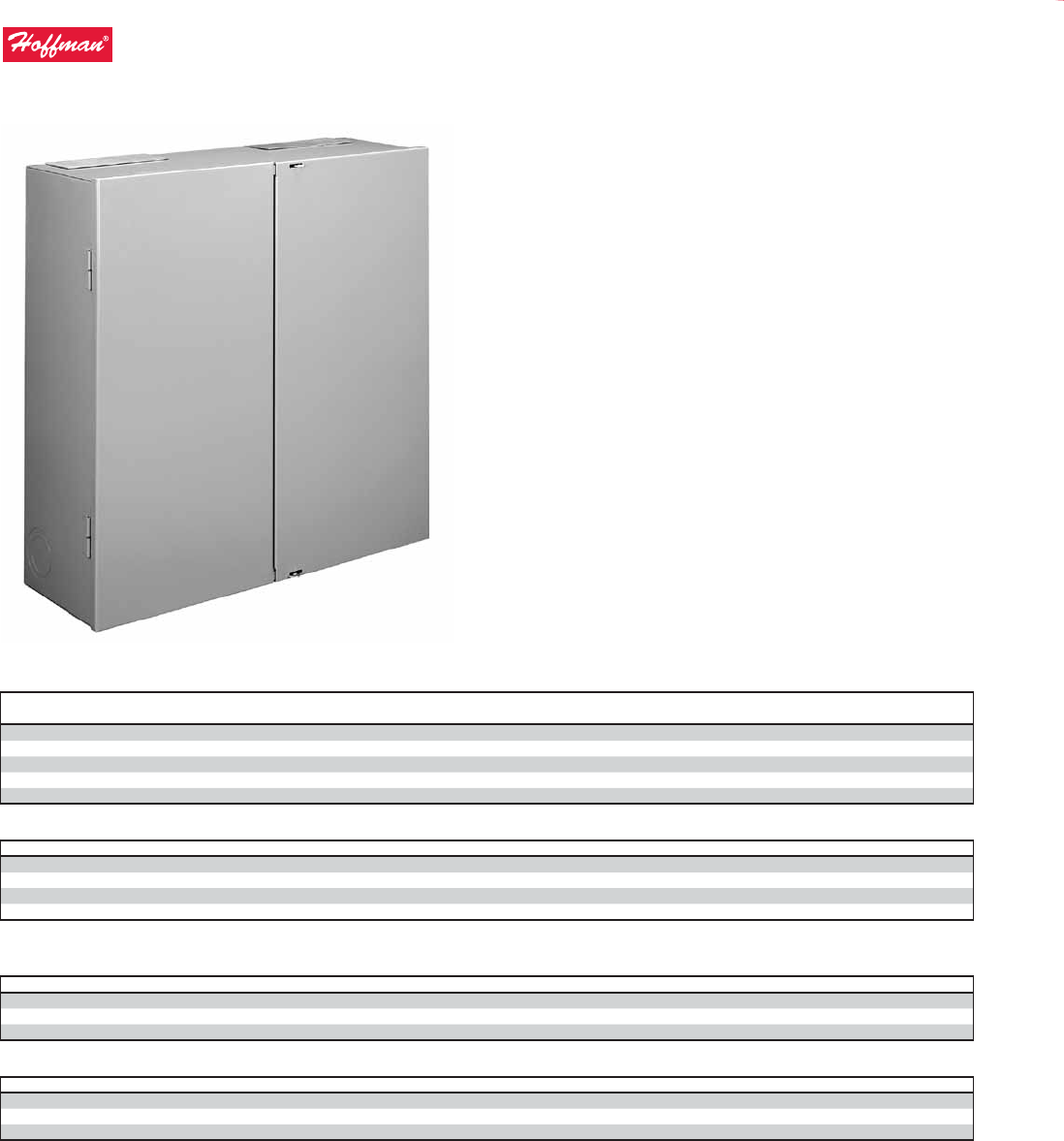

Metering, Type 1
Industry Standards
CSA File Number 42184: Type 1
NEMA/EEMAC Type 1
IEC 60529, IP30
Application
This enclosure houses metering transformers and instrument
assemblies in indoor applications. HQ models meet Hydro-Québec
requirements. It includes one pre-punched accessory, one potential
transformer and one current transformer panel, and a four-lug
splitter block.
Features
• Gland plates on top of two-door enclosure for meter connection
• Hinged door with pull latch and provision for padlocking
• Single panel included with standard models
• Mounting holes in back
Specications
• 14 or 16 gauge steel
Finish
ANSI 61 gray polyester powder paint nish inside and out
Accessories
[s-3428]
Bulletin: M1
Standard Product Metering Cabinets

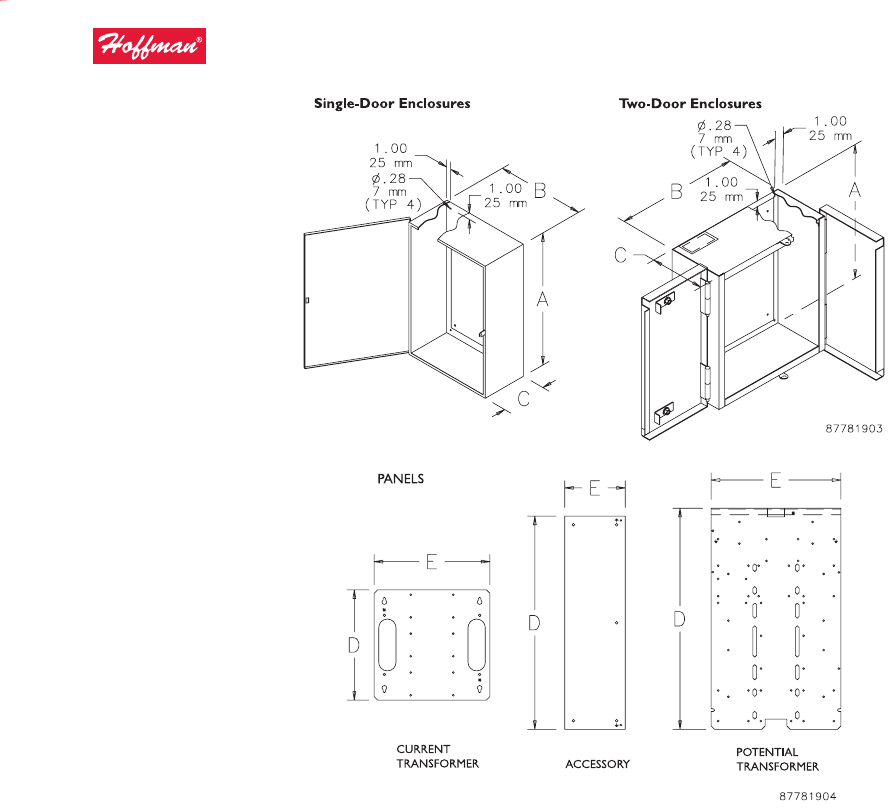

Catalog Number AxBxC in. AxBxC mm
Panel Dimensions
D x E (in.)
Panel Dimension
D x E (mm) Door
AMC271310R 27.00 x 13.00 x 10.00 686 x 330 x 254 22.75 x 8.75 578 x 222 Single
AMC302010R 30.00 x 20.00 x 10.00 762 x 508 x 254 25.75 x 15.75 654 x 400 Single
AMC303010R 30.00 x 30.00 x 10.00 762 x 762 x 254 25.75 x 25.75 654 x 654 Double
AMC363612R 36.00 x 36.00 x 12.00 915 x 915 x 305 31.75 x 31.75 806 x 806 Double
AMC484812R 48.00 x 48.00 x 12.00 1220 x 1220 x 305 43.75 x 43.75 1111 x 1111 Double
Standard Product UG-Series Cabinets
Catalog Number AxBxC in. AxBxC mm Door
AMC202010UG 20.00 x 20.00 x 254.00 508 x 508 x 10 Single
AMC303010UG 30.00 x 30.00 x 254.00 762 x 762 x 10 Double
AMC363612UG 36.00 x 36.00 x 305.00 914 x 914 x 12 Double
AMC484812UG 48.00 x 48.00 x 305.00 1219 x 1219 x 12 Double
Panels included.
Standard Product Metering Cabinets Meeting Hydro-Québec Requirements
Catalog Number AxBxC in. AxBxC mm Door
AMC303010HQ 30.00 x 30.00 x 10.00 762 x 762 x 254 Double
AMC363612HQ 36.00 x 36.00 x 12.00 914 x 914 x 305 Double
AMC484812HQ 48.00 x 48.00 x 12.00 1219 x 1219 x 305 Double
Panels Included with Hydro-Québec Cutouts
Catalog Number AxBxC in. AxBxC mm Panel with Cutouts for D (in.) D (mm) E (in.) E (mm)
A32N34HQ 0.00 Current Transformer 12.76 324 13.39 340
A62N17HQ 0.00 Accessory 24.69 627 7.01 178
A65N38HQ 0.00 Main and Potential Transformer 25.59 650 15.00 381
![](asset-51.png)
81
ContractorType 1: Canadian Cabinets and Splitters
Canadian Cabinets
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
![](asset-52.png)
82
ContractorType 1: Canadian Cabinets and Splitters
Canadian Splitters
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Canadian Spl itters
Splitter Trough, Type 1
Industry Standards
CSA C22.2 No. 76, File No. 42184: Type 1
NEMA/EEMAC Type 1
IEC 60529, IP30
Application
With pre-installed terminal blocks for three- and four-wire power
distribution systems, this trough splits feeder circuit conductors into
multiple branch circuit conductors.
Features
• Various size knockouts on each side
• Hinged covers
• Mounting holes in back
• Includes single-point ground lug
• Ground Splitter (ground bar) accessory available
Specications
• 16 or 14 gauge steel
Finish
ANSI 61 gray polyester powder paint nish inside and out
Accessories
[s-3185]
[s-3428]
Bulletin: S90T
Knockout Size and Spacing
Amps Rating Qty. End Knockout Size Spacing (in.) Spacing (mm) Side Knockout Size and Position Spacing (in.) Spacing (mm)
85 2 1-3/4 - 2 2.75 70 Alternating 1/2 - 3/4 and 1 - 1-3/4 4.50 114
125 2 1-3/4 - 2 2.75 70 Alternating 1/2 - 3/4 and 1 - 1-3/4 4.50 114
225 2 2-1/2 - 3 4.06 103 Alternating 1/2 - 3/4 and 1 - 1-3/4 4.50 114
400 2 3 - 3-1/2 4.91 125 Alternating 1/2 - 3/4 and 1 - 1-3/4 4.50 114
600 2 3 - 3-1/2 4.91 125 Alternating 1/2 - 3/4 and 1 - 1-3/4 4.50 114
![](asset-53.png)
83
ContractorType 1: Canadian Cabinets and Splitters
Canadian Splitters
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Standard Product Type 1 Splitter Trough
Catalog Number in. mm
Number
of Wires
Main Lugs
Amps CU
Main Lugs
Wire Size Range
Main
Lugs Qty.
Branch Lugs
Amps CU
Branch Lugs
Wire Size Range
Branch
Lugs Qty.
AST283R 24.00 x 6.00 x 4.50 610 x 152 x 114 3 85 14-1 1 55 14-6 6
AST284R 24.00 x 6.00 x 4.50 610 x 152 x 114 4 85 14-1 1 55 14-6 6
AST383R 36.00 x 6.00 x 4.50 914 x 152 x 114 3 85 14-1 1 55 14-6 6
AST384R 36.00 x 6.00 x 4.50 914 x 152 x 114 4 85 14-1 1 55 14-6 6
AST483R 48.00 x 6.00 x 4.50 1219 x 152 x 114 3 85 14-1 1 55 14-6 6
AST484R 48.00 x 6.00 x 4.50 1219 x 152 x 114 4 85 14-1 1 55 14-6 6
AST2123R 24.00 x 6.00 x 4.50 610 x 152 x 114 3 125 14-1/0 1 110 14-2 6
AST2124R 24.00 x 6.00 x 4.50 610 x 152 x 114 4 125 14-1/0 1 110 14-2 6
AST3123R 36.00 x 6.00 x 4.50 914 x 152 x 114 3 125 14-1/0 1 110 14-2 6
AST3124R 36.00 x 6.00 x 4.50 914 x 152 x 114 4 125 14-1/0 1 110 14-2 6
AST4123R 48.00 x 6.00 x 4.50 1219 x 152 x 114 3 125 14-1/0 1 110 14-2 6
AST4124R 48.00 x 6.00 x 4.50 1219 x 152 x 114 4 125 14-1/0 1 110 14-2 6
AST3223R 36.00 x 8.25 x 4.50 914 x 210 x 114 3 225 6-300MCM 1 150 14-2/0 6
AST3224R 36.00 x 8.25 x 4.50 914 x 210 x 114 4 225 6-300MCM 1 150 14-2/0 6
AST4223R 48.00 x 8.25 x 4.50 1219 x 210 x 114 3 225 6-300MCM 1 150 14-2/0 6
AST4224R 48.00 x 8.25 x 4.50 1219 x 210 x 114 4 225 6-300MCM 1 150 14-2/0 6
AST5223R 60.00 x 8.25 x 4.50 1524 x 210 x 114 3 225 6-300MCM 1 150 14-2/0 6
AST5224R 60.00 x 8.25 x 4.50 1524 x 210 x 114 4 225 6-300MCM 1 150 14-2/0 6
AST6223R 72.00 x 8.25 x 4.50 1829 x 210 x 114 3 225 6-300MCM 1 150 14-2/0 6
AST6224R 72.00 x 8.25 x 4.50 1829 x 210 x 114 4 225 6-300MCM 1 150 14-2/0 6
AST3403R 36.00 x 10.00 x 6.00 914 x 254 x 152 3 400 1/0-250MCM: 4-600MCM 2:1 175 6-4/0 AND 14-3/0a4 and 2a
AST4403R 48.00 x 10.00 x 6.00 1219 x 254 x 152 3 400 1/0-250MCM: 4-600MCM 2:1 175 6-4/0 AND 14-3/0a4 and 2a
AST4404R 48.00 x 10.00 x 6.00 1219 x 254 x 152 4 400 1/0-250MCM: 4-600MCM 2:1 175 6-4/0 AND 14-3/0a4 and 2a
AST5403R 60.00 x 10.00 x 6.00 1524 x 254 x 152 3 400 1/0-250MCM: 4-600MCM 2:1 175 6-4/0 AND 14-3/0a4 and 2a
AST5404R 60.00 x 10.00 x 6.00 1524 x 254 x 152 4 400 1/0-250MCM: 4-600MCM 2:1 175 6-4/0 AND 14-3/0a4 and 2a
AST6403R 72.00 x 10.00 x 6.00 1829 x 254 x 152 3 400 1/0-250MCM: 4-600MCM 2:1 175 6-4/0 AND 14-3/0a4 and 2a
AST6404R 72.00 x 10.00 x 6.00 1829 x 254 x 152 4 400 1/0-250MCM: 4-600MCM 2:1 175 6-4/0 AND 14-3/0a4 and 2a
AST4603R 48.00 x 11.00 x 6.50 1219 x 279 x 165 3 600 1/0-250MCM: 4-600MCM 4:2 175 6-4/0 AND 14-3/0a4 and 2a
AST4604R 48.00 x 11.00 x 6.50 1219 x 279 x 165 4 600 1/0-250MCM: 4-600MCM 4:2 175 6-4/0 AND 14-3/0a4 and 2a
AST5603R 60.00 x 11.00 x 6.50 1524 x 279 x 165 3 600 1/0-250MCM: 4-600MCM 4:2 175 6-4/0 AND 14-3/0a4 and 2a
AST5604R 60.00 x 11.00 x 6.50 1524 x 279 x 165 4 600 1/0-250MCM: 4-600MCM 4:2 175 6-4/0 AND 14-3/0a4 and 2a
AST6603R 72.00 x 11.00 x 6.50 1829 x 279 x 165 3 600 1/0-250MCM: 4-600MCM 4:2 175 6-4/0 AND 14-3/0a4 and 2a
AST6604R 72.00 x 11.00 x 6.50 1829 x 279 x 165 4 600 1/0-250MCM: 4-600MCM 4:2 175 6-4/0 AND 14-3/0a4 and 2a
aSix total branch lugs: (4) 6-4/0 and (2) 14-3/0
![](asset-54.png)
84
ContractorType 1: Canadian Cabinets and Splitters
Canadian Splitters
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Splitter Box, Type 1
Industry Standards
CSA C22.2 No. 76, File No. 42184: Type 1
NEMA/EEMAC Type 1
IEC 60529, IP30
Application
This box splits feeder circuit conductors into multiple branch circuit
conductors and comes with pre-installed terminal blocks for three-
and four-wire power distribution systems.
Features
• Various numbers and sizes of combination knockouts are provided
on all four sides: see Knockout Size and Spacing Table
• Hinged covers
• Mounting holes in back
• Includes single point ground lug
• Ground Splitter (ground bar) accessory available
Specications
• 16 or 14 gauge steel
Finish
ANSI 61 gray polyester powder paint nish inside and out
Accessories
[s-3185]
[s-3428]
Bulletin: S90B
Standard Product Type 1 Splitter Box, 600 volt
Catalog Number AxBxC in. AxBxC mm
Number
of Wires
Main Lugs
Amps CU
Main Lugs
Wire Size Range
Main
Lugs Qty.
Branch Lugs
Amps CU
Branch Lugs
Wire Size Range
Branch
Lugs Qty.
ASB83R 12.00 x 12.00 x 4.00 305 x 305 x 102 3 85 14-1 1 55 14-6 3
ASB84R 12.00 x 12.00 x 4.00 305 x 305 x 102 4 85 14-1 1 55 14-6 3
ASB123R 12.00 x 12.00 x 4.00 305 x 305 x 102 3 125 14-2/0 1 110 14-2/0 3
ASB124R 12.00 x 12.00 x 4.00 305 x 305 x 102 4 125 14-2/0 1 110 14-2/0 3
ASB223R 16.00 x 16.00 x 5.00 406 x 406 x 127 3 225 6-300MCM 1 175 14-2/0 3
ASB224R 16.00 x 16.00 x 5.00 406 x 406 x 127 4 225 6-300MCM 1 175 14-2/0 3
ASB403R 22.00 x 22.00 x 6.00 559 x 559 x 152 3 400 4-600MCM 2 285 4-600MCM 2
ASB404R 22.00 x 22.00 x 6.00 559 x 559 x 152 4 400 4-600MCM 2 285 4-600MCM 2
Knockout Size and Spacing from Outside Enclosure
Amps Rating Qty. Knockout Size Spacing (in.) Spacing (mm)
85 21 1-3/4 - 2 2.00 51
2 - 2-1/2 4.00 102
125 21 1-3/4 - 2 2.00 51
2 - 2-1/2 4.00 102
225 21 1-3/4 - 2 2.00 51
2-1/2 - 3 6.00 152
400 21 2 - 2-1/2 2.00 51
3 - 3-1/2 6.00 152
Knockouts viewed from outside enclosure. Pattern and sizes same on all four sides.
![](asset-55.png)
85
ContractorType 1: Canadian Cabinets and Splitters
Canadian Splitters
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products

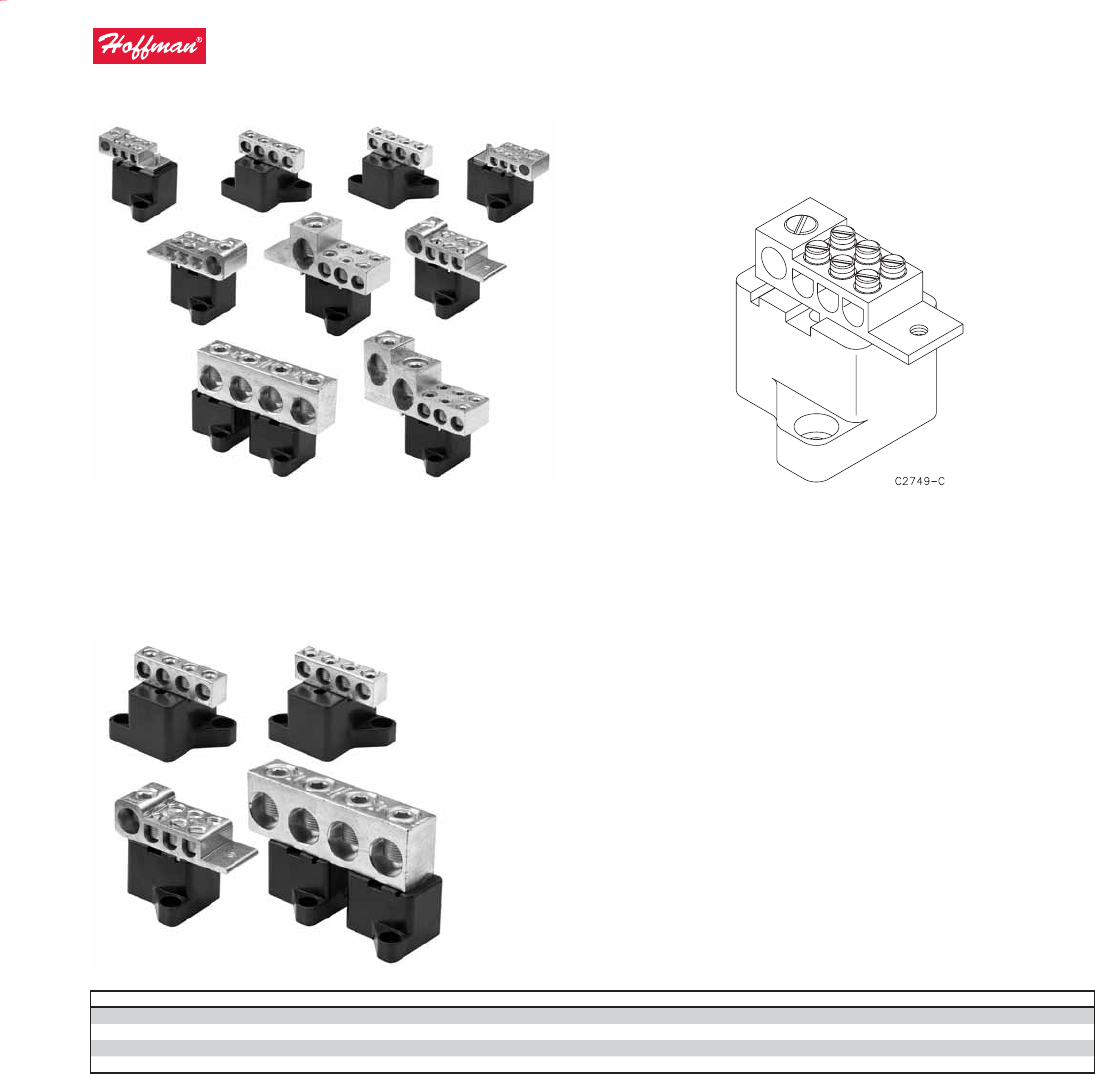

Splitter Block Assemblies Overview
Industry Standards
CSA Certied
Application
Splitter Block Assemblies tap feeder branch circuits in splitter boxes
and troughs. Each 600-volt block includes a main lug and branch
lugs, together with copper/aluminum (CU/AL) connectors secured to
insulators.
Splitter Box Block Assemblies Bulletin: S90Y
Catalog Number Main Amps Main Lug Qty. Main Lug Wire Size Range Branch Amps Branch Lug Qty. Branch Lug Wire Size Range
ASBB85 85 1 14-1 40 3 14-6
ASBB125 125 1 14-2/0 85 3 14-2/0
ASBB225 225 1 6-300MCM 125 3 14-2/0
ASBB400R 400 2 4-600MCM 225 2 4-600MCM
![](asset-56.png)
86
ContractorType 1: Canadian Cabinets and Splitters
Canadian Splitters
PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com
Subject to change without notice © 2011 Pentair Technical Products
Splitter Trough Block Assemblies Bulletin: S90Y
Catalog Number Main Amps Main Lug Qty. Main Lug Wire Size Range Branch Amps Branch Lug Qty. Branch Lug Wire Size Range
ASTB85 85 1 14-1 40 6 14-6
ASTB125 125 1 14-1/0 85 6 14-2
ASTB225 225 1 6-300MCM 125 6 14-2/0
ASTB400 400 1:2 4-600MCM:1/0-250 125 4 + 2A6-4/0 and 14-3/0A
ASTB600 600 2:4 4-600MCM:1/0-250 125 4 + 2A6-4/0 and 14-3/0A
A Six total branch lugs: (4) 6-4/0 and (2) 14-3/0
Ground Splitter (Ground Bar)
Bulletin: S90Y
Catalog Number
Depth
in./mm Lug Qty. Wire Size Range Application
ASG4 2.38
60
4 14-2/0 Splitter Box or Splitter Trough
ASG8 4.75
121
8 14-2/0 Splitter Trough
