Eaton
Cutler-Hammer ® Series
Classied Circuit Breakers
GE is a registered trademark of General
Electric Company.
ITE/Siemens is a federally registered
trademark of Siemens AG.
Quincy, Mass. Thomas & Betts is a federally
registered trademark of Thomas & Betts
Corporation.
Square D, HOMELINE, and QO are federally
registered trademarks of SNA Holdings Inc.
Murray is a federally registered trademark of
Siemens Energy & Automation, Inc.
Crouse-Hinds is a federally registered
trademark of Cooper Industries.
UL is a registered trademark of
Underwriters Laboratories.
The National Electrical Code is a registered
trademark of the National Fire Protection
Association.
All other trademarks are property of their
respective owners.
UL Classified
Replacement Circuit Breakers
Square D®
HOMELINE®
Square D®
QO®
Crouse-Hinds®
General
Electric®
Crouse-Hinds®
Murray®
Thomas &
Betts®
UL Classified to
Fit Virtually Any Panel...
Even Square D® HOMELINE®
Cutler-Hammer® Series UL Classified Replacement Circuit
Breakers by Eaton Corporation are the key to safe installation and
streamlined inventory. They virtually eliminate the need to carry
any other manufacturer’s circuit breakers. Why carry up to seven
other brands when the industry’s most reputable brand,
Eaton, is all you need.
Coming in both 3/4-inch Type CHQ and 1-inch Type CL, one- and
two-pole configurations, these breakers are classified as direct
replacements by Underwriters Laboratories Inc. In addition to a UL
listing, they also come with an outstanding 15-year warranty.
Streamline Breaker Inventory
UL Classied breakers are
designed and tested to be
both mechanically and electri-
cally interchangeable with
circuit breakers manufactured
by General Electric, Thomas &
Betts, ITE/Siemens, Murray,
Crouse-Hinds, and Square D.
By reducing your breaker
inventory from six manufac-
turers to one, you streamline
your stock and shelving space.
Contractors will be able to
reduce the types of break-
ers they carry on their trucks.
Your customers will be able to
install new circuits on the rst
site visit, as long as they have
Eaton Cutler-Hammer Series
Type CLs and CHQs at the
ready. With a high-level of
protection and fast tripping
response, these are the one-
source, one-brand breaker so-
lution you’ve been looking for.
Specied vs. Classied
Specied breakers are listed
by the manufacturer of the
panelboard for use in a
particular panel. This doesn’t
mean that the panelboard
manufacturer produced the
specied breaker, it mearly
means that the panelboard
manufacturer has tested the
breaker in the panel. In fact,
through the years the Eaton
business has manufactured
thousands of breakers
for other panelboard
manufacturers.
UL Classied breakers are
produced by one manufacturer
for use in place of the breakers
specied on the panelboard.
Like specied breakers, UL
Classied breakers have been
tested in the panels for which
they are approved.
Testing and Safety
We test each Classied
breaker extensively in
numerous GE, Siemens,
Murray, Thomas & Betts,
Square D, and Crouse-Hinds
panels. The tests are
conducted with witnesses
from Underwriters
Laboratories Inc. and involve
short-circuit, temperature,
and insertion/withdrawal
applications. This level of
testing assures that the
breakers meet identied
standards and have been found
suitable by UL for the specied
purpose. By using UL Classi-
ed breakers, contractors and
homeowners can be assured
that the breaker has passed
tests that non-classied
breakers have not.
Code Acceptance
Financially, it makes sense for
manufacturers to specify their
own breakers for use in their
panelboards and not list
competitors’ products; even
though they too are suitable
for use. This is why a third-
party organization
(Underwriters Laboratories
Inc.) is responsible for listing
suitable replacements for the
manufacturer’s specied circuit
breakers. Our classied circuit
breakers meet all code
acceptance regulations
governed by the
National Electric Code® and
Underwriters Laboratories Inc.
The Most Complete Line
Not only do we cover more
manufacturers, we also offer
breakers in standard one- and
two-pole congurations as
well as Ground Fault Circuit
Interrupters, Remote Control,
and Arc Fault Circuit Interrupt-
ers! Breakers are available in
standard packaging, and many
are available in clamshells for
counter area displays.
Original Panelboard Warranty
Original panelboard
manufacturers may claim that
the use of breakers other than
those specied voids their
warranty. However, the
Magnusson-Moss Warranty
Act prevents manufactur-
ers from making warranties
contingent upon the use of
their replacement parts, as
long as the third-party part is
safe. Since the safety has been
proven by UL, the panelboard
manufacturer’s warranty is still
effective when you choose a
CL or CHQ breaker.
The Eaton Warranty –
The Industry’s Best
The Eaton business warrants
its CL and CHQ Direct
Replacement Circuit Breakers
to be free from failures due
to defects in material or
workmanship for 15 years
from the date of purchase.
Additionally, should a failure
of a CL or CHQ breaker occur
that would cause damage to
the loadcenter in which it is
installed, the Eaton business
would repair or replace the
loadcenter with an equivalent
product upon delivery of the
damaged components.
1-800-525-2000
www.eaton.com
Understanding Classied
Breaker Terminology
Skip the legalese. Here’s what
you need to know to save
time, hassle, and shelf space.
Specied Circuit Breaker
Each manufacturer lists the
brands of circuit breakers that
can be used in their panel-
boards. Often, manufacturers
will not list competitors as
specied, even though they
are suitable replacements.
UL Classied Circuit Breaker
A breaker that is considered
suitable, by Underwriters
Laboratory, for use in place of
the specied circuit breaker.
Listed Breaker
According to the NEC®, the
listing of a product is by an
independent third-party. Eaton
Cutler-Hammer Series Classi-
ed Breakers are listed by UL.
Labeled Breaker
A breaker with a label afxed
by an independent third-party.
2EATON CORPORATION UL Classied Replacement Circuit Breakers 3
Eaton
1000 Eaton Boulevard
Cleveland, OH 44122
United States
Eaton.com
© 2014 Eaton
All Rights Reserved
Printed in USA
Publication No. SA00304001E
March 2014
1
1Please use the compatibility chart provided with each classied
breaker for the list of approved panels.

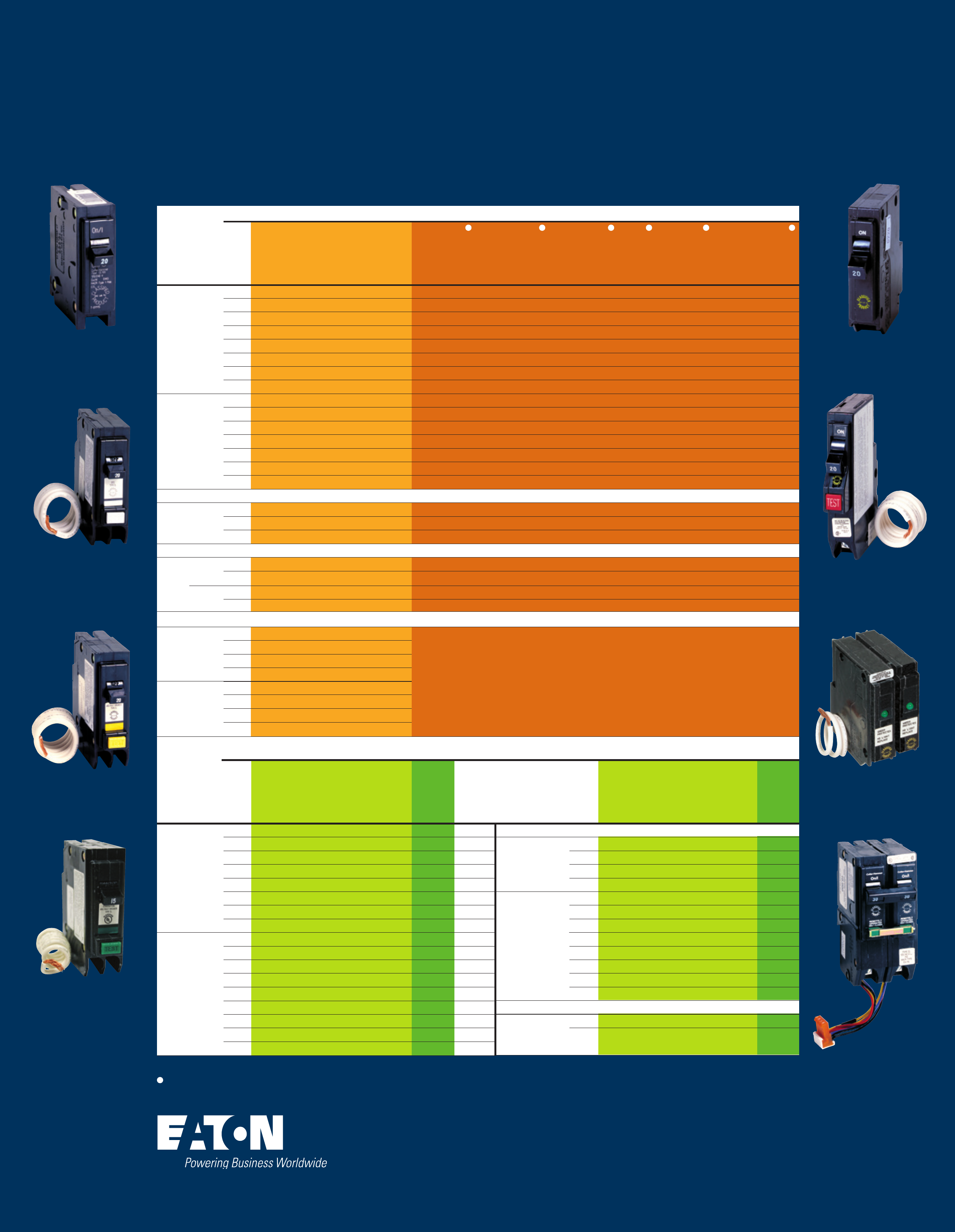

TYPE CL 1” CLASSIFIED BREAKER SOLUTIONS
Cutler-Hammer Series Cutler-Hammer Series Square D Crouse-Hinds General Electric Siemens Murray Thomas & Betts
Type CL Circuit Type CL Circuit HOMELINE
Breakers Breakers
(Standard Pack) (Clamshell Pack)
Amp Catalog Catalog Carton Catalog Catalog Catalog Catalog Catalog Catalog
Rating Number Number Pack Number Number Number Number Number Number
15 CL115 CL115CS 6 HOM115 MP115 THQ1115 Q115 MP115 TB115
20 CL120 CL120CS 6 HOM120 MP120 THQ1120 Q120 MP120 TB120
25 CL125 — — HOM125 MP125 THQ1125 Q125 MP125 TB125
30 CL130 — — HOM130 MP130 THQ1130 Q130 MP130 TB130
35 CL135 — — HOM135 MP135 THQ1135 Q135 MP135 TB135
40 CL140 — — HOM140 MP140 THQ1140 Q140 MP140 TB140
45 CL145 — — HOM145 MP145 THQ1145 Q145 MP145 TB145
50 CL150 — — HOM150 MP150 THQ1150 Q150 MP150 TB150
15 CL215 — — HOM215 MP215 THQ1215 Q215 MP215 TB215
20 CL220 CL220CS 3 HOM220 MP220 THQ1220 Q220 MP220 TB220
25 CL225 — — HOM225 MP225 THQ1225 Q225 MP225 TB225
30 CL230 CL230CS 3 HOM230 MP230 THQ1230 Q230 MP230 TB230
40 CL240 CL240CS 3 HOM240 MP240 THQ1240 Q240 MP240 TB240
45 CL245 — — HOM245 MP245 THQ1245 Q245 MP245 TB245
50 CL250 CL250CS 3 HOM250 MP250 THQ1250 Q250 MP250 TB250
TYPE CL 1” GFCI BREAKERS
15 CL115GF CL115GFCS 6 HOM115GF MP115GFI THQL1115GF1 QF115 MP115GF GFB115GF
20 CL120GF CL120GFCS 6 HOM120GF MP120GFI THQL1120GF1 QF120 MP120GF GFB120GF
30 CL130GF — — — MP130GFI THQL1130GF1 QF130 MP130GF GFB130GF
TYPE CL 1” AFCI BREAKERS
15 CL115AF CL115AFCS 6 HOM115AFI — THQL1115AF Q115AF MP115AF —
20 CL120AF CL120AFCS 6 HOM120AFI — THQL1120AF Q120AF MP120AF —
15 CL115CAF CL115CAFCS 6 HOM115AFIC — THQL1115AF2 Q115AFC MP115AFC —
20 CL120CAF CL120CAFCS 6 HOM120AFIC — THQL1120AF2 Q120AFC MP120AFC —
TYPE CL 1” LATCHING REMOTE CONTROL BREAKERS —SMART BREAKERS™
15 CLR115 — —
20 CLR120 — —
25 CLR125 — —
30 CLR130 — —
15 CLR215 — —
20 CLR220 — —
25 CLR225 — —
30 CLR230 — —
TYPE CHQ 3/4” CLASSIFIED BREAKER SOLUTIONS FOR SQUARE D QO
Cutler-Hammer Series Cutler-Hammer Series Square D
Type CHQ Circuit Type CHQ Circuit QO
Breakers Breakers
(Standard Pack) (Clamshell Pack)
Amp Catalog Catalog Carton Catalog
Rating Number Number Pack Number
15 CHQ115 CHQ115CS 6 QO115
20 CHQ120 CHQ120CS 6 QO120
25 CHQ125 CHQ125CS 6 QO125
30 CHQ130 CHQ130CS 6 QO130
35 CHQ135 — — QO135
40 CHQ140 — — QO140
45 CHQ145 — — QO145
50 CHQ150 — — QO150
15 CHQ215 CHQ215CS 3 QO215
20 CHQ220 CHQ220CS 3 QO220
25 CHQ225 — — QO225
30 CHQ230 CHQ230CS 3 QO230
35 CHQ235 — — QO235
40 CHQ240 CHQ240CS 3 QO240
45 CHQ245 — — QO245
50 CHQ250 CHQ250CS 3 QO250
60 CHQ260 CHQ260CS 3 QO260
Cutler-Hammer Series Cutler-Hammer Series Square D
Type CHQ Circuit Type CHQ Circuit QO
Breakers Breakers
(Standard Pack) (Clamshell Pack)
Amp Catalog Catalog Carton Catalog
Rating Number Number Pack Number
TYPE CHQ 3/4” GFCI BREAKERS
15 CHQ115GF CHQ115GFCS 6 QO115GFI
20 CHQ120GF CHQ120GFCS 6 QO120GFI
25 CHQ125GF — — QO125GFI
30 CHQ130GF CHQ130GFCS 6 QO130GFI
15 CHQ215GF — — QO215GFI
20 CHQ220GF — — QO220GFI
25 CHQ225GF — — QO225GFI
30 CHQ230GF — — QO230GFI
35 CHQ235GF — — QO235GFI
40 CHQ240GF — — QO240GFI
45 CHQ245GF — — QO245GFI
50 CHQ250GF — — QO250GFI
TYPE CHQ 3/4” SURGE ARRESTOR
N/A CHQSA — — —
Unfortunately, we cannot give a cross-reference because no manufacturer has a functional
equivalent of Eaton’s Cutler-Hammer Series Smart Breaker™—however, our devices have been UL
Classied to be installed in their panels, and you can offer the benets of Smart Breaker™
to your customers regardless of their installed base.
1-Pole
120/240 VAC
10,000 AIC
2-Pole
120/240 VAC
10,000 AIC
1-Pole
120 VAC
10,000 AIC
GFCI
1-Pole
120 VAC
10,000 AIC
1-Pole
120 VAC
10,000 AIC
1-Pole
120/240 VAC
10,000 AIC
1-Pole
120 VAC
10,000 AIC
GFCI
2-Pole
120/240 VAC
10,000 AIC
2-Pole
120/240 VAC
10,000 AIC
2-Pole
120/240 VAC
10,000 AIC
GFCI
Surge
Arrestor
Classied Breaker
Type CL
1-inch
Classied Breaker
Type CHQ
3/4-inch
Classied Ground
Fault Breaker
Type CL_GF
1-inch
Classied Ground
Fault Breaker
Type CHQ_GF
3/4-inch
Classied Branch
Feeder Arc Fault Breaker
Type CL_AF
1-inch
Classied
Combination Arc
Fault Breaker
Type CL_CAF
1-inch
Classied
Latching Remote
Control Breaker
Type CLR
Classied
Surge Arrestor
Type CHQ
3/4-inch
Ordering in carton packs reduces the possibility of breakage.
UL is a federally registered trademark of Underwriters Laboratories Inc. The National Electrical Code is a registered trademark of the Na-
tional Fire Protection Association, Quincy, Mass. Thomas & Betts is a federally registered trademark of Thomas & Betts Corporation, Square
D, HOMELINE, and QO are federally registered trademarks of SNA Holdings Inc. ITE/Siemens is a federally registered trademark of Siemens
AG. Murray is a federally registered trademark of Siemens Energy & Automation, Inc. General Electric is a federally registered trademark of
General Electric Company. Crouse-Hinds is a federally registered trademark of Cooper Industries.
UL Classified Circuit Breaker Replacement Chart
Branch
Feeder AFCI
Combination
AFCI
1See compatibility chart inside each classied breaker
box for list of the approved panel installations.
1 1 1 1 1 1
