The Occupational Safety and Health Administration (OSHA)

and other International Standards mandate that all energy

sources be isolated and locked out to protect employees from

injuries caused by the accidental startup of equipment under

repair or service. OSHA 1910.147 outlines the control of this

hazardous energy with an effective lockout/tagout program.

Panduit offers a complete line of lockout/tagout and safety

products to aid in compliance with OSHA 1910.147 and other

related International Standards including:

Lockout /Tagout Requirements

• Training manuals, videos, and templates/

checklists to help train employees on

the requirements of lockout/tagout

and assist safety professionals in

establishing and maintaining a

compliant lockout/tagout system

• Extensive line of universal, high

quality devices to lockout a variety

of energy sources

• Lockout/tagout kits and stations that

offer a convenient method to store

and contain lockout devices, tags

and padlocks

• High quality, durable, secure padlocks

in a variety of styles, colors and keying

configurations that ensure safety

and security

• Extensive line of safety identification

products that include tags, signs and

warning labels

Panduit offers everything you need to establish and maintain

an effective lockout/tagout program. Ensure employee safety

while conducting lockout/tagout procedures by utilizing Panduit

innovative products and high quality materials.

A1

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

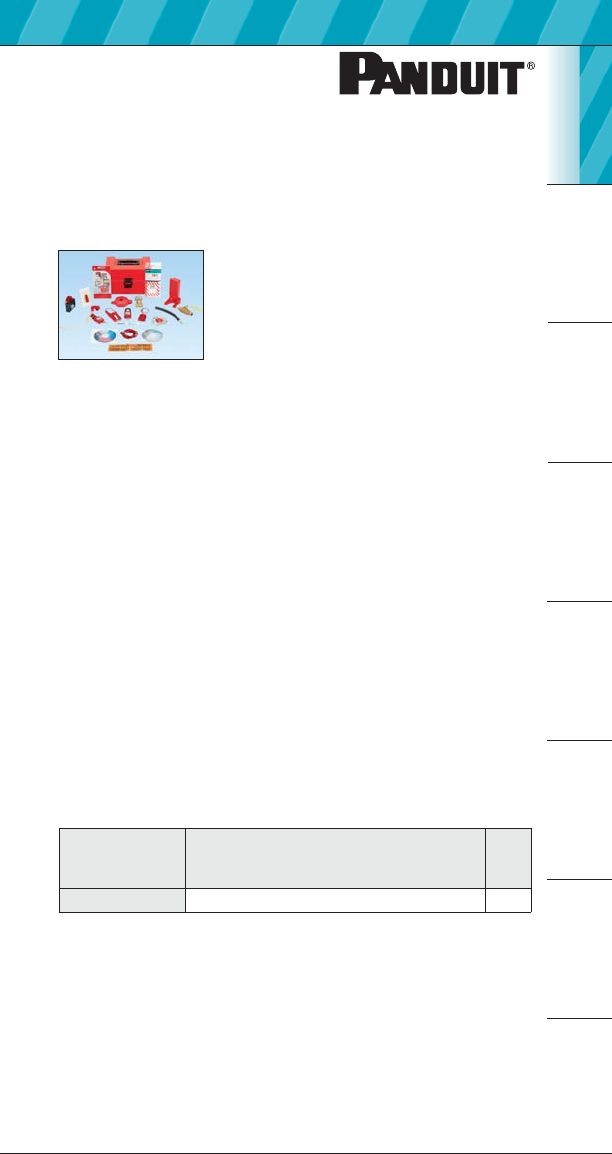

OSHA Lockout/Tagout Compliance

and Training Kit

• Takes you step-by-step through the

process of bringing your company into

compliance with OSHA Standard 1910.147;

also provides training materials and

devices for educating employees on the

the elements and applications of

lockout tagout

• This complete package includes:

Training video: DVD video “Life is

on the Line” for training employees

on the elements and application of

lockout/tagout (LOTO)

Compliance CD containing:

Training materials: Training agenda,

quiz, certificate, and key points for

hands on device training

Templates: Step-by-step interactive

presentation facility and machine

specific procedure templates;

equipment, training, and inspection

logs; lockout/tagout program template,

periodic and lockout/tagout checklists

Components: Demonstration

components for thorough “hands-on”

training including circuit breakers,

ball valves, etc., and the compatible

lockout devices

Training Products

Part Number Part Description

Std.

Pkg.

Qty.

PSL-LOTO-TRAIN OSHA lockout/tagout compliance kit 1

A2

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

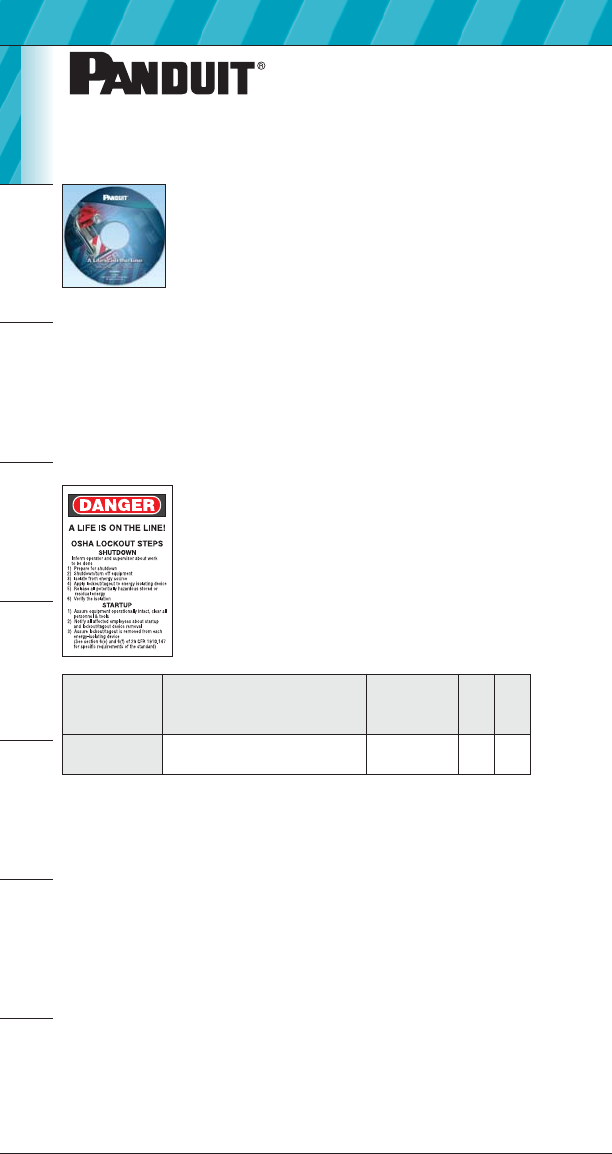

Lockout/Tagout Training Video

• “A Life on the Line” Lockout/Tagout

Training Video provides thorough

instruction on OSHA recommended safety

practices and procedures for

lockout/tagout

• Please visit www.panduit.com/safety to

request a free copy of the Lockout/Tagout

Training Video

• Also available in Spanish

Lockout Quick Reference Card

• Provides those employees responsible for

lockout/tagout with a constant reminder

of the OSHA recommended steps

for shutdown and startup

• Current calendar year is printed on back side

Part Number Part Description

Number of

Cards

Included

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

PSL-STEPS 2.13" x 3.38", lockout/tagout

steps/calendar wallet card.

25 1 4

B1

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

Lockout Devices and Kits

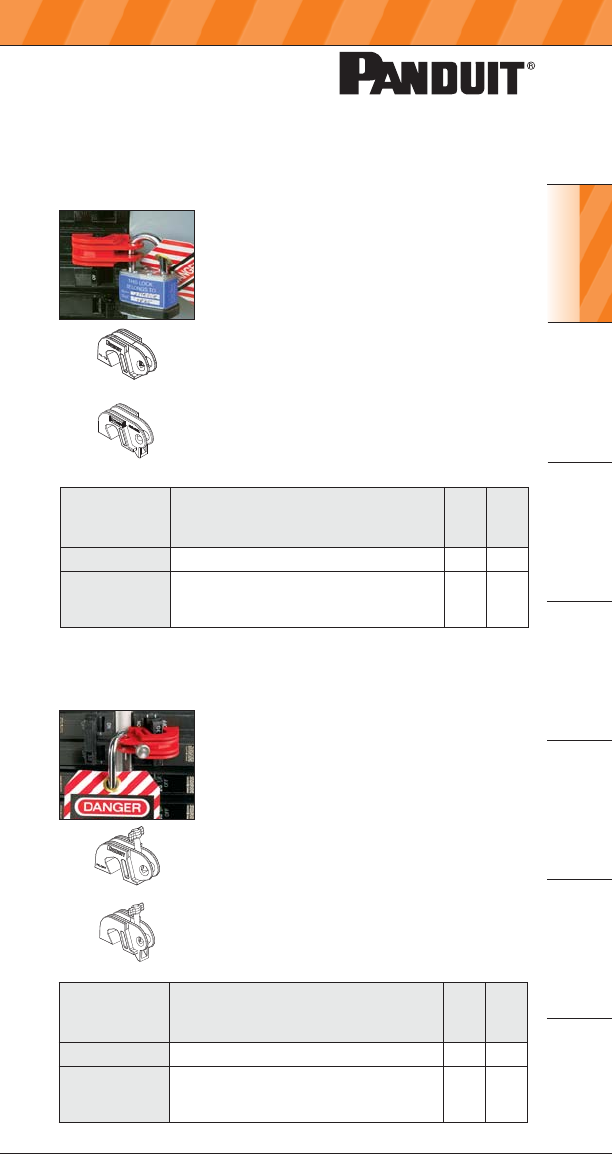

“No Tool” Circuit Breaker Lockout Devices

^I-LINE is a registered trademark of Square D Company.

Part Number Part Description

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

PSL-CBNT “No Tool” universal circuit breaker lockout. 1 10

PSL-CBILNT “No Tool” circuit breaker lockout for use

with Square D I-LINE^/Federal Pacific

(FPE) circuit breakers.

110

• Quickly locks circuit breakers in the off position

without any tools

• Compact, universal design fits a wide range of

single, double, and triple handle circuit

breakers

• Accommodates breaker handle sizes ranging

from 0.30" – 0.60" (7.6mm x 15.2mm) tall and

0.16" – 0.35" (4.1mm x 8.9mm) thick

• Easily secured to circuit breaker without

modifications or holes in the breaker handle

• Constructed of polycarbonate and stainless

steel for industrial and harsh applications

Circuit Breaker Lockout Devices

• Quickly locks circuit breakers in the off

position using a screwdriver

• Compact, universal design fits a wide

range of single, double, and triple handle

circuit breakers

• Accommodates breaker handles

0.30" – 0.60" (7.6mm x 15.2mm) tall and

0.25" – 0.44" (6.6mm x 11.2mm) thick

• Easily secured to circuit breaker without

modifications or holes in the breaker

handle

• Constructed of polycarbonate and

stainless steel for industrial and

harsh applications

^I-LINE is a registered trademark of Square D Company.

Part Number Part Description

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

PSL-CB Universal circuit breaker lockout. 1 10

PSL-CBIL Circuit breaker lockout device for use with

Square D I-LINE^/Federal Pacific (FPE)

circuit breakers.

110

PSL-CBIL

PSL-CBNT

PSL-CBILNT

PSL-CB

B2

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

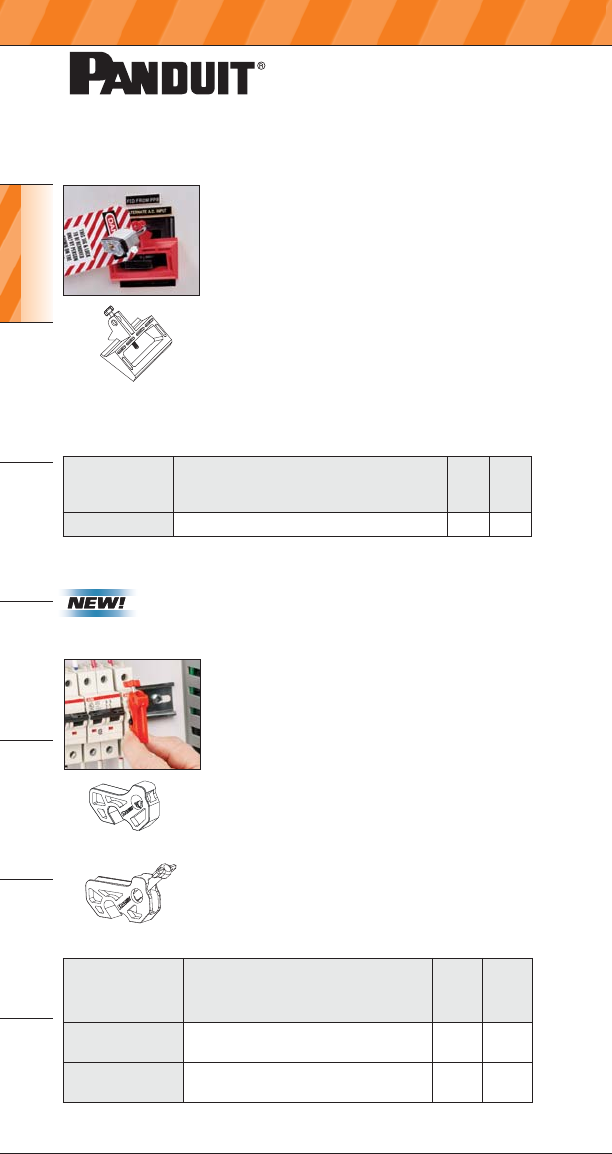

Large Handle Circuit Breaker Lockout Device

• Quickly locks circuit breakers in the off

position without any tools

• Compact, universal design fits a wide

range of large handle circuit breakers

• Accommodates breaker handle

dimensions up to 0.80" thick x 3.00"

wide (20.3mm x 76.2mm)

• Easily secured to circuit breaker without

modifications or holes in the breaker

handle

• Constructed of polycarbonate and

stainless steel for industrial and harsh

applications

PSL-CBL

Part Number Part Description

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

PSL-CBL Large handle circuit breaker lockout. 1 10

Miniature Circuit Breaker

Lockout Devices

• Quickly locks out miniature circuit breakers

commonly used in industrial automation

and motor control

• On the PSL-MCBNT, multiple padlock

orientations allow adjacent circuit breakers

to be locked out individually

• PSL-MCB can be installed using a

screwdriver

• PSL-MCBNT can be installed by hand with

no tool required

PSL-MCB

PSL-MCBNT

Part Number Part Description

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

PSL-MCB Universal miniature circuit breaker

lockout.

110

PSL-MCBNT No-Tool miniature circuit breaker

lockout.

110

B3

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

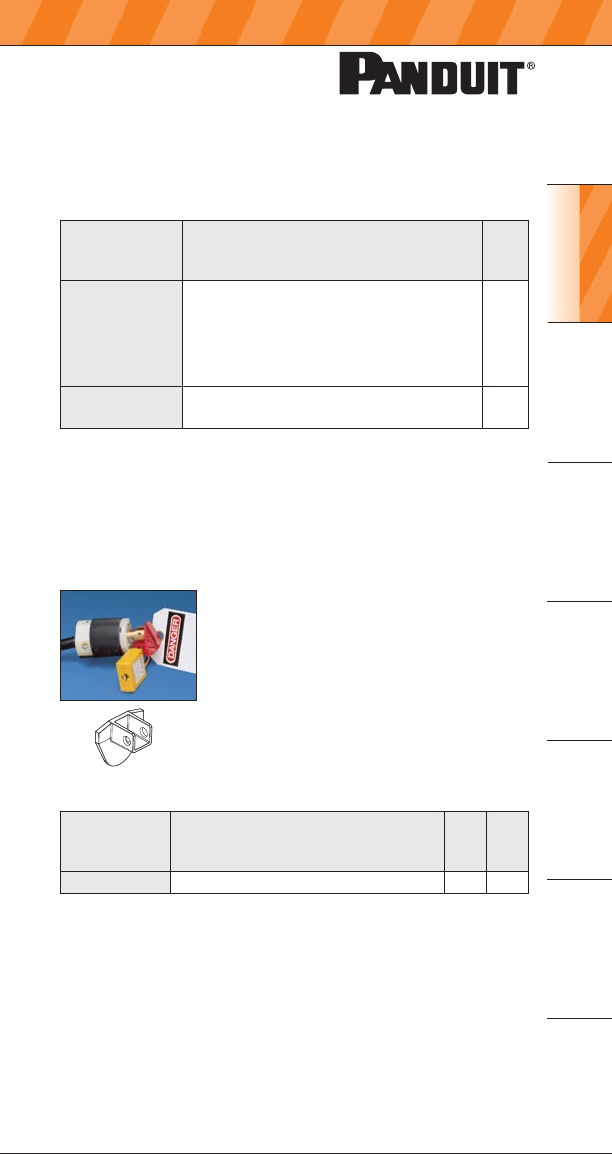

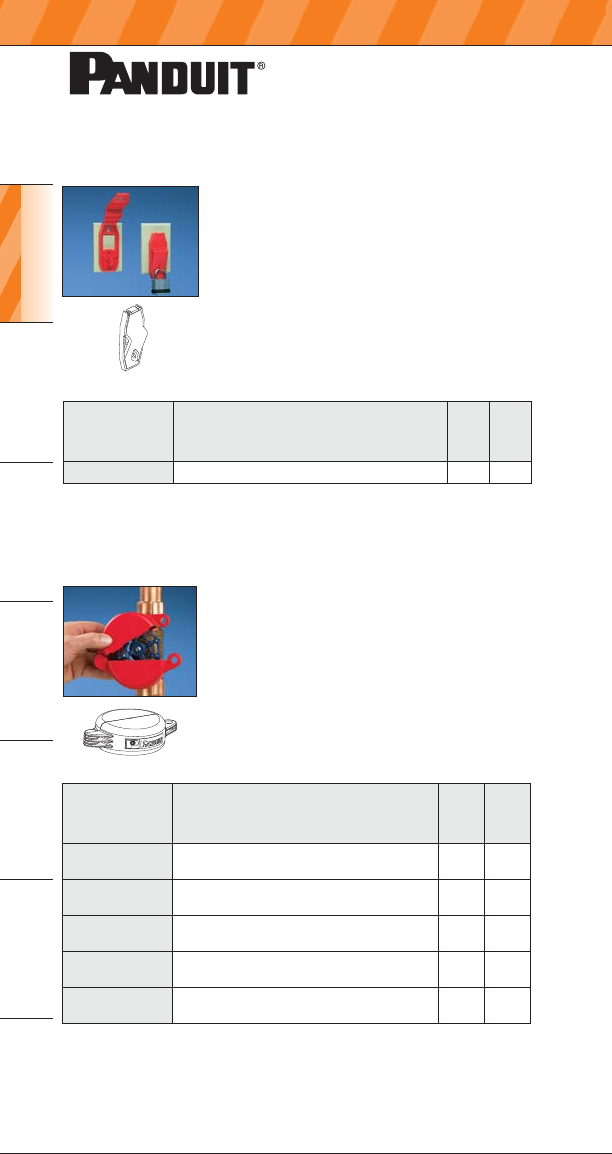

Plug Lockout Device

• Locks a wide range of individual plugs to

prevent energization

• Works with plugs that have a hole in a

blade of the plug

• Constructed of polycarbonate and

stainless steel for industrial and harsh

applications

• Accommodates padlocks with shackle

lengths of 1.50" (38.1mm)

PSL-P

Part Number Part Description

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

PSL-P Plug lockout. 1 10

Part Number Contents

Std.

Pkg.

Qty.

PSL-CBKIT (1) PSL-CBL large handle circuit breaker

lockout device.

(1) PSL-CBNT “No Tool” universal circuit

breaker lockout device.

(1) PSL-CBILNT “No Tool” universal circuit

breaker lockout device for Square D/I-Line^.

1

PSL-CB-3PC (3) PSL-CB universal circuit breaker

lockout device.

1

Circuit Breaker Lockout Device Kits

• Packages of commonly used circuit breaker lockout devices

^ I-LINE is a registered trademark of Square D Company.

B4

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

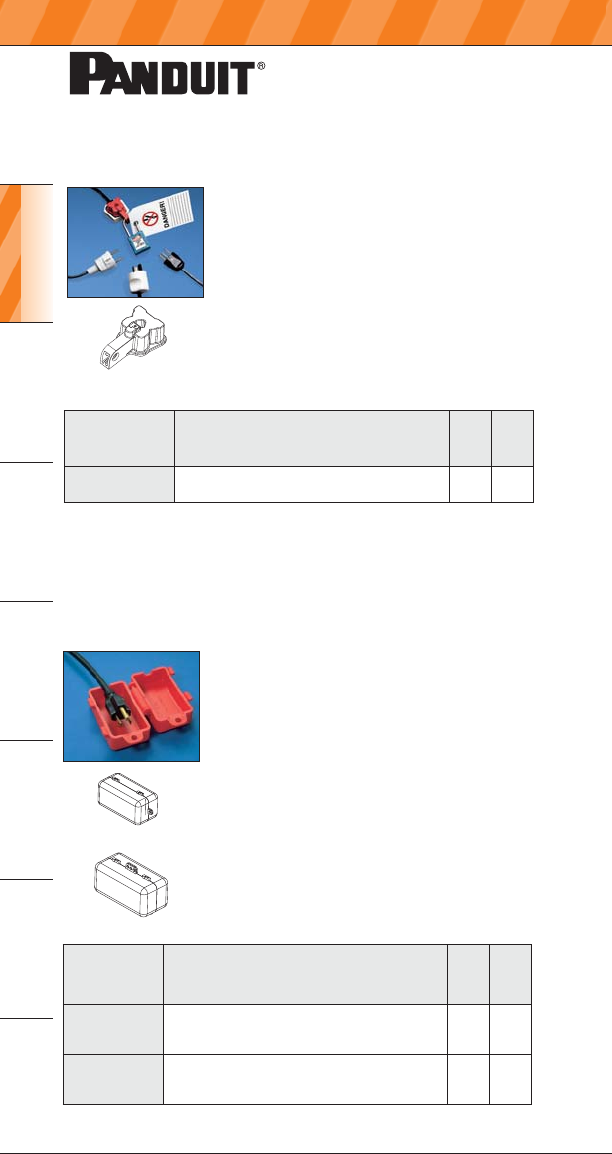

Cord Lockout Devices

• Locks out a wide range of corded plugs

to prevent energization

PSL-CL110

PSL-CL480

PSL-PI

• Compact universal design accommodates

most 220 – 240 Volt plugs

• Quickly and easily installed

• Polycarbonate construction offers great

strength and durability

• Required lock with shackle diameter

between 0.20" (6.0mm) and 0.37" (9.0mm)

• Accepts Panduit PSL-6, PSL-7, and PSL-8

series locks

Global Plug Lockout Device

Note: Cannot be used with North American 120 VAC plugs

Part Number Part Description

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

PSL-PI Global plug lockout for 220 – 240 Volt

AC/Industrial Plugs.

110

Part Number Part Description

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

PSL-CL110 Lockout for small corded plugs, 2.00" x

2.00" x 3.50" (50.8mm x 50.8mm x 88.9mm)

outside dimensions.

110

PSL-CL480 Lockout for large corded plugs, 3.25" x 3.25"

x 7.00" (82.6mm x 82.6mm x 177.8mm)

outside dimensions.

110

B5

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

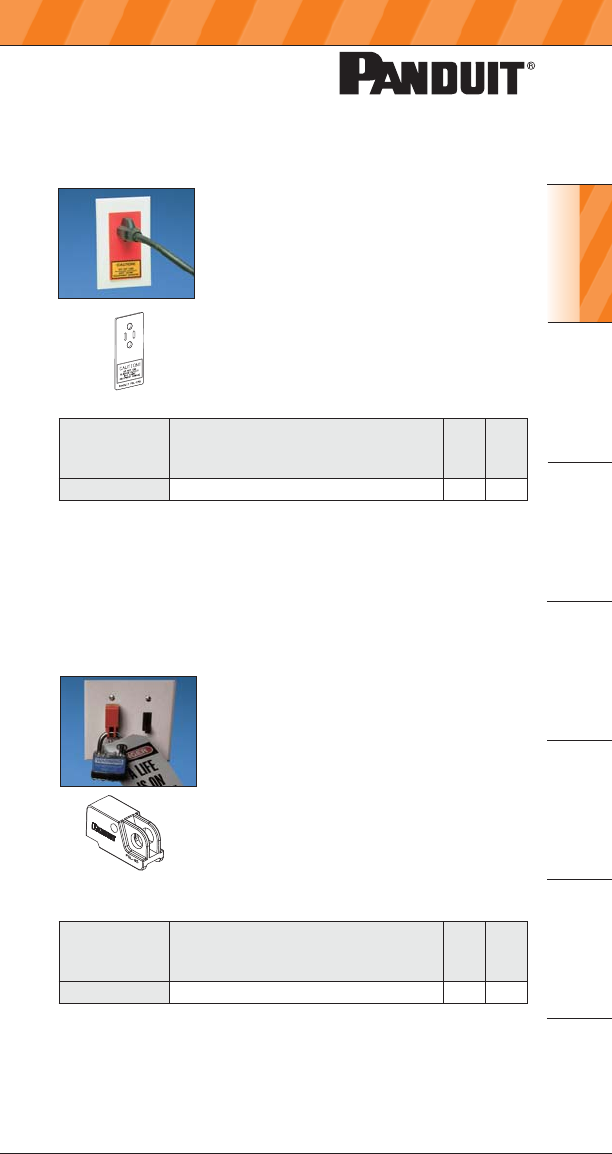

Receptacle Blockout Device

• Blocks out receptacles to prevent

equipment damage from overloading

circuits or electrical interference

• Accommodates industrial electrical

receptacles with two or three blades

Part Number Part Description

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

PSL-ERB Blockout for 120 V electrical receptacle. 1 25

PSL-ERB

Toggle Switch Lockout Device

• Fits most toggle switches and some small

circuit breakers

• Easily attached without removal of

faceplate or screws

• Accommodates switches

0.45" – 0.78" (11.4mm – 19.8mm) tall,

0.25" – 0.38" (6.4mm – 9.7mm) wide,

0.25" – 0.40" (6.4mm – 10.2mm) thick

• Constructed of polycarbonate and

stainless steel for industrial and harsh

applications

Part Number Part Description

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

PSL-WS Toggle switch lockout. 1 10

PSL-WS

B6

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

Toggle/Rocker Switch Lockout Device

• Designed for switches that are

frequently locked out

• Locks out toggle/rocker switches

controlling electrical supply

• Accommodates standard wall

switch faceplates

• Install using faceplate screws

Part Number Part Description

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

PSL-WS1A Toggle/rocker switch lockout. 1 10

Gate Valve Lockout Devices

• Gate valves regulating hydraulic,

pneumatic, and chemical energy can be

locked out quickly and easily

• Accommodates valve handles ranging

from 1.00" (25.4mm) to 13.00" (330.2mm)

in diameter

• Constructed of rugged polypropylene

providing strength, durability, and added

security

PSL-WS1A

PSL-V2A

* For available colors other than red, add suffix BLU (Blue), GRN (Green), or

YEL (Yellow).

** For available colors other than red, replace A at end of part with suffix

BLU (Blue), GRN (Green), or YEL (Yellow).

^ Part numbers PSL-V9 and PSL-V13 are also available in Yellow, add suffix

YEL (Yellow) to part number.

Part Number Part Description

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

PSL-V2A Gate valve lockout, accommodates

1.00" – 2.50" diameter handle, red.

110

PSL-V4* Gate valve lockout, accommodates

2.50" – 5.00" diameter handle, red.

110

PSL-V6A** Gate valve lockout, accommodates

2.50" – 6.50" diameter handle, red.

110

PSL-V9^ Gate valve lockout, accommodates

6.50" – 10.00" diameter handle, red.

110

PSL-V13^ Gate valve lockout, accommodates

10.00" – 13.00" diameter handle, red.

1—

B7

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

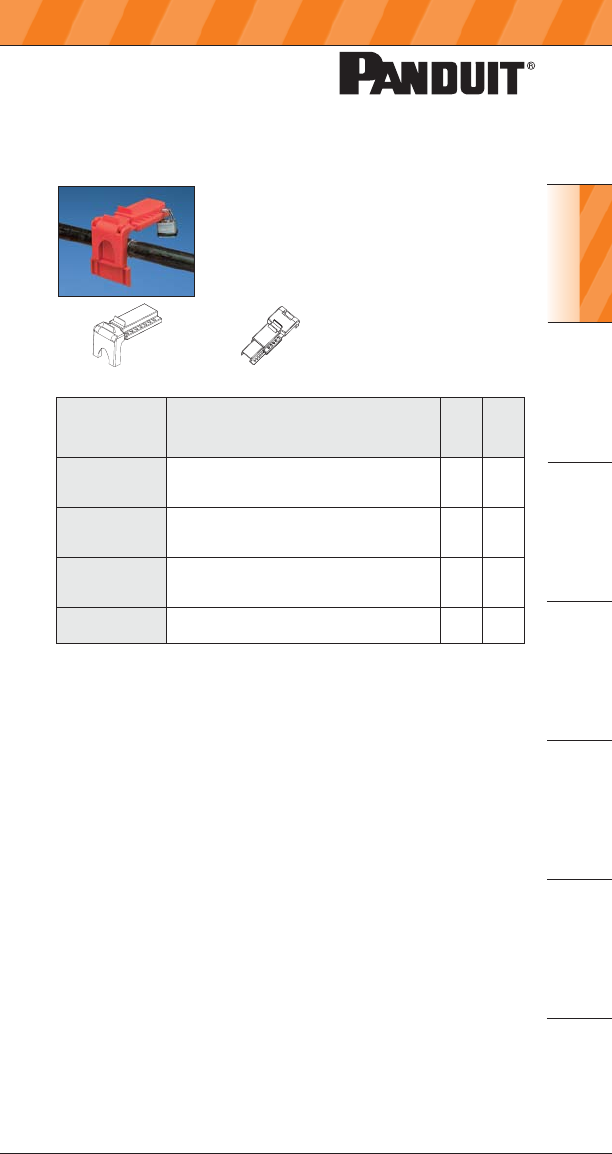

Ball/Butterfly Valve Lockout Devices

• Ball valves regulating hydraulic, pneumatic,

and chemical energy can be locked out

quickly and easily

• Accommodates valve diameters ranging

from 0.25" (6.4mm) to 8.00" (203.2mm)

PSL-BV1 PSL-BFV

Part Number Part Description

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

PSL-BV1 Ball valve lockout, accommodates

.25" – 1.00" (6.4mm – 25.4mm) valve

pipe diameter.

110

PSL-BV2 Ball valve lockout, accommodates

1.25" – 3.00" (31.8mm – 76.2mm) valve

pipe diameter.

110

PSL-BV3 Ball valve lockout, accommodates

2.00" – 8.00" (50.8mm – 203.2mm) valve

pipe diameter.

110

PSL-BFV Butterfly valve lockout, accommodates

most butterfly valve handles.

110

B8

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

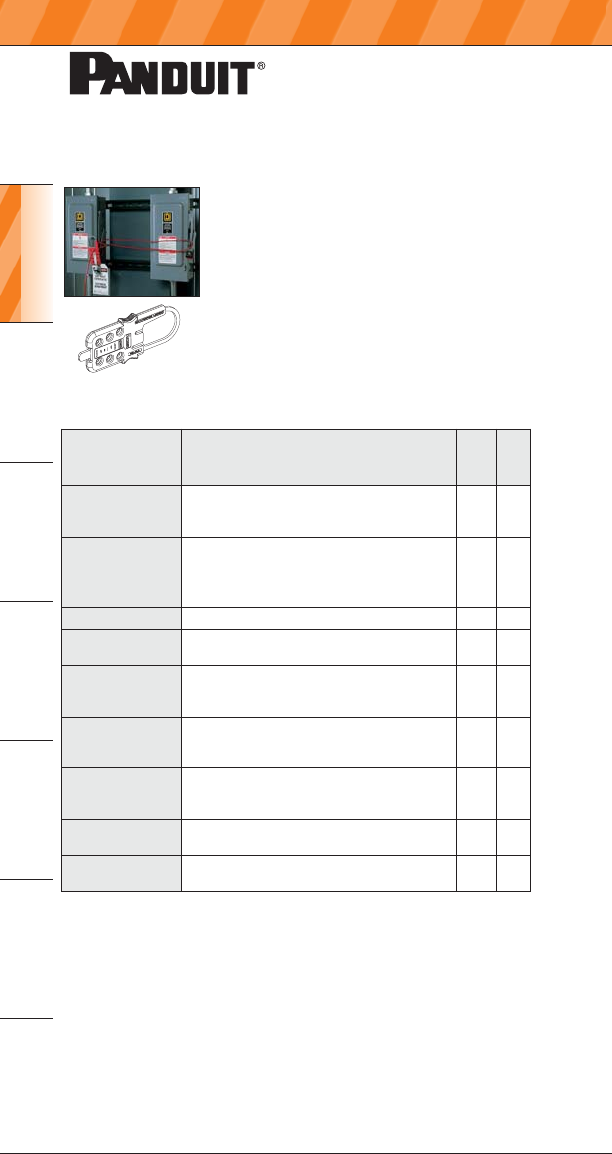

Multiple Lockout Device

• Device can be used alone as a lockout hasp

or with provided 0.19" (4.8mm) diameter

cable to lockout electrical disconnects, gate

valves, or large cumbersome devices

• Compact and easy to install

• Constructed of rugged polycarbonate and

stainless steel for industrial and harsh

applications

• Vinyl coated galvanized steel cable up to

176°F (80°C); nylon coated galvanized steel

cable up to 230°F (110°C)

PSL-MLD

Part Number Part Description

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

PSL-MLD Multiple lockout device; includes lockout

hasp and 6.00’ (1.8m) vinyl coated

galvanized steel cable with loophole.

120

PSL-MLDT Multiple lockout device; includes lockout

hasp and 6.00’ (1.8m) nylon coated high

temperature rating galvanized steel cable

with loophole.

120

PSL-MLDH-X Multiple lockout device (hasp only). 10 —

PSL-MLDC 6.00’ (1.8m) vinyl coated galvanized steel

cable with loophole (cable only).

15

PSL-MLDCT 6.00’ (1.8m) nylon coated high temperature

rating galvanized steel cable with loophole

(cable only).

15

PSL-MLDC200 200.00’ (61.0m) vinyl coated galvanized

steel cable on roll without loophole

(cable only).

1—

PSL-MLDC200T 200.00’ (61.0m) nylon coated high

temperature rating galvanized steel cable

on roll without loophole (cable only).

1—

PSL-MLD-CRIMP Additional crimps for creating cable

loopholes, ten Crimps per package

10 50

PSL-MLD-TOOL Tool for installing crimps on custom-length

cables using the PSL-MDLC200.

1—

B9

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

Electrician Lockout Kit

• Kit contains a variety of lockout/tagout

devices commonly used by an

individual electrician

Pneumatic Energy Lockout Device

• Quickly locks out pneumatic energy

devices without costly tool modifications

or inconvenient in-line valves

• Installs on the male pneumatic fitting,

preventing the ability to engage into

the female fitting

• Universal compact design makes the

pneumatic lockout device easy to transport

and install on almost any fitting, even in

tight spaces

• Rugged stainless steel construction offers

superior strength, durability, added security

and corrosion resistance

PSL-PEL

*For the electrician’s lockout kit available with signage in French, add

suffix -F to part number.

Part Number Contents

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

PSL-PK-EA* (1) Screwdriver.

(1) PSL-PK pouch.

(1) PSL-8 red non-conductive lockout

padlock.

(1) PSL-MLD multiple lockout device.

(1) PSL-WS wall switch lockout device.

(1) PSL-CBNT “No Tool” circuit breaker

lockout device.

(1) PSL-P plug lockout device.

(5) PVT-30 electrician’s blocking tags.

15

Part Number Part Description

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

PSL-PEL Pneumatic energy lockout device, 3.50"

(88.9mm) diameter x 0.10" (2.5mm) thick.

120

B10

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

Contractor Lockout Kit

• Kit contains a variety of lockout/tagout

devices commonly used by electrical

contractors and multiple electricians

• Contains items from electrician lockout kit

above and additional components

*For the contractor lockout kit available with signage in French,

add suffix -F to part number.

Part Number Contents

Std.

Pkg.

Qty.

PSL-KT-CONA* (1) Screwdriver.

(1) PSL-KT carrying case – 5.00" x 3.50" x

11.00" (127.0mm x 88.9mm x 279.4mm).

(6) PSL-8 red non-conductive lockout

padlocks.

(1) PSL-1A lockout hasp – 1.00" (25.4mm) jaw

diameter.

(1) PSL-MLD multiple lockout device.

(3) PSL-WS wall switch lockouts.

(3) PSL-CBNT “No Tool” circuit breaker lockout

device.

(3) PSL-P plug lockouts.

(15 Tags) PVT-98 "EQUIPMENT LOCKED

OUT BY..." safety tags.

1

B11

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

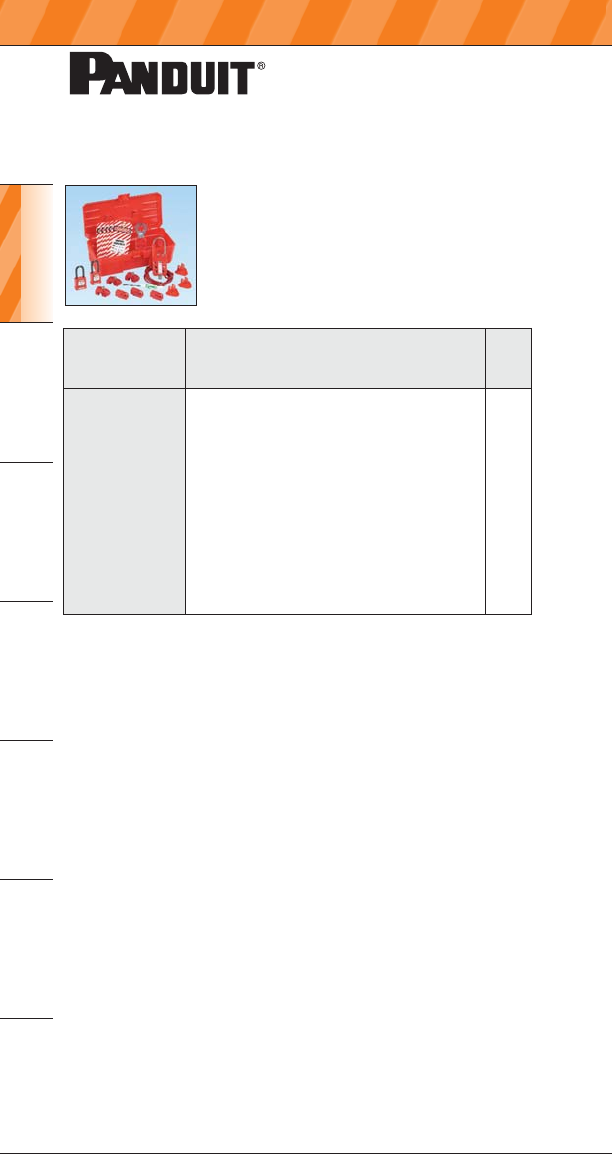

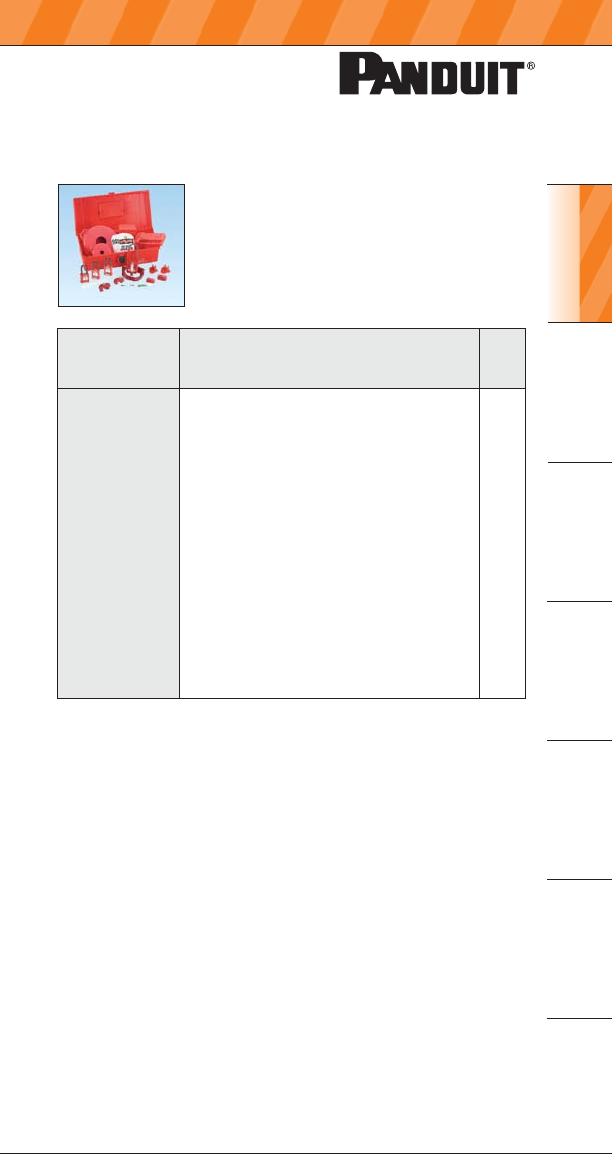

Maintenance/MRO Lockout Kit

• Kit contains a variety of lockout/tagout

devices commonly used by maintenance

and repair personnel in a facility

*For the MRO lockout kit available with signage in French, add suffix -F to

part number.

Part Number Contents

Std.

Pkg.

Qty.

PSL-KT-MROA* (1) Screwdriver.

(1) PSL-BX carrying case – 6.50" x 5.00" x

14.50" (165.1mm x 127.0mm x 368.3mm).

(3) PSL-8 red non-conductive lockout

padlocks.

(1) PSL-MLD multiple lockout device.

(2) PSL-WS wall switch lockouts.

(2) PSL-CBNT “No Tool” circuit breaker lockout

device.

(2) PSL-P plug lockouts.

(1) PSL-V6A gate valve lockout – 6.50"

(165.1mm).

(1) PSL-V2A gate valve lockout – 2.50"

(63.5mm).

(1) PSL-BV2 ball valve lockout – 3.00"

(76.2mm).

(1) PSL-CL110 110V plug lockout.

(10) PVT-44 “DO NOT OPERATE”

maintenance tags.

1

B12

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

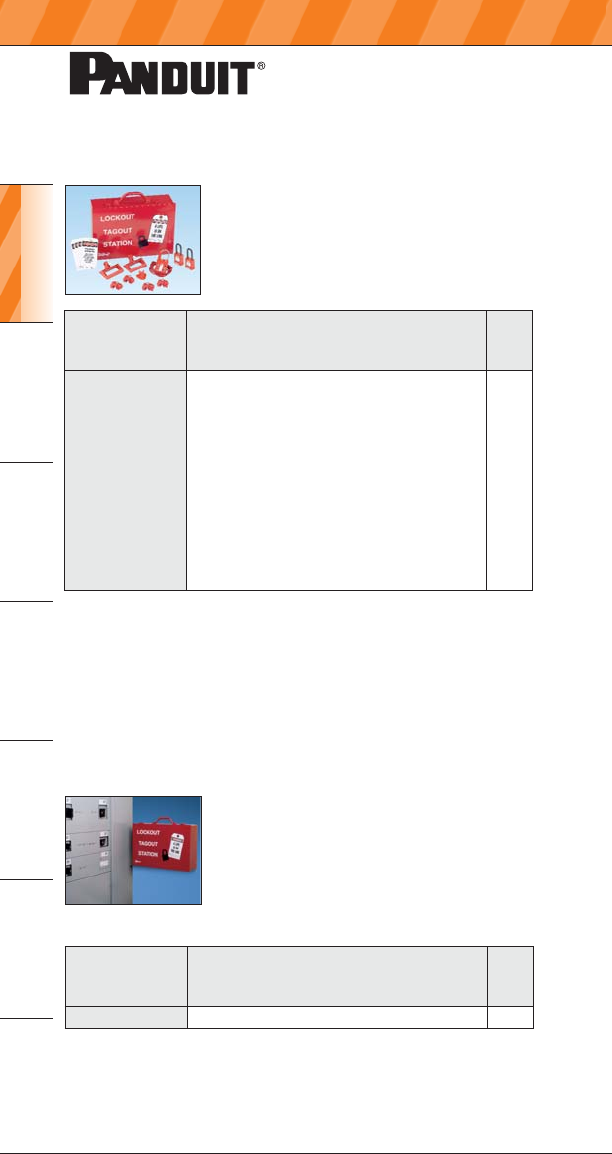

Metal Wall Mount Cabinet (Case only)

• Conveniently store lockout tools and

accessories in one common area

• Durable steel case can be wall-mounted

(nine mounting holes) or used as a

portable case

• 14.75" x 10.25" x 4.63"

(374.7mm x 260.4mm x 117.6mm)

Part Number Part Description

Std.

Pkg.

Qty.

PSL-STATION Metal wall mount cabinet. 1

Power and Panel Distribution Lockout Kit

• Kit contains a variety of lockout/tagout

devices commonly used by maintenance

and repair personnel to isolate electrical

distribution panels

• Durable steel case can be wall mounted

or used as a portable case

*For the power and panel distribution lockout kit available with signage in

French, add suffix -F to part number.

^I-LINE is a registered trademark of Square D Company.

Part Number Contents

Std.

Pkg.

Qty.

PSL-KT-PWR* (1) Screwdriver.

(1) PSL-STATION metal wall mount cabinet.

(2) PSL-8 red non-conductive lockout padlocks.

(1) PSL-MLD multiple lockout device.

(2) PSL-CBNT “No Tool” circuit breaker lockout

device.

(2) PSL-CBILNT circuit breaker lockout device

for Square D I-LINE^/Federal Pacific (FPE)

circuit breakers.

(2) PSL-CBL large handle circuit breaker

lockout devices.

(1) PSL-P plug lockout.

(25) PVT-23-Q “DO NOT OPERATE

ELECTRICIANS AT WORK” tags.

1

B13

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

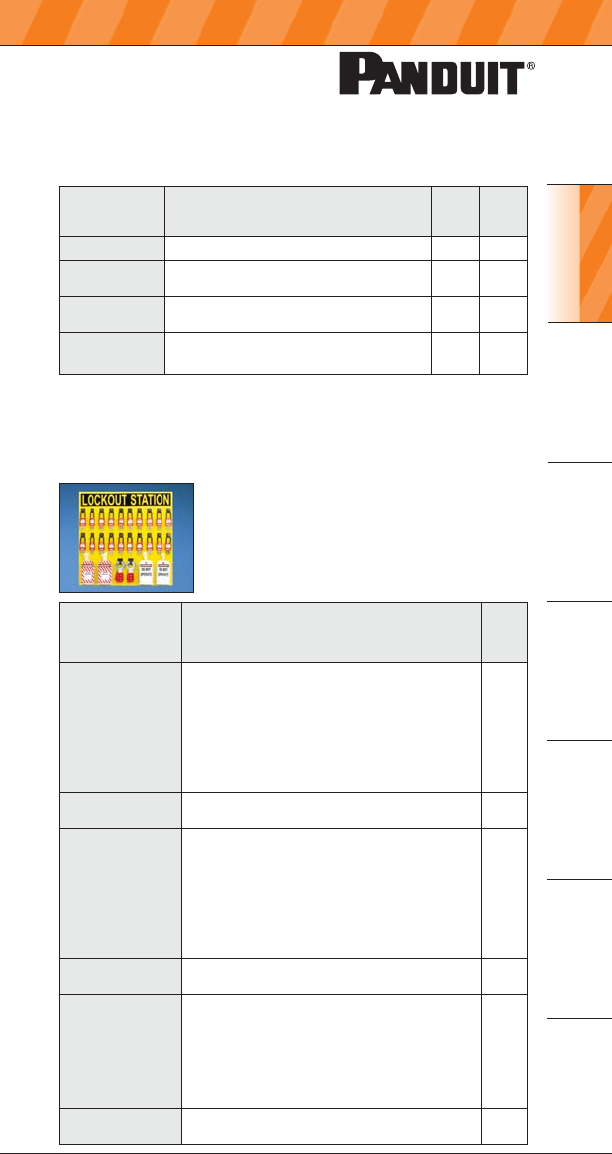

Lockout Stations

• Conveniently store padlocks, tags and

lockout devices in one common area

• Designs available to accommodate four,

ten, or twenty people

Cases to Create Your Own Kit

Contact Your Local Panduit Representative for custom kits,

minimum order quantity is ten kits.

Part Number Part Description

Std.

Pkg

Qty.

Std.

Ctn.

Qty.

PSL-PK Electrician pouch. 1 10

PSL-KT Carrying case – 5.00" x 3.50" x 11.00"

(127.0mm x 88.9mm x 279.4mm)

12

PSL-BX Carrying case – 6.50" x 5.00" x 14.50"

(165.1mm x 127.0mm x 368.3mm)

1—

PSL-STATION Metal wall mount cabinet 14.75" x 10.25"

x 4.63" (374.7mm x 260.4mm x 117.6mm)

1—

Part Number Part Description

Std.

Pkg.

Qty.

PSL-20SWCA 23.00" x 23.00" (584.2mm x 584.2mm),

20 person lockout station with components;

components include:

(20) PSL-8 red non-conductive lockout

padlocks (keyed differently),

(6) PSL-1.5 lockout hasps,

(25 tags) PVT-98 safety tags, and

(25 tags) PVT-41 safety tags.

1

PSL-20SA 23.00" x 23.00" (584.2mm x 584.2mm),

20 person lockout station (sign only).

1

PSL-10SWCA 11.50" x 23.00" (292.2mm x 584.2mm),

10 person lockout station with components;

components include:

(10) PSL-8 red non-conductive lockout

padlocks (keyed differently),

(3) PSL-1.5 lockout hasps,

(15 tags) PVT-98 safety tags, and

(10 tags) PVT-41 safety tags.

1

PSL-10SA 11.50" x 23.00" (292.2mm x 584.2mm),

10 person lockout station (sign only).

1

PSL-4SWCA 11.50" x 11.50" (292.2mm x 292.2mm),

4 person lockout station with components,

components include:

(4) PSL-8 red non-conductive padlocks (keyed

differently),

(3) PSL-1.5 lockout hasps, and

(15 tags) PVT-98 safety tags.

1

PSL-4SA 11.50" x 11.50" (292.2mm x 292.2mm),

4 person lockout station (sign only).

1

• Manage multiple employees and energy

sources involved in a group lockout procedure

• Accommodates up to thirteen padlocks

(not included)

• Rust-resistant lock box delivers maximum

durability

• Lock box is also available in stainless steel

• Dimensions: 9.00" (228.6mm) W x 6.00"

(152.4mm) H x 3.25" (82.6mm) D

• Innovative sliding lid design enhances safety

and security

B14

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

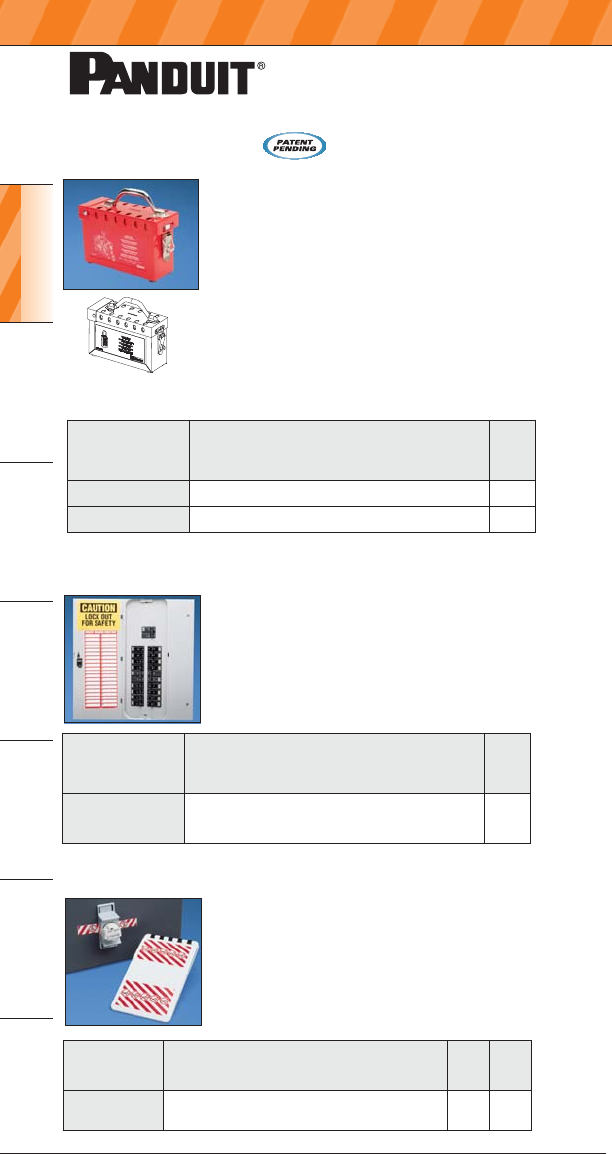

Group Lock Box

• Eliminate the guesswork when identifying

power sources – a must for lockout/tagout

compliance

• Adhesive paper sign designed to provide

clear identification of circuit breaker

connections, list up to 40 circuits plus add

the part number to the index section

PSL-GLBN

Circuit Breaker Directory Sign

• Write-on area for adding your own warning

message

• Made of vinyl cloth material that allows

label to be removed easily after repairs are

completed

• Features the international prohibition

symbol for “Do Not Throw Switch”

Lockout Warning Strip Label

Part Number Part Description

Std.

Pkg.

Qty.

PSL-GLBN Group lock box. 1

PSL-GLBNSS Stainless steel group lock box. 1

Part Number Part Description

Std.

Pkg.

Qty.

PES-S1 Circuit breaker directory sign, paper (adhesive),

13.00" x 5.50" (330.2mm x 139.7mm), 1 sign, 5

signs/pack, red/white.

1

Part Number Part Description

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

PSL-CBWL 0.54" x 4.84" (13.7mm x 122.9mm) warning

label, 60 markers per book, red/white.

110

C1

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

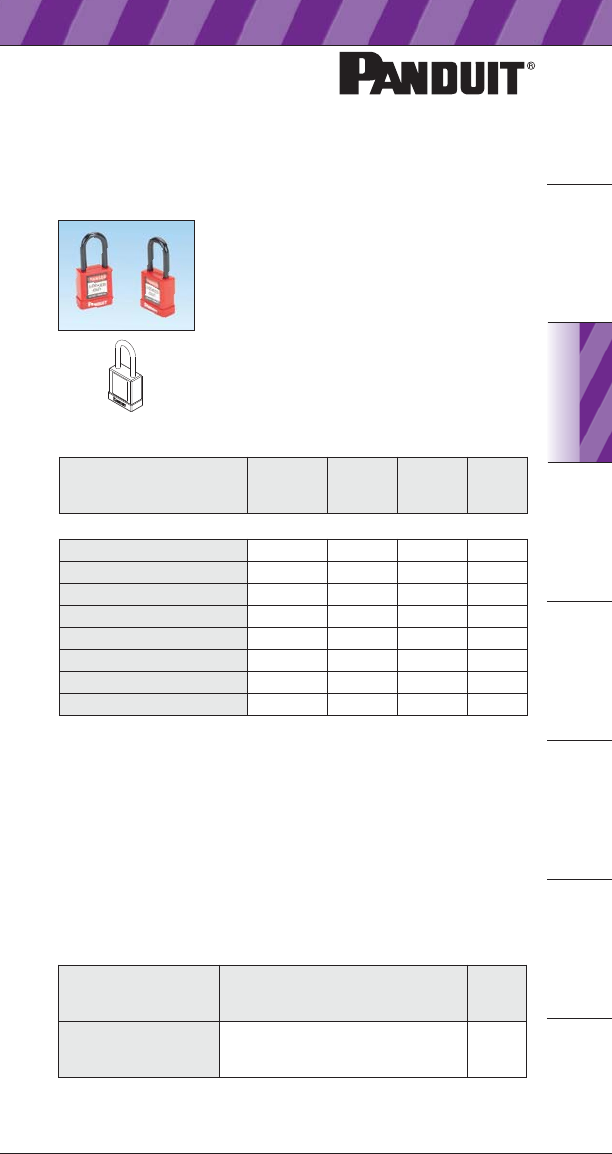

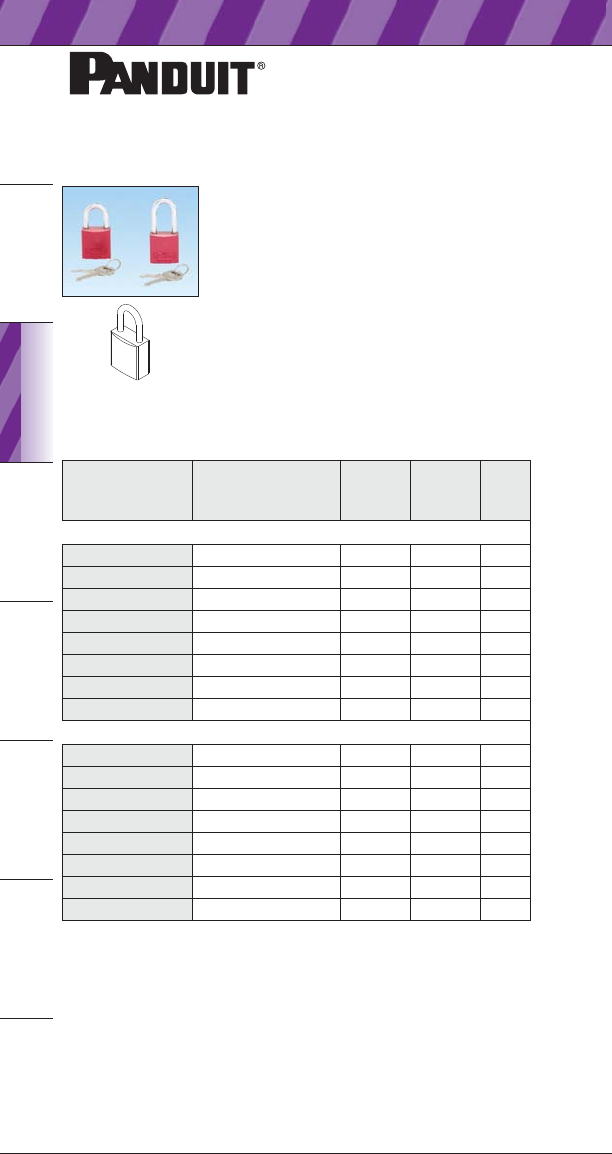

Non-Conductive Lockout Padlocks

• Standard locks are keyed differently –

each padlock is supplied with one key

• Non-conductive lock body and shackle

provide protection against electrical

hazards

• Available in eight assorted colors for quick

visual color identification

• Key-retention feature means that key

cannot be removed from padlock

when open

Padlocks, Hasps, and Accessories

These locks can be master keyed or keyed alike. These locks can also be

custom engraved, see page C3 for more information on custom padlocks.

PSL-8

Replacement Labels for Non-Conductive

Lockout Padlocks

• Labels supplied in English, Spanish, and French

• Replacement labels for front and back of lock

• Used to identify employees’ locks

Part Number Color

Std.

Pkg.

Qty.

PSL-8-LABEL Package of 20 replacement labels

for PSL-8 non-conductive

lockout padlocks.

1

Part Number Color

Shackle

Diameter

(In.)

Shackle

Diameter

(mm)

Std.

Pkg.

Qty.

1.50" (38.1mm) Shackle

PSL-8 Red 0.26 6.5 1

PSL-8BL Black 0.26 6.5 1

PSL-8BU Blue 0.26 6.5 1

PSL-8GR Green 0.26 6.5 1

PSL-8OR Orange 0.26 6.5 1

PSL-8YL Yellow 0.26 6.5 1

PSL-8PU Purple 0.26 6.5 1

PSL-8BR Brown 0.26 6.5 1

C2

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

High Security Padlocks

• Standard locks are keyed differently –

each padlock is supplied with two keys

• Solid aluminum body with anodized

aluminum finish provides improved

durability and corrosion resistance

• Available in eight assorted colors for quick

visual color identification

• Padlocks can be ordered with various

keying options (keyed-alike and master-

keyed)

• Six-pin cylinder design allows for a large

number of key change options

PSL-7

These locks can be master keyed or keyed alike. These locks can also be

custom engraved, see page C3 for more information on custom padlocks.

Part Number Color

Shackle

Diameter

(In.)

Shackle

Diameter

(mm)

Std.

Pkg.

Qty.

Short Shackle –1.00" (25.4mm)

PSL-7 Red 0.25 6.4 1

PSL-7BL Black 0.25 6.4 1

PSL-7BU Blue 0.25 6.4 1

PSL-7GR Green 0.25 6.4 1

PSL-7OR Orange 0.25 6.4 1

PSL-7YL Yellow 0.25 6.4 1

PSL-7PU Purple 0.25 6.4 1

PSL-7BR Brown 0.25 6.4 1

Long Shackle –3.00" (76.2mm)

PSL-7-LS Red 0.25 6.4 1

PSL-7BL-LS Black 0.25 6.4 1

PSL-7BU-LS Blue 0.25 6.4 1

PSL-7GR-LS Green 0.25 6.4 1

PSL-7OR-LS Orange 0.25 6.4 1

PSL-7YL-LS Yellow 0.25 6.4 1

PSL-7PU-LS Purple 0.25 6.4 1

PSL-7BR-LS Brown 0.25 6.4 1

C3

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

Laminated Steel Padlocks

• Standard locks are keyed differently -

each padlock is supplied with two keys

• Hardened steel shackle with double-ball

locking mechanism provides protection

from cutting, prying, and rusting

• Available in six vinyl bumper colors

for quick visual color identification

• Padlocks can be ordered with

various keying options (keyed-alike

and master-keyed)

• Galvanized layer design provides corrosion

resistance in harsh environments

PSL-6

These locks not suitable for custom engraving.

Part Number Color

Shackle

Diameter

(In.)

Shackle

Diameter

(mm)

Std.

Pkg.

Qty.

Short Shackle –0.75" (19.3mm)

PSL-6 Red 0.27 6.8 1

PSL-6BL Black 0.27 6.8 1

PSL-6BU Blue 0.27 6.8 1

PSL-6GR Green 0.27 6.8 1

PSL-6WH White 0.27 6.8 1

PSL-6YL Yellow 0.27 6.8 1

Long Shackle –2.00" (50.8mm)

PSL-6-LS Red 0.27 6.8 1

PSL-6BL-LS Black 0.27 6.8 1

PSL-6BU-LS Blue 0.27 6.8 1

PSL-6GR-LS Green 0.27 6.8 1

PSL-6WH-LS White 0.27 6.8 1

PSL-6YL-LS Yellow 0.27 6.8 1

Customized Lockout Padlocks

If your application demands specialized, lockout padlocks, Panduit offers

many options of customized padlocks. Options include:

• Keyed Alike

• Master Keyed

• Keyed Alike and Master Keyed

• Engraving

Fill out the Customized Lockout Padlock order form with your desired options,

engraved text, and quantities, and Panduit will create the specified padlocks.

Look for the icon below at www.panduit.com/safety to download electronic

copies of the Customized Lockout Padlock order form.

C4

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

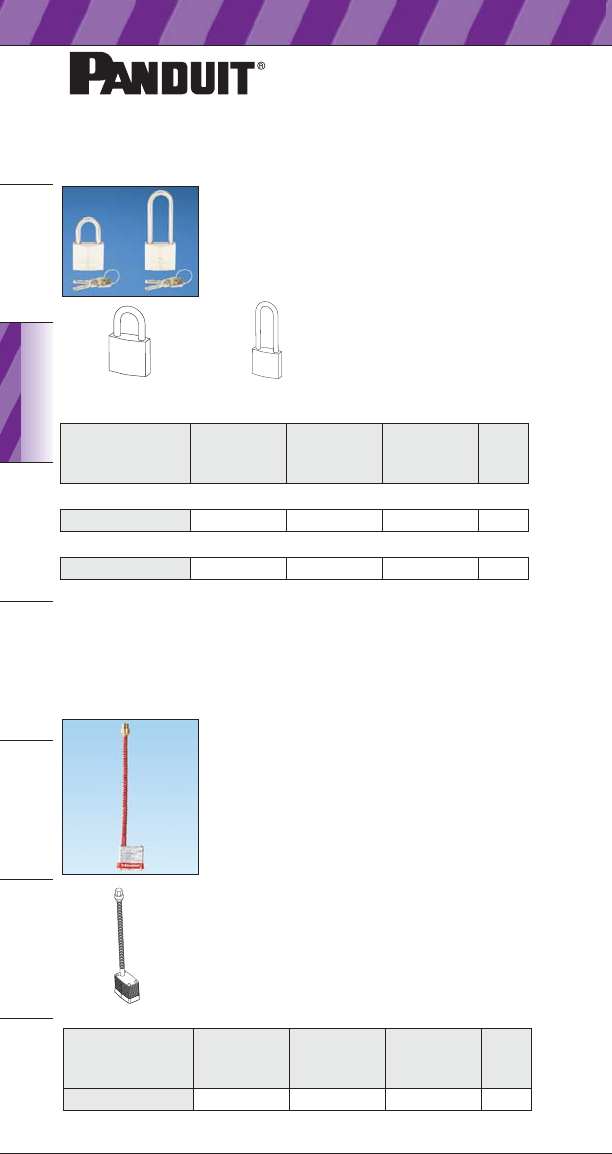

Harsh Environment Padlocks

• Standard locks are keyed differently –

each padlock is supplied with two keys

• Flexible steel shackle works with most

circuit breaker lockout devices

• Flexible steel shackle allows movement

of the lock body in order to close the

panel door

PSL-9

PSL-CS

PSL-9-LS

Flexible Shackle Padlock

Part Number Color

Shackle

Diameter

(In.)

Shackle

Diameter

(mm)

Std.

Pkg.

Qty.

Short shackle –1.00" (25.4mm)

PSL-9 Silver 0.25 6.4 1

Long shackle –2.50" (63.5mm)

PSL-9-LS Silver 0.25 6.4 1

These locks are not suitable for custom engraving.

Part Number Color

Shackle

Diameter (In.)

Shackle

Diameter

(mm)

Std.

Pkg.

Qty.

PSL-CS Red 0.20 5.2 1

• Standard locks are keyed differently –

each padlock is supplied with two keys

• Solid brass body with chrome finish and

stainless steel shackle for use in severe

weather and environmental conditions

C5

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

Lockout Hasps

• Energy sources can be locked

out quickly and easily by more

than one worker for group

lockout applications

• Heavy duty hasps with

tamper-resistant designs

to deter vandalism

• Variety of lockout hasp styles

and sizes to accommodate a

wide range of lockout applications

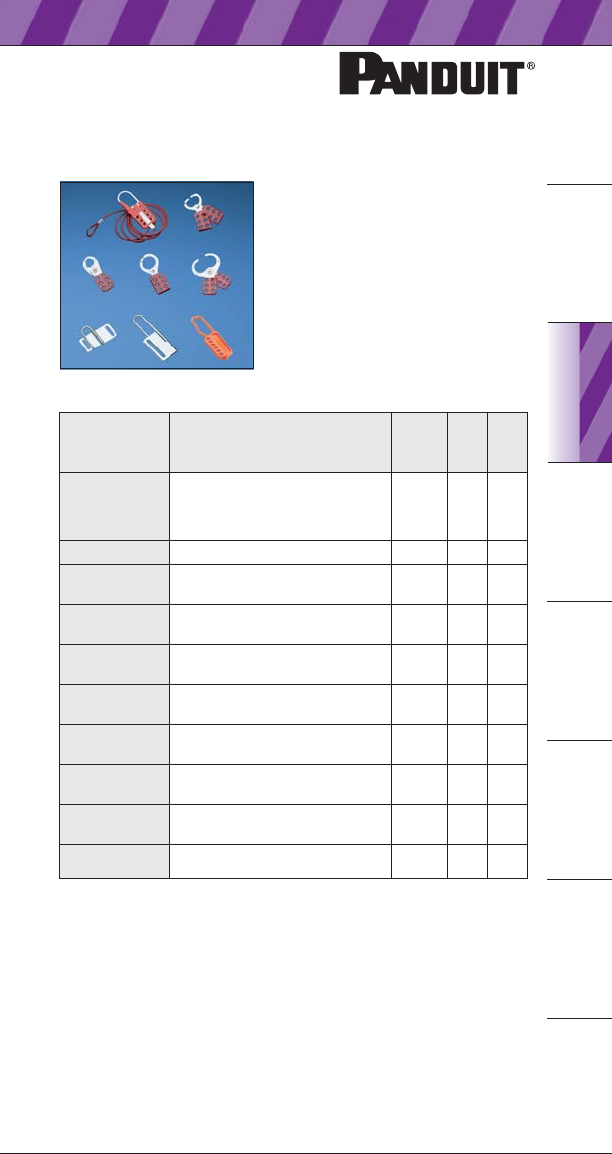

PSL-MLD

PSL-HD1 PSL-NC3

PSL-1.5 PSL-1.5APSL-1A

PSL-HD3

PSL-1

Part Number Part Description

Max.

No.

Locks

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

PSL-MLD Multiple lockout device; includes

lockout hasp and 6.00’ (1.8m)

vinyl coated galvanized steel

cable with loophole.

6120

PSL-MLDH-X Multiple lockout device (hasp only). 6 10 –

PSL-1 Hasp with 1.00" (25.4mm)

diameter jaw and overlapping tabs.

6 12 144

PSL-1.5 Hasp with 1.50" (38.1mm)

diameter jaw and overlapping tabs.

6 12 144

PSL-1A Hasp with 1.00" (25.4mm)

diameter jaw.

6 12 144

PSL-1.5A Hasp with 1.50" (38.1mm)

diameter jaw.

61248

PSL-HD1 Heavy duty hasp with 1.00" x 1.00"

(25.4mm x 25.4mm) clearance.

512–

PSL-HD2.4 Heavy duty hasp with 1.00" x 2.40"

(25.4mm x 60.0mm) clearance.

512–

PSL-HD3 Heavy duty hasp with 1.00" x 3.00"

(25.4mm x 76.0mm) clearance.

712–

PSL-NC3 Non-Conductive lockout hasp with

3.00" (76.2mm) shackle.

6120

C6

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

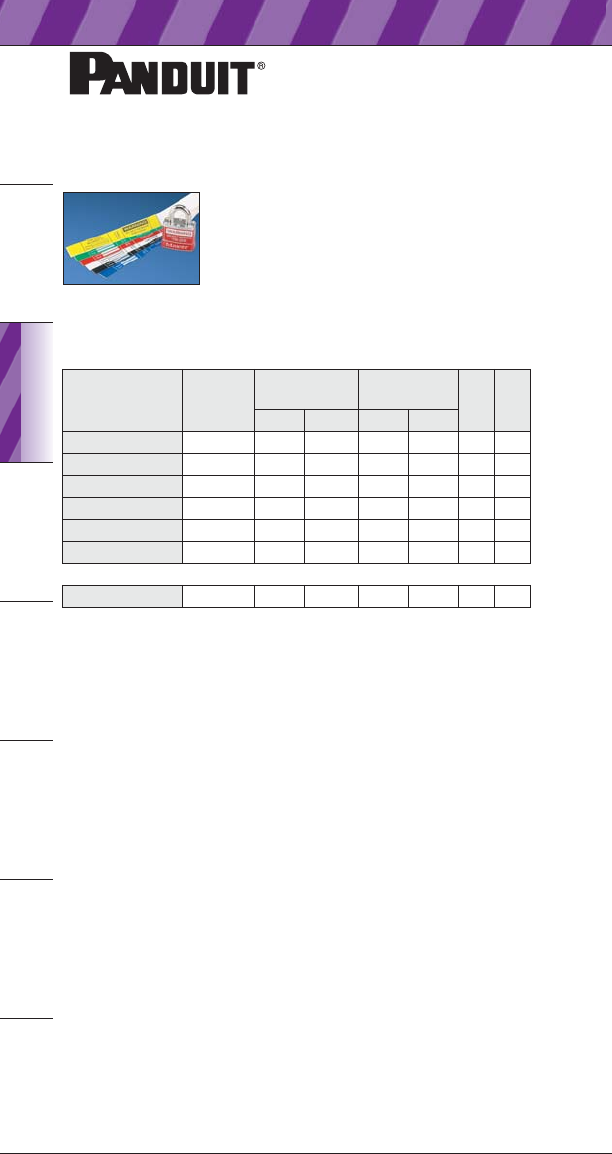

Self-Laminating Padlock Labels

Labels are designed with blank write-on area for name and department

designation and can be clearly identified with Panduit permanent marking

pens, page D16.

• Used to identify employees’ locks;

employees sign the label, attach it to the

padlock, and overwrap with the clear vinyl

to protect the legend

• Available in six colors for

departmental coding

• One-piece design is easy to use

• For use with PSL-6 padlocks

Part Number Color

Width Height Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

In. mm In. mm

PSL-PL1REDY Red 10.00 254.0 0.75 19.1 25 150

PSL-PL1BLKY Black 10.00 254.0 0.75 19.1 25 150

PSL-PL1BLUY Blue 10.00 254.0 0.75 19.1 25 150

PSL-PL1GRNY Green 10.00 254.0 0.75 19.1 25 150

PSL-PL1WHTY White 10.00 254.0 0.75 19.1 25 150

PSL-PL1YELY Yellow 10.00 254.0 0.75 19.1 25 150

DANGER Header

PSL-PL1REDY-D White/Red 10.00 254.0 0.75 19.1 25 150

C7

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

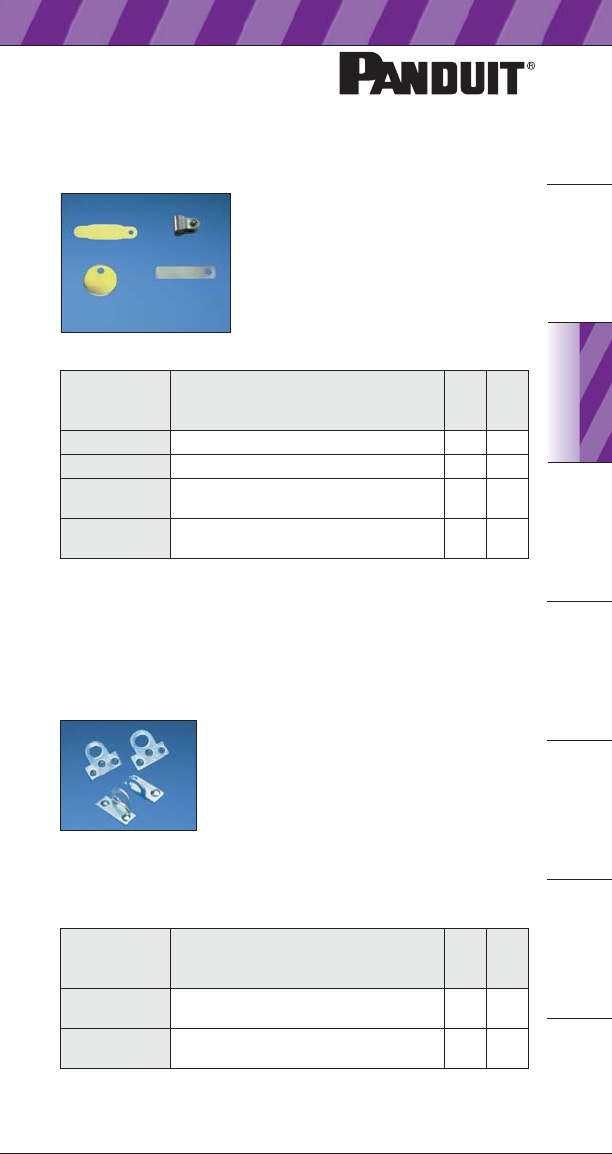

Metal I.D. Tags and Collars

PSL-TG1

MTB1D-Q

MT172W38-C

PSL-SC

• Provides permanent identification of pipes,

conduit, valves, cables and equipment in

harsh environments

• All marker plates/tags can be embossed

or laser etched with Panduit Factory

Custom Marking Service*

*For information on the Panduit Custom Marking Service

visit www.panduit.com/permanentid.

Part Number Part Description

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

PSL-TG1 Brass padlock identification tag. 12 48

PSL-SC Padlock shackle collar and rivet. 12 48

MTB1D-Q Brass identification tag 1.00" (25.4mm)

diameter.

25 250

MT172W38-C Stainless steel tag 1.72" x 0.38" (43.7mm

x 9.7mm).

100 1000

Padlock Eyes

• Padlock eyes can be added to equipment

to lock it out

• Surface mounted eyes are made of 0.13"

(3.0mm) hard wrought steel

• Tamper resistant inside mounting eyes –

2.50" (64.0mm) wide, accept shackle

diameters up to 0.63" (16.0mm)

PSL-PE2

PSL-PE1

Part Number Part Description

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

PSL-PE1 Padlock eyes, angled (metal mounting

screws included).

110

PSL-PE2 Padlock eyes, straight (wood mounting

screws included).

110

C8

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

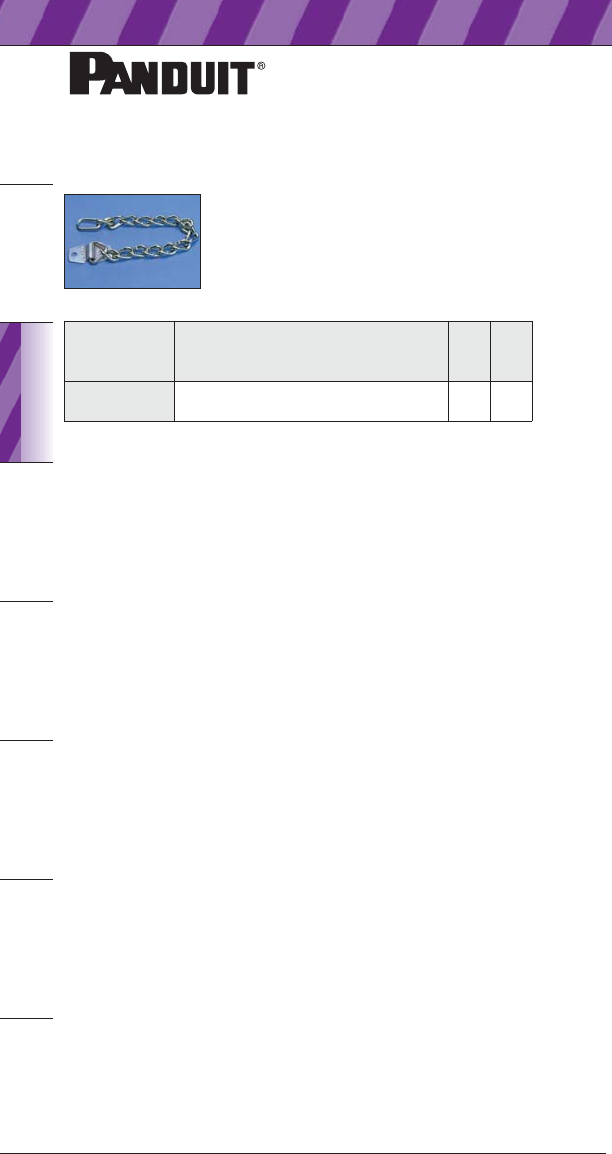

Chain Attachment

• Optional 9.00" (229.0mm) chain

for permanently attaching lockouts

at pre-designed locations

Part Number Part Description

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

PSL-PC Heavy duty zinc plated steel chain with

chain holder attached.

110

D1

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

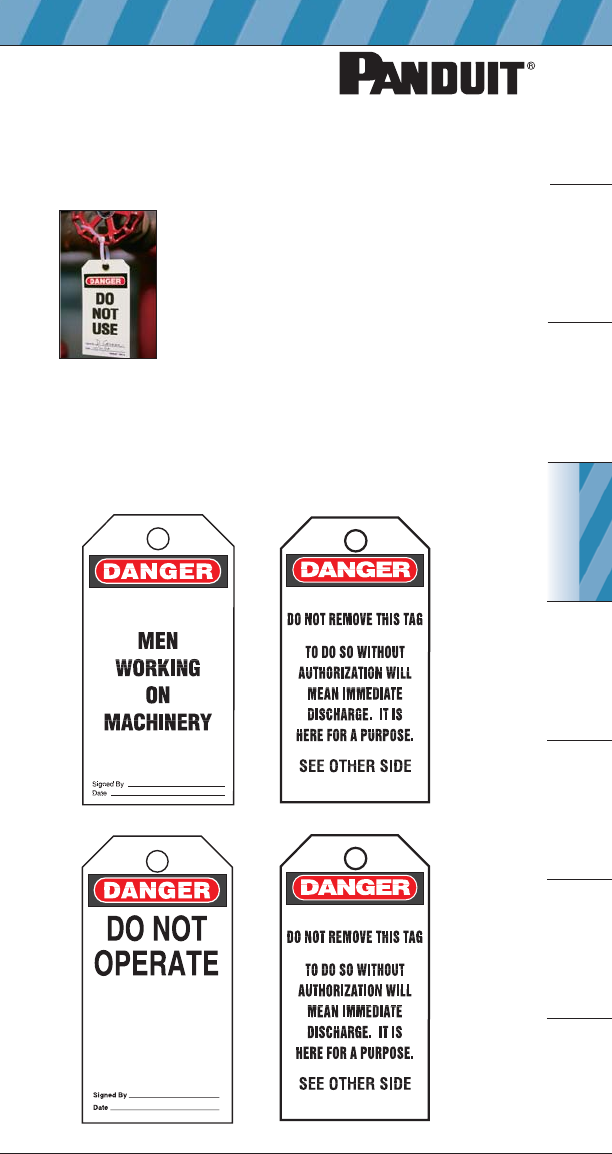

Tags, Signs, and Labels

PVT-9-Q

Front

Back

PVT-15

Front

Back

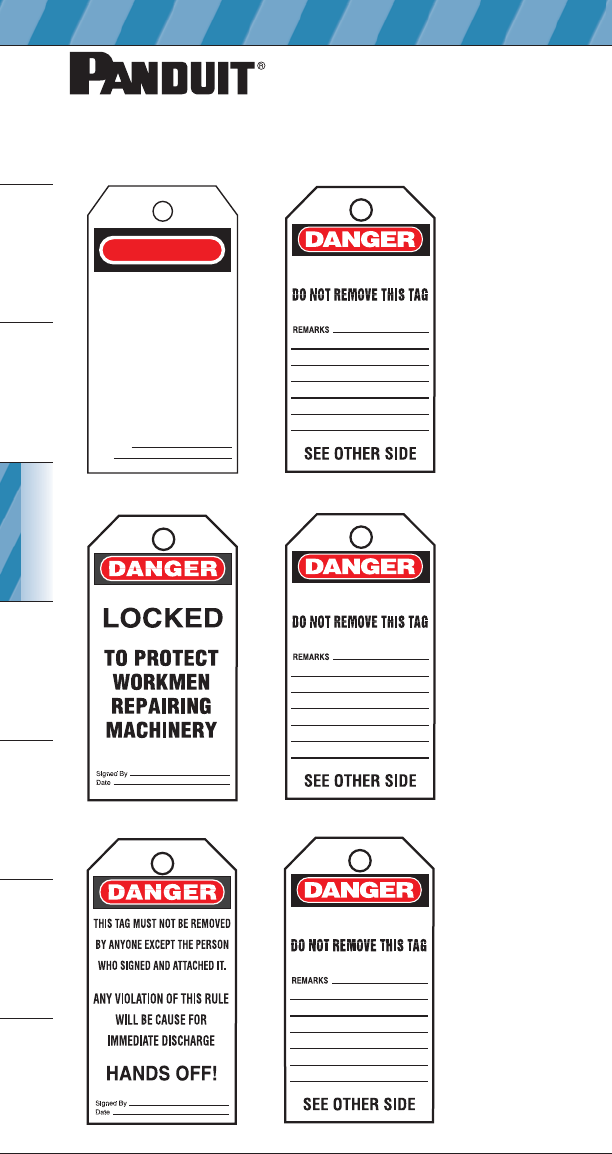

Write-On Safety Tags

• Meets OSHA Standard 1910.147

requirements for tagout applications

• Semi-rigid plastic tags are 3.00" (76.0mm)

wide x 5.75" (146.0mm) high with a 0.38"

(9.0mm) brass grommet for greater strength

and increased durability

• Tags can be attached with a lockout device or

with a Panduit PLT2S nylon tie (50 lb. loop

tensile strength) supplied with each tag

• PVT-* package consists of five tags and five

cable ties

• PVT-*-Q package consists of 25 tags and 25

cable ties

• Can be clearly identified with Panduit

permanent marking pens, page D16

continued on page D2.

D2

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

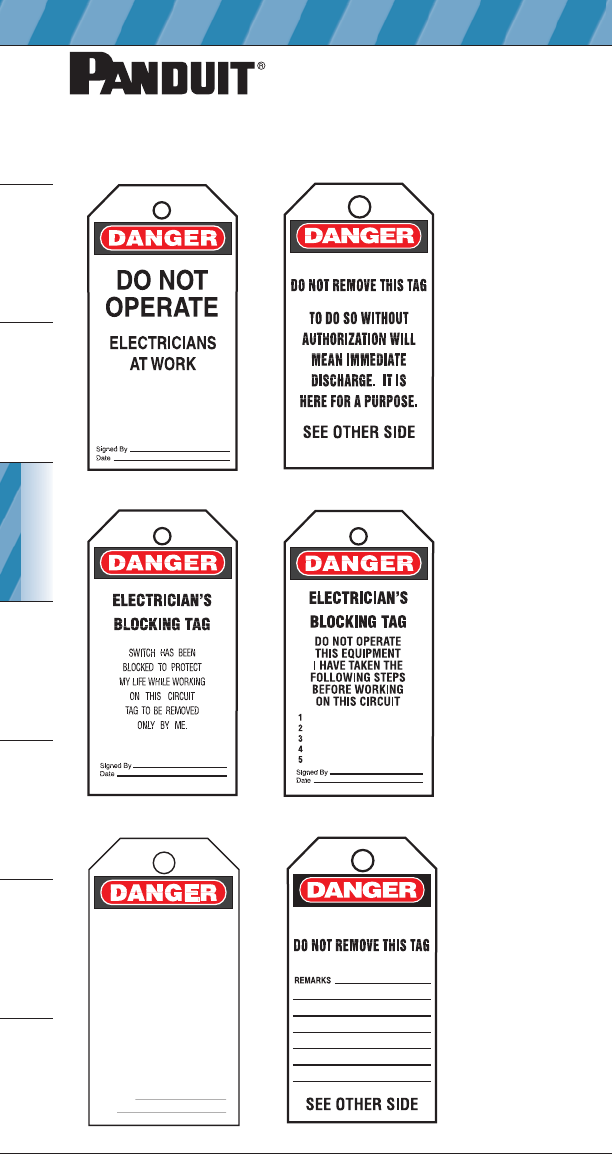

PVT-30

PVT-30-Q

Front

Back

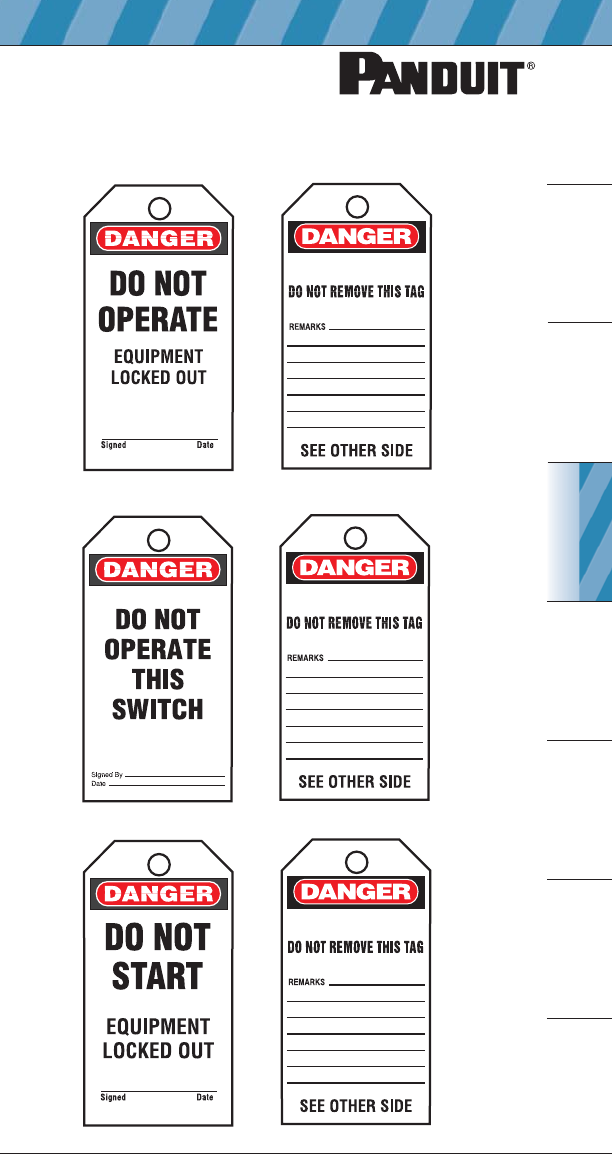

Write-On Safety Tags (continued)

PVT-23

PVT-23-Q

Front

Back

DO NOT

OPERATE

Signed By

Date

PVT-41

Front

Back

D3

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

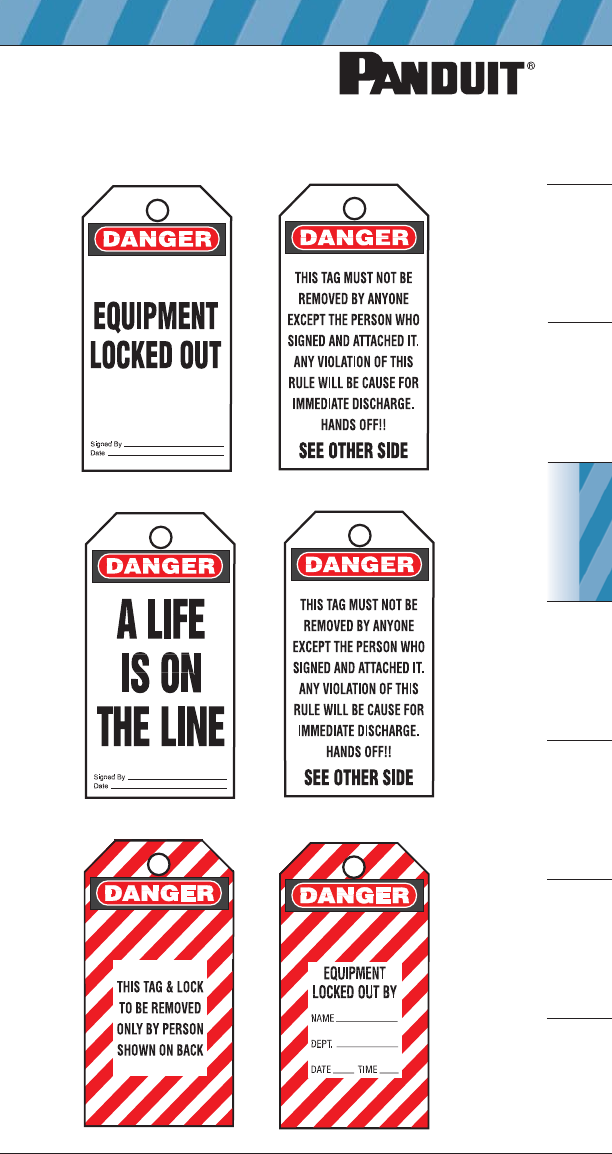

PVT-43

Front

Back

PVT-44

PVT-44-Q

Front

Back

Write-On Safety Tags (continued)

continued on page D4.

PVT-42-Q

Front

Back

D4

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

PVT-62-Q

Front

Back

PVT-57-Q

PVT-56-Q

Front

Back

Front

Back

Write-On Safety Tags (continued)

PANDUIT PVT-56

DANGER

Signed By:

Date:

LIVE

WIRE

D5

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

PVT-96

PVT-96-Q

Front

Back

PVT-97

PVT-97-Q

PVT-98

PVT-98-Q

Front

Back

Front

Back

Write-On Safety Tags (continued)

continued on page D6.

D6

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

PVT-150-Q

Front

Back

PVT-148-Q

Front

Back

Write-On Safety Tags (continued)

DO NOT OPERATE

Front

Back

PVT-99

D7

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

PVT-153-Q

Front

Back

PVT-156-Q

Front

Back

PVT-155-Q

Front

Back

Write-On Safety Tags (continued)

continued on page D8.

D8

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

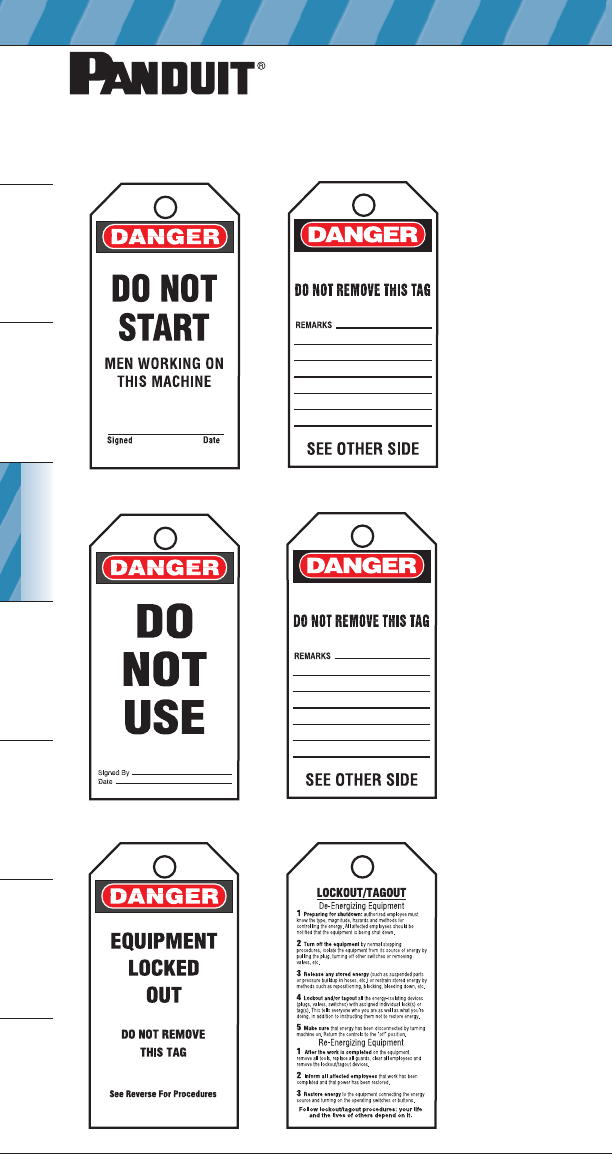

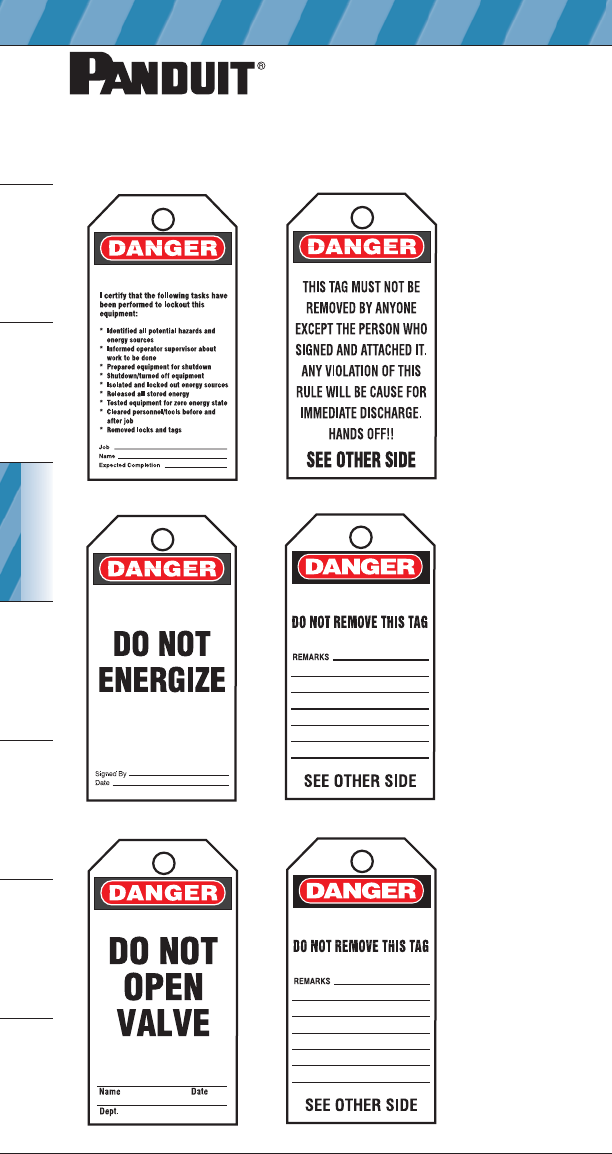

Write-On Safety Tags (continued)

PVT-160-Q

Front

Back

PVT-158-Q

Front

Back

PVT-157-Q

Front

Back

D9

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

Write-On Safety Tags (continued)

PVT-238-Q

Front

Back

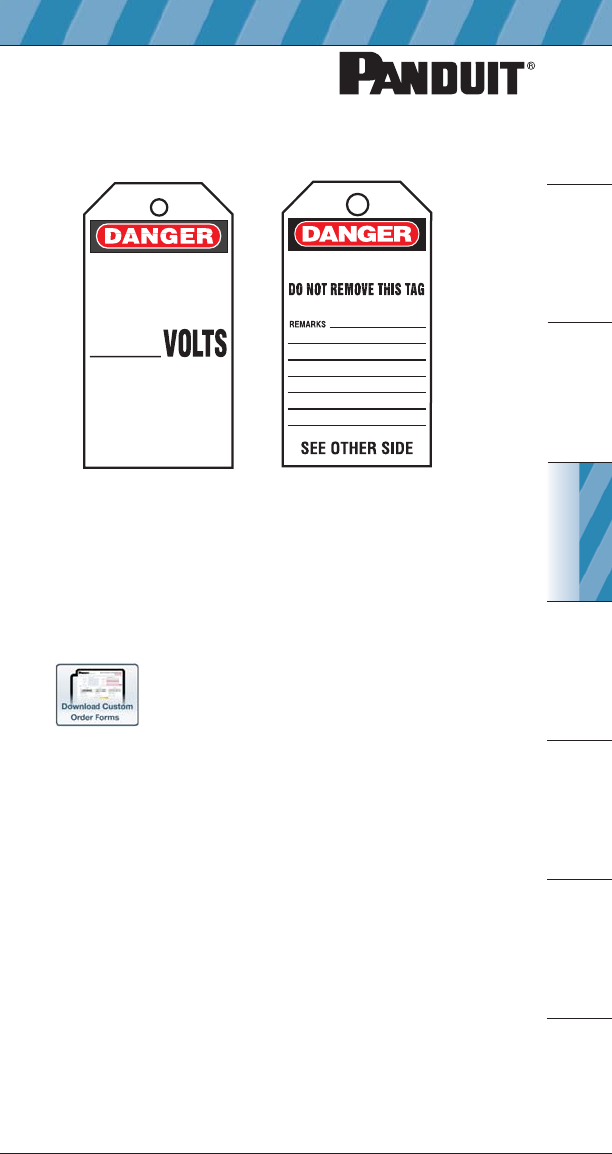

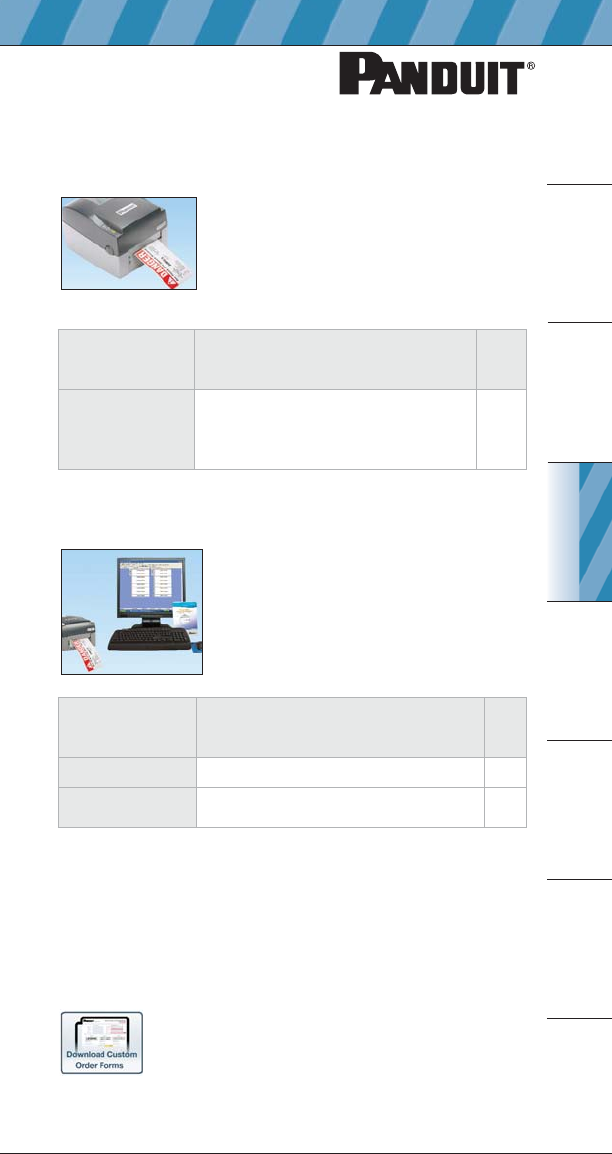

Custom Printed PVT Vinyl Tags

If your application demands custom printed information for your PVT Tags,

Panduit offers many custom printed options. Fill out the Custom Printed PVT

Vinyl Tags order form with your specific values, information, and even a

company logo, and Panduit will create and print the specified tags. Look for

the icon below at www.panduit.com/safety to download electronic copies of

the Custom Printed PVT Vinyl Tag order form.

D10

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

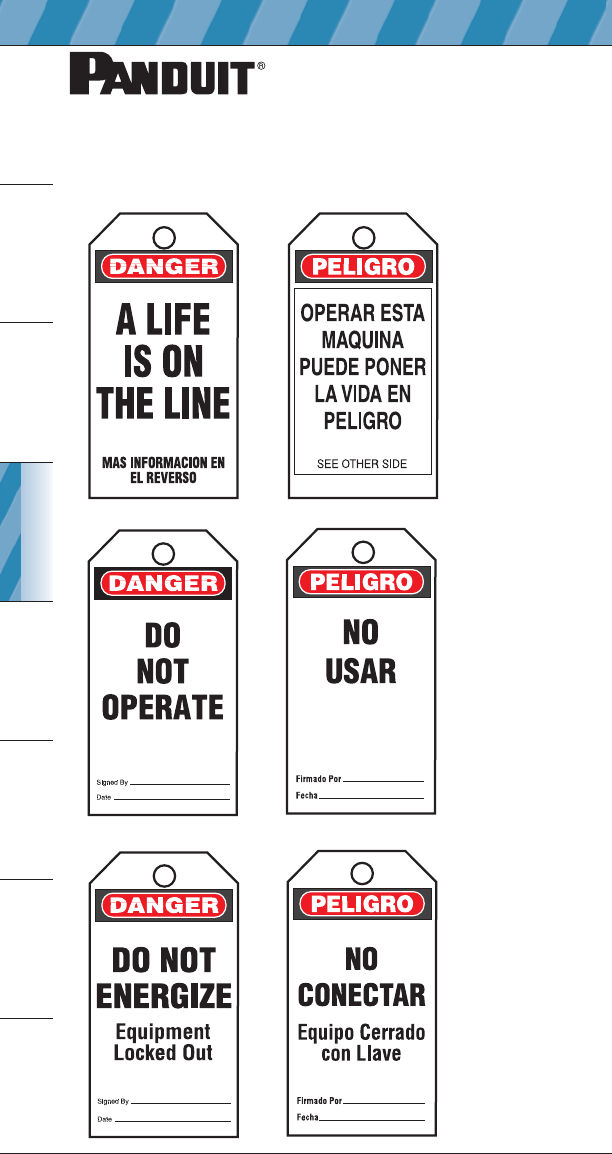

Bilingual Write-On Safety Tags

(English/Spanish)

PVT-97S-Q

Front

Back

PVT-161-Q

Front

Back

PVT-165-Q

Front

Back

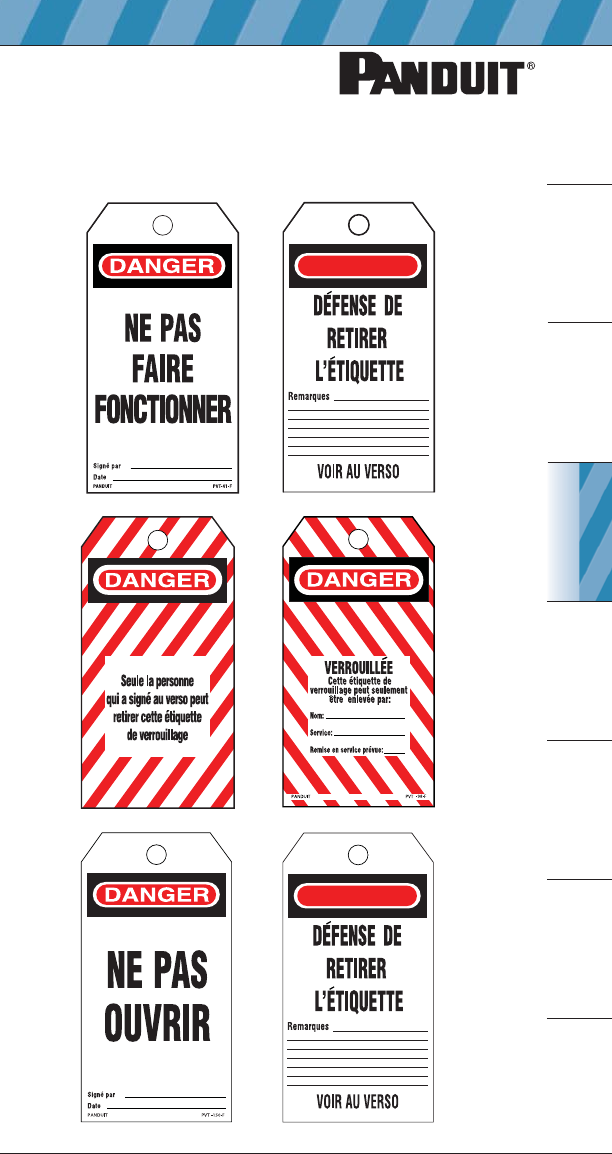

Write-On Safety Tags (French)

DANGER

DANGER

PVT-41-F

Front

Back

PVT-98-F

Front

Back

PVT-150-F

Front

Back

D11

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

D12

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

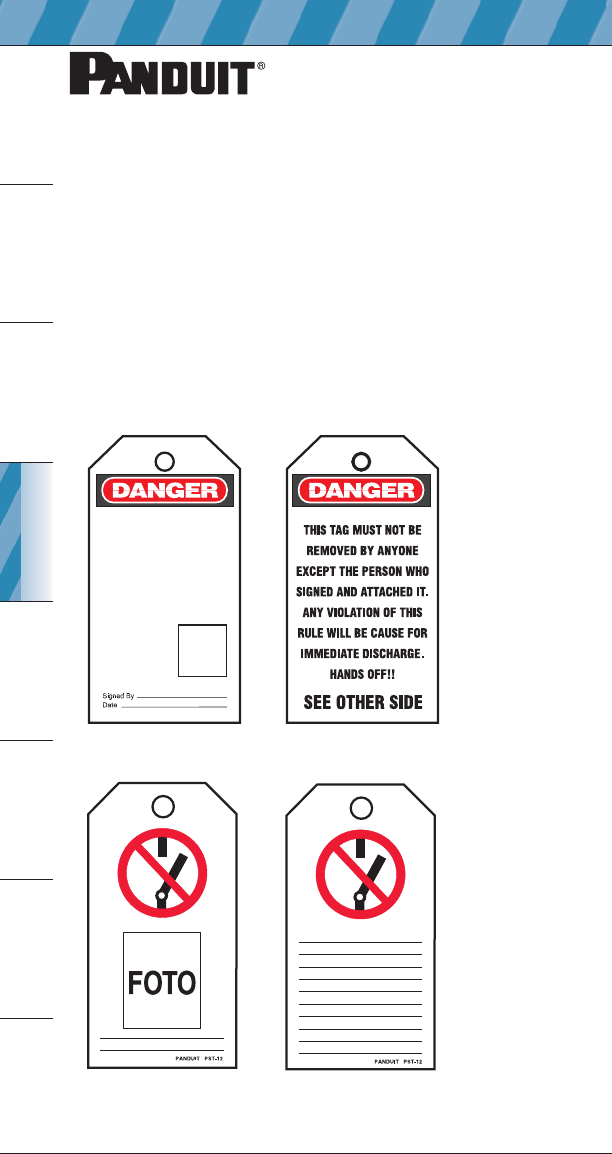

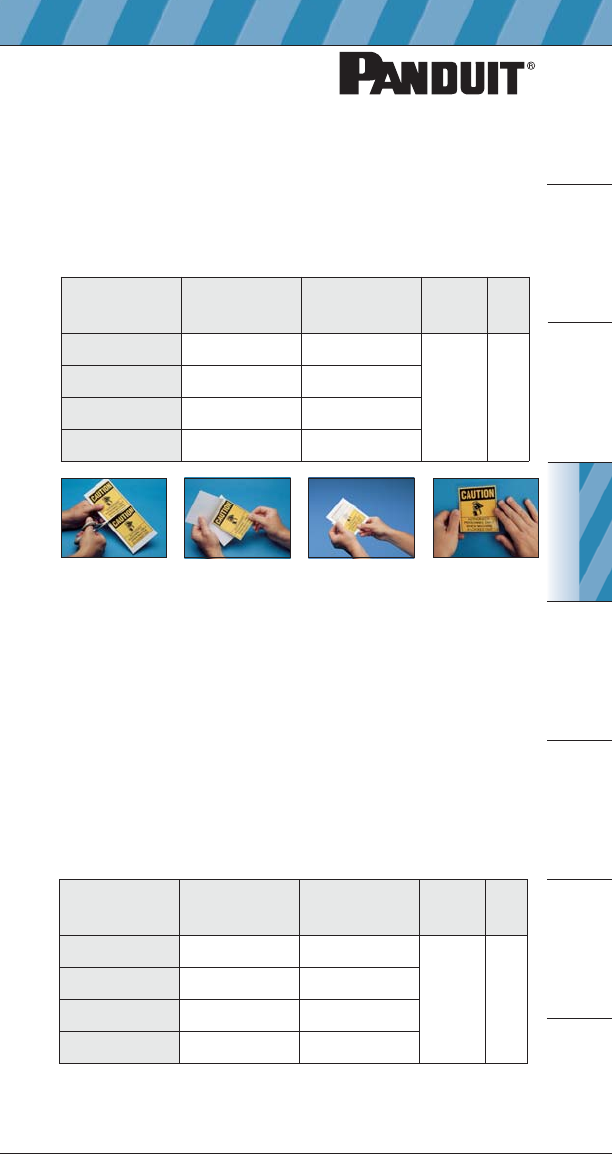

Self-Laminating Photo Tags

• Semi-rigid plastic tags with polyester laminate to protect photos

and other written data are 5.75" H x 3.00" W (146.0mm x

76.0mm) with a 0.38" (9.0mm) brass grommet for greater

strength and durability

• Tags have write-on surface and can be attached with a lockout

device or with a Panduit PLT2S nylon tie (50 lb. loop tensile

strength) supplied with each tag

• Package consists of five tags and five cable ties

• Can be clearly identified with Panduit permanent marking pens,

page D16

DO

NOT

OPERATE

Do not remove

this lock. It

is here to

protect my life.

PLACE


HERE

PST-3

Front

Back

PST-12

Front

Back

D13

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

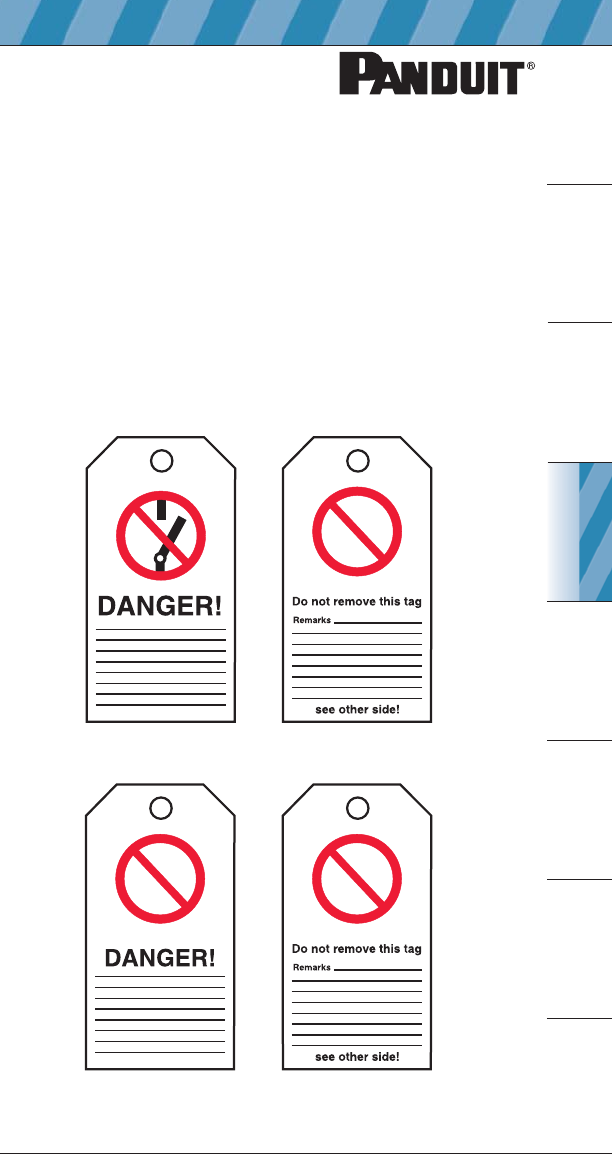

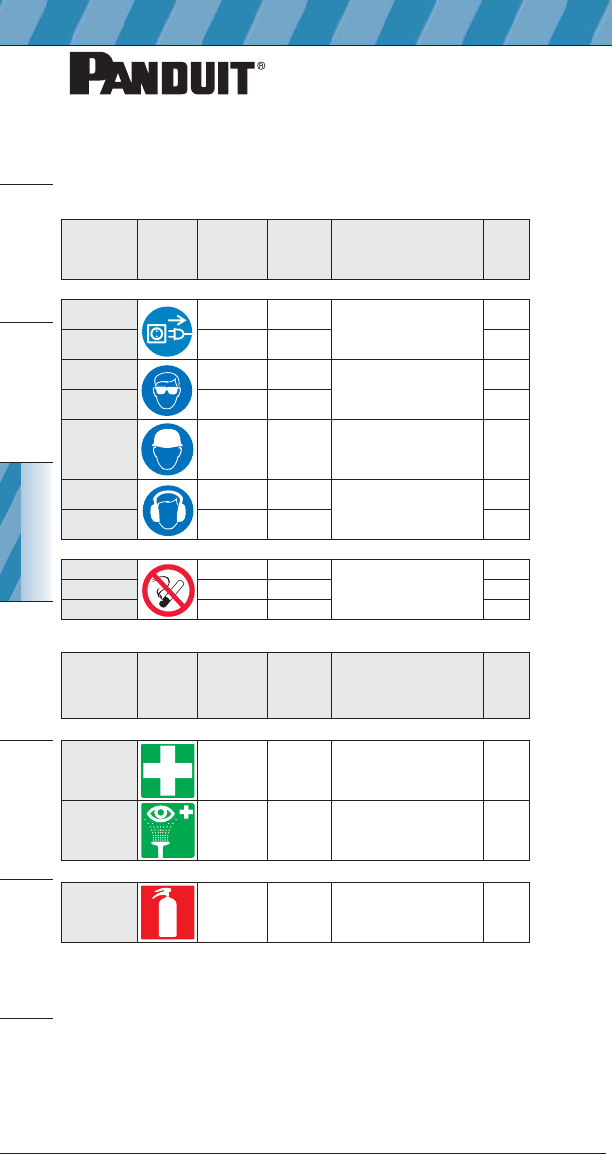

ISO Symbol Safety Tags

• Meet International Organization for Standardization (ISO) to

communicate safety information

• Semi-rigid plastic tags are 5.75" H x 3.00" W (146.0mm x

76.0mm) with a 0.38" (9.0mm) brass grommet for greater

strength and durability

• Tags have write-on surface and can be attached with a lockout

device or with a Panduit PLT2S nylon tie (50 lb. loop tensile

strength) supplied with each tag

• Package consists of five tags and five cable ties

• Can be clearly identified with Panduit permanent marking pens,

page D16

Front

Back

Front

Back

PVT-110

(Do Not

Throw Switch)

PVT-111

(Prohibition)

continued on page D14.

D14

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

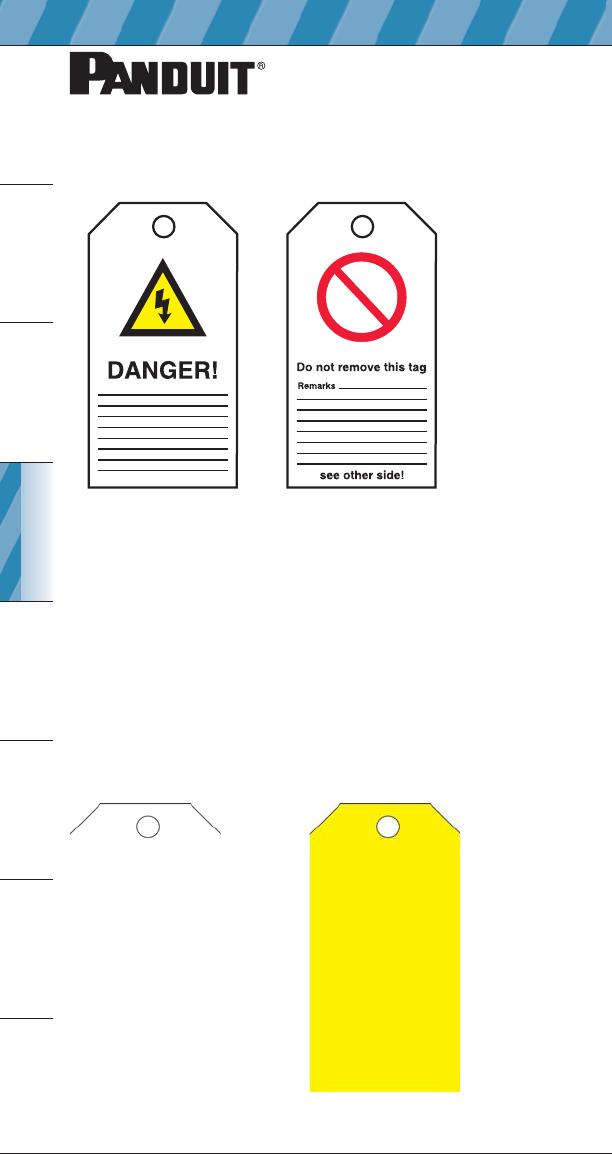

PVT-112

(Warning of

Dangerous

Electrical

Voltage)

Front

Back

Do-It-Yourself Tags

• Semi-rigid plastic tags are 5.75" H x 3.00" W (146.0mm x

76.0mm) with a 0.38" (9.0mm) brass grommet for greater

strength and increased durability

• Tags can be attached with a lockout device or with a Panduit

PLT2S nylon tie (50 lb. loop tensile strength) supplied with

each tag

• Package consists of 25 tags and 25 cable ties

• Can be clearly identified with Panduit permanent marking pens,

page D16

PVT-94-Q PVT-95-Q

ISO Symbol Safety Tags (continued)

D15

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

Do-It-Yourself Tags

PANDUIT PVT-118

DANGER

PVT-113-Q PVT-118-Q

PVT-179-Q

PVT-199 PANDUIT

EMPTY

CYLINDER

DO NOT

USE

PVT-199-Q

PVT-200 PANDUIT

FULL

CYLINDER

READY FOR

USE

PVT-200-Q

D16

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

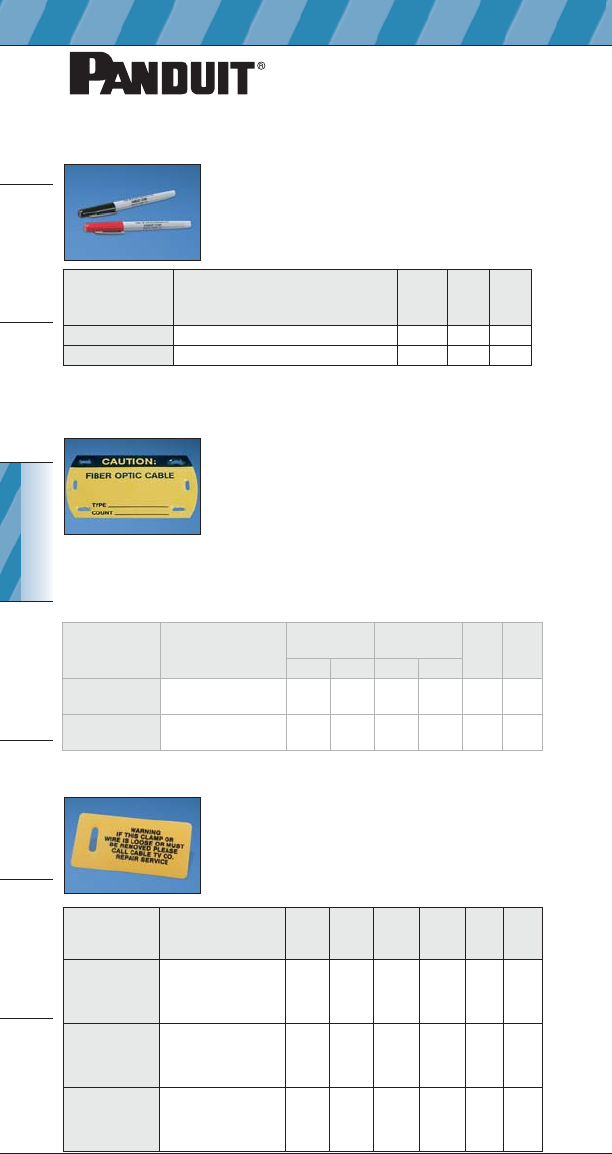

Permanent Marking Pens

• Fast drying permanent ink

• Can be used with write-on labels and tags

Self-Laminating Fiber Optic Cable

Marker Tags

• Durable tag for marking fiber optic cable in

manhole and indoor/outdoor environments

• Clear overlaminate protects legend

• Can be installed as a wrap or flag with

Panduit Intermediate Cable Ties

• Can also be used with 0.33" (8.4mm) and

0.50" (12.7mm) width Panduit ®Tak-Ty ®

Hook and Loop Cable Ties in the 90° flag

application

Cable Marking Ground Warning Tags

• U.V. resistant legend is printed on

both sides

• Install with Panduit Intermediate

Cable Ties

• 100 tags per package

Part Number Part Description

Width

(In.)

Width

(mm)

Height

(In.)

Height

(mm)

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

PT-BGND Ground Tag,

Network Bldg,

Green/Yellow,

100/Pk

2.75 70.0 1.38 35.0 1 5

PT-GND Ground Tag,

Ground Wire,

Black/Yellow,

100/Pk

2.75 70.0 1.38 35.0 1 5

PT-TGND Ground Tag,

Telephone,

Black/Yellow,

100/Pk

2.75 70.0 1.38 35.0 1 5

Part Number Part Description

Width Height

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

In. mm In. mm

PST-FO Black/yellow tag, 5

tags/pack

3.50 88.9 2.00 50.8 1 40

PST-FOBLNK Yellow blank tag, 5

tags/pack

3.50 88.9 2.00 50.8 1 40

Part Number Part Description

Ink

Color

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

PFX-0 Permanent marking pen – fine tip. Black 12 144

PFX-2 Permanent marking pen – fine tip. Red 12 144

D17

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

Panduit offers signs in four materials:

Indoor Adhesive Vinyl (Type PVS)

• Economical, general purpose signs for use

in most environments

• Very good adhesive properties when applied

to a clean surface

Indoor/Outdoor Sub-Surface Printed

Adhesive Polyester (Type PPS)

• High quality signs for use indoors and

outdoors

• Excellent resistance to UV light, chemical

atmosphere, and abrasion

• Excellent life and adhesion properties

• Printed graphics are protected by clear

polyester laminate

Indoor/Outdoor Rigid Polyethylene

(Type PRS)

• Rugged signs for indoors and outdoors

• Abrasion resistant

• Used where adhesives will not work

Indoor/Outdoor Aluminum (Type PAS)

• Durable material for indoor and outdoor use

• Strong aluminum material excellent for

medium and large size signs

• Ideal for a variety of industrial applications

Safety Signs

Size Reference Chart

Part

Number

Width Height Signs

per

Card

Std.

Pkg.

Qty.

In. mm In. mm

*0109*9.00 228.6 1.50 38.1 1 5 Signs

*0202* 2.25 57.2 2.25 57.2 4 5 Cards

*0204*4.50 114.3 2.25 57.2 2 5 Cards

*0209*9.00 228.6 2.25 57.2 1 5 Signs

*0305*5.00 127.0 3.50 88.9 2 5 Cards

*0404* 4.00 101.6 4.00 101.6 1 5 Signs

*0406* 4.00 101.6 6.00 152.4 1 5 Signs

*0503*3.50 88.9 5.00 127.0 1 5 Signs

*0505* 5.00 127.0 5.00 127.0 1 5 Signs

*0507*7.00 177.8 5.00 127.0 1 5 Signs

*0509*9.00 228.6 5.00 127.0 1 5 Signs

*0514* 14.00 355.6 5.00 127.0 1 5 Signs

*0710*10.00 254.0 7.00 177.8 1 1 Sign

*1014*14.00 355.6 10.00 254.0 1 1 Sign

*1209* 9.00 228.6 12.00 304.8 1 1 Sign

*1420* 20.00 508.0 12.00 355.6 1 1 Sign

*Denotes the part numbers’ prefix and suffix.

See pages D18 – D38 for available signs.

D18

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

PVS0204C171Y

PVS0204C177Y

LOCK OUT

BEFORE SERVICING

PVS0204C176Y

PVS0204W172Y

THE FOLLOWING STEPS MUST

BE PERFORMED WHEN LOCKING

OUT EQUIPMENT:

1 - Identify all potential hazards

and energy sources.

2 - Inform operator / supervisor about

work to be performed.

3 - Prepare equipment for shutdown.

4 - Shutdown / turn off equipment.

5 - Isolate and LOCKOUT energy sources.

6 - Release all stored energy.

7 - Test equipment for zero energy state.

8 - Clear personnel / tools before

and after job.

9 - Remove locks and tags when work

completed.

PVS0710C173Y

PVS0710C180Y

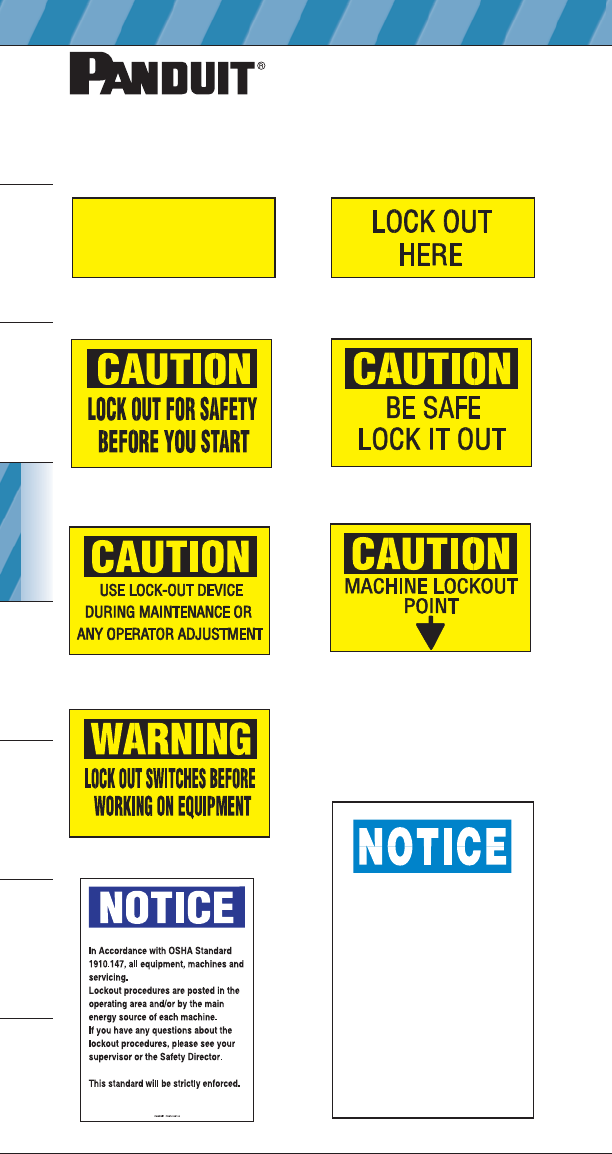

Lockout/Tagout Safety Signs

See page D17 for information on part number sizes and materials.

PRS1410N106 PVS0503N458Y

PVS0204C179Y

D19

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

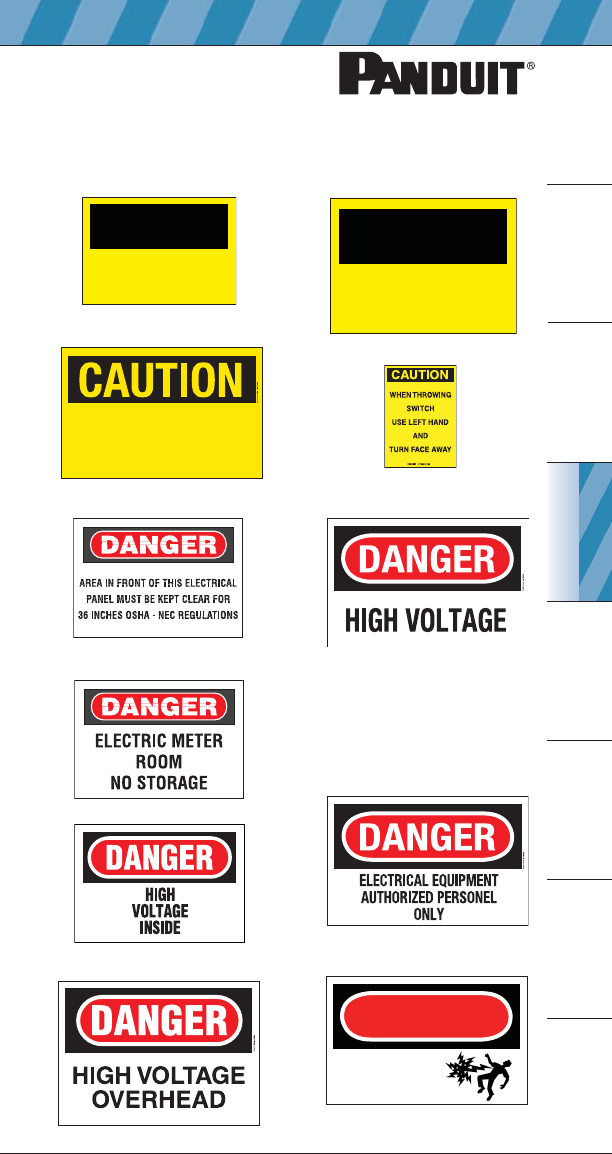

Electrical Hazard Safety Signs

CAUTION

HIGH VOLTAGE

DO NOT ENTER THIS ENCLOSURE

PANDUIT PPS0710C143

PPS0710C143

PPS0305D72

PPS0710D72

PPS1014D72

PRS0710D72

PRS1014D72

PVS0109D72Y

PVS0204D72Y

PVS0710D72Y

AREA IN FRONT OF THIS ELECTRICAL

PANEL MUST BE KEPT CLEAR FOR

36 INCHES OSHA - NEC REGULATIONS

PPS0710C141

PPS1014C141

CAUTION

CAUTION

KEEP ELECTIRCAL

AREA PANEL

CLEAR

PANDUIT PPS0710C142

PPS0710C142

PRS1014C142

PRS1007C95

PPS0503C95

PANDUIT PPS0710D78

PPS0710D78

PRS1014D78

PRS1014D71

PPS0710D66

PPS1014D66

See page D17 for information on part number sizes and materials.

continued on page D20.

PRS1014D82

DANGER

HIGH

VOLTAGE

PANDUIT PPS1014D81

PPS1014D81

PPS0305D70 PPS0710D70

PPS1014D70 PRS1014D70

D20

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

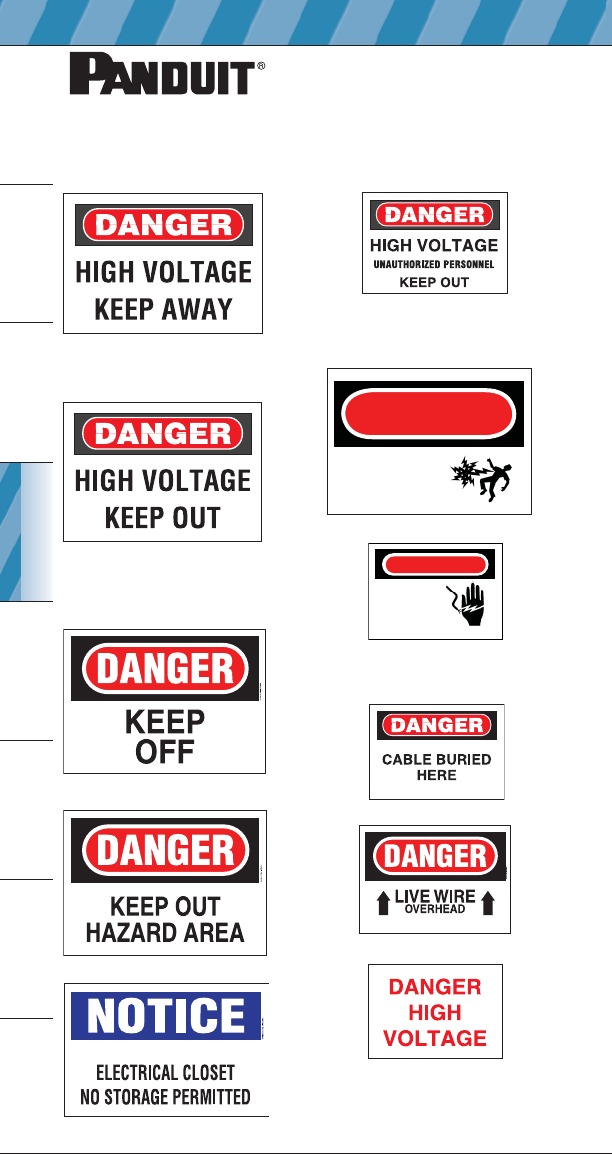

Electrical Hazard Safety Signs (continued)

PPS0305D79

PPS0710D79

PRS1014D79

PPS0305D73

PPS0710D73

PPS1014D73

PRS1014D73

PRS1014D131

DANGER

PANDUIT PPS1014D74

HIGH VOLTAGE

WITHIN

KEEP OUT

PPS1014D74

PANDUIT PPS0305D76

DANGER

HIGH

VOLTAGE

PPS0305D76

PPS0710D76

PPS1014D76

PRS1014D118

PPS0710N203

PPS1014N203

PPS0710B364

PRS0710B364

PRS1014B364

PVS0509B364Y

PVS0710B364Y

PRS0710D68

PRS1014D89

PPS0305D75

PPS0710D75

PPS1014D75

PRS1420D75

See page D17 for information on part number sizes and materials.

D21

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

Electrical Hazard Safety Signs (continued)

See page D17 for information on part number sizes and materials.

PPS1007D72SE

HIGH

VOLTAGE

ALTO

VOLTAJE

PRS0910D453

PPS0503C181SE

PPS0305W2200

PPS0507W2200

Short Circuit Hazard Signs

Bilingual Hazard Signs

• Aids in compliance with UL 508A requirement, see page G15 for

more information

WARNING

RISK OF FIRE OR ELECTRIC SHOCK

The opening of the branch-circuit protective device may be

an indication that a fault current has been interrupted.

All current carrying parts and other componenets protected

by this device should be examined and replaced if damaged.

If burnout of a current element of an overload relay occurs,

the complete overload relay must be replaced.

SHORT CIRCUIT CURRENT kA; VMAX

PANDUIT PVS0305W2201Y

PVS0305W2201Y

PVS0507W2201Y

PPS0514B363

PPS0710D28

PPS1014D28

D22

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

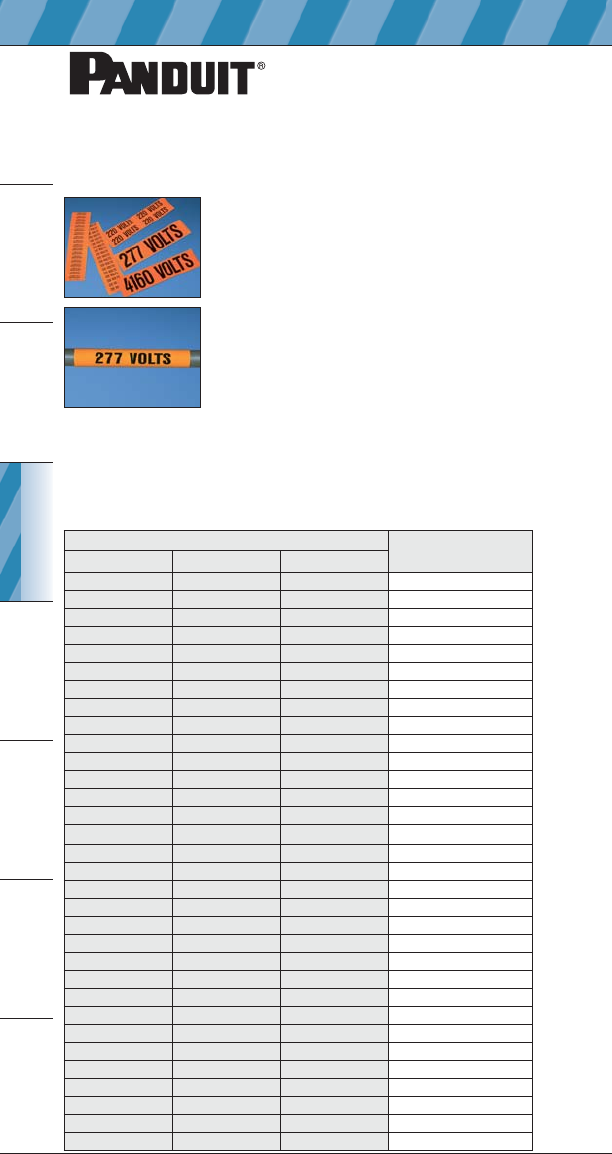

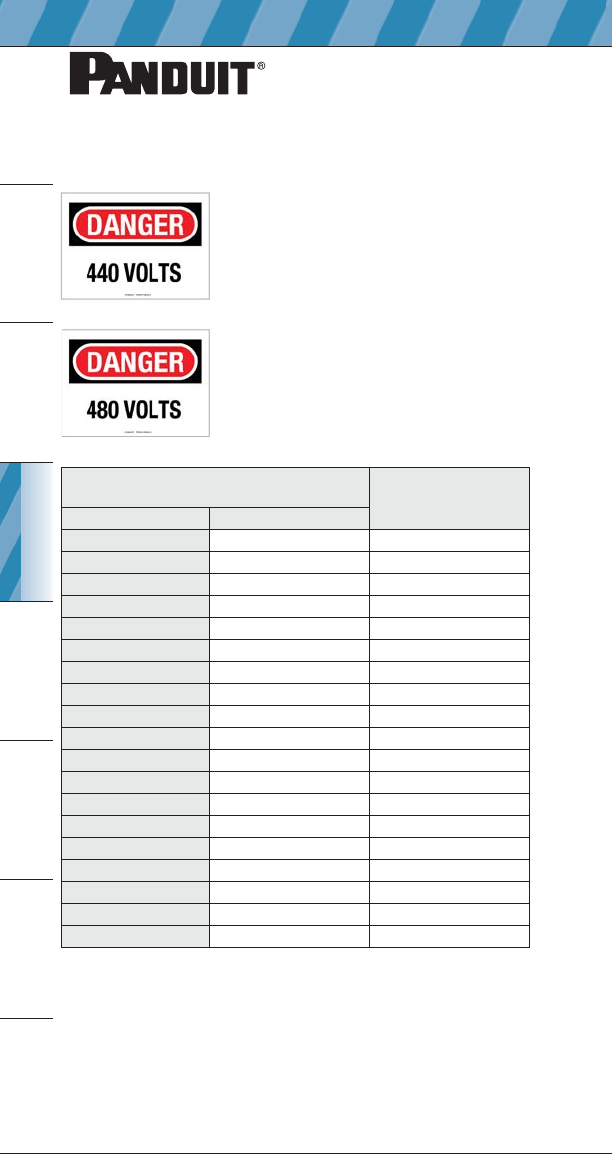

Part Number

Legend10.00" W x 7.00" H 14.00" W x 10.00" H

PPS0710DV001 –110 VOLTS

PPS0710DV002 –115 VOLTS

PPS0710DV003 – 120/208 VOLTS

PPS0710DV004 –120 VOLTS

PPS0710DV005 – 12,470 VOLTS

PPS0710DV006 – 13,200 VOLTS

PPS0710DV007 – 13,800 VOLTS

PPS0710DV008 –208 VOLTS

PPS0710DV009 –220 VOLTS

PPS0710DV010 – 2,300 VOLTS

PPS0710DV011 –230 VOLTS

PPS0710DV012 –240 VOLTS

PPS0710DV013 – 277/480 VOLTS

PPS0710DV014 –277 VOLTS

PPS0710DV015 – 4,160 VOLTS

PPS0710DV016 PPS1014DV016 440 VOLTS

PPS0710DV017 –460 VOLTS

PPS0710DV018 PPS1014DV018 480 VOLTS

PPS0710DV019 –600 VOLTS

See page D17 for information on part number sizes and materials.

Voltage Signs

• Polyester – indoor/outdoor

• Header – DANGER

• Color – legend red and black; background white

• Available Sizes: 10.00" (254.0mm) wide x 7.00"

(177.8mm) high and 14.00" (355.6mm) wide x

10.00" (254.0mm) high

• Standard package quantity - 1

D23

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

PPS0710D24

PRS0710W67

PPS0710D129

THIS EQUIPMENT

STARTS AUTOMATICALLY

PPS0710D101

PPS0710D77

PRS1014D87

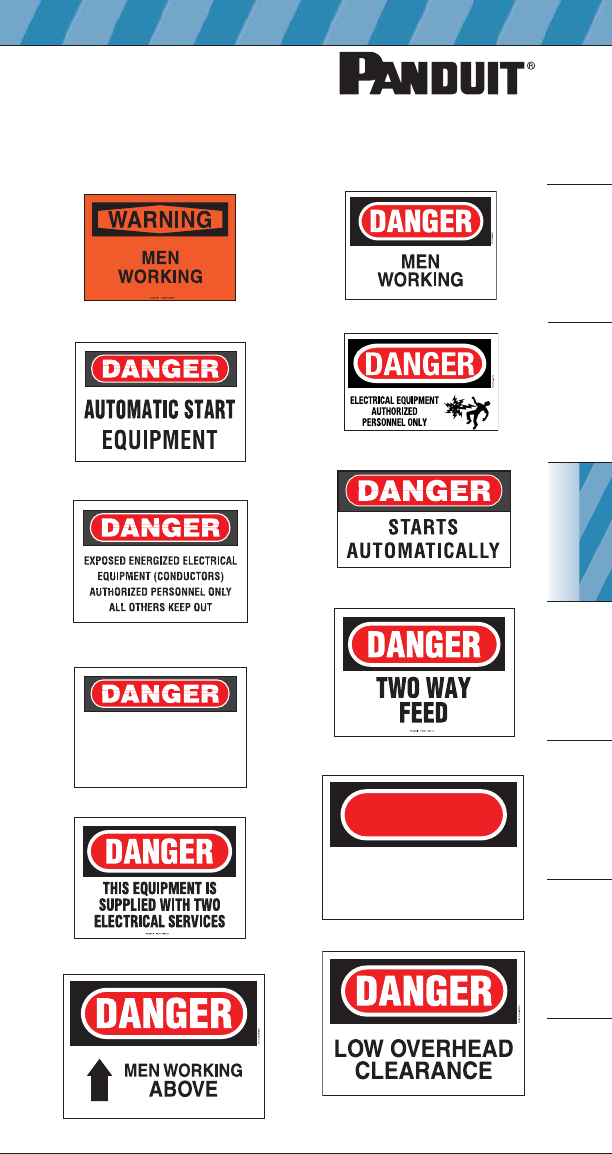

Machine and Operational Safety Signs

See page D17 for information on part number sizes and materials.

PPS1014D80

PRS1014D67

PANDUIT PRS1014D130

DANGER

DO NOT WATCH

THE ARC

PRS1014D130

PPS0710D124

PVS0204D100Y

PRS1014D132

continued on page D24.

D24

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

PPS0710D121

PRS1014D121

PRS1014D123

PRS0710C96

PRS1014D126

PVS0204C178Y

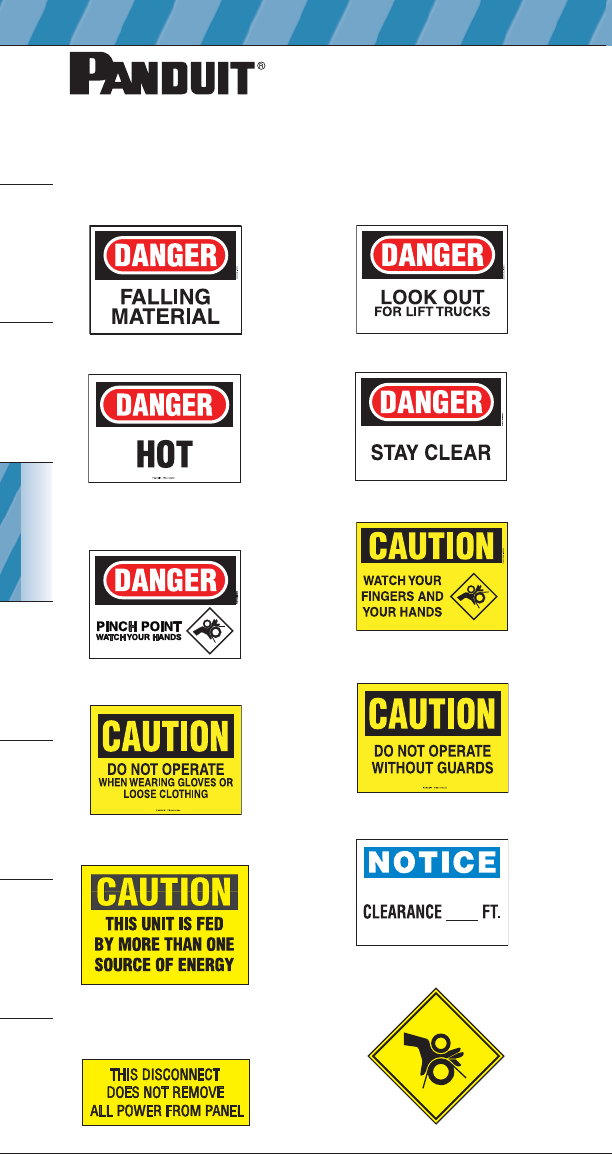

Machine and Operational Safety Signs

(continued)

PPS0305C174

PVS0305C174Y

PVS0505C174Y

PRS1014D128

PRS1014D127

PPS0710N191

PRS0710C97

PRS1014C88

PPS0202B493

See page D17 for information on part number sizes and materials.

D25

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

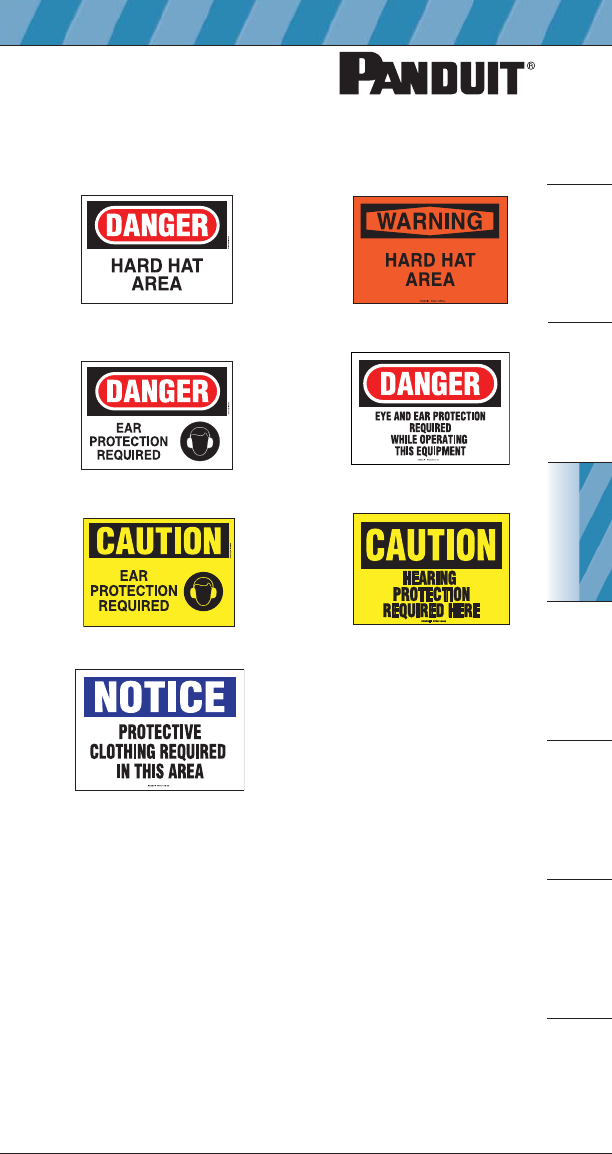

Personal Protection Signs

See page D17 for information on part number sizes and materials.

PRS1014D85

PPS0710D104

PRS1014D104

PPS0710N105

PRS0710N105

PRS1014C85

PPS0710D125

PRS0710W104

PPS0710C94

PRS1014C94

D26

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

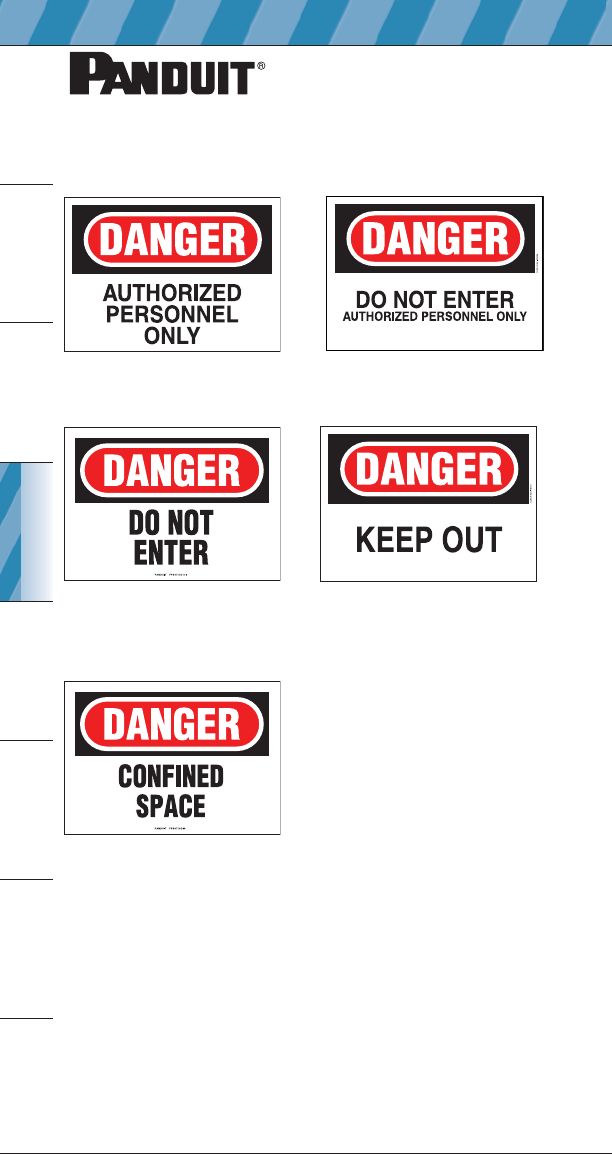

Admittance Signs

See page D17 for information on part number sizes and materials.

PANDUIT PRS1014D120

PRS1014D120 PRS1014D115

PPS0710D116

PRS1014D116

PPS0710D69

PRS1014D69

PRS1014D117

D27

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

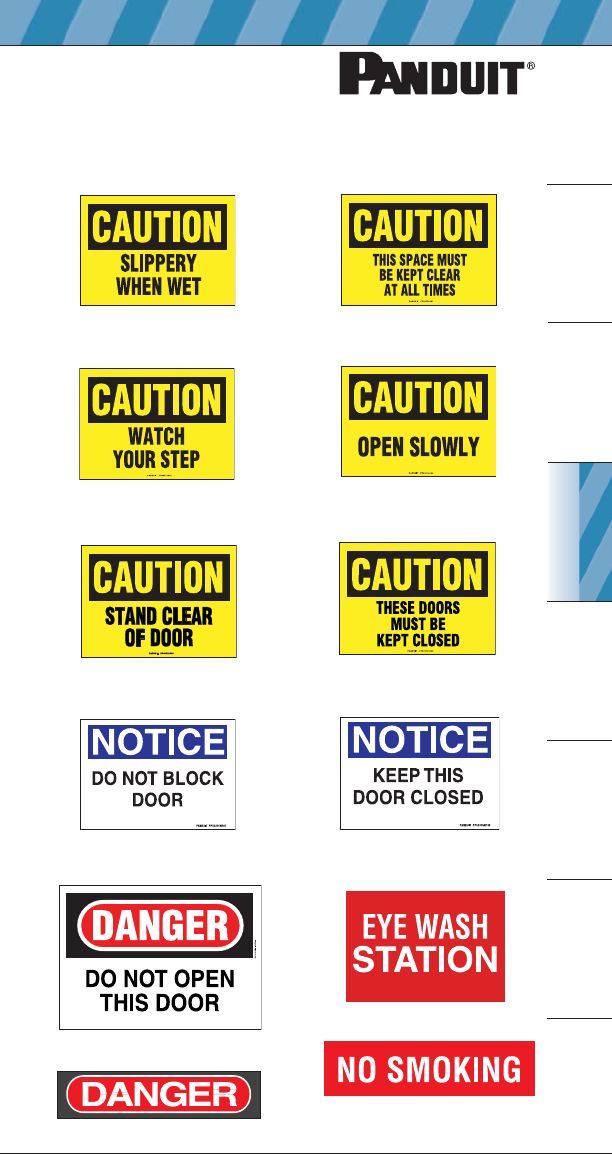

Facility Safety Signs

See page D17 for information on part number sizes and materials.

PPS0710C92

PRS1014C92

PANDUIT PPS0710C90

PPS0710C90

PRS1014C90

PRS1014D86

PPS0305N107

PRS0710N107

PPS0710C99

PRS1014C99

PVS0209D445Y

PPS0710C98

PRS0710C98

PPS0710C91

PRS1014C91

PRS0710B251

PPS0305N108

PRS0710N108

PPS0710C135

PRS1014C135

PPS0514B265

continued on page D28.

D28

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

PRS1209B317

PPS0710B430

PRS0710B430

PPS0710B113

PRS1014B113

PRS1014B112

PRS1014B110

PRS0310F319

NOT AN

EXIT

PPS0710B380

PRS1014B111

PRS1014B109

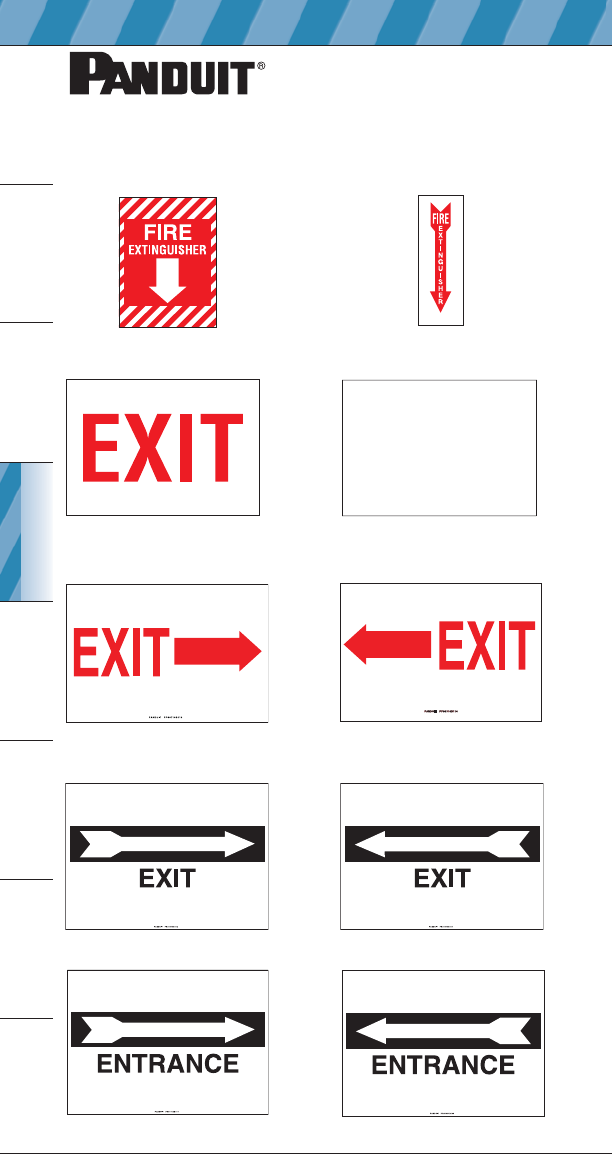

Facility Safety Signs (continued)

See page D17 for information on part number sizes and materials.

PPS0710B114

PRS1014B114

D29

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

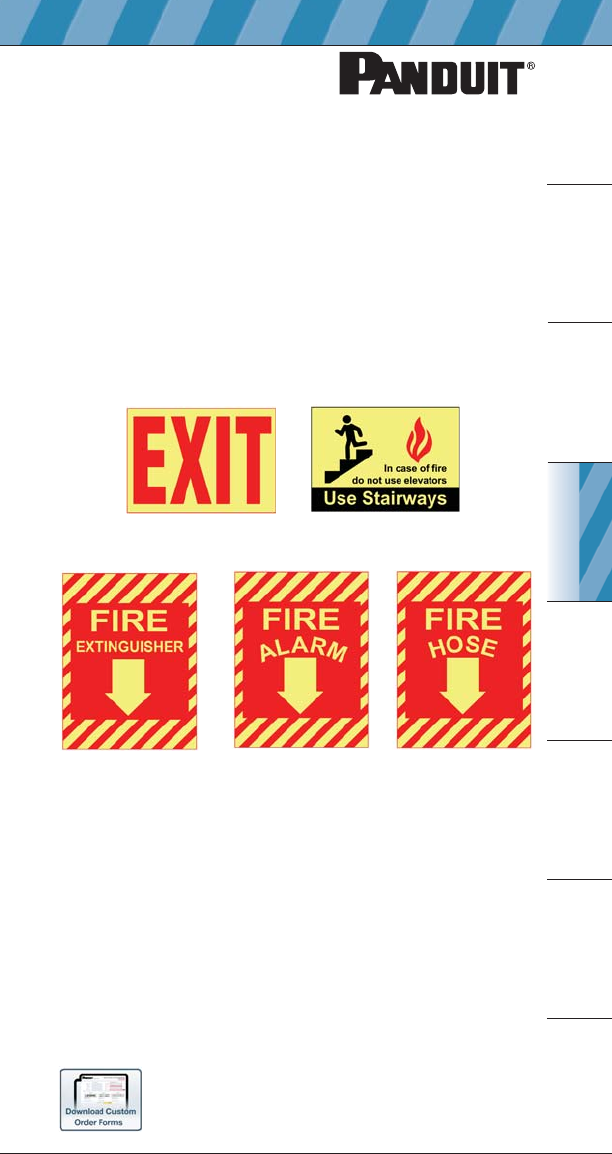

Photoluminescent Safety Signs

• Used to mark egress routes, fire alarms, and fire equipment that

is clearly visible for up to ten hours after power is lost

• Absorbs energy from ambient light and releases this energy in

the form of a glow when power is lost

• Panduit Photoluminescent Signs meet or exceed the following

safety standard specification for photoluminescent safety

markings including: ASTM E 2072-00, ASTM E 2073-00, ASTM

E 2030-99, DIN67510-1, IMO Resolution A.752.18, ISO/CD

15370, DIN 67510, UL 924, ASTM 162, ASTM 648, ASTM 662,

MIL-L-3891 B, NFPA 101 Life Safety Code, OSHA 1910.37

See page D17 for information on part number sizes and materials.

PPS0710G001

PPS1014G002

PPS1209G010

PPS0710G020

PPS1209G011 PPS1209G012

See page E3 for information on Photoluminescent Tapes.

Custom Printed Adhesive and Rigid

Safety Signs

If your application demands custom printed safety signage, Panduit offers

many custom printed options.

Signage options include:

• Adhesive PPS signs

• Semi-Rigid PRS signs

• Aluminum PAS signs

Fill out the custom safety sign order form with your specific information and

artwork, and Panduit will create and print the specified signs. Look for the

icon below at www.panduit.com/safety to download electronic copies of the

Custom Printed Adhesive and Rigid Safety Sign order form.

D30

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

Arc Flash Pre-Printed Labels

• Provide employees with the highest degree of safety through

proper identification and communication

• New 2012 detailed format is compliant with NFPA 70E 2012

standard for Arc Flash labeling

• Clearly visible and recognizable hazard information to

communicate Arc Flash hazards are present

• Large WARNING header, universal hazard symbols and clear,

concise, hazard description

• New DANGER header signs available for high risk Arc Flash

applications

• Multiple sizes to choose from for specific applications

• Labels are constructed of durable polyester (PPS) designed to

withstand UV exposure, outdoor use, water, abrasion or vinyl

material (PVS) that accepts handwritten hazard information by

using Panduit permanent black marking pens

Basic

WARNING

Standard

Part Number Part description

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

Basic

PPS0204W2100 4.50" x 2.25" (114.3mm x 57.2mm),

black/orange, adhesive polyester

sign, “WARNING”. Potential Arc

Flash Hazard.

5 100

PPS0204W2100-F 4.50" x 2.25" (114.3mm x 57.2mm),

black/orange, adhesive polyester

sign, “WARNING”. Potential Arc

Flash Hazard, written in French.

5 100

PPS0305W2100 3.50" x 5.00" (88.9mm x 127.0mm),

black/orange, adhesive polyester

sign, “WARNING”. Potential Arc

Flash Hazard.

550

PPS0507W2100 5.00" x 7.00" (127.0mm x

177.8mm), black/orange, adhesive

polyester sign, “WARNING”.

Potential Arc Flash Hazard.

550

PPS0507W2100-F 5.00" x 7.00" (127.0mm x

177.8mm), black/orange, adhesive

polyester sign, “WARNING”.

Potential Arc Flash Hazard, written

in French.

550

Standard

PVS0305W2102Y 3.50" x 5.00" (88.9mm x 127.0mm),

black and orange/white, adhesive

vinyl sign, “WARNING”. ARC Flash

and Shock Hazard.

550

PVS0305W2102Y-S 3.50" x 5.00" (88.9mm x 127.0mm),

black and orange/white, adhesive

vinyl sign, “WARNING”. ARC Flash

and Shock Hazard. Written in

Spanish.

550

D31

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

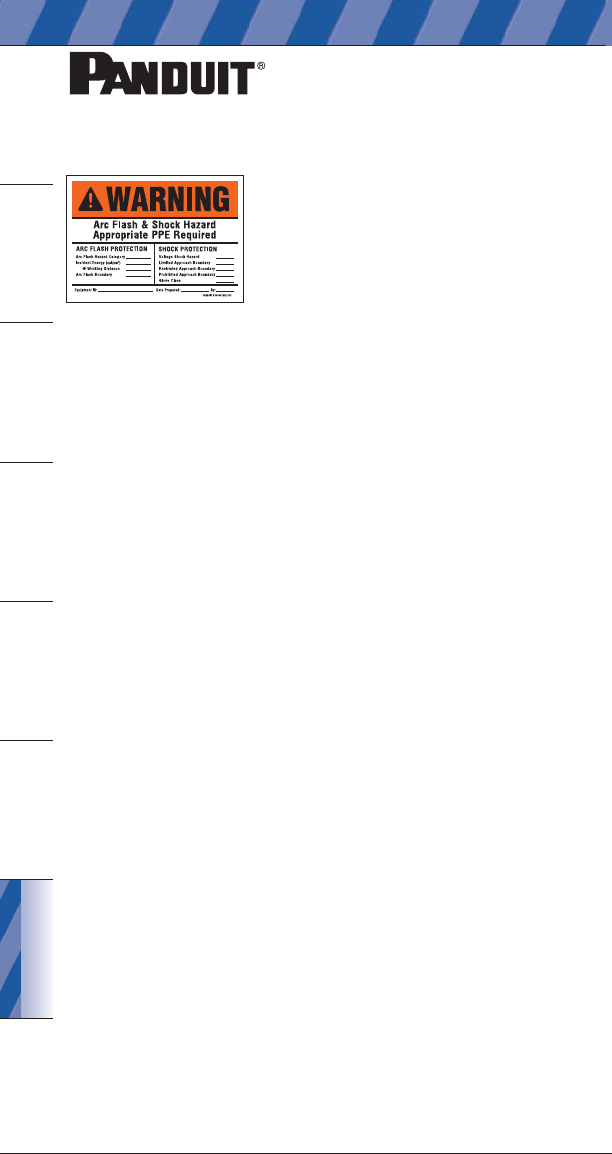

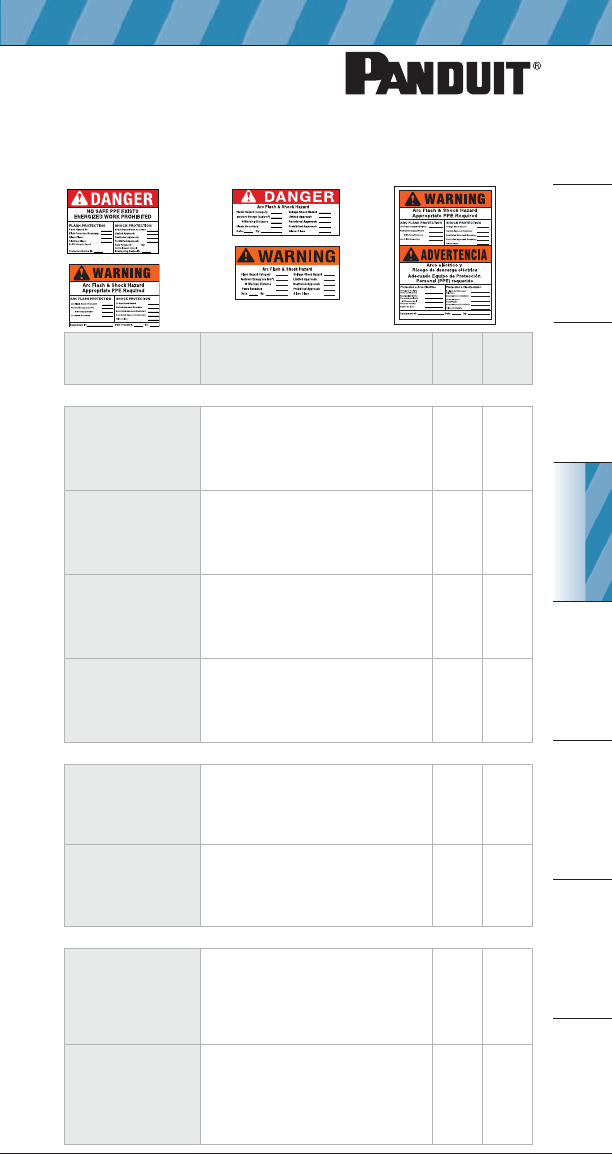

Arc Flash Pre-Printed Labels (continued)

Detailed Compact Detailed Bilingual

Part Number Part Description

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

Detailed

PVS0305W2103Y 3.50" x 5.00" (88.9mm x 127.0mm),

black and orange/white, adhesive

vinyl sign, “WARNING”. Potential

Arc Flash and Shock Hazard with

detailed write-on area.

5 100

PVS0305D2101Y 3.50" x 5.00" (88.9mm x 127.0mm),

red and black/white, adhesive vinyl

sign, “DANGER”. Potential Arc

Flash Exists with detailed write-on

area.

550

PVS0507W2103Y 5.00" x 7.00" (127.0mm x

177.8mm), black and orange/white,

adhesive vinyl sign, “WARNING”.

Potential Arc Flash and Shock

Hazard with detailed write-on area.

5 100

PVS0507D2101Y 5.00" x 7.00" (127.0mm x

177.8mm), red and black/white,

adhesive vinyl sign, “DANGER”.

Potential Arc Flash Exists with

detailed write-on area.

550

Compact

PVS0204W2103Y 2.25" x 4.50" (57.2mm x 114.3mm),

black and orange/white, adhesive

vinyl sign, “WARNING”. Potential

Arc Flash and Shock Hazard with

detailed write-on area.

5 100

PVS0204D2101Y 2.25" x 4.50" (57.2mm x 114.3mm),

red and black/white, adhesive vinyl

sign, “DANGER”. Potential Arc

Flash Exists with detailed write-on

area.

5 100

Detailed Bilingual

PVS0705W2105Y-S 7.00" x 5.00" (177.8mm x

127.0mm), orange and black/white,

adhesive vinyl sign, “WARNING”.

Arc Flash and Shock Hazard, with

detailed write-on area. Written in

English and Spanish.

5 100

PVS0705D2105Y-S 7.00" x 5.00" (177.8mm x

127.0mm), red and black/white,

adhesive vinyl sign, “DANGER”. Arc

Flash and Shock Hazard, with

detailed write-on area. Written in

English and Spanish.

5 100

D32

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

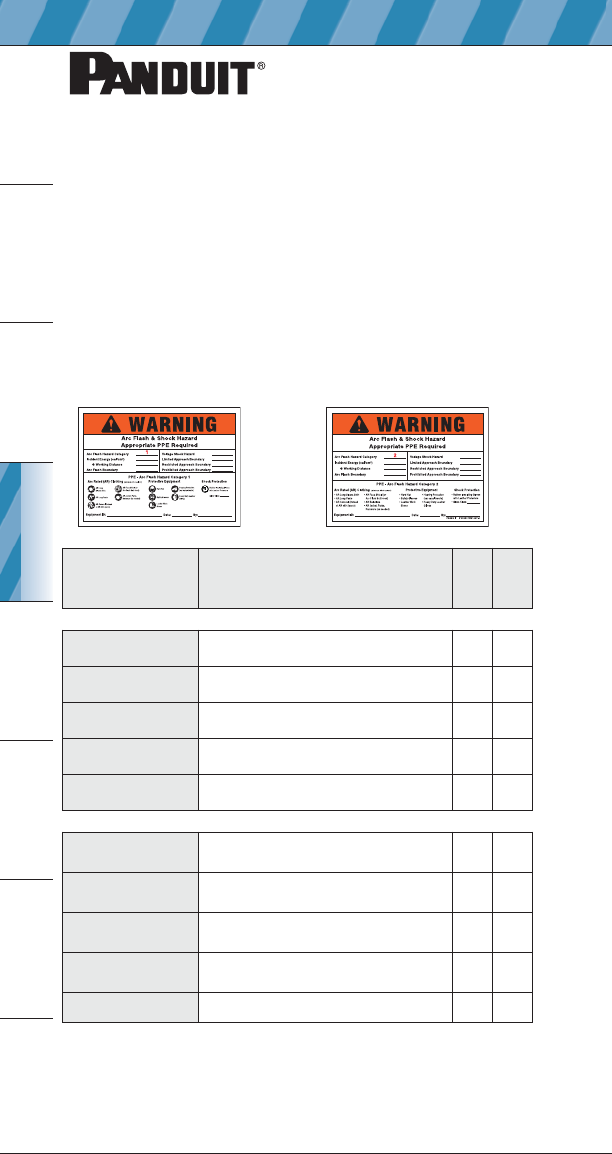

Arc Flash Pre-Printed Labels with

PPE Listings

• New 2012 detailed PPE format is compliant with NFPA 70E 2012 standard

for Arc Flash labeling

• Provides helpful guide for employees to select PPE appropriate to the

electrical hazard

• Labels are constructed of vinyl material (PVS) that accepts handwritten

hazard information by using Panduit permanent black marking pens,

page D16

• Labels are 5.00" x 7.00" (127.0mm x 177.8mm) with large

“WARNING” header

Detailed with PPE Pictograms Detailed with PPE Listing

Part Number Part Description

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

Detailed with PPE Pictograms

PVS0507W2104Y-0 PPE Pictograms for Hazard Risk

Category 0.

5 100

PVS0507W2104Y-1 PPE Pictograms for Hazard Risk

Category 1.

5 100

PVS0507W2104Y-2 PPE Pictograms for Hazard Risk

Category 2.

5 100

PVS0507W2104Y-3 PPE Pictograms for Hazard Risk

Category 3.

5 100

PVS0507W2104Y-4 PPE Pictograms for Hazard Risk

Category 4.

5 100

Detailed with PPE Listing

PVS0507W2106Y-0 PPE Listing for Hazard Risk Category 0. 5 100

PVS0507W2106Y-1 PPE Listing for Hazard Risk Category 1. 5 100

PVS0507W2106Y-2 PPE Listing for Hazard Risk Category 2. 5 100

PVS0507W2106Y-3 PPE Listing for Hazard Risk Category 3. 5 100

PVS0507W2106Y-4 PPE Listing for Hazard Risk Category 4. 5 100

D33

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

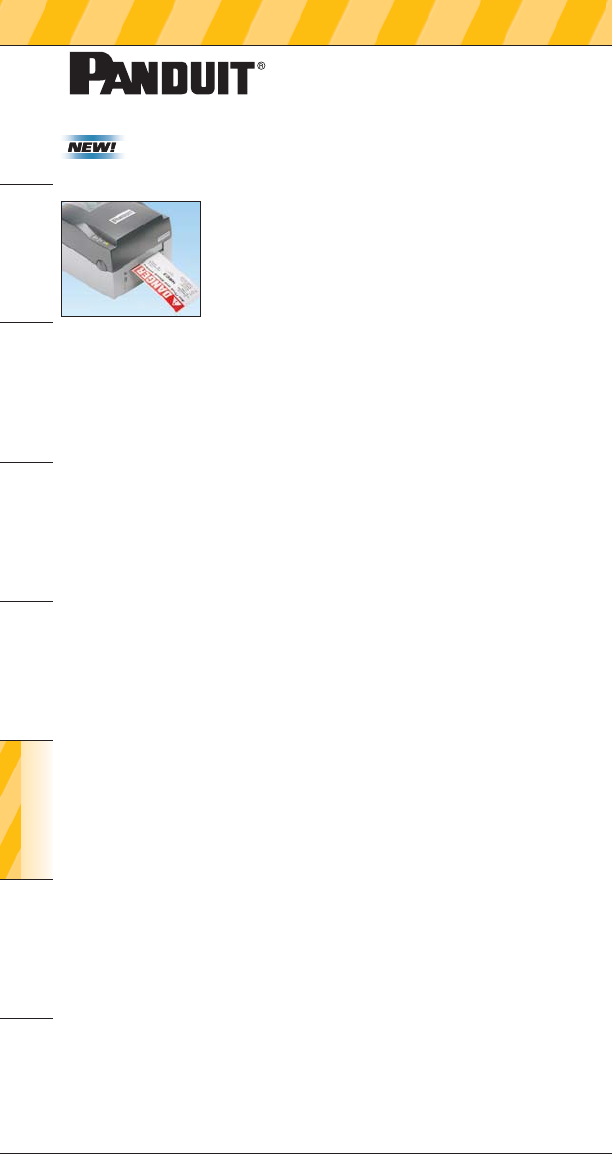

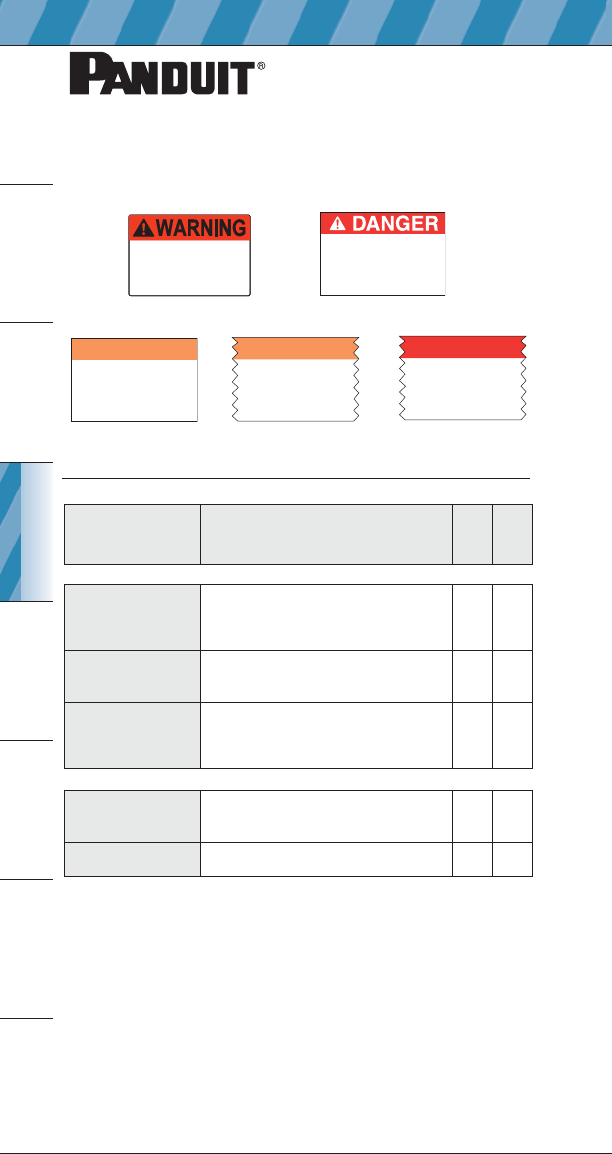

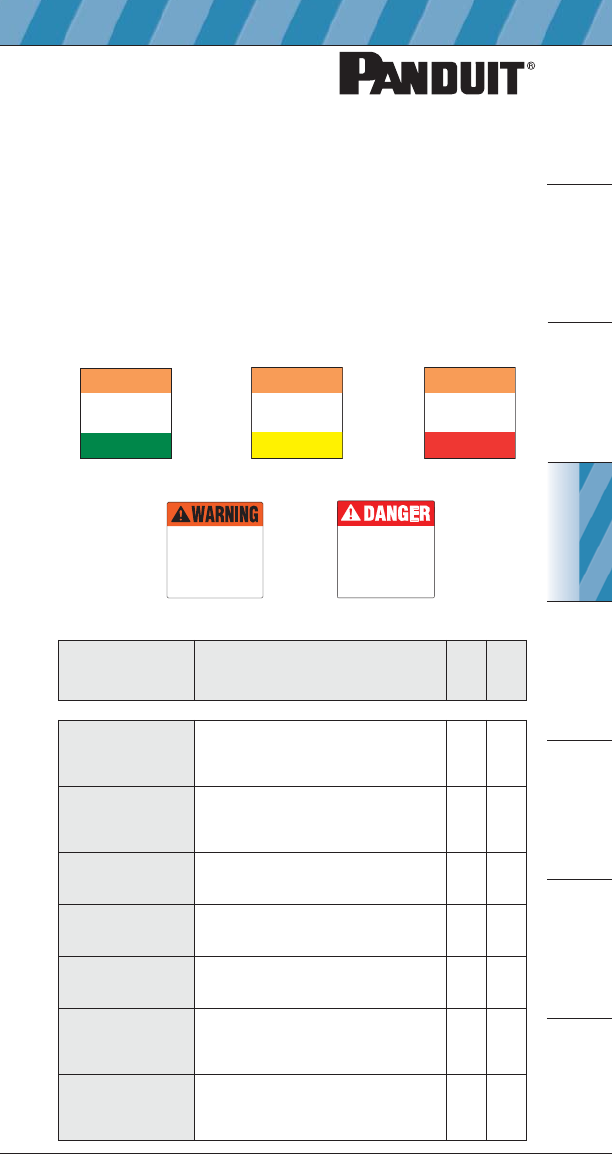

Arc Flash Print On-Demand Labels

C400X400A21 C400X400A31C400X400A11

C400X400A51 C400X400YZ1

• Custom Arc Flash Hazard Labels can be printed using Panduit labeling

software and desktop thermal transfer printers with resin ribbons

• Provide employees with the highest degree of safety through proper

identification and communication

• New 2012 detailed format is compliant with NFPA 70E 2012 standard for

Arc Flash labeling

• Clearly visible and recognizable hazard information to communicate arc

flash hazards present

• Labels are constructed of durable polyester designed to withstand UV

exposure, outdoor use, water and abrasion

Part Number Part Description

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

Arc Flash Print On-Demand Die Cut

C200X400A51 2.00" x 4.00" (50.8mm x 101.6mm),

polyester safety label, WARNING

(Header) orange and black, 250 labels

per roll.

14

C200X400YZ1 2.00" x 4.00" (50.8mm x 101.6mm),

polyester safety label, DANGER

(Header) red and white, 250 labels

per roll.

14

C400X400A11 4.00" x 4.00" (101.6mm x 101.6mm),

polyester safety label, orange header,

green footer, 250 labels per roll.

14

C400X400A21 4.00" x 4.00" (101.6mm x 101.6mm),

polyester safety label, orange header,

yellow footer, 250 labels per roll.

14

C400X400A31 4.00" x 4.00" (101.6mm x 101.6mm),

polyester safety label, orange header,

red footer, 250 labels per roll.

14

C400X400A51 4.00" x 4.00" (101.6mm x 101.6mm),

polyester safety label, WARNING

(Header) orange and black, 250 labels

per roll.

14

C400X400YZ1 4.00" x 4.00" (101.6mm x 101.6mm),

polyester safety label, DANGER

(Header) red and white, 250 labels

per roll.

14

D34

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

C400X600YX1 T400X000YX1 T400X000A91

C400X600YZ1

C400X600A51

Arc Flash Print On-Demand Labels

(continued)

Part Number Part Description

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

Arc Flash Print On-Demand Die Cut

C400X600A51 4.00" x 6.00" (101.6mm x 152.4mm),

polyester safety label, WARNING

(Header) orange and black, 100 labels

per roll.

14

C400X600YX1 4.00" x 6.00" (101.6mm x 152.4mm),

polyester arc flash label, orange

header, 100 labels per roll.

14

C400X600YZ1 4.00" x 6.00" (101.6mm x 152.4mm),

polyester safety label, DANGER

(Header) red and white,100 labels

per roll.

14

Arc Flash Print On-Demand Continuous Tape

T400X000YX1 4.00" x 50.00’ (101.6mm x 15.2m),

polyester arc flash tape, orange

header.

14

T400X000A91 4.00" x 50.00’ (101.6mm x 15.2m),

polyester arc flash tape, red header.

14

D35

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

Arc Flash Print On-Demand

TDP43ME Thermal Transfer Desktop Printer

Easy-Mark ™Labeling Software

• Compatible and easy setup with Panduit

software and media

• High-quality printed legends

• Durable construction

• Easy-Mark ™Labeling Software included

with printer

• Up to 4 inches per second print speed

• Easy-Mark ™Labeling Software simplifies

label creation for the specific needs of your

applications

• Intuitive interview process allows automatic

generation of labels and signs

Part Number Part Description

Std.

Pkg.

Qty.

TDP43ME 300 dpi printer; includes printer, Panduit ®

Easy-Mark ™Labeling Software, RMEH4BL

hybrid black ribbon, AC power adapter with

US power cord, USB cable, user manual,

quick start card, and driver disk.

1

Part Number Part Description

Std.

Pkg.

Qty.

PROG-EMCD3 Easy-Mark ™Labeling Software, CD-ROM 1

PROG-EM2GO Easy-Mark ™Portable Application, USB

Flash Drive

1

Custom Printed Arc Flash Labels

If your application demands custom printed information for your Arc Flash

Labeling, Panduit offers many options of custom printed arc flash labels.

Fill out the custom Arc Flash Label order form with your specific values,

information, and even a company logo, and Panduit will create and print

the specified labels. Look for the icon below at www.panduit.com/safety to

download electronic copies of the Custom Arc Flash Label order form.

D36

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

• Facility Identification can be printed using Panduit labeling software and

desktop thermal transfer printers.

C400X600A61

C400X600AY1

C400X600AX1

C400X600Y81

C400X600A41

C400X600AZ1

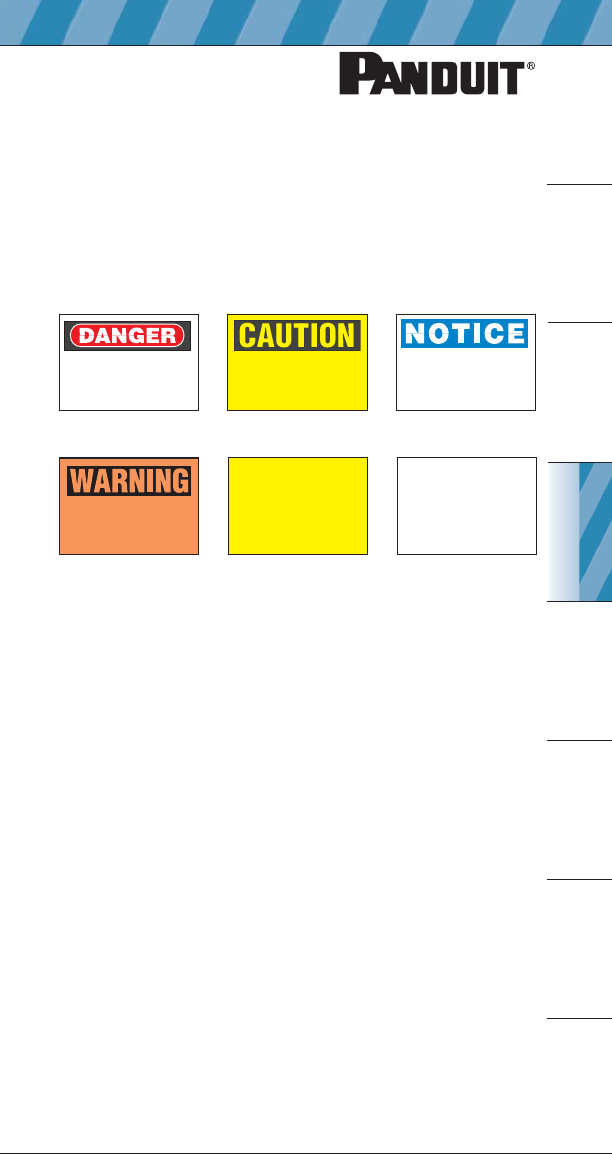

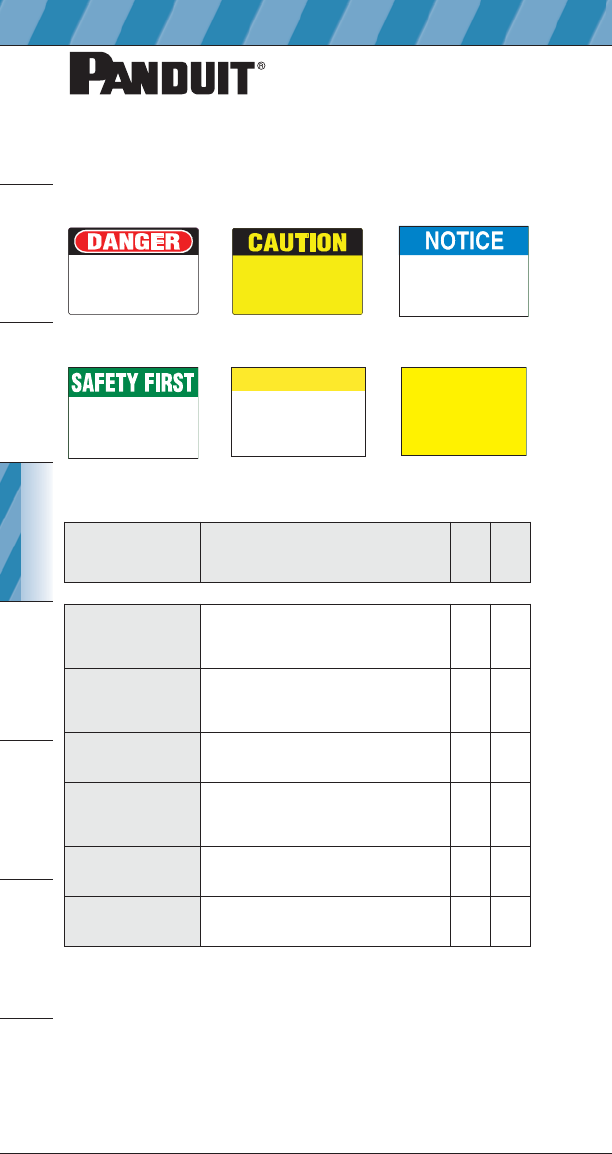

Thermal Transfer Printable Labels

Part Number Part Description

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

Custom - Die Cut

C400X600A41 4.00" x 6.00" (101.6mm x 152.4mm),

polyester safety label, DANGER

(Header), red and black/white, 100

labels per roll.

14

C400X600A61 4.00" x 6.00" (101.6mm x 152.4mm),

polyester safety label, CAUTION

(Header), yellow/black, 100 labels

per roll.

14

C400X600AX1 4.00" x 6.00" (101.6mm x 152.4mm),

polyester safety label, blue/white,

NOTICE header, 100 labels per roll.

14

C400X600AY1 4.00" x 6.00" (101.6mm x 152.4mm),

polyester safety label, green/ white,

SAFETY FIRST header, 100 labels

per roll.

14

C400X600AZ1 4.00" x 6.00" (101.6mm x 152.4mm),

polyester arc flash label, yellow

header, 100 labels per roll.

14

C400X600Y81 4.00" x 6.00" (101.6mm x 152.4mm),

polyester safety label, yellow, 100

labels per roll.

14

D37

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

Laser Printable Adhesive Signs

• Signs can be printed with a standard laser printer

• Indoor polyolefin pressure sensitive signs with square corners

on stay flat liner

• Signs are 8.50" x 11.00" (215.9mm x 279.4mm)

• 25 signs per package

SEZ-1CLLSEZ-1DLL SEZ-1NLL

SEZ-1WHLLSEZ-1YLLSEZ-1WLL

D38

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training Products

Lockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

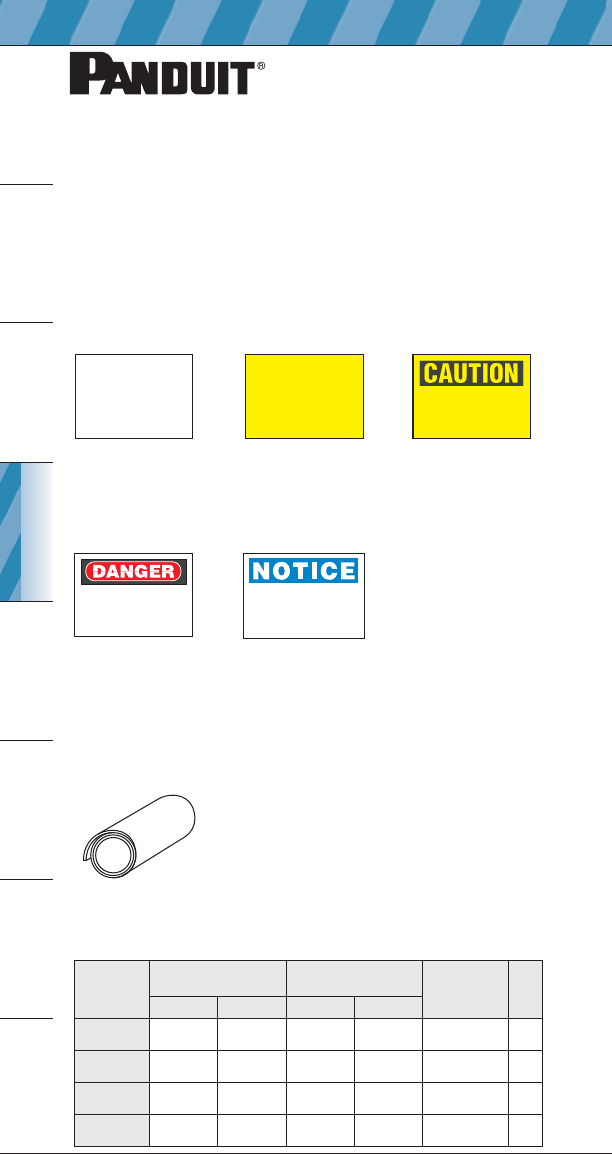

Pre-Coiled Clear Snap-On Markers

• Use to increase durability of adhesive

pipe/conduit markers

• Excellent resistance to oils, bases,

detergents, solvents, salt water

and mild acids

• Estimated outdoor expectancy is 3 years

PMSCLL

PMSCLP

PMSCLN

PMSCLM

Sign Panels –Blank Space for

Custom Messages

PPS0710BWHT

PPS1014BWHT

PPS1420BWHT

PRS0710BWHT

PRS1014BWHT

PRS1420BWHT

PPS0710BYEL

PPS1014BYEL

PPS1420BYEL

PRS0710BYEL

PRS1014BYEL

PRS1420BYEL

PPS0710C442

PPS1014C442

PPS1420C442

PRS0710C442

PRS1014C442

PRS1420C442

PPS0710D440

PPS1014D440

PPS1420D440

PRS0710D440

PRS1014D440

PRS1420D440

PPS0710N443

PPS1014N443

PPS1420N443

PRS0710N443

PRS1014N443

PRS1420N443

See page D17 for information on part number sizes and materials.

• Can be used with Panduit Thermal Transfer Desktop Printers and

Labeling Software to create your own custom signs

— Print your own legend on clear polyester tape with the

TDP43ME Thermal Transfer Desktop Printer and adhere label to

sign to adhesive or non-adhesive side panel, see pages F2– F3

for more information.

Part

Number

Marker Length

Pipe / Conduit O.D.

Range Markers

Per Card

Std.

Pkg.

Qty.

In. mm In. mm

PMSCLL 3.00 76.0 0.50 –

0.75

13.0 –

19.0

51

PMSCLP 13.00 330.0 0.75 –

2.25

19.0 –

57.0

51

PMSCLN 17.00 431.8 2.25 –

3.25

57.0 –

83.0

51

PMSCLM 17.00 431.8 3.25 –

6.00

83.0 –

152.0

51

D39

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

Self-Laminating Adhesive Sign Carriers

• Convert any printed paper page to a laminated, adhesive sign

• Print paper sign using a laser/ink jet printer

• Cut out paper sign and insert into the self-laminating carrier

• For indoor use on a clean and dry surface

Print paper

marker using a

laser or ink jet

printer and cut

out with scissors.

Place marker

between the

two pieces of

self-adhesive

laminate liner.

Remove top

adhesive liner

by peeling and

press firmly onto

top of marker.

Remove liner

on back of

carrier and

adhere to clean,

dry surface.

Self-Laminating Non-Adhesive Rigid

Sign Carriers

• Convert paper to rigid indoor signs

• Print paper tag using a laser/ink jet printer

• Cut out paper sign and insert into the self-laminating carrier

• For indoor use on a clean and dry surface

Part Number

Carrier Size

In. (mm)

Maximum Label

Size

In. (mm)

Carriers/

Pkg.

Std.

Pkg.

Qty.

SEZ-SNC4 7.00 x 6.00

(177.8 x 152.4)

6.00 x 5.00

(152.4 x 127.0)

51

SEZ-SNC3 10.50 x 7.00

(266.7 x 177.8)

9.50 x 6.00

(241.3 x 152.4)

SEZ-SNC2 12.00 x 6.00

(304.8 x 152.4)

11.00 x 5.00

(279.4 x 127.0)

SEZ-SNC1 12.00 x 9.50

(304.8 x 241.3)

11.00 x 8.50

(279.4 x 215.9)

Part Number

Carrier Size

In. (mm)

Maximum Label

Size

In. (mm)

Carriers/

Pkg.

Std.

Pkg.

Qty.

SEZ-RSC1 7.00 x 6.00

(177.8 x 152.4)

6.00 x 5.00

(152.4 x 127.0)

51

SEZ-RSC2 10.50 x 7.00

(266.7 x 177.8)

9.50 x 6.00

(241.3 x 152.4)

SEZ-RSC3 12.00 x 9.50

(304.8 x 241.3)

11.00 x 8.50

(279.4 x 215.9)

SEZ-RSC4 12.00 x 6.00

(304.8 x 152.4)

11.00 x 5.00

(279.4 x 127.0)

D40

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

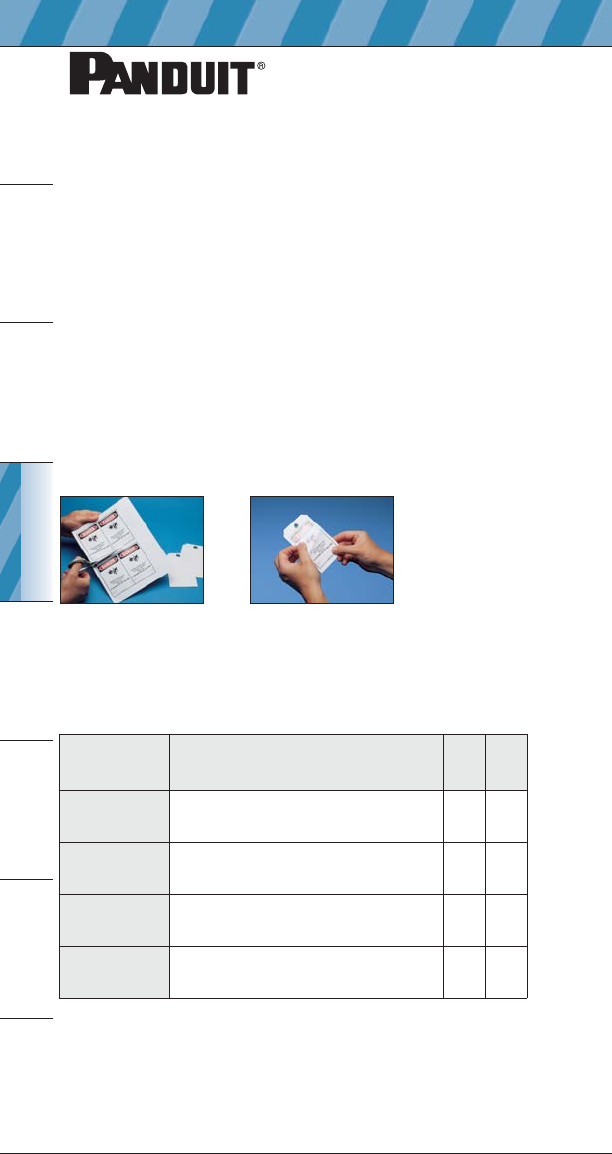

Print paper tag using

a laser/ink jet printer.

Use scissors to cut

out tag.

Place tag between

self-adhesive

laminate liner and

rigid vinyl backing.

Fasten tag with

Panduit cable tie.

Indoor Rigid Vinyl Safety Tag Carriers

for Laser or Ink Jet Printers

• Create your own rigid indoor tags with protected legends in

minutes using a laser or ink jet printer!

• Cut out paper sign and insert into the self-laminating carrier

• Using the PST Tag carrier allows tags to be resistant to mild

chemicals and acids

• Self-laminating vinyl material for rigid carrier

• Sturdy brass grommet provides extra durability

• Panduit PLT2S (7.40") nylon ties included for quick and easy

installation

• Meet OSHA Standard 1910.147 for lockout tag 50 lb. pull force

requirement

Create Your Own Tags

Part Number Part Description

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

PST-4 3.50" x 5.75" (88.9mm x 146.1mm),

front only lamination, 25 carriers

per package.

14

PST-5 3.50" x 5.75" (88.9mm x 146.1mm),

front and back lamination, 25 carriers

per package.

14

PST-1 3.00" x 2.00" (76.2mm x 50.8mm),

front only lamination, 10 carriers

per package.

120

PST-2 3.25" x 5.75" (82.6mm x 146.1mm),

front only lamination, 5 carriers

per package.

120

D41

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

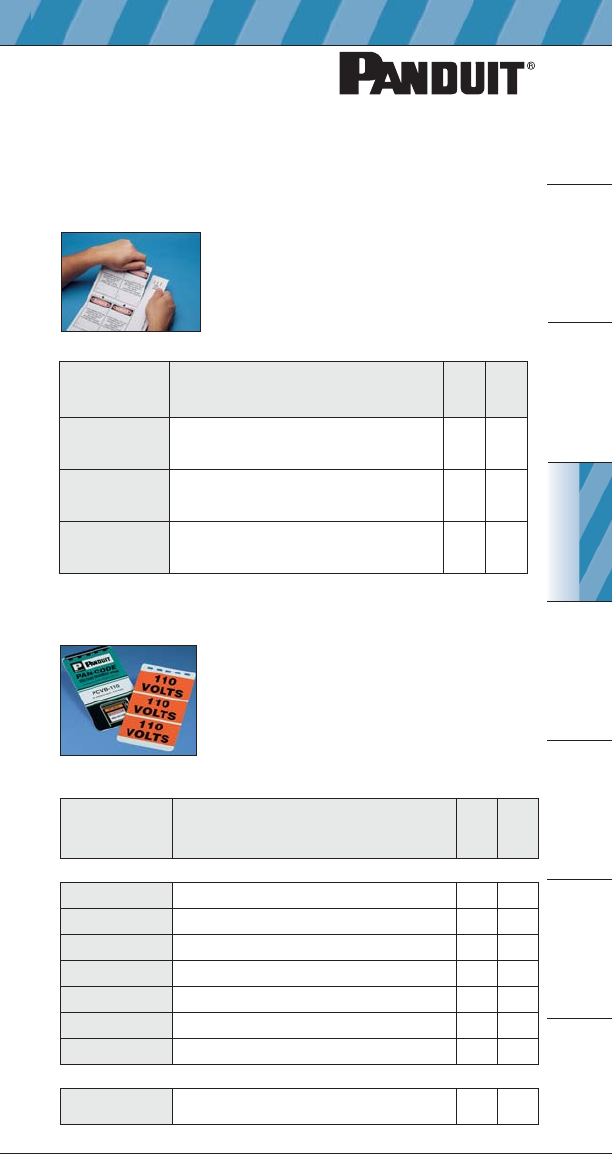

Economical Card Stock Tags for Ink

Jet Printers

• Economical solution for temporary,

indoor tags

• Ink jet printable card stock material for

semi-rigid tag with perforation for easy

tag separation and punched hole

for hanging

Part Number Part Description

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

SEZ-TAGWH 3.00" x 5.00" (76.2mm x 127.0mm),

white, four tags per sheet, 25 sheets

per package.

15

SEZ-TAGOR 3.00" x 5.00" (76.2mm x 127.0mm),

orange, four tags per sheet, 25 sheets

per package.

15

SEZ-TAGY 3.00" x 5.00" (76.2mm x 127.0mm),

yellow, four tags per sheet, 25 sheets

per package.

15

Create Your Own Tags (continued)

Voltage and Safety Marker Books

• Vinyl – indoor

• Each Marker–

Marker Size: 1.50" High x 3.25" Wide

(38.1mm x 82.6mm)

3 Markers per page

30 Markers per book

Part Number Part Description

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

Voltage Markers

PCVB-110Y Voltage Marker Book, Vinyl, ‘110 Volts’. 1 10

PCVB-220Y Voltage Marker Book, Vinyl, ‘220 Volts’. 1 10

PCVB-277Y Voltage Marker Book, Vinyl, ‘277 Volts’. 1 10

PCVB-277/480Y Voltage Marker Book, Vinyl, ‘277/480 Volts’. 110

PCVB-440Y Voltage Marker Book, Vinyl, ‘440 Volts’. 1 10

PCVB-480Y Voltage Marker Book, Vinyl, ‘480 Volts’. 1 10

PCVB-4160Y Voltage Marker Book, Vinyl, ‘4160 Volts’. 1 10

Safety Markers

PSSB-13 Sign Book, ‘Danger High Voltage’, red/black

on white.

110

D42

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

Voltage Markers

Voltage and Fiber Optic Markers

Part Number

LegendStyle A Style B Style C

PCV-110AY PCV-110BY PCV-110CY 110 Volts

PCV-115AY PCV-115BY PCV-115CY 115 Volts

PCV-120/208AY PCV-120/208BY PCV-120/208CY 120/208 Volts

PCV-120AY PCV-120BY PCV-120CY 120 Volts

PCV-12470AY PCV-12470BY PCV-12470CY 12470 Volts

PCV-13200AY PCV-13200BY —13200 Volts

PCV-13800AY PCV-13800BY PCV-13800CY 13800 Volts

PCV-1PHAY PCV-1PHBY PCV-1PHCY Single Phase

PCV-208AY PCV-208BY PCV-208CY 208 Volts

PCV-220AY PCV-220BY PCV-220CY 220 Volts

PCV-2300AY PCV-2300BY PCV-2300CY 2300 Volts

PCV-230AY PCV-230BY PCV-230CY 230 Volts

PCV-2400AY PCV-2400BY PCV-2400CY 2400 Volts

PCV-240AY PCV-240BY PCV-240CY 240 Volts

—PCV-24VDCBY —24 Volts DC

PCV-277/480AY PCV-277/480BY PCV-277/480CY 277/480 Volts

PCV-277AY PCV-277BY PCV-277CY 277 Volts

PCV-380AY PCV-380BY PCV-380CY 380 Volts

PCV-3PHAY PCV-3PHBY PCV-3PHCY Three Phase

PCV-415AY PCV-415BY PCV-415CY 415 Volts

PCV-4160AY PCV-4160BY PCV-4160CY 4160 Volts

PCV-440AY PCV-440BY PCV-440CY 440 Volts

PCV-460AY PCV-460BY PCV-460CY 460 Volts

PCV-480AY PCV-480BY PCV-480CY 480 Volts

PCV-600AY PCV-600BY PCV-600CY 600 Volts

PCV-BLANKAY PCV-BLANKBY PCV-BLANKCY Blank-No Legend

PCV-ESAY PCV-ESBY PCV-ESCY Emergency Service

PCV-FAAY PCV-FABY PCV-FACY Fire Alarm

PCV-FOAY PCV-FOBY PCV-FOCY Fiber Optic

PCV-FOCAY PCV-FOCBY PCV-FOCCY Fiber Optic

PCV-MAINAY PCV-MAINBY PCV-MAINCY Main

PCV-TELEAY PCV-TELEBY PCV-TELECY Telephone

• Vinyl – indoor

• Color – legend black; background orange

• Each Marker–

Style A: 2.25" High x 9.00" Wide

(57.2mm x 228.6mm)

1 Marker per card

Pipe/Conduit O.D. Range 3.00"

(76.2mm) and over

Style B: 1.13" High x 4.50" Wide

(28.7mm x 114.3mm)

4 Markers per card

Pipe/Conduit O.D. Range 1.25" – 3.00"

(31.8mm – 76.2mm)

Style C: 0.50" High x 2.25" Wide

(12.7mm x 57.2mm)18 Markers per card

Pipe/Conduit O.D. Range 1.25"

(31.8mm) and under

• Standard package quantity – 5 cards

D43

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

Voltage and Fiber Optic Markers

(continued)

• Semi-Rigid Polyester – indoor/outdoor

• Color – legend black; background orange

• Each Marker–

Style M: 23.00" High x 14.00" Wide

(584.2mm x 355.6mm)

Snap-on markers (non-adhesive)

Pipe/Conduit O.D. Range 2.25" – 6.00"

(57.2mm – 152.4mm)

Style R: 8.00" High x 8.00" Wide

(203.2mm x 203.2mm)

Snap-on markers (non-adhesive)

Pipe/Conduit O.D. Range 0.75" – 2.25"

(19.1mm – 152.4mm)

• Standard package quantity – 5 cards

Part Number

LegendStyle M Style R

— PCV-120RY 120 Volts

— PCV-480RY 480 Volts

— PCV-FORY Fiber Optic

PCV-FOMY — Fiber Optic

Custom Pipe Markers and Voltage Markers

If your application demands custom printed information for your conduit or

pipe marking, Panduit offers many options of custom printed markers,

Options include:

Pipe Markers

Pressure Sensitive Adhesive Vinyl

Conduit and Voltage Markers

Pressure Sensitive Adhesive Vinyl

Semi-Rigid Snap-OnSemi-Rigid Snap-On

Rigid Snap-On

Fill out the custom order form with your specific values

and information, Panduit will create and print the

specified markers. Look for the icon shown here at

www.panduit.com/safety to download electronic

copies of the Custom Pipe Marker and Custom

Conduit and Voltage Marker order forms.

LEGEND

LEGEND

PLD-81

D44

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

• Provided in a handy dispenser for

convenience and label protection

• Made of durable, adhesive backed

polyester material

Warning Labels

Labels in Dispenser

PLD-30‡

PLD-36 120 V

PLD-45 230 V

PLD-38 240 V

PLD-46 277 V

PLD-47 277 V/480 V

PLD-91 480 V

PLD-12‡PLD-43‡

PLD-58

PLD-56

ISO 3864 PLD-67

PLD-72PLD-68‡PLD-74

PLD-37 PLD-52

ISO 3864

‡Can be clearly identified with Panduit permanent marking pens, page D16.

Part Number

Label Size

In. (mm)

Labels/

Dispenser

Std.

Pkg.

Qty.

PLD-* 1.50" x 1.00" (38.1mm x 25.4mm) 200 1 Disp.

PLD-80

D45

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers Related Products Regulatory Standards Index

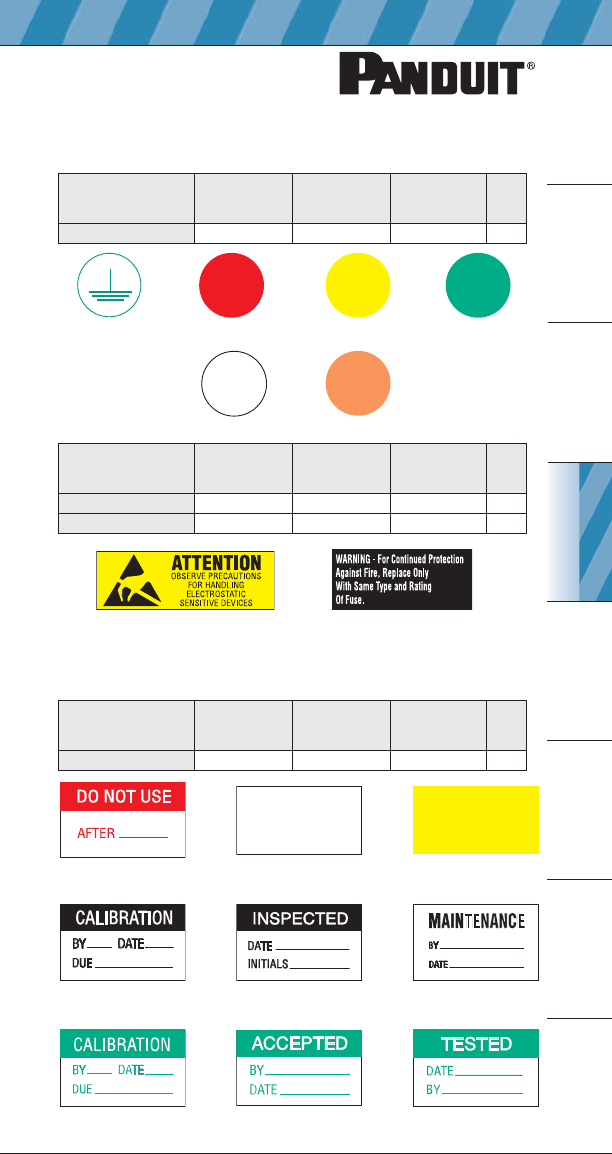

Labels in Dispenser (continued)

PLD-57 PLD-62 PLD-63

PLD-77 PLD-78

PLD-64

PLD-60 PLD-71

PLD-3 PLD-4 PLD-7

Write-On Quality Labels in Dispenser

PLD-22 PLD-28 PLD-29

PLD-11 PLD-17 PLD-18

Part Number

Diameter

(In.)

Diameter

(mm)

Labels Per

Dispenser

Std.

Pkg.

Qty.

PLD-* 0.75 19.1 300 1

Part Number

Overall Size

W x H (In.)

Overall Size

W x H (mm)

Labels Per

Dispenser

Std.

Pkg.

Qty.

PLD-* 1.50 x 1.00 38.1 x 25.4 200 1

Part Number

Overall Size

W x H (In.)

Overall Size

W x H (mm)

Labels Per

Dispenser

Std.

Pkg.

Qty.

PLD-60 3.00 x 1.00 76.2 x 25.4 100 1

PLD-71 2.00 x 1.00 50.8 x 25.4 150 1

D46

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

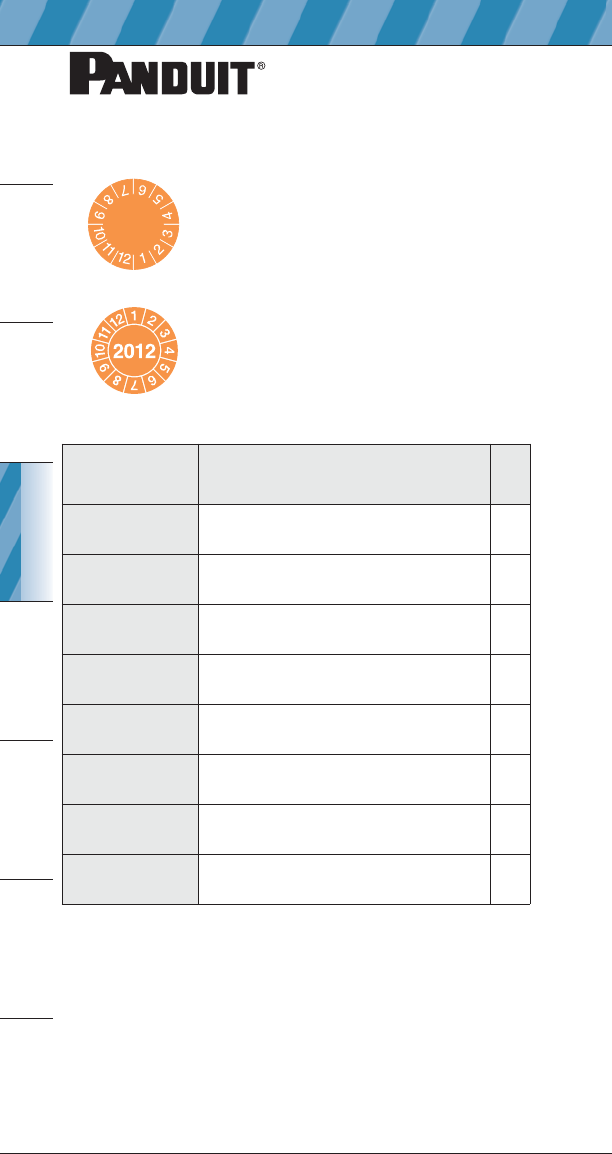

Inspection Plates

• The ideal system for fast recognition of

inspection intervals and maintenance dates

for safety testing

• Vinyl label will destruct upon removal; for

permanent and tamper resistant labeling

applications

• Indoor/outdoor rated

12

PEIP-D-12Y

PEIP-A-12Y

Part Number Part Description

Std.

Pkg.

Qty.

PEIP-A-12Y Inspection plate label, vinyl, 12, 0.59"

(15.0mm) diameter, 10 marker/card, white

legend on orange background.

10

PEIP-A-13Y Inspection plate label, vinyl, 13, 0.59"

(15.0mm) diameter, 10 marker/card, white

legend on purple background.

10

PEIP-A-14Y Inspection plate label, vinyl, 14, 0.59"

(15.0mm) diameter, 10 marker/card, white

legend on green background.

10

PEIP-A-15Y Inspection plate label, vinyl, 15, 0.59"

(15.0mm) diameter, 10 marker/card, white

legend on blue background.

10

PEIP-D-12Y Inspection plate label, vinyl, 2012, 1.38"

(35.1mm) diameter, 5 marker/card, white

legend on orange background.

10

PEIP-D-13Y Inspection plate label, vinyl, 2013, 1.38"

(35.1mm) diameter, 5 marker/card, white

legend on purple background.

10

PEIP-D-14Y Inspection plate label, vinyl, 2014, 1.38"

(35.1mm) diameter, 5 marker/card, white

legend on green background.

10

PEIP-D-15Y Inspection plate label, vinyl, 2015, 1.38"

(35.1mm) diameter, 5 marker/card, white

legend on blue background.

10

Part Number Symbol Part Description

Std.

Pkg.

Card.

PARW125-RED 0.13" x 0.10" (3.3mm x 2.5mm),

black/red, adhesive vinyl cloth

inspection arrow label, 576 labels

per card.

25

PARW125-YEL 0.13" x 0.10" (3.3mm x 2.5mm),

black/yellow, adhesive vinyl cloth

inspection arrow label, 576 labels

per card.

25

D47

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

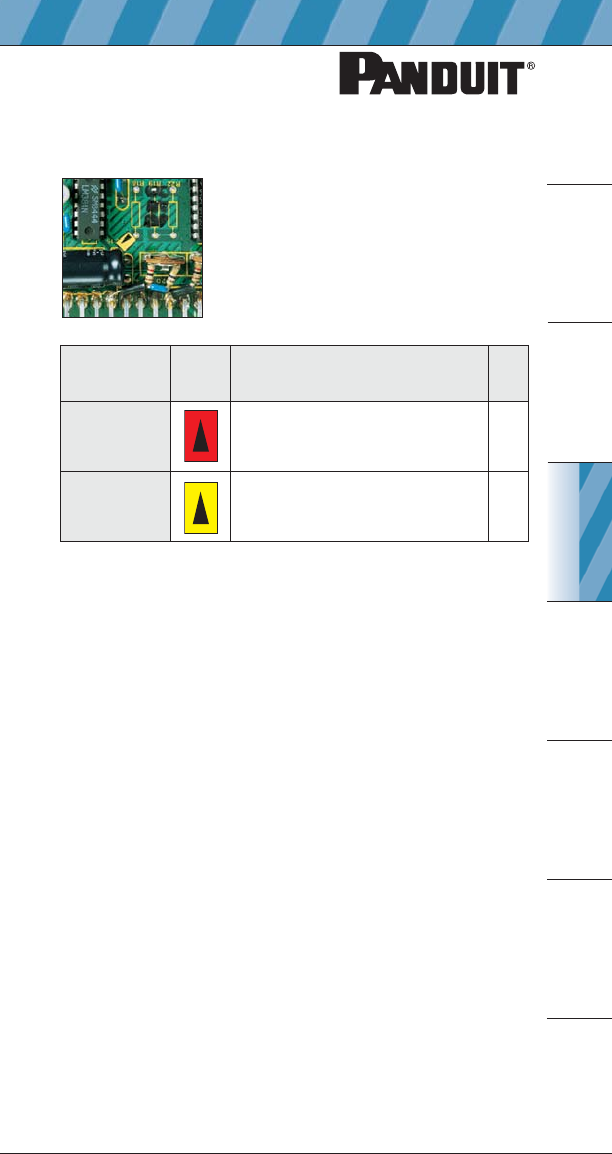

Inspection Arrows

• Arrows are re-positionable

• Pin-point rework areas on circuit boards

and equipment

• Vinyl cloth for durability and easy removal

D48

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

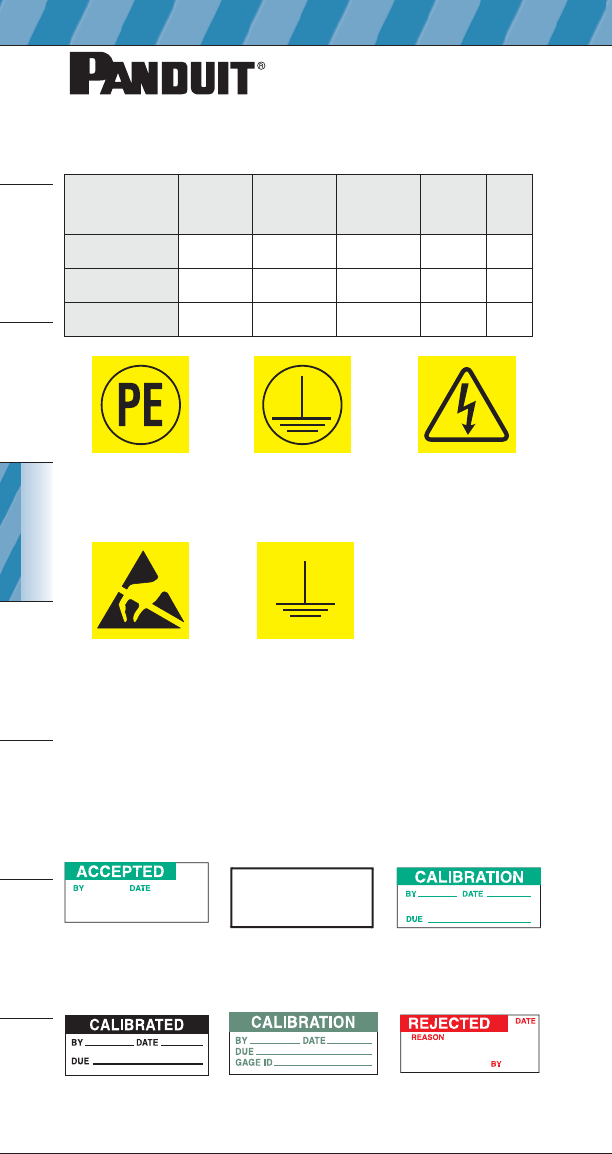

PESC-H-PE

PESC-J-PE

Protective Conductor

PESC-H-EC

PESC-J-EC

Safety Function

PESC-H-AT

PESC-J-AT

Warning of Dangerous

Electrical Voltage

PESC-H-HT

PESC-J-HT

Static Sensitive

Device —

Precautions Required

PESC-H-E

PESC-J-E

Earth (Ground)

Electrical Symbols on Cards

PCWL-ACC PCWL-BL PCWL-CAL

PCWL-CALD PCWL-ICAL PCWL-REJ

Write-on Labels on Cards

Part Number Material

Overall Size

W x H (In.)

Overall Size

W x H (mm)

Markers/

Card

Std.

Pkg.

Qty.

PESC-H-* Vinyl Cloth 0.51 x 0.51 12.9 x 12.9 68 10

Cards

PESC-J* Vinyl Cloth 0.75 x 0.75 19.1 x 19.1 36 10

Cards

PCWL* Vinyl Cloth 1.50 x 0.63 38.1 x 16.0 14 25

Cards

D49

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

Conductor and Regulatory

Identification Labels

CE Symbol*

PESS-A-CE

PESS-B-CE

PESS-C-CE

PESS-D-CE

PESS-E-CE

Earth (Ground)*

PESS-A-ES

PESS-B-ES

PESS-C-ES

PESS-D-ES

PESS-E-ES

Safety Function*

PESS-A-SS

PESS-B-SS

PESS-C-SS

PESS-D-SS

Outer Conductor – L1

PESS-A-L1

PESS-B-L1

PESS-C-L1

PESS-D-L1

PESS-E-L1

Outer Conductor – L2

PESS-A-L2

PESS-B-L2

PESS-C-L2

PESS-D-L2

PESS-E-L2

Outer Conductor – L3

PESS-A-L3

PESS-B-L3

PESS-C-L3

PESS-D-L3

PESS-E-L3

Neutral Conductor – N

PESS-A-N

PESS-B-N

PESS-C-N

PESS-D-N

Protective

Conductor – PE

PESS-A-PE

Lead Free – LF

PESS-A-LF

continued on page D50.

Part Number

Marker Diameter

In. (mm)

Markers/

Card

Std. Pkg.

Qty.

PESS-A-* 0.49 (12.5) 20 10 Sheets

PESS-B-* 0.63 (16.0) 20 10 Sheets

PESS-C-* 0.79 (20.0) 10 10 Sheets

PESS-D-* 0.98 (25.0) 10 10 Sheets

PESS-E-* 1.24 (31.5) 10 10 Sheets

* Dotted line represents cut line and will not show on label.

D50

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

Conductor and Regulatory

Identification Labels (continued)

PESS-A-ROHS

10

PESS-A-RCIO PESS-A-RCE

50

PESS-A-RC50

25

PESS-A-RC25

ISO Warning Symbols

PESW-*-1Y

Caution – Risk of

Electric Shock

PESW-*-6Y

Caution – Risk of

Ionizing Radiation

PESW-*-9Y

Caution – General

Warning, Risk

of Danger

PESW-*-11Y

Warning of Static

Sensitive Device

PESW-AA-11Y

Warning of Static

Sensitive Device

PESW-*-8Y

Caution – Laser Beam

Part Number

Label Width

In. (mm)

Marker

Qty.

Std. Pkg.

Qty.

PESW-A-* 0.50 (13.0) 10/card 10 cards

PESW-AA-11Y 0.30 (7.6) 80/card 10 cards

PESW-B-* 1.00 (25.4) 10/card 10 cards

PESW-C-* 1.97 (50.0) 10/card 10 cards

PESW-D-* 3.90 (99.1) 3/card 10 cards

PESW-E-* 7.90 (200.7) 1/card 10 cards

D51

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

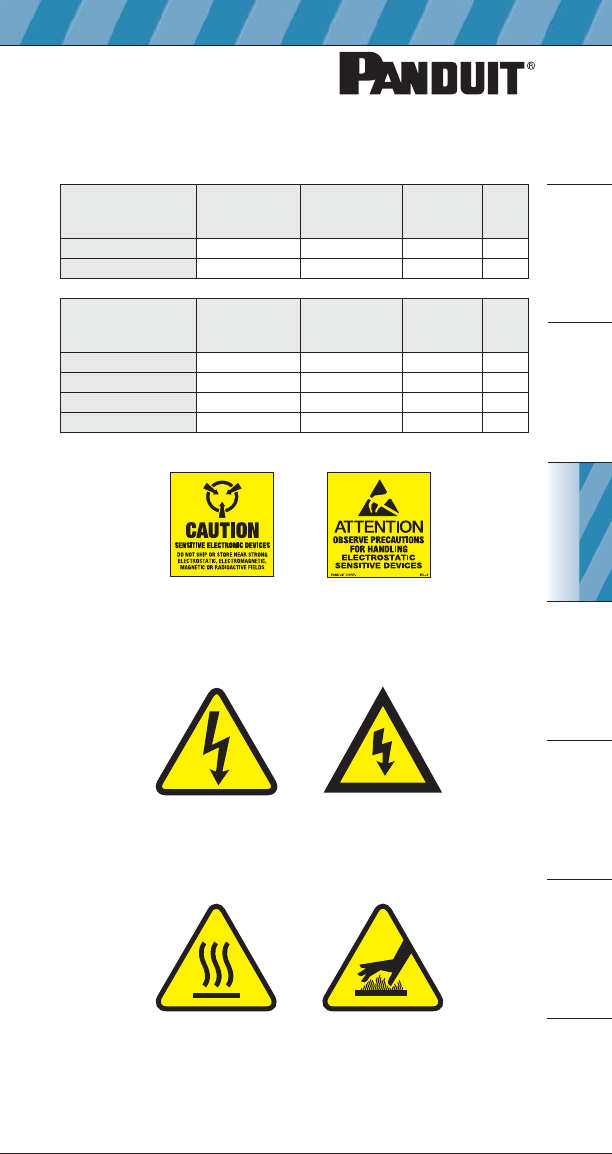

WL1

Static Awareness

Warning

ISO Warning Symbols (continued)

WL3

Static Awareness

Warning

WL32Y

Risk of

Electric Shock

WL33Y

Risk of

Electric Shock

WL35Y

Caution – Hot

Surface Warning

WL36Y

Warning – Hot

Surface Warning

Part Number

Overall Size

W x H

(In.)

Overall Size

W x H

(mm)

Labels

Per

Roll

Std.

Pkg.

Qty.

WL1 2.00 x 2.00 50.8 x 50.8 500 1

WL3 2.00 x 2.00 50.8 x 50.8 500 1

Part Number

Triangle

Width

(In.)

Triangle

Width

(mm)

Labels

Per

Pkg.

Std.

Pkg.

Qty.

WL32Y 1.50 38.1 50 1

WL33Y 4.50 114.3 50 1

WL35Y 2.00 50.8 50 1

WL36Y 2.00 50.8 50 1

D52

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

Other ISO Symbols

• Symbols denote a mandatory action without the use of words

Part

Number Symbol

Marker

Diameter

(In.)

Markers

Per Card

Symbol

Represents

Std.

Pkg.

Cards.

Mandatory Symbols

PESG-B-1 0.98 10

UNPLUG EQUIPMENT

BEFORE OPENING

10

PESG-C-1 1.97 5 10

PESG-C-2 1.97 5

EYE PROTECTION

MUST BE WORN

10

PESG-E-2 7.87 1 10

PESG-E-3 7.87 1

HEAD PROTECTION

MUST BE WORN

10

PESG-C-4 1.97 5 HEARING

PROTECTION MUST

BE WORN

10

PESG-E-4 7.87 1 10

Prohibition Symbols

PESV-C-3 1.97 5

SMOKING

PROHIBITED

10

PESV-D-3 3.94 1 10

PESV-E-3 7.87 1 10

Part

Number Symbol

Overall

Size

W x H

(In.)

Markers

Per Card

Symbol

Represents

Std.

Pkg.

Cards.

Safe Procedure Symbols

PESH-D-2 3.94 x

3.94

1 FIRST AID 10

PESH-E-6 7.87 x

7.87

1 EYEWASH 10

Fire Equipment Symbol

PESF-D-3 3.94 x

3.94

1 FIRE EXTINGUISHER 10

E1

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

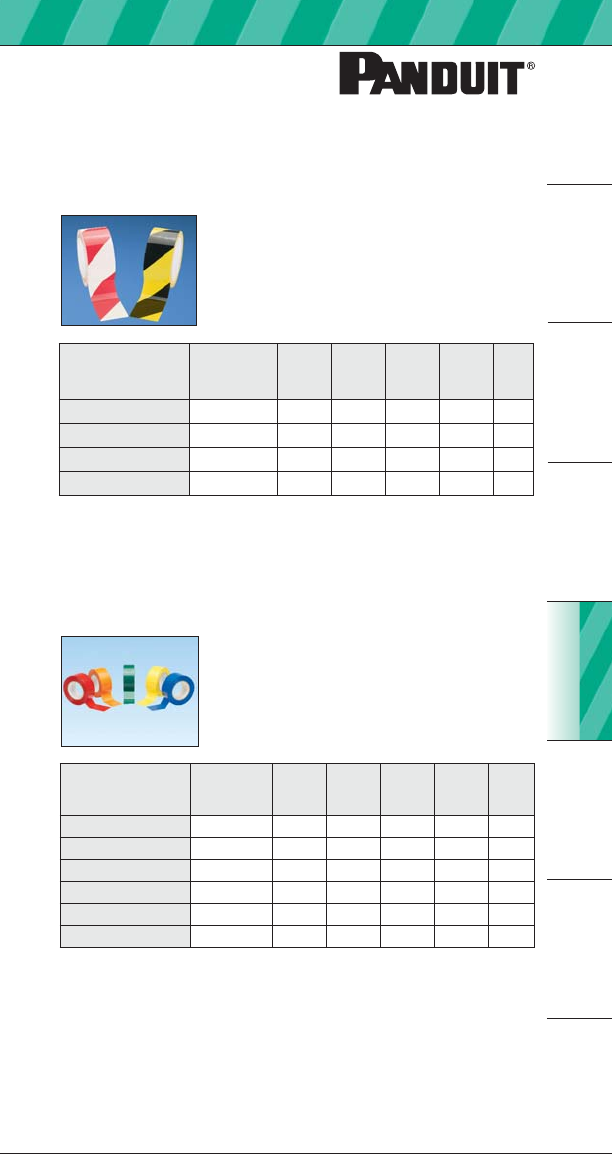

Hazard Tape

Tapes, Letters, and Numbers

Solid Color Adhesive Warning Tape

• Self-adhesive striped warning/hazard tape

• Color coded for quick identification

• Can be used in place of paint

• Durable vinyl continuous tape

for indoor use

• Used to identify hazards, traffic lanes, etc.

• Installs faster and lasts longer than paint

• Durable vinyl continuous tape for

indoor use

Part Number Color

Width

(In.)

Width

(mm)

Roll

Length

(Ft.)

Roll

Length

(m)

Std.

Pkg.

Qty.

HT2-BLU Blue 2.00 50.8 180.00 55.0 1

HT2-GRN Green 2.00 50.8 180.00 55.0 1

HT2-ORN Orange 2.00 50.8 180.00 55.0 1

HT2-RED Red 2.00 50.8 180.00 55.0 1

HT2-YEL Yellow 2.00 50.8 180.00 55.0 1

HT2-WHT White 2.00 50.8 180.00 55.0 1

Part Number Color

Width

(In.)

Width

(mm)

Roll

Length

(Ft.)

Roll

Length

(m)

Std.

Pkg.

Qty.

HT2S-BLK-YEL Black/Yellow 2.00 50.8 54.00 16.5 1

HT2S-RED-WHT Red/White 2.00 50.8 54.00 16.5 1

HT3S-BLK-YEL Black/Yellow 3.00 76.2 54.00 16.5 1

HT3S-RED-WHT Red/White 3.00 76.2 54.00 16.5 1

E2

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

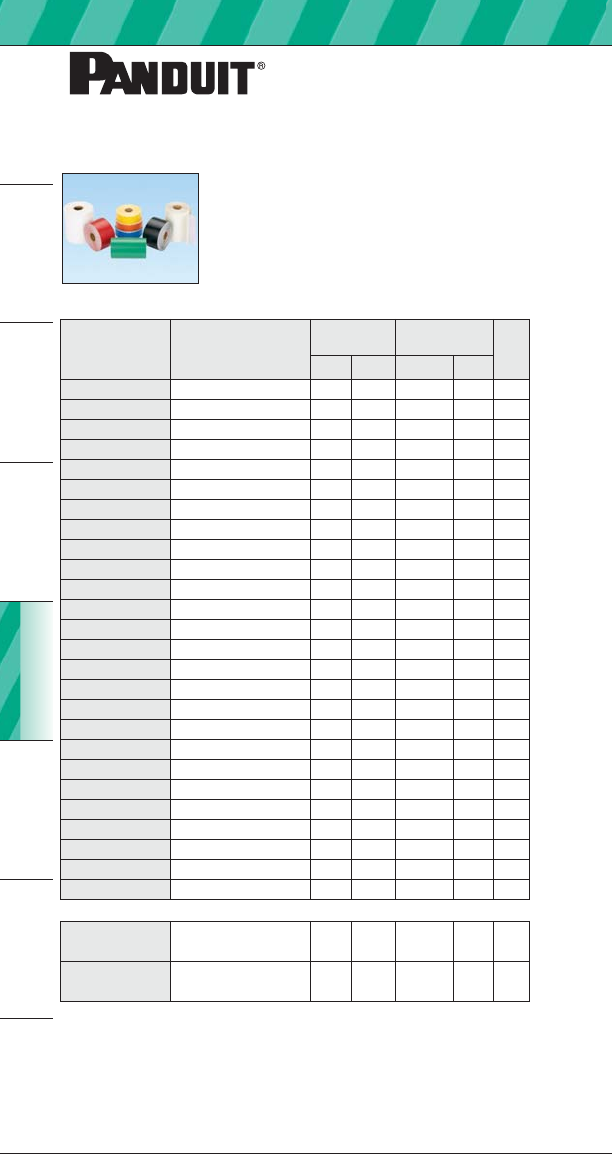

Thermal Transfer Continuous Tapes

• Tapes offer crisp, clear legends

with superior legibility

• Available in continuous color vinyl

or clear polyester and supplied on rolls

• Panduit labeling software packages

include all label formats for quick

and easy label production

Part Number Part Description

Height Length Std.

Pkg.

Qty.

In. mm Ft. m

T100X000VP1Y White, vinyl tape. 1.00 25.4 100.00 30.5 1

T100X000VQ1Y Blue, vinyl tape. 1.00 25.4 100.00 30.5 1

T100X000VS1Y Green, vinyl tape. 1.00 25.4 100.00 30.5 1

T100X000VU1Y Orange, vinyl tape. 1.00 25.4 100.00 30.5 1

T100X000VW1Y Red, vinyl tape. 1.00 25.4 100.00 30.5 1

T100X000VX1Y Yellow, vinyl tape. 1.00 25.4 100.00 30.5 1

T100X000VY1Y Black, vinyl tape. 1.00 25.4 100.00 30.5 1

T200X000VP1Y White, vinyl tape. 2.00 50.8 100.00 30.5 1

T200X000VQ1Y Blue, vinyl tape. 2.00 50.8 100.00 30.5 1

T200X000VS1Y Green, vinyl tape. 2.00 50.8 100.00 30.5 1

T200X000VU1Y Orange, vinyl tape. 2.00 50.8 100.00 30.5 1

T200X000VV1Y Purple, vinyl tape. 2.00 50.8 100.00 30.5 1

T200X000VW1Y Red, vinyl tape. 2.00 50.8 100.00 30.5 1

T200X000VX1Y Yellow, vinyl tape. 2.00 50.8 100.00 30.5 1

T200X000VY1Y Black, vinyl tape. 2.00 50.8 100.00 30.5 1

T200X000YK1 Clear, polyester tape. 2.00 50.8 100.00 30.5 1

T200X000YK1 Clear, polyester tape. 2.00 50.8 100.00 30.5 1

T400X000VP1Y White, vinyl tape. 4.00 101.6 100.00 30.5 1

T400X000VQ1Y Blue, vinyl tape. 4.00 101.6 100.00 30.5 1

T400X000VS1Y Green, vinyl tape. 4.00 101.6 100.00 30.5 1

T400X000VU1Y Orange, vinyl tape. 4.00 101.6 100.00 30.5 1

T400X000VV1Y Purple, vinyl tape. 4.00 101.6 100.00 30.5 1

T400X000VW1Y Red, vinyl tape. 4.00 101.6 100.00 30.5 1

T400X000VX1Y Yellow, vinyl tape. 4.00 101.6 100.00 30.5 1

T400X000VY1Y Black, vinyl tape. 4.00 101.6 100.00 30.5 1

T400X000YK1 Clear, polyester tape. 4.00 101.6 100.00 30.5 1

Polyester Over-Laminate

T225X000YK1 Clear, non-printable

polyester tape.

2.25 57.2 100.00 30.5 1

T425X000YK1 Clear, non-printable

polyester tape.

4.25 107.9 100.00 30.5 1

E3

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

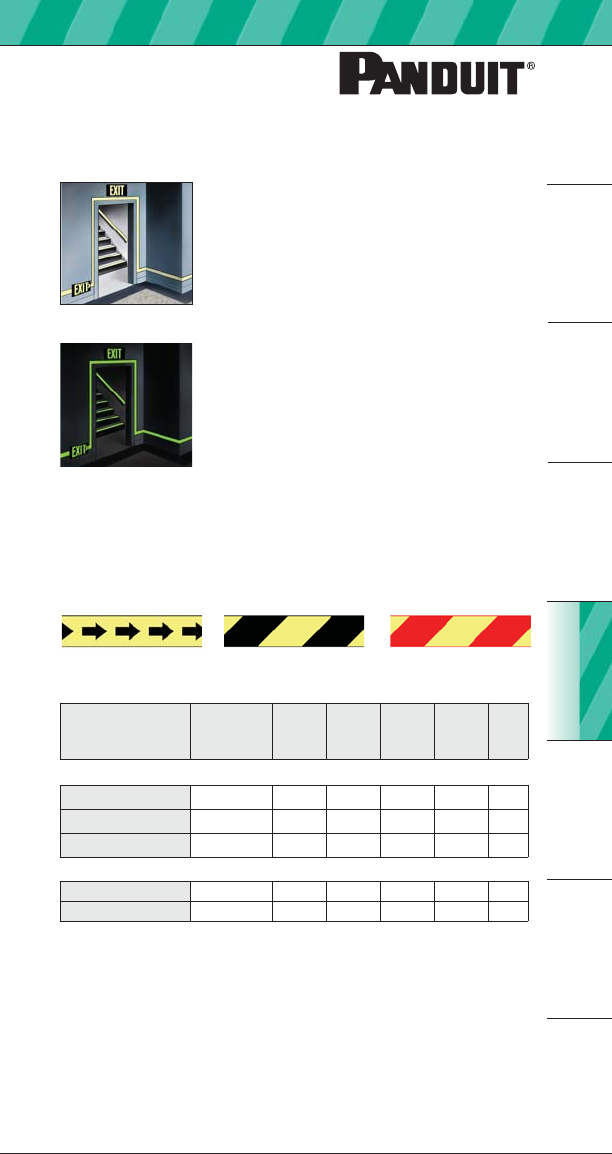

Photoluminescent Tapes

• Used to mark egress routes, fire alarms,

and fire equipment that is clearly visible for

up to ten hours after power is lost

• Absorb energy from ambient light and

releases this energy in the form of a glow

when power is lost

• Can be used in Panduit thermal transfer

desktop printers to create direction arrow

tape, striped tape, or safety signs on

demand

• Panduit photoluminescent tapes meet or

exceed the following safety standard

specification for photoluminescent safety

markings including: ASTM E 2072-00,

ASTM E 2073-00, ASTM E 2030-99,

DIN67510-1, IMO Resolution A.752.18,

ISO/CD 15370, DIN 67510, UL924, ASTM

162, ASTM 648, ASTM 662, MIL-L-3891

B, NFPA 101 Life Safety Code, OSHA

1910.37

Normal Lighting

Blackout

See page D29 for information on Photoluminescent Signs.

PT2S-ARW PT2S-BLK PT2S-RED

Part Number Legend

Width

(In.)

Width

(mm)

Roll

Length

(Ft.)

Roll

Length

(m)

Std.

Pkg.

Qty.

Pre-Printed

PT2S-ARW Black Arrow 2.00 50.8 30.00 9.1 1

PT2S-BLK Black Stripe 2.00 50.8 30.00 9.1 1

PT2S-RED Red Stripe 2.00 50.8 30.00 9.1 1

Blank

T200X000Y2T — 2.00 50.8 15.00 4.5 1

T400X000Y2T — 4.00 101.6 15.00 4.5 1

E4

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

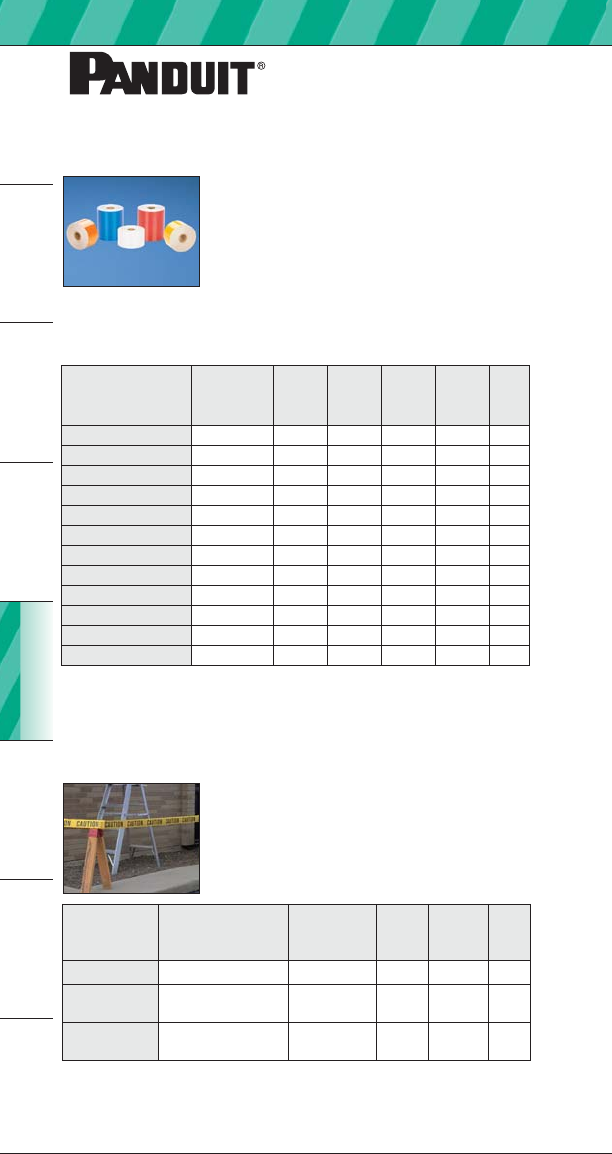

Reflective Tapes

• Reflective sheeting tapes can be used for

illuminating or highlighting a range of

objects

• Increases safety during power outages or

other low light conditions

• Custom legends can be printed using a

Panduit TDP43ME thermal printer

• Tapes are laminated for improved print

quality and durability

Part Number Color

Width

(In.)

Width

(mm)

Length

(Ft.)

Length

(m)

Std.

Pkg.

Qty.

T100X000RP1 White 1.00 25.4 50.00 15.2 1

T100X000RU1 Orange 1.00 25.4 50.00 15.2 1

T100X000RX1 Yellow 1.00 25.4 50.00 15.2 1

T200X000RP1 White 2.00 50.8 50.00 15.2 1

T200X000RU1 Orange 2.00 50.8 50.00 15.2 1

T200X000RX1 Yellow 2.00 50.8 50.00 15.2 1

T300X000RP1 White 3.00 76.2 50.00 15.2 1

T400X000RP1 White 4.00 101.6 50.00 15.2 1

T400X000RQ1 Blue 4.00 101.6 50.00 15.2 1

T400X000RU1 Orange 4.00 101.6 50.00 15.2 1

T400X000RW1 Red 4.00 101.6 50.00 15.2 1

T400X000RX1 Yellow 4.00 101.6 50.00 15.2 1

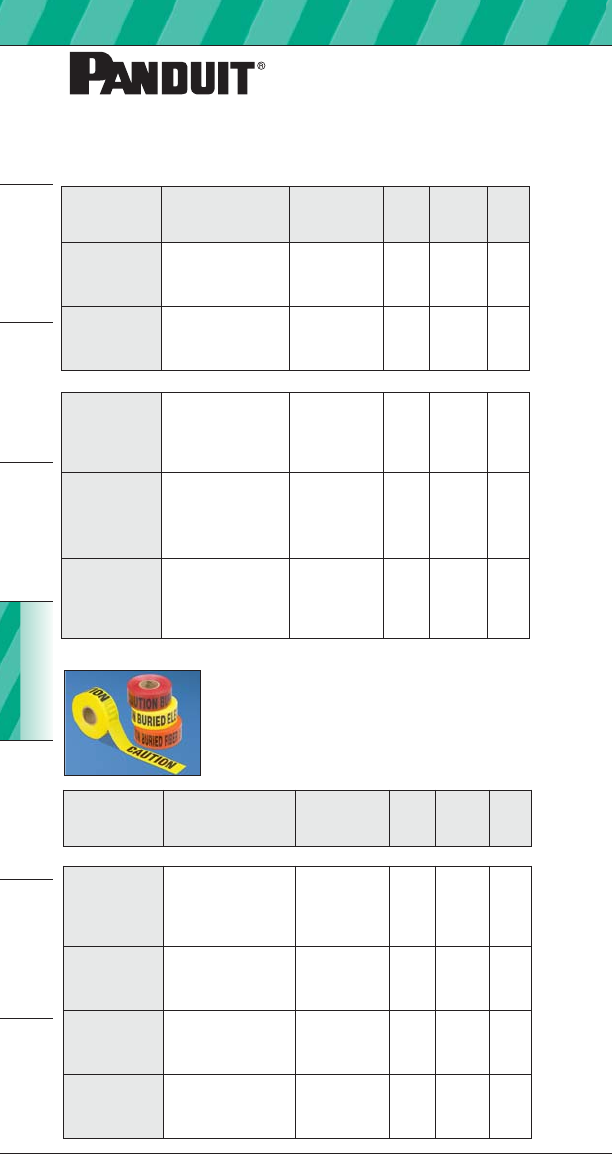

Barricade Tapes

• Used to warn of temporary hazards

• Attaches easily to posts, walls, etc.

• Highly visible 2.00" (51.0mm) black legends

on yellow background

• Made of non-adhesive polyethylene film

• Supplied in rolls of 1000 feet (30.5 meters)

Part Number Legend

Color

(Legend/

Background)

Width

(In.)

Width

(mm)

Std.

Pkg.

Qty.

HTB3-C-M CAUTION Black/Yellow 3.00 76.2 1

HTB3-DNE-M CAUTION DO NOT

ENTER

Black/Yellow 3.00 76.2 1

HTB3-HV-M CAUTION HIGH

VOLTAGE

Black/Yellow 3.00 76.2 1

E5

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

Underground Hazard Tape

continued on page E6.

• Used to warn of buried utility lines

• HTDU* parts are made of detectable

laminated aluminum tape

• Supplied in rolls of 1000 feet

(30.5 meters)

Part Number Legend

Color

(Legend/

Background)

Width

(In.)

Width

(mm)

Std.

Pkg.

Qty.

Laminated Detectable Aluminum

HTDU2B-W CAUTION

WATER LINE

BURIED BELOW

Black/Blue 2.00 50.8 1

HTDU2O-FO CAUTION

FIBER OPTIC

CABLE BURIED

BELOW

Black/Orange 2.00 50.8 1

HTDU2O-T CAUTION

TELEPHONE LINE

BURIED BELOW

Black/Orange 2.00 50.8 1

HTDU2R-E CAUTION

ELECTRIC LINE

BURIED BELOW

Black/Red 2.00 50.8 1

HTDU3B-W CAUTION

WATER LINE

BURIED BELOW

Black/Blue 3.00 76.2 1

HTDU3G-S CAUTION

SEWER LINE

BURIED BELOW

Black/Green 3.00 76.2 1

HTDU3O-FO CAUTION

FIBER OPTIC

CABLE BURIED

BELOW

Black/Orange 3.00 76.2 1

HTDU3O-T CAUTION

TELEPHONE LINE

BURIED BELOW

Black/Orange 3.00 76.2 1

HTDU3R-E CAUTION

ELECTRIC LINE

BURIED BELOW

Black/Red 3.00 76.2 1

HTDU6O-FO CAUTION

FIBER OPTIC

CABLE BURIED

BELOW

Black/Orange 6.00 152.4 1

E6

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

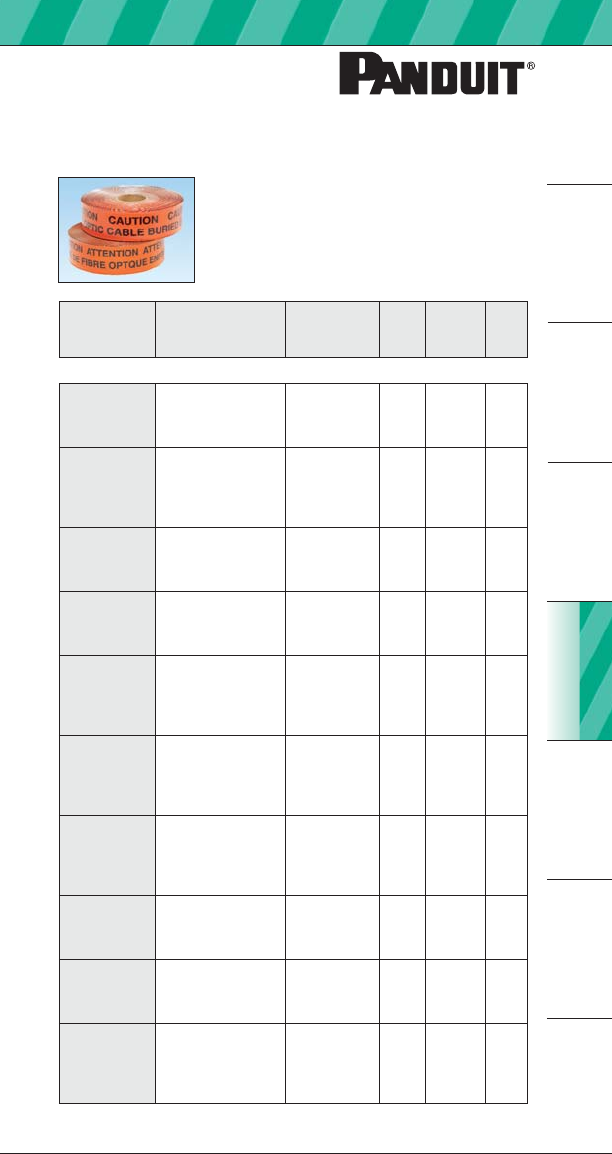

Underground Hazard Tape (continued)

• Used to warn of buried utility lines

• HTU* parts are made of polyethylene tape

• Supplied in rolls of 1000 feet (30.5 meters)

Part Number Legend

Color

(Legend/

Background)

Width

(In.)

Width

(mm)

Std.

Pkg.

Qty.

HTDU6O-T CAUTION

TELEPHONE LINE

BURIED BELOW

Black/Orange 6.00 152.4 1

HTDU6R-E CAUTION

ELECTRIC LINE

BURIED BELOW

Black/Red 6.00 152.4 1

French Legend

HTDU2B-W-F CAUTION WATER

LINE BURIED

BELOW

(French Legend)

Black/Blue 2.00 50.8 1

HTDU3O-FO-F CAUTION

FIBER OPTIC

CABLE BURIED

BELOW

(French Legend)

Black/Orange 3.00 76.2 1

HTDU3R-E-F CAUTION

ELECTRIC LINE

BURIED BELOW

(French Legend)

Black/Red 3.00 76.2 1

Part Number Legend

Color

(Legend/

Background)

Width

(In.)

Width

(mm)

Std.

Pkg.

Qty.

Polyethylene

HTU3G-T-M CAUTION

TELEPHONE LINE

BURIED BELOW

Black/Green 3.00 76.2 1

HTU3O-FO-M CAUTION FIBER

OPTIC CABLE

BURIED BELOW

Black/Orange 3.00 76.2 1

HTU3O-T-M CAUTION

TELEPHONE LINE

BURIED BELOW

Black/Orange 3.00 76.2 1

HTU3R-E-M CAUTION

ELECTRIC LINE

BURIED BELOW

Black/Red 3.00 76.2 1

E7

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

Underground Hazard Tape (continued)

Part Number Legend

Color

(Legend/

Background)

Width

(In.)

WIdth

(mm)

Std.

Pkg.

Qty.

HTU3Y-E-M CAUTION

ELECTRIC LINE

BURIED BELOW

Black/Yellow 3.00 76.2 1

HTU6O-TV CAUTION

CABLE TV LINE

BURIED BELOW

Black/Orange 6.00 152.4 1

HTU6R-E CAUTION

ELECTRIC LINE

BURIED BELOW

Black/Red 6.00 152.4 1

HTU6O-FO CAUTION

BURIED FIBER

OPTIC CABLE

Black/Orange 6.00 152.4 1

HTU6O-T CAUTION

TELEPHONE LINE

BURIED BELOW

Black/Orange 6.00 152.4 1

HTU6Y-E CAUTION

ELECTRIC LINE

BURIED BELOW

Black/Yellow 6.00 152.4 1

HTU6Y-G CAUTION

GAS LINE BURIED

BELOW

Black/Yellow 6.00 152.4 1

French Legend

HTU3Y-E-M-F CAUTION

ELECTRIC LINE

BURIED BELOW

(French Legend)

Black/Yellow 3.00 76.2 1

HTU3Y-EF CAUTION

ELECTRIC LINE

BURIED BELOW

(English/French)

Black/Yellow 3.00 76.2 1

E8

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

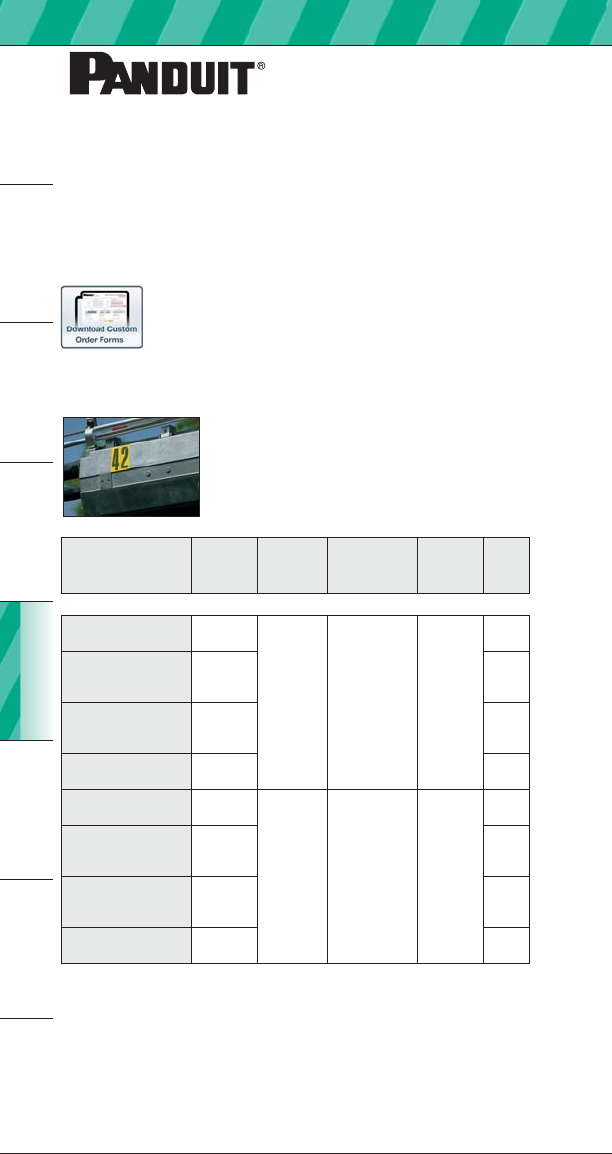

Vinyl Letters and Numbers

• Identify shelving, cable tray, racks, etc.

• Vinyl material designed for indoor

and outdoor marking

Custom Printed Utility Tapes

If your application demands custom printed information for your utility tapes

Panduit offers many custom printed options. Fill out the Custom Printed

Utility Tapes order form with your specific information and Panduit will create

and print the specified tapes. Look for the icon below at

www.panduit.com/safety to download electronic copies of the Custom

Printed Utility Tapes order form.

Part Number Legend

Legend

Height

In. (mm)

Overall Size

W x H

In. (mm)

Markers

Per

Card

Std.

Pkg.

Qty.

Black Legend On Yellow Background

PVL100BY-0-Y 0

1.00

(25.4)

0.88 x 1.50

(22.4 x 38.1) 10

25

Cards

PVL100BY-1-Y

thru

PVL100BY-9-Y

1

thru

9

25

Cards

PVL100BY-A-Y

thru

PVL100BY-Z-Y

A

thru

Z

25

Cards

PVL100BY-DSH-Y –25

Cards

PVL200BY-0-Y 0

2.00

(50.8)

0.88 x 2.25

(22.4 x 57.2) 10

25

Cards

PVL200BY-1-Y

thru

PVL200BY-9-Y

1

thru

9

25

Cards

PVL200BY-A-Y

thru

PVL200BY-Z-Y

A

thru

Z

25

Cards

PVL200BY-DSH-Y –25

Cards

E9

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

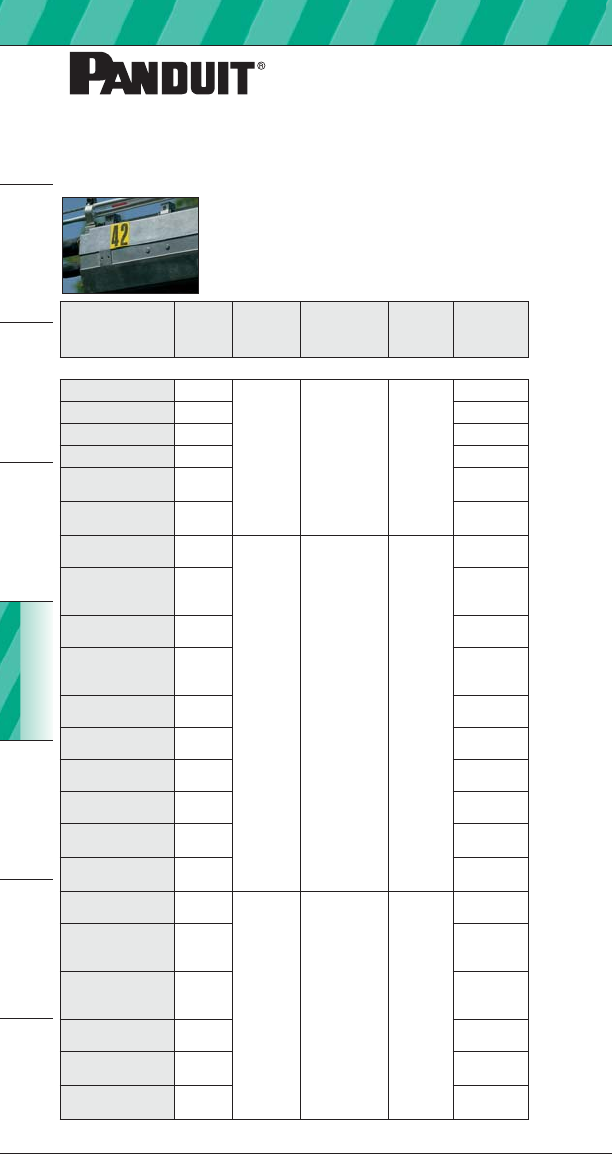

Vinyl Cloth Letters and Numbers

• Identify shelving, cable tray, racks, etc.

• Vinyl cloth material designed for indoor

and outdoor marking

*1 – 5 have 3 cards each; 6 – 0 have 2 cards each.

^Each letter has 1 card.

continued on page E10.

Part Number Legend

Legend

Height

In. (mm)

Overall Size

W x H

In. (mm)

Markers

Per Card

Std.

Pkg.

Qty.

Black Legend On Yellow Background

PCL037-0 0

0.38

(9.7)

0.34 x 0.50

(8.6 x 12.7 ) 78

25

Cards

PCL037-1

thru

PCL037-9

1

thru

9

25

Cards

PCL037-0-9 0 thru 9 25

Cards

PCL037-A-Z A thru Z 25

Cards

PCL037-A

thru

PCL037-Z

A25

Cards

PCLCP037-0-9* 1 thru 5

6 thru 0

25

Cards

PCLCP037-A-Z^ A thru Z 26

Cards

PCL062-0 0

0.63

(16.0)

0.56 x 0.75

(14.2 x 19.1) 32

25

Cards

PCL062-0-9 0 thru 9 25

Cards

PCL062-1

thru

PCL062-9

1

thru

9

25

Cards

PCL062-A

thru

PCL062-Z

A25

Cards

PCL062-A-Z A thru Z 25

Cards

PCL062-DSH –25

Cards

PCLCP062-0-9* 1 thru 5

6 thru 0

25

Cards

PCLCP062-A-Z^ A thru Z 26

Cards

PCL100-0 0

1.00

(25.4)

0.88 x 1.50

(22.4 x 38.1) 10

25

Cards

PCL100-1

thru

PCL100-9

1

thru

9

25

Cards

PCL100-0-9 0 thru 9 25

Cards

PCL100-A

thru

PCL100-Z

A25

Cards

E10

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

Vinyl Cloth Letters and Numbers

(continued)

*1 – 5 have 3 cards each; 6 – 0 have 2 cards each.

^Each letter has 1 card.

Part Number Legend

Legend

Height

In. (mm)

Overall Size

W x H

In. (mm)

Markers

Per Card

Std.

Pkg.

Qty.

Black Legend On Yellow Background

PCL100-A-J A thru J

1.00

(25.4)

0.88 x 1.50

(22.4 x 38.1) 10

25 Cards

PCL100-K-T K thru T 25 Cards

PCL100-U-Z U thru Z 25 Cards

PCL100-DSH – 25Cards

PCLCP100-0-9* 1 thru 5

6 thru 0

25

Cards

PCLCP100-A-Z^ A thru Z 26

Cards

PCL200-0 0

2.00

(50.8)

0.88 x 2.25

(22.4 x 57.2) 10

25

Cards

PCL200-1

thru

PCL200-9

1

thru

9

25

Cards

PCL200-0-9 0 thru 9 25

Cards

PCL200-A

thru

PCL200-Z

A25

Cards

PCL200-A-J A thru J 25

Cards

PCL200-K-T K thru T 25

Cards

PCL200-U-Z U thru Z 25

Cards

PCL200-DSH –25

Cards

PCLCP200-0-9* 1 thru 5

6 thru 0

25

Cards

PCLCP200-A-Z^ A thru Z 26

Cards

PCL300-0 0

3.00

(76.2)

1.50 x 3.50

(38.1 x 88.9) 6

25

Cards

PCL300-1

thru

PCL300-9

1

thru

9

25

Cards

PCL300-A

thru

PCL300-Z

A

thru

Z

25

Cards

PCL300-DSH –25

Cards

PCLCP300-0-9* 1 thru 5

6 thru 0

25

Cards

PCLCP300-A-Z^ A thru Z 26

Cards

E11

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

Reflective Letters and Numbers

• Identify shelving, cable tray, racks, etc.

• Vinyl cloth material designed for indoor and

outdoor marking

• Black legend on yellow background

^50 of each legend.

*25 of each legend.

Part Number Legend

Legend

Height

In. (mm)

Overall Size

W x H

In. (mm)

Markers

Per

Pkg.

Std.

Pkg.

Qty.

Black Legend On Yellow Background

PRL100BY-0

thru

PRL100BY-9

0

thru

9

1.00

(25.4)

1.00 x 1.63

(25.4 x 41.4)

25

1

Pkg.

PRL100BY-A

thru

PRL100BY-Z

A

thru

Z

PRL100BY-DSH –

PRL100BY-BLNK BLANK

PRL100BY-18KIT^ 0 thru 9,

A thru D,

L, P, R,

S900

PRL100BY-36KIT* 0 thru 9,

A thru Z,

–, Blank 950

Yellow Legend On Black Background

PRL150YB-0

thru

PRL150YB-9

0

thru

9

1.50

(38.1)

1.38 x 1.88

(35.1 x 47.8)

25

1

Pkg.

PRL150YB-A

thru

PRL150YB-Z

A

thru

Z

PRL150YB-DSH –

PRL250YB-0

thru

PRL250YB-9

0

thru

9

2.50

(63.5)

1.75 x 2.88

(44.5 x 73.2) 1

Pkg.

PRL250YB-A

thru

PRL250YB-Z

A

thru

Z

PRL250YB-DSH –

E12

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

Notes

F1

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

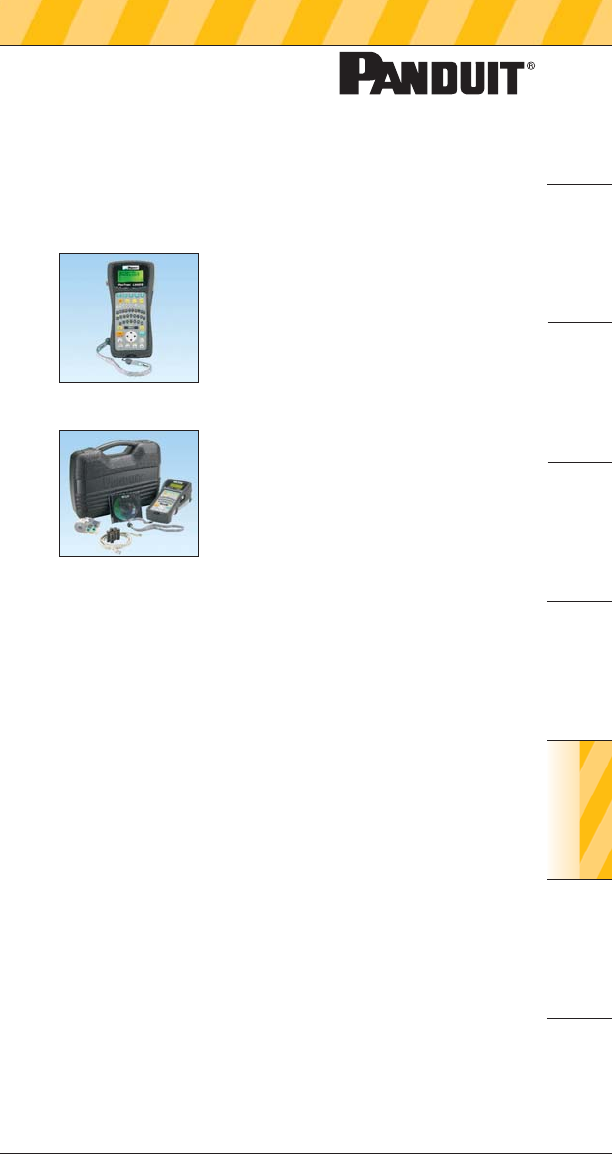

Related Products

LS8EQ

LS8EQ-KIT

• Innovative QWERTY keypad design delivers

faster text entry and label design for

enhanced productivity

• Cut-to-length functionality eliminates label

waste and label trimming labor

• Partial-cut feature available to provide

tear-apart strips of labels or individual

cut labels for application flexibility and

quicker installation

• Market specific labeling tools simplify label

creation for network components, panel

building, and construction and maintenance

• Prints self-laminating labels, heat shrink

tubing, die-cut component labels, marker

plates, flag labels, and continuous tape

for improved printer versatility

• Label cassette contains integrated memory

device for automatic formatting, recall

of last legend used and number of

labels remaining in cassette for

improved efficiency

• Fast-loading label cassette includes both

label material and ribbon for easy label

changeover

• USB interface for importing data, system

upgrades, and printing from a wireless

laptop or desktop computer to increase

printer functionality

• Large graphic display with backlight

improves visibility; ideal for printing labels

at a remote job site

LS8EQ Hand-Held Printer

with QWERTY Keypad

F2

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

TDP43ME Thermal Transfer Desktop

Printer and Accessories

TDP43ME

• Creates durable, crisp, clear legends and

graphics that offer superior legibility

• Prints a wide variety of label sizes

and materials

• Prints durable legends for harsh industrial

environments

• Fine resolution for small type characters

and images

• Solid printing of large characters and shapes

• Connects quickly and easily to PC, reduces

time required for learning how to operate the

printer and make adjustments

• Easy-Mark™Labeling Software included

with printer

• Up to 4 inches per second print speed

• RoHS Compliant

F3

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

Easy-Mark™Labeling Software

PROG-EMCD3

PROG-EM2GO

• Easy-Mark ™Labeling Software simplifies

label creation for the specific needs of your

applications

• Instructions and user interface are

available in English, French, German,

Italian, Spanish, Korean, Chinese,

Portuguese, and Japanese

• Intuitive interview process allows automatic

generation of compliant labels and signs

• Program lets you see labels on-screen as

they will appear when printed to improve

productivity and reduce errors

• WYSIWYG (What You See Is What You

Get) user interface, alpha/numeric

serialization, data import, symbol import

• Easy-Mark ™Labeling Software is part of a

complete line of innovative identification

solutions from Panduit

• Easy-Mark ™Labeling Software on a USB

Flash Drive eliminates the need to install a

dedicated copy on each computer

• Supports most Windows^ fonts drivers for

standard thermal transfer, dot matrix, laser

and ink jet, including Panduit thermal

transfer printers

• Revisions and enhancements including

additional market specific labeling

application tools will be available on the

Panduit web site under: Support /

Software, Firmware and Printers /

EASY-MARK Labeling Software

• Site license available for five additional

installs per Easy-Mark ™CD. Please

contact Customer Service or your Panduit

Distributor for additional information

System Requirements:

– 64 MB hard drive space and 64 MB

RAM (256 MB RAM recommended)

– Windows^2000, Windows 7, XP, or Vista

– Mouse or compatible pointing device

– CD-ROM or USB Port

^Windows is a registered trademark of Microsoft Corp. in the United States

and/or other countries.

F4

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

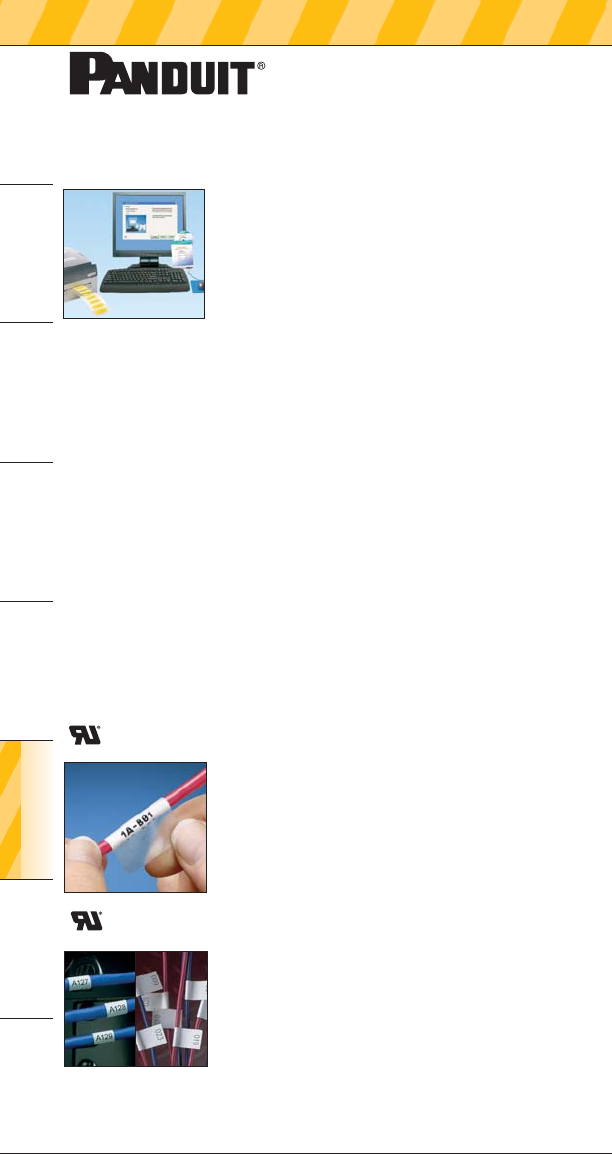

PROG-CCCD

CAD-Connect™Labeling Software

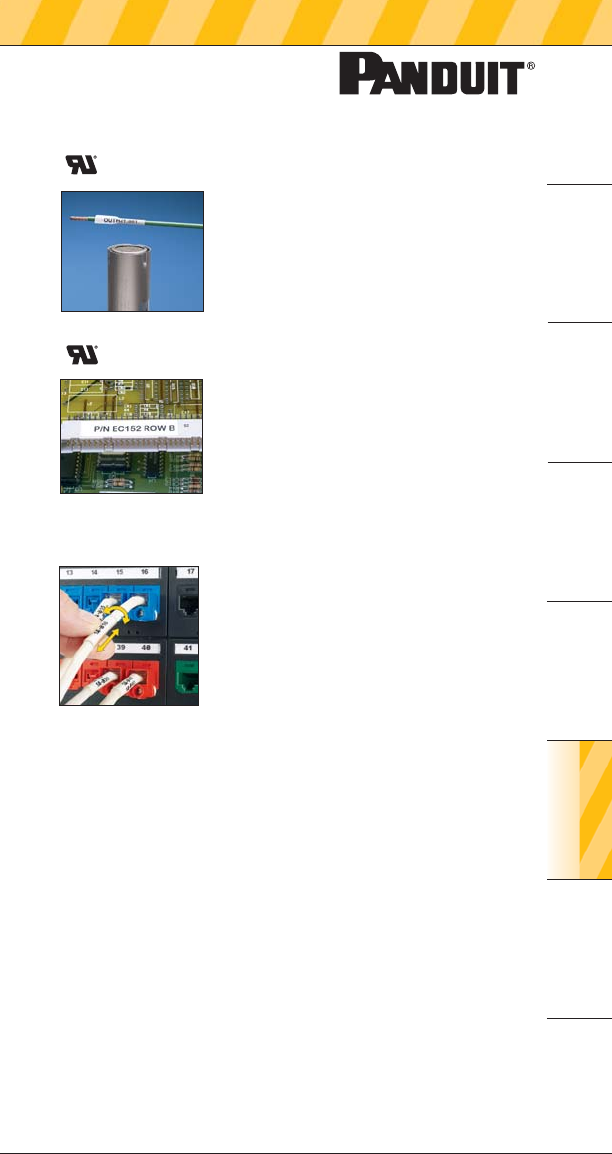

Self-Laminating Labels

• Labels offer crisp, clear legends with

superior legibility

• Include a colored print-on area and clear

overlaminate to protect the legend for clear

and durable identification

• Labels are available in a large range of

wire/cable sizes

Non-Laminated Labels

• Labels offer crisp, clear legends with

superior legibility

• Use as a wrap around label or flag style

marker for wire/cable labeling

• Labels are available in a large range of

wire/cable sizes

*AutoCAD is a registered trademark of Autodesk, Inc.

^Windows, Visio and EXCEL are registered trademarks of Microsoft Corp.

in the United States and/or other countries.

• Facilitates quick and easy organization of

identifiers from CAD for printing within

Easy-Mark ™Labeling Software

• Easily captures and organizes CAD data

for future use and documentation

• Saves time and reduces errors by utilizing

identifiers previously created in CAD files to

eliminate manual entry of data into labeling

software

• Compatible with full versions of AutoCAD*

2008 or newer and Visio^ version 2002 or

newer

• Exports to alternative formats such as

EXCEL^ (XLS) or Text (CSV) files for future

use and documentation

• Upgrades are available on the Panduit web

site under Support / Software, Firmware and

Printers / CAD-Connect Labeling Software

System Requirements:

– 64 MB hard drive space and 64 MB

RAM (256 MB RAM recommended)

– Mouse or compatible pointing device

– Windows^ 2000, XP, Vista, or Windows 7

– CD-ROM Drive

Component Labels

• Labels offer crisp, clear legends with

superior legibility

• Multiple-purpose and high-temperature

labels for identifying flat surfaces such as

components, control panels, circuit boards

and general labeling

F5

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

Thermal Transfer Turn-Tell ®Labels

• Allows labels to rotate for visibility from any

angle, and allows repositioning on the

wire/cable to align legends for improved

aesthetics

• Ideal for use in high density or space

constrained cable applications

• Use thermal transfer hybrid ribbon

• Temperature range: -40°F to 200°F (-40°C

to 107°C)

• RoHS Compliant

• Outdoor rated

• Available in P1 ™Label Cassettes for the

LS8E or LS8EQ printers and in computer

printable rolls, for use with Easy-Mark ™

Labeling Software and desktop thermal

transfer printers

Heat Shrink Labels

• Labels offer crisp, clear legends with

superior legibility

• Meets UL Standard 224 for flammability

and UL Standard 2043 suitable for use in

air handling spaces

• Heat Shrink ratio 3:1, except for Halogen

Free Heat Shrink ratio 2:1

F6

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

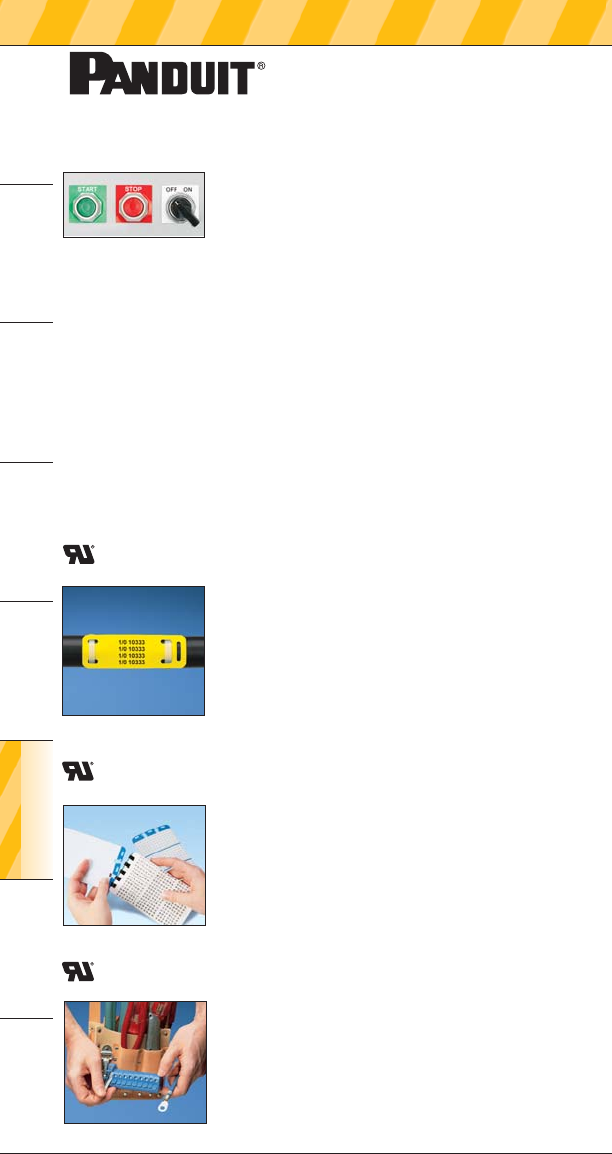

Thermal Transfer Marker Plates

• Marker plates offer crisp, clear legends

with superior legibility

• Print custom marker plates on demand

with a thermal transfer printer

• Attachable in a horizontal or

vertical orientation

• Available in a variety of colors and sizes

Marker Books

• Convenient, pocket-sized book

• Markers are perforated and can be torn in

half to mark both ends of conductors

• Terminal block markers are included

to properly identify connectors

• 10 pages of markers per book

Pre-Printed Marker Tape Dispenser

• Flexible polyester marker tape conforms

tightly to wires/cables

• Dispenser allows marker tape to be cut to

the exact length required for marking any

size wire/cable

• Durable plastic dispenser can be attached

to tool belt for industrial use

Thermal Transfer Raised Panel Labels

• Delivers the look of engraved laminated

plates with the convenience of printing

on demand

• Strong holding power for rough, textured,

and powder coated surfaces

• Provides crisp, clear, and durable legends

for your reliable, high performance

identification needs

• Use thermal transfer resin ribbon

• UL969 recognized, File # MH14979; cUL

recognized, C22.2 No. 0.15-01,

File # MH14979

• Temperature range: -40°F to 212°F (-40°C

to 100°C)

• Outdoor Rated

• RoHS Compliant

F7

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

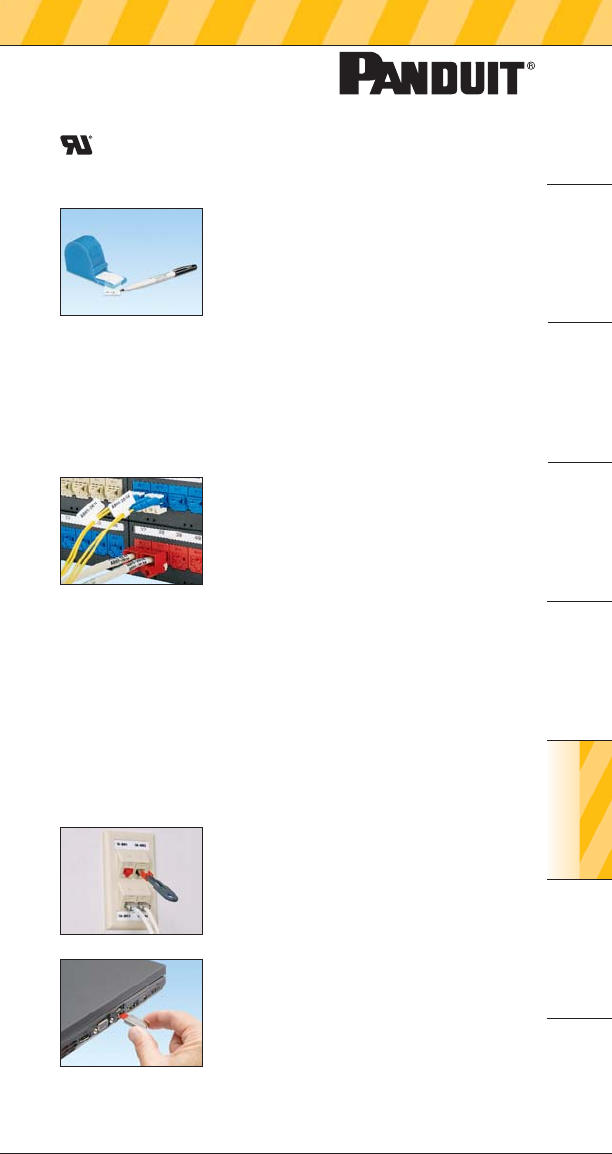

Network Security Lock-in Devices

• Secures patch cords into a jack/adapter,

preventing unauthorized removal

• Available for Copper (RJ45) and Fiber (LC

duplex) patch cords

• RJ45 devices work with Panduit Category

5e, Category 6, and Category 6A (10Gig)

cables

• Each device requires a special

installation/removal tool

Network Security Blockout Devices

• Blocks unauthorized access to jacks and

potentially harmful foreign objects, saving

time and money associated with data

security breaches, network downtime,

repair and hardware replacement

• Compatible with most RJ45 jacks to

accommodate a variety of applications and

does not interfere with jack contacts

• Can be installed/removed without

interfering with adjacent jacks or hardware

• May only be released with the special

removal tool, ensuring the safety and

security of your network infrastructure

Requires a special removal tool

Self-Laminating Wire

Marker Dispenser

• Self-laminating labels are provided in

handy dispenser which protects markers

when not in use

• Clear section of marker overlaminates

and protects write-on legend

• Quick, easy to use for smaller installations

and maintenance

F8

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

Notes

G1

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

Occupational Health and Safety

Administration (OSHA) Standard 29CFR

The Control of Hazardous Energy

(Lockout/Tagout) 1910.147

1910.147(a)

Scope, application and purpose -

1910.147(a)(1)

Scope

1910.147(a)(1)(i)

This standard covers the servicing and maintenance of machines and

equipment in which the unexpected energization or start up of the

machines or equipment, or release of stored energy could cause injury

to employees. This standard establishes minimum performance

requirements for the control of such hazardous energy.

1910.147(a)(1)(ii)

This standard does not cover the following:

1910.147(a)(1)(ii)(A)

Construction, agriculture and maritime employment;

1910.147(a)(1)(ii)(B)

Installations under the exclusive control of electric utilities for the purpose of

power generation, transmission and distribution, including related equipment

for communication or metering; and

1910.147(a)(1)(ii)(C)

Exposure to electrical hazards from work on, near, or with conductors or

equipment in electric utilization installations, which is covered by Subpart S

of this part; and

..1910.147(a)(1)(ii)(D)

1910.147(a)(1)(ii)(D)

Oil and gas well drilling and servicing.

1910.147(a)(2)

Application.

1910.147(a)(2)(i)

This standard applies to the control of energy during servicing and/or

maintenance of machines and equipment.

1910.147(a)(2)(ii)

Normal production operations are not covered by this standard (See Subpart

O of this Part). Servicing and/or maintenance which takes place during

normal production operations is covered by this standard only if:

1910.147(a)(2)(ii)(A)

An employee is required to remove or bypass a guard or other safety

device; or

1910.147(a)(2)(ii)(B)

An employee is required to place any part of his or her body into an area on

a machine or piece of equipment where work is actually performed upon the

material being processed (point of operation) or where an associated danger

zone exists during a machine operating cycle.

G2

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

OSHA Standard 29CFR

The Control of Hazardous Energy

(Lockout/Tagout) 1910.147 (continued)

Note: Exception to paragraph (a)(2)(ii): Minor tool changes and

adjustments, and other minor servicing activities, which take place during

normal production operations, are not covered by this standard if they are

routine, repetitive, and integral to the use of the equipment for production,

provided that the work is performed using alternative measures which

provide effective protection (See Subpart O of this Part).

1910.147(a)(2)(iii)

This standard does not apply to the following:

..1910.147(a)(2)(iii)(A)

1910.147(a)(2)(iii)(A)

Work on cord and plug connected electric equipment for which exposure

to the hazards of unexpected energization or start up of the equipment is

controlled by the unplugging of the equipment from the energy source and

by the plug being under the exclusive control of the employee performing

the servicing or maintenance.

1910.147(a)(2)(iii)(B)

Hot tap operations involving transmission and distribution systems for

substances such as gas, steam, water or petroleum products when they

are performed on pressurized pipelines, provided that the employer

demonstrates that-

1910.147(a)(2)(iii)(B)(1)

continuity of service is essential;

1910.147(a)(2)(iii)(B)(2)

shutdown of the system is impractical; and

1910.147(a)(2)(iii)(B)(3)

documented procedures are followed, and special equipment is used which

will provide proven effective protection for employees.

1910.147(a)(3)

Purpose.

1910.147(a)(3)(i)

This section requires employers to establish a program and utilize

procedures for affixing appropriate lockout devices or tagout devices to

energy isolating devices, and to otherwise disable machines or equipment

to prevent unexpected energization, start up or release of stored energy

in order to prevent injury to employees.

1910.147(a)(3)(ii)

When other standards in this part require the use of lockout or tagout,

they shall be used and supplemented by the procedural and training

requirements of this section.

1910.147(b)

Definitions applicable to this section.

Affected employee. An employee whose job requires him/her to operate

or use a machine or equipment on which servicing or maintenance is being

performed under lockout or tagout, or whose job requires him/her to work in

an area in which such servicing or maintenance is being performed.

G3

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

OSHA Standard 29CFR

The Control of Hazardous Energy

(Lockout/Tagout) 1910.147 (continued)

Authorized employee. A person who locks out or tags out machines or

equipment in order to perform servicing or maintenance on that machine or

equipment. An affected employee becomes an authorized employee when

that employee's duties include performing servicing or maintenance covered

under this section.

Capable of being locked out. An energy isolating device is capable of

being locked out if it has a hasp or other means of attachment to which, or

through which, a lock can be affixed, or it has a locking mechanism built into

it. Other energy isolating devices are capable of being locked out, if lockout

can be achieved without the need to dismantle, rebuild, or replace the

energy isolating device or permanently alter its energy control capability.

Energized. Connected to an energy source or containing residual

or stored energy.

Energy isolating device. A mechanical device that physically prevents the

transmission or release of energy, including but not limited to the following:

A manually operated electrical circuit breaker; a disconnect switch; a

manually operated switch by which the conductors of a circuit can be

disconnected from all ungrounded supply conductors, and, in addition,

no pole can be operated independently; a line valve; a block; and any similar

device used to block or isolate energy. Push buttons, selector switches and

other control circuit type devices are not energy isolating devices.

Energy source. Any source of electrical, mechanical, hydraulic, pneumatic,

chemical, thermal, or other energy.

Hot tap. A procedure used in the repair, maintenance and services activities

which involves welding on a piece of equipment (pipelines, vessels or tanks)

under pressure, in order to install connections or appurtenances. it is

commonly used to replace or add sections of pipeline without the

interruption of service for air, gas, water, steam, and petrochemical

distribution systems.

Lockout. The placement of a lockout device on an energy isolating device,

in accordance with an established procedure, ensuring that the energy

isolating device and the equipment being controlled cannot be operated until

the lockout device is removed.

Lockout device. A device that utilizes a positive means such as a lock,

either key or combination type, to hold an energy isolating device in the safe

position and prevent the energizing of a machine or equipment. Included are

blank flanges and bolted slip blinds.

Normal production operations. The utilization of a machine or equipment

to perform its intended production function.

Servicing and/or maintenance. Workplace activities such as constructing,

installing, setting up, adjusting, inspecting, modifying, and maintaining

and/or servicing machines or equipment. These activities include lubrication,

cleaning or un-jamming of machines or equipment and making adjustments

or tool changes, where the employee may be exposed to the unexpected

energization or startup of the equipment or release of hazardous energy.

Setting up. Any work performed to prepare a machine or equipment to

perform its normal production operation.

Tagout. The placement of a tagout device on an energy isolating device, in

accordance with an established procedure, to indicate that the energy

isolating device and the equipment being controlled may not be operated

until the tagout device is removed.

G4

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

OSHA Standard 29CFR

The Control of Hazardous Energy

(Lockout/Tagout) 1910.147 (continued)

Tagout device. A prominent warning device, such as a tag and a means

of attachment, which can be securely fastened to an energy isolating device

in accordance with an established procedure, to indicate that the energy

isolating device and the equipment being controlled may not be operated

until the tagout device is removed.

..1910.147(c)

1910.147(c)

General -

1910.147(c)(1)

Energy control program. The employer shall establish a program consisting

of energy control procedures, employee training and periodic inspections to

ensure that before any employee performs any servicing or maintenance on

a machine or equipment where the unexpected energizing, startup or

release of stored energy could occur and cause injury, the machine or

equipment shall be isolated from the energy source and rendered

inoperative.

1910.147(c)(2)

Lockout/tagout.

1910.147(c)(2)(i)

If an energy isolating device is not capable of being locked out, the

employer's energy control program under paragraph (c)(1) of this section

shall utilize a tagout system.

1910.147(c)(2)(ii)

If an energy isolating device is capable of being locked out, the employer's

energy control program under paragraph (c)(1) of this section shall utilize

lockout, unless the employer can demonstrate that the utilization of a tagout

system will provide full employee protection as set forth in paragraph (c)(3)

of this section.

1910.147(c)(2)(iii)

After January 2, 1990, whenever replacement or major repair, renovation or

modification of a machine or equipment is performed, and whenever new

machines or equipment are installed, energy isolating devices for such

machine or equipment shall be designed to accept a lockout device.

1910.147(c)(3)

Full employee protection.

1910.147(c)(3)(i)

When a tagout device is used on an energy isolating device which is

capable of being locked out, the tagout device shall be attached at the same

location that the lockout device would have been attached, and the employer

shall demonstrate that the tagout program will provide a level of safety

equivalent to that obtained by using a lockout program.

..1910.147(c)(3)(ii)

1910.147(c)(3)(ii)

In demonstrating that a level of safety is achieved in the tagout program

which is equivalent to the level of safety obtained by using a lockout

program, the employer shall demonstrate full compliance with all tagout-

related provisions of this standard together with such additional elements as

are necessary to provide the equivalent safety available from the use of a

G5

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

OSHA Standard 29CFR

The Control of Hazardous Energy

(Lockout/Tagout) 1910.147 (continued)

lockout device. Additional means to be considered as part of the

demonstration of full employee protection shall include the implementation

of additional safety measures such as the removal of an isolating circuit

element, blocking of a controlling switch, opening of an extra disconnecting

device, or the removal of a valve handle to reduce the likelihood of

inadvertent energization.

1910.147(c)(4)

Energy control procedure.

1910.147(c)(4)(i)

Procedures shall be developed, documented and utilized for the control of

potentially hazardous energy when employees are engaged in the activities

covered by this section.

Note: Exception: The employer need not document the required procedure

for a particular machine or equipment, when all of the following elements

exist: (1) The machine or equipment has no potential for stored or residual

energy or reaccumulation of stored energy after shut down which could

endanger employees; (2) the machine or equipment has a single energy

source which can be readily identified and isolated; (3) the isolation and

locking out of that energy source will completely de-energize and deactivate

the machine or equipment; (4) the machine or equipment is isolated from

that energy source and locked out during servicing or maintenance; (5) a

single lockout device will achieve a locker-out condition; (6) the lockout

device is under the exclusive control of the authorized employee performing

the servicing or maintenance; (7) the servicing or maintenance does not

create hazards for other employees; and (8) the employer, in utilizing this

exception, has had no accidents involving the unexpected activation

or re-energization of the machine or equipment during servicing

or maintenance.

1910.147(c)(4)(ii)

The procedures shall clearly and specifically outline the scope, purpose,

authorization, rules, and techniques to be utilized for the control of

hazardous energy, and the means to enforce compliance including,

but not limited to, the following:

1910.147(c)(4)(ii)(A)

A specific statement of the intended use of the procedure;

1910.147(c)(4)(ii)(B)

Specific procedural steps for shutting down, isolating, blocking and securing

machines or equipment to control hazardous energy;

1910.147(c)(4)(ii)(C)

Specific procedural steps for the placement, removal and transfer of lockout

devices or tagout devices and the responsibility for them; and

..1910.147(c)(4)(ii)(D)

1910.147(c)(4)(ii)(D)

Specific requirements for testing a machine or equipment to determine and

verify the effectiveness of lockout devices, tagout devices, and other energy

control measures.

G6

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

OSHA Standard 29CFR

The Control of Hazardous Energy

(Lockout/ Tagout) 1910.147 (continued)

1910.147(c)(5)

Protective materials and hardware.

1910.147(c)(5)(i)

Locks, tags, chains, wedges, key blocks, adapter pins, self-locking fasteners,

or other hardware shall be provided by the employer for isolating, securing

or blocking of machines or equipment from energy sources.

1910.147(c)(5)(ii)

Lockout devices and tagout devices shall be singularly identified; shall be

the only devices(s) used for controlling energy; shall not be used for other

purposes; and shall meet the following requirements:

1910.147(c)(5)(ii)(A)

Durable.

1910.147(c)(5)(ii)(A)(1)

Lockout and tagout devices shall be capable of withstanding the

environment to which they are exposed for the maximum period of time that

exposure is expected.

1910.147(c)(5)(ii)(A)(2)

Tagout devices shall be constructed and printed so that exposure to weather

conditions or wet and damp locations will not cause the tag to deteriorate or

the message on the tag to become illegible.

1910.147(c)(5)(ii)(A)(3)

Tags shall not deteriorate when used in corrosive environments such as

areas where acid and alkali chemicals are handled and stored.

..1910.147(c)(5)(ii)(B)

1910.147(c)(5)(ii)(B)

Standardized. Lockout and tagout devices shall be standardized within the

facility in at least one of the following criteria: Color; shape; or size; and

additionally, in the case of tagout devices, print and format shall be

standardized.

1910.147(c)(5)(ii)(C)

Substantial -

1910.147(c)(5)(ii)(C)(1)

Lockout devices. Lockout devices shall be substantial enough to prevent

removal without the use of excessive force or unusual techniques, such as

with the use of bolt cutters or other metal cutting tools.

1910.147(c)(5)(ii)(C)(2)

Tagout devices. Tagout devices, including their means of attachment, shall

be substantial enough to prevent inadvertent or accidental removal. Tagout

device attachment means shall be of a non-reusable type, attachable by

hand, self-locking, and non-releasable with a minimum unlocking strength of

no less than 50 pounds and having the general design and basic

characteristics of being at least equivalent to a one-piece, all environment-

tolerant nylon cable tie.

1910.147(c)(5)(ii)(D)

Identifiable. Lockout devices and tagout devices shall indicate the identity

of the employee applying the device(s).

G7

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

OSHA Standard 29CFR

The Control of Hazardous Energy

(Lockout/ Tagout) 1910.147 (continued)

1910.147(c)(5)(iii)

Tagout devices shall warn against hazardous conditions if the machine or

equipment is energized and shall include a legend such as the following:

Do Not Start. Do Not Open. Do Not Close. Do Not Energize.

Do Not Operate.

..1910.147(c)(6)

1910.147(c)(6)

Periodic inspection.

1910.147(c)(6)(i)

The employer shall conduct a periodic inspection of the energy control

procedure at least annually to ensure that the procedure and the

requirements of this standard are being followed.

1910.147(c)(6)(i)(A)

The periodic inspection shall be performed by an authorized employee other

than the ones(s) utilizing the energy control procedure being inspected.

1910.147(c)(6)(i)(B)

The periodic inspection shall be conducted to correct any deviations or

inadequacies identified.

1910.147(c)(6)(i)(C)

Where lockout is used for energy control, the periodic inspection shall

include a review, between the inspector and each authorized employee,

of that employee's responsibilities under the energy control procedure

being inspected.

1910.147(c)(6)(i)(D)

Where tagout is used for energy control, the periodic inspection shall include

a review, between the inspector and each authorized and affected

employee, of that employee's responsibilities under the energy control

procedure being inspected, and the elements set forth in paragraph (c)(7)(ii)

of this section.

..1910.147(c)(6)(ii)

1910.147(c)(6)(ii)

The employer shall certify that the periodic inspections have been

performed. The certification shall identify the machine or equipment on

which the energy control procedure was being utilized, the date of the

inspection, the employees included in the inspection, and the person

performing the inspection.

1910.147(c)(7)

Training and communication.

1910.147(c)(7)(i)

The employer shall provide training to ensure that the purpose and function

of the energy control program are understood by employees and that the

knowledge and skills required for the safe application, usage, and removal

of the energy controls are acquired by employees.

G8

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

OSHA Standard 29CFR

The Control of Hazardous Energy

(Lockout/Tagout) 1910.147 (continued)

The training shall include the following:

1910.147(c)(7)(i)(A)

Each authorized employee shall receive training in the recognition of

applicable hazardous energy sources, the type and magnitude of the energy

available in the workplace, and the methods and means necessary for

energy isolation and control.

1910.147(c)(7)(i)(B)

Each affected employee shall be instructed in the purpose and use of the

energy control procedure.

1910.147(c)(7)(i)(C)

All other employees whose work operations are or may be in an area where

energy control procedures may be utilized, shall be instructed about the

procedure, and about the prohibition relating to attempts to restart or

reenergize machines or equipment which are locked out or tagged out.

1910.147(c)(7)(ii)

When tagout systems are used, employees shall also be trained in the

following limitations of tags:

..1910.147(c)(7)(ii)(A)

1910.147(c)(7)(ii)(A)

Tags are essentially warning devices affixed to energy isolating devices,

and do not provide the physical restraint on those devices that is provided

by a lock.

1910.147(c)(7)(ii)(B)

When a tag is attached to an energy isolating means, it is not to be removed

without authorization of the authorized person responsible for it, and it is

never to be bypassed, ignored, or otherwise defeated.

1910.147(c)(7)(ii)(C)

Tags must be legible and understandable by all authorized employees,

affected employees, and all other employees whose work operations are

or may be in the area, in order to be effective.

1910.147(c)(7)(ii)(D)

Tags and their means of attachment must be made of materials which will

withstand the environmental conditions encountered in the workplace.

1910.147(c)(7)(ii)(E)

Tags may evoke a false sense of security, and their meaning needs to be

understood as part of the overall energy control program.

1910.147(c)(7)(ii)(F)

Tags must be securely attached to energy isolating devices so that they

cannot be inadvertently or accidentally detached during use.

G9

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

OSHA Standard 29CFR

The Control of Hazardous Energy

(Lockout/Tagout) 1910.147 (continued)

1910.147(c)(7)(iii)

Employee retraining.

..1910.147(c)(7)(iii)(A)

1910.147(c)(7)(iii)(A)

Retraining shall be provided for all authorized and affected employees

whenever there is a change in their job assignments, a change in machines,

equipment or processes that present a new hazard, or when there is a

change in the energy control procedures.

1910.147(c)(7)(iii)(B)

Additional retraining shall also be conducted whenever a periodic inspection

under paragraph (c)(6) of this section reveals, or whenever the employer has

reason to believe that there are deviations from or inadequacies in the

employee's knowledge or use of the energy control procedures.

1910.147(c)(7)(iii)(C)

The retraining shall reestablish employee proficiency and introduce new or

revised control methods and procedures, as necessary.

1910.147(c)(7)(iv)

The employer shall certify that employee training has been accomplished

and is being kept up to date. The certification shall contain each employee's

name and dates of training.

1910.147(c)(8)

Energy isolation. Lockout or tagout shall be performed only by the

authorized employees who are performing the servicing or maintenance.

1910.147(c)(9)

Notification of employees. Affected employees shall be notified by the

employer or authorized employee of the application and removal of lockout

devices or tagout devices.

Notification shall be given before the controls are applied, and after they are

removed from the machine or equipment.

..1910.147(d)

1910.147(d)

Application of control. The established procedures for the application of

energy control (the lockout or tagout procedures) shall cover the following

elements and actions and shall be done in the following sequence:

1910.147(d)(1)

Preparation for shutdown. Before an authorized or affected employee

turns off a machine or equipment, the authorized employee shall have

knowledge of the type and magnitude of the energy, the hazards of the

energy to be controlled, and the method or means to control the energy.

1910.147(d)(2)

Machine or equipment shutdown. The machine or equipment shall be

turned off or shut down using the procedures established for the machine

or equipment. An orderly shutdown must be utilized to avoid any additional

or increased hazard(s) to employees as a result of the equipment stoppage.

G10

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

OSHA Standard 29CFR

The Control of Hazardous Energy

(Lockout/Tagout) 1910.147 (continued)

1910.147(d)(3)

Machine or equipment isolation. All energy isolating devices that are

needed to control the energy to the machine or equipment shall be

physically located and operated in such a manner as to isolate the

machine or equipment from the energy source(s).

1910.147(d)(4)

Lockout or tagout device application.

1910.147(d)(4)(i)

Lockout or tagout devices shall be affixed to each energy isolating device by

authorized employees.

..1910.147(d)(4)(ii)

1910.147(d)(4)(ii)

Lockout devices, where used, shall be affixed in a manner to that will hold

the energy isolating devices in a “safe” or “off” position.

1910.147(d)(4)(iii)

Tagout devices, where used, shall be affixed in such a manner as will clearly

indicate that the operation or movement of energy isolating devices from the

“safe” or “off” position is prohibited.

1910.147(d)(4)(iii)(A)

Where tagout devices are used with energy isolating devices designed with

the capability of being locked, the tag attachment shall be fastened at the

same point at which the lock would have been attached.

1910.147(d)(4)(iii)(B)

Where a tag cannot be affixed directly to the energy isolating device, the tag

shall be located as close as safely possible to the device, in a position that

will be immediately obvious to anyone attempting to operate the device.

1910.147(d)(5)

Stored energy.

1910.147(d)(5)(i)

Following the application of lockout or tagout devices to energy isolating

devices, all potentially hazardous stored or residual energy shall be relieved,

disconnected, restrained, and otherwise rendered safe.

..1910.147(d)(5)(ii)

1910.147(d)(5)(ii)

If there is a possibility of reaccumulation of stored energy to a hazardous

level, verification of isolation shall be continued until the servicing or

maintenance is completed, or until the possibility of such accumulation no

longer exists.

1910.147(d)(6)

Verification of isolation. Prior to starting work on machines or equipment

that have been locked out or tagged out, the authorized employee shall

verify that isolation and de-energization of the machine or equipment have

been accomplished.

G11

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

OSHA Standard 29CFR

The Control of Hazardous Energy

(Lockout/Tagout) 1910.147 (continued)

1910.147(e)

Release from lockout or tagout. Before lockout or tagout devices are

removed and energy is restored to the machine or equipment, procedures

shall be followed and actions taken by the authorized employee(s) to ensure

the following:

1910.147(e)(1)

The machine or equipment. The work area shall be inspected to ensure

that nonessential items have been removed and to ensure that machine or

equipment components are operationally intact.

1910.147(e)(2)

Employees.

1910.147(e)(2)(i)

The work area shall be checked to ensure that all employees have been

safely positioned or removed.

1910.147(e)(2)(ii)

After lockout or tagout devices have been removed and before a machine or

equipment is started, affected employees shall be notified that the lockout or

tagout device(s) have been removed.

1910.147(e)(3)

Lockout or tagout devices removal. Each lockout or tagout device shall be

removed from each energy isolating device by the employee who applied the

device. Exception to paragraph (e)(3): When the authorized employee who

applied the lockout or tagout device is not available to remove it, that device

may be removed under the direction of the employer, provided that specific

procedures and training for such removal have been developed,

documented and incorporated into the employer's energy control program.

The employer shall demonstrate that the specific procedure provides

equivalent safety to the removal of the device by the authorized employee

who applied it. The specific procedure shall include at least the following

elements:

1910.147(e)(3)(i)

Verification by the employer that the authorized employee who applied the

device is not at the facility:

1910.147(e)(3)(ii)

Making all reasonable efforts to contact the authorized employee to inform

him/her that his/her lockout or tagout device has been removed; and

1910.147(e)(3)(iii)

Ensuring that the authorized employee has this knowledge before he/she

resumes work at that facility.

..1910.147(f)

G12

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

1910.147(f)

Additional requirements.

1910.147(f)(1)

Testing or positioning of machines, equipment or components thereof.

In situations in which lockout or tagout devices must be temporarily removed

from the energy isolating device and the machine or equipment energized

to test or position the machine, equipment or component thereof, the

following sequence of actions shall be followed:

1910.147(f)(1)(i)

Clear the machine or equipment of tools and materials in accordance

with paragraph (e)(1) of this section;

1910.147(f)(1)(ii)

Remove employees from the machine or equipment area in accordance

with paragraph (e)(2) of this section;

1910.147(f)(1)(iii)

Remove the lockout or tagout devices as specified in paragraph (e)(3)

of this section;

1910.147(f)(1)(iv)

Energize and proceed with testing or positioning;

1910.147(f)(1)(v)

Deenergize all systems and reapply energy control measures in accordance

with paragraph (d) of this section to continue the servicing and/or

maintenance.

1910.147(f)(2)

Outside personnel (contractors, etc.).

1910.147(f)(2)(i)

Whenever outside servicing personnel are to be engaged in activities

covered by the scope and application of this standard, the on-site employer

and the outside employer shall inform each other of their respective lockout

or tagout procedures.

..1910.147(f)(2)(ii)

1910.147(f)(2)(ii)

The on-site employer shall ensure that his/her employees understand and

comply with the restrictions and prohibitions of the outside employer's energy

control program.

1910.147(f)(3)

Group lockout or tagout.

1910.147(f)(3)(i)

When servicing and/or maintenance is performed by a crew, craft,

department or other group, they shall utilize a procedure which affords the

employees a level of protection equivalent to that provided by the

implementation of a personal lockout or tagout device.

1910.147(f)(3)(ii)

Group lockout or tagout devices shall be used in accordance with the

procedures required by paragraph (c)(4) of this section including, but not

necessarily limited to, the following specific requirements:

G13

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

OSHA 1910.333

Safety-related work practices shall be employed to prevent electric shock

or other injuries resulting from either direct or indirect electrical contacts,

when work is performed near or on equipment or circuits which are

or may be energized.

1910.147(f)(3)(ii)(A)

Primary responsibility is vested in an authorized employee for a set number

of employees working under the protection of a group lockout or tagout

device (such as an operations lock);

1910.147(f)(3)(ii)(B)

Provision for the authorized employee to ascertain the exposure status of

individual group members with regard to the lockout or tagout of the machine

or equipment and

1910.147(f)(3)(ii)(C)

When more than one crew, craft, department, etc. is involved, assignment of

overall job-associated lockout or tagout control responsibility to an

authorized employee designated to coordinate affected work forces and

ensure continuity of protection; and

..1910.147(f)(3)(ii)(D)

1910.147(f)(3)(ii)(D)

Each authorized employee shall affix a personal lockout or tagout device to

the group lockout device, group lockbox, or comparable mechanism when he

or she begins work, and shall remove those devices when he or she stops

working on the machine or equipment being serviced or maintained.

1910.147(f)(4)

Shift or personnel changes. Specific procedures shall be utilized during

shift or personnel changes to ensure the continuity of lockout or tagout

protection, including provision for the orderly transfer of lockout or tagout

device protection between off-going and oncoming employees, to minimize

exposure to hazards from the unexpected energization or start-up of the

machine or equipment, or the release of stored energy.

Note: The following appendix to §1910.147 services as a non-mandatory

guideline to assist employers and employees in complying with the

requirements of this section, as well as to provide other helpful information.

Nothing in the appendix adds to or detracts from any of the requirements

of this section.

Safety signs, safety symbols, or accident prevention tags shall be used

where necessary to warn employees about electrical hazards that might

endanger them.

NFPA 70E 130.7 (E) (1) – Safety Signs

and Tags

G14

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

National Electric Code – Article 110.16

NFPA 70E 130.5 (C) –Equipment Labeling

(for Arc Flash)

110.16 Arc-Flash Hazard Warning.

Electrical equipment, such as switchboards,

panel boards, industrial motor control

panels, meter socket enclosures, and motor

control centers, that are in other than

dwelling occupancies, and are likely to

require examination, adjustment, servicing,

or maintenance while energized shall be

filed marked to warn qualified persons of

potential electric arc flash hazards. The

markings shall be located so as to be

clearly visible to qualified persons before

examination, adjustment, servicing, or

maintenance of the equipment.

Equipment Labeling. Electrical equipment, such as switchboards, panel

boards, industrial motor control panels, meter socket enclosures, and motor

control centers, that are in other than dwelling occupancies, and are likely

to require examination, adjustment, servicing, or maintenance while

energized shall be field marked with a label containing all the following

information:

1. At least one of the following:

a. Available incident energy and corresponding working distance

b. Minimum arc rating of clothing

c. Required level of PPE

d. Highest hazard/risk category (HRC) for the equipment

2. Nominal system voltage

3. Arc flash boundary

Exception: Labels applied prior to September 30, 2011, are acceptable if

they contain the available incident energy or required level of PPE.

The method of calculating and data to support the information for the label

shall be documented.

G15

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

UL 508A –Industrial Control Panels

UL 508aSB5 –Markings

SB5.2 – Cautionary Markings

SB5.2.1 An industrial control panel with a short circuit current rating based

on the high fault short circuit current ratings of one or more components as

specified in SB4.2.3 shall be marked with the word “WARNING” and the

following statement:

Risk of Fire or Electric Shock – The opening of the branch-circuit protective

device may be an indication that a fault current has been interrupted. All

current-carrying parts and other components protected by this device

should be examined and replaced if damaged. If burnout of a current

element of an overload relay occurs, the complete overload relay must

be replaced.

ASME A13.1 – 2007

“The Scheme for the Identification of Pipe Systems” ASME A13.1 is the

recognized standard for the identification of piping systems.

This standard is designed to standardize the identification of all materials

conveyed through piping systems in order to make a facility safer and a

more efficient place in which to work. All Panduit Pipe Marking Systems

comply with ASME A13.1.

ASME recommends the size of legend letters, color combinations and

marker placement.

G16

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

Notes

H1

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

C

C200X400A51........D33

C200X400YZ1 .......D33

C400X400A11........D33

C400X400A21........D33

C400X400A31........D33

C400X400A51........D33

C400X400YZ1 .......D33

C400X600A41........D36

C400X600A51........D34

C400X600A61........D36

C400X600AX1 .......D36

C400X600AY1........D36

C400X600AZ1 .......D36

C400X600Y81........D36

C400X600YX1 .......D34

C400X600YZ1 .......D34

H

HT2-BLU ..................E1

HT2-GRN .................E1

HT2-ORN .................E1

HT2-RED..................E1

HT2S-BLK-YEL ........E1

HT2S-RED-WHT ......E1

HT2-WHT .................E1

HT2-YEL ..................E1

HT3S-BLK-YEL ........E1

HT3S-RED-WHT......E1

HTB3-C-M ................E4

HTB3-DNE-M ...........E4

HTB3-HV-M ..............E4

HTDU2B-W ..............E5

HTDU2B-W-F ...........E6

HTDU2O-FO ............E5

HTDU2O-T ...............E5

HTDU2R-E ...............E5

HTDU3B-W ..............E5

HTDU3G-S...............E5

HTDU3O-FO ............E5

HTDU3O-FO-F.........E6

HTDU3O-T ...............E5

HTDU3R-E ...............E5

HTDU3R-E-F............E6

HTDU6O-FO ............E5

HTDU6O-T ...............E6

HTDU6R-E ...............E6

HTU3G-T-M ..............E6

HTU3O-FO-M...........E6

HTU3O-T-M ..............E6

HTU3R-E-M .............E6

HTU3Y-EF ................E7

HTU3Y-E-M ..............E7

HTU3Y-E-M-F...........E7

HTU6O-FO...............E7

HTU6O-T..................E7

HTU6O-TV ...............E7

HTU6R-E..................E7

HTU6Y-E ..................E7

HTU6Y-G ..................E7

L

LS8EQ......................F1

LS8EQ-KIT ...............F1

M

MT172W38-C...........C7

MTB1D-Q.................C7

P

PARW125-RED ......D47

PARW125-YEL.......D47

PCL037-0 .................E9

PCL037-0-9..............E9

PCL037-1 –

PCL037-9 .............E9

PCL037-A –

PCL037-Z .............E9

PCL037-A-Z .............E9

PCL062-0 .................E9

PCL062-0-9..............E9

PCL062-1 –

PCL062-9 .............E9

PCL062-A –

PCL062-Z .............E9

PCL062-A-Z .............E9

PCL062-DSH ...........E9

PCL100-0 .................E9

PCL100-0-9..............E9

PCL100-1 –

PCL100-9 .............E9

PCL100-A –

PCL100-Z .............E9

PCL100-A-J............E10

PCL100-DSH .........E10

PCL100-K-T ...........E10

PCL100-U-Z ...........E10

PCL200-0 ...............E10

PCL200-0-9............E10

PCL200-1 –

PCL200-9 ...........E10

PCL200-A –

PCL200-Z ...........E10

PCL200-A-J............E10

PCL200-DSH .........E10

PCL200-E...............E10

PCL200-F...............E10

PCL200-K-T ...........E10

PCL200-U-Z ...........E10

PCL300-0 ...............E10

PCL300-1 –

PCL300-9 ...........E10

PCL300-A –

PCL300-Z ...........E10

PCL300-DSH .........E10

PCLCP037-0-9.........E9

PCLCP037-A-Z ........E9

PCLCP062-0-9.........E9

PCLCP062-A-Z ........E9

PCLCP100-0-9.......E10

PCLCP100-A-Z ......E10

PCLCP200-0-9.......E10

PCLCP200-A-Z ......E10

PCLCP300-0-9.......E10

PCLCP300-A-Z ......E10

PCV-110AY ............D42

PCV-110BY............D42

PCV-110CY............D42

PCV-115AY ............D42

PCV-115BY............D42

PCV-115CY............D42

PCV-120/208AY .....D42

PCV-120/208BY .....D42

PCV-120/208CY .....D42

PCV-120AY ............D42

PCV-120BY............D42

PCV-120CY............D42

PCV-120RY............D43

PCV-12470AY ........D42

PCV-12470BY........D42

PCV-12470CY........D42

PCV-13200AY ........D42

PCV-13200BY........D42

PCV-13800AY ........D42

PCV-13800BY........D42

PCV-13800CY........D42

PCV-1PHAY ...........D42

PCV-1PHBY...........D42

PCV-1PHCY...........D42

PCV-208AY ............D42

PCV-208BY............D42

PCV-208CY............D42

PCV-220AY ............D42

PCV-220BY............D42

PCV-220CY............D42

PCV-2300AY ..........D42

PCV-2300BY..........D42

PCV-2300CY..........D42

PCV-230AY ............D42

PCV-230BY............D42

PCV-230CY............D42

PCV-2400AY ..........D42

PCV-2400BY..........D42

PCV-2400CY..........D42

PCV-240AY ............D42

PCV-240BY............D42

PCV-240CY............D42

PCV-24VDCBY ......D42

PCV-277/480AY .....D42

PCV-277/480BY .....D42

PCV-277/480CY .....D42

PCV-277AY ............D42

PCV-277BY............D42

PCV-277CY............D42

PCV-380AY ............D42

PCV-380BY............D42

PCV-380CY............D42

PCV-3PHAY ...........D42

PCV-3PHBY...........D42

PCV-3PHCY...........D42

PCV-415AY ............D42

PCV-415BY............D42

PCV-415CY............D42

PCV-4160AY ..........D42

PCV-4160BY..........D42

PCV-4160CY..........D42

Part

Number

Page

No.

Page

No.

Part

Number

Part

Number

Page

No.

Part Number Index

H2

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

PCV-440AY ............D42

PCV-440BY............D42

PCV-440CY............D42

PCV-460AY ............D42

PCV-460BY............D42

PCV-460CY............D42

PCV-480AY ............D42

PCV-480BY............D42

PCV-480CY............D42

PCV-480RY............D43

PCV-600AY ............D42

PCV-600BY............D42

PCV-600CY............D42

PCVB-110Y............D41

PCVB-220Y............D41

PCVB-277/480Y .....D41

PCVB-277Y............D41

PCVB-4160Y..........D41

PCVB-440Y............D41

PCVB-480Y............D41

PCV-BLANKAY ......D41

PCV-BLANKBY ......D42

PCV-BLANKCY......D42

PCV-ESAY .............D42

PCV-ESBY .............D42

PCV-ESCY.............D42

PCV-FAAY ..............D42

PCV-FABY..............D42

PCV-FACY..............D42

PCV-FOAY .............D42

PCV-FOBY.............D42

PCV-FOCAY...........D42

PCV-FOCBY ..........D42

PCV-FOCCY ..........D42

PCV-FOCY.............D42

PCV-FOMY ............D43

PCV-FORY.............D43

PCV-MAINAY .........D42

PCV-MAINBY.........D42

PCV-MAINCY.........D42

PCV-TELEAY .........D42

PCV-TELEBY.........D42

PCV-TELECY.........D42

PCWL-ACC ............D48

PCWL-BL ...............D48

PCWL-CAL ............D48

PCWL-CALD..........D48

PCWL-ICAL ...........D48

PCWL-REJ.............D48

PEIP-A-12Y............D46

PEIP-A-13Y............D46

PEIP-A-14Y............D46

PEIP-A-15Y............D46

PEIP-D-12Y ...........D46

PEIP-D-13Y ...........D46

PEIP-D-14Y ...........D46

PEIP-D-15Y ...........D46

PESC-H-AT ............D48

PESC-H-E..............D48

PESC-H-EC ...........D48

PESC-H-HT ...........D48

PESC-H-PE ...........D48

PESC-J-AT.............D48

PESC-J-E...............D48

PESC-J-EC ............D48

PESC-J-HT ............D48

PESC-J-PE ............D48

PESF-D-3 ..............D52

PESG-B-1 ..............D52

PESG-C-1 ..............D52

PESG-C-2 ..............D52

PESG-C-4 ..............D52

PESG-E-2 ..............D52

PESG-E-3 ..............D52

PESG-E-4 ..............D52

PESH-D-2 ..............D52

PESH-E-6 ..............D52

PES-S1 ..................B14

PESS-A-CE............D49

PESS-A-ES............D49

PESS-A-L1.............D49

PESS-A-L2.............D49

PESS-A-L3.............D49

PESS-A-LF ............D49

PESS-A-N ..............D49

PESS-A-PE............D49

PESS-A-RC10 .......D50

PESS-A-RC25 .......D50

PESS-A-RC50 .......D50

PESS-A-RCE .........D50

PESS-A-ROHS ......D50

PESS-A-SS............D49

PESS-BCE.............D49

PESS-B-ES............D49

PESS-B-L1.............D49

PESS-B-L2.............D49

PESS-B-L3.............D49

PESS-B-N ..............D49

PESS-B-SS............D49

PESS-C-CE ...........D49

PESS-C-ES............D49

PESS-C-L1 ............D49

PESS-C-L2 ............D49

PESS-C-L3 ............D49

PESS-C-N..............D49

PESS-C-SS............D49

PESS-D-CE ...........D49

PESS-D-ES............D49

PESS-D-L1 ............D49

PESS-D-L2 ............D49

PESS-D-L3 ............D49

PESS-D-N..............D49

PESS-D-SS............D49

PESS-E-CE............D49

PESS-E-ES............D49

PESS-E-L1.............D49

PESS-E-L2.............D49

PESS-E-L3.............D49

PESV-C-3...............D52

PESV-D-3...............D52

PESV-E-3...............D52

PESW-A-11Y .........D50

PESW-A-1Y ...........D50

PESW-A-6Y ...........D50

PESW-A-8Y ...........D50

PESW-A-9Y ...........D50

PESW-AA-11Y .......D50

PESW-B-11Y .........D50

PESW-B-1Y ...........D50

PESW-B-6Y ...........D50

PESW-B-8Y ...........D50

PESW-B-9Y ...........D50

PESW-C-11Y .........D50

PESW-C-1Y ...........D50

PESW-C-6Y ...........D50

PESW-C-8Y ...........D50

PESW-C-9Y ...........D50

PESW-D-11Y .........D50

PESW-D-1Y ...........D50

PESW-D-6Y ...........D50

PESW-D-8Y ...........D50

PESW-D-9Y ...........D50

PESW-E-11Y .........D50

PESW-E-1Y ...........D50

PESW-E-6Y ...........D50

PESW-E-8Y ...........D50

PESW-E-9Y ...........D50

PFX-0.....................D16

PFX-2.....................D16

PLD-11...................D45

PLD-12...................D44

PLD-17...................D45

PLD-18...................D45

PLD-22...................D45

PLD-28...................D45

PLD-29...................D45

PLD-3.....................D45

PLD-30...................D44

PLD-36...................D44

PLD-37...................D44

PLD-38...................D44

PLD-4.....................D45

PLD-43...................D44

PLD-45...................D44

PLD-46...................D44

PLD-47...................D44

PLD-52...................D44

PLD-56...................D44

PLD-57...................D45

PLD-58...................D44

PLD-60...................D45

PLD-62...................D45

PLD-63...................D45

PLD-64...................D45

PLD-67...................D44

PLD-68...................D44

PLD-7.....................D45

PLD-71...................D45

PLD-72...................D44

PLD-74...................D44

PLD-77...................D45

PLD-78...................D45

PLD-80...................D44

PLD-81...................D44

PLD-91...................D44

PMSCLL.................D38

PMSCLM................D38

PMSCLN ................D38

PMSCLP ................D38

Part

Number

Page

No.

Page

No.

Part

Number

Part

Number

Page

No.

H3

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

PPS0202B493 .......D24

PPS0204W2100 .....D30

PPS0204W2100-F ..D30

PPS0305C174 .......D24

PPS0305D70 .........D19

PPS0305D72 .........D19

PPS0305D73 .........D20

PPS0305D75 .........D20

PPS0305D70...........D19

PPS0305D72...........D19

PPS0305D73...........D20

PPS0305D75...........D20

PPS0305D76...........D20

PPS0305D79...........D20

PPS0305N107.........D27

PPS0305N108.........D27

PPS0305W2100 .....D30

PPS0305W2200 ....D21

PPS0503C181SE....D21

PPS0503C95...........D19

PPS0507W2100 .....D30

PPS0507W2100-F ..D30

PPS0507W2200 ....D21

PPS0514B265 .......D27

PPS0514B363 .......D21

PPS0710B113 .......D28

PPS0710B114 .......D28

PPS0710B364 .......D20

PPS0710B380 .......D28

PPS0710B430 .......D28

PPS0710BWHT .....D38

PPS0710BYEL.......D38

PPS0710C141 .......D19

PPS0710C142 .......D19

PPS0710C143 .......D19

PPS0710C442 .......D38

PPS0710C90 .........D27

PPS0710C91 .........D27

PPS0710C92 .........D27

PPS0710C94 .........D25

PPS0710C98 .........D27

PPS0710C99 .........D27

PPS0710D101 .......D23

PPS0710D104 .......D25

PPS0710D116 .......D26

PPS0710D121 .......D24

PPS0710D124 .......D23

PPS0710D125 .......D25

PPS0710D129 .......D23

PPS0710D24 .........D23

PPS0710D28 .........D21

PPS0710D440 .......D38

PPS0710D66 .........D19

PPS0710D69 .........D26

PPS0710D70 .........D19

PPS0710D72 .........D19

PPS0710D73 .........D20

PPS0710D75 .........D20

PPS0710D76 .........D20

PPS0710D77 .........D23

PPS0710D78 .........D19

PPS0710D79 .........D20

PPS0710DV001 .....D22

PPS0710DV002 .....D22

PPS0710DV003 .....D22

PPS0710DV004 .....D22

PPS0710DV005 .....D22

PPS0710DV006 .....D22

PPS0710DV007 .....D22

PPS0710DV008 .....D22

PPS0710DV009 .....D22

PPS0710DV0010 ...D22

PPS0710DV0011 ...D22

PPS0710DV0012 ...D22

PPS0710DV0013 ...D22

PPS0710DV0014 ...D22

PPS0710DV0015 ...D22

PPS0710DV0016 ...D22

PPS0710DV0017 ...D22

PPS0710DV0018 ...D22

PPS0710DV0019 ...D22

PPS0710G001 .......D29

PPS0710G020 .......D29

PPS0710N105 .......D25

PPS0710N191 .......D24

PPS0710N203 .......D20

PPS0710N443 .......D38

PPS1007D72SE ....D21

PPS1014BWHT .....D38

PPS1014BYEL.......D38

PPS1014C141 .......D19

PPS1014C442 .......D38

PPS1014D28 .........D21

PPS1014D440 .......D38

PPS1014D66 .........D19

PPS1014D70 .........D19

PPS1014D71 .........D19

PPS1014D72 .........D19

PPS1014D73 .........D20

PPS1014D74 .........D20

PPS1014D75 .........D20

PPS1014D76 .........D20

PPS1014D80 .........D23

PPS1014D81 .........D19

PPS1014DV016 .....D22

PPS1014DV018 .....D22

PPS1014G002 .......D29

PPS1014N203 .......D20

PPS1014N443 .......D38

PPS1209G010 .......D29

PPS1209G011 .......D29

PPS1209G012 .......D29

PPS1420BWHT .....D38

PPS1420BYEL.......D38

PPS1420C442 .......D38

PPS1420D440 .......D38

PPS1420N443 .......D38

PRL100BY-0 –

PRL100BY-9 ........E11

PRL100BY-18KIT ...E11

PRL100BY-36KIT ...E11

PRL100BY-A –

PRL100BY-Z ........E11

PRL100BY-BLNK ...E11

PRL100BY-DSH .....E11

PRL150YB-0 –

PRL150YB-9........E11

PRL150YB-A –

PRL150YB-Z........E11

PRL150YB-DSH.....E11

PRL250YB-0 –

PRL250YB-9........E11

PRL250YB-A –

PRL250YB-Z........E11

PRL250YB-DSH.....E11

PROG-CCCD ...........F4

PROG-EM2GO .D35,F3

PROG-EMCD3..D35,F3

PRS0310F319 .......D28

PRS0710B251 .......D27

PRS0710B364 .......D20

PRS0710B430 .......D28

PRS0710BWHT .....D38

PRS0710BYEL ......D38

PRS0710C442 .......D38

PRS0710C96 .........D24

PRS0710C97 .........D24

PRS0710C98 .........D27

PRS0710D440 .......D38

PRS0710D68 .........D20

PRS0710D72 .........D19

PRS0710N105 .......D25

PRS0710N107 .......D27

PRS0710N108 .......D27

PRS0710N443 .......D38

PRS0710W104 ......D25

PRS0710W67 ........D23

PRS0910D453 .......D21

PRS1007C95 .........D19

PRS1014B109 .......D28

PRS1014B110 .......D28

PRS1014B111 .......D28

PRS1014B112 .......D28

PRS1014B113 .......D28

PRS1014B114 .......D28

PRS1014B364 .......D20

PRS1014BWHT .....D38

PRS1014BYEL ......D38

PRS1014C135 .......D27

PRS1014C142 .......D19

PRS1014C442 .......D38

PRS1014C85 .........D25

PRS1014C88 .........D24

PRS1014C90 .........D27

PRS1014C91 .........D27

PRS1014C92 .........D27

PRS1014C94 .........D25

PRS1014C99 .........D27

PRS1014D104 .......D25

PRS1014D115 .......D26

PRS1014D116 .......D26

PRS1014D117 .......D26

PRS1014D118 .......D20

PRS1014D120 .......D26

PRS1014D121 .......D24

PRS1014D123 .......D24

PRS1014D126 .......D24

PRS1014D127 .......D24

PRS1014D128 .......D24

PRS1014D130 .......D23

PRS1014D131 .......D20

Part

Number

Page

No.

Page

No.

Part

Number

Part

Number

Page

No.

H4

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Training ProductsLockout DevicesPadlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products

Regulatory Standards

Index

Part

Number

Page

No.

Page

No.

Part

Number

Part

Number

Page

No.

PRS1014D132 .......D23

PRS1014D440 .......D38

PRS1014D67 .........D23

PRS1014D69 .........D26

PRS1014D70 .........D19

PRS1014D71 .........D19

PRS1014D72 .........D19

PRS1014D73 .........D20

PRS1014D78 .........D19

PRS1014D79 .........D20

PRS1014D82 .........D19

PRS1014D85 .........D25

PRS1014D86 .........D27

PRS1014D87 .........D23

PRS1014D89 .........D20

PRS1014N443 .......D38

PRS1209B317 .......D28

PRS1410N106 .......D18

PRS1420BWHT .....D38

PRS1420BYEL ......D38

PRS1420C442 .......D38

PRS1420D440 .......D38

PRS1420D75 .........D20

PRS1420N443 .......D38

PSL-1 .......................C5

PSL-1.5 ....................C5

PSL-1.5A..................C5

PSL-10SA ..............B13

PSL-10SWCA ........B13

PSL-1A.....................C5

PSL-20SA ..............B13

PSL-20SWCA ........B13

PSL-4SA ................B13

PSL-4SWCA ..........B13

PSL-6 .......................C3

PSL-6BL...................C3

PSL-6BL-LS .............C3

PSL-6BU ..................C3

PSL-6BU-LS ............C3

PSL-6GR..................C3

PSL-6GR-LS ............C3

PSL-6-LS .................C3

PSL-6WH .................C3

PSL-6WH-LS ...........C3

PSL-6YL...................C3

PSL-6YL-LS .............C3

PSL-7 .......................C2

PSL-7BL...................C2

PSL-7BL-LS .............C2

PSL-7BR ..................C2

PSL-7BR-LS ............C2

PSL-7BU ..................C2

PSL-7BU-LS ............C2

PSL-7GR..................C2

PSL-7GR-LS ............C2

PSL-7-LS .................C2

PSL-7OR..................C2

PSL-7OR-LS ............C2

PSL-7PU ..................C2

PSL-7PU-LS ............C2

PSL-7YL...................C2

PSL-7YL-LS .............C2

PSL-8 .......................C1

PSL-8BL...................C1

PSL-8BR ..................C1

PSL-8BU ..................C1

PSL-8GR..................C1

PSL-8-LABEL...........C1

PSL-8OR..................C1

PSL-8PU ..................C1

PSL-8YL...................C1

PSL-9 .......................C4

PSL-9-LS .................C4

PSL-BFV ..................B7

PSL-BV1 ..................B7

PSL-BV2 ..................B7

PSL-BV3 ..................B7

PSL-BX ..................B13

PSL-CB ....................B1

PSL-CB-3PC ............B3

PSL-CBIL .................B1

PSL-CBILNT ............B1

PSL-CBKIT...............B3

PSL-CBL ..................B2

PSL-CBNT ...............B1

PSL-CBWL.............B14

PSL-CL110...............B4

PSL-CL480...............B4

PSL-CS ....................C4

PSL-ERB..................B5

PSL-GLBN .............B14

PSL-GLBNSS.........B14

PSL-HD1..................C5

PSL-HD2.4...............C5

PSL-HD3..................C5

PSL-KT...................B13

PSL-KT-CONA........B10

PSL-KT-MROA .......B11

PSL-KT-PWR..........B12

PSL-LOTO-TRAIN....A1

PSL-MCB .................B2

PSL-MCBNT ............B2

PSL-MLD ...........B8, C5

PSL-MLDC ...............B8

PSL-MLDC200 .........B8

PSL-MLDC200T.......B8

PSL-MLD-CRIMP.....B8

PSL-MLDCT.............B8

PSL-MLDH-X.....B8, C5

PSL-MLDT ...............B8

PSL-MLD-TOOL.......B8

PSL-NC3..................C5

PSL-P.......................B3

PSL-PC ....................C8

PSL-PE1 ..................C7

PSL-PE2 ..................C7

PSL-PEL ..................B9

PSL-PI......................B4

PSL-PK ..................B13

PSL-PK-EA ..............B9

PSL-PL1BLKY .........C6

PSL-PL1BLUY .........C6

PSL-PL1GRNY ........C6

PSL-PL1REDY .........C6

PSL-PL1REDY-D......C6

PSL-PL1WHTY ........C6

PSL-PL1YELY ..........C6

PSL-SC ....................C7

PSL-STATION.B12-B13

PSL-STEPS .............A2

PSL-TG1 ..................C7

PSL-V13...................B6

PSL-V2A ..................B6

PSL-V4.....................B6

PSL-V6A ..................B6

PSL-V9.....................B6

PSL-WS ...................B5

PSL-WS1A ...............B6

PSSB-13 ................D41

PST-1 .....................D40

PST-12 ...................D12

PST-2 .....................D40

PST-3 .....................D12

PST-4 .....................D40

PST-5 .....................D40

PST-FO ..................D16

PST-FOBLNK .........D16

PT2S-ARW...............E3

PT2S-BLK ................E3

PT2S-RED ...............E3

PT-BGND ...............D16

PT-GND..................D16

PT-TGND................D16

PVL100BY-0-Y .........E8

PVL100BY-1-Y –

PVL100BY-9-Y .........E8

PVL100BY-A-Y –

PVL100BY-Z-Y .........E8

PVL100BY-DSH-Y....E8

PVL200BY-0-Y .........E8

PVL200BY-1-Y –

PVL200BY-9-Y .........E8

PVL200BY-A-Y –

PVL200BY-Z-Y.........E8

PVL200BY-DSH-Y....E8

PVS0109D72Y.......D19

PVS0204C171Y.....D18

PVS0204C176Y.....D18

PVS0204C177Y.....D18

PVS0204C178Y.....D24

PVS0204C179Y.....D18

PVS0204D100Y.....D23

PVS0204D2101Y...D31

PVS0204D72Y.......D19

PVS0204W172Y ....D18

PVS0204W2103Y ..D31

PVS0209D445Y.....D27

PVS0305C174Y.....D24

PVS0305D2101Y .....D31

PVS0305W2102Y ..D30

PVS0305W2102Y-S. D30

PVS0305W2103Y.... D31

PVS0305W2201Y ..D21

PVS0503N458Y.....D18

PVS0505C174Y.....D24

PVS0507D2101Y .....D31

PVS0507W2103Y ..D31

PVS0507W2104Y-0 .D32

PVS0507W2104Y-1 .D32

H5

For service and technical support, call 866-405-6654 or visit www.panduit.com.

Training Products Lockout Devices Padlocks, Hasps

& Accessories

Tags, Signs

& Labels

Tapes, Letters

& Numbers

Related Products Regulatory Standards Index

PVS0507W2104Y-2 .D32

PVS0507W2104Y-3 .D32

PVS0507W2104Y-4 .D32

PVS0507W2106Y-0 .D32

PVS0507W2106Y-1 .D32

PVS0507W2106Y-2 .D32

PVS0507W2106Y-3 .D32

PVS0507W2106Y-4 .D32

PVS0507W2201Y ....D21

PVS0509B364Y .....D20

PVS0705D2105Y-S. D31

PVS0705W2105Y-S. D31

PVS0710B364Y .....D20

PVS0710C173Y.....D18

PVS0710C180Y.....D18

PVS0710D72Y.......D19

PVT-110 .................D13

PVT-111 .................D13

PVT-112 .................D14

PVT-113-Q .............D15

PVT-118-Q .............D15

PVT-148-Q ...............D6

PVT-15 .....................D1

PVT-150-F ..............D11

PVT-150-Q ...............D6

PVT-153-Q ...............D7

PVT-155-Q ...............D7

PVT-156-Q ...............D7

PVT-157-Q ...............D8

PVT-158-Q ...............D8

PVT-160-Q ...............D8

PVT-161-Q .............D10

PVT-165-Q .............D10

PVT-179-Q .............D15

PVT-199-Q .............D15

PVT-200-Q .............D15

PVT-23 .....................D2

PVT-238-Q ...............D9

PVT-23-Q .................D2

PVT-30 .....................D2

PVT-30-Q .................D2

PVT-41 .....................D2

PVT-41-F ................D11

PVT-42-Q .................D3

PVT-43 .....................D3

PVT-44 .....................D3

PVT-44-Q .................D3

PVT-56-Q .................D4

PVT-57-Q .................D4

PVT-62-Q .................D4

PVT-94-Q ...............D14

PVT-95-Q ...............D14

PVT-96 .....................D5

PVT-96-Q .................D5

PVT-97 .....................D5

PVT-97-Q .................D5

PVT-97S-Q .............D10

PVT-98 .....................D5

PVT-98-F ................D11

PVT-98-Q .................D5

PVT-99 .....................D6

PVT-9-Q ...................D1

S

SEZ-1CLL ..............D37

SEZ-1DLL ..............D37

SEZ-1NLL ..............D37

SEZ-1WHLL...........D37

SEZ-1WLL .............D37

SEZ-1YLL ..............D37

SEZ-RSC1 .............D39

SEZ-RSC2 .............D39

SEZ-RSC3 .............D39

SEZ-RSC4 .............D39

SEZ-SNC1 .............D39

SEZ-SNC2 .............D39

SEZ-SNC3 .............D39

SEZ-SNC4 .............D39

SEZ-TAGOR...........D41

SEZ-TAGWH ..........D41

SEZ-TAGY..............D41

T

T100X000RP1..........E4

T100X000RU1..........E4

T100X000RX1..........E4

T100X000VP1Y .......E2

T100X000VQ1Y .......E2

T100X000VS1Y .......E2

T100X000VU1Y .......E2

T100X000VW1Y ......E2

T100X000VX1Y .......E2

T100X000VY1Y .......E2

T200X000RP1..........E4

T200X000RU1..........E4

T200X000RX1..........E4

T200X000VP1Y .......E2

T200X000VQ1Y .......E2

T200X000VS1Y .......E2

T200X000VU1Y .......E2

T200X000VV1Y .......E2

T200X000VW1Y ......E2

T200X000VX1Y .......E2

T200X000VY1Y .......E2

T200X000Y2T ..........E3

T200X000YK1..........E2

T225X000YK1..........E2

T400X000RP1..........E4

T400X000A91 ........D34

T400X000RP1..........E4

T400X000RQ1 .........E4

T400X000RU1..........E4

T400X000RW1.........E4

T400X000RX1..........E4

T400X000VP1Y .......E2

T400X000VQ1Y .......E2

T400X000VS1Y .......E2

T400X000VU1Y .......E2

T400X000VV1Y .......E2

T400X000VW1Y ......E2

T400X000VX1Y .......E2

T400X000VY1Y .......E2

T400X000Y2T ..........E3

T400X000YK1..........E2

T400X000YX1........D34

T425X000YK1..........E2

TDP43ME ........D35, F2

W

WL1........................D51

WL3........................D51

WL32Y ...................D51

WL33Y ...................D51

WL35Y ...................D51

WL36Y ...................D51

Part

Number

Page

No.

Page

No.

Part

Number

Part

Number

Page

No.

Panduit is a global leader in

cabling and communication products,

delivering end-to-end solutions in support of

demanding electrical and networking requirements.

H6

Panduit Catalogs

Copper Systems

Fiber Optic Systems

Power over Ethernet

Zone Cabling

Wireless

Outlets

Media Distribution

Physical Infrastructure

Management

Overhead and Underfloor

Routing

Surface Raceway

Cabinets, Racks, and

Cable Management

Grounding and Bonding

Industrial

Labeling and Identification

Cable Management

Accessories

Network Connectivity

SA-NCCB51

Bundle

Cable Ties

Cable Accessories

Stainless Steel Cable Ties

and Accessories

Route/Protect

Wiring Duct

Surface Raceway

Abrasion Protection

Cable Management

Terminate

Terminals

Power Connectors

Grounding Connectors

Identification and

Safety Solutions

Labeling Systems

Labels

Pre-Printed and

Write-On Markers

Permanent Identification

Lockout/Tagout and

Safety Solutions

Electrical Solutions

SA-ELCB10
