www.hubbell-killark.com

LED SOLUTIONS

Harsh and Hazardous Products

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

SECTION L

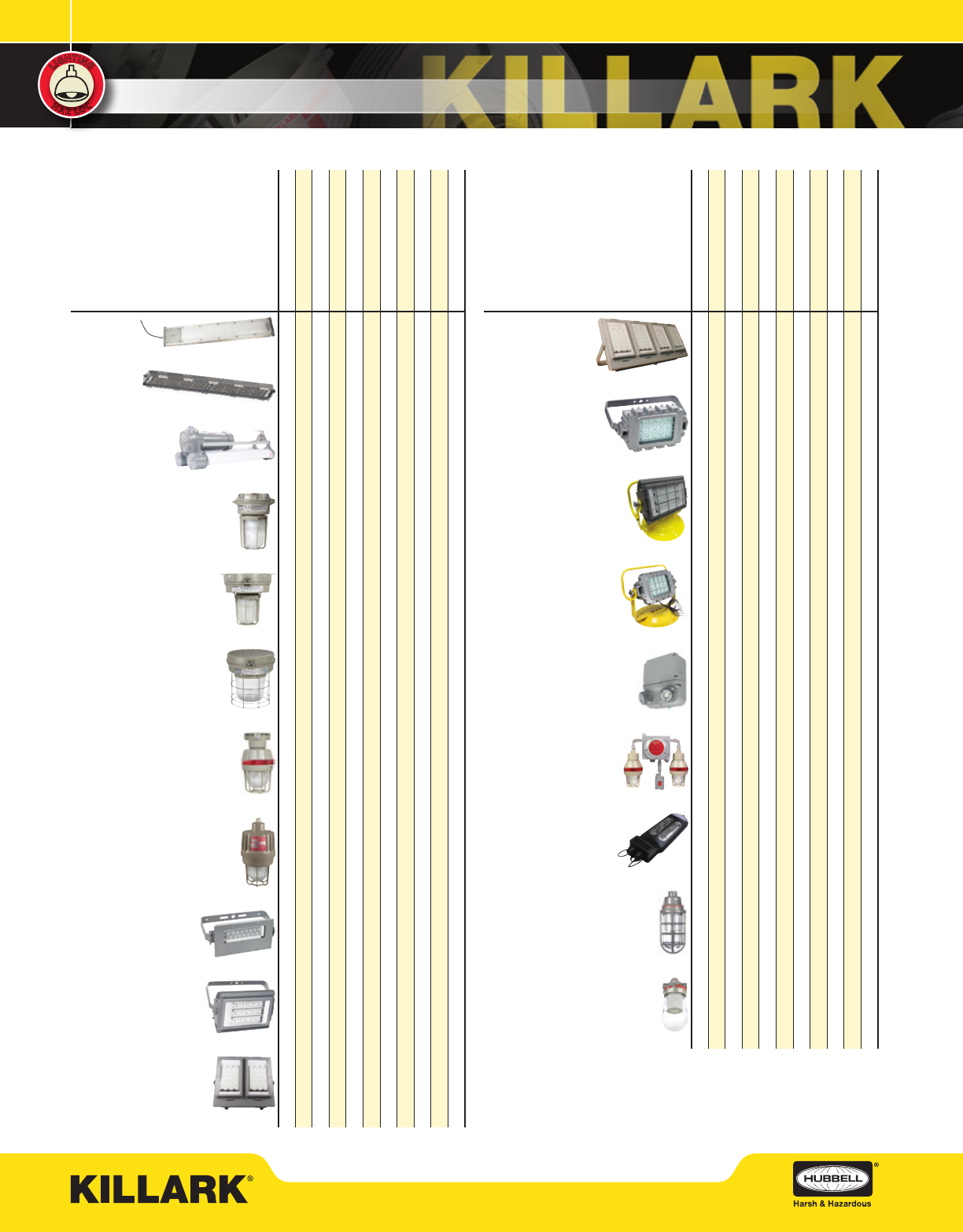

LIGHTING INDEX

PRODUCT PAGE NO.

NEMA 4 (or 4X or IP66)

Class I, Div. 2 / Zone 2

Class I, Zone 2 Ex nR

Class II / III Div. I

Class II / III Div. 2

Class I, Div. 1 C, D / Zone 1

Class I, Div. 1 A, B, C, D / Zone 1

IECEx Zone 1

ATEX Zone 1

IECEx Zone 2

ATEX Zone 2

LAL Series ....................................2-7 X X X X X X

LZ2NL/LZ2SL...............................8-9 X X X X

HLLX ................................................ 10 X X X X

MBL Series ............................... 12-16 X X X X

VM1L Series .............................17-22 X X X X

VM2L & VM4L Series ............ 23-34 X X X X X X

EML Series .............................. 35-38 XX XXX

EZL Series ............................... 39-40 XX XXX

KFLC Series ............................ 42-43 X X X X

KFL Series ............................... 44-45 X X X X X X

KFLH Series ............................ 46-47 X X X X X X

PRODUCT PAGE NO.

NEMA 4 (or 4X or IP66)

Class I, Div. 2 / Zone 2

Class I, Zone 2 Ex nR

Class II / III Div. I

Class II / III Div. 2

Class I, Div. 1 C, D / Zone 1

Class I, Div. 1 A, B, C, D / Zone 1

IECEx Zone 1

ATEX Zone 1

IECEx Zone 2

ATEX Zone 2

KFL2H Series .......................... 48-49 X X X X X X

KF1L Series ............................. 50-51 XX XXX XXXX

KFLP Series ............................ 52-53

KF1LP Series .......................... 54-55 XX XXX XXXX

NEBS Series .............................57-58

EBS Series ............................... 59-63 XX XXX

LLS2 Series ...................................64

VSL SERIES ............................ 65-69 X X X

DVL Series ..................................... 70 X X X

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L1

LINEAR LIGHTING

LAL

LALxE

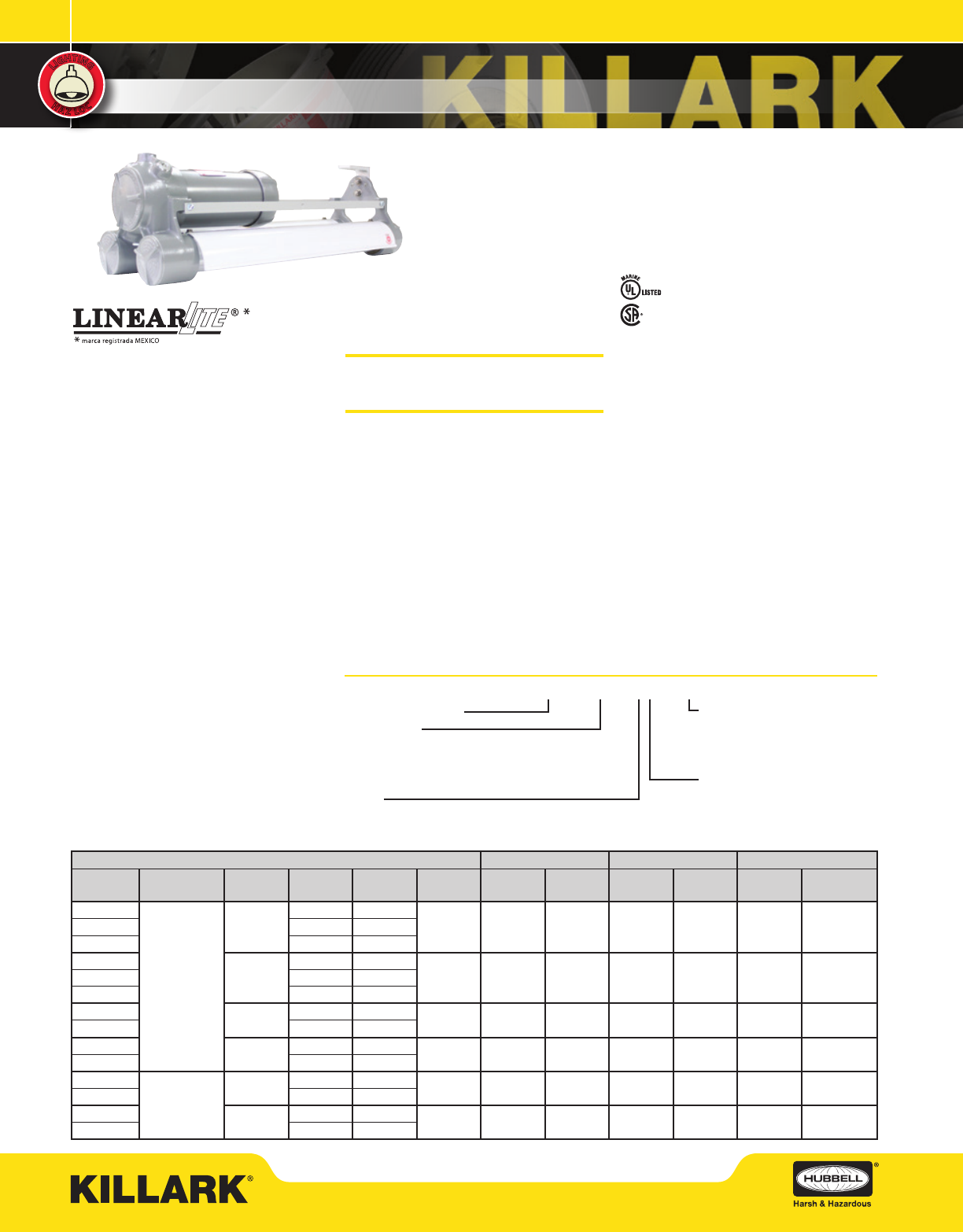

LZ2NL & LZ2SL

HLLX

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

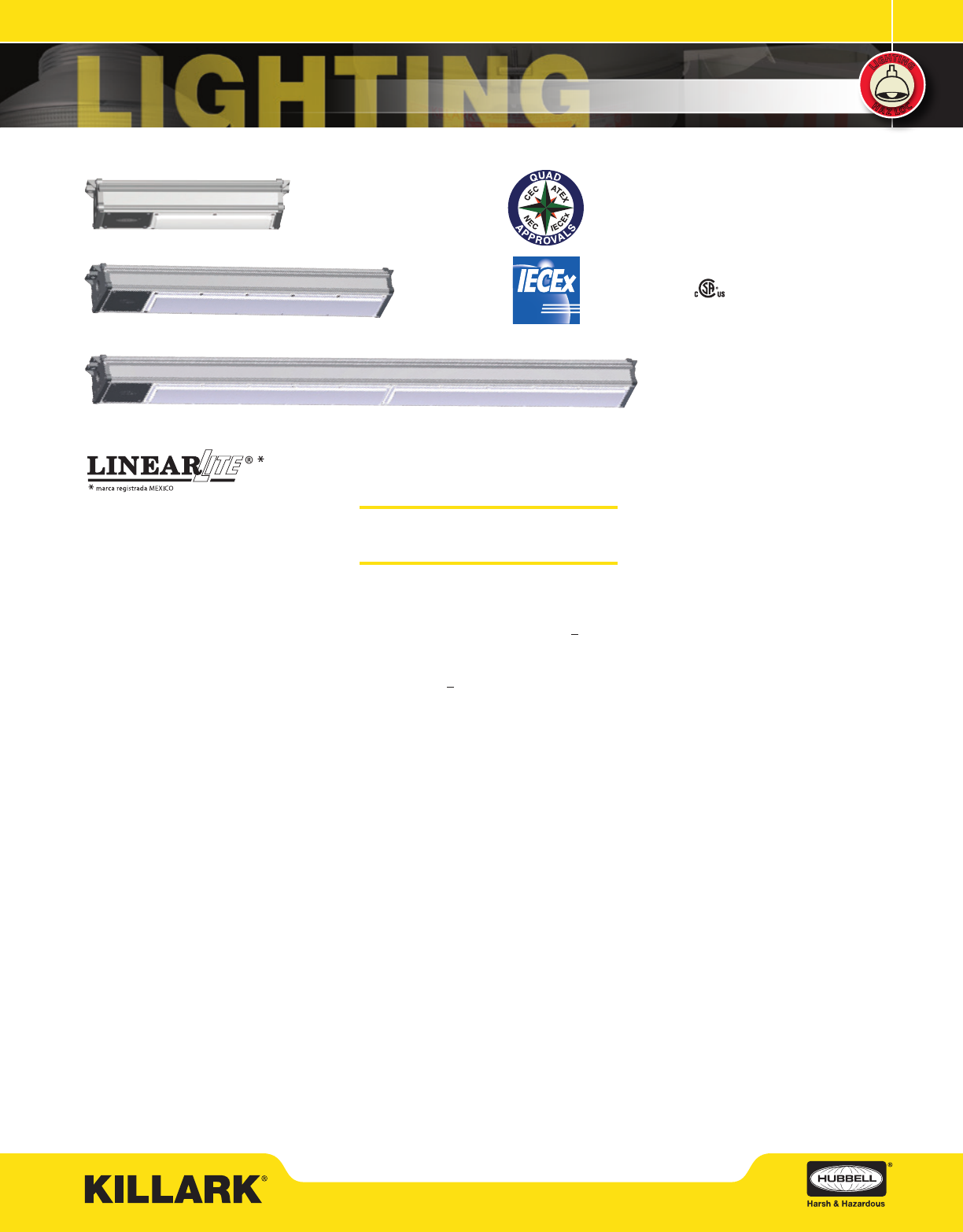

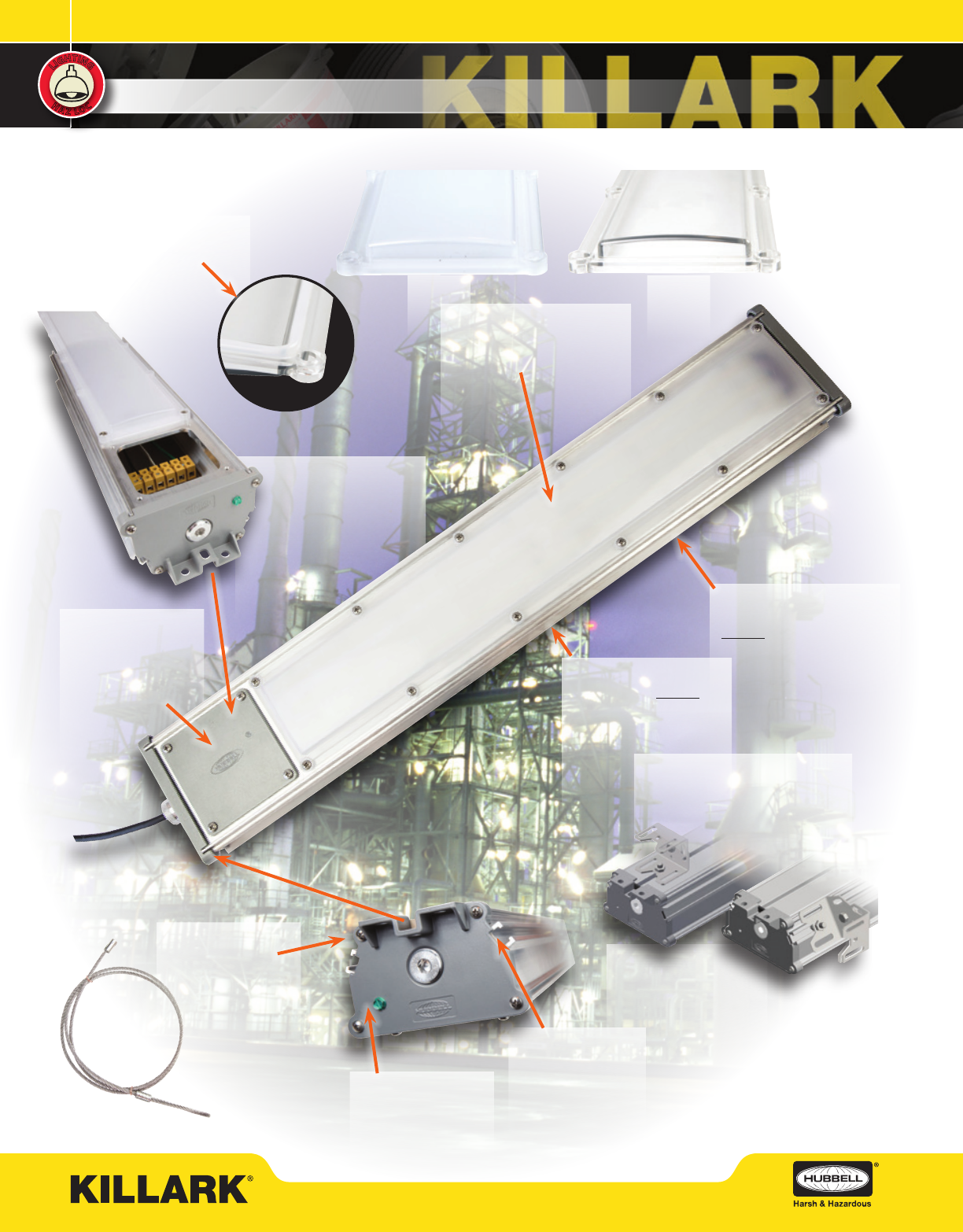

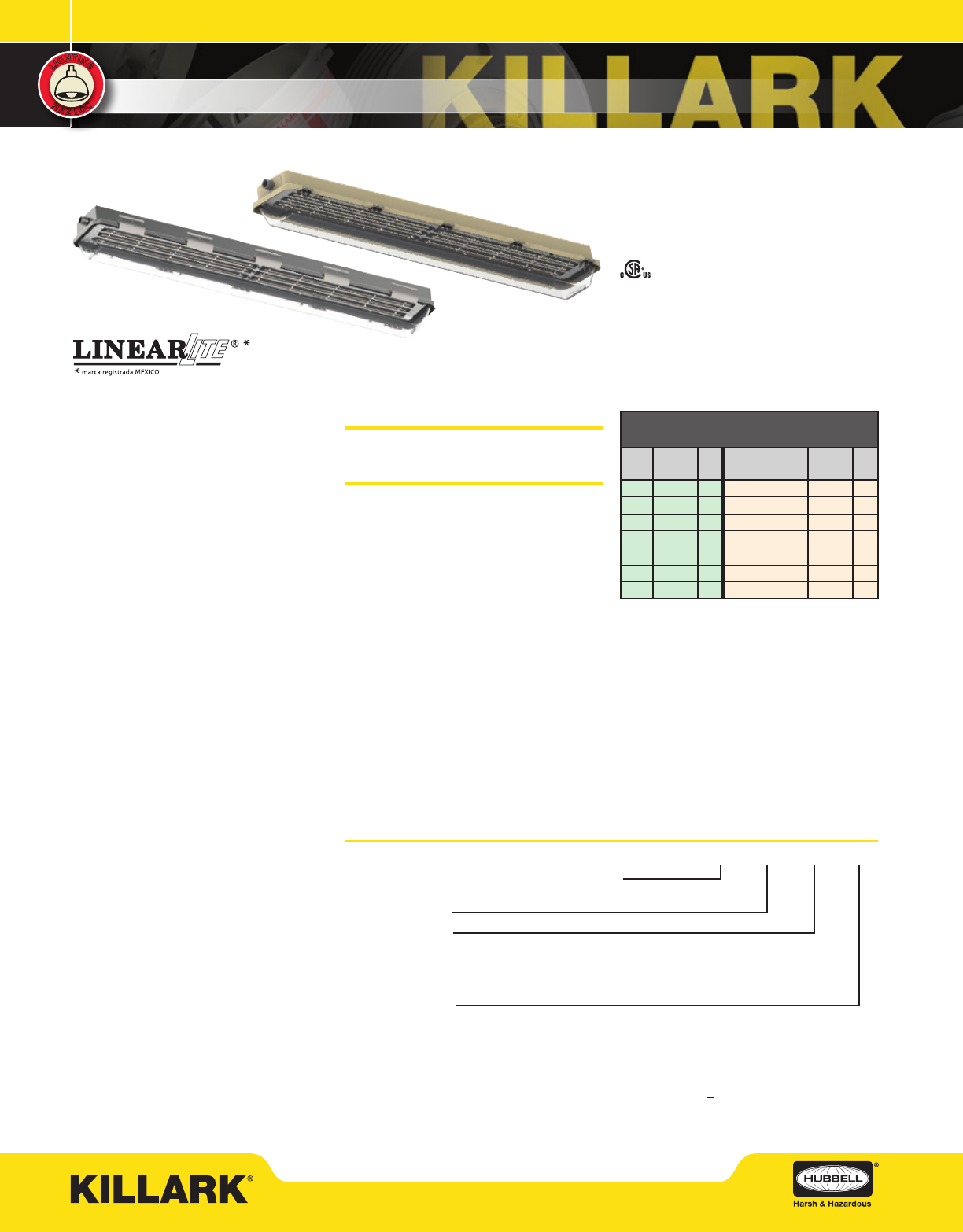

LAL/LALxE/LALC SERIES

LOW PROFILE LINEAR ALUMINUM LED • EXCLUSIVE DESIGN FEATURES

Optional Through

Wiring

2 Access Plates for

feed through wiring

2 Lens Choices:

• Clear for maximum lumens

• Diffused for glare control

Earth

External Earth Ground

for IECEx requirement

Battery

E13 and E26 models include

internal Emergency battery

systems to 50°C suitability

Shown with LAL-SB

Height adjustable Swivel

Brackets

Endcaps standard with 1 x 3/4” hub.

1/2” NPT and M20 available.

Looping Terminal Blocks

under Wiring Access

Plate(s).

High temperature rated

silicone gasketing

provides NEMA 4X &

IP66 sealing.

Surge

Standard with internal

20kA/10kA Supplemental

Surge Protection

End Caps include feet

for direct ceiling

mounting and safety

cable connection

Mounting Slots on

back and at 45°

Diffused Clear

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L3

LAL/LALxE/LALC SERIES

LINEAR LED TECHNOLOGY

Supplemental 20KA/10KV Surge Protection

is standard (for 120-277 VAC models)

10KA/10KV Surge Protection (for 347-480 VAC)

Materials

• NEMA 4X & IP66 rated

• Housing – one piece natural ﬁnish < .1%

copper-free aluminum extrusion

• Endcaps & wiring – Access covers are

copper-free (< .4%) aluminum with gray

baked powder epoxy-polyester ﬁnish,

electrostatically applied for complete

uniform corrosion resistance.

• External screws are 316 stainless steel

• Lens – Impact resistant polycarbonate

lens available in diffuse or clear

LAL & LALxE Product Features

• LALxE models have “built-in” battery

backup for 90 minute emergency exit

• Shallow design minimizes proﬁle in work

areas with low ceiling heights

• Diffuse Lens Standard to minimize glare;

Clear Lens available

• Polycarbonate Single Lens 18W to 60W;

Double Lens model 34W – 120W

• Slot Back Design allows multiple

mounting access points across length –

slots can also be used with 5/16” or 8mm

bolts & nuts, 3 housing slots, 1 center

back and 2 at 45°.

• Variety of mounting options including

swivel brackets, wall, ceiling brackets, or

beam clamps

• End Caps each have 2 mounting feet built-in

plus a safety strap attachment point

• Standard unit End Caps each have single

a ¾” NPT hub, and ﬁxture is furnished

with one ¾” close-up plug and two ¾” to

½” reducers – provides out of the box ½”

dead-end to ¾” feed-through ﬂexibility.

Metric openings are available.

• Standard LALs have one wiring Access

Plate for easy access to driver leads.

LED Features and Standards

• Many Midpower LEDs blend light to

simulate ﬂuorescent tubes

• Crisp White Light for Excellent Color

Rendering – Chromaticity 5000K (CCT);

approx. 70 CRI

• Energy Savings – High lumens per watt

• LED Array Life – to 212,000 maintenance

free hours to 70% initial lumens

• Ambient suitability -40°C to 65°C (see

tables). 0°C to 50°C Ambient suitability for

Emergency models.

• Instant On – Including after power

interruption

• World Voltage 120 - 277VAC 50/60Hz

• Solder-LESS LED Board Connections –

Vibration Resistant

• LM80-08 Measurement of lumen

maintenance for LED light sources

• LM79-08 Certiﬁed “Absolute” Photometry,

including Chromaticity Color for Solid

State Lighting

• L70 Values – Industry Nomenclature for

Hours of use to 70% of initial Lumens –

TM-21* & Calculated

Applications

Linear LED Luminaires are designed for

installations where moisture, dirt, dust,

corrosion and vibration may be present, and

NEMA 3, 4X, IP66 areas where wind, water,

snow or high ambients can be expected.

They can be used in locations made

hazardous by the presence of ﬂammable

vapors or gases or combustible dusts as

deﬁned by the NEC/CEC/IECEx.

Typical applications include land based

oil rigs, offshore oil platforms, dockside

installations, chemical and petrochemical

processing facilities, sewage treatment

plants, garages, storage facilities, tunnels,

and grain/food facilities.

ABS (American Bureau of Shipping)

type approval for use on decks, vessels,

platforms, barges, ships and boats. Also

suitable for docks and marinas.

Compliances

• UL-8750 for LED lighting

• ANSI/UL 1598(A)

• UL-844 Standard for lighting ﬁxtures for

hazardous locations, Class I, Division 2;

Class II, Divisions 1 and 2; Class III

• CSA C22.2 no. 137-M1981 electric

luminaires for use in hazardous locations

• IEC sufﬁx Zone 2/21 to IEC 60079-0,

60079-15, 60079-31 Standards

• Enclosed and gasketed

• NEMA 3, 4X

• IP66

FEATURES-SPECIFICATIONS

Class I, Div. 2, Groups A, B, C, D

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E, F, G

AEx nAII, Ex nAII

Wet Locations

NEMA 4X

IP66

IECEx Rated

Zone 2 and Zone 21 areas

Ex nA IIC T6 to T3, Gc

Ex tb IIC T95°C Db

Tamb -50°C < Tz < +65°C, IP66

IECEx Certicate

QPS 15.0010

ATEX Certicate

CML 15ATEX4081X (nA)

CML15ATEX3082X (tb)

Certified - File LR11713

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

LAL/LALxE/LALC SERIES

CATALOG LOGIC

LAL(C) – Series Constant

Aluminum Extrusion with Polycarbonate Lens

LAL(R) –

Rig Version with Poke out Hubs

Emergency Battery Backup (LAL 120-

277VAC 50/60Hz only, not LALC Compact)

Blank –

No Emergency

E13 –

LAL 120-277VAC all Models; 18W, 28W, 45W,

60W use extended 4’ housing

E26 –

LAL 120-277VAC 34W, 55W, 80W, 120W

2-Lens models

Voltage

30 –

120V-277VAC 50/60Hz LAL/LALC all models

27 –

12VDC - 24VDC LALC 15W, 20W, 25W models only

33 –

347-480VAC LAL 28W & 55W non-emergency models only

34 –

125VDC-250VDC; 120-277VAC 50/60Hz LALC 15W, 18W, 20W, 23W, 25W

and LAL 28W, 60W, 55W, 120W non-emergency models

Lens

D –

Diffuse Polycarbonate

C –

Clear Polycarbonate

Specials – Contact Factory for custom

congurations and options

Example

= 45W 4PCB with 13W Emergency 120 - 277VAC

with Diffuse Lens, 2 Fuses, 2 Access Plates

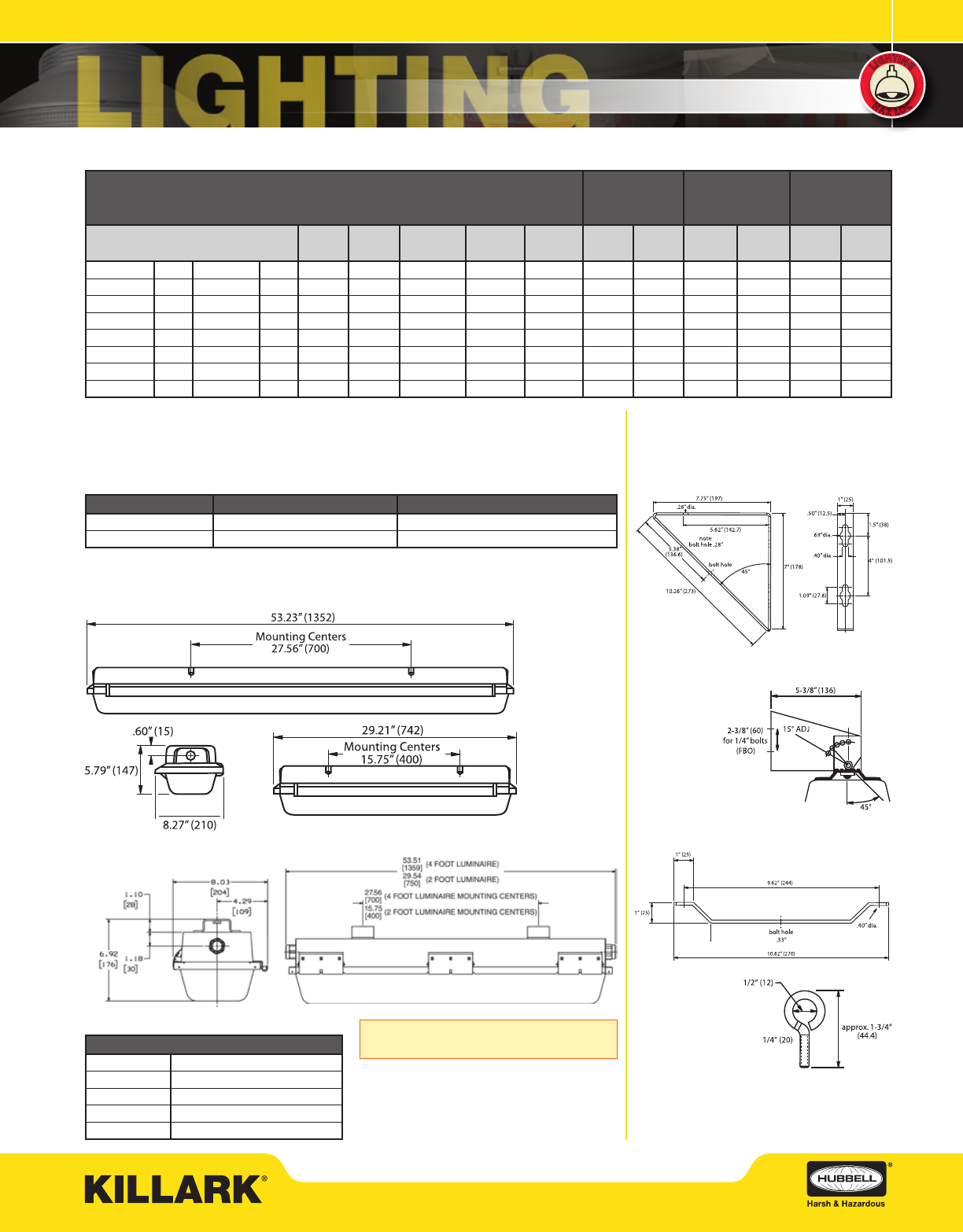

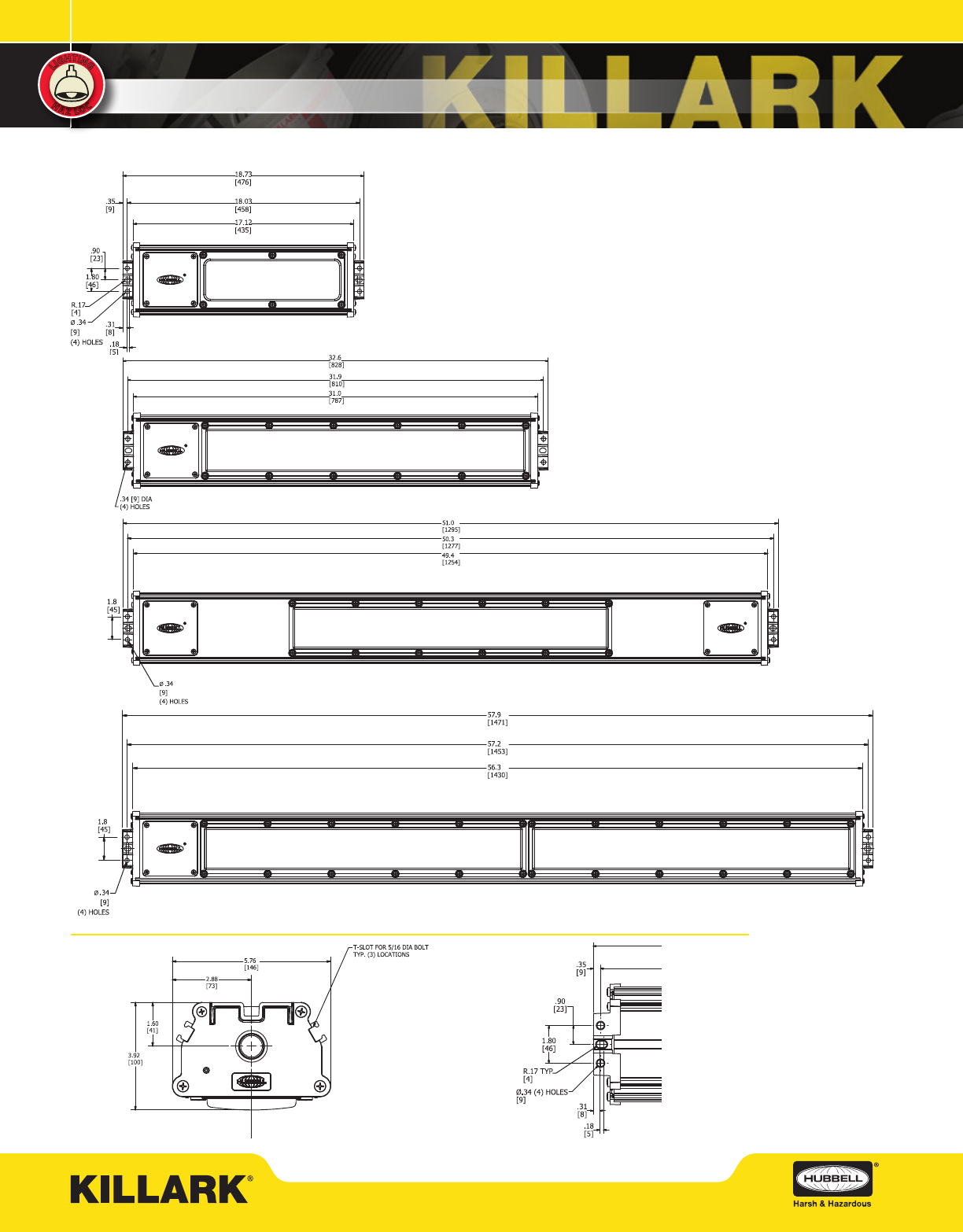

Dimension “B”

Fixture Wattage

120

C15

C20

C25

C30

C35

C40

C45

C50

Single Lens – Dimension

(C required

for E13 Emergency or for Non-emergency to

match E13 length)

Two Lens – Dimension

for Non-emergency,

or E13 or E26 Emergency)

Compact Lens – See Dimension

LAL 45 E13 30 DL4-2AP FF

j Cataloged Wattage in LZ2x Fluorescent or LALx LED

luminaires – actual varies with driver or ballast losses

– Delivered Lumens and L/W from photometry testing

k LAL L70 Life 99,600-212,000 hours

LZ2x Fluorescent 10,000-60,000 hours

l 2AP Length Dimensions will increase by 4.2”.

LED VS FLUORESCENT WATTAGE & DELIVERED LUMENSjk

LED WATT LUMENS L/W FLUORESCENT LUMENS L/W

18W 2557 150 40W 1x40W BX 2471 63

28W 3775 144 55W 1x55W BX 3766 65

34W 5075 149 56W 2x28T5 4676 71

45W 5562 137 64W 2x32T8 4772 80

55W 7577 144 108W 2x54T5HO 8088 67

60W 7618 132 120W 2x60T12HO 6965 56

80W 11140 137 162W 3x54T5HO 11619 65

Energy Savings

Options

L4-2AP –

LAL 18W, 28W, 45W, 60W with E13 Emer or

Non-Emer to match E13 length (Dimension C)

F –

Single Fuse (1 pole)

FF –

Two Fuses (2 pole - 2 hot legs)

S52 –

1 Endcap with 1x1/2” NPT and 1xM20

Entries (3/4” NPT Plugged)

D52 –

2 Endcaps with 1x1/2” NPT and 1xM20

Entries (3/4” NPT Plugged)

D50 –

2x1/2” NPT Entries 1 end cap, 3/4”

plugged; 2nd end cap std. 1x3/4” NPT

D502 –

2x1/2” Entries 2 end caps, 3/4” NPTs

plugged

D20 –

2xM20 Entries 1 end cap, 3/4” plugged;

2nd end cap std. 1x3/4”NPT

D202 –

2xM20 Entries 2 end caps, 3/4” NPTs

plugged

LSP –

Less Surge Protector

GH –

Gray Painted Housing

RH –

Red Painted Housing

2AP –

Dual Access Platesl

TBL –

Terminal Blocks Looping through Wiring

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L5

LAL/LALxE/LALC SERIES

ORDERING INFORMATION

j See Logic Notes for Options

k Use 75°C Minimum Supply Wire @ 40°C; Use 90°C Wire at 55° or 65°C

l 55°C or 65°C where listed

m T-Codes for 55°C or 65°C reect maximum internal or external temperatures.

However, E13 or E26 Emergency units are limited to -20°C to 50°C ambient to

protect electronics and batteries.

LAL

LED LUMEN LIFE L70 CALCULATED L70 TM-21**

40°C Ambient 212,000 Hours to 70% Initial 60,600 Hours Ofﬁcial Reported

55°C/65°C Ambiento99,600 Hours to 70% Initial 60,400 Hours Ofﬁcial Reported

LALC

LED LUMEN LIFE L70 CALCULATED L70 TM-21**

Extra High L/W Models

278,000 Hours to 70% Initial 72,600 Hours Ofﬁcial Reported

High L/W Models 270,000 Hours to 70% Initial 60,100 Hours Ofﬁcial Reported

50W High L/W Models

190,000 Hours to 70% Initial 60,300 Hours Ofﬁcial Reported

ORDERING INFORMATION AND AMBIENT SUITABILITY

C1D2 ABCD/

ZONE 2 IIC, IIB,

IIAkl

C1D2kl

GRPS. EFG

SIMULTANEOUS

C2D1kl

GRPS. EFG IEC ZONE 2lIEC ZONE 21l

CATALOG NUMBER W/

DIFFUSE LENS j

WEIGHT

LBS./KG

WATTS

STD.

POWER

LENGTH

STYLE -

INCHES (MM)

VOLTAGE AMPS q

DELIVERED

LUMENS

Diffuse/

Clear

40°C 55°C

65°C

40°C 55°C

65°C

40°C 55°C

65°C

40°C 55°C

65°C

40°C 55°C

65°C

LAL1830D

17.9 / 8.1

B-32.6 (828)

120-277VAC

0.15 - 0.06

2272 / 2479

T6 T6 T5 T4A T4A T4A T4A T4A T4A T6 T6 T5 T4 T4 T4LAL1830D-L4-2AP

21.9 / 9.9

C-51 (1295)

LAL18E1330D-L4-2AP

31.9 / 14.5

C-51 (1295)

LAL2830D

17.9 / 8.1

B-32.6 (828)

0.23 - 0.10

3321 / 3624

T6 T6 T5 T4A T4A T4A T4A T4A T4A T6 T6 T5 T4 T4 T4

LAL2830D-L4-2AP

21.9 / 9.9

C-51 (1295)

LAL28E1330D-L4-2AP

31.9 / 14.5

C-51 (1295)

LAL4530D

17.9 / 8.1

B-32.6 (828)

0.38 - 0.16

5054 / 5515

T6 T5 -T4A T4A T4A T4A T4A T4A T6 T5 T5 T4 T4 T4

LAL4530D-L4-2AP

21.9 / 9.9

C-51 (1295)

LAL45E1330D-L4-2AP

31.9 / 14.5

C-51 (1295)

LAL6030D

18.9 / 8.6

B-32.6 (828)

0.50 - 0.22

7064 / 7709

T6 T5 -T4A T4A -T4A T4A -T6 T5 -T4 T4 -LAL6030D-L4-2AP

22.9 / 10.4

C-51 (1295)

LAL60E1330D-L4-2AP

32.9 / 14.9

C-51 (1295)

LAL3430D

34.5 / 15.6

D-5 7.9 (1471)

120-277VAC

0.28 - 0.12

4517 / 4929

T6 T5 -T4A T4A -T4A T4A -T6 T5 -T4 T4 -LAL34E1330D

44.5 / 20.2

D-5 7.9 (1471)

LAL34E2630D

54.5 / 24.7

D-5 7.9 (1471)

LAL5530D

34.5 / 15.6

D-5 7.9 (1471)

0.46 - 0.20

6864 / 7490

T6 T5 -T4A T4A -T4A T4A -T6 T5 -T4 T4 -

LAL55E1330D

44.5 / 20.2

D-5 7.9 (1471)

LAL55E2630D

54.5 / 24.7

D-5 7.9 (1471)

LAL8030D

34.5 / 15.6

D-5 7.9 (1471)

0.67 - 0.29

10110 / 11032

T6 T5 -T4A T4A -T4A T4A -T6 T5 -T4 T4 -LAL80E1330D

44.5 / 20.2

D-5 7.9 (1471)

LAL80E2630D

54.5 / 24.7

D-5 7.9 (1471)

LAL12030D

36.5 / 16.6

120

D-5 7.9 (1471)

1.00 - 0.43

15090 / 16467

T6 T5 -T4A T4A -T4A T4A -T6 T5 -T4 T4 -LAL120E1330D

46.5 / 21.1

D-5 7.9 (1471)

LAL120E2630D

56.5 / 25.6

D-5 7.9 (1471)

LALC1527D

12.03 / 4.49

A-18.73 (476)

12-24VDC

1.3-0.6

1503 / 1640

T5 T4A -T4A T4A T4A T4A -T5 T4 - T4 T4 -

LALC1530D

120-277VAC

0.15-0.06

LALC1534D

120-

250VDC

0.2-0.1

LALC2027D

A-18.73 (476)

12-24VDC

1.7-0.8

2337 / 2550

T5 T5 -T4A T4A T4A T4A -T5 T5 -T4 T4 -

LALC2030D

120-277VAC

0.17-0.08

LALC2034D

120-

250VDC

0.2-0.1

LALC2527D

A-18.73 (476)

12-24VDC

2.1-1.0

3019 / 3294

T5 T4A -T4A T4A T4A T4A -T5 T4 -T4 T4 -

LALC2530D

120-277VAC

0.18-0.08

LALC2534D

120-

250VDC

0.2-0.1

LALC3030D 30

A-18.73 (476)

120-277VAC

0.26-0.11

2726 / 2974

T5 T4A -T4A T4A T4A T4A -T5 T4 -T4 T4 -

LALC3530D 35

A-18.73 (476)

0.30-0.13

3261 / 3558

T5 T4A -T4A T4A T4A T4A -T5 T4 -T4 T4 -

LALC4030D 40

A-18.73 (476)

0.34-0.15

4152 / 4530

T5 T5 -T4A T4A T4A T4A -T5 T5 -T4 T4 -

LALC4530D 45

A-18.73 (476)

0.38-0.17

5136 / 5604

T5 T5 -T4A T4A T4A T4A -T5 T5 -T4 T4 -

LALC5030D 50

A-18.73 (476)

0.42-0.18

6039 / 6590

T5 - - T4A - - T4A - - T5 - - T4 - -

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

LAL/LALxE/LALC SERIES

DIMENSIONS AND ACCESSORIES

C: Dimension

Single Lens

with Emergency

Battery or

Extended

Model to Match

Emergency

Length

D: Dimension

Double Lens

with or without

Emergency

Battery

A: Dimensions

for LALC

End Views

B: Dimension

for Single Lens

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L7

LAL/LALxE/LALC SERIES

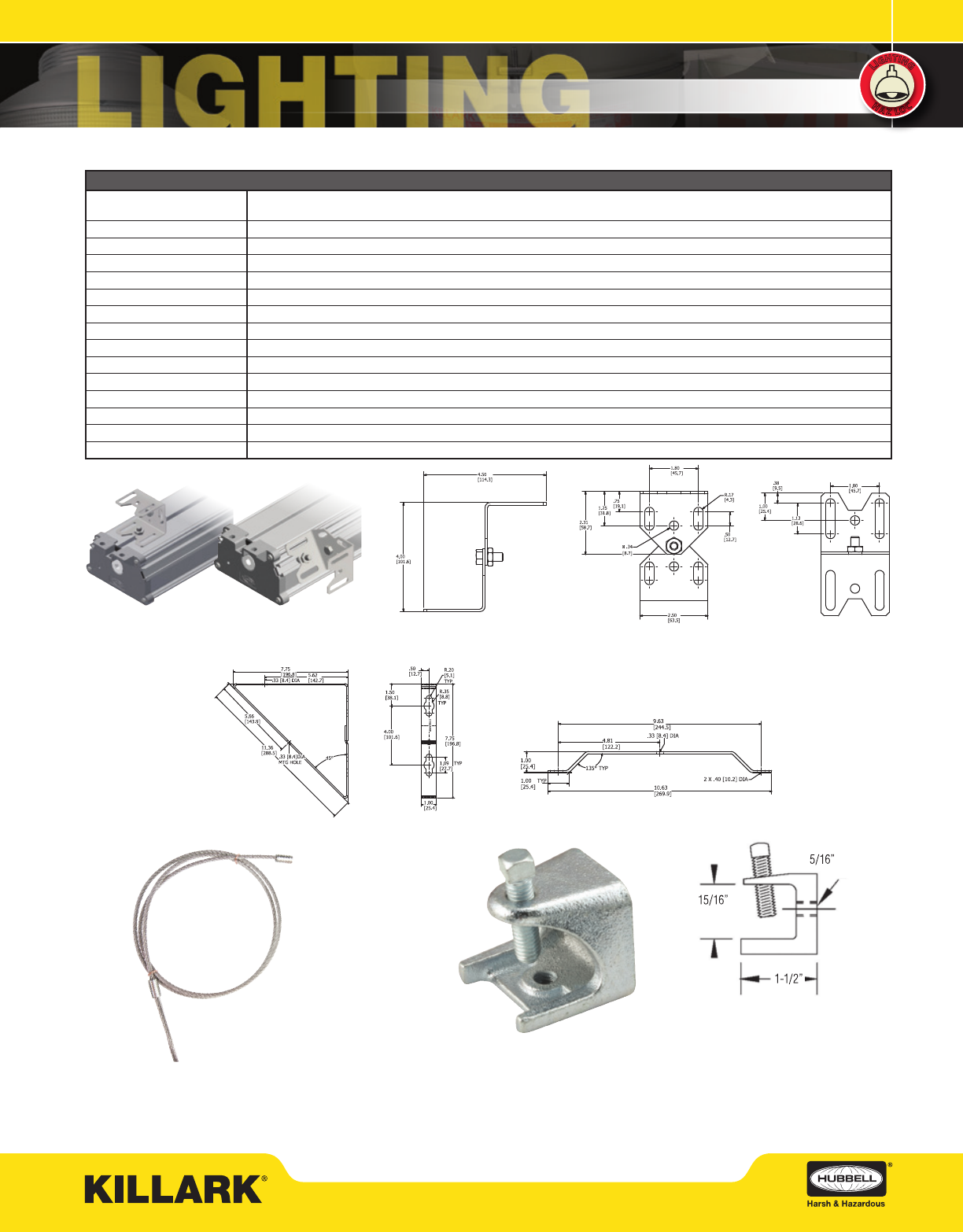

ACCESSORIES AND REPLACEMENT PARTS

LAL-BC Beam Clamp

VMSC10 Safety Cable

j Dimensions in ( ) are millimeters.

k Product accessories have hardware for attachment to

xture; hardware to attach to wall/ceiling F.B.O.

l Un-extended height 3.25” (82.6)

LAL-SB on Center Slot LAL-SB on 45° Slot LAL-SB Dimensions – extended shown

Wall Bracket Setk

Part Number LZWB

Stainless Steel (natural nish)

ACCESSORIES AND REPLACEMENT PARTS: jk

LAL-SB Swivel Bracket Set w/ Adjustable Height; includes 5/16” bolts/nuts/lock-washers for attachment to LAL(C) “slots; can also be attached to

end cap mounting feet with FBO bolts.

LZCB Ceiling Bracket Set with Stainless Steel Bolts to attach to LAL(C) “slots”

LZWB Wall Bracket Set with Stainless Steel Bolts to attach to LAL(C) “slots”

LAL-BC Steel/malleable Iron with Zinc electroplate for corrosion resistance; includes Stainless Steel Bolts to attach to LAL(C) “slots”

LAL-EB Eyebolt Set with Stainless Steel Bolts to attach to LAL(C) “slots”

VMSC10 10’ Stainless Steel Safety Cable with loop grip

LALG Stainless Guard for 1 LAL Lens, order two for 2 lens models

LALCG LALC Stainless Guard

LAL-LENSCLR Single Clear Lens with Gasket for LAL Series

LAL-LENSDIF Single Diffuse Lens with Gasket for LAL Series

LALC-LENSCLR Single Clear Lens with Gasket for LALC Series

LALC-LENSDIF Single Diffuse Lens with Gasket for LALC Series

LAL-RIG-CB Rig Mounting Style Ceiling Bracket

LAL-RIG-WB Rig Mounting Style Wall Bracket

RIG-LALC Rig End Caps for LALC

-18

[23.8]

[38.1]

Ceiling Bracket Setk

Part Number LZCB

Stainless Steel (natural nish)

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

LZ2NL/LZ2SL SERIES

LZ LED INTRODUCTION & LOGIC

Applications

Linear LED Luminaires are designed for

installations where moisture, dirt, dust,

corrosion and vibration may be present, and

NEMA 3, 4X IP66 areas where wind, water,

snow or high ambients can be expected. They

can be used in locations made hazardous by

the presence of ﬂammable vapors or gases or

combustible dusts as deﬁned by the NEC/CEC.

ABS (American Bureau of Shipping) type

approval for use on decks, vessels, platforms,

barges, ships and boats. Also suitable for

docks and marinas.

NSF (National Sanitation Foundation) approved

for “Food Handling” areas, typically requiring

non-glass lighting.

Typical applications include manufacturing

plants, and certain chemical and petrochemical

processing facilities, sewage treatment plants, off-

shore and dockside installations, garages, storage

facilities, tunnels, and grain/food facilities.

Compliances

• UL-8750 for LED lighting

• ANSI/UL 1598(A)

• UL-844 Standard for lighting ﬁxtures for

hazardous locations, Class I, Division 2;

Class II, Divisions 1 and 2; Class III

• CSA C22.2 no. 137-M1981 electric

luminaires for use in hazardous locations

• Enclosed and gasketed

• NEMA 3, 4X, IP66

Materials

• NEMA 4X & IP66 rated enclosure

• Housing – one piece ﬁberglass reinforced

polyester or 316 Stainless Steel

• Lens – Clear Lexan® impact resistant

polycarbonate lens (Lexan is a registered

trademark of SABIC)

• Two 3/4” NTP hubs – one at each end

(includes one 3/4” close-up plug and two

3/4”x1/2” reducers for maximum user

ﬂexibility – LZ2NL hubs aluminum; LZ2SL

hubs 316 Stainless Steel

FEATURES-SPECIFICATIONS

LED Features and Standards

Supplemental 20KA/10KV Surge Protection

is standard (for 120-277 VAC models)

10KA/10KV Surge Protection (for 347-480 VAC)

• Many Midpower LEDs blend light to simulate

ﬂuorescent tube

• Crisp White Light for Excellent Color Rendering

– Chromaticity 5000K (CCT); approx. 70 CRI

• Energy Savings – High lumens per watt

• LED Array Life – to 212,000 maintenance

free hours to 70% initial lumens

• Ambient suitability -40°C to 55°C up to 120W

• Instant On – Including after power interruption

• World Voltage 120 - 277VAC 50/60Hz

• Solder-LESS LED Board Connections –

Vibration Resistant

• LM80-08 Measurement of lumen

maintenance for LED light sources

• LM79-08 Certiﬁed “Absolute” Photometry,

including Chromaticity Color for Solid State

Lighting

• L70 Values – Industry Nomenclature for

Hours of use to 70% of initial Lumens –

TM-21 & Calculated

LZ2NL - Series Constant

FRP Housing, Lexan Lens

or LZ2SL - Series Constant

316 Stainless Housing, Lexan Lens

Fixture Wattage

120

Voltage

– 120V-277VAC 50/60Hz 18W - 120W

– 347-480VAC 60Hz 28W, 55W only

– 125VDC - 250VDC; 120-277VAC 28W, 60W, 55W, 120W only

Options

– Single Fuse (1 hot leg)k

– 2 Fuses (2 hot legs)k

TBL

– Terminal Blocks Looping

l – 120V Photocell factory installed

l – 208V-277VAC

l – 347V only - 28W, 40W, 55W, 75W only

– QuickDisconnect (before driver)

LZ2NL55 33 FF

Catalog Number Logic

j Group LZ2SL only for group E

k Fuses not for Canadian or Marine applications

l LZ2xL xtures with photocells are C1D2 only,

not C2D1

Class I, Div. 2, Groups A, B, C, D

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups Ej, F, G

AEx nAII, Ex nAII

Wet Locations

NEMA 4X, IP66

ABS

Type Approval (L32NL, L32SL)

NSF Food Handling (LZ2NL)

Certified - File LR11713

4’ styles shown

LED VS FLUORESCENT WATTAGE &

DELIVERED LUMENSmn

LED

WATT LUMENS L/W FLUORESCENT LUMENS L/W

18W 2557 150 40W 1x40W BX 2471 63

28W 3775 144 55W 1x55W BX 3766 65

34W 5075 149 56W 2x28T5 4676 71

45W 5562 137 64W 2x32T8 4772 80

55W 7577 144 108W 2x54T5HO 8088 67

60W 7618 132 120W

2x60T12HO

6965 56

80W 11140 137 162 3x54T5HO 11619 65

m Cataloged Wattage in LZ2x Housing & Lens – actual

varies with driver or ballast losses – Delivered Lumens

and L/W from photometry testing

n LZ2xL L70 Life 99,600 - 212,000

LZ2x Fluorescent 10,000 - 60,000

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L9

LZ2NL/LZ2SL SERIES

LZ SERIES – ORDERING INFORMATION & TECHNICAL DATA

ORDERING INFORMATION AND AMBIENT SUITABILITY C1D2n

C2D1n

LZ2NL GRPS. FG

LZ2SL GRPS. EFG

C1Z2n AEx nA

Ex nA

CATALOG NUMBERjk WATTS LENGTH

lVOLTAGE AMPSmDELIVERED

LUMENS 40°C 55°C 40°C 55°C 40°C 55°C

FIBERGLASS (W T.) STAINLESS (WT.)

LZ2NL1830 12 LZ2SL1830 13 18 2’ 120-277VAC 0.15 - 0.06 2557 T5 T4A ≤ 135°C ≤ 135°C T5 T4

LZ2NL2830 12 LZ2SL2830 13 28 2’ 120-277VAC 0.23 - 0.10 3775 T5 T4A ≤ 135°C ≤ 135°C T5 T4

LZ2NL4530 12 LZ2SL4530 13 45 2’ 120-277VAC 0.38 - 0.16 5562 T5 T4A ≤ 135°C ≤ 135°C T5 T4

LZ2NL6030 14 LZ2SL6030 15 60 2’ 120-277VAC 0.50 - 0.22 7618 T4A -≤ 135°C -T4 -

LZ2NL3430 23 LZ2SL3430 24 34 4’ 120-277VAC 0.28 - 0.12 5075 T5 T4A ≤ 135°C ≤ 135°C T5 T4

LZ2NL5530 23 LZ2SL5530 24 55 4’ 120-277VAC 0.46 - 0.20 7577 T5 T4A ≤ 135°C ≤ 135°C T5 T4

LZ2NL8030 23 LZ2SL8030 24 80 4’ 120-277VAC 0.67 - 0.29 11140 T5 T4A ≤ 135°C ≤ 135°C T5 T4

LZ2NL12030 25 LZ2SL12030 26 120 4’ 120-277VAC 1.00 - 0.43 16010 T4A -≤ 135°C -T4 -

j Dimensions in ( ) are millimeters.

kProduct accessories have hardware for attachment to

xture; hardware to attach to wall/ceiling F.B.O.

NOTE: Eyebolts are 316 Series, brackets are 300 Series

Stainless Steel.

Eyebolt Set

Part Number LZEB

Stainless Steel bolt

with lockwasher & nut

(natural nish)

Suspension Chains (2 required)

Part Number HFX-SC

36” length plated steel chain with snap link ends

For use with LZEB

j See logic for additional voltages and options

k Shipping weights approximate

l Length is nominal, see dimensional detail. PCB noted quantity used per xture wattage

m Amperage measured at 120VAC; 277VAC calculated

n Use 60°C Minimum Supply Wire at 40°C Ambient except 120W; 75°C Wire at 55° Ambient and all 120W

* Mounting Centers are 1/4-20” tapped for

user all thread rod or below accessories.

LED LUMEN LIFE L70 CALCULATED L70 TM-21**

40°C Ambient 212,000 Hours to 70% Initial 60,600 Hours Ofﬁcial Reported

55°C Ambient 99,600 Hours to 70% Initial 60,400 Hours Ofﬁcial Reported

REPLACEMENT PARTS:

LZ2N4LENS 4’ Lens only LZ2NL/LZ2SL

LZ2N2LENS 2’ Lens only LZ2NL/LZ2SL

LZ2N4BAR 4’ Locking Bar only LZ2NL

LZ2N2BAR 2’ Locking Bar only LZ2NL

LZ2S-LATCH Latch and Spring LZ2SL

Mounting Accessories

Ceiling Bracket Setk

Part Number LZCB

Stainless Steel (natural nish)

.33”

Wall Bracket Setk

Part Number LZWB

Stainless Steel (natural nish)

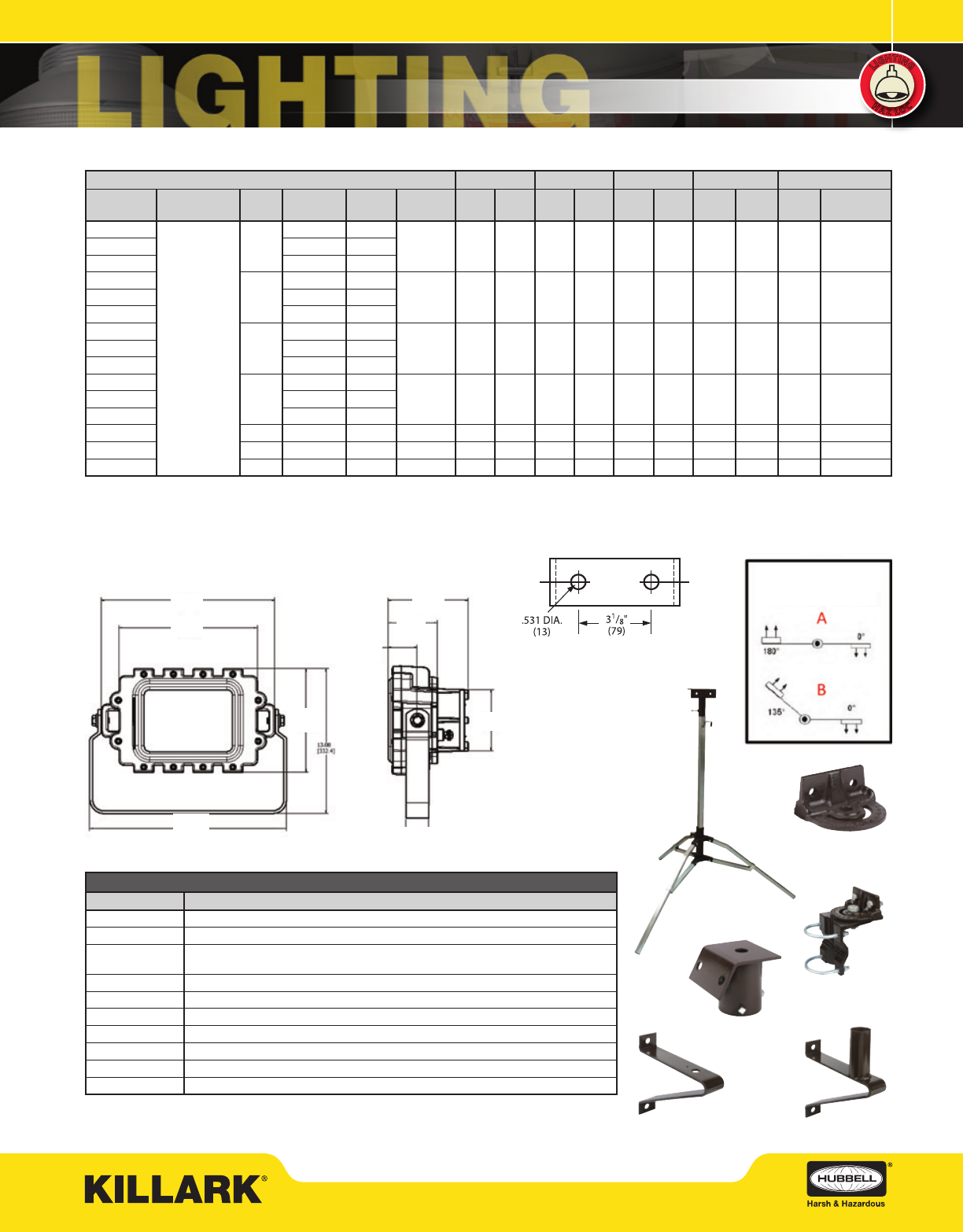

Dimensions LZ2NL Series

Dimensions LZ2SL Series

Adjustable Wall Bracket Setk

Part Number LZAB

Stainless Steel bracket

with ceramic coated

pivot bolt

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L10

HLLX SERIES

Applications

HLLX Series LED ﬁxtures are designed for

installations where moisture, dirt, dust,

corrosion and vibration may be present, or

NEMA 3 and 4X areas where wind, water and

snow can be expected. They can also be used in

locations made hazardous due to the presence

of ﬂammable or explosive gases, vapors and

combustible ducts as deﬁned by the NEC.

Typical applications include classiﬁed areas

such as inside paint spray booths, paint

manufacturing plants, ammunition facilities,

oil and gas producing and reﬁning plants,

off-shore and dockside installations, tank

farms, pipeline pumping stations and marine

loading and fuel transfer terminals.

LED Features and Standards

• UL Listed and labeled for use inside paint

spray booths and rooms

• Construction is strong lightweight

corrosion resistant copper-free aluminum

alloy, less than 4/10 of 1%

• Energy Savings – High efﬁciency LED chips

• All external hardware is corrosion

resistant 316 stainless steel to provide

maintenance free long life

Supplemental 20KA/10KV Surge Protection

is standard (for 120-277 VAC models)

10KA/10KV Surge Protection (for 347-480 VAC)

• UL factory sealed construction (no

external seals required). Saves installation

time and cost

• Extruded aluminum reﬂectors are easily

removable for cleaning. White baked

enamel ﬁnish

• Optional 316 stainless steel wire guard for

added protection

• Threaded O-Ring gasketed covers

provide easy access to driver and wiring

compartment

• Suitable for use in both indoor and

outdoor wet locations

• Many Midpower LEDs blend light to

simulate ﬂuorescent tubes

Catalog Number Logic

Constant for HLLX Series

Lumen Outputs

4 – 4000 lumens

6 – 6000 lumens

7 – 7000 lumens

11 – 11,000 lumens

15 – 15,000 lumens

22 – 22,000 lumens

Voltage

27 – 12-24VDC

30 – 120-277V 50/60 Hz

33 – 347-480VAC 50/60 Hz

34 – 120-250VDC

Options

F – Single Fuse (1 pole)

FF – Two Fuses (2 pole - 2 hot legs)

LSP – Less Surge Protector

Length

2 – 2 foot

4 – 4 foot

HLLX 304 0022

• Crisp White Light for Excellent Color Rendering

– Chromaticity 5000K (CCT); approx. 70 CRI

• Energy Savings – High lumens per watt

• LED Array Life – to 212,000 maintenance

free hours to 70% initial lumens

• Instant On – Including after power interruption

• World Voltage 120-277VAC 50/60Hz

Compliances

• UL-8750 for LED lighting

• UL-844, Electric Lighting Fixtures for use

in Hazardous Locations

• UL Marine Type Electric Lighting Fixtures

• CSA C22.2 no. 137-M1981 Electric

Luminaires for use in Hazardous Locations

• NEMA 3, 4X, 7(C,D), 9 (E,F,G)

FEATURES-SPECIFICATIONS

ORDERING INFORMATION AND AMBIENT SUITABILITY C1D1 C2D1 L70

CATALOG NO. WEIGHT LBS./KG WATTS VOLTAGE AMPS DELIVERED

LUMENS 40°C 55°C 40°C 55°C TM-21 CALCULATED

HLLX4272

32.00 / 14.52

12-24VDC 2.0 - 4.0

3829 T6 T6 T4A T4A 60300 199000HLLX4302 120-277VAC 0.2 - 0.09

HLLX4342 108-250VDC 0.2 - 0.1

HLLX6272

12-24VDC 2.91 - 5.83

5756 T6 T6 T4A T4A 60300 19900HLLX6302 120-277VAC 0.29 - 0.67

HLLX6342 108-250VDC 0.29 - 0.14

HLLX7302 55 120-277VAC 0.44 - 1.02 7644 T6 T6 T4A T4A 60300 199000

HLLX7342 108-250VDC 0.44 - 0.21

HLLX11302 85 120-277VAC 0.71 - 1.64 10830 T6 T6 T4A T4A 60300 199000

HLLX11342 108-250VDC 0.71 - 1.48

HLLX15304

50.00 / 22.6

110 120-277VAC 0.92 - 0.40 15288 T6 T6 T4A T4A 60300 199000

HLLX15344 108-250VDC 1.02 - 0.44

HLLX22304 170 120-277VAC 1.38 - 3.18 22540 T6 T6 T4A T4A 60300 128000 @40C

HLLX22344 108-250VDC 1.57 - 0.68

Class I, Div. 1 & 2, Groups C,D

Class l, Zones 1 & 2, Groups llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III, Div. 1 & 2

NEMA 3, 4X, 7(C,D) 9(E,F,G)

Suitable for wet locations

Suitable for paint spray booths

- File E12976 and E89665 (Marine)

Certified - File LR11713

LED FIXTURES

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L11

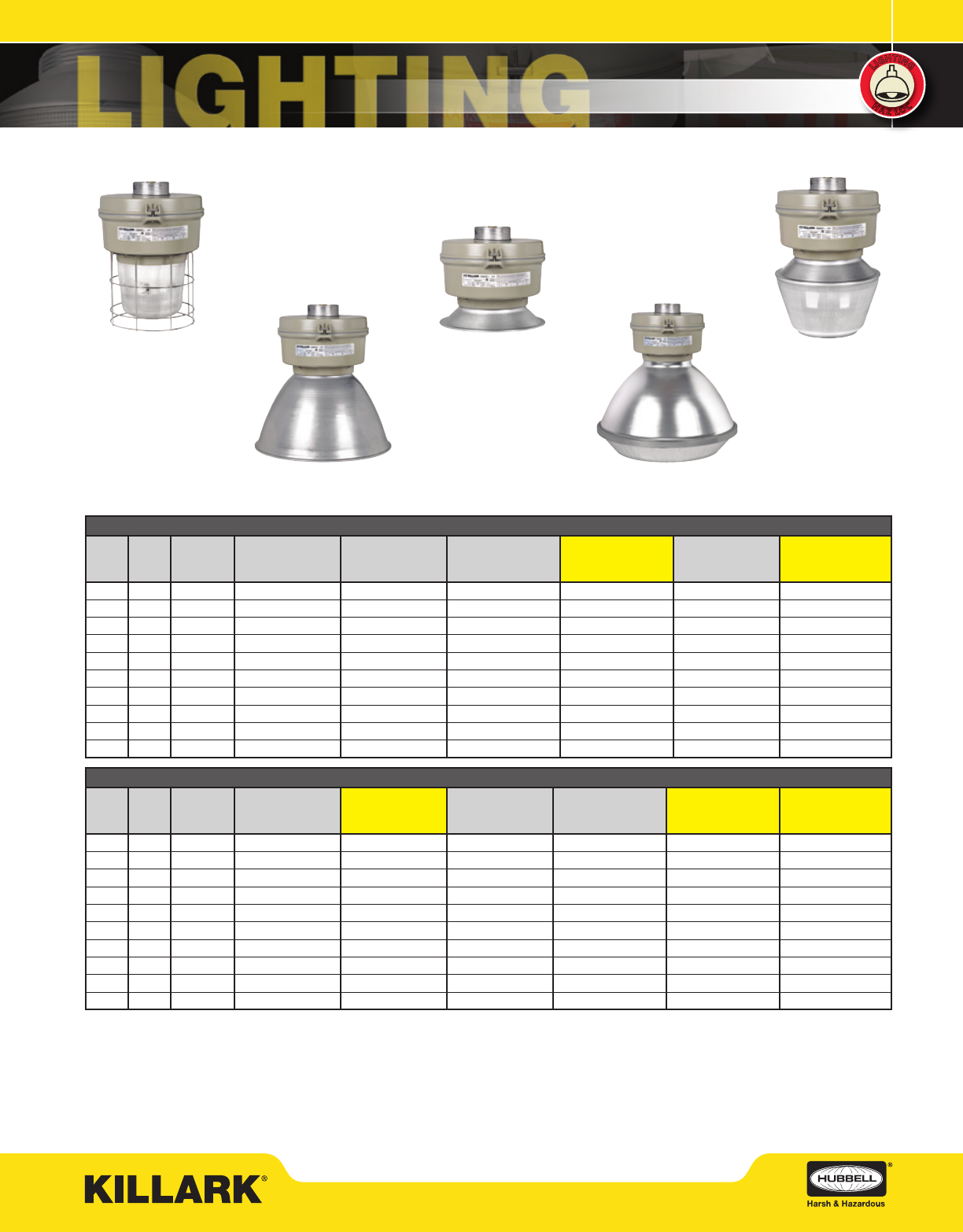

LOWBAY & HIGHBAY LIGHTING

MBL VM2L & VM4L

VM1L

EZLEML

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L12

MBL SERIES

COMPACT SIZE – INTRODUCTION & LOGIC

FEATURES-SPECIFICATIONS

Certified - File LR11713

Class I, Div. 2, Groups A,B,C,D

Class l, Zone 2, Groups llC,llB,llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

Marine Rated (US only)

NEMA 3, 4X

Applications

CERTILITE® MBL LED ﬁxtures are designed for

installations where moisture, dirt, dust, corrosion

and vibration may be present, or NEMA 3 and 4X

areas where wind, water, snow or high ambients can

be expected. They can be used in locations made

hazardous by the presence of ﬂammable vapors or

gases or combustible dusts as deﬁned by the NEC.

Typical applications can low ceiling areas in

manufacturing plants, and certain chemical and

petrochemical processing facilities, sewage

treatment plants, off-shore and dockside

installations, garages and storage facilities.

Compliances

• UL-8750 for LED lighting; UL 1598A

• UL Marine type lighting ﬁxtures

• UL-844 Standard for lighting ﬁxtures for

hazardous locations, Class I, Division 2; Class

II, Divisions 1 and 2; Class III

• CSA C22.2 no. 137-M1981 electric luminaries

for use in hazardous locations

• Enclosed and gasketed

• NEMA 3, 4X

Materials

• Driver tank, splice box and guards (MBAG,

VMAG) corrosion resistant copper-free

aluminum alloy

• Baked powder epoxy/polyester ﬁnish,

electrostatically applied for complete, uniform

corrosion protection

• All external hardware - stainless steel

• Reﬂectors - Polyester reinforced ﬁberglass

LED Luminaire Features and

Standards

Supplemental 20KA/10KV Surge Protection

is standard (for 120-277 VAC models)

10KA/10KV Surge Protection (for 347-480 VAC)

• Compact in Size with Traditional Industrial

Appearance and Suitability

• Wide variety of optics including globes, globes

with reﬂectors, all-glass refractors, and spin-

top refractors

• Optional Mounting arrangements including

Pendant, Wall, Ceiling, and Stanchion

• MBL LED Housings can be retroﬁtted to

existing MB splice boxes; upgrade from

Fluorescent or HID

• Energy Savings – Less than 50 Watts of

Power; 25 Watts for MBL2230

• Long Life up to 100,000+ maintenance free

hours to 70% initial lumens

• Crisp White Light for Excellent Color Rendering

- Chromaticity 5000°K (CCT); 70 CRI

• Ambient suitability -40°C to 40°C (to 55°C for

14W to 22W)

• Instant on – Including after power interruption

• “World Voltage” 120-277VAC 50/60Hz

• Solder-LESS LED Board Connections –

Vibration Resistant

• LM80-08 Measurement of lumen maintenance

for LED light sources

• LM79-08 Certiﬁed “Absolute” Photometry,

including Chromaticity Color for Solid State

Lighting

• L70 Values - Industry Nomenclature for Hours

of use to 70% of Initial Lumens (TM-21+ Cal.)

Catalog Number Logic

Housing Series

LED Wattage

14 - 14W 22 - 22W 45 - 45W

17 - 17W 25 - 25W 50 - 50W

20 - 20W 40 - 40W

Guard

– No Guard

– Guard

MBL 45 30 A2R5 G

Mounting Style

– Pendant

– Ceiling

– Wall

– Stanchion 25°

Entry

– 3/4” NPT (A, X, B)

– 1” NPT (A, X, B)

– 1-1/4” NPT (D only)

– 1-1/2” NPT (D only)

– M20 4 hub (X only)

Voltage

05 - 480VACk

15 - 347VACk

27 - 12-24VDC

30 - 120-277VAC

34 - 120-250VDC (14W - 25W & 45W only)

Optic

– Globe (MBG)

– Type 5 Glass Refractor

– 8” Spin-top Type V Refractor

– 12” Spin-top V Refractor

– 12” Poly Spin-top V Refractor

– 8” Glass Flat Lensj

– 8” Polycarbonate Flat Lensj

Options

– Component Pack (housing, mount,

Optic, Guard if selected)

– Assembled Fixture

(components as selected)

DDR

– Dual Driver Option

j 14W - 25W only for 8” at lens

k Single step-down transformer feeds driver(s)

Luminaire w/Glass Refractor

and Guard

Wall Mount w/VZRF8PR Pathway

Reector

Luminaire w/Flat Lens

Non-Glass

Polycarbonate

8” Flat Lens

or Spin-top

Patented Design

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L13

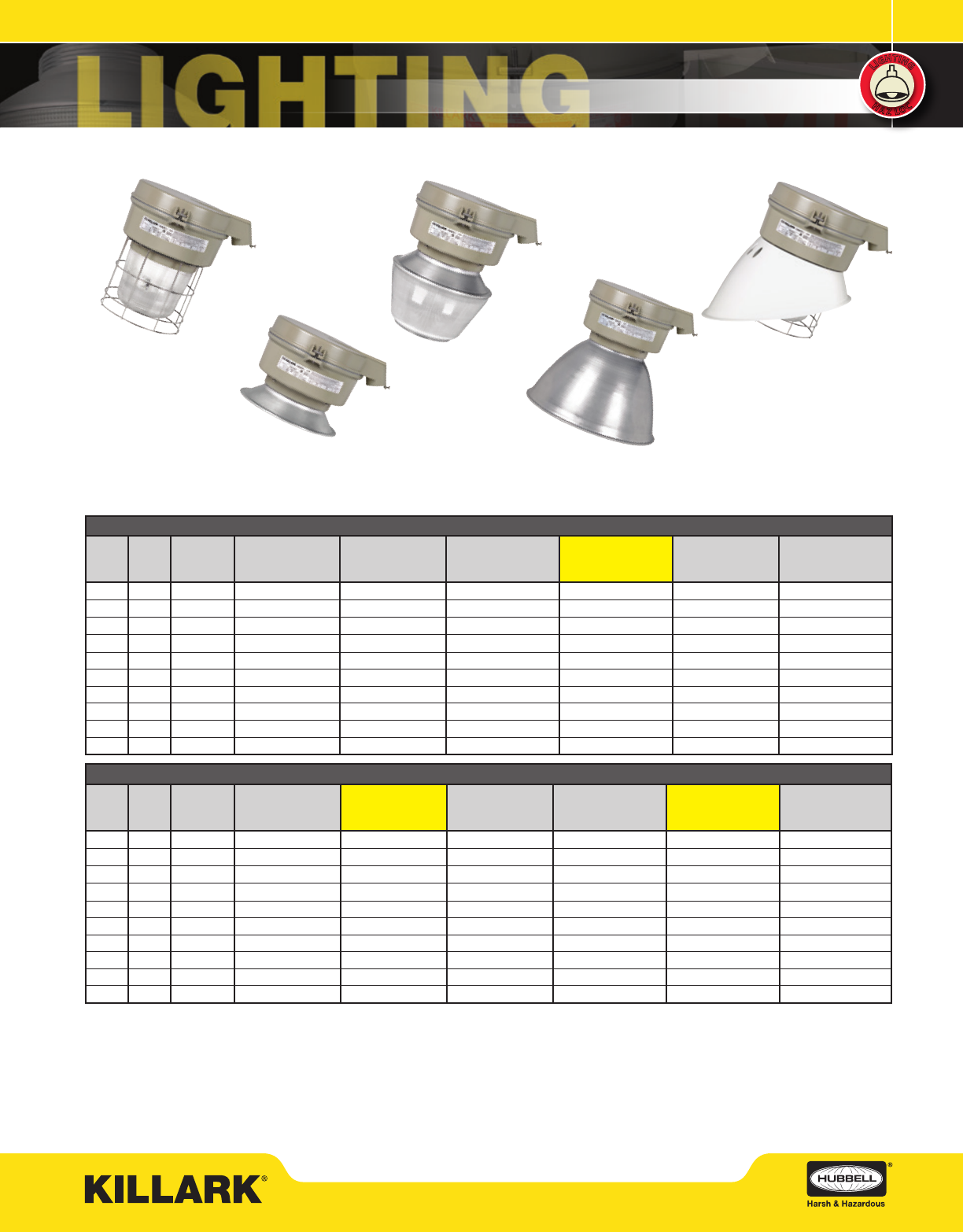

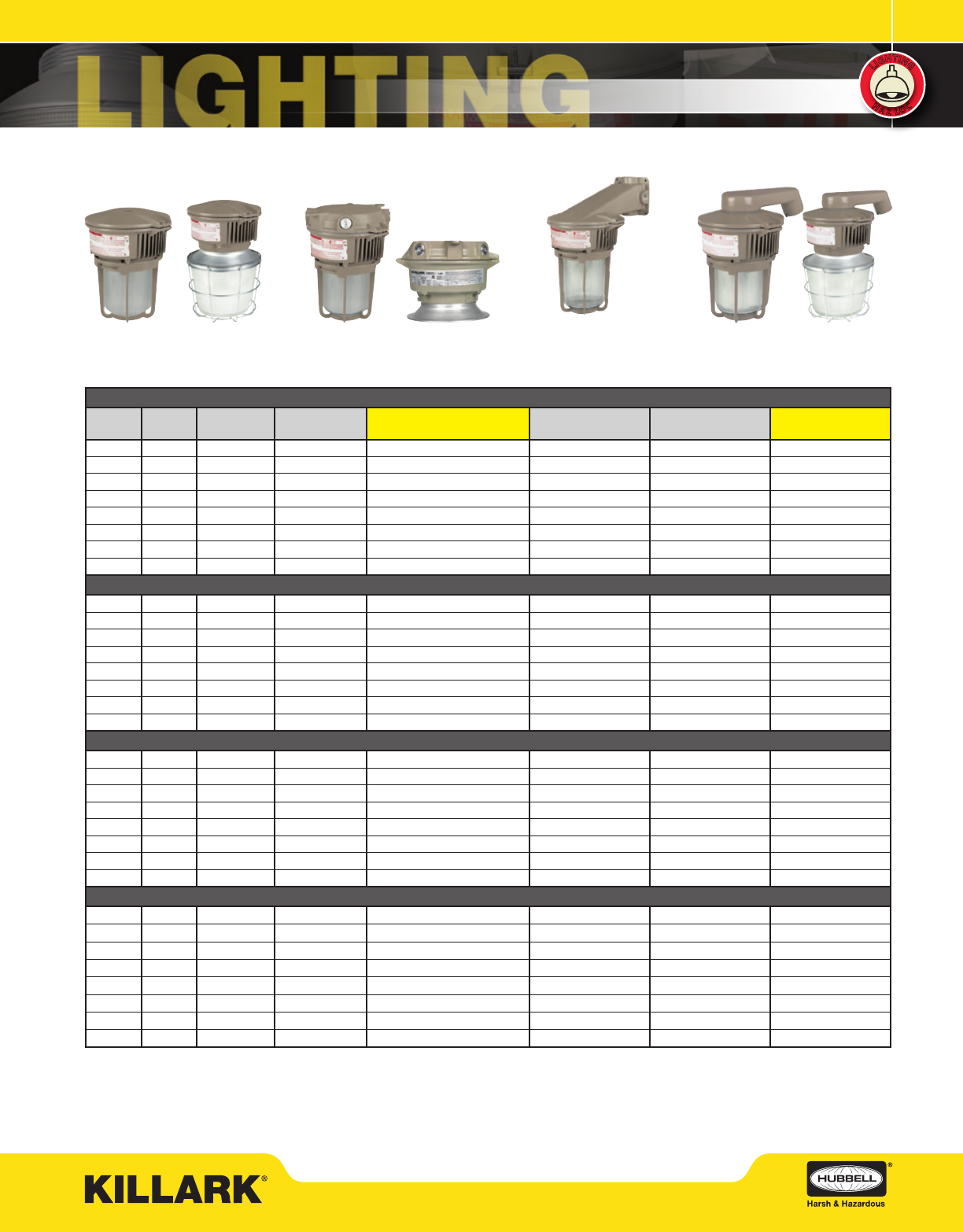

MBL SERIES

COMPACT SIZE – ORDERING INFORMATION

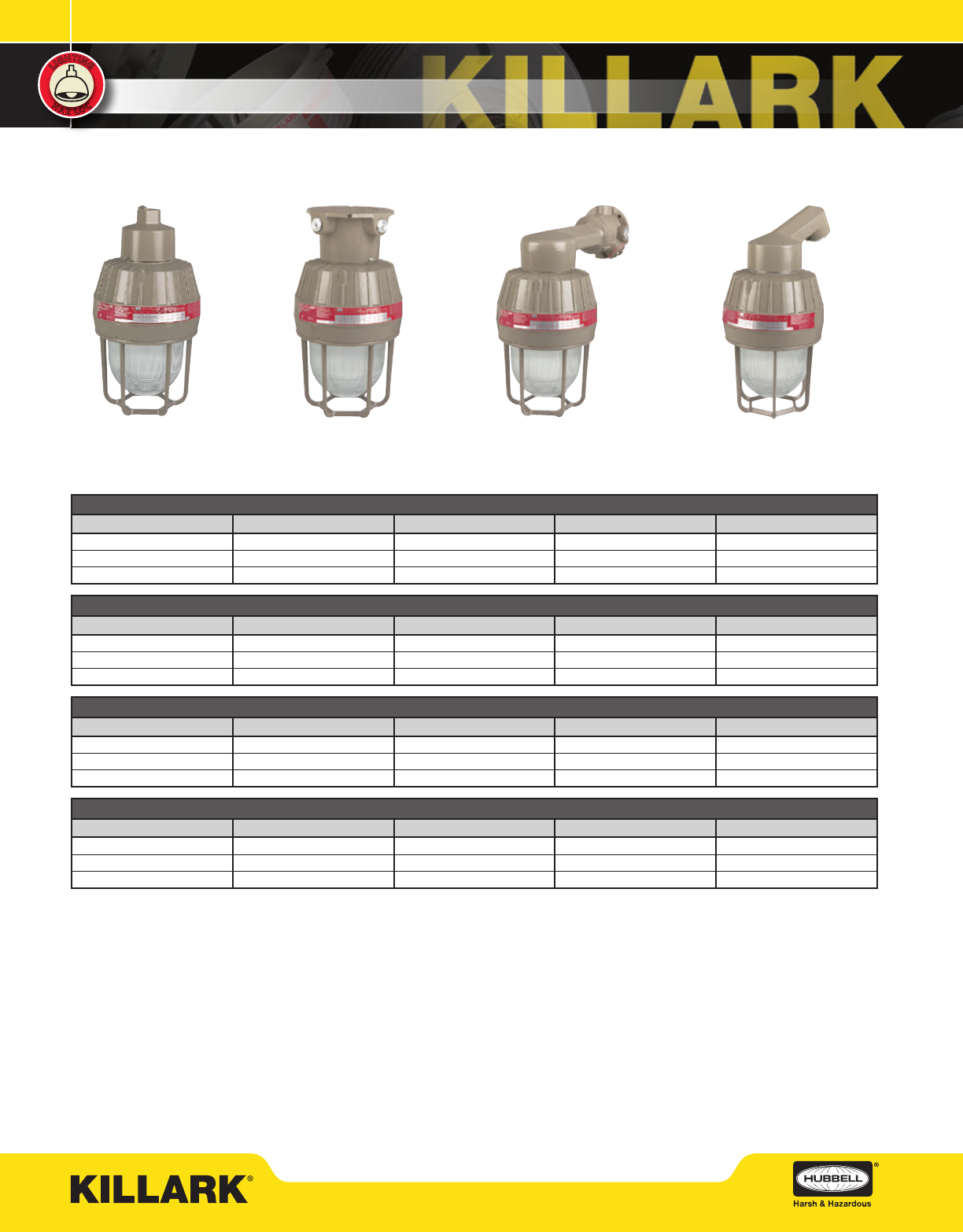

PENDANT WALL

j Catalog numbers shown are with Guard; to omit guard change ending G to N; e.g. MBL2230A2GLN

k Catalog numbers shown are with 3/4” conduit openings; change “2” to “3” for 1” e.g. MBL2230A3GLG

l 120VAC through 277VAC 50/60Hz

m Catalog numbers shown are with 1-1/4” conduit openings; change “4” to “5” for 1-1/2” e.g. MBL2230D5GLG

n For Glass 8” Spin-top Flat Lens, change PFN to GFN at end of catalog number

CEILING STANCHION

ORDERING INFORMATION

MBL SERIES PENDANT WITH OPTIC AND GUARD

WATTS HUB

SIZEkVOLTAGElGLOBE & GUARD 8” SPIN-TOP POLYCARBONATE

FLAT LENSn

TYPE V GLASS

REFRACTOR & GUARD

8” SPIN-TOP TYPE V

REFRACTOR & GUARD

12” SPIN-TOP TYPE V

REFRACTOR & GUARD

14 3/4” 120-277VAC MBL1430A 2GLG MBL1430A 2PFN MBL1430A2R5G MBL1430A 2S8G MBL1430A2S5G

17 3/4” 120-277VAC MBL1730A2GLG MBL1730A2PFN MBL1730A2R5G MBL1730A2S8G MBL1730A2S5G

20 3/4” 120-277VAC MBL2030A2GLG MBL2030A2PFN MBL2030A2R5G MBL2030A2S8G MBL2030A2S5G

22 3/4” 120-277VAC MBL2230A2GLG MBL2230A2PFN MBL2230A2R5G MBL2230A2S8G MBL2230A2S5G

25 3/4” 120-277VAC MBL2530A2GLG MBL2530A2PFN MBL2530A2R5G MBL2530A2S8G MBL2530A2S5G

40 3/4” 120-277VAC MBL4030A2GLG -MBL4030A2R5G MBL4030A2S8G MBL4030A2S5G

45 3/4” 120-277VAC MBL4530A2GLG -MBL4530A2R5G MBL4530A2S8G MBL4530A2S5G

50 3/4” 120-277VAC MBL5030A2GLG -MBL5030A2R5G MBL5030A2S8G MBL5030A2S5G

MBL SERIES CEILING WITH OPTIC AND GUARDj

14 3/4” 120-277VAC MBL1430X2GLG MBL1430X 2PFN MBL1430X2R5G MBL1430X2S8G MBL1430X2S5G

17 3/4” 120-277VAC MBL1730X2GLG MBL1730X 2PFN MBL1730X2R5G MBL1730X2S8G MBL1730X2S5G

20 3/4” 120-277VAC MBL2030X2GLG MBL2030X2PFN MBL2030X2R5G MBL2030X2S8G MBL2030X2S5G

22 3/4” 120-277VAC MBL2230X2GLG MBL2230X2PFN MBL2230X2R5G MBL2230X2S8G MBL2230X2S5G

25 3/4” 120-277VAC MBL2530X2GLG MBL2530X2PFN MBL2530X2R5G MBL2530X2S8G MBL2530X2S5G

40 3/4” 120-277VAC MBL4030X2GLG -MBL4030X2R5G MBL4030X2S8G MBL4030X2S5G

45 3/4” 120-277VAC MBL4530X2GLG -MBL4530X2R5G MBL4530X2S8G MBL4530X2S5G

50 3/4” 120-277VAC MBL5030X2GLG -MBL5030X2R5G MBL5030X2S8G MBL5030X2S5G

MBL SERIES WALL WITH OPTIC AND GUARDj

14 3/4” 120-277VAC MBL1430B2GLG MBL1430B2PFN MBL1430B2R5G MBL1430B2S8G MBL1430B2S5G

17 3/4” 120-277VAC MBL1730B2GLG MBL1730B2PFN MBL1730B2R5G MBL1730B2S8G MBL1730B2S5G

20 3/4” 120-277VAC MBL2030B2GLG MBL2030B2PFN MBL2030B2R5G MBL2030B2S8G MBL2030B2S5G

22 3/4” 120-277VAC MBL2230B2GLG MBL2230B2PFN MBL2230B2R5G MBL2230B2S8G MBL2230B2S5G

25 3/4” 120-277VAC MBL2530B2GLG MBL2530B2PFN MBL2530B2R5G MBL2530B2S8G MBL2530B2S5G

40 3/4” 120-277VAC MBL4030B2GLG -MBL4030B2R5G MBL4030B2S8G MBL4030B2S5G

45 3/4” 120-277VAC MBL4530B2GLG -MBL4530B2R5G MBL4530B2S8G MBL4530B2S5G

50 3/4” 120-277VAC MBL5030B2GLG -MBL5030B2R5G MBL5030B2S8G MBL5030B2S5G

MBL SERIES 25° STANCHION WITH OPTIC AND GUARDj

14 1-1/4”m120-277VAC MBL1430D4GLG MBL1430D4PFN MBL1430D4R5G MBL1430D4S8G MBL1430D4S5G

17 1-1/4”m120-277VAC MBL1730D4GLG MBL1730D4PFN MBL1730D4R5G MBL1730D4S8G MBL1730D4S5G

20 1-1/4”m120-277VAC MBL2030D4GLG MBL2030D4PFN MBL2030D4R5G MBL2030D4S8G MBL2030D4S5G

22 1-1/4”m120-277VAC MBL2230D4GLG MBL2230D4PFN MBL2230D4R5G MBL2230D4S8G MBL2230D4S5G

25 1-1/4”m120-277VAC MBL2530D4GLG MBL2530D4PFN MBL2530D4R5G MBL2530D4S8G MBL2530D4S5G

40 1-1/4”m120-277VAC MBL4030D4GLG -MBL4030D4R5G MBL4030D4S8G MBL4030D4S5G

45 1-1/4”m120-277VAC MBL4530D4GLG -MBL4530D4R5G MBL4530D4S8G MBL4530D4S5G

50 1-1/4”m120-277VAC MBL5030D4GLG -MBL5030D4R5G MBL5030D4S8G MBL5030D4S5G

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L14

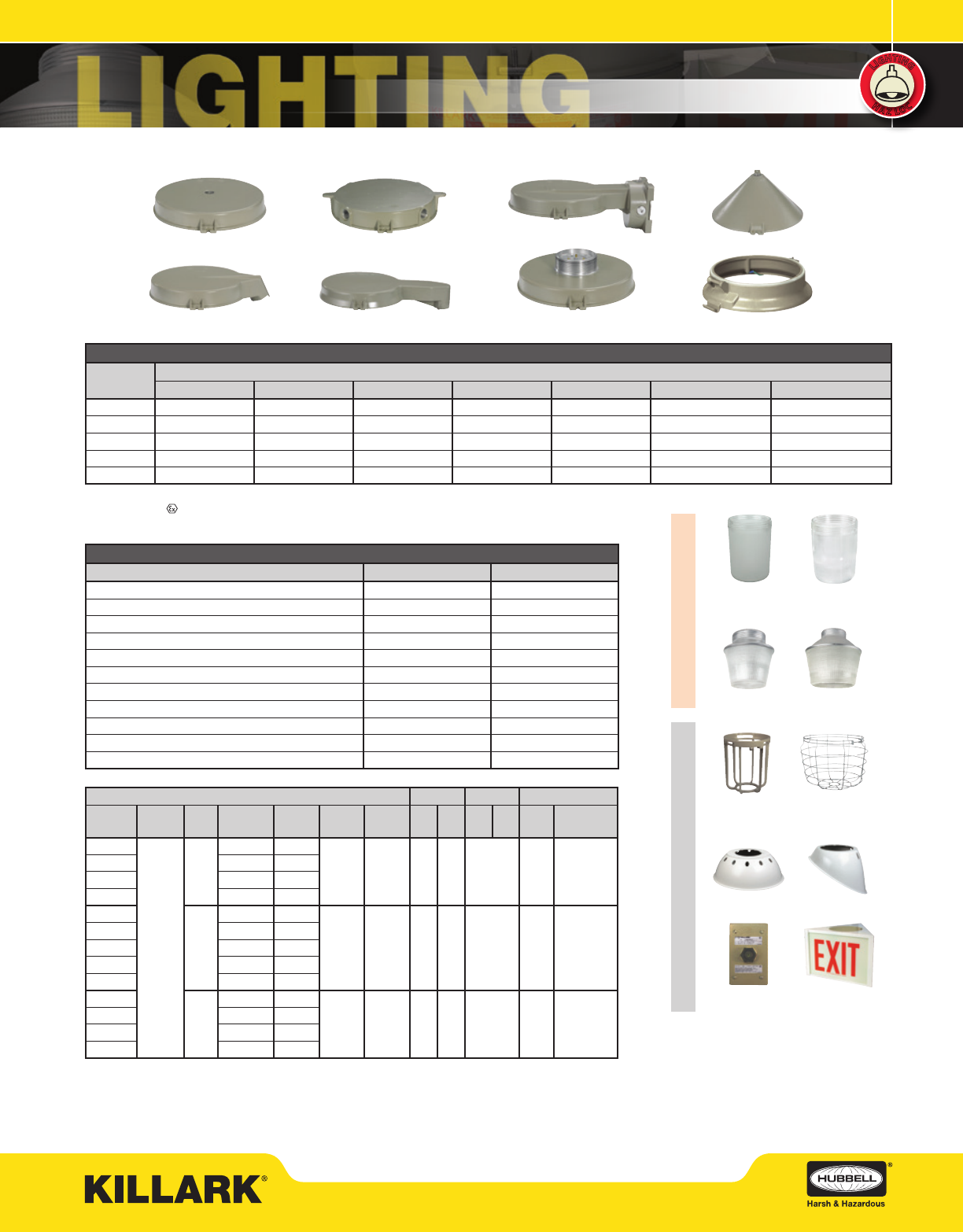

MBL SERIES

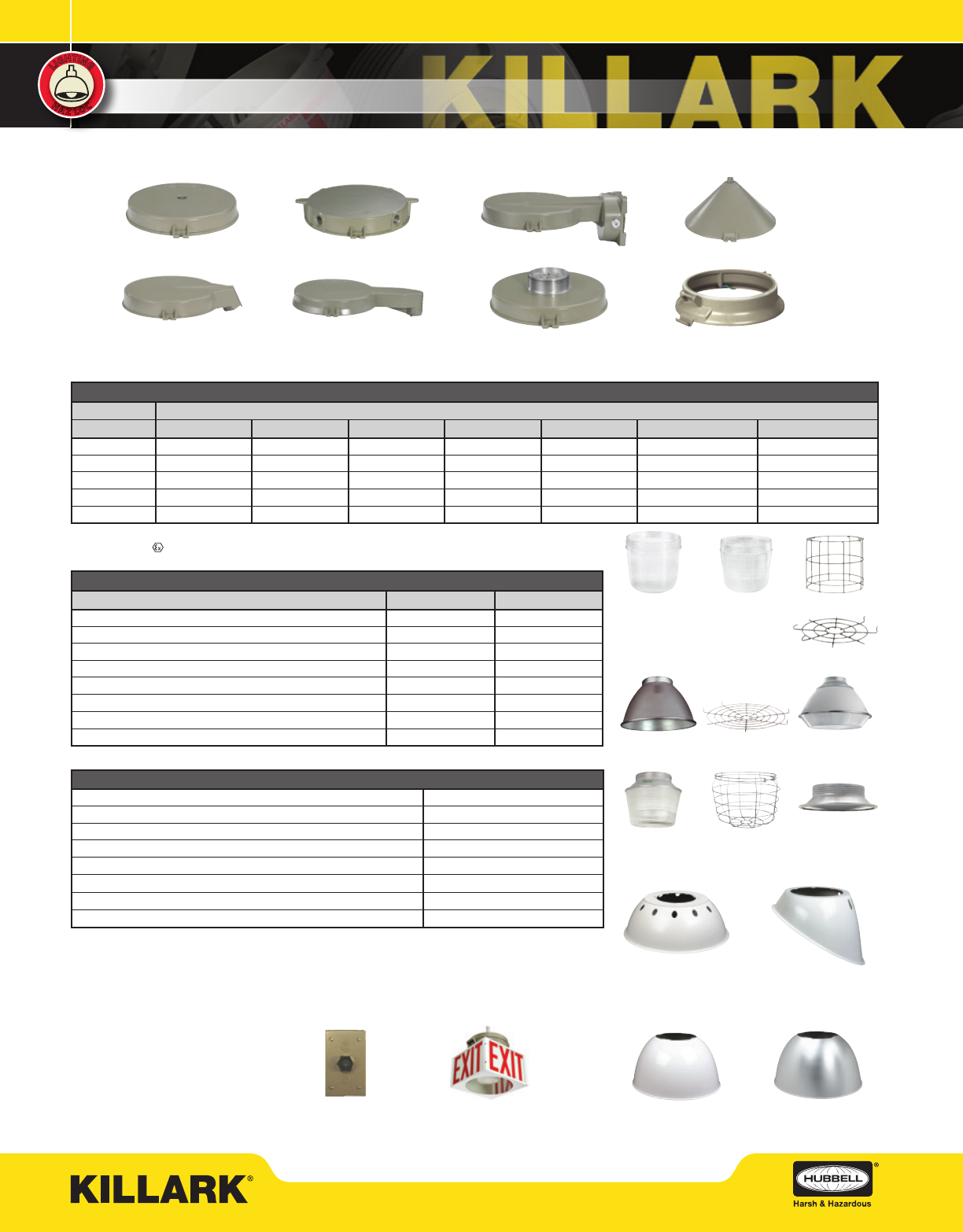

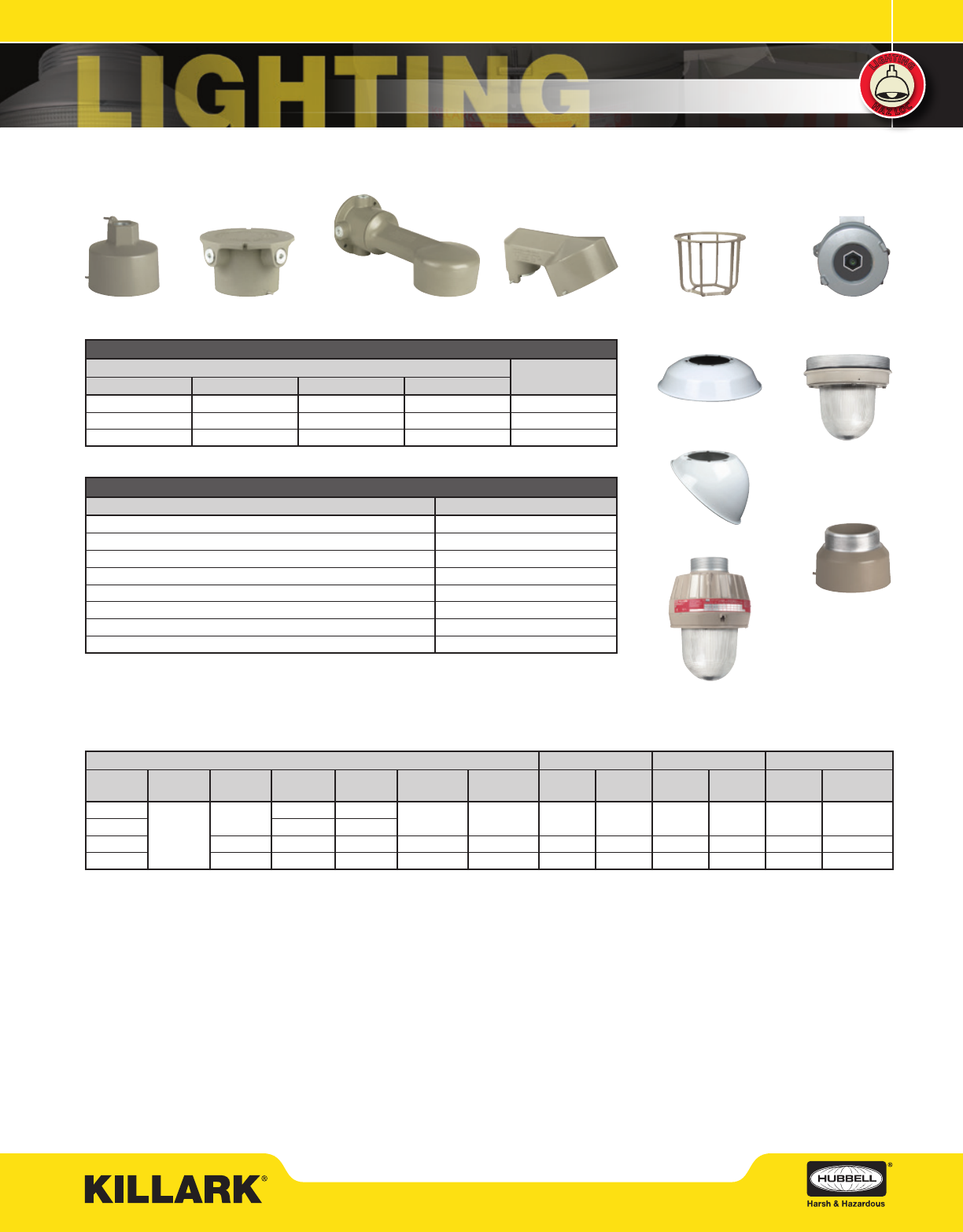

COMPACT SIZE – COMPONENTS

WallPendant Ceiling Stanchion

MBG

VMRWG8n

VZRG1550 VZRG2550

VZRP175

VMAG17

VMR175 VZRGF8

VZRPF8

VMRWGSnVMPA-17

VMPSD-17 VMFSPC1

MBAG

j14-25W only

kReectors for use with MBG/MBAG only; VMG17 globe with VMAG17 guard will t without reector.

VEXA100B

Non-Glass Polycarbonate

8” Flat Lens or Spin-top

Patented Design

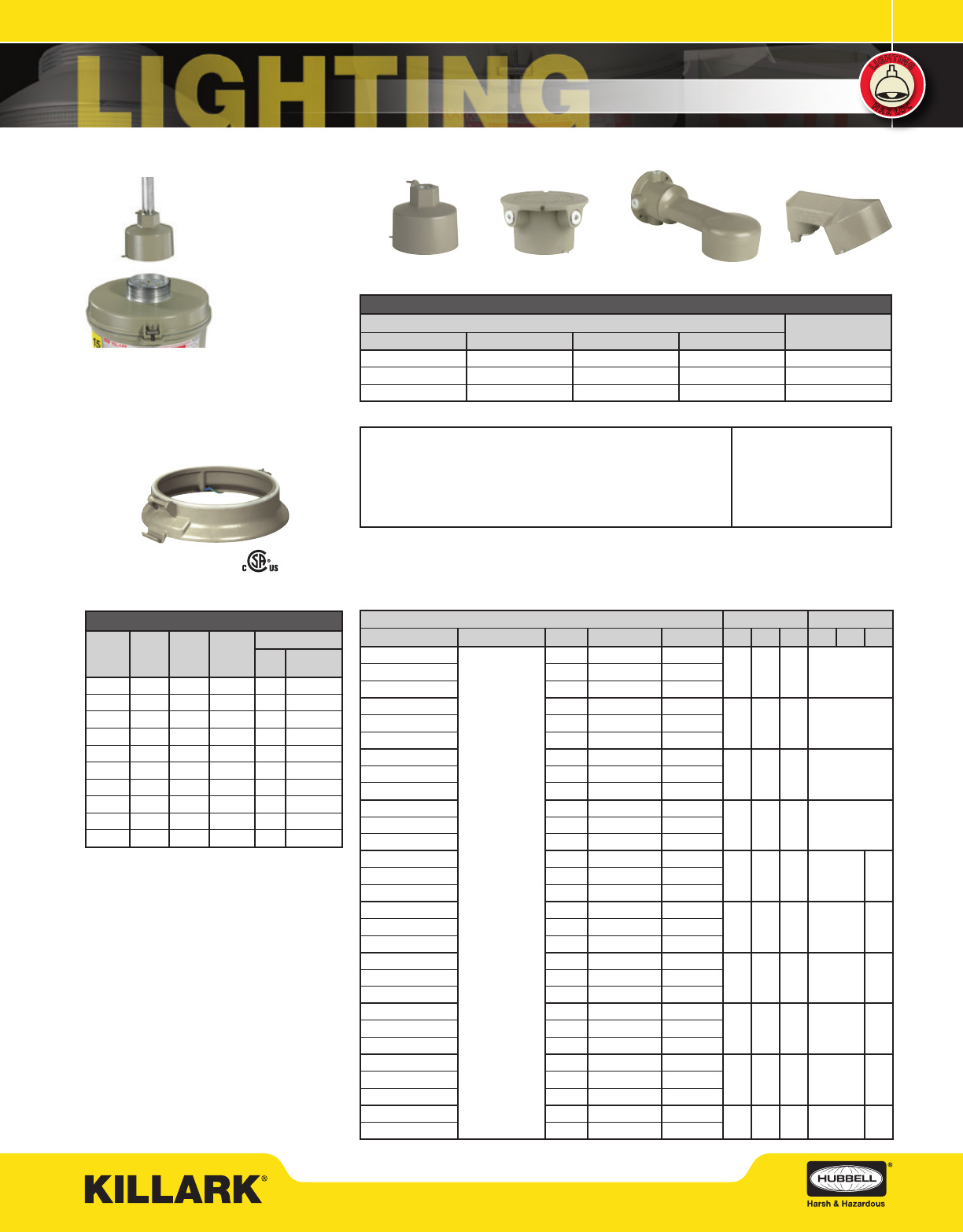

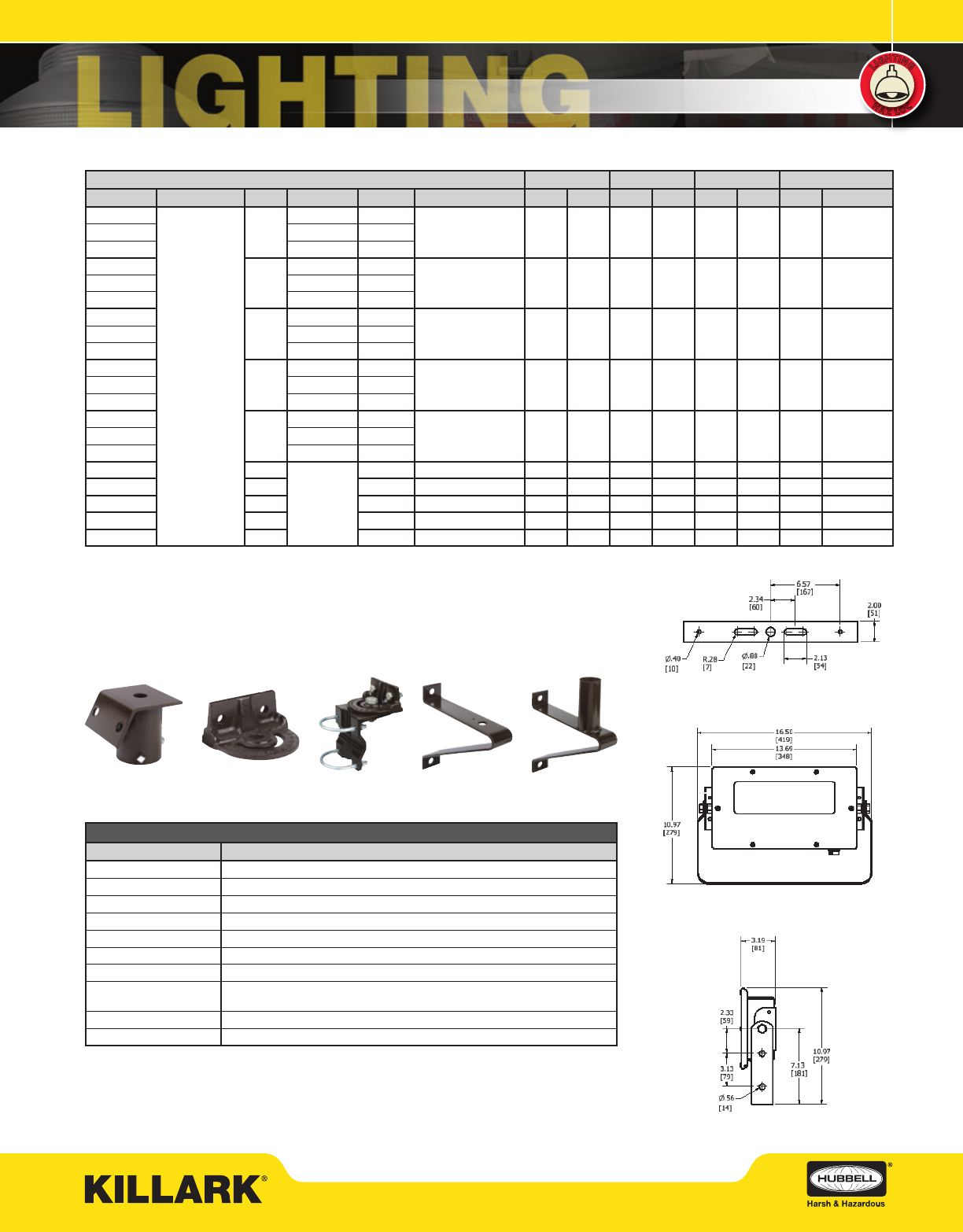

MB MOUNTING BRACKETS

CATALOG NUMBER HUB SIZE

PENDANT CEILING WALL STANCHION

MBA-2 MBX-2 MBB-2 —3/4”

MBA-3 MBX-3 MBB-3 —1”

—MBX-8* ——M20

———MBD-4 1-1/4”

———MBD-5 1-1/2”

* MBX-8 furnished with 3 non-metallic plugs

MBL LED OPTICS AND ACCESSORIES

DESCRIPTION OPTIC LOGIC GUARD

Globe (glass) MBG (GL) MBAG

Refractor (all glass) Type V VMR175 (R5) VMAG17

Refractor (spin top) 8”Type V VZ R G 15 5 0 ( S 8) VMRWG8

Refractor (spin top) 12”Type V VZRG2550 (S5) VMRWGS

8” Spin-top ﬂat lens (glass)jVZRGF8 (GF) VZRF8GRD

8” Spin-top ﬂat lens (polycarbonate)jVZRPF8 (PF) VZRF8GRD

Refractor polycarbonate (spin -top) 12” Type V VZRP175 (P5) VMRWGS

Pathway Reﬂectorj VZRF8PR NA

Reﬂector for MBG Globe - DOMEkVMPSD-17 NA

Reﬂector for MBG Globe - ANGLEkVMPA-17 NA

120VAC Photocell with FS Style Cover VMFSPC1 NA

208-277VAC Photocell with FS Style Cover VMFSPC2 NA

3-sided EXIT Accessory (use without guard) VEXA100B NA

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L15

MBL SERIES

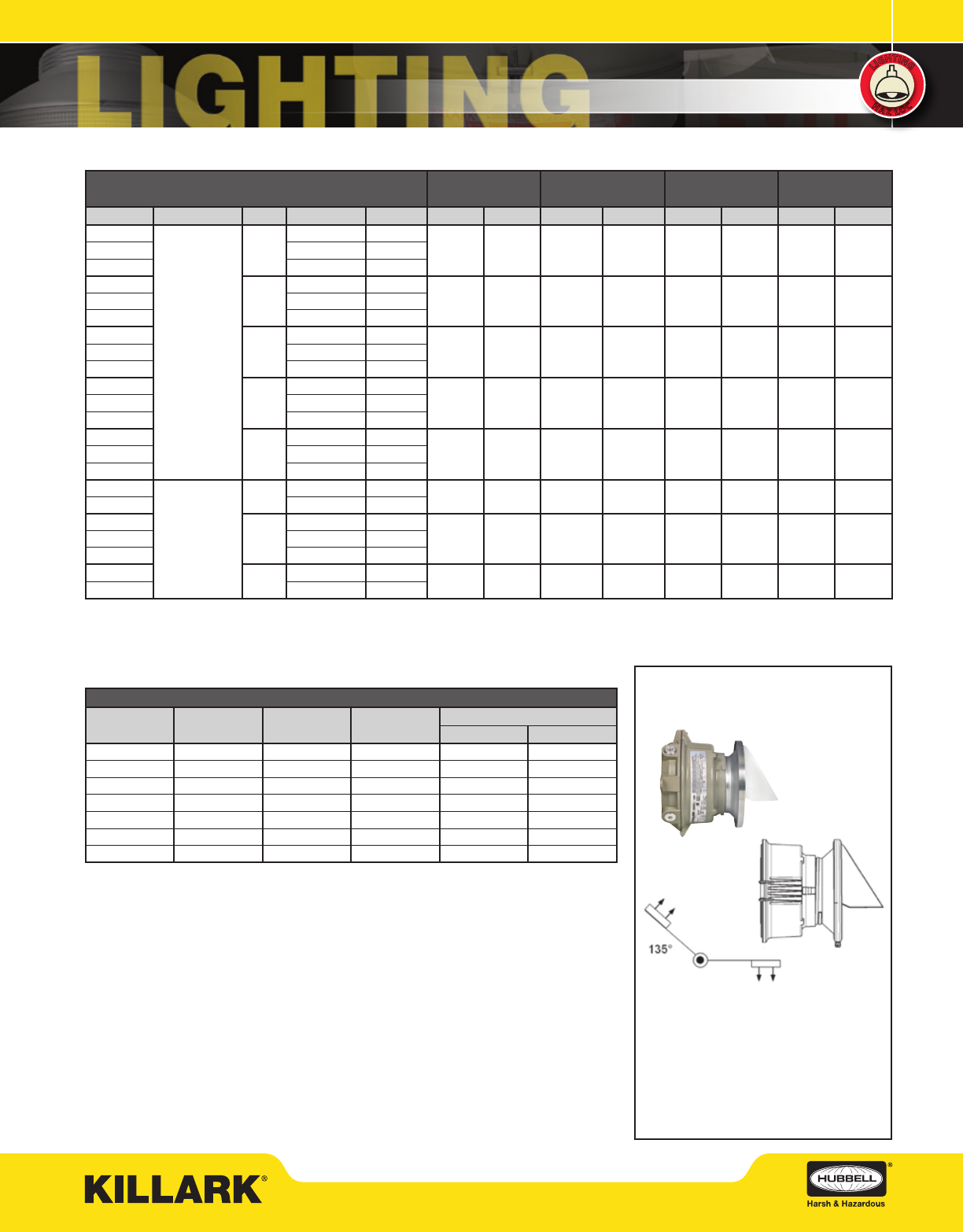

COMPACT SIZE – RATINGS, SPECIAL AIMING ANGLES

j Use 75°C minimum supply wire @ 40°C; use 90°C supply wire @ 55°C.

14W-25W MBL Housings with 8” Flat

Spin-Top Lens may be aimed from 135° to

0° with or without the VZRF8PF Pathway

Reﬂector. Pathway Reﬂector must NOT

be aimed upwards in a Class II (Dust)

environment, or where any contaminant

may be collected. Applications include

tunnels, lighting dark spots around ceiling

piping or pathways near handrails.

Special Aiming Angles

Wall Mount MBL with Pathway

Reector

Extra high lumen per watt LED’s

* Values indicated are estimates; LM-79 Absolute Photometry testing is in progress.

ORDERING INFORMATION AND AMBIENT SUITABILITY C1D2 OPTIC

ONLYj

ABCD W/

REFLECTORj

C2D1 OPTIC

ONLYj

EFG W/

REFLECTORj

CATALOG NO. WEIGHT LBS./KG WATTS VOLTAGE AMPS 40°C 55°C 40°C 55°C 40°C 55°C 40°C 55°C

MBL1427

10.00 / 4.54

12-24VDC 1.17-0.58

T5 T4A T4 T3B T4A T4A T4A T4A

MBL1430 120-277VAC 0.12-0.05

MBL1434 120-250VDC 0.12-0.04

MBL1727

12-24VDC 1.42-0.71

T5 T5 T5 T5 T4 T4 T4 T4MBL1730 120-277VAC 0.14-0.06

MBL1734 120-250VDC 0.14-0.06

MBL2027

12-24VDC 1.67-0.83

T5 T5 T5 T5 T4 T4 T4 T4MBL2030 120-277VAC 0.17-0.07

MBL2034 120-250VDC 0.17-0.06

MBL2227

12-24VDC 1.83-0.92

T4A T4 T4A T4 T4 T4 T4 T4MBL2230 120-277VAC 0.18-0.08

MBL2234 120-250VDC 0.18-0.07

MBL2527

12-24VDC 2.08-1.04

T5 T5 T5 T5 T4 T4 T4 T4MBL2530 120-277VAC 0.21-0.09

MBL2534 120-250VDC 0.21-0.08

MBL4027

15.5 / 7.03

40 12-24VDC 3.33-1.67 T5 -T5 -T4 -T4 -

MBL4030 120-277VAC 0.33-0.14

MBL4527

12-24VDC 3.75-1.88

T4A -T4A -T4 -T4 -MBL4530 120-277VAC 0.38-0.16

MBL4534 120-250VDC 0.38-0.14

MBL5027 50 12-24VDC 4.17-2.08 T5 -T5 -T4 -T4 -

MBL5030 120-277VAC 0.42-0.18

DELIVERED LUMENS

WATTS MBL + MBG MBL + VMR MBL + VZRXF8 L70

TM-21 CALCULATED

14 910 800* 980* 60100 270000

20 1785 1570* 2009* 60100 270000

22 1365 1201* 1427* 60100 270000

25 2485 2236* 3186* 72600 278000

40 3625 3821 -60100 270000

45 2940 2955 -60100 270000

50 5824* 6139 -72600 278000

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L16

MBL SERIES

COMPACT SIZE – DIMENSIONS & WEIGHTS

9.90

4.63 4.56

9.63 10.95

8.38

2.04 1.69

.89

45o

MBX Ceiling

9.82

4.88

2.90

9.59

1.00

MBL & MBG Globe Only

2.90

11.15

9.82

4.63

8.16 DIA.

1.00

MBL & 8” Type V Spin-top MBL & 12” Type V Spin-top

2.90

13.13

4.63

9.32

12.19 DIA.

1.00

MBL & VMR Refractor

10.68

2.90

9.82

4.63

5.31 DIA.

1.00

MBD Stanchion

4.56

2.50

13.28

7.32

4.63

3.04

2.25 25o

MBA Pendant

1.29 1.31

.94

9.9

2.90

10.60 10.84

10.22

9.90

.94

MBL Pendant, Globe, Guard

MBL Flat Lens, Pathway Reector

Wall Mount

MBL Flat Lens Ceiling Mount

MBL Tank with Flat Lens

.94

MBL Pendant, Refractor, Guard

9.90

4.96

11.69

2.90

11.85

10.22

TYPICAL WEIGHTS (LBS.) W/STANDARD

GLOBE AND GUARD - MBL SERIES

14-25W Pendant 14.96 Ceiling 15.96 Wall 19.30 Stanchion 16.83

40-50W Pendant 20.96 Ceiling 21.69 Wall 25.30 Stanchion 22.83

13.32

9.31

1.05

MBB Wall Mount

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L17

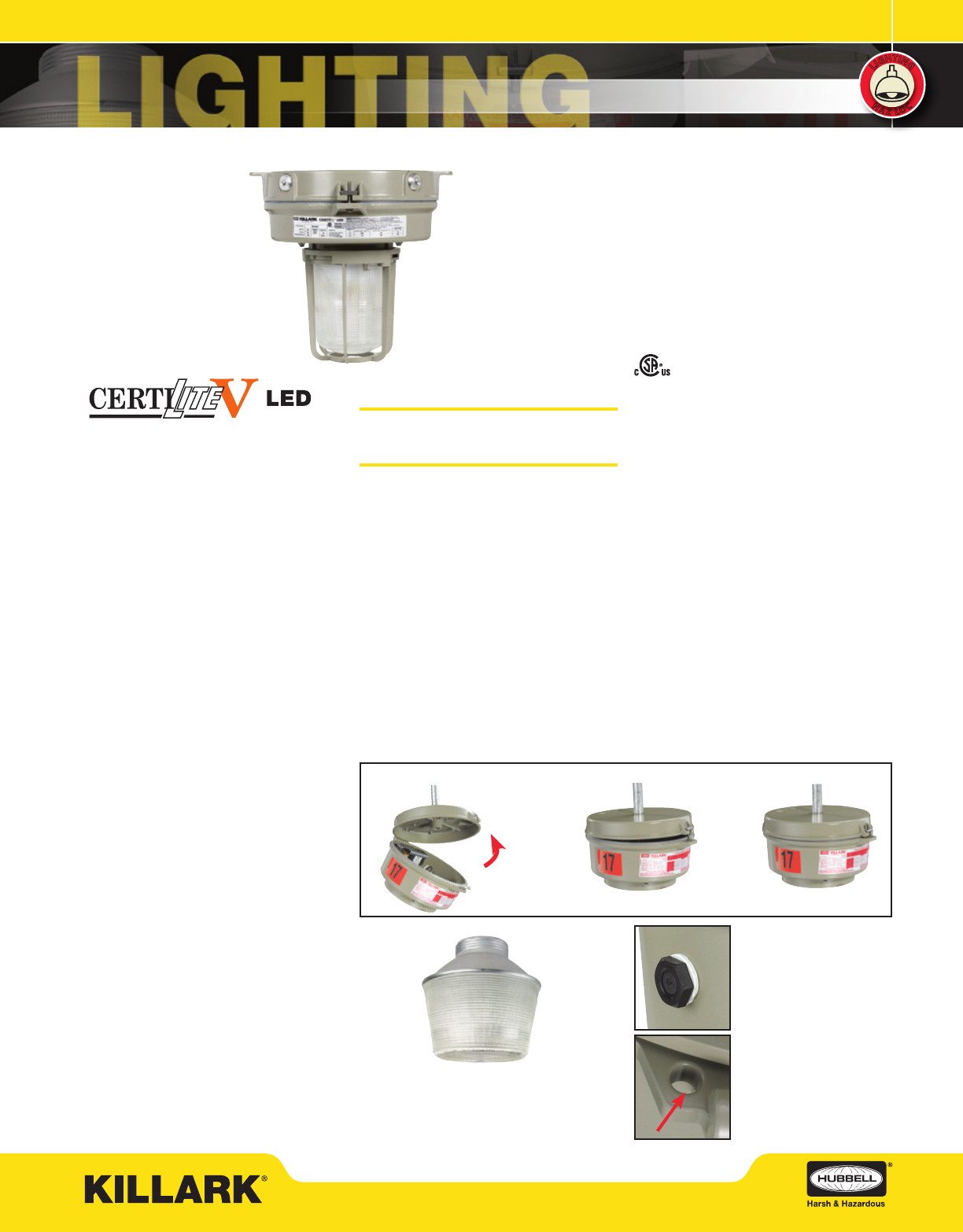

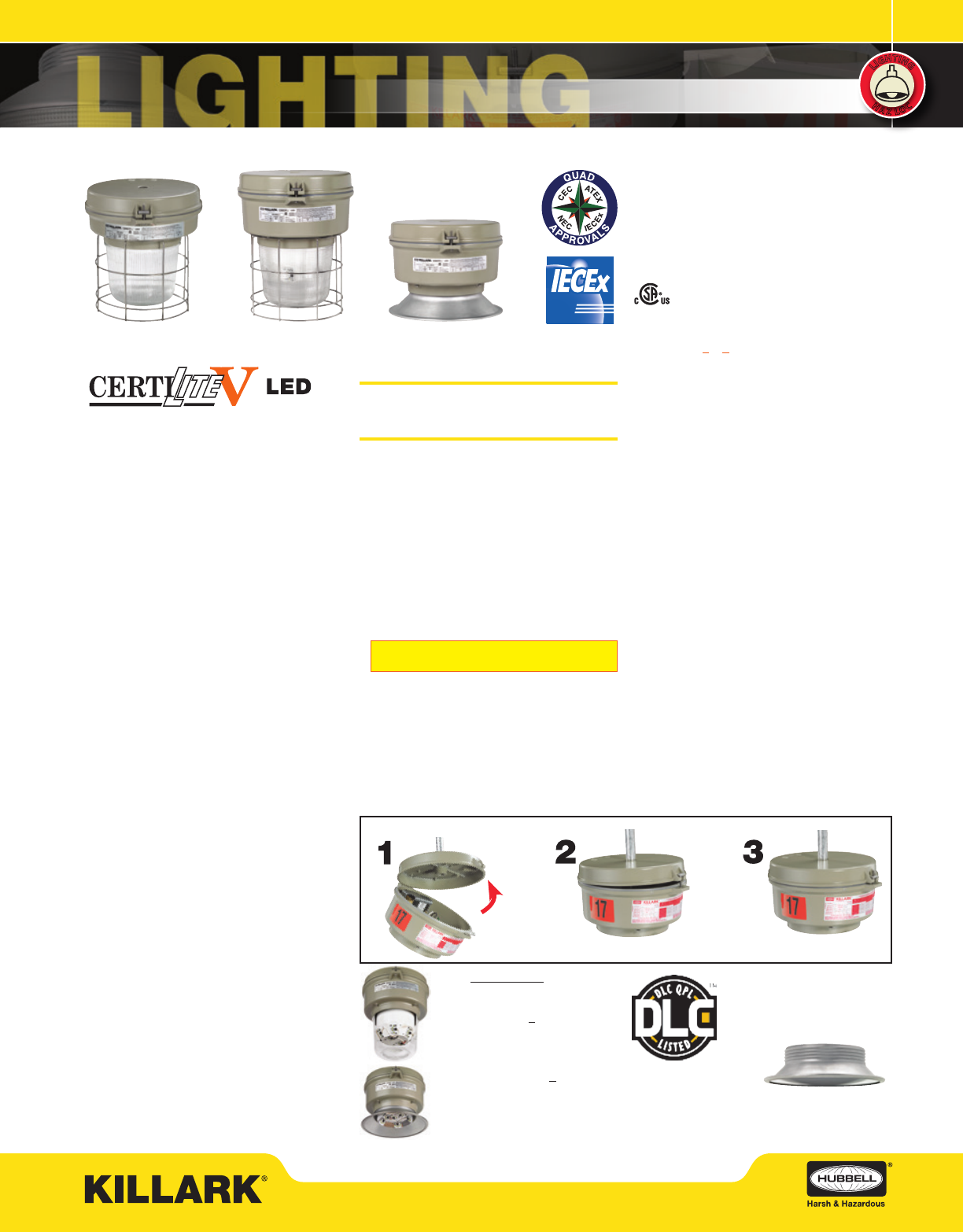

VM1L SERIES

REDUCED PROFILE – INTRODUCTION

FEATURES-SPECIFICATIONS

Certified - File LR11713

Class I, Div. 2, Groups A,B,C,D

Class l, Zone 2, Groups llC,llB,llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

Marine Rated (US only)

NEMA 3, 4X

Applications

CertiLite®V VM1L LED ﬁxtures are designed

for installations where moisture, dirt, dust,

corrosion and vibration may be present, or

NEMA 3 and 4X areas where wind, water,

snow, or high ambients can be expected.

They can be used in locations made

hazardous by the presence of ﬂammable

vapors or gases or combustible dusts as

deﬁned by the NEC.

Typical applications include manufacturing

plants, and certain chemical and

petrochemical processing facilities, sewage

treatment plants, off-shore and dockside

installations, garages and storage facilities.

Compliances

• UL-8750 for LED lighting

• UL-844 Standard for lighting ﬁxtures for

hazardous locations, Class I, Division 2; Class

II, Divisions 1 and 2; Class III

• CSA C22.2 no. 137-M1981 electric luminaries

for use in hazardous locations

• Enclosed and gasketed

• NEMA 3, 4X

Materials

• Driver tank, splice box and cast guards

corrosion resistant copper-free aluminum

alloy

• Baked powder epoxy/polyester ﬁnish,

electrostatically applied for complete, uniform

corrosion protection

• All external hardware - stainless steel

• Reﬂectors - Polyester reinforced ﬁberglass

LED Luminaire Features and Standards

Supplemental 20KA/10KV Surge Protection

is standard (for 120-277 VAC models)

10KA/10KV Surge Protection (for 347-480 VAC)

• Reduced proﬁle with Traditional Industrial

Appearance and Suitability

• Wide variety of optics including globes,

globes with reﬂectors, all-glass refractors,

and spin-top refractors

• Swing-Barrel Nut patented tank mounting system

• Optional Mounting arrangements including

Pendant, Wall, Ceiling, Stanchion and others

• VM1L LED Housings can be retroﬁtted to

existing VM splice boxes; upgrade from

HID sources

• Energy Savings – less than 55 Watts of Power

• Long Life – 50,000 - 55,000 maintenance free

hours to 70% initial lumens

• Crisp White Light for Excellent Color

Rendering – Chromaticity 5000°K (CCT);

70 CRI

• Ambient suitability -40°C to 55°C

• Instant on – including after power interruption

• “World Voltage” 120-277VAC 50/60Hz

• Solder-LESS LED Board Connections –

Vibration Resistant

• Dual Driver Option (DDR) – For additional

energy savings, half of the ﬁxture can be

turned off

• LM80-08 Measurement of lumen

maintenance for LED light sources

• LM79-08 Certiﬁed “Absolute” Photometry,

including Chromaticity Color for Solid State

Lighting

• L70 Values – Industry Nomenclature for

Hours of use to 70% of Initial Lumens

Earthquake Tab –

Built-in attachment point for

safety cables.

Safety: Secures xture

to structure in case of

conduit failure.

Photo controls – Class I

Div. 2 / N4X areas

Available as Field or Factory

Installed to save energy

when light not required.

* LM-xx are Illumination Engineering Society Standards designed to promote uniformity in testing procedures among

test labs and manufacturers. For more information go to www.ies.org

Swing-Barrel Nut (Patented)

Hang

Fixture

Tighten

Swing into Place

Polycarbonate 12”

Spin-top

Refractor VZRG2550

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L18

VM1L SERIES

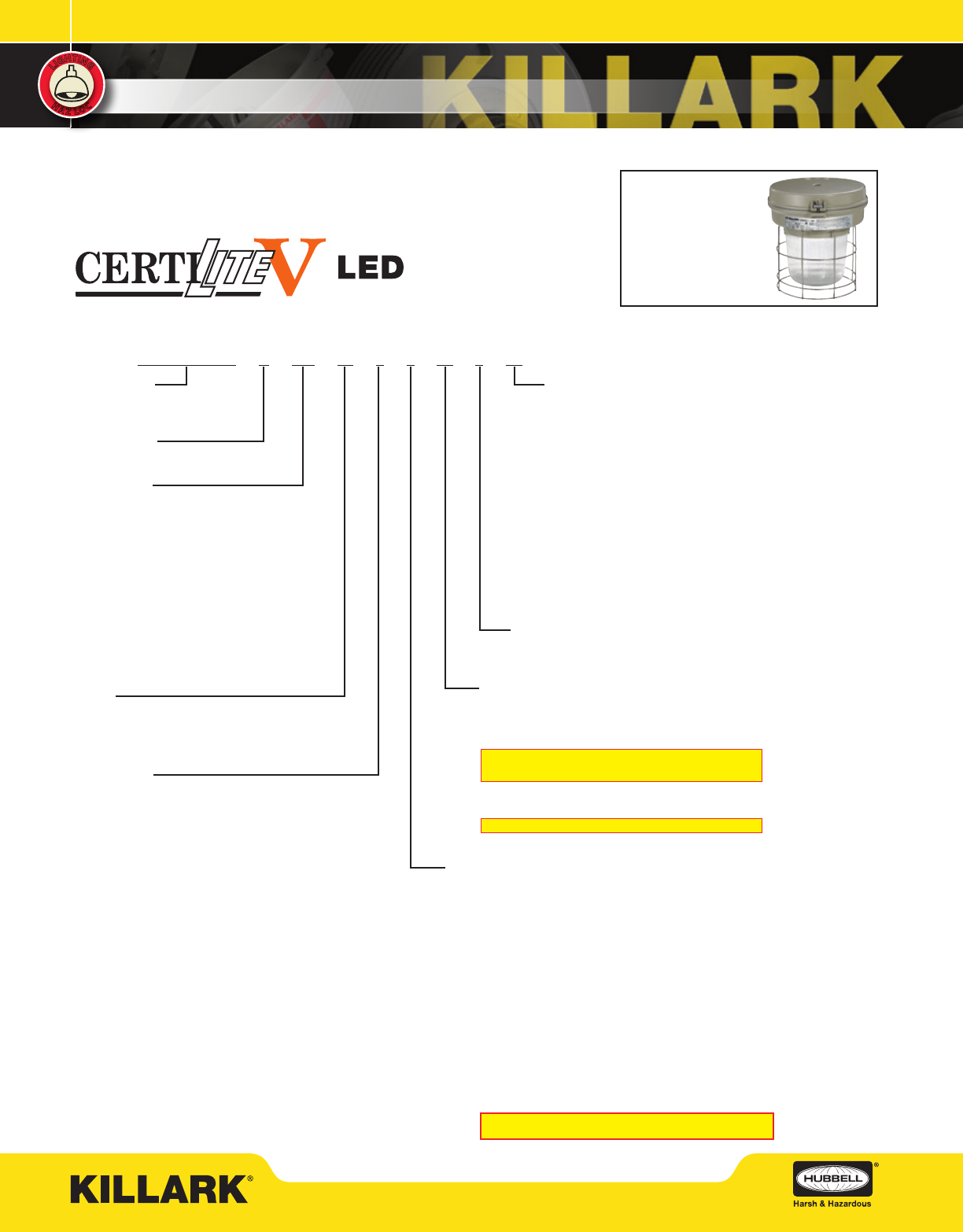

REDUCED PROFILE – CATALOG LOGIC

Optic

GL – Globe

R5 – Type V Refractor (all glass)

S8 – Type V 8” Spin-Top Refractor

S5 – Type V12” Spin-Top Refractor

P5 – Polycarbonate Type V 12” Spin-Top Refractor

Options

F – Single Fusel

FF – Double Fusel

TBX – Terminal Blocks

X= Variations

(May be alphanumeric to

indicate terminals)

P1 – Photocell 120Vm

Factory Installed

P2 – Photocell 208-277Vm

Factory Installed

QD – QD Wired at Drivern

CP – Component Pack

(Tank w/mount, optic, guard -

LED’s included in tank)

AN – Assembled

(Tank w/mount, optic, guard-

LED’s included in tank)

DDR – Dual Driver Option

CertiLite®V LED Catalog Number Logic

Guard

G – Guard (Globes & Glass refractors)

N – No Guard

Housing Series

5-1/2” thread w/driver

and LED’s

Voltage

05 – 480VAC 50/60 Hzj

15 – 347VAC 50/60 Hzj

27 – 12-24VDC

30 – 120-277VAC 50/60 Hz

34 – 120-250VDC

Mounting Type

A – Pendant

X – Ceiling

B – Wall Bracket

C – Cone Top

E – EZ Mount Adapterk

D – Stanchion 25°

S – Stanchion Straight 90°

N – None (mount ordered separately)

Lamp Wattage

40W – LED

45W – LED

50W – LED

Entry (Mounts available)

2 – 3/4” NPT (A,B,C,X)

3 – 1” NPT (A,B,C,X)

4 – 1 1/4” NPT (D,S)

5 – 1 1/2” NPT (D,S)

6 – 3/4” NPT 5-Hub (X)

7 – 1” NPT 5-Hub (X)

8 – M20 4-Hub (X)

9 – M20 5-Hub (X)

Z – EZ Mount Adapterk

N – None (mount ordered separately)

VM1L 45 30 0000 000

j Single step-down transformer feeds driver.

k Completes as “EZ”, conduit mounting boxes ordered seperately.

l Fusing not for Marine or Canadian installations.

m Photocells for Class I, Div. 2 only.

n QD = Quick Disconnect. Allows easy tank removal for maintenance. Electrician unplugs tank from mount for xture

relocation or repair due to impact damage.

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L19

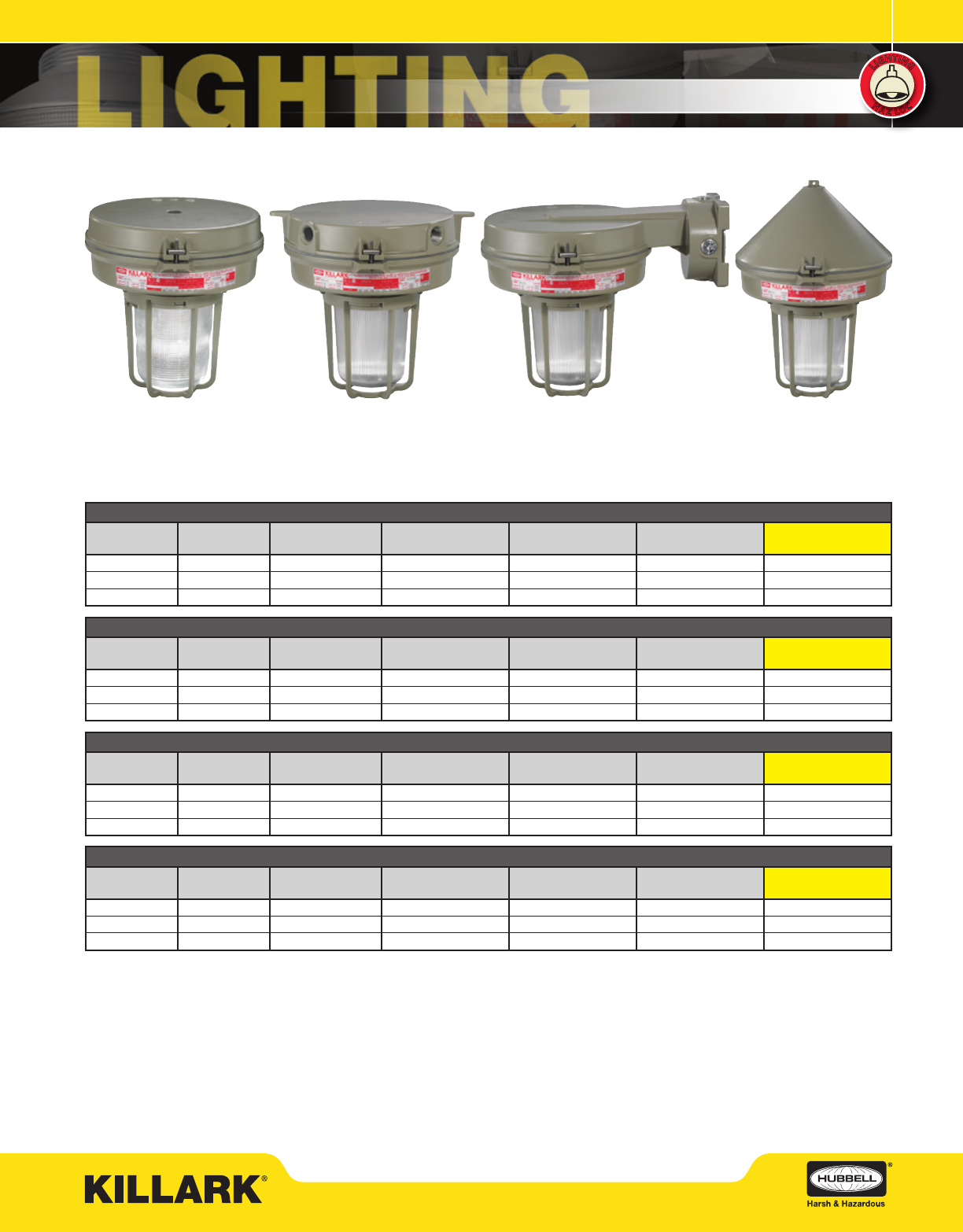

VM1L SERIES

REDUCED PROFILE – ORDERING INFORMATION

CEILINGPENDANT WALL CONE

ORDERING INFORMATION

j Catalog numbers shown are with Guard; to omit guard change ending G to N; e.g. VM1L4530A2GLN

k Catalog numbers shown are with 3/4” conduit openings; change “2” to “3” for 1” e.g. VM1L4530A3GLG

l 120VAC through 277VAC 50/60Hz

VM1L SERIES PENDANT WITH OPTIC AND GUARDj

WATTS HUB SIZEkVOLTAGElGLOBE & GUARD TYPE V GLASS

REFRACTOR & GUARD

8” SPIN-TOP TYPE V

REFRACTOR & GUARD

12” SPIN-TOP TYPE V

REFRACTOR & GUARD

40 3/4” 120-277VAC VM1L4030A2GLG VM1L4030A2R5G VM1L4030A2S8G VM1L4030A2S5G

45 3/4” 120-277VAC VM1L4530A2GLG VM1L4530A2R5G VM1L4530A2S8G VM1L4530A2S5G

50 3/4” 120-277VAC VM1L5030A2GLG VM1L5030A2R5G VM1L5030A2S8G VM1L5030A2S5G

VM1L SERIES CEILING WITH OPTIC AND GUARDj

WATTS HUB SIZEkVOLTAGElGLOBE & GUARD TYPE V GLASS

REFRACTOR & GUARD

8” SPIN-TOP TYPE V

REFRACTOR & GUARD

12” SPIN-TOP TYPE V

REFRACTOR & GUARD

40 3/4” 120-277VAC VM1L4030X2GLG VM1L4030X2R5G VM1L4030X2S8G VM1L4030X2S5G

45 3/4” 120-277VAC VM1L4530X2GLG VM1L4530X2R5G VM1L4530X2S8G VM1L4530X2S5G

50 3/4” 120-277VAC VM1L5030X2GLG VM1L5030X2R5G VM1L5030X2S8G VM1L5030X2S5G

VM1L SERIES WALL WITH OPTIC AND GUARDj

WATTS HUB SIZEkVOLTAGElGLOBE & GUARD TYPE V GLASS

REFRACTOR & GUARD

8” SPIN-TOP TYPE V

REFRACTOR & GUARD

12” SPIN-TOP TYPE V

REFRACTOR & GUARD

40 3/4” 120-277VAC VM1L4030B2GLG VM1L4030B2R5G VM1L4030B2S8G VM1L4030B2S5G

45 3/4” 120-277VAC VM1L4530B2GLG VM1L4530B2R5G VM1L4530B2S8G VM1L4530B2S5G

50 3/4” 120-277VAC VM1L5030B2GLG VM1L5030B2R5G VM1L5030B2S8G VM1L5030B2S5G

VM1L SERIES CONE WITH OPTIC AND GUARDj

WATTS HUB SIZEkVOLTAGElGLOBE & GUARD TYPE V GLASS

REFRACTOR & GUARD

8” SPIN-TOP TYPE V

REFRACTOR & GUARD

12” SPIN-TOP TYPE V

REFRACTOR & GUARD

40 3/4” 120-277VAC VM1L4030C2GLG VM1L4030C2R5G VM1L4030C2S8G VM1L4030C2S5G

45 3/4” 120-277VAC VM1L4530C2GLG VM1L4530C2R5G VM1L4530C2S8G VM1L4530C2S5G

50 3/4” 120-277VAC VM1L5030C2GLG VM1L5030C2R5G VM1L5030C2S8G VM1L5030C2S5G

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L20

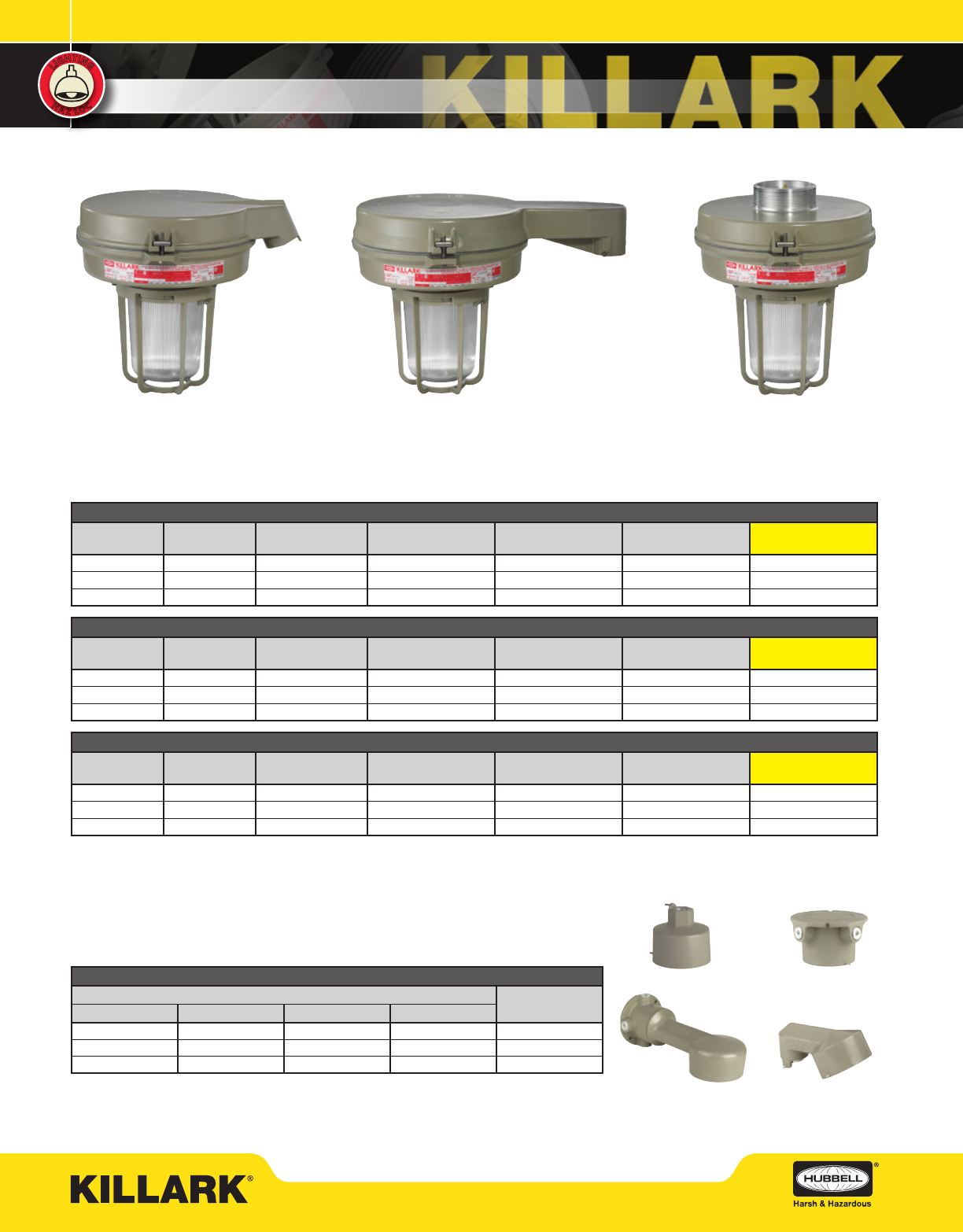

VM1L SERIES

REDUCED PROFILE – ORDERING INFORMATION

ORDERING INFORMATION

j Catalog numbers shown are with Guard; to omit guard change ending G to N; e.g. VM1L4530D5GLN

k Catalog numbers shown are with 1-1/2” conduit openings; change “5” to “4” for 1-1/4” e.g. VM1L4530D4GLG

l 120VAC through 277VAC 50/60Hz

m VMEZA tank adapters UL “classied” as an assembly for use between VM tanks and EZ mounts.

Order EZ mounts separately (see below).

Wall Bracket 25° Stanchion

Pendant Ceiling

*1-1/2” furnished with 1-1/2”-1-1/4” reducer and extension.

EZ ADAPTER

STANCHION STRAIGHT

STANCHION 25°

VM1L SERIES 25° STANCHION WITH OPTIC AND GUARDj

WATTS HUB SIZEkVOLTAGElGLOBE & GUARD TYPE V GLASS

REFRACTOR & GUARD

8” SPIN-TOP TYPE V

REFRACTOR & GUARD

12” SPIN-TOP TYPE V

REFRACTOR & GUARD

40 1-1/2” 120-277VAC VM1L4030D5GLG VM1L4030D5R5G VM1L4030D5S8G VM1L4030D5S5G

45 1-1/2” 120-277VAC VM1L4530D5GLG VM1L4530D5R5G VM1L4530D5S8G VM1L4530D5S5G

50 1-1/2” 120-277VAC VM1L5030D5GLG VM1L5030D5R5G VM1L5030D5S8G VM1L5030D5S5G

VM1L SERIES STRAIGHT STANCHION WITH OPTIC AND GUARDj

WATTS HUB SIZEkVOLTAGElGLOBE & GUARD TYPE V GLASS

REFRACTOR & GUARD

8” SPIN-TOP TYPE V

REFRACTOR & GUARD

12” SPIN-TOP TYPE V

REFRACTOR & GUARD

40 1-1/2” 120-277VAC VM1L4030S5GLG VM1L4030S5R5G VM1L4030S5S8G VM1L4030S5S5G

45 1-1/2” 120-277VAC VM1L4530S5GLG VM1L4530S5R5G VM1L4530S5S8G VM1L4530S5S5G

50 1-1/2” 120-277VAC VM1L5030S5GLG VM1L5030S5R5G VM1L5030S5S8G VM1L5030S5S5G

VM1L SERIES EZ ADAPTER WITH OPTIC AND GUARDj

WATTS HUB SIZEkVOLTAGElGLOBE & GUARD TYPE V GLASS

REFRACTOR & GUARD

8” SPIN-TOP TYPE V

REFRACTOR & GUARD

12” SPIN-TOP TYPE V

REFRACTOR & GUARD

40 NA 120-277VAC VM1L4030EZGLG VM1L4030EZR5G VM1L4030EZS8G VM1L4030EZS5G

45 NA 120-277VAC VM1L4530EZGLG VM1L4530EZR5G VM1L4530EZS8G VM1L4530EZS5G

50 NA 120-277VAC VM1L5030EZGLG VM1L5030EZR5G VM1L5030EZS8G VM1L5030EZS5G

MOUNTING BOXES FOR EZ ADAPTER

CATALOG NUMBER HUB SIZE

PENDANT CEILING BRACKET STANCHION

EZA2 EZX2 EZB2 —3/4”

EZA3 EZX3 EZB3 —1”

———EZD4A* 1-1/4”/1-1/2”*

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L21

VM1L SERIES

REDUCED PROFILE – COMPONENTS

Pendant Ceiling Wall

25° Stanchion

Cone Top

Straight Stanchion EZ Adapter*

VMEZA

* VMEZA is used between a driver tank and an EZ mount-ordered separately.

* * Furnished with non-metallic plugs. Also available: VMB10B wall 4xM25 hubs, and VMB810B 2xM20 side hubs

and 2xM25 top/bottom

VMG17

VMRWG8j

VMRWGSj

VZRG1550 VZRG2550

VMR175

VMPA40VMPSD40

VMFSPC1 VEXA100B

Tank Adapter

VMAG17

j VMRWG8 Plated Steel, VMRWGS 316 Stainless Steel.

CERTILITE®V VM MOUNTING SPLICE BOXES

HUB SIZE CATALOG NUMBER

PENDANT CEILING 4 HUB CEILING 5 HUB WALL CONE TOP 25 DEGREE STANCHION 90 DEGREE STANCHION

3/4” VMA2B VMX2B VMX6B VMB2B VMC2B — —

1” VMA3B VMX3B VMX7B VMB3B VMC3B — —

1-1/4” —————VMD4B VMS4B

1-1/2” —————VMD5B VMS5B

M-20 —VMX8B** VMX9B** VMB8B** — — —

VM1L LED OPTICS AND ACCESSORIES

DESCRIPTION OPTIC LOGIC GUARD

Globe (glass) VMG17 (GL) VMAG17

Refractor (all glass) Type V VMR175 (R5) VMAG17

Refractor (spin top) 8”Type V V ZR G15 50 (S 8) VMRWG8

Refractor (spin top) 12”Type V VZRG2550 (S5) VMRWGS

Refractor polycarbonate (spin-top) 12” Type V VZRP175 (P5) VMRWGS

DOME REFLECTOR (Polyester reinforced ﬁberglass) VMPSD40 NA

ANGLE REFLECTOR (Polyester reinforced ﬁberglass) VMPA40 NA

120VAC Photocell with FS Style Cover VMFSPC1 NA

208-277VAC Photocell with FS Style Cover VMFSPC2 NA

3-sided EXIT Accessory (use without guard) VEXA100B NA

Tank adapter to Crouse-Hinds® VM Series mounts* VMCHVM NA

ORDERING INFORMATION AND AMBIENT SUITABILITY C1D2 C2D1 L70

CATALOG

NO.

WEIGHT

LBS./KG

WATTS

VOLTAGE AMPS VMG15

LUMENS

VMR175

LUMENS 40°C 55°C 40°C 55°C TM-21

CALCULATED

VM1L4005

15.50 /

7.03

480 VAC 0.09

3812 4019 T6 T5 T4 (EFG) 60100 270000

VM1L4015

347 VAC 0.13

VM1L4027

12-24VDC

3.33-1.67

VM1L4030

120-277VAC

0.36-0.16

VM1L4505

480 VAC 0.10

2858.00 2955 T4A T4 T4 (EFG) 60100 270000

VM1L4515

347 VAC 0.14

VM1L4527

12-24VDC

4.00-2.00

VM1L4530

120-277VAC

0.42-0.18

VM1L4534

120-250VDC

0.40-0.19

VM1L5005

480 VAC 0.10

6162.00 6427 T5 T4A T4 (EFG) 72600 278000

VM1L5015

347 VAC 0.14

VM1L5027

12-24VDC

4.17-2.08

VM1L5030

120-277VAC

0.43-0.18

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L22

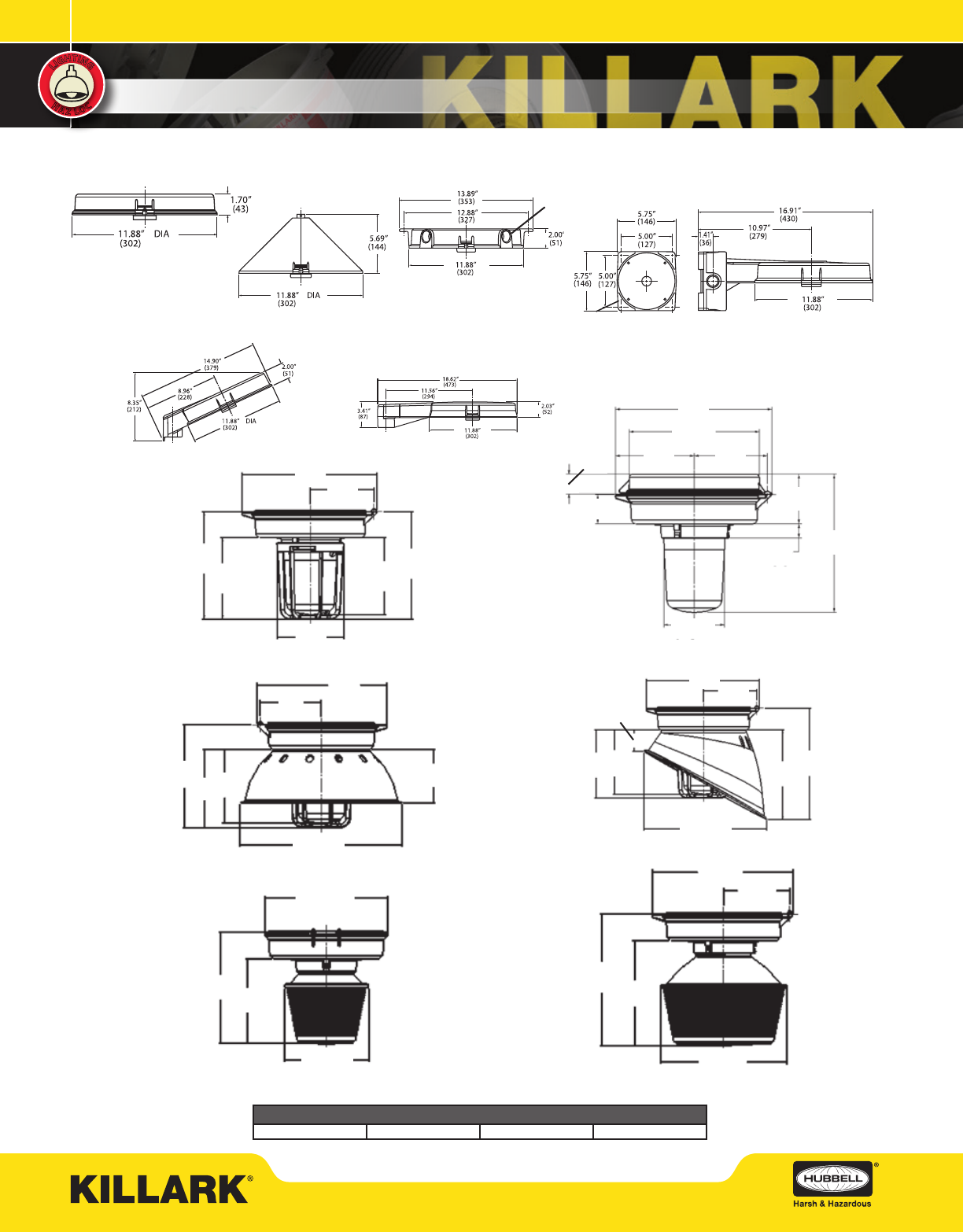

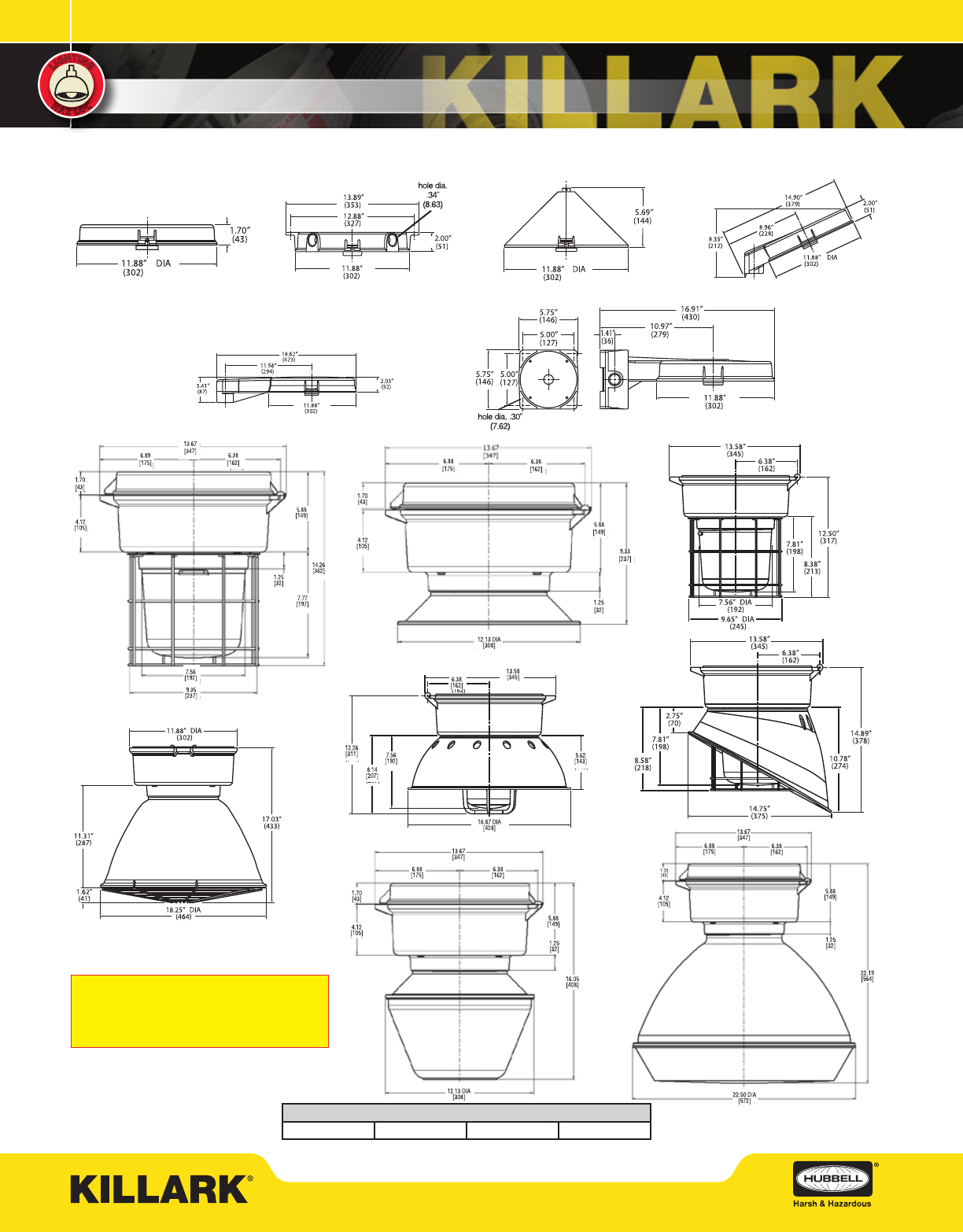

VM1L SERIES

REDUCED PROFILE – DIMENSIONS & WEIGHTS

13.55

(344)

6.38

(162)

10.77

(274)

8.21

(208)

7.74

(197)

10.77

(274)

6.75

(171)

VM1L Tank Globe & Guard

10.77

(274) 8.21

(208)

7.74

(197)

5.62

(143)

13.58

(345)

6.38

(162)

16.87 DIA.

(428)

VM1L Tank with Dome Refractor

13.58

(345) 6.38

(162)

8.21

(208)

7.74

(197)

2.63

(67)

10.78

(274)

13.34

(339)

14.75 DIA

(375)

VM1L Tank with Angle Refractor

VM1L Tank with 12” Spin-top Refractor

12.73

(323)

10.17

(258)

13.58

(345)

6.38

(162)

12.19

(310)

13.67

(347)

6.88

(175)

1.70

(43)

2.56

(65)

6.38

(162)

4.33

(110)

12.07

(307)

5.31 DIA.

(135)

1.25

(32)

11.35 DIA.

(299)

VM1L Tank w/Pendant M ount & Globe

hole dia. .30”

(7.62) Wall Bracket Mount

hole dia.

.34”

(8.63)

Ceiling Mount

Cone Mount

Stanchion (0°) Mount

Pendant Mount

VM1L Tank with 8” Spin-top Refractor

8.82

(275) 8.25

(210)

11.87 DIA.

(301)

8.16 DIA.

(207)

Stanchion (25°) Mount

TYPICAL WEIGHTS (LBS.) W/ STANDARD GLOBE AND GUARD - VM1L SERIES

Pendant 23.00 Ceiling 24.10 Wall 27.5 0 Stanchion 23.90

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L23

VM2&4LB, VM2&4LC SERIES

HIGH WATTAGE – INTRODUCTION

LED Luminaire Features and Standards

Supplemental 20KA/10KV Surge Protection

is standard (for 120-277 VAC models)

10KA/10KV Surge Protection (for 347-480 VAC)

• Traditional Industrial Appearance,

Suitability, and Photometric Performance

• Wide variety of optics including globes,

globes with reﬂectors, all-glass refractors,

spin-top refractors and ﬂat lens

• Swing-Barrel Nut patented tank mounting

system

• Optional Mounting arrangements including

Pendant, Wall, Ceiling, Stanchion and others

• VM4L LED Housings can be retroﬁtted to

existing VM splice boxes; upgrade from

HID sources

• VM2Lx housing is 1.56” shallower for low

ceilings

• Crisp White Light for Excellent Color

Rendering – Chromaticity 5000 K (CCT

range); approx. 70 CRI

• Energy Savings – less than 130 Watts of

Power

• Long Life – 50,000 - 55,000 maintenance

free hours to 70% initial lumens

• Ambient suitability -40°C to 55°C

VM4LB with Globe/

Guard

VM4LC with Flat Lens

FEATURES-SPECIFICATIONS

Certified - File LR11713

Class I, Div. 2, Groups A,B,C,D

Class I, Zone 2, Groups IIC, IIB, IIA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4X

IP66

Marine Rated (US only)

Contact Factory for other certication details

Applications

CERTILITE® V VM4L LED ﬁxtures are

designed for installations where moisture,

dirt, dust, corrosion and vibration may be

present, or NEMA 3 and 4X areas where

wind, water, snow or high ambients can be

expected. They can be used in locations

made hazardous by the presence of

ﬂammable vapors or gases or combustible

dusts as deﬁned by the NEC/CEC.

Typical applications include manufacturing

plants, food processing, certain chemical

and petrochemical processing facilities,

sewage treatment plants, off-shore and

dockside installations, garages and storage

facilities.

Compliances

• UL-8750 for LED lighting

• UL-844 Standard for lighting ﬁxtures for

hazardous locations, Class I, Division 2;

Class II, Divisions 1 and 2; Class III

• CSA C22.2 no. 137-M1981 electric

luminairies for use in hazardous locations

• Enclosed and gasketed

• NEMA 3, 4X

• IP66 & Marine

Materials

• Driver tank, splice box and cast guards

corrosion resistant copper-free aluminum

alloy

• Baked powder epoxy/polyester ﬁnish,

electrostatically applied for complete,

uniform corrosion protection

• All external hardware – stainless steel

• Reﬂectors – Polyester reinforced ﬁber

glass or aluminum

LED INTERNAL

Heat Sinks

Bulb style (VM4LB)

Maximum lumens but has

more glare at line-of-sight.

Concave style (VM4LC)

for a compact proﬁle.

Recessed concave LED

array produces less glare.

Non-Glass Polycarbonate

12” Flat Lens

Patented Design

VM2LB with Globe/

Guard

Swing-Barrel Nut (Patented)

Hang

Fixture Swing into Place Tighten

Consult website

for current list of

approved luminaires

IECEx Rated Models (VM4L with IEx sufﬁx)

Ex nA IIC T4, Gc / Ex tb IIIC T83ºC Db

Tamp -40ºC <Ta<+65ºC, IP66

IECEx Certiﬁcate

QPS 15.0006

ATEX Certiﬁcate

CML 15ATEX4101X(nA)

CML 15ATEX3102X(tb)

• Instant On – Including after power

interruption

• World Voltage 120 – 277VAC 50/60Hz

• Solder-LESS LED Board Connections –

Vibration Resistant

• Dual Driver Option (DDR) – For additional

energy savings, half of the ﬁxture can be

turned off.

• LM80-08 Measurement of lumen

maintenance for LED light sources

(including TM-21)

• LM79-08 Certiﬁed “Absolute” Photometry,

including Chromaticity Color for Solid

State Lighting

• L70 Values – Industry Nomenclature for

Hours of use to 70% of Initial Lumens

• Two LED internal heat sink styles

» Bulb VM2LB/VM4LB

» Concave VM2LC/VM4LC

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L24

VM2&4LB, VM2&4LC SERIES

HIGH WATTAGE – CATALOG LOGIC

Options/Accessories

F – Single Fusen

FF – Double Fusen

TBx – Terminal Blocks

x= Variations (May

be alphanumeric to

indicate terminals)

IEX – IEC Ex includes TBL &

external ground. Not

available with polyoptic,

fuses, photocells or

347/480 volt input.

P1 – Photocell 120Vm

Factory Installed

P2 – Photocell 208-277Vm

Factory Installed

P3 – Photocell 347Vo

Factory Installed

QD – QD Wired at Drivern

CP – Component Pack (Tank w/

mount, optic, guard-

LED’s included in tank)

AN – Assembled (Tank w/mount,

optic, guard- LED’s

included in tank)

Accessories – See q below

CertiLite®V LED Catalog Number Logic

B – Bulb heat sink

C – Concave heat sink

Housing Series

7-3/4” thread w/driver

and LED’s

Voltage

30 – 120-277VAC 50/60 Hz

33 – 347-480VAC 50/60Hz

34 – 120-250VDC (to 105W)j

Mounting Type

A – Pendant

X – Ceiling

B – Wall Bracket

C – Cone Top

E – EZ Mount Adapterk

D – Stanchion 25°

S – Stanchion Straight 90°

N – None (mount ordered separately)

Lamp Wattage

Approx. VA (wattage) of driver & LED’s

040W LED VM2, VM4

050W LED VM2, VM4

055W LED VM2, VM4

065W LED VM2, VM4

070W LED VM4

080W LED VM4

090W LED VM4

100W LED VM4

105W LED VM4

130W LED VM4

Guard

G – Guard (Globes & Glass refractors)

N – No Guard

Optic

GL – Globe

R5 – Type V Refractor (all glass)

ER – Enclosed Refractor

EP – Polycarbonate Shielded Enclosed Reﬂector*

P5 – 12” Type V Polycarbonate Spin-Top*

S2 – Type II 12” Spin-Top Refractor

S5 – Type V 12” Spin-Top Refractor

PF – Spin-Top with ﬂat poly lens (VM2LC and VM4LC only)

GF – Spin-Top with ﬂat glass lens (VM2LC and VM4LC only)

Entry (Mounts available)

2 – 3/4” NPT (A,B,C,X)

3 – 1” NPT (A,B,C,X)

4 – 1 1/4” NPT (D,S)

5 – 1 1/2” NPT (D,S)

6 – 3/4” NPT 5-Hub (X)

j 80W-105W only (also 120-277VAC 50/60HZ)

k Completes as “EZ”, conduit mounting boxes ordered separately

l Fusing not for Marine or Canadian installations.

m Photocells for Class I, Div. 2 only.

n QD = Quick Disconnect. Allows easy tank removal for maintenance. Electrician

unplugs tank from mount for xture relocation or repair due to impact damage.

o Accessories - Shown for ordering convenience (shipped separately)

S VMPSD40 Fiberglass White Reector

A VMPA40 Fiberglass ANGLE White Reector

D HRD400 Deep White Reector

Z HRD400ALZ Deep Alzak Reector

p IEx option only available with VM4L and requires glass optics

*Non-glass Group G Food Processing Suitability

Killark high efﬁciency

LED Luminaries

require NO external

heat sink which adds

weight and collects

dust and other

contaminates

VM2L or VM4L B 130 30 0000 000

7 – 1” NPT 5-Hub (X)

8 – M20 4-Hub (X)

9 – M25 5-Hub (X)

Z – EZ Mount Adapterk

N – None (mount ordered separately)

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L25

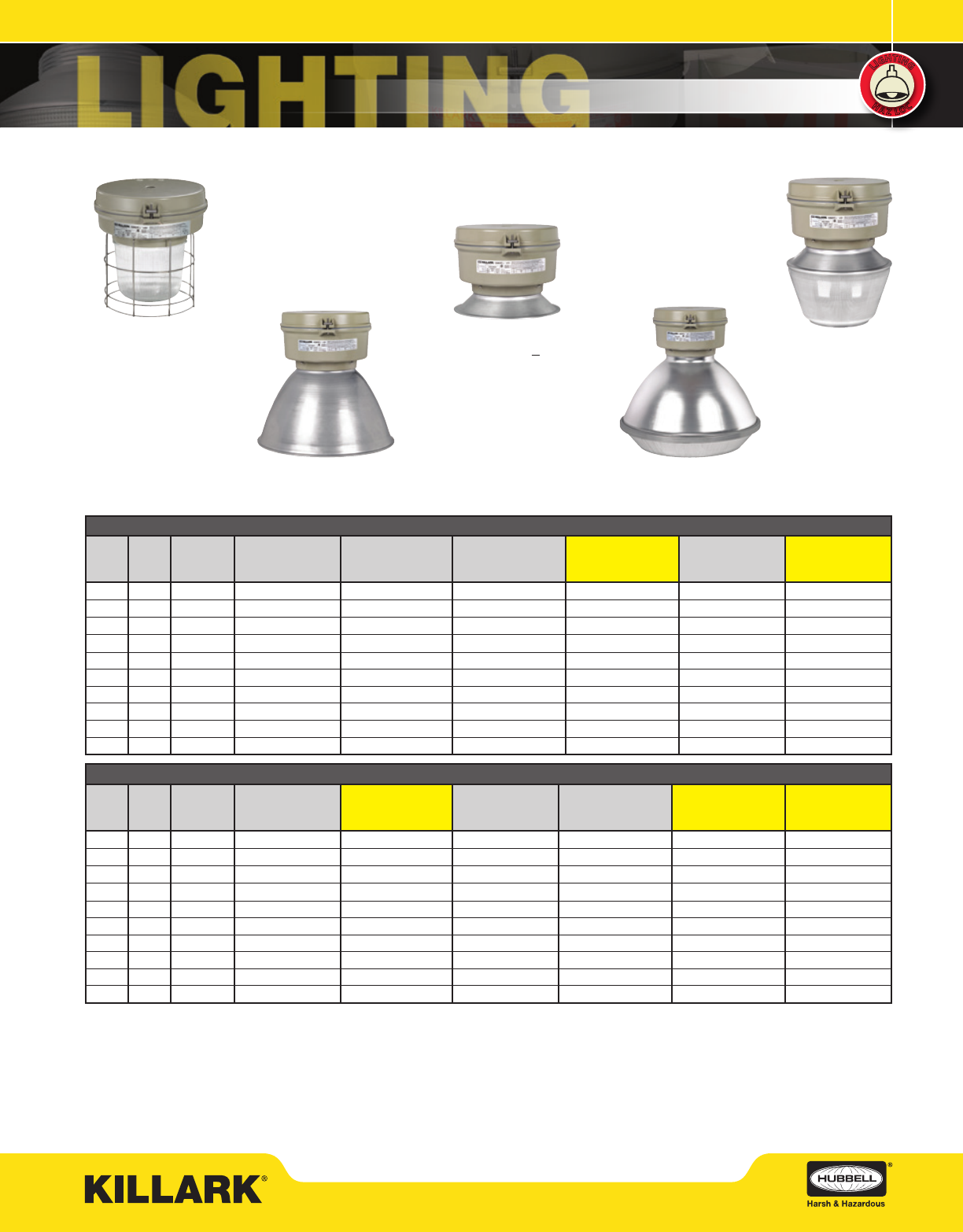

VM2&4LB, VM2&4LC SERIES

HIGH WATTAGE – ORDERING INFORMATION

j Catalog numbers shown are with Guard (except ER/EP/PF); to omit guard change ending G to N; e.g. VM4LB05530X2GLN.

k Catalog numbers shown are with 3/4” conduit openings; change “2” to “3” for 1”; e.g. VM4LB05530X3GLG.

l 120VAC through 277VAC 50/60Hz. See logic for other voltages.

m 40W, 50W, 55W and 65W are available in VM2LB/VM2LC shallower housings. Substitute VM2L for VM4L in catalog number.

* For Glass 12” Spin-Top Flat Lens change PFN to GFN at end of catalog number.

Globe & Guard or

Glass Refractor & Guard

Enclosed Reector

Spin-Top Poly or

Glass Refractor

Poly Food Optic

Spin-Top Poly or Glass

Flat Lens VM4LC only

VM4LB SERIES PENDANT WITH OPTIC AND GUARDj

WATTS HUB

SIZEkVOLTAGElGLOBE & GUARD TYPE V GLASS

REFRACTOR & GUARD

12” SPIN-TOP

TYPE V GLASS

REFRACTOR & GUARD

12” SPIN-TOP TYPE V

POLYCARBONATE

REFRACTOR & GUARD

ENCLOSED

REFLECTOR

POLYCARBONATE

FOOD OPTIC

40m3/4” 120-277VAC VM4LB04030A2GLG VM4LB04030A2R5G VM4LB04030A2S5G VM4LB04030A2P5G VM4LB04030A2ERN VM4LB04030A2EPN

50m3/4” 120-277VAC VM4LB05030A2GLG VM4LB05030A2R5G VM4LB05030A2S5G VM4LB05030A2P5G VM4LB05030A2ERN VM4LB05030A2EPN

55m3/4” 120-277VAC VM4LB05530A2GLG VM4LB05530A2R5G VM4LB05530A2S5G VM4LB05530A2P5G VM4LB05530A2ERN VM4LB05530A2EPN

65m3/4” 120-277VAC VM4LB06530A2GLG VM4LB06530A2R5G VM4LB06530A2S5G VM4LB06530A2P5G VM4LB06530A2ERN VM4LB06530A2EPN

70 3/4” 120-277VAC VM4LB07030A2GLG VM4LB07030A2R5G VM4LB07030A2S5G VM4LB07030A2P5G VM4LB07030A2ERN VM4LB07030A2EPN

80 3/4” 120-277VAC VM4LB08030A2GLG VM4LB08030A2R5G VM4LB08030A2S5G VM4LB08030A2P5G VM4LB08030A2ERN VM4LB08030A2EPN

90 3/4” 120-277VAC VM4LB09030A2GLG VM4LB09030A2R5G VM4LB09030A2S5G VM4LB09030A2P5G VM4LB09030A2ERN VM4LB09030A2EPN

100 3/4” 120-277VAC VM4LB10030A2GLG VM4LB10030A2R5G VM4LB10030A2S5G VM4LB10030A2P5G VM4LB10030A2ERN VM4LB10030A2EPN

105 3/4” 120-277VAC VM4LB10530A2GLG VM4LB10530A2R5G VM4LB10530A2S5G VM4LB10530A2P5G VM4LB10530A2ERN VM4LB10530A2EPN

130 3/4” 120-277VAC VM4LB13030A2GLG VM4LB13030A2R5G VM4LB13030A2S5G VM4LB13030A2P5G VM4LB13030A2ERN VM4LB13030A2EPN

VM4LC SERIES PENDANT WITH OPTIC AND GUARDj

WATTS HUB

SIZEkVOLTAGElGLOBE & GUARD

12” SPIN-TOP

POLYCARBONATE

FLAT LENS*

TYPE V GLASS

REFRACTOR

& GUARD

12” SPIN-TOP TYPE V

GLASS REFRACTOR

& GUARD

12” SPIN-TOP TYPE V

POLYCARBONATE

REFRACTOR & GUARD

POLYCARBONATE

FOOD OPTIC

40m3/4” 120-277VAC VM4LC04030A2GLG VM4LC04030A2PFN VM4LC04030A2R5G VM4LC04030A2S5G VM4LC04030A2P5G VM4LC04030A2EPN

50m3/4” 120-277VAC VM4LC05030A2GLG VM4LC05030A2PFN VM4LC05030A2R5G VM4LC05030A2S5G VM4LC05030A2P5G VM4LC05030A2EPN

55m3/4” 120-277VAC VM4LC05530A2GLG VM4LC05530A2PFN VM4LC05530A2R5G VM4LC05530A2S5G VM4LC05530A2P5G VM4LC05530A2EPN

65m3/4” 120-277VAC VM4LC06530A2GLG VM4LC06530A2PFN VM4LC06530A2R5G VM4LC06530A2S5G VM4LC06530A2P5G VM4LC06530A2EPN

70 3/4” 120-277VAC VM4LC07030A2GLG VM4LC07030A2PFN VM4LC07030A2R5G VM4LC07030A2S5G VM4LC07030A2P5G VM4LC07030A2EPN

80 3/4” 120-277VAC VM4LC08030A2GLG VM4LC08030A2PFN VM4LC08030A2R5G VM4LC08030A2S5G VM4LC08030A2P5G VM4LC08030A2EPN

90 3/4” 120-277VAC VM4LC09030A2GLG VM4LC09030A2PFN VM4LC09030A2R5G VM4LC09030A2S5G VM4LC09030A2P5G VM4LC09030A2EPN

100 3/4” 120-277VAC VM4LC10030A2GLG VM4LC10030A2PFN VM4LC10030A2R5G VM4LC10030A2S5G VM4LC10030A2P5G VM4LC10030A2EPN

105 3/4” 120-277VAC VM4LC10530A2GLG VM4LC10530A2PFN VM4LC10530A2R5G VM4LC10530A2S5G VM4LC10530A2P5G VM4LC10530A2EPN

130 3/4” 120-277VAC VM4LC13030A2GLG VM4LC13030A2PFN VM4LC13030A2R5G VM4LC13030A2S5G VM4LC13030A2P5G VM4LC13030A2EPN

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L26

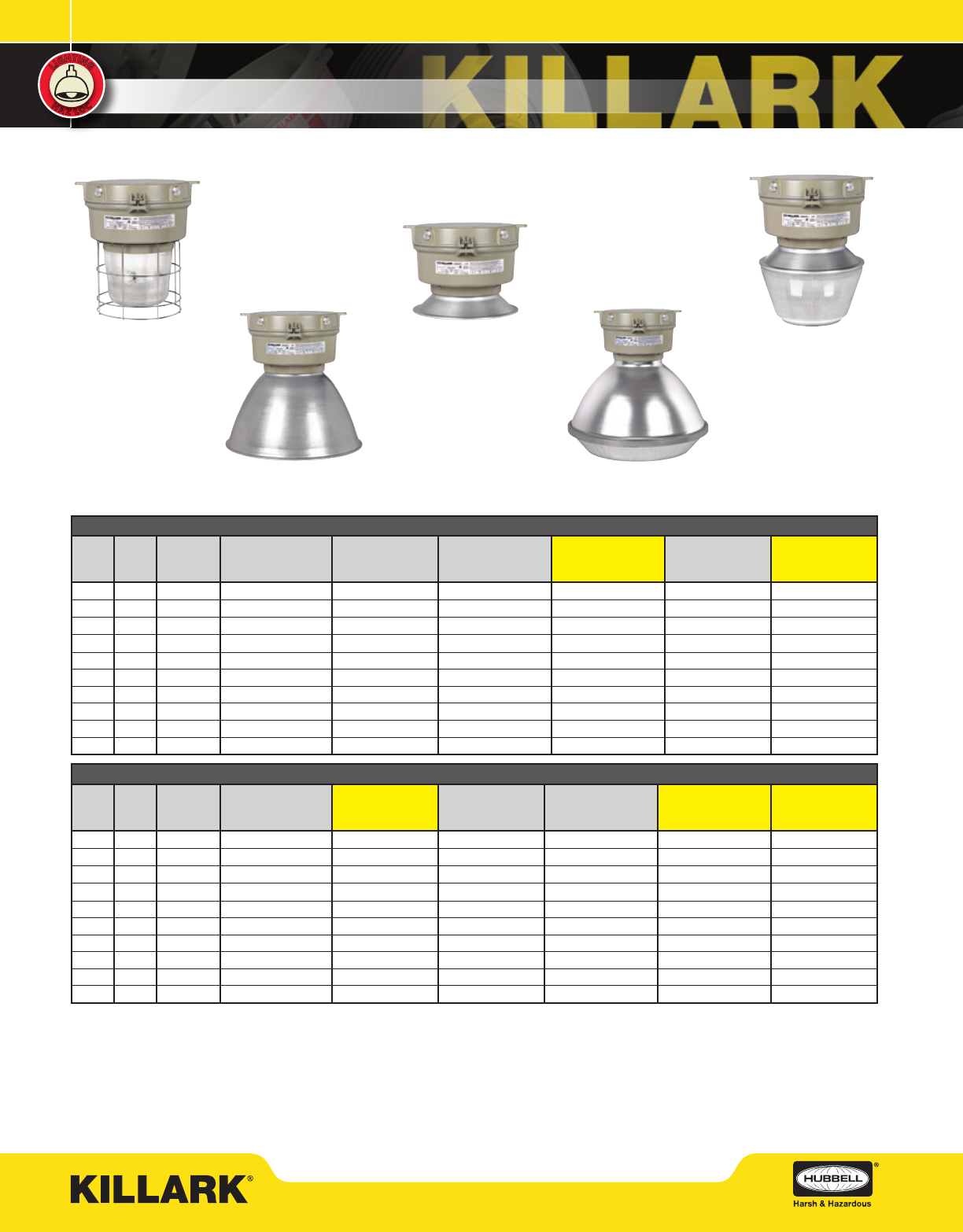

VM2&4LB, VM2&4LC SERIES

HIGH WATTAGE – ORDERING INFORMATION

j Catalog numbers shown are with Guard (except ER/EP/PF); to omit guard change ending G to N; e.g. VM4LB05530X2GLN.

k Catalog numbers shown are with 3/4” conduit openings; change “2” to “3” for 1”; e.g. VM4LB05530X3GLG.

l 120VAC through 277VAC 50/60Hz. See logic for other voltages.

m 40W, 50W, 55W and 65W are available in VM2LB/VM2LC shallower housings. Substitute VM2L for VM4L in catalog number.

* For Glass 12” Spin-Top Flat Lens change PFN to GFN at end of catalog number.

Globe & Guard or

Glass Refractor & Guard

Enclosed Reector

Spin-Top Poly or

Glass Refractor

Poly Food Optic

Spin-Top Poly or Glass

Flat Lens

VM4LB SERIES CEILING WITH OPTIC AND GUARDj

WATTS HUB

SIZEkVOLTAGElGLOBE & GUARD

TYPE V GLASS

REFRACTOR &

GUARD

12” SPIN-TOP

TYPE V GLASS

REFRACTOR & GUARD

12” SPIN-TOP TYPE V

POLYCARBONATE

REFRACTOR & GUARD

ENCLOSED

REFLECTOR

POLYCARBONATE

FOOD OPTIC

40m3/4” 120-277VAC VM4LB04030X2GLG VM4LB04030X2R5G VM4LB04030X2S5G VM4LB04030X2P5G VM4LB04030X2ERN VM4LB04030X2EPN

50m3/4” 120-277VAC VM4LB05030X2GLG VM4LB05030X2R5G VM4LB05030X2S5G VM4LB05030X2P5G VM4LB05030X2ERN VM4LB05030X2EPN

55m3/4” 120-277VAC VM4LB05530X2GLG VM4LB05530X2R5G VM4LB05530X2S5G VM4LB05530X2P5G VM4LB05530X2ERN VM4LB05530X2EPN

65m3/4” 120-277VAC VM4LB06530X2GLG VM4LB06530X2R5G VM4LB06530X2S5G VM4LB06530X2P5G VM4LB06530X2ERN VM4LB06530X2EPN

70 3/4” 120-277VAC VM4LB07030X2GLG VM4LB07030X2R5G VM4LB07030X2S5G VM4LB07030X2P5G VM4LB07030X2ERN VM4LB07030X2EPN

80 3/4” 120-277VAC VM4LB08030X2GLG VM4LB08030X2R5G VM4LB08030X2S5G VM4LB08030X2P5G VM4LB08030X2ERN VM4LB08030X2EPN

90 3/4” 120-277VAC VM4LB09030X2GLG VM4LB09030X2R5G VM4LB09030X2S5G VM4LB09030X2P5G VM4LB09030X2ERN VM4LB09030X2EPN

100 3/4” 120-277VAC VM4LB10030X2GLG VM4LB10030X2R5G VM4LB10030X2S5G VM4LB10030X2P5G VM4LB10030X2ERN VM4LB10030X2EPN

105 3/4” 120-277VAC VM4LB10530X2GLG VM4LB10530X2R5G VM4LB10530X2S5G VM4LB10530X2P5G VM4LB10530X2ERN VM4LB10530X2EPN

130 3/4” 120-277VAC VM4LB13030X2GLG VM4LB13030X2R5G VM4LB13030X2S5G VM4LB13030X2P5G VM4LB13030X2ERN VM4LB13030X2EPN

VM4LC SERIES CEILING WITH OPTIC AND GUARDj

WATTS HUB

SIZEkVOLTAGElGLOBE & GUARD

12” SPIN-TOP

POLYCARBONATE

FLAT LENS*

TYPE V GLASS

REFRACTOR

& GUARD

12” SPIN-TOP TYPE V

GLASS REFRACTOR

& GUARD

12” SPIN-TOP TYPE V

POLYCARBONATE

REFRACTOR & GUARD

POLYCARBONATE

FOOD OPTIC

40m3/4” 120-277VAC VM4LC04030X2GLG VM4LC04030X2PFN VM4LC04030X2R5G VM4LC04030X2S5G VM4LC04030X2P5G VM4LC04030X2EPN

50m3/4” 120-277VAC VM4LC05030X2GLG VM4LC05030X2PFN VM4LC05030X2R5G VM4LC05030X2S5G VM4LC05030X2P5G VM4LC05030X2EPN

55m3/4” 120-277VAC VM4LC05530X2GLG VM4LC05530X2PFN VM4LC05530X2R5G VM4LC05530X2S5G VM4LC05530X2P5G VM4LC05530X2EPN

65m3/4” 120-277VAC VM4LC06530X2GLG VM4LC06530X2PFN VM4LC06530X2R5G VM4LC06530X2S5G VM4LC06530X2P5G VM4LC06530X2EPN

70 3/4” 120-277VAC VM4LC07030X2GLG VM4LC07030X2PFN VM4LC07030X2R5G VM4LC07030X2S5G VM4LC07030X2P5G VM4LC07030X2EPN

80 3/4” 120-277VAC VM4LC08030X2GLG VM4LC08030X2PFN VM4LC08030X2R5G VM4LC08030X2S5G VM4LC08030X2P5G VM4LC08030X2EPN

90 3/4” 120-277VAC VM4LC09030X2GLG VM4LC09030X2PFN VM4LC09030X2R5G VM4LC09030X2S5G VM4LC09030X2P5G VM4LC09030X2EPN

100 3/4” 120-277VAC VM4LC10030X2GLG VM4LC10030X2PFN VM4LC10030X2R5G VM4LC10030X2S5G VM4LC10030X2P5G VM4LC10030X2EPN

105 3/4” 120-277VAC VM4LC10530X2GLG VM4LC10530X2PFN VM4LC10530X2R5G VM4LC10530X2S5G VM4LC10530X2P5G VM4LC10530X2EPN

130 3/4” 120-277VAC VM4LC13030X2GLG VM4LC13030X2PFN VM4LC13030X2R5G VM4LC13030X2S5G VM4LC13030X2P5G VM4LC13030X2EPN

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L27

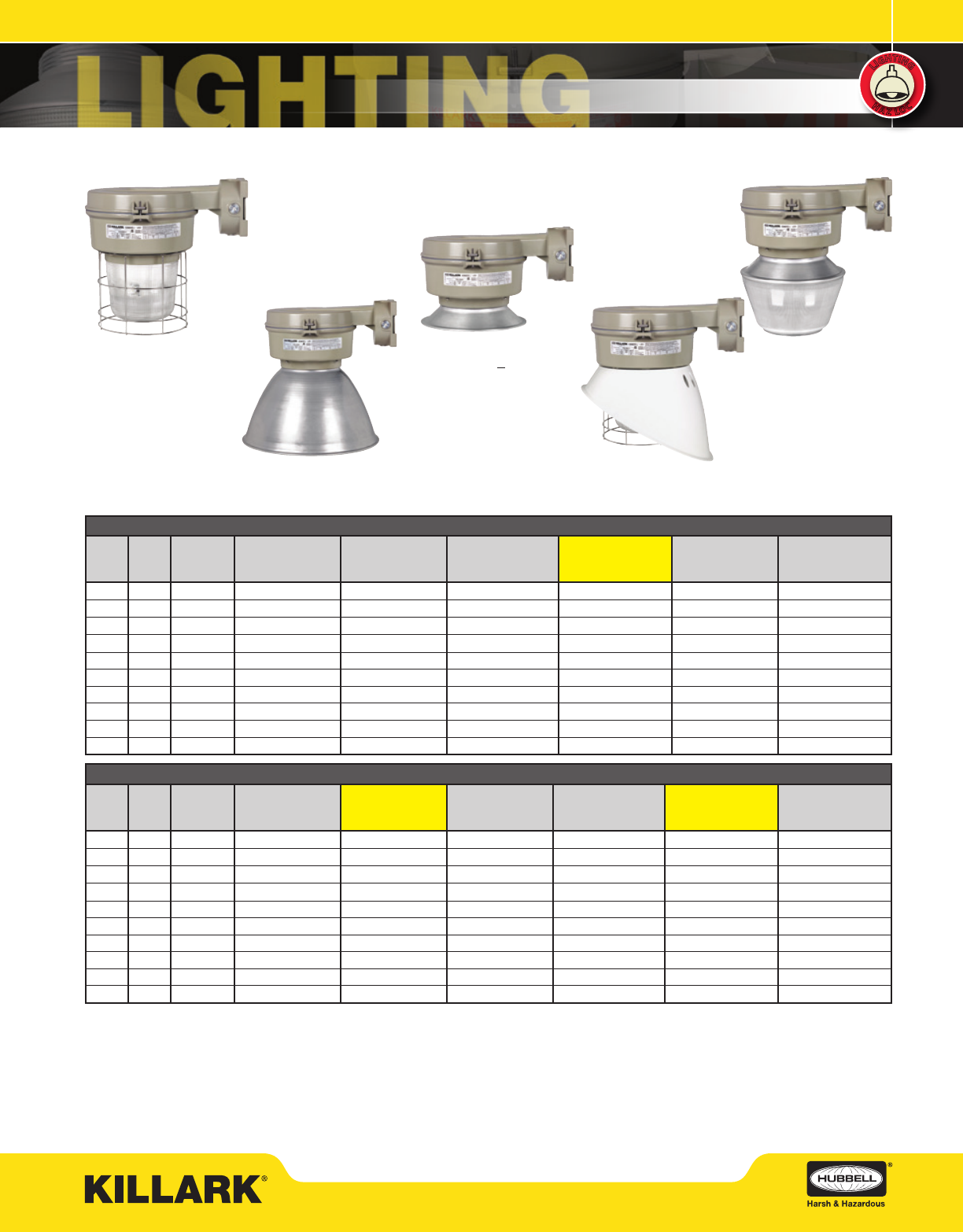

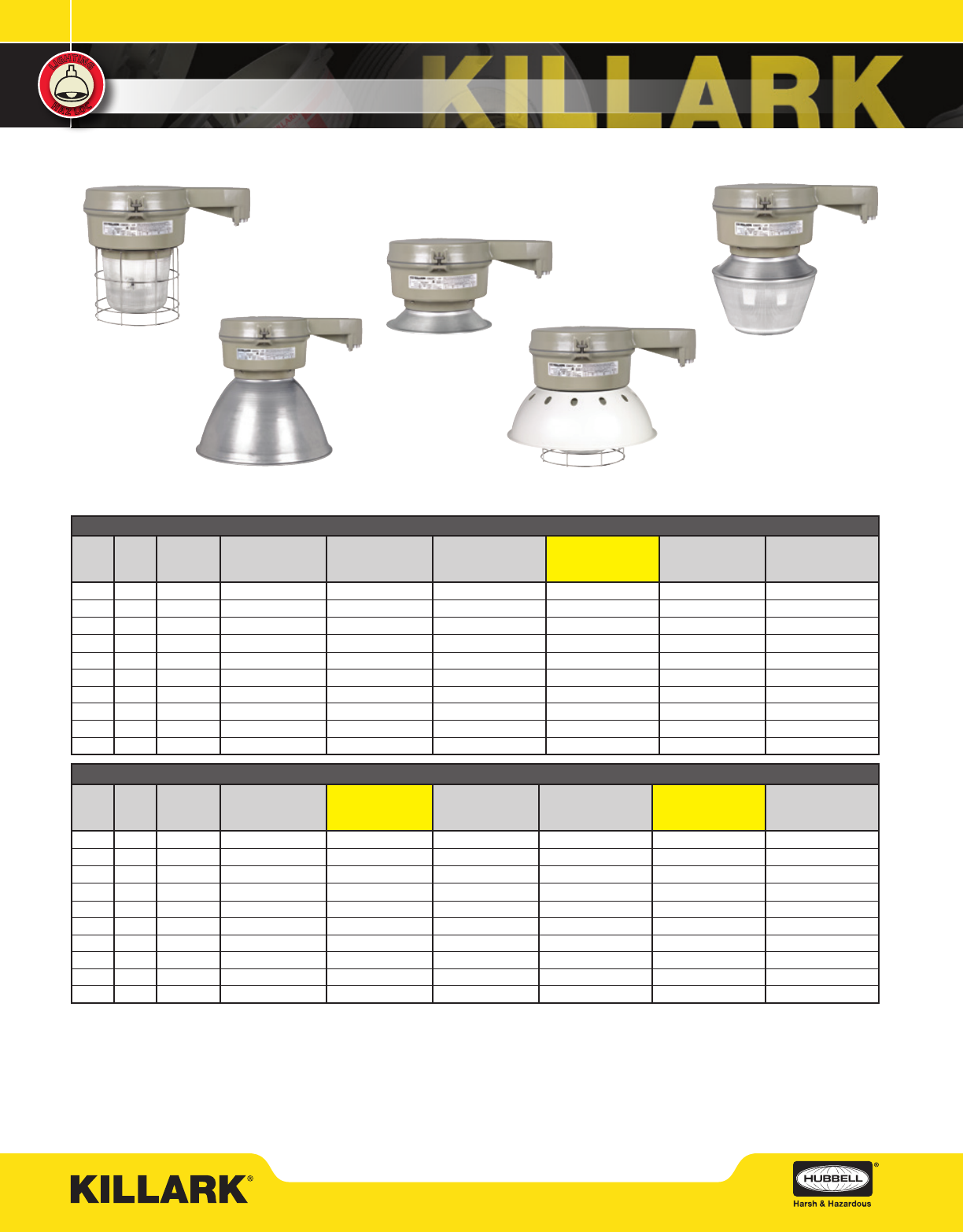

VM2&4LB, VM2&4LC SERIES

HIGH WATTAGE – ORDERING INFORMATION

j Catalog numbers shown are with Guard (except ER/EP/PF); to omit guard change ending G to N; e.g. VM4LB05530B2GLN.

k Catalog numbers shown are with 3/4” conduit openings; change “2” to “3” for 1”; e.g. VM4LB05530B3GLG.

l 120VAC through 277VAC 50/60Hz. See logic for other voltages.

m See logic for reector ordering options or order angle reector VMPA40 separately.

n 40W, 50W, 55W and 65W are available in VM2LB/VM2LC shallower housings. Substitute VM2L for VM4L in catalog number.

* For Glass 12” Spin-Top Flat Lens change PFN to GFN at end of catalog number.

Globe & Guard or

Glass Refractor & Guard

Enclosed Reector

Spin-Top Poly or

Glass Refractor

Globe, Guard and Angle Reector

Spin-Top Poly or Glass

Flat Lens VM4LC only

VM4LB SERIES WALL WITH OPTIC AND GUARDj

WATTS HUB

SIZEkVOLTAGElGLOBE & GUARD

TYPE V GLASS

REFRACTOR &

GUARD

12” SPIN-TOP

TYPE V GLASS

REFRACTOR & GUARD

12” SPIN-TOP TYPE V

POLYCARBONATE

REFRACTOR & GUARD

ENCLOSED

REFLECTOR

GLOBE, GUARD

& ANGLE

RELFECTORm

40m3/4” 120-277VAC VM4LB04030B2GLG VM4LB04030B2R5G VM4LB04030B2S5G VM4LB04030B2P5G VM4LB04030B2ERN VM4LB04030B2GLG-A

50m3/4” 120-277VAC VM4LB05030B2GLG VM4LB05030B2R5G VM4LB05030B2S5G VM4LB05030B2P5G VM4LB05030B2ERN VM4LB05030B2GLG-A

55m3/4” 120-277VAC VM4LB05530B2GLG VM4LB05530B2R5G VM4LB05530B2S5G VM4LB05530B2P5G VM4LB05530B2ERN VM4LB05530B2GLG-A

65m3/4” 120-277VAC VM4LB06530B2GLG VM4LB06530B2R5G VM4LB06530B2S5G VM4LB06530B2P5G VM4LB06530B2ERN VM4LB06530B2GLG-A

70 3/4” 120-277VAC VM4LB07030B2GLG VM4LB07030B2R5G VM4LB07030B2S5G VM4LB07030B2P5G VM4LB07030B2ERN VM4LB07030B2GLG-A

80 3/4” 120-277VAC VM4LB08030B2GLG VM4LB08030B2R5G VM4LB08030B2S5G VM4LB08030B2P5G VM4LB08030B2ERN VM4LB08030B2GLG-A

90 3/4” 120-277VAC VM4LB09030B2GLG VM4LB09030B2R5G VM4LB09030B2S5G VM4LB09030B2P5G VM4LB09030B2ERN VM4LB09030B2GLG-A

100 3/4” 120-277VAC VM4LB10030B2GLG VM4LB10030B2R5G VM4LB10030B2S5G VM4LB10030B2P5G VM4LB10030B2ERN VM4LB10030B2GLG-A

105 3/4” 120-277VAC VM4LB10530B2GLG VM4LB10530B2R5G VM4LB10530B2S5G VM4LB10530B2P5G VM4LB10530B2ERN VM4LB10530B2GLG-A

130 3/4” 120-277VAC VM4LB13030B2GLG VM4LB13030B2R5G VM4LB13030B2S5G VM4LB13030B2P5G VM4LB13030B2ERN VM4LB13030B2GLG-A

VM4LC SERIES WALL WITH OPTIC AND GUARDj

WATTS HUB

SIZEkVOLTAGElGLOBE & GUARD

12” SPIN-TOP

POLYCARBONATE

FLAT LENS*

TYPE V GLASS

REFRACTOR

& GUARD

12” SPIN-TOP TYPE V

GLASS REFRACTOR

& GUARD

12” SPIN-TOP TYPE V

POLYCARBONATE

REFRACTOR & GUARD

GLOBE, GUARD

& ANGLE

RELFECTORm

40m3/4” 120-277VAC VM4LC04030B2GLG VM4LC04030B2PFN VM4LC04030B2R5G VM4LC04030B2S5G VM4LC04030B2P5G VM4LC04030B2GLG-A

50m3/4” 120-277VAC VM4LC05030B2GLG VM4LC05030B2PFN VM4LC05030B2R5G VM4LC05030B2S5G VM4LC05030B2P5G VM4LC05030B2GLG-A

55m3/4” 120-277VAC VM4LC05530B2GLG VM4LC05530B2PFN VM4LC05530B2R5G VM4LC05530B2S5G VM4LC05530B2P5G VM4LC05530B2GLG-A

65m3/4” 120-277VAC VM4LC06530B2GLG VM4LC06530B2PFN VM4LC06530B2R5G VM4LC06530B2S5G VM4LC06530B2P5G VM4LC06530B2GLG-A

70 3/4” 120-277VAC VM4LC07030B2GLG VM4LC07030B2PFN VM4LC07030B2R5G VM4LC07030B2S5G VM4LC07030B2P5G VM4LC07030B2GLG-A

80 3/4” 120-277VAC VM4LC08030B2GLG VM4LC08030B2PFN VM4LC08030B2R5G VM4LC08030B2S5G VM4LC08030B2P5G VM4LC08030B2GLG-A

90 3/4” 120-277VAC VM4LC09030B2GLG VM4LC09030B2PFN VM4LC09030B2R5G VM4LC09030B2S5G VM4LC09030B2P5G VM4LC09030B2GLG-A

100 3/4” 120-277VAC VM4LC10030B2GLG VM4LC10030B2PFN VM4LC10030B2R5G VM4LC10030B2S5G VM4LC10030B2P5G VM4LC10030B2GLG-A

105 3/4” 120-277VAC VM4LC10530B2GLG VM4LC10530B2PFN VM4LC10530B2R5G VM4LC10530B2S5G VM4LC10530B2P5G VM4LC10530B2GLG-A

130 3/4” 120-277VAC VM4LC13030B2GLG VM4LC13030B2PFN VM4LC13030B2R5G VM4LC13030B2S5G VM4LC13030B2P5G VM4LC13030B2GLG-A

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L28

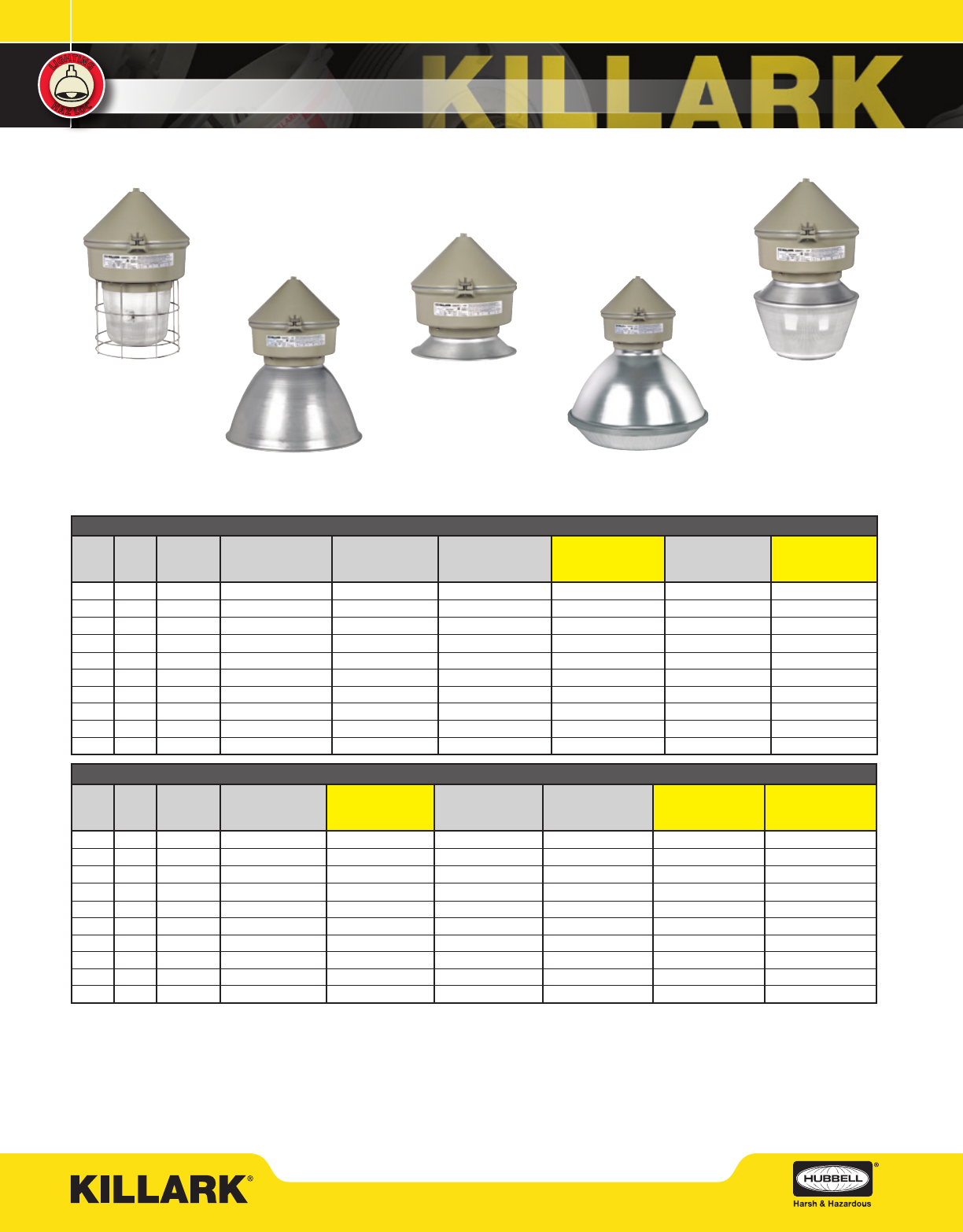

VM2&4LB, VM2&4LC SERIES

HIGH WATTAGE – ORDERING INFORMATION

Enclosed

Reector

Poly Food Optic

Spin-Top Poly or

Glass Refractor

Spin-Top Poly or

Glass Flat Lens

j Catalog numbers shown are with Guard (except ER/EP/PF); to omit guard change ending G to N; e.g. VM4LB05530C2GLN.

k Catalog numbers shown are with 3/4” conduit openings; change “2” to “3” for 1”; e.g. VM4LB05530C3GLG.

l 120VAC through 277VAC 50/60Hz. See logic for other voltages.

m 40W, 50W, 55W and 65W are available in VM2LB/VM2LC shallower housings. Substitute VM2L for VM4L in catalog number.

* For Glass 12” Spin-Top Flat Lens change PFN to GFN at end of catalog number.

Globe & Guard or

Glass Refractor & Guard

VM4LB SERIES CONE WITH OPTIC AND GUARDj

WATTS HUB

SIZEkVOLTAGElGLOBE & GUARD

TYPE V GLASS

REFRACTOR &

GUARD

12” SPIN-TOP

TYPE V GLASS

REFRACTOR & GUARD

12” SPIN-TOP TYPE V

POLYCARBONATE

REFRACTOR & GUARD

ENCLOSED

REFLECTOR

POLYCARBONATE

FOOD OPTIC

40m3/4” 120-277VAC VM4LB04030C2GLG VM4LB04030C2R5G VM4LB04030C2S5G VM4LB04030C2P5G VM4LB04030C2ERN VM4LB04030C2EPN

50m3/4” 120-277VAC VM4LB05030C2GLG VM4LB05030C2R5G VM4LB05030C2S5G VM4LB05030C2P5G VM4LB05030C2ERN VM4LB05030C2EPN

55m3/4” 120-277VAC VM4LB05530C2GLG VM4LB05530C2R5G VM4LB05530C2S5G VM4LB05530C2P5G VM4LB05530C2ERN VM4LB05530C2EPN

65m3/4” 120-277VAC VM4LB06530C2GLG VM4LB06530C2R5G VM4LB06530C2S5G VM4LB06530C2P5G VM4LB06530C2ERN VM4LB06530C2EPN

70 3/4” 120-277VAC VM4LB07030C2GLG VM4LB07030C2R5G VM4LB07030C2S5G VM4LB07030C2P5G VM4LB07030C2ERN VM4LB07030C2EPN

80 3/4” 120-277VAC VM4LB08030C2GLG VM4LB08030C2R5G VM4LB08030C2S5G VM4LB08030C2P5G VM4LB08030C2ERN VM4LB08030C2EPN

90 3/4” 120-277VAC VM4LB09030C2GLG VM4LB09030C2R5G VM4LB09030C2S5G VM4LB09030C2P5G VM4LB09030C2ERN VM4LB09030C2EPN

100 3/4” 120-277VAC VM4LB10030C2GLG VM4LB10030C2R5G VM4LB10030C2S5G VM4LB10030C2P5G VM4LB10030C2ERN VM4LB10030C2EPN

105 3/4” 120-277VAC VM4LB10530C2GLG VM4LB10530C2R5G VM4LB10530C2S5G VM4LB10530C2P5G VM4LB10530C2ERN VM4LB10530C2EPN

130 3/4” 120-277VAC VM4LB13030C2GLG VM4LB13030C2R5G VM4LB13030C2S5G VM4LB13030C2P5G VM4LB13030C2ERN VM4LB13030C2EPN

VM4LC SERIES CONE WITH OPTIC AND GUARDj

WATTS HUB

SIZEkVOLTAGElGLOBE & GUARD

12” SPIN-TOP

POLYCARBONATE

FLAT LENS*

TYPE V GLASS

REFRACTOR

& GUARD

12” SPIN-TOP

TYPE V GLASS

REFRACTOR & GUARD

12” SPIN-TOP TYPE V

POLYCARBONATE

REFRACTOR & GUARD

POLYCARBONATE

FOOD OPTIC

40m3/4” 120-277VAC VM4LC04030C2GLG VM4LC04030C2PFN VM4LC04030C2R5G VM4LC04030C2S5G VM4LC04030C2P5G VM4LC04030C2EPN

50m3/4” 120-277VAC VM4LC05030C2GLG VM4LC05030C2PFN VM4LC05030C2R5G VM4LC05030C2S5G VM4LC05030C2P5G VM4LC05030C2EPN

55m3/4” 120-277VAC VM4LC05530C2GLG VM4LC05530C2PFN VM4LC05530C2R5G VM4LC05530C2S5G VM4LC05530C2P5G VM4LC05530C2EPN

65m3/4” 120-277VAC VM4LC06530C2GLG VM4LC06530C2PFN VM4LC06530C2R5G VM4LC06530C2S5G VM4LC06530C2P5G VM4LC06530C2EPN

70 3/4” 120-277VAC VM4LC07030C2GLG VM4LC07030C2PFN VM4LC07030C2R5G VM4LC07030C2S5G VM4LC07030C2P5G VM4LC07030C2EPN

80 3/4” 120-277VAC VM4LC08030C2GLG VM4LC08030C2PFN VM4LC08030C2R5G VM4LC08030C2S5G VM4LC08030C2P5G VM4LC08030C2EPN

90 3/4” 120-277VAC VM4LC09030C2GLG VM4LC09030C2PFN VM4LC09030C2R5G VM4LC09030C2S5G VM4LC09030C2P5G VM4LC09030C2EPN

100 3/4” 120-277VAC VM4LC10030C2GLG VM4LC10030C2PFN VM4LC10030C2R5G VM4LC10030C2S5G VM4LC10030C2P5G VM4LC10030C2EPN

105 3/4” 120-277VAC VM4LC10530C2GLG VM4LC10530C2PFN VM4LC10530C2R5G VM4LC10530C2S5G VM4LC10530C2P5G VM4LC10530C2EPN

130 3/4” 120-277VAC VM4LC13030C2GLG VM4LC13030C2PFN VM4LC13030C2R5G VM4LC13030C2S5G VM4LC13030C2P5G VM4LC13030C2EPN

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L29

VM2&4LB, VM2&4LC SERIES

HIGH WATTAGE – ORDERING INFORMATION

j Catalog numbers shown are with Guard (except ER/EP/PF); to omit guard change ending G to N; e.g. VM4LB05530D5GLN.

k Catalog numbers shown are with 1-1/2” conduit openings; change “5” to “4” for 1-1/4”; e.g. VM4LB05530D4GLG.

l 120VAC through 277VAC 50/60Hz. See logic for other voltages.

m See logic for reector ordering options or order angle reector VMPA40 separately.

n 40W, 50W, 55W and 65W are available in VM2LB/VM2LC shallower housings. Substitute VM2L for VM4L in catalog number.

* For Glass 12” Spin-Top Flat Lens change PFN to GFN at end of catalog number.

Globe & Guard or

Glass Refractor & Guard

Spin-Top Poly or

Glass Flat Lens

Spin-Top Poly or

Glass Refractor

Enclosed

Reector

Globe Guard &

Angle Reector

VM4LB SERIES 25° STANCHION WITH OPTIC AND GUARDj

WATTS HUB

SIZEkVOLTAGElGLOBE & GUARD

TYPE V GLASS

REFRACTOR &

GUARD

12” SPIN-TOP

TYPE V GLASS

REFRACTOR & GUARD

12” SPIN-TOP TYPE V

POLYCARBONATE

REFRACTOR & GUARD

ENCLOSED

REFLECTOR

GLOBE, GUARD

& ANGLE

RELFECTORm

40m1-1/2” 120-277VAC VM4LB04030D5GLG VM4LB04030D5R5G VM4LB04030D5S5G VM4LB04030D5P5G VM4LB04030D5ERN VM4LB04030D5GLG-A

50m1-1/2” 120-277VAC VM4LB05030D5GLG VM4LB05030D5R5G VM4LB05030D5S5G VM4LB05030D5P5G VM4LB05030D5ERN VM4LB05030D5GLG-A

55m1-1/2” 120-277VAC VM4LB05530D5GLG VM4LB05530D5R5G VM4LB05530D5S5G VM4LB05530D5P5G VM4LB05530D5ERN VM4LB05530D5GLG-A

65m1-1/2” 120-277VAC VM4LB06530D5GLG VM4LB06530D5R5G VM4LB06530D5S5G VM4LB06530D5P5G VM4LB06530D5ERN VM4LB06530D5GLG-A

70 1-1/2” 120-277VAC VM4LB07030D5GLG VM4LB07030D5R5G VM4LB07030D5S5G VM4LB07030D5P5G VM4LB07030D5ERN VM4LB07030D5GLG-A

80 1-1/2” 120-277VAC VM4LB08030D5GLG VM4LB08030D5R5G VM4LB08030D5S5G VM4LB08030D5P5G VM4LB08030D5ERN VM4LB08030D5GLG-A

90 1-1/2” 120-277VAC VM4LB09030D5GLG VM4LB09030D5R5G VM4LB09030D5S5G VM4LB09030D5P5G VM4LB09030D5ERN VM4LB09030D5GLG-A

100 1-1/2” 120-277VAC VM4LB10030D5GLG VM4LB10030D5R5G VM4LB10030D5S5G VM4LB10030D5P5G VM4LB10030D5ERN VM4LB10030D5GLG-A

105 1-1/2” 120-277VAC VM4LB10530D5GLG VM4LB10530D5R5G VM4LB10530D5S5G VM4LB10530D5P5G VM4LB10530D5ERN VM4LB10530D5GLG-A

130 1-1/2” 120-277VAC VM4LB13030D5GLG VM4LB13030D5R5G VM4LB13030D5S5G VM4LB13030D5P5G VM4LB13030D5ERN VM4LB13030D5GLG-A

VM4LC SERIES 25° STANCHION WITH OPTIC AND GUARDj

WATTS HUB

SIZEkVOLTAGElGLOBE & GUARD

12” SPIN-TOP

POLYCARBONATE

FLAT LENS*

TYPE V GLASS

REFRACTOR

& GUARD

12” SPIN-TOP

TYPE V GLASS

REFRACTOR & GUARD

12” SPIN-TOP TYPE V

POLYCARBONATE

REFRACTOR & GUARD

GLOBE, GUARD

& ANGLE

RELFECTORm

40m1-1/2” 120-277VAC

VM4LC04030D5GLG VM4LC04030D5PFN VM4LC04030D5R5G VM4LC04030D5S5G VM4LC04030D5P5G VM4LC04030D5GLG-A

50m1-1/2” 120-277VAC

VM4LC05030D5GLG VM4LC05030D5PFN VM4LC05030D5R5G VM4LC05030D5S5G VM4LC06530D5P5G VM4LC05030D5GLG-A

55m1-1/2” 120-277VAC

VM4LC05530D5GLG VM4LC05530D5PFN VM4LC05530D5R5G VM4LC05530D5S5G VM4LC05530D5P5G VM4LC05530D5GLG-A

65m1-1/2” 120-277VAC

VM4LC06530D5GLG VM4LC06530D5PFN VM4LC06530D5R5G VM4LC06530D5S5G VM4LC06530D5P5G VM4LC06530D5GLG-A

70 1-1/2” 120-277VAC

VM4LC07030D5GLG VM4LC07030D5PFN VM4LC07030D5R5G VM4LC07030D5S5G VM4LC07030D5P5G VM4LC07030D5GLG-A

80 1-1/2” 120-277VAC

VM4LC08030D5GLG VM4LC08030D5PFN VM4LC08030D5R5G VM4LC08030D5S5G VM4LC08030D5P5G VM4LC08030D5GLG-A

90 1-1/2” 120-277VAC

VM4LC09030D5GLG VM4LC09030D5PFN VM4LC09030D5R5G VM4LC09030D5S5G VM4LC09030D5P5G VM4LC09030D5GLG-A

100 1-1/2” 120-277VAC

VM4LC10030D5GLG VM4LC10030D5PFN VM4LC10030D5R5G VM4LC10030D5S5G VM4LC10030D5P5G VM4LC10030D5GLG-A

105 1-1/2” 120-277VAC

VM4LC10530D5GLG VM4LC10530D5PFN VM4LC10530D5R5G VM4LC10530D5S5G VM4LC10530D5P5G VM4LC10530D5GLG-A

130 1-1/2” 120-277VAC

VM4LC13030D5GLG VM4LC13030D5PFN VM4LC13030D5R5G VM4LC13030D5S5G VM4LC13030D5P5G VM4LC13030D5GLG-A

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L30

VM2&4LB, VM2&4LC SERIES

HIGH WATTAGE – ORDERING INFORMATION

j Catalog numbers shown are with Guard (except ER/EP/PF); to omit guard change ending G to N; e.g. VM4LB05530S5GLN.

k Catalog numbers shown are with 1-1/2” conduit openings; change “5” to “4” for 1-1/4”; e.g. VM4LB05530S4GLG.

l 120VAC through 277VAC 50/60Hz. See logic for other voltages.

m See logic for reector ordering options or order dome reector VMPSD40 separately.

n 40W, 50W, 55W and 65W are available in VM2LB/VM2LC shallower housings. Substitute VM2L for VM4L in catalog number.

* For Glass 12” Spin-Top Flat Lens change PRN to GFN at end of catalog number.

Globe & Guard or Glass

Refractor & Guard

Spin-Top Poly or

Glass Flat Lens

Spin-Top Poly or

Glass Refractor

Enclosed Reector Globe, Guard and Dome Reector

VM4LB SERIES STRAIGHT STANCHION WITH OPTIC AND GUARDj

WATTS HUB

SIZEkVOLTAGElGLOBE & GUARD

TYPE V GLASS

REFRACTOR &

GUARD

12” SPIN-TOP

TYPE V GLASS

REFRACTOR & GUARD

12” SPIN-TOP TYPE V

POLYCARBONATE

REFRACTOR & GUARD

ENCLOSED

REFLECTOR

GLOBE GUARD

AND DOME

REFLECTORm

40m1-1/2” 120-277VAC VM4LB04030S5GLG VM4LB04030S5R5G VM4LB04030S5S5G VM4LB04030S5P5G VM4LB04030S5ERN VM4LB04030S5GLG-S

50m1-1/2” 120-277VAC VM4LB05030S5GLG VM4LB05030S5R5G VM4LB05030S5S5G VM4LB05030S5P5G VM4LB05030S5ERN VM4LB05030S5GLG-S

55m1-1/2” 120-277VAC VM4LB05530S5GLG VM4LB05530S5R5G VM4LB05530S5S5G VM4LB05530S5P5G VM4LB05530S5ERN VM4LB05530S5GLG-S

65m1-1/2” 120-277VAC VM4LB06530S5GLG VM4LB06530S5R5G VM4LB06530S5S5G VM4LB06530S5P5G VM4LB06530S5ERN VM4LB06530S5GLG-S

70 1-1/2” 120-277VAC VM4LB07030S5GLG VM4LB07030S5R5G VM4LB07030S5S5G VM4LB07030S5P5G VM4LB07030S5ERN VM4LB07030S5GLG-S

80 1-1/2” 120-277VAC VM4LB08030S5GLG VM4LB08030S5R5G VM4LB08030S5S5G VM4LB08030S5P5G VM4LB08030S5ERN VM4LB08030S5GLG-S

90 1-1/2” 120-277VAC VM4LB09030S5GLG VM4LB09030S5R5G VM4LB09030S5S5G VM4LB09030S5P5G VM4LB09030S5ERN VM4LB09030S5GLG-S

100 1-1/2” 120-277VAC VM4LB10030S5GLG VM4LB10030S5R5G VM4LB10030S5S5G VM4LB10030S5P5G VM4LB10030S5ERN VM4LB10030S5GLG-S

105 1-1/2” 120-277VAC VM4LB10530S5GLG VM4LB10530S5R5G VM4LB10530S5S5G VM4LB10530S5P5G VM4LB10530S5ERN VM4LB10530S5GLG-S

130 1-1/2” 120-277VAC VM4LB13030S5GLG VM4LB13030S5R5G VM4LB13030S5S5G VM4LB13030S5P5G VM4LB13030S5ERN VM4LB13030S5GLG-S

VM4LC SERIES STRAIGHT STANCHION WITH OPTIC AND GUARDj

WATTS HUB

SIZEkVOLTAGElGLOBE & GUARD

12” SPIN-TOP

POLYCARBONATE

FLAT LENS*

TYPE V GLASS

REFRACTOR

& GUARD

12” SPIN-TOP

TYPE V GLASS

REFRACTOR & GUARD

12” SPIN-TOP TYPE V

POLYCARBONATE

REFRACTOR & GUARD

GLOBE GUARD

AND DOME

REFLECTORm

40m1-1/2” 120-277VAC VM4LC04030S5GLG VM4LC04030S5PFN VM4LC04030S5R5G VM4LC04030S5S5G VM4LC04030S5P5G VM4LC04030S5GLG-S

50m1-1/2” 120-277VAC VM4LC05030S5GLG VM4LC05030S5PFN VM4LC05030S5R5G VM4LC05030S5S5G VM4LC05030S5P5G VM4LC05030S5GLG-S

55m1-1/2” 120-277VAC VM4LC05530S5GLG VM4LC05530S5PFN VM4LC05530S5R5G VM4LC05530S5S5G VM4LC05530S5P5G VM4LC05530S5GLG-S

65m1-1/2” 120-277VAC VM4LC06530S5GLG VM4LC06530S5PFN VM4LC06530S5R5G VM4LC06530S5S5G VM4LC06530S5P5G VM4LC06530S5GLG-S

70 1-1/2” 120-277VAC VM4LC07030S5GLG VM4LC07030S5PFN VM4LC07030S5R5G VM4LC07030S5S5G VM4LC07030S5P5G VM4LC07030S5GLG-S

80 1-1/2” 120-277VAC VM4LC08030S5GLG VM4LC08030S5PFN VM4LC08030S5R5G VM4LC08030S5S5G VM4LC08030S5P5G VM4LC08030S5GLG-S

90 1-1/2” 120-277VAC VM4LC09030S5GLG VM4LC09030S5PFN VM4LC09030S5R5G VM4LC09030S5S5G VM4LC09030S5P5G VM4LC09030S5GLG-S

100 1-1/2” 120-277VAC VM4LC10030S5GLG VM4LC10030S5PFN VM4LC10030S5R5G VM4LC10030S5S5G VM4LC10030S5P5G VM4LC10030S5GLG-S

105 1-1/2” 120-277VAC VM4LC10530S5GLG VM4LC10530S5PFN VM4LC10530S5R5G VM4LC10530S5S5G VM4LC10530S5P5G VM4LC10530S5GLG-S

130 1-1/2” 120-277VAC VM4LC13030S5GLG VM4LC13030S5PFN VM4LC13030S5R5G VM4LC13030S5S5G VM4LC13030S5P5G VM4LC13030S5GLG-S

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L31

VM2&4LB, VM2&4LC SERIES

HIGH WATTAGE – ORDERING INFORMATION

j Catalog numbers shown are with Guard (except ER/EP/PF); to omit guard change ending G to N; e.g. VM4LB05530EZGLN.

k VMEZA tank adapters UL “classied” as an assembly for use between VM tanks and EZ mounts. Order EZ mounts separately - see page L31 on components page.

l 120VAC through 277VAC 50/60Hz. See logic for other voltages.

n 40W, 50W, 55W and 65W are available in VM2LB/VM2LC shallower housings. Substitute VM2L for VM4L in catalog number.

* For Glass 12” Spin-Top Flat Lens change PFN to GFN at end of catalog number.

Globe & Guard or

Glass Refractor & Guard

Spin-Top Poly or

Glass Flat Lens

Spin-Top Poly or

Glass Refractor

Enclosed Reector Poly Food Optic

VM4LB SERIES EZ ADAPTER WITH OPTIC AND GUARDjk

WATTS HUB

SIZEkVOLTAGElGLOBE & GUARD

TYPE V GLASS

REFRACTOR &

GUARD

12” SPIN-TOP

TYPE V GLASS

REFRACTOR & GUARD

12” SPIN-TOP TYPE V

POLYCARBONATE

REFRACTOR & GUARD

ENCLOSED

REFLECTOR

POLYCARBONATE

FOOD OPTIC

40m k 120-277VAC VM4LB04030EZGLG VM4LB04030EZR5G VM4LB04030EZS5G VM4LB04030EZP5G VM4LB04030EZERN VM4LB04030EZEPN

50m k 120-277VAC VM4LB05030EZGLG VM4LB05030EZR5G VM4LB05030EZS5G VM4LB05030EZP5G VM4LB05030EZERN VM4LB05030EZEPN

55m k 120-277VAC VM4LB05530EZGLG VM4LB05530EZR5G VM4LB05530EZS5G VM4LB05530EZP5G VM4LB05530EZERN VM4LB05530EZEPN

65m k 120-277VAC VM4LB06530EZGLG VM4LB06530EZR5G VM4LB06530EZS5G VM4LB06530EZP5G VM4LB06530EZERN VM4LB06530EZEPN

70 k120-277VAC VM4LB07030EZGLG VM4LB07030EZR5G VM4LB07030EZS5G VM4LB07030EZP5G VM4LB07030EZERN VM4LB07030EZEPN

80 k120-277VAC VM4LB08030EZGLG VM4LB08030EZR5G VM4LB08030EZS5G VM4LB08030EZP5G VM4LB08030EZERN VM4LB08030EZEPN

90 k120-277VAC VM4LB09030EZGLG VM4LB09030EZR5G VM4LB09030EZS5G VM4LB09030EZP5G VM4LB09030EZERN VM4LB09030EZEPN

100 k120-277VAC VM4LB10030EZGLG VM4LB10030EZR5G VM4LB10030EZS5G VM4LB10030EZP5G VM4LB10030EZERN VM4LB10030EZEPN

105 k120-277VAC VM4LB10530EZGLG VM4LB10530EZR5G VM4LB10530EZS5G VM4LB10530EZP5G VM4LB10530EZERN VM4LB10530EZEPN

130 k120-277VAC VM4LB13030EZGLG VM4LB13030EZR5G VM4LB13030EZS5G VM4LB13030EZP5G VM4LB13030EZERN VM4LB13030EZEPN

VM4LC SERIES EZ ADAPTER WITH OPTIC AND GUARDjk

WATTS HUB

SIZEkVOLTAGElGLOBE & GUARD

12” SPIN-TOP

POLYCARBONATE

FLAT LENS*

TYPE V GLASS

REFRACTOR

& GUARD

12” SPIN-TOP

TYPE V GLASS

REFRACTOR & GUARD

12” SPIN-TOP TYPE V

POLYCARBONATE

REFRACTOR & GUARD

POLYCARBONATE

FOOD OPTIC

40m k 120-277VAC VM4LC04030EZGLG VM4LC04030EZPFN VM4LC04030EZR5G VM4LC04030EZS5G VM4LC04030EZP5G VM4LC04030EZEPN

50m k 120-277VAC VM4LC05030EZGLG VM4LC05030EZPFN VM4LC05030EZR5G VM4LC05030EZS5G VM4LC05030EZP5G VM4LC05030EZEPN

55m k 120-277VAC VM4LC05530EZGLG VM4LC05530EZPFN VM4LC05530EZR5G VM4LC05530EZS5G VM4LC05530EZP5G VM4LC05530EZEPN

65m k 120-277VAC VM4LC06530EZGLG VM4LC06530EZPFN VM4LC06530EZR5G VM4LC06530EZS5G VM4LC06530EZP5G VM4LC06530EZEPN

70 k120-277VAC VM4LC07030EZGLG VM4LC07030EZPFN VM4LC07030EZR5G VM4LC07030EZS5G VM4LC07030EZP5G VM4LC07030EZEPN

80 k120-277VAC VM4LC08030EZGLG VM4LC08030EZPFN VM4LC08030EZR5G VM4LC08030EZS5G VM4LC08030EZP5G VM4LC08030EZEPN

90 k120-277VAC VM4LC09030EZGLG VM4LC09030EZPFN VM4LC09030EZR5G VM4LC09030EZS5G VM4LC09030EZP5G VM4LC09030EZEPN

100 k120-277VAC VM4LC10030EZGLG VM4LC10030EZPFN VM4LC10030EZR5G VM4LC10030EZS5G VM4LC10030EZP5G VM4LC10030EZEPN

105 k120-277VAC VM4LC10530EZGLG VM4LC10530EZPFN VM4LC10530EZR5G VM4LC10530EZS5G VM4LC10530EZP5G VM4LC10530EZEPN

130 k120-277VAC VM4LC13030EZGLG VM4LC13030EZPFN VM4LC13030EZR5G VM4LC13030EZS5G VM4LC13030EZP5G VM4LC13030EZEPN

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L32

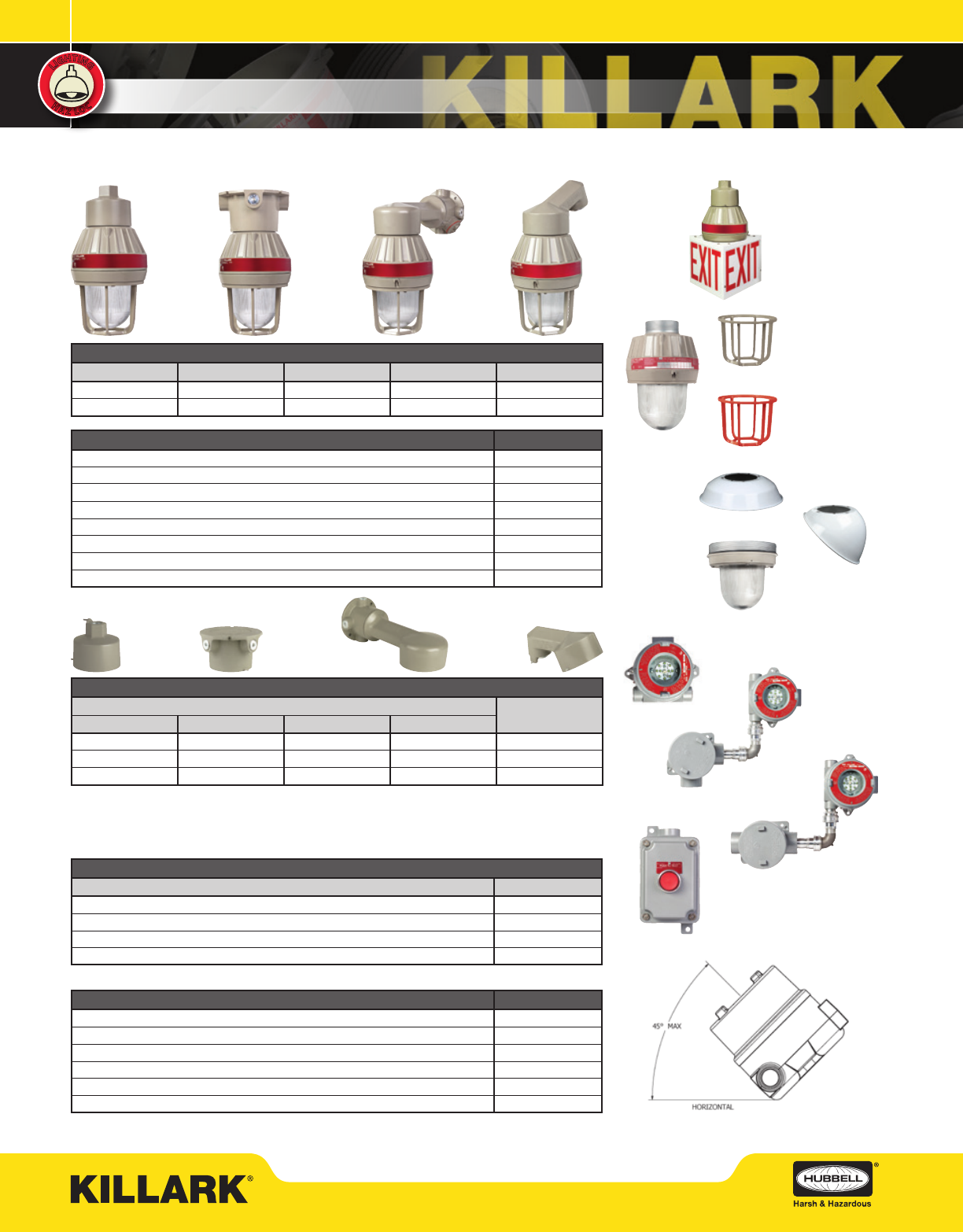

VM2&4LB, VM2&4LC SERIES

HIGH WATTAGE – COMPONENTS

Pendant Ceiling

25° Stanchion

Cone Top

Straight Stanchion EZ Adapter*

VMEZA

Tank Adapter

See next page to order

HRD400

VMPSD40 VMPA40

HRD400ALZ

Standard Dome, Fiberglass

White Reﬂector, Dia: 16”

30° Angle, Fiberglass

White Reﬂector, Dia:16”

Deep Aluminum, White

Reﬂector, Dia: 21”

Deep Aluminum, Anodized

Reﬂector, Dia: 21”

VMAGBC

VMER40

VMG25 VMR255

VMR253

VMR251

VMEP40

VMAG25S

VMERG

VZRG4050

VZRG4020

VMRWGS VZRPF/VZRGF

VMFSPC VEXA400

Fixture not included

* VMEZA is used between a driver tank and an EZ mount - ordered separately. See catalog grids.

* * Furnished with non-metallic plugs. Also available: VMB10B wall 4xM25 hubs, and VMB810B 2xM20 side hubs

and 2xM25 top/bottom

* Non-glass over Food/Grain Class II Div 1 Group G Certied; VMEP40, VZRP175B, and VZRPF12

CERTILITE®V VM MOUNTING SPLICE BOXES

CATALOG NUMBER

HUB SIZE PENDANT CEILING 4 HUB CEILING 5 HUB WALL CONE TOP 25 DEGREE STANCHION 90 DEGREE STANCHION

3/4” VMA2B VMX2B VMX6B VMB2B VMC2B — —

1” VMA3B VMX3B VMX7B VMB3B VMC3B — —

1-1/4” —————VMD4B VMS4B

1-1/2” —————VMD5B VMS5B

M-20 —VMX8B** VMX9B** VMB8B** — — —

VM2L/VM4L LED OPTICS AND ACCESSORIES

DESCRIPTION OPTIC LOGIC GUARDm

Flat Lens (glass spin top) “C” tank only VZRGF12 (GF) VZRF12GRD

Flat Lens (polycarbonate spin top) “C” tank only* VZRPF12 (PF) VZRF12GRD

Globe (glass) VMG25 (GL) VMAG25S

Refractor (all glass) Type V VMR255 (R5) VMAG25S

Enclosed Reﬂector VMER40 (ER) VMERG

Enclosed Reﬂector with polycarbonate Lens*VMEP40 (EP)l—

Refractor (polycarbonate spin top) 12” Type V*VZRP175B (P5) VMRWGS

Refractor (glass spin top) 12” Type V VZRG4050 (S5) VMRWGS

j Order single-gang FS box separately. For photocell factory installed in tank, see logic.

k For use with Generator or UPS powered xtures

l For wall applications mount must be spaced out for bottom hub

m Guards are 316 Stainless Steel. Bottom closure for VMAG25S pt. no. VMAGBC

VM2L/VM4L LED REFLECTORS AND ACCESSORIES

DOME REFLECTOR (Polyester reinforced ﬁberglass) VMPSD40

ANGLE REFLECTOR (Polyester reinforced ﬁberglass) VMPA40

DEEP DOME REFLECTOR (White Painted Aluminum) HRD400

DEEP DOME REFLECTOR (Anodized Aluminum) HRD400ALZ

120VAC Photocell with FS Style CoverjVMFSPC1

208-277VAC Photocell with FS Style CoverjVMFSPC2

Bottom Closure for VMAG25SmVMAGBC

4-sided EXIT Accessory (use without guard)kVEXA400

Wall

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L33

VM2&4LB, VM2&4LC SERIES

HIGH WATTAGE – COMPONENTS & RATINGS

Wall Bracket 25° StanchionPendant Ceiling

“EZ” Mount Adapter

For easy ﬁxture relocation

or to repair ﬁxture on

‘bench top’.

VMEZA adapter is used

between a driver tank

and EZ mount ordered

separately.

j VM4LC with ceiling mount approx. 17.4 lbs.

For VM2L models, deduct approx. 1.25 lbs.

k For a given wattage current values are the same,

regardless of tank type VM2LB/C or VM4LB/C.

l Replace (x) with tank size 2 or 4 and replace (y) with

heat sink style B or C.

* Extra high lumen per watt LED’s

Competitive Adapters

Designed to ease upgrading of other manufacturer’s

ﬁxtures to KILLARK LEDs where removal of existing

mounting screws and conduit would be difﬁcult and time

consuming.

Patented Design

*1-1/2” furnished with 1-1/2”-1-1/4” reducer and extension.

MOUNTING BOXES

CATALOG NUMBER HUB SIZE

PENDANT CEILING BRACKET STANCHION

EZA2 EZX2 EZB3 —3/4”

EZA3 EZX3 EZB3 —1”

— — — EZD4A 1-1/4” / 1/2”*

ORDERING INFORMATION AND AMBIENT SUITABILITY C1D2 C2D1

CATALOG NO.l

WEIGHT LBS./KGj

WATTS VOLTAGE AMPSk40°C 55°C 65°C 40°C 55°C 65°C

VM(X)L(Y)04030

18.90 / 8.57

40 120-277 VAC 0.35-0.16

T4A T4A T4 EFGVM(X)L(Y)04033 40 347-480VAC 0.12-0.09

VM(X)L(Y)04034 40 120-250VDC 0.33-0.16

VM(X)L(Y)05030 50 120-277 VAC 0.43-0.21

T4A T4A T4 EFGVM(X)L(Y)05033 50 347-480VAC 0.15-0.12

VM(X)L(Y)05034 50 120-250VDC 0.42-0.20

VM(X)L(Y)05530 55 120-277 VAC 0.48-0.21

T4A T4A T4 EFGVM(X)L(Y)05533 55 347-480VAC 0.17-0.12

VM(X)L(Y)05534 55 120-250VDC 0.46-0.22

VM(X)L(Y)06530 65 120-277 VAC 0.56-0.24

T4A T4A T4 EFGVM(X)L(Y)06533 65 347-480VAC 0.19-0.14

VM(X)L(Y)06534 65 120-250VDC 0.54-0.26

VM4L(Y)07030 70 120-277 VAC 0.60-0.30

T4A T4 -EFG -VM4L(Y)07033 70 347-480VAC 0.20-0.17

VM4L(Y)07034 70 120-250VDC 0.58-0.28

VM4L(Y)08030 80 120-277 VAC 0.68-0.30

T4A T4 -EFG -VM4L(Y)08033 80 347-480VAC 0.24-0.17

VM4L(Y)08034 80 120-250VDC 0.67-0.32

VM4L(Y)09030 90 120-277 VAC 0.77-0.33

T4A T4 -EFG -VM4L(Y)09033 90 347-480VAC 0.27-0.19

VM4L(Y)09034 90 120-250VDC 0.75-0.36

VM4L(Y)10030 100 120-277 VAC 0.85-0.39

T4A T4 -EFG -VM4L(Y)10033 100 347-480VAC 0.29-0.23

VM4L(Y)10034 100 120-250VDC 0.83-0.40

VM4L(Y)10530 105 120-277 VAC 0.89-0.39

T4A T4 -EFG -VM4L(Y)10533 105 347-480VAC 0.31-0.23

VM4L(Y)105834 105 120-250VDC 0.88-0.42

VM4L(Y)13030 130 120-277 VAC 1.10-0.46 T4A T4 -EFG -

VM4L(Y)13033 130 347-480 VAC 0.38-0.27

DELIVERED LUMENS

WATTS GLOBE

(VM4LB)

GLOBE

(VM4LC)

FLAT

LENS

(VM4LC)

L70

TM-21

CALCULATED

40 4600 4180 3873 60100 270000

50 6715 6087 5556 72600 278000

55 5842 5275 4790 60100 270000

65 8577 8229 7441 72600 278000

70 7111 6524 5980 60100 270000

80 8525 7559 6923 60100 270000

90 10520 10210 9115 72600 278000

100 12220 11910 10666 60100 270000

105 10780 9600 8809 60100 270000

130 15630 15370 13780 72600 278000

j Crouse-Hinds® is a registered trademark of EATON®

corporation.

k Appleton® and MERCMASTER are registered

trademarks of Emerson® Industrial Automation.

l Hazlux® is a registered trademark of Thomas & Betts®.

m Holophane® and Petrolux™ are registered trademarks

of Acuity Brands

n GE® and Filtr-gard™ are registered trademarks of

General Electric®

Tank adapter to Crouse-Hinds®j VM Series mounts

Tank adapter to CH (70’s era wall mount with deep box)

Tank adapter to Appleton®k MERCMASTER II mounts

Tank adapter to Appleton® MERCMASTER III mounts

Tank adapter to Hazlux®3l mounts

Tank adapter mount to Holophane®m Petrolux™

Tank adapter H2 mount to GE®n H2 Filtr-gard™

VMCHVM

VMCHVM-DEEP

VMM2LP

VMM3KP

VMHLDS

VMHPP2

VMGEH2

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L34

VM2&4LB, VM2&4LC SERIES

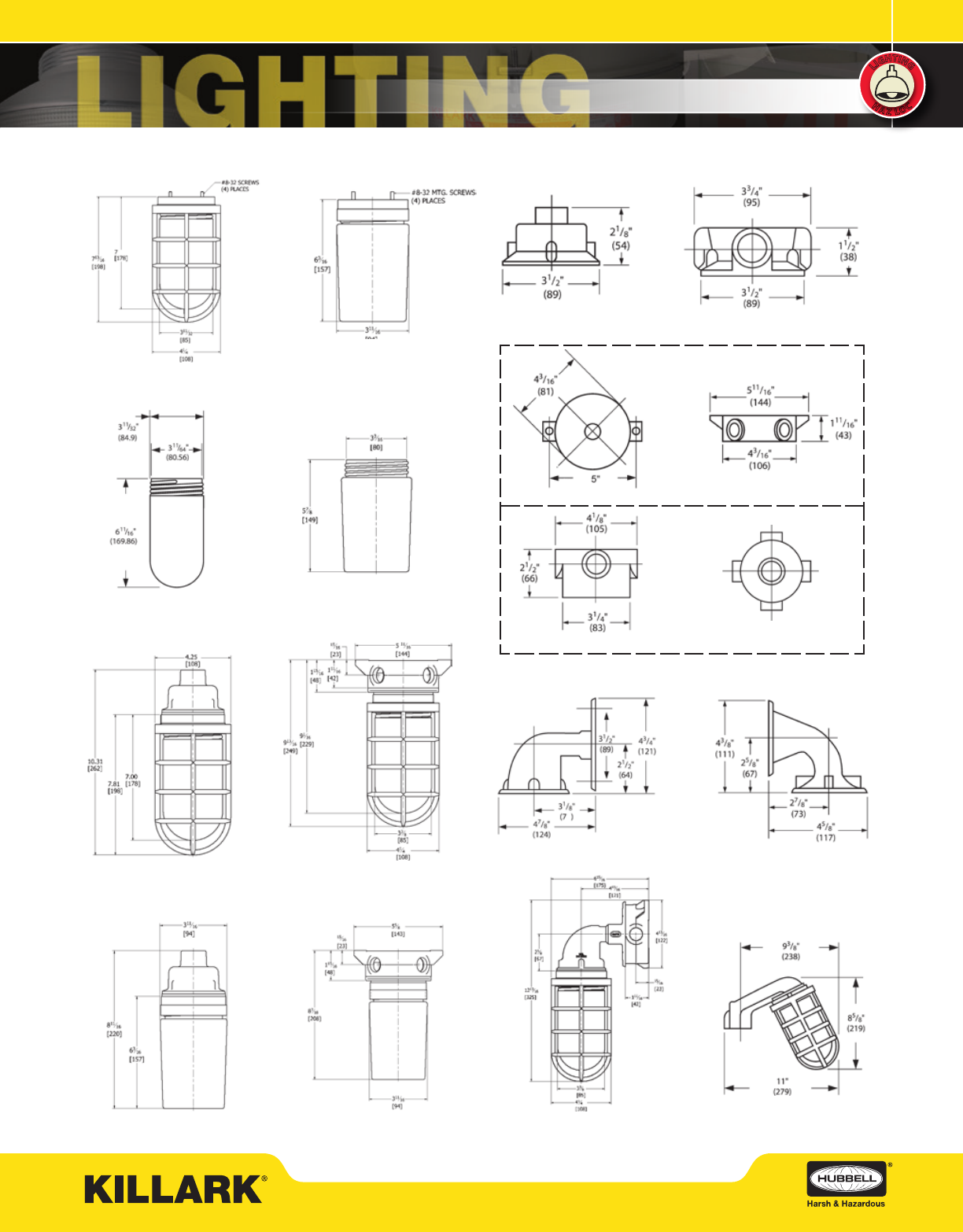

HIGH WATTAGE – DIMENSIONS & WEIGHTS

For Height of VM2L models, deduct

1.56” (40mm) from VM4L tank, or overall

dimensions with some mount and optic.

All other dimensions are the same.

Wall Bracket Mount

Stanchion (0°) Mount

Cone Mount Stanchion (25°) Mount

Ceiling Mount

Pendant Mount

TYPICAL WEIGHTS (LBS.) W/STANDARD GLOBE AND GUARD - VM4LB/C SERIES

Pendant 33.40 Ceiling 33.00 Wall 37.90 Stanchion 34.30

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L35

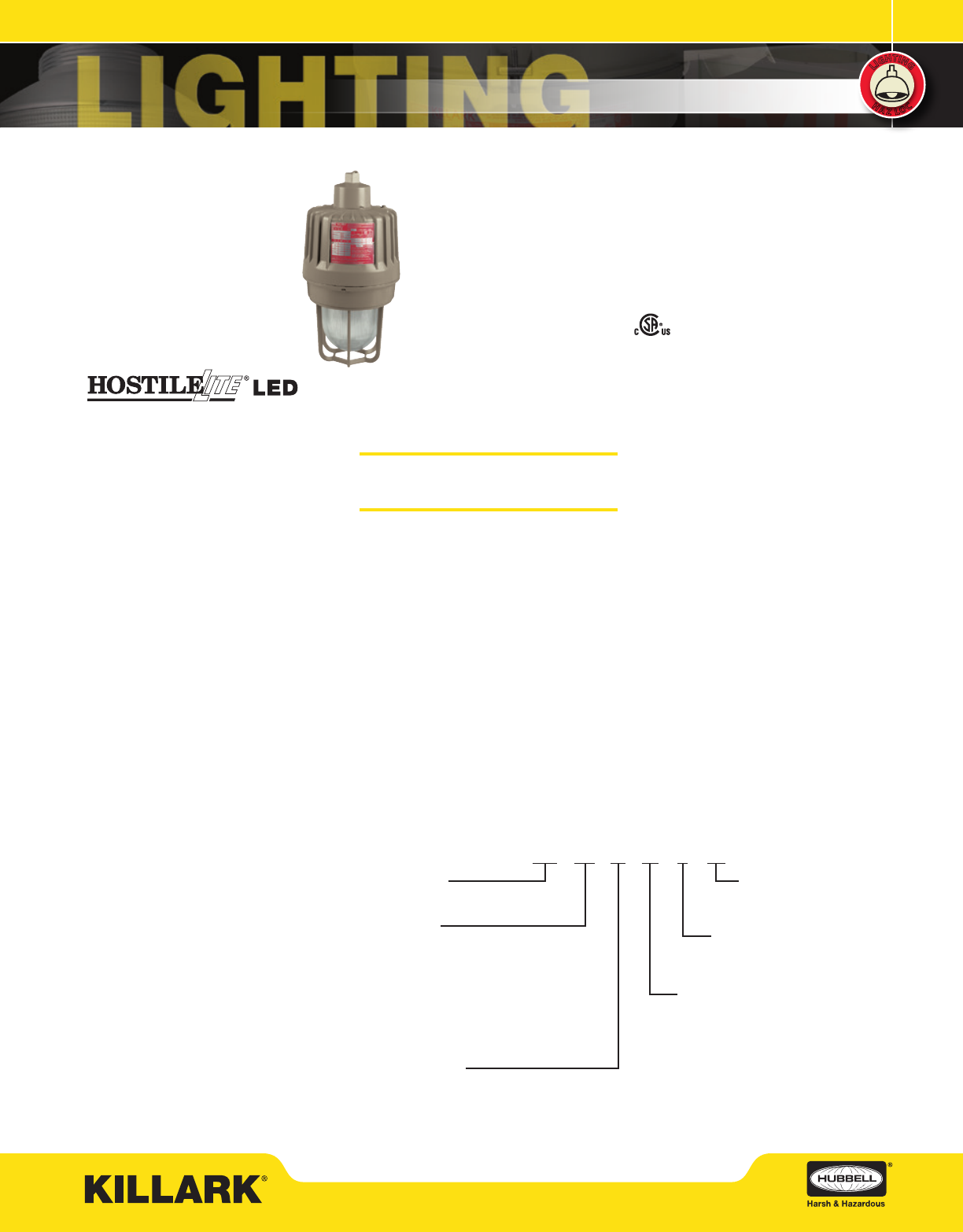

EML SERIES

EXPLOSION-PROOF – INTRODUCTION & LOGIC

FEATURES-SPECIFICATIONS

Certified - File LR11713

Class I, Div. 1 & 2, Groups C,D

Class I, Zones 1 & 2, Groups llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III, Div. 1 & 2

Suitable for wet locations

Suitable for Paint Spray Booth

Marine Rated (US only)

NEMA 3, 4, 4X

Factory Sealed

Catalog Number Logic

Tank & Globe with

Driver and LEDs

EMLC — Tank w/Clear Globe

EML — Tank w/Fluted Globe

Wattage

40W - LED

45W - LED

50W - LED

Mounting Type

A2 — 3/4” Pendant

A3 — 1” Pendant

X2 — 3/4” Ceiling

X3 — 1” Ceiling

B2 — 3/4” Bracket

B3 — 1” Bracket

D4 — 1-1/4” / 1-1/2” Stanchion

Guard

G = Guard

EMLC 45 30 A2 G

Applications

HostileLite® EML LED Series ﬁxtures are

designed for installations where moisture,

dirt, dust, corrosion and vibration may be

present, or NEMA 3 and 4X areas where

wind, water, snow, or high ambients can

be expected. They can be used in locations

made hazardous due to the presence of

ﬂammable or explosive gases, vapors and

combustible dusts as deﬁned by the NEC.

Applications include classiﬁed areas such

as paint manufacturing plants, ammunition

facilities, oil and gas producing and reﬁning

plants, off-shore and dockside installations,

tank farms, pipeline pumping stations and

marine loading and fuel transfer terminals.

Compliances

• UL-8750 for LED lighting

• UL-844 Electric Lighting Fixtures for use

in Hazardous Locations

• UL Marine Type Electric Lighting Fixtures

• CSA C22.2 no. 137-M1981 Electric

Luminaires for use in Hazardous

Locations

• NEMA 3, 4, 4X, 7CD, 9EFG

Materials

• Driver tank, splice box and guards

corrosion resistant copper-free aluminum

alloy

• Baked powder epoxy/polyester ﬁnish,

electorstatically applied for complete,

uniform corrosion protection

• All external hardware – Stainless Steel

• Reﬂectors are aluminum with white ﬁnish

LED Luminaire Features and Standards

• Compact Explosion-proof with Traditional

Industrial Appearance and Suitability

• Fluted or Exclusive Clear Globe; Dome or

Angle Reﬂectors

• Optional Mounting arrangements

including Pendant, Wall, Ceiling, and

Stanchion

• EML LED Housings can be retroﬁtted to

existing EZ splice boxes; upgrade from

Incandescent, Fluorescent or HID

• Energy Savings – Less than 55 Watts of

Power

• Long Life – 50,000 - 55,000 Maintenance

Free Hours to 70% Initial Lumens

• Crisp White Light for Excellent Color

Rendering – Chromaticity 5000K (CCT

range; approx. 70 CRI

• Ambient suitability -40°C to 55°C

• Instant on – Including after power

interruption

• “World Voltage” 120-277VAC 50/60Hz

• Solder-LESS LED Board Connections –

Vibration Resistant

• LM80-08 Measurement of lumen

maintenance for LED light sources

• LM79-08 Certiﬁed “Absolute” Photometry,

including Chromaticity Color for Solid

State Lighting

• L70 Values – Industry Nomenclature for

Hours of use to 70% of Initial Lumens

• Factory Sealed Construction – No external

seal required, simply wire mouting cap

and thread-in ﬁxture to install

Voltage

30 — 120-277VAC 50/60Hz

33 — 347-480V (40W only)

Accessories (sold separately)

ERSD30 — Dome Reﬂector

ERA30 — Angle Reﬂector

LED

Options

AN - Assembled Fixture

Suitable for Paint Spray Booth

Applications

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L36

EML SERIES

EXPLOSION-PROOF – ORDERING INFORMATION

ORDERING INFORMATION

Pendant Ceiling Wall Stanchion

j Catalog numbers shown are with Guard; Omit G if guard not required e.g. EML4530A2.

k Catalog numbers shown are with 3/4” conduit openings; change “2” to “3” for 1” e.g. EML4530A3G.

l Stanchion conduit hub size supplied is 1-1/2” with 1-1/2” to 1-1/4” reducer for 1-1/4” mounting (refer to catalog logic).

m 120VAC through 277VAC 50/60Hz.

* Exclusive from KILLARK - clear globe for maximum brightness.

EML SERIES PENDANT WITH OPTIC AND GUARDj

WATTS HUB SIZEkVOLTAGEmFLUTED GLOBE & GUARD CLEAR GLOBE & GUARD*

40 3/4” 120-277VAC EML4030A2G EMLC4030A2G

45 3/4” 120-277VAC EML4530A2G EMLC4530A2G

50 3/4” 120-277VAC EML5030A2G EMLC5030A2G

EML SERIES CEILING WITH OPTIC AND GUARDj

WATTS HUB SIZEkVOLTAGEmFLUTED GLOBE & GUARD CLEAR GLOBE & GUARD*

40 3/4” 120-277VAC EML4030X2G EMLC4030X2G

45 3/4” 120-277VAC EML4530X2G EMLC4530X2G

50 3/4” 120-277VAC EML5030X2G EMLC5030X2G

EML SERIES WALL WITH OPTIC AND GUARDj

WATTS HUB SIZEkVOLTAGEmFLUTED GLOBE & GUARD CLEAR GLOBE & GUARD*

40 3/4” 120-277VAC EML4030B2G EMLC4030B2G

45 3/4” 120-277VAC EML4530B2G EMLC4530B2G

50 3/4” 120-277VAC EML5030B2G EMLC5030B2G

EML SERIES 25° STANCHION WITH OPTIC AND GUARDj

WATTS HUB SIZElVOLTAGEmFLUTED GLOBE & GUARD CLEAR GLOBE & GUARD*

40 1-1/4”/1-1/2” 120-277VAC EML4030D4G EMLC4030D4G

45 1-1/4”/1-1/2” 120-277VAC EML4530D4G EMLC4530D4G

50 1-1/4”/1-1/2” 120-277VAC EML5030D4G EMLC5030D4G

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L37

EML SERIES

EXPLOSION-PROOF – COMPONENTS & RATINGS

Wall BracketPendant Ceiling 25° Stanchion EMG2

ERA30 Angle Dome

ERSD30 Standard Dome

EML4530

EMLC4530

Factory Sealed

Photocell VMHKPC1

EMGS3

EMGS2

EAC/EACH

EZ MOUNTING BRACKETS

CATALOG NUMBER HUB SIZE

PENDANT CEILING WALL STANCHION

EZA2 EZX2 EZB2 —3/4”

EZA3 EZX3 EZB3 —1”

— — — EZD4* 1-1/4” / 1-1/2”*

* 1-1/2” furnished with 1-1/2” - 1-1/4” reducer

j Guards are cast of copper-free aluminum with electrostatically applied epoxy/polyester.

k Reectors are aluminum with white nish.

l Adapters for discontinued Killark “H” Series and Crouse Hinds® available.

EML - EMLC LED ACCESSORIES

DESCRIPTION CATALOG NUMBER

GuardjEMG2

Dome ReﬂectorkERSD30

Angle ReﬂectorkERA30

CIDI C2D1 N4X Photocell 120VAC VMHKPC1

CIDI C2D1 N4X Photocell 208-277VAC VMHKPC2

Replacement Fluted Globe & Support EMGS3

Replacement Clear Globe & Support EMGS2

Adapter to old Killark “H” Series or Crouse Hinds®EAC/EACHl

ORDERING INFORMATION AND AMBIENT SUITABILITY C1D1/C1Z1 C2D1 L70

CATALOG

NO.

WEIGHT

LBS./KG WATTS VOLTAGE AMPS EML FLUTTED

LUMENS

EMLC CLEAR

LUMENS 40°C 55°C 40°C 55°C TM-21 CALCULATED

EML4030

26.00 /

11.79

40 120-277VAC 0.46-0.16 3479 3750 T6 T6 T4A (EFG) T4 (EFG) 60100 270000

EML4033 347-480VAC 0.14-0.10

EML4530 49 120-277VAC 0.41-0.18 2880 2930 T6 T6 T4A (EFG) T4 (EFG) 60100 270000

EML5030 50 120-277VAC 0.43-0.18 5740 5741 T6 T6 T4A (EFG) T4 (EFG) 72600 278000

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L38

EML SERIES

EXPLOSION-PROOF – DIMENSIONS & WEIGHTS

Wall 25° Stanchion

Pendant Ceiling

EML(C) DIMENSIONS

TYPE A B C D

PENDANT 15-15/16”

(404)

15-1/16”

(382)

8-13/16”

(224)

11-15/16”

(303)

CEILING 15-15/16”

(404)

15-1/16”

(382)

8-13/16”

(224)

11-15/16”

(303)

WALL 16-13/16”

(426)

15-15/16”

(404)

15”

(379)

11-15/16”

(303)

STANCHION 15-1/8”

(384)

14”

(356)

13-1/2”

(343)

TYPICAL WEIGHTS (LBS.) W/STANDARD GLOBE AND GUARD - EML (C) SERIES

Pendant 29.33 Ceiling 31.79 Wall 33.25 Stanchion 30.94

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L39

EXPLOSION-PROOF – INTRODUCTION & LOGIC

EZL SERIES

FEATURES-SPECIFICATIONS

Certified - File LR11713

Class I, Div. 1 & 2, Groups C,D

Class I, Zones 1 & 2, Groups llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III, Div. 1 & 2

Suitable for wet locations

Suitable for Paint Spray Booth

Marine Rated (US only)

NEMA 3, 4, 4X

Factory Sealed

Catalog Number Logic

Series Constant

Lamp Wattage

55 – 55 W

65 – 65 W

90 – 90 W

95 – 95 W

100 – 100 W

125 – 125 W

Voltage, Frequency

30 – 120 - 277 VAC, 50/60 Hz

33 – 347 - 480 VAC, 50/60 Hz

34 – 120-250VDC

Guard

G – Guard

(omit G if guard is not required)

Options

AN – Assembled Fixture

EB – Eyebolts

Mounting Type

A2 – 3/4” Pendant

A3 – 1” Pendant

X2 – 3/4” Ceiling

X3 – 1” Ceiling

B2 – 3/4” Bracket

B3 – 1” Bracket

D4 – 1-1/4” / 1-1/2” Stanchion

EZL 125 30 A2 GAN

Applications

HOSTILELITE® EZL Series high wattage

LED ﬁxtures are designed for installations

where moisture, dirt, dust, corrosion and

vibration may be present, or NEMA 3 and

4X areas where wind, water, snow or where

high ambient temperatures can be expected.

They can be used in locations made

hazardous due to the presence of ﬂammable

or explosive gases, vapors and combustible

dusts as deﬁned by the NEC.

Typical applications include classiﬁed areas

such as paint manufacturing plants, paint

spray, oil and gas producing and reﬁning

plants, off-shore and dockside installations,

tank farms, pipeline pumping stations and

marine loading and fuel transfer terminals.

Compliances

• UL-8750 for LED lighting

• UL-844 Electric Lighting Fixtures for use

in Hazardous Locations

• UL Marine Type Electric Lighting Fixtures

• CSA C22.2 no. 137-M1981 Electric

Luminaires for use in Hazardous

Locations

• NEMA 3, 4, 4X, 7CD, 9EFG

Materials

• Housing, splice box, and guards corrosion

resistant copper-free aluminum alloy

• Baked powder epoxy/polyester ﬁnish,

electorstatically applied for complete,

uniform corrosion protection

• All external hardware – Stainless Steel

• Reﬂectors are aluminum with white ﬁnish

LED Luminaire Features and Standards

Supplemental 20KA/10KV Surge Protection

is standard (for 120-277 VAC models)

10KA/10KV Surge Protection (for 347-480 VAC)

• Explosion-proof with Traditional Industrial

Appearance and Suitability

• Mounting choice – Pendant, ceiling,

25° stanchion or 90° wall mount, all

with “wireless” design that allows fast,

easy ﬁxture installation or removal for

maintenance.

• Accessories – Available with or without

guard, standard dome or angle reﬂector

• EZL LED Housings can be retroﬁtted to

existing EZ splice boxes; upgrade from

Incandescent, Fluorescent or HID

• Energy Savings – Less than 130 Watts of

Power

• Long Life – 50,000 - 55,000 Maintenance

Free Hours to 70% Initial Lumens

• Crisp White Light for Excellent Color

Rendering – Chromaticity 5000K (CCT

range; approx. 70 CRI

• Ambient suitability -40°C to 55°C

• Instant on – Including after power

interruption

• “World Voltage” 120-277VAC 50/60Hz

• Solder-LESS LED Board Connections –

Vibration Resistant

• LM80-08 Measurement of lumen

maintenance for LED light sources

• LM79-08 Certiﬁed “Absolute” Photometry,

including Chromaticity Color for Solid

State Lighting

• L70 Values – Industry Nomenclature for

Hours of use to 70% of Initial Lumens

• Factory Sealed Construction – No external

seal required, simply wire mouting cap

and thread-in ﬁxture to install

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L40

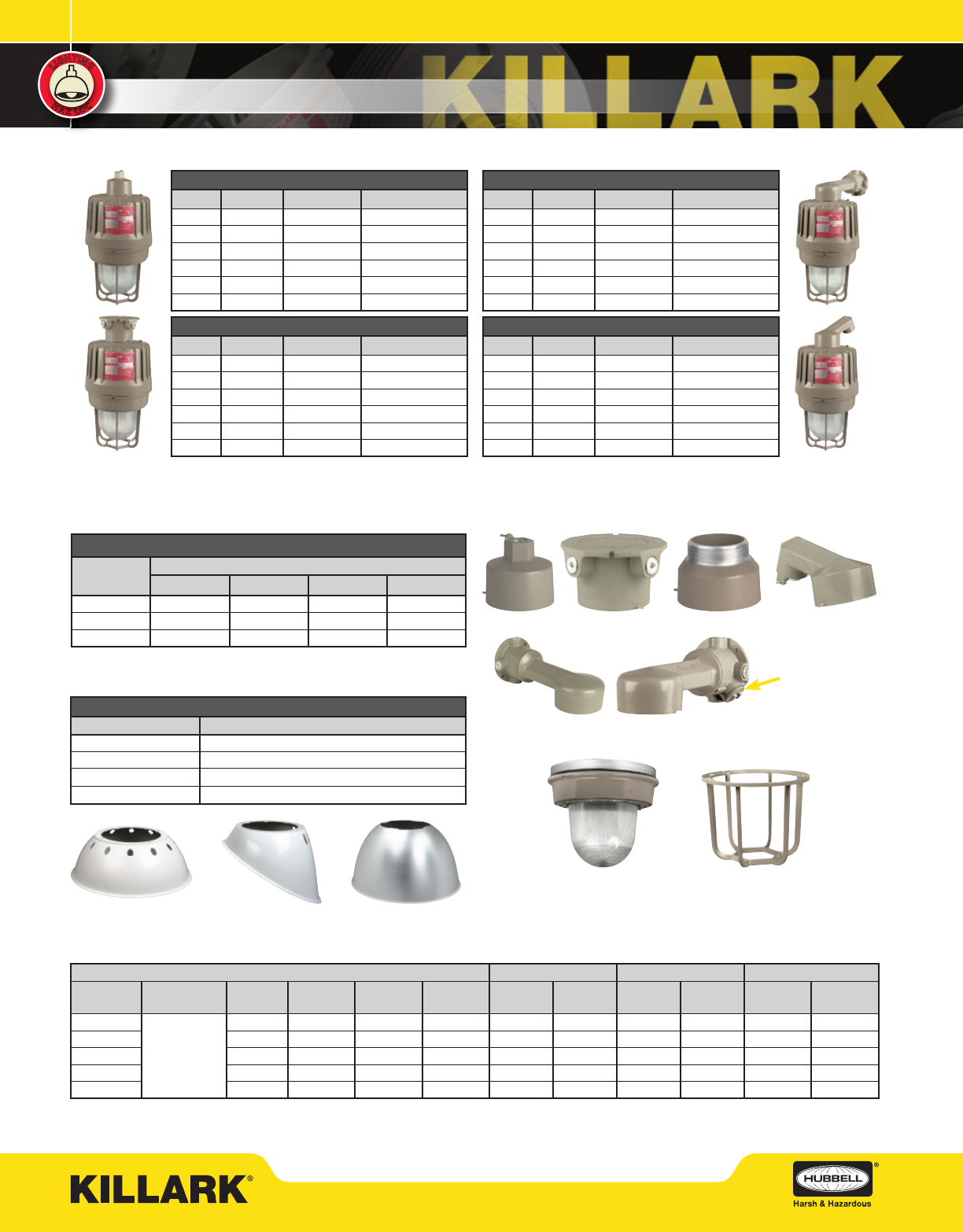

EXPLOSION PROOF – ORDERING INFORMATION, COMPONENTS & RATINGS

EZL SERIES

MOUNTING BOXES

HUB

SIZE

CATALOG NUMBER

PENDANT CEILING BRACKET STANCHION

3/4” EZA2 EZX2** EZB2 —

1” EZA3 EZX3 EZB3 —

1-1/4”/1-1/2” — — — EZD4*

REFLECTORS

CATALOG NUMBER DESCRIPTION

VMPSD40 Standard dome. ﬁberglass reinforced polyester

VMPA40 30° Angle ﬁberglass reinforced polyester

HRD400 Deep dome. Aluminum with white ﬁnish k

HRD400ALZ Deep dome with specular anaodized ﬁnish k

j Catalog numbers shown are with Guard; Omit G if guard not required e.g. EZL5530A2.

k Catalog numbers shown are with 3/4” conduit openings; change “2” to “3” for 1” e.g. EZL5530A2G.

l Stanchion conduit hub size supplied is 1-1/2” with 1-1/2” to 1-1/4” reducer for 1-1/4” mounting.

* 1-1/2” furnished with 1-1/2” - 1-1/4” reducer

EZL SERIES PENDANT WITH OPTIC AND GUARD

WATTS HUB SIZE VOLTAGE GLOBE & GUARDjk

55 3/4” 120-277VAC EZL5530A2G

65 3/4” 120-277VAC EZL6530A2G

90 3/4” 120-277VAC EZL9030A2G

95 3/4” 120-277VAC EZL9530A2G

100 3/4” 120-277VAC EZL10030A2G

125 3/4” 120-277VAC EZL12530A2G

EZL SERIES CEILING WITH OPTIC AND GUARD

WATTS HUB SIZE VOLTAGE GLOBE & GUARDjk

55 3/4” 120-277VAC EZL5530X2G

65 3/4” 120-277VAC EZL6530X2G

90 3/4” 120-277VAC EZL9030X2G

95 3/4” 120-277VAC EZL9530X2G

100 3/4” 120-277VAC EZL10030X2G

125 3/4” 120-277VAC EZL12530X2G

EZL SERIES WALL BRACKET WITH OPTIC AND GUARD

WATTS HUB SIZE VOLTAGE GLOBE & GUARDjk

55 3/4” 120-277VAC EZL5530B2G

65 3/4” 120-277VAC EZL6530B2G

90 3/4” 120-277VAC EZL9030B2G

95 3/4” 120-277VAC EZL9530B2G

100 3/4” 120-277VAC EZL10030B2G

125 3/4” 120-277VAC EZL12530B2G

EZL SERIES STANCHION WITH OPTIC AND GUARD

WATTS HUB SIZE VOLTAGE GLOBE & GUARDjl

55 3/4” 120-277VAC EZL5530D4G

65 3/4” 120-277VAC EZL6530D4G

90 3/4” 120-277VAC EZL9030D4G

95 3/4” 120-277VAC EZL9530D4G

100 3/4” 120-277VAC EZL10030D4G

125 3/4” 120-277VAC EZL12530D4G

ORDERING INFORMATION AND AMBIENT SUITABILITY C1D1/C1Z1 C2D1 L70

CATALOG NO. WEIGHT LBS./KG WATTS VOLTAGE AMPS DELIVERED

LUMENS 40°C 55°C 40°C 55°C TM-21 CALCULATED

EZL6530

36 / 16.33

65 120-277VAC 0.54/0.23 6515 T6 T6 EFG EFG 60100 270000

EZL9030 90 120-277VAC 0.75/0.32 7818 T6 T6 EFG EFG 60100 270000

EZL9530 95 120-277VAC 0.79/0.34 9121 T6 T6 EFG EFG 60100 270000

EZL10030 100 120-277VAC 0.83/0.36 10903 T6 XXX EFG XXX 72600 278000

EZL12530 125 120-277VAC 1.04/0.45 12720 T6 XXX EFG XXX 72600 278000

25° Stanchion

Replacement

Globe & Support

Assemblies

EZGS1

Wall Bracket

EACPendant Ceiling

HIC-BEIGE

replacement wiring

plug for EZBx

Wall Bracket

VMPSD40 VMPA40 HRD400

HRD400ALZ (pictured)

Replacement Guard

EZG1

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L41

FLOODLIGHTING

KFLC

KFL

KF1L

KFLH

KFL2H

KFLP

KF1LP

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L42

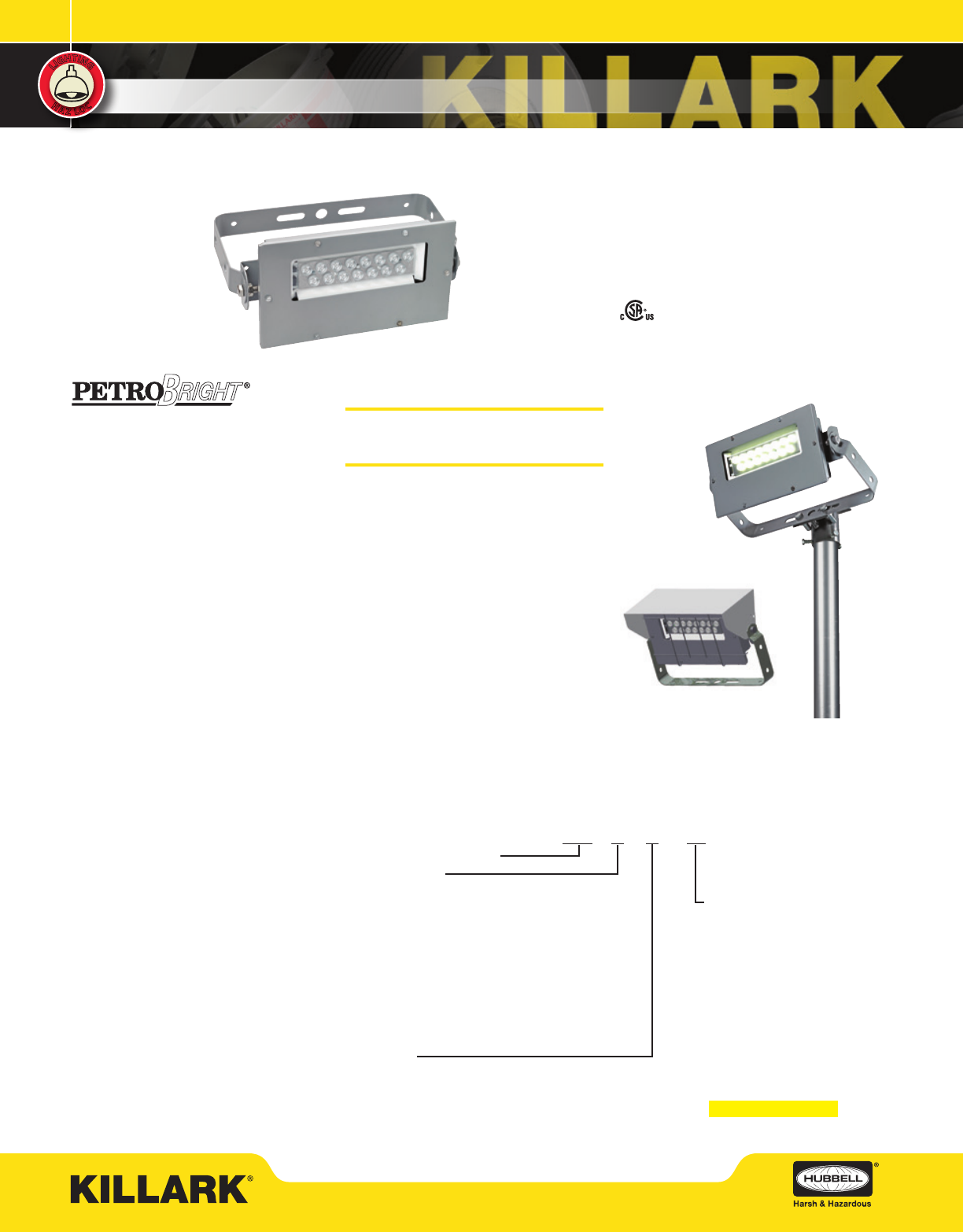

KFLC SERIES

COMPACT FLOOD – INTRODUCTION & LOGIC

FEATURES-SPECIFICATIONS

File LR11713

Class I, Div. 2, Groups A,B,C,D

Class I, Zone 2, Groups IIC, IIB, IIA

Class II, Div. 1 & 2, Groups E,F,G

Class III

NEMA 4X

Applications

LED Compact Floods are designed for

installations where moisture, dirt, dust,

corrosion and vibration may be present, or

NEMA 3 and 4X areas where wind, water,

snow or high ambients can be expected.

They can be used in locations made

hazardous by the presence of ﬂammable

vapors or gases or combustible dusts as

deﬁned by the NEC.

Typical applications include spot lighting

or walkways in manufacturing plants,

and certain chemical and petrochemical

processing facilities, sewage treatment

plants, off-shore and dockside installations,

garages and storage facilities

Compliances

• UL-8750 for LED lighting

• ANSI/UL 1598 (A)

• UL-844 Standard for lighting ﬁxtures for

hazardous locations, Class I, Division 1;

Class II, Division 1; Class III

• CSA C22.2 no. 137-M1981 electric

luminairies for use in hazardous locations

• Enclosed and gasketed

• NEMA 3, 4X, IP66

Materials

• Body and lens frame corrosion resistant

copper-free aluminum alloy with

baked powder epoxy/polyester ﬁnish,

electrostatically applied for complete,

uniform corrosion protection

• All external hardware – stainless steel

• Thermal shock and impact resistant extra

heavy-duty glass lens

• High temperature silicone gasketing

• Trunnion heavy gauge galvanized steel

with painted ﬁnish

LED Flood Features and Standards

Supplemental 20KA/10KV Surge Protection

is standard (for 120-277 VAC models)

10KA/10KV Surge Protection (for 347-480 VAC)

• One 3/4” NPT hub & R-21

3/4” x 1/2” reducer is standard

• Crisp White Light for Excellent Color Rendering

– Chromaticity 5000 K (CCT); approx. 70 CRI

• Energy Savings – High lumens per watt

• Long Life – 100,000+ maintenance free hours

to 70% initial lumens

• Ambient suitability -40˚C to 55˚C

• Instant On – Including after power interruption

• Solder-LESS LED Board Connections –

Vibration Resistant

• LM80-08 Measurement of lumen maintenance

for LED light sources

• LM79-08 Certiﬁed “Absolute” Photometry,

including Chromaticity Color for Solid State

Lighting

• L70 Values – Industry Nomenclature for Hours

of use to 70% of initial Lumens – TM-21 &

calculated

Catalog Number Logic

15 -

15W “30, 27 or 34” voltage codes

18 -

18W “30, 27 or 34” voltage codes

20 -

20W “30, 27 or 34” voltage codes

23 -

23W “30, 27 or 34” voltage codes

25 -

25W “30, 27 or 34” voltage codes

30 -

30W “30” voltage code 120 - 277VAC

35 -

35W “30” voltage code 120 - 277VAC

40 -

40W “30” voltage code 120 - 277VAC

45 -

45W “30” voltage code 120 - 277VAC

50 -

50W “30” voltage code 120 - 277VAC

KFLC 45 30 X X

KFLC - Series Constant

LED Wattage

Voltage

30 -

120 - 277VAC 50/60Hz

27 -

12 - 24VDC input

34 -

120-250VDC input; 120-277VAC (15 - 23W

only)

Options

LY-

Less Yoke for Wall Mount

F-

Single Fuse

FF-

2 Fuses

SP-

Surge Protection

TBL-

Terminal Blocks Looping

QD-

QuickDisconnect

D75-

Dual 3/4” threaded NPT entry

M25-

Single M25 Slip-hole Entry

D25-

Two M25 Slip-hole Entry

M20-

Single M20 Slip-hole Entry

D20-

Dual M20 Slip-hole Entry

PL-

Polycarbonate Lens

KFLC with KFS-6

Sliptter mount

on 2” pipe

Dark Sky Visor

KFLC-DARK

Patented

Fixture Design

LED

jFusing not for Canadian Marine Installations

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L43

KFLC SERIES

COMPACT FLOOD – ORDERING & TECHNICAL DATA

Dimensions

Trunnion Mounting

Detail

Front

Side

j Fittings available to adapt trunnion mount oodlights to crossarms, poles and walls. Must be ordered separately.

k Drop limit 1’. Attaches to luminaire cable provision and to mounting structure.

l Designed to eliminate uplight when aimed at 70°.

** TM-21 based values require very long duration testing. IES TM-21 “official reported” is based on at 8,000 to

10,000 hours of LED chip manufacturer’s LM-80 Testing at printing.

KFS-6

SLIPFITTER

KFCB

CROSS ARM MOUNT

KFWB

WALL/PIPE BRACKET

K4040

WALL BRACKET

4041

TENON FITTING

Extra high lumen per watt LED’s

* KFLC 30-50w Lumens are LM-79 absolute photometry. 15-25W are calculated based on driver output current.

** All wattages are available as “30” voltage code 120-277VAC.

KFL MOUNTS AND ACCESSORIESj

CATALOG NUMBER DESCRIPTION

KFLC-DARKkReﬂector for ﬁeld addition - No uplight at 45° to 70°

KFLCG Guard

KFLC-DOORkReplacement Door Assembly

NWP-HUBA 3/4” Aluminum Hub; Replacement or Additional (Max. 4)

VMSC10lSafety Cable (through yoke)

KFS-6 Steel Slipﬁtter for 2” Pipe (2-3/8” o.d.) Tenon. Slips 3.75” Over Pipe.

KFCB Heavy Duty Cast-Iron Crossarm Fitting for Horizontal Trunnion

KFWB Heavy Duty Wall Mount and/or Pipe Clamp Fitting Clamps 2” Pipe (2-3/8” o.d.)

Through 2-1/2” Pipe (2-7/8” o.d.)

K4040 Heavy Duty Steel Wall Bracket. (Must be with KFCB Crossarm Fitting).

4041 Heavy Duty Steel Wall Bracket 2” Pipe (2-3/8” o.d.) Tenon Fitting.

ORDERING INFORMATION AND AMBIENT SUITABILITY C1D2 C1D2 C2D1 L70

CATALOG NO. WEIGHT LBS./KG WATTS VOLTAGE AMPS DELIVERED LUMENS 40°C 55°C 40°C 55°C 40°C 55°C TM-21 CALCULATED

KFLC1527

9.50 / 4.31

12-24VDC 1.3-0.6

1435 T6 T6 T4 T3B T4A T4A 60100 270000KFLC1530 120-277VAC 0.2-0.1

KFLC1534 120-250VDC 0.2-0.1

KFLC1827

12-24VDC 1.5-0.8

1830 T6 T6 T4 T3B T4A T4A 72600 278000KFLC1830 120-277VAC 0.2-0.1

KFLC1834 120-250VDC 0.2-0.1

KFLC2027

12-24VDC 1.7-0.8

2170 T6 T6 T4 T3B T4A T4A 60100 270000KFLC2030 120-277VAC 0.2-0.1

KFLC2034 120-250VDC 0.2-0.1

KFLC2327

12-24VDC 1.9-1.0

2550 T6 T6 T4 T3B T4A T4A 60100 270000

KFLC2330 120-277VAC 0.2-0.1

KFLC2334 120-250VDC 0.2-0.1

KFLC2527

12-24VDC 2.1-1.0

2667 T6 T6 T4 T3B T4A T4A 72600 278000KFLC2530 120-277VAC 0.2-0.1

KFLC2534 120-250VDC 0.2-0.1

KFLC3030 30

120-277VAC

0.26-0.11 2662 T6 T6 T4 T3B T4A T4A 60100 270000

KFLC3530 35 0.30-0.13 3302 T6 T6 T4 T3B T4A T4A 60100 270000

KFLC4030 40 0.34-0.15 4039 T6 T6 T4 T3B T4A T4A 72600 278000

KFLC4530 45 0.38-0.17 4718 T6 T6 T4 T3B T4A T4A 72600 278000

KFLC5030 50 0.42-0.18 5353 T6 T6 T4 T3B T4A T4A 60300 190000

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L44

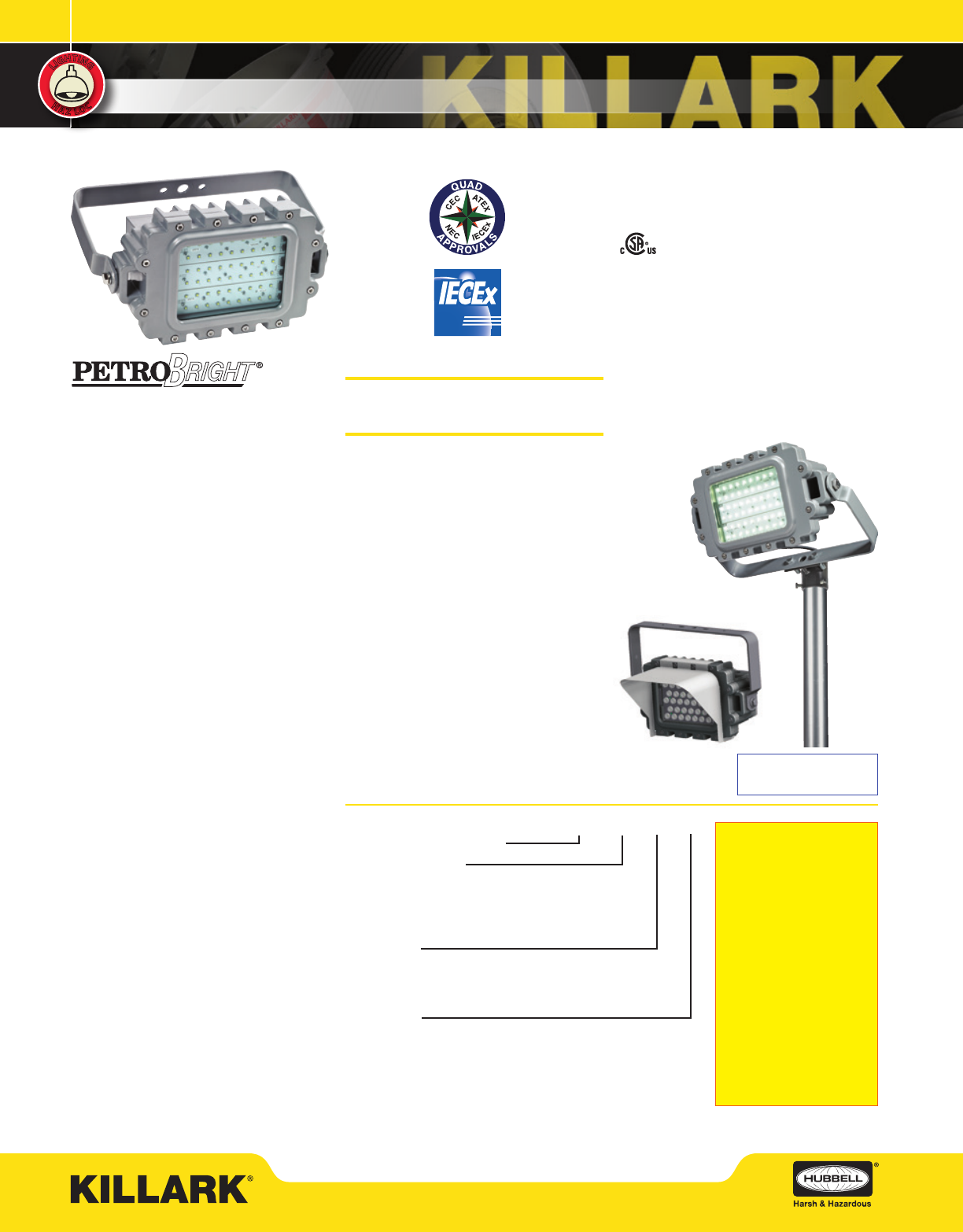

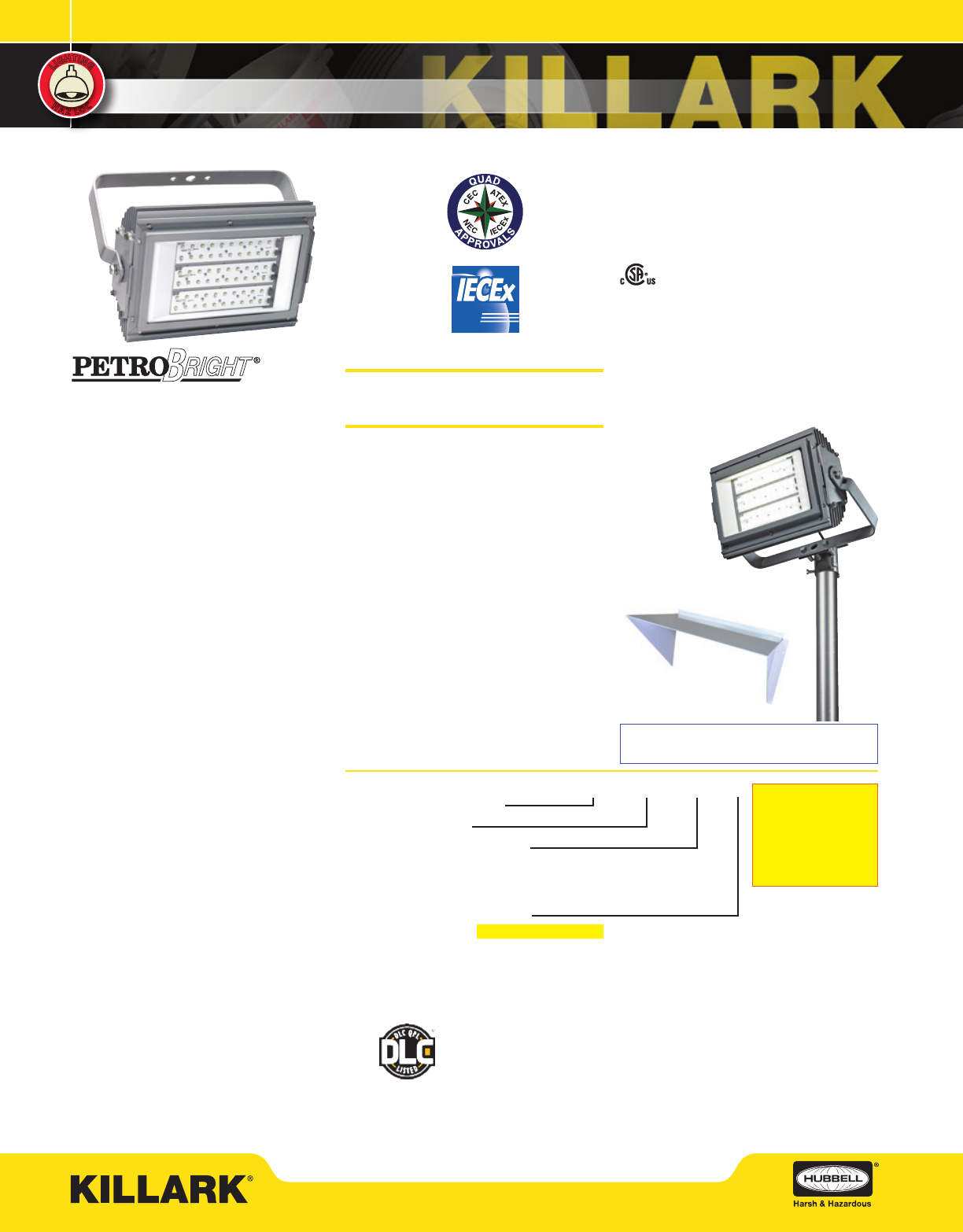

KFL SERIES

C1D2 FLOOD – INTRODUCTION & LOGIC

KFL with KFS-6

Sliptter mount

on 2” pipe

LED Flood Features and Standards

Supplemental 20KA/10KV Surge Protection

is standard (for 120-277 VAC models)

10KA/10KV Surge Protection (for 347-480 VAC)

• Crisp White Light for Excellent Color Rendering

- Chromaticity 5000K (CCT); approx. 70 CRI

• Energy Savings - High lumens per watt

• Long Life - to 100,000+ maintenance free

hours to 70% initial lumens

• Ambient suitability -50°C to 55°C up to 125Wk

• Instant On - Including after power interruption

• World Voltage 120 - 277VAC 50/60Hz

• Solder-LESS LED Board Connections -

Vibration Resistant

• LM80-08 Measurement of lumen

maintenance for LED light sources

• LM79-08 Certiﬁed “Absolute” Photometry,

including Chromaticity Color for Solid State

Lighting

• L70 Values - Industry Nomenclature for

Hours of use to 70% of initial Lumens -

TM-21 & Calculated

Class I, Div. 2, Groups A,B,C,D

Class II, Div. 1&2, Groups EFG

Class III

Suitable for wet locations

Marine Rated (US Only)

NEMA 3, 4X

IP66

IEC Ex Rated model (w/IEX sufﬁx)

Zone 2 and Zone 21 areas

Ex nA IIC T6…T3, Gc

Ex tb IIIC T160°C Db

Tamb -50°C <Ta<+55°C, IP66

IECEx Certiﬁcate

CSA 14.0002X

ATEX Certiﬁcate

CML 14ATEX3087/4088

Applications

LED Floods are designed for installations

where moisture, dirt, dust, corrosion and

vibration may be present, or NEMA 3 and

4X areas where wind, water, snow, or high

ambients can be expected. They can be used

in locations made hazardous by the presence

of ﬂammable vapors or gases or combustible

dusts as deﬁned by the NEC.

Typical applications include manufacturing

plants, and certain chemical and

petrochemical processing facilities, sewage

treatment plants, off-shore and dockside

installations, garages and storage facilities.

Compliances

• UL-8750 for LED lighting

• ANSI/UL 1598(A)

• UL-844 Standard for lighting ﬁxtures for

hazardous locations, Class I, Division 2;

Class II, Divisions 1 and 2; Class III

• CSA C22.2 no. 137-M1981 electric

luminairies for use in hazardous locations

• Enclosed and gasketed

• NEMA 3, 4X

• IP66

• IEX sufﬁx Zone 2/21 to IEC 60079-0,

60079-15, 60079-31 Standards

Materials

• Body, end caps and lens frame corrosion

resistant copper-free aluminum alloy with

baked powder epoxy/polyester ﬁnish,

electrostatically applied for complete,

uniform corrosion protection

• All external hardware - stainless steel

• Thermal shock and impact resistant glass lens

• High temperature silicone gasketing

• Trunnion heavy gauge galvanized steel

with painted ﬁnish

PATENTED

LUMINAIRE

DESIGN

IEX Units include Qty. 3 6mm terminals

plus external ground as standard

File LR11713

FEATURES-SPECIFICATIONS

LED

Catalog Number Logic

KFL 125 30 XX

KFL - Series Constant

Fixture Wattage

060

- 60W

070

- 70W

075

- 75W

085

- 85W

090

- 90W

105

- 105W

110

- 110W

125

- 125W

150

- 150W

165

- 165W

195

- 195W

Voltage

– 120 - 277VAC 50/60Hz

– 347 - 480VAC 60Hz (60W to 125W models)k

– 120 - 250VDC (60W to 125W models)

Options

- Polycarbonate Lens

- Single Fusej

- Double Fusej

TBL

- Terminal Blocks

Looping

(Std. w/IEX)

- 120V Photocell, factory installed

- 208V-277V Photocell, factory installed

- 347V Photocell, factory installed

- Quick Disconnect

D20

- 2x M20 entries

D25

- 2x M25 entries

D75

- 2 x 3/4” NPT

- 316 SS Yoke

IEX

- IECEx & ATEX includes TBL and External Ground (to 125W)

Construction Note:

Models with dual metric

entries are tapped with

one plugged and the

standard 3/4” NPT entry

will be plugged.

j Fusing not for Canadian or Marine

Installations

k 347V-480V +40°C Max

Consult website

for current list of

approved luminaires

Dark Sky Visor

KFL-DARK

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L45

KFL SERIES

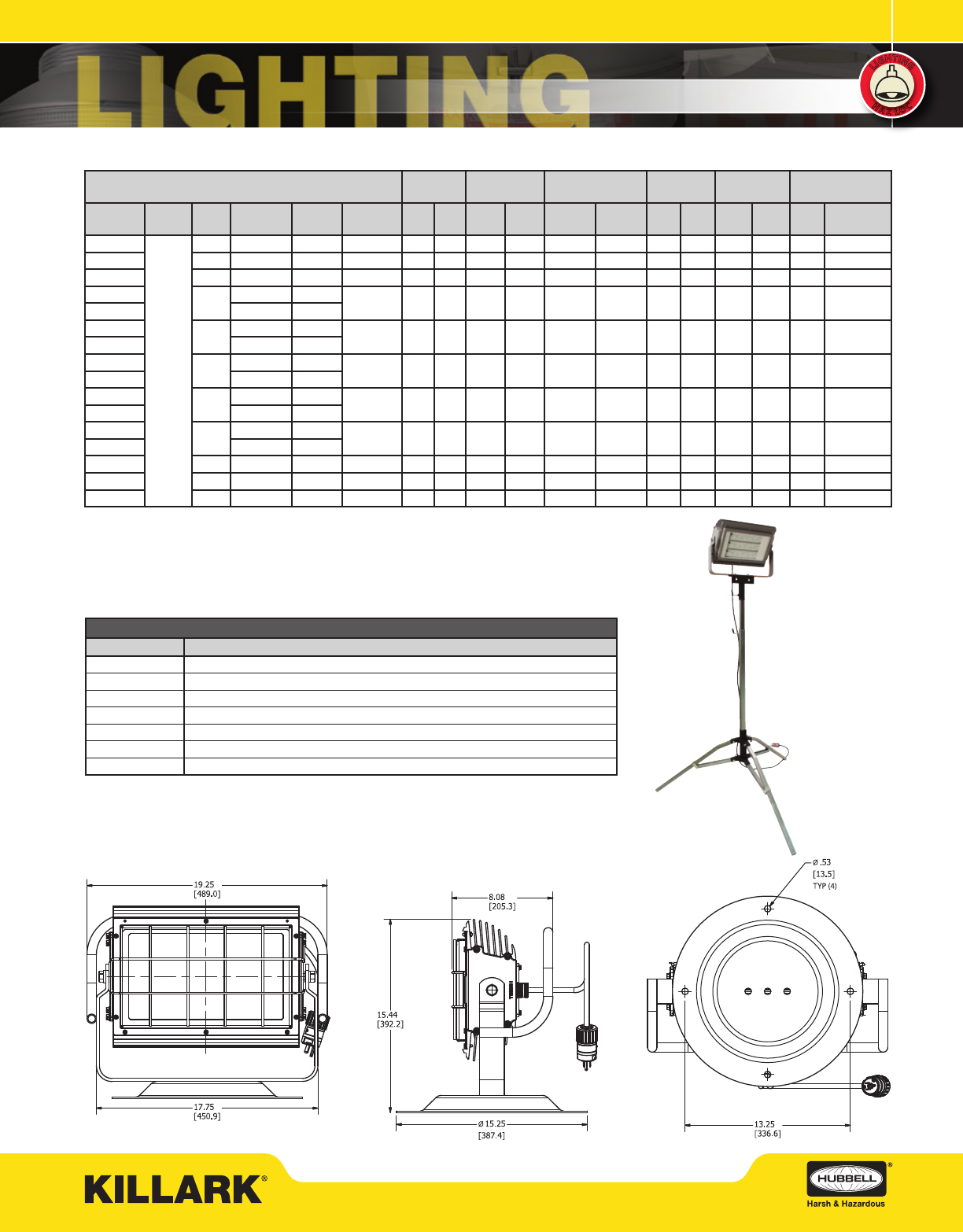

C1D2 FLOOD – ORDERING INFORMATION & TECHNICAL DATA

KFL MOUNTS AND ACCESSORIESj

CATALOG NUMBER DESCRIPTION

KFS-6 Steel Slipﬁtter for 2” Pipe (2-3/8” o.d.) Tenon. Slips 3.75” Over Pipe.

KFCB Heavy Duty Cast-Iron Crossarm Fitting for Horizontal Trunnion

KFWB Heavy Duty Wall Mount and/or Pipe Clamp Fitting Clamps 2” Pipe (2-3/8” o.d.) Through

2-1/2” Pipe (2-7/8” o.d.)

K4040 Heavy Duty Steel Wall Bracket. (Must be with

KFCB

Crossarm Fitting).

4041 Heavy Duty Steel Wall Bracket 2” Pipe (2-3/8” o.d.) Tenon Fitting. Uses with KFS-6.

KFLGnWire Guard, 316 Stainless Steel (not used with KFL-DARK)

VMSC10k10’ Stainless Steel Safety Cable with loop grip

KFL-DARKln Dark Sky Visor, White Painted Aluminum (not used with KFLG)

KFL-DOOR Replacement Door and Lens Assembly (for units w/o internal reﬂectors)

KFL-DOOR2mReplacement Internal Reﬂector and Lens Assembly

KFL-STND 8 Foot Extendable Portable Stand

j Fittings available to adapt trunnion mount oodlights to crossarms, poles and walls. Must be ordered separately.

k Drop limit 1’. Attaches to luminaire cable provision and to mounting structure.

l Designed to eliminate uplight when aimed at 45°.

m Only for models factory supplied with internal reector. Not backward compatible with units originally shipped

without internal reector.

n KFLG and KFL-DARK cannot be used together.

Dimensions

Side

14.07

[357.3]

5.22

[132.7]

8.41

[213.5]

2.00

[50.8]

17.75

[450.9]

14.88

[377.8]

Front

11.32

[287.6]

KFS-6

Sliptter

KFCB

Cross Arm Mount

KFWB

Wall/Pipe Bracket

K4040

Wall Bracket

4041

Tenon Fitting

j Cat. nos. are 120-277VAC models, see logic for 347-480V.

k Amperage measured at 120VAC; 277VAC calculated

l Extra high Lumens per Watt LED models

m Use 75° minimum Supply Wire @40°C Ambient; 90 @55°C Ambient

n First number is lens temperature under 25mm layer of dust; Second number is lens temp. for dust cloud.

ORDERING INFORMATION AND AMBIENT SUITABILITY C1D2mC1D2m

SIMULTANEOUS C2D1mIEC ZONE 2

mIEC ZONE 21nL70

CATALOG

NO.j

WEIGHT

LBS./KG WATTS VOLTAGE AMPS

DELIVERED

LUMENSl

40°C 55°C 40°C 55°C 40°C 55°C 40°C 55°C 40°C 55°C TM-21 CALCULATED

KFL06030

30.00 /

13.61

60 120-277VAC 0.50-0.20 6111 T6 T5 T3C T3C T3C (EFG) T3C (EFG) T6 T5 145-70 160-85 60100 270000

KFL07030 70 120-277VAC 0.60-0.30 9742 T6 T5 T3C T3C T3C (EFG) T3C (EFG) T6 T5 145-70 160-85 72600 278000

KFL07530 75 120-277VAC 0.60-0.30 7454 T6 T5 T3C T3C T3C (EFG) T3C (EFG) T6 T5 145-70 160-85 60100 270000

KFL08530

120-277VAC 0.70-0.30

10840 T6 T5 T3C T3C T3C (EFG) T3C (EFG) T6 T5 145-70 160-85 72600 278000KFL08533 347-480VAC 0.24-0.17

KFL08534 120-250VDC 0.70-0.27

KFL09030

120-277VAC 0.80-0.40

9023 T6 T5 T3C T3C T3C (EFG) T3C (EFG) T6 T5 145-70 160-85 60100 270000KFL09033 347-480VAC 0.28-0.23

KFL09034 120-250VDC 0.80-0.36

KFL10530

105

120-277VAC 0.90-0.40

10370 T4A T4A T3C T3C T3C (EFG) T3C (EFG) T4 T4 145-70 160-85 60100 270000KFL10533 347-480VAC 0.31-0.23

KFL10534 120-250VDC 0.90-0.36

KFL11030

110

120-277VAC 0.90-0.40

13780 T6 T5 T3C T3C T3C (EFG) T3C (EFG) T6 T5 145-70 160-85 72600 278000

KFL11033 347-480VAC 0.31-0.23

KFL11034 120-250VDC 0.90-0.36

KFL12530

125

120-277VAC 1.00-0.50

15340 T6 T5 T3C T3C T3C (EFG) T3C (EFG) T6 T5 145-70 160-85 72600 278000

KFL12533 347-480VAC 0.35-0.29

KFL12534 120-250VDC 1.00-0.45

KFL15030 150 120-277VAC 1.25-0.54 18550 T5 -T3C -T3C (EFG) - - - - - 60300 190000

KFL16530 165 120-277VAC 1.38-0.60 19220 T5 -T3C -T3C (EFG) - - - - - 72600 278000

KFL19530 195 120-277VAC 1.63-0.70 21940 T5 -T3C -T3C (EFG) - - - - - 72600 278000

3-1/8”

(79)

.531 DIA.

(13)

Trunnion Mounting

Detail

KFL-STND

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L46

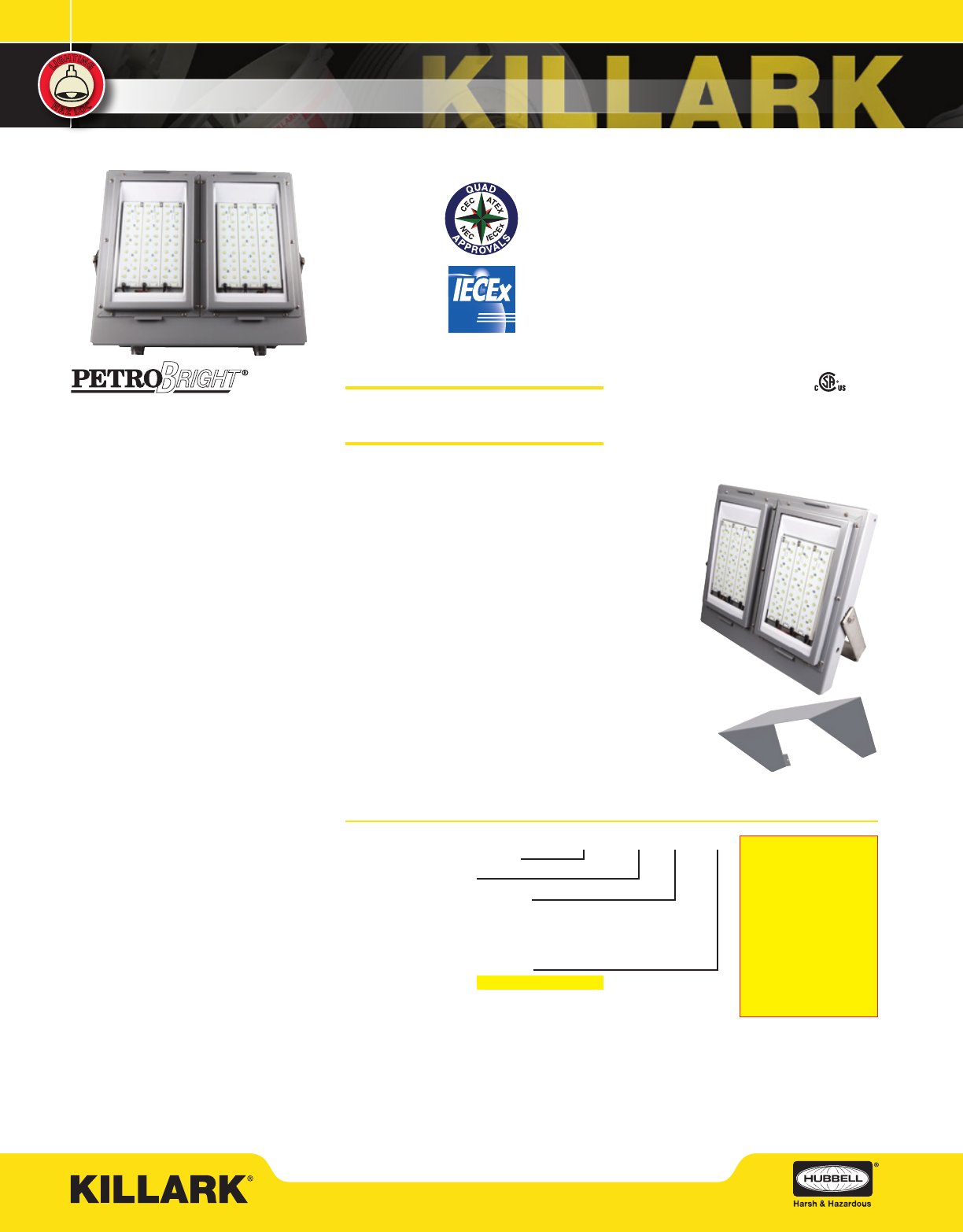

KFLH SERIES

C1D2 FLOOD – INTRODUCTION & LOGIC

KFLH

Luminaire

LED Flood Features and Standards

Supplemental 20KA/10KV Surge Protection

is standard (for 120-277 VAC models)

10KA/10KV Surge Protection (for 347-480 VAC)

• Crisp White Light for Excellent Color Rendering

– Chromaticity 5000K (CCT); approx. 70 CRI

• Energy Savings – High lumens per watt

• Long Life – to 100,000+ maintenance free

hours to 70% initial lumens

• Ambient suitability -40°C to 55°C up

to 250Wk to -50°C for non-hazardous

applications

• Instant On – Including after power interruption

• World Voltage 120 – 277VAC 50/60Hz

• Solder-LESS LED Board Connections –

Vibration Resistant

• LM80-08 Measurement of lumen

maintenance for LED light sources

• LM79-08 Certiﬁed “Absolute” Photometry,

including Chromaticity Color for Solid State

Lighting

• L70 Values – Industry Nomenclature for

Hours of use to 70% of initial Lumens –

TM-21 & Calculated

Class I, Div. 2, Groups A, B, C, D

Class I, Zone 2, IIC, IIB, IIA

Class II, Div. 1 & 2, Groups E, F, G

Class III

Suitable for wet locations

Marine Rated (US only)

NEMA 3, 4X

IP66

IEC Ex Rated Model (w/ IEX sufﬁx)

Zone 2 and Zone 21 areas

Ex nA IIC T6…T3, Gc

Ex tb IIC T105°C Db

Tamb -50°C < Ta < +55°C, IP66

IECEx Certiﬁcate

QPS 15.0011

ATEX Certiﬁcate

CML 15ATEX4079X (nA)

CML 15ATEX3080X (tb)

PATENTED

LENS and

REFLECTOR

DESIGN

Applications

LED Floods are designed for installations

where moisture, dirt, dust, corrosion and

vibration may be present, or NEMA 3 and

4X areas where wind, water, snow or high

ambients can be expected. They can be used

in locations made hazardous by the presence

of ﬂammable vapors or gases or combustible

dusts as deﬁned by the NEC.

Typical applications include manufacturing

plants, and certain chemical and

petrochemical processing facilities, sewage

treatment plants, off-shore and dockside

installations, garages and storage facilities.

Compliances

• UL-8750 for LED lighting

• ANSI/UL 1598(A)

• UL-844 Standard for lighting ﬁxtures for

hazardous locations, Class I, Division 2;

Class II, Divisions 1 and 2; Class III

• CSA C22.2 no. 137-M1981 electric

luminairies for use in hazardous locations

• Enclosed and gasketed

• NEMA 3, 4X

• IP66

Materials

• Body and lens frame corrosion resistant

copper-free aluminum alloy with

baked powder epoxy/polyester ﬁnish,

electrostatically applied for complete,

uniform corrosion protection

• All external hardware – stainless steel

• Thermal shock and impact resistant glass

lens (Polycarbonate available)

• High temperature silicone gasketing

• Trunnion heavy gauge 316 stainless steel

FEATURES-SPECIFICATIONS

LED

Catalog Number Logic

KFLH 170 30 XX

KFLH - Series Constant

Fixture Wattage

170 -

170W

210 -

210W

220 -

220W

250 -

250W

300 -

300W

390 -

390W

Voltage

– 120 - 277VAC 50/60Hz

– 347 - 480VAC 60Hz (170W to 250W)k

– 120 - 250VDC (170W to 250W)

Options

- Polycarbonate Lens

- Single Fusej

- Double Fusej

TBL

- Terminal Blocks

Looping

- 120V Photocell, factory installed

- 208V-277V Photocell, factory installed

- 347V Photocell, factory installed

- Quick Disconnect

D20

- 2x M20 entries

IEX

- IEXEx includes TBL & External ground

Construction Note:

Standard with two

3/4” NPT entries with

one plugged

Models for dual

metric entries have

slip holes with

metric locknuts and

certiﬁed blanking

plugs

jFusing not for Canadian or Marine

Installations

k 347V-480V +40°C Max

Dark Sky Visor

KFLH-DARK

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L47

KFLH SERIES

C1D2 FLOOD – ORDERING INFORMATION & TECHNICAL DATA

KFLH MOUNTS AND ACCESSORIESj

CATALOG NUMBER DESCRIPTION

KFS-6 Steel Slipﬁtter for 2” Pipe (2-3/8” o.d.) Tenon. Slips 3.75” Over Pipe.

KFCB Heavy Duty Cast-Iron Crossarm Fitting for Horizontal Trunnion

KFWB Heavy Duty Wall Mount and/or Pipe Clamp Fitting Clamps 2” Pipe (2-3/8” o.d.) Through

2-1/2” Pipe (2-7/8” o.d.)

K4040 Heavy Duty Steel Wall Bracket. (Must be with

KFCB

Crossarm Fitting).

4041 Heavy Duty Steel Wall Bracket 2” Pipe (2-3/8” o.d.) Tenon Fitting. Use with KFS-6.

KFLG Wire Guard, 316 Stainless Steel (order 2 per ﬁxture)

VMSC10k10’ Stainless Steel Safety Cable with loop grip

KFLH-DARKlDark Sky Visor, White Painted Aluminum

KFLH-DOOR Replacement Internal Reﬂector and Lens Assembly (order 2 per ﬁxture as required)

j Fittings available to adapt trunnion mount oodlights to crossarms, poles and walls. Must be ordered separately.

k Drop limit 1’. Attaches to luminaire cable provision and to mounting structure.

l Designed to eliminate uplight when aimed at 45°.

j Cat. Nos. are 120 through 277VAC 50/60Hz; see logic for 347-480V or 125-250VDC input

k Amperage measured at 120VAC; 277VAC calculated

l Extra High Lumens per Watt LED Models

m Use 75°C Supply Wire @ 40°C Ambient; 90°C Wire @ 55°C Ambient

n 55°C only for 170W through 250W at 120-277VAC 50/60Hz or 125-250VDC; not 480VAC

o For Dust Applications, limit aiming angle between 120° and -120° to minimize buildup - see gure at right

KFS-6

Sliptter

K4040

Wall Bracket

4041

Tenon Fitting

KFWB

Wall/Pipe Bracket

KFCB

Cross Arm Mount

o Dust Aiming

Angles

ORDERING INFORMATION AND AMBIENT SUITABILITY C1D2 (C1Z2) C1D2 SIMULTANEOUS C2D1 L70

CATALOG NO. WEIGHT LBS./KG WATTS VOLTAGE AMPS DELIVERED

LUMENS 40°C 55°C 40°C 55°C 40°C 55°C TM-21 CALCULATED

KFLH17030

25.00 / 11.3

170

120-277VAC 1.46-0.63

21620 T4A (T4) T4 T4 T3C T4 T3C 72600 278000KFLH17033 347-480VAC 0.51-0.36

KFLH17034 120-250VDC 1.46-0.56

KFLH21030

210

120-277VAC 1.75-0.75

21220 T4A (T4) T4 T4 T3C T4 T3C 60100 270000KFLH21033 347-480VAC 0.61-0.43

KFLH21034 120-250VDC 1.75-0.68

KFLH22030

220

120-277VAC 1.88-0.81

26970 T4A (T4) T4 T4 T3C T4 T3C 72600 278000KFLH22033 347-480VAC 0.65-0.47

KFLH22034 120-250VDC 1.88-0.73

KFLH25030

250

120-277VAC 2.17-0.94

30950 T4A (T4) T4 T4 T3C T4 T3C 72600 278000

KFLH25033 347-480VAC 0.75-0.54

KFLH25034 120-250VDC 2.17-0.85

KFLH30030 300 120-277VAC 2.48-1.07 37030 T4A (T4) T4 - - - - 60300 107000

KFLH39030 390 120-277VAC 3.30-1.43 40410 T4A (T4) T4 - - - - 60300 190000

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L48

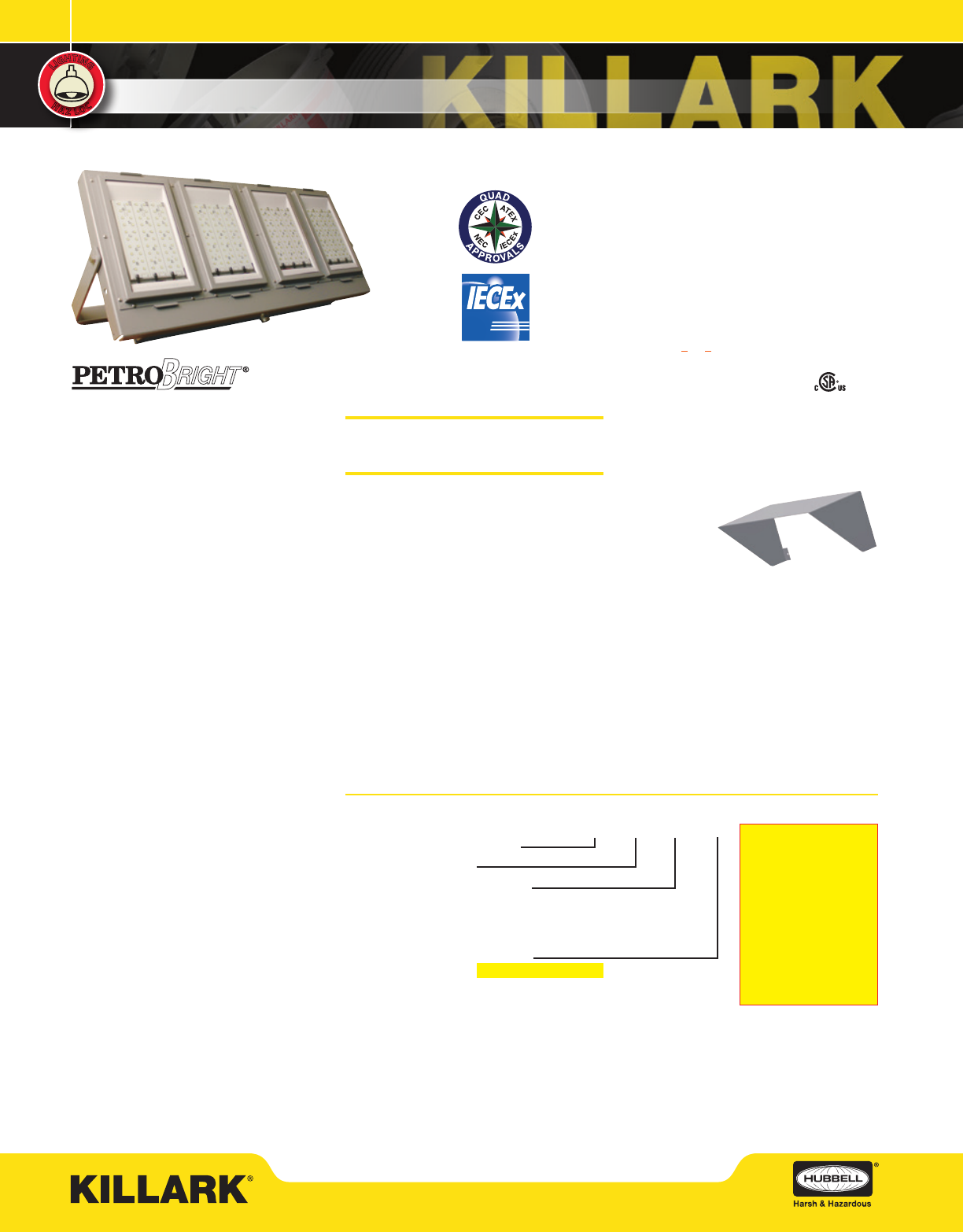

KFL2H SERIES

C1D2 FLOOD – INTRODUCTION & LOGIC

* LM-xx & TM-xx are illumination Engineering Society

Standards designed to promote uniformity in testing

procedures among test labs and manufacturers.

For more information go to www.ies.org

LED Flood Features and Standards

Supplemental 20KA/10KV Surge Protection

is standard (for 120-277 VAC models)

10KA/10KV Surge Protection (for 347-480 VAC)

• Crisp White Light for Excellent Color

Rendering – Chromaticity 5000K (CCT);

approx. 70 CRI

• Energy Savings – High lumens per watt

• Long Life – to 100,000+ maintenance free

hours to 70% initial lumens

• Ambient suitability -40°C to 55°C up

to 500Wk to -50°C for non-hazardous

applications

• Instant On – Including after power

interruption

• World Voltage 120 – 277VAC 50/60Hz

• Solder-LESS LED Board Connections –

Vibration Resistant

• LM80-08* Measurement of lumen

maintenance for LED light sources

Class I, Div. 2, Groups A, B, C, D

Class I, Zone 2, IIC, IIB, IIA

Class II, Div. 1 & 2, Groups E, F, G

Class III

Suitable for wet locations

Marine Rated (US only)

NEMA 3, 4X

IP66

IEC Ex Rated Model (w/ IEX sufﬁx)

Zone 2 and Zone 21 areas

Ex nA IIC T6…T3, Gc

Ex tb IIC T105°C Db

Tamb -50°C < Ta < +55°C, IP66

IECEx Certiﬁcate

QPS 15.0011

ATEX Certiﬁcate

CML 15ATEX4079X (nA)

CML 15ATEX3080X (tb)

PATENTED LENS and

REFLECTOR DESIGN

Applications

LED Floods are designed for installations

where moisture, dirt, dust, corrosion and

vibration may be present, or NEMA 3 and

4X areas where wind, water, snow or high

ambients can be expected. They can be used

in locations made hazardous by the presence

of ﬂammable vapors or gases or combustible

dusts as deﬁned by the NEC.

Typical applications include manufacturing

plants, and certain chemical and

petrochemical processing facilities, sewage

treatment plants, off-shore and dockside

installations, garages and storage facilities.

Compliances

• UL-8750 for LED lighting

• ANSI/UL 1598(A)

• UL-844 Standard for lighting ﬁxtures for

hazardous locations, Class I, Division 2;

Class II, Divisions 1 and 2; Class III

• CSA C22.2 no. 137-M1981 electric

luminairies for use in hazardous locations

• Enclosed and gasketed

• NEMA 3, 4X

• IP66

Materials

• Body and lens frame corrosion resistant

copper-free aluminum alloy with

baked powder epoxy/polyester ﬁnish,

electrostatically applied for complete,

uniform corrosion protection

• All external hardware – stainless steel

• Thermal shock and impact resistant glass

lens (Polycarbonate available)

• High temperature silicone gasketing

• Trunnion heavy gauge 316 stainless steel

FEATURES-SPECIFICATIONS

LED

Catalog Number Logic

KFL2H 340 30 XX

KFL2H - Series Constant

Fixture Wattage

340 -

340W

420 -

420W

440 -

440W

500 -

500W

600 -

600W

780 -

780W

Voltage

– 120 - 277VAC 50/60Hz

– 347 - 480VAC 60Hz (340W to 500W)k

– 120 - 250VDC (340W to 500W)

Options

- Polycarbonate Lens

- Single Fusej

- Double Fusej

TBL

- Terminal Blocks

Looping

- 120V Photocell, factory installed

- 208V-277V Photocell, factory installed

- 347V Photocell, factory installed

- Quick Disconnect

D20

- 2x M20 entries

IEX

- IEXEx includes TBL & External ground

Construction Note:

Standard with two

3/4” NPT entries with

one plugged

Models for dual

metric entries have

slip holes with

metric locknuts and

certiﬁed blanking

plugs

jFusing not for Canadian or Marine

Installations

k 347V-480V +40°C Max

Dark Sky Visor

KFLH-DARK

• LM79-08* Certiﬁed “Absolute”

Photometry, including Chromaticity Color

for Solid State Lighting

• L70 Values – Industry Nomenclature for

Hours of use to 70% of initial Lumens –

TM-21* & Calculated

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L49

KFL2H SERIES

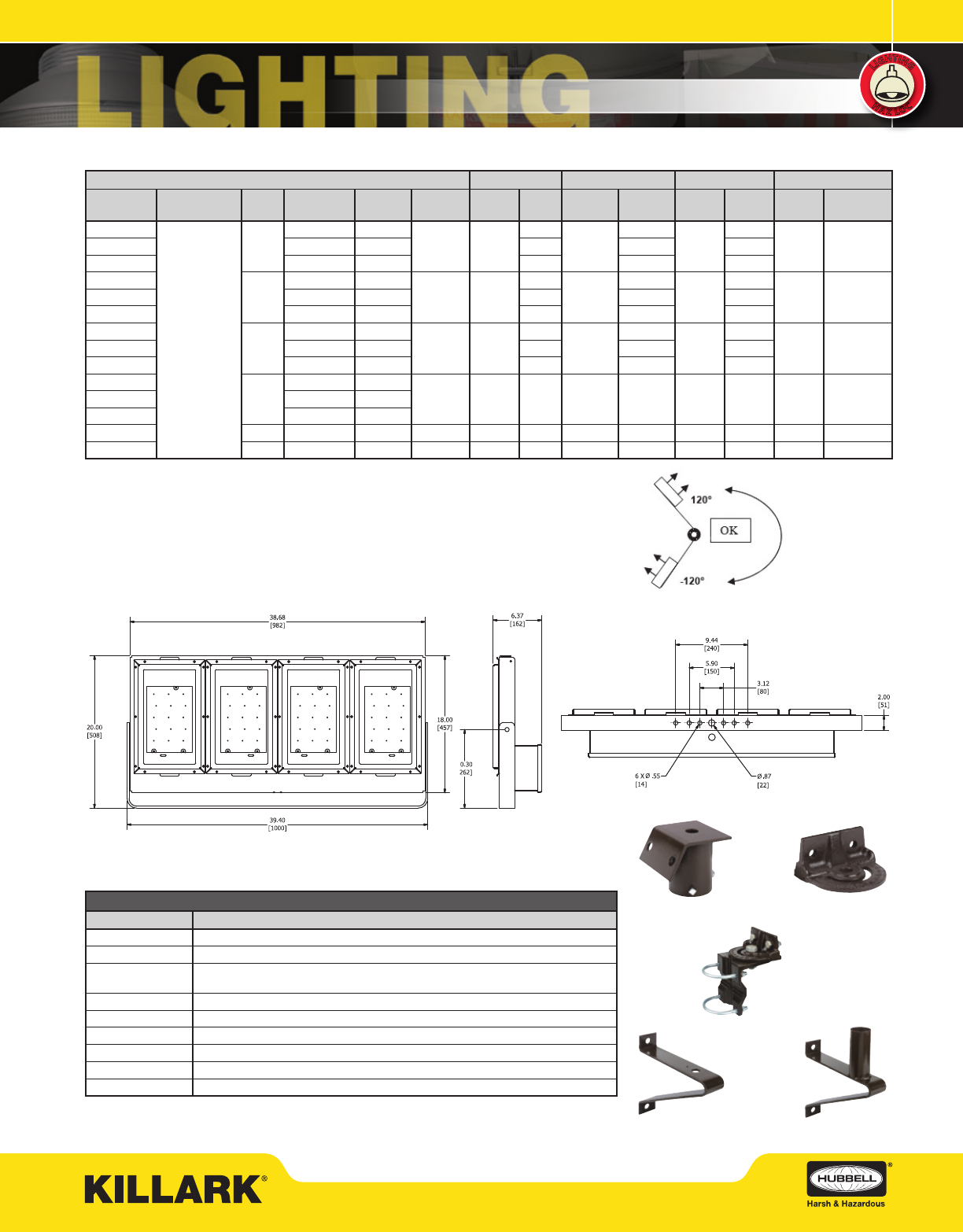

C1D2 FLOOD – ORDERING INFORMATION & TECHNICAL DATA

KFL2H MOUNTS AND ACCESSORIESj

CATALOG NUMBER DESCRIPTION

KFS-6 Steel Slipﬁtter for 2” Pipe (2-3/8” o.d.) Tenon. Slips 3.75” Over Pipe.

KFCB Heavy Duty Cast-Iron Crossarm Fitting for Horizontal Trunnion

KFWB Heavy Duty Wall Mount and/or Pipe Clamp Fitting Clamps 2” Pipe (2-3/8” o.d.) Through

2-1/2” Pipe (2-7/8” o.d.)

K4040 Heavy Duty Steel Wall Bracket. (Must be with

KFCB

Crossarm Fitting).

4041 Heavy Duty Steel Wall Bracket 2” Pipe (2-3/8” o.d.) Tenon Fitting. Use with KFS-6.

KFLG Wire Guard, 316 Stainless Steel (order 4 per ﬁxture)

VMSC10k10’ Stainless Steel Safety Cable with loop grip

KFLH-DARKlDark Sky Visor, White Painted Aluminum

KFLH-DOOR Replacement Internal Reﬂector and Lens Assembly (order 4 per ﬁxture as required)

j Fittings available to adapt trunnion mount oodlights to crossarms, poles and walls. Must be ordered separately.

k Drop limit 1’. Attaches to luminaire cable provision and to mounting structure.

l Designed to eliminate uplight when aimed at 45°.

j Cat. Nos. are 120 through 277VAC 50/60Hz; see logic for 347-480V or 125-250VDC input

k Amperage measured at 120VAC; 277VAC calculated

l Extra High Lumens per Watt LED Models

m Use 75°C Supply Wire @ 40°C Ambient; 90°C Wire @ 55°C Ambient

n 55°C only for 340W through 500W at 120-277VAC 50/60Hz or 125-250VDC; not 480VAC

o For Dust Applications, limit aiming angle between 120° and -120° to minimize buildup - see gure at right

p L70 is time in hours to 70% of initial lumens remaining. TM-21 based values require very long duration testing and

is denoted “official reported” and is based on at least 6,000 minimum, to 12,000 hours testing (at time of printing).

“Calculated” values by the major chip vendors utilized predict L70 life up to 278,000 hours.

KFS-6

Sliptter

K4040

Wall Bracket

4041

Tenon Fitting

KFWB

Wall/Pipe Bracket

KFCB

Cross Arm Mount

p Dust Aiming

Angles

ORDERING INFORMATION AND AMBIENT SUITABILITY C1D2 (C1Z2) C1D2 SIMULTANEOUS C2D1 L70

CATALOG NO. WEIGHT LBS./KG WATTS VOLTAGE AMPS DELIVERED

LUMENS 40°C 55°C 40°C 55°C 40°C 55°C TM-21 CALCULATED

KFL2H34030

50.00 / 22.6

340

120-277VAC 2.92-1.26

43240 T4A (T4)

T3C

72600 278000KFL2H34033 347-480VAC 1.02-0.72 - - -

KFL2H34034 120-250VDC 2.92-1.12 T4 T3C T3C

KFL2H42030

420

120-277VAC 3.50-1.50

42440 T4A (T4)

T3C

60100 270000KFL2H42033 347-480VAC 1.22-0.86 - - -

KFL2H42034 120-250VDC 3.50-1.36 T4 T3C T3C

KFL2H44030

440

120-277VAC 3.76-1.62

53940 T4A (T4)

T3C

72600 278000KFL2H44033 347-480VAC 1.30-0.94 - - -

KFL2H44034 120-250VDC 3.76-1.46 T4 T3C T3C

KFL2H50030

500

120-277VAC 4.34-1.88

69410 T4A (T4) T4 T4 T3C T4 T3C 72600 278000

KFL2H50033 347-480VAC 1.50-1.08

KFL2H50034 120-250VDC 4.34-1.70

KFL2H60030 600 120-277VAC 4.96-2.14 74060 T4A (T4) T4 - - - - 60300 107000

KFL2H78030 780 120-277VAC 6.60-2.86 80820 T4A (T4) T4 - - - - 60300 190000

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L50

KF1L SERIES

C1D1 FLOOD – INTRODUCTION & LOGIC

KF1L with KFS-6

Sliptter mount

on 2” pipe

Dark Sky Visor

KF1L-DARK

LED Flood Features and Standards

Supplemental 20KA/10KV Surge Protection

is standard (for 120-277 VAC models)

10KA/10KV Surge Protection (for 347-480 VAC)

• Factory Sealed Construction

• One 3/4” NPT & one M20 entry standard (see

logic for other choices)

• Crisp White Light for Excellent Color Rendering

– Chromaticity 5000 K (CCT); approx. 70 CRI

• Energy Savings – High lumens per watt

• Long Life – 100,000+ maintenance free hours

to 70% initial lumens

• Instant On – Including after power interruption

• World Voltage 120 – 277VAC 50/60Hz

• Solder-LESS LED Board Connections –

Vibration Resistant

• LM80-08 Measurement of lumen maintenance

for LED light sources

• LM79-08 Certiﬁed “Absolute” Photometry,

including Chromaticity Color for Solid State

Lighting

• L70 Values – Industry Nomenclature for Hours

of use to 70% of initial Lumens – TM-21 &

calculated

Class I, Div. 1&2, Groups B,C,D

Class I, Zone 1&2, Groups IIB+H2, IIA

Class II, Div. 1&2, Groups EFG, Class III

Enclosure Type 4X, IP66 (-50°C to +55°C)

IEC Ex Rated model (w/IEX or IEX4B sufﬁx) Zone 1,

Zone 21

Ex de IIB+H2 T6..T5, Gb, IP66

Tamb -20°C ≤Ta≤ +55°C; Option LT for -50°C ≤Ta≤

+55°Cj

Ex de IIB T6..T5, Gb, -50°C ≤Ta≤ +55°Cj

Ex tb IIIC T90°C Db, -50°C ≤Ta≤ +55°Cj

IECEx Certiﬁcate

CSA 14.0010

ATEX Certiﬁcate

SIRA14ATEX1159X

Applications

LED KF1L Series Explosion-proof Floods are

designed for installations where moisture,

dirt, dust, corrosion and vibration may be

present, or NEMA 3 and 4X areas where

wind, water, snow or high ambients can be

expected. They can be used in locations

made hazardous by the presence of

ﬂammable vapors or gases or combustible

dusts as deﬁned by the NEC.

Typical applications include manufacturing

plants, and certain chemical and

petrochemical processing facilities, sewage

treatment plants, off-shore and dockside

installations, garages and storage facilities

Compliances

• UL-8750 for LED lighting

• ANSI/UL 1598A

• UL-844 Standard for lighting ﬁxtures for

hazardous locations, Class I, Division 1;

Class II, Division 1; Class III

• CSA C22.2 no. 137-M1981 electric

luminairies for use in hazardous locations

• Zone 1 and Zone 21 to IEC 60079-0,60079-

1,60079-31, 60079-7 Standards

• Enclosed and gasketed

• NEMA 3, 4X

• IP66

Materials

• Body, end caps and lens frame corrosion

resistant copper-free aluminum alloy with

baked powder epoxy/polyester ﬁnish,

electrostatically applied for complete,

uniform corrosion protection

• All external hardware - stainless steel

• Thermal shock and impact resistant extra

heavy-duty glass lens

• High temperature silicone gasketing

• Trunnion heavy gauge 316 SS

Patent Pending

Fixture

Design

LED

Catalog Number Logic

KF1L 125 30 XX

KF1L - Series Constant

Fixture Wattage

090

- 90W

105

- 105W

110

- 110W

125

- 125W

Voltage

- 120 - 277VAC 50/60Hz

- 347 - 480VAC 60Hz (90W-125W)

- 120-250VDC (90W-125W)

Options

IEX4B -

Four bolt termination cover (see Note 1)

LT -

For -50°C to +55°C, IEC Zone 1 (see Note 1)

F -

Single Fuse

FF -

Double Fusek

D20 -

Dual M-20 Entries

D25 -

Dual M-25 Entries

D75 -

Dual 3/4” NPT

jConstruction/Certication

Notes: KF1L units are standard

with one 3/4” NPT hub & one

M20 hub – both plugged,

with an 8-bolt factory sealed

termination chamber, suitable

for CID1 BCD -50°C to +55°C

and IEC Zone 1

Ex de suitable for -20°C to

55°C.

Use option LT for models

needing IEC Zone 1, -50°C

to +55°C suitability for

hydrogen.

Option IEX4B utilizes 4

terminal cover bolts for Ex de

and maintains all ratings

EXCEPT CID1 BCD.

See logic for other entry

options

k Fusing not for Canadian or Marine Installations

File LR11713

FEATURES-SPECIFICATIONS

150

- 150W

165

- 165W

195

- 195W

Suitable for Paint

Spray

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L51

KF1L SERIES

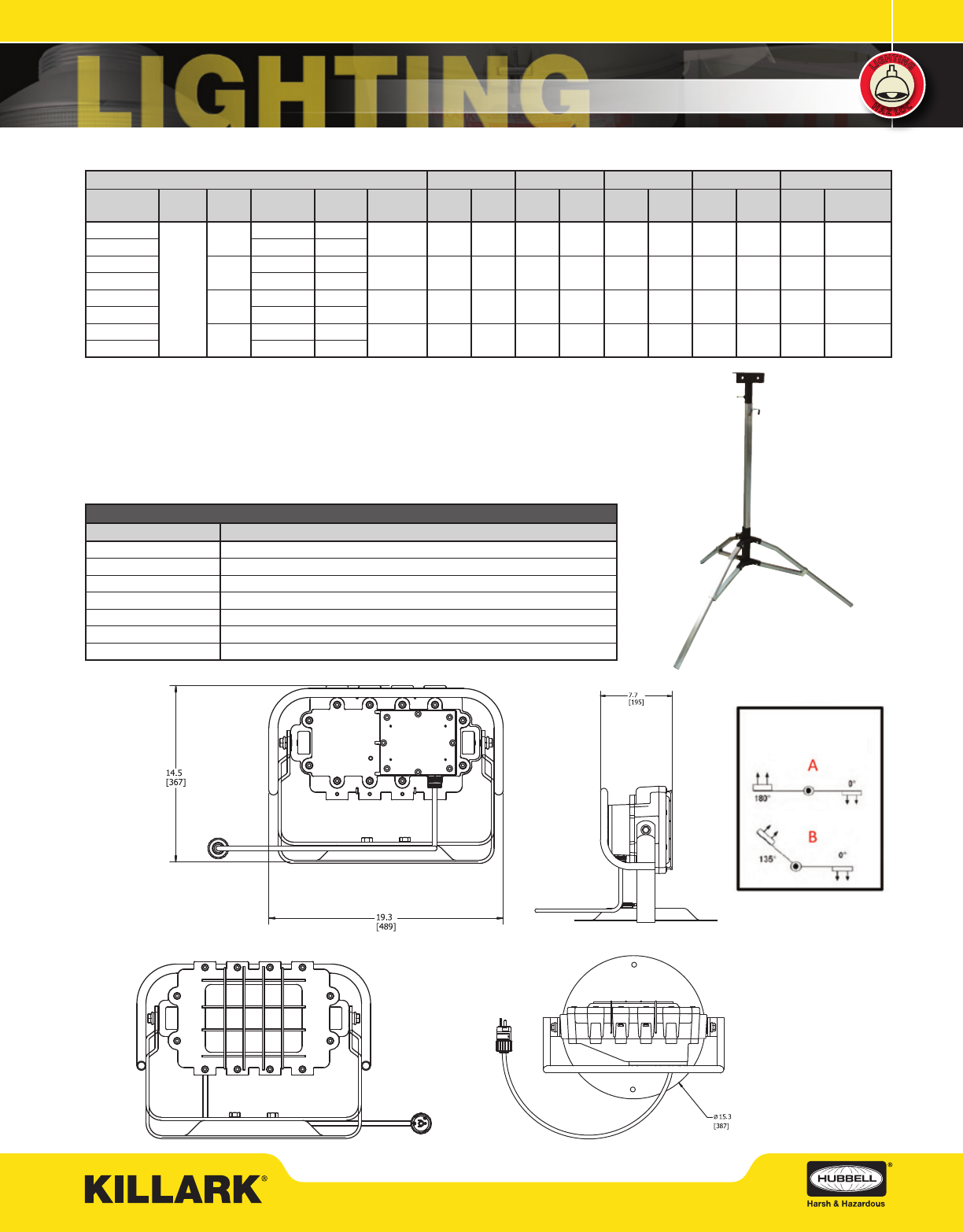

C1D1 FLOOD – ORDERING & TECHNICAL DATA

j Yellow highlighted models have extra high lumen LED’s.

k See logic for 347-480V availability

l Amperage measured at 120VAC; 277VAC calculated

m Use minimum 75° Supply Wire @40°C Ambient; 90°@55°C Ambient

n CID1 40°/55° & C2D1 40°C use Aiming Figure “A” below.

o 55°C C2D1 EFG T3C Aiming Figure “B”, 55° C2D1 EF T3A Aiming Figure “A”

p First number is lens temperature under 25mm layer of dust; Second number is lens

temp for dust cloud.

KFL MOUNTS AND ACCESSORIESj

CATALOG NUMBER DESCRIPTION

KFS-6 Steel Slipﬁtter for 2” Pipe (2-3/8” o.d.) Tenon. Slips 3.75” Over Pipe.

KFCB Heavy Duty Cast-Iron Crossarm Fitting for Horizontal Trunnion

KFWB Heavy Duty Wall Mount and/or Pipe Clamp Fitting Clamps 2” Pipe (2-3/8” o.d.) Through

2-1/2” Pipe (2-7/8” o.d.)

K4040 Heavy Duty Steel Wall Bracket. (Must be with

KFCB

Crossarm Fitting).

4041 Heavy Duty Steel Wall Bracket 2” Pipe (2-3/8” o.d.) Tenon Fitting.

KFLG Wire Guard, 316 Stainless Steel

VMSC10 10’ Stainless Steel Safety Cable with loop gripk

KF1L-DARK Dark Sky Visor, White Painted Aluminuml

KF1L-DOOR Replacement Door and Lens Assembly

KFL-STND 8 Foot Extendable Portable Stand

j Fittings available to adapt trunnion mount oodlights to crossarms, poles and walls. Must be ordered separately.

k Drop limit 1’. Attaches to luminaire cable provision and to mounting structure.

l Designed to eliminate uplight when aimed at 45°.

17.75

[450.9]

9.36

[237.7]

15.65

[397.4]

12.50

[317.5]

Front

Dimensions

5.30

[134.7]

6.91

[175.5]

2.00

[50.8]

4.27

[108.5]

Side

2.52

[64.0]

Aiming Figures

See Notes n & o

Trunnion Mounting

Detail

ORDERING INFORMATION AND AMBIENT SUITABILITY C1D1 C2D1 IEC ZONE 1 IEC ZONE 21 L70

CATALOG NO. WEIGHT LBS./KG WATTS VOLTAGE AMPS DELIVERED

LUMENS 40°C 55°C 40°C 55°C 40°C 55°C 40°C 55°C TM-21 CALCULATED

KF1L09030

46.00 / 20.87

120-277VAC 0.72-0.31

7182 T6 T6 (EFG) oT6 T5 160-75 175-90 60100 270000KF1L09033 347-480VAC 0.25-0.18

KF1L09034 120-250VDC 0.72-0.28

KF1L10530

105

120-277VAC 0.85-0.37

8362 T6 T6 (EFG) oT6 T5 160-76 175-91 60100 270000KF1L10533 347-480VAC 0.29-0.21

KF1L10534 120-250VDC 0.85-0.33

KF1L11030

110

120-277VAC 0.95-0.41

10590 T6 T6 (EFG) oT6 T5 160-77 175-92 72600 278000KF1L11033 347-480VAC 0.33-0.24

KF1L11034 120-250VDC 0.95-0.37

KF1L12530

125

120-277VAC 1.10-0.48

11590 T6 T6 (EFG) oT6 T5 160-78 175-93 72600 278000

KF1L12533 347-480VAC 0.38-0.28

KF1L12534 120-250VDC 1.10-0.43

KF1L15030 150 120-277VAC 1.25-0.54 13280 T5 ---T5 - - - 60300 190000

KF1L16530 165 120-277VAC 1.38-0.60 13760 T5 ---T5 - - - 72600 278000

KF1L19530 195 120-277VAC 1.63-0.70 15707 T5 ---T5 - - - 72600 278000

KFS-6

Sliptter

K4040

Wall Bracket

4041

Tenon Fitting

KFWB

Wall/Pipe Bracket

KFCB

Cross Arm Mount

KFL-STND

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L52

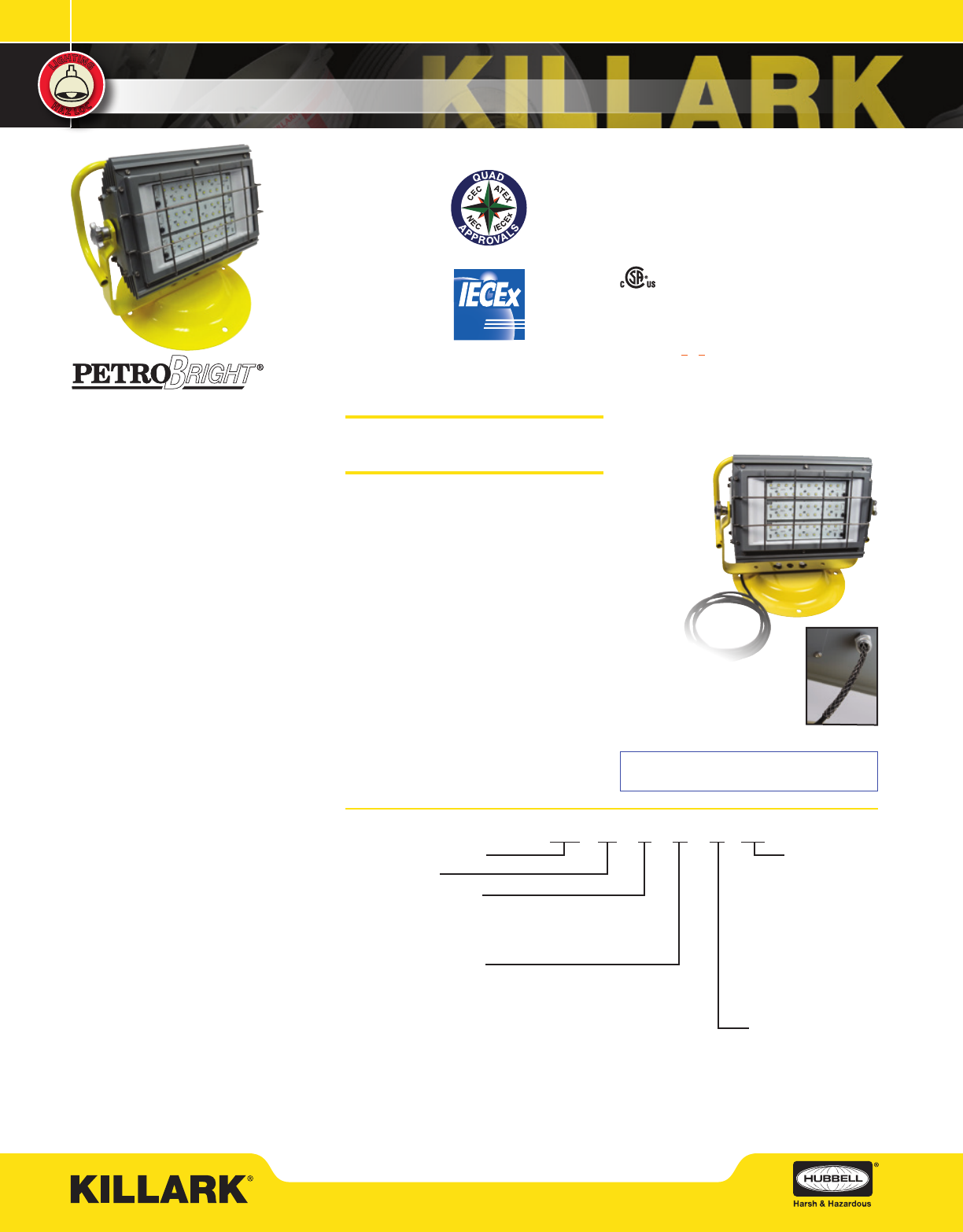

KFLP SERIES

C1D2 FLOOD – INTRODUCTION & LOGIC

LED Flood Features and Standards

Supplemental 20KA/10KV Surge Protection

is standard (for 120-277 VAC models)

10KA/10KV Surge Protection (for 347-480 VAC)

• Crisp White Light for Excellent Color Rendering

– Chromaticity 5000K (CCT); approx. 70 CRI

• Energy Savings – High lumens per watt

• Long Life – to 150,000 maintenance free

hours to 70% initial lumens

• Ambient suitability -50°C to 55°C up to 125Wk

• Instant On – Including after power interruption

• World Voltage 120 - 277VAC 50/60Hz

• Solder-LESS LED Board Connections -

Vibration Resistant

• LM80-08 Measurement of lumen

maintenance for LED light sources

• LM79-08 Certiﬁed “Absolute” Photometry,

including Chromaticity Color for Solid State

Lighting

• L70 Values – Industry Nomenclature for

Hours of use to 70% of initial Lumens –

TM-21 & Calculated

Applications

LED Portable Floods are designed for

temporary applications where moisture, dirt,

dust, corrosion and vibration may be present,

or NEMA 3 and 4X areas where wind, water,

snow or high ambients can be expected. They

can be used in locations made hazardous by

the presence of ﬂammable vapors or gases or

combustible dusts as deﬁned by the NEC.

Typical applications include manufacturing

plants, and certain chemical and petrochemical

processing facilities, sewage treatment plants,

off-shore and dockside installations, garages

and storage facilities.

Compliances

• UL-8750 for LED lighting

• ANSI/UL 1598(A)

• UL-844 Standard for lighting ﬁxtures for

hazardous locations, Class I, Division 2;

Class II, Divisions 1 and 2; Class III

• CSA C22.2 no. 137-M1981 electric

luminairies for use in hazardous locations

• Enclosed and gasketed

• NEMA 3, 4X, IP66

• IEX sufﬁx Zone 2/21 to IEC 60079-0, 60079-

15, 60079-31 Standards

Materials

• Body, end caps and lens frame and base

corrosion resistant copper-free aluminum

alloy with baked powder epoxy/polyester

ﬁnish, electrostatically applied for complete,

uniform corrosion protection

• All external hardware - stainless steel

• High temperature silicone gasketing

• Trunnion heavy gauge galvanized steel with

painted ﬁnish

• Stand and handle epoxy pound coat

• Polycarbonate Lens

• Stainless steel wire guard

FEATURES-SPECIFICATIONS

Available with

cord and plug

Class I, Div. 2, Groups A,B,C,D

Class II, Div. 1&2, Groups EFG

Class III

Suitable for wet locations

Marine Rated (US Only)

NEMA 3, 4X

IP66

IEC Ex Rated model (w/IEX sufﬁx)

Zone 2 and Zone 21 areas

Ex nA IIC T6 to T3, Gc

Ex tb IIIC T160°C Db

Tamb -50°C <Ta<+55°C, IP66

IECEx Certiﬁcate

CSA 14.0002X

ATEX Certiﬁcate

CML 14ATEX3087/4088

PATENTED

LUMINAIRE

DESIGN

Units include Qty. 3 6mm terminals plus

external ground as standard

File LR11713

Catalog Number Logic

KFLP 125 30 XX XXXXX

KFLP - Series Constant

Fixture Wattage

060

- 60W

070

- 70W

075

- 75W

085

- 85W

090

- 90W

105

- 105W

110

- 110W

125

- 125W

150

- 150W

165

- 165W

195

- 195W

Plugs

- VersaMate 30A

- Acceptor Quick

Wire 15 amp

- KR Series Plug

20 amp

VSI

- VersaMate

Non-Metallic

20 amp

- No Plug

Voltage

– 120 - 277VAC 50/60Hz

– 347 - 480VAC 60Hz (85W to 125W models)k

Options

- Single Fusej

- Double Fusej

IEX

- IECEx & ATEX includes TBL and

External Ground (to 125W)

j Fusing not for Canadian or Marine Installations

k 347V-480V +40°C Max

Strain Relief

Cord Grip

Cord

Blank -

No Cord

25 -

25’

50 -

50’

LED

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L53

KFLP SERIES

C1D2 FLOOD – ORDERING INFORMATION & TECHNICAL DATA

j Amperage measured at 120VAC; 277VAC calculated

k Extra high Lumens per Watt LED models

l Use 75° minimum Supply Wire @40°C Ambient; 90 @55°C Ambient

m First number is lens temperature under 25mm layer of dust; Second number is lens temp. for dust cloud.

Dimensions

KFLP ACCESSORIES

CATALOG NUMBER DESCRIPTION

KFLG Wire Guard, 316 Stainless Steel (not used with KFL-DARK)

KFL-DOOR-POLY Replacement Door and Lens Assembly (for units w/o internal reﬂectors)

VP3023 VersaMate Metallic 30 amp 3W4P Plug

UGP-15231QW Acceptor Quick Wire 15 amp NEMA 5-15P

KP-20ABC KR Series 20 amp Plug

VSI20P304 VersaMate Non-Metallic 20 amp 125v Plug

KFL-STND 8 Foot Extendable Portable Stand

ORDERING INFORMATION AND AMBIENT SUITABILITY C1D2 C1D2

SIMULTANEOUS C2D1 IEC ZONE 2 IEC ZONE 21 L70

CATALOG

NO.

WEIGHT

LBS./KG WATTS VOLTAGE AMPSjDELIVERED

LUMENS 40°C 55°C 40°C 55°C 40°C 55°C 40°C 55°C 40°C 55°C TM-21 CALCULATED

KFLP06030

33.00 /

14.97

60 120-277VAC 0.50-0.20 6111 T6 T5 T3C T3C T3C (EFG) T3C (EFG) T6 T5 145-70 160-85 60100 270000

KFLP07030 70 120-277VAC 0.60-0.30 9742 T6 T5 T3C T3C T3C (EFG) T3C (EFG) T6 T5 145-70 160-85 72600 278000

KFLP07530 75 120-277VAC 0.60-0.30 7454 T6 T5 T3C T3C T3C (EFG) T3C (EFG) T6 T5 145-70 160-85 60100 270000

KFLP08530 85 120-277VAC 0.70-0.30 10840 T6 T5 T3C T3C T3C (EFG) T3C (EFG) T6 T5 145-70 160-85 72600 278000

KFLP08533 347-480VAC 0.24-0.17

KFLP09030 90 120-277VAC 0.80-0.40 9023 T6 T5 T3C T3C T3C (EFG) T3C (EFG) T6 T5 145-70 160-85 60100 270000

KFLP09033 347-480VAC 0.28-0.23

KFLP10530 105 120-277VAC 0.90-0.40 10370 T4A T4A T3C T3C T3C (EFG) T3C (EFG) T4 T4 145-70 160-85 60100 270000

KFLP10533 347-480VAC 0.31-0.23

KFLP11030 110 120-277VAC 0.90-0.40 13780 T6 T5 T3C T3C T3C (EFG) T3C (EFG) T6 T5 145-70 160-85 72600 278000

KFLP11033 347-480VAC 0.31-0.23

KFLP12530 125 120-277VAC 1.00-0.50 15340 T6 T5 T3C T3C T3C (EFG) T3C (EFG) T6 T5 145-70 160-85 72600 278000

KFLP12533 347-480VAC 0.35-0.29

KFLP15030 150 120-277VAC 1.25-0.54 18550 T5 -T3C -T3C (EFG) - - - - - 60300 190000

KFLP16530 165 120-277VAC 1.38-0.60 19220 T5 -T3C -T3C (EFG) - - - - - 72600 278000

KFLP19530 195 120-277VAC 1.63-0.70 21940 T5 -T3C -T3C (EFG) - - - - - 72600 278000

KFL-STND

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L54

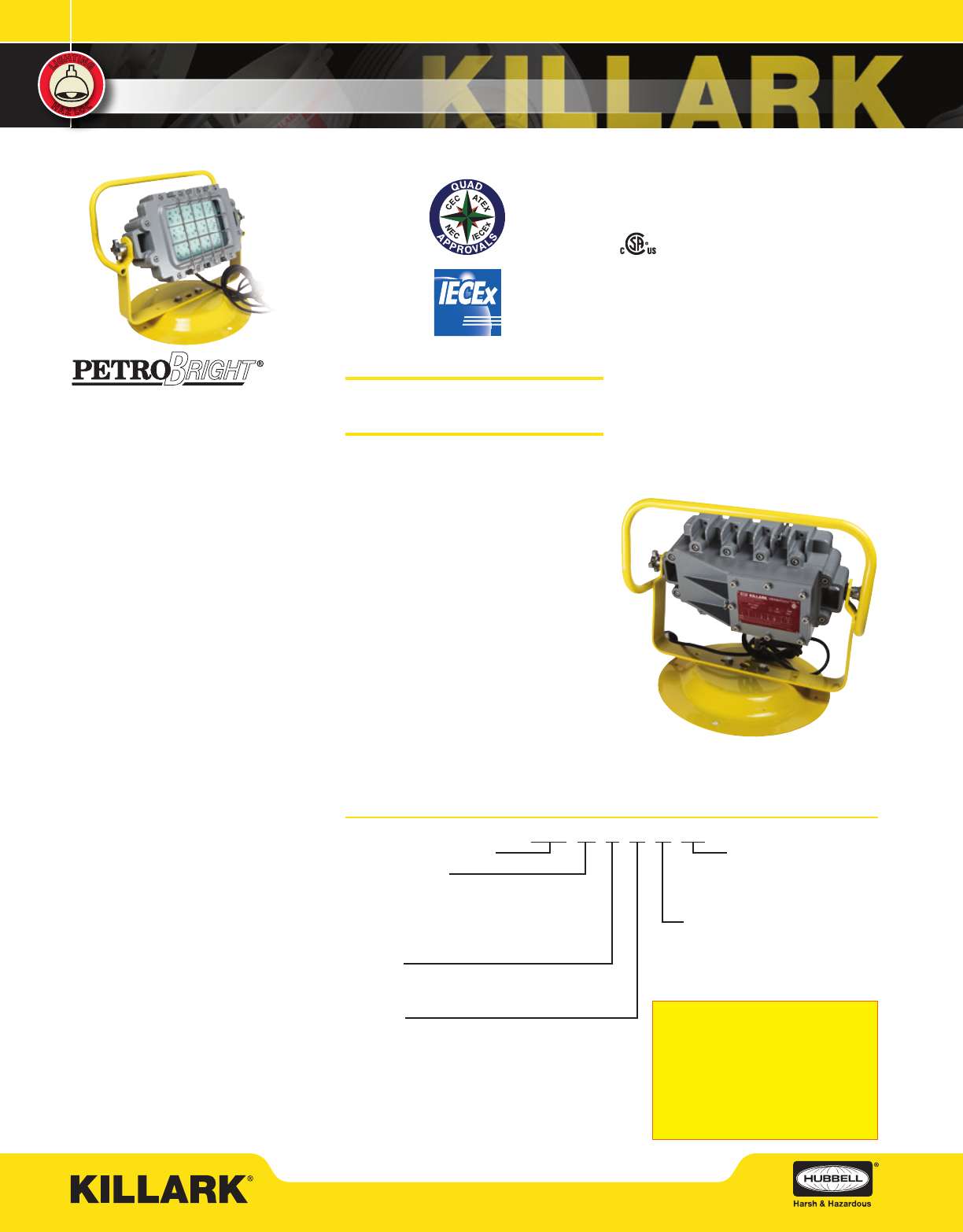

KF1LP SERIES

C1D1 FLOOD – INTRODUCTION & LOGIC

LED Flood Features and Standards

Supplemental 20KA/10KV Surge Protection

is standard (for 120-277 VAC models)

10KA/10KV Surge Protection (for 347-480 VAC)

• Factory Sealed Construction

• One 3/4” NPT & one M20 entry standard (see

logic for other choices)

• Crisp White Light for Excellent Color Rendering

– Chromaticity 5000 K (CCT); approx. 70 CRI

• Energy Savings – High lumens per watt

• Long Life – 80,000 maintenance free hours to

70% initial lumens

• Instant On – Including after power interruption

• World Voltage 120 – 277VAC 50/60Hz

• Solder-LESS LED Board Connections –

Vibration Resistant

• LM80-08 Measurement of lumen maintenance

for LED light sources

• LM79-08 Certiﬁed “Absolute” Photometry,

including Chromaticity Color for Solid State

Lighting

• L70 Values – Industry Nomenclature for

Hours of use to 70% of initial Lumens –

TM-21 & calculated

Class I, Div. 1&2, Groups B,C,D

Class I, Zone 1&2, Groups IIB+H2, IIA

Class II, Div. 1&2, Groups EFG, Class III

Enclosure Type 4X, IP66 (-50°C to +55°C)

IEC Ex Rated model (w/IEX or IEX4B sufﬁx)

Zone 1, Zone 21

Ex de IIB+H2 T6..T5, Gb, IP66

Tamb -20°C ≤Ta≤ +55°C;

Option LT for -50°C ≤Ta≤ +55°Cj

Ex de IIB T6..T5, Gb, -50°C ≤Ta≤ +55°Cj

Ex tb IIIC T90°C Db, -50°C ≤Ta≤ +55°Cj

IECEX Certiﬁcate

CSA 14.0010

ATEX Certiﬁcate

SIRA 14ATEX1159X

Applications

LED KF1L Portable Explosion-proof Floods

are designed Temp App where moisture,

dirt, dust, corrosion and vibration may be

present, or NEMA 3 and 4X areas where

wind, water, snow, or high ambients can

be expected. They can be used in locations

made hazardous by the presence of

ﬂammable vapors or gases or combustible

dusts as deﬁned by the NEC.

Typical applications include manufacturing

plants, and certain chemical and

petrochemical processing facilities, sewage

treatment plants, off-shore and dockside

installations, garages and storage facilities

Compliances

• UL-8750 for LED lighting

• ANSI/UL 1598A

• UL-844 Standard for lighting ﬁxtures for

hazardous locations, Class I, Division 1;

Class II, Division 1; Class III

• CSA C22.2 no. 137-M1981 electric

luminairies for use in hazardous locations

• IEX4B sufﬁx for Zone 1 and Zone 21 to

IEC 60079-0,60079-1,60079-31, 60079-7

Standards

• Enclosed and gasketed

• NEMA 3, 4X

• IP66

Materials

• Body and lens frame corrosion resistant

copper-free aluminum alloy with

baked powder epoxy/polyester ﬁnish,

electrostatically applied for complete,

uniform corrosion protection

• All external hardware - stainless steel

• Thermal shock and impact resistant extra

heavy-duty glass lens

• High temperature silicone gasketing

• Trunnion heavy gauge 316 SS

Patent Pending

Fixture Design

LED

Catalog Number Logic

KF1LP 125 30 XX XX XXX

KF1LP - Series Constant

Voltage

- 120 - 277VAC 50/60Hz

- 347 - 480VAC 60Hz (90W-125W)

Options

IEX4B -

Four bolt termination coverj

LT -

For -50°C to +55°C, IEC Zone 1j

F -

Single Fuse

FF -

Double Fusek

Plugs

A -

Acceptor Quick Wire 15 amp

N -

No Plug

Cord

Blank -

No Cord

25 -

25’

50 -

50’

jConstruction/Certication Notes: 8-bolt

factory sealed termination chamber, suitable

for CID1 BCD -50°C to +55°C and IEC Zone 1

Ex de suitable for -20°C to 55°C.

Use option LT for models needing IEC Zone

1, -50°C to +55°C suitability for hydrogen.

Option IEX4B utilizes 4 terminal cover bolts

for Ex de and maintains all ratings

EXCEPT CID1 BCD.

k Fusing not for Canadian or Marine Installations

File LR11713

FEATURES-SPECIFICATIONS

Fixture Wattage

090

- 90W

105

- 105W

110

- 110W

125

- 125W

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L55

KF1LP SERIES

C1D1 FLOOD – ORDERING & TECHNICAL DATA

Dimensions

j Amperage measured at 120VAC; 277VAC calculated

k Use minimum 75° Supply Wire @40°C Ambient; 90°@55°C Ambient

l First number is lens temperature under 25mm layer of dust; Second number is lens temp for dust cloud.

m 55°C C2D1 EFG T3C Aiming Figure “B”, 55°C C2D1 EF T3A Aiming Figure “A”

KF1L MOUNTS AND ACCESSORIES

CATALOG NUMBER DESCRIPTION

KF1LG Wire Guard, 316 Stainless Steel

KF1L-DOOR Replacement Door and Lens Assembly

VP3023 VersaMate Metallic 30 amp 3W4P Plug

UGP-15231QW Acceptor Quick Wire 15 amp NEMA 5-15P

KP-20ABC KR Series 20 amp Plug

VSI20P304 VersaMate Non-Metallic 20 amp 125v Plug

KFL-STND 8 Foot Extendable Portable Stand

ORDERING INFORMATION AND AMBIENT SUITABILITY C1D1kC2D1kIEC ZONE 1kIEC ZONE 21kl L70

CATALOG NO. WEIGHT

LBS./KG WATTS VOLTAGE AMPSjDELIVERED

LUMENS 40°C 55°C 40°C 55°C 40°C 55°C 40°C 55°C TM-21 CALCULATED

KF1LP09030

49.00 /

22.22

90 120-277VAC 0.72-0.31 7182 T6 T6 (EFG) mT6 T5 160-75 175-90 60100 270000

KF1LP09033 347-480VAC 0.25-0.18

KF1LP10530 105 120-277VAC 0.85-0.37 8362 T6 T6 (EFG) mT6 T5 160-76 175-91 60100 270000

KF1LP10533 347-480VAC 0.29-0.21

KF1LP11030 110 120-277VAC 0.95-0.41 10590 T6 T6 (EFG) mT6 T5 160-77 175-92 72600 278000

KF1LP11033 347-480VAC 0.33-0.24

KF1LP12530 125 120-277VAC 1.10-0.48 11590 T6 T6 (EFG) mT6 T5 160-78 175-93 72600 278000

KF1LP12533 347-480VAC 0.38-0.28

Aiming Figures

See Notes l & m

KFL-STND

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L56

EMERGENCY & UTILITY LIGHTING

EMERGENCY BATTERY BACKUP & UTILITY LIGHTING

LLS2

NEBS

EBS

DVL

VSL

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L57

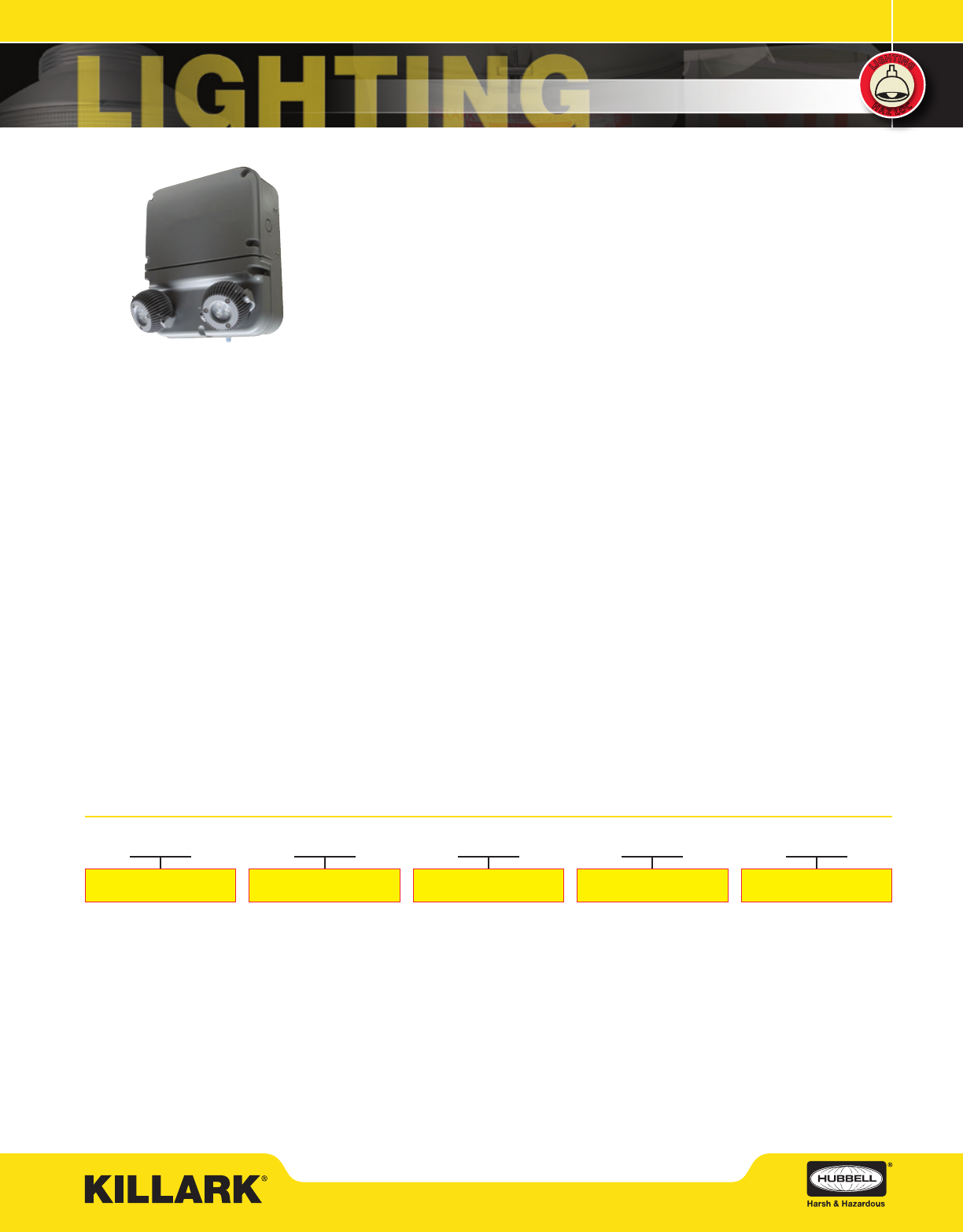

EMERGENCY BATTERY SYSTEM

NEBS SERIES

Construction

The NEBS Series housing, covers, remote

housing, shield and LED Lenses are made of

impact resistant polycarbonate. Lamp-heads

are made of die-cast aluminum for thermal

dissipation.

Installation

The unit includes a universal mounting

plate which facilitates mounting to a truss

or I-beam, pole, column, or wall. Included

is a special bracket to ensure positive pole

gripping when using bands. In wet or NEMA

4X applications, use UL listed water tight

conduit ﬁttings that meet the requirements

of the UL 514B Standard for Conduit Tubing

and Cable Fittings when using knockouts on

the side or top of unit. All ﬁttings supplied by

others. C1D2 and C2D1 listed models include

2 each hazardous location rated conduit

hubs with ground provision.

Illumination

The NEBS series provides bright and uniform

illumination and is speciﬁcally designed

for higher mounting heights above 9’.

Coverage provided by 2 sealed aluminum

Class I, Division 2, Groups A, B, C, D

Class I, Zone 2, Groups IIA, IIB, IIB+H2, IIC

Class II, Division 1, Groups E, F, G

Class III

Suitable for wet locations

NEMA 4, 4X

IP66

UL Sanitation Certied with FP Option

Applications

The NEBS Series is a highly versatile

superior lumen output, industrial application

emergency lighting unit, designed to provide

a minimum of 90 minutes illumination when

primary power is lost. The NEBS Series

provides the same level of lumen output with

no light degradation for the full 90 minutes

of battery discharge. It has a ﬂame-rated,

UV stable thermoplastic housing which is

fully gasketed and corrosion resistant with

a gray ﬁnish. LED based lamp-heads are

made of high strength die-cast aluminum

with polycarbonate lens. Includes micro-

controller based 3-stage charger and Lithium

Iron Phosphate(LiFePO4) battery. The NEBS

Series accepts 120 through 277VAC input at

50 or 60Hz. Not designed for self-diagnostic

operation at 220-240VAC input. Universal

mounting plate made of painted stamped

steel. The NEBS is speciﬁcally designed for

demanding environments, high reliability

operation in industrial settings such as wet

location or hose-down, food processing,

food storage, production facilities, chemical

plant and wastewater treatment.

FEATURES-SPECIFICATIONS

lamp-heads using 3 high power LEDs each.

The LEDs are located in a specially designed

heat dissipating lamp-head which is fully

adjustable and can be locked into position.

The NEBS is designed for full lumen output

across the entire 90 minutes of operation.

This ensures maximum visibility of the egress

path over the full 90 minute discharge period.

Spectron Includes:

• Self-diagnostics monitors LED status,

LED driver circuit, battery capacity and

charger function and displays any fault

detection by means of a ﬂashing code

• Self-Test feature automatically runs

a 1 minute test once a month and an

alternating 30-60 minute test once every

6 months. Multi-color LED indicator

provides visible fault detection and

charging status

• User initiated 1, or 90-minute system test

feature

• 15 minute re-transfer delay

• Automatic unit transfer in brown-out

conditions (below 80% of nominal AC

input voltage)

Model Capacity Self-Diagnostics Application Lamp

NEBS 12 IC1D2 06L

– 6 Wattk

– 12 Wattl

– Food Processing Rated

C1D2

– Class 1 Div. 2m

C2D1

– Class 2 Div. 1n

Blank

– None

I – Spectron® Self-Diagnostics

Blank

– 3 Watt LED lamps

06L

–

6 Watt LED lampsj

jOnly available on NEBS with 12 watt capacity

kNEBS6 only available in the following congurations-NEBS6, NEBS6I, NEBS6I-FP

lNEBS12 only available in the following congurations-NEBS12, NEBS12I,

NEBS12-FP, NEBS12I-FP, NEBS12-06L, NEBS12I-06L, NEBS12-06L,

NEBS12-FP-06L, NEBS12I-06L, NEBS12I-FP-06L

mC1D2 Option only available with NEBS6-C1D2, NEBS61-C1D2, NEBS12-C1D2,

NEBS121-C1D2, NEBS12-C1D2-06L, and NEBS121-C1D2- 06L

nC2D1 Option only available with NEBS6-C2D1, NEBS61-C2D1, NEBS12-C2D1,

NEBS121-C2D1, NEBS12-C2D1-06L, and NEBS121-C2D1-06L which

includes shield

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L58

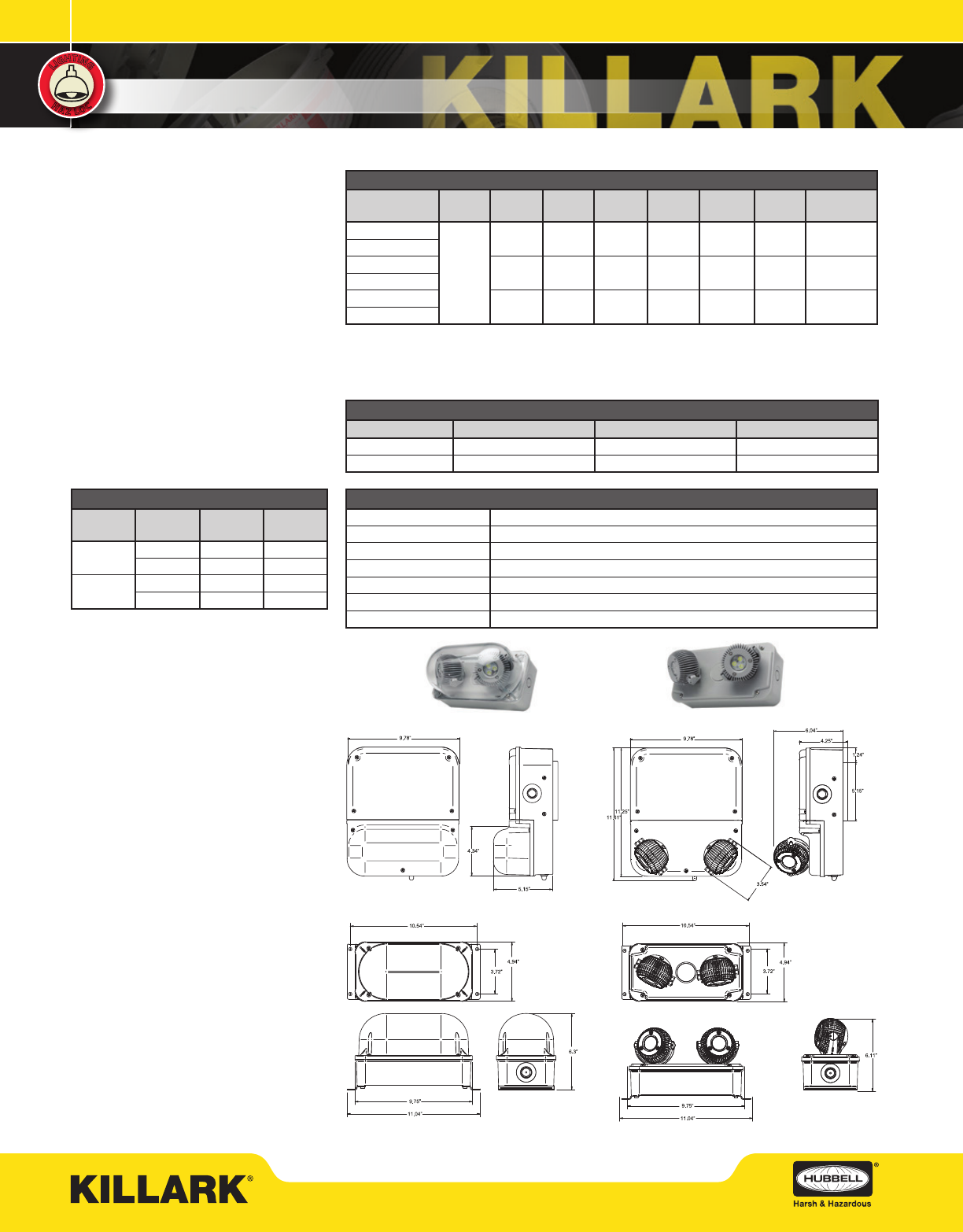

EMERGENCY BATTERY SYSTEM

NEBS SERIES

ADDITIONAL PRODUCT INFORMATION

CATALOG

NUMBER

BATTERY CAPACITY LAMP(W) LUMENS

PER LAMP RUNTIME EXTENDED

RUNTIME

REMOTE

CAPABLE

REMOTE PART

NUMBER

NEBS6I-C1D2

LiFePO4

6 watts 3 watts 331 90 min No No N/A

NEBS6I-C2D1

NEBS12I-C1D2 12 watts 3 watts 331 90 min Yes Yes NEBSRS

NEBS12I-C2D1

NEBS12I-C1D2-06L

12 watts 6 watts 514 90 min No No N/A

NEBS12I-C2D1-06L

ACCESSORIES

NEBSRS NEMA 4X Rated Single Head Remote

NEBSRD NEMA 4X Rated Double Head Remote

NEBSRS-FP Food Processing Rated Single Head Remote

NEBSRD-FP Food Processing Rated Double Head Remote

NEBSWG Wire Guard (Does not include Food Processing option) 15”H x 14”L x 7”D

NEBSRD-C1D2 Class 1, Div. 2 Remote, 3W heads, 1 conduit hub included

NEBSRD-C2D1 Class 2, Div. 1 Remote, 3W heads with shield, 1 conduit hub included

Electronics

Upon failure of the normal utility power,

a LED driver is automatically activated to

power the emergency LED lamp-heads. At

resumption of normal utility power, the LED

driver is turned off. The battery is recharged

through a micro-controller based 3-stage

charger. The battery is a maintenance-free

Lithium Iron Phosphate (LiFePO4) type. The

NEBS series accepts dual-voltage input of

120 through 277VAC at 50 or 60 Hz. A low

voltage battery disconnect feature protects

the battery from severe damage during

prolonged power failures. Manual testing is

available at any time using the push-to-test

button. The NEBS remote can be located up

to 100’ from the source unit using 12 gage

wire.

INPUT POWER CONSUMPTION

INPUT

VOLTAGE AMPS. MAX.

WATTS

NEBS6 120 0.03 3.40

277 0.04 3.49

NEBS12 120 0.05 5.98

277 0.04 6.52

The NEBS Series meets proposed California

Energy Commission(CEC) requirements for

limits on power consumption in maintenance

mode with less than 0.5 watts.

• Maintenance Mode Power Consumption

120VAC- 0.33W

• Maintenance Mode Power Consumption

277VAC- 0.36W

Operating Temperature:

•

C1D2 & C2D1:

50° to 122°F(10° to 50°C)

OPERATING TEMPERATURE IN °C

AMBIENT °C CLASS 1 DIV. 2 A, B, C, D CLASS 2 DIV. 1 E, F, G SUPPLY WIRE TEMP. °C MIN.

40 T6 T6 75

50 T5 T6 75

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L59

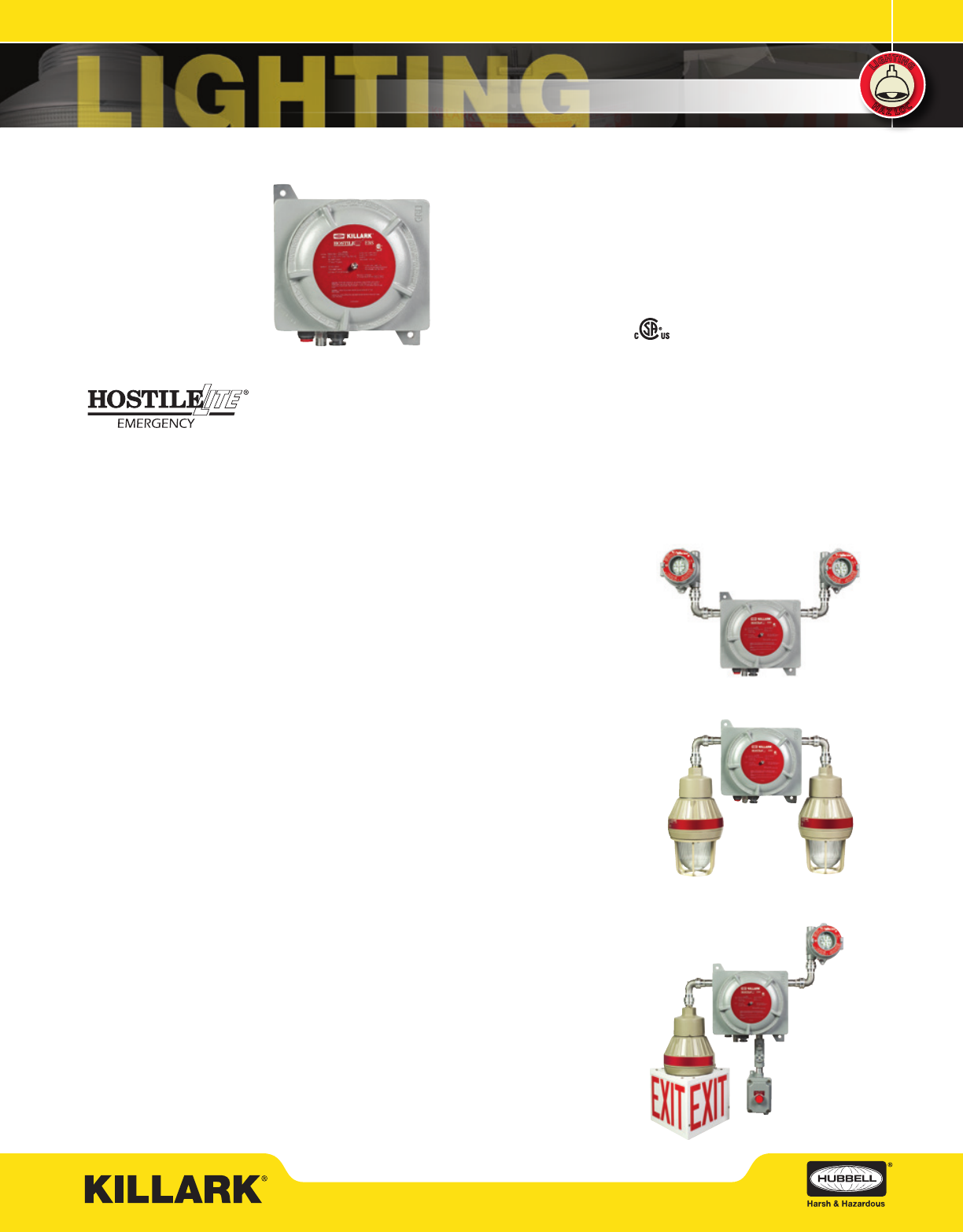

EBS SERIES

EMERGENCY BATTERY SYSTEM – INTRODUCTION

FEATURES-SPECIFICATIONS

File LR11713

Class I, Div. 1&2, Groups Bj,C,D

Class I, Zone 1&2, Groups llB+H2j, llA

Class II, Div. 1&2, Groups EFG

Class III

Enclosure Type 4 (NEMA 4, 7Bj CD, 9EFG)

Applications

Where required by the NEC (or local “Life Safety”

code) for safe egress (over doors, aisleways,

stairs, walkways, exit paths, and outer perimeter

walls) to provide illumination during interruption

of normal power to area lighting.

In indoor or outdoor locations made hazardous

by the presence of ﬂammable gas, vapors, or

dusts. Includes reﬁnery/chemical production

and storage, grain processing, waste water

treatment facilities and any area requiring

heavy-duty dependable emergency lighting.

Exclusive Features

• LED Heads provide clear crisp illumination

at 5000° Kelvink

• LED Head L70 value 100,000 hours for

minimal maintenance

• Two head models up to 500% brighter

than competitive conventional unitsl

• Enclosure Type 4 (NEMA 4) for wet and

harsh locations

• Group B is standard when using EBSHK

type heads

• Automatic Safety Disconnect – Removing

main cover disconnects battery power

• Ambient Suitability 0°C to 45°C Battery

Unit; Heads to 55°

• Compact unit requires only two mounting

points

• World Voltage 120-277 VAC 50/60Hz input

Other Features

• High % of lumens maintained during 90

minute egress cycle

• EBSHK type heads are fully adjustable on

unit or remote when ordered with

RFSL Factory Sealed mounting kits

• EBSEL type heads are factory sealed on

their EZ type mounting boxes

• Heads can be remote mounted over 300’

from battery unit

• Ni-Cad sealed batteries provide 90

minutes of illumination

• Integral base unit LED pilot light indicates

AC power is present

• Choice of Integral or Remote Push-To-Test

station to verify system operation

• Vapor Capsule to inhibit corrosion is

standard with main enclosure unit

• Terminal Blocks identiﬁed for incoming

and outgoing connections

Compliances

• UL 1598 Standard for Luminaires

• UL 8750 for LED Lighting

• UL 844 Luminaires for Hazardous

Locations

• UL 1203 Explosion-Proof/Dust-Ignition-

Proof Electrical Enclosures

• UL 924 Emergency Lighting

• CSA C22.2 no. 137-M1981 Luminaires for

Hazardous Locations

• CSA C22.2 no. 30-M1986 C1D1 Enclosures

• CSA 22.2 no. 25-1066 C2D1 EFG Enclosures

• Enclosure Type 4

• NEMA 4, 7BjCD, 9EFG

Materials

• Main Enclosure and Heads Copper Free

Aluminum alloy with Baked Powder epoxy/

polyester ﬁnish, electrostatically applied

for complete, uniform corrosion protection

• Attachment ﬁttings copper-free aluminum

• External hardware 316 Stainless Steel

• EBSEL reﬂectors EXIT accessory

aluminum with white paint

Notes

j Main EBS unit is CID1 Grp B (Suitable Zone 1

IIB+H2) with attached EBSHK heads or no heads;

with attached EBSEL heads unit is CID1 Groups CD

(Suitable Zone 1 IIB, IIA)

k See VSL Series Photometry Color Graphs; 5000°

Kelvin is typical (“sunlight”)

l Based on published tungsteon/incandescent data

EBSEL Heads 300% brighter; EBSHK Heads 500%

brighter

EBS Unit with HK Type Heads and

Integral Push-To-Test

EBS Unit with EL Type Heads and

Integral Push-To-Test

EBS Unit with

EL Type Head

and Exit plus

HK Head

with remote

Push-To-Test

EBS Battery Unit Only

EBS

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L60

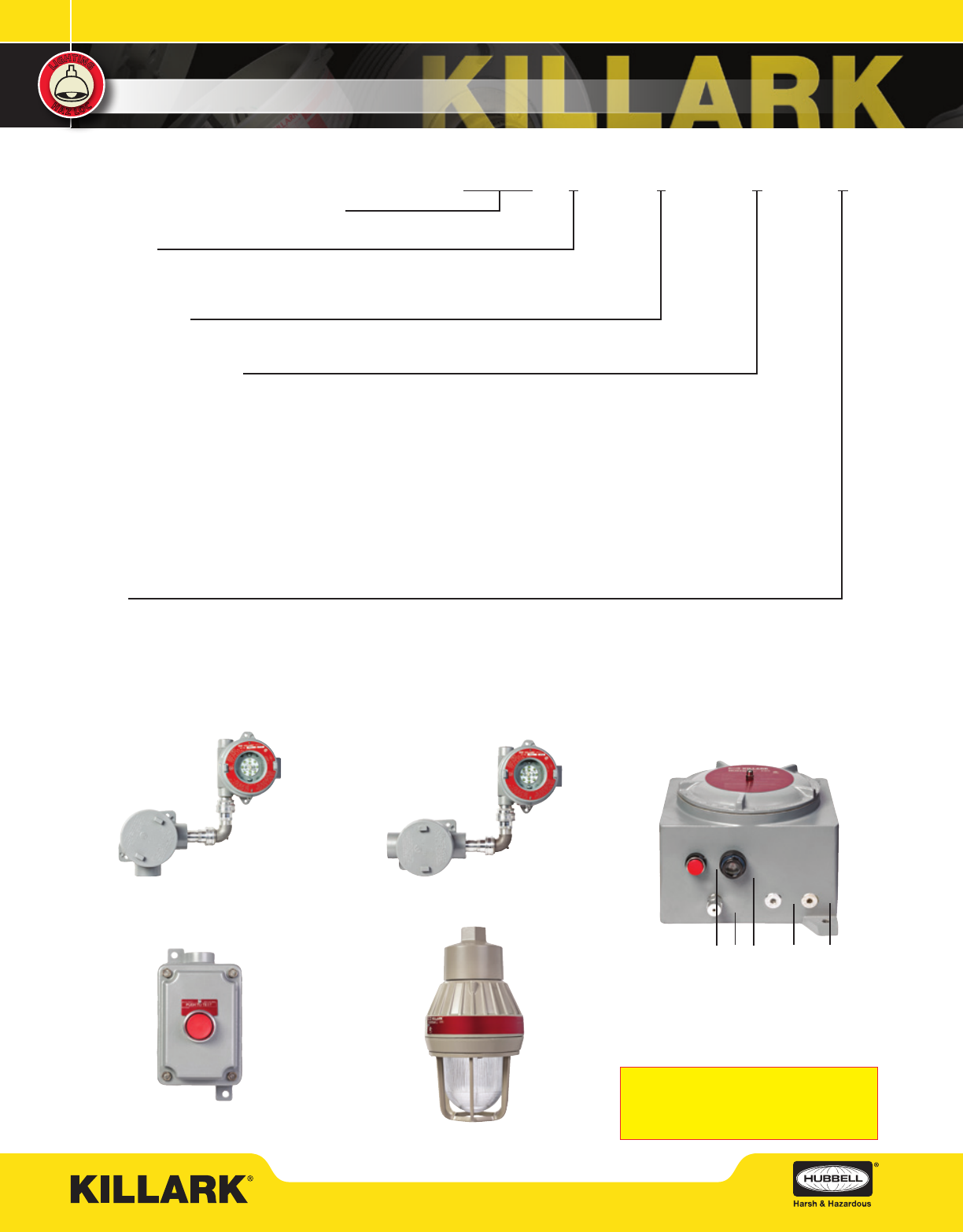

EBS SERIES

EMERGENCY BATTERY SYSTEM – LOGIC & COMPONENTS

Factory Sealed Remote LED Spot

Light - Bottom Feed

Factory Sealed Remote LED Spot

Light - Side Feed

A Optional Push-To-Test

B Optional Group B Drain

C Standard Pilot Light

D Entry for Remote P-T-T Station

E Power Entry (also on top)

Remote Push-To-Test Station

Remote LED Luminaire

Catalog Number Logic EBS23DH - P T A D

Series Constant 120-277V 50/60Hz 23W

Dual-Head (Remote or Attached)

Test Options

– Push-To-Test on Enclosure

– Remote Push-To-Test Station (EBS-PTT shipped separately)

– None - ordered separately or breaker controlled

EBS23DH

Time Delay Option

– Power Resumption Emergency Time-delay (Factory set approx. 15 min.) 120 thru 277V

– No Time-Delay

Luminaire Head Options

– No heads - For Remote Heads Ordered Separately

– 2 EBSHK1030 Heads Factory Attached

– 2 EBSEL1030 Heads (Less Guards) and Fittings for Attachment

– 2 EBSEL1030 Heads with Guards and Fittings for Attachment

– 2 EBSEL1030 Heads with 1 Guard and 1 HEXA-100 EXIT and Fittings for Attachment

– 1 EBSHK1030 Head Attached and 1 EBSEL1030 Head (Less Guard) and Fittings for Attachment

– 1 EBSHK1030 Heads Attached and 1 EBSEL1030 Head with Guard and Fittings for Attachment

– 1 EBSHK1030 Heads Attached and 1 EBSEL1030 Head witn HEXA-100 EXIT and Fittings for Attachment

– 1 EBSHK1030 Only (2nd Head Remote - Ordered Separately)

– 1 EBSEL1030 Only Less Guard and Fittings for Attachment (2nd Head Remote - Ordered Separately)

– 1 EBSEL1030 Only with Guard and Fittings for Attachment (2nd Head Remote - Ordered Separately)

– 1 EBSEL1030 Only with HEXA100 EXIT and Fittings for Attachment (2nd Head Remote - Ordered Separately)

Drain

– Group B Drain for Wet Applications including condensation from heat <> cold cycling

Blank

– Not included

j Main Enclosure nameplate does not reect heads ordered; unit is Dual Marked with ratings dependent on heads attached. E.g. if No heads or EBSHK only

head(s) attached then unit is C1D1 Groups BCD; if an EBSEL head is attached then unit is Groups CD.

k Units ordered with EBSHK heads are shipped with heads attached; EBSEL heads are shipped separately.

l Drain packed in enclosure with vapor capsule.

EBS UNIT - BOTTOM DETAIL

A B C D E

The EBS23 System is designed to

power 2 Heads for operation (total

attached or remote); each Head is

approximately 10 Watts.

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L61

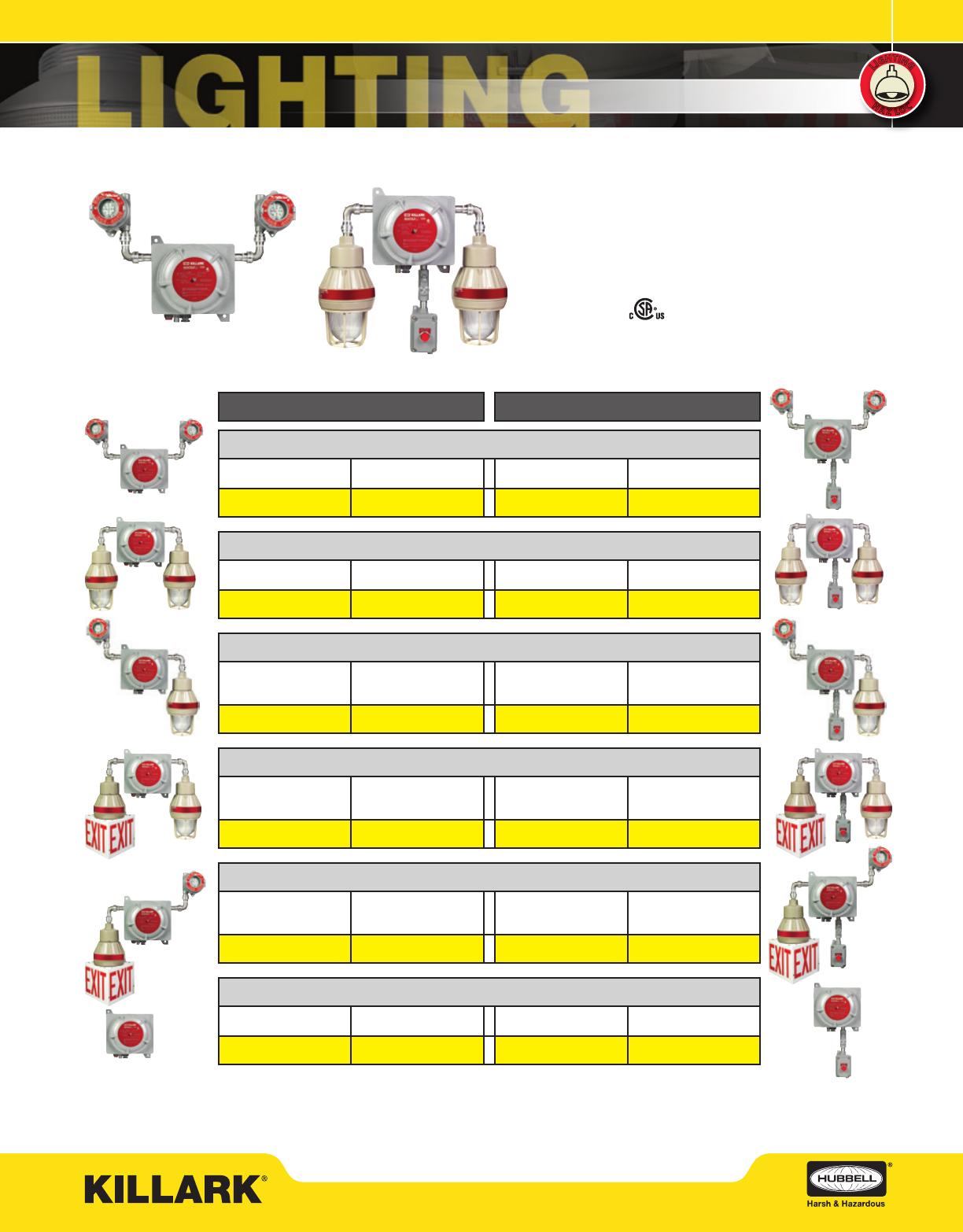

EBS SERIES

EMERGENCY BATTERY SYSTEM – PRE-CONFIGURED UNITS

ORDERING INFORMATION

Class I, Div. 1&2, Groups Bj,C,D

Class I, Zone 1&2, Groups llB+H2j, llA

Class II, Div. 1&2, Groups EFG

Class III

Enclosure Type 4 (NEMA 4, 7Bj CD, 9EFG)

File LR11713

j Main EBS unit is CID1 Group B (Suitable Zone 1 IIB+H2) with attached EBSHK heads or no heads; with attached

EBSEL heads unit is CID1 Groups CD (Suitable Zone 1 IIB, IIA)

kUse catalog logic for single attached head models and order required remote 2nd head separately. Note, for EXIT

applications EBSEL heads must be ordered without guards.

lPTT = Push-To-Test; TDR = Time Delay Relay (prox 15 minutes after power resumption).

INTEGRAL PUSH-TO-TEST REMOTE PUSH-TO-TEST

EBS SYSTEM WITH TWO EBSHK HEADS kl CID1BCD

Integral PTT, Two EBSHK Integral PTT,

TDR

, Two

EBSHK Remote PTT, Two EBSHK Remote PTT,

TDR

, Two

EBSHK

EBS23DH-PNA EBS23DH-PTA EBS23DH-RNA EBS23DH-RTA

EBS SYSTEM WITH TWO EBSEL HEADS WITH GUARDS kl CID1CD

Integral PTT, Two

EBSEL Heads w/ Guards

Integral PTT,

TDR

, Two

EBSEL Heads w/ Guards

Remote PTT, Two EBSEL

Heads w/ Guards

Remote PTT,

TDR

, Two

EBSEL Heads w/ Guards

EBS23DH-PNBG EBS23DH-PTBG EBS23DH-RNBG EBS23DH-RTBG

EBS SYSTEM WITH ONE EBSHK HEAD & 1 EBSEL HEAD WITH GUARD kl CID1CD

Integral PTT, One EBSHK

& One EBSEL Head w/

Guard

Integral PTT,

TDR

, One

EBSHK & One EBSEL Head

w/ Guard

Remote PTT, One EBSHK

& One EBSEL Head w/

Guard

Remote PTT,

TDR

, One

EBSHK & One EBSEL Head

w/ Guard

EBS23DH-PNCG EBS23DH-PTCG EBS23DH-RNCG EBS23DH-RTCG

EBS SYSTEM WITH TWO EBSEL HEADS ONE WITH EXIT kl CID1CD

Integral PTT, Two EBSEL

Heads, One w/ EXIT, One

w/ Guard

Integral PTT,

TDR

, Two

EBSEL Heads One w/ EXIT,

One w/ Guard

Remote PTT, Two EBSEL

Heads, One w/ EXIT, One

w/ Guard

Remote PTT, Two EBSEL

Heads, One w/ EXIT, One

w/ Guard

EBS23DH-PNBE EBS23DH-PTBE EBS23DH-RNBE EBS23DH-RTBE

EBS SYSTEM WITH ONE EBSHK HEAD & ONE EBSEL HEAD WITH EXIT kl CID1CD

Integral PTT, One EBSHK

Head, One EBSEL w/ EXIT

Integral PTT,

TDR

, One

EBSHK Head, One EBSEL

w/ EXIT

Remote PTT, One EBSHK

Head, One EBSEL w/ EXIT

Remote PTT,

TDR

, One

EBSHK Head, One EBSEL

w/ EXIT

EBS23DH-PNCE EBS23DH-PTCE EBS23DH-RNCE EBS23DH-RTCE

EBS SYSTEM ONLY FOR REMOTE HEADS (ORDER TWO SEPARATELY) kl CID1BCD

Integral PTT, No Heads Integral PTT,

TDR

, No

Heads Remote PTT, No Heads Remote PTT,

TDR

, No

Heads

EBS23DH-PNN EBS23DH-PTN EBS23DH-RNN EBS23DH-RTN

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L62

EBS SERIES

EMERGENCY BATTERY SYSTEM – REMOTE HEADS & ACCESSORIES

EBSEL

Shown with

Exit Accessory

ERSD15

ERA15

EMGS1

EBSEL1030

EMG1

EMG1-R

EBS-PTT

EBSHK1030-RFSL

EBSHK1030-RFSC

EBSHK1030

EBSEL1030 REMOTE HEADS WITH MOUNT (FACTORY SEALED) CID1CD; C2D1EFG

10W 30VDC PENDANT 3/4”jCEILING 3/4”jWALL 3/4”jSTANCHION 1-1/2”k

With Guard EBSEL1030A2G EBSEL1030X2G EBSEL1030B2G EBSEL1030D4G

Without GuardlEBSEL1030A2 EBSEL1030X2 EBSEL1030B2 EBSEL1030D4

EBSEL1030 COMPONENTS & ACCESSORIES – DESCRIPTION

CATALOG NUMBER

EBSEL 10W Head Only with LED’s, Less Mount and Guard EBSEL1030

Guard EMG1

Red Guard – used to signify remote ﬁxture is for Emergency EMG1-Rl

EXIT Accessory – 3-sided white painted aluminum HEXA-100l

Dome Reﬂector ERSD15

Angle Reﬂector ERA15

Sealed Fittings Set for attachment of Pendant EBSEL to EBS23HD-xxx EBS-AHFS

Replacement Globe and Support Assembly EMGS1

j For 1” pendant, ceiling and wall hubs, substitute “3” for “2” in catalog number; example: EBSEL1030A3G.

k Stanchion conduit hub size supplied is 1-1/2” with 1-1/2” to 1-1/4” reducer for 1-1/4” mounting.

l Order xture without guard for use with HEXA-100 EXIT Accessory, or to order EMG1-R Red Guard.

m For EBSEL with Mount Dimensions, see EMI15 series in lighting section.

MOUNTING BOXES

CATALOG NUMBER HUB SIZE

PENDANT CEILING BRACKET STANCHION

EZA2 EZX2 EZB2 –3/4”

EZA3 EZX3 EZB3 –1”

–––EZD4k1-1/4” / 1-1/2”

j Seal purchased separately appropriate of area of use

EBSHK1030 10W 30V HEADS, COMPONENTS & ACCESSORIES CID1BCD; C2D1EFG

DESCRIPTION CATALOG NUMBER

EBSHK Head Only with LED’s – Requires Field SealjEBSHK1030

EBSHK Head with ADJUSTABLE FACTORY SEALED “C” ﬁttings set EBSHK1030-RFSC

EBSHK Head with ADJUSTABLE FACTORY SEALED “L” ﬁttings set EBSHK1030-RFSL

Sealed Fittings Set for attachment of EBSHK to EBS23DH-xxx EBS-AHFS

j EBS23DH requires conduit seals (purchased separately) exiting enclosure within 18”; EBS-PTT contains a N.C.

contact and is Factory Sealed for C&D and up to 5’ for Group B.

EBS23DH SERIES ACCESSORIES – DESCRIPTION

CATALOG NUMBER

Remote Push-To-Test Station Group B 3/4” Feed-Thru w/Close Up PlugjEBS-PTT

Remote Push-To-Test Station with Lock Off, Group B 3/4” Feed-ThrujEBS-PTT-LO

Lock-Off for Integral Push-To-Test GO10502

Sealed Fittings Set for attachment of EBSHK to GEBC-2 or GEBL-2 EBS-AHFS

Replacement Battery Pack and Electronics KLBP01

Replacement Vapor Capsule for corrosion protection EBS-VC

EBSHK Heads can be aimed up to 45 above

horizontal – if ush on wall will require spacing out.

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L63

EBS SERIES

EMERGENCY BATTERY SYSTEM – DIMENSIONS & WEIGHTS

Dimensions -

Factory Sealed

Remote HK Head

For EBSEL

with mounting

Dimensions,

see EM/15 in

lighting section.

Dimensions - Remote Test Station

Dimensions - EBS Main Unit

14.64

3.40

5.09

10.95

4.54

3.69

6.71

6.19

2.25

3.40

11.94

8.51

10.47

9.47

Dimensions - EBS with HK Heads

Dimensions - EBS with EL Heads Dimensions - EBS with EL-EXIT & HK Heads

10.80

WEIGHTS (SHIPPING) INDIVIDUAL AND

COMBINATIONSjLBS.

EGS23DH Main Unit Only 36.6

EBSEL1030 Pendant Head Only w/ Fittings Set 12.3

EBSHK1030 Head Only w/ Fittings Set 5.0

EBSHK1030-RFSC (or RFSL) 11.0

EBS-PTT 3.0

EBS-AHFS Factory Sealed Fittings Set 0.6

EBS23DH & 1 EBSHK w/ Fittings 41.6

EBS23DH & 2 EBSHK w/ Fittings 46.6

EBS23DH & 1 EBSEL w/ Fittings 48.9

EBS23DH & 2 EBSEL w/ Fittings 61.2

EBS23DH & 1 EBSEL & 1 EBSHK w/ Fittings 53.9

j EBSEL Heads ship separately

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L64

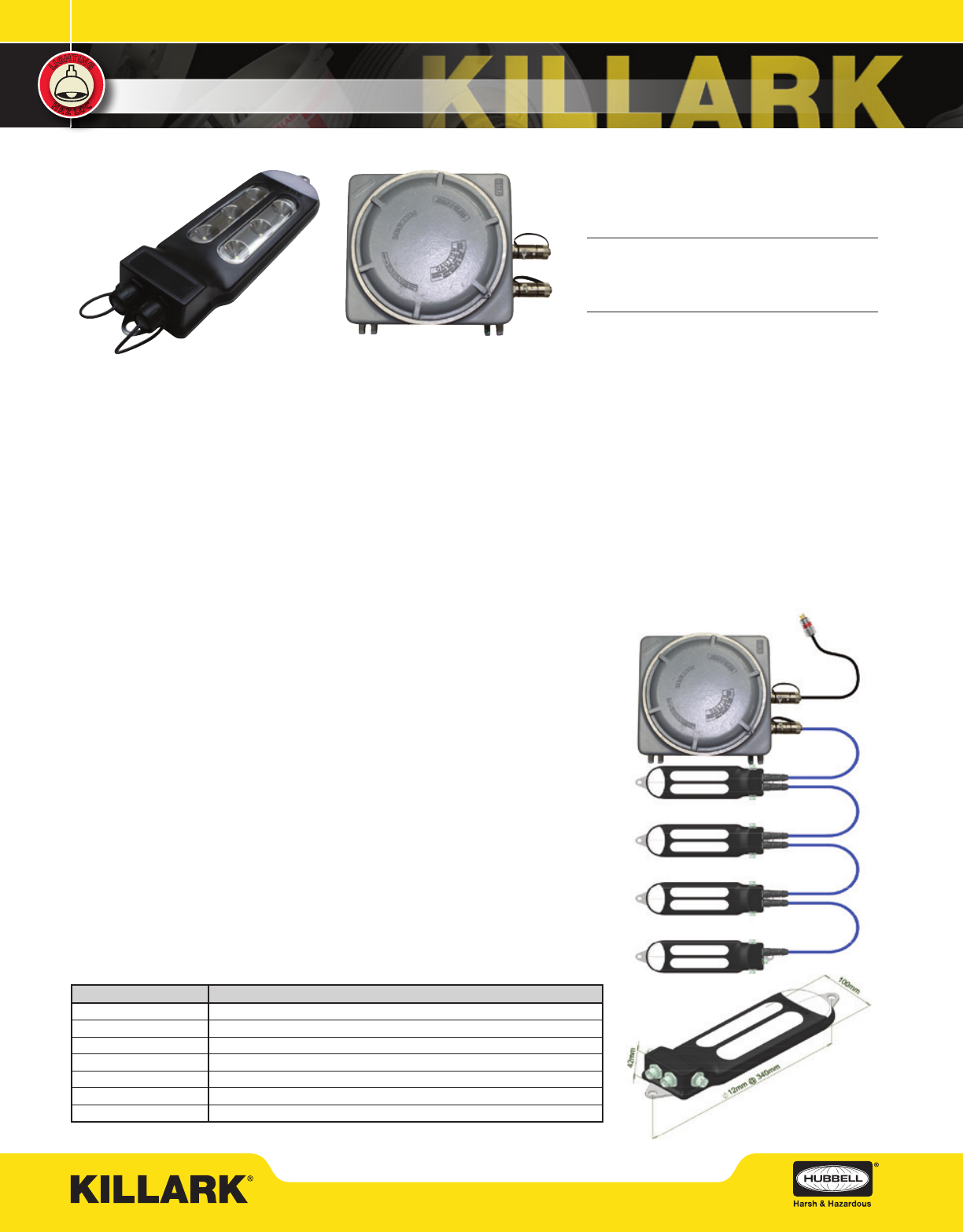

Power Supply

• Operating Voltage – 10.0 - 12.6Vdc

• Current Consumption – 700mA max

• Ui – 12.6Vdc

• Ii – 3.3A

• Ci – 3.3uF

• Li – 0uH

Photometrics

• Luminance Flux – 650lm

• Beam angle – 90º

• Color temperature – 5000-8300ºK

LED LIGHT HEAD LUMINAIRE

LLS2 SERIES

FEATURES-SPECIFICATIONS

Applications

The intrinsically safe Type LLS2 LED

luminaire is part of the Killark portable area

lighting system that is designed to provide

plant and area illumination in Group I and II

harsh and hazardous areas. The LLS2 LED

ﬁnds application on longwalls, around load

centres and on machinery such as road

headers, continuous miners and roof bolters

for general area illumination.

The LLS2 LED luminaire uses high efﬁciency

LED technology to provide both a compact

low proﬁle form factor and a long life

maintenance free area illumination solution.

The luminaire is powered from a general-

purpose intrinsically safe 12V power

supply the Austdac AC36W installed in a

GR enclosure. The AC36W is capable of

powering up to 4 LLS2 LEDs. Up to 2 power

suplies can be place in a GR enclosure

allowing for 8 LED’s

The LLS2 LED luminaire is ﬁtted with two

power connectors which allow the LLS2 LED

to be daisy chained.

The LLS2 LED can be mounted by the

integral high strength magnets or may be

bolted in place using the two external 12mm

mounting holes. These two simple mounting

alternatives and integral connector make

the LLS2 LED particularly suited for use as

longwall area lighting as the lighting system

can be quickly removed during longwall

relocations.

Compliances

• The LED luminaire type LLS2 is IECEx

certiﬁed for use in Group I and II

hazardous areas. The LLS2 IECEx

certiﬁcate is IECEx TSA 15.0028X

• The LLS2 LED markings are Ex ia I Ma and

Ex ia IIB T3 Ga.

• For Group II applications the user should

refer to the User’s Manual regarding

potential electrostatic charging hazard.

Features and Standards

• High Intensity cool white

• High efﬁciency LED technology 650lm

• Low proﬁle

• Magnetic or bolt mounting

• Intrinsically safe

• Long life

• Certiﬁed for Group I and II

Specications

• Name – Luminaire LED

• Type – LLS2

• Mounting – M12 @ 340mm centres

• Size – 100(H)x360(W)x42(D)mm

3.93(H)x14.17(W)x1.65(D)

• Mass – 1100g

• Electrical connections – Integral

connector

• Maximum cable length – 50m (164 feet)

• Ingress protection – IP65

• Operating temp range – -20ºC to +40ºC

-04ºF to +104ºF

CATALOG NUMBER DESCRIPTION

LLS002-01 LED Light Head Luminaire TYPE LLS2 - GROUP I

LLS002-02 LED Light Head Luminaire TYPE LLS2 - GROUP II

LLS002-C1-10 Cable LLS2 - 1 Connector – 10m

LLS002-C2-10 Cable LLS2 - 2 Connector – 10m

PSAC36W-12V-3.00A Power Supply TYPE AC36W

GRISCB1 GR Enclosure / (1) Intrisically-Safe Power Supply / InstrumEx Connectors

GRISCB2 GR Enclosure / (2) Intrisically-Safe Power Supply / InstrumEx Connectors

GR Box

Zones 0, 1, 2

Ex ia I Ma and Ex ia IIB T3 Ga

IP65

Ta = -20°C to +40°C

Certiﬁcate: IECEx TSA 15.00 28X

Zone 1, 2

Ex d IIB T5/T6 and Ex tDA21 T80°C or T90°C

IP66

Ta = -20°C to +60°C

Certiﬁcate: IECEx PTB 05.0029

Zone 1, 2

Ex dbe IIC and Ex tb IIIC Db T85

IP66

Ta = -40°C to +60°C

Certiﬁcate: IECEx BAS 06.0018X

LED Head

Connectors

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L65

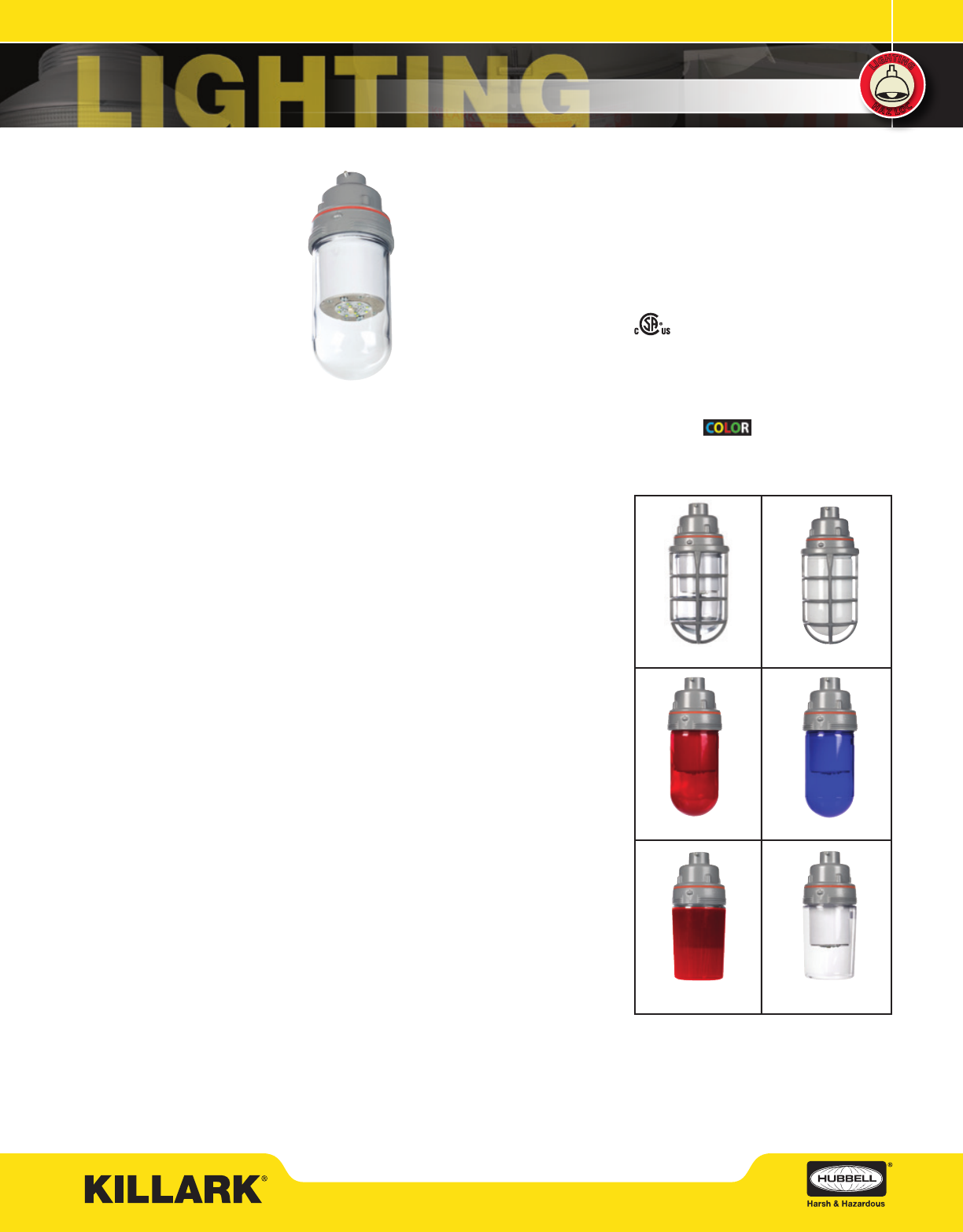

VSL SERIES

UTILITY LIGHT – INTRODUCTION

Optic Selection Examples

• Broadest globe offering for

Hazardous Locations in the industry

• Use as status lights or specialty/

emergency indicators

FEATURES-SPECIFICATIONS

Introduction

Killark ‘VSL’ Series LED ﬁxtures are designed

for installations where moisture, dirt, dust,

corrosion and vibration may be present,

or NEMA 3 and 4 areas where wind, water,

snow or high ambients can be expected.

VSL’s are sized to replace “Utility” type

ﬁxtures (incandescent or CFL’s) in hallways,

closets, elevator pits, docks, stairwells,

access tunnels, and mechanical rooms.

These ﬁxtures can be used in locations made

hazardous by the presence of ﬂammable

vapors or gases or combustible dusts as

deﬁned by the NEC. Typical applications

include manufacturing plants, and certain

chemical and petrochemical processing

facilities, sewage treatment plants, off-shore

and dockside installations, and garage areas.

LED Lumminaire Features and

Standards

• Compact in Size with Traditional Industrial

Appearance and Suitability

• Wide variety of optics including glass

globes (clear and tempered, color) plus

polycarbonate globes in clear and colors

• Optional Mounting arrangements including

Pendant, Wall, Ceiling, Stanchion and Adapters

• Fixtures available unit packed, order

option CP

• VSL LED Housings can be retroﬁtted to

existing V Series splice boxes; upgrade

from CFL or incandescent

• Energy Savings – less than 13 Watts of

Power; less than 16 Watts for VSL1630.

Replaces 75W or higher incandescent

• Long Life – 60,500+ maintenance-free

hours to 70% initial lumens

• Crisp White Light for Excellent Color

Rendering – Chromaticity 5000°K (CCT);

70 CRI

• Integral driver – maintains ﬁxture’s

compact proﬁle to ﬁt in existing spaces

• Ambient suitability -40°C to 55°Ck

• Instant on – including after power

interruption

• “World Voltage” 120-277VAC 50/60Hz

• Solder-LESS LED Board Connections –

Vibration Resistant

• LM80-08 Measurement of lumen

maintenance for LED light sources

• LM79-08 Certiﬁed “Absolute” Photometry,

including Chromaticity Color for Solid

State Lighting

• TM-21 method to project long term lumen

maintenance

• L70 Values – Industry Nomenclature for

Hours of use to 70% of Initial Lumens

Compliances

• UL-8750 for LED lighting

• UL 1598 standard for luminaires

• UL-844 Standard for lighting ﬁxtures for

hazardous locations, Class I, Division 2;

Class II, Division 2; Class III, Division 2

• CSA C22.2 no. 137-M1981 electric

luminaries for use in hazardous locations

• Enclosed and gasketed

• NEMA 3, 4

Materials, Weights

• Body, splice box and guards are corrosion

resistant copper-free aluminum alloy

• Baked powder epoxy/polyester ﬁnish,

electrostatically applied for complete,

uniform corrosion protection

• Reﬂectors – Polypropylene for pendant or

ceiling applications

• Heavy-duty silicone gasketing for NEMA 4

requirements

V SERIES LED

j When mounted (globe down) to V series boxes; not

Class II, Div. 2 or NEMA 4 on VBA, VFPS, VB or VFL

adaptors to sheet metal boxes.

k Glass globe models to 55°C; Polycarbonate suitable

to 40°C.

Certified - File LR11713

Class I, Div. 2, Groups A,B,C,D

Class l, Zone 2, Groups llC,llB,llA

Class II, Div. 2, Groups F,Gj

Class III

Suitable for wet locations

Enclosure Type 4j

Clear Glass w/Guard

Red Glass

Red Polycarbonate

White Glass w/Guard

Blue Glass

Clear Polycarbonate

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L66

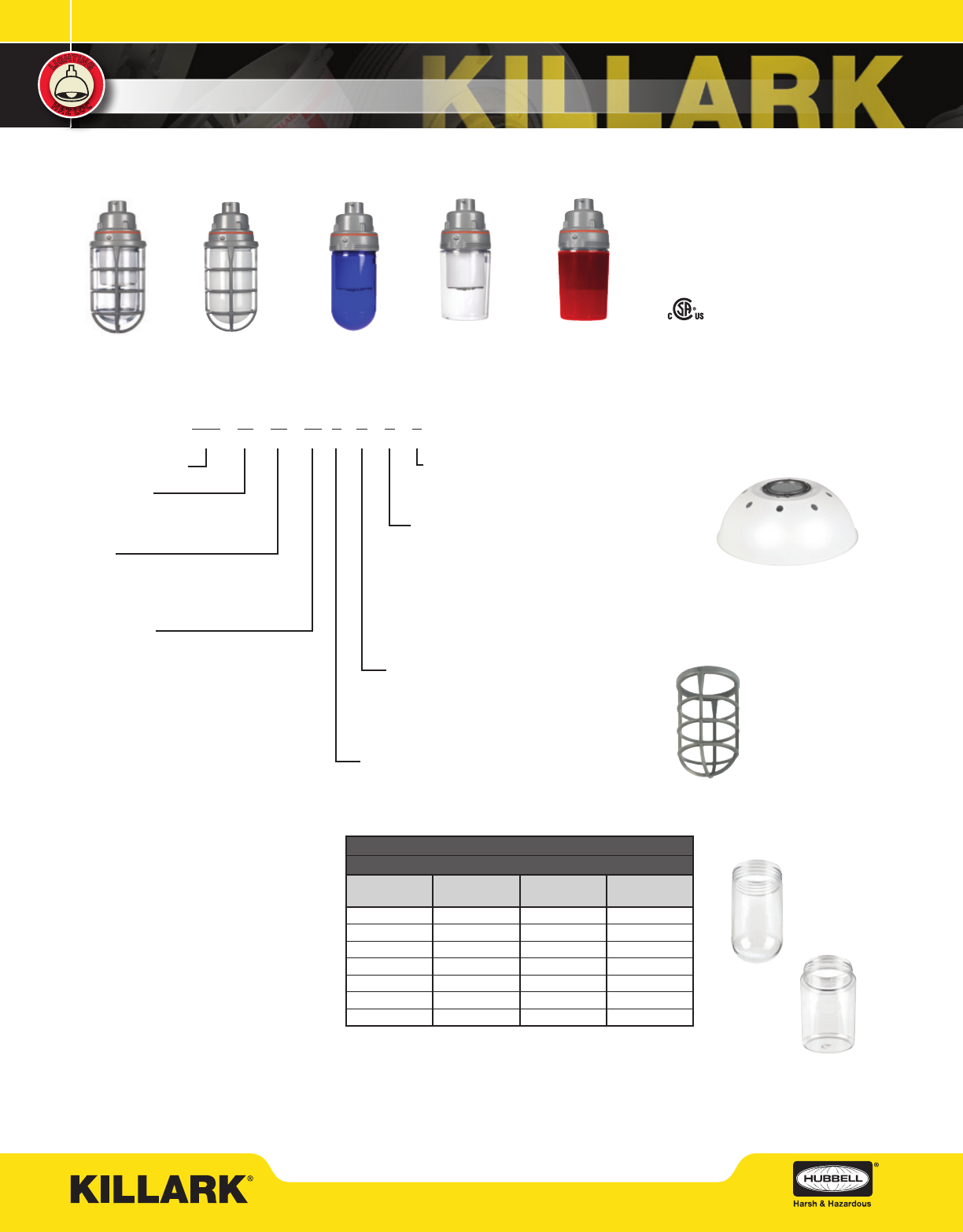

VSL SERIES

UTILITY LIGHT – CATALOG LOGIC

Clear Glass w/Guard White Glass w/

Guard

Blue Glass Clear Polycarbonate Red Polycarbonate

V SERIES LED Catalog Number Logic

VSL Series Constant

Voltage

– 120-277VAC (13W, 16W)

– 12-24VDC (13W, 16W)

– 120-250VDC (13W)

Mounting Type

– Mounr Ordered Separately

– 1/2” Pendant (VGA-1)

– 3/4” Pendant (VGA-2)

– 1/2” Ceiling w/Feet & Adapter (VBC-1 w/VBA)

– 3/4” Ceiling w/Feet & Adapter (VBC-2 w/VBA)

– 1/2” Ceiling (VGX-1)

– 3/4” Ceiling (VGX-2)

– 1/2” Ceiling (VGC-1)

– 3/4” Ceiling (VGC-2)

– 1/2” Ceiling Dead End (VGH-1)

– 3/4” Ceiling Dead End (VGH-2)

– 1/2” Ceiling Deep (VXA-1)

– 3/4” Ceiling Deep (VXA-2)

– 1-1/4” Stanchion (VD-4)

– Round (Box) Adapter (VBA)

– Square (Box) Adapter (VFPS)

– 1/2” Wall w/Feet (VBC-1 w/VB-1)

– 3/4” Wall w/Feet (VBC-2 w/VB-2)

– 1/2” Wall Elbow (VB-1)

– 3/4” Wall Elbow (VB-2)

– Elbow for “V” Box (VFL)

Lamp Wattage

= 13W LED

= 16W LED

Guard

– Guard (For Glass Globes Only)

– No Guard (Standard on Polycarbonate Globes

– Guard Red (For Glass Globes Only)

Can Signify Emergency UPS Circuits

Optics**

– Standard Globe (Clear)

– Heat Resistant (Tempered) Globe (Clear)

– Polycarbonate (Clear)

VSL

- B

Class I, Div. 2, Groups A,B,C,D

Class l, Zone 2, Groups llC,llB,llA

Class II, Div. 2, Groups F,Gj

Class III

Suitable for wet locations

Enclosure Type 4j

Certified - File LR11713

Optic Color (Optic Type)

– Amber (S, H, P)

– Blue (S, H)

– Red (S, H, P)

– Green (S, P)

– Purple (S)

– Blue Green (S, H)

– White (S)

Reector

– Standard Reﬂector (Pendant or Ceiling Use Only)k

– Component Packl

** Use tempered glass or poly globe for wet location applications.

j When mounted (globe down) to V series boxes; not Class II, Div.2 or

NEMA 4 on VBA, VFPS, VB or VFL adaptors to sheet metal boxes.

k Reector is held on xture body by VAG-100 guard for glass globe models

or polycarbonate globe’s shoulder. Reectors ship separately.

l CP option includes complete xture in components contained in single

outer carton.

COLORED GLOBE OPTIONS** EXAMPLE VSL1330A1SG-A

SUFFIX AND AVAILABLE COMBINATIONS

COLOR

NUMBER

STANDARD

GLOBE

TEMPERED

GLOBE POLYCARBONATE

AMBER A A A

BLUE B B —

RUBY R R R

GREEN G — G

PURPLE P — —

BLUE-GREEN BG BG —

WHITE WWW

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L67

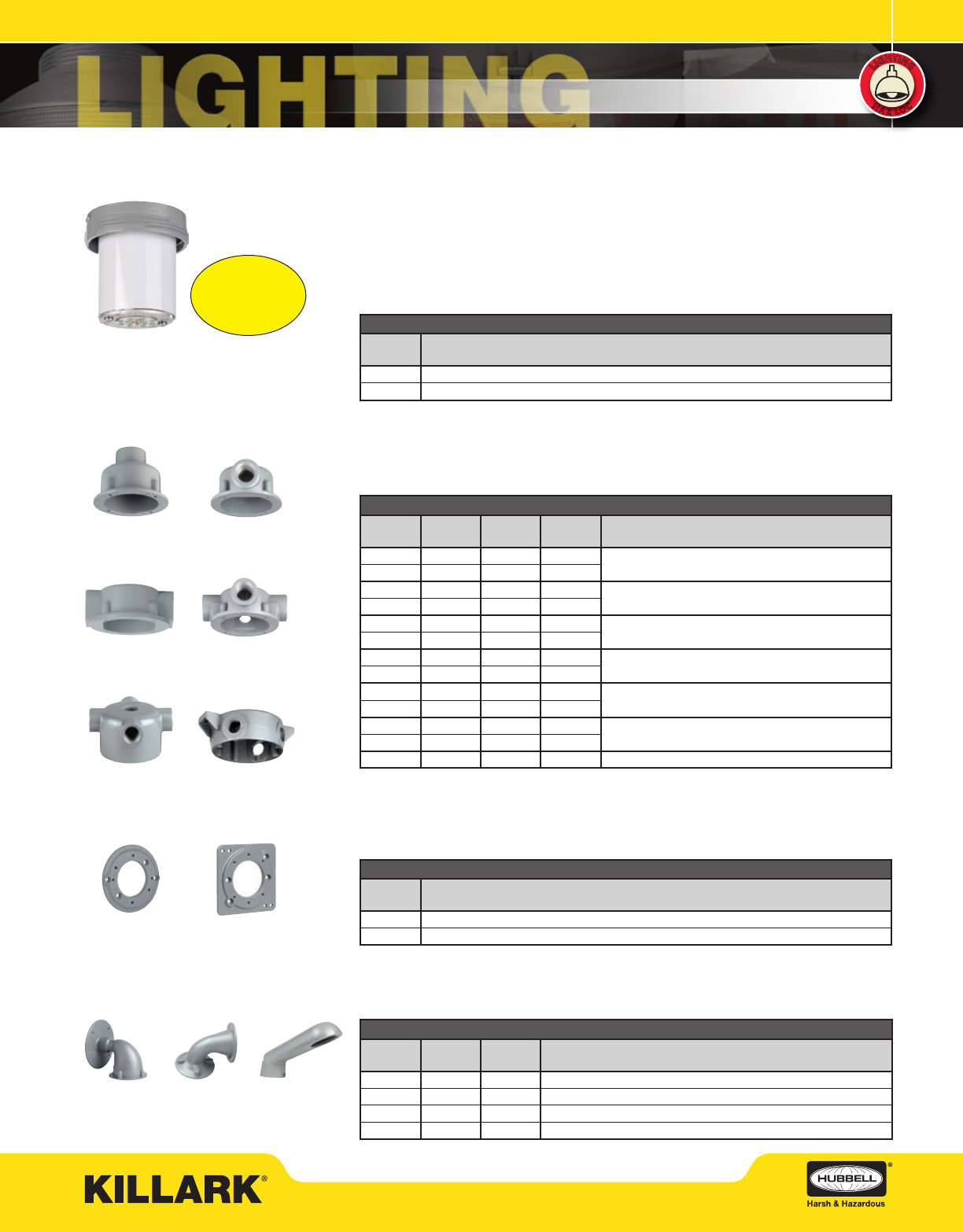

VSL SERIES

UTILITY LIGHT – COMPONENTS

Fixture bodies contain the LED driver and array, heat sink plus gaskets, and are threaded to

accept globes, guards and reﬂectors. Users with KILLARK “V” Series vapor tight ﬁxtures

from the 1960’s onward can up-grade to the latest technology and, in many cases, reuse

existing mounts, globes and guards. VSL bodies are designed for metallic boxes and mount

directly to V Series splice boxes or adapters as indicated.

VSL Fixture Bodies Only

VSL Body

RETROFIT

FOR ENERGY

SAVINGS VSL FIXTURE BODIES

CATALOG

NUMBER DESCRIPTION

VSL1330 13W 120-277VAC 50/60Hz Body with LEDs and Driver

VSL1630 16W 120-277VAC 50/60Hz Body with LEDs and Driver

VGHVGA

VGXVGC

VBCVXA

*Volume cu. in. is 18

For use with VSL Series ﬁxture bodies.

VSL Splice Boxes

VSL SPLICE BOXES

CATALOG

NUMBER HUB SIZE Q T Y. LOGIC

CODE DESCRIPTION

VGA-1 1/2” 1A1 Pendant mount

VGA-2 3/4” 1A2

VGH-1 1/2” 1H1 Ceiling mount

VGH-2 3/4” 1H2

VGC-1 1/2” 2C1 Ceiling mount

VGC-2 3/4” 2C2

VGX-1 1/2” 4X1 Ceiling mount

VGX-2 3/4” 4X2

VX A-1 1/2” 5D1 Ceiling mount, deep box

VXA-2 3/4” 5D2

VBC-1* 1/2” 4F1 Ceiling mount, with 3 close-up plugs (requires VBA Adapter)

or wall mount with VB elbow

VBC-2* 3/4” 4F2

VXAB – – – Blank close-up plate (less gasket)

VFPSVBA

VSL Adapters

VSL ADAPTER MOUNTING PLATES

CATALOG

NUMBER DESCRIPTION

VBA Adapts ﬁxture body to VB, VJ or steel 3-1/2” & 4” splice boxes. Supplied with gasket.

VFPS Adapts ﬁxture body to steel 4” square outlet boxes or 3-1/2” or 4” octagon boxes

VFLVB VD

VSL Wall/Stanchion Mounts

VSL MOUNTING BRACKETS

CATALOG

NUMBER HUB SIZE Q T Y. DESCRIPTION

VB-1 1/2” 1 Wall mount to VJ or VB boxes

VB-2 3/4” 1 Wall mount to VJ or VB boxes

VFL – – Wall mount to V boxes directly or to VJ, VB boxes with VBA adapter

VD-4 1-1/4” 1Stanchion mount

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L68

VSL SERIES

UTILITY LIGHT – COMPONENTS, RATINGS & WEIGHTS

Glass

Globe

Poly

Globe

Glass Color

Globe

Poly Color

Globe

* See Pre-congured ordering tables for complete xtures.

** Use tempered glass or polycarbonate globes for wet location applications.

VSL Globes

VSL GLOBES – ORDERING INFORMATION AND SUFFIX GRID**

COLOR GLASS OPTIC LOGIC TEMPERED

GLASS OPTIC LOGIC POLYCARBONATE OPTIC LOGIC

Clear VCG-100 S* VCGP-100 H* VPLCG-100 P*

Amber AMG-100 AVAMGP-100 AVPLCG-100A A

Blue VBG-100 BVBGP-100 B––

Ruby (Red) VRG-100 RVRGP-100 RVPLCG-100R R

Green VRSG-100 G––VPLCG-100G G

Purple VPG-100 P––––

Blue-Green VGG-100 BG VGGP-100 BG ––

White VWG-100 WVWGP-100 WVPLCG-100W W

VSL Thermal Ratings

VSL THERMAL PERFORMANCE DATA INCLUDING VPRSD-100 REFLECTOR

CATALOG

NUMBER AMBIENT C1D2 C2D2 SUPPLY L70

GLASS GLOBE POLY GLOBE GLASS GLOBE POLY GLOBE WIRE TM-21 CALCULATED

VSL1330 40°C T6 T5 T5 (F,G) T5 (F,G) 90° 60,500 100,000+

VSL1330 55°C T5 –––90° 60,500 100,000+

VSL1630 40°C T5 –T5 (F,G) –90° 60,500 100,000+

DELIVERED LUMENS

WATTS W/ GLOBE

VCG-100

W/GLOBE

VPLCG-100

W/GLOBE

VWG100

13W 1211 1104 905

16W 1328 1308 1072

VSL LED BODY WITH DRIVERSJAND LEDS – ELECTRICAL RATINGS

CATALOG

NUMBER

VOLTAGE

50/60HZ WATTS AMPS

120/277 LUMENS WEIGHT

LBS.

VSL1330 120-277VAC 12.42 .108/.047 1300 5.0

VSL1630 120-277VAC 15.64 .156/.067 1625 5.0

VSL Electrical Ratings

VSL Components

VPRSD-100

16-3/8” Dia. 5-5/8” High

VTG-S VTGG1-SVAG-100

VSL COMPONENT PARTS AND ACCESSORIES

CATALOG

NUMBER DESCRIPTION

VAG-100 Aluminum Guard for use with Glass Globe

VAG-100R Red Aluminum Guard for use with Glass Globe

VTG-S Body to Splice Box Gasket – Silicone

VTGG1-S Globe Gasket – Silicone

VPRSD-100 White polypropylene for pendant & ceiling applications. Not for use with wall or stanchion models.

Typical Weights (lbs.) w/Standard Globe and Guard – VSL Series

Pendant 7.03 Ceiling 7.51 Wall 8.09 Stanchion 7.61

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L69

VSL SERIES

UTILITY LIGHT – DIMENSIONS

VGA VGC or VGX

*VGH is 3-5/8” (92)

VBC-1 & VBC-2

VXA

VSL Body w/Globe &

Guard, No Splice Box

VB VFL

VSL Stanchion Fixture

w/Globe & Guard

VSL Body

w/Polycarbonate Globe,

No Splice Box

Glass Globe Polycarbonate Globe

VSL Pendant Fixture

w/Globe & Guard

VSL Ceiling Fixture

w/Globe & Guard

VSL Pendant Fixture

w/Polycarbonate Globe

VSL Wall Mounted Fixture

w/Globe & Guard

VSL Ceiling Fixture

w/Polycarbonate Globe

Side View

Top View

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L70

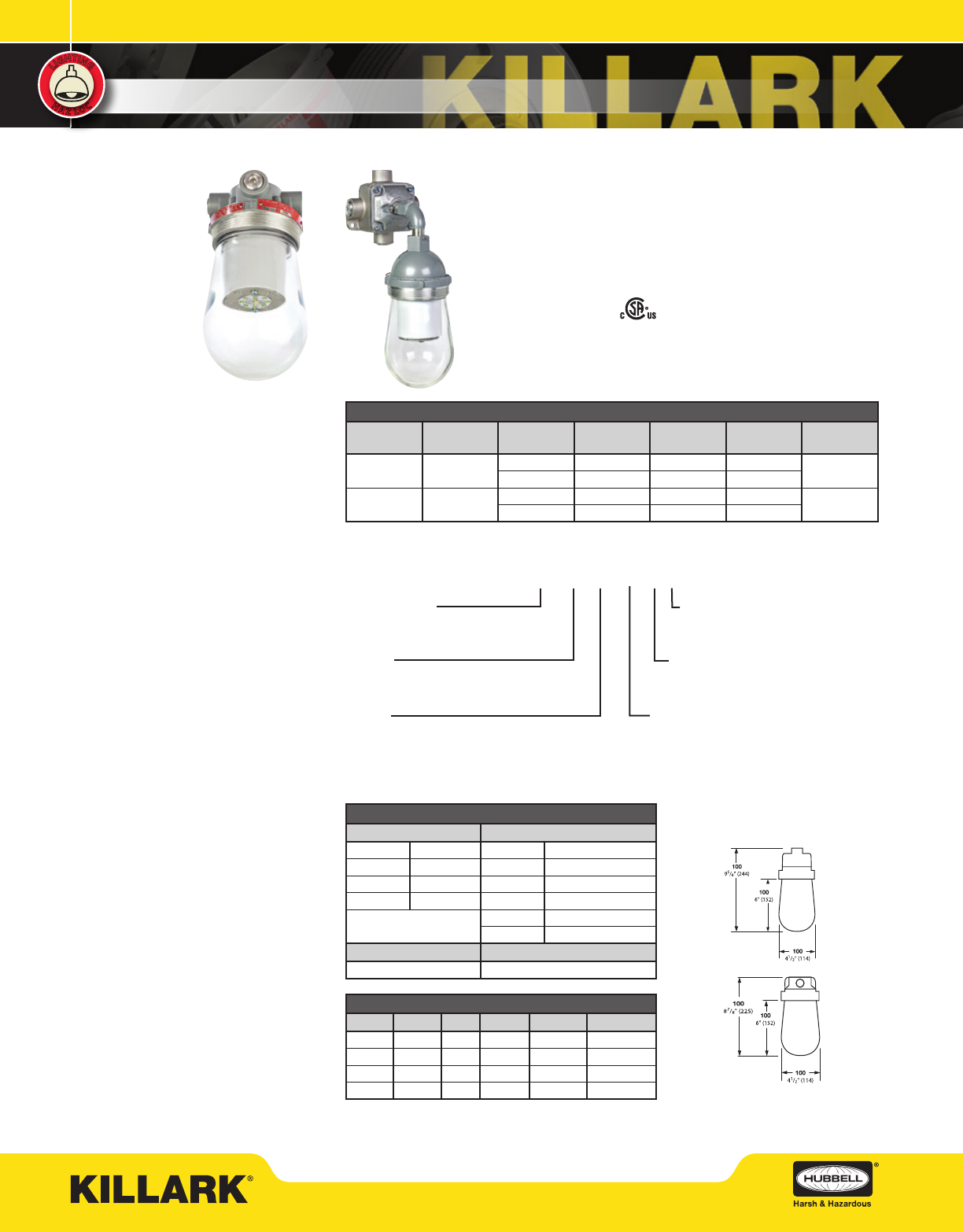

DVL SERIES

CLASS II UTILITY LIGHT – INTRODUCTION & ORDERING INFORMATION

FEATURES-SPECIFICATIONS

Introduction

Killark ‘DVL’ Series LED ﬁxtures are designed

for hazardous locations where suspended metal,

carbon (such as coal) and grain dusts create

explosive or ignitable mixture with the air.

LED Lumminaire Features and

Standards

• Compact in Size with Traditional Industrial

Appearance and Suitability

• DVL LED Housings can be retroﬁtted to

existing DV Series splice boxes; upgrade from

incandescent housing 100 Series components

• Long Life – 60,500+ maintenance-free

hours to 70% initial lumens

• Crisp White Light for Excellent Color Rendering

– Chromaticity 5000°K (CCT); 70 CRI

• Integral driver – maintains ﬁxture’s

compact proﬁle to ﬁt in existing spaces

• Instant on – including after power interruption

• “World Voltage” 120-277VAC 50/60Hz

• Solder-LESS LED Board Connections –

Vibration Resistant

Compliances

• UL-8750 for LED lighting

• UL 1598 standard for luminaires

• UL-844 Standard for lighting ﬁxtures for

hazardous locations, Class I, Division 2;

Class II, Division 2; Class III, Division 2

• CSA C22.2 no. 137-M1981 electric

luminaries for use in hazardous locations

Materials, Weights

• Body and splice box are corrosion resistant

copper-free aluminum alloy. Steel guard.

• Baked powder epoxy/polyester ﬁnish,

electrostatically applied for complete,

uniform corrosion protection

DV SERIES LED

Certified - File LR11713

Class II, Div. 1 & 2, Groups E, F, G

Class III

Class I, Div. 2, Groups A, B, C, D

j Fixtures supplied with guard. Substitute ‘n‘ for ‘g‘ for xture less guard.

DVL Series LED Catalog Logic

Dimensions

As 100 Series incandescent

Series Constant

Wattage

– 13W LED

– 16W LED

Guard

– No Guard

– Guard

DVL 13 30 A 1 G

Mounting Style

– Pendant

– Ceiling

– Bracket & Fittings for Wall Mount

Voltage

– 120-277VAC 50/60 Hz

– 12-24VDC input

DVL Electrical and L70 Ratings

Same as VSL Series - See page L55

Wall Mount overall dimensions

Height = 13.125” (333mm)

Outward from wall = 7.4” (188mm)

Conduit Entry Size

– /2”

– 3/4”

Pendant

Mount

Ceiling

Mount

DVL 100 SERIESj

MODEL LAMP HUB PENDANT CEILING WALL DELIVERED

LUMENS

Type 100

13Watt Included 1/2” DVL1330A1G DVL1330X1G DVL1330B1G 1144

3/4” DVL1330A2G DVL1330X 2G DVL1330B2G

Type 100

16Watt Included 1/2” DVL1630A1G DVL1630X1G DVL1630B1G 1355

3/4” DVL1630A2G DVL1630X 2G DVL1630B2G

DVL THERMAL RATINGS

CAT. NO. AMBIENT WATTS C2D1 EFG C1D2 ABCD SUPPLY WIRE

DVL1330 40°C 13 T3B T6 90°C

DVL1630 40°C 16 T3B T6 90°C

DVL1330 55°C 13 -T5 90°C

DVL1630 55°C 16 -T5 90°C

ACCESSORIES/COMPONENTS

BODIES MOUNTS

DVL 1330 LED 13W DVA1 1/2” Pendant Mount

DVL 1327 LED 13W DVA2 3/4” Pendant Mount

DVL 1630 LED 16W DVX1 1/2” Ceiling Mount

DVL 1627 LED 16W DVX2 3/4” Ceiling Mount

DVB1 1/2” Wall Mount

DVB2 3/4” Wall Mount

GLOBE GUARD

DCGE-10 DAG-100

KILLARK LIGHTING

SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L71

NOTES

KILLARK LIGHTING

WWW.HUBBELL-KILLARK.COM

L72

NOTES

United States

Killark

3940 Dr. Martin Luther King Dr.

St. Louis, Missouri 63113

Tel: (314) 531-0460 • Fax: (314) 531-7164

www.hubbell-killark.com

Email: killarkinfo@hubbell.com

RigPower (Hawke International)

4140 World Houston Parkway, Suite 130

Houston, TX 77032

Tel: (281) 445-7400 • Fax: (281) 445-7404

Email: rigpowerinfo@hubbell.com

Vantage Technology

4675 South Windermere Street

Englewood, Colorado 80110

Tel: 303-761-2121 • Fax: 303-789-4215

Email: xpsales@vantagexp.com

Canada

Hubbell Canada LP

870 Brock Road South

Pickering, Ontario

Canada L1W 1Z8

Tel: (905) 839-1139 • Fax: (905) 839-9108

Email: infohclp@hubbell-canada.com

Mexico

Hubbell de Mexico

Av. Insurgentes Sur 1228, Piso 8

Col. Tlacoquemécatl Del Valle

C.P. 03200, Mexiso D.F.

Tel: (01 52) 559-151-9999 • Fax: (01 52) 559-151-9988/89

www.hubbell.com.mx

Email: info@hubbell.com.mx

United Kingdom

Hubbell Products

Brunel Drive

Stretton Park Burton on Trent

Straffordshire DE13 0BZ UK

Tel: +44 (0) 1283 500500 • Fax: +44 (0) 1283 500400

Email: Sales@hubbell.co.uk

Victor Lighting

PO Box 5571

Glasgow G52 9AH Scotland

Tel: +44 (0) 141 810 9644 • Fax: +44 (0) 141 810 9642

www.victor-lighting.com

Chalmit Lighting

PO Box 5575

Glasgow G52 9AP Scotland

Tel: +44 (0) 141 882 5555 • Fax: +44 (0) 141 883 3704

www.chalmit.com

Middle East

Office #432, Bldg #6EB

Dubai Airport Free Zone (DAFZ) • PO Box 23529 Dubai UAE

Tel: +971 (0) 4 609 1222 • Email: killarkinfo@hubbell.com

Asia Pacic

130 Joo Seng Road, #03-02, Olivine Building

Singapore 368357

Tel: 00 65 6282 2242 • Fax: 00 65 6284 4244

Email: killarkinfo@hubbell.com

Korea

512 Hyosung Intellian 681-3 Deungchon Dong

Kangseo-Ku Seoul 157-030 Korea

Tel: +82 2 2063 3719 • Fax: +82 2 2603 7386

Email: killarkinfo@hubbell.com

China

Room H/I 18F No. 728 Pudong Avenue

Shanghai International Ocean and Finance Building

Shanghai 20120 P.R. China

Tel: (86 21) 3392 6550 ext. 318 • Fax (86 21) 3392 6551

Email: killarkinfo@hubbell.com

Hubbell Harsh & Hazardous

Contact Details

Hubbell Electrical Systems

A Division of Hubbell, Inc. (Delaware)

3940 Dr. Martin Luther King Drive

St. Louis, MO 63113

TEL: (314) 531-0460 FAX: (314) 531-7164

www.hubbell-killark.com • killarkinfo@hubbell.com

Hubbell de Mexico

Av. Insurgentes Sur 1228, Piso 8

Col. Tlacoquemécatl Del Valle

C.P. 03200, Mexiso D.F.

Tel: (01 52) 559-151-9999

info@hubbell.com.mx

Hubbell Canada LP

870 Brock Road South

Pickering, Ontario L1W 1Z8

(905) 839-1138

infohclp@hubbell-canada.com

149378 Catalog

Navigation menu

Versions of this User Manual:

Views

Navigation
