The power to protect your world.SM
3M™ Fall Protection
Fall Protection Catalog
CONTENTS
INTRODUCTION.................................................... 2
FALL PROTECTION TRAINING ................................. 5
FUNDAMENTALS OF FALL PROTECTION ................... 6
FULL BODY HARNESSES ....................................... 8

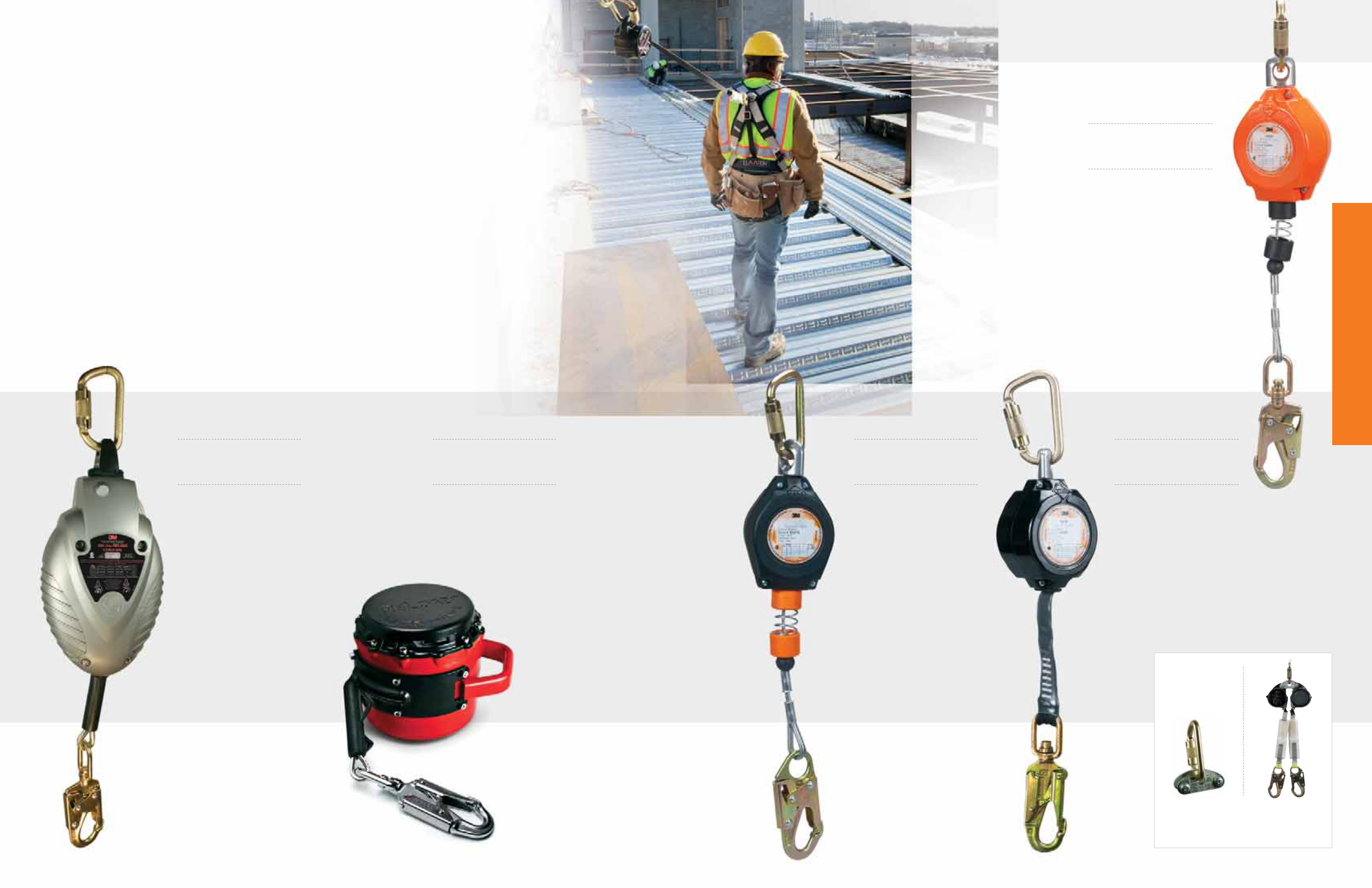

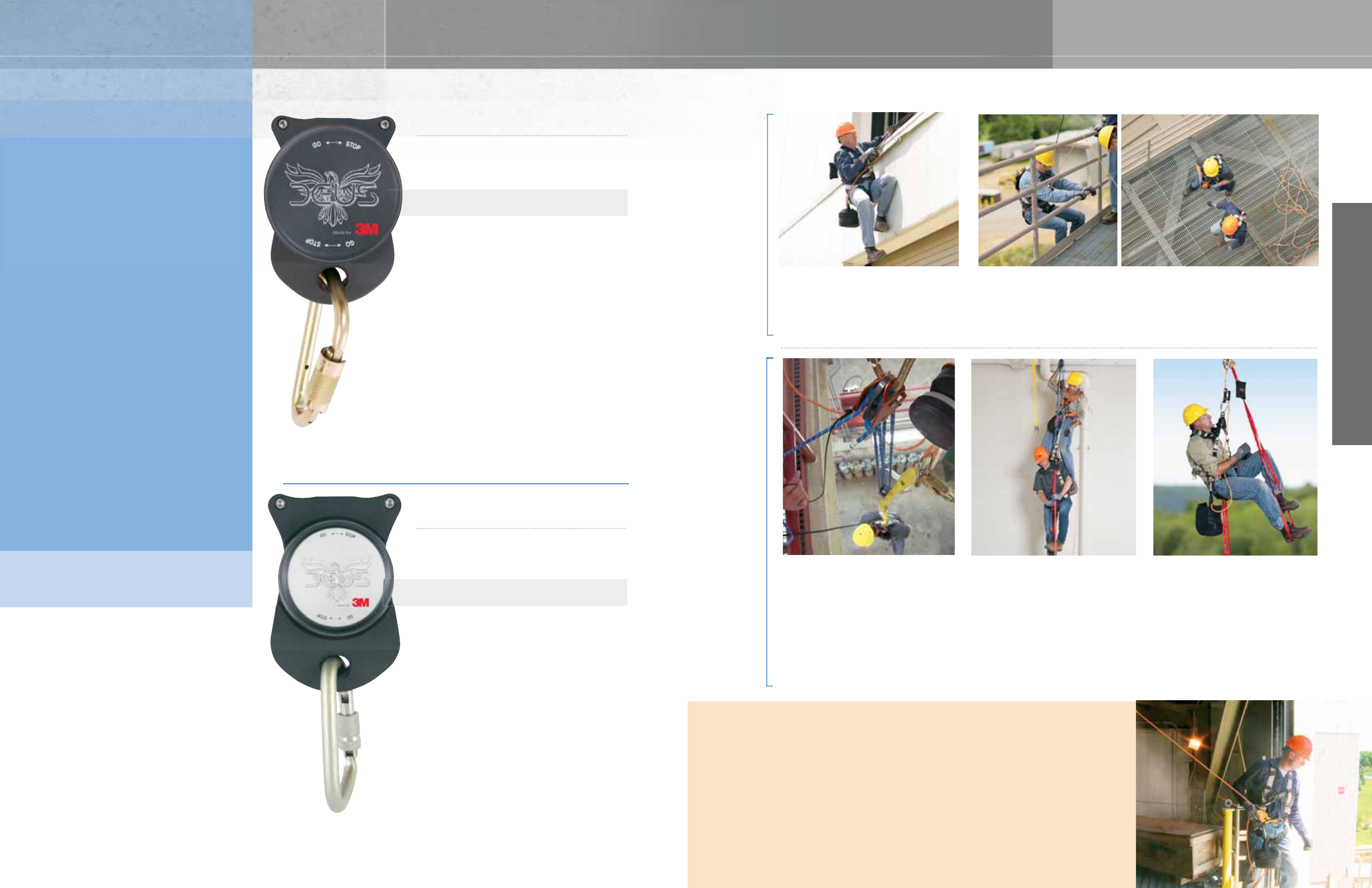

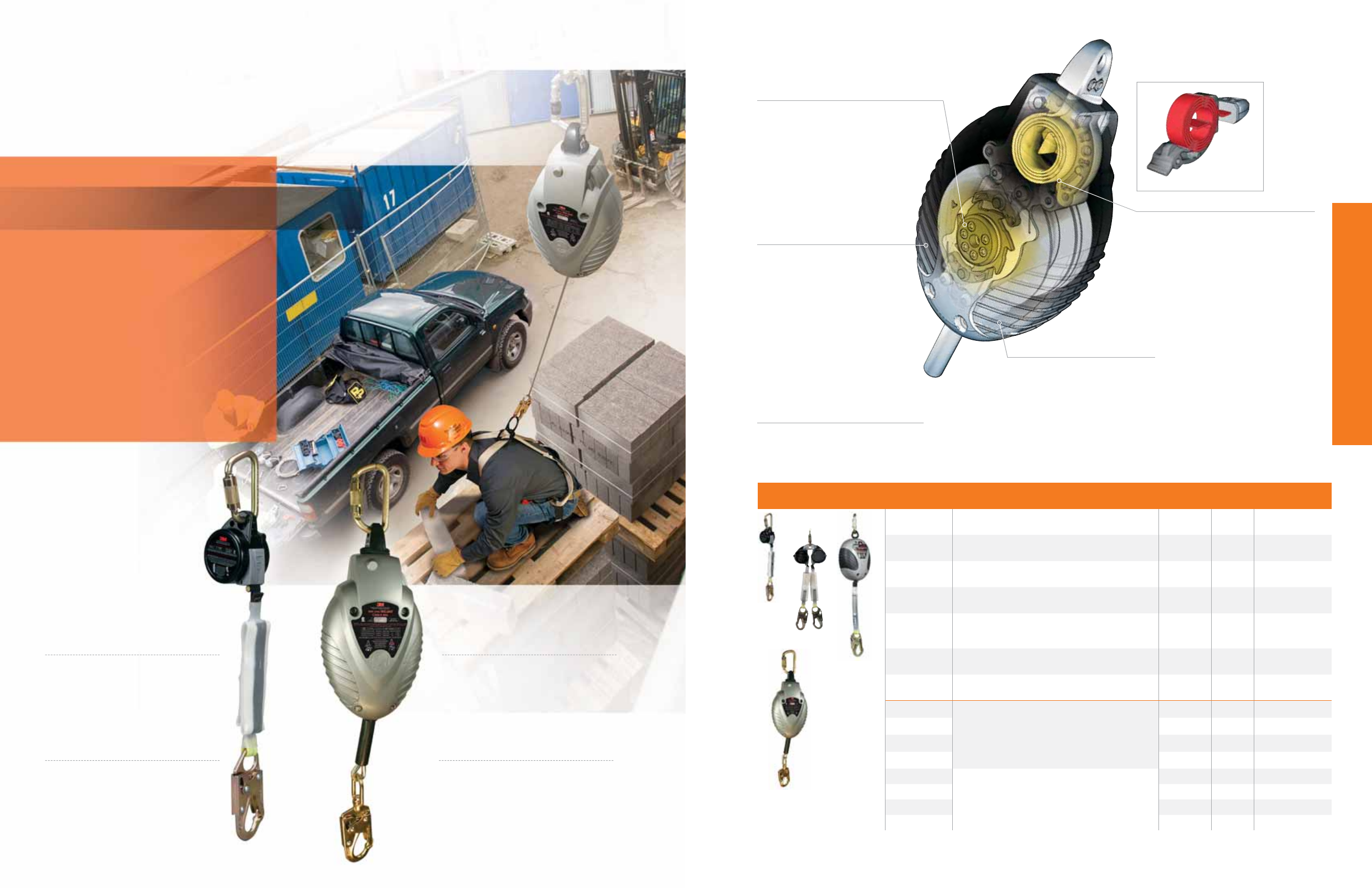

SELF-RETRACTING LANYARDS ............................. 42

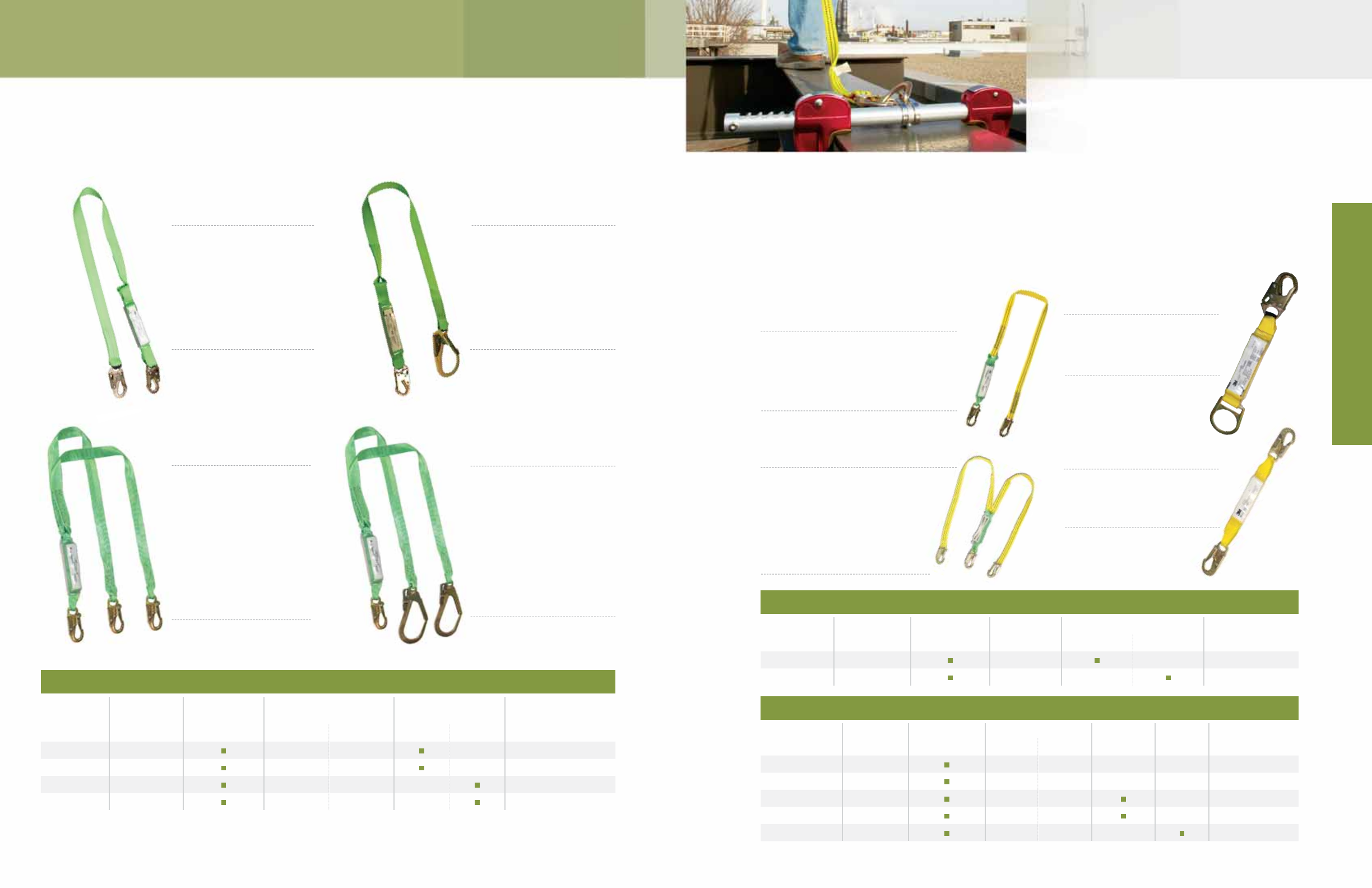

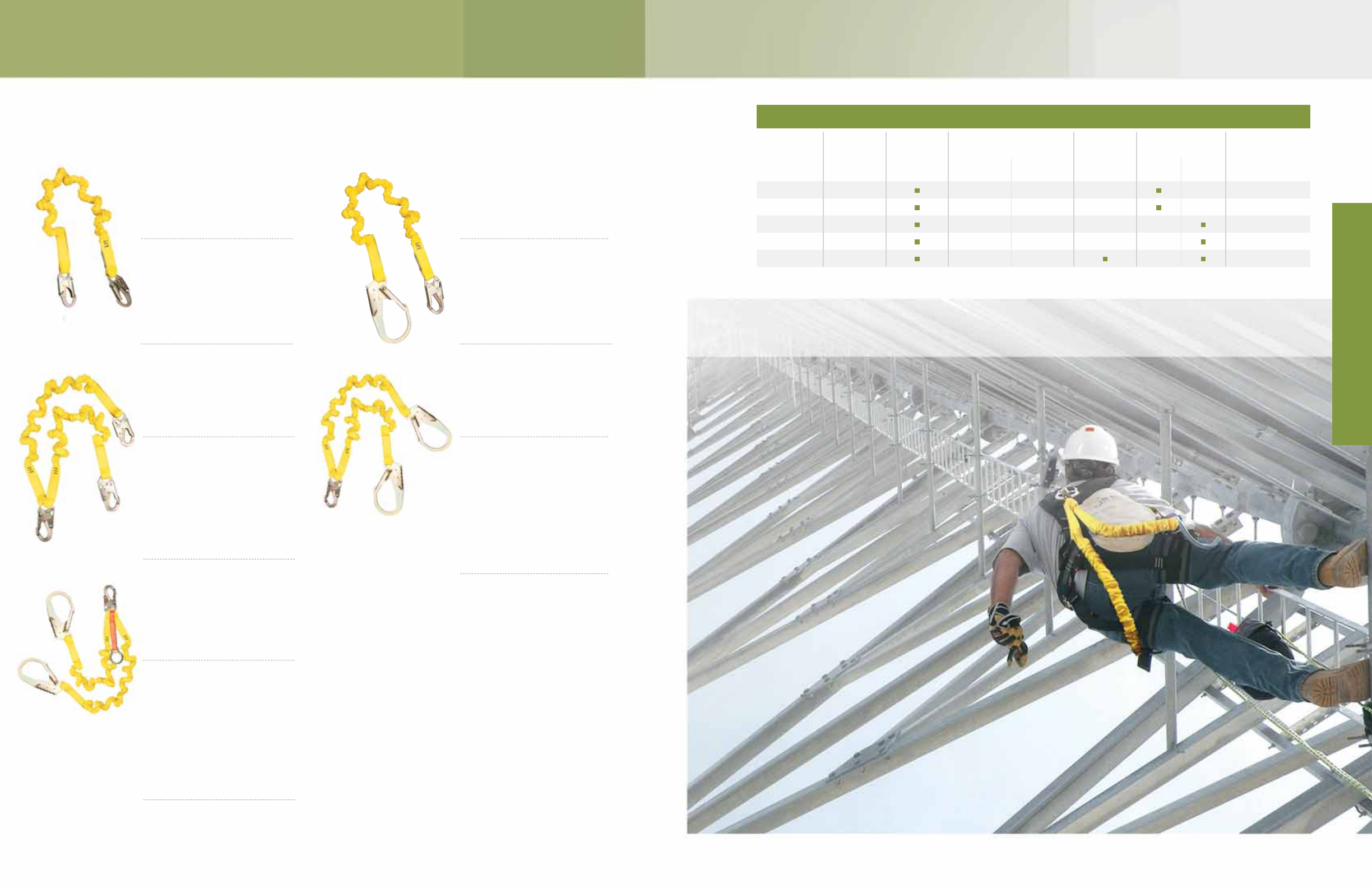

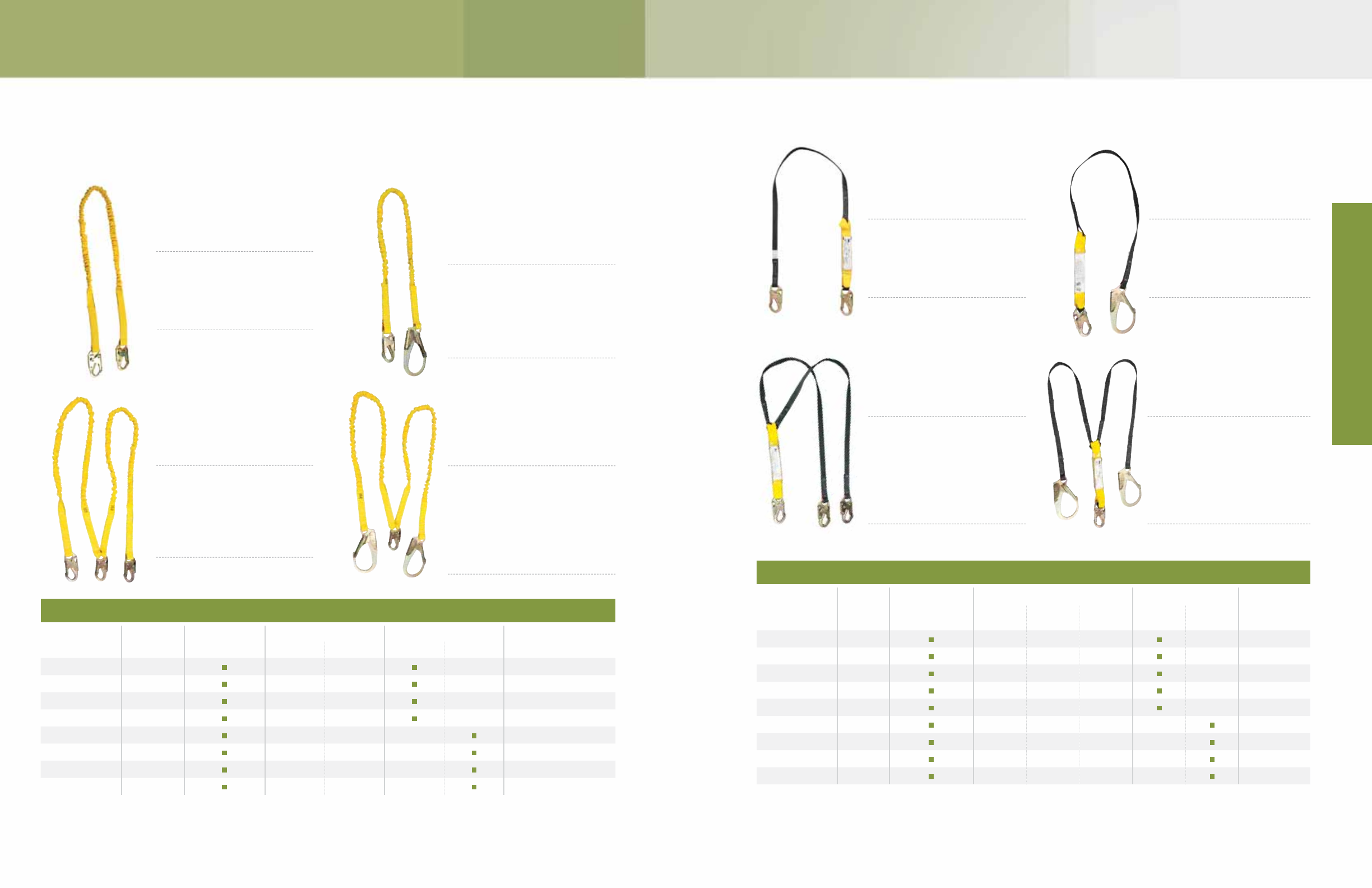

ENERGY-ABSORBING LANYARDS .......................... 54
POSITIONING DEVICES ........................................ 66
ANCHORAGE CONNECTORS ................................. 68

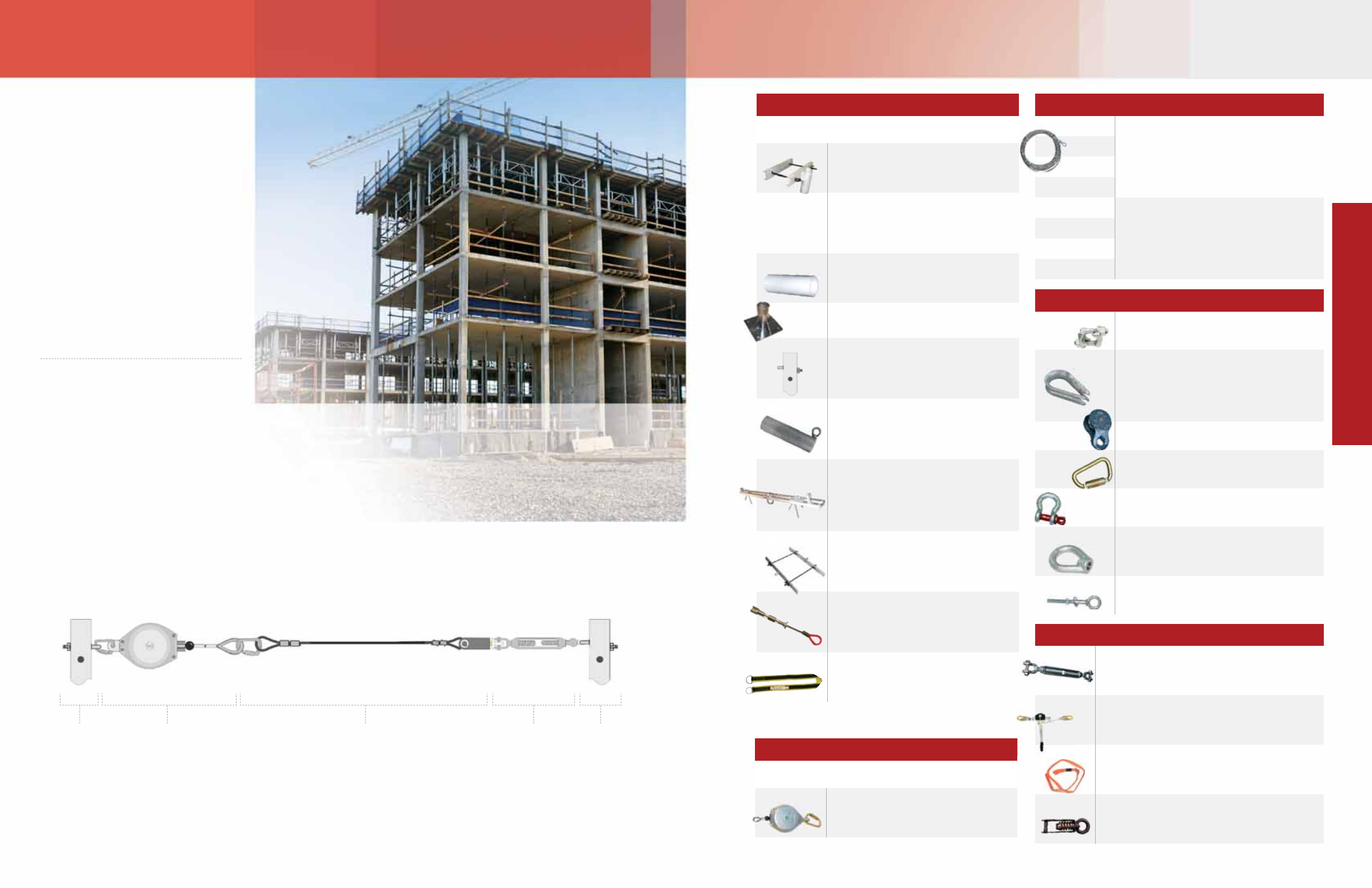

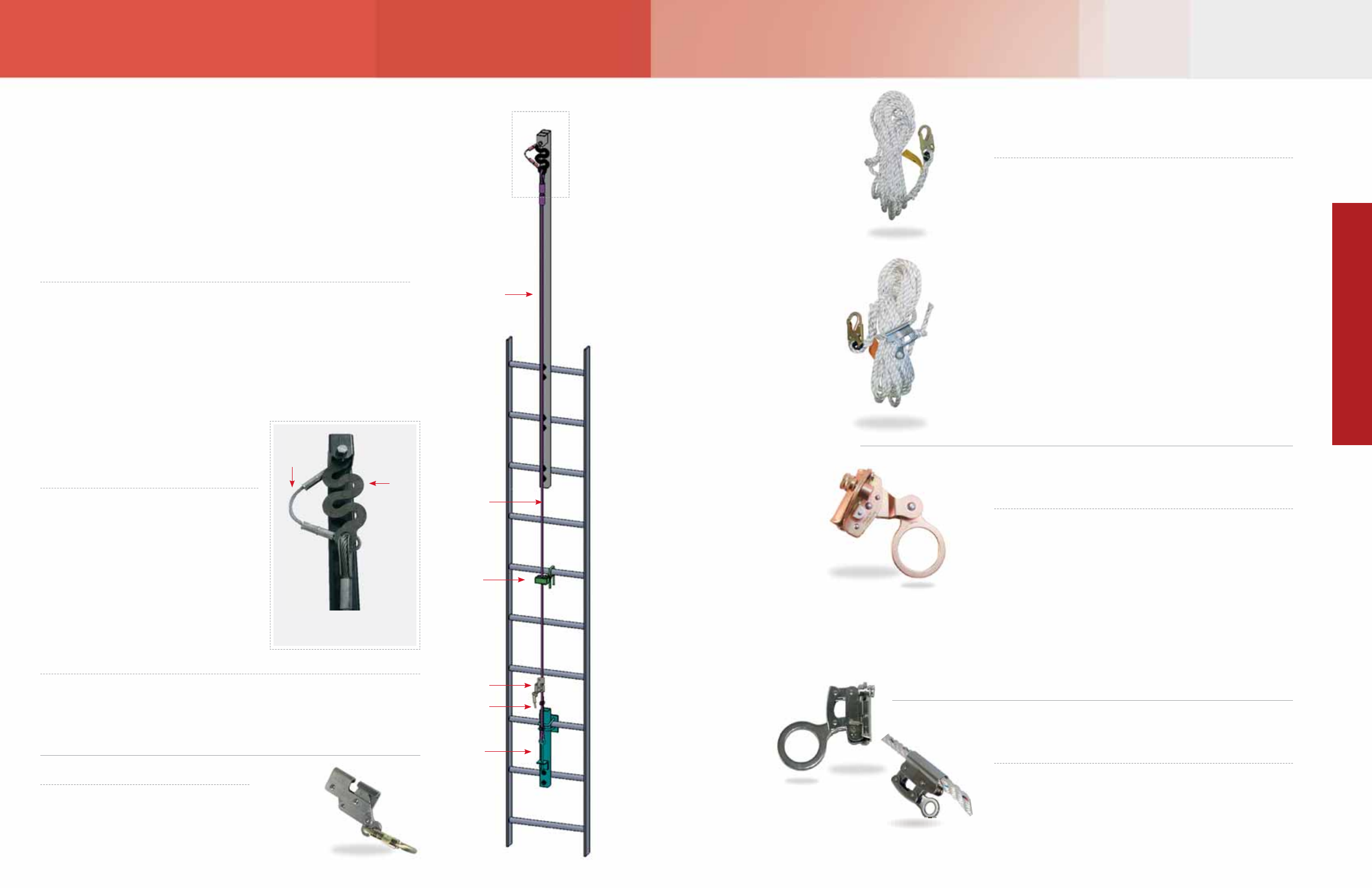

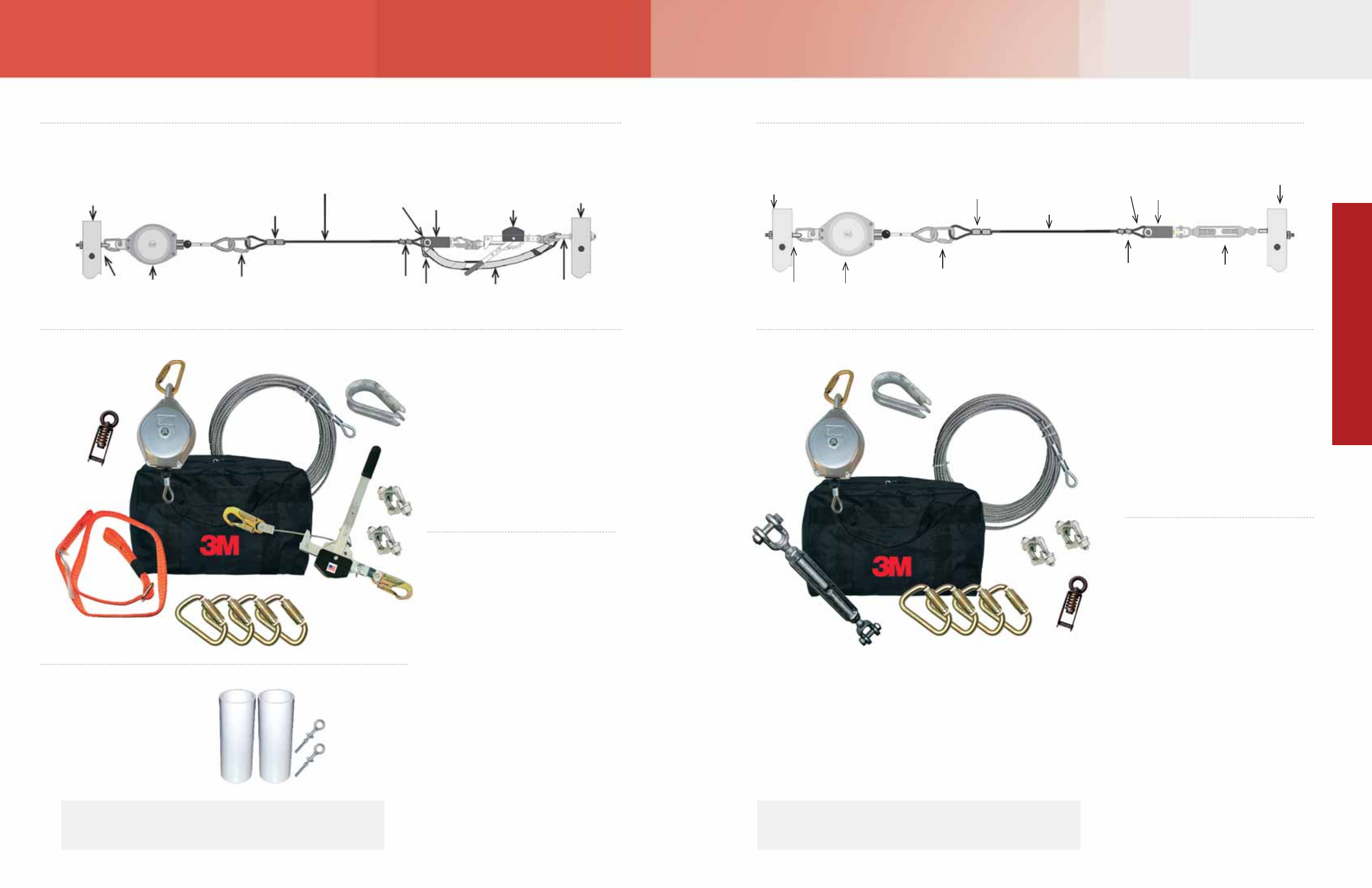

LIFELINE SYSTEMS ............................................ 80

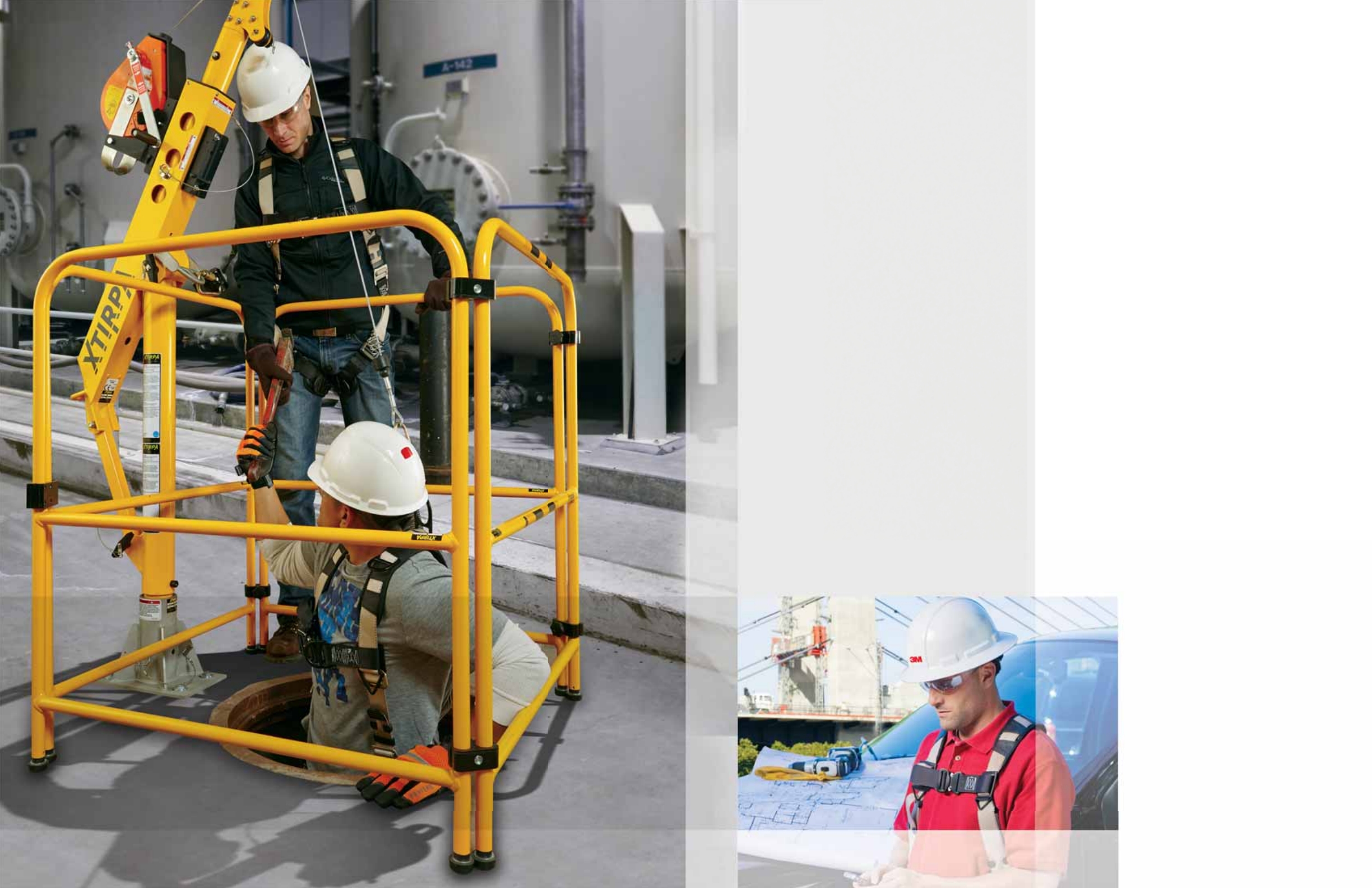

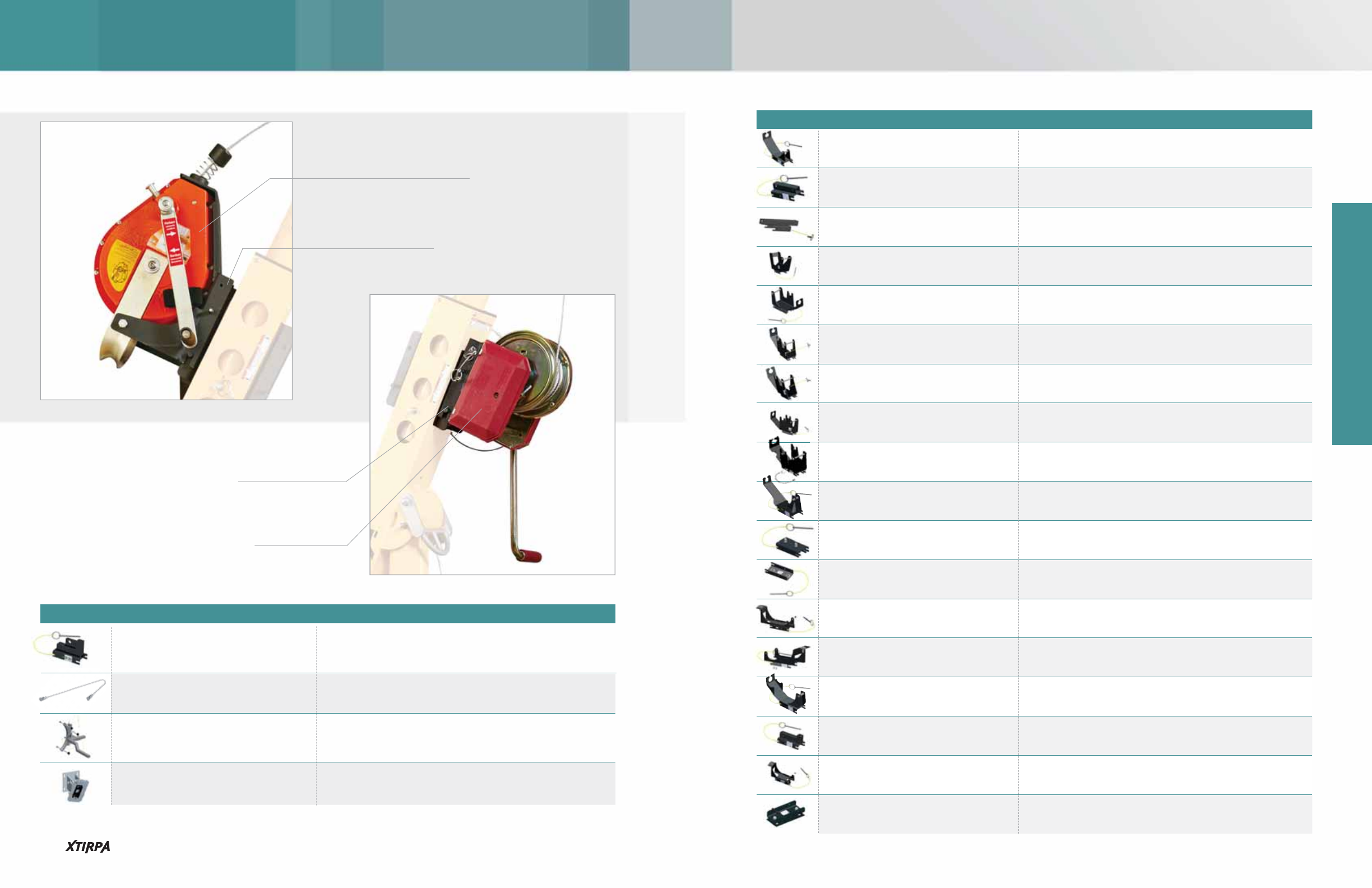

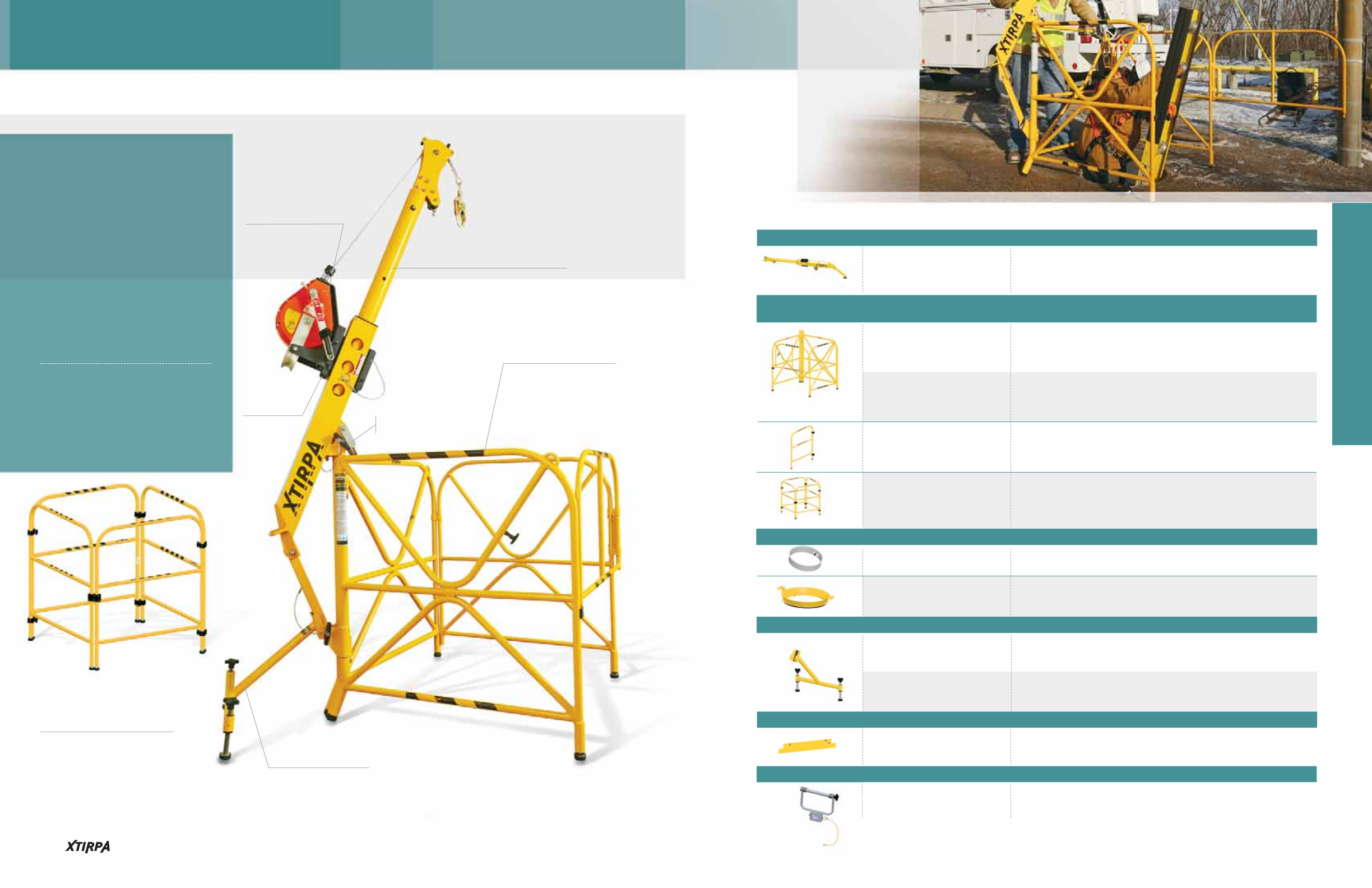

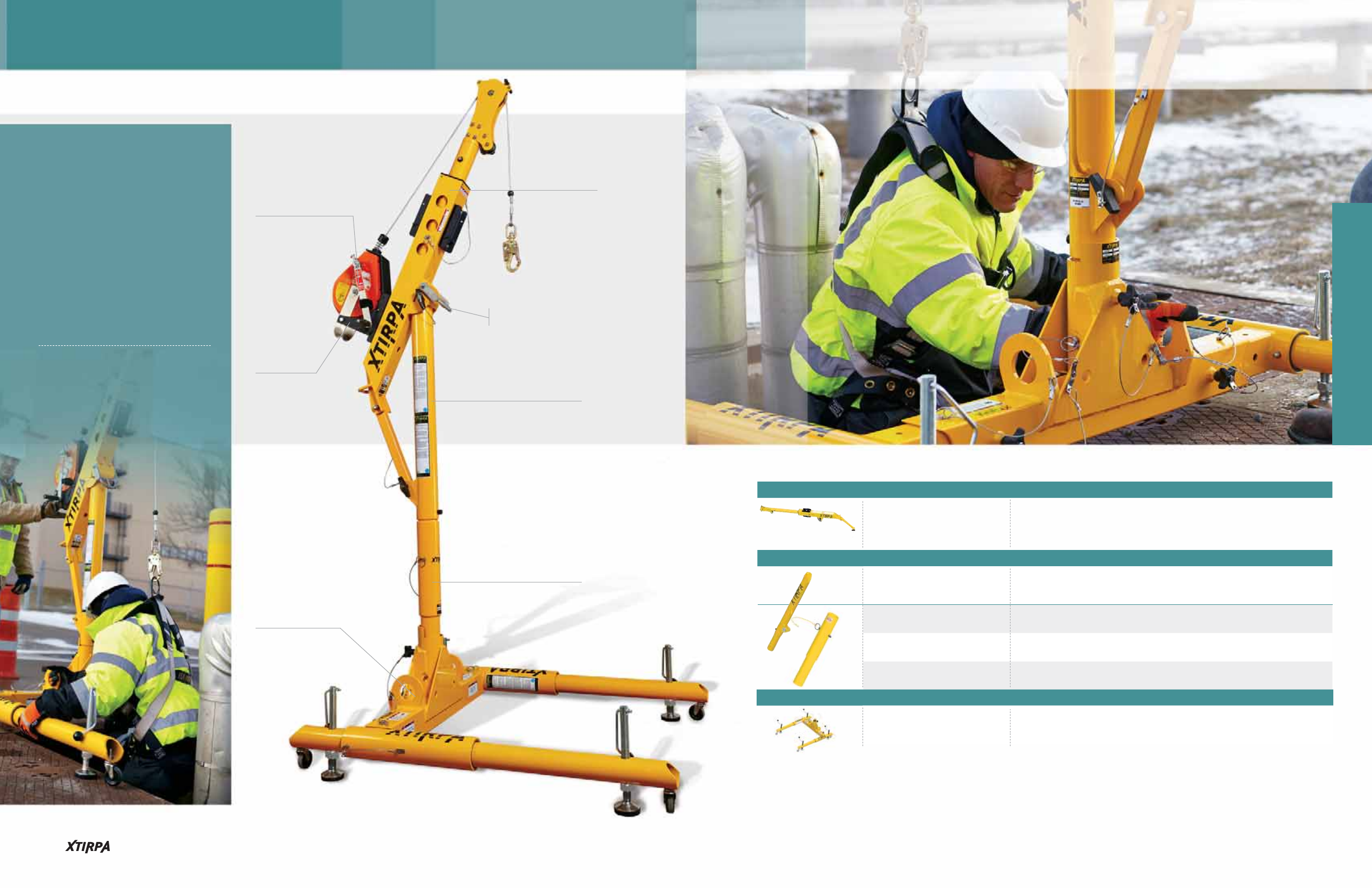

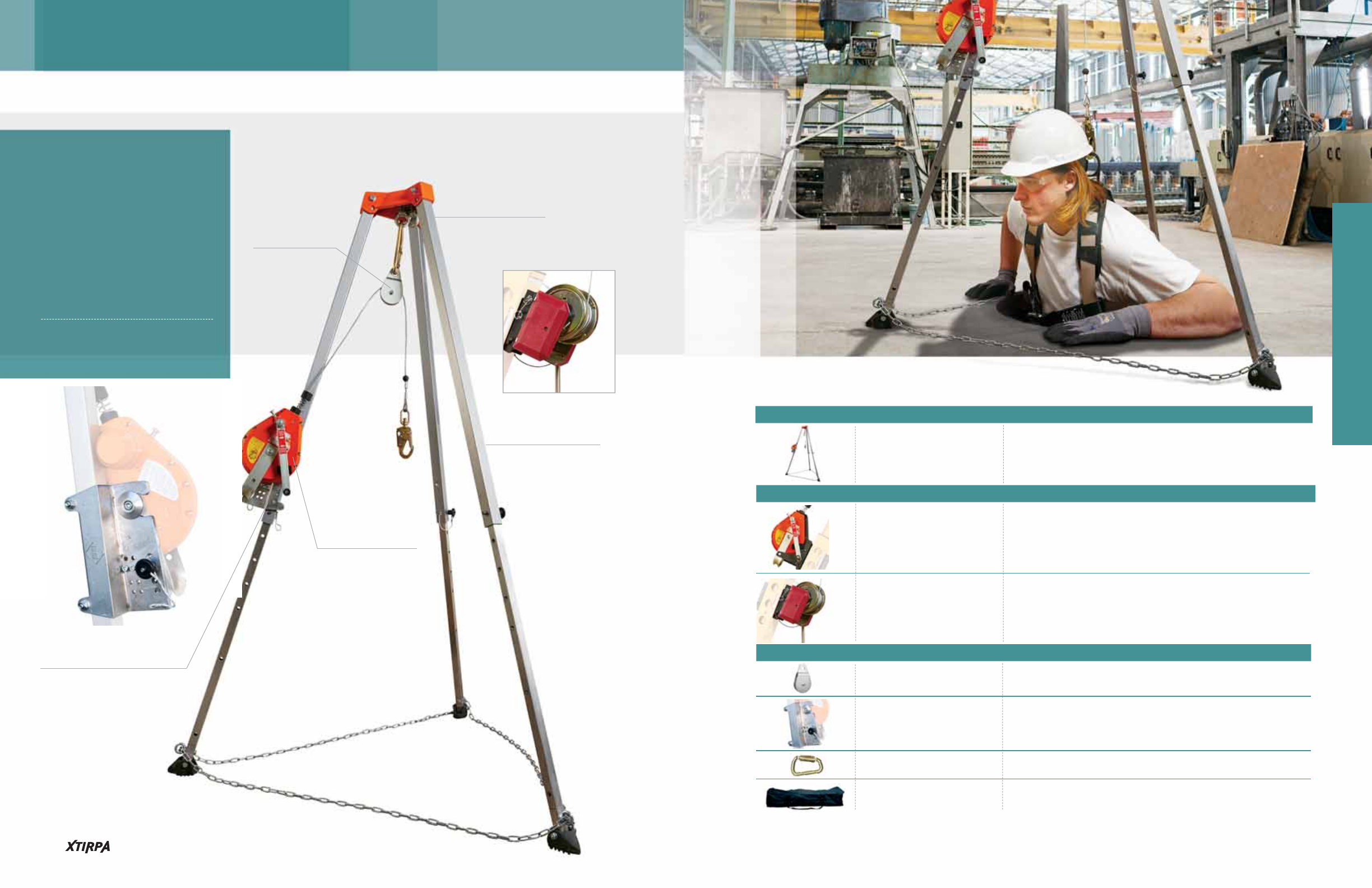

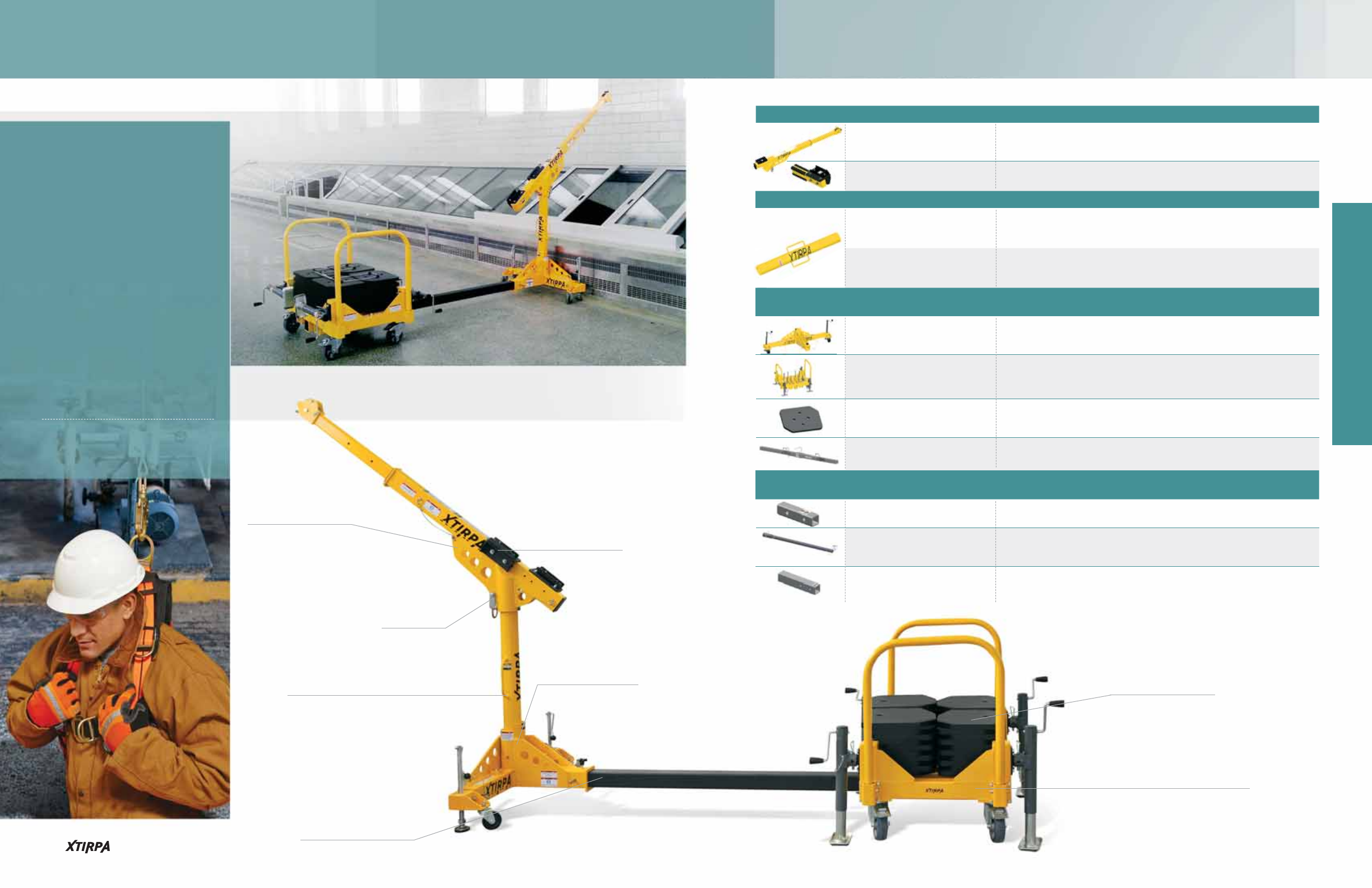

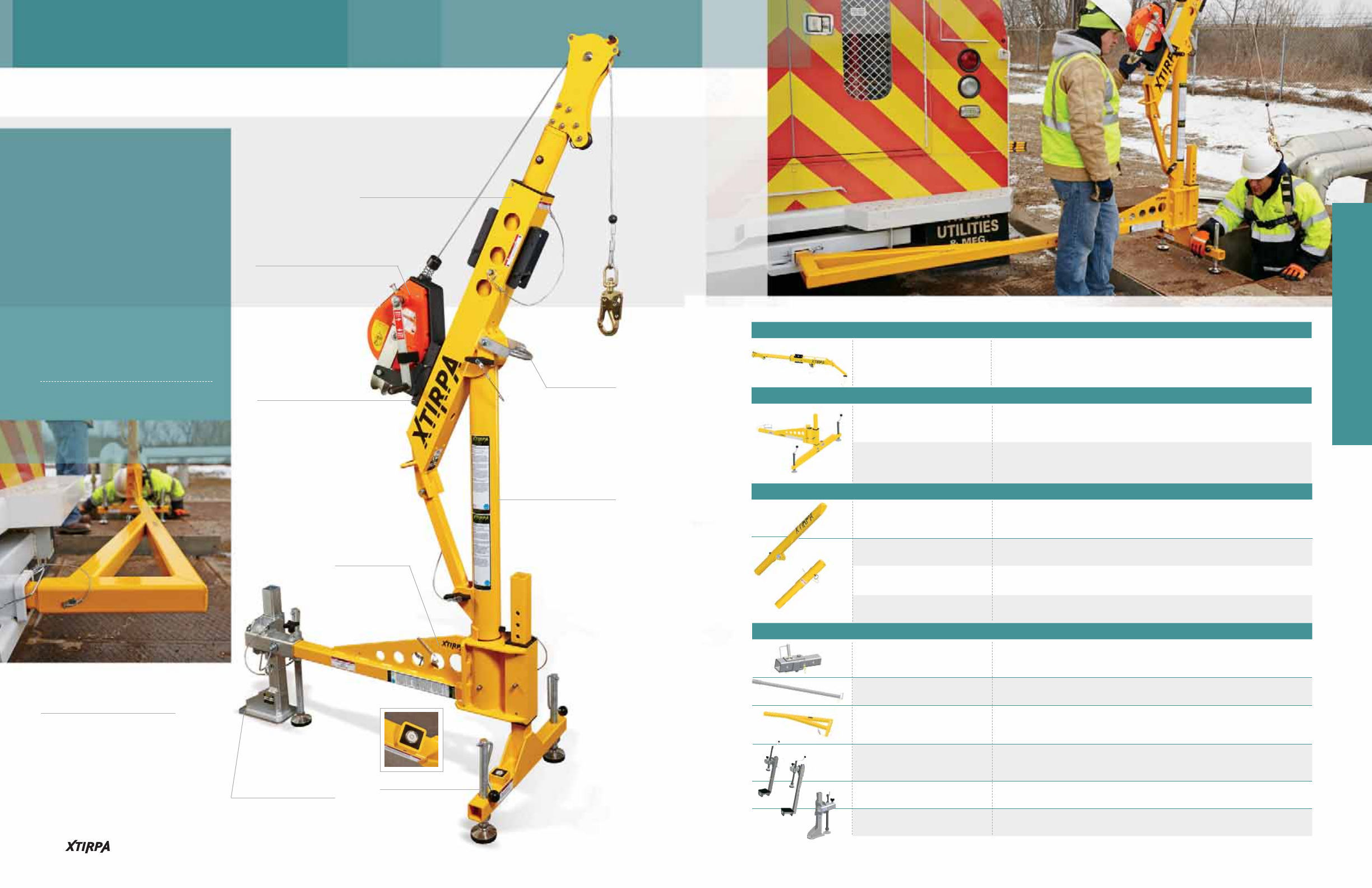

CONFINED-SPACE SYSTEMS ................................ 92

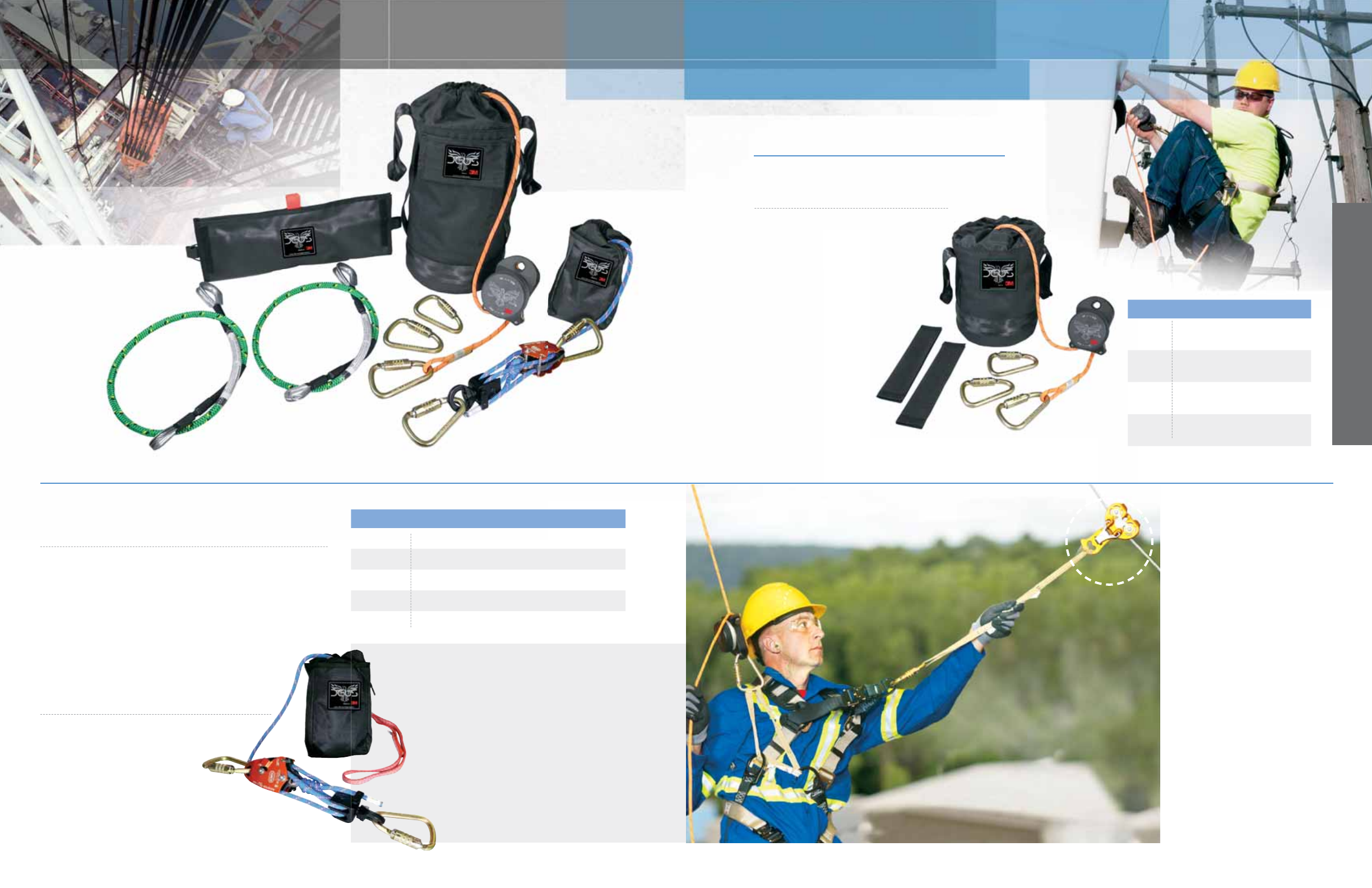

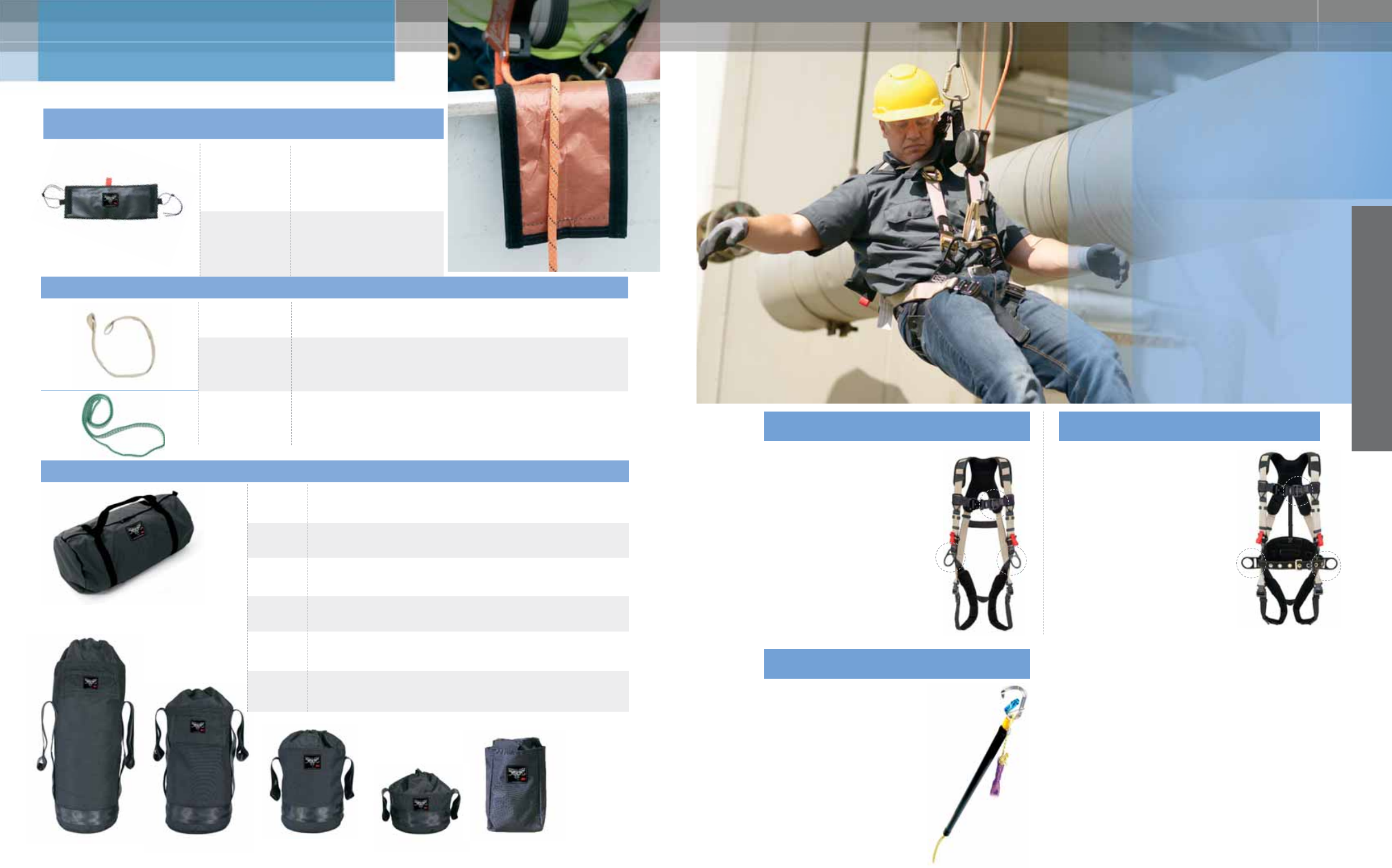

ESCAPE AND RESCUE ....................................... 124
KITS .............................................................. 146
HARDWARE AND ACCESSORIES ......................... 150
FALL PROTECTION REGULATIONS & STANDARDS .. 152
INSPECTION, PRODUCT LIFE AND WARRANTY ...... 154
BEST PRACTICES FOR FALL PROTECTION ............ 155
3
Our core items, noted by the symbol, are our best selling items.
They are in stock and in demand.
3M™ Fall Protection Catalog | 3M.com/FallProtection |
Falls to a lower level are one of the top four leading
causes of death at work in the U.S.* Nobody
understands the need for safety more than 3M.
For more than 40 years, we’ve been developing
personal safety protection products for global use
across multiple industries. Our innovation, ambition
and drive toward excellence have made us an
industry leader in safety. When it comes to fall
protection, 3M products have been researched,
designed and developed to provide safe and secure
solutions for those who work at height. When you put
yourself at height, put yourself in the hands of 3M.
PROTECTING WORKERS
FOR MORE THAN
40 YEARS
* U.S. Department of Labor, Bureau of Labor Statistics, in cooperation
with state, New York City, District of Columbia and federal agencies.
Census of Fatal Occupational Injuries, September 19, 2012.
2
Your
committed partner
in worker safety.
TRAINING AND SUPPORT
In accordance with the requirements of OSHA, employers are
responsible for ensuring all employees are properly trained to safely
use the appropriate fall protection system and its components.
At 3M, we offer training classes and tools to help promote safety on
every work site. For registration and course information requests,
email 3MFallProtectionTraining@mmm.com.
On-Site Demonstrations
Using our fall protection demonstration drop trailers, the 3M
team comes directly to you, ready to emphasize the importance of
using compliant fall arrest equipment to ensure top-line education
and results. The goal is to make it easy for you to help enhance
safety awareness for large numbers of workers — and to feel
confi dent that crucial information has been absorbed.
Even the most careful and focused worker is subject to
the kind of danger that could change a life forever. At
3M, the demand of our job is to help make sure your
safety precautions meet the highest standards. That’s
why we’ve made it simple to equip your workers with the
best in fall protection. Our fall protection products have
been thoroughly researched, designed, developed and
tested. We not only help provide you with safe and secure
solutions for your workers, we give you the confi dence to
get the job done.
Yet fall protection isn’t just about having the best
equipment — it’s also about using the equipment
properly. Along with our full line of 3M™ Fall Protection
products designed for seamless integration, we offer
training classes and other tools to help ensure proper
equipment and implementation.
Providing the most dependable fall protection support for
you and your workers isn’t just a goal, it’s a 3M mission.
The demands of your job put you at risk — every day.
4 5
3M™ Fall Protection Catalog | 3M.com/FallProtection |
BODY SUPPORT
provides a personal connection point
and distributes fall force across the
entire body.
FUNDAMENTALS OF FALL PROTECTION
Full Body Harnesses are used to distribute fall arrest
forces across the shoulders, upper thighs, chest, and pelvis.
They feature a center back fall arrest attachment (dorsal
D-ring) for clipping to the fall arrest connector and may have
other D-rings for use in worker positioning, travel restraint,
retrieval or ladder climbing. They are the only form of
bodywear acceptable for fall arrest and should be selected
based on the job task as well as the work environment.
Body Belts circle the waist and are used for worker
positioning and travel restraint. While they are used in
conjunction with a full body harness, they must NEVER
be used for personal fall arrest.
FALL PROTECTION IS AS EASY AS A, B, C & D
The fi rst four letters of the alphabet help us
understand the components of fall protection.
A is for anchorage, B is for body support, C is
the connector that joins the two. D stands for the
descent and rescue plan that must be on-site
for each job.
Effective fall protection is more than one product — it’s a team of products working together.
B
A
C
D
DESCENT AND
RESCUE DEVICES
retrieve an injured worker and
lower him/her to the ground.
Users must have a rescue plan that either provides the
prompt rescue of employees in the event of a fall or
ensures that employees are able to rescue themselves.

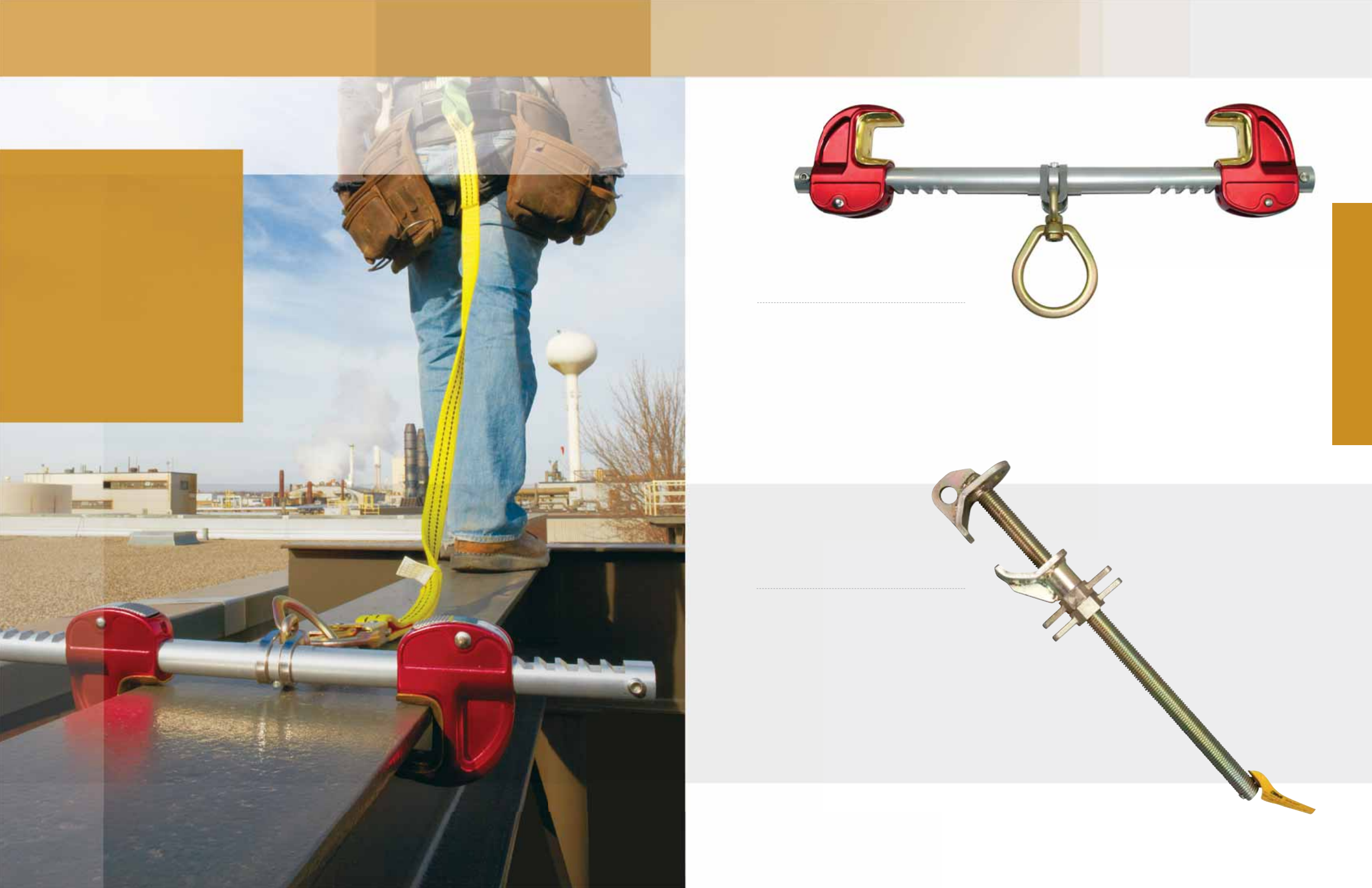

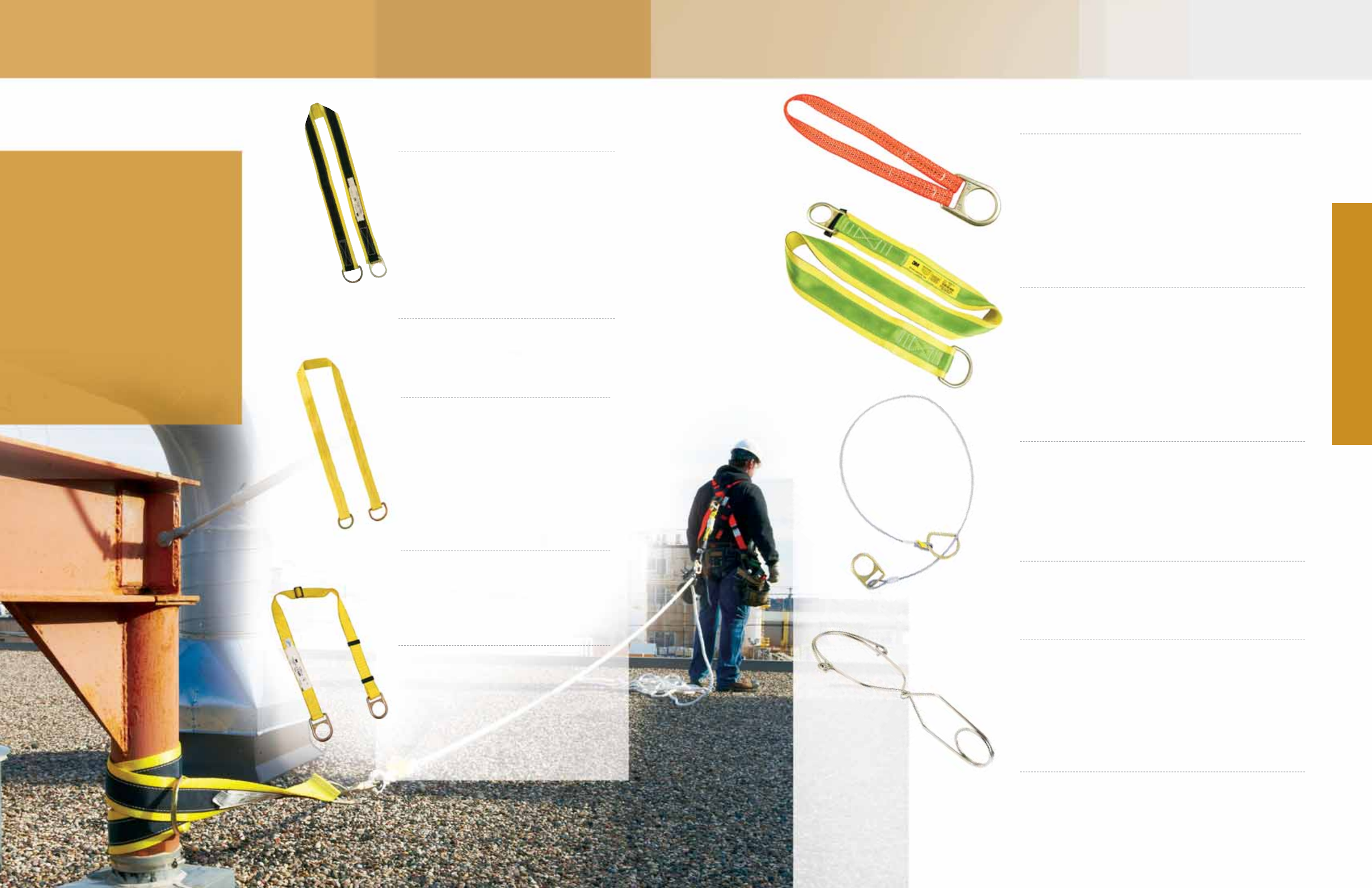

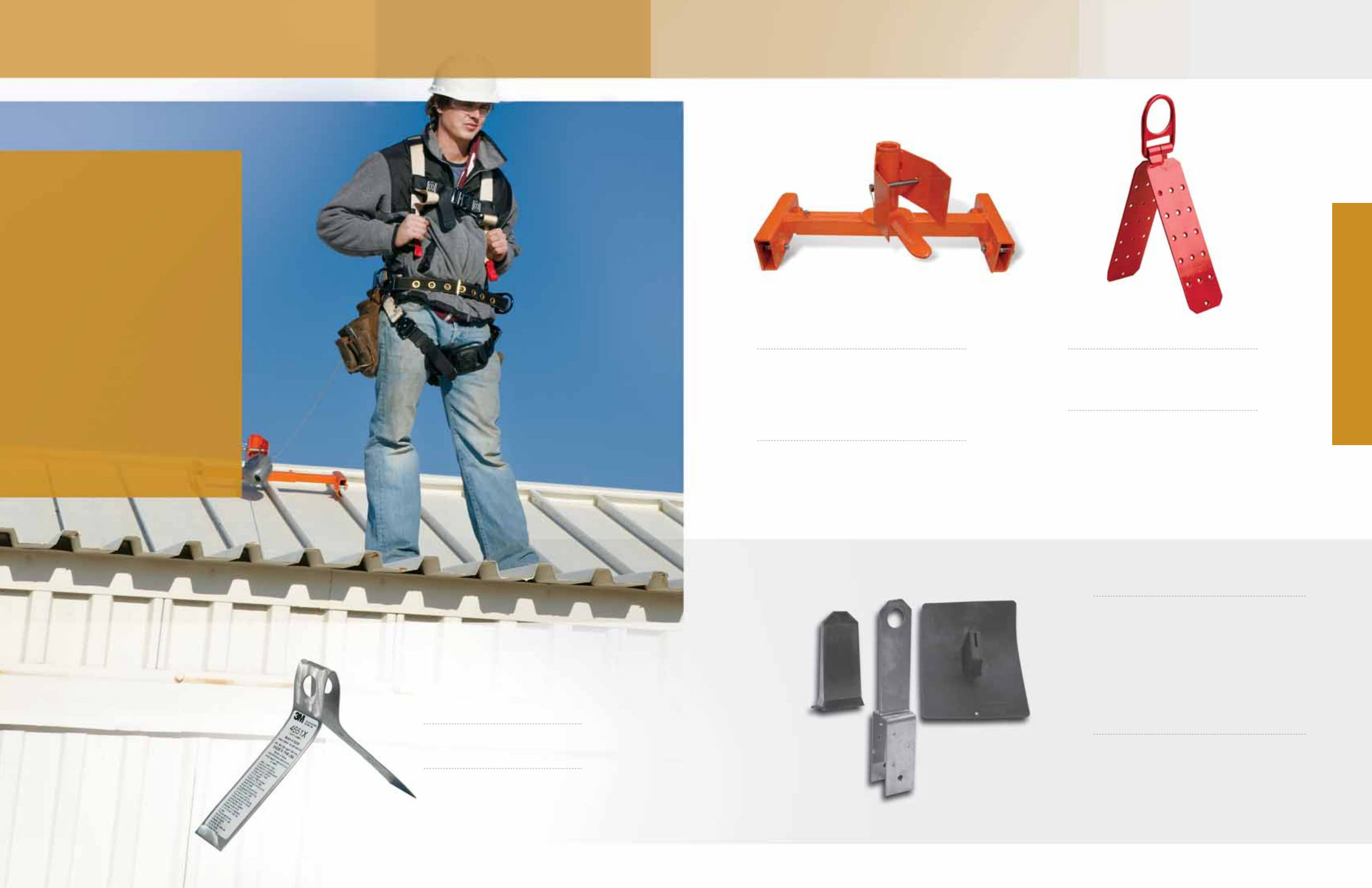

ANCHORAGE CONNECTORS
offer secure attachment to your location.
Anchorage connectors, as defi ned by OSHA, are secure points
of attachment for lifelines, lanyards or deceleration devices and
are designed to hold fast under the forces generated during a fall.
Anchorage connectors vary by industry, job, type of installation
and structure.
• An anchorage connector may be a beam anchor, hook anchor,
cross-arm strap, D-bolt, tripod, davit or other secure device that
serves as a point of attachment.
• Anchorages and anchorage connectors must be independent and
capable of supporting 5,000 lbs. per worker attached, or they may
be designed, installed and used under the supervision of a
qualifi ed person as part of a complete personal fall arrest system
that maintains a safety factor of at least two times maximum
arresting force. They must also be located high enough for a
worker to avoid contact with a lower level should a fall occur.
Connectors attach the worker’s harness to the anchorage
connector. Types will vary depending on whether the worker
needs connecting for either of the following:
• Personal Fall Arrest
This connector is often a lanyard equipped with an
energy-absorbing element to reduce the force transmitted
to the user’s body in the event of a fall.
• Positioning and Travel Restriction
This connector is usually a simple lanyard intended to reduce
the potential for entering a fall hazard zone or for free falling from
a distance of less than 2 feet.
CONNECTORS
provide the lifeline between body harness and
anchorage connector.
6 7
3M™ Fall Protection Catalog | 3M.com/FallProtection |
When it comes to fall protection
equipment, a full body harness is one of
the most important choices you can make.
3M™ Fall Protection Harnesses offer high-
end durability, maximum movement and
easy-to-wear comfort, all while providing a
system component designed and tested to
meet the rigorous requirements of OSHA
regulations and ANSI Z359 standards.
Select products also certifi ed to CSA Z259
standards. With a harness for nearly every
task, 3M is committed to delivering you
carefully-crafted, innovatively-designed
gear to help keep you productive and safe.

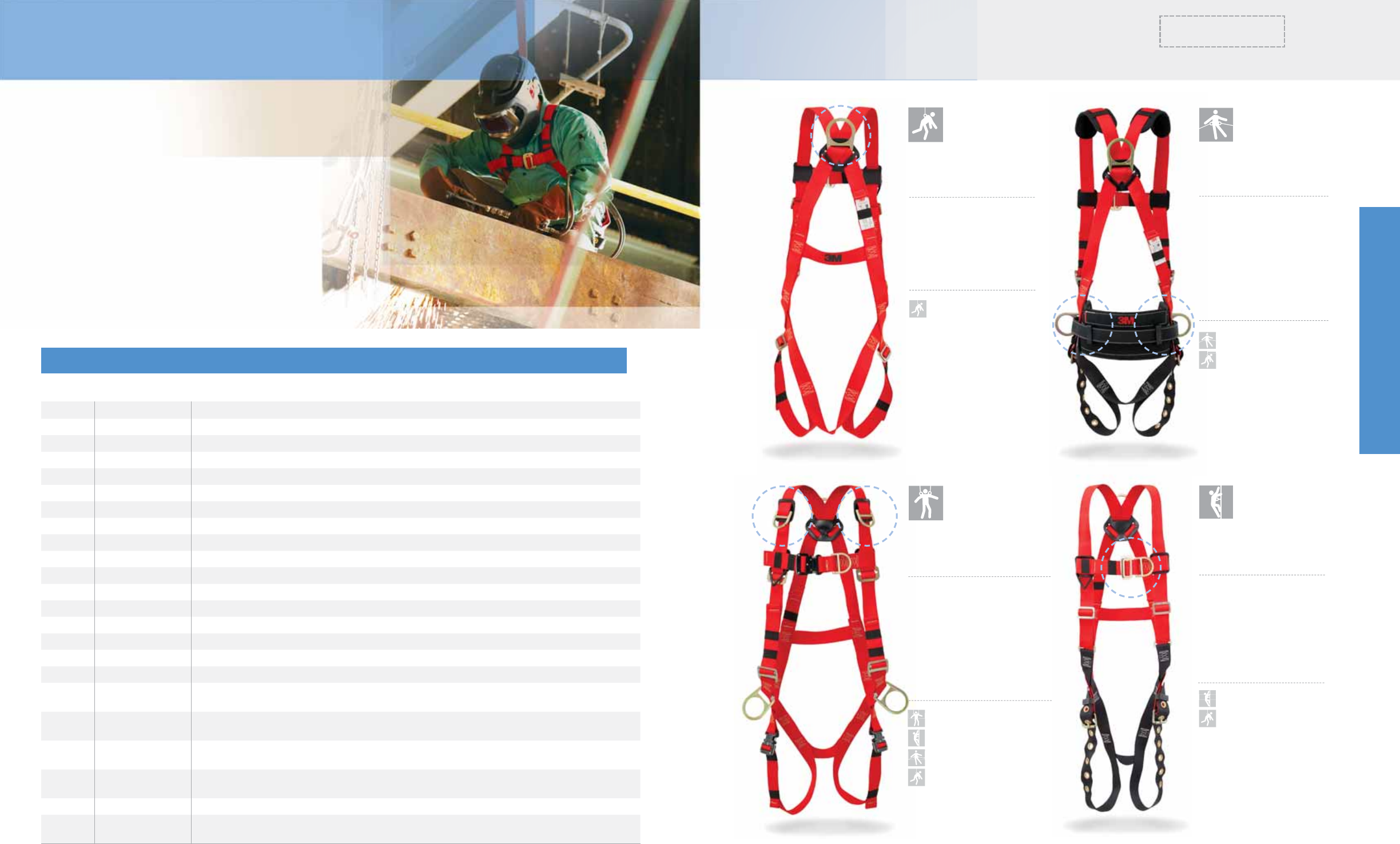

SAFELIGHT HARNESS
FEATHER HARNESS
AMEBA HARNESS

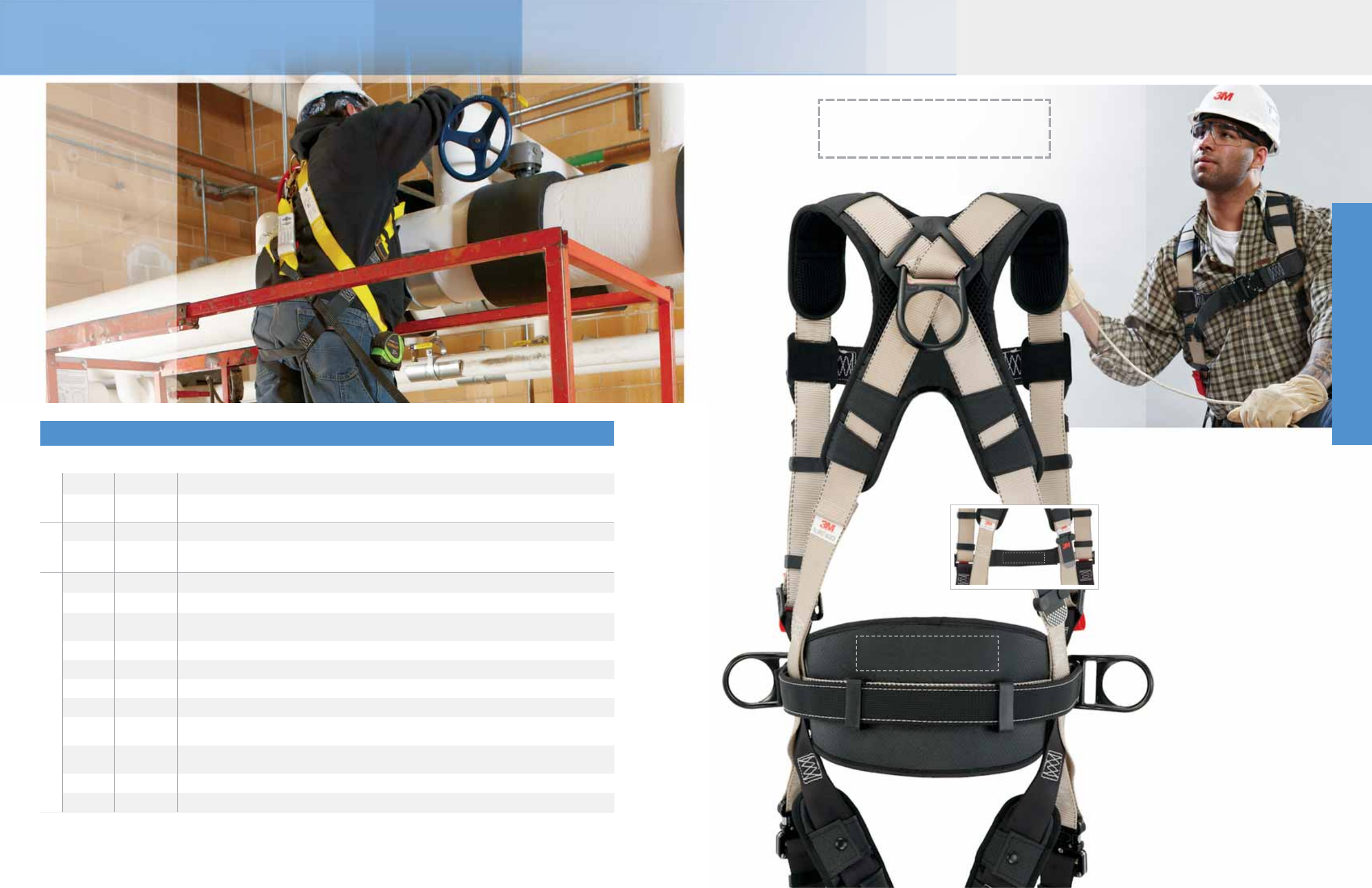

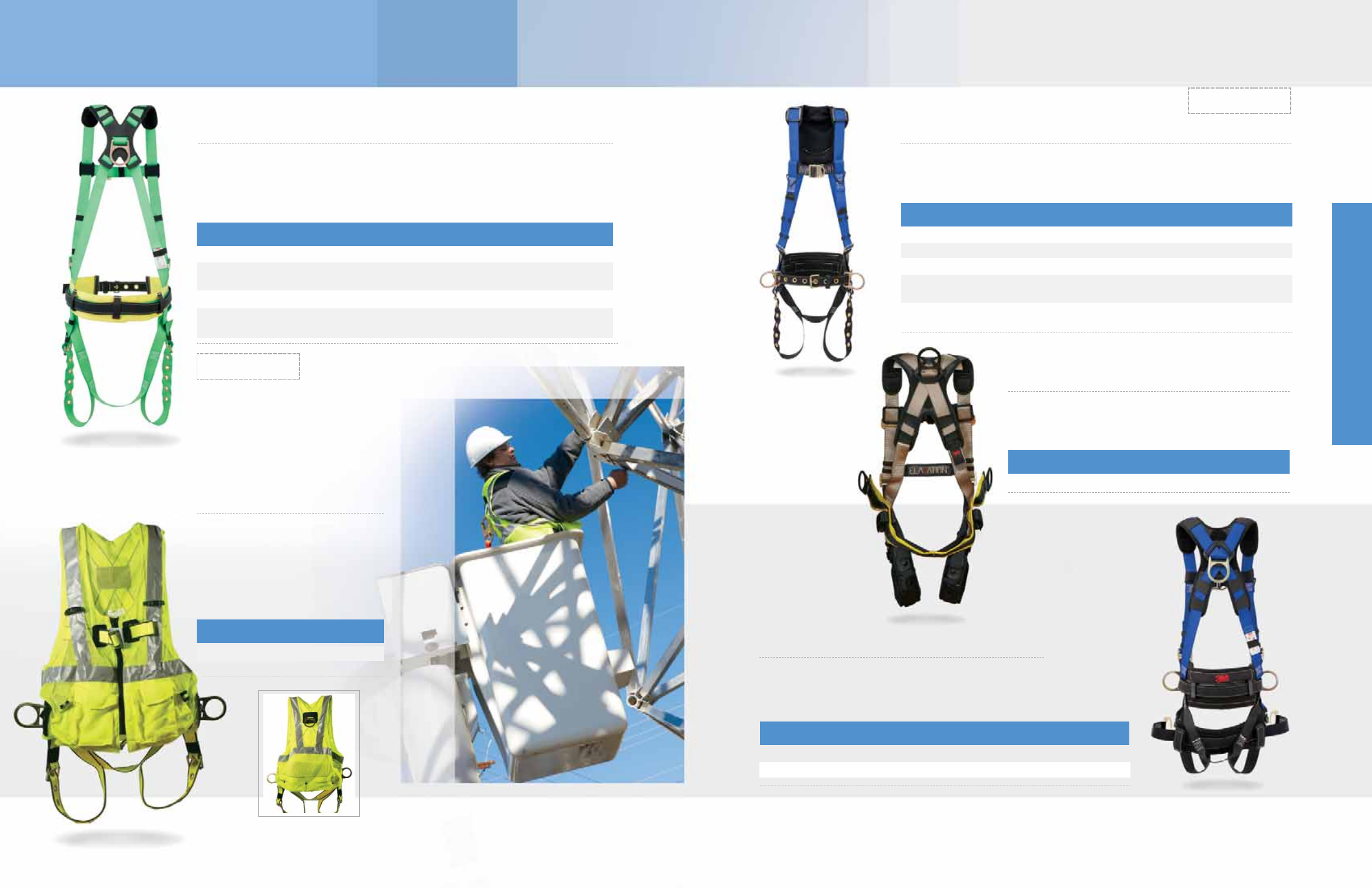

SPECIALTY HARNESSES
ELAVATION™ HARNESS
$ PRICE RANGE $$$
FEATURES AND BENEFITS
Benefits vs. Price
Our family of 3M™ Fall Protection
Harnesses offers a variety of
features and benefi ts to fi t your
needs as well as your price range.
To help you choose the right
harness, use this chart to align
your budget with desired features
and benefi ts.
• WHAT TYPE OF HARDWARE CONNECTIONS DO YOU PREFER?
GROMMET
LEG OPTION
PASS THRU
CHEST OPTION
LEG OPTION
QUICK CONNECT
CHEST OPTION
LEG OPTION
(on Elavation™ and Saturn)
QUICK CONNECT
CHEST OPTION
LEG OPTION
(on Feather and Ameba)

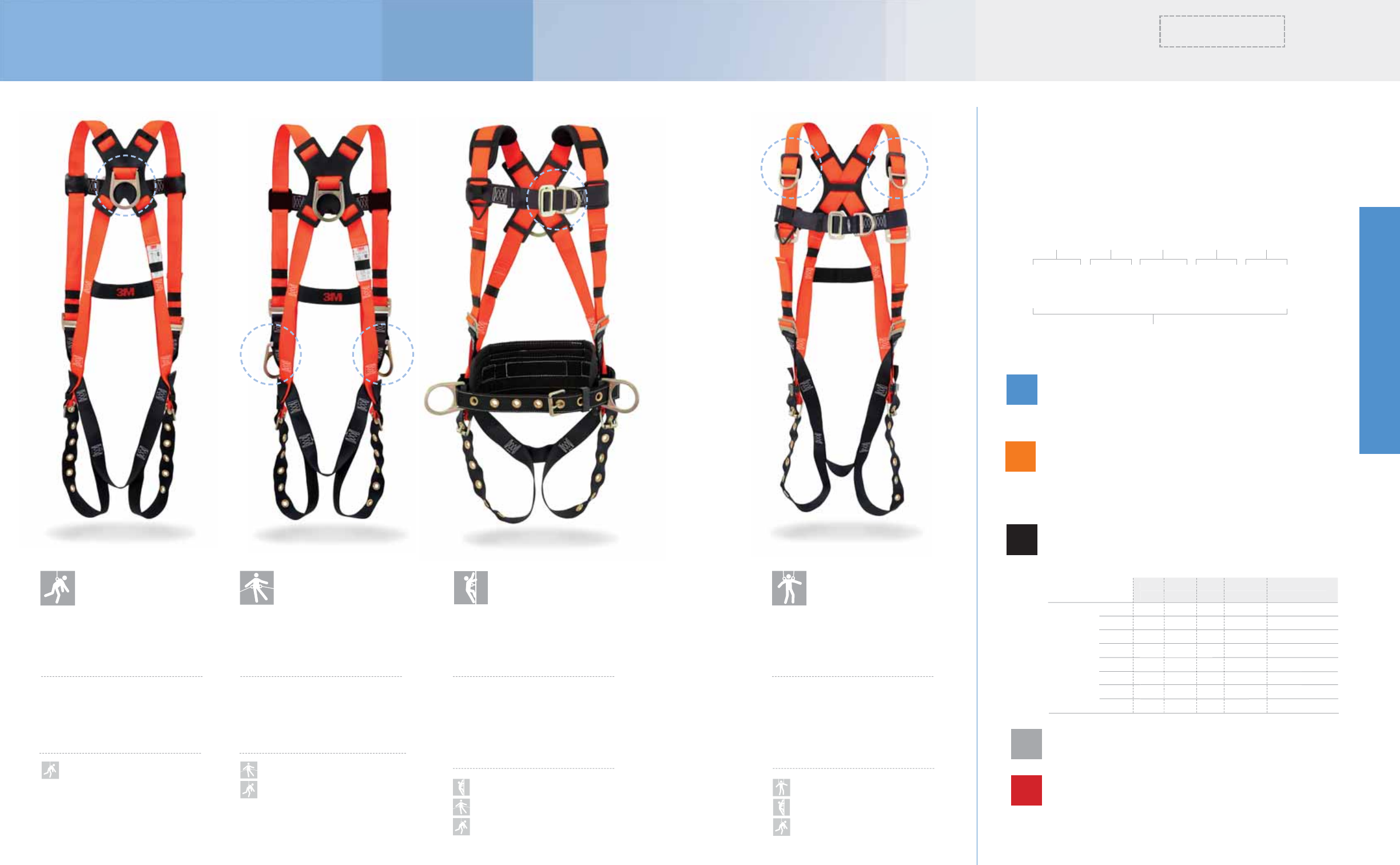

• HARNESS FAMILY OVERVIEW
CONSIDERATIONS FOR CHOOSING A FULL BODY HARNESS:
• WHAT TYPE OF WORK WILL YOU BE DOING?
3M™ Fall Protection Catalog | 3M.com/FallProtection |
Work Positioning &
Travel Restraint
Positioning D-rings located
on the hips are used with
positioning lanyards and allow
workers to use both hands.
General Fall Arrest
The back D-ring is for
fall arrest. Included
on all harnesses.
Ladder Climbing
A front attachment point is
the distinguishing factor of
these harnesses, enabling
connection to permanent
ladder systems.
Retrieval
An attachment point located
on each shoulder strap is
used in retrieval operations
such as a confi ned space.
A variety of hardware
options are available,
including quick
connect or pass thru
buckles for chest,
and quick connect,
pass thru, or
grommet for legs.
98
Harness the power
of confi dence to get the job done.
FULL BODY HARNESSESFULL BODY HARNESSES
10 11

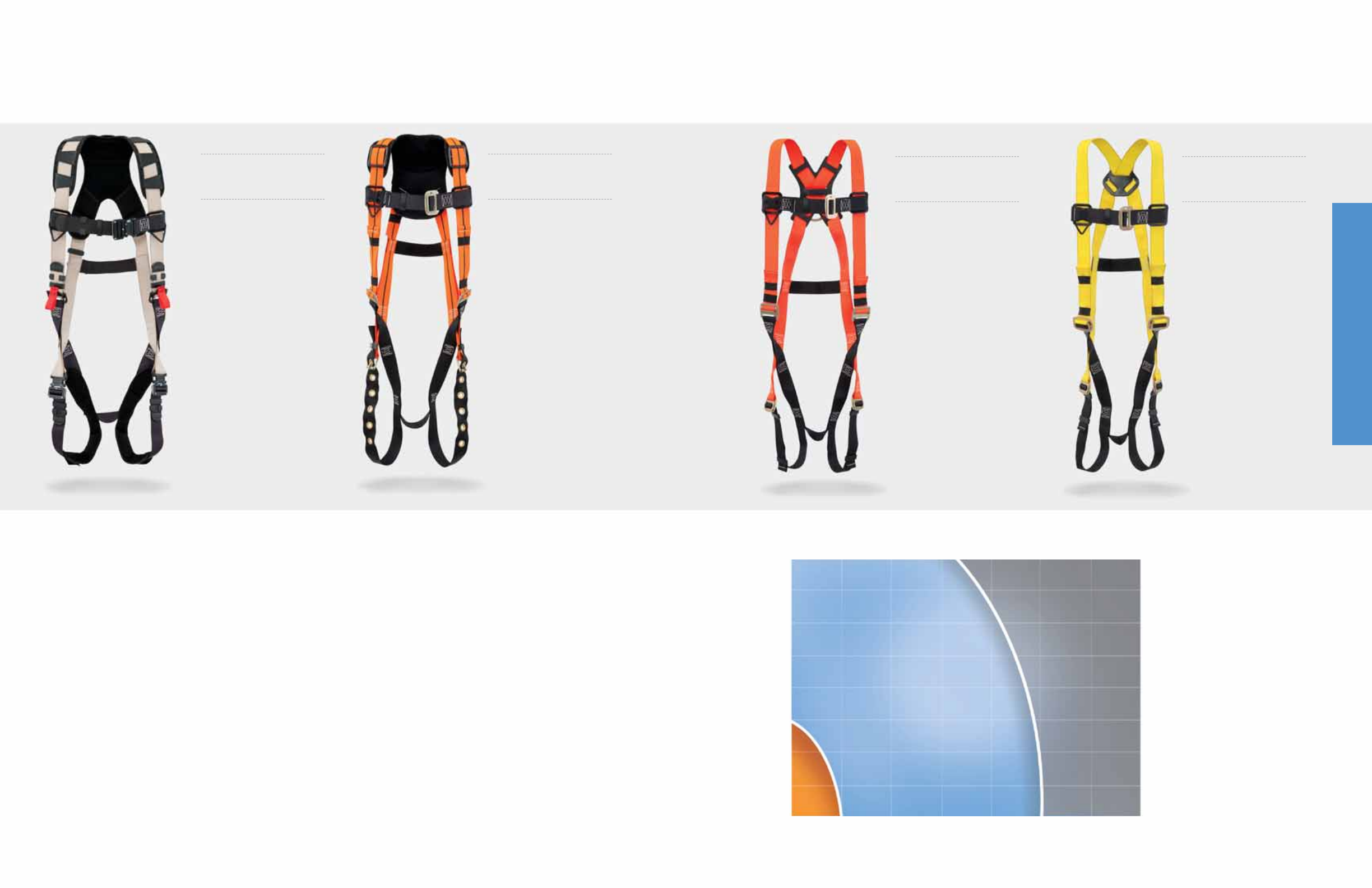

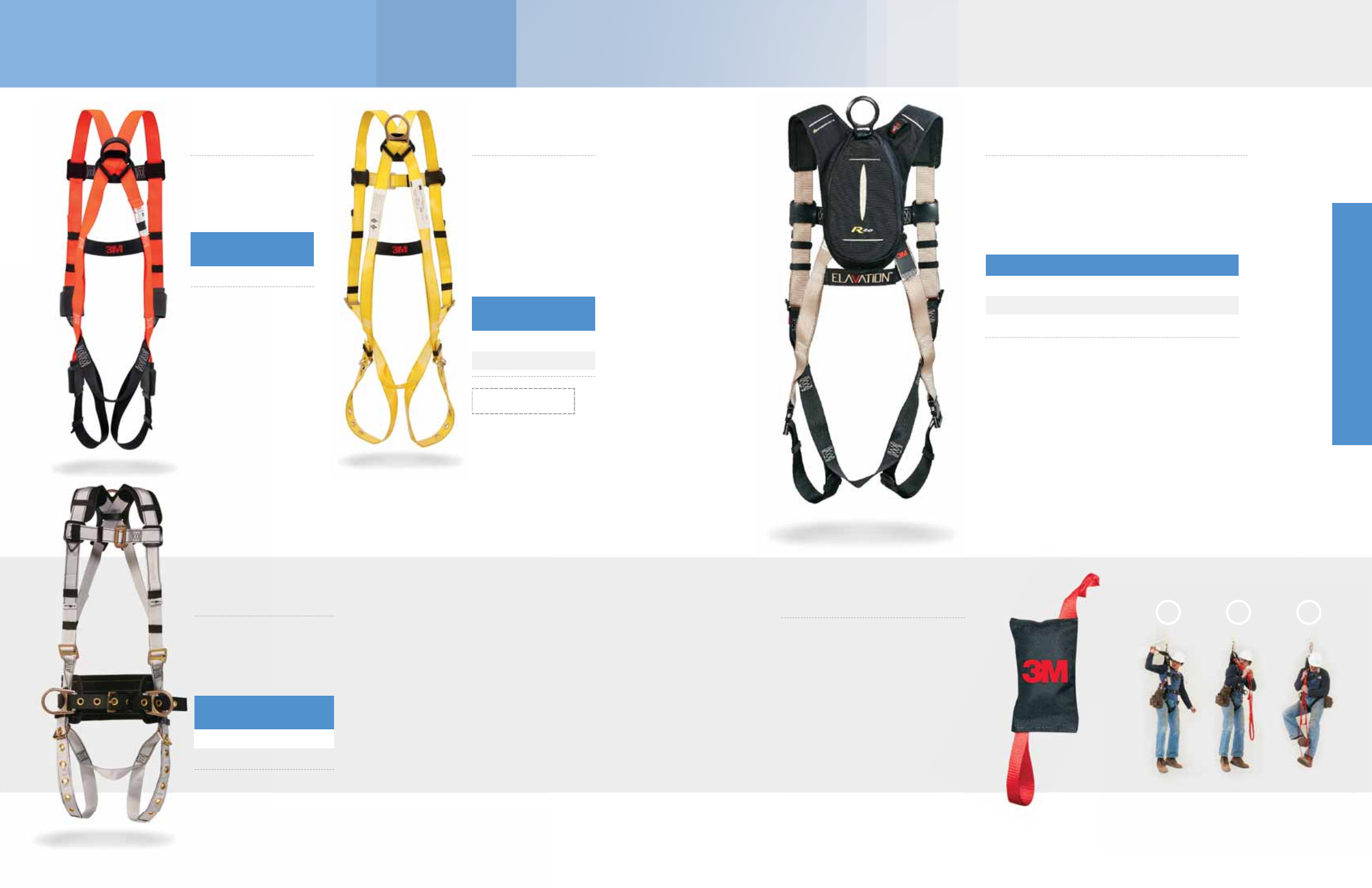

FULL BODY HARNESSES | HARNESS LINE OVERVIEW |

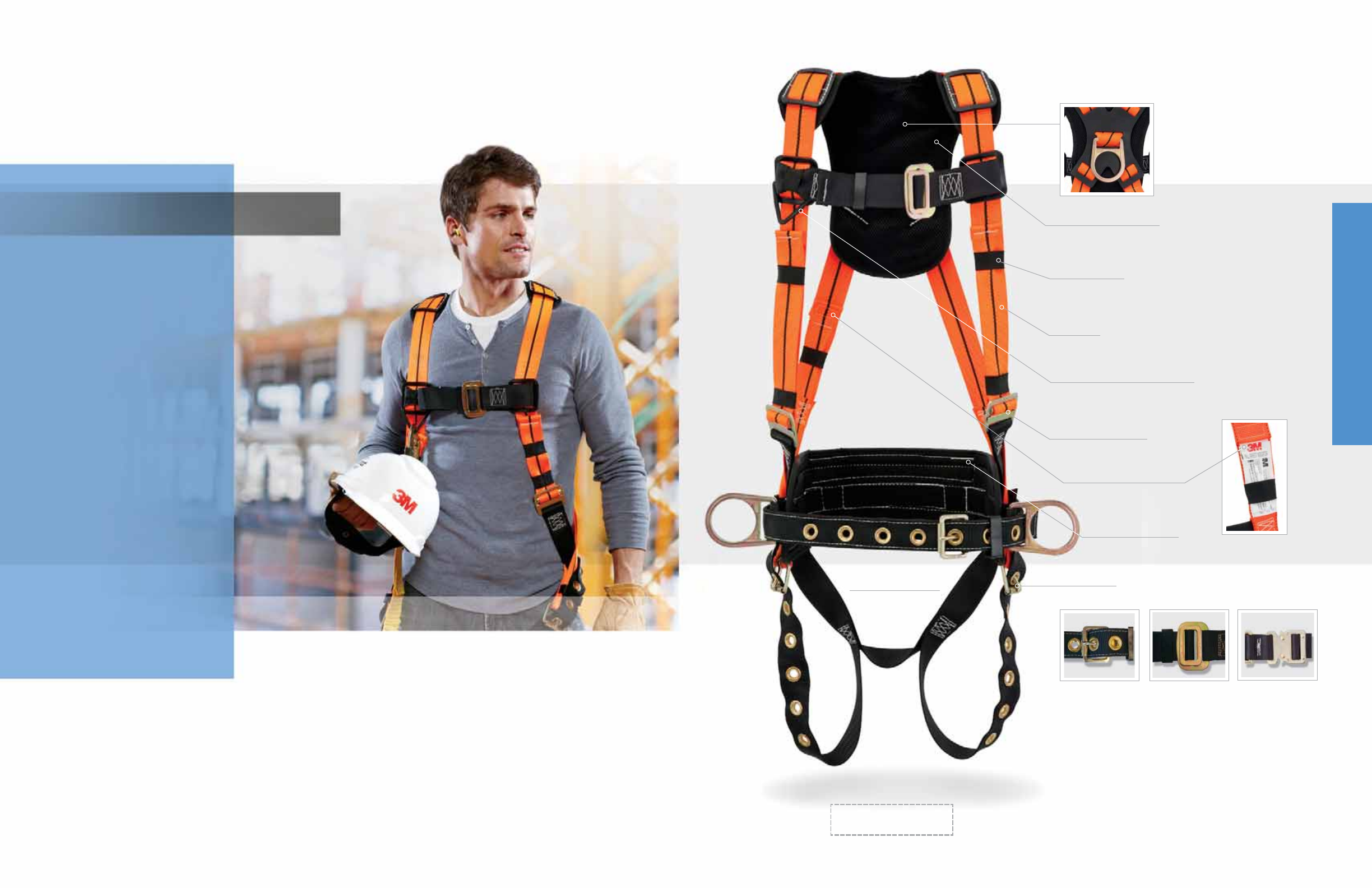

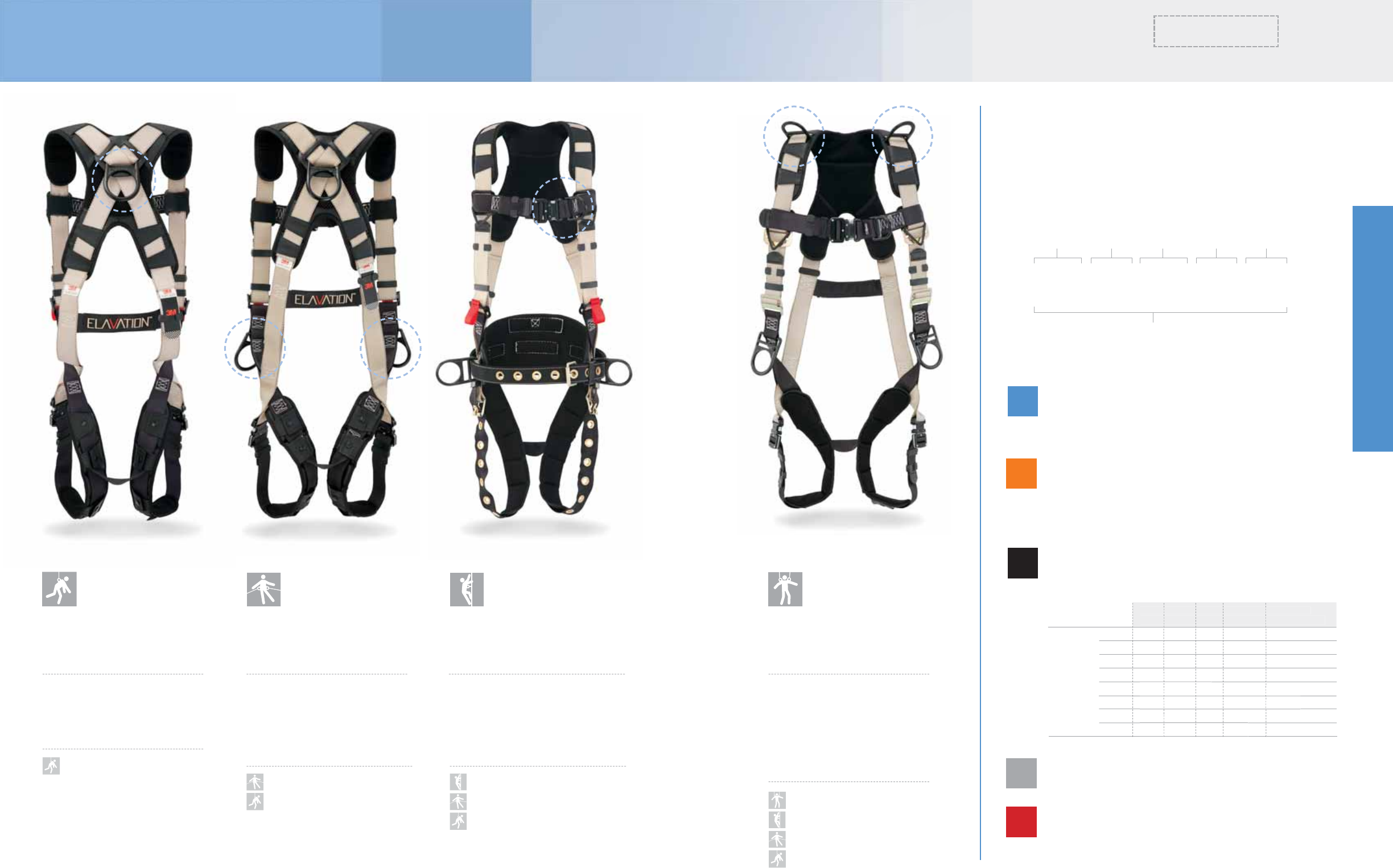

ELAVATION™
The premium
fall arrest harness
• Advanced design allows
for ease of adjustment and
a more comfortable fi t
• Premium padding is
breathable and durable
• Web keepers and lanyard
keepers help reduce potential
entanglement hazards
• Fall arrest indicators clearly
show when product has been
involved in a fall and needs to
be removed from service
• Rubber protective shield for
label pack
• All sizes rated to 400 lbs.
AMEBA
The upper mid-range
fall arrest harness
• Webbing designed to fl ex with
wearer for nonbinding comfort
• Soft mesh back pad for
more comfortable wear
• Web keepers and lanyard
keepers help reduce potential
entanglement hazards
• Fall arrest indicator clearly
shows when product has been
involved in a fall and needs to
be removed from service
• Laminate helps protect label
• Universal, S-M, L-XL rated
to 310 lbs., and XXL rated
to 400 lbs.
FEATHER
The lower mid-range
classic fall arrest harness
• Features an X-plate D-ring
assembly designed to help
reduce tangles for easier
donning
• Web keepers and lanyard
keepers help reduce potential
entanglement hazards
• Fall arrest indicator clearly
shows when product has been
involved in a fall and needs to
be removed from service
• Laminate helps protect label
• Universal, S-M, L-XL rated
to 310 lbs., and XXL rated
to 400 lbs.

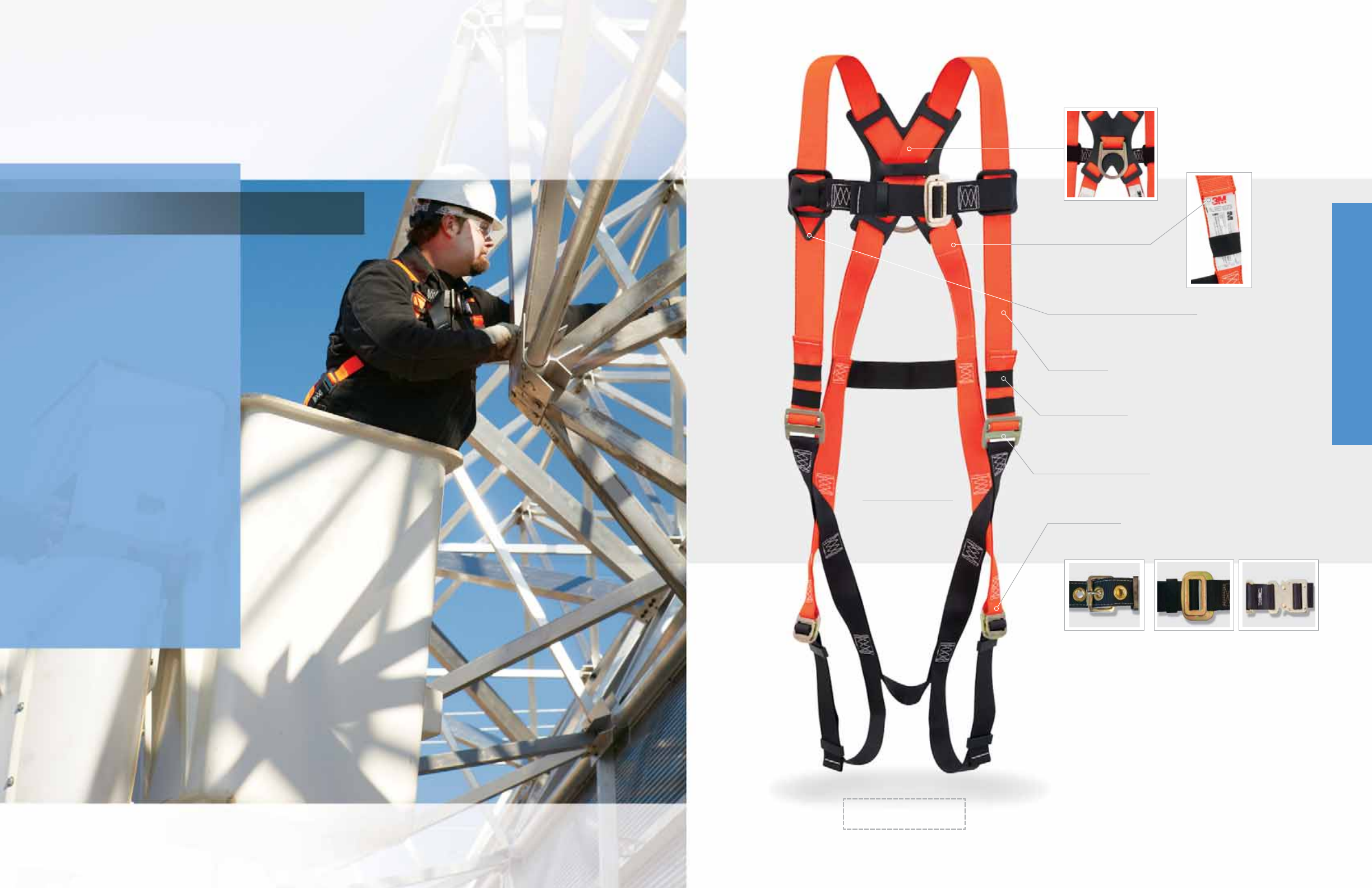

SAFELIGHT
The entry-level
fall arrest harness
• Provides performance at
exceptional value
• Lightweight design may help
to improve worker comfort
• Web keepers and lanyard
keepers help reduce potential
entanglement hazards
• Fall arrest indicator clearly
shows when product has
been involved in a fall and
needs to be removed from
service
• Universal, XS, S-M, L-XL
rated to 310 lbs., and
XXL rated to 400 lbs.
Special Purpose Harnesses (featured on pages 36–41)
To meet your specifi c environmental requirements and safety needs, 3M offers a variety of harnesses — each with its own unique properties and
benefi ts. Choose from our Elavation™
, Ameba, Feather, SafeLight and Specialty harnesses designed and tested to help keep you productive and
protected, no matter the situation.
HEIGHT
WEIGHT (LBS.)
Consider total working weight including
clothing, tools, etc., and need for a tool belt:
• Up to 310 lbs. — XS, Universal,
S-M and L-XL
• Up to 400 lbs. — XXL, Elavation™ Series
or Apache
• With tool belt — select size based on
waist measurement:
S-M = 34 inches–47 inches
L-XL = 44 inches–57 inches
XXL = 49 inches–62 inches
CHOOSING THE SIZE OF YOUR HARNESS
7' 2"
6' 10"
6' 6"
6' 3"
5' 11"
5' 7"
5' 3"
4' 11"
4' 7"
88 132 176 220 265 310 353 400
XS UNIVERSAL | S-M | L-XL XXL
SATURN | designed for high-heat applications
APACHE | constructed for workers with a 311 lbs.–400 lbs. working weight
VEST HARNESS | harness with integrated bright color safety vest with 3M™ Scotchlite™ refl ective material
WIND ENERGY HARNESS | designed for climbing applications
ENERGY HARNESS | 3M™ Elavation™ harness with padded seat sling
TOWER CLIMBING HARNESS | lightweight, fl exible design for tower and other extensive climbing applications
SPECIALTY HARNESS | manufactured with PVC sleeves to cover all metal hardware
COATED HARNESS | polyurethane coating helps to protect webbing in extreme environments such as tar, oil and paint applications
OMEGA HARNESS | designed with webbing for those in contact with steel, concrete or abrasive surfaces

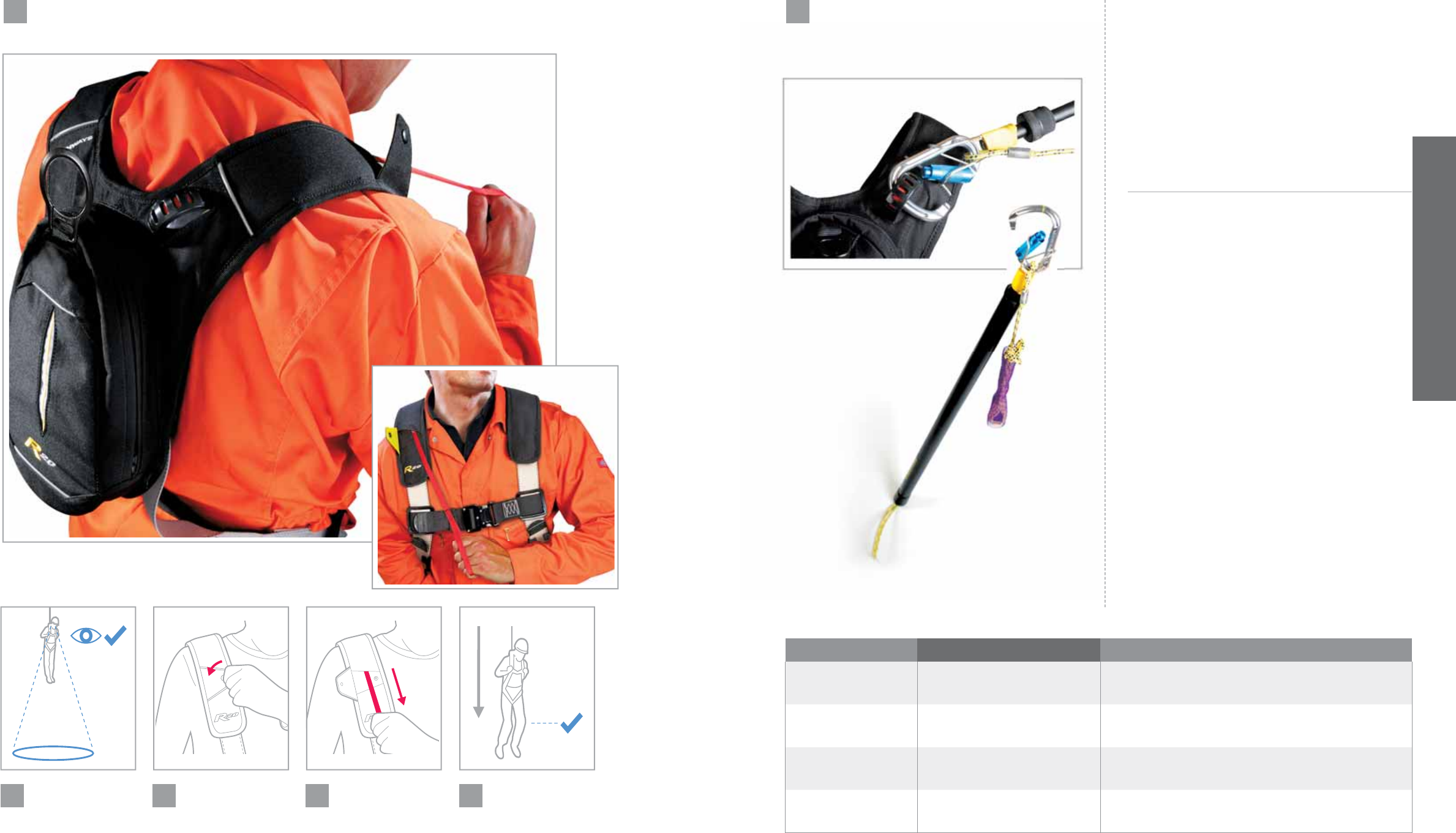

PERSONAL RESCUE DEVICE HARNESS | Latchways Personal Rescue Device™ PRD™ with 3M™ Elavation™ Harness
3M™ Fall Protection Catalog | 3M.com/FallProtection |
FULL BODY HARNESSES
12 13
ELAVATION™ | PREMIUM FULL BODY HARNESS |
The advanced design features in our
Elavation™ harness help make fi tting,
adjusting, and wearing this fall arrest
harness easier and more comfortable.
From quick connect buckles to grommet
leg straps or additional D-rings, we offer
a variety of hardware confi gurations
to suit your needs. Comfort padding is
breathable and durable to help promote
airfl ow while wicking away moisture.
Potential entanglement hazards are
minimized thanks to integrated web
keepers and lanyard keepers that hold
excess material out of the way. With
long-lasting strength and premium
features, Elavation harnesses rise above.
When your life is at risk,
reward yourself with security.
ADVANCED DESIGN AND COMFORT
Innovative design makes fi tting, adjusting, and wearing the harness easier and
more comfortable.
DURABLE MATERIALS
Long-lasting materials designed to meet the everyday challenges of your
work environment.
MULTIPLE CONFIGURATIONS
A full range of harness confi gurations ensure the right harness choice for the application
or industry in which you work — construction, wind energy, oil and gas, and more.
ELAVATION™ HARNESS FEATURES
ELAVATION™
7512Q
DORSAL CONNECTION
Dorsal D-ring for fast, secure
connections. Optional D-ring
extension is available for even
easier access to the back D-ring.
BREATHABLE PADDING
Breathable and durable fabric allows airfl ow and wicks
away moisture for extended comfort.
INTEGRATED LANYARD KEEPER
Attach and detach snap or rebar hooks of connecting device
quickly while preventing dangerous tangles and snags.
WEB KEEPERS
Help keep excess webbing in place and reduce
entanglement hazards.
FORMFIT WEBBING
Designed to mold to the wearer’s body,
giving comfortable support.
IMPACT INDICATORS
Located below the back D-ring,
makes inspection quick and simple.
LABEL PACK COVER
Helps protect labels from
the environment.
TORSO ADJUSTERS
For improved fi t and comfort, red pull tabs
provide easier adjustment when wearing gloves.
PADDED LEG STRAPS
Padded leg and pelvic support.
CONNECTORS
The following connector options are available
on Elavation harnesses:
PADDED TOOLBELT
Comfortable support for positioning applications.
GROMMET
(for leg only)
QUICK CONNECT
(for chest and leg)
CustomLogo
• AVAILABLE ON ALL ELAVATION™ HARNESSES •
See page 35 for more info.
3M™ Fall Protection Catalog | 3M.com/FallProtection |
GENERAL FALL ARREST LADDER CLIMBING RETRIEVAL
ELAVATION
™
HARNESS ORDERING GUIDE
Build your harness by creating a product code in 5 steps.
75 1 1F E Q
Harness
Family
Adjustment
Hardware
(leg)
D-ring
Confi guration
D-ring
Extender
(optional)
Quick
Connect
Buckles (chest)*
Each harness option is designated with a code. Choose the harness family, leg and chest
hardware and D-ring confi guration, and add an optional D-ring extender or Quick Connect
Buckle chest connection hardware. The combination of these codes creates a product code
for ordering your harness with desired options.
1.
Choose a Harness Family
Every harness family has a code. This code is the fi rst entry
in your product code.
75 = Elavation™ Harnesses
Choose Hardware for the Leg Connection
Choose preferred hardware. This code is the second entry in your
product code.
1 = Quick Connect Leg Connection Hardware
5 = Grommet Leg Connection Hardware
2.
If you want to add a D-ring extender, add an “E” to the
product code for “Extender.”
*All Elavation harnesses come with Quick Connect chest
connection. Add a “Q” at the end of the product code.
4.
5.
Choose a D-ring Confi guration
The chart below shows D-ring options. Choose the code for the desired
confi guration. This determines the next entry in your product code.
3.
D-RING OPTIONS Padded
Back Front Side Shoulder Positioning Belt
•
• •
• •
• • •
• • •
• • • •
• • •
• • • •
0
0F
1
1F
2
2F
3F
4F
D-ring
Code
Padded
Back Front Side Shoulder Positioning Belt
Your product code: 7511FEQ
Your harness description: Elavation™ harnesses with Quick Connect leg
connection hardware, back, front and side D-rings, a D-ring extender and
Quick Connect chest buckles.
EXAMPLE:
WORK POSITIONING
& FALL RESTRAINT
FULL BODY HARNESSES
14 15
7510Q
Elavation™
Premium Fall Protection Harness
Quick Connect Buckle Chest Connection,
Quick Connect Buckle Leg Connection and
Back D-ring. Protective covers for label
pack, lanyard keepers, and web keepers.
• General Fall Arrest
• S-M | L-XL | XXL
• 400 lbs. capacity
7552FQ
Elavation™
Premium Fall Protection Harness
Quick Connect Buckle Chest Connection,
Grommet Leg Connection and Front, Back
and Side D-rings with padded positioning belt
with toolbelt holder. Protective covers for label
pack, lanyard keepers and web keepers.
• Ladder Climbing
• Work Positioning & Travel Restraint
• General Fall Arrest
• S-M | L-XL | XXL
• 400 lbs. capacity
7511Q
Elavation™
Premium Fall Protection Harness
Quick Connect Buckle Chest Connection,
Quick Connect Buckle Leg Connection,
Back and Side D-rings. Protective
covers for label pack, lanyard keepers,
and web keepers.
• Work Positioning & Travel Restraint
• General Fall Arrest
• S-M | L-XL | XXL
• 400 lbs. capacity
ELAVATION™ | PREMIUM FULL BODY HARNESS |
Choose the harness confi guration with features that best fi t your application or industry needs.
7514FQ
Elavation™
Premium Fall Protection Harness
Quick Connect Buckle Chest
Connection, Quick Connect Buckle
Leg Connection and Front, Back , Side
and Shoulder D-rings. Protective covers
for label pack, lanyard keepers and
web keepers.
• Retrieval
• Ladder Climbing
• Work Positioning & Travel Restraint
• General Fall Arrest
• S-M | L-XL | XXL
• 400 lbs. capacity
The images shown above represent a variety of our harness confi gurations to fi t a variety of applications or industry needs. A full list of harnesses, by family, follows each section.
CORE ITEM Our best selling equipment — in stock and in demand.
CustomLogo
• AVAILABLE ON ALL ELAVATION™ HARNESSES •
See page 35 for more info.
Sample Elavation Harness Confi gurations
3M™ Fall Protection Catalog | 3M.com/FallProtection |
ELAVATION™ | PREMIUM FULL BODY HARNESS |
3M™ Fall Protection Catalog | 3M.com/FallProtection |
ELAVATION™ | PREMIUM FULL BODY HARNESSES ELAVATION™ | PREMIUM FULL BODY HARNESSES
Product No. Size Description
7510
7510Q S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Quick Connect Leg Connection and Back D-ring
7510EQ S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Quick Connect Leg Connection and Back D-ring with 11 in.
D-ring extension
7510FQ S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Quick Connect Leg Connection and Front and Back D-rings
7510FEQ S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Quick Connect Leg Connection and Front and Back D-rings with
11 in. D-ring extension
7511
7511Q S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Quick Connect Leg Connection and Side and Back D-rings
7511EQ S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Quick Connect Leg Connection and Side and Back D-rings with
11 in. D-ring extension
7511FQ S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Quick Connect Leg Connection and Side, Front and Back D-rings
7511FEQ S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Quick Connect Leg Connection and Side, Front and Back D-rings with
11 in. D-ring extension
7512
7512Q S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Quick Connect Leg Connection and Side and Back D-rings and padded
positioning belt with toolbelt holder
7512EQ S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Quick Connect Leg Connection, Side and Back D-rings with 11 in.
D-ring extension and padded positioning belt with toolbelt holder
7512FQ S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Quick Connect Leg Connection, Side, Front and Back D-rings and
padded positioning belt with toolbelt holder
7512FEQ S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Quick Connect Leg Connection, Side, Front and Back D-rings with
11 in. D-ring extension and padded positioning belt with toolbelt holder
7512FB S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Quick Connect Leg Connection, Side, Front, and Back D-rings and
padded positioning belt with extended belt D-ring and toolbelt holder
7513
7513FQ S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Quick Connect Leg Connection and Shoulder, Front and Back D-rings
7513FEQ S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Quick Connect Leg Connection and Shoulder, Front and Back D-rings
with 11 in. D-ring extension
7514
7514FQ S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Quick Connect Leg Connection and Shoulder, Side, Front and
Back D-rings
7514FEQ S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Quick Connect Leg Connection and Shoulder, Side, Front and Back
D-rings with 11 in. D-ring extension
7550
7550Q S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Grommet Leg Connection and Back D-ring
7550EQ S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Grommet Leg Connection and Back D-ring with 11 in. D-ring extension
7550FQ S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Grommet Leg Connection and Front and Back D-rings
7550FEQ S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Grommet Leg Connection and Front and Back D-rings with 11 in.
D-ring extension
7551
7551Q S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Grommet Leg Connection and Side and Back D-rings
7551EQ S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Grommet Leg Connection and Side and Back D-rings with 11 in.
D-ring extension
7551FQ S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Grommet Leg Connection and Side, Front and Back D-rings
7551FEQ S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Grommet Leg Connection and Side, Front and Back D-rings with
11 in. D-ring extension
Product No. Size Description
7552
7552Q S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Grommet Leg Connection, Side and Back D-rings and padded
positioning belt with toolbelt holder
7552EQ S, M, L, XL, XXL Quick Connect Buckle Chest Connection, Grommet Leg Connection, Side and Back D-rings with 11 in.
D-ring extension and padded positioning belt with toolbelt holder
7552FQ S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Grommet Leg Connection, Side, Front and Back D-rings and padded
positioning belt with toolbelt holder
7552FEQ S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Grommet Leg Connection, Side, Front and Back D-rings with 11 in.
D-ring extension and padded positioning belt with toolbelt holder
7553
7553FQ S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Grommet Leg Connection and Shoulder, Front and Back D-rings
7553FEQ S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Grommet Leg Connection and Shoulder, Front and Back D-rings with
11 in. D-ring extension
7554
7554FQ S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Grommet Leg Connection and Shoulder, Side, Front and Back D-rings
7554FEQ S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Grommet Leg Connection and Shoulder, Side, Front and Back D-rings with
11 in. D-ring extension
1716
CustomLogo
• AVAILABLE ON ALL ELAVATION™ HARNESSES •
See page 35 for more info.
CORE ITEM Our best selling equipment — in stock and in demand.
FULL BODY HARNESSES
18 19
AMEBA | UPPER MID-RANGE FULL BODY HARNESS |
The Ameba harness features a
webbing uniquely designed to fl ex
and bend with the wearer for non-
binding comfort. Unlike harnesses
that feature elastic blend webbing,
the Ameba harness maintains its
shape and integrity over time. Its soft
mesh backpad helps wick moisture
away from the body for a cooler, more
comfortable experience. Potential
entanglement hazards are minimized
thanks to integrated web keepers
and lanyard keepers designed to hold
excess material out of the way. This is
an exceptional mid-range harness for
a greater range of mobility.
The protection you need,
the comfort you want
AMEBA HARNESS FEATURES
AMEBA
1452
DORSAL CONNECTION
Dorsal D-ring for fast, secure
connections. Optional D-ring
extension is available for even
easier access to the back D-ring.
BREATHABLE PADDING
Breathable mesh backpad allows airfl ow and wicks away
moisture for extended comfort.
INTEGRATED LANYARD KEEPER
Attach and detach snap or rebar hooks of connecting device
quickly while preventing dangerous tangles and snags.
WEBBING
Designed to fl ex with wearer for nonbinding comfort.
GROMMET
(for leg only)
PASS THRU
(for chest or leg)
QUICK CONNECT
(for chest or leg)
PADDED TOOLBELT
Comfortable support for positioning applications.
CONNECTORS
The following connector options are available on Ameba harnesses:
IMPACT INDICATORS
Promote safety and makes
inspection quick and simple.
TORSO ADJUSTERS
For improved fi t and comfort.
ADVANCED DESIGN AND COMFORT
Non-elastic webbing conforms to the wearer, yet maintains its shape for ultimate
comfort throughout the day.
DURABLE MATERIALS
Engineered and built using quality materials designed to endure the many effects
of day-to-day use.
MULTIPLE CONFIGURATIONS
Features full range of harness confi gurations to ensure the right choice of appropriate
harness for the application or industry — construction, wind energy, oil and gas, and more.
CustomLogo
3M™ Fall Protection Catalog | 3M.com/FallProtection |
WEB KEEPERS
Help keep excess webbing in place and reduce
entanglement hazards.
• AVAILABLE ON ALL AMEBA HARNESSES •
See page 35 for more info.
AMEBA HARNESS ORDERING GUIDE
Build your harness by creating a product code in 5 steps.
14 1 3F E Q
Harness
Family
Adjustment
Hardware
(leg & chest)
D-ring
Confi guration
D-ring
Extender
(optional)
Quick
Connect
Buckles (chest)
Each harness option is designated by a code. Choose the harness family, leg and chest hardware
and D-ring confi guration, and add an optional D-ring extender or Quick Connect Buckle chest
connection hardware. The combination of these codes creates a product code for ordering your
harness with desired options.
1.
Choose a Harness Family
Every harness family has a code. This code is the fi rst entry in
your product code.
14 = Ameba Harnesses
Choose Hardware for Leg and Chest Connections
Choose preferred hardware. This code is the second entry in
your product code.
1 = Pass Thru Leg and Chest Connection Hardware
5 = Grommet Leg Connection, Pass Thru Chest Hardware
2.
Choose a D-ring Confi guration
The chart below shows D-ring options. Choose the code for the desired
confi guration. This determines the next entry in your product code.
3.
Your product code: 1413FEQ
Your harness description: Ameba harnesses with Quick Connect leg connection hardware,
back, front and shoulder D-rings, a D-ring extender and Quick Connect chest buckles.
EXAMPLE:
If you want to add a D-ring extender, add an “E” to the
product code for “Extender.”
Add a “Q” at the end of your product code to upgrade
chest and leg hardware as follows:
If 1 was chosen in step 2: Pass Thru leg and Pass Thru chest will change
to Quick Connect leg and Quick Connect chest.
If 5 was chosen in step 2: Grommet leg and Pass Thru chest will change
to Grommet leg and Quick Connect chest.
4.
5.
D-RING OPTIONS Padded
Back Front Side Shoulder Positioning Belt
•
• •
• •
• • •
• • •
• • • •
• • •
• • • •
0
0F
1
1F
2
2F
3F
4F
D-ring
Code
Padded
Back Front Side Shoulder Positioning Belt
FULL BODY HARNESSES
20 21
1452FE
Ameba Upper Mid-range
Fall Protection Harness
Pass Thru Chest Connection, Grommet Leg Con-
nection, Front, Back and Side D-rings with 11 in.
D-ring Extender and Padded Positioning Belt with
Toolbelt Holder. Lanyard keepers and web keepers.
• Ladder Climbing
• Work Positioning & Travel Restraint
• General Fall Arrest
• S-M | 310 lbs. capacity
• L-XL | 310 lbs. capacity
• XXL | 400 lbs. capacity
1452
Ameba Upper Mid-range
Fall Protection Harness
Pass Thru Chest Connection, Grommet Leg
Connection and Back and Side D-rings with
Backpad and Toolbelt. Lanyard keepers and
web keepers.
• Work Positioning & Travel Restraint
• General Fall Arrest
• S-M | 310 lbs. capacity
• L-XL | 310 lbs. capacity
• XXL | 400 lbs. capacity
1450
Ameba Upper Mid-range
Fall Protection Harness
Comfort Harness with Pass Thru Chest
Connection, Grommet Leg Connection
and Back D-ring. Lanyard keepers and
web keepers.
• General Fall Arrest
• Universal Size | 310 lbs. capacity
• XXL | 400 lbs. capacity
GENERAL FALL ARREST LADDER CLIMBING
WORK POSITIONING
& TRAVEL RESTRAINT
Choose the harness confi guration with features that best fi t your application or industry needs.
1453F
Ameba Upper Mid-range
Fall Protection Harness
Comfort Harness with Pass Thru Chest
Connection, Grommet Leg Connection
and Front, Back and Shoulder D-rings.
Lanyard keepers and web keepers.
• Retrieval
• Ladder Climbing
• General Fall Arrest
• Universal Size | 310 lbs. capacity
• XXL | 400 lbs. capacity
AMEBA | UPPER MID-RANGE FULL BODY HARNESS |
RETRIEVAL
Sample Ameba Harness Confi gurations
3M™ Fall Protection Catalog | 3M.com/FallProtection |
CustomLogo
• AVAILABLE ON ALL AMEBA HARNESSES •
See page 35 for more info.
The images shown above represent a variety of our harness confi gurations to fi t a variety of applications or industry needs. A full list of harnesses, by family, follows each section.
CORE ITEM Our best selling equipment — in stock and in demand.
FULL BODY HARNESSES
22 23
3M™ Fall Protection Catalog | 3M.com/FallProtection |
Product No. Size Description
1410
1410 Universal, XXL Pass Thru Chest Connection, Pass Thru Leg Connection and Back D-ring
1410E Universal, XXL Pass Thru Chest Connection, Pass Thru Leg Connection and Back D-ring with 11 in. D-ring extension
1410F Universal, XXL Pass Thru Chest Connection, Pass Thru Leg Connection and Front and Back D-rings
1410FE Universal, XXL Pass Thru Chest Connection, Pass Thru Leg Connection and Front and Back D-rings with 11 in. D-ring extension
1410Q Universal, XXL Quick Connect Chest Connection, Quick Connect Leg Connection and Back D-ring
1410EQ Universal, XXL Quick Connect Chest Connection, Quick Connect Leg Connection and Back D-ring with 11 in. D-ring extension
1410FQ Universal, XXL Quick Connect Chest Connection, Quick Connect Leg Connection and Front and Back D-rings
1410FEQ Universal, XXL Quick Connect Chest Connection, Quick Connect Leg Connection and Front and Back D-rings with 11 in. D-ring extension
1411
1411 Universal, XXL Pass Thru Chest Connection, Pass Thru Leg Connection and Side and Back D-rings
1411E Universal, XXL Pass Thru Chest Connection, Pass Thru Leg Connection and Side and Back D-rings with 11 in. D-ring extension
1411F Universal, XXL Pass Thru Chest Connection, Pass Thru Leg Connection and Side, Front and Back D-rings
1411FE Universal, XXL Pass Thru Chest Connection, Pass Thru Leg Connection and Side, Front and Back D-rings with 11 in. D-ring extension
1411Q Universal, XXL Quick Connect Chest Connection, Quick Connect Leg Connection and, Side and Back D-rings
1411EQ Universal, XXL Quick Connect Chest Connection, Quick Connect Leg Connection and Side and Back D-rings with 11 in. D-ring extension
1411FQ Universal, XXL Quick Connect Chest Connection, Quick Connect Leg Connection and Side, Front and Back D-rings
1411FEQ Universal, XXL Quick Connect Chest Connection, Quick Connect Leg Connection and Side, Front and Back D-rings with 11 in. D-ring extension
1412
1412 S-M, L-XL, XXL Pass Thru Chest Connection, Pass Thru Leg Connection, Side and Back D-rings and padded positioning belt with
toolbelt holder
1412E S-M, L-XL, XXL Pass Thru Chest Connection, Pass Thru Leg Connection, Side and Back D-rings with 11 in. D-ring extension and padded
positioning belt with toolbelt holder
1412F S-M, L-XL, XXL Pass Thru Chest Connection, Pass Thru Leg Connection, Side, Front and Back D-rings and padded positioning belt with
toolbelt holder
1412FE S-M, L-XL, XXL Pass Thru Chest Connection, Pass Thru Leg Connection, Side, Front and Back D-rings with 11 in. D-ring extension and
padded positioning belt with toolbelt holder
1412Q S-M, L-XL, XXL Quick Connect Chest Connection, Quick Connect Leg Connection, Side and Back D-rings and padded positioning belt with
toolbelt holder
1412EQ S-M, L-XL, XXL Quick Connect Chest Connection, Quick Connect Leg Connection, Side and Back D-rings with 11 in. D-ring extension and
padded positioning belt with toolbelt holder
1412FQ S-M, L-XL, XXL Quick Connect Chest Connection, Quick Connect Leg Connection, Side, Front and Back D-rings and padded positioning belt
with toolbelt holder
1412FEQ S-M, L-XL, XXL Quick Connect Chest Connection, Quick Connect Leg Connection, Side, Front and Back D-rings with 11 in. D-ring extension
and padded positioning belt with toolbelt holder
1413
1413F Universal, XXL Pass Thru Chest Connection, Pass Thru Leg Connection and Shoulder, Front and Back D-rings
1413FE Universal, XXL Pass Thru Chest Connection, Pass Thru Leg Connection and Shoulder, Front and Back D-rings with 11 in. D-ring extension
1413FQ Universal, XXL Quick Connect Chest Connection, Quick Connect Leg Connection and Shoulder, Front and Back D-rings
1413FEQ Universal, XXL Quick Connect Chest Connection, Quick Connect Leg Connection and Shoulder, Front and Back D-rings with 11 in.
D-ring extension
1414
1414F Universal, XXL Pass Thru Chest Connection, Pass Thru Leg Connection and Shoulder, Side, Front and Back D-rings
1414FE Universal, XXL Pass Thru Chest Connection, Pass Thru Leg Connection and Shoulder, Side, Front and Back D-rings with 11 in. D-ring extension
1414FQ Universal, XXL Quick Connect Chest Connection, Quick Connect Leg Connection and Shoulder, Side, Front and Back D-rings
1414FEQ Universal, XXL Quick Connect Chest Connection, Quick Connect Leg Connection and Shoulder, Side, Front and Back D-rings with 11 in.
D-ring extension
Product No. Size Description
1450
1450 Universal, XXL Pass Thru Chest Connection, Grommet Leg Connection and Back D-ring
1450E Universal, XXL Pass Thru Chest Connection, Grommet Leg Connection and Back D-ring with 11 in. D-ring extension
1450F Universal, XXL Pass Thru Chest Connection, Grommet Leg Connection and Front and Back D-rings
1450FE Universal, XXL Pass Thru Chest Connection, Grommet Leg Connection and Front and Back D-rings with 11 in. D-ring extension
1450Q Universal, XXL Quick Connect Chest Connection, Grommet Leg Connection and Back D-ring
1450EQ Universal, XXL Quick Connect Chest Connection, Grommet Leg Connection and Back D-ring with 11 in. D-ring extension
1450FQ Universal, XXL Quick Connect Chest Connection, Grommet Leg Connection and Front and Back D-rings
1450FEQ Universal, XXL Quick Connect Chest Connection, Grommet Leg Connection and Front and Back D-rings with 11 in. D-ring extension
1451
1451 Universal, XXL Pass Thru Chest Connection, Grommet Leg Connection and Side and Back D-rings
1451E Universal, XXL Pass Thru Chest Connection, Grommet Leg Connection and Side and Back D-rings with 11 in. D-ring extension
1451F Universal, XXL Pass Thru Chest Connection, Grommet Leg Connection and Side, Front and Back D-rings
1451FE Universal, XXL Pass Thru Chest Connection, Grommet Leg Connection and Side, Front and Back D-rings with 11 in. D-ring extension
1451Q Universal, XXL Quick Connect Chest Connection, Grommet Leg Connection and Side and Back D-rings
1451EQ Universal, XXL Quick Connect Chest Connection, Grommet Leg Connection and Side and Back D-rings with 11 in. D-ring extension
1451FQ Universal, XXL Quick Connect Chest Connection, Grommet Leg Connection and Side, Front and Back D-rings
1451FEQ Universal, XXL Quick Connect Chest Connection, Grommet Leg Connection and Side, Front and Back D-rings with 11 in. D-ring extension
1452
1452 S-M, L-XL, XXL Pass Thru Chest Connection, Grommet Leg Connection, Side and Back D-rings and padded positioning belt with
toolbelt holder
1452E S-M, L-XL, XXL Pass Thru Chest Connection, Grommet Leg Connection, Side and Back D-rings with 11 in. D-ring extension and padded
positioning belt with toolbelt holder
1452F S-M, L-XL, XXL Pass Thru Chest Connection, Grommet Leg Connection, Side, Front and Back D-rings and padded positioning belt with
toolbelt holder
1452FE S-M, L-XL, XXL Pass Thru Chest Connection, Grommet Leg Connection, Side, Front and Back D-rings with 11 in. D-ring extension and
padded positioning belt with toolbelt holder
1452Q S-M, L-XL, XXL Quick Connect Chest Connection, Grommet Leg Connection, Side and Back D-rings and padded positioning belt with
toolbelt holder
1452EQ S-M, L-XL, XXL Quick Connect Chest Connection, Grommet Leg Connection, Side and Back D-rings with 11 in. D-ring extension and
padded positioning belt with toolbelt holder
1452FQ S-M, L-XL, XXL Quick Connect Chest Connection, Grommet Leg Connection, Side, Front and Back D-rings and padded positioning belt
with toolbelt holder
1452FEQ S-M, L-XL, XXL Quick Connect Chest Connection, Grommet Leg Connection, Side, Front and Back D-rings with 11 in. D-ring extension
and padded positioning belt with toolbelt holder
1453
1453F Universal, XXL Pass Thru Chest Connection, Grommet Leg Connection and Shoulder, Front and Back D-rings
1453FE Universal, XXL Pass Thru Chest Connection, Grommet Leg Connection and Shoulder, Front and Back D-rings with 11 in. D-ring extension
1453FQ Universal, XXL Quick Connect Chest Connection, Grommet Leg Connection and Shoulder, Front and Back D-rings
1453FEQ Universal, XXL Quick Connect Chest Connection, Grommet Leg Connection and Shoulder, Front and Back D-rings with 11 in.
D-ring extension
1454
1454F Universal, XXL Pass Thru Chest Connection, Grommet Leg Connection and Shoulder, Side, Front and Back D-rings
1454FE Universal, XXL Pass Thru Chest Connection, Grommet Leg Connection and Shoulder, Side, Front and Back D-rings with 11 in.
D-ring extension
1454FQ Universal, XXL Quick Connect Chest Connection, Grommet Leg Connection and Shoulder, Side, Front and Back D-rings
1454FEQ Universal, XXL Quick Connect Chest Connection, Grommet Leg Connection and Shoulder, Side, Front and Back D-rings with 11 in.
D-ring extension
AMEBA | FALL PROTECTION HARNESSES AMEBA | FALL PROTECTION HARNESSES
Any Ameba harness size XXL is rated to 400 lbs.
FULL BODY HARNESSES
AMEBA | UPPER MID-RANGE FULL BODY HARNESS |
CORE ITEM Our best selling equipment — in stock and in demand.
CustomLogo
• AVAILABLE ON ALL AMEBA HARNESSES •
See page 35 for more info.
FULL BODY HARNESSES
24 25
FEATHER | LOWER MID-RANGE FULL BODY HARNESS |
The harness
that’s a true workhorse
FEATHER HARNESS FEATURES
FEATHER
1010
WEBBING
Durable polyester material is lightweight and long wearing.
The Feather harness is our original
harness and remains a popular choice
today thanks to its X-plate D-ring
assembly, designed to help reduce
tangles and lie fl at on the user’s back.
From pass thru chest connection
to grommet or pass thru leg straps
to additional D-rings, a variety of
hardware confi gurations are available.
Integrated web keepers and lanyard
keepers hold excess material out
of the way to help reduce potential
entanglement hazards. The Feather
is a perfect lower mid-range harness
choice that’s a true original.
FEATHER FALL ARREST HARNESS
Lightweight, durable harness features full range of harness confi gurations for most
applications — from general fall arrest and positioning to ladder climbing and retrieval.
DORSAL CONNECTION
The X-plate D-ring assembly helps
reduce tangles and lies fl at for easy
donning of the harness.
INTEGRATED LANYARD KEEPER
Attach and detach snap or rebar hooks of connecting device
quickly while preventing dangerous tangles and snags.
IMPACT INDICATORS
Promotes safety and makes
inspection quick and simple.
CONNECTORS
Depending on worker preference, these connector options
are available:
CustomLogo
GROMMET
(for leg only)
PASS THRU
(for chest or leg)
QUICK CONNECT
(for chest or leg)
3M™ Fall Protection Catalog | 3M.com/FallProtection |
TORSO ADJUSTERS
For improved fi t and comfort.
WEB KEEPERS
Help keep excess webbing in place and reduce
entanglement hazards.
• AVAILABLE ON ALL FEATHER HARNESSES •
See page 35 for more info.
FEATHER HARNESS ORDERING GUIDE
Build your harness by creating a product code in 5 steps.
10 1 2 E Q
Harness
Family
Adjustment
Hardware
(leg & chest)
D-ring
Confi guration
Quick
Connect
Buckles
Each harness option is designated with a code. Choose the harness family, leg and chest
hardware and D-ring confi guration, and add an optional D-ring extender or Quick Connect
Buckle chest connection hardware. The combination of these codes creates a product code
for ordering your harness with desired options.
1.
Choose a Harness Family
Every family of harness has a code. This code is the fi rst entry
in your product code.
10 = Feather Harnesses
Choose Hardware for Leg and Chest Connections
Choose the preferred hardware. This code is the second entry in your
product code.
1 = Pass Thru Leg and Chest Connection Hardware
5 = Grommet Leg Connection, Pass Thru Chest Hardware
2.
Choose a D-ring Confi guration
The chart below shows D-ring options. Choose the code for the desired
confi guration. This determines the next entry in your product code.
3.
Your product code: 1012EQ
Your harness description: Feather harnesses with Quick Connect leg connection hardware, back
and side D-rings and positioning belt, a D-ring extender and Quick Connect chest buckles.
EXAMPLE:
4.
5.
D-RING OPTIONS Padded
Back Front Side Shoulder Positioning Belt
•
• •
• •
• • •
• • •
• • • •
• • •
• • • •
0
0F
1
1F
2
2F
3F
4F
D-ring
Code
Padded
Back Front Side Shoulder Positioning Belt
If you want to add a D-ring extender, add an “E” to the
product code for “Extender.”
Add a “Q” at the end of your product code to upgrade
chest and leg hardware as follows:
If 1 was chosen in step 2: Pass Thru leg and Pass Thru chest will change
to Quick Connect leg and Quick Connect chest.
If 5 was chosen in step 2: Grommet leg and Pass Thru chest will change
to Grommet leg and Quick Connect chest.
D-ring
Extender
(optional)
FULL BODY HARNESSES
26 27
1053F
Feather Lower Mid-Range
Fall Protection Harness
Classic Fall Protection Harness
with Pass Thru Chest Connection,
Grommet Leg Connection and Front,
Back and Shoulder D-rings. Lanyard
keepers and web keepers.
• Retrieval
• Ladder Climbing
• General Fall Arrest
• Universal Size | 310 lbs. capacity
• XXL | 400 lbs. capacity
1050
Feather Lower Mid-Range
Fall Protection Harness
Classic Fall Protection Harness with Pass
Thru Chest Connection, Grommet Leg
Connection and Back D-rings. Lanyard
keepers and web keepers.
• General Fall Arrest
• Universal Size | 310 lbs. capacity
• XXL | 400 lbs. capacity
1051
Feather Lower Mid-Range
Fall Protection Harness
Classic Fall Protection Harness with Pass
Thru Chest Connection, Grommet Leg
Connection and Back and Side D-rings.
Lanyard keepers and web keepers.
• Work Positioning & Travel Restraint
• General Fall Arrest
• Universal Size | 310 lbs. capacity
• XXL | 400 lbs. capacity
1052F
Feather Lower Mid-Range
Fall Protection Harness
Classic Fall Protection Harness with Pass
Thru Chest Connection, Grommet Leg Con-
nection and Back, Front and Side D-rings
with Padded Positioning Belt with Toolbelt
Holder. Lanyard keepers and web keepers.
• Ladder Climbing
• Work Positioning & Travel Restraint
• General Fall Arrest
• S-M | 310 lbs. capacity
• L-XL | 310 lbs. capacity
• XXL | 400 lbs. capacity
FEATHER | LOWER MID-RANGE FULL BODY HARNESS |
GENERAL FALL ARREST LADDER CLIMBING
WORK POSITIONING
& TRAVEL RESTRAINT RETRIEVAL
Choose the harness confi guration with features that best fi t your application or industry needs.
The images shown above represent a variety of our harness confi gurations to fi t a variety of applications or industry needs.
A full list of harnesses, by family, follows each section.
CORE ITEM Our best selling equipment — in stock and in demand.
Sample Feather Harness Confi gurations
3M™ Fall Protection Catalog | 3M.com/FallProtection |
CustomLogo
• AVAILABLE ON ALL FEATHER HARNESSES •
See page 35 for more info.
FULL BODY HARNESSES
28 29
Any Feather harness size XXL is rated to 400 lbs.
3M™ Fall Protection Catalog | 3M.com/FallProtection |
Product No. Size Description
1010
1010 Universal, XXL Pass Thru Chest Connection, Pass Thru Leg Connection and Back D-ring
1010E Universal, XXL Pass Thru Chest Connection, Pass Thru Leg Connection and Back D-ring with 11 in. D-ring extension
1010F Universal, XXL Pass Thru Chest Connection, Pass Thru Leg Connection and Front and Back D-rings
1010FE Universal, XXL Pass Thru Chest Connection, Pass Thru Leg Connection and Front and Back D-rings with 11 in. D-ring extension
1010Q Universal, XXL Quick Connect Chest Connection, Quick Connect Leg Connection and Back D-ring
1010EQ Universal, XXL Quick Connect Chest Connection, Quick Connect Leg Connection and Back D-ring with 11 in. D-ring extension
1010FQ Universal, XXL Quick Connect Chest Connection, Quick Connect Leg Connection and Front and Back D-rings
1010FEQ Universal, XXL Quick Connect Chest Connection, Quick Connect Leg Connection and Front and Back D-rings with 11 in. D-ring extension
1011
1011 Universal, XXL Pass Thru Chest Connection, Pass Thru Leg Connection and Side and Back D-rings
1011E Universal, XXL Pass Thru Chest Connection, Pass Thru Leg Connection and Side and Back D-rings with 11 in. D-ring extension
1011F Universal, XXL Pass Thru Chest Connection, Pass Thru Leg Connection and Side, Front and Back D-rings
1011FE Universal, XXL Pass Thru Chest Connection, Pass Thru Leg Connection and Side, Front and Back D-rings with 11 in. D-ring extension
1011Q Universal, XXL Quick Connect Chest Connection, Quick Connect Leg Connection and Side and Back D-rings
1011EQ Universal, XXL Quick Connect Chest Connection, Quick Connect Leg Connection and Side and Back D-rings with 11 in. D-ring extension
1011FQ Universal, XXL Quick Connect Chest Connection, Quick Connect Leg Connection and Side, Front and Back D-rings
1011FEQ Universal, XXL Quick Connect Chest Connection, Quick Connect Leg Connection and Side, Front and Back D-rings with 11 in. D-ring extension
1012
1012 S-M, L-XL, XXL Pass Thru Chest Connection, Pass Thru Leg Connection, Side and Back D-rings and padded positioning belt with
toolbelt holder. Comes with 9 in. shoulder pads.
1012E S-M, L-XL, XXL Pass Thru Chest Connection, Pass Thru Leg Connection, Side and Back D-rings with 11in. D-ring extension and padded
positioning belt with toolbelt holder. Comes with 9 in. shoulder pads.
1012F S-M, L-XL, XXL Pass Thru Chest Connection, Pass Thru Leg Connection, Side, Front and Back D-rings and padded positioning belt with
toolbelt holder. Comes with 9 in. shoulder pads.
1012FE S-M, L-XL, XXL Pass Thru Chest Connection, Pass Thru Leg Connection, Side, Front and Back D-rings with 11 in. D-ring extension and
padded positioning belt with toolbelt holder. Comes with 9 in. shoulder pads.
1012Q S-M, L-XL, XXL Quick Connect Chest Connection, Quick Connect Leg Connection, Side and Back D-rings and padded positioning belt with
toolbelt holder. Comes with 9 in. shoulder pads.
1012EQ S-M, L-XL, XXL Quick Connect Chest Connection, Quick Connect Leg Connection, Side and Back D-rings with 11 in. D-ring extension and
padded positioning belt with toolbelt holder. Comes with 9 in. shoulder pads.
1012FQ S-M, L-XL, XXL Quick Connect Chest Connection, Quick Connect Leg Connection, Side, Front and Back D-rings and padded positioning belt
with toolbelt holder. Comes with 9 in. shoulder pads.
1012FEQ S-M, L-XL, XXL Quick Connect Chest Connection, Quick Connect Leg Connection, Side, Front and Back D-rings with 11 in. D-ring extension
and padded positioning belt with toolbelt holder. Comes with 9 in. shoulder pads.
1013
1013F Universal, XXL Pass Thru Chest Connection, Pass Thru Leg Connection and Shoulder, Front and Back D-rings
1013FE Universal, XXL Pass Thru Chest Connection, Pass Thru Leg Connection and Shoulder, Front and Back D-rings with 11 in. D-ring extension
1013FQ Universal, XXL Quick Connect Chest Connection, Quick Connect Leg Connection and Shoulder, Front and Back D-rings
1013FEQ Universal, XXL Quick Connect Chest Connection, Quick Connect Leg Connection and Shoulder, Front and Back D-rings with 11 in.
D-ring extension
1014
1014F Universal, XXL Pass Thru Chest Connection, Pass Thru Leg Connection and Shoulder, Side, Front and Back D-rings
1014FE Universal, XXL Pass Thru Chest Connection, Pass Thru Leg Connection and Shoulder, Side, Front and Back D-rings with 11 in. D-ring extension
1014FQ Universal, XXL Quick Connect Chest Connection, Quick Connect Leg Connection and Shoulder, Side, Front and Back D-rings
1014FEQ Universal, XXL Quick Connect Chest Connection, Quick Connect Leg Connection and Shoulder, Side, Front and Back D-rings with 11 in.
D-ring extension
FEATHER | FALL PROTECTION HARNESSES
Product No. Size Description
1050
1050 Universal, XXL Pass Thru Chest Connection, Grommet Leg Connection and Back D-ring
1050E Universal, XXL Pass Thru Chest Connection, Grommet Leg Connection and Back D-ring with 11 in. D-ring extension
1050F Universal, XXL Pass Thru Chest Connection, Grommet Leg Connection and Front and Back D-rings
1050FE Universal, XXL Pass Thru Chest Connection, Grommet Leg Connection and Front and Back D-rings with 11 in. D-ring extension
1050Q Universal, XXL Quick Connect Chest Connection, Grommet Leg Connection and Back D-ring
1050EQ Universal, XXL Quick Connect Chest Connection, Grommet Leg Connection and Back D-ring with 11 in. D-ring extension
1050FQ Universal, XXL Quick Connect Chest Connection, Grommet Leg Connection and Front and Back D-rings
1050FEQ Universal, XXL Quick Connect Chest Connection, Grommet Leg Connection and Front and Back D-rings with 11 in. D-ring extension
1050-R Universal Pass Thru Chest Connection, Grommet Leg Connection and with Back D-ring and frontal rescue loops
1051
1051 Universal, XXL Pass Thru Chest Connection, Grommet Leg Connection and Side and Back D-rings
1051E Universal, XXL Pass Thru Chest Connection, Grommet Leg Connection and Side and Back D-rings with 11 in. D-ring extension
1051F Universal, XXL Pass Thru Chest Connection, Grommet Leg Connection and Side, Front and Back D-rings
1051FE Universal, XXL Pass Thru Chest Connection, Grommet Leg Connection and Side, Front and Back D-rings with 11 in. D-ring extension
1051Q Universal, XXL Quick Connect Chest Connection, Grommet Leg Connection and Side and Back D-rings
1051EQ Universal, XXL Quick Connect Chest Connection, Grommet Leg Connection and Side and Back D-rings with 11 in. D-ring extension
1051FQ Universal, XXL Quick Connect Chest Connection, Grommet Leg Connection and Side, Front and Back D-rings
1051FEQ Universal, XXL Quick Connect Chest Connection, Grommet Leg Connection and Side, Front and Back D-rings with 11 in. D-ring extension
1052
1052 S-M, L-XL, XXL Pass Thru Chest Connection, Grommet Leg Connection, Side and Back D-rings and padded positioning belt with
toolbelt holder. Comes with 9 in. shoulder pads.
1052E S-M, L-XL, XXL Pass Thru Chest Connection, Grommet Leg Connection, Side and Back D-rings with 11 in. D-ring extension and padded
positioning belt with toolbelt holder. Comes with 9 in. shoulder pads.
1052F S-M, L-XL, XXL Pass Thru Chest Connection, Grommet Leg Connection, Side, Front and Back D-rings and padded positioning belt with
toolbelt holder. Comes with 9 in. shoulder pads.
1052FE S-M, L-XL, XXL Pass Thru Chest Connection, Grommet Leg Connection, Side, Front and Back D-rings with 11 in. D-ring extension and
padded positioning belt with toolbelt holder. Comes with 9 in. shoulder pads.
1052Q S-M, L-XL, XXL Quick Connect Chest Connection, Grommet Leg Connection, Side and Back D-rings and padded positioning belt with
toolbelt holder. Comes with 9 in. shoulder pads.
1052EQ S-M, L-XL, XXL Quick Connect Chest Connection, Grommet Leg Connection, Side and Back D-rings with 11 in. D-ring extension and
padded positioning belt with toolbelt holder. Comes with 9 in. shoulder pads.
1052FQ S-M, L-XL, XXL Quick Connect Chest Connection, Grommet Leg Connection, Side, Front and Back D-rings and padded positioning belt
with toolbelt holder. Comes with 9 in. shoulder pads.
1052FEQ S-M, L-XL, XXL Quick Connect Chest Connection, Grommet Leg Connection, Side, Front and Back D-rings with 11 in. D-ring extension
and padded positioning belt with toolbelt holder. Comes with 9 in. shoulder pads.
1053
1053F Universal, XXL Pass Thru Chest Connection, Grommet Leg Connection and Shoulder, Front and Back D-rings
1053FE Universal, XXL Pass Thru Chest Connection, Grommet Leg Connection and Shoulder, Front and Back D-rings with 11 in. D-ring extension
1053FQ Universal, XXL Quick Connect Chest Connection, Grommet Leg Connection and Shoulder, Front and Back D-rings
1053FEQ Universal, XXL Quick Connect Chest Connection, Grommet Leg Connection and Shoulder, Front and Back D-rings with 11 in.
D-ring extension
1054
1054F Universal, XXL Pass Thru Chest Connection, Grommet Leg Connection and Shoulder, Side, Front and Back D-rings
1054FE Universal, XXL Pass Thru Chest Connection, Grommet Leg Connection and Shoulder, Side, Front and Back D-rings with 11 in.
D-ring extension
1054FQ Universal, XXL Quick Connect Chest Connection, Grommet Leg Connection and Shoulder, Side, Front and Back D-rings
1054FEQ Universal, XXL Quick Connect Chest Connection, Grommet Leg Connection and Shoulder, Side, Front and Back D-rings with 11 in.
D-ring extension
FEATHER | FALL PROTECTION HARNESSES
FEATHER | LOWER MID-RANGE FULL BODY HARNESS |CustomLogo
• AVAILABLE ON ALL FEATHER HARNESSES •
See page 35 for more info.
CORE ITEM Our best selling equipment — in stock and in demand.
FULL BODY HARNESSES
30 31
SAFELIGHT | ENTRY-LEVEL FULL BODY HARNESS |
Reliable fall protection
that’s strong, lightweight and a great value
SAFELIGHT HARNESS FEATURES
SAFELIGHT
10910
GROMMET
(for leg only)
PASS THRU
(for chest or leg)
A lightweight and economical fall arrest
harness, the SafeLight delivers quality
construction designed for general fall
arrest applications. It comes standard
with a pass thru chest connection and
options for grommet or pass thru leg
straps and additional D-rings. The
SafeLight harness is an excellent
entry-level harness choice that is
affordable and easy to use.
DORSAL CONNECTION
Integrated dorsal D-ring for secure
general fall protection purposes.
WEBBING
Durable polyester material is lightweight and long-wearing.
CONNECTORS
Depending on worker preference, these connector options
are available:
ECONOMIC FALL ARREST HARNESS
Affordable, lightweight, quality harness for general fall arrest and roofi ng applications.
CustomLogo
3M™ Fall Protection Catalog | 3M.com/FallProtection |
WEB KEEPERS
Help keep excess webbing in place and reduce
entanglement hazards.
• AVAILABLE ON ALL SAFELIGHT HARNESSES •
See page 35 for more info.
INTEGRATED LANYARD KEEPER
Attach and detach snap or rebar hooks of connecting device
quickly while preventing dangerous tangles and snags.
SAFELIGHT HARNESS ORDERING GUIDE
Build your harness by creating a product code in 3 steps.
109* 5 0
Harness
Family
Adjustment
Hardware
(leg & chest)
D-ring
Confi guration
Each harness option is designated with a code. Choose the harness family, leg and chest
hardware and D-ring confi guration. The combination of these codes creates a product code
for ordering your harness with desired options.
1.
Choose a Harness Family
Every harness family has a code. This code is the fi rst entry in your
product code.
109 = SafeLight Harnesses
*SafeLight code can also begin with 106 and 108. See next page for product options.
Choose Hardware for Leg and Chest Connections
Choose the preferred hardware. This code is the second entry in your
product code.
1 = Pass Thru Leg and Pass Thru Chest Connection Hardware
5 = Grommet Leg Connection and Pass Thru Chest
Connection Hardware
2.
D-Ring extenders and Quick Connect buckles are not available on
SafeLight harnesses.
Choose a D-ring Confi guration
The chart below shows D-ring options. Choose the code for the
confi guration needed. This determines the next entry in your
product code.
3.
Your product code: 10950
Your harness description: SafeLight harness with Grommet leg connection hardware,
Pass Thru chest connection and back D-ring.
EXAMPLE:
D-RING OPTIONS Padded
Back Front Side Shoulder Positioning Belt
•
• •
• •
• • •
• • •
• • • •
• • •
• • • •
0
0F
1
1F
2
2F
3F
4F
D-ring
Code
Padded
Back Front Side Shoulder Positioning Belt
FULL BODY HARNESSES
32 33
10911
SafeLight Entry-Level
Fall Protection Harness
Pass Thru Chest Connection, Pass Thru
Leg Connection and Back and Side D-rings.
Lanyard keepers and web keepers.
• Work Positioning & Travel Restraint
• General Fall Arrest
• XS and Universal Size |
310 lbs. capacity
10950
SafeLight Entry-Level
Fall Protection Harness
Pass Thru Chest Connection,
Grommet Leg Connection and Back
D-ring. Lanyard keepers and web keepers.
• General Fall Arrest
• XS and Universal Size |
310 lbs. capacity
10952F
SafeLight Entry-Level
Fall Protection Harness
Pass Thru Chest Connection, Grommet Leg
Connection and Back, Front and Side D-rings
with Padded Positioning Belt with Toolbelt
Holder. Lanyard keepers and web keepers.
• Ladder Climbing
• Work Positioning & Travel Restraint
• General Fall Arrest
• S-M and L-XL | 310 lbs. capacity
• XXL | 400 lbs. capacity
10954F
SafeLight Entry-Level
Fall Protection Harness
Pass Thru Chest Connection, Grommet
Leg Connection and Front, Back, Side and
Shoulder D-rings. Lanyard keepers and
web keepers.
• Retrieval
• Ladder Climbing
• Work Positioning & Travel Restraint
• General Fall Arrest
• Universal Size | 310 lbs. capacity
SAFELIGHT | ENTRY-LEVEL FULL BODY HARNESS |
GENERAL FALL ARREST
Choose the harness confi guration with features that best fi t your application or industry needs.
LADDER CLIMBING
WORK POSITIONING
& TRAVEL RESTRAINT RETRIEVAL
Sample SafeLight Harness Confi gurations
3M™ Fall Protection Catalog | 3M.com/FallProtection |
CustomLogo
• AVAILABLE ON ALL SAFELIGHT HARNESSES •
See page 35 for more info.
The images shown above represent a variety of our harness confi gurations to fi t a variety of applications or industry needs. A full list of harnesses, by family, follows each section.
CORE ITEM Our best selling equipment — in stock and in demand.
FULL BODY HARNESSES
34 35
SAFELIGHT | ENTRY-LEVEL FULL BODY HARNESS |
3M.com/FallProtection |
CustomLogo
3M offers the option to add a custom
logo to select harness families.
Follow the guidelines to ensure 3M can
help customize your order. Look for
“Custom Logo” on all eligible harness
family pages.
Order Instructions
To order a harness with logo, simply add “-Logo”
to the end of any eligible harness product code.
Minimum 15-piece opening order for harnesses
with logo. Minimum fi ve pieces for reorders.
Custom Logo Specifi cations
• Print area: 1-1/2 inches x 5 inches
• Color: Two maximum
• Location: Logo will appear on back strap unless
the harness comes with a padded positioning belt.
Then, the logo will appear on the back of
the padded belt.
• Artwork format: .eps or .ai fi les
All logo artwork received must comply with
3M Harness Logo Program requirements
Custom Logo
Custom Logo
Customize your harness with your company logo.
• AVAILABLE ON SELECT HARNESSES •
Product No. Size Description
106XX
10650 Universal Pass Thru Chest Connection, Grommet Leg Connection, Front and Back D-rings and frontal rescue loops with carabiner
10651 Universal Pass Thru Chest Connection, Grommet Leg Connection, Side, Front and Back D-rings and frontal rescue loops
with carabiner
108XX
10810 Universal Three-Point Adjustment Harness, Pass Thru Chest Connection, Pass Thru Leg Connection and Back D-ring
10810/
208512
Universal Three-Point Adjustment Harness, Pass Thru Chest Connection, Pass Thru Leg Connection and Back D-ring with
permanently attached SafeLight 6 ft. Energy Absorbing Lanyard
109XX
10910 Universal Pass Thru Chest Connection, Pass Thru Leg Connection and Back D-ring
10910F Universal Pass Thru Chest Connection, Pass Thru Leg Connection and Front and Back D-rings
10910/
209512
Universal Pass Thru Chest Connection, Pass Thru Leg Connection and Back D-ring with permanently attached SafeLight 6 ft.
Energy-Absorbing Lanyard
10911 XS, Universal Pass Thru Chest Connection, Pass Thru Leg Connection and Side and Back D-rings
10911F XS, Universal Pass Thru Chest Connection, Pass Thru Leg Connection and Side, Front and Back D-rings
10950 XS, Universal Pass Thru Chest Connection, Grommet Leg Connection and Back D-ring
10951 XS, Universal Pass Thru Chest Connection, Grommet Leg Connection and Side and Back D-rings
10952 S-M, L-XL, XXL Pass Thru Chest Connection, Grommet Leg Connection and Side and Back D-rings and padded positioning belt with
toolbelt holder
10952F S-M, L-XL, XXL Pass Thru Chest Connection, Grommet Leg Connection and Side, Front and Back D-rings and padded positioning belt with
toolbelt holder
10953F Universal Pass Thru Chest Connection, Grommet Leg Connection and Shoulder, Front and Back D-rings
10954F Universal Pass Thru Chest Connection, Grommet Leg Connection and Shoulder, Side, Front and Back D-rings
SAFELIGHT | FALL PROTECTION HARNESSES
Any SafeLight harness size XXL is rated to 400 lbs.
CORE ITEM Our best selling equipment — in stock and in demand.
FULL BODY HARNESSES
36 37
SPECIALTY | FULL BODY HARNESS |
1020
Saturn High-Heat Harness
Pass Thru Chest Connection,
Pass Thru Leg Connection
and Back D-ring. Resists char
spatter up to 700°F. Lanyard
keepers and web keepers.
• General Fall Arrest
• XS and Universal Size
310 lbs. capacity
• XXL and XXXL |
400 lbs. capacity
Saturn Harness
1321
Saturn High-Heat Harness
Pass Thru Chest Connection,
Grommet Leg Connection and
Back and Side D-rings, and
padded positioning belt with
toolbelt holder. Resists char
spatter up to 700°F. Lanyard
keepers and web keepers.
• Work Positioning
& Travel Restraint
• General Fall Arrest
• S-M | 310 lbs. capacity
• L-XL | 310 lbs. capacity
• XXL | 400 lbs. capacity
1030F
Saturn High-Heat Harness
Pass Thru Chest Connection,
Grommet Leg Connection and
Front and Back D-rings. Resists
char spatter up to 700°F.
Lanyard keepers and web
keepers.
• Ladder Climbing
• General Fall Arrest
• Universal Size |
310 lbs. capacity
• XXL | 400 lbs. capacity
The Saturn harness is specifi cally designed for
high-heat applications to provide char resistance. With
its innovative fi ber web, the Saturn resists char spatter
up to 700°F. Benefi ts include a lightweight fi t designed
to improve worker comfort and integrated web keepers
and lanyard keepers that hold excess material out of the
way to reduce potential entanglement hazards. For
quality and protection, the Saturn is a star.
1024FQ
Saturn High-Heat Harness
Quick Connect Buckle Chest
Connection, Quick Connect
Buckle Leg Connection and Front,
Back, Side and Shoulder
D-rings. Resists char spatter
up to 700°F. Lanyard keepers
and web keepers.
• Retrieval
• Ladder Climbing
• Work Positioning
& Travel Restraint
• General Fall Arrest
• Universal Size |
310 lbs. capacity
• XXL | 400 lbs. capacity
GENERAL
FALL ARREST
WORK POSITIONING
& TRAVEL RESTRAINT
LADDER
CLIMBING
RETRIEVAL
Sample Saturn Harness Confi gurations
3M™ Fall Protection Catalog | 3M.com/FallProtection |
Product No. Size Description
1020 XS, Universal, XXL, XXXL Pass Thru Chest Connection, Pass Thru Leg Connection and Back D-ring
1020F Universal, XXL Pass Thru Chest Connection, Pass Thru Leg Connection and Front and Back D-ring
1020Q Universal, XXL Quick Connect Buckle Chest Connection, Quick Connect Buckle Leg Connection and Back D-ring
1020FQ Universal, XXL Quick Connect Buckle Chest Connection, Quick Connect Buckle Leg Connection and Front and Back D-rings
1021 Universal, XXL Pass Thru Chest Connection, Pass Thru Leg Connection and Side and Back D-rings
1021F Universal, XXL Pass Thru Chest Connection, Pass Thru Leg Connection and Side, Front and Back D-rings
1021Q Universal, XXL Quick Connect Buckle Chest Connection, Quick Connect Buckle Leg Connection and Side and Back D-rings
1021FQ Universal, XXL Quick Connect Buckle Chest Connection, Quick Connect Buckle Leg Connection and Side, Front and Back D-rings
1024FQ Universal, XXL Quick Connect Buckle Chest Connection, Quick Connect Buckle Leg Connection and Shoulder, Side, Front and Back D-rings
1030 XS, Universal, XXL, XXXL Pass Thru Chest Connection, Grommet Leg Connection and Back D-ring
1030F Universal, XXL Pass Thru Chest Connection, Grommet Leg Connection and Front and Back D-ring
1030Q Universal, XXL Quick Connect Buckle Chest Connection, Grommet Leg Connection and Back D-ring
1030FQ Universal, XXL Quick Connect Buckle Chest Connection, Grommet Leg Connection and Front and Back D-ring
1031 Universal, XXL Pass Thru Chest Connection, Grommet Leg Connection and Side and Back D-rings
1031F Universal, XXL Pass Thru Chest Connection, Grommet Leg Connection and Side, Front and Back D-rings
1031Q Universal, XXL Quick Connect Buckle Chest Connection, Grommet Leg Connection and Side and Back D-rings
1031FQ Universal, XXL Quick Connect Buckle Chest Connection, Grommet Leg Connection and Side, Front and Back D-rings
1321 S-M, L-XL, XXL Pass Thru Chest Connection, Grommet Leg Connection and Side and Back D-rings with padded positioning belt with
toolbelt holder
1321F S-M, L-XL, XXL Pass Thru Chest Connection, Grommet Leg Connection and Side, Front and Back D-rings with padded positioning belt with
toolbelt holder
1321Q S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Grommet Leg Connection and Side and Back D-rings with padded positioning belt
with toolbelt holder
1321FQ S-M, L-XL, XXL Quick Connect Buckle Chest Connection, Grommet Leg Connection and Side, Front and Back D-rings with padded
positioning belt with toolbelt holder
1323 Universal, XXL Pass Thru Chest Connection, Grommet Leg Connection and Shoulder and Back D-rings
1324F S-M, L-XL, XXL Pass Thru Chest Connection, Grommet Leg Connection and Shoulder, Side, Front and Back D-rings with padded positioning
belt with toolbelt holder
SATURN | FALL PROTECTION HARNESSES WITH LANYARD STORAGE AND WEB KEEPERS | Resists char spatter up to 700ºF
CORE ITEM Our best selling equipment — in stock and in demand. CORE ITEM Our best selling equipment — in stock and in demand.
CustomLogo
• AVAILABLE ON ALL SATURN HARNESSES •
See page 35 for more info.
FULL BODY HARNESSES
Prod. No. Size Weight Rating
1808 S-M, L-XL 310 lbs.
1808 XXL 400 lbs.
1808
Vest Harness
The Fall Arrest Harness with bright colored vest
including 3M Scotchlite™ Refl ective Material
with Pass Thru Chest Connection, Grommet
Leg Connection and Back and Side D-rings.
Lanyard keepers and web keepers.
Meets ANSI/ISEA 107-2004 Class II.
SPECIALTY | FULL BODY HARNESS |
1710
Apache Harness
The Apache Harness is engineered and manufactured for workers who have a 311 lbs.–400 lbs. total
working weight. Given these specifi cations, the harness must be used with a 400 lbs. rated connecting
device. Integrated web keepers and lanyard keepers hold excess material out of the way to help reduce
potential entanglement hazards. Rugged, durable and strong, the Apache accommodates.
CustomLogo
• AVAILABLE ON APACHE HARNESS •
See page 35 for more info.
Prod. No. Size Description Weight Rating
1040 XXL, XXXL Pass Thru Chest Connection, Pass Thru Leg and Back D-ring 400 lbs.
1041 XXL, XXXL
Pass Thru Chest Connection, Pass Thru Leg, Back and Side D-rings
and padded positioning belt with toolbelt holder
400 lbs.
1710 XXL, XXXL
Pass Thru Chest Connection, Grommet Leg and Back D-ring with Toolbelt
400 lbs.
1711 XXL, XXXL
Pass Thru Chest Connection, Grommet Leg and Back and Side D-rings
with Toolbelt
400 lbs.
1492
Wind Energy Harness
Wind Energy Harness, with Quick Connect Buckle Chest Connection, Grommet Leg Connection, Back
and Side D-Rings and a fi xed Front D-Ring for approved connection point with vertical lifeline systems.
Comes with padded positioning belt and toolbelt holder. Lanyard keepers and web keepers.
CustomLogo
• AVAILABLE ON WIND ENERGY HARNESS •
See page 35 for more info.
WM7510
Elavation™ Energy Harness
Elavation™ Fall Protection Energy Harness with Quick Connect Buckle
Chest Connection, Quick Connect Buckle Leg Connection and Back and
Seat D-rings with padded seat sling. Lanyard keepers and web keepers.
Prod. No. Size Weight Rating
WM7510 S-M, L-XL , XXL 400 lbs.
1515
Tower Climbing Harness
Tower Climbing Fall Protection Harness with Quick Connect Buckle Chest Connection, Quick
Connect Leg Connection, Back, Front, Side and Seat D-rings, and padded positioning belt
with toolbelt holder and seat sling for climbing application. Lanyard keepers and web keepers.
Prod. No. Size Weight Rating
1515 S, M, L, XL 310 lbs.
1515 XXL 400 lbs.
39
3M™ Fall Protection Catalog | 3M.com/FallProtection |
CORE ITEM Our best selling equipment — in stock and in demand.
38
Prod. No. Size Description Weight Rating
1490 S-M Quick Connect Chest, Grommet Leg and Back and Front D-rings 310 lbs.
1490 L-XL Quick Connect Chest, Grommet Leg and Back and Front D-rings 310 lbs.
1490 XXL Quick Connect Chest, Grommet Leg and Back and Front D-rings 400 lbs.
1492 S, M, L, XL Quick Connect Chest, Grommet Leg and Back, Side and Front D-rings,
and padded positioning belt with toolbelt holder 310 lbs.
1492 XXL Quick Connect Chest, Grommet Leg and Back, Side and Front D-rings,
and padded positioning belt with toolbelt holder 400 lbs.
BACK VIEW
Prod. Size Weight
No. Rating
U1620 Universal 310 lbs.
Prod. Size Weight
No. Rating
10955 Universal 310 lbs.
10955 XXL 400 lbs.
Prod. No. Size Weight Rating
PRD-7510Q (S-M) S-M 310 lbs.
PRD-7510Q (L-XL) L-XL 310 lbs.
PRD-7510Q (XXL) XXL 310 lbs.
FULL BODY HARNESSES
40 41
Prod. Size Weight
No. Rating
M1311
S, M, L, XL
310 lbs.
M1311
XXL
400 lbs.
M1311
Omega Fall Protection Harness
Pass Thru Chest Connection,
Grommet Leg Connection, Side
and Back D-rings, and padded
positioning belt with toolbelt holder.
10955
Coated Web Harness
Quick Connect Buckle Chest
Connection, Grommet Leg
Connection and Back D-ring.
Polyurethane coated web
for dirty jobs such as tar
roofi ng, oil-fi eld work and
painting. Lanyard keepers
and web keepers.
PRD-7510Q
Personal Rescue Device Harness
Latchways Personal Rescue Device™ PRD™ with 3M™ Elavation™
Harness 7510Q has Quick Connect Buckle Chest and Leg
Connection, Back D-ring. For more information on the Personal
Rescue Device Harness, see page 126 in the Escape and Rescue
section of this catalog.
U1620
Specialty Harness
Specialty Harness with Soft
Loop Back D-Ring and PVC
sleeve. Lanyard keepers and
web keepers.
R-100
Suspension Trauma Strap
Suspension Trauma Strap helps to relieve
discomfort normally associated with prolonged
suspension. 70 inch overall length.
1 2 3
3M™ Fall Protection Catalog | 3M.com/FallProtection |
CustomLogo
SPECIALTY | FULL BODY HARNESS |
• AVAILABLE ON COATED WEB HARNESS •
See page 35 for more info.
CORE ITEM Our best selling equipment — in stock and in demand.
SELF-RETRACTING LANYARDS
42 43
3M™ Fall Protection Catalog | 3M.com/FallProtection |
Safety and security
that defi es gravity, not logic.
When working in dangerous environments,
3M™ Fall Protection self-retracting lanyards
deliver the freedom of movement with the
assurance of superior safety. Designed with
durability and functionality in mind, our
innovative lifelines are dependable. They
are available in a wide range of lengths
in both webbing and cable lifelines — so
whatever the job, there is a product for
you. Extensively tested to meet or exceed
applicable ANSI and CSA standards and
OSHA regulatory requirements, 3M is
committed to give you the confi dence to
get the job done.
Self-retracting lanyards offer greater mobility and maneuverability,
which may help increase productivity. They also help shorten fall
distance and minimize trip hazards — signifi cantly reducing the
potential for injury. Unlike a typical 6 foot energy-absorbing lanyard,
SRLs range in length from 7 feet to 130 feet to increase the working
zone. In the event of a fall, the self-retracting lanyard braking
mechanism activates as soon as the user reaches an approximate
acceleration speed of 4-1/2 feet–6-1/2 ft./sec. (generally
12 inches–18 inches), with a maximum arresting distance of
42 inches as required by OSHA 1910.66 and 1926.502 regulations.
Self-retracting lanyards retain tension on the lifeline at all times,
staying out of the worker’s way while providing maximum safety.
WHAT TO CONSIDER WHEN CHOOSING A SELF-RETRACTING LANYARD.
SELF-RETRACTING LANYARDS
Your comfort, budget and specifi c work environment needs are of utmost importance.
CARABINER
connects to
anchorage connector
DUAL-LEG ADAPTER
connects directly to back
D-ring, allowing two SRLs
for 100% tie-off
SWIVEL SNAP HOOK REBAR SNAP HOOKSNAP HOOK

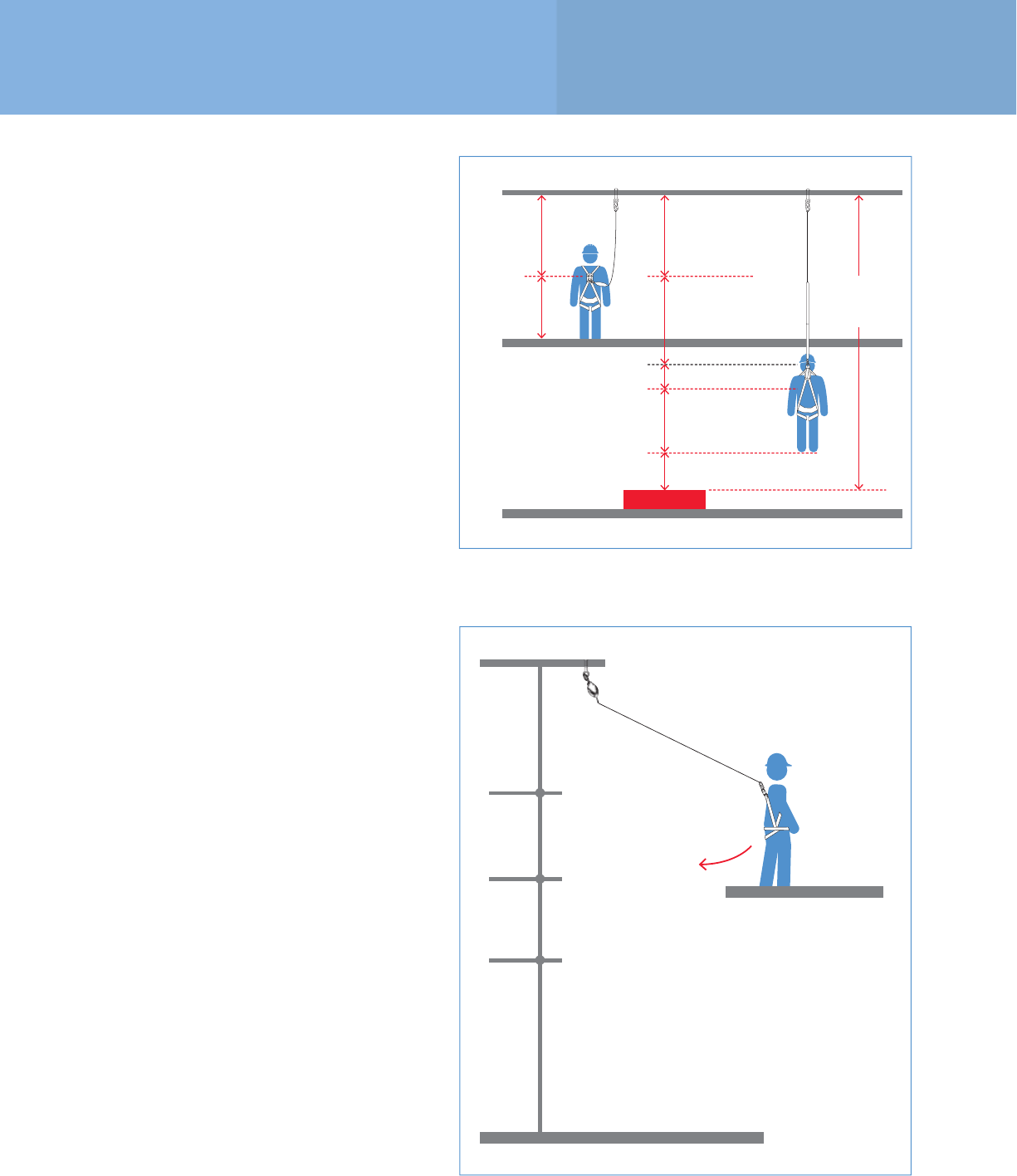

ABOVE 17.5 FT.
BELOW 17.5 FT.
MORE THAN 17-1/2 FEET OF CLEARANCE
An energy-absorbing lanyard or
self-retracting lanyard can be used.
LESS THAN 17-1/2 FEET OF CLEARANCE
The use of a self-
retracting lanyard
is recommended.
SafeLight
Shock
Absorbing
Lanyard
209512
ReLoad™
Self-Retracting
Lanyard REC-23
ReLoad™
Self-Retracting
Lanyard REC-23
1 WORK ENVIRONMENT
When choosing an SRL, it’s important to know the conditions of your work environment. From harsh marine and mining to oil
and gas to general purpose, getting the best use out of an SRL depends on understanding where — and how — it will be utilized.
Which lanyard material is required?
WEB | General-purpose environments — ideal for indoor or less harsh environments
CABLE | Extremely harsh environments — offers extra durability and is ideal for abrasive or high-heat situations
Why should I choose a single- or dual-leg lanyard?
SINGLE-LEG | for single anchor point connection to work within a specifi c range of movement
DUAL-LEG | offers continued protection for a broader range of movement when transferring between anchor points
2 COST vs. LENGTH AND MATERIAL
Choose from a wide range of our competitively priced
web or cable lanyards in lengths from 7 feet to 130 feet.
3 HARDWARE CHOICES
HOUSING HARDWARE LIFELINE HARDWARE
4 CHOOSING A SELF-RETRACTING LANYARD vs.
AN ENERGY-ABSORBING LANYARD
WEB CABLE
LENGTHS 7 FT.------50 FT.
LENGTHS 10 FT.-------------------130 FT.
LENGTH
COST
$$$
$$$$
SELF-RETRACTING LANYARDS
44 45
3M™ Fall Protection Catalog | 3M.com/FallProtection |
SEALED RELOAD | designed for durable performance in harsh work environments | Cable
RELOAD | designed for durable performance in both light and heavy industrial environments | Cable and Web
M SERIES | designed for durable performance in general-purpose work environments | Cable
RLD SERIES | designed for durable performance in both light and heavy industrial environments | Cable
MS SERIES | designed for general-purpose use and/or scratch-sensitive surfaces | Web
3M SELF-RETRACTING LANYARDS | OVERVIEW |
3M™ Sealed ReLoad™
, ReLoad™
, M Series, RLD Series and MS Series retractable lanyard families
represent a broad range of connecting devices. Designed for durable performance, they are ideal
for indoor or outdoor use, in light and heavy industrial environments.
Premium and Mid-range Self-Retracting Lanyards
RELOAD™
The premium 3M
self-retracting lanyard
• Designed for durable performance
in general-purpose and harsh work
environments. Web models also ideal
for environments that may be sensitive
to contact with traditional steel cable.
• Available with galvanized or stainless
steel cable ranging from 23 feet up to
50 feet and with web ranging from
7 feet up to 23 feet.
• Stainless steel or galvanized cable
lifeline with indicating snaphook and
impact-modifi ed nylon housing.
Web lifeline with aluminum or
impact-modifi ed nylon housing.

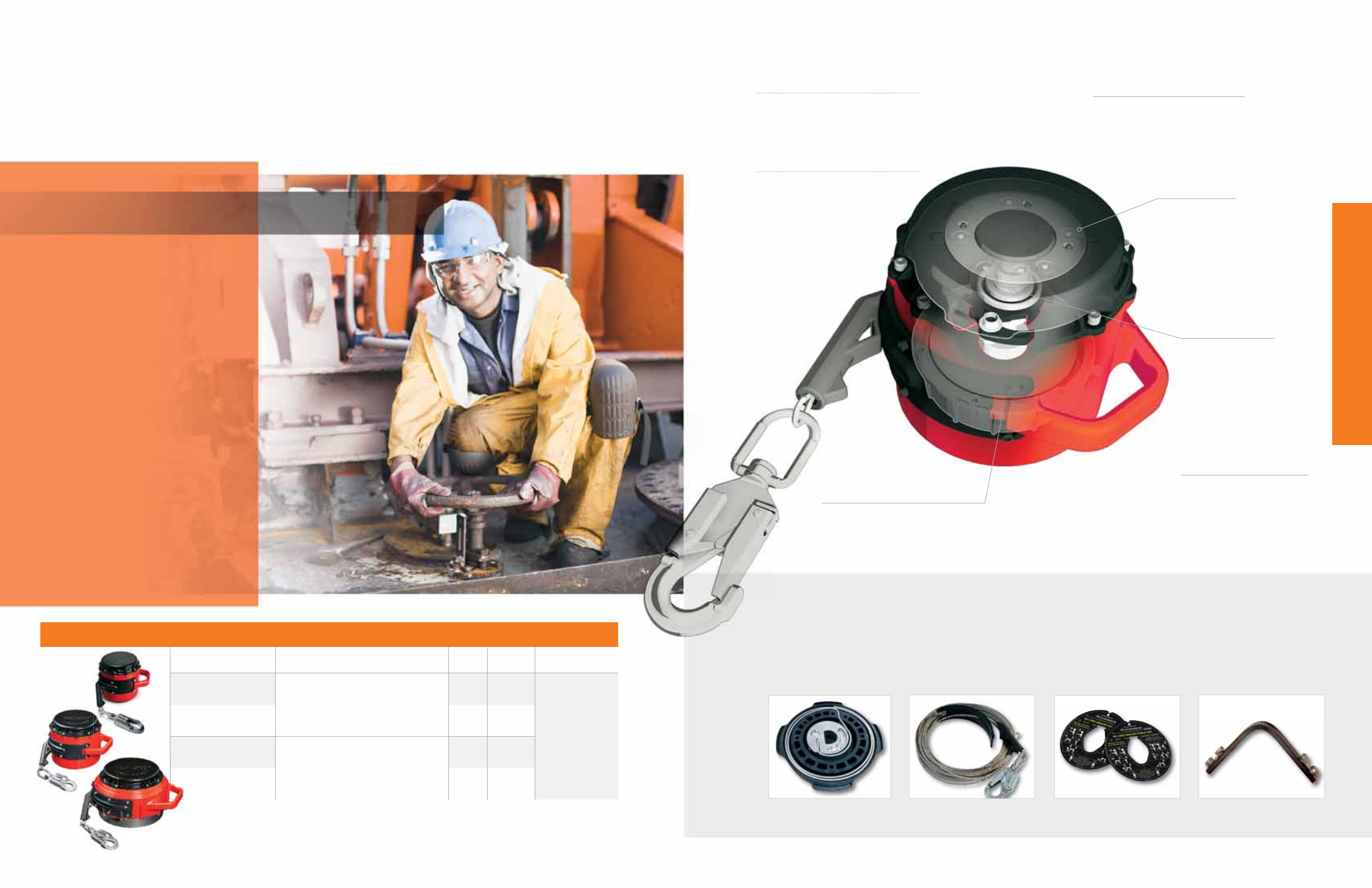

SEALED RELOAD™
The premium 3M
self-retracting lanyard
• Designed for use in corrosive
environments, including marine,
mining, oil, gas and steel mills.
• Available with stainless steel
cable ranging from 30 feet
up to 130 feet.
• Ingress
protection
rating: IP69K.
RLD SERIES
The mid-range cable 3M
self-retracting lanyard
• Economically suited for most
work environments.
• Available with galvanized
steel cable ranging from
10 feet to 50 feet.
• Polymer housing helps to
provide a lighter-weight
option.
MS SERIES
The mid-range web 3M
self-retracting lanyard
• For use in general-purpose work
environments and in environments
that may be sensitive to contact with
traditional steel cable lanyards.
• Strong-performing web retractable
available in 7 feet up to 50 feet.
• Dyneema® webbing for
increased durability.
M SERIES
The mid-range cable 3M
self-retracting lanyard
• Ideal for use in general-
purpose work environments.
• Available with 15 feet of
galvanized steel cable.
• Aluminum housing and
galvanized steel cable lifeline
provides increased durability.
SRL ACCESSORY:
DL-7 DUAL-LEG
ADAPTER
Lightweight adapter connects two self-
retracting lanyards directly to back D-ring
of harness, allowing for 100% tie-off.
LANYARDS | SEALED RELOAD™ SELF-RETRACTING
PRODUCT NUMBER DESCRIPTION LENGTH WEIGHT
OF UNIT STANDARD
SREC-30-SS Sealed ReLoad SRL features aluminum housing,
Grade 316 stainless steel lifeline with indicating
stainless steel swivel snap hook and a 310 lb.
weight rating.
30 ft. 21.4 lbs.
ANSI Z359.14-2012,
CSA Z259.2.2-98
SREC-50-SS 50 ft. 27.7 lbs.
SREC-85-SS Sealed ReLoad SRL features aluminum, stainless
steel housing, Grade 316 stainless steel lifeline
with indicating stainless steel swivel snap hook and
a 310 lb. weight rating.
85 ft. 48.3 lbs.
SREC-130-SS 130 ft. 62 lbs.
SREC-30-SS
SREC-130-SS
SREC-50-SS
SRE
S
RE
C
-1
30
-
SS
SELF-RETRACTING LANYARDS
46 47
3M™ Fall Protection Catalog | 3M.com/FallProtection |
PROTECTIVE SEAL
Critical components are sealed from the
external environment by a series of rubber
gaskets, providing improved resistance to
corrosion. The protective seal provides an
IP rating of IP 69K, which is the highest
rating on the ingress protection scale.
With years of fall protection experience,
3M has developed the Sealed ReLoad™
self- retracting lanyard (SRL) — a completely
fi eld serviceable sealed SRL. The Sealed
ReLoad™ SRL range offers a dependable
means of fall protection and has been
specifi cally designed for use in harsh
environments such as steel mills, oil rigs,
wind turbines and other applications, enabling
an unhindered, hands-free fall protection
solution. Utilizing modern engineering and
innovative design, it’s one of the most
advanced, reliable and cost-effective SRLs
available on the market today.
SEALED RELOAD™ | PREMIUM SELF-RETRACTING LANYARD |
Smart. Safe. Strong.
Fit for a purpose.
COMPLETELY FIELD SERVICEABLE*
The 3M™ Sealed ReLoad™ SRL allows for common repairs to be performed on site by a trained technician. Should a fall occur, the modular
design makes it easy for individual components to be removed and replaced in the fi eld within minutes — allowing quick and easy servicing
of not only the cable, but also the absorber. The Sealed ReLoad™ SRL reduces costs incurred during product maintenance, including labor,
shipping and product downtime. 3M can provide training that will enable personnel to inspect and maintain Sealed ReLoad™ SRL units on
site. Contact your 3M Representative for more information. A selection of replacement component parts is shown below.
100% FULL CONTACT
LOCKING MECHANISM
The Full Contact™ pawl locking
mechanism provides 100%
reliable locking pawls that won’t
freeze, hang up or corrode.
ACCELERATED CORROSION TESTING
Accelerated corrosion testing has been performed that
simulates real life corrosion in a controlled environment for
2000 hours. This is a recognized representative period of
10 years “real life” use of the Sealed ReLoad™ SRL.
MEETS OR EXCEEDS GLOBAL
INDUSTRY STANDARDS AND OSHA
REGULATORY REQUIREMENTS
• ANSI Z359.14-2012
• OSHA 1910.66
• OSHA 1926.502
• CSA Z259.2.2-98
• IP 69K
FRICTIONLESS BRAKING MECHANISM
This braking mechanism has no moving parts and will not go out of
adjustment or require recalibration for the lifespan of the product.
* Must be repaired by a certifi ed repair person.
REPLACEMENT
ABSORBER KIT
REPLACEMENT STAINLESS
STEEL CABLE KIT
REPLACEMENT
LABELS
ATTACHMENT
POINT
SREC-30-SS
Sealed ReLoad™ Self-Retracting Lanyard
This premium fall protection self-retracting
lanyard is a 30 foot stainless steel 316 cable
lifeline with aluminum housing and indicating
stainless steel swivel snap hook. Designed for
durable performance in harsh work environments.
SELF-RETRACTING LANYARDS
LANYARDS | RELOAD SELF-RETRACTING
PRODUCT
NUMBER DESCRIPTION LENGTH WEIGHT
OF UNIT
HOUSING
HARDWARE
REW-7 ReLoad SRL features aluminum housing, web lifeline with
snap hook and a 310 lbs. weight rating. 7 ft. 3.4 lbs. Carabiner
DLREW-7 Dual-leg ReLoad SRL features aluminum housing, web lifeline
with snap hooks and a 310 lbs. weight rating. 7 ft. 6.5 lbs. DL-7 Dual-leg
Retractable Adapter
REW-7-0241A* ReLoad SRL features aluminum housing, web lifeline with
aluminum rebar hook and a 310 lbs. weight rating. 7 ft. 3.8 lbs. Carabiner
DLREW-7-0241A* Dual-leg ReLoad SRL features aluminum housing, web lifeline
with aluminum rebar hooks and a 310 lbs. weight rating. 7 ft. 7.5 lbs.
DL-7 Dual-leg
Retractable Adapter
with Carabiner
REW-12 ReLoad SRL features high-impact-modifi ed nylon housing,
web lifeline with snap hook and a 310 lbs. weight rating. 12 ft. 5.3 lbs. Swivel-Top Carabiner
REW-23 ReLoad SRL features high-impact-modifi ed nylon housing,
web lifeline with snap hook and a 310 lbs. weight rating. 23 ft. 9.6 lbs. Swivel-Top Carabiner
REC-23
ReLoad SRL features high-impact-modifi ed nylon housing,
galvanized cable lifeline with indicating steel swivel snap hook
and a 400 lbs. weight rating.
23 ft. 11.5 lbs. Carabiner
REC-30 30 ft. 13.3 lbs. Carabiner
REC-40 40 ft. 16.0 lbs. Carabiner
REC-50 50 ft. 16.6 lbs. Carabiner
REC-23-SS
ReLoad SRL features high-impact-modifi ed nylon housing,
Grade 316 stainless steel cable lifeline with indicating
stainless steel swivel snap hook and a 400 lbs. weight rating.
23 ft. 11.4 lbs. Carabiner
REC-30-SS 30 ft. 13.2 lbs. Carabiner
REC-40-SS 40 ft. 15.8 lbs. Carabiner
REC-50-SS 50 ft. 16.4 lbs. Carabiner
RELOAD™ | PREMIUM SELF-RETRACTING LANYARD |
3M has combined innovative engineering, superior
materials and futuristic design with quick and easy
recertifi cation to provide the most advanced range
of self-retracting lanyards (SRLs) on the market.
The ReLoad™ SRL has been developed with a
number of unique features to provide a smarter,
safer and stronger alternative to traditional SRLs.
RELOAD™ SELF-RETRACTING
LANYARD FEATURES
PATENTED FRICTIONLESS BRAKING SYSTEM
• A frictionless braking system with no moving
parts to go out of adjustment
• Individual components can be removed and
replaced in minutes due to modular design.
Repairs to be performed on site by a
trained technician.
• Components need only visual inspection,
not mechanical testing
100% RELIABLE LOCKING MECHANISM
• Constantly moving, the 100% reliable Full Contact™
locking mechanism “clicks” to reassure the user it’s
functioning correctly
• Cannot freeze, hang up or corrode
• No wet lubrication to attract dirt and debris
• Stainless steel components unaffected by
water, contaminants, temperature and time
Easy to service,
even in the fi eld.
IMPACT-RESISTANT CASING
The ReLoad™ self-retracting lanyard
range is encased in an impact-modifi ed
nylon housing, which is designed to
help to protect the chassis inside.
This acts purely as armor — no critical
components form part of the casing,
meaning that even in the event of severe
damage, it can be easily replaced.
MEETS GLOBAL INDUSTRY STANDARDS
• ANSI Z359.14 • OSHA 1910.66
• OSHA 1926.502 • CSA Z259.2.2-98
COMPLETELY FIELD SERVICEABLE
Wherever the ReLoad™ SRL is in service, full inspection can be undertaken quickly and
easily, enabling complete fi eld serviceability, performed on site by a trained technician —
a totally unique range in the market. The entire range has been developed in a modular
fashion to enable simple key component replacement, so parts can be replaced in a
matter of minutes and the unit doesn’t require costly “return to factory” servicing
(service charge, labor and downtime). Replacement components available through
your 3M Representative include (but are not limited to):
• Cable Assembly • Energy Absorber • Labels • Cases
Constant Force
®
Energy Absorbing Coil
can be replaced in minutes.
REW-7
Premium Self-Retracting Lanyard
This self-retracting lanyard has a 7 foot
Vectran™ web lifeline with aluminum housing
and snap hook. Designed for general-
purpose use and/or in environments that
may be sensitive to contact with traditional
steel cable lanyards.
REC-23
Premium Self-Retracting Lanyard
This premium fall protection self-retracting
lanyard is a 23 foot galvanized cable lifeline
with impact-modifi ed nylon housing and an
indicating swivel snap hook. Designed for
durable performance in both light and heavy
industrial environments.
REW-7
REW-12
REC-23
DLREW-7
48 49
3M™ Fall Protection Catalog | 3M.com/FallProtection |
CORE ITEM Our best selling equipment — in stock and in demand.
*Available late April 2014
SELF-RETRACTING LANYARDS
50 51
3M™ Fall Protection Catalog | 3M.com/FallProtection |

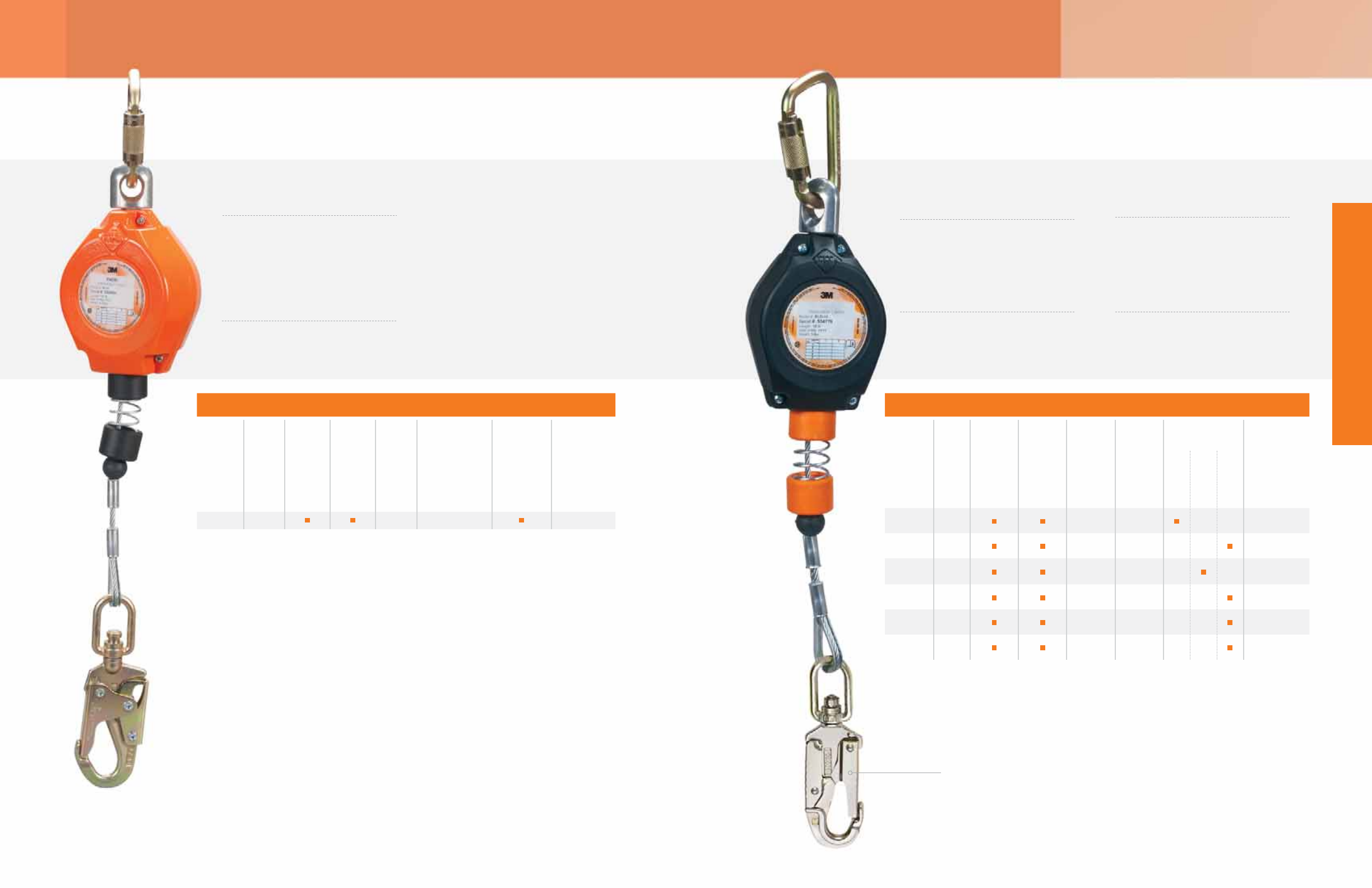

LANYARDS | M SERIES SELF-RETRACTING
PRODUCT
NUMBER
LENGTH LIFELINE
MATERIAL
HOUSING
TYPE
WEIGHT
OF UNIT
HOUSING
HARDWARE
LIFELINE
HARDWARE
WEIGHT RATING
GALVANIZED CABLE
ALUMINUM
SWIVEL HOOK
M-15 15 ft. 6.3 lbs. Swivel-Top Carabiner 310 lbs.
The RLD Series of self-retracting lanyards offers an economical option
suitable for most work environments. Available with galvanized steel cable
ranging in length from 10 feet to 50 feet, with polymer housing.
RLD SERIES
RLD-10S
RLD SERIES | MID-RANGE CABLE SELF-RETRACTING LANYARDS |
M SERIES | MID-RANGE CABLE SELF-RETRACTING LANYARDS |
RLD-30
Self-Retracting Lanyard
This mid-range fall protection self-retracting
lanyard is a 30 foot galvanized cable lifeline
with polymer housing and a swivel snap
hook. Designed for durable performance in
both light and heavy industrial environments.
RLD-10S
Self-Retracting Lanyard
This mid-range fall protection self-retracting
lanyard is a 10 foot galvanized cable lifeline
with polymer housing and a swivel snap
hook. Designed for durable performance in
both light and heavy industrial environments.
M-15
Self-Retracting Lanyard
This mid-range fall protection self-
retracting lanyard is a 15 foot galvanized
cable lifeline with aluminum housing and
a swivel snap hook. Designed for durable
performance in both light and heavy
industrial environments.
The M Series of self-retracting lanyards offers an economical option suitable for
most general-purpose work environments. Available with a galvanized steel cable
lifeline and aluminum housing, providing increased durability.
LANYARDS | RLD SELF-RETRACTING
PRODUCT
NUMBER
LENGTH LIFELINE
MATERIAL
HOUSING
TYPE
WEIGHT
OF UNIT
HOUSING
HARDWARE
LIFELINE
HARDWARE
WEIGHT RATING
GALVANIZED CABLE
POLYMER
SNAP HOOK
REBAR HOOK
SWIVEL HOOK
RLD-10 10 ft. 4.9 lbs. Swivel-Top
Carabiner
310 lbs.
RLD-10S 10 ft. 5.1 lbs. Swivel-Top
Carabiner
310 lbs.
RLD-10-
0241
10 ft. 5.6 lbs. Swivel-Top
Carabiner
310 lbs.
RLD-20 20 ft. 7.1 lbs. Swivel-Top
Carabiner
310 lbs.
RLD-30 30 ft. 8.5 lbs. Swivel-Top
Carabiner
310 lbs.
RLD-50 50 ft. 15 lbs. Swivel-Top
Carabiner
310 lbs.
CORE ITEM Our best selling equipment — in stock and in demand.
Meets requirements of ANSI Z359.1-07 standards and CSA Z259.2.2-98
Meets requirements of ANSI Z359.1-07 standards and CSA Z259.2.2-98
CORE ITEM Our best selling equipment — in stock and in demand.
SELF-RETRACTING LANYARDS
52 53
3M™ Fall Protection Catalog | 3M.com/FallProtection |

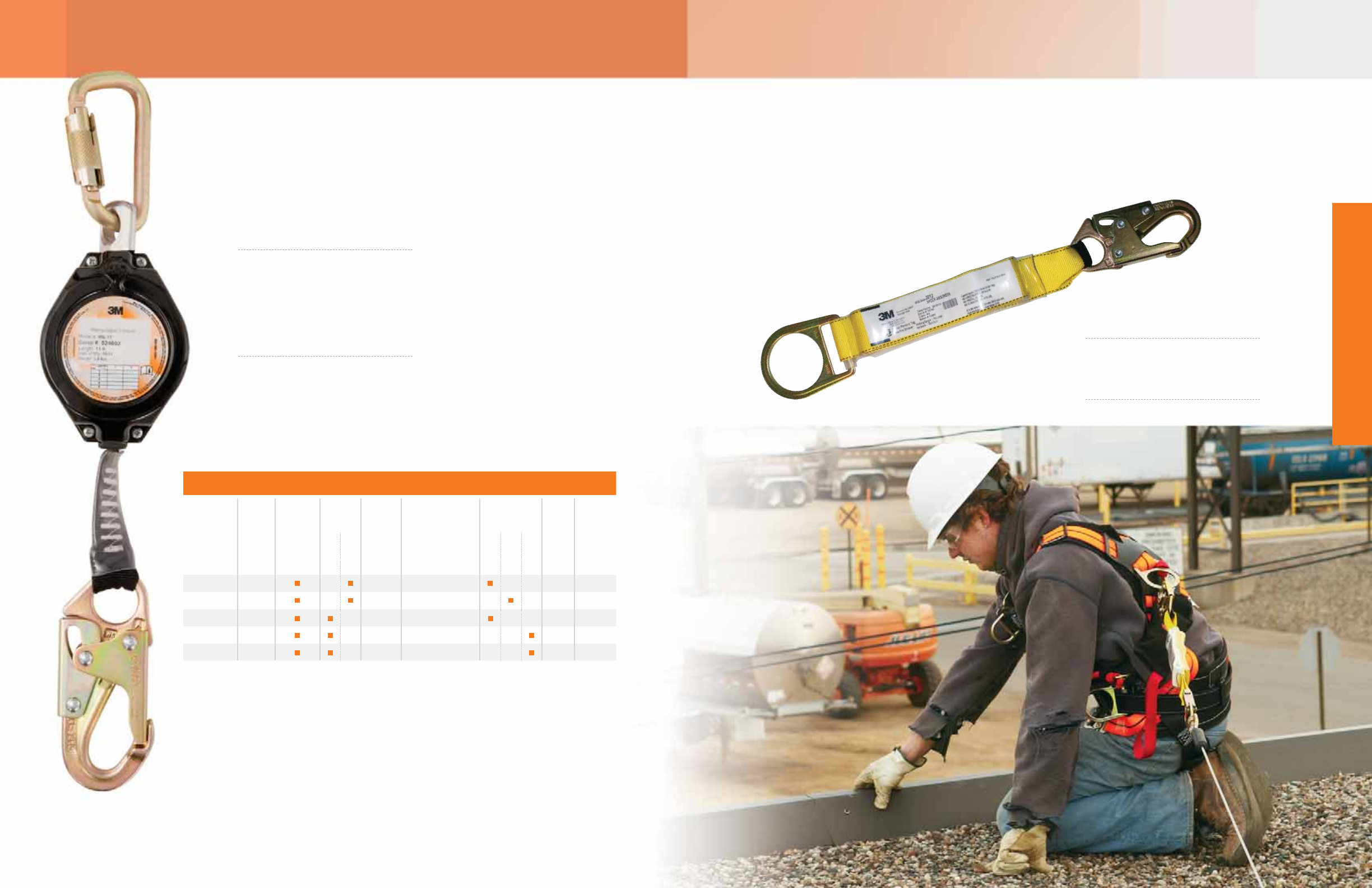

A popular choice, this 3M self-retracting lanyard is a strong-performing web retractable.
The aluminum housing offers durability and helps ensure the product is lightweight for
the wearer. Features Dyneema® webbing for increased durability.
The use of the personal energy absorber is required in leading-edge applications. A personal energy absorber must be placed inline
with a self-retracting lanyard to add energy absorption properties at the body end of the system. Reference the Self-Retracting
Lanyard User Instruction Manual for additional information on leading edge applications. See page 65 for additional personal
energy absorber options.
MS-11
Self-Retracting Lanyard
This mid-range fall protection self-retracting
lanyard is an 11 foot Dyneema® web lifeline
with aluminum housing and a snap hook.
Designed for general-purpose use and/or
for environments that may be sensitive to
contact with traditional steel cable.
3012
Personal Energy Absorber
This fall protection personal energy
absorber is 18 inches and includes a
snap hook and D-ring.
MS SERIES | MID-RANGE WEB SELF-RETRACTING LANYARDS |
LANYARDS | MS SERIES SELF-RETRACTING
PRODUCT
NUMBER
LENGTH LIFELINE
MATERIAL
HOUSING
TYPE
WEIGHT
OF UNIT
HOUSING
HARDWARE
LIFELINE
HARDWARE
DUAL-
LEG
WEIGHT
RATING
WEB
POLYMER
ALUMINUM
SNAP HOOK
REBAR HOOK
SWIVEL HOOK
MS-11 11 ft. 4.4 lbs. Swivel-Top Carabiner 310 lbs.
MS-11/0241 11 ft. 5.1 lbs. Swivel-Top Carabiner 310 lbs.
MS-16 16 ft. 4.5 lbs. Swivel-Top Carabiner 310 lbs.
MS-30 30 ft. 6.5 lbs. Swivel-Top Carabiner 310 lbs.
MS-50 50 ft. 12.5 lbs. Swivel-Top Carabiner 310 lbs.
Meets requirements of ANSI Z359.1-07 standards and CSA Z259.2.2-98
Leading-Edge Applications
CORE ITEM Our best selling equipment — in stock and in demand.
54 55
3M™ Fall Protection Catalog | 3M.com/FallProtection |

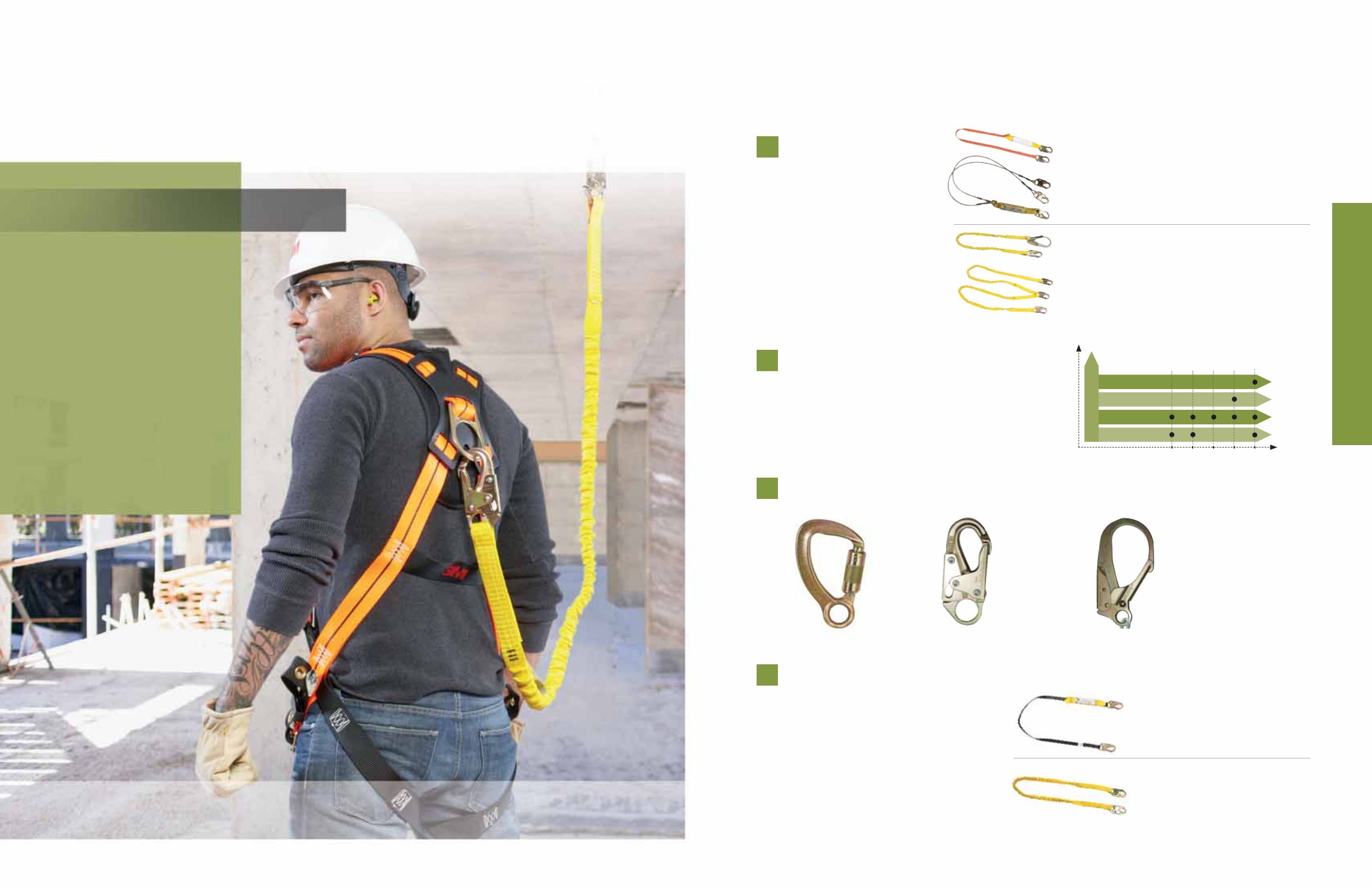

ENERGY-ABSORBING LANYARDS
A stronger connection,
to give you greater performance.
When working at height, your confi dence
in the strength, durability and construction
of your fall arrest lanyard are at the
forefront of 3M’s mission. We offer a
wide range of energy-absorbing lanyards
designed to meet a variety of industry
applications. These products have been
developed and tested to meet many fall
protection performance standards as
well as your own expectations.
HOW DO ENERGY ABSORBERS DIFFER IN LANYARD CHOICES?
OSHA 29 CFR 1910.66 Appendix C Section I (d)(1)
and 1926.502(d)(16)state that personal arrest
systems, when stopping a fall, shall: limit maximum
arresting force on an employee to 1,800 lbs.
(8 kN) when used with a body harness.
Many 3M lanyards keep forces below 900 lbs.
(4 kN), and all 3M lanyards keep forces below
1,800 lbs. (8 kN). External or integrated styles
are available, depending on preference.
EXTERNAL | Tearweb is packed in
a PVC sleeve and tears out during a
fall arrest. External energy absorber
attaches to back D-ring of harness.
INTEGRATED | Energy absorber is
incorporated throughout the length of
the lanyard in a low profi le (tubular)
design. Available in expandable or
non-expandable options.
CONSIDERATIONS FOR CHOOSING AN ENERGY-ABSORBING LANYARD:
Your comfort, budget, and specifi c work environment needs are of utmost importance.
REBAR HOOK
for use when climbing
and/or on rebar
SNAP HOOK
for connecting to back
D-ring of harness or
anchorage connector
TIE-BACK CARABINER
CONNECTORS AND HOOKS
LANYARD HARDWARE
3
4
COST vs. LENGTH AND MATERIAL
Choose from a wide range of our competitively-priced options
to fi t your budget requirements. Available in 3 feet, 4 feet, 5 feet,
4 feet–6 feet or 6 feet adjustable or expandable options,
depending on range of movement needed.
2
WORK ENVIRONMENT
When choosing a lanyard,
it’s important to consider
the conditions of your work
environment. From harsh marine
and mining to oil and gas to
general purpose, getting the best
use out of a lanyard depends on
understanding where —
and how — it will be used.
Which lanyard is best for my work site?
WEB | General-purpose environments — from use inside
to use in harsh environmental elements.
CABLE | Extremely harsh environments — offers extra
durability and is ideal for abrasive or high-heat situations.
Should I choose a single- or dual-leg lanyard?
SINGLE-LEG | helps provide high strength fall
protection that limits the force of a fall arrest.
DUAL-LEG | offers protective connection as worker
moves from one anchor point to the next for 100% tie-off.
1
Specialty
SafeAbsorb Xtra
SafeAbsorb
SafeLight
$$$
$$$
$ LENGTH (ft.)
COST
43 5 4–6 6
FEATURES
ENERGY-ABSORBING LANYARDS
LANYARDS | PREMIUM SAFEABSORB XTRA-EXPANDABLE
PRODUCT
NUMBER
LENGTH ENERGY
ABSORBER
CONNECTORS D-RING
EXTENDER
STYLE WEIGHT RATING
INTEGRATED SNAP HOOK REBAR HOOK SINGLE-LEG DUAL-LEG
4712-6 4 ft.–6 ft. 2 310 lbs.
4712-6/0241 4 ft.–6 ft. 11 310 lbs.
4750 4 ft.–6 ft. 3 310 lbs.
4750/0241 4 ft.–6 ft. 12 310 lbs.
4750/0241E 4 ft.–6 ft. 12 310 lbs.
56 57
3M™ Fall Protection Catalog | 3M.com/FallProtection |
ENERGY-ABSORBING LANYARDS
These expandable lanyards have integrated energy absorption and stretch from 4 feet to 6 feet to help reduce trip hazards.
Available with snap hooks and/or rebar hooks, allowing for a variety of attachment options. Meets the requirements of ANSI Z359.1-2007
standard. 3,600 lbs. gate rated hardware.
4750/0241
SafeAbsorb Xtra-Expandable
Energy-Absorbing Dual-Leg Lanyard
This premium expandable dual-leg
lanyard stretches from 4 feet to 6 feet
to help reduce trip hazards. Comes
with one snap hook, two rebar hooks
and integrated energy absorption.
Designed for general-purpose work
environments. Dual-leg style allows for
100% tie-off.
4750
SafeAbsorb Xtra-Expandable
Energy-Absorbing Dual-Leg Lanyard
This premium expandable dual-leg
lanyard stretches from 4 feet to 6 feet
to help reduce trip hazards. Comes with
three snap hooks and integrated energy
absorption. Designed for general-
purpose work environments. Dual-leg
style allows for 100% tie-off.
4712-6
SafeAbsorb Xtra-Expandable
Energy-Absorbing Lanyard
This premium expandable lanyard
stretches from 4 feet to 6 feet to help
reduce trip hazards. Comes with two
snap hooks and integrated energy
absorption. Designed for general-
purpose work environments.
4712-6/0241
SafeAbsorb Xtra-Expandable
Energy-Absorbing Lanyard
This premium expandable lanyard
stretches from 4 feet to 6 feet to
help reduce trip hazards. Comes with
one snap hook, one rebar hook and
integrated energy absorption. Designed
for general-purpose work environments.
SAFEABSORB
XTRA-EXPANDABLE | PREMIUM ENERGY-ABSORBING LANYARDS |
CORE ITEM Our best selling equipment — in stock and in demand.
4750/0241E
SafeAbsorb Xtra-Expandable
Energy-Absorbing Dual-Leg
Lanyard with D-Ring Extender
This expandable dual-leg lanyard
stretches from 4 feet to 6 feet to
help reduce trip hazards. Comes with
one snap hook, two rebar hooks, a
D-ring extender and integrated energy
absorption. Designed for general-
purpose work environments. Dual-leg
style allows for 100% tie-off.
LANYARDS | MID-RANGE CABLE SAFEABSORB
PRODUCT NUMBER LENGTH ENERGY ABSORBER CONNECTORS STYLE WEIGHT RATING
EXTERNAL SNAP HOOK REBAR HOOK SINGLE-LEG DUAL-LEG
3612 6 ft. 2 310 lbs.
3612-0241 6 ft. 11 310 lbs.
3612-D 6 ft. 3 310 lbs.
3612-D-0241 6 ft. 12 310 lbs.
LANYARDS | MID-RANGE WEB SAFEABSORB
PRODUCT NUMBER LENGTH ENERGY ABSORBER CONNECTORS STYLE WEIGHT RATING
EXTERNAL SNAP HOOK REBAR HOOK SINGLE-LEG DUAL-LEG
3251 4 ft.–6 ft. 2 310 lbs.
3251-0241 4 ft.–6 ft. 11 310 lbs.
3251-D 4 ft.–6 ft. 3 310 lbs.
3251-D-0241 4 ft.–6 ft. 12 310 lbs.
3510 3 ft. 2 310 lbs.
3510-0241CC 3 ft. 11 310 lbs.
3511 4 ft. 2 310 lbs.
3511-0241 4 ft. 11 310 lbs.
3512 6 ft. 2 310 lbs.
3512-0241 6 ft. 11 310 lbs.
3550 6 ft. 3 310 lbs.
3550-0241 6 ft. 12 310 lbs.
3550-4 4 ft. 3 310 lbs.
3550-4-0241 4 ft. 12 310 lbs.
LANYARDS | MID-RANGE ROPE SAFEABSORB
PRODUCT NUMBER LENGTH ENERGY ABSORBER CONNECTORS STYLE WEIGHT RATING
EXTERNAL SNAP HOOK REBAR HOOK SINGLE-LEG DUAL-LEG
3450-5-0240 5 ft. 12 310 lbs.
58 59
3M™ Fall Protection Catalog | 3M.com/FallProtection |
ENERGY-ABSORBING LANYARDS

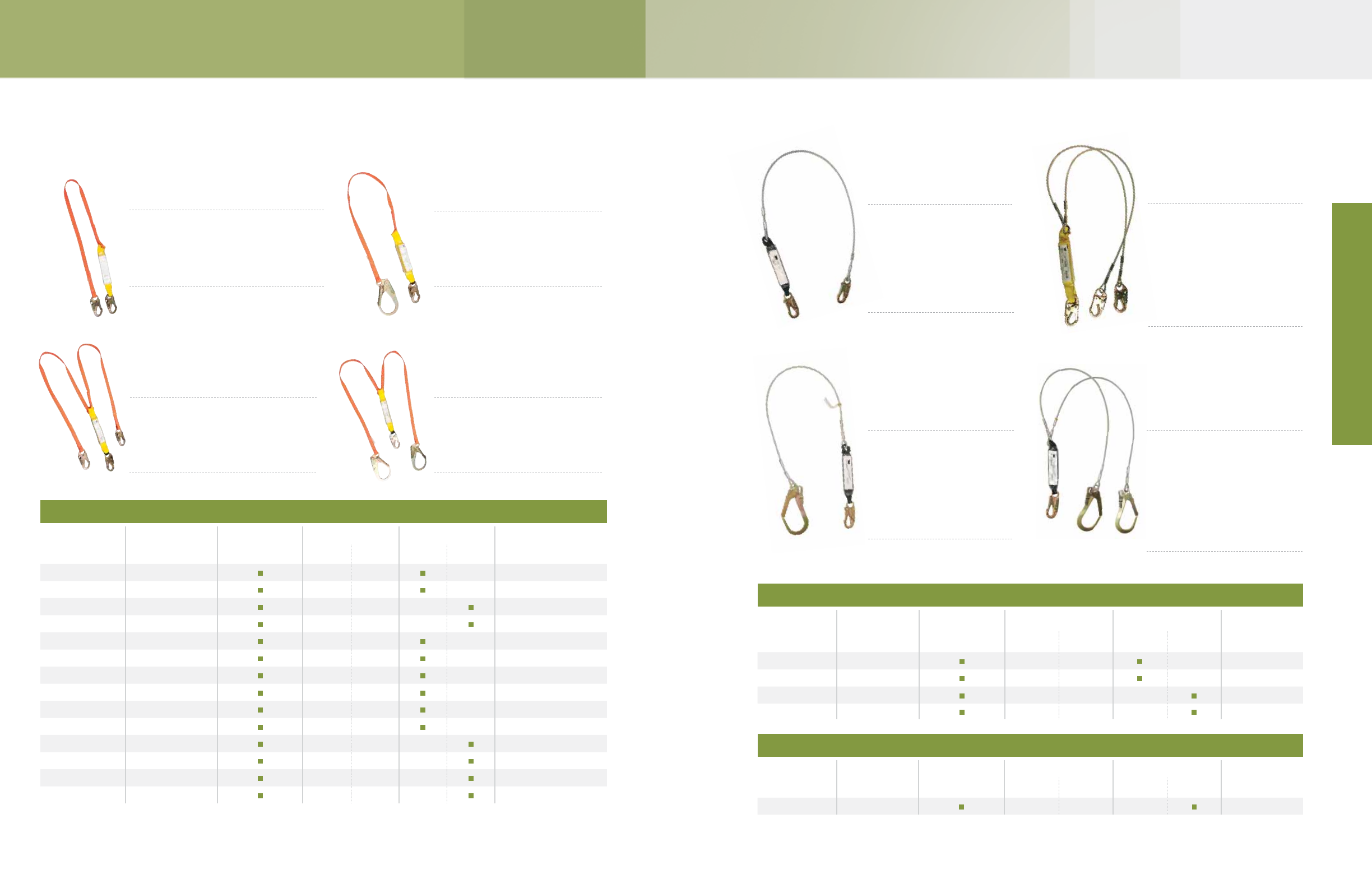

3550
SafeAbsorb Energy-Absorbing
Dual-Leg Lanyard
This mid-range 6 foot dual-leg lanyard comes with
three snap hooks and an external energy absorber.
Designed for general-purpose work environments.
Dual-leg style allows for 100% tie-off.
3512
SafeAbsorb Energy-Absorbing Lanyard
This mid-range 6 foot lanyard comes with
two snap hooks and an external energy
absorber. Designed for general-purpose
work environments.
3550-0241
SafeAbsorb Energy-Absorbing
Dual-Leg Lanyard
This mid-range 6 foot dual-leg lanyard
comes with one snap hook, two rebar hooks
and an external energy absorber. Dual-leg
style allows for 100% tie-off.
3512-0241
SafeAbsorb Energy-Absorbing Lanyard
This mid-range 6 foot lanyard comes
with one snap hook, one rebar hook and
an external energy absorber. Designed for
general-purpose work environments.
The SafeAbsorb lanyards include 6 foot web and cable offerings with external energy absorbers that meet ANSI Z359.13-2009 standards.
Available with snap hooks and/or rebar hooks, allowing for a variety of attachment options. 3,600 lbs. gate rated hardware.
WEB
SAFEABSORB | MID-RANGE ENERGY-ABSORBING LANYARDS |
CABLE
3612
SafeAbsorb Energy-Absorbing
Cable Lanyard
This mid-range 6 foot cable lanyard
comes with two snap hooks and an
external energy absorber. Designed
for extra durability and is ideal
for abrasive, high-heat or harsh
environments.
3612-0241
SafeAbsorb Energy-Absorbing
Cable Lanyard
This mid-range 6 foot cable lanyard
comes with one snap hook, one
rebar hook and an external energy
absorber. Designed for extra
durability and ideal for abrasive,
high-heat or harsh environments.
3612-D-0241
SafeAbsorb Energy-Absorbing
Dual-Leg Cable Lanyard
This mid-range 6 foot cable dual-leg
lanyard comes with one snap hook,
two rebar hooks and an external
energy absorber. Designed for extra
durability and ideal for abrasive,
high-heat or harsh environments.
Dual-leg style allows for 100% tie-off.
3612-D
SafeAbsorb Energy-Absorbing
Dual-Leg Cable Lanyard
This mid-range 6 foot cable dual-leg
lanyard comes with three snap hooks
and an external energy absorber.
Designed for extra durability and ideal
for abrasive, high-heat or harsh
environments. Dual-leg style allows
for 100% tie-off.
CORE ITEM Our best selling equipment — in stock and in demand.
LANYARDS | ENTRY-LEVEL EXTERNAL SAFELIGHT
PRODUCT NUMBER LENGTH ENERGY ABSORBER CONNECTORS STYLE WEIGHT RATING
EXTERNAL SNAP HOOK REBAR HOOK ROPE GRAB SINGLE-LEG DUAL-LEG
209510 3 ft. 2 310 lbs.
209511 4 ft. 2 310 lbs.
209511-0241 4 ft. 11 310 lbs.
209512 6 ft. 2 310 lbs.
209512-0241 6 ft. 11 310 lbs.
209550 6 ft. 3 310 lbs.
209550-0241 6 ft. 12 310 lbs.
209550-4 4 ft. 3 310 lbs.
209550-4-0241 4 ft. 12 310 lbs.
LANYARDS | ENTRY-LEVEL INTEGRATED SAFELIGHT
PRODUCT NUMBER LENGTH ENERGY ABSORBER CONNECTORS STYLE WEIGHT RATING
INTEGRATED SNAP HOOK REBAR HOOK SINGLE-LEG DUAL-LEG
209711 4 ft. 2 310 lbs.
209711-0241 4 ft. 11 310 lbs.
209712 6 ft. 2 310 lbs.
209712-0241 6 ft. 11 310 lbs.
209750 6 ft. 3 310 lbs.
209750-0241 6 ft. 12 310 lbs.
209750-4 4 ft. 3 310 lbs.
209750-4-0241 4 ft. 12 310 lbs.
60 61
3M™ Fall Protection Catalog | 3M.com/FallProtection |
ENERGY-ABSORBING LANYARDS
209712
SafeLight Energy-Absorbing Lanyard
This entry-level 6-foot low-profi le (tubular)
lanyard comes with two snap hooks and
integrated energy absorption. Designed
for general-purpose work environments.
209712-0241
SafeLight Energy-Absorbing
Dual-Leg Lanyard
This entry-level 6-foot low-profi le (tubular)
lanyard comes with one snap hook,
one rebar hook and integrated energy
absorption. Designed for general-purpose
work environments.
209750
SafeLight Energy-Absorbing
Dual-Leg Lanyard
This entry-level 6-foot low-profi le (tubular)
lanyard comes with three snap hooks and
integrated energy absorption. Designed
for general-purpose work environments.
Dual-leg style allows for 100% tie-off.
SAFELIGHT | ENTRY-LEVEL ENERGY-ABSORBING LANYARDS |
EXTERNAL ENERGY ABSORBER
209750-0241
SafeLight Low-Profi le Energy-Absorbing
Dual-Leg Lanyard
This entry-level 6-foot low-profi le (tubular)
lanyard comes with one snap hook,
two rebar hooks and integrated energy
absorption. Designed for general-purpose
work environments. Dual-leg style allows for
100% tie-off.
INTEGRATED ENERGY ABSORBER
Our economy lanyard is available with an external energy absorber or integrated energy absorber. Choose from 3 foot, 4 foot, or 6 foot lengths
and single-leg or dual-leg options. Available with snap hooks and/or rebar hooks, allowing for a variety of attachment options. Meets the
requirements of ANSI Z359.1-2007 standard. 3,600 lbs. gate rated hardware.
209550
SafeLight Energy-Absorbing
Dual-Leg Lanyard
This entry-level 6-foot low-profi le
(tubular) lanyard comes with three
snap hooks and an external energy
absorption. Designed for general-
purpose work environments.
Dual-leg style allows for 100% tie-off.
209512
SafeLight Energy-Absorbing Lanyard
This entry-level 6 foot lanyard comes
with two snap hooks and an external
energy absorber. Designed for general-
purpose work environments.
209550-0241
SafeLight Energy-Absorbing
Dual-Leg Lanyard
This entry-level 6-foot dual-leg lanyard
comes with two rebar hooks, one snap
hook and an external energy absorber.
Designed for general-purpose work
environments. Dual-leg style allows for
100% tie-off.
209512-0241
SafeLight Energy-Absorbing Lanyard
This entry-level 6 foot lanyard comes with
one snap hook, one rebar hook and an
external energy absorber. Designed for
general-purpose work environments.
CORE ITEM Our best selling equipment — in stock and in demand.
62 63
3M™ Fall Protection Catalog | 3M.com/FallProtection |
ENERGY-ABSORBING LANYARDS
3520
Saturn High-Heat
Energy-Absorbing Lanyard
This 6 foot lanyard is specifi cally
designed for high-heat applications
to provide char resistance up to
700°F. Comes with two snap hooks
and an external energy absorber.
SPECIALTY | ENERGY-ABSORBING LANYARDS |
3531
Saturn High-Heat
Energy- Absorbing Lanyard
This 6 foot lanyard is specifi cally
designed for high-heat applications to
provide char resistance up to 700°F.
Comes with one snap hook, one rebar
hook and an external energy absorber.
3531-D
Saturn High-Heat
Energy-Absorbing Dual-Leg Lanyard
This 6 foot dual-leg lanyard is
specifi cally designed for high-heat
applications to provide char resistance
up to 700°F. Comes with one snap hook,
two rebar hooks and an external energy
absorber. Dual-leg style allows for
100% tie-off.
3520-D
Saturn High-Heat Energy-Absorbing
Dual-Leg Lanyard
This 6 foot dual-leg lanyard is
specifi cally designed for high-heat
applications to provide char resistance
up to 700°F. Comes with three snap
hooks and an external energy absorber.
Dual-leg style allows for 100% tie-off.
Because no two work environments are exactly the same, 3M offers a variety of unique specialty lanyards designed to suit your specifi c
needs. With a variety of options offering the same quality protection and construction, the choice is yours.
Tie-back lanyards offer a two-in-one solution by combining your lanyard and anchorage connector into one superior-quality, high-strength
fall arrest unit. Tie-backs not only reduce inventory and cost, they offer greater versatility while still meeting industry safety requirements.
Meets requirements of ANSI Z359.13-2009 standard.
The Saturn lanyard is specifi cally constructed to provide char resistance. Use with the Saturn harness for high-heat applications. Uniquely
designed Nomex® and polyester web resists spatter up to 700°F. Saturn High-Heat Energy-Absorbing Lanyards 3520 and 3520-D meet
requirements of ANSI Z359.13-2009 standard.
3812
Tie-Back Energy-Absorbing Lanyard
This is a 6 foot lanyard with one
snap hook, one tie-back hook, an
external energy absorber and integral
anchoring capabilities. Designed for
general-purpose work environments.
5,000 lbs. rated hardware.
3560
Tie-Back Energy-Absorbing
Dual-Leg Lanyard
This is a 6 foot dual-leg lanyard with
three snap hooks, an external energy
absorber and integral anchoring
capabilities. Designed for general-
purpose work environments. Dual-leg
style allows 100% tie-off. 3,600 lbs.
gate rated hardware.
3813
Tie-Back Energy-Absorbing
Dual-Leg Lanyard
This is a 6 foot dual-leg lanyard with one
snap hook, two tie-back hooks, an external
energy absorber and integral anchoring
capabilities. Designed for general-purpose
work environments. Dual-leg style
allows for 100% tie-off. 5,000 lbs. rated
hardware.
TIE-BACK
[ANCHOR/LANYARD COMBO]
3561
Tie-Back Energy-Absorbing
Dual-Leg Lanyard
This is a 6 foot lanyard that comes with
two snap hooks, an external energy absorber,
and integral anchoring capabilities.
Designed for general-purpose work
environments. Dual-leg style allows for
100% tie-off. 3,600 lbs. gate rated hardware.
SATURN [HIGH HEAT]
LANYARDS | SPECIALTY — TIE-BACK
PRODUCT
NUMBER
LENGTH ENERGY
ABSORBER
CONNECTORS STYLE WEIGHT RATING
EXTERNAL SNAP HOOK TIE-BACK CARABINER SINGLE-LEG DUAL LEG
3560 6 ft. 3 310 lbs.
3561 6 ft. 2 310 lbs.
3812 6 ft. 11 310 lbs.
3813 6 ft. 12 310 lbs.
LANYARDS | SPECIALTY — SATURN
PRODUCT
NUMBER
LENGTH ENERGY
ABSORBER
CONNECTORS STYLE WEIGHT RATING
EXTERNAL SNAP HOOK REBAR HOOK SINGLE-LEG DUAL-LEG
3520 6 ft. 2 310 lbs.
3520-D 6 ft. 3 310 lbs.
3531 6 ft. 11 400 lbs.
3531-D 6 ft. 12 400 lbs.
CORE ITEM Our best selling equipment — in stock and in demand.
64 65
3M™ Fall Protection Catalog | 3M.com/FallProtection |
ENERGY-ABSORBING LANYARDS
3530-D
Powerstop Energy-Absorbing Dual-Leg Lanyard
This 6 foot dual-leg lanyard arrests forces of a
12 foot freefall that are generated with
working surface tie-off. Comes with three
snap hooks. Designed for general-purpose
work environments. Dual-leg style allows
for 100% tie-off.
3530
Powerstop Energy-Absorbing Lanyard
This 6 foot lanyard arrests forces of a 12 foot freefall
that are generated with working surface tie-off. Comes
with two snap hooks and an external energy absorber.
Designed for general-purpose work environments.
3012
Personal Energy Absorber
This fall protection personal energy
absorber is 18 inches and has a snap
hook and D-ring.
3011-C2
Personal Energy Absorber
This fall protection personal energy
absorber is 24 inches and has two
snap hooks.
SPECIALTY | ENERGY-ABSORBING LANYARDS / PERSONAL ENERGY ABSORBERS |
APACHE [USE WITH APACHE HARNESS]
POWERSTOP
[12 FOOT FREEFALL FOR FOOT-LEVEL ANCHOR]
Personal energy absorbers are the “shock pack”/energy
absorber and are 18 inches or 24 inches long. These compact
lanyards are ideal for use in aerial lifts, bucket trucks, vertical
lifelines and leading edges when a short lanyard is preferred.
See page 53 for additional information for use on leading
edges.
When you need to connect to an anchorage connector at foot
level, the Powerstop lanyards safely arrest forces of a 12 foot
freefall that are generated with working surface tie-off. Meets
requirements of the ANSI Z359.13-2009 standard.
PERSONAL ENERGY
ABSORBERS
3530-E
Apache Energy-Absorbing Lanyard
This 6 foot lanyard is for workers
311 lbs.–400 lbs. (total working
weight). Comes with two snap hooks
and an external energy absorber.
Designed for general-purpose work
environments. Use with a 400 lbs.–
capacity harness.
3530-E-0241
Apache Energy-Absorbing Lanyard
This 6 foot lanyard is for workers 311
lbs.–400 lbs (total working weight).
Comes with one snap hook, one
rebar hook and an external energy
absorber. Designed for general-
purpose work environments. Use
with a 400 lbs.–capacity harness.
3530-DE
Apache Energy-Absorbing
Dual-Leg Lanyard
This 6 foot dual-leg lanyard is for
workers 311 lbs.–400 lbs. (total
working weight). Comes with three
snap hooks and an external energy
absorber. Designed for general-
purpose work environments. Use
with a 400 lbs.–capacity harness.
Dual-leg style allows for 100%
tie-off.
3530-DE-0241
Apache Energy-Absorbing
Dual-Leg Lanyard
This 6 foot dual-leg lanyard is for
workers 311 lbs.–400 lbs. (total
working weight). Comes with
two rebar hooks, one snap hook
and an external energy absorber.
Designed for general-purpose work
environments. Use with a 400 lbs.–
capacity harness. Dual-leg style
allows 100% tie-off.
SPECIALTY | PERSONAL ENERGY ABSORBERS AND LANYARDS
PRODUCT NUMBER LENGTH ENERGY ABSORBER CONNECTORS FALL ARRESTER D-RING WEIGHT RATING
EXTERNAL SNAP HOOK SOFT LOOP
3011-C 18 in. 1 1 310 lbs.
3011-C2 24 in. 2 310 lbs.
3011-RGA 24 in. 1 310 lbs.
209510/124 36 in. 1 310 lbs.
3012 18 in. 1 310 lbs.
LANYARDS | SPECIALTY — POWERSTOP
PRODUCT NUMBER LENGTH ENERGY ABSORBER CONNECTORS STYLE WEIGHT RATING
EXTERNAL SNAP HOOK SINGLE-LEG DUAL-LEG
3530 6 ft. 2 310 lbs.
3530-D 6 ft. 3 310 lbs.
The Apache lanyard is engineered and manufactured for workers who are 311 lbs.–400 lbs. (total working weight). Must be used with a
400 lbs. capacity harness, such as the 3M™ Apache Harness.
CORE ITEM Our best selling equipment — in stock and in demand.
LANYARDS | SPECIALTY — APACHE
PRODUCT
NUMBER
LENGTH ENERGY
ABSORBER
CONNECTORS STYLE WEIGHT RATING
EXTERNAL SNAP HOOK REBAR HOOK SINGLE-LEG DUAL-LEG
3530-E 6 ft. 2 400 lbs.
3530-E-0241 6 ft. 11 400 lbs.
3530-DE 6 ft. 3 400 lbs.
3530-DE-0241 6 ft. 12 400 lbs.
66 67
3M™ Fall Protection Catalog | 3M.com/FallProtection |
POSITIONING DEVICES
Restraint,
from a position of strength.
3M positioning devices keep you
connected. Our rebar assemblies and
positioning lanyards and belts operate in
horizontal or vertical positions, enabling
users to work with both hands free and
improve productivity. Various lengths
and connectors are available. With 3M
positioning devices, working safe and
being productive go hand in hand. POSITIONING DEVICES
PRODUCT NUMBER SIZE SERIES CONNECTORS BELT WEIGHT RATING LENGTH
S M L XL XXL
WEB
CABLE
ROPE
CHAIN
SNAP HOOKS
SWIVEL REBAR
HOOK
Positioning
Belts
2011 Yes 400 lbs. —
2111 Yes 400 lbs. —
2410 Yes 400 lbs. —
Positioning Lanyards
3110 No 400 lbs. 3 ft.
3111 No 400 lbs. 4 ft.
3112 No 400 lbs. 6 ft.
3210 No 400 lbs. 3 ft.
3211 No 400 lbs. 4 ft.
3212 No 400 lbs. 6 ft.
3250 No 400 lbs. 4-6 ft.
3312 No 400 lbs. 6 ft.
Rebar Assemblies
3710-S No 400 lbs. 13 links
SP3610-S No 400 lbs. 28 inches
SP3706-S No 400 lbs. 6 links
SP3710-S No 400 lbs. 13 links
Positioning spreader bar hooks also available, as shown above with SKUs 3708-SBH and 3709-SBH.
SP3710-S
Rebar Positioning Chain Assembly
This 13-link rebar chain assembly for positioning
only. Its swivel rebar hook allows for a wider
range of movement. Features two snap hooks
and one rebar hook. 400 lbs. capacity.
3708-SBH
Positioning Equipment Spreader Bar Hook
with Carabiner 3708-SBH
For positioning only. It brings waist D-rings
closer together at the front of a harness.
The carabiner connects to the anchorage or
anchorage connector.
3709-SBH
Rebar Positioning Web Lanyard with Spreader
Bar Hook and Rebar Hook
For positioning only. It brings waist D-rings
closer together at the front of a harness. The
large rebar hook connects to the anchorage or
anchorage connector.
3212
Web Positioning Lanyard
Web lanyard is 6 feet long and 1 inch wide.
Features two snap hooks. 400 lbs. capacity.
2011
Positioning Belt with Waist D-rings
Positioning belts are part of a positioning or travel
restraint system. This belt has 3 inch yellow web
padding and two waist D-rings. 400 lbs. capacity.
Available in sizes Small to XX-Large.
Warning: Web positioning belts, lanyards and assemblies are for
positioning only and must never be used for personal fall arrest.
CORE ITEM Our best selling equipment — in stock and in demand.
POSITIONING DEVICES
ANCHORAGE CONNECTORS
68 69
3M™ Fall Protection Catalog | 3M.com/FallProtection |
A secure connection
for confi dence while working.
As soon as you attach yourself to a
3M™ Fall Protection anchorage
connector, it’s hard not to grow attached
to that feeling of safety. Knowing you’re
secure helps you to confi dently get the
job done. Whether it’s a rooftop or beam,
concrete or steel, you’ll feel as grounded
as you did the moment before you started
the climb up.
CONSIDERATIONS FOR CHOOSING AN ANCHORAGE CONNECTOR:
TEMPORARY ANCHORS
are designed to be used on one job site.
Upon job completion, they can be
integrated into the structure and cannot
be removed. Intended for single job use.
Will the anchor need to be temporary, permanent or removable?
What surface are you connecting to — steel, concrete, roof, etc.?
PIPE or REBAR
All of our pipe anchors are
removable. Fixed or mobile
options available.
I-BEAM
All of our I-Beam anchors are
removable. Fixed or mobile
options available.
CONCRETE
Available in temporary, permanent or
removable applications for horizontal
or vertical surfaces.
PERMANENT ANCHORS
are installed once and can either be
removed upon job completion or left
on the structure for future reuse.
REMOVABLE ANCHORS
can be easily inserted and removed
throughout the job or at the end of
the job, enabling workers to reuse
the anchor at various places.
STEEL
Available in permanent or removable
applications for horizontal or
vertical surfaces.
ROOFING
Temporary and removable options
available for wood and/or metal
decking on flat or pitched roofs.
2
1
ANCHORAGE CONNECTORS
ANCHORAGE CONNECTORS
70 71
3M™ Fall Protection Catalog | 3M.com/FallProtection |
4012-C
Mega Swivel Concrete
Anchorage Connector
This fall protection concrete bolt
anchorage connector is for use in
temporary, permanent and reusable
applications. Design includes a swivel
D-ring for 360° movement that is
combined with an anchor bolt.
• Drill hole dimensions:
3/4 inch x 4-1/2 inches deep
• Concrete must have compressive
strength of at least 3,000 psi and
minimum thickness of 5 inches.
• Minimum tensile breaking:
strength 5,000 lbs.
4823
Concrete Anchor Strap
This fall protection concrete anchor
strap is a low-cost temporary
anchorage connector for concrete-forming
work. Designed to be cut and removed upon
job completion. Includes a steel D-ring and
soft loop with wear pad.
• 4 foot length x 2 inch width
• Minimum tensile breaking strength: 5,000 lbs.
• Wear pad for improved abrasion resistance
• Also available in other lengths
4823-8 Concrete Anchor Strap — 8 feet
4823-12 Concrete Anchor Strap — 12 feet
4823-16 Concrete Anchor Strap — 16 feet
4824
Concrete Anchor Strap
This fall protection concrete anchor strap is a low-cost
temporary anchorage connector for concrete-forming work.
Designed to be cut and removed upon job completion.
Includes a steel D-ring and soft loop.
• 4 foot length x 2 inch width
• Minimum tensile breaking
strength: 5,000 lbs.
For many fall protection systems, an
anchorage connector needs to be
compatible with cured concrete or concrete-
forming work. 3M provides solutions to
this need. 3M reusable concrete anchors
are engineered with strength, security
and fl exibility in mind and designed for
easy insertion and removal. The concrete
bolt anchors can be used in temporary
or permanent applications. The durable
concrete anchor straps are available in
varying lengths to conform to your needs.
This economical option provides mounting
options to concrete ceilings, walls and fl oors.
With a 3M concrete anchorage connector,
the greatest component of fall protection is
peace of mind.
4075
SafeClaw™ Reusable Concrete
Anchorage Connector
This fall protection reusable concrete anchor
can easily be inserted into and removed from
cured concrete to quickly provide a secure
anchor point. Provides movement fl exibility
with up to 90° of fl ex.
• Drill hole dimensions:
3/4 inch width x 3 inch depth
• Concrete must have
compressive strength
of at least 3,000 psi
• Minimum tensile breaking
strength: 5,000 lbs.
CONCRETE ANCHORS | ANCHORAGE CONNECTORS |
4077
SafeClaw™ Reusable Concrete
Anchorage Connector
This fall protection reusable concrete anchor can
easily be inserted into and removed from cured
concrete to quickly provide a secure anchor
point. Provides movement fl exibility with up
to 90° of fl ex.
• Drill hole dimensions:
1 inch width x 4-1/2 inch depth
• Concrete must have compressive
strength of at least 3,000 psi
• Minimum tensile breaking strength:
10,000 lbs.
• Can be used with 3M horizontal lifeline systems
4825
Concrete
Anchor Strap
This fall protection concrete anchor strap is a low-cost temporary
anchorage connector for concrete-forming work. Designed to be
cut and removed upon job completion. Includes two soft loop ends.
• 4 foot length x 2 inch width
• Minimum tensile breaking strength: 5,000 lbs.
CORE ITEM Our best selling equipment — in stock and in demand.
4011
SafeLok Reusable Anchorage Connector
This reusable anchor can easily be inserted into
and removed from precast or hollow-core concrete
to form a secure anchor point. It can also be used
on steel beams. Provides movement fl exibility
with up to 90° of fl ex.
• Drill hole dimensions:
Drill a 3/4 inch-diameter hole through center
of hollow-core or 1-1/2 inch concrete with a
minimum compressive strength of 5,000 psi.
• Minimum tensile breaking strength: 5,000 lbs.
4012-RC
Six piece Replacement Concrete
Bolt Set
For 4012-C Mega Swivel Concrete
Anchorage Connector. Allows user to reuse
swivel D-ring from anchorage connector in different locations.
ANCHORAGE CONNECTORS
72 73
3M™ Fall Protection Catalog | 3M.com/FallProtection |
4000
Reusable Roof Anchorage Connector
This economical fall protection roof anchorage
connector is a reusable anchor with hinged steel
design for use on wood and metal decking.
• Minimum tensile breaking strength: 5,000 lbs.
• Easy rooftop installation & removal
• Can be used as part of a 3M horizontal lifeline
• Suitable for fl at or pitched roofs
ROOFING | ANCHORAGE CONNECTORS |
4100
Permanent Roof Anchorage Connector — Small
This fall protection roof anchor is a permanent anchor that
includes a fl ashing base and cover and is intended for use on
wood only.
• Product dimensions: 2 inches x 4 inches
• Minimum tensile breaking strength: 3,600 lbs.
4101
Permanent Roof Anchorage Connector — Large
This fall protection roof anchor is a permanent anchor that
includes a fl ashing base and cover and is intended for use
on wood only.
• Product dimensions: 2 inches x 8 inches
• Minimum tensile breaking strength: 3,600 lbs.
4009
Reusable Standing Seam Roof
Anchorage Connector
This fall protection reusable anchorage connector is
for use on sloped or fl at standing seams with self-
retracting lanyards up to 50 feet long. The standing
seam anchor allows 360° movement with a self-
retracting lanyard. Adjusts 24 inches – 36 inches.
• Minimum tensile breaking strength: 5,000 lbs.
Whether you’re working on a roof that’s
commercial or residential, 3M roofi ng
anchorage connectors are an essential
part of your fall protection system. We
offer a variety of roofi ng anchor options to
accommodate the variety of different
roofs — be they steel or wood, pitched or
fl at. From swivel-top to standing-seam,
3M roofi ng anchors deliver strong, durable
connections without affecting structural
integrity. 3M roof anchorage connectors
keep you secure so you can work confi dently.
4651X
Single-use Economy
Roof Anchorage Connector
This fall protection roof anchor is a single-
use economy anchor for use on wood only.
• Minimum tensile breaking
strength: 1,800 lbs.
• Easy roof top installation
• Surface: Roofi ng — wood only
SINGLE-USE (TEMPORARY)
ROOF ANCHORAGE
CONNECTORS
REUSABLE ROOF ANCHORAGE CONNECTORS
PERMANENT ROOF ANCHORAGE
CONNECTORS
CORE ITEM Our best selling equipment — in stock and in demand.
ANCHORAGE CONNECTORS
74 75
3M™ Fall Protection Catalog | 3M.com/FallProtection |
I-BEAM | ANCHORAGE CONNECTORS |
3M I-Beam anchorage connectors are
a main component of many on-site
fall protection systems. Designed for
dependable attachment to I-Beams,
these anchors are an adaptable means
of rigging both temporary and reusable
safety systems. 3M I-Beam anchors offer
secure, portable and reliable connection
to beams of varying width.
4650-3
BeamWalk Adjustable
Sliding Beam Anchorage Connector
BeamWalk adjustable sliding anchor provides horizontal
mobility on I-Beams. Lightweight aluminum construction,
quick and easy installation. Adjusts from both sides.
Beveled sliders allow smooth movement along the
beam, moving with the worker.
• Fits beams from 3-1/2 inches to 12 inches wide and
up to 1-1/4 inches thick
• Minimum tensile breaking strength: 5,000 lbs.
CORE ITEM Our best selling equipment — in stock and in demand.
4650-2V
Vertical Beam Clamp Anchorage Connector
Stationary beam anchor provides a fi xed anchor
point for an I- or H-Beam in vertical or
horizontal position.
• Fits beams up to 12 inches wide and 1 inch thick
• Minimum tensile breaking strength: 5,000 lbs.
ANCHORAGE CONNECTORS
76 77
3M™ Fall Protection Catalog | 3M.com/FallProtection |
PIPE AND REBAR | ANCHORAGE CONNECTORS |
Available in several lengths for varying
applications, 3M pipe and rebar
anchorage connectors are made to wrap
around structures to form secure anchor
points. 3M pipe and rebar anchor points
may be used in horizontal and vertical
applications. All our anchor points are
ideally suited for quick installations,
making convenience and ease highlights.
4550-U-6
Heavy-Duty Cross-Arm-Strap
Anchorage Connector
This fall protection 6 foot heavy-duty cross-arm strap is
a low-cost general-purpose anchorage connector with
wear pad designed to wrap around structures for a
secure anchor point. Convenient and ideally suited for
quick and easy installations.
• 1-3/4 inch width
• Minimum tensile breaking strength: 5,000 lbs.
• Also available in a 3 foot length and in custom lengths
in 2 foot increments up to 20 feet. Contact your 3M
Representative for more information.
4550-U-3 Heavy-Duty Cross-Arm-Strap Anchor — 3 feet
4550-6
Cross-Arm-Strap Anchorage Connector
This fall protection 6 foot cross-arm strap is a low-cost
general-purpose anchorage connector designed to wrap
around structures for a secure anchor point. Convenient
and ideally suited for quick and easy installations.
• 1-3/4 inch width
• Minimum tensile breaking strength: 5,000 lbs.
• Also available in a 3 foot length and in custom lengths
in 2 foot increments up to 20 feet. Contact your 3M
Representative for more information.
4550-3 Cross-Arm-Strap Anchor — 3 feet
4550-A
Adjustable Cross-Arm-Strap
Anchorage Connector
This fall protection adjustable 4 foot to 6 foot cross-
arm strap is a low-cost general-purpose anchorage
connector designed to wrap around structures for a
secure anchor point. Convenient and ideally suited for
quick and easy installations.
• 4 foot to 6 foot length x 1-3/4 inch width
• Minimum tensile breaking strength: 5,000 lbs.
4550-SCS-6
Cable Pass Thru Cross-Arm-Strap Anchorage Connector
This fall protection 6 foot cable cross-arm strap is a low-cost general-purpose
anchorage connector designed to wrap around typical I-Beam or pipe
application for overhead tie-off. Cable provides additional durability.
Suited for quick and easy installations.
• 1/4 inch width galvanized steel cable
• Minimum tensile breaking strength: 5,000 lbs.
• Also available in a 4 foot length
4550-SCS-4 Cable Pass Thru Cross-Arm-Strap Anchorage
Connector — 4 feet
4551
Scaffolding Cross-Arm-Strap Anchorage Connector
This fall protection scaffolding cross-arm strap is a low-cost general-
purpose anchorage connector designed to wrap around 3 inch
maximum diameter structures. Convenient and ideally suited for
quick and easy installations.
• 1-1/2 foot length x 1 inch width
• Minimum tensile breaking strength: 5,000 lbs.
4550-E
Apache Cross-Arm-Strap Anchorage Connector
This fall protection cross-arm strap is a low-cost general-purpose
anchorage connector with a 3 inch wear pad designed to wrap around
structures for a secure anchor point. Convenient and ideally suited for
quick and easy installations.
• 6 foot length x 1-3/4 inch width
• Minimum tensile breaking strength: 5,000 lbs.
CORE ITEM Our best selling equipment — in stock and in demand.
251
Manuclave Anchor Clamp
This fall protection anchor clamp is a spring loaded stainless steel wire
clamp for use on pipe. Suited for quick and easy installations. Provides
increased fall clearance versus a cross-arm-strap anchor.
• For use on pipes up to 4 inches in diameter
• Minimum tensile breaking strength: 5,000 lbs.
252
Manuclave Anchor Clamp
• For use on pipes up to 6 inches in diameter
• Minimum tensile breaking strength: 5,000 lbs.
ANCHORAGE CONNECTORS
78 79
3M™ Fall Protection Catalog | 3M.com/FallProtection |
STEEL | ANCHORAGE CONNECTORS |OTHER ANCHORAGE CONNECTORS
3M™ Fall Protection is dedicated to
providing you steel anchorage connectors
that meet the demands of the job.
We offer a wide variety of permanent,
temporary, and reusable anchorage
connectors. These heavy-duty steel
devices are designed to be lightweight,
easily installed and reliable to give you
the confi dence to take on risk.
4012-S
Mega Swivel Steel Bolt
Anchorage Connectors
This fall protection anchor can be used
in temporary and reusable applications.
Design includes a swivel D-ring for 360°
that is combined with a steel anchor bolt.
• Drill hole 5/8 inch with steel that is a
minimum thickness of 1/4 inch
• Minimum tensile breaking strength: 10,000 lbs.
4004
Permanent D-Bolt Anchorage Connector
This fall protection anchor is for use on concrete, metal or wood surfaces.
Design includes a D-bolt with mounting plate and fl oating D-ring for anchor
tie-off. This permanent anchor can be bolted or welded to a structure.
• Minimum tensile breaking strength: 5,000 lbs.
4011
SafeLok Reusable
Anchorage Connector
This fall protection reusable anchor can
easily be inserted into and removed from
precast or hollow-core concrete to form a secure
anchor point. It can also be used on steel beams.
• Drill-hole dimensions: Drill a 3/4 inch diameter hole
through center of hollow-core or 1-1/2 inch concrete
with a minimum compressive strength of 5,000 psi.
• Minimum tensile breaking strength: 5,000 lbs.
4005
Permanent D-Bolt Anchorage Connector
This fall protection anchor is for use on concrete, metal or wood surfaces.
Design includes D-bolt anchor with 1-1/2 inch diameter bolt, nut and washer
hardware. This permanent anchor can be bolted or welded to a structure.
• Minimum tensile breaking strength: 5,000 lbs.
FS-92
Anchorage Connector
This temporary and reusable fall protection anchorage connector can be
connected to any anchor that meets 3,600 lbs. or 5,000 lbs. requirements.
Its shape is ideal for peri form, a concrete-forming panel, and fi ts in the hole of
the panel. Design includes 1-1/2 inch eye diameter and 3-1/3 inch anchorage
opening. Length:12-1/8 inch.
• Minimum tensile breaking strength: 5,000 lbs.
CORE ITEM Our best selling equipment — in stock and in demand.

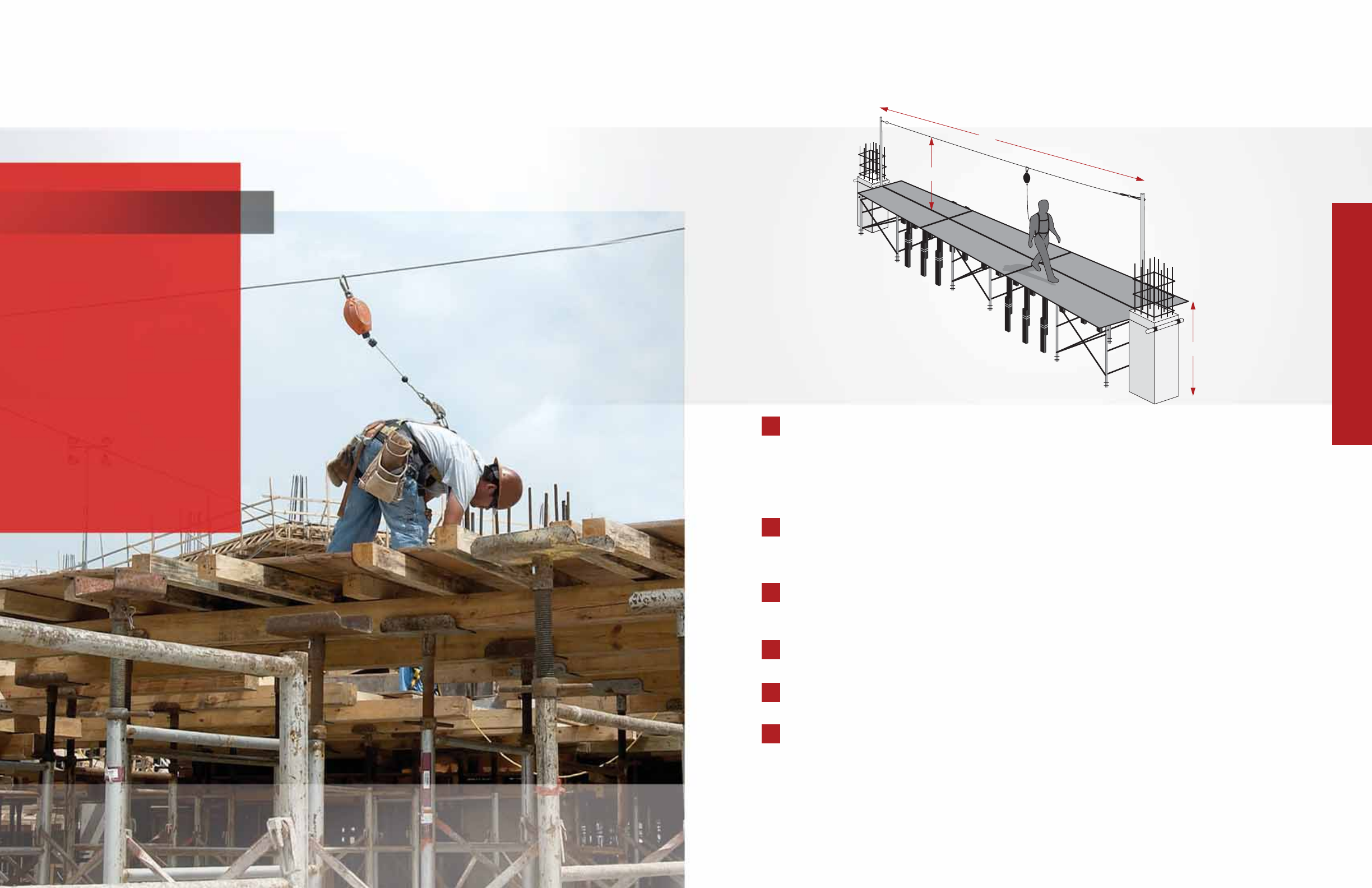

Going to great lengths
to ensure your safety.
(H)
(L)
(F)
80 81
3M™ Fall Protection Catalog | 3M.com/FallProtection |
HORIZONTAL LIFELINES
80 81
Horizontal lifeline systems are used
to protect workers when they are
exposed to a fall hazard along a
horizontal plane and access to overhead
anchor points is limited. Horizontal
lifelines are pre-engineered and
designed as part of a complete personal
fall arrest system to help limit the fall
arrest forces in the event of a fall.
They can be used for fall arrest or
travel restraint.
CONSIDERATIONS FOR CHOOSING A HORIZONTAL LIFELINE SYSTEM:
What is the maximum number of workers using the system at one time?
Up to two people — choose a rope or cable lifeline.
• Rope (ideal for indoor use) — choose our Sidewalk Rope System (100 foot maximum), page 86
• Cable (ideal for outdoor use) — choose our SafeReach System (100 foot maximum), page 87, or our Mobile
Skywalk System, page 82.
Up to four people — choose our Mobile Skywalk System, page 82.
What is the total system length (anchor point to anchor point)? (L)
A variety of rope and cable lengths are available.
What is the total system length (anchor point to anchor point)? (L)
Less than 200 ft. — requires one PowerBrake.
200 ft. or greater — requires a second PowerBrake.
What is the height of the walking/working surface to the ground or danger level? (F)
This determines the number of intermediates required.
What is the height of the walking/working surface to the proposed anchorage? (H)
This determines the height of the stanchion.
What are the anchor points?
Are prefabricated anchorages needed? See page 83 for anchorage options.
Are post systems needed? See page 83 for anchorage options.
Horizontal lifeline systems are highly technical. Please contact your 3M Representative for assistance on how to select a lifeline for your work
environment/application.
1
2
4
6
3
5
ADDITIONAL CONSIDERATIONS, IF CHOOSING A MOBILE SKYWALK SYSTEM:
HORIZONTAL LIFELINES
82 83
3M™ Fall Protection Catalog | 3M.com/FallProtection |
Anchorage Connectors
The Mobile Skywalk system may be secured to the existing structure
in a variety of ways.
SWSW-06 Stud Bracket has a receiver sleeve for the Aluminum
Post Stanchion. The Stud Bracket may be attached
to the base of a rebar cage, around the top of a
concrete column or through a concrete wall.
SWSW-06X
Image not
available
Flat Surface Weld Bracket is a weldable version of
the Stud Bracket SWSW-06. It is constructed with
3/4 in. thick, 14-1/2 in. by 8 in. zinc-plated steel,
and Schedule 80 pipe as the receiver sleeve for the
Aluminum Post Stanchion.
SWSW-13 PVC Sleeve is 12 in. tall with a 4 in. inside diameter,
and constructed of 4 in. Schedule 40 PVC. PVC
Sleeve is cast into concrete and receives the
Aluminum Post Stanchion.
SWSW-29 Flat Base is designed to mount onto fl at surfaces
and to be used with the Aluminum Post Stanchion.
SWSW-08A Aluminum Post Stanchion — end/intermediate
stanchion is 7-1/2 ft. long with a 3-1/2 in. outside
diameter. Each post has two sets of 9/16 in. holes
set 4 in. apart and at 90° for the SWSW-01 Eye Bolt
(not included).
SWSW-22 Swivel Cap — placed over the top of the Aluminum
Post Stanchion, creates an elevated individual
anchor point. A self-retracting lanyard may be
attached to the Swivel Cap, allowing the user to
work 360°.
SWSW-24 Skyhook Bracket clamps to #9 or larger stirruped
rebar, with two 2 in. inside diameter J-bolts, at
6-1/2 ft. above the working surface. A safety strap
(not shown) wraps around the rebar cage, creating
an anchor point at the proper height for the Mobile
Skywalk Horizontal Lifeline.
SWSW-30A Sky Bracket is constructed with aluminum and two
30 in. threaded bars that clamp to #9 or larger
stirruped rebar. Installed at 6-1/2 ft. above the
working surface, it creates an anchor point at the
proper height.
4077 10,000 lbs. SafeClaw™ — reusable concrete
anchorage connector can easily be inserted into and
removed from cured concrete to quickly provide a
secure anchor point. Provides movement fl exibility
and can be pulled in all directions up to 90°.
4550-U-6
Cross-Arm Anchor Strap — 6 ft. heavy-duty cross-
arm strap is a low-cost general-purpose anchor with
a wear pad designed to wrap around structures for a
secure anchor point. 5,000 lbs. rated.
PowerBrake
Engineered to maximize energy absorption and reduce forces on the
end anchorages.
SWSW-18 PowerBrake — the inline energy absorber is
designed to limit the maximum arrest load to less
than 1,650 lbs. on the end anchorages. This is a
required component.
HORIZONTAL LIFELINES
3M™ MOBILE SKYWALK | UP-TO FOUR-MAN HORIZONTAL LIFELINE |
The 3M™ Mobile Skywalk system provides
workers an increased working range
without sacrificing safety in leading edge
applications. The PowerBrake energy
absorber allows for a four-man tie-off while
keeping fall clearance requirements low.
A versatile array of anchorage connectors
have been designed for a wide range of
work surfaces, including pour-in-place and
pre-poured concrete. The Mobile Skywalk
system also offers a permanent or a
temporary cable tensioning device to help
facilitate easy installation.
The Mobile Skywalk system is ideal
for more than two workers, low
fall clearance requirements and/or
anchoring to concrete.
These lifeline system components represent the major categories needed to construct a Mobile Skywalk system.
For specific parts within each category, refer to page 83.
BUILD YOUR LIFELINE:
Other anchorage connector options are available for use with the Mobile Skywalk.
Please contact your 3M Representative for more information.
*Available in early 2014. To order custom lengths prior, use product code SWSW-00
and state length required. Contact 3M Sales Representative for more information.
Cable Assemblies*
SWMS-30
Galvanized Steel Cable for the Mobile Skywalk horizontal
lifeline system. Available in 30 ft., 60 ft., 100 ft. or 200
ft. lengths. Cable assembly includes one fi nished swaged
end and one unfi nished end with two Fist Grips and a
Thimble for manual termination.
SWMS-60
SWMS-100
SWMS-200
SWMS-30-SS
Stainless Steel Cable for the Mobile Skywalk horizontal
lifeline systems. Available in 30 ft., 60 ft., 100 ft. or 200
ft. lengths. Cable assembly includes one fi nished swaged
end and one unfi nished end with two Fist Grips and
Thimble for manual termination.
SWMS-60-SS
SWMS-100-SS
SWMS-200-SS
Accessories
SWSW-11 Fist Grip — included with cable assembly to secure
the unfi nished end of the Mobile Skywalk Cable once
adjustment is complete.
SWSW-12T Thimble is included with cable assembly and is installed
inside the loop to preserve the natural shape of the eye
and protect the cable from pinching and abrading on the
inside of the eye. The Thimble prevents the load from
coming into direct contact with the wires. Available as a
replacement part.
0216-R Cable lifeline traveler is for cable or rope lifelines up
to 1/2 in. thick.
0210-07 Carabiner required for use in connecting the PowerBrake
and Cable. Must be ordered separately.
SWSW-03
The Shackle is 1/2 in. and is a cable connection point.
SWSW-10 1/2 in. Shoulder Eye Nut attaches to the Eye Bolt
SWSW-01 to create an attachment point on the opposite
side of the Aluminum Post Stanchion when building
congruent systems.
SWSW-01 Eye Bolt for the Aluminum Post Stanchion is 5 in. long
with a 1 in. inside diameter eye and comes with a washer
and nut.
S
SW
11
Tensioners
SWSW-04 Turnbuckle adjusts from 18 in. to 28 in. and is used to adjust
tension in the Mobile Skywalk system. Ideal for use with shorter
lifeline systems.
SWSW-02 Come-Along adjusts tension in the Mobile Skywalk lifeline.
It must always be used in conjunction with the SWSW-05
Adjustable Safety Link. Ideal for use with longer lifeline systems
.
SWSW-05 Adjustable Safety Link is constructed of 1 in. polyester webbing
and is adjustable from 3 ft. to 6 ft. The Adjustable Safety Link
must be used with the Come-Along. A standard carabiner
(not included) on each end is used to connect it to the system.
SWPC-17 Pre-Tensioner — designed to easily identify whether the
Mobile Skywalk horizontal lifeline system has been properly
tensioned. Used with the Turnbuckle or Come-Along.
SW
SW
-
7
WS
W
S
SW
SW-2
4
SWS
SWSW
S
W
SS
Anchorage
Connector
Anchorage
Connector
PowerBrake Cables Assemblies Tensioner
Lifeline System Component Overview
S
84 85
3M™ Fall Protection Catalog | 3M.com/FallProtection |
SWMS-XXX
(or SWMS-XXX-SS)
Cable
Swaged
Primary End
0210-07
Carabiner
0210-07
Carabiner
0210-07
Carabiner
SWSW-18
PowerBrake
SWSW-18
PowerBrake
SWSW-11
Fist Grips
SWSW-11
Fist Grips
SWSW-05
Adjustable
Safety Link
SWSW-01
Eye Bolt
SWSW-04
Turnbuckle
SWSW-01
Eye Bolt
SWSW-01
Eye Bolt
SWPC-17
Pre-Tensioner
SWPC-17
Pre-Tensioner
SWSW-08A
Aluminum
Post Stanchion
SWSW-08A
Aluminum
Post Stanchion
SWSW-08A
Aluminum
Post
Stanchion
SWSW-08A
Aluminum
Post Stanchion
SWSW-02
Come-Along
Four-Man Horizontal Lifeline less than 200 feet total system length Four-Man Horizontal Lifeline less than 200 feet total system length
SWSW-12T
Thimble
SWSW-12T
Thimble
HORIZONTAL LIFELINES
MOBILE SKYWALK KITS | UP-TO FOUR-MAN HORIZONTAL LIFELINE |
SWSW-18
SWSW-12T SWSW-12T
SWSW-18
0210-07 0210-07
SWMS-XXX
or SWMS-XXX-SS
SWMS-XXX
or SWMS-XXX-SS
SWPC-17
SWPC-17
SWSW-11
SWSW-11
4701
4701
SWSW-05 SWSW-02
SWSW-04
MOBILE SKYWALK KITS WITH A COME-ALONG MOBILE SKYWALK KITS WITH A TURNBUCKLE
Come-Along Kit includes:
Come-Along SWSW-02, Adjustable Safety Link
SWSW-05, PowerBrake SWSW-18,
Pre-tensioner Component SWPC-17,
Galvanized or Stainless Steel Mobile Skywalk
Cable Assembly SWMS-XXX or SWMS-XXX-SS
(available in a variety of lengths, as specifi ed
by kits below, and includes two Fist Grips
SWSW-11 and one Thimble SWSW-12T),
four Autolock Carabiners 0210-07, Extra-Large
Tool Bag 4701.
Come-Along Kit Turnbuckle Kit Turnbuckle Kit includes:
Turnbuckle SWSW-04, PowerBrake SWSW-18,
Pre-tensioner Component SWPC-17, Galvanized
or Stainless Steel Mobile Skywalk Cable
Assembly SWMS-XXX or SWMS-XXX-SS
(available in a variety of lengths, as specifi ed
by kits below, and includes two Fist Grips
SWSW-11 and one Thimble SWSW-12T ),
four Autolock Carabiners 0210-07, Extra-Large
Tool Bag 4701.
what diagram goes here?
Swaged
Primary End
SWMS-XXX
(or SWMS-XXX-SS)
Cable
SWSWKIT17 Kit includes:
Two PVC Sleeves SWSW-13, two
Shoulder Eye Bolts SWSW-01.
Must purchase Aluminum Post
Stanchion SWSW-08 separately.
Come-Along Cable Assembly
Kit #
SWSWKIT1 SWMS-30-SS
3M™ 30 ft. Stainless Steel Cable
SWSWKIT2 SWMS-30
3M™ 30 ft. Galvanized Steel Cable
SWSWKIT5 SWMS-60-SS
3M™ 60 ft. Stainless Steel Cable
SWSWKIT6 SWMS-60
3M™ 60 ft. Galvanized Steel Cable
SWSWKIT9 SWMS-100-SS
3M™ 100 ft. Stainless Steel Cable
SWSWKIT10 SWMS-100
3M™ 100 ft. Galvanized Steel Cable
SWSWKIT13 SWMS-200-SS
3M™ 200 ft. Stainless Steel Cable
SWSWKIT14 SWMS-200
3M™ 200 ft. Galvanized Steel Cable
Turnbuckle Cable Assembly
Kit #
SWSWKIT3 SWMS-30-SS
3M™ 30 ft. Stainless Steel Cable
SWSWKIT4 SWMS-30
3M™ 30 ft. Galvanized Steel Cable
SWSWKIT7 SWMS-60-SS
3M™ 60 ft. Stainless Steel Cable
SWSWKIT8 SWMS-60
3M™ 60 ft. Galvanized Steel Cable
SWSWKIT11 SWMS-100-SS
3M™ 100 ft. Stainless Steel Cable
SWSWKIT12 SWMS-100
3M™ 100 ft. Galvanized Steel Cable
SWSWKIT15 SWMS-200-SS
3M™ 200 ft. Stainless Steel Cable
SWSWKIT16 SWMS-200
3M™ 200 ft. Galvanized Steel Cable
Kits shown on pages 84 and 85 will be available in early 2014. Kits shown on pages 84 and 85 will be available in early 2014.
86 87
3M™ Fall Protection Catalog | 3M.com/FallProtection |
HORIZONTAL LIFELINES
Cable system includes:
Energy absorber, turnbuckle, carabiner, large carabiner,
two O-rings, galvanized cable (available in a variety of
lengths), two fi st grips, thimble and storage bag.
Must purchase anchors to use with this kit separately.
Product # Description
SWHC-20 20 ft. horizontal cable lifeline system
SWHC-30 30 ft. horizontal cable lifeline system
SWHC-40 40 ft. horizontal cable lifeline system
SWHC-50 50 ft. horizontal cable lifeline system
SWHC-60 60 ft. horizontal cable lifeline system
SWHC-70 70 ft. horizontal cable lifeline system
SWHC-80 80 ft. horizontal cable lifeline system
SWHC-90 90 ft. horizontal cable lifeline system
SWHC-100 100 ft. horizontal cable lifeline system
All components listed above are available to order as
replacement parts.
Rope system includes:
Two cross-arm straps, two O-rings, two carabiners, tensioner,
rope (available in a variety of lengths) and storage bag.

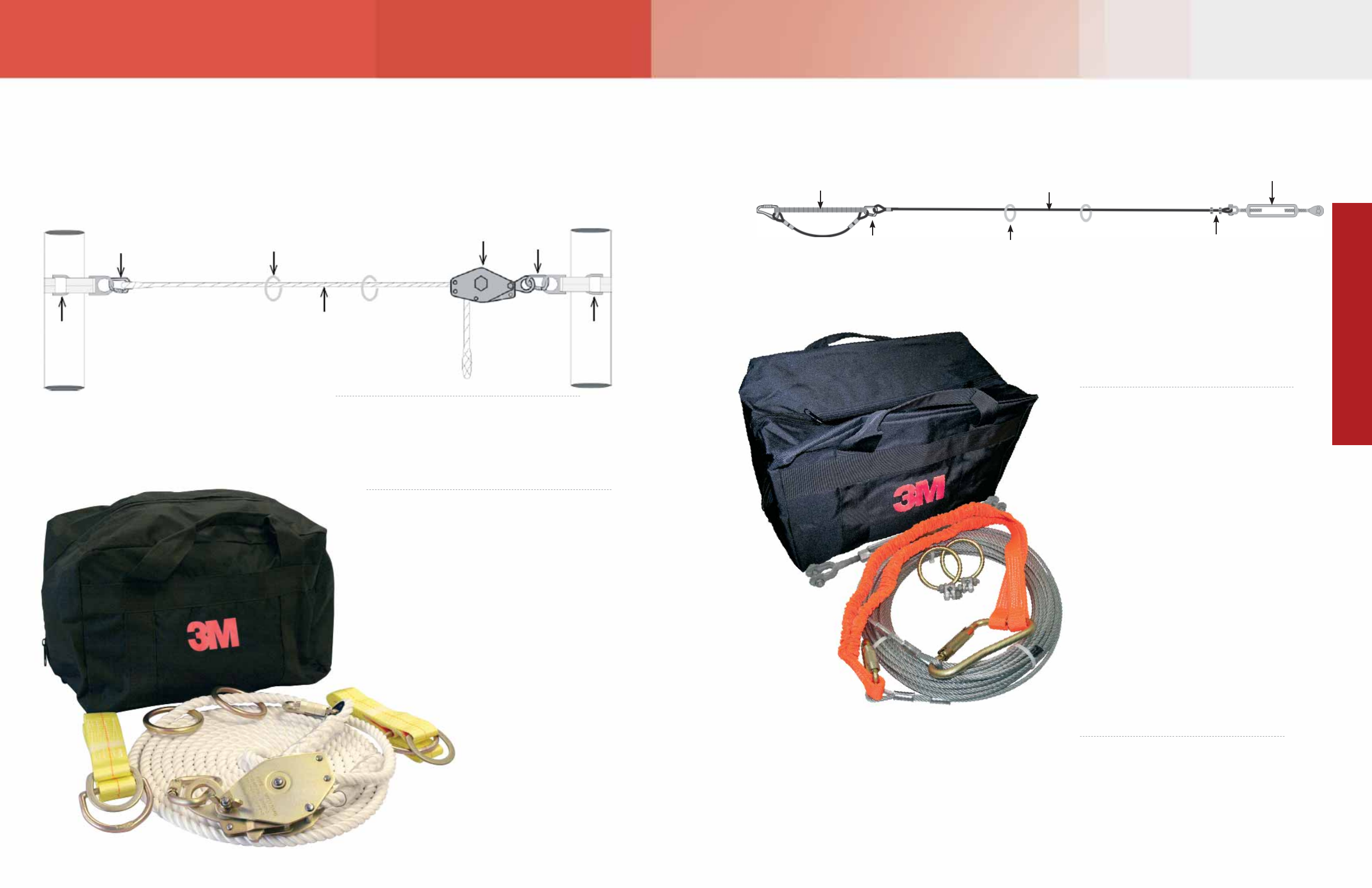

TWO-MAN KITS | TEMPORARY HORIZONTAL LIFELINE SYSTEM |
3M™ Two-Man Horizontal Lifeline systems are a complete lifeline system in a bag. Choose cable or rope systems based on work environment.
All systems are portable and include a tensioning device to help with proper lifeline tension.
Product # Description
SWHR-30 30 ft. horizontal rope lifeline system
SWHR-60 60 ft. horizontal rope lifeline system
SWHR-100 100 ft. horizontal rope lifeline system
All components listed above are available to order as
replacement parts.
99-0215
O-ring 99-0215
O-ring
0223-XXX
Rope
4550-6
Cross-arm Strap
4550-6
Cross-arm Strap
0210-07
Carabiner
0210-07
Carabiner
0246-HD
Rope Tensioner
SideWalk Rope Horizontal Lifeline System (100 Foot Max.)
SafeReach Cable Horizontal Lifeline System (100 Foot Max.)
SWSW-04
Turnbuckle
SWSW-11
Fist Grips
SWSW-XX
Cable
SW-247
Energy Absorber
0210-07
Carabiner
Replacement Rope 0223-XX:
Product # Description
0223-30 5/8 in. replacement rope, 30 ft.
0223-60 5/8 in. replacement rope, 60 ft.
Replacement Cable Assemblies SWMS-XX:
Cable assembly includes replacement cable, one fi nished
swaged end and one unfi nished end with two Fist Grips
and a Thimble for manual termination.
Product # Description
SWMS-30 30 ft. replacement cable
SWMS-60 60 ft. replacement cable
SWMS-100 100 ft. replacement cable
CORE ITEM Our best selling equipment — in stock and in demand.
Keeping the risk low
as you climb higher.
88 89
3M™ Fall Protection Catalog | 3M.com/FallProtection |
VERTICAL LIFELINES
CONSIDERATIONS WHEN CHOOSING A VERTICAL LIFELINE:
Do you need a permanent or portable system?
PERMANENT — If the system can remain in place for the duration of the job or for
on-going maintenance (i.e., fixed ladder system).
PORTABLE — If the system needs to be removed at end of job or each day.
(i.e., rope lifeline with rope fall arrester).
Does your worker need to be mobile or is a fi xed positioning device preferred?
MOBILE — use a self-trailing fall arrester for vertical climbing that allows for
free movement and trails the worker as he or she climbs.
FIXED — use a manual rope adjuster that workers must physically move up
and down the lifeline, keeping them in a limited work area for restraint.
Vertical lifelines are needed when a
worker has long vertical lengths to travel.
Instead of having to disconnect and fi nd
new tie-off points as workers travel, a
vertical lifeline allows them movement
up and down the entire height of lifeline.
They are designed as part of a complete
personal fall arrest system to help limit
the forces in the event of a fall.
Vertical lifelines can also be used as part
of a travel restraint system.
VERTICAL LIFELINES
90 91
3M™ Fall Protection Catalog | 3M.com/FallProtection |
VERTICAL LIFELINES
LADDER CLIMB SYSTEM | PERMANENT VERTICAL LIFELINE SYSTEM |ROPE LIFELINES & GRABS | |
TEMPORARY VERTICAL LIFELINE
SYSTEM OR HORIZONTAL RESTRAINT
Product # Description
M400-30 Ladder climb system; 30 ft.
M400-40 Ladder climb system; 40 ft.
M400-50 Ladder climb system; 50 ft.
M400-75 Ladder climb system; 75 ft.
Product # Description
M400-100 Ladder climb system; 100 ft.
M400-150 Ladder climb system; 150 ft.
M400-200 Ladder climb system; 200 ft.
M400-300 Ladder climb system; 300 ft.
Complete Systems Include:
RC M400-XXX Cable Assembly (3/8 inch galvanized steel cable, energy absorber and safety
backup cable), 128 Cable Fall Arrester with 0210CP-07 Carabiner, M400-10 Extended Top
Bracket, M400-11* Extended Top Bracket Round Rung Hardware, M400-2 Bottom Bracket,
two M400-3 Fist Grips, M400-8 Thimble, M400-5 Cable Guide
*System comes with round rung ladder confi guration hardware. If using a square rung
confi guration, order M400-7 Extended Top Bracket Square Rung Hardware.
Replacement Cable Assemblies
RC-M400-XXX Include:
3/8 inch galvanized steel cable; energy absorber
and safety backup cable
Product # Description
RC M400-30 Replacement cable assembly; 30 ft.
RC M400-40 Replacement cable assembly; 40 ft.
RC M400-50 Replacement cable assembly; 50 ft.
RC M400-75 Replacement cable assembly; 75 ft.
RC M400-100 Replacement cable assembly; 100 ft.
RC M400-150 Replacement cable assembly; 150 ft.
RC M400-200 Replacement cable assembly; 200 ft.
RC M400-300 Replacement cable assembly; 300 ft.
Available Replacement Parts:
Product # Description
M400-10 Extended Top Bracket
M400-11 Extended Top Bracket Round-Rung Hardware
M400-7 Extended Top Bracket Square-Rung Hardware
Product # Description
M400-3 Fist Grips
128 Fall Arrester
Rope Lifelines
3M™ Rope Lifeline Assemblies are constructed of 5/8 inch Polydac rope and
are available in fi xed lengths with one or two double-locking snap hooks.
Some varieties available with manual rope adjuster.
Product # Description
0221-25 25 ft.; Double-locking snap hook
0221-25-2 25 ft.; Two Double-locking snap hooks
0221-50 50 ft.; Double-locking snap hook
0221-50-2 50 ft.; Two Double-locking snap hooks
0221-75 75 ft.; Double-locking snap hook
0221-100 100 ft.; Double-locking snap hook
0221-100-2 100 ft.; Two Double-locking snap hooks
0221-150 150 ft.; Double-locking snap hook
0221-200 200 ft.; Double-locking snap hook
Assemblies with 0116-1 Manual Rope Adjuster
Product # Description
0221-25RG 25 ft.; Double-locking snap hook, Rope adjuster
0221-50RG 50 ft.; Double-locking snap hook, Rope adjuster
0221-100RG 100 ft.; Double-locking snap hook, Rope adjuster
Fall Arrester — Cable
Product # Description
128 3/8 inch self-trailing cable fall arrester for automatic
movement with worker. For use with 3M Ladder Climb
System M400 Series. Comes with Carabiner 0210CP-07.
123
128 0116-1
0113
M400-10
Extended
Top Bracket
M400-11
Extended Top
Bracket Round
Rung Hardware
M400-5
Cable Guide
3/8"
Galvanized
Cable
M400-3
Fist Grips
128
Fall Arrester
M400-2
Bottom Bracket
The 3M™ Ladder Climb Vertical Lifeline is a pre-engineered fl exible system designed to meet most
vertical applications. The extended top ladder bracket allows users to safely ascend to the next working
surface prior to disconnecting from the system. The ladder climb system is available in multiple-length
ready-to-order systems and replacement cable and energy absorber assemblies are available. Please
note the ladder climb system requires the use of a harness with front D-ring for attachment.
Fall Arresters — Rope
These fall arresters are self-trailing rope grabs allowing for automatic
movement, trailing behind (or with) worker.
Product # Description
123 Self-trailing 5/8 inch Fall Arrester; Large eye
124 Self-trailing 5/8 inch Fall Arrester; Small eye
129 Stainless steel self-trailing 5/8 inch Fall Arrester;
Includes panic hardware
3011-RGA 124 Self-trailing 5/8 inch Fall Arrester with permanently
attached 18 inch personal energy absorber
124/209509 124 Self-trailing 5/8 inch Fall Arrester with permanently
attached 2 foot energy absorbing lanyard
209510/124 124 Self-trailing 5/8 inch Fall Arrester with permanently
attached 3 foot personal energy absorber
Rope Adjuster
These rope adjusters are manual rope grabs that must be physically moved
up and down by the worker. This keeps the worker in one spot for fall restraint.
Product # Description
0113 5/8 inch stainless steel manual rope adjuster
0116-1 5/8 inch manual rope adjuster
See diagram below
Safety
Backup
Cable Energy
Absorber
RC M400-XXX
Cable Assembly
0221-50RG
0221-50
CORE ITEM Our best selling equipment — in stock and in demand.
92 93

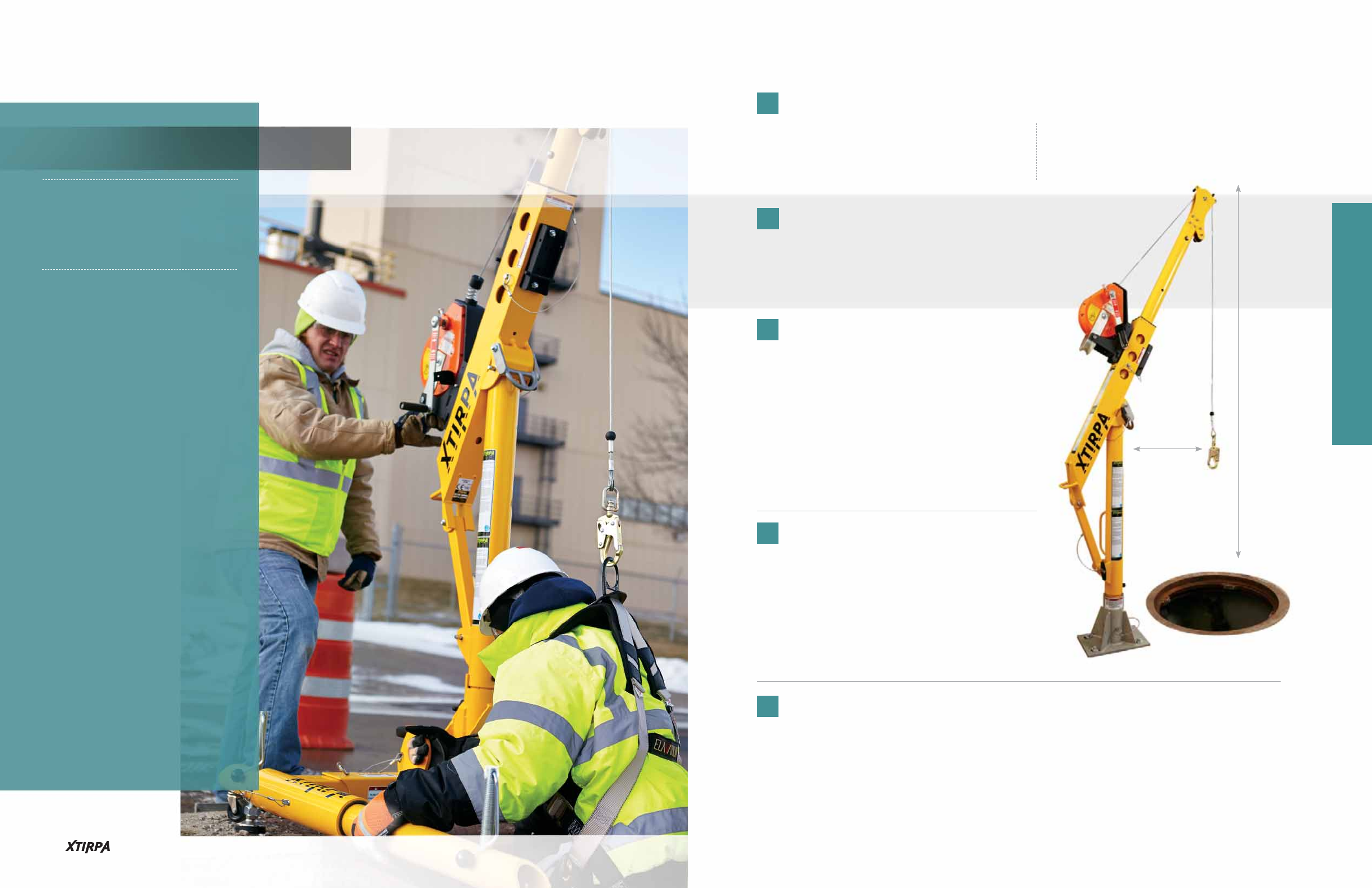

HEIGHT
REACH
DESIGN CONSIDERATIONS FOR CONFINED-SPACE SYSTEMS:
VERTICAL ENTRY
Consider vertical-entry solutions if accessing the top of a
tank, an underground utility vault, manhole, shaft, duct, pipe,
pit or degreaser.
HORIZONTAL ENTRY
Consider horizontal-entry solutions if accessing the side of a
boiler, tunnel, cellular double-bottom tank, duct keel, void space,
ballast or oil tank.
1 Do you need a vertical or horizontal system?
2 If choosing a vertical-entry system,
what reach and height are required?
Determine reach to the center of the entry point while considering
overhead clearance limitations.
3 Do you need fall arrest and rescue
and/or entry and retrieval devices?
Fall arrest/rescue only: three-way self-retracting lanyard is
recommended where a ladder or other structure is present
for ascending and descending the confi ned space.
Entry/retrieval only: use a three-way self-retracting lanyard or
man-rated winch in spaces where no fall hazard is present.
Fall arrest/rescue and entry/retrieval: use a three-way
self-retracting lanyard and winch in a space with a fall hazard
and where no ladder is present for ascending or descending.
4 What type of anchor point is required?
Consider your environment.
Limited space? Overhead beams? Low/high traffi c?
Consider your anchor point fl oor or wall materials.
Existing concrete? Fresh concrete? Thickness and PSI?
Consider system location and use.
Variety of work positions required? Same entry point accessed?
5 Do you need to protect your confi ned-space entry point from accidental entry?
When entrance covers are removed, the opening shall be promptly guarded by a railing, temporary cover or other temporary
barrier that will prevent an accidental fall through the opening.
Rugged systems that give you the confi dence to
handle a crisis.
When working in confi ned spaces,
the risk of injury and fatality is
extremely high. Successive fatalities
often come to the would-be rescuer.
Your safety precautions have to meet the
highest standards. We offer the best
in confi ned-space systems so you can
confi dently provide safe and secure solutions
for your workers.
OSHA 1910.146(b) defi nes “confi ned
space” as any space that:
(1) Is large enough and so confi gured that
an employee can bodily enter and
perform assigned work; and
(2) Has limited or restricted means for entry
or exit (for example: tanks, vessels, silos,
storage bins, hoppers, vaults and pits
are spaces that may have limited means
of entry) and
(3) Not designed for continuous
employee occupancy.
When the chance of a hazard is possible, the
space would be considered a “permitted”
space. In permitted confi ned spaces greater
than 5 feets deep, a means of retrieval is
required, and all entrants must use a full body
harness. Fall protection is required in general
industry when an employee is exposed to a fall
hazard of 4 feet or greater. In construction, fall
protection is required at 6 feet or greater.
CONFINED-SPACE SYSTEMS
3M™ Fall Protection Catalog | 3M.com/FallProtection |
CONFINED-SPACE SYSTEMS
Fall Arrest and Confined-Space Systems distributed by 3M
ACCESSORIES
Xtirpa™ LOW CLEARANCE INTEGRATED
MAST AND DAVIT ARM
Use in any of the 24 inch adapter bases
when a shorter clearance is needed.
36 inch height, 18 inch reach.
94 95
3M™ TRIPOD SYSTEM
Use when portability, affordability and easy
installation are key decision factors.
Xtirpa™ COUNTERWEIGHT
SYSTEM
For multiple entry point use, this
system offers a 30 inch–48 inch
davit arm for greater reach.
Xtirpa™ POLE HOIST SYSTEM
Use for vertical entry/retrieval or
horizontal retrieval in areas of
limited space.
3M™ SELF-RETRACTING LANYARD
Use for fall protection, retrieval and entry.
3M™ MATERIAL-HANDLING WINCH
Material-handling winch for use in
confi ned spaces.
Xtirpa™ SELF-RETRACTING LANYARD
AND WINCH ADAPTERS
Provides connection to davit arm.
Xtirpa™ RATCHET
MANHOLE-COVER LIFTER
Provides safe lifting in ergonomic
position. Three hook sizes available.
Xtirpa™ MULTI-FUNCTIONAL BARRICADE
Provides additional confi guration options.
OVERVIEW OF SYSTEMS AND ACCESSORIES
Xtirpa™ ADAPTER-
BASE SYSTEM
Fixed Mast and
Davit-Arm Assembly
use where base can
be permanently fi xed
to an existing structure.
Xtirpa™ TRAILER HITCH
MOUNT SYSTEM
Use with vehicles to access
typical vertical-entry points
or rescue and retrieval over
the side of a bridge or edge
of settling pond.
Xtirpa™
FREE STANDING
H-BASE SYSTEM
Use to access various
confi ned-space entry
points in same area.
Xtirpa™ MANHOLE GUARD SYSTEM
Use where an entry point needs to
be guarded and when installation of
an adapter base is not possible.
(Anchor point is incorporated into
structure of this system).
Xtirpa™ MANHOLE
COLLAR SYSTEM
Designed for applications
involving frequent setups
over similarly sized
access openings.
3M™ Fall Protection Catalog | 3M.com/FallProtection |
CONFINED-SPACE SYSTEMS
Fall Arrest and Confined-Space Systems distributed by 3M

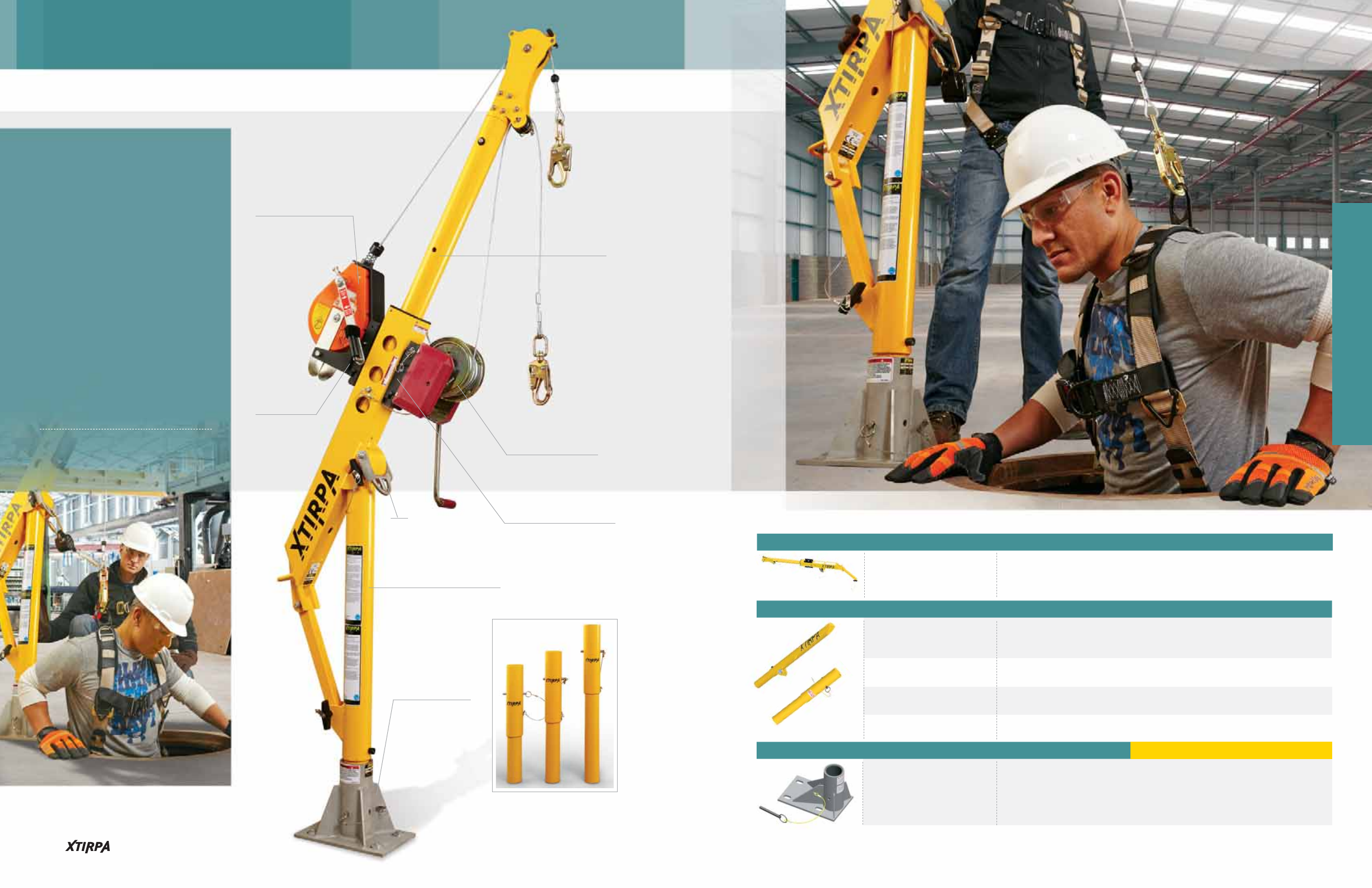

Sample 24 Inch Adapter-Base System
96 97
MAST AND EXTENSIONS Product # Name Description
IN-2003 Xtirpa™ Davit Mast
55 inches
Mast for confi ned space fall protection and retrieval to be used in conjunction with the fall
protection and retrieval 24 in. davit arm IN-2210 and any Xtirpa™ 24 in. davit-arm base or
system. Height: 55 inches. Unit weight: 22 lbs.
IN-2044 Xtirpa™ Mast
Extension, 15 inches
Mast extension is made of painted steel and provides an additional 15 in. of height when used
with any 24 in. davit-arm base. Unit weight: 20 lbs.
IN-2109 Xtirpa™ Mast
Extension, 18 inches
Mast extension is made of painted steel and provides an additional 18 in. of height when used
with any 24 in. davit-arm base. Unit weight: 24 lbs.
IN-2045 Xtirpa™ Mast
Extension, 24 inches
Mast extension is made of painted steel and provides an additional 24 in. of height when used
with any 24 in. davit-arm base. Unit weight: 26 lbs.
DAVIT ARM Product # Name Description
IN-2210 Xtirpa™ Davit Arm
24 inches
24 in. davit arm with secondary block adapter for fall protection and retrieval facilitates access
to confi ned spaces. Used in conjunction with 24 in. mast IN-2003 and appropriate Xtirpa™
base/system or manhole guard IN-2108 or IN-2324. Equipped with 5,000 lbs. anchor point.
Unit weight: 33 lbs.
FLOOR ADAPTER BASES Product # Name Description
IN-2005
IN-2106
IN-2311
Xtirpa™ Floor
Adapter Base
Stainless Steel
Zinc Plated
316 Stainless Steel
Floor adapter base attaches to concrete or steel. Use with 24 in. universal mast IN-2003
and davit arm IN-2210. Bolts not included.
Xtirpa™ 24 INCH ADAPTER-BASE SYSTEM
For self-retracting lanyards, winches and other accessories, see page 120.
Additional fl oor adapter bases on following pages
Xtirpa™ DAVIT MAST
IN-2003, 55 inch height
Available in a variety of sizes
based on length of davit arm.
Xtirpa™
DAVIT ARM
IN-2210,
24 inch reach
Also available
in 30 inch–
48 inch and
60 inch–96 inch.
Xtirpa™ FLOOR
ADAPTER BASE
A variety of
options are available:
See pages 97–99.
3M™ MATERIAL
HANDLING WINCH
142G, 65 feet
3M™ STAINLESS STEEL
THREE-WAY SELF-
RETRACTING LANYARD
205G-50, 50 feet
50 foot three-way
self-retracting lanyard.
VERTICAL-ENTRY SOLUTIONS
Xtirpa™ 24 INCH ADAPTER-BASE SYSTEM
For work areas that require regular
setup and tear-down and where a base
can be permanently affi xed to an existing
structure, adapter-base systems are an
ideal solution. These systems consist of
a davit arm, mast, retrieval device and
adapter base. This lightweight, reliable
and easy-to-install system facilitates
access to vertical confi ned spaces. The
universal mast and davit arm allow for fall
protection and retrieval and can be used
and installed in many different adapter
bases. The davit arm is equipped with a
5,000 lbs. anchor point.
MAST EXTENSIONS
Provide additional mast height
by inserting a mast extension
into the adapter base, then place
mast in top of extension.
WEIGHT CAPACITY: 360 lbs.
Equipped with 5,000 lbs.
rated anchor point.
Xtirpa™
SRL ADAPTER
IN-2356*
Use to attach
205G-50 to davit
arm mounting
bracket.
Xtirpa™ WINCH ADAPTER
IN-2157
Use to attach 142G to
davit-arm mounting bracket.
3M™ Fall Protection Catalog | 3M.com/FallProtection |
* If using a 205G-50 self-retracting lanyard that was manufactured
before July 2013, use mounting bracket IN-2079 instead of IN-2356.
CONFINED-SPACE SYSTEMS
Fall Arrest and Confined-Space Systems distributed by 3M
ADAPTER BASES Product # Name Description
IN-2171 Xtirpa™ Transformer Adapter High-power transformer adapter provides clearance when lifting objects out
of transformer. Use with universal mast IN-2003 and davit arm IN 2210.
IN-2117
Xtirpa™ Concrete Top Wall Bracket,
Stainless Steel
Stainless steel wall-mount adapter provides the option for attaching a mast
adapter to top of concrete wall at 90°. Use with universal mast IN-2003
and davit arm IN-2210. Bolts not included.
ADAPTER ACCESSORIES Product # Name Description
IN-2161 Xtirpa™ Warning Post
Use with permanent adapter bases when installed in high-traffi c locations
to provide a visual warning of base. May help prevent objects from falling
in base and reduce trip hazards. 45 in. height x 4 in. diameter. Fits 3 in.
diameter hole for IN-2003 universal mast.
IN-2072 Xtirpa™ Adapter Cap
Adapter cap for use with permanent adapter bases when mast not installed
may help to prevent objects from falling in adapter base. Fits 3 in. diameter
hole for IN-2003 universal mast.
IN-2073 Xtirpa™ Adapter Cap
with Steel Wire
Adapter cap with steel wire for use with permanent adapter bases when
mast not installed may help to prevent objects from falling in base. Wire
keeps cap attached to base. Fits 3 in. diameter hole for IN-2003 universal
mast.
P2006-006 Xtirpa™ Adapter-Reinforcement
Plate, Stainless Steel
Stainless steel reinforcement plate for adapter base IN-2006, for use when
concrete is less than 8 in. thick, see specifi cation sheet for all require-
ments. Purchase anchor rods IN-2174 or IN-2212.
P2105-001 Xtirpa™ Adapter-Reinforcement
Plate, Stainless Steel
Stainless steel reinforcement plate for adapter base IN-2105, for use when
concrete is less than 8 in. thick and a minimum of 6 in., see specifi cation
sheet for all requirements. Purchase anchor rods IN-2174 or IN-2212.
P2005-001 Xtirpa™ Adapter-Reinforcement
Plate, Stainless Steel
Stainless steel reinforcement plate for adapter base IN-2005, for use when
concrete is less than 8 in. thick and a minimum of 6 in., see specifi cation
sheet for all requirements. Purchase anchor rods IN-2174 or IN-2212.
P2087-004 Xtirpa™ Adapter-Reinforcement
Plate, Stainless Steel
Stainless steel reinforcement plate for adapter base IN-2087, for use when
concrete is less than 8 in. thick and a minimum of 6 in., see specifi cation
sheet for all requirements. Purchase anchor rods IN-2174 or IN-2212.
P2013-008 Xtirpa™ Adapter-Reinforcement
Plate, Stainless Steel
Stainless steel reinforcement plate for adapter base IN-2013, for use when
concrete is less than 8 in. thick, see specifi cation sheet for all require-
ments. Purchase anchor rods IN-2174 or IN-2212.
IN-2174 Xtirpa™ Adapter Plate 12 in.
Rod Kit, Stainless Steel, 4 per kit
This kit comes with four 12 in. stainless steel threaded rods for sandwich-
type installation of adapter bases.
IN-2212 Xtirpa™ Adapter Plate 16 in.
Rod Kit, Stainless Steel, 4 per kit
This kit comes with four 16 in. stainless steal threaded rods for sandwich-
type installation of adapter bases.
Xtirpa™ 24 INCH ADAPTER-BASE SYSTEM | CONTINUED
Xtirpa™ CONFINED-SPACE INTEGRATED
MAST AND DAVIT ARM
IN-2295, 36 inch height x 18 inch reach
Low-clearance integrated mast and davit arm for use in any of
the 24 inch adapter bases when a shorter clearance is needed.
Unit weight: 16 lbs.
WEIGHT CAPACITY: 360 LBS.
Xtirpa™ LOW CLEARANCE MAST AND DAVIT
ADAPTER BASES Product # Name Description
IN-2006
IN-2114
IN-2325
Xtirpa™ Flush Floor-Adapter Base
Stainless Steel
Zinc Plated
316 Stainless Steel
Floor adapter attaches to concrete or steel. May help to reduce trip hazards
when not in use. Use with mast IN-2003 and davit arm IN-2210. Bolts not
included.
IN-2007
IN-2326
Xtirpa™ Cast-in-Place
Concrete Floor Base
Stainless Steel
316 Stainless Steel
Floor adapter for use with fresh concrete fl oors in new construction. May help
to reduce trip hazards when not in use. Use with mast IN-2003 and davit arm
IN-2210. Bolts not included.
IN-2013
IN-2107
IN-2327
Xtirpa™ Mural Wall Mount
Adapter Base
Stainless Steel
Zinc Plated
316 Stainless Steel
Adapter attaches fl ush to concrete or steel vertical structures for minimal
intrusion. Use with universal mast IN-2003 and davit arm IN-2210. Bolts not
included.
IN-2124 Xtirpa™ 8 inch Clearance Mural
Wall Adapter
Stainless steel adapter attaches to concrete or steel vertical structures,
provides an 8 in. clearance from wall. Use with universal mast IN-2003 and
davit arm IN-2210. Bolts not included.
IN-2067
IN-2312
Xtirpa™ 14 inch Clearance
Mural Wall Adapter
Stainless Steel
316 Stainless Steel
Stainless steel adapter attaches to concrete or steel vertical structures and
provides 14 in. clearance from wall. Use with universal mast IN-2003 and davit
arm IN-2210. Bolts not included.
IN-2097
IN-2328
Xtirpa™ Sleeve Adapter
Stainless Steel
316 Stainless Steel
Stainless steel sleeve adapter provides fl ush mount with concrete fl oor.
For use with universal mast IN-2003 and davit arm IN-2210. 4-1/5 in. diameter
hole needed.
IN-2021
IN-2129
Xtirpa™ Wall-Adapter Base
Stainless Steel
Zinc Plated
Wall adapter base attaches to walls that are max 3 in. thick. Universal mast
IN-2003 is then installed in adapter base. Commonly used on boats/ferries.
IN-2315 Xtirpa™ Wall-Adapter Base
2 in.–5 in., Zinc Plated Zinc plated wall adapter 2 in.–5 in. width. Commonly used on shoring boxes.
IN-2008
IN-2168
IN-2075
IN-2125
IN-2251
Xtirpa™ Adjustable Wall Adapter
6 in.–15.75 in.
12 in.–24 in.
12 in.–31.5 in.
24 in.–45 in.
12 in.–30 in.
Adjustable wall adapters range from 6 in.–15 in. up to 12 in.–48 in.
Bolts included.
IN-2131
IN-2132
Xtirpa™ Exterior-Corner Wall
Mount Sleeve
Stainless Steel
Zinc Plated
Wall-mount adapter base provides the option for attaching a mast adapter to
an exterior 90° corner wall. Bolts not included.
IN-2133
IN-2134
Xtirpa™ Inside-Corner Wall
Mount Sleeve
Stainless Steel
Zinc Plated
Wall-mount adapter base provides the option for attaching a mast adapter to
an interior 90° corner wall. Bolts not included.
IN-2105
IN-2137
IN-2329
Xtirpa™ Central Floor-Adapter Base
Stainless Steel
Zinc Plated
316 Stainless Steel
Center-mounted fl oor adapter attaches to concrete or steel. Use with universal
mast IN-2003 and davit arm IN-2210. Ideal when 360° movement required.
Bolts not included.
IN-2087 Xtirpa™ Wall-Mounted Universal
Ring Adapter
Universal ring adapter anchor point, use on ceiling or wall with pole hoist
system. Use horizontally or vertically. Bolts not included.
IN-2085 Xtirpa™ H-Beam Adapter
Adapter base attaches to H-Beams to provide an anchorage point for davit
arm IN-2003. Designed for H-Beam width 12 in. x 26 in. Used on suspended
fl oors over sections of beams. Use with universal mast IN-2003 and davit arm
IN-2210. Comes with bolts.
IN-2208 Xtirpa™ Sliding Beam Adapter
Sliding beam adapter fi ts beams 15 in. x 5-3/8 in. Tighten while in use, then
move to new location along entire length of beam. Bolts located on one side
for ease of transfer. Use with universal mast IN-2003 and davit arm IN-2210.
Commonly used on dams.
Xtirpa™ 24 INCH ADAPTER-BASE SYSTEM | CONTINUED
98 99
3M™ Fall Protection Catalog | 3M.com/FallProtection |
For self-retracting lanyards, winches and other accessories, see page 120.
CONFINED-SPACE SYSTEMS
Fall Arrest and Confined-Space Systems distributed by 3M
ADAPTER BASES Product # Name Description
IN-2238
IN-2302
Xtirpa™ Floor Adapter Base
Stainless Steel
Zinc Plated
Floor-adapter base attaches to concrete or steel structure. For use with mast IN-2240
or IN-2313 and davit arm IN-2237. Bolts not included.
IN-2253
IN-2303
Xtirpa™ Mural Wall
Adapter Base
Stainless Steel
Zinc Plated
Wall adapter installed fl ush to concrete for minimal intrusion in work space.
Use with mast IN-2240 or IN-2313 and davit arm IN-2237. Bolts not included.
IN-2254
IN-2304
X
tirpa™ Central Floor
Adapter Base
Stainless Steel
Zinc Plated
Center-mounted fl oor adapter attaches to concrete or steel structure. Use with mast
IN-2240 or IN-2313 and davit arm IN-2237. Ideal for 360° rotation. Bolts not included.
IN-2266 Xtirpa™ Flush Floor Adapter
Base, Stainless Steel
Stainless steel adapter attaches to concrete or steel. May help reduce trip hazards
when not in use. Use with mast IN-2240 or IN-2313 and davit arm IN-2237.
Bolts not included.
IN-2255 Xtirpa™ Mast Sleeve
Adapter, Stainless Steel
Stainless steel sleeve adapter provides fl ush mount with concrete fl oor. For use with mast
IN-2240 or IN-2313 and davit arm IN-2237. 5-3/4 inch diameter hole needed.
IN-2272 Xtirpa™ Adapter Cap
4 in. diameter
Use with permanent adapter bases when mast not installed. May help to prevent objects
from falling in base. Use with mast IN-2240 or IN-2313. Fits 4 in. diameter hole.
IN-2273 Xtirpa™ Adapter Cap
with
Steel Wire, 4 in. diameter
Wire keeps cap attached to base. Use with permanent adapter bases when mast not
installed. May help to prevent objects from falling in base. Use with mast IN-2240 or
IN-2313. Fits 4 in. diameter hole.
A2238-03 Xtirpa™ Cylinder Reducer
4 in.
–
3 in.
For 30 in.
–
48 in. davit-arm adapter base to allow use of 24 in. davit-arm mast IN-2003
and 24 in. system with larger 30 in.
–
48 in. base.
MASTS Product # Name Description
IN-2240
Xtirpa™ Mast for
30 in.
–
48 in. Davit Arm
42 in. height
Mast for confi ned-space fall protection and retrieval to be used in conjunction with
30 in.
–
48 in. davit arm IN-2237. It fi ts 30 in.
–
48 in. Xtirpa™ adapter bases and counter-
weight system. Height:42 in. Unit weight: 25 lbs.
IN-2313
Xtirpa™ Mast for
30 in.
–
48 in. Davit Arm
60 in. height
60 in. mast for confi ned space fall protection and retrieval to be used in conjunction with
30 in.
–
48 in. davit arm IN-2237. It fi ts 30 in.
–
48 in. Xtirpa™ adapter bases. Unit weight:
34 lbs.
Xtirpa™ 30 INCH–48 INCH ADAPTER-BASE SYSTEM
DAVIT ARM Product # Name Description
IN-2237
Xtirpa™ Davit Arm
30 in.
–
48 in.
30 in.–48 in. davit arm for fall protection and retrieval facilitates access to confi ned space. Use
with masts IN-2240 or IN-2313. Pinholes located at 30 in., 36 in. and 48 in. Equipped with
5,000
lbs. anchor point.
For winch handling support, order A2237-06 separately. Unit weight: 35 lbs.
A2237-06 Xtirpa™ Removable
Winch Adapter Removable winch adapter for the 30
in.–
48 in. davit arm (IN-2237).

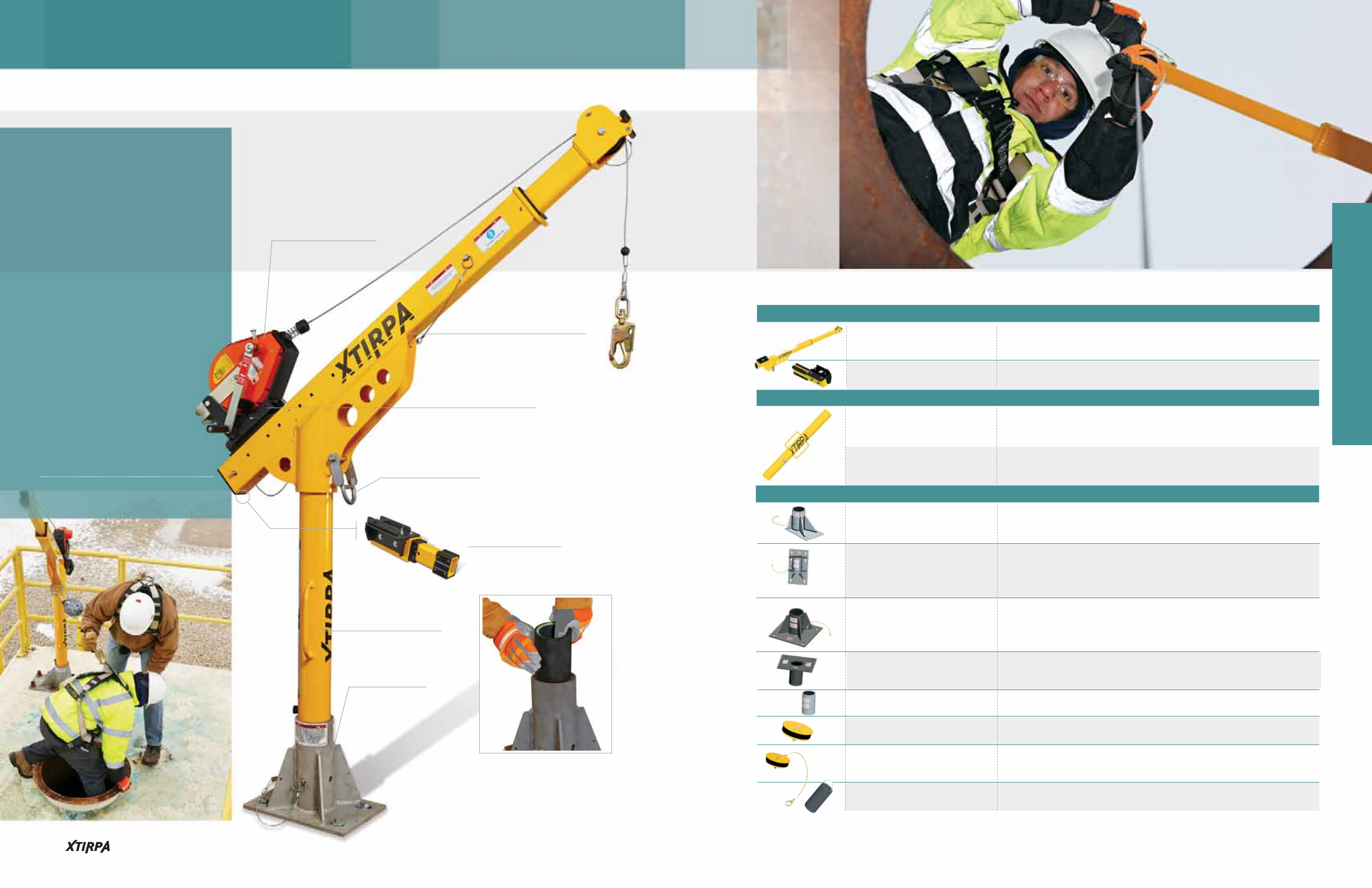

Sample 30 Inch–48 Inch Adapter-Base System
100 101
VERTICAL-ENTRY SOLUTIONS
Xtirpa™ 30 INCH–48 INCH ADAPTER-BASE SYSTEM
Xtirpa™ DAVIT ARM
IN-2237, 30 inch–48 inch
reach
Adjust to 30 inches, 36
inches or 48 inches.
Xtirpa™ DAVIT MAST
IN-2240, 42 inch height
Use cylinder reducer A2238-03 in
adapter base to allow for use with
24 inch davit arms.
Xtirpa™ FLOOR
ADAPTER BASE
A variety of options
are available.
The 30 inch–48 inch system is ideal for
work areas that require regular setup and
tear-down and where a base can be
permanently affi xed to an existing structure.
This system consists of a davit arm, mast
retrieval device and adapter base. Including
all the benefi ts of the 24 inch system,
this larger system is easily positioned in
30 inch, 36 inch and 48 inch reach. This
greater versatility offers a solution where
other systems are not viable. The davit arm
is equipped with a 5,000 lbs. anchor
point. Typical applications include
anywhere greater reach is needed
including, but not limited to: bridge
decking, water and sewer facilities
and entry into large basins.
WEIGHT CAPACITY: 360 lbs.
Xtirpa™ SRL ADAPTER
IN-2356*
Use to attach 205G-50 to
davit-arm mounting bracket.
3M™ STAINLESS STEEL
THREE-WAY SELF-
RETRACTING LANYARD
205G-50, 50 feet
50 foot three-way
self-retracting lanyard.
Equipped with 5,000 lbs.
rated anchor point.
Xtirpa™
REMOVABLE ADAPTER
A2237-06
For positioning winch.
3M™ Fall Protection Catalog | 3M.com/FallProtection |
For self-retracting lanyards, winches and other accessories, see page 120.
* If using a 205G-50 self-retracting lanyard that was manufactured
before July 2013, use mounting bracket IN-2079 instead of IN-2356.
CONFINED-SPACE SYSTEMS
Fall Arrest and Confined-Space Systems distributed by 3M
Xtirpa™ 60 INCH–96 INCH ADAPTER-BASE SYSTEM
MAST Product # Name Description
IN-2199
Xtirpa™ Mast
for 60 in.
–
96 in.
Davit Arm
Mast for confi ned-space fall protection and retrieval to be used in conjunction with the fall
protection and retrieval 60 in.
–
96 in. davit arm IN-2197. Use with center-mounted fl oor
adapter IN-2201. Height: 55 in. Unit weight: 35 lbs.
DAVIT ARM Product # Name Description
IN-2197 Xtirpa™ Davit Arm
60 in.
–
96 in.
60 in.
–
96 in. davit arm with secondary block adapter for fall protection and retrieval facili-
tates access to underground chambers and other confi ned spaces. Use with mast IN-2199
and center-mounted fl oor adapter IN-2201. Equipped with 5,000 lbs. anchor point.
Unit weight: 125 lbs.
ADAPTER BASE Product # Name Description
IN-2201
Xtirpa™ Center
Mounted Floor
Adapter
Center-mounted stainless steel fl oor adapter for concrete or steel. Use mast IN-2199 and
davit arm IN-2197. Cylinder reducers allow use with Xtirpa™ masts and davit arms.
Bolts not included.
A2201-03
Xtirpa™ Cylinder
Reducer with Cable,
5-1/2 in.
–
3 in.
For 96 in. davit-arm adapter base IN-2201 to allow use of 24 in. davit arm IN-2210 and
mast IN-2003 or mast extensions. Adjusts diameter of adapter base from 5-1/2 in. to 3 in.
Attached cable helps remove cylinder reducer from the adapter receptacle.
A2201-04
Xtirpa™
Cylinder Reducer,
5-1/2 in.
–
4 in.
For 96 in. davit-arm adapter base IN-2201 to allow use of 30 in.
–
48 in. davit-arm mast
IN-2240 or IN-2313 and arm IN-2237 with the larger 96 in. davit-arm adapter base.
Adjusts diameter of adapter base from 5-1/2 in.
–
4 in.
Sample 60 Inch-96 Inch Adapter-Base System
102 103
VERTICAL-ENTRY SOLUTIONS
Xtirpa™ 60 INCH–96 INCH ADAPTER-BASE SYSTEM
Xtirpa™ DAVIT ARM
IN-2197,
60 inch
–
96 inch reach
Xtirpa™ DAVIT MAST
IN-2199, 55 inches
Xtirpa™ FLOOR
ADAPTER BASE
IN-2201
Use a cylinder reducer in adapter base to allow for use with
24 inch (P2201-004) or 30 inch–48 inch (A2201-04) inch davit-arms systems
Equipped with 5,000 lbs.
rated anchor point.
3M™ STAINLESS STEEL THREE-WAY
SELF-RETRACTING LANYARD
205G-50, 50 feet
50 foot three-way
self-retracting lanyard
The 60 inch–96 inch is ideal for work areas
that require regular setup and tear-down
and where a base can be permanently
affi xed to an existing structure. This system
consists of a davit arm, mast retrieval
device and adapter base. Including all the
benefi ts of the adapter-base systems, this
system provides extended reach and is
easily positioned from 5 feet to 8 feet.
The davit arm is equipped with a 5,000 lbs.
anchor point. Typical applications include
shipyards and dry docks.
WEIGHT CAPACITY: 360 lbs.
3M™ Fall Protection Catalog | 3M.com/FallProtection |
For self-retracting lanyards, winches and other accessories, see page 120.
Xtirpa™ SRL ADAPTER
IN-2356*
Use to attach 205G-50 to
davit-arm mounting bracket
* If using a 205G-50 self-retracting lanyard that was manufactured before
July 2013, use mounting bracket IN-2079 instead of IN-2356.
CONFINED-SPACE SYSTEMS
Fall Arrest and Confined-Space Systems distributed by 3M
104 105
Xtirpa™ MANHOLE GUARD SYSTEM
DAVIT ARM Product # Name Description
IN-2210 Xtirpa™ Davit Arm
24 in.
24 in.davit arm with secondary block adapter for fall protection and retrieval
facilitates access to confi ned spaces. Use with 24 in. mast IN-2003 and
appropriate Xtirpa™ bases/systems or manhole guard IN-2108 or IN-2324.
Equipped with 5,000 lbs. anchor point. Unit weight: 33 lbs.
MANHOLE GUARDS
AND BARRICADES Product # Name Description
IN-2108
Xtirpa™ Manhole
Guard 42 in. H x 38
in. W x 38 in. D
Portable manhole guard with integrated mast that is used in conjunction with a
24 in. davit arm for confi ned-space fall protection and retrieval. It is 42 in. height x
38 in. width x 38 in. depth. Comes with adjustable feet for simple leveling of system.
Unit weight: 29 lbs.
IN-2324
Xtirpa™ Manhole
Guard 42 in. H x 52
in. W x 52 in. D
Large portable manhole guard with integrated mast that is used in conjunction
with the 24 in. davit arm for confi ned space fall protection and retrieval. It is 42 in.
height x 52 in. width x 52 in. depth. Comes with adjustable feet for simple leveling of
system. Unit weight: 44 lbs.
A2101-07
Xtirpa™
Multi-functional
Barricade, 1-side
Single section multi-functional portable manhole guard allows worker to assemble
additional sections as needed to create a safe working area. 42 in. height x
38 in. width x 38 in. deep. For use with portable manhole guard IN-2108 or
IN-2324. Unit weight: 7 lbs.
IN-2101
Xtirpa™
Multi-functional
Barricade, 4-sides
four-sided multi-functional portable manhole guard allows worker to assemble
additional sections to create a safe working area. Each removable section is
42 in. height x 38 in. width x 38 in. depth. For use with portable manhole
guard IN-2108 or IN-2324. Unit weight: 28 lbs.
PLATE PROTECTOR Product # Name Description
IN-2176 Xtirpa™ Barricade
Plate Protector
Kick-plate protector for portable manhole guard to help prevent objects at foot level from
entering confi ned space. 6 in. height x 37-1/2 in. length x 1/16 in. width (thickness).
ACCESSORIES Product # Name Description
IN-2296
Xtirpa™ Manhole
Guard Cable Reel
Support
Manhole guard cable reel support used by cable companies (telephone, electric) to
pull conduit cable. It is fi xed on manhole guards IN-2108 or IN-2324 and wire placed
on reel.
Xtirpa™ MANHOLE GUARD
IN-2108
Available in 42 inch
and 52 inch sizes with
adjustable feet.
VERTICAL-ENTRY SOLUTIONS
Xtirpa™ MANHOLE GUARD SYSTEM
Manhole guard systems are used when an
exposed entry point needs to be guarded.
This portable system has an integrated
mast that is used in conjunction with
a davit arm to provide fall protection
and entry and retrieval capabilities. The
manhole guard system facilitates access
to underground chambers or any other
type of confi ned space where an entry
point should be protected. Davit arm is
equipped with a 5,000 lbs. anchor point.
WEIGHT CAPACITY: 420 lbs. with
manhole guard system
Xtirpa™ STABILIZER
A2108-18
For increased stability of
system. Designed to be
used with 24 inch davit
arm IN-2210 and mast
manhole guard.
Xtirpa™
MULTIFUNCTIONAL BARRICADE
IN-2101
Extend your work area with an
additional barricade.
Xtirpa™
DAVIT ARM
IN-2210, 24 inch reach
3M™ STAINLESS STEEL
THREE-WAY SELF-
RETRACTING LANYARD
205G-50, 50 feet
50 foot three-way
self-retracting lanyard.
Equipped with 5,000 lbs.
rated anchor point.
Xtirpa™
SRL ADAPTER
IN-2356*
Use to attach
205G-50 to
davit-arm
mounting
bracket.
Sample Manhole Guard System
If working on metal grids or
gravel, large rubber feet are
available to order separately
A2001-28 (see page 122).
RINGS Product # Name Description
IN-2010 Xtirpa™ Manhole
Retaining Ring
Retaining ring that must be used in conjunction with cone-shaped safety ring
IN-2009 to secure to manhole. Expands 28 in.
–
30 in.
IN-2009 Xtirpa™ Cone
Shaped Safety Ring
30 in. cone-shaped sealing safety ring must be used in conjunction with retaining
ring IN-2010. Connects to manhole guard IN-2108 or IN-2324 to help prevent
liquids from entering the confi ned space.
STABILIZER Product # Name Description
A2108-18 Xtirpa™ Stabilizer
Stabilizer for IN-2108 or IN-2324 portable manhole guards. For use with self-
retracting lanyards over 50 ft. for increased stability of system. May be used with
other winching mechanisms: either material-handling winch or man-handling winch.
A2108-20 Xtirpa™ Stabilizer
with wheels
Stabilizer for IN-2108 or IN-2324 portable manhole guard with wheels. For use with
self-retracting lanyards over 50 ft. for increased stability of system. Wheels allow for
ease of movement without dismantling system.
3M™ Fall Protection Catalog | 3M.com/FallProtection |
For self-retracting lanyards, winches and other accessories, see page 120.
* If using a 205G-50 self-retracting lanyard that
was manufactured before July 2013,
use mounting bracket IN-2079 instead of IN-2356.
CONFINED-SPACE SYSTEMS
Fall Arrest and Confined-Space Systems distributed by 3M
Sample Manhole
Collar System
106 107
Xtirpa™ MANHOLE-COLLAR SYSTEM
DAVIT ARM Product # Name Description
IN-2210 Xtirpa™ Davit Arm,
24 in.
24 in. davit arm with secondary block adapter for fall protection and retrieval
facilitates access to confi ned spaces. Use with 24 in. mast IN-2003 and appropriate
Xtirpa™ bases/systems or manhole guards IN-2108 or IN-2324. Equipped with
5,000 lbs. anchor point. Unit weight: 33 lbs.
MAST Product # Name Description
IN-2003 Xtirpa™ Davit-Arm
Mast, 55 in.
Mast for confi ned-space fall protection and retrieval to be used in conjunction with the
fall protection and retrieval 24 in. davit arm IN-2210 and any Xtirpa™ 24 in. davit-arm
base or system. Height: 55 in. Unit weight: 22 lbs.
IN-2044 Xtirpa™ Mast
Extension, 15 in.
Mast extension is made of painted steel and provides an additional 15 in. of height
when used with any 24 in. davit-arm base. Unit weight: 20 lbs.
IN-2109 Xtirpa™ Mast
Extension, 18 in.
Mast extension is made of painted steel and provides an additional 18 in. of height
when used with any 24 in. davit-arm base. Unit weight: 24 lbs.
IN-2045 Xtirpa™ Mast
Extension, 24 in.
Mast extension is made of painted steel and provides an additional 24 in. of height
when used with any 24 in. davit-arm base. Unit weight: 26 lbs.
Manhole collars on following page
VERTICAL-ENTRY SOLUTIONS
Xtirpa™ MANHOLE COLLAR SYSTEM
Manhole collar systems are designed for
applications involving frequent setups
over similarly-sized access openings.
This lightweight and easy-to-assemble/
disassemble system provides a portable
adapter base and anchor point making
it an ideal option for areas where a
permanent anchor is not viable.
WEIGHT CAPACITY: 360 lbs.
Xtirpa™ MANHOLE COLLAR
IN-2221, 22 inch–24 inch diameter
A variety of sizes are available.
Equipped with 5,000 lbs.
rated anchor point.
Xtirpa™ DAVIT MAST
IN-2003, 55 inch height
Available in a variety of sizes
based on length of davit arm.
Xtirpa™
DAVIT ARM
IN-2210, 24 inch reach
3M™ STAINLESS STEEL
THREE-WAY SELF-
RETRACTING LANYARD
205G-50, 50 feet
50 foot three-way
self-retracting lanyard.
Xtirpa™
SRL ADAPTER
IN-2356*
Use to attach
205G-50 to davit-
arm mounting
bracket.
Xtirpa™ MANHOLE COLLAR
LADDER ADAPTER
A2217-05
Attaches to any manhole collar and
secures ladder to collar for additional
stability. Use where ladder is not built into
structure. Cannot be used with safety rings.
Xtirpa™ CONFINED-SPACE
INTEGRATED MAST AND
DAVIT ARM
IN-2295
Low clearance integrated mast and
davit arm for use with manhole collar
system or any 24 inch adapter-base
when a shorter clearance is needed.
Unit weight: 16 lbs.
3M™ Fall Protection Catalog | 3M.com/FallProtection |
For self-retracting lanyards, winches and other accessories, see page 120.
* If using a 205G-50 self-retracting lanyard that was manufactured
before July 2013, use mounting bracket IN-2079 instead of IN-2356.
CONFINED-SPACE SYSTEMS
Fall Arrest and Confined-Space Systems distributed by 3M
108 109
Xtirpa™ Ratchet Manhole
Cover Lifter | IN-2071
Designed for easy handling of
manhole covers, a ratchet system
offers an ergonomically safe way to
lift the toughest lids with less strain.
Lightweight and durable. Measures
53 inches in height. Non-skidding
tempered steel pegs, includes medium
hook. Three hook sizes available.
P2071-021P Small J hook
P2071-022P Medium square hook
P2071-023P Large J hook
SPECIALIZED Product # Name Description
IN-2244
Xtirpa
™
Positioning Seat
Positioning seat allows for comfortable entrance/exit of confi ned space by
providing worker a padded seat to sit on while ascending/descending.
Seat attaches to man-rated winch. Commonly used in grain elevators.
Xtirpa™ MANHOLE COLLAR SYSTEM | CONTINUED
VERTICAL-ENTRY SOLUTIONS
COLLARS Product # Name Description
Xtirpa™ Fall/Arrest
Retrieval Manhole Collar
Fall arrest/retrieval manhole collars fi t 16 in.–44 in. diameter. Provides
portable adapter base for a confi ned-space system by fi tting within a manhole
opening. Use with 24 in. mast IN-2003 and davit arm IN-2210.
IN-2287
IN-2219
IN-2220
IN-2221
IN-2217
IN-2222
IN-2218
IN-2167
IN-2223
IN-2224
IN-2180
Fits 16 in.–18 in. diameter
Fits 18 in.–20 in. diameter
Fits 20 in.–22 in. diameter
Fits 22 in.–24 in. diameter
Fits 24 in.–26 in. diameter
Fits 26 in.–28 in. diameter
Fits 28 in.–30 in. diameter
Fits 30 in.–32 in. diameter
Fits 32 in.–34 in. diameter
Fits 34 in.–36 in. diameter
Fits 42-1/2 in.–44 in. diameter
IN-2269 Xtirpa™ Adjustable Manhole Collar
Fits 32 in.–42 in. diameter
Adjustable fall arrest/retrieval manhole collar adjusts from 32 in.–42 in. diameter.
Provides a portable base for a confi ned-space system by fi tting within a manhole
opening. Use with 24 in. mast IN-2003 and davit arm IN-2210.
Xtirpa™ MANHOLE COLLAR ACCESSORIES
COMFORT SEAT Product # Name Description
A2217-10 Xtirpa™ Manhole
Collar Comfort Seat
This seat can be attached to any manhole collar for added comfort when entering
or working on a confi ned space entry point. Cannot be used with IN-2009 due to
tilted edges. Seat dimensions: 10 in. length x 12 in. height.
LADDER ADAPTER Product # Name Description
A2217-05
Xtirpa™ Manhole
Collar Ladder
Adapter
Ladder adapter attaches to any Xtirpa™ manhole collar and provides a mechanism
to secure ladder to manhole collar for added stability when a ladder is needed
but not built into structure. Cannot be used with IN-2009. Comes with
necessary hardware.
HAND RAIL Product # Name Description
IN-2282 Xtirpa™ Manhole
Adaptable Handrail
This adaptable handrail is for use with mast IN-2003 and provides easier
entrance/exit from confi ned space. Unit weight 5-1/2 lbs.
3M™ Fall Protection Catalog | 3M.com/FallProtection |
For self-retracting lanyards, winches and other accessories, see page 120.
CONFINED-SPACE SYSTEMS
Fall Arrest and Confined-Space Systems distributed by 3M
110 111
DAVIT ARM Product # Name Description
IN-2210 Xtirpa™ Davit Arm,
24 in.
24 in. davit arm with secondary block for fall protection and retrieval facilitates access
to confi ned spaces. Use with 24 in. mast IN-2003 and appropriate Xtirpa™ bases/sys-
tems or manhole guards IN-2108 or IN-2324. Equipped with 5,000 lbs. anchor point.
Unit weight: 33 lbs.
MAST AND EXTENSIONS Product # Name Description
IN-2003 Xtirpa™ Davit-Arm
Mast, 55 in.
Mast for confi ned-space fall protection and retrieval to be used in conjunction with the
fall protection and retrieval 24 in. davit arm IN-2210 and any Xtirpa™ 24 in. davit-arm
base or system. Height: 55 in. Unit weight: 22 lbs.
IN-2044 Xtirpa™ Mast
Extension, 15 in.
Mast extension is made of painted steel and provides an additional 15 in. of height
when used with any 24 in. davit-arm base. Unit weight: 20 lbs.
IN-2109 Xtirpa™ Mast
Extension, 18 in.
Mast extension is made of painted steel and provides an additional 18 in. of height
when used with any 24 in. davit-arm base. Unit weight: 24 lbs.
IN-2045 Xtirpa™ Mast
Extension, 24 in.
Mast extension is made of painted steel and provides an additional 24 in. of height
when used with any 24 in. davit-arm base. Unit weight: 26 lbs.
H-BASE Product # Name Description
IN-2118 Xtirpa™ H-Base,
50 in.
50 in. H-base for confi ned space fall protection and retrieval. Use with 24 in. davit arm
IN-2210 and mast IN-2003. The lower base is portable and adjusts to fi t most standard
confi ned spaces. Three-piece system.
Xtirpa™ FREESTANDING H-BASE SYSTEM
VERTICAL-ENTRY SOLUTIONS
Xtirpa™ FREESTANDING H-BASE SYSTEM
A free-standing system is ideal when
you need to move and access various
confi ned-space entry points. The
portable lower base allows for
adjustment to accommodate width
and length of most standard confi ned
spaces, offering a solution for the entry,
rescue and positioning of personnel.
The system pivots for an easier and
safer rescue. The davit arm is equipped
with a 5,000 lbs. anchor point.
WEIGHT CAPACITY: 360 lbs.
Sample Freestanding H-Base System
Xtirpa™ DAVIT
MAST EXTENSION
IN-2044, 15 inch height
Also available in 18 inches
and 24 inches.
Xtirpa™
DAVIT ARM
IN-2210,
24 inch reach
3M™ STAINLESS STEEL
THREE-WAY SELF-
RETRACTING LANYARD
205G-50, 50 feet
50 foot three-way
self-retracting lanyard.
Equipped with 5,000 lbs.
rated anchor point.
Xtirpa™
SRL ADAPTER
IN-2356*
Use to attach
205G-50 to davit-
arm mounting
bracket.
Xtirpa™ DAVIT MAST
IN-2003, 55 inch height
Available in a variety of sizes
based on length of davit arm.
Xtirpa™ H-BASE
IN-2118, 50 inches
Three-piece system.
3M™ Fall Protection Catalog | 3M.com/FallProtection |
For self-retracting lanyards, winches and other accessories, see page 120.
* If using a 205G-50 self-retracting
lanyard that was manufactured
before July 2013, use mounting
bracket IN-2079 instead of IN-2356.
CONFINED-SPACE SYSTEMS
Fall Arrest and Confined-Space Systems distributed by 3M
TRAILER MOUNT HITCH Product # Name Description
IN-2126
Xtirpa™ Trailer Hitch
Mount with Standard
24 in. Stabilizer
Trailer hitch mount with 24 in. stabilizer is part of a confi ned-space system that
connects to 2 in. square vehicle receiver hitches. Use with mast IN-2003 and davit arm
IN-2210. Comes with adjustable screw pads for simple leveling of system.
IN-2204
Xtirpa™ Trailer Hitch
Mount with 60 in.
Stabilizer
Trailer hitch mount with 60 in. stabilizer connects to 2 in. square vehicle receiver hitches.
Used with mast IN-2003 and davit arm IN-2210. Recommended for use with rescue
stretcher. Comes with adjustable screw pads for leveling of system.
Xtirpa™ TRAILER HITCH MOUNT SYSTEM
DAVIT ARM Product # Name Description
IN-2210 Xtirpa™ Davit Arm,
24 in.
2
4 in. davit arm with secondary block for fall protection and retrieval facilitates access to
confi ned spaces. Used in conjunction with 24 in. mast IN-2003 and appropriate Xtirpa
™
base/system or manhole guard IN-2108 or IN-2324. Equipped with 5,000 lbs. anchor
point. Unit weight: 33 lbs.
MAST AND EXTENSIONS Product # Name Description
IN-2003 Xtirpa™ Davit Mast,
55 in.
Mast for confi ned-space fall protection and retrieval to be used in conjunction with the fall
protection and retrieval 24 in. davit arm IN-2210 and any Xtirpa
™
24 in. davit-arm base or
system. Height: 55 in.
Unit weight: 22 lbs.
IN-2044 Xtirpa™ Mast
Extension, 15 in.
Mast extension is made of painted steel and provides an additional 15 in. of height when
used with any 24 in. davit-arm base. Unit weight: 20 lbs
.
IN-2109 Xtirpa™ Mast
Extension, 18 in.
Mast extension is made of painted steel and provides an additional 18 in. of height
when used with any 24 in. davit-arm base. Unit weight: 24 lbs.
IN-2045 Xtirpa™ Mast
Extension, 24 in.
Mast extension is made of painted steel and provides an additional 24 in. of height when
used with any 24 in. davit-arm base. Unit weight: 26 lbs
.
ACCESSORIES Product # Name Description
A2126-07
Xtirpa™ Universal Joint
Assembly for Trailer
Hitch Mount
The universal joint assembly attaches to trailer hitch mount IN-2126 or IN-2204
allowing for a 22-1/2° lateral movement when attached to hitch of vehicle. Usually used
in conjunction with 6 ft. trailer hitch mount extension A2126-09.
A2126-09
Xtirpa™ Trailer Hitch
Mount Extension, 6 ft.
This mount extension attaches to trailer hitch mount IN-2126 or IN-2204 and provides an
additional 6 ft. of length. Usually used in conjunction with universal joint assembly A2126-07.
A2126-10
Xtirpa™ Trailer Hitch
Mount 90° Extension
This mount extension attaches to trailer hitch mount IN-2126 or IN-2204 and provides
a 90° extension for trailer hitch mount system. Allows vehicle to be parallel with traffi c
and access confi ned space on the side of the road.
A2126-14
Xtirpa™ C-clamp
Adapter for Trailer
Hitch
Mount, 16
in.
16 in. C-clamp adapter for trailer hitch mount. Used on I-Beam and cement slabs that
can withstand 5,000 lbs as an anchor point.
A2126-33
Xtirpa™ C-clamp Adapter
for Trailer
Hitch Mount
Maximum 23-1/2 in., minimum 8-1/2 in. capacity C-clamp adapter for trailer hitch mount.
Use on I-Beam and cement slabs that can withstand 5,000 lbs. as an anchor point.
A2126-21
Xtirpa
™
Anchor Bolt Adapter
for Trailer Hitch Mount
Portable anchor. Attach to trailer hitch mounts IN-2126 or IN-2204.
Sample Trailer Hitch Mount System
112 113
The trailer hitch mount system is
commonly used with rescue vehicles for
confi ned-space rescue. This section will
help you build a portable confi ned-space
system with a trailer hitch mount system
that connects to 2 inch square vehicle
receiver hitches. This popular system
offers you adjustable screw pads for
simple leveling of the system. The davit
arm is equipped with a 5,000 lbs. anchor
point. Numerous options are available for
you to customize your confi ned-space
system with a trailer hitch mount.
VERTICAL-ENTRY SOLUTIONS
Xtirpa™ TRAILER HITCH MOUNT SYSTEM
This mount extension attaches to trailer
hitch mounts IN-2126 or IN-2204 and
provides a 90° extension for trailer hitch
mount system. This allows the vehicle
to be parallel with traffi c and access to
confi ned space on the side of the road.
Xtirpa™ TRAILER HITCH MOUNT
90° EXTENSION
A2126-10
Xtirpa™ DAVIT ARM
IN-2210, 24 inch reach
WEIGHT CAPACITY: 360 lbs.
This portable anchor
attaches to trailer hitch
mounts IN-2126 or IN-2204.
Adjustable feet
allow for simple
leveling of system.
Equipped with
5,000 lbs. rated
anchor point.
3M™ STAINLESS STEEL THREE-WAY
SELF-RETRACTING LANYARD
205G-50, 50 feet
50 foot three-way
self-retracting lanyard.
Xtirpa™ SRL ADAPTER
IN-2356*
Use to attach 205G-50 to
davit-arm mounting bracket.
Xtirpa™ DAVIT MAST
IN-2003, 55 inch height
Xtirpa™ TRAILER
HITCH MOUNT
IN-2126
with standard
24 inch stabilizer.
Xtirpa™ ANCHOR BOLT
ADAPTER FOR TRAILER
HITCH MOUNT
A2126-21 BUILT-IN LEVEL
3M™ Fall Protection Catalog | 3M.com/FallProtection |
For self-retracting lanyards, winches and other accessories, see page 120.
* If using a 205G-50 self-retracting
lanyard that was manufactured
before July 2013, use mounting
bracket IN-2079 instead of IN-2356.
CONFINED-SPACE SYSTEMS
Fall Arrest and Confined-Space Systems distributed by 3M
DAVIT ARM Product # Name Description
IN-2237
Xtirpa™ Davit Arm
30 in.–48 in.
30
in.–
48 in. davit arm for fall protection and retrieval facilitates access to confi ned space. Use
with masts IN-2240 or IN-2313. Pinholes located at 30 in., 36 in. and 48 in. Equipped with
5,000
lbs. anchor point.
For winch handling support, order
A2237-06
separately.
Unit weight: 35 lbs.
A2237-06 Xtirpa™ Removable
Winch Adapter Removable winch adapter for the 30 in.–48 in. davit arm (IN-2237).
MASTS Product # Name Description
IN-2240
Xtirpa™ Mast for
30 in.–48 in. Davit Arm
42 in. height
Mast for confi ned-space fall protection and retrieval to be used in conjunction with
30 in.–48 in. davit arm IN-2237. It fi ts 30 in.–48 in. Xtirpa™ adapter bases and counter-
weight system. Height: 42 in. Unit weight: 25 lbs.
IN-2313
Xtirpa™ Mast for
30 in.–48 in. Davit Arm
60 in. height
60 in. mast for confi ned-space fall protection and retrieval to be used in conjunction with
30 in.–48 in. davit arm IN-2237. It fi ts 30 in.–48 in. Xtirpa™ adapter bases. Unit weight:
34 lbs.
Xtirpa™ COUNTERWEIGHT SYSTEM
COMPONENTS -
REQUIRED Product # Name Description
IN-2305 Xtirpa™ T-Base Mount
Portable T-base mount for confi ned space fall protection and retrieval. Attaches to
counterweight base A2305-27 via extension A2305-23. Use with mast IN-2240 and davit
arm IN-2237. Purchase weights separately. Equipped with 5,000 lbs. anchor point.
A2305-27 Xtirpa™ Counterweight
Base
Portable counterweight confi ned-space system base attaches to T-base mount IN-2305
via extension A2305-23. Serves as certifi ed anchor point. Use with mast IN-2240 and
30 in.–48 in.
davit arm IN-2237. Weight plates to be purchased separately.
P2305-016n
Xtirpa™ Counterweight
System Weight Plates,
50 lbs.
50 lbs. weight plate for use on counterweight confi ned-space system. Attach to counter-
weight base A2305-27. Forty plates required.
A2305-40 Xtirpa™ Counterweight
Base Extension Tube
8 ft. extension tube for counterweight base. Comes in two sections and with handles for
ease in transporting.
ACCESSORIES —
OPTIONAL Product # Name Description
A2305-20 Xtirpa™ T-Base Mount
Reducer, 2-1/2 in.–2 in.
This T-base reducer is used with 6 ft. extension A2305-16. Allows extension to fi t into
2 in. vehicle hitch mount.
A2305-16 Xtirpa™ T-Base Mount
Extension, 6 ft.
This 6 ft. extension connects to T-base IN-2305 using adapter A2305-25. Permits
T-base to connect to vehicle hitch. Measures 2-1/2 in. in diameter. Use reducer
A2305-20 to fi t 2 in. vehicle hitch mount.
A2305-25
Xtirpa™ Counterweight
System Adapter for 6 ft.
Extension
Adapter for 6 ft. extension A2305-16.
Sample Counterweight System
114 115
Xtirpa™ WEIGHT PLATES
P2305-016n
Xtirpa™ COUNTERWEIGHT BASE
A2305-27
VERTICAL-ENTRY SOLUTIONS
Xtirpa™ COUNTERWEIGHT SYSTEM
Xtirpa™ DAVIT MAST
IN-2240, 42 inch height
Xtirpa™ DAVIT ARM
IN-2237, 30 in.–48 in. reach
Xtirpa™ T-BASE MOUNT
IN-2305
WEIGHT CAPACITY: 360 lbs.
A counterweight system is ideal when you
need to move and access various confi ned
space entry points in the same area and
want to use the 30 inch–48 inch davit arm
for increased reach. Consisting of a central
base unit with a number of options for
anchoring, positioning, leg adjustment
and extension assemblies, this is a
system designed for accessibility.
The system can be used with a weight
rack for counterbalance or a wheel pad
assembly with an attendant vehicle.
The davit arm is equipped with a 5,000 lbs.
anchor point.
Xtirpa™ 8 FOOT EXTENSION
A2305-23
Equipped with
5,000 lbs. rated
anchor point.
Removable winch adapter
A2237-06 available,
order separately.
3M™ Fall Protection Catalog | 3M.com/FallProtection |
For self-retracting lanyards, winches and other accessories, see page 120.
CONFINED-SPACE SYSTEMS
Fall Arrest and Confined-Space Systems distributed by 3M
TRIPOD Product # Name Description
99-M10 3M™ Tripod
This 7 ft. adjustable aluminum tripod with pulley carabiner and chain for the legs
is one of three components of the 3M™ Tripod system used for confi ned-space
rescue. Must order with 205G-50 and M10B-1 for a complete system.
RETRIEVAL DEVICES Product # Name Description
205G-50 50 ft. three-way
Device
This 50 ft. three-way self-retracting lanyard is one of three components of the
3M™ Tripod system used for confi ned-space rescue. Lifeline is stainless steel
cable.
142G Material Handling
Winch
The 142G material winch is capable of raising and lowering loads of 550 lbs. and
has 65 feet of galvanized steel cable. The 142G material handling winch comes
complete with hardware pre-attached for mounting onto the 99-M10 tripod.
TRIPOD ACCESSORIES Product # Name Description
99-0217 Pulley Replacement pulley for tripod 99-M10.
M10B-1 Tripod bracket
Tripod mounting bracket for 205G-50 Series three-way self-retracting lanyard.
Must order M10B-1 with 99-M10 tripod and 205G-50 Series three-way
self-retracting lanyard for a complete system.
1000210-07 Carabiner Required for connecting additional device.
4500-
TripodA Storage Bag Carrying and storage bag for tripod.
116 117
3M™ TRIPOD SYSTEM
For other accessories, see page 120.
Simple setup procedure makes the
process quick and promotes correct use.
Legs automatically lock in the open
position for added safety. Aluminum leg
and head design reduces weight and
improves portability. Designed for lifting,
lowering and positioning personnel.
Carrying bags allow for great portability.
Provides a 5,000 lbs. anchor point.
VERTICAL-ENTRY SOLUTIONS
3M™ TRIPOD SYSTEM
3M™ CONFINED-
SPACE TRIPOD
99-M10, 7 foot
3M™ TRIPOD MOUNTING BRACKET
M10B-1
To be used with 205G-50.
3M™ TRIPOD PULLEY
99-0217
3M™ STAINLESS STEEL
THREE-WAY SELF-
RETRACTING LANYARD
205G-50, 50 feet
50 foot three-way
self-retracting lanyard.
WEIGHT CAPACITY: 360 lbs.
3M™ MATERIAL
HANDLING WINCH
142G, 65 foot
3M™ Fall Protection Catalog | 3M.com/FallProtection |
CONFINED-SPACE SYSTEMS
Fall Arrest and Confined-Space Systems distributed by 3M
119
IN-2242
This certifi ed anchor point
for the pole hoist system
can be used on round or
square fl ange.
LIFTING POLES Product # Name Description
IN-2337 Xtirpa™ Pole Hoist,
48 in.–72 in. Pole hoist system with swivel-head for vertical and horizontal retrieval and fall
arrest. Extends with two fi xed angles. Use with certifi ed anchor point. Purchase
T-Bar separately.
IN-2338 Xtirpa™ Pole Hoist,
57 in.–102 in.
ADJUSTABLE T-BAR Product # Name Description
IN-2127
Xtirpa™ Adjustable T-Bar
for Pole Hoist, Short,
Up to 48 in.
Adjustable T-bar attaches to adjustable swivel-head pole hoist IN-2337
or IN-2338 for base stability of pole hoist system. Extends to specifi ed lengths.
IN-2256
Xtirpa™ Adjustable T-Bar
for Pole Hoist, Long,
46-4/5 in.–74-4/5 in.
IN-2274 Xtirpa™ Adjustable T-Bar
for Pole Hoist, 12 in.–14 in.
ADAPTERS Product # Name Description
IN-2242 Xtirpa™ Lateral Entry
Angle Adapter
Anchor point for vertical and horizontal entry with pole hoist system.
Can be used on round or square fl ange that can withstand 5,000 lbs as an
anchor point. Comes with snap hook. Use existing studs to attach.
IN-2087 Xtirpa™ Wall Mounted
Universal Ring Adapter
Universal ring adapter anchor point, use on ceiling or wall with pole hoist
system. Use horizontally or vertically. Bolts not included.
IN-2241 Xtirpa™ Lateral Entry
Jib Adapter
This jib adapter is positioned outside of confi ned-space entry point allowing
for lateral entry. Typically used with tanks when walls are too thin for anchoring.
Can be certifi ed anchor point when anchored at base. Height adjusts from
88-9/10 in.–109-1/5 in.

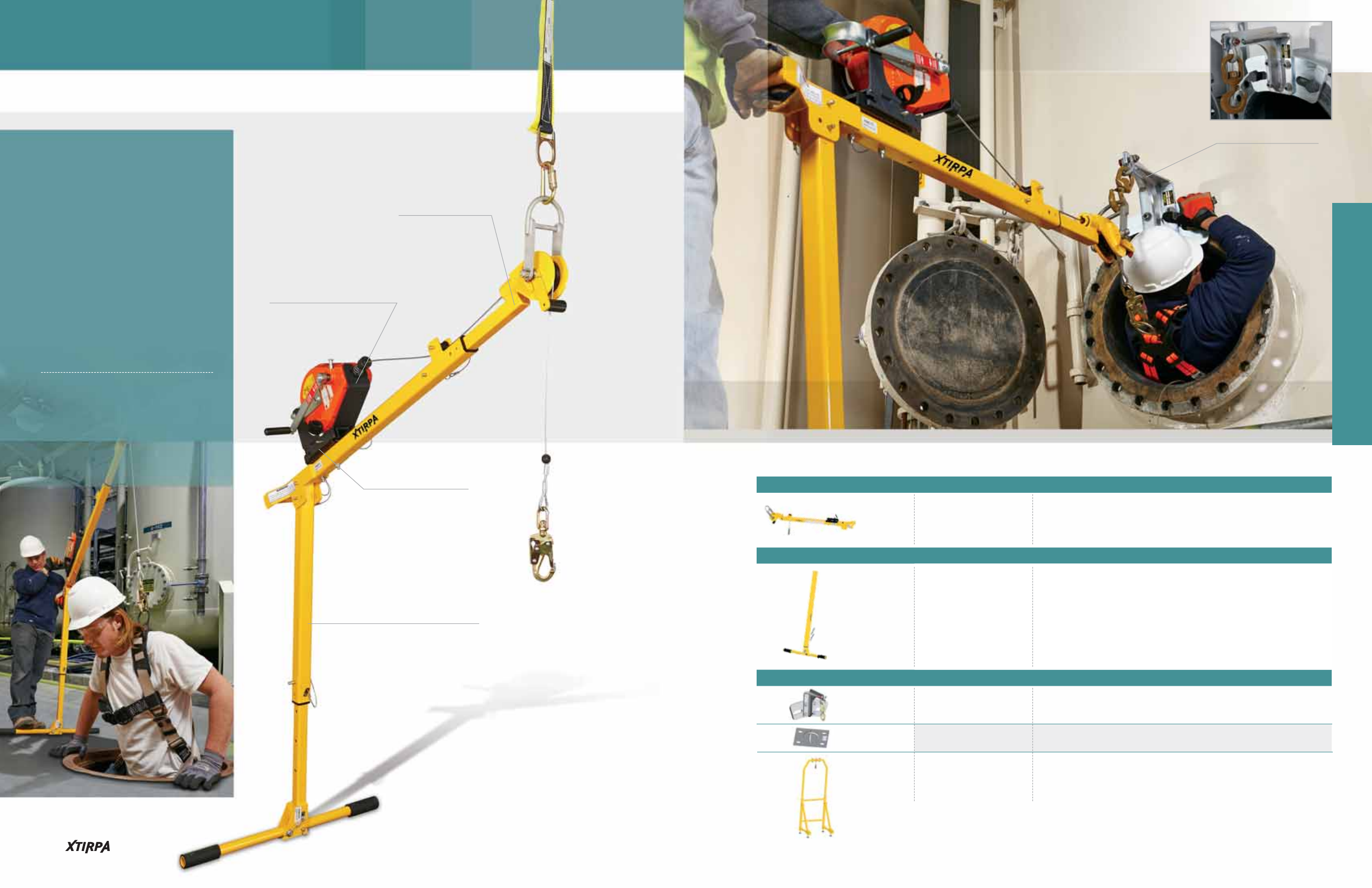

POLE HOIST SYSTEM
This two-piece portable system is one
of the most versatile systems on the
market for confi ned space, entry/retrieval
and rescue. When attached to an
anchor point, it provides retrieval
and fall protection when limited
overhead clearance is available. It can
also be confi gured to provide retrieval
from horizontal entries. Designed for
lifting, lowering and positioning of
personnel. Load rating is based on the
anchor point.
Xtirpa™ POLE HOIST
IN-2337, 48 inches–72 inches
Also available in
57 inches–102 inches.
Xtirpa™ T-BAR
IN-2127
Available in a variety of sizes.
HORIZONTAL- AND VERTICAL-ENTRY SOLUTIONS
Xtirpa™ POLE HOIST SYSTEM
Sample Pole Hoist System
3M™ STAINLESS STEEL THREE-WAY
SELF-RETRACTING LANYARD
205G-50, 50 feet
50 foot three-way
self-retracting lanyard.
Xtirpa™ SRL ADAPTER
IN-2356*
Use to attach 205G-50 to
davit-arm mounting bracket.
WEIGHT CAPACITY: 360 lbs.
3M™ Fall Protection Catalog | 3M.com/FallProtection |
118
For self-retracting lanyards, winches and other accessories, see page 120.
* If using a 205G-50 self-retracting
lanyard that was manufactured
before July 2013, use mounting
bracket IN-2079 instead of IN-2356.
CONFINED-SPACE SYSTEMS
Fall Arrest and Confined-Space Systems distributed by 3M
120 121
Product # Name Description
IN-2152 Xtirpa™ Protecta™
SRL Mounting Adapter
This adapter attaches to Xtirpa™ mounting bracket A2002-31 for use with
Protecta™ self-retracting lanyard AD515CG.
IN-2191 Xtirpa™ North™ SRL Bracket and
Miller™ Man Handler Adapter
This adapter attaches to the Xtirpa™ mounting bracket A2002-31 for use with
North™ self-retracting lanyard bracket FP6610/15 and Miller™ Man Handler.
IN-2215 Xtirpa™ North™
SRL Bracket Adapter
This adapter attaches to the Xtirpa™ mounting bracket A2002-31 for use with
North™ self-retracting lanyard bracket FP6610/33.
IN-2279 Xtirpa™North™
SRL Bracket Adapter
This adapter attaches to the Xtirpa™ mounting bracket A2002-31 for use with
North™ self-retracting lanyard FP3-733GR.
IN-2079 Xtirpa™ 3M™ or Ikar™
SRL Adapter
This adapter attaches to Xtirpa™ mounting bracket A2002-31 for use with
the 3M™ and Ikar™ self-retracting lanyard 205G-50 that were manufactured
before July 2013.
IN-2178 Xtirpa™ 3M™ or Ikar™
SRL Adapter
This adapter attaches to Xtirpa™ mounting bracket A2002-31 for use with
3M™ and Ikar™ self-retracting lanyard 205G-75.
IN-2231 Xtirpa™ 3M™ or Ikar™
SRL Adapter
This adapter attaches to Xtirpa™ mounting bracket A2002-31 for use with
3M™ and Ikar™ self-retracting lanyard 205G-100.
IN-2316 Xtirpa™ 3M™ or Ikar™
SRL Adapter
This adapter attaches to Xtirpa™ mounting bracket A2002-31 for use with
3M™ and Ikar™ self-retracting lanyard 205G-100 (version 2012).
IN-2356 Xtirpa™ 3M™ or Ikar™
SRL Adapter
This adapter attaches to Xtirpa™ mounting bracket A2002-31 for use with the
3M™ and Ikar™ self-retracting lanyard 205G-50 that were manufactured in or
after July 2013.
IN-2151 Xtirpa™ MSA™ Winch Adapter This adapter attaches to Xtirpa™ mounting bracket A2002-31 for use with
MSA™ 50 ft. winch 10011744.
IN-2157 Xtirpa™ 3M™ or Alko™
Material-Handling Winch Adapter
This adapter attaches to Xtirpa™ mounting bracket A2002-31 for use with
3M™ and Alko™ material-handling winch 651.
IN-2211 Xtirpa™ Strong Arm™ or
Mounting Bracket Adapter
This adapter attaches to Xtirpa™ mounting bracket A2002-31 for use with
Strong Arm™ winch.
IN-2153 Xtirpa™ Miller™ SRL Adapter This adapter attaches to the Xtirpa™ mounting bracket A2002-31 for use with
Miller™ self-retracting lanyard MR50g, MR50ss and MR40k.
IN-2177 Xtirpa™ Miller™ SRL Adapter This adapter attaches to the Xtirpa™ mounting bracket A2002-31 for use with
Miller™ self-retracting lanyard MR100 and MR130.
IN-2225 Xtirpa™Miller™ SRL Adapter This adapter attaches to the Xtirpa™ mounting bracket A2002-31 for use with
Miller™ self-retracting lanyard M52/25 ft.
IN-2226 Xtirpa™ Miller™ SRL Adapter This adapter attaches to the Xtirpa™ mounting bracket A2002-31 for use with
Miller™ self-retracting lanyard bracket LB287.
IN-2319 Xtirpa™ Guardian™ SRL Adapter This adapter attaches to the Xtirpa™ mounting bracket A2002-31 for use
with Guardian™ 50 ft. self-retracting lanyard 10974.
A2002-31 Xtirpa™ Mounting Bracket
for Davit Arms
Replacement mounting bracket for Xtirpa™ davit arms includes all necessary
hardware to attach to davit arm. Comes standard with all Xtirpa™ davit-arm
systems.
BRACKETS AND ADAPTERS | CONTINUED
3M™ STAINLESS STEEL THREE-WAY
SELF-RETRACTING LANYARD
205G-50, 50 feet
Use with IN-2356*.
Xtirpa,™ 3M™ or ALKO™
WINCH ADAPTER
IN-2157
Use to attach 142G to davit-arm mounting bracket.
3M™ MATERIAL
HANDLING WINCH
142G, 65 foot
BRACKETS AND ADAPTERS FOR SELF-RETRACTING LANYARDS AND WINCHES
Product # Name Description
IN-2271 Xtirpa™ Fall Arrest and
Rescue Link Adapter
This adapter for fall arrest and rescue fi ts onto davit arm and is used with
mechanical rope system instead of a self-retracting lanyard to form a mechani-
cal advantage rope system. Use with certifi ed wire rope link (5BG416G4165-16).
5BG416G4165-16 Xtirpa™ Certifi ed
Wire Rope Link This wire rope is used with IN-2271 fall arrest and rescue link adapter.
IN-2290 Xtirpa™ Horizontal
Rescue System
Confi ned-space horizontal rescue system. Hinge mount, used with walker-type
tank doors. Not to be used for fall arrest.
IN-2314 Xtirpa™ Mural Wall Angular
Adapter for Fall Arrest System
Wall mounted winch adapter plate for use with IN-2087 anchor and confi ned-
space pulley and carabiner.
CONFINED-SPACE ACCESSORIES
Xtirpa,™ 3M™ or IKAR™
ADAPTER PLATE
IN-2356*
Use to attach 205G-50 to
davit-arm mounting bracket.
3M™ Fall Protection Catalog | 3M.com/FallProtection |
* If using a 205G-50 self-retracting lanyard that was manufactured before July 2013, use mounting bracket IN-2079 instead of IN-2356.
CONFINED-SPACE SYSTEMS
Fall Arrest and Confined-Space Systems distributed by 3M
123
REPLACEMENT
PINS Product # Name
A2120-07 Xtirpa™ Pole Hoist Replacement
Two-Pin Set
A2127-06 Xtirpa™ Pole Hoist Replacement
T-Bar Locking Pin
A2127-07 Xtirpa™ Pole Hoist Replacement
T-Bar Height Adjustment Pin
DAVIT-ARM PINS Product # Name Description
A2002-08 Xtirpa™ T-Handle Replacement
Pin for Davit Arm, 3 in.
3 in. replacement T-handle for Xtirpa™ davit arm. To be used at base of davit
arm to lock davit arm into mast and manhole guards. Dimensions: 1/2 in.
diameter x 3 in. grip range/working length.
A2002-09 Xtirpa™ T-Handle Replacement
Pin for Davit Arm, 4-1/2 in.
4-1/2 in. replacement T-handle for Xtirpa™ davit arm. To be used in middle
of davit arm to connect to manhole guard or mast. Dimensions: 1/2 in. diam-
eter x 4-1/2 in. grip range/working length.
A2002-10 Xtirpa™ Confi ned-Space Pull
Locking Pin, 4 in.
4 in. replacement pull-ring lock for Xtirpa™ davit-arm extension. Dimensions:
1/2 in. diameter x 4 in. grip range/working length.
ADAPTER PINS Product # Name Description
A2005-07 Xtirpa™ Confi ned-Space
Assembly Kit with Pull Ring Fits all inch bases or 24 in. adapter bases.
A2079-03 Xtirpa™ Winch Adapter
Locking Pin with Steel Wire
Any Xtirpa™ SRL or winch adapter to secure winch or SRL to adapter. Comes
with steel wire to attach locking pin to adapter. Dimensions: 5/16 in. diam-
eter x 4-1/8 in. grip range/working length.
Product # Name Description
A2210-03 Xtirpa™ Replacement 2 in.
Pulley for Davit Arm
2 in. pulley comes standard with all Xtirpa™ davit arms, but can also be
purchased separately if a replacement part is needed.
A2210-12 Xtirpa™ Replacement 4 in.
Pulley for Davit Arms
4 in. pulley comes standard with all Xtirpa™ davit arms, but can also be
purchased separately if a replacement part is needed.
A2210-11 Xtirpa™ Dual-Locking Pull-Ring
for Secondary Block Pulley
Dual press replacement locking pull-ring for Xtirpa
™
davit-arm pulleys
(A2210-03). Dimensions: 3/8 in. diameter x 1-3/4 in. grip range/working length.
A2210-13 Xtirpa™ Cable Restraint Pin
for Davit Arms Replacement restraint pin for use on Xtirpa™ davit arms (next to pulley).
P2006-004
Xtirpa™ PVC Sleeve Adapter
This part comes standard with all 24 in. adapter bases. Intended as a
replacement part if the existing PVC sleeve is removed. Fits all 24 in.
adapter bases.
A2001-32 Xtirpa™ Rubber Latch
Assembly
Replacement rubber latch assembly for 42 in. Xtirpa™ barricades
IN-2108 and IN-2324. Hardware included.
A2001-10 Xtirpa™ Cylinder Kit
Cylinder kit for adjustable leg for 42 in. Xtirpa™ barricades IN-2108
and IN-2324, receptacle that A2001-09 fi ts into. Includes all necessary
hardware.
DAVIT SYSTEM REPLACEMENT PINS
Xtirpa™ replacement stickers available on request.
Contact your 3M Representative directly.
REPLACEMENT
PARTS Product # Name
A2337-05 Xtirpa™ Replacement
Adapter-Plate Assembly
A2337-06 Xtirpa™ Cable-Tensioning
Mechanism
A2127-08
Xtirpa™ Rubber Replacement
Pads for Pole Hoist System
T-Bar
PULLEYS Product # Name
A2337-07 Xtirpa™ Swivel-Head
Replacement Pulley
P2337-003 Xtirpa™ Cable-
Retention Pulley
POLE HOIST REPLACEMENT PARTS — INCLUDES ALL NECESSARY HARDWARE
DAVIT SYSTEM REPLACEMENT PARTS
Product # Name Description
P2108-025 Xtirpa™ Confi ned-Space Manhole
Guard Carrying Bag, 42 in.
Carrying bag for 42 in. manhole guard IN-2108.
P2101-008 Xtirpa™ Multi-Functional Barricade
Carrying Bag, 42 in.
Carrying bag for multi-functional portable manhole guard IN-2101 or
A2101-07.
P2002-046 Xtirpa™ Davit-Arm Carrying Bag Carrying bag for davit arm IN-2210.
P2003-011 Xtirpa™ Mast Carrying Bag Carrying bag for mast IN-2003.
P2118-017 Xtirpa™ H-Base Body Section
Carrying Bag
Carrying bag for body section of H-base system.
P2118-018 Xtirpa™ H-Base Foot-Base
Section Carrying Bag Carrying bag for one of the two foot-base sections of H-base system.
P2120-014 Xtirpa™ 48 in.–72 in.,
Pole Hoist Carrying Bag Carrying bag for pole hoist IN-2337.
P2121-003 Xtirpa™ 57 in.–102 in.
Pole Hoist Carrying Bag Carrying bag for pole hoist IN-2338.
CARRYING BAGS
Product # Name Description
A2001-09 Xtirpa™ Barricade
Feet, Adjustable
These adjustable feet come standard with Xtirpa™ portable manhole
guards, but can be purchased separately if replacement feet are needed
due to wear. Adjustable feet are ideal for uneven terrain.
A2001-36 Xtirpa™ Barricade Main Post
Rubber Feet, Fixed
These fi xed feet come standard on the Xtirpa™ portable manhole guard's
mast feet, but can also be purchased separately if replacement feet are
needed due to wear.
A2001-18 Xtirpa™ Manhole Guard
Spiked Feet
These spiked manhole guard feet do not come standard with Xtirpa™
portable manhole guards, but can be ordered separately. For use on
slippery surfaces.
A2001-28 Xtirpa™ Manhole Guard
Rubber Feet, Large
Kit of three large rubber feet for IN-2108 or IN-2324, does not come stan-
dard with Xtirpa™ portable manhole guard, but can be ordered separately.
Use on metal grids, gravel or soft ground conditions. For load-bearing legs.
FEET FOR BARRICADE AND MANHOLE GUARDS
GENERAL ACCESSORIES
All Carrying Bags provide storage and easy transport from work site to work site. Each bag is tear-resistant and waterproof.
CONFINED-SPACE ACCESSORIES
Product # Name Description
4670 Bosun chair Designed for users required to be suspended while working.
To use, attach D-ring on chair to snap hook of 205G-50.
M30-SBA Spreader Bar
Assembly
Spreader bar assembly is for confi ned-space rescue/retrieval. To use,
attach snap hooks on assembly to shoulder D-rings of harness and
assembly D-ring to the retrieval system cable. Not for fall arrest.
Dimensions: 30 in. length x 12 in. width.
122
CONFINED-SPACE SYSTEMS
3M™ Fall Protection Catalog | 3M.com/FallProtection |
For self-retracting lanyards, winches and other accessories, see page 120. For self-retracting lanyards, winches and other accessories, see page 120.
Fall Arrest and Confined-Space Systems distributed by 3M
Escape and rescue made
quick and simple. CONSIDERATIONS WHEN CHOOSING AN ESCAPE AND RESCUE DEVICE
1 What specifi c capabilities do you need?
• ESCAPE — individual and/or multi-person
• ASSISTED RESCUE — including two-person
• SELF-RESCUE after a fall
• RESCUE TRAINING
2 What is your environment?
• General Industrial/Manufacturing
• Tower Climbing
• Oil & Gas
• Mining
• Construction
• Utilities/Bucket Trucks
3 Are there hazards that could jeopardize the safety
of the worker during an escape or rescue descent?
• Consider a device that allows the user to stop and go and change speed
at any time during the descent to help avoid hazards.
4 Descent speed/standards
• Up to 2 m/sec. (6-3/5 ft./sec.) (ANSI, CSA and EN certifi ed)
• Up to 3 m/sec. (9-4/5 ft./sec.)
5 What height are you working at?
• This determines rope length requirements.
6 Portability
• Consider equipment that allows for the option to
carry device with worker or to anchor device
to anchorage connector.
ESCAPE AND RESCUE
124 125
3M™ Fall Protection Catalog | 3M.com/FallProtection |
When things go wrong 500 feet in the
air, you want a quick, simple way to get
yourself or another person down safely.
3M offers real solutions for escape and
rescue, built around descent technology
that is innovative and designed for ease
of use. This can assist with escape and
rescue for workers on towers, cranes,
platforms, scaffolding, aerial lifts, rigs
and in other at-height environments.
THE NEED FOR RESCUE PLANS
Descent and rescue devices are used to retrieve an injured worker and lower him to
the ground. Employers must have a rescue plan that provides the prompt rescue of
employees in the event of a fall or ensures that employees are able to rescue themselves.
Rescue Plan Required by OHS (Occupational Health and Safety)
Rescue plan regulations — written rescue procedures must be in place and executed
before any use of a fall arrest system. A rescue plan is required for any person at height.*
Legislation standards require that where a worker is exposed to the hazard of falling
more than 3 meters, the worker will wear a serviceable safety belt or harness and lifeline
so that the worker cannot fall freely for a vertical distance of more than 1.5 meters;
and before any use of a fall arrest system, the worker’s employer shall develop written
procedures for rescuing the worker after his or her fall has been arrested.**
* Statement above relates to Ministry of Labour, Province of Ontario.
** Statement will vary by Provincial Legislation. Please contact your local governing body for exact
wording on rescue plan defi nition in your own jurisdiction.
OSHA 1926.502 (d)(20): The employer shall provide for prompt rescue of employees
in the event of a fall or shall assure that employees are able to rescue themselves.
OSHA 1910.66 Appendix C Section III.(g): “Rescue considerations.” As required by
the standard (Section I Paragraph (e)(8)), when personal fall arrest systems are used,
the employer must assure that employees can be promptly rescued or can rescue
themselves should a fall occur. The availability of rescue personnel, ladders or other
rescue equipment should be evaluated. In some situations, equipment which allows
employees to rescue themselves after the fall has been arrested may be desirable,
such as devices which have descent capability.
Rescue Plan Required by OSHA in the U.S.
The Latchways Personal Rescue Device™
(PRD)™ is worn with a 3M™ Elavation™
full body harness, and activation is
achieved by simply pulling the release
cord, allowing for self-rescue. The
lightweight, unobtrusive rescue device
is contained in a small “backpack” that
integrates rescue capabilities into your
personal fall arrest equipment. In the
event of a fall, the Elavation harness
suspends the user and allows the
Latchways PRD to gently lower him or her
to the ground, unassisted, in a controlled
descent. If the user is unable to self-
rescue, the device may be activated by
another person. The PRD features 65 feet
of rope, which is released at a controlled
rate through an integral braking
mechanism.
In a world of complex rescue solutions,
simplifi ed rescue is essential.
PERSONAL RESCUE DEVICE
LATCHWAYS PRD™ WITH 3M™ ELAVATION™ HARNESS FEATURES
Simplifi es rescue:
release with a simple pull
Minimal
pre-use checks
Bring victim
down,
not rescuer up
Less costly
and less complex than traditional
RESCUE PLANS
Meets ANSI standards
reduces
rescue
time
7510Q
Elavation™
Premium
Fall Protection
Harness
Immediately
available
to worker
Elavation™ Premium
Harness
rescue plan
for improved safety
Self-activated
with intuitive mechanism,
NO SPECIALIST
training required
FRONT
VIEW
ESCAPE AND RESCUE
126 127
3M™ Fall Protection Catalog | 3M.com/FallProtection |
Latchways Personal Rescue Device™ (PRD™) distributed by 3M
PRODUCT NUMBER PRODUCT NAME PRODUCT DESCRIPTION
PRD-7510Q (S-M) Latchways PRD™ with
3M™ Elavation™ Harness 7510Q (S-M)
Elavation Harness, size small-medium, has Quick Connect Buckle Chest and
Leg Connection and Back D-ring.
PRD-7510Q (L-XL) Latchways PRD™ with
3M™ Elavation™ Harness 7510Q (L-XL)
Elavation Harness, size L-XL, has Quick Connect Buckle Chest and Leg
Connection and Back D-ring.
PRD-7510Q (XXL) Latchways PRD™ with
3M™ Elavation™ Harness 7510Q (XXL)
Elavation Harness, size XXL, has Quick Connect Buckle Chest and Leg
Connection and Back D-ring.
PRD-RescPole Latchways Rescue Pole for Latchways
Personal Rescue Device™ (PRD)™
Used with Latchways PRD™ to rescue an unconscious worker needing rescue.
Collapsed length: 2 feet 8 inches, and 11 feet 2 inches at full extension.
Product Codes and Descriptions
HOW IT WORKS (FOR SELF-RESCUE)
1Check the ground below
to ensure descent path
is clear and a safe
landing is possible.
2 3 4
Open the fl ap on the
right shoulder strap
to access the
release cord.
Pull sharply on the
release cord.
Prepare for landing by
bending knees slightly.
TWO OPTIONS FOR RESCUE:
SELF-RESCUE
Bring the victim down, not the rescuer up.
1
The Latchways Rescue Pole activating
the PRD’s built-in secondary descent
release mechanism. Collapsed length:
2 feet 8 inches, and 11 feet 2 inches
at full extension.
PRODUCT DETAILS
COMPONENT PARTS | Descent rope lifeline made
from UHMWPE rope with aramid overbraid
DESCENT HEIGHT | 65 feet (20 m)
COMPLETE WEIGHT | 7510Q (S-M) 10.6 lbs. (4.8 kg)
7510Q (L-XL) 10.7 lbs. (4.85 kg)
7510Q (XXL) 10.9 lbs. (4.94 kg)
SYSTEM CAPACITY | 310 lbs. (140 kg)
DESCENT SPEED | Up to 6-3/5 ft./sec. (2 m/sec.)
TRAINING | Minimal user training required —
no annual user refresher training required
PRE-USE CHECKS | The Latchways PRD™ has been designed
to be user-friendly, with minimal pre-use checks required. The
descent device, harness and backpack should be checked for
any signs of use in a descent, damage, corrosion, chemical
attack or altering.
MAINTENANCE | Periodic examination is limited to a
series of visual inspections carried out by a competent person
(full instructions provided).
STANDARDS
The Latchways PRD™ with 3M™ Elavation™ harness conforms
to the following standards:
The Elavation™ harness conforms to:
• ANSI Z359.1.2007
The Latchways PRD™ conforms to:
• ANSI Z359.4.2007
The “backpack” and harness conform to:
• Waterproof and dustproof IP56 (Ingress Protection)
• -4ºF (-20ºC) to +140ºF (60ºC) operating temperature
ASSISTED RESCUE
If the user is not able to self-rescue, the device may be
activated by another person using a Latchways Rescue Pole.
2
ESCAPE AND RESCUE
128 129
3M™ Fall Protection Catalog | 3M.com/FallProtection |
Latchways Personal Rescue Device™ (PRD™) distributed by 3M
Taking escape and rescue to new heights
3M™ and DEUS™ Controlled Descent Device Features
LIGHTWEIGHT & PORTABLE
Lightweight and pocket-sized device is easy to carry with you.
• 3700 device is just 2-4/5 lbs. (1.27 kg) without rope
and carabiner
• 3300 device is just 2 lbs. (0.9 kg) without rope and carabiner
Lightweight rope for controlled descent does not require user to
double up the rope with device, making overall weight of system
easier to transport.
• 100 feet of 8 mm rope is 3-3/10 lbs. (1.49 kg)
• 100 feet of rope for 100 feet of controlled descent
distance (vs. 100 feet of rope for 50 feet of
controlled-descent distance, like other
rescue systems in the market)
COST-SAVING VERSATILITY
The rope is not integrated, which means the same
device can be used with different rope lengths based
on working height or training requirements. The descent
device can also be used for emergency and training
purposes simply by switching out training rope. User
can replace rope in seconds.
YOUR ALL-IN-ONE ESCAPE
AND RESCUE SYSTEM
Use the 3700 or 3300 device for a
variety of rescue applications at heights
up to 590 feet* including individual and
multi-person escape, self-rescue and
assisted rescue, including two-person rescue.
3300
DEVICE
3700
DEVICE
REDUCED HEAT BUILD-UP
“Away-from-rope” braking reduces heat and mechanical
damage. Combined with fi re-resistant rope (to 925°F), the
controlled descent system provides superior performance.
7-1/2 mm and 8 mm rope has
polyester sheath and Technora core,
which is fi re resistant to 925°F.
STAY IN CONTROL
The control dial is all you need for a
completely controlled descent, even with
heavy gloves. Stop, or go and change
speed anytime during descent with a
twist of the dial.
PEACE OF MIND
Four independent brakes provide reinforced safety.
1 Drum brake with oversize control dial for adjusting
descent speed or to “stop” or “go” hands-free.
2 Centrifugal brake automatically
guards against free fall.
3 Figure-8 — hands-free and
self-adjusting — for redundant safety.
4 Manual rope tailing brake for precise control.
LIMITED LIFETIME WARRANTY
The same device can be used year after year even if used
for an escape or rescue. Always return device after use in
an emergency evacuation situation or every three years for
inspection by a DEUS™ authorized repair center.
WHEN
SECONDS COUNT
Descent speed limited to a
safe 2 m/sec or 3 m/sec.,
(6-3/5 ft./sec. or 9-4/5 ft./
sec.) depending on model.
Use only with 3M and DEUS
rope for work and training.
3M™ and DEUS™ ropes are engineered and crafted for safety,
performance and to work in synergy with 3M™ and DEUS™
equipment under a variety of specifi c, often extreme conditions.
A range of different polymer fi bers and braiding techniques are
used to make 3M™ and DEUS™ ropes with specifi c properties to
ensure your 3M™ and DEUS™ 3000 Series devices work properly
and to the appropriate standards.
IDEAL FOR USE IN
HARSH ENVIRONMENTS
Features a rock-solid case
and steel, brass and titanium
components. Sealed internal brakes
are protected from corrosion.
12 mm belay rope and 7-1/2 mm
blue RTU ropes have a polyester
sheath and nylon core.
*590 feet applies to 3700 device.
Training required before use. Please contact your 3M Representative.
ESCAPE AND RESCUE
130 131
3M™ Fall Protection Catalog | 3M.com/FallProtection |
DEUS™ Escape and Rescue Products distributed by 3M
Each of the 3M™ and DEUS™ 3000 Series
devices provides simple, hands-free operation,
quadruple-redundant brakes to guard against
free fall, “carry-it-with-you-always” portability
and rugged construction. When lives are on the
line, trust 3M and DEUS for personal escape
and rescue.
What really sets the 3M and DEUS 3000 Series
apart from the rest is the amazing versatility.
Devices in the 3M and DEUS 3000 Series are
useful tools in multiple situations. Each 3000
Series device can provide a safe, simple basis
for individual and multi-person escape, assisted
rescue, self-rescue, work positioning, travel
restraint and rescue training.
Compared to other controlled-descent solutions,
the 3M and DEUS 3000 Series is the top of the
class with its advanced technology, unmatched
ease-of-use, superior safety and practical
portability. And the amazing versatility puts the
3M and DEUS 3000 Series in a class all its own.
ASSISTED RESCUE
3M™ and DEUS™ 3000 Series devices can
be rigged for victim rescue, giving complete
control — hands-free or manually — to the
rescuer, ensuring the victim is lowered to
safety quickly and easily.
Convenient kit options available for
emergency evacuation and/or rescue.
Each device is an all-in-one,
all-purpose work-and-rescue package.
TRAVEL RESTRAINT
While rigged for “escape” or “rescue,”
the 3M™ and DEUS™ 3000 Series
devices can also provide quick,
simple, hands-free travel restraint.
CONTROLLED DESCENT DEVICES
3700 CONTROLLED-DESCENT DEVICE
3M Product No.: 3700
TECHNICAL
Approved for one-person or two-person use*
Operation: Hands-free or manual
Descent Rate: 2 m/sec. (6-3/5 ft./sec.)
at 310 lbs. (140.61 kg)
Min. Weight: 130 lbs. (59 kg) per ANSI
88 lbs. (40 kg) per CSA and EN
Max. Weight*: 310 lbs. (140 kg) per ANSI
275 lbs. (125 kg) per CSA and EN
Max. Descent Height: One person 590 ft. (180 m)
Rope: Use 3M™ and DEUS™ 8 mm
orange kernmantle rope
CONSTRUCTION
Aluminum, stainless steel, titanium and brass
WEIGHT & DIMENSIONS
Weight without rope
and carabiner: 2-4/5 lbs. (1.27 kg)
Dimensions: 5-3/10 in. height x 3-4/5 in. width x
2-1/5 in. depth (13 cm x 10 cm x 6 cm)
Certifi cations: ANSI Z359.4-2007
,
EN341:2012
/
Type 1, Class B,
CSA Z259.2.3:2012/Type 1, Class B
Warranty: Limited Lifetime Warranty
(Renew every three years)
3300 CONTROLLED DESCENT DEVICE
3M Product No.: 3300
TECHNICAL
Approved for one person
Operation: Hands-free or manual
Descent Rate: 3 m/sec. (9-4/5 ft./sec.)
at 310 lbs. (140.61 kg)
Max. Weight: 310 lbs. (140.61 kg)
Max. Descent Height: 350 ft. (106 m)
Rope: Use 3M™ and DEUS™ 7-1/2 mm
green kernmantle rope
CONSTRUCTION
Aluminum, stainless steel, titanium and brass
WEIGHT & DIMENSIONS
Weight without rope
and carabiner: 2 lbs. (0.9 kg)
Dimensions: 5-3/10 in. height x 3-1/2 in. width
x 2-1/10 in. depth
(13 cm x 9 cm x 5 cm)
Certifi cations: NFPA 1983: 2012ED “Escape”
and “Fire Escape”
Warranty: Limited Lifetime Warranty
(Renew every three years)
*For two-person descent or heavy loads, always maintain manual control.
ESCAPE — INDIVIDUAL
Carry it pre-rigged so it’s ready when you need
it — just anchor and go, under manual control
or fully hands-free in “stop” or “go” mode.
ESCAPE — RAPID SEQUENTIAL EVACUATIONS
3M™ and DEUS™ 3000 Series devices can be used to safely evacuate people
from high places, one after another. No need for re-rigging between descents
because 3M™ and DEUS™ 3000 Series devices operate in both directions.
SELF-RESCUE AFTER A FALL
The problem with fall protection equipment
is that it only stops the fall. Getting down
is another matter… and a 3M™ and DEUS™
3000 Series device can help. Rather than
waiting to be rescued (and risking
suspension trauma), use a 3M™ and DEUS™
3000 Series device to rescue yourself.
TWO-PERSON ASSISTED RESCUE
With the addition of an extra carabiner,
each 3M™ and DEUS™ 3000 Series
device can be rigged to safely handle
a two-person load under manual control.
HANDS-FREE WORK POSITIONING
Sometimes there’s work to be done off
the ground. Your 3M™ and DEUS™ 3000
Series device is all you need — descend
to position, turn the control knob to the
“stop” position, ensure tension on the rope,
and you can hold your position hands-free
while you do your work.
Training required before use. Please contact your 3M Representative.
ESCAPERESCUEWORK +
ESCAPE AND RESCUE
132 133
| 3M.com/FallProtection |
DEUS™ Escape and Rescue Products distributed by 3M
KITS | 3700 DEVICE
Product # Rope Length
IE37-50 Kit comes with 50 feet of 8 mm orange kernmantle rope
IE37-100 Kit comes with 100 feet of 8 mm orange kernmantle rope
IE37-200 Kit comes with 200 feet of 8 mm orange kernmantle rope
IE37-300 Kit comes with 300 feet of 8 mm orange kernmantle rope
IE37-350 Kit comes with 350 feet of 8 mm orange kernmantle rope
DEUS 3700 | ESCAPE KITS
ESCAPE AND RESCUE KITS
An extensive kit with the tools to support individual and multi-person
escape, assisted rescue and more, for workers at height using the
3700 descent device.
KIT CONTENTS:
Each Escape and Rescue Kit comes pre-rigged and packed in a
sturdy, water-resistant haul bag and includes:
• 3700 Descent Device
• 4:1 Rescue Transfer Unit (RTU)*
• 8 mm Orange Kernmantle Escape & Rescue Rope
(available in a variety of lengths)
• Two 4-foot Rope-Over-Wire Anchorage Connectors
• Three Carabiners
• One Edge Protector
Product # Rope Length
IR37-50 Kit comes with 50 feet of 8 mm orange kernmantle rope
IR37-100 Kit comes with 100 feet of 8 mm orange kernmantle rope
IR37-200 Kit comes with 200 feet of 8 mm orange kernmantle rope
IR37-300 Kit comes with 300 feet of 8 mm orange kernmantle rope
IR37-350 Kit comes with 350 feet of 8 mm orange kernmantle rope
DEUS 3700 | ESCAPE AND RESCUE KITS
RESCUE TRANSFER UNIT
A rescue transfer unit is a specialized piece of
equipment used to raise a person who has fallen
and is suspended from a piece of fall-protection
equipment in order to transfer the load from the
fall-protection device to a rigged and anchored
controlled descent device. After the load is
transferred to the controlled descent device,
the unloaded fall-protection device is released
so that controlled descent can proceed.
Training required before use. Please contact your 3M Representative.Training required before use. Please contact your 3M Representative.
ESCAPE AND RESCUE
134 135
Complete kits for
every kind of task
3M™ and DEUS™ systems provide a range
of complete kits for escape and rescue in a
variety of professional markets. Kits are built
around the 3M™ and DEUS™ line of unique
and highly engineered controlled-descent
devices. Every system features a compact,
lightweight design, easy hands-free
operation and redundant braking to protect
against free fall. Combined with an array
of innovative rescue tools and accessories,
these kits address many rescue needs.
ESCAPE KITS
To provide workers with a safe, simple way down when things go wrong
at height, look to the 3M™ and DEUS™ escape kits. Each kit provides all
the basics, so escape during an evacuation emergency is just “two clips
and go.”
KIT CONTENTS:
Each escape kit comes pre-rigged and packed in a sturdy,
water-resistant haul bag and includes:
• 3700 Descent Device
• 8 mm Orange Kernmantle Escape & Rescue Rope
(available in a variety of lengths)
• 4 foot Rope-Over-Wire Anchorage Connector
• Three Carabiners
*RTU for lifting and hauling
The Rescue Transfer Unit (RTU) is a simple
and compact lifting and hauling solution.
Packed in its own bag, the RTU includes
a set of pulleys with 4:1 mechanical
advantage, pre-rigged with 3M™ and DEUS™
7-1/2 mm blue kernmantle rope, Dyneema®
sling and autolock carabiners.
3M™ Fall Protection Catalog | 3M.com/FallProtection |
DEUS™ Escape and Rescue Products distributed by 3M
INDUSTRY-SPECIFIC KITS | 3700 DEVICE
OIL & GAS ESCAPE AND RESCUE KITS
Escape and assisted rescue kit for oil and gas applications, equipped with
triple-lock carabiners and edge protectors to meet safety requirements in
the oil and gas industry.
KIT CONTENTS:
Each Oil & Gas Escape and Rescue Kit comes pre-rigged and packed
in a sturdy, water-resistant haul bag and includes:
• 3700 Descent Device
• 4:1 Rescue Transfer Unit (RTU)*
• 8 mm Orange Kernmantle Escape & Rescue Rope
(available in a variety of lengths)
• Two 4-foot Rope-Over-Wire Anchorage Connectors
• Three Triple-lock Carabiners
• One Deluxe Edge Protector
*RTU for lifting and hauling
The Rescue Transfer Unit (RTU) is a simple
and compact lifting and hauling solution.
Packed in its own bag, the RTU includes a
set of pulleys with 4:1 mechanical advantage,
pre-rigged with 3M™ and DEUS™ 7-1/2 mm
blue kernmantle rope, Dyneema® sling
and autolock carabiners.
RESCUE TRANSFER UNIT
A rescue transfer unit is a specialized piece of
equipment used to raise a person who has fallen
and is suspended from a piece of fall-protection
equipment in order to transfer the load from the
fall-protection device to a rigged and anchored
controlled descent device. After the load is
transferred to the controlled descent device,
the unloaded fall-protection device is released
so that controlled descent can proceed.
Product # Rope Length
IR37OG-50 Kit comes with 50 feet of 8 mm orange kernmantle rope
IR37OG-100 Kit comes with 100 feet of 8 mm orange kernmantle rope
IR37OG-200 Kit comes with 200 feet of 8 mm orange kernmantle rope
IR37OG-300 Kit comes with 300 feet of 8 mm orange kernmantle rope
IR37OG-350 Kit comes with 350 feet of 8 mm orange kernmantle rope
DEUS 3700 | OIL & GAS ESCAPE AND RESCUE KITS
Product # Rope Length
BT-100 Kit comes with 100 feet of
8 mm orange kernmantle rope
BT-150 Kit comes with 150 feet of
8 mm orange kernmantle rope
BT-200 Kit comes with 200 feet of
8 mm orange kernmantle rope
BT-300 Kit comes with 300 feet of
8 mm orange kernmantle rope
DEUS 3700 | ESCAPE KITS
Training required before use. Please contact your 3M Representative.Training required before use. Please contact your 3M Representative.
Angled-Descent Kit for
Rig Escape
For an easy-to-use, reliable zip
system, use the 3M™ and DEUS™
Angled-Descent Kit with a 3M™ and
DEUS™ Escape and/or Rescue Kit.
Ideal for oil and gas applications, the
Angled-Descent Kit features a special
gate that’s easy to open with one hand
and allows for quick connection to a
guy line for quick angled descent in
emergency situations. The Angled-
Descent Kit comes with a strap and
carabiner to connect a guy line to the
worker’s harness. Must be used with
a 3M™ and DEUS™ Escape and/or
Rescue Kit. See page 17 for additional
information.
ESCAPE AND RESCUE
136 137
BUCKET TRUCK ESCAPE KITS
Allows bucket truck workers to lower themselves
in emergency situations.
KIT CONTENTS:
Each Bucket Truck Kit comes pre-rigged and
packed in a sturdy, water-resistant haul bag
and includes:
• 3700 Descent Device
• 8 mm Orange Kernmantle Escape
& Rescue Rope
(available in a variety of lengths)
• Three Carabiners
• Two Edge Protectors
3M™ Fall Protection Catalog | 3M.com/FallProtection |
DEUS™ Escape and Rescue Products distributed by 3M
KITS | 3300 DEVICE
TOWER ESCAPE KITS
The Tower Escape Kit offers a complete escape kit for those who
work on wind, telecommunications or utility towers.
KIT CONTENTS:
Each Tower Escape Kit comes pre-rigged and packed in a sturdy,
water-resistant haul bag and includes:
• 3300 Descent Device
• 7.5 mm Green Kernmantle Escape & Rescue Rope
(available in 300 and 350 foot lengths)
• Three Carabiners
• 4 foot Rope-Over-Wire Anchorage Connector
Product # Rope Length
GE33-300 Kit comes with 300 feet of 7.5 mm green kernmantle rope
GE33-350 Kit comes with 350 feet of 7.5 mm green kernmantle rope
DEUS 3300 | TOWER ESCAPE KITS
TOWER ESCAPE AND RESCUE KITS
Handle any type of tower emergency with this lightweight, compact
kit. For professionals on wind, electrical or utility towers or other high
structures, this kit is ideal for individual and multi-person escape and
assisted rescue.
KIT CONTENTS:
Each Tower Escape and Rescue Kit comes pre-rigged and packed
in a sturdy, water-resistant haul bag and includes:
• 3300 Descent Device
• 4:1 Rescue Transfer Unit (RTU)*
• 7.5 mm green kernmantle Escape & Rescue Rope
(available in 300 foot and 350 foot lengths)
• Three Carabiners
• Two 4-foot Rope-Over-Wire Anchorage Connectors
• One Edge Protector
*RTU for lifting and hauling
The Rescue Transfer Unit (RTU) is a simple
and compact lifting and hauling solution.
Packed in its own bag, the RTU includes
a set of pulleys with 4:1 mechanical
advantage, pre-rigged with 3M™ and DEUS™
7-1/2 mm blue kernmantle rope, Dyneema®
sling and autolock carabiners.
Product # Rope Length
GR33-300 Kit comes with 300 feet of 7.5 mm green kernmantle rope
GR33-350 Kit comes with 350 feet of 7.5 mm green kernmantle rope
DEUS 3300 | ESCAPE AND RESCUE KITS
RESCUE TRANSFER UNIT
A rescue transfer unit is a specialized piece of
equipment used to raise a person who has fallen
and is suspended from a piece of fall-protection
equipment in order to transfer the load from the
fall-protection device to a rigged and anchored
controlled-descent device. After the load is
transferred to the controlled descent device,
the unloaded fall-protection device is released
so that controlled-descent can proceed.
Training required before use. Please contact your 3M Representative.Training required before use. Please contact your 3M Representative.
ESCAPE AND RESCUE
138 139
3M™ Fall Protection Catalog | 3M.com/FallProtection |
DEUS™ Escape and Rescue Products distributed by 3M
Ideal for training or rescue, the 3M™ and DEUS™ 7300 Controlled-
Descent Device is a completely hands-free backup belay. It allows
users to experiment with and perfect standard operating procedures for
bailout, evacuation and rescue with confi dence, knowing that backup
belay is automatic and done right. Its also ideal as a primary system at
extreme heights for one person or sequential fi xed evacuations.
BACKUP BELAY KITS
Built around the innovative 7300 device, these kits provide superior
belay to primary systems. The 7300 engages automatically, limits
shock load and controls descent all the way to the ground.
KIT CONTENTS:
Each Backup Belay Kit comes pre-rigged and packed in a sturdy,
water-resistant haul bag and includes:
• 7300 Backup Belay Device
• 12 mm White Kernmantle Escape & Rescue Rope with storage
bag (available in 100 foot and 200 foot lengths). Rope storage
bag will be size small or medium based on rope length ordered.
Rope bag not shown above.
• Four Carabiners
• 4 foot Rope-Over-Wire Anchorage Connector
• Two O-rings
Product # Rope Length
BI73-100 Kit comes with 100 feet of 12 mm white kernmantle rope
BI73-200 Kit comes with 200 feet of 12 mm white kernmantle rope
DEUS 7300 | BACKUP BELAY KITS
VIGILANT — Unlike human belay operators, the DEUS™ 7300
instantly and automatically brings a worker safely to the
ground if their primary system fails.
RE-RIGGING UNNECESSARY — This system is designed for repetitive
use with rope running through the 7300 reversibly at all times, allowing for
back-to-back evolutions.
PROVEN RELIABLE — NFPA, ANSI, CSA and EN certifi ed.
INSTANT AND AUTOMATIC BACKUP — If descent speed exceeds 2 m/sec.,
the 7300 instantly and automatically takes control to guard against free fall.
The 7300 features a “soft engagement” to prevent shock load and injury.
HIGHLY FLEXIBLE — Rig to a high anchor to support multiple sequential descents
without re-rigging. Rig the system to an anchor on the ground, running the belay
line through a high-anchor pulley, if you want to control descent via the free end
of the rope. The rope is not integrated and can be replaced in seconds.
3M™ and DEUS™ 7300
Backup Belay for Rescue Training
and Fixed Evacuations
Training required before use. Please contact your 3M Representative.Training required before use. Please contact your 3M Representative.
7300
DEVICE
ESCAPE AND RESCUE
140 141
3M™ Fall Protection Catalog | 3M.com/FallProtection |
DEUS™ Escape and Rescue Products distributed by 3M
7300 CONTROLLED-DESCENT DEVICE
3M Product No.: 7300
TECHNICAL Approved for Backup Belay or Fixed Evacuations
Operation: Manual
Descent Rate: 2 m/sec. (6-3/5 ft./sec.)
at 310 lbs. (140.61 kg)
Max. Weight: 310 lbs. (140 kg) per ANSI, 275 lbs. (125 kg) per CSA,
330 lbs. (150 kg) per EN
Max. Descent Height: One person 590 ft. (180 m)
Rope: Use 3M and DEUS 12 mm
kernmantle rope
CONSTRUCTION Anodized Aluminum and Stainless Steel
WEIGHT & DIMENSIONS
Weight without rope: 15.2 lbs. (6.89 kg)
Dimensions: 7-9/10 in. height x 9-2/5 in. width x 3 in. depth
(20 cm x 24 cm x 7.5 cm)
Certifi cations: NFPA 1983 (2012 ED) General Use “G”
ANSI 359.4 (2007 ED) Multiple Use
CSA Z259.2.3 (2012 ED) Type 1, Class A
EN341 (2012 ED) Type 1, Class A
Warranty: Limited Lifetime Warranty (Renew every three years)
COMPONENTS/PARTS/ACCESSORIES
ANCHORS | Rope-Over-Wire (ROW)
ART
RTU Kits Product # Kit Description
RTU
RTU is a mechanical advantage 4:1 system for vertical rescue lifting. Pre-rigged kit
contains one cam-locking pulley, one double pulley with integral swivel and 50 ft. of
7-1/2 mm blue kernmantle rope, two carabiners, Dyneema® sling and a storage bag.
Working length of 12-1/2 feet.
RTU-
O
G
RTU is a mechanical advantage 4:1 system for vertical rescue lifting. Pre-rigged kit
contains one cam locking pulley, one double pulley with integral swivel and 50 ft.
of 7-1/2 mm blue kernmantle rope, two triple-lock carabiners, Dyneema® sling and
storage bag. Triple-lock carabiner ideal for oil and gas applications. Working
length of 12-1/2 feet.
Kernmantle Rope Product # Description
A2W-7.5L-50 7.5 mm green kernmantle rope, 50 ft. length, one each
A2W-7.5L-100 7.5 mm green kernmantle rope, 100 ft. length, one each
A2W-7.5L-200 7.5 mm green kernmantle rope, 200 ft. length, one each
A2W-7.5L-300 7.5 mm green kernmantle rope, 300 ft. length, one each
A2W-7.5L-350 7.5 mm green kernmantle rope, 350 ft. length, one each
A2W-8.0-50 8 mm orange kernmantle rope, 50 ft. length, one each
A2W-8.0-100 8 mm orange kernmantle rope, 100 ft. length, one each
A2W-8.0-150 8 mm orange kernmantle rope, 150 ft. length, one each
A2W-8.0-200 8 mm orange kernmantle rope, 200 ft. length, one each
A2W-8.0-300 8 mm orange kernmantle rope, 300 ft. length, one each
A2W-8.0-350 8 mm orange kernmantle rope, 350 ft. length, one each
A2W-8.0-400 8 mm orange kernmantle rope, 400 ft. length, one each
A2W-8.0-500 8 mm orange kernmantle rope, 500 ft. length, one each
A2W-8.0-590 8 mm orange kernmantle rope, 590 ft. length, one each
83208-100 12 mm white belay kernmantle rope, 100 ft. length, one each
83208-200 12 mm white belay kernmantle rope, 200 ft. length, one each
83208-300 12 mm white belay kernmantle rope, 300 ft. length, one each
83208-350 12 mm white belay kernmantle rope, 350 ft. length, one each
83208-400 12 mm white belay kernmantle rope, 400 ft. length, one each
83208-500 12 mm white belay kernmantle rope, 500 ft. length, one each
83208-590 12 mm white belay kernmantle rope, 590 ft. length, one each
2WP-7.51-050 7.5 mm blue kernmantle rope, 50 ft. length, one each
*When purchasing replacement rope or a different length rope for an existing device, see 3700 device backplate to determine rope requirements. The last three digits of the
model number indicate the version of the device and which rope to use. All model numbers ending in 005 will use 3M™ and DEUS™ 8 mm orange kernmantle rope. All model
numbers ending in 004 are earlier models and will use 3M™ and DEUS™ 7.5 mm green kernmantle rope.
7.5 mm green rope is NFPA-certifi ed
For use only with
3300 device*
For use with
3700 device*
For use with
7300 device
For use with
RTU kit
3M™ and DEUS™ rope-over-wire (ROW) anchorage connectors combine the fl exibility and ease-of-use of synthetic rope with the strength, durability
and cut-resistance of steel cable.
Color: Green
Strength: Rated to 7,000 lbs.
Construction: Polyester over
galvanized steel
Cable Diameter: 1/4 in.
Total Diameter: 12-1/2 mm
Weight: 4 ft. — 1.32 lbs. (0.6 kg)
6 ft. — 1.65 lbs. (0.75 kg)
8 ft. — 1.98 lbs. (0.90 kg)
Certifi cation: NFPA 1983:2012
“General Use”;
ANSI Z359.1-2007
Color: Safety Orange
Strength: Rated to 10,000 lbs.
Construction: Polyester over
galvanized steel
Cable Diameter: 3/8 in.
Total Diameter: 17-1/2 mm
Weight: 4 ft. — 2.86 lbs. (1.3 kg)
6 ft. — 3.52 lbs. (1.6 kg)
8 ft. — 4.18 lbs. (1.9 kg)
Certifi cation: NFPA 1983:2012
“General Use”;
ANSI Z359.1-2007
Product # Description
DR-0832G-04 Green, 4 ft. length, one each
DR-0832G-06 Green, 6 ft. length, one each
DR-0832G-08 Green, 8 ft. length, one each
Product # Description
DR-1232O-04 Orange, 4 ft. length, one each
DR-1232O-06 Orange, 6 ft. length, one each
DR-1232O-08 Orange, 8 ft. length, one each
Angled-Descent Kits Product # Kit Description
ADK-GI
Angled-Descent Kit for attachment to guy line allows for quick angled descent in emergency
situations. Angled Descent Kit includes device, strap and carabiner to connect guy line to
worker’s harness. Must be used with a 3M™ and DEUS™ Escape and/or Rescue Kit.
ADK-
O
G
Angled-Descent Kit for attachment to guy line allows for quick angled descent in
emergency situations. Angled Descent Kit includes device, strap and carabiner to
connect guy line to worker’s harness. Must be used with a 3M™ and DEUS™ Escape
and/or Rescue Kit. Triple-lock carabiner ideal for oil and gas applications.
Carabiners &
O
-Rings Product # Kit Description
SAL-2
Steel pear-shaped, double-lock carabiner for use with 3M™ and DEUS™ Escape and
Rescue Kits. 4-1/2 in. overall length, internal 3-1/2 in. x 2-1/2 in., gate opening of
1 in. 10,000 lbs. with 3,600 lbs. gate rated.
STL-3
Steel pear-shaped, triple-lock carabiner for use with 3M™ and DEUS™ Oil and Gas
Escape and/or Rescue Kits. 4-1/2 in. overall length, internal 3-1/2 in. x 2-1/2 in.,
gate opening of 1 in. 10,000 lbs. with 3,600 lbs. gate rated.
DEUS-
O
2Rope termination thimble, which eliminates rope wear caused by carabiner or other
connector. #2 sized for 7-1/2 mm and 8 mm rope.
DEUS-
O
4Rope termination thimble, which eliminates rope wear caused by carabiner or other
connector. #4 sized for 12 mm rope.
Training required before use. Please contact your 3M Representative.Training required before use. Please contact your 3M Representative.
ESCAPE AND RESCUE
142 143
3M™ Fall Protection Catalog | 3M.com/FallProtection |
DEUS™ Escape and Rescue Products distributed by 3M
COMPONENTS/PARTS/ACCESSORIES
Storage Bags Product # Kit Description
DR045 Black storage bag for belay rope storage.
Dimensions: 2 ft. width x 1 ft. diameter.
DR160-XS Black storage bag for Escape and Rescue kit.
Dimensions: 5 in. height. Bag is for rope lengths up to 100 ft. of 8 mm rope.
DR160-S Black storage bag for Escape and Rescue kit. Dimensions: 10 in. height.
Bag is for rope lengths up to 200 ft. of 8 mm rope or 50 ft. of 12 mm rope.
DR160-M Black storage bag for Escape and Rescue kit. Dimensions: 15 in. height.
Bag is for rope lengths up to 300 ft. of 8 mm rope or 100 ft. of 12 mm rope.
DR160-L Black storage bag for Escape and Rescue kit. Dimensions: 20 in. height.
Bag is for rope lengths up to 350 ft. of 8 mm rope and RTU kit.
DR241 Black storage bag to store 3M™ and DEUS™ Rescue Transfer Unit (RTU).
Dimensions: 10 in. height.
Edge Protectors for
Use on Bucket Trucks Product # Kit Description
DR100
Designed with proprietary laminate
and nylon to protect moving and
non-moving rope from damage
when in contact with a leading edge.
Dimensions: 17 in. x 6 in.
DR1040G-12
Designed with proprietary laminate
and nylon to protect moving and
non-moving rope from damage
when in contact with a leading edge.
Dimensions: 12 in. x 2.25 in.
Straps/Slings Product # Kit Description
753024
Strap used to form lower attachment point on harness using side D-rings. Also for use
as replacement strap on 3M™ and DEUS™ Angled-Descent Devices. Technora™ webbing is
fi re and cut resistant. 5,000 lb rated. 24 in. length. NFPA-G certifi ed. Tan color.
753012
Strap used to form lower attachment point on harness using side D-rings. Also for use with
3M™ and DEUS™ Angled-Descent Devices when a shorter strap is preferred. Technora™
webbing is fi re and cut resistant. 5,000 lb rated. 12 in. length. NFPA-G certifi ed. Tan color.
DR-DYNS-024
Dyneema® web sling can be used to form Prusik loop when using our Rescue Transfer
Unit. It is lightweight and cut resistant. 5,000 lbs. rated. 24 in. length. Various colors.
DR045
DR160-XSDR160-S
DR160-M
DR160-L DR241
DEUS™ Escape and Rescue Products distributed by 3M
3M™ Elavation™ Premium Fall
Protection Harness with Quick
Connect Buckle Chest Connection,
Quick Connect Buckle Leg Connection
and Front, Back and Side D-rings.
Protective covers for Label Pack,
Web Keepers and Lanyard Keepers.
• S-M, L-XL, XXL
• 400 lbs. capacity
3M™ Elavation™ Premium Fall
Protection Harness with Quick Connect
Buckle Chest Connection, Quick
Connect Buckle Leg Connection and
Front, Back and Side D-rings with
padded positioning belt with toolbelt
holder. Protective covers for Label
Pack, Web Keepers and Lanyard
Keepers.
• S-M, L-XL, XXL
• 400 lbs. capacity
Latchways Rescue Pole can be
used with any 3M™ and DEUS™
Escape and Rescue Kit to aid in use
with the Rescue Transfer Unit (RTU)
for assisted-rescue applications.
Collapsed pole length: 2 feet, 8 inches.
Fully extended: 11 feet, 2 inches.
Product code: PRD-RescPole.
3M™ Elavation™ Full Body Harness 7511FQ
Consider front and side
D-rings when choosing
a 3M™ Harness to be
used with any of the
3M™ and DEUS™ Escape
and Rescue products.
Ideal options include
the 3M™ Elavation™
Harness 7511FQ and
3M™ Elavation™
Harness 7512FQ.
Training required before use. Please contact your 3M Representative.
3M™ Elavation™ Full Body Harness 7512FQ
Rescue Accessory
ESCAPE AND RESCUE
144 145
3M™ Fall Protection Catalog | 3M.com/FallProtection |
KITS
146 147
KITS
Tools all together-
just grab, install and get to work.
With 3M portable safety kits, fall protection
goes wherever you go. Available for roofi ng
and aerial lift applications, our convenient
kits contain the essential components of a
personal fall arrest system.
ROOFING KITS |
ROOFING KITS
HARNESS ENERGY ABSORBING LANYARD ANCHOR LIFELINE, ROPE ADJUSTER OR
FALL ARRESTER STORAGE
Prod # Prod # — Description Prod # — Description Prod # — Description Prod # — Description Prod # — Description
10000
(S-M)
1010 — 3M™ Feather
Five-Point Harness
(Universal)
3510 — 3M™ SafeAbsorb
3 ft. Energy-Absorbing Lanyard
4000 — 3M™
Reusable Roof Anchor
0221-50 — 3M™ 50 ft. Vertical
Rope Lifeline and 123 — 3M™
Self-Trailing Steel Fall Arrester
4521 — 3M™ Tool
Bag
10000
(L-XL)
1010 — 3M™ Feather
Five-Point Harness
(Universal)
3510 — 3M™ SafeAbsorb
3 ft. Energy-Absorbing Lanyard
4000 — 3M™
Reusable Roof Anchor
0221-50 — 3M™ 50 ft. Vertical
Rope Lifeline and 123 — 3M™
Self-Trailing Steel Fall Arrester
4521 — 3M™ Tool
Bag
10500
10950 — 3M™
SafeLight Five-Point
Harness (Universal)
209510 — 3M™ SafeLight
3 ft. Energy-Absorbing Lanyard
4000 — 3M™
Reusable Roof Anchor
0221-50 — 3M™ 50 ft. Vertical
Rope Lifeline and 123 — 3M™
Self-Trailing Steel Fall Arrester
4521 — 3M™ Tool
Bag
20000
10910 — 3M™
SafeLight Five-Point
Harness (Universal)
209512 — 3M™ SafeLight
6 ft. Energy-Absorbing Lanyard
4651X — Two 3M™
Single-Use Disposable
Roof Anchors
0221-50RG — 3M™ 50 ft. Vertical
Rope Lifeline with Manual Rope
Adjuster
5000 — 3M™
Storage Bucket
20002
10910 — 3M™
SafeLight Five-Point
Harness (Universal)
209510 — 3M™ SafeLight
3 ft. Energy-Absorbing Lanyard
4000 — 3M™
Reusable Roof Anchor
0221-50 — 3M™ 50 ft. Vertical
Rope Lifeline and 123 — 3M™
Self-Trailing Steel Fall Arrester
4521 — 3M™ Tool
Bag
20012
10810 — 3M™
Three-Point Harness
(Universal)
208512 — 3M™ SafeLight
6 ft. Energy-Absorbing Lanyard
4000 — 3M™
Reusable Roof Anchor
0221-50RG — 3M™ 50 ft. Vertical
Rope Lifeline with Manual Rope
Adjuster
5000 — 3M™
Storage Bucket
20012-AG1
1050 — 3M™ Feather
Five-Point Harness
(Universal)
209510 — 3M™ SafeLight
3 ft. Energy-Absorbing Lanyard
4000 — 3M™
Reusable Roof Anchor
0221-50 — 3M™ 50 ft. Vertical
Rope Lifeline, 129 — Self-Trailing
Stainless Steel Fall Arrester
4521 — 3M™ Tool
Bag
20012-SU
10810 — 3M™
Three-Point Harness
(Universal)
208510 — 3M™ SafeLight
3 ft. Energy-Absorbing Lanyard
4000 — 3M™
Reusable Roof Anchor
0221-50RG — 3M™ 50 ft. Vertical
Rope Lifeline with Manual Rope
Adjuster
4521 — 3M™ Tool
Bag
20058
10910 — 3M™
SafeLight Five-Point
Harness (Universal)
209512 — 3M™ SafeLight
6 ft. Energy-Absorbing Lanyard
with Snap Hooks
4000 — 3M™
Reusable Roof Anchor
0221-50RG — 3M™ 50 ft. Vertical
Rope Lifeline with Manual Rope
Adjuster
5000 — 3M™
Storage Bucket
20503
10950 — 3M™
SafeLight Five-Point
Harness (universal size)
124/209510 — 3M™ SafeLight
3 ft. Energy-Absorbing Lanyard
with Fall Arrester attached
4000 — 3M™
Reusable Roof Anchor
0221-50 — 3M™ 50 ft. Vertical
Rope Lifeline, 124 — 3M™ Self-Trailing
Steel Fall Arrester integrated with
209510 Energy-Absorbing Lanyard
4521 — 3M™ Tool
Bag
30519
10910 — 3M™
SafeLight Five-Point
Harness (Universal)
209512 — 3M™ SafeLight
6 ft. Energy-Absorbing Lanyard
4550-U-6 — 3M™
Heavy Duty 6 ft.
Cross-Arm-Strap
Anchor
0221-100RG — 3M™ 100 ft. Vertical
Rope Lifeline with Manual Rope
Adjuster
4701 — 3M™ Tool
Bag
30519-XXL
1010-XXL — 3M™
Feather Five-Point
Harness (XXL)
209512 — 3M™ SafeLight
6 ft. Energy-Absorbing Lanyard
4550-U-6 — 3M™
Heavy Duty 6 ft.
Cross-Arm-Strap
Anchor
0221-100RG — 3M™ 100 ft. Vertical
Rope Lifeline with Manual Rope
Adjuster
4701 — 3M™ Tool
Bag
3M roofi ng kits are not only designed for compliance with most roofi ng applications, they
are designed for versatility as well, offering you a wide selection of fall protection equipment
in one convenient container. Choose the harness, lanyard, anchor and rope adjuster or fall
arrester that’s just right for your work environment and situation. Kits come in either a durable
storage bucket or tool bag (customize logo option for bag).
20058
Roofi ng Kit
This roofi ng kit contains:
• 3M™ SafeLight Harness 10910 (Universal)
• 3M™ SafeLight 6 foot Lanyard with
Snap Hooks 209512
• 3M™ 50 foot Vertical Rope Lifeline with
Manual Rope Adjuster 0221-50RG
• 3M™ Reusable Roof Anchor 4000
• 3M™ Storage Bucket 5000
20000
Roofi ng Kit
This roofi ng kit contains:
• 3M™ SafeLight Harness 10910 (Universal)
• 3M™ SafeLight 6 foot Lanyard 209512
• 3M™ 50 foot Vertical Rope Lifeline with
Manual Rope Adjuster 0221-50RG
• Two 3M™ Single-use Disposable Roof
Anchors 4651X
• 3M™ Storage Bucket 5000
20012-SU
Roofi ng Kit
This economy roofi ng kit includes:
• 3M™ Three-Point Harness 10810 (Universal)
• 3M™ SafeLight 3 foot Lanyard 208510
• 3M™ 50 foot Vertical Rope Lifeline with
Manual Rope Adjuster 0221-50RG
• 3M™ Reusable Roof Anchor 4000
• 3M™ Tool Bag 4521
CORE ITEM Our best selling equipment — in stock and in demand.
3M™ Fall Protection Catalog | 3M.com/FallProtection |
KITS
148 149
For workers in aerial and scissor lifts, these kits are designed to help simplify regulatory
compliance and inventory management. As part of your personal fall arrest system, the
aerial kits offer a variety of harness and lanyard combinations to choose from, while the
anchor itself is found on the actual lift. Kits come in a handy storage bag that can be
customized with your logo.
30510
Aerial Kit
This kit for use on aerial lifts contains the 3M™ Ameba
Harness 1450 (Universal), the 3M™ SafeAbsorb Xtra
Expandable 4 foot–6 foot Energy-Absorbing
Lanyard with Snap Hooks 4712-6 and the
3M™ Tool Bag 4514 for storage.
30500
Aerial Kit
This kit for use on aerial lifts contains the 3M™ SafeLight
Fall Protection Harness 10910 (Universal), the
3M™ SafeLight 6 foot Energy-Absorbing
Lanyard with Snap Hooks 209512 and
3M™ Tool Bag 4514 for storage.
30514
Aerial Kit
This kit for use on aerial lifts contains the 3M™
SafeLight Fall Protection Harness 10950 (Universal),
the 3M™ SafeLight 6 foot Low Profi le Energy-
Absorbing Lanyard with Snap Hooks 209712 and
3M™ Tool Bag 4514 for storage.
Vest Harness Aerial Kits
CustomLogo
HARNESS LANYARD STORAGE
Kit Prod # Prod # — Description Prod # — Description Prod # — Description
30000 10910/ 209512 — 3M™ SafeLight Five-Point Harness/Lanyard Combo (Universal Size) and 3M™ SafeLight 6 ft. Energy-
Absorbing Lanyard with Snap Hooks 4514 — 3M™ Tool Bag
30500 10910 — 3M™ SafeLight Five-Point Harness (Universal) 209512 — 3M™ SafeLight 6 ft. Energy-Absorbing Lanyard with
Snap Hooks 4514 — 3M™ Tool Bag
30580-TB 10910 — 3M™ SafeLight Five-Point Harness (Universal) 3812 — 3M™ Tie-back 6 ft. Energy-Absorbing Lanyard with
Tie-back Hook and Snap Hook 4514 — 3M™ Tool Bag
30501 10810 — 3M™ SafeLight Three-Point Harness (Universal) 208512 — 3M™ 6 ft. Energy-Absorbing Lanyard with Snap
Hooks 4514 — 3M™ Tool Bag
30502 10810 — 3M™ SafeLight Three-Point Harness (Universal) 208512 — 3M™ 6 ft. Energy-Absorbing Lanyard with Snap
Hooks 4512A — 3M™ Tool Bag
30502-PB 10810 — 3M™ SafeLight Three-Point Harness (Universal) 208512 — 3M™ 6 ft. Energy-Absorbing Lanyard with Snap
Hooks Plastic Bag
30506 1452 — 3M™ Ameba Five-Point Harness (L-XL) 209712 — 3M™ SafeLight 6 ft. Low-Profi le Energy-Absorbing
Lanyard with Snap Hooks 4521 — 3M™ Tool Bag
30508 1050 — 3M™ Feather Five-Point Harness (Universal) 209750 — 3M™ SafeLight 6 ft. Dual-Leg Low Profi le Energy-
Absorbing Lanyard with Snap Hooks 4514 — 3M™ Tool Bag
30510 1450 — 3M™ Ameba Five-Point Harness (Universal) 4712-6 — 3M™ SafeAbsorb Xtra Expandable 4 ft.– 6 ft. Energy-
Absorbing Lanyard with Snap Hooks 4514 — 3M™ Tool Bag
30511 1450 — 3M™ Ameba Five-Point Harness (Universal) 3812 — 3M™ Tie-back 6 ft. Energy-Absorbing Lanyard with
Tie-back Hook and Snap Hook 4514 — 3M™ Tool Bag
30512 10910 — 3M™ SafeLight Five-Point Harness (Universal) 209712 — 3M™ SafeLight 6 ft. Low-Profi le Energy-Absorbing
Lanyard with Snap Hooks 4514 — 3M™ Tool Bag
30513 10951 — 3M™ SafeLight Five-Point Harness (Universal) 209550 — 3M™ SafeLight 6 ft. Dual-Leg Energy-Absorbing
Lanyard with Snap Hooks 4514 — 3M™ Tool Bag
30513-DTB 10951 — 3M™ SafeLight Five-Point Harness (Universal) 3813 — 3M™ Tie-back 6 ft. Dual-Leg Energy-Absorbing Lanyard
with Two Tie-back Hooks and Snap Hook 4514 — 3M™ Tool Bag
30514 10950 — 3M™ SafeLight Five-Point Harness (Universal) 209712 — 3M™ SafeLight 6 ft. Low-Profi le Energy-Absorbing
Lanyard with Snap Hooks 4514 — 3M™ Tool Bag
30514-DTB 10950 — 3M™ SafeLight Five-Point Harness (Universal) 3813 — 3M™ Tie-back 6 ft. Dual-Leg Energy-Absorbing Lanyard
with Two Tie-back Hooks and Snap Hook 4514 — 3M™ Tool Bag
30515 10911 — 3M™ SafeLight Five-Point Harness (Universal) 209512 — 3M™ SafeLight 6 ft. Energy-Absorbing Lanyard with
Snap Hooks 4514 — 3M™ Tool Bag
30516 1410 — 3M™ Ameba Five-Point Harness (Universal) 4712-6 — 3M™ SafeAbsorb Xtra Expandable 4 ft.–6 ft. Energy-
Absorbing Lanyard with Snap Hooks 4514 — 3M™ Tool Bag
30520 1050 — 3M™ Feather Five-Point Harness (Universal) 209712 — 3M™ SafeLight 6 ft. Low-Profi le Energy-Absorbing
Lanyard with Snap Hooks 4514 — 3M™ Tool Bag
30523 10950 — 3M™ SafeLight Five-Point Harness (Universal) 209712 — 3M™ SafeLight 6 ft. Low-Profi le Energy-Absorbing
Lanyard with Snap Hooks Plastic Bag
30524 10950 — 3M™ SafeLight Five-Point Harness (Universal) 209550 — 3M™ SafeLight 6 ft. Dual-Leg Energy-Absorbing
Lanyard with Snap Hooks 4514 — 3M™ Tool Bag
30540 1040-XXL — 3M™ Apache Five-Point Harness.
For total user capacity of 311 lbs.–400 lbs. (XXL)
3530-E — 3M™ Apache 6 ft. Energy-Absorbing Lanyard with
Snap Hooks (311 lbs.–400 lbs.)
4514 — 3M™ Tool Bag
30550 1050 — 3M™ Feather Five-Point Harness (Universal) 3550 — 3M™ SafeAbsorb 6 ft. Dual-Leg Energy-Absorbing
Lanyard with Snap Hooks 4514 — 3M™ Tool Bag
30570 10910 — 3M™ SafeLightFive-Point Harness (Universal) 3561 — 3M™ Tie-back 6 ft. Energy-Absorbing Lanyard with
Snap Hooks 4514 — 3M™ Tool Bag
HARNESS LANYARD STORAGE
Prod # Prod # — Description Prod # — Description Prod # — Description
1808-K
(S-M)
1808 — 3M™ Five-Point Vest Harness with bright color,
including 3M™ Scotchlite™ Refl ective Material (S-M)
209712 — 3M™ SafeLight 6 ft. Low-Profi le
Energy-Absorbing Lanyard with Snap Hooks 4521 — 3M™ Tool Bag
1808-K
(L-XL)
1808 — 3M™ Five-Point Vest Harness with bright color,
including 3M™ Scotchlite™ Refl ective Material (L-XL)
209712 — 3M™ SafeLight 6 ft. Low-Profi le
Energy-Absorbing Lanyard with Snap Hooks 4521 — 3M™ Tool Bag
1808-K
(XXL)
1808 — 3M™ Five-Point Vest Harness with bright color,
including 3M™ Scotchlite™ Refl ective Material (XXL)
209712 — 3M™ SafeLight 6 ft. Low-Profi le
Energy-Absorbing Lanyard with Snap Hooks 4521 — 3M™ Tool Bag
AERIAL KITS
Logo minimum order requirements:
The aerial kits have an option to have a
custom logo applied to the harness and/or
the storage bag. Minimum 15-piece opening
order required for kits with logos.
Minimum of fi ve pieces required for reorders.
Order a custom logo harness by adding -H to the
end of your product number (ex: 30510-H). Order
a custom logo bag by adding -B to the end of your
product number (ex: 30500-B). To order custom
logos on both harness and bag, add -HB to the
end of your product number (ex: 30514-HB).
Bag logo specifi cations:
Dimensions — 5 inch height x 5 inch width
Colors — Two maximum
Location — One side of bag only, other side
has a 3M logo
Format - .eps or .ai fi les to be provided
See page 35 for harness logo specifi cations.
CORE ITEM Our best selling equipment — in stock and in demand.
AERIAL KITS
3M™ Fall Protection Catalog | 3M.com/FallProtection |
HARDWARE AND ACCESSORIES
HARDWARE | ACCESSORIES
150 151
3M™ Fall Protection Catalog | 3M.com/FallProtection |
4514
Fall Protection Equipment
Small Storage Bag
Black storage bag ideal for
lanyard and harness storage.
Dimensions:
13 in. length x 9 in. diameter
2501
Harness Leg Pad Set
Large
0210-3-07
Carabiner
Large teardrop steel autolock
carabiner with 2-1/10 inch
gate opening.
From storage bags and carabiners
to replacement belts and D-ring
extenders, our accessories deliver the
same high quality and reliability you’ve
come to expect from 3M. With safety
and security always in mind, 3M™ Fall
Protection is dedicated to meeting the
demands of your job.
4701
Fall Protection Equipment
Large Storage Bag
Extra-large black storage bag ideal
for lanyard and harness storage.
Dimensions: 19 in. length x 12 in.
width x 12 in. height
4521
Fall Protection Equipment
Medium Storage Bag
Black storage bag ideal for
lanyard and harness storage.
Dimensions:
20 in. length x 9 in. diameter
2110-WB-S
Replacement Belt for Harness
2500
Harness Leg Pad Set
Small
2110-WB-S Replacement Belt for Harness, Small (30 in.–43 in.)
2110-WB-M Replacement Belt for Harness, Medium (34 in.–47 in.)
2110-WB-L Replacement Belt for Harness, Large (39 in.–52 in.)
2110-WB-XL Replacement Belt for Harness, XL (44 in.–57 in.)
2110-WB-XXL Replacement Belt for Harness, XXL (49 in.–62 in.)
0210-07
Carabiner
Steel autolock carabiner with
39/50 inch gate opening.
5552
Harness D-Ring Extender
Harness D-ring Extender
provides an 18 inch extender
with soft-loop choke
connection with two split
D-rings for 100% tie-off.
5551
Harness D-Ring Extender
Harness D-ring Extender
with rebar hook and D-ring
connection provides an 18 inch
extender for a lanyard or
self-retracting lanyard snap
hook to be attached to back
D-ring of harness.
5550
Harness D-Ring Extender
Harness D-ring Extender
with snap hook and D-ring
connection provides an 18 inch
extender for a lanyard or
self-retracting lanyard snap
hook to be attached to back
D-ring of harness.
5000
Empty Roofi ng Kit
Bucket
Empty fi ve gallon bucket with
lid. Can be used for storing
roofi ng kits.
*For Xtirpa™ Confi ned Space, 3M™ and Deus™ escape and rescue product accessories and hardware, see applicable product sections in the catalog.
Bags are available
with custom logo
123
HARDWARE
STORAGE
HARNESS ACCESSORIES
R-100
Suspension Trauma Strap
Suspension Trauma Strap helps
to relieve discomfort normally
associated with prolonged
suspension. 70 inch overall length.
CORE ITEM Our best selling equipment — in stock and in demand.
152 153
Regulations for Fall Protection Standards for Fall Protection
1926 CONSTRUCTION
Subpart E, Personal Protective Equipment
Body Belts, Lifelines and Lanyards ............................. 1926.104
Safety Nets ............................................................... 1926.105
Subpart L, Scaffolding
Fall Protection ........................................................1926.451(g)
Subpart M, Fall Protection
Scope, Application and Defi nitions .............................. 1926.500
Duty to Have Fall Protection ....................................... 1926.501
Fall Protection Systems Criteria and Practices ............. 1926.502
Training Requirements ............................................... 1926.503
Subpart R, Steel Erection
Fall Protection ........................................................... 1926.760
Subpart V, Power Transmission and Distribution
Linemen Body Belts, Safety Straps and Lanyards ........ 1926.959
Subpart X, Ladders
Ladders .................................................................. 1926.1053
1910 GENERAL INDUSTRY
Proposed Rule to Revise Subpart D (May 24, 2010)
Subpart D, Walking/Working Surfaces
Fixed Ladders, Ladder Safety Devices ...................1910.27(d)(5)
Safety Requirements for Scaffolding,
Boatswain’s Chair .................................................1910.28(j)(4)
Subpart F, Powered Platforms, Man Lifts and
Vehicle-Mounted Work Platforms
Powered Platforms and Building Maintenance ............... 1910.66
Personal Fall Arrest Systems ..............................1910.66 App. C
Subpart J, Permit-Required Confi ned Space .......... 1910.146
Subpart R, Special Industries
Telecommunications.................................................. 1910.268
Electric Power Generation, Transmission
and Distribution .................................................1910.269(g)(2)
The Occupational Safety and Health Act (OSH) of 1971 made employers legally responsible for making their place of work safe for
employees. In order to enforce the OSH Act, the Occupational Safety and Health Administration (OSHA) was created. In addition to
enforcement, OSHA proposes new safety regulations and continuously updates existing ones, both of which must go through a
comprehensive process to become law.
Employers have to meet all of the applicable OSHA regulations, including the General Duty Clause, which requires employers to keep their
workplace free of serious recognized hazards such as falls. OSHA fall protection regulations state when fall protection is required and
describe basic equipment requirements. OSHA does not explain how to use fall protection. For application questions, contact your
3M Fall Protection Representative. OSHA explicitly addresses fall protection in the following sections:
An OSHA exception: If there is a hazard below such as liquid
fi lled tank or there is a dangerous surface or obstacle below, an
employee must be protected even if the fall distance is less than
a trigger height.
Note: The OSHA trigger heights for fall protection on fi xed ladders
is 20 feet–24 feet, depending on the industry; portable ladders
that meet the OSHA criteria have no trigger height.
1915-1917-1918 MARINE TERMINALS AND LONGSHORING
Shipyard Employment, Personal Fall Arrest Systems .... 1915.159
Shipyard Employment, Positioning Device Systems...... 1915.159
Marine Terminals, Employee Protection ....................1917.112(b)
Longshoring, Deck Loads .........................................1918.33(b)
Longshoring, Fall Protection ............................1918.85(j) and (k)
OSHA defi nes the heights and most of the circumstances for when
you must use fall protection. An employee exposed to a fall from
a wall opening or a hole in the fl oor must be protected if the fall
distance is 4 feet or more for general industry, and 6 feet or
more for the construction industry. Checking with a regulatory
agency and employer for requirements is recommended.
Regulations
ANSI Z359
Defi nitions and Nomenclature Used for
Fall Protection and Fall Arrest ..............................Z359.0 (2009)
Safety Requirements for Personal Fall
Arrest Systems, Subsystems and Components ......Z359.1 (2007)
Minimum Requirements for a Comprehensive
Managed Fall Protection Program ........................Z359.2 (2007)
Safety Requirements for Positioning and
Travel Restraint Systems......................................Z359.3 (2007)
Safety Requirements for Assisted Rescue
and Self-Rescue Systems,
Subsystems and Components ..............................Z359.4 (2007)
Specifi cations and Design Requirements
for Active Fall Protection Systems .........................Z359.6 (2009)
Qualifi cation and Verifi cation Testing
of Fall Protection Products ...................................Z359.7 (2011)
Connecting Components for Personal
Fall Arrest Systems ...........................................Z359.12 (2009)
Personal Energy Absorbers and
Energy-Absorbing Lanyards ...............................Z359.13 (2009)
Safety Requirements for Self-Retracting
Devices for Personal Fall Arrest and
Rescue Systems ...............................................Z359.14 (2012)
OTHER ANSI STANDARDS
Personal Fall Protection Safety Requirements
for Construction and Demolition Operations ......... A10.32 (2012)
Ladders — Fixed-Safety Requirements ................. A14.3 (2008)
Safety Requirements for Confi ned Spaces ............Z117.1 (2009)
CSA STANDARDS
Full Body Harnesses ................................CAN/CSA-Z259.10-12
Fall Restrict Equipment for
Wood Pole Climbing ................................CAN/CSA-Z259.14-12
Anchorage Connectors ............................CAN/CSA-Z259.15-12
Self-Retracting Devices for
Personal Fall-Arrest Systems ....CAN/CSA-Z259.2.2-98 (R2009)
Descent Devices (Adopted ISO 22159:2007,
fi rst edition, 2007-05-15,
with Canadian deviations) .......................CAN/CSA-Z259.2.3-12
Fall Arresters and Vertical Lifelines ..........CAN/CSA-Z259.2.5-12
Body Belts and Saddles for Work
Positioning and Travel Restraint .................... Z259.1-05 (R2010)
Energy Absorbers and Lanyards ................. Z259.11-05 (R2010)
Connecting Components for
Personal Fall Arrest Systems (PFAS) ........................ Z259.12-11
Flexible Horizontal Lifeline Systems ............ Z259.13-04 (R2009)
Design of Active Fall-Protection Systems .... Z259.16-04 (R2009)
Fall Arresters and Vertical Rigid Rails ...................... Z259.2.4-12
Fall protection standards organizations such as the American National Standards Institute (ANSI) and the Canadian Standards
Association (CSA) are made up of industry experts that agree upon and standardize requirements for the manufacture of fall
protection equipment; they are voluntary. For the most part, fall protection standards focus on equipment performance,
strength, testing and labeling, but some offer guidance on forming a managed fall protection program: ANSI Z359.2 (2007).
If a standard is cited by the legislative body having jurisdiction, it becomes law and therefore must be followed by employers.
Always make sure that your equipment meets the most up-to-date standards.
Standards
Industry Trigger Heights
General Industry 4 feet 29 CFR 1910.23 (b)(1)
Construction 6 feet 29 CFR 1926.501 (b)(1)
Steel Construction (Subpart R) 15 feet 29 CFR 1926.760 (a)(1)
30 feet 9 CFR 1926.760 (b)(1)
Marine Terminals 4 feet 29 CFR 1917.112 (b)(1)
Shipyard Employment 5 feet 29 CFR 1915.73 (d)
Longshoring 8 feet 29 CFR 1918.2
defi nitions “fall hazard”
3M™ Fall Protection Catalog | 3M.com/FallProtection |
154 155
3M™ Fall Protection Catalog | 3M.com/FallProtection |
Inspection, Product Life and Warranty for Fall Protection Best Practices for Fall Protection
3M User Instructions state that fall protection products must be
inspected prior to each use and annually by an OSHA-defi ned
“competent person” other than the user. Due to OSHA inspection
requirements, 3M does not apply a mandatory shelf-life or
expiration date on many of our fall protection products.
• OSHA 1910.66 and 1926.502 require no formal inspection
period, only inspection by the user before each use.
1926.502(d)(21) specifi cally states: Personal fall arrest systems
shall be inspected prior to each use for wear, damage and other
deterioration, and defective components shall be removed
from service.
• ANSI Z359.1-2007 states: Equipment shall be inspected by
the user before each use and, additionally, by a competent
person, other than the user, at intervals of no more than
one year.
• ANSI A10.32-2004 states: Formal inspections shall be
made by a qualifi ed person on at least a semi-annual basis.
Because ANSI Z359 and A10.32 are national consensus standards
and law does not require compliance, your company has the
discretion to determine if the standard is applicable to your
workplace. You may also wish to consult your insurance carrier
or your legal counsel regarding your liability and your company’s
liability if you choose to use safety equipment in a manner
inconsistent from what is advised by the manufacturer.
Please note that it is very important for the user to inspect the
equipment before each use. We strive to make our products easy
to inspect by providing detailed inspection guidelines and criteria
within the 3M User Instructions supplied with each product.
For current 3M User Instructions please visit
http://www.3M.com/FallProtection. Contact 3M Technical
Service at 800-243-4630 if you have any questions or concerns.
WARRANTY: THE FOLLOWING IS MADE IN LIEU OF ALL WARRANTIES
OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING THE IMPLIED
WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE. Equipment offered by 3M is warranted
against factory defects in workmanship and materials for a period of
one year from date of installation or fi rst use by the original owner.
LIMITED REMEDY: Upon notice in writing, 3M will repair or replace
all defective items at 3M’s sole discretion. 3M reserves the right to
require that the defective item be returned to its plant for inspection
before determining the appropriate course of action. Warranty does
not cover equipment damage resulting from wear, abuse, damage in
transit, failure to maintain the product or other damage beyond the
control of 3M. 3M shall be the sole judge of product condition and
warranty options. This warranty applies only to original purchaser
and is the only warranty applicable to this product. Please contact
3M’s technical service department at 800-243-4630 for assistance.
LIMITATION OF LIABILITY: IN NO EVENT WILL 3M BE LIABLE
FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES INCLUDING, BUT NOT LIMITED TO LOSS OF PROFITS,
IN ANY WAY RELATED TO THE PRODUCTS REGARDLESS OF THE
LEGAL THEORY ASSERTED.
Inspection and Product Life
Product Warranty, Limited Remedy and Limitation of Liability
Training
Training is required by OSHA for employees who might be exposed
to fall hazards. Training must be delivered by a competent person
(see 29 CFR 1926.503). At a minimum, training should include:
• Identifying fall hazards
• Setting up and dismantling fall protection equipment
• Performing prior-to-use equipment inspection
• Proper equipment storage and maintenance
• The safe use, operation and limitations of fall protection
equipment and systems
• OSHA requirements/regulations for fall protection
As a best practice, training should include hands-on training
where training participants are able to practice and demonstrate
their competency. It is recommended in ANSI Z359.2 that training
should occur every two years and be assessed annually. OSHA
requires retraining when an employee demonstrates incompetence
or the environment or equipment has changed. All training must be
documented, and the documents must be retained.
Developing a Managed Fall Protection Program
Most businesses have developed a written fall protection program
that clearly assigns roles and responsibilities, and spells out an
organization’s policies for fall protection. This written program is
strongly recommended, and when required, must be site, job and/
or or application specifi c. Reasons for developing a program include
ensuring compliance with legislation, legal defense from lawsuits
and providing employees with clear guidance to keep them safe.
A good program should include regulations, consensus standards,
best practices, identifi cation of fall hazards, a hierarchy system for
addressing hazards, defi ned roles, training, inspection, regular
audits and more.
Competent Person
According to OSHA 29 CFR 1910.32 (f), a competent person is “one
who is capable of identifying existing and predictable hazards in the
surrounds or working conditions which are unsanitary, hazardous,
or dangerous to employees, and who has authorization to take
prompt corrective measures to eliminate them.” The authority to take
prompt corrective measures comes from the competent person’s
employer. A competent person is often a manager, supervisor or
a safety professional.
Authorized Person
“A person approved or assigned by the employer to perform a
specifi c type of duty or duties or to be at a specifi c location or
locations at the jobsite.” [OSHA 1926.32 (d)]. ANSI Z359.2 uses
“authorized person” to mean any user of fall protection who is
trained to correctly use fall protection, inspect equipment prior
to use and will notify a competent person if he/she recognizes
a hazard or if equipment fails a prior-to-use inspection.
Competent Equipment Inspector
This is a competent person who is granted authority by his/her
employer to inspect fall protection equipment. The competent
equipment inspector performs a documented inspection of fall
protection equipment following the manufacturer’s instructions.
Qualifi ed Person
A qualifi ed person is “one with a recognized degree or professional
certifi cate and extensive knowledge and experience in the subject
fi eld who is capable of design, analysis, evaluation and specifi cations
in the subject work, project, or product.”
(OSHA 29 CFR 1910.66 App C)
“One who, by possession of a recognized degree, certifi cate,
or professional standing, or who by extensive knowledge, training
and experience, has successfully demonstrated his ability to solve
or resolve problems relating to the subject matter, the work, or the
project.” [OSHA 29 CFR 1926.32 (m)]
156
Best Practices for Fall Protection
Figure 1 (Clearance)
Figure 2 (Swing Fall)
Lower level
Working level
Swing-fall
hazard
Clearance
Fall arrest systems require a certain amount of open,
unobstructed distance below the user so that in the event of a
fall, the worker will not hit any objects. There are many types of
fall arrest systems, each with different clearance requirements,
so it’s important to read the manufacturer’s instructions. The
amount of clearance required often will dictate the type of fall
arrest system that can be used (see fi gure 1).
Swing Fall
Not only must a user of fall arrest be concerned with vertical
clearance but also be aware that a pendulum-like swing
can occur during a fall if the worker is off to the side of the
anchorage when he/she falls. A pendulum swing must be
taken seriously because a pendulum swing of 6 feet has the
same amount of energy as a vertical fall of 6 feet. A swing fall
into a wall or exposed rebar can cause serious injury or death.
Work as near the anchorage as possible to help avoid swing-
fall hazards (see fi gure 2).
Rescue
Often, the most overlooked component of fall arrest is rescue.
A suspended victim must be rescued promptly to reduce the
chance of injury caused by suspension trauma, or venous
blood pooling. Whenever fall arrest is used, a rescue plan
must be in place to ensure a suspended worker is promptly
rescued. Relying on public-sector emergency-rescue services
is inadequate as the time it may take to rescue a victim could
be too long. A rescue plan can be very simple, such as
using an aerial work platform. The important point is to have
a rescue plan and practice it.
6 ft. (1.83 m) max
Average D-ring
height from
walking/working
surface
Nearest obstruction
Total distance
for this example:
17.5 ft. (5.33 m)
from anchorage
Harness stretch / D-ring slide:
1 ft. (305 mm)
D-ring height:
5 ft. (1.52 m)
Safety factor:
2 ft. (610 mm)
Length of energy-
absorbing lanyard:
6 ft. (1.83 m)
Deceleration distance
(per marked standard):
3.5 ft. (1.07 m)
(per OSHA 1910 & 1926)
Personal Safety Division
3M Center, Building 235-2W-70
Saint Paul, MN 55144-1000
U.S.A.
For More Information
Sales Assistance: 800-328-1667
Technical
Service:
800-243-4630 in U.S.A.
800-267-4414 in Canada
Website: www.3M.com/FallProtection
ISO 9001
FM 573368
Compliant fall protection and emergency rescue systems help prevent serious injury during fall arrest. Users must read and understand the User Instructions provided with
the product and be properly trained by their employer prior to use per OSHA 1910.66 and 1926.503 or applicable local standards. Misuse or failure to follow warnings and
instructions may result in serious personal injury or death.
WARNING
XTIRPA™ Products are manufactured by
INNOVA Public Utility Products Inc.
Made in Canada
Covered by patents US 7,213,715 B2
CA 2.479.513
EP 03 744 296.9
© 3M 2014. All rights reserved.
3M, Elavation, SafeClaw, Scotchlite and ReLoad are trademarks
of 3M Company, the power to protect your world is a service mark of
3M Company, used under license in Canada.
Al-ko is a trademark of Al-ko Axis, Inc. CAPITAL SAFETY and
DBI/SALA are trademarks of D B Industries, LLC. Constant Force
is a registered trademark and Full Contact, Latchways, Latchways
Personal Rescue Device and PRD are trademarks of Latchways plc.
DEUS is a trademark of DEUS Rescue. Dyneema is a registered trademark
of Royal DSM. Guardian is a trademark of GF Protection Inc. Ikar is a
trademark of IKAR GB Limited. Miller is a trademark of Honeywell and/or its
affi liates. MSA is a trademark of Mine Safety Appliances Company. Nomex is
a registered trademark of E.I. du Pont de Nemours and Company. North is a
trademark of Protective Product Holdings, Inc. PROTECTA is a trademark of
Capital Safety Group EMEA Simplifi ed Business Association. STRONGARM
is a trademark of Strong Arm, Inc. Technora is a trademark of Teijin Limited.
Vectran is a trademark of Kuraray Co., Ltd. Xtirpa is a registered trademark
of Innova, used under license in Canada.
70-0715-7447-2 (03.14)
