Volume 2—Commercial Distribution CA08100003E—April 2016 www.eaton.com V2-T1-1

Switching Devices

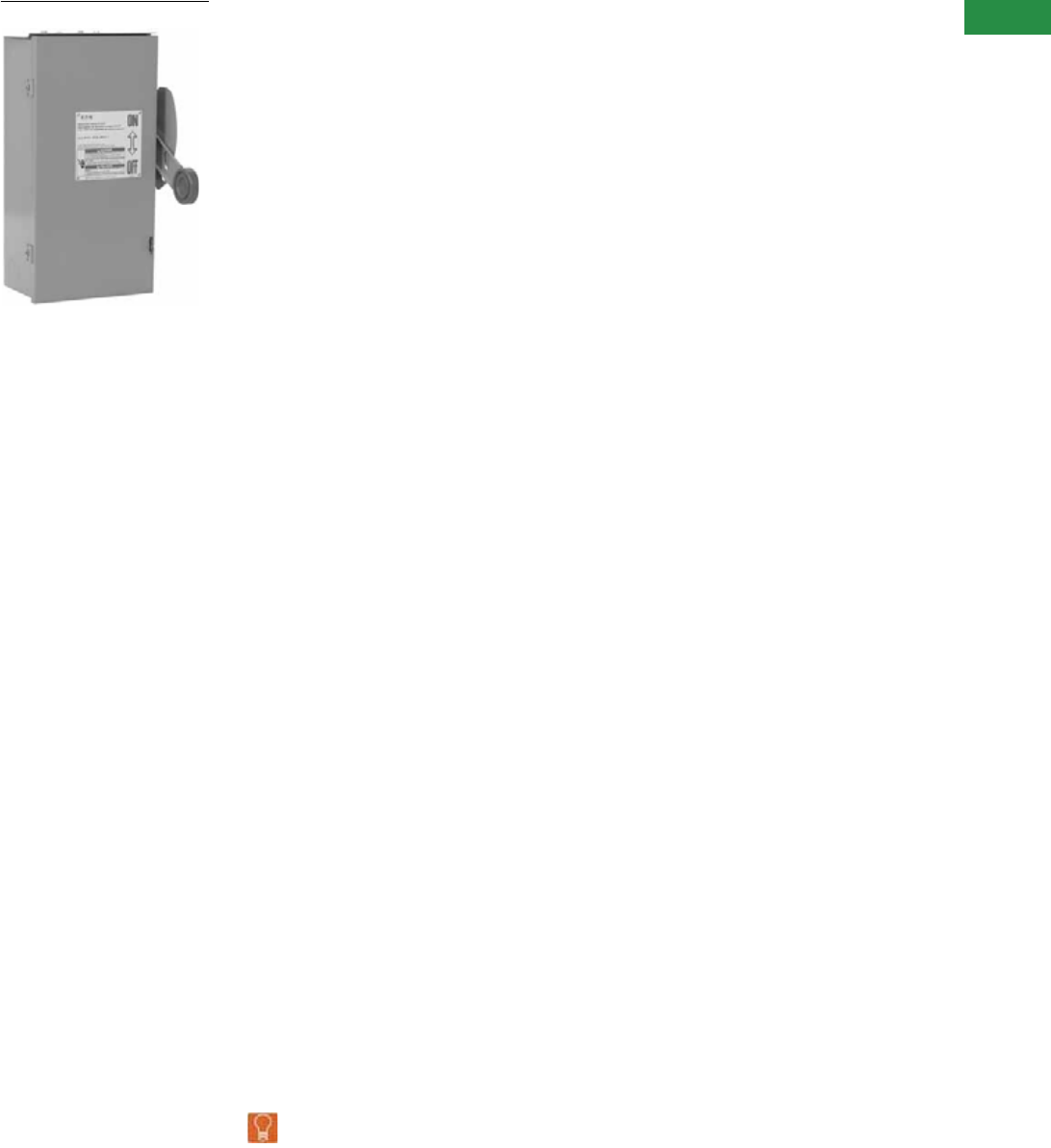

DH362NRK Safety Switch

1.1 Safety Switches

Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-3

Cross-Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-5

Catalog Number Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-13

Options and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-14

Modifications—Flex Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-16

Standard Lug Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-20

General Duty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-26

Heavy-Duty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-31

Six-Pole Switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-43

Double-Throw Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-45

EnviroLine—Stainless Steel Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-53

EnviroLine—Upper and Lower Window Switches. . . . . . . . . . . . . . . . V2-T1-56

EnviroLine—Receptacle Switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-59

EnviroLine—Non-Metallic KRYDON Switch . . . . . . . . . . . . . . . . . . . . V2-T1-61

Shunt Trip Safety SwitchShunt Trip Safety Switch. . . . . . . . . . . . . . . . V2-T1-63

NEMA 7/9—Hazardous Location Disconnect Switch . . . . . . . . . . . . . V2-T1-66

Quick Connect Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-68

Solar Disconnect Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-70

316-Grade Stainless Steel Safety Switches. . . . . . . . . . . . . . . . . . . . . V2-T1-72

Mill-Duty Rated, Heavy-Duty, Fusible, Non-Fusible, Single-Throw . . . V2-T1-76

Heavy-Duty Fusible Safety Switches Accepting Cube Fuses . . . . . . . V2-T1-78

Elevator Control Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-81

Auxiliary Power Heavy-Duty Safety Switch . . . . . . . . . . . . . . . . . . . . . V2-T1-83

Left-Handed Safety Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-86

200% Neutral Safety Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-87

Pringle Bolted Pressure Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-88

Type DS, Fusible and Non-Fusible . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-91

Type Visi-Flex DE-ION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-94

Flange Mounted—Variable Depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-98

Flange Mounted—Fixed Depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-102

1.2 Enclosed Circuit Breakers

Product Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-104

Application Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-104

Features, Benefits and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-105

Standards and Certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-105

Cross-Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-106

Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-108

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-110

Flex Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-112

Technical Data and Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-113

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-115

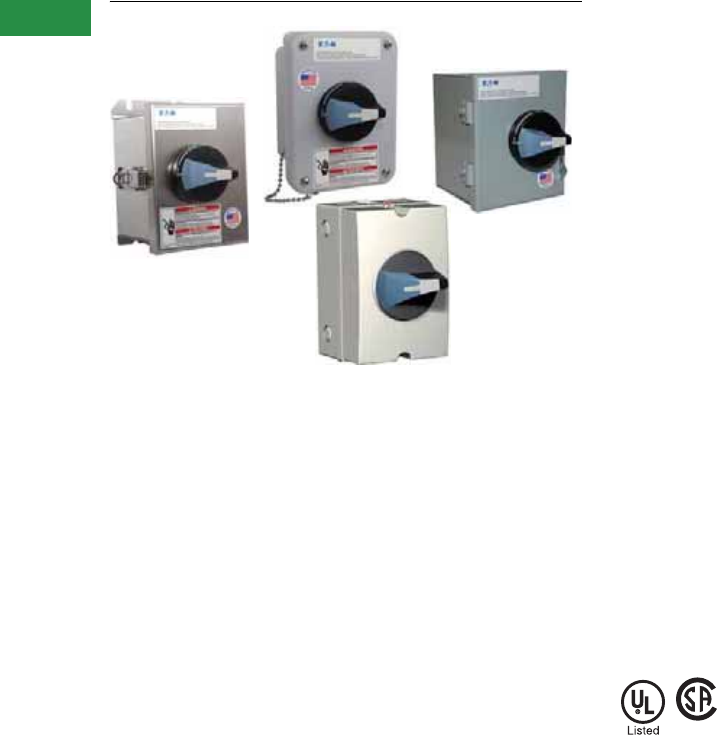

1.3 Enclosed Rotary Disconnects

Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-122

Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-123

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-124

Learn

Online

V2-T1-2 Volume 2—Commercial Distribution CA08100003E—April 2016 www.eaton.com

1.1

Switching Devices

Safety Switches

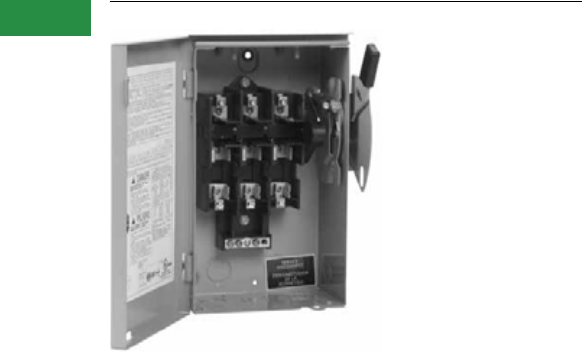

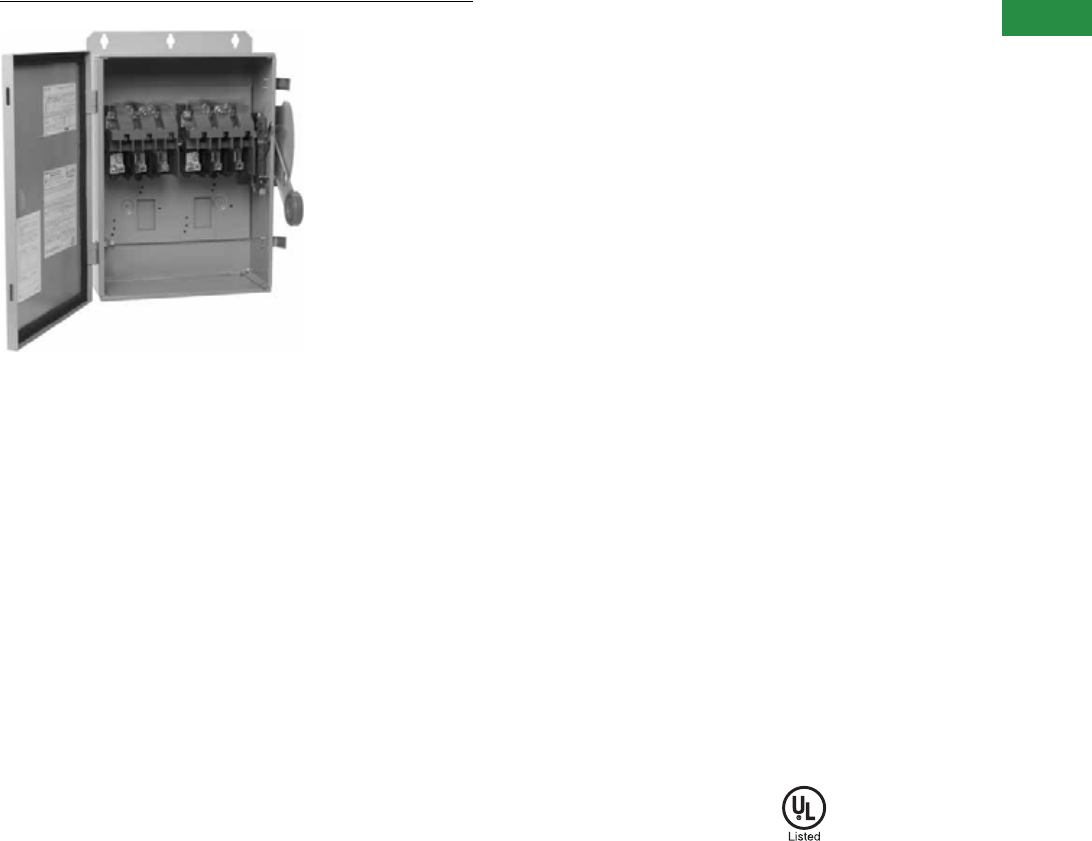

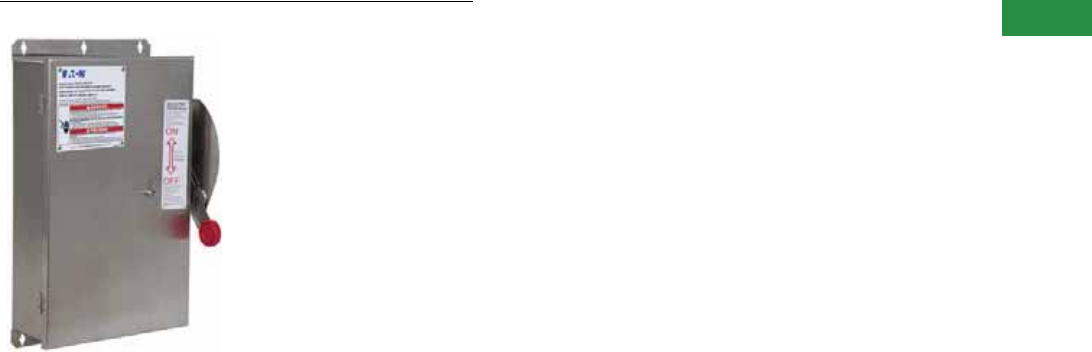

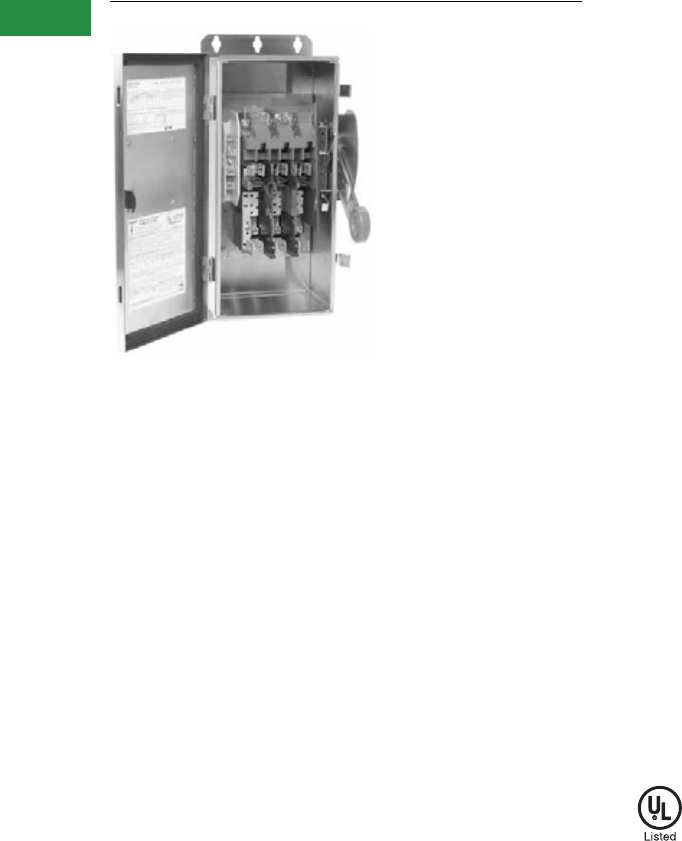

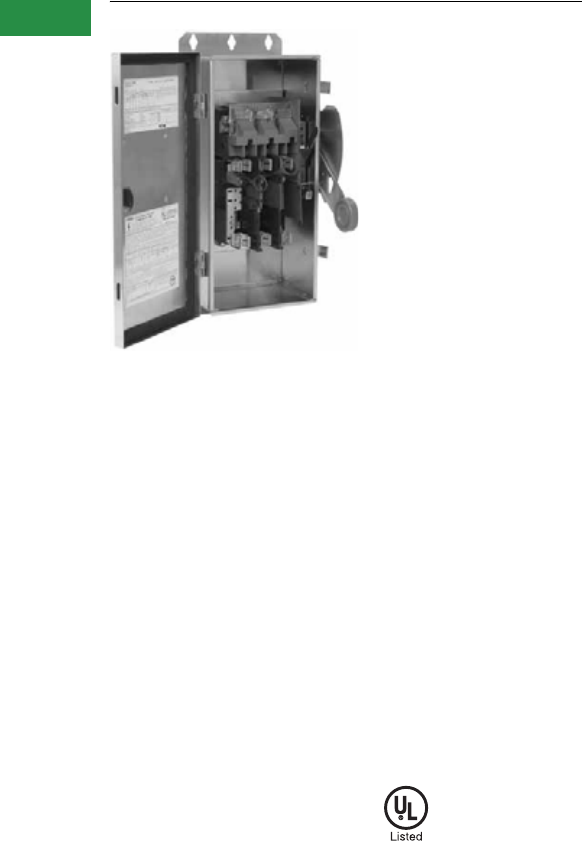

General-Duty Safety Switch

Contents

Description Page

Product Overview

Product Selection Guide . . . . . . . . . . . . . . . . . . . . V2-T1-3

Standards and Certifications . . . . . . . . . . . . . . . . . V2-T1-4

Cross-Reference . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-5

Catalog Number Selection . . . . . . . . . . . . . . . . . . V2-T1-13

Options and Accessories. . . . . . . . . . . . . . . . . . . . V2-T1-14

Modifications—Flex Center. . . . . . . . . . . . . . . . . . V2-T1-16

Technical Data and Specifications . . . . . . . . . . . . . V2-T1-20

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-24

General Duty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-26

Heavy-Duty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-31

Six-Pole Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-43

Double-Throw Switches . . . . . . . . . . . . . . . . . . . . . . . V2-T1-45

EnviroLine—Stainless Steel Switch . . . . . . . . . . . . . . V2-T1-53

EnviroLine—Upper and Lower Window Switches . . . V2-T1-56

EnviroLine—Receptacle Switches . . . . . . . . . . . . . . . V2-T1-59

EnviroLine—Non-Metallic KRYDON Switch . . . . . . . . V2-T1-61

Shunt Trip Safety SwitchShunt Trip Safety Switch . . . V2-T1-63

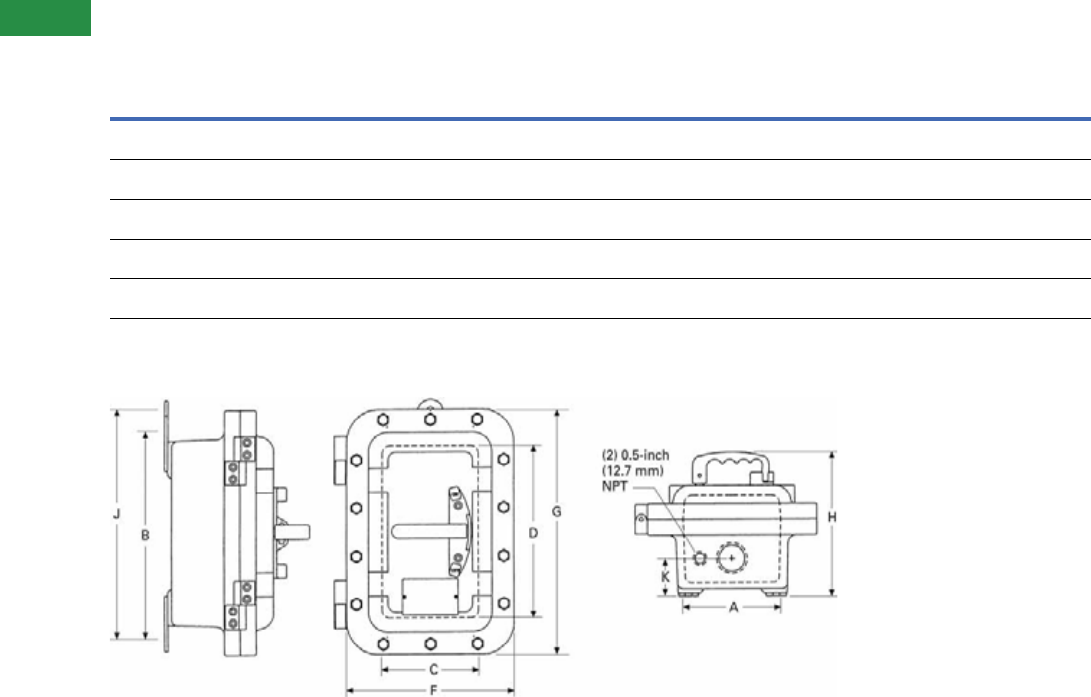

NEMA 7/9—Hazardous Location Disconnect Switch . V2-T1-66

Quick Connect Switches. . . . . . . . . . . . . . . . . . . . . . . V2-T1-68

Solar Disconnect Switch . . . . . . . . . . . . . . . . . . . . . . . V2-T1-70

316-Grade Stainless Steel Safety Switches . . . . . . . . V2-T1-72

Mill-Duty Rated, Heavy-Duty, Fusible, Non-Fusible,

Single-Throw. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-76

Heavy-Duty Fusible Safety Switches Accepting

Cube Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-78

Elevator Control Switch. . . . . . . . . . . . . . . . . . . . . . . . V2-T1-81

Auxiliary Power Heavy-Duty Safety Switch. . . . . . . . . V2-T1-83

Left-Handed Safety Switch . . . . . . . . . . . . . . . . . . . . . V2-T1-86

200% Neutral Safety Switches. . . . . . . . . . . . . . . . . . V2-T1-87

Pringle Bolted Pressure Switch. . . . . . . . . . . . . . . . . . V2-T1-88

Type DS, Fusible and Non-Fusible. . . . . . . . . . . . . . . . V2-T1-91

Type Visi-Flex DE-ION . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-94

Flange Mounted—Variable Depth. . . . . . . . . . . . . . . . V2-T1-98

Flange Mounted—Fixed Depth. . . . . . . . . . . . . . . . . . V2-T1-102

Volume 2—Commercial Distribution CA08100003E—April 2016 www.eaton.com V2-T1-3

1.1

Switching Devices

Safety Switches

Product Overview

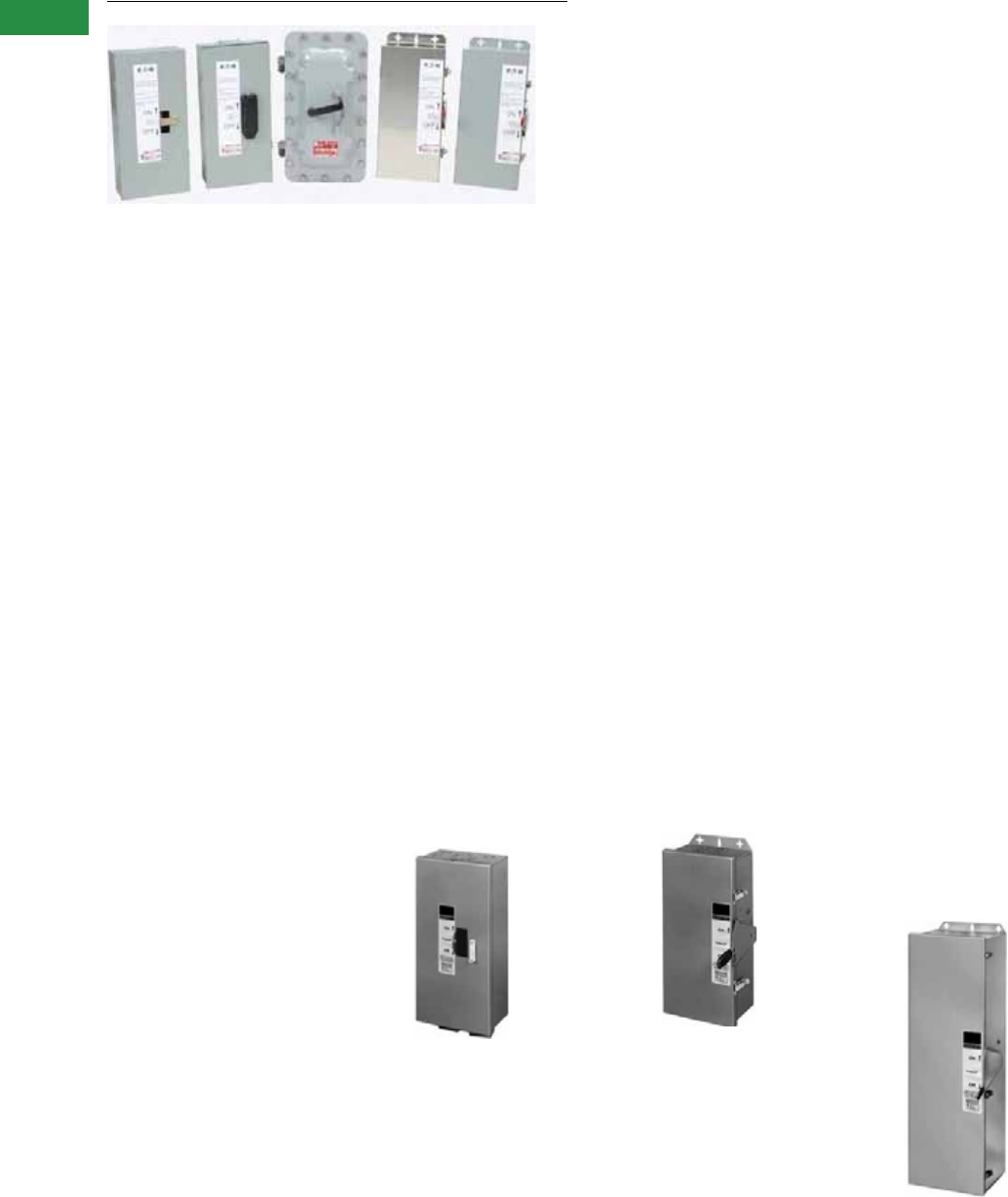

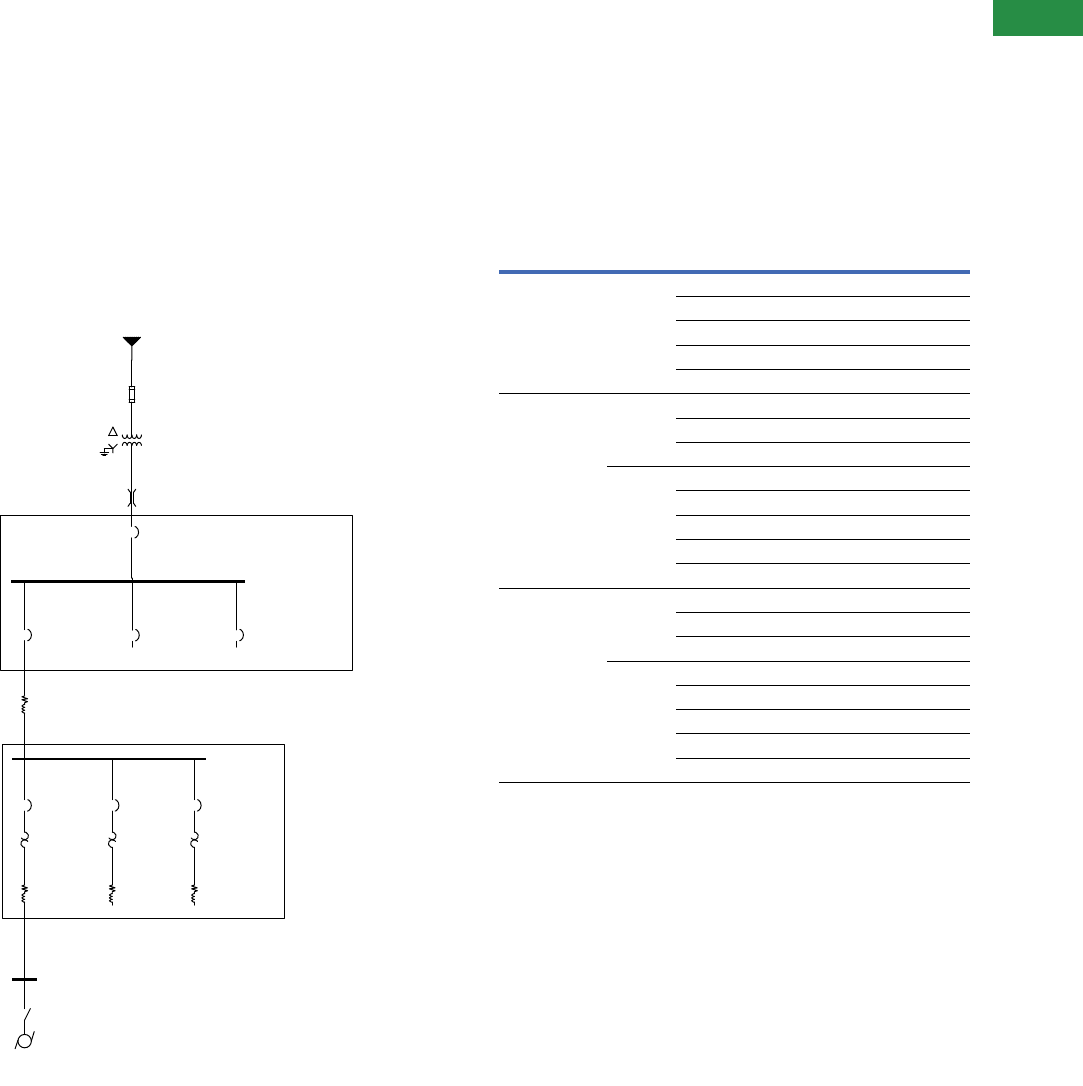

Product Selection Guide

Safety Switch

Notes

1See specific catalog number page for Fuse Class details. Enclosed rotary switches are non-fusible only.

2NEMA Type 12 enclosures (30–800A) can be field modified to meet NEMA 3R rainproof requirements when a factory provided drain screw is removed.

3Class J fuse clips provided.

Description General-Duty Heavy-Duty Six-Pole Motor Circuit Double-Throw Enclosed Rotary Switches

Type

Single-throw maximum

240 Vac horsepower rated

Single-throw maximum

600V AC/DC horsepower rated

Single-throw maximum

600 Vac

Maximum 600 Vac

horsepower rated

Maximum 600 Vac

Fuse type

Fusible Plug Cartridge Cartridge Cartridge —

Cartridge

Fuse class

Fusible 111 1 1

Ampere rating

Fusible 30–600 30–1200 30–200 30–1200 —

Non-fusible 30–600 30–1200 30–200 30–1200 16–125

Number of poles

Fusible 1, 2 and 3 2, 3 and 4 6 2 and 3 —

2 and 3

Non-

fusible

2 and 3 2, 3, 4 and 6 6 2, 3, 4 and 6 3 and 4

Enclosure types

NEMA® 1

Fusible Yes Yes — Yes Yes

Non-

fusible

Yes Yes — Yes Yes

NEMA 3R

Fusible Yes Yes — Yes Yes

Non-

fusible

Yes Yes Yes Yes Yes 2

NEMA 12

Fusible — Yes 2Yes, up to 200A 2Yes Yes

Non-

fusible

— Yes, up to 1200A 2Yes 2Yes, up to 400A Yes 2

NEMA 4 painted steel

Fusible — Yes, 400–800A — — —

Non-

fusible

— Yes, 400–800A — — —

NEMA 4X stainless steel

Fusible — Yes Yes, up to 200A Yes Yes

Non-

fusible

— Yes, up to 1200A Yes Yes, up to 400A Yes

NEMA 4X non-metallic

Fusible — Yes, up to 200A — — Yes

Non-

fusible

— Yes, up to 200A — — Yes

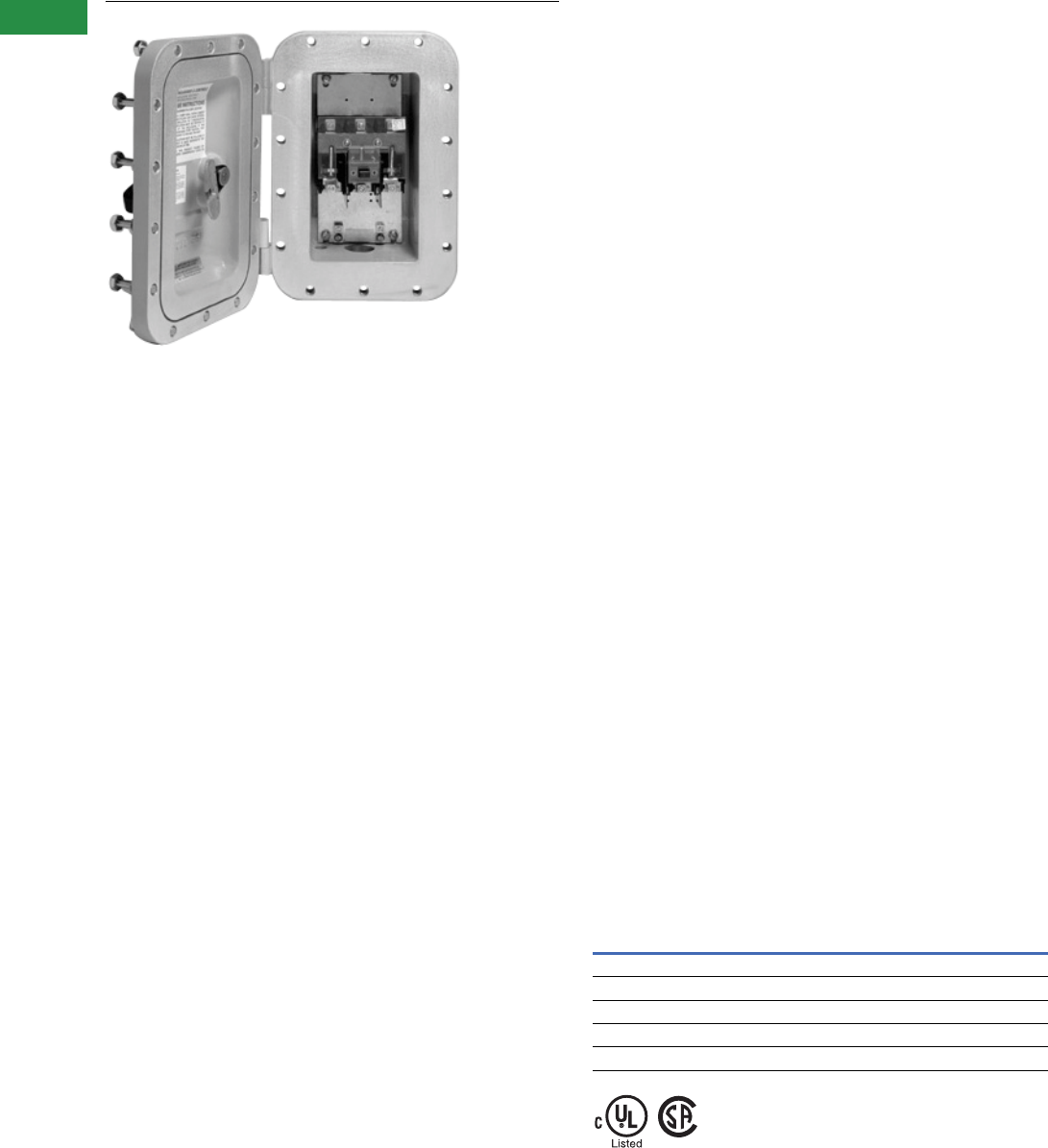

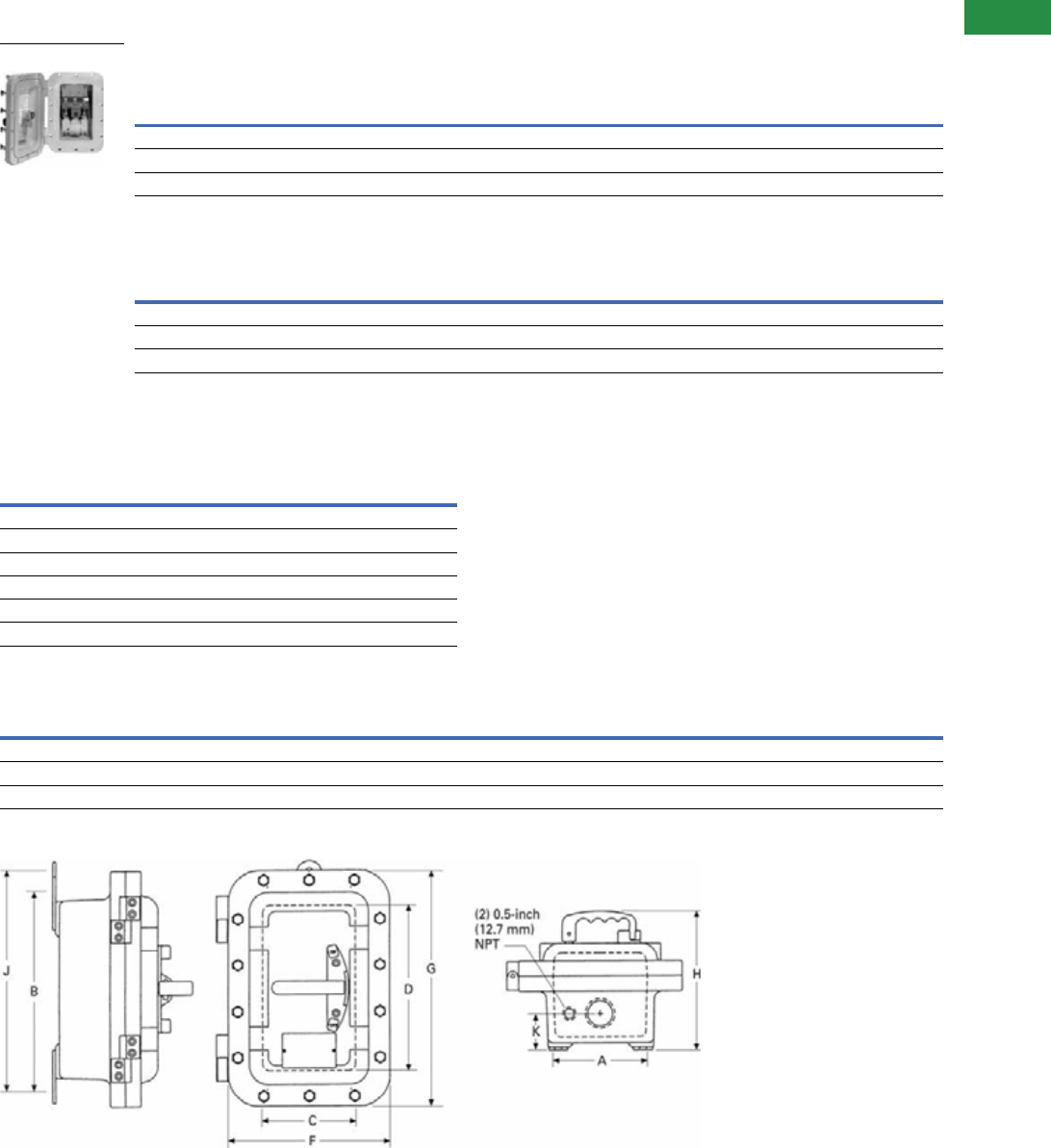

NEMA 7/9

Fusible — Yes, up to 100A — — —

Non-

fusible

— Yes, up to 100A 3—— —

V2-T1-4 Volume 2—Commercial Distribution CA08100003E—April 2016 www.eaton.com

1.1

Switching Devices

Safety Switches

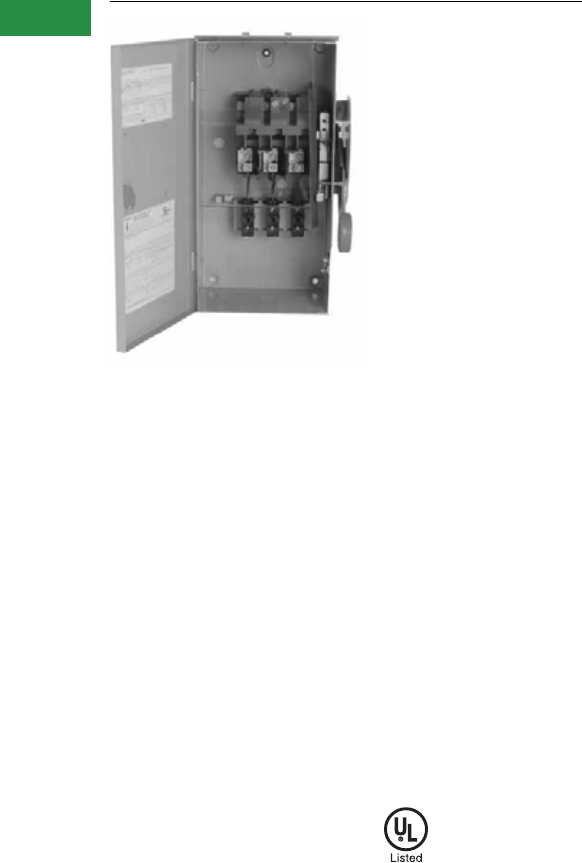

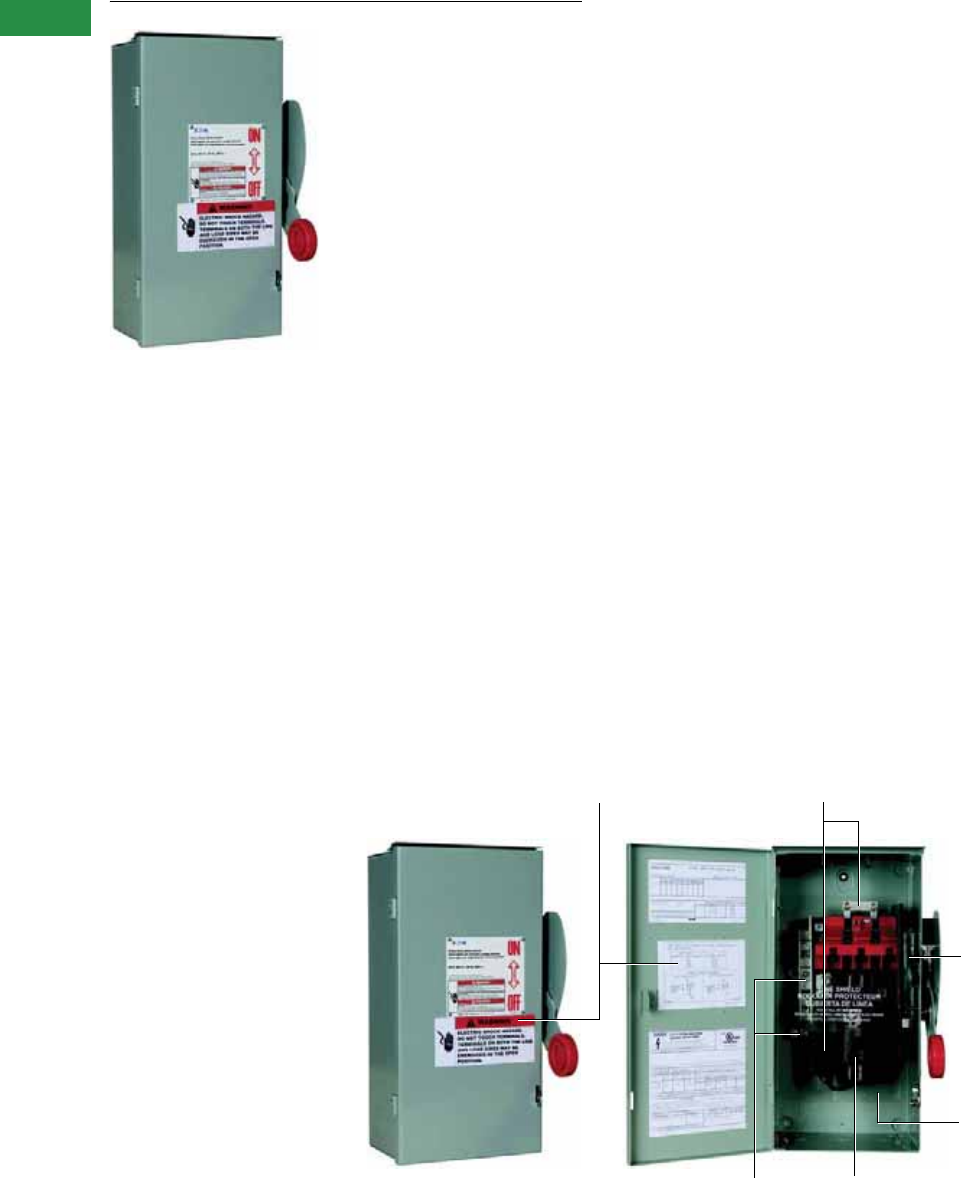

Product Description

●Used to open or close

a circuit

●Non-fusible safety

switches provide a means

to manually connect or

disconnect the load from

the source

●Fusible safety switches

provide a means to

manually open and close

a circuit and overcurrent

protection by means of

installed fuses

●Also commonly referred

to as a disconnect switch

or disconnect

●Available from 30 to 1200A

Standards and Certifications

●UL® 98

●UL 50

●NEMA KS-1

Volume 2—Commercial Distribution CA08100003E—April 2016 www.eaton.com V2-T1-5

1.1

Switching Devices

Safety Switches

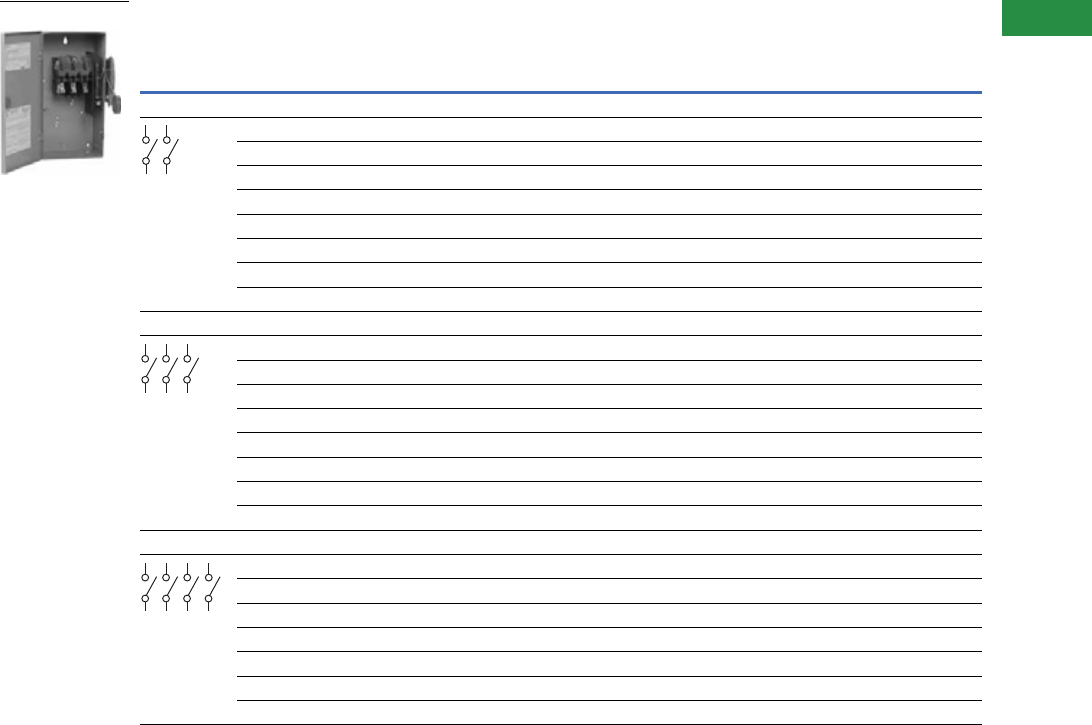

Cross-Reference

General-Duty General-Duty, continued

Notes

1Separate neutral kit required.

Always verify the number of poles and wires required since catalog numbers may appear in

multiple tables.

Ampere

Rating

Catalog Number

Eaton General Electric Siemens Square D

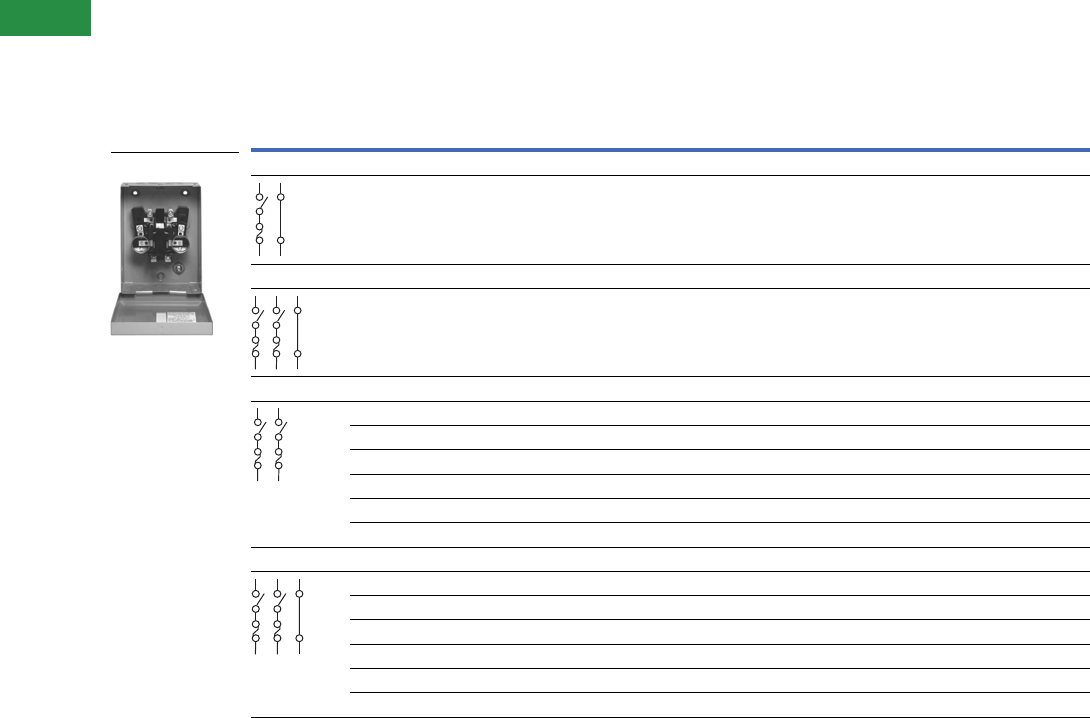

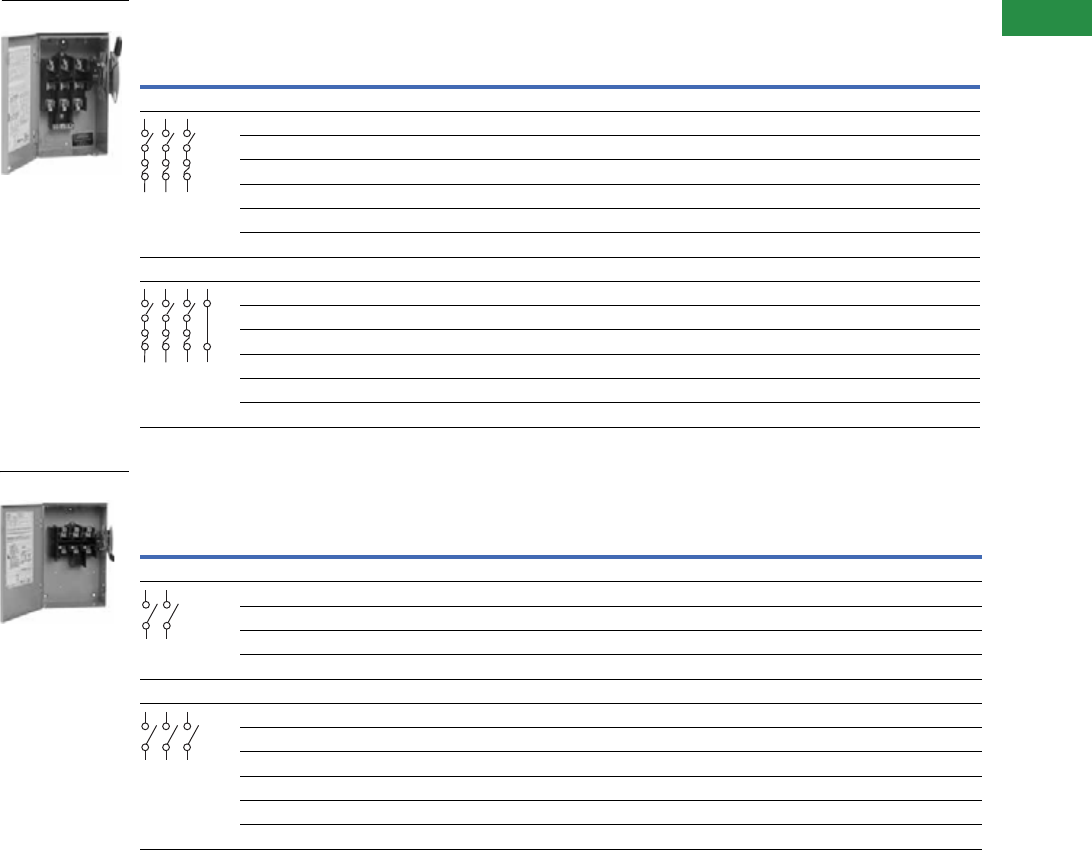

Plug Fuse, Single-Pole, Two-Wire, 120 Vac, NEMA 1

30 DP111NGB TPF130 LF111N D211N

Plug Fuse, Two-Pole, Three-Wire, 240 Vac, NEMA 1

30 DP221NGB TPF230 LF211N D211N

Fusible, Two-Pole, Three-Wire, 240 Vac, NEMA 1

30 DG221NGB TG3221 GF221N D221N

60 DG222NGB TG3222 GF222N D222N

100 DG223NGB TG3223 GF223N D223N

200 DG224NGK TG3224 GF224N D224N

400 DG225NGK TG3225 GF225N D225N

600 DG226NGK TG3226 GF226N D226N

Fusible, Three-Pole, Three-Wire, 240 Vac, NEMA 1

30 DG321NGB TG4321 GF321N D321N

60 DG322NGB TG4322 GF322N D322N

100 DG323NGB TG4323 GF323N D323N

200 DG324NGK TG4324 GF324N D324N

400 DG325FGK TG3325 GF325N D325N

600 DG326FGK TG3326 GF326N D326N

Fusible, Three-Pole, Four-Wire, 240 Vac, NEMA 1

30 DG321NGB TG4321 GF321N D321N

60 DG322NGB TG4322 GF322N D322N

100 DG323NGB TG4323 GF323N D323N

200 DG324NGK TG4324 GF324N D324N

400 DG325NGK TG4325 GF325N D325N

600 DG326NGK TG4326 GF326N D326N

Non-Fusible, Two-Pole, Two-Wire, 240 Vac, NEMA 1

30 DG221UGB TGN3321 N/A N/A

60 DG222UGB TGN3322 N/A QO260NATS

100 DG223UGB TGN3323 N/A QO2000NS

200 DG324UGK TGN3324 N/A DU324

400 DG325UGK TGN3325 N/A DU325

600 DG326UGK TGN3326 N/A DU326

Non-Fusible, Three-Pole, Three-Wire, 240 Vac, NEMA 1

30 DG321UGB TGN3321 GNF321 DU321

60 DG322UGB TGN3322 GNF322 DU322

100 DG323UGB TGN3323 GNF323 DU323

200 DG324UGK TGN3324 GNF324 DU324

400 DG325UGK TGN3325 GNF325 DU325

600 DG326UGK TGN3326 GNF326 DU326

Ampere

Rating

Catalog Number

Eaton General Electric Siemens Square D

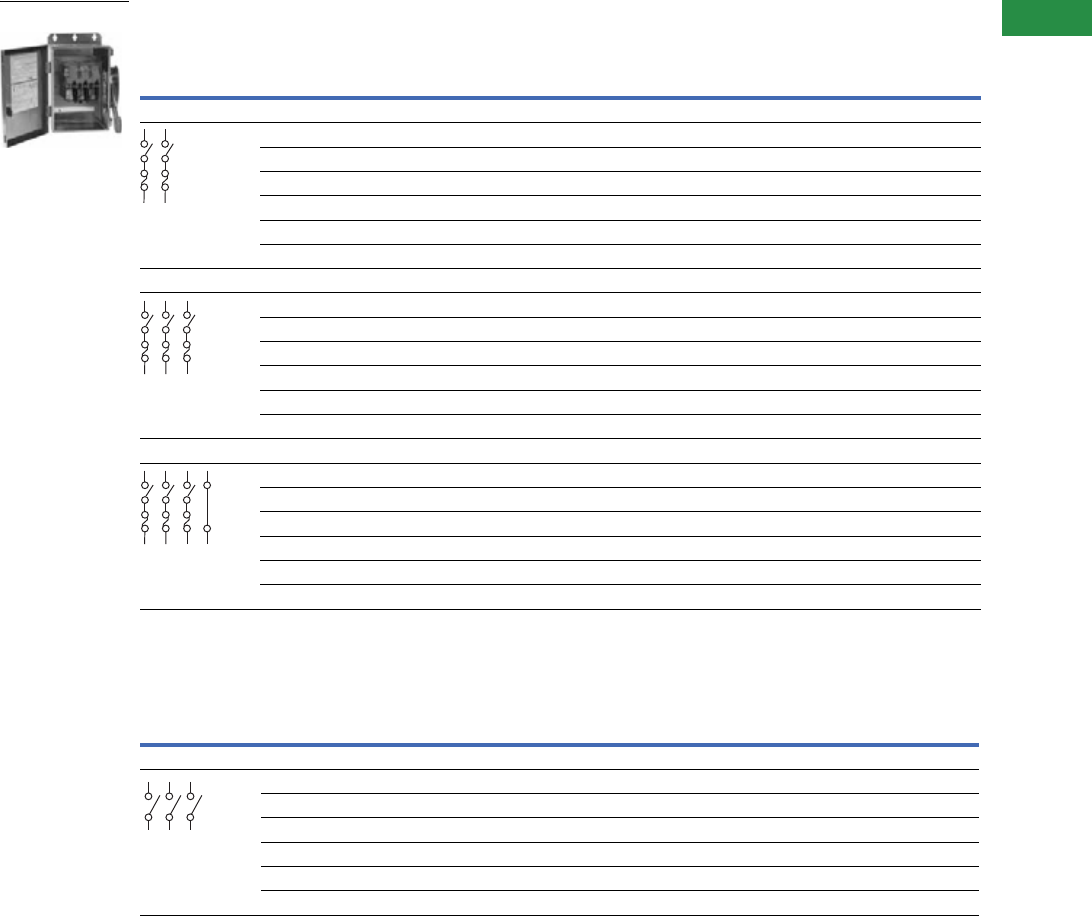

Fusible, Two-Pole, Three-Wire, 240 Vac, NEMA 3R

30 DG221NRB TG3221R GF221NR D221NRB

60 DG222NRB TG3222R GF222NR D222NRB

100 DG223NRB TG3223R GF223NR D223NRB

200 DG224NRK TG3224R GF224NR D224NRB

400 DG225NRK TG3225R GF225NR D225NR

600 DG226NRK TG3226R GF226NR D226NR

Fusible, Three-Pole, Three-Wire, 240 Vac, NEMA 3R

30 DG321NRB TG4321R GF321NR D321NRB

60 DG322NRB TG4322R GF322NR D322NRB

100 DG323NRB TG4323R GF323NR D323NRB

200 DG324NRK TG4324R GF324NR D324NRB

400 DG325FRK TG3325R GF325NR D325NR

600 DG326FRK TG3326R GF326NR D326NR

Fusible, Three-Pole, Four-Wire, 240 Vac, NEMA 3R

30 DG321NRB TG4321R GF321NR D321NRB

60 DG322NRB TG4322R GF322NR D322NRB

100 DG323NRB TG4323R GF323NR D323NRB

200 DG324NRK TG4324R GF324NR D324NRB

400 DG325NRK TG3325R 1GF325NR D325NR

600 DG326NRK TG3326R 1GF326NR D326NR

Non-Fusible, Two-Pole, Two-Wire, 240 Vac, NEMA 3R

30 DG221URB TGN3321R GNF321R DU221RB

60 DG222URB TGN3322R GNF322R DU222RB

100 DG223URB TGN3323R GNF323R QO2000NRB

200 DG324URK TGN3324R GNF324R DU324RB

Non-Fusible, Three-Pole, Three-Wire, 240 Vac, NEMA 3R

30 DG321URB TGN3321R GNF321R DU321RB

60 DG322URB TGN3322R GNF322R DU322RB

100 DG323URB TGN3323R GNF323R DU323RB

200 DG324URK TGN3324R GNF324R DU324RB

400 DG325URK N/A N/A N/A

600 DG326URK N/A N/A N/A

V2-T1-6 Volume 2—Commercial Distribution CA08100003E—April 2016 www.eaton.com

1.1

Switching Devices

Safety Switches

Heavy-Duty Heavy-Duty, continued

Notes

1Separate neutral kit required.

2600V switch.

Always verify the number of poles and wires required since catalog numbers may appear in

multiple tables.

Ampere

Rating

Catalog Number

Eaton General Electric Siemens Square D

Fusible, Two-Pole, Two-Wire, 240 Vac, NEMA 1

30 DH221FGK TH3221 N/A H221N

60 DH222NGK TH3222 N/A H222N

100 DH223NGK TH3223 N/A H223N

200 DH224NGK TH3224 N/A H224N

400 DH225FGK TH3225 N/A H225

600 DH226FGK TH3226 N/A H226

800 DH227FGK TC72267 N/A H227

1200 DH328FGK TC72268 N/A H228

Fusible, Two-Pole, Three-Wire, 240 Vac, NEMA 1

30 DH221NGK TH3221 HF221N H221N

60 DH222NGK TH3222 HF222N H222N

100 DH223NGK TH3223 HF223N H223N

200 DH224NGK TH3224 HF224N H224N

400 DH225NGK TH3225 HF225N H225N

600 DH226NGK TH3226 HF226N H226N

800 DH227NGK TC72267 1HF227N H227N

1200 DH328NGK TC72268 1HF228N H228N

Fusible, Three-Pole, Three-Wire, 240 Vac, NEMA 1

30 DH321FGK TH4321 N/A H321N

60 DH322FGK TH4322 N/A H322N

100 DH323FGK TH4323 N/A H323N

200 DH324FGK TH4324 N/A H324N

400 DH325FGK TH3325 N/A H325

600 DH326FGK TH3326 N/A H326

800 DH327FGK TC72367 N/A H327

1200 DH328FGK TC72368 N/A H328

Fusible, Three-Pole, Four-Wire, 240 Vac, NEMA 1

30 DH321NGK TH4321 HF321N H321N

60 DH322NGK TH4322 HF322N H322N

100 DH323NGK TH4323 HF323N H323N

200 DH324NGK TH4324 HF324N H324N

400 DH325NGK TH4325 HF325N H325N

600 DH326NGK TH4326 HF326N H326N

800 DH327NGK TC72367 1HF327N H327N

1200 DH328NGK TC72368 1HF328N H328N

Fusible, Four-Pole, Four-Wire, 240 Vac, NEMA 1

30 DH421FGK N/A F421 H461 2

60 DH422FGK N/A F422 H462 2

100 DH423FGK N/A F423 H463 2

200 DH424FGK N/A F424 H464 2

400 DH425FGK N/A F425 H465 2

600 DH426FGK N/A F426 H466 2

Ampere

Rating

Catalog Number

Eaton General Electric Siemens Square D

Non-Fusible, Three-Pole, Three-Wire, 240 Volt/600 Vac, NEMA 1

30 DH361UGK THN3361 HNF361 HU361

60 DH362UGK THN3362 HNF362 HU362

100 DH363UGK THN3363 HNF363 HU363

200 DH364UGK THN3364 HNF364 HU364

400 DH365UGK THN3365 HNF365 HU365

600 DH366UGK THN3366 HNF366 HU366

800 DH367UGK TC36367 HNF367 HU367

1200 DH368UGK TC36368 HNF368 HU368

Fusible, Three-Pole, Two-Wire, 240 Vac, NEMA 3R

30 DH221NRK TH3221R N/A H221NRB

60 DH222NRK TH3222R N/A H222NRB

100 DH223NRK TH3223R N/A H223NRB

200 DH224NRK TH3224R N/A H224NRB

400 DH225FRK TH3225R N/A H225R

600 DH226FRK TH3226R N/A H226R

800 DH227NRK TC72267R N/A H227R

1200 DH328FRK TC72268R N/A H228R

Fusible, Two-Pole, Three-Wire, 240 Vac, NEMA 3R

30 DH221NRK TH3221R HF221NR H221NRB

60 DH222NRK TH3222R HF222NR H222NRB

100 DH223NRK TH3223R HF223NR H223NRB

200 DH224NRK TH3224R HF224NR H224NRB

400 DH225NRK TH3225R HF225NR H225NR

600 DH226NRK TH3226R HF226NR H226NR

800 DH227NRK TC72267R 1HF227NR H227NR

1200 DH328NRK TC72268R 1HF228NR H228NR

Fusible, Three-Pole, Three-Wire, 240 Vac, NEMA 3R

30 DH321FRK TH4321R N/A H321NRB

60 DH322FRK TH4322R N/A H322NRB

100 DH323FRK TH4323R N/A H323NRB

200 DH324FRK TH4324R N/A H324NRB

400 DH325FRK TH3325R N/A H325NR

600 DH326FRK TH3326R N/A H326NR

800 DH327FRK TC72367R N/A H327NR

1200 DH328FRK TC72368R N/A H328NR

Volume 2—Commercial Distribution CA08100003E—April 2016 www.eaton.com V2-T1-7

1.1

Switching Devices

Safety Switches

Heavy-Duty, continued Heavy-Duty, continued

Notes

1Separate neutral kit required.

Always verify the number of poles and wires required since catalog numbers may appear in

multiple tables.

Ampere

Rating

Catalog Number

Eaton General Electric Siemens Square D

Fusible, Three-Pole, Four-Wire, 240 Vac, NEMA 3R

30 DH321NRK TH4321R HF321NR H321NRB

60 DH322NRK TH4322R HF322NR H322NRB

100 DH323NRK TH4323R HF323NR H323NRB

200 DH324NRK TH4324R HF324NR H324NRB

400 DH325NRK TH3325R 1HF325NR H325R

600 DH326NRK TH3326R 1HF326NR H326R

800 DH327NRK TC72367R 1HF327NR H327R

1200 DH328NRK TC72368R 1HF328NR H328R

Non-Fusible, Three-Pole, Three-Wire, 240 Volt/600 Vac, NEMA 3R

30 DH361URK THN3361R HNF361R HU361RB

60 DH362URK THN3362R HNF362R HU362RB

100 DH363URK THN3363R HNF363R HU363RB

200 DH364URK THN3364R HNF364R HU364RB

400 DH365URK THN3365R HNF365R HU365R

600 DH366URK THN3366R HNF366R HU366R

800 DH367URK N/A HNF367R HU367R

1200 DH368URK N/A HNF368R HU368R

Fusible, Two-Pole, Two-Wire, 240 Vac, NEMA 4/4X

30 DH221NWK TH2221SS HF221S H221DS

60 DH222NWK TH2222SS HF222S H222DS

100 DH223NWK TH3223SS HF223S H223DS

200 DH224NWK TH3224SS HF224S H224DS

400 DH225FWK TH3225SS HF325S H225DS

600 DH226FWK TH3226SS HF326S H226DS

Fusible, Two-Pole, Three-Wire, 240 Vac, NEMA 4/4X

30 DH221NWK TH3221SS HF321S 1H221DS 1

60 DH222NWK TH3222SS HF322S 1H222DS 1

100 DH223NWK TH3223SS HF323S 1H223DS 1

200 DH224NWK TH3224SS HF324S 1H224DS 1

400 DH225NWK TH3225SS HF325S 1H225NDS

600 DH226NWK TH3226SS HF326S 1H226NDS

800 DH227NWK N/A HF327S 1N/A

Fusible, Three-Pole, Three-Wire, 240 Vac, NEMA 4/4X

30 DH321FWK TH3321SS HF321S H321DS

60 DH322FWK TH3322SS HF322S H322DS

100 DH323NWK TH4323SS HF323S H323DS

200 DH324NWK TH4324SS HF324S H324DS

400 DH325FWK TH4325SS HF325S H325DS

600 DH326FWK TH4326SS HF326S H326DS

800 DH327FWK N/A HF327S N/A

Fusible, Three-Pole, Four-Wire, 240 Vac, NEMA 4/4X

30 DH321NWK TH4321SS HF321S 1H321DS 1

60 DH322NWK TH4322SS HF322S 1H322DS 1

100 DH323NWK TH4323SS HF323S 1H323DS 1

200 DH324NWK TH4324SS HF324S 1H324DS 1

400 DH325NWK TH4325SS HF325S 1H325NDS

600 DH326NWK TH4326SS HF326S 1H326NDS

Ampere

Rating

Catalog Number

Eaton General Electric Siemens Square D

Fusible, Two-Pole, Two-Wire, 240 Vac, NEMA 12

30 DH221NDK TH2221J HF221J H221AWK

60 DH222NDK TH2222J HF222J H222AWK

100 DH223NDK TH3223J HF223J H223AWK

200 DH224NDK TH3224J HF224J H224AWK

400 DH225FDK TH3225J HF325J H225AWK

600 DH226FDK TH3226J HF326J H226AWK

800 DH227FDK N/A HF327J H227AWK

1200 N/A N/A N/A H228AWK

Fusible, Two-Pole, Three-Wire, 240 Vac, NEMA 12

30 DH221NDK TH3221J HF221J 1H221AWK

60 DH222NDK TH3222J HF222J 1H222AWK

100 DH223NDK TH3223J HF223J 1H223AWK

200 DH224NDK TH3224J HF224J 1H224AWK

400 DH225NDK TH3225J HF325J 1H225NAWK

600 DH226NDK TH3226J HF326J 1H226NAWK

800 DH227NDK N/A HF327J 1H227NAWK

1200 N/A N/A N/A H228NAWK

Fusible, Three-Pole, Three-Wire, 240 Vac, NEMA 12

30 DH321FDK TH3321J HF321J H321AWK

60 DH322FDK TH3322J HF322J H322AWK

100 DH323FDK TH4323J HF323J H323AWK

200 DH324FDK TH4324J HF324J H324AWK

400 DH325FDK TH4325J HF325J H325AWK

600 DH326FDK TH4326J HF326J H326AWK

800 DH327FDK N/A HF327J H327AWK

1200 N/A N/A N/A H328AWK

Fusible, Three-Pole, Four-Wire, 240 Vac, NEMA 12

30 DH321NDK TH4321J HF321J 1H321AWK 1

60 DH322NDK TH4322J HF322J 1H322AWK 1

100 DH323NDK TH4323J HF323J 1H323AWK 1

200 DH324NDK TH4324J HF324J 1H324AWK 1

400 DH325NDK TH4325J HF325J 1H325NAWK

600 DH326NDK TH4326J HF326J 1H326NAWK

800 N/A N/A HF327J 1H327NAWK

1200 N/A N/A N/A H328NAWK

Fusible, Four-Pole, Four-Wire, 240 Vac, NEMA 12

30 DH421FDK N/A N/A N/A

60 DH422FDK N/A N/A N/A

100 DH423FDK N/A N/A N/A

200 DH424FDK N/A N/A N/A

V2-T1-8 Volume 2—Commercial Distribution CA08100003E—April 2016 www.eaton.com

1.1

Switching Devices

Safety Switches

Heavy-Duty, continued Heavy-Duty, continued

Notes

1Separate neutral kit required.

Always verify the number of poles and wires required since catalog numbers may appear in

multiple tables.

Ampere

Rating

Catalog Number

Eaton General Electric Siemens Square D

Fusible, Two-Pole, Two-Wire, 600 Vac, NEMA 1

30 DH261FGK TH2261DC HF261 H361

60 DH262FGK TH2262DC HF262 H362

100 DH263FGK TH2263DC HF263 H363

200 DH264FGK N/A N/A H364

400 DH265FGK N/A HF265 H265

600 DH266FGK N/A HF266 H266

800 DH267FGK N/A N/A H267

1200 N/A N/A N/A H268

Fusible, Three-Pole, Three-Wire, 600 Vac, NEMA 1

30 DH361FGK TH3361 HF361 H361

60 DH362FGK TH3362 HF362 H362

100 DH363FGK TH3363 HF363 H363

200 DH364FGK TH3364 HF364 H364

400 DH365FGK TH3365 HF365 H365

600 DH366FGK TH3366 HF366 H366

800 DH367FGK TC72367 HF367 H367

1200 DH368FGK TC72368 HF368 H368

Fusible, Three-Pole, Four-Wire, 600 Vac, NEMA 1

30 DH361NGK TH3361 1HF361N H361N

60 DH362NGK TH3362 1HF362N H362N

100 DH363NGK TH3363 1HF363N H363N

200 DH364NGK TH3364 1HF364N H364N

400 DH365NGK TH3365 1HF365N H365N

600 DH366NGK TH3366 1HF366N H366N

800 DH367NGK TC72367 1HF367N H367N

1200 DH368NGK TC72368 1HF368 1H368N

Fusible, Four-Pole, Four-Wire, 600 Vac, NEMA 1

30 DH461FGK TH6661 N/A H461

60 DH462FGK TH6662 N/A H462

100 DH463FGK TH6663 N/A H463

200 DH464FGK TH6664 N/A H464

400 DH465FGK N/A N/A H465

600 DH466FGK N/A N/A H466

Non-Fusible, Two-Pole, Two-Wire, 600 Vac, NEMA 1

30 DH261UGK THN2261DC HNF261 HU361

60 DH362UGK THN2262DC HNF262 HU362

100 DH263UGK THN2263DC HNF263 HU363

200 DH364UGK N/A N/A HU364

400 DH265UGK N/A HNF265 HU265

600 DH266UGK N/A HNF266 HU266

800 DH267UGK N/A N/A HU267

1200 N/A N/A N/A HU268

Ampere

Rating

Catalog Number

Eaton General Electric Siemens Square D

Non-Fusible, Four-Pole, Four-Wire, 600 Vac, NEMA 1

30 DH461UGK THN6661 N/A HU461

60 DH462UGK THN6662 N/A HU462

100 DH463UGK THN6663 N/A HU463

200 DH464UGK THN6664 N/A HU464

400 DH465UGK N/A N/A HU465

600 DH466UGK N/A N/A HU466

Fusible, Two-Pole, Two-Wire, 600 Vac, NEMA 3R

30 DH361FRK TH2261RDC HF261R H361RB

60 DH362FRK TH2262RDC HF262R H362RB

100 DH363FRK TH2263RDC HF263R H363RB

200 DH364FRK N/A N/A H364RB

400 DH365FRK N/A N/A H265R

600 DH366FRK N/A HF265R H266R

800 DH367FRK N/A HF266R H267R

1200 DH368FRK N/A N/A H268R

Fusible, Three-Pole, Three-Wire, 600 Vac, NEMA 3R

30 DH361FRK TH3361R HF361R H361RB

60 DH362FRK TH3362R HF362R H362RB

100 DH363FRK TH3363R HF363R H363RB

200 DH364FRK TH3364R HF364R H364RB

400 DH365FRK TH3365R HF365R H365R

600 DH366FRK TH3366R HF366R H366R

800 DH367FRK TC72367R HF367R H367R

1200 DH368FRK TC72368R HF368R H368R

Fusible, Three-Pole, Four-Wire, 600 Vac, NEMA 3R

30 DH361NRK TH3361R 1HF361NR H361NRB

60 DH362NRK TH3362R 1HF362NR H362NRB

100 DH363NRK TH3363R 1HF363NR H363NRB

200 DH364NRK TH3364R 1HF364NR H364NRB

400 DH365NRK TH3365R 1HF365NR H365NR

600 DH366NRK TH3366R 1HF366NR H366NR

800 DH367NRK TC72367R 1HF367NR H367NR

1200 DH368NRK TC72368R 1HF368R H368NR

Non-Fusible, Three-Pole, Three-Wire, 600 Vac, NEMA 3R

30 DH361URK THN2261RDC HNF261R HU361RB

60 DH362URK THN2262RDC HNF262R HU362RB

100 DH363URK THN2263RDC HNF263R HU363RB

200 DH364URK N/A N/A HU364RB

400 DH365URK N/A HNF265R HU265R

600 DH366URK N/A HNF266R HU266R

800 DH367URK N/A N/A HU267R

1200 DH368URK N/A N/A HU268R

Volume 2—Commercial Distribution CA08100003E—April 2016 www.eaton.com V2-T1-9

1.1

Switching Devices

Safety Switches

Heavy-Duty, continued Heavy-Duty, continued

Notes

1Separate neutral kit required.

Always verify the number of poles and wires required since catalog numbers may appear in

multiple tables.

Ampere

Rating

Catalog Number

Eaton General Electric Siemens Square D

Non-Fusible, Four-Pole, Four-Wire, 600 Vac, NEMA 3R

30 DH461UDK THN6661 N/A N/A

60 DH462UDK THN6662 N/A N/A

100 DH463UDK THN6663 N/A N/A

200 DH464UDK THN6664 N/A N/A

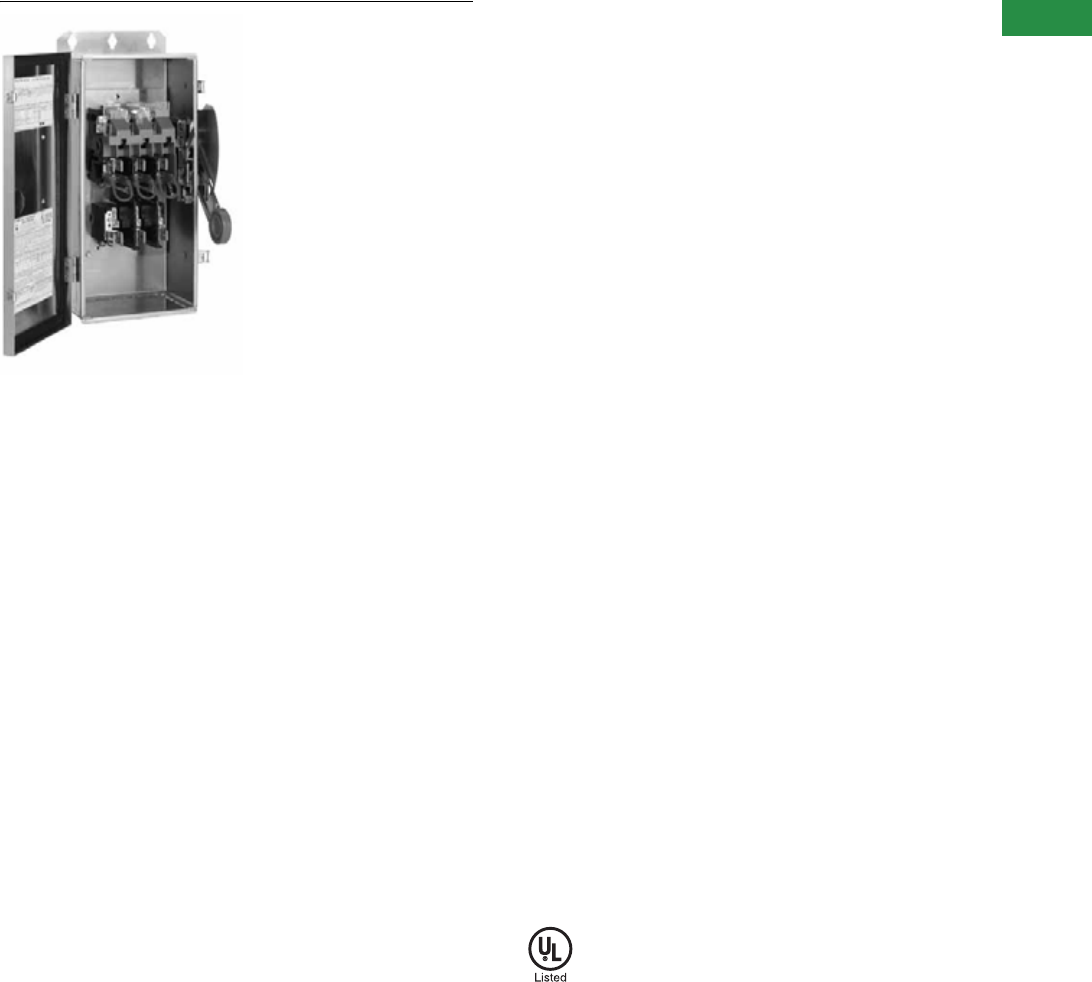

Fusible, Two-Pole, Two-Wire, 600 Vac, NEMA 4/4X Stainless Steel

30 DH261FWK TH2261SSDC HF261S H361DS

60 DH362FWK TH2262SSDC HF262S H362DS

100 DH363FWK TH2263SSDC HF263S H363DS

200 DH264FWK N/A N/A H364DS

400 DH365FWK N/A HF265S H265DS

600 DH366FWK N/A HF266S H266DS

800 DH367FWK N/A N/A N/A

Fusible, Three-Pole, Three-Wire, 600 Vac, NEMA 4/4X Stainless Steel

30 DH361FWK TH3361SS HF361S H361DS

60 DH362FWK TH3362SS HF362S H362DS

100 DH363FWK TH3363SS HF363S H363DS

200 DH364FWK TH3364SS HF364S H364DS

400 DH365FWK TH3365SS HF365S H365DS

600 DH366FWK TH3366SS HF366S H366DS

800 DH367FWK N/A HF367S N/A

Fusible, Three-Pole, Four-Wire, 600 Vac, NEMA 4/4X Stainless Steel

30 DH361NWK TH3361SS 1HF361S 1H361DS 1

60 DH362NWK TH3362SS 1HF362S 1H362DS 1

100 DH363NWK TH3363SS 1HF363S 1H363DS 1

200 DH364NWK TH3364SS 1HF364S 1H364NDS

400 DH365NWK TH3365SS 1HF365S 1H365NDS

600 DH366NWK TH3366SS 1HF366S 1H366NDS

Non-Fusible, Two-Pole, Two-Wire, 600 Vac, NEMA 4/4X Stainless Steel

30 DH361UWK THN2261SSDC HNF261S HU361DS

60 DH362UWK THN2262SSDC HNF262S HU362DS

100 DH363UWK THN2263SSDC HNF263S HU363DS

200 DH364UWK N/A N/A HU364DS

400 DH365UWK N/A HNF265S HU265DS

600 DH366UWK N/A HNF266S HU266DS

800 DH367UWK N/A N/A N/A

Non-Fusible, Three-Pole, Three-Wire, 600 Vac, NEMA 4/4X Stainless Steel

30 DH361UWK THN3361SS HNF361S HU361DS

60 DH362UWK THN3362SS HNF362S HU362DS

100 DH363UWK THN3363SS HNF363S HU363DS

200 DH364UWK THN3364SS HNF364S HU364DS

400 DH365UWK THN3365SS HNF365S HU365DS

600 DH366UWK THN3366SS HNF366S HU366DS

800 DH367UWK N/A HNF367S N/A

Ampere

Rating

Catalog Number

Eaton General Electric Siemens Square D

Non-Fusible, Four-Pole, Four-Wire, 600 Vac, NEMA 4/4X Stainless Steel

30 DH461UWK N/A N/A HU461DS

60 N/A N/A N/A HU462DS

100 N/A N/A N/A HU464DS

200 N/A N/A N/A HU464DS

Fusible, Two-Pole, Two-Wire, 600 Vac, NEMA 12

30 DH261FDK TH2261JDC HF261J H361AWK

60 DH262FDK TH2262JDC HF262J H362AWK

100 DH263FDK TH2263JDC HF263J H363AWK

200 DH264FDK N/A N/A H364AWK

400 DH265FDK N/A HF265J H265AWK

600 DH266FDK N/A HF266J H266AWK

800 DH267FDK N/A N/A H267AWK

1200 N/A N/A N/A H268AWK

Fusible, Three-Pole, Three-Wire, 600 Vac, NEMA 12

30 DH361FDK TH3361J HF361J H361AWK

60 DH362FDK TH3362J HF362J H362AWK

100 DH363FDK TH3363J HF363J H363AWK

200 DH364FDK TH3364J HF364J H364AWK

400 DH365FDK TH3365J HF365J H365AWK

600 DH366FDK TH3366J HF366J H366AWK

800 DH367FDK N/A HF367J H367AWK

1200 N/A N/A N/A H368AWK

Fusible, Three-Pole, Four-Wire, 600 Vac, NEMA 12

30 DH361NDK THN3361J 1HF361J 1H361AWK 1

60 DH362NDK THN3362J 1HF362J 1H362AWK 1

100 DH363NDK THN3363J 1HF363J 1H363AWK 1

200 DH364NDK THN3364J 1HF364J 1H364NAWK

400 DH365NDK THN3365J 1HF365J 1H365NAWK

600 DH366NDK THN3366J 1HF366J 1H366NAWK

800 DH367NDK N/A HF367J 1H367NAWK

1200 N/A N/A N/A H368NAWK

Fusible, Four-Pole, Four-Wire, 600 Vac, NEMA 12

30 N/A TH6661 N/A H461AWK

60 N/A TH6662 N/A H462AWK

100 DH463FDK TH6663 N/A H463AWK

200 DH464FDK TH6664 N/A H464AWK

400 N/A N/A N/A H465AWK

V2-T1-10 Volume 2—Commercial Distribution CA08100003E—April 2016 www.eaton.com

1.1

Switching Devices

Safety Switches

Heavy-Duty, continued Heavy-Duty Six-Pole

Note

Always verify the number of poles and wires required since catalog numbers may appear in

multiple tables.

Ampere

Rating

Catalog Number

Eaton General Electric Siemens Square D

Non-Fusible, Two-Pole, Two-Wire, 600 Vac, NEMA 12

30 DH261UDK THN2261JDC HNF261J HU361AWK

60 DH262UDK THN2262JDC HNF262J HU362AWK

100 DH263UDK THN2263JDC HNF263J HU363AWK

200 DH264UDK N/A N/A HU364AWK

400 DH265UDK N/A HNF265J HU265AWK

600 DH266UDK N/A HNF266J HU266AWK

800 DH267UDK N/A N/A HU267AWK

1200 N/A N/A N/A HU268AWK

Non-Fusible, Three-Pole, Three-Wire, 600 Vac, NEMA 12

30 DH361UDK THN3361J HNF361J HU361AWK

60 DH362UDK THN3362J HNF362J HU362AWK

100 DH363UDK THN3363J HNF363J HU363AWK

200 DH364UDK THN3364J HNF364J HU364AWK

400 DH365UDK THN3365J HNF365J HU365AWK

600 DH366UDK THN3366J HNF366J HU366AWK

800 DH367UDK N/A HNF367J HU367AWK

1200 N/A N/A N/A HU368AWK

Non-Fusible, Four-Pole, Four-Wire, 600 Vac, NEMA 12

30 DH461UDK THN6661 N/A HU461AWK

60 DH462UDK THN6662 N/A HU462AWK

100 DH463UDK THN6663 N/A HU463AWK

200 DH464UDK THN6664 N/A HU464AWK

400 N/A N/A N/A HU465AWK

Ampere

Rating

Catalog Number

Eaton General Electric Siemens Square D

Fusible, Six-Pole, Six-Wire, 600 Vac, NEMA 3R

30 DH661FDK TH6661 F651H N/A

60 DH662FDK TH6662 F652H N/A

100 DH663FDK TH6663 F653H N/A

200 DH664FDK TH6664 N/A N/A

Fusible, Six-Pole, Six-Wire, 600 Vac, NEMA 12

30 DH661FDK TH6661 F651H N/A

60 DH662FDK TH6662 F652H N/A

100 DH663FDK TH6663 F653H H663AWK

200 DH664FDK TH6664 N/A H664RWK

Fusible, Six-Pole, Six-Wire, 600 Vac, NEMA 4X

30 N/A N/A F651SS N/A

60 N/A N/A F652SS N/A

100 N/A N/A F653SS H663DS

200 N/A N/A N/A H664DS

Non-Fusible, Six-Pole, Six-Wire, 600 Vac, NEMA 3R

30 DH661UDK THN6661 NF651H N/A

60 DH662UDK THN6662 NF652H N/A

100 DH663UDK THN6663 NF653H N/A

200 DH664UDK THN6664 N/A N/A

Non-Fusible, Six-Pole, Six-Wire, 600 Vac, NEMA 12

30 DH661UDK THN6661 NF651H HU661AWK

60 DH662UDK THN6662 NF652H HU662AWK

100 DH663UDK THN6663 NF653H HU663AWK

200 DH664UDK THN6664 N/A HU664RWK

Non-Fusible, Six-Pole, Six-Wire, 600 Vac, NEMA 4X

30 DH661UWK N/A NF651SS HU661DS

60 DH662UWK N/A NF652SS HU662DS

100 DH663UWK N/A NF653SS HU663DS

200 DH664UWK N/A N/A HU664DS

Volume 2—Commercial Distribution CA08100003E—April 2016 www.eaton.com V2-T1-11

1.1

Switching Devices

Safety Switches

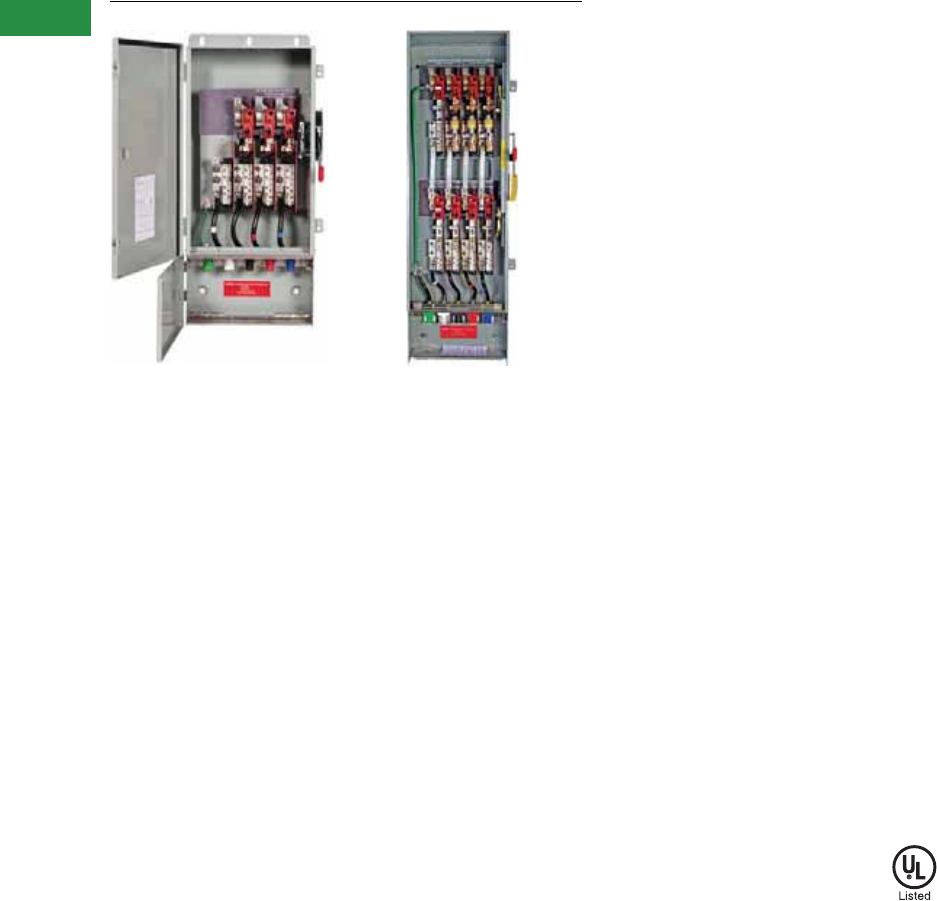

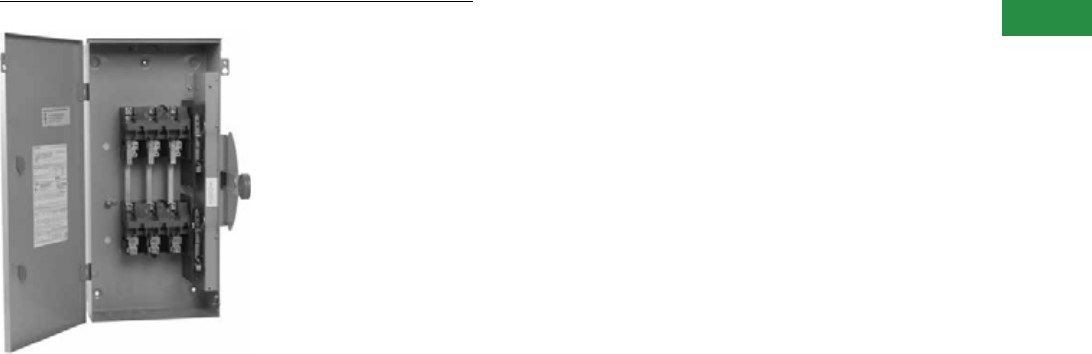

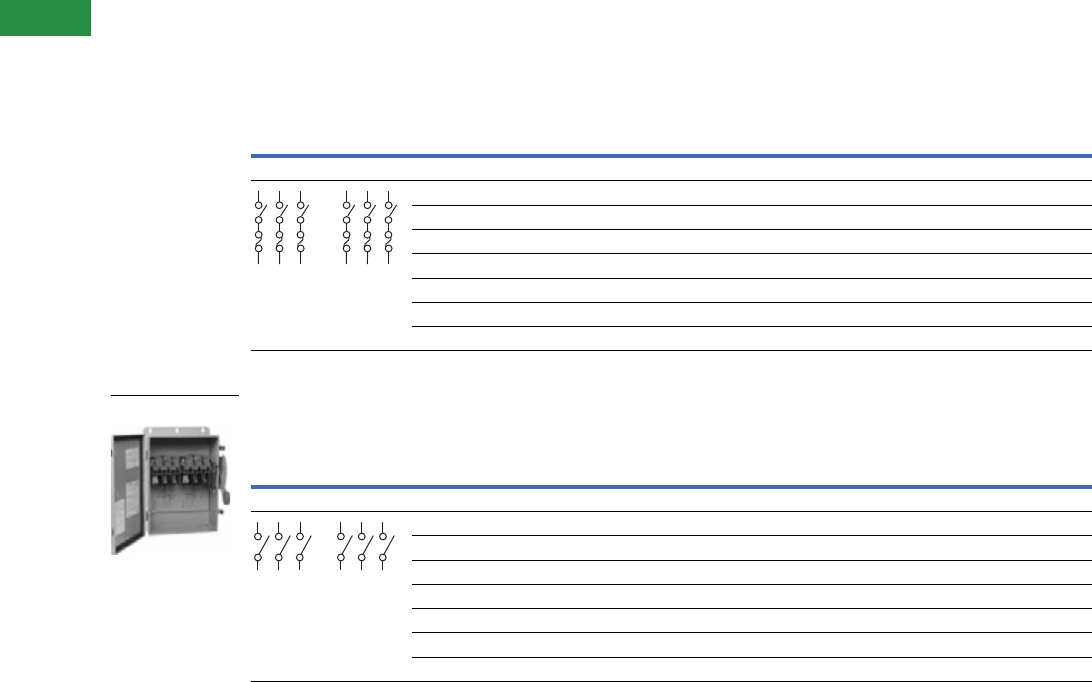

Double-Throw Double-Throw, continued

Note

Always verify the number of poles and wires required since catalog numbers may appear in

multiple tables.

Ampere

Rating

Catalog Number

Eaton General Electric Siemens Square D

Fusible, Two-Pole, Two-Wire, 240 Vac, NEMA 1

30 DT321FGK TDT3321 N/A N/A

60 DT322FGK TDT3322 N/A N/A

100 DT323FGK TDT3323 N/A DT223

200 DT224FGK TDT3324 DTF224 DT224

400 DT325FGK TDT3325 N/A N/A

600 DT326FGK TDT3326 N/A N/A

Fusible, Three-Pole, Three-Wire, 240 Vac, NEMA 1

30 DT321FGK TDT3321 DTF321 DT321

60 DT322FGK TDT3322 DTF322 DT322

100 DT323FGK TDT3323 DTF323 DT323

200 DT324FGK TDT3324 DTF324 DT324

400 DT325FGK TDT3325 DTF325 N/A

600 DT326FGK TDT3326 DTF326 N/A

Non-Fusible, Two-Pole, Two-Wire, 240 Vac, NEMA 1

30 DT221UGK N/A DTNF221 92251

60 DT222UGK N/A DTNF222 DTU222

100 DT223UGK N/A DTNF223 DTU223

200 DT224UGK N/A DTNF224 DTU224

400 DT225UGK N/A DTNF225 92255

600 DT226UGK N/A DTNF226 N/A

800 DT227UGK N/A N/A N/A

Non-Fusible, Three-Pole, Three-Wire, 240 Vac, NEMA 1

30 DT321UGK TC35321 DTNF321 DTU321

60 DT322UGK TC35322 DTNF322 DTU322

100 DT323UGK TC35323 DTNF323 DTU323

200 DT324UGK TC35324 DTNF324 DTU324

400 DT325UGK TC35325 DTNF325 92355

600 DT326UGK TC35326 DTNF326 92356

800 DT327UGK N/A DTNF327 N/A

Fusible, Three-Pole, Three-Wire, 600 Vac, NEMA 1

30 DT361FGK TDT3361 DTF361 DT361

60 DT362FGK TDT3362 DTF362 DT362

100 DT363FGK TDT3363 DTF363 DT363

200 DT364FGK TDT3364 DTF364 DT364

400 DT365FGK TDT3365 DTF365 N/A

600 N/AN/A N/A N/A

Non-Fusible, Two-Pole, Two-Wire, 600 Vac, NEMA 1

30 DT261UGK N/A DTNF261 N/A

60 DT262UGK N/A DTNF262 82342

100 DT263UGK N/A DTNF263 82343

200 DT264UGK N/A DTNF264 82344

400 DT265UGK N/A DTNF265 92345

600 DT266UGK N/A DTNF266 92346

Ampere

Rating

Catalog Number

Eaton General Electric Siemens Square D

Non-Fusible, Three-Pole, Three-Wire, 600 Vac, NEMA 1

30 DT361UGK TC35361 DTNF361 DTU361

60 DT362UGK TC35362 DTNF362 DTU362

100 DT363UGK TC35363 DTNF363 DTU363

200 DT364UGK TC35364 DTNF364 DTU364

400 DT365UGK TC35365 DTNF365 92345

600 DT366UGK TC35366 DTNF366 92346

800 DT367UGK N/A DTNF367 N/A

1200 N/A N/A N/A N/A

Non-Fusible, Four-Pole, Four-Wire, 600 Vac, NEMA 1

30 N/A N/A N/A N/A

60 N/A N/A N/A DTU462

100 N/A N/A N/A DTU463

200 DT464UGK N/A NF454DTK DTU464

400 DT465UGK N/A NF455DTK 92445

600 DT466UGK N/A NF456DTK 92446

800 DT467UGK N/A NF457DTK N/A

Fusible, Two-Pole, Two-Wire, 240 Vac, NEMA 3R

30 DT321FRK TDT3321R N/A N/A

60 DT322FRK TDT3322R N/A N/A

100 DT323FRK TDT3323R N/A DT223RB

200 DT224FRK TDT3324R DTF224R DT224RB

Fusible, Three-Pole, Three-Wire, 240 Vac, NEMA 3R

30 DT321FRK TDT3321R DTF321R DT321RB

60 DT322FRK TDT3322R DTF322R DT322RB

100 DT323FRK TDT3323R DTF323R DT323RB

200 DT324FRK TDT3324R DTF324R DT324RB

400 DT325FRK N/A FR325DTK N/A

600 DT326FRK N/A FR326DTK N/A

Non-Fusible, Two-Pole, Two-Wire, 240 Vac, NEMA 3R

30 N/A N/A N/A N/A

60 N/A N/A N/A N/A

100 DT223URK N/A N/A DTU223RB

200 DT224URK N/A DTNF224R DTU224RB

400 DT225URK N/A DTNF225R 92255R

Non-Fusible, Three-Pole, Three-Wire, 240 Vac, NEMA 3R

30 N/AN/A N/A N/A

60 N/AN/A N/A N/A

100 DT323URK N/A DTNF323R DTU323RB

200 DT324URK N/A DTNF324R DTU324RB

400 DT325URK N/A N/A 92355R

600 N/A N/A N/A 92356R

V2-T1-12 Volume 2—Commercial Distribution CA08100003E—April 2016 www.eaton.com

1.1

Switching Devices

Safety Switches

Double-Throw, continued Double-Throw, continued

Notes

1Eaton and Siemens switches shown are 600V switches.

Always verify the number of poles and wires required since catalog numbers may appear in

multiple tables.

Ampere

Rating

Catalog Number

Eaton General Electric Siemens Square D

Fusible, Three-Pole, Three-Wire, 600 Vac, NEMA 3R

30 N/A N/A N/A DT361RB

60 N/A N/A N/A DT362RB

100 DT363FRK N/A DTF363R DT363RB

200 DT364FRK N/A DTF364R DT364RB

400 DT365FRK N/A FR355DTK N/A

Non-Fusible, Two-Pole, Two-Wire, 600 Vac, NEMA 3R

30 N/A N/A N/A N/A

60 N/A N/A N/A 82342RB

100 N/A N/A N/A 82343RB

200 DT264URK N/A DTNF264R 82344RB

400 DT265URK N/A DTNF265R 92345RB

600 DT266URK N/A NFR256DTK 92346RB

Non-Fusible, Three-Pole, Three-Wire, 600 Vac, NEMA 3R

30 DT361URK N/A DTNF361R DTU361RB

60 DT362URK N/A DTNF362R DTU362RB

100 DT363URK N/A DTNF363R DTU363RB

200 DT364URK N/A DTNF364R DTU364RB

400 DT365URK N/A DTNF365R 92345RB

600 DT366URK N/A DTNF366R 92346RB

800 DT367URK N/A DTNF367R N/A

Non-Fusible, Four-Pole, Four-Wire, 600 Vac, NEMA 3R

30 DT461URK N/A NFR451DTK N/A

60 DT462URK N/A NFR452DTK 92442RB

100 DT463URK N/A NFR453DTK 92443RB

200 DT464URK N/A NFR454DTK 92444RB

400 DT465URK N/A NFR455DTK 92445R

600 DT466URK N/A NFR456DTK 92446R

800 DT467URK N/A NFR457DTK N/A

Non-Fusible, Six-Pole, Six-Wire, 600 Vac, NEMA 3R

30 DT661URK N/A NFR651DTK N/A

60 DT662URK N/A NFR652DTK N/A

100 DT663URK N/A NFR653DTK N/A

Non-Fusible, Two-Pole, Two-Wire, 240 Vac, NEMA 12 1

30 DT361UDK N/A DTNF361J H92251

60 DT362UDK N/A DTNF362J H82252

100 DT363UDK N/A DTNF363J H82253

200 DT364UDK N/A DTNF364J H82254

400 DT365UDK N/A NF355HDTK H92255

Non-Fusible, Three-Pole, Three-Wire, 240 Vac, NEMA 12 1

30 DT361UDK N/A DTNF361J H92351

60 DT362UDK N/A DTNF362J DTU362AWK

100 DT363UDK N/A DTNF363J DTU363AWK

200 DT364UDK N/A DTNF364J DTU364AWK

400 DT365UDK N/A NF355HDTK H92355

600 N/A N/A N/A H92356

Non-Fusible, Four-Pole, Four-Wire, 240 Vac, NEMA 12

30 N/A N/A N/A H92451

60 N/A N/A N/A DTU462AWK

100 N/A N/A N/A DTU463AWK

200 N/A N/A N/A DTU464AWK

400 N/A N/A N/A H92455

600 N/A N/A N/A H92456

Ampere

Rating

Catalog Number

Eaton General Electric Siemens Square D

Non-Fusible, Two-Pole, Two-Wire, 600 Vac, NEMA 12

30 DT361UDK N/A DTNF361J N/A

60 DT362UDK N/A DTNF362J H82342

100 DT363UDK N/A DTNF363J H82343

200 DT364UDK N/A DTNF364J H82344

400 DT365UDK N/A NF355HDTK H92345

600 N/A N/A N/A H92346

Non-Fusible, Three-Pole, Three-Wire, 600 Vac, NEMA 12

30 DT361UDK N/A DTNF361J N/A

60 DT362UDK N/A DTNF362J DTU362AWK

100 DT363UDK N/A DTNF363J DTU363AWK

200 DT364UDK N/A DTNF364J DTU364AWK

400 DT365UDK N/A NF355HDTK H92345

600 N/A N/A N/A H92346

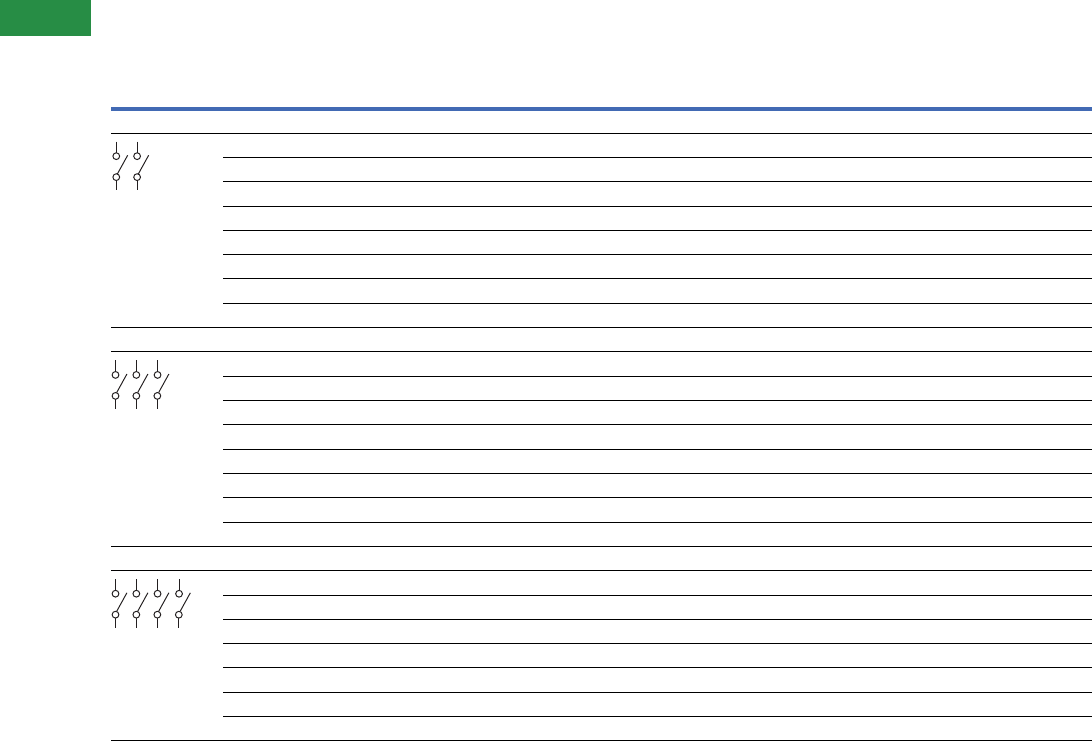

Non-Fusible, Four-Pole, Four-Wire, 600 Vac, NEMA 12

30 N/A N/A N/A N/A

60 N/A N/A N/A DTU462AWK

100 N/A N/A N/A DTU463AWK

200 N/A N/A N/A DTU464AWK

400 N/A N/A N/A H92445

600 N/A N/A N/A H92446

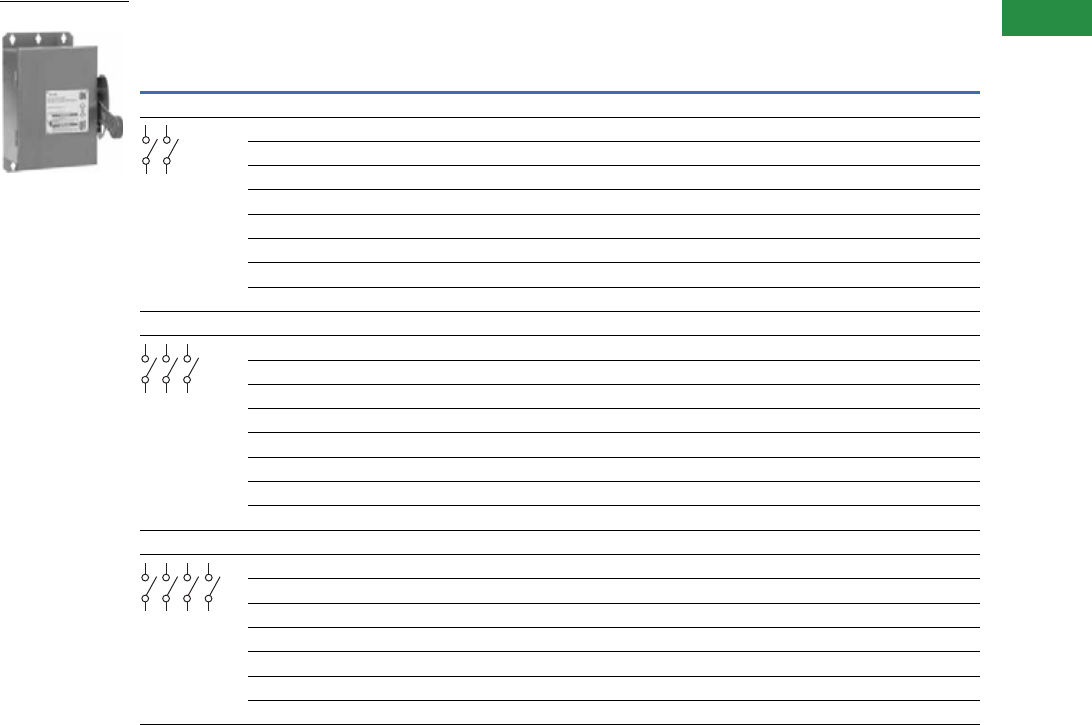

Non-Fusible, Two-Pole, Two-Wire, 600 Vac, NEMA 4X

30 DT361UWK N/A DTNF361S N/A

60 DT362UWK N/A DTNF362S 82342DS

100 DT363UWK N/A DTNF363S 82343DS

200 DT364UWK N/A DTNF364S 82344DS

400 DT365UWK N/A NF355SSDTK N/A

Non-Fusible, Three-Pole, Three-Wire, 600 Vac, NEMA 4X

30 DT361UWK N/A DTNF361S N/A

60 DT362UWK N/A DTNF362S DTU362DS

100 DT363UWK N/A DTNF363S DTU363DS

200 DT364UWK N/A DTNF364S DTU364DS

400 DT365UWK N/A NF355SSDTK N/A

Non-Fusible, Four-Pole, Four-Wire, 600 Vac, NEMA 4X

30 N/A N/A N/A N/A

60 N/A N/A N/A DTU462DS

100 N/A N/A N/A DTU463DS

200 N/AN/A N/A DTU464DS

Fusible, Three-Pole, Three-Wire, 600 Vac, NEMA 4X

30 DT361FWK N/A F351SSDTK N/A

60 DT362FWK N/A F352SSDTK N/A

100 DT363FWK N/A F353SSDTK N/A

200 DT364FWK N/A F354SSDTK N/A

400 DT365FWK N/A F355SSDTK N/A

Volume 2—Commercial Distribution CA08100003E—April 2016 www.eaton.com V2-T1-13

1.1

Switching Devices

Safety Switches

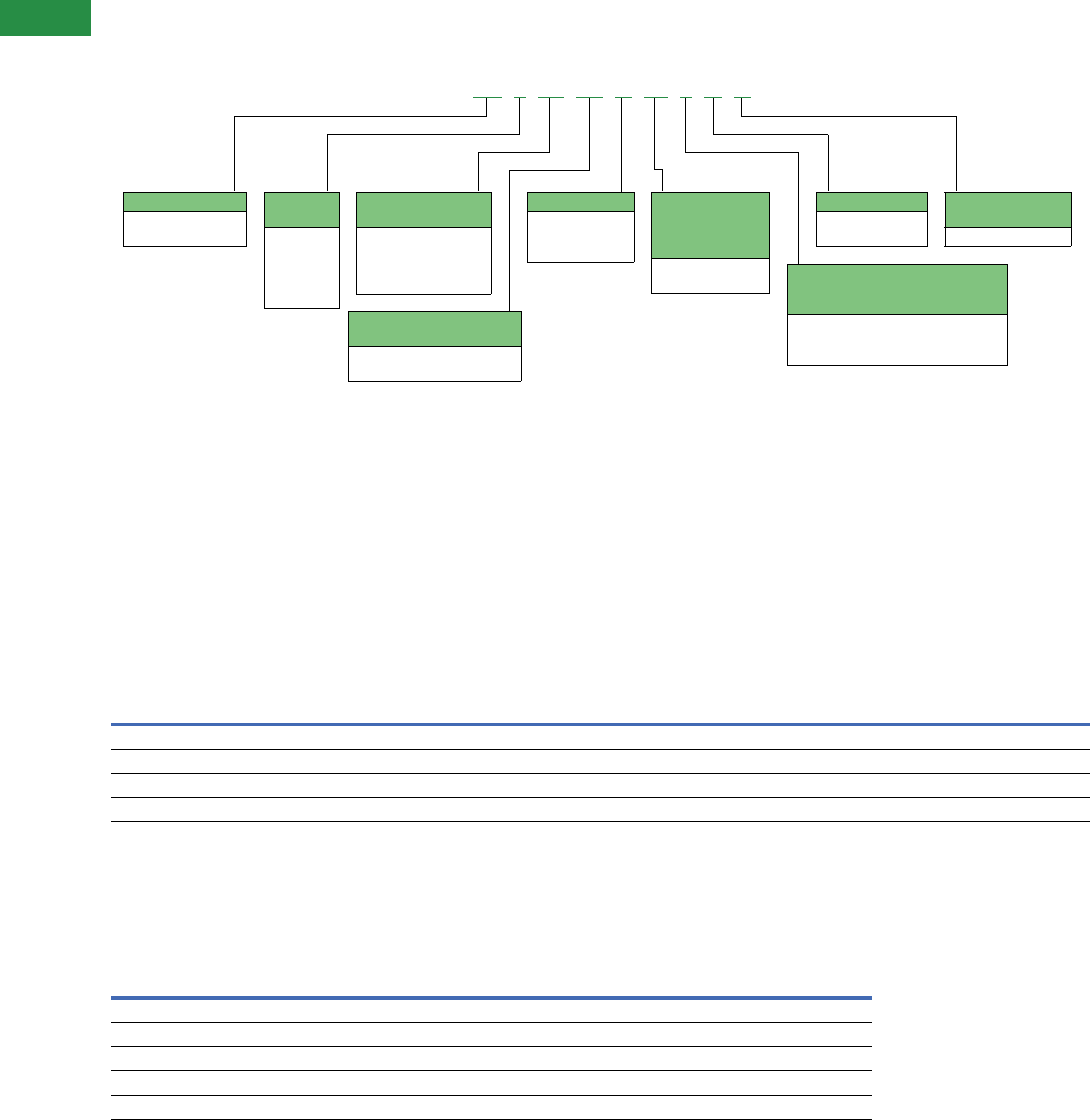

Catalog Number Selection

Safety Switch

Notes

1See Pages V2-T1-16 through V2-T1-19 for additional Flex Center options.

2Effective August 2003, 30–100A window switches are replaced by a full view window that allows blade position verification and blown fuse indication. See Page V2-T1-39 for catalog numbers.

This table is intended for use in breaking down existing catalog numbers. It is not intended for building new catalog numbers.

A factory-installed ground lug is supplied in all heavy-duty safety switches.

Series

K= Design all general-duty switches

above 200A and all heavy-duty

switches incorporate K-Series

switch design features listed below

B= Design general-duty 30–100A

H= General-duty double-throw switch

(compact design 30–100A)

Fusible/Non-Fusible or Neutral

F = Fusible without neutral

U = Non-fusible

N = Fusible with neutral

NEMA Enclosure Ratings

G= NEMA 1

R= NEMA 3R

D= NEMA 12 or 12/3R

P= NEMA 4 (painted steel)

W= NEMA 4X (corrosion-resistant

(304 Grade stainless steel)

C= NEMA 4X non-metallic

(for Type DH)

X= NEMA 7/9 (for Type DS)

X= NEMA 4X non-metallic

(for Type DR)

Switch Type

DP = General-duty/plug fuse

DG = General-duty/cartridge fuse

DH = Heavy-duty

DT = Double-throw

DR = Rotary switch

DS = Classified location with

DS interior

Voltage

1 = 120 Vac

2 = 240 Vac

6 = 600 Vac

Ampere Rating

1= 30A

2 = 60A

3 = 100A

4 = 200A

5 = 400A

6 = 600A

7 = 800A

8 = 1200A

Options 1

W= Upper viewing window 2

LW = Lower viewing window 2

X= EnviroLine stainless

(enclosure and mechanism)

GCL = Mill-duty

Poles/Blades

1 = 1-pole

2 = 2-pole

3 = 3-pole

4 = 4-pole

6 = 6-pole

DH 3 6 1 N D K LW

V2-T1-14 Volume 2—Commercial Distribution CA08100003E—April 2016 www.eaton.com

1.1

Switching Devices

Safety Switches

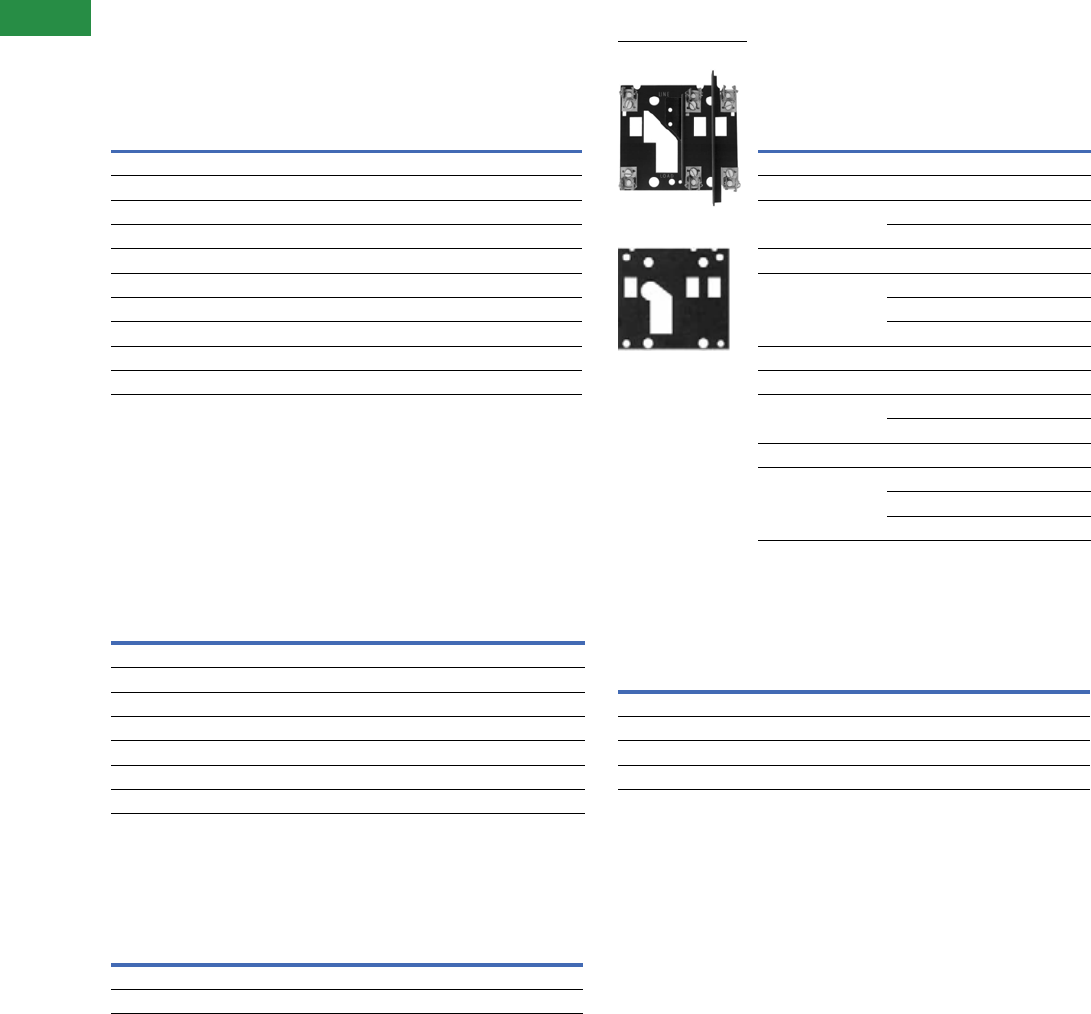

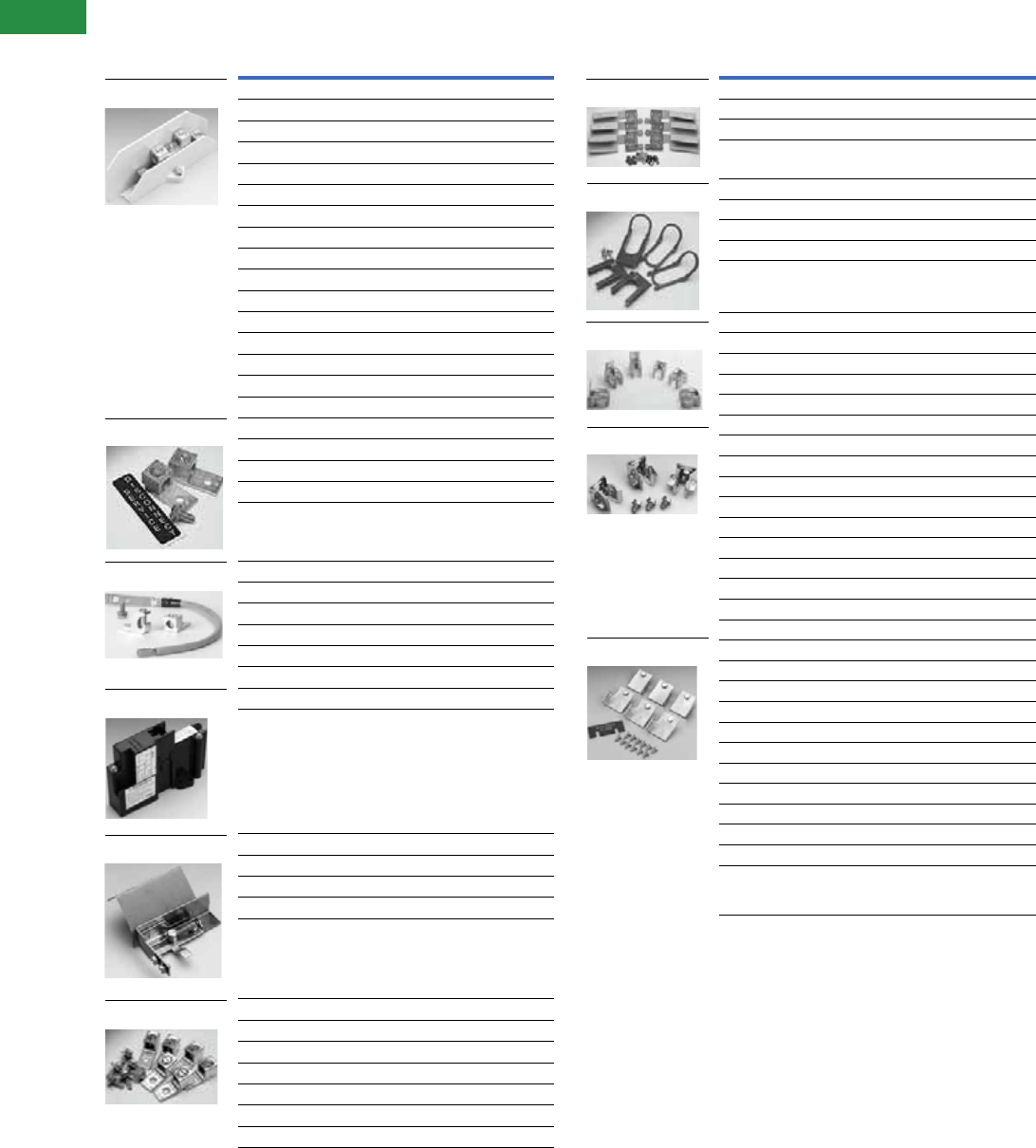

Options and Accessories

Safety Switches Safety Switches, continued

Notes

1Ground bar kit is not listed on device publications.

2Order one kit per switch.

3For duty ratings, see table on following page.

4Order one kit for three poles.

5Order one kit for each pole.

6Receptacle switches.

730A Class J available as factory option only.

8If Class J fuse kit is not listed, then switch will accept Class J fusing by repositioning either

fuse base or fuse clips. No drilling required.

9Order one kit for six poles.

Accessories are not applicable to NEMA 7/9 switches unless indicated otherwise.

A factory-installed ground lug is supplied in all heavy-duty safety switches.

Description Catalog Number

Neutral Kits/Ground Kits

30A DG DG030NB

60–100A DG DG100NB

200A DG, DH (NEMA 1, 3R enclosures) DG200NK

30–60A DH DH030NK

100A DH DH100NK

200A DH (NEMA 4X, 12 enclosures) DH200NK

400A DG, DH DS400NK

600A DG, DH DS600NK

400–600A fusible DT, 800–1200A DH DS800NK

30–100A DT DT100NK

200A DT DT200NK

400A non-fusible DT DT400NK

600A non-fusible DT DT600NK

800A DT DT800NK

1200A DT DT1200NK

Ground Lug Kits

30–100A DG DG030GB

30–100A DH, DT 1DS100GK

200A DG, DH, DT DS200GK

400–600A DG, 400–1200A DH, 400–800A DT DS468GK

Switching Neutral Bonding Kits 2

30–100A DT, 3P, 4P non-fusible DT100BK

200A DT, 3P, 4P non-fusible DT200BK

400A DT, 3P, 4P non-fusible DT400BK

600A DT, 3P, 4P non-fusible DT600BK

800–1200A DT, 3P, 4P non-fusible DT800BK

Control Pole Kit (For 2P, 3P Switches)

400–600A DG, 30–1200A DH, 30–800A DT DS16CP

Auxiliary Contact Kits

All switches (except 30–100A DG) 1NO/1NC DS200EK1 3

All switches (except 30–100A DG) 2NO/2NC DS200EK2 3

NEMA 7/9 switches (30–100A) 1NO/1NC 178C265G05

NEMA 7/9 switches (30–100A) 2NO/2NC 178C265G06

Copper Lug Kits

30A DH, DT 4DS16CL

60A DH, DT 4DS16CL

100A DH, DT 4DS36CL

200A DH 4DS46CL

400A DH (NEMA 4, 4X, 12 enclosures) 5DS56CL

600–800A DH (NEMA 4, 4X, 12 enclosures) 5DS66CL

DH030NK

DS200GK

DT100BK

DS16CP

DS200EK1

DS36CL

Description Catalog Number

Crimp Lug Pad Kit (NEMA 4, 4X, 12 Enclosures)

400–600A DH 4DS56CK

800A DH 5DS76CK

400–800A neutral DH 2DS800CNK

Fuse Puller Kits

30–60A DH 4DS30FP

30–60A DH 6DS60FP

100A DH 4DS100FP

200A DH 4DS200FP

“J” Fuse Adapter Kits 78

60A 240V DH 4DS22JK

60A DH, DT and receptacle switches 4DS26JK

400A 600V DT 9DT400JK

600A 240–600V DH, 600A DG 5DS600JK

“R” Fuse Adapter Kits 4

30A DG DG030RB

100A DG DG100RB

30A 240V DH, DT DS12FK

30A 600V DH, DT, 60A 240V DH, DT, 60A DG DS16FK

60A 600V DH, DT DS26FK

100A 240–600V DH, DT DS36FK

200A 240–600V DH, DT, 200A DG DS46FK

400A 240–600V DH, 240V DT, 400A DG DS56FK

600A 240–600V DH, DT, 600A DG DS66FK

“T” Fuse Adapter Kits

200A 240V DH 4DS426TK

200A 600V DH 4DS466TK

400A 240V DG, DH, DT 5DS526TK

400A 600V DH 5DS566TK

600A 240V DG, DH 5DS626TK

600A 600V DH 5DS666TK

600A 240V 5DT626TK

600A 600V 5DT666TK

800A 240V DH 5DS726TK

800A 600V DH, DT 5DS766TK

Hookstick handle DH800HSH

Lubricating grease for safety switch blades and

contacts (each kit contains three 30 cc tubes of

lubricating grease)

DSLUBEKIT

DS56CK

DS60FP

DS22JK

DS12FK

DS426TK

Volume 2—Commercial Distribution CA08100003E—April 2016 www.eaton.com V2-T1-15

1.1

Switching Devices

Safety Switches

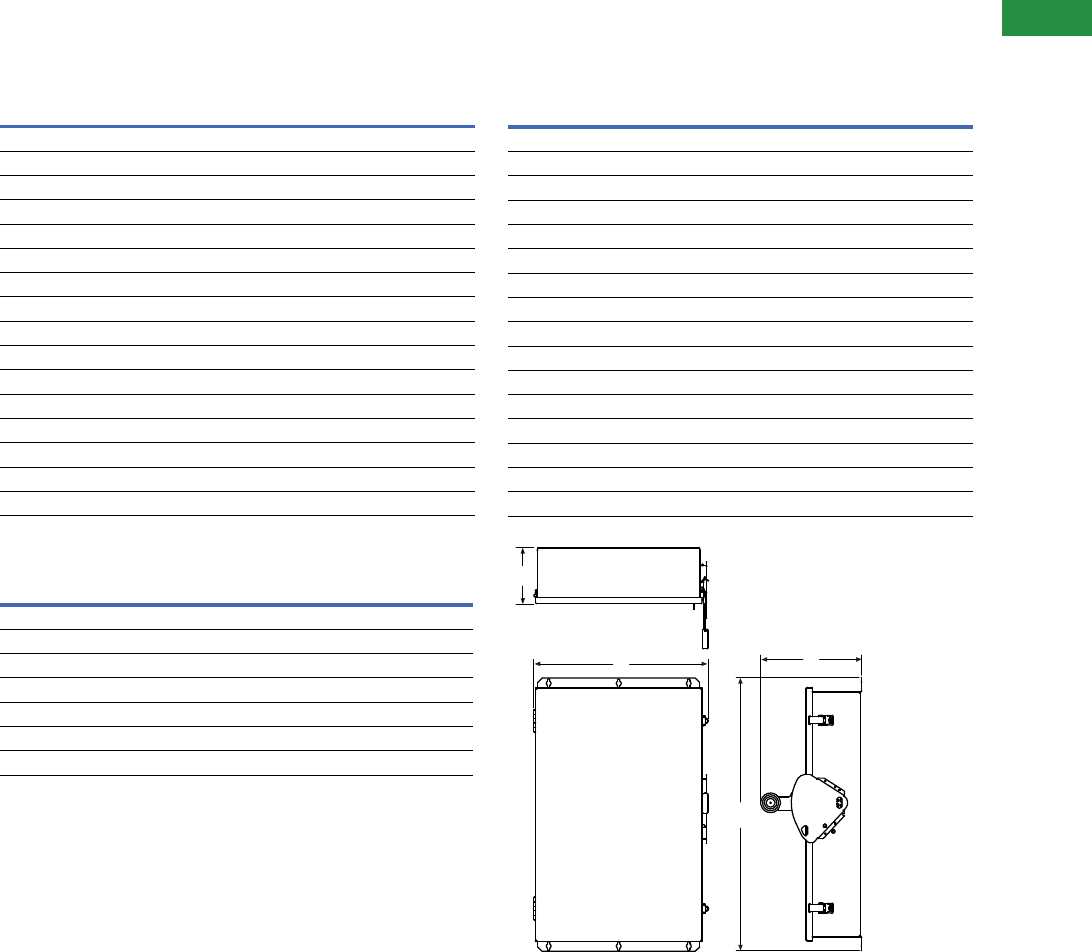

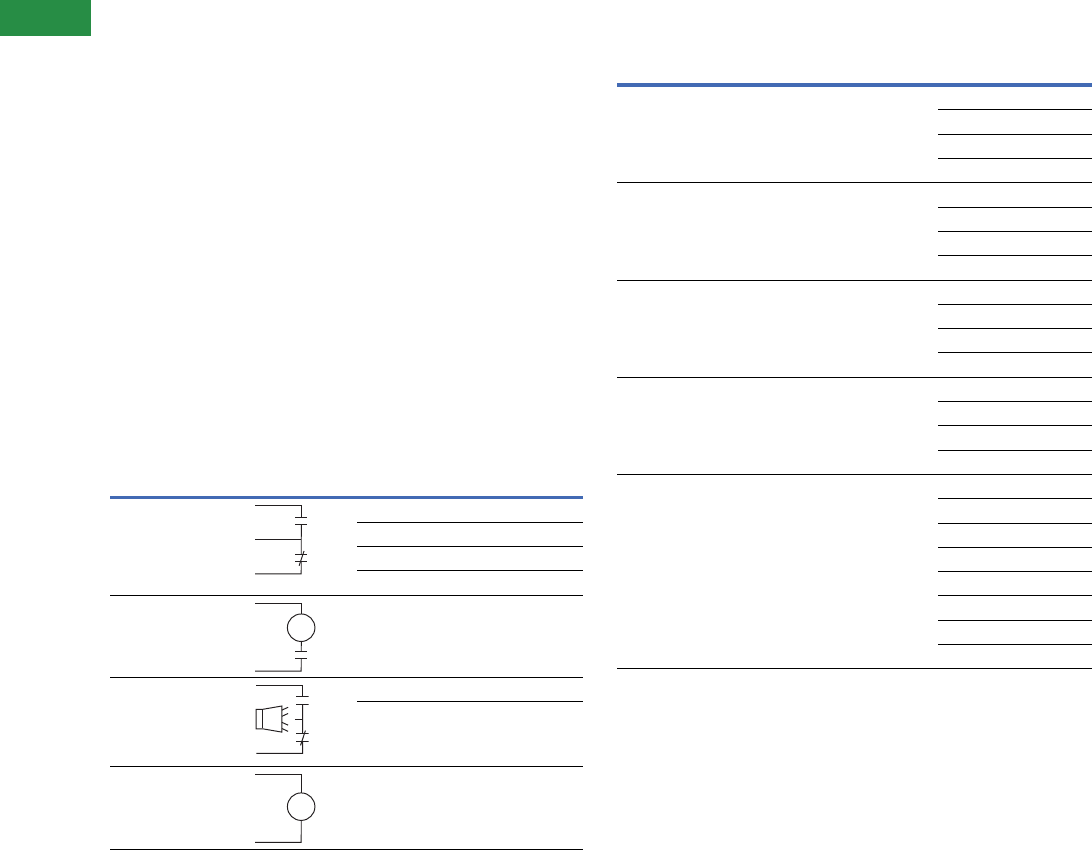

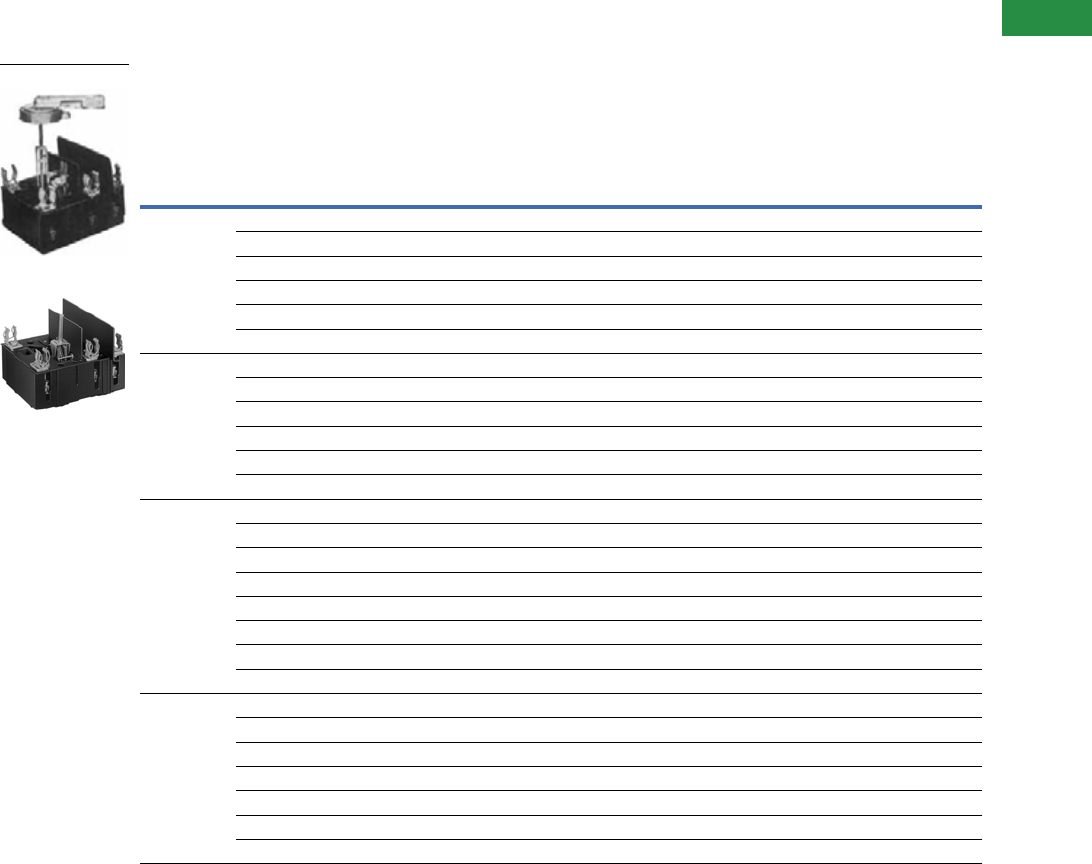

Auxiliary Contact Rating

AC Pilot Duty Ratings DC Pilot Duty Ratings

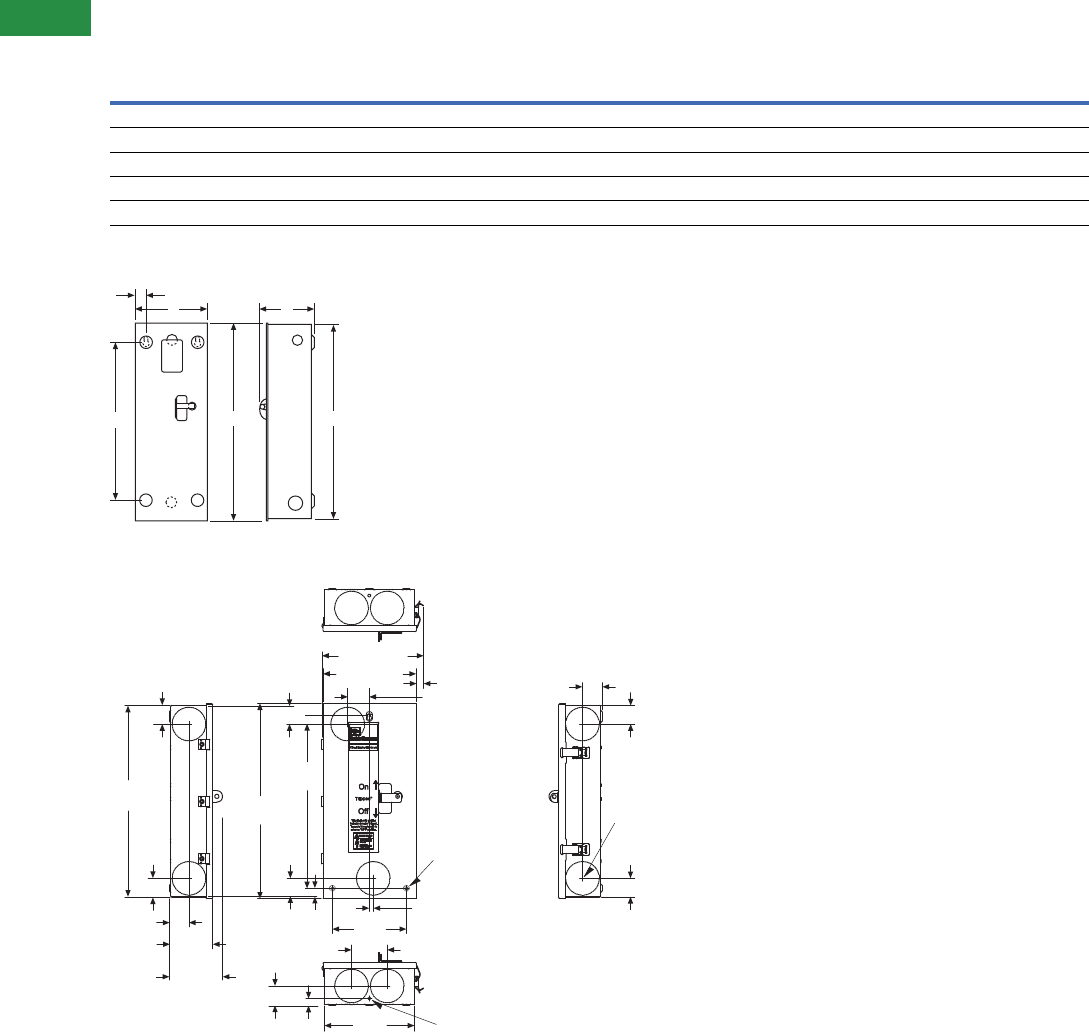

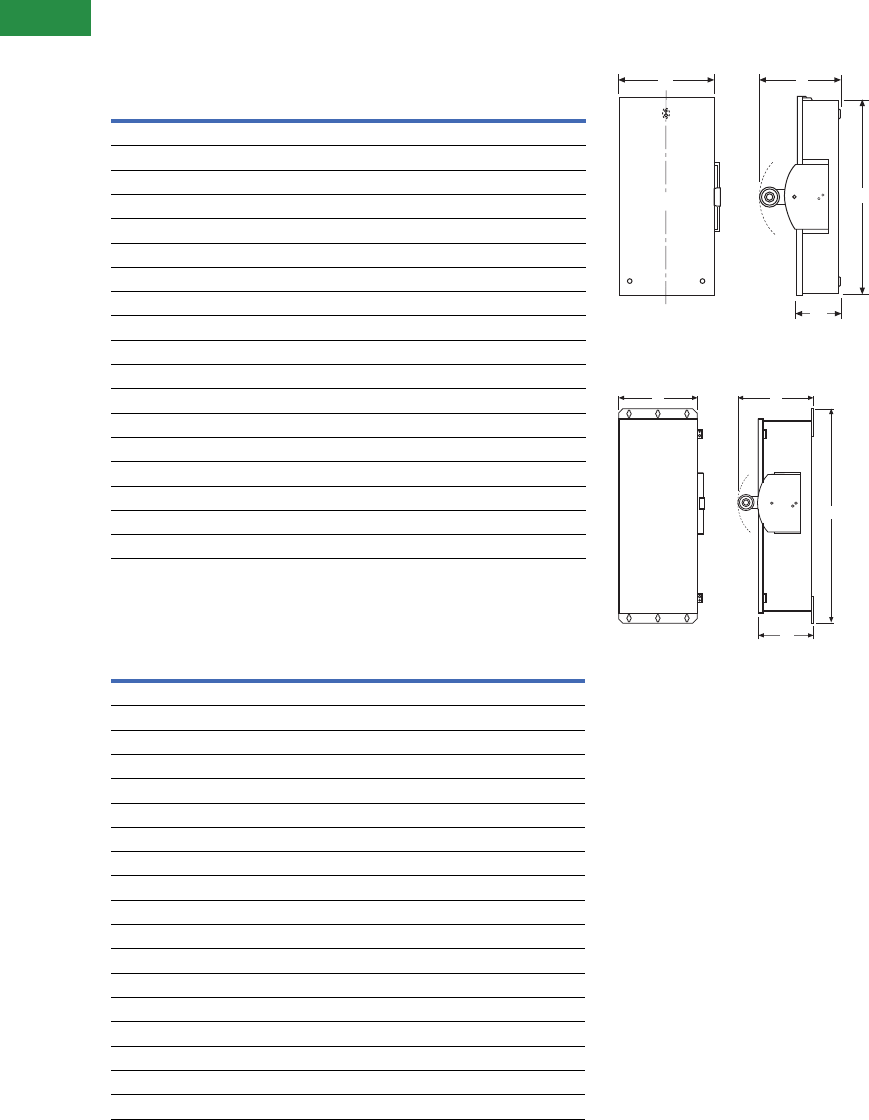

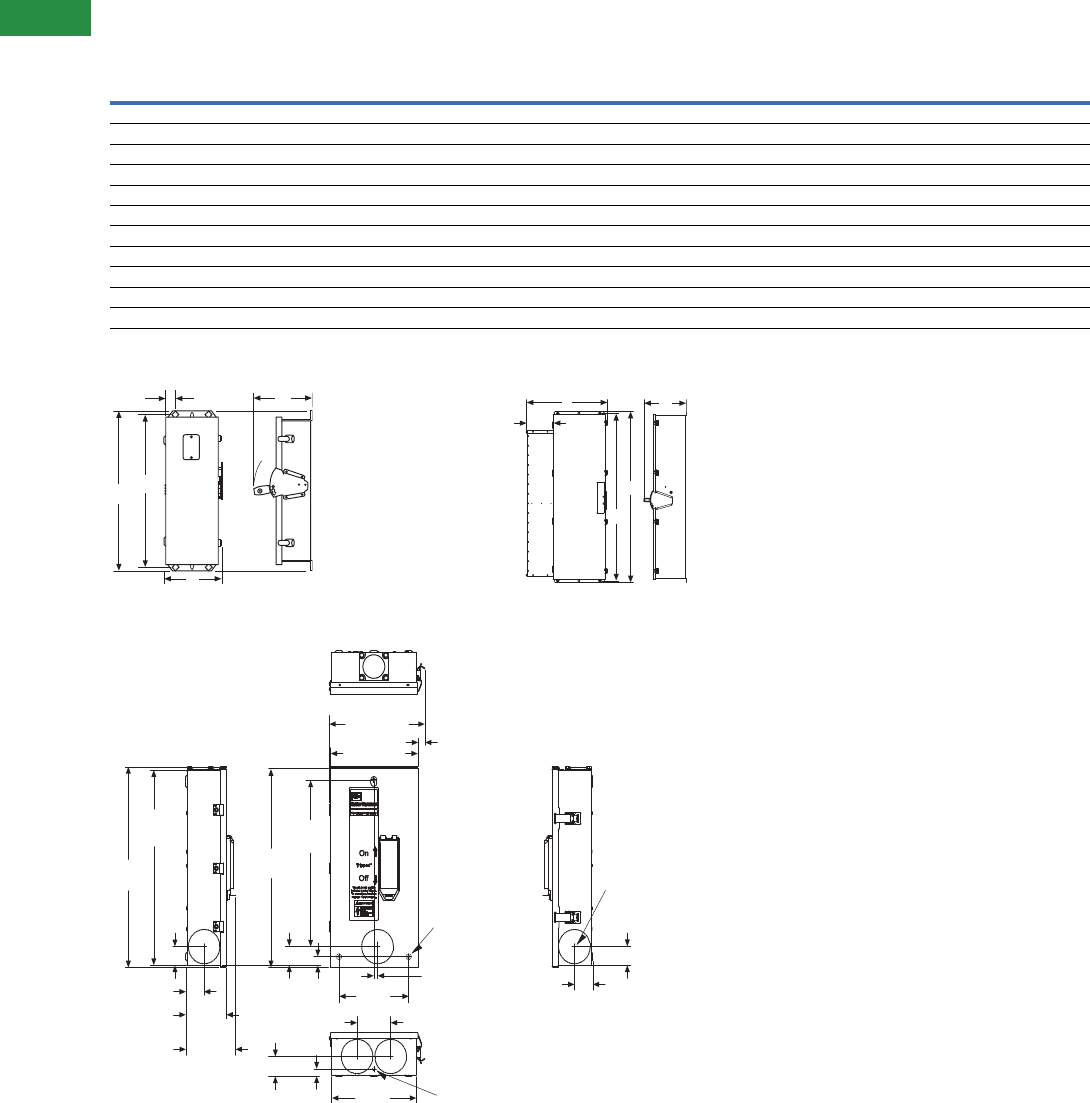

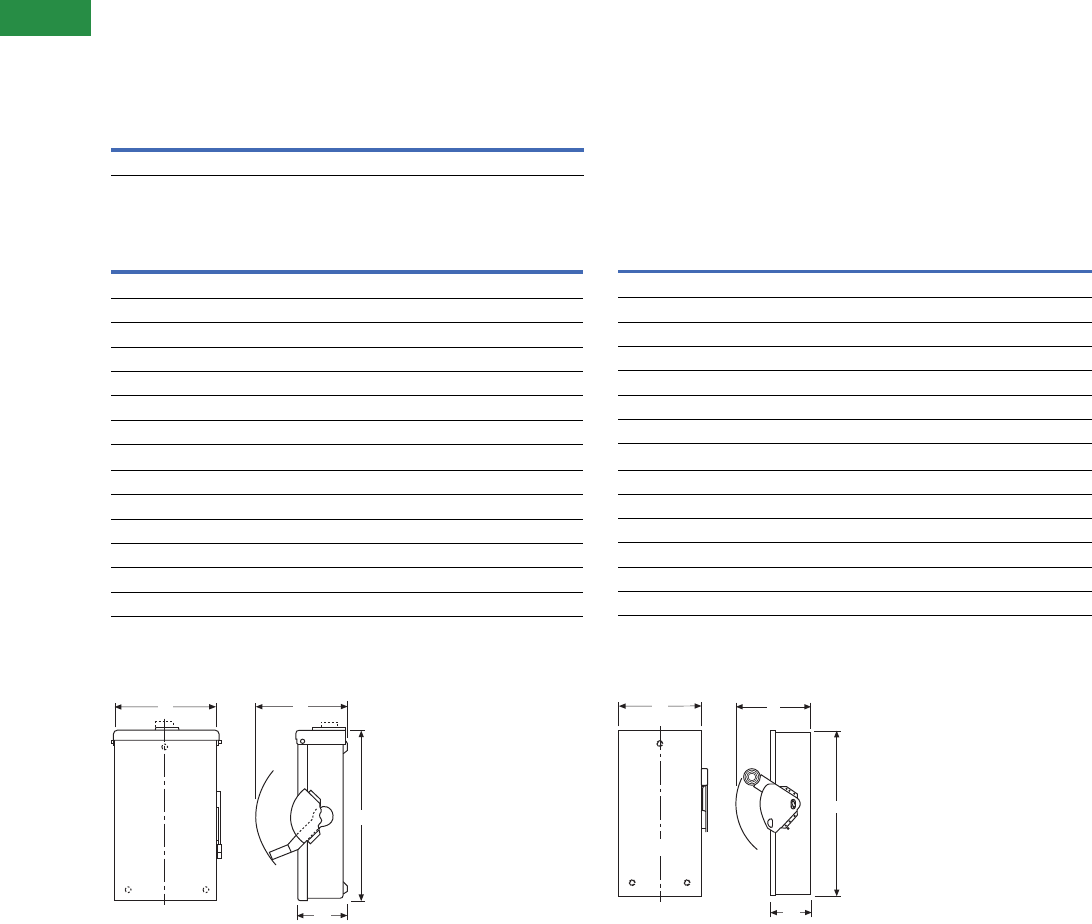

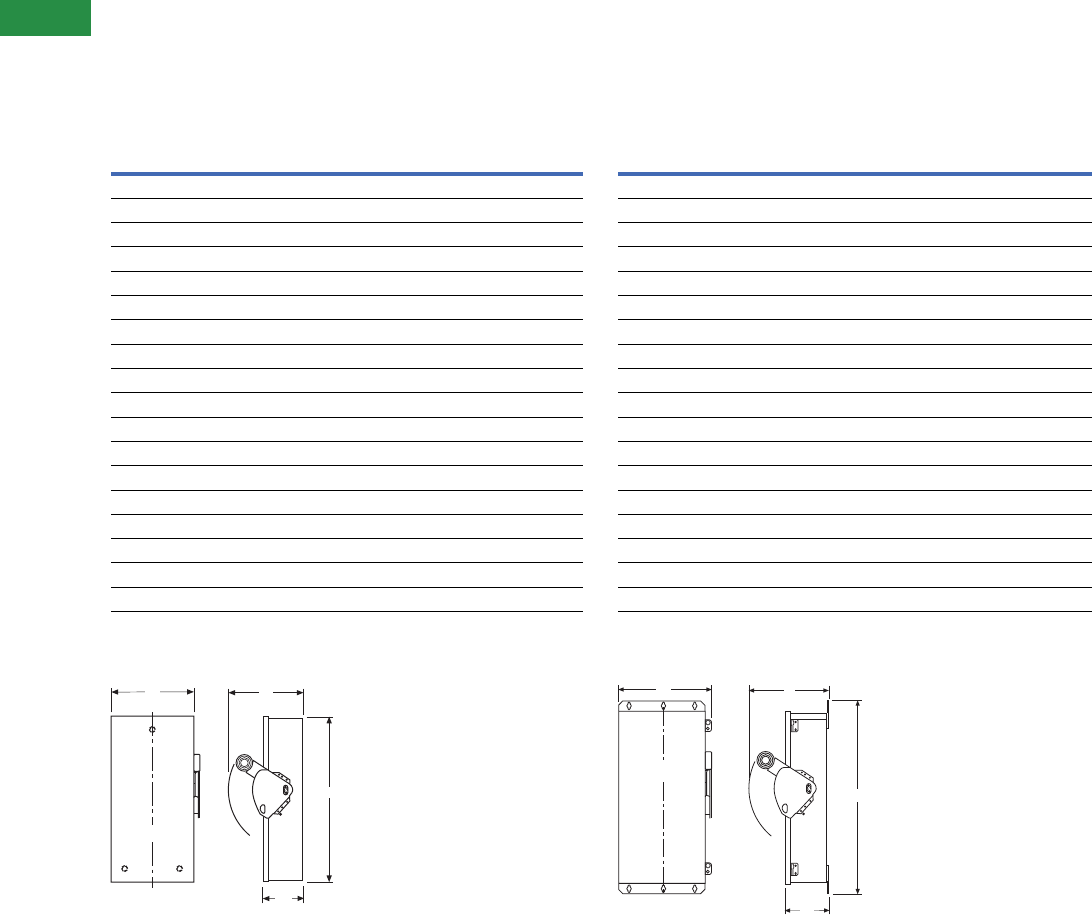

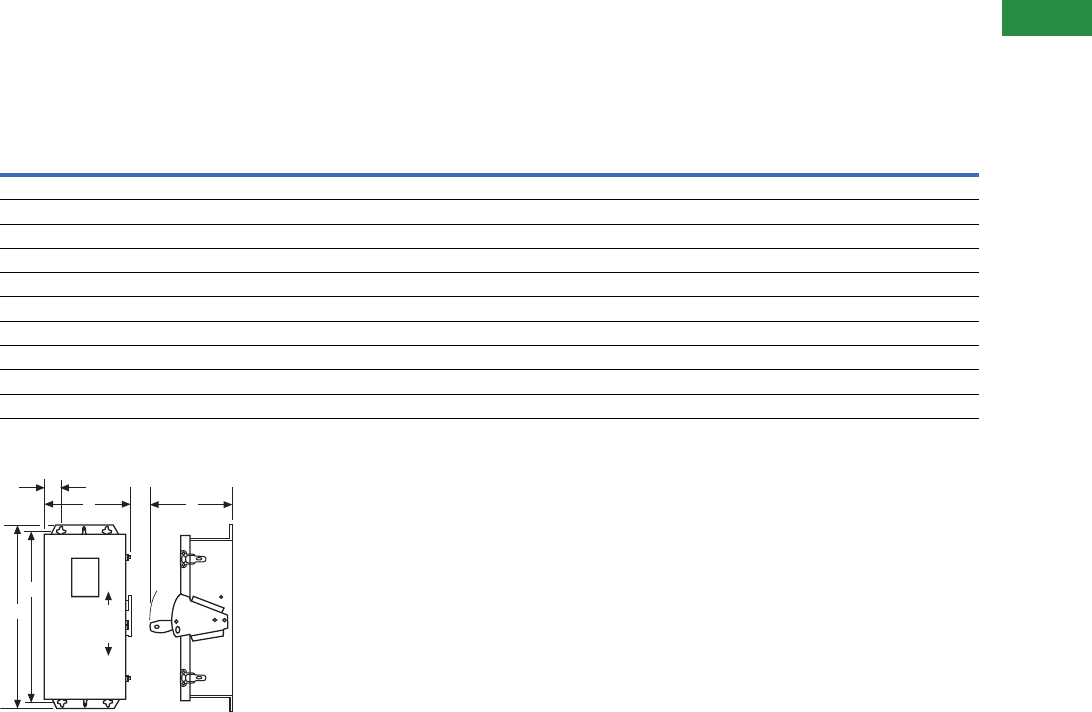

Approximate Dimensions in Inches (mm)

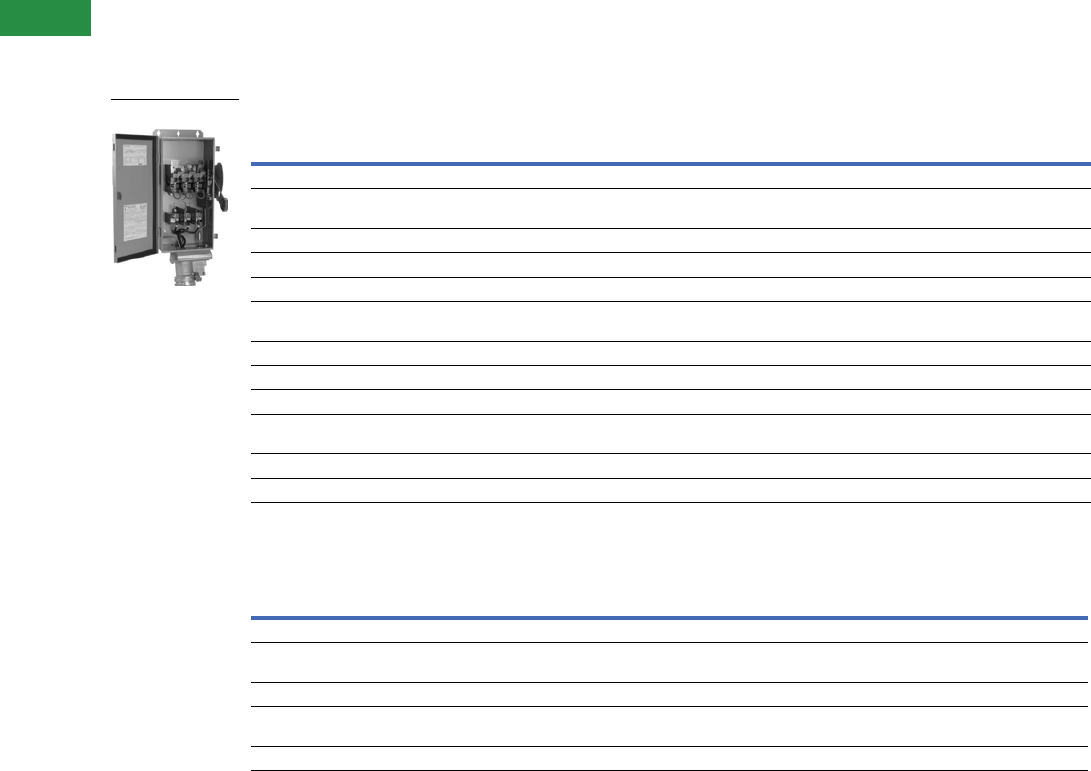

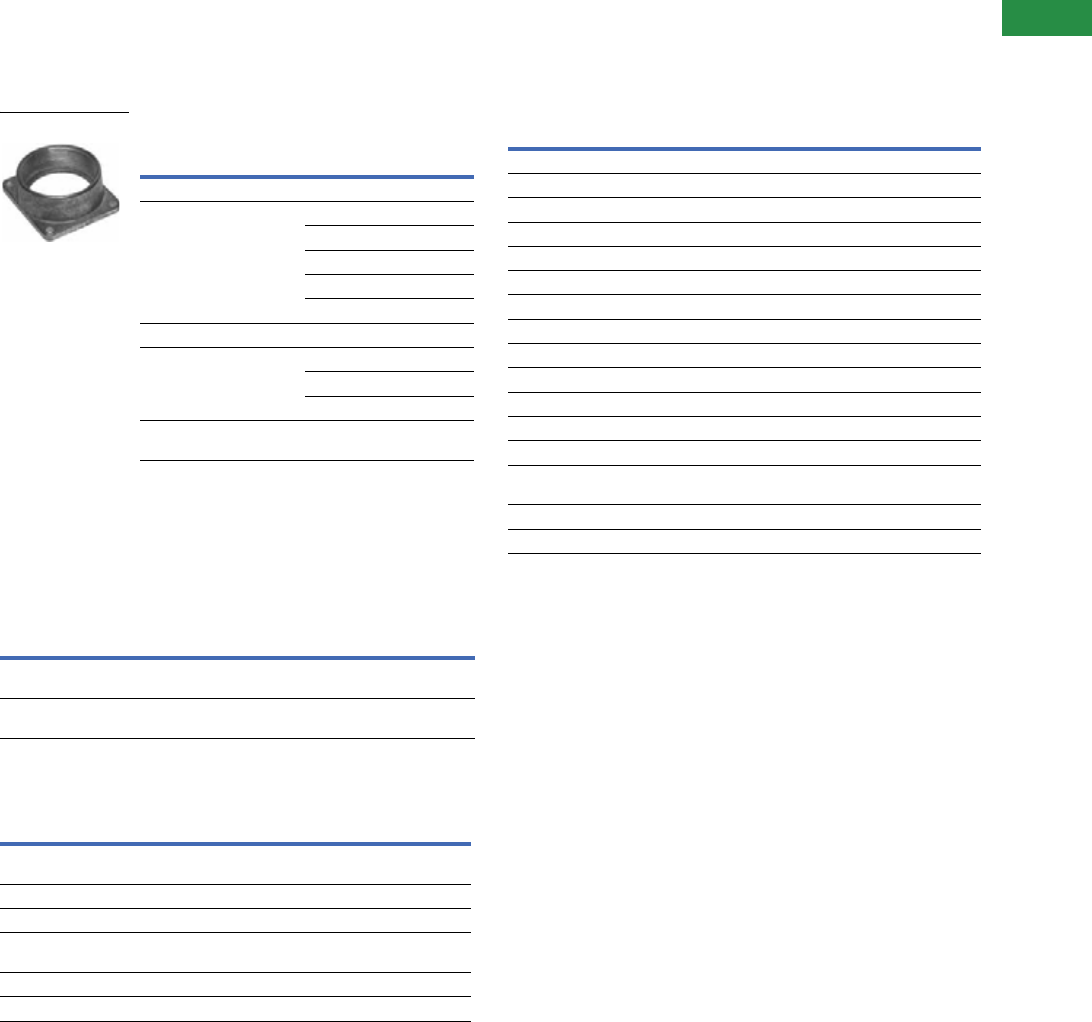

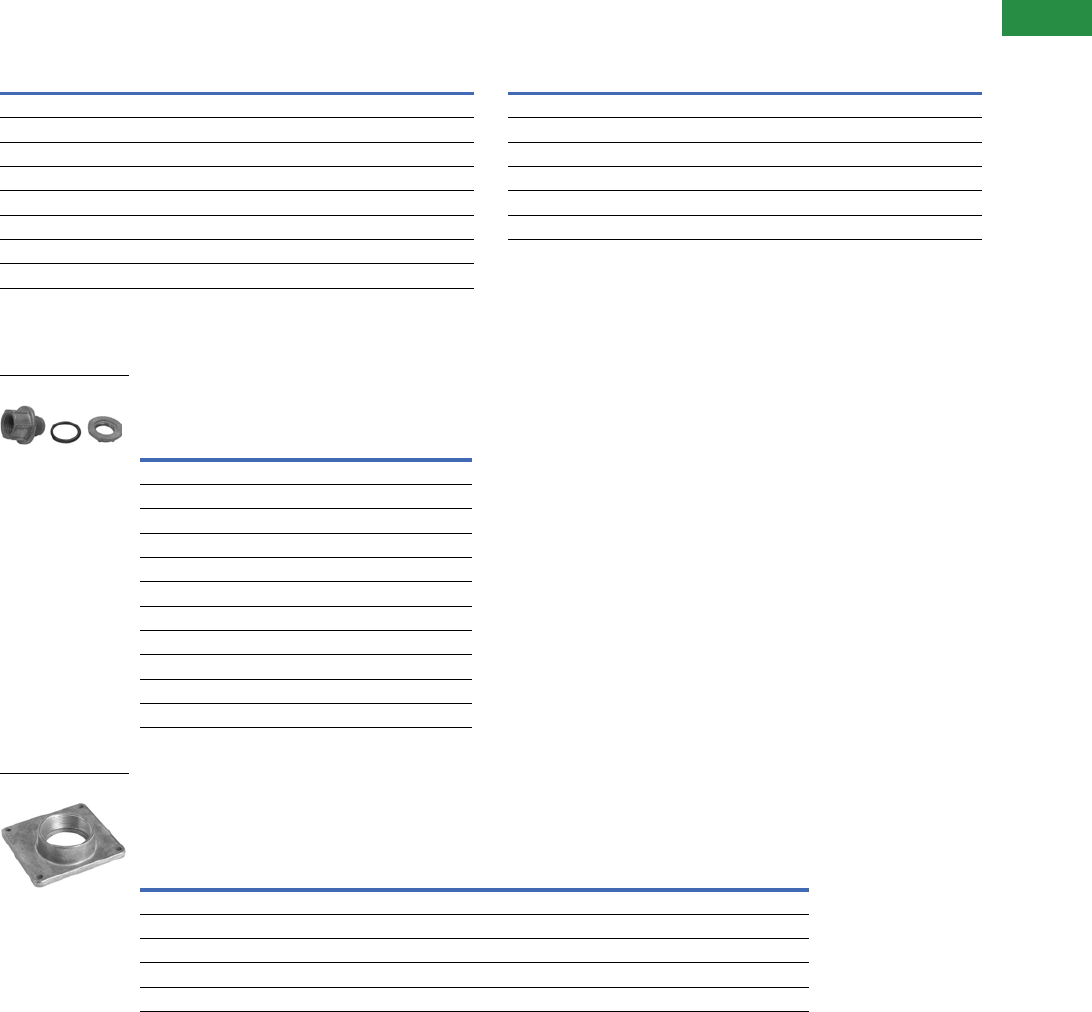

Myers Type Hubs

NEMA 3R (400A and above)

NEMA 4, 4X (stainless steel), 12

Plate Type Hubs

For NEMA 3R enclosures (up to 200A)

Catalog number DS900AP adapter kit

permits Installation of Group 1 hubs on

200A type general-duty, heavy-duty and

double-throw switches.

Contact the Flex Center at 1-888-329-9272 or

FlexSwitches@eaton.com for information on

hubs for non-metallic NEMA 4X switches.

Catalog

Number Description Volts

Break

(Amperes)

Make

(Amperes)

DS200EK1 1NO-1NC 110 15.0 40.0

DS200EK1 1NO-1NC 220 10.0 20.0

DS200EK1 1NO-1NC 440 6.0 10.0

DS200EK1 1NO-1NC 600 5.0 8.0

DS200EK2 2NO/2NC 110 3.0 30.0

DS200EK2 2NO/2NC 220 1.5 15.0

DS200EK2 2NO/2NC 440 1.0 8.0

DS200EK2 2NO/2NC 600 0.8 6.0

Catalog

Number Description Volts

Single Throw

(Amperes)

Double Throw

(Amperes)

DS200EK1 1NO-1NC 115 2.0 0.5

DS200EK1 1NO-1NC 230 0.5 0.2

DS200EK1 1NO-1NC 600 0.1 0.02

DS200EK2 2NO/2NC 115 1.0 0.2

DS200EK2 2NO/2NC 230 0.3 0.1

DS200EK2 2NO/2NC 600 0.1 —

Catalog Number Conduit Size

DS050MH 0.50 (12.7)

DS075MH 0.75 (19.1)

DS100MH 1.00 (25.4)

DS125MH 1.25 (31.8)

DS150MH 1.50 (38.1)

DS200MH 2.00 (50.8)

DS250MH 2.50 (63.5)

DS300MH 3.00 (76.2)

DS350MH 3.50 (88.9)

DS400MH 4.00 (101.6)

DS500MH 5.00 (127.0)

Group 1

General-Duty, Heavy-Duty,

Double-Throw Through 100A

Group 2

General-Duty, Heavy-Duty,

Double-Throw—200A

Catalog Number Conduit Size Catalog Number Conduit Size

DS075H1 0.75 (19.1) DS200H2 2.00 (50.8)

DS100H1 1.00 (25.4) DS250H2 2.50 (63.5)

DS125H1 1.25 (31.8) DS300H2 3.00 (76.2)

DS150H1 1.50 (38.1) ——

DS200H1 2.00 (50.8) ——

DS050MH

DS075H1

V2-T1-16 Volume 2—Commercial Distribution CA08100003E—April 2016 www.eaton.com

1.1

Switching Devices

Safety Switches

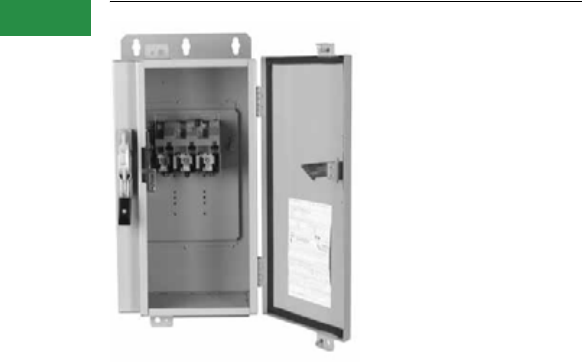

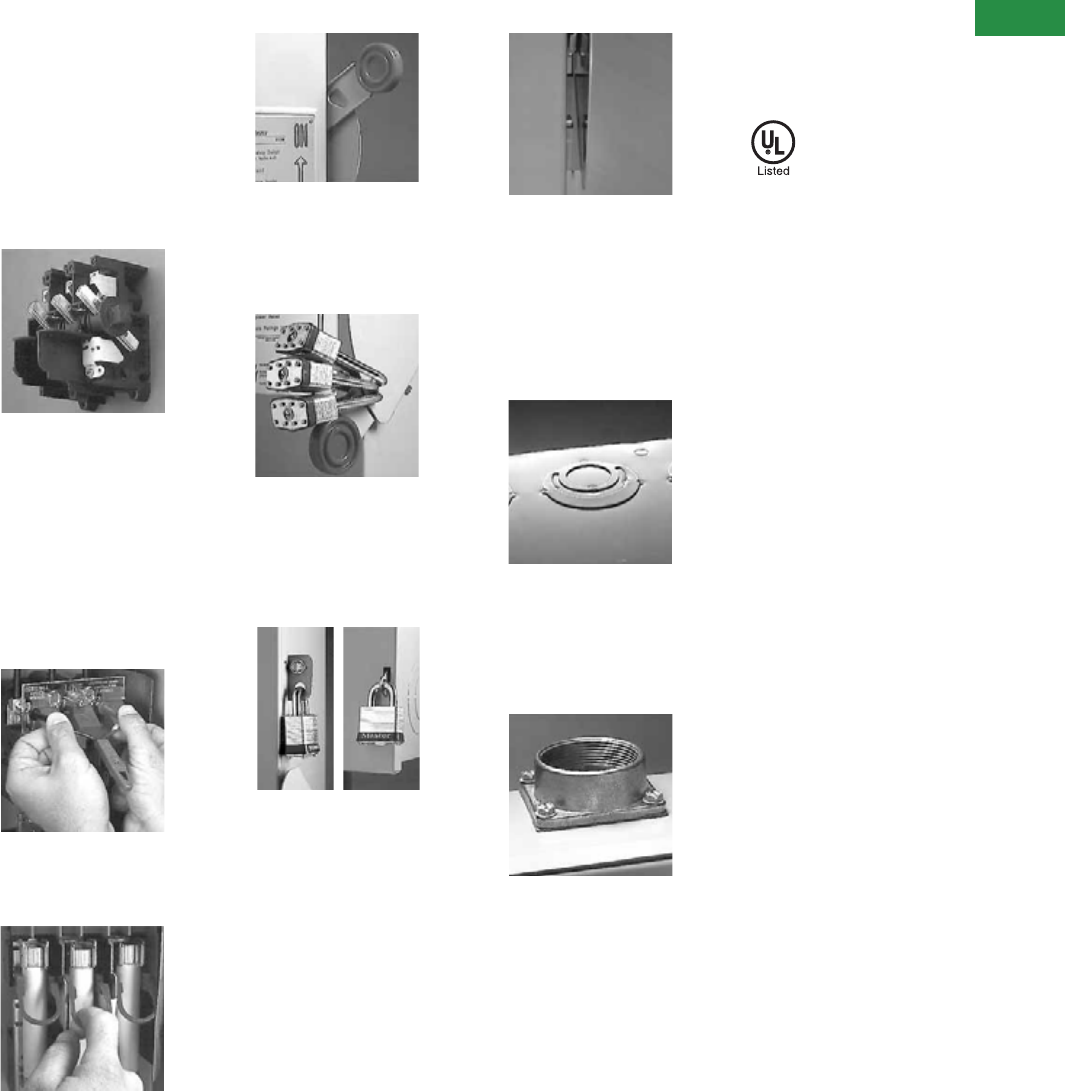

Modifications—Flex Center

Introduction

The Safety Switch Flex

Center is a special facility

at the site of our Cleveland,

Tennessee, plant that is

dedicated to providing

customized safety switches

that meet customer’s

challenging applications.

Eaton’s Flex Center is

a solutions center that

provides real value:

●A dedicated and

knowledgeable

engineering/

manufacturing/customer

service team to meet

your needs

●A production facility

stocked with a full arsenal

of equipment to get the

job done

●The industry’s shortest

lead-time

●Easy ordering through

our distributors

Description Suffix Item

Nameplates NP 1

Fungus proofing FP 2

Special paint 3

Lock-on provisions on

heavy-duty safety

switches for most

enclosure types

LO 4

Trapped key interlock

systems

TK 5

Upper cover viewing

window

Lower cover viewing

window

LW 7

Neutral assemblies

factory installed for

double-throw safety

switches

Class “R” fuse clips

factory installed for

heavy-duty switches

5 or 6 9

Class “T” fuse clips

factory installed for

heavy-duty switches

T10

Class “J” fuse clips

factory installed for

heavy-duty and double-

throw safety switches

J11

Fuse pullers factory

installed

FE 12

Special crimp lug pads

factory installed for

general-duty and heavy-

duty switches

CK 13

Copper lugs factory

installed

CL 14

Equipment ground lugs

factory installed

G15

Custom lug

configurations

L16

Auxiliary contacts

factory installed

2 or 3 17

Control pole factory

installed

CP 18

Switching neutral

double-throw

SN 19

Neutral assemblies

factory installed for

single-throw non-fusible

safety switches

N20

How to order 21

How to price 22

1. Nameplates

Price covers up to three

lines of text with a maximum

of 25 characters per line.

Standard nameplates are

laser-engraved plastic and

have black letters on a white

background. Rotary-engraved

phenolic nameplates are

also available at a premium.

Additional color combinations

and larger nameplates are

available. Contact the

Flex Center for price and

availability for these special

requirements. Customer

must specify the text when

placing an order.

Item 1

2. Fungus Proofing

All non-metallic components

of the switch are coated

with a moisture and fungus-

resistant varnish. The

inhibitor used meets military

specification: MIL-V-173C for

MOISTURE AND FUNGUS-

RESISTANT TREATMENT.

The treated switch meets

military specification:

MIL-T-152E for MOISTURE

AND FUNGUS-RESISTANT

TREATMENT OF

COMMUNICATIONS,

ELECTRONICS AND

ASSOCIATED EQUIPMENT.

Not UL listed.

Item 2

To order, add Suffix FP

to standard safety switch

catalog number. Example:

DH363FGKFP.

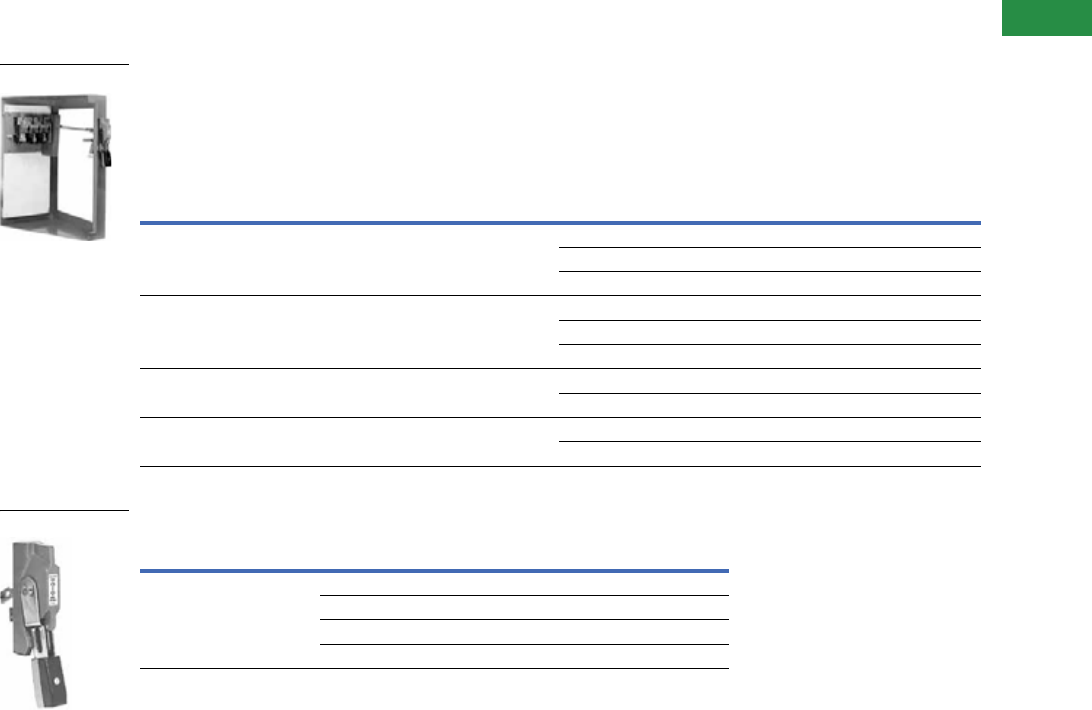

3. Special Paint

Special paint colors are

available for order quantities

of five or more switches.

Colors available are red,

orange, yellow, green, black

and white. Custom color is

applied over the standard

ANSI-61 gray finish.

Minimum quantity of five of

the same color is required.

Order by description. For

quantities less than five,

higher ampere ratings,

or other color request,

contact the Safety Switch

Flex Center.

Item 3

4. Lock-On Provisions

on Heavy-Duty Safety

Switches for Most

Enclosure Types

Available on 30–800A heavy-

duty and double-throw safety

switches.

Provision will

accept a single lock.

To order, add Suffix LO to

the standard catalog number.

Example: DH362FRKLO.

Description

Plastic nameplate—up to three lines

Phenolic nameplate—up to three lines

Ampere Rating

100

200

400

600

800

1200

Ampere Rating

100

200

400

600

Volume 2—Commercial Distribution CA08100003E—April 2016 www.eaton.com V2-T1-17

1.1

Switching Devices

Safety Switches

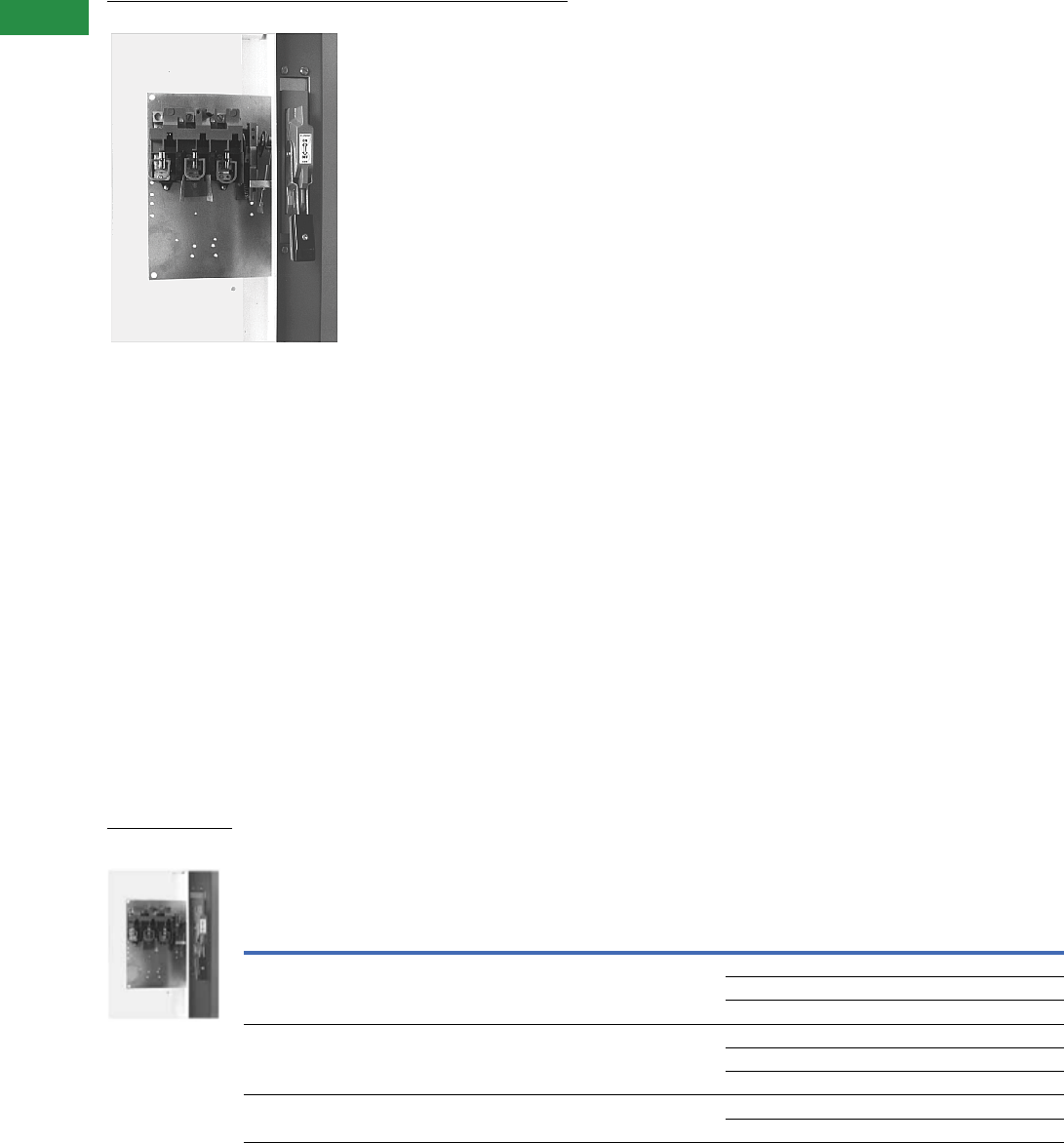

5. Trapped Key

Interlock Systems

Available only on heavy-duty

and double-throw safety

switches. Trapped key

systems are used on

safety switches to prevent

unauthorized operations

or to predetermine a series

of power transfers by an

authorized operator.

Before system construction

can begin, the following

information must be provided

to the Flex Center:

●User—name, address and

telephone number

●Complete coordination

(lock scheme) required

with order

To order, add Suffix TK to

the standard catalog number.

Example: DH363FWKTK.

Item 5

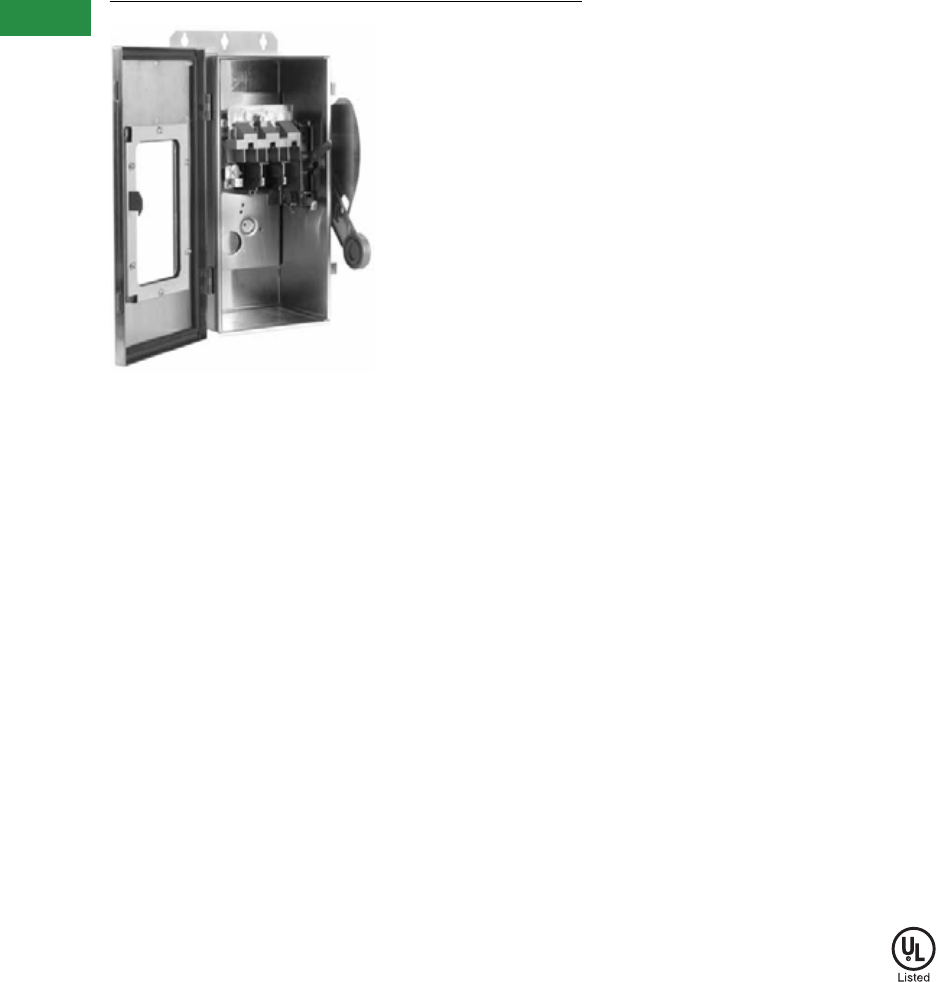

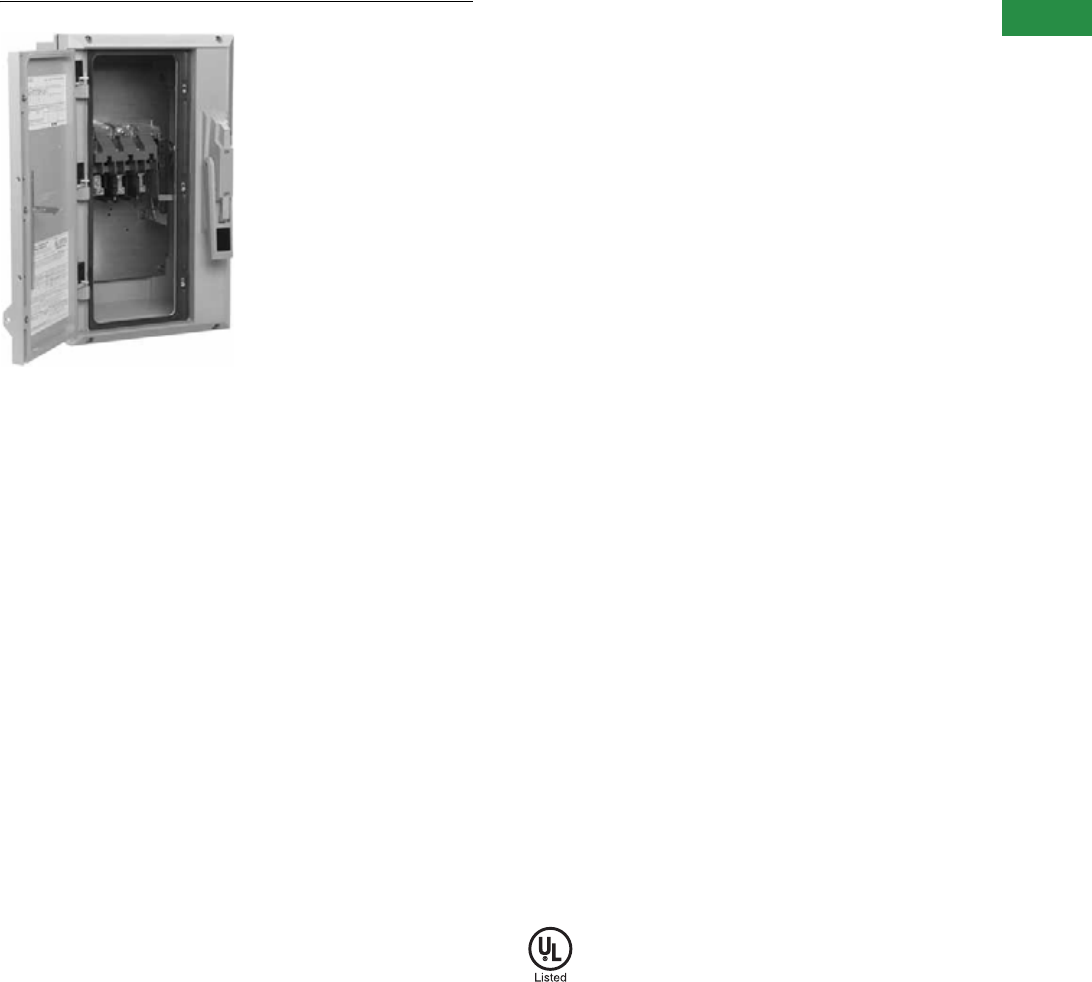

6. Upper Cover

Viewing Window

Upper viewing window is

centered over the switching

contacts to provide visual

verification of ON/OFF status.

Available on most heavy-duty

NEMA 4X stainless steel and

NEMA 12/3R and double-

throw enclosures. Not

available on non-metallic

enclosures. To order, add

Suffix W to the standard

catalog number.

Note: 30–100A window switches

are now provided with a full

view cover window for blade

verification and blown

fuse indication.

7. Lower Cover

Viewing Window

Lower viewing window is

positioned over fuses and

provides visual verification

of blown fuse indicators

for Littelfuse, Inc.™ fuses.

Available in 200–600A, two-

and three-pole heavy-duty

NEMA 4X stainless steel and

NEMA 12/3R enclosures.

Not available on nonmetallic

enclosures. To order, add

Suffix LW to standard

catalog number.

Note: 30–100A window switches

are now provided with a full

view cover window for blade

verification and blown

fuse indication.

Items 6 and 7

Contact the Safety Switch

Flex Center for lead-time.

8. Neutral Assemblies

Factory Installed for Double-

Throw Safety Switches

Item 8

To order, add Suffix N on

non-fusible switches OR

replace 6th character F with N

on fusible switches. The total

price is the standard switch

price plus the price adder.

Example 1: DT361URKN

non-fusible double-throw,

three-pole, 30A switch

with factory-installed

neutral assembly.

Example 2: DT363NRK

fusible double-throw,

three-pole, 100A switch

with factory-installed

neutral assembly.

Ampere

Rating

Switch

Type

30–1200 Heavy-duty

30–800 Double-throw

Viewing Window (Upper or Lower)

Ampere Rating

30–200

400–800

Ampere

Rating

Switch Type

Two- and Three-Pole

30 Fusible and non-fusible

60 Fusible and non-fusible

100 Fusible and non-fusible

200 Fusible and non-fusible

400 Non-fusible

600 Non-fusible

400 Fusible

600 Fusible

800 Non-fusible

9. Class “R” Fuse Clips

Factory Installed for

Heavy-Duty Switches

Item 9

To order, add Suffix 5 to

the standard catalog number

for 240V application.

Add Suffix 6 to standard

catalog number for 600V

application. Total price is

the standard catalog number

price plus the price adder

from the table above

depending on the number

of safety switch poles.

Example: DH324FRK5 heavy-

duty, three-pole, 200A switch

at 240V with factory-installed

Class “R” fuse clips.

10. Class “T” Fuse Clips

Factory Installed for

Heavy-Duty Switches

Item 10

To order, add Suffix T to

the standard catalog number

(catalog number identifies

voltage). Total price is the

standard catalog number

price plus the price adder

depending on the number

of safety switch poles.

Example: DH364FGKT heavy-

duty, three-pole, 200A fusible

switch at 480V with factory-

installed Class “T” Fuse Clips.

11. Class “J” Fuse Clips

Factory Installed for

Heavy-Duty and Double-

Throw Safety Switches

Item 11

Total price is the standard

catalog number price plus

the price adder from the

table above depending on

the number of safety poles.

Order by description. A table

of common 30A heavy-duty

switches with “J” fuse clips

factory installed is shown on

Page V2-T1-18 (field

modification kits are not

available for 30A heavy-

duty switches).

Ampere

Rating Voltage

30 240 and 600

60 240 and 600

100 240 and 600

200 240 and 600

400 240 and 600

600 240 and 600

Ampere

Rating Voltage

200 240

600

400 240

600

600 240

600

800 240

600

1200 240

600

Ampere

Rating Voltage

Switch

Type

30 240 Heavy-duty and

double-throw

600 Heavy-duty and

double-throw

60 240 Heavy-duty and

double-throw

600 Heavy-duty and

double-throw

100 240 Heavy-duty and

double-throw

600 Heavy-duty and

double-throw

200 240 Heavy-duty and

double-throw

600 Heavy-duty and

double-throw

400 600 Double-throw

600 240 Heavy-duty

600 Heavy-duty

V2-T1-18 Volume 2—Commercial Distribution CA08100003E—April 2016 www.eaton.com

1.1

Switching Devices

Safety Switches

Common 30A Heavy-Duty

Switches with “J” Fuse

Clips Factory Installed

To order, add Suffix J to

the standard catalog number

(catalog number identifies

voltage). Total price is the

standard catalog number

price plus the price adder

depending on the number

of safety switch poles.

Example: DH363FGKJ heavy-

duty, three-pole, 200A fusible

switch at 480V with factory-

installed Class “J” fuse clips.

12. Fuse Pullers

Factory Installed

Item 12

To order, add Suffix FE to

the standard catalog number.

Example: DH361FRKFE.

Note: Standard NEMA 12/3R,

4 and 4X switches through

200A are supplied with fuse

pullers from the factory.

13. Special Crimp Lug

Pads Factory Installed for

General-Duty and Heavy-

Duty Switches (Crimp

Lugs are Not Included)

To order add Suffix CK

to the standard safety

switch catalog number.

Item 13

Heavy-duty Type DH

switches, 30–200A are

adaptable to crimp lugs,

simply remove the box lugs.

14. Copper Lugs

Factory Installed

Item 14

To order, add Suffix CL to the

standard safety switch catalog

number. The total price is the

standard switch price plus the

price adder.

Example: DH221FGKCL

heavy-duty, two-pole, 30A

fusible switch at 240V with

copper lugs factory installed.

15. Equipment Ground Lugs

Factory Installed for

General-Duty and Heavy-

Duty Switches

Item 15

To order, add Suffix G to the

standard Safety Switch Catalog

Number. The total price is the

standard switch price plus the

price adder.

Voltage

Switch Type

Three-Pole

Catalog

Number

240 NEMA 1 DH321FGKJ

NEMA 3R DH321FRKJ

NEMA 12 DH321FDKJ

NEMA 4X DH321FWKJ

600 NEMA 1 DH361FGKJ

NEMA 3R DH361FRKJ

NEMA 12 DH361FDKJ

NEMA 4X DH361FWKJ

Ampere

Rating

Switch

Type

30–60 Heavy-duty

100 Heavy-duty

200 General-duty and heavy-duty

Ampere Rating

400–600

800

Ampere

Rating

Switch

Type

30 Heavy-duty

Double-throw

60 Heavy-duty

Double-throw

100 Heavy-duty

Double-throw

200 Heavy-duty

400 General-duty and heavy-duty

600 General-duty and heavy-duty

Ampere Rating

30–100

200

400–1200

16. Custom Lug

Configurations

Customer-specified lug

arrangements are available on

heavy-duty and double-throw

safety switches. Contact the

Safety Switch Flex Center for

price and lead-time.

17. Auxiliary Contacts

Factory Installed Provide

Early-Make/Early-Break

Operation

Item 17

To order 1NO/1NC

contacts, add Suffix 2

to the standard safety

switch catalog number.

To order 2NO/2NC

contacts, add Suffix 3

to the standard safety

switch catalog number.

The total price is the

standard switch price plus the

price adder.

Example: DH423FGK2

Heavy-duty, four-pole, 100A

fusible switch at 240V with

factory-installed 1NO/1NC

contacts.

Example: DT324FGK22

double-throw, three-pole,

200A fusible switch at 240V

with two factory-installed

contacts (one installed in

the normal ON position and

one installed in the auxiliary

ON position).

18. Control Pole Factory

Installed Provides

Late-Make/Early-Break

Operation

The K-Series control pole

provides one normally open

contact, late-make, early-

break operation. It mounts in

the exact location as the

neutral block using the same

pre-drilled holes. This is

directly connected to the

power pole operating shaft.

Direct connection and visible

blades provide more secure

electrical interlocking than

handle linkage operation of a

snap/switch type interlock.

This reliability meets the

requirements of many

specifications for four-pole

switches when the fourth

pole is required for secure

electrical interlocking.

Item 18

To order, add Suffix CP to

the standard safety switch

catalog number. The total price

is the standard switch price

plus the price adder.

Example: DH267FGKCP

heavy-duty, two-pole, 800A

fusible switch at 480V with

factory-installed control pole.

General-Duty Switches 200–600A,

Non-Metallic 30–200A,

Heavy-Duty 30–1200A

and

Double-Throw Switches 30–800A

Ampere

Rating Description

30–200 1NO/1NC

2NO/2NC

400–1200 1NO/1NC

2NO/2NC

Ampere

Rating

Switch

Type

30–1200 Heavy-duty

30–200 Double-throw

400–600 General-duty

Volume 2—Commercial Distribution CA08100003E—April 2016 www.eaton.com V2-T1-19

1.1

Switching Devices

Safety Switches

19. Switching Neutral

Double-Throw

UL listed for three-pole and

four-pole non-fusible double-

throw safety switches.

Switching neutrals are

required for separately

derived systems when

bonding the neutral of the

generator to a grounding

system at the generator.

Item 19

To order, add Suffix SN to

the standard safety switch

catalog number. The total

price is the standard switch

price plus the price adder.

Example: DT324URKSN

non-fusible double-throw,

three-pole, 200A switch

with factory-installed

switching neutral.

20. Neutral Assemblies

Factory Installed for

Single-Throw Non-Fusible

Safety Switches

Available on 200–600A

general-duty safety switches

and 30–1200A heavy-duty

safety switches.

Item 20

To order, add Suffix N to

the standard safety switch

catalog number.

Example: DH364UWKN

Heavy-duty, three-pole, 200A,

NEMA 4X.

21. How to Order

Step One: Contact the Safety

Switch Flex Center for price

and delivery on product being

modified. An authorized

negotiation (TSP) number

will be provided to track

your order.

Safety Switch Flex Center

Phone: 1-888-329-9272 or

FlexSwitches@eaton.com

Fax: 1-423-478-0270

Step Two: Enter the order on

VISTALINE™ by description

(with catalog number if it

applies) and reference the

authorized negotiation

(TSP) number.

Vista suffix will be “ETS.”

Product code will be “BE90.”

For order entry assistance,

contact CSC at:

Phone: 1-800-356-1243

Fax: 1-800-752-8602

22. How to Price

Step One: Select catalog

number from Pages V2-T1-

14 through V2-T1-83 of this

catalog or Vista of the switch

that needs to be modified.

Step Two: Use the correct

price (from Vista or the

current Price and Availability

Digest) of the switch that

needs to be modified. If no

price exists, Flex Center will

provide one.

Step Three: Refer to the

modification on Pages V2-T1-

16 through V2-T1-19 for price

additions.

Example: DT363URK

Options: factory installed

Neutral (N)

Copper lugs (CL)

(3 x 120.00)

Step Four: Contact the

Safety Switch Flex Center

for authorized price and

lead-time.

Note: Existing DSP, CSP and DOP

pricing does not apply.

For application, availability or

pricing questions, contact the

Safety Switch Flex Center at

1-888-329-9272 or

FlexSwitches@eaton.com.

Additional Safety Switch Flex

Center Design Offerings

●Left-hand design

(30–200A)

●Cover-mounted status

lights and selector

switches

●Integrated:

●Transient Voltage Surge

Suppression (TVSS)

●Current transformers

●Double-throw

receptacle switches

●200% neutrals

●Seam-welded

stainless steel

●Gang-operated kits:

●Mechanically interlocks

two or three separate

switches

●Cam-Lok® and Posi-Lok®

receptacles

●Reverse feed

●Integrated wattmeter

●Custom enclosures

●Double-throw switches

with windows

●316 grade stainless steel

●Breather/drains

●Voltage/phase monitor

Literature

The Safety Switch Flex

Center’s innovative approach

to flexible engineering,

manufacturing and customer

service provides the shortest

production, design and

delivery cycle in the industry.

Find out more about how the

Safety Switch Flex Center

can give you the safety

switch solution you

need...when you

need them.

Order Sales Aid SA00801002E

from Eaton’s Literature

Fulfillment Center by calling

1-800-957-7050.

Ampere Rating

30–200

400

600

800

Ampere Rating

30–60

100

200 NEMA 4, 4X, 12

200 NEMA 1, 3R

400

600

800

1200

V2-T1-20 Volume 2—Commercial Distribution CA08100003E—April 2016 www.eaton.com

1.1

Switching Devices

Safety Switches

Technical Data and Specifications

Standard Lug Capacities

Notes

1Single barrel lug that accepts one or two cables per phase as detailed above.

2The maximum size aluminum or copper-clad aluminum wire allowable for applications where the conductor enters

or leaves the enclosure through the wall opposite its terminal is #1 gauge.

3Double barrel lug that accepts two cables per phase as detailed above.

Although certain lug capacities are larger than required, only minimum wire bending space is provided per the

requirements noted in NEC® Tables 373.6 (a) and (b) for respective ampere ratings.

A factory-installed ground lug is supplied in all heavy-duty safety switches.

Description

Minimum

Wire Size

Maximum

Wire Size Wire Type

30A DP #14

#12

#10

Cu or 1

30A DG #14 #6 Cu/Al

30A DH, DT #14 #2 Cu/Al

60A DG #14 #1/0 Cu/Al

60A DH, DT #14 #2 Cu/Al

100A DG 2#14 #1/0 Cu/Al

100A DH, DT #14 #1/0 Cu/Al

200A DG, DT #6 250 kcmil Cu/Al

200A DH Type 1 and 3R #6 250 kcmil Cu/Al

200A DH Type 4 and 12 #6 300 kcmil Cu/Al

400A DG, DH, DT (2) #1/0

(1) #1/0

(2) 300 kcmil

(1) 750 kcmil

Cu/Al or 1

Cu/Al

600A DG, DH (1) #2

(1) #1/0

(1) 600 kcmil

(1) 750 kcmil

Cu/Al and 3

Cu/Al

600A non-fusible DT (2) #250 (2) 500 kcmil Cu/Al

800A DH (4) #1/0 (4) 750 kcmil Cu/Al

800A DT, 600A fusible DT (3) #250 (3) 500 kcmil Cu/Al

1200A DH, DT (4) #1/0 (4) 750 kcmil Cu/Al

Copper-Bodied Lugs

30A Cu #14 #6 Cu

60A Cu #14 #4 Cu

100A Cu #6 #1/0 Cu

200A Cu #6 250 kcmil Cu

400A Cu #1/0 500 kcmil Cu

600–800A Cu (2) #1/0 (2) 500 kcmil Cu

Volume 2—Commercial Distribution CA08100003E—April 2016 www.eaton.com V2-T1-21

1.1

Switching Devices

Safety Switches

General-Duty

Short-Circuit Ratings Using Class “R”, “J” or “T” Fusing

Where Applicable 1

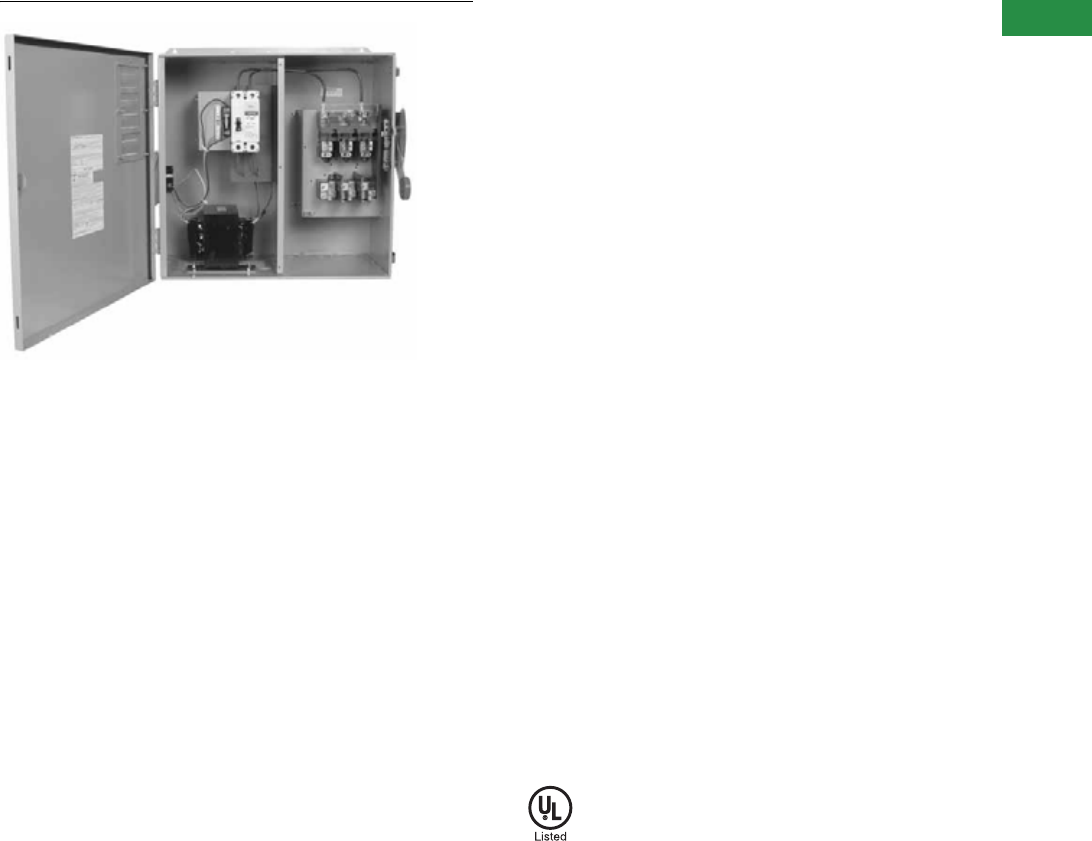

Shunt Trip Safety Switch

Short-Circuit Ratings Using Class “R,” “J/L” or “T” Fusing 2

Heavy-Duty

Short-Circuit Ratings Using Class “R,” “J” or “T” Fusing

Where Applicable 1

Double Throw

Short-Circuit Ratings Using Class “R,” “J” or “T” Fusing

where Applicable 45678

Notes

1Class “H” fuse clips supplied as standard for 30–600A. Rated at 10,000A rms symmetrical

when using Class “H” fuses.

2Non-fusible values are based on combination rating with upstream device

(see TD00801005E).

3Class “L” fuse connectors supplied as standard for 800A and 1200A.

4Class “H” fuse clips supplied as standard for 30–600A, except Class “T” for 400A at 600V

and 600A at 240V. Rated at 10,000A rms symmetrical when using Class “H” fuses.

5Class “L” fuse connectors supplied as standard for 800A and 1200A.

6Safety switch short-circuit ratings are applicable to AC only.

7Safety switch I2t and Ip values are identical to UL maximum acceptable I2t and Ip values for

the corresponding class fuse.

8Table above is not applicable to the compact design shown on Page V2-T1-47. The compact

design is suitable for use on a circuit capable of delivering not more than 10,000 rms

symmetrical amperes.

Ampere

Rating

Short-Circuit Ratings (Amperes)

Type 1 Type 3R

30 100k at 240V 100k at 240V

60 100k at 240V 100k at 240V

100 100k at 240V 100k at 240V

200 100k at 240V 100k at 240V

400 100k at 250V 100k at 250V

600 100k at 250V 100k at 250V

Ampere

Rating 480V 600V

30 200 kAIC 200 kAIC

60 200 kAIC 200 kAIC

100 200 kAIC 200 kAIC

200 200 kAIC 100 kAIC

400 200 kAIC 100 kAIC

600 200 kAIC 100 kAIC

800 200 kAIC 200 kAIC

Ampere

Rating

Short-Circuit Ratings (Amperes)

Type 1 Type 3R Type 12 Type 4 and 4X

30 200k at 600V 200k at 600V 200k at 600V 200k at 600V

60 200k at 600V 200k at 600V 200k at 600V 200k at 600V

100 200k at 480V

100k at 600V

200k at 480V

100k at 600V

200k at 600V 200k at 600V

200 200k at 600V 200k at 600V 200k at 600V 200k at 600V

400 200k at 480V

100k at 600V

200k at 480V

100k at 600V

200k at 480V

100k at 600V

200k at 480V

100k at 600V

600 200k at 480V

100k at 600V

200k at 480V

100k at 600V

200k at 480V

100k at 600V

200k at 480V

100k at 600V

800 3200k at 480V

100k at 600V

200k at 480V

100k at 600V

200k at 480V

100k at 600V

200k at 480V

100k at 600V

1200 3200k at 600V 200k at 600V 200k at 600V 200k at 600V

Ampere

Rating

Short-Circuit Ratings (Amperes) (600V)

Type 1 Type 3R Type 12 Type 4 and 4X

30 100k 100k 100k 100k

60 100k 100k 100k 100k

100 100k 100k 100k 100k

200 100k 100k 100k 100k

400 100k 100k 100k 100k

600 100k 100k 100k 100k

800 100k 100k — —

1200 100k 100k — —

V2-T1-22 Volume 2—Commercial Distribution CA08100003E—April 2016 www.eaton.com

1.1

Switching Devices

Safety Switches

Short-Circuit Ratings of Non-Fusible Switches

The UL listed short-circuit

ratings for Eaton non-fusible

switches are based on the

switches being properly

protected by overcurrent

protective devices. For

applications that require a UL

listed short-circuit rating of

10,000 rms symmetrical

amperes or less, an Eaton

non-fusible switch must be

properly protected by any

overcurrent protective device

rated no greater than the

ampere rating of the switch.

For applications that require a

UL listed short-circuit rating

of greater than 10,000 rms

symmetrical amperes, an

Eaton non-fusible switch

must be properly protected

by the appropriate class and

size fusing noted. Otherwise,

this non-fusible switch must

be replaced with an Eaton

fusible switch that uses the

appropriate fusing required.

Molded-case circuit breaker

protection of non-fusible

Eaton switches for

applications that require a

short-circuit rating of greater

than 10,000 rms symmetrical

amperes has been evaluated

and is summarized below.

Refer to the reference tables

for typical Eaton fusible

switch UL listed short-circuit

ratings.

UL Recognized Safety Switch/Circuit Breaker

Series-Connected Ratings

Safety

Switch

Ampere

Rating

Maximum

System

Voltage AC

Circuit Breaker

Maximum

Short-Circuit

Rating (rms

Symmetrical)

Circuit Breaker

Frame(s)

30 and

600 25,000

18,000

14,000

FDC, HFD, HFDE, EGH

FD, EGE

FDB

100 600 25,000

18,000

14,000

FDC, HFD, HFDE, EGH

FD, EGE

FDB

480 35,000 EGH, EGS

200 600 25,000

18,000

14,000

FDC, HFD, HFDE, HJD, JGH

FD, JD, JGE

FDB

480 65,000 HFD, HFDE, HJD, JGH

Volume 2—Commercial Distribution CA08100003E—April 2016 www.eaton.com V2-T1-23

1.1

Switching Devices

Safety Switches

Product Enhancement

Eaton non-fusible safety

switches, per table below,

within the noted ampere

ratings, now carry series

combination short-circuit

ratings as shown when

combined with the identified

MCCB or fuse type. With this

listed rating, the safety

switch shown in the one-line

diagram, can be correctly

applied when the motor

feeder Eaton HMCP circuit

breaker is replaced with an

Eaton molded-case circuit

breaker properly sized for the

motor hp rating. This is a

significant enhancement to

the product’s performance

rating. To achieve these

ratings, the switches have

been tested in combination

with all of the overcurrent

devices shown. Furthermore,

the applicable combination

ratings are marked on the

inside of the switch door,

ensuring inspector approval.

One-Line Diagram

Transformer Fused Switch

Overload Fuse Links, 15.5 kV

125A

PPower Transformer

2500 kVA 12,470/

480V 5.75% Z

Bus Duct–0001

1–#3200, 5 ft

Utility 12,470V

SC 3P 100 MVA

Main Switchgear

Eaton Magnum DS,

DT 520

3000A/3000A

MCC3 FDR

Magnum DS,

DT 520

800A/800A

MCC1 FDR

Magnum DS,

DT 520

800A/800A

Cable–0001

2–#500, 35 ft

MCC1

480V

32.91 kA

MTR FDR

HMCP

MTR O/L

Class 20

Cable–0002

1–#4, 50 ft

Motor Disconnect

480V

13.5 kA

Motor

50 hp

MCC2 FDR

Magnum DS,

DT 520

800A/800A

MTR FDR

HMCP

MTR O/L

Class 20

MTR FDR

HMCP

MTR O/L

Class 20

LV Motor Control Center

LV Switchgear

Main

Switchgear

480V

36.66 kA

Information and Application

The circuit breaker or fuse

rating is not to exceed the

ampere rating of the non-

fusible switch. When used on

systems with greater than

10 kA short-circuit rating

available, the UL Listed short-

circuit rating of the non-

fusible switch is based upon

the switch being used in

combination with fuses or

molded-case circuit breakers

identified in the table below.

Non-Fusible Safety Switches

Notes

1For use on NEMA 1, 3R, 12/3R and 4X switches.

2Fuse or circuit breaker rating is not to exceed switch rating.

3NEMA 12, 4/4X only. NEMA 1, 3R are 100 kAIC at 600 Vac.

Eaton Non-Fusible

Safety Switch

Ampere Rating 1

Maximum

System

Voltage AC

Maximum

Short-Circuit

Rating

Upstream Device 2

Fuse Class Breaker Frame

30 and 60 600 10,000 H, K Any circuit breaker

14,000 FDB

18,000 FD, EGE

25,000 FDC, HFD, HFDE, EGH

200,000 R, T, J, L

100 480 10,000 H, K Any circuit breaker

35,000 EGH, EGS

200,000 R, T, J, L

600 10,000 H, K Any circuit breaker

14,000 FDB

18,000 FD, EGE

25,000 FDC, HFD, HFDE, EGH

200,000 3R, T, J, L

200 480 10,000 H, K Any circuit breaker

65,000 HFD, HFDE, HJD, JGH

200,000 R, T, J, L

600 10,000 H, K Any circuit breaker

14,000 FDB

18,000 FD, JD, JGE

25,000 FDC, HFD, HFDE, HJD, JGH

200,000 R, T, J, L

V2-T1-24 Volume 2—Commercial Distribution CA08100003E—April 2016 www.eaton.com

1.1

Switching Devices

Safety Switches

Dimensions

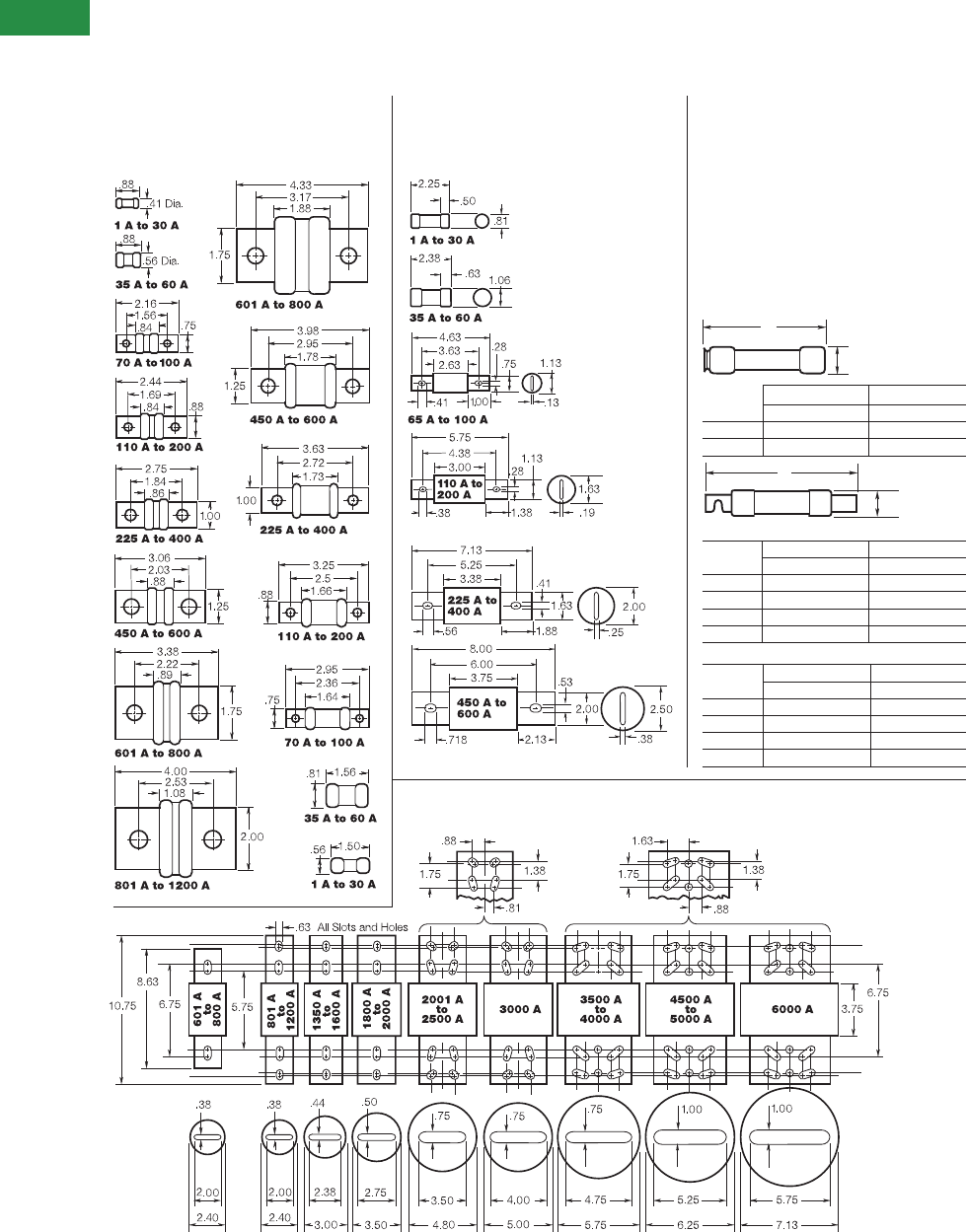

Typical Fuse Dimensions in Inches

Note: For typical fuse dimensions in millimeters, see Page V2-T1-25.

250V 600V

Ampere A B A B

1/10–30 2.00 0.56 5.00 0.81

35–60 3.00 0.81 5.50 1.06

250V 600V

Ampere A B A B

70–100 5.88 1.06 7.88 1.34

110–200 7.13 1.56 9.63 1.84

225–400 8.63 2.06 11.63 2.59

450–600 10.38 2.59 13.38 3.13

250V 600V

Ampere A B A B

110–200 7.13 1.66 9.63 1.66

225–400 8.63 2.38 11.63 2.38

450–600 10.38 2.88 13.38 2.88

T-Tron™ Fuses

JJN (300V) JJS (600V)

Class J Class RK5 and RK1, Class H

(Dimensions Apply)

Low-Peak

and Limitron

Fuses

LPJ & JKS (600V)

Class L

Low-Peak and Limitron Fuses

KRP-C, KTU & KLU (601–4000A) (600V)

Note: KRP-CL (150–600A) fuses

have same dimensions as 601–800A

case size. KTU (200–600A) have

same dimensions, except tube

3-inch lgth. x 2-inch dia.; terminal

1.63-inch width x 1.25-inch thick.

Class T

Fusetron

, Low-Peak and

Limitron Fuses (250 and 600V)

FRN-R and FRS-R; LPN-RK

and LPS-RK; KTN-R and KTS-R

Basic dimensions are same as Class H

(formerly NEC) ONE-TIME (NON and NOS)

and SUPERLAG Renewable RES and

REN fuses.

Note: These fuses can be used to replace

existing Class H, RK1 and RK5 fuses relating

to dimensional compatibility.

70–100 5.88 1.16 7.88 1.16

Low-Peak

Fusetron and Limitron

Volume 2—Commercial Distribution CA08100003E—April 2016 www.eaton.com V2-T1-25

1.1

Switching Devices

Safety Switches

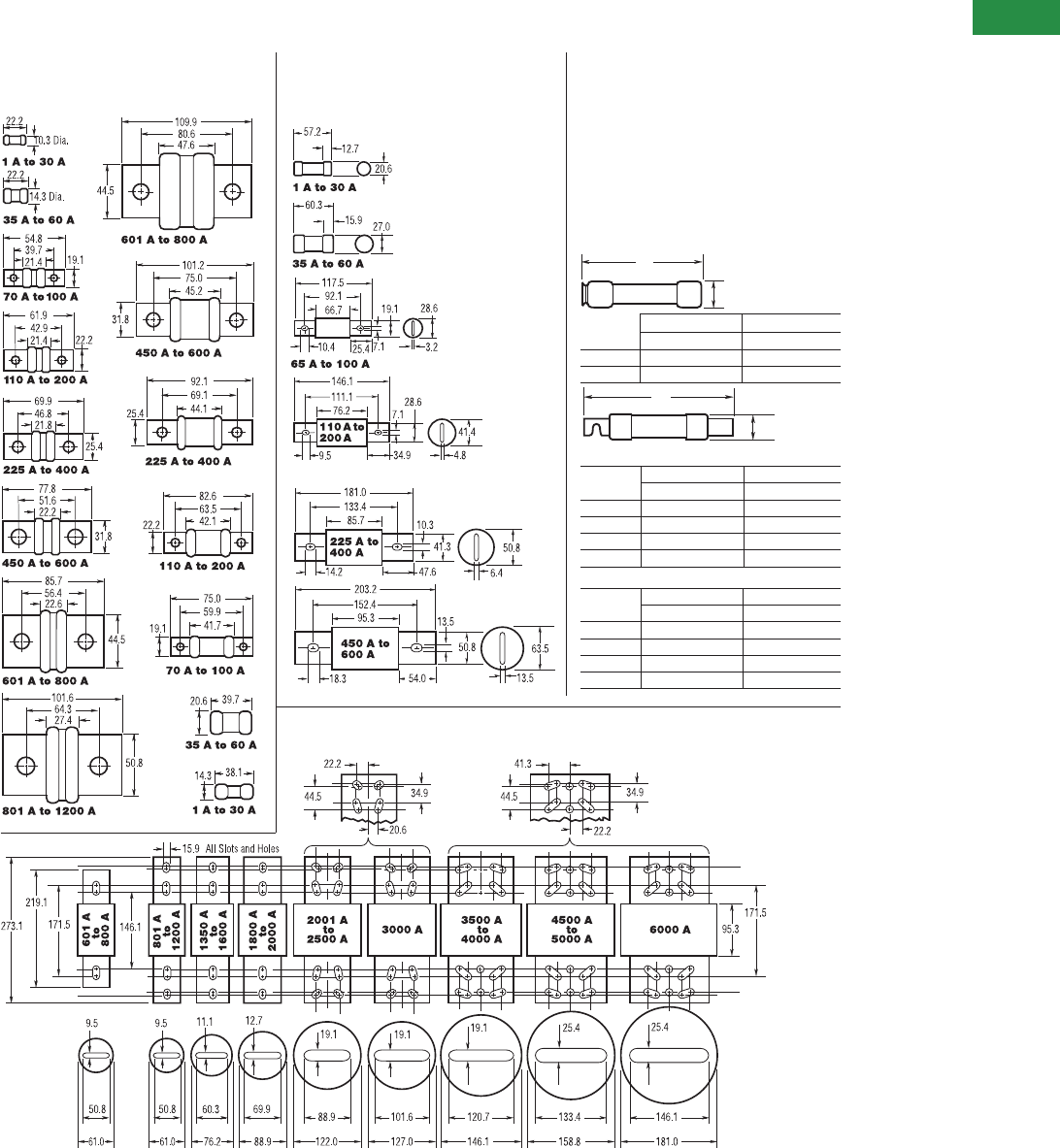

Typical Fuse Dimensions in Millimeters

T-Tron Fuses

JJN (300V) JJS (600V)

Class J

Low-Peak and Limitron Fuses

LPJ and JKS (600V)

Class L Low-Peak and Limitron Fuses

KRP-C, KTU and KLU (601–4000A) (600V)

Note: KRP-CL (150–600A) fuses

have same dimensions as 601–800A

case size. KTU (200–600A) have

same dimensions, except tube

76.2 mm lgth. x 50.8 mm dia.; terminal

41.3 mm width x 31.8 mm thick.

250V 600V

Ampere A B A B

1/10–30 50.8 14.3 127.0 20.6

35–60 76.2 20.6 139.7 27.0

250V 600V

Ampere A B A B

70–100 149.2 26.9 200.0 34.0

110–200 181.0 39.6 244.5 46.7

225–400 219.1 52.3 295.3 65.8

450–600 263.5 65.8 339.7 79.5

250V 600V

Ampere A B A B

70–100 149.2 29.5 200.0 29.5

110–200 181.0 42.2 244.5 42.2

225–400 219.1 60.5 295.3 60.5

450–600 263.5 73.2 339.7 73.2

Class T

Fusetron, Low-Peak and

Limitron Fuses (250 and 600V)

FRN-R and FRS-R; LPN-RK

and LPS-RK; KTN-R and KTS-R

Basic dimensions are same as Class H

(formerly NEC) ONE-TIME (NON and NOS)

and SUPERLAG Renewable RES and REN fuses.

Note: These fuses can be used to replace

existing Class H, RK1 and RK5 fuses relating

to dimensional compatibility.

Fusetron and Limitron

Low-Peak

V2-T1-26 Volume 2—Commercial Distribution CA08100003E—April 2016 www.eaton.com

1.1

Switching Devices

Safety Switches

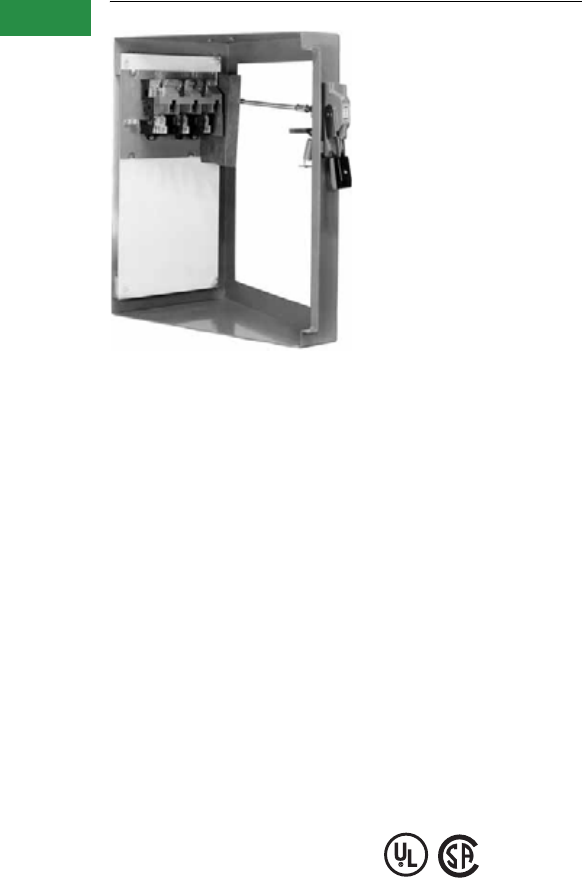

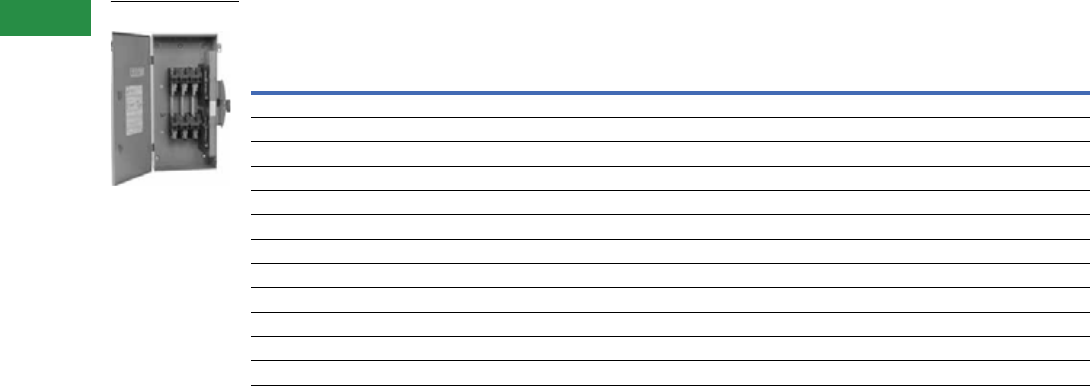

Cartridge Fuse General-Duty Safety Switch

Contents

Description Page

Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-3

General Duty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-26

Standards and Certifications . . . . . . . . . . . . . . . . . V2-T1-27

Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-28

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-30

Heavy-Duty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-31

Six-Pole Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-43

Double-Throw Switches . . . . . . . . . . . . . . . . . . . . . . . V2-T1-45

EnviroLine—Stainless Steel Switch . . . . . . . . . . . . . . V2-T1-53

EnviroLine—Upper and Lower Window Switches . . . V2-T1-56

EnviroLine—Receptacle Switches . . . . . . . . . . . . . . . V2-T1-59

EnviroLine—Non-Metallic KRYDON Switch . . . . . . . . V2-T1-61

Shunt Trip Safety SwitchShunt Trip Safety Switch . . . V2-T1-63

NEMA 7/9—Hazardous Location Disconnect Switch . V2-T1-66

Quick Connect Switches. . . . . . . . . . . . . . . . . . . . . . . V2-T1-68

Solar Disconnect Switch . . . . . . . . . . . . . . . . . . . . . . . V2-T1-70

316-Grade Stainless Steel Safety Switches . . . . . . . . V2-T1-72

Mill-Duty Rated, Heavy-Duty, Fusible, Non-Fusible,

Single-Throw. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V2-T1-76

Heavy-Duty Fusible Safety Switches Accepting

Cube Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

V2-T1-78
