Reference guide and pricebook July 2013
Pricebook
Reference guide
and pricebook
Prices effective
July 1, 2013
Eaton 5P UPS
Eaton
1000 Eaton Boulevard
Cleveland, OH 44122
United States
Eaton.com
8609 Six Forks Road
Raleigh, NC 27615
United States
Toll Free: 1.800.356.5794
Eaton.com
© 2013 Eaton
All Rights Reserved
Printed in USA
Publication No. SLT02LTA / BC-175
June 2013
Learn more at
powerquality.eaton.com
1.800.356.5794
Eaton is a registered trademark.
All other trademarks are property
of their respective owners.
OVERVIEW OF REVISIONS
ADDED:
• Eaton5PUPSrackmount
• Eaton5PUPStower
• Eaton5SUPStower
• EatonPowerXpertInsightE
UPDATED:
• Eaton5115rackmountUPSmovedtotransitionproductspage
• EatonEvolutionTUPSmovedtotransitionproductspage
• Eaton5125UPStowermovedtotransitionproductspage
• EatonS-Seriesrackoptions
• EatonPowerXpertInsightdevicecountupgrades
• Single-phaseservice
• Extendedwarrantypricing
BATTERY REPLACEMENT
Forbatteries,refertotheEaton Battery Replacement PricebooklocatedonEaton’sPowerQuality
Website.
PRODUCT REGISTRATION
Registeryourproductat:Eaton.com/PQ/Register
1
Introduction
Input Plug and Output Receptacle Chart .............................................................................................................................................................................................. 3
Ordering Information, Parts, Accessories and Current List Pricing
Eaton Power Distribution, Monitoring and Enclosures
ePDUs ............................................................................................................................................................................................................................................... 5
Eaton Automatic Transfer Switches ............................................................................................................................................................................................. 8
Eaton HotSwap Maintenance Bypass (MBP) ........................................................................................................................................................................... 8
ePDU Cables . ................................................................................................................................................................................................................................... 9
Eclipse Surge Suppressors ......................................................................................................................................................................................................... 10
Eaton S-Series Rack ...................................................................................................................................................................................................................... 11
Environmental Rack Monitor (ERM) ........................................................................................................................................................................................... 14
Remote Power Panel (RPP) ......................................................................................................................................................................................................... 16
Power Distribution Rack (PDR) ................................................................................................................................................................................................... 20
Eaton Branch Circuit Breakers ................................................................................................................................................................................................... 22
Eaton Energy Management System Upgrade Kit ..................................................................................................................................................................... 23
UL Listed Power Distribution Cables . ........................................................................................................................................................................................ 24
Single-phase Products
Catalog Number Ordering Instructions for Single-phase Products .................................................................................................................................................... 27
Single-phase (Standby)
Eaton 3S UPS (350–750 VA) .......................................................................................................................................................................................................... 28
Single-phase (Line-interactive)
Eaton 5110 UPS (500–1500 VA) .................................................................................................................................................................................................... 29
Eaton 5S UPS (550–1500 VA) ........................................................................................................................................................................................................ 30
Eaton 5115 UPS Tower (500–1400 VA) ........................................................................................................................................................................................ 31
Eaton Transition Line-Interactive UPS Products ...................................................................................................................................................................... 32
Eaton 5P UPS Rackmount (550–3000 VA) .................................................................................................................................................................................. 33
Eaton 5P UPS Tower (750–3000 VA) .......................................................................................................................................................................................... 35
Eaton 5PX UPS Rack/Tower (1000–3000 VA) ............................................................................................................................................................................. 37
Single-phase (Online)
Eaton EX UPS (700–3000 VA)........................................................................................................................................................................................................ 38
Eaton 9130 UPS Rack (700–3000 VA) .......................................................................................................................................................................................... 41
Eaton 9130 UPS Tower (700–3000 VA) ........................................................................................................................................................................................ 44
Eaton 9PX UPS Rack/Tower (5–6 kVA) ....................................................................................................................................................................................... 46
Eaton 9PX UPS Rack/Tower (8–11kVA) ...................................................................................................................................................................................... 48
Eaton 9155 UPS (8–15 kVA) .......................................................................................................................................................................................................... 50
Eaton 9170+ UPS Rack/Tower (3–18 kVA) .................................................................................................................................................................................. 53
Series FERRO
Eaton FERRUPS FE UPS 60 Hz (500–3100 VA) .......................................................................................................................................................................... 58
Eaton FERRUPS UPS Rack Series (1.4 kVA–7 kVA) ................................................................................................................................................................. 60
Eaton FERRUPS UPS External Options & Accessories .......................................................................................................................................................... 61
(table of contents continued on next page)
REFERENCE GUIDE AND PRICEBOOK
Table of Contents
2EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
REFERENCE GUIDE AND PRICEBOOK
Table of Contents (continued)
Ordering Information, Parts, Accessories and Current List Pricing (continued)
Three-phase (Double-conversion)
Eaton BladeUPS (12–60 kW) ....................................................................................................................................................................................................... 63
Eaton 9355 UPS (10–15 kVA) ....................................................................................................................................................................................................... 71
Eaton 9355 UPS (20–30 kVA) ....................................................................................................................................................................................................... 74
Eaton Emergency Lighting UPS (10–30 kVA) ............................................................................................................................................................................ 77
Eaton 9E UPS (20–60 kVA) ........................................................................................................................................................................................................... 78
Eaton 9390IT UPS (40–160 kVA) .................................................................................................................................................................................................. 81
Additional Products
Ultra-isolator Noise Suppressors .............................................................................................................................................................................................. 85
Power Conditioners ...................................................................................................................................................................................................................... 86
Metering Products ........................................................................................................................................................................................................................ 90
Software Products ...................................................................................................................................................................................................................... 109
Connectivity Products ................................................................................................................................................................................................................ 110
Surge Protection Products – PSPD Series ............................................................................................................................................................................ 112
Surge Protection Products – PSPV Series ............................................................................................................................................................................ 117
Surge Protection Devices ......................................................................................................................................................................................................... 118
Services
Single-phase Service Plans Overview .................................................................................................................................................................................... 120
Single-phase Service Plans ...................................................................................................................................................................................................... 121
Three-phase Service Plans Overview .................................................................................................................................................................................... 124
Three-phase Service Plans ...................................................................................................................................................................................................... 124
Time and Material Service Rate Schedule ............................................................................................................................................................................. 127
RMA Policy and Product Warranties
Sales Returned Merchandise Authorization (RMA) Policy ................................................................................................................................................. 128
Product Warranty Statements .................................................................................................................................................................................................. 129
Notes: Due to continuing product improvement programs, all specifications and prices are subject to change without notice.
With the exception of batteries, any UPS parts or parts kit pricing that is included in this reference guide is based on a concurrent purchase of a new unit(s). Pricing for parts or parts kits
purchases made separately from a concurrent unit purchase must be obtained from the Eaton Customer Support Center at 800.356.5737.
July 1, 2013
3www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013

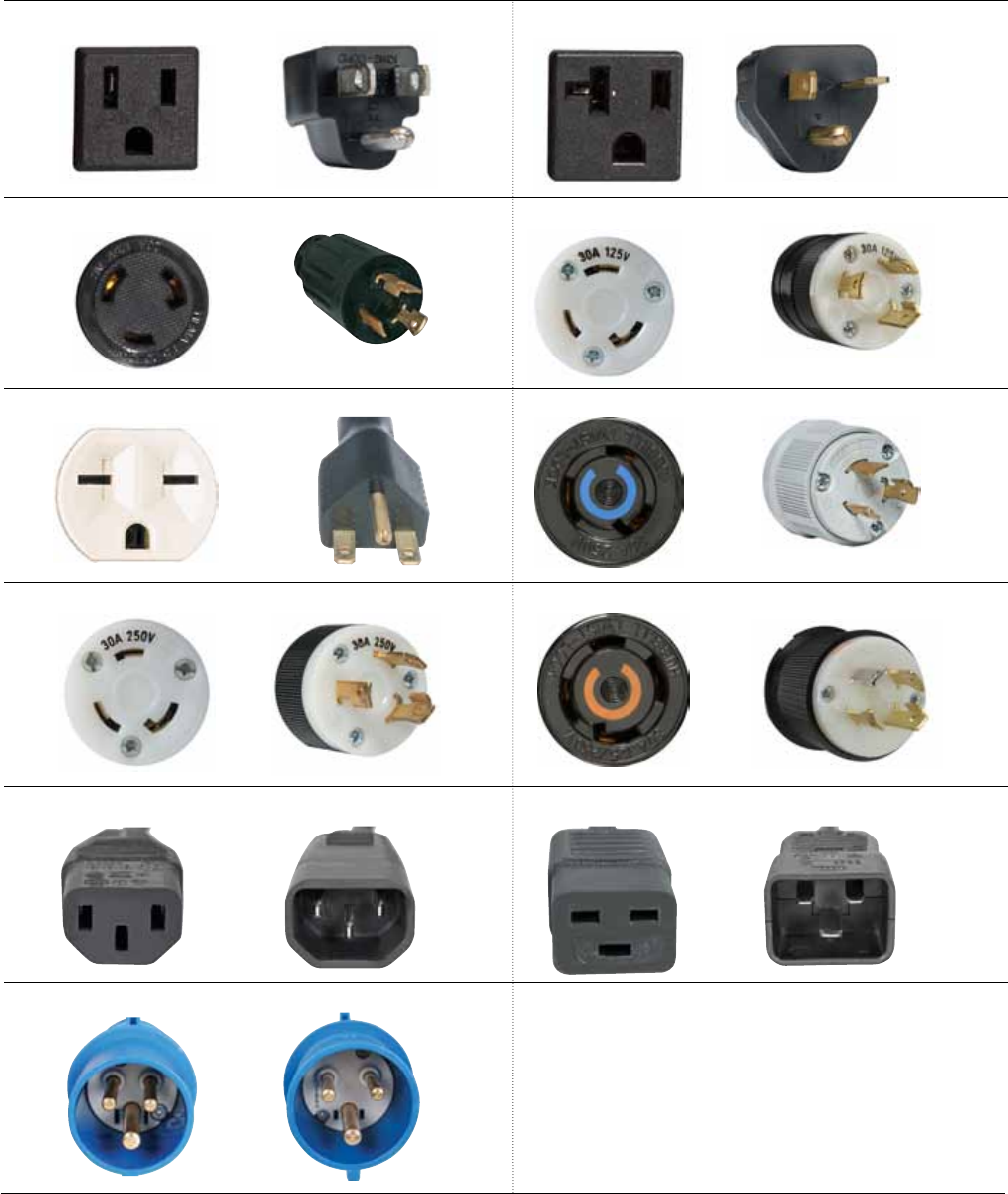

RECEPTACLE CHART
Input Plug and Output Receptacle Chart
5-15R 5-15P 5-20R 5-20P
L5-20R L5-20P L5-30R L5-30P
6-15R 6-15P L6-20R L6-20P
IEC-309, 16A IEC-309, 32A
L6-30R L6-30P L14-30R L14-30P
R indicates receptacle
P indicates plug
L indicates locking plug or receptacle
IEC-320-C13 (female) IEC-320-C14 (male) IEC-320-C19 (female) IEC-320-C20 (male)
4EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
Eaton ePDU Catalog Numbering System
PW 1 04 BA 0U 006
Function / Communications
BA = Basic
MI = Ethernet Monitored
SW = Switched
Branding
PW = Eaton series
Form Factor
OU, 1U, 2U
Unique Three-digit Model Identifier
001-999 Unique for every model
Note that alphas signify international part
numbers
Input Phase
1 = Single- / Split-phase
3 = Three-phase
Max kW Rounded
Two characters, 01- 23
Eaton's smart part numbers help our customers understand our numbering system.
Follow the example below to see what the letters and numbers mean within our ePDU catalog numbers.
Eaton has introduced new part numbers to our product link. Please see details below:
ePBZ
BZ = Basic
eMA
MA = Managed
eAM
AM = Advanced Monitored
July 1, 2013
5www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
ePDUs
ePDUs feature the broadest portfolio in the industry across all power densities and technologies
to satisfy the needs of every data center.
• Vertical OU or horizontal 1U/2U configurations
• Five technologies: Basic, Monitored, Advanced Monitored, Switched and Managed
• Custom designs upon request
ePDUs
Catalog Max. Cord Input Output Dimensions List
Number kW Function Length (ft) Plug Receptacles (H x W x D, inches) Price
Basic ePDUs–Designed for reliable and cost effective power distribution; basic ePDUs have the form factor and receptacle choices to meet the needs of demanding data center architects.
Horizontal Mount Models
ePBZ78 2.88 BA 15 L5-30P (20) 5-20R 1.7 x 17.0 x 3.5 $259
ePBZ79 4.99 BA 15 L6-30P (16) C13, (4) C19 1.7 x 17.0 x 5.1 $259
ePBZ82 1.92 BA 15 L5-20P/5-20P* (12) 5-20R 1.7 x 17.3 x 2.3 $148
ePBZ83 1.44 BA 15 5-15P (12) 5-15R 1.7 x 17.3 x 2.3 $99
ePBZ84 2.88 BA 10 L5-30P (10) 5-20R 1.7 x 17.0 x 3.5 $226
ePBZ85 1.92 BA 10 5-20P (12) 5-20R 1.7 x 17.3 x 2.3 $119
ePBZ86 1.44 BA 10 5-15P (12) 5-15R 1.7 x 17.3 x 2.3 $99
ePBZ88 3.33 BA 6 C20 (10) C13, (2) C19 1.7 x 19.0 x 2.4 $129
ePBZ91 4.99 BA 10 L6-30P (10) C13 1.7 x 17.0 x 3.5 $209
ePBZ94 4.99 BA 6 L6-30P (6) C19 1.7 x 19.0 x 2.4 $229
ePBZ95 3.33 BA 6 L6-20P (12) C13, (1) C19 1.7 x 19.0 x 2.4 $129
ePBZ99 1.92 BA 6 L5-20P (12) 5-20R 1.7 x 19.0 x 2.4 $119
EFLXI3000R-PDU1UIEC 3.33 BA 3 C20 (12) C13, (1) C19 1.7 x 17.3 x 2.4 $157
EFLXL1500R-PDU1U 1.44 BA 3 5-15P (12) 5-15R 1.7 x 17.3 x 2.4 $94
EFLXL2000R-PDU1U 1.92 BA 3 5-20P (12) 5-20R 1.7 x 17.3 x 2.4 $104
EFLXL2000R-PDU1UL 1.92 BA 3 5-20P (5) L5-20R 1.7 x 17.3 x 2.4 $136
PW101BA1U140 1.44 BA 9 5-15P (12) 5-15R 1.7 x 19.0 x 7.0 $253
PW102BA1U158 1.92 BA 9 5-20P (12) 5-20R 1.7 x 19.0 x 7.0 $256
PW102BA1U159 1.92 BA 9 L5-20P (12) 5-20R 1.7 x 19.0 x 7.0 $266
PW103BA1U190 2.88 BA 9 L5-30P (12) 5-20R 1.7 x 19.0 x 7.0 $279
PW103BA1U191 3.33 BA 9 L6-20P (12) C13 1.7 x 19.0 x 7.0 $335
PW103BA1U405 3.33 BA 9 C20 (16) C13 1.7 x 19.0 x 7.0 $241
PW103BA1U406 4.99 BA 9 L6-30P (16) C13 1.7 x 19.0 x 7.0 $418
PW105BA1U163 4.99 BA 9 L6-30P (12) C13 1.7 x 19.0 x 7.0 $387
PW105BA1U192 4.99 BA 9 L6-30 P (8) C13, (4) C19 1.7 x 19.0 x 7.0 $414
PW105BA1U404 4.99 BA 9 L14-30P (12) 5-15R 1.7 x 19.0 x 7.0 $469
PW105BA2U420 4.99 BA 9 L6-30P (4) L6-20R 3.4 x 19.0 x 6.0 $579
PW105BA2U422 4.99 BA 9 L14-30P (4) L6-20R 3.4 x 19.0 x 6.0 $649
PW314BA1U193 14.4 BA 9 CS8365 (6) C19 1.7 x 17.0 x 7.0 $729
Vertical Mount Models
ePBZ71 1.92 BA 15 5-20P/L5-20P* (30) 5-20R 72.0 x 1.5 x 1.5 $279
ePBZ72 1.92 BA 15 5-20P/L5-20P* (18) 5-20R 48.0 x 1.5 x 1.5 $209
ePBZ73 1.44 BA 15 5-15P (18) 5-15R 48.0 x 1.5 x 1.5 $149
ePBZ74 1.92 BA 15 5-20P/L5-20P* (14) 5-20R 24.0 x 1.5 x 1.5 $169
ePBZ75 1.44 BA 15 5-15P (14) 5-15R 24.0 x 1.5 x 1.5 $119
ePBZ77 1.92 BA 15 L5-20P/5-20P (24) 5-20R 60.0 x 1.5 x 1.5 $219
ePBZ80 4.99 BA 10 L6-30P (30) C13, (6) C19 52.9 x 1.9 x 2.1 $299
ePBZ89 1.44 BA 6 C14 (16) C13 28.0 x 2.2 x 1.9 $99
ePBZ90 2.88 BA 15 L5-30P (24) 5-20R 40.0 x 1.9 x 2.1 $269
ePBZ92 4.99 BA 6 L6-30P (20) C13, (4) C19 42.0 x 2.2 x 1.9 $279
ePBZ93 3.33 BA 6 L6-20P (20) C13, (4) C19 42.0 x 2.2 x 1.9 $229
ePBZ96 1.92 BA 6 L5-20P (24) 5-20R 60.0 x 1.5 x 1.5 $199
ePBZ97 1.92 BA 6 5-20P (24) 5-20R 60.0 x 1.5 x 1.5 $149
ePBZ98 1.44 BA 6 5-15P (18) 5-15R 48.0 x 1.5 x 1.5 $99
PW103BA0U237 3.33 BA 9 L6-20P (24) C13, (4) C19 66.0 x 1.9 x 2.0 $524
PW103BA0U257 2.88 BA 9 L5-30P (24) 5-20R 66.0 x 1.9 x 2.0 $474
PW105BA0U239 4.99 BA 9 L6-30P (24) C13, (4) C19 66.0 x 1.9 x 2.0 $536
PW105BA0U412 4.99 BA 6 L14-30P (12) 5-15R 10.0 x 7.8 x 3.0 $349
PW105BA0U421 4.99 BA 9 L14-30P (24) 5-20R 66.0 x 1.9 x 2.0 $599
PW306BA0U241 5.76 BA 9 L21-20P (30) 5-20R 66.0 x 1.9 x 2.0 $688
PW306BA0U244 5.76 BA 9 L21-20P (36) C13, (6) C19 66.0 x 1.9 x 2.0 $609
PW306BA0U246 5.76 BA 9 L21-20P (18) 5-20R, (6) L6-20R 66.0 x 1.9 x 2.0 $691
PW309BA0U409 8.65 BA 9 L21-30P (24) 5-20R 66.0 x 1.9 x 2.0 $879
PW314BA0U251 14.4 BA 9 CS8365 (24) C13, (4) C19, (2) L6-30R 66.0 x 1.9 x 2.0 $776
PW314BA0U253 14.4 BA 9 CS8365 (30) C13, (6) C19 66.0 x 1.9 x 2.0 $1,102
* These units ship with an adapter allowing for 5-20P input plug.
6EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
ePDUs (continued)
ePDUs
(continued)
Catalog Max. Cord Input Output Dimensions List
Number kW Function Length (ft) Plug Receptacles (H x W x D, inches) Price
Monitored ePDUs–Designed for high-density, mission-critical server applications, provides maximum power for both standard and blade servers. Monitored ePDUs provide circuit level amperage
metering through both a local digital meter and ethernet network capabilities. This technology allows the data center manager complete access to power information.
Horizontal Mount Models
PW101MI1U221 1.44 MI 9 5-15P (12) 5-15R 1.7 x 17.0 x 7.0 $434
PW101MI1U403 1.44 MI 9 5-20P (12) 5-20R 1.7 x 17.0 x 7.0 $480
PW102MI1U160 1.92 MI 9 L5-20P (12) 5-20R 1.7 x 17.0 x 7.0 $493
PW103MI1U161 2.88 MI 9 L5-30P (12) 5-20 R 1.7 x 17.0 x 7.0 $556
PW103MI1U162 3.33 MI 9 L6-20P (12) C13 1.7 x 17.0 x 7.0 $516
PW105MI1U164 4.99 MI 9 L6-30P (12) C13 1.7 x 17.0 x 7.0 $682
PW105MI1U165 4.99 MI 9 L6-30P (6) C13, (4) C19 1.7 x 17.0 x 7.0 $629
PW105MI2U402 4.99 MI 9 L6-30P (20) C13 3.4 x 19.0 x 7.0 $734
PW317MI2U141 17.29 MI 9 IEC30960 460P9W (12) C19 3.4 x 19.0 x 9.5 $1,417
Vertical Mount Models
PW101MI0U233 1.44 MI 9 5-15P (28) 5-15R 66.0 x 1.9 x 2.0 $546
PW102MI0U234 1.44 MI 9 5-20P (24) 5-20R 66.0 x 1.9 x 2.0 $594
PW102MI0U235 1.92 MI 9 L5-20P (24) 5-20 R 66.0 x 1.9 x 2.0 $570
PW103MI0U236 2.88 MI 9 L5-30P (24) 5-15 R 66.0 x 1.9 x 2.0 $597
PW103MI0U238 3.33 MI 9 L6-20P (24) C13, (4) C19 66.0 x 1.9 x 2.0 $667
PW105MI0U240 4.99 MI 9 L6-30P (24) C13, (4) C19 66.0 x 1.9 x 2.0 $820
PW105MI0U255 4.99 MI 9 L14-30P (24) C13, (4) C19, (4) 5-20R 66.0 x 1.9 x 2.0 $809
PW306MI0U242 5.76 MI 9 L21-20P (30) 5-20R 66.0 x 1.9 x 2.0 $945
PW306MI0U243 5.76 MI 9 L21-20P (24) C13, (3) C19, (6) 5-20R 66.0 x 1.9 x 2.0 $860
PW306MI0U245 5.76 MI 9 L21-20P (36) C13, (6) C19 66.0 x 1.9 x 2.0 $895
PW306MI0U247 5.76 MI 9 L21-20P (18) 5-20R, (6) L6-20R 66.0 x 1.9 x 2.0 $950
PW306MI0U408 5.76 MI 9 L21-20P (30) 5-15R 66.0 x 1.9 x 2.0 $734
PW306MI0U416 5.76 MI 10 L21-20P (42) C13 66.0 x 1.9 x 2.0 $1,153
PW309MI0U248 8.65 MI 9 L21-30P (24) C13, (3) C19, (6) 5-20R 66.0 x 1.9 x 2.0 $960
PW309MI0U250 8.65 MI 9 L21-30P (36) C13 66.0 x 1.9 x 2.0 $944
PW309MI0U256 8.65 MI 9 L21-30P (30) C13, (6) C19 66.0 x 1.9 x 2.0 $984
PW314MI0U252 14.40 MI 9 CS8365 (24) C13, (4) C19, (2) L6-30R 66.0 x 1.9 x 2.0 $1,417
PW314MI0U254 14.40 MI 9 CS8365 (30) C13, (6) C19 66.0 x 1.9 x 2.0 $1,154
PW317MI0U222 17.29 MI 7 IEC309-60 (12) C13, (12) C19 66.0 x 2.0 x 4.0 $1,889
Switched ePDUs–For receptacle level control choose switched ePDUs, which allow the user to remote reboot or lockout individual receptacles. Switched ePDUs also employee local meters as
well as networking capability via either Ethernet or serial connections. Local LEDs show the status of receptacles and an accessories port allows for temperature and humidity probes to manage local
environmental conditions.
Horizontal Mount Models
PW103SW2U413 3.33 SW 9 C20 (8) C13 1.7 x 19.0 x 9.5 $787
PW103SW2U414 3.33 SW 9 C20 (8) 5-15R 1.7 x 19.0 x 9.5 $787
PW105SW2U223 4.99 SW 9 L6-30P (20) C13 1.7 x 19.0 x 9.5 $1,469
PW105SW2U415 4.99 SW 9 L6-30P (20) C13, (4) C19 1.7 x 19.0 x 9.5 $1,469
Vertical Mount Models
PW101SW0U224 1.44 SW 9 5-15P (16) 5-15R 68.0 x 1.9 x 2.0 $1,229
PW102SW0U150 1.92 SW 9 L5-20P (8) 5-15R 42.0 x 1.9 x 2.0 $949
PW102SW0U151 1.92 SW 9 L5-20P (24) 5-15R 66.0 x 1.9 x 2.0 $1,399
PW103SW0U152 2.88 SW 9 L5-30P (16) 5-15R 66.0 x 1.9 x 2.0 $1,399
PW103SW0U153 3.33 SW 9 L6-20P (24) C13 66.0 x 1.9 x 2.0 $1,399
PW105SW0U154 4.99 SW 9 L6-30P (16) C13 66.0 x 1.9 x 2.0 $1,299
PW306SW0U155 5.76 SW 9 L21-20P (24) 5-15R 66.0 x 1.9 x 2.0 $1,399
PW306SW0U156 5.76 SW 9 L21-20P (24) C13 66.0 x 1.9 x 2.0 $1,399
PW309SW0U178 8.65 SW 9 L21-30P (24) C14 66.0 x 1.9 x 2.0 $1,599
PW317SW0U400 17.29 SW 9 IEC 60309P 3P + PE (18) C13, (6) C19 66.0 x 2.0 x 4.0 $2,309
PW317SW0U401 17.29 SW 9 IEC 60309 460P9W (12) C13, (12) C19 66.0 x 2.0 x 4.0 $2,299
July 1, 2013
7www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
ePDUs (continued)
ePDUs
(continued)
Catalog Max. Cord Input Output Dimensions List
Number kW Function Length (ft) Plug Receptacles (H x W x D, inches) Price
Advanced Monitored ePDUs–Outlet level monitoring of voltage, current, power and energy (KWH).Provides necessary measurements to calculate Level 3 PUE and to run capacity /usage
analytics. Advanced local display and color coded silk screen.
Vertical Mount Models
eAM001 5.8 AM 10 L6-30P (20) C13, (4) C19 68.0 x 2.2 x 2.6 $1,030
eAM002 5.8 AM 10 L21-20P (21) C13, (3) C19 60.0 x 2.2 x 2.6 $1,170
eAM003 12.6 AM 10 CS8365C (21) C13, (3) C19 68.0 x 2.2 x 2.6 $1,420
eAM004 8.6 AM 10 L21-30P (21) C13, (3) C19 68.0 x 2.2 x 2.6 $1,420
eAM005 17.3 AM 10 IEC309 48A (12) C13, (12) C19 72.4 x 2.2 x 2.6 $2,240
eAM008 3.3 AM 10 C20 (20) C13, (4) C19 60.0 x 2.2 x 2.6 $920
Managed ePDUs–Includes outlet level switching to power cycle (reboot) locked servers or turn off unused outlets. Outlet level monitoring of voltage, current, power and energy (KWH). Provides
necessary measurements to calculate Level 3 PUE and to run capacity /usage analytics.
Vertical Mount Models
eMA006 5.8 MA 10 L21-20P (21) C13, (3) C19 60.0 x 2.2 x 2.6 $1,300
eMA007 12.6 MA 10 CS8365C (21) C13, (3) C19 68.0 x 2.2 x 2.6 $1,570
eMA009 17.3 MA 10 IEC309 48A (12) C13, (12) C19 72.4 x 2.2 x 2.6 $2,470
eMA010 5.8 MA 10 L6-30P (20) C13, (4) C19 68.0 x 2.2 x 2.6 $1,150
eMA011 8.6 MA 10 L21-30P (21) C13, (3) C19 68.0 x 2.2 x 2.6 $1,570
eMA012 3.3 MA 10 L6-20P (20) C13, (4) C19 60.0 x 2.2 x 2.6 $1,020
eMA013 11.5 MA 10 IEC309 16A (12) C13, (12) C19 68.0 x 2.2 x 2.6 $1,720
eMA014 17.3 MA 10 IEC309 32A (12) C13, (12) C19 72.4 x 2.2 x 2.6 $2,160
Environmental Probes
Catalog
Number Description Price
EMP001 Environmental Monitoring Probes for AM and MA units $104
Accessories
Catalog
Number Description Price
KBLT01 Plug Restraint Cable Tray for AM and MA units $83
SERVICES
For detailed information on service plans, please refer to the Single-phase Service section on page 122.
FlexPDU plug/amp rating UPS model (North American only)
Eaton Evolution Rack UPS, 650–1550 VA
15 Eaton 5PX Rack/Tower UPS, 1000-1500 VA
Eaton 9130 Rack UPS, 700–1500 VA
Eaton EX Rack UPS, 1000–1500 VA
Eaton Evolution Rack/Tower UPS, 2000 VA
20 Eaton 5PX Rack/Tower UPS, 2200-3000 VA
Eaton 9130 Rack UPS, 2000-3000 VA
Eaton EX Rack/Tower UPS, 2200-3000 VA
8EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
Eaton Automatic Transfer Switches
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
Eaton HotSwap Maintenance Bypass (MBP)
HotSwap MBP—Facilitating hot-swappable UPS replacement from the rack—the HotSwap MBP is also
ideal when exchanging a faulty unit or upgrading to a new UPS. The HotSwap MBP offers
receptacles in 5-15R and 5-20R.
• Gain additional receptacles on UPSs
• Provide service continuity during battery replacement, UPS maintenance or upgrade
• Ease installation with flexible mounting options (rear panel, the top, on the left or on the right of
the UPS (depending on the UPS model)
• Accommodate most space constraints with minimal depth 1U form factor
HOTSWAP MBP
Catalog Max. Cord Input Output Dimensions List
Number kW Function Length Connection Receptacles (Quantity) (H x W x D, inches) Price
EHBPL1500R-PDU1U 1.44 BA 3' 5-15P (6) 5-15R 2.1 x 3.8 x 17.3 $242
EHBPL2000R-PDU1U 1.92 BA 3' 5-20P (6) 5-15R 2.1 x 3.8 x 17.3 $289
EHBPL3000R-PDU1U 2.88 BA 3' L5-30P (5) 5-20R 2.1 x 3.8 x 17.3 $420
HotSwap MBP UPS model (North American only)
Eaton Evolution Rack UPS, 650–1550 VA
15 Eaton 5PX Rack/Tower UPS, 1000-1500 VA
Eaton 9130 Rack UPS, 700–1500 VA
Eaton EX Rack UPS, 1000–1500 VA
Eaton Evolution Rack/Tower UPS, 2000 VA
20 Eaton 5PX Rack/Tower UPS, 2200 VA
Eaton 9130 Rack UPS, 2000 VA
Eaton EX Rack/Tower UPS, 2200 VA
30 Eaton 5PX Rack/Tower UPS, 3000 VA
Eaton 9130 Rack UPS, 2500–3000 VA
Eaton EX Rack/Tower UPS, 3000 VA
eATS (Automatic Transfer Switch) and STS (Source Transfer Switch) ePDUs—Designed for switching non-phase synchronized AC power sources,
the automatic transfer switch ePDUs' intelligent circuitry monitors both inputs, providing a fast switch transfer from primary to secondary source power
critical equipment without interruption. These ePDUs assure the highest level of redundancy to mission-critical applications.
• 1U configurations available
• Custom designs upon request
eATS (Automatic Transfer Switch) and STS (Source Transfer Switch) ePDUs
Catalog Max. Cord Input Output Dimensions List
Number kW Function Length (ft) Plug Receptacles (H x W x D, inches) Price
Horizontal Mount Models
PULSTS1400R-1U - AT - (2) 5-15P (6) 5-15R 1.7 x 19.0 x 9.8 $300
PULSTS16AMPR-1U - AT - (2) C20 (6) C13, (1) C19 1.7 x 16.9 x 9.8 $310
PWATSL520004 1.92 AT 9 (2) L5-20P (8) 5-20R 1.7 x 19.0 x 7.0 $734
PWATSL530005 2.88 AT 9 (2) L5-30P (8) 5-20R 1.7 x 19.0 x 7.0 $787
PWATSL530007 2.88 AT 9 (2) L5-30P (1) L5-30R 1.7 x 19.0 x 7.0 $787
PWATSL630006 4.99 AT 9 (2) L6-30P (12) C13 1.7 x 19.0 x 7.0 $839
PWATSL630008 4.99 AT 9 (2) L6-30P (1) L6-30R 1.7 x 19.0 x 7.0 $787
PWATSS515002 1.44 AT 9 (2) 5-15P (8) 5-15R 1.7 x 19.0 x 7.0 $629
PWATSS520003 1.92 AT 9 (2) 5-20P (8) 5-20 R 1.7 x 19.0 x 7.0 $682
PWATSSC20001 3.33 AT - (2) C20 (8) C13, (1) C19 1.7 x 19.0 x 7.0 $629
July 1, 2013
9www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
ePDU Cables
• Adapters to enable equipment with disparate input/output receptacles to work together
• Jumpers to connect two pieces of equipment without cluttering up the cable arrangement
• Splitters to add extra equipment to a UPS or PDU without using up more outlets
All Eaton power cables are tested and certified for use with Eaton products, such as ePDUs, rack power modules
(RPMs) and UPSs—proven to deliver the reliability and service life needed for the most rigorous data center
applications.
• Choose from adapters, jumpers and splitters for any rack power distribution application
• Select from a broad range of input/output connectors
• Streamline cabling in Enclosures by deploying exactly the cable length needed
• Count on assured performance with pre-tested products that meet UL and Eaton standards
Adapter Cables
Catalog
Number Description Leads Input Plug Output Length (ft) Price
010-0020 10 ft IEC320-C14 to IEC320-C13 Jumper Cable 1 C14 C13 10 $17
010-0021 7 ft IEC320-C14 to IEC320-C13 Jumper Cable 1 C14 C13 7 $14
010-0024 15 ft IEC320-C14 to IEC320-C13 Jumper Cable 1 C14 C13 15 $20
010-0025 8 ft IEC320-C14 to IEC320-C13 Jumper Cable 1 C14 C13 8 $15
010-0026 8 ft C19 TO Bare Wire Cable 1 Bare Wire C19 8 $16
010-0027 6 ft IEC320-C14 to IEC320-C13 Jumper Cable 1 C14 C13 6 $13
010-0028 4 ft IEC320-C14 to IEC320-C13 Jumper Cable 1 C14 C13 4 $11
010-0029 2 ft IEC320-C14 to IEC320-C13 Jumper Cable 1 C14 C13 2 $9
010-0032 1 ft IEC320-C14 to 5-15R Adapter Cable 1 C19 C14 1 $15
010-0034 8 ft IEC320-C19 to Bare Wire Adapter Cable 1 C19 Bare 8 $32
010-9332 8 ft IEC320-C13 to 5-15P Jumper Cable 1 5-15P C13 8 $16
010-9334 8 ft IEC320-C19 to 5-15P Adapter Cable 1 5-15P C19 8 $21
010-9335 8 ft IEC320-C19 to 5-20P Adapter Cable 1 5-20P C19 8 $27
010-9336 8 ft IEC320-C19 to 6-15P Adapter Cable 1 6-15P C19 8 $32
010-9337 8 ft IEC320-C19 to 6-20P Adapter Cable 1 6-20P C19 8 $32
010-9338 8 ft IEC320-C19 to L5-15P Adapter Cable 1 L5-15 P C19 8 $37
010-9339 8 ft IEC320-C19 to L5-20P Adapter Cable 1 L5-20 P C19 8 $27
010-9341 8 ft IEC320-C19 to L6-20P Adapter Cable 1 L6-20 P C19 8 $32
010-9342 8 ft IEC320-C19 to IEC320-C20 Adapter Cable 1 C20 C19 8 $32
010-9343 8 ft SCHUCKO to IEC320-C19 Adapter Cable 1 C19 SCHUCKO 8 $30
010-9345 8 ft AS/NZS 3112 to IEC320-C19 Adapter Cable 1 C19 AS/NZS 3112 8 $35
010-9351 8 ft British to IEC320-C19 Adapter Cable 1 C19 British Connector 8 $27
010-9365 8 ft IEC320-C14 to IEC320-C19 Jumper Cable 1 C19 C14 8 $33
CBL146 30 ft Power Cord Assembly 10/3 SOOW 2" Pigtails 2 Pigtails Pigtails 30 $138
CBL147 Cable Assembly High Volt Cover, 15 ft 10/3 SOOW, L6-30P 1 L6-30P 15 $147
SUB-PWRCORD-908 8 ft L6-30R to L6-30P Adapter Cable 1 L6-30P L6-30R 8 $56
Splitter Cables
Catalog
Number Description Leads Input Plug Output Length (ft) Price
CBL139 Splitter Cable L14-30P to (2) L6-30R (4ft/2ft) 2 L14-30P L6-30R 4 $158
CBL143 Splitter Cable L14-30P to (2) L5-30R (4ft/2ft) 2 L14-30P L5-30R 4 $158
CBL148 Splitter Cable L14-20P to (2) L5-20R (4ft/2ft) 2 L14-20P L5-20R 4 $169
CBL149 Splitter Cable L21-30P to (3) L5-30R (4ft/2ft/1ft) 3 L21-30P L5-30R 4 $157
CBL150 Splitter Cable L21-20P to (3) L5-20R (4ft/2ft/1ft) 3 L21-20P L5-20R 4 $229
10 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
ePDU Cables (continued)
Accessories
Catalog
Number Description Price
010-0322 C19 Receptacle Connector $14
035-0113 C13 Outlet Cap $3
001-0819-1 Mounting Bracket Right $19
001-0819-2 Mounting Bracket Left $19
001-1393-1 Mounting Bracket Adjustable Black - RoHS Compliant $6
001-1928-1 Side Mounting Bracket $26
001-1995-1 Bracket $31
SUB-HRDWARE-017 VPC Bracket - Standard, Offset $12
SUB-HRDWARE-032 Mounting Bracket $5
SUB-HRDWARE-038 Tool-less Mounting Kit $3
Environmental Probes
Catalog
Number Description Price
SENSOR-T1-10 Sensor with 1 Temperature Probe $79
SENSOR-T1H1-10 Sensor with 1 Temperature Probe 1 Humidity Probe $99
SENSOR-T2-10 Sensor with 2 Temperature Probes $169
SENSOR-T2H1-10 Sensor with 2 Temperature Probes 1 Humidity Probe $179
ECLIPSE SURGE SUPPRESSORS
Pulsar series
The Eclipse is Ideal for all uses—computer, peripheral, stereo and video—total
protection against power surges, spikes, nearby lightning strikes and line noise.
• Up to 1020 joule rating
• Master on/off switch
• Instantaneous response time
• Visual alarm(s)
• Audible alarm (except personal)
• Circuit breaker and thermal fuse protection
• 360º rotating plug (except personal)
Eclipse Surge Suppressors
Catalog Style Dimensions Weight List
Number Number Description (H x W x D, inches) (lb) Price*
ECLL1800-PER 83500 ECLIPSE Personal 120V 1800W (6) 5-15R 2.00 x 1.25 x 11.00 1.0 $240
ECLL1800-PRO 83501 ECLIPSE Pro 120V 1800W (8) 5-15R 3.88 x 1.31 x 9.75 1.5 $450
ECLL1800-PROTEL 83502 ECLIPSE ProTel 1800W (8) 5-15R 3.88 x 1.31 x 9.75 1.5 $490
* List price reflects minimum purchase quantity of 20 pieces.
July 1, 2013
11www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
S-Series Rack
Designed for small and medium-sized businesses, the Eaton S-Series Rack manage and support your critical IT equipment.
These standard configured racks are scalable and integrate an array of options including cable management, power
distribution and backup power to provide a full network solution.
• Fully-welded steel frame that can store up to 2,200 pounds of computer and networking equipment
• Enhanced frame ensures zero leakage around the front perimeter and also features oval grommets in front frame verticals
for cable pass-thru between racks
• Split rear doors provide easier access and maneuverability in data center environments
• Top panel with two six-inch wide brushed openings for cable egress
• Guaranteed compatibility with EIA-310 standard size equipment
• A wide range of cable management options enhance cable routing horizontally and vertically
• Split rear doors provide easy access and maneuverability
S-SERIES RACK
Dimensions List
Part Number Description (H x W x D, inches) Weight (lb) Price
ETN-ENC422442SE 42Ux24"x42" 4 post rack, no sides, doors, divider or castors 81 x 24 x 41 171 $1,400
ETN-ENC422442S 42Ux24"x42" w/doors, top, one divider panel, castors 81 x 24 x 42 309 $2,400
ETN-ENC422448S 42Ux24"x48" w/doors, top, one divider panel, castors 81 x 24 x 42 321 $3,200
ETN-ENC423042S 42Ux30"x42" w/doors, top, one divider panel, castors 81 x 24 x 48 351 $3,100
ETN-ENC423048S 42Ux30"x48" w/doors, top, one divider panel, castors 81 x 30 x 48 364 $3,950
ETN-ENC482442S 48Ux24"x42" w/doors, top, one divider panel, castors 91 x 24 x 42 336 $2,950
ETN-ENC483042S 48Ux30"x42" w/doors, top, one divider panel, castors 91 x 30 x 42 380 $3,600
ETN-ENC482448S 48Ux24"x48" w/doors, top, one divider panel, castors 91 x 24 x 48 350 $3,650
ETN-ENC483048S 48Ux30"x48" w/doors, top, one divider panel, castors 91 x 30 x 48 394 $4,200
ETN-ENC422442SB 42Ux24"x42" w/doors, sides, top, levelers, castors 81 x 24 x 42 367 $2,750
ETN-ENC422442SC 42Ux24"x 42" w/doors, sides, top, levelers (no castors) 81 x 24 x 42 327 $2,650
ETN-ENC423042SC 42Ux30"x 42" w/doors, sides, top, levelers (no castors) 81 x 30 x 42 341 $3,350
ETN-ENC422442SD 42Ux24"x 42" w/doors, top, levelers (no sides/divider/castors) 81 x 24 x 42 269 $1,950
ETN-ENC423042SD 42Ux30"x 42" w/doors, top, levelers (no sides/divider/castors) 81 x 30 x 42 299 $2,650
ETN-ENC422442SL 42Ux24"x 42" w/doors, sides, top, levelers, castors, combo lock 81 x 24 x 42 370 $3,300
S-SERIES RACK OPTIONS
Part Number Description List Price
Rack Panels and Doors
ETN-ACC4242DP S-Series Divider Panel 42U x 42D w/Pass-Thru (Qty-1) $425
ETN-ACC4248DP S-Series Divider Panel 42U x 48D w/Pass-Thru (Qty-1) $575
ETN-ACC4842DP S-Series Divider Panel 48U x 42D w/Pass-Thru (Qty-1) $475
ETN-ACC4848DP S-Series Divider Panel 48U x 48D w/Pass-Thru (Qty-1) $750
ETN-ACC4242SP S-Series Side Panel 42U x 42D (Qty-1) $450
ETN-ACC4248SP S-Series Side Panel 42U x 48D (Qty-1) $600
ETN-ACC4842SP S-Series Side Panel 48U x 42D (Qty-1) $500
ETN-ACC4848SP S-Series Side Panel 48U x 48D (Qty-1) $775
ETN-ACC2442TP S-Series Top Panel 24W x 42D $318
ETN-ACC2448TP S-Series Top Panel 24W x 48D $361
ETN-ACC3042TP S-Series Top Panel 30W x 42D $338
ETN-ACC3048TP S-Series Top Panel 30W x 48D $389
ETN-ACC4224FD S-Series Front Door 42U x 24W $417
ETN-ACC4224RD S-Series Rear Door Split 42U x 24W $754
ETN-ACC4230FD S-Series Front Door 42U x 30W $444
ETN-ACC4230RD S-Series Rear Door Split 42U x 30W $803
ETN-ACC4824FD S-Series Front Door 48U x 24W $451
ETN-ACC4824RD S-Series Rear Door Split 48U x 24W $816
ETN-ACC4830FD S-Series Front Door 48U x 30W $481
ETN-ACC4830RD S-Series Rear Door Split 48U x 30W $869
ETN-ACC4224RL S-Series Rails 42U x 24W $402
ETN-ACC4230RL S-Series Reducer Rails 42U x 30W $533
ETN-ACC4824RL S-Series Rails 48U x 24W $363
12 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
S-Series Rack (continued)
S-SERIES RACK OPTIONS
(continued)
Part Number Description List Price
Rack Panels and Doors (continued)
ETN-ACC4830RL S-Series Reducer Rails 48U x 30W $577
ETN-ACC42VBP S-Series Vertical Blanking Panels 42U x 30W $202
ETN-ACC48VBP S-Series Vertical Blanking Panels 48U x 30W $219
Rack and Raised Floor Air Management
ETN-PBP1U10 Eaton Blanking Panel 19" Tool-less Plastic 1U (Qty-10) $66
ETN-PBP1U100 Eaton Blanking Panel 19" Tool-less Plastic 1U (Qty-100) $535
ETN-PBP2U10 Eaton Blanking Panel 19" Tool-less Plastic 2U (Qty-10) $87
ETN-PBP2U100 Eaton Blanking Panel 19" Tool-less Plastic 2U (Qty-100) $738
ETN-PBP8U10 Eaton Blanking Panel 19" Tool-less Plastic 8U (Qty-10) $280
ETN-PBP8U100 Eaton Blanking Panel 19" Tool-less Plastic 8U (Qty-100) $2,405
ETN-JFT12440 Top fan tray kit (4 fans) for S-Series 24" x 42", 120VAC $315
ETN-JFT12445 Top fan tray kit (4 fans) for S-Series 24" x 48", 120VAC $350
ETN-JFT13040 Top fan tray kit (4 fans) for S-Series 30" x 42", 120VAC $335
ETN-JFT13045 Top fan tray kit (4 fans) for S-Series 30" x 48", 120VAC $365
ETN-FLRGR118 Eaton Floor Grommet, 11"W x 8.25"D (Qty-1) $125
ETN-FLRGR11810 Eaton Floor Grommet, 11"W x 8.25"D (Qty-10) $1,118
ETN-FLRGR76 Eaton Floor Grommet, 7.5"W x 6.5"D (Qty-1) $112
ETN-FLRGR7610 Eaton Floor Grommet, 7.5"W x 6.5"D (Qty-10) $990
Rack Shelves
ETN-FS19201U20 Eaton Shelf Fixed 19" 1U x 20"D 200lbs $179
ETN-FS19201U40 Eaton Shelf Fixed 19" 1U x 20"D 400lbs $197
ETN-FS19241U20 Eaton Shelf Fixed 19" 1U x 24"D 200lbs $184
ETN-FS19241U40 Eaton Shelf Fixed 19" 1U x 24"D 400lbs $202
ETN-FS19281U20 Eaton Shelf Fixed 19" 1U x 28"D 200lbs $195
ETN-FS19281U40 Eaton Shelf Fixed 19" 1U x 28"D 400lbs $198
ETN-RS19241U10 Eaton Shelf Roll-Out 19" 1U x 24"D 100lbs $443
ETN-RS19242U20 Eaton Shelf Roll-Out 19" 2U x 24"D 200lbs $715
ETN-RS19281U10 Eaton Shelf Roll-Out 19" 1U x 28"D 100lbs $477
ETN-RS19282U20 Eaton Shelf Roll-Out 19" 2U x 28"D 200lbs $782
ETN-CHASBKT2032 Eaton Chassis Support Brackets Adj 19" (20"-32") 400 lbs. $340
EAUS192U1605 Eaton 19" Utility Shelf, 2 post mounting $125
Rack Cable and PDU Management, hardware
ETN-LACEB42U03 Eaton S-Series Lacing Bar 42U x 3"W $81
ETN-LACEB42U08 Eaton S-Series Lacing Bar 42U x 8"W $111
ETN-LACEB42U12 Eaton S-Series Lacing Bar 42U x 12"W $147
ETN-LACEB48U03 Eaton S-Series Lacing Bar 48U x 3"W $97
ETN-LACEB48U08 Eaton S-Series Lacing Bar 48U x 8"W $117
ETN-LACEB48U12 Eaton S-Series Lacing Bar 48U x 12"W $153
ETN-PWRBAR42U Eaton S-Series Power Mounting Bar 42U x 9"W $146
ETN-PWRBAR48U Eaton S-Series Power Mounting Bar 48U x 9"W $148
ETN-PDUBRCKTW Eaton S-Series PDU Mounting Brackets $58
ETN-CMDRNR031U Eaton Cable D-Ring Kit 1U (Qty-4) $47
ETN-CMDRNR032U Eaton Cable D-Ring Kit 2U (Qty-4) $50
ETN-STLDRING Eaton Cable D-Ring Kit, Plastic, (Qty-4) $124
ETN-CMTUNR02 Eaton Fiber Spool 2.5"H $65
ETN-CMTUNR05 Eaton Fiber Spool 5"H $70
ETN-BX45V8 Eaton Velcro Strap 8"L, (Qty-50) $77
ETN-BX45V11 Eaton Velcro Strap 11"L, (Qty-50) $87
ETN-CMVBCKL Eaton Velcro Buckle Strap 9"L, (Qty-10) $81
ETN-CMVBCKL12 Eaton Velcro Buckle Strap 12"L, (Qty-10) $84
ETN-CMRB19022U Eaton Cable Strain Relief Bar 2"D $84
ETN-CMRB19042U Eaton Cable Strain Relief Bar 4"D $91
ETN-CMRB19062U Eaton Cable Strain Relief Bar 6"D $96
ETN-CMRB19082U Eaton Cable Strain Relief Bar 8"D $99
ETN-CMPD19031U Eaton Horizontal Ring Manager 1U $70
ETN-CMPD19032U Eaton Horizontal Ring Manager 2U $86
July 1, 2013
13www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
S-Series Rack (continued)
S-SERIES RACK OPTIONS
(continued)
Description Part Number List Price
Rack Cable and PDU Management, hardware (continued)
ETN-CMBPBRSH1U Eaton Cable Pass-Thru Panel 1U w/Brush $74
ETN-CMBPBRSH2U Eaton Cable Pass-Thru Panel 2U w/Brush $80
ETN-CMFD19041U Eaton PatchLink Horizontal Cable Manager 1U $133
ETN-CMFD19042U Eaton PatchLink Horizontal Cable Manager 2U $182
ETN-CMFP19032U Eaton Upper Transition Tray 2U x 3.5"D $117
ETN-CMFP19052U Eaton Upper Transition Tray 2U x 5.0"D $125
ETN-CMLT19032U Eaton Lower Transition Tray 2U x 3.5"D $148
ETN-CMLT19052U Eaton Lower Transition Tray 2U x 5.0"D $153
ETN-CMHD19242U High Density Cable Organizer, w/rear transition tray 24" cabinet $400
ETN-CMHD19302U High Density Cable Organizer, w/rear transition tray 30" cabinet $420
ETN-1032CAGE20 Eaton Cage Nut #10-32 Hardware Kit (Qty-20) $41
ETN-M6CAGE20 Eaton Cage Nut M6 Hardware Kit (Qty-20) $45
Top of Rack Cable Management
ETN-LAD1006B Eaton S-Series Cable Ladder Rack 6"W x 10'L BLK $273
ETN-LAD1012B Eaton S-Series Cable Ladder Rack 12"W x 10'L BLK $309
ETN-JCMTLDRPD Eaton S-Series Ladder Rack Bracket Perpendicular $136
ETN-JCMTLDRPR Eaton S-Series Ladder Rack Bracket Parallel $86
ETN-JCMT24SP Eaton S-Series Data Cable Partition Panel 24" Solid $117
ETN-JCMT24PP Eaton S-Series Data Cable Partition Panel 24" Pass-Thru $146
ETN-JCMT24PT Eaton S-Series Power Cable Trough 24" $203
ETN-JCMT30SP Eaton S-Series Data Cable Partition Panel 30" Solid $140
ETN-JCMT30PP Eaton S-Series Data Cable Partition Panel 30" Pass-Thru $145
ETN-JCMT30PT Eaton S-Series Power Cable Trough 30" $222
Rack shipping and anchoring
ETN-JANCHOR1 Eaton S-Series Floor Anchor Brackets (S-Series) $194
ETN-ENCRMP24 Eaton Standard-Duty Ramp for 24"W Racks (S-Series) $75
ETN-ENCRMP30 Eaton Standard-Duty Ramp for 30"W Racks (S-Series) $80
Note: Call factory for heavy duty packaging options
14 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
• Connect and monitor up to two temperature sensors, two humidity sensors and four input
contact sensors
• 0U form factor space saving design; does not take valuable space that can be occupied
by servers
• Built-in Web server—access, monitor, configure and even reboot the device from
anywhere on the Internet using its own dedicated IP address
• Supports SNMP and comes with its own MIB (Management Information Base). Can
integrate with any open-standards based Network Management System (NMS) such
as HP OpenView
• One-year warranty on rack monitor and all sensors
ENVIRONMENTAL RACK MONITORS
Shipping
Dimensions Shipping List
Description Part Number (H x W x D, inches) Weight (lb) Price
Environmental Rack Monitor, 120V AC 2-pin power input1 103005775 2.5 x 7.6 x 11.9 1.7 $399
Environmental Rack Monitor, C13/C14, 100-250V AC, 50/60Hz 3-pin power input 103005912 2.5 x 7.6 x 11.9 2.2 $399
TH-Module (Black), individual 103005822 2.4 x 6.3 x 8.8 0.7 $89
Environmental Rack Monitor Water Leak Detector, 3ft 103005780 0.6 x 7.9 x 8.2 0.3 $139
Environmental Rack Monitor Water Leak Detector, 12ft 103005894 0.6 x 11.2 x 11.4 0.5 $249
Environmental Rack Monitor Door Contact Sensor 103005781 2.0 x 2.0 x 2.0 0.1 $29
Environmental Rack Monitor Vibration Sensor 103005782 2.0 x 3.0 x 2.0 0.1 $35
Environmental Rack Monitor Power Supply, 120V AC 103005783 2.1 x 2.8 x 4.1 0.2 $22
Environmental Rack Monitor Power Supply, C13/C14 adapter cable, 103005895 2.1 x 2.8 x 4.1 0.2 $39
100-250V AC, 50/60Hz
Environmental Rack Monitor Smoke Detector/Alarm (220V, IEC C-13) 103005779 2.4 x 6.3 x 8.8 2.2 $139
Environmental Rack Monitor Smoke Detector/Alarm (110V, 5-15) 103005890 2.4 x 6.3 x 8.8 2.2 $139
1. Includes one TH-module
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
Environmental Rack Monitor (ERM)
July 1, 2013
15www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
Eaton Remote Power Panel Part Number Illustration
Eaton is now employing the use of smart part numbers to help our customers understand the product that fits their needs. Follow the example below as
reference only. For ordering purposes please select one of the pre-configured part numbers in the price book or use the online configurator available
through the Power Quality web site.
B1 4 1 A CC 0 3 2 0 3 001
Series
B1 = Small RPP (24”W x 24”D)
B2 = Rack RPP (24”W x 42”D)
Display
0 = None
1 = Single Display
2 = Dual Display
Input Connection
1 = Direct Connect
2-3 = Single Input
4-5 = Dual Input
Door
0 = Solid
1 = See-Thru Plexi
2 = Rack Mesh
Communication
0 = None
2 = Modbus RTU
3 = PXGXPDP
4 = Modbus RTU & PXGXPDP
Panel Main Breaker
1 = Standard kAIC
2 = High kAIC
Generation
001 = Gen 1
Panel Type
A = 208V 225A Bolt-on CH
B = 208V 400A Bolt-on CH
C = 208V 225A Plug-on CH
D = 208V 400A Plug-on CH
E = 208V 225A Bolt-on SQD
F = 208V 400A Bolt-on SQD
Front/Rear Configuration
0 = None
A = Top Only (1 Panel)
B = Bottom Only (1 Panel)
C = Top & Bottom (2 Panels)
Metering
0 = None
1 = System Level
2 = Premium BCMS 60A
3 = Premium BCMS 100A
Surge
0 = None
2 = 100kA/ph
3 = 200kA/ph
16 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
Eaton RPPs deliver unmatched power distribution with up to 168 factory-installed branch breakers in a
highly compact footprint. These products offer ease of installation through standard top and bottom
cable entry provisions within a free-standing structure. They include extensive monitoring options
such as branch circuit monitoring, which allows you to manage and monitor power effectively.
• Unmatched power distribution in either a highly compact footprint or rack configuration to line and
match with IT equipment racks
• Ease of installation through standard top and bottom cable entry provision
• Extensive monitoring options allow you to manage power effectively
• Factory-tested power distribution to ensure highest reliability
• Flexible expansion for your power distribution within a data center
REMOTE POWER PANEL TOPSELLERS (24”W x 24”D x 80”H)
Surge List
Part Number Description Local Display Protection Door Style Price
Direct Connection to Panel Main Breakers
System Level Monitoring (Includes Power Xpert Gateway PDP Card)
B111AC010113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $10,170
B111AC012113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front 100 kA/ph See-Through Plexi $12,220
per Input
B111BC010103001 Front Only - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $11,145
B111ACC10213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $16,790
B111ACC12213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back 100 kA/ph See-Through Plexi $20,890
per Input
B111BCC10203001 Front & Back - 4 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $19,015
Premium Level Monitoring with BCMS (60A max) (Includes Power Xpert Gateway PDP Card)
B111AC020113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $13,270
B111AC022113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front 100 kA/ph See-Through Plexi $15,320
per Input
B111BC020103001 Front Only - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $14,245
B111ACC20213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $20,790
B111ACC22213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back 100 kA/ph See-Through Plexi $24,890
per Input
B111BCC20203001 Front & Back - 4 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $23,015
Premium Level Monitoring with BCMS (100A max) (Includes Power Xpert Gateway PDP Card)
B111AC030113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $13,720
B111AC032113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front 100 kA/ph See-Through Plexi $15,770
per Input
B111BC030103001 Front Only - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $14,695
B111ACC30213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $21,790
B111ACC32213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back 100 kA/ph See-Through Plexi $25,890
per Input
B111BCC30203001 Front & Back - 4 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $24,015
Single Input Main Lug
System Level Monitoring (Includes Power Xpert Gateway PDP Card)
B121AC010113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $10,805
B131ACC10113001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $13,690
B131BAA10103001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $12,915
Premium Level Monitoring with BCMS (60A max) (Includes Power Xpert Gateway PDP Card)
B121AC020113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $13,905
B131ACC20113001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $19,890
B131BAA20103001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $16,015
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
Remote Power Panel (RPP)
Remote Power Panel
24"W x 24"D x 80"H
Rack Power Panel
24"W x 42"D x 80"H
July 1, 2013
17www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
Remote Power Panel (RPP)
(continued)
REMOTE POWER PANEL TOPSELLERS (24”W x 24”D x 80”H)
(continued)
Surge List
Part Number Description Local Display Protection Door Style Price
Single Input Main Lug (continued)
Premium Level Monitoring with BCMS (100A max) (Includes Power Xpert Gateway PDP Card)
B121AC030113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $14,355
B131ACC30113001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $20,890
B131BAA30103001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $16,465
Dual Input Main Lugs
System Level Monitoring (Includes Power Xpert Gateway PDP Card)
B141ACC10213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $17,860
B141BAA10203001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $17,085
Premium Level Monitoring with BCMS (60A max) (Includes Power Xpert Gateway PDP Card)
B141ACC20213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $21,860
B141BAA20203001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $17,985
Premium Level Monitoring with BCMS (100A max) (Includes Power Xpert Gateway PDP Card)
B141ACC30213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $22,860
B141BAA30203001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $18,435
RACK POWER PANEL TOPSELLERS (24”W x 42”D x 80”H)
Surge List
Part Number Description Local Display Protection Door Style Price
Direct Connection to Panel Main Breakers
System Level Monitoring (Includes Power Xpert Gateway PDP Card)
B211AC010113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $12,595
B211AC012113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front 100 kA/ph See-Through Plexi $14,645
per Input
B211BC010103001 Front Only - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $13,445
B211ACC10213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $19,215
B211ACC12213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back 100 kA/ph See-Through Plexi $23,315
per Input
B211BCC10203001 Front & Back - 4 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $21,315
Premium Level Monitoring with BCMS (60A max) (Includes Power Xpert Gateway PDP Card)
B211AC020113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $15,695
B211AC022113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front 100 kA/ph See-Through Plexi $17,745
per Input
B211BC020103001 Front Only - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $16,545
B211ACC20213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $23,215
B211ACC22213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back 100 kA/ph See-Through Plexi $27,315
per Input
B211BCC20203001 Front & Back - 4 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $25,315
Premium Level Monitoring with BCMS (100A max) (Includes Power Xpert Gateway PDP Card)
B211AC030113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $16,145
B211AC032113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front 100 kA/ph See-Through Plexi $18,195
per Input
B211BC030103001 Front Only - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $16,995
B211ACC30213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $24,115
B211ACC32213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back 100 kA/ph See-Through Plexi $28,215
per Input
B211BCC30203001 Front & Back - 4 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $26,215
Single Input Main Lug
System Level Monitoring (Includes Power Xpert Gateway PDP Card)
B221AC010113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $13,230
B231ACC10113001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $16,115
B231BAA10103001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $15,215
18 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
Remote Power Panel (RPP)
(continued)
RACK POWER PANEL TOPSELLERS (24”W x 42”D x 80”H)
(continued)
Surge List
Part Number Description Local Display Protection Door Style Price
Single Input Main Lug (continued)
Premium Level Monitoring with BCMS (60A max) (Includes Power Xpert Gateway PDP Card)
B221AC020113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $16,330
B231ACC20113001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $22,315
B231BAA20103001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $18,315
Premium Level Monitoring with BCMS (100A max) (Includes Power Xpert Gateway PDP Card)
B221AC030113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $16,780
B231ACC30113001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $23,215
B231BAA30103001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $18,765
Dual Input Main Lugs
System Level Monitoring (Includes Power Xpert Gateway PDP Card)
B241ACC10213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $20,285
B241BAA10203001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $19,385
Premium Level Monitoring with BCMS (60A max) (Includes Power Xpert Gateway PDP Card)
B241ACC20213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $24,285
B241BAA20203001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $20,285
Premium Level Monitoring with BCMS (100A max) (Includes Power Xpert Gateway PDP Card)
B241ACC30213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $25,185
B241BAA30203001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $20,735
REMOTE AND RACK POWER PANEL TOPSELLERS
-
OPTIONS
Part Number Description List Price
157607364 Transient Suppression Plate - 4'W x 4'D plate $250
157607206 Extra Knock-out Plates - 84 holes $170
157607208 Extra Blank Plates $170
124100030-009 Low Voltage Control Junction Box $370
REMOTE AND RACK POWER PANEL TOPSELLERS
-
BRANCH BREAKERS
For branch breakers, please refer to the Eaton Branch Circuit Breakers section.
SERVICES
For detailed information on service plans, please refer to the Three-phase Service section on page 125.
July 1, 2013
19www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
Eaton Power Distribution Rack Part Number Illustration
Eaton is now employing the use of smart part numbers to help our customers understand the product that the fits their needs. Follow the example below
as reference only. For ordering purposes please select one of the pre-configured part numbers in the price book or use the online configurator available
through the Power Quality web site.
PD 1 1 2 0 0 0 2 0 1 0 0 0 1
PDR
Display
1 = Single UCB/display(Front)
2 = Single UCB/Dual Display
3 = Dual UCB/Dual Display
Voltage
208/1/20V
Door
0 = Standard Mesh Door
1 = See-Thru Plexi
2 = Mesh with cut out
None
Input
1 = Direct connection
2 = Single input 800A lug
3 = Dual input 800A lug
4 = Single 400A main CB
5 = Single 600A main CB
6 = Dual 400A main CB
7 = Dual 600A main CB
Gen Code
Front
1 = 1x 225A 42cct PB
2 = 2 x 225A 42 cct PB
3 = 1 x 400A 42 cct PB
4 = 2 x 400A 42 cct PB
Access
1 = No side access
2 = Left side access
Rear
1 = 1x 225A 42cct PB
2 = 2 x 225A 42 cct PB
3 = 1 x 400A 42 cct PB
4 = 2 x 400A 42 cct PB
SPD
0 = None
1 = 50KA 1 unit
2 = 100KA 1 unit
3 = 50KA 2 unit
4 = 100KA 2 unit
5 = 50KA 3 unit
6 = 100KA 3 unit
7 = 50KA 4 unit
8 = 100KA 4 unit
Metering
0 = None
2 = System Level
3 = Premium BCMS 60A
4 = Premium BCMS 100A
Custom
0 = None
1 = Breakers installed
None
20 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
Power Distribution Rack (PDR)
Eaton PDRs are designed for high power applications in data center and rack equipment environments. The PDR packs up
to four 400A column panelboards into a single EIA standard Enclosure allowing users to take full advantage of all 168 pole
positions. The PDR offers top and bottom cable entry for fast, flexible installation. Available options include 100% rated
breakers, plexiglas doors and cabinet main input breakers.
• Flexible power distribution with up to 168 factory-installed branch breakers in a highly compact footprint
• Designed for high-density racks, with 400A panels and high power inputs
• Aesthetically pleasing design, with an elegant rack Enclosure in textured black finish
• Free-standing unit with top and bottom cable entry for fast, flexible installation
• Front and/or rear access, column power panels, large LCD for ease of servicing
• Extensive monitoring options, including the Eaton Energy Management System
POWER DISTRIBUTION RACK TOPSELLERS
Surge List
Part Number Description Local Display Protection Door Style Price
Direct Connection to Panel Main Breakers
System Level Monitoring
PD1122002031001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Plexi $18,630
PD1120102011001 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None Plexi $13,590
PD1120032010001 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front 50 kA/ph Mesh $15,140
per Input
PD1122182030001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back 100 kA/ph Mesh $23,580
per Input
Premium Level Monitoring with BCMS (60A max)
PD1122003031001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Plexi $22,620
PD1120103011001 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None Plexi $16,440
PD1120033010011 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front 50 kA/ph Plexi $18,240
per Input
PD1122183030001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back 100 kA/ph Mesh $27,570
per Input
Premium Level Monitoring with BCMS (100A max)
PD1144104030001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Mesh $27,410
PD1122004030001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Mesh $22,690
PD1120004010001 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None Mesh $16,340
PD1140004010001 Front only - 2 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Mesh $19,100
Single Input Main Lug
System Level Metering
PD1244102030001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Mesh $25,100
PD1222102010001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Mesh $20,380
PD1200002011011 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None Plexi $15,590
PD1222002031011 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Plexi $20,630
Premium Level Monitoring with BCMS (60A max)
PD1244103030001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Mesh $29,090
PD1222103030001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Mesh $24,370
PD1244103030011 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Plexi $29,340
PD1244003030011 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Plexi $24,620
Premium Level Monitoring with BCMS (100A max)
PD1244104030001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Mesh $29,410
PD1222104030001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Mesh $24,690
PD1244104030011 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Plexi $29,660
PD1220004011001 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None Plexi $18,590
July 1, 2013
21www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
Power Distribution Rack (PDR)
(continued)
POWER DISTRIBUTION RACK TOPSELLERS
Surge List
Part Number Description Local Display Protection Door Style Price
Dual Input Main Lugs
System Level Metering
PD1344102031001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Plexi $27,350
PD1322102030001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Mesh $22,380
PD1322002031001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Plexi $22,630
Premium Level Monitoring with BCMS (60A max)
PD1322103031001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Plexi $29,940
PD1344103031001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Plexi $31,340
PD1322003030001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Mesh $26,370
PD1344003031001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Plexi $31,090
Premium Level Monitoring with BCMS (100A max)
PD1322104030001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Mesh $26,690
PD1344104030001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Mesh $31,410
PD1322004031001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Plexi $26,940
PD1344004031001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Plexi $31,660
Single Input Main Breaker (400A)
System Level Metering
PD1420102010001 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None Mesh $15,840
PD1422002030001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Mesh $20,880
Premium Level Monitoring with BCMS (60A max)
PD1420003011001 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $18,940
PD1420003012001 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None Mesh w/ Cut-out $18,840
Premium Level Monitoring with BCMS (100A max)
PD1420004011001 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $19,090
PD1420004012001 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None Mesh w/ Cut-out $18,990
Dual Input Main Breaker (600A)
System Level Metering
PD1722102030001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Mesh $25,380
PD1744102030001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Mesh $30,100
Premium Level Monitoring with BCMS (60A max)
PD1722103031001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Plexi $29,370
PD1744103030001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Mesh $34,090
Premium Level Monitoring with BCMS (100A max)
PD1722104031001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Plexi $29,690
PD1744104030001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Mesh $34,410
POWER DISTRIBUTION RACK TOPSELLERS
-
OPTIONS
Part Number Description List Price
103008064-5591 Power Xpert Gateway Communication PDP Card $950
124100030-009 Control Junction Box $370
157607364 Transient Suppression Plate $225
Notes: PDRs come with 42-circuit column panelboards with 225A or 400A panel main breakers. Please contact factory for custom configurations.
SERVICES
For detailed information on service plans, please refer to the Three-phase Service section on page 125.
22 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
Eaton Branch Circuit Breakers
Eaton Cutler-Hammer bolt-on branch circuit breakers can be installed in any 42-pole Cutler-Hammer panelboard providing over-current and high
interrupting current protection. Single-, double- and three-pole breakers can be provided from 10 to 100A trip rating and 10 or 22 kAIC.
Single-pole Breakers
Part Number Trip Rating kAIC List Price
BAB1010 10A 10 $17.00
BAB1015 15A 10 $17.00
BAB1020 20A 10 $17.00
BAB1025 25A 10 $17.00
BAB1030 30A 10 $17.00
BAB1035 35A 10 $17.00
BAB1040 40A 10 $17.00
BAB1045 45A 10 $17.00
BAB1050 50A 10 $17.00
BAB1055 55A 10 $17.00
BAB1060 60A 10 $17.00
QBHW1015 15A 22 $26.00
QBHW1020 20A 22 $26.00
QBHW1025 25A 22 $26.00
QBHW1030 30A 22 $26.00
QBHW1035 35A 22 $26.00
QBHW1040 40A 22 $26.00
QBHW1045 45A 22 $26.00
QBHW1050 50A 22 $26.00
QBHW1055 55A 22 $26.00
QBHW1060 60A 22 $26.00
Double-pole Breakers Three-pole Breakers
Part Number Trip Rating kAIC List Price Part Number Trip Rating kAIC List Price
BAB2010 10A 10 $29.00 BAB3015H 15A 10 $95.00
BAB2015 15A 10 $29.00 BAB3020H 20A 10 $95.00
BAB2020 20A 10 $29.00 BAB3025H 25A 10 $95.00
BAB2025 25A 10 $29.00 BAB3030H 30A 10 $95.00
BAB2030 30A 10 $29.00 BAB3035H 35A 10 $95.00
BAB2035 35A 10 $29.00 BAB3040H 40A 10 $95.00
BAB2040 40A 10 $29.00 BAB3045H 45A 10 $95.00
BAB2045 45A 10 $29.00 BAB3050H 50A 10 $95.00
BAB2050 50A 10 $29.00 BAB3055H 55A 10 $95.00
BAB2055 55A 10 $29.00 BAB3060H 60A 10 $95.00
BAB2060 60A 10 $29.00 QBHW3015H 15A 22 $138.00
BAB2070 70A 10 $56.00 BAB3070H 70A 10 $152.00
BAB2080 80A 10 $56.00 BAB3080H 80A 10 $152.00
BAB2090 90A 10 $56.00 BAB3090H 90A 10 $152.00
BAB2100 100A 10 $56.00 BAB3100H 100A 10 $152.00
QBHW2015 15A 22 $41.00 QBHW3020H 20A 22 $138.00
QBHW2020 20A 22 $41.00 QBHW3025H 25A 22 $138.00
QBHW2025 25A 22 $41.00 QBHW3030H 30A 22 $138.00
QBHW2030 30A 22 $41.00 QBHW3035H 35A 22 $138.00
QBHW2035 35A 22 $41.00 QBHW3040H 40A 22 $138.00
QBHW2040 40A 22 $41.00 QBHW3045H 45A 22 $138.00
QBHW2045 45A 22 $41.00 QBHW3050H 50A 22 $138.00
QBHW2050 50A 22 $41.00 QBHW3055H 55A 22 $138.00
QBHW2055 55A 22 $41.00 QBHW3060H 60A 22 $138.00
QBHW2060 60A 22 $41.00 QBHW3070H 70A 22 $220.00
QBHW2070 70A 22 $74.00 QBHW3080H 80A 22 $220.00
QBHW2080 80A 22 $74.00 QBHW3090H 90A 22 $220.00
QBHW2090 90A 22 $74.00 QBHW3100H 100A 22 $220.00
QBHW2100 100A 22 $74.00
July 1, 2013
23www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
Eaton Energy Management System Upgrade Kit
Eaton EMS Upgrade Kit (EMS-UGK) extends branch circuit monitoring capabilities to any existing and third-party power distribution equipment, such as RPPs, PDUs or
wall-mounted panels. This standalone device monitors, tracks and analyzes power, voltage, current and frequency readings, providing time-stamped metering, alarms,
events and statistical information for better energy planning. This practical and affordable solution comes with an easy-to-use software tool to configure startup settings
and options.
• Monitors up to 2 x 42-poles panels and 2 main inputs up to 400A through split core CTs
• Subfeed monitoring, 75A and 100A branch breaker CTs optional
• LCD screen for local indication of energy consumption
• Conduit box for enhanced wiring harness protection
• 208/120V or 380-415/220-240V rating for North American and International use
• Power Xpert PDP SNMP and TCP/IP Gateway Card included
• Dimensions: 15”W x 11”H x 5”D
EMS UPGRADE KIT - NORTH AMERICAN MODELS: 120/208V, 50/60Hz
Part Number Power Monitoring Display Conduit Box List Price
E11101003 1 Panel (42 Poles) No No $5,050
E11201003 2 Panels (84 Poles) No No $6,350
E12101003 1 Panel (42 Poles) Yes No $5,550
E12201003 2 Panels (84 Poles) Yes No $6,850
E11112003 1 Panel (42 Poles) & Panel Main Breaker No Yes $6,260
E11212003 2 Panels (84 Poles) & Panel Main Breaker No Yes $7,670
E12112003 1 Panel (42 Poles) & Panel Main Breaker Yes Yes $6,760
E12212003 2 Panels (84 Poles) & Panel Main Breaker Yes Yes $8,170
E11111003 1 Panel (42 Poles) & Panel Main Breaker No No $6,150
E11211003 2 Panels (84 Poles) & Panel Main Breaker No No $7,450
E12111003 1 Panel (42 Poles) & Panel Main Breaker Yes No $6,650
E12211003 2 Panels (84 Poles) & Panel Main Breaker Yes No $7,950
EMS UPGRADE KIT - INTERNATIONAL MODELS: 380/415 - 220/240V, 50/60Hz
Part Number Power Monitoring Display Conduit Box List Price
E21101003 1 Panel (42 Poles) No No $5,095
E21201003 2 Panels (84 Poles) No No $6,395
E22101003 1 Panel (42 Poles) Yes No $5,595
E22201003 2 Panels (84 Poles) Yes No $6,895
E21112003 1 Panel (42 Poles) & Panel Main Breaker No Yes $6,305
E21212003 2 Panels (84 Poles) & Panel Main Breaker No Yes $7,715
E22112003 1 Panel (42 Poles) & Panel Main Breaker Yes Yes $6,805
E22212003 2 Panels (84 Poles) & Panel Main Breaker Yes Yes $8,215
E21111003 1 Panel (42 Poles) & Panel Main Breaker No No $6,195
E21211003 2 Panels (84 Poles) & Panel Main Breaker No No $7,495
E22111003 1 Panel (42 Poles) & Panel Main Breaker Yes No $6,695
E22211003 2 Panels (84 Poles) & Panel Main Breaker Yes No $7,995
EMS UPGRADE KIT - OPTIONS
Part Number Description List Price
103006704 Subfeed Breaker Monitoring Kit (3 CTs) $825
103006705 100A Branch Breaker CTs Kit (10) $475
103006756 Extra 75A Branch Breaker CTs Kit (5) $120
24 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
Eaton's line of liquid-tight power distribution cables minimizes electrical and mechanical disturbances
including harmonic distortion. These cables are UL listed for use with Integration Technology Equipment
(NEC 645) and are exempt from being secured in place, making your power distribution system completely
flexible and cost effective.
• Highly flexible and approved for data center environments (NEC 645)
• Custom configurations and colors available
STANDARD NEMA CABLE
NEMA
Type
Hubbell
PN Volts Amps Phase Breaker Wire Qty Wire Size Sealtite Fixed
Price
Price Per
Foot
5-15R1 5261 120 15 1 1 Pole 3 12 awg 0.5" $130.00 $3.21
5-15R2 5262 120 15 1 1 Pole 3 12 awg 0.5" $130.00 $3.21
5-15R4 5262 120 15 1 1 Pole 3 12 awg 0.5" $135.00 $3.21
5-20R1 5361 120 20 1 1 Pole 3 12 awg 0.5" $135.00 $3.21
5-20R2 5362 120 20 1 1 Pole 3 12 awg 0.5" $110.00 $3.21
5-20R4 5362 120 20 1 1 Pole 3 12 awg 0.5" $140.00 $3.21
5-30R1 9308 120 30 1 1 Pole 3 10 awg 0.5" $140.00 $3.94
5-50R1 9360 120 50 1 1 Pole 3 8 awg 0.5" $185.00 $7.19
6-15R1 5661 208 15 1 2 Pole 3 12 awg 0.5" $130.00 $3.21
6-15R2 5662 208 15 1 2 Pole 3 12 awg 0.5" $125.00 $3.21
6-15R4 5662 208 15 1 2 Pole 3 12 awg 0.5" $170.00 $3.21
6-20R1 5465 208 20 1 2 Pole 3 12 awg 0.5" $145.00 $3.21
6-20R2 5462 208 20 1 2 Pole 3 12 awg 0.5" $135.00 $3.21
6-20R4 5462 208 20 1 2 Pole 3 12 awg 0.5" $185.00 $3.21
6-30R1 9330 208 30 1 2 Pole 3 10 awg 0.5" $140.00 $3.94
14-20R1 8410 120/208 20 1 2 Pole 4 12 awg 0.5" $150.00 $3.62
14-30R1 9430 120/208 30 1 2 Pole 4 10 awg 0.5" $185.00 $4.36
14-50R1 9450 120/208 50 1 2 Pole 4 8 awg 0.75" $295.00 $7.80
L5-15R1 4710 120 15 1 1 Pole 3 12 awg 0.5" $140.00 $3.21
L5-15R2 4700 120 15 1 1 Pole 3 12 awg 0.5" $140.00 $3.21
L5-20R1 2310 120 20 1 1 Pole 3 12 awg 0.5" $125.00 $3.21
L5-30R1 2610 120 30 1 1 Pole 3 10 awg 0.5" $145.00 $3.94
L6-15R1 4560 208 15 2 2 Pole 3 12 awg 0.5" $135.00 $3.21
L6-15R2 4550 208 15 2 2 Pole 3 12 awg 0.5" $135.00 $3.21
L6-20R1 2320 208 20 2 2 Pole 3 12 awg 0.5" $125.00 $3.21
L6-30R1 2620 208 30 2 2 Pole 3 10 awg 0.5" $140.00 $3.94
L14-20R1 2410 120/208 20 2 2 Pole 4 12 awg 0.5" $145.00 $3.62
L14-30R1 2710 120/208 30 2 2 Pole 4 10 awg 0.5" $170.00 $4.36
L15-20R1 2420 208 20 3 3 Pole 4 12 awg 0.5" $175.00 $3.62
L15-30R1 2720 208 30 3 3 Pole 4 10 awg 0.5" $185.00 $4.36
L21-20R1 2510 208 20 3 3 Pole 5 12 awg 0.5" $160.00 $4.36
L21-30R1 2810 208 30 3 3 Pole 5 10 awg 0.5" $185.00 $4.99
Notes: See next page
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
UL Listed Power Distribution Cables
July 1, 2013
25www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
NEMA "IG" ISOLATED GROUND CABLE
NEMA Type Hubbell
PN Volts Amps Phase Breaker Wire Qty Wire Size Sealtite Fixed
Price
Price Per
Foot
5-15R1 IG 5261 120 15 1 1 Pole 4 12 awg 0.5" $120.00 $3.62
5-15R2 IG 5262 120 15 1 1 Pole 4 12 awg 0.5" $125.00 $3.62
5-15R4 IG 5262 120 15 1 1 Pole 4 12 awg 0.5" $160.00 $3.62
5-20R1 IG 5361 120 20 1 1 Pole 4 12 awg 0.5" $130.00 $3.62
5-20R2 IG 5362 120 20 1 1 Pole 4 12 awg 0.5" $125.00 $3.62
5-20R4 IG 5362 120 20 1 1 Pole 4 12 awg 0.5" $165.00 $3.62
5-30R1 IG 9308 120 30 1 1 Pole 4 10 awg 0.5" $160.00 $4.41
6-15R1 IG 5661 208 15 1 2 Pole 4 12 awg 0.5" $195.00 $3.62
6-15R2 IG 5662 208 15 1 2 Pole 4 12 awg 0.5" $205.00 $3.62
6-15R4 IG 5662 208 15 1 2 Pole 4 12 awg 0.5" $325.00 $3.62
6-20R1 IG 5465 208 20 1 2 Pole 4 12 awg 0.5" $210.00 $3.62
6-20R2 IG 5462 208 20 1 2 Pole 4 12 awg 0.5" $235.00 $3.62
6-20R4 IG 5462 208 20 1 2 Pole 4 12 awg 0.5" $370.00 $3.62
6-30R1 IG 9330 208 30 1 2 Pole 4 10 awg 0.5" $255.00 $4.41
L5-15R1 IG 4710 120 15 1 1 Pole 4 12 awg 0.5" $175.00 $3.62
L5-15R2 IG 4700 120 15 1 1 Pole 4 12 awg 0.5" $140.00 $3.62
L5-20R1 IG 2310 120 20 1 1 Pole 4 12 awg 0.5" $135.00 $3.62
L5-30R1 IG 2610 120 30 1 1 Pole 4 10 awg 0.5" $155.00 $4.41
L6-15R1 IG 4560 208 15 2 2 Pole 4 12 awg 0.5" $140.00 $3.62
L6-15R2 IG 4550 208 15 2 2 Pole 4 12 awg 0.5" $135.00 $3.62
L6-20R1 IG 2320 208 20 2 2 Pole 4 12 awg 0.5" $135.00 $3.62
L6-30R1 IG 2620 208 30 2 2 Pole 4 10 awg 0.5" $165.00 $4.41
L14-20R1 IG 2410 120/208 20 2 2 Pole 5 12 awg 0.5" $155.00 $4.36
L14-30R1 IG 2710 120/208 30 2 2 Pole 5 10 awg 0.5" $200.00 $4.99
L15-20R1 IG 2420 208 20 3 3 Pole 5 12 awg 0.5" $205.00 $4.36
L15-30R1 IG 2720 208 30 3 3 Pole 5 10 awg 0.5" $235.00 $4.99
L21-20R1 IG 2510 208 20 3 3 Pole 6 12 awg 0.5" $170.00 $4.67
L21-30R1 IG 2810 208 30 3 3 Pole 6 10 awg 0.5" $205.00 $5.51
Notes:
1. For the cables that have 0.5" conduit, to go to 0.75" conduit, please add $1.05 per foot to the above list price.
2. For the cables that have 12 awg wire, to go to 10 awg wire conduit, please add $1.00 per foot to the above list price.
3. Breakers are NOT included in the base price above.
4. The above pricing does NOT include shipping costs.
5. Please see the Cables specifications or contact the factory for details.
6. Add .63 per FT for colored LT.
7. For separate circuits for quads etc, must call for quote.
8. To construct a part number use the following format: <NEMA Type> - <Cable Length in Feet, min of 2 digits>. As an example, a 5-50R1 NEMA type with 2
feet of cable becomes 5-50R1-02.
9. Price is determined by adding the Fixed Price to Price per Foot multiplied by the cable length in feet.
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
UL Listed Power Distribution Cables (continued)
26 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
RUSSELLSTOLL & IEC CABLES
Device Volts Amps Phase Breaker Wire Qty Wire Size Sealtite Fixed
Price
Price Per
Foot
RS3913 250 20 2 2 Pole 3 12 awg 0.5" $650.00 $3.21
RS3743 250 20 2 2 Pole 3 12 awg 0.5" $845.00 $3.21
RS3913U2 250 20 2 2 Pole 3 12 awg 0.5" $665.00 $3.21
RS3914 250 20 3 3 Pole 4 12 awg 0.5" $755.00 $3.62
RS3933 250 30 2 2 Pole 4 10 awg 0.5" $765.00 $4.36
RS3753 250 30 2 2 Pole 4 10 awg 0.5" $825.00 $4.36
RS3934 250 30 3 3 Pole 4 10 awg 0.5" $810.00 $4.36
RS3754 250 30 3 3 Pole 4 10 awg 0.5" $875.00 $4.36
RS7428-78 600 60 3 3 Pole 4 6 awg 0.75" $2,205.00 $10.82
9C33UO 250 30 2 2 Pole 3 10 awg 0.5" $625.00 $4.36
9C54U2/C75 250 50 3 3 Pole 4 8 awg 0.75" $1,080.00 $9.03
HBL360C6W 250 60 2 2 Pole 3 6 awg 0.75" $1,050.00 $10.82
HBL460C9W 250 60 3 3 Pole 4 6 awg 0.75" $945.00 $15.02
HBL360R9W 250 60 3 3 Pole 4 6 awg 0.75" $1,000.00 $15.02
EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES
UL Listed Power Distribution Cables (continued)
"FIELD WIRE" CABLES
Description Device Volts Amps Phase Breaker Wire Qty Wire Size Sealtite Fixed
Price
Price Per
Foot
FW120 N/A 120 15 1 1 Pole 3 12 awg 0.5" $130.00 $3.21
FW130 N/A 120 15 1 1 Pole 3 10 awg 0.5" $130.00 $3.94
FW220 N/A 120 15 1 2 Pole 3 12 awg 0.5" $170.00 $3.21
FW220N N/A 120 20 1 2 Pole 4 12 awg 0.5" $135.00 $3.62
FW230 N/A 120 20 1 2 Pole 3 10 awg 0.5" $135.00 $3.94
FW230N N/A 120 20 1 2 Pole 4 10 awg 0.5" $175.00 $4.36
FW320 N/A 120 30 1 3 Pole 4 12 awg 0.5" $155.00 $3.62
FW320N N/A 208 15 1 3 Pole 5 12 awg 0.5" $225.00 $4.46
FW330 N/A 208 15 1 3 Pole 4 10 awg 0.5" $235.00 $4.36
FW330N N/A 208 15 1 3 Pole 5 10 awg 0.5" $365.00 $4.99
FW360 N/A 208 20 1 3 Pole 4 6 awg 0.75" $140.00 $13.81
FW360N N/A 208 20 1 3 Pole 5 6 awg 1.00" $270.00 $16.07
FW3100 N/A 208 20 1 3 Pole 4 3 awg 1.25" $420.00 $33.34
FW3100N N/A 208 100 1 3 Pole 5 1 awg 1.50" $280.00 $45.05
Notes:
1. For the cables that have 0.5" conduit, to go to 0.75" conduit, please add $1.05 per foot to the above list price. 2. For the cables that have 12 awg
wire, to go to 10 awg wire conduit, please add $1.00 per foot to the above list price. 3. Breakers are NOT included in the base price above. 4. The
above pricing does NOT include shipping costs. 5. Please see the Cables specifications or contact the factory for details. 6. Add .63 list per FT for
colored LT. 7. For "Field Wire" cables: All single pole field wire cables include a neutral, separate "N" is not required.
July 1, 2013
27www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
EATON CATALOG NUMBER ORDERING INSTRUCTIONS
Single-phase Products
Eaton is now employing the use of smart part numbers to help our customers design the product that fits their needs and makes ordering a snap.
Follow the example below to see how to easily select your product’s features and create the catalog number for your order.
PW 5130 G 2000 R - XL 2U EU
Series Descriptor
PW = Eaton series
Form Factor
R = Rackmount
T = Tower
Family
5130 = Line-interactive 1250-3000 kVA
9130 = Online 700-3000 kVA
9135 = Online 5-6 kVA
Option Field 1: Runtime
XL = Extended runtime (None = Standard)
EBM = Extended battery module
PDM = Power distribution module
Option Field 2: U size
1U = 1U package (Blank = Tower)
2U = 2U package
3U = 3U package etc...
Voltage
L = 120V, nominal* J = 200V only
G = 208V, nominal* N =Voltage irrelevant
I = 230V, nominal*
Option Field 3: Open
Two characters (325 combinations)
EU = European model/IEC outlets
HW = Hardwired
VA
3-5 characters
e.g. 700 or 12000
*Other selectable voltages vary by product
28 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
EATON 3S UPS
Eaton series
Standby UPS (350–750 VA)
The sleek Eaton 3S delivers high efficiency and energy-saving battery backup and surge protection for your premium home and office equipment —
ready to go right out of the box.
• Ease of use: Plug-and-play capability — features HID-compliant USB port for automatic integration with
Windows, Mac and Linux (no drivers required)
• EcoControl for 30% greater energy savings than a typical battery backup
• Attractive design and glossy finish make the 3S a perfect fit for the modern office environment
• Up to 10 receptacles — (5) battery backup and surge protection, (5) surge protection
• Protection for devices connected to telephone, fax and Ethernet lines
• User-replaceable batteries
• Integrated graceful shutdown capability for connected devices
• Warranty (US and Canada): Three-year limited warranty (third year of warranty free with
online product registration), $25,000 load protection guarantee
3S NORTH AMERICAN MODELS: 120V, 50/60 Hz
Part Rating Input Output Dimensions Weight List
Model Number (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
3S 350 3S350 350/200 5-15P (8) 5-15R (4 Battery Backup & 3.4 x 5.5 x 13.2 6.6 $88
4 Surge Protection only)
3S 550 3S550 550/330 5-15P (8) 5-15R (4 Battery Backup & 3.4 x 5.5 x 13.2 7.3 $110
4 Surge Protection only)
3S 750 3S750 750/450 5-15P (10) 5-15R (5 Battery Backup & 3.4 x 6.7 x 13.2 9.7 $159
5 Surge Protection only)
3S INTERNATIONAL MODELS: 230V, 50/60 Hz
Part Rating Input Output Dimensions Weight List
Model Number (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
3S550IEC 3S550IEC 550/330 C14 (8) C13 (4 Battery Backup & 3.4 x 5.5 x 13.2 7.3 $129
(1) IEC-IEC cable 4 Surge only)
3S700IEC 3S700IEC 700/420 C14 (8) C13 (4 Battery Backup & 3.4 x 6.7 x 13.2 9.7 $181
(1) IEC-IEC cable 4 Surge only)
SOFTWARE
To enable EcoControl functionality on the 750 VA unit, download Personal Solution-Pac software at www.eaton.com/psp. The Intelligent Power Software
Suite is available for download free of charge from www.eaton.com/intelligentpower. See the software and connectivity product sections for more
detail.
3S BATTERY BACKUP TIMES (in minutes)
UPS model
Load 50W 100W 150W 200W 250W 300W 350W 400W 450W
3S350 30 12 7 5
3S550 42 18 11 6 4
3S750 61 31 20 13 10 7 6 4 3
Note: Battery runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc.
SERVICES
For detailed information on service plans, please refer to the Single-phase Service section on page 122.
July 1, 2013
29www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
EATON 5110 UPS
Powerware series
Line-interactive UPS (500–1500 VA)
Protect your SOHO computer and telephone equipment from the damaging threats that lurk in public utility power.
• Protect against power outages, surges, sags and line noise
• Save space with a compact design that fits easily under a desk, mounted under a computer terminal, or on a
computer shelf with quick access to all receptacles
• Keep essential systems running through power outages by plugging them into receptacles with surge suppression
and battery backup
• Conserve battery runtime by plugging non-essential equipment into receptacles that have surge suppression only
• Extend UPS service life with user-replaceable batteries and deliver short-term mobile power with start-on-battery
capability
• Protect network-connected equipment from surges coming over LAN or telephone lines
• USB port and cables are standard
• Warranty (US and Canada): Three-year limited warranty (third year of warranty free with
online product registration), $150,000 load protection guarantee
5110 NORTH AMERICAN MODELS: 120V, 50/60 Hz
Part Power Out Input Output Dimensions Weight List
Model Number (VA/Watts) Connection* Receptacles** (H x W x D, inches) (lb) Price
5110 500 103004256-5591 500/300 5-15P (8) 5-15R 10.6 x 3.4 x 10.2 12.1 $161
5110 700 103004257-5591 700/420 5-15P (8) 5-15R 10.6 x 3.4 x 10.2 15.2 $189
5110 1000 103004258-5591 1000/600 5-15P (8) 5-15R 10.6 x 3.4 x 15.1 28.0 $230
5110 1500 103004259-5591 1440/900 5-15P (8) 5-15R 10.6 x 3.4 x 15.1 29.1 $337
5110 INTERNATIONAL MODELS: 230V, 50/60 HZ
Part Power Out Input Output Dimensions Weight List
Model Number (VA/Watts) Connection*** Receptacles** H x W x D (inches) (lb) Price
5110 700i 103004262-5591 700/420 C14 (8) C13 10.6 x 3.4 x 10.2 16.5 $217
5110 1500i 103004264-5591 1500/900 C14 (8) C13 10.6 x 3.4 x 15.1 30.2 $388
* 1.8m line cord with 90-degree angle plug **Four battery backup & surge protection; four surge protection only *** 1.8m line patch cord IEC to IEC
SOFTWARE
The Intelligent Power Software Suite is available for download free of charge. See the software and connectivity product sections for more detail.
5110 BATTERY BACKUP TIMES (in minutes)
Load 30W 60W 90W 120W 150W 180W 210W 240W 270W 300W 330W 360W 390W 420W
500 52 35 22 14 11 8 6 5 4 3 - - - -
700 63 46 34 23 16 12 10 8 7 6 5 4 4 3
Load 120W 180W 240W 300W 360W 420W 480W 540W 600W 660W 720W 780W 840W 900W
1000 52 35 23 17 13 10 9 7 5 - - - - -
1500 62 43 29 20 16 14 12 11 9 8 7 6 5 4.4
Note: Battery runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc.
SERVICES
For detailed information on service plans, please refer to the Single-phase Service section on page 122.
30 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
EATON 5S UPS TOWER
Line-interactive UPS (550 – 1500 VA)
• Power management: Enhance your power protection capabilities and ensure safe system shutdown
with the Eaton UPS Companion software. The 5S interface is auto-recognized when plugged into
computers with Windows, Macintosh and Linux environments
• LCD display: Access critical UPS information including battery time and outage tracking
in a single screen view with the user-friendly LCD
• Data protection: Safeguard your work and data with the UPS Companion software by gracefully shutting
down your equipment during power outages
• Eco-Control: Save up to 30 percent on energy consumption by shutting down non-essential peripherals
when the connected computer is turned off
• Convenient form factor: Fit the 5S easily into tight spaces with its slim form factor. The versatile 5S can be
used as a tower or as a desktop monitor stand
• Surge protection: Provide surge protection for network phone lines, cable TV and satellite applications
• Battery health checks: Schedule daily, weekly or monthly health checks to verify battery performance and ensure it
delivers power during the next outage
• Warranty (US and Canada): Three-year limited warranty (third year of warranty free with
online product registration), $25,000 load protection guarantee
5S NORTH AMERICAN MODELS: 120V, 50/60 Hz
Catalog Rating Input Output Dimensions Net Weight List
Number (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) LCD Eco Control Price
5S550 550/330 5-15P (6 ft) (8) 5-15R 9.8 x 3.4 x 10.2 12.6 No No $161
5S700 700/420 5-15P (6 ft) (8) 5-15R 9.8 x 3.4 x 10.2 14.7 No No $179
5S700LCD 700/420 5-15P (6 ft) (8) 5-15R 9.8 x 3.4 x 10.2 15.1 Yes Yes $189
5S1000LCD 1000/600 5-15P (6 ft) (10) 5-15R 9.8 x 3.4 x 15.0 21.7 Yes Yes $230
5S1500LCD 1500/900 5-15P (6 ft) (10) 5-15R 9.8 x 3.4 x 15.0 26.1 Yes Yes $337
5S INTERNATIONAL MODELS: 208 or 230V, 50/60 Hz
Catalog Rating Input Output Dimensions Net Weight List
Number (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) LCD Eco Control Price
5S700G 700/420 C14 (6) C13 9.8 x 3.4 x 10.2 13.2 No No $217
5S1500G 1500/900 C14 (8) C13 9.8 x 3.4 x 15.0 24.6 No No $388
SOFTWARE
The UPS Companion software is available for download free of charge. See the software and connectivity product sections for more detail.
5S BATTERY BACKUP TIMES (in minutes)
UPS model
Load 30W 60W 90W 120W 150W 180W 210W 240W 270W 300W 330W 360W 390W 420W
5S550 121 56 31 20 14 10 8 6 5 4 1
5S700 151 75 37 30 21 14 12 11 9 7 6 5 3 2
5S700G 151 75 37 30 21 14 12 11 9 7 6 5 3 2
5S700LCD 86 67 36 27 20 15 11 9 7 6 5 4 2 2
UPS model
Load 120W 180W 240W 300W 360W 420W 480W 540W 600W 660W 720W 780W 840W 900W
5S1000LCD 43 26 18 14 10 9 6 4 3
5S1500G 79 43 30 22 17 13 10 9 8 6 5 4 3 2
5S1500LCD 71 42 31 22 16 13 10 8 7 6 5 4 3 2
Note: Battery runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc.
SERVICES
For detailed information on service plans, please refer to the Single-phase Service section on page 122.
July 1, 2013
31www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
Line-interactive UPS (500–1400 VA)
The Eaton 5115 UPS offers Series 5 advanced protection for PCs, small-office-home-office
equipment, workstations and small networking devices.
• ABM technology significantly increases battery service life
• Pure sine wave output delivers smooth, continuous power
• Buck and Boost voltage regulation corrects incoming voltage fluctuations
• Hot-swappable batteries simplify service
• Network Transient Protector isolates network/phone wiring
• Intelligent Power Software Suite provides monitoring and shutdown capabilities
• Warranty (US and Canada): Three-year limited warranty (third year of warranty free with
online product registration), $150,000 load protection guarantee
EATON 5115 UPS TOWER
Powerware series
5115 NORTH AMERICAN TOWER MODELS: 120V, 50/60 Hz1
Part Rating Input Output Dimensions Weight List
Model Number (VA/Watts) Connection Receptacles (H x W x D inches) (lb) Price
5115 500 05146548-5591 500/320 5-15P (4) 5-15R 7.6 x 5.9 x 10.6 17.2 $285
5115 750 05146554-5591 750/500 5-15P (4) 5-15R 7.6 x 5.9 x 13.2 27.3 $410
5115 1000 05146560-5591 1000/670 5-15P (6) 5-15R 7.6 x 5.9 x 13.2 27.8 $470
5115 1400 05146566-5591 1400/950 5-15P (6) 5-15R 7.6 x 5.9 x 15.4 37.0 $605
1. Bundled with Intelligent Power Software Suite CD and communication cable (DB9f to DB9m P/N 60420064-002).
5115 TAA COMPLIANT MODELS
Part Rating Input Output Dimensions Weight List
Model Number (VA/Watts) Connection Receptacles H x W x D (inches) (lb) Price
5115 750 VA 120V TAA 05146554-5591US 750/500 5-15P (4) 5-15R 7.6 x 5.9 x 13.2 27.3 $488
5115 1000 VA 120V TAA 05146560-5591US 1000/670 5-15P (6) 5-15R 7.6 x 5.9 x 13.2 27.8 $636
5115 1500 VA 120V TAA 05146566-5591US 1400/950 5-15P (6) 5-15R 7.6 x 5.9 x 15.4 37.0 $715
5115 750 VA 230V TAA 05146555-5591US 750/500 C14 (6) C13 7.6 x 5.9 x 13.2 27.3 $471
5115 1000VA 230V TAA 05146561-5591US 1000/670 C14 (6) C13 7.6 x 5.9 x 13.2 27.8 $637
5115 1500 VA 230V TAA 05146567-5591US 1400/950 C14 (6) C13 7.6 x 5.9 x 15.4 37.0 $793
5115 INTERNATIONAL TOWER MODELS: 230V, 50/60 Hz1
Part Rating Input Output Dimensions Weight List
Model Number (VA/Watts) Connection Receptacles H x W x D (inches) (lb) Price
5115 500i 05146549-5591 500/320 C14 (4) C13 7.6 x 5.9 x 10.6 17.2 $328
5115 750i 05146555-5591 750/500 C14 (4) C13 7.6 x 5.9 x 13.2 27.3 $471
5115 1000i 05146561-5591 1000/670 C14 (6) C13 7.6 x 5.9 x 13.2 27.8 $541
5115 1400i 05146567-5591 1400/950 C14 (6) C13 7.6 x 5.9 x 15.4 37.0 $696
1. Includes all mounting hardware. Bundled with Intelligent Power Software Suite CD and communication cable (DB9f to DB9m, P/N 60420064-002).
SOFTWARE
The Intelligent Power Software Suite is available for download free of charge. See the software and connectivity product sections for more detail.
5115 BATTERY BACKUP TIMES (in minutes)
Load (VA/Watts) 5115 500 5115 750 5115 1000 5115 1400
200/128 17 38 41 58
300/192 11 27 28 41
500/320 5 14 15 28
600/402 – 9 10 19
750/503 – 6 8 14
900/603 – – 6 10
1000/670 – – 5 8
1200/804 – – – 6
1400/938 – – – 5
Note: Runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc.
View interactive runtime graphs at www.eaton.com/5115
SERVICES
For detailed information on service plans, please refer to the Single-phase Service section on page 122.
32 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
5115 NORTH AMERICAN RACKMOUNT MODELS: 120V, 50/60 Hz1
Part Rating Input Output Dimensions Weight List
Model Number (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
5115 500 RM 103003266-6591 500/320 5-15P (4) 5-15R 1.75 x 17.3 x 22.8 35.2 $389
5115 750 RM 103003269-6591 750/520 5-15P (4) 5-15R 1.75 x 17.3 x 22.8 41.4 $644
5115 1000 RM 103003272-6591 1000/670 5-15P (4) 5-15R 1.75 x 17.3 x 22.8 41.4 $829
5115 1500 RM 103003275-6591 1440/1000 5-15P (4) 5-15R 1.75 x 17.3 x 22.8 48.6 $1,065
1. Includes all mounting hardware. Bundled with Intelligent Power Software Suite CD and communication cable (DB9f to DB9m, P/N 60420064-002).
5115 INTERNATIONAL RACKMOUNT MODELS: 230V, 50/60 Hz1
Part Rating Input Output Dimensions Weight List
Model Number (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
5115 750i RM 103003270-6591 750/520 C14 (4) C13 1.75 x 17.3 x 22.8 41.4 $699
5115 1500i RM 103003276-6591 1440/1000 C14 (4) C13 1.75 x 17.3 x 22.8 48.6 $1,156
1. Includes all mounting hardware. Bundled with Intelligent Power Software Suite CD and communication cable (DB9f to DB9m, P/N 60420064-002).
EVOLUTION NORTH AMERICAN MODELS: 120V, 50/60 Hz
Catalog Style Rating Input Output Dimensions Weight List
Number Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
EVLL650T 81700 Evolution 650 VA Tower 650/420 5-15P (4) 5-15R 9.2 x 5.8 x 16.5 18.5 $410
EVLL850T 81703 Evolution 850 VA Tower 850/600 5-15P (4) 5-15R 9.2 x 5.8 x 16.5 23.9 $495
EVLL1150T 81705 Evolution 1150 VA Tower 1150/770 5-15P (4) 5-15R 9.2 x 5.8 x 16.5 27.6 $656
EVLL1550T 81709 Evolution 1550 VA Tower 1550/1100 5-15P (4) 5-15R 9.2 x 5.8 x 19.4 36.4 $810
EVLL650R-1U 81701 Evolution 650 VA Rackmount (1U) 650/420 5-15P (4) 5-15R 1.7 (1U) x 17.2 x 14.4 22.3 $441
EVLL850R-1U 81704 Evolution 850 VA Rackmount (1U) 850/600 5-15P (4) 5-15R 1.7 (1U) x 17.2 x 20.2 35.5 $660
EVLL1150R-1U 81706 Evolution 1150 VA Rackmount (1U) 1150/770 5-15P (4) 5-15R 1.7 (1U) x 17.2 x 20.2 36.6 $841
EVLL1550R-1U 81710 Evolution 1550 VA Rackmount (1U) 1550/1100 5-15P (4) 5-15R 1.7 (1U) x 17.2 x 21.9 44.1 $1,057
5125 NORTH AMERICAN TOWER MODELS: 120V, 50/60 Hz
Part Rating Input Output Dimensions Weight List
Model Number (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
5125 1000 05146629-5591 1000/700 5-15P (6) 5-15R 9.81 x 6.38 x 15.79 34.3 $673
5125 1500 05146632-5591 1440/1050 5-15P (6) 5-15R 9.81 x 6.38 x 18.39 50.7 $840
5125 2200 05146635-5591 1920/1600 5-20P (6) 5-15R, (2) 5-20R 9.84 x 8.07 x 19.41 68.3 $1,386
EATON TRANSITION LINE-INTERACTIVE UPS PRODUCTS
July 1, 2013
33www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
EATON 5P UPS RACKMOUNT
Line-interactive UPS (550–3000 VA)
• Helps save money and protect the environment through energy efficient operation (ENERGY
STAR® qualified UPS)
• Enables you to customize UPS settings, view load and power consumption through the graphical interactive LCD screen interface
• Fully integrates with Intelligent Power Software Suite for continuous up time of servers and virtual machines
• Provides more real power (watts) to protect more equipment and leave room for expanding IT
systems
• Extends battery service life by 50% with ABM Technology
• Warranty (US and Canada): Three-year limited warranty (third year of warranty free with online
product registration), five-year extended warranty plans available, $150,000 load protection
guarantee
5P RACKMOUNT 1U MODELS: 120V, 50/60 Hz
Dimensions
Catalog Rating Input Output (H x W x D, Weight List
Number Description (VA/Watts) Connection Receptacles inches) (lb) Price
5P550R 5P 550 VA 120V Rackmount 1U 550/420 5-15P (6 ft) (5) 5-15R 1.7 (1U) x 17.2 x 14.3 20 $441
5P750R 5P 750 VA 120V Rackmount 1U 750/600 5-15P (6 ft) (5) 5-15R 1.7 (1U) x 17.2 x 20.0 31 $660
5P1000R 5P 1000 VA 120V Rackmount 1U 1000/770 5-15P (6 ft) (5) 5-15R 1.7 (1U) x 17.2 x 20.0 33 $841
5P1500R 5P 1500 VA 120V Rackmount 1U 1440/1100 5-15P (6 ft) (5) 5-15R 1.7 (1U) x 17.2 x 21.8 44 $1,065
5P RACKMOUNT 1U MODELS: 208/230V, 50/60 Hz
Dimensions
Catalog Rating Input Output (H x W x D, Weight List
Number Description (VA/Watts) Connection Receptacles inches) (lb) Price
5P850GR 5P 850 VA 208V Rackmount 1U 850/600 C14 (4) C13 1.7 (1U) x 17.2 x 20.0 30 $716
5P1550GR 5P 1550 VA 208V Rackmount 1U 1550/1100 C14 (6) C13 1.7 (1U) x 17.2 x 21.8 43 $1,156
5P RACKMOUNT 2U MODELS: 120V, 50/60 Hz
Dimensions
Catalog Rating Input Output (H x W x D, Weight List
Number Description (VA/Watts) Connection Receptacles inches) (lb) Price
5P1500RT 5P 1500 VA 120V Rack/Tower 2U 1440/1440 5-15P (8 ft) (8) 5-15R 3.4 (2U) x 17.4 x 20.6 65 $1,134
5P2200RT 5P 2200 VA 120V Rack/Tower 2U 1950/1920 5-20P (8 ft) (4) 5-15R, (4) 5-20R 3.4 (2U) x 17.4 x 20.6 65 $1,732
5P3000RT 5P 3000 VA 120V Rack/Tower 2U 3000/2700 L5-30P (10 ft) (6) 5-20R, (1) L5-30R 3.4 (2U) x 17.4 x 20.6 87 $2,074
5P RACKMOUNT OPTIONS
Catalog Number Description For use with List Price
Mounting Hardware
RK2PA 2-post rail kit (optional) 1U All Models except 5P550G TBA
103007018-5591 Two-post rack mounting rail kit All RT Models $109
Catalog For use with Input Output Dimensions List
Number Description 5P model Connection Receptacles (H x W x D, inches) Price
Power distribution and maintenance bypass
EHBPL1500R-PDU1U HotSwap Maintenance Bypass (MBP) 5P550R, 5P750R, 5P1000R 5-15P (6) 5-15R 2.1 x 17.3 x 3.8 $242
5P1500R, 5P1500RT
EHBPL2000R-PDU1U HotSwap Maintenance Bypass (MBP) 5P2200RT 5-20P (6) 5-15R 2.1 x 17.3 x 3.8 $289
EHBPL3000R-PDU1U HotSwap Maintenance Bypass (MBP) 5P3000RT L5-30P (5) 5-20R 2.1 x 17.3 x 3.8 $420
SOFTWARE AND CONNECTIVITY OPTIONS
Catalog Number Description For use with List Price
Network-MS Network Card-MS All Models $279
Relay-MS Relay / Serial Interface Card All Models $100
116750224-001 Environmental Monitoring Probe All Models (requires Network-MS) $220
See software and connectivity product sections for more detail.
34 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
EATON 5P UPS RACKMOUNT
(continued)
5P RACKMOUNT BATTERY BACKUP TIMES (in minutes)
UPS model
Load (watts) 50 100 200 400 600 700 800 1000 1500 2500
5P550R 37 19 9 3
5P750R 40 19 8 4
5P850GR
5P1000R 51 25 11 7 6
5P1500R 47 20 12 10 8 5
5P1550GR
5P1500RT 56 26 15 11 9 7 3
5P2200RT 59 33 20 16 13 8 4
5P3000RT 41 27 22 18 14 9 4
Note: Runtimes are displayed in minutes. Runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc. View interactive runtime graphs at www.eaton.com/5Prm.
SERVICES
For detailed information on service plans, please refer to the Single-phase Service section on page 122.
July 1, 2013
35www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
Line-interactive UPS (750–3000 VA)
• Helps save money and protect the environment through energy efficient operation (ENERGY
STAR® qualified UPS)
• Enables you to customize UPS settings, view load and power consumption through the graphical
interactive LCD screen interface
• Fully integrates with Intelligent Power Software Suite for continuous up time of servers and virtual
machines
• Provides more real power (watts) to protect more equipment and leave room for expanding IT systems
• Extends battery service life by 50% with ABM Technology
• Warranty (US and Canada): Three-year limited warranty (third year of warranty free with online product
registration), five-year extended warranty plans available, $150,000 load protection guarantee
EATON 5P UPS TOWER
5P TOWER MODELS: 120V, 50/60 Hz
Dimensions
Catalog Rating Input Output (H x W x D, Weight List
Number Description (VA/Watts) Connection Receptacles inches) (lb) Price
5P750 5P 750 VA 120V Tower 750/600 5-15P (6ft) (8) 5-15R 9.1 x 5.9 x 13.6 24 $495
5P1000 5P 1000 VA 120V Tower 1000/770 5-15P (6ft) (8) 5-15R 9.1 x 5.9 x 13.6 25 $699
5P1500 5P 1500 VA 120V Tower 1440/1100 5-15P (6ft) (8) 5-15R 9.1 x 5.9 x 17.5 36 $869
5P2200 5P 2200 VA 120V Tower 1950/1920 5-20P (8ft) (8) 5-20R 3.4 (2U) x 17.4 x 20.6 59 $1,385
5P3000 5P 3000 VA 120V Tower 3000/2700 L5-30P (10 ft) (6) 5-20R, (1) L5-30R 3.4 (2U) x 17.4 x 25.4 81 $1,696
5P TOWER MODELS: 208/230V, 50/60 Hz
Dimensions
Catalog Rating Input Output (H x W x D, Weight List
Number Description (VA/Watts) Connection Receptacles inches) (lb) Price
5P850G 5P 850 VA 208V Tower 850/600 C14 (6) C13 9.1 x 5.9 x 13.6 23 $537
5P1550G 5P 1550 VA 208V Tower 1550/1100 C14 (8) C13 9.1 x 5.9 x 17.5 34 $943
SOFTWARE AND CONNECTIVITY OPTIONS
Catalog Number Description For use with List Price
Network-MS Network Card-MS All Models $279
Relay-MS Relay / Serial Interface Card All Models $100
116750224-001 Environmental Monitoring Probe All Models (requires Network-MS) $220
See software and connectivity product sections for more detail.
5P TOWER BATTERY BACKUP TIMES (in minutes)
UPS model
Load (watts) 50 100 200 400 600 700 800 1000 1500 2500
5P750 40 19 8 4
5P850G
5P1000 51 25 11 7 6
5P1500 47 20 12 10 8 5
5P1550G
5P2200 59 33 20 16 13 8 4
5P3000 41 27 22 18 14 9 4
Note: Runtimes are displayed in minutes. Runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc. View interactive runtime graphs at www.eaton.com/5P.
SERVICES
For detailed information on service plans, please refer to the Single-phase Service section on page 122.
36 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
EATON 5PX UPS RACK/TOWER
Extended Run Capable
5PX NORTH AMERICAN MODELS: 120V, 50/60 Hz
Catalog Rating Input Output Dimensions Weight List
Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
5PX1000RT Eaton 5PX 1000 VA 120V Rack / Tower 2U 1000/1000 5-15P (8ft) (8) 5-15R 3.4 (2U) x 17.4 x 20.6 62 $951
5PX1500RT Eaton 5PX 1500 VA 120V Rack / Tower 2U 1440/1440 5-15P (8ft) (8) 5-15R 3.4 (2U) x 17.4 x 20.6 65 $1,244
5PX1500RTN Eaton 5PX 1500 VA with Network Card-MS 1440/1440 5-15P (8ft) (8) 5-15R 3.4 (2U) x 17.4 x 20.6 65 $1,575
5PX2200RT Eaton 5PX 2200 VA 120V Rack / Tower 2U 1950/1920 5-20P (8ft) (4) 5-20R, (4) 5-15R 3.4 (2U) x 17.4 x 20.6 65 $2,061
5PX2200RTN Eaton 5PX 2200 VA with Network Card-MS 1950/1920 5-20P (8ft) (4) 5-20R, (4) 5-15R 3.4 (2U) x 17.4 x 20.6 65 $2,389
5PX3000RT2U Eaton 5PX 3000 VA 120V Rack / Tower 2U 3000/2700 L5-30P (10ft) (6) 5-20R, (1) L5-30R 3.4 (2U) x 17.4 x 25.4 87 $2,430
5PX3000RTN Eaton 5PX 3000 VA with Network Card-MS 3000/2700 L5-30P (10ft) (6) 5-20R, (1) L5-30R 3.4 (2U) x 17.4 x 25.4 87 $2,759
5PX3000RT3U Eaton 5PX 3000 VA 120V Rack / Tower 3U 3000/2700 L5-30P (10ft) (6) 5-20R, (1) L5-30R 5.1 (3U) x 17.4 x 19.6 86 $2,527
5PX INTERNATIONAL MODELS: 208/230V, 50/60 Hz
Catalog Rating Input Output Dimensions Weight List
Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
5PX1500iRT Eaton 5PX 1500 VA 208/230V Rack / Tower 2U 1500/1350 C14 (8) C13 3.4 (2U) x 17.4 x 20.6 61 $1,391
5PX2200iRT Eaton 5PX 2200 VA 208/230V Rack / Tower 2U 2200/1980 C20 (1) C19, (8) C13 3.4 (2U) x 17.4 x 20.6 63 $2,352
5PX3000iRT2U Eaton 5PX 3000 VA 208/230V Rack / Tower 2U 3000/2700 C20 (1) C19, (8) C13 3.4 (2U) x 17.4 x 25.4 84 $2,727
5PX3000iRTN Eaton 5PX 3000 VA with Network Card-MS 3000/2700 C20 (1) C19, (8) C13 3.4 (2U) x 17.4 x 25.4 84 $3,056
5PX OPTIONS
Catalog Rating For use with Dimensions Weight List
Number Description (VA) 5PX model (H x W x D, inches) (lb) Price
Extended Battery Modules
5PXEBM48RT Eaton 5PX 48V EBM Rack / Tower 2U 48V 5PX1000RT, 5PX1500RT, 5PX2200RT 3.4 (2U) x 17.4 x 20.0 72 $784
5PXEBM72RT2U Eaton 5PX 72V EBM Rack / Tower 2U 72V 5PX3000RT2U 3.4 (2U) x 17.4 x 25.5 102 $1,151
5PXEBM72RT3U Eaton 5PX 72V EBM Rack / Tower 3U, 72V 5PX3000RT3U 5.1 (3U) x 17.4 x 19.6 98 $1,151
short depth
Two-post rail kit
103007018-5591 Two-post rack mounting rail kit (supports 2U models only) $91
Catalog For use with Input Output Dimensions List
Number Description 5PX model Connection Receptacles (H x W x D, inches) Price
Power distribution and maintenance bypass
EHBPL1500R-PDU1U HotSwap Maintenance Bypass (MBP) 5PX1000RT, 5PX1500RT 5-15P (6) 5-15R 2.1 x 17.3 x 3.8 $242
EHBPL2000R-PDU1U HotSwap Maintenance Bypass (MBP) 5PX2200RT 5-20P (6) 5-15R 2.1 x 17.3 x 3.8 $289
EHBPL3000R-PDU1U HotSwap Maintenance Bypass (MBP) 5PX3000RT2U, L5-30P (5) 5-20R 2.1 x 17.3 x 3.8 $420
5PX3000RT3U
For detailed information on FlexPDU and HotSwap Maintenance Bypass products, please refer to the Eaton Power Distribution and Enclosures section.
Line-interactive UPS (1000–3000 VA)
The Eaton 5PX UPS provides advanced power conditioning and unparalleled battery backup for network
closets and small data centers.
• Line-interactive topology with sine wave output
• Industry-leading efficiency of up to 99 percent
• Meters energy consumption down to the outlet segments
• Displays critical UPS information in a next-generation graphical LCD
• Protects more devices by providing up to 28 percent more wattage than traditional UPSs
• ABM technology extends battery life by 50 percent
• Extended available runtime by adding up to 4 EBMs
• Comes with free monitoring and management software, perfect for virtualized environments
• Hot-swappable batteries allow you to replace batteries while the UPS stays on
• Load segments enable shutdown of connected devices for increased runtime
• 4-post rail kit included (2-post rail kit optional)
• Warranty (US and Canada): Three-year limited warranty (third year of warranty free with
online product registration), five-year extended warranty plans available, $150,000 load protection guarantee
July 1, 2013
37www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
EATON 5PX UPS RACK/TOWER
Eaton series (continued)
SOFTWARE AND CONNECTIVITY OPTIONS
Catalog Number Description List Price
Network-MS Network Card-MS $279
See software and connectivity product sections for more detail.
5PX BATTERY BACKUP TIMES (in minutes)1
Load (VA/Watts) Internal Batteries +1 EBM +2 EBMs +3 EBMs +4 EBMs
5PX1000RT (with 5PXEBM48RT)
100/70 120 462 796 1131 1466
250/175 69 286 490 695 899
500/350 30 145 254 364 473
750/525 17 83 151 219 286
1000/700 11 59 108 156 204
1000/10002 7 39 71 103 135
5PX1500RT (with 5PXEBM48RT)
150/105 81 334 550 765 981
375/262 43 187 315 442 569
750/525 18 87 150 214 277
1125/787 9 50 89 129 169
1440/1050 6 35 66 96 126
1440/14402 3 21 41 62 82
5PX2200RT (with 5PXEBM48RT)
195/136 71 274 465 656 847
488/341 39 154 270 385 501
975/682 16 67 123 179 236
1463/1045 8 36 67 93 128
1950/1365 5 26 48 65 93
2200/19202 3 15 29 36 57
5PX3000RT2U or 5PX3000RT3U (with 5PXEBM72RT2U or 5PXEBM72RT3U)
300/210 63 273 470 667 864
750/525 31 148 254 360 465
1500/1050 13 64 111 158 206
2250/1575 8 35 64 94 123
3000/2100 6 26 48 70 91
3000/27002 4 19 35 52 68
1. Battery backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc. International model runtimes are available; please visit www.eaton.com/5PX for
details. 2. Runtimes shown at full load with maximum power factor.
View interactive runtime graphs at www.eaton.com/5PX
SERVICES
For detailed information on service plans, please refer to the Single-phase Service section on page 122.
38 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
Online UPS (700–3000 VA)
Ideal protection for servers, data storage, network equipment, telephony, VoIP and
medical equipment—industrial processes.
• True double-conversion
• Hot-swappable batteries
• Two load segments
• USB and RS-232 ports
• Rack/tower configurations provide versatility
• Four-post rail kit included with rack UPS (except where noted)
• Optional two-post rail kit
EX NORTH AMERICAN MODELS: 120V, 50/60 Hz
Catalog Style Rating Input Output Dimensions Weight List
Number Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
PULSL700T 86700 120V TWR 0.7 kVA 700/630 5-15P (4) 5-15R 9.52 x 6.00 x 17.31 25.7 $790
PULSL1000T 86701 120V TWR 1 kVA 1000/900 5-15P (4) 5-15R 9.52 x 6.00 x 17.31 33.0 $950
PULSL1500T 86703 120V TWR 1.5 kVA 1500/1350 5-15P (4) 5-15R 9.52 x 6.00 x 19.29 39.6 $1,280
PULSL1000R-XL2U 86702 120V RT2U 1 kVA 1000/900 5-15P (6) 5-15R 3.46 (2U) x 17.25 x 19.00 39.6 $1,100
PULSL1500R-XL2U 86704 120V RT2U 1.5 kVA 1500/1350 5-15P (6) 5-15R 3.46 (2U) x 17.25 x 19.00 45.2 $1,460
PULSML2200-XL2U 86722 120V RT2U 2.2 kVA 2100/1650 5-20P (6) 5-20R, (1) L5-20R 3.40 (2U) x 17.30 x 25.20 68.2 $2,120
PULSML2200-XL3U 86723 120V RT3U 2.2 kVA 2100/1650 5-20P (6) 5-20R, (1) L5-20R 5.14 (3U) x 17.30 x 19.29 70.0 $2,120
PULSML3000-XL2U 86732 120V RT2U 3 kVA 3000/2550 L5-30P (6) 5-20R, (1) L5-30R 3.40 (2U) x 17.30 x 25.20 70.0 $2,650
EX INTERNATIONAL MODELS: 230V, 50/60 Hz
Catalog Style Rating Input Output Dimensions Weight List
Number Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
PULSI1000T 68181 230V TWR 1 kVA 1000/900 IEC C14 (10A Socket) (6) IEC C13 (10A) 9.52 x 6.00 x 17.31 33.0 $988
PULSI1000R-XL2U 68182 230V RT2U 1 kVA 1000/900 IEC C14 (10A Socket) (6) IEC C13 (10A) 3.46 (2U) x 17.25 x 19.00 39.6 $1,137
PULSI1500R-XL2U 68184 230V RT2U 1.5 kVA 1500/1350 IEC C14 (10A Socket) (6) IEC C13 (10A) 3.46 (2U) x 17.25 x 19.00 - $1,615
PULSMI2200-XL2U 68401 230V RT2U 2.2 kVA 2200/1980 IEC C20 (16A) or terminal (8) IEC C13 (10A) 3.39 (2U) x 17.32 x 25.20 68.3 $2,221
block on 103007536-6591 PPDM (1) IEC C19 (16A)
PULSMI2200-XL3U* 68400 230V RT3U 2.2 kVA 2200/1980 IEC C20 (16A) or terminal (8) IEC C13 (10A) 5.16 (3U) x 17.32 x 19.29 66.1 $1,997
block on 103007536-6591 PPDM (1) IEC C19 (16A)
PULSMI3000-XL2U 68403 230V RT2U 3 kVA 3000/2700 IEC C20 (16A) or terminal (8) IEC C13 (10A) 3.39 (2U) x 17.32 x 25.20 68.3 $2,887
block on 103007536-6591 PPDM (1) IEC C19 (16A)
PULSMI3000-XL3U* 68402 230V RT3U 3 kVA 3000/2700 IEC C20 (16A) or terminal (8) IEC C13 (10A) 5.16 (3U) x 17.32 x 19.29 66.1 $2,887
block on 103007536-6591 PPDM (1) IEC C19 (16A)
*Four-post rail kit not included
EX OPTIONS
Catalog Style Dimensions Weight List
Number Number Description (H x W x D, inches) (lb) Price
Extended Battery Modules
PULSL1500T-EBM 86705 120V TWR EBM 1–1.5 kVA 9.52 x 6.00 x 17.32 46.3 $695
PULSL1500R-EBM 86706 120V RT EBM 1-1.5 kVA 3.40 (2U) x 17.25 x 19.00 58.1 $802
PULSI1500T-EBM 68185 230V TWR EBM 1–1.5 kVA 9.53 x 6.22 x 15.75 46.3 $617
PULSI1500R-EBM 68186 230V RT EBM 1-1.5 kVA 3.41 (2U) x 17.32 x 18.9 58.1 $743
PULSMI3000-EBM 68405 120/230V RT EBM 2–3 kVA 5.16 (3U) x 17.32 x 19.29 92.4 $1,004
Optional Mounting Hardware
PULSM-RAIL 68441 2U/3U Four-post rail kit - 22.0 $109
- 103007018-5591 Two-post rack mounting rail kit - - $109
Power distribution and maintenance bypass
For detailed information on FlexPDU and HotSwap Maintenance Bypass products, please refer to the Eaton Power Distribution and Enclosures section.
EATON EX UPS
Pulsar series
(this product was formerly known as the Pulsar and Pulsar M UPSs)
July 1, 2013
39www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
EATON EX UPS
Pulsar series (continued)
SOFTWARE AND CONNECTIVITY OPTIONS
Catalog Number Description List Price
Network-MS Network Card-MS $279
See software and connectivity product sections for more detail.
EX BATTERY BACKUP TIMES (in minutes)
Load Standard
(VA/Watts) Internal Batteries +1 EBM +2 EBMs +3 EBMs +4 EBMs
EX 700
70/49 71 – – – –
140/98 36 – – – –
210/147 25 – – – –
280/196 20 – – – –
350/245 16 – – – –
420/294 12 – – – –
490/343 10 – – – –
560/392 8 – – – –
630/441 6 – – – –
700/490 5 – – – –
EX 1000 / 1000 RT 2U
100/70 75 290 490 790 980
200/140 40 170 290 440 550
300/210 28 125 210 310 390
400/280 21 92 180 240 310
500/350 18 75 150 205 250
600/420 14 60 110 170 220
700/490 11 52 90 145 190
800/560 9 43 78 125 170
900/630 7 40 70 112 155
1000/700 6 35 60 95 135
EX 1500 / 1500 RT 2U
150/105 60 212 360 475 700
300/210 32 110 220 280 380
450/315 21 78 155 210 260
600/420 16 60 115 160 200
750/525 13 47 83 140 180
900/630 10 40 71 110 140
1050/735 8 34 60 90 118
1200/840 7 30 52 76 100
1350/945 6 27 48 70 90
1500/1050 5 24 42 62 80
EX 2200 RT 2U & 3U*
220/154 90 352 587 831 1216
440/308 48 200 340 470 650
660/462 30 130 225 320 450
880/616 22 100 170 260 350
1100/770 16 80 135 215 286
1320/924 13 62 110 180 240
1540/1078 10 50 95 150 200
1760/1232 8 42 80 125 170
1980/1386 7 36 65 110 152
2200/1540 6 30 51 83 134
View interactive runtime graphs at www.eaton.com/ex
40 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
EX BATTERY BACKUP TIMES (in minutes)
(continued)
Load Standard
(VA/Watts) Internal Batteries +1 EBM +2 EBMs +3 EBMs +4 EBMs
EX 3000 RT 2U & 3U**
300/210 79 254 454 549 847
600/420 40 130 255 290 445
900/630 25 80 160 205 290
1200/840 18 60 120 162 230
1500/1050 14 48 102 129 187
1800/1260 12 38 82 103 150
2100/1470 9 32 72 86 125
2400/1680 7 27 58 73 100
2700/1890 6 22 50 64 82
3000/2100 5 18 36 47 70
EX 3000 RT 3U XL***
300/210 - 175 375 549 768
600/420 - 90 215 290 405
900/630 - 55 135 205 265
1200/840 - 42 102 162 212
1500/1050 - 34 88 129 173
1800/1260 - 26 70 103 138
2100/1470 - 23 63 86 116
2400/1680 - 20 51 73 93
2700/1890 - 16 44 64 76
3000/2100 - 13 31 47 65
* Output power rating = 1650W ** Standard configuration power rating = 2550W, with EBM = 2100W *** Output power rating = 2150W up to 12 EBMs can be added for extended runtime of 196–1909
minutes
Note: Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.
The Eaton EX has a 0.9 power factor, but runtimes are shown here at 0.7 power factor for easy comparison against competitor's products, which have a 0.7 power factor.
EATON EX UPS
Pulsar series (continued)
SERVICES
For detailed information on service plans, please refer to the Single-phase Service section on page 122.
July 1, 2013
41www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
EATON 9130 UPS RACKMOUNT
Powerware series
9130 NORTH AMERICAN RACK MODELS: 120V, 50/60 Hz
Catalog Rating Input Output Dimensions Weight List
Number Description (VA/Watts) Connection1 Receptacles (H x W x D, inches) (lb) Price
PW9130L700R-XL2U 9130 700 120V RACK 700/630 5-15P (6) 5-15R 3.4 (2U) x 17.3 x 16.9 35.3 $989
PW9130L1000R-XL2U 9130 1000 120V RACK 1000/900 5-15P (6) 5-15R 3.4 (2U) x 17.3 x 16.9 35.3 $1,230
PW9130L1500R-XL2U 9130 1500 120V RACK 1500/1350 5-15P (6) 5-15R 3.4 (2U) x 17.3 x 16.9 43.0 $1,831
PW9130L1500R-XL2UN 9130 1500 120V RACK 1500/1350 5-15P (6) 5-15R 3.4 (2U) x 17.3 x 16.9 43.0 $2,192
with Network Card-MS
PW9130L2000R-XL2U 9130 2000 120V RACK 2000/1800 5-20P (6) 5-20R, (1) L5-20R 3.4 (2U) x 17.3 x 22.6 63.9 $2,164
PW9130L2000R-XL2UN 9130 2000 120V RACK 2000/1800 5-20P (6) 5-20R, (1) L5-20R 3.4 (2U) x 17.3 x 22.6 63.9 $2,480
with Network Card-MS
PW9130L2500R-XL2U 9130 2500 120V RACK 2500/2250 L5-30P (6) 5-20R, (1) L5-30R 3.4 (2U) x 17.3 x 22.6 65.0 $2,689
PW9130L3000R-XL2U 9130 3000 120V RACK 3000/2700 L5-30P (6) 5-20R, (1) L5-30R 3.4 (2U) x 17.3 x 22.6 65.0 $3,562
PW9130L3000R-XL2UN 9130 3000 120V RACK 3000/2700 L5-30P (6) 5-20R, (1) L5-30R 3.4 (2U) x 17.3 x 22.6 65.0 $3,877
with Network Card-MS
9130 TAA COMPLIANT MODELS
Catalog Rating Input Output Dimensions Weight List
Number Description (VA/Watts) Connection1 Receptacles (H x W x D, inches) (lb) Price
PW9130L700R-XL2US 9130 700 VA 120V TAA Rack 2U 700/630 5-15P (6) 5-15R 3.4 (2U) x 17.3 x 16.9 35.3 $1,124
PW9130L1500R-XL2US 9130 1500 VA 120V TAA Rack 2U 1500/1350 5-15P (6) 5-15R 3.4 (2U) x 17.3 x 16.9 43.0 $1,877
PW9130L2000R-XL2US 9130 2000 VA 120V TAA Rack 2U 2000/1800 5-20P (6) 5-20R, (1) L5-20R 3.4 (2U) x 17.3 x 22.6 63.9 $2,468
PW9130L3000R-XL2US 9130 3000 VA 120V TAA Rack 2U 3000/2700 L5-30P (6) 5-20R, (1) L5-30R 3.4 (2U) x 17.3 x 22.6 65.0 $3,891
PW9130i3000R-XL2US 9130 3000 VA 230V TAA Rack 2U 3000/2700 IEC C20-16A (1) IEC-C19 16A, 3.4 (2U) x 17.3 x 22.6 65.0 $3,891
(8) IEC-C13 10A
9130 GLOBAL RACK MODELS: 208V, 50/60 Hz
Catalog Rating Input Output Dimensions Weight List
Number Description (VA/Watts) Connection1 Receptacles (H x W x D, inches) (lb) Price
PW9130G3000R-XL2U 9130 3000G RACK 3000/2700 L6-20P2 (1) L6-30R, (1) L6-20R, 3.4 (2U) x 17.3 x 22.6 65.0 $3,381
(2) 6-20R
PW9130G3000R-XL2UEU 9130 3000G EU RACK 3000/2700 L6-20P2 (8) C13, (1) C19 3.4 (2U) x 17.3 x 22.6 65.0 $3,381
1. Input cord length is 6 ft
2. C20, w/detachable L6-20P cord
Online UPS (700–3000 VA)
The Eaton 9130 UPS delivers online power quality and scalable battery runtimes for servers, voice
and data networks, storage systems and other IT equipment.
• 4-post rail kit (2-post rail kit optional) . UPS unit designed to fit in 19 inch racks
• Fully integrates with Intelligent Power Software Suite for continuous up time of servers and virtual
machines. (Included)
• Provides up to 28% more real power (watts) to protect more equipment and leave room for expanding IT systems with a 0.9 power factor
• Simplifies UPS monitoring and management with a bright LCD user interface, intuitive power management software and optional eNotify
Remote Monitoring service
• Increases battery service life and system uptime up to 50% with ABM battery-charging technology and hot-swappable batteries
• Maximizes runtimes with optional extended battery modules
• Warranty (US and Canada): Two-year limited warranty, extended warranty, Onsite Flex and Onsite PowerTrust service plans
42 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
9130 INTERNATIONAL RACK MODELS: 230V, 50/60 Hz
Catalog Rating Input Output Dimensions Weight List
Number Description (VA/Watts) Connection1 Receptacles (H x W x D, inches) (lb) Price
PW9130i1000R-XL2U 9130 1000 230V RACK 1000/900 C14 (6) C13 3.4 (2U) x 17.3 x 16.9 35.3 $1,301
PW9130i1500R-XL2U 9130 1500 230V RACK 1500/1350 C14 (6) C13 3.4 (2U) x 17.3 x 16.9 43.0 $1,862
PW9130i2000R-XL2U 9130 2000 230V RACK 2000/1800 C14 (8) C13, (1) C19 3.4 (2U) x 17.3 x 22.6 63.9 $2,208
PW9130i3000R-XL2U 9130 3000 230V RACK 3000/2700 C20 (8) C13, (1) C19 3.4 (2U) x 17.3 x 22.6 65.0 $3,381
1. Input cord length is 6 ft
9130 RACK OPTIONS
Style Input Output Dimensions Weight List
Catalog Number Number Description Connection Receptacles (H x W x D, inches) (lb) Price
Extended Battery Modules
PW9130N1000R-EBM2U1 – PW9130 700/1000 EBM Rack – – 3.4 (2U) x 17.3 x 16.9 48.7 $737
PW9130N1500R-EBM2U2 – PW9130 1500 EBM Rack – – 3.4 (2U) x 17.3 x 16.9 62.0 $737
PW9130N3000R-EBM2U3 – PW9130 2000/2500/3000 EBM Rack – – 3.4 (2U) x 17.3 x 22.6 90.6 $868
PW9130N1000R-EBM2US – 9130 700/1000 EBM TAA Rack 2U – – 3.4 (2U) x 17.3 x 16.9 48.7 $857
PW9130N1500R-EBM2US – 9130 1500 EBM TAA Rack 2U – – 3.4 (2U) x 17.3 x 16.9 62.0 $857
PW9130N3000R-EBM2US – PW9130 2000/3000 EBM TAA Rack 2U – – 3.4 (2U) x 17.3 x 22.6 90.6 $1,006
PowerPass® Distribution Modules (PPDMs)
EPPDMG3000R-2U-15 103007535-6591 PPDM1-HV-US-P2 3 kVA IEC320-C204 (1) L5-30R 3.5 (2U) x 17.0 x 23.9 76.0 $1,018
& (6) 5-20R
EPPDMG3000R-2U-HW5 103007536-6591 PPDM1-HV-US-HW 3 kVA (ROHS) Hardwire Hardwire 3.5 (2U) x 17.0 x 23.9 76.0 $1,018
EPPDML3000R-2U-HW6 103007537-6591 PPDM2-LV-US-HW 3 kVA (ROHS) Hardwire Hardwire 3.5 (2U) x 17.0 x 23.9 20.0 $814
EPPDML3000R-2U-46 103006843-6591 PPDM2-LV-US-P1 3 kVA L5-30P4 (1) L5-30R 3.5 (2U) x 17.0 x 23.9 20.0 $814
& (6) 5-20R
– 103002731-65915 PPDM1-HV-US-P3 3 kVA C20 (6) 5-20R 3.5 (2U) x 17.0 x 23.9 76.0 $1,018
Two-post rail kit
103007018-5591 Two-post rack mounting rail kit - - $109
(supports 2U models only; 3 kVA PPDM not supported)
Power distribution and maintenance bypass
EHBPL1500R-PDU1U7 - HotSwap Maintenance Bypass (MBP) 5-15P (6) 5-15R 2.1 (2U) x 17.3 x 3.8 - $242
EHBPL2000R-PDU1U8 - HotSwap Maintenance Bypass (MBP) 5-20P (6) 5-15R 2.1 (2U) x 17.3 x 3.8 - $289
EHBPL3000R-PDU1U9 - HotSwap Maintenance Bypass (MBP) L5-30P (5) 5-20R 2.1 (2U) x 17.3 x 3.8 - $420
For detailed information on FlexPDU and HotSwap Maintenance Bypass products, please refer to the Eaton Power Distribution and Enclosures section.
1. This EBM works with 700/1000 VA models, where available
2. This EBM works with 1500 VA model
3. This EBM works with 2000/2500/3000 VA models, where available
4. Connection cables to the UPS are included with the PPDM; use the input cord from the UPS as input to the PPDM, except for hardwire units
5. These PPDMs work with the following 9130 models: PW9130G3000R-XL2UEU and PW9130i3000R-XL2U.
6. These PPDMs work with the following 9130 models: PW9130L2500R-XL2U and PW9130L3000R-XL2U.
7. This HotSwap MBP works with the following 9130 models: PW9130L700R-XL2U, PW9130L1000R-XL2U, PW9130L1500R-XL2U
8. This HotSwap MBP works with the following 9130 model: PW9130L2000R-XL2U
9. This HotSwap MBP works with the following 9130 models: PW9130L2500R-XL2U, PW9130L3000R-XL2U
SOFTWARE AND CONNECTIVITY OPTIONS
Catalog Number Description List Price
Network-MS Network Card-MS $279
See software and connectivity product sections for more detail.
EATON 9130 UPS RACKMOUNT
Powerware series (continued)
SERVICES
For detailed information on service plans, please refer to the Single-phase Service section on page 122.
July 1, 2013
43www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
9130 RACK MODELS BATTERY BACKUP TIMES (in minutes) @ 0.7 Power Factor*
Internal
VA/Watts Batteries +1EBM +2 EBMs +3 EBMs +4 EBMs
PW9130L700R-XL2U
700/490 14 55 102 148 175
525/368 20 77 140 179 239
350/245 32 124 189 282 414
175/123 64 200 395 552 739
PW9130L1000R-XL2U
1000/700 10 40 73 108 149
750/525 13 58 101 152 219
500/350 24 85 172 249 304
250/175 48 190 310 451 569
PW9130i1000R-XL2U
1000/700 10 40 78 110 150
750/525 13 55 103 151 223
500/350 22 82 186 250 312
250/175 47 190 328 431 584
PW9130L1500R-XL2U
1500/1050 7 34 63 88 135
1125/788 11 44 84 129 210
750/525 18 79 148 207 267
375/263 38 167 278 475 540
PW9130i1500R-XL2U
1500/1050 7 32 61 98 128
1125/788 11 47 83 126 195
750/525 18 81 143 208 262
375/263 38 171 298 416 564
PW9130L2000R-XL2U
2000/1400 9 45 86 124 163
1500/1050 14 66 115 165 225
1000/700 26 101 185 251 343
500/350 52 197 353 481 629
PW9130i2000R-XL2U
2000/1400 9 46 83 118 163
1500/1050 13 64 118 170 221
1000/700 25 95 190 242 345
500/350 53 205 346 488 625
PW9130L2500R-XL2U
2500/2250 7 31 59 87 119
1875/1688 10 43 81 121 154
1250/1125 17 65 120 163 203
625/563 40 145 228 363 491
PW9130L3000R-XL2U
3000/2100 5 25 48 72 100
2250/1575 8 37 72 102 137
1500/1050 13 60 100 165 223
750/525 34 138 228 326 438
PW9130G3000R-XL2U / PW9130G3000R-XL2UEU / PW9130i3000R-XL2U
3000/2100 6 25 45 68 96
2250/1575 8 34 70 96 130
1500/1050 14 62 92 156 211
750/525 34 130 212 355 442
*Battery backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc. The 9130 has a 0.9 power factor, but runtimes are shown here at 0.7 power factor for
easy comparison against competitors' products, which have a 0.7 power factor.
EATON 9130 UPS RACKMOUNT
Powerware series (continued)
View interactive runtime graphs
at www.eaton.com/9130rm
44 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
EATON 9130 UPS TOWER
Powerware series
Online UPS (700–3000 VA)
The Eaton 9130 UPS delivers online power quality and scalable battery runtimes for servers, voice and data networks,
storage systems and other IT equipment.
• Cuts energy usage and costs with >95% efficiency rating in high efficiency mode
• Displays critical UPS information on a bright lit, configurable LCD screen
• Ships with free monitoring and management software, perfect for virtualized environments
• True tower form factor
• Provides up to 22% more real power (watts) to protect more equipment and leave room for expanding IT systems with
a 0.9 power factor
• Increases battery service life and system uptime up to 50% with ABM battery-charging technology and hot-swappable batteries
• Maximizes runtimes with optional extended battery modules (compatible with all units except the 700 VA tower models)
• Warranty (US and Canada): Two-year limited warranty, extended warranty, Onsite Flex and Onsite PowerTrust service plans
9130 NORTH AMERICAN TOWER MODELS: 120V, 50/60 Hz
Catalog Rating Input Output Dimensions Weight List
Number Description (VA/Watts) Connection1 Receptacles (H x W x D, inches) (lb) Price
PW9130L700T PW9130 700 120V TOWER 700/630 5-15P (6) 5-15R 9.1 x 6.3 x 13.9 26.5 $931
PW9130L1000T-XL PW9130 1000 120V TOWER 1000/900 5-15P (6) 5-15R 9.1 x 6.3 x 15.1 30.9 $1,202
PW9130L1500T-XL PW9130 1500 120V TOWER 1500/1350 5-15P (6) 5-15R 9.1 x 6.3 x 17.0 41.8 $1,657
PW9130L2000T-XL PW9130 2000 120V TOWER 2000/1800 5-20P (1) L5-20, (4) 5-20R 12.8 x 8.4 x 16.2 77.2 $2,102
PW9130L3000T-XL PW9130 3000 120V TOWER 3000/2700 L5-30P (4) 5-20R, (1) L5-30R 12.8 x 8.4 x 16.2 77.2 $3,292
1. Input cord length is 6 ft
9130 GLOBAL TOWER MODELS: 208V, 50/60 Hz
Catalog Rating Input Output Dimensions Weight List
Number Description (VA/Watts) Connection1 Receptacles (H x W x D, inches) (lb) Price
PW9130G2000T-XL PW9130 2000G TOWER 2000/1800 L6-20P2 (1) L6-20R, (4) 6-20R 12.8 x 8.4 x 16.2 77.2 $2,051
PW9130G2000T-XLEU PW9130 2000G EU TOWER 2000/1800 L6-20P2 (8) C13, (1) C19 12.8 x 8.4 x 16.1 76.1 $2,051
PW9130G3000T-XL PW9130 3000G TOWER 3000/2700 L6-20P3 (1) L6-30R, (1) L6-20R, 12.8 x 8.4 x 16.2 77.2 $3,210
(2) 6-20R
PW9130G3000T-XLEU PW9130 3000G EU TOWER 3000/2700 L6-20P3 (8) C13, (1) C19 12.8 x 8.4 x 16.2 77.2 $3,210
1. Input cord length is 6 ft
2. C14, w/detachable 6' L6-20P cord
3. C20, w/detachable L6-20P
9130 INTERNATIONAL TOWER MODELS: 230V, 50/60 Hz
Catalog Rating Input Output Dimensions Weight List
Number Description (VA/Watts) Connection1 Receptacles (H x W x D, inches) (lb) Price
PW9130i700T PW9130 700 230V TOWER 700/630 C14 (6) C13 9.1 x 6.3 x 13.9 26.5 $887
PW9130i1000T-XL PW9130 1000 230V TOWER 1000/900 C14 (6) C13 9.1 x 6.3 x 15.1 30.9 $1,092
PW9130i1500T-XL PW9130 1500 230V TOWER 1500/1350 C14 (6) C13 9.1 x 6.3 x 17.0 41.8 $1,580
PW9130i2000T-XL PW9130 2000 230V TOWER 2000/1800 C14 (8) C13, (1) C19 12.8 x 8.4 x 16.2 77.2 $2,108
PW9130i3000T-XL PW9130 3000 230V TOWER 3000/2700 C20 (8) C13, (1) C19 12.8 x 8.4 x 16.2 77.2 $3,077
1. Input cord length is 6 ft
9130 OPTIONS
Catalog Dimensions Weight List
Number Description (H x W x D, inches) (lb) Price
Extended Battery Modules
PW9130N1000T-EBM1 PW9130 1000 EBM Tower 9.1 x 6.3 x 15.1 41.8 $610
PW9130N1500T-EBM2 PW9130 1500 EBM Tower 9.1 x 6.3 x 17.0 52.9 $769
PW9130N3000T-EBM3 PW9130 2000/3000 EBM Tower 12.8 x 8.4 x 16.2 110.2 $879
1. This EBM works with 1000 VA model
2. This EBM works with 1500 VA model
3. This EBM works with 2000/3000 VA models
SOFTWARE AND CONNECTIVITY OPTIONS
Catalog Number Description List Price
Network-MS Network Card-MS $279
See software and connectivity product sections for more detail.
July 1, 2013
45www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
9130 TOWER MODELS BATTERY BACKUP TIMES (in minutes) @ 0.7 Power
Factor*
Internal
VA/Watts Batteries +1EBM +2 EBMs +3 EBMs +4 EBMs
PW9130L700T
700/490 8 N/A N/A N/A N/A
525/368 12 N/A N/A N/A N/A
350/245 21 N/A N/A N/A N/A
175/123 37 N/A N/A N/A N/A
PW9130i700T
700/490 8 N/A N/A N/A N/A
525/368 12 N/A N/A N/A N/A
350/245 19 N/A N/A N/A N/A
175/123 35 N/A N/A N/A N/A
PW9130L1000T-XL
1000/700 10 40 73 108 149
750/525 13 58 101 152 219
500/350 24 85 172 249 304
250/175 48 190 310 451 569
PW9130i1000T-XL
1000/700 10 40 78 110 150
750/525 13 55 103 151 223
500/350 22 82 186 250 312
250/175 47 190 328 431 584
PW9130L1500T-XL
1500/1050 7 34 63 88 135
1125/788 11 44 84 129 210
750/525 18 81 143 208 262
375/263 38 171 298 416 564
PW9130i1500T-XL
1500/1050 7 32 61 88 135
1125/788 11 47 83 126 195
750/525 18 81 143 208 262
375/263 38 171 298 416 564
PW9130L2000T-XL
2000/1400 15 61 111 156 194
1500/1050 21 81 145 184 269
1000/700 34 129 198 193 410
500/350 72 225 449 590 766
PW9130G2000T-XL / XLEU / PW9130i2000T-XL
2000/1400 15 61 111 156 186
1500/1050 21 81 145 184 248
1000/700 34 129 198 293 410
500/350 72 225 449 590 766
PW9130L3000T-XL
3000/2100 9 35 66 95 132
2250/1575 13 53 100 139 183
1500/1050 22 86 153 221 267
750/525 69 168 298 395 545
PW9130G3000T-XL / XLEU / PW9130i3000T-XL
3000/2100 9 36 68 101 137
2250/1575 12 49 90 134 165
1500/1050 20 79 143 180 240
750/525 46 161 267 434 547
*Battery backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc. The 9130 has a 0.9 power factor, but runtimes are shown here at 0.7 power factor for
easy comparison against competitors' products, which have a 0.7 power factor.
EATON 9130 UPS TOWER
Powerware series (continued)
View interactive runtime graphs
at www.eaton.com/9130
SERVICES
For detailed information on service plans, please refer to the Single-phase Service section on page 122.
46 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
EATON 9PX UPS RACK/TOWER
5-6 kVA Bundles
Delivering premium backup power and scalable battery runtimes for servers, voice/data networks and
storage systems, the Eaton 9PX UPS is the ideal solution for both rack and stand-alone installations. With
an advanced LCD screen interface and robust power management software, managing a UPS has never
been easier with the 9PX—even in virtualized environments.
• Graphical LCD screenenables you to customize UPS settings, diagnose UPS alarms and view load and
power consumption
• Provides more real power (watts) to protect more equipment and leave room for expanding IT systems
• Delivers added runtime with extended battery modules and extends battery service life by 50% with ABM Technology
• Virtualization-ready UPS includes connectivity card
• Cuts energy usage and costs with 93% efficiency rating in default, online mode
• Maximizes availability with extended battery runtime options, hot-swappable batteries, internal bypass and optional
maintenance bypass
• Fully integrates with Intelligent Power Software Suite for continuous up time of servers and virtual machines. (Included)
• 4-post rail kit included (2-post rail kit optional)
• Warranty (US and Canada): Two-year limited warranty, five-year extended warranty plans available, $250,000 load
protection guarantee
9PX 5-6 kVA RACK/TOWER: 208/230V* OUTPUT, 50/60 Hz BUNDLES
Catalog Rating Input Output Dimensions Weight List
Number Description (VA/Watts) Connection1 Receptacles (H x W x D, inches) (lb) Price
9PX5K 5 kVA 9PX UPS 5000/4500 Terminal block with Hardwired + (2) L6-30R, 5.1 (3U) x 17.3 x 28.4 106 $5,509
L6-30P cord (2) L6-20R
9PX6K** 6 kVA 9PX UPS 6000/5400 Terminal block with Hardwired + (2) L6-30R, 5.1 (3U) x 17.3 x 28.4 106 $6,089
L6-30P cord (2) L6-20R
9PX6KG** 6 kVA 9PX UPS Global 6000/5400 Hardwired Hardwired + (2) C19, 5.1 (3U) x 17.3 x 27.0 106 $6,089
(8) C13
* 9PX 5K, 6K operate at 200, 208 (default), 220, 230, 240V ** 6K models derated at 200, 208, 220V (see technical specs)
9PX 5-6 kVA RACK/TOWER: 120/208/230V** OUTPUT, 50/60 Hz BUNDLES
Catalog Rating Input Output Dimensions Weight List
Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
9PX5KTF5 5 kVA 9PX UPS and 5 kVA Transformer 5000/4500 Terminal block with (1) L6-30R, (2) L6-20R, 10.2 (6U) x 17.3 x 28.4 201 $6,443
L6-30P cord (18) 5-20R
9PX5KP1*** 5 kVA 9PX UPS and 6 kVA PPDM* 5000/4500 L6-30P (1) L14-30R, (1) L6-30R, 10.2 (6U) x 17.3 x 28.4 203 $6,525
(6) 5-20R
9PX5KP2*** 5 kVA 9PX UPS and 6 kVA PPDM* 5000/4500 Hardwired Hardwired 10.2 (6U) x 17.3 x 28.4 201 $6,525
9PX6KTF5 6 kVA 9PX UPS and 5 kVA Transformer 6000/5400 Terminal block with (1) L6-30R, (2) L6-20R, 10.2 (6U) x 17.3 x 28.4 201 $7,089
L6-30P cord (18) 5-20R
9PX6KP1*** 6 kVA 9PX UPS and 6 kVA PPDM* 6000/5400 L6-30P (1) L14-30R, (1) L6-30R, 10.2 (6U) x 17.3 x 28.4 203 $7,181
(6) 5-20R
9PX6KP2*** 6 kVA 9PX UPS and 6 kVA PPDM* 6000/5400 Hardwired Hardwired 10.2 (6U) x 17.3 x 28.4 201 $7,181
* PPDM provides external, wrap-around maintenance bypass ** 9PX 5K, 6K operates at 200, 208 (default), 220, 230, 240V *** 6K models derated at 200, 208, 220V (see technical specs)
9PX OPTIONS
Catalog Input Output Dimensions Weight List
Number Description Connection Receptacles (H x W x D, inches) (lb) Price
Extended runtime
9PXEBM180RT 5/6 kVA EBM (add up to 4 EBMs), Cable is 18" in length 5.1 (3U) x 17.3 x 25.4 150 $1,535
EBMCBL180 6-foot battery extension cable for EBM $156
CBLADAPT180 Adapter cable from Eaton 9135/MX UPS or EBM to 5/6 kVA 9PX UPS models $132
Mounting Hardware (all modules include 4-post rail kits)
RK2PC 2-post rack mounting rail kit $109
BINTSYS Battery integration system - vertical mounting platform with wheels 7.9 x 20.5 x 31.5 30 $535
Power distribution and maintenance bypass
MBP6K208 Rear-mount 3U, 208V maintenance bypass Hardwired Hardwired + (2) L6-30R $595
for 5 and 6 kVA 9PX UPS models
PW105BA2U420 Basic ePDU for additional output receptacles. L6-30P (4) L6-20R 3.5 (2U) x 19.0 x 6.0 $579
2U form factor.
PW105BA0U421 Basic ePDU for additional output receptacles. L14-30P (24) 5-20R 66.0 (0U) x 1.89 x 2.0 $599
0U form factor.
July 1, 2013
47www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
EATON 9PX UPS RACK/TOWER (continued)
9PX OPTIONS
(continued)
Catalog Rating Input Output Dimensions Weight List
Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
Power distribution and maintenance bypass (continued)
PW105BA2U422 Basic ePDU for additional output receptacles. L14-30P (4) L6-20R 3.5 (2U) x 19.0 x 6.0 $649
2U form factor.
ePBZ79 Basic ePDU for additional output receptacles. L6-30P (16) C13 and (4) C19 1.7 (1U) x 17.0 x 5.1 $259
1U form factor.
Transformer accessories*
9PXTFMR5 9PX 5 kVA stepdown transformer 5000 L6-30P (18) 5-20R 5.1 (3U) x 17.3 x 25.4 95 $1,097
9PXPPDM1 9PX PowerPass Distribution Module 6000 L6-30P (1) L14-30R, (1) L6-30R, 5.1 (3U) x 17.3 x 25.4 97 $1,252
(plug-and-play) (6) 5-20R
9PXPPDM2 9PX PowerPass Distribution Module 6000 Hardwired Hardwired 5.1 (3U) x 17.3 x 25.4 95 $1,252
(Hardwired)
* These transformer accessories may be ordered a la cart but for best pricing they should be purchased as bundled solution.
9PX BATTERY BACKUP TIMES (in minutes)**
Load (Watts) Internal Batteries +1 EBM +2 EBMs +3 EBMs +4 EBMs
5400 3.0 16 28 47 58
4050 4.5 24 45 62 90
2700 8.5 38 71 104 133
1350 22.0 85 147 214 287
540 57.0 203 399 554 755
** Runtimes shown at full load with maximum power factor, are approximate and may vary with equipment, configuration, battery age, temperature, etc.View interactive runtime graphs at www.eaton.
com/9PX
SERVICES
For detailed information on service plans, please refer to the Single-phase Service section on page 122.
48 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
EATON 9PX UPS RACK/TOWER
8-11 kVA Bundles
Delivering premium backup power and scalable battery runtimes for servers, voice/data networks and
storage systems, the Eaton 9PX UPS is the ideal solution for both rack and stand-alone installations. With
an advanced LCD screen interface and robust power management software, managing a UPS has never
been easier with the 9PX—even in virtualized environments.
• Graphical LCD screenenables you to customize UPS settings, diagnose UPS alarms and view load and
power consumption
• Provides more real power (watts) to protect more equipment and leave room for expanding IT systems
• Delivers added runtime with extended battery modules and extends battery service life by 50% with ABM Technology
• Virtualization-ready UPS includes connectivity card
• Cuts energy usage and costs with 94% efficiency rating in default, online mode
• Maximizes availability with extended battery runtime options, hot-swappable batteries, internal bypass and optional
maintenance bypass
• Fully integrates with Intelligent Power Software Suite for continuous up time of servers and virtual machines. (Included)
• 4-post rail kit included
• Warranty (US and Canada): Two-year limited warranty, five-year extended warranty plans available, $250,000 load
protection guarantee
9PX RACK/TOWER: 208/230V* OUTPUT, 50/60 Hz BUNDLES
Catalog Rating Input Output Dimensions Weight List
Number Description (VA/Watts) Connection1 Receptacles (H x W x D, inches) (lb) Price
9PX8KHW 8 kVA 9PX UPS power module 8000/7200 Hardwired Hardwired 10.2 (6U) x 17.3 x 27.6 190 $7,319
and 11 kVA EBM
9PX8K 8 kVA 9PX UPS power module, 8000/7200 Hardwired Hardwired + (3) L6-30R 10.2 (6U) x 17.3 x 30.0 205 $7,851
11 kVA EBM and 11 kVA MBP
9PX11KHW** 11 kVA 9PX UPS power module 11000/10000 Hardwired Hardwired 10.2 (6U) x 17.3 x 27.6 190 $8,843
and 11 kVA EBM
9PX11K** 11 kVA 9PX UPS power module, 11000/10000 Hardwired Hardwired + (3) L6-30R 10.2 (6U) x 17.3 x 30.0 205 $9,281
11 kVA EBM and 11 kVA MBP
* 9PX 8K, 11K operate at 200, 208 (default), 220, 230, 240, 250V ** 11K models derated at 200, 208, 220, 250V (see technical specs)
9PX RACK/TOWER: 120/208/230V OUTPUT, 50/60 Hz BUNDLES
Catalog Rating Input Output Dimensions Weight List
Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
9PX8KTF5 8 kVA 9PX UPS power module, 8000/7200 Hardwired Hardwired + (2) L6-30R, 15.3 (9U) x 17.3 x 30.0 300 $8,828
11 kVA EBM, 11 kVA MBP and 5 kVA Transformer (18) 5-20R
9PX11KTF5* 11 kVA 9PX UPS power module, 11000/10000 Hardwired Hardwired + (2) L6-30R, 15.3 (9U) x 17.3 x 30.0 300 $10,363
11 kVA EBM, 11 kVA MBP and 5 kVA Transformer (18) 5-20R
9PX11KTF11* 11 kVA 9PX UPS power module, 11000/10000 Hardwired Hardwired + (2) L14-30R, 15.3 (9U) x 17.3 x 27.6 377 $11,559
11 kVA EBM and 10 kW Transformer (8) 5-20R
* 11K models derated at 200, 208, 220, 250V (see technical specs)
9PX OPTIONS
Catalog Input Output Dimensions Weight List
Number Description Connection Receptacles (H x W x D, inches) (lb) Price
Extended runtime
9PXEBM240RT 8/11 kVA EBM (add up to 5 EBMs), Cable is 18" in length 5.1 (3U) x 17.3 x 25.4 150 $1,529
EBMCBL240 6-foot battery extensioncable for EBM $167
CBLADAPT240 Adapter cable from Eaton EX RT UPS or EBM to 8/11 kVA 9PX UPS models $132
BINTSYS Battery integration system - vertical mounting platform with wheels 7.9 x 20.5 x 31.5 30 $535
SC240RT 240V supercharger module to add up to 12 EBMs to 8 /11 kVA 9PX UPS models. 5.1 (3U) x 17.3 x 26.8 34 $799
Includes 4-post rail kit
Power distribution and maintenance bypass
MBP11K208 Rear-mount 3U, 208V maintenance bypass module Hardwired Hardwired + (3) L6-30R $950
for 8/11 kVA 9PX UPS models.
PW105BA2U420 Basic ePDU for additional output receptacles. L6-30P (4) L6-20R 3.5 (2U) x 19.0 x 6.0 $579
2U form factor
PW105BA0U421 Basic ePDU for additional output receptacles. L14-30P (24) 5-20R 66.0 (0U) x 1.89 x 2.0 $599
0U form factor.
PW105BA2U422 Basic ePDU for additional output receptacles. L14-30P (4) L6-20R 3.5 (2U) x 19.0 x 6.0 $649
2U form factor.
ePBZ79 Basic ePDU for additional output receptacles. L6-30P (16) C13 and (4) C19 1.7 (1U) x 17.0 x 5.1 $259
1U form factor.
July 1, 2013
49www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
EATON 9PX UPS RACK/TOWER (continued)
9PX OPTIONS
(continued)
Catalog Rating Input Output Dimensions Weight List
Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price
Additional modules
9PXTFMR5 9PX 5 kVA stepdown transformer 5000/5000 L6-30P (18) 5-20R 5.1 (3U) x 17.3 x 25.4 95 $1,097
9PXTFMR11 9PX 10 kW stepdown transformer 10000/10000 Hardwired Hardwired + (2) L14-30R, 5.1 (3U) x 17.3 x 25.4 187 $3,200
(8) 5-20R
9PX8KPM* 9PX 8 kVA power module 8000/7200 Hardwired Hardwired 5.1 (3U) x 17.3 x 27.6 46 $5,695
9PX11KPM* 9PX 11 kVA power module 11000/10000 Hardwired Hardwired 5.1 (3U) x 17.3 x 27.6 46 $7,199
* These transformer accessories may be ordered a la cart but for best pricing they should be purchased as bundled solution.
9PX BATTERY BACKUP TIMES (in minutes)**
Load (Watts) Internal Batteries +1 EBM +2 EBMs +3 EBMs +4 EBMs +5 EBMs
10000 3 10 18 25 34 42
7500 5.5 15 25 37 48 61
5000 10 25 42 61 80 98
2500 25 60 97 136 163 184
** Runtimes shown at full load with maximum power factor, are approximate and may vary with equipment, configuration, battery age, temperature, etc.View interactive runtime graphs at www.eaton.
com/9PX
SERVICES
For detailed information on service plans, please refer to the Single-phase Service section on page 122.
50 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
EATON 9155 UPS
Powerware series
Online double-conversion UPS (8–15 kVA)
This innovative design delivers one of the industry's best combinations of high efficiency, low input current distortion and
highest power factor, while conserving valuable space and offering the most cost-effective, highest performance option
available today.
• True online double-conversion topology protects equipment from all nine of the most common power problems
• Industry leading power density, providing up to 13 percent more power capacity in a compact tower design including
batteries
• Up to 200 percent more standard runtime out of the box, 600 percent more runtime in a smaller footprint with a 3-high module
• Up to a 74 percent footprint reduction
• Flexible voltages, as split-phase architecture creates up to 15 kVA at 100, 120, 208 or 240 Vac with no transformers required
• Flexible on-board power distribution modules (PDMs) allow for hardwired output or up to 15 different output receptacle
options, reducing installation and site preparation expenses
• Plug-and-play rack Enclosure power distribution with the on-board PDU
• Inherently scalable from 8–15 kVA, allowing you to pay as you grow or increase capacity with no additional hardware
purchases or installation concerns
• Eaton’s patented Hot Sync paralleling technology allows for wireless paralleling in the event of communications failure,
providing the industry’s only truly redundant paralleling technology
• Flexible 0 footprint extended run configurations allow for adding additional runtime in the same industry-leading compact
footprint available
• Includes on-site 5x8 startup and operator training by Eaton field technician
• Includes one year of eNotify remote monitoring service (requires connectivity parts and self installation)
9155 MODELS
Part Rating2 Input Output Dimensions Weight3 List
Model Number1 (kVA/kW) Connection Receptacles (H x W x D, inches) (lb) Price
PW9155 8 kVA 32 Battery (2-high) K40811000000000 8/7.2 Hardwired Optional 32.2 x 12.0 x 33.7 352 $10,658
PW9155 8 kVA 64 Battery (3-high) K40812000000000 8/7.2 Hardwired Optional 47.8 x 12.0 x 33.7 590 $12,674
PW9155 8 kVA 32 Battery K40813000000000 8/7.2 Hardwired Optional 47.8 x 12.0 x 33.7 558 $14,655
w/Trans. Mod. (3-high)
PW9155 10 kVA 32 Battery (2-high) K41011000000000 10/9 Hardwired Optional 32.2 x 12.0 x 33.7 352 $12,227
PW9155 10 kVA 64 Battery (3-high) K41012000000000 10/9 Hardwired Optional 47.8 x 12.0 x 33.7 590 $14,567
PW9155 10 kVA 32 Battery K41013000000000 10/9 Hardwired Optional 47.8 x 12.0 x 33.7 558 $16,752
w/Trans. Mod. (3-high)
PW9155 12 kVA 32 Battery (2-high) K41211000000000 12/10.8 Hardwired Optional 32.2 x 12.0 x 33.7 352 $12,858
PW9155 12 kVA 64 Battery (3-high) K41212000000000 12/10.8 Hardwired Optional 47.8 x 12.0 x 33.7 590 $15,220
PW9155 12 kVA 32 Battery K41213000000000 12/10.8 Hardwired Optional 47.8 x 12.0 x 33.7 558 $17,318
w/Trans. Mod. (3-high)
PW9155 15 kVA 32 Battery (2-high) K41511000000000 15/13.5 Hardwired Optional 32.2 x 12.0 x 33.7 352 $13,971
PW9155 15 kVA 64 Battery (3-high) K41512000000000 15/13.5 Hardwired Optional 47.8 x 12.0 x 33.7 590 $16,632
PW9155 15 kVA 32 Battery K41513000000000 15/13.5 Hardwired Optional 47.8 x 12.0 x 33.7 558 $18,808
w/Trans. Mod. (3-high)
1. 50/60 Hz auto-sensing. All models can be used for frequency/phase conversion with derated 80% load, please refer to manual for details. 2. Input voltage 100/200, 110/220, 120/240, Vac 180° phase
displacement, 120/208, 127/220 Vac 120° phase displacement. Output voltages are user-selectable 100/200, 110/220, 120/240 Vac 180° phase displacement. 3. Weight is installed weight, add 47 lb
(2-modules high) or 50 lb (3-modules high) to determine shipping weight.
BUILT-IN CONNECTIVITY OPTIONS
Available X-Slot card options (The UPS has two X-Slot bays available; one X-Slot card can be factory installed, the second X-Slot card can be ordered separately
and user-installed.)
Value for Part List
Description CTO Digit 8 Number (if ordered separately) Price
NONE (No Pre-installed X-Slot card) 0 - $0
Modbus Card-X-Slot 4 103005425-5591 $661
Relay Interface Card-X-Slot (AS/400 Compatible) 5 1018460 $146
Industrial Relay and Display Drive Card X-Slot 6 103003055 $335
SOFTWARE AND CONNECTIVITY OPTIONS
Description Part Number List Price
Power Xpert Gateway UPS Card PXGXUPS (103007974-5591) $450
Bundled with Intelligent Power Software Suite CD and communication cable. See the software and connectivity sections for more details.
July 1, 2013
51www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
EATON 9155 UPS
Powerware series (continued)
OUTPUT RECEPTACLES AND MAINTENANCE BYPASS
Order Number Description Dimensions (H x W x D, inches) Weight (lb) List Price
See worksheet below: Power Distribution Module (PDM) with Mechanical 16.5 x 12.0 x 7.0 25.0 $999
Bypass Switch (rear UPS mount)*
Receptacle Codes (Qty) NEMA Type
(Select digits 9–12 in the CTO number)
Price Adder
PDM Worksheet CTO Description Voltage Phase per Receptacle Code Chosen
S Mechanical Bypass Module only $999
A (4) 5-15R 120V Single $220
B (4) 5-20R UL 120V Single $220
D (4) 6-15R 208V Dual $220
E (4) 6-20R 208V Dual $220
F (4) L5-15R 120V Single $220
G (2) L5-20R* 120V Single $220
H (2) L5-30R* 120V Single $220
I (2) L6-15R 208V Dual $220
J (2) L6-20R* 208V Dual $220
K (2) L6-30R* 208V Dual $220
L (2) L14-20R* 120/208V Dual $220
M (2) L14-30R* 120/208V Dual $220
X Blank Plate - - $20
0 (Zero) Last Product Identifier Number - - -
Notes: If any output receptacles are chosen, the Maintenance Bypass module will be included and will add $999 to the cost. Maximum 4 choices within CTO part number (9-12). The combined quantities
of LOCKING receptacles (denoted with a *) must not exceed four. Please be sure to utilize the "X" designation for any of the 4 total slots not populated. * Please contact factory for custom configuration
availability.
* If only mechanical bypass is chosen, remaining three slots should be populated with "0".
9155 OPTIONS
Model Number Description Dimensions (H x W x D, inches) Weight (lb) List Price
Hot Sync (Parallel Systems)*
124100017-001 9155 Parallel Tie Cabinet 24.00 x 20.30 x 6.00 80.0 $1,719
103004336 CAN Bridge Card - - $519
Note: Up to (3) PW9155s can be paralleled within the Parallel Tie Cabinet and each UPS must include a Hot Sync CAN Bridge Card installed in the 2nd X-Slot.
Extended Battery Module
103004192-5501 PW9155 EBM 64 (2-high Stack) 32.20 x 12.00 x 30.20 480.0 $6,099
103004193-5501 PW9155 EBM 96 (3-high Stack) 47.80 x 12.00 x 30.20 710.0 $8,702
Note: Up to (4) EBM64s or (3) EBM96s can be added for additional runtime.
Maintenance Bypass Module (MBM)
BPE20MBB1A Wall-mounted Maintenance Bypass Module 21.00 x 14.00 x 6.75 34.0 $1,790
9155 Upgrade Packages
103004195 PW9155 One-step kVA Upgrade Kit $1,350
103004196 PW9155 Two-step kVA Upgrade Kit $2,703
Seismic Kit
103004194-5501 Seismic kit, Rated Zone 4, UL tested, performance rating 136.0 $2,023
based on NEBS GR-63-CORE Standard Vibration Test
Notes: An 8 to 15 kVA upgrade would require purchase of a one and two-step upgrade. Up to three 9155s can be paralleled within the Parallel Tie Cabinet and each UPS must include CAN Bridge Card
installed in the second X-Slot. For extended runtime applications, each UPS must have dedicated and identical number of EBMs. Kit includes CAN Bridge Card and Instructions.
* Eaton startup is required for factory warranty of parallel configuration.
9155 SPARE PARTS
Description Part Number List Price
PW9155 Spares Kit 106711155 call
Spare parts kits MUST be purchased at the time of the UPS. If not purchasing at the time of the UPS then contact our Service Group, 1-800-356-5737, for pricing.
9155 UPGRADES
Description Part Number List Price
9155–2 Unit Parallel Upgrade Kit4 103004626 call for quotation
9155–3 Unit Parallel Upgrade Kit4 103004627 call for quotation
1. Up to three PW9155s can be paralleled with the parallel cabinet. 2. Each 9155 must have a Hot Sync Bridge CAN Card installed in the second X-Slot communication bay. 3. If extended runtime is
required for the application, then each UPS must have its own EBM and the same number of EBM(s). 4. Kit includes CAN Bridge Card and instructions.
52 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
EATON 9155 UPS
Powerware series (continued)
9155 BATTERY BACKUP TIMES (in minutes) @ 0.9 Power Factor
Load UPS + Internal UPS + Internal
(VA/Watts) 32 Battery +1 EBM 64 +2 EBM 64 +3 EBM 64 +4 EBM 64 64 Battery +1 EBM 96 +2 EBM 96 +3 EBM 96
15000/13500 4.6 23.0 43.0 65.1 88.6 13.3 43.0 76.7 113.0
14500/13050 4.9 24.1 45.2 68.3 93.0 14.1 45.2 80.5 119.0
14000/12600 5.2 25.2 47.3 71.5 97.4 14.9 47.3 84.2 125.0
13500/12150 5.5 26.4 49.4 74.7 102.0 15.8 49.4 88.1 130.0
13000/11700 5.8 27.6 51.6 78.1 106.0 16.7 51.6 92.0 136.0
12500/11250 6.1 28.8 54.0 81.6 111.0 17.6 54.0 96.2 142.0
12000/10800 6.5 30.2 56.5 85.5 116.0 18.6 56.5 101.0 149.0
11500/10350 6.9 31.6 59.3 89.7 122.0 19.2 59.3 106.0 156.0
11000/9900 7.3 33.3 62.4 94.4 129.0 20.2 62.4 111.0 164.0
10500/9450 7.8 35.1 65.9 99.6 136.0 21.4 65.9 117.0 174.0
10000/9000 8.4 37.2 69.8 106.0 144.0 22.6 69.8 124.0 184.0
9500/8550 9.1 39.6 74.2 112.0 153.0 24.1 74.2 132.0 196.0
9000/8100 9.9 42.3 79.4 120.0 163.0 25.7 79.4 141.0 209.0
8500/7650 10.8 45.5 85.2 129.0 175.0 27.6 85.2 152.0 225.0
8000/7200 11.9 49.1 91.9 139.0 189.0 29.8 91.9 164.0 242.0
7500/6750 13.1 53.2 99.7 151.0 205.0 32.3 99.7 178.0 263.0
7000/6300 14.6 58.0 109.0 164.0 224.0 35.2 109.0 194.0 286.0
6500/5850 16.3 63.5 119.0 180.0 245.0 38.6 119.0 212.0 314.0
6000/5400 18.4 70.0 131.0 198.0 270.0 42.5 131.0 234.0 346.0
5500/4950 20.1 77.6 145.0 220.0 300.0 47.2 145.0 259.0 383.0
5000/4500 22.4 86.6 162.0 245.0 334.0 52.6 162.0 289.0 428.0
4500/4050 25.2 97.4 182.0 276.0 376.0 59.2 182.0 325.0 -
4000/3600 28.6 110.0 207.0 313.0 426.0 67.1 207.0 369.0 -
3500/3150 32.8 127.0 238.0 359.0 - 77.0 238.0 423.0 -
3000/2700 38.3 148.0 277.0 418.0 - 89.7 277.0 - -
2500/2250 45.6 176.0 329.0 - - 107.0 329.0 - -
Note: Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.
SERVICES
For detailed information on service plans, please refer to the Three-phase Service section on page 125.
July 1, 2013
53www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
Online double-conversion UPS (3–18 kVA)
Reliable online, high-frequency, double-conversion power protection that provides flexible solutions for mission-critical
applications.
• N + X power and logic redundancy eliminating all system level single point-of-failure
• Easily scalable to adapt to changing IT environments by simply adding power and/or battery modules
• Double-conversion, online design delivers the highest level of protection
• ABM technology significantly increases battery service life
• Hot-swappable battery and power modules, each weighing less than 30 pounds for easy handling and replacement
• Power management software bundle provides monitoring and shutdown capabilities
• Warranty (US and Canada): Two-year limited warranty and $250,000 load protection guarantee; optional Gold Plans
available
EATON 9170+ UPS RACK/TOWER
Powerware series
9170+ MODELS
Dimensions Weight List
Model Part Number (H x W x D, inches) (lb) Price
9170+ Modules
Split-phase Power Module (100/200, 120/208, 127/220, 110/220, 120/240V In & Out) ASY-0673 4.23 x 14.12 x 15.25 17 $2,040
Universal Power Module (208-240V In & Out) ASY-0674 4.23 x 14.12 x 15.25 17 $1,952
Battery Module (two required per slot/string)1 ASY-0529 4.23 x 7.012 x 14.75 30 $402
Optional 20 Amp Charger Module (same form factor as 3 kVA power modules) ASY-0675 4.23 x 14.12 x 14.75 17 $2,858
Note: For 9170 replacement modules, contact our Service Group at 800.356.5737 for pricing.
UPS Enclosures
3-slot Enclosure (3 kVA max.), Hardwired Input/Output 0660C030AAAAAAAI 17.80 x 17.00 x 25.40 66 $2,049
6-slot Enclosure (3, 6 or 9 kVA), Hardwired Input/Output 0660C060AAAAAAAI 31.50 x 17.00 x 25.40 103 $2,355
9-slot Enclosure (3, 6, 9, 12, 15 or 18 kVA), Hardwired Input/Output 0660C090AAAAAAAI 47.00 x 24.00 x 28.40 158 $2,620
12-slot Enclosure (3, 6, 9, 12, 15 or 18 kVA), Hardwired Input/Output 0660C120AAAAAAAI 60.70 x 24.00 x 28.40 196 $2,916
9-slot rack Enclosure 0660C092AAAAAAAI 45.00 x 17.00 x 25.40 158 $2,930
12-slot rack Enclosure 0660C122AAAAAAAI 58.00 x 17.00 x 25.40 196 $3,216
External Options
Rack Kit (3- & 6-slot Enclosure only) ASY-0547 - 15 $170
Caster option for 3- & 6-slot Enclosure ASY-0527 - 9 $210
External battery connection option (matching cabinet for hot-swap battery modules) ASY-0525 - 8 $275
Floor Anchoring kit ASY-0548 - 6 $70
6-slot external battery Enclosure: black1 ASY-0612 31.50 x 17.00 x 25.40 93 $1,550
9-slot external battery Enclosure: black1 ASY-0737 47.00 x 24.00 x 28.40 148 $1,975
12-slot external battery Enclosure: black1 ASY-0738 60.70 x 24.00 x 28.40 186 $2,695
12-slot Enclosure w/AC for charger option: black ASY-0739 60.70 x 24.00 x 28.40 196 $2,975
12-slot rack external battery Enclosure: black 103004136 58.00 x 17.00 x 25.40 186 $2,486
12-slot rack external battery Enclosure w/AC charger option: black 103004137 58.00 x 17.00 x 25.40 196 $3,135
Rail Kit Option for 3 & 6 slot rackmount2 103007312 - 12 $310
1. External Battery Cabinet connection option (ASY-0525) required with each battery cabinet.
2. Rail kit optional for 3 & 6 slot rackmount chassis - included with 9 & 12 slot rackmount chassis
Wall-mounted Maintenance Bypass Cabinets
3- & 6-slot Enclosure (Make-Before-Break) BPE14MBB1A 21.0 x 14.0 x 6.75 31 $1,385
9- & 12-slot Enclosure (Break-Before-Make) BPE20BBM1A 21.0 x 14.0 x 6.75 34 $1,556
9- & 12-slot Enclosure (Make-Before-Break) BPE20MBB1A 21.0 x 14.0 x 6.75 34 $1,790
54 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
EATON 9170+ UPS RACK/TOWER
Powerware series (continued)
9170+ PRE-CONFIGURED SYSTEMS
Output Dimensions Weight List
Model Number Rating Input Connection Receptacles (H x W x D, inches) (lb) Price
Pre-configured Systems with Hardwire Input and Output Options
PW3S3K 3 kVA expandable Hardwired Hardwired 19.5 x 17.0 x 25.5 155 $5,103
Includes: to 3 kVA N+1
(1) 3-slot Enclosure
(1) power module
(2) battery modules
(1) caster kit
PW6S3K 3 kVA expandable Hardwired Hardwired 33.3 x 17.0 x 25.5 155 $ 5,409
Includes: to 9 kVA N+X
(1) 6-slot Enclosure
(1) power module
(2) battery modules
(1) caster kit
PW6S6K 6 kVA expandable Hardwired Hardwired 33.3 x 17.0 x 25.5 232 $ 8,253
Includes: to 9 kVA N+X
(1) 6-slot Enclosure
(2) power modules
(4) battery modules
(1) caster kit
PW6S9K 9 kVA expandable Hardwired Hardwired 33.3 x 17.0 x 25.5 346 $11,097
Includes: to 9 kVA N+X
(1) 6-slot Enclosure
(3) power modules
(6) battery modules
(1) caster kit
PW9S9K 9 kVA expandable Hardwired Hardwired 47.0 x 24.0 x 28.5 389 $11,152
Includes: to 18 kVA N+X
(1) 9-slot Enclosure
(3) power modules
(6) battery modules
PW12S9K 9 kVA expandable Hardwired Hardwired 60.7 x 24.0 x 28.5 427 $11,448
Includes: to 18 kVA N+X
(1) 12-slot Enclosure
(3) power modules
(6) battery modules
PW12S12K 12 kVA expandable Hardwired Hardwired 60.7 x 24.0 x 28.5 504 $14,292
Includes: to 18 kVA N+X
(1) 12-slot Enclosure
(4) power modules
(8) battery modules
PW12S15K 15 kVA expandable Hardwired Hardwired 60.7 x 24.0 x 28.5 581 $17,136
Includes: to 18 kVA N+X
(1) 12-slot Enclosure
(5) power modules
(10) battery modules
PW12S18K 18 kVA expandable Hardwired Hardwired 60.7 x 24.0 x 28.5 658 $19,980
Includes: to 18 kVA N+X
(1) 12-slot Enclosure
(6) power modules
(12) battery modules
Replacement batteries—contact Sales Support 800.356.5794, option 3.
July 1, 2013
55www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
PRE-CONFIGURED SYSTEMS WITH HARDWIRE INPUT AND RECEPTACLES OUTPUT OPTIONS
Output Dimensions Weight List
Model Number Rating Input Connection Receptacles (H x W x D, inches) (lb) Price
PW6S3K-PD 3 kVA expandable Hardwired (2) L14-30R, 33.3 x 17.0 x 25.5 192 $5,823
Includes: to 9 kVA N+X (2) L6-30R,
(1) 6-slot Enclosure (12) 5-20R
(1) power modules
(2) battery modules
(1) caster kit
PW6S6K-PD 6 kVA expandable Hardwired (2) L14-30R, 33.3 x 17.0 x 25.5 269 $8,667
Includes: to 9 kVA N+X (2) L6-30R,
(1) 6-slot Enclosure (12) 5-20R
(2) power modules
(4) battery modules
(1) caster kit
PW6S9K-PD 9 kVA expandable Hardwired (2) L14-30R, 33.3 x 17.0 x 25.5 346 $11,511
Includes: to 9 kVA N+X (2) L6-30R,
(1) 6-slot Enclosure (12) 5-20R
(3) power modules
(6) battery modules
(1) caster kit
PW9S9K-PD 9 kVA expandable Hardwired (2) L14-30R, 47.0 x 24.0 x 28.5 389 $11,566
Includes: to 18 kVA N+X (2) L6-30R,
(1) 9-slot Enclosure (12) 5-20R
(3) power modules
(6) battery modules
PW12S9K-PD 9 kVA expandable Hardwired (3) L14-30R, 60.7 x 24.0 x 28.5 427 $12,000
Includes: to 18 kVA N+X (3) L6-30R,
(1) 12-slot Enclosure (12) 5-20R
(3) power modules
(6) battery modules
PW12S12K-PD 12 kVA expandable Hardwired (3) L14-30R, 60.7 x 24.0 x 28.5 504 $14,844
Includes: to 18 kVA N+X (3) L6-30R,
(1) 12-slot Enclosure (12) 5-20R
(4) power modules
(8) battery modules
PW12S15K-PD 15 kVA expandable Hardwired (3) L14-30R, 60.7 x 24.0 x 28.5 581 $17,688
Includes: to 18 kVA N+X (3) L6-30R,
(1) 12-slot Enclosure (12) 5-20R
(5) power modules
(10) battery modules
PW12S18K-PD 18 kVA expandable Hardwired (3) L14-30R, 60.7 x 24.0 x 28.5 658 $20,532
Includes: to 18 kVA N+X (3) L6-30R,
(1) 12-slot Enclosure (12) 5-20R
(6) power modules
(12) battery modules
PW3S3K-LPD 3 kVA expandable L14-30P (1) L14-30R, 19.5 x 17.0 x 25.5 155 $5,467
Includes: to 3 kVA N+1 (1) L6-30R,
(1) 3-slot Enclosure (4) 5-20R
(1) power modules
(2) battery modules
(1) caster kit
PW6S3K-LPD 3 kVA expandable 14-50P (2) L14-30R, 33.3 x 17.0 x 25.5 192 $5,972
Includes: to 9 kVA N+X (2) L6-30R,
(1) 6-slot Enclosure (12) 5-20R
(1) power modules
(2) battery modules
(1) caster kit
PW6S6K-LPD 6 kVA expandable 14-50P (2) L14-30R, 33.3 x 17.0 x 25.5 269 $8,815
Includes: to 9 kVA N+X (2) L6-30R,
(1) 6-slot Enclosure (12) 5-20R
(2) power modules
(4) battery modules
(1) caster kit
Notes: 50/60 Hz automatic frequency selection. Input/output voltages: 208–240 Vac or 100/200, 110/220, 120/208, 120/240 and 127/220 Vac. Pre-configured systems (3) and (6) slot Enclosure dimensions include
caster kit. Each pre-configured system includes a 6.5-minute runtime. Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc. Split-phase Power Modules
included.
EATON 9170+ UPS RACK/TOWER
Powerware series (continued)
56 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
SOFTWARE AND CONNECTIVITY OPTIONS
Catalog Number Description List Price
116750222-001 ConnectUPS-BD $335
Bundled with Intelligent Power Software Suite CD and communication cable.
See software and connectivity product sections for more detail.
SPLIT-PHASE MODULE ASY-0673 RUNTIME CHART IN MINUTES (FULL LOAD/HALF LOAD)
Load (VA) Number of Strings (two battery modules per string; two battery modules occupy one slot)
1 String 2 String 3 String 4 String 5 String 6 String 7 String 8 String 9 String 10 String 11 String 12 String
3 kVA 6.5/16 16/40 27.5/67.5 40/98 53.5/132 67.5/167 83/204 98/242 115/283 132/324 149/365 167/408
6 kVA 6.5/16 11/27.5 16/40 21.5/53.5 27.5/68 33.5/83 40/98 46.5/115 53.5/132 60.5/149 67.5/167
9 kVA 6.5/16 9.5/23.5 13/31.5 16/40 20/49 23.5/58 27.5/67.5 31.5/78 35.5/88 40/98
12 kVA 6.5/16 9/21.5 11/27.5 13.5/33.5 16/40 19/46.5 21.5/53.5 24.5/60.5 27.5/68
15 kVA 6.5/16 8/20.5 10/25 12/30 14/35 16/40 18.5/45 20.5/50.5
18 kVA 6.5/16 8/20 9.5/23.5 11/27.5 12.5/30 14.5/35.5 16/40
Note: Additional battery runtimes available up to 8 hr. Please contact your Eaton representative. Split-phase Module is for U.S. use.
13 String 14 String 15 String 16 String 17 String 18 String 19 String 20 String 21 String 22 String 23 String 24 String
3 kVA 185/456 204/501 223/549 242/595 262/640 283/692 302/750 323/790 345/850 365/900 387/955 408/1015
6 kVA 75/185 83/204 90/223 98/242 106/262 115/285 123/302 132/324 140/345 149/365 157/388 167/408
9 kVA 44/109 49/120 53.5/132 58/143 63/154 68/167 73/179 78/191 83/204 88/210 93/229 98/242
12 kVA 30.5/75 33.5/83 37/90 40/98 43/106 46.5/115 50/123 53.5/132 57/140 60/149 64/157 68/167
15 kVA 23/56 25/62 27.5/67.5 30/73.5 32.5/79.5 35/86 37.5/92 40/98 42.5/105 45/111 48/118 51/124
18 kVA 18/44 20/49 21.5/53.5 23.5/58 25.5/63 27.5/68 29.5/73 31.5/78 33.5/83 35.5/88 38/93 40/98
Note: Battery strings above and to the right of the dark line require additional (N+X) power modules or a 20A charger module.
UNIVERSAL MODULE ASY-0674 RUNTIME CHART IN MINUTES (FULL LOAD/HALF LOAD)
Load (VA) Number of strings (two battery modules per string; two battery modules occupy one slot)
1 String 2 String 3 String 4 String 5 String 6 String 7 String 8 String 9 String 10 String 11 String 12 String
3 kVA 8/24 24/59 43/95 58/140 80/175 95/125 119/240 135/290 155/335 165/365 200/395 215/450
6 kVA 8/24 16/40 24/59 32/83 40/103 49/114 58/140 69/156 83/175 90/190 103/205
9 kVA 8/24 13/35 18/46 24/59 29/63 35/86 40/103 46/115 54/125 58/140
12 kVA 8/24 13/33 16/40 19.5/43.5 24/59 29/70 33/80 36/90 41/100
15 kVA 8/24 11.5/31 14.5/31.5 18/46 20.5/51 24/58 28/66 31/73
18 kVA 8/24 11/31.5 13/36 15.5/41 18/45 20.5/51 24/58
Note: Additional battery runtimes available up to 8 hours. Please contact your Eaton representative.
13 String 14 String 15 String 16 String 17 String 18 String 19 String 20 String 21 String 22 String 23 String 24 String
3 kVA 225/500 245/540 270/600 290/620 315/650 335/690 350/720 365/780 375/850 395/890 425/920 450/950
6 kVA 113/335 123/255 135/273 143/290 148/315 156/333 165/350 175/365 183/385 190/395 198/420 205/440
9 kVA 63/150 73/165 80/178 86/190 93/200 100/210 107/225 115/240 121/255 125/270 135/280 143/290
12 kVA 47/110 52/121 56/130 58/140 65/147 70/156 75/165 80/175 85/185 90/195 95/205 100/215
15 kVA 34/83 38/94 41.5/103 44.5/113 46.5/117 51/127 56/130 58/140 61/149 66/158 71/165 73/170
18 kVA 27/65 31.5/72 34.5/77 36/83 38/94 41/100 44/105 45/115 48/122 54/131 57/137 58/140
Battery strings above and to the right of the dark line require additional (N+X) power modules or a 20A charger module.
CUSTOMIZABLE INPUT PLUG OPTIONS1
Input Plug Power Module Type CTO Digit List Price
L14-20P2 Split-phase F $109
L14-30P3 Split-phase G $129
14-50P4 Split-phase H $149
Notes: 1. May be configured to order by contacting sales support: 800.356.5794. 2. Limits chassis to maximum current of 16A and two power modules for 3 kVA redundant. 3. Limits chassis to maximum
current of 24A and three power modules for 5 kVA redundant. 4. Limits chassis to maximum current of 40A and four power modules for 8 kVA redundant.
EATON 9170+ UPS RACK/TOWER
Powerware series (continued)
July 1, 2013
57www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
CUSTOMIZABLE RECEPTACLE OPTIONS
Output Receptacle Power Module Type # of Bays CTO Digit List Price
5-20R duplex Split-phase 1 E $49
6-20R duplex All 1 G $69
L5-20R twist lock Split-phase 1 K $49
L5-30R twist lock Split-phase 1 L $59
L6-15R twist lock duplex All 1 M $79
L6-20R twist lock All 1 N $69
L6-30R twist lock All 1 O $69
L14-30R twist lock Split-phase 1 R $69
3 x 5-15R duplex Split-phase 2 W $69
3 x 5-20R duplex Split-phase 2 X $69
Maximum of three different
types of receptacles
per Enclosure
Bays available per
Enclosure:
3-slot has (4) bays
6-slot has (8) bays
9-slot has (8) bays
12-slot has (12) bays
EATON 9170+ UPS RACK/TOWER
Powerware series (continued)
SERVICES
For detailed information on service plans, please refer to the Single-phase Service section on page 122.
58 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
FERRUPS FE 60 Hz MODELS
Input/Output Runtimes Output List
CTO Number Voltage Full/Half Load Input Plug Receptacles Price
MODEL FE500 (500 VA/350W)
FA000AA0A0A0A0A 120V/120V 9/25 min Hardwire Hardwire $1,832
FA000BB2A0A0A0A 120V/120V 9/25 min 5-15 (4) 5-15 $1,791
FA010BB2A0A0A0A 120V/120V 20/56 min 5-15 (4) 5-15 $1,861
FA020BB2A0A0A0A 120V/120V 75/212 min 5-15 (4) 5-15 $2,010
MODEL FE700 (700 VA/500W)
FB000AA0A0A0A0A 120V/120V 11/31 min Hardwire Hardwire $2,055
FB000BB2A0A0A0A 120V/120V 11/31 min 5-15 (4) 5-15 $2,013
FB020BB2A0A0A0A 120V/120V 34/96 min 5-15 (4) 5-15 $2,220
FB040BB2A0A0A0A 120V/120V External Battery 5-15 (4) 5-15 $1,907
Model FE850 (850 VA/600W)
FC000AA0A0A0A0A 120V/120V 9/25 min Hardwire Hardwire $2,288
FC000BB2A0A0A0A 120V/120V 9/25 min 5-15 (4) 5-15 $2,247
FC010BB2A0A0A0A 120V/120V 38/107 min 5-15 (4) 5-15 $2,361
Model FE1.15 (1.15 kVA/800W)
FD000AA0A0A0A0A 120V/120V 8/22 min Hardwire Hardwire $3,113
FD000BB3A0A0A0A 120V/120V 8/22 min 5-15 (6) 5-15 $3,071
FD010BB3A0A0A0A 120V/120V 30/85 min 5-15 (6) 5-15 $3,367
FD020BB3A0A0A0A 120V/120V 70/197 min 5-15 (6) 5-15 $3,465
Model FE1.4 (1.4 kVA/1 kW)
FE000AA0A0A0A0A 120V/120V 11/31 min Hardwire Hardwire $3,377
FE000BB3A0A0A0A 120V/120V 11/31 min 5-15 (6) 5-15 $3,335
FE010BB3A0A0A0A 120V/120V 22/62 min 5-15 (6) 5-15 $3,603
Model FE1.8 (1.8 kVA/1.25 kW)
FF000CC3A0A0A0B 120V/120V 11/30 min 5-20 (6) 5-20 $4,815
FF010AA0A0A0A0B 120V/120V 86/206 min Hardwire Hardwire $5,377
FF010CC3A0A0A0B 120V/120V 86/206 min 5-20 (6) 5-20 $5,335
Model FE2.1 (2.1 kVA/1.5 kW)
FG000AA0A0A0A0B 120V/120V 9/25 min Hardwire Hardwire $5,359
FG000CC3A0A0A0B 120V/120V 9/25 min 5-20 (6) 5-20 $5,317
FG010AA0A0A0A0B 120V/120V 66/163 min Hardwire Hardwire $5,870
FG010CC3A0A0A0B 120V/120V 66/163 min 5-20 (6) 5-20 $5,829
Model FE3.1 (3.1 kVA/2.2 kW)
FH000AA0A0A0A0B 120V/120V 14/35 min Hardwire Hardwire $6,710
FH000JC3A0A0A0B 120V/120V 14/35 min L5-30 (6) 5-20 $6,668
FH010AA0A0A0A0B 120V/120V 37/98 min Hardwire Hardwire $7,169
FH010JC3A0A0A0B 120V/120V 37/98 min L5-30 (6) 5-20 $7,128
Note: See following pages for external battery packs and maintenance bypass switches.
Ferroresonant UPS (500–3100 VA)
• Bulletproof power integrity and management for telecommunications and
computer loads
• Special configurations and options available—call sales support for
details: 800.356.5794
• Warranty (US and Canada): Two-year limited warranty and $250,000 load
protection guarantee; optional Gold Plans available
The FERRUPS® can be
customized with many
options and runtimes.
If you do not find the
configuration you need
in this price book, call
800.356.5794.
EATON FERRUPS FE UPS 60 HZ
Powerware series
July 1, 2013
59www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
EATON FERRUPS FE UPS 60 HZ
Powerware series (continued)
FERRUPS FE 60 Hz MODELS
(continued)
Input/Output Runtimes Output List
Model Number CTO Number Voltage Full/Half Load Input Plug Receptacles Price
Model FE4.3 (4.3 kVA/3 kW)
FE4.3 kVA FI000AA0A0A0A0B 120V/120V 10/24 min Hardwired Hardwired $9,921
FE4.3 kVA FI100AA0A0A0A0B 208-208/120V 10/24 min Hardwired Hardwired $9,642
FE4.3 kVA FI300AA0A0A0A0B 240-240/120V 10/24 min Hardwired Hardwired $9,642
Model FE5.3 (5.3 kVA/3.7 kW)
FE5.3 kVA FJ000AA0A0A0A0B 120V/120V 20/50 min Hardwired Hardwired $11,317
FE5.3 kVA FJ100AA0A0A0A0B 208-208/120V 20/50 min Hardwired Hardwired $11,038
FE5.3 kVA FJ300AA0A0A0A0B 240-240/120V 20/50 min Hardwired Hardwired $11,038
Model FE7 (7 kVA/5 kW)
FE7 kVA FK000AA0A0A0A0B 120V/120V 12/33 min Hardwired Hardwired $14,198
FE7 kVA FK100AA0A0A0A0B 208-208/120V 12/33 min Hardwired Hardwired $13,920
FE7 kVA FK300AA0A0A0A0B 240-240/120V 12/33 min Hardwired Hardwired $13,920
Model FE10 (10 kVA/7.5 kW)
FE10 kVA FL140AA0A0A0A0B 208-208/120V External Hardwired Hardwired $15,085
Recommended system options: EBPS10F Standard external battery pack (11/26 min) $5,116
BPE04BBM1A External maintenance bypass switch (break-before-make) $1,034
System List $21,235
FE10 kVA FL340AA0A0A0A0B 240-240/120V External Hardwired Hardwired $15,085
Recommended system options: EBPS10F Standard external battery pack (11/26 min) $5,116
BPE04MBB1A External maintenance bypass switch (make-before-break) $1,134
System List $21,335
Model FE12.5 (12.5 kVA/10 kW)
FE12.5 kVA FM140AA0A0A0A0B 208-208/120V External Hardwired Hardwired $16,106
Recommended system options: EBPS12F Standard external battery pack (18/48 min) $7,062
BPE04BBM1A External maintenance bypass switch (break-before-make) $1,034
System List $24,202
FE12.5 kVA FM340AA0A0A0A0B 240-240/120V External Hardwired Hardwired $16,106
Recommended system options: EBPS12F Standard external battery pack (18/48 min) $7,062
BPE04MBB1A External maintenance bypass switch (make-before-break) $1,134
System List $24,302
Model FE18 (18 kVA/15 kW)
FE18 kVA FN140AA0A0A0A0B 208-208/120V External Hardwired Hardwired $20,719
Recommended system options: EBPS18F Standard external battery pack (10/26 min) $7,062
BPE05BBM1A External maintenance bypass switch (break-before-make) $1,274
System List $29,055
FE18 kVA FN340AA0A0A0A0B 240-240/120V External Hardwired Hardwired $20,719
Recommended system options: EBPS18F Standard external battery pack (10/26 min) $7,062
BPE05MBB1A External maintenance bypass switch (make-before-break) $1,430
System List $29,211
Note: See following pages for external battery packs and maintenance bypass switches. Call for other configurations and options.
Ferroresonant UPS (4.3–18 kVA)
• Bulletproof power integrity and management for telecommunications and computer loads
• Power factor-corrected, switch-mode and linear power supplies
The FERRUPS can be
customized with many
options and runtimes.
If you do not find the
configuration you need
in this price book, call
800.356.5794.
60 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
FERRUPS RACK SERIES 60 Hz MODELS
Input/Output Runtimes Output List
CTO Number Voltage Full/Half Load Input Plug Receptacles Price
Model FES1.4 (1.4 kVA/1 kW)
RC000BB2A0A0A0A 120V–120V 14/36 min 5-15 (4) 5-15 $6,549
RC000AA0A0A0A0A 120V–120V 14/36 min Hardwired Hardwired $6,425
Model FER2.1 (2.1 kVA/1.5 kW)
RH000CC3A0A0A0B 120V–120V 24/58 min 5-20 (6) 5-20 $7,602
RH000AA0A0A0A0B 120V–120V 24/58 min Hardwired Hardwired $7,395
Model FER3.1 (3.1 kVA/2.2 kW)
RI000JB3A0A0A0B 120V–120V 14/35 min L5-30 (6) 5-15 $8,356
RI000AA0A0A0A0B 120V–120V 14/35 min Hardwired Hardwired $8,106
Model FER7 (7 kVA/5 kW)
RK140AA0A0A0A0B 208–120/208V External Battery Hardwired Hardwired $15,292
RK340AA0A0A0A0B 240–120/240V External Battery Hardwired Hardwired $15,292
EBPS4.3R Standard external battery pack (12/33 min) $4,351
Note: See following pages for external battery packs and maintenance bypass switches. Call for other configurations and options.
SOFTWARE AND CONNECTIVITY OPTIONS
Description Part Number List Price
Serial CheckUPS Cable DB25M to DB9F INT-0035 $63
BestLink Web/SNMP Adapter (external) 116750225-001 $349
IBM AS/400 Kit Standard Cable Kit IPK-0001 $124
Handheld Remote and Keypad (FE, FES, FER models only) RCK-0007 $363
Caster Assy CAA-0006 $186
Ferroresonant UPS (1.4 kVA–7 kVA)
• Bulletproof power integrity and management for telecommunications and computer loads
• Power factor-corrected, switch-mode and linear power supplies
• High reliability for industrial and harsh environment
• Ultra-high reliability for standard, commercial environment
The FERRUPS can be
customized with many
options and runtimes.
If you do not find the
configuration you need
in this price book, call
800.356.5794.
EATON FERRUPS UPS RACK SERIES 60 HZ
Powerware series
SERVICES
For detailed information on service plans, please refer to the Single-phase Service section on page 122.
July 1, 2013
61www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
FERRUPS EXTERNAL BATTERY PACK BACKUP TIMES (full/half load)
FERRUPS external battery packs offer extended backup times. Please see following pages for typical backup times. Use of the external battery packs require that
the FERRUPS UPS be configured with external battery or battery charger options as noted below.
EATON FERRUPS UPS EXTERNAL OPTIONS & ACCESSORIES
Powerware series
Tower: 1.4–3.1 kVA
Battery Pack List Price FE1.15 kVA FE1.4 kVA FE1.8 kVA FE2.1 kVA FE3.1 kVA
8ME $3,421 3h 15m / 9h 11m 2h 20m / 6h 35m - - -
9ME $3,736 3h 50m / 10h 50m 3h 10m / 8h 57m 2h 12m / 4h 53m 1h 41m / 3h 54m 57m / 2h 27m
10ME $6,422 6h 30m / 18h 23m 5h 20m / 15h 5m 3h 38m / 8h 22m 2h 50m / 6h 37m 1h 41m / 4h 03m
11ME $7,114 - - 5h 09m / 11h 30m 4h 03m / 9h 10m 2h 29m / 5h 44m
12ME1 $9,014 - - 6h 07m / 14h 06m 4h 46m / 11h 08m 2h 52m / 6h 50m
13ME1 $11,004 - - 8h 30m / 18h 53m 6h 42m / 15h 04m 4h 07m / 9h 27m
14ME1 $13,505 - - 12h 08m / 27h 06m 9h 33m / 21h 36m 5h 52m / 13h 30m
15ME1 $18,263 - - 18h 52m / 44h 45m 15h 12m / 36h 28m 9h 41m / 22h 18m
Tower: 4.3–7 kVA
Battery Pack List Price FE4.3 kVA FE5.3 kVA FE7 kVA
1FE $4,615 40m / 1h 42m 27m / 1h 14m -
2FE $6,464 1h 11m / 2h 51m 49m / 2h 10m 34m / 1h 28m
3FE $7,164 1h 49m / 4h 05m 1h 12m / 3h 08m 48m / 2h 13m
4FE2 $9,096 2h 06m / 4h 46m 1h 27m / 3h 39m 60m / 2h 33m
5FE2 $11,118 3h 04m / 6h 46m 2h 13m / 5h 11m 1h 32m / 3h 41m
6FE3 $13,382 4h 27m / 9h 39m 3h 08m / 7h 22m 2h 16m / 5h 14m
7FE3 $18,482 7h 12m / 15h 56m 5h 10m / 12h 10m 3h 45m / 8h 39m
Tower: 10–18 kVA
Battery Pack List Price FE10 kVA FE12.5 kVA Battery Pack List Price FE18 kVA
EBPS10F $5,116 11m / 26 m - EBPS18F $7,062 10m / 26m
EBPS12F $7,062 - 18m / 48m 16FE $8,812 14m / 39m
8FE $7,104 27m / 1h 10m - 17FE $13,528 27m / 1h 10m
9FE $9,362 41m / 1h 48m 27m / 1h 13m 18FE $14,551 37m / 1h 46m
10FE $14,256 1h 13m / 2h 59m 49m / 2h 07m 19FE3 $20,397 48m / 2h 04m
11FE $15,808 1h 51m / 4h 16m 1h 12m / 3h 04m 20FE3 $25,529 1h 13m / 3h 01m
12FE2 $20,219 2h 09m / 5h 02m 1h 38m / 4h 05m 21FE3 $29,101 1h 49m / 4h 17m
13FE2 $25,782 3h 07m / 7h 04m 2h 12m / 5h 05m 22FE3 $43,514 3h 04m / 7h 05m
14FE3 $29,938 4h 26m / 10h 04m 3h 08m / 7h 14m
15FE3 $43,489 7h 20m / 16h 38m 5h 10m / 11h 57m
Rackmount: 2.1–7 kVA
Battery Pack List Price FER2.1 kVA FER3.1 kVA FER7 kVA
1RE $4,428 1h 41m / 3h 54m 57m / 2h 27m -
2RE $7,685 2h 50m / 6h 37m 1h 41m / 4h 03m -
EBPS4.3R $4,351 - - 12m / 33m
1. Requires FERRUPS UPS to be configured with optional 15 Amp battery charger.
2. Requires FERRUPS UPS to be configured with optional 10 Amp battery charger.
3. Requires FERRUPS UPS to be configured with optional 20 Amp battery charger.
Note: Backup times are approximate and vary with equipment, configuration, battery age, temperature etc.
62 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
MAINTENANCE BYPASS SWITCHES
Part Number Description Application List Price
BPE01MBB1A BPE01 Make-Before-Break Maintenance Bypass Switch For use with:
FE500 VA–2.1 kVA with 120V input
FE3.1 kVA with 120 V input and standard charger $631
BPE02BBM1A BPE02 Break-Before-Make Maintenance Bypass Switch For use with:
FE500 VA–7 kVA with 208V or 220V input $865
BPE02MBB1A BPE02 Make-Before-Break Maintenance Bypass Switch For use with:
FE3.1 kVA with 120V input and 15 Amp charger
FE4.3 kVA with 120V input
FE500 VA–FE7 kVA with 240V input $865
BPE04BBM1A BPE04 Break-Before-Make Maintenance Bypass Switch For use with:
FE10 kVA–12.5 kVA with 208V input $1,034
BPE04MBB1A BPE04 Make-Before-Break Maintenance Bypass Switch For use with:
FE5.3 kVA–7 kVA with 120V input
FE10 kVA–FE12.5 kVA with 240V input $1,144
BPE05MBB1A BPE05 Make-Before-Break Maintenance Bypass Switch For use with:
FE18 kVA with 240V input $1,430
BPE05BBM1A BPE05 Break-Before-Make Maintenance Bypass Switch For use with:
FE18 kVA with 208V input $1,274
Note: See FERRUPS CTO Configuration Guides for additional external maintenance bypass switch options.
SPARE PARTS KITS1
Application Low Voltage Part Number High Voltage Part Number List Price
FE500VA 60 Hz Tower SPK-FALV - call
FE700VA 60 Hz Tower SPK-FBLV - call
FE850VA 60 Hz Tower SPK-FCLV SPK-FCHV call
FE1.15kVA 60 Hz Tower SPK-FDLV SPK-FDHV call
FE1.4kVA 60 Hz Tower SPK-FELV SPK-FEHV call
FE1.8kVA 60 Hz Tower SPK-FFLV SPK-FFHV call
FE2.1kVA 60 Hz Tower SPK-FGLV SPK-FGHV call
FE3.1kVA 60 Hz Tower SPK-FHLV SPK-FHHV call
FE4.3kVA 60 Hz Tower, with 5 Amp Battery Charger SPK-FILV-5A SPK-FIHV-5A call
FE4.3kVA 60 Hz Tower, with 10 Amp Battery Charger SPK-FILV-10A SPK-FIHV-10A call
FE4.3kVA 60 Hz Tower, with 20 Amp Battery Charger SPK-FILV-20A SPK-FIHV-20A call
FE5.3kVA 60 Hz Tower, with 5 Amp Battery Charger SPK-FJLV-5A SPK-FJHV-5A call
FE5.3kVA 60 Hz Tower, with 10 Amp Battery Charger SPK-FJLV-10A SPK-FJHV-10A call
FE5.3kVA 60 Hz Tower, with 20 Amp Battery Charger SPK-FJLV-20A SPK-FJHV-20A call
FE7kVA 60 Hz Tower, with 5 Amp Battery Charger SPK-FKLV-5A SPK-FKHV-5A call
FE7kVA 60 Hz Tower, with 10 Amp Battery Charger SPK-FKLV-10A SPK-FKHV-10A call
FE7kVA 60 Hz Tower, with 20 Amp Battery Charger SPK-FKLV-20A SPK-FKHV-20A call
FE10kVA 60 Hz Tower, with 5 Amp Battery Charger - SPK-FLHV-5A call
FE10kVA 60 Hz Tower, with 10 Amp Battery Charger - SPK-FLHV-10A call
FE10kVA 60 Hz Tower, with 20 Amp Battery Charger - SPK-FLHV-20A call
FE12.5kVA 60 Hz Tower, with 5 Amp Battery Charger - SPK-FMHV-5A call
FE12.5kVA 60 Hz Tower, with 10 Amp Battery Charger - SPK-FMHV-10A call
FE12.5kVA 60 Hz Tower, with 20 Amp Battery Charger - SPK-FMHV-20A call
FE18kVA 60 Hz Tower, with 5 Amp Battery Charger - SPK-FNHV-5A call
FE18kVA 60 Hz Tower, with 10 Amp Battery Charger - SPK-FNHV-10A call
FE18kVA 60 Hz Tower, with 20 Amp Battery Charger - SPK-FNHV-20A call
FES850VA 60 Hz rack SPK-RALV SPK-RAHV call
FES1.4kVA 60 Hz rack SPK-RCLV - call
FER or FES2.1kVA 60 Hz rack SPK-RHLV - call
FER or FES3.1kVA 60 Hz rack - SPK-RIHV call
FER7kVA 60 Hz rack, with 5 Amp Battery Charger SPK-RKLV-5A SPK-RKHV-5A call
FER7kVA 60 Hz rack, with 10 Amp Battery Charger SPK-RKLV-10A SPK-RKHV-10A call
1. Spare parts kits must be ordered at time of FERRUPS UPS order.
EATON FERRUPS UPS EXTERNAL OPTIONS & ACCESSORIES
Powerware series (continued)
July 1, 2013
63www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
Double-conversion on-demand (12–60 kW)
The Eaton BladeUPS is a revolutionary power quality solution, expanding power protection from 12 kW
to 60 kW in a single industry standard 19-inch rack, and, most significantly, providing this robust, compact
solution without generating the additional heat associated with legacy end-of-row, modular UPS products.
• Achieves the highest power density in the marketplace
• Requires only six rack units (6U) per unit
• Reduces single points of failure with an intelligent bypass design that eliminates human error
• Provides the ultimate in reliability through a peer-to-peer paralleling relationship
EATON BLADEUPS
BLADEUPS (12 kW) MODELS: 208V
Input/Output Dimensions Weight1 List
Description Style Number Rating Voltage (H x W x D, inches) (lb) Price
BladeUPS 12 kW 208V w/60A 5W in/5W out ZC1212200100000 12 kVA (12 kW) 208/208 10.5 (6U) x 17.3 x 28.0 322 $12,095
BladeUPS 12 kW 208V w/60A 5W in/4W out ZC1212600100000 12 kVA (12 kW) 208/208 10.5 (6U) x 17.3 x 28.0 321 $12,045
BladeUPS 12 kW 208V w/60A 5W in/RPM ONLY ZC1212000100000 12 kVA (12 kW) 208/208 10.5 (6U) x 17.3 x 28.0 321 $11,895
BladeUPS 12 kW 208V w/parallel cord ZC121P060100000 12 kVA (12 kW) 208/208 10.5 (6U) x 17.3 x 28.0 311 $12,095
BladeUPS 12 kW 208V w/60A 5W in/5W out ZC1212208100000 12 kVA (12 kW) 208/208 10.5 (6U) x 17.3 x 28.0 322 $12,545
w/Power Xpert SNMP/ModBus
BladeUPS 12 kW 208V w/60A 5W in/4W out ZC1212608100000 12 kVA (12 kW) 208/208 10.5 (6U) x 17.3 x 28.0 321 $12,495
w/Power Xpert SNMP/ModBus
BladeUPS 12 kW 208V w/parallel cord ZC121P068100000 12 kVA (12 kW) 208/208 10.5 (6U) x 17.3 x 28.0 311 $12,545
w/Power Xpert SNMP/ModBus
1. All weights are installed weight, add 80 lb to determine shipping weight
2. 5W in (wired input plug) is model IEC309-60 HBL560P9W or similar
3. 5W out (output connector) is model IEC309-60 HBL560C9W or similar
4. 4W out (output connector) is model IEC309-60 HBL460C9W or similar
BLADEUPS (12 kW) MODELS: 400V
Input/Output Dimensions Weight1 List
Description Style Number Rating Voltage (H x W x D, inches) (lb) Price
BladeUPS 12 kW 400V w/IEC 309-32A 5W in/5W out ZC1224400100000 12 kVA (12 kW) 400/400 10.5 (6U) x 17.3 x 28.0 318 $12,095
BladeUPS 12kW 400V w/IEC 309-32A 5W in/5W out ZC1224408100000 12 kVA (12 kW) 400/400 10.5 (6U) x 17.3 x 28.0 314 $12,545
w/PXGX SNMP/ModBus
BladeUPS 12 kW 400V w/IEC 309-32A 5W in/ RPM ZC1224000100000 12 kVA (12 kW) 400/400 10.5 (6U) x 17.3 x 28.0 317 $11,895
ONLY out
BladeUPS 12kW 400V w/IEC 309-32A 5W in/ RPM ZC1224008100000 12 kVA (12 kW) 400/400 10.5 (6U) x 17.3 x 28.0 318 $12,345
ONLY out w/PXGX SNMP/ModBus
BladeUPS 12 kW 400V w/parallel cord ZC122P060100000 12 kVA (12 kW) 400/400 10.5 (6U) x 17.3 x 28.0 314 $12,095
BladeUPS 12kW 400V w/parallel cord w/PXGX ZC122P068100000 12 kVA (12 kW) 400/400 10.5 (6U) x 17.3 x 28.0 317 $12,545
SNMP/ModBus
1. All weights are installed weight, add 80 lb to determine shipping weight
2. 5W in (wired input plug) is model IEC309-32 HBL532P6W or similar
3. 5W out (output connector) in model IEC309-32 HBL532C6W or similar
Note: BladeUPS EBMs are not TAA Compliant
BUILT-IN CONNECTIVITY OPTIONS
Select digit “8” Value for Price
Option in the Style Number Style Number digit 8 Adder
X-Slot 2 Standard Relay Card (<60 Vac rated, IBM AS/400) 3 $146
Industrial Relay Card (5A @ 250 Vac) 4 $335
Hot Sync CAN Bridge Card 6 $519
Select digit “9” Value for Price
Option in the Style Number Style Number digit 9 Adder
X-Slot 1 Standard Relay Card (<60 Vac rated, IBM AS/400) 3 $146
Industrial Relay Card (5A @ 250 Vac) 4 $335
Power Xpert Gateway UPS Card (Web/SNMP/ModBusTCP) 8 $450
Note: All parallel configured systems include a Hot Sync CAN Bridge card in the standard part number
64 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
EATON BLADEUPS (continued)
BLADEUPS (12–60 kW) MODELS: PRE-ASSEMBLED SYSTEMS IN S-SERIES RACK
Factory Installed and Tested UPS Systems in Eaton 42U Rack
Input/Output Dimensions1 Weight2 List
Description Style Number Rating Voltage (H x W x D, inches) (lb) Price
BladeUPS Pre-Assembled Bottom Entry 12 kW, 208V ZP21110XXXXX000 12 kVA (12 kW) 208/208 81.0 x 24.0 x 42.0 683 $17,895
BladeUPS Pre-Assembled Bottom Entry 12 kW, 208V ZP21115XXXXX000 12 kVA (12 kW) 208/208 81.0 x 24.0 x 42.0 683 $18,345
w/(1) Power Xpert SNMP/ModBus
BladeUPS Pre-Assembled Bottom Entry 24 kW, 208V ZP212100XXXX000 24 kVA (24 kW) 208/208 81.0 x 24.0 x 42.0 994 $29,395
BladeUPS Pre-Assembled Bottom Entry 24 kW, 208V ZP212150XXXX000 24 kVA (24 kW) 208/208 81.0 x 24.0 x 42.0 994 $29,845
w/(1) Power Xpert SNMP/ModBus
BladeUPS Pre-Assembled Bottom Entry 36 kW, 208V ZP2131000XXX000 36 kVA (36 kW) 208/208 81.0 x 24.0 x 42.0 1316 $39,995
BladeUPS Pre-Assembled Bottom Entry 36 kW, 208V ZP2131500XXX000 36 kVA (36 kW) 208/208 81.0 x 24.0 x 42.0 1316 $40,445
w/(1) Power Xpert SNMP/ModBus
BladeUPS Pre-Assembled Bottom Entry 48 kW, 208V ZP21410000XX000 48 kVA (48 kW) 208/208 81.0 x 24.0 x 42.0 1638 $49,095
BladeUPS Pre-Assembled Bottom Entry 48 kW, 208V ZP21415000XX000 48 kVA (48 kW) 208/208 81.0 x 24.0 x 42.0 1638 $49,545
w/(1) Power Xpert SNMP/ModBus
BladeUPS Pre-Assembled Bottom Entry 60 kW, 208V ZP215100000X000 60 kVA (60 kW) 208/208 81.0 x 24.0 x 42.0 1960 $61,995
BladeUPS Pre-Assembled Bottom Entry 60 kW, 208V ZP215150000X000 60 kVA (60 kW) 208/208 81.0 x 24.0 x 42.0 1960 $62,445
w/(1) Power Xpert SNMP/ModBus
BladeUPS Pre-Assembled Bottom Entry 60 kW N+1, 208V ZP2161000000000 60 kVA (60 kW) N+1 208/208 81.0 x 24.0 x 42.0 2282 $73,695
BladeUPS Pre-Assembled Bottom Entry 60 kW N+1, 208V ZP2161500000000 60 kVA (60 kW) N+1 208/208 81.0 x 24.0 x 42.0 2282 $74,145
w/(1) Power Xpert SNMP/ModBus
BladeUPS Pre-Assembled Top Entry 12 kW, 208V ZP22110XXXXX000 12 kVA (12 kW) 208/208 81.0 x 24.0 x 42.0 683 $17,895
BladeUPS Pre-Assembled Top Entry 12 kW, 208V, ZP22115XXXXX000 12 kVA (12 kW) 208/208 81.0 x 24.0 x 42.0 683 $18,345
w/Power Xpert SNMP/ModBus
BladeUPS Pre-Assembled Top Entry 24 kW, 208V ZP222100XXXX000 24 kVA (24 kW) 208/208 81.0 x 24.0 x 42.0 994 $29,395
BladeUPS Pre-Assembled Top Entry 24 kW, 208V, ZP222150XXXX000 24 kVA (24 kW) 208/208 81.0 x 24.0 x 42.0 994 $29,845
w/Power Xpert SNMP/ModBus
BladeUPS Pre-Assembled Top Entry 36 kW, 208V ZP2231000XXX000 36 kVA (36 kW) 208/208 80.0 x 24.0 x 42.0 1316 $39,995
BladeUPS Pre-Assembled Top Entry 36 kW, 208V, ZP2231500XXX000 36 kVA (36 kW) 208/208 80.0 x 24.0 x 42.0 1316 $40,445
w/Power Xpert SNMP/ModBus
BladeUPS Pre-Assembled Top Entry 48 kW, 208V ZP22410000XX000 48 kVA (48 kW) 208/208 81.0 x 24.0 x 42.0 1638 $49,095
BladeUPS Pre-Assembled Top Entry 48 kW, 208V, ZP22415000XX000 48 kVA (48 kW) 208/208 81.0 x 24.0 x 42.0 1638 $49,545
w/Power Xpert SNMP/ModBus
BladeUPS Pre-Assembled Top Entry 60 kW, 208V ZP225100000X000 60 kVA (60 kW) 208/208 81.0 x 24.0 x 42.0 1960 $61,995
BladeUPS Pre-Assembled Top Entry 60 kW, 208V, ZP225150000X000 60 kVA (60 kW) 208/208 81.0 x 24.0 x 42.0 1960 $62,445
w/Power Xpert SNMP/ModBus
BladeUPS Pre-Assembled Top Entry 60 kW N+1, 208V ZP2261000000000 60 kVA (60 kW) N+1 208/208 81.0 x 24.0 x 42.0 2282 $73,695
BladeUPS Pre-Assembled Top Entry 60 kW N+1, 208V, ZP2261500000000 60 kVA (60 kW) N+1 208/208 81.0 x 24.0 x 42.0 2282 $74,145
w/Power Xpert SNMP/ModBus
1. Shipping dimensions are 87”H x 37”W x 60”D. If more than 4 units are installed batteries for 5th and 6th units will ship on a separate pallet maximum 15”H x 32”W x 48”D. Total shipping weight for
configurations of 4 UPS modules or less is installed weight plus 345 lbs. For configurations of 5 or 6 UPS modules add 391 lbs. to installed weight.
Additional notes: Factory-installed connectivity for Pre-Assembled Systems: Style Number digits 7 thru 12 (based in number of systems installed) represent the communication card(s) installed in the
system. 0 = No connectivity, 2 = ModBus RTU, 3 = Standard relay card, 4 = Industrial relay card, 5 = Power Xpert Gateway UPS Card For systems with more than one UPS module, additional cards can be
installed. Please visit the Connectivity Products section for card information, including pricing.
July 1, 2013
65www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
EATON BLADEUPS (continued)
BLADEUPS (12–48 kW) MODELS: PRE-ASSEMBLED SYSTEMS IN S-SERIES RACK
Factory Installed and Tested UPS Systems in Eaton 42U Rack. System capable of expansion to maximum of 48kW
Input/Output Dimensions1 Weight2 List
Description Style Number Rating Voltage (H x W x D, inches) (lb) Price
BladeUPS Pre-Assembled Bottom Entry 12 kW, 208V ZP23110XXXXX000 12 kVA (12 kW) 208/208 81.0 x 24.0 x 42.0 661 $17,095
BladeUPS Pre-Assembled Bottom Entry 12 kW, 208V ZP23115XXXXX000 12 kVA (12 kW) 208/208 81.0 x 24.0 x 42.0 661 $17,545
w/(1) Power Xpert SNMP/ModBus
BladeUPS Pre-Assembled Bottom Entry 24 kW, 208V ZP232100XXXX000 24 kVA (24 kW) 208/208 81.0 x 24.0 x 42.0 972 $28,595
BladeUPS Pre-Assembled Bottom Entry 24 kW, 208V ZP232150XXXX000 24 kVA (24 kW) 208/208 81.0 x 24.0 x 42.0 972 $29,045
w/(1) Power Xpert SNMP/ModBus
BladeUPS Pre-Assembled Bottom Entry 36 kW, 208V ZP2331000XXX000 36 kVA (36 kW) 208/208 81.0 x 24.0 x 42.0 1294 $39,195
BladeUPS Pre-Assembled Bottom Entry 36 kW, 208V ZP2331500XXX000 36 kVA (36 kW) 208/208 81.0 x 24.0 x 42.0 1294 $39,645
w/(1) Power Xpert SNMP/ModBus
BladeUPS Pre-Assembled Bottom Entry 48 kW, 208V ZP23410000XX000 48 kVA (48 kW) 208/208 81.0 x 24.0 x 42.0 1616 $48,295
BladeUPS Pre-Assembled Bottom Entry 48 kW, 208V ZP23415000XX000 48 kVA (48 kW) 208/208 81.0 x 24.0 x 42.0 1616 $48,745
w/(1) Power Xpert SNMP/ModBus
BladeUPS Pre-Assembled Top Entry 12 kW, 208V ZP24110XXXXX000 12 kVA (12 kW) 208/208 81.0 x 24.0 x 42.0 661 $17,095
BladeUPS Pre-Assembled Top Entry 12 kW, 208V, ZP24115XXXXX000 12 kVA (12 kW) 208/208 81.0 x 24.0 x 42.0 661 $17,545
w/Power Xpert SNMP/ModBus
BladeUPS Pre-Assembled Top Entry 24 kW, 208V ZP242100XXXX000 24 kVA (24 kW) 208/208 81.0 x 24.0 x 42.0 972 $28,595
BladeUPS Pre-Assembled Top Entry 24 kW, 208V, ZP242150XXXX000 24 kVA (24 kW) 208/208 81.0 x 24.0 x 42.0 972 $29,045
w/Power Xpert SNMP/ModBus
BladeUPS Pre-Assembled Top Entry 36 kW, 208V ZP2431000XXX000 36 kVA (36 kW) 208/208 80.0 x 24.0 x 42.0 1294 $39,195
BladeUPS Pre-Assembled Top Entry 36 kW, 208V, ZP2431500XXX000 36 kVA (36 kW) 208/208 80.0 x 24.0 x 42.0 1294 $39,645
w/Power Xpert SNMP/ModBus
BladeUPS Pre-Assembled Top Entry 48 kW, 208V ZP24410000XX000 48 kVA (48 kW) 208/208 81.0 x 24.0 x 42.0 1616 $48,295
BladeUPS Pre-Assembled Top Entry 48 kW, 208V, ZP24415000XX000 48 kVA (48 kW) 208/208 81.0 x 24.0 x 42.0 1616 $48,745
w/Power Xpert SNMP/ModBus
1. Shipping dimensions are 87”H x 37”W x 60”D. If more than 4 units are installed batteries for 5th and 6th units will ship on a separate pallet maximum 15”H x 32”W x 48”D. Total shipping weight for
configurations of 4 UPS modules or less is installed weight plus 345 lbs. For configurations of 5 or 6 UPS modules add 391 lbs. to installed weight.
Additional notes: Factory-installed connectivity for Pre-Assembled Systems: Style Number digits 7 thru 12 (based in number of systems installed) represent the communication card(s) installed in the
system. 0 = No connectivity, 2 = ModBus RTU, 3 = Standard relay card, 4 = Industrial relay card, 5 = Power Xpert Gateway UPS Card For systems with more than one UPS module, additional cards can be
installed. Please visit the Connectivity Products section for card information, including pricing.
BLADEUPS ASSEMBLIES
Nominal Dimensions Weight List
Description Style Number Part Number Voltage (H x W x D, inches) (lb) Price
S-Series Rack with 48kW BladeUPS Parallel bar Top P-103000505 ETN-BLADERACK4T 208V or 400V 81.0 x 24.0 x 42.0 452 $5,895
w/wireway
S-Series Rack with 48kW BladeUPS Parallel bar Bottom P-103000506 ETN-BLADERACK4B 208V or 400V 81.0 x 24.0 x 42.0 452 $5,895
w/wireway
S-Series Rack with 60kW BladeUPS Parallel bar Top P-103000503 ETN-BLADERACK6T 208V or 400V 81.0 x 24.0 x 42.0 466 $6,695
w/wireway
S-Series Rack with 60kW BladeUPS Parallel bar Bottom P-103000504 ETN-BLADERACK6B 208V or 400V 81.0 x 24.0 x 42.0 466 $6,695
w/wireway
66 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
EATON BLADEUPS (continued)
BLADEUPS OPTIONS
Description Style Number Dimensions (H x W x D, inches) Weight (lb) List Price
Extended Battery Modules
BladeUPS 3U EBM1 2 103005747-6591 5.2 (3U) x 17.2 x 26.0 170 $1,745
Extension Cable
BladeUPS 3 Ft EBM Extension Cable 103006348-001 2.4 x 8.5 x 9.7 2 $250
1. Shipped on pallet with dimensions of 5x40x48. BladeUPS EBMs are not TAA Compliant
Maintenance Bypass
BladeUPS Maintenance Bypass Module, 208V 103007415-5208 10.5 (6U) x 17.3 x 29.6 76 $6,195
BladeUPS Maintenance Bypass Module, 400V 103007415-5400 10.5 (6U) x 17.3 x 29.6 76 $6,195
UPS Paralleling
BladeUPS 60 kW Bus Bar, Bottom Entry 103007571-55912 71.9 x 6.0 x 5.7 54 $3,795
BladeUPS 60 kW Bus Bar, Top Entry 103007573-55912 71.9 x 6.0 x 5.7 54 $3,795
BladeUPS 60 kW Universal Wireway 103007569-55912 10.4 (6U) x 19.0 x 34.0 45 $1,445
BladeUPS 48 kW BusBar, Top Entry 103007828-55912 51.0 x 6.0 x 5.7 40 $3,195
BladeUPS 48 kW BusBar, Bottom Entry 103007830-55912 51.0 x 6.0 x 5.7 40 $3,195
2. Please consult Application Engineering when purchasing this item.
3. All bus bar assemblies are rated for 208 or 400V installations.
Distribution Options
See ePDU options in the Eaton Power Distribution and Enclosures section of this book.
SOFTWARE AND CONNECTIVITY OPTIONS
Bundled with Intelligent Power Software Suite CD and communication cable. See the software and connectivity product sections for more detail.
SERVICES
For detailed information on service plans, please refer to the Three-phase Service section on page 125.
July 1, 2013
67www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
BLADEUPS BATTERY BACKUP TIMES (in minutes)
Load (kW) Internal Battery +1 EBM +2 EBMs +3 EBMs +4 EBMs
2 44 85 137 199 258
3 30 56 89 128 165
4 23 42 66 94 120
5 18 33 51 73 94
6 13.6 27 42 60 76
7 11 23 32 50 64
8 9 18 28 43 55
9 7 15 24 38 48
10 6 13 22 33 42
11 5 11 20 30 38
12 4.7 9.5 17 27 34
Note: Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.
1 For parallel installations, add same number of EBMs to each 12kW UPS module.
BLADEUPS BATTERY BACKUP TIMES (Parallel UPS, in minutes)
Number of Total Load Internal
UPS Modules (kW) Configuration Battery +1 EBM +2 EBMs +3 EBMs +4 EBMs
2 12 N+1 14 27 42 60 76
3 24 N+1 8.7 18 28 43 55
4 36 N+1 7.3 15 24 38 48
5 48 N+1 6.7 13 23 35 44
6 60 N+1 6.2 13 22 33 42
BLADEUPS OPTIONS: RACK POWER MODULE (RPM)
The RPM delivers up to 36 kW of power in an organized manner to loads of various voltages, power cords
and layouts. The 3U RPM can be deployed in the same rack with the UPS and IT equipment; there’s no need
for a dedicated infrastructure rack. The resulting architecture has fewer cables to manage, fewer distribution
points to monitor, and greater flexibility for IT personnel make changes without an electrician.
• Provides plug-and-play primary distribution of power from three-phase input source to secondary
power distribution devices
• Serves data center loads with various voltages, power cord configurations and layouts
• Distributes three-phase power to 12 poles, with choice of output receptacle types
• “Power Equalizer” LED gives quick visual indication of each circuits load, reducing possibility of overloads and breakers tripped offline
• Load information available from the front of the rack, no need to check individual power strips in the rear of the cabinet (hot isle)
• Branch circuit monitoring option allows easy load monitoring over the network, with Power Xpert infrastructure
• Installs in only 3U of space in EIA 19-inch rack or Enclosure (or optional wall-mount), all hardware included
• Enables customer installation and changes without the services of a licensed electrician
RPM DIMENSIONS
Dimensions (H x W x D, inches) Dimensions (H x W x D, mm) Weight (lb) Weight (kg)
Installed 5.2 x 17.4 x 26.3 132 x 442 x 668 32 15
Shipped 16.2 x 21.5 x 31.0 5.2 x 17.4 x 26.3 44 20
RPM TOPSELLERS
Topseller RPMs are the most popular configurations.
Receptacles
Part Number Input Cable Recep 1 (Qty) Recep 2 (Qty) Metering List Price
Y03113011100000 BladeUPS 208V 15' L21-20 (2) L21-20 (2) Power Equalizer $2,790
Y03113022100000 BladeUPS 208V 15' L21-30 (2) L21-30 (2) Power Equalizer $2,880
Y03114022100000 BladeUPS 208V 20' L21-30 (2) L21-30 (2) Power Equalizer $2,955
Y03113055100000 BladeUPS 208V 15' L6-30 (3) L6-30 (3) Power Equalizer $2,390
Y03113047100000 BladeUPS 208V 15' L6-20 (3) 5-20 (6) Power Equalizer $2,425
Y03113017100000 BladeUPS 208V 15' L21-20 (2) 5-20 (6) Power Equalizer $2,565
Y03113027100000 BladeUPS 208V 15' L21-30 (2) 5-20 (6) Power Equalizer $2,610
Y031220AA300000 IEC309-60 (60A) 10' IEC C13 (12) IEC C13 (12) Energy Management $2,705
Y03100044100000 Hardwire (208V) L6-20 (3) L6-20 (3) Power Equalizer $2,410
Y03100077100000 Hardwire (208V) 5-20 (6) 5-20 (6) Power Equalizer $2,240
Y032420CD100000 BladeUPS 400V 10' IEC C13 (12) IEC C19 (6) Power Equalizer $2,245
Y032440CD100000 BladeUPS 400V 20' IEC C13 (12) IEC C19 (6) Power Equalizer $2,405
Y032000CC300000 Hardwire (400V) IEC C13 (12) IEC C13 (12) Energy Management $3,275
EATON BLADEUPS (continued)
68 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
EATON BLADEUPS (continued)
RACK POWER MODULE CONFIGURATOR
Description Quantity Part List
Number Digit Value Price
Base 3U RPM Distribution Box - 1 Y
2 0
3 3
Input Voltage 208V - 4 1 $1,675
400V 2 $1,675
Input Cords: Connection Hardwired - 5 0
BladeUPS Unit 208V 1
IEC309-60 5 wire 2
NEMA L21-30P 3
BladeUPS Unit 400V 4
Input Cords: Length Hardwired - 6 0 $215
8 feet - 1 BladeUPS Unit 208V $170
IEC309-60 5 wire $640
NEMA L21-30P $125
BladeUPS Unit 400V $170
10 feet - 2 BladeUPS Unit 208V $230
IEC309-60 5 wire $645
NEMA L21-30P $140
BladeUPS Unit 400V $230
15 feet - 3 BladeUPS Unit 208V $315
IEC309-60 5 wire $705
NEMA L21-30P $155
BladeUPS Unit 400V $315
20 feet - 4 BladeUPS Unit 208V $390
IEC309-60 5 wire $765
NEMA L21-30P $175
BladeUPS Unit 400V $390
Future Option - 7 0 -
Rack Power Module (RPM)
Y03
Input Cords/Connection
0 = Hardwire
1 = BladeUPS Unit 208V
2 = IEC309-60 5 wire
3 = NEMA l21-30P
4 = BladeUPS Unit 400V
Input Voltage
1 = 208V
2 = 400V
Metering Choices
1 = Power Equalizer
2 = Energy Management System, NO Card
3 = Energy Management System, with card
Input Cord Length
0 = Hardwire
1 = 8 feet
2 = 10 feet
3 = 15 feet
4 = 20 feet
(Base 3U RPM distribution box) 0 0
Output Receptacle Plate #1 & #2
1 = L21-20R
2 = L21-30R
3 = L6-15R
4 = L6-20R
5 = L6-30R
6 = 5-15R
7 = 5-20R
8 = L14-20R
9 = L14-30R
A = IEC320-C13 (208V)
B = IEC320-C19 (208V)
C = IEC320-C13 (230V) International
D = IEC320-C19 (230V) International
E = L15-20R
F = L15-3R
0 0 0 0
Rack Power Module (RPM)
RPM ACCESSORIES
Description Part Number List Price
RPM wall-mount bracket kit 103006226 $205
July 1, 2013
69www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
EATON BLADEUPS (continued)
RACK POWER MODULE CONFIGURATOR
(continued)
Description Quantity Part List
Number Digit Value Price
Output Receptacle Plate #1 & L21-20R 2 8 & 9 1 $400
Output Receptacle Plate #2 L21-30R 2 2 $445
L6-15R 3 3 $245
L6-20R 3 4 $260
L6-30R 3 5 $200
5-15R 6 6 $170
5-20R 6 7 $175
L14-20R 3 8 $180
L14-30R 3 9 $245
IEC320-C13 (208V) 12 A $180
IEC320-C19 (208V) 6 B $160
IEC320-C13 (230V) 12 C $180
IEC320-C19 (230V) 6 D $160
L15-20 2 E $400
L15-30 2 F $445
Metering Choices Power Equalizer - 10 1 -
Energy Management System, NO card - 2 $695
Energy Management System, with card - 3 $1,025
Future Option - 11 0 -
None - 12 0 $0
- 13 0 -
- 14 0 -
- 15 0 -
How to order: 1. Select base model voltage (208V or 400V), 2. Select input connector option, 3. Select input cord length (corded units only), 4. Select first recep-
tacle plate option, 5. Select second receptacle plate option, 6. Select metering option.
Example of configured model part number: Y03111022300000
BLADEUPS OPTIONS: EATON BLADEUPS PDU WITH MAINTENANCE BYPASS
K-1 RATED TP-1 TRANSFORMER, 480V IN 208V OUT AND (2) 42-POLE PANELBOARDS
The Eaton BladeUPS PDU with Maintenance Bypass saves money and space in the data center or network operations
center while offering three functions in one cabinet. The BladeUPS PDU combines step-down transformation, power
distribution (up to 84 pole positions) and maintenance bypass into a single cabinet—the perfect complement to a 60 kVA
BladeUPS system.
• TP-1, K1-rated input transformer—Energy-star efficiency, 480-208/120V, along with integral voltage transformation,
electrical isolation and high efficiency
• Integrated maintenance bypass, including maintenance bypass breaker, rectifier input breaker and UPS output
breaker, all rated for 225A, for high availability
• Available with up to two Eaton PRL-1a 42-pole panelboards, or up to four subfeed breakers or full rated lugs.
PRL-1a panels accept BAB or QBHW style breakers
• Multiple power functions in a single cabinet mean efficient use of space
• Free-standing, easy-access design that complements other modern data center equipment while providing ease of
installation and use for flexible access and deployment options
• Warranty: Eighteen months
EATON BLADEUPS PDU WITH MAINTENANCE BYPASS
Dimensions
Catalog Style Rating Input Output (H x W x D, Weight List
Number Number Description (VA/Watts) Connection Receptacles inches) (lb) Price
124100029-001 124100029-001 PDU for 60 kVA 60 kVA/60 kW AC input 480V (2) 42-pole panelboards 80 x 30 x 36 1200 $23,190
BladeUPS – 3 phase 3 wire, (branch breakers
2 panels – 480:208V ground, 60 Hz not included)
70 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
EATON BLADEUPS (continued)
EATON BLADEUPS PDU WITH MAINTENANCE BYPASS
(continued)
Dimensions
Catalog Style Rating Input Output (H x W x D, Weight List
Number Number Description (VA/Watts) Connection Receptacles inches) (lb) Price
124100029-002 PTE06056BAS4100 PDU with bypass 60 kVA/60 kW Hardwire 480 vac (1) 42 pole 80 x 30 x 36 1150 $22,730
w/ 1 42 pole panelboard
panelboard Eaton PRL1
124100029-003 PTE06056BAS41LL PDU with bypass 60 kVA/60 kW Hardwire 480 vac (1) 42 pole 80 x 30 x 36 1170 $23,420
w/ 1 42 pole panelboard
panelboard, Eaton PRL1,
full rated output lugs full output lugs
124100029-004 PTE06056BAS412A PDU with bypass 60 kVA/60 kW Hardwire 480 vac (1) 42 pole 80 x 30 x 36 1210 $23,540
w/ 1 42 pole panelboard
panelboard, Eaton PRL1,
2 subfeed breakers 2 subfeed breakers
124100029-005 PTE06056BAS413A PDU with bypass 60 kVA/60 kW Hardwire 480 vac (1) 42 pole 80 x 30 x 36 1225 $27,130
w/ 1 42 pole panelboard
panelboard, Eaton PRL1,
3 subfeed breakers 3 subfeed breakers
124100029-006 PTE06056BAS414A PDU with bypass 60 kVA/60 kW Hardwire 480 vac (1) 42 pole 80 x 30 x 36 1240 $28,750
w/ 1 42 pole panelboard
panelboard, Eaton PRL1,
4 subfeed breakers 4 subfeed breakers
124100029-007 PTE06056BAS40LL PDU with bypass 60 kVA/60 kW Hardwire 480 vac Full rated 80 x 30 x 36 1100 $22,820
w/ full rated output lugs
output lugs
124100029-008 PTE06056BAS402A PDU with bypass 60 kVA/60 kW Hardwire 480 vac 2 subfeed 80 x 30 x 36 1130 $25,270
w/ 2 subfeed breakers
breakers
124100029-009 PTE06056BAS403A PDU with bypass 60 kVA/60 kW Hardwire 480 vac 3 subfeed 80 x 30 x 36 1145 $26,760
w/ 3 subfeed breakers
breakers
124100029-010 PTE06056BAS404A PDU with bypass 60 kVA/60 kW Hardwire 480 vac 4 subfeed 80 x 30 x 36 1160 $28,410
w/ 4 subfeed breakers
breakers
124100029-011 PTE06056BAS42LL PDU with bypass 60 kVA/60 kW Hardwire 480 vac (2) 42 pole 80 x 30 x 36 1210 $23,890
w/ 2 42 pole panelboard
panelboard, Eaton PRL1,
full rated output lugs full output lugs
Note:
1. Please contact Pre-sales Support to specify what trip ratings are needed for the subfeed breakers.
2. All subfeed breakers are standard Eaton FD frames, rated at 225A trip.
3. The PDU with bypass should be discounted at the same multiplier level as the BladeUPS system.
July 1, 2013
71www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
Double-conversion (10–15 kVA)
This innovative design delivers one of the industry’s best combinations of high efficiency, low input current
distortion and highest power factor, while conserving valuable space and offering the most cost-effective,
highest performance option available today.
• True double-conversion topology protects equipment from all nine of the most common power problems
• Industry leading power density, providing up to 20 percent more power capacity in a compact tower design
including batteries
• Up to 350 percent more standard runtime
• Up to a 74 percent footprint reduction and up to an 83 percent total size reduction
• Flexible on-board power distribution modules (PDMs) allow for hardwired output or up to 15 different output
receptacle options, reducing installation and site preparation expenses
• Plug-and-play rack Enclosure power distribution with the 9355 on-board PDU
• Inherently scalable from 10–15 and 20–30 kVA, allowing you to pay as you grow or increase capacity with no
additional hardware purchases or installation concerns
• Eaton’s patented Hot Sync paralleling technology allows for wireless paralleling in the event of
communications failure, providing the industry’s only truly redundant paralleling technology
• Flexible 0 footprint extended run configurations allow for adding additional runtime in the same industry-leading compact footprint
• Includes rear-mounted bypass switch
• Includes on-site 5x8 startup and operator training by Eaton field technician
• Includes one year of eNotify remote monitoring service (requires connectivity parts and self installation)
EATON 9355 UPS
Powerware series
9355 (10–15 kVA) MODELS
Input/Output Base Dimensions Weight List
Description Part Number1 Rating Voltage Runtime (min) (H x W x D, inches)3 (lb)3 Price
PW9355 10 kVA with 32-Battery (2-high) KA1011100000010 10 kVA/9 kW 208/208 8 32.2 x 12.0 x 33.7 373 $16,375
PW9355 10 kVA with 64-Battery (3-high) KA1012100000010 10 kVA/9 kW 208/208 22 47.8 x 12.0 x 33.7 609 $18,230
PW9355 10 kVA with 32-Battery (2-high) KA1011200000010 10 kVA/9 kW 220/2202 8 32.2 x 12.0 x 33.7 373 $16,375
PW9355 10 kVA with 64-Battery (3-high) KA1012200000010 10 kVA/9 kW 220/2202 22 47.8 x 12.0 x 33.7 609 $18,230
PW9355 10 kVA with 32-Battery and input KA1013400000010 10 kVA/9 kW 480/208 8 47.8 x 12.0 x 33.7 577 $20,865
isolation transformer (3-high)
PW9355 10 kVA with 32-Battery and input KA1013600000010 10 kVA/9 kW 600/208 8 47.8 x 12.0 x 33.7 577 $20,865
isolation transformer (3-high)
PW9355 15 kVA with 32-Battery (2-high) KA1511100000010 15 kVA/13.5 kW 208/208 4 32.2 x 12.0 x 33.7 373 $17,788
PW9355 15 kVA with 64-Battery (3-high) KA1512100000010 15 kVA/13.5 kW 208/208 13 47.8 x 12.0 x 33.7 609 $19,687
PW9355 15 kVA with 32-Battery (2-high) KA1511200000010 15 kVA/13.5 kW 220/2202 4 32.2 x 12.0 x 33.7 373 $17,788
PW9355 15 kVA with 64-Battery (3-high) KA1512200000010 15 kVA/13.5 kW 220/2202 13 47.8 x 12.0 x 33.7 609 $19,687
PW9355 15 kVA with 32-Battery and input KA1513400000010 15 kVA/13.5 kW 480/208 4 47.8 x 12.0 x 33.7 577 $22,015
isolation transformer (3-high)
PW9355 15 kVA with 32-Battery and input KA1513600000010 15 kVA/13.5 kW 600/208 4 47.8 x 12.0 x 33.7 577 $22,015
isolation transformer (3-high)
1. 50/60 Hz auto-sensing.
2. 220V units are wye connected 220/127V input and 220/127V output, three-phase, 4-wire plus ground.
3. Add 47 lbs for 2-high configurations or 50 lbs for 3-high configurations to determine shipping weight.
4. An input neutral is required for all configurations unless the input isolation transformer is used.
5. For parallel systems, change CTO digit #5 to a “2” and add $300 to the list price and include Parallel Tie Cabinet.. Eaton startup is required for factory warranty of parallel configuration.
SURGE PROTECTION
See the surge protection product section for more details.
SOFTWARE AND CONNECTIVITY OPTIONS
Description Part Number List Price
Power Xpert Gateway UPS Card PXGXUPS (103007974-5591) $450
Bundled with Intelligent Power Software Suite CD and communication cable. See the software and connectivity sections for more details.
SERVICES
For detailed information on service plans, please refer to the Three-phase Service section on page 125.
72 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
EATON 9355 UPS
Powerware series (continued)
9355 OPTIONS
Part Additional Input/Output Dimensions Weight List
Description Number Information Voltage (H x W x D, inches) (lb) Price
PW9355 10-15 kVA 2-High Line & Match Extended Battery Module 103004192-5501 64 Batteries - 32.2 x 12.0 x 30.2 480 $6,099
PW9355 10-15 kVA 3-High Line & Match Extended Battery Module 103004193-5501 96 Batteries - 47.8 x 12.0 x 30.2 710 $8,702
PW9355 Wall Mount Parallel Tie Cabinet, 2-Breaker MBP 124100020-001* - 208V/208V 36.0 x 20.0 x 5.75 681 $1,705
(225A Bus, 200A Neutral, (1) 225A MBP, & (4) 80A MOBs)
PW9355 Wall Mount Parallel Tie Cabinet With MIS Breaker 124100020-002* - 208V/208V 60 x 20.0 x 5.75 140 $4,049
(225A MBP, 225A MIS, & (4) 80A MOBs)
PW9355 Remote EPO Switch 103002939 Wall-mounted - - - $286
PW9355 10-15 kVA Seismic Mounting Kit 103004194-5501 Zone 4 Kit - - - $2,023
Remote Monitor Panel requires Industrial Relay X-Slot Card part See section for Connectivity Options & Pricing
CAN Bridge Parallel Card 103004336* - - - $519
1. This is a net weight; please add 40 lb for the shipping weight of the panels and 50 lb for panels with panelboard provisions.
* Eaton startup is required for factory warranty of parallel configuration
9355 BYPASS PANELS
Part Input/Output Dimensions Weight List
Description Number Voltage (H x W x D, inches) (lb)1 Price
PW9355 15 kVA 3-breaker Maintenance Bypass Panel 124100027-001 208V/208V 48.0 x 20.0 x 5.8 120 $3,588
(100A Bus, 200A Neutral, & 60A MBP, MIB, MIS)
PW9355 15 kVA 3-breaker Maintenance Bypass Panel 124100027-002 208V/208V 60.0 x 20.0 x 5.8 120 $6,810
with integral 120 KA TVSS (100A Bus, 200A Neutral,
& 60A MBP, MIB, MIS)
PW9355 15 kVA 3-breaker Maintenance Bypass Panel 124100027-003 208V/208V 72.0 x 20.0 x 5.8 210 $4,004
with 36-Pole Distribution Provisions (Cutler-Hammer GHB 65 kAIC)
PW9355 15 kVA 3-breaker Maintenance Bypass Panel 124100027-004 208V/208V 90.0 x 20.0 x 5.8 225 $7,384
with 36-Pole Distribution Provisions & Integrated TVSS
(Cutler-Hammer GHB 65 kAIC)
PW9355 15 kVA 3-breaker Maintenance Bypass Panel 124100027-006 208V/208V 72.0 x 20.0 x 5.8 210 $4,004
with 36-Pole Distribution Provisions (Cutler-Hammer GHBW 22 kAIC)
PW9355 15 kVA 3-breaker Maintenance Bypass Panel 124100027-007 208V/208V 72.0 x 20.0 x 5.8 210 $4,004
with 36-Pole Distribution Provisions (Cutler-Hammer BAB 10 kAIC)
PW9355 15 kVA 3-breaker Maintenance Bypass Panel 124100027-008 208V/208V 90.0 x 20.0 x 5.8 225 $7,384
with 36-Pole Distribution Provisions & Integrated TVSS
(Cutler-Hammer GBHW 22 kAIC)
PW9355 15 kVA 3-breaker Maintenance Bypass Panel 124100027-009 208V/208V 90.0 x 20.0 x 5.8 225 $7,384
with 36-Pole Distribution Provisions & Integrated TVSS
(Cutler-Hammer BAB 10 kAIC)
1. This is a net weight; please add 40 lb for the shipping weight of the panels and 50 lb for panels with panelboard provisions.
OUTPUT RECEPTACLES
Receptacle Codes (Qty) NEMA Type Enter “Receptacle Code” into CTO Digits # Price Adder for EACH Receptacle Code Chosen
2 (1) L15-30R 9, 10 or 11 only $220
3 (1) L21-20R 9, 10 or 11 only $220
4 (1) L21-30R 9, 10 or 11 only $220
A (2) 5-15R 9,10,11,12 $220
B (2) 5-20R UL 9,10,11,12 $220
D (2) 6-15R 9,10,11,12 $220
E (2) 6-20R 9,10,11,12 $220
F (2) L5-15R 9,10,11,12 $220
G (1) L5-20R* 9,10,11,12 $220
H (1) L5-30R* 9,10,11,12 $220
I (2) L6-15R 9,10,11,12 $220
J (1) L6-20R* 9,10,11,12 $220
K (1) L6-30R* 9,10,11,12 $220
L (1) L14-20R* 9,10,11,12 $220
M (1) L14-30R* 9,10,11,12 $220
X Blank Panel 9,10,11,12 $20
N (2) IEC 320 C13 (120V) 9,10,11,12 $220
P (2) IEC 320 C19 (120V) 9,10,11,12 $220
Note: Arrange receptacle codes in numerical-alphabetical order in digits 9 through 12 of the CTO number
Example 1: a PDM with an L21-20, an L14-30, and Qty 2 IEC320-C19 would have digits 9 through 12 of the CTO arranged as "3MPP"
Example 2: a PDM with a 5-15R, and an L6-30, and an L14-30 would have digits 9 through 12 of the CTO arranged as “AKMX”
The combined quantities of LOCKING receptacles (denoted by *) must not exceed 4 per unit.
Please be sure to utilize the "X" designation for any of the 4 total slots not populated.
July 1, 2013
73www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
EATON 9355 UPS
Powerware series (continued)
BUILT-IN CONNECTIVITY OPTIONS
Value for Part List
Description CTO Digit 8 Number (if ordered separately) Price
NONE (No Pre-installed X-Slot card) 0 - $0
Modbus Card-X-Slot 4 103005425-5591 $661
Relay Interface Card-X-Slot (AS/400 Compatible) 5 1018460 $146
Industrial Relay and Display Drive Card X-Slot 6 103003055 $335
Note: You can have up to two optional connectivity cards installed.
9355 BATTERY BACKUP TIMES (in minutes) @ 0.9 POWER FACTOR
Load UPS + Internal UPS + Internal
(VA/Watts) 32 Battery +1 EBM 64 +2 EBMs 64 +3 EBMs 64 +4 EBMs 64 64 Battery +1 EBM 96 +2 EBMs 96 +3 EBMs 96
15000/13500 4.6 23.0 43.0 65.1 88.6 13.3 43.0 76.7 113.0
14500/13050 4.9 24.1 45.2 68.3 93.0 14.1 45.2 80.5 119.0
14000/12600 5.2 25.2 47.3 71.5 97.4 14.9 47.3 84.2 125.0
13500/12150 5.5 26.4 49.4 74.7 102.0 15.8 49.4 88.1 130.0
13000/11700 5.8 27.6 51.6 78.1 106.0 16.7 51.6 92.0 136.0
12500/11250 6.1 28.8 54.0 81.6 111.0 17.6 54.0 96.2 142.0
12000/10800 6.5 30.2 56.5 85.5 116.0 18.6 56.5 101.0 149.0
11500/10350 6.9 31.6 59.3 89.7 122.0 19.2 59.3 106.0 156.0
11000/9900 7.3 33.3 62.4 94.4 129.0 20.2 62.4 111.0 164.0
10500/9450 7.8 35.1 65.9 99.6 136.0 21.4 65.9 117.0 174.0
10000/9000 8.4 37.2 69.8 106.0 144.0 22.6 69.8 124.0 184.0
9500/8550 9.1 39.6 74.2 112.0 153.0 24.1 74.2 132.0 196.0
9000/8100 9.9 42.3 79.4 120.0 163.0 25.7 79.4 141.0 209.0
8500/7650 10.8 45.5 85.2 129.0 175.0 27.6 85.2 152.0 225.0
8000/7200 11.9 49.1 91.9 139.0 189.0 29.8 91.9 164.0 242.0
7500/6750 13.1 53.2 99.7 151.0 205.0 32.3 99.7 178.0 263.0
7000/6300 14.6 58.0 109.0 164.0 224.0 35.2 109.0 194.0 286.0
6500/5850 16.3 63.5 119.0 180.0 245.0 38.6 119.0 212.0 314.0
6000/5400 18.4 70.0 131.0 198.0 270.0 42.5 131.0 234.0 346.0
5500/4950 20.1 77.6 145.0 220.0 300.0 47.2 145.0 259.0 383.0
5000/4500 22.4 86.6 162.0 245.0 334.0 52.6 162.0 289.0 428.0
4500/4050 25.2 97.4 182.0 276.0 376.0 59.2 182.0 325.0 -
4000/3600 28.6 110.0 207.0 313.0 426.0 67.1 207.0 369.0 -
3500/3150 32.8 127.0 238.0 359.0 - 77.0 238.0 423.0 -
3000/2700 38.3 148.0 277.0 418.0 - 89.7 277.0 - -
2500/2250 45.6 176.0 329.0 - - 107.0 329.0 - -
Note: Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.
74 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
9355 (20–30 KVA) MODELS
20 kVA (18 kW)
Input/Output Base Dimensions Weight List System
Description Part Number1 Voltage Runtime (min) (H x W x D, inches)3 (lb)3 Price Price
PW9355 20 kVA with Internal Batteries KB2013100000010 208/208 18 66.0 x 20.0 x 34.1 1160 $24,393 $24,393
PW9355 20 kVA Single Feed with KB2013100000010 208/208 18 66.0 x 20.0 x 34.1 1160 $24,393 $30,017
Options Cabinet & Internal Batteries KBT001100000010* Input Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,624
PW9355 20 kVA with Internal Batteries KB2013100000010 208/208 18 66.0 x 20.0 x 34.1 1160 $24,393
& Dual Feed Isolation Transformer KBT001100000010* Input Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,624 $35,641
(2 Opt Cabs) KBT002100000010 Output Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,624
PW9355 20 kVA with Internal Batteries KB2013200000010 220/2202 18 66.0 x 20.0 x 34.1 1160 $24,393 $24,393
PW9355 20 kVA with Internal Batteries KB2013100000010 480/208 18 66.0 x 20.0 x 34.1 1160 $24,393 $30,017
& Single Feed Options Cabinet KBT001200000010* Input Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,624
PW9355 20 kVA Dual Feed with Options KB2013100000010 480/208 18 66.0 x 20.0 x 34.1 1160 $24,393
Cabinets & Internal Batteries KBT002200000010 Input Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,624 $35,641
(2 Opt Cabs) KBT001200000010* Output Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,624
PW9355 20 kVA Single Feed with KB2013100000010 600/208 18 66.0 x 20.0 x 34.1 1160 $24,393 $30,017
Options Cabinets & Internal Batteries KBT001300000010 Input Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,624
PW9355 20 kVA Dual Feed with KB2013100000010 600/208 18 66.0 x 20.0 x 34.1 1160 $24,393
Options Cabinets & Internal Batteries KBT001300000010* Input Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,624 $35,641
KBT002300000010 Output Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,624
PW9355 20 kVA Single Feed with Options KB2013100000010 480/480 18 66.0 x 20.0 x 34.1 1160 $24,393 $35,641
Cabinet & Internal Batteries (1 Opt Cab) KBT004200000010* Input Isolation options Cab 66.0 x 20.0 x 34.1 792 $11,248
30 kVA (27 kW)
UPS Part Input/Output Base Dimensions Weight List System
Description (CTO) Number Voltage Runtime (min) (H x W x D, inches)3 (lb)3 Price Price
PW9355 30 kVA with Internal Batteries KB3013100000010 208/208 11 66.0 x 20.0 x 34.1 1160 $25,565 $25,565
PW9355 30 kVA Single Feed with KB3013100000010 208/208 11 66.0 x 20.0 x 34.1 1160 $25,565 $31,189
Options Cabinet & Internal Batteries, KBT001100000010* Input Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,624
including Isolation
PW9355 30 kVA with Internal Batteries KB3013100000010 208/208 11 66.0 x 20.0 x 34.1 1160 $25,565
& Dual Feed Isolation Transformer KBT001100000010* Input Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,624 $36,813
(2 Opts Cabs) KBT002100000010 Output Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,624
PW9355 30 kVA with Internal Batteries KB3013200000010 220/2202 11 66.0 x 20.0 x 34.1 1160 $25,565 $25,565
PW9355 30 kVA with Internal Batteries KB3013100000010 480/208 11 66.0 x 20.0 x 34.1 1160 $25,565 $31,189
& Single Feed Options Cabinet KBT001200000010* Input Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,624
PW9355 30 kVA Dual Feed with KB3013100000010 480/208 11 66.0 x 20.0 x 34.1 1160 $25,565
Options Cabinets & Internal Batteries KBT001200000010* Input Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,624 $36,813
(2 Opts Cabs) KBT002200000010 Output Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,624
PW9355 30 kVA Single Feed with KB3013100000010 600/208 11 66.0 x 20.0 x 34.1 1160 $25,565 $31,189
Options Cabinet & Internal Batteries KBT001300000010 Output Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,624
PW9355 30 kVA Dual Feed with KB3013100000010 600/208 11 66.0 x 20.0 x 34.1 1160 $25,565
Options Cabinet & Internal Batteries KBT001300000010* Input Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,624 $36,813
(2 Opts Cabs) KBT002300000010 Output Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,624
PW9355 30 kVA Single Feed with Options KB3013100000010 480/480 11 66.0 x 20.0 x 34.1 1160 $25,565 $36,813
Cabinet & Internal Batteries (1 Opts Cab) KBT004200000010* Input Isolation options Cab 66.0 x 20.0 x 34.1 792 $11,248
* contains MBP Rotary Style
1. 50/60 Hz auto-sensing.
2. 220V units are wye connected 220/127V input and 220/127V output, three-phase, 4-wire plus ground.
3. Add 47 lb for 2-high configurations or 50 lbs for 3-high configurations to determine shipping weight.
4. An input neutral is required for all configurations unless the input isolation transformer is used.
5. For parallel systems, change CTO digit #5 to a “2” and add $500 to the list price and include Parallel Tie Cabinet.. Eaton startup is required for factory warranty of parallel configuration.
EATON 9355 UPS
Powerware series (continued)
July 1, 2013
75www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
9355 OPTIONS
Part Input/Output Dimensions Weight List
Description Number Rating Voltage (H x W x D, inches) (lb)1 Price
PW9355 20 & 30 kVA 2 String Line & Match
Extended Battery Cabinet 103005183 36 - 66.0 x 20.0 x 34.1 1105.0 $8,775
PW9355 20 & 30 kVA 4 String Line & Match
Extended Battery Cabinet 103004868 72 - 66.0 x 20.0 x 34.1 2060.0 $13,392
Option Cabinet, Containing Maintenance Bypass,
with No Transformer KBT000000000010 - 208/208 67.0 x 20.0 x 34.1 205.0 $2,511
PW9355 30 kVA Wall-mount Parallel Tie Cabinet 2-Breaker MBP
(400A Bus, 200A Neutral, 1 350A MBP, & (4) 110A MOBs) 124100026-001* - 208/208 48.0 x 20.0 x 5.8 150.01 $3,166
PW9355 30 kVA Wall-mount Parallel Tie Cabinet with MIS
Breaker (350A MBP, 350A MIS, & (4) 110A MOBs) 124100026-002* - 208/208 57.0 x 24.0 x 11.3 235 $7,324
Remote EPO Switch 103002939 Wall-mounted - - - $286
Zone 4 Seismic Kit (UPS Cabinet only) 103004896 Zone 4 Kit - - - $546
Remote Monitor Panel requires Industrial Relay X-Slot Card part See section for Connectivity Options & Pricing
CAN Bridge Parallel Card 103004336* - - - - $519
UPS Optional Output Breaker (125A, Change Digit #5 in CTO number to "3" for RT systems) $250
1. This is a net weight; please add 40 lb for the shipping weight of the panels and 50 lb for panels with panelboard provisions.
Notes: Up to 3 EBMs can be added to each UPS for extended runtime. To find items and pricing for spare parts, kVA upgrades and parallel upgrades, please refer to the 9355 services page.
* Eaton startup is required for factory warranty of parallel configuration
9355 BYPASS PANELS
Part Input/Output Dimensions Weight List
Description Number Voltage (H x W x D, inches) (lb)1 Price
PW9355 20 & 30 kVA 3-breaker Maintenance Bypass Panel 124100028-001 208/208 48.0 x 20.0 x 5.8 120 $4,095
(225A Bus, 225A Neutral, & 110A MBP, 125A MIB, 110A MIS)
PW9355 20 & 30 kVA 3-breaker Maintenance Bypass Panel 124100028-002 208/208 60.0 x 20.0 x 5.8 120 $7,775
with integral 120 KA TVSS
(225A Bus, 225A Neutral, & 110A MBP, 125A MIB, 110A MIS)
PW9355 20 & 30kVA 3-Breaker Maintenance Bypass Panel 124100028-003 208/208 72.0 x 20.0 x 5.8 210 $4,723
with 36-pole Distribution Provisions (Cutler-Hammer GHB 65 kAIC)
PW9355 20 & 30 kVA 3-Breaker Maintenance Bypass Panel 124100028-004 208/208 90.0 x 20.0 x 5.8 225 $8,135
with 36-pole Distribution Provisions & Integrated TVSS (Cutler-
Hammer GHB 65 kAIC)
PW9355 20 & 30kVA 3-Breaker Maintenance Bypass Panel 124100028-006 208/208 72.0 x 20.0 x 5.8 210 $4,723
with 36-pole Distribution Provisions (Cutler-Hammer GBHW 22 kAIC)
PW9355 20 & 30kVA 3-Breaker Maintenance Bypass Panel 124100028-007 208/208 72.0 x 20.0 x 5.8 210 $4,723
with 36-pole Distribution Provisions (Cutler-Hammer BAB 10 kAIC)
PW9355 20 & 30 kVA 3-Breaker Maintenance Bypass Panel 124100028-008 208/208 90.0 x 20.0 x 5.8 225 $8,135
with 36-pole Distribution Provisions & Integrated TVSS (Cutler-
Hammer GBHW 22 kAIC)
PW9355 20 & 30 kVA 3-Breaker Maintenance Bypass Panel 124100028-009 208/208 90.0 x 20.0 x 5.8 225 $8,135
with 36-pole Distribution Provisions & Integrated TVSS (Cutler-
Hammer BAB 10 kAIC)
1. This is a net weight; please add 40 lb for the shipping weight of the panels and 50 lb for panels with panelboard provisions.
Note: Please specify preference for breakers.
9355 BUILT-IN CONNECTIVITY OPTIONS
Available X-Slot card options
Value for Part List
Description CTO Digit 8 Number (if ordered separately) Price
NONE (No pre-installed X-Slot card) 0 – $0
Modbus Card-X-Slot 4 103005425-5591 $661
Relay Interface Card-X-Slot (AS/400 Compatible) 5 1018460 $146
Industrial Relay and Display Drive Card X-Slot 6 103003055 $335
Note: UPS has two X-Slots, one of which can be populated or factory installed, with the second X-Slot accessory supplied separately.
SOFTWARE AND CONNECTIVITY OPTIONS
Description Part Number List Price
Power Xpert Gateway UPS Card PXGXUPS (103007974-5591) $450
Bundled with Intelligent Power Software Suite CD and communication cable. See the software and connectivity sections for more details.
EATON 9355 UPS
Powerware series (continued)
76 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
EATON 9355 UPS
Powerware series (continued)
9355 BATTERY BACKUP TIMES (in minutes)
UPS Internal Internal Internal Internal
Load w/Internal Battery Battery Battery Battery
(VA/Watts) Battery +EBC 36 +EBC 72 +2 EBC 72 +3 EBC 72
30000/27000 11 31 56 89 108
29000/26100 11 33 58 90 109
28000/25200 12 35 60 93 111
27000/24300 12 38 62 95 114
26000/23400 13 40 65 98 118
25000/22500 14 43 68 101 124
24000/21600 14 46 71 103 129
23000/20700 15 48 74 106 134
22000/19800 16 51 76 109 144
21000/18900 17 53 79 111 152
20000/18000 18 56 82 114 160
19000/17100 19 58 85 117 175
18000/16200 20 62 88 120 189
17000/15300 22 66 92 130 204
16000/14400 24 71 96 142 219
15000/13500 26 75 101 154 234
14000/12600 28 79 105 166 249
13000/11700 31 84 110 178 265
12000/10800 35 88 114 201 280
11000/9900 38 94 119 226 319
10000/9000 42 101 134 251 355
7500/6750 58 117 188 347 471
5000/4500 90 188 294 543 610
Note: Battery backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.
SERVICES
For detailed information on service plans, please refer to the Three-phase Service section on page 125.
July 1, 2013
77www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
EATON EMERGENCY LIGHTING UPS
SINGLE-PHASE EMERGENCY LIGHTING
System Dimensions Individual System
Individual Quantity Rating Input/Output Runtime (H x W x D, Weight List List
Description Part Number Description Required (kVA/kW) Voltage (min) inches) (lb) Price Price
K41013000000000 9155 10 kVA UPS 1 $16,752
Eaton Emergency Lighting BH- 8KEL208IP - 100 UPS Upgrade 1 10/7.2 277/277 134 47.8 x 36.0 x 33.7 1,978 $2,712 $29,092
Single-phase 7 kW 277V 103004193-5501 9155 Battery Cabinet 1 $8,702
UPS System BH-EBM96EL-600 Battery Upgrade 1 $926
K41513000000000 9155 15 kVA UPS 1 $18,808
Eaton Emergency Lighting BH-10KEL208IP - 100 UPS Upgrade 1 15/9 277/277 120 47.8 x 48.0 x 33.7 1,978 $3,120 $41,184
Single-phase 9 kW 277V 103004193-5501 9155 Battery Cabinet 2 $8,702
UPS System BH-EBM96EL-600 Battery Upgrade 2 $926
THREE-PHASE EMERGENCY LIGHTING
System Dimensions Individual System
Individual Quantity Rating Input/Output Runtime (H x W x D, Weight List List
Description Part Number Description Required (kVA/kW) Voltage (min) inches) (lb) Price Price
KA1012100000010 9355 10 kVA UPS 1 $18,230
Eaton Emergency Lighting BH-10KEL2083P-100 UPS Upgrade 1 10/8.5 208/208 124 47.8 x 36.0 x 33.7 2,029 $3,472 $40,958
Three-phase 8.5 kW 208V 103004193-5501 9355 Battery Cabinet 2 $8,702
UPS System BH-EBM96EL-600 Battery Upgrade 2 $926
KA1512100000010 9355 15 kVA UPS 1 $19,687
Eaton Emergency Lighting BH-15KEL2083P-100 UPS Upgrade 1 15/13.1 208/208 113 47.8 x 48.0 x 33.7 2,739 $3,876 $52,447
Three-phase 13 kW 208V 103004193-5501 9355 Battery Cabinet 3 $8,702
UPS System BH-EBM96EL-600 Battery Upgrade 3 $926
KB2013100000010 9355 20 kVA UPS 1 $24,393
Eaton Emergency Lighting BH-20KEL2083P-100 UPS Upgrade 1 20/18 208/208 114 66.0 x 60.0 x 34.1 5,280 $4,583 $58,694
Three-phase 18 kW 208V 103004868 9355 Battery Cabinet 2 $13,392
UPS System BH-EBC72EL-600 Battery Upgrade 2 $1,467
KB3013100000010 9355 30 kVA UPS 1 $25,565
Eaton Emergency Lighting BH-30KEL208SF-100 UPS Upgrade 1 30/24 208/208 108 66.0 x 60.0 x 34.1 5,280 $4,955 $60,238
Three-phase 24 kW 208V 103004868 9355 Battery Cabinet 2 $13,392
UPS System BH-EBC72EL-600 Battery Upgrade 2 $1,467
KB3013100000010 9355 30 kVA UPS 1 $25,565
Eaton Emergency Lighting BH-30KEL2083P-100 UPS Upgrade 1 30/27 208/208 90 66.0 x 80.0 x 34.1 7,340 $4,955 $75,097
Three-phase 27 kW 208V 103004868 9355 Battery Cabinet 3 $13,392
UPS System BH-EBC72EL-600 Battery Upgrade 3 $1,467
KB2013100000010 9355 20 kVA UPS 1 $24,393
BH-20KEL2083P-100 UPS Upgrade 1 $4,583
Eaton Emergency Lighting 103004868 9355 Battery Cabinet 2 20/18 480/277 114 66.0 x 80.0 x 34.1 6,072 $13,392 $72,191
Three-phase 18 kW 480V BH-EBC72EL-600 Battery Upgrade 2 $1,467
UPS System KBT004200000010 9355 Options Cabinet 1 $11,248
BH-KBT004-200 Options Upgrade 1 $2,249
KB3013100000010 9355 30 kVA UPS 1 $25,565
BH-30KEL208SF-100 UPS Upgrade 1 $4,955
Eaton Emergency Lighting 103004868 9355 Battery Cabinet 2 30/24 480/277 108 66.0 x 80.0 x 34.1 6,072 $13,392 $73,735
Three-phase 24 kW 480V BH-EBC72EL-600 Battery Upgrade 2 $1,467
UPS System KBT004200000010 9355 Options Cabinet 1 $11,248
BH-KBT004-200 Options Upgrade 1 $2,249
KB3013100000010 9355 30 kVA UPS 1 $25,565
BH-30KEL2083P-100 UPS Upgrade 1 $4,955
Eaton Emergency Lighting 103004868 9355 Battery Cabinet 3 30/27 480/277 90 66.0 x 100.0 x 34.1 8,132 $13,392 $88,594
Three-phase 27 kW 480V BH-EBC72EL-600 Battery Upgrade 3 $1,467
UPS System KBT004200000010 9355 Options Cabinet 1 $11,248
BH-KBT004-200 Options Upgrade 1 $2,249
Eaton’s Emergency Lighting product line offers a UPS system and line and match battery cabinets to achieve
the minimum UL 924 required 90 minutes of runtime. The Eaton Emergency Lighting UPS line combines the
industry's highest capacity and smallest footprint, making it the most cost-effective solution to comply with
Emergency Lighting.
All solutions are fully tested to comply with UL 924.
• 90 minutes of runtime
• Allows for a manually operated and protected test switch
• 10-30 kVA
• 208, 277 and 480V options
78 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
EATON 9E UPS & ACCESSORIES
The Eaton 9E UPS delivers three key benefits that drive a lower total cost of ownership (TCO): internal
batteries, compact footprint and energy-efficiency.
Energy-efficient
• Delivers up to 98% efficiency
• Up to 7% more efficient than competitive units
• Helps you qualify for local utility rebates and incentives
Internal batteries
• Deliver up to 21 minutes of runtime
• Pre-wired for easy installation
Compact footprint
• Up to 35% smaller than similarly specified competitive solutions
• Allows dedication of more floor space to revenue-producing equipment
9E (20-30 KVA) MODELS WITH INTERNAL RUNTIME
Input/Output Internal Dimensions Weight List
Description Part Number* Voltage Runtime (min) (H x W x D, inches) (lb) Price
20 kVA (16 kW)
20 kVA UPS Single Feed with Internal Batteries 9EA02AA61001000 208/208 22 53.5 x 20.9 x 31.5 1049 $21,826
20 kVA UPS Single Feed with Internal Batteries 9EF02AA63001000 208/208 12 53.5 x 20.9 x 31.5 831 $20,408
and Standard Runtime
20 kVA UPS Single Feed with Internal Batteries 9EA02AA61101000 208/208 22 53.5 x 20.9 x 31.5 1049 $23,376
and Internal Maintenance Bypass System
30 kVA (24 kW)
30 kVA UPS Single Feed with Internal Batteries 9EA03AA61001000 208/208 12 53.5 x 20.9 x 31.5 1049 $23,598
30 kVA UPS Single Feed with Internal Batteries 9EA03AA61101000 208/208 12 53.5 x 20.9 x 31.5 1049 $25,148
and Internal Maintenance Bypass System
9E (20-30 KVA) MODELS FOR EXTERNAL RUNTIME
Input/Output Dimensions Weight List
Description Part Number* Voltage (H x W x D, inches) (lb) Price
20 kVA (16 kW)
20 kVA UPS Single Feed for External Batteries 9EA02AA60001000 208/208 53.5 x 20.9 x 31.5 434 $16,398
20 kVA UPS Single Feed for External Batteries 9EA02AA60101000 208/208 53.5 x 20.9 x 31.5 434 $17,948
and Internal Maintenance Bypass System
30 kVA (24 kW)
30 kVA UPS Single Feed for External Batteries 9EA03AA60001000 208/208 53.5 x 20.9 x 31.5 434 $18,170
30 kVA UPS Single Feed for External Batteries 9EA03AA60101000 208/208 53.5 x 20.9 x 31.5 434 $19,720
and Internal Maintenance Bypass System
* 50/60 Hz auto-sensing. For 220/220 V Input/Output Voltage change CTO digit #6-7 to BB
* For Dual Feed change Part Number digit #12 to 2 and apply $100 adder per UPS to the list price.
9E (20-30 KVA) EXTENDED BATTERY CABINET
Number of Number of Dimensions Weight List
Description Part Number Batteries Strings (H x W x D, inches) (lb) Price
20 & 30 kVA Extended Battery Cabinet** 9EZAAC000000000 54 3 53.5 x 20.9 x 31.5 1585 $13,650
** Maximum of 2 Extended Battery Cabinets can be bought for a system. See runtime chart.
20-30 kVA 40-60 kVA
9E (20-30 KVA) INTEGRATED ACCESSORY CABINET - DISTRIBUTION
Dimensions Weight List
Description Part Number (H x W x D, inches) (lb) Price
20 & 30 kVA IAC - With 42-pole Distribution Panelboard 9EZDA0000000000 53.5 x 20.9 x 31.5 238 $8,413
and No Subfeed Breakers
Subfeed Breaker Options
Select Part Number digits #6, 7, and 8 from the following list for up to 3 Subfeed Breakers
Description Subfeed Part Number Price Adder per Subfeed Breaker
125A Breaker A $643
60A Breaker B $623
40A Breaker C $334
No Subfeed Breaker 0 $0
July 1, 2013
79www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
EATON 9E UPS & ACCESSORIES
(continued)
9E (20-30 KVA) INTEGRATED ACCESSORY CABINET - MAINTENANCE BYPASS
Dimensions Weight List
Description Part Number* (H x W x D, inches) (lb) Price
20 & 30 kVA IAC - Maintenance Bypass for Single Feed Units 9EZBA1000000000 53.5 x 20.9 x 31.5 237 $7,144
20 & 30 kVA IAC - Maintenance Bypass for Dual Feed Units 9EZBA2000000000 53.5 x 20.9 x 31.5 237 $7,333
9E (20-30 KVA) INTEGRATED ACCESSORY CABINET - TIE
Dimensions Weight List
Description Part Number (H x W x D, inches) (lb) Price
20 & 30 kVA IAC - Tie for 1+1 Redundant with 9EZCA0100000000 53.5 x 20.9 x 31.5 326 $10,039
Maintenance Bypass
20 & 30 kVA IAC - Tie for 2+0 Capacity with 9EZCA0200000000 53.5 x 20.9 x 31.5 326 $11,437
Maintenance Bypass
9E (20-30 KVA) INTEGRATED ACCESSORY CABINET - TRANSFORMER
Input/Output Dimensions Weight List
Description Part Number Voltage (H x W x D, inches) (lb) Price
20 & 30 kVA IAC - Single Transformer 9EZFAA000000000 480/208 53.5 x 20.9 x 31.5 496 $8,013
20 & 30 kVA IAC - Dual Transformers 9EZFAB000000000 480/480 53.5 x 20.9 x 31.5 834 $11,839
9E (20-30 KVA) WALL MOUNT MAINTENANCE BYPASS PANELS
Dimensions Weight List
Description Part Number (H x W x D, inches) (lb) Price
Up to 30 kVA Wall Mount Maintenance Bypass Panel M1BAAX0X1XXXXXX 57.0 x 24.0 x 11.3 400 $5,431
Up to 30 kVA Wall Mount Maintenance Bypass Panel M9EZGA110000000 90.0 x 24.0 x 11.3 400 $5,886
with 36 Pole Distribution
Up to 90 kVA Wall Mount Maintenance Bypass Panel M1BI0X0X1XXXXXX 57.0 x 24.0 x 11.3 350 $8,026
Up to 90 kVA Wall Mount Maintenance Bypass Panel M9EZGA310000000 90.0 x 24.0 x 11.3 350 $9,024
with 36 Pole Distribution
9E (40-60 KVA) MODELS WITH INTERNAL RUNTIME
Input/Output Internal Dimensions Weight List
Description Part Number* Voltage Runtime (min) (H x W x D, inches) (lb) Price
40 kVA (32 kW)
40 kVA UPS Single Feed with Internal Batteries 9EB04AA61001000 208/208 12 74.0 x 23.6 x 31.5 1499 $38,540
40 kVA UPS Single Feed with Internal Batteries 9EG04AA63001000 208/208 7 74.0 x 23.6 x 31.5 1448 $36,035
and Standard Runtime
40 kVA UPS Single Feed with Internal Batteries 9EB04AA61101000 208/208 12 74.0 x 23.6 x 31.5 1499 $41,540
and Internal Maintenance Bypass System
60 kVA (48 kW)
60 kVA UPS Single Feed with Internal Batteries 9EB06AA61001000 208/208 6 74.0 x 23.6 x 31.5 1499 $43,027
60 kVA UPS Single Feed with Internal Batteries 9EB06AA61101000 208/208 6 74.0 x 23.6 x 31.5 1499 $46,027
and Internal Maintenance Bypass System
9E (40-60 KVA) MODELS FOR EXTERNAL RUNTIME
Input/Output Dimensions Weight List
Description Part Number* Voltage (H x W x D, inches) (lb) Price
40 kVA (32 kW)
40 kVA UPS Single Feed for External Batteries 9EB04AA60001000 208/208 74.0 x 23.6 x 31.5 705 $26,504
40 kVA UPS Single Feed for External Batteries 9EB04AA60101000 208/208 74.0 x 23.6 x 31.5 705 $29,504
and Internal Maintenance Bypass System
60 kVA (48 kW)
60 kVA UPS Single Feed for External Batteries 9EB06AA60001000 208/208 74.0 x 23.6 x 31.5 705 $33,991
60 kVA UPS Single Feed for External Batteries 9EB06AA60101000 208/208 74.0 x 23.6 x 31.5 705 $36,504
and Internal Maintenance Bypass System
* 50/60 Hz auto-sensing. For 220/220 V Input/Output Voltage change CTO digit #6-7 to BB
* For Dual Feed change Part Number digit #12 to 2 and apply $100 adder per UPS to the list price.
9E (40-60 KVA) EXTENDED BATTERY CABINET
Number of Number of Dimensions Weight List
Description Part Number Batteries Strings (H x W x D, inches) (lb) Price
40 & 60 kVA Extended Battery Cabinet** 9EZABB000000000 72 4 74.0 x 31.3 x 31.5 2713 $20,037
40 & 60 kVA Extended Battery Cabinet** 9EZABC000000000 108 6 74.0 x 31.3 x 31.5 3117 $26,423
** Maximum of 2 Extended Battery Cabinets can be bought for a system. See runtime chart.
80 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
EATON 9E UPS & ACCESSORIES
(continued)
9E (40-60 KVA) INTEGRATED ACCESSORY CABINET - DISTRIBUTION
Dimensions Weight List
Description Part Number (H x W x D, inches) (lb) Price
40 & 60 kVA IAC - With 42-pole Distribution Panelboard 9EZDB0000000000 74.0 x 20.9 x 31.5 315 $8,558
and No Subfeed Breakers
Subfeed Breaker Options
Select Part Number digits #6, 7, and 8 from the following list for up to 3 Subfeed Breakers
Description Subfeed Part Number Price Adder per Subfeed Breaker
250A Breaker A $853
125A Breaker B $833
80A Breaker C $409
No Subfeed Breaker 0 $0
9E (40-60 KVA) INTEGRATED ACCESSORY CABINET - MAINTENANCE BYPASS
Dimensions Weight List
Description Part Number (H x W x D, inches) (lb) Price
40 & 60 kVA IAC - Maintenance Bypass for Single Feed Units 9EZBB1000000000 74.0 x 20.9 x 31.5 334 $10,281
40 & 60 kVA IAC - Maintenance Bypass for Dual Feed Units 9EZBB2000000000 74.0 x 20.9 x 31.5 334 $10,513
9E (40-60 KVA) INTEGRATED ACCESSORY CABINET - TIE
Dimensions Weight List
Description Part Number (H x W x D, inches) (lb) Price
40 & 60 kVA IAC - Tie for 1+1 Redundant with 9EZCB0100000000 74.0 x 20.9 x 31.5 456 $14,034
Maintenance Bypass
40 & 60 kVA IAC - Tie for 2+0 Capacity with 9EZCB0200000000 74.0 x 20.9 x 31.5 456 $15,227
Maintenance Bypass
9E (40-60 KVA) INTEGRATED ACCESSORY CABINET - TRANSFORMER
Input/Output Dimensions Weight List
Description Part Number Voltage (H x W x D, inches) (lb) Price
40 & 60 kVA IAC - Single Transformer 9EZFBA000000000 480/208 74.0 x 31.3 x 31.5 918 $12,338
40 & 60 kVA IAC - Dual Transformers 9EZFBB000000000 480/480 74.0 x 31.3 x 31.5 1446 $16,249
9E (40-60 KVA) WALL MOUNT MAINTENANCE BYPASS PANELS
Dimensions Weight List
Description Part Number (H x W x D, inches) (lb) Price
Up to 60 kVA Wall Mount Maintenance Bypass Panel M1BFFX0X1XXXXXX 57.0 x 24.0 x 11.3 700 $8,179
Up to 60 kVA Wall Mount Maintenance Bypass Panel M9EZGB110000000 90.0 x 24.0 x 11.3 700 $9,177
with 36 Pole Distribution
Up to 180 kVA Wall Mount Maintenance Bypass Panel M1BN0X0X1XXXXXX 73.5 x 36.0 x 11.3 350 $15,434
Up to 180 kVA Wall Mount Maintenance Bypass Panel M9EZGB310000000 90.0 x 36.0 x 11.3 350 $16,433
with 36 Pole Distribution
9E BATTERY BACKUP TIMES (in minutes)*
Model 100% Load
20 kVA 21
30 kVA 12
40 kVA 10
60 kVA 5
9E EBC RUNTIMES
20 kVA 30 kVA 40 kVA 60 kVA
1 EBC 42 minutes 26 minutes 26 minutes - 43 minutes - 14 minutes - 26 minutes -
4 String 6 String 4 String 6 String
2 EBC 102 minutes 62 minutes 62 minutes - 104 minutes - 37 minutes - 62 minutes -
8 String 12 String 8 String 12 String
* Battery backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.
SERVICES
For detailed information on service plans, please refer to the Three-phase Service section on page 125.
July 1, 2013
81www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
Double-conversion
• All-in-one, space efficient, completely integrated system with internal batteries (40 kVA) and distribution delivers
optimal end-of-row data center solution
• Industry leading power density, providing up to 23 percent more power capacity in a compact all-in-one tower with
internal batteries
• Industry's smallest footprint at 40 kVA, providing up to a 61 percent footprint reduction
• Scalable 40 kVA modular building block, allowing for cost-effective expansion to 80 kVA with an on-board tie cabinet
and 160 kVA with a four-module tie cabinet
• Up to 40 percent more STANDARD runtime, eliminating the need for external battery cabinets
• On-board pre-wired maintenance bypass and integrated distribution cabinets provide greater redundancy and reduce
installation and maintenance costs
• Reduced footprint extended run modules for longer runtime applications
• Inherently 208 or 480 Vac-capable with no transformers
• Patented Powerware Hot Sync® paralleling technology enables paralleling of up to four 9390 UPSs for additional
capacity or redundancy
• Power management software suite includes applications for remote UPS monitoring, management and shutdown to help insure system and data
integrity
• Includes Eaton Saver System, ESS
• Factory startup (5x8) included standard on all models; one-year parts warranty, 90-day labor warranty from startup date; two-year battery warranty
on internal batteries
• 9390IT with distribution from 40-160 kVA (standalone units only)
• Includes on-site 5x8 startup and operator training by Eaton field technician
• Includes one year of eNotify remote monitoring service (requires connectivity parts and self installation)
9390IT (40 kVA) BASE MODELS
Rating Input/Output Base Run- Dimensions Weight List
Part Number Description (kVA/kW) Voltage time (min) (H x W x D, inches) (lb) Price
TA04A1001150010 9390IT 40 kVA UPS with internal batteries 40 kVA/36 kW 208/208 8 73.7 x 27.9 x 31.0 1,445 $38,540
TA04A2001150010 9390IT 40 kVA UPS with internal batteries 40 kVA/36 kW 480/480 8 73.7 x 27.9 x 31.0 1,445 $35,550
TA04A1001180010 9390IT 40 kVA extended-run UPS module 40 kVA/36 kW 208/208 0 73.7 x 18.9 x 31.6 590 $35,152
(no internal batteries)
TA04A2001180010 9390IT 40 kVA extended-run UPS module 40 kVA/36 kW 480/480 0 73.7 x 18.9 x 31.6 540 $33,280
(no internal batteries)
TA04A1001153010 9390IT 40 kVA UPS with internal batteries and 40 kVA/36 kW 208/208 8 73.7 x 35.9 x 31.0 1,595 $43,090
integrated three-breaker maintenance bypass
sidecar (175A BIB, MBP, & MIS breakers)
TA04A2001153010 9390IT 40 kVA UPS with internal batteries and 40 kVA/36 kW 480/480 8 73.7 x 35.9 x 31.0 1,595 $40,100
integrated three-breaker maintenance bypass
sidecar (70A BIB, MBP, & MIS breakers)
TA04A1001183010 9390IT 40 kVA extended-run UPS module and 40 kVA/36 kW 208/208 0 73.7 x 26.9 x 31.6 740 $39,702
integrated three-breaker maintenance bypass
sidecar (175A BIB, MBP, & MIS breakers)
TA04A2001183010 9390IT 40 kVA extended-run UPS module and 40 kVA/36 kW 480/480 0 73.7 x 26.9 x 31.6 690 $37,830
integrated three-breaker maintenance bypass
sidecar (70A BIB, MBP, & MIS breakers)
TA04A1001159010 9390IT 40 kVA UPS with internal batteries and 40 kVA/36 kW 208/208 8 73.7 x 35.9 x 31.0 1,595 $43,090
two-system parallel tie sidecar (with output
system load breaker)
TA04A2001159010 9390IT 40 kVA UPS with internal batteries and 40 kVA/36 kW 480/480 8 73.7 x 35.9 x 31.0 1,595 $40,100
two-system parallel tie sidecar (with output
system load breaker)
TA04A1001189010 9390IT 40 kVA with internal batteries and 40 kVA/36 kW 208/208 0 73.7 x 26.9 x 31.6 740 $39,702
two-system parallel tie sidecar (with output
system load breaker and no internal batteries)
TA04A2001189010 9390IT 40 kVA with internal batteries and 40 kVA/36 kW 480/480 0 73.7 x 26.9 x 31.6 690 $37,830
two-system parallel tie sidecar (with output
system load breaker and no internal batteries)
For Order Notes please to the bottom of the next page
EATON 9390IT UPS
Powerware series
82 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
EATON 9390IT UPS
Powerware series (continued)
9390IT WITH DISTRIBUTION
Rating Input/Output Base Run- Dimensions Weight List
Part Number Description (kVA/kW) Voltage time (min) (H x W x D, inches) (lb) Price
TA04A100115K010 9390IT 40 kVA UPS with internal batteries and 40 kVA/36 kW 208/208 8 73.7 x 34.9 x 31.0 1,590 $48,722
integrated IT distribution. Includes 12 / L6-30
receptacles with three breaker maintenance
bypass (BIB, MBP, & MIS breakers)
TA04A100115P010 9390IT 40 kVA UPS with internal batteries and 40 kVA/36 kW 208/208 8 73.7 x 34.9 x 31.0 1,590 $46,599
integrated IT distribution. Includes 6 / L21-30
receptacles with three breaker maintenance
bypass (BIB, MBP, & MIS breakers)
TA04A100115R010 9390IT 40 kVA UPS with internal batteries and 40 kVA/36 kW 208/208 8 73.7 x 34.9 x 31.0 1,590 $49,604
integrated IT distribution. Includes 4 / IEC309-60
receptacles with three breaker maintenance
bypass (BIB, MBP, & MIS breakers)
TA04A100118K010 9390IT 40 kVA extended-run UPS module with 40 kVA/36 kW 208/208 - 73.7 x 26.9 x 31.0 735 $37,123
integrated IT distribution. Includes 12 / L6-30
receptacles with three breaker maintenance
bypass (BIB, MBP, & MIS breakers)
TA04A100118P010 9390IT 40 kVA extended-run UPS module with 40 kVA/36 kW 208/208 - 73.7 x 26.9 x 31.0 735 $35,000
integrated IT distribution. Includes 6 / L21-30
receptacles with three breaker maintenance
bypass (BIB, MBP, & MIS breakers)
TA04A100118R010 9390IT 40 kVA extended-run UPS module with 40 kVA/36 kW 208/208 - 73.7 x 26.9 x 31.0 735 $38,004
integrated IT distribution. Includes 4 / IEC309-60
receptacles with three breaker maintenance
bypass (BIB, MBP, & MIS breakers)
TE04A400118P010 9390IT 40 kVA extended-run UPS module with 40 kVA/36 kW 400/400 - 73.7 x 26.9 x 31.0 735 $47,780
integrated IT distribution. Includes 4 / L22-30
receptacles with three breaker maintenance
bypass (BIB, MBP, & MIS breakers)
TE04A400118R010 9390IT 40 kVA extended-run UPS module with 40 kVA/36 kW 400/400 - 73.7 x 26.9 x 31.0 735 $48,273
integrated IT distribution. Includes 2 / IEC309-60
receptacles with three breaker maintenance
bypass (BIB, MBP, & MIS breakers)
TB08A100118P010 9390IT 80 kVA extended-run UPS module with 80 kVA/72 kW 208/208 - 73.7 x 26.9 x 31.0 790 $60,570
integrated IT distribution. Includes 12 / L21-30
receptacles with three breaker maintenance
bypass (BIB, MBP, & MIS breakers)
TB08A100118R010 9390IT 80 kVA extended-run UPS module with 80 kVA/72 kW 208/208 - 73.7 x 26.9 x 31.0 790 $64,238
integrated IT distribution. Includes 6 / IEC309-60
receptacles with three breaker maintenance
bypass (BIB, MBP, & MIS breakers)
TF08A400118P010 9390IT 80 kVA extended-run UPS module with 80 kVA/72 kW 400/400 - 73.7 x 26.9 x 31.0 785 $62,917
integrated IT distribution. Includes 6 / L22-30
receptacles with three breaker maintenance
bypass (BIB, MBP, & MIS breakers)
TF08A400118R010 9390IT 80 kVA extended-run UPS module with 80 kVA/72 kW 400/400 - 73.7 x 26.9 x 31.0 785 $64,881
integrated IT distribution. Includes 4 / IEC309-60
receptacles with three breaker maintenance
bypass (BIB, MBP, & MIS breakers)
TG12A400118P010 9390IT 120 kVA extended-run UPS module with 120 kVA/108 kW 400/400 - 73.7 x 43.9 x 31.0 1,110 $70,658
integrated IT distribution. Includes 9 / L22-30
receptacles with three breaker maintenance
bypass (BIB, MBP, & MIS breakers)
TH16A400118R010 9390IT 160 kVA extended-run UPS module with 160 kVA/144 kW 400/400 - 73.7 x 43.9 x 31.0 1,200 $76,174
integrated IT distribution. Includes 6 / IEC209-60
receptacles with three breaker maintenance
bypass (BIB, MBP, & MIS breakers)
1. To order a parallel system, change digit 5 to a B and digit 7 or 8 (Can-Bridge Card) must also be 2. 2. On-board maintenance bypass side-car systems have 65 kAIC breakers @ 208 Vac and 35 kAIC
breakes @ 480 Vac. 3. For Load-sync Control, digit 15 must be a 2 and requires one wall-mounted control box for two systems—see miscellaneous parts. 4. For runtimes exceeding 8 minutes, an extended
Run-UPS BASE Module and battery cabinet is required
July 1, 2013
83www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
CONNECTIVITY OPTIONS
Description CTO Part Number List Price
HotSync CAN Bridge Card (required to obtain RS485 Port for RMP II/RIM II/SCM II) 103004336 $519
Power Xpert Gateway UPS Card 103007974-5591 $450
ModBus Communication Card 103002510-5501 $661
Standard Relay Card (<60 Vac rated, IBM AS/400 ) 1018460 $146
Industrial Relay and Display Drive Card X-Slot (5A @ 250 Vac) 103003055 $335
9390IT OPTIONS (40 kVA)
Input/Output Dimensions Weight List
Part Number Description Voltage (H x W x D, inches) (lb) Price
T04112000000001 IDC with MBS and main output breaker 208/208 73.7 x 35.8 x 31.6 350 $6,521
T04112200000021 IDC with MBS, K-13 isolation transformer 208/208 73.7 x 35.8 x 31.6 1,350 $9,431
T04152200000021 IDC with MBS, K-13 isolation transformer 480/208 73.7 x 35.8 x 31.6 1,350 $9,691
T04112040000021 IDC with three-breaker MBS and 42-pole 208/208 73.7 x 35.8 x 31.6 350 $8,580
distribution panel
T04112044000021 IDC with three-breaker MBS and (2) 42-pole 208/208 73.7 x 35.8 x 31.6 350 $10,639
distribution panels
T04112041000021 IDC with three-breaker MBS, 42-pole 208/208 73.7 x 35.8 x 31.6 350 $9,484
distribution panel and (1) sub-feed breaker
TP0442111100010 Parallel tie maintenance bypass cabinet, 208/208 73.5 x 36.0 x 11.5 600 $11,544
(4) UPS modules 120 kVA N+1, 160 kVA
capacity (150A MOBs, 600A MIS, 600A MBP)
TP0442211100010 Parallel tie maintenance bypass cabinet, (4) 480/480 57.0 x 24.0 x 11.5 600 $5,408
UPS modules 120 kVA N+1, 160 kVA capacity
(70A MOBs, 250A MIS, 250A MBP)
9390IT EXTENDED BATTERY OPTIONS
Input/Output Base Run- Dimensions Weight List
Part Number Description Rating Voltage time (min) (H x W x D, inches) (lb) Price
TS0403E20111100 40 kVA Extended-run battery cabinet 240 Cell 480V Link 22 73.7 x 22.5 x 31.6 2,395 $15,323
TL0403E33111100 40 kVA Extended-run battery cabinet 240 Cell 480V Link 42 73.7 x 42.7 x 31.6 3,580 $21,292
TL0403B47111100 40 kVA Extended-run battery cabinet 240 Cell 480V Link 66 73.7 x 42.7 x 31.6 4,785 $40,689
TS0803E20111100 80 kVA Extended-run battery cabinet 240 Cell 480V Link 7 73.7 x 22.5 x 31.6 2,405 $15,699
TL0803E33111100 80 kVA Extended-run battery cabinet 240 Cell 480V Link 18 73.7 x 42.7 x 31.6 3,590 $21,702
TL0803E50111100 80 kVA Extended-run battery cabinet 240 Cell 480V Link 29 73.7 x 42.7 x 31.6 4,835 $26,662
TL1203E28111100 120 kVA Extended-run battery cabinet 240 Cell 480V Link 7 73.7 x 42.7 x 31.6 3,245 $19,797
TL1203E28211100 120 kVA Extended-run battery cabinet 480 Cell 480V Link 20 73.7 x 85.4 x 31.6 6,490 $39,118
TL1203E50211100 120 kVA Extended-run battery cabinet 480 Cell 480V Link 43 73.7 x 85.4 x 31.6 9,670 $52,843
TL1603E39111100 160 kVA Extended-run battery cabinet 240 Cell 480V Link 8 73.7 x 42.7 x 31.6 3,920 $23,418
TL1603E33211100 160 kVA Extended-run battery cabinet 480 Cell 480V Link 18 73.7 x 85.4 x 31.6 7,180 $43,125
TL1603E50211100 160 kVA Extended-run battery cabinet 480 Cell 480V Link 29 73.7 x 85.4 x 31.6 9,670 $53,043
Order Notes
1. All weights are installed weight, add 65 lb to determine shipping weight
2. Main breaker feeds input of isolation transformer
3. All IDC cabinets listed above include three-breaker UPS wrap-around maintenance bypass switch
4. 42-pole load centers are Cutler-Hammer series, type PRL1A; use type BAB or QBHW bolt-on breakers
5. 40 kVA IDC uses 175A C-H type "JG" breakers at 208V and 70A C-H type "EG" breakers at 480V
6. All breakers have adjustable trip settings; please refer to the Installation Manual for details
7. For seismic zone 4 construction change digit 10 to 1
8. Cabinets ordered remotely will include only one set of side panels and no interconnect (battery cabinet to UPS or battery cabinet to battery
NON-MATCHING MAINTENANCE BYPASS PANELS (40 kVA)
Part Input/Output Dimensions Weight List
Number Description Rating (amps) Voltage (H x W x D, inches) (lb) Price
M90BEA1XXX Maintenance bypass, 208/208V, three-breaker 225 208/208 73.0 x 24.0 x 11.5 400 $4,503
10 kAIC (225A MIS/MBP/BIB)
M90BFA1XXX Maintenance bypass, 208/208V, three-breaker 175 208/208 73.0 x 24.0 x 11.5 400 $4,295
35 kAIC (175A MIS/MBP/BIB)
EATON 9390IT UPS
Powerware series (continued)
84 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
EATON 9390IT UPS
Powerware series (continued)
NON-MATCHING MAINTENANCE BYPASS PANELS (40 kVA)
(continued)
Part Input/Output Dimensions Weight List
Number Description Rating (amps) Voltage (H x W x D, inches) (lb) Price
M90BGA1XXX Maintenance bypass, 208/208V, three-breaker 175 208/208 73.0 x 24.0 x 11.5 400 $4,711
65 kAIC (175A MIS/MBP/BIB)
M90BEE1XXX Maintenance bypass, 480/480V, three-breaker 100 480/480 73.0 x 24.0 x 11.5 400 $3,359
10 kAIC (100A MIS/MBP/BIB)
M90BFE1XXX Maintenance bypass, 480/480V, three-breaker 70 480/480 73.0 x 24.0 x 11.5 400 $4,087
35 kAIC (70A MIS/MBP/BIB)
M90BGE1XXX Maintenance bypass, 480/480V, three-breaker 70 480/480 73.0 x 24.0 x 11.5 400 $4,503
65 kAIC (70A MIS/MBP/BIB)
MISCELLANEOUS PARTS
Part Number Description List Price
103006244 REPO switch, wall-mount 1 $426
103004223 Remote Monitor Panel "RMP II" 2 $1,113
103004221 Relay Interface Module "RIM II" 2 $1,092
103004222 Supervisory Contact Module "SCM II" 2 $1,206
103007974-5591 Power Xpert Gateway UPS Card $450
103004336 HotSync CAN Bridge Card, (used for paralleling units and/or RMP II/RIM II/SCM II interface) 3 $519
103004179 9390 UPS/IDC seismic mounting kit 4 $718
103001040 9390 output sync control box, 208 Vac $11,336
103001041 9390 output sync control box, 480 Vac $7,072
103003876 UPS/ battery cabinet/ IDC side panel kit $738
152601664 Battery cabinet to battery cabinet interconnect cables (IBC-S cabinet) $73
152601526 Battery cabinet to battery cabinet interconnect cables (IBC-L cabinet) $73
Notes
1. UPS EPO is selectable as N/O or N/C. 2. Requires HotSync CAN Bridge Card to interface with these devices (only one CAN card required for up to four remote devices). Each UPM requires one card for
paralleling. Same card can be used for communication to RS485 devices (RMP II, RIM II, SCM II). Remote devices (RMP II, RIM II, SCM II) require protected 120V AC source hardwired to the device. 3.
HotSync CAN Bridge Card for parallel operation requires Eaton Service Engineer to configure. 4. 40–80 kVA IDC Seismic kit cannot be installed in the field. Must be factory installed. Order via CTO.
9390IT BATTERY BACKUP TIMES (in minutes)*
Load (VA/Watts) UPS w/Internal Battery
40,000 / 36,000 8.3
36,000 / 32,400 9.9
32,000 / 28,800 11.7
28,000 / 25,200 14.5
24,000 / 21,600 17.2
20,000 / 18,000 21.8
16,000 / 14,400 30.1
12,000 / 10,800 42.7
8,000 / 7,200 60.0
4,000 / 3,600 86.5
* Battery backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.
SERVICES
For detailed information on service plans, please refer to the Three-phase Service section on page 125.
July 1, 2013
85www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
Ultra-isolator Noise Suppressor and Isolation Provider
The Power-Suppress 100 offers the following advanced features:
• Traps unwanted harmonics
• Removes surge voltages and minimizes reflected THD
• Eliminates load generated feedback
• Available in both hardwired or line cord/receptacle models
• Fast and easy installation
• Long life operation
• Small footprint—saves valuable space
• Meets FCC Category A
• UL 1012, cUL, UL 1449
POWER-SUPPRESS 100 and POWER-SUPPRESS T7
POWER-SUPPRESS 100: 125 to 7500 VA
Style Input/Output Dimensions Weight List
Catalog Number Number Description Voltage (H x W x D, inches) (lb) Price
Line-cord/receptacle models
T100R-0500 T100R-0500 PWR SUPPRESS T100 RCPT 500 VA 120V IN, 120V OUT 6.5 x 6.1 x 12.0 22 $824
T100R-0750 T100R-0750 PWR SUPPRESS T100 RCPT 750 VA 120V IN, 120V OUT 6.5 x 6.1 x 12.0 - $880
T100R-1000 T100R-1000 PWR SUPPRESS T100 RCPT 1000 VA 120V IN, 120V OUT 6.5 x 6.1 x 12.0 31 $893
T100R-1800 T100R-1800 PWR SUPPRESS T100 RCPT 1800 VA 120V IN, 120V OUT 10.5 x 11.1 x 17.0 54 $1,183
T100R-2400 T100R-2400 PWR SUPPRESS T100 RCPT 2400 VA 120V IN, 120V OUT 10.5 x 11.1 x 17.0 58 $1,341
Terminal style models
T100H-0500 T100H-0500 PWR SUPPRESS T100 HW 500 VA 120/240V IN, 120/240V OUT 6.4 x 6.1 x 12.0 22 $842
T100H-0750 T100H-0750 PWR SUPPRESS T100 HW 750 VA 120/240V IN, 120/240V OUT 6.4 x 6.1 x 12.0 28 $888
T100H-1000 T100H-1000 PWR SUPPRESS T100 HW 1000 VA 120/240V IN, 120/240V OUT 6.4 x 6.1 x 12.0 31 $904
T100H-1800 T100H-1800 PWR SUPPRESS T100 HW 1800 VA 120/240V IN, 120/240V OUT 10.3 x 11.1 x 17.0 54 $1,061
T100H-2500 T100H-2500 PWR SUPPRESS T100 HW 2500 VA 120/240V IN, 120/240V OUT 10.3 x 11.1 x 17.0 58 $1,310
T100H-5000 T100H-5000 PWR SUPPRESS T100 HW 5000 VA 120/240V IN, 120/240V OUT 10.3 x 11.1 x 17.0 86 $1,909
T100H-5001* T100H-5001 PWR SUPPRESS T100 HW V 5000 VA 240/480V IN, 120/240V OUT 10.3 x 11.1 x 17.0 - $2,309
T100H-7500 T100H-7500 PWR SUPPRESS T100 HW 7500 VA 120/240V IN, 120/240V OUT 10.3 x 11.1 x 17.0 116 $2,316
T100H-7501* T100H-7501 PWR SUPPRESS T100 HW 7500 VA 240/480V IN, 120/240V OUT 10.3 x 11.1 x 17.0 116 $2,803
* Please note the higher input voltage on these models
POWER-SUPPRESS T7: 15 to 225 kVA
Style Dimensions Weight List
Catalog Number Number Description (H x W x D, inches) (lb) Price
T7H208-15K 97201-31 PWR SUPPRESS T7 208/208V 15 kVA 31 x 35 x 18 420 $10,770
T7H208-30K 97203-31 PWR SUPPRESS T7 208/208V 30 kVA 31 x 35 x 18 490 $11,000
T7H208-50K 97205-31 PWR SUPPRESS T7 208/208V 50 kVA 43 x 43 x 22 710 $12,810
T7H208-75K 97207-31 PWR SUPPRESS T7 208/208V 75 kVA 43 x 43 x 22 950 $15,150
T7H480-100K 97410-31 PWR SUPPRESS T7 480/208V 100 kVA 43 x 43 x 22 990 $18,250
T7H480-125K 97412-31 PWR SUPPRESS T7 480/208V 125 kVA 43 x 43 x 22 1,140 $21,100
T7H480-150K 97415-31 PWR SUPPRESS T7 480/208V 150 kVA 43 x 43 x 22 1,240 $22,540
T7H480-15K 97401-31 PWR SUPPRESS T7 480/208V 15 kVA 35 x 31 x 18 420 $12,110
T7H480-225K 97422-31 PWR SUPPRESS T7 480/208V 225 kVA 55 x 47 x 28 1,780 $26,510
T7H480-30K 97403-31 PWR SUPPRESS T7 480/208V 30 kVA 35 x 31 x 18 490 $11,720
T7H480-50K 97405-31 PWR SUPPRESS T7 480/208V 50 kVA 43 x 43 x 22 710 $12,990
T7H480-75K 97407-31 PWR SUPPRESS T7 480/208V 75 kVA 43 x 43 x 22 810 $16,160
The Power-Suppress T7 provides these features
• Traps unwanted harmonics
• 20,000,000:1 (146 dB) common-mode reduction
• Normal-mode noise reduction
• Transient suppression system with status indicators
• Exclusive shielding
• K-20 rated
• Over-temperature protection
• Clean, noise-free power output
• High efficiency
• Fast, easy installation
• UL and cUL listed requirements
86 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
The Power-Sure 700 provides intelligent protection for transmitters & industrial controls.
• Fast microprocessor controlled voltage regulation
• Tight output voltage regulation
• Zero-current switching
• Wide input regulation range
• Triple shielded, computer grade transformer
• Highly efficient—97% typical
• High inrush capability
• Transient protection and high frequency filter
• Over/under voltage protection (optional)
• Includes input circuit breaker
• Manual bypass switch
Optional 10-45 kVA
Standard 50+ kVA
POWER-SURE 700 POWER CONDITIONERS: 208/208V
Style Dimensions Weight List
Catalog Number Number Description (H x W x D, inches) (lb) Price
TBL-010K-6 TBL-010K-6 PWRSURE 700 208/208V 10 kVA 30.0 x 21.5 x 29.0 440 $16,680
TBL-015K-6 TBL-015K-6 PWRSURE 700 208/208V 15 kVA 30.0 x 21.5 x 29.0 520 $18,050
TBL-025K-6 TBL-025K-6 PWRSURE 700 208/208V 25 kVA 44.0 x 21.5 x 29.0 700 $26,030
TBL-030K-6 TBL-030K-6 PWRSURE 700 208/208V 30 kVA 44.0 x 21.5 x 29.0 720 $22,540
TBL-045K-6 TBL-045K-6 PWRSURE 700 208/208V 45 kVA 44.0 x 45.0 x 29.0 950 $28,090
TBL-050K-6 TBL-050K-6 PWRSURE 700 208/208V 50 kVA 44.0 x 45.0 x 29.0 970 $34,260
TBL-075K-6 TBL-075K-6 PWRSURE 700 208/208V 75 kVA 44.0 x 45.0 x 29.0 1100 $45,210
TBL-100K-6 TBL-100K-6 PWRSURE 700 208/208V 100 kVA 44.0 x 45.0 x 29.0 1660 $52,270
TBL-125K-6 TBL-125K-6 PWRSURE 700 208/208V 125 kVA 44.0 x 45.0 x 29.0 1980 $59,070
TBL-150K-6 TBL-150K-6 PWRSURE 700 208/208V 150 kVA 44.0 x 45.0 x 29.0 2200 $70,290
TBL-225K-6 TBL-225K-6 PWRSURE 700 208/208V 225 kVA 77.0 x 56.0 x 41.5 3300 $108,640
TBL-300K-6 TBL-300K-6 PWRSURE 700 208/208V 300 kVA 77.0 x 56.0 x 41.5 4000 $129,450
POWER-SURE 700 POWER CONDITIONERS: 240/208V
Style Dimensions Weight List
Catalog Number Number Description (H x W x D, inches) (lb) Price
TCL-010K-6 TCL-010K-6 PWRSURE 700 240/208V 10 kVA 30.0 x 21.5 x 29.0 440 $16,780
TCL-015K-6 TCL-015K-6 PWRSURE 700 240/208V 15 kVA 30.0 x 21.5 x 29.0 520 $18,050
TCL-030K-6 TCL-030K-6 PWRSURE 700 240/208V 30 kVA 44.0 x 21.5 x 29.0 720 $21,850
TCL-045K-6 TCL-045K-6 PWRSURE 700 240/208V 45 kVA 44.0 x 45.0 x 29.0 950 $33,060
TCL-050K-6 TCL-050K-6 PWRSURE 700 240/208V 50 kVA 44.0 x 45.0 x 29.0 970 $28,900
TCL-075K-6 TCL-075K-6 PWRSURE 700 240/208V 75 kVA 44.0 x 45.0 x 29.0 1100 $41,750
TCL-100K-6 TCL-100K-6 PWRSURE 700 240/208V 100 kVA 44.0 x 45.0 x 29.0 1660 $54,250
POWER-SURE 700 POWER CONDITIONERS: 480/208V
Style Dimensions Weight List
Catalog Number Number Description (H x W x D, inches) (lb) Price
TDL-010K-6 TDL-010K-6 PWRSURE 700 480/208V 10 kVA 30.0 x 21.5 x 29.0 440 $18,480
TDL-015K-6 TDL-015K-6 PWRSURE 700 480/208V 15 kVA 30.0 x 21.5 x 29.0 520 $18,030
TDL-025K-6 TDL-025K-6 PWRSURE 700 480/208V 25 kVA 44.0 x 21.5 x 29.0 700 $21,960
TDL-030K-6 TDL-030K-6 PWRSURE 700 480/208V 30 kVA 44.0 x 21.5 x 29.0 720 $22,910
TDL-045K-6 TDL-045K-6 PWRSURE 700 480/208V 45 kVA 44.0 x 45.0 x 29.0 950 $29,960
TDL-050K-6 TDL-050K-6 PWRSURE 700 480/208V 50 kVA 44.0 x 45.0 x 29.0 970 $30,140
TDL-075K-6 TDL-075K-6 PWRSURE 700 480/208V 75 kVA 44.0 x 45.0 x 29.0 1100 $44,930
TDL-100K-6 TDL-100K-6 PWRSURE 700 480/208V 100 kVA 44.0 x 45.0 x 29.0 1660 $48,750
TDL-125K-6 TDL-125K-6 PWRSURE 700 480/208V 125 kVA 44.0 x 45.0 x 29.0 1980 $48,480
TDL-150K-6 TDL-150K-6 PWRSURE 700 480/208V 150 kVA 44.0 x 45.0 x 29.0 2200 $58,174
TDL-225K-6 TDL-225K-6 PWRSURE 700 480/208V 225 kVA 77.0 x 56.0 x 41.5 3300 $94,840
TDL-300K-6 TDL-300K-6 PWRSURE 700 480/208V 300 kVA 77.0 x 56.0 x 41.5 4000 $100,430
POWER-SURE 700
July 1, 2013
87www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
POWER-SURE 700 (continued)
POWER-SURE 700 POWER CONDITIONERS: 480/480V
Style Dimensions Weight List
Catalog Number Number Description (H x W x D, inches) (lb) Price
TDN-010K-6 TDN-010K-6 PWRSURE 700 480/480V 10 kVA 30.0 x 21.5 x 29.0 440 $17,070
TDN-025K-6 TDN-025K-6 PWRSURE 700 480/480V 25 kVA 44.0 x 21.5 x 29.0 700 $24,060
TDN-030K-6 TDN-030K-6 PWRSURE 700 480/480V 30 kVA 44.0 x 21.5 x 29.0 720 $24,000
TDN-045K-6 TDN-045K-6 PWRSURE 700 480/480V 45 kVA 44.0 x 45.0 x 29.0 950 $30,850
TDN-075K-6 TDN-075K-6 PWRSURE 700 480/480V 75 kVA 44.0 x 45.0 x 29.0 1100 $36,280
TDN-100K-6 TDN-100K-6 PWRSURE 700 480/480V 100 kVA 44.0 x 45.0 x 29.0 1660 $52,690
TDN-125K-6 TDN-125K-6 PWRSURE 700 480/480V 125 kVA 44.0 x 45.0 x 29.0 1980 $49,060
TDN-150K-6 TDN-150K-6 PWRSURE 700 480/480V 150 kVA 44.0 x 45.0 x 29.0 2200 $59,260
TDN-225K-6 TDN-225K-6 PWRSURE 700 480/480V 225 kVA 77.0 x 56.0 x 41.5 3300 $86,980
TDN-300K-6 TDN-300K-6 PWRSURE 700 480/480V 300 kVA 77.0 x 56.0 x 41.5 - $106,770
POWER-SURE 700 POWER CONDITIONERS: 600/208V
Style Dimensions Weight List
Catalog Number Number Description (H x W x D, inches) (lb) Price
TEL-010K-6 TEL-010K-6 PWRSURE 700 600/208V 10 kVA 30.0 x 21.5 x 29.0 440 $17,380
TEL-015K-6 TEL-015K-6 PWRSURE 700 600/208V 15 kVA 30.0 x 21.5 x 29.0 520 $18,670
TEL-025K-6 TEL-025K-6 PWRSURE 700 600/208V 25 kVA 44.0 x 21.5 x 29.0 700 $22,630
TEL-030K-6 TEL-030K-6 PWRSURE 700 600/208V 30 kVA 44.0 x 21.5 x 29.0 720 $22,830
TEL-045K-6 TEL-045K-6 PWRSURE 700 600/208V 45 kVA 44.0 x 45.0 x 29.0 950 $30,210
TEL-050K-6 TEL-050K-6 PWRSURE 700 600/208V 50 kVA 44.0 x 45.0 x 29.0 970 $30,740
TEL-075K-6 TEL-075K-6 PWRSURE 700 600/208V 75 kVA 44.0 x 45.0 x 29.0 1100 $46,980
TEL-100K-6 TEL-100K-6 PWRSURE 700 600/208V 100 kVA 44.0 x 45.0 x 29.0 1660 $55,840
TEL-125K-6 TEL-125K-6 PWRSURE 700 600/208V 125 kVA 44.0 x 45.0 x 29.0 1980 $50,800
TEL-150K-6 TEL-150K-6 PWRSURE 700 600/208V 150 kVA 44.0 x 45.0 x 29.0 2200 $68,840
TEL-225K-6 TEL-225K-6 PWRSURE 700 600/208V 225 kVA 77.0 x 56.0 x 41.5 3300 $94,840
TEL-300K-6 TEL-300K-6 PWRSURE 700 600/208V 300 kVA 77.0 x 56.0 x 41.5 - $106,640
POWER-SURE 700 POWER CONDITIONERS: 600/480V
Style Dimensions Weight List
Catalog Number Number Description (H x W x D, inches) (lb) Price
TEN-010K-6 TEN-010K-6 PWRSURE 700 600/480V 10 kVA 30.0 x 21.5 x 29.0 440 $17,070
TEN-015K-6 TEN-015K-6 PWRSURE 700 600/480V 15 kVA 30.0 x 21.5 x 29.0 520 $19,200
TEN-025K-6 TEN-025K-6 PWRSURE 700 600/480V 25 kVA 44.0 x 21.5 x 29.0 700 $21,160
TEN-030K-6 TEN-030K-6 PWRSURE 700 600/480V 30 kVA 44.0 x 21.5 x 29.0 720 $23,750
TEN-045K-6 TEN-045K-6 PWRSURE 700 600/480V 45 kVA 44.0 x 45.0 x 29.0 950 $27,140
TEN-075K-6 TEN-075K-6 PWRSURE 700 600/480V 75 kVA 44.0 x 45.0 x 29.0 1100 $43,220
TEN-100K-6 TEN-100K-6 PWRSURE 700 600/480V 100 kVA 44.0 x 45.0 x 29.0 1660 $50,750
TEN-125K-6 TEN-125K-6 PWRSURE 700 600/480V 125 kVA 44.0 x 45.0 x 29.0 1980 $52,490
TEN-150K-6 TEN-150K-6 PWRSURE 700 600/480V 150 kVA 44.0 x 45.0 x 29.0 2200 $62,290
TEN-225K-6 TEN-225K-6 PWRSURE 700 600/480V 225 kVA 77.0 x 56.0 x 41.5 3300 $89,940
TEN-300k-6 TEN-300k-6 PWRSURE 700 600/480V 300 kVA 77.0 x 56.0 x 41.5 - $102,120
POWER-SURE 700 OPTIONS
Suffix Description List Price Adder
B Maintenance Bypass 10 kVA to 30 kVA $1,550
B Maintenance Bypass 45 kVA $2,570
M Meter option $3,400
S Integrated Surge Protection $1,700
T Remote Emergency Power off option C/F
U Under/Over Voltage shutdown breaker trip C/F
V Under/Over Voltage shutdown output disabled C/F
W Extended Regulation range (+10% to -40%) C/F
* Catalog Number example:
TDN-045K-6BMS = 45KVA T700 complete with surge protection, Bypass and Meter, $36,365
88 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
POWER-SURE 800
POWER-SURE 800 POWER CONDITIONERS: 60 Hz Models–Receptacle Style (Plug-and-play)
Style Dimensions Weight List
Catalog Number Number Description (H x W x D, inches) (lb) Price
T800R-00500 T800R-00500 PWRSURE 800 OFC/RCPT 500 VA 8.5 x 12.8 x 9.5 32 $913
T800R-00700 T800R-00700 PWRSURE 800 OFC/RCPT 700 VA 8.5 x 12.8 x 9.5 - $1,245
T800R-00850 T800R-00850 PWRSURE 800 OFC/RCPT 800 VA 8.5 x 12.8 x 9.5 - $1,284
T800R-01000 T800R-01000 PWRSURE 800 OFC/RCPT 1 kVA 8.5 x 12.8 x 17.5 46 $1,363
T800R-01600 T800R-01600 PWRSURE 800 OFC/RCPT 1.6 kVA 8.5 x 12.8 x 17.5 62 $1,710
T800R-02100 T800R-02100 PWRSURE 800 OFC/RCPT 2.1 kVA 8.5 x 12.8 x 17.5 65 $1,870
T800R-02500 T800R-02500 PWRSURE 800 OFC/RCPT 2.5 kVA 8.5 x 12.8 x 17.5 68 $1,961
T800R-03500 T800R-03500 PWRSURE 800 OFC/RCPT 3.5 kVA 8.5 x 12.8 x 17.5 72 $2,351
T800R-03501 T800R-03501 PWRSURE 800 OFC/RCPT 3.5 kVA 8.5 x 12.8 x 17.5 73 $2,486
T800R-05000 T800R-05000 PWRSURE 800 OFC/RCPT 5 kVA 15.0 x 23.8 x 22.5 - Contact factory
T800R-07500 T800R-07500 PWRSURE 800 OFC/RCPT 7.5 kVA 15.0 x 23.8 x 22.5 - Contact factory
T800R-10000 T800R-10000 PWRSURE 800 OFC/RCPT 10 kVA 15.0 x 23.8 x 22.5 - Contact factory
T800R-15000 T800R-15000 PWRSURE 800 OFC/RCPT 15 kVA 15.0 x 23.8 x 22.5 - Contact factory
POWER-SURE 800 POWER CONDITIONERS: 60 Hz Models—Hardwired Wall or Panel Mount
Style Dimensions Weight List
Catalog Number Number Description (H x W x D, inches) (lb) Price
T800P-00500 T800P-00500 PWRSURE 800 PNL/HW 500 VA 9.0 x 14.0 x 10.0 52 $1,095
T800P-00750 T800P-00750 PWRSURE 800 PNL/HW 750 VA 9.0 x 14.0 x 10.0 60 $1,418
T800P-01000 T800P-01000 PWRSURE 800 PNL/HW 1 kVA 9.0 x 14.0 x 10.0 82 $1,405
T800P-01500 T800P-01500 PWRSURE 800 PNL/HW 1.5 kVA 13.0 x 16.5 x 14.8 106 $2,026
T800P-02000 T800P-02000 PWRSURE 800 PNL/HW 2 kVA 13.0 x 16.5 x 14.8 125 $1,958
T800P-03000 T800P-03000 PWRSURE 800 PNL/HW 3 kVA 13.0 x 16.5 x 14.8 142 $3,038
T800P-05000 T800P-05000 PWRSURE 800 PNL/HW 5 kVA 27.0 x 22.5 x 28.5 437 $5,453
T800P-08000 T800P-08000 PWRSURE 800 PNL/HW 8 kVA 27.0 x 22.5 x 28.5 495 $6,714
T800P-10000 T800P-10000 PWRSURE 800 PNL/HW 10 kVA 27.0 x 22.5 x 28.5 - $8,195
POWER-SURE 800 POWER CONDITIONERS: 60 Hz Models—Hardwired Floor Mount
Style Dimensions Weight List
Catalog Number Number Description (H x W x D, inches) (lb) Price
T800F-05000 T800F-05000 PWRSURE 800 FLR/HW 5 kVA 23.0 x 20.0 x 28.5 407 $5,556
T800F-08000 T800F-08000 PWRSURE 800 FLR/HW 8 kVA 23.0 x 20.0 x 28.5 465 $6,709
T800F-10000 T800F-10000 PWRSURE 800 FLR/HW 10 kVA 23.0 x 20.0 x 28.5 407 $7,529
T800F-15000 T800F-15000 PWRSURE 800 FLR/HW 15 kVA 35.0 x 25.0 x 39.5 830 $11,696
T800F-20000 T800F-20000 PWRSURE 800 FLR/HW 20 kVA 35.0 x 25.0 x 39.5 - $14,156
T800F-25000 T800F-25000 PWRSURE 800 FLR/HW 25 kVA 35.0 x 25.0 x 39.5 - $16,165
Power Conditioners (1.4 to 25 kVA)
Superior power conditioning for industrial, commercial and medical equipment. Power-Sure 800 power conditioners provide high quality
power with inherent surge protection, noise and bi-directional harmonic filtering, as well as superior isolation. Power-Sure 800 units range
from office models to floor or wall/panel mounted industrial models and provide an excellent solution for any application with noisy or poor
power quality.
• Superior isolation
• Tight voltage regulation
• High immunity to distortion
• Lightning and surge protection
• Protection against power interruptions
• Power factor correction
• Bi-directional harmonic filtering
• Meets ANSI standards for computers with inputs as low as 50% of nominal
• UL 1012, UL 544 and cUL Listed
• K-30 rated design
July 1, 2013
89www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
POWER-SURE 800
CUSTOM OUTPUT RECEPTACLES
Suffix NEMA Volts Amps Output Panels used*
A (1) 5-15R 120 15 1
B (2) 5-15R 120 15 1
C (1) 5-20R 120 20 1
D (2) 5-20R 120 20 1
E (1) 5-30R 120 30 1.5
F (1) 6-15R 208/240 15 1
G (2) 6-15R 208/240 15 1
H (1) 6-20R 208/240 20 1
I (2) 6-20R 208/240 20 1
J (1) 6-30R 208/240 30 1.5
K (1) 6-50R 208/240 50 1.5
L (1) 14-20R 120/240 20 1
M (1) 14-30R 120/240 30 1.5
N (1) L5-15R 120 120 1
P (2) L5-15R 120 15 1
R (1) L5-20R 120 20 1
S (1) L5-30R 120 30 1
T (1) L6-15R 208/240 15 1
U (2) L6-15R 208/240 15 1
V (1) L6-20R 208/240 20 1
W (1) L6-30R 208/240 30 1
X (1) L14-30R 120/240 20 1
Y (1) L14-20R 120/240 30 1
Example:
T800R-100002B2Y Consists of 2 (2)5-15R receptecles and 2 (1)L14-30R receptecles
90 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
You can't manage what you can't measure, and you certainly can't measure something you can't even see—without a power quality instrument that is.
Invisible and fleeting power disturbances can be silent killers—the electronic equivalent of high blood pressure.
Eaton's Power Xpert 4000/6000/8000 meters represent a new genre of power quality instruments and world-class power monitoring that reduces day
to day operating costs and helps avoid costly business interruptions. The meters combine state-of-the-art technology with next generation power
diagnostics, data trending and performance benchmarking, along with a "Twist-n-Click" LCD: a new paradigm for simplicity and ease of use in the
market place.
Features and Benefits
• Free download of Power Xpert Meter Profiler to trend and predict energy usage
• Embedded Web Server -- see and analyze waveforms, trends, harmonics directly in your web browser or LCD meter graphic display
• Automatic power quality analysis and trigger setting with built-in ITIC performance curve: detect and capture sags, swells, transients and flicker
• Comprehensive power, energy and demand measurements for 138 standard data points logged
• At-a-glance view of power quality analysis with patented Power Quality Index gauge, statistically derived trending and red-yellow-green indicators for overall
power health
Power Xpert Meter 4000/6000/8000
Power Quality Metering Products
In addition the meters have an embedded Web server that enables users to surf to the meter over the
Internet via a standard Web browser. The new platform offers advanced functionality like high speed
impulsive transient waveform capture, 6 Mhz sampling rate (six samples every millionth of a second)
with one millisecond time stamping, anti-aliasing, ITIC analysis and automatic trigger settings, open field
upgradeable firmware, up to 8 GB memory and optional digital, relay I/O card.
• High storage capacity
• 4000 meter offers 2 GB
• 6000 meter offers 4 GB
• 8000 meter offers 8 GB
• ANSI C12.20 accuracy
• CE and Industry Canada certified
• Energy usage patterns can be effortlessly analyzed with the month-to-month, week-to-week comparison
chart. Raw data can be easily exported with the ‘Save Table’ option to other applications such as Excel for
further analysis or graphing
• Industry-standard communication protocols, to support a multitude of configurations and third-party software:
HTTP, FTP, Modbus RTU, Modbus TCP, SNMP, SMTP, NTP, COMTRADE
• 4000 to 6000 meter firmware upgrade available
Identify power quality problems
• Identify harmonics, sags, swells and transients damaging or disrupting
sensitive, mission critical IT equipment
• Boost IT equipments service life to the maximum
• Analyze sequence of events up to one millisecond time resolution
• Protect motors from damage
• Preserve the integrity of processes and batches
• Prevent blown capacitor bank fuses
• Protect transformers and conductors from overheating
Detect and record high speed transients
• Avoid equipment damage and disruption
• Identify equipment malfunction
Monitor circuit loading
• Avoid overloads and nuisance overload trips
• Maximize equipment utilization
• Manage emergency overloads
Manage energy utilization
• Reduce peak demand charges and power factor penalties
• Identify excessive energy consumption
Applications
July 1, 2013
91www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
POWER XPERT METER 4000/6000/8000
Catalog Number Style Number Description List Price
PXM 4000 METERS
PXM4051A1AA 65D4061G001 PXM 4000 Meter, 2 GB, AC, no options $5,555
PXM4051A1BA 65D4061G002 PXM 4000 Meter, 2 GB, AC, w/ Com. Exp. Card $6,780
PXM4051A1AB 65D4061G005 PXM 4000 Meter, 2 GB, AC, w/ I/O Card $6,225
PXM4051A1BB 65D4061G006 PXM 4000 Meter, 2 GB, AC, w/ Com. Exp. & I/O Cards $7,445
PXM4251A1AA 65D4261G001 PXM 4000 Meter, 2 GB, AC, w/ VAUX $6,450
PXM4251A1BA 65D4261G002 PXM 4000 Meter, 2 GB, AC, w/ VAUX & Com. Exp. Card $7,675
PXM4251A1AB 65D4261G005 PXM 4000 Meter, 2 GB, AC, w/ VAUX & I/O Card $7,115
PXM4251A1BB 65D4261G006 PXM 4000 Meter, 2 GB, AC, w/ VAUX, Com. Exp. & I/O Cards $8,340
PXM 6000 METERS
PXM6051A1AA 65D6061G001 PXM 6000 Meter, 4 GB, AC, no options $7,785
PXM6051A1BA 65D6061G002 PXM 6000 Meter, 4 GB, AC, w/ Com. Exp. Card $9,005
PXM6051A1AB 65D6061G005 PXM 6000 Meter, 4 GB, AC, w/ I/O Card $8,450
PXM6051A1BB 65D6061G006 PXM 6000 Meter, 4 GB, AC, w/ Com. Exp. & I/O Cards $9,675
PXM6251A1AA 65D6261G001 PXM 6000 Meter, 4 GB, AC, w/ VAUX $8,675
PXM6251A1BA 65D6261G002 PXM 6000 Meter, 4 GB, AC, w/ VAUX & Com. Exp. Card $9,900
PXM6251A1AB 65D6261G005 PXM 6000 Meter, 4 GB, AC, w/ VAUX & I/O Card $9,340
PXM6251A1BB 65D6261G006 PXM 6000 Meter, 4 GB, AC, w/ VAUX, Com. Exp. & I/O Cards $10,565
PXM 8000 METERS
PXM8051A1AA 65D8061G001 PXM 8000 Meter, 8 GB, AC, no options $10,010
PXM8051A1BA 65D8061G002 PXM 8000 Meter, 8 GB, AC, w/ Com. Exp. Card $11,230
PXM8051A1AB 65D8061G005 PXM 8000 Meter, 8 GB, AC, w/ I/O Card $10,675
PXM8051A1BB 65D8061G006 PXM 8000 Meter, 8 GB, AC, w/ Com. Exp. & I/O Cards $11,900
PXM8251A1AA 65D8261G001 PXM 8000 Meter, 8 GB, AC, w/ VAUX $10,900
PXM8251A1BA 65D8261G002 PXM 8000 Meter, 8 GB, AC, w/ VAUX & Com. Exp. Card $12,125
PXM8251A1AB 65D8261G005 PXM 8000 Meter, 8 GB, AC, w/ VAUX & I/O Card $11,570
PXM8251A1BB 65D8261G006 PXM 8000 Meter, 8 GB, AC, w/ VAUX, Com. Exp. & I/O Cards $12,790
POWER XPERT METER 4000/6000/8000 ACCESSORIES
Catalog Number Style Number Description List Price
PX-PMBA 66B2133G01 PXM Bracket Assembly for back-to-back meter to display mounti $222
PXMIO-B 66D2101G11 I/O card: 8 Digital Input, 2 Solid State Output, 3 Relay Out $667
PXMCE-B 66D2102G11 Com Expansion Card: Ethernet 100FX, 10/100T, RS-485, RS-232 $1,224
PXD-MMG 66D2117G01 PXM Meter Graphic Display Module $1,780
PX-PMBB 66D2148G01 Panel mnt bracket retrofit assembly for PXM LCD to an IQA cu $166
PX-PMBC 66D2150G01 Panel mnt bracket assembly for reduced PXM LCD Display rear $166
PXM-4KUPG 65D1001G01 POWER XPERT METER 4000 TO 6000 LICENSE UPGRADE KEY $2,615
Power Xpert Meter 4000/6000/8000 (continued)
Power Quality Metering Products
Power Xpert Meter 4000/6000/8000 Catalog Numbering System
PXM 8 0 5 1 A 1 B B
Example 1: PXM8251A1BB (PXM 8000 Meter, w/ VAUX, Std pwr, Com. Exp. and I/O Cards)
Example 2: PXM6251A1BA (PXM 6000 Meter, w/ VAUX, Std pwr, Com. Exp. Card)
Model Series
4 = 4000 (Standard Power Quality), 2 GB
6 = 6000 (Enhanced Power Quality), 4 GB
8 = 8000 (Premium PQ w/ Transient Capture), 8 GB
Card Slot 3 Configuration
A = No Card Option
B = I/O Option Card (8 Digital Inputs, 2 Solid
State Outputs, 3 Relay Outputs)
Voltage Input Configuration
0 = Standard (V1, V2, V3, V4)
2 = Standard plus auxiliary (V6, V7
, V8)
Card Slot 2 Configuration
A = No Card Option
B = Communication Expansion Card
w/ 10/100 Base-T, 100F, RS-485, RS-232 Ports
Power Supply Configuration
1 = Standard 100-240 Vac or 110-250 Vac Power Supply Card Slot 1 Configuration
1 = Standard Communications Module
with RS-485
92 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
POWER XPERT METER 2000
Compact Power Quality Metering Products
The meters combine state-of-the-art technology with waveform viewing and recording, data trending and
performance benchmarking. The embedded Web server enables users to surf to the meter over the Internet via a
standard Web browser. This platform offers adaptability such as field-upgradeable firmware and optional digital
inputs/outputs and analog outputs.
Applications
Identify power quality problems to help:
• Protect motors from damage
• Preserve the integrity of processes and batches
• Prevent blown capacitor bank fuses
• Protect transformers and conductors from overheating
POWER XPERT METER 2000
Catalog Number Description List Price
PXM 2250 Meters
PXM2250MA51105 PXM2250 Meter/Display 50Hz 1A 90-265V AC/DC $2,089
PXM2250MA51405 PXM2250 Meter/Display 50Hz 1A 24-48V DC $2,089
PXM2250MA55105 PXM2250 Meter/Display 50Hz 5A 90-265V AC/DC $2,089
PXM2250MA55405 PXM2250 Meter/Display 50Hz 5A 24-48V DC $2,089
PXM2250MA61105 PXM2250 Meter/Display 60Hz 1A 90-265V AC/DC $2,089
PXM2250MA61405 PXM2250 Meter/Display 60Hz 1A 24-48V DC $2,089
PXM2250MA65105 PXM2250 Meter/Display 60Hz 5A 90-265V AC/DC $2,089
PXM2250MA65115 PXM2250 Meter/Display 60Hz 5A 90-265V AC/DC w/2DO&2DI $2,554
PXM2250MA65125 PXM2250 Meter/Display 60Hz 5A 90-265V AC/DC w/4KYZ&4DI $3,072
PXM2250MA65135 PXM2250 Meter/Display 60Hz 5A 90-265V AC/DC w/4AO 0-1 $3,072
PXM2250MA65145 PXM2250 Meter/Display 60Hz 5A 90-265V AC/DC w/4AO 4-20 $2,661
PXM2250MA65405 PXM2250 Meter/Display 60Hz 5A 24-48V DC $2,089
PXM2250MA65415 PXM2250 Meter/Display 60Hz 5A 24-48V DC w/2DO&2DI $2,554
PXM2250MA65425 PXM2250 Meter/Display 60Hz 5A 24-48V DC w/4KYZ&4DI $3,072
PXM2250MA65435 PXM2250 Meter/Display 60Hz 5A 24-48V DC w/4AO 0-1 $3,072
PXM2250MA65445 PXM2250 Meter/Display 60Hz 5A 24-48V DC w/4AO 4-20 $2,661
PXM2250TA51105 PXM2250 Transducer Only 50Hz 1A 90-265V AC/DC $1,909
PXM2250TA51405 PXM2250 Transducer Only 50Hz 1A 24-48V DC $1,909
PXM2250TA55105 PXM2250 Transducer Only 50Hz 5A 90-265V AC/DC $1,909
PXM2250TA55405 PXM2250 Transducer Only 50Hz 5A 24-48V DC $1,909
PXM2250TA61105 PXM2250 Transducer Only 60Hz 1A 90-265V AC/DC $1,909
PXM2250TA61405 PXM2250 Transducer Only 60Hz 1A 24-48V DC $1,909
PXM2250TA65105 PXM2250 Transducer Only 60Hz 5A 90-265V AC/DC $1,909
PXM2250TA65115 PXM2250 Transducer Only 60Hz 5A 90-265V AC/DC w/2DO&2DI $2,376
PXM2250TA65125 PXM2250 Transducer Only 60Hz 5A 90-265V AC/DC w/4KYZ&4DI $2,893
PXM2250TA65135 PXM2250 Transducer Only 60Hz 5A 90-265V AC/DC w/4AO 0-1 $2,893
PXM2250TA65145 PXM2250 Transducer Only 60Hz 5A 90-265V AC/DC w/4AO 4-20 $2,483
PXM2250TA65405 PXM2250 Transducer Only 60Hz 5A 24-48V DC $1,909
PXM2250TA65415 PXM2250 Transducer Only 60Hz 5A 24-48V DC w/2DO&2DI $2,376
PXM2250TA65425 PXM2250 Transducer Only 60Hz 5A 24-48V DC w/4KYZ&4DI $2,893
PXM2250TA65435 PXM2250 Transducer Only 60Hz 5A 24-48V DC w/4AO 0-1 $2,893
PXM2250TA65445 PXM2250 Transducer Only 60Hz 5A 24-48V DC w/4AO 4-20 $2,483
PXM 2260 Meters
PXM2260MA51105 PXM2260 Meter/Display 50Hz 1A 90-265V AC/DC $2,468
PXM2260MA51405 PXM2260 Meter/Display 50Hz 1A 24-48V DC $2,468
PXM2260MA55105 PXM2260 Meter/Display 50Hz 5A 90-265V AC/DC $2,468
PXM2260MA55405 PXM2260 Meter/Display 50Hz 5A 24-48V DC $2,468
PXM2260MA61105 PXM2260 Meter/Display 60Hz 1A 90-265V AC/DC $2,468
PXM2260MA61405 PXM2260 Meter/Display 60Hz 1A 24-48V DC $2,468
PXM2260MA65105 PXM2260 Meter/Display 60Hz 5A 90-265V AC/DC $2,468
July 1, 2013
93www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
POWER XPERT METER 2000 (continued)
Catalog Number Description List Price
PXM 2260 Meters (continued)
PXM2260MA65115 PXM2260 Meter/Display 60Hz 5A 90-265V AC/DC w/2DO&2DI $2,934
PXM2260MA65125 PXM2260 Meter/Display 60Hz 5A 90-265V AC/DC w/4KYZ&4DI $3,452
PXM2260MA65135 PXM2260 Meter/Display 60Hz 5A 90-265V AC/DC w/4AO 0-1 $3,452
PXM2260MA65145 PXM2260 Meter/Display 60Hz 5A 90-265V AC/DC w/4AO 4-20 $3,041
PXM2260MA65405 PXM2260 Meter/Display 60Hz 5A 24-48V DC $2,468
PXM2260MA65415 PXM2260 Meter/Display 60Hz 5A 24-48V DC w/2DO&2DI $2,934
PXM2260MA65425 PXM2260 Meter/Display 60Hz 5A 24-48V DC w/4KYZ&4DI $3,452
PXM2260MA65435 PXM2260 Meter/Display 60Hz 5A 24-48V DC w/4AO 0-1 $3,452
XM2260MA65445 PXM2260 Meter/Display 60Hz 5A 24-48V DC w/4AO 4-20 $3,041
PXM2260TA51105 PXM2260 Transducer Only 50Hz 1A 90-265V AC/DC $2,289
PXM2260TA51405 PXM2260 Transducer Only 50Hz 1A 24-48V DC $2,289
PXM2260TA55105 PXM2260 Transducer Only 50Hz 5A 90-265V AC/DC $2,289
PXM2260TA55405 PXM2260 Transducer Only 50Hz 5A 24-48V DC $2,289
PXM2260TA61105 PXM2260 Transducer Only 60Hz 1A 90-265V AC/DC $2,289
PXM2260TA61405 PXM2260 Transducer Only 60Hz 1A 24-48V DC $2,289
PXM2260TA65105 PXM2260 Transducer Only 60Hz 5A 90-265V AC/DC $2,289
PXM2260TA65115 PXM2260 Transducer Only 60Hz 5A 90-265V AC/DC w/2DO&2DI $2,755
PXM2260TA65125 PXM2260 Transducer Only 60Hz 5A 90-265V AC/DC w/4KYZ&4DI $3,272
PXM2260TA65135 PXM2260 Transducer Only 60Hz 5A 90-265V AC/DC w/4AO 0-1 $3,272
PXM2260TA65145 PXM2260 Transducer Only 60Hz 5A 90-265V AC/DC w/4AO 4-20 $2,862
PXM2260TA65405 PXM2260 Transducer Only 60Hz 5A 24-48V DC $2,289
PXM2260TA65415 PXM2260 Transducer Only 60Hz 5A 24-48V DC w/2DO&2DI $2,755
PXM2260TA65425 PXM2260 Transducer Only 60Hz 5A 24-48V DC w/4KYZ&4DI $3,272
PXM2260TA65435 PXM2260 Transducer Only 60Hz 5A 24-48V DC w/4AO 0-1 $3,272
PXM2260TA65445 PXM2260 Transducer Only 60Hz 5A 24-48V DC w/4AO 4-20 $2,862
PXM 2270 Meters
PXM2270MA51105 PXM2270 Meter/Display 50Hz 1A 90-265V AC/DC $3,270
PXM2270MA51405 PXM2270 Meter/Display 50Hz 1A 24-48V DC $3,270
PXM2270MA55105 PXM2270 Meter/Display 50Hz 5A 90-265V AC/DC $3,270
PXM2270MA55405 PXM2270 Meter/Display 50Hz 5A 24-48V DC $3,270
PXM2270MA61105 PXM2270 Meter/Display 60Hz 1A 90-265V AC/DC $3,270
PXM2270MA61405 PXM2270 Meter/Display 60Hz 1A 24-48V DC $3,270
PXM2270MA65105 PXM2270 Meter/Display 60Hz 5A 90-265V AC/DC $3,270
PXM2270MA65115 PXM2270 Meter/Display 60Hz 5A 90-265V AC/DC w/2DO&2DI $3,736
PXM2270MA65125 PXM2270 Meter/Display 60Hz 5A 90-265V AC/DC w/4KYZ&4DI $4,254
PXM2270MA65135 PXM2270 Meter/Display 60Hz 5A 90-265V AC/DC w/4AO 0-1 $4,254
PXM2270MA65145 PXM2270 Meter/Display 60Hz 5A 90-265V AC/DC w/4AO 4-20 $3,843
PXM2270MA65405 PXM2270 Meter/Display 60Hz 5A 24-48V DC $3,270
PXM2270MA65415 PXM2270 Meter/Display 60Hz 5A 24-48V DC w/2DO&2DI $3,736
PXM2270MA65425 PXM2270 Meter/Display 60Hz 5A 24-48V DC w/4KYZ&4DI $4,254
PXM2270MA65435 PXM2270 Meter/Display 60Hz 5A 24-48V DC w/4AO 0-1 $4,254
PXM2270MA65445 PXM2270 Meter/Display 60Hz 5A 24-48V DC w/4AO 4-20 $3,843
PXM2270TA51105 PXM2270 Transducer Only 50Hz 1A 90-265V AC/DC $3,188
PXM2270TA51405 PXM2270 Transducer Only 50Hz 1A 24-48V DC $3,188
PXM2270TA55105 PXM2270 Transducer Only 50Hz 5A 90-265V AC/DC $3,188
PXM2270TA55405 PXM2270 Transducer Only 50Hz 5A 24-48V DC $3,188
PXM2270TA61105 PXM2270 Transducer Only 60Hz 1A 90-265V AC/DC $3,188
PXM2270TA61405 PXM2270 Transducer Only 60Hz 1A 24-48V DC $3,188
PXM2270TA65105 PXM2270 Transducer Only 60Hz 5A 90-265V AC/DC $3,188
PXM2270TA65115 PXM2270 Transducer Only 60Hz 5A 90-265V AC/DC w/2DO&2DI $3,653
PXM2270TA65125 PXM2270 Transducer Only 60Hz 5A 90-265V AC/DC w/4KYZ&4DI $4,171
POWER XPERT METER 2000 (continued)
Power Quality Metering Products
94 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
POWER XPERT METER 2000 (continued)
Catalog Number Description List Price
PXM 2270 Meters (continued)
PXM2270TA65135 PXM2270 Transducer Only 60Hz 5A 90-265V AC/DC w/4AO 0-1 $4,171
PXM2270TA65145 PXM2270 Transducer Only 60Hz 5A 90-265V AC/DC w/4AO 4-20 $3,762
PXM2270TA65405 PXM2270 Transducer Only 60Hz 5A 24-48V DC $3,188
PXM2270TA65415 PXM2270 Transducer Only 60Hz 5A 24-48V DC w/2DO&2DI $3,653
PXM2270TA65425 PXM2270 Transducer Only 60Hz 5A 24-48V DC w/4KYZ&4DI $4,171
PXM2270TA65435 PXM2270 Transducer Only 60Hz 5A 24-48V DC w/4AO 0-1 $4,171
PXM2270TA65445 PXM2270 Transducer Only 60Hz 5A 24-48V DC w/4AO 4-20 $3,762
PXM 2280 Meters
PXM2280MA51105 PXM2280 Meter/Display 50Hz 1A 90-265V AC/DC $4,084
PXM2280MA51405 PXM2280 Meter/Display 50Hz 1A 24-48V DC $4,084
PXM2280MA55105 PXM2280 Meter/Display 50Hz 5A 90-265V AC/DC $4,084
PXM2280MA55405 PXM2280 Meter/Display 50Hz 5A 24-48V DC $4,084
PXM2280MA61105 PXM2280 Meter/Display 60Hz 1A 90-265V AC/DC $4,084
PXM2280MA61405 PXM2280 Meter/Display 60Hz 1A 24-48V DC $4,084
PXM2280MA65105 PXM2280 Meter/Display 60Hz 5A 90-265V AC/DC $4,084
PXM2280MA65115 PXM2280 Meter/Display 60Hz 5A 90-265V AC/DC w/2DO&2DI $4,557
PXM2280MA65125 PXM2280 Meter/Display 60Hz 5A 90-265V AC/DC w/4KYZ&4DI $5,110
PXM2280MA65135 PXM2280 Meter/Display 60Hz 5A 90-265V AC/DC w/4AO 0-1 $5,110
PXM2280MA65145 PXM2280 Meter/Display 60Hz 5A 90-265V AC/DC w/4AO 4-20 $4,666
PXM2280MA65405 PXM2280 Meter/Display 60Hz 5A 24-48V DC $4,084
PXM2280MA65415 PXM2280 Meter/Display 60Hz 5A 24-48V DC w/2DO&2DI $4,557
PXM2280MA65425 PXM2280 Meter/Display 60Hz 5A 24-48V DC w/4KYZ&4DI $5,110
PXM2280MA65435 PXM2280 Meter/Display 60Hz 5A 24-48V DC w/4AO 0-1 $5,110
PXM2280MA65445 PXM2280 Meter/Display 60Hz 5A 24-48V DC w/4AO 4-20 $4,666
PXM2280TA51105 PXM2280 Transducer Only 50Hz 1A 90-265V AC/DC $3,846
PXM2280TA51405 PXM2280 Transducer Only 50Hz 1A 24-48V DC $3,846
PXM2280TA55105 PXM2280 Transducer Only 50Hz 5A 90-265V AC/DC $3,846
PXM2280TA55405 PXM2280 Transducer Only 50Hz 5A 24-48V DC $3,846
PXM2280TA61105 PXM2280 Transducer Only 60Hz 1A 90-265V AC/DC $3,846
PXM2280TA61405 PXM2280 Transducer Only 60Hz 1A 24-48V DC $3,846
PXM2280TA65105 PXM2280 Transducer Only 60Hz 5A 90-265V AC/DC $3,846
PXM2280TA65115 PXM2280 Transducer Only 60Hz 5A 90-265V AC/DC w/2DO&2DI $4,317
PXM2280TA65125 PXM2280 Transducer Only 60Hz 5A 90-265V AC/DC w/4KYZ&4DI $4,860
PXM2280TA65135 PXM2280 Transducer Only 60Hz 5A 90-265V AC/DC w/4AO 0-1 $4,860
PXM2280TA65145 PXM2280 Transducer Only 60Hz 5A 90-265V AC/DC w/4AO 4-20 $4,426
PXM2280TA65405 PXM2280 Transducer Only 60Hz 5A 24-48V DC $3,846
PXM2280TA65415 PXM2280 Transducer Only 60Hz 5A 24-48V DC w/2DO&2DI $4,317
PXM2280TA65425 PXM2280 Transducer Only 60Hz 5A 24-48V DC w/4KYZ&4DI $4,860
PXM2280TA65435 PXM2280 Transducer Only 60Hz 5A 24-48V DC w/4AO 0-1 $4,860
PXM2280TA65445 PXM2280 Transducer Only 60Hz 5A 24-48V DC w/4AO 4-20 $4,426
PXM 2290 Meters
PXM2290MA51105 PXM2290 Meter/Display 50Hz 1A 90-265V AC/DC $5,975
PXM2290MA51405 PXM2290 Meter/Display 50Hz 1A 24-48V DC $5,975
PXM2290MA55105 PXM2290 Meter/Display 50Hz 5A 90-265V AC/DC $5,975
PXM2290MA55405 PXM2290 Meter/Display 50Hz 5A 24-48V DC $5,975
PXM2290MA61105 PXM2290 Meter/Display 60Hz 1A 90-265V AC/DC $5,975
PXM2290MA61405 PXM2290 Meter/Display 60Hz 1A 24-48V DC $5,975
PXM2290MA65105 PXM2290 Meter/Display 60Hz 5A 90-265V AC/DC $5,975
PXM2290MA65115 PXM2290 Meter/Display 60Hz 5A 90-265V AC/DC w/2DO&2DI $6,465
PXM2290MA65125 PXM2290 Meter/Display 60Hz 5A 90-265V AC/DC w/4KYZ&4DI $7,085
PXM2290MA65135 PXM2290 Meter/Display 60Hz 5A 90-265V AC/DC w/4AO 0-1 $7,085
POWER XPERT METER 2000 (continued)
Power Quality Metering Products
July 1, 2013
95www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
POWER XPERT METER 2000 (continued)
Power Quality Metering Products
PXM 2250 M A 6 5 1 0 5
Example 1: PXM2270MA65145 (PXM 2270 Meter/Display 60 Hz, 5 A, 90 – 265 Vac/dc W/4AO)
Example 2: PXM2250MA65105 (PXM 2250 Meter/Display 60 Hz, 5 A, 90 – 265 Vac/dc)
Model Series
2250 = Energy Meter
2260 = Power Quality Meter
2270 = Power Quality Plus Meter
2280 = Power Quality Plus with
up to 64 samples/cycle waveform
recording meter
2290 = Power Quality Plus with
up to 512 samples/cycle recording
meter
Meter Type
M = Meter (with integral display)
T = Transducer Only (no display)
I/O Slot 2
5 = Gateway Card
I/O Slot 1
0 = None
1 = 2 Relay Outputs/2 Status Inputs
2 = 4 KYZ Pulses/4 Status Inputs
3 = 4 Analog Outputs: 0–1 mA
4 = 4 Analog Outputs: 4–20 mA
Frequency
5 = 50 Hz System
6 = 60 Hz Systems
Current Input
1 = 1 Amp Secondary
5 = 5 Amp Secondary
Power Supply
1 = 90–265 Vac/dc
4 = 24–60 Vdc
POWER XPERT METER 2000 (continued)
Catalog Number Description List Price
PXM 2290 Meters (continued)
PXM2290MA65145 PXM2290 Meter/Display 60Hz 5A 90-265V AC/DC w/4AO 4-20 $6,580
PXM2290MA65405 PXM2290 Meter/Display 60Hz 5A 24-48V DC $5,975
PXM2290MA65415 PXM2290 Meter/Display 60Hz 5A 24-48V DC w/2DO&2DI $6,465
PXM2290MA65425 PXM2290 Meter/Display 60Hz 5A 24-48V DC w/4KYZ&4DI $7,085
PXM2290MA65435 PXM2290 Meter/Display 60Hz 5A 24-48V DC w/4AO 0-1 $7,085
PXM2290MA65445 PXM2290 Meter/Display 60Hz 5A 24-48V DC w/4AO 4-20 $6,580
PXM2290TA51105 PXM2290 Transducer Only 50Hz 1A 90-265V AC/DC $5,735
PXM2290TA51405 PXM2290 Transducer Only 50Hz 1A 24-48V DC $5,735
PXM2290TA55105 PXM2290 Transducer Only 50Hz 5A 90-265V AC/DC $5,735
PXM2290TA55405 PXM2290 Transducer Only 50Hz 5A 24-48V DC $5,735
PXM2290TA61105 PXM2290 Transducer Only 60Hz 1A 90-265V AC/DC $5,735
PXM2290TA61405 PXM2290 Transducer Only 60Hz 1A 24-48V DC $5,735
PXM2290TA65105 PXM2290 Transducer Only 60Hz 5A 90-265V AC/DC $5,735
PXM2290TA65115 PXM2290 Transducer Only 60Hz 5A 90-265V AC/DC w/2DO&2DI $6,220
PXM2290TA65125 PXM2290 Transducer Only 60Hz 5A 90-265V AC/DC w/4KYZ&4DI $6,840
PXM2290TA65135 PXM2290 Transducer Only 60Hz 5A 90-265V AC/DC w/4AO 0-1 $6,840
PXM2290TA65145 PXM2290 Transducer Only 60Hz 5A 90-265V AC/DC w/4AO 4-20 $6,335
PXM2290TA65405 PXM2290 Transducer Only 60Hz 5A 24-48V DC $5,735
PXM2290TA65415 PXM2290 Transducer Only 60Hz 5A 24-48V DC w/2DO&2DI $6,220
PXM2290TA65425 PXM2290 Transducer Only 60Hz 5A 24-48V DC w/4KYZ&4DI $6,840
PXM2290TA65435 PXM2290 Transducer Only 60Hz 5A 24-48V DC w/4AO 0-1 $6,840
PXM2290TA65445 PXM2290 Transducer Only 60Hz 5A 24-48V DC w/4AO 4-20 $6,335
*Prices subject to change.
POWER XPERT METER 2000 ACCESSORIES
Catalog Number Description List Price
IQ250/260-IO1 PXM 2000 I/O Card-2 Relay Outputs/2 Status Inputs $504
IQ250/260-IO2 PXM 2000 I/O Card-4 KYZ Pulses/4 Status Inputs $1,065
IQ250/260-IO3 PXM 2000 I/O Card-4 Analog Outputs - 0–1 mA $1,065
IQ250/260-IO4 PXM 2000 I/O Card-4 Analog Outputs - 4–20 mA $621
IQ250-PMAK Panel Mounting Adapter Kit-PXM2000 To IQ A/DP/DATA $89
PXM2000-GCK PXM 2000 Gateway Card Kit to Upgrade an IQ 250/260 to a PXM 2000 $835
96 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
IQ 250/260 SERIES
Metering Products
The IQ 250 and IQ 260 electronic meters provide capabilities you wouldn’t normally expect in an affordable, compact meter—such as fast
sampling rate and accurate metering for a full range of power attributes. The meter can be configured either from the easy-to-read display or
remotely (accessible via a Power Xpert Gateway) via included configuration software. In addition, built-in slots allow for upgrades to input/output
option cards.
Applications
Identify power quality problems to help:
• Comprehensive metering
• High-end accuracy
• Self-test capability to validate accuracy
• Large, easy-to-read display
• Local or remote configuration
• Industry-standard communication protocols (Modbus)
• Mix-and-match input/output options
• Integration with Eaton’s Power Xpert Architecture
• Field-upgradeable
IQ 250/260 SERIES
Catalog Number Description List Price
IQ 250 Meters
IQ250MA51100 IQ250 Meter/Display 50Hz 1A 90-265V AC/DC $1,392
IQ250MA51400 IQ250 Meter/Display 50Hz 1A 24-48V DC $1,392
IQ250MA55100 IQ250 Meter/Display 50Hz 5A 90-265V AC/DC $1,392
IQ250MA55400 IQ250 Meter/Display 50Hz 5A 24-48V DC $1,392
IQ250MA61100 IQ250 Meter/Display 60Hz 1A 90-265V AC/DC $1,392
IQ250MA61400 IQ250 Meter/Display 60Hz 1A 24-48V DC $1,392
IQ250MA65100 IQ250 Meter/Display 60Hz 5A 90-265V AC/DC $1,392
IQ250MA65110 IQ250 Meter/Display 60Hz 5A 90-265V AC/DC w/2DO&2DI $1,896
IQ250MA65114 IQ250 Meter/Display 60Hz 5A 90-265V AC/DC w/2DO&2DI&4AO $2,515
IQ250MA65120 IQ250 Meter/Display 60Hz 5A 90-265V AC/DC w/4KYZ&4DI $2,456
IQ250MA65140 IQ250 Meter/Display 60Hz 5A 90-265V AC/DC w/4AO $2,012
IQ250MA65400 IQ250 Meter/Display 60Hz 5A 24-48V DC $1,392
IQ250MA65410 IQ250 Meter/Display 60Hz 5A 24-48V DC w/2DO&2DI $1,896
IQ250MA65414 IQ250 Meter/Display 60Hz 5A 24-48V DC w/2DO&2DI&4AO $2,515
IQ250MA65420 IQ250 Meter/Display 60Hz 5A 24-48V DC w/4KYZ&4DI $2,456
IQ250MA65440 IQ250 Meter/Display 60Hz 5A 24-48V DC w/4AO $2,012
IQ250ML51100 IQ250 Meter/Display Log 50Hz 1A 90-265V AC/DC $1,826
IQ250ML51400 IQ250 Meter/Display Log 50Hz 1A 24-48V DC $1,826
IQ250ML55100 IQ250 Meter/Display Log 50Hz 5A 90-265V AC/DC $1,826
IQ250ML55400 IQ250 Meter/Display Log 50Hz 5A 24-48V DC $1,826
IQ250ML61100 IQ250 Meter/Display Log 60Hz 1A 90-265V AC/DC $1,826
IQ250ML61400 IQ250 Meter/Display Log 60Hz 1A 24-48V DC $1,826
IQ250ML65100 IQ250 Meter/Display Log 60Hz 5A 90-265V AC/DC $1,826
IQ250ML65110 IQ250 Meter/Display Log 60Hz 5A 90-265V AC/DC w/2DO&2DI $2,328
IQ250ML65114 IQ250 Meter/Display Log 60Hz 5A 90-265V AC/DC w/2DO&2DI&4AO $2,946
IQ250ML65120 IQ250 Meter/Display Log 60Hz 5A 90-265V AC/DC w/4KYZ&4DI $2,914
IQ250ML65130 IQ250 Meter/Display Log 60Hz 5A 90-265V AC/DC w/4AO 0-1mA $2,914
IQ250ML65140 IQ250 Meter/Display Log 60Hz 5A 90-265V AC/DC w/4AO $2,445
IQ250ML65400 IQ250 Meter/Display Log 60Hz 5A 24-48V DC $1,826
IQ250ML65410 IQ250 Meter/Display Log 60Hz 5A 24-48V DC w/2DO&2DI $2,328
IQ250ML65414 IQ250 Meter/Display Log 60Hz 5A 24-48V DC w/2DO&2DI&4AO $2,946
IQ250ML65420 IQ250 Meter/Display Log 60Hz 5A 24-48V DC w/4KYZ&4DI $2,914
IQ250ML65440 IQ250 Meter/Display Log 60Hz 5A 24-48V DC w/4AO $2,445
July 1, 2013
97www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
IQ 250/260 SERIES (continued)
Configuration Number Catalog Number Description List Price
IQ 250 Meters (continued)
IQ250TA51100 IQ250 Transducer Only 50Hz 1A 90-265V AC/DC $1,199
IQ250TA51400 IQ250 Transducer Only 50Hz 1A 24-48V DC $1,199
IQ250TA55100 IQ250 Transducer Only 50Hz 5A 90-265V AC/DC $1,199
IQ250TA55400 IQ250 Transducer Only 50Hz 5A 24-48V DC $1,199
IQ250TA61100 IQ250 Transducer Only 60Hz 1A 90-265V AC/DC $1,199
IQ250TA61400 IQ250 Transducer Only 60Hz 1A 24-48V DC $1,199
IQ250TA65100 IQ250 Transducer Only 60Hz 5A 90-265V AC/DC $1,199
IQ250TA65110 IQ250 Transducer Only 60Hz 5A 90-265V AC/DC w/2DO&2DI $1,701
IQ250TA65114 IQ250 Transducer Only 60Hz 5A 90-265V AC/DC w/2DO&2DI&4AO $2,322
IQ250TA65120 IQ250 Transducer Only 60Hz 5A 90-265V AC/DC w/4KYZ&4DI $2,261
IQ250TA65140 IQ250 Transducer Only 60Hz 5A 90-265V AC/DC w/4AO $1,818
IQ250TA65400 IQ250 Transducer Only 60Hz 5A 24-48V DC $1,199
IQ250TA65410 IQ250 Transducer Only 60Hz 5A 24-48V DC w/2DO&2DI $1,701
IQ250TA65414 IQ250 Transducer Only 60Hz 5A 24-48V DC w/2DO&2DI&4AO $2,322
IQ250TA65420 IQ250 Transducer Only 60Hz 5A 24-48V DC w/4KYZ&4DI $2,261
IQ250TA65440 IQ250 Transducer Only 60Hz 5A 24-48V DC w/4AO $1,818
IQ250TL51100 IQ250 Transducer Log 50Hz 1A 90-265V AC/DC $1,647
IQ250TL51400 IQ250 Transducer Log 50Hz 1A 24-48V DC $1,647
IQ250TL55100 IQ250 Transducer Log 50Hz 5A 90-265V AC/DC $1,647
IQ250TL55400 IQ250 Transducer Log 50Hz 5A 24-48V DC $1,647
IQ250TL61100 IQ250 Transducer Log 60Hz 1A 90-265V AC/DC $1,647
IQ250TL61400 IQ250 Transducer Log 60Hz 1A 24-48V DC $1,647
IQ250TL65100 IQ250 Transducer Log 60Hz 5A 90-265V AC/DC $1,647
IQ250TL65110 IQ250 Transducer Log 60Hz 5A 90-265V AC/DC w/2DO&2DI $2,142
IQ250TL65114 IQ250 Transducer Log 60Hz 5A 90-265V AC/DC w/2DO&2DI&4AO $2,759
IQ250TL65120 IQ250 Transducer Log 60Hz 5A 90-265V AC/DC w/4KYZ&4DI $2,728
IQ250TL65130 IQ250 Transducer Log 60Hz 5A 90-265V AC/DC w/4AO 0-1mA $2,728
IQ250TL65140 IQ250 Transducer Log 60Hz 5A 90-265V AC/DC w/4AO $2,258
IQ250TL65400 IQ250 Transducer Log 60Hz 5A 24-48V DC $1,647
IQ250TL65410 IQ250 Transducer Log 60Hz 5A 24-48V DC w/2DO&2DI $2,142
IQ250TL65414 IQ250 Transducer Log 60Hz 5A 24-48V DC w/2DO&2DI&4AO $2,759
IQ250TL65420 IQ250 Transducer Log 60Hz 5A 24-48V DC w/4KYZ&4DI $2,728
IQ250TL65440 IQ250 Transducer Log 60Hz 5A 24-48V DC w/4AO $2,258
IQ 260 Meters
IQ260MA51400 IQ260 Meter/Display 50Hz 1A 24-48V DC $1,803
IQ260MA55100 IQ260 Meter/Display 50Hz 5A 90-265V AC/DC $1,803
IQ260MA55400 IQ260 Meter/Display 50Hz 5A 24-48V DC $1,803
IQ260MA61100 IQ260 Meter/Display 60Hz 1A 90-265V AC/DC $1,803
IQ260MA61400 IQ260 Meter/Display 60Hz 1A 24-48V DC $1,803
IQ260MA65100 IQ260 Meter/Display 60Hz 5A 90-265V AC/DC $1,803
IQ260MA65110 IQ260 Meter/Display 60Hz 5A 90-265V AC/DC w/2DO&2DI $2,306
IQ260MA65114 IQ260 Meter/Display 60Hz 5A 90-265V AC/DC w/2DO&2DI&4AO $2,926
IQ260MA65120 IQ260 Meter/Display 60Hz 5A 90-265V AC/DC w/4KYZ&4DI $2,867
IQ260MA65140 IQ260 Meter/Display 60Hz 5A 90-265V AC/DC w/4AO $2,423
IQ260MA65400 IQ260 Meter/Display 60Hz 5A 24-48V DC $1,803
IQ260MA65410 IQ260 Meter/Display 60Hz 5A 24-48V DC w/2DO&2DI $2,306
IQ260MA65414 IQ260 Meter/Display 60Hz 5A 24-48V DC w/2DO&2DI&4AO $2,926
IQ260MA65420 IQ260 Meter/Display 60Hz 5A 24-48V DC w/4KYZ&4DI $2,867
IQ260MA65440 IQ260 Meter/Display 60Hz 5A 24-48V DC w/4AO $2,423
IQ260ML51100 IQ260 Meter/Display Log 50Hz 1A 90-265V AC/DC $2,242
IQ260ML51400 IQ260 Meter/Display Log 50Hz 1A 24-48V DC $2,242
IQ 250/260 SERIES (continued)
Metering Products
98 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
IQ 250/260 SERIES (continued)
Metering Products
IQ 250/260 SERIES (continued)
Catalog Number Description List Price
IQ 260 Meters (continued)
IQ260ML55100 IQ260 Meter/Display Log 50Hz 5A 90-265V AC/DC $2,242
IQ260ML55400 IQ260 Meter/Display Log 50Hz 5A 24-48V DC $2,242
IQ260ML61100 IQ260 Meter/Display Log 60Hz 1A 90-265V AC/DC $2,242
IQ260ML61400 IQ260 Meter/Display Log 60Hz 1A 24-48V DC $2,242
IQ260ML65100 IQ260 Meter/Display Log 60Hz 5A 90-265V AC/DC $2,242
IQ260ML65110 IQ260 Meter/Display Log 60Hz 5A 90-265V AC/DC w/2DO&2DI $2,742
IQ260ML65114 IQ260 Meter/Display Log 60Hz 5A 90-265V AC/DC w/2DO&2DI&4AO $3,359
IQ260ML65120 IQ260 Meter/Display Log 60Hz 5A 90-265V AC/DC w/4KYZ&4DI $3,324
IQ260ML65130 IQ260 Meter/Display Log 60Hz 5A 90-265V AC/DC w/4AO 0-1mA $3,324
IQ260ML65140 IQ260 Meter/Display Log 60Hz 5A 90-265V AC/DC w/4AO $2,859
IQ260ML65400 IQ260 Meter/Display Log 60Hz 5A 24-48V DC $2,242
IQ260ML65410 IQ260 Meter/Display Log 60Hz 5A 24-48V DC w/2DO&2DI $2,742
IQ260ML65414 IQ260 Meter/Display Log 60Hz 5A 24-48V DC w/2DO&2DI&4AO $3,359
IQ260ML65420 IQ260 Meter/Display Log 60Hz 5A 24-48V DC w/4KYZ&4DI $3,324
IQ260ML65440 IQ260 Meter/Display Log 60Hz 5A 24-48V DC w/4AO $2,859
IQ260TA51100 IQ260 Transducer Only 50Hz 1A 90-265V AC/DC $1,609
IQ260TA51400 IQ260 Transducer Only 50Hz 1A 24-48V DC $1,609
IQ260TA55100 IQ260 Transducer Only 50Hz 5A 90-265V AC/DC $1,609
IQ260TA55400 IQ260 Transducer Only 50Hz 5A 24-48V DC $1,609
IQ260TA61100 IQ260 Transducer Only 60Hz 1A 90-265V AC/DC $1,609
IQ260TA61400 IQ260 Transducer Only 60Hz 1A 24-48V DC $1,609
IQ260TA65100 IQ260 Transducer Only 60Hz 5A 90-265V AC/DC $1,609
IQ260TA65110 IQ260 Transducer Only 60Hz 5A 90-265V AC/DC w/2DO&2DI $2,112
IQ260TA65114 IQ260 Transducer Only 60Hz 5A 90-265V AC/DC w/2DO&2DI&4AO $2,733
IQ260TA65120 IQ260 Transducer Only 60Hz 5A 90-265V AC/DC w/4KYZ&4DI $2,672
IQ260TA65140 IQ260 Transducer Only 60Hz 5A 90-265V AC/DC w/4AO $2,230
IQ260TA65400 IQ260 Transducer Only 60Hz 5A 24-48V DC $1,609
IQ260TA65410 IQ260 Transducer Only 60Hz 5A 24-48V DC w/2DO&2DI $2,112
IQ260TA65414 IQ260 Transducer Only 60Hz 5A 24-48V DC w/2DO&2DI&4AO $2,733
IQ260TA65420 IQ260 Transducer Only 60Hz 5A 24-48V DC w/4KYZ&4DI $2,672
IQ260TA65440 IQ260 Transducer Only 60Hz 5A 24-48V DC w/4AO $2,230
IQ260TL51100 IQ260 Transducer Log 50Hz 1A 90-265V AC/DC $2,058
IQ260TL51400 IQ260 Transducer Log 50Hz 1A 24-48V DC $2,058
IQ260TL55100 IQ260 Transducer Log 50Hz 5A 90-265V AC/DC $2,058
IQ260TL55400 IQ260 Transducer Log 50Hz 5A 24-48V DC $2,058
IQ260TL61100 IQ260 Transducer Log 60Hz 1A 90-265V AC/DC $2,058
IQ260TL61400 IQ260 Transducer Log 60Hz 1A 24-48V DC $2,058
IQ260TL65100 IQ260 Transducer Log 60Hz 5A 90-265V AC/DC $2,058
IQ260TL65110 IQ260 Transducer Log 60Hz 5A 90-265V AC/DC w/2DO&2DI $2,555
IQ260TL65114 IQ260 Transducer Log 60Hz 5A 90-265V AC/DC w/2DO&2DI&4AO $3,171
IQ260TL65120 IQ260 Transducer Log 60Hz 5A 90-265V AC/DC w/4KYZ&4DI $3,137
IQ260TL65130 IQ260 Transducer Log 60Hz 5A 90-265V AC/DC w/4AO 0-1mA $3,137
IQ260TL65140 IQ260 Transducer Log 60Hz 5A 90-265V AC/DC w/4AO $2,673
IQ260TL65400 IQ260 Transducer Log 60Hz 5A 24-48V DC $2,058
IQ260TL65410 IQ260 Transducer Log 60Hz 5A 24-48V DC w/2DO&2DI $2,555
IQ260TL65414 IQ260 Transducer Log 60Hz 5A 24-48V DC w/2DO&2DI&4AO $3,171
IQ260TL65420 IQ260 Transducer Log 60Hz 5A 24-48V DC w/4KYZ&4DI $3,137
IQ260TL65440 IQ260 Transducer Log 60Hz 5A 24-48V DC w/4AO $2,673
*Prices subject to change.
July 1, 2013
99www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
IQ 250/260 SERIES (continued)
Metering Products
IQ 250/260 ACCESSORIES (I/O Cards Offered for Upgrade)
Catalog Number Description List Price
IQ250/260-IO1 PXM 2000 I/O Card-2 Relay Outputs/2 Status Inputs $504
IQ250/260-IO2 PXM 2000 I/O Card-4 KYZ Pulses/4 Status Inputs $1,065
IQ250/260-IO3 PXM 2000 I/O Card-4 Analog Outputs - 0–1 mA $1,065
IQ250/260-IO4 PXM 2000 I/O Card-4 Analog Outputs - 4–20 mA $621
IQ250-PMAK Panel Mounting Adapter Kit-PXM2000 To IQ A/DP/DATA $89
PXM2000-GCK PXM 2000 Gateway Card Kit to Upgrade an IQ 250/260 to a PXM 2000 $835
IQ 250/260 Catalog Numbering System
IQ 250 M A 6 5 1 1 0
Example 1: IQ250MA65140 (IQ 250 Meter/Display 60 Hz, 5 A, 90 – 265 Vac/dc W/4AO)
Example 2: IQ260MA65100 (IQ 260 Meter/Display 60 Hz, 5 A, 90 – 265 Vac/dc)
Model Series
250 = Energy
260 = Power Quality
Meter Type
M = Meter (with integral display)
T = Transducer Only (no display)
I/O Slot 2
0 = None
1 = 2 Relay Outputs/2 Status Inputs
2 = 4 KYZ Pulses/4 Status Inputs
3 = 4 Analog Outputs- 0-1 mA
4 = 4 Analog Outputs- 4-20 mA
I/O Slot 1
0 = None
1 = 2 Relay Outputs/2 Status Inputs
2 = 4 KYZ Pulses/4 Status Inputs
3 = 4 Analog Outputs: 0–1 mA
4 = 4 Analog Outputs: 4–20 mA
Data Logging
A = None
L = Data logging
Current Input
1 = 1 Amp Secondary
5 = 5 Amp Secondary
Power Supply
1 = 90-265V AC/DC
4 = 24-48V DC
Frequency
5 = 50 Hz System
6 = 60 Hz Systems
100 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
IQ 130/140/150 SERIES
Metering Products
Providing the first line of defense against costly power problems, Eaton’s IQ 100 electronic power meters can perform the work of an entire wall
of legacy metering equipment utilizing today’s technology. Eaton’s IQ 100 meters use 24-bit AD converters that sample at more than 400 samples
per cycle and meet ANSI C12.20 standards for accuracy of 0.5 percent. With such high-performance measurement capability, these meters can
be confidently used for primary revenue metering and submetering applications.
Applications
• Utility and commercial metering
• Substations, industrial facilities, power generation sites and campuses
• Submetering
• Load studies and voltage recording
• Analog meter replacement
IQ 130/140/150 SERIES
Catalog Number Description List Price
IQ 130 Meters
IQ130MA5110 IQ130 Meter/Display 50Hz 1A 90-265V AC/DC $469
IQ130MA5111 IQ130 Meter/Display 50Hz 1A 90-265V AC/DC w/Modbus/KYZ Out $622
IQ130MA5112 IQ130 Meter/Display 50HZ 1A 90-265V AC/DC w/Ethernet/KYZ $1,022
IQ130MA5140 IQ130 Meter/Display 50Hz 1A 24-48V DC $469
IQ130MA5510 IQ130 Meter/Display 50Hz 5A 90-265V AC/DC $469
IQ130MA5511 IQ130 Meter/Display 50Hz 5A 90-265V AC/DC w/Modbus/KYZ Out $622
IQ130MA5512 IQ130 Meter/Display 50HZ 5A 90-265V AC/DC w/Ethernet/KYZ $1,022
IQ130MA5540 IQ130 Meter/Display 50Hz 5A 24-48V DC $469
IQ130MA6110 IQ130 Meter/Display 60Hz 1A 90-265V AC/DC $469
IQ130MA6111 IQ130 Meter/Display 60Hz 1A 90-265V AC/DC w/Modbus/KYZ Out $622
IQ130MA6112 IQ130 Meter/Display 60HZ 1A 90-265V AC/DC w/Ethernet/KYZ $1,022
IQ130MA6140 IQ130 Meter/Display 60Hz 1A 24-48V DC $469
IQ130MA6510 IQ130 Meter/Display 60Hz 5A 90-265V AC/DC $469
IQ130MA6511 IQ130 Meter/Display 60Hz 5A 90-265V AC/DC w/Modbus/KYZ Out $622
IQ130MA6512 IQ130 Meter/Display 60HZ 5A 90-265V AC/DC w/Ethernet/KYZ $1,022
IQ130MA6540 IQ130 Meter/Display 60Hz 5A 24-48V DC $469
IQ130MA6541 IQ130 Meter/Display 60Hz 5A 24-48V DC w/Modbus/KYZ Out $622
IQ130MA6542 IQ130 Meter/Display 60HZ 5A 24-48V DC w/Ethernet/KYZ $1,022
IQ130TA5111 IQ130 Transducer Only 50Hz 1A 90-265V AC/DC w/Modbus/KYZ Out $469
IQ130TA5112 IQ130 Transducer Only 50HZ 1A 90-265V AC/DC w/Ethernet/KYZ $925
IQ130TA5141 IQ130 Transducer Only 50Hz 1A 24-48V DC w/Modbus/KYZ Out $469
IQ130TA5142 IQ130 Transducer Only 50HZ 1A 24-48V DC w/Ethernet/KYZ $925
IQ130TA5511 IQ130 Transducer Only 50Hz 5A 90-265V AC/DC w/Modbus/KYZ Out $469
IQ130TA5512 IQ130 Transducer Only 50HZ 5A 90-265V AC/DC w/Ethernet/KYZ $925
IQ130TA5541 IQ130 Transducer Only 50Hz 5A 24-48V DC w/Modbus/KYZ Out $469
IQ130TA5542 IQ130 Transducer Only 50HZ 5A 24-48V DC w/Ethernet/KYZ $925
IQ130TA6111 IQ130 Transducer Only 60Hz 1A 90-265V AC/DC w/Modbus/KYZ Out $469
IQ130TA6112 IQ130 Transducer Only 60HZ 1A 90-265V AC/DC w/Ethernet/KYZ $925
IQ130TA6141 IQ130 Transducer Only 60Hz 1A 24-48V DC w/Modbus/KYZ Out $469
IQ130TA6142 IQ130 Transducer Only 60HZ 1A 24-48V DC w/Ethernet/KYZ $925
IQ130TA6511 IQ130 Transducer Only 60Hz 5A 90-265V AC/DC w/Modbus/KYZ Out $469
IQ130TA6512 IQ130 Transducer Only 60HZ 5A 90-265V AC/DC w/Ethernet/KYZ $925
IQ130TA6541 IQ130 Transducer Only 60Hz 5A 24-48V DC w/Modbus/KYZ Out $469
IQ130TA6542 IQ130 Transducer Only 60HZ 5A 24-48V DC w/Ethernet/KYZ $925
IQ 140 Meters
IQ140MA5110 IQ140 Meter/Display 50Hz 1A 90-265V AC/DC $607
IQ140MA5111 IQ140 Meter/Display 50Hz 1A 90-265V AC/DC w/Modbus/KYZ Out $760
IQ140MA5112 IQ140 Meter/Display 50HZ 1A 90-265V AC/DC w/Ethernet/KYZ $1,160
July 1, 2013
101www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
IQ 130/140/150 SERIES (continued)
Metering Products
IQ 130/140/150 SERIES (continued)
Catalog Number Description List Price
IQ 140 Meters (continued)
IQ140MA5140 IQ140 Meter/Display 50Hz 1A 24-48V DC $607
IQ140MA5510 IQ140 Meter/Display 50Hz 5A 90-265V AC/DC $607
IQ140MA5511 IQ140 Meter/Display 50Hz 5A 90-265V AC/DC w/Modbus/KYZ Out $760
IQ140MA5512 IQ140 Meter/Display 50HZ 5A 90-265V AC/DC w/Ethernet/KYZ $1,160
IQ140MA5540 IQ140 Meter/Display 50Hz 5A 24-48V DC $607
IQ140MA6110 IQ140 Meter/Display 60Hz 1A 90-265V AC/DC $607
IQ140MA6111 IQ140 Meter/Display 60Hz 1A 90-265V AC/DC w/Modbus/KYZ Out $760
IQ140MA6112 IQ140 Meter/Display 60HZ 1A 90-265V AC/DC w/Ethernet/KYZ $1,160
IQ140MA6140 IQ140 Meter/Display 60Hz 1A 24-48V DC $607
IQ140MA6510 IQ140 Meter/Display 60Hz 5A 90-265V AC/DC $607
IQ140MA6511 IQ140 Meter/Display 60Hz 5A 90-265V AC/DC w/Modbus/KYZ Out $760
IQ140MA6512 IQ140 Meter/Display 60HZ 5A 90-265V AC/DC w/Ethernet/KYZ $1,160
IQ140MA6540 IQ140 Meter/Display 60Hz 5A 24-48V DC $607
IQ140MA6541 IQ140 Meter/Display 60Hz 5A 24-48V DC w/Modbus/KYZ Out $760
IQ140MA6542 IQ140 Meter/Display 60HZ 5A 24-48V DC w/Ethernet/KYZ $1,160
IQ140TA5111 IQ140 Transducer Only 50Hz 1A 90-265V AC/DC w/Modbus/KYZ Out $607
IQ140TA5112 IQ140 Transducer Only 50HZ 1A 90-265V AC/DC w/Ethernet/KYZ $1,063
IQ140TA5141 IQ140 Transducer Only 50Hz 1A 24-48V DC w/Modbus/KYZ Out $607
IQ140TA5142 IQ140 Transducer Only 50HZ 1A 24-48V DC w/Ethernet/KYZ $1,063
IQ140TA5511 IQ140 Transducer Only 50Hz 5A 90-265V AC/DC w/Modbus/KYZ Out $607
IQ140TA5512 IQ140 Transducer Only 50HZ 5A 90-265V AC/DC w/Ethernet/KYZ $1,063
IQ140TA5541 IQ140 Transducer Only 50Hz 5A 24-48V DC w/Modbus/KYZ Out $607
IQ140TA5542 IQ140 Transducer Only 50HZ 5A 24-48V DC w/Ethernet/KYZ $1,063
IQ140TA6111 IQ140 Transducer Only 60Hz 1A 90-265V AC/DC w/Modbus/KYZ Out $607
IQ140TA6112 IQ140 Transducer Only 60HZ 1A 90-265V AC/DC w/Ethernet/KYZ $1,063
IQ140TA6141 IQ140 Transducer Only 60Hz 1A 24-48V DC w/Modbus/KYZ Out $607
IQ140TA6142 IQ140 Transducer Only 60HZ 1A 24-48V DC w/Ethernet/KYZ $1,063
IQ140TA6511 IQ140 Transducer Only 60Hz 5A 90-265V AC/DC w/Modbus/KYZ Out $607
IQ140TA6512 IQ140 Transducer Only 60HZ 5A 90-265V AC/DC w/Ethernet/KYZ $1,063
IQ140TA6541 IQ140 Transducer Only 60Hz 5A 24-48V DC w/Modbus/KYZ Out $607
IQ140TA6542 IQ140 Transducer Only 60HZ 5A 24-48V DC w/Ethernet/KYZ $1,063
IQ 150 Meters
IQ150MA5110 IQ150 Meter/Display 50Hz 1A 90-265V AC/DC $642
IQ150MA5111 IQ150 Meter/Display 50Hz 1A 90-265V AC/DC w/Modbus/KYZ Out $795
IQ150MA5112 IQ150 Meter/Display 50HZ 1A 90-265V AC/DC w/Ethernet/KYZ $1,195
IQ150MA5140 IQ150 Meter/Display 50Hz 1A 24-48V DC $642
IQ150MA5510 IQ150 Meter/Display 50Hz 5A 90-265V AC/DC $642
IQ150MA5511 IQ150 Meter/Display 50Hz 5A 90-265V AC/DC w/Modbus/KYZ Out $795
IQ150MA5512 IQ150 Meter/Display 50HZ 5A 90-265V AC/DC w/Ethernet/KYZ $1,195
IQ150MA5540 IQ150 Meter/Display 50Hz 5A 24-48V DC $642
IQ150MA6110 IQ150 Meter/Display 60Hz 1A 90-265V AC/DC $642
IQ150MA6111 IQ150 Meter/Display 60Hz 1A 90-265V AC/DC w/Modbus/KYZ Out $795
IQ150MA6112 IQ150 Meter/Display 60HZ 1A 90-265V AC/DC w/Ethernet/KYZ $1,195
IQ150MA6140 IQ150 Meter/Display 60Hz 1A 24-48V DC $642
IQ150MA6510 IQ150 Meter/Display 60Hz 5A 90-265V AC/DC $642
IQ150MA6511 IQ150 Meter/Display 60Hz 5A 90-265V AC/DC w/Modbus/KYZ Out $795
IQ150MA6512 IQ150 Meter/Display 60HZ 5A 90-265V AC/DC w/Ethernet/KYZ $1,195
IQ150MA6540 IQ150 Meter/Display 60Hz 5A 24-48V DC $642
IQ150MA6541 IQ150 Meter/Display 60Hz 5A 24-48V DC w/Modbus/KYZ Out $795
IQ150MA6542 IQ150 Meter/Display 60HZ 5A 24-48V DC w/Ethernet/KYZ $1,195
102 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
IQ 130/140/150 SERIES (continued)
Metering Products
IQ 150 M A 6 5 1 1
Model Series
130 = Volts/amps
140 = Power
150 = Energy
Meter Type
M = Meter (with integral display)
T = Transducer Only (no display)
Communication
0 = None
1 = Modbus and KYZ Pulse
(RS485)
2 = Modbus TCP and KYZ
Output (RS485)
Frequency
5 = 50 Hz System
6 = 60 Hz Systems
Current Input
1 = 1A Secondary
5 = 5A Secondary
Power Supply
1 = 90–265 Vac/dc
4 = 24–48 Vdc
IQ 130/140/150 SERIES (continued)
Catalog Number Description List Price
IQ 150 Meters (continued)
IQ150TA5111 IQ150 Transducer Only 50Hz 1A 90-265V AC/DC w/Modbus/KYZ Out $642
IQ150TA5112 IQ150 Transducer Only 50HZ 1A 90-265V AC/DC w/Ethernet/KYZ $1,098
IQ150TA5141 IQ150 Transducer Only 50Hz 1A 24-48V DC w/Modbus/KYZ Out $642
IQ150TA5142 IQ150 Transducer Only 50HZ 1A 24-48V DC w/Ethernet/KYZ $1,098
IQ150TA5511 IQ150 Transducer Only 50Hz 5A 90-265V AC/DC w/Modbus/KYZ Out $642
IQ150TA5512 IQ150 Transducer Only 50HZ 5A 90-265V AC/DC w/Ethernet/KYZ $1,098
IQ150TA5541 IQ150 Transducer Only 50Hz 5A 24-48V DC w/Modbus/KYZ Out $642
IQ150TA5542 IQ150 Transducer Only 50HZ 5A 24-48V DC w/Ethernet/KYZ $1,098
IQ150TA6111 IQ150 Transducer Only 60Hz 1A 90-265V AC/DC w/Modbus/KYZ Out $642
IQ150TA6112 IQ150 Transducer Only 60HZ 1A 90-265V AC/DC w/Ethernet/KYZ $1,098
IQ150TA6141 IQ150 Transducer Only 60Hz 1A 24-48V DC w/Modbus/KYZ Out $642
IQ150TA6142 IQ150 Transducer Only 60HZ 1A 24-48V DC w/Ethernet/KYZ $1,098
IQ150TA6511 IQ150 Transducer Only 60Hz 5A 90-265V AC/DC w/Modbus/KYZ Out $642
IQ150TA6512 IQ150 Transducer Only 60HZ 5A 90-265V AC/DC w/Ethernet/KYZ $1,098
IQ150TA6541 IQ150 Transducer Only 60Hz 5A 24-48V DC w/Modbus/KYZ Out $642
IQ150TA6542 IQ150 Transducer Only 60HZ 5A 24-48V DC w/Ethernet/KYZ $1,098
Accessories
Catalog Number Description List Price
IQ250-PMAK Panel Mounting Adapter Kit-IQ 130/140/150 To IQ A/DP/DATA $89
IQ 100 Catalog Numbering System
July 1, 2013
103www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
Enclosed Meters
Power Quality Metering Products
Designed for the IQ35M, IQ150, IQ250/260, and Power Xpert Meter 2000, Eaton’s Single and Multi Unit Enclosed Meter offers
mounting and installation flexibility, especially in retrofit applications where no metering compartment or mounting space is
available in the existing electrical distribution equipment or where installation time is a premium. Factory designed and wired,
Eaton’s Enclosed Meter delivers savings in labor and installation costs since input current and voltage wiring as well as I/O
wiring is pre-wired to terminal blocks inside the Enclosure. To ensure safety, Eaton’s Enclosed Meter includes a primary
breaker for line voltage that can be turned off during meter maintenance.
Applications
Stand-alone, enclosed meters are ideal for new metering applications where no metering existed previously, retrofit installa-
tions or where ease of installation is required. All necessary components are included.
ENCLOSED METERS — SINGLE UNIT
Catalog Number Description List Price
w/IQ35M Series Meters
IQ35MA15-3A IQ35M w/BACNET w/NEMA 3R Enclosure $3,430
w/IQ100 Meter Series
IQ150MA6511-2A IQ150 w/Modbus/KYZ Out w/NEMA 12 Enclosure $1,683
IQ150MA6511-2B IQ150 w/Modbus/KYZ Out w/NEMA 12 Enclosure w/CPT $1,834
IQ150MA6511-3A IQ150 w/Modbus/KYZ Out w/NEMA 3R Enclosure $1,762
IQ150MA6511-3B IQ150 w/Modbus/KYZ Out w/NEMA 3R Enclosure w/CPT $1,914
IQ150MA6511-4A IQ150 w/Modbus/KYZ Out w/NEMA 4X Enclosure $1,855
IQ150MA6511-4B IQ150 w/Modbus/KYZ Out w/NEMA 4X Enclosure w/CPT $2,005
IQ150MA6512-2A IQ150 w/Ethernet/KYZ Out w/NEMA 12 Enclosure $2,083
IQ150MA6512-2B IQ150 w/Ethernet/KYZ Out w/NEMA 12 Enclosure w/CPT $2,234
IQ150MA6512-3A IQ150 w/Ethernet/KYZ Out w/NEMA 3R Enclosure $2,162
IQ150MA6512-3B IQ150 w/Ethernet/KYZ Out w/NEMA 3R Enclosure w/CPT $2,314
IQ150MA6512-4A IQ150 w/Ethernet/KYZ Out w/NEMA 4X Enclosure $2,255
IQ150MA6512-4B IQ150 w/Ethernet/KYZ Out w/NEMA 4X Enclosure w/CPT $2,405
w/IQ250/260 Meter Series
IQ250MA65100-2A IQ250 w/NEMA 12 Enclosure $2,266
IQ250MA65100-2B IQ250 w/NEMA 12 Enclosure w/CPT $2,418
IQ250MA65100-3A IQ250 w/NEMA 3R Enclosure $2,347
IQ250MA65100-3B IQ250 w/NEMA 3R Enclosure w/CPT $2,498
IQ250MA65100-4A IQ250 w/NEMA 4X Enclosure $2,439
IQ250MA65100-4B IQ250 w/NEMA 4X Enclosure w/CPT $2,590
IQ250MA65110-2A IQ250 w/2DO&2DI w/NEMA 12 Enclosure $2,980
IQ250MA65110-2B IQ250 w/2DO&2DI w/NEMA 12 Enclosure w/CPT $3,131
IQ250MA65110-3A IQ250 w/2DO&2DI w/NEMA 3R Enclosure $3,060
IQ250MA65110-3B IQ250 w/2DO&2DI w/NEMA 3R Enclosure w/CPT $3,211
IQ250MA65110-4A IQ250 w/2DO&2DI w/NEMA 4X Enclosure $3,152
IQ250MA65110-4B IQ250 w/2DO&2DI w/NEMA 4X Enclosure w/CPT $3,303
IQ250MA65114-2A IQ250 w/2DO&2DI&4AO w/NEMA 12 Enclosure $3,630
IQ250MA65114-2B IQ250 w/2DO&2DI&4AO w/NEMA 12 Enclosure w/CPT $3,782
IQ250MA65114-3A IQ250 w/2DO&2DI&4AO w/NEMA 3R Enclosure $3,711
IQ250MA65114-3B IQ250 w/2DO&2DI&4AO w/NEMA 3R Enclosure w/CPT $3,862
IQ250MA65114-4A IQ250 w/2DO&2DI&4AO w/NEMA 4X Enclosure $3,803
IQ250MA65114-4B IQ250 w/2DO&2DI&4AO w/NEMA 4X Enclosure w/CPT $3,954
IQ260MA65100-2A IQ260 w/NEMA 12 Enclosure $2,699
IQ260MA65100-2B IQ260 w/NEMA 12 Enclosure w/CPT $2,850
IQ260MA65100-3A IQ260 w/NEMA 3R Enclosure $2,779
IQ260MA65100-3B IQ260 w/NEMA 3R Enclosure w/CPT $2,930
IQ260MA65100-4A IQ260 w/NEMA 4X Enclosure $2,871
IQ260MA65100-4B IQ260 w/NEMA 4X Enclosure w/CPT $3,021
IQ260MA65110-2A IQ260 w/2DO&2DI w/NEMA 12 Enclosure $3,411
IQ260MA65110-2B IQ260 w/2DO&2DI w/NEMA 12 Enclosure w/CPT $3,562
IQ260MA65110-3A IQ260 w/2DO&2DI w/NEMA 3R Enclosure $3,492
IQ260MA65110-3B IQ260 w/2DO&2DI w/NEMA 3R Enclosure w/CPT $3,643
IQ260MA65110-4A IQ260 w/2DO&2DI w/NEMA 4X Enclosure $3,583
104 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
ENCLOSED METERS — SINGLE UNIT
(continued)
Catalog Number Description List Price
w/IQ250/260 Meter Series (continued)
IQ260MA65110-4B IQ260 w/2DO&2DI w/NEMA 4X Enclosure w/CPT $3,734
IQ260MA65114-2A IQ260 w/2DO&2DI&4AO w/NEMA 12 Enclosure $4,062
IQ260MA65114-2B IQ260 w/2DO&2DI&4AO w/NEMA 12 Enclosure w/CPT $4,212
IQ260MA65114-3A IQ260 w/2DO&2DI&4AO w/NEMA 3R Enclosure $4,142
IQ260MA65114-3B IQ260 w/2DO&2DI&4AO w/NEMA 3R Enclosure w/CPT $4,293
IQ260MA65114-4A IQ260 w/2DO&2DI&4AO w/NEMA 4X Enclosure $4,233
IQ260MA65114-4B IQ260 w/2DO&2DI&4AO w/NEMA 4X Enclosure w/CPT $4,384
w/Power Xpert Meter 2000 Series
PXM2250MA65105-2A PXM2250 w/NEMA 12 Enclosure $2,998
PXM2250MA65105-2B PXM2250 w/NEMA 12 Enclosure w/CPT $3,149
PXM2250MA65105-3A PXM2250 w/NEMA 3R Enclosure $3,079
PXM2250MA65105-3B PXM2250 w/NEMA 3R Enclosure w/CPT $3,230
PXM2250MA65105-4A PXM2250 w/NEMA 4X Enclosure $3,170
PXM2250MA65105-4B PXM2250 w/NEMA 4X Enclosure w/CPT $3,322
PXM2250MA65115-2A PXM2250 w/2DO&2DI w/NEMA 12 Enclosure $3,671
PXM2250MA65115-2B PXM2250 w/2DO&2DI w/NEMA 12 Enclosure w/CPT $3,822
PXM2250MA65115-3A PXM2250 w/2DO&2DI w/NEMA 3R Enclosure $3,752
PXM2250MA65115-3B PXM2250 w/2DO&2DI w/NEMA 3R Enclosure w/CPT $3,902
PXM2250MA65115-4A PXM2250 w/2DO&2DI w/NEMA 4X Enclosure $3,843
PXM2250MA65115-4B PXM2250 w/2DO&2DI w/NEMA 4X Enclosure w/CPT $3,995
PXM2250MA65145-2A PXM2250 w/4AO 4-20 w/NEMA 12 Enclosure $3,784
PXM2250MA65145-2B PXM2250 w/4AO 4-20 w/NEMA 12 Enclosure w/CPT $3,935
PXM2250MA65145-3A PXM2250 w/4AO 4-20 w/NEMA 3R Enclosure $3,864
PXM2250MA65145-3B PXM2250 w/4AO 4-20 w/NEMA 3R Enclosure w/CPT $4,016
PXM2250MA65145-4A PXM2250 w/4AO 4-20 w/NEMA 4X Enclosure $3,956
PXM2250MA65145-4B PXM2250 w/4AO 4-20 w/NEMA 4X Enclosure w/CPT $4,107
PXM2260MA65105-2A PXM2260 w/NEMA 12 Enclosure $3,396
PXM2260MA65105-2B PXM2260 w/NEMA 12 Enclosure w/CPT $3,547
PXM2260MA65105-3A PXM2260 w/NEMA 3R Enclosure $3,477
PXM2260MA65105-3B PXM2260 w/NEMA 3R Enclosure w/CPT $3,628
PXM2260MA65105-4A PXM2260 w/NEMA 4X Enclosure $3,568
PXM2260MA65105-4B PXM2260 w/NEMA 4X Enclosure w/CPT $3,720
PXM2260MA65115-2A PXM2260 w/2DO&2DI w/NEMA 12 Enclosure $4,070
PXM2260MA65115-2B PXM2260 w/2DO&2DI w/NEMA 12 Enclosure w/CPT $4,221
PXM2260MA65115-3A PXM2260 w/2DO&2DI w/NEMA 3R Enclosure $4,151
PXM2260MA65115-3B PXM2260 w/2DO&2DI w/NEMA 3R Enclosure w/CPT $4,302
PXM2260MA65115-4A PXM2260 w/2DO&2DI w/NEMA 4X Enclosure $4,242
PXM2260MA65115-4B PXM2260 w/2DO&2DI w/NEMA 4X Enclosure w/CPT $4,394
PXM2260MA65145-2A PXM2260 w/4AO 4-20 w/NEMA 12 Enclosure $4,183
PXM2260MA65145-2B PXM2260 w/4AO 4-20 w/NEMA 12 Enclosure w/CPT $4,334
PXM2260MA65145-3A PXM2260 w/4AO 4-20 w/NEMA 3R Enclosure $4,263
PXM2260MA65145-3B PXM2260 w/4AO 4-20 w/NEMA 3R Enclosure w/CPT $4,415
PXM2260MA65145-4A PXM2260 w/4AO 4-20 w/NEMA 4X Enclosure $4,355
PXM2260MA65145-4B PXM2260 w/4AO 4-20 w/NEMA 4X Enclosure w/CPT $4,506
PXM2270MA65105-2A PXM2270 w/NEMA 12 Enclosure $4,239
PXM2270MA65105-2B PXM2270 w/NEMA 12 Enclosure w/CPT $4,391
PXM2270MA65105-3A PXM2270 w/NEMA 3R Enclosure $4,319
PXM2270MA65105-3B PXM2270 w/NEMA 3R Enclosure w/CPT $4,470
PXM2270MA65105-4A PXM2270 w/NEMA 4X Enclosure $4,410
PXM2270MA65105-4B PXM2270 w/NEMA 4X Enclosure w/CPT $4,562
PXM2270MA65115-2A PXM2270 w/2DO&2DI w/NEMA 12 Enclosure $4,912
PXM2270MA65115-2B PXM2270 w/2DO&2DI w/NEMA 12 Enclosure w/CPT $5,065
PXM2270MA65115-3A PXM2270 w/2DO&2DI w/NEMA 3R Enclosure $4,993
Enclosed Meters (continued)
Power Quality Metering Products
July 1, 2013
105www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
ENCLOSED METERS — SINGLE UNIT
(continued)
Catalog Number Description List Price
w/Power Xpert Meter 2000 Series
(continued)
PXM2270MA65115-3B PXM2270 w/2DO&2DI w/NEMA 3R Enclosure w/CPT $5,145
PXM2270MA65115-4A PXM2270 w/2DO&2DI w/NEMA 4X Enclosure $5,085
PXM2270MA65115-4B PXM2270 w/2DO&2DI w/NEMA 4X Enclosure w/CPT $5,240
PXM2270MA65145-2A PXM2270 w/4AO 4-20 w/NEMA 12 Enclosure $5,025
PXM2270MA65145-2B PXM2270 w/4AO 4-20 w/NEMA 12 Enclosure w/CPT $5,180
PXM2270MA65145-3A PXM2270 w/4AO 4-20 w/NEMA 3R Enclosure $5,110
PXM2270MA65145-3B PXM2270 w/4AO 4-20 w/NEMA 3R Enclosure w/CPT $5,265
PXM2270MA65145-4A PXM2270 w/4AO 4-20 w/NEMA 4X Enclosure $5,200
PXM2270MA65145-4B PXM2270 w/4AO 4-20 w/NEMA 4X Enclosure w/CPT $5,350
PXM2280MA65145-3A PXM2280 w/4AO 4-20 w/NEMA 3R Enclosure $5,893
PXM2290MA65105-2B PXM2290 w/NEMA 12 Enclosure w/CPT $6,966
w/Power Xpert Meter 4000/6000/8000 Series
PXM4051A1BA-2A PXM 4000 W/ COM. EXP. CARD W/NEMA 12 ENC W/DISPT $10,907
PXM4051A1BA-2B PXM 4000 W/ COM. EXP. CARD W/NEMA 12 ENC W/CPT W/DISP $11,199
PXM4051A1BA-3A PXM 4000 W/ COM. EXP. CARD W/NEMA 3R ENC W/DISP $11,141
PXM4051A1BA-3B PXM 4000 W/ COM. EXP. CARD W/NEMA 3R ENC W/CPT W/DISP $11,549
PXM4051A1BA-4A PXM 4000 W/ COM. EXP. CARD W/NEMA 4X ENC W/DISP $13,649
PXM4051A1BA-4B PXM 4000 W/ COM. EXP. CARD W/NEMA 4X ENC W/CPT W/DISP $13,941
PXM4051A1BB-2A PXM 4000 W/ COM. EXP. & I/O CARDS W/NEMA 12 ENC W/DISP $11,542
PXM4051A1BB-2B PXM 4000 W/ COM. EXP. & I/O CARDS W/NEMA 12 ENC W/CPT W/DISP $11,834
PXM4051A1BB-3A PXM 4000 W/ COM. EXP. & I/O CARDS W/NEMA 3R ENC W/DISP $11,776
PXM4051A1BB-3B PXM 4000 W/ COM. EXP. & I/O CARDS W/NEMA 3R ENC W/CPT W/DISP $12,184
PXM4051A1BB-4A PXM 4000 W/ COM. EXP. & I/O CARDS W/NEMA 4X ENC W/DISP $14,284
PXM4051A1BB-4B PXM 4000 W/ COM. EXP. & I/O CARDS W/NEMA 4X ENC W/CPT W/DISP $14,576
PXM6051A1BA-2A PXM 6000 W/ COM. EXP. CARD W/NEMA 12 ENC W/DISPT $13,027
PXM6051A1BA-2B PXM 6000 W/ COM. EXP. CARD W/NEMA 12 ENC W/CPT W/DISP $13,319
PXM6051A1BA-3A PXM 6000 W/ COM. EXP. CARD W/NEMA 3R ENC W/DISP $13,261
PXM6051A1BA-3B PXM 6000 W/ COM. EXP. CARD W/NEMA 3R ENC W/CPT W/DISP $13,669
PXM6051A1BA-4A PXM 6000 W/ COM. EXP. CARD W/NEMA 4X ENC W/DISP $15,769
PXM6051A1BA-4B PXM 6000 W/ COM. EXP. CARD W/NEMA 4X ENC W/CPT W/DISP $16,061
PXM6051A1BB-2A PXM 6000 W/ COM. EXP. & I/O CARDS W/NEMA 12 ENC W/DISP $13,662
PXM6051A1BB-2B PXM 6000 W/ COM. EXP. & I/O CARDS W/NEMA 12 ENC W/CPT W/DISP $13,954
PXM6051A1BB-3A PXM 6000 W/ COM. EXP. & I/O CARDS W/NEMA 3R ENC W/DISP $13,896
PXM6051A1BB-3B PXM 6000 W/ COM. EXP. & I/O CARDS W/NEMA 3R ENC W/CPT W/DISP $14,304
PXM6051A1BB-4A PXM 6000 W/ COM. EXP. & I/O CARDS W/NEMA 4X ENC W/DISP $16,404
PXM6051A1BB-4B PXM 6000 W/ COM. EXP. & I/O CARDS W/NEMA 4X ENC W/CPT W/DISP $16,696
PXM8051A1BA-2A PXM 8000 W/ COM. EXP. CARD W/NEMA 12 ENC W/DISPT $15,147
PXM8051A1BA-2B PXM 8000 W/ COM. EXP. CARD W/NEMA 12 ENC W/CPT W/DISP $15,439
PXM8051A1BA-3A PXM 8000 W/ COM. EXP. CARD W/NEMA 3R ENC W/DISP $15,381
PXM8051A1BA-3B PXM 8000 W/ COM. EXP. CARD W/NEMA 3R ENC W/CPT W/DISP $15,789
PXM8051A1BA-4A PXM 8000 W/ COM. EXP. CARD W/NEMA 4X ENC W/DISP $17,889
PXM8051A1BA-4B PXM 8000 W/ COM. EXP. CARD W/NEMA 4X ENC W/CPT W/DISP $18,181
PXM8051A1BB-2A PXM 8000 W/ COM. EXP. & I/O CARDS W/NEMA 12 ENC W/DISP $15,782
PXM8051A1BB-2B PXM 8000 W/ COM. EXP. & I/O CARDS W/NEMA 12 ENC W/CPT W/DISP $16,074
PXM8051A1BB-3A PXM 8000 W/ COM. EXP. & I/O CARDS W/NEMA 3R ENC W/DISP $16,016
PXM8051A1BB-3B PXM 8000 W/ COM. EXP. & I/O CARDS W/NEMA 3R ENC W/CPT W/DISP $16,424
PXM8051A1BB-4A PXM 8000 W/ COM. EXP. & I/O CARDS W/NEMA 4X ENC W/DISP $18,524
PXM8051A1BB-4B PXM 8000 W/ COM. EXP. & I/O CARDS W/NEMA 4X ENC W/CPT W/DISP $18,816
PXM8251A1BA-2B PXM 8000 W/ VAUX & COM. EXP. CARD W/NEMA 12 ENC W/CPT W/DISP $17,456
Note: Enclosed Meters Includes Meter/Display, 60HZ, 5A, 90-265VAC
Enclosed Meters (continued)
Power Quality Metering Products
106 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
ENCLOSED METERS — MULTI UNIT
Catalog Number Description List Price
w/IQ35M Meter Series
IQ35MA12-3A4C 4-IQ35Ms w/NEMA 3R Enclosure w/COMM $8,025
IQ35MA12-4A4C 4-IQ35Ms w/NEMA 4X Enclosure w/COMM $9,547
IQ35MA15-3A4A 4-IQ35Ms w/BACNET w/NEMA 3R w/4 Unit Enc $8,395
w/IQ150 Meter Series
IQ150MA6511-2A4C 4-IQ150s w/Modbus/KYZ Out w/NEMA 12 Enclosure w/COMM $7,767
IQ150MA6511-2B4C 4-IQ150s w/Modbus/KYZ Out w/NEMA 12 Enclosure w/CPT w/COMM $7,942
IQ150MA6511-3A4C 4-IQ150s w/Modbus/KYZ Out W/NEMA 3R Enclosure w/COMM $8,450
IQ150MA6511-3B4C 4-IQ150s w/Modbus/KYZ Out W/NEMA 3R Enclosure w/CPT w/COMM $8,625
IQ150MA6511-4A4C 4-IQ150s w/Modbus/KYZ Out w/NEMA 4X Enclosure w/COMM $9,972
IQ150MA6511-4B4C 4-IQ150s w/Modbus/KYZ Out w/NEMA 4X Enclosure w/CPT w/COMM $10,147
w/IQ250/260 Meter Series
IQ250MA65100-2A4C 4-IQ250s w/NEMA 12 Enclosure w/COMM $9,887
IQ250MA65100-2B4C 4-IQ250s w/NEMA 12 Enclosure w/CPT w/COMM $10,062
IQ250MA65100-3A4C 4-IQ250s w/NEMA 3R Enclosure w/COMM $10,570
IQ250MA65100-3B4C 4-IQ250s w/NEMA 3R Enclosure w/CPT w/COMM $10,745
IQ250MA65100-4A4C 4-IQ250s w/NEMA 4X Enclosure w/COMM $12,092
IQ250MA65100-4B4C 4-IQ250s w/NEMA 4X Enclosure w/CPT w/COMM $12,267
IQ260MA65100-2A4C 4-IQ260s w/NEMA 12 Enclosure w/COMM $11,455
IQ260MA65100-2B4C 4-IQ260s w/NEMA 12 Enclosure w/CPT w/COMM $11,630
IQ260MA65100-3A4C 4-IQ260s w/NEMA 3R Enclosure w/COMM $12,138
IQ260MA65100-3B4C 4-IQ260s w/NEMA 3R Enclosure w/CPT w/COMM $12,313
IQ260MA65100-4A4C 4-IQ260s w/NEMA 4X Enclosure w/COMM $13,660
IQ260MA65100-4B4C 4-IQ260s w/NEMA 4X Enclosure w/CPT w/COMM $13,835
Enclosed Meters (continued)
Power Quality Metering Products
July 1, 2013
107www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
Enclosed Meters (continued)
Power Quality Metering Products
Single Unit Enclosed Meter ordering information
PXM2250MA65105 - 2 B
Meter type
PXM2250MA65105 IQ250MA65100
PXM2250MA65115 IQ250MA65110
PXM2250MA65145 IQ250MA65114
PXM2260MA65105 IQ260MA65100
PXM2260MA65115 IQ260MA65110
PXM2260MA65145 IQ260MA65114
PXM2270MA65105 IQ150MA6511
PXM2270MA65115 IQ150MA6512
PXM2270MA65145
CPT option
A = 120/240 VAC (No CPT)
B = 480 VAC (Control Power
Transformer)
NEMA rating
2 = NEMA 12
3 = NEMA 3R
4 = NEMA 4X
Multi Unit Enclosed Meter ordering information
IQ150MA6511 - 2 B 4 C
* Not available with IQ 35M
NEMA rating
2 = NEMA 12*
3 = NEMA 3R
4 = NEMA 4X
CPT option
A = No CPT
B = Control Power Transformer*
# of meters
4 = 4 meters
Communications
C = Includes PXG200E
Meter type
IQ35MA12
IQ150MA6511
IQ250MA65100
IQ260MA65100
108 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
Enclosed Meters (continued)
Power Quality Metering Products
Eaton’s IQ 150S/250S meters provide direct-reading metered values for the most critical power aspects, such as watts, watt
demand, watthours, voltage-amperes (VA), VA-hours, vars, varhours and power factor. They have high sampling speed and
accuracy. These meters are self-enclosed in a NEMA 12 Enclosure with “knock-outs” on the bottom for communication and
power providing for an easy installation. Perhaps you don’t have network drops in all the right places. No problem.
The IQ 150S/250S offers a wireless communications option. The transmissions are encrypted using 128-bit Wired
Equivalent Privacy (WEP) for security.
Features and benefits
• Self-enclosed, these meters are an ideal solution for surface mounting next to a selected piece of equipment for
energy monitoring
• NEMA 12 Enclosure with a large, easy-to-read faceplate, consistent with other Eaton meter models, designed with
‘knockouts’ for easy installation
• Ethernet communications option for either wired or wireless setup allowing for additional ease of installation and
integration into existing
• Available data and alarm recording for historical records/trending
• Integrate into Eaton’s Power Xpert® Architecture for a holistic system-level view
SELF-ENCLOSED METERS
Catalog Number Description List Price
IQ 150S/250S Self-Enclosed Meters
IQ150SA5511 IQ150 Self-Enclosed Meter 50HZ 5A 90-400V AC/DC w/Modbus RTU $985
IQ150SA6511 IQ150 Self-Enclosed Meter 60HZ 5A 90-400V AC/DC w/Modbus RTU $985
IQ150SA5111 IQ150 Self-Enclosed Meter 50HZ 1A 90-400V AC/DC w/Modbus RTU $985
IQ150SA6111 IQ150 Self-Enclosed Meter 60HZ 1A 90-400V AC/DC w/Modbus RTU $985
IQ150SA5512 IQ150 Self-Enclosed Meter 50HZ 5A 90-400V AC/DC w/WiFi $1,435
IQ150SA6512 IQ150 Self-Enclosed Meter 60HZ 5A 90-400V AC/DC w/WiFi $1,435
IQ150SA5112 IQ150 Self-Enclosed Meter 50HZ 1A 90-400V AC/DC w/WiFi $1,435
IQ150SA6112 IQ150 Self-Enclosed Meter 60HZ 1A 90-400V AC/DC w/WiFi $1,435
IQ250SA5511 IQ250 Self-Enclosed Meter 50HZ 5A 90-400V AC/DC w/Modbus RTU $1,575
IQ250SA6511 IQ250 Self-Enclosed Meter 60HZ 5A 90-400V AC/DC w/Modbus RTU $1,575
IQ250SA5111 IQ250 Self-Enclosed Meter 50HZ 1A 90-400V AC/DC w/Modbus RTU $1,575
IQ250SA6111 IQ250 Self-Enclosed Meter 60HZ 1A 90-400V AC/DC w/Modbus RTU $1,575
IQ250SA5512 IQ250 Self-Enclosed Meter 50HZ 5A 90-400V AC/DC w/WiFi $2,025
IQ250SA6512 IQ250 Self-Enclosed Meter 60HZ 5A 90-400V AC/DC w/WiFi $2,025
IQ250SA5112 IQ250 Self-Enclosed Meter 50HZ 1A 90-400V AC/DC w/WiFi $2,025
IQ250SA6112 IQ250 Self-Enclosed Meter 60HZ 1A 90-400V AC/DC w/WiFi $2,025
IQ 150S/250S Meter catalog numbering system
IQ 150 S A 6 5 1 1
Model Series
150 = Energy
250 = Energy Plus
Meter Type
S = Self Enclosed
Meter
Frequency
5 = 50 Hz system
6 = 60 Hz system
Current Input
1 = 1A secondary
5 = 5A secondary
Power Supply
1 = 90—400 Vac/dc
Communication
1 = Modbus RTU (RS485)
2 = Modbus RTU (RS485)
or TCP - (RJ45)
or 802.11b (WiFi)
July 1, 2013
109www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
SOFTWARE
Software Products
UPS MANAGEMENT/SUPERVISORY SOFTWARE
Description Part Number List Price
Intelligent Power Manager, Silver edition: support for 11–100 IP addresses - all series 66925 $569
Intelligent Power Manager, Gold edition: support for unlimited IP addresses - all series 66926 $2,765
Management-Pac 2–Network Management Systems - Pulsar series 66923 $369
Intelligent Power Software Suite CD: Bundled free-of-charge with Eaton UPSs 103004871
(contains: Intelligent Power Manager supervisory software, Intelligent Power Protector
protection software, Personal Solution-Pac power management software for non-networked
Pulsar series UPSs, LanSafe power management software)
EATON POWER XPERT INSIGHT™
Part Number List Price
Power Xpert Insight
PXI for up to 10 device connections PXI-A $2,999
PXI for up to 25 device connections PXI-B $6,999
PXI for up to 50 device connections PXI-C $11,999
PXI for up to 100 device connections PXI-D $18,999
PXI for up to 200 device connections PXI-E $27,999
Power Xpert Insight Device Count Upgrades
PXI 10 to 25 Upgrade PXI-A2B $3,639
PXI 10 to 50 Upgrade PXI-A2C $8,039
PXI 10 to 100 Upgrade PXI-A2D $14,439
PXI 10 to 200 Upgrade PXI-A2E $20,999
PXI 25 to 50 Upgrade PXI-B2C $3,839
PXI 25 to 100 Upgrade PXI-B2D $10,449
PXI 25 to 200 Upgrade PXI-B2E $1,679
PXI 50 to 100 Upgrade PXI-C2D $4,749
PXI 50 to 200 Upgrade PXI-C2E $11,759
PXI 100 to 200 Upgrade PXI-D2E $4,759
EATON POWER SOFTWARE
Part Number List Price
Power Xpert Software Professional Edition
Power Xpert Software Professional Edition PXS-PRO $5,999
Power Xpert Software Professional Edition w/ 1 Day Startup* PXS-PROn1S $9,897
Power Xpert Software Professional Edition w/ 2 Day Startup* PXS-PROn2S $12,651
Power Xpert Software Professional Edition w/ 5 Day Startup* PXS-PROn5S $20,947
Power Xpert Software Professional Edition & Power Xpert Reporting PXS-PROnPXR $11,398
Power Xpert Software Enterprise Edition
Power Xpert Software Enterprise Edition PXS-ENT $11,999
Power Xpert Software Enterprise Edition w/ 1 Day Startup* PXS-ENTn1S $15,297
Power Xpert Software Enterprise Edition w/ 2 Day Startup* PXS-ENTn2S $18,051
Power Xpert Software Enterprise Edition w/ 5 Day Startup* PXS-ENTn5S $26,347
Power Xpert Software Enterprise Edition & Power Xpert Reporting PXS-ENTnPXR $17,098
*N/A = Not available for international sales, services are available in continental USA only.
POWER XPERT SOFTWARE ACCESSORIES
Description Part Number List Price
Environmental Monitoring Probe 116750224-001 $220
The EMP requires connectivity through a communications card like the PXGX card to communicate with PXS
POWER XPERT REPORTING
Description Part Number List Price
Power Xpert Reporting - Single Source DB Connections * PXR $5,999
Power Xpert Reporting - up to 2 Source DB Connections * PXR-2DB $8,998
Power Xpert Reporting - up to 5 Source DB Connections * PXR-5DB $12,597
Power Xpert Reporting - up to 10 Source DB Connections * PXR-10DB $17,636
Power Xpert Reporting - up to 25 Source DB Connections * PXR-25DB $24,691
Power Xpert Reporting - up to 50 Source DB Connections * PXR-50DB $34,567
*Number of supported Source Database Connections to either Power Xpert Software or Foreseer
110 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
SOFTWARE COMPATIBILITY WITH UPS VIA USB OR SERIAL CABLE (PEER-TO-PEER)
Powerware Series Pulsar Series Eaton BladeUPS
Protection and supervision software
Intelligent Power Protector x x x
Personal Solution-Pac x
Microsoft® Integrated Power Manager x
LanSafe x x x
SOFTWARE AND CONNECTIVITY COMPATIBILITY WITH ETHERNET AND CONNECTIVITY CARD
(NETWORK)
Supervision software—monitors and manages UPSs and connected devices
Intelligent Power Manager x x x x x
Foreseer and Power Xpert Software -
Professional/Enterprise x x x x x
LanSafe x x
Protection software—graceful shutdown of OSs on servers and PCs
Intelligent Power Protector x x x x x
NetWatch x x x x x
Network Shutdown Module x x
Power Xpert Software - Professional and
Enterprise Editions x x x x
LanSafe x
Enterprise Power Monitoring Software
Power Xpert Insight x x x x
Power Xpert Software - Professional and
Enterprise Editions x x x x
Foreseer Services x x x x x
Connectivity compatibility
3S, 5110 and 5115 tower
5115 RM x x x
5125 x x x
Evolution x x
5P/5PX x x
EX x x x
9130 x x x x
9PX x x x
9155 x x
9170+ x x
FERRUPS x
BladeUPS x x x
9315 x x x
9355 x x x
9E x x x
9390 x x x
9390IT x x x
9395 x x x
*Also compatible with the following high voltage series: Ellipse, Ellipse Max, Protection Center, Protection Station
CONNECTIVITY
Connectivity Products
Network Card-MS
(Network-MS)
ConnectUPS-BD
(116750222-001)
When purchasing additional
software, make sure that it is
compatible with your UPS’s
connectivity card.
BestLink Web/SNMP
Adapter (116750225-001)
Network and MODBUS
Card-MS (MODBUS-MS)
X-Slot® Modbus Card
(103005425-5591)
Power Xpert Gateway
UPS (PXGXUPS)
Relay card-MS
(Relay-MS)
Relay Interface
Card-X-Slot (1018460)
Relay Interface
Card-BestDock (1014018)
July 1, 2013
111www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
CONNECTIVITY (continued)
Connectivity Options
WEB/SNMP PRODUCTS
Description Part Number List Price
ConnectUPS-BD Web/SNMP Card (for use with 9130 and 9170+) 116750222-001 $335
ConnectUPS-E Web/SNMP Adapter (for use with legacy Powerware 9150 and 9305 UPSs) 116750223-001 $493
Ethernet SNMP/HTTP Adapter (for use with FERRUPS) 116750225-001 $349
Network Card-MS Web/SNMP (Replaces Part#1030068261/66102) Network-MS $279
(for use with Evolution, 5130, 5P, 5PX, 9130, 9135, EX RT, 9E)
Power Xpert Gateway PDP Card (Web/SNMP/Modbus TCP) 103008064-5591 $950
Power Xpert Gateway UPS Card (for use with 9x55 and BladeUPS 9315,9390,9395) 103007974-5591 $450
INTEGRATION PRODUCTS (EXPANDED CONNECTIVITY & OPEN SYSTEM INTEGRATION) -
POWERWARE AND EATON SERIES
Description Part Number List Price
Expansion Chassis - Provides additional X-Slots via RS-232 DB9 (Includes Modbus Card) 05147063 $1,658
Modbus Card-X-Slot 103005425-5591 $661
Network and MODBUS Card-MS (for use with 5PX, MX, EX RT, 9E, 9130) MODBUS-MS $335
CONNECTIVITY AND ENVIRONMENTAL ACCESSORIES
Description Part Number List Price
Environmental Monitoring Probe 116750224-001 $220
RELAY INTERFACE/REMOTE MONITORING PRODUCTS
Description Part Number List Price
Relay Card-MS (new card name and part number replacing style #s 103006828 and 66104) 103006828/RELAY-MS $100
Relay Interface Card-BD (AS/400 Compatible) 1014018 $146
Relay Interface Card-X-Slot (AS/400 Compatible) (for use with 5115,5125,9140,9155,BladeUPS,9315,9390,9395) 1018460 $146
Cable 25 ft (compatible with AS/400 model 9406; for use with 1014018 or 1018460) 103004349-5501 $62
Cable 75 ft (compatible with AS/400 model 9406; for use with 1014018 or 1018460) 103004347-5501 $104
Industrial Relay and Display Drive Card X-Slot. (for use with 9355, BladeUPS,9390) 103003055 $335
Provides (4) Form-C Relay contacts (5A @ 250V) for UPS integration into security and alarm
systems. Also provides signal information for the Remote Monitor Display Panel (103002687-001)
Splitter Cable 3 ft (DB15 male to dual DB15 female; for use with 1014018 or 1018460) 124102028-001 $158
Relay Card - Contacts (DB25) & RS232 (DB9) - X-Slot. Includes 30 ft cable DB25 - DB9. 103004741-5591 $314
(compatible with AS/400 model 9406)
Cable 10 ft DB9 - DB9 (compatible with AS/400 model 9406; for use with 103006828) 66033 $100
REMOTE MONITORING PANELS (FOR MONITORING OF UPS STATUS) - POWERWARE SERIES
Description Part Number List Price
Remote Monitor Display Panel (Requires Industrial Relay and Display Drive Card Part Number 103003055) 103002687-001 $335
INTEGRATION SOFTWARE - POWERWARE AND EATON SERIES
Description Web Download List Price
IBM Director Snap-in: Network Management System (NMS) software powerquality.eaton.com Free-of-charge
112 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
SURGE PROTECTION
PSPD SERIES
Eaton’s PSPD series of surge protection devices ensure that critical equipment is protected with the
safest, most reliable and most advanced UL 1449 3rd Edition certified surge protectors. The array of
features, options, and configurations ensures there is a unit for all electrical applications, including
service entrances, data centers, critical distribution switchboards and panelboards, and PDU’s and
RPP’s.
• Common voltages and configurations as well as a variety of surge current capacity ratings from 50
through 400 kA provide application flexibility.
• UL 1449 3rd Edition recognized component for the United States and Canada, covered by
Underwriters Laboratories certification and follow-up service.
• Utilizes self-protected protected metal oxide varistor (MOV) technology, which provides both high
energy capacity and fail-safe operation.
• Side mount units offer factory-sealed assembly, which prevents arc flash and shock hazards.
• Standard units include EMI/RFI filtering to provide effective protection for sensitive electronic loads.
• Side mount units contain no replaceable parts or items that require periodic maintenance thus reducing maintenance costs.
Dimensions Dimensions
Part (H x W x D, Weight List Part (H x W x D, Weight List
Description Number inches) (lb) Price Number inches) (lb) Price
PSPD 050 (50 kA/phase surge rating)
Standard with Surge Counter Diagnostics 'K' Option - No Integral Disconnect 'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G) PSPD050208Y3K 10.5 x 7.5 x 3.5 7.0 $941 PSPD050208Y3M 11.0 x 11.5 x 6.0 14.0 $1,372
120/240 Single Split-phase (3W + G) PSPD050240S3K 10.5 x 7.5 x 3.5 7.0 $1,024 PSPD050240S3M 11.0 x 11.5 x 6.0 14.0 $1,455
240 Delta (3W + G) PSPD050240D3K 10.5 x 7.5 x 3.5 7.0 $1,107 PSPD050240D3M 11.0 x 11.5 x 6.0 14.0 $1,532
480 Delta (3W + G) PSPD050480D3K 10.5 x 7.5 x 3.5 7.0 $1,107 PSPD050480D3M 11.0 x 11.5 x 6.0 14.0 $1,532
400/230 Wye Three-phase (4W + G) PSPD050400Y3K 10.5 x 7.5 x 3.5 7.0 $1,107 PSPD050400Y3M 11.0 x 11.5 x 6.0 14.0 $1,532
480/277 Wye Three-phase (4W + G) PSPD050480Y3K 10.5 x 7.5 x 3.5 7.0 $1,107 PSPD050480Y3M 11.0 x 11.5 x 6.0 14.0 $1,532
Standard Diagnostics 'K' Option - No Integral Disconnect 'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G) PSPD050208Y2K 10.5 x 7.5 x 3.5 7.0 $787 PSPD050208Y2M 11.0 x 11.5 x 6.0 14.0 $1,218
120/240 Single Split-phase (3W + G) PSPD050240S2K 10.5 x 7.5 x 3.5 7.0 $870 PSPD050240S2M 11.0 x 11.5 x 6.0 14.0 $1,296
240 Delta (3W + G) PSPD050240D2K 10.5 x 7.5 x 3.5 7.0 $941 PSPD050240D2M 11.0 x 11.5 x 6.0 14.0 $1,372
480 Delta (3W + G) PSPD050480D2K 10.5 x 7.5 x 3.5 7.0 $941 PSPD050480D2M 11.0 x 11.5 x 6.0 14.0 $1,372
400/230 Wye Three-phase (4W + G) PSPD050400Y2K 10.5 x 7.5 x 3.5 7.0 $941 PSPD050400Y2M 11.0 x 11.5 x 6.0 14.0 $1,372
480/277 Wye Three-phase (4W + G) PSPD050480Y2K 10.5 x 7.5 x 3.5 7.0 $941 PSPD050480Y2M 11.0 x 11.5 x 6.0 14.0 $1,372
Basic Diagnostics 'K' Option - No Integral Disconnect 'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G) PSPD050208Y1K 10.5 x 7.5 x 3.5 7.0 $752 PSPD050208Y1M 11.0 x 11.5 x 6.0 14.0 $1,178
120/240 Single Split-phase (3W + G) PSPD050240S1K 10.5 x 7.5 x 3.5 7.0 $823 PSPD050240S1M 11.0 x 11.5 x 6.0 14.0 $1,254
240 Delta (3W + G) PSPD050240D1K 10.5 x 7.5 x 3.5 7.0 $906 PSPD050240D1M 11.0 x 11.5 x 6.0 14.0 $1,331
480 Delta (3W + G) PSPD050480D1K 10.5 x 7.5 x 3.5 7.0 $906 PSPD050480D1M 11.0 x 11.5 x 6.0 14.0 $1,331
400/230 Wye Three-phase (4W + G) PSPD050400Y1K 10.5 x 7.5 x 3.5 7.0 $906 PSPD050400Y1M 11.0 x 11.5 x 6.0 14.0 $1,331
480/277 Wye Three-phase (4W + G) PSPD050480Y1K 10.5 x 7.5 x 3.5 7.0 $906 PSPD050480Y1M 11.0 x 11.5 x 6.0 14.0 $1,331
PSPD 080 (80 kA/phase surge rating)
Standard with Surge Counter Diagnostics 'K' Option - No Integral Disconnect 'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G) PSPD080208Y3K 10.5 x 7.5 x 3.5 7.0 $1,379 PSPD080208Y3M 11.0 x 11.5 x 6.0 14.0 $1,769
120/240 Single Split-phase (3W + G) PSPD080240S3K 10.5 x 7.5 x 3.5 7.0 $1,497 PSPD080240S3M 11.0 x 11.5 x 6.0 14.0 $1,887
240 Delta (3W + G) PSPD080240D3K 10.5 x 7.5 x 3.5 7.0 $1,615 PSPD080240D3M 11.0 x 11.5 x 6.0 14.0 $2,005
480 Delta (3W + G) PSPD080480D3K 10.5 x 7.5 x 3.5 7.0 $1,615 PSPD080480D3M 11.0 x 11.5 x 6.0 14.0 $2,005
400/230 Wye Three-phase (4W + G) PSPD080400Y3K 10.5 x 7.5 x 3.5 7.0 $1,615 PSPD080400Y3M 11.0 x 11.5 x 6.0 14.0 $2,005
480/277 Wye Three-phase (4W + G) PSPD080480Y3K 10.5 x 7.5 x 3.5 7.0 $1,615 PSPD080480Y3M 11.0 x 11.5 x 6.0 14.0 $2,005
July 1, 2013
113www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
SURGE PROTECTION (continued)
PSPD SERIES
Dimensions Dimensions
Part (H x W x D, Weight List Part (H x W x D, Weight List
Description Number inches) (lb) Price Number inches) (lb) Price
PSPD 080 (80 kA/phase surge rating) (continued)
Standard Diagnostics 'K' Option - No Integral Disconnect 'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G) PSPD080208Y2K 10.5 x 7.5 x 3.5 7.0 $1,142 PSPD080208Y2M 11.0 x 11.5 x 6.0 14.0 $1,532
120/240 Single Split-phase (3W + G) PSPD080240S2K 10.5 x 7.5 x 3.5 7.0 $1,260 PSPD080240S2M 11.0 x 11.5 x 6.0 14.0 $1,651
240 Delta (3W + G) PSPD080240D2K 10.5 x 7.5 x 3.5 7.0 $1,260 PSPD080240D2M 11.0 x 11.5 x 6.0 14.0 $1,769
480 Delta (3W + G) PSPD080480D2K 10.5 x 7.5 x 3.5 7.0 $1,379 PSPD080480D2M 11.0 x 11.5 x 6.0 14.0 $1,769
400/230 Wye Three-phase (4W + G) PSPD080400Y2K 10.5 x 7.5 x 3.5 7.0 $1,379 PSPD080400Y2M 11.0 x 11.5 x 6.0 14.0 $1,769
480/277 Wye Three-phase (4W + G) PSPD080480Y2K 10.5 x 7.5 x 3.5 7.0 $1,379 PSPD080480Y2M 11.0 x 11.5 x 6.0 14.0 $1,769
Basic Diagnostics 'K' Option - No Integral Disconnect 'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G) PSPD080208Y1K 10.5 x 7.5 x 3.5 7.0 $1,083 PSPD080208Y1M 11.0 x 11.5 x 6.0 14.0 $1,473
120/240 Single Split-phase (3W + G) PSPD080240S1K 10.5 x 7.5 x 3.5 7.0 $1,195 PSPD080240S1M 11.0 x 11.5 x 6.0 14.0 $1,585
240 Delta (3W + G) PSPD080240D1K 10.5 x 7.5 x 3.5 7.0 $1,308 PSPD080240D1M 11.0 x 11.5 x 6.0 14.0 $1,698
480 Delta (3W + G) PSPD080480D1K 10.5 x 7.5 x 3.5 7.0 $1,313 PSPD080480D1M 11.0 x 11.5 x 6.0 14.0 $1,703
400/230 Wye Three-phase (4W + G) PSPD080400Y1K 10.5 x 7.5 x 3.5 7.0 $1,313 PSPD080400Y1M 11.0 x 11.5 x 6.0 14.0 $1,703
480/277 Wye Three-phase (4W + G) PSPD080480Y1K 10.5 x 7.5 x 3.5 7.0 $1,313 PSPD080480Y1M 11.0 x 11.5 x 6.0 14.0 $1,703
PSPD 100 (100 kA/phase surge rating)
Standard with Surge Counter Diagnostics 'K' Option - No Integral Disconnect 'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G) PSPD100208Y3K 10.5 x 7.5 x 3.5 7.0 $1,572 PSPD100208Y3M 11.0 x 11.5 x 6.0 14.0 $1,953
120/240 Single Split-phase (3W + G) PSPD100240S3K 10.5 x 7.5 x 3.5 7.0 $1,705 PSPD100240S3M 11.0 x 11.5 x 6.0 14.0 $2,086
240 Delta (3W + G) PSPD100240D3K 10.5 x 7.5 x 3.5 7.0 $1,835 PSPD100240D3M 11.0 x 11.5 x 6.0 14.0 $2,216
480 Delta (3W + G) PSPD100480D3K 10.5 x 7.5 x 3.5 7.0 $1,835 PSPD100480D3M 11.0 x 11.5 x 6.0 14.0 $2,216
400/230 Wye Three-phase (4W + G) PSPD100400Y3K 10.5 x 7.5 x 3.5 7.0 $1,835 PSPD100400Y3M 11.0 x 11.5 x 6.0 14.0 $2,216
480/277 Wye Three-phase (4W + G) PSPD100480Y3K 10.5 x 7.5 x 3.5 7.0 $1,835 PSPD100480Y3M 11.0 x 11.5 x 6.0 14.0 $2,216
Standard Diagnostics 'K' Option - No Integral Disconnect 'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G) PSPD100208Y2K 10.5 x 7.5 x 3.5 7.0 $1,305 PSPD100208Y2M 11.0 x 11.5 x 6.0 14.0 $1,686
120/240 Single Split-phase (3W + G) PSPD100240S2K 10.5 x 7.5 x 3.5 7.0 $1,437 PSPD100240S2M 11.0 x 11.5 x 6.0 14.0 $1,818
240 Delta (3W + G) PSPD100240D2K 10.5 x 7.5 x 3.5 7.0 $1,567 PSPD100240D2M 11.0 x 11.5 x 6.0 14.0 $1,948
480 Delta (3W + G) PSPD100480D2K 10.5 x 7.5 x 3.5 7.0 $1,567 PSPD100480D2M 11.0 x 11.5 x 6.0 14.0 $1,948
400/230 Wye Three-phase (4W + G) PSPD100400Y2K 10.5 x 7.5 x 3.5 7.0 $1,567 PSPD100400Y2M 11.0 x 11.5 x 6.0 14.0 $1,948
480/277 Wye Three-phase (4W + G) PSPD100480Y2K 10.5 x 7.5 x 3.5 7.0 $1,567 PSPD100480Y2M 11.0 x 11.5 x 6.0 14.0 $1,948
Basic Diagnostics 'K' Option - No Integral Disconnect 'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G) PSPD100208Y1K 10.5 x 7.5 x 3.5 7.0 $1,210 PSPD100208Y1M 11.0 x 11.5 x 6.0 14.0 $1,591
120/240 Single Split-phase (3W + G) PSPD100240S1K 10.5 x 7.5 x 3.5 7.0 $1,329 PSPD100240S1M 11.0 x 11.5 x 6.0 14.0 $1,710
240 Delta (3W + G) PSPD100240D1K 10.5 x 7.5 x 3.5 7.0 $1,448 PSPD100240D1M 11.0 x 11.5 x 6.0 14.0 $1,829
480 Delta (3W + G) PSPD100480D1K 10.5 x 7.5 x 3.5 7.0 $1,448 PSPD100480D1M 11.0 x 11.5 x 6.0 14.0 $1,829
400/230 Wye Three-phase (4W + G) PSPD100400Y1K 10.5 x 7.5 x 3.5 7.0 $1,448 PSPD100400Y1M 11.0 x 11.5 x 6.0 14.0 $1,829
480/277 Wye Three-phase (4W + G) PSPD100480Y1K 10.5 x 7.5 x 3.5 7.0 $1,448 PSPD100480Y1M 11.0 x 11.5 x 6.0 14.0 $1,829
PSPD 120 (120 kA/phase surge rating)
Standard with Surge Counter Diagnostics 'K' Option - No Integral Disconnect 'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G) PSPD120208Y3K 10.5 x 7.5 x 3.5 7.0 $1,791 PSPD120208Y3M 11.0 x 11.5 x 6.0 14.0 $2,255
120/240 Single Split-phase (3W + G) PSPD120240S3K 10.5 x 7.5 x 3.5 7.0 $1,943 PSPD120240S3M 11.0 x 11.5 x 6.0 14.0 $2,407
240 Delta (3W + G) PSPD120240D3K 10.5 x 7.5 x 3.5 7.0 $2,100 PSPD120240D3M 11.0 x 11.5 x 6.0 14.0 $2,565
480 Delta (3W + G) PSPD120480D3K 10.5 x 7.5 x 3.5 7.0 $2,100 PSPD120480D3M 11.0 x 11.5 x 6.0 14.0 $2,565
400/230 Wye Three-phase (4W + G) PSPD120400Y3K 10.5 x 7.5 x 3.5 7.0 $2,100 PSPD120400Y3M 11.0 x 11.5 x 6.0 14.0 $2,565
480/277 Wye Three-phase (4W + G) PSPD120480Y3K 10.5 x 7.5 x 3.5 7.0 $2,100 PSPD120480Y3M 11.0 x 11.5 x 6.0 14.0 $2,565
114 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
SURGE PROTECTION (continued)
PSPD SERIES
Dimensions Dimensions
Part (H x W x D, Weight List Part (H x W x D, Weight List
Description Number inches) (lb) Price Number inches) (lb) Price
PSPD 120 (120 kA/phase surge rating) (continued)
Standard Diagnostics 'K' Option - No Integral Disconnect 'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G) PSPD120208Y2K 10.5 x 7.5 x 3.5 7.0 $1,530 PSPD120208Y2M 11.0 x 11.5 x 6.0 14.0 $1,995
120/240 Single Split-phase (3W + G) PSPD120240S2K 10.5 x 7.5 x 3.5 7.0 $1,681 PSPD120240S2M 11.0 x 11.5 x 6.0 14.0 $2,147
240 Delta (3W + G) PSPD120240D2K 10.5 x 7.5 x 3.5 7.0 $1,837 PSPD120240D2M 11.0 x 11.5 x 6.0 14.0 $2,303
480 Delta (3W + G) PSPD120480D2K 10.5 x 7.5 x 3.5 7.0 $1,837 PSPD120480D2M 11.0 x 11.5 x 6.0 14.0 $2,303
400/230 Wye Three-phase (4W + G) PSPD120400Y2K 10.5 x 7.5 x 3.5 7.0 $1,837 PSPD120400Y2M 11.0 x 11.5 x 6.0 14.0 $2,303
480/277 Wye Three-phase (4W + G) PSPD120480Y2K 10.5 x 7.5 x 3.5 7.0 $1,837 PSPD120480Y2M 11.0 x 11.5 x 6.0 14.0 $2,303
Basic Diagnostics 'K' Option - No Integral Disconnect 'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G) PSPD120208Y1K 10.5 x 7.5 x 3.5 7.0 $1,414 PSPD120208Y1M 11.0 x 11.5 x 6.0 14.0 $1,878
120/240 Single Split-phase (3W + G) PSPD120240S1K 10.5 x 7.5 x 3.5 7.0 $1,553 PSPD120240S1M 11.0 x 11.5 x 6.0 14.0 $2,018
240 Delta (3W + G) PSPD120240D1K 10.5 x 7.5 x 3.5 7.0 $1,698 PSPD120240D1M 11.0 x 11.5 x 6.0 14.0 $2,163
480 Delta (3W + G) PSPD120480D1K 10.5 x 7.5 x 3.5 7.0 $1,698 PSPD120480D1M 11.0 x 11.5 x 6.0 14.0 $2,163
400/230 Wye Three-phase (4W + G) PSPD120400Y1K 10.5 x 7.5 x 3.5 7.0 $1,698 PSPD120400Y1M 11.0 x 11.5 x 6.0 14.0 $2,163
480/277 Wye Three-phase (4W + G) PSPD120480Y1K 10.5 x 7.5 x 3.5 7.0 $1,698 PSPD120480Y1M 11.0 x 11.5 x 6.0 14.0 $2,163
PSPD 160 (160 kA/phase surge rating)
Standard with Surge Counter Diagnostics 'K' Option - No Integral Disconnect 'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G) PSPD160208Y3K 10.5 x 7.5 x 3.5 7.0 $2,238 PSPD160208Y3M 11.0 x 11.5 x 6.0 14.0 $2,804
120/240 Single Split-phase (3W + G) PSPD160240S3K 10.5 x 7.5 x 3.5 7.0 $2,437 PSPD160240S3M 11.0 x 11.5 x 6.0 14.0 $3,002
240 Delta (3W + G) PSPD160240D3K 10.5 x 7.5 x 3.5 7.0 $2,635 PSPD160240D3M 11.0 x 11.5 x 6.0 14.0 $3,200
480 Delta (3W + G) PSPD160480D3K 10.5 x 7.5 x 3.5 7.0 $2,635 PSPD160480D3M 11.0 x 11.5 x 6.0 14.0 $3,200
400/230 Wye Three-phase (4W + G) PSPD160400Y3K 10.5 x 7.5 x 3.5 7.0 $2,635 PSPD160400Y3M 11.0 x 11.5 x 6.0 14.0 $3,200
480/277 Wye Three-phase (4W + G) PSPD160480Y3K 10.5 x 7.5 x 3.5 7.0 $2,635 PSPD160480Y3M 11.0 x 11.5 x 6.0 14.0 $3,200
Standard Diagnostics 'K' Option - No Integral Disconnect 'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G) PSPD160208Y2K 10.5 x 7.5 x 3.5 7.0 $1,985 PSPD160208Y2M 11.0 x 11.5 x 6.0 14.0 $2,550
120/240 Single Split-phase (3W + G) PSPD160240S2K 10.5 x 7.5 x 3.5 7.0 $2,183 PSPD160240S2M 11.0 x 11.5 x 6.0 14.0 $2,747
240 Delta (3W + G) PSPD160240D2K 10.5 x 7.5 x 3.5 7.0 $2,381 PSPD160240D2M 11.0 x 11.5 x 6.0 14.0 $2,945
480 Delta (3W + G) PSPD160480D2K 10.5 x 7.5 x 3.5 7.0 $2,381 PSPD160480D2M 11.0 x 11.5 x 6.0 14.0 $2,945
400/230 Wye Three-phase (4W + G) PSPD160400Y2K 10.5 x 7.5 x 3.5 7.0 $2,381 PSPD160400Y2M 11.0 x 11.5 x 6.0 14.0 $2,945
480/277 Wye Three-phase (4W + G) PSPD160480Y2K 10.5 x 7.5 x 3.5 7.0 $2,381 PSPD160480Y2M 11.0 x 11.5 x 6.0 14.0 $2,945
Basic Diagnostics 'K' Option - No Integral Disconnect 'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G) PSPD160208Y1K 10.5 x 7.5 x 3.5 7.0 $1,838 PSPD160208Y1M 11.0 x 11.5 x 6.0 14.0 $2,403
120/240 Single Split-phase (3W + G) PSPD160240S1K 10.5 x 7.5 x 3.5 7.0 $2,019 PSPD160240S1M 11.0 x 11.5 x 6.0 14.0 $2,583
240 Delta (3W + G) PSPD160240D1K 10.5 x 7.5 x 3.5 7.0 $2,205 PSPD160240D1M 11.0 x 11.5 x 6.0 14.0 $2,770
480 Delta (3W + G) PSPD160480D1K 10.5 x 7.5 x 3.5 7.0 $2,205 PSPD160480D1M 11.0 x 11.5 x 6.0 14.0 $2,770
400/230 Wye Three-phase (4W + G) PSPD160400Y1K 10.5 x 7.5 x 3.5 7.0 $2,205 PSPD160400Y1M 11.0 x 11.5 x 6.0 14.0 $2,770
480/277 Wye Three-phase (4W + G) PSPD160480Y1K 10.5 x 7.5 x 3.5 7.0 $2,205 PSPD160480Y1M 11.0 x 11.5 x 6.0 14.0 $2,770
PSPD 200 (200 kA/phase surge rating)
Standard with Surge Counter Diagnostics 'K' Option - No Integral Disconnect 'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G) PSPD200208Y3K 10.5 x 7.5 x 3.5 7.0 $2,803 PSPD200208Y3M 11.0 x 11.5 x 6.0 14.0 $3,556
120/240 Single Split-phase (3W + G) PSPD200240S3K 10.5 x 7.5 x 3.5 7.0 $3,057 PSPD200240S3M 11.0 x 11.5 x 6.0 14.0 $3,810
240 Delta (3W + G) PSPD200240D3K 10.5 x 7.5 x 3.5 7.0 $3,312 PSPD200240D3M 11.0 x 11.5 x 6.0 14.0 $4,065
480 Delta (3W + G) PSPD200480D3K 10.5 x 7.5 x 3.5 7.0 $3,312 PSPD200480D3M 11.0 x 11.5 x 6.0 14.0 $4,065
400/230 Wye Three-phase (4W + G) PSPD200400Y3K 10.5 x 7.5 x 3.5 7.0 $3,312 PSPD200400Y3M 11.0 x 11.5 x 6.0 14.0 $4,065
480/277 Wye Three-phase (4W + G) PSPD200480Y3K 10.5 x 7.5 x 3.5 7.0 $3,312 PSPD200480Y3M 11.0 x 11.5 x 6.0 14.0 $4,065
July 1, 2013
115www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
SURGE PROTECTION (continued)
PSPD SERIES
Dimensions Dimensions
Part (H x W x D, Weight List Part (H x W x D, Weight List
Description Number inches) (lb) Price Number inches) (lb) Price
PSPD 200 (200 kA/phase surge rating) (continued)
Standard Diagnostics 'K' Option - No Integral Disconnect 'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G) PSPD200208Y2K 10.5 x 7.5 x 3.5 7.0 $2,543 PSPD200208Y2M 11.0 x 11.5 x 6.0 14.0 $3,295
120/240 Single Split-phase (3W + G) PSPD200240S2K 10.5 x 7.5 x 3.5 7.0 $2,797 PSPD200240S2M 11.0 x 11.5 x 6.0 14.0 $3,549
240 Delta (3W + G) PSPD200240D2K 10.5 x 7.5 x 3.5 7.0 $3,052 PSPD200240D2M 11.0 x 11.5 x 6.0 14.0 $3,805
480 Delta (3W + G) PSPD200480D2K 10.5 x 7.5 x 3.5 7.0 $3,052 PSPD200480D2M 11.0 x 11.5 x 6.0 14.0 $3,805
400/230 Wye Three-phase (4W + G) PSPD200400Y2K 10.5 x 7.5 x 3.5 7.0 $3,052 PSPD200400Y2M 11.0 x 11.5 x 6.0 14.0 $3,805
480/277 Wye Three-phase (4W + G) PSPD200480Y2K 10.5 x 7.5 x 3.5 7.0 $3,052 PSPD200480Y2M 11.0 x 11.5 x 6.0 14.0 $3,805
Basic Diagnostics 'K' Option - No Integral Disconnect 'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G) PSPD200208Y1K 10.5 x 7.5 x 3.5 7.0 $2,351 PSPD200208Y1M 11.0 x 11.5 x 6.0 14.0 $3,103
120/240 Single Split-phase (3W + G) PSPD200240S1K 10.5 x 7.5 x 3.5 7.0 $2,589 PSPD200240S1M 11.0 x 11.5 x 6.0 14.0 $3,342
240 Delta (3W + G) PSPD200240D1K 10.5 x 7.5 x 3.5 7.0 $2,820 PSPD200240D1M 11.0 x 11.5 x 6.0 14.0 $3,573
480 Delta (3W + G) PSPD200480D1K 10.5 x 7.5 x 3.5 7.0 $2,820 PSPD200480D1M 11.0 x 11.5 x 6.0 14.0 $3,573
400/230 Wye Three-phase (4W + G) PSPD200400Y1K 10.5 x 7.5 x 3.5 7.0 $2,820 PSPD200400Y1M 11.0 x 11.5 x 6.0 14.0 $3,573
480/277 Wye Three-phase (4W + G) PSPD200480Y1K 10.5 x 7.5 x 3.5 7.0 $2,820 PSPD200480Y1M 11.0 x 11.5 x 6.0 14.0 $3,573
PSPD 250 (250 kA/phase surge rating)
Standard with Surge Counter Diagnostics 'K' Option - No Integral Disconnect 'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G) PSPD250208Y3K 10.5 x 7.5 x 6.0 11.5 $3,521 PSPD250208Y3M 11.0 x 11.5 x 6.0 16.5 $4,410
120/240 Single Split-phase (3W + G) PSPD250240S3K 10.5 x 7.5 x 6.0 11.5 $3,848 PSPD250240S3M 11.0 x 11.5 x 6.0 16.5 $4,736
240 Delta (3W + G) PSPD250240D3K 10.5 x 7.5 x 6.0 11.5 $4,173 PSPD250240D3M 11.0 x 11.5 x 6.0 16.5 $5,063
480 Delta (3W + G) PSPD250480D3K 10.5 x 7.5 x 6.0 11.5 $4,173 PSPD250480D3M 11.0 x 11.5 x 6.0 16.5 $5,063
400/230 Wye Three-phase (4W + G) PSPD250400Y3K 10.5 x 7.5 x 6.0 11.5 $4,173 PSPD250400Y3M 11.0 x 11.5 x 6.0 16.5 $5,063
480/277 Wye Three-phase (4W + G) PSPD250480Y3K 10.5 x 7.5 x 6.0 11.5 $4,173 PSPD250480Y3M 11.0 x 11.5 x 6.0 16.5 $5,063
Standard Diagnostics 'K' Option - No Integral Disconnect 'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G) PSPD250208Y2K 10.5 x 7.5 x 6.0 11.5 $3,256 PSPD250208Y2M 11.0 x 11.5 x 6.0 16.5 $4,144
120/240 Single Split-phase (3W + G) PSPD250240S2K 10.5 x 7.5 x 6.0 11.5 $3,580 PSPD250240S2M 11.0 x 11.5 x 6.0 16.5 $4,469
240 Delta (3W + G) PSPD250240D2K 10.5 x 7.5 x 6.0 11.5 $3,906 PSPD250240D2M 11.0 x 11.5 x 6.0 16.5 $4,796
480 Delta (3W + G) PSPD250480D2K 10.5 x 7.5 x 6.0 11.5 $3,906 PSPD250480D2M 11.0 x 11.5 x 6.0 16.5 $4,796
400/230 Wye Three-phase (4W + G) PSPD250400Y2K 10.5 x 7.5 x 6.0 11.5 $3,906 PSPD250400Y2M 11.0 x 11.5 x 6.0 16.5 $4,796
480/277 Wye Three-phase (4W + G) PSPD250480Y2K 10.5 x 7.5 x 6.0 11.5 $3,906 PSPD250480Y2M 11.0 x 11.5 x 6.0 16.5 $4,796
Basic Diagnostics 'K' Option - No Integral Disconnect 'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G) PSPD250208Y1K 10.5 x 7.5 x 6.0 11.5 $3,012 PSPD250208Y1M 11.0 x 11.5 x 6.0 16.5 $3,901
120/240 Single Split-phase (3W + G) PSPD250240S1K 10.5 x 7.5 x 6.0 11.5 $3,314 PSPD250240S1M 11.0 x 11.5 x 6.0 16.5 $4,204
240 Delta (3W + G) PSPD250240D1K 10.5 x 7.5 x 6.0 11.5 $3,617 PSPD250240D1M 11.0 x 11.5 x 6.0 16.5 $4,505
480 Delta (3W + G) PSPD250480D1K 10.5 x 7.5 x 6.0 11.5 $3,617 PSPD250480D1M 11.0 x 11.5 x 6.0 16.5 $4,505
400/230 Wye Three-phase (4W + G) PSPD250400Y1K 10.5 x 7.5 x 6.0 11.5 $3,617 PSPD250400Y1M 11.0 x 11.5 x 6.0 16.5 $4,505
480/277 Wye Three-phase (4W + G) PSPD250480Y1K 10.5 x 7.5 x 6.0 11.5 $3,617 PSPD250480Y1M 11.0 x 11.5 x 6.0 16.5 $4,505
PSPD 300 (300 kA/phase surge rating)
Standard with Surge Counter Diagnostics 'K' Option - No Integral Disconnect 'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G) PSPD300208Y3K 10.5 x 7.5 x 6.0 11.5 $4,167 PSPD300208Y3M 11.0 x 11.5 x 6.0 16.5 $5,115
120/240 Single Split-phase (3W + G) PSPD300240S3K 10.5 x 7.5 x 6.0 11.5 $4,558 PSPD300240S3M 11.0 x 11.5 x 6.0 16.5 $5,510
240 Delta (3W + G) PSPD300240D3K 10.5 x 7.5 x 6.0 11.5 $4,950 PSPD300240D3M 11.0 x 11.5 x 6.0 16.5 $5,902
480 Delta (3W + G) PSPD300480D3K 10.5 x 7.5 x 6.0 11.5 $4,950 PSPD300480D3M 11.0 x 11.5 x 6.0 16.5 $5,902
400/230 Wye Three-phase (4W + G) PSPD300400Y3K 10.5 x 7.5 x 6.0 11.5 $4,950 PSPD300400Y3M 11.0 x 11.5 x 6.0 16.5 $5,902
480/277 Wye Three-phase (4W + G) PSPD300480Y3K 10.5 x 7.5 x 6.0 11.5 $4,950 PSPD300480Y3M 11.0 x 11.5 x 6.0 16.5 $5,902
116 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
SURGE PROTECTION (continued)
PSPD SERIES
Dimensions Dimensions
Part (H x W x D, Weight List Part (H x W x D, Weight List
Description Number inches) (lb) Price Number inches) (lb) Price
PSPD 300 (300 kA/phase surge rating) (continued)
Standard Diagnostics 'K' Option - No Integral Disconnect 'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G) PSPD300208Y2K 10.5 x 7.5 x 6.0 11.5 $3,901 PSPD300208Y2M 11.0 x 11.5 x 6.0 16.5 $4,849
120/240 Single Split-phase (3W + G) PSPD300240S2K 10.5 x 7.5 x 6.0 11.5 $4,292 PSPD300240S2M 11.0 x 11.5 x 6.0 16.5 $5,240
240 Delta (3W + G) PSPD300240D2K 10.5 x 7.5 x 6.0 11.5 $4,683 PSPD300240D2M 11.0 x 11.5 x 6.0 16.5 $5,633
480 Delta (3W + G) PSPD300480D2K 10.5 x 7.5 x 6.0 11.5 $4,683 PSPD300480D2M 11.0 x 11.5 x 6.0 16.5 $5,633
400/230 Wye Three-phase (4W + G) PSPD300400Y2K 10.5 x 7.5 x 6.0 11.5 $4,683 PSPD300400Y2M 11.0 x 11.5 x 6.0 16.5 $5,633
480/277 Wye Three-phase (4W + G) PSPD300480Y2K 10.5 x 7.5 x 6.0 11.5 $4,683 PSPD300480Y2M 11.0 x 11.5 x 6.0 16.5 $5,633
Basic Diagnostics 'K' Option - No Integral Disconnect 'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G) PSPD300208Y1K 10.5 x 7.5 x 6.0 11.5 $3,610 PSPD300208Y1M 11.0 x 11.5 x 6.0 16.5 $4,558
120/240 Single Split-phase (3W + G) PSPD300240S1K 10.5 x 7.5 x 6.0 11.5 $3,972 PSPD300240S1M 11.0 x 11.5 x 6.0 16.5 $4,920
240 Delta (3W + G) PSPD300240D1K 10.5 x 7.5 x 6.0 11.5 $4,333 PSPD300240D1M 11.0 x 11.5 x 6.0 16.5 $5,281
480 Delta (3W + G) PSPD300480D1K 10.5 x 7.5 x 6.0 11.5 $4,333 PSPD300480D1M 11.0 x 11.5 x 6.0 16.5 $5,281
400/230 Wye Three-phase (4W + G) PSPD300400Y1K 10.5 x 7.5 x 6.0 11.5 $4,333 PSPD300400Y1M 11.0 x 11.5 x 6.0 16.5 $5,281
480/277 Wye Three-phase (4W + G) PSPD300480Y1K 10.5 x 7.5 x 6.0 11.5 $4,333 PSPD300480Y1M 11.0 x 11.5 x 6.0 16.5 $5,281
PSPD 400 (400 kA/phase surge rating)
Standard with Surge Counter Diagnostics 'K' Option - No Integral Disconnect 'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G) PSPD400208Y3K 10.5 x 7.5 x 6.0 11.5 $5,472 PSPD400208Y3M 11.0 x 11.5 x 6.0 16.5 $6,483
120/240 Single Split-phase (3W + G) PSPD400240S3K 10.5 x 7.5 x 6.0 11.5 $5,999 PSPD400240S3M 11.0 x 11.5 x 6.0 16.5 $7,009
240 Delta (3W + G) PSPD400240D3K 10.5 x 7.5 x 6.0 11.5 $6,515 PSPD400240D3M 11.0 x 11.5 x 6.0 16.5 $7,525
480 Delta (3W + G) PSPD400480D3K 10.5 x 7.5 x 6.0 11.5 $6,515 PSPD400480D3M 11.0 x 11.5 x 6.0 16.5 $7,525
400/230 Wye Three-phase (4W + G) PSPD400400Y3K 10.5 x 7.5 x 6.0 11.5 $6,515 PSPD400400Y3M 11.0 x 11.5 x 6.0 16.5 $7,525
480/277 Wye Three-phase (4W + G) PSPD400480Y3K 10.5 x 7.5 x 6.0 11.5 $6,515 PSPD400480Y3M 11.0 x 11.5 x 6.0 16.5 $7,525
Standard Diagnostics 'K' Option - No Integral Disconnect 'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G) PSPD400208Y2K 10.5 x 7.5 x 6.0 11.5 $5,205 PSPD400208Y2M 11.0 x 11.5 x 6.0 16.5 $6,219
120/240 Single Split-phase (3W + G) PSPD400240S2K 10.5 x 7.5 x 6.0 11.5 $5,730 PSPD400240S2M 11.0 x 11.5 x 6.0 16.5 $6,735
240 Delta (3W + G) PSPD400240D2K 10.5 x 7.5 x 6.0 11.5 $6,252 PSPD400240D2M 11.0 x 11.5 x 6.0 16.5 $7,262
480 Delta (3W + G) PSPD400480D2K 10.5 x 7.5 x 6.0 11.5 $6,252 PSPD400480D2M 11.0 x 11.5 x 6.0 16.5 $7,262
400/230 Wye Three-phase (4W + G) PSPD400400Y2K 10.5 x 7.5 x 6.0 11.5 $6,252 PSPD400400Y2M 11.0 x 11.5 x 6.0 16.5 $7,262
480/277 Wye Three-phase (4W + G) PSPD400480Y2K 10.5 x 7.5 x 6.0 11.5 $6,252 PSPD400480Y2M 11.0 x 11.5 x 6.0 16.5 $7,262
Basic Diagnostics 'K' Option - No Integral Disconnect 'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G) PSPD400208Y1K 10.5 x 7.5 x 6.0 11.5 $4,813 PSPD400208Y1M 11.0 x 11.5 x 6.0 16.5 $5,827
120/240 Single Split-phase (3W + G) PSPD400240S1K 10.5 x 7.5 x 6.0 11.5 $5,294 PSPD400240S1M 11.0 x 11.5 x 6.0 16.5 $6,305
240 Delta (3W + G) PSPD400240D1K 10.5 x 7.5 x 6.0 11.5 $5,784 PSPD400240D1M 11.0 x 11.5 x 6.0 16.5 $6,794
480 Delta (3W + G) PSPD400480D1K 10.5 x 7.5 x 6.0 11.5 $5,784 PSPD400480D1M 11.0 x 11.5 x 6.0 16.5 $6,794
400/230 Wye Three-phase (4W + G) PSPD400400Y1K 10.5 x 7.5 x 6.0 11.5 $5,784 PSPD400400Y1M 11.0 x 11.5 x 6.0 16.5 $6,794
480/277 Wye Three-phase (4W + G) PSPD400480Y1K 10.5 x 7.5 x 6.0 11.5 $5,784 PSPD400480Y1M 11.0 x 11.5 x 6.0 16.5 $6,794
July 1, 2013
117www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
SURGE PROTECTION
PSPV SERIES
Eaton’s PSPV series is a commercial grade and light industrial surge protection device that combines surge suppression
components and EMI/RFI filtering to provide effective protection for sensitive electronic loads. Use of the PSPV can
prevent costly downtime and equipment damage from surges (or transients) caused by lightning, utility grid switching,
switching of external/internal inductive or capacitive loads and other sources.
• Surge Plane technology ensures reliability and performance by using a low impedance copper platform.
• Compact design enables close mounting to electrical distribution equipment.
• Status indicator lights let you easily monitor supply power, surge suppression component status, and fusing.
• Choose from 6 surge current ratings to meet a variety of application needs.
• UL 1449 3rd Edition certification.
Voltage Part Dimensions
Description Rating Number (H x W x D, inches) Enclosure Weight (lb) List Price
PSPV 050 (50 kA/phase surge rating) 120/240 Split Phase (3W+G) PSPV050240S2K 5.1 x 11.6 x 2.7 NEMA 1 5.0 $671
PSPV 050 (50 kA/phase surge rating) 240 Delta (3W+G) PSPV050240D2K 5.1 x 11.6 x 2.7 NEMA 1 5.0 $671
PSPV 050 (50 kA/phase surge rating) 120/208 Wye (4W+G) PSPV050208Y2K 5.1 x 11.6 x 2.7 NEMA 1 5.0 $671
PSPV 050 (50 kA/phase surge rating) 400 Delta (3W+G) PSPV050480D2K 5.1 x 11.6 x 2.7 NEMA 1 5.0 $671
PSPV 050 (50 kA/phase surge rating) 277/480 Wye (4W+G) PSPV050480Y2K 5.1 x 11.6 x 2.7 NEMA 1 5.0 $671
PSPV 050 (50 kA/phase surge rating) 400 Delta (3W+G) PSPV050400D2K 5.1 x 11.6 x 2.7 NEMA 1 5.0 $671
PSPV 050 (50 kA/phase surge rating) 230/400 Wye (4W+G) PSPV050400Y2K 5.1 x 11.6 x 2.7 NEMA 1 5.0 $671
PSPV 080 (80 kA/phase surge rating) 120/240 Split Phase (3W+G) PSPV080240S2K 5.1 x 11.6 x 2.7 NEMA 1 5.5 $761
PSPV 080 (80 kA/phase surge rating) 240 Delta (3W+G) PSPV080240D2K 5.1 x 11.6 x 2.7 NEMA 1 5.5 $1,029
PSPV 080 (80 kA/phase surge rating) 120/208 Wye (4W+G) PSPV080208Y2K 5.1 x 11.6 x 2.7 NEMA 1 5.5 $1,029
PSPV 080 (80 kA/phase surge rating) 400 Delta (3W+G) PSPV080480D2K 5.1 x 11.6 x 2.7 NEMA 1 5.5 $1,029
PSPV 080 (80 kA/phase surge rating) 277/480 Wye (4W+G) PSPV080480Y2K 5.1 x 11.6 x 2.7 NEMA 1 5.5 $1,029
PSPV 080 (80 kA/phase surge rating) 400 Delta (3W+G) PSPV080400D2K 5.1 x 11.6 x 2.7 NEMA 1 5.5 $1,029
PSPV 080 (80 kA/phase surge rating) 230/400 Wye (4W+G) PSPV080400Y2K 5.1 x 11.6 x 2.7 NEMA 1 5.5 $1,029
PSPV 100 (100 kA/phase surge rating) 120/240 Split Phase (3W+G) PSPV100240S2K 5.1 x 11.6 x 2.7 NEMA 1 6.0 $895
PSPV 100 (100 kA/phase surge rating) 240 Delta (3W+G) PSPV100240D2K 5.1 x 11.6 x 2.7 NEMA 1 6.0 $1,220
PSPV 100 (100 kA/phase surge rating) 120/208 Wye (4W+G) PSPV100208Y2K 5.1 x 11.6 x 2.7 NEMA 1 6.0 $1,220
PSPV 100 (100 kA/phase surge rating) 400 Delta (3W+G) PSPV100480D2K 5.1 x 11.6 x 2.7 NEMA 1 6.0 $1,220
PSPV 100 (100 kA/phase surge rating) 277/480 Wye (4W+G) PSPV100480Y2K 5.1 x 11.6 x 2.7 NEMA 1 6.0 $1,220
PSPV 100 (100 kA/phase surge rating) 400 Delta (3W+G) PSPV100400D2K 5.1 x 11.6 x 2.7 NEMA 1 6.0 $1,220
PSPV 100 (100 kA/phase surge rating) 230/400 Wye (4W+G) PSPV100400Y2K 5.1 x 11.6 x 2.7 NEMA 1 6.0 $1,220
PSPV 120 (120 kA/phase surge rating) 120/240 Split Phase (3W+G) PSPV120240S2K 5.1 x 11.6 x 2.7 NEMA 1 6.0 $1,074
PSPV 120 (120 kA/phase surge rating) 240 Delta (3W+G) PSPV120240D2K 5.1 x 11.6 x 2.7 NEMA 1 6.0 $1,398
PSPV 120 (120 kA/phase surge rating) 120/208 Wye (4W+G) PSPV120208Y2K 5.1 x 11.6 x 2.7 NEMA 1 6.0 $1,398
PSPV 120 (120 kA/phase surge rating) 400 Delta (3W+G) PSPV120480D2K 5.1 x 11.6 x 2.7 NEMA 1 6.0 $1,398
PSPV 120 (120 kA/phase surge rating) 277/480 Wye (4W+G) PSPV120480Y2K 5.1 x 11.6 x 2.7 NEMA 1 6.0 $1,398
PSPV 120 (120 kA/phase surge rating) 400 Delta (3W+G) PSPV120400D2K 5.1 x 11.6 x 2.7 NEMA 1 6.0 $1,398
PSPV 120 (120 kA/phase surge rating) 230/400 Wye (4W+G) PSPV120400Y2K 5.1 x 11.6 x 2.7 NEMA 1 6.0 $1,398
PSPV 160 (160 kA/phase surge rating) 120/240 Split Phase (3W+G) PSPV160240S2K 5.1 x 11.6 x 2.7 NEMA 1 6.5 $1,432
PSPV 160 (160 kA/phase surge rating) 240 Delta (3W+G) PSPV160240D2K 5.1 x 11.6 x 2.7 NEMA 1 6.5 $1,845
PSPV 160 (160 kA/phase surge rating) 120/208 Wye (4W+G) PSPV160208Y2K 5.1 x 11.6 x 2.7 NEMA 1 6.5 $1,845
PSPV 160 (160 kA/phase surge rating) 400 Delta (3W+G) PSPV160480D2K 5.1 x 11.6 x 2.7 NEMA 1 6.5 $1,845
PSPV 160 (160 kA/phase surge rating) 277/480 Wye (4W+G) PSPV160480Y2K 5.1 x 11.6 x 2.7 NEMA 1 6.5 $1,845
PSPV 160 (160 kA/phase surge rating) 400 Delta (3W+G) PSPV160400D2K 5.1 x 11.6 x 2.7 NEMA 1 6.5 $1,845
PSPV 160 (160 kA/phase surge rating) 230/400 Wye (4W+G) PSPV160400Y2K 5.1 x 11.6 x 2.7 NEMA 1 6.5 $1,845
PSPV 200 (200 kA/phase surge rating) 120/240 Split Phase (3W+G) PSPV200240S2K 5.1 x 11.6 x 2.7 NEMA 1 7.0 $1,845
PSPV 200 (200 kA/phase surge rating) 240 Delta (3W+G) PSPV200240D2K 5.1 x 11.6 x 2.7 NEMA 1 7.0 $2,292
PSPV 200 (200 kA/phase surge rating) 120/208 Wye (4W+G) PSPV200208Y2K 5.1 x 11.6 x 2.7 NEMA 1 7.0 $2,292
PSPV 200 (200 kA/phase surge rating) 400 Delta (3W+G) PSPV200480D2K 5.1 x 11.6 x 2.7 NEMA 1 7.0 $2,292
PSPV 200 (200 kA/phase surge rating) 277/480 Wye (4W+G) PSPV200480Y2K 5.1 x 11.6 x 2.7 NEMA 1 7.0 $2,292
PSPV 200 (200 kA/phase surge rating) 400 Delta (3W+G) PSPV200400D2K 5.1 x 11.6 x 2.7 NEMA 1 7.0 $2,292
PSPV 200 (200 kA/phase surge rating) 230/400 Wye (4W+G) PSPV200400Y2K 5.1 x 11.6 x 2.7 NEMA 1 7.0 $2,292
118 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
SURGE PROTECTION
Surge Protection Devices (SPD)
SPD Type 1 CHSP Service Entrance Surge Protection — UL 1449 3rd Ed. Listed
• Commercial grade AC power protection
• Type 1 surge device for installation before or after the main service disconnect
• Convenient mounting options—universal fit to any manufacturer’s equipment
• Clear, visible LED indication displaying status of the surge protector
SPD TYPE 1 CHSP
Surge Current
Catalog Frequency Capacity, Per List
Number Enclosure Voltage Phase (Hz) MCOV1 VPR2 In3 SCCR4 Phase Rating5 Price
CHSPT1ULTRA NEMA 4 100/200, 110/220, 120/240 Single 50/60 L-L 300, L-L 1000, 20 kA 200 kA 50 kA $1,384
L-N 150 L-N 600
CHSPT1MAX NEMA 4 100/200, 110/220, 120/240 Single 50/60 L-L 300, L-L 1000, 20 kA 200 kA 45 kA $1,046
L-N 150 L-N 600
CHSPT1MICRO NEMA 4 100/200, 110/220, 120/240 Single 50/60 L-L 300, L-L 1000, 20 kA 200 kA 36 kA $706
L-N 150 L-N 600
CHSPT1-208Y NEMA 4 120/208 Three-phase 50/60 L-L 300, L-L 1000, 20 kA 200 kA 50 kA $1,384
wye L-N 150 L-N 600
Notes:
1. MCOV: Maximum Continuous Operating Voltage that may be applied to the device per mode. 2. VPR: Voltage Protection Rating is the measured limiting voltage after a surge event.
3. In: Nominal Discharge Current is the current that the device can withstand for 15 impulses. 4. SCCR: The amount of current the product can withstand under short-circuit conditions
5. Surge Current Capacity: The maximum one time surge current rating per phase
For warranty details, go to www.eaton.com/surgetrap
SPD Type 2 CHSP Service Entrance Surge Protection — UL 1449 3rd Ed.; cUL
• AC power protection
• Universally connects to any manufacturer’s loadcenter (breaker box)
• Quick connect design—easy to mount telephone and cable protection modules
• LED status indication
• This product should be connected on the load side of the loadcenter main service
disconnect through a dedicated circuit breaker (follow NEC Guidelines)
SPD TYPE 2 CHSP
Surge Current
Catalog Frequency Capacity, Per List
Number Enclosure Voltage Phase (Hz) MCOV1 VPR2 In3 SCCR4 Phase Rating5 Price
CHSPT2ULTRA NEMA 4 120/240 Vac Single 60 150V L-N, 600V L-N, 1000V L-L, 20 kA 22 kA 108 kA (L1-N 54 kA, L1-G $1,051
rated line voltage 300V L-L 800V N-G, 600V L-G 54 kA, L2-N 54 kA, L2-G 54 kA)
CHSPT2MAX NEMA 4 120/240 Vac Single 60 150V L-N, 600V L-N, 1000V L-L, 10 kA 22 kA 72 kA (L1-N 36 kA, L1-G $559
rated line voltage 300V L-L 800V N-G, 600V L-G 36 kA, L2-N 36 kA, L2-G 36 kA)
CHSPT2MICRO NEMA 4 120/240 Vac Single 60 150V L-N, 600V L-N, 1000V L-L, 5 kA 22 kA 36 kA (L1-N 18 kA, L1-G $350
rated line voltage 300V L-L 800V N-G, 600V L-G 18 kA, L2-N 18 kA, L2-G 18 kA)
Notes:
1. MCOV: Maximum Continuous Operating Voltage that may be applied to the device per mode. 2. VPR: Voltage Protection Rating is the measured limiting voltage after a surge event.
3. In: Nominal Discharge Current is the current that the device can withstand for 15 impulses. 4. SCCR: The amount of current the product can withstand under short-circuit conditions
5. Surge Current Capacity: The maximum one time surge current rating per phase.
For warranty details, go to www.eaton.com/surgetrap
July 1, 2013
119www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
SURGE PROTECTION(continued)
Surge Protection Devices (SPD)
Accessories for CHSP Type 2 Service Entrance Protection
CHSP TYPE 2
Catalog Surge Current DC Breakdown List
Number Description Installation Capacity Voltage Voltage Price
CHSPCABLE Quick Connect design—add additional Indoor installation; 10 kA per line 145V – $315
telephone and AC protection modules; or rain-tight when
protects two quad shield cables used with recommended
Enclosure
CHSPTELE Quick Connect design—add additional AC Indoor installation; 20 kA per line 230V Ring 90–120 Vac/ $336
and cable protection modules; protects or rain-tight when Tone 48–52 Vdc
four telephone lines, bi-directional used with recommended
Enclosure
CHSPT23PACK 3-Pack: – See individual – – $1,118
CHSPT2ULTRA+CHSPTELE+CHSPCABLE; product ratings
Surge protection for AC power,
telephone and cable—see individual product
features
120 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
SERVICES
Single-phase Service Plans Overview
SUMMARY OF EATON SERVICE PLANS FOR SINGLE-PHASE MODELS
SELECTING A SERVICE PLAN
Eaton single-phase UPSs come with warranty coverage that typically includes parts and labor for electronics, 7x24 Customer Reliability Center triage and 7x24
technical support access. But to extend the term of the base factory warranty and expedite service delivery, you should recommend a service plan. The best
service plans are essentially offered in two categories:
1. Extended Warranty (recommended for UPSs below 5 kVA)
When your customer notifies Eaton about a defective unit, Eaton ships a replacement unit overnight. Upon receipt of the new UPS, the customer
returns the defective unit to Eaton via ground shipment. The freight for both units is paid by Eaton.
2. Onsite service and repair (recommended for UPSs 5 kVA and above)
Onsite service is a standard 7x24, next day response level of coverage – for detailed information, visit www.eaton.com/upsservices. The following
features can be added to onsite service to guarantee unparalleled UPS performance:
• Comprehensive coverage of the UPS and batteries
• Telephone technical support
• eNotify remote monitoring
• Connectivity support
• Expedited delivery of replacement parts, modules and batteries
• Onsite startup
• Onsite corrective maintenance
• Next-day 24-hour response
• Annual UPS and/or battery preventive maintenance
Single-phase Factory Extended
Service Plan Features Warranty Warranty Flex
Comprehensive coverage of the • • •
UPS and standard batteries
Telephone technical support • • •
eNotify remote monitoring o
Connectivity support • • •
Expedited delivery of replacement • •
parts, modules and batteries
Onsite startup o o
Onsite corrective maintenance •
7x24 Next-day response •
UPS preventive maintenance o o
• Included feature o Optional feature
1. Unit must be within 100 miles of Eaton established service location to qualify for next day response.
2. eNotify Remote Monitoring service requires Web card and EMP, not included in Flex or Extended Warranty contract price. eNotify not available for 3015, 5110, 5115 and FERRUPS.
3. Factory Warranty: Two-year Warranty for 3105, 3S, 5110, 5115, 5125, 5130, 5P, 5PX, 9130, 9135, 9PX, Evolution, Evolution S, EX, MX, EX RT, 9140, 9155, 9170+ and FERRUPS. Eaton 3105, 3S, 5110, 5115,
5125, 5130 and 5PX upgrade to 3-Year Warranty when registered online at www.eaton.com/pq/register.
July 1, 2013
121www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
SERVICES
Single-phase Service Plans
EXTENDED WARRANTIES
Extended Warranty Advanced Exchange Coverage for UPS (includes batteries in UPS)
Extended 1YR Warranty
Applicable Warranty Part Extension
VA Range UPS Model Number List Price Description Part Number List Price Description
1 - 700 3SW5Y-0750UC $23 3SW1Y-0750UC $7
1 - 950 5SW5Y-0950UC $62 5SW1Y-0950UC $19
951 - 1400 5SW5Y-1400UC $127 5SW1Y-1400UC $38
1401 - 1750 5SW5Y-1750UC $166 5SW1Y-1750UC $50
1751 - 2500 5SW5Y-2500UC $345 5SW1Y-2500UC $103
2501 - 3000 5SW5Y-3000UC $397 5SW1Y-3000UC $119
3001 - 6000 5SW5Y-6000UC $841 5SW1Y-6000UC $252
1 - 700 9SW3Y-0700UC $115 9SW1Y-0700UC $57
701 - 1000 9SW3Y-1000UC $148 9SW1Y-1000UC $74
1001 - 1500 9SW3Y-1500UC $189 9SW1Y-1500UC $94
1501 - 2000 9SW3Y-2200UC $252 9SW1Y-2200UC $126
2001 - 2500 9SW3Y-2500UC $334 9SW1Y-2500UC $167
2501 - 3000 9SW3Y-3000UC $421 9SW1Y-3000UC $211
3001 - 6000 9SW3Y-6000UC $645 9SW1Y-6000UC $322
6001 - 11000 9SW3Y-11000UC $868 9SW1Y-11000UC $434
11001-18000 9SW3Y-18000UC $1,240 9SW1Y-18000UC $620
1 - 700 9SW5Y-0700UC $276
701 - 1000 9SW5Y-1000UC $355
1001 - 1500 9SW5Y-1500UC $454
1501 - 2000 9SW5Y-2200UC $605
2001 - 2500 9SW5Y-2500UC $803
2501 - 3000 9SW5Y-3000UC $1,013
3001 - 6000 9SW5Y-6000UC $1,549
6001 - 11000 9SW5Y-11000UC $2,088
11001-18000 9SW5Y-18000UC $2,650
Extended Warranty Coverage for EBM (External Battery Module)
Extended 1YR Warranty
Applicable Warranty Part Extension
VA Range EBM Model Number List Price Description Part Number List Price Description
1 - 1750 5SW5Y-1750BC $404 5SW1Y-1750BC $135
1751 - 3000 5SW5Y-3000BC $632 5SW1Y-3000BC $211
3001 - 6000 5SW5Y-6000BC $885 5SW1Y-6000BC $295
1 - 3000 9SW3Y-3000BC $204
3001 - 18000 9SW3Y-18000BC $409
1 - 3000 9SW5Y-3000BC $511 9SW1Y-3000BC $170
3001 - 18000 9SW5Y-18000BC $1,022 9SW1Y-18000BC $341
5S, 5110, 5115,
5P, 5PX,
Evolution
Warranty-5: 5-year-total
warranty (UPS) for new
product purchase
Extend: 1-year warranty
(UPS) for renewal
extensions for 5S, 5110,
5115, 5130, 5P, 5PX,
Evolution
Extend: 1-year warranty
(UPS) for renewal
extensions for 3105, 3S
Warranty-5: 5-year-total
warranty (UPS) for new
product purchase
3S
Extend: 1-year warranty
(UPS) for renewal
extensions for 9PX, 9130,
9135, FERRUPS non hard-
wired, 9170+, EX, MX,
9140, EX RT
Warranty-3: 3-year-total
warranty (UPS) for new
product purchase
9PX, 9130, FERRUPS
non hard-wired,
9170+, EX
9PX, 9130, FERRUPS
non hard-wired,
9170+, EX
Warranty-5: 5-year-total
warranty (UPS) for new
product purchase
Warranty-3 = 3 year total warranty for new UPS or EBM
Warranty-5 = 5 year total warranty for new UPS or EBM
Extend = 1 year advanced exchange warranty
extensions
If purchased non-concurrently (60 days after product
purchase), replace last character "C" with "N" and apply
aftermarket multiplier
5PX, Evolution Warranty-5: 5-year-total
warranty (EBM)
Extend: 1-year warranty
(EBM) for renewal
extensions
9PX, 9130, FERRUPS
non hard-wired,
9170+, EX Extend: 1-year warranty
(EBM) for renewal
extensions
Warranty-5: 5-year-total
warranty (EBM)
Warranty-3: 3-year-total
warranty (EBM)
122 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
SERVICES
Single-phase Service Plans (continued)
EXTENDED WARRANTIES
(continued)
Extended Warranty Coverage for ePDU
Extended
ePDU List Applicable Warranty Part
Price Range ePDU Model Number List Price Description
$0 to $400 ESW5Y-0400P $63
$401 to $1000 ESW5Y-1000P $158
$1001 to $2000 ESW5Y-2000P $315
$2001 to $5000 ESW5Y-5000P $788
$5000+ ESW5Y-9999P call
$0 to $400 ESW5Y-0400S $79
$401 to $1000 ESW5Y-1000S $197
$1001 to $2000 ESW5Y-2000S $394
$2001 to $5000 ESW5Y-5000S $984
$5000+ ESW5Y-9999S call
$0 to $400 ESW5Y-0400C $79
$401 to $1000 ESW5Y-1000C $197
$1001 to $2000 ESW5Y-2000C $394
$2001 to $5000 ESW5Y-5000C $984
$5000+ ESW5Y-9999C call
Important Notes:
1) Extended Warranty extends term of Factory Warranty and adds Advanced Exchange
2) Factory Warranty - Return Process
- Customer returns unit to Eaton (customer pays freight)
- Eaton ground ships replacement unit (on receipt of defective unit)
- Eaton covers freight to customer
3) Advanced Exchange - Return Process
- Eaton overnight ships replacement unit (on customer contact)
- Customer returns defective unit in overnight packaging
- Eaton covers freight in both directions
4) Extended Warranty "buy/resell" multiplier matches new product (hardware) multiplier
5) Prices apply to equipment installed in US 50 states
6) 9170+ uses the total KVA installed for service pricing (e. 3kVA N+1 = 6kVA)
All ePDU Top Seller
products based on
list price
All ePDU BtO,
Specialty products
based on list price
All ePDU Custom
products based on
list price
Warranty-5:
ePDU Top Sellers
(50005), 5-year-total
warranty (ePDU)
Warranty-5: ePDU
Build to Order,
Specialty (50006,
50008), 5-year-total
warranty (ePDU)
Warranty-5: ePDU
Custom, 5-year-total
warranty (ePDU)
ONSITE UPS SERVICE
Flex Plan (onsite parts and labor only) 7x24 next day response, includes internal batteries
Onsite 1YR Onsite 2YR Onsite 3YR Onsite 5YR
Applicable Service Coverage List Service Coverage List Service Coverage List Service Coverage List
VA Range UPS Model Part Number Price Part Number Price Part Number Price Part Number Price
1 - 700 FLN71XXX-0700UC $48 FLN72XXX-0700UC $96 FLN73XXX-0700UC $245 FLN75XXX-0700UC $360
701 - 1000 FLN71XXX-1000UC $60 FLN72XXX-1000UC $120 FLN73XXX-1000UC $304 FLN75XXX-1000UC $446
1001 - 1500 FLN71XXX-1500UC $90 FLN72XXX-1500UC $180 FLN73XXX-1500UC $462 FLN75XXX-1500UC $679
1501 - 2000 FLN71XXX-2200UC $100 FLN72XXX-2200UC $200 FLN73XXX-2200UC $510 FLN75XXX-2200UC $750
2001 - 2500 FLN71XXX-2509UC $130 FLN72XXX-2509UC $260 FLN73XXX-2509UC $666 FLN75XXX-2509UC $979
2501 - 3000 FLN71XXX-3009UC $172 FLN72XXX-3009UC $344 FLN73XXX-3009UC $875 FLN75XXX-3009UC $1,286
3001 - 6000 FLN71XXX-6009UC $194 FLN72XXX-6009UC $388 FLN73XXX-6009UC $986 FLN75XXX-6009UC $1,450
6001 - 11000 FLN71XXX-11000UC $405 FLN72XXX-11000UC $810 FLN73XXX-11000UC $2,066 FLN75XXX-11000UC $3,038
11001-18000 FLN71XXX-18000UC $534 FLN72XXX-18000UC $1,068 FLN73XXX-18000UC $2,721 FLN75XXX-18000UC $4,001
Onsite UPS parts and labor repair or replace coverage, includes internal battery coverage, 7x24 coverage and next day response for new product purchase; onsite
pricing may be used to quote legacy UPS models with appropriate non-concurrent multiplier (replace last digit "C" with "N")
5S, 5110,
5115, 5P, 5PX,
Evolution, 9PX,
9130, FERRUPS,
9170+, EX
July 1, 2013
123www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
SERVICES
Single-phase Service Plans (continued)
ONSITE UPS SERVICE
(continued)
External Battery Coverage (parts and labor)
Onsite Battery EBM Onsite Battery EBM Onsite Battery EBM Onsite Battery EBM
Applicable 1YR Coverage List 2YR Coverage List 3YR Coverage List 5YR Coverage List
VA Range UPS Model Part Number Price Part Number Price Part Number Price Part Number Price
1250 - 4900 21 ME EBN71XXX-4900BC $68 EBN72XXX-4900BC $135 EBN73XXX-4900BC $345 EBN75XXX-4900BC $506
5000 - 7000 9170+ 6-slot, EBN71XXX-7000BC $123 EBN72XXX-7000BC $241 EBN73XXX-7000BC $627 EBN75XXX-7000BC $923
EBPS12.5, EBPS18,
8FE, 2FE 9FE,
16FE 2re, 1rd,
8ME EBPS4.3R,
9ME EBPS10,
24ME 1FE, 25ME 1re
7001 - 11000 9170+ 9-slot, EBN71XXX-11000BC $235 EBN72XXX-11000BC $469 EBN73XXX-11000BC $1,196 EBN75XXX-11000BC $1,759
10ME 11ME,
12ME 3FE,
4FE 2rd, 13ME,
5FE, 3rd, 10FE, 17FE
11001 - 12000 9170+ 12-slot, EBN71XXX-12000BC $418 EBN72XXX-12000BC $836 EBN73XXX-12000BC $2,132 EBN75XXX-12000BC $3,135
14ME, 6FE,
11FE, 12FE,
18FE, 19FE
12001 - 14000 15ME, 7FE, EBN71XXX-14000BC $589 EBN72XXX-14000BC $1,178 EBN73XXX-14000BC $3,004 EBN75XXX-14000BC $4,418
13FE, 20FE
14001 - 18000 14FE, 21FE, EBN71XXX-18000BC $1,112 EBN72XXX-18000BC $2,224 EBN73XXX-18000BC $5,671 EBN75XXX-18000BC $8,340
15FE, 22FE
Onsite external battery (EBM) replacement coverage to complement UPS coverage for new product purchase
Scheduled Onsite Services and Monitoring
Onsite Onsite eNotify Remote Scheduled Assembly
Applicable 7x24 Startup List UPS PM 7x24 List Monitoring Per Year List Service 7x24 List
VA Range UPS Model Part Number Price Part Number Price Part Number Price Part Number Price
1 - 6000 5110, 5115, SU05NXXX-6000UC $1,032 0005NXXX-6000UC $1,032 XXXXNEXX-6000UC $196 AS00NXXX-6000UC $500
5P, 5PX
Evolution
1 - 6000 SU05NXXX-6009UC $1,032 0005NXXX-6009UC $1,032 XXXXNEXX-6009UC $196 AS00NXXX-6009UC $500
6001-11000 SU05NXXX-11000UC $1,277 0005NXXX-11000UC $1,088 XXXXNEXX-11000UC $196 AS00NXXX-11000UC $600
11001-18000 SU05NXXX-18000UC $1,468 0005NXXX-18000UC $1,196 XXXXNEXX-18000UC $196 AS00NXXX-18000UC $818
Flex (FL) = Flex (3Phase) parts and labor onsite 7x24, next day (new)
Important Notes:
1) Onsite coverage plans start upon product purchase and upgrades and/or extends the Factory Warranty
2) Onsite plan registration process
- Customer registers product serial number online at www.powerquality.eaton.com/register
3) To request or schedule service or to replace batteries, call 800/356-5737
4) External battery coverage purchase requires an onsite UPS plan
5) To renew or sell coverage after the Factory Warranty, original extension or plan coverage, batteries must be replaced
6) Prices apply to equipment installed in US 50 states and equipment must be within 100 miles of the nearest Eaton field technician
7) 9170+ uses the total KVA installed for service pricing (e. 3kVA N+1 = 6kVA)
8) Multi unit startup discount: apply 50% discount on additional units beyond first unit (ex., first unit is 100% of startup price and second unit is 50% if started at
same time at same location)
9) Multi module 10% discount for any onsite coverage, PM or monitoring when 2 or more units are at the same location
10) Apply 50% discount for first year coverage; only applies to first warranty year
9PX, 9130,
FERRUPS,
9170+, EX
124 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
SERVICES
Three-phase Service Plans Overview
Eaton's three-phase UPS service options, provide the uptime, convenience and value that's right for you and your business. You can leverage onsite
services to meet your specific needs for UPSs, batteries and related equipment. With 240 customer service engineers in North America, we have more
factory-trained personnel than any other UPS manufacturer and customers consistently rank our service number one in quality.
PowerTrust PowerTrust
Three-phase Service Plan Features Value ProActive PowerTrust Preferred Flex
Parts and Labor for Electronics • • • • o
Parts and Labor for Batteries o o o o o
5x8 Onsite Corrective Maintenance • o
7x24 Onsite Corrective Maintenance • • • o
Next Business Day Response • o
8-Hour Response • • • o
4-Hour Response o o o o
2-Hour Response o o o o
5x8 UPS Preventive Maintenance Visit 1 per year o 1 per year o o
7x24 UPS Preventive Maintenance Visit o 1 per year o 2 per year o
Battery Preventive Maintenance Visit o o 1 per year 2 per year o
eNotify Remote Monitoring Service • • • • o
Discounted Spare Parts & Upgrade Kits & T&M 30% 30% 30%
• Included feature o Optional feature
Eaton's most popular on-site UPS support plans come standard with the above features. Additional preventive maintenance visits can be added to any
packaged plan. Flex Support Plans should be used whenever a standard packaged service plan doesn't exactly match your needs. If quoting any first
year concurrent contract or preventive services, replace "W2" with W1" and apply 50% discount; does not apply to startup services (ex. selling 2 years
of Flex coverage starting in warranty year, quote quantity 1 of W1FL87NXXX at 50% of the W2 item, and quantity 1 of W2FL87NXXX at 100% price)
Eaton 9155 uses three-phase service pricing and includes internal battery replacement coverage. Special note: for any 9155 service replace the
seventh part number digit "N" with "5".
1YR FLEX PLANS (Onsite Parts and Labor only includes replacement coverage for BladeUPS and
9155)
7x24, 8-hour 7x24, 4-hour 7x24, 8-hour 7x24, 4-hour
response List response List response + eNotify List response + eNotify List
kVA Range Part Number Price Part Number Price Part Number Price Part Number Price
6 - 10 W2FL87NXXX-0010 $1,217 W2FL47NXXX-0010 $1,522 W2FL87NEXX-0010 $1,413 W2FL47NEXX-0010 $1,718
11 - 15 W2FL87NXXX-0015 $1,393 W2FL47NXXX-0015 $1,740 W2FL87NEXX-0015 $1,588 W2FL47NEXX-0015 $1,935
16 - 20 W2FL87NXXX-0020 $1,566 W2FL47NXXX-0020 $1,957 W2FL87NEXX-0020 $1,914 W2FL47NEXX-0020 $2,305
21 - 30 W2FL87NXXX-0030 $1,857 W2FL47NXXX-0030 $2,322 W2FL87NEXX-0030 $2,292 W2FL47NEXX-0030 $2,756
31 - 50 W2FL87NXXX-0050 $2,312 W2FL47NXXX-0050 $2,889 W2FL87NEXX-0050 $2,964 W2FL47NEXX-0050 $3,541
51 - 80 W2FL87NXXX-0080 $2,827 W2FL47NXXX-0080 $3,580 W2FL87NEXX-0080 $3,698 W2FL47NEXX-0080 $4,451
81 - 160 W2FL87NXXX-0160 $3,860 W2FL47NXXX-0160 $4,844 W2FL87NEXX-0160 $4,731 W2FL47NEXX-0160 $5,714
July 1, 2013
125www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
SERVICES
Three-phase Service Plans (continued)
1YR SUPPORT PLANS (Onsite Parts and Labor plus Preventive, eNotify includes internal battery PM
and replacement coverage for BladeUPS and 9155)
PowerTrust Value PowerTrust Service Plan PowerTrust Service Plan
Service Plan List 8 Hr (1 batt cab/EBM) List 4 Hr (1 batt cab/EBM) List
kVA Range Part Number Price Part Number Price Part Number Price
6 - 10 W2PVN3NEXX-0010 $1,938 W2PT82NEDX-0010 $3,419 W2PT42NEDX-0010 $3,724
11 - 15 W2PVN3NEXX-0015 $2,054 W2PT82NEDX-0015 $3,621 W2PT42NEDX-0015 $3,968
16 - 20 W2PVN3NEXX-0020 $2,425 W2PT82NEDX-0020 $4,077 W2PT42NEDX-0020 $4,469
21 - 30 W2PVN3NEXX-0030 $2,805 W2PT82NEDX-0030 $4,599 W2PT42NEDX-0030 $5,064
31 - 50 W2PVN3NEXX-0050 $3,418 W2PT82NEDX-0050 $5,438 W2PT42NEDX-0050 $6,015
51 - 80 W2PVN3NEXX-0080 $4,124 W2PT82NEDX-0080 $6,404 W2PT42NEDX-0080 $7,157
81 - 160 W2PVN3NEXX-0160 $4,886 W2PT82NEDX-0160 $7,673 W2PT42NEDX-0160 $8,657
PowerTrust Preferred Service Plan 4 Hr PowerTrust Preferred Service Plan 8 Hr
(1 batt cab/EBM) List (1 batt cab/EBM) List
kVA Range Part Number Price Part Number Price
6 - 10 W2PP41NEDX-0010 $6,184 W2PP81NEDX-0010 $5,880
11 - 15 W2PP41NEDX-0015 $6,261 W2PP81NEDX-0015 $5,914
16 - 20 W2PP41NEDX-0020 $6,871 W2PP81NEDX-0020 $6,479
21 - 30 W2PP41NEDX-0030 $7,467 W2PP81NEDX-0030 $7,003
31 - 50 W2PP41NEDX-0050 $8,416 W2PP81NEDX-0050 $7,839
51 - 80 W2PP41NEDX-0080 $9,832 W2PP81NEDX-0080 $9,079
81 - 160 W2PP41NEDX-0160 $11,439 W2PP81NEDX-0160 $10,455
SCHEDULED ONSITE SERVICES
Onsite 5x8 Startup List Onsite 7x24 Startup List Scheduled Assembly Service 7x24 List
kVA Range Part Number Price Part Number Price Part Number Price
6 - 10 W2SU06NXXX-0010 $1,060 W2SU05NXXX-0010 $1,277 W20006NXXX-0010 $500
11 - 15 W2SU06NXXX-0015 $1,196 W2SU05NXXX-0015 $1,468 W20006NXXX-0015 $818
16 - 20 W2SU06NXXX-0020 $1,360 W2SU05NXXX-0020 $1,632 W20006NXXX-0020 $818
21 - 30 W2SU06NXXX-0030 $1,468 W2SU05NXXX-0030 $1,740 W20006NXXX-0030 $1,000
31 - 50 W2SU06NXXX-0050 $1,736 W2SU05NXXX-0050 $2,284 W20006NXXX-0050 $1,000
51 - 80 W2SU06NXXX-0080 $1,839 W2SU05NXXX-0080 $2,419 W20006NXXX-0080 $1,250
81 - 160 W2SU06NXXX-0160 $2,339 W2SU05NXXX-0160 $3,078 W20006NXXX-0160 $1,250
RPP w/BCMS, EMS UGK W2SU06NXXX-RPPB $870 W2SU05NXXX-RPPB $1,393 W20006NXXX-RPPB $818
RPP, PDR W2SU06NXXX-RPP $680 W2SU05NXXX-RPP $1,088 W20006NXXX-RPP $818
Onsite UPS PM 5x8 List Onsite UPS PM 7x24 List
kVA Range Part Number Price Part Number Price
6 - 10 W20006NXXX-0010 $973 W20005NXXX-0010 $1,277
11 - 15 W20006NXXX-0015 $979 W20005NXXX-0015 $1,196
16 - 20 W20006NXXX-0020 $1,088 W20005NXXX-0020 $1,305
21 - 30 W20006NXXX-0030 $1,196 W20005NXXX-0030 $1,360
31 - 50 W20006NXXX-0050 $1,305 W20005NXXX-0050 $1,413
51 - 80 W20006NXXX-0080 $1,468 W20005NXXX-0080 $1,632
81 - 160 W20006NXXX-0160 $1,577 W20005NXXX-0160 $1,740
RPP w/BCMS, EMS UGK W20006NXXX-RPPB $598 W20005NXXX-RPPB $816
RPP, PDR W20006NXXX-RPP $534 W20005NXXX-RPP $637
126 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
SERVICES
Three-phase Service Plans (continued)
BATTERY PREVENTIVE MAINTENANCE
AFTER HOURS (7x24) BATTERY REPLACEMENT COVERAGES
Battery Part Number List Price Battery Part Number List Price
9E (20, 30 kVA) - 3 Strings (54 jars) 0005NSXX-0054 $1,036 2 Year Battery Labor Coverage adder W2BL07NAXX $327
9E (20, 30 kVA) - 6 Strings (108 jars) 0005NSXX-0108 $1,727 3 Year Battery Labor Coverage adder W2BL07NBXX $734
9E (40, 60 kVA) - 4 Strings (72 jars) 0005NSXX-0072 $1,381 Full Battery Coverage B47 W2FB07CNXX-B47 $4,781
9E (40, 60 kVA) - 6 Strings (108 jars) 0005NSXX-0108 $1,727 Full Battery Coverage E20 W2FB07CNXX-E20 $2,407
9E (40, 60 kVA) - 8 Strings (144 jars) 0005NSXX-0144 $1,996 Full Battery Coverage E33 W2FB07CNXX-E33 $3,270
9E (40, 60 kVA) - 12 Strings (216 jars) 0005NSXX-0216 $2,993 Full Battery Coverage EBC 36 W2FB07CXXX-E36 $1,770
1 to 4 EBMs per system W20005NEXT $880 Full Battery Coverage EBC 72 W2FB07CXXX-E72 $2,458
Internal batteries W20005NINT $880 Full Battery Coverage EBM 64 W2FB07NXXX-EB64 $891
Per 40 jar battery cabinet W20005NS040 $880 Full Battery Coverage EBM 96 W2FB07NXXX-EB96 $1,224
Per EBC 36 W20005NS036 $792 Full Battery Coverage Internal - 108 jars W2FB07NXXX-IH34 $1,309
Per EBC 72 W20005NS072 $1,426 Full Battery Coverage Internal - 32 jars W2FB07NXXX-IN32 $576
Per EBM 64 W20005NS064 $792 Full Battery Coverage 9E EBC 54 W2FB07CNXX-9E54 $3,249
Per EBM 96 W20005NS096 $1,426 Full Battery Coverage 9E EBC 72 W2FB07CNXX-9E72 $4,333
Full Battery Coverage 9E EBC 108 W2FB07CNXX-9E08 $6,499
STARTUP UPGRADES FROM 5X8 TO 7X24
System Part Number List Price
Upgrade from 5x8 to 7x24 Startup 10kVA UP05CXXX-0010 $217
Upgrade from 5x8 to 7x24 Startup 15kVA UP05CXXX-0015 $272
Upgrade from 5x8 to 7x24 Startup 20kVA UP05CXXX-0020 $272
Upgrade from 5x8 to 7x24 Startup 30kVA UP05CXXX-0030 $272
Upgrade from 5x8 to 7x24 Startup 50kVA UP05CXXX-0050 $548
Upgrade from 5x8 to 7x24 Startup 80kVA UP05CXXX-0080 $580
Upgrade from 5x8 to 7x24 Startup 160kVA UP05CXXX-0160 $739
STARTUP FOR BLADEUPS PRE-ASSEMBLED SYSTEMS
System Part Number List Price
BladeUPS Pre-Assembled Start-up Level 1, 5 x 8 (20 acces.) W2SUPS06XXX-0080 $2,206
BladeUPS Pre-Assembled Start-up Level 1, 7 x 24 (20 acces.) W2SUPS05XXX-0080 $2,903
BladeUPS Pre-Assembled Start-up Level 2, 5 x 8 (40 acces.) W2SUPR06XXX-0080 $2,390
BladeUPS Pre-Assembled Start-up Level 2, 7 x 24 (40 acces.) W2SUPR05XXX-0080 $3,146
FBC ordering notes: Full Battery Coverage (FBC) is priced per cabinet (40 jars)/per year, can only be bought when batteries are new (less than 6 months old) and
requires purchase of module corrective coverage and an annual battery PM. FBC includes battery parts, freight and labor if battery fails or is rated below 80% of
capacity; should be purchased in 5 year length.
July 1, 2013
127www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
SERVICES
Three-phase Service Plans Overview
TIME AND MATERIAL SERVICE RATE SCHEDULE
The following rate schedule applies to all services rendered on non-contracted and non-warranty equipment and to all services performed on contracted equipment
where the service performed is outside the scope of the contracted coverage. Labor rates are based on the actual time of delivery. Specific contract customers may
be eligible for discounts on time and material charges.
3-Phase Products - Portal to Portal Labor per Hour (Onsite and Travel Time) Current List Price
Mon. – Fri., Business Hours (8AM – 5PM): $270
Mon. – Fri., After Business Hours (5PM – 8AM): $345
Weekends and Holidays (Saturday 12:01AM – Sunday Midnight): $430
3-Phase Products - Minimum Labor Billing (minimum value range equal to above rates x hourly minimum)
Equipment below 200kVA, Five day or less response (4 hour min.): $1,080 to $1,720
Equipment 200kVA and above or Multi Module, Five day or less response (6 hour min.): $1,620 to $2,580
Equipment 200kVA and above or Multi Module, Two day or less response (8 hour min.): $2,160 to $3,440
1-Phase Products - Portal to Portal Labor per Hour (Onsite and Travel Time)
Mon. – Fri., Business Hours (8AM – 5PM): $215
Mon. – Fri., After Business Hours (5PM – 8AM), Weekends and Holidays: $345
1-Phase Products - Minimum Labor Billing (minimum value range equal to above rates x hourly minimum)
Equipment below 200kVA, Five day or less response (4 hour min.): $860 to $1,380
Equipment 200kVA and above or Multi Module, Five day or less response (6 hour min.): $1,290 to $2,070
Equipment 200kVA and above or Multi Module, Two day or less response (8 hour min.): $1,720 to $2,760
Travel & Living Expenses
Transportation:
3-Phase Products: Automobile mileage included in labor rates
1-Phase Products: Automobile mileage at $ 0.75 per mile
All others (air fare, car rental, tolls, etc.): Actual
Lodging & Meals: Actual
Calculation of Labor and Mileage Charges: Portal to Portal (travel labor and mileage)
Materials/Spare Parts Current List Price
Minimum billing: $130 Domestic, $320 International
Parts Expedite Fees
Mon. – Fri., Business Hours (8AM – 5PM): $130
Mon. – Fri., After Business Hours (5PM – 8AM): $290
Weekends and Holidays: $465
Freight Expense
Freight – FOB Factory: Actual
Same Day Delivery: $180 plus Actual Freight
Depot Repair Labor: $145 per hour
Minimum Billing: $145
Expediting Fee: $120
Note: Three-phase products include Eaton BladeUPS, Best Power Unity UT3; single-phase products include Eaton 9155, Powerware 9150, Best Power Unity UT3K,
UT8K
128 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
Written authority from Eaton must be obtained before any return or credit will be allowed.
Sales RMAs will be issued for new, unused equipment that is:
A. Within 30 days of original shipment date
B. Returned in original sealed packaging
C. Returned in unmodified, untampered, original condition
D. A current design
Cancellations and Erroneous Orders:
Any order for standard Eaton products may not be cancelled within thirty days of the date scheduled for shipment/delivery by Eaton. Otherwise the order
may be cancelled in accordance with the following:
• Sales RMAs issued for cancellations and erroneous orders will be subject to a minimum 15% restocking/cancellation fee
• Restocking/cancellation fee for standard product will be 15%
• Restocking/cancellation fee for special, custom or configured products will be a minimum of 50%
• The buyer is responsible for both inbound and outbound freight charges
Note: Charges may be waived by mutual agreement between buyer and seller. Proper approval and authorization must be obtained and documented in
writing before the transaction is initiated.
Erroneous Shipments:
Sales RMAs necessary as a result of shipping/order entry errors will be issued and transacted with no charge to the buyer. Eaton will pay inbound
freight, and outbound freight will be similar service level as original shipment.
RMA Expiration:
An RMA is valid for 60 calendar days from date of authorization by Eaton, after which it is subject to cancellation.
Sales Contracts:
An active Sales Contract with clauses relating to return of product for sales credits may supersede the Sales RMA policy statements above.
To request a Sales RMA please contact:
800.356.5794
e-mail: salesrma@eaton.com
RMA POLICY AND PRODUCT WARRANTIES
Sales Returned Merchandise Authorization (RMA) Policy
July 1, 2013
129www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
WARRANTY
Eaton Corporation Load Protection Guarantee (US and Canada)
UPS MODELS: 3105, 3S, 5S, 5110, 5115, 5125, 5P, 5PX, 9130, 9135, 9140, 9PX, 9155, 9170+ AND FERRUPS
GUARANTOR: The Guarantor for the load protection guaranty set forth herein is Eaton (“Company”).
LIMITED GUARANTY: This load protection guaranty (this “Guaranty”) applies only to the original End-user (the “End-user”) of any 3105, 3S, 5S,
5110, 5115, 5125, 5130, 5P, 5PX, 9130, 9135, 9140, 9PX, 9155, 9170+ and FERRUPS Products (individually and collectively, the “Product”) and cannot be
transferred. This Guaranty applies even in the event that the Product is initially sold by Company for resale to an End-User.
WHAT THIS GUARANTY COVERS: For the lifetime of the Product, Guarantor promises to repair or replace, at Guarantor's option, the equipment
(valued up to the limits shown below*) that is damaged by an AC power line surge, spike or other transient when properly connected to Guarantor's
uninterruptible power system (“UPS”). Reimbursement for or restoration of data loss excluded. This Guaranty applies only if all of the following
circumstances arise:
1. The UPS is plugged into properly grounded and wired outlets, using no extension cords, adapters, other ground wires or other electrical
connectors;
2. The installation of the UPS complies with all applicable electrical and safety codes described by the National Electric Code (NEC);
3. The UPS was used under normal operating conditions and in accordance with all labels and instructions; and
4. The UPS was not damaged by accident (other than AC power line transient), misuse or abuse.
*Cumulative Limits to be paid by Guarantor under this Load Protection Guaranty:
$25,000 for UPS Model 3105 and 3S
$150,000 for UPS Models 5110, 5115, 5125, 5P and 5PX
$250,000 for UPS Models 9130, 9135, 9140, 9PX, 9155, 9170+ and FERRUPS products
WHAT THIS GUARANTY DOES NOT COVER: Any reimbursement or repair to End-user's equipment does not include reimbursement for or restoration
of any data loss. This Guaranty does not cover any defects or damages caused by: (a) failure to properly store the Product before installation,
including the charge of batteries no later than the date indicated on the packaging; (b) shipping and delivery of the Product if shipping is FOB
Factory; (c) neglect, accident, abuse, misuse, misapplication, or incorrect installation of Product; (d) repair or alteration of Product not authorized
in writing by Company personnel or performed by an authorized Company Customer Service Engineer or Agent; (e) improper testing, operation,
maintenance, adjustment, or modification of any kind to the Product not authorized in writing by Company personnel or performed by an authorized
Company Customer Service Engineer or Agent; or (f) use of the Product under other than normal operating conditions or in a manner inconsistent
with the Product's labels or instructions.
This Guaranty is not valid: (a) unless the End-user returns to Company the Warranty Registration Card or completes the registration form on
www.powerquality.eaton.com/productregistration within thirty (30) days of purchase; or (b) if the Product's serial numbers have been removed or
are illegible.
Company shall not be responsible for any charges for testing, checking, removal or installation of any items.
LIMITATION OF LIABILITY: THE REMEDIES OF THE END-USER SET FORTH HEREIN ARE EXCLUSIVE AND ARE THE SOLE REMEDIES FOR ANY FAILURE
OF COMPANY TO COMPLY WITH ITS OBLIGATIONS HEREUNDER. EXCEPT AS OTHERWISE PROVIDED FOR IN THIS GUARANTY, IN NO EVENT SHALL
COMPANY BE LIABLE IN CONTRACT, IN TORT (INCLUDING NEGLIGENCE OR STRICT LIABILITY) OR OTHERWISE FOR DAMAGE TO PROPERTY OR
EQUIPMENT OTHER THAN THE PRODUCTS, INCLUDING LOSS OF PROFITS OR REVENUE, LOSS OF USE OF PRODUCTS, LOSS OF DATA, COST OF
CAPITAL, CLAIMS OF CUSTOMERS OF THE END-USER OR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER.
THE TOTAL CUMULATIVE LIABILITY OF COMPANY HEREUNDER WHETHER THE CLAIMS ARE BASED IN CONTRACT (INCLUDING INDEMNITY), IN
TORT (INCLUDING NEGLIGENCE OR STRICT LIABILITY) OR OTHERWISE, SHALL NOT EXCEED THOSE SET FORTH ABOVE.
Company shall not be responsible for failure to provide repair or replacement under this Guaranty due to causes beyond Company's reasonable
control.
END-USER’S OBLIGATIONS: In order to receive the benefits of this Guaranty, the End-user must use the Product in a normal way; follow the
Product's operation and maintenance manual; and protect against further damage to the Product if there is a covered defect.
OTHER LIMITATIONS: Company's obligations under this Guaranty are expressly conditioned upon receipt by Company of all payments due to it
(including interest charges, if any). During such time as Company has not received payment of any amount due to it for the Product, in accordance
with the contract terms under which the Product is sold, Company shall have no obligation under this Guaranty.
COSTS NOT RELATED TO GUARANTY: The End-user shall be invoiced for, and shall pay for, all services not expressly provided for by the terms
of this Guaranty, including without limitation, site calls involving an inspection that determines no corrective maintenance is required. Any costs
for replacement equipment, installation, materials, freight charges, travel expenses or labor of Company representatives outside the terms of this
Guaranty will be borne by the End-user.
TO MAKE A CLAIM: In the USA, call the Customer Reliability Center 7x24 at 800.356.5737. Outside of the USA, contact your local Eaton product sales
or service representative, or call the Customer Reliability Center in the USA at 919.870.3149. For comments or questions about this Load Protection
Guaranty, write to the Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North Carolina 27616 USA.
130 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
UPS MODELS: 3105, 3S, 5S, 5110, 5115, 5125, 5P AND 5PX (USA AND CANADA)
WARRANTOR: The warrantor for the limited warranties set forth herein is Eaton (“Company”).
LIMITED WARRANTY: This limited warranty (this “Warranty”) applies only to the original End-user (the “End-user”) of any 3105, 3S, 5S, 5110, 5115,
5125, 5P and 5PX Products (individually and collectively, the “Product”) purchased on or after August 19th, 2009, and cannot be transferred. This
Warranty applies even in the event that the Product is initially sold by Company for resale to an End-user.
LIMITED WARRANTY PERIOD: The period covered by this Warranty for Product installed [and currently located] in the fifty (50) United States, the
District of Columbia and Canada is twenty-four (24) months from the date of purchase, or thirty (30) months from the date of shipment. For units
that are registered online at www.eaton.com/PQ/Register, the warranty is extended to thirty-six (36) months from the date of purchase, or forty-
two (42) months from the date of shipment.
WHAT THIS LIMITED WARRANTY COVERS: The warrantor warrants that the Product and battery (individually and collectively, the ”Warranted
Items”) are free of defects in material and workmanship. If, in the opinion of Company, a Warranted Item is defective and the defect is within the
terms of this Warranty, Company's sole obligation will be to repair or replace such defective Warranted Item (including by providing service, parts
and labor, as applicable), at the option of Company.
PROCEDURES FOR REPAIR OR REPLACEMENT OF WARRANTED ITEMS: The Warranted Item will be repaired or replaced at a Company site or
such other location as determined by Company.
If the Warranted Item is to be replaced by Company, and the End-user supplies a credit card number or purchase order for the value of the
replacement product, Company will use commercially reasonable business efforts to ship (via standard ground shipment and at no cost to the
End-user) the replacement Warranted Item to the End-user within one (1) business day after Company receives notice of the warranty claim. In
such case, the End-user must return (at Company's expense) the defective Warranted Item to Company in the same packaging as the replacement
Warranted Item received by the End-user or as otherwise instructed by Company. If Company does not receive the defective Warranted Item,
Company will either charge the End-user's credit card, or send the End-user an invoice (which the End-user agrees to pay), for the value of the
replacement product.
If the Warranted Item is to be replaced by Company, but the End-user is unwilling or unable to supply a credit card number or purchase order for
the value of the replacement product, Company will use commercially reasonable business efforts to ship (via standard ground shipment and at no
cost to the End-user) the replacement Warranted Item to the End-user within one (1) business day after Company receives the defective product
from the End-user.
In any case, Company will provide shipping instructions and will pay its designated carrier for all shipping charges for return of defective
equipment and replacement of Warranted Items. Any returned Warranted Item or parts that are replaced may be new or reconditioned. All
Warranted Items returned to Company and all parts replaced by Company shall become the property of Company.
WHAT THIS LIMITED WARRANTY DOES NOT COVER: This Warranty does not cover any defects or damages caused by: (a) failure to properly
store the Product before installation, including the charge of batteries no later than the date indicated on the packaging; (b) shipping and delivery
of the Product if shipping is FOB Factory; (c) neglect, accident, abuse, misuse, misapplication or incorrect installation; (d) repair or alteration not
authorized in writing by Company personnel or performed by an authorized Company Customer Service Engineer or Agent; (e) improper testing,
operation, maintenance, adjustment or modification of any kind not authorized in writing by Company personnel or performed by an authorized
Company Customer Service Engineer or Agent; or (f) use of the Product under other than normal operating conditions or in a manner inconsistent
with the Product's labels or instructions.
This Warranty is not valid if the Product's serial numbers have been removed or are illegible. Any Warranted Items repaired or replaced pursuant
to this Warranty will be warranted for the remaining portion of the original Warranty subject to all the terms thereof.
WARRANTY
Limited Warranty
July 1, 2013
131www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
Company shall not be responsible for any charges for testing, checking, removal or installation of Warranted Items.
COMPANY DOES NOT WARRANT EQUIPMENT NOT MANUFACTURED BY COMPANY. IF PERMITTED BY THE APPLICABLE MANUFACTURER,
COMPANY SHALL PASS THROUGH SUCH MANUFACTURER'S WARRANTIES TO END-USER.
COMPANY DOES NOT WARRANT SOFTWARE, INCLUDING SOFTWARE EMBEDDED IN PRODUCTS, THAT IS NOT CREATED BY COMPANY.
WITHOUT LIMITING THE FOREGOING, COMPANY SPECIFICALLY DOES NOT WARRANT SOFTWARE (SUCH AS LINUX) THAT WAS CREATED
USING AN “OPEN SOURCE” MODEL OR IS DISTRIBUTED PURSUANT TO AN OPEN SOURCE LICENSE.
THIS WARRANTY IS THE SOLE AND EXCLUSIVE WARRANTY OFFERED BY COMPANY WITH RESPECT TO THE PRODUCTS AND SERVICES AND,
EXCEPT FOR SUCH FOREGOING WARRANTY COMPANY DISCLAIMS ALL OTHER WARRANTIES INCLUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTIES OF MERCHANTABILITY, TITLE, NON-INFRINGEMENT AND FITNESS FOR A PARTICULAR PURPOSE. CORRECTION OF NON-
CONFORMITIES IN THE MANNER AND FOR THE PERIOD OF TIME PROVIDED ABOVE SHALL CONSTITUTE COMPANY'S SOLE LIABILITY AND
END-USER'S EXCLUSIVE REMEDY FOR FAILURE OF COMPANY TO MEET ITS WARRANTY OBLIGATIONS, WHETHER CLAIMS OF THE END-USER
ARE BASED IN CONTRACT, IN TORT (INCLUDING NEGLIGENCE OR STRICT LIABILITY) OR OTHERWISE.
LIMITATION OF LIABILITY: The remedies of the End-user set forth herein are exclusive and are the sole remedies for any failure of Company to
comply with its obligations hereunder. In no event shall Company be liable in contract, in tort (including negligence or strict liability) or otherwise
for damage to property or equipment other than the Products, including loss of profits or revenue, loss of use of Products, loss of data, cost of
capital, claims of customers of the End-user or any special, indirect, incidental or consequential damages whatsoever. The total cumulative
liability of Company hereunder whether the claims are based in contract (including indemnity), in tort (including negligence or strict liability) or
otherwise, shall not exceed the price of the Product on which such liability is based.
Company shall not be responsible for failure to provide service or parts due to causes beyond Company's reasonable control.
END-USER’S OBLIGATIONS: In order to receive the benefits of this Warranty, the End-user must use the Product in a normal way; follow the
Product's operation and maintenance manual; and protect against further damage to the Product if there is a covered defect.
OTHER LIMITATIONS: Company's obligations under this Warranty are expressly conditioned upon receipt by Company of all payments due to it
(including interest charges, if any). During such time as Company has not received payment of any amount due to it for the Product, in accordance
with the contract terms under which the Product is sold, Company shall have no obligation under this Warranty. Also during such time, the period
of this Warranty shall continue to run and the expiration of this Warranty shall not be extended upon payment of any overdue or unpaid amounts.
COSTS NOT RELATED TO WARRANTY: The End-user shall be invoiced for, and shall pay for, all services not expressly provided for by the terms
of this Warranty, including without limitation, site calls involving an inspection that determines no corrective maintenance is required. Any costs
for replacement equipment, installation, materials, freight charges, travel expenses or labor of Company representatives outside the terms of this
Warranty will be borne by the End-user.
OBTAINING WARRANTY SERVICE: In the USA, call the Customer Reliability Center 7x24 at 800.843.9433. Outside of the USA, contact your local
Eaton product sales or service representative, or call the Customer Reliability Center in the USA at 919.870.3028. For comments or questions about
this Warranty, write to the Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North Carolina 27616 USA.
WARRANTY
Limited Warranty (continued)
132 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
UPS MODELS: 9130, 9135, 9140, 9PX AND FERRUPS UP TO 3.1 kVA (USA AND CANADA)
WARRANTOR: The warrantor for the limited warranties set forth herein is Eaton (“Company”).
LIMITED WARRANTY: This limited warranty (this “Warranty”) applies only to the original End-user (the “End-user”) of any 9130, 9135, 9140, 9PX
and FERRUPS up to 3.1 kVA Products (individually and collectively, the “Product”) purchased on or after June 1, 2004, and cannot be transferred.
This Warranty applies even in the event that the Product is initially sold by Company for resale to an End-user.
LIMITED WARRANTY PERIOD: The period covered by this Warranty for Product installed [and currently located] in the fifty (50) United States, the
District of Columbia and Canada is twenty-four (24) months from the date of purchase, or thirty (30) months from the date of shipment.
WHAT THIS LIMITED WARRANTY COVERS: The warrantor warrants that the Product and battery (individually and collectively, the ”Warranted
Items”) are free of defects in material and workmanship. If, in the opinion of Company, a Warranted Item is defective and the defect is within the
terms of this Warranty, Company's sole obligation will be to repair or replace such defective Warranted Item (including by providing service, parts
and labor, as applicable), at the option of Company.
PROCEDURES FOR REPAIR OR REPLACEMENT OF WARRANTED ITEMS: The Warranted Item will be repaired or replaced at a Company site or
such other location as determined by Company.
If the Warranted Item is to be replaced by Company, and the End-user supplies a credit card number or purchase order for the value of the
replacement product, Company will use commercially reasonable business efforts to ship (via standard ground shipment and at no cost to the
End-user) the replacement Warranted Item to the End-user within one (1) business day after Company receives notice of the warranty claim. In
such case, the End-user must return (at Company's expense) the defective Warranted Item to Company in the same packaging as the replacement
Warranted Item received by the End-user or as otherwise instructed by Company. If Company does not receive the defective Warranted Item,
Company will either charge the End-user's credit card, or send the End-user an invoice (which the End-user agrees to pay), for the value of the
replacement product.
If the Warranted Item is to be replaced by Company, but the End-user is unwilling or unable to supply a credit card number or purchase order for
the value of the replacement product, Company will use commercially reasonable business efforts to ship (via standard ground shipment and at no
cost to the End-user) the replacement Warranted Item to the End-user within one (1) business day after Company receives the defective product
from the End-user.
In any case, Company will provide shipping instructions and will pay its designated carrier for all shipping charges for return of defective
equipment and replacement of Warranted Items. Any returned Warranted Item or parts that are replaced may be new or reconditioned. All
Warranted Items returned to Company and all parts replaced by Company shall become the property of Company.
WHAT THIS LIMITED WARRANTY DOES NOT COVER: This Warranty does not cover any defects or damages caused by: (a) failure to properly
store the Product before installation, including the charge of batteries no later than the date indicated on the packaging; (b) shipping and delivery
of the Product if shipping is FOB Factory; (c) neglect, accident, abuse, misuse, misapplication or incorrect installation; (d) repair or alteration not
authorized in writing by Company personnel or performed by an authorized Company Customer Service Engineer or Agent; (e) improper testing,
operation, maintenance, adjustment or modification of any kind not authorized in writing by Company personnel or performed by an authorized
Company Customer Service Engineer or Agent; or (f) use of the Product under other than normal operating conditions or in a manner inconsistent
with the Product's labels or instructions.
This Warranty is not valid if the Product's serial numbers have been removed or are illegible. Any Warranted Items repaired or replaced pursuant
to this Warranty will be warranted for the remaining portion of the original Warranty subject to all the terms thereof.
WARRANTY
Two-Year Limited Warranty
July 1, 2013
133www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
Company shall not be responsible for any charges for testing, checking, removal or installation of Warranted Items.
COMPANY DOES NOT WARRANT EQUIPMENT NOT MANUFACTURED BY COMPANY. IF PERMITTED BY THE APPLICABLE MANUFACTURER,
COMPANY SHALL PASS THROUGH SUCH MANUFACTURER'S WARRANTIES TO END-USER.
COMPANY DOES NOT WARRANT SOFTWARE, INCLUDING SOFTWARE EMBEDDED IN PRODUCTS, THAT IS NOT CREATED BY COMPANY.
WITHOUT LIMITING THE FOREGOING, COMPANY SPECIFICALLY DOES NOT WARRANT SOFTWARE (SUCH AS LINUX) THAT WAS CREATED
USING AN “OPEN SOURCE” MODEL OR IS DISTRIBUTED PURSUANT TO AN OPEN SOURCE LICENSE.
THIS WARRANTY IS THE SOLE AND EXCLUSIVE WARRANTY OFFERED BY COMPANY WITH RESPECT TO THE PRODUCTS AND SERVICES AND,
EXCEPT FOR SUCH FOREGOING WARRANTY COMPANY DISCLAIMS ALL OTHER WARRANTIES INCLUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTIES OF MERCHANTABILITY, TITLE, NON-INFRINGEMENT AND FITNESS FOR A PARTICULAR PURPOSE. CORRECTION OF NON-
CONFORMITIES IN THE MANNER AND FOR THE PERIOD OF TIME PROVIDED ABOVE SHALL CONSTITUTE COMPANY'S SOLE LIABILITY AND
END-USER'S EXCLUSIVE REMEDY FOR FAILURE OF COMPANY TO MEET ITS WARRANTY OBLIGATIONS, WHETHER CLAIMS OF THE END-USER
ARE BASED IN CONTRACT, IN TORT (INCLUDING NEGLIGENCE OR STRICT LIABILITY) OR OTHERWISE.
LIMITATION OF LIABILITY: The remedies of the End-user set forth herein are exclusive and are the sole remedies for any failure of Company to
comply with its obligations hereunder. In no event shall Company be liable in contract, in tort (including negligence or strict liability) or otherwise
for damage to property or equipment other than the Products, including loss of profits or revenue, loss of use of Products, loss of data, cost of
capital, claims of customers of the End-user or any special, indirect, incidental or consequential damages whatsoever. The total cumulative
liability of Company hereunder whether the claims are based in contract (including indemnity), in tort (including negligence or strict liability) or
otherwise, shall not exceed the price of the Product on which such liability is based.
Company shall not be responsible for failure to provide service or parts due to causes beyond Company's reasonable control.
END-USER’S OBLIGATIONS: In order to receive the benefits of this Warranty, the End-user must use the Product in a normal way; follow the
Product's operation and maintenance manual; and protect against further damage to the Product if there is a covered defect.
OTHER LIMITATIONS: Company's obligations under this Warranty are expressly conditioned upon receipt by Company of all payments due to it
(including interest charges, if any). During such time as Company has not received payment of any amount due to it for the Product, in accordance
with the contract terms under which the Product is sold, Company shall have no obligation under this Warranty. Also during such time, the period
of this Warranty shall continue to run and the expiration of this Warranty shall not be extended upon payment of any overdue or unpaid amounts.
COSTS NOT RELATED TO WARRANTY: The End-user shall be invoiced for, and shall pay for, all services not expressly provided for by the terms
of this Warranty, including without limitation, site calls involving an inspection that determines no corrective maintenance is required. Any costs
for replacement equipment, installation, materials, freight charges, travel expenses or labor of Company representatives outside the terms of this
Warranty will be borne by the End-user.
OBTAINING WARRANTY SERVICE: In the USA, call the Customer Reliability Center 7x24 at 800.843.9433. Outside of the USA, contact your local
Eaton product sales or service representative, or call the Customer Reliability Center in the USA at 919.870.3028. For comments or questions about
this Warranty, write to the Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North Carolina 27616 USA.
WARRANTY
Two-Year Limited Warranty (continued)
134 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
WARRANTY
Two-Year Limited Warranty
UPS MODELS: 9155, 9170+ AND FERRUPS 4.3–18 kVA (USA AND CANADA)
WARRANTOR: The warrantor for the limited warranties set forth herein is Eaton (“Company”).
LIMITED WARRANTY: This limited warranty (this “Warranty”) applies only to the original end-user (the “End-user”) of any 9155, 9170 and FERRUPS
4.3–18 kVA Products (individually and collectively, the “Product”) purchased on or after June 1, 2004, and cannot be transferred. This Warranty
applies even in the event that the Product is initially sold by Company for resale to an End-user.
LIMITED WARRANTY PERIOD: The period covered by this Warranty for Product installed [and currently located] in the fifty (50) United States, the
District of Columbia and Canada is twenty-four (24) months from the date of purchase for parts, or thirty (30) months from the date of shipment for
parts, and ninety (90) days from the date of purchase for labor, as further clarified in the following sections.
WHAT THIS LIMITED WARRANTY COVERS: The warrantor warrants that the Product and battery (individually and collectively, the “Warranted
Items”) are free of defects in material and workmanship. If, in the opinion of Company, a Warranted Item is defective and the defect is within the
terms of this Warranty, Company's sole obligation will be to repair or replace such defective Warranted Items (including by providing service, parts
and labor, as applicable), at the option of Company, and such repair or replacement shall be at either the End-user's location, Company's site, or such
other location as determined by Company. All Warranted Items returned to Company and all parts replaced by Company shall become the property of
Company. Expenses for any labor to repair the Warranted Item beyond the initial ninety (90) days are the sole responsibility of the End-user.
PROCEDURES FOR REPAIR OR REPLACEMENT OF WARRANTED ITEMS: When shipment is required of End-user: When Company determines that
the Warranted Item will be repaired or replaced at a Company site or such other location, and the End-user must ship to Company the defective
Warranted Item, the following procedures are required.
If the Warranted Item is to be replaced by Company, and the End-user supplies a credit card number or purchase order for the value of the
replacement product, Company will use commercially reasonable business efforts to ship (via standard ground shipment and at no cost to the
End-user) the replacement Warranted Item to the End-user within one (1) business day after Company receives notice of the warranty claim. In
such case, the End-user must return (at Company's expense) the defective Warranted Item to Company in the same packaging as the replacement
Warranted Item received by the End-user or as otherwise instructed by Company. If Company does not receive the defective Warranted Item,
Company will either charge the End-user's credit card, or send the End-user an invoice (which the End-user agrees to pay), for the value of the
replacement product.
If the Warranted Item is to be replaced by Company, but the End-user is unwilling or unable to supply a credit card number or purchase order for the
value of the replacement product, Company will use commercially reasonable business efforts to ship (via standard ground shipment and at no cost
to the End-user) the replacement Warranted Item to the End-user within one (1) business day after Company receives the defective product from the
End-user.
In any case, Company will provide shipping instructions and will pay its designated carrier for all shipping charges for return of defective equipment
and replacement of Warranted Items. Any returned Warranted Item or parts that are replaced may be new or reconditioned. All Warranted Items
returned to Company and all parts replaced by Company shall become the property of Company.
WHAT THIS LIMITED WARRANTY DOES NOT COVER: This Warranty does not cover any defects or damages caused by: (a) failure to properly store
the Product before installation, including the charge of batteries no later than the date indicated on the packaging; (b) shipping and delivery of the
Product if shipping is FOB Factory; (c) neglect, accident, abuse, misuse, misapplication or incorrect installation; (d) repair or alteration not authorized
in writing by Company personnel or performed by an authorized Company Customer Service Engineer or Agent; (e) improper testing, operation,
maintenance, adjustment or modification of any kind not authorized in writing by Company personnel or performed by an authorized Company
Customer Service Engineer or Agent; or (f) use of the Product under other than normal operating conditions or in a manner inconsistent with the
Product's labels or instructions.
This Warranty is not valid if the Product's serial numbers have been removed or are illegible. Any Warranted Items repaired or replaced pursuant to
this Warranty will be warranted for the remaining portion of the original Warranty subject to all the terms thereof.
Company shall not be responsible for any charges for testing, checking, removal or installation of Warranted Items.
July 1, 2013
135www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
WARRANTY
Two-Year Limited Warranty (continued)
COMPANY DOES NOT WARRANT EQUIPMENT NOT MANUFACTURED BY COMPANY. IF PERMITTED BY THE APPLICABLE MANUFACTURER,
COMPANY SHALL PASS THROUGH SUCH MANUFACTURER'S WARRANTIES TO END-USER.
COMPANY DOES NOT WARRANT SOFTWARE, INCLUDING SOFTWARE EMBEDDED IN PRODUCTS, THAT IS NOT CREATED BY COMPANY.
WITHOUT LIMITING THE FOREGOING, COMPANY SPECIFICALLY DOES NOT WARRANT SOFTWARE (SUCH AS LINUX) THAT WAS CREATED USING
AN “OPEN SOURCE” MODEL OR IS DISTRIBUTED PURSUANT TO AN OPEN SOURCE LICENSE.
THIS WARRANTY IS THE SOLE AND EXCLUSIVE WARRANTY OFFERED BY COMPANY WITH RESPECT TO THE PRODUCTS AND SERVICES AND,
EXCEPT FOR SUCH FOREGOING WARRANTY COMPANY DISCLAIMS ALL OTHER WARRANTIES INCLUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTIES OF MERCHANTABILITY, TITLE, NON-INFRINGEMENT AND FITNESS FOR A PARTICULAR PURPOSE. CORRECTION OF NON-
CONFORMITIES IN THE MANNER AND FOR THE PERIOD OF TIME PROVIDED ABOVE SHALL CONSTITUTE COMPANY'S SOLE LIABILITY AND END-
USER'S EXCLUSIVE REMEDY FOR FAILURE OF COMPANY TO MEET ITS WARRANTY OBLIGATIONS, WHETHER CLAIMS OF THE END-USER ARE
BASED IN CONTRACT, IN TORT (INCLUDING NEGLIGENCE OR STRICT LIABILITY), OR OTHERWISE.
LIMITATION OF LIABILITY: The remedies of the End-user set forth herein are exclusive and are the sole remedies for any failure of Company to
comply with its obligations hereunder. In no event shall Company be liable in contract, in tort (including negligence or strict liability) or otherwise
for damage to property or equipment other than the Products, including loss of profits or revenue, loss of use of Products, loss of data, cost of
capital, claims of customers of the End-user or any special, indirect, incidental or consequential damages whatsoever. The total cumulative liability
of Company hereunder whether the claims are based in contract (including indemnity), in tort (including negligence or strict liability) or otherwise,
shall not exceed the price of the Product on which such liability is based.
Company shall not be responsible for failure to provide service or parts due to causes beyond Company's reasonable control.
END-USER'S OBLIGATIONS: In order to receive the benefits of this Warranty, the End-user must use the Product in a normal way; follow the
Product's operation and maintenance manual; and protect against further damage to the Product if there is a covered defect.
OTHER LIMITATIONS: Company's obligations under this Warranty are expressly conditioned upon receipt by Company of all payments due to it
(including interest charges, if any). During such time as Company has not received payment of any amount due to it for the Product, in accordance
with the contract terms under which the Product is sold, Company shall have no obligation under this Warranty. Also during such time, the period
of this Warranty shall continue to run and the expiration of this Warranty shall not be extended upon payment of any overdue or unpaid amounts.
COSTS NOT RELATED TO WARRANTY: The End-user shall be invoiced for, and shall pay for, all services not expressly provided for by the terms
of this Warranty, including without limitation, site calls involving an inspection that determines no corrective maintenance is required. Any costs
for replacement equipment, installation, materials, freight charges, travel expenses or labor of Company representatives outside the terms of this
Warranty will be borne by the End-user.
OBTAINING WARRANTY SERVICE: In the USA, call the Customer Reliability Center 7x24 at 800.843.9433. Outside of the USA, contact your local
Eaton product sales or service representative, or call the Customer Reliability Center in the USA at 919.870.3028. For comments or questions about
this Warranty, write to the Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North Carolina 27616 USA.
136 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
WARRANTY
Limited Warranty (Global)
UPS MODEL: BLADEUPS
WARRANTOR: The warrantor for the limited warranties set forth herein is Eaton (“Eaton”).
LIMITED WARRANTY: This limited warranty (this “Warranty”) applies only to the original Purchaser (the “End-user”) of any BladeUPS Products
(individually and collectively, the “Product”) purchased and registered with Eaton and cannot be transferred. This restriction applies even in the
event that the Product is initially sold by Eaton for resale to an End-user. This Warranty gives you specific legal rights, and you may also have
other rights which vary from State to State (or jurisdiction to jurisdiction).
LIMITED WARRANTY PERIOD: The period covered by this Warranty for the Product is eighteen (18) months from date of Product shipment.
WHAT THIS LIMITED WARRANTY COVERS: Eaton warrants that the Product and battery (individually and collectively, the ”Warranted Items”)
are free of defects in material and workmanship. If, in the opinion of Eaton, a Warranted Item is defective and the defect is within the terms of
this Warranty, Eaton’s sole obligation will be to repair or replace such defective Warranted Item (including providing service, parts and labor, as
applicable), at the option of Eaton.
PROCEDURES FOR REPAIR OR REPLACEMENT OF WARRANTED ITEMS: The Warranted Item will be repaired or replaced at an Eaton site or such
other location as determined by Eaton.
If the Warranted Item is to be replaced by Eaton, and the End-user supplies a credit card number or purchase order for the value of the
replacement product, Eaton will use commercially reasonable business efforts to ship (via standard ground shipment and at no cost to the End-
user) the replacement Warranted Item to the End-user within one (1) business day after Eaton receives notice of the warranty claim. In such case,
the End-user must return (at Eaton’s expense) the defective Warranted Item to Eaton in the same packaging as the replacement Warranted Item
received by the End-user or as otherwise instructed by Eaton. If Eaton does not receive the defective Warranted Item, Eaton will either charge the
End-user’s credit card, or send the End-user an invoice (which the End-user agrees to pay), for the value of the replacement product.
If the Warranted Item is to be replaced by Eaton, but the End-user is unwilling or unable to supply a credit card number or purchase order for the
value of the replacement product, Eaton will use commercially reasonable business efforts to ship (via standard ground shipment and at no cost
to the End-user) the replacement Warranted Item to the End-user within one (1) business day after Eaton receives the defective product from the
End-user.
In any case, Eaton will provide shipping instructions and will pay its designated carrier for all shipping charges for return of defective equipment
and replacement of Warranted Items. Any returned Warranted Item or parts that are replaced may be new or re-conditioned. All Warranted Items
returned to Eaton and, in any replacement endeavor, all parts removed by Eaton shall become the property of Eaton.
WHAT THIS LIMITED WARRANTY DOES NOT COVER: This Warranty does not cover any defects or damages caused by: (a) failure to properly
store the Product before installation, including the charge of batteries no later than the date indicated on the packaging; (b) shipping and
delivery of the Product if shipping is FOB Factory; (c) damage caused by fire, flood, lightning, vandalism, acts of God, End-user's neglect, misuse,
misapplication, incorrect connection or external damage; or that has been subject to repair or alteration by End-user (or a third party) not
authorized by Eaton in writing; (d) repair or alteration not performed by an authorized Eaton Customer Service Engineer or Agent; (e) improper
testing, operation, maintenance, adjustment or modification of any kind not authorized in writing by Eaton personnel or performed by an authorized
Eaton Customer Service Engineer or Agent; or (f) use of the Product under other than normal operating conditions or in a manner inconsistent with
the Product’s labels or instructions.
This Warranty is not valid if the Product’s serial numbers have been removed or are illegible. Any Warranted Items repaired or replaced pursuant
to this Warranty will be warranted for the remaining portion of the original Warranty subject to all the terms thereof.
Eaton shall not be responsible for any charges for testing, checking, removal or installation of Warranted Items.
EATON DOES NOT WARRANT EQUIPMENT NOT MANUFACTURED BY EATON. IF PERMITTED BY THE APPLICABLE MANUFACTURER, EATON
SHALL PASS THROUGH SUCH MANUFACTURER’S WARRANTIES TO END-USER.
July 1, 2013
137www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
EATON DOES NOT WARRANT SOFTWARE, INCLUDING SOFTWARE EMBEDDED IN PRODUCTS, THAT IS NOT CREATED BY EATON. WITHOUT LIMITING
THE FOREGOING, EATON SPECIFICALLY DOES NOT WARRANT SOFTWARE (SUCH AS LINUX) THAT WAS CREATED USING AN “OPEN SOURCE” MODEL
OR IS DISTRIBUTED PURSUANT TO AN OPEN SOURCE LICENSE.
THIS WARRANTY IS THE SOLE AND EXCLUSIVE WARRANTY OFFERED BY EATON WITH RESPECT TO THE PRODUCTS AND SERVICES AND, EXCEPT FOR
SUCH FOREGOING WARRANTY EATON DISCLAIMS ALL OTHER WARRANTIES INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MER-
CHANTABILITY, TITLE, NON-INFRINGEMENT AND FITNESS FOR A PARTICULAR PURPOSE. CORRECTION OF NON-CONFORMITIES IN THE MANNER AND
FOR THE PERIOD OF TIME PROVIDED ABOVE SHALL CONSTITUTE EATON’S SOLE LIABILITY AND END-USER’S EXCLUSIVE REMEDY FOR FAILURE OF
EATON TO MEET ITS WARRANTY OBLIGATIONS, WHETHER CLAIMS OF THE END-USER ARE BASED IN CONTRACT, IN TORT (INCLUDING NEGLIGENCE
OR STRICT LIABILITY) OR OTHERWISE. SOME STATES OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF EXPRESS OR IMPLIED WARRANTIES,
SO THE ABOVE EXCLUSION MAY NOT APPLY TO YOU. IN THAT EVENT, SUCH WARRANTIES ARE LIMITED IN DURATION TO THE LIMITED WARRANTY
PERIOD. SOME STATES OR JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND/OR EXCLUSIONS MAY NOT APPLY TO YOU.
LIMITATION OF LIABILITY: The remedies of the End-user set forth herein are exclusive and are the sole remedies for any failure of Eaton to comply with
its obligations hereunder. In no event shall Eaton be liable for any indirect, incidental, special or consequential damages of any kind or type whatsoever,
resulting from or in connection with any claim or cause of action, whether brought in contract or in tort (including negligence or strict liability). Some
States or jurisdictions do not allow the exclusion of limitation of incidental or consequential damages, so the above limitation or exclusion may not apply
to you. Eaton shall not be responsible for failure to provide service or parts due to causes beyond Eaton’s reasonable control. In no case will Eaton’s
liability under this Warranty exceed the replacement value of the Warranted Items.
END-USER’S OBLIGATIONS: In order to receive the benefits of this Warranty, the End-user must register the product warranty (via mail or online at
www.eaton.com/powerquality “warranty registration”); use the Product in a normal way; follow the Product’s operation and maintenance manual; and
protect against further damage to the Product if there is a covered defect.
OTHER LIMITATIONS: Eaton’s obligations under this Warranty are expressly conditioned upon receipt by Eaton of all payments due from End-user
(including interest charges, if any). During such time as Eaton has not received payment of any amount due to it for the Product, in accordance with the
contract terms under which the Product is sold, Eaton shall have no obligation under this Warranty. Also during such time, the period of this Warranty
shall continue to run and the expiration of this Warranty shall not be extended upon payment of any overdue or unpaid amounts.
COSTS NOT RELATED TO WARRANTY: The End-user shall be invoiced for, and shall pay for, all services not expressly provided for by the terms of
this Warranty, including without limitation, site calls involving an inspection that determines no corrective maintenance is required. Any costs for
replacement equipment, installation, materials, freight charges, travel expenses or labor of Eaton representatives outside the terms of this Warranty will
be borne by the End-User.
OBTAINING WARRANTY SERVICE: In the United States, call the Customer Reliability Center 7x24 at 800.356.5737. Outside of the United States, contact
your local Eaton product sales or service representative, or call the Customer Reliability Center in the United States at 919.870.3028. For comments or
questions about this Warranty, write to the Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North Carolina 27616 USA.
WARRANTY
Limited Warranty (Global) (continued)
138 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
WARRANTY
Two-Year Limited Warranty (USA and Canada)
CONNECTIVITY DEVICES
WARRANTOR: The warrantor for the limited warranties set forth herein is Eaton (“Company”).
LIMITED WARRANTY: This limited warranty (this “Warranty”) applies only to the original End-user (the “End-user”) of any 3, 5 and 9 series
Connectivity Devices (the “Product”) purchased on or after June 1, 2004, and cannot be transferred. This Warranty applies even in the event that
the Product is initially sold by Company for resale to an End-user.
LIMITED WARRANTY PERIOD: The period covered by this Warranty for the Product installed [and currently located] in the fifty (50) United States,
the District of Columbia, and Canada is twenty-four (24) months from the date of purchase.
WHAT THIS LIMITED WARRANTY COVERS: The warrantor warrants that the Product (the “Warranted Item”) is free from defects in material and
workmanship. If, in the opinion of Company, a Warranted Item is defective and the defect is within the terms of this Warranty, Company’s sole
obligation will be to repair or replace such defective Warranted Item (including by providing service, parts and labor, as applicable), at the option
of Company.
PROCEDURES FOR REPAIR OR REPLACEMENT OF WARRANTED ITEMS: The Warranted Item will be repaired or replaced at a Company site or
such other location as determined by Company.
If the Warranted Item is to be replaced by Company, and the End-user supplies a credit card number or purchase order for the value of the
replacement Product, Company will use commercially reasonable business efforts to ship (via standard ground shipment and at no cost to the
End-user) the replacement Warranted Item to the End-user within one (1) business day after Company receives notice of the warranty claim. In
such case, the End-user must return (at Company’s expense) the defective Warranted Item to Company in the same packaging as the replacement
Warranted Item received by the End-user or as otherwise instructed by Company. If Company does not receive the defective Warranted Item,
Company will either charge the End-user’s credit card, or send the End-User an invoice (which the End-user agrees to pay), for the value of the
replacement Product.
If the Warranted Item is to be replaced by Company, but the End-user is unwilling or unable to supply a credit card number or purchase order for
the value of the replacement Product, Company will use commercially reasonable business efforts to ship (via standard ground shipment and at no
cost to the End-user) the replacement Warranted Item to the End-user within one (1) business day after Company receives the defective Product
from the End-user.
In any case, Company will provide shipping instructions and will pay its designated carrier for all shipping charges for return of defective
equipment and replacement of Warranted Items. Any returned Warranted Item or parts that are replaced may be new or reconditioned. All
Warranted Items returned to Company and all parts replaced by Company shall become the property of Company.
WHAT THIS LIMITED WARRANTY DOES NOT COVER: This Warranty does not cover any defects or damages caused by: (a) failure to properly
store the Product before installation; (b) shipping and delivery of the Product if shipping is FOB Factory; (c) neglect, accident, abuse, misuse,
misapplication or incorrect installation; (d) repair or alteration not authorized in writing by Company personnel or performed by an authorized
Company Customer Service Engineer or Agent; (e) improper testing, operation, maintenance, adjustment or modification of any kind not authorized
in writing by Company personnel or performed by an authorized Company Customer Service Engineer or Agent; or (f) use of the Product under
other than normal operating conditions or in a manner inconsistent with the Product’s labels or instructions.
This Warranty is not valid if the Product’s serial numbers have been removed or are illegible. Any Warranted Items repaired or replaced pursuant
to this Warranty will be warranted for the remaining portion of the original Warranty subject to all the terms thereof.
Company shall not be responsible for any charges for testing, checking, removal or installation of Warranted Items.
COMPANY DOES NOT WARRANT EQUIPMENT NOT MANUFACTURED BY COMPANY. IF PERMITTED BY THE APPLICABLE MANUFACTURER,
COMPANY SHALL PASS THROUGH SUCH MANUFACTURER’S WARRANTIES TO END-USER.
COMPANY DOES NOT WARRANT SOFTWARE (IF APPLICABLE TO THE PRODUCT), INCLUDING SOFTWARE EMBEDDED IN PRODUCTS, THAT
IS NOT CREATED BY COMPANY. WITHOUT LIMITING THE FOREGOING, COMPANY SPECIFICALLY DOES NOT WARRANT SOFTWARE (SUCH AS
LINUX) THAT WAS CREATED USING AN “OPEN SOURCE” MODEL OR IS DISTRIBUTED PURSUANT TO AN OPEN SOURCE LICENSE.
July 1, 2013
139www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
COMPANY DOES NOT WARRANT SOFTWARE (IF APPLICABLE TO THE PRODUCT), INCLUDING SOFTWARE EMBEDDED IN PRODUCTS, THAT IS NOT
CREATED BY COMPANY. WITHOUT LIMITING THE FOREGOING, COMPANY SPECIFICALLY DOES NOT WARRANT SOFTWARE (SUCH AS LINUX) THAT
WAS CREATED USING AN “OPEN SOURCE” MODEL OR IS DISTRIBUTED PURSUANT TO AN OPEN SOURCE LICENSE.
THIS WARRANTY IS THE SOLE AND EXCLUSIVE WARRANTY OFFERED BY COMPANY WITH RESPECT TO THE PRODUCTS AND SERVICES AND, EXCEPT
FOR SUCH FOREGOING WARRANTY COMPANY DISCLAIMS ALL OTHER WARRANTIES INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES
OF MERCHANTABILITY, TITLE, NON-INFRINGEMENT, AND FITNESS FOR A PARTICULAR PURPOSE. CORRECTION OF NON-CONFORMITIES IN THE
MANNER AND FOR THE PERIOD OF TIME PROVIDED ABOVE SHALL CONSTITUTE COMPANY’S SOLE LIABILITY AND END-USER’S EXCLUSIVE REMEDY
FOR FAILURE OF COMPANY TO MEET ITS WARRANTY OBLIGATIONS, WHETHER CLAIMS OF THE END-USER ARE BASED IN CONTRACT, IN TORT
(INCLUDING NEGLIGENCE OR STRICT LIABILITY), OR OTHERWISE.
LIMITATION OF LIABILITY: The remedies of the End-user set forth herein are exclusive and are the sole remedies for any failure of Company to comply
with its obligations hereunder. In no event shall Company be liable in contract, in tort (including negligence or strict liability) or otherwise for damage
to property or equipment other than the Products, including loss of profits or revenue, loss of use of Products, loss of data, cost of capital, claims of
customers of the End-user or any special, indirect, incidental or consequential damages whatsoever. The total cumulative liability of Company hereunder
whether the claims are based in contract (including indemnity), in tort (including negligence or strict liability) or otherwise, shall not exceed the price of
the Product on which such liability is based.
Company shall not be responsible for failure to provide service or parts due to causes beyond Company’s reasonable control.
END-USER’S OBLIGATIONS: In order to receive the benefits of this Warranty, the End-user must use the Product in a normal way; follow the Product’s
user’s guide; and protect against further damage to the Product if there is a covered defect.
OTHER LIMITATIONS: Company’s obligations under this Warranty are expressly conditioned upon receipt by Company of all payments due to it
(including interest charges, if any). During such time as Company has not received payment of any amount due to it for the Product, in accordance with
the contract terms under which the Product is sold, Company shall have no obligation under this Warranty. Also during such time, the period of this
Warranty shall continue to run and the expiration of this Warranty shall not be extended upon payment of any overdue or unpaid amounts.
COSTS NOT RELATED TO WARRANTY: The End-User shall be invoiced for, and shall pay for, all services not expressly provided for by the terms of
this Warranty, including without limitation, site calls involving an inspection that determines no corrective maintenance is required. Any costs for
replacement equipment, installation, materials, freight charges, travel expenses or labor of Company representatives outside the terms of this Warranty
will be borne by the End-User.
OBTAINING WARRANTY SERVICE: In the USA, call the Customer Reliability Center 7x24 at 800.356.5737. Outside of the USA, contact your local product
sales or service representative, or call the Customer Reliability Center in the USA at 919.870.3149. For comments or questions about this Warranty, write
to the Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North Carolina 27616 USA.
WARRANTY
Two-Year Limited Warranty (USA and Canada) (continued)
140 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
WARRANTY
Limited Warranty (USA and Canada)
EPDU ENCLOSURE POWER DISTRIBUTION UNITS
WARRANTOR: The warrantor for the limited warranties set forth herein is Eaton (“Company”).
RACKMOUNTED LIMITED WARRANTY: This limited warranty (this “Warranty”) applies only to the original End-user (the “End-user”) of any Eaton
Rackmounted Power Distribution Units (the “Product”) purchased on or after July 1, 2012, and cannot be transferred. This Warranty applies even in
the event that the Product is initially sold by Company for resale to an End-user.
LIMITED WARRANTY PERIOD: The period covered by this Warranty for Product installed [and currently located] in the fifty (50) United States, the
District of Columbia and Canada is twenty-four (24) months from the date of purchase, or thirty (30) months from the date of shipment. For units
that are registered online at www.eaton.com/PQ/Register, the warranty is extended to thirty-six (36) months from the date of purchase, or fortytwo
(42) months from the date of shipment.
WHAT THIS LIMITED WARRANTY COVERS: The warrantor warrants that the Product (the “Warranted Item”) is free from defects in material and
workmanship. If, in the opinion of Company, a Warranted Item is defective and the defect is within the terms of this Warranty, Company’s sole
obligation will be to repair or replace such defective Warranted Item (including by providing service, parts and labor, as applicable), at the option of
Company.
PROCEDURES FOR REPAIR OR REPLACEMENT OF WARRANTED ITEMS:
Standard Product: Defined as ePDU product with the product number sequence PWxxxxxxxxxx or eXXXXX, (whereas x can be any value). The War-
ranted item will be repaired or replaced by the Company.
Custom Product: Defined as ePDU product with any product number sequence that does not equal a standard product as noted above. The War-
ranted item will be repaired at a Company site or such other location as determined by Company.
If the Warranted Item is to be replaced by Company, and the End-user supplies a credit card number or purchase order for the value of the
replacement Product, Company will use commercially reasonable business efforts to ship (via standard ground shipment and at no cost to the
End-user) the replacement Warranted Item to the End-user within one (1) business day after Company receives notice of the warranty claim. In
such case, the End-user must return (at Company’s expense) the defective Warranted Item to Company in the same packaging as the replacement
Warranted Item received by the End-user or as otherwise instructed by Company. If Company does not receive the defective Warranted Item,
Company will either charge the End-user’s credit card, or send the End-user an invoice (which the End-user agrees to pay), for the value of the
replacement Product.
If the Warranted Item is to be replaced by Company, but the End-user is unwilling or unable to supply a credit card number or purchase order for
the value of the replacement Product, Company will use commercially reasonable business efforts to ship (via standard ground shipment and at no
cost to the End-user) the replacement Warranted Item to the End-user within one (1) business day after Company receives the defective Product
from the End-user.
In any case, Company will provide shipping instructions and will pay its designated carrier for all shipping charges for return of defective
equipment and replacement of Warranted Items. Any returned Warranted Item or parts that are replaced may be new or reconditioned. All
Warranted Items returned to Company and all parts replaced by Company shall become the property of Company.
WHAT THIS LIMITED WARRANTY DOES NOT COVER: This Warranty does not cover any defects or damages caused by: (a) failure to properly
store the Product before installation; (b) shipping and delivery of the Product if shipping is FOB Factory; (c) neglect, accident, abuse, misuse,
misapplication or incorrect installation; (d) repair or alteration not authorized in writing by Company personnel or performed by an authorized
Company Customer Service Engineer or Agent; (e) improper testing, operation, maintenance, adjustment or modification of any kind not authorized
in writing by Company personnel or performed by an authorized Company Customer Service Engineer or Agent; or (f) use of the Product under
other than normal operating conditions or in a manner inconsistent with the Product’s labels or instructions.
This Warranty is not valid if the Product’s serial numbers have been removed or are illegible. Any Warranted Items repaired or replaced pursuant
to this Warranty will be warranted for the remaining portion of the original Warranty subject to all the terms thereof.
Company shall not be responsible for any charges for testing, checking, removal or installation of Warranted Items.
July 1, 2013
141www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
COMPANY DOES NOT WARRANT EQUIPMENT NOT MANUFACTURED BY COMPANY. IF PERMITTED BY THE APPLICABLE MANUFACTURER,
COMPANY SHALL PASS THROUGH SUCH MANUFACTURER’S WARRANTIES TO END-USER.
COMPANY DOES NOT WARRANT SOFTWARE (IF APPLICABLE TO THE PRODUCT), INCLUDING SOFTWARE EMBEDDED IN PRODUCTS, THAT
IS NOT CREATED BY COMPANY. WITHOUT LIMITING THE FOREGOING, COMPANY SPECIFICALLY DOES NOT WARRANT SOFTWARE (SUCH AS
LINUX) THAT WAS CREATED USING AN “OPEN SOURCE” MODEL OR IS DISTRIBUTED PURSUANT TO AN OPEN SOURCE LICENSE.
THIS WARRANTY IS THE SOLE AND EXCLUSIVE WARRANTY OFFERED BY COMPANY WITH RESPECT TO THE PRODUCTS AND SERVICES AND,
EXCEPT FOR SUCH FOREGOING WARRANTY COMPANY DISCLAIMS ALL OTHER WARRANTIES INCLUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTIES OF MERCHANTABILITY, TITLE, NON-INFRINGEMENT AND FITNESS FOR A PARTICULAR PURPOSE. CORRECTION OF NON-
CONFORMITIES IN THE MANNER AND FOR THE PERIOD OF TIME PROVIDED ABOVE SHALL CONSTITUTE COMPANY’S SOLE LIABILITY AND END-
USER’S EXCLUSIVE REMEDY FOR FAILURE OF COMPANY TO MEET ITS WARRANTY OBLIGATIONS, WHETHER CLAIMS OF THE END-USER ARE
BASED IN CONTRACT, IN TORT (INCLUDING NEGLIGENCE OR STRICT LIABILITY), OR OTHERWISE.
LIMITATION OF LIABILITY: The remedies of the End-user set forth herein are exclusive and are the sole remedies for any failure of Company to
comply with its obligations hereunder. In no event shall Company be liable in contract, in tort (including negligence or strict liability) or otherwise
for damage to property or equipment other than the Products, including loss of profits or revenue, loss of use of Products, loss of data, cost of
capital, claims of customers of the End-user or any special, indirect, incidental or consequential damages whatsoever. The total cumulative liability
of Company hereunder whether the claims are based in contract (including indemnity), in tort (including negligence or strict liability) or otherwise,
shall not exceed the price of the Product on which such liability is based.
Company shall not be responsible for failure to provide service or parts due to causes beyond Company’s reasonable control.
END-USER’S OBLIGATIONS: In order to receive the benefits of this Warranty, the End-user must use the Product in a normal way; follow the
Product’s user’s guide; and protect against further damage to the Product if there is a covered defect.
OTHER LIMITATIONS: Company’s obligations under this Warranty are expressly conditioned upon receipt by Company of all payments due to it
(including interest charges, if any). During such time as Company has not received payment of any amount due to it for the Product, in accordance
with the contract terms under which the Product is sold, Company shall have no obligation under this Warranty. Also during such time, the period
of this Warranty shall continue to run and the expiration of this Warranty shall not be extended upon payment of any overdue or unpaid amounts.
COSTS NOT RELATED TO WARRANTY: The End-user shall be invoiced for, and shall pay for, all services not expressly provided for by the terms
of this Warranty, including without limitation, site calls involving an inspection that determines no corrective maintenance is required. Any costs
for replacement equipment, installation, materials, freight charges, travel expenses or labor of Company representatives outside the terms of this
Warranty will be borne by the End-user.
OBTAINING WARRANTY SERVICE: In the USA, call the Customer Reliability Center 7x24 at 800.356.5737. Outside of the USA, contact your local
Eaton product sales or service representative, or call the Customer Reliability Center in the USA at 919.870.3149. For comments or questions about
this Warranty, write to the Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North Carolina 27616 USA.
WARRANTY
Two-Year Limited Warranty (USA and Canada) (continued)
142 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
WARRANTY
Limited Factory Warranty For Eaton Three-phase UPS Products
THREE-PHASE PRODUCTS
WARRANTOR: The warrantor for the limited warranties set forth herein is Eaton (“Eaton”).
LIMITED WARRANTY: This limited warranty (this “Warranty”) applies only to the original End-user (the “End-user”) of the Eaton three-phase UPS
Products (the “Product”) and cannot be transferred. This Warranty applies even in the event that the Product is initially sold by Eaton for resale to
an End-user.
LIMITED WARRANTY PERIOD: The period covered by this Warranty for Product installed [and currently located] in the fifty (50) United States and
the District of Columbia is twelve (12) months from the date of Product startup or eighteen (18) months from date of Product shipment, whichever
occurs first, for parts coverage and 90 days from the date of Product startup for labor coverage. The period covered by this Warranty for Product
installed [and currently located] outside of the fifty (50) United States and the District of Columbia is twelve (12) months from the date of Product
startup or eighteen (18) months from date of Product shipment, whichever occurs first, for parts coverage.
WHAT THIS LIMITED WARRANTY COVERS: The warrantor warrants that the Eaton three-phase UPS electronics, Eaton-built accessories, and
Eaton-built battery cabinets, (individually and collectively, the ”Warranted Items”) are free from defects in material and workmanship. If, in the
opinion of Eaton, a Warranted Item is defective and the defect is within the terms of this Warranty, Eaton’s sole obligation will be to repair or
replace such defective item (including by providing service, parts and labor, as applicable), at the option of Eaton. The Warranted Item will be
repaired or replaced onsite at the End-user’s location or such other location as determined by Eaton. Any parts that are replaced may be new or
reconditioned. All parts replaced by Eaton shall become the property of Eaton.
WHAT THIS LIMITED WARRANTY DOES NOT COVER: This Warranty does not cover any defects or damages caused by: (a) failure to properly
store the Product before installation, including the "trickle charge" of batteries no later than the date indicated on the packaging; (b) shipping and
delivery of the Product if shipping is FOB Factory; (c) neglect, accident, fire, flood, lightning, vandalism, acts of God, Customer's neglect, abuse,
misuse, misapplication, incorrect installation; (d) repair or alteration, not authorized in writing by Eaton personnel or performed by an authorized
Eaton Customer Service Engineer or Agent; or (e) improper testing, operation, maintenance, adjustment or any modification of any kind not
authorized in writing by Eaton personnel or performed by an authorized Eaton Customer Service Engineer or Agent.
This Warranty is not valid: (a) unless an authorized Eaton Customer Service Engineer (in USA) or Agent (outside of USA) performs startup and
commissioning of the Product; (b) if the Product is moved to a new location by someone other than an authorized Eaton Customer Service Engineer
(in USA) or Agent (outside of USA); or (c) if the Product’s serial numbers have been removed or are illegible. Any Warranted Items repaired or
replaced pursuant to this Warranty will be warranted for the remaining portion of the original Warranty subject to all the terms thereof. Labor
warranty is not provided for Product located outside of the fifty (50) United States or the District of Columbia. Any equipment, parts or materials
included in the Product and not manufactured by Eaton are warranted solely by the manufacturer of such equipment, parts or materials and are
not included as part of this warranty. Batteries are not warranted by Eaton.
THIS WARRANTY IS THE END-USER'S SOLE REMEDY AND IS EXPRESSLY IN LIEU OF, AND THERE ARE NO OTHER, EXPRESSED OR IMPLIED
GUARANTEES OR WARRANTIES (INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PURPOSE, WHICH ARE
EXPRESSLY DISCLAIMED).
LIMITATION OF LIABILITY: In no event shall Eaton be liable for any indirect, incidental, special or consequential damages of any kind or type
whatsoever, or based on any claim or cause of action, however denominated. Eaton shall not be responsible for failure to provide service or
parts due to causes beyond Eaton's reasonable control. In no case will Eaton's liability under this Warranty exceed the replacement value of the
Warranted Items.
END-USER’S OBLIGATIONS: In order to receive the benefits of this Warranty, the End-user must use the Product in a normal way; follow the
Product’s operators and maintenance manual; and protect against further damage to the Product if there is a covered defect.
OTHER LIMITATIONS: Eaton’s obligations under this Warranty are expressly conditioned upon receipt by Eaton of all payments due to it (including
interest charges, if any). During such time as Eaton has not received payment of any amount due to it for the Product, in accordance with the
contract terms under which the Product is sold, Eaton shall have no obligation under this Warranty. Also during such time, the period of this
Warranty shall continue to run and the expiration of this Warranty shall not be extended upon payment of any overdue or unpaid amounts.
COSTS NOT RELATED TO WARRANTY: The End-user shall be invoiced for, and shall pay for, all services not expressly provided for by the terms
of this Warranty, including without limitation, site calls involving an inspection that determines no corrective maintenance is required. Any costs
for replacement equipment, installation, materials, freight charges, travel expenses or labor of Eaton representatives outside the terms of this
Warranty will be borne by the End-user.
OBTAINING WARRANTY SERVICE: In the USA, call the Eaton Customer Reliability Center 7x24 at 800.843.9433. Outside of the USA, call your local
Eaton sales or service representative, or call the Eaton Customer Reliability Center in the USA at 919.870.3028. For comment or questions about this
Limited Factory Warranty, write to the Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North Carolina 27616 USA.
July 1, 2013
143www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
WARRANTY
Limited Factory Warranty For Eaton 9355 UPS Products
9355
WARRANTOR: The warrantor for the limited warranties set forth herein is Eaton Corporation, an Ohio Corporation (“Eaton”).
LIMITED WARRANTY: This limited warranty (this “Warranty”) applies only to the original End-user (the “End-user”) of the 9355 UPS Products (the
“Product”) and cannot be transferred. This Warranty applies even in the event that the Product is initially sold by Eaton for resale to an End-user.
WHAT THIS LIMITED WARRANTY COVERS: The warrantor warrants, within the terms of this Warranty, that the Eaton three-phase UPS electronics,
Eaton-built accessories and Eaton-built battery cabinets, (individually and collectively, the ”Warranted Items”) are free from defects in material and
workmanship.
For Product installed (and currently located) in the fifty (50) United States and the District of Columbia, if, in the opinion of Eaton, a Warranted Item
is defective, Eaton’s sole obligation, at the option of Eaton, will be to refurbish or replace such defective Warranted Item (including the costs of
providing diagnosis, service, and labor [“labor coverage”]). The defective Warranted Item will be refurbished or replaced onsite at the End-user’s
location or such other location as determined by Eaton. Any parts that are replaced may be new or reconditioned. All parts replaced by Eaton shall
become the property of Eaton.
For Product installed (and currently located) outside the fifty (50) United States and the District of Columbia, if, in the opinion of Eaton, a Warranted
Item is defective, Eaton’s sole obligation, at the option of Eaton, will be to refurbish or replace such defective Warranted Item. (not including the
costs of labor coverage). The defective Warranted Item will be refurbished or replaced onsite at the End-User’s location or such other location as
determined by Eaton. Any parts that are replaced may be new or reconditioned. All parts replaced by Eaton shall become the property of Eaton.
LIMITED WARRANTY PERIOD:
The period covered by this Warranty for Product installed (and currently located) in the fifty (50) United States and the District of Columbia is ninety
(90) days from the date of Product purchase for labor coverage and twelve (12) months from the date of Product purchase or eighteen (18) months
from date of Product shipment, whichever occurs first, for the refurbishment/replacement of parts.
The period covered by this Warranty for Product installed (and currently located) outside of the fifty (50) United States and the District of Columbia
is twelve (12) months from the date of Product purchase or eighteen (18) months from date of Product shipment, whichever occurs first, for the
refurbishment/replacement of parts.
WHAT THIS LIMITED WARRANTY DOES NOT COVER:
This Warranty does not cover any defects or damages caused by: (a) failure to properly store the Product before installation, including the "trickle
charge" of batteries no later than the date indicated on the packaging; (b) shipping and delivery of the Product if shipping is FOB Factory; (c) neglect,
accident, fire, flood, lightning, vandalism, acts of God, Customer's neglect, abuse, misuse, misapplication, incorrect installation; (d) repair or alteration,
not authorized in writing by Eaton personnel or performed by an authorized Eaton Customer Service Engineer or Agent; or (e) improper testing,
operation, maintenance, adjustment or any modification of any kind not authorized in writing by Eaton personnel or performed by an authorized Eaton
Customer Service Engineer or Agent.
This Warranty is not valid: if the Product’s serial numbers have been removed or are illegible. Any Warranted Items repaired or replaced pursuant to
this Warranty will be warranted for the remaining portion of the original Warranty subject to all the terms thereof. Labor warranty is not provided for
Product located outside of the fifty (50) United States or the District of Columbia. Any equipment, parts or materials included in the Product and
not manufactured by Eaton are warranted solely by the manufacturer of such equipment, parts or materials and are not included as part
of this warranty. Batteries are not warranted by Eaton.
THIS WARRANTY IS THE END-USER'S SOLE REMEDY AND IS EXPRESSLY IN LIEU OF, AND THERE ARE NO OTHER, EXPRESSED OR IM-
PLIED GUARANTEES OR WARRANTIES (INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PURPOSE,
WHICH ARE EXPRESSLY DISCLAIMED).
LIMITATION OF LIABILITY: In no event shall Eaton be liable for any indirect, incidental, special or consequential damages of any kind or type
whatsoever, or based on any claim or cause of action, however denominated. Eaton shall not be responsible for failure to provide service or parts
due to causes beyond Eaton's reasonable control. In no case will Eaton's liability under this Warranty exceed the replacement value of the War-
ranted Items.
144 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
END-USER’S OBLIGATIONS: In order to receive the benefits of this Warranty, the End-user must register the product warranty (via mail or online
at www.eaton.com/powerquality “product registration”); use the Product in a normal way; follow the Product’s operators and maintenance manual;
and protect against further damage to the Product if there is a covered defect.
OTHER LIMITATIONS: Eaton’s obligations under this Warranty are expressly conditioned upon receipt by Eaton of all payments due to it (including
interest charges, if any). During such time as Eaton has not received payment of any amount due to it for the Product, in accordance with the con-
tract terms under which the Product is sold, Eaton shall have no obligation under this Warranty. Also during such time, the period of this Warranty
shall continue to run and the expiration of this Warranty shall not be extended upon payment of any overdue or unpaid amounts.
COSTS NOT RELATED TO WARRANTY: The End-user shall be invoiced for, and shall pay for, all services not expressly provided for by the terms of
this Warranty, including without limitation, site calls involving an inspection that determines no corrective maintenance is required. Any costs for
replacement equipment, installation, materials, freight charges, travel expenses or labor of Eaton representatives outside the terms of this Warranty
will be borne by the End-user.
OBTAINING WARRANTY SERVICE: In the USA, call the Eaton Customer Reliability Center 7x24 at 800.843.9433. Outside of the USA, call your local
Eaton sales or service representative, or call the Eaton Customer Reliability Center in the USA at 919.870.3028. For comment or questions about this
Limited Factory Warranty, write to the Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North Carolina 27616 USA.
WARRANTY
Limited Factory Warranty For Eaton 9355 UPS Products (continued)
July 1, 2013
145www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
WARRANTY
Limited Factory Warranty For Eaton 9E UPS Products
9E
WARRANTOR: The warrantor for the limited warranties set forth herein is Eaton (“Eaton”).
LIMITED WARRANTY: This limited warranty (this “Warranty”) applies only to the original Purchaser (the “End-User”) of the Eaton 9E UPS Products
(the “Product”) and cannot be transferred. This restriction applies even in the event that the Product is initially sold by Eaton for resale to an End-User.
This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State (or jurisdiction to jurisdiction).
WHAT THIS LIMITED WARRANTY COVERS: Eaton warrants, within the terms of this Warranty, that the Eaton three-phase UPS electronics,
Eaton-built accessories, and Eaton-built battery cabinets, (individually and collectively, the”Warranted Items”) are free from defects in material and
workmanship.
For Product installed (and currently located) in the fifty (50) United States and the District of Columbia, if, in the opinion of Eaton, a Warranted Item is
defective, Eaton’s sole obligation, at the option of Eaton, will be to refurbish or replace such defective Warranted Item (including the costs of provid-
ing diagnosis, service, and labor [“labor coverage”]). The defective Warranted Item will be refurbished or replaced onsite at the End-User’s location
or such other location as determined by Eaton. Any parts that are replaced may be new or reconditioned. In any replacement endeavor, all parts
removed by Eaton shall become the property of Eaton.
For Product installed (and currently located) outside the fifty (50) United States and the District of Columbia, if, in the opinion of Eaton, a Warranted
Item is defective, Eaton’s sole obligation, at the option of Eaton, will be to refurbish or replace such defective Warranted Item. (not including the
costs of labor coverage). The defective Warranted Item will be refurbished or replaced onsite at the End-User’s location or such other location
as determined by Eaton. Any parts that are replaced may be new or reconditioned. In any replacement endeavor, all parts removed by Eaton shall
become the property of Eaton.
LIMITED WARRANTY PERIOD: The period covered by this Warranty for Product installed (and currently located) in the fifty (50) United States
and the District of Columbia is six (6) months from the date of Product purchase for labor coverage when no startup is performed by an authorized
Eaton Customer Service Engineer or Agent or twelve (12) months from the date of Product purchase with startup performed by an authorized Eaton
Customer Service Engineer or Agent and twelve (12) months from the date of Product purchase or eighteen (18) months from date of Product
shipment, whichever occurs first, for the refurbishment/replacement of parts.
The period covered by this Warranty for Product installed (and currently located) outside of the fifty (50) United States and the District of Columbia is
twelve (12) months from the date of Product purchase or eighteen (18) months from date of Product shipment, whichever occurs first, for the
refurbishment/replacement of parts.
WHAT THIS LIMITED WARRANTY DOES NOT COVER: This Warranty does not cover any defects or damages caused by: (a) failure to properly
store the Product before installation, including the "trickle charge" of batteries no later than the date indicated on the packaging; (b) shipping and
delivery of the Product if shipping is FOB Factory; (c) neglect, accident, fire, flood, lightning, vandalism, acts of God, End-User’s neglect, abuse,
misuse, misapplication, incorrect installation; (d) repair or alteration, not authorized in writing by Eaton personnel or performed by an authorized Eaton
Customer Service Engineer or Agent; or (e) improper testing, operation, maintenance, adjustment, or any modification of any kind not authorized in
writing by Eaton personnel or performed by an authorized Eaton Customer Service Engineer or Agent.
This Warranty is not valid: if the Product’s serial numbers have been removed or are illegible. Any Warranted Items repaired or replaced pursuant
to this Warranty will be warranted for the remaining portion of the original Warranty subject to all the terms thereof. Eaton does not provide a labor
warranty for Product located outside of the fifty (50) United States or the District of Columbia. Any equipment, parts or materials included in the
Product and not manufactured by Eaton are warranted solely by the manufacturer of such equipment, parts or materials and are not included as part
of this Warranty. Batteries are not warranted by Eaton.
THIS WARRANTY IS THE END-USER'S SOLE REMEDY AND IS EXPRESSLY IN LIEU OF, AND THERE ARE NO OTHER, EXPRESSED OR IM-
PLIED GUARANTEES OR WARRANTIES (INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PURPOSE,
WHICH ARE EXPRESSLY DISCLAIMED). SOME STATES OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF EXPRESS OR IMPLIED
WARRANTIES, SO THE ABOVE EXCLUSION MAY NOT APPLY TO YOU. IN THAT EVENT, SUCH WARRANTIES ARE LIMITED IN DURATION TO
THE LIMITED WARRANTY PERIOD. SOME STATES OR JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WAR-
RANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND/
OR EXCLUSIONS MAY NOT APPLY TO YOU..
LIMITATION OF LIABILITY: In no event shall Eaton be liable for any indirect, incidental, special or consequential damages of any kind or type
whatsoever, resulting from or in connection with any claim or cause of action, whether brought in contract or in tort (including negligence and strict
liability). Some States or jurisdictions do not allow the exclusion of limitation of incidental or consequential damages, so the above limitation or ex-
clusion may not apply to you. Eaton shall not be responsible for failure to provide service or parts due to causes beyond Eaton's reasonable control.
In no case will Eaton's liability under this Warranty exceed the replacement value of the Warranted Items.
146 EATON CORPORATION Reference Guide & Pricebook
July 1, 2013
July 1, 2013
WARRANTY
Limited Factory Warranty For Eaton 9E UPS Products (continued)
END-USER’S OBLIGATIONS: In order to receive the benefits of this Warranty, the End-User must register the product warranty (via mail or online
at www.powerquality.eaton.com/Product-Registration “product registration”); use the Product in a normal way; follow the Product’s operators and
maintenance manual; and protect against further damage to the Product if there is a covered defect.
OTHER LIMITATIONS: Eaton’s obligations under this Warranty are expressly conditioned upon receipt by Eaton of all payments due from End-User
(including interest charges, if any). During such time as Eaton has not received payment of any amount due to it for the Product, in accordance with
the contract terms under which the Product is sold, Eaton shall have no obligation under this Warranty. Also during such time, the period of this
Warranty shall continue to run and the expiration of this Warranty shall not be extended upon payment of any overdue or unpaid amounts.
COSTS NOT RELATED TO WARRANTY: The End-User shall be invoiced for, and shall pay for, all services not expressly provided for by the terms
of this Warranty, including without limitation, site calls involving an inspection that determines no corrective maintenance is required. Any costs for
replacement equipment, installation, materials, freight charges, travel expenses or labor of Eaton representatives outside the terms of this Warranty
will be borne by the End-User.
OBTAINING WARRANTY SERVICE: In the United States, call the Eaton Customer Reliability Center 7x24 at 800-843-9433. Outside of the United
States, call your local Eaton sales or service representative, or call the Eaton Customer Reliability Center in the United States at 919-870-3028. For
comment or questions about this Limited Factory Warranty, write to the Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North
Carolina 27616 USA.
July 1, 2013
147www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
July 1, 2013
WARRANTY
Pulsar series
LIMITED WARRANTY & PROPRIETARY RIGHTS FOR PULSAR SERIES SINGLE-PHASE PRODUCTS (T-11)
STANDARD LIMITED WARRANTY FORM (APPLICABLE WITHIN THE UNITED STATES, CANADA AND LATIN AMERICA)
EATON STANDARD SINGLE-PHASE LIMITED WARRANTY
Eaton warrants single phase products manufactured by Eaton to be free from defects in materials and workmanship for the following applicable time
periods beginning with the date of purchase by or for the first End-user (“Purchaser”):
The following products are covered by a one (1) year warranty period:
• Power-Sure 700 Power Conditioners
The following products are covered by a two (2) year warranty period:
• Nova AVR, Evolution, Evolution S, EX, MX, MX Frame and EX RT
• Power-Suppress 100 Ultra-Isolator Noise Suppressors and Power-Sure 800 Power Conditioners
The following products are covered by a three (3) year warranty period:
• Eclipse Personal
The following products are covered by a five (5) year warranty period:
• Power-Suppress T7
The following products are covered by a ten (10) year warranty period;
• Eclipse Pro and Eclipse ProTel
The terms and conditions of this standard limited warranty also apply to extended warranty coverage for the Pulsar series.
Any defects in materials or workmanship must be reported to Eaton within the applicable warranty period. Where labor is not included in the warranty,
any labor performed by Eaton shall be billed to Purchaser at, and Purchaser agrees to pay, Eaton standard labor rates then in effect for all warranty work
performed hereunder. Eaton shall have the sole right to determine if any defective parts are to be repaired at the job site or whether they are to be re-
turned to the factory for repair or replacement. All items returned to Eaton for repair or replacement must be sent freight prepaid to its factory. Purchaser
must obtain Eaton Return Materials Authorization (“RMA”) prior to returning items. The conditions stated herein must be met for Eaton warranty to be
valid. Eaton will not be liable for any damage done by unauthorized repair work, unauthorized replacement parts, from any misapplication of the subject
product, for damage due to accident, abuse or act of God (such as earthquake, flood, inclement weather, rain or fire), or relating to Purchaser’s failure to
follow proper environmental conditions for the product.
In no event shall Eaton be liable for loss, damage, or expense directly or indirectly arising from the use of or any defects in the subject product, or from
any other cause, except as expressly stated in this warranty. EXCEPT AS EXPRESSLY STATED IN THIS WARRANTY, EATON MAKES NO WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY AS TO MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR USE OR NON-INFRINGE-
MENT. SOME STATES OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF EXPRESS OR IMPLIED WARRANTIES, SO THE ABOVE EXCLUSION
MAY NOT APPLY TO YOU. IN THAT EVENT, SUCH WARRANTIES ARE LIMITED IN DURATION TO THE LIMITED WARRANTY PERIOD. SOME STATES OR
JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND/OR EXCLUSIONS MAY NOT APPLY TO YOU.
Eaton is not liable for and Purchaser waives any right of action it has or may have against Eaton for any consequential or special damages arising out of
any breach of warranty, and for any damages Purchaser may claim for damage to any property or injury or death to any person arising out of its purchase
or the use, operation or maintenance of the subject product. In no event will Eaton be liable for any labor subcontracted or performed by Purchaser for
preparation of the warranted item for return to an Eaton factory or for preparation work for field repair or replacement, and Eaton will not be responsible
to pay any invoice therefore. Some States and jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you.
This warranty shall be exclusive of any and all other warranties express or implied and may be modified only by a writing signed by an authorized officer
of Eaton. This warranty shall extend to the Purchaser but to no one else. Accessories supplied by Eaton, but manufactured by others, carry any warranty
the manufacturers have made to Eaton, and which can be passed on to Purchaser.
EATON makes no warranty with respect to whether the products sold hereunder infringe any patent, U.S. or foreign, and Purchaser represents that any
148 EATON CORPORATION Reference Guide & Pricebook
specially ordered products do not infringe any patent. Purchaser agrees to indemnify and hold EATON harmless from any liability by virtue of any patent
claims where Purchaser has ordered a product conforming to Purchaser’s specifications, or conforming to Purchaser’s specific design. Purchaser has not
relied and shall not rely on any oral representation regarding any products sold hereunder and any oral representation shall not bind EATON and shall not
be part of any warranty.
This warranty gives you specific legal rights, and you may also have other rights which vary from State to State or jurisdiction to jurisdiction.
PROPRIETARY RIGHTS STATEMENT
The information in this manual is the property of EATON, and represents a proprietary article in which EATON retains any and all intellectual property rights,
including exclusive rights of use and/or manufacture and/or sale. Possession of this information does not convey any permission to reproduce, print, manu-
facture, or have made the article or articles shown herein. Such permission may be granted only by specific written authorization signed by an authorized
officer of EATON.
IBM, PC-AT, ES/9000, and AS/400 are trademarks of International Business Machines Corporation. Other trademarks that may be used herein are owned by
their respective companies and are referred to in an editorial fashion only.
Eaton DPQD, 8709 Kerns Street, San Diego, CA 92154 · 800.279.7776 · www.eaton.com/powerquality · www.eaton.com/mgeops
For Single-phase Warranty applicable outside of the United States, Canada and Latin America, contact the appropriate EATON Regional Office.
WARRANTY
Pulsar series (continued)
149www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
NOTES
150 EATON CORPORATION Reference Guide & Pricebook
NOTES
151www.eaton.com/powerquality 1.800.356.5794
July 1, 2013
NOTES
NOTES
152 EATON CORPORATION Reference Guide & Pricebook
