Reference guide
Small projects products
For panelboards, surge protection,
transformers and switches
Table of Contents

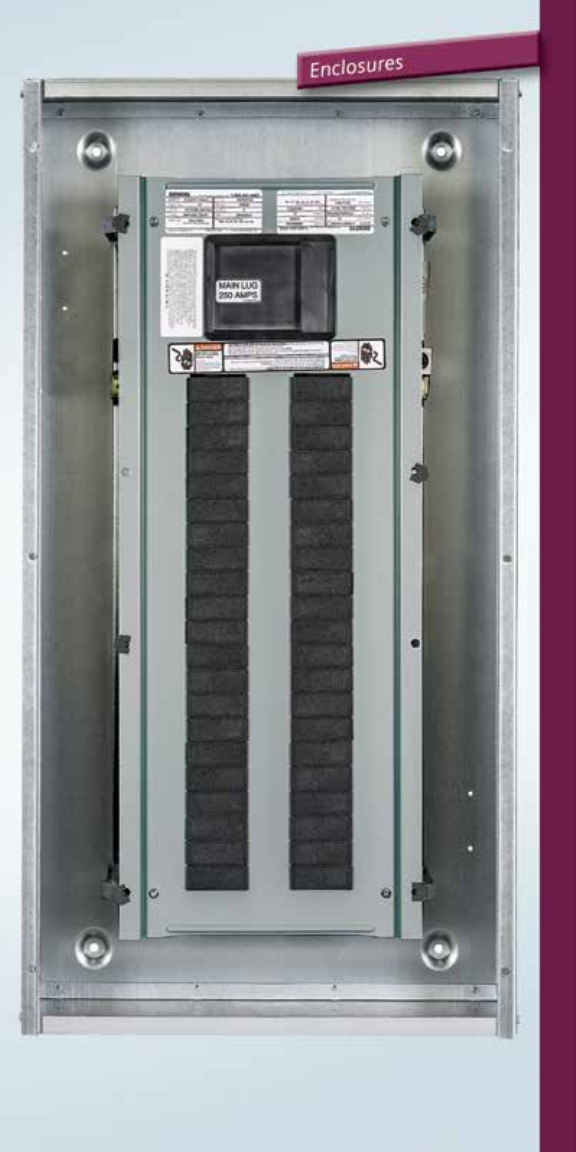

Enclosures
Inside Cover
Branch Breakers
Breaker Mountings Kits

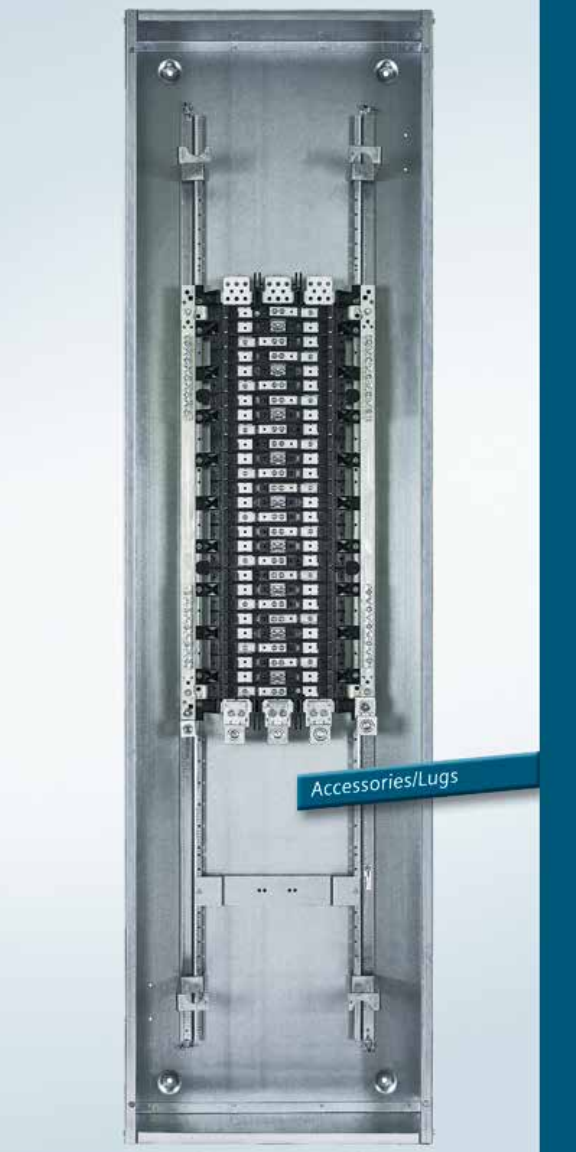

Accessories/Lugs

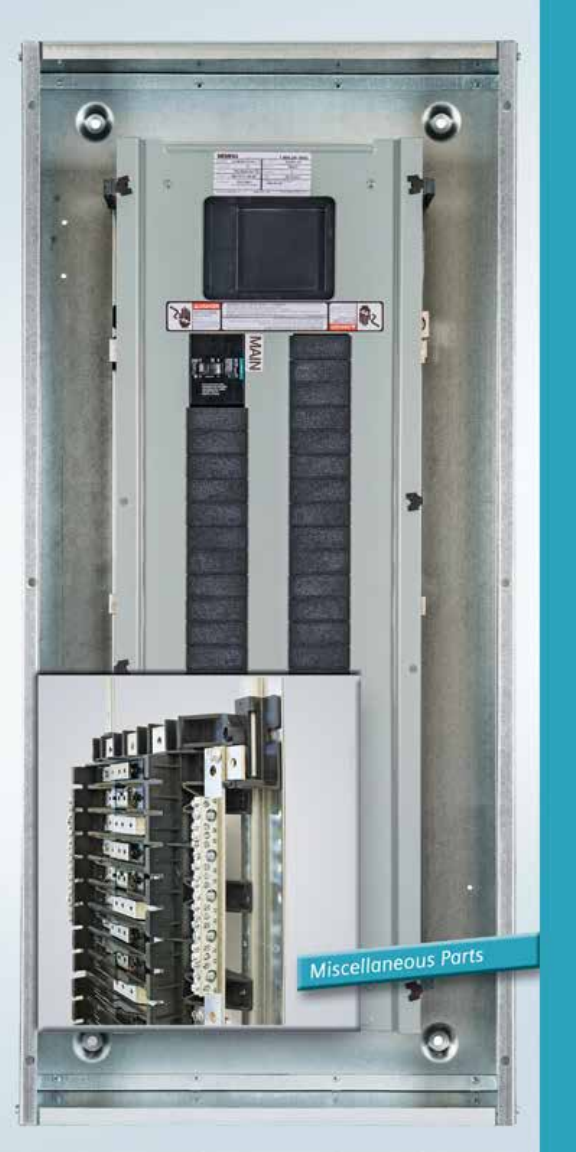

Miscellaneous Parts

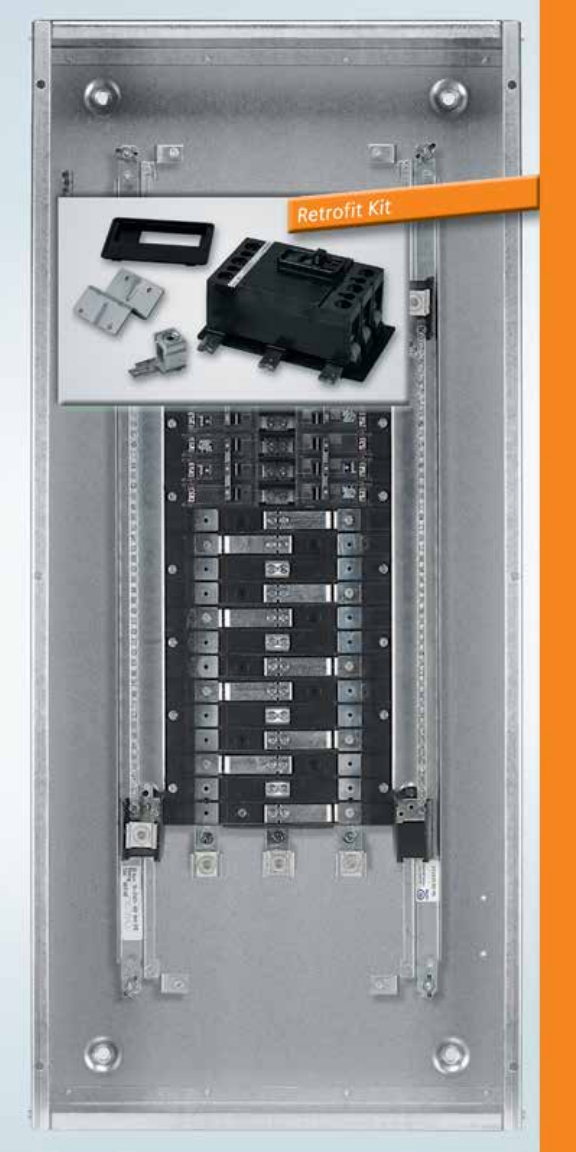

Retrofit Kit

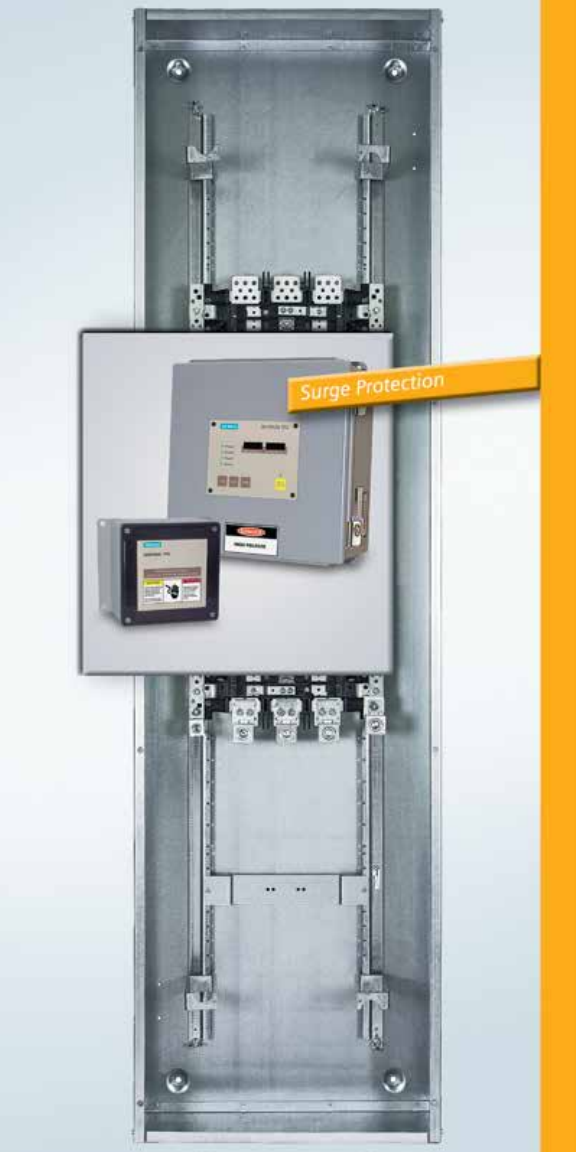

Surge Protection
Transformers
General Duty Safety Switches

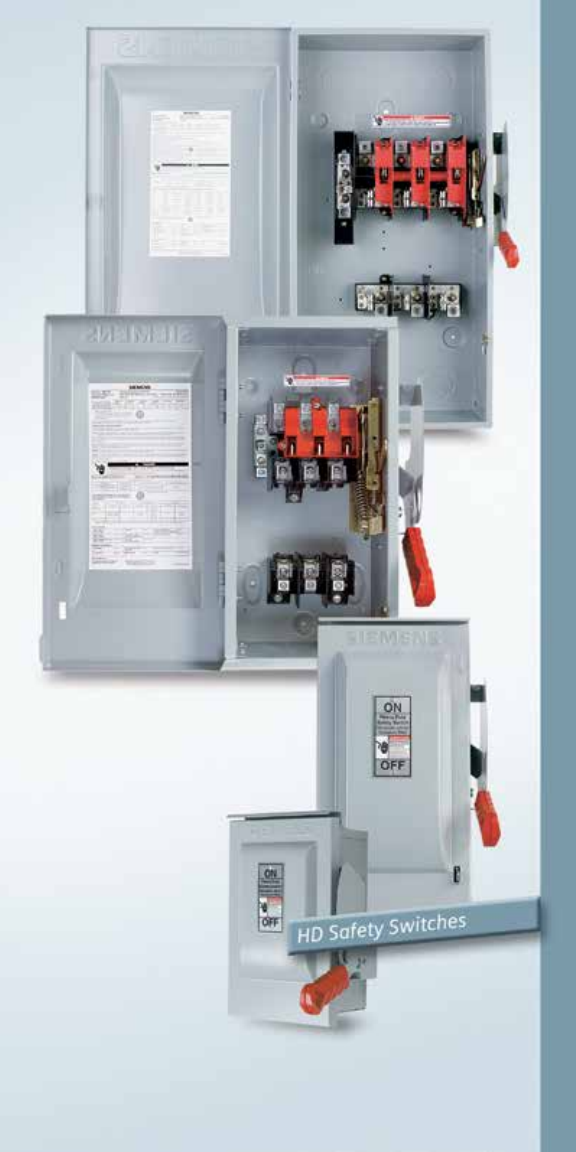

Heavy Duty Safety Switches

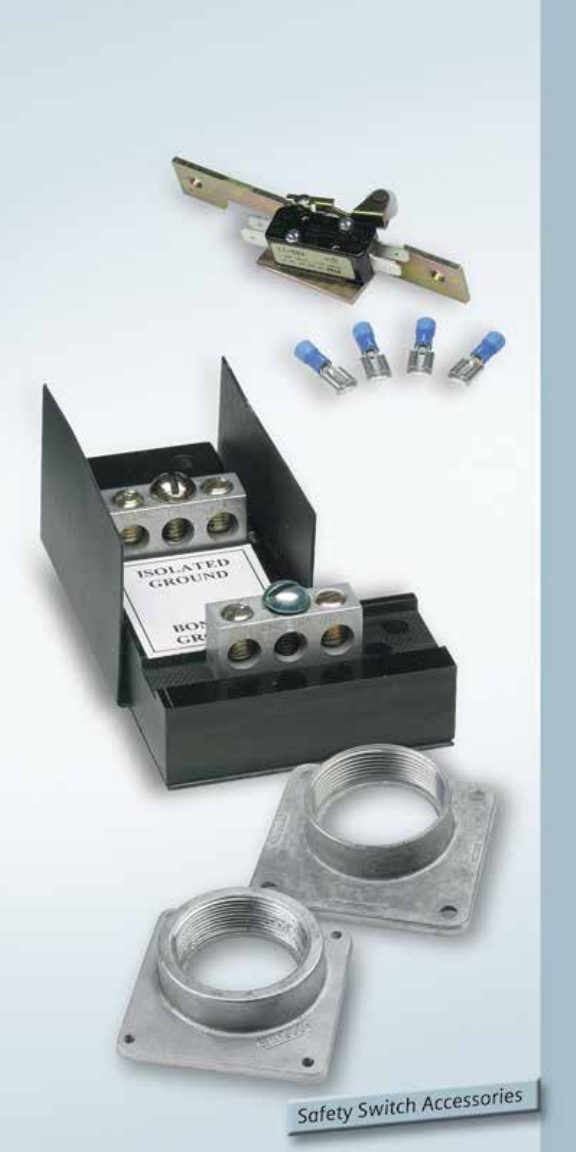

Safety Switch Accessories
Type P1 Unassembled Panelboards
Enclosures 1
Height
Inches
Type 1
Boxes
Type
3R/12 2, 3
Trim
Surface Flush
32 S32B F32B B32 WP32
38 S38B F38B B38 WP38
44 S44B F44B B44 WP44
50 S50B F50B B50 WP50
62 S62B F62B B62 WP62
68 S68B F68B B68 WP68
74 S74B F74B B74 WP74
1 18 Circuit 400A panels are not available with Revised P1.
54 Circuit Panels are available for both 250A and 400A.
66 circuit panels are available as Factory assembled only if needed
2 3R/12 enclosures are complete and do not require a trim.
3 Enclosure height is directly related to the P1 panel maximum amperage and
branch circuits (poles). P1 250 amp maximum can heights are 32”, 38”, 44”
and 50” respectfully. P1 400 amp maximum panels heights are 62”, 68” and
74” for 30, 42 and 54 circuit panels respectfully.
Type P1 Unassembled Panelboards
Interiors only – Less branch breakers
1 Phase, 3 Wire 120/240V
Ampere
Rating
Mains
Max. No.
of Poles Interiors Material
250
18 P1A18MC250AT
Aluminum
30 P1A30MC250AT
42 P1A42MC250AT
54 P1A54MC250AT
400
30 P1A30MC400AT
Aluminum42 P1A42MC400AT
54 P1A54MC400AT
250
18 P1A18MC250CT
Copper
30 P1A30MC250CT
42 P1A42MC250CT
54 P1A54MC250CT
400
30 P1A30MC400CT
Copper42 P1A42MC400CT
54 P1A54MC400CT
3 Phase, 4 Wire 208Y/120V
250
18 P1X18MC250AT
Aluminum
30 P1X30MC250AT
42 P1X42MC250AT
54 P1X54MC250AT
400 30 P1X30MC400AT
Aluminum42 P1X42MC400AT
54 P1X54MC400AT
250
18 P1X18MC250CT
Copper
30 P1X30MC250CT
42 P1X42MC250CT
54 P1X54MC250CT
400 30 P1X30MC400CT Copper
42 P1X42MC400CT
54 P1X54MC400CT
3 Phase, 4 Wire 480Y/277V
250
18 P1E18MC250AT
Aluminum
30 P1E30MC250AT
42 P1E42MC250AT
54 P1E54MC250AT
400
30 P1E30MC400AT Aluminum
42 P1E42MC400AT
54 P1E54MC400AT
250
18 P1E18MC250CT
Copper
30 P1E30MC250CT
42 P1E42MC250CT
54 P1E54MC250CT
400 30 P1E30MC400CT Copper
42 P1E42MC400CT
54 P1E54MC400CT
Type P1 Unassembled Panelboards
Interiors only, for xGB Breakers – Less Branch Breakers
Ampere
Rating
Mains
Max. No.
of Poles Interiors Material
250
18 P1718MC250AT
Aluminum
30 P1730MC250AT
42 P1742MC250AT
54 P1754MC250AT
250
18 P1718MC250CT
Copper
30 P1730MC250CT
42 P1742MC250CT
54 P1754MC250CT
400
30 P1730MC400AT
Aluminum42 P1742MC400AT
54 P1754MC400AT
400 30 P1730MC400CT Copper
42 P1742MC400CT
54 P1754MC400CT

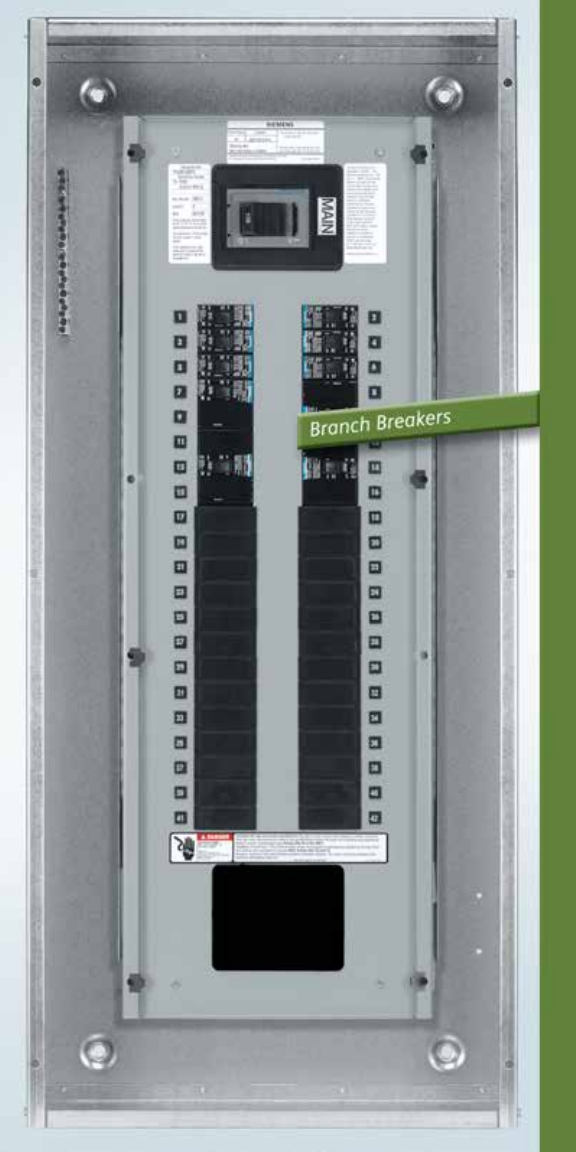

Branch Breakers Selection for P1
BL Branch Breakers – 10,000A IR
Amp
Rating
1-Pole
120/240V
2-Pole
120/240V
2-Pole
240V
3-Pole
240V
15 B115 B215 B215R B315
20 B120 B220 B220R B320
25 B125 B225 B225R B325
30 B130 B230 B230R B330
35 B135 B235 B235R B335
40 B140 B240 B240R B340
45 B145 B245 B245R B345
50 B150 B250 B250R B350
55 B155 — — —
60 B160 B260 — B360
70 B170 B270 — B370
80 — B280 — B380
90 — B290 — B390
100 — B2100 — B3100
BLH Branch Breakers – 22,000A IR
Amp
Rating
1-Pole
120/240V
2-Pole
120/240V
3-Pole
240V
15 B115H B215H B315H
20 B120H B220H B320H
25 B125H B225H B325H
30 B130H B230H B330H
40 B140H B240H B340H
50 B150H B250H B350H
55 B155H — —
60 B160H B260H B360H
70 B170H B270H B370H
80 — B280H B380H
90 — B290H B390H
100 — B2100H B3100H
HBL Branch Breakers – 65,000A IR
15 B115HH B215HH B315HH
20 B120HH B220HH B320HH
30 B130HH B230HH B330HH
40 B140HH B240HH B340HH
50 B150HH B250HH B350HH
60 — B260HH B360HH
70 — B270HH B370HH
80 — B280HH B380HH
90 — B290HH B390HH
100 — B2100HH B3100HH
BQD Branch Breakers
14,000A IR Max. @ 480/277V AC / 65,000A IR max. @ 240V AC
GB Family Branch Breakers
NGB – 25,000A IR Max. @ 480/277V AC /100,000A IR max. @ 240V A
Amp
Rating
1-Pole
277V
2-Pole
480/277V
3-Pole
480Y/277V
15 BQD115 BQD215 BQD315
20 BQD120 BQD220 BQD320
25 BQD125 BQD225 BQD325
30 BQD130 BQD230 BQD330
35 BQD135 BQD235 BQD335
40 BQD140 BQD240 BQD340
45 BQD145 BQD245 BQD345
50 BQD150 BQD250 BQD350
60 BQD160 BQD260 BQD360
70 BQD170 BQD270 BQD370
80 BQD180 BQD280 BQD380
90 BQD190 BQD290 BQD390
100 BQD1100 BQD2100 BQD3100
HGB – 35,000 A IR Max. @ 480/277V AC / 100,000 A IR @ 240V AC
LGB – 65,000 A IR Max. @ 480/277V AC / 100,000 A IR @ 240V AC
Amp
Rating
1-Pole
277V
2-Pole
480/277V
3-Pole
480Y/277V
15 xGB1B015B xGB2B015B xGB3B015B
20 xGB1B020B xGB2B020B xGB3B020B
25 xGB1B025B xGB2B025B xGB3B025B
30 xGB1B030B xGB2B030B xGB3B030B
35 xGB1B035B xGB2B035B xGB3B035B
40 xGB1B040B xGB2B040B xGB3B040B
45 xGB1B045B xGB2B045B xGB3B045B
50 xGB1B050B xGB2B050B xGB3B050B
60 xGB1B060B xGB2B060B xGB3B060B
70 xGB1B070B xGB2B070B xGB3B070B
80 xGB1B080B xGB2B080B xGB3B080B
90 xGB1B090B xGB2B090B xGB3B090B
100 xGB1B100B xGB2B100B xGB3B100B
110 xGB1B110B xGB2B110B xGB3B110B
125 xGB1B125B xGB2B125B xGB3B125B
Replace x with N, H or L depending on desired type of breaker
Note: 2-pole and 3-pole xGB Frame Breakers are also rated at 14,000 A IR max.
for 600Y/347V AC systems. UPB interiors are only rated to 480V max. – see
factory assembled section for proper interiors.
GFCI Personnel Protection (5MA)
EQF Equipment Protection (30MA)
Breaker
Type
Ampere
Rating
Catalog
Number
Interrupting Ratings (kA)
(RMS Symmetrical Amperes)
Volts AC
120 120/240 240
BLF
1-Pole
15
20
25
30
BF115
BF120
BF125 n
BF130
10
10
10
10
—
—
—
—
—
—
—
—
BLF
2-Pole
15
20
30
40
50
60
BF215
BF220
BF230
BF240 n
BF250 n
BF260 n
—
—
—
—
—
—
10
10
10
10
10
10
—
—
—
—
—
—
BLHF
1-Pole
15
20
30
BF115H
BF120H
BF130H n
22
22
22
—
—
—
—
—
—
BLHF
2-Pole
15
20
30
40
50
60
BF215H n
BF220H n
BF230H n
BF240H n
BF250H n
BF260H n
—
—
—
—
—
—
22
22
22
22
22
22
—
—
—
—
—
—
Breaker
Type
Ampere
Rating
Catalog
Number
Interrupting Ratings (kA)
(RMS Symmetrical Amperes)
Volts AC
120 120/240 240
BLE
1-Pole
120V AC
15
20
30
BE115 n
BE120
BE130
10
10
10
—
—
—
—
—
—
BLE
2-Pole
120/240V AC
15
20
30
40
50
60
BE215 n
BE220
BE230
BE240 n
BE250 n
BE260 n
—
—
—
—
—
—
10
10
10
10
10
10
—
—
—
—
—
—
BLEH
1-Pole
15
20
30
BE115H n
BE120H n
BE130H n
22
22
22
—
—
—
—
—
—
BLEH
2-Pole
15
20
30
40
50
60
BE215H n
BE220H n
BE230H n
BE240H n
BE250H n
BE260H n
—
—
—
—
—
—
22
22
22
22
22
22
—
—
—
—
—
—
nBuilt to order. Allow 2-3 weeks for delivery.
AFCI – Combination Type Arc Fault Circuit Interrupter
Breaker
Type
Ampere
Rating
Catalog
Number
Interrupting Ratings (kA)
(RMS Symmetrical Amperes)
Volts AC
120 120/240 240
BAF2
1-pole
15
20
B115AFC
B120AFC
10
10
—
—
—
—
BAFH2
1-pole
15
20
B115AFCH
B120AFCH
22
22
—
—
—
—
HBAF2
1-pole
15
20
BA115AFCHH
BA120AFCHH
65
65
—
—
—
—
BAF
2-pole
15
20
B215AFC
B220AFC
10
10
—
—
—
—
BAFH
2-pole
15
20
B215AFCH
B220AFCH
22
22
—
—
—
—
n
Built to order.
Switching Neutrals
Breaker
Type
Ampere
Rating
Catalog
Number
Maximum
Interrupting Ratings (kA)
Volts AC
120 120/240 240
BG
2-Wire
Common Trip
15
20
30
BG215 n
BG220 n
BG230 n
10
10
10
—
—
—
—
—
—
BG
3-Wire
Common Trip
15
20
30
BG315 n
BG320 n
BG330 n
—
—
—
10
10
10
—
—
—
AFCI – Branch Feeder Type Arc Fault Circuit Interrupter
Breaker
Type
Ampere
Rating
Catalog
Number
Interrupting Ratings (kA)
(RMS Symmetrical Amperes)
Volts AC
120 120/240 240
BAF2
1-pole
15
20
BA115AF
BA120AF
10
10
—
—
—
—
BAF2H
1-pole
15
20
BA115AFH
BA120AFH
22
22
—
—
—
—
HBAF2
1-pole
15
20
BA115AFHH
BA120AFHH
65
65
—
—
—
—
Dual Function AFCI/GFCI Circuit Breaker
Breaker
Type
Ampere
Rating
Catalog
Number
Interrupting Ratings (kA)
RMS Symmetrical Amperes
Volts AC
120 120/240 240
BFGA2
1-pole
15
20
BA115DF
BA120DF
10
10
—
—
—
—
BFGAH2
1-pole
15
20
BA115DFH
BA120DFH
22
22
—
—
—
—
HBFGA2
1-pole
15
20
BA115DFHH
BA120DFHH
65
65
—
—
—
—
Catalog Numbering System
Unassembled Panelboards
1 2 3,4 5,6 7,8,9 10 11
P 1 X 1 8 M C 2 5 0 A T
1. P1
2. Voltage and System
X = 208Y/120, 3 Phase, 4 Wire
A = 120/240V, 1 Phase, 3 Wire
E = 480Y/277V, 3 Phase, 4 Wire
7 = xGB interior, 480Y/277V, 3-Phase 4-Wire
3, 4. Circuit – 18, 30, 42 , 54* (* Revised P1 only)
5, 6. Mains
MC = Convertible mains
Select Main Lug Kit or Breaker Mounting Kit
Select Main Breaker Kit
7, 8, 9. Amperage – 400A Max
10. Main Bus Material
A = Tin-plated aluminum
C = Copper Temp. Rated
11. SubFeed Space Indicator
“T” indicates that a subfeed space is available –
Feed-Thru configuration. Factory assembled panels
may have an “N” indicating a NFT or Non-Feed-Thru
configuration.
Type P1 unassembled panelboards are completely convertible
from main lug to main breaker and vice-versa. Additionally,
feed-thru lugs, or a subfeed circuit breaker up to 400 amperes
can be added without increasing the box height. Follow these
easy steps to select and price the proper P1 panel from stock:
1. Compute total number of poles to determine interior
catalog number.
2. List catalog number and price of interior, box and front.
3. Select main lug kit or main breaker kit from appropriate
tables. Note: Main/Subfeed Breaker mounting kits may
be ordered with or without breakers included.
4. List required branch circuit breakers and filler plates to
cover any unused portions.
5. Select any modifications or accessories.
The Original P1 series interiors can be identified as "not having"
either a "T" or an "N" at the end of the Panel number. The Revised P1
panels were introduced in January 2015. Revised P1 Panels DO NOT
use the same accessories as the Original P1.

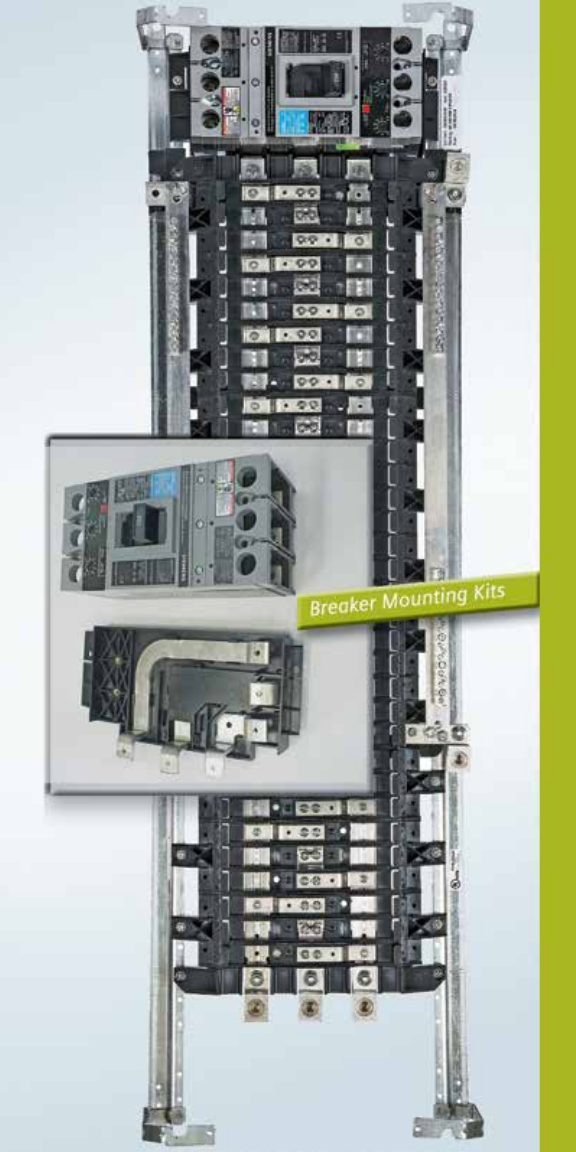

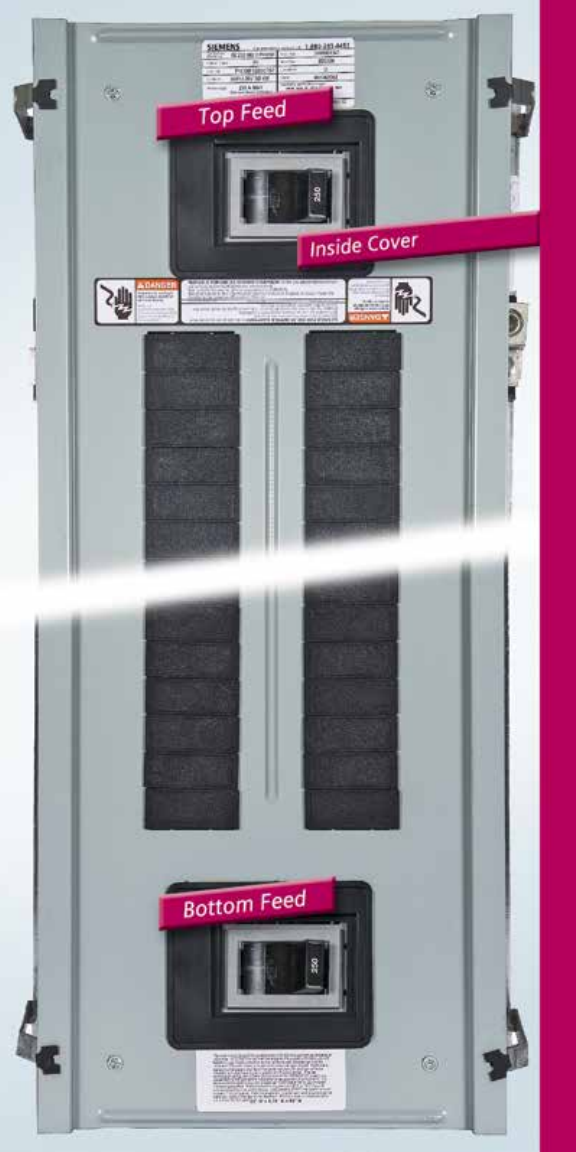

Breaker Mounting Kits
250A Max. – Main or Subfeed without Breaker
Breaker Mounting Kits With Breakers for P1 Panels
(250A and lower can be used as subfeed kits also)
Amp
rating Breaker type Service
Catalog
number
100 BQD 3 Phase MBKBFA2
100 BL, BLH, HBL 1 Phase
3 Phase
MBKBFA2
MBKBFA2
125
NGB, HGB, LGB 1 Phase
3 Phase
MBKBFA2
MBKBFA2
125 ED4, ED6, HED4, HED6 1 Phase
3 Phase
MBKED1A
MBKED3A
225 QJ2, QJH2, QJ2-H 1 Phase
3 Phase
MBKQJ1A
MBKQJ3A
250 FXD6, FD6, HFD6, HFXD6 1 Phase
3 Phase
MBKFD1A
MBKFD3A
400 1JXD2, JD6, JXD6,
HJD6, HJXD6
1 Phase
3 Phase
MBKJD1A
MBKJD3A
1 400 amp kit is for main only – not allowed for subfeed breaker.
2 Back-fed main occupies branch space.
Catalog
Number Description
Rating
240V 480V
MBKED3100A Kit w/3 pole ED4 100A breaker 65kA 18kA
MBKED3125A Kit w/3 pole ED4 125A breaker 65kA 18kA
MBKQJ1125A Kit w/2 pole QJ2 125A breaker 10kA —
MBKQJ1150A Kit w/2 pole QJ2 150A breaker 10kA —
MBKQJ1175A Kit w/2 pole QJ2 175A breaker 10kA —
MBKQJ1200A Kit w/2 pole QJ2 200A breaker 10kA —
MBKQJ1225A Kit w/2 pole QJ2 225A breaker 10kA —
MBKQJ3125A Kit w/3 pole QJ2 125A breaker 10kA —
MBKQJ3150A Kit w/3 pole QJ2 150A breaker 10kA —
MBKQJ3175A Kit w/3 pole QJ2 175A breaker 10kA —
MBKQJ3200A Kit w/3 pole QJ2 200A breaker 10kA —
MBKQJ3225A Kit w/3 pole QJ2 225A breaker 10kA —
MBKQJ1125HA Kit w/2 pole QJ2H 125A breaker 42kA —
MBKQJ1150HA Kit w/2 pole QJ2H 150A breaker 42kA —
MBKQJ1175HA Kit w/2 pole QJ2H 175A breaker 42kA —
MBKQJ1200HA Kit w/2 pole QJ2H 200A breaker 42kA —
MBKQJ1225HA Kit w/2 pole QJ2H 225A breaker 42kA —
MBKQJ3125HA Kit w/3 pole QJ2H 125A breaker 42kA —
MBKQJ3150HA Kit w/3 pole QJ2H 150A breaker 42kA —
MBKQJ3175HA Kit w/3 pole QJ2H 175A breaker 42kA —
MBKQJ3200HA Kit w/3 pole QJ2H 200A breaker 42kA —
MBKQJ3225HA Kit w/3 pole QJ2H 225A breaker 42kA —
MBKFD3150A Kit w/3 pole FXD6 150A breaker 65kA 35kA
MBKFD3175A Kit w/3 pole FXD6 175A breaker 65kA 35kA
MBKFD3200A Kit w/3 pole FXD6 200A breaker 65kA 35kA
MBKFD3225A Kit w/3 pole FXD6 225A breaker 65kA 35kA
MBKFD3250A Kit w/3 pole FXD6 250A breaker 65kA 35kA
MBKJD1300A1Kit w/2 pole JXD6 300A breaker 65kA 35kA
MBKJD3300A1Kit w/3 pole JXD6 300A breaker 65kA 35kA
MBKJD1400A1Kit w/2 pole JXD6 400A breaker 65kA 35kA
MBKJD3400A1Kit w/3 pole JXD6 400A breaker 65kA 35kA
MBKJD12300A1Kit w/2 pole JXD6 300A breaker 65kA —
MBKJD32300A1 Kit w/3 pole JXD6 300A breaker 65kA —
MBKJD12400A1Kit w/2 pole JXD6 400A breaker 65kA —
MBKJD32400A1Kit w/3 pole JXD6 400A breaker 65kA —
1 Kits can be used for either top feed or bottom feed.
Lug Kits — Main or Feed Thru
Copper Neutral Lug Kits — 250A
Number
of Circuits Description
Revised P1
Catalog
Number
18
2 or 4 Branch Neutral Strips,
1 Main Neutral Lug, Hardware
Use 30 ckt kit
30 CNKL30A
42 CNKL42A
54, 66 CNLK54A
2/0 Neutral Lug Kits — 250A and 400A
18
2 or 4 Branch Neutral Strips,
Hardware
Use 30 ckt kit
30 LNLK30A
42 LNLK42A
54, 66 LNLK54A
200% Neutral Lug Kits/250A
18
2 or 4 Branch Neutral Strips,
1 Main Neutral Lug, Hardware
Use 30 ckt kit
30 2NK30A
42 2NK42A
54, 66 2NK54A
200% Neutral Lug Kits/400A
18
2 or 4 Branch Neutral Strips, 1 Main
600MCM Neutral Lug, Hardware
Use 30 ckt kit
30 42NLK30A
42 42NLK42A
54, 66 42NLK54A
Amp
Rating Matl.
Wire Range
(includes Neutral) Service
Catalog
Number
250
AL (1) #6 AWG-
350 kcmil (CU or AL)
1 Phase MLKA1A
3 Phase MLKA3A
CU (1) #6 AWG-
350 kcmil (CU or AL)
1 Phase MLKC1A
3 Phase MLKC3A
400
AL (2) 1/0 - 250 kcmil
or (1) #2 AWG-600 kcmil
1 Phase 4MLKA1A
3 Phase 4MLKA3A
CU (2) 1/0 - 4/0
or (1) 1/0 - 600 kcmil
1 Phase 4MLKC1A
3 Phase 4MLKC3A
400 AL AL 1/0-750 kcmil
(max. 600 kcmil CU wire)
1 Phase 4MLKA1B
3 Phase 4MLKA3B
Type P1, P2, P3, SE and S3 Panelboards
1 Replacement parts only.
Miscellaneous Parts and Accessories
Catalog # Description
BK1 Bonding Kit for 400A max. Original P1 panels
BK1A Bonding Kit for 400A max. Revised P1 Panels
BK2 Bonding Kit for S1/S2 400 and 600
BK3 Bonding kit for S3
P2BK1 Bonding Kit for P2 250A Max.
P2BK2 Bonding Kit for P2 400A Max.
P2BK3 Bonding Kit for P2 600A Max.
P3BK1 Bonding kit for P3
IMK1 Interior Adjusting Kit
11-1824-01 Directory Card Holder
12-1110-01 Directory Card
11-1056-01 NEMA Instruction Book
NBK03 Number Strips 1–42, Stick-on type:
Use w/P1 series Panels
NBK04 Number Strips 43–84, Stick-on type:
Use w/P1 series Panels
NBK05 Number Strips 85–126, Stick-on type:
Use w/P1 series Panels
NBK06 Number Strips 127–168, Stick-on type:
Use w/P1 series Panels
EGK AL Ground Bus 44 Connections
ECGK CU Ground Bus 44 Connections
IGK Insulated AL Ground Bus
ICGK Insulated CU Ground Bus
EWK1 End Wall Kit with Knockouts (20" W x 5.75" DP)
EWK2 End Wall Kit with Knockouts (24" W x 7.75" DP)
EBF1 NEB/HEB Filler Plate
P1SCRWS Package of 42 breaker mounting screws for P1
DFFP1 1" Branch circuit filler plate (suitable for replacing
QF3 in P1 thru P5 Panelboards and Switchboards)
P1CONBPHCU 1Connector kit – 6 pcs. B-phase Copper
P1CONBPHAL 1Connector kit – 6 pcs. B-phase Aluminum
P1CONACPHCU 1Connector kit – 6 pcs. A or C-phase Copper
P1CONACPHAL 1Connector kit – 6 pcs. A or C-phase Aluminum
1 Replacement Parts Only.
400/600A S1/S2 and All SE Panels
Amp
Rating Breaker Type Service Catalog
Number
125 ED2, ED4, ED6, HED4, HED6, HHED6 1 Phase SMBKED1
225 ED2, ED4, ED6, HED4, HED6, HHED6 3 Phase SMBKED3
225 QJ2, HQJ2, HQJ2H 1 Phase SMBKQJ1
QJ2, HQJ2, HQJ2H 3 Phase SMBKQJ3
250 FXD6, FD6, HFXD6, HFD6 1 Phase SMBKFD1
FXD6, FD6, HFXD6, HFD6 3 Phase SMBKFD3
400 JD6, JXD6, HJD6, HJXD6 1 Phase SMBKJD1
JD6, JXD6, HJD6, HJXD6 3 Phase SMBKJD3
600 LD6, LXD6, HLD6, HLXD6 1 Phase SMBKLD1
LD6, LXD6, HLD6, HLXD6 3 Phase SMBKLD3
SPP/FPP/S4/S5/P4/P5/F1/F2 Kits
Breaker Type Mounting
Unit
Height
Inches
Category 1
10” Deep
S4/P4/SPP
FPP/P1
Category 2
12.75” Deep
S5/P5/F2
SPP/FPP
BL/BQD Twin 3.75 SBL SBLBD
ED Twin 3.75 SE6 SE6D
CED6 Single 3.75 SCE SCED
QJ Twin 5.00 SQJ SQJD
FD6 Twin 5.00 SF6 SF6D
CFD6 Single 5.00 SCF SCFD
JXD2, JXD6 Single 8.75 SJ1 SJ1D
JXD2, JXD6 Twin 8.75 — SJ2D
SJD6 Single 8.75 SSJ1 SSJ1D
CJD6 Single 8.75 SCJ SCJD
SCJD6 Single 8.75 SSCJ SSCJD
LD6 Single 8.75 SL6 SL6D
SLD6 Single 8.75 SSL6 SSL6D
CLD6 Single 8.75 SCL SCLD
SCLD6 Single 8.75 SSCL SSCLD
LMD6, HLMD6 Single 8.75 SLM1 SLM1D
MD6, HMD6,
CMD6 Single 10 — SMND
SMD6, SHMD6 Single 10 — SSMND
ND6, HND6 Single 10 — SMND
SND6, SHND6
SCND6 Single 10 — SSMND
MG1D Single 10 — NM, HM, LM,
SNM, SHM
NG1D Single 10 — NN, HN, LN,
SNN, SHN
Kit
Number Description
BBKB32 BL/BQD 6-pole 3” branch breaker kit
BBKED32 ED 6-pole 3” branch breaker kit
BBKNB32 xGB branch mounting kit (NGB, HGB & LGB)
BBKQ1 QJ branch breaker kit for 2 and 3-pole single mount
BBKQ2 Branch breaker kit for 2 and 3-pole QJ twin mount (P3)
DKF1 BL, BQD, ED deadfront kit for 1” pole breakers
DFFP3 Deadfront filler 3”
DFFP6 Deadfront filler 6”
BNK2 Branch Neutral (P2)
P2BK1 P2 250A max. bonding kit
P2BK2 P2 400A max. bonding kit
P2BK3 P2 600A max. bonding kit
P3BK1 P3 bonding kit
P2/P3 Kits and Accessories
Internal TPS
All internal TPS standard monitoring includes LED Indicators
TPS3 01, L1, 05, L5, 06, L6 standard monitoring includes:
- LED indicators
- Audible Alarm with Silence and Test Buttons
- Dry Contacts
TPS3 02 is for new Revised P1 only – not for use in Original P1.
TPS3 01 Surge Protection Device (SPD) for Original P1, P2 Lighting
Panelboards and P3 Power Distribution Panelboards, Motor
Control Centers and Busway Systems
Mounts internal to:
- P1, P2 and P3 panels
- tiastar motor control centers – standard 6” bucket
- STP series busplug on SX series busway
Ordering Information – When an option is not selected, put a zero
(0) in the field.
TPS3 L2 is for new Revised P1 only – not for use in Original P1.
TPS3 L1 True 10 Mode Protection, Surge Protection Device (SPD) for
Original P1, P2 Lighting and P3 Power Distribution Panelboards,
Motor Control Centers and Busway Systems
Mounts internal to:
• P1, P2 and P3 panels
• tiastar motor control centers – standard 6” bucket
• STP series busplug on SX series busway
Ordering Information – When an option is not selected, put a zero
(0) in the field
1 2 3X 3W 3BorM
1 2 3X 3W 3BorM
1. Voltage Code
A = 120/240V, 1Ø, 3W
B = 120/240V, 3Ø, 4W
C = 120/208V, 3Ø, 4W
D = 240V, 3Ø, 3W
E = 277/480V, 3Ø, 4W
F = 480V, 3Ø, 3W
G = 600V, 3Ø, 3W
K = 380/220V, 3Ø, 4W
L = 600/347V, 3Ø, 4W
S = 400/230V, 3Ø, 4W
1. Voltage Code
A = 120/240V, 1Ø, 3W
B = 120/240V, 3Ø, 4W
C = 120/208V, 3Ø, 4W
E = 277/480V, 3Ø, 4W
K = 380/220V, 3Ø, 4W
S = 400/230V, 3Ø, 4W
2. Surge
Current (kA)
10 = 100kA per phase
15 = 150kA per phase
20 = 200kA per phase
25 = 250kA per phase
30 = 300kA per phase
2. Surge
Current (kA)
15 = 150kA per phase
30 = 300kA per phase
3. Options
X = Surge
counter
W = Terminal lug
B = Busway
application
M = MCC
application
3. Options
X = Surge counter
W = Terminal lug
B = Busway
application
M = MCC
application
Available accessories ordered separately. RMSIE – remote monitor.
Example: TPS3C0120X00 = SPD for a 208/120V panelboard with a
surge capacity of 200kA per phase and a surge counter option.
Available accessories ordered separately. RMSIE – remote monitor.
Example: TPS3CL130X00 = 10 Mode SPD for a 208/120V panelboard
with a surge current capacity of 300kA per phase and a surge
counter option.
T P S 3 0 1
T P S 3 L 1
TPS3 05 Surge Protection Device (SPD) for P4 and P5
Panelboards and Distribution Switchboards
Mounts internal to:
- P4 and P5 panelboards and distribution switchboards
Ordering Information – When an option is not selected, put a zero
(0) in the field.
TPS3 L5 True 10 Mode Protection
Surge Protection Device (SPD) for P4 and P5 Panelboards and
Distribution Switchboards
Mounts internal to:
• P4 and P5 panelboards and distribution switchboards
Ordering Information – When an option is not selected, put a zero
(0) in the field.
1 2 3
1. Voltage Code
A = 120/240V, 1Ø, 3W
B = 240/120V, 3Ø, 4W
C = 120/208V, 3Ø, 4W
D = 240V, 3Ø, 3W
E = 277/480V, 3Ø, 4W
F = 480V, 3Ø, 3W
G = 600V, 3Ø, 3W 1
K = 380/220V, 3Ø, 4W
L = 600/347V, 3Ø, 4W
S = 400/230V, 3Ø, 4W
1. Voltage Code
A = 120/240V, 1Ø, 3W
B = 120/240V, 3Ø, 4W
C = 120/208V, 3Ø, 4W
E = 277/480V, 3Ø, 4W
K = 380/220V, 3Ø, 4W
S = 400/230V, 3Ø, 4W
2. Surge Current (kA)
10 = 100kA per phase
15 = 150kA per phase
20 = 200kA per phase
25 = 250kA per phase
30 = 300kA per phase
2. Surge Current (kA)
15 = 150kA per phase
30 = 300kA per phase
3. Options
X = Surge
counter
3. Options
X = Surge
counter
1 Available in 100 and 150 kA only.
Available accessories ordered separately. RMSIE – remote monitor.
Example: TPS3C0530X = SPD for a 208/120V power panel with a surge
current capacity of 300kA per phase and a surge counter option.
Available accessories ordered separately. RMSIE
Available accessories ordered separately. RMSIE – remote monitor.
Example: TPS3CL530X = 10 mode SPD for a 208/120V power
panel with a surge current capacity of 300kA per phase and a surge
counter option.
1 2 3
T P S 3 0 5
T P S 3 L 5
TPS3 06 Surge Protection Device (SPD) for Service
Entrance Applications – SB1, SB2, SB3, Type RCS Switchboards,
Type WL Low Voltage Switchgear, Motor Control Centers and
Busway Systems
Mounts internal to:
- SB1, SB2, SB3 and Type RCS switchboards
- Type WL low voltage switchgear
- tiastar motor control centers - standard 12” bucket
- STP series busplug on SX series busway
Ordering Information – When an option is not selected, put a zero
(0) in the field.
TPS3 L6 True 10 Mode Protection
Surge Protection Device (SPD) for Service Entrance Applications –
SB1, SB2, SB3, Type RCS Switchboards, Type WL Low Voltage
Switchgear, Motor Control Centers and Busway Systems
Mounts internal to:
SB1, SB2, SB3 and Type RCS switchboards
- Type WL low voltage switchgear
- tiastar motor control centers - standard 12” bucket
- STP series busplug on SX series busway
Ordering Information – When an option is not selected, put a zero (0)
in the field.
1. Voltage Code
A = 120/240V, 1Ø, 3W
B = 120/240V, 3Ø, 4W
C = 120/208V, 3Ø, 4W
D = 240V, 3Ø, 3W 1
E = 277/480V, 3Ø, 4W
F = 480V, 3Ø, 3W 1
G = 600V, 3Ø, 3W 2
K = 380/220V, 3Ø, 4W
L = 600/347V, 3Ø, 4W
S = 400/230V, 3Ø, 4W
1. Voltage Code
A = 120/240V, 1Ø, 3W
B = 120/240V, 3Ø, 4W
C = 120/208V, 3Ø, 4W
E = 277/480V, 3Ø, 4W
K = 380/220V, 3Ø, 4W
S = 400/230V, 3Ø, 4W
2. Surge Current (kA)
10 = 100kA per phase
15 = 150kA per phase
20 = 200kA per phase
25 = 250kA per phase
30 = 300kA per phase
40 = 400kA per phase
50 = 500kA per phase
2. Surge Current (kA)
15 = 150kA per phase
30 = 300kA per phase
3. Options
X = Surge
counter
B = Busway
application 3
M = MCC
application 3
3. Options
X = Surge
counter
B = Busway
application
M = MCC
application
1 Not available in 500 kA.
2 Available in 150, 200, 250 kA only
3 G voltage code only available in 200 and 250 kA.
Available accessories ordered separately. RMSIE – remote monitor.
Example: TPS3C0640X0 = SPD for a 208/120V switchboard with a
surge current capacity of 400kA per phase and a surge counter option.
Available accessories ordered separately. RMSIE – remote monitor.
Example: TPS3CL645X0 = 10 mode SPD for a 208/120V switchboard
with a surge current capacity of 450kA per phase and a surge
counter option.
1 2 3X 3W 3BorM
T P S 3 0 6
1 2 3X 3W 3BorM
T P S 3 L 6
External or Wall Mount TPS
1. Voltage Code
A = 120/240V, 1Ø, 3W
B = 120/240V, 3Ø, 4W
C = 120/208V, 3Ø, 4W
D = 240V, 3Ø, 3W
E = 277/480V, 3Ø, 4W
F = 480V, 3Ø, 3W
G = 600V, 3Ø, 3W
K = 380/220V, 3Ø, 4W
L = 600/347V, 3Ø, 4W
2. Surge
Current (kA)
05 = 50kA
per phase
3. Options
D = Dry contact
and audible
alarm
Available accessories ordered separately. RMSIE – remote monitor.
Example: TPS3C0305D = Type 1 SPD for a 208/120V application with
a surge current capacity of 50kA per phase, in a standard NEMA 4X
enclosure with dry contacts and audible alarm option.
1 2 3
T P S 3 0 3
All external TPS standard monitoring includes LED indicators
TPS3 03, 09 and 11 standard monitoring include:
- LED Indicators
TPS3 12, and L12 standard monitoring include:
- LED Indicators
- Audible Alarm with Silence and Test Buttons
- Dry Contacts
TPS3 15, and L15 standard monitoring include:
- LED Indicators
- Audible Alarm with Silence and Test Buttons
- Dry Contacts
- Disconnect Switch
TPS3 03
Type 1 Surge Protective Device (SPD) TPS3 03
Mounts external to electrical distribution equipment
- Recommended for line side or load side applications
Ordering Information – When an option is not selected, put a zero
(0) in the field.
TPS3 09 Type 1 Surge Protective Device (SPD)
Internal to P1, P2 Lighting Panelboards, P3 Power Panelboards
and Busway Systems
Mounts external to electrical distribution equipment
- Weatherproof hub included
- Recommended for line side or load side applications
Mounts internal to P1 panelboards and busway
- P1 – Field retrofit or factory install
- P2 and P3 – Factory install only
*Consult factory for field retrofit
Ordering Information – When an option is not selected, put a zero
(0) in the field.
1. Voltage Code
A = 120/240V, 1Ø,3W
B = 120/240V, 3Ø, 4W
C = 120/208V, 3Ø, 4W
D = 240V, 3Ø, 3W
E = 277/480V, 3Ø, 4W
F = 480V, 3Ø, 3W
G= 600V, 3Ø, 3W
K = 380/220V, 3Ø, 4W
L = 600/347V, 3Ø, 4W
S = 400/230V, 3Ø, 4W
2. Surge
Current (kA)
10 = 100kA
per phase
3. Options
D = Dry contact and
audible alarm
I = Internal
mounting in
P1, P2 panels 1
E = Extended
indicator light
Available accessories ordered separately.
RMSIE – remote monitor.
FMKITC – Flush mount kit
TPS9IKITP1 – Mounting bracket for installation in P1 panels
1 Requires TPS9IKITP1 mounting bracket accessory.
Example: TPS3C0910D00 = Type 1 SPD for a 208/120V panelboard
with a surge current capacity of 100kA per phase with standard
NEMA 4X enclosure, dry contacts and audible alarm option.
1 2 3D 3I 3E
T P S 3 0 9
TPS3 11 – Type 1 Surge Protection Device (SPD)
1. Voltage Code
A = 120/240V, 1Ø, 3W
B = 120/240V, 3Ø, 4W
C = 120/208V, 3Ø, 4W
D = 240V, 3Ø, 3W
E = 277/480V, 3Ø, 4W
F = 480V, 3Ø, 3W
G = 600V, 3Ø, 3W 1
K = 380/220V, 3Ø, 4W
L = 600/347V, 3Ø, 4W
S = 400/230V, 3Ø, 4W
2. Surge Current (kA)
10 = 100kA per phase
15 = 150kA per phase
20 = 200kA per phase
3. Options
D = Dry contact
and audible
alarm
Available accessories ordered separately.
RMSIE – Remote monitor
KITFMXF – Flush mount kit
1 Available in 100kA per phase only.
Example: TPS3C1110D = Type 1 SPD for a 208/120V application with
a surge current capacity of 100kA per phase, in a standard NEMA 4X
enclosure with dry contacts and audible alarm option.
1 2 3
T P S 3 1 1
Mounts external to electrical distribution equipment
- Recommended for line side or load side applications
Ordering Information – When an option is not selected, put a zero
(0) in the field.
TPS3 12 Type 1 Surge Protective Device (SPD)
1. Voltage Code
A = 120/240V,
1Ø, 3W
B = 120/240V,
3Ø, 4W
C = 120/208V,
3Ø, 4W
D = 240V,
3Ø, 3W 1
E = 277/480V,
3Ø, 4W
F = 480V,
3Ø, 3W 1
G = 600V,
3Ø, 3W 2
K = 380/220V,
3Ø, 4W
L = 600/347V,
3Ø, 4W
S = 400/230V,
3Ø, 4W
2. Surge
Current (kA)
10 = 100kA
per phase
15 = 150kA
per phase
20 = 200kA
per phase
25 = 250kA
per phase
30 = 300kA
per phase
40 = 400kA
per phase
50 = 500kA
per phase
3. Enclosure
0 = Standard
NEMA
1/12/3R/4
steel
V = NEMA 4X
non-metallic
S = NEMA 4X
stainless steel
F = NEMA 1 flush
mount
P = NEMA 1
screwcover
pullbox with
extended display
on 6 ft cable
for line side
mounting in
SWBD/SWGR
4. Options
X = Surge
counter
D = Internal
rotary
disconnect
T = Thru-door
disconnect
Available accessories ordered separately. RMSIE – Remote monitor
1 Not available in 500kA.
2 Available in 100, 150, 200, 250 kA only.
Example: TPS3C12100XD = Type 1 SPD for a 208/120V application
with a surge current capacity of 100kA per phase, in a standard
NEMA 1/12/3R/4 enclosure with a surge counter and internal rotary
disconnect option.
Mounts external to electrical distribution equipment
- Recommended for line side or load side applications
Ordering Information – When an option is not selected, put a zero
(0) in the field.
1 2 3 4X 4DorT
T P S 3 1 2
TPS3 L12 True 10 Mode Protection
Type 1 Surge Protective Device (SPD)
1. Voltage Code
A = 120/240V,
1Ø, 3W
B = 120/240V,
3Ø, 4W
C = 120/208V,
3Ø, 4W
E = 277/480V,
3Ø, 4W
K = 380/220V,
3Ø, 4W
S = 400/230V,
3Ø, 4W
2. Surge
Current (kA)
15 = 150kA
per phase
30 = 300kA
per phase
45 = 450kA
per phase
3. Enclosure
0 = Standard
NEMA
1/12/3R/4
steel
V = NEMA 4X
non-metallic
S = NEMA 4X
stainless steel
F = NEMA 1 flush
mount
P = NEMA 1
screwcover
pullbox with
extended display
on 6 ft cable
for line side
mounting in
SWBD/SWGR
4. Options
X = Surge
counter
D = Internal
rotary
disconnect
T = Thru-door
disconnect
Available accessories ordered separately. RMSIE – Remote monitor
Example: TPS3CL12150XD = 10 Mode, Type 1 SPD for a 208/120V
application with a surge current capacity of 150kA per phase, in a
standard NEMA 1/12/3R/4 enclosure with a surge counter and internal
rotary disconnect option.
Mounts external to electrical distribution equipment
- Recommended for line side or load side applications
Ordering Information – When an option is not selected, put a zero
(0) in the field.
1 2 3 4X 4DorT
T P S 3 L 1 2
TPS3 15 Type 1 Surge Protective Device (SPD)
1. Voltage Code
A = 120/240V,
1Ø, 3W
B = 120/240V,
3Ø, 4W
C = 120/208V,
3Ø, 4W
D = 240V,
3Ø, 3W 1
E = 277/480V,
3Ø, 4W
F = 480V,
3Ø, 3W 1
G = 600V,
3Ø, 3 W 2
K = 380/220V,
3Ø, 4W
L = 600/347V,
3Ø, 4W
S = 400/230V,
3Ø, 4W
2. Surge
Current (kA)
40 = 400kA
per phase3
50 = 500kA
per phase 3
60 = 600kA
per phase
80 = 800kA
per phase
1K = 1000kA
per phase
3. Enclosure
0 = Standard
NEMA
1/12/3R/4
steel
V = NEMA 4X
non-metallic
S = NEMA 4X
stainless steel
F = NEMA 1 flush
mount
P = NEMA 1
screwcover
pullbox with
extended display
on 6 ft cable
for line side
mounting in
SWBD/SWGR
4. Options
X = Surge
counter
T = Thru-door
disconnect
Available accessories ordered separately. RMSIE – Remote monitor
Note: Internal disconnect switch is standard.
1 Available in 600 and 800 kA only.
2 Available in 400 and 500 kA only.
3 Available in G voltage code only.
Example: TPS3C1560SX0 = Type 1 SPD for a 208/120V application
with a surge current capacity of 600kA per phase, in a NEMA 4X
stainless steel enclosure with a surge counter option and standard
disconnect switch.
Mounts external to electrical distribution equipment
- Recommended for line side or load side applications
Ordering Information – When an option is not selected, put a zero
(0) in the field.
1 2 3 4X 4T
T P S 3 1 5
TPS3 L15 True 10 Mode Protection
Type 1 Surge Protective Device (SPD)
1. Voltage Code
A = 120/240V,
1Ø, 3W
B = 120/240V,
3Ø, 4W
C = 208Y/120V
3Ø, 4W
E = 277/480V,
3Ø, 4W
K = 380V/220V,
3Ø, 4W
S = 400Y/230V,
4W
2. Surge
Current (kA)
60 = 600kA
per phase
90 = 900kA
per phase
3. Enclosure
0 = Standard
NEMA
1/12/3R/4
steel
V = NEMA 4X
non-metallic
S = NEMA 4X
stainless steel
F = NEMA 1 flush
mount
P = NEMA 1
screwcover
pullbox with
extended display
on 6 ft cable
for line side
mounting in
SWBD/SWGR
4. Options
X = Surge
counter
T = Thru-door
disconnect
Note: Internal disconnect switch is standard.
Example: TPS3CL15600X0 = 10 Mode, Type 1 SPD for a 208/120V
application with a surge current capacity of 600kA per phase, in a
standard NEMA 1/12/3R/4 enclosure with a surge counter option and
standard disconnect switch.
Mounts external to electrical distribution equipment
- Recommended for line side or load side applications
Ordering Information – When an option is not selected, put a zero
(0) in the field.
1 2 3 4X 4T
T P S 3 L 1 5

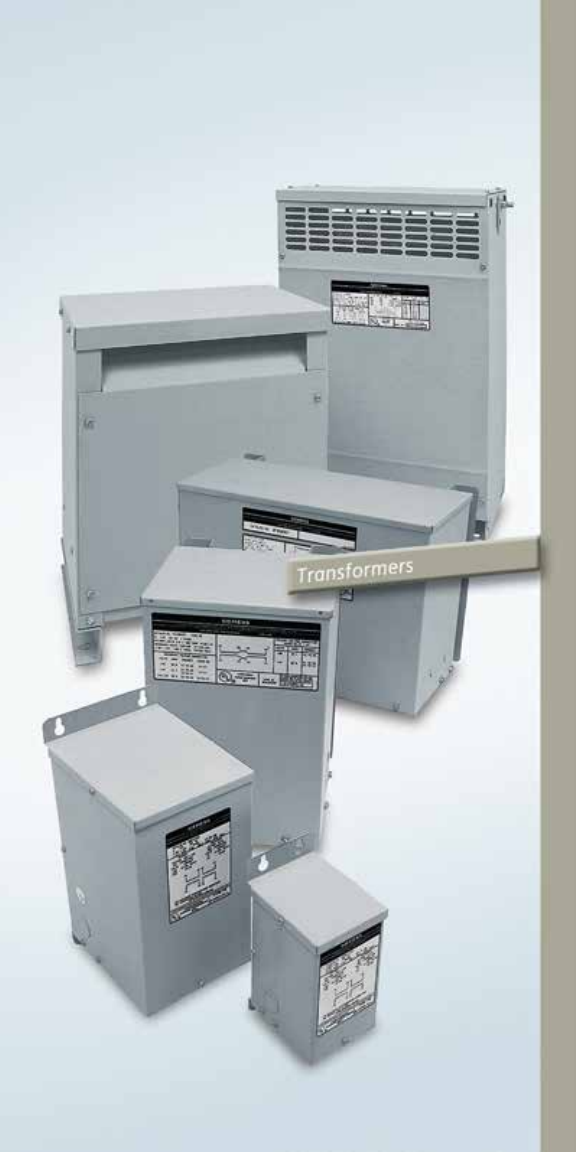

General Purpose Transformers
Standard Units
1P 480 x 240V Primary,
120/240V Secondary
KVA Catalog Number
.25 1D1N205
.50 1D1N505
.75 1D1N705
1.0 1D1N001
1.5 1D1N105
2.0 1D1N002
3.0 1D1N003
5.0 1D1N005
7.5 1D1N007
10 1D1N010
15 1D1N015
15 1D1Y015TP1
25 1D1Y025TP1
37.5 1D1Y037TP1
50 1D1Y050TP1
75 1D1Y075TP1
100 1D1Y100TP1
167 1D1Y167TP1
3P 480 Primary,
208/120V Secondary
KVA Catalog Number
33FR003
63FR006
93FR009
15 3F3Y015TP1
30 3F3Y030TP1
45 3F3Y045TP1
75 3F3Y075TP1
112.5 3F3Y112TP1
150 3F3Y150TP1
225 3F3Y225TP1
300 3F3Y300TP1
500 3F3Y500TP1
3P 480 Primary,
240V Secondary with
120V TAP on B Phase
KVA Catalog Number
15 3F1Y015TP1
30 3F1Y030TP1
45 3F1Y045TP1
75 3F1Y075TP1
112.5 3F1Y112TP1
150 3F1Y150TP1
225 3F1Y225TP1
300 3F1Y300TP1
500 3F1Y500TP1
Modified Units
3P 480V Primary,
208Y/120V Secondary
Low Temperature 115C Rise
KVA Catalog Number
15 3F3Y015FTP1
30 3F3Y030FTP1
45 3F3Y045FTP1
75 3F3Y075FTP1
112.5 3F3Y112FTP1
150 3F3Y150FTP1
225 3F3Y225FTP1
3P 480V Primary,
208Y/120V Secondary
Low Temperature 80C Rise
KVA Catalog Number
15 3F3Y015BTP1
30 3F3Y030BTP1
45 3F3Y045BTP1
75 3F3Y075BTP1
112.5 3F3Y112BTP1
150 3F3Y150BTP1
225 3F3Y225BTP1
3P 480V Primary,
208Y/120V Secondary
Noise Attenuation w/
Electrostatic Shield
KVA Catalog Number
15 3F3Y015ESTP1
30 3F3Y030ESTP1
45 3F3Y045ESTP1
75 3F3Y075ESTP1
112.5 3F3Y112ESTP1
150 3F3Y150ESTP1
3P 480V Primary,
208Y/120V Secondary
K13 (100% Non-Linear Load)
KVA Catalog Number
15 3F3Y015K13TP1
30 3F3Y030K13TP1
45 3F3Y045K13TP1
75 3F3Y075K13TP1
112.5 3F3Y112K13TP1
150 3F3Y150K13TP1
Catalog Number Coding System for Transformers
3 F 3 Y 150 K13 F ES C LN3 Z4 TE TEE TP1 LZ HM1 NP 30 TS7 TV TB SS SSN4X 13 CC W VG DS BA
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29
Basic Rating Information
1. Phase
2. Primary Voltage
3. Secondary Voltage
4. Taps
5. kVA
Optional Modifications
6. K-Factor (K4, K13, K20, K30)
7. Low Temperature Rise: 130C = (G),
115C = (F) 80C = (B)
8. Electrostatic Shield 1 (ES)(ES2=dual)
ES3=120dB attenuation on HM1& 2
9. Copper Wound (C)
10. Low Noise X (where X = dB below
NEMA, ex LN3 - 3dB below)
11. Seismic Zone 4 Rated (Z4)
12. Totally Enclosed NEMA 3R OR 4 (TE)
13. Totally Enclosed Encapsulated
NEMA 3R or 4 (TEE)
14. Energy Efficient (NEMA - TP1)
15. Frequency 50/60Hz
16. Harmonic Mitigation (HM1=1
secondary/single output, HM2=2
secondaries/double output)
17. Super Energy Efficient - Surpasses
NEMA-TP1 (available on TP1, HM1,
HM2, “TP1NP,” “HM1NP,” “HM2NP
Optional Product Offerings
1. For non-standard or non-cataloged
voltages or non-cataloged primary
taps refer to sales office.
2. Non-standard application, 50/60 Hz,
special impedance, voltage, etc. –
consult sales office.
3. Wall mounting brackets and
weathershields – available at no
charge on all indicated units when
requested at time of initial project
order. Contact sales office for
feasibility of wall brackets on units
with special temperature rise, low
noise, or copper windings.
4. Special temperature rise:
- 115° C rise, can tolerate 15%
continuous overload. (Suffix Code F)
1
- 80° C rise, can tolerate 30%
continuous overload. (Suffix Code B)1
18. Phase shift for HM1 select > (00) or
(30) degree. Phase shift for HM2
select > (03) for 0 & 30 for 15 & 45
degree lagging, or (PN15) for 15
pos & 15 neg
19. Thermal Switches (TS7=170C,TS8=
180C or TS0=200C) (TS72=2 switches,
TS76=6 switches @170C, etc.)
20. TVSS - Filter Capacitors Secondary
Side with Surge Suppression
21. Terminal Block
22. Stainless Steel Enclosure N-3R w/DS
23. Enclosure Types NEMA 4X (SSN4X),
NEMA 12 (N12), NEMA 4 (N4)
24. Special Impedance – 14 = 4% max,
13 = 3% max etc.
25. Core and Coil Assembly with name-
plate displayed on frame bracket
(may be shipped in std. enclosure)
26. Wall Mounting Brackets (W)
27. Vent Guard
28. Drip Shields (weathershields) to
provide NEMA-3R (DS)
29. Buy America
5. Copper windings – Available on
most designs. (Suffix Code C).
6. Low Noise Suffix code LN3 (3dB
below std.) available as indicated.
For LN5, etc. contact sales office
with required sound level.
7. Totally Enclosed Non-Ventilated (TE)
8. Auto transformers (A)
9. Non-standard paint color –
contact sales office.
10. Electrostatic shield (full width
copper foil) for added noise
attenuation and reduction of high
frequency disturbances. (Suffix
Code ES) 2
11. Super Energy Efficient (NEMA
Premium ) – Exceeds NEMA TP1
efficiencies by 30%.
12. Harmonic mitigating transformers
13. Transformer and panel
combinations
Note 1: If the catalog number will not completely describe the product, it will be
identified as SPC- _ _ _KVA-XFMR.
Note 2: “JST” suffix on catalog numbers defines units available in some of our distributor
stock locations, may be available for immediate shipment – check for availability.
Note 3: TP1 alone has K1 load rating. K4 or higher K-Factor options with TP1 indicates
associated load profile. Electrostatic Shield and 200% neutral are standard with
K4 and above options. Suffix K13TP1 will indicate K-Factor rating and TP1 rating
at K1 loading.
Note 4: Most transformers come standard with seismic rating. Contact factory for
additional information.
Note 5: Primary and secondary terminal lugs are included on certain ventilated
transformers. (15KVA - 75KVA 3PH & 15KVA - 50KVA 1PH)
1 With continuous overloads these units will be operating as 150°C rise designs.
2 ”XES” Suffix coding for shielded isolation with filters and surge suppression.
Phase
1-Phase 1
3-Phase 3
Primary
240x120 A
208 B
240 C
480x240 D
277 E
480 F
600 G
190/200/208/220/x380 Export
400/416/440 Range H
190/208/220/240x380 Export
416/440/480 Range X
Description Designation
None N
2-5% FCBN R
2–5% (1 FCAN, 1 FCBN) S
2–2.5% FCBN U
6–2.5% (2 FCAN, 4 FCBN) Y
Secondary
120/240 1
240 12
208Y/120 3
120/208 13
480Y/277 5
380Y/219 6
230Y/133 7
110/220 8
Optional Product Offerings
TAP Designations
KVA
KVA
Catalog
Code KVA
Catalog
Code KVA
Catalog
Code KVA
Catalog
Code
0.25 205 5 005 30 030 150 150
0.50 505 6 006 37.5 037 167 167
0.75 705 7.5 007 45 045 225 225
1 001 9 009 50 050 300 300
1.5 105 10 010 75 075 500 500
2 002 15 015 100 100 750 750
3 003 25 025 112.5 112 1000 1000
1 Available in 3-phase 3 to 15 KVA only.
2 Applies to HMT designs.
3 Taps are determined by transformer design and are not selectable on standard
catalog units.
Catalog
Number
Single
Phase
KVA Sizes
Three
Phase
KVA Sizes
Terminal Lug 1
Cable
RangeQty . Lug No.
TLK34Q — 112.5 11 AB-350S 6awg-350mcm
TLK14Q 100 — 12 AB-350S 6awg-350mcm
Terminal Lug Kits For Ventilated Transformers
Terminal Lug Kits For Ventilated Transformers (cont’d)
Catalog
Number
Terminal Lug 1Cable
Range
Hardware Included
Qty. Lug No. Qty. Bolt Size
TLK34Q n/a — — 11 3/8” x 1 1/2”
TLK14Q n/a — — 12 3/8” x 1 1/2”
1 Terminal lugs are screw type, lug connectors suitable for both copper and
aluminum cable. Each barrel is suitable for cable range shown. Lugs are
rated 90ºC.

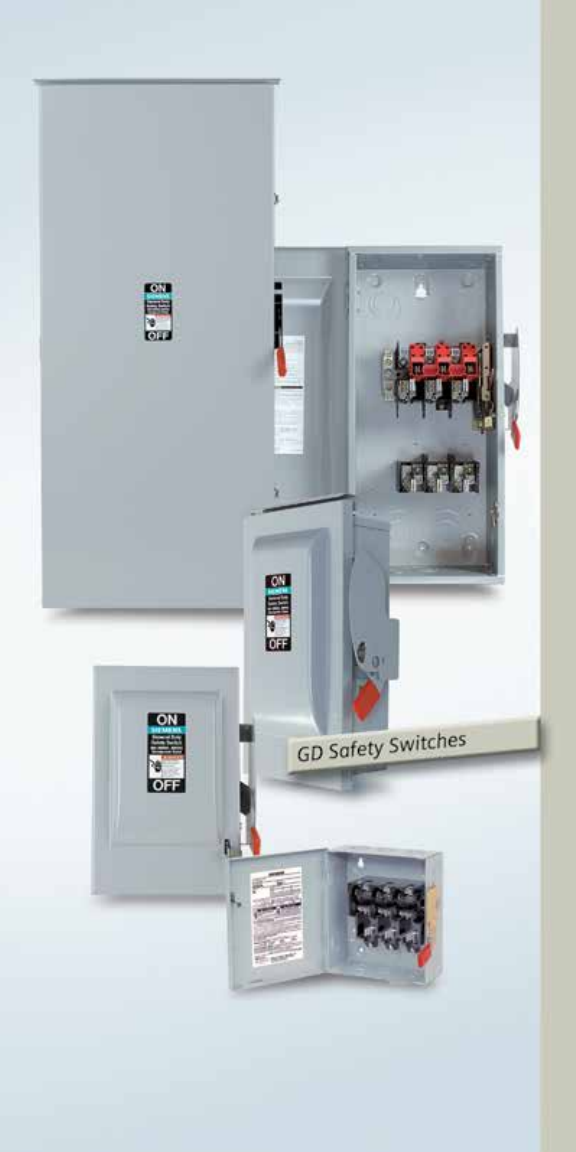

General Duty Enclosed Switches
Features:
nCompact size
nHorsepower rated
nIndoor and Outdoor Enclosure
nQuick Make, Quick Break Mechanism
nVisible “ON” and “OFF” indications
nPadlock-Off Handle Feature
nDoor Padlock Provision
nBondable Interior (where indicated)
nLugs Suitable for Copper and Aluminum Wires
nUL Listed
nProvisions for T, R, S, H and K Class Fuses (T&J 100-600A)
General Duty Safety Switches
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF221N GF221NR
60 GF222N GF222NR
100 GF223N GF223NR
200 GF224N GF224NR
400 GF225NH 4GF225NRH 4
400 GF225N GF225NR
600 GF226NH 4GF226NRH 4
600 GF226N GF226NR

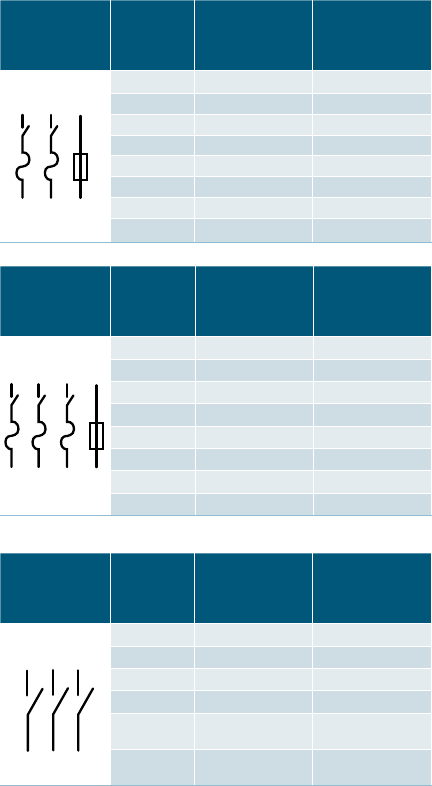

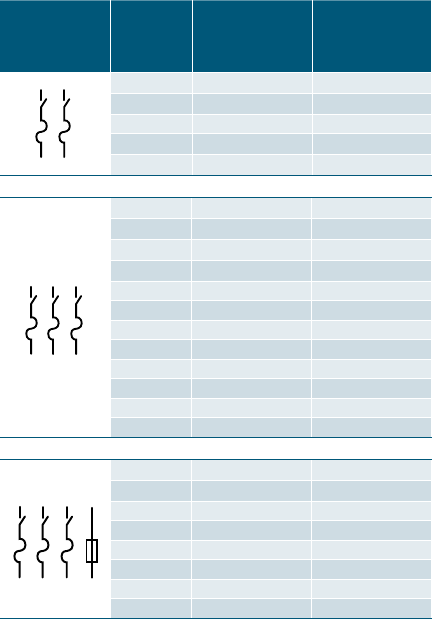

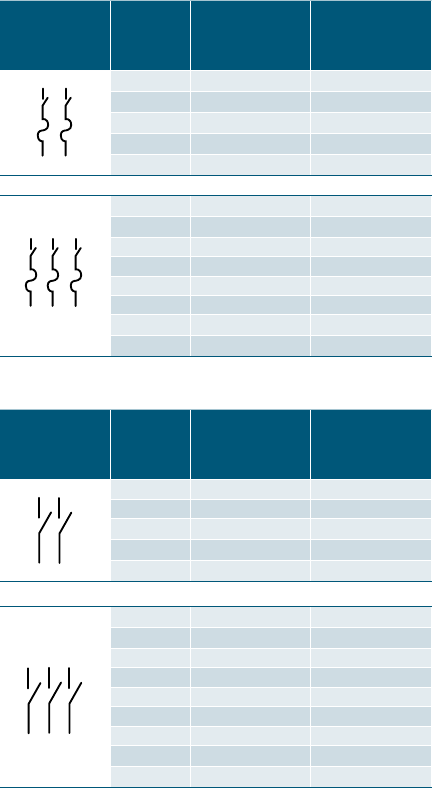

240V Fusible
2P, 2F, and Neutral 1 2 3 240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF321N GF321NR
60 GF322N GF322NR
100 GF323N GF323NR
200 GF324N GF324NR
400 GF325NH 4GF325NRH 4
400 GF325N GF325NR
600 GF326NH 4GF326NRH 4
600 GF326N GF326NR

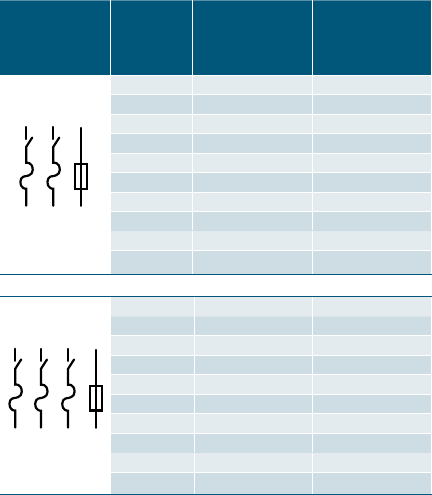

3P, 3F, and Neutral 3240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GNF321 GNF321R
60 GNF322 GNF322R
100 GNF323 GNF323R
200 GNF324 GNF324R
400 GNF325 HNF365R
Use 600V Switch
600 GNF326 HNF366R
Use 600V Switch
240V Non-Fusible
2P or 3P 240V AC/250V DC
1These switches are UL listed for application on grounded B-phase systems.
2Suitable for use on 3-phase motor loads.
3Service entrance rated.
4Height reduced switches (45.25" rather than 56" in height) for use with 500MCM or
smaller conductors.
NEW-SPP Pocket Refer Guide :PBBR-REFGD-0510 7/26/10 4:57 PM Page 40
General Duty Safety Switches
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF221N GF221NR
60 GF222N GF222NR
100 GF223N GF223NR
200 GF224N GF224NR
400 GF225NH 4GF225NRH 4
400 GF225N GF225NR
600 GF226NH 4GF226NRH 4
600 GF226N GF226NR
240V Fusible
2P, 2F, and Neutral 1 2 3 240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF321N GF321NR
60 GF322N GF322NR
100 GF323N GF323NR
200 GF324N GF324NR
400 GF325NH 4GF325NRH 4
400 GF325N GF325NR
600 GF326NH 4GF326NRH 4
600 GF326N GF326NR
3P, 3F, and Neutral 3240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GNF321 GNF321R
60 GNF322 GNF322R
100 GNF323 GNF323R
200 GNF324 GNF324R
400 GNF325 HNF365R
Use 600V Switch
600 GNF326 HNF366R
Use 600V Switch
240V Non-Fusible
2P or 3P 240V AC/250V DC
1These switches are UL listed for application on grounded B-phase systems.
2Suitable for use on 3-phase motor loads.
3Service entrance rated.
4Height reduced switches (45.25" rather than 56" in height) for use with 500MCM or
smaller conductors.
NEW-SPP Pocket Refer Guide :PBBR-REFGD-0510 7/26/10 4:57 PM Page 40
General Duty Safety Switches
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF221N GF221NR
60 GF222N GF222NR
100 GF223N GF223NR
200 GF224N GF224NR
400 GF225NH 4GF225NRH 4
400 GF225N GF225NR
600 GF226NH 4GF226NRH 4
600 GF226N GF226NR
240V Fusible
2P, 2F, and Neutral 1 2 3 240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF321N GF321NR
60 GF322N GF322NR
100 GF323N GF323NR
200 GF324N GF324NR
400 GF325NH 4GF325NRH 4
400 GF325N GF325NR
600 GF326NH 4GF326NRH 4
600 GF326N GF326NR
3P, 3F, and Neutral 3240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GNF321 GNF321R
60 GNF322 GNF322R
100 GNF323 GNF323R
200 GNF324 GNF324R
400 GNF325 HNF365R
Use 600V Switch
600 GNF326 HNF366R
Use 600V Switch
240V Non-Fusible
2P or 3P 240V AC/250V DC
1These switches are UL listed for application on grounded B-phase systems.
2Suitable for use on 3-phase motor loads.
3Service entrance rated.
4Height reduced switches (45.25" rather than 56" in height) for use with 500MCM or
smaller conductors.
NEW-SPP Pocket Refer Guide :PBBR-REFGD-0510 7/26/10 4:57 PM Page 40
General Duty Enclosed Switches
240V Fusible
2P, 2F, and Neutral 1 2 3 240V AC / 250V DC
System
Ampere
Rating
Indoor
Type 1
Catalog
Number
Outdoor
Type 3R
Catalog
Number
30 GF221N GF221NR
60 GF222N GF222NR
100 GF223N GF223NR
200 GF224N GF224NR
400 GF225NH 4 GF225NRH 4
400 GF225N GF225NR
600 GF226NH 4 GF226NRH 4
600 GF226N GF226NR
240V Non-Fusible
2P or 3P 240V AC / 250V DC
System
Ampere
Rating
Indoor
Type 1
Catalog
Number
Outdoor
Type 3R
Catalog
Number
30 GNF321 GFN321R
60 GNF322 GNF322R
100 GNF323 GNF323R
200 GNF324 GNF324R
400 GNF325 HNF365R
use 600V Switch
600 GNF326 HNF366R
use 600V Switch
3P, 3F and Neutral 3 240V AC / 250V DC
System
Ampere
Rating
Indoor
Type 1
Catalog
Number
Outdoor
Type 3R
Catalog
Number
30 GF321N GF321NR
60 GF322 GF322NR
100 GF323N GF323NR
200 GF324N GF324NR
400 GF325NH 4 GF325NRH 4
400 GF325N GF325NR
600 GF326NH 4 GF326NRH 4
600 GF326N GF326NR
1 These switches are UL listed for application on grounded B-phase systems.
2 Suitable for use on 3-phase motor loads.
3 Service entrance rated.
4 Height reduced switches (45.25” rather than 56” in height) for use with 500MCM or
smaller conductors.
Heavy Duty Safety Switches
Features:
nQuick-make, quick-break operating mechanism that
ensures positive operation.
nVisible blade, double-break switching action.
nArc chutes dissipate head and prolong switch life.
nHighly visible red handle grip. Designed for hook
stick operation.
nDefeatable dual cover interlock.
nCenter punch provided for field drilling to allow
ON padlocking.
nHandle can be padlocked in the OFF position with up
to (3) padlocks with 5/16” hasps.
nGenerous top, bottom and side gutters that meet or
exceed NEC wire-bending space requirements.
nInformative door labeling which includes replacement
parts list.
nTangential knockouts through 600A for easy
conduit lineup.
nSide-hinged door that opens past 180 degrees for
easier wiring.
nUnique enclosure design increases rigidity and prevents
cuts and scrapes to conductors and installer’s hands.
nSpring reinforced fuse clips that assure reliable
contact for cool operation.
nDoor latch securely holds door closed and allows
cover padlocking.
nFront removable mechanical lugs that are suitable for
CU/AI 60 or 75º C conductors.
nLugs are field convertible to copper body and to a wide
variety of compression connectors.
nHinged clear line terminal shield with probe holes for
inspecting or testing line side terminals.
nEmbossed aluminum nameplate on Heavy Duty
Switches provides highly visible ON/OFF indication.
nDrawn cover for increased rigidity and resistance to abuse.
nTop key hole and bottom mounting holes provide easy 2
to 3 point mounting.
General Duty Safety Switches
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF221N GF221NR
60 GF222N GF222NR
100 GF223N GF223NR
200 GF224N GF224NR
400 GF225NH
4
GF225NRH
4
400 GF225N GF225NR
600 GF226NH
4
GF226NRH
4
600 GF226N GF226NR
240V Fusible
2P, 2F, and Neutral
1 2 3
240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF321N GF321NR
60 GF322N GF322NR
100 GF323N GF323NR
200 GF324N GF324NR
400 GF325NH
4
GF325NRH
4
400 GF325N GF325NR
600 GF326NH
4
GF326NRH
4
600 GF326N GF326NR
3P, 3F, and Neutral
3
240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GNF321 GNF321R
60 GNF322 GNF322R
100 GNF323 GNF323R
200 GNF324 GNF324R
400 GNF325 HNF365R
Use 600V Switch
600 GNF326 HNF366R
Use 600V Switch
240V Non-Fusible
2P or 3P 240V AC/250V DC
1
These switches are UL listed for application on grounded B-phase systems.
2
Suitable for use on 3-phase motor loads.
3
Service entrance rated.
4
Height reduced switches (45.25" rather than 56" in height) for use with 500MCM or
smaller conductors.
NEW-SPP Pocket Refer Guide :PBBR-REFGD-0510 7/26/10 4:57 PM Page 40
Heavy Duty Safety Switches
3P, 3F, and Neutral 240V AC / 250V DC
30 HF321N HF321NR
60 HF322N HF322NR
100 HF323N HF323NR
200 HF324N HF324NR
400 HF325NH 2 HF325NRH 2
400 HF325N HF325NR
600 HF326NH 2 HF326NRH 2
600 HF326N HF326NR
800 HF327N HF327NR
1200 HF328N HF328NR
n Built to order. Allow 3-5 weeks for delivery.
1 These switches are UL-listed for application on grounded B-phase systems and
are suitable for 3-phase motor applications.
2 Height reduced switch (45.25 rather than 56 inches in height) for use with
500MCM or smaller conductors.
3 Suitable for use as service entrance equipment.
240V Fusible 3
2P, 2F, and Neutral 1 240V AC / 250V DC
System
Ampere
Rating
Indoor
Type 1
Catalog
Number
Outdoor
Type 3R
Catalog
Number
30 HF221N HF221NR
60 HF222N HF222NR
100 HF223N HF223NR
200 HF224N HF224NR
400 HF225NH 2 HF225NRH 2
400 HF225N HF225NR
600 HF226NH 2 HF226NRH 2
600 HF226N HF226NR
800 HF227N HF227NR
1200 HF228N nHF228NR n
General Duty Safety Switches
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF221N GF221NR
60 GF222N GF222NR
100 GF223N GF223NR
200 GF224N GF224NR
400 GF225NH
4
GF225NRH
4
400 GF225N GF225NR
600 GF226NH
4
GF226NRH
4
600 GF226N GF226NR
240V Fusible
2P, 2F, and Neutral
1 2 3
240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF321N GF321NR
60 GF322N GF322NR
100 GF323N GF323NR
200 GF324N GF324NR
400 GF325NH
4
GF325NRH
4
400 GF325N GF325NR
600 GF326NH
4
GF326NRH
4
600 GF326N GF326NR
3P, 3F, and Neutral
3
240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GNF321 GNF321R
60 GNF322 GNF322R
100 GNF323 GNF323R
200 GNF324 GNF324R
400 GNF325 HNF365R
Use 600V Switch
600 GNF326 HNF366R
Use 600V Switch
240V Non-Fusible
2P or 3P 240V AC/250V DC
1
These switches are UL listed for application on grounded B-phase systems.
2
Suitable for use on 3-phase motor loads.
3
Service entrance rated.
4
Height reduced switches (45.25" rather than 56" in height) for use with 500MCM or
smaller conductors.
NEW-SPP Pocket Refer Guide :PBBR-REFGD-0510 7/26/10 4:57 PM Page 40
General Duty Safety Switches
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF221N GF221NR
60 GF222N GF222NR
100 GF223N GF223NR
200 GF224N GF224NR
400 GF225NH
4
GF225NRH
4
400 GF225N GF225NR
600 GF226NH
4
GF226NRH
4
600 GF226N GF226NR
240V Fusible
2P, 2F, and Neutral
1 2 3
240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF321N GF321NR
60 GF322N GF322NR
100 GF323N GF323NR
200 GF324N GF324NR
400 GF325NH
4
GF325NRH
4
400 GF325N GF325NR
600 GF326NH
4
GF326NRH
4
600 GF326N GF326NR
3P, 3F, and Neutral
3
240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GNF321 GNF321R
60 GNF322 GNF322R
100 GNF323 GNF323R
200 GNF324 GNF324R
400 GNF325 HNF365R
Use 600V Switch
600 GNF326 HNF366R
Use 600V Switch
240V Non-Fusible
2P or 3P 240V AC/250V DC
1
These switches are UL listed for application on grounded B-phase systems.
2
Suitable for use on 3-phase motor loads.
3
Service entrance rated.
4
Height reduced switches (45.25" rather than 56" in height) for use with 500MCM or
smaller conductors.
NEW-SPP Pocket Refer Guide :PBBR-REFGD-0510 7/26/10 4:57 PM Page 40
n Built to order. Allow 3-5 weeks for delivery.
1 Suitable for use as service entrance equipment.
2 When a neutral is required use a field installed neutral kit.
3 Also rated Type 3S/3R.
4 304 grade stainless steel.
240V Fusible 1
2P, 2F 2 240V AC / 250V DC
System
Ampere
Rating
Type 4/4X
Stainless 4
Catalog
Number
Type 12
Industrial 3
Catalog
Number
30 HF221S HF221J
60 HF222S HF222J
100 HF223S HF223J
200 HF224S HF224J
3P, 3F 2 (Also used for 2-Pole, 2-Wire Applications in
400-800A ratings) 240V AC / 250V DC
30 HF321S HF321J
60 HF322S HF322J
100 HF323S HF323J
200 HF324S HF324J
400 HF325S HF325J n
600 HF326S HF326J n
800 HF327S nHF327J n
Heavy Duty Safety Switches
General Duty Safety Switches
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF221N GF221NR
60 GF222N GF222NR
100 GF223N GF223NR
200 GF224N GF224NR
400 GF225NH
4
GF225NRH
4
400 GF225N GF225NR
600 GF226NH
4
GF226NRH
4
600 GF226N GF226NR
240V Fusible
2P, 2F, and Neutral
1 2 3
240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF321N GF321NR
60 GF322N GF322NR
100 GF323N GF323NR
200 GF324N GF324NR
400 GF325NH
4
GF325NRH
4
400 GF325N GF325NR
600 GF326NH
4
GF326NRH
4
600 GF326N GF326NR
3P, 3F, and Neutral
3
240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GNF321 GNF321R
60 GNF322 GNF322R
100 GNF323 GNF323R
200 GNF324 GNF324R
400 GNF325 HNF365R
Use 600V Switch
600 GNF326 HNF366R
Use 600V Switch
240V Non-Fusible
2P or 3P 240V AC/250V DC
1
These switches are UL listed for application on grounded B-phase systems.
2
Suitable for use on 3-phase motor loads.
3
Service entrance rated.
4
Height reduced switches (45.25" rather than 56" in height) for use with 500MCM or
smaller conductors.
NEW-SPP Pocket Refer Guide :PBBR-REFGD-0510 7/26/10 4:57 PM Page 40
General Duty Safety Switches
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF221N GF221NR
60 GF222N GF222NR
100 GF223N GF223NR
200 GF224N GF224NR
400 GF225NH
4
GF225NRH
4
400 GF225N GF225NR
600 GF226NH
4
GF226NRH
4
600 GF226N GF226NR
240V Fusible
2P, 2F, and Neutral
1 2 3
240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF321N GF321NR
60 GF322N GF322NR
100 GF323N GF323NR
200 GF324N GF324NR
400 GF325NH
4
GF325NRH
4
400 GF325N GF325NR
600 GF326NH
4
GF326NRH
4
600 GF326N GF326NR
3P, 3F, and Neutral
3
240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GNF321 GNF321R
60 GNF322 GNF322R
100 GNF323 GNF323R
200 GNF324 GNF324R
400 GNF325 HNF365R
Use 600V Switch
600 GNF326 HNF366R
Use 600V Switch
240V Non-Fusible
2P or 3P 240V AC/250V DC
1
These switches are UL listed for application on grounded B-phase systems.
2
Suitable for use on 3-phase motor loads.
3
Service entrance rated.
4
Height reduced switches (45.25" rather than 56" in height) for use with 500MCM or
smaller conductors.
NEW-SPP Pocket Refer Guide :PBBR-REFGD-0510 7/26/10 4:57 PM Page 40
General Duty Safety Switches
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF221N GF221NR
60 GF222N GF222NR
100 GF223N GF223NR
200 GF224N GF224NR
400 GF225NH 4GF225NRH 4
400 GF225N GF225NR
600 GF226NH 4GF226NRH 4
600 GF226N GF226NR
240V Fusible
2P, 2F, and Neutral 1 2 3 240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF321N GF321NR
60 GF322N GF322NR
100 GF323N GF323NR
200 GF324N GF324NR
400 GF325NH 4GF325NRH 4
400 GF325N GF325NR
600 GF326NH 4GF326NRH 4
600 GF326N GF326NR
3P, 3F, and Neutral 3240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GNF321 GNF321R
60 GNF322 GNF322R
100 GNF323 GNF323R
200 GNF324 GNF324R
400 GNF325 HNF365R
Use 600V Switch
600 GNF326 HNF366R
Use 600V Switch
240V Non-Fusible
2P or 3P 240V AC/250V DC
1These switches are UL listed for application on grounded B-phase systems.
2Suitable for use on 3-phase motor loads.
3Service entrance rated.
4Height reduced switches (45.25" rather than 56" in height) for use with 500MCM or
smaller conductors.
NEW-SPP Pocket Refer Guide :PBBR-REFGD-0510 7/26/10 4:57 PM Page 40
Heavy Duty Safety Switches
n Built to order. Allow 3-5 weeks for delivery.
1 60-200A 3-Pole switches are also rated 600V DC.
2 Height reduced switch (45.25 rather than 56 inches in height) for use with
500MCM or smaller conductors.
3 Use 3-Pole switch for 200A applications.
4 Suitable for use as service entrance equipment except on1200 Amp solidly
grounded wye systems per NEC 230.95.
5 Indicates oversized enclosure (30A switch with 60A lugs in a 60A enclosure or
60A switch with 100A lugs in a 100A enclosure).
600V Fusible 4
2P, 2F 3 480V AC / 600V AC / 600V DC
System
Ampere
Rating
Indoor
Type 1
Catalog
Number
Outdoor
Type 3R
Catalog
Number
30 HF261 HF261R
60 HF262 HF262R
100 HF263 HF263R
400 HF265 nHF265R n
600 HF266 nHF266R n
3P, 3F 480V AC / 600V AC / 250V DC 1
30 HF361 HF361R
30 HF361L 5HF361RL 5
60 HF362 HF362R
60 —HF362RL 5
100 HF363 HF363R
200 HF364 HF364R
400 HF365H 2HF365RH 2
400 HF365 HF365R
600 HF366H 2HF366RH 2
600 HF366 HF366R
800 HF367 HF367R
1200 HF368 HF368R
3P, 3F and Solid Neutral 480V AC / 600V AC / 250V DC
1
30 HF361N HF361NR
60 HF362N HF362NR
100 HF363N HF363NR
200 HF364N HF364NR
400 HF365N HF365NR
600 HF366N HF366NR
800 HF367N HF367NR
1200 HF368N HF368NR
600V Non-Fusible 1
2P, 2F 2 480V AC / 600V AC / 600V DC
System
Ampere
Rating
Type 4X
Stainless
Catalog
Number
Type 12 3
Industrial
Catalog
Number
30 HNF261S HNF261J
60 HNF262S HNF262J
100 HNF263S nHNF263J n
400 HNF265S nHNF265J n
600 HNF266S nHNF266J n
600V Fusible 1
2P, 2F 2 480V AC / 600V AC / 600V DC
System
Ampere
Rating
Type 4X
Stainless
Catalog
Number
Type 12 3
Industrial
Catalog
Number
30 HF261S HF261J n
60 HF262S HF262J n
100 HF263S nHF263J n
400 HF265S nHF265J n
600 HF266S nHF266J n
3P, 3F 480V AC / 600V AC / 250V DC
30 HNF361S HNF361J
60 HNF362SH 4HNF362JH 4
60 HNF362S HNF363J
100 HNF363S HNF363J
200 HNF364S HNF364J
400 HNF355S HNF365J
600 HNF366S HNF366J
800 HNF367S HNF367J n
1200 HNF368S nHNF368J n
3P, 3F 480V AC / 600V AC / 250V DC
30 HF361S HF361J
60 HF362S HF362J
100 HF363S HF363J
200 HF364S HF364J
400 HF355S HF365J
600 HF366S HF366J
800 HF367S HF367J n
1200 HF368S nHF368J n
General Duty Safety Switches
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF221N GF221NR
60 GF222N GF222NR
100 GF223N GF223NR
200 GF224N GF224NR
400 GF225NH
4
GF225NRH
4
400 GF225N GF225NR
600 GF226NH
4
GF226NRH
4
600 GF226N GF226NR
240V Fusible
2P, 2F, and Neutral
1 2 3
240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF321N GF321NR
60 GF322N GF322NR
100 GF323N GF323NR
200 GF324N GF324NR
400 GF325NH
4
GF325NRH
4
400 GF325N GF325NR
600 GF326NH
4
GF326NRH
4
600 GF326N GF326NR
3P, 3F, and Neutral
3
240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GNF321 GNF321R
60 GNF322 GNF322R
100 GNF323 GNF323R
200 GNF324 GNF324R
400 GNF325 HNF365R
Use 600V Switch
600 GNF326 HNF366R
Use 600V Switch
240V Non-Fusible
2P or 3P 240V AC/250V DC
1
These switches are UL listed for application on grounded B-phase systems.
2
Suitable for use on 3-phase motor loads.
3
Service entrance rated.
4
Height reduced switches (45.25" rather than 56" in height) for use with 500MCM or
smaller conductors.
NEW-SPP Pocket Refer Guide :PBBR-REFGD-0510 7/26/10 4:57 PM Page 40
General Duty Safety Switches
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF221N GF221NR
60 GF222N GF222NR
100 GF223N GF223NR
200 GF224N GF224NR
400 GF225NH
4
GF225NRH
4
400 GF225N GF225NR
600 GF226NH
4
GF226NRH
4
600 GF226N GF226NR
240V Fusible
2P, 2F, and Neutral
1 2 3
240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF321N GF321NR
60 GF322N GF322NR
100 GF323N GF323NR
200 GF324N GF324NR
400 GF325NH
4
GF325NRH
4
400 GF325N GF325NR
600 GF326NH
4
GF326NRH
4
600 GF326N GF326NR
3P, 3F, and Neutral
3
240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GNF321 GNF321R
60 GNF322 GNF322R
100 GNF323 GNF323R
200 GNF324 GNF324R
400 GNF325 HNF365R
Use 600V Switch
600 GNF326 HNF366R
Use 600V Switch
240V Non-Fusible
2P or 3P 240V AC/250V DC
1
These switches are UL listed for application on grounded B-phase systems.
2
Suitable for use on 3-phase motor loads.
3
Service entrance rated.
4
Height reduced switches (45.25" rather than 56" in height) for use with 500MCM or
smaller conductors.
NEW-SPP Pocket Refer Guide :PBBR-REFGD-0510 7/26/10 4:57 PM Page 40
General Duty Safety Switches
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF221N GF221NR
60 GF222N GF222NR
100 GF223N GF223NR
200 GF224N GF224NR
400 GF225NH
4
GF225NRH
4
400 GF225N GF225NR
600 GF226NH
4
GF226NRH
4
600 GF226N GF226NR
240V Fusible
2P, 2F, and Neutral
1 2 3
240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF321N GF321NR
60 GF322N GF322NR
100 GF323N GF323NR
200 GF324N GF324NR
400 GF325NH
4
GF325NRH
4
400 GF325N GF325NR
600 GF326NH
4
GF326NRH
4
600 GF326N GF326NR
3P, 3F, and Neutral
3
240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GNF321 GNF321R
60 GNF322 GNF322R
100 GNF323 GNF323R
200 GNF324 GNF324R
400 GNF325 HNF365R
Use 600V Switch
600 GNF326 HNF366R
Use 600V Switch
240V Non-Fusible
2P or 3P 240V AC/250V DC
1
These switches are UL listed for application on grounded B-phase systems.
2
Suitable for use on 3-phase motor loads.
3
Service entrance rated.
4
Height reduced switches (45.25" rather than 56" in height) for use with 500MCM or
smaller conductors.
NEW-SPP Pocket Refer Guide :PBBR-REFGD-0510 7/26/10 4:57 PM Page 40
General Duty Safety Switches
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF221N GF221NR
60 GF222N GF222NR
100 GF223N GF223NR
200 GF224N GF224NR
400 GF225NH
4
GF225NRH
4
400 GF225N GF225NR
600 GF226NH
4
GF226NRH
4
600 GF226N GF226NR
240V Fusible
2P, 2F, and Neutral
1 2 3
240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF321N GF321NR
60 GF322N GF322NR
100 GF323N GF323NR
200 GF324N GF324NR
400 GF325NH
4
GF325NRH
4
400 GF325N GF325NR
600 GF326NH
4
GF326NRH
4
600 GF326N GF326NR
3P, 3F, and Neutral
3
240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GNF321 GNF321R
60 GNF322 GNF322R
100 GNF323 GNF323R
200 GNF324 GNF324R
400 GNF325 HNF365R
Use 600V Switch
600 GNF326 HNF366R
Use 600V Switch
240V Non-Fusible
2P or 3P 240V AC/250V DC
1
These switches are UL listed for application on grounded B-phase systems.
2
Suitable for use on 3-phase motor loads.
3
Service entrance rated.
4
Height reduced switches (45.25" rather than 56" in height) for use with 500MCM or
smaller conductors.
NEW-SPP Pocket Refer Guide :PBBR-REFGD-0510 7/26/10 4:57 PM Page 40
Heavy Duty Safety Switches
n Built to order. Allow 3-5 weeks for delivery.
1 Suitable for use as service entrance equipment except on1200 Amp solidly grounded
wye systems per NEC 230.95.
2 Use 3-Pole switch for 200A applications.
3 Also rated Type 3S/3R.
4 Compact switch (11.1”H, 6.6”W box less cover and handle). Short circuit withstand
rating – 100,000 RMS Sym. amps.
Heavy Duty Safety Switches
Type 4/4X & 12 with Viewing Window
Description
30–600A, 3-pole 600V max. in fusible and non-fusible
versions in Type 4/4X stainless steel and Type 12 enclosures.
All allow viewing of visible blade position.
30–200A also allow viewing of indicating type fuses.
Features:
nRugged installer-friendly enclosure design features a
gasket flange with continuously welded seams
n Tool-free cover latches
n Two, three and four point mounting
nMetal handle with large insulating grip features a positive
stop in both ON and OFF position
nGround lugs provided as standard
nType 12 enclosures are fabricated from galvanized steel
and are also rated for 3R/3S outdoor applications
nThe widest range of accessories available including 200%
neutrals, gold plated PLC auxiliary contacts and isolated
ground kits
System
Ampere
Rating
Catalog
Number
3-Pole, 3-Wire Fusible, Type 3R 3 600V AC / 250V DC 1
30 HF361RW
60 HF362RW
3-Pole, 3-Wire Non-Fusible, Type 3R 3 600V AC / 250V DC 1
30 HNF361RW
60 HNF362RW
3-Pole, 3-Wire Fusible, Type 12 2, 3 600V AC / 250V DC 1
30 HF361JW
60 HF362JW
100 HF363JW
200 HF364JW
400 HF365JW
600 HF366JW
3-Pole, 3-Wire Non-Fusible, Type 12 2, 3 600V AC / 250V DC 1
30 HNF361JW
60 HNF362JW
100 HNF363JW
200 HNF364JW
400 HNF365JW
3-Pole, 3-Wire Fusible, Type 4X
Stainless Steel 3, 4 600V AC / 250V DC 1
30 HF361SW
60 HF362SW
100 HF363SW
200 HF364SW
400 HF365SW
3-Pole, 3-Wire Non-Fusible, Type 4X
Stainless Steel 3, 4 600V AC / 250V DC 1
30 HNF361SW
60 HNF362SW
100 HNF363SW
200 HNF364SW
400 HNF365SW
Heavy Duty Safety Switches
Type 4/4X & 12 with Viewing Window
1 200A switches are also rated 600V DC.
2 Also rated Type 3S/3R.
3 All switches are suitable for use as service entrance equipment. Use outside poles of
3-pole switch for 2-pole application.
4 304 grade stainless steel. For switches with enclosures constructed from 316 grade
stainless steel.
General Duty Safety Switches
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF221N GF221NR
60 GF222N GF222NR
100 GF223N GF223NR
200 GF224N GF224NR
400 GF225NH
4
GF225NRH
4
400 GF225N GF225NR
600 GF226NH
4
GF226NRH
4
600 GF226N GF226NR
240V Fusible
2P, 2F, and Neutral
1 2 3
240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF321N GF321NR
60 GF322N GF322NR
100 GF323N GF323NR
200 GF324N GF324NR
400 GF325NH
4
GF325NRH
4
400 GF325N GF325NR
600 GF326NH
4
GF326NRH
4
600 GF326N GF326NR
3P, 3F, and Neutral
3
240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GNF321 GNF321R
60 GNF322 GNF322R
100 GNF323 GNF323R
200 GNF324 GNF324R
400 GNF325 HNF365R
Use 600V Switch
600 GNF326 HNF366R
Use 600V Switch
240V Non-Fusible
2P or 3P 240V AC/250V DC
1
These switches are UL listed for application on grounded B-phase systems.
2
Suitable for use on 3-phase motor loads.
3
Service entrance rated.
4
Height reduced switches (45.25" rather than 56" in height) for use with 500MCM or
smaller conductors.
NEW-SPP Pocket Refer Guide :PBBR-REFGD-0510 7/26/10 4:57 PM Page 40
General Duty Safety Switches
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF221N GF221NR
60 GF222N GF222NR
100 GF223N GF223NR
200 GF224N GF224NR
400 GF225NH 4GF225NRH 4
400 GF225N GF225NR
600 GF226NH 4GF226NRH 4
600 GF226N GF226NR
240V Fusible
2P, 2F, and Neutral 1 2 3 240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF321N GF321NR
60 GF322N GF322NR
100 GF323N GF323NR
200 GF324N GF324NR
400 GF325NH 4GF325NRH 4
400 GF325N GF325NR
600 GF326NH 4GF326NRH 4
600 GF326N GF326NR
3P, 3F, and Neutral 3240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GNF321 GNF321R
60 GNF322 GNF322R
100 GNF323 GNF323R
200 GNF324 GNF324R
400 GNF325 HNF365R
Use 600V Switch
600 GNF326 HNF366R
Use 600V Switch
240V Non-Fusible
2P or 3P 240V AC/250V DC
1These switches are UL listed for application on grounded B-phase systems.
2Suitable for use on 3-phase motor loads.
3Service entrance rated.
4Height reduced switches (45.25" rather than 56" in height) for use with 500MCM or
smaller conductors.
NEW-SPP Pocket Refer Guide :PBBR-REFGD-0510 7/26/10 4:57 PM Page 40
General Duty Safety Switches
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF221N GF221NR
60 GF222N GF222NR
100 GF223N GF223NR
200 GF224N GF224NR
400 GF225NH
4
GF225NRH
4
400 GF225N GF225NR
600 GF226NH
4
GF226NRH
4
600 GF226N GF226NR
240V Fusible
2P, 2F, and Neutral
1 2 3
240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF321N GF321NR
60 GF322N GF322NR
100 GF323N GF323NR
200 GF324N GF324NR
400 GF325NH
4
GF325NRH
4
400 GF325N GF325NR
600 GF326NH
4
GF326NRH
4
600 GF326N GF326NR
3P, 3F, and Neutral
3
240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GNF321 GNF321R
60 GNF322 GNF322R
100 GNF323 GNF323R
200 GNF324 GNF324R
400 GNF325 HNF365R
Use 600V Switch
600 GNF326 HNF366R
Use 600V Switch
240V Non-Fusible
2P or 3P 240V AC/250V DC
1
These switches are UL listed for application on grounded B-phase systems.
2
Suitable for use on 3-phase motor loads.
3
Service entrance rated.
4
Height reduced switches (45.25" rather than 56" in height) for use with 500MCM or
smaller conductors.
NEW-SPP Pocket Refer Guide :PBBR-REFGD-0510 7/26/10 4:57 PM Page 40
General Duty Safety Switches
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF221N GF221NR
60 GF222N GF222NR
100 GF223N GF223NR
200 GF224N GF224NR
400 GF225NH
4
GF225NRH
4
400 GF225N GF225NR
600 GF226NH
4
GF226NRH
4
600 GF226N GF226NR
240V Fusible
2P, 2F, and Neutral
1 2 3
240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF321N GF321NR
60 GF322N GF322NR
100 GF323N GF323NR
200 GF324N GF324NR
400 GF325NH
4
GF325NRH
4
400 GF325N GF325NR
600 GF326NH
4
GF326NRH
4
600 GF326N GF326NR
3P, 3F, and Neutral
3
240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GNF321 GNF321R
60 GNF322 GNF322R
100 GNF323 GNF323R
200 GNF324 GNF324R
400 GNF325 HNF365R
Use 600V Switch
600 GNF326 HNF366R
Use 600V Switch
240V Non-Fusible
2P or 3P 240V AC/250V DC
1
These switches are UL listed for application on grounded B-phase systems.
2
Suitable for use on 3-phase motor loads.
3
Service entrance rated.
4
Height reduced switches (45.25" rather than 56" in height) for use with 500MCM or
smaller conductors.
NEW-SPP Pocket Refer Guide :PBBR-REFGD-0510 7/26/10 4:57 PM Page 40
General Duty Safety Switches
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF221N GF221NR
60 GF222N GF222NR
100 GF223N GF223NR
200 GF224N GF224NR
400 GF225NH
4
GF225NRH
4
400 GF225N GF225NR
600 GF226NH
4
GF226NRH
4
600 GF226N GF226NR
240V Fusible
2P, 2F, and Neutral
1 2 3
240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF321N GF321NR
60 GF322N GF322NR
100 GF323N GF323NR
200 GF324N GF324NR
400 GF325NH
4
GF325NRH
4
400 GF325N GF325NR
600 GF326NH
4
GF326NRH
4
600 GF326N GF326NR
3P, 3F, and Neutral
3
240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GNF321 GNF321R
60 GNF322 GNF322R
100 GNF323 GNF323R
200 GNF324 GNF324R
400 GNF325 HNF365R
Use 600V Switch
600 GNF326 HNF366R
Use 600V Switch
240V Non-Fusible
2P or 3P 240V AC/250V DC
1
These switches are UL listed for application on grounded B-phase systems.
2
Suitable for use on 3-phase motor loads.
3
Service entrance rated.
4
Height reduced switches (45.25" rather than 56" in height) for use with 500MCM or
smaller conductors.
NEW-SPP Pocket Refer Guide :PBBR-REFGD-0510 7/26/10 4:57 PM Page 40
General Duty Safety Switches
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF221N GF221NR
60 GF222N GF222NR
100 GF223N GF223NR
200 GF224N GF224NR
400 GF225NH
4
GF225NRH
4
400 GF225N GF225NR
600 GF226NH
4
GF226NRH
4
600 GF226N GF226NR
240V Fusible
2P, 2F, and Neutral
1 2 3
240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GF321N GF321NR
60 GF322N GF322NR
100 GF323N GF323NR
200 GF324N GF324NR
400 GF325NH
4
GF325NRH
4
400 GF325N GF325NR
600 GF326NH
4
GF326NRH
4
600 GF326N GF326NR
3P, 3F, and Neutral
3
240V AC/250V DC
Indoor Outdoor
Type 1 Type 3R
Ampere Catalog Catalog
System Rating Number Number
30 GNF321 GNF321R
60 GNF322 GNF322R
100 GNF323 GNF323R
200 GNF324 GNF324R
400 GNF325 HNF365R
Use 600V Switch
600 GNF326 HNF366R
Use 600V Switch
240V Non-Fusible
2P or 3P 240V AC/250V DC
1
These switches are UL listed for application on grounded B-phase systems.
2
Suitable for use on 3-phase motor loads.
3
Service entrance rated.
4
Height reduced switches (45.25" rather than 56" in height) for use with 500MCM or
smaller conductors.
NEW-SPP Pocket Refer Guide :PBBR-REFGD-0510 7/26/10 4:57 PM Page 40
Accessories
Auxiliary Contacts
with 1 NO and 1 NC Isolated Contacts
Switch
Amp
Rating
Aux.
Switch
Catalog
Number
Maximum
Kit Ampere Rating
Maximum
Kit Horsepower Rating
125
V AC
250
V AC
28
V DC
125
V AC
250
V AC
28
V DC
30-200 HA161234 10 10 — 1/2 3/4 —
400-1200 HA165678 10 10 — 1/2 3/4 —
with 2 NO and 2 NC Isolated Contacts
30-200 HA261234 10 10 7 1/2 3/4 —
400-1200 HA265678 10 10 7 1/2 3/4 —
Low Current PLC Type with 1 NO and 1 NC Gold Plated Contacts
30-200 HA361234 10 10 — 1/2 3/4 —
400-1200 HA365678 10 10 — 1/2 3/4 —
Equipment Ground Kits
Switch
Amp
Rating
Catalog
Number
Number of
Terminals
Wire Range
Per Terminal (Cu/Al)
30 GD GSGK60 2 #14-8 AWG
60-200 GD HG61234 2 #14-4 AWG
30-200 HD HG61234 2 #14-4 AWG
400 & 600 HG656 4 #14-2/0
800-1200 HG678 8 #6 AWG-250 kcmil
Isolated Ground Kits
Switch
Amp
Rating
Catalog
Number
Number of Terminals Wire Range
Per Terminal
(Cu/Al)Isolated Grounded
30-200 HG261234 2 2 #14-4 AWG
400-600 HG2656 4 4 #14-2/0
Hubs – Type 3R 1
Conduit Size Inches Catalog Number Used On
Cover ECHA000
30A GD Only
3/4 ECHA075
1 ECHA100
1 1/4 ECHA125
Cover ECHS000
60-200A GD
30-200A HD
3/4 ECHS075
1 ECHS100
1 1/4 ECHS125
1 1/2 ECHS150
2 ECHS200
2 1/2 ECHS250
2 1/2 ECHV250
400-1200A
3 ECHV300
3 1/2 ECHV350
4 ECHV400
1 Suitable for 3R switches.
Class J Fusing
All 30-600A, 600V and 100-600A,240V fusible Heavy Duty
Switches are field convertible to accept Class J fuses by moving
the load base to a pre-drilled J fuse position. All 100-600A, 240V
fusible General Duty switches can also be field converted to
accept Class J fuses.
Class T Fuse Adapter Kits
All 100-600A, General Duty and 100- 200Amp and 1200Amp
Heavy Duty Switches are field convertible to accept Class T fuses.
400-800A switches are field convertible to accept Class T fuses
by moving the load base to a pre-drilled T fuse position.
n Built to order. Allow 6-8 weeks for delivery.
1 One kit per 3 pole switch required.
Accessories
Class R Fuse Clip Kits
Catalog Number Description
GSRK321 30A, 240V Kit (GD only)
HR21 30A, 240V Kit (HD only)
HR612 30A, 600V Kit/60A, 240 Kit
HR62 60A, 600V Kit
HR63 100A Kit
HR64 200A Kit
HR656 400A / 600A Kit
Class T Fuse Adapter Kits 1
Catalog Number Description
HT23 100A, 240V Kit
HT63 100A, 600V Kit
HT24 200A 240V Kit
HT64 n200A 600V Kit
TFAK82 1200A, 240V Kit
Class R Fuse Clip Kits
All General Duty and Heavy Duty Switches are field convertible
to accept Class R Fuse Clip Kits. The kits prevent the installation
of Class H and K fuses (one kit required per 3-pole switch).
Neutral Kits
Switch Ampere Rating Kit Catalog Number
30 GD W410190
30 HD, 60 GD HN612
60, 100 HD, 100 GD HN623
200 HN64
400 & 600 HN656
800 & 1200 HN678
Neutral Kits
Standard Neutral Kits can be field installed in General and
Heavy Duty Switches.
200% Neutral Kits 1
Switch
Ampere
Rating
Kit
Catalog
Number
Wire Range
Line & Load
Lugs (Cu/Al)
100 HN263 (2) #14-1/0 AWG
200 HN264 (2) #6 AWG - 300 Kcmil
400 HN656 (2) 1/0 AWG - 750 Kcmil
or (4) 1/0 AWG - 250 Kcmil
600 HN678 (4) 1/0 AWG - 750 Kcmil
200% Neutral Kits 1
UL listed 200% Neutrals are available for 100-600A Heavy Duty
Switches. They are typically used with non-linear transformers or
where increased neutral ampacity/lug capacity is required.
n Built to order. Allow 6-8 weeks for delivery.
1 One kit per 3 pole switch required.
2 Not designed for use in Non-metallic 4X safety switches. Not designed for use with
Auxiliary Contacts.
Accessories
Internal Shield Kits 2
Switch ampere rating Kit Catalog Number
30A HD HSK61SSW
60A HD HSK62SSW
100A HD HSK63SSW
200A HD HSK64SSW
Internal Shield Kits (for fusible switches)
Kits provide a clear plastic inner door to prevent accidental
contact with live parts. Test probe holes are provided and fuses
can be replaced without removal of kit.
Fuse Puller Kits
Switch ampere rating Kit Catalog Number
30 HP61
60 HP62 n
100 HP63 n
Fuse Puller Kits
Fuse puller kits are field installable in 30-100A Type VBII Heavy
Duty Switches (one kit required 3-pole switch).
Accessories
Copper Lug Kits
Switch
Ampere
Rating
Catalog
Number Description
30-60 HLC612 (9) Lugs/Kit #14-4 AWG Cu
100 HLC63 n(9) Lugs/Kit #14-1/0 AWG Cu
200 HLC64 n(9) Lugs/Kit #6 AWG-300 Kcmil Cu
400-1200 HLC65678 (1) Lugs/Kit #1/0 AWG-600 Kcmil Cu
Quick Connects
Catalog Number Description
HCQ62 60A 2 wire quick connect kit
HCQ63 100A 2 wire quick connect kit
HCQ64 200A 2 wire quick connect kit
Copper Lug Kits
Heavy duty switches are UL approved to accept field installed
copper lug kits.
Quick Connects
They provide two point control power take-off capability and are
normally used on two poles on the line side when it is required
to have control power available when the switch is in the OFF
position. They provide a mounting provision for standard ¼”
quick connect terminal. Installed in the line or load side. 30A
VBII switches have lugs UL listed to accept (2) wires per pole as
standard so a 30A kit is not required.
n Built to order. Allow 6-8 weeks for delivery.
The information provided in this brochure contains merely
general descriptions or characteristics of performance
which in case of actual use do not always apply as described
or which may change as a result of further development
of the products. An obligation to provide the respective
characteristics shall only exist if expressly agreed in the
terms of contract.
All product designations may be trademarks or product
names of Siemens AG or supplier companies whose use by
third parties for their own purposes could violate the rights
of the owners.
Subject to change without prior notice.
Order No: PBBR-REFGD-0215
All rights reserved.
Printed in USA
© 2015 Siemens Industry, Inc.
Siemens Industry, Inc.
5400 Triangle Parkway
Norcross, GA 30092
1-800 -241-4453
info.us@siemens.com
www.usa.siemens.com/powerdistribution

Navigation menu
