EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC230
3
763.422.2211
763.422.2600
NONMETALLIC
Polye ster
Intro Page
CHAPTER 3
NONMETALLIC
POLYPRO
POLYPRO polyester enclosures perform exceptionally well
in applications where harsh chemicals, weather extremes
and corrosive environments demand toughness from a
lightweight enclosure. Providing excellent ultraviolet
protection and a tight environmental seal, these
versatile, feature-rich enclosures are also recyclable.
ULTRX
Providing outstanding protection against corrosion and
the elements, the clean lines and molded, embossed
design of ULTRX fiberglass enclosures make them the
most stylish and aesthetically pleasing of their class.
QLINE D
QLINE D polycarbonate and ABS enclosures have contoured
bodies with flush cover screws for an attractive,
contemporary appearance. Tough as well as stylish,
they are functional in corrosive environments and can
withstand occasional submersion. The ABS series shares
the same features and similar physical properties as the
polycarbonate but is a more economical, non-UL rated
alternative.
EQUIPMENT PROTECTION NONMETALLIC 231
CHAPTER CONTENTS
POLYESTER
POLYPRO, TYPE 4X
POLYPRO Polyester Enclosures ...............................................232
POLYPRO WiFi, Type 4X .....................................................234
Adjustable Panel Block Kit ...................................................236
Polyester Mounting Bracket Kits ..............................................236
Aluminum Swing-Out Panels .................................................236
Stainless Steel Latches (Padlockable) .........................................237
Hinge Retainers ...........................................................237
FIBERGLASS
CONTINUOUS HINGE
Continuous Hinge, Type 4X ...................................................238
Swing-Out Panel Kit ........................................................ 241
Quick-Release Latch Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
Hinge-Cover WiFi, Type 4X ...................................................242
Swing-Out Panel Kit ........................................................244
Threaded Panel Extenders ...................................................244
Quick-Release Latch Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
Panels for WiFi Cabinets and Small Wall-Mount Enclosures .........................245
SCREW OR HINGECOVER WITH QUICKRELEASE LATCH
Screw- or Hinge-Cover with Quick-Release Latch, Type 4X ..........................246
Fiberglass Mounting Bracket Kit ..............................................249
OVERLAPPING COVER
Raised Cover with Screws, Type 4X ............................................250
Raised Cover with Latches, Type 4X ............................................252
Flat Cover with Screws, Type 4X ..............................................254
Flat Cover with Latches, Type 4X ..............................................256
Flat Clear Cover with Latches, Type 4X .........................................258
ULTRX
ULTRX, Type 4X ...........................................................260
ULTRX WiFi, Type 4X ........................................................262
Panel Bracket Kit ..........................................................264
Swing-Out Panel ..........................................................264
Grounding Device ..........................................................264
Panels for Type 3R, 4, 4X, 12 and 13 Enclosures ..................................265
Rack Angles (Type RA) ......................................................265
Door Stop Kit .............................................................266
Keylock Kit and Padlock Kit ..................................................266
Swing Frame. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
ULTRX Key Insert ..........................................................267
ULTRX Mounting Bracket Kit .................................................267
Screw Insert Kit ...........................................................267
Self-Tapping Screws. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
HINGECOVER WITH 3POINT LATCH OR QUICKRELEASE LATCHES
Hinge-Cover with 3-Point Latch or Quick-Release Latches, Type 4X ...................268
WALLMOUNT DISCONNECT
Fiberglass Disconnect, Type 4X ...............................................274
Disconnect Mounting Space ..................................................277
HAZARDOUS LOCATION
ZONEX Non-Metallic Terminal Enclosure ........................................278
FREESTAND
Free-Stand, Type 4X ........................................................280
Accessory Selection for Free-Stand, Type 4X ....................................282
Rack Mounting Accessory Selection for Free-Stand, Type 4X ........................283
TWODOOR FREESTAND
Two-Door Free-Stand, Type 4X ................................................284
Bottom Support Kits .......................................................285
POLYCARBONATE AND ABS
QLINE D
QLINE D Pushbutton, Type 4X .................................................286
QLINE D, Type 4X ..........................................................288
Hinge Kit ................................................................292
Mounting Bracket Kit .......................................................292
Hardware Kit .............................................................292
Panels ..................................................................292
QLINE D, EMC, Type 4X ......................................................294
QLINE E
QLINE E, Type 4X ...........................................................296
Brass Inserts .............................................................300
Hinge Kit ................................................................300
Mounting Bracket Kit .......................................................300
Hardware Kit .............................................................300
Panels ..................................................................300
QLINE E, EMC, Type 4X ......................................................302
QLINE I
QLINE I, Type 4X ...........................................................304
Cover Screw Kit ...........................................................310
Brass Insert Kit ...........................................................310
Panel Depth Fitting ........................................................310
Swing Panel ..............................................................310
Hinge Kit ................................................................311
Mounting Bracket Kit .......................................................311
Hardware Kit .............................................................311
Extension Rings ...........................................................311
Panels ..................................................................311
QLINE I, EMC, Type 4X .......................................................312
3
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC232
3

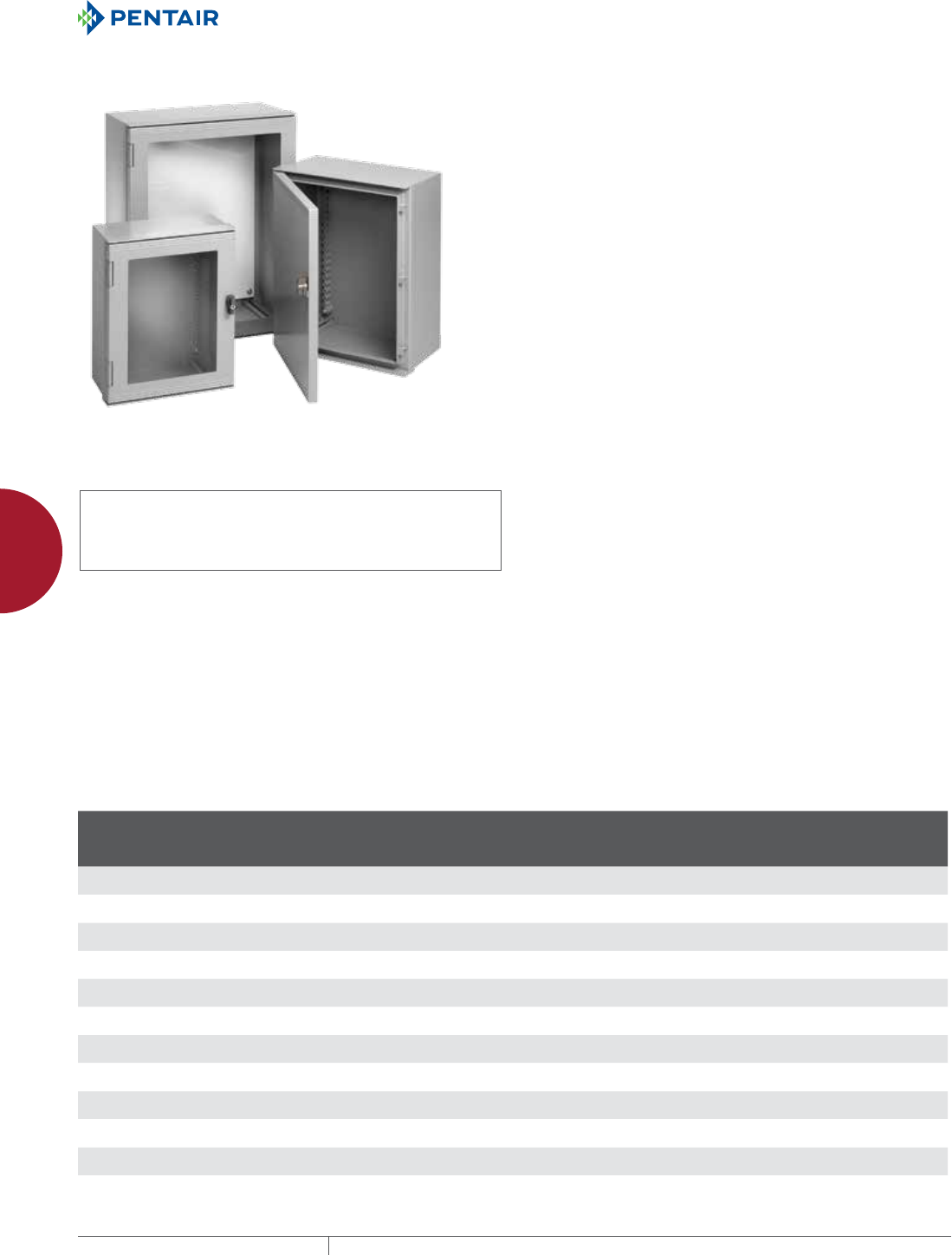

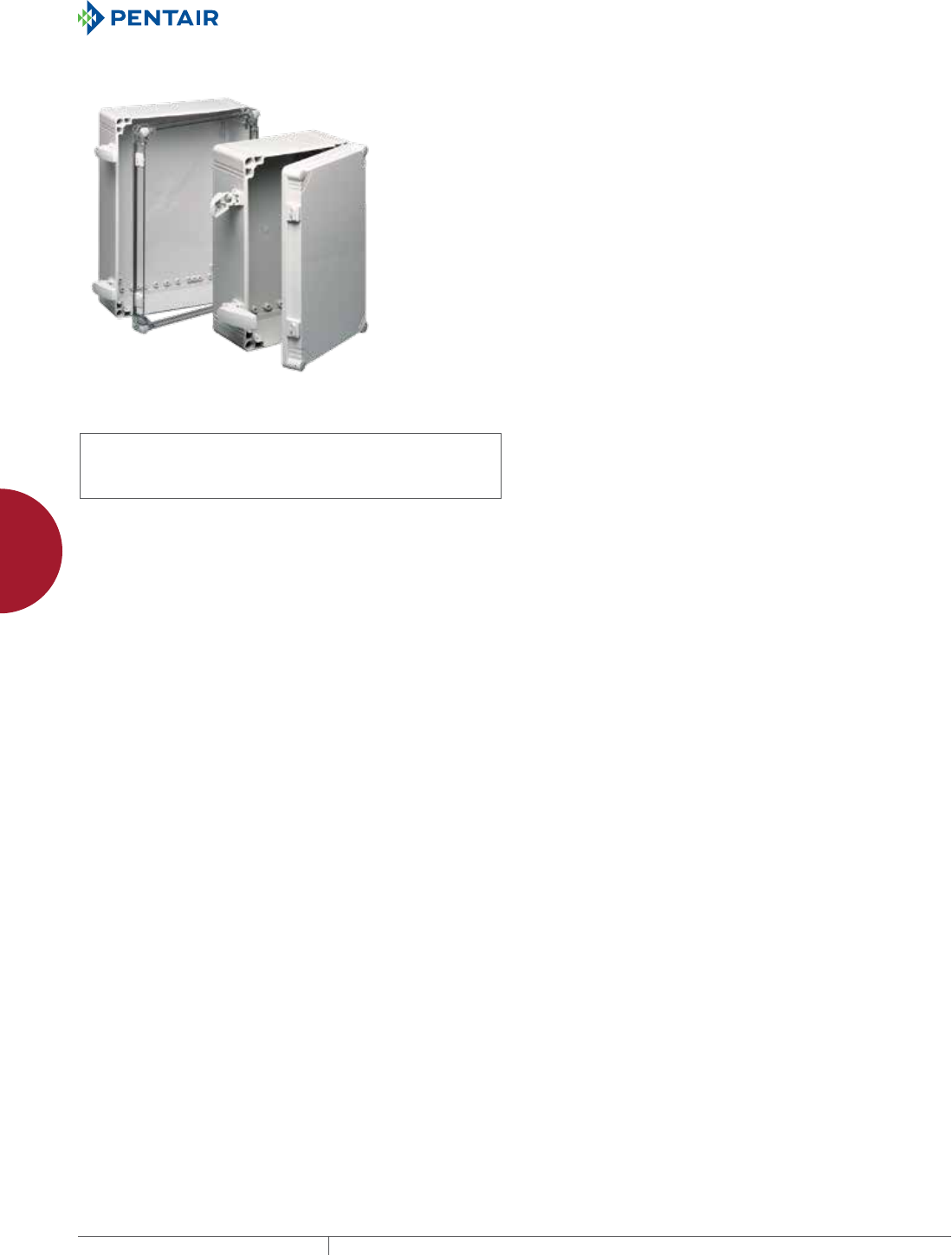

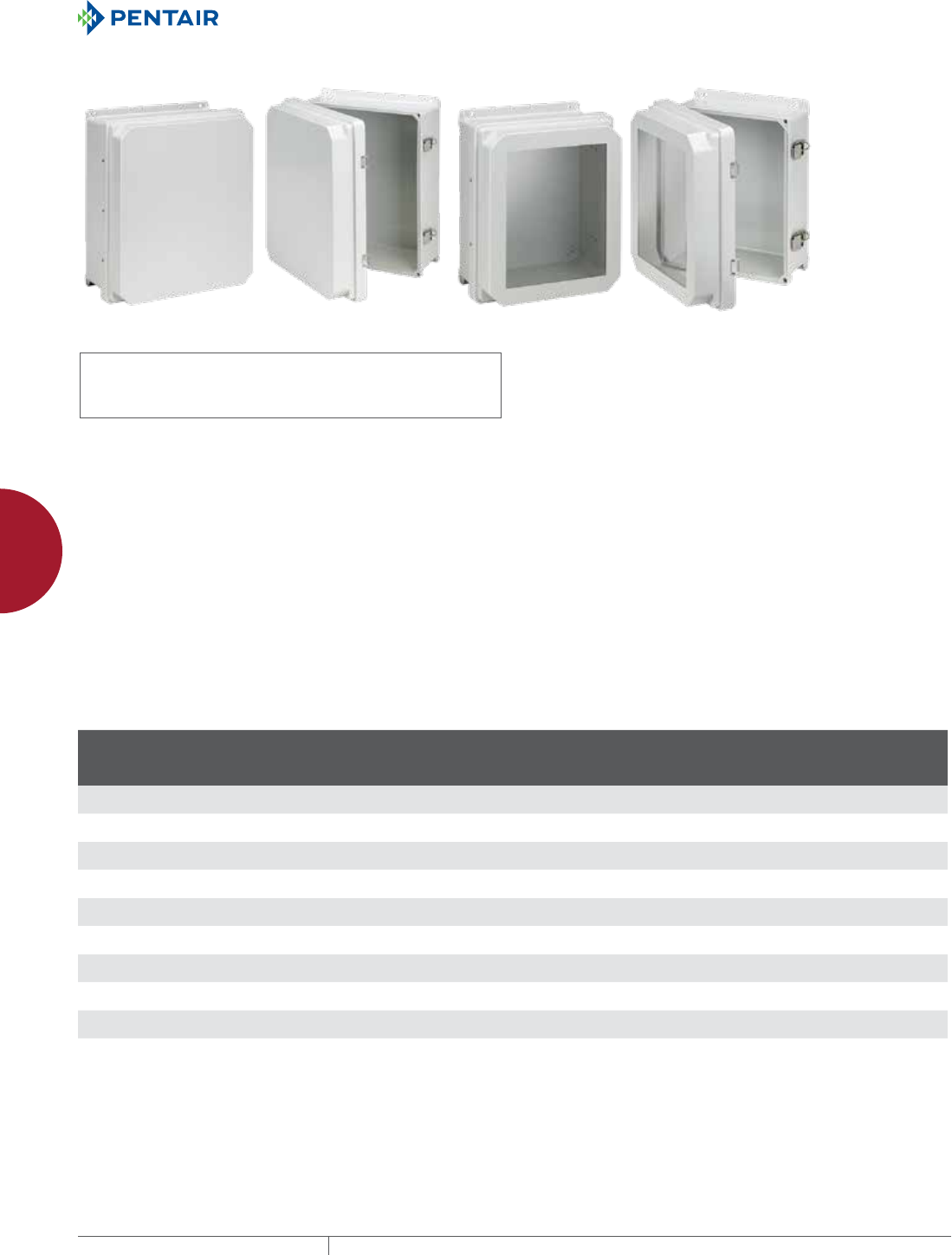

POLYESTER POLYPRO, TYPe 4X

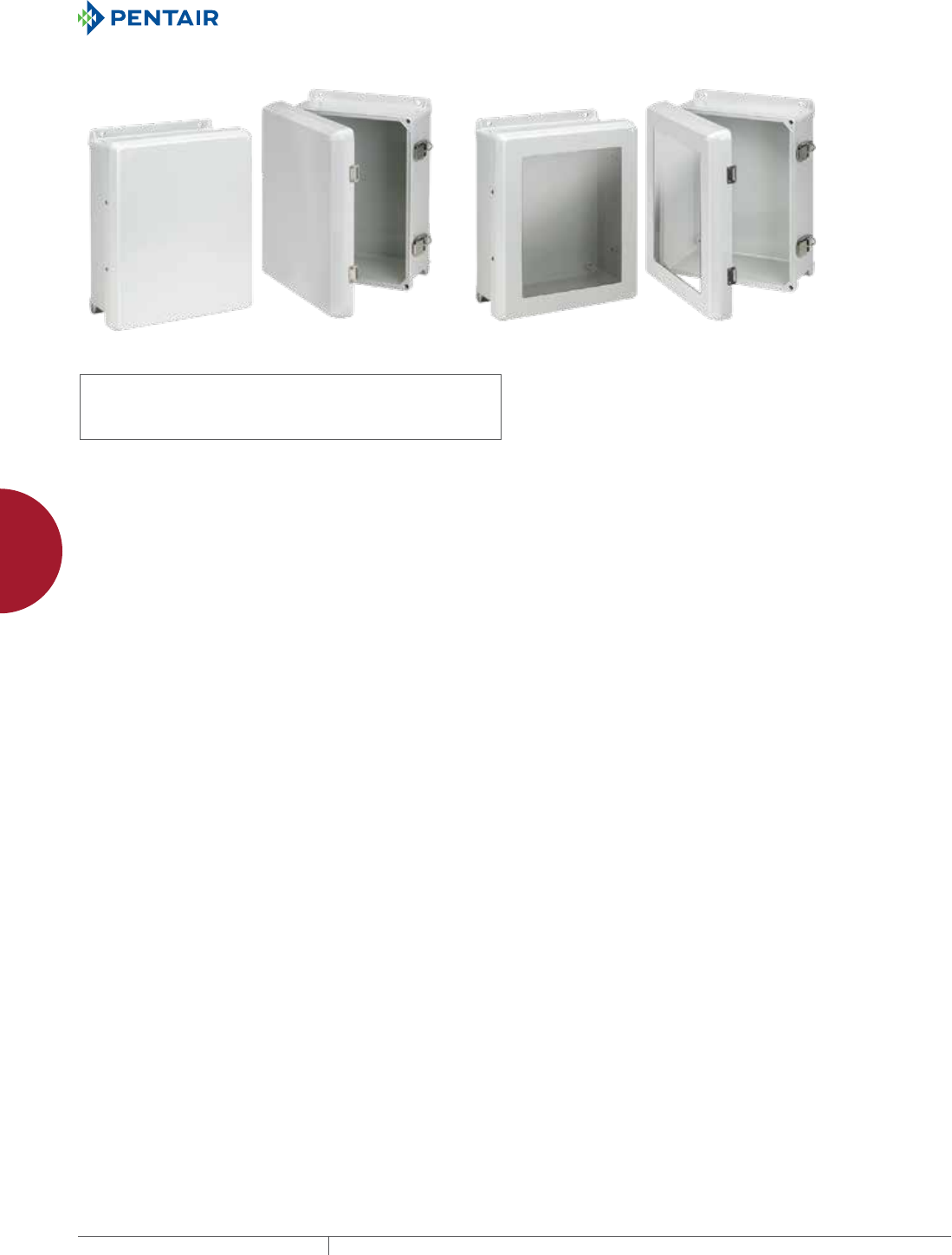

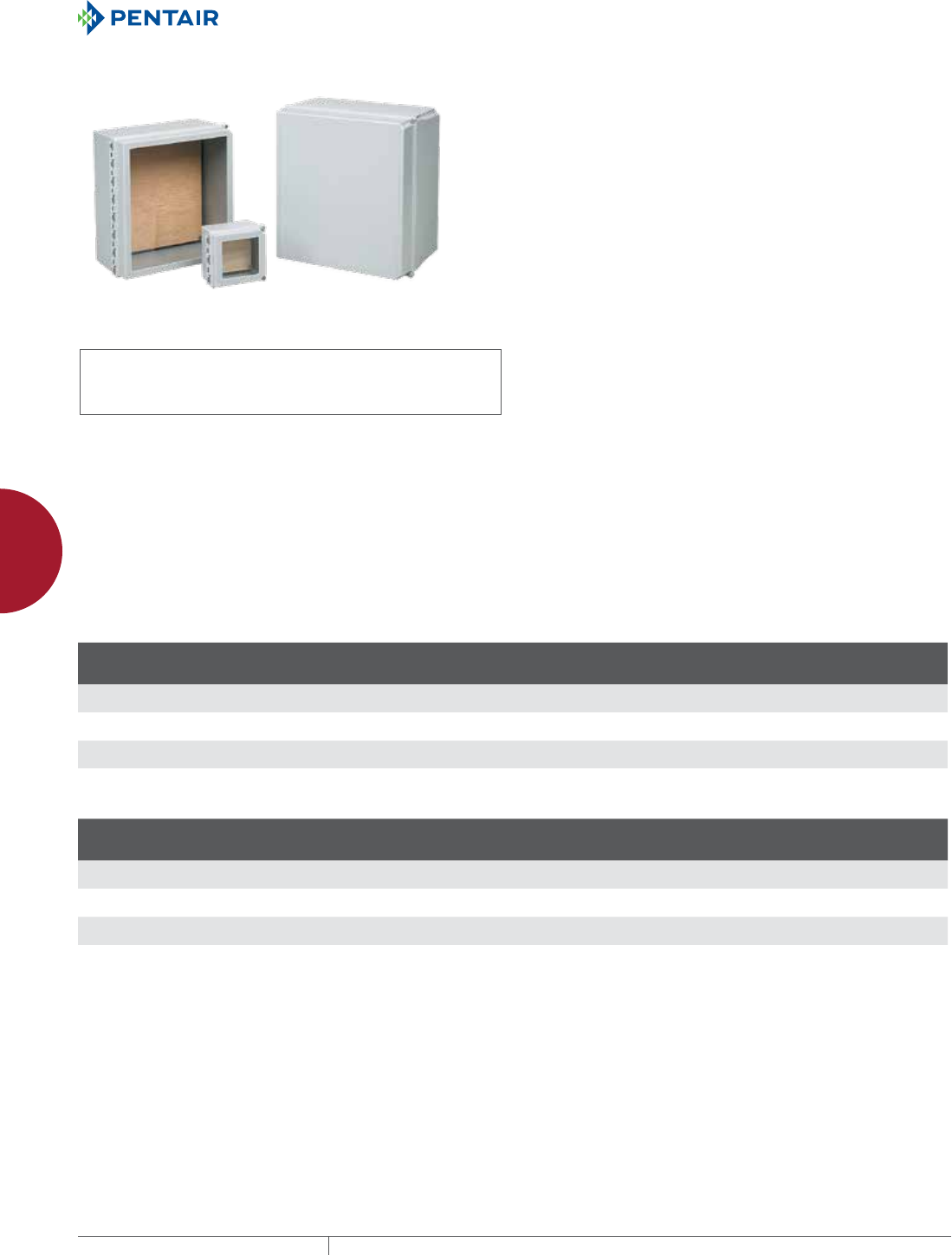

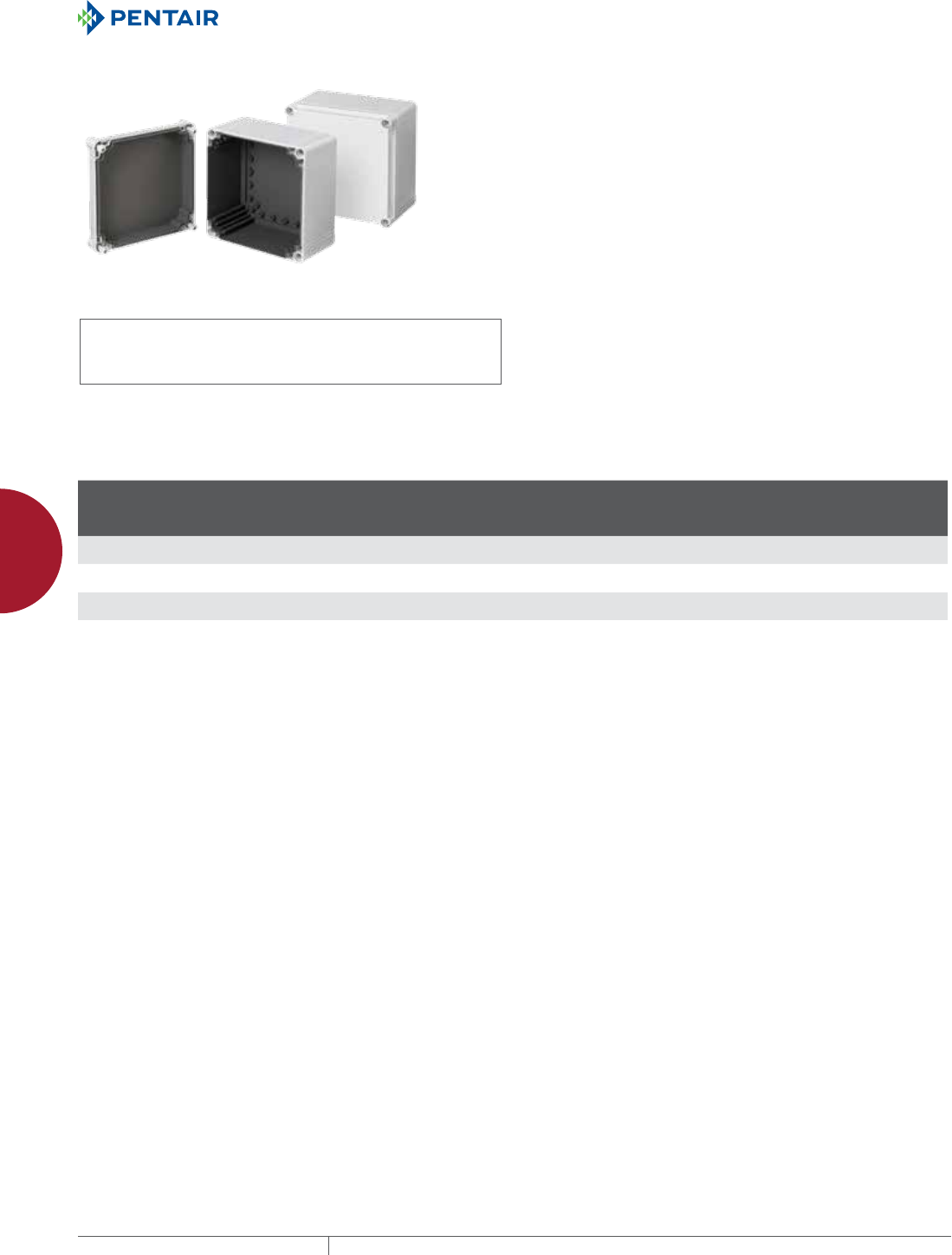

PolyPro, tyPe 4X
POLYPRO POLYESTER ENCLOSURES
INDUSTRY STANDARDS
Mounting brackets required to meet UL/CSA external mounting
requirements.
APPLICATION
SPECIFICATIONS
FINISH
ACCESSORIES
See also Accessories.
MODIFICATION AND CUSTOMIZATION
Bulletin: PCR
EQUIPMENT PROTECTION NONMETALLIC 233
3
POLYESTER POLYPRO, TYPe 4X

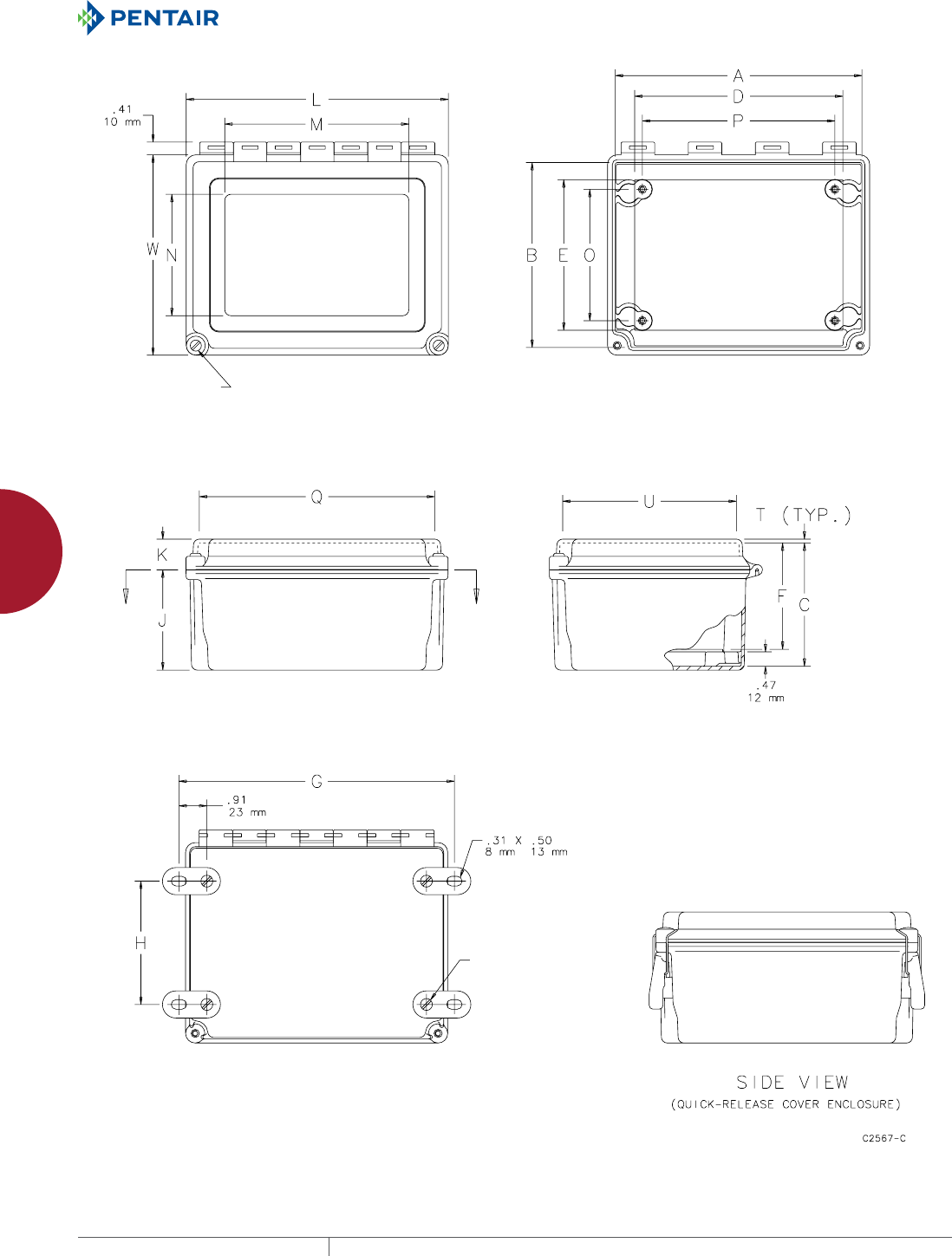

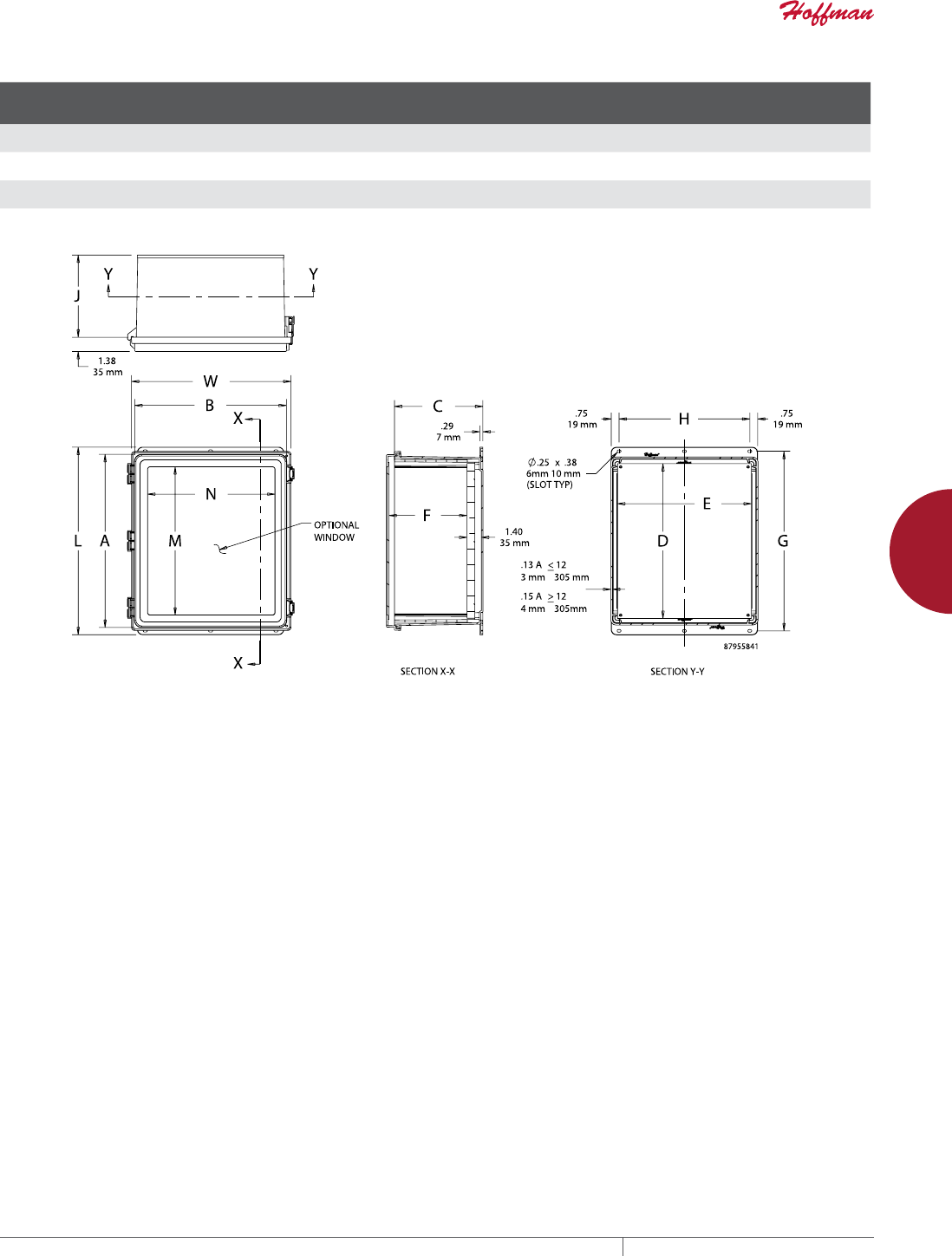

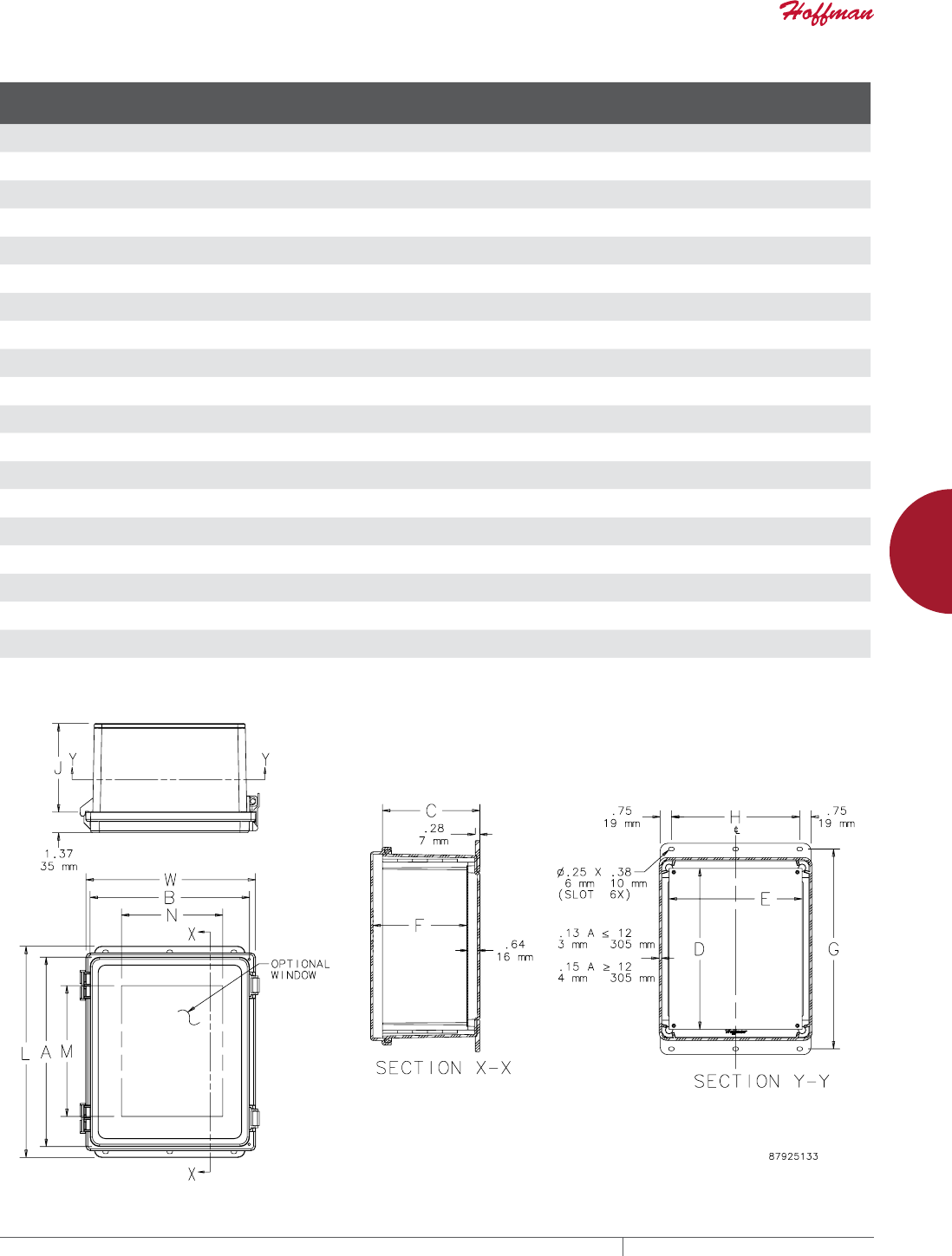

Catalog Number AxBxC in./mm
Cover
Type
Steel
Panel
Aluminum
Panel
Panel Size
D x E
in./mm
F
in./mm
G
in./mm
H
in./mm
J
in./mm
L
in./mm
M
in./mm
N
in./mm
W
in./mm
A644PHC 6.12 x 4.12 x 4.38
155 x 105 x 111
Solid A6P4 A6P4AL 4.88 x 2.88
124 x 73
4.32
110
7.38
187
2.56
65
3.91
99
8.15
207
—
—
—
—
5.23
133
A644PHCW 6.12 x 4.12 x 4.38
155 x 105 x 111
Window A6P4 A6P4AL 4.88 x 2.88
124 x 73
4.32
110
7.38
187
2.56
65
3.91
99
8.15
207
4.25
108
2.25
57
5.23
133
A664PHC 6.12 x 6.12 x 4.38
155 x 155 x 111
Solid A6P6 A6P6AL 4.88 x 4.88
124 x 124
4.32
110
7.38
187
4.56
116
3.91
99
8.15
207
—
—
—
—
7.23
184
A664PHCW 6.12 x 6.12 x 4.38
155 x 155 x 111
Window A6P6 A6P6AL 4.88 x 4.88
124 x 124
4.32
110
7.38
187
4.56
116
3.91
99
8.15
207
4.25
108
4.25
108
7.23
184
A864PHC 8.12 x 6.12 x 4.38
206 x 155 x 111
Solid A8P6 A8P6AL 6.75 x 4.88
171 x 124
4.32
110
9.38
238
4.56
116
3.91
99
10.15
258
—
—
—
—
7.23
184
A864PHCW 8.12 x 6.12 x 4.38
206 x 155 x 111
Window A8P6 A8P6AL 6.75 x 4.88
171 x 124
4.32
110
9.38
238
4.56
116
3.91
99
10.15
258
6.25
159
4.25
108
7.23
184
A884PHC 8.12 x 8.12 x 4.38
206 x 206 x 111
Solid A8P8 A8P8AL 6.75 x 6.88
171 x 175
4.32
110
9.38
238
6.56
167
3.91
99
10.15
258
—
—
—
—
9.23
234
A884PHCW 8.12 x 8.12 x 4.38
206 x 206 x 111
Window A8P8 A8P8AL 6.75 x 6.88
171 x 175
4.32
110
9.38
238
6.56
167
3.91
99
10.15
258
6.25
159
6.25
159
9.23
234
A1084PHC 10.12 x 8.12 x 4.38
257 x 155 x 111
Solid A10P8 A10P8AL 8.75 x 6.88
222 x 175
4.32
110
11.38
289
6.56
167
3.91
99
12.15
309
—
—
—
—
9.23
234
A1084PHCW 10.12 x 8.12 x 4.38
257 x 155 x 111
Window A10P8 A10P8AL 8.75 x 6.88
222 x 175
4.32
110
11.38
289
6.56
167
3.91
99
12.15
309
8.25
210
6.25
159
9.23
234
A10106PHC 10.04 x 10.04 x 6.38
255 x 255 x 162
Solid A10P10 A10P10AL 8.75 x 8.88
222 x 226
6.32
161
11.31
287
8.56
217
5.91
150
12.08
307
—
—
—
—
11.23
285
A10106PHCW 10.04 x 10.04 x 6.38
255 x 255 x 162
Window A10P10 A10P10AL 8.75 x 8.88
222 x 226
6.32
161
11.31
287
8.56
217
5.91
150
12.08
307
8.25
210
8.25
210
11.23
285
A12106PHC 12.08 x 10.09 x 6.38
307 x 256 x 162
Solid A12P10 A12P10AL 10.75 x 8.88
273 x 226
6.32
161
13.34
339
8.56
217
5.91
150
14.08
358
—
—
—
—
11.23
285
A12106PHCW 12.08 x 10.09 x 6.38
307 x 256 x 162
Window A12P10 A12P10AL 10.75 x 8.88
273 x 226
6.32
161
13.34
339
8.56
217
5.91
150
14.08
358
10.25
260
8.25
210
11.23
285
A14128PHC 14.02 x 12.01 x 8.35
356 x 305 x 212
Solid A14P12 A14P12AL 12.75 x 10.88
324 x 276
8.27
210
15.27
388
10.56
268
7.91
201
16.04
407
—
—
—
—
13.32
338
A14128PHCW 14.02 x 12.01 x 8.35
356 x 305 x 212
Window A14P12 A14P12AL 12.75 x 10.88
324 x 276
8.27
210
15.27
388
10.56
268
7.91
201
16.04
407
12.25
311
10.25
260
13.32
338
A16148PHC 16.02 x 14.01 x 8.35
407 x 356 x 212
Solid A16P14 A16P14AL 14.75 x 12.88
375 x 327
8.27
210
17.27
439
12.56
319
7.91
201
18.04
458
—
—
—
—
15.32
389
A16148PHCW 16.02 x 14.01 x 8.35
407 x 356 x 212
Window A16P14 A16P14AL 14.75 x 12.88
375 x 327
8.27
210
17.27
439
12.56
319
7.91
201
18.04
458
14.25
362
12.25
311
15.32
389
A181610PHC 17.95 x 15.94 x 10.35
456 x 405 x 263
Solid A18P16 A18P16AL 16.75 x 14.88
425 x 378
10.27
261
19.20
488
14.56
370
9.91
252
19.97
507
—
—
—
—
17.32
440
A181610PHCW 17.95 x 15.94 x 10.35
456 x 405 x 263
Window A18P16 A18P16AL 16.75 x 14.88
425 x 378
10.27
261
19.20
488
14.56
370
9.91
252
19.97
507
16.25
413
14.25
362
17.32
440
Purchase panels separately. Panels are available in aluminum, mild steel, stainless steel, conductive and composite materials.
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC234
3
POLYESTER POLYPRO, TYPe 4X
POLYPRO WIFI, TYPE 4X
INDUSTRY STANDARDS
APPLICATION
FEATURES
SPECIFICATIONS
FINISH
Bulletin: DWS12
EQUIPMENT PROTECTION NONMETALLIC 235
3
POLYESTER POLYPRO, TYPe 4X

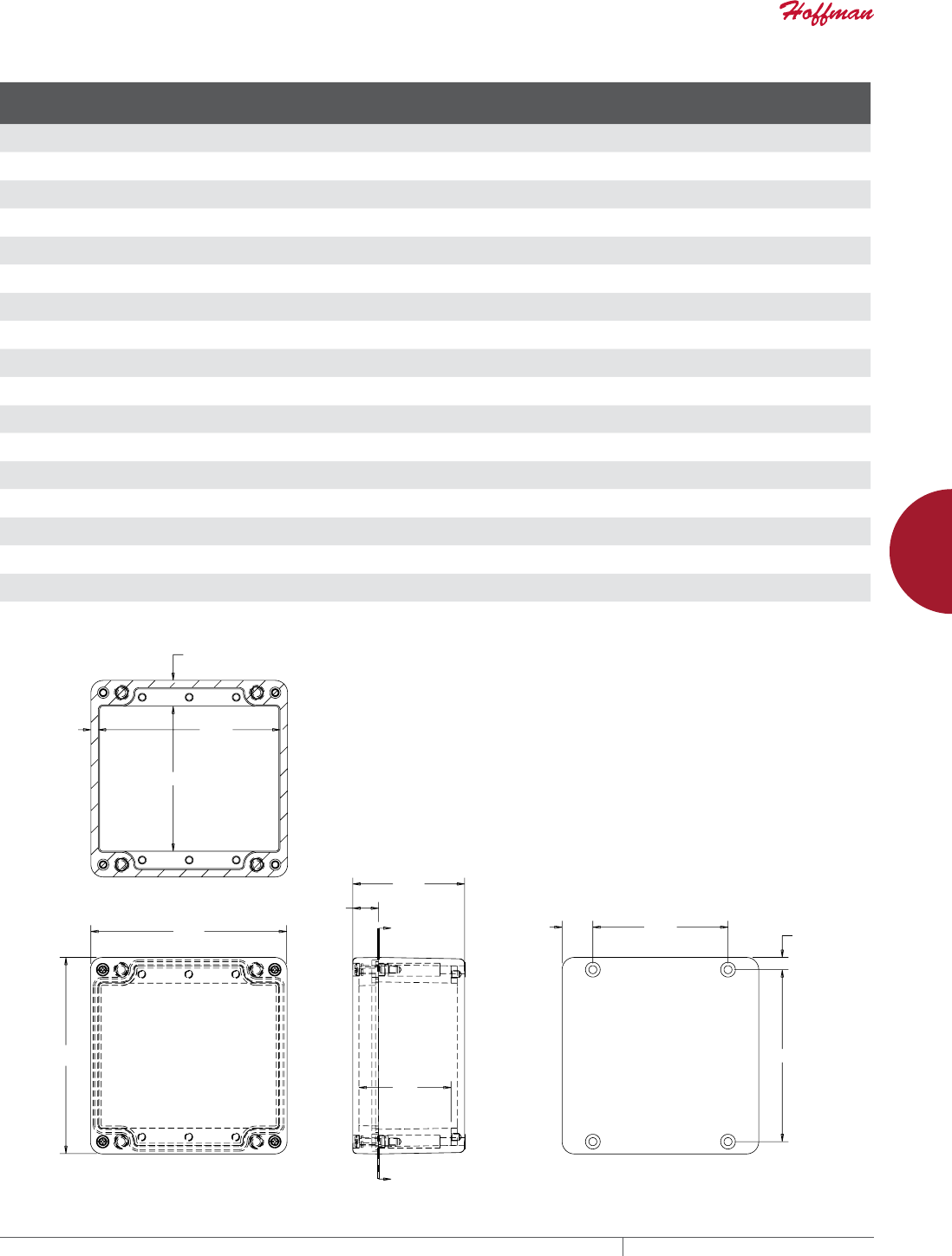

Catalog Number AxBxC in./mm Door Type
Panel Size
D x E
in./mm
F
in./mm
G
in./mm
H
in./mm
J
in./mm
L
in./mm
M
in./mm
N
in./mm
W
in./mm
D664WF 6.12 x 6.12 x 4.38
155 x 155 x 111
Solid 4.88 x 4.88
124 x 124
4.32
110
7.38
187
2.56
65
3.91
99
8.15
207
—
—
—
—
5.23
133
D664WFW 6.12 x 6.12 x 4.38
155 x 155 x 111
Window 4.88 x 4.88
124 x 124
4.32
110
7.38
187
2.56
65
3.91
99
8.15
207
4.25
108
2.25
57
5.23
133
D16148WF 16.12 x 14.01 x 8.35
409 x 356 x 212
Solid 14.75 x 12.88
375 x 327
8.27
210
17.27
439
12.56
319
7.91
201
18.04
458
—
—
—
—
15.32
389
D16148WFW 16.12 x 14.01 x 8.35
409 x 356 x 212
Window 14.75 x 12.88
375 x 327
8.27
210
17.27
439
12.56
319
7.91
201
18.04
458
14.25
362
12.25
311
15.32
389
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC236
3
POLYESTER POLYPRO, TYPe 4X
ADJUSTABLE PANEL BLOCK KIT
Bulletin: PCRY
Catalog Number Qty.
APNLBLK 4
Includes Allen wrench
$GMXVWDEOH
SDQHOEORFN
;
POLYESTER MOUNTING BRACKET KITS
Included with standard POLYPRO models.
Bulletin: PCRY
Catalog Number Description (in.) Qty.
APOLYFT4 4.00 2
APOLYFT6 6.00 2
APOLYFT8 8.00 2
APOLYFT10 10.00 2
APOLYFT12 12.00 2
APOLYFT14 14.00 2
APOLYFT16 16.00 2
&
/
PP
PP
ALUMINUM SWINGOUT PANELS
Bulletin: PCRY
'
(
Catalog Number D x E (in.) D x E (mm)
A64PSWPNL 5.00 x 3.62 127 x 92
A66PSWPNL 5.00 x 5.62 127 x 143
A86PSWPNL 7.00 x 5.62 178 x 143
A88PSWPNL 7.00 x 7.62 178 x 194
A108PSWPNL 9.00 x 7.62 229 x 194
A1010PSWPNL 9.00 x 9.62 229 x 244
A1210PSWPNL 11.00 x 9.62 279 x 244
A1412PSWPNL 13.00 x 11.62 330 x 295
A1614PSWPNL 15.00 x 13.62 381 x 346
A1816PSWPNL 17.00 x 15.62 432 x 397
EQUIPMENT PROTECTION NONMETALLIC 237
3
POLYESTER POLYPRO, TYPe 4X

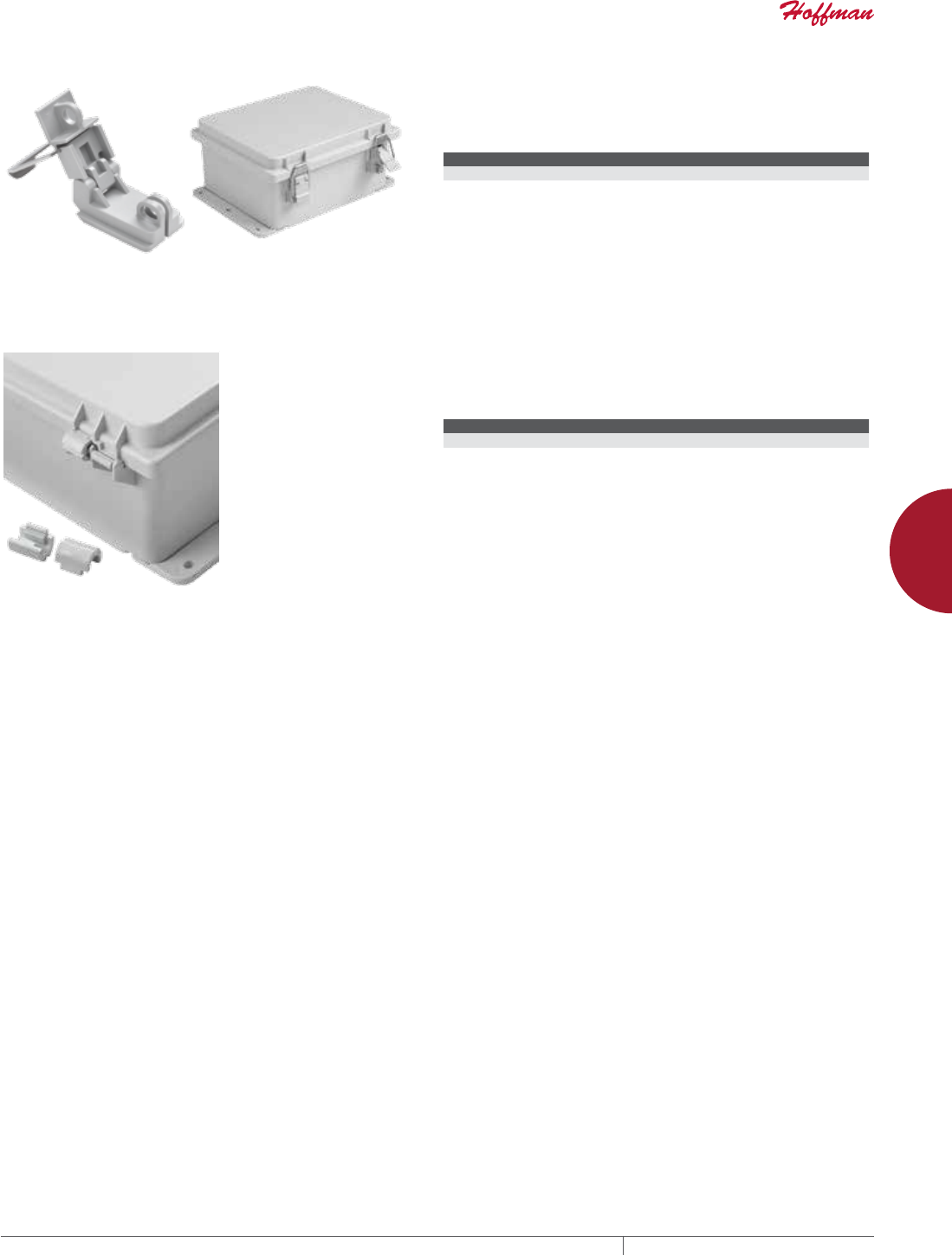

STAINLESS STEEL LATCHES (PADLOCKABLE)
Bulletin: PCRY
Catalog Number Qty.
AQRLSS6 2
HINGE RETAINERS
Bulletin: PCRY
Catalog Number Description Pkg. Qty.
AHGCLP POLYPRO Hinge Retainers 10
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC238
3
FIBERGLASS COnTinuOus Hinge
Fiberglass
Continuous Hinge

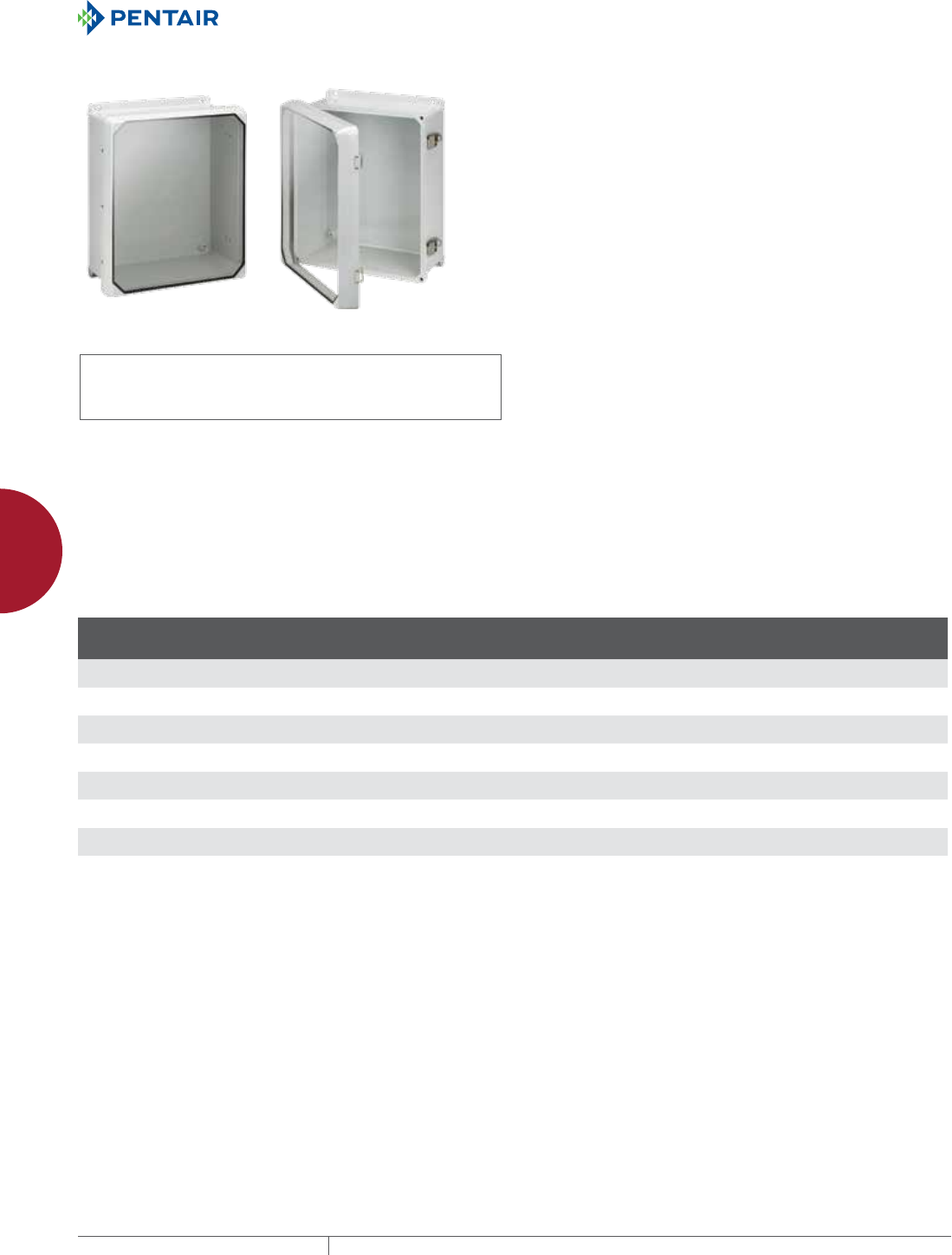

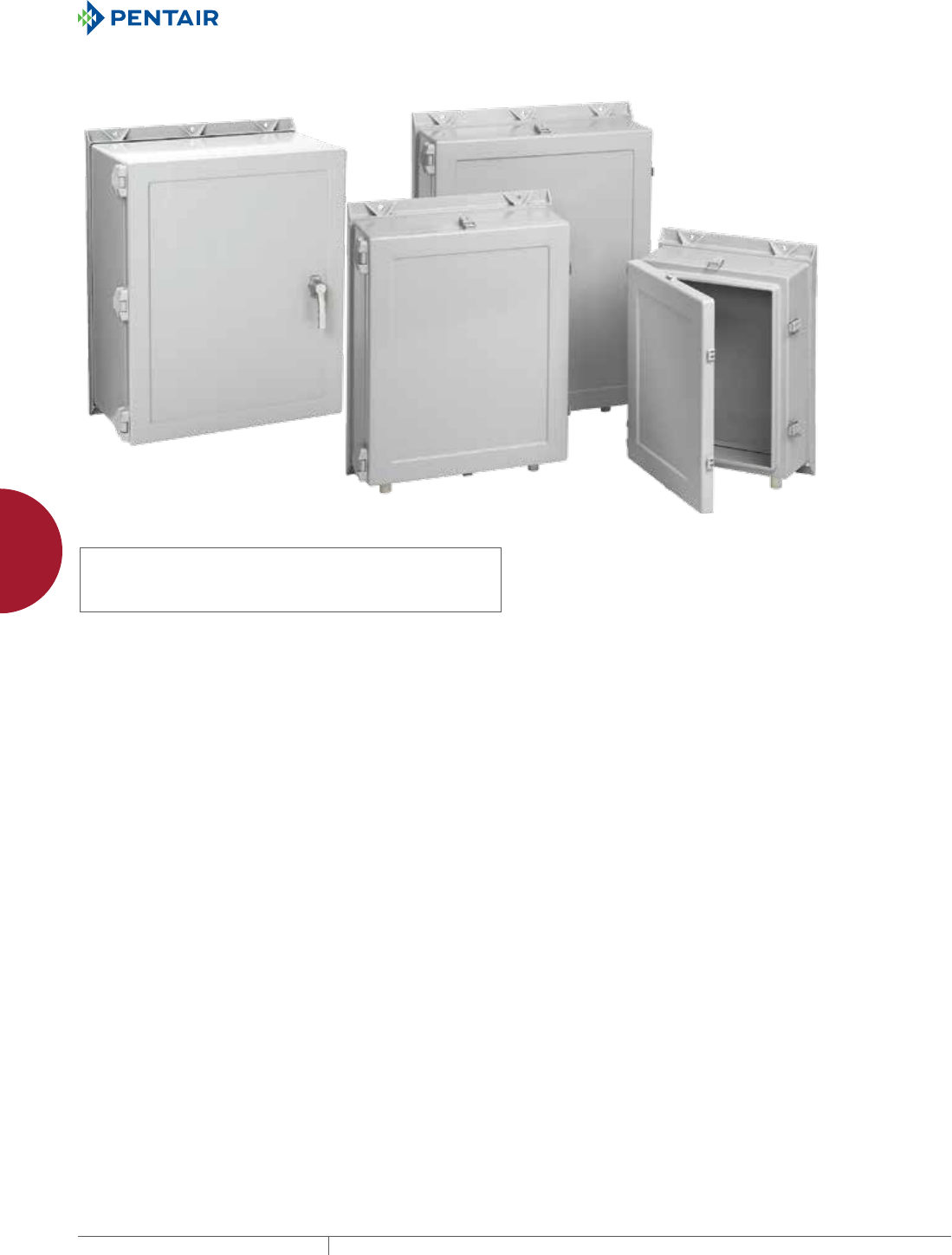

CONTINUOUS HINGE, TYPE 4X
INDUSTRY STANDARDS
Mounting brackets required to meet UL/CSA external mounting
requirements.
APPLICATION
SPECIFICATIONS
FINISH
ACCESSORIES
See also Accessories.
MODIFICATION AND CUSTOMIZATION
Bulletin: A48
EQUIPMENT PROTECTION NONMETALLIC 239
3
FIBERGLASS COnTinuOus Hinge
Solid Cover
Catalog Number AxBxC in./mm Type
Steel
Panel
Alum.
Panel
Panel Size
D x E
in./mm
Mounting
G x H
in./mm
Overall
L x W
in./mm
F
in./mm
J
in./mm
K
in./mm
O
in./mm
P
in./mm
Q
in./mm
T
in./mm
U
in./mm
A664CHSCFG 6.00 x 6.00 x 4.00
152 x 152 x 102
Screw
Cover
A6P6 A6P6AL 4.88 x 4.88
124 x 124
6.94 x 4.00
176 x 102
6.50 x 6.50
165 x 165
3.45
88
3.25
83
1.00
25
4.25
108
4.25
108
5.64
143
0.12
3
5.64
143
A664CHQRFG 6.00 x 6.00 x 4.00
152 x 152 x 102
Quick
Release
A6P6 A6P6AL 4.88 x 4.88
124 x 124
6.94 x 4.00
176 x 102
6.50 x 6.50
165 x 165
3.45
88
3.25
83
1.00
25
4.25
108
4.25
108
5.64
143
0.12
3
5.64
143
A864CHSCFG 8.00 x 6.00 x 4.00
203 x 152 x 102
Screw
Cover
A8P6 A8P6AL 6.75 x 4.88
171 x 124
8.94 x 4.00
227 x 102
8.50 x 6.50
216 x 165
3.45
88
3.25
83
1.00
25
4.25
108
6.25
159
7.64
194
0.12
3
5.64
143
A864CHQRFG 8.00 x 6.00 x 4.00
203 x 152 x 102
Quick
Release
A8P6 A8P6AL 6.75 x 4.88
171 x 124
8.94 x 4.00
227 x 102
8.50 x 6.50
216 x 165
3.45
88
3.25
83
1.00
25
4.25
108
6.25
159
7.64
194
0.12
3
5.64
143
A1086CHSCFG 10.00 x 8.00 x 6.00
254 x 203 x 152
Screw
Cover
A10P8 A10P8AL 8.75 x 6.88
222 x 175
10.94 x 6.00
278 x 152
10.50 x 8.50
267 x 216
5.45
138
4.94
125
1.31
33
6.25
159
8.25
210
9.61
244
0.12
3
7.61
193
A1086CHQRFG 10.00 x 8.00 x 6.00
254 x 203 x 152
Quick
Release
A10P8 A10P8AL 8.75 x 6.88
222 x 175
10.94 x 6.00
278 x 152
10.50 x 8.50
267 x 216
5.45
138
4.94
125
1.31
33
6.25
159
8.25
210
9.61
244
0.12
3
7.61
193
A12106CHSCFG 12.00 x 10.00 x 6.00
305 x 254 x 152
Screw
Cover
A12P10 A12P10AL 10.75 x 8.88
273 x 226
12.94 x 8.00
329 x 203
12.50 x 10.50
318 x 267
5.45
138
4.69
119
1.56
40
8.25
210
10.25
260
11.58
294
0.12
3
9.58
243
A12106CHQRFG 12.00 x 10.00 x 6.00
305 x 254 x 152
Quick
Release
A12P10 A12P10AL 10.75 x 8.88
273 x 226
12.94 x 8.00
329 x 203
12.50 x 10.50
318 x 267
5.45
138
4.69
119
1.56
40
8.25
210
10.25
260
11.58
294
0.12
3
9.58
243
A14128CHSCFG 14.00 x 12.00 x 8.00
356 x 305 x 203
Screw
Cover
A14P12 A14P12AL 12.75 x 10.88
324 x 276
14.94 x 10.00
379 x 254
14.55 x 12.55
370 x 319
7.45
189
6.50
165
1.81
46
10.25
260
12.25
311
13.59
345
0.15
4
11.59
294
A14128CHQRFG 14.00 x 12.00 x 8.00
356 x 305 x 203
Quick
Release
A14P12 A14P12AL 12.75 x 10.88
324 x 276
14.94 x 10.00
379 x 254
14.55 x 12.55
370 x 319
7.45
189
6.50
165
1.81
46
10.25
260
12.25
311
13.59
345
0.15
4
11.59
294
A16148CHSCFG 16.00 x 14.00 x 8.00
406 x 356 x 203
Screw
Cover
A16P14 A16P14AL 14.75 x 12.88
375 x 327
16.94 x 12.00
430 x 305
16.55 x 14.55
420 x 370
7.45
189
6.23
158
2.08
53
12.25
311
14.25
362
15.56
395
0.15
4
13.56
344
A16148CHQRFG 16.00 x 14.00 x 8.00
406 x 356 x 203
Quick
Release
A16P14 A16P14AL 14.75 x 12.88
375 x 327
16.94 x 12.00
430 x 305
16.55 x 14.55
420 x 370
7.45
189
6.23
158
2.08
53
12.25
311
14.25
362
15.56
395
0.15
4
13.56
344
A181610CHSCFG 18.00 x 16.00 x 10.00
457 x 406 x 254
Screw
Cover
A18P16 A18P16AL 16.75 x 14.88
425 x 378
18.94 x 14.00
481 x 356
18.58 x 16.58
472 x 421
9.45
240
7.66
195
2.66
68
14.25
362
16.25
413
17.53
445
0.16
4
15.53
394
A181610CHQRFG 18.00 x 16.00 x 10.00
457 x 406 x 254
Quick
Release
A18P16 A18P16AL 16.75 x 14.88
425 x 378
18.94 x 14.00
481 x 356
18.58 x 16.58
472 x 421
9.45
240
7.66
195
2.66
68
14.25
362
16.25
413
17.53
445
0.16
4
15.53
394
Purchase panels separately. Optional stainless steel, aluminum, conductive and composite material panels available for most sizes.
Window Cover
Catalog Number AxBxC in./mm Type
Steel
Panel
Alum.
Panel
Panel Size
D x E
in./mm
Mounting
G x H
in./mm
Overall
L x W
in./mm
F
in./mm
J
in./mm
K
in./mm
M
in./mm
N
in./mm
O
in./mm
P
in./mm
Q
in./mm
T
in./mm
U
in./mm
A664CHSCFGW 6.00 x 6.00 x 4.00
152 x 152 x 102
Screw
Cover
A6P6 A6P6AL 4.88 x 4.88
124 x 124
6.94 x 4.00
176 x 102
6.50 x 6.50
165 x 165
3.45
88
3.25
83
1.00
25
4.25
108
4.25
108
4.25
108
4.25
108
5.64
143
0.12
3
5.64
143
A664CHQRFGW 6.00 x 6.00 x 4.00
152 x 152 x 102
Quick
Release
A6P6 A6P6AL 4.88 x 4.88
124 x 124
6.94 x 4.00
176 x 102
6.50 x 6.50
165 x 165
3.45
88
3.25
83
1.00
25
4.25
108
4.25
108
4.25
108
4.25
108
5.64
143
0.12
3
5.64
143
A864CHSCFGW 8.00 x 6.00 x 4.00
203 x 152 x 102
Screw
Cover
A8P6 A8P6AL 6.75 x 4.88
171 x 124
8.94 x 4.00
227 x 102
8.50 x 6.50
216 x 165
3.45
88
3.25
83
1.00
25
6.25
159
4.25
108
4.25
108
6.25
159
7.64
194
0.12
3
5.64
143
A864CHQRFGW 8.00 x 6.00 x 4.00
203 x 152 x 102
Quick
Release
A8P6 A8P6AL 6.75 x 4.88
171 x 124
8.94 x 4.00
227 x 102
8.50 x 6.50
216 x 165
3.45
88
3.25
83
1.00
25
6.25
159
4.25
108
4.25
108
6.25
159
7.64
194
0.12
3
5.64
143
A1086CHSCFGW 10.00 x 8.00 x 6.00
254 x 203 x 152
Screw
Cover
A10P8 A10P8AL 8.75 x 6.88
222 x 175
10.94 x 6.00
278 x 152
10.50 x 8.50
267 x 216
5.45
138
4.94
125
1.31
33
8.25
210
6.25
159
6.25
159
8.25
210
9.61
244
0.12
3
7.61
193
A1086CHQRFGW 10.00 x 8.00 x 6.00
254 x 203 x 152
Quick
Release
A10P8 A10P8AL 8.75 x 6.88
222 x 175
10.94 x 6.00
278 x 152
10.50 x 8.50
267 x 216
5.45
138
4.94
125
1.31
33
8.25
210
6.25
159
6.25
159
8.25
210
9.61
244
0.12
3
7.61
193
A12106CHSCFGW 12.00 x 10.00 x 6.00
305 x 254 x 152
Screw
Cover
A12P10 A12P10AL 10.75 x 8.88
273 x 226
12.94 x 8.00
329 x 203
12.50 x 10.50
318 x 267
5.45
138
4.69
119
1.56
40
10.25
260
8.25
210
8.25
210
10.25
260
11.58
294
0.12
3
9.58
243
A12106CHQRFGW 12.00 x 10.00 x 6.00
305 x 254 x 152
Quick
Release
A12P10 A12P10AL 10.75 x 8.88
273 x 226
12.94 x 8.00
329 x 203
12.50 x 10.50
318 x 267
5.45
138
4.69
119
1.56
40
10.25
260
8.25
210
8.25
210
10.25
260
11.58
294
0.12
3
9.58
243
A14128CHSCFGW 14.00 x 12.00 x 8.00
356 x 305 x 203
Screw
Cover
A14P12 A14P12AL 12.75 x 10.88
324 x 276
14.94 x 10.00
379 x 254
14.55 x 12.55
370 x 319
7.45
189
6.50
165
1.81
46
12.25
311
10.25
260
10.25
260
12.25
311
13.59
345
0.15
4
11.59
294
A14128CHQRFGW 14.00 x 12.00 x 8.00
356 x 305 x 203
Quick
Release
A14P12 A14P12AL 12.75 x 10.88
324 x 276
14.94 x 10.00
379 x 254
14.55 x 12.55
370 x 319
7.45
189
6.50
165
1.81
46
12.25
311
10.25
260
10.25
260
12.25
311
13.59
345
0.15
4
11.59
294
A16148CHSCFGW 16.00 x 14.00 x 8.00
406 x 356 x 203
Screw
Cover
A16P14 A16P14AL 14.75 x 12.88
375 x 327
16.94 x 12.00
430 x 305
16.55 x 14.55
420 x 370
7.45
189
6.23
158
2.08
53
14.25
362
12.25
311
12.25
311
14.25
362
15.56
395
0.15
4
13.56
344
A16148CHQRFGW 16.00 x 14.00 x 8.00
406 x 356 x 203
Quick
Release
A16P14 A16P14AL 14.75 x 12.88
375 x 327
16.94 x 12.00
430 x 305
16.55 x 14.55
420 x 370
7.45
189
6.23
158
2.08
53
14.25
362
12.25
311
12.25
311
14.25
362
15.56
395
0.15
4
13.56
344
A181610CHSCFGW 18.00 x 16.00 x 10.00
457 x 406 x 254
Screw
Cover
A18P16 A18P16AL 16.75 x 14.88
425 x 378
18.94 x 14.00
481 x 356
18.58 x 16.58
472 x 421
9.45
240
7.66
195
2.66
68
16.25
413
14.25
362
14.25
362
16.25
413
17.53
445
0.16
4
15.53
394
A181610CHQRFGW 18.00 x 16.00 x 10.00
457 x 406 x 254
Quick
Release
A18P16 A18P16AL 16.75 x 14.88
425 x 378
18.94 x 14.00
481 x 356
18.58 x 16.58
472 x 421
9.45
240
7.66
195
2.66
68
16.25
413
14.25
362
14.25
362
16.25
413
17.53
445
0.16
4
15.53
394
Purchase panels separately. Optional stainless steel, aluminum, conductive and composite material panels available for most sizes.
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC240
3

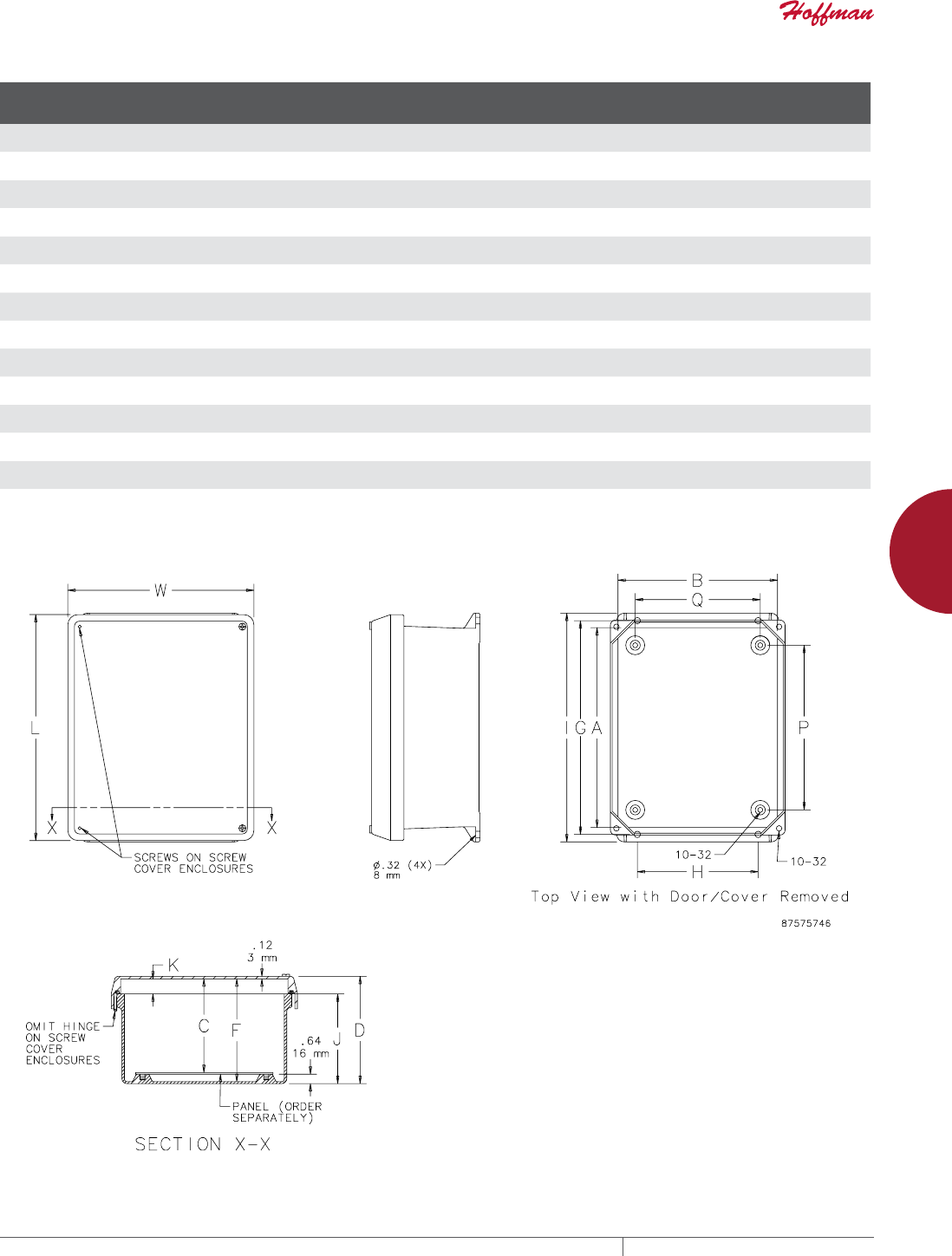

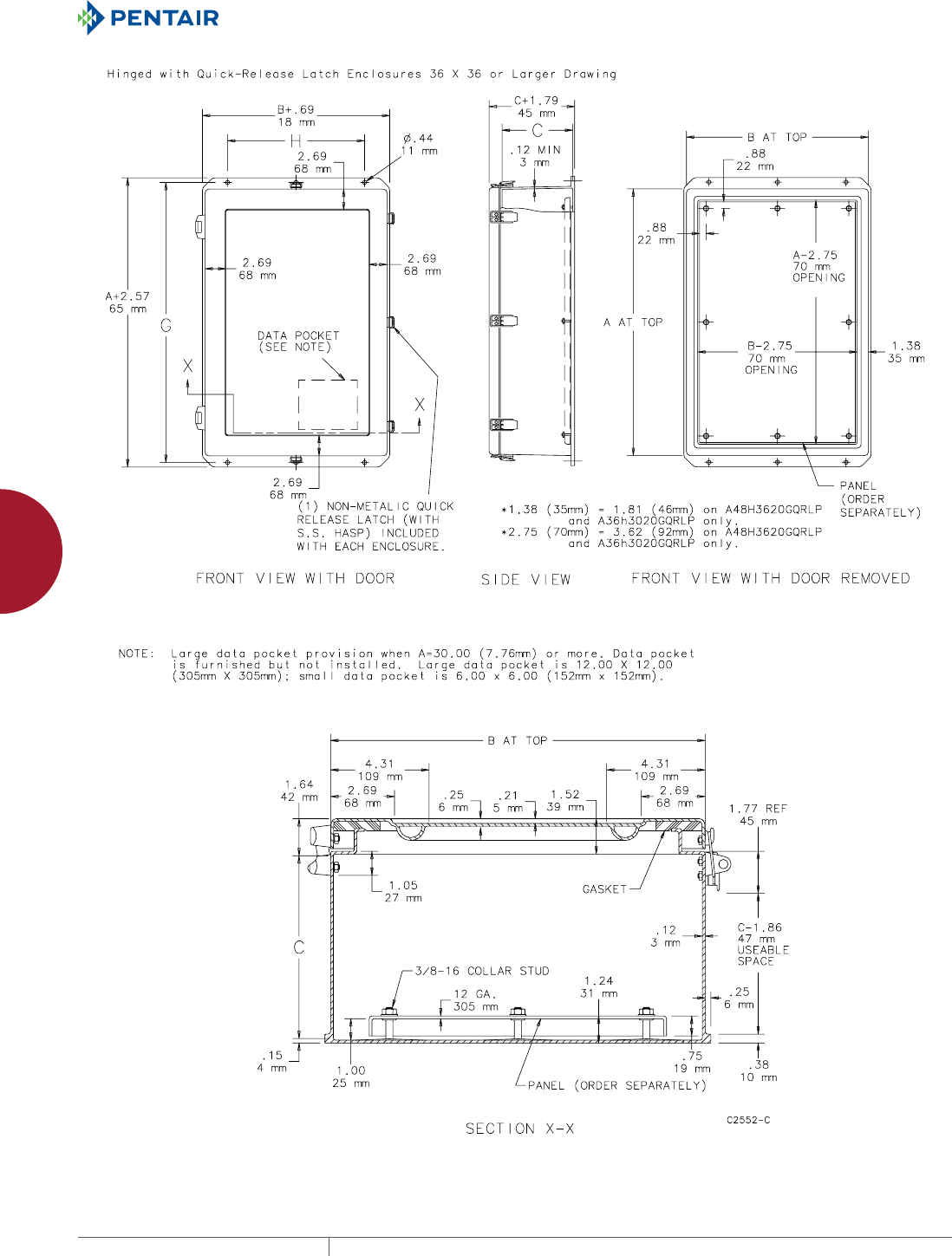

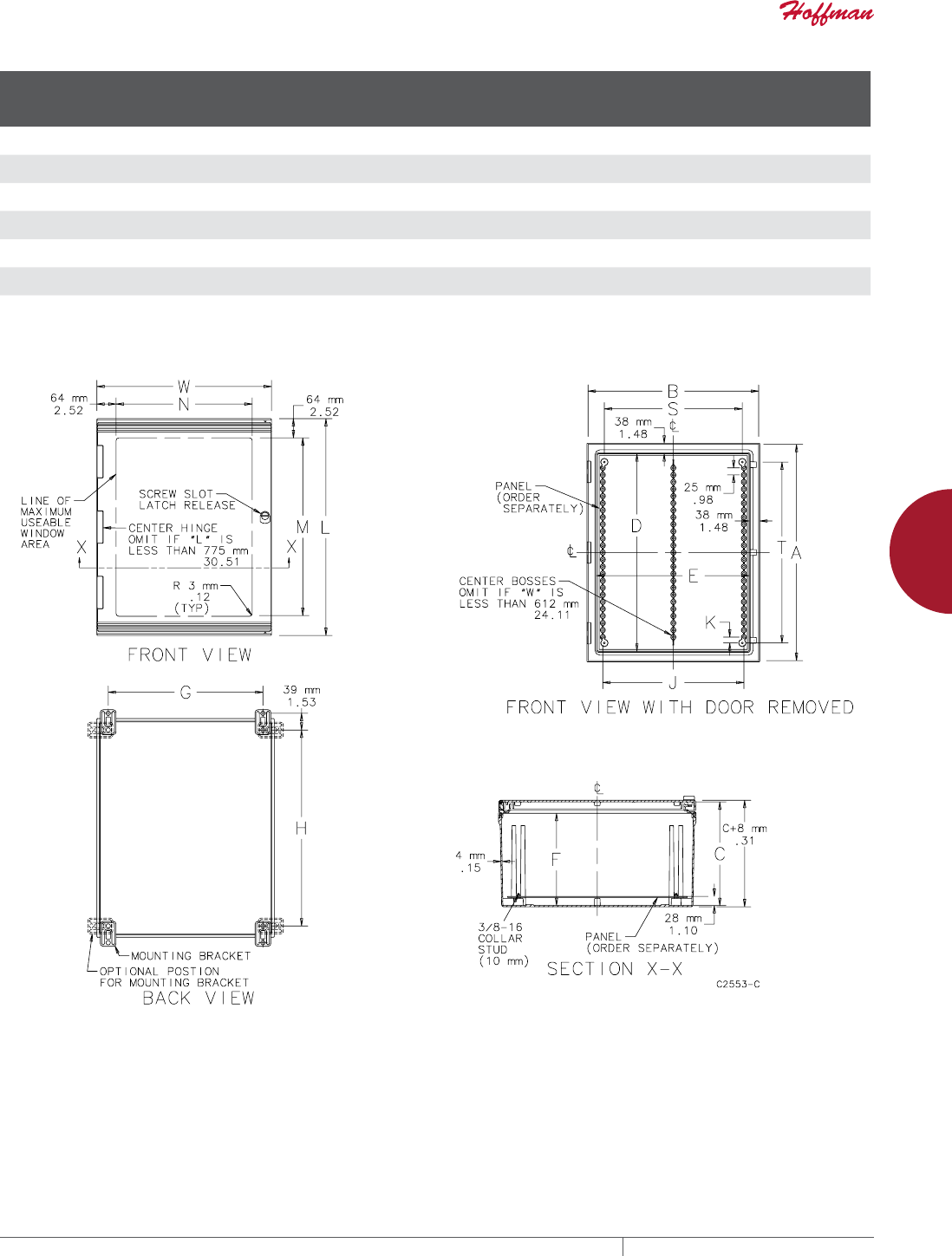

FIBERGLASS COnTinuOus Hinge
#1/4-10
#1/4-10
XX
X-X
EQUIPMENT PROTECTION NONMETALLIC 241
3
FIBERGLASS COnTinuOus Hinge

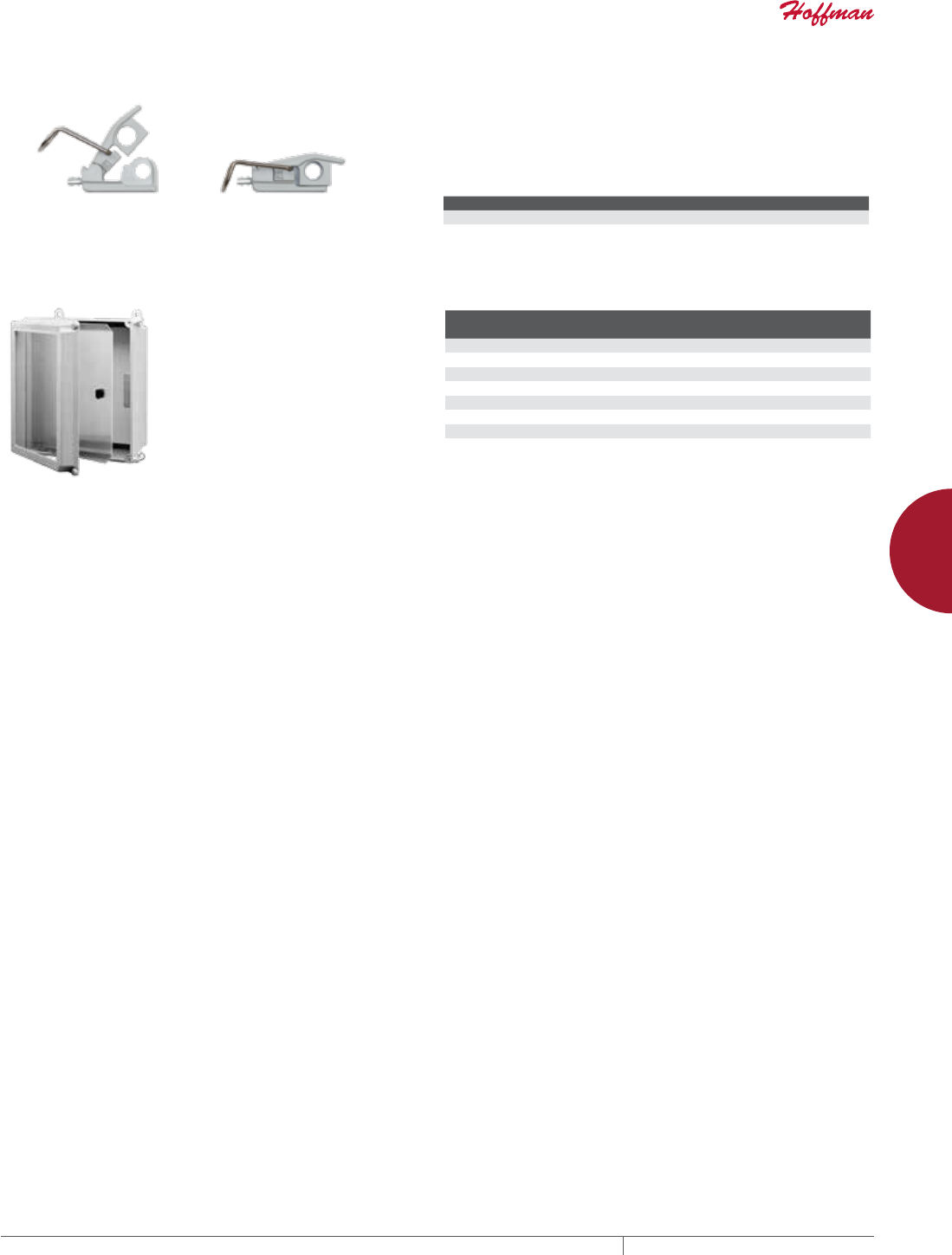

QUICKRELEASE LATCH KIT
Bulletin: A48Y
Catalog Number Description Kit Qty.
AL48 Quick-Release Latch Kit 2
SWINGOUT PANEL KIT
Bulletin: A48Y
Catalog Number
Fits Enclosure
A x B (in.)
Fits Enclosure
A x B (mm)
A6SPK6C 6.00 x 6.00 152 x 152
A8SPK6C 8.00 x 6.00 203 x 152
A10SPK8C 10.00 x 8.00 254 x 203
A12SPK10C 12.00 x 10.00 305 x 254
A16SPK14C 16.00 x 14.00 406 x 356
A18SPK16C 18.00 x 16.00 457 x 406
A14SPK12C 14.00 x 12.00 356 x 305
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC242
3
FIBERGLASS COnTinuOus Hinge

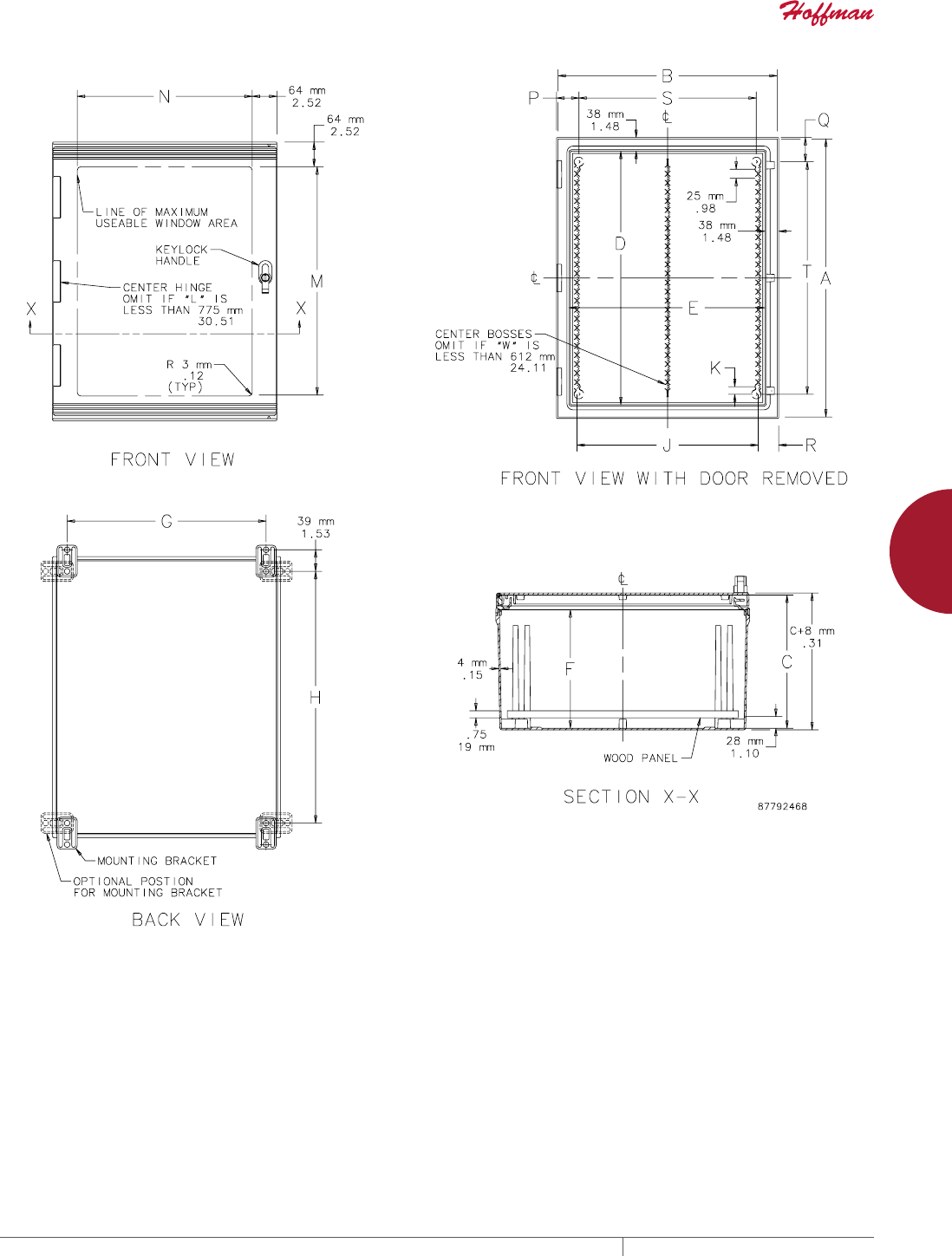

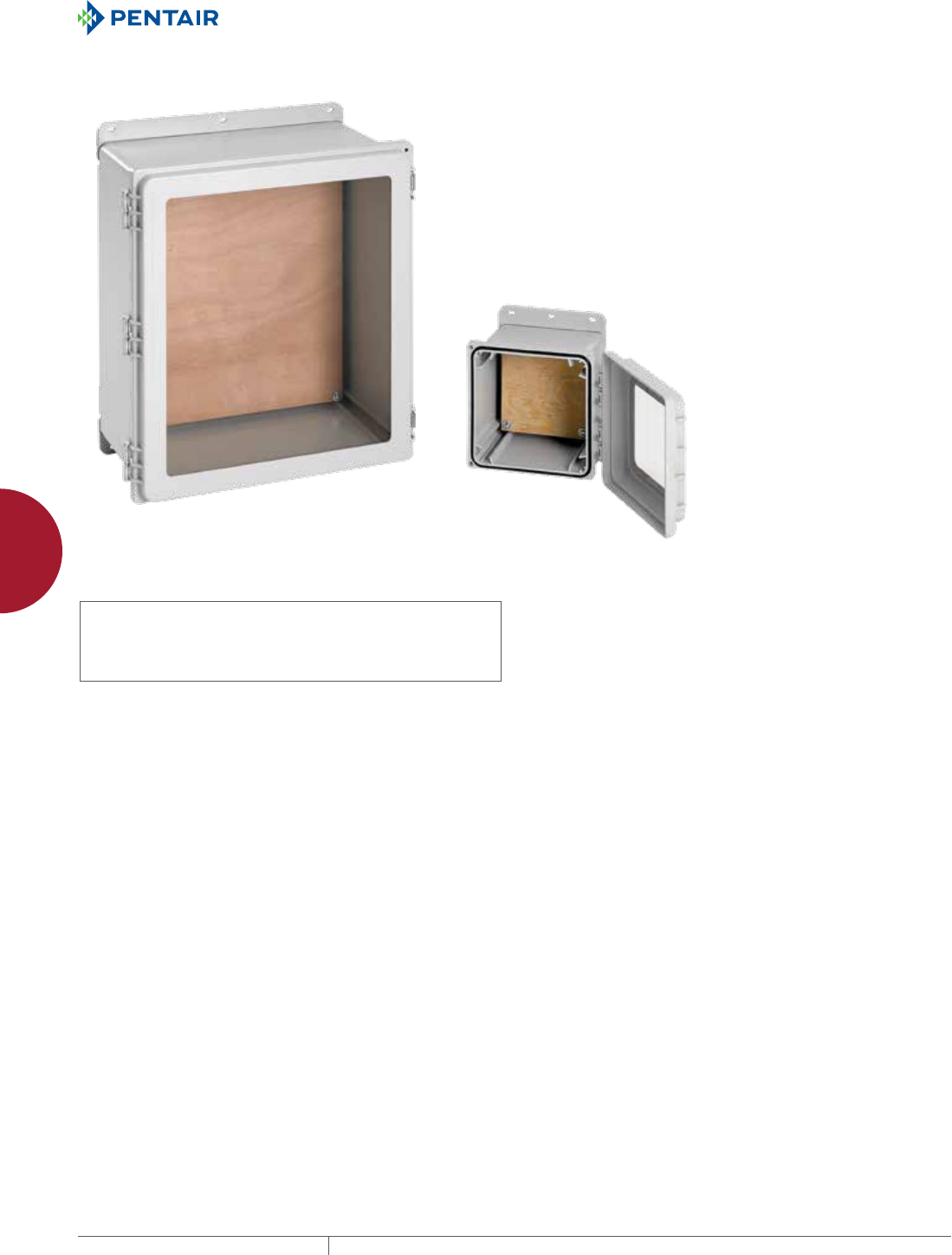

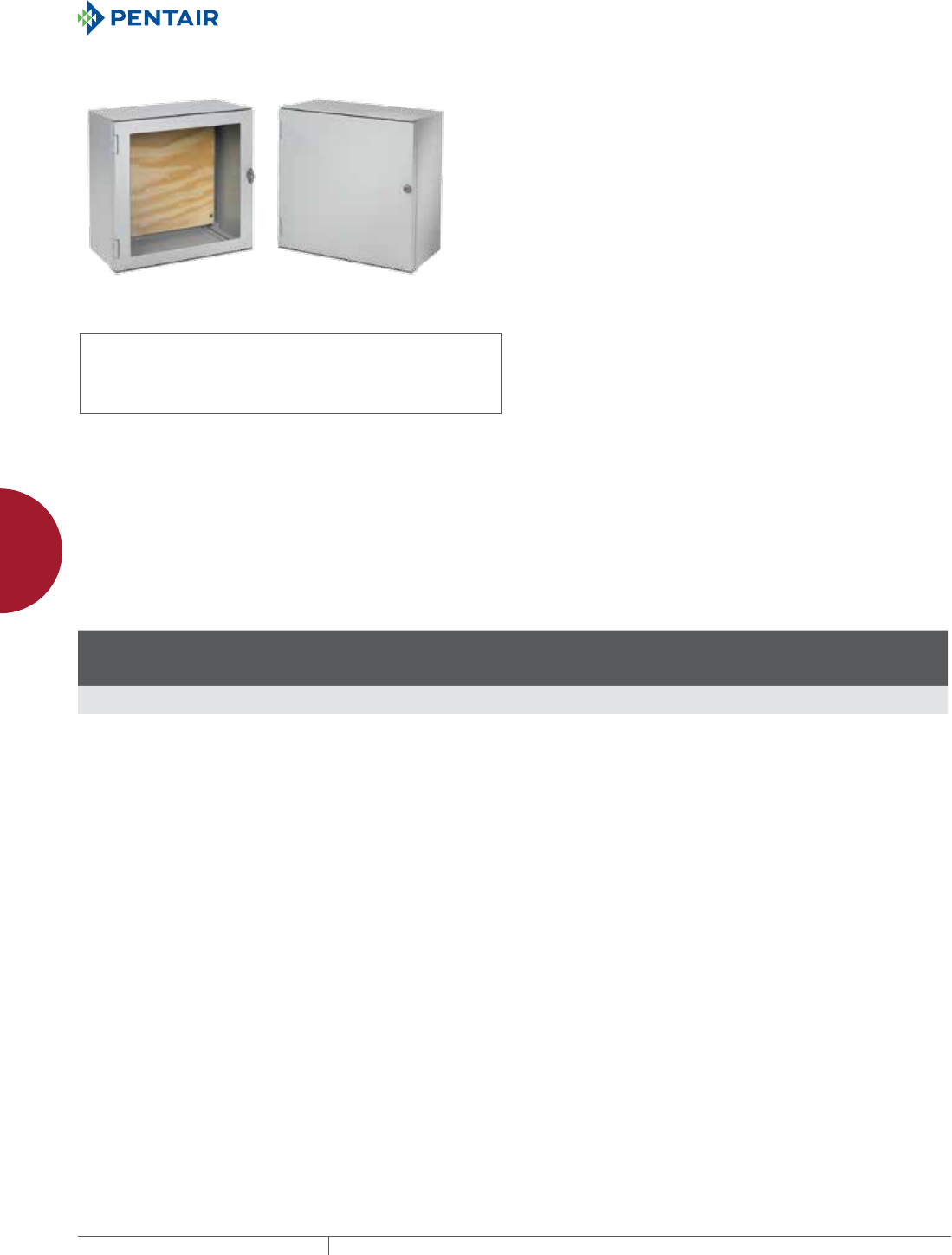

HINGECOVER WIFI, TYPE 4X
INDUSTRY STANDARDS
APPLICATION
FEATURES
SPECIFICATIONS
®
Margard is a trademark of General Electric
FINISH
Bulletin: DWS12
Solid Door
Catalog Number AxBxC in./mm Panel
Panel
D X E
in./mm
Mounting
G x H
in./mm
Overall Size
L x W
in./mm
J
in./mm
K
in./mm
O
in./mm
P
in./mm
Q
in./mm
R
in./mm
T
in./mm
U
in./mm
D664CHSCFGP 6.00 x 6.00 x 4.00
152 x 152 x 102
A6P6WD 4.88 x 4.88
124 x 124
6.94 x 4.00
176 x 102
6.50 x 6.50
165 x 165
3.25
83
1.00
25
4.25
108
4.25
108
5.64
143
5.12
130
.12
3
5.64
143
D16148CHSCFGP 16.00 x 14.00 x 8.00
406 x 356 x 203
A16P14WD 14.75 x 12.88
375 x 327
16.94 x 12.00
430 x 305
16.55 x 14.55
420 x 370
6.23
158
2.08
53
12.25
311
14.25
362
15.56
395
15.12
384
.15
4
13.56
344
D181610CHSCFGP 18.00 x 16.00 x 10.00
457 x 406 x 254
A18P16WD 16.75 x 14.88
425 x 378
18.94 x 14.00
481 x 356
18.58 x 16.58
472 x 421
7.66
195
2.66
68
14.25
362
16.25
413
17.53
445
17.12
435
.16
4
15.53
394
Wood panels included with enclosure. Optional steel panels must be ordered separately.
Window Door
Catalog Number AxBxC in./mm Panel
Panel
D X E
in./mm
Mounting
G x H
in./mm
Overall Size
L x W
in./mm
J
in./mm
K
in./mm
O
in./mm
P
in./mm
Q
in./mm
R
in./mm
T
in./mm
U
in./mm
D664CHSCFGWP 6.00 x 6.00 x 4.00
152 x 152 x 102
A6P6WD 4.88 x 4.88
124 x 124
6.94 x 4.00
176 x 102
6.50 x 6.50
165 x 165
3.25
83
1.00
25
4.25
108
4.25
108
5.64
143
5.12
130
.12
3
5.64
143
D16148CHSCFGWP 16.00 x 14.00 x 8.00
406 x 356 x 203
A16P14WD 14.75 x 12.88
375 x 327
16.94 x 12.00
430 x 305
16.55 x 14.55
420 x 370
6.23
158
2.08
53
12.25
311
14.25
362
15.56
395
15.12
384
.15
4
13.56
344
D181610CHSCFGWP 18.00 x 16.00 x 10.00
457 x 406 x 254
A18P16WD 16.75 x 14.88
425 x 378
18.94 x 14.00
481 x 356
18.58 x 16.58
472 x 421
7.66
195
2.66
68
14.25
362
16.25
413
17.53
445
17.12
435
.16
4
15.53
394

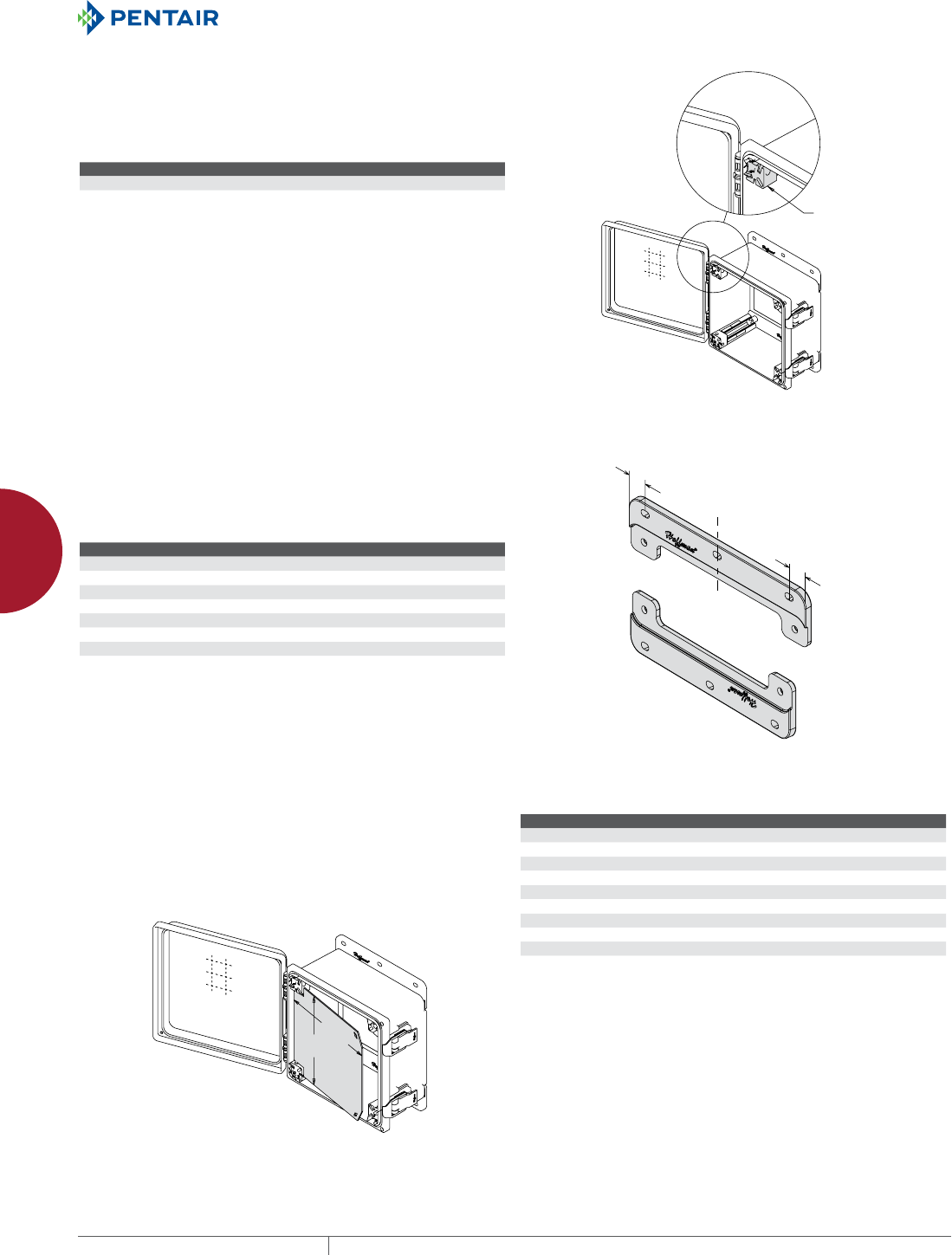

EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC244
3
FIBERGLASS COnTinuOus Hinge
QUICKRELEASE LATCH KIT
Bulletin: A48Y
Catalog Number Description Kit Qty.
AL48 Quick-Release Latch Kit 2
SWINGOUT PANEL KIT
Bulletin: A48Y
Catalog Number
Fits Enclosure
A x B (in.)
Fits Enclosure
A x B (mm)
A6SPK6C 6.00 x 6.00 152 x 152
A8SPK6C 8.00 x 6.00 203 x 152
A10SPK8C 10.00 x 8.00 254 x 203
A12SPK10C 12.00 x 10.00 305 x 254
A16SPK14C 16.00 x 14.00 406 x 356
A18SPK16C 18.00 x 16.00 457 x 406
A14SPK12C 14.00 x 12.00 356 x 305

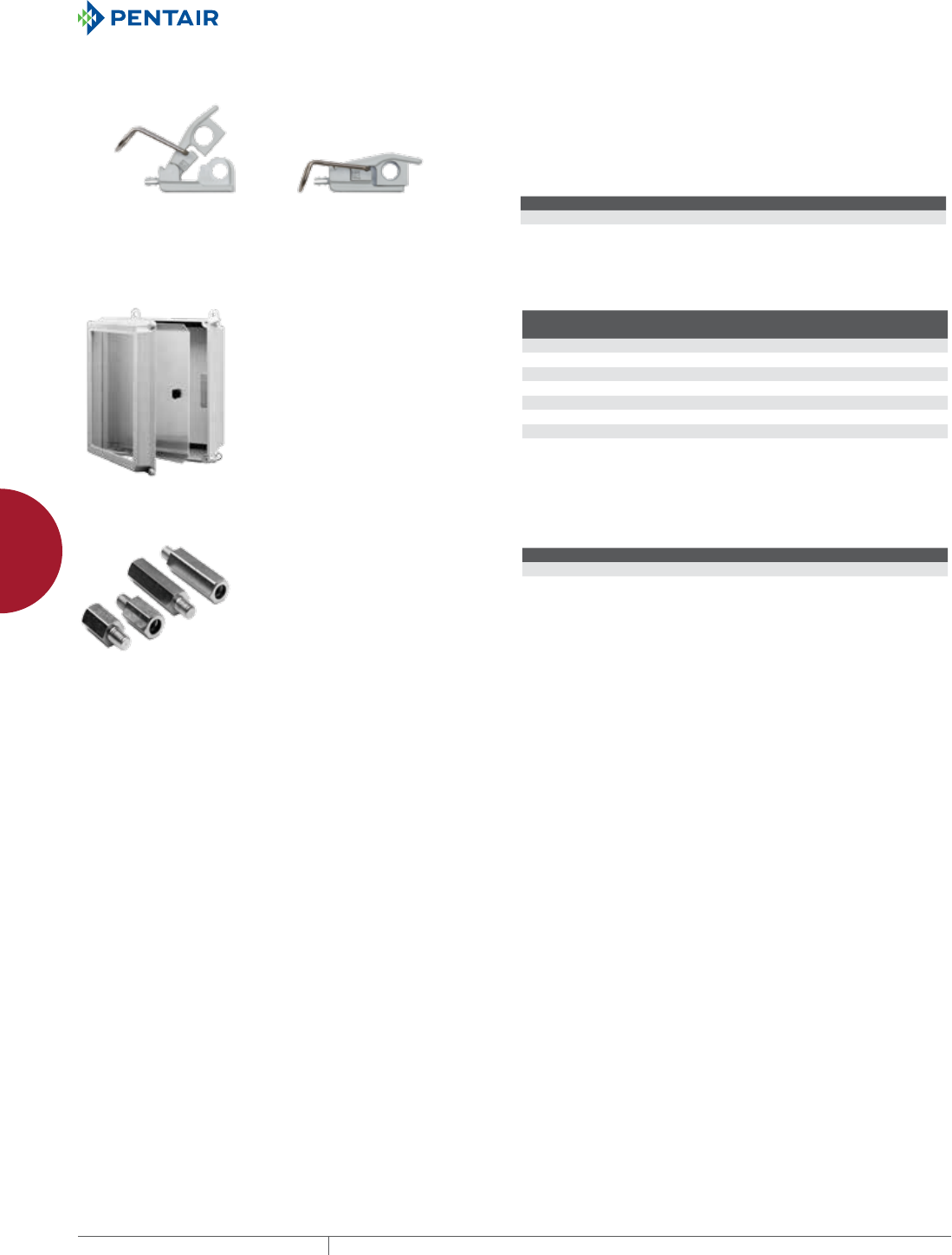

THREADED PANEL EXTENDERS
Bulletin: A80
Catalog Number Length (in.) Length (mm)
APE050 0.50 13
APE100 1.00 25
EQUIPMENT PROTECTION NONMETALLIC 245
3
FIBERGLASS COnTinuOus Hinge

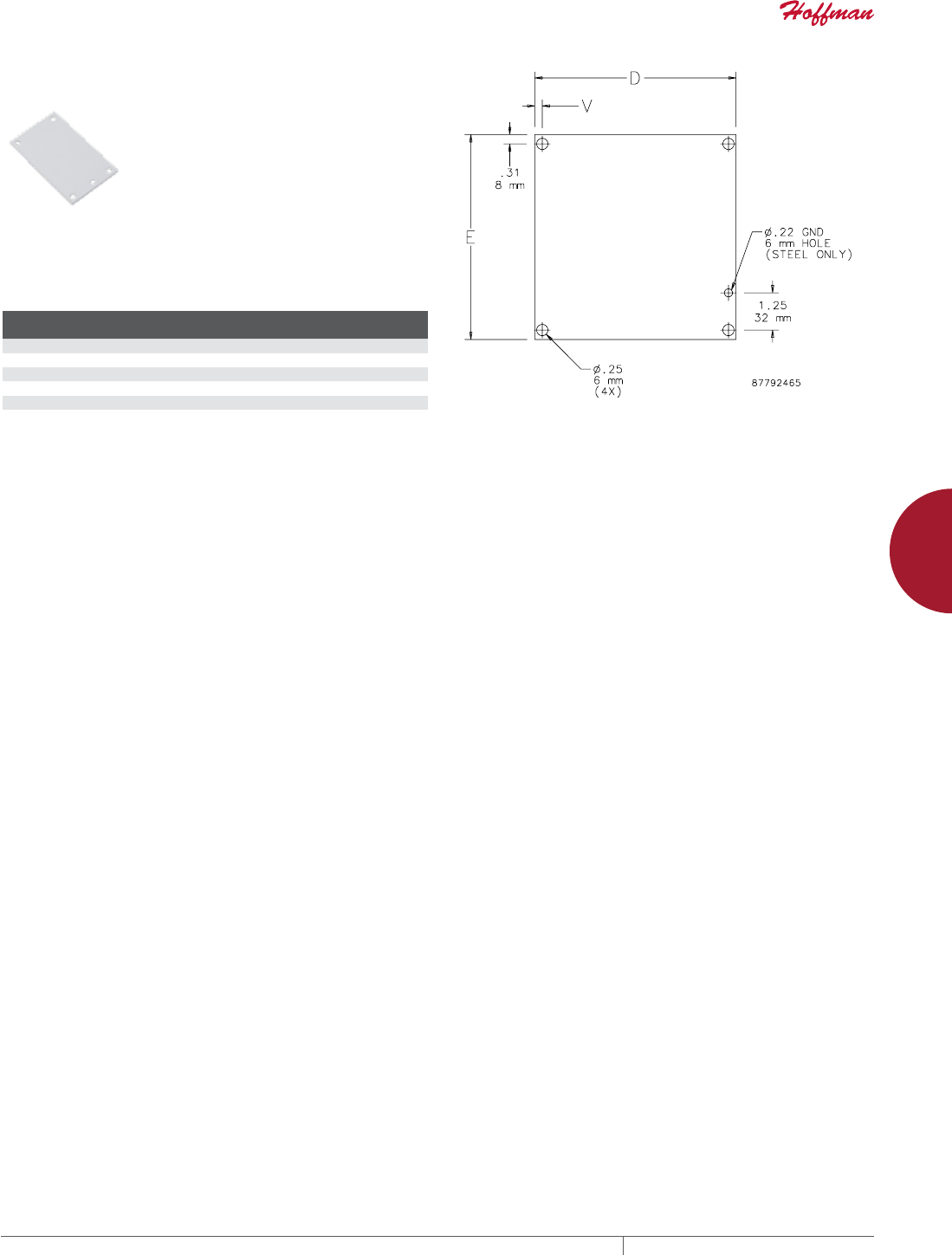

PANELS FOR WIFI CABINETS AND SMALL WALL
MOUNT ENCLOSURES
Bulletin: DWS12, PnlJ, PnlWM
Catalog Number Material
Panel Size
D x E (in.)
Panel Size
D x E (mm) V (in.) V (mm)
A6P6 Steel 4.88 x 4.88 124 x 124 0.31 8
A6P6WD Wood 4.88 x 4.88 124 x 124 0.31 8
A16P14 Steel 14.75 x 12.88 375 x 327 0.25 6
A16P14WD Wood 14.75 x 12.88 375 x 327 0.25 6
A18P16 Steel 16.75 x 14.88 425 x 378 0.25 6
A18P16WD Wood 16.75 x 14.88 425 x 378 0.25 6
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC246
3

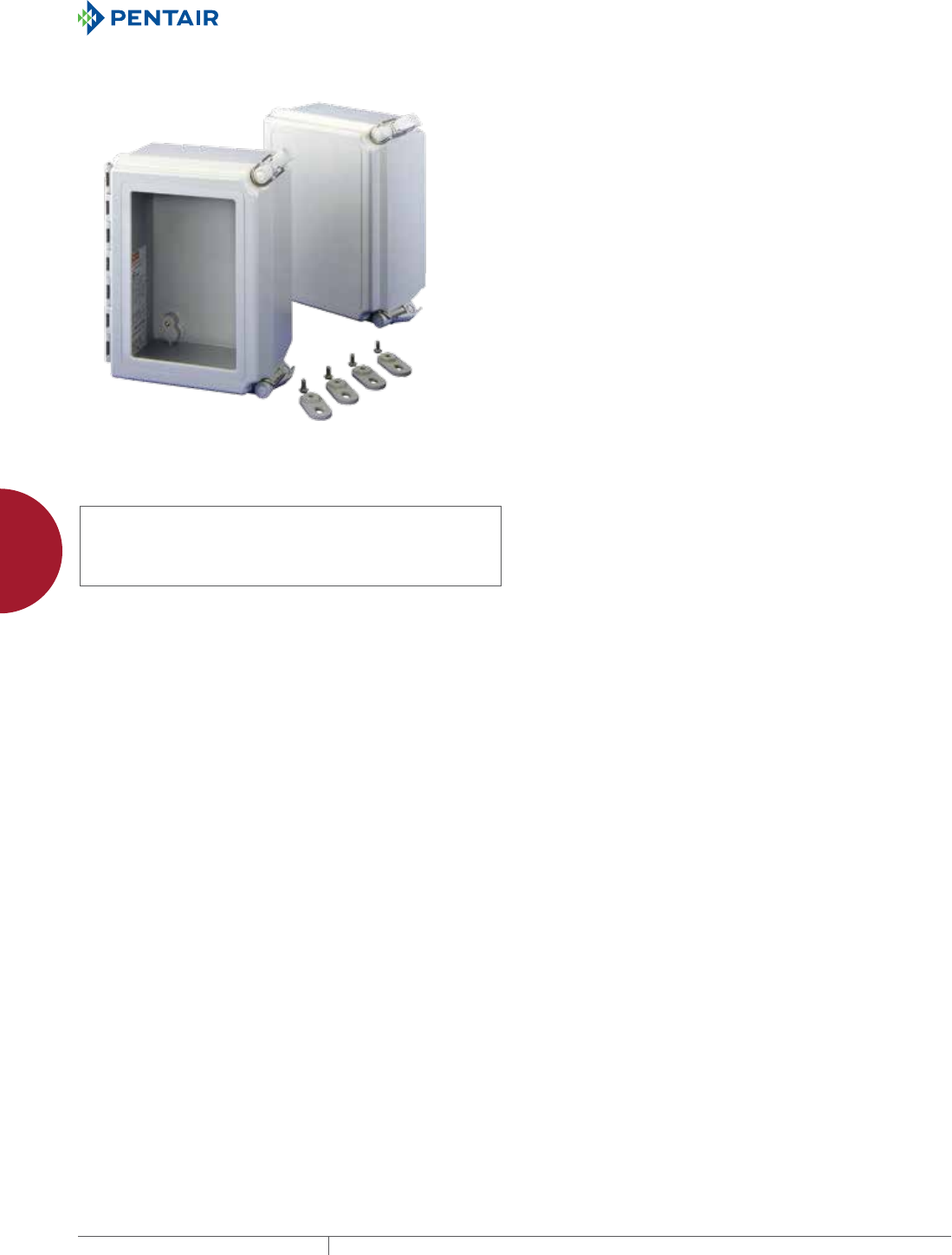

FIBERGLASS sCRew- OR Hinge-COveR wiTH QuiCk-ReLease LaTCH
sCrew- or Hin ge-Cover witH Q uiCk-relea se latCH

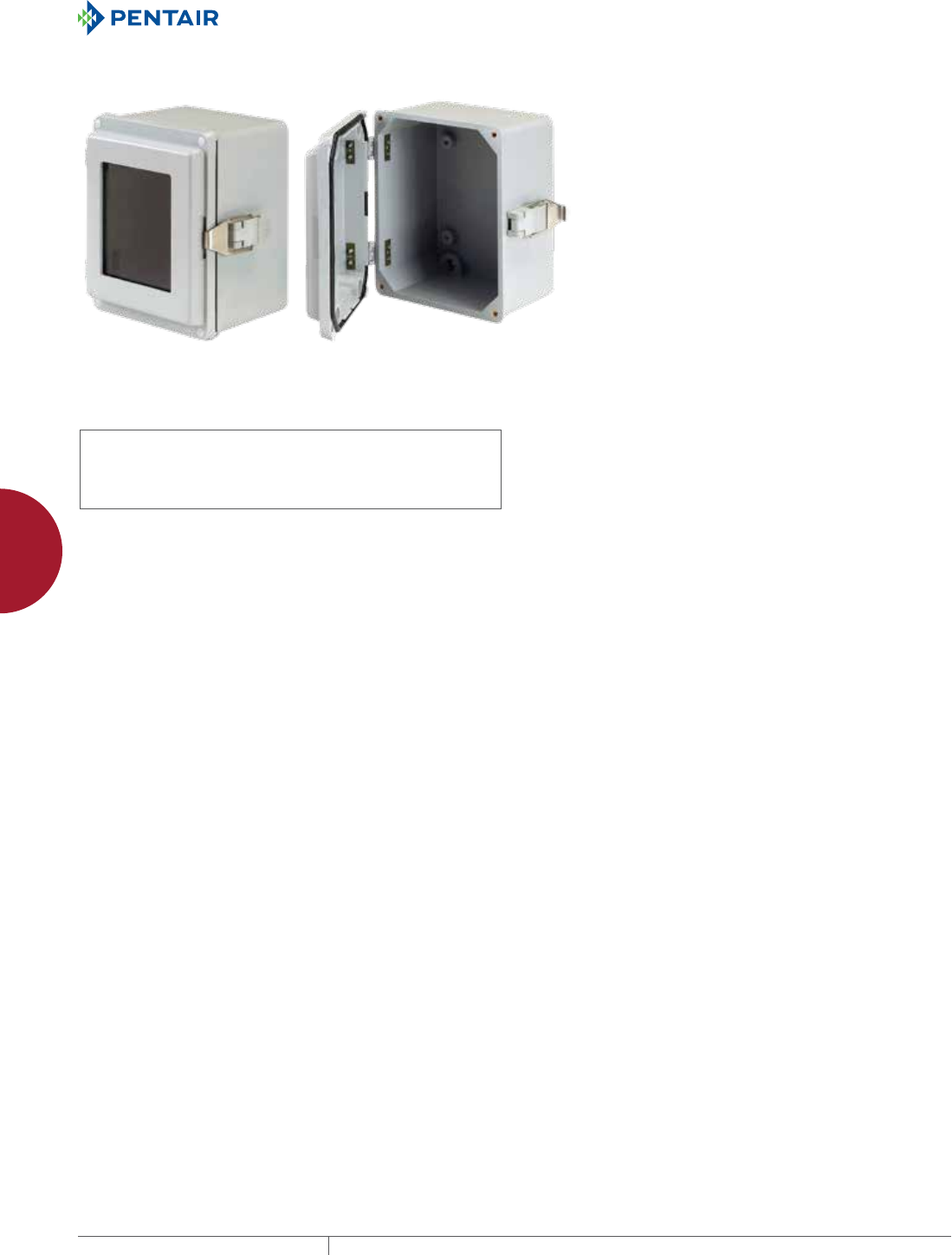

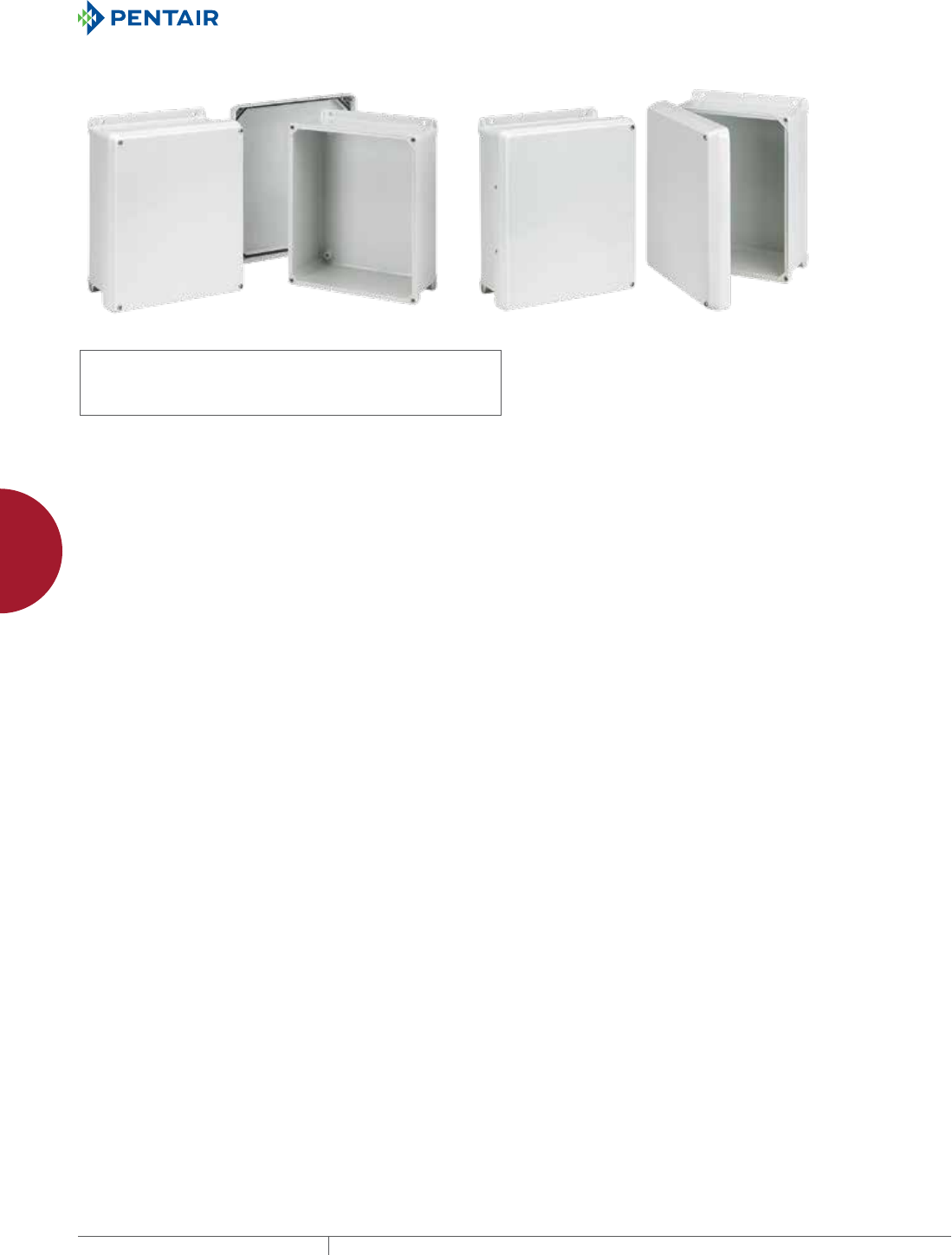

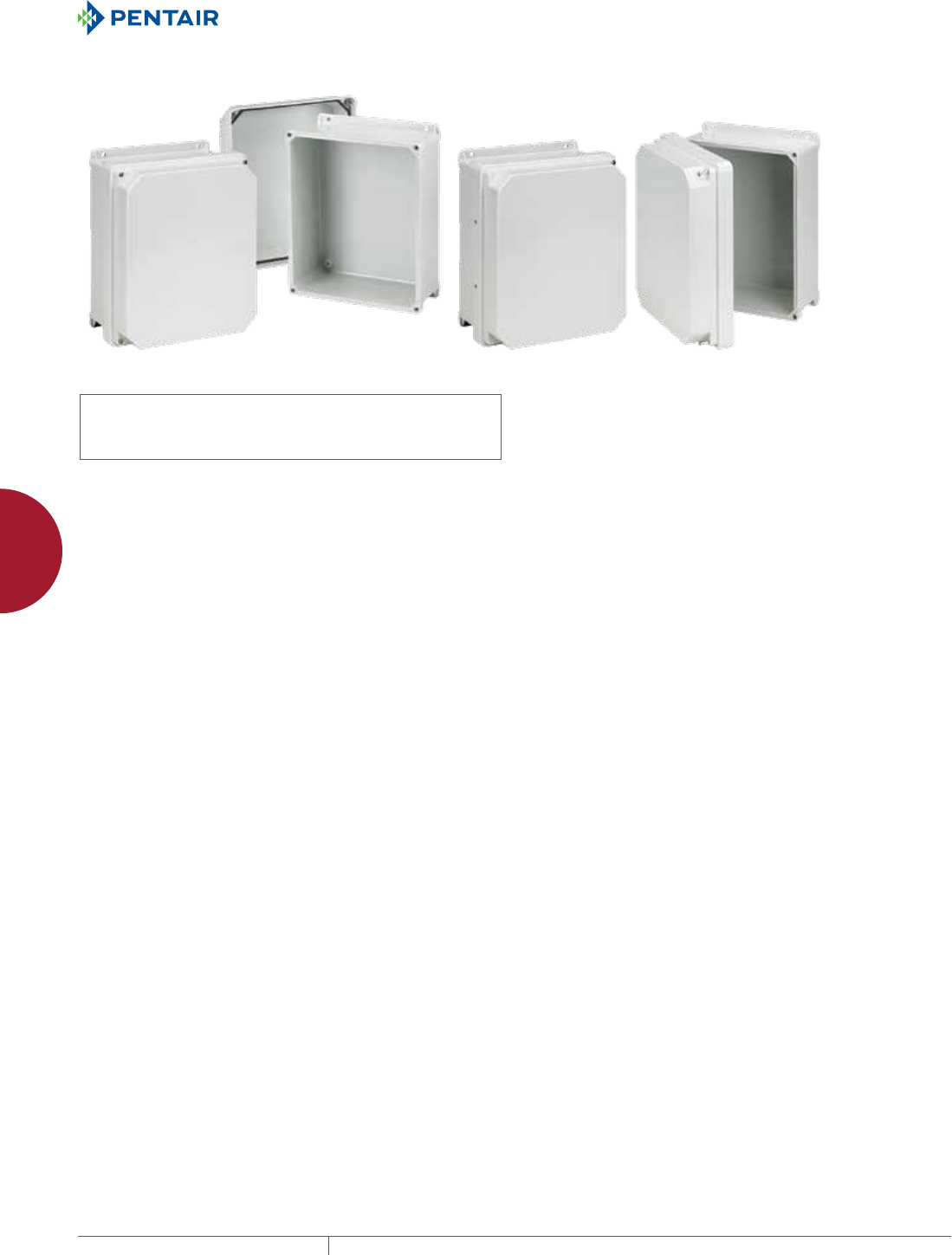

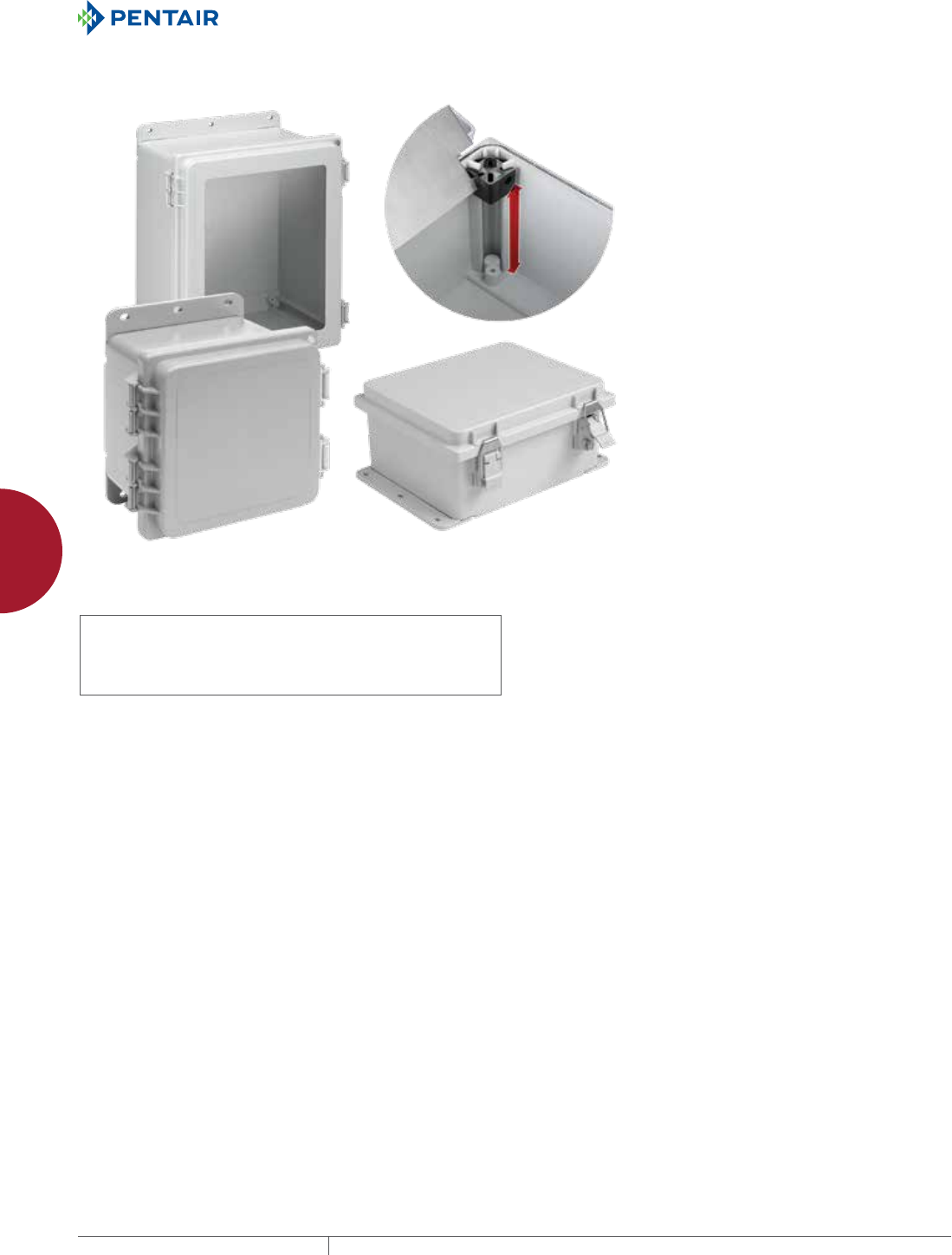

SCREW OR HINGECOVER WITH QUICKRELEASE LATCH, TYPE 4X
INDUSTRY STANDARDS
Mounting brackets required to meet UL/CSA external mounting
requirements.
Meets NEMA Type 3RX requirements
APPLICATION
SPECIFICATIONS
FINISH
ACCESSORIES
See also Accessories.
MODIFICATION AND CUSTOMIZATION
Bulletin: A50
EQUIPMENT PROTECTION NONMETALLIC 247
3
FIBERGLASS sCRew- OR Hinge-COveR wiTH QuiCk-ReLease LaTCH

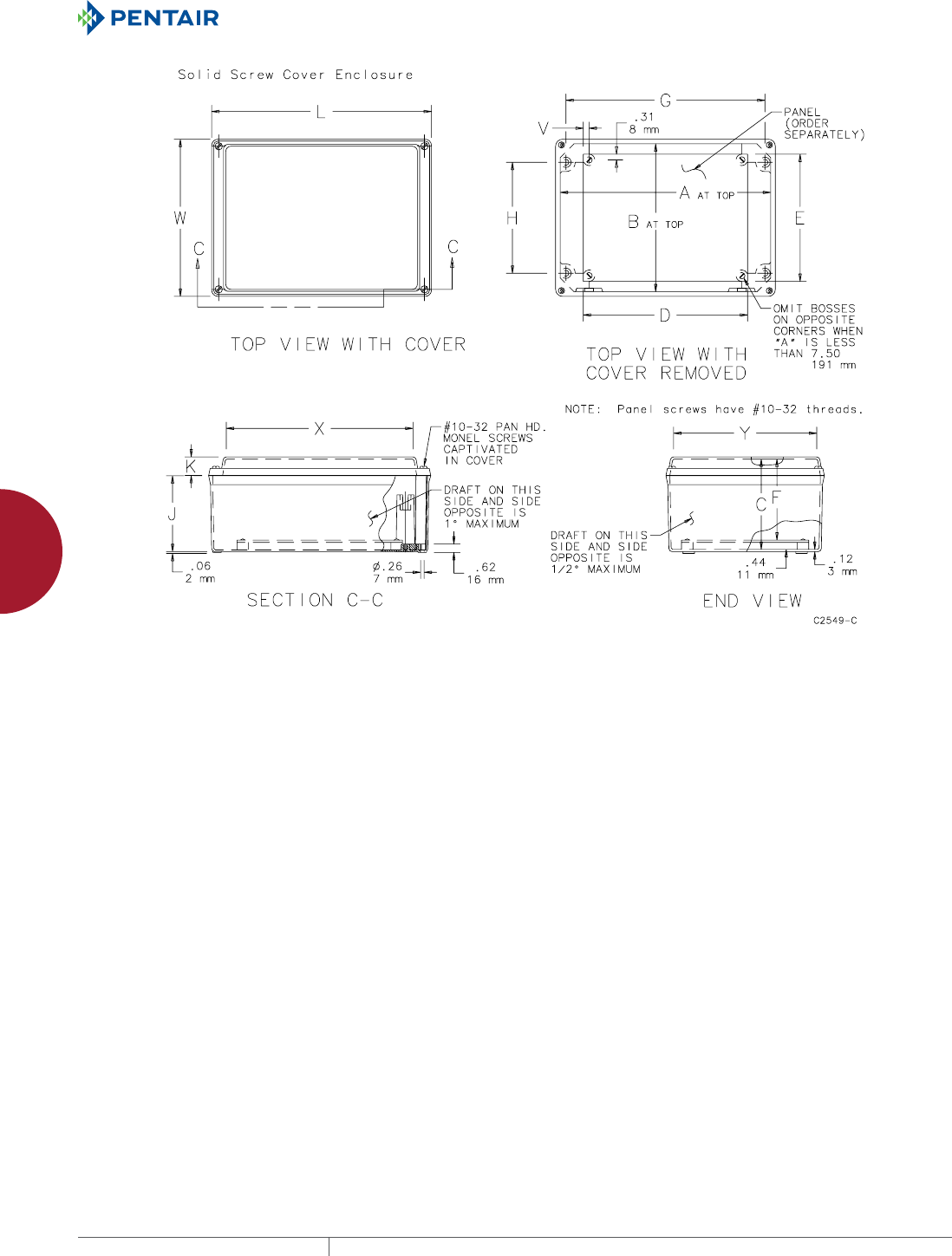

Solid Cover with Screws
Catalog Number AxBxC in./mm
Inside Dimensions
A x B x C
in./mm
Steel
Panel
Aluminum
Panel
Panel Size
D x E
in./mm
Mounting
G x H
in./mm
Overall
L x W
in./mm
F
in./mm
J
in./mm
K
in./mm
V
in./mm
X
in./mm
Y
in./mm
A645JFGR 6.00 x 4.00 x 5.00
152 x 102 x 127
5.50 x 4.00 x 4.94
140 x 102 x 125
No Panel No Panel No Panel
No Panel
4.75 x 2.00
121 x 51
6.00 x 4.50
152 x 114
4.41
112
4.13
105
1.00
25
--
--
4.22
107
3.59
91
A845JFGR 8.00 x 4.00 x 5.00
203 x 102 x 127
7.50 x 4.00 x 4.94
191 x 102 x 125
A6P4 A6P4AL 4.88 x 2.88
124 x 73
6.75 x 2.00
171 x 51
8.00 x 4.50
203 x 114
4.41
112
4.13
105
1.00
25
0.31
8
6.22
158
3.59
91
A865JFGR 8.00 x 6.00 x 5.00
203 x 152 x 127
7.50 x 6.00 x 5.19
191 x 152 x 132
A6P6 A6P6AL 4.88 x 4.88
124 x 124
6.75 x 4.00
171 x 102
8.00 x 6.50
203 x 165
4.66
118
4.38
111
1.00
25
0.31
8
6.22
158
5.59
142
A1066JFGR 10.00 x 6.00 x 6.00
254 x 152 x 152
9.50 x 6.00 x 5.69
241 x 152 x 145
A8P6 A8P6AL 6.75 x 4.88
171 x 124
8.75 x 4.00
222 x 102
10.00 x 6.50
254 x 165
5.16
131
4.63
118
1.25
32
0.25
6
8.12
206
5.50
140
A1287JFGR 12.00 x 8.00 x 7.00
305 x 203 x 178
11.50 x 8.00 x 6.69
292 x 203 x 170
A10P8 A10P8AL 8.75 x 6.88
222 x 175
10.75 x 6.00
273 x 152
12.00 x 8.50
305 x 216
6.16
156
5.13
130
1.75
44
0.25
6
9.97
253
7.34
186
A14107JFGR 14.00 x 10.00 x 7.00
356 x 254 x 178
13.50 x 10.00 x 7.19
343 x 254 x 183
A12P10 A12P10AL 10.75 x 8.88
273 x 226
12.75 x 8.00
324 x 203
14.00 x 10.50
356 x 267
6.66
169
5.63
143
1.75
44
0.25
6
11.97
304
9.34
237
A16128JFGR 16.00 x 12.00 x 8.00
406 x 305 x 203
15.50 x 12.00 x 8.19
394 x 305 x 208
A14P12 A14P12AL 12.75 x 10.88
324 x 276
14.75 x 10.00
375 x 254
16.00 x 12.50
406 x 318
7.66
195
6.13
156
2.25
57
0.25
6
13.78
350
11.16
283
A18149JFGR 18.00 x 14.00 x 9.00
457 x 356 x 229
17.50 x 14.00 x 8.69
445 x 356 x 221
A16P14 A16P14AL 14.75 x 12.88
375 x 327
16.75 x 12.00
425 x 305
18.00 x 14.50
457 x 368
8.16
207
6.63
168
2.25
57
0.25
6
15.78
401
13.16
334
Purchase panels separately. Optional stainless steel, aluminum and composite material panels available for most sizes.
Solid Cover with Quick-Release Latches
Catalog Number AxBxC in./mm
Inside Dimensions
A x B x C
in./mm
Steel
Panel
Aluminum
Panel
Panel Size
D x E
in./mm
Mounting
G x H
in./mm
Overall
L x W
in./mm
F
in./mm
J
in./mm
K
in./mm
V
in./mm
X
in./mm
Y
in./mm Number of Latches
A645JFGQRR 6.00 x 4.00 x 5.00
152 x 102 x 127
5.50 x 4.00 x 5.02
140 x 102 x 128
No Panel No Panel No Panel
No Panel
4.75 x 2.00
121 x 51
6.00 x 5.39
152 x 137
4.50
114
4.13
105
1.00
25
--
--
4.22
107
3.59
91
1
A845JFGQRR 8.00 x 4.00 x 5.00
203 x 102 x 127
7.50 x 4.00 x 5.02
191 x 102 x 128
A6P4 A6P4AL 4.88 x 2.88
124 x 73
6.75 x 2.00
171 x 51
8.00 x 5.39
203 x 137
4.50
114
4.13
105
1.00
25
0.31
8
6.22
158
3.59
91
1
A865JFGQRR 8.00 x 6.00 x 5.00
203 x 152 x 127
7.50 x 6.00 x 5.28
191 x 152 x 134
A6P6 A6P6AL 4.88 x 4.88
124 x 124
6.75 x 4.00
171 x 102
8.00 x 7.39
203 x 188
4.75
121
4.38
111
1.00
25
0.31
8
6.22
158
5.59
142
2
A1066JFGQRR 10.00 x 6.00 x 6.00
254 x 152 x 152
9.50 x 6.00 x 5.78
241 x 152 x 147
A8P6 A8P6AL 6.75 x 4.88
171 x 124
8.75 x 4.00
222 x 102
10.00 x 7.39
254 x 188
5.25
133
4.63
118
1.25
32
0.25
6
8.12
206
5.50
140
2
A1287JFGQRR 12.00 x 8.00 x 7.00
305 x 203 x 178
11.50 x 8.00 x 6.78
292 x 203 x 172
A10P8 A10P8AL 8.75 x 6.88
222 x 175
10.75 x 6.00
273 x 152
12.00 x 9.39
305 x 239
6.25
159
5.13
130
1.75
44
0.25
6
9.97
253
7.34
186
2
A14107JFGQRR 14.00 x 10.00 x 7.00
356 x 254 x 178
13.50 x 10.00 x 7.28
343 x 254 x 185
A12P10 A12P10AL 10.75 x 8.88
273 x 226
12.75 x 8.00
324 x 203
14.00 x 11.39
256 x 289
6.75
171
5.63
143
1.75
44
0.25
6
11.97
304
9.34
237
2
A16128JFGQRR 16.00 x 12.00 x 8.00
406 x 305 x 203
15.50 x 12.00 x 8.28
394 x 305 x 210
A14P12 A14P12AL 12.75 x 10.88
324 x 276
14.75 x 10.00
375 x 254
16.00 x 13.39
406 x 340
7.75
197
6.13
156
2.25
57
0.25
6
13.78
350
11.16
283
2
A18149JFGQRR 18.00 x 14.00 x 9.00
457 x 356 x 229
17.50 x 14.00 x 8.78
445 x 356 x 223
A16P14 A16P14AL 14.75 x 12.88
375 x 327
16.75 x 12.00
425 x 305
18.00 x 15.39
457 x 391
8.25
210
6.63
168
2.25
57
0.25
6
15.78
401
13.16
334
2
Purchase panels separately. Optional stainless steel, aluminum and composite material panels available for most sizes.
Window Cover with Quick-Release Latches
Catalog Number AxBxC in./mm
Inside Dimensions
A x B x C
in./mm
Steel
Panel
Aluminum
Panel
Panel Size
D x E
in./mm
Mounting
G x H
in./mm
Overall
L x W
in./mm
Window Size
M x N
in./mm
F
in./mm
J
in./mm
K
in./mm
V
in./mm Number of Latches
A865JFGQRPWR 8.00 x 6.00 x 5.00
203 x 152 x 127
7.50 x 6.00 x 5.03
191 x 152 x 128
A6P6 A6P6AL 4.88 x 4.88
124 x 124
6.75 x 4.00
171 x 102
8.00 x 7.39
203 x 188
4.55 x 4.00
116 x 102
4.52
115
4.38
111
1.00
25
0.31
8
1
A1066JFGQRPWR 10.00 x 6.00 x 6.00
254 x 152 x 152
9.50 x 6.00 x 5.53
241 x 152 x 140
A8P6 A8P6AL 6.75 x 4.88
171 x 124
8.75 x 4.00
222 x 102
10.00 x 7.39
254 x 188
6.55 x 4.00
166 x 102
5.00
127
4.63
118
1.25
32
0.25
6
2
A1287JFGQRPWR 12.00 x 8.00 x 7.00
305 x 203 x 178
11.50 x 8.00 x 6.53
292 x 203 x 166
A10P8 A10P8AL 8.75 x 6.88
222 x 175
10.75 x 6.00
273 x 152
12.00 x 9.39
305 x 239
8.25 x 5.84
210 x 148
6.00
152
5.13
130
1.75
44
0.25
6
2
A14107JFGQRPWR 14.00 x 10.00 x 7.00
356 x 254 x 178
13.50 x 10.00 x 7.03
343 x 254 x 179
A12P10 A12P10AL 10.75 x 8.88
273 x 226
12.75 x 8.00
324 x 203
14.00 x 11.39
253 x 289
10.28 x 6.84
261 x 174
6.52
166
5.63
143
1.75
44
0.25
6
2
A16128JFGQRPWR 16.00 x 12.00 x 8.00
406 x 305 x 203
15.50 x 12.00 x 8.03
394 x 305 x 204
A14P12 A14P12AL 12.75 x 10.88
324 x 276
14.75 x 10.00
375 x 254
16.00 x 13.39
406 x 340
12.34 x 9.10
313 x 231
7.52
191
6.13
156
2.25
57
0.25
6
2
A18149JFGQRPWR 18.00 x 14.00 x 9.00
457 x 356 x 229
17.50 x 14.00 x 8.53
445 x 356 x 217
A16P14 A16P14AL 14.75 x 12.88
375 x 327
16.75 x 12.00
425 x 305
18.00 x 15.39
457 x 391
14.45 x 11.06
367 x 281
8.00
203
6.63
168
2.25
57
0.25
6
2
Purchase panels separately. Optional stainless steel, aluminum and composite material panels available for most sizes.
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC248
3

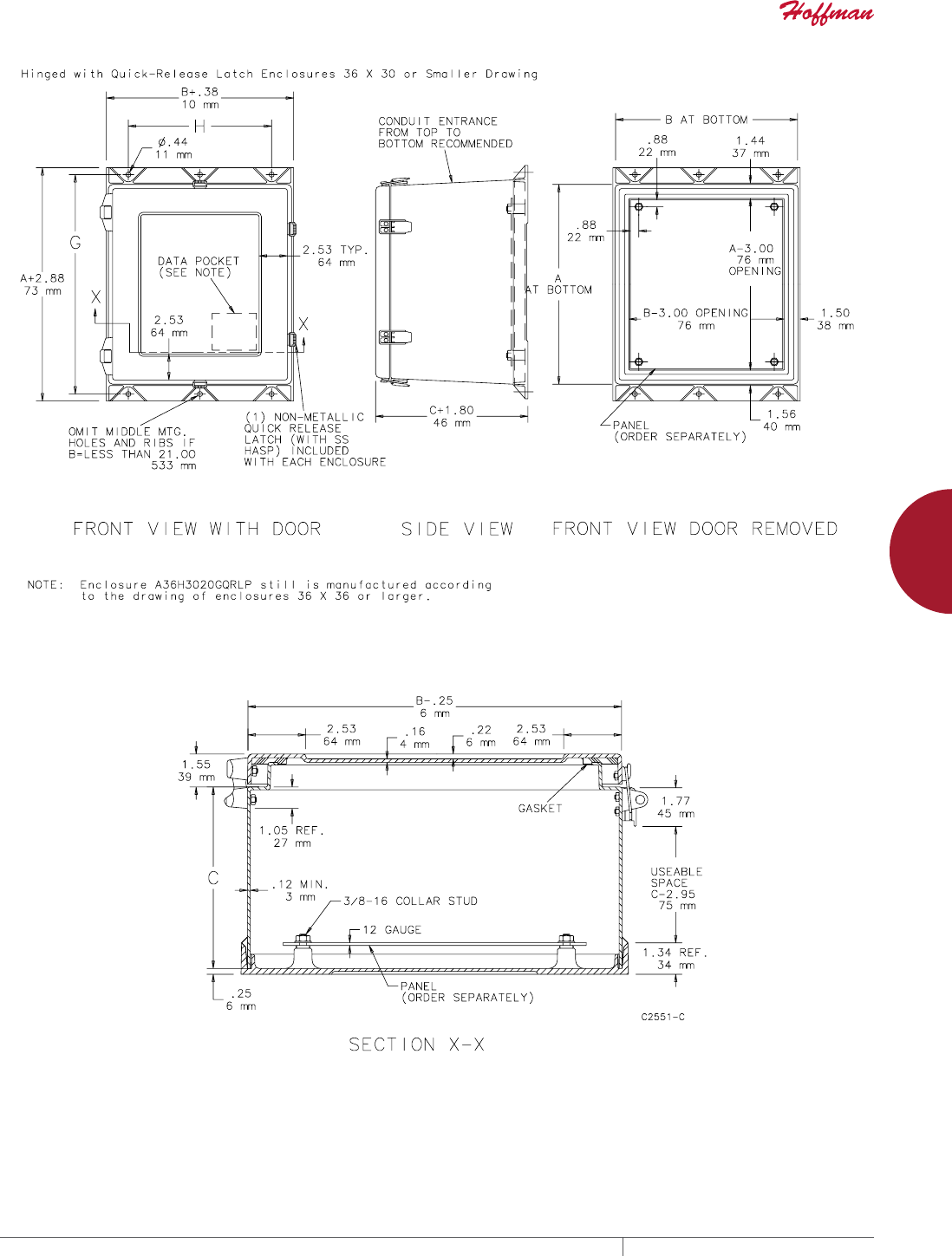

FIBERGLASS sCRew- OR Hinge-COveR wiTH QuiCk-ReLease LaTCH
EQUIPMENT PROTECTION NONMETALLIC 249
3
FIBERGLASS sCRew- OR Hinge-COveR wiTH QuiCk-ReLease LaTCH
FIBERGLASS MOUNTING BRACKET KIT
See Screw- or Hinged-Cover with Quick-Release Latch, Type 4X tables
for G and H dimensions.
Bulletin: A50Y
Catalog Number
A50MFKR
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC250
3
FIBERGLASS OveRLaPPing COveR
overlaPPing Cover
RAISED COVER WITH SCREWS, TYPE 4X
INDUSTRY STANDARDS
Meets NEMA Type 3RX requirements
APPLICATION
SPECIFICATIONS
FINISH
ACCESSORIES
See also Accessories.
MODIFICATION AND CUSTOMIZATION
Bulletin: HJ
EQUIPMENT PROTECTION NONMETALLIC 251
3
FIBERGLASS OveRLaPPing COveR
Catalog Number AxBxC in./mm
Door
Fasteners
D
in./mm
F
in./mm
G
in./mm
H
in./mm
I
in./mm
J
in./mm
K
in./mm
L
in./mm
P
in./mm
Q
in./mm
W
in./mm
Steel
Panel
Alum
Panel
Panel
Size
in./mm
RHJ1008HWLG 9.70 x 7.71 x 5.91
246 x 196 x 150
Hinged,
2 screws
6.86
174
6.49
165
10.75
273
6.00
152
11.51
292
4.50
114
3.15
80
11.22
285
8.25
210
6.25
159
9.22
234
A10P8 A10P8AL 8.75 x 6.88
222 x 102
RHJ1008WLG 9.70 x 7.71 x 5.91
246 x 196 x 150
4 screws 6.86
174
6.49
165
10.75
273
6.00
152
11.51
292
4.50
114
3.15
80
11.22
285
8.25
210
6.25
159
9.22
234
A10P8 A10P8AL 8.75 x 6.88
222 x 102
RHJ1210HWLG 11.68 x 9.69 x 6.16
296 x 246 x 156
Hinged,
2 screws
7.05
179
6.73
171
12.75
324
6.00
152
13.51
343
4.66
118
3.15
80
13.22
336
10.25
260
8.25
210
11.22
285
A12P10 A12P10AL 10.75 x 8.88
273 x 226
RHJ1210WLG 11.68 x 9.69 x 6.16
296 x 246 x 156
4 screws 7.05
179
6.73
171
12.75
324
6.00
152
13.51
343
4.66
118
3.15
80
13.22
338
10.25
260
8.25
210
11.22
285
A12P10 A12P10AL 10.75 x 8.88
273 x 226
RHJ1412HWLG 13.62 x 11.62 x 7.24
346 x 295 x 184
Hinged,
2 screws
8.13
207
7.81
194
14.75
375
10.00
254
15.51
394
5.63
143
3.25
82
15.22
387
12.25
311
10.25
260
13.22
336
A14P12 A14P12AL 12.75 x 10.88
324 x 276
RHJ1412WLG 13.62 x 11.62 x 7.24
346 x 295 x 184
4 screws 8.13
207
7.81
194
14.75
375
10.00
254
15.51
394
5.63
143
3.25
82
15.22
387
12.25
311
10.25
260
13.22
336
A14P12 A14P12AL 12.75 x 10.88
324 x 276
RHJ1614HWLG 15.62 x 13.62 x 7.24
396 x 346 x 184
Hinged,
2 screws
8.13
207
7.81
194
16.75
425
12.00
305
17.51
445
5.63
143
3.25
82
17.22
437
14.25
362
12.25
311
15.22
386
A16P14 A16P14AL 14.75 x 12.88
375 x 327
RHJ1614WLG 15.62 x 13.62 x 7.24
396 x 346 x 184
4 screws 8.13
207
7.81
194
16.75
425
12.00
305
17.51
445
5.63
143
3.25
82
17.22
437
14.25
362
12.24
311
15.30
289
A16P14 A16P14AL 14.75 x 12.88
375 x 327
RHJ1816HWLG 17.48 x 15.77 x 9.44
444 x 400 x 240
Hinged,
2 screws
10.25
260
10.01
254
18.75
476
12.00
305
19.51
496
7.76
197
3.25
82
19.22
488
16.25
413
14.25
362
17.22
437
A18P16 A18P16AL 16.75 x 14.88
425 x 378
RHJ1816WLG 17.48 x 15.77 x 9.44
444 x 400 x 240
4 screws 10.25
260
10.01
254
18.75
476
12.00
305
19.51
496
7.76
197
3.25
82
19.22
488
16.25
413
14.25
362
17.22
437
A18P16 A18P16AL 16.75 x 14.88
425 x 378
A x B x C are internal dimensions.
Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC252
3
FIBERGLASS OveRLaPPing COveR
RAISED COVER WITH LATCHES, TYPE 4X
INDUSTRY STANDARDS
Meets NEMA Type 3RX requirements
APPLICATION
SPECIFICATIONS
FINISH
ACCESSORIES
See also Accessories.
MODIFICATION AND CUSTOMIZATION
Bulletin: HJ
Catalog Number AxBxC in./mm
No. of
Latches
Window
Size
M x N
in./mm
D
in./mm
F
in./mm
G
in./mm
H
in./mm
I
in./mm
J
in./mm
K
in./mm
L
in./mm
P
in./mm
Q
in./mm
W
in./mm
RHJB1008HWPL1LG 9.70 x 7.71 x 5.91
246 x 196 x 150
1 8.00 x 6.00
203 x 152
6.86
174
6.49
165
10.75
273
6.00
152
11.51
292
4.50
114
3.15
80
11.22
285
8.25
210
6.25
159
9.22
234
RHJB1210HWPL2LG 11.68 x 9.69 x 6.16
296 x 246 x 156
2 10.00 x 8.00
254 x 203
7.05
179
6.73
171
12.75
324
8.00
203
13.51
343
4.66
118
3.15
80
13.22
336
10.25
260
8.25
210
11.22
285
RHJB1412HWPL2LG 13.62 x 11.62 x 7.24
346 x 295 x 184
2 12.00 x 10.00
305 x 254
8.13
207
7.81
194
14.75
375
10.00
254
15.50
394
5.63
143
3.25
82
15.32
387
12.25
311
10.25
260
13.22
336
RHJB1614HWPL2LG 15.62 x 13.62 x 7.24
396 x 346 x 184
2 14.00 x 12.00
356 x 305
8.13
207
7.81
194
16.75
425
12.00
305
17.51
445
5.63
143
3.25
82
17.22
437
14.25
362
12.25
311
15.22
386
RHJ1008HWPL1LG 9.70 x 7.71 x 5.91
246 x 196 x 150
1 ---
---
6.86
174
6.49
165
10.75
273
6.00
152
11.51
292
4.50
114
3.15
80
11.22
285
8.25
210
6.25
159
9.22
234
RHJ1210HWPL2LG 11.68 x 9.69 x 6.16
296 x 246 x 156
2 ---
---
7.05
179
6.73
171
12.75
324
6.00
152
13.51
343
4.66
118
3.15
80
13.22
336
10.25
260
8.25
210
11.22
285
RHJ1412HWPL2LG 13.62 x 11.62 x 7.24
346 x 295 x 184
2 ---
---
8.13
207
7.81
194
14.75
375
10.00
254
15.51
394
5.63
143
3.25
82
15.22
387
12.25
311
10.25
260
13.22
336
RHJ1614HWPL2LG 15.62 x 13.62 x 7.24
396 x 346 x 184
2 ---
---
8.13
207
7.81
194
16.75
425
12.00
305
17.51
445
5.63
143
3.25
82
17.22
437
14.25
362
12.25
311
15.22
386
RHJ1816HWPL2LG 17.48 x 15.77 x 9.44
444 x 400 x 240
2 ---
---
10.25
260
10.01
254
18.74
476
12.00
305
19.51
496
7.76
197
3.25
82
19.22
488
16.25
413
14.25
3.62
17.22
437
A x B x C are internal dimensions.
Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.
EQUIPMENT PROTECTION NONMETALLIC 253
3
FIBERGLASS OveRLaPPing COveR
Panels
Enclosure Catalog Number Steel Panel Aluminum Panel
Panel Size
in./mm
RHJB1008HWPL1LG A10P8 A10P8AL 8.75 x 6.88
222 x 102
RHJB1210HWPL2LG A12P10 A12P10AL 10.75 x 8.88
273 x 226
RHJB1412HWPL2LG A14P12 A14P12AL 12.75 x 10.88
324 x 276
RHJB1614HWPL2LG A16P14 A16P14AL 14.75 x 12.88
375 x 327
RHJ1008HWPL1LG A10P8 A10P8AL 8.75 x 6.88
222 x 102
RHJ1210HWPL2LG A12P10 A12P10AL 10.75 x 8.88
273 x 226
RHJ1412HWPL2LG A14P12 A14P12AL 12.75 x 10.88
324 x 276
RHJ1614HWPL2LG A16P14 A16P14AL 14.75 x 12.88
375 x 327
RHJ1816HWPL2LG A18P16 A18P16AL 16.75 x 14.88
425 x 378
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC254
3
FIBERGLASS OveRLaPPing COveR

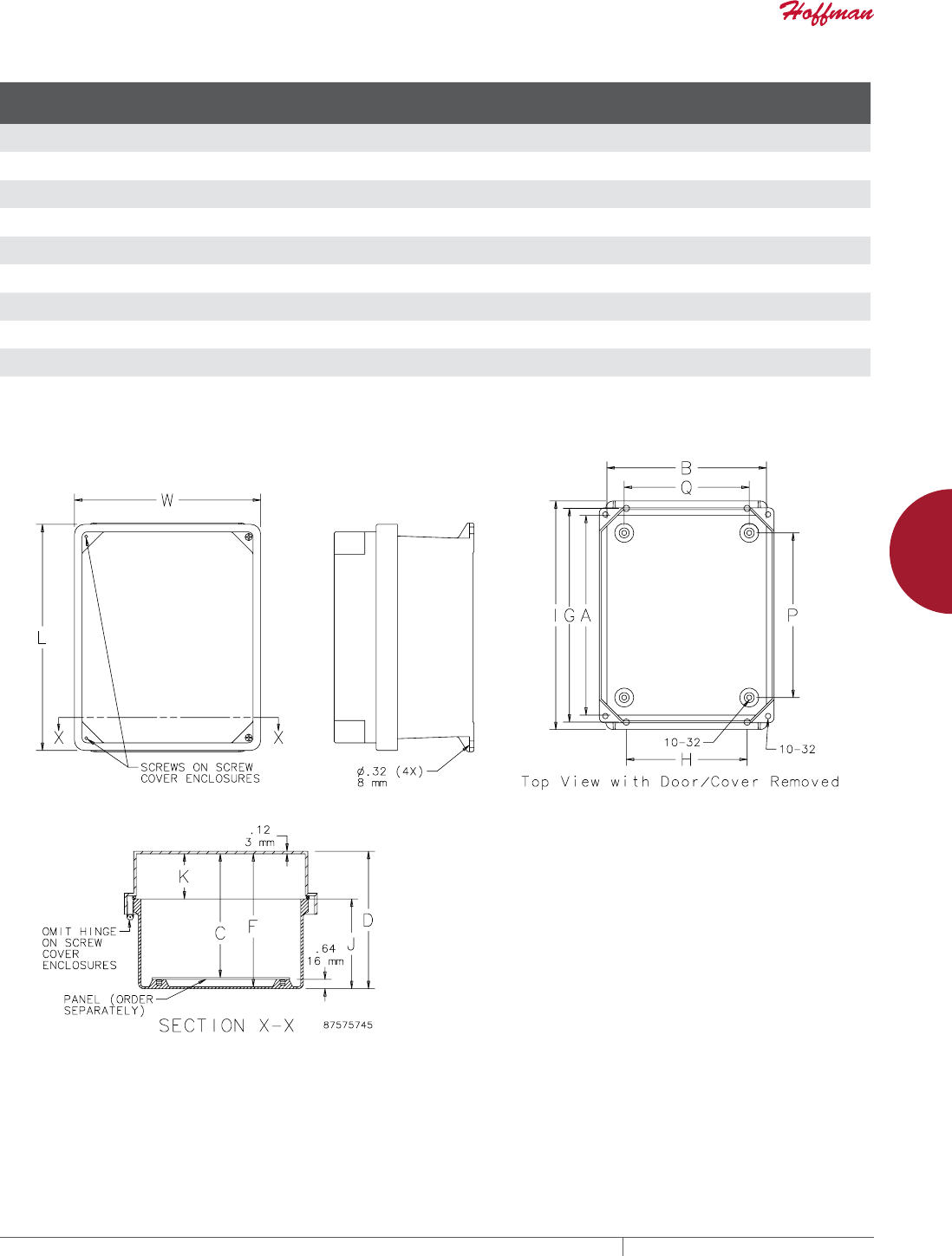

FLAT COVER WITH SCREWS, TYPE 4X
INDUSTRY STANDARDS
Meets NEMA Type 3RX requirements
APPLICATION
SPECIFICATIONS
FINISH
ACCESSORIES
See also Accessories.
Bulletin: HJ
EQUIPMENT PROTECTION NONMETALLIC 255
3
FIBERGLASS OveRLaPPing COveR
Catalog Number AxBxC in./mm
Door
Fasteners
D
in./mm
F
in./mm
G
in./mm
H
in./mm
I
in./mm
J
in./mm
K
in./mm
L
in./mm
P
in./mm
Q
in./mm
W
in./mm
Steel
Panel
Aluminum
Panel
Panel
Size
in./mm
HJ606HWLG 5.71 x 5.72 x 4.05
145 x 145 x 103
Hinged,
2 screws
4.90
125
4.62
118
6.75
171
4.00
102
7.51
191
4.28
109
1.38
35
6.00
152
4.25
108
4.25
108
5.97
152
A6P6 A6P6AL 4.88 x 4.88
124 x 124
HJ606WLG 5.71 x 5.72 x 4.05
145 x 145 x 103
4 screws 4.90
125
4.62
118
6.75
171
4.00
102
7.51
191
4.28
109
1.38
35
6.00
152
4.25
108
4.25
108
5.97
152
A6P6 A6P6AL 4.88 x 4.88
124 x 124
HJ806HWLG 7.71 x 5.72 x 4.05
196 x 145 x 103
Hinged,
2 screws
4.90
125
4.62
118
8.75
222
4.00
102
9.51
242
4.28
109
1.38
35
9.31
236
6.25
159
4.25
108
7.31
186
A8P6 A8P6AL 6.75 x 4.88
171 x 124
HJ806WLG 7.71 x 5.72 x 4.05
196 x 145 x 103
4 screws 4.90
126
4.62
118
8.75
222
4.00
102
9.51
242
4.28
109
1.38
35
9.31
236
6.25
159
4.25
108
7.31
186
A8P6 A8P6AL 6.75 x 4.88
171 x 124
HJ1008HWLG 9.71 x 7.21 x 4.30
247 x 196 x 109
Hinged,
2 screws
5.15
131
4.88
125
10.75
273
6.00
152
11.51
292
4.28
109
1.67
42
11.25
286
8.25
210
6.24
158
9.25
235
A10P8 A10P8AL 8.75 x 6.88
222 x 102
HJ1008WLG 9.71 x 7.21 x 4.30
247 x 196 x 109
4 screws 5.15
131
4.88
125
10.75
273
6.00
152
11.51
292
4.28
109
1.67
42
11.25
286
8.25
210
6.24
158
9.25
235
A10P8 A10P8AL 8.75 x 6.88
222 x 102
HJ1210HWLG 11.68 x 9.69 x 4.62
297 x 246 x 117
Hinged,
2 screws
5.42
138
5.20
132
12.75
324
8.00
203
13.51
343
4.66
118
1.77
45
13.23
336
10.25
260
8.25
210
11.23
285
A12P10 A12P10AL 10.75 x 8.88
273 x 226
HJ1210WLG 11.68 x 9.69 x 4.62
297 x 246 x 117
4 screws 5.42
138
5.20
132
12.75
324
8.00
203
13.51
343
4.66
118
1.77
45
13.23
336
10.25
260
8.25
210
11.23
285
A12P10 A12P10AL 10.75 x 8.88
2.73 x 226
HJ1412HWLG 13.81 x 11.81 x 5.99
351 x 300 x 152
Hinged,
2 screws
6.79
172
6.44
164
14.75
375
10.00
254
15.51
394
5.63
143
1.75
45
15.29
388
10.25
260
12.25
311
13.29
338
A14P12 A14P12AL 12.75 x 10.88
324 x 276
HJ1412WLG 13.81 x 11.81 x 5.99
351 x 300 x 152
4 screws 6.79
172
6.44
164
14.75
375
10.00
254
15.51
394
5.63
143
1.75
45
15.29
388
10.25
260
12.25
311
13.29
338
A14P12 A14P12AL 12.75 x 10.88
324 x 276
HJ1614HWLG 15.81 x 13.81 x 5.99
402 x 351 x 152
Hinged,
2 screws
6.68
170
6.44
164
16.75
425
12.00
305
17.51
445
5.63
143
1.75
45
17.29
439
14.25
362
12.25
311
15.29
388
A16P14 A16P14AL 14.75 x 12.88
3.75 x 327
HJ1614WLG 15.81 x 13.81 x 5.99
402 x 351 x 152
4 screws 6.68
170
6.44
164
16.75
425
12.00
305
17.51
445
5.63
143
1.75
45
17.29
439
14.25
362
12.25
311
15.29
388
A16P14 A16P14AL 14.75 x 12.88
375 x 327
HJ1816HWLG 17.81 x 15.81 x 8.86
452 x 402 x 225
Hinged,
2 screws
9.55
243
9.32
237
18.75
476
12.00
305
19.51
495
8.56
217
1.75
45
19.29
790
16.25
413
14.25
362
17.29
439
A18P16 A18P16AL 16.75 x 14.88
425 x 378
HJ1816WLG 17.81 x 15.81 x 8.86
452 x 402 x 225
4 screws 9.55
243
9.32
237
18.75
476
12.00
305
19.51
495
8.56
217
1.75
45
19.29
790
16.25
413
14.25
362
17.29
439
A18P16 A18P16AL 16.75 x 14.88
375 x 378
A x B x C are internal dimensions.
Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC256
3
FIBERGLASS OveRLaPPing COveR

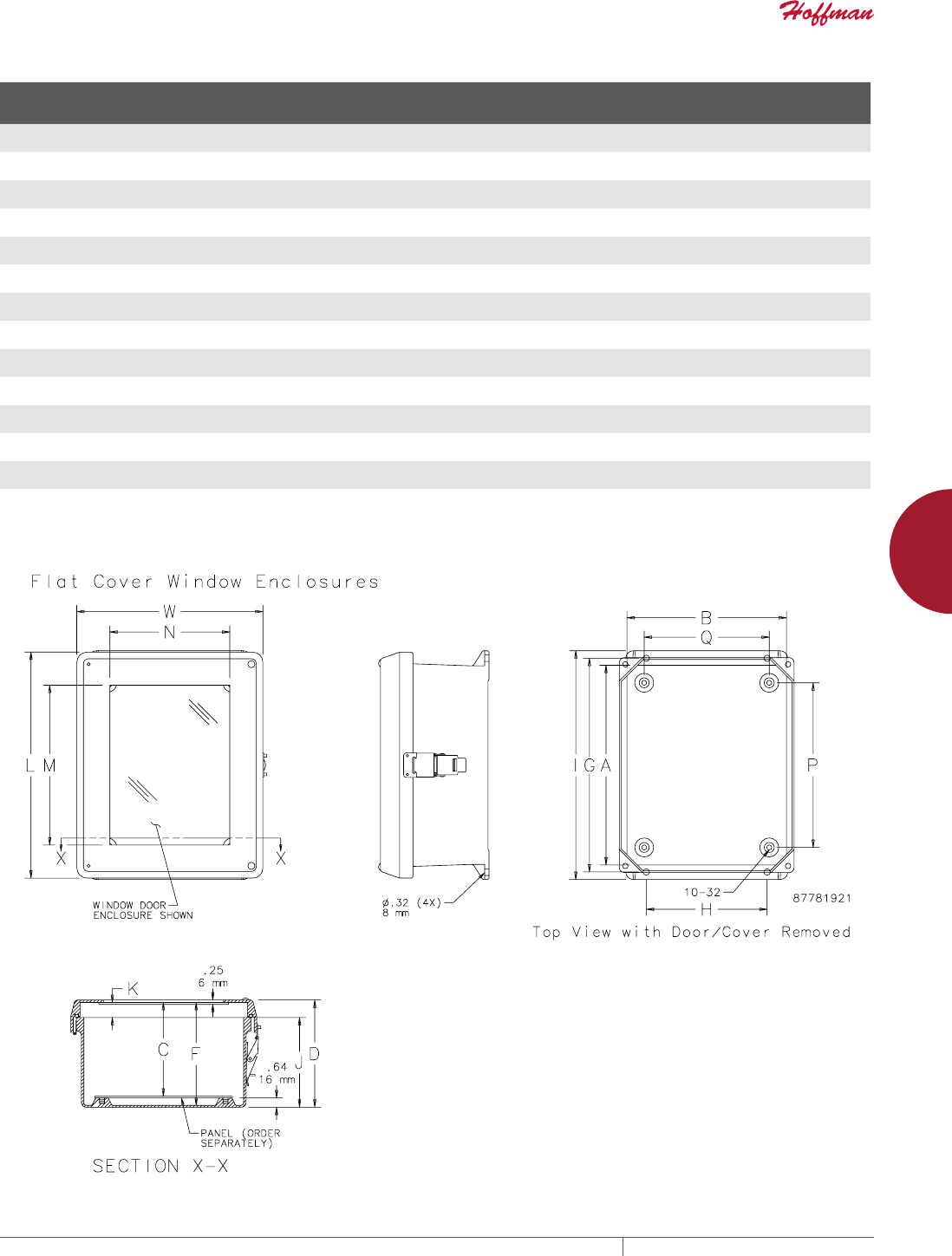

FLAT COVER WITH LATCHES, TYPE 4X
INDUSTRY STANDARDS
Meets NEMA Type 3RX requirements
APPLICATION
SPECIFICATIONS
FINISH
ACCESSORIES
See also Accessories.
MODIFICATION AND CUSTOMIZATION
Bulletin: HJ
EQUIPMENT PROTECTION NONMETALLIC 257
3
FIBERGLASS OveRLaPPing COveR
Catalog Number AxBxC in./mm
No. of
Latches
Window Size
M x N
in./mm
D
in./mm
F
in./mm
G
in./mm
H
in./mm
I
in./mm
J
in./mm
K
in./mm
L
in./mm
P
in./mm
Q
in./mm
W
in./mm
Steel
Panel
Aluminum
Panel
Panel Size
in./mm
HJ606HWPL1LG 5.71 x 5.72 x 4.05
145 x 145 x 103
1 —
—
4.90
125
4.62
118
6.75
171
4.00
102
7.51
191
4.28
109
1.38
35
6.00
152
4.25
108
4.25
108
5.97
152
A6P6 A6P6AL 4.88 x 4.88
124 x 124
HJ806HWPL1LG 7.71 x 5.72 x 4.05
196 x 145 x 103
1 —
—
4.90
126
4.62
118
8.75
222
4.00
102
9.51
242
4.28
109
1.38
35
9.31
236
6.25
159
4.25
108
7.31
186
A8P6 A8P6AL 6.75 x 4.88
171 x 124
HJ1008HWPL1LG 9.71 x 7.21 x 4.30
247 x 196 x 109
1 —
—
5.15
131
4.88
125
10.75
273
6.00
152
11.51
292
4.28
109
1.67
42
11.25
286
8.25
210
6.24
158
9.25
235
A10P8 A10P8AL 8.75 x 6.88
222 x 102
HJ1210HWPL2LG 11.68 x 9.69 x 4.62
297 x 246 x 117
2 —
—
5.42
138
5.20
132
12.75
324
8.00
203
13.51
343
4.66
118
1.75
45
13.23
336
10.25
260
8.25
210
11.23
285
A12P10 A12P10AL 10.75 x 8.88
273 x 226
HJ1412HWPL2LG 13.81 x 11.81 x 5.99
351 x 300 x 152
2 —
—
6.79
172
6.44
142
14.75
375
10.00
254
15.51
940
5.63
143
1.75
45
15.29
388
10.24
260
12.26
311
13.29
338
A14P12 A14P12AL 12.75 x 10.88
324 x 276
HJ1614HWPL2LG 15.81 x 13.81 x 5.99
402 x 351 x 152
2 —
—
6.68
170
6.44
164
16.75
425
12.00
305
17.51
445
5.63
143
1.75
45
17.29
439
14.25
363
12.25
311
15.29
388
A16P14 A16P14AL 14.75 x 12.88
375 x 327
HJ1816HWPL2LG 17.81 x 15.81 x 8.86
452 x 402 x 225
2 —
—
9.55
243
9.32
237
18.75
476
12.00
305
19.51
495
8.56
217
1.75
45
19.29
790
16.25
413
14.25
362
17.29
439
A18P16 A18P16AL 16.75 x 14.88
425 x 378
HJB606HWPL1LG 5.71 x 5.72 x 4.05
145 x 145 x 103
1 4.00 x 4.00
102 x 102
4.90
125
4.62
118
6.75
171
4.00
102
7.51
191
4.28
109
1.38
35
6.00
152
4.25
108
4.25
108
5.97
152
A6P6 A6P6AL 4.88 x 4.88
124 x 124
HJB806HWPL1LG 7.71 x 5.72 x 4.05
196 x 145 x 103
1 6.00 x 4.00
152 x 102
4.90
125
4.62
118
8.75
222
4.00
102
9.51
252
4.28
109
1.38
35
9.31
236
6.25
159
4.25
108
7.31
186
A8P6 A8P6AL 6.75 x 1.88
171 x 124
HJB1008HWPL1LG 9.71 x 7.21 x 4.30
247 x 196 x 109
1 8.00 x 6.00
203 x 152
5.15
131
4.88
125
10.75
273
6.00
152
11.51
292
4.28
109
1.67
42
11.25
286
8.25
210
6.24
158
9.25
236
A10P8 A10P8AL 8.75 x 6.88
222 x 102
HJB1210HWPL2LG 11.68 x 9.69 x 4.62
297 x 246 x 117
2 10.00 x 8.00
254 x 203
5.42
138
5.20
132
12.75
324
8.00
203
13.51
343
4.66
118
1.75
45
13.23
336
10.25
260
8.25
210
11.23
285
A12P10 A12P10AL 10.78 x 8.88
273 x 226
HJB1412HWPL2LG 13.81 x 11.81 x 5.99
351 x 300 x 152
2 12.00 x 10.00
305 x 254
6.79
172
6.44
164
14.75
375
10.00
254
15.51
940
5.63
143
1.75
45
15.29
388
10.24
260
12.26
311
13.29
338
A14P12 A14P12AL 12.75 x 10.88
324 x 276
HJB1614HWPL2LG 15.81 x 13.81 x 5.99
402 x 351 x 152
2 14.00 x 12.00
356 x 305
6.68
170
6.44
164
16.75
425
12.00
305
17.51
445
5.63
143
1.75
45
17.29
439
14.25
363
12.25
311
15.29
388
A16P14 A16P14AL 14.75 x 12.88
375 x 327
HJB1816HWPL2LG 17.81 x 15.81 x 8.86
452 x 402 x 225
2 16.00 x 14.00
406 x 356
9.55
243
9.32
237
18.75
476
12.00
305
19.51
495
8.56
217
1.75
45
19.29
490
16.25
413
14.25
362
17.29
439
A18P16 A18P16AL 16.75 x 14.88
425 x 378
A x B x C are internal dimensions.
Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC258
3
FIBERGLASS OveRLaPPing COveR

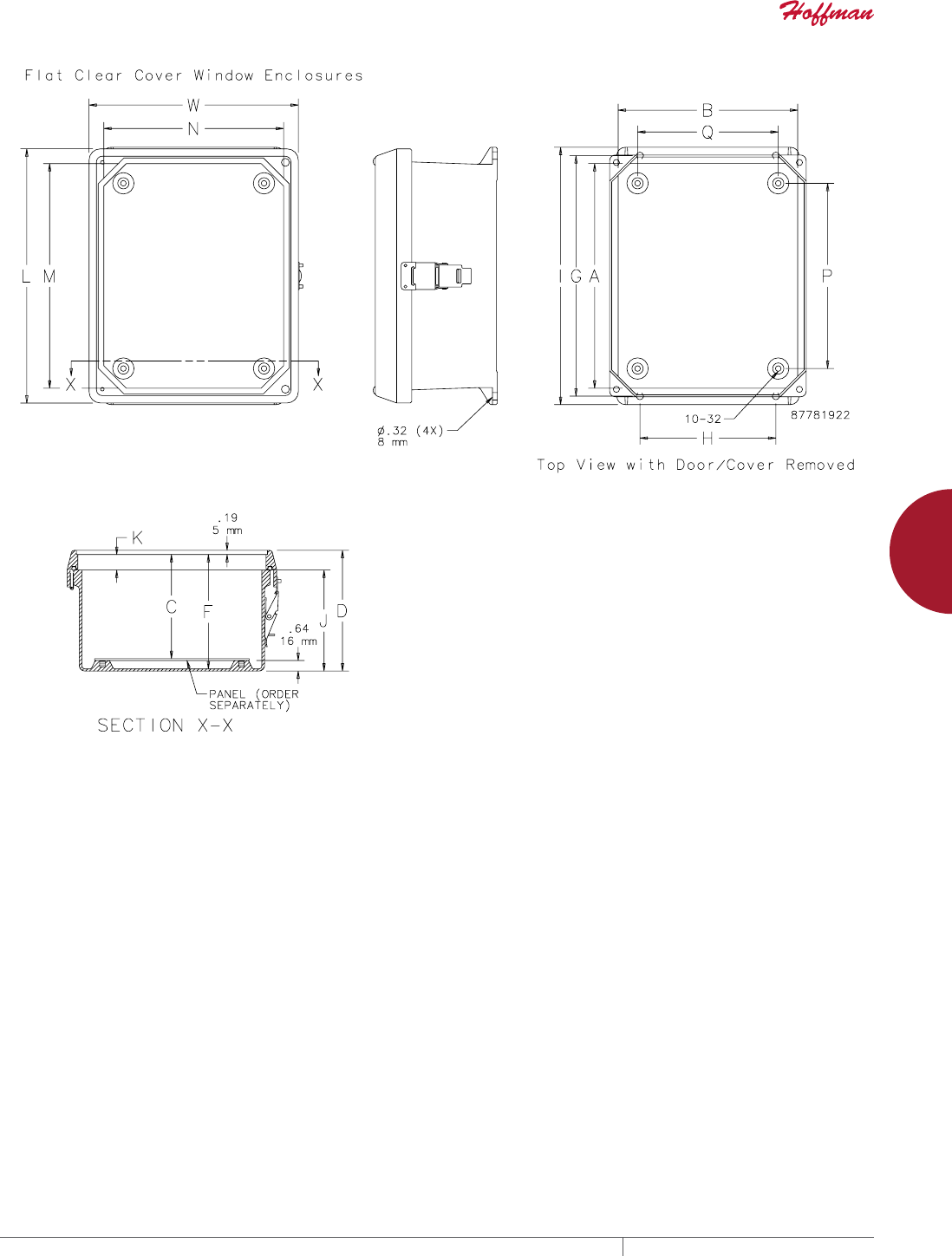

FLAT CLEAR COVER WITH LATCHES, TYPE 4X
INDUSTRY STANDARDS
Meets NEMA Type 3RX requirements
APPLICATION
SPECIFICATIONS
FINISH
ACCESSORIES
See also Accessories.
MODIFICATION AND CUSTOMIZATION
Bulletin: HJ
Catalog Number AxBxC in./mm
No. of
Latches
Window Size
N x M
in./mm
D
in./mm
F
in./mm
G
in./mm
H
in./mm
I
in./mm
J
in./mm
K
in./mm
L
in./mm
P
in./mm
Q
in./mm
W
in./mm
Steel
Panel
Aluminum
Panel
Panel Size
in./mm
CHJ606HWPL1LG 5.71 x 5.72 x 4.05
145 x 145 x 103
1 6.00 x 6.00
152 x 152
4.90
125
4.62
118
6.75
171
4.00
102
7.51
191
4.28
109
1.38
35
6.00
152
4.25
108
4.25
108
5.97
152
A6P6 A6P6AL 4.88 x 4.88
124 x 124
CHJ806HWPL1LG 7.71 x 5.72 x 4.05
196 x 145 x 103
1 8.00 x 6.00
203 x 152
4.90
125
4.62
118
8.75
222
4.00
102
9.51
242
4.28
109
1.38
35
9.31
236
6.25
159
4.25
108
7.31
186
A8P6 A8P6AL 6.75 x 4.88
171 x 124
CHJ1008HWPL1LG 9.71 x 7.21 x 4.30
247 x 196 x 109
1 10.00 x 8.00
254 x 203
5.15
131
4.88
124
10.75
273
6.00
152
11.51
292
4.28
109
1.67
42
11.25
286
8.25
210
6.24
158
9.25
235
A10P8 A10P8AL 8.75 x 6.88
222 x 102
CHJ1210HWPL2LG 11.68 x 9.69 x 4.62
297 x 246 x 117
2 12.00 x 10.00
305 x 254
5.42
138
5.20
132
12.75
324
8.00
203
13.51
343
4.66
118
1.77
45
13.23
336
10.25
260
8.25
210
11.23
285
A12P10 A12P10AL 10.75 x 8.88
273 x 226
CHJ1412HWPL2LG 13.81 x 11.81 x 5.99
351 x 300 x 152
2 14.00 x 12.00
356 x 305
6.79
172
6.44
164
14.75
375
10.00
254
15.51
394
5.63
143
1.75
45
15.29
388
10.25
260
10.25
260
13.29
338
A14P12 A14P12AL 12.75 x 10.88
324 x 276
CHJ1614HWPL2LG 15.81 x 13.81 x 5.99
402 x 351 x 152
2 16.00 x 14.00
406 x 356
6.68
170
6.44
164
16.75
425
12.00
305
17.51
445
5.63
143
1.75
45
17.29
439
14.25
363
12.25
311
15.29
388
A16P14 A16P14AL 14.75 x 12.88
375 x 327
CHJ1816HWPL2LG 17.81 x 15.81 x 8.86
452 x 402 x 225
2 18.00 x 16.00
457 x 406
9.55
243
9.32
237
18.75
476
12.00
305
19.51
495
8.56
217
1.75
45
19.29
790
16.25
413
14.25
362
17.29
439
A18P16 A18P16AL 16.75 x 14.88
425 x 378
A x B x C are internal dimensions.
Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC260
3
FIBERGLASS uLTRX
ultr X
ULTRX, TYPE 4X
INDUSTRY STANDARDS
Mounting brackets required to meet UL/CSA external mounting
requirements.
Meets NEMA Type 3RX requirements
APPLICATION
SPECIFICATIONS
FINISH
ACCESSORIES
See also Accessories.
MODIFICATION AND CUSTOMIZATION
Bulletin: uX1
Catalog Number
Door
Style
External
Dimensions
L x W
mm/in.
Internal
Dimensions
A x B x C
mm/in. Panel
Conductive
Panel
Panel Size
D x E
mm/in.
Mounting
G x H
mm/in.
Window Size
M x N
mm/in.
F
mm/in.
J
mm/in.
K
mm/in.
S
mm/in.
T
mm/in.
UU504020 Solid 513 x 413
20.20 x 16.26
496 x 396 x 220
19.53 x 15.59 x 8.66
A20P16 A20P16G 432 x 330
17.00 x 12.99
359 x 459
14.13 x 18.07
—
—
186
7.32
297
11.69
19
0.75
286
11.26
387
15.24
UU504020W Window 513 x 413
20.20 x 16.26
496 x 396 x 220
19.53 x 15.59 x 8.66
A20P16 A20P16G 439 x 330
17.00 x 12.99
359 x 459
14.13 x 18.07
386 x 286
15.20 x 11.26
186
7.32
297
11.69
19
0.75
286
11.26
387
15.24
UU606020 Solid 625 x 612
24.61 x 24.09
608 x 595 x 220
23.94 x 23.43 x 8.66
A24P24 A24P24G 533 x 533
20.98 x 20.98
559 x 572
22.01 x 22.52
—
—
186
7.32
500
19.68
21
0.83
489
19.25
489
19.25
UU606020W Window 625 x 612
24.61 x 24.09
608 x 595 x 220
23.94 x 23.43 x 8.66
A24P24 A24P24G 533 x 533
20.98 x 20.98
559 x 572
22.01 x 22.52
498 x 486
19.61 x 19.13
186
7.32
500
19.68
21
0.83
489
19.25
489
19.25
UU605025 Solid 625 x 513
24.61 x 20.20
608 x 496 x 270
23.94 x 19.53 x 10.63
A24P20 A24P20G 533 x 432
20.98 x 17.00
457 x 570
17.99 x 22.44
—
—
239
9.41
400
15.75
21
0.83
387
15.24
489
19.25
UU605025W Window 625 x 513
24.61 x 20.20
608 x 496 x 270
23.94 x 19.53 x 10.63
A24P20 A24P20G 533 x 432
20.98 x 17.00
457 x 570
17.99 x 22.44
498 x 386
19.61 x 15.20
239
9.41
400
15.75
21
0.83
387
15.24
489
19.25
UU504030 Solid 513 x 412
20.20 x 16.22
496 x 395 x 321
19.53 x 15.55 x 12.64
A20P16 A20P16G 432 x 330
17.00 x 12.99
355 x 455
13.98 x 17.91
—
—
287
11.30
300
11.81
19
0.75
286
11.26
387
15.24
UU504030W Window 513 x 412
20.20 x 16.22
496 x 395 x 321
19.53 x 15.55 x 12.64
A20P16 A20P16G 432 x 330
17.00 x 12.99
355 x 455
13.98 x 17.91
386 x 286
15.20 x 11.26
287
11.30
300
11.81
19
0.75
286
11.26
387
15.24
UU606030 Solid 625 x 612
24.61 x 24.09
608 x 595 x 321
23.94 x 23.43 x 12.64
A24P24 A24P24G 533 x 533
20.98 x 20.98
555 x 568
21.85 x 22.36
—
—
287
11.30
500
19.68
21
0.83
489
19.25
489
19.25
UU606030W Window 625 x 612
24.61 x 24.09
608 x 595 x 321
23.94 x 23.43 x 12.64
A24P24 A24P24G 533 x 533
20.98 x 20.98
555 x 568
21.85 x 22.36
498 x 486
19.61 x 19.13
287
11.30
500
19.68
21
0.83
489
19.25
489
19.25
UU756030 Solid 775 x 612
30.51 x 24.09
758 x 595 x 321
29.84 x 23.43 x 12.64
A30P24 A30P24G 686 x 533
27.01 x 20.98
555 x 718
21.85 x 28.27
—
—
287
11.30
500
19.68
21
0.83
489
19.25
641
25.24
EQUIPMENT PROTECTION NONMETALLIC 261
3
FIBERGLASS uLTRX
Catalog Number
Door
Style
External
Dimensions
L x W
mm/in.
Internal
Dimensions
A x B x C
mm/in. Panel
Conductive
Panel
Panel Size
D x E
mm/in.
Mounting
G x H
mm/in.
Window Size
M x N
mm/in.
F
mm/in.
J
mm/in.
K
mm/in.
S
mm/in.
T
mm/in.
UU756030W Window 775 x 612
30.51 x 24.09
758 x 595 x 321
29.84 x 23.43 x 12.64
A30P24 A30P24G 686 x 533
27.01 x 20.98
555 x 718
21.85 x 28.27
648 x 486
25.51 x 19.13
287
11.30
500
19.68
21
0.83
489
19.25
641
25.24
UU1008030 Solid 1025 x 825
40.35 x 32.48
1008 x 808 x 321
39.68 x 31.81 x 12.64
A40P30 A40P30G 940 x 737
37.01 x 29.02
768 x 968
30.24 x 38.11
—
—
287
11.30
700
27.56
23
0.91
692
27.24
895
35.24
UU1008030W Window 1025 x 825
40.35 x 32.48
1008 x 808 x 321
39.68 x 31.81 x 12.64
A40P30 A40P30G 940 x 737
37.01 x 29.02
768 x 968
30.24 x 38.11
898 x 698
35.35 x 27.48
287
11.30
700
27.56
23
0.91
692
27.24
895
35.24
UU606040 Solid 625 x 612
24.61 x 24.09
608 x 595 x 421
23.94 x 23.43 x 16.57
A24P24 A24P24G 533 x 533
20.98 x 20.98
555 x 568
21.85 x 22.36
—
—
387
15.24
500
19.68
21
0.83
489
19.25
489
19.25
UU606040W Window 625 x 612
24.61 x 24.09
608 x 595 x 421
23.94 x 23.43 x 16.57
A24P24 A24P24G 533 x 533
20.98 x 20.98
555 x 568
21.85 x 22.36
498 x 486
19.61 x 19.13
387
15.24
500
19.68
21
0.83
489
19.25
489
19.25
UU756040 Solid 775 x 612
30.51 x 24.09
758 x 595 x 421
29.84 x 23.43 x 16.57
A30P24 A30P24G 686 x 533
27.01 x 20.98
555 x 718
21.85 x 28.27
—
—
387
15.24
500
19.68
21
0.83
489
19.25
641
25.24
UU756040W Window 775 x 612
30.51 x 24.09
758 x 595 x 421
29.84 x 23.43 x 16.57
A30P24 A30P24G 686 x 533
27.01 x 20.98
555 x 718
21.85 x 28.27
648 x 486
25.51 x 19.13
387
15.24
500
19.68
21
0.83
489
19.25
641
25.24
Purchase panels separately.
Note: When installing enclosures in a right-hand hinge application that involves vibration, Hoffman recommends the use of pad-locking or key-locking quarter-turn latch accessories for door securement (UUHPL, UUHKL).
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC262
3
FIBERGLASS uLTRX
ULTRX WIFI, TYPE 4X
INDUSTRY STANDARDS
APPLICATION
FEATURES
SPECIFICATIONS
FINISH
Bulletin: DWS12
Catalog Number AxBxC mm/in. Door Type
Internal
Dimensions
A x B x C
mm/in. Panel
Panel Size
D x E
mm/in.
Mounting
G x H
mm/in.
Window
Size
M x N
mm/in.
F
mm/in.
J
mm/in.
K
mm/in.
P
mm/in.
Q
mm/in.
R
mm/in.
S
mm/in.
T
mm/in.
DU606030P 608 x 595 x 321
23.94 x 23.43 x 12.64
Solid 608 x 595 x 321
23.94 x 23.44 x 12.64
A24P24WD 533 x 533
21.00 x 21.00
555 x 568
21.86 x 22.36
498 x 486
19.62 x 19.12
287
11.31
500
19.68
21
0.81
62
2.43
68
2.68
56
2.21
489
19.25
489
19.25
DU606030WP 608 x 595 x 321
23.94 x 23.43 x 12.64
Window 608 x 595 x 321
23.94 x 23.44 x 12.64
A24P24WD 533 x 533
21.00 x 21.00
555 x 568
21.86 x 22.36
498 x 486
19.62 x 19.12
287
11.31
500
19.68
21
0.81
62
2.43
68
2.68
56
2.21
489
19.25
489
19.25
Wood panel included with enclosure. Optional steel panels must be ordered separately.
Window size applies to window door cabinets only.
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC264
3

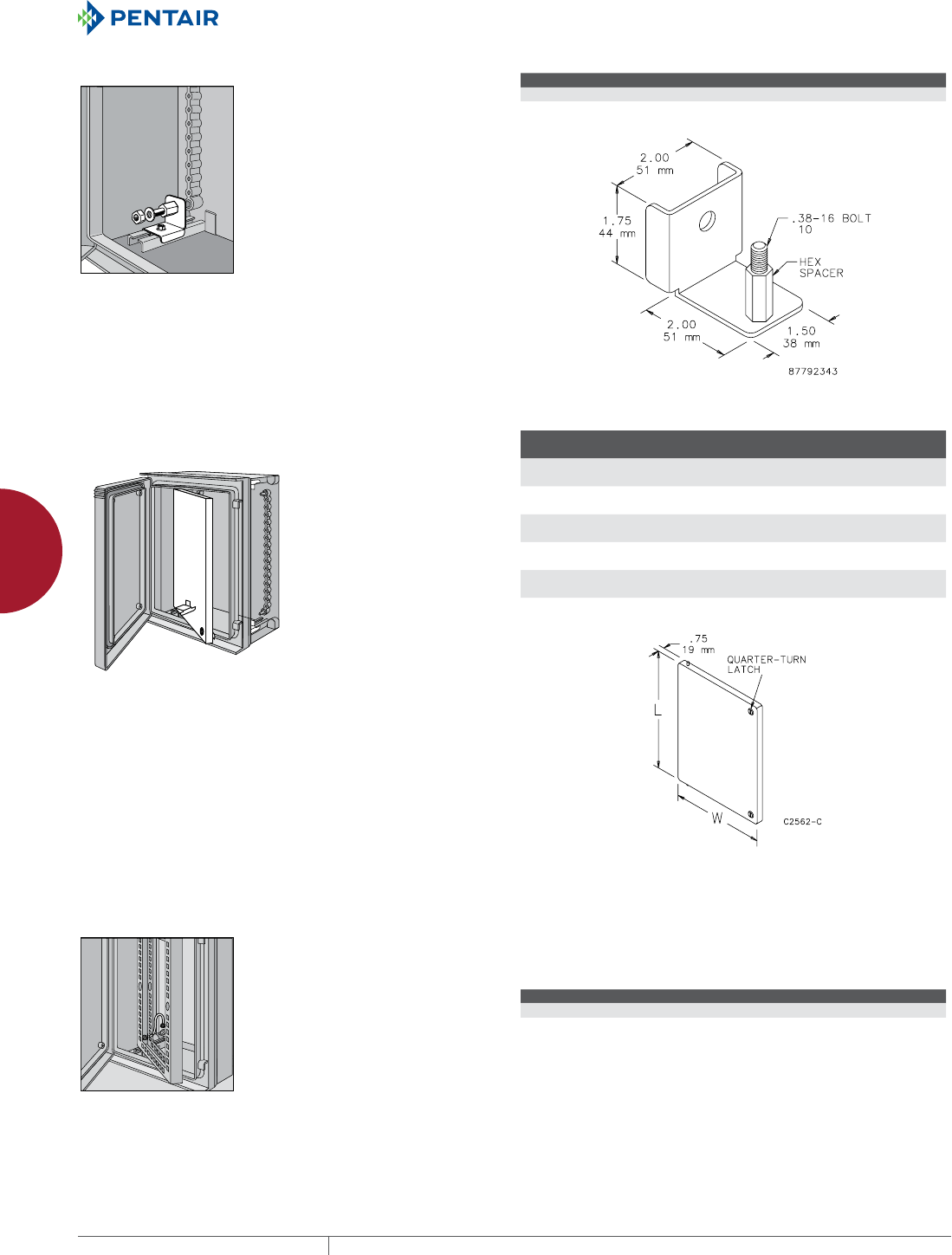

FIBERGLASS uLTRX

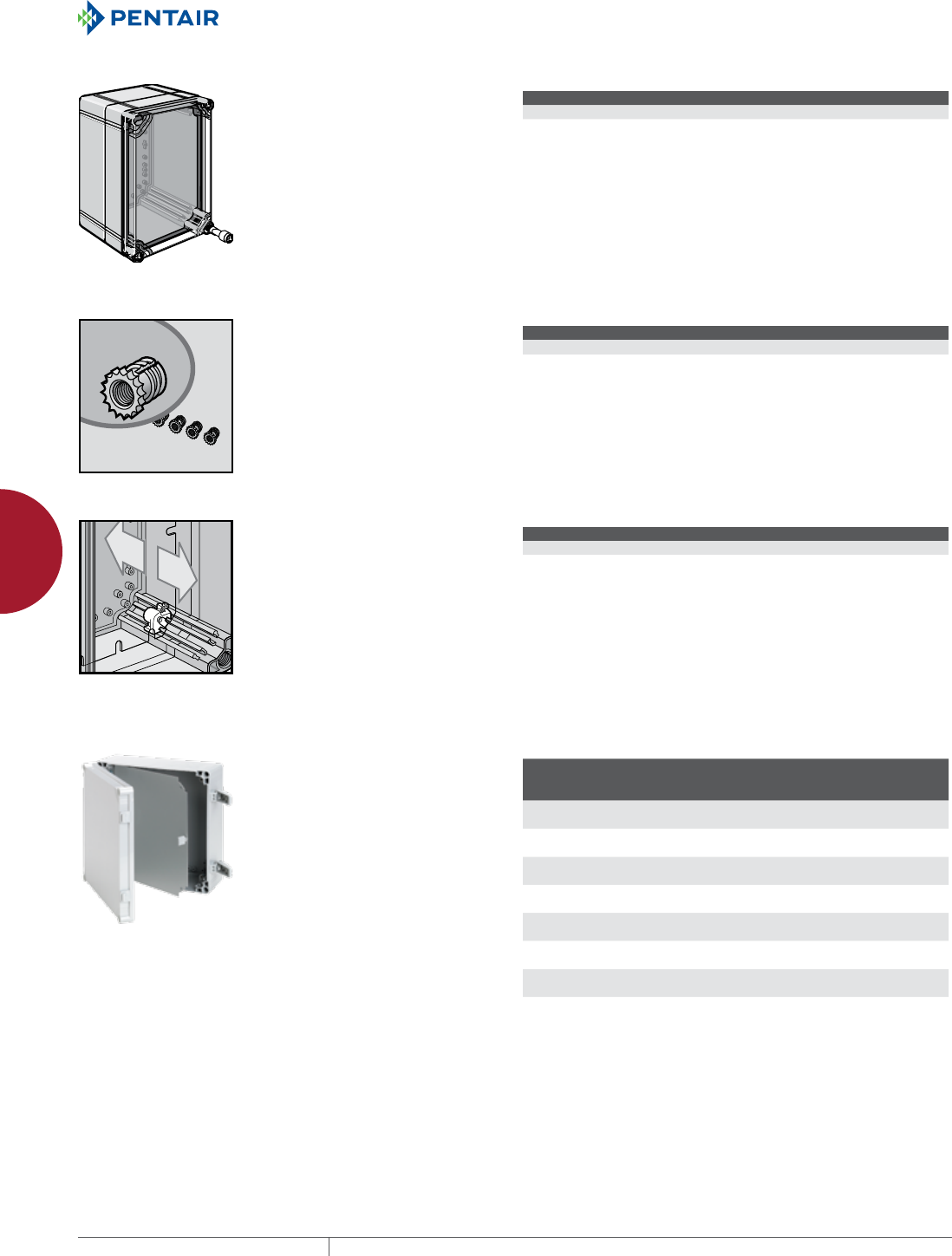

PANEL BRACKET KIT
Note: Front mounting position is approximately
140mm/5.5 in. back on 400mm enclosures.
Bulletin: uX1Y
Catalog Number Description Pkg. Qty.
UUPB ULTRX Panel Bracket Kit 4
SWINGOUT PANEL
Note: Front mounting position is approximately 140mm/5.5 in. back on
400mm enclosures.
Bulletin: uX1Y
Catalog Number
Fits A x B
mm/in.
L
mm/in.
W
mm/in.
UU5040SP 513 x 413
20.20 x 16.26
432
17.00
330
12.99
UU6050SP 625 x 513
24.61 x 20.20
536
21.10
432
17.00
UU6060SP 625 x 612
24.61 x 24.09
540
21.25
535
21.08
UU7560SP 775 x 612
30.51 x 24.09
687
27.05
535
21.08
UU10080SP 1025 x 825
40.35 x 32.48
935
36.80
737
29.00
Use UU6060SP with DATACOM ULTRX Fiberglass Type 4X WiFi Cabinet.
GROUNDING DEVICE
Bulletin: uX1Y
Catalog Number Description
UUGK ULTRX Grounding Device
EQUIPMENT PROTECTION NONMETALLIC 265
3
FIBERGLASS uLTRX

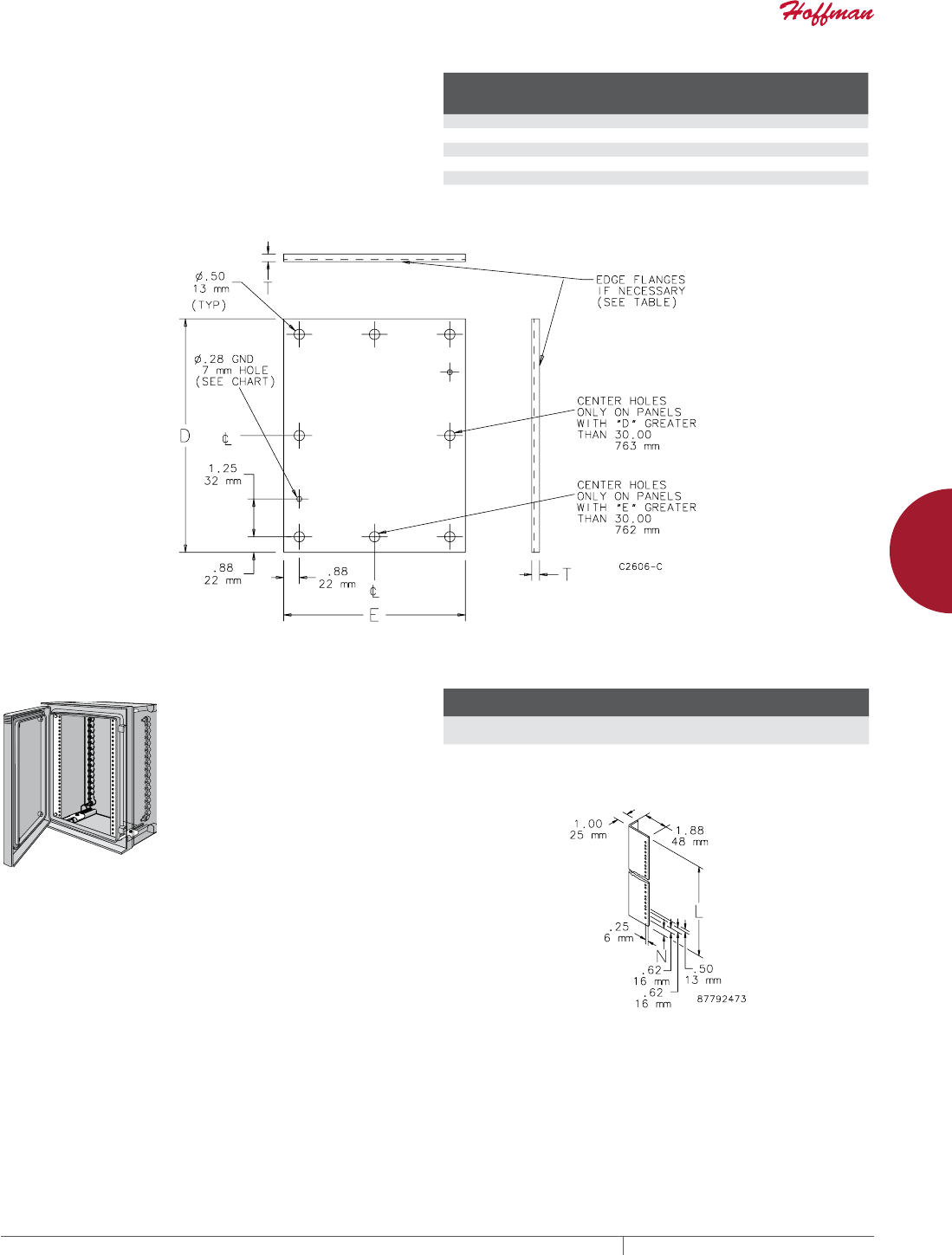

PANELS FOR TYPE 3R, 4, 4X, 12 AND 13 ENCLOSURES
Bulletin: DWS12, PnlWM
Catalog Number
Flange
Thickness
T (in.)
Flange
Thickness
T (mm)
Panel Size
D x E (in.)
Panel Size
D x E (mm)
Number
of Holes
Edge
Flanges
A20P16 — — 17.00 x 13.00 432 x 330 4 0
A24P20 0.75 19 21.00 x 17.00 533 x 432 4 2
A24P24 0.75 19 21.00 x 21.00 533 x 533 4 2
A24P24WD 0.75 19 21.00 x 21.00 533 x 533 4 —
A30P24 0.75 19 27.00 x 21.00 686 x 533 4 2
A40P30 0.75 19 37.00 x 29.00 940 x 737 4 4
Catalog number with “WD” is wood.
RACK ANGLES (TYPE RA)
Bulletin: uX1Y
Catalog Number
Fits A x B
mm/in.
L
mm/in.
N
mm/in.
Rack
Units
Pkg.
Qty.
UURA6060 610 x 610
24.00 x 24.00
552
21.75
10
.38
12 2
UURA7560 762 x 610
30.00 x 24.00
705
27.75
19
.75
15 2
Use UURA6060 with DATACOM ULTRX Fiberglass Type 4X WiFi Cabinet.
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC266
3
FIBERGLASS uLTRX

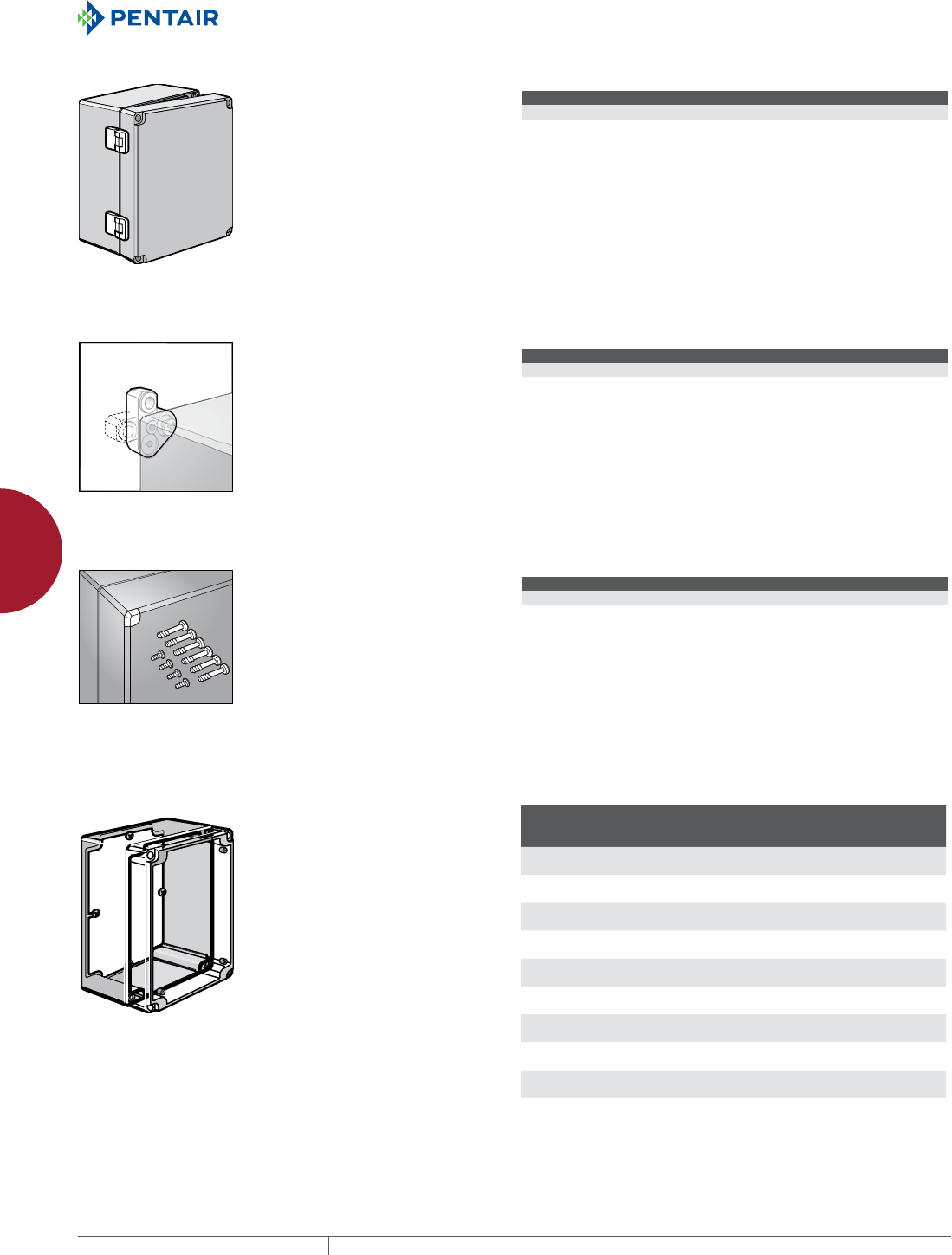

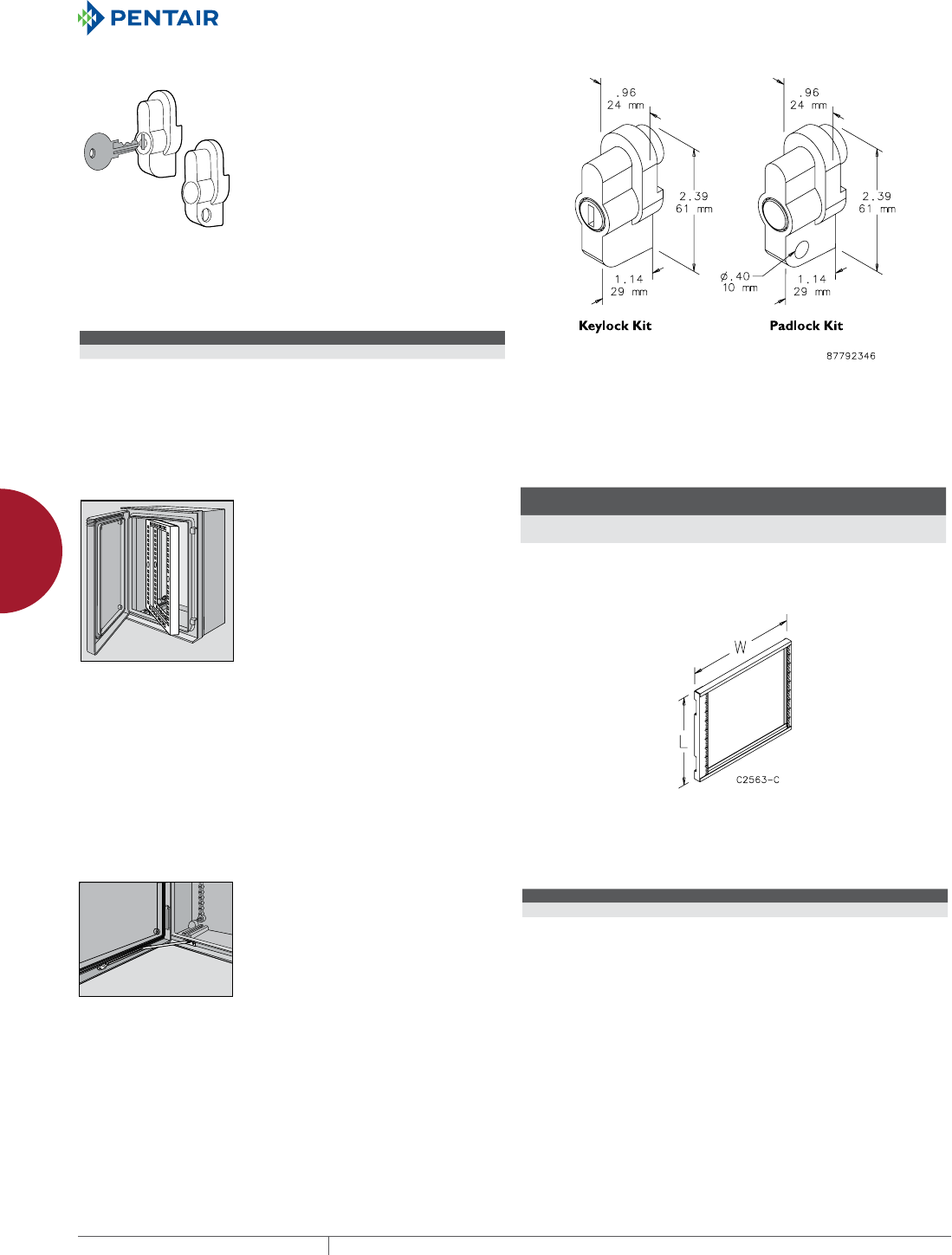

KEYLOCK KIT AND PADLOCK KIT
Bulletin: uX1Y
Catalog Number Description
UUHKL Keylock Kit
UUHPL Padlock Kit
UUHKL: Internal key components are not stainless steel.
UUHPL: Handles maintain UL 508A, Type 3, 4, 4X and 12 when properly installed on a Hoffman enclosure. Set
up for 1/4-in. or 3/8-in. padlock.
SWING FRAME
Note: Front mounting position is approximately 140mm/5.5 in. back on
400mm enclosures.
Bulletin: uX1Y
Catalog Number
Fits A x B
mm/in.
L
mm/in.
W
mm/in.
Rack
Units
UU6060SF 610 x 610
24.00 x 24.00
540
21.25
535
21.08
11
UU7560SF 762 x 610
30.00 x 24.00
687
27.05
535
21.08
14
Use UU6060SF with DATACOM ULTRX Fiberglass Type 4X WiFi Cabinet.
DOOR STOP KIT
Bulletin: uX1Y
Catalog Number Description
UUDS Door Stop Kit
EQUIPMENT PROTECTION NONMETALLIC 267
3
FIBERGLASS uLTRX

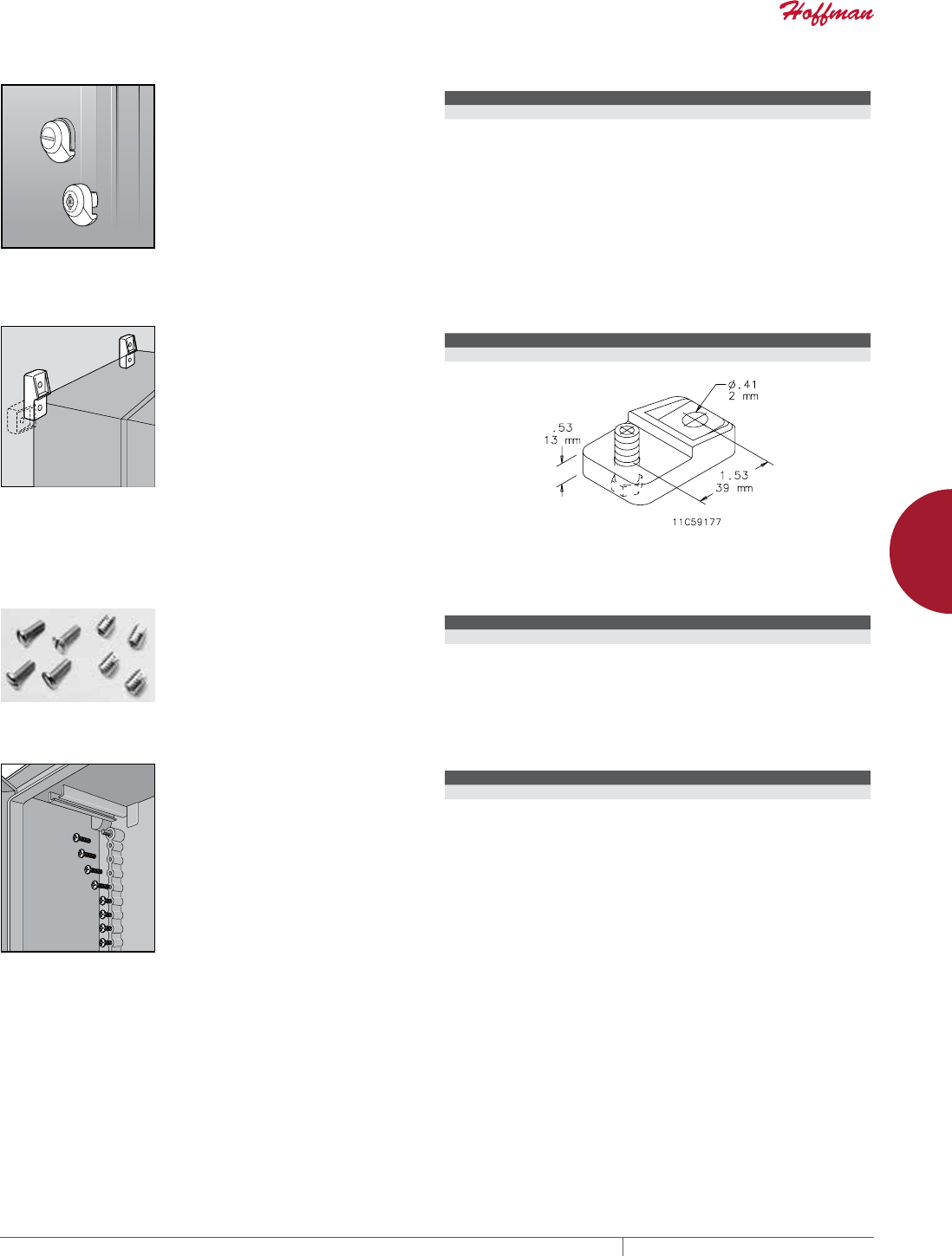

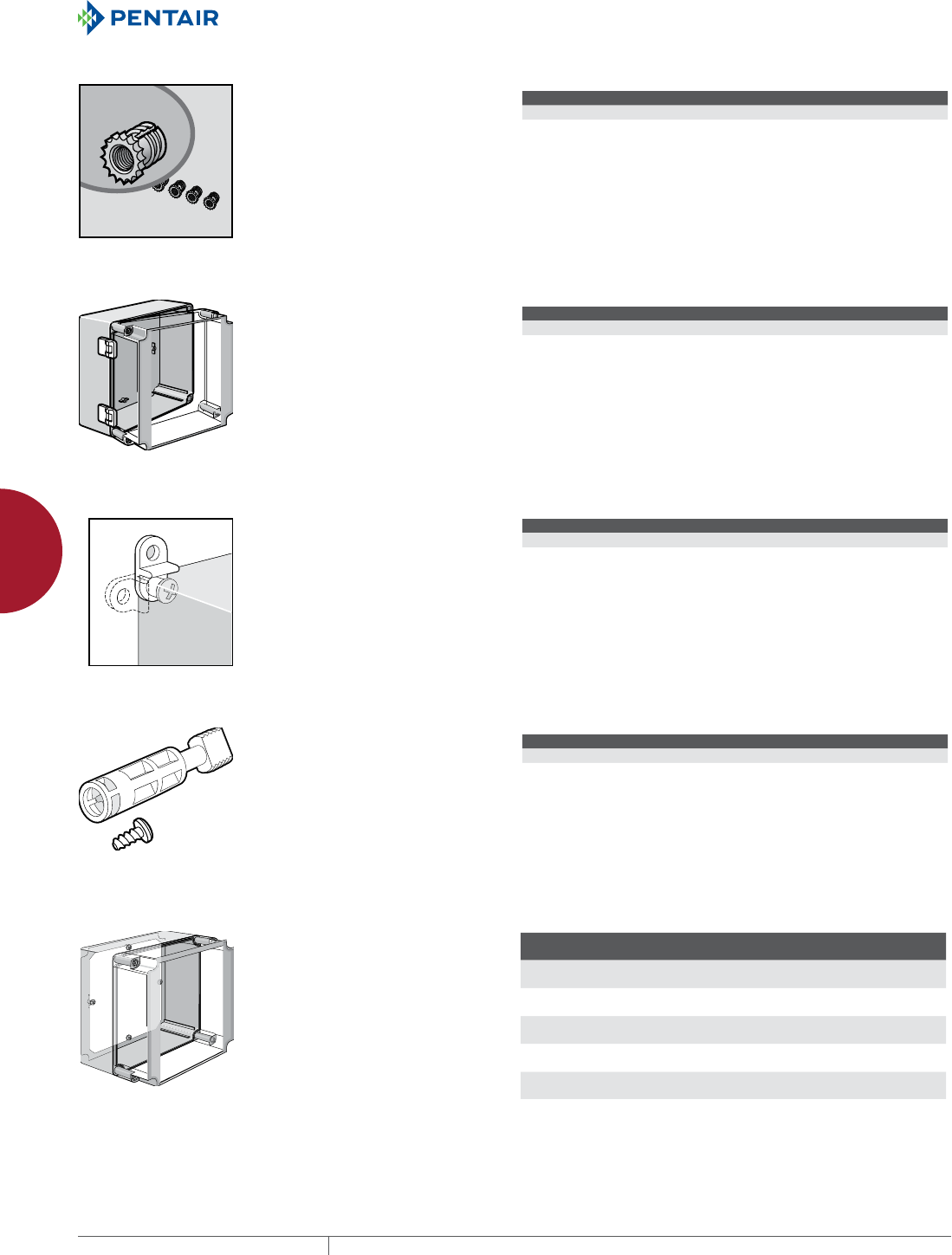

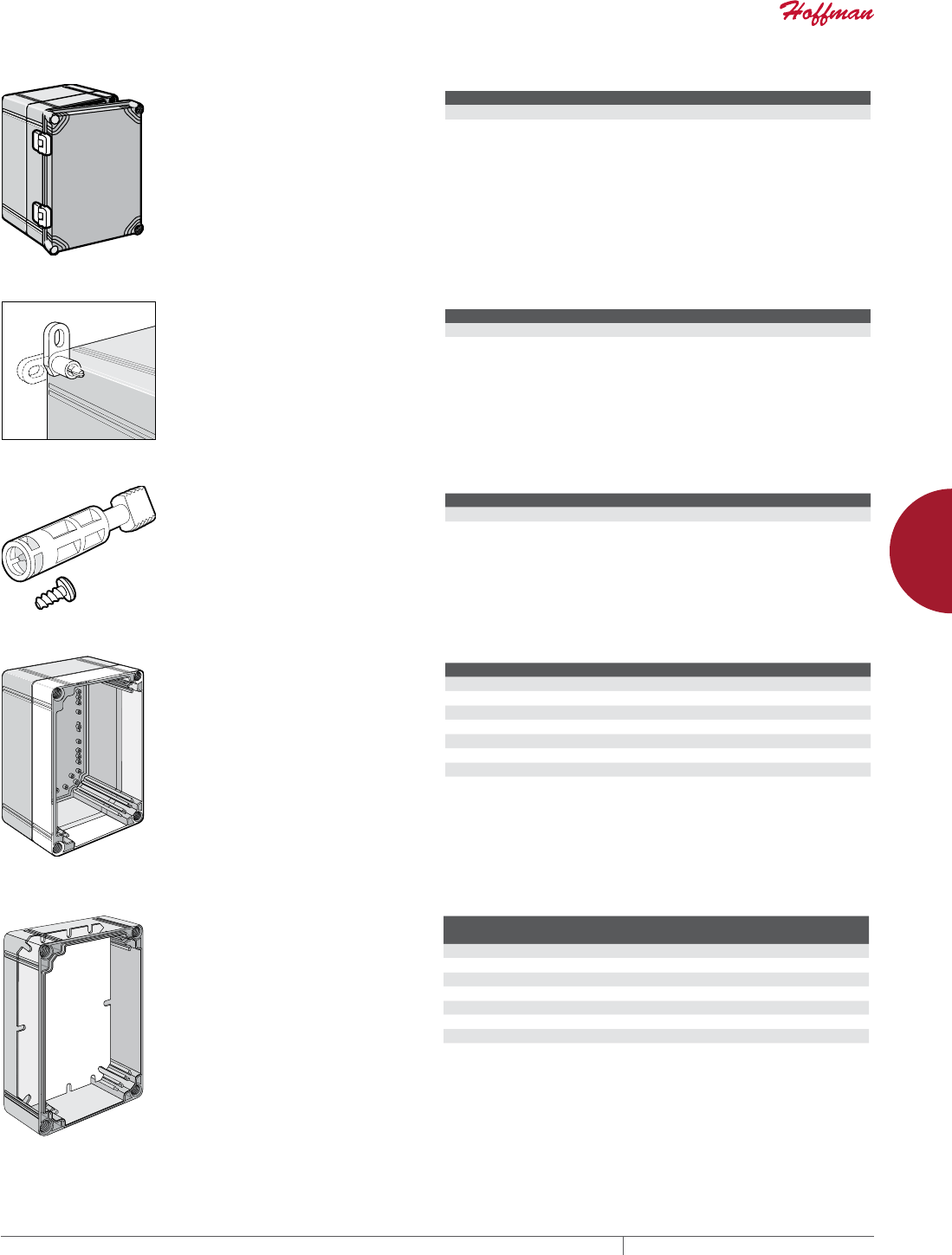

ULTRX KEY INSERT
Bulletin: uX1Y
Catalog Number Insert Type
UUL3DB Double-bit 3 mm
UULSC Screw driver slot
ULTRX MOUNTING BRACKET KIT
Bulletin: uX1Y
Catalog Number Description Kit Qty.
UUMF Mounting Bracket Kit 4
SCREW INSERT KIT
Bulletin: uX1Y
Catalog Number Description Kit Qty.
UUMH2 Screw Insert Kit 4 inserts and 4 screws
SELFTAPPING SCREWS
Bulletin: uX1Y
Catalog Number Description Pkg. Qty.
UUMH1 Self-Tapping Screws 10
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC268
3
FIBERGLASS Hinge-COveR wiTH 3-POinT LaTCH OR QuiCk-ReLease LaTCHes
Hinge-Cov er witH 3-Point l atCH or QuiCk-rel ease latCHe s
HINGECOVER WITH 3POINT LATCH OR QUICKRELEASE LATCHES, TYPE 4X
INDUSTRY STANDARDS
Meets NEMA Type 3RX requirements
APPLICATION
SPECIFICATIONS
FINISH
ACCESSORIES
See also Accessories
MODIFICATION AND CUSTOMIZATION
Bulletin: A17W3, A17WM
EQUIPMENT PROTECTION NONMETALLIC 269
3
FIBERGLASS Hinge-COveR wiTH 3-POinT LaTCH OR QuiCk-ReLease LaTCHes
3-Point Latch
Catalog Number AxBxC in./mm Panel
Conductive
Panel
Panel Size
Height
in./mm
G x H
in./mm
A24H2006GQRLP3PT 24.25 x 20.25 x 6.00
616 x 514 x 152
A24P20 A24P20G 21.00 x 17.00
533 x 432
25.86 x 14.00
657 x 356
A20H2008GQRLP3PT 20.19 x 20.25 x 8.00
513 x 514 x 203
A20P20 A20P20G 17.00 x 17.00
432 x 432
21.81 x 14.00
554 x 356
A24H2008GQRLP3PT 24.25 x 20.25 x 8.00
616 x 514 x 203
A24P20 A24P20G 21.00 x 17.00
533 x 432
25.86 x 14.00
657 x 356
A24H2408GQRLP3PT 24.19 x 24.19 x 8.00
614 x 614 x 203
A24P24 A24P24 21.00 x 21.00
533 x 533
25.81 x 18.00
656 x 457
A30H2408GQRLP3PT 30.25 x 24.25 x 8.00
768 x 616 x 203
A30P24 A30P24G 27.00 x 21.00
686 x 533
31.95 x 18.00
812 x 457
A36H3008GQRLP3PT 36.25 x 30.25 x 8.00
921 x 768 x 203
A36P30 A36P30G 33.00 x 27.00
838 x 686
37.58 x 24.00
955 x 610
A24H2010GQRLP3PT 24.25 x 20.25 x 10.00
616 x 514 x 254
A24P20 A24P20G 21.00 x 17.00
533 x 432
25.86 x 14.00
657 x 356
A30H2410GQRLP3PT 30.25 x 24.25 x 10.00
768 x 616 x 254
A30P24 A30P24G 27.00 x 21.00
686 x 533
31.95 x 18.00
812 x 457
A24H2412GQRLP3PT 24.19 x 24.19 x 12.00
614 x 614 x 305
A24P24 A24P24G 21.00 x 21.00
533 x 533
25.81 x 18.00
656 x 457
A30H2412GQRLP3PT 30.25 x 24.25 x 12.00
768 x 616 x 305
A30P24 A30P24G 27.00 x 21.00
686 x 533
31.95 x 18.00
812 x 457
A36H3012GQRLP3PT 36.25 x 30.25 x 12.00
921 x 768 x 305
A36P30 A36P30G 33.00 x 27.00
838 x 686
37.58 x 24.00
955 x 610
Purchase panels separately. Optional stainless steel, composite and aluminum panels available for most sizes. See General Accessories.
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC270
3
FIBERGLASS Hinge-COveR wiTH 3-POinT LaTCH OR QuiCk-ReLease LaTCHes
Quick-Release Latch
Catalog Number AxBxC in./mm Panel
Cond.
Panel
Panel Size
in./mm
Mtg G x H
in./mm
No. of
Latches
A20H1606GQRLP 20.19 x 16.25 x 6.00
513 x 413 x 152
A20P16 A20P16G 17.00 x 13.00
432 x 330
21.81 x 10.00
554 x 254
4
A20H2006GQRLP 20.19 x 20.25 x 6.00
513 x 514 x 152
A20P20 A20P20G 17.00 x 17.00
432 x 432
21.81 x 14.00
554 x 356
4
A24H2006GQRLP 24.25 x 20.25 x 6.00
616 x 514 x 152
A24P20 A24P20G 21.00 x 17.00
533 x 432
25.86 x 14.00
657 x 356
4
A30H2406GQRLP 30.25 x 24.25 x 6.00
768 x 616 x 152
A30P24 A30P24G 27.00 x 21.00
686 x 533
31.95 x 18.00
812 x 457
5
A20H1608GQRLP 20.19 x 16.25 x 8.00
513 x 413 x 203
A20P16 A20P16G 17.00 x 13.00
432 x 330
21.81 x 10.00
554 x 254
4
A20H2008GQRLP 20.19 x 20.25 x 8.00
513 x 514 x 203
A20P20 A20P20G 17.00 x 17.00
432 x 432
21.81 x 14.00
554 x 356
4
A24H2008GQRLP 24.25 x 20.25 x 8.00
616 x 514 x 203
A24P20 A24P20G 21.00 x 17.00
533 x 432
25.86 x 14.00
657 x 356
4
A24H2408GQRLP 24.19 x 24.19 x 8.00
614 x 614 x 203
A24P24 A24P24G 21.00 x 21.00
533 x 533
25.81 x 18.00
656 x 457
4
A30H2408GQRLP 30.25 x 24.25 x 8.00
768 x 616 x 203
A30P24 A30P24G 27.00 x 21.00
686 x 533
31.95 x 18.00
812 x 457
5
A36H3008GQRLP 36.25 x 30.25 x 8.00
921 x 768 x 203
A36P30 A36P30G 33.00 x 27.00
838 x 686
37.61 x 24.00
955 x 610
5
A20H1610GQRLP 20.19 x 16.25 x 10.00
513 x 413 x 254
A20P16 A20P16G 17.00 x 13.00
432 x 330
21.81 x 10.00
554 x 254
4
A20H2010GQRLP 20.19 x 20.25 x 10.00
513 x 514 x 254
A20P20 A20P20G 17.00 x 17.00
432 x 432
21.81 x 14.00
554 x 356
4
A24H2010GQRLP 24.25 x 20.25 x 10.00
616 x 514 x 254
A24P20 A24P20G 21.00 x 17.00
533 x 432
25.86 x 14.00
657 x 356
4
A30H2410GQRLP 30.25 x 24.25 x 10.00
768 x 616 x 254
A30P24 A30P24G 27.00 x 21.00
686 x 533
31.95 x 18.00
812 x 457
5
A20H1612GQRLP 20.19 x 16.25 x 12.00
513 x 413 x 305
A20P16 A20P16G 17.00 x 13.00
432 x 330
21.81 x 10.00
554 x 254
4
A20H2012GQRLP 20.19 x 20.25 x 12.00
513 x 514 x 305
A20P20 A20P20G 17.00 x 17.00
432 x 432
21.81 x 14.00
554 x 356
4
A24H2012GQRLP 24.25 x 20.25 x 12.00
616 x 514 x 305
A24P20 A24P20G 21.00 x 17.00
533 x 432
25.86 x 14.00
657 x 356
4
A24H2412GQRLP 24.19 x 24.19 x 12.00
614 x 614 x 305
A24P24 A24P24G 21.00 x 21.00
533 x 533
25.81 x 18.00
656 x 457
4
A30H2412GQRLP 30.25 x 24.25 x 12.00
768 x 616 x 305
A30P24 A30P24G 27.00 x 21.00
686 x 533
31.95 x 18.00
812 x 457
5
A36H3012GQRLP 36.25 x 30.25 x 12.00
921 x 768 x 305
A36P30 A36P30G 33.00 x 27.00
838 x 686
37.58 x 24.00
955 x 610
5
A36H3612GQRLP 36.25 x 36.25 x 12.00
921 x 921 x 305
A36P36 A36P36G 33.00 x 33.00
838 x 838
37.61 x 30.00
955 x 762
7
A48H3612GQRLP 48.25 x 36.25 x 12.00
1226 x 921 x 305
A48P36 A48P36G 45.00 x 33.00
1143 x 838
49.58 x 30.00
1259 x 762
8
A60H3612GQRLP 60.12 x 36.31 x 12.00
1527 x 922 x 305
A60P36 A60P36G 57.00 x 33.00
1448 x 838
61.41 x 30.00
1564 x 762
8
A24H2016GQRLP 24.25 x 20.25 x 16.00
616 x 514 x 406
A24P20 A24P20G 21.00 x 17.00
533 x 432
25.86 x 14.00
657 x 356
4
A24H2416GQRLP 24.19 x 24.19 x 16.00
614 x 614 x 406
A24P24 A24P24G 21.00 x 21.00
533 x 533
25.81 x 18.00
656 x 457
4
A30H2416GQRLP 30.25 x 24.25 x 16.00
768 x 616 x 406
A30P24 A30P24G 27.00 x 21.00
686 x 533
31.95 x 18.00
812 x 457
5
A48H3616GQRLP 48.25 x 36.25 x 16.00
1226 x 921 x 406
A48P36 A48P36G 45.00 x 33.00
1143 x 838
49.58 x 30.00
1259 x 762
8
A60H3616GQRLP 60.12 x 36.31 x 16.00
1527 x 922 x 406
A60P36 A60P36G 57.00 x 33.00
1448 x 838
61.41 x 30.00
1566 x 762
8
A20H1620GQRLP 20.19 x 16.25 x 20.00
513 x 413 x 508
A20P16 A20P16G 17.00 x 13.00
432 x 330
21.81 x 10.00
554 x 254
4
A20H2020GQRLP 20.19 x 20.25 x 20.00
513 x 514 x 508
A20P20 A20P20G 17.00 x 17.00
432 x 432
21.81 x 14.00
554 x 356
4
A24H2020GQRLP 24.25 x 20.25 x 20.00
616 x 514 x 508
A24P20 A24P20G 21.00 x 17.00
533 x 432
25.86 x 14.00
657 x 356
4
A24H2420GQRLP 24.19 x 24.19 x 20.00
614 x 614 x 508
A24P24 A24P24G 21.00 x 21.00
533 x 533
25.81 x 18.00
656 x 457
4
A30H2420GQRLP 30.25 x 24.25 x 20.00
768 x 616 x 508
A30P24 A30P24G 27.00 x 21.00
686 x 533
31.95 x 18.00
812 x 457
5
A36H3020GQRLP 36.25 x 30.25 x 20.00
921 x 768 x 508
A36P30 A36P30G 33.00 x 27.00
838 x 686
37.61 x 24.00
958 x 610
5
A48H3620GQRLP 48.25 x 36.25 x 20.00
1226 x 921 x 508
A48P36 A48P36G 45.00 x 33.00
1143 x 838
49.58 x 30.00
1263 x 762
8
A24H2024GQRLP 24.25 x 20.25 x 24.00
616 x 514 x 610
A24P20 A24P20G 21.00 x 17.00
533 x 432
25.86 x 14.00
657 x 356
4
A24H2424GQRLP 24.19 x 24.19 x 24.00
614 x 614 x 610
A24P24 A24P24G 21.00 x 21.00
533 x 533
25.81 x 18.00
656 x 457
4
A30H2424GQRLP 30.25 x 24.25 x 24.00
768 x 616 x 610
A30P24 A30P24G 27.00 x 21.00
686 x 533
31.95 x 18.00
812 x 457
5
Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC272
3
FIBERGLASS Hinge-COveR wiTH 3-POinT LaTCH OR QuiCk-ReLease LaTCHes
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC274
3

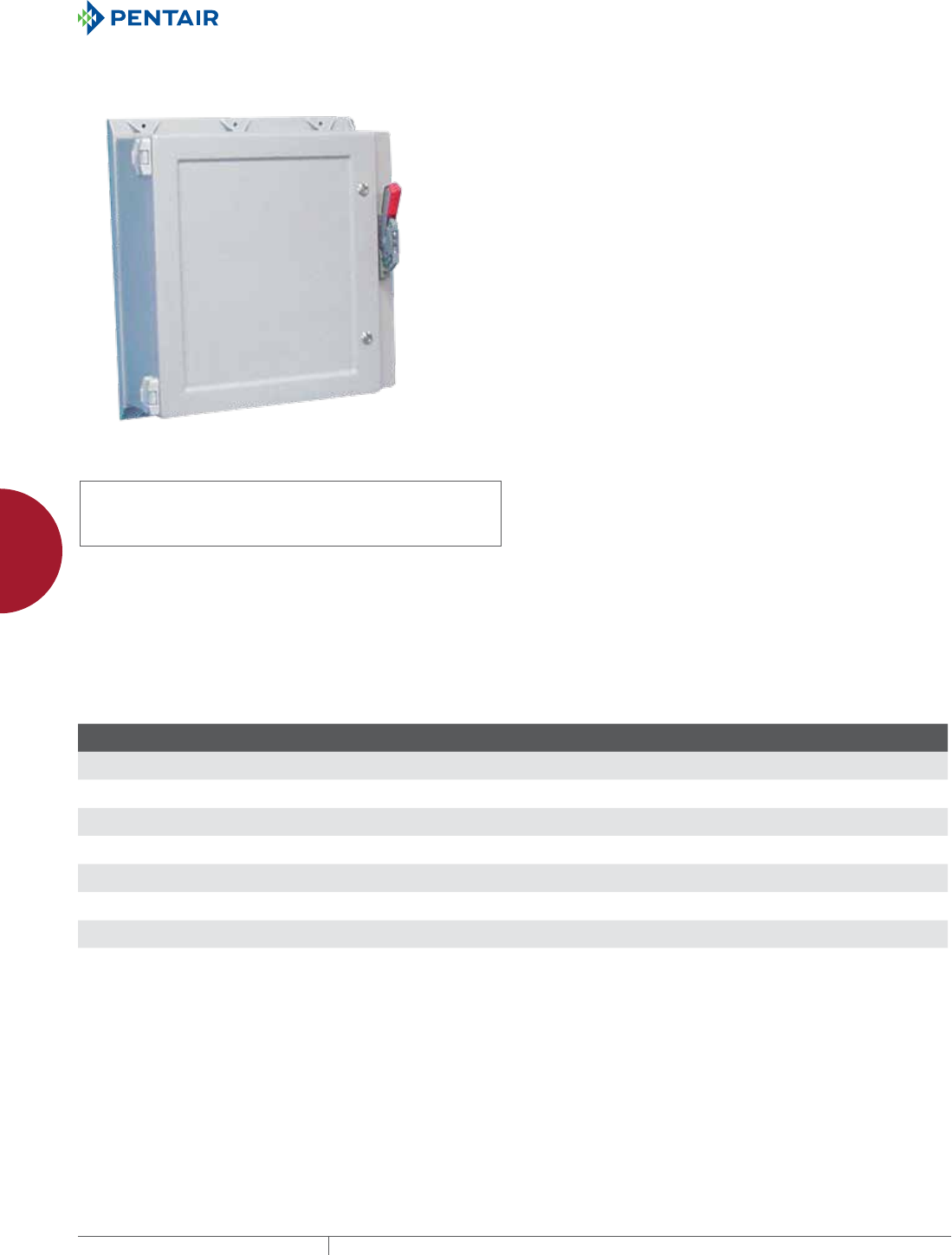

FIBERGLASS waLL-MOunT DisCOnneCT
wall-Mount DisConneCt
FIBERGLASS DISCONNECT, TYPE 4X
INDUSTRY STANDARDS
Meets NEMA Type 3RX requirements
APPLICATION
SPECIFICATIONS
FINISH
ACCESSORIES
See also Accessories.
MODIFICATION AND CUSTOMIZATION
Bulletin: A17WD
Catalog Number AxBxC in./mm Panel Conductive Panel
Panel Size
in./mm
Mounting G x H
in./mm
Number of
Latches
A20HS1610GQRLP 20.19 x 16.25 x 10.00
513 x 413 x 254
A20P16 A20P16G 17.00 x 13.00
432 x 330
21.81 x 10.00
554 x 254
2
A24HS2008GQRLP 24.25 x 20.25 x 8.00
616 x 514 x 203
A24P20 A24P20G 21.00 x 17.00
533 x 432
25.86 x 14.00
657 x 356
2
A24HS2408GQRLP 24.19 x 24.19 x 8.00
614 x 614 x 203
A24P24 A24P24G 21.00 x 21.00
533 x 533
25.81 x 18.00
656 x 457
2
A24HS2412GQRLP 24.19 x 24.19 x 12.00
614 x 614 x 305
A24P24 A24P24G 21.00 x 21.00
533 x 533
25.81 x 18.00
656 x 457
2
A30HS2412GQRLP 30.25 x 24.25 x 12.00
768 x 616 x 305
A30P24 A30P24G 27.00 x 21.00
686 x 533
31.95 x 18.00
812 x 457
2
A36HS3012GQRLP 36.25 x 30.25 x 12.00
921 x 768 x 305
A36P30 A36P30G 33.00 x 27.00
838 x 686
37.58 x 24.00
955 x 610
4
A48HS3612GQRLP 48.25 x 36.25 x 12.00
1226 x 921 x 305
A48P36 A48P36G 45.00 x 33.00
1143 x 838
49.58 x 30.00
1259 x 762
5
A60HS3612GQRLP 60.25 x 36.31 x 12.00
1530 x 922 x 305
A60P36 A60P36G 57.00 x 33.00
1448 x 838
61.58 x 30.00
1564 x 762
5
Purchase panels separately. Optional stainless steel, composite and aluminum panels available for most sizes. See General Accessories.
No additional “C” dimensions available.
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC276
3

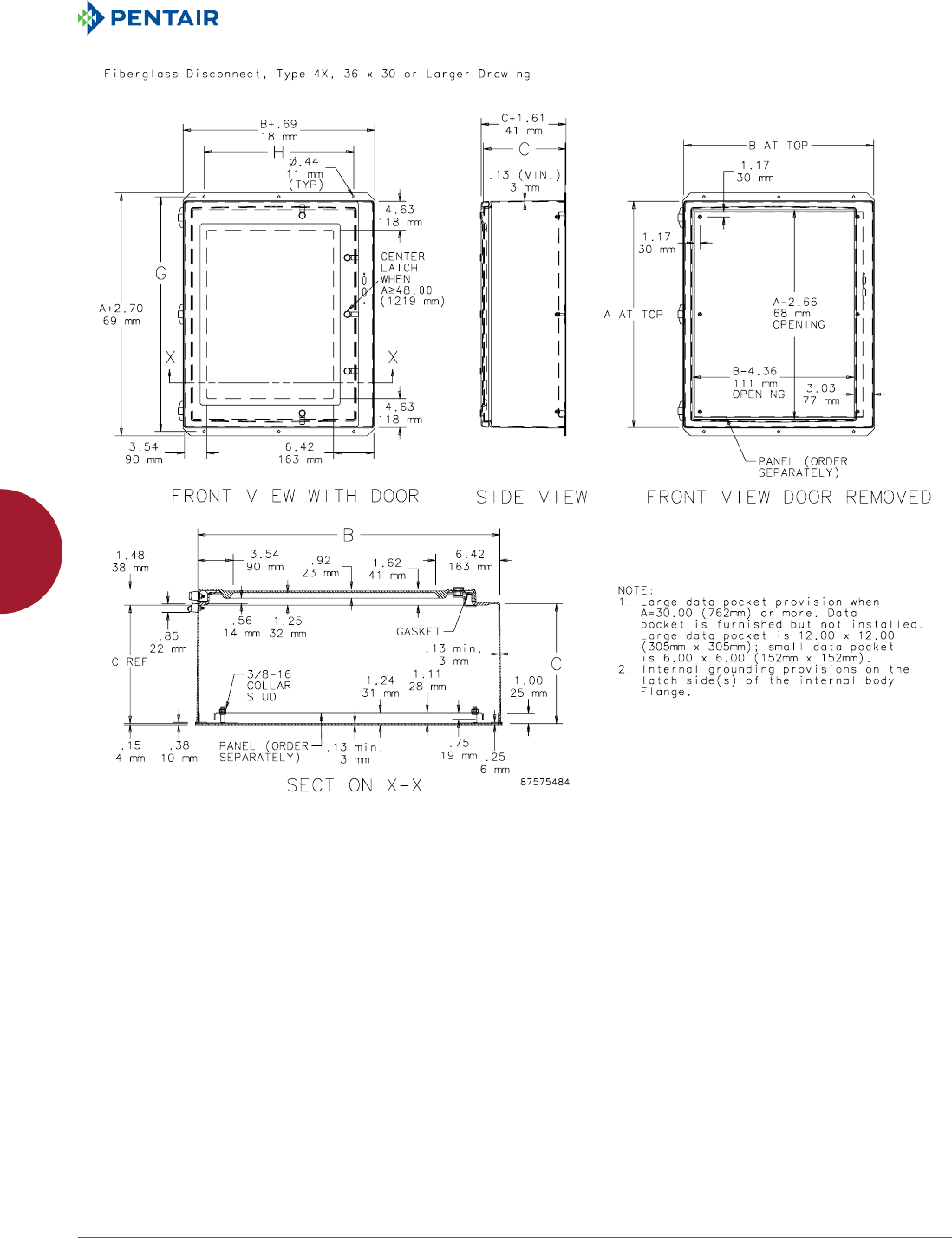

FIBERGLASS waLL-MOunT DisCOnneCT

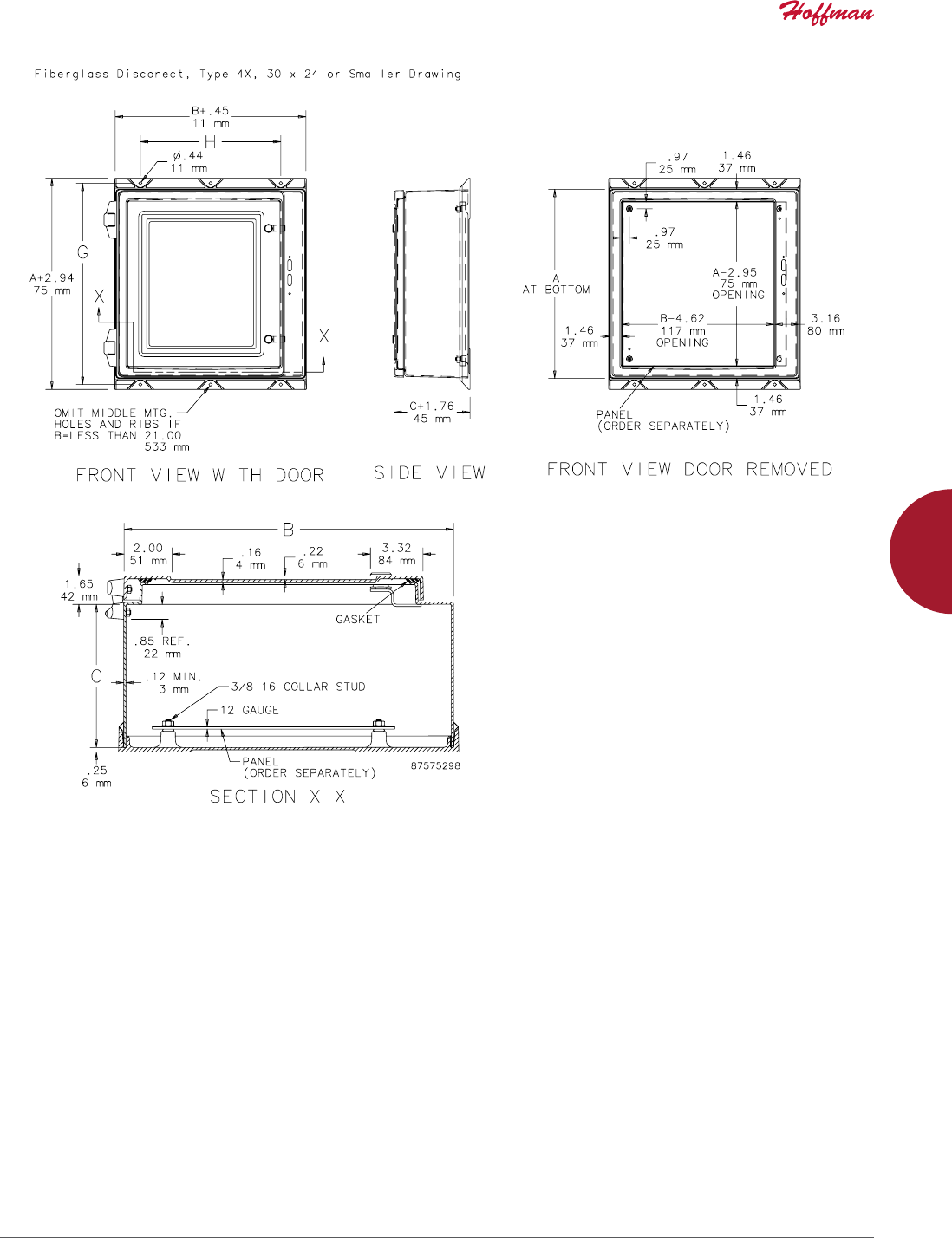

EQUIPMENT PROTECTION NONMETALLIC 277
3
FIBERGLASS waLL-MOunT DisCOnneCT

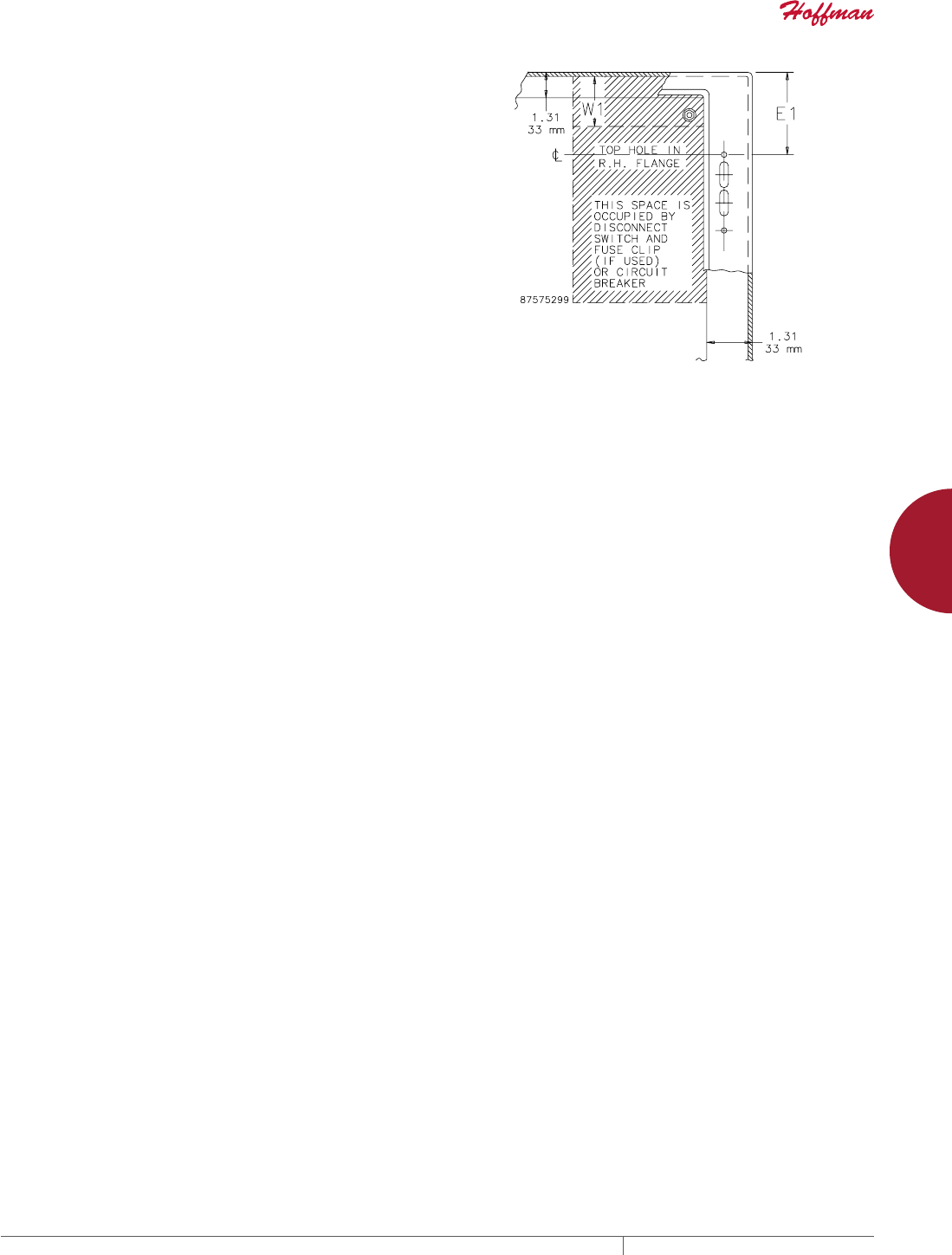

DISCONNECT MOUNTING SPACE
See Technical Information for wire bend space.
National Electrical Code®
Verify your application to determine whether wiring space is
adequate.
Consult disconnect
manufacturer for F1
and G1 dimensions.
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC278
3

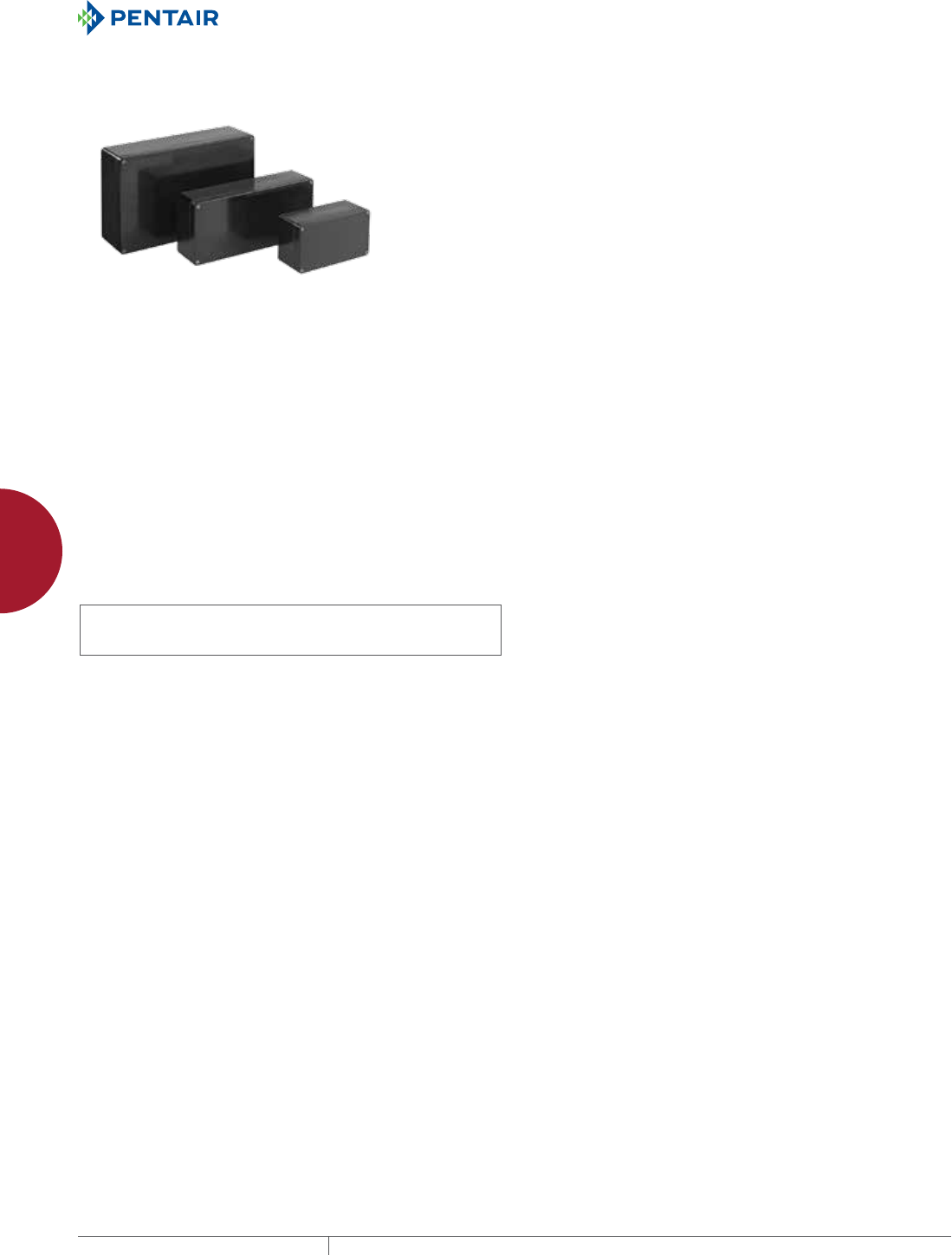

FIBERGLASS HazaRDOus LOCaTiOn
HazarDous loCation
ZONEX NONMETALLIC TERMINAL ENCLOSURE
INDUSTRY STANDARDS
ATEX Directive 94/9/EC
ATEX
IECEx
APPLICATION
FEATURES
SPECIFICATIONS
FINISH
ACCESSORIES
NOTES
MODIFICATION AND CUSTOMIZATION
Bulletin: Hl3
EQUIPMENT PROTECTION NONMETALLIC 279
3
FIBERGLASS HazaRDOus LOCaTiOn
Catalog Number AxBxC in./mm
F
in./mm
G
in./mm
H
in./mm
I
in./mm
J
in./mm
Mounting
Screw Size
in./mm Panel
Panel
Material
Panel Size
in./mm
EXE807555 3.15 x 2.95 x 2.17
80 x 75 x 55
.17
4
.57
15
.59
15
1.65
42
.23
6
#8
4
A8075P Composite 2.72 x 2.52 x .08
69 x 64 x 2
EXE1107555 4.33 x 2.95 x 2.17
110 x 75 x 55
.17
4
.57
15
.59
15
1.65
42
.24
6
#8
4
A11075P Composite 3.90 x 2.52 x .08
99 x 64 x 2
EXE1607555 6.30 x 2.95 x 2.17
160 x 75 x 55
.17
4
.57
15
.59
15
1.65
42
.24
6
#8
4
A16075P Composite 5.87 x 2.52 x .08
149 x 64 x 2
EXE1907555 7.48 x 2.95 x 2.17
190 x 75 x 55
.17
4
.57
15
.59
15
1.65
42
.23
6
#8
4
A19075P Composite 7.05 x 2.52 x .08
179 x 64 x 2
EXE807575 3.15 x 2.95 x 2.95
80 x 75 x 75
.16
4
.56
14
.59
15
2.44
62
.23
6
#8
4
A8075P Composite 2.72 x 2.52 x .08
69 x 64 x 2
EXE1107575 4.33 x 2.95 x 2.95
110 x 75 x 75
.16
4
.56
14
.59
15
2.44
62
.24
6
#8
4
A11075P Composite 3.90 x 2.52 x .08
99 x 64 x 2
EXE1607575 6.30 x 2.95 x 2.95
160 x 75 x 75
.16
4
.56
14
.59
15
2.44
62
.24
6
#8
4
A16075P Composite 5.87 x 2.52 x .08
149 x 64 x 2
EXE1907575 7.48 x 2.95 x 2.95
190 x 75 x 75
.16
4
.56
14
.59
15
2.44
62
.24
6
#8
4
A19075P Composite 7.05 x 2.52 x .08
179 x 64 x 2
EXE12212090 4.80 x 4.72 x 3.54
122 x 120 x 90
.17
4
.75
19
.98
25
2.91
74
.32
8
1/4
6
A122120P Plated Steel 4.25 x 4.21 x .06
108 x 107 x 1.5
EXE22012090 8.66 x 4.72 x 3.54
220 x 120 x 90
.17
4
.75
19
.98
25
2.95
75
.32
8
1/4
6
A220120P Plated Steel 8.11 x 4.21 x .06
206 x 107 x 1.5
EXE16016090 6.30 x 6.30 x 3.54
160 x 160 x 90
.23
5.9
.79
20
.83
21
2.95
75
.39
10
1/4
6
A160160P Plated Steel 5.63 x 5.70 x .06
143 x 144 x 1.5
EXE26016090 10.24 x 6.30 x 3.54
260 x 160 x 90
.23
5.9
.79
20
.83
21
2.95
75
.39
10
1/4
6
A260160P Plated Steel 9.61 x 5.70 x .06
244 x 144 x 1.5
EXE36016090 14.17 x 6.30 x 3.54
360 x 160 x 90
.23
5.9
.79
20
.83
21
2.95
75
.39
10
1/4
6
A360160P Plated Steel 13.54 x 5.70 x .06
344 x 144 x 1.5
EXE56016090 22.05 x 6.30 x 3.54
560 x 160 x 90
.21
5
.77
20
.83
21
2.95
.75
.39
10
1/4
6
A560160P Plated Steel 21.38 x 5.70 x .06
543 x 144 x 2.5
EXE255250120 10.04 x 9.84 x 4.72
255 x 250 x 120
.22
6
.79
20
.98
25
4.09
104
.39
10
1/4
6
A255250P Plated Steel 9.45 x 9.17 x .06
240 x 233 x 1.5
EXE400250120 15.75 x 9.84 x 4.72
400 x 250 x 120
.22
6
.79
20
.98
25
4.09
104
.39
10
1/4
6
A400250P Plated Steel 15.12 x 9.17 x .06
384 x 233 x 1.5
EXE400405120 15.75 x 15.94 x 4.72
400 x 405 x 120
.23
6
.79
20
.98
25
4.09
104
.39
10
1/4
6
A400405P Plated Steel 15.16 x 15.35 x .06
385 x 390 x 1.5
EXE400405165 15.75 x 15.94 x 6.50
400 x 405 x 165
.20
5
.76
19
.98
25
5.87
149
.39
10
1/4
6
A400405P Plated Steel 15.16 x 15.35 x .06
385 x 390 x 1.5
$
%
,
+
&
=
=
%/
/
$-
-
$*
*
)
%)
==
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC280
3

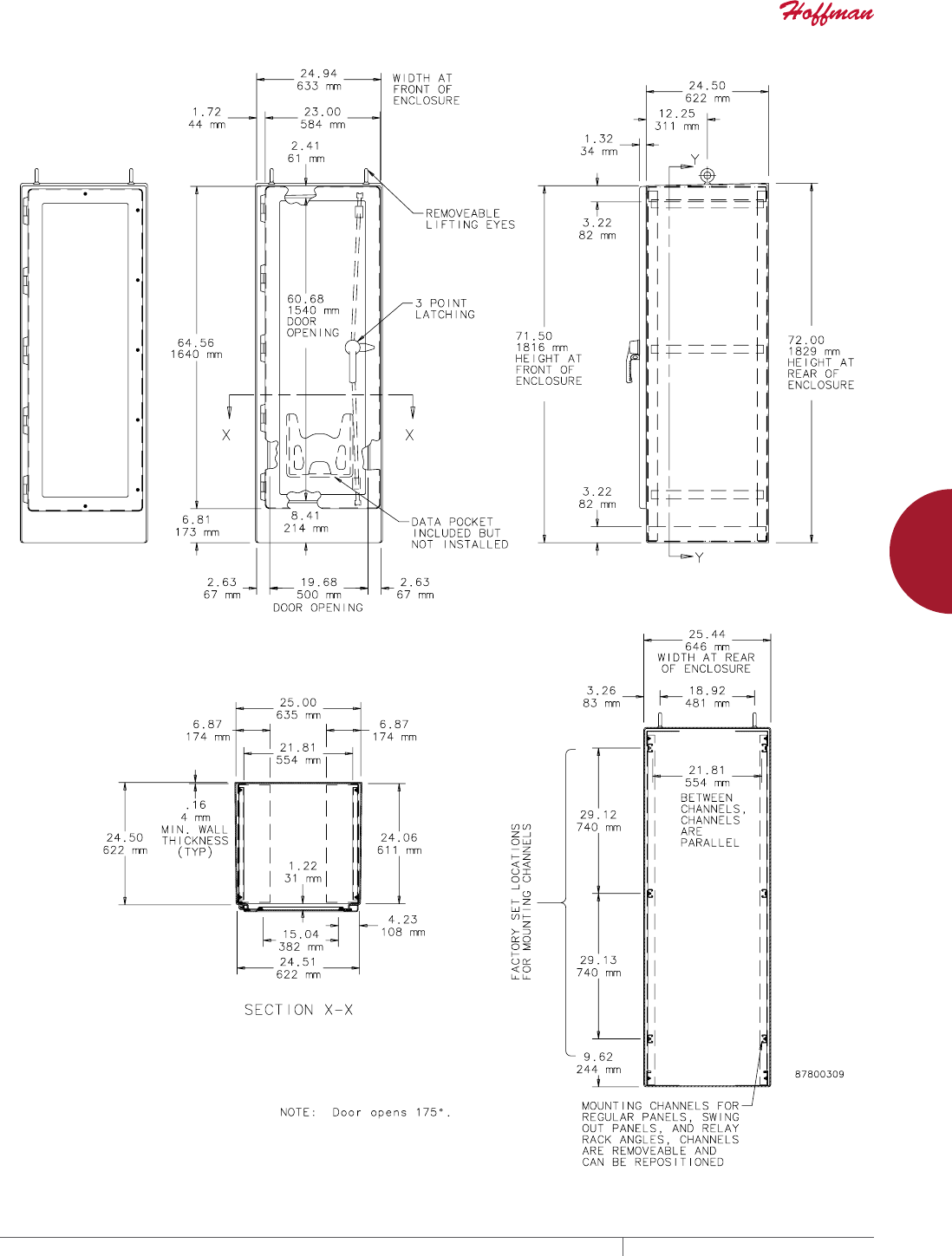

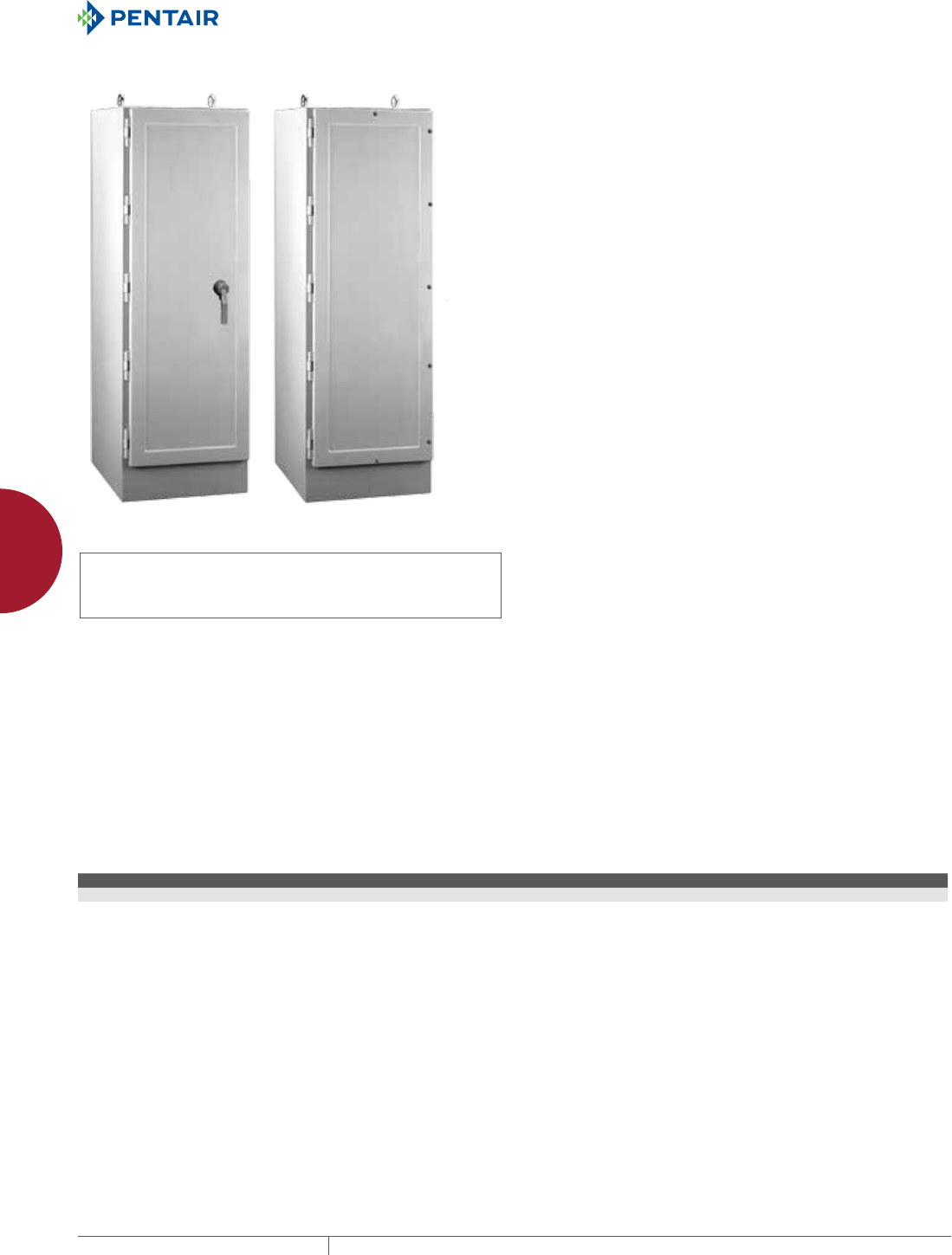

FIBERGLASS FRee-sTanD
Free-s tanD
FREESTAND, TYPE 4X
INDUSTRY STANDARDS
Meets NEMA Type 3RX requirements
APPLICATION
SPECIFICATIONS
FINISH
ACCESSORIES
See also Accessories.
MODIFICATION AND CUSTOMIZATION
Bulletin: A17
Catalog Number AxBxC in. AxBxC mm Description Estimated Ship Wt. (lb.) Estimated Ship Wt. (kg)
A722525FGFS 72.00 x 25.00 x 24.50 1829 x 635 x 622 Stainless steel captivated door screws 215 97.5
A722525FGFS3PT 72.00 x 25.00 x 24.50 1829 x 635 x 622 3-point latching system/Type 316 stainless steel handle 215 97.5
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC282
3
FIBERGLASS FRee-sTanD
ACCESSORY SELECTION FOR FREESTAND, TYPE 4X
Bulletin: A17Y, A80, D10, Pnl30, PnlFS
Panels
Catalog Number Description Size (in.) Size (mm)
A72P24F1 Full Panel, Steel 60.00 x 20.00 1524 x 508
A72P24F2 Half Panel, Steel 30.88 x 20.00 784 x 508
A72P24F1G Full Panel, Conductive 60.00 x 20.00 1524 x 508
A72P24F2G Half Panel, Conductive 30.88 x 20.00 784 x 508
Purchase panels and accessories separately.
Swing-Out Panels
Catalog Number Description Size (in.) Size (mm)
A72SP24F3 Full Swing-Out Panel 60.00 x 18.19 1524 x 462
A72SP24F4 Half Swing-Out Panel 30.88 x 18.19 784 x 462
Purchase panels and accessories separately.
Half Swing-Out Panel fits in top or bottom half of enclosure.
Side-Mounted Panels
Catalog Number Description Size (in.) Size (mm)
A72SMP14 14.00 inch (356mm)
Wide Panel, Steel
60.00 x 14.00 1524 x 356
A72SMP20 20.00 inch (508mm)
Wide Panel, Steel
60.00 x 20.00 1524 x 508
Catalog Number Description Size (in.) Size (mm)
A72SMP14G 14.00 inch (356mm)
Wide Panel, Conductive
60.00 x 14.00 1524 x 356
A72SMP20G 20.00 inch (508mm)
Wide Panel, Conductive
60.00 x 20.00 1524 x 508
Purchase panels and accessories separately.
Clamping Nuts
Catalog Number Description Package Qty
APS1420CN 1/4-20 Clamping Nut 20
APS51618CN 5/16-18 Clamping Nut 20
Purchase panels and accessories separately.
Casters
Catalog Number Description Size (in.) Size (mm)
DMCKC Set of four casters 4.00 x 3.00 102 x 76
Requires Bottom Support
Purchase panels and accessories separately.
Inside Bottom Support
Catalog Number Description Size (in.) Size (mm)
A17SUPPORT1 Enclosure bottom support allows
installation of casters or floor-stand kits.
23.70 x 23.25 602 x 591
Purchase panels and accessories separately.
EQUIPMENT PROTECTION NONMETALLIC 283
3
FIBERGLASS FRee-sTanD
RACK MOUNTING ACCESSORY SELECTION FOR FREE
STAND, TYPE 4X
Bulletin: A80, P20
Rack Mounting Angles
Catalog Number Description Length (in.) Length (mm) Units
A72RP24F5 Two Full-Length Angles (Type RP) 61.25 1556 35
A72RP24F6 Two Half-Length Angles (Type RP) 31.50 800 18
A60RA19TH Two Full-Length Angles (Type RA) 49.00 1245 28
A72RA19TH Two Full-Length Angles (Type RA 61.25 1556 35
Purchase accessories separately.
1 unit = 1.75 in. (44mm)
Clip Nut Package
Catalog Number Description Package Qty Size
AN1032 #10-32 Zinc-Plated 20 Fits U-Style (Type RA) Rack Mounting Angle
Purchase accessories separately.
Rack Panels
Catalog Number Description Size (in.) Size (mm) Units
P19RP1UA Aluminum 19.00 x 1.75 483 x 44 1
P19RP1UP Steel 19.00 x 1.75 483 x 44 1
P19RP2UA Aluminum 19.00 x 3.50 483 x 89 2
P19RP2UP Steel 19.00 x 3.50 483 x 89 2
P19RP3UA Aluminum 19.00 x 5.25 483 x 133 3
P19RP3UP Steel 19.00 x 5.25 483 x 133 3
P19RP4UA Aluminum 19.00 x 7.00 483 x 178 4
P19RP4UP Steel 19.00 x 7.00 483 x 178 4
P19RP5UA Aluminum 19.00 x 8.75 483 x 222 5
P19RP5UP Steel 19.00 x 8.75 483 x 222 5
P19RP6UA Aluminum 19.00 x 10.50 483 x 267 6
P19RP6UP Steel 19.00 x 10.50 483 x 267 6
P19RP7UA Aluminum 19.00 x 12.25 483 x 311 7
P19RP7UP Steel 19.00 x 12.25 483 x 311 7
P19RP8UA Aluminum 19.00 x 14.00 483 x 356 8
P19RP8UP Steel 19.00 x 14.00 483 x 356 8
P19RP9UP Steel 19.00 x 15.75 483 x 400 9
P19RP10UP Steel 19.00 x 17.50 483 x 445 10
P19RP11UA Aluminum 19.00 x 19.25 483 x 489 11
P19RP11UP Steel 19.00 x 19.25 483 x 489 11
P19RP12UA Aluminum 19.00 x 21.00 483 x 533 12
P19RP12UP Steel 19.00 x 21.00 483 x 533 12
P19RP16UP Steel 19.00 x 28.00 483 x 711 16
Purchase panels and accessories separately.
1 unit = 1.75 in. (44 mm)
Screw Package
Catalog Number Description Package Qty
AS1032 10-32 Truss Head Nickel-Plated 20
Purchase accessories separately.
Drawers
Catalog Number Description Depth (in.) Depth (mm) Units
A19DR2U Pull-Out Drawer 3.47 88 2
A19DR4U Pull-Out Drawer 6.97 177 4
Purchase accessories separately.
1 unit = 1.75 in. (44 mm)
Requires two sets of Type RA Rack Mounting Angles for installation.
Writing Surface for Drawers
Catalog Number Description Size
A19WSDR Hinged Surface Fits Drawer A19DR2U and A19DR4U
Purchase accessories separately.
Shelves
Catalog Number Description Units
A19SHP6 Pull-Out Shelf 2
A19SH5 Fixed Shelf 1
A19SH6 Fixed Shelf 1
Purchase accessories separately.
1 unit = 1.75 in. (44 mm)
Guides
Catalog Number Description Unit
AG1U6 Chassis Guide (set of two) 1
Purchase accessories separately.
1 unit = 1.75 in. (44 mm)
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC284
3

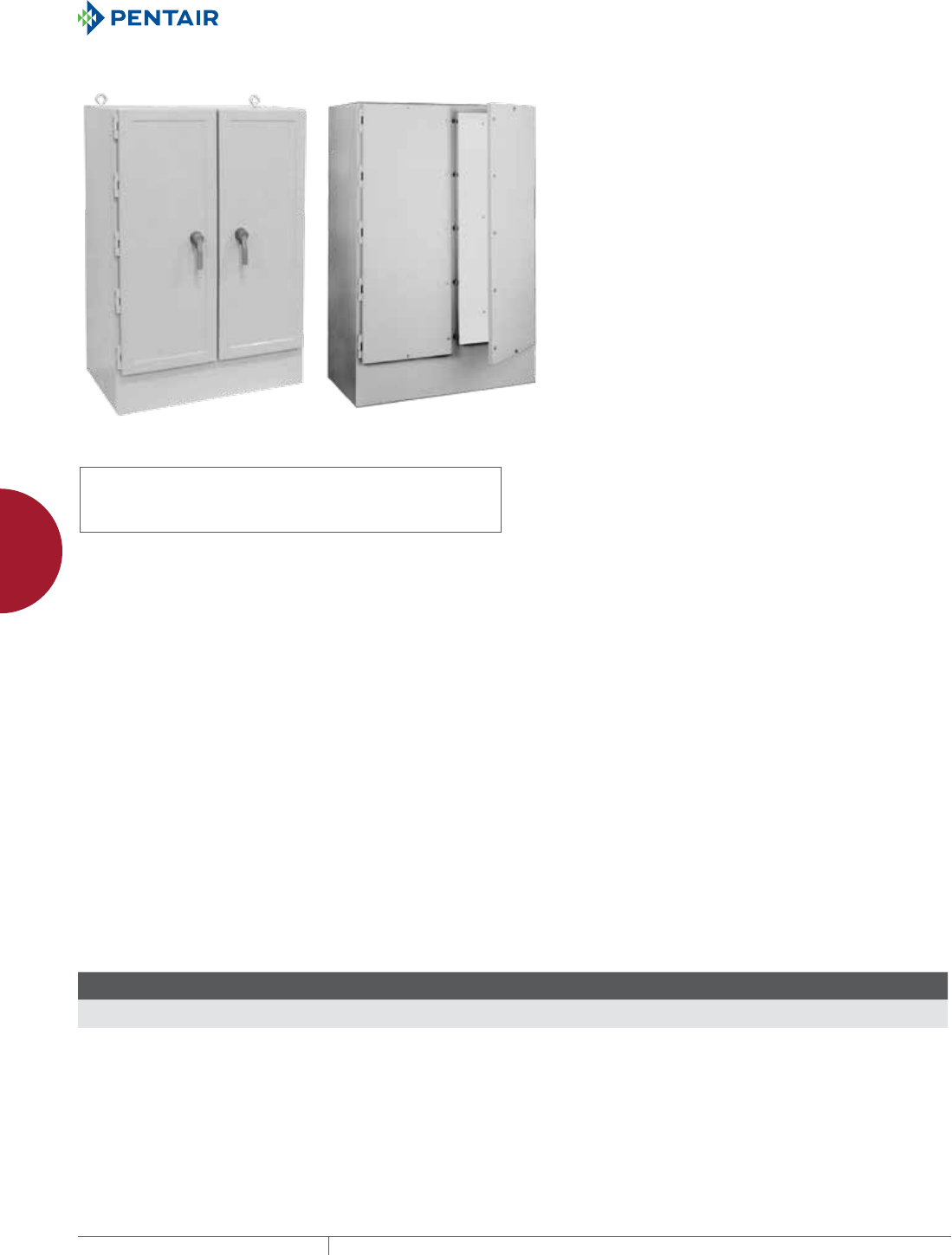

FIBERGLASS TwO-DOOR FRee-sTanD
two-Door Free-stanD
TWODOOR FREESTAND, TYPE 4X
INDUSTRY STANDARDS
Meets NEMA Type 3RX requiremets
APPLICATION
SPECIFICATIONS
FINISH
ACCESSORIES
See also Accessories.
MODIFICATION AND CUSTOMIZATION
Bulletin: A17
Catalog Number AxBxC in./mm Number of Panels
Panel Size
in./mm
A724925FG 72.00 x 49.00 x 24.50
1829 x 1245 x 622
2 56.00 x 22.00
1422 x 559
A724925FGFS3PT 72.00 x 49.00 x 24.50
1829 x 1245 x 622
2 56.00 x 22.00
1422 x 559

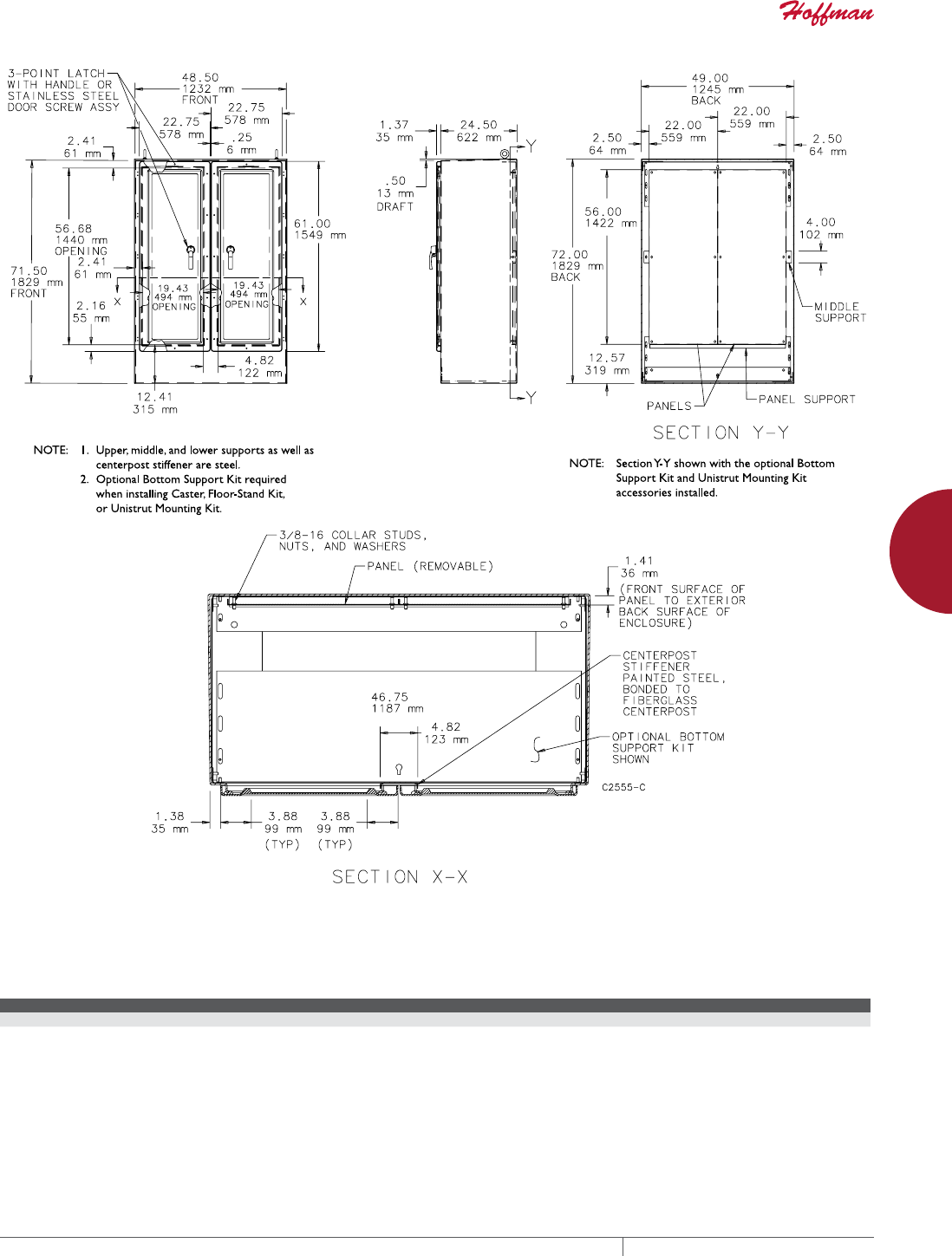

EQUIPMENT PROTECTION NONMETALLIC 285
3
FIBERGLASS TwO-DOOR FRee-sTanD
BOTTOM SUPPORT KITS
Bulletin: A17Y
Catalog Number Description
A17SUPPORT2 Inside Bottom Support -- Enclosure bottom support to allow option of installing casters or floor stand kits
A17UNISTRUT Bolt-On Unistrut Channel (8 channels) -- Painted steel unistrut for accessory mounting
A17SUPPORT2 required to install A17UNISTRUT in two-door enclosures
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC286
3

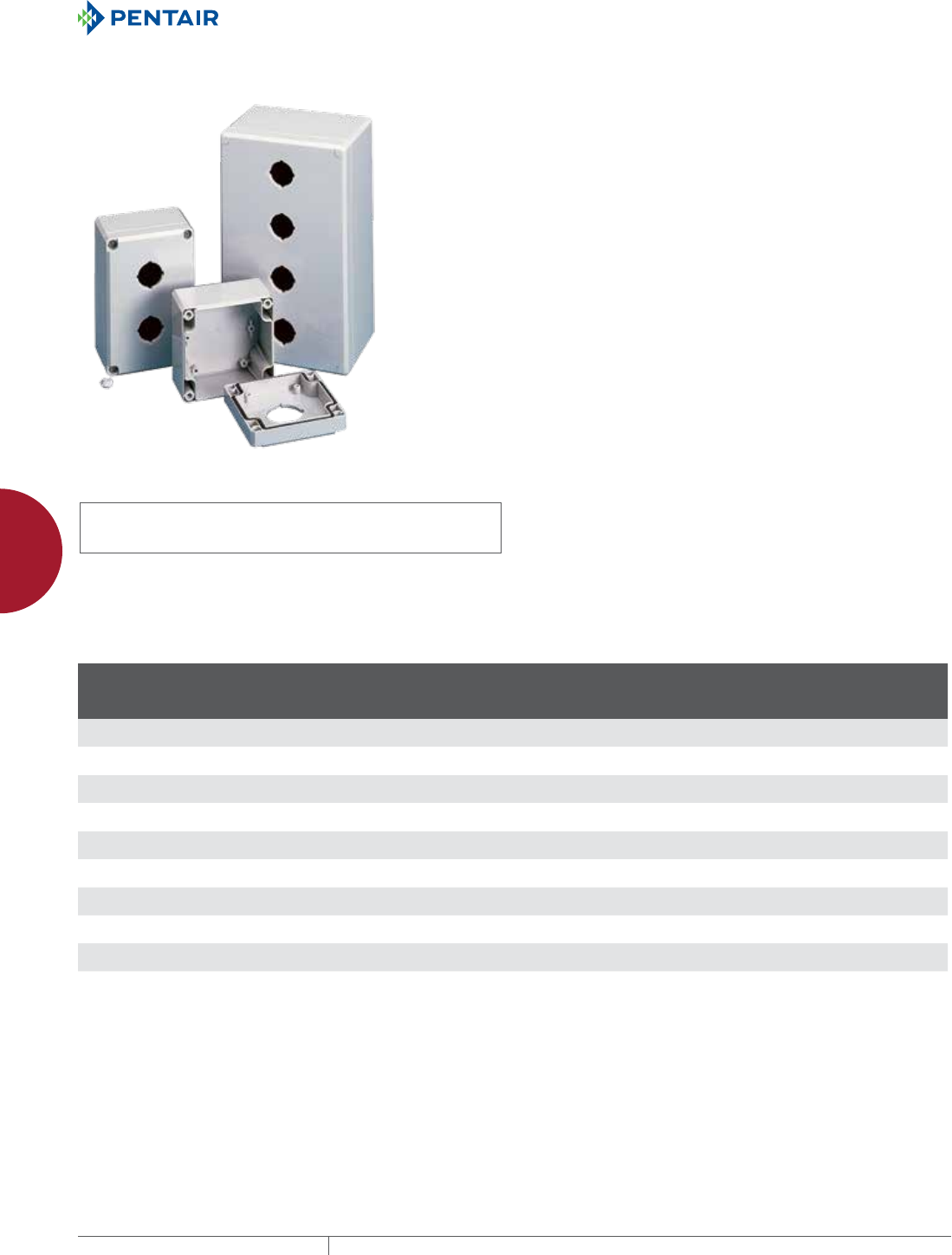

POLYCARBONATE AND ABS QLine D
PolyCarbonate anD abs
Qline D

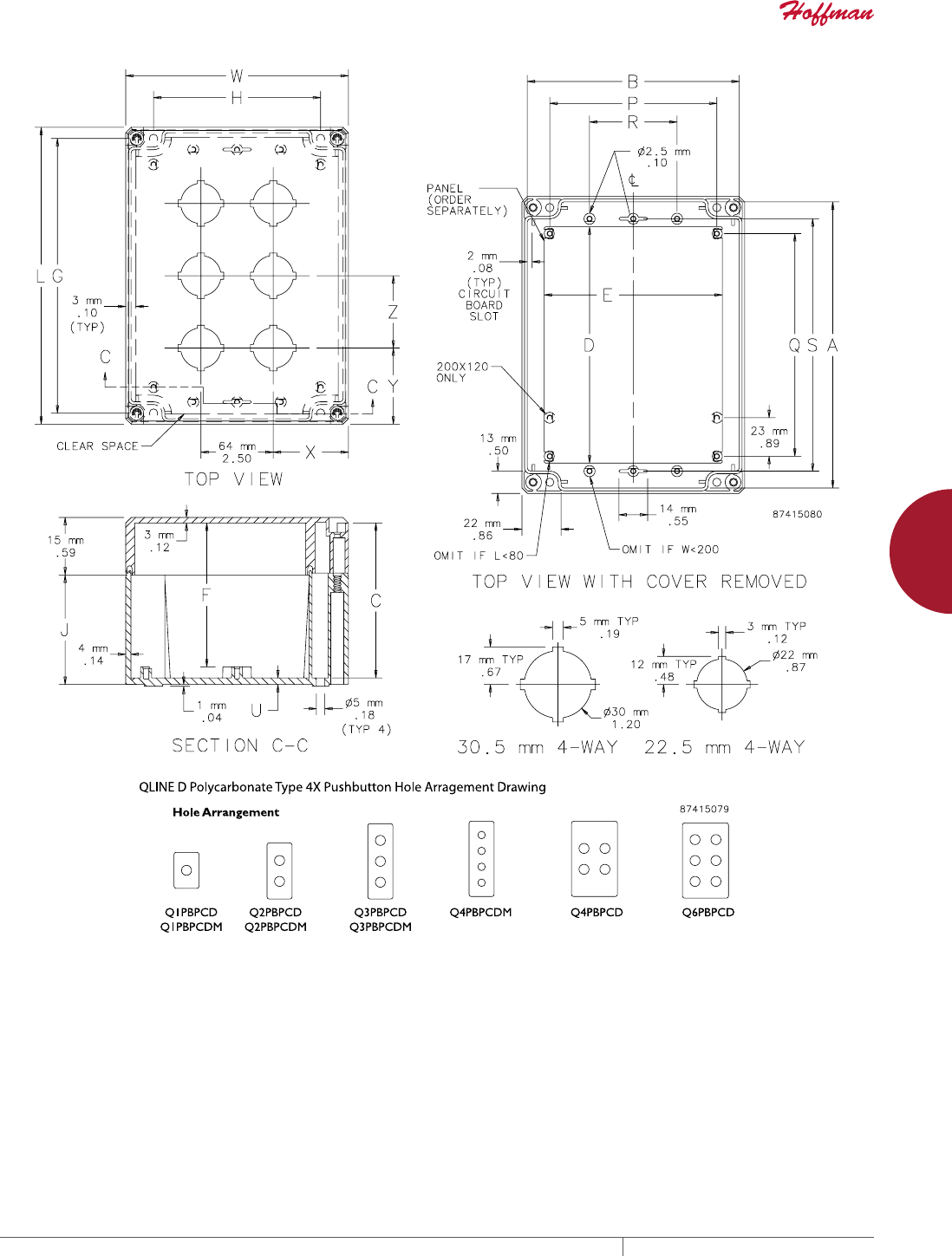

QLINE D PUSHBUTTON, TYPE 4X
INDUSTRY STANDARDS
APPLICATION
SPECIFICATIONS
FINISH
ACCESSORIES
See also Accessories.
Bulletin: Q41
Catalog Number AxBxC mm/in.
Hole
Size
mm/in.
External
Dimensions
L x W
mm/in. Panel
Panel Size
D x E
mm/in.
Mounting
G x H
mm/in.
F
mm/in.
J
mm/in.
P
mm/in.
Q
mm/in.
R
mm/in.
S
mm/in.
U
mm/in.
X
mm/in.
Y
mm/in.
Z
mm/in.
Q1PBPCD 75 x 73 x 79
2.95 x 2.87 x 3.11
30.5 82 x 80
3.23 x 3.15
Q88PD 68 x 55
2.68 x 2.17
70 x 50
2.76 x 1.97
72
2.83
70
2.76
58
2.28
44
1.73
—
—
58
2.28
3
0.12
40
1.57
41
1.61
—
—
Q1PBPCDM 75 x 73 x 79
2.95 x 2.87 x 3.11
22.5 82 x 80
3.23 x 3.15
Q88PD 68 x 55
2.68 x 2.17
70 x 50
2.76 x 1.97
72
2.83
70
2.76
58
2.28
44
1.73
—
—
58
2.28
3
0.12
40
1.57
41
1.61
—
—
Q2PBPCD 113 x 73 x 79
4.45 x 2.87 x 3.11
30.5 120 x 80
4.72 x 3.15
Q128PD 91 x 65
3.58 x 2.56
108 x 50
4.25 x 1.97
72
2.83
70
2.76
58
2.28
82
3.22
—
—
96
3.78
3
0.12
40
1.57
36
1.42
48
1.89
Q2PBPCDM 113 x 73 x 79
4.45 x 2.87 x 3.11
22.5 120 x 80
4.72 x 3.15
Q128PD 91 x 65
3.58 x 2.56
108 x 50
4.25 x 1.97
72
2.83
70
2.76
58
2.28
82
3.22
—
—
96
3.78
3
0.12
40
1.57
36
1.42
48
1.89
Q3PBPCD 153 x 73 x 79
6.02 x 2.87 x 3.11
30.5 160 x 80
6.30 x 3.15
Q168PD 131 x 65
5.16 x 2.56
148 x 50
5.83 x 1.97
72
2.83
70
2.76
58
2.28
122
4.80
—
—
136
5.35
3
0.12
40
1.57
32
1.26
48
1.89
Q3PBPCDM 153 x 73 x 79
6.02 x 2.87 x 3.11
22.5 160 x 80
6.30 x 3.15
Q168PD 131 x 65
5.16 x 2.56
148 x 50
5.83 x 1.97
72
2.83
70
2.76
58
2.28
122
4.80
—
—
136
5.35
3
0.12
40
1.57
32
1.26
48
1.89
Q4PBPCD 193 x 113 x 79
7.60 x 4.45 x 3.11
30.5 200 x 120
7.87 x 4.72
Q2012PD 170 x 100
6.69 x 3.94
188 x 90
7.40 x 3.54
72
2.83
70
2.76
90
3.54
160
6.30
40
1.57
176
6.93
3
0.12
60
2.36
28
1.10
48
1.89
Q4PBPCDM 193 x 113 x 79
7.60 x 4.45 x 3.11
22.5 200 x 120
7.87 x 4.72
Q2012PD 170 x 100
6.69 x 3.94
188 x 90
7.40 x 3.54
72
2.83
70
2.76
90
3.54
160
6.30
40
1.57
176
6.93
3
0.12
60
2.36
28
1.10
48
1.89
Q6PBPCD 233 x 153 x 84
9.17 x 6.02 x 3.29
30.5 240 x 160
9.45 x 6.30
Q2416PD 211 x 148
8.31 x 5.83
228 x 130
8.98 x 5.12
78
3.07
75
2.95
138
5.43
202
7.95
75
2.95
215
8.46
4
0.16
48
1.89
56
2.20
64
2.52
A x B x C are internal dimensions.
Purchase panels separately.
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC288
3

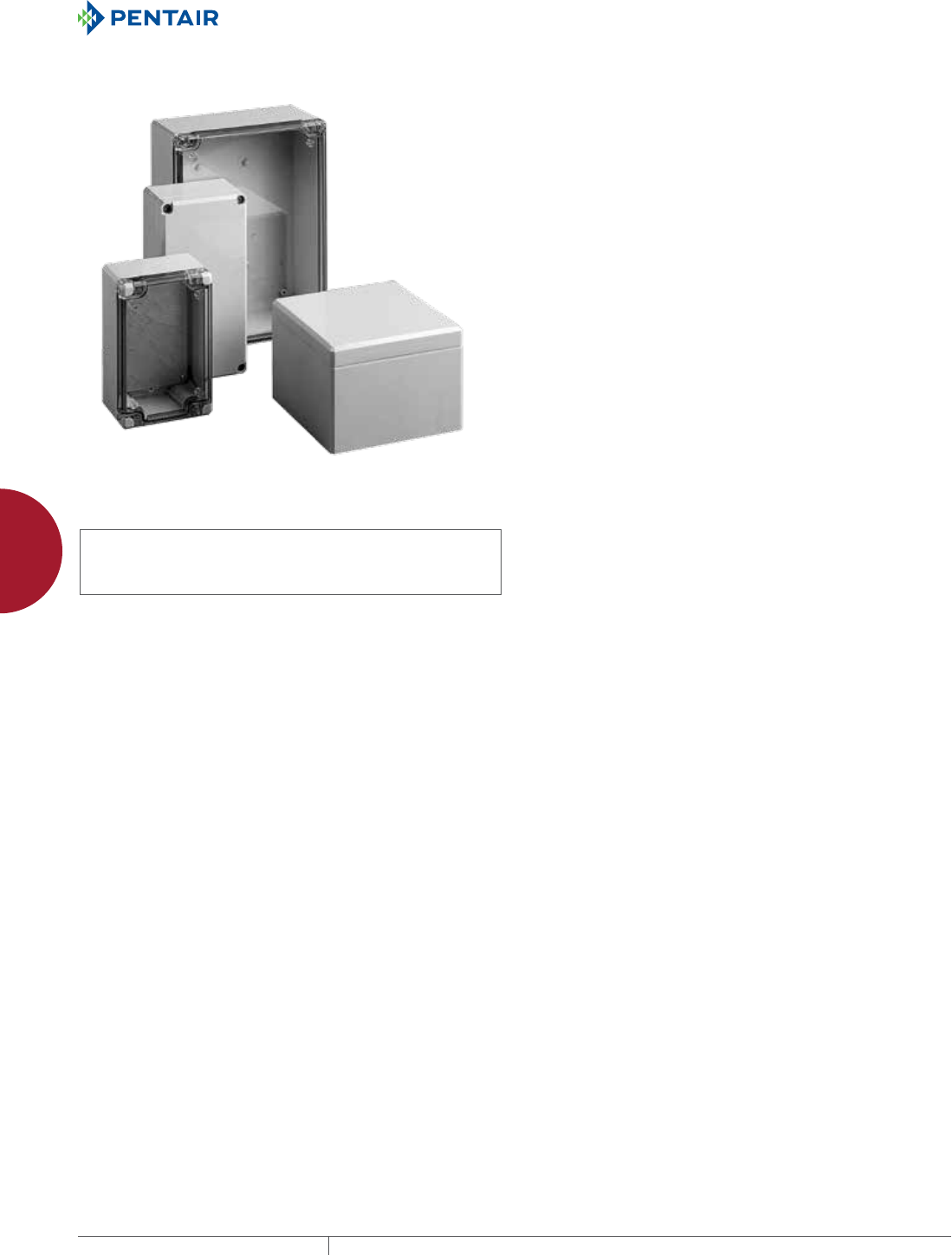

POLYCARBONATE AND ABS QLine D

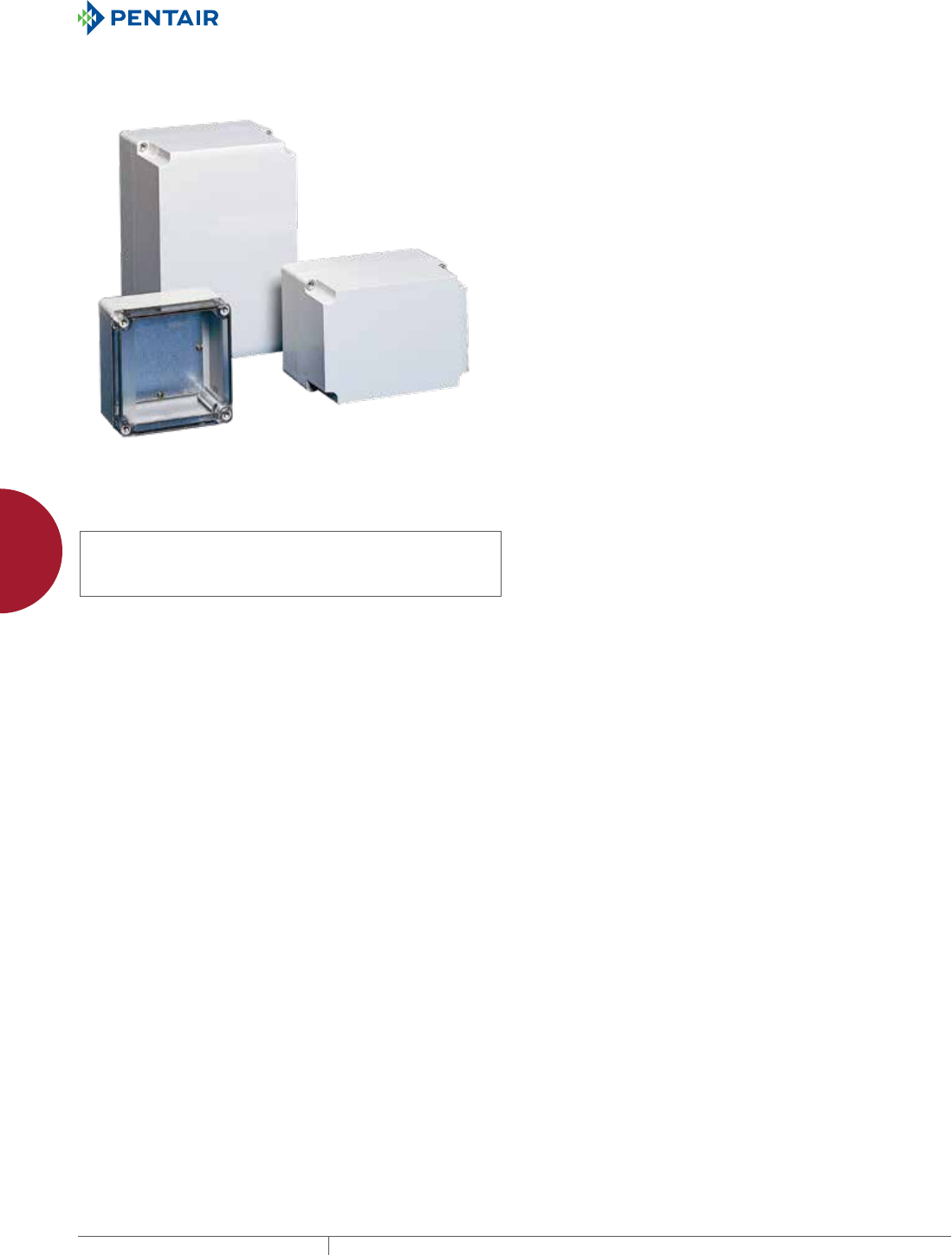

QLINE D, TYPE 4X
INDUSTRY STANDARDS
Polycarbonate Enclosure
ABS Enclosure
APPLICATION
SPECIFICATIONS
FINISH
ACCESSORIES
See also Accessories.
MODIFICATION AND CUSTOMIZATION
Bulletin: Q41
EQUIPMENT PROTECTION NONMETALLIC 289
3

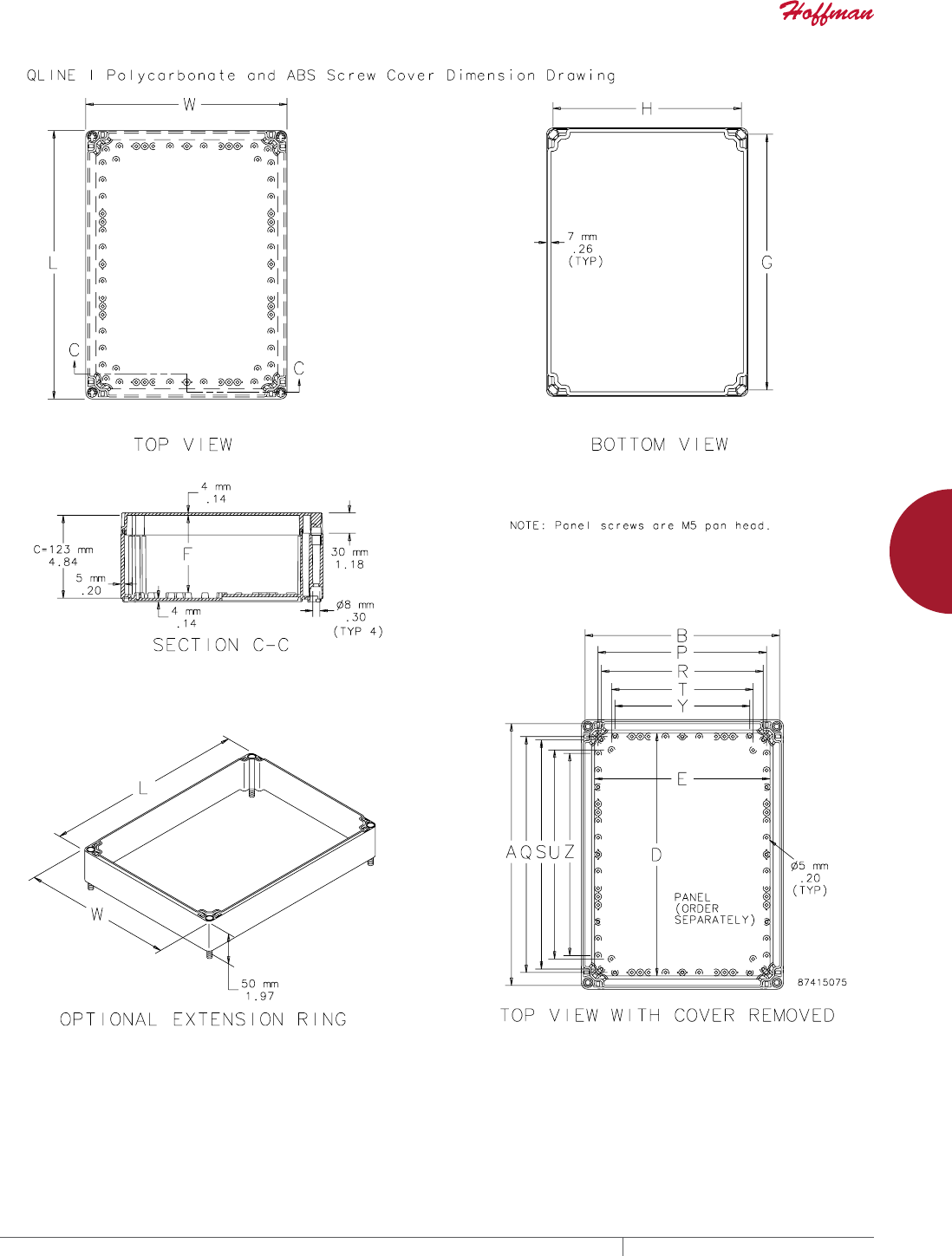

POLYCARBONATE AND ABS QLine D

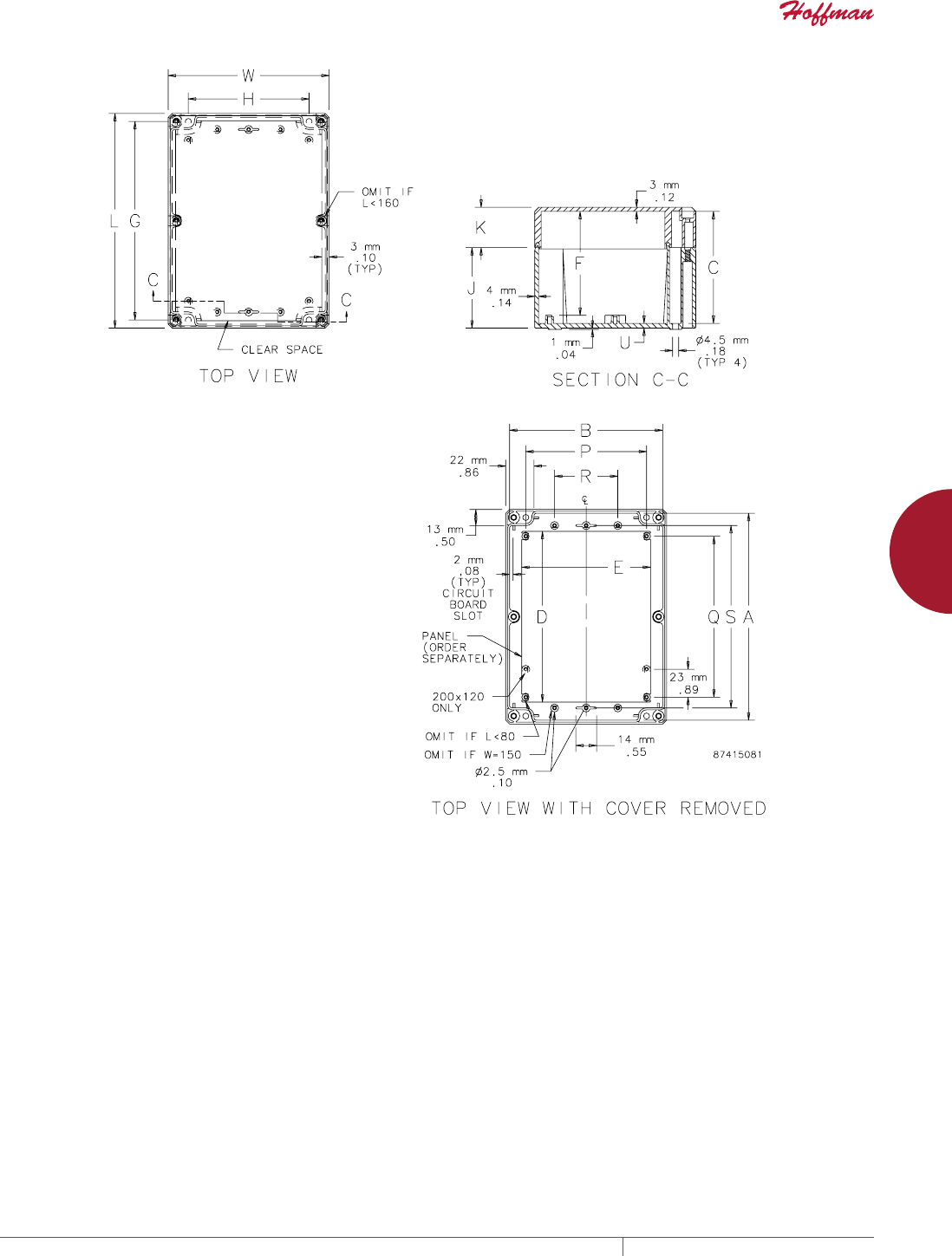

Polycarbonate
Catalog Number AxBxC mm/in.
Cover
Style
External
Dimensions
L x W
mm/in. Panel
Panel Size
D x E
mm/in.
Mounting
G x H
mm/in.
F
mm/in.
J
mm/in.
K
mm/in.
P
mm/in.
Q
mm/in.
R
mm/in.
S
mm/in.
U
mm/in.
Q554PCD 53 x 55 x 36
2.09 x 2.17 x 1.42
Opaque 55 x 53
2.17 x 2.09
— —
—
43 x 41
1.69 x 1.61
28
1.10
25
0.98
10
0.39
16
0.63
—
—
—
—
—
—
2
0.08
Q554PCDCC 53 x 55 x 36
2.09 x 2.17 x 1.42
Clear 55 x 53
2.17 x 2.09
— —
—
43 x 41
1.69 x 1.61
28
1.10
25
0.98
10
0.39
16
0.63
—
—
—
—
—
—
2
0.08
Q886PCD 76 x 74 x 49
2.97 x 2.89 x 1.93
Opaque 82 x 80
3.23 x 3.15
Q88PD 68 x 55
2.68 x 2.17
70 x 50
2.76 x 1.97
42
1.65
40
1.57
15
0.59
58
2.28
44
1.73
—
—
58
2.28
3
0.12
Q886PCDCC 76 x 74 x 49
2.97 x 2.89 x 1.93
Clear 82 x 80
3.23 x 3.15
Q88PD 68 x 55
2.68 x 2.17
70 x 50
2.76 x 1.97
42
1.65
40
1.57
15
0.59
58
2.28
44
1.73
—
—
58
2.28
3
0.12
Q1286PCD 114 x 74 x 49
4.47 x 2.89 x 1.93
Opaque 120 x 80
4.72 x 3.15
Q128PD 91 x 65
3.58 x 2.56
108 x 50
4.25 x 1.97
42
1.65
40
1.57
15
0.59
58
2.28
82
3.23
—
—
96
3.78
3
0.12
Q1286PCDCC 114 x 74 x 49
4.47 x 2.89 x 1.93
Clear 120 x 80
4.72 x 3.15
Q128PD 91 x 65
3.58 x 2.56
108 x 50
4.25 x 1.97
42
1.65
40
1.57
15
0.59
58
2.28
82
3.23
—
—
96
3.78
3
0.12
Q1686PCD 154 x 74 x 49
6.04 x 2.89 x 1.93
Opaque 160 x 80
6.30 x 3.15
Q168PD 131 x 65
5.16 x 2.56
148 x 50
5.83 x 1.97
42
1.65
40
1.57
15
0.59
58
2.28
122
4.80
—
—
136
5.35
3
0.12
Q1686PCDCC 154 x 74 x 49
6.04 x 2.89 x 1.93
Clear 160 x 80
6.30 x 3.15
Q168PD 131 x 65
5.16 x 2.56
148 x 50
5.83 x 1.97
42
1.65
40
1.57
15
0.59
58
2.28
122
4.80
—
—
136
5.35
3
0.12
Q12126PCD 120 x 122 x 56
4.72 x 4.80 x 2.20
Opaque 122 x 120
4.80 x 4.72
Q1212PD 105 x 93
4.13 x 3.66
110 x 90
4.33 x 3.54
42
1.65
40
1.57
15
0.59
98
3.86
84
3.31
—
—
98
3.86
3
0.12
Q12126PCDCC 120 x 122 x 56
4.72 x 4.80 x 2.20
Clear 122 x 120
4.80 x 4.72
Q1212PD 105 x 93
4.13 x 3.66
110 x 90
4.33 x 3.54
42
1.65
40
1.57
15
0.59
98
3.86
84
3.31
—
—
98
3.86
3
0.12
Q20158PCD 150 x 200 x 76
5.91 x 7.87 x 2.99
Opaque 200 x 150
7.87 x 5.91
Q2015PD 170 x 128
6.69 x 5.04
188 x 120
7.40 x 4.72
62
2.44
60
2.36
15
0.59
118
4.65
160
6.30
118
4.65
176
6.93
3
0.12
Q20158PCDCC 150 x 200 x 76
5.91 x 7.87 x 2.99
Clear 200 x 150
7.87 x 5.91
Q2015PD 170 x 128
6.69 x 5.04
188 x 120
7.40 x 4.72
62
2.44
60
2.36
15
0.59
118
4.65
160
6.30
118
4.65
176
6.93
3
0.12
Q889PCD 80 x 82 x 86
3.15 x 3.23 x 3.39
Opaque 82 x 80
3.23 x 3.15
Q88PD 68 x 55
2.68 x 2.17
70 x 50
2.76 x 1.97
72
2.83
70
2.76
15
0.59
58
2.28
44
1.73
37
1.46
58
2.28
3
0.12
Q889PCDCC 80 x 82 x 86
3.15 x 3.23 x 3.39
Clear 82 x 80
3.23 x 3.15
Q88PD 68 x 55
2.68 x 2.17
70 x 50
2.76 x 1.97
72
2.83
70
2.76
15
0.59
58
2.28
44
1.73
37
1.46
58
2.28
3
0.12
Q1289PCD 113 x 73 x 79
4.45 x 2.87 x 3.11
Opaque 120 x 80
4.72 x 3.15
Q128PD 91 x 65
3.58 x 2.56
108 x 50
4.25 x 1.97
72
2.83
70
2.76
15
0.59
58
2.28
82
3.23
—
—
96
3.78
3
0.12
Q1289PCDCC 113 x 73 x 79
4.45 x 2.87 x 3.11
Clear 120 x 80
4.72 x 3.15
Q128PD 91 x 65
3.58 x 2.56
108 x 50
4.25 x 1.97
72
2.83
70
2.76
15
0.59
58
2.28
82
3.23
—
—
96
3.78
3
0.12
Q1689PCD 113 x 73 x 79
4.45 x 2.87 x 3.11
Opaque 160 x 80
6.30 x 3.15
Q168PD 131 x 65
5.16 x 2.56
148 x 50
5.83 x 1.97
72
2.83
70
2.76
15
0.59
58
2.28
122
4.80
—
—
136
5.35
3
0.12
Q1689PCDCC 113 x 73 x 79
4.45 x 2.87 x 3.11
Clear 160 x 80
6.30 x 3.15
Q168PD 131 x 65
5.16 x 2.56
148 x 50
5.83 x 1.97
72
2.83
70
2.76
15
0.59
58
2.28
122
4.80
—
—
136
5.35
3
0.12
Q12129PCD 120 x 122 x 86
4.72 x 4.80 x 3.39
Opaque 122 x 120
4.80 x 4.72
Q1212PD 105 x 93
4.13 x 3.66
110 x 90
4.33 x 3.54
72
2.83
70
2.76
15
0.59
98
3.86
84
3.31
97
3.82
98
3.86
3
0.12
Q12129PCDCC 120 x 122 x 86
4.72 x 4.80 x 3.39
Clear 122 x 120
4.80 x 4.72
Q1212PD 105 x 93
4.13 x 3.66
110 x 90
4.33 x 3.54
72
2.83
70
2.76
15
0.59
98
3.86
84
3.31
97
3.82
98
3.86
3
0.12
Q20129PCD 193 x 113 x 79
7.60 x 4.45 x 3.11
Opaque 200 x 120
7.87 x 4.72
Q2012PD 170 x 100
6.69 x 3.94
188 x 90
7.40 x 3.54
72
2.83
70
2.76
15
0.59
90
3.54
160
6.30
40
1.57
176
6.93
3
0.12
Q20129PCDCC 193 x 113 x 79
7.60 x 4.45 x 3.11
Clear 200 x 120
7.87 x 4.72
Q2012PD 170 x 100
6.69 x 3.94
188 x 90
7.40 x 3.54
72
2.83
70
2.76
15
0.59
90
3.54
160
6.30
40
1.57
176
6.93
3
0.12
Q30239PCD 293 x 223 x 79
11.54 x 8.78 x 3.11
Opaque 300 x 230
11.81 x 9.05
Q3023PD 265 x 210
10.43 x 8.27
288 x 200
11.34 x 7.87
73
2.87
55
2.17
30
1.18
198
7.80
255
10.04
160
6.30
275
10.83
4
0.16
Q30239PCDCC 230 x 300 x 86
9.06 x 11.81 x 3.39
Clear 300 x 230
11.81 x 9.05
Q3023PD 265 x 210
10.43 x 8.27
288 x 200
11.34 x 7.87
73
2.87
55
2.17
30
1.18
198
7.80
255
10.04
160
6.30
275
10.83
4
0.16
Q16129PCD 153 x 113 x 84
6.02 x 4.45 x 3.29
Opaque 160 x 120
6.30 x 4.72
Q1612PD 130 x 100
5.12 x 3.94
148 x 90
5.83 x 3.54
78
3.07
60
2.36
30
1.18
90
3.54
120
4.72
—
—
136
5.35
3
0.12
Q16129PCDCC 153 x 113 x 84
6.02 x 4.45 x 3.29
Clear 160 x 120
6.30 x 4.72
Q1612PD 130 x 100
5.12 x 3.94
148 x 90
5.83 x 3.54
78
3.07
60
2.36
30
1.18
90
3.54
120
4.72
—
—
136
5.35
3
0.12
Q24169PCD 233 x 153 x 84
9.17 x 6.02 x 3.29
Opaque 240 x 160
9.45 x 6.30
Q2416PD 211 x 148
8.31 x 5.83
228 x 130
8.98 x 5.12
78
3.07
75
2.95
15
0.59
138
5.43
202
7.95
75
2.95
215
8.46
4
0.16
Q24169PCDCC 233 x 153 x 84
9.17 x 6.02 x 3.29
Clear 240 x 160
9.45 x 6.30
Q2416PD 211 x 148
8.31 x 5.83
228 x 130
8.98 x 5.12
78
3.07
75
2.95
15
0.59
138
5.43
202
7.95
75
2.95
215
8.46
4
0.16
Q302311PCD 230 x 300 x 111
9.06 x 11.81 x 4.37
Opaque 300 x 230
11.81 x 9.06
Q3023PD 265 x 210
10.43 x 8.27
288 x 200
11.34 x 7.87
98
3.86
55
2.17
55
2.17
198
7.80
255
10.04
160
6.30
275
10.83
4
0.16
Q302311PCDCC 230 x 300 x 111
9.06 x 11.81 x 4.37
Clear 300 x 230
11.81 x 9.06
Q3023PD 265 x 210
10.43 x 8.27
288 x 200
11.34 x 7.87
98
3.86
55
2.17
55
2.17
198
7.80
255
10.04
160
6.30
275
10.83
4
0.16
Q241612PCD 160 x 240 x 121
6.30 x 9.45 x 4.76
Opaque 240 x 160
9.45 x 6.30
Q2416PD 211 x 148
8.31 x 5.83
228 x 130
8.98 x 5.12
108
4.25
75
2.95
45
1.77
75
2.95
202
7.95
75
2.95
215
8.46
4
0.16
Q241612PCDCC 160 x 240 x 121
6.30 x 9.45 x 4.76
Clear 240 x 160
9.45 x 6.30
Q2416PD 211 x 148
8.31 x 5.83
228 x 130
8.98 x 5.12
108
4.25
75
2.95
45
1.77
75
2.95
202
7.95
75
2.95
215
8.46
4
0.16
A x B x C are internal dimensions.
Purchase panels separately.
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC290
3
POLYCARBONATE AND ABS QLine D
ABS
Catalog Number AxBxC mm/in.
Cover
Style
External
Dimensions
L x W
mm/in. Panel
Panel Size
D x E
mm/in.
Mtg.
G x H
mm/in.
F
mm/in.
J
mm/in.
K
mm/in.
P
mm/in.
Q
mm/in.
R
mm/in.
S
mm/in.
U
mm/in.
Q554ABD 53 x 55 x 36
2.09 x 2.17 x 1.42
Opaque 55 x 53
2.17 x 2.09
— —
—
43 x 41
1.69 x 1.61
28
1.10
25
.98
10
.39
16
.63
—
—
—
—
—
—
2
.08
Q554ABDCC 53 x 55 x 36
2.09 x 2.17 x 1.42
Clear 55 x 53
2.17 x 2.09
— —
—
43 x 41
1.69 x 1.61
28
1.10
25
.98
10
.39
16
.63
—
—
—
—
—
—
2
.08
Q886ABD 80 x 82 x 56
3.15 x 3.23 x 2.20
Opaque 82 x 80
3.23 x 3.15
Q88PD 68 x 55
2.68 x 2.17
70 x 50
2.76 x 2.17
42
1.65
40
1.57
15
.59
58
2.28
44
1.73
—
—
58
2.28
3
.12
Q886ABDCC 80 x 82 x 56
3.15 x 3.23 x 2.20
Clear 82 x 80
3.23 x 3.15
Q88PD 68 x 55
2.68 x 2.17
70 x 50
2.76 x 2.17
42
1.65
40
1.57
15
.59
58
2.28
44
1.73
—
—
58
2.28
3
.12
Q1286ABD 80 x 120 x 56
3.15 x 4.72 x 2.20
Opaque 120 x 80
4.72 x 3.15
Q128PD 91 x 65
3.58 x 2.56
108 x 50
4.25 x 1.97
42
1.65
40
1.57
15
.59
58
2.28
82
3.23
—
—
96
3.78
3
.12
Q1286ABDCC 80 x 120 x 56
3.15 x 4.72 x 2.20
Clear 120 x 80
4.72 x 3.15
Q128PD 91 x 65
3.58 x 2.56
108 x 50
4.25 x 1.97
42
1.65
40
1.57
15
.59
58
2.28
82
3.23
—
—
96
3.78
3
.12
Q1686ABD 80 x 160 x 56
3.15 x 6.30 x 2.20
Opaque 160 x 80
6.30 x 3.15
Q168PD 131 x 65
5.16 x 2.56
148 x 50
5.83 x 1.97
42
1.65
40
1.57
15
.59
58
2.28
122
4.80
—
—
136
5.35
3
.12
Q1686ABDCC 80 x 160 x 56
3.15 x 6.30 x 2.20
Clear 160 x 80
6.30 x 3.15
Q168PD 131 x 65
5.16 x 2.56
148 x 50
5.83 x 1.97
42
1.65
40
1.57
15
.59
58
2.28
122
4.80
—
—
136
5.35
3
.12
Q12126ABD 120 x 122 x 56
4.72 x 4.80 x 2.20
Opaque 122 x 120
4.80 x 4.72
Q1212PD 105 x 93
4.13 x 3.66
110 x 90
4.33 x 3.54
42
1.65
40
1.57
15
.59
98
3.86
84
3.31
—
—
98
3.86
3
.12
Q12126ABDCC 120 x 122 x 56
4.72 x 4.80 x 2.20
Clear 122 x 120
4.80 x 4.72
Q1212PD 105 x 93
4.13 x 3.66
110 x 90
4.33 x 3.54
42
1.65
40
1.57
15
.59
98
3.86
84
3.31
—
—
98
3.86
3
.12
Q20158ABD 150 x 200 x 76
5.91 x 7.87 x 2.99
Opaque 200 x 150
7.87 x 5.91
Q2015PD 170 x 128
6.69 x 5.04
188 x 120
7.40 x 4.72
62
2.44
60
2.36
15
.59
118
4.65
160
6.30
118
4.65
176
6.93
3
.12
Q20158ABDCC 150 x 200 x 76
5.91 x 7.87 x 2.99
Clear 200 x 150
7.87 x 5.91
Q2015PD 170 x 128
6.69 x 5.04
188 x 120
7.40 x 4.72
62
2.44
60
2.36
15
.59
118
4.65
160
6.30
118
4.65
176
6.93
3
.12
Q889ABD 80 x 82 x 86
3.15 x 3.23 x 3.39
Opaque 82 x 80
3.23 x 3.15
Q88PD 68 x 55
2.68 x 2.17
70 x 50
2.76 x 1.97
72
2.83
70
2.76
15
.59
58
2.28
44
1.73
37
1.46
58
2.28
3
.12
Q889ABDCC 80 x 82 x 86
3.15 x 3.23 x 3.39
Clear 82 x 80
3.23 x 3.15
Q88PD 68 x 55
2.68 x 2.17
70 x 50
2.76 x 1.97
72
2.83
70
2.76
15
.59
58
2.28
44
1.73
37
1.46
58
2.28
3
.12
Q1289ABD 80 x 120 x 86
3.15 x 4.72 x 3.39
Opaque 120 x 80
4.72 x 3.15
Q128PD 91 x 65
3.58 x 2.56
108 x 50
4.25 x 1.97
72
2.83
70
2.76
15
.59
58
2.28
82
3.23
—
—
58
2.28
3
.12
Q1289ABDCC 80 x 120 x 86
3.15 x 4.72 x 3.39
Clear 120 x 80
4.72 x 3.15
Q128PD 91 x 65
3.58 x 2.56
108 x 50
4.25 x 1.97
72
2.83
70
2.76
15
.59
58
2.28
82
3.23
—
—
58
2.28
3
.12
Q1689ABD 80 x 160 x 86
3.15 x 6.30 x 3.39
Opaque 160 x 80
6.30 x 3.15
Q168PD 131 x 65
5.16 x 2.56
148 x 50
5.83 x 1.97
72
2.83
70
2.76
15
.59
58
2.28
122
4.80
—
—
136
5.35
3
.12
Q1689ABDCC 80 x 160 x 86
3.15 x 6.30 x 3.39
Clear 160 x 80
6.30 x 3.15
Q168PD 131 x 65
5.16 x 2.56
148 x 50
5.83 x 1.97
72
2.83
70
2.76
15
.59
58
2.28
122
4.80
—
—
136
5.35
3
.12
Q12129ABD 120 x 122 x 86
4.72 x 4.80 x 3.39
Opaque 122 x 120
4.80 x 4.72
Q1212PD 105 x 93
4.13 x 3.66
110 x 90
4.33 x 3.54
72
2.83
70
2.76
15
.59
98
3.86
84
3.31
97
3.82
98
3.86
3
.12
Q12129ABDCC 120 x 122 x 86
4.72 x 4.80 x 3.39
Clear 122 x 120
4.80 x 4.72
Q1212PD 105 x 93
4.13 x 3.66
110 x 90
4.33 x 3.54
72
2.83
70
2.76
15
.59
98
3.86
84
3.31
97
3.82
98
3.86
3
.12
Q20129ABD 120 x 200 x 86
4.72 x 7.87 x 3.39
Opaque 200 x 120
7.87 x 4.72
Q2012PD 170 x 100
6.69 x 3.94
188 x 90
7.40 x 3.54
72
2.83
70
2.76
15
.59
90
3.54
160
6.30
40
1.67
176
6.93
3
.12
Q20129ABDCC 120 x 200 x 86
4.72 x 7.87 x 3.39
Clear 200 x 120
7.87 x 4.72
Q2012PD 170 x 100
6.69 x 3.94
188 x 90
7.40 x 3.54
72
2.83
70
2.76
15
.59
90
3.54
160
6.30
40
1.67
176
6.93
3
.12
Q30239ABD 230 x 300 x 86
9.06 x 11.81 x 3.39
Opaque 300 x 230
11.81 x 9.05
Q3023PD 265 x 210
10.43 x 8.27
288 x 200
11.34 x 7.87
73
2.87
55
2.17
30
1.18
198
7.80
255
10.04
160
6.30
275
10.83
4
.16
Q30239ABDCC 230 x 300 x 86
9.06 x 11.81 x 3.39
Clear 300 x 230
11.81 x 9.05
Q3023PD 265 x 210
10.43 x 8.27
288 x 200
11.34 x 7.87
73
2.87
55
2.17
30
1.18
198
7.80
255
10.04
160
6.30
275
10.83
4
.16
Q16129ABD 120 x 160 x 91
4.72 x 6.30 x 3.58
Opaque 160 x 120
6.30 x 4.72
Q1612PD 130 x 100
5.12 x 3.94
148 x 90
5.83 x 3.54
78
3.07
60
2.36
30
1.18
90
3.54
120
4.72
—
—
136
5.35
3
.12
Q16129ABDCC 120 x 160 x 91
4.72 x 6.30 x 3.58
Clear 160 x 120
6.30 x 4.72
Q1612PD 130 x 100
5.12 x 3.94
148 x 90
5.83 x 3.54
78
3.07
60
2.36
30
1.18
90
3.54
120
4.72
—
—
136
5.35
3
.12
Q24169ABD 160 x 240 x 91
6.30 x 9.45 x 3.58
Opaque 240 x 160
9.45 x 6.30
Q2416PD 211 x 148
8.31 x 5.83
228 x 130
8.98 x 5.12
78
3.07
75
2.95
15
.59
138
5.43
202
7.95
75
2.95
215
8.46
4
.16
Q24169ABDCC 233 x 153 x 84
9.17 x 6.02 x 3.31
Clear 240 x 160
9.45 x 6.30
Q2416PD 211 x 148
8.31 x 5.83
228 x 130
8.98 x 5.12
78
3.07
75
2.95
15
.59
138
5.43
202
7.95
75
2.95
215
8.46
4
.16
Q302311ABD 230 x 300 x 111
9.06 x 11.81 x 4.37
Opaque 300 x 230
11.81 x 9.06
Q3023PD 265 x 210
10.43 x 8.27
288 x 200
11.34 x 7.87
98
3.86
55
2.17
55
2.17
198
7.80
255
10.04
160
6.30
275
10.83
4
.16
Q302311ABDCC 230 x 300 x 111
9.06 x 11.81 x 4.37
Clear 300 x 230
11.81 x 9.06
Q3023PD 265 x 210
10.43 x 8.27
288 x 200
11.34 x 7.87
98
3.86
55
2.17
55
2.17
198
7.80
255
10.04
160
6.30
275
10.83
4
.16
Q241612ABD 160 x 240 x 121
6.30 x 9.45 x 4.76
Opaque 240 x 160
9.45 x 6.30
Q2416PD 211 x 148
8.31 x 5.83
228 x 130
8.98 x 5.12
108
4.25
75
2.95
45
1.77
75
2.95
202
7.95
75
2.95
215
8.46
4
.16
Q241612ABDCC 160 x 240 x 121
6.30 x 9.45 x 4.76
Clear 240 x 160
9.45 x 6.30
Q2416PD 211 x 148
8.31 x 5.83
228 x 130
8.98 x 5.12
108
4.25
75
2.95
45
1.77
75
2.95
202
7.95
75
2.95
215
8.46
4
.16
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC292
3
POLYCARBONATE AND ABS QLine D
HINGE KIT
Hinge Kit meets Type 4
requirements.
Bulletin: Q41Y
Catalog Number
QDEHK
MOUNTING BRACKET KIT
Bulletin: Q41Y
Catalog Number
QDMFK
HARDWARE KIT
Bulletin: Q41Y
Catalog Number
QDHK
PANELS
Bulletin: Q41Y
Catalog Number
Panel Size
D x E
mm/in.
Mounting
G x H
mm/in.
Q88PD 65 x 55
2.56 x 2.17
44 x 60
1.71 x 2.28
Q128PD 93 x 65
3.66 x 2.56
82 x 60
3.21 x 2.28
Q168PD 133 x 65
5.24 x 2.56
121 x 60
4.78 x 2.28
Q1212PD 105 x 95
4.13 x 3.74
98 x 84
3.86 x 3.29
Q1612PD 132 x 105
5.20 x 4.13
160 x 90
6.30 x 3.54
Q2012PD 172 x 105
6.77 x 4.13
160 x 90
6.30 x 3.54
Q2015PD 172 x 133
6.77 x 5.24
160 x 118
6.30 x 4.65
Q2416PD 213 x 145
8.38 x 5.71
201 x 138
7.93 x 5.43
Q3023PD 285 x 210
11.22 x 8.27
255 x 198
10.04 x 7.50
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC294
3
POLYCARBONATE AND ABS QLine D

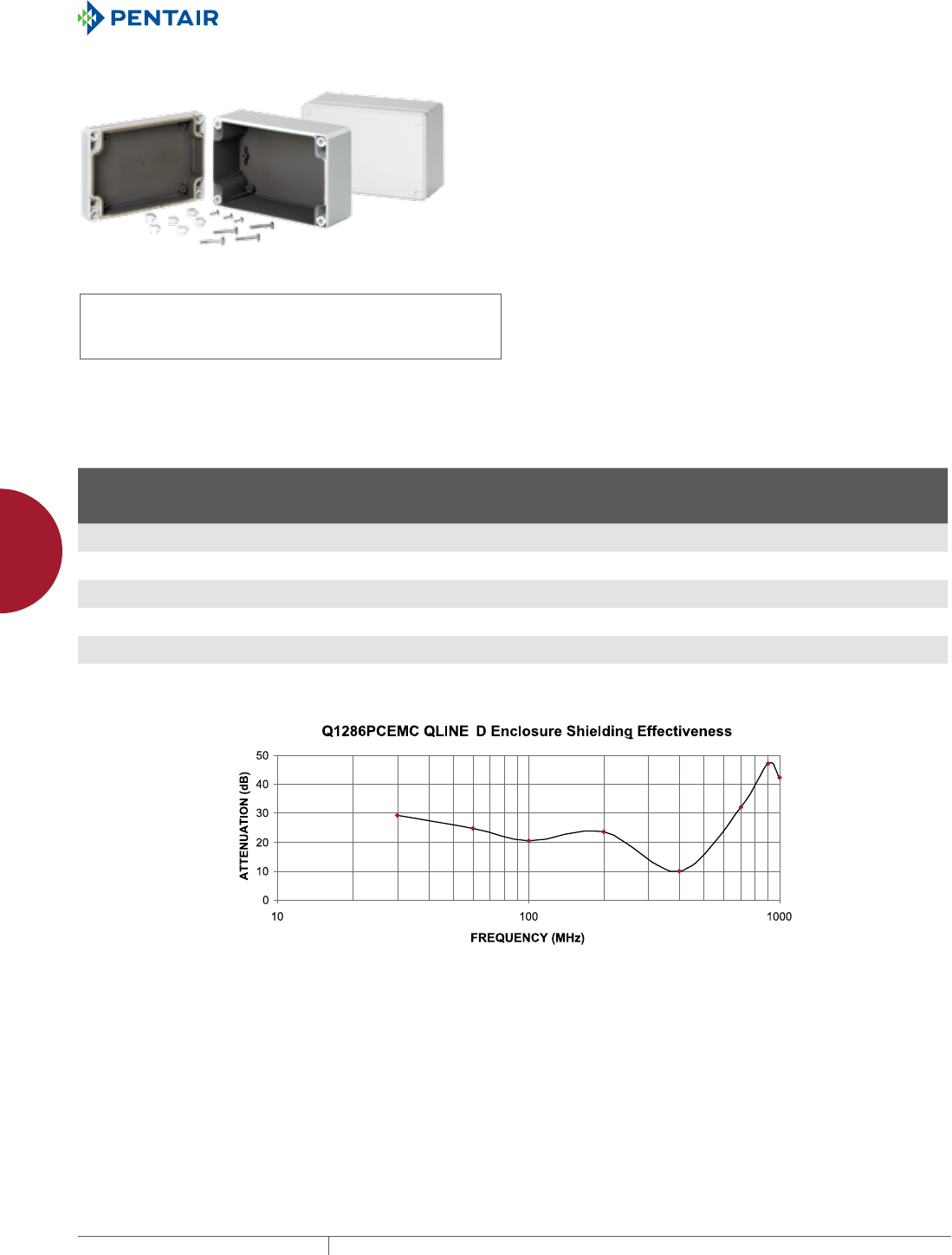

QLINE D, EMC, TYPE 4X
INDUSTRY STANDARDS
APPLICATION
SPECIFICATIONS
FINISH
Bulletin: Q41eM
Catalog Number AxBxC mm/in.
External
Dimensions
L x W
mm/in.
Internal
Dimensions
A x B x C
mm/in. Panel
Panel Size
D x E
mm/in.
Mounting
G x H
mm/in.
F
mm/in.
J
mm/in.
K
mm/in.
P
mm/in.
Q
mm/in.
R
mm/in.
S
mm/in.
U
mm/in.
Q1286PCEMC 120 x 80 x 55
4.72 x 3.15 x 2.17
120 x 80
4.72 x 3.15
114 x 74 x 49
4.47 x 2.89 x 1.93
Q128PD 91 x 65
3.58 x 2.56
108 x 50
4.25 x 1.97
42
1.65
40
1.57
15
0.59
58
2.28
82
3.21
—
—
96
3.78
3
0.12
Q1289PCEMC 120 x 80 x 85
4.72 x 3.15 x 3.35
120 x 80
4.72 x 3.15
113 x 73 x 79
4.45 x 2.87 x 3.11
Q128PD 91 x 65
3.58 x 2.56
108 x 50
4.25 x 1.97
72
2.83
70
2.76
15
0.59
58
2.28
82
3.21
—
—
96
3.78
3
0.12
Q16129PCEMC 160 x 120 x 90
6.30 x 4.72 x 3.54
160 x 120
6.30 x 4.72
153 x 113 x 84
6.02 x 4.45 x 3.29
Q1612PD 130 x 100
5.12 x 3.94
148 x 90
5.83 x 3.54
77.5
3.05
60
2.36
30
1.18
90
3.54
120
4.72
—
—
136
5.35
3
0.12
Q1689PCEMC 160 x 80 x 85
6.30 x 3.15 x 3.35
160 x 80
6.30 x 3.15
153 x 73 x 79
6.02 x 2.87 x 3.11
Q168PD 131 x 65
5.16 x 2.56
148 x 50
5.83 x 1.97
72
2.83
70
2.76
15
0.59
58
2.28
122
4.78
—
—
136
5.35
3
0.12
Q20129PCEMC 200 x 120 x 85
7.87 x 4.72 x 3.35
200 x 120
7.87 x 4.72
193 x 113 x 79
7.60 x 4.45 x 3.11
Q2012PD 170 x 100
6.69 x 3.94
188 x 90
7.40 x 3.54
72
2.83
70
2.76
15
0.59
90
3.54
160
6.30
40
1.57
176
6.93
3
0.12
Q24169PCEMC 240 x 160 x 90
9.45 x 6.30 x 3.54
240 x 160
9.45 x 6.30
233 x 153 x 84
9.17 x 6.02 x 3.29
Q2416PD 211 x 148
8.31 x 5.83
228 x 130
8.98 x 5.12
77.5
3.05
75
2.95
15
0.59
138
5.43
202
7.93
75
2.95
215
8.46
3.5
0.14
Purchase panels separately.
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC296
3
POLYCARBONATE AND ABS QLine e

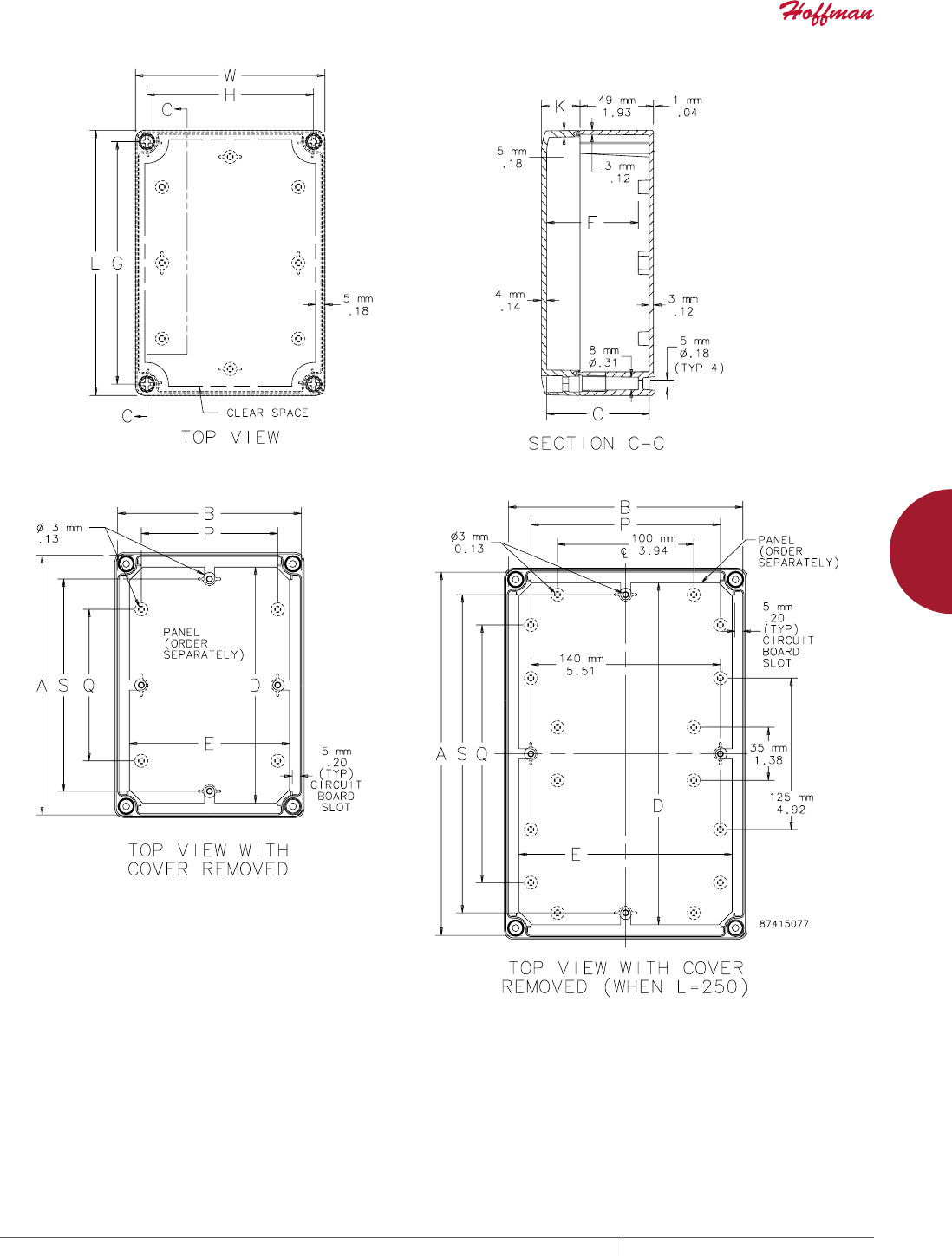

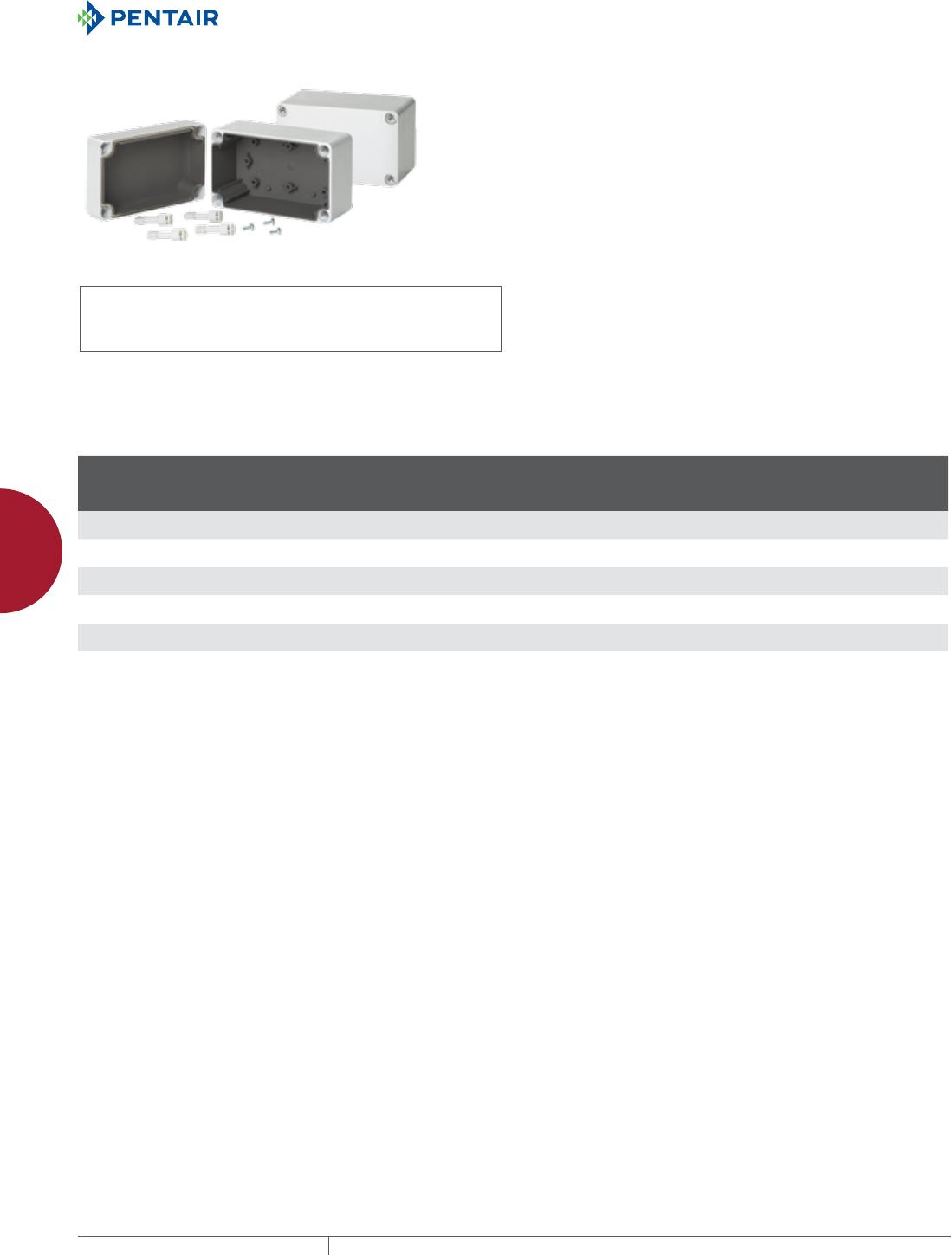

Qline e
QLINE E, TYPE 4X
INDUSTRY STANDARDS
Polycarbonate Enclosure
ABS Enclosure
APPLICATION
SPECIFICATIONS
FINISH
ACCESSORIES
See also Accessories.
MODIFICATION AND CUSTOMIZATION
Bulletin: Q41
EQUIPMENT PROTECTION NONMETALLIC 297
3
POLYCARBONATE AND ABS QLine e
Polycarbonate
Catalog Number AxBxC mm/in.
Cover
Style
External
Dimensions
L x W
mm/in. Panel
Panel Size
D x E
mm/in.
Mounting
G x H
mm/in.
F
mm/in.
K
mm/in.
P
mm/in.
Q
mm/in.
S
mm/in.
Q1388PCE 119 x 69 x 67
4.69 x 2.72 x 2.64
Opaque 125 x 75
4.92 x 2.95
Q138PE 98 x 48
3.86 x 1.89
110 x 60
4.33 x 2.36
61
2.40
25
0.98
40
1.57
75
2.95
90
3.54
Q1388PCECC 119 x 69 x 67
4.67 x 2.70 x 2.65
Clear 125 x 75
4.92 x 2.95
Q138PE 98 x 48
3.86 x 1.89
110 x 60
4.33 x 2.36
61
2.40
25
0.98
40
1.57
75
2.95
90
3.54
Q13138PCE 119 x 119 x 67
4.67 x 4.67 x 2.65
Opaque 125 x 125
4.92 x 4.92
Q1313PE 98 x 98
3.86 x 3.86
110 x 110
4.33 x 4.33
61
2.40
25
0.98
90
3.54
75
2.95
90
3.54
Q13138PCECC 119 x 119 x 67
4.67 x 4.67 x 2.65
Clear 125 x 125
4.92 x 4.92
Q1313PE 98 x 98
3.86 x 3.86
110 x 110
4.33 x 4.33
61
2.40
25
0.98
90
3.54
75
2.95
90
3.54
Q18138PCE 169 x 119 x 67
6.63 x 4.67 x 2.65
Opaque 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
61
2.40
25
0.98
90
3.54
100
3.94
140
5.51
Q18138PCECC 169 x 119 x 67
6.63 x 4.67 x 2.65
Clear 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
61
2.40
25
0.98
90
3.54
100
3.94
140
5.51
Q18188PCE 169 x 169 x 67
6.63 x 6.63 x 2.65
Opaque 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
160 x 160
6.30 x 6.30
61
2.40
25
0.98
140
5.51
125
4.92
140
5.51
Q18188PCECC 169 x 169 x 67
6.63 x 6.63 x 2.65
Clear 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
160 x 160
6.30 x 6.30
61
2.40
25
0.98
140
5.51
125
4.92
140
5.51
Q25188PCE 244 x 169 x 67
9.59 x 6.63 x 2.65
Opaque 250 x 175
9.84 x 6.89
Q2518PE 223 x 148
8.78 x 5.83
235 x 160
9.25 x 6.30
61
2.40
25
0.98
139
5.47
202
7.95
215
8.46
Q25188PCECC 244 x 169 x 67
9.59 x 6.63 x 2.65
Clear 250 x 175
9.84 x 6.89
Q2518PE 223 x 148
8.78 x 5.83
235 x 160
9.25 x 6.30
61
2.40
25
0.98
139
5.47
202
7.95
215
8.46
Q13810PCE 119 x 69 x 92
4.67 x 2.70 x 3.64
Opaque 125 x 75
4.92 x 2.95
Q138PE 98 x 48
3.86 x 1.89
110 x 60
4.33 x 2.36
86
3.39
50
1.97
40
1.57
75
2.95
90
3.54
Q13810PCECC 119 x 69 x 92
4.67 x 2.70 x 3.64
Clear 125 x 75
4.92 x 2.95
Q138PE 98 x 48
3.86 x 1.89
110 x 60
4.33 x 2.36
86
3.39
50
1.97
40
1.57
75
2.95
90
3.54
Q131310PCE 119 x 119 x 92
4.67 x 4.67 x 3.64
Opaque 125 x 125
4.92 x 4.92
Q1313PE 98 x 98
3.86 x 3.86
110 x 110
4.33 x 4.33
86
3.39
50
1.97
90
3.54
75
2.95
90
3.54
Q131310PCECC 119 x 119 x 92
4.67 x 4.67 x 3.64
Clear 125 x 125
4.92 x 4.92
Q1313PE 98 x 98
3.86 x 3.86
110 x 110
4.33 x 4.33
86
3.39
50
1.97
90
3.54
75
2.95
90
3.54
Q181310PCE 169 x 119 x 92
6.63 x 4.67 x 3.64
Opaque 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
86
3.39
50
1.97
90
3.54
100
3.94
140
5.51
Q181310PCECC 169 x 119 x 92
6.63 x 4.67 x 3.64
Clear 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
86
3.39
50
1.97
90
3.54
100
3.94
140
5.51
Q181810PCE 169 x 169 x 92
6.63 x 6.63 x 3.64
Opaque 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
160 x 160
6.30 x 6.30
86
3.39
50
1.97
140
5.51
125
4.92
140
5.51
Q181810PCECC 169 x 169 x 92
6.63 x 6.63 x 3.64
Clear 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
160 x 160
6.30 x 6.30
86
3.39
50
1.97
140
5.51
125
4.92
140
5.51
Q251810PCE 244 x 169 x 92
9.59 x 6.63 x 3.64
Opaque 250 x 175
9.84 x 6.89
Q2518PE 223 x 148
8.78 x 5.83
235 x 160
9.25 x 6.30
86
3.39
50
1.97
139
5.47
202
7.95
215
8.46
Q251810PCECC 244 x 169 x 92
9.59 x 6.63 x 3.64
Clear 250 x 175
9.84 x 6.89
Q2518PE 223 x 148
8.78 x 5.83
235 x 160
9.25 x 6.30
86
3.39
50
1.97
139
5.47
202
7.95
215
8.46
Q13813PCE 119 x 69 x 117
4.67 x 2.70 x 4.62
Opaque 125 x 75
4.92 x 2.95
Q138PE 98 x 48
3.86 x 1.89
110 x 60
4.33 x 2.36
111
4.37
75
2.95
40
1.57
75
2.95
90
3.54
Q13813PCECC 119 x 69 x 117
4.67 x 2.70 x 4.62
Clear 125 x 75
4.92 x 2.95
Q138PE 98 x 48
3.86 x 1.89
110 x 60
4.33 x 2.36
111
4.37
75
2.95
40
1.57
75
2.95
90
3.54
Q131313PCE 119 x 119 x 117
4.67 x 4.67 x 4.62
Opaque 125 x 125
4.92 x 4.92
Q1313PE 98 x 98
3.86 x 3.86
110 x 110
4.33 x 4.33
111
4.37
75
2.95
90
3.54
75
2.95
90
3.54
Q131313PCECC 119 x 119 x 117
4.67 x 4.67 x 4.62
Clear 125 x 125
4.92 x 4.92
Q1313PE 98 x 98
3.86 x 3.86
110 x 110
4.33 x 4.33
111
4.37
75
2.95
90
3.54
75
2.95
90
3.54
Q181313PCE 169 x 119 x 117
6.63 x 4.67 x 4.62
Opaque 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
111
4.37
75
2.95
90
3.54
100
3.94
140
5.51
Q181313PCECC 169 x 119 x 117
6.63 x 4.67 x 4.62
Clear 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
111
4.37
75
2.95
90
3.54
100
3.94
140
5.51
Q181813PCE 169 x 169 x 117
6.63 x 6.63 x 4.62
Opaque 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
160 x 160
6.30 x 6.30
111
4.37
75
2.95
140
5.51
125
4.92
140
5.51
Q181813PCECC 169 x 169 x 117
6.63 x 6.63 x 4.62
Clear 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
160 x 160
6.30 x 6.30
111
4.37
75
2.95
140
5.51
125
4.92
140
5.51
Q181315PCE 169 x 119 x 142
6.63 x 4.67 x 5.61
Opaque 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
136
5.35
100
3.94
90
3.54
100
3.94
140
5.51
Q181315PCECC 169 x 119 x 142
6.63 x 4.67 x 5.61
Clear 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
136
5.35
100
3.94
90
3.54
100
3.94
140
5.51
Q181815PCE 169 x 169 x 142
6.63 x 6.63 x 5.61
Opaque 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
160 x 160
6.30 x 6.30
136
5.35
100
3.94
140
5.51
125
4.92
140
5.51
Q181815PCECC 169 x 169 x 142
6.63 x 6.63 x 5.61
Clear 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
160 x 160
6.30 x 6.30
136
5.35
100
3.94
140
5.51
125
4.92
140
5.51
Q251815PCE 244 x 169 x 142
9.59 x 6.63 x 5.61
Opaque 250 x 175
9.84 x 6.89
Q2518PE 223 x 148
8.78 x 5.83
235 x 160
9.25 x 6.30
136
5.35
100
3.94
139
5.47
202
7.95
215
8.46
Q251815PCECC 244 x 169 x 142
9.59 x 6.63 x 5.61
Clear 250 x 175
9.84 x 6.89
Q2518PE 223 x 148
8.78 x 5.83
235 x 160
9.25 x 6.30
136
5.35
100
3.94
139
5.47
202
7.95
215
8.46
A x B x C are internal dimensions.
Purchase panels separately.
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC298
3
POLYCARBONATE AND ABS QLine e
ABS
Catalog Number AxBxC mm/in.
Cover
Style
External
Dimensions
L x W
mm/in. Panel
Panel Size
D x E
mm/in.
Mounting
G x H
mm/in.
F
mm/in.
K
mm/in.
P
mm/in.
Q
mm/in.
S
mm/in.
Q1388ABE 75 x 125 x 75
2.95 x 4.92 x 2.95
Opaque 125 x 75
4.92 x 2.95
Q138PE 98 x 48
3.86 x 1.89
110 x 60
4.33 x 2.36
61
2.40
25
.98
40
1.57
75
2.95
90
3.54
Q1388ABECC 75 x 125 x 75
2.95 x 4.92 x 2.95
Clear 125 x 75
4.92 x 2.95
Q138PE 98 x 48
3.86 x 1.89
110 x 60
4.33 x 2.36
61
2.40
25
.98
40
1.57
75
2.95
90
3.54
Q13138ABE 125 x 125 x 75
4.92 x 4.92 x 2.95
Opaque 125 x 125
4.92 x 4.92
Q1313PE 98 x 98
3.86 x 3.86
110 x 110
4.33 x 4.33
61
2.40
25
.98
90
3.54
75
2.95
90
3.54
Q13138ABECC 125 x 125 x 75
4.92 x 4.92 x 2.95
Clear 125 x 125
4.92 x 4.92
Q1313PE 98 x 98
3.86 x 3.86
110 x 110
4.33 x 4.33
61
2.40
25
.98
90
3.54
75
2.95
90
3.54
Q18138ABE 125 x 175 x 75
4.92 x 6.89 x 2.95
Opaque 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
61
2.40
25
.98
90
3.54
100
3.94
140
5.51
Q18138ABECC 125 x 175 x 75
4.92 x 6.89 x 2.95
Clear 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
61
2.40
25
.98
90
3.54
100
3.94
140
5.51
Q18188ABE 175 x 175 x 75
6.89 x 6.89 x 2.95
Opaque 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
160 x 160
6.30 x 6.30
61
2.40
25
.98
140
5.51
125
4.92
140
5.51
Q18188ABECC 175 x 175 x 75
6.89 x 6.89 x 2.95
Clear 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
160 x 160
6.30 x 6.30
61
2.40
25
.98
140
5.51
125
4.92
140
5.51
Q25188ABE 175 x 250 x 75
6.89 x 9.84 x 2.95
Opaque 250 x 175
9.84 x 6.89
Q2518PE 223 x 148
8.78 x 5.83
235 x 160
9.25 x 6.30
61
2.40
25
.98
139
5.47
202
7.95
215
8.46
Q25188ABECC 175 x 250 x 75
6.89 x 9.84 x 2.95
Clear 250 x 175
9.84 x 6.89
Q2518PE 223 x 148
8.78 x 5.83
235 x 160
9.25 x 6.30
61
2.40
25
.98
139
5.47
202
7.95
215
8.46
Q13810ABE 119 x 69 x 92
4.67 x 2.70 x 3.64
Opaque 125 x 75
4.92 x 2.95
Q138PE 98 x 48
3.86 x 1.89
110 x 60
4.33 x 2.36
86
3.39
50
1.97
40
1.57
75
2.95
90
3.54
Q13810ABECC 75 x 125 x 100
2.95 x 4.92 x 3.94
Clear 125 x 75
4.92 x 2.95
Q138PE 98 x 48
3.86 x 1.89
110 x 60
4.33 x 2.36
86
3.39
50
1.97
40
1.57
75
2.95
90
3.54
Q131310ABE 119 x 119 x 92
4.67 x 4.67 x 3.64
Opaque 125 x 125
4.92 x 4.92
Q1313PE 98 x 98
3.86 x 3.86
110 x 110
4.33 x 4.33
86
3.39
50
1.97
90
3.54
75
2.95
90
3.54
Q131310ABECC 125 x 125 x 100
4.92 x 4.92 x 3.94
Clear 125 x 125
4.92 x 4.92
Q1313PE 98 x 98
3.86 x 3.86
110 x 110
4.33 x 4.33
86
3.39
50
1.97
90
3.54
75
2.95
90
3.54
Q181310ABE 169 x 119 x 92
6.63 x 4.67 x 3.64
Opaque 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
86
3.39
50
1.97
90
3.54
100
3.94
140
5.51
Q181310ABECC 125 x 175 x 100
4.92 x 6.89 x 3.94
Clear 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
86
3.39
50
1.97
90
3.54
100
3.94
140
5.51
Q181810ABE 169 x 169 x 92
6.63 x 6.63 x 3.64
Opaque 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
5.83 x 5.83
6.30 x 6.30
86
3.39
50
1.97
140
5.51
125
4.92
140
5.51
Q181810ABECC 175 x 175 x 100
6.89 x 6.89 x 3.94
Clear 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
5.83 x 5.83
6.30 x 6.30
86
3.39
50
1.97
140
5.51
125
4.92
140
5.51
Q251810ABE 244 x 169 x 92
9.59 x 6.63 x 3.64
Opaque 250 x 175
9.84 x 6.89
Q2518PE 223 x 148
8.78 x 5.83
235 x 160
9.25 x 6.30
86
3.39
50
1.97
139
5.47
202
7.95
215
8.46
Q251810ABECC 175 x 250 x 100
6.89 x 9.84 x 3.94
Clear 250 x 175
9.84 x 6.89
Q2518PE 223 x 148
8.78 x 5.83
235 x 160
9.25 x 6.30
86
3.39
50
1.97
139
5.47
202
7.95
215
8.46
Q13813ABE 75 x 125 x 125
2.95 x 4.92 x 4.92
Opaque 125 x 75
4.92 x 2.95
Q138PE 98 x 48
3.86 x 1.89
110 x 60
4.33 x 2.36
111
4.37
75
2.95
40
1.57
75
2.95
90
3.54
Q13813ABECC 75 x 125 x 125
2.95 x 4.92 x 4.92
Clear 125 x 75
4.92 x 2.95
Q138PE 98 x 48
3.86 x 1.89
110 x 60
4.33 x 2.36
111
4.37
75
2.95
40
1.57
75
2.95
90
3.54
Q131313ABE 125 x 125 x 125
4.92 x 4.92 x 4.92
Opaque 125 x 125
4.92 x 4.92
Q1313PE 98 x 98
3.86 x 3.86
110 x 110
4.33 x 4.33
111
4.37
75
2.95
90
3.54
75
2.95
90
3.54
Q131313ABECC 125 x 125 x 125
4.92 x 4.92 x 4.92
Clear 125 x 125
4.92 x 4.92
Q1313PE 98 x 98
3.86 x 3.86
110 x 110
4.33 x 4.33
111
4.37
75
2.95
90
3.54
75
2.95
90
3.54
Q181313ABE 125 x 175 x 125
4.92 x 6.89 x 4.92
Opaque 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
111
4.37
75
2.95
90
3.54
100
3.94
140
5.51
Q181313ABECC 125 x 175 x 125
4.92 x 6.89 x 4.92
Clear 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
111
4.37
75
2.95
90
3.54
100
3.94
140
5.51
Q181813ABE 175 x 175 x 125
6.89 x 6.89 x 4.92
Opaque 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
160 x 160
6.30 x 6.30
111
4.37
75
2.95
140
5.51
125
4.92
140
5.51
Q181813ABECC 175 x 175 x 125
6.89 x 6.89 x 4.92
Clear 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
160 x 160
6.30 x 6.30
111
4.37
75
2.95
140
5.51
125
4.92
140
5.51
Q181315ABE 169 x 119 x 142
6.63 x 4.67 x 5.61
Opaque 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
136
5.35
100
3.94
90
3.54
100
3.94
140
5.51
Q181315ABECC 125 x 175 x 150
4.92 x 6.89 x 5.91
Clear 175 x 125
6.89 x 4.92
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
136
5.35
100
3.94
90
3.54
100
3.94
140
5.51
Q181815ABE 169 x 169 x 142
6.63 x 6.63 x 5.61
Opaque 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
160 x 160
6.30 x 6.30
136
5.35
100
3.94
140
5.51
125
4.92
140
5.51
Q181815ABECC 175 x 175 x 150
6.89 x 6.89 x 5.91
Clear 175 x 175
6.89 x 6.89
Q1818PE 148 x 148
5.83 x 5.83
160 x 160
6.30 x 6.30
136
5.35
100
3.94
140
5.51
125
4.92
140
5.51
Q251815ABE 244 x 169 x 142
9.59 x 6.63 x 5.61
Opaque 250 x 175
9.84 x 6.89
Q2518PE 223 x 148
8.78 x 5.83
235 x 160
9.25 x 6.30
136
5.35
100
3.94
139
5.47
202
7.95
215
8.46
Q251815ABECC 175 x 250 x 150
6.89 x 9.84 x 5.91
Clear 250 x 175
9.84 x 6.89
Q2518PE 223 x 148
8.78 x 5.83
235 x 160
9.25 x 6.30
136
5.35
100
3.94
139
5.47
202
7.95
215
8.46
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC300
3
POLYCARBONATE AND ABS QLine e
BRASS INSERTS
Bulletin: Q41Y
Catalog Number Description Qty. Pkg.
QEBI M2 thread inserts 4
HINGE KIT
Kit might not meet Type 4
requirements and should, therefore,
be verified by customer.
Bulletin: Q41Y
Catalog Number
QDEHK
MOUNTING BRACKET KIT
Bulletin: Q41Y
Catalog Number
QEMFK
HARDWARE KIT
Bulletin: Q41Y
Catalog Number Description Fits QLINE Enclosure
QEHK35 35-mm screw when C = 67 mm, 117 mm or 142 mm
QEHK60 60-mm screw when C = 92 mm
PANELS Bulletin: Q41Y
Catalog Number
Panel Size D x E
mm/in.
Q138PE 98 x 48
3.86 x 1.89
Q1313PE 98 x 98
3.86 x 3.86
Q1813PE 148 x 98
5.83 x 3.86
Q1818PE 148 x 148
5.83 x 5.83
Q2518PE 223 x 148
8.78 x 5.83
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC302
3
POLYCARBONATE AND ABS QLine e
QLINE E, EMC, TYPE 4X
INDUSTRY STANDARDS
APPLICATION
SPECIFICATIONS
FINISH
Bulletin: Q41eM
Catalog Number AxBxC mm/in.
External
Dimensions
L x W
mm/in.
Internal
Dimensions
A x B x C
mm/in. Panel
Panel Size
D x E
mm/in.
Mounting
G x H
mm/in.
F
mm/in.
K
mm/in.
P
mm/in.
Q
mm/in.
S
mm/in.
T
mm/in.
W
mm/in.
X
mm/in.
Q1388PCEMC 125 x 75 x 74
4.92 x 2.95 x 2.91
125 x 75
4.92 x 2.95
119 x 69 x 67
4.67 x 2.70 x 2.65
Q138PE 98 x 48
3.86 x 1.89
110 x 60
4.33 x 2.36
61
2.38
25
0.98
40
1.57
75
2.95
90
3.54
—
—
—
—
—
—
Q13138PCEMC 125 x 125 x 74
4.92 x 4.92 x 2.91
125 x 125
4.92 x 4.92
119x 119 x 67
4.67 x 4.67 x 2.65
Q1313PE 98 x 98
3.86 x 3.86
110 x 110
4.33 x 4.33
61
2.38
25
0.98
90
3.54
75
2.95
90
3.54
—
—
23
0.89
—
—
Q131310PCEMC 125 x 125 x 99
4.90 x 4.90 x 3.90
125 x 125
4.92 x 4.92
119 x 119 x 92
4.67 x 4.67 x 3.64
Q1313PE 98 x 98
3.86 x 3.86
110 x 110
4.33 x 4.33
86
3.37
25
0.98
90
3.54
75
2.95
90
3.54
—
—
23
0.89
—
—
Q18138PCEMC 175 x 125 x 74
6.89 x 4.92 x 2.91
175 x 125
6.89 x 4.92
169 x 119 x 67
6.63 x 4.67 x 2.65
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
61
2.38
25
0.98
90
3.54
100
3.94
140
5.51
15
0.59
23
0.89
—
—
Q181310PCEMC 175 x 125 x 99
6.89 x 4.92 x 3.90
175 x 125
6.89 x 4.92
169 x 119 x 92
6.63 x 4.67 x 3.64
Q1813PE 148 x 98
5.83 x 3.86
160 x 110
6.30 x 4.33
86
3.37
50
1.97
90
3.54
100
3.94
140
5.51
15
0.59
23
0.89
—
—
Q18188PCEMC 175 x 175 x 74
6.89 x 6.89 x 2.91
175 x 175
6.89 x 6.89
169 x 169 x 67
6.63 x 6.63 x 2.65
Q1818PE 148 x 148
5.83 x 5.83
160 x 160
6.30 x 6.30
61
2.38
25
0.98
140
5.51
125
4.92
140
5.51
—
—
15
0.59
35
1.38
Purchase panels separately.
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC304
3
POLYCARBONATE AND ABS QLine i
Qline i
QLINE I, TYPE 4X
INDUSTRY STANDARDS
Polycarbonate Enclosure
ABS Enclosure
APPLICATION
SPECIFICATIONS
Screw Cover Enclosures
Enclosures with Quick-Release Latches
FINISH
ACCESSORIES
See also Accessories.
MODIFICATION AND CUSTOMIZATION
Bulletin: Q41
EQUIPMENT PROTECTION NONMETALLIC 305
3
POLYCARBONATE AND ABS QLine i
Polycarbonate
Catalog Number AxBxC mm/in.
Cover
Style Cover Type
External
Dim’s
L x W
mm/in. Panel
Panel
Size
D x E
mm/in.
Extension
Ring
Mounting
G x H
mm/in.
F
mm/in.
P
mm/in.
Q
mm/in.
R
mm/in.
S
mm/in.
T
mm/in.
U
mm/in.
Y
mm/in.
Z
mm/in.
Q202013PCI 188 x 188 x 123
7.40 x 7.40 x 4.84
Opaque Screw
Cover
200 x 200
7.87 x 7.87
Q2020PI 160 x 160
6.30 x 6.30
Q2020EXTI 180 x 180
7.09 x 7.09
115
4.53
150
5.91
150
5.91
140
5.51
140
5.51
120
4.72
110
4.33
100
3.94
100
3.94
Q202013PCICC 188 x 188 x 123
7.40 x 7.40 x 4.84
Clear Screw
Cover
200 x 200
7.87 x 7.87
Q2020PI 160 x 160
6.30 x 6.30
Q2020EXTI 180 x 180
7.09 x 7.09
115
4.53
150
5.91
150
5.91
140
5.51
140
5.51
120
4.72
120
4.33
100
3.94
100
3.94
Q302013PCI 288 x 188 x 123
11.34 x 7.40 x 4.84
Opaque Screw
Cover
300 x 200
11.81 x 7.87
Q3020PI 260 x 160
10.24 x 6.30
Q3020EXTI 280 x 180
11.02 x 7.09
115
4.53
150
5.91
250
9.84
140
5.51
240
9.45
120
4.72
210
8.27
100
3.94
200
7.87
Q302013PCICC 288 x 188 x 123
11.34 x 7.40 x 4.84
Clear Screw
Cover
300 x 200
11.81 x 7.87
Q3020PI 260 x 160
10.24 x 6.30
Q3020EXTI 280 x 180
11.02 x 7.09
115
4.53
150
5.91
250
9.84
140
5.51
240
9.45
120
4.72
210
8.27
100
3.94
200
7.87
Q402013PCI 388 x 188 x 123
15.28 x 7.40 x 4.84
Opaque Screw
Cover
400 x 200
15.75 x 7.87
Q4020PI 360 x 160
14.17 x 6.30
Q4020EXTI 380 x 180
14.96 x 7.09
115
4.53
150
5.91
350
13.78
140
5.51
340
13.39
120
4.72
310
12.20
100
3.94
300
11.81
Q402013PCICC 388 x 188 x 123
15.28 x 7.40 x 4.84
Clear Screw
Cover
400 x 200
15.75 x 7.87
Q4020PI 360 x 160
14.17 x 6.30
Q4020EXTI 380 x 180
14.96 x 7.09
115
4.53
150
5.91
350
13.78
140
5.51
340
13.39
120
4.72
310
12.20
100
3.94
300
11.81
Q303013PCI 288 x 288 x 123
11.34 x 11.34 x 4.84
Opaque Screw
Cover
300 x 300
11.81 x 11.81
Q3030PI 260 x 260
10.24 x 10.24
Q3030EXTI 280 x 280
11.02 x 11.02
115
4.53
250
9.84
250
9.84
240
9.45
240
9.45
220
8.66
210
8.27
200
7.87
200
7.87
Q303013PCICC 288 x 288 x 123
11.34 x 11.34 x 4.84
Clear Screw
Cover
300 x 300
11.81 x 11.81
Q3030PI 260 x 260
10.24 x 10.24
Q3030EXTI 280 x 280
11.02 x 11.02
115
4.53
250
9.84
250
9.84
240
9.45
240
9.45
220
8.66
210
8.27
200
7.87
200
7.87
Q403013PCI 388 x 288 x 123
15.28 x 11.34 x 4.84
Opaque Screw
Cover
400 x 300
15.75 x 11.81
Q4030PI 360 x 260
14.17 x 10.24
Q4030EXTI 380 x 280
14.96 x 11.02
115
4.53
250
9.84
350
13.78
240
9.45
340
13.39
220
8.66
310
12.20
200
7.87
300
11.81
Q403013PCICC 388 x 288 x 123
15.28 x 11.34 x 4.84
Clear Screw
Cover
400 x 300
15.75 x 11.81
Q4030PI 360 x 260
14.17 x 10.24
Q4030EXTI 380 x 280
14.96 x 11.02
115
4.53
250
9.84
350
13.78
240
9.45
340
13.39
220
8.66
310
12.20
200
7.87
300
11.81
Q603013PCI 300 x 600 x 130
11.81 x 23.62 x 5.12
Opaque Screw
Cover
600 x 300
23.62 x 11.81
Q6030PI 560 x 260
22.05 x 10.24
Q6030EXTI 580 x 280
22.83 x 11.02
115
4.53
250
9.84
550
21.65
240
9.45
540
21.26
220
8.66
510
20.08
200
7.87
500
19.69
Q603013PCICC 300 x 600 x 130
11.81 x 23.62 x 5.12
Clear Screw
Cover
600 x 300
23.62 x 11.81
Q6030PI 560 x 260
22.05 x 10.24
Q6030EXTI 580 x 280
22.83 x 11.02
115
4.53
250
9.84
550
21.65
240
9.45
540
21.26
220
8.66
510
20.08
200
7.87
500
19.69
Q604013PCI 400 x 600 x 130
15.75 x 23.62 x 5.12
Opaque Screw
Cover
600 x 400
23.62 x 15.75
Q6040PI 560 x 360
22.05 x 14.17
Q6040EXTI 580 x 380
22.83 x 14.96
115
4.53
350
13.78
550
21.65
340
13.39
540
21.26
320
12.60
510
20.08
300
11.81
500
19.69
Q604013PCICC 400 x 600 x 130
15.75 x 23.62 x 5.12
Clear Screw
Cover
600 x 400
23.62 x 15.75
Q6040PI 560 x 360
22.05 x 14.17
Q6040EXTI 580 x 380
22.83 x 14.96
115
4.53
350
13.78
550
21.65
340
13.39
540
21.26
320
12.60
510
20.08
300
11.81
500
19.69
Q202018PCI 188 x 188 x 173
7.40 x 7.40 x 6.81
Opaque Screw
Cover
200 x 200
7.87 x 7.87
Q2020PI 160 x 160
6.30 x 6.30
Q2020EXTI 180 x 180
7.09 x 7.09
165
6.50
150
5.91
150
5.91
140
5.51
140
5.51
120
4.72
110
4.33
100
3.94
100
3.94
Q202018PCICC 188 x 188 x 173
7.40 x 7.40 x 6.81
Clear Screw
Cover
200 x 200
7.87 x 7.87
Q2020PI 160 x 160
6.30 x 6.30
Q2020EXTI 180 x 180
7.09 x 7.09
165
6.50
150
5.91
150
5.91
140
5.51
140
5.51
120
4.72
110
4.33
100
3.94
100
3.94
Q302018PCI 288 x 188 x 173
11.34 x 7.40 x 6.81
Opaque Screw
Cover
300 x 200
11.81 x 7.87
Q3020PI 260 x 160
10.24 x 6.30
Q3020EXTI 280 x 180
11.02 x 7.09
165
6.50
150
5.91
250
9.84
140
5.51
240
9.45
120
4.72
110
4.33
100
3.94
200
7.87
Q302018PCICC 288 x 188 x 173
11.34 x 7.40 x 6.81
Clear Screw
Cover
300 x 200
11.81 x 7.87
Q3020PI 260 x 160
10.24 x 6.30
Q3020EXTI 280 x 180
11.02 x 7.09
165
6.50
150
5.91
250
9.84
140
5.51
240
9.45
120
4.72
110
4.33
100
3.94
200
7.87
Q402018PCI 388 x 188 x 173
15.28 x 7.40 x 6.81
Opaque Screw
Cover
400 x 200
15.75 x 7.87
Q4020PI 360 x 160
14.17 x 6.30
Q4020EXTI 380 x 180
14.96 x 7.09
165
6.50
150
5.91
350
13.78
140
5.51
340
13.39
120
4.72
310
12.20
100
3.94
300
11.81
Q402018PCICC 388 x 188 x 173
15.28 x 7.40 x 6.81
Clear Screw
Cover
400 x 200
15.75 x 7.87
Q4020PI 360 x 160
14.17 x 6.30
Q4020EXTI 380 x 180
14.96 x 7.09
165
6.50
150
5.91
350
13.78
140
5.51
340
13.39
120
4.72
310
12.20
100
3.94
300
11.81
Q303018PCI 288 x 288 x 173
11.34 x 11.34 x 6.81
Opaque Screw
Cover
300 x 300
11.81 x 11.81
Q3030PI 260 x 260
10.24 x 10.24
Q3030EXTI 280 x 280
11.02 x 11.02
165
6.50
250
9.84
250
9.84
240
9.45
240
9.45
220
8.66
210
8.27
200
7.87
200
7.87
Q303018PCICC 288 x 288 x 173
11.34 x 11.34 x 6.81
Clear Screw
Cover
300 x 300
11.81 x 11.81
Q3030PI 260 x 260
10.24 x 10.24
Q3030EXTI 280 x 280
11.02 x 11.02
165
6.50
250
9.84
250
9.84
240
9.45
240
9.45
220
8.66
210
8.27
200
7.87
200
7.87
Q403018PCI 388 x 288 x 173
15.28 x 11.34 x 6.81
Opaque Screw
Cover
400 x 300
15.75 x 11.81
Q4030PI 360 x 260
14.17 x 10.24
Q4030EXTI 380 x 280
14.96 x 11.02
165
6.50
250
9.84
350
13.78
240
9.45
340
13.39
220
8.66
310
12.20
200
7.87
300
11.81
Q403018PCICC 388 x 288 x 173
15.28 x 11.34 x 6.81
Clear Screw
Cover
400 x 300
15.75 x 11.81
Q4030PI 360 x 260
14.17 x 10.24
Q4030EXTI 380 x 280
14.96 x 11.02
165
6.50
250
9.84
350
13.78
240
9.45
340
13.39
220
8.66
310
12.20
200
7.87
300
11.81
Q603018PCI 300 x 600 x 180
11.81 x 23.62 x 7.09
Opaque Screw
Cover
600 x 300
23.62 x 11.81
Q6030PI 560 x 260
22.05 x 10.24
Q6030EXTI 580 x 280
22.83 x 11.02
165
6.50
250
9.84
550
21.65
240
9.45
540
21.26
220
8.66
510
20.08
200
7.87
500
19.69
Q603018PCICC 300 x 600 x 180
11.81 x 23.62 x 7.09
Clear Screw
Cover
600 x 300
23.62 x 11.81
Q6030PI 560 x 260
22.05 x 10.24
Q6030EXTI 580 x 280
22.83 x 11.02
165
6.50
250
9.84
550
21.65
240
9.45
540
21.26
220
8.66
510
20.08
200
7.87
500
19.69
Q604018PCI 400 x 600 x 180
15.75 x 23.62 x 7.09
Opaque Screw
Cover
600 x 400
23.62 x 15.75
Q6040PI 560 x 360
22.05 x 14.17
Q6040EXTI 580 x 380
22.83 x 14.96
165
6.50
350
13.78
550
21.65
340
13.39
540
21.26
320
12.60
510
20.08
300
11.81
500
19.69
Q604018PCICC 400 x 600 x 180
15.75 x 23.62 x 7.09
Clear Screw
Cover
600 x 400
23.62 x 15.75
Q6040PI 560 x 360
22.05 x 14.17
Q6040EXTI 580 x 380
22.83 x 14.96
165
6.50
350
13.78
550
21.65
340
13.39
540
21.26
320
12.60
510
20.08
300
11.81
500
19.69

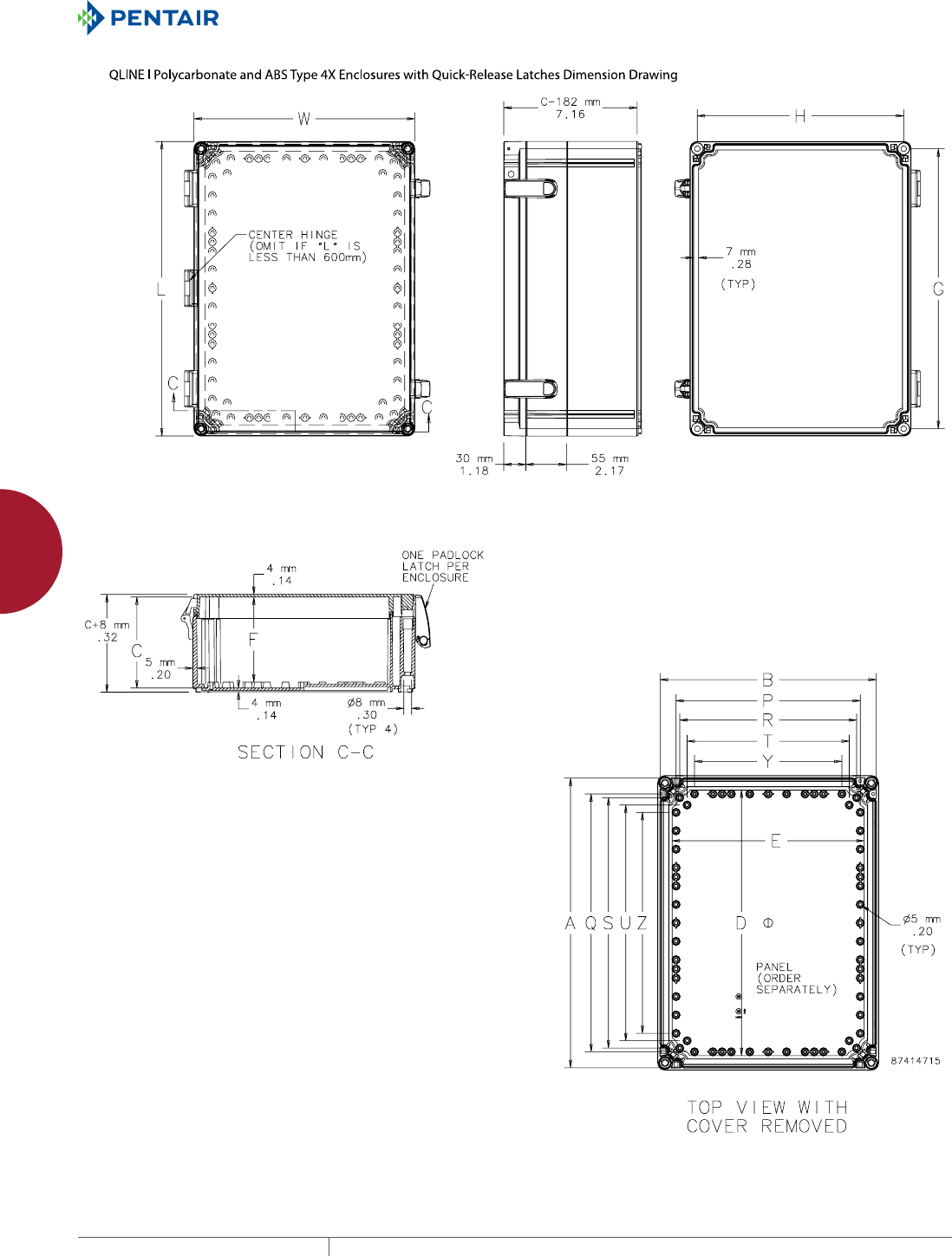

Q202013PCIQRR 200 x 200 x 130
7.87 x 7.87 x 5.12
Opaque QR
Latch
200 x 200
7.87 x 7.87
Q2020PI 160 x 160
6.30 x 6.30
— 180 x 180
7.09 x 7.09
115
4.53
150
5.91
150
5.91
140
5.51
140
5.51
120
4.72
110
4.33
100
3.94
100
3.94
Q202013PCIQRCCR 200 x 200 x 130
7.87 x 7.87 x 5.12
Clear QR
Latch
200 x 200
7.87 x 7.87
Q2020PI 160 x 160
6.30 x 6.30
— 180 x 180
7.09 x 7.09
115
4.53
150
5.91
150
5.91
140
5.51
140
5.51
120
4.72
110
4.33
100
3.94
100
3.94
Q302013PCIQRR 200 x 300 x 130
7.87 x 11.81 x 5.12
Opaque QR
Latch
300 x 200
11.81 x 7.87
Q3020PI 260 x 160
10.24 x 6.30
— 280 x 180
11.02 x 7.09
115
4.53
150
5.91
250
9.84
140
5.51
240
9.45
120
4.72
210
8.27
100
3.94
200
7.87
Q302013PCIQRCCR 200 x 300 x 130
7.87 x 11.81 x 5.12
Clear QR
Latch
300 x 200
11.81 x 7.87
Q3020PI 260 x 160
10.24 x 6.30
— 280 x 180
11.02 x 7.09
115
4.53
150
5.91
250
9.84
140
5.51
240
9.45
120
4.72
210
8.27
100
3.94
200
7.87
Q402013PCIQRR 200 x 400 x 130
7.87 x 15.75 x 5.12
Opaque QR
Latch
400 x 200
15.75 x 7.87
Q4020PI 360 x 160
14.17 x 6.30
— 380 x 180
14.96 x 7.09
115
4.53
150
5.91
350
13.78
140
5.51
340
13.39
120
4.72
310
12.20
100
3.94
300
11.81
Q402013PCIQRCCR 200 x 400 x 130
7.87 x 15.75 x 5.12
Clear QR
Latch
400 x 200
15.75 x 7.87
Q4020PI 360 x 160
14.17 x 6.30
— 380 x 180
14.96 x 7.09
115
4.53
150
5.91
350
13.78
140
5.51
340
13.39
120
4.72
310
12.20
100
3.94
300
11.81
Q303013PCIQRR 300 x 300 x 130
11.81 x 11.81 x 5.12
Opaque QR
Latch
300 x 300
11.81 x 11.81
Q3030PI 260 x 260
10.24 x 10.24
— 280 x 280
11.02 x 11.02
115
4.53
250
9.84
250
9.84
240
9.45
240
9.45
220
8.66
210
8.27
200
7.87
200
7.87
Q303013PCIQRCCR 300 x 300 x 130
11.81 x 11.81 x 5.12
Clear QR
Latch
300 x 300
11.81 x 11.81
Q3030PI 260 x 260
10.24 x 10.24
— 280 x 280
11.02 x 11.02
115
4.53
250
9.84
250
9.84
240
9.45
240
9.45
220
8.66
210
8.27
200
7.87
200
7.87
Q403013PCIQRR 300 x 400 x 130
11.81 x 15.75 x 5.12
Opaque QR
Latch
400 x 300
15.75 x 11.81
Q4030PI 360 x 260
14.17 x 10.24
— 380 x 280
14.96 x 11.02
115
4.53
250
9.84
350
13.78
240
9.45
340
13.39
220
8.66
310
12.20
200
7.87
300
11.81
Q403013PCIQRCCR 300 x 400 x 130
11.81 x 15.75 x 5.12
Clear QR
Latch
400 x 300
15.75 x 11.81
Q4030PI 360 x 260
14.17 x 10.24
— 380 x 280
14.96 x 11.02
115
4.53
250
9.84
350
13.78
240
9.45
340
13.39
220
8.66
310
12.20
200
7.87
300
11.81
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC306
3
POLYCARBONATE AND ABS QLine i
Catalog Number AxBxC mm/in.
Cover
Style Cover Type
External
Dim’s
L x W
mm/in. Panel
Panel
Size
D x E
mm/in.
Extension
Ring
Mounting
G x H
mm/in.
F
mm/in.
P
mm/in.
Q
mm/in.
R
mm/in.
S
mm/in.
T
mm/in.
U
mm/in.
Y
mm/in.
Z
mm/in.
Q603013PCIQRR 300 x 600 x 130
11.81 x 23.62 x 5.12
Opaque QR
Latch
600 x 300
23.62 x 11.81
Q6030PI 560 x 260
22.05 x 10.24
— 580 x 280
22.83 x 11.02
115
4.53
250
9.84
550
21.65
240
9.45
540
21.26
220
8.66
510
20.08
200
7.87
500
19.69
Q603013PCIQRCCR 300 x 600 x 130
11.81 x 23.62 x 5.12
Clear QR
Latch
600 x 300
23.62 x 11.81
Q6030PI 560 x 260
22.05 x 10.24
— 580 x 280
22.83 x 11.02
115
4.53
250
9.84
550
21.65
240
9.45
540
21.26
220
8.66
510
20.08
200
7.87
500
19.69
Q604013PCIQRR 400 x 600 x 130
15.75 x 23.62 x 5.12
Opaque QR
Latch
600 x 400
23.62 x 15.75
Q6040PI 560 x 360
22.05 x 14.17
— 580 x 380
22.83 x 14.96
115
4.53
350
13.78
550
21.65
340
13.39
540
21.26
320
12.60
510
20.08
300
11.81
500
19.69
Q604013PCIQRCCR 400 x 600 x 130
15.75 x 23.62 x 5.12
Clear QR
Latch
600 x 400
23.62 x 15.75
Q6040PI 560 x 360
22.05 x 14.17
— 580 x 380
22.83 x 14.96
115
4.53
350
13.78
550
21.65
340
13.39
540
21.26
320
12.60
510
20.08
300
11.81
500
19.69
Q202018PCIQRR 200 x 200 x 180
7.87 x 7.87 x 7.09
Opaque QR
Latch
200 x 200
7.87 x 7.87
Q2020PI 160 x 160
6.30 x 6.30
— 180 x 180
7.09 x 7.09
115
6.50
150
5.91
150
5.91
140
5.51
140
5.51
120
4.72
110
4.33
100
3.94
100
3.94
Q202018PCIQRCCR 200 x 200 x 180
7.87 x 7.87 x 7.09
Clear QR
Latch
200 x 200
7.87 x 7.87
Q2020PI 160 x 160
6.30 x 6.30
— 180 x 180
7.09 x 7.09
165
6.50
150
5.91
150
5.91
140
5.51
140
5.51
120
4.72
110
4.33
100
3.94
100
3.94
Q302018PCIQRR 200 x 300 x 180
7.87 x 11.81 x 7.09
Opaque QR
Latch
300 x 200
11.81 x 7.87
Q3020PI 260 x 160
10.24 x 6.30
— 280 x 180
11.02 x 7.09
165
6.50
150
5.91
250
9.84
140
5.51
240
9.45
120
4.72
110
4.33
100
3.94
200
7.87
Q302018PCIQRCCR 200 x 300 x 180
7.87 x 11.81 x 7.09
Clear QR
Latch
300 x 200
11.81 x 7.87
Q3020PI 260 x 160
10.24 x 6.30
— 280 x 180
11.02 x 7.09
165
6.50
150
5.91
250
9.84
140
5.51
240
9.45
120
4.72
110
4.33
100
3.94
200
7.87
Q402018PCIQRR 200 x 400 x 180
7.87 x 15.75 x 7.09
Opaque QR
Latch
400 x 200
15.75 x 7.87
Q4020PI 360 x 160
14.17 x 6.30
— 380 x 180
14.96 x 7.09
165
6.50
150
5.91
350
13.78
140
5.51
340
13.39
120
4.72
310
12.20
100
3.94
300
11.81
Q402018PCIQRCCR 200 x 400 x 180
7.87 x 15.75 x 7.09
Clear QR
Latch
400 x 200
15.75 x 7.87
Q4020PI 360 x 160
14.17 x 6.30
— 380 x 180
14.96 x 7.09
165
6.50
150
5.91
350
13.78
140
5.51
340
13.39
120
4.72
310
12.20
100
3.94
300
11.81
Q303018PCIQRR 300 x 300 x 180
11.81 x 11.81 x 7.09
Opaque QR
Latch
300 x 300
11.81 x 11.81
Q3030PI 260 x 260
10.24 x 10.24
— 280 x 280
11.02 x 11.02
165
6.50
250
9.84
250
9.84
240
9.45
240
9.45
220
8.66
210
8.27
200
7.87
200
7.87
Q303018PCIQRCCR 300 x 300 x 180
11.81 x 11.81 x 7.09
Clear QR
Latch
300 x 300
11.81 x 11.81
Q3030PI 260 x 260
10.24 x 10.24
— 280 x 280
11.02 x 11.02
165
6.50
250
9.84
250
9.84
240
9.45
240
9.45
220
8.66
210
8.27
200
7.87
200
7.87
Q403018PCIQRR 300 x 400 x 180
11.81 x 15.75 x 7.09
Opaque QR
Latch
400 x 300
15.75 x 11.81
Q4030PI 360 x 260
14.17 x 10.24
— 380 x 280
14.96 x 11.02
165
6.50
250
9.84
350
13.78
240
9.45
340
13.39
220
8.66
310
12.20
200
7.87
300
11.81
Q403018PCIQRCCR 300 x 400 x 180
11.81 x 15.75 x 7.09
Clear QR
Latch
400 x 300
15.75 x 11.81
Q4030PI 360 x 260
14.17 x 10.24
— 380 x 280
14.96 x 11.02
165
6.50
250
9.84
350
13.78
240
9.45
340
13.39
220
8.66
310
12.20
200
7.87
300
11.81
Q603018PCIQRR 300 x 600 x 180
11.81 x 23.62 x 7.09
Opaque QR
Latch
600 x 300
23.62 x 11.81
Q6030PI 560 x 260
22.05 x 10.24
— 580 x 280
22.83 x 11.02
165
6.50
250
9.84
550
21.65
240
9.45
540
21.25
220
8.66
510
20.08
200
7.87
500
19.69
Q603018PCIQRCCR 300 x 600 x 180
11.81 x 23.62 x 7.09
Clear QR
Latch
600 x 300
23.62 x 11.81
Q6030PI 560 x 260
22.05 x 10.24
— 580 x 280
22.83 x 11.02
165
6.50
250
9.84
550
21.65
240
9.45
540
21.26
220
8.66
510
20.08
200
7.87
500
19.69
Q604018PCIQRR 400 x 600 x 180
15.75 x 23.62 x 7.09
Opaque QR
Latch
600 x 400
23.62 x 15.75
Q6040PI 560 x 360
22.05 x 14.17
— 580 x 380
22.83 x 14.96
165
6.50
350
13.78
550
21.65
340
13.39
540
21.28
320
12.60
510
20.08
300
11.81
500
19.69
Q604018PCIQRCCR 400 x 600 x 180
15.75 x 23.62 x 7.09
Clear QR
Latch
600 x 400
23.62 x 15.75
Q6040PI 560 x 360
22.05 x 14.17
— 580 x 380
22.83 x 14.96
165
6.50
350
13.78
550
21.65
340
13.39
540
21.26
320
12.60
510
20.08
300
11.81
500
19.69
A x B x C are internal dimensions.
Purchase panels and extension rings separately.
EQUIPMENT PROTECTION NONMETALLIC 307
3
POLYCARBONATE AND ABS QLine i
ABS, Screw Cover
Catalog Number AxBxC mm/in.
Cover
Style
External
Dim’s
L x W
mm/in. Panel
Panel Size
D x E
mm/in.
Extension
Ring
Mounting
G x H
mm/in.
F
mm/in.
P
mm/in.
Q
mm/in.
R
mm/in.
S
mm/in.
T
mm/in.
U
mm/in.
Y
mm/in.
Z
mm/in.
Q202013ABI 188 x 188 x 123
7.40 x 7.40 x 4.84
Opaque 200 x 200
7.87 x 7.87
Q2020PI 160 x 160
6.30 x 6.30
Q2020EXTI 180 x 180
7.09 x 7.09
115
4.53
150
5.91
150
5.91
140
5.51
140
5.51
120
4.72
110
4.33
100
3.94
100
3.94
Q202013ABICC 200 x 200 x 130
7.87 x 7.87 x 5.12
Clear 200 x 200
7.87 x 7.87
Q2020PI 160 x 160
6.30 x 6.30
Q2020EXTI 180 x 180
7.09 x 7.09
115
4.53
150
5.91
150
5.91
140
5.51
140
5.51
120
4.72
110
4.33
100
3.94
100
3.94
Q302013ABI 300 x 200 x 123
11.81 x 7.87 x 4.84
Opaque 300 x 200
11.81 x 7.87
Q3020PI 260 x 160
10.24 x 6.30
Q3020EXTI 280 x 180
11.02 x 7.09
115
4.53
150
5.91
250
9.84
140
5.51
240
9.45
120
4.72
210
8.27
100
3.94
200
7.87
Q302013ABICC 200 x 300 x 130
7.87 x 11.81 x 5.12
Clear 300 x 200
11.81 x 7.87
Q3020PI 260 x 160
10.24 x 6.30
Q3020EXTI 280 x 180
11.02 x 7.09
115
4.53
150
5.91
250
9.84
140
5.51
240
9.45
120
4.72
210
8.27
100
3.94
200
7.87
Q402013ABI 388 x 188 x 123
15.28 x 7.40 x 4.84
Opaque 400 x 200
15.75 x 7.87
Q4020PI 360 x 160
14.17 x 6.30
Q4020EXTI 380 x 180
14.96 x 7.09
115
4.53
150
5.91
350
13.78
140
5.51
340
13.39
120
4.72
310
12.20
100
3.94
300
11.81
Q402013ABICC 200 x 400 x 130
7.87 x 15.75 x 5.12
Clear 400 x 200
15.75 x 7.87
Q4020PI 360 x 160
14.17 x 6.30
Q4020EXTI 380 x 180
14.96 x 7.09
115
4.53
150
5.91
350
13.78
140
5.51
340
13.39
120
4.72
310
12.20
100
3.94
300
11.81
Q303013ABI 288 x 288 x 123
11.34 x 11.34 x 4.84
Opaque 300 x 300
11.81 x 11.81
Q3030PI 260 x 260
10.24 x 10.24
Q3030EXTI 280 x 280
11.02 x 11.02
115
4.53
250
9.84
250
9.84
240
9.45
240
9.45
220
8.66
210
8.27
200
7.87
200
7.87
Q303013ABICC 300 x 300 x 130
11.81 x 11.81 x 5.12
Clear 300 x 300
11.81 x 11.81
Q3030PI 260 x 260
10.24 x 10.24
Q3030EXTI 280 x 280
11.02 x 11.02
115
4.53
250
9.84
250
9.84
240
9.45
240
9.45
220
8.66
210
8.27
200
7.87
200
7.87
Q403013ABI 388 x 288 x 123
15.28 x 11.34 x 4.84
Opaque 400 x 300
15.75 x 11.81
Q4030PI 360 x 260
14.17 x 10.24
Q4030EXTI 380 x 280
14.96 x 11.02
115
4.53
250
9.84
350
13.78
240
9.45
240
13.39
220
8.66
310
12.20
200
7.87
300
11.81
Q403013ABICC 300 x 400 x 130
11.81 x 15.75 x 5.12
Clear 400 x 300
15.75 x 11.81
Q4030PI 360 x 260
14.17 x 10.24
Q4030EXTI 380 x 280
14.96 x 11.02
115
4.53
250
9.84
350
13.78
240
9.45
240
13.39
220
8.66
310
12.20
200
7.87
300
11.81
Q603013ABI 300 x 600 x 130
11.81 x 23.62 x 5.12
Opaque 600 x 300
23.62 x 11.81
Q6030PI 560 x 260
22.05 x 10.24
Q6030EXTI 580 x 280
22.83 x 11.02
115
4.53
250
9.84
550
21.65
240
9.45
540
21.26
220
8.66
510
20.08
200
7.87
300
11.81
Q603013ABICC 300 x 600 x 130
11.81 x 23.62 x 5.12
Clear 600 x 300
23.62 x 11.81
Q6030PI 560 x 260
22.05 x 10.24
Q6030EXTI 580 x 280
22.83 x 11.02
115
4.53
250
9.84
550
21.65
240
9.45
540
21.26
220
8.66
510
20.08
200
7.87
300
11.81
Q604013ABI 400 x 600 x 130
15.75 x 23.62 x 5.12
Opaque 600 x 400
23.62 x 15.75
Q6040PI 560 x 360
22.05 x 14.17
Q6040EXTI 580 x 380
22.83 x 14.96
115
4.53
350
13.78
550
21.65
340
13.39
540
21.26
320
12.60
510
20.08
300
11.81
500
19.69
Q604013ABICC 400 x 600 x 130
15.75 x 23.62 x 5.12
Clear 600 x 400
23.62 x 15.75
Q6040PI 560 x 360
22.05 x 14.17
Q6040EXTI 580 x 380
22.83 x 14.96
115
4.53
350
13.78
550
21.65
340
13.39
540
21.26
320
12.60
510
20.08
300
11.81
500
19.69
Q202018ABI 188 x 188 x 173
7.40 x 7.40 x 6.81
Opaque 200 x 200
7.87 x 7.87
Q2020PI 160 x 160
6.30 x 6.30
Q2020EXTI 180 x 180
7.09 x 7.09
165
6.50
150
5.91
150
5.91
140
5.51
140
5.51
120
4.72
110
4.33
100
3.94
100
3.94
Q202018ABICC 200 x 200 x 180
7.87 x 7.87 x 7.09
Clear 200 x 200
7.87 x 7.87
Q2020PI 160 x 160
6.30 x 6.30
Q2020EXTI 180 x 180
7.09 x 7.09
165
6.50
150
5.91
150
5.91
140
5.51
140
5.51
120
4.72
110
4.33
100
3.94
100
3.94
Q302018ABI 288 x 188 x 173
11.34 x 7.40 x 6.81
Opaque 300 x 200
11.81 x 7.87
Q3020PI 260 x 160
10.24 x 6.30
Q3020EXTI 280 x 180
11.02 x 7.09
165
6.50
150
5.91
250
9.84
140
5.51
240
9.45
120
4.72
110
4.33
100
3.94
200
7.87
Q302018ABICC 200 x 300 x 180
7.87 x 11.81 x 7.09
Clear 300 x 200
11.81 x 7.87
Q3020PI 260 x 160
10.24 x 6.30
Q3020EXTI 280 x 180
11.02 x 7.09
165
6.50
150
5.91
250
9.84
140
5.51
240
9.45
120
4.72
110
4.33
100
3.94
200
7.87
Q402018ABI 388 x 188 x 173
15.28 x 7.40 x 6.81
Opaque 400 x 200
15.75 x 7.87
Q4020PI 360 x 160
14.17 x 6.30
Q4020EXTI 380 x 180
14.96 x 7.09
165
6.50
150
5.91
350
13.78
140
5.51
340
13.39
120
4.72
310
12.20
100
3.94
300
11.81
Q402018ABICC 200 x 400 x 180
7.87 x 15.75 x 7.09
Clear 400 x 200
15.75 x 7.87
Q4020PI 360 x 160
14.17 x 6.30
Q4020EXTI 380 x 180
14.96 x 7.09
165
6.50
150
5.91
350
13.78
140
5.51
340
13.39
120
4.72
310
12.20
100
3.94
300
11.81
Q303018ABI 288 x 288 x 173
11.34 x 11.34 x 6.81
Opaque 300 x 300
11.81 x 11.81
Q3030PI 260 x 260
10.24 x 10.24
Q3030EXTI 280 x 280
11.02 x 11.02
165
6.50
250
9.84
250
9.84
240
9.45
240
9.45
220
8.66
210
8.27
200
7.87
200
7.87
Q303018ABICC 300 x 300 x 180
11.81 x 11.81 x 7.09
Clear 300 x 300
11.81 x 11.81
Q3030PI 260 x 260
10.24 x 10.24
Q3030EXTI 280 x 280
11.02 x 11.02
165
6.50
250
9.84
250
9.84
240
9.45
240
9.45
220
8.66
210
8.27
200
7.87
200
7.87
Q403018ABI 388 x 288 x 173
15.28 x 11.34 x 6.81
Opaque 400 x 300
15.75 x 11.81
Q4030PI 360 x 260
14.17 x 10.24
Q4030EXTI 380 x 280
14.96 x 11.02
165
6.50
250
9.84
350
13.78
240
9.45
340
13.39
220
8.66
310
12.20
200
7.87
300
11.81
Q403018ABICC 300 x 400 x 180
11.81 x 15.75 x 7.09
Clear 400 x 300
15.75 x 11.81
Q4030PI 360 x 260
14.17 x 10.24
Q4030EXTI 380 x 280
14.96 x 11.02
165
6.50
250
9.84
350
13.78
240
9.45
340
13.39
220
8.66
310
12.20
200
7.87
300
11.81
Q603018ABI 300 x 600 x 180
11.81 x 23.62 x 7.09
Opaque 600 x 300
23.62 x 11.81
Q6030PI 560 x 260
22.05 x 10.24
Q6030EXTI 580 x 280
22.83 x 11.02
165
6.50
250
9.84
550
21.65
240
9.45
540
21.26
220
8.66
510
20.08
200
7.87
500
19.69
Q603018ABICC 300 x 600 x 180
11.81 x 23.62 x 7.09
Clear 600 x 300
23.62 x 11.81
Q6030PI 560 x 260
22.05 x 10.24
Q6030EXTI 580 x 280
22.83 x 11.02
165
6.50
250
9.84
550
21.65
240
9.45
540
21.26
220
8.66
510
20.08
200
7.87
500
19.69
Q604018ABI 400 x 600 x 180
15.75 x 23.62 x 7.09
Opaque 600 x 400
23.62 x 15.75
Q6040PI 560 x 360
22.05 x 14.17
Q6040EXTI 580 x 380
22.83 x 14.96
165
6.50
350
13.78
550
21.65
340
13.39
540
21.26
320
12.60
510
20.08
300
11.81
500
19.69
Q604018ABICC 400 x 600 x 180
15.75 x 23.62 x 7.09
Clear 600 x 400
23.62 x 15.75
Q6040PI 560 x 360
22.05 x 14.17
Q6040EXTI 580 x 380
22.83 x 14.96
165
6.50
350
13.78
550
21.65
340
13.39
540
21.26
320
12.60
510
20.08
300
11.81
500
19.69
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC308
3
POLYCARBONATE AND ABS QLine i
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC310
3
POLYCARBONATE AND ABS QLine i
COVER SCREW KIT
Bulletin: Q41Y
Catalog Number Description
QIWHSK wing-head screw
QITSK 3-mm tamper-resistant double-bit
BRASS INSERT KIT
Bulletin: Q41Y
Catalog Number
QBIK
PANEL DEPTH FITTING
Bulletin: Q41Y
Catalog Number
QIPDF
SWING PANEL
Bulletin: Q41Y
Catalog Number
Panel Size
D x E
mm/in.
Fits Enclosure
Size A x B
mm/in.
Hinged Side
of Enclosure
QIHFP22A 186 x 180
7.32 x 7.09
200 x 200
7.87 x 7.87
200
QIHFP23A 186 x 280
7.32 x 11.02
300 x 200
11.81 x 7.87
200
QIHFP32A 286 x 180
11.26 x 7.09
300 x 200
11.81 x 7.87
300
QIHFP42A 386 x 180
15.20 x 7.09
400 x 200
15.75 x 7.87
400
QIHFP33A 286 x 280
11.26 x 11.02
300 x 300
11.81 x 11.81
300
QIHFP43A 386 x 280
15.20 x 11.02
400 x 300
15.75 x 11.81
400
QIHFP63A 586 x 280
23.07 x 11.02
600 x 300
23.62 x 11.81
600
QIHFP64A 586 x 380
23.07 x 14.96
600 x 400
23.62 x 15.75
600
EQUIPMENT PROTECTION NONMETALLIC 311
3
POLYCARBONATE AND ABS QLine i
HINGE KIT
Hinge Kit meets Type 4 requirements.
Three hinges required for 600-mm
sides.
Bulletin: Q41Y
Catalog Number
QIHK
MOUNTING BRACKET KIT
Bulletin: Q41Y
Catalog Number
QIMFK
HARDWARE KIT
Bulletin: Q41Y
Catalog Number Description
QIHK424 42-mm screws
EXTENSION RINGS
Bulletin: Q41Y
Catalog Number Use with Enclosure Catalog Number Beginning With
Q2020EXTI Q2020
Q3020EXTI Q3020
Q3030EXTI Q3030
Q4020EXTI Q4020
Q4030EXTI Q4030
Q6030EXTI Q6030
Q6040EXTI Q6040
PANELS Bulletin: Q41Y
Catalog Number
Panel Size
D x E (mm)
Panel Size
D x E (in.)
Q2020PI 160 x 160 6.30 x 6.30
Q3020PI 260 x 160 10.24 x 6.30
Q3030PI 260 x 260 10.24 x 10.24
Q4020PI 360 x 160 14.17 x 6.30
Q4030PI 360 x 260 14.17 x 10.24
Q6030PI 560 x 260 22.05 x 10.24
Q6040PI 560 X 360 22.05 x 14.17
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICENONMETALLIC312
3
POLYCARBONATE AND ABS QLine i

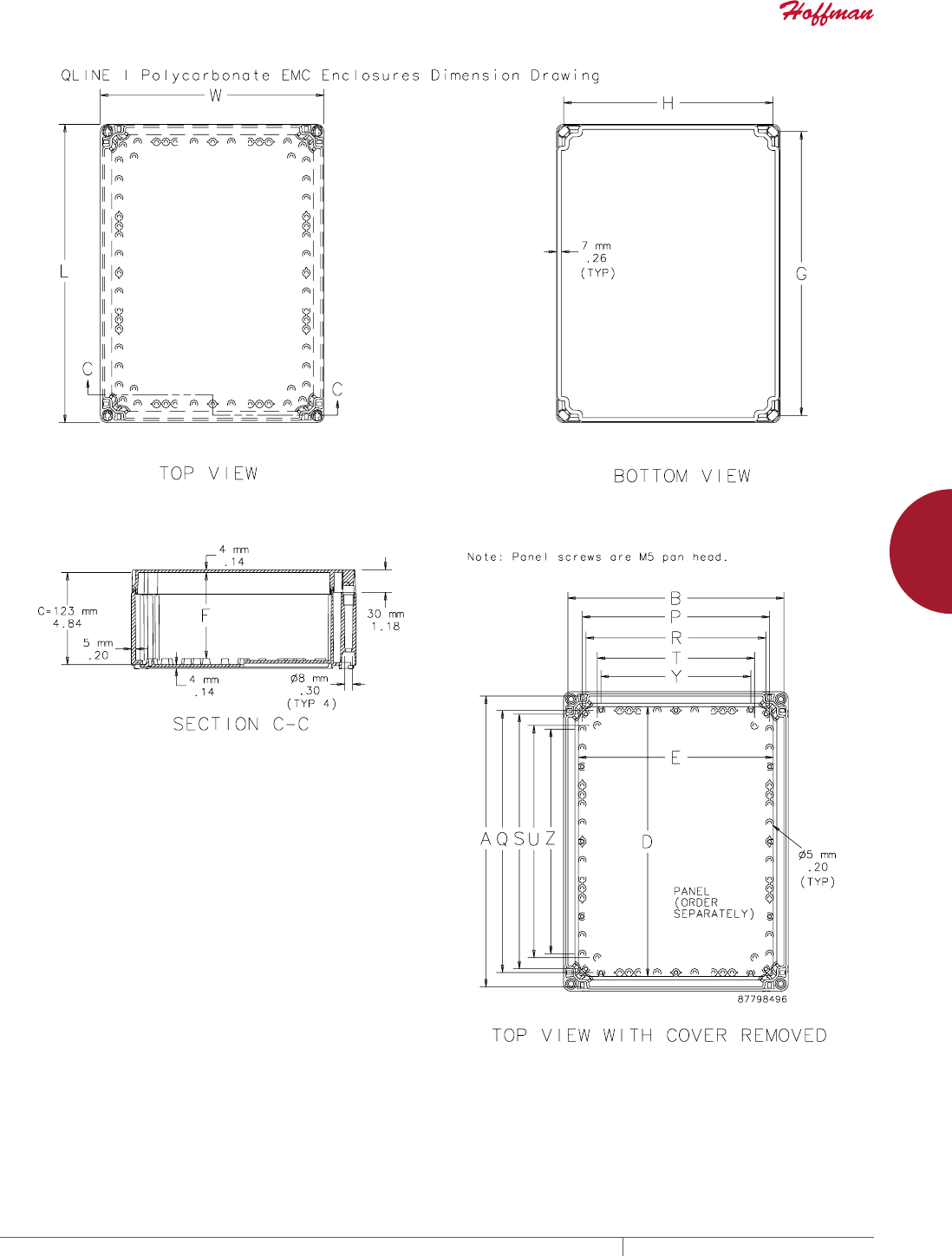

QLINE I, EMC, TYPE 4X
INDUSTRY STANDARDS
APPLICATION
SPECIFICATIONS
FINISH
Bulletin: Q41eM
Catalog Number AxBxC mm/in.
External
Dimensions
L x W
mm/in.
Internal
Dimensions
A x B x C
mm/in. Panel
Panel Size
D x E
mm/in.
Mounting
G x H
mm/in.
F
mm/in.
P
mm/in.
Q
mm/in.
R
mm/in.
S
mm/in.
T
mm/in.
U
mm/in.
Y
mm/in.
Z
mm/in.
Q202013PCEMC 200 x 200 x 123
7.87 x 7.87 x 4.84
200 x 200
7.87 x 7.87
188 x 188
7.40 x 7.40
Q2020PI 160 x 160
6.30 x 6.30
180 x 180
7.09 x 7.09
115
4.53
150
5.91
150
5.91
140
5.51
140
5.51
120
4.72
110
4.33
100
3.94
100
3.94
Q302013PCEMC 300 x 200 x 123
11.81 x 7.87 x 4.84
300 x 200
11.81 x 7.87
288 x 188
11.34 x 7.40
Q3020PI 260 x 160
10.24 x 6.30
280 x 180
11.02 x 7.09
115
4.53
150
5.91
250
9.84
140
5.51
240
9.45
120
4.72
210
8.27
100
3.94
200
7.87
Q402013PCEMC 400 x 200 x 123
15.75 x 7.87 x 4.84
400 x 200
15.75 x 7.87
388 x 188
15.28 x 7.40
Q4020PI 360 x 160
14.17 x 6.30
380 x 180
14.96 x 7.09
115
4.53
150
5.91
350
13.78
140
5.51
340
13.39
120
4.72
310
12.20
100
3.94
300
11.81
Purchase panels separately.
