Welcome to

Engineered Products Company (EPCO)!

We are the premier brand supplier of specialty products to Electrical Distributors and Contractors.

Headquartered in Minnetonka (a suburb west of Minneapolis), EPCO has supported the electrical

industry since 1976 by supplying a broad range of standard and unique consumables for

commercial, industrial, residential, and agricultural buildings.

Our reliable, durable, and quality products are designed and engineered with innovative product

features specically intended to save installation time and cost. And EPCO’s unique display

packaging provides exceptional convenience for Contractors.

Thousands of Distributors and Contractors know just how easy it is to do business with EPCO

because we consistently ship and deliver on time, error-free, and risk-free.

When you select EPCO products, you join an exclusive group of Electrical Distributors and

Contractors who demand the very best in electrical specialty products. All of our standard

catalogued products are in stock in our 52,000 square foot warehouse and available for immediate

shipment. We are committed to providing our customers with the “complete” quality customer

service experience from technical support, easy ordering, shipping orders 100% complete in 24

hours or less, comprehensive post sale technical support, and “hassle-free” returns.

Our goal is to provide you with competitively priced, quality products with customer service and

delivery dates that meet your requirements. If you don’t see exactly what you need in our catalog,

call or fax your product request to us today.

Everyone at Engineered Products Company appreciates your business!

Respectfully,

Jack Schuster, President

Engineered Products Company

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

1

TABLE OF CONTENTS

LIGHTING PRODUCTS

Stairwell Lighting

Microwave Stairwell Light Fixtures.......................... 3

Ultrasonic Stairwell Light Fixtures. .......................... 3

Retrot Lighting

T5 and T8 Retrot Conversion Kits™. ........................7

Utility Lighting

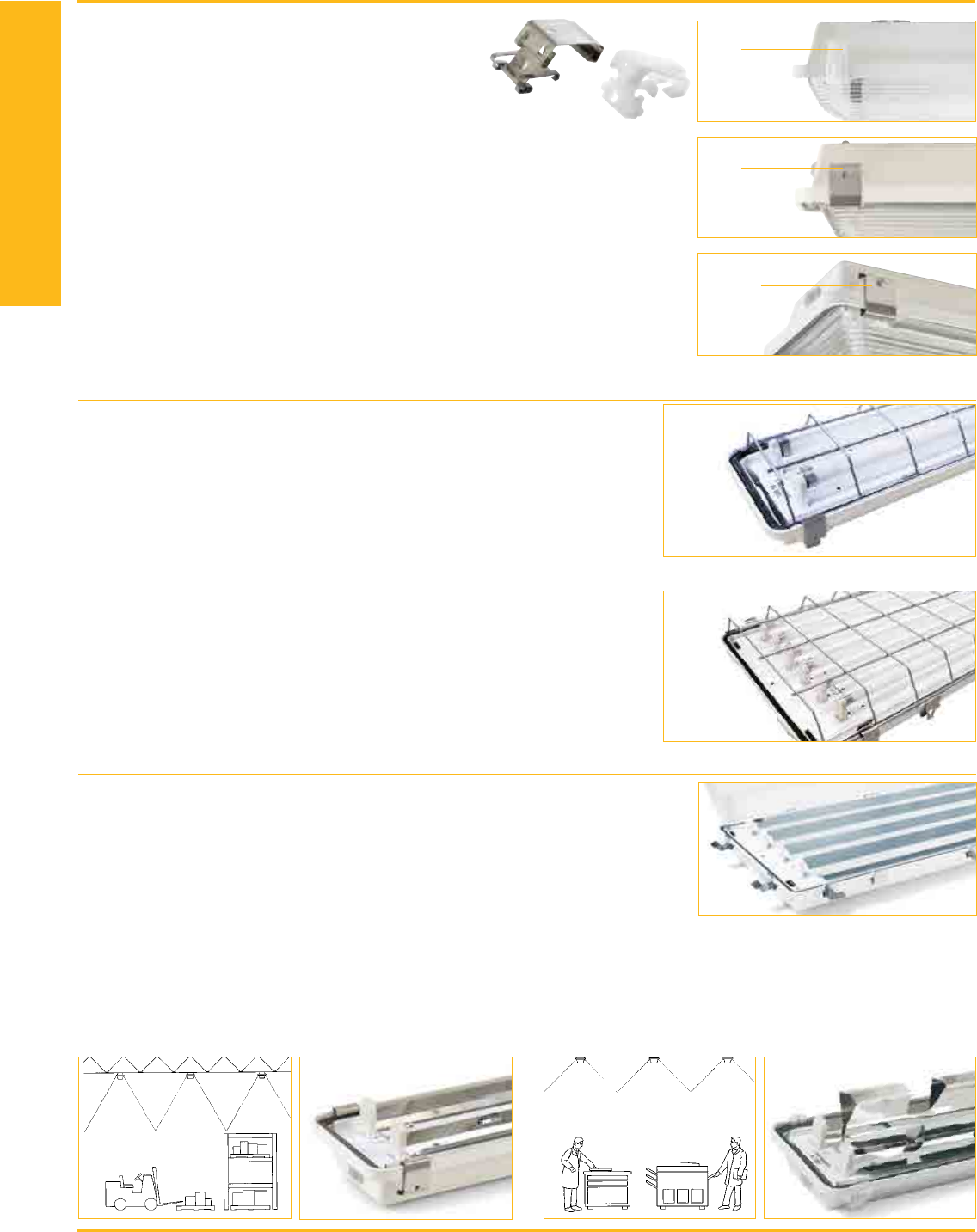

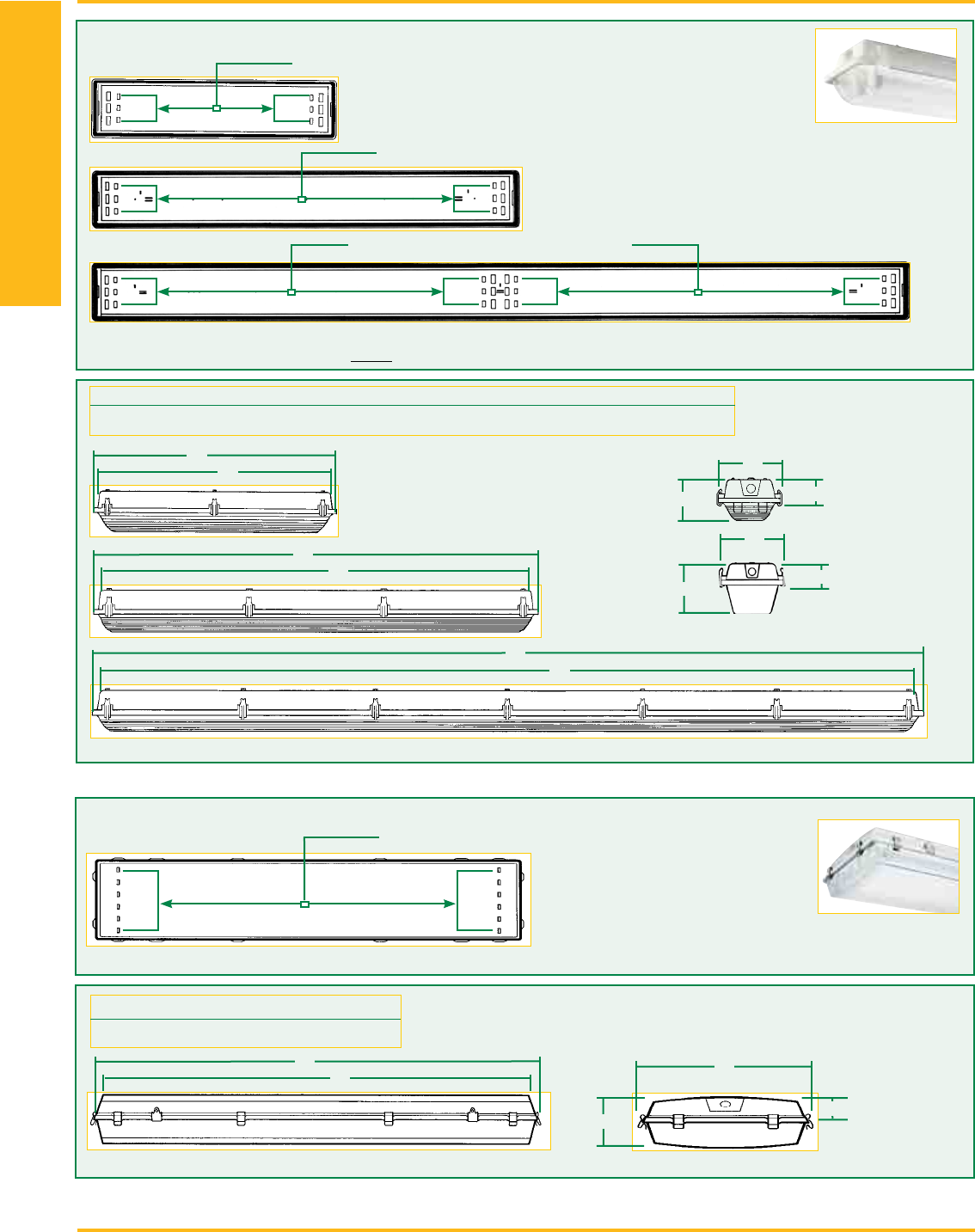

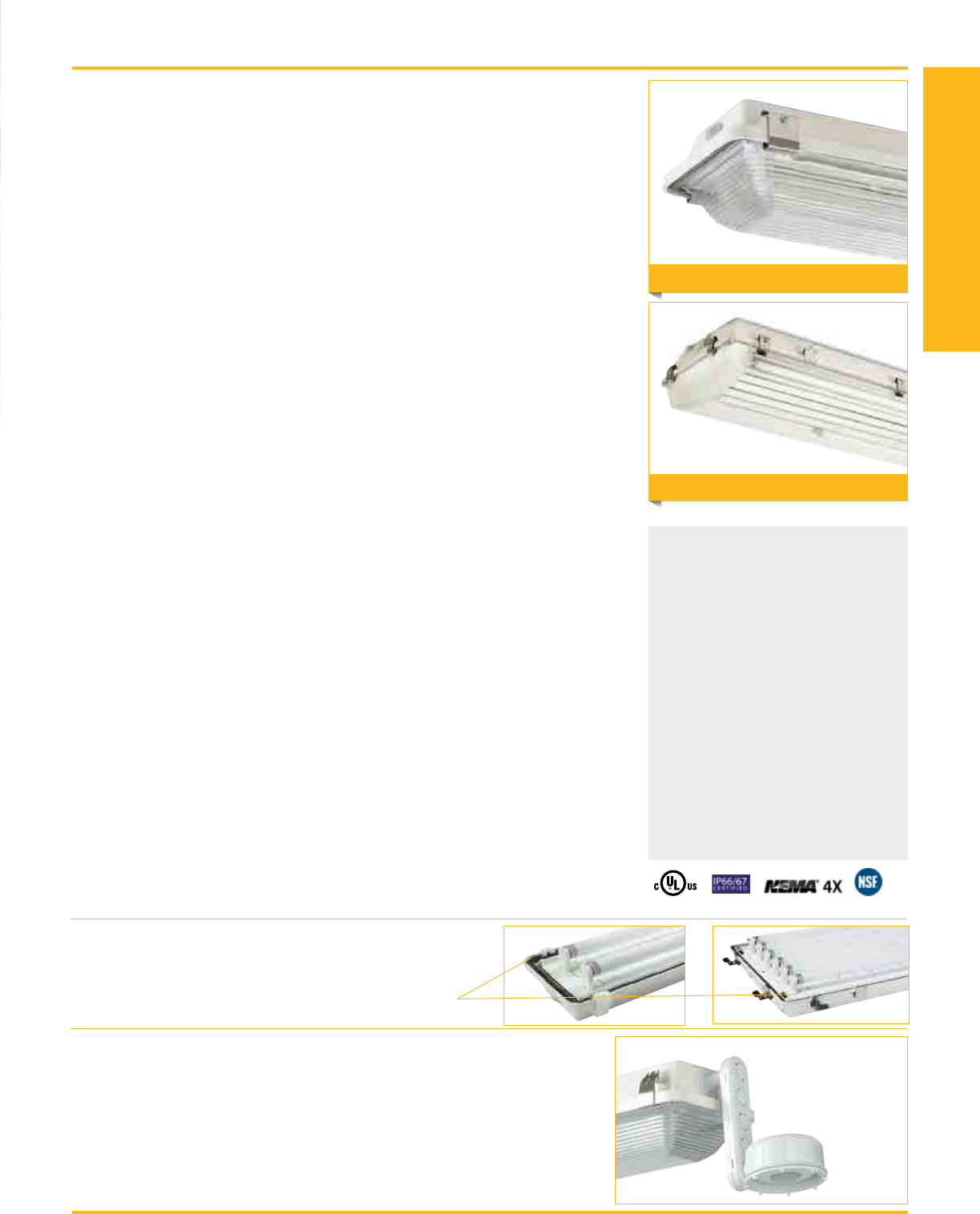

GFF, GLF, GFFW and GLFW Series™ Light Fixtures ...........11

GFF, GLF, GFFW, and GLFW Fixture Suspension System Kit ..13

GFF and GLF Surface Mount Bracket .......................14

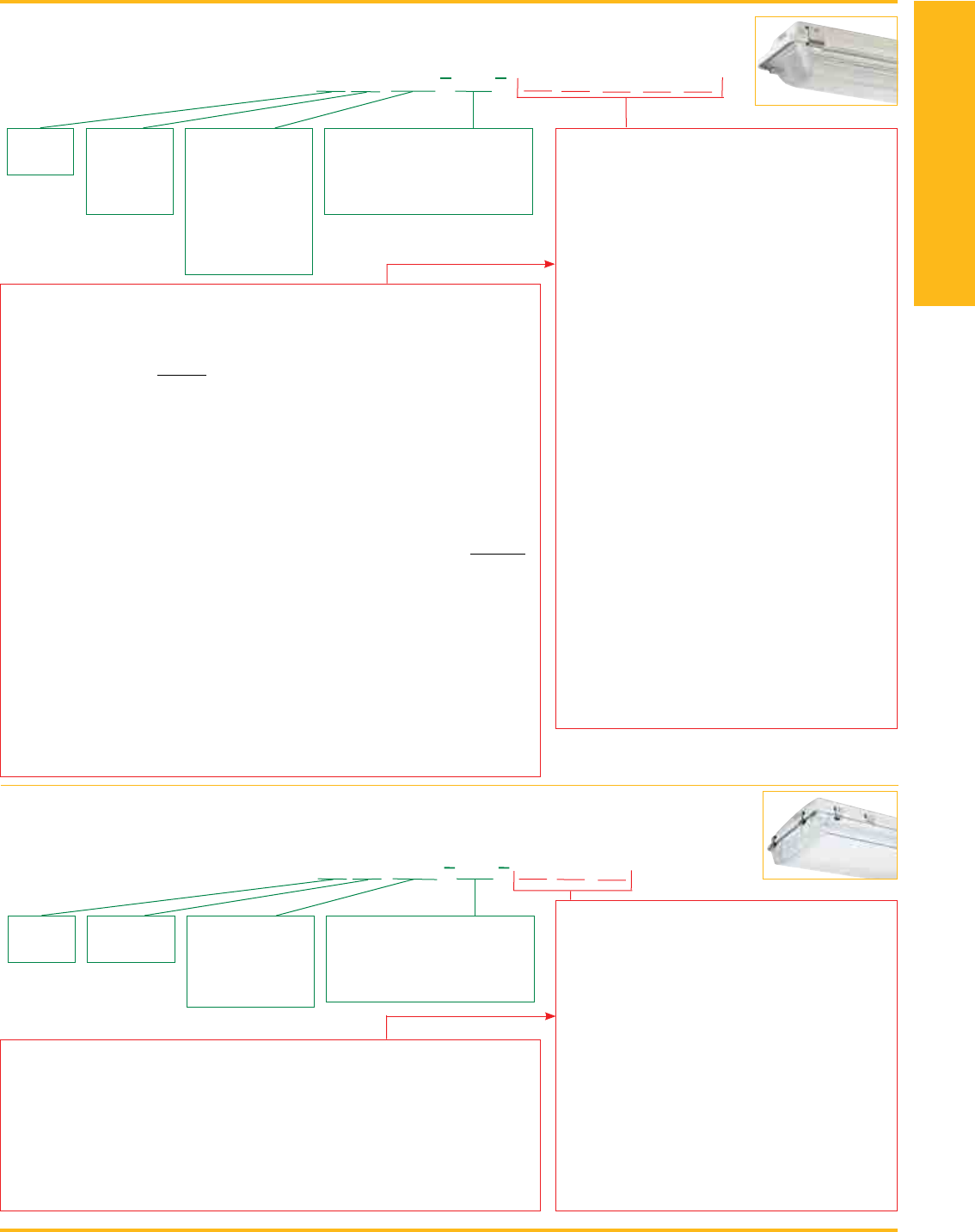

GFF and GFFW Ordering Information ......................17

GLF and GLFW Ordering Information ......................18

ProSeries™ LED Fixture & LED Light Upgrade ...............21

ProSeries™ Medium-Base and GU24 Light Fixtures .........23

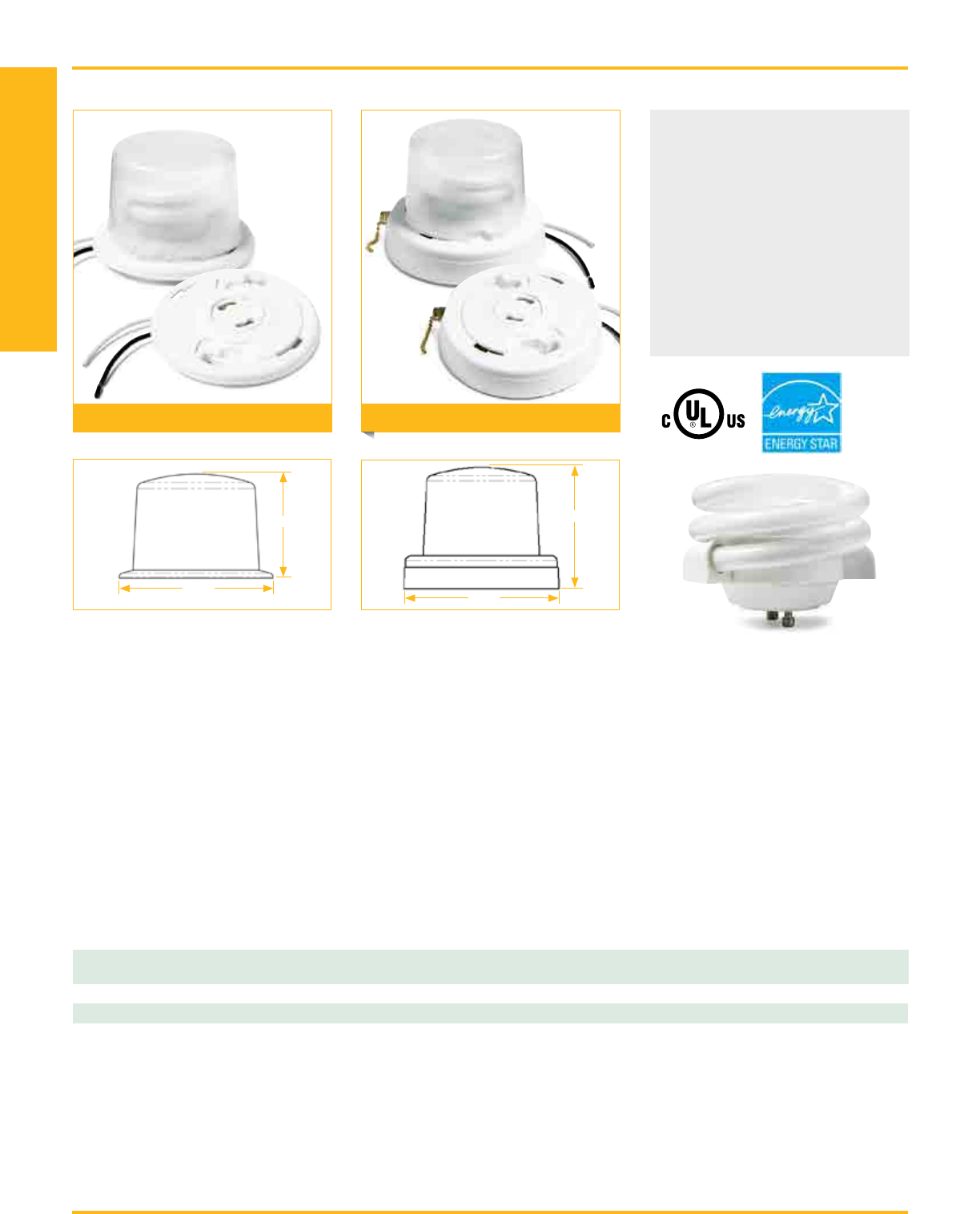

15000 Series: Ceiling Mount Light Fixtures .................25

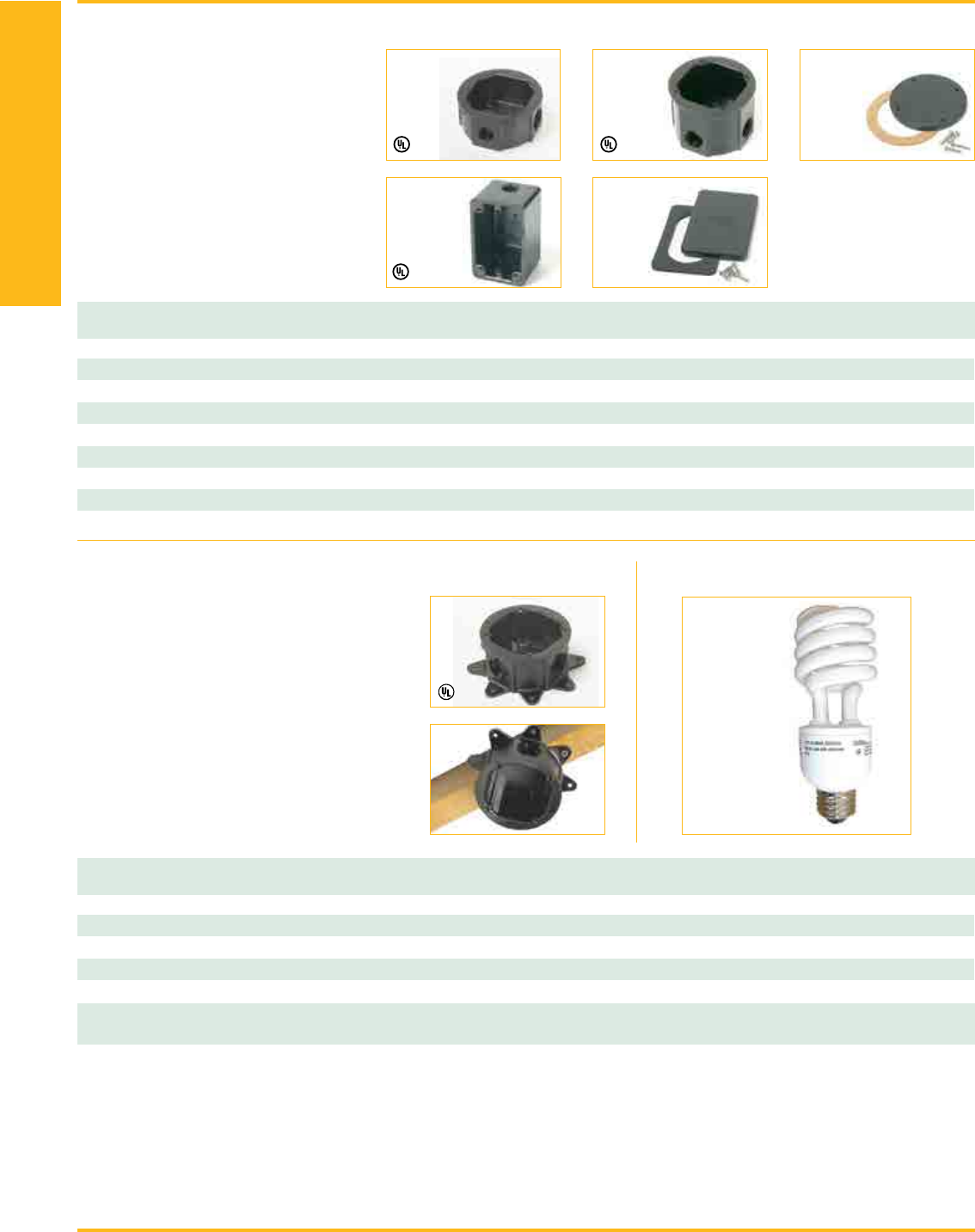

15000 Series: Standard Non-Metallic Junction Boxes .......26

15000 Series: SpiderBox™ Junction Boxes ..................26

15000 Series: Compact Fluorescent Lamp..................26

15000 Series: Fixture Globes...............................27

15000 Series: Replacement Lamp Socket...................27

15000 Series: Wire Guard ..................................27

15000 Series: Wall Mount Light Fixture.....................28

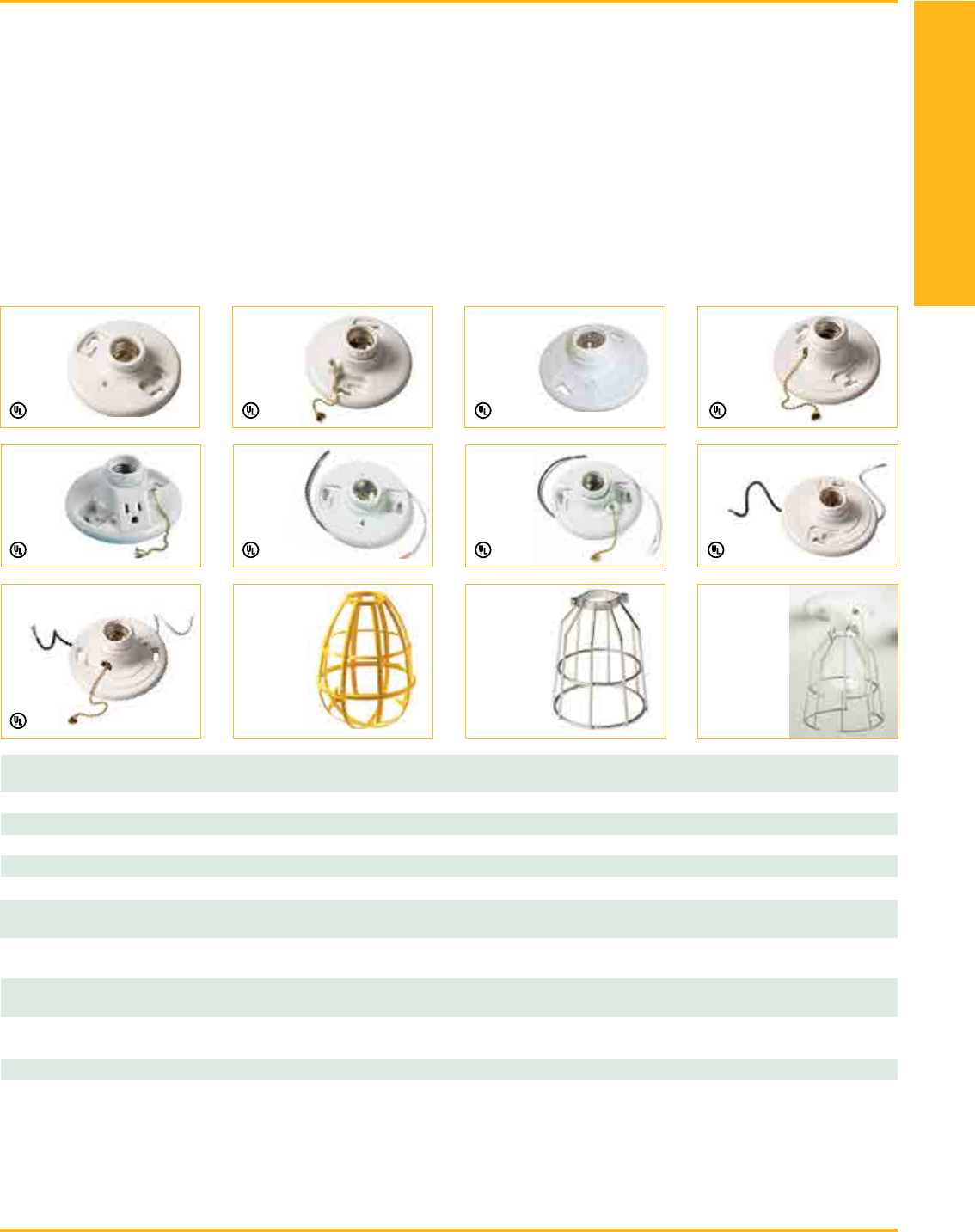

Lamp Holders (Porcelain and Plastic).......................29

GU24 Lamp Holders.......................................30

Fixture Whips

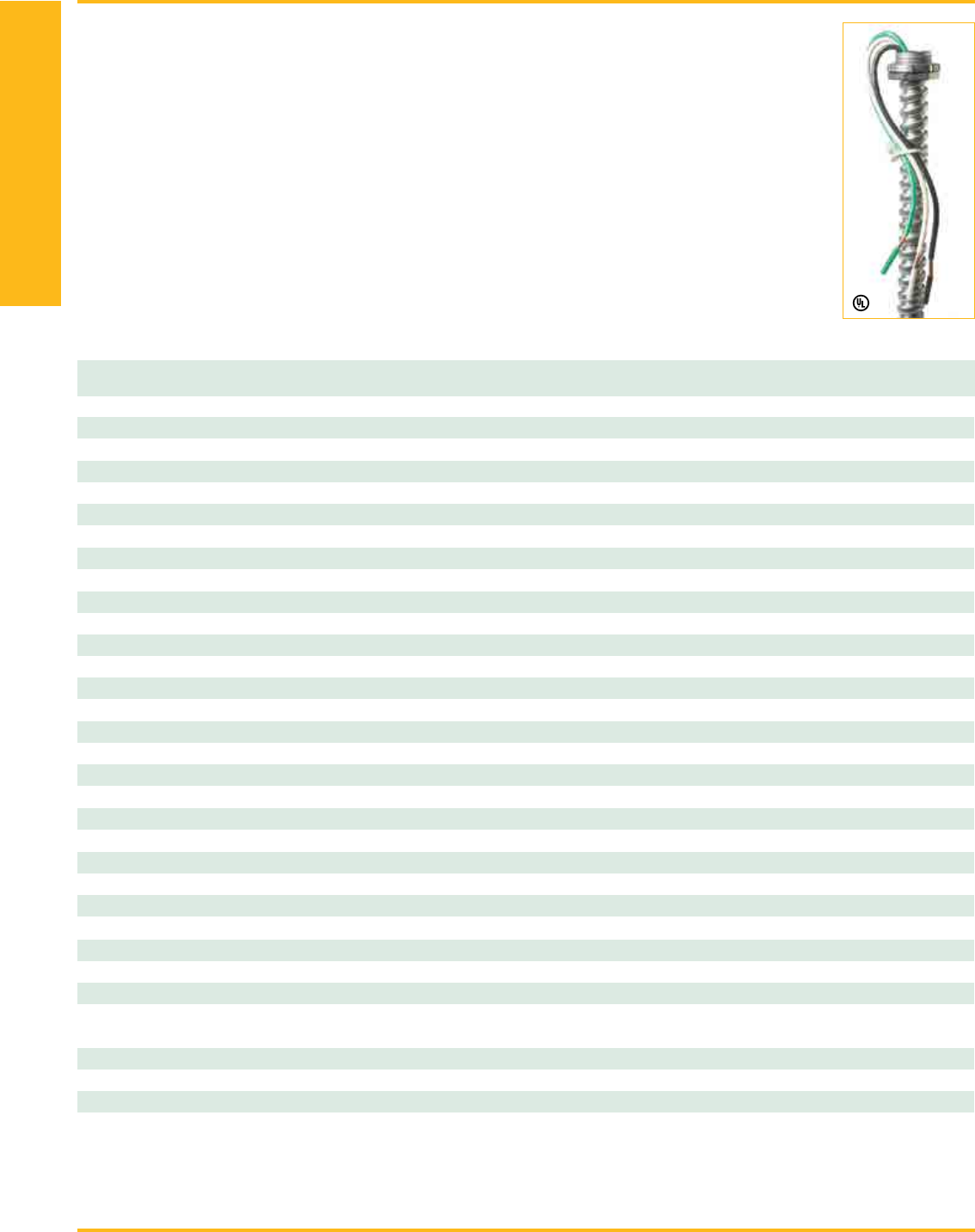

Fixture Whips with Die Cast Screw-In Connectors ..........32

Fixture Whips with Die Cast Snap-In Connectors. ...........33

Fixture Whips with Polycarbonate Snap-In Connectors .....34

QuikWhip™ Fixture Whips .................................35

Retrot Fixture Whips with Die-Cast Screw-In Connectors ..36

Custom Fixture Whip Order Form ..........................37

Tube Guards

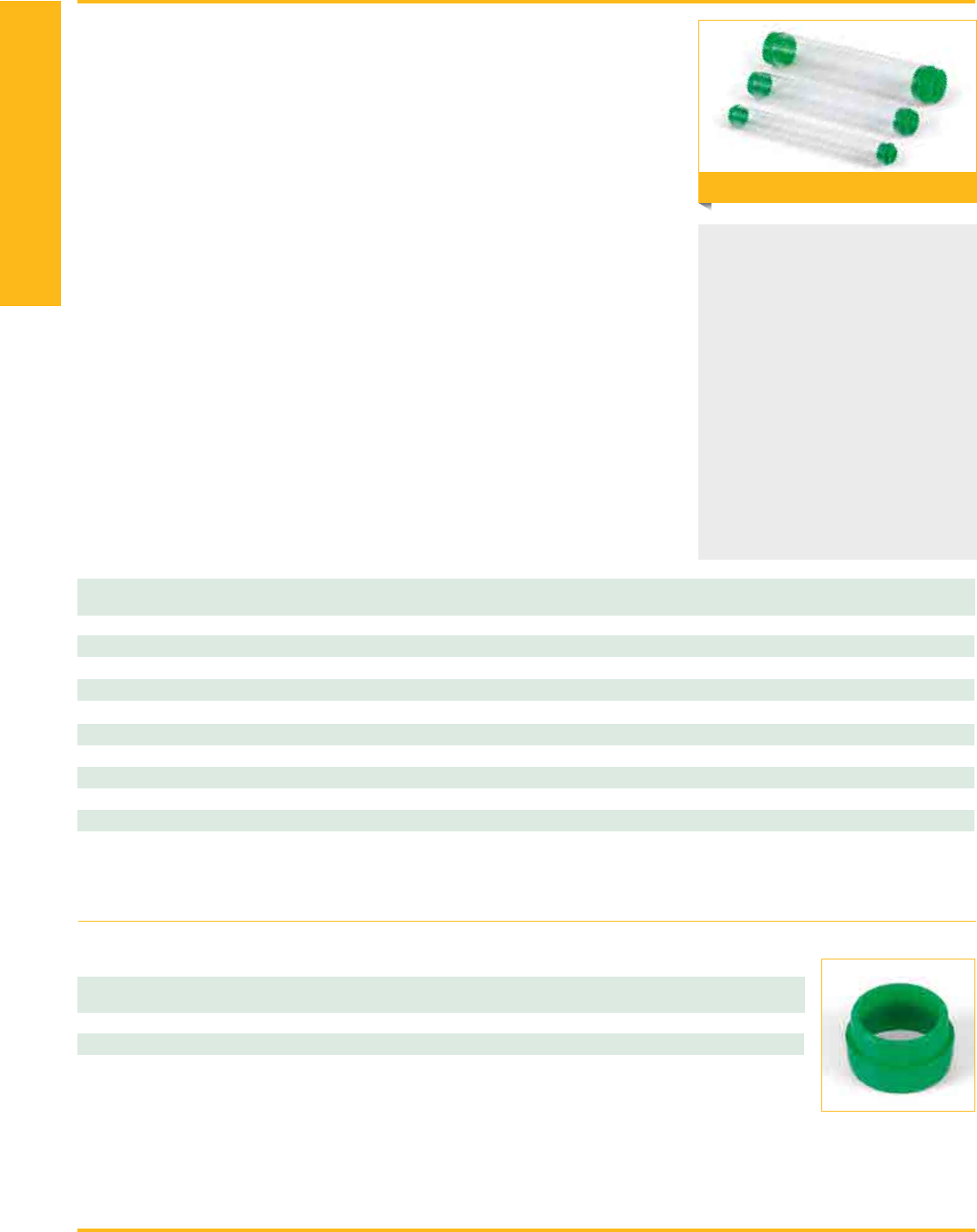

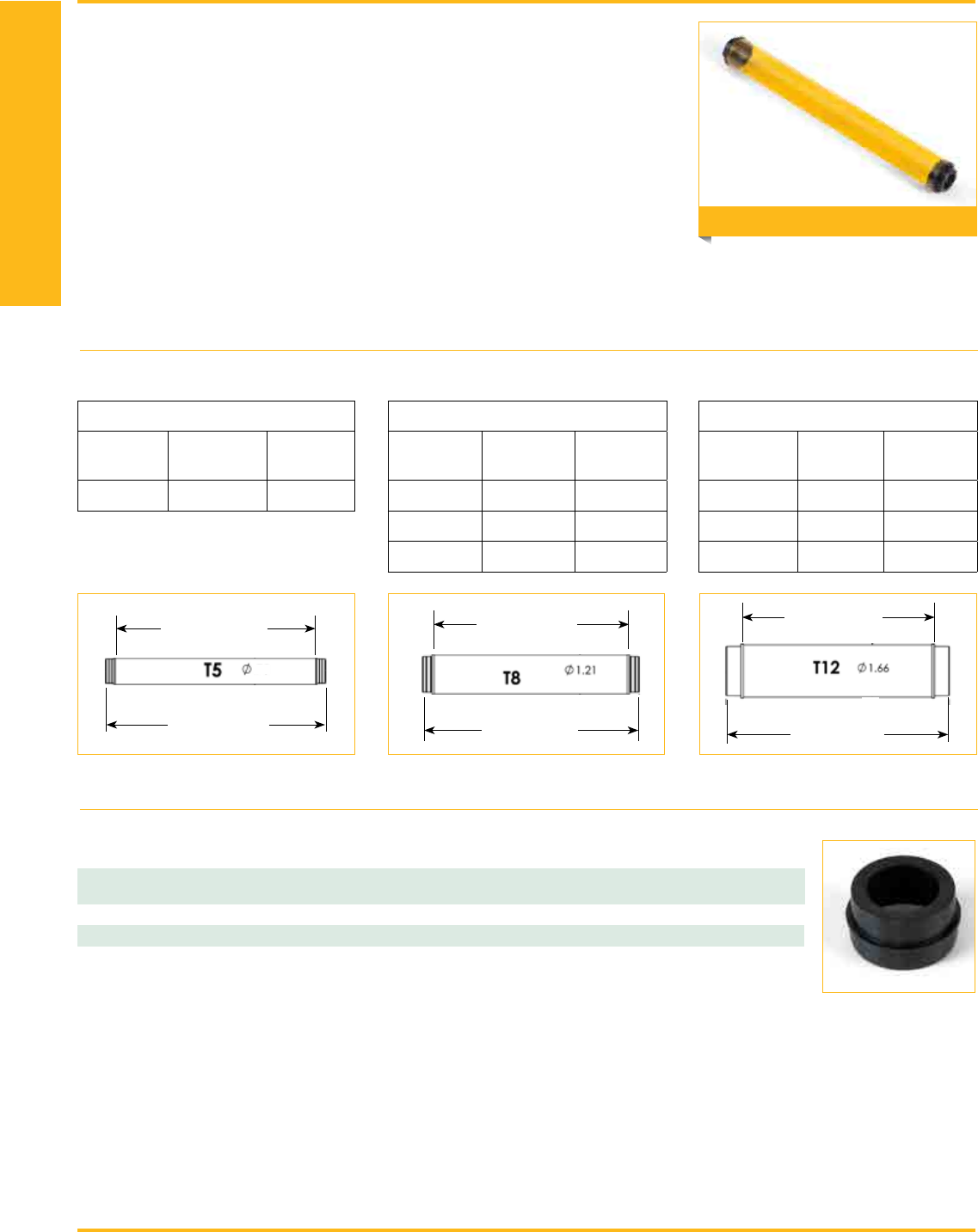

Standard Tube Guards.....................................39

UV Filtering Tube Guards ..................................42

Heat Sink Screens .........................................43

Temporary Lighting

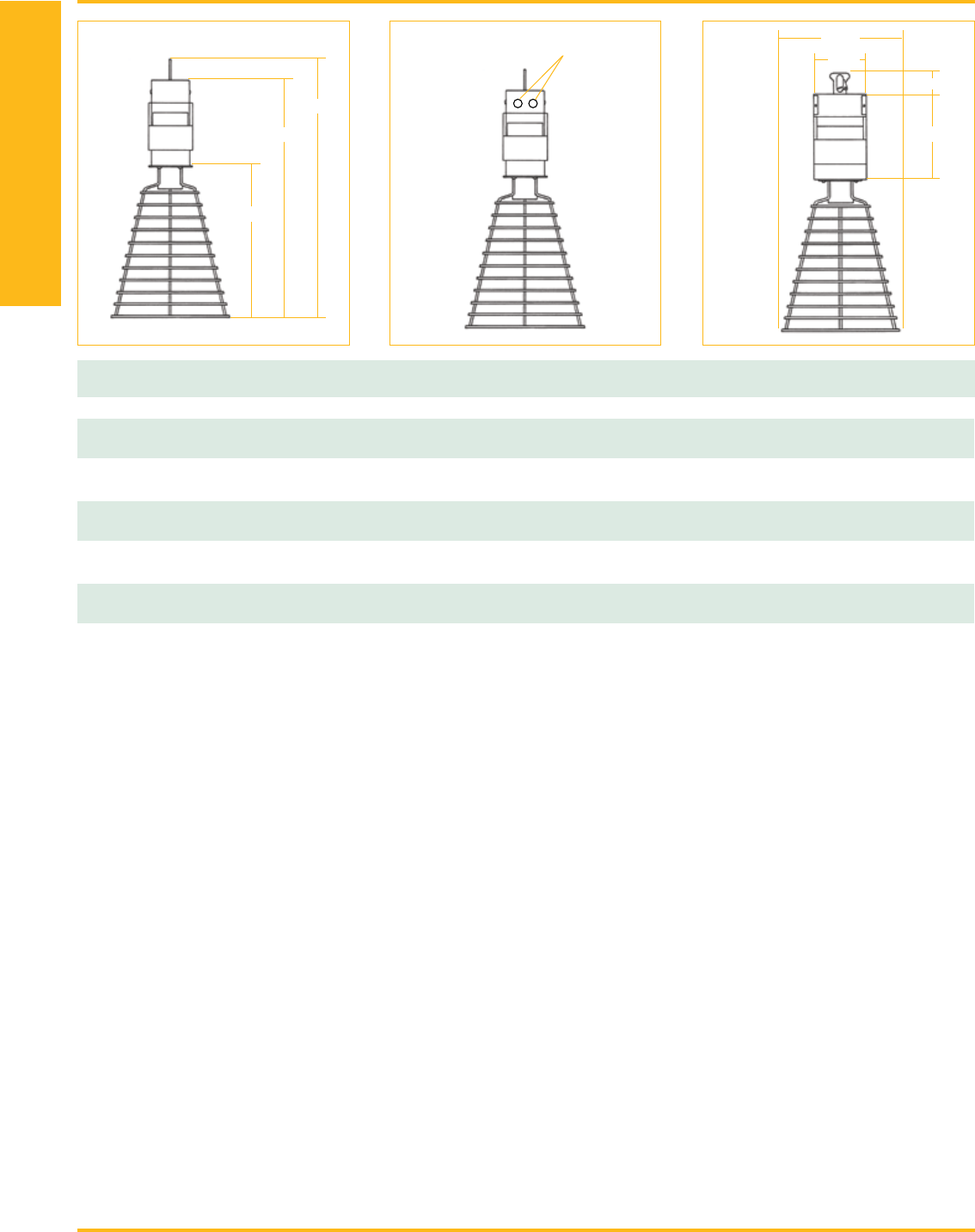

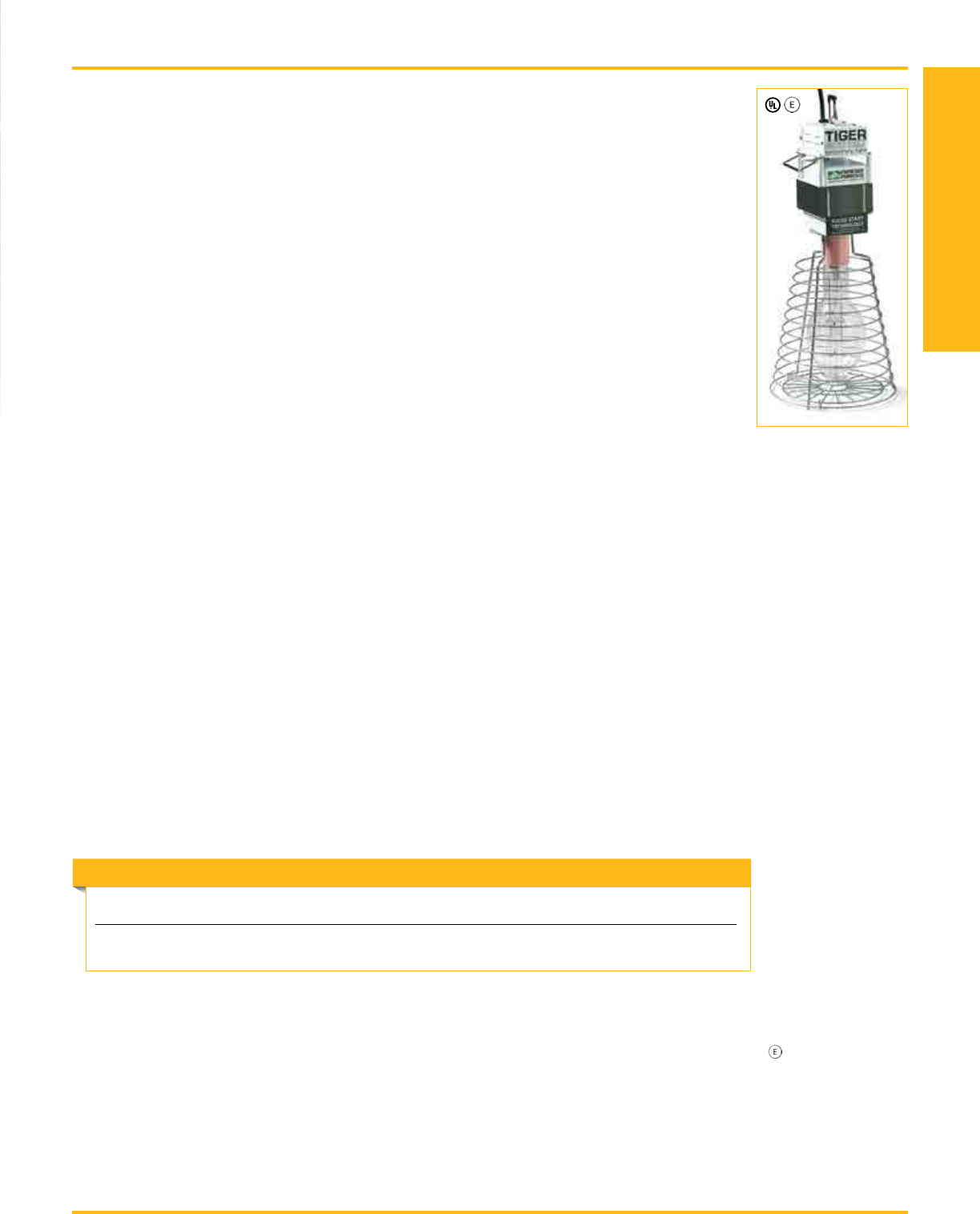

TIGER 400 and TIGERcub 175 HID™ Light Fixtures. ..........45

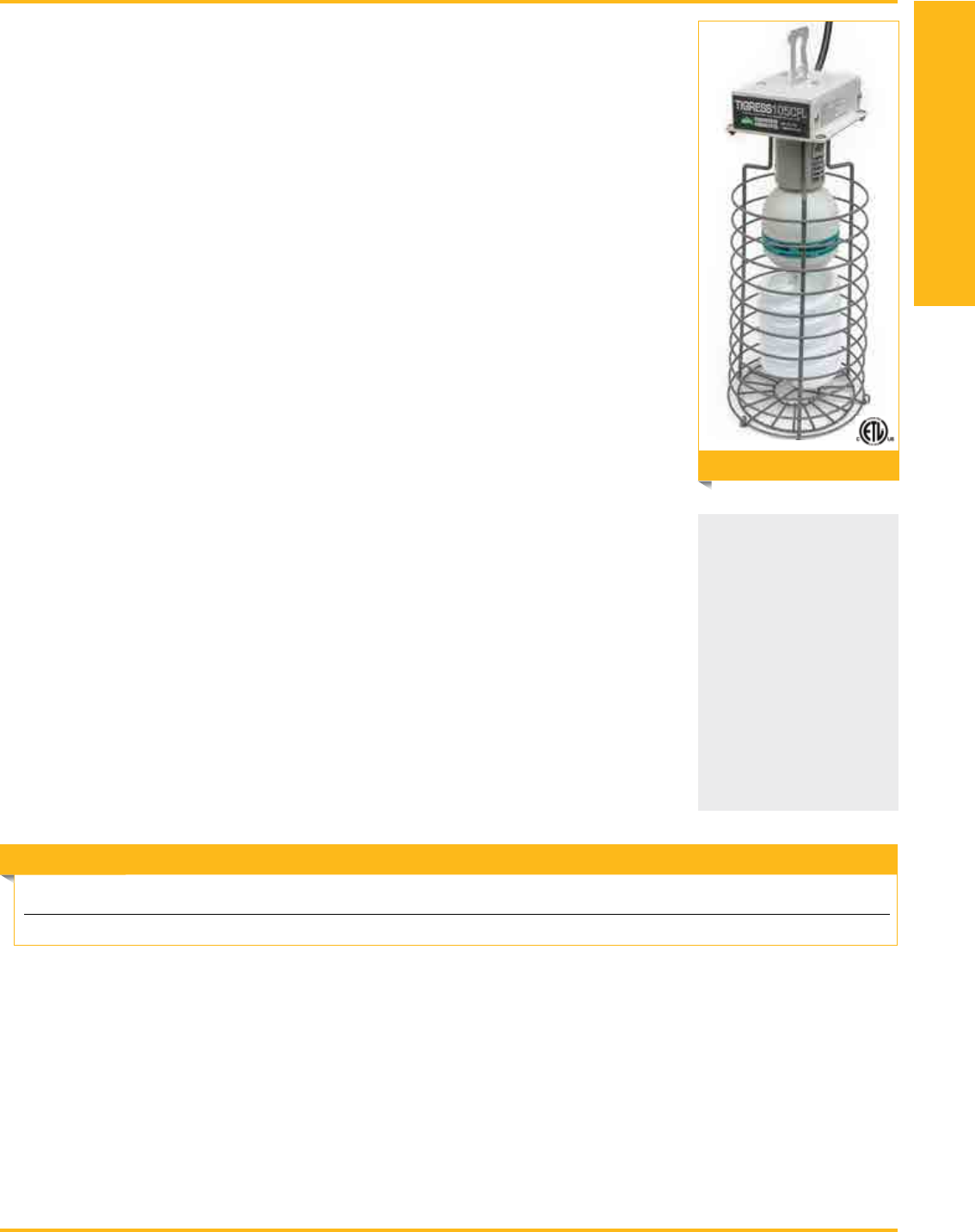

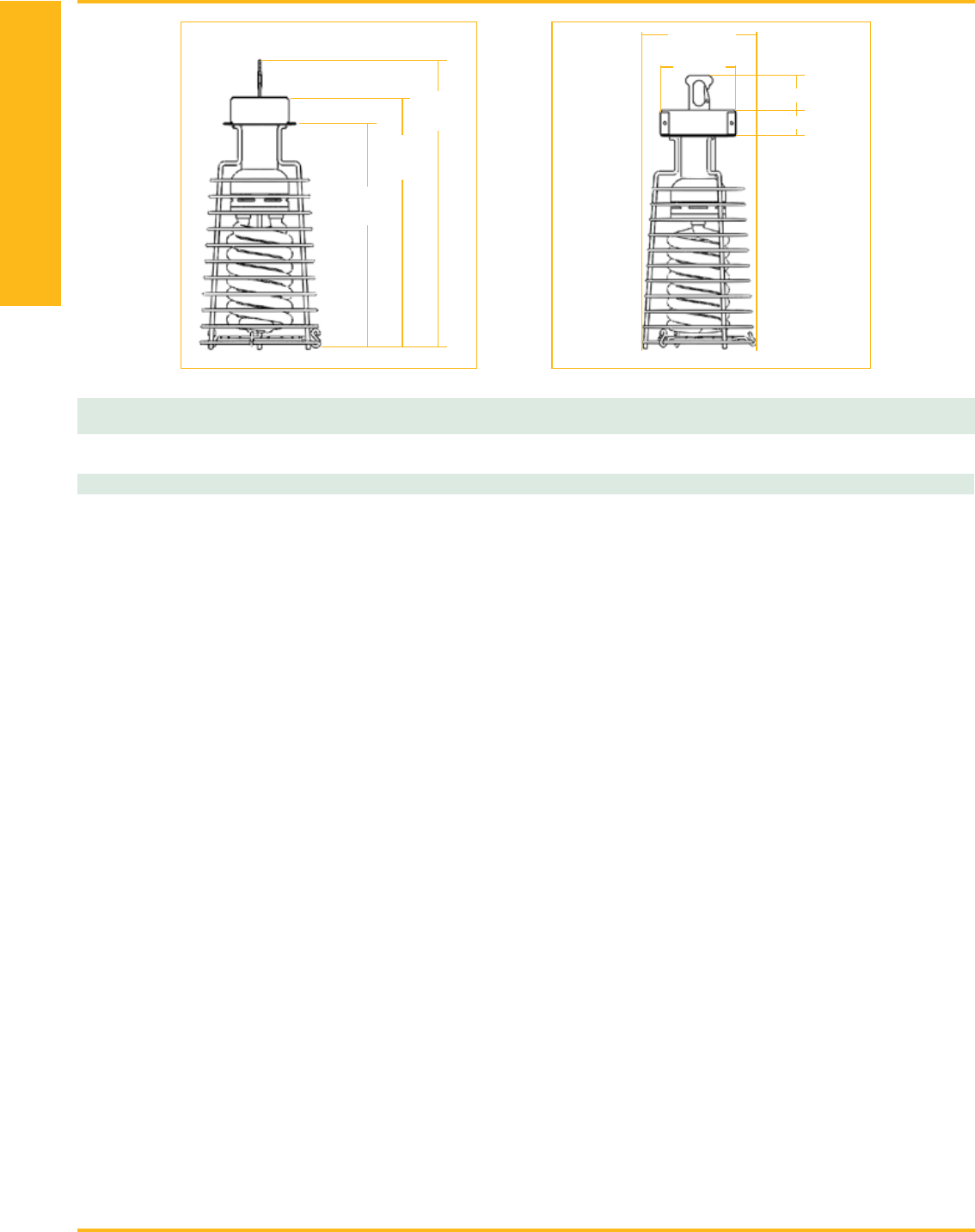

TIGRESS™ 105-Watt CFL Light Fixture.......................47

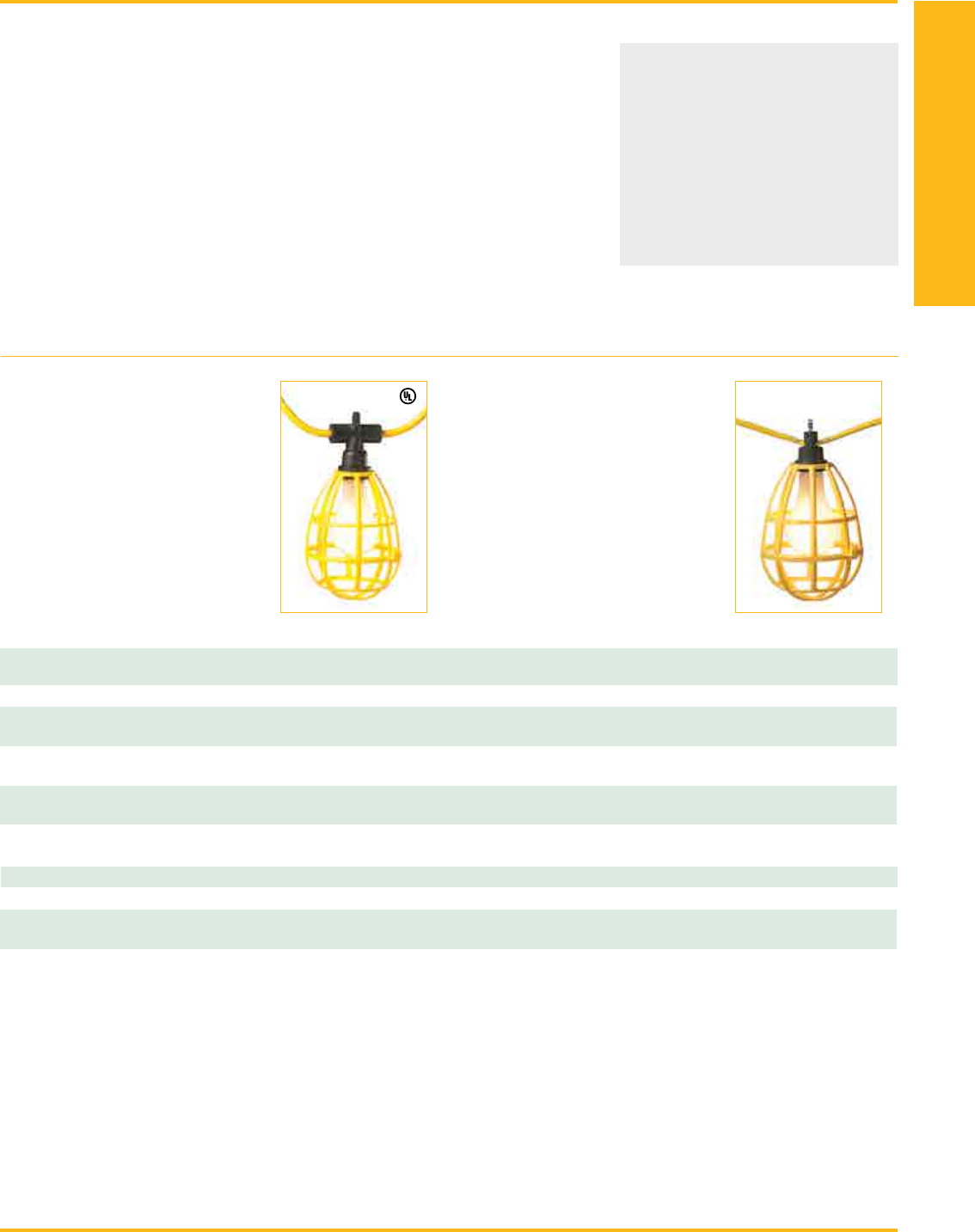

Deluxe and Contractor Grade CordLights™.................49

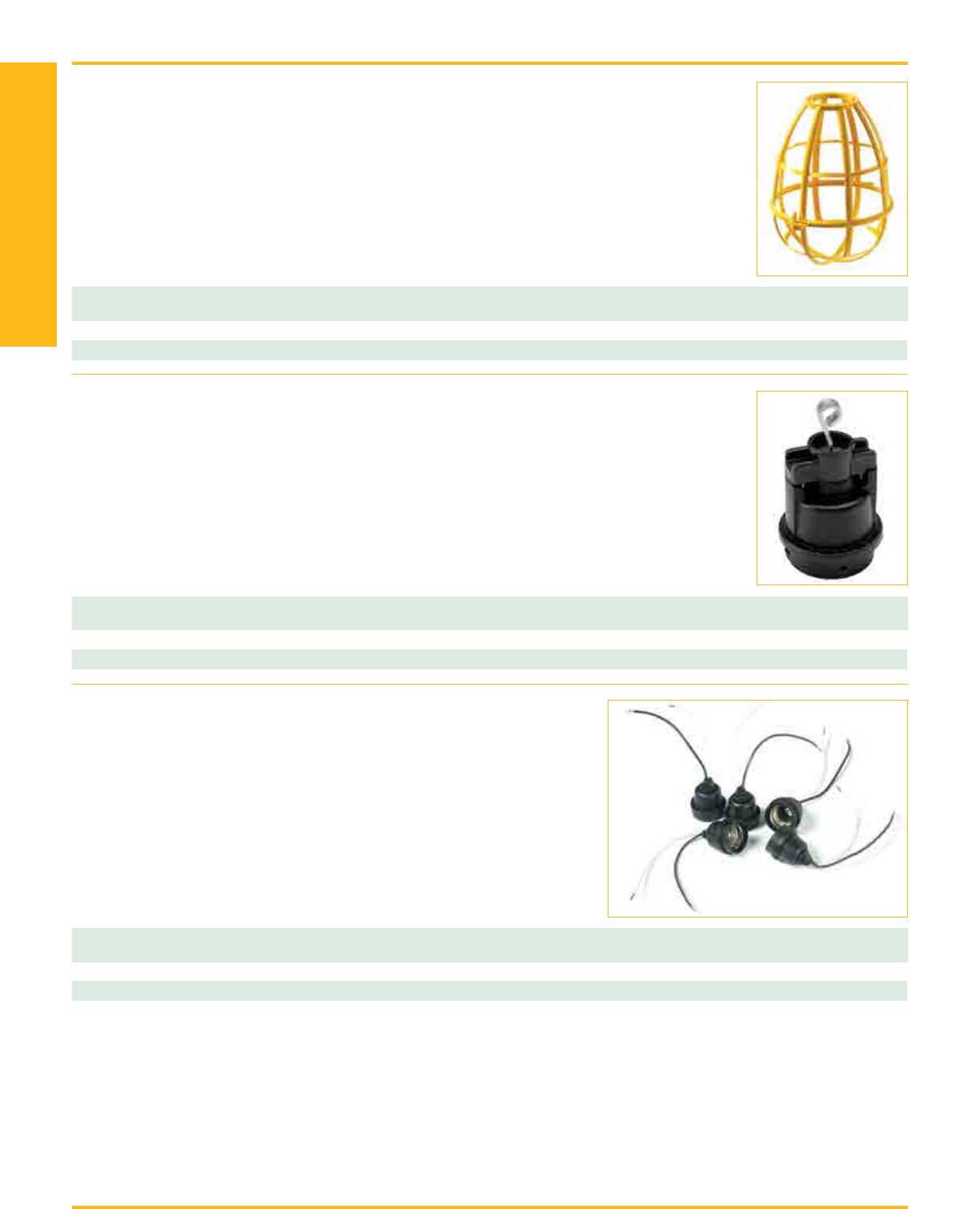

Safety Cages.. .............................................50

Insulation Piercing Lamp Socket...........................50

Pigtail Lamp Socket .......................................50

Landscape Lighting

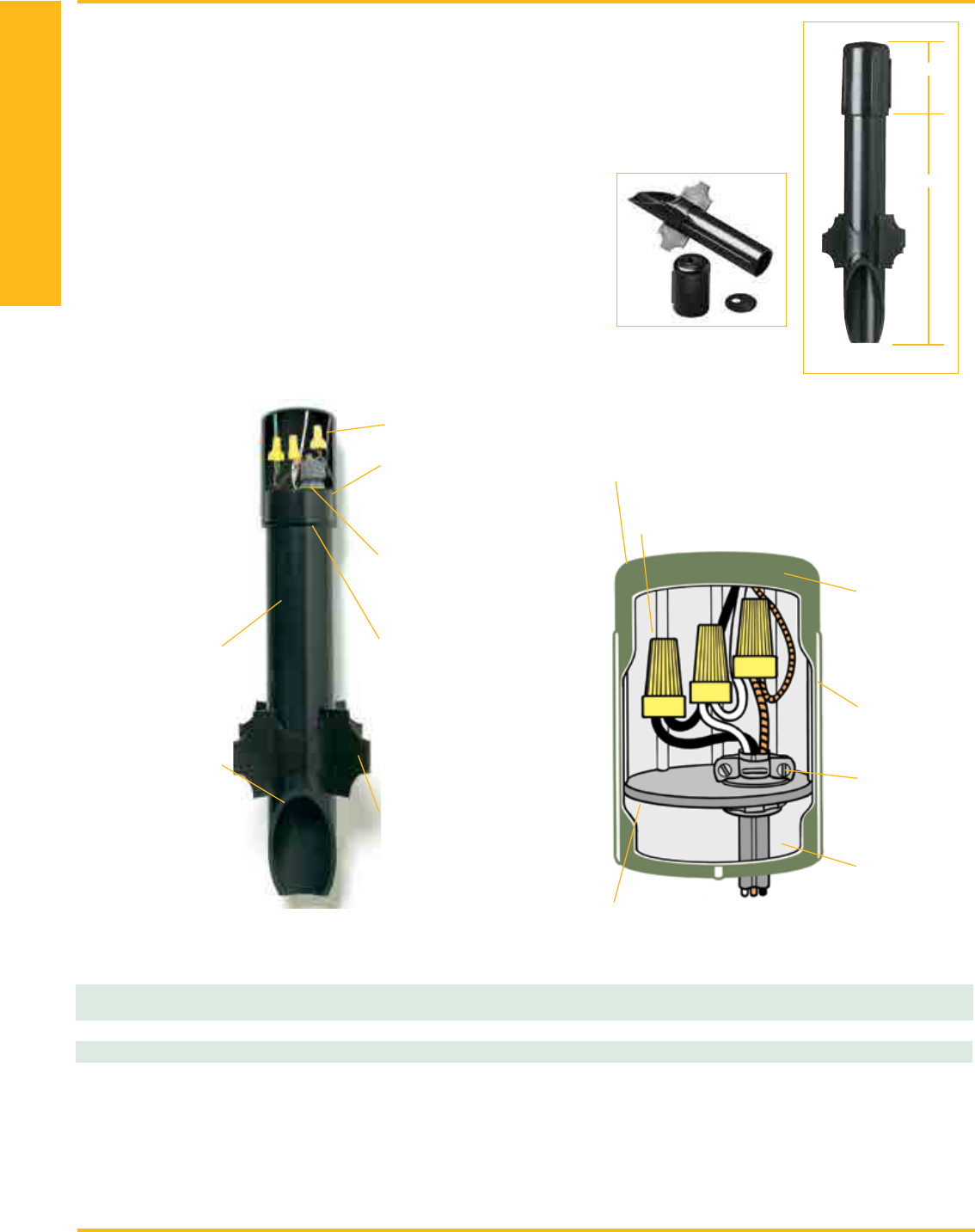

Landscape SplicePost™....................................52

Landscape LightPost™ ....................................53

GROUND BONDING PRODUCTS

Ground Bonding PigTails™

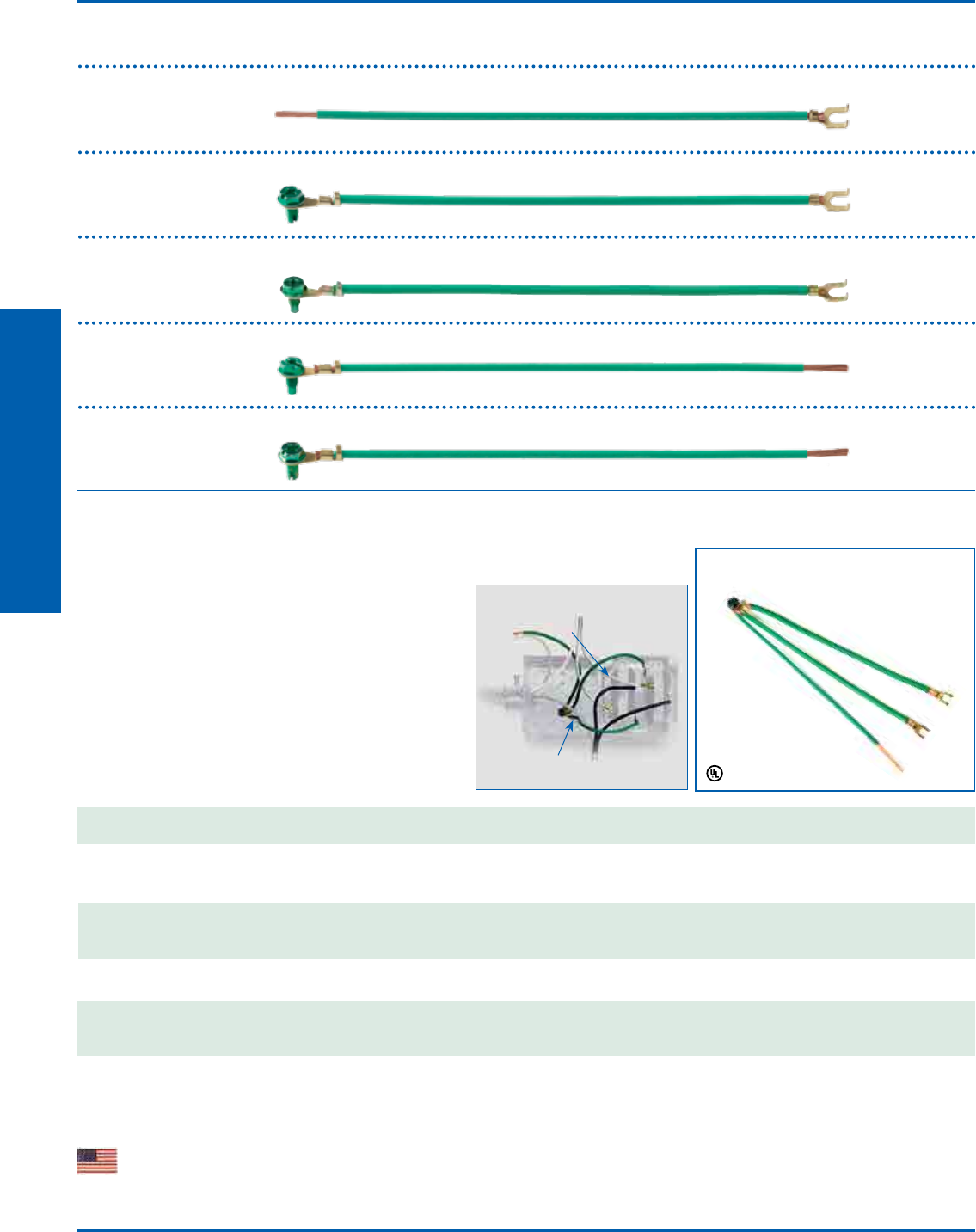

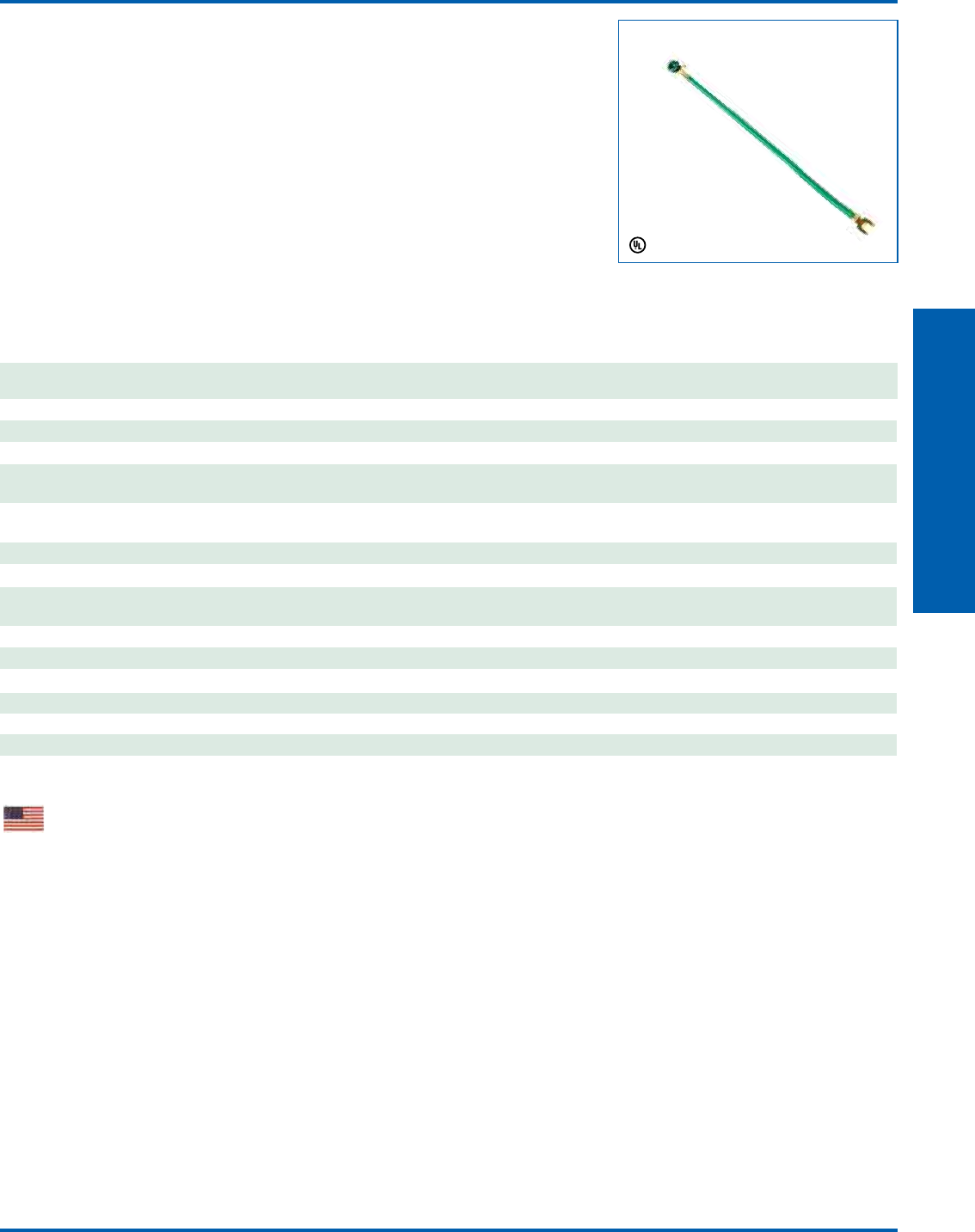

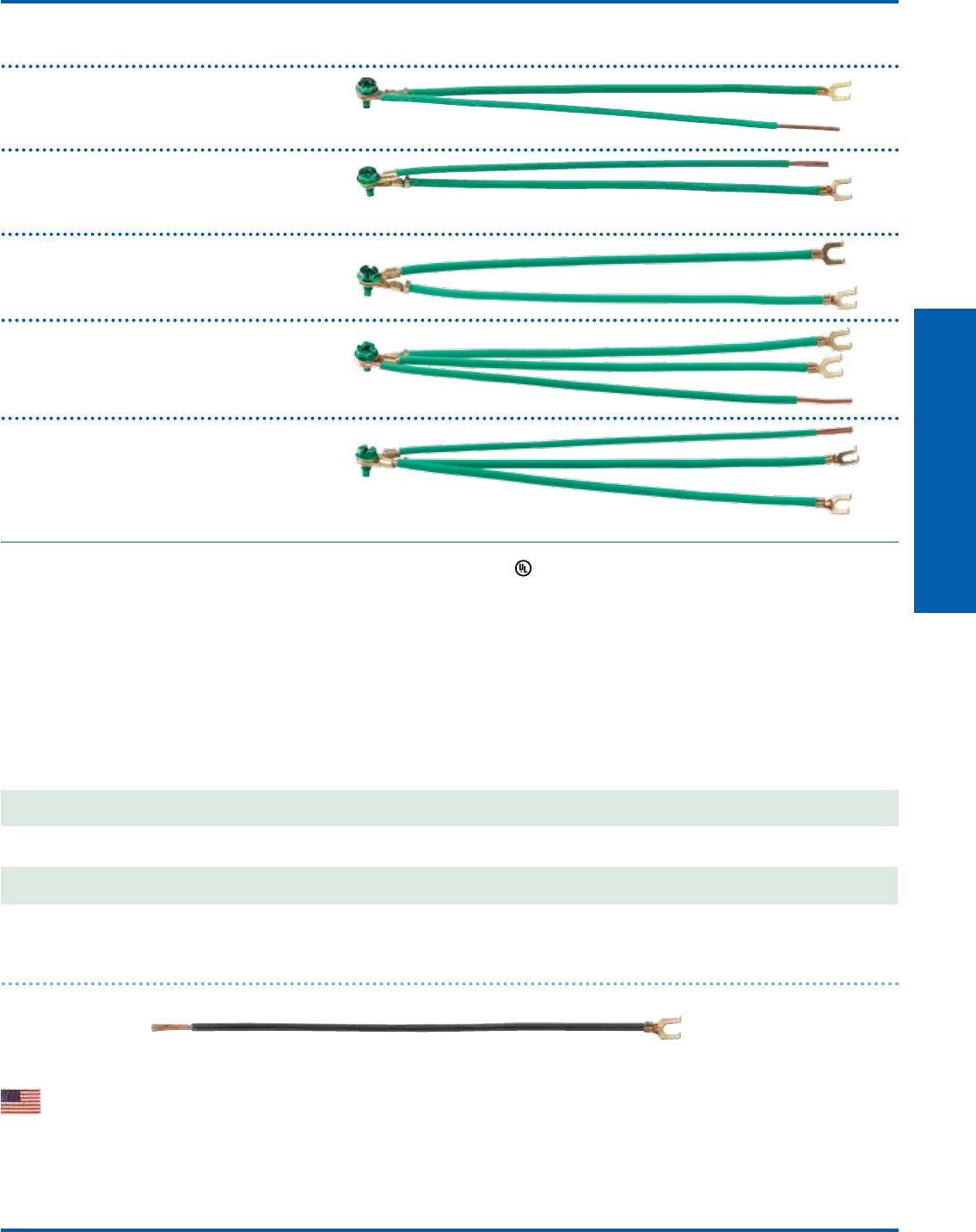

Insulated Solid Wire PigTails ...............................56

Insulated Stranded Wire PigTails ...........................57

Single and Dual-Gang PigTails .............................58

PowerTails® Device Wiring Conductors.....................59

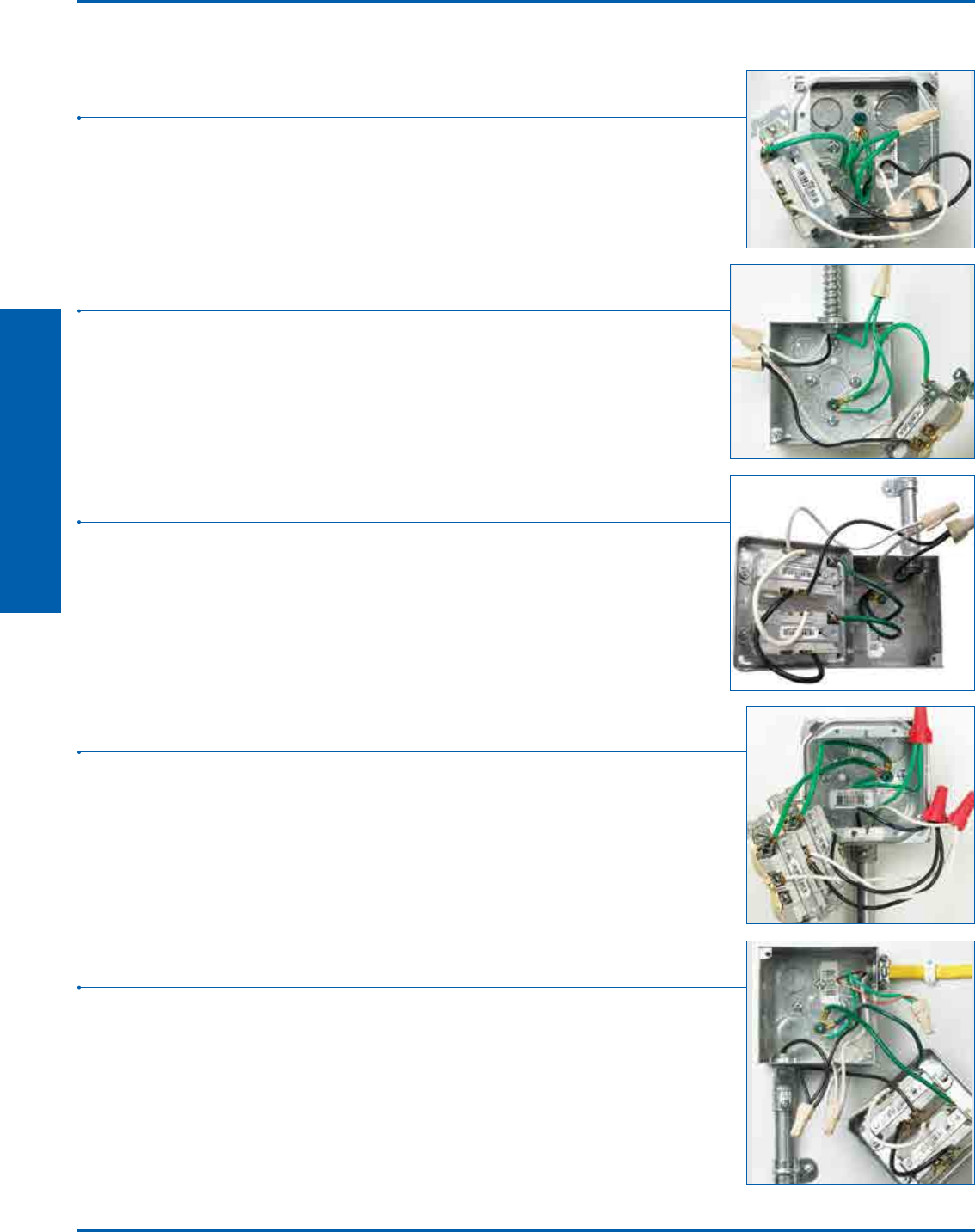

Ground Bonding Application Examples ....................60

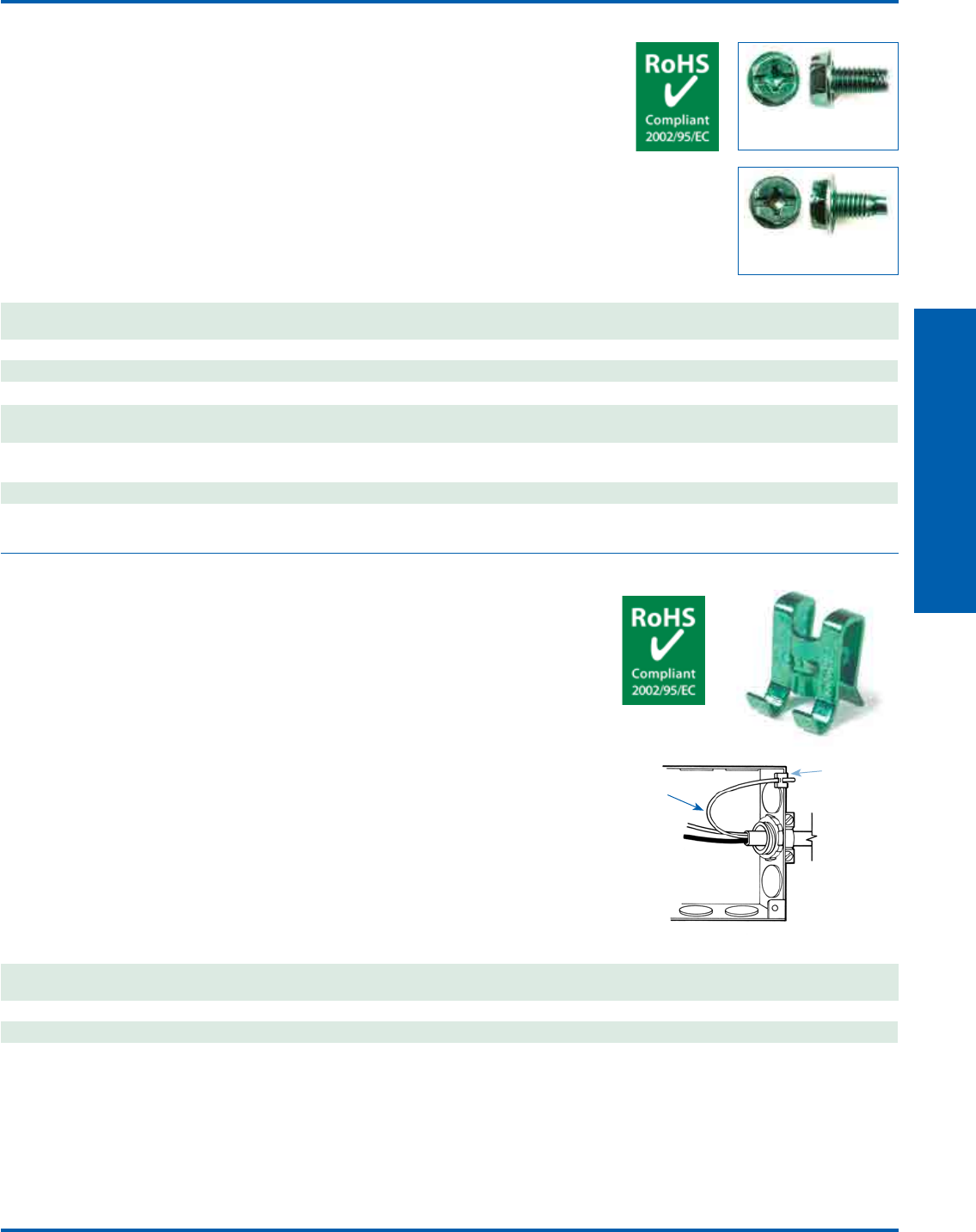

Ground Screws. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Ground Clips..............................................61

SPLICE KITS/HEAT SHRINK TUBING PRODUCTS

Splice Kits

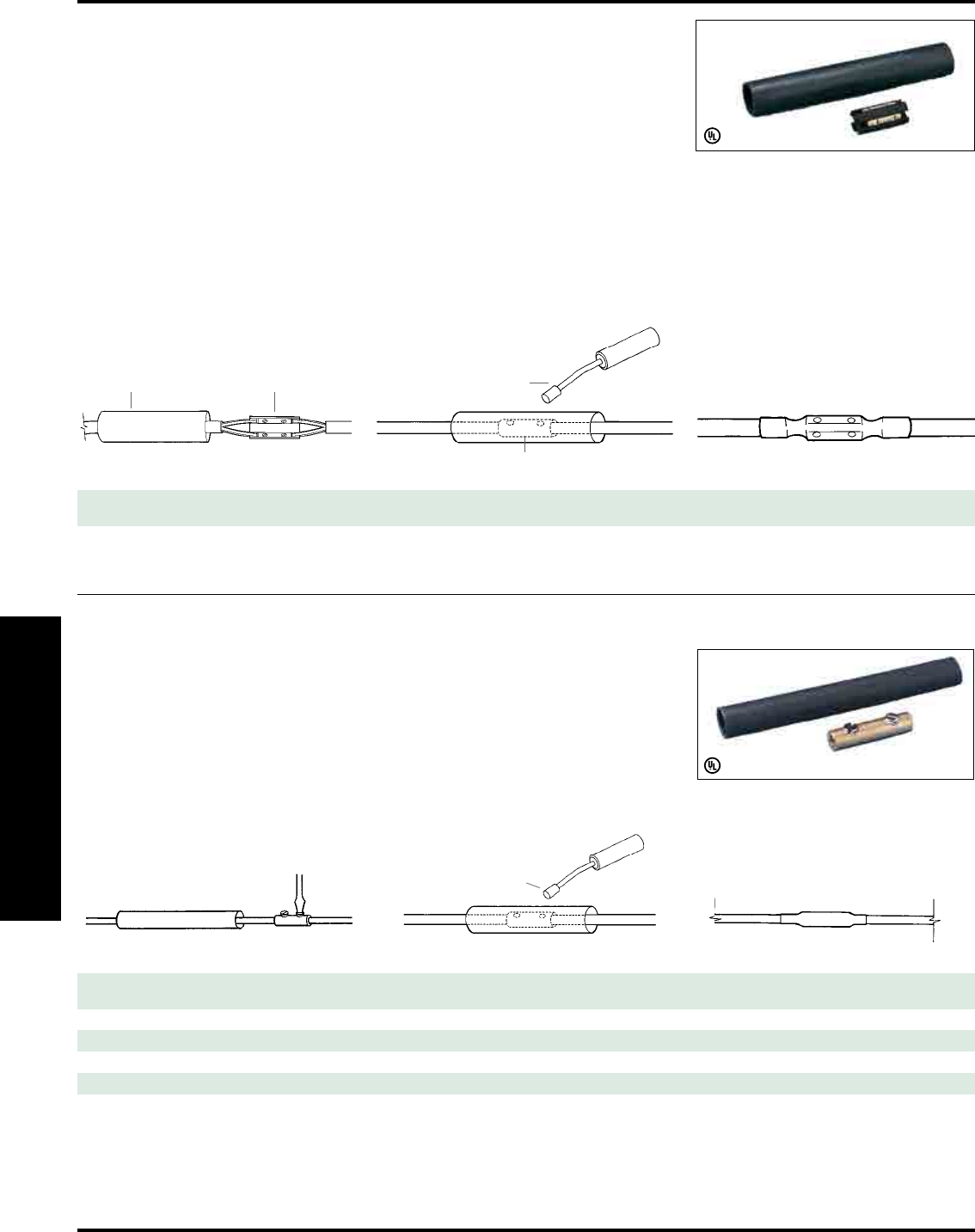

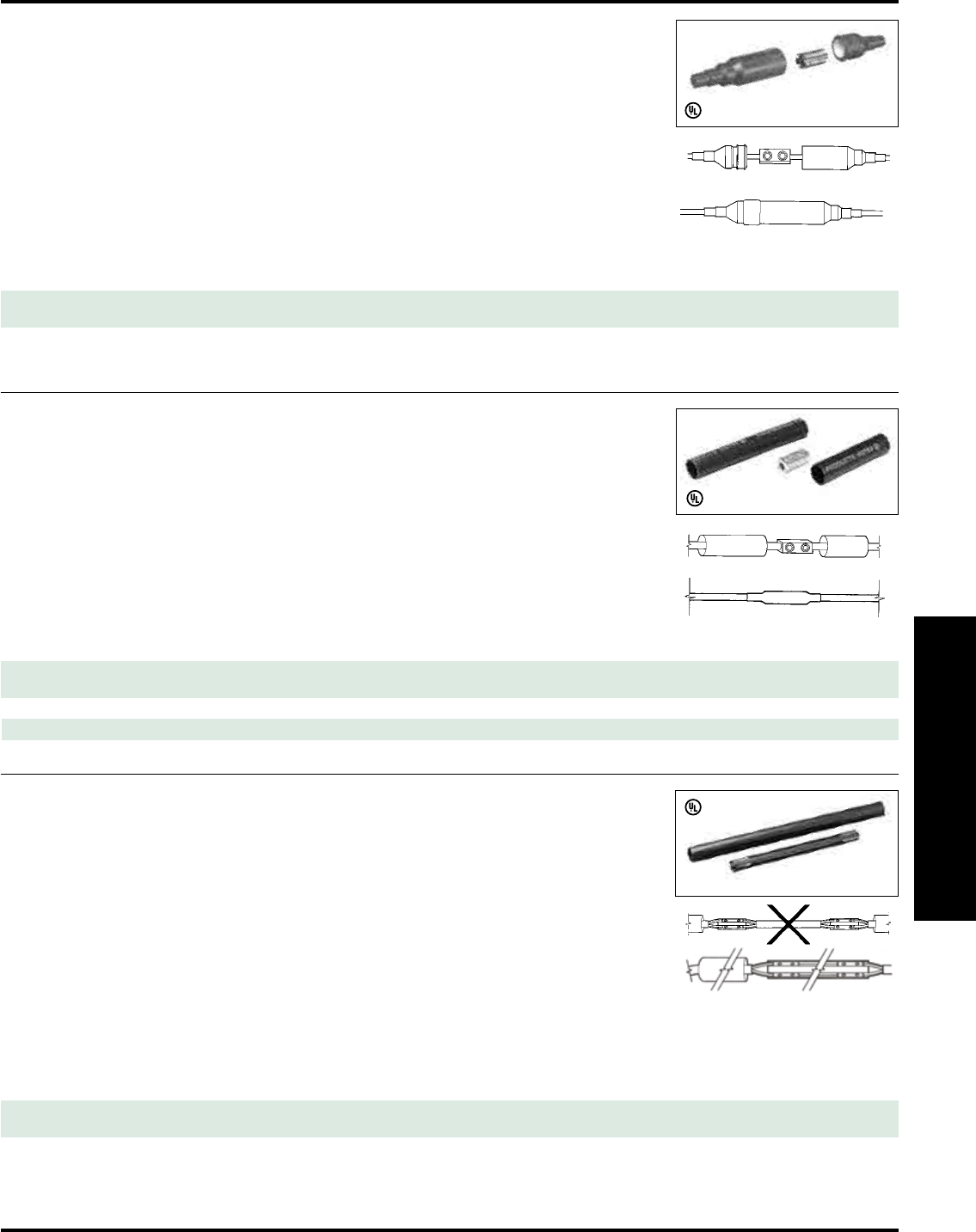

UF Cable Splice Kit ........................................64

Copper Butt Splice Kits ....................................64

Self Sealing UF Splice Kit...................................65

Dual Rated Butt Splice Kits. ................................65

UF Stretcher Kit ...........................................65

Heat Shrink Tubing

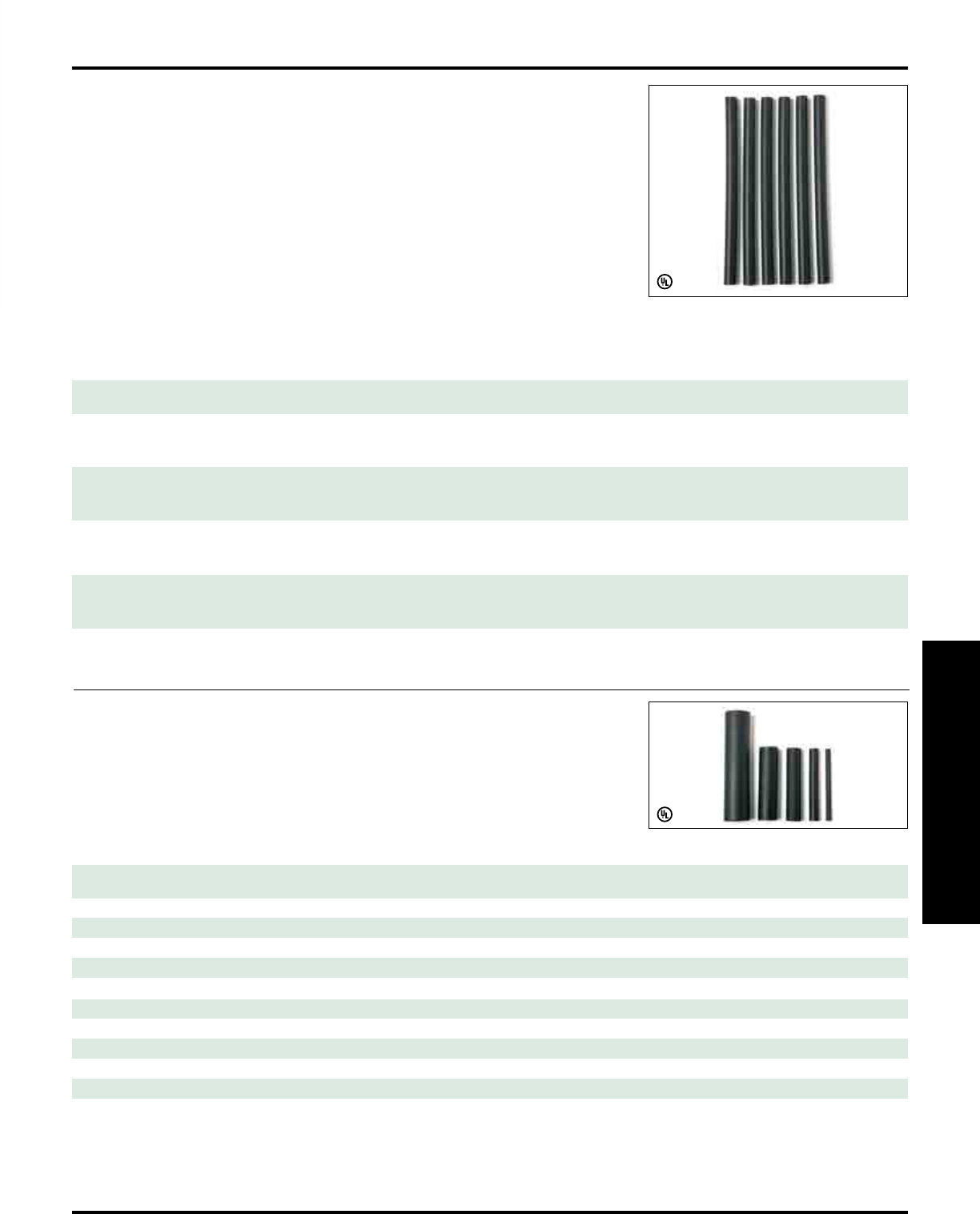

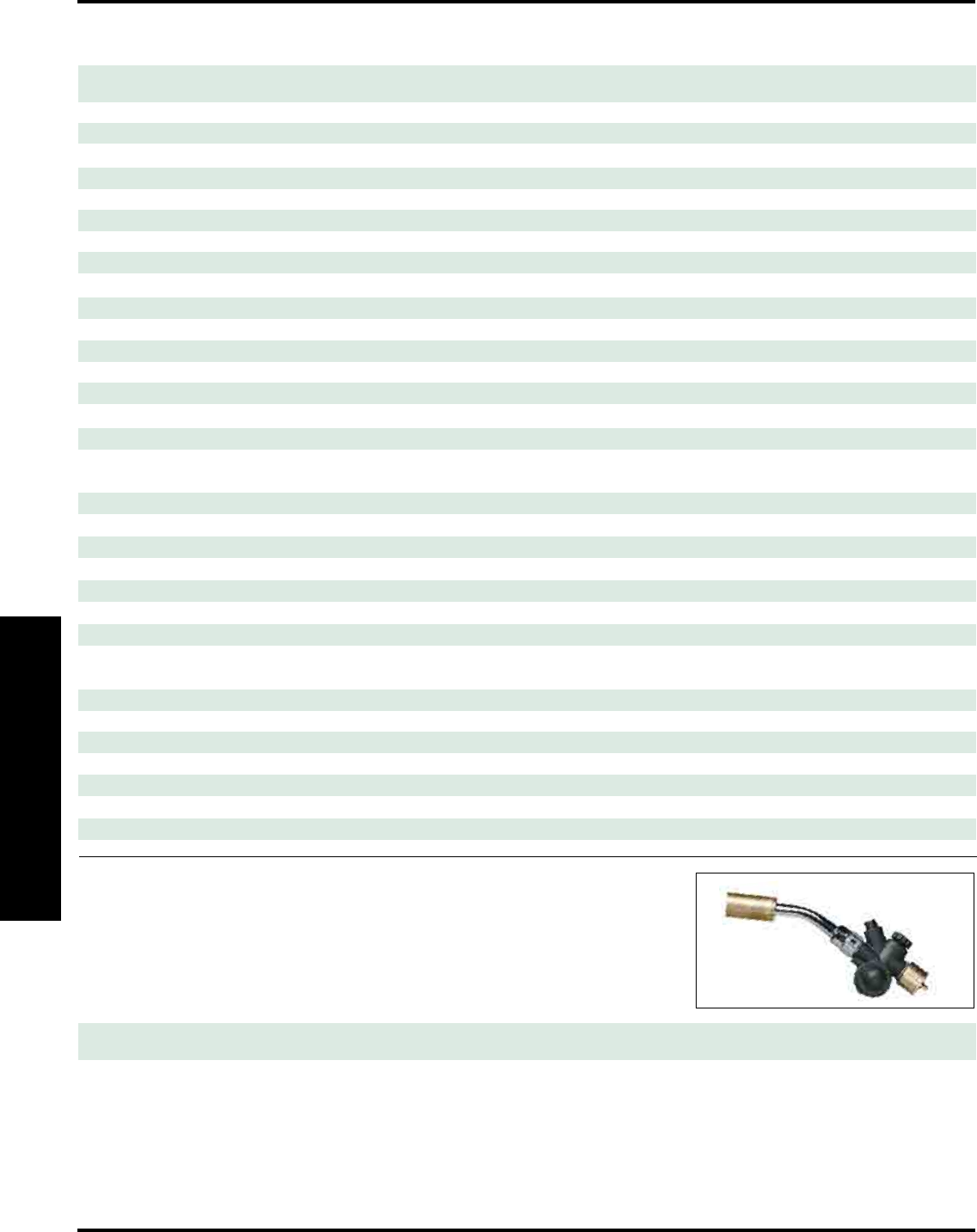

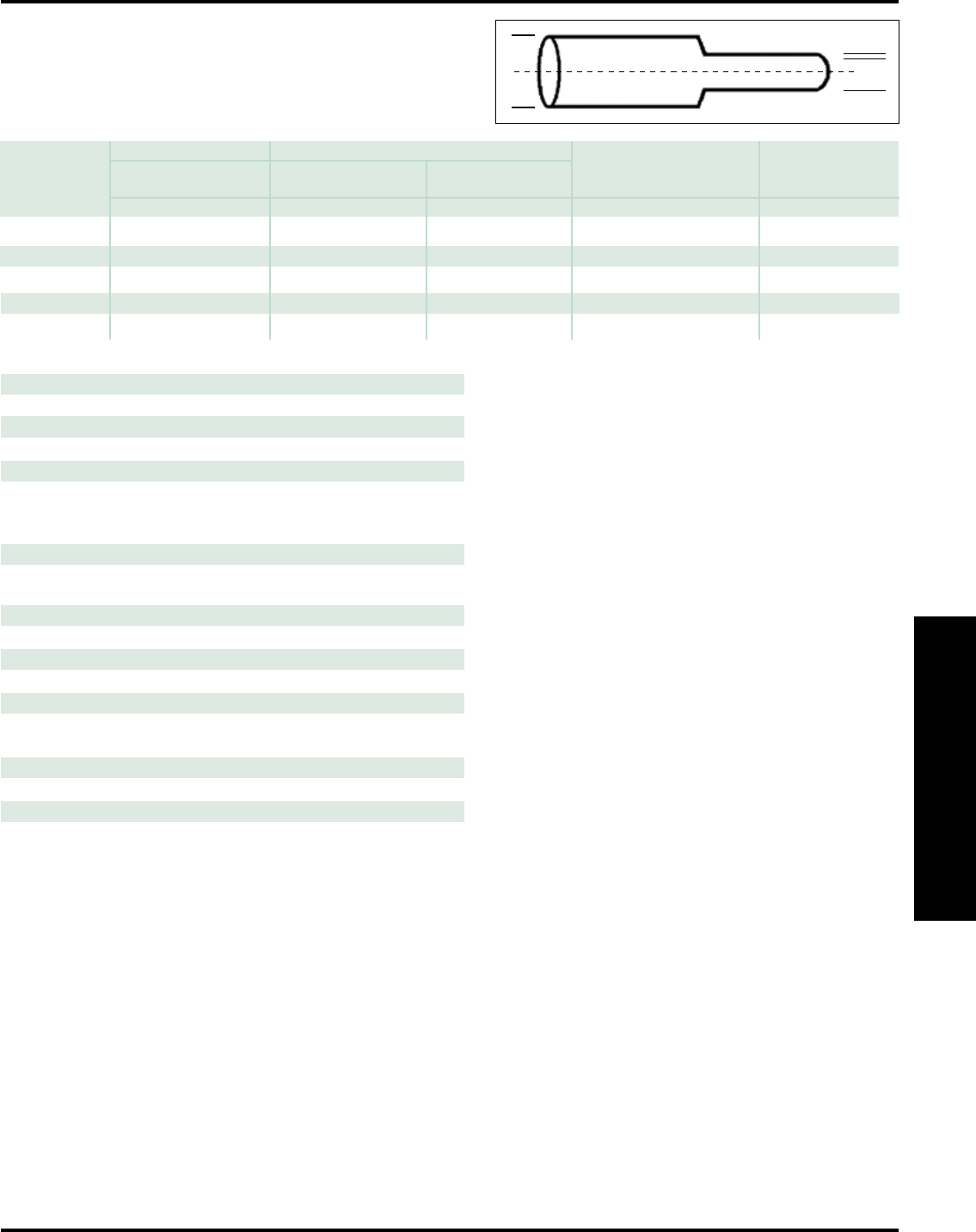

Thick Wall Heat Shrink Tubing. .............................67

Bulk Thick Wall Heat Shrink Tubing.........................67

Heat Shrink Torch .........................................68

PRODUCT ACCESSORIES

Residential Accessories

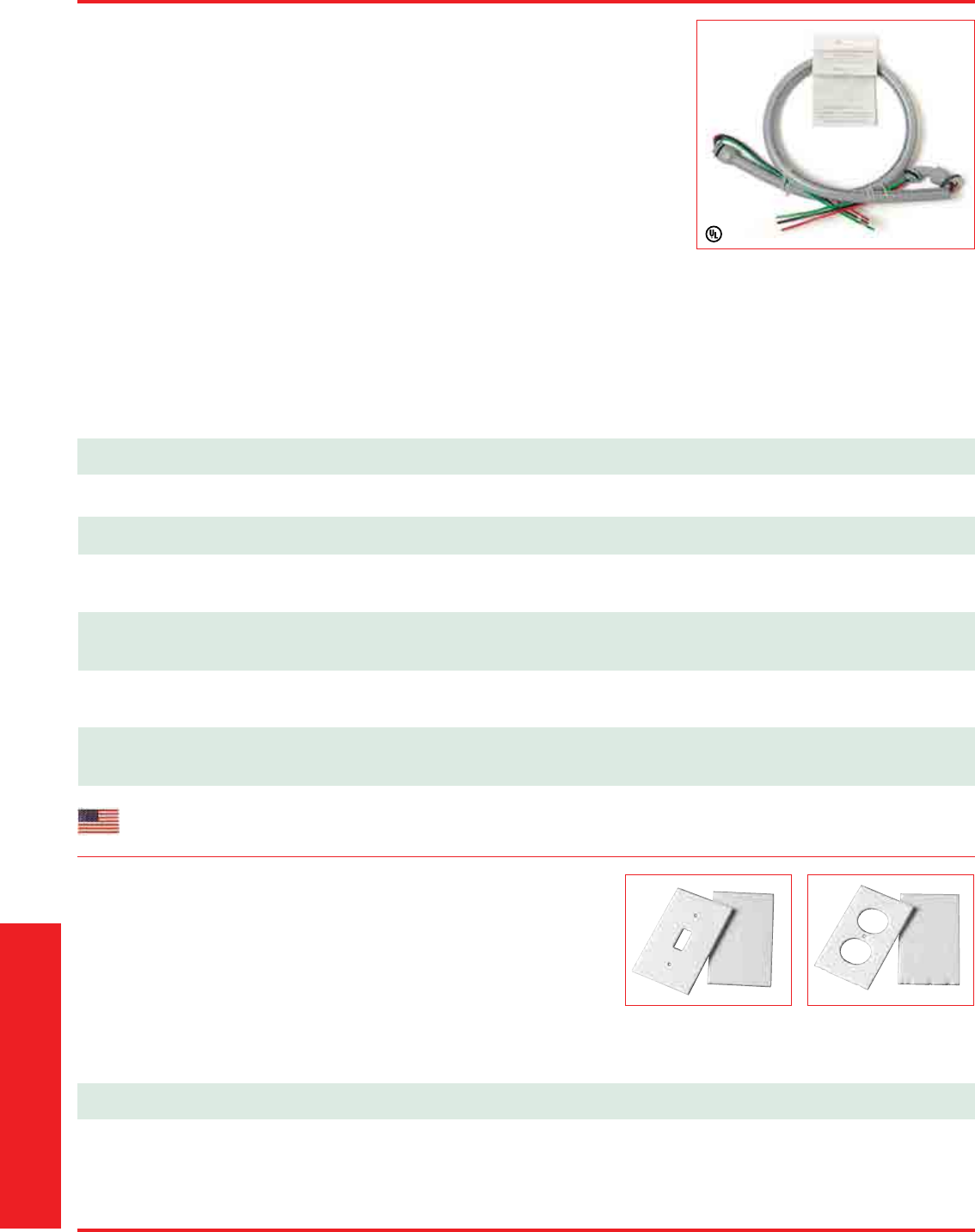

Air Conditioner Whips..................................... 72

Wall Plate Insulation Gasket ............................... 72

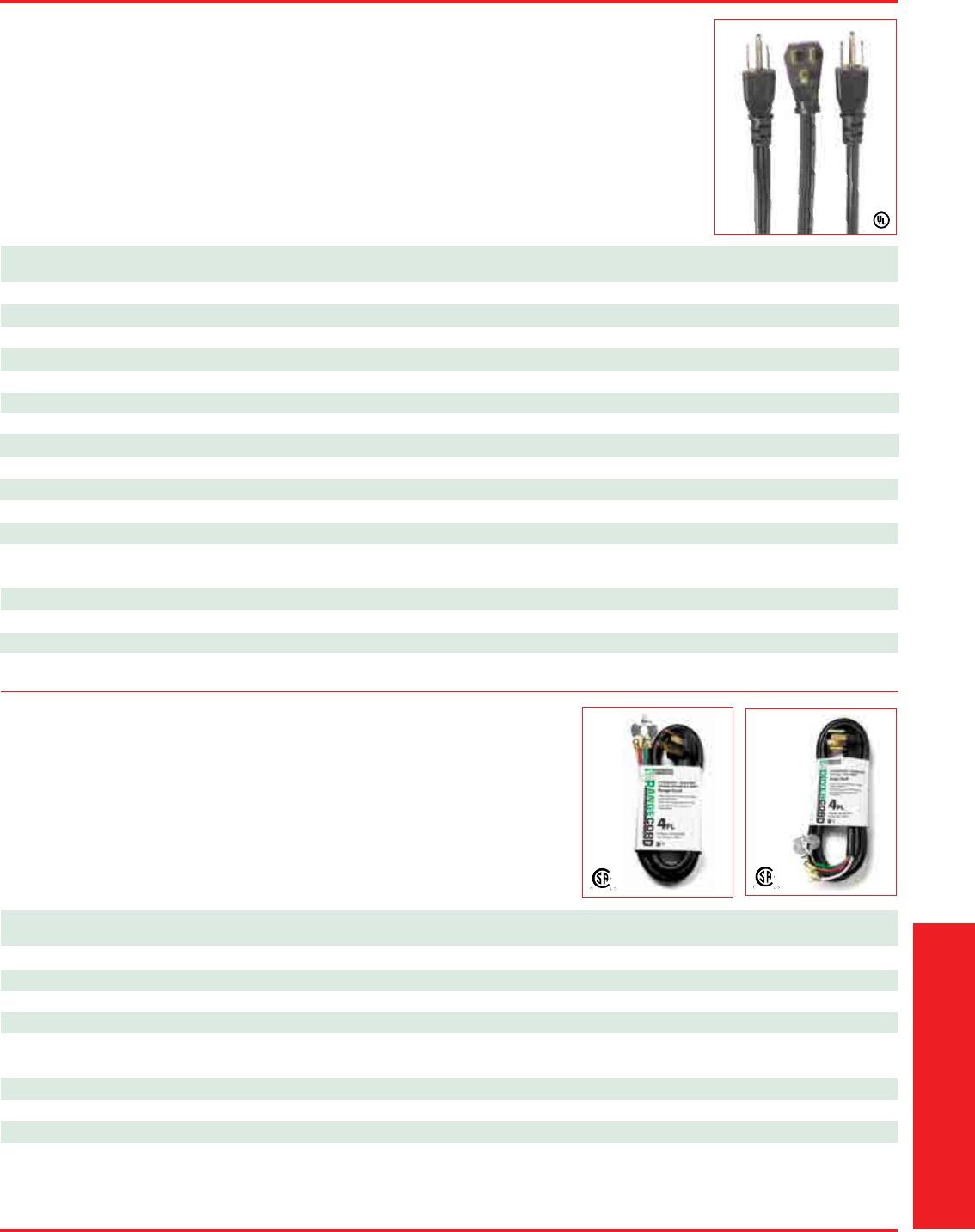

Power/Appliance Cords ................................... 73

Range Cords .............................................. 73

Dryer Cords............................................... 73

Commercial Accessories

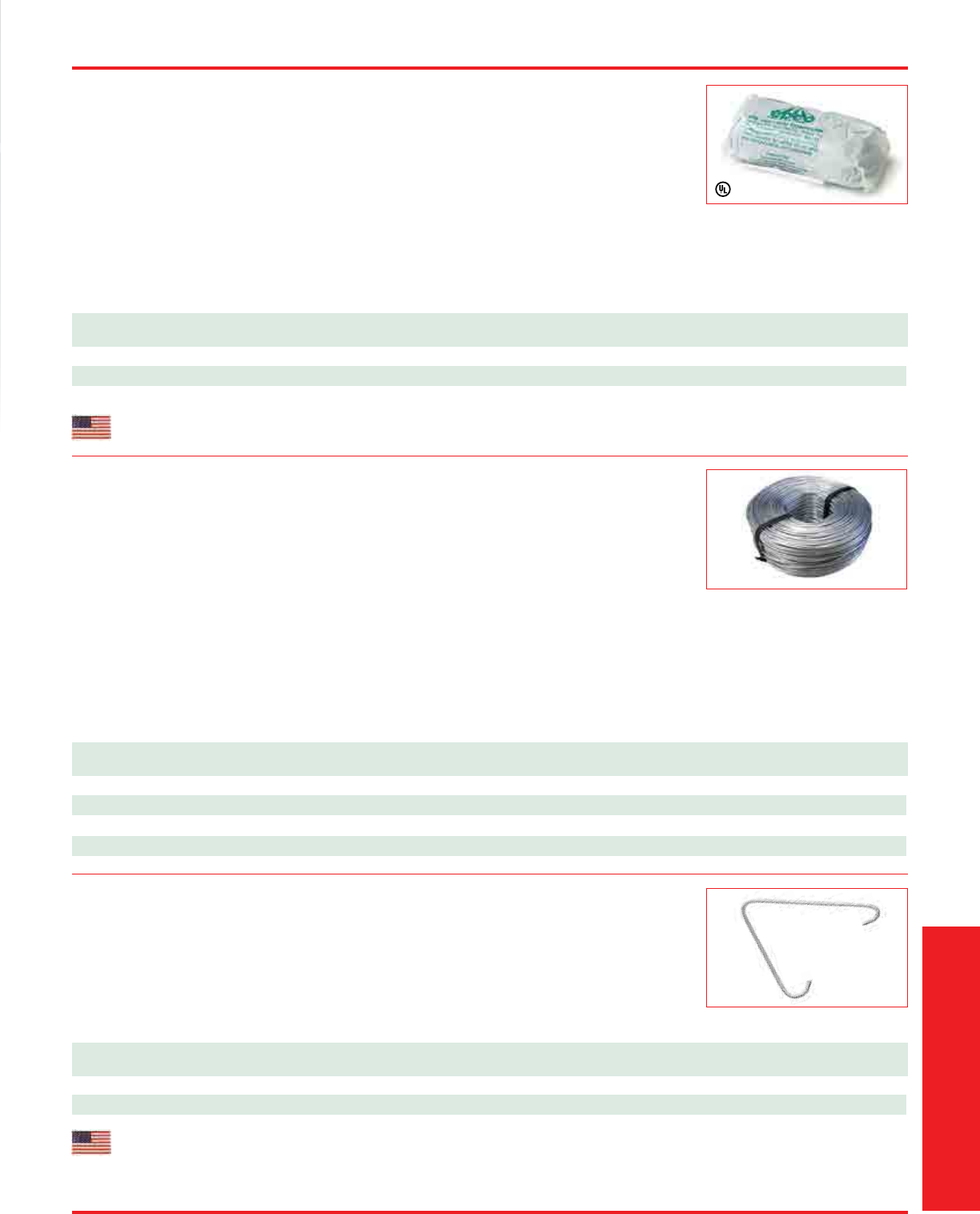

Duct Seal Compound...................................... 75

Tie Wire................................................... 75

Side and Top Mount Fixture Hangers. . . . . . . . . . . . . . . . . . . . . . . 75

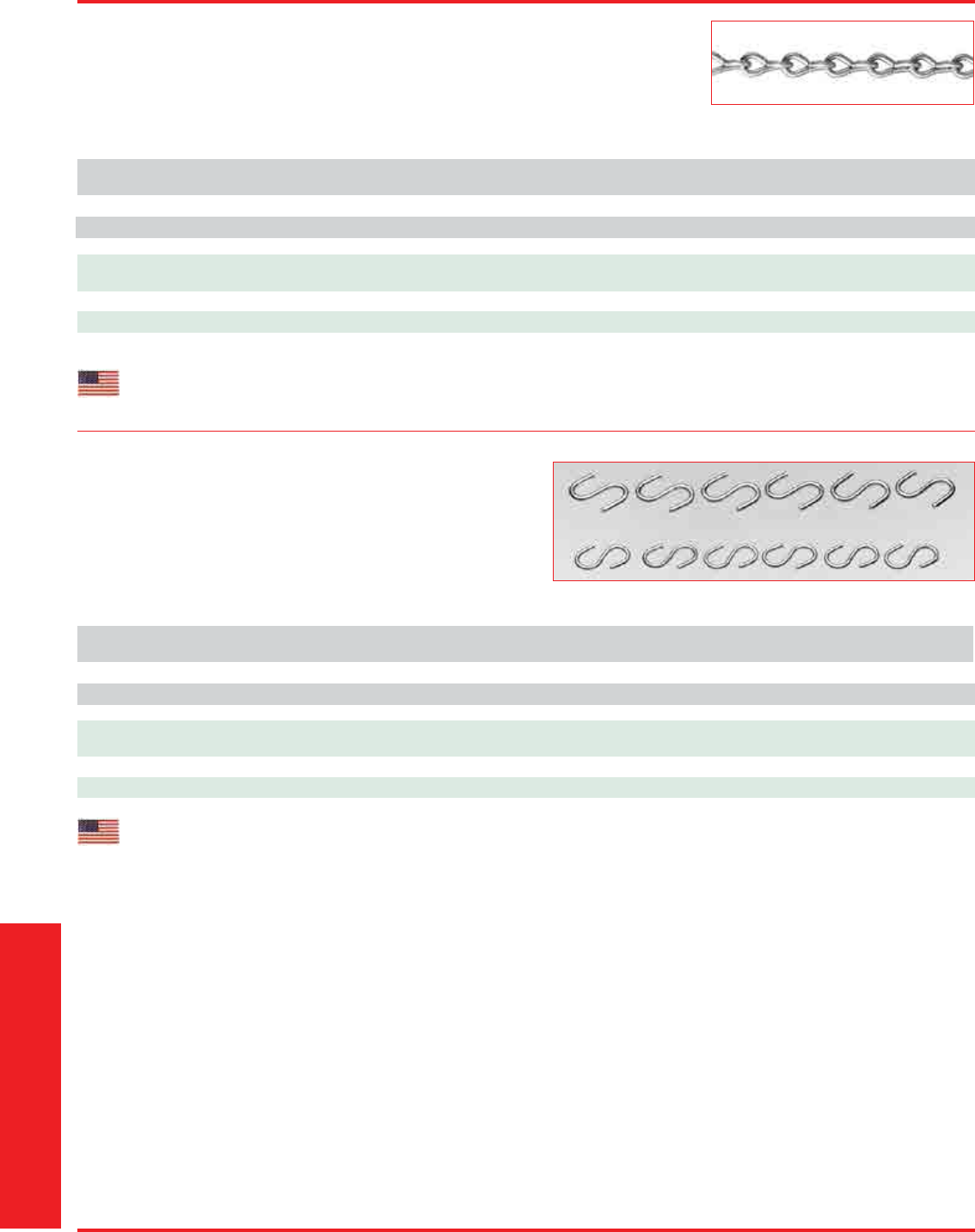

Single Loop Jack Chain. ................................... 76

S-Hooks. .................................................. 76

PART NUMBER/UPC INDEX ............................. 77

SALES REPRESENTATIVES ............................... 79

PRODUCT WARRANTY ................................... 80

LIGHTING PRODUCTS

2

nSTAIRWELL LIGHTING

nRETROFIT LIGHTING

nUTILITY LIGHTING

n FIXTURE WHIPS

n TEMPORARY LIGHTING

n TUBE GUARDS

n LANDSCAPE LIGHTING

LIGHTING PRODUCTS

3

Safety and security lighting has always been a concern for building owners and facility managers, a common

business interest in customer satisfaction and employee comfort. Until recently, safety and security lighting was not

identified as an energy savings opportunity and conservation measure because stairwells, corridors, public egress

and other circulation areas, are required to be illuminated 24 hours a day, 7 days a week, regardless of whether they

are occupied. Unfortunately this represents a significant energy expense and unnecessary waste of electricity. The

“typical” energy savings solution for upgrading illumination that required 24/7 lighting was to retrofit the existing

light fixture to a more energy efficient T8 lamp.

SIGNIFICANT ENERGY SAVINGS

Engineered Products Company (EPCO) Stairwell Light Fixture is a single and bi-level two (2) or three (3) lamp surface

mounted lighting system solution designed to maintain minimum illumination requirements in compliance with the

ASHRAE/IES 90.1 building standard that maximizes energy savings for your facility.

This light fixture is primarily suited for indoor applications and includes an integrated microware or ultrasonic

lighting control sensor that reduces lumen output to minimum standards—as low as 25% of normal output—when

no one is present. When this light fixture system detects someone in the area, illumination levels are restored to full

brightness. This can result in annual energy savings from 50% to 75% for each Stairwell Light Fixture that is installed

or replaced.

OCCUPANCY SENSING LIGHTING CONTROLS

EPCO’s Stairwell Light Fixture’s 180° high frequency, extremely sensitive Microwave or Ultrasonic Motion

Lighting

Control Sensors are mounted internally – dimmable to 25%. The user selectable bi-level lighting operation can adjust

to the “low light” standby level with the ability to instantly transition to “full” light output when occupancy is detected

by either motion sensor for safety and compliance requirements as well as designated emergency egress.

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

4LIGHTING PRODUCTS

STAIRWELL LIGHTING

STAIRWELL LIGHT FIXTURES

MICROWAVE AND ULTRASONIC OCCUPANCY MOTION LIGHTING CONTROL SENSOR STAIRWELL

LIGHT FIXTURES

BENEFITS

n Operates in compliance with the “always on” ASHRAE/IES 90.1 building

standard to maintaining proper illumination levels in stairwells, public egress, and

other circulation areas while occupied (when properly installed).

n Integral microwave or ultrasonic lighting controls reduce illumination when not

needed but activates the light fixture “ON” for safety and security identified locations.

n Standby light levels can be reduced to 25% to maximize energy savings, reduce

peak energy demand and energy consumption costs thereby making this an

attractive upgrade for single and bi-level lighting applications.

n In addition to significant energy savings realized from the implementation of

EPCO’s Stairwell Light Fixture system technology, a new facility installation or

retrofitting an existing facility may qualify for a rebate from your utility. See the

yellow box to the right for typical minimum rebate requirements.

FEATURES

n UL listed. Suitable for indoor use only.

n Designed for wall mount applications only. Note: T8 Lamps are not supplied.

n High quality two or three-lamp light fixtures that operate on 120V-277V circuits.

Note: The Microwave Occupancy Sensor Lighting Control operates on 120 Volt Circuit Only!

n Corrosion resistant fixture housing, fixture housing channel ends, and lamp socket

brackets are manufactured from 22-gauge carbon steel, pre-painted with a highly

reflective white finish.

n Fixture Mounting: Two (2) Keyhole slots on the rear panel of the light fixture for

surface mounting to a wall.

n Installation: Eight (8) knockouts provided on the top, side and rear panel of the light

fixture to facilitate fixture wiring.

n 72-hour lamp conditioning circuit (Ultrasonic Lighting Control) operates the lamps

at 100% before allowing the lighting controls to “switch” them into full occupancy

operating mode thereby ensuring long lamp life.

n “Optional” Emergency Battery Back-up operation to ensure emergency lighting

is available in the event of a power outage even if the light fixture is not on an

emergency circuit.

n All light fixtures 100% tested at the factory before shipment.

TYPICAL APPLICATIONS:

n

Stairwells and Corridors in

Commercial Buildings, Public or

Residential Multi-use Facilities with

two (2) or more levels including

Hotels, Condominiums, Nursing

Homes, Office Buildings, and more.

n

Infrequently used Storage and

Supply Rooms

n

Small Classrooms or Lecture Halls

n

Conference, Meeting and Training

Rooms

n

Employee Lunch and Break Rooms

n

Restrooms in Schools, Universities,

Stadiums, Arenas or Auditoriums

n

Locker, Fitting and Dressing Rooms

n

Laundry and Maintenance Rooms

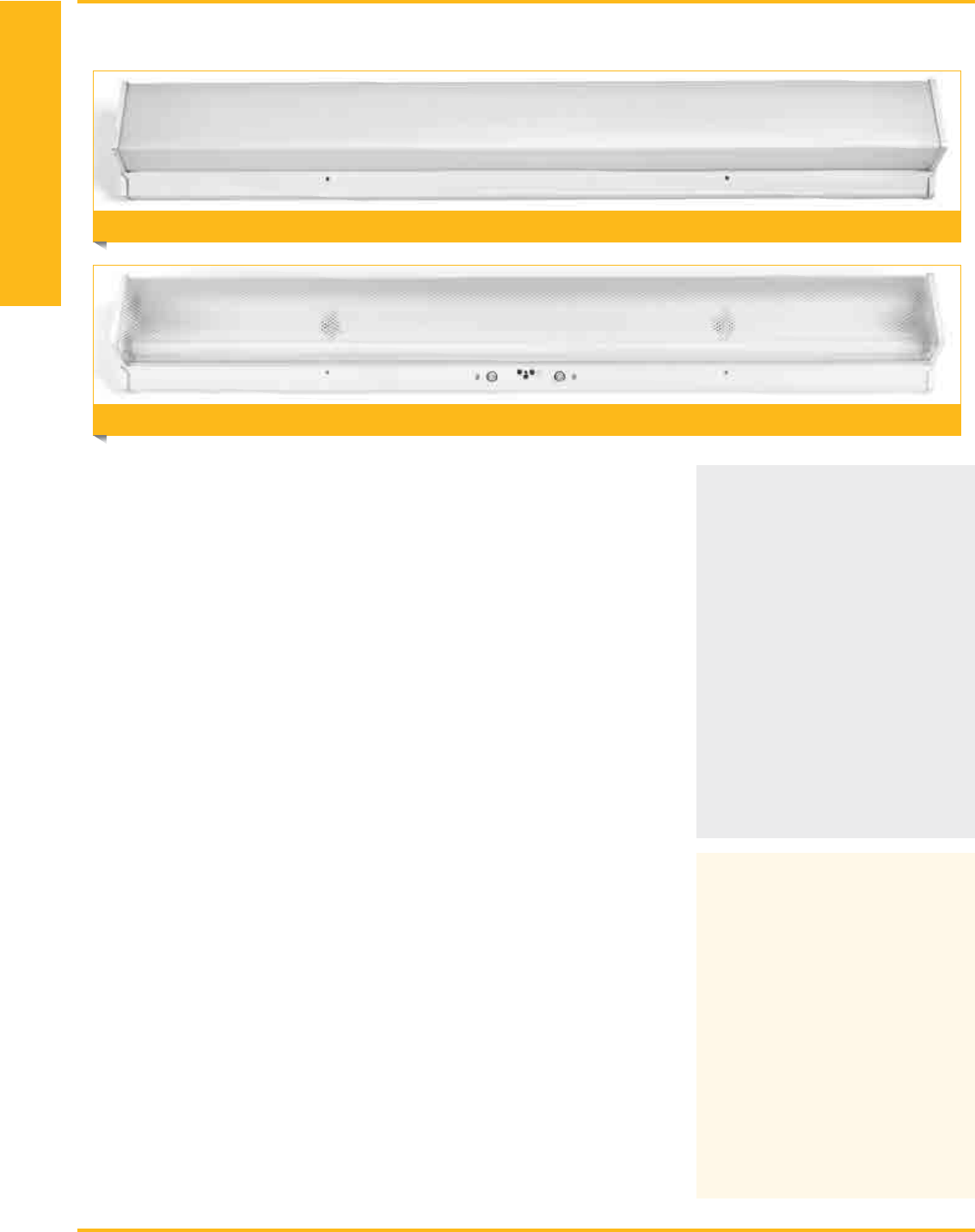

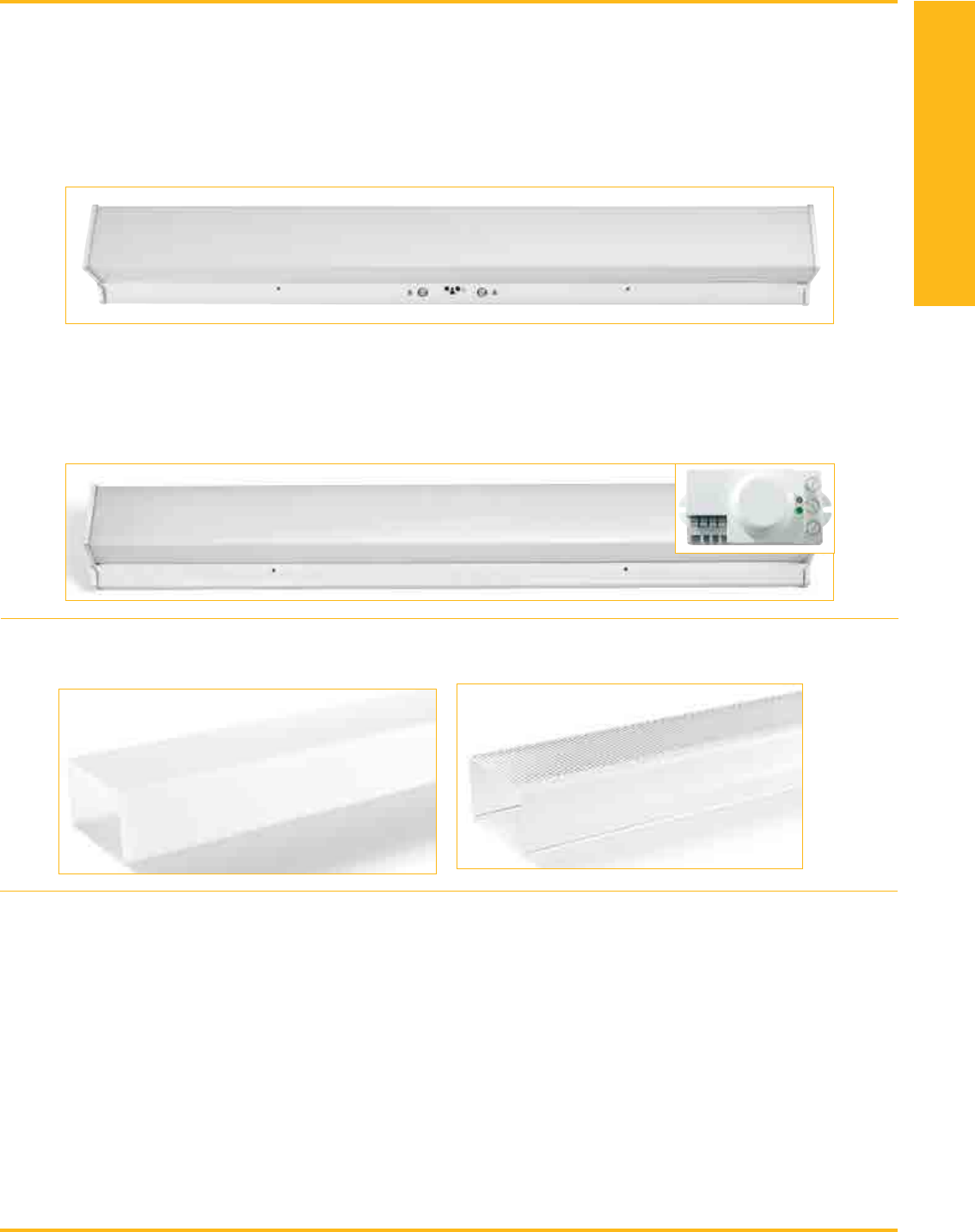

STAIRWELL LIGHT FIXTURE WITH MICROWAVE OCCUPANCY SENSOR LIGHTING CONTROL

STAIRWELL LIGHT FIXTURE WITH ULTRASONIC OCCUPANCY SENSOR LIGHTING CONTROL

Typical Rebate Requirements

• Only complete, new fluorescent fixtures with

programmed-start electronic ballasts and lamps that

meet requirements in the “Second Generation T8

Linear Fluorescent Lamps with Electronic Ballasts”

category qualify.

• Must be manufactured with integrated lighting control

(occupancy sensors) that control the individual light

fixture and meet UL requirements.

• All lamps must be medium bi-pin-based linear

fluorescent lamps.

• Must include “microwave” or “ultrasonic” lighting

controls with a fail-safe feature in case of lamp failure

caused by a sensor failure.

• The bi-level stairwell fixture must operate at low-

standby light levels during vacancy with the capability

to switch to full light output upon occupancy.

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

5LIGHTING PRODUCTS

STAIRWELL LIGHTING

STAIRWELL LIGHT FIXTURES

OCCUPANCY SENSING LIGHTING CONTROLS

n Ultrasonic Motion Sensor (1): Adjustable “time delay” can be programmed at “full-on” from 5 to 30 minutes.

(1)

WattStopper® Ultrasonic Occupancy Sensor radiates high frequency (40Hz) sound waves that are undetectable to the human ear. The sound

waves bounce off surfaces, including people and other moving objects. Motion is detected via shifts in frequency sound waves. In rooms with

hard surfaces, ultrasonic occupancy sensors can detect occupants around corners and out of the line of sight. This sensor type is more sensitive

than microwave sensors and PIR sensors in locations where people are moving toward or away from the sensor.

Provides functions for testing, overriding the light fixture “ON” and a 72-hour lamp burn-in mode.

n

Microwave Motion Sensor: Adjustable “time delay” can be programmed at “full-on” from 10 seconds to 30 minutes.

The microwave sensor is the most reliable occupancy sensor at a reduced cost. Microwaves emitted from the detector cover a wide range

to detect movement and activate lighting controls or an alarm. The sensor is an active motion detector. It emits high-frequency electro-magnetic

waves (5.8 GHz) and receives their echo. The sensor detects the change in echo from even the slightest movement in its detection zone. A

microprocessor then triggers the “switch light ON” command. Detection is possible through doors, panes of glass or thin walls. Persons or objects

moving towards this sensor provides the best detection.

LENS TYPE

n 100% Impact Resistant Prismatic Acrylic Lens or Translucent White Acrylic Lens - Standard on all Stairwell Light Fixtures.

Prismatic Acrylic Lens

Translucent White Acrylic Lens

STAIRWELL LIGHT FIXTURE SPECIFICATIONS

CONSTRUCTION

The Stairwell Light Fixture’s housing is die formed from heavy-duty 22 gauge cold roll steel with over-lapping end caps to

insure uniformity and maintain dimensional stability.

BALLAST TYPE

n Electronic T8 Class P Thermally Protected, CEE NEMA Premium Compliant

LAMP TYPES

n Two (2) 32-watt T8 linear fluorescent lamps or; three (3) - one (1) 17-watt and two (2) 32-watt T8 linear fluorescent lamps (not supplied)

COMPLIES WITH INDUSTRY STANDARDS

n Life Safety NFPA 101 n 2014 National Electrical Code (NEC) n International Building Code

n Uniform Building Code n All State and Local Municipal Codes

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

6LIGHTING PRODUCTS

STAIRWELL LIGHTING

STAIRWELL LIGHT FIXTURES

STAIRWELL LIGHT FIXTURE SPECIFICATIONS CONT

LAMP HOLDERS

n T8 Medium bi-pin standard profile turn-type lamp holder.

FIXTURE SIZE

n Length: 48 inches (1219mm), Width: 5.53 inches (140mm), Height: 5 inches (127mm)

OPERATING VOLTAGE

n 120-277 VAC, 60 Hz. Note: 120 VAC only when the Microwave Occupancy Sensor Lighting Control is specified.

Catalog UPC Order Order Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

72001 72001 4-FT Stairwell Light Fixture: Fits Two (2) 4-FT T8 Lamps, EA 1 BX 1 1 6 Yes 10

Programmed Start Ballast, Microwave Sensor,

Translucent White Acrylic Lens (100% ON/OFF)

72002 72002 4-FT Stairwell Light Fixture: Fits Two (2) 4-FT T8 Lamps, EA 1 BX 1 1 6 Yes 11

One (1) 2-FT T8 Lamp, Programmed Start and Instant Start

Ballasts, Microwave Sensor, Translucent White Acrylic Lens

72003 72003 4-FT Stairwell Light Fixture: Fits Two (2) 4-FT T8 Lamps, EA 1 BX 1 1 6 Yes 10

Dimming Ballast, Ultrasonic Sensor, Translucent White

Acrylic Lens

72004 72004 4-FT Stairwell Light Fixture: Fits Two (2) 4-FT T8 Lamps, EA 1 BX 1 1 6 Yes 10

Instant Start Ballast, Translucent White Acrylic Lens - No Sensor

Note: 100% Full-On

72051 72051 4-FT Stairwell Light Fixture: Fits Two (2) 4-FT T8 Lamps, EA 1 BX 1 1 6 Yes 10

Programmed Start Ballast, Microwave Sensor, Prismatic

Acrylic Lens (100% ON/OFF)

72052 72052 4-FT Stairwell Light Fixture: Fits Two (2) 4-FT T8 Lamps EA 1 BX 1 1 6 Yes 11

and One (1) 2-FT T8 Lamp, Programmed Start and Instant

Start Ballasts, Microwave Sensor, Prismatic Acrylic Lens

72053 72053 4-FT Stairwell Light Fixture: Fits Two (2) 4-FT T8 Lamps, EA 1 BX 1 1 6 Yes 10

Dimming Ballast, Ultrasonic Sensor, Prismatic Acrylic Lens

72054 72054 4-FT Stairwell Light Fixture: Fits Two (2) 4-FT T8 Lamps, EA 1 BX 1 1 6 Yes 10

Instant Start Ballast, Prismatic Acrylic Lens - No Sensor

Note: 100% Full-On

720010 720010 Replacement Lens: 4-FT, Translucent White Acrylic EA 1 BX 4 4 4 Yes 5

720011 720011 Replacement Lens: 4-FT, Prismatic Clear Acrylic EA 1 BX 4 4 4 Yes 5

STAIRWELL LIGHT FIXTURE PART NUMBERS

Stairwell Light Fixture Limited Warranty

Engineered Products Company (herein known as EPCO) warrants that it will repair, replace or refund, at EPCO‘s sole option, any Stairwell Light Fixture that is defective in materials or

workmanship for a period of one (1) year from the date of original purchase. This warranty only applies to the original purchaser and is not transferable.

This warranty does not apply to any of the following:

n Any Stairwell Light Fixture that has been incorrectly installed by drilling holes, puncturing, piercing or any other means that will alter the integrity of the fixture housing.

n Damage caused by the use of parts, components, and/or other equipment(s) that are not compatible, suitable, and/or unauthorized by EPCO for use with the Stairwell Light Fixture.

n Damage resulting from use of the Stairwell Light Fixture in what EPCO, at its sole discretion, considers extreme applications.

n Product damage as determined by EPCO to be caused by a crash, impact, or obvious signs of abuse to the Stairwell Light Fixture.

n Should a replacement be required, there are no charge-backs for any labor required to remove, re-install, or re-power the Stairwell Light Fixture.

Stairwell Light Fixture Ballast Warranty

The Ballast Warranty is ve (5) years and is limited to the original installation only. Contact the ballast manufacturer directly for more specic information on their warranty

policy and procedures.

(1) WattStopper Lighting Control Ultrasonic (Occupancy Sensor) Warranty

Watt Stopper/Legrand warranties its Ultrasonic Sensor to be free of defects in materials and workmanship for a period of ve (5) years. Should any defects occur after installation, and within the

warranty period, these defects should be specically described to your local WattStopper representative. WattStopper will furnish materials to repair or replace the Ultrasonic Sensor that may

prove to be defective in its workmanship and materials within the warranty period. This does not apply to: (1) damage caused by accident, abuse, or mishandling; (2) materials which have

been subject to unauthorized repair; (3) any Ultrasonic Sensor not used in accordance with the supplied operating instructions; or (4) ordinary wear and tear. WattStopper will be limited to

furnishing of new parts, free of charge, in exchange for parts proven to be defective and does not include any other costs of removal or re-installation.

Engineered Products Company Lighting Controls (Occupancy Sensor) Warranty

EPCO will replace any Microwave Sensor that is defective in quality, material, or workmanship for a period of one (1) year from the date of original purchase. This limited warranty only applies to

the original purchaser and is not transferable. This does not apply to: (1) damage caused by accident, abuse, or mishandling; (2) any Microwave Sensor which have been subject to unauthorized

repair; (3) any Microwave Sensor not used in accordance with the supplied operating instructions; or (4) ordinary wear and tear. EPCO will be limited to furnishing only a new sensor, free of

charge, in exchange for the originally installed sensor that is proven to be defective. EPCO’s warranty and does not include the costs of removal or re-installation. Contact EPCO’s Inside Sales

Department directly for more specic information on the Microwave Sensor warranty policy.

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

LIGHTING PRODUCTS

77

LIGHTING PRODUCTS

Our Retrofit Conversion Kits convert older 4-foot and 8-foot T8 or T12 strip-light fixtures into energy efficient T5 or T8

light fixtures. Each kit includes T5 or T8 Bi-Pin Lamp Sockets, Retrofit Bracket Socket Plates, and Self-Tapping Screws.

n Complies with UL Standard 1598B.

n Pre-wired conversion kit brackets; the installer only needs to complete the bracket installation and ballast lead

terminations.

n Pre-painted with smooth, glossy, highly reflective white paint.

n Includes pre-punched holes for installing Ballast Covers or Reflectors.

BENEFITS FOR THE FACILITY OWNER

n Simple upgrade to an energy efficient T5 or T8 light fixture.

n The original light fixture housing is reused. This reduces the retrofit conversion time for a new T5 or T8 light

fixture to half the cost and half the time compared to the installation of a new fixture.

n Improved efficiency, lighting quality, and longer lamp life.

n Simplifies your lamp inventory to one lamp type and color temperature.

n Converting old light fixtures to energy efficient T5 or T8 light fixtures will provide energy savings up to 49%, and

the return on investment can be as short as 15 months.

DISTRIBUTOR BENEFITS

n The combination of our low cost Retrofit Conversion Kit, electronic ballasts, and T5 or T8 fluorescent lamps are

recognized as the most energy efficient lighting system today.

n Our Retrofit Conversion Kits are made in the USA, complies with the American Recovery and Reinvestment Act

(ARRA), and allows the contractors to readily participate in Government sponsored lighting retrofit projects.

CONTRACTOR BENEFITS

n Viable retrofit opportunities in commercial, industrial, and institutional buildings that have not converted to the

energy efficient T5 or T8 lighting systems.

n Labor savings! The combination of high efficiency ballast, T5 or T8 lamps, and the low cost of our Retrofit

Conversion Kits is a fast and easy installation.

n Requires minimal rewiring.

n Minimal recycling on the job site.

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

8LIGHTING PRODUCTS

RETROFIT LIGHTING

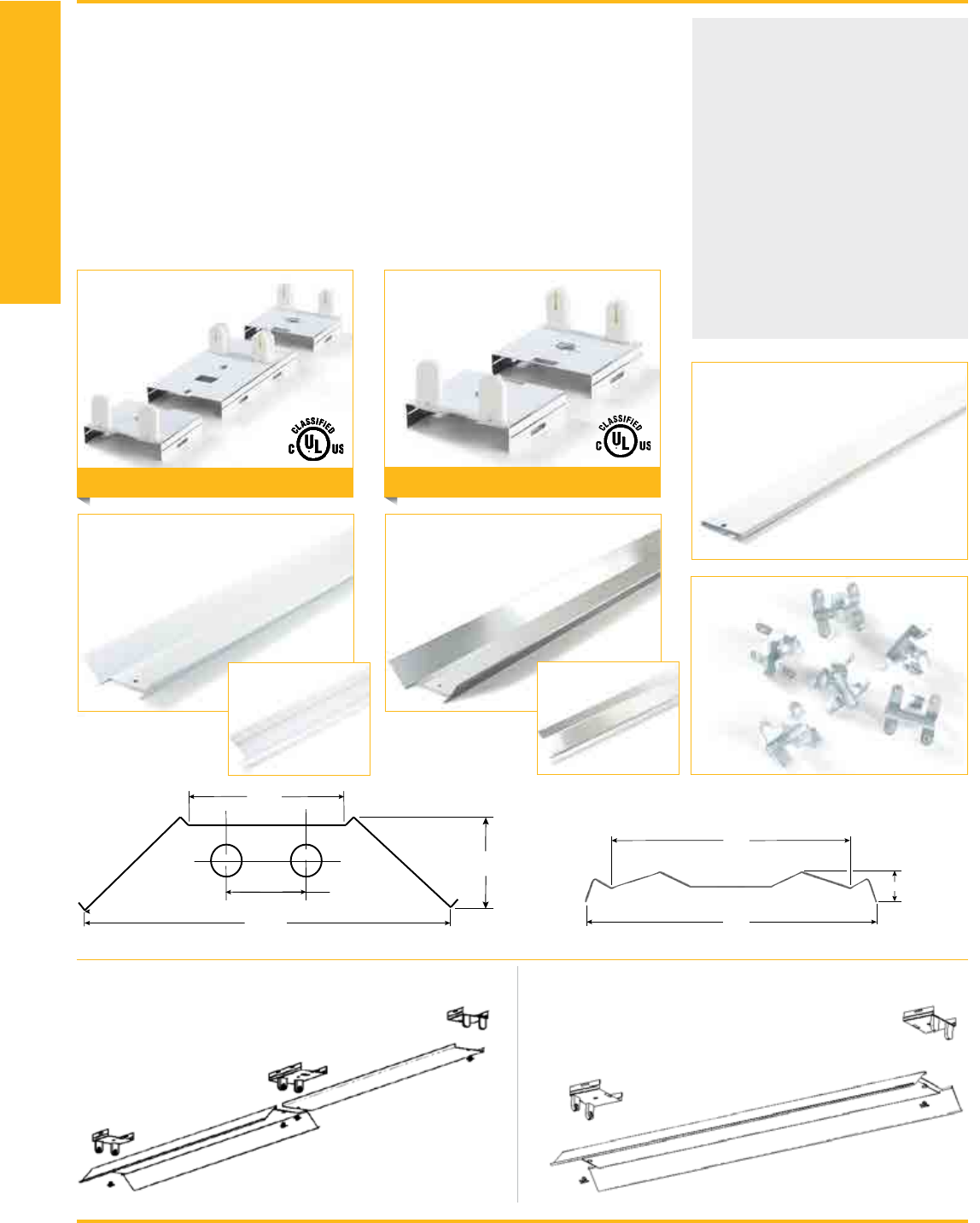

STRIP-LIGHT RETROFIT CONVERSION KITSTM

P/N 14085: 1/4

Turn Retainer

Clips

P/N 14080: Standard Ballast Cover

P/Ns 14092 and 14096: Specular ReflectorP/Ns 14091 and 14095: White Reflector

4-FT T8 RETROFIT KIT - P/N 14090

TYPICAL APPLICATIONS:

n

Commercial Buildings

n

Industrial Facilities

n

Factories

n

Warehouses and Storage Areas

n

Strip Malls and Shopping Centers

n

Schools and Recreation Areas

n

Airport, Train and Bus Terminals

n

Fast Food Restaurants

n

Other applications where

retrotting existing lighting

systems will provide improved

lumen output and energy savings.

BALLAST COVERS AND REFLECTORS

n Tool-less installation. Quickly and easily attaches to the Retrot Conversion Kit

Bracket using 1/4 Turn Retainer Clips.

n Complies with the majority of utility rebate requirements.

n Optimizes light output and helps to reduce energy consumption.

n Standard Ballast Cover (Steel) - P/N 14080: White, Reectance 92%.

n Nominal Length: 4-Feet.

n Aluminum Reectors - Improves the usable light.

– P/Ns 14091 (6-inch) and 14095 (10-inch): White, Reectance 92%.

– P/Ns 14092 (6-inch) and 14096 (10-inch): Specular, Reectance 96%.

5.10"

2.25"

9.25"

2.5"

6-Inch Reector10-Inch Reector

4.58"

0.43"

5.40"

Part Numbers - 14060 and 14050: Converts an 8-foot, 1 or 2 Lamp T8 or

T12 “strip-type" Light Fixture into an 8-foot, 4 Lamp T5 or T8 Light Fixture

(Shown with optional P/Ns 14080, 14095 or 14096)

Part Numbers -14066 and 14090: Converts a 4-foot, 1 or 2 Lamp T8 or

T12 “strip-type" Light Fixture into a 4-foot, 2 Lamp T5 or T8 Light Fixture

(Shown with optional P/Ns 14095 or 14096)

Note: Does not include optional Ballast Cover or Reflectors.Note: Does not include optional Ballast Cover or Reflectors.

8-FT T8 RETROFIT KIT - P/N 14050

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

9LIGHTING PRODUCTS

RETROFIT LIGHTING

STRIP-LIGHT RETROFIT CONVERSION KITSTM

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

T5 Retrofit Conversion Kits

14060 14060 T5 Retrofit Conversion Kit: for 8-FT Fixture, 4 Lamp EA 1 BG 10 10 10 Yes 14

14065 14065 T5 Retrofit Conversion Kit: for 8-FT Fixture, 2 Lamp EA 1 BG 10 10 10 Yes 14

14066 14066 T5 Retrofit Conversion Kit: for 4-FT Fixture, 2 Lamp EA 1 BG 10 10 10 Yes 14

14067 14067 T5 Retrofit Conversion Kit: for 4-FT Fixture, 1 Lamp EA 1 BG 10 10 10 Yes 14

T8 Retrofit Conversion Kits*

14050 14050 T8 Retrofit Conversion Kit: for 8-FT Fixture, 4 Lamp EA 1 BG 10 10 10 Yes 14

14050B 14052 T8 Retrofit Conversion Kit (BULK): for 8-FT Fixture, 4 Lamp EA 1 BN 20 20 20 Yes 28

14051 14051 T8 Retrofit Conversion Kit: for 8-FT Fixture, 4 Lamp, EA 1 BG 10 10 10 Yes 14

with Jumper and WAGO® Connector

14051B 14053 T8 Retrofit Conversion Kit (BULK): for 8-FT Fixture, 4 Lamp, EA 1 BN 20 20 20 Yes 28

with Jumper and WAGO® Connector

14055 14055 T8 Retrofit Conversion Kit: for 8-FT Fixture, 2 Lamp EA 1 BG 10 10 10 Yes 14

14056 14056 T8 Retrofit Conversion Kit: for 8-FT Fixture, 2 Lamp, EA 1 BG 10 10 10 Yes 14

with Jumper and WAGO® Connector

14057 14057 T8 Retrofit Conversion Kit: for 4-FT Fixture, 1 Lamp EA 1 BG 10 10 10 Yes 14

14070† 14070 T8 Retrofit Conversion Kit: for 8-FT Fixture, 4 Lamp EA 1 BG 10 10 10 Yes 14

Use Programmed Start Ballast ONLY

14071† 14071 T8 Retrofit Conversion Kit: for 8-FT Fixture, 2 Lamp EA 1 BG 10 10 10 Yes 14

Use with Programmed Start Ballast ONLY

14076† 14076 T8 Retrofit Conversion Kit: for 4-FT Fixture, 2 Lamp EA 1 BG 10 10 10 Yes 14

Use with Programmed Start Ballast ONLY

14077† 14077 T8 Retrofit Conversion Kit: for 4-FT Fixture, 1 Lamp EA 1 BG 10 10 10 Yes 14

Use with Programmed Start Ballast ONLY

14090 14090 T8 Retrofit Conversion Kit: for 4-FT Fixture, 2 Lamp EA 1 BG 10 10 10 Yes 14

Retrofit Conversion Kit Accessories

14080 14080 Standard Ballast Cover: 4-FT - White, 1/4 Turn Retainer Clips EA 1 BX 20 20 20 Yes 27

for 4.25” Wide Fixture Housing ONLY

14085 14085 1/4 Turn Retainer Clips: for Ballast Cover and Reflectors EA 1 BG 40 40 40 Yes 1

14091 14091 White Reflector: 4-FT, 6-inch - Nominal Width 5.40”, with EA 1 BX 20 20 20 Yes 14

1/4 Turn Retainer Clips, for 4.58” Wide Fixture Housing ONLY

14092 14092 Specular Reflector: 4-FT, 6-inch - Nominal Width 5.40”, with EA 1 BX 20 20 20 Yes 14

1/4 Turn Retainer Clips, for 4.58” Wide Fixture Housing ONLY

14095 14095 White Reflector: 4-FT, 10-inch - Nominal Width 9.25”, with EA 1 BX 20 20 20 Yes 16

1/4 Turn Retainer Clips, for 5.10” Wide Fixture Housing ONLY

14096 14096 Specular Reflector: 4-FT, 10-inch - Nominal Width 9.25”, with EA 1 BX 20 20 20 Yes 16

1/4 Turn Retainer Clips, for 5.10” Wide Fixture Housing ONLY

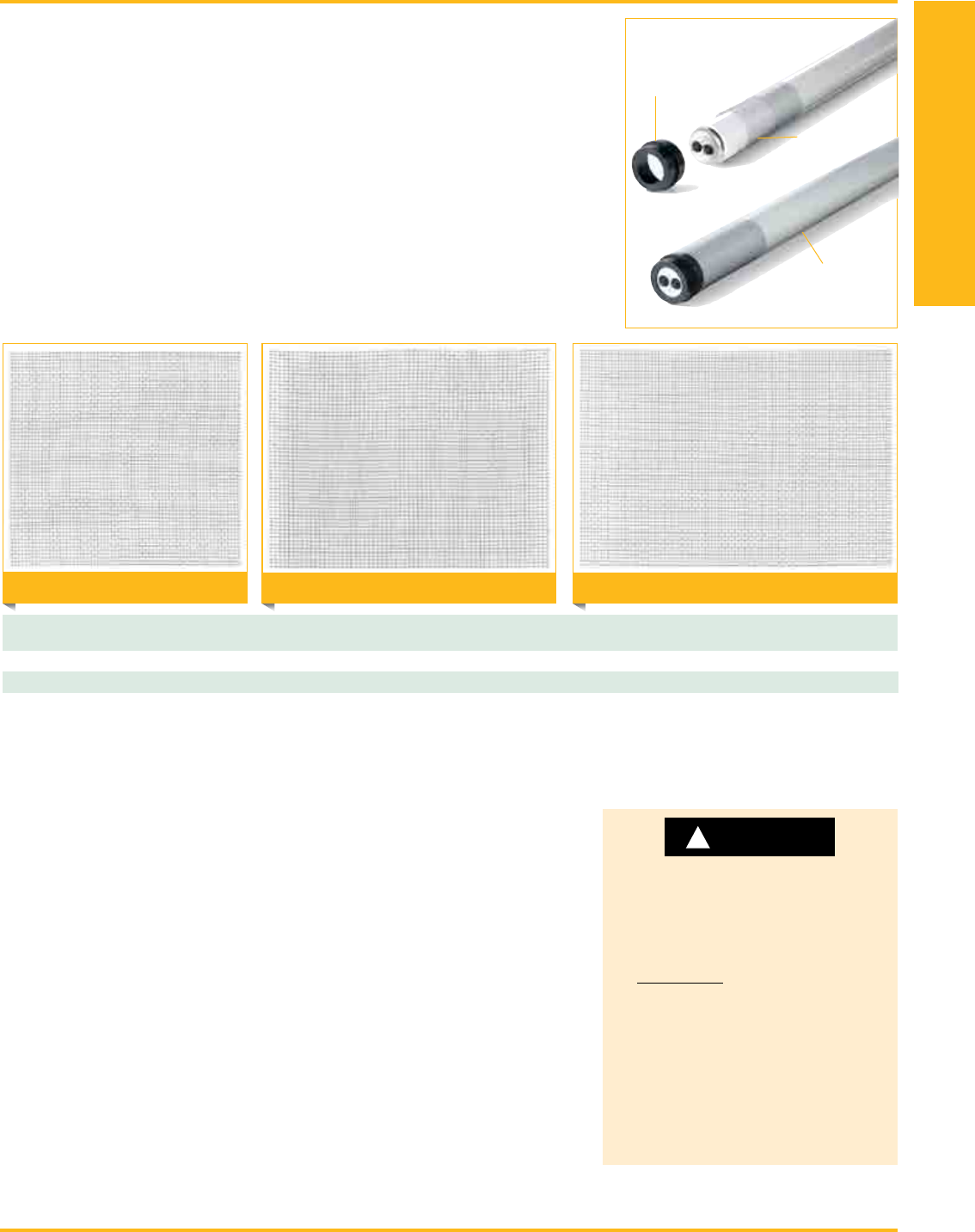

Note: * 1. T8 RETROFIT KITS FOR USE WITH INSTANT START BALLAST ONLY EXCEPT P/NS 14070, 14071, 14076 AND 14077!

2. Accommodates xture housing widths between 4.25” to 5.0”.

3. Energy consumption and savings will vary based on the operating hours per day, the number of operating days per year, the energy cost from

your local service provider, and lamp cost.

†4. Our Retrot Conversion Kits may be suitable for use with Linear LED Retrot Lighting. These designated Retrot Conversion Kit part numbers

tted with “non-shunted” lamp holders are suitable for use with linear LED lamps (T5 and T8 shaped LED tubes) as long as the LED lamps are

classied per UL 1598C.

LIGHTING PRODUCTS

10

Our energy efficient and cost-effective Utility Light Fixtures and Accessories meet a very broad variety of lighting applications. We

currently provide linear, multi-lamp fluorescent light fixtures as well as single-lamp utility light fixtures. Both light fixture types are

UL listed for use in “damp” or “wet” lighting applications.

GFF, GFFW, GLF AND GLFW SERIES™

EPCO’s gasketed “vapor-tight” fluorescent and LED multi-lamp light fixtures (GFF/GFFW and GLF/GLFW, respectively) are easily

configurable for a wide range of lighting applications using T5, T8, or T8 LED lamps. They are energy efficient, maintain a NEMA

4X / IP66/67 wet location rating makes them suitable for applications where high-pressure wash-down is required. Fast and

easy installation is achieved using our “unique” mounting hardware bracket for ceiling or wall mount applications saves the

contractor time and reduces overall labor cost.

These light fixtures are ideal for high-bay locations such as warehouses, parking garages, food processing facilities, commercial

kitchens, pedestrians walkways, road tunnels, as well as other locations that require above-average lighting. In many of these

installations, the use of a “vapor-tight” fluorescent or LED light fixture can reduce the number of fixtures required to meet your

lighting requirements.

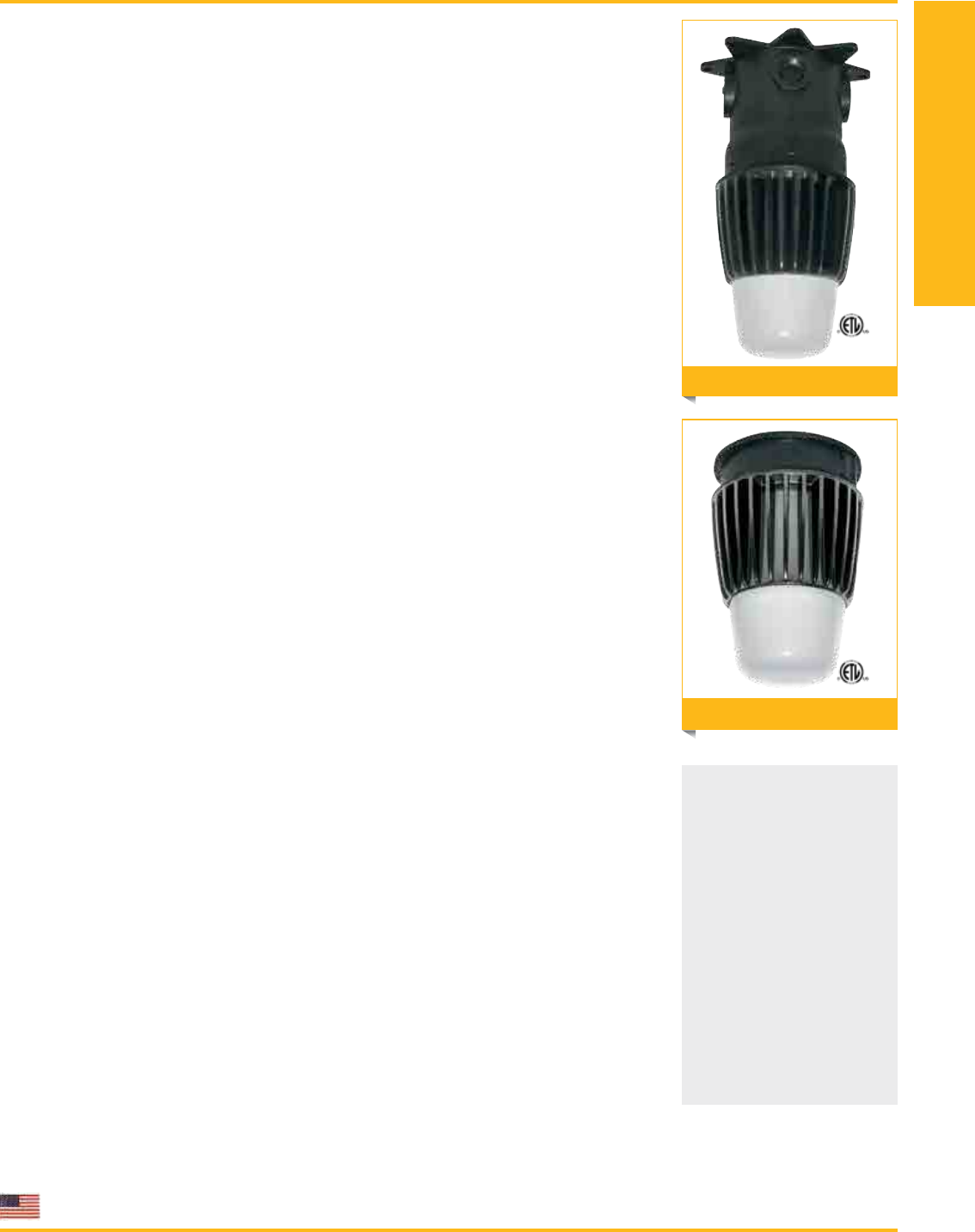

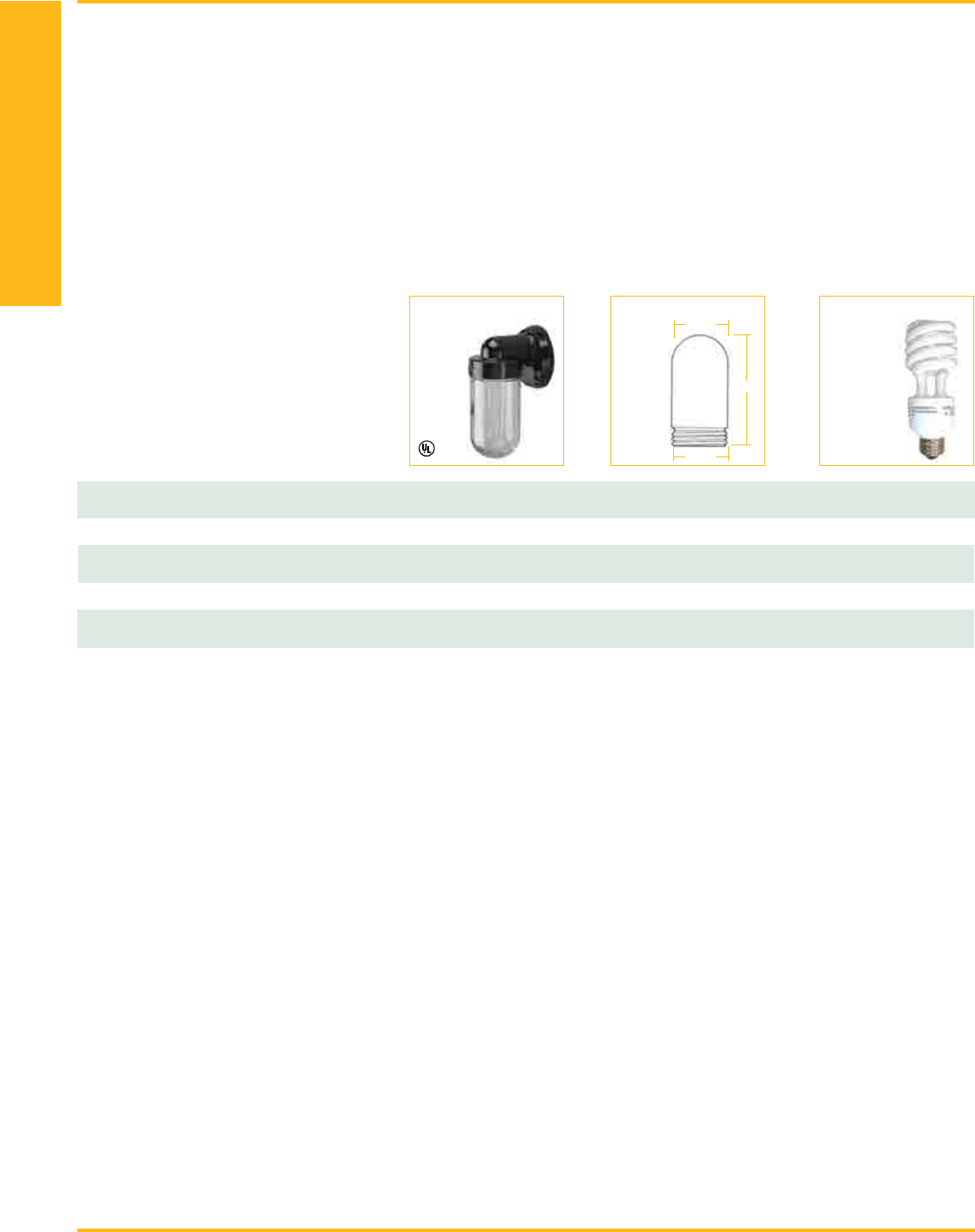

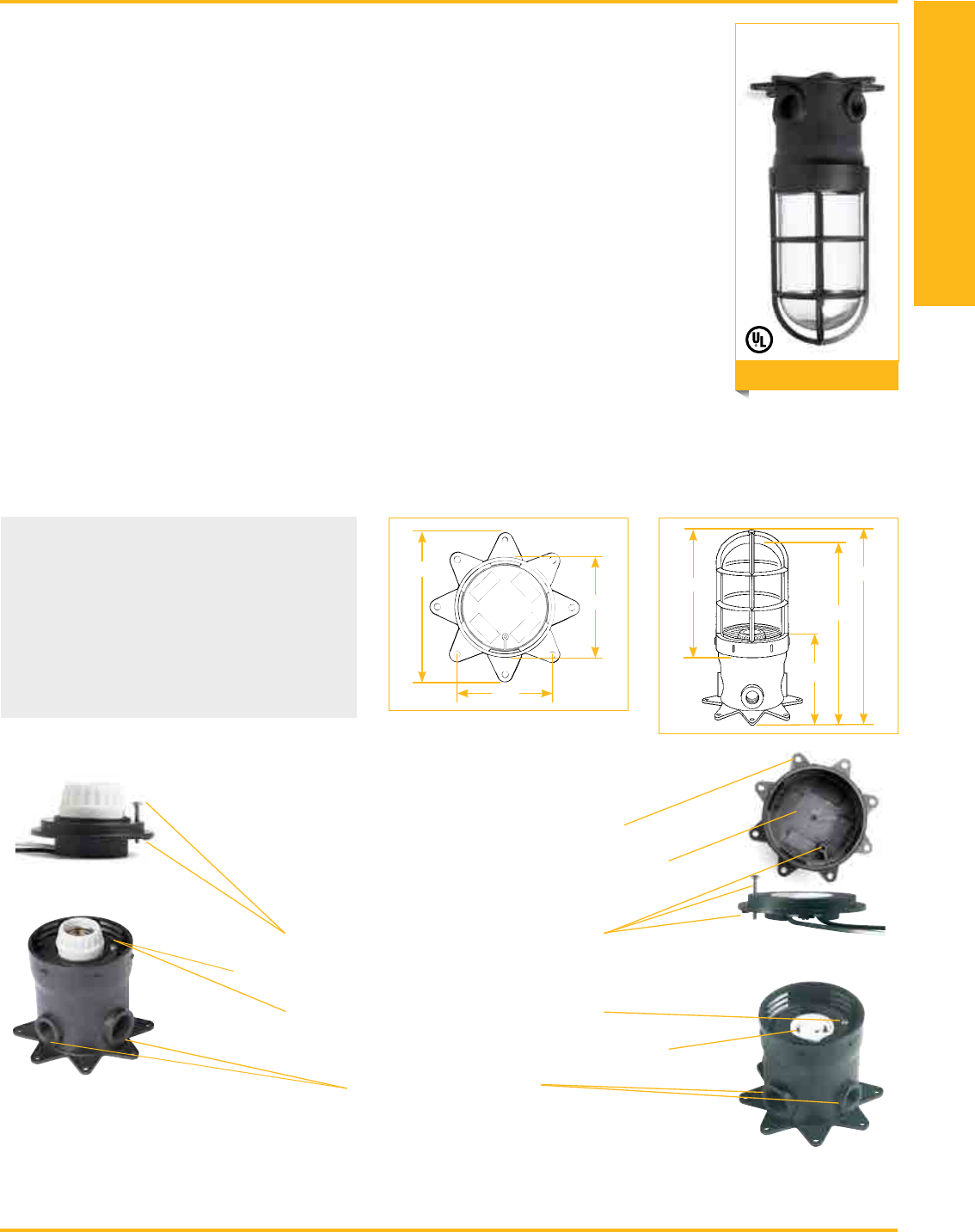

PROSERIES™ EDISON BASE, GU24 AND LED

The ProSeries™ Utility Lights are rated for use in “wet” locations and are available in three (3) configurations:

nProSeries Edison-base: The Nickel-plated brass screw shell is recessed in the fixture housing to facilitate the installation of large

incandescent or LED lamps. When mounted vertically, the glass globe will not permit dust or water to enter the junction box.

n 

ProSeries GU24-base: The GU24 socket and base system is designed to replace the Edison-base socket in energy efficient

lighting fixtures. This light fixture was designed for compatibly with energy efficiency regulations and qualified as energy

efficient under Title 24-2005. It is not backward compatible and cannot be operated with an incandescent lamp.

n 

ProSeries LED: Many commercial and industrial facilities, in addition to swine, poultry and agricultural support buildings

are transitioning to this LED light fixture because of its minimal maintenance requirements, high lumen output, and the

opportunity for this light fixture to qualify for rebates from their local utility.

All three configurations include a UV resistant, high impact and corrosion resistant 18 cubic-inch junction box that provides

capacity for an additional circuit that meets the National Electric Code junction box fill requirements.

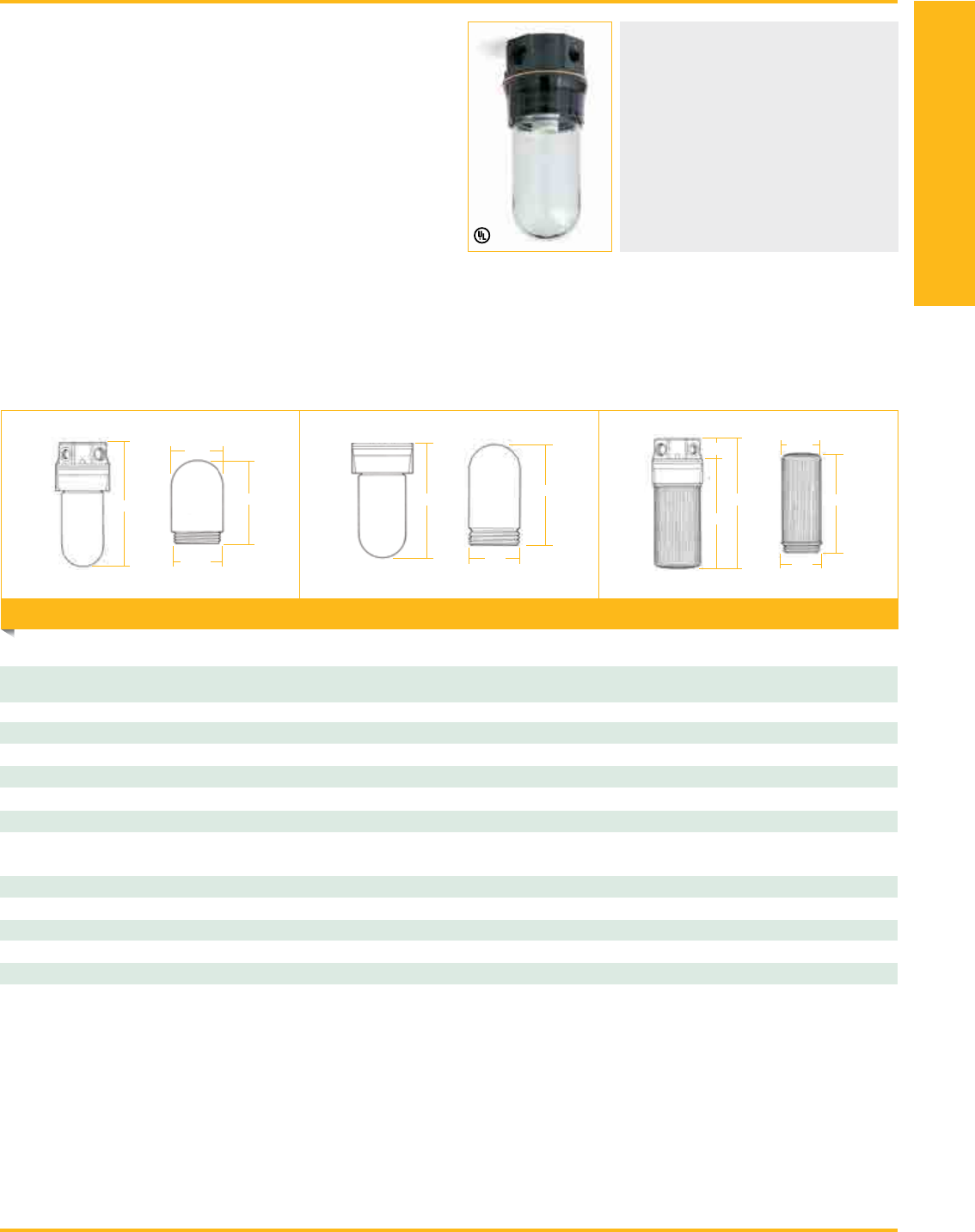

15000 SERIES

The core of our single-lamp light fixtures is the 15000 Series Utility Light. We have sold more light fixtures from the 15000

Series family than any other manufacturer because of its outstanding quality and in-use longevity. These UL listed light fixtures

are rated for use in “damp” locations and include a corrosion resistant nickel-plated brass screw shell - at no extra cost.* The

benefit – long lasting, superior performance, especially under severe environmental conditions like heat, cold, ammonia, and

humidity typically found in animal confinement areas.

The 15000 Series Utility Light has been a key factor for many years to support worker safety, improved animal production, and

provide farmstead security to older barns and utility out-buildings that have substandard lighting systems.

* UL Listed. Engineered Products Company’s 15000 Series Utility Lights meet the Minnesota State Board of Electricity Electrical Wiring requirements for Agricultural

Buildings and the 2014 National Electrical Code “, Article 547.5 (C) (1, 2, and 3).

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

11LIGHTING PRODUCTS

UTILITY LIGHTING

GFF, GLF, GFFW & GLFW SERIESTM LIGHT FIXTURES

GFF, GLF, GFFW AND GLFW SERIES LIGHT FIXTURES

Our domestically manufactured Gasketed Fluorescent (GFF / GFFW) and LED (GLF

/ GLFW) Series Light Fixtures accommodate both T5, T8 and T8 LED lamps, all rated

for long life, energy eciency, and more uniform lumen distribution. For high or low

ceiling applications, the highly reective coated nish of the GFF, GLF, GFFW and

GLFW light xtures’ gear tray surface translates into improved ecacy by providing

more usable lumens per watt.

COMMONALITIES

n UL Listed. Suitable for indoor or outdoor use including wet locations. File #: E319552.

n Fast installation saves time and reduces labor cost.

n Reliable, durable, maintenance free performance!

n Meets the requirements of the 2014 National Electrical Code: Articles 410.10(A),

410.104(A), 410.130(G)(1), 547.5(C)(1) and (2), and 547.8(A) and (B).

n

Long lasting fixtures will not deteriorate under most hostile environments when it is

installed according to factory procedures.

n Multiple configurations available in 2-foot, 4-foot and 8-foot lengths.

Note: The GFFW and GLFW Light Fixtures are only available in a 4-foot length!

n Ingress Protection – NEMA 4X and IP66/IP67 rated dust and moisture resistant luminaire;

suitable for use in wet locations where high-power pressure wash-down is required.

n Gear tray: tethered and hinged to fixtures provide quick access to the ballast wiring

to simplify installation, power-to-ballast termination, and allow for easy ballast

replacement.

n Continuous “poured-in-place” closed cell polyurethane gasket completely seals the

fixture from dust and moisture.

n Fixture Mounting Hardware allows the contractor to pre-install the mounting

brackets to mounting surface without drilling into the fixture housing.

n Luminaire Disconnect: Enables the electrical contractor to easily and safely disconnect

the incoming power to allow safe servicing to the light fixtures.

Note: No Luminaire Disconnect for light fixtures using T8 LED lamps!

n

Impact resistant acrylic diffusers withstand breakage from high power pressure washers;

lowers replacement and maintenance costs.

n Solid reinforced fixture housings provide strong rigidity with no deflection. The

fixture housing is rated 5VA-F1 fiberglass.*

n “Captive” Acetal (Plastic) or Stainless Steel Latches.

n Domestic Ballast Manufacturer.

n 100% factory tested before shipping. No contractor callbacks!

n Two (2) 1/2” trade size knockouts on each end of the light fixture housing

accommodates standard conduit fittings.

*Note: Quantied and tested by Underwriters Laboratories, reference UL 746C.

TYPICAL APPLICATIONS:

n

Food Processing Facilities

n

Commercial Kitchens

n

Laundries

n

Industrial Facilities

n

Saunas

n

Car Washes

n

Storage Buildings

n

Pedestrian and Road Tunnels

n

Parking Garages

n

Elevator Shafts

n

Refrigerators and Freezers

n Locker Rooms

n And more...

GFFW AND GLFW (WIDE BODY)

GFF AND GLF (NARROW BODY)

INGRESS PROTECTION

Continuous “poured-in-place” closed cell polyurethane

gasket seals the light xtures from dust and moisture

and provides protection from –40ºC/–40ºF to 80ºC/176ºF.

OCCUPANCY SENSORS

Our Occupancy Sensor (OS) is the energy and cost ecient method to manage

lighting systems in applications such as stairwells, warehouses, utility and

maintenance buildings, storage areas, tunnels and more.

Installing our occupancy sensor can reduce energy consumption by 45% or more.

Its installation lowers energy cost by operating similar to a light switch. The sensor

turns the lights on when it senses activity in a room or area, then turns the lights

o automatically after sensing no activity after a preset time.

Occupancy

Sensor

Option R1

(dry locations)

Option R2

(dry/cold

locations)

Option R3

(wet locations)

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

12 LIGHTING PRODUCTS

UTILITY LIGHTING

GFF, GLF, GFFW & GLFW SERIESTM LIGHT FIXTURES

FIXTURE LATCH OPTIONS

GFF and GLF Series Light Fixtures can be ordered with

your choice of Acetal (Plastic) or Stainless Steel Latches.

Note: GFFW and GLFW Light Fixtures are only available with Stainless

Steel Latches.

Both cam-type latch options accommodate a variety of application environments.

Acetal (Plastic) Latches (Option C) provide an exceptional combination of heat

resistance, durability and strength over a wide range of ambient temperatures with

minimal attachment of airborne particles.

Stainless Steel Latches (Option S) are ideal for food processing facilities and related

applications. These latches can withstand extreme temperatures for refrigerator

and freezer applications as well as the chemicals present in car washes. They are

also impervious to acidic conditions making them suitable for use in livestock

containment buildings.

Tamper Resistant Screws (Option T) can help the building owner save thousands of

dollars in re-lamping cost by protecting the uorescent or LED lamps installed in

our light xtures from tampering, vandalism and theft.

Stainless Steel

Latch

(Option S)

Tamper

Resistant

Screws

(Option T)

SPECULAR REFLECTORS

n Specular reflectors can reduce lighting energy costs by as much as 30%.

n Provides additional light into the work space.

n Delivers the highest efficacy at the lowest watts per square foot that enables

lamps to perform at maximum efficiency.

n Two (2) reflector styles:

– The Basic Reector (Option B) concentrates light to specic work areas and provides more uniform illumination.

– The Wide Reector (Option W) provides a broader dispersion of light at higher and lower mounting levels in warehouses,

manufacturing areas, factories, commercial kitchens, parking garages, as well as outdoor lighting applications.

n Both reflectors provide 95% reflectivity to enhance energy efficiency for more effective lighting.

Note: Wide Reflector is available ONLY for 4-foot, two (2) lamp and 8-foot, four (4) lamp GFF Series Light Fixtures. Specular reectors are not needed for the

GLF or GLFW Series Light Fixtures.

GFF - Basic Specular Reector

(Option B)

GFF - Wide Specular Reector

(Option W)

GFFW - Specular Reector

(Option N)

Acetal (Plastic)

Latch

(Option C)

GFF and GLF Wire Spacing: Outside section: 2.75" x 3.0"

Center section: 3.0" x 3.0"

GFFW and GLFW Wire Spacing:

Outside section: 2.75" x 3.0"

Center section: 3.0" x 3.5"

GFF and GLF

Lamp Guard

(Option O)

GFFW and

GLFW Lamp

Guard

(Option O)

LAMP GUARD

Our Lamp Guards are constructed of cold-rolled steel wire and resistance welded

in a rectangular grid pattern. The Lamp Guard attaches to directly to the GFF,

GLF, GFFW and GLFW Light Fixtures using the factory-mounted Acetal (Plastic) or

Stainless Steel latches.

Material Finish: Silver powder coated epoxy; moisture and weather resistant.

Typical applications include:

n Classrooms

n Offices

n Lavatories

n Commerical Kitchens

n Restaurants

n Shopping Centers

n Factories

n Workshops

n Warehouses

n Parking Garages

n Gymnasiums

n Other areas where the fluorescent

lamps may be exposed to forceful

contact or damage.

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

13LIGHTING PRODUCTS

UTILITY LIGHTING

GFF, GLF, GFFW & GLFW SERIESTM LIGHT FIXTURES

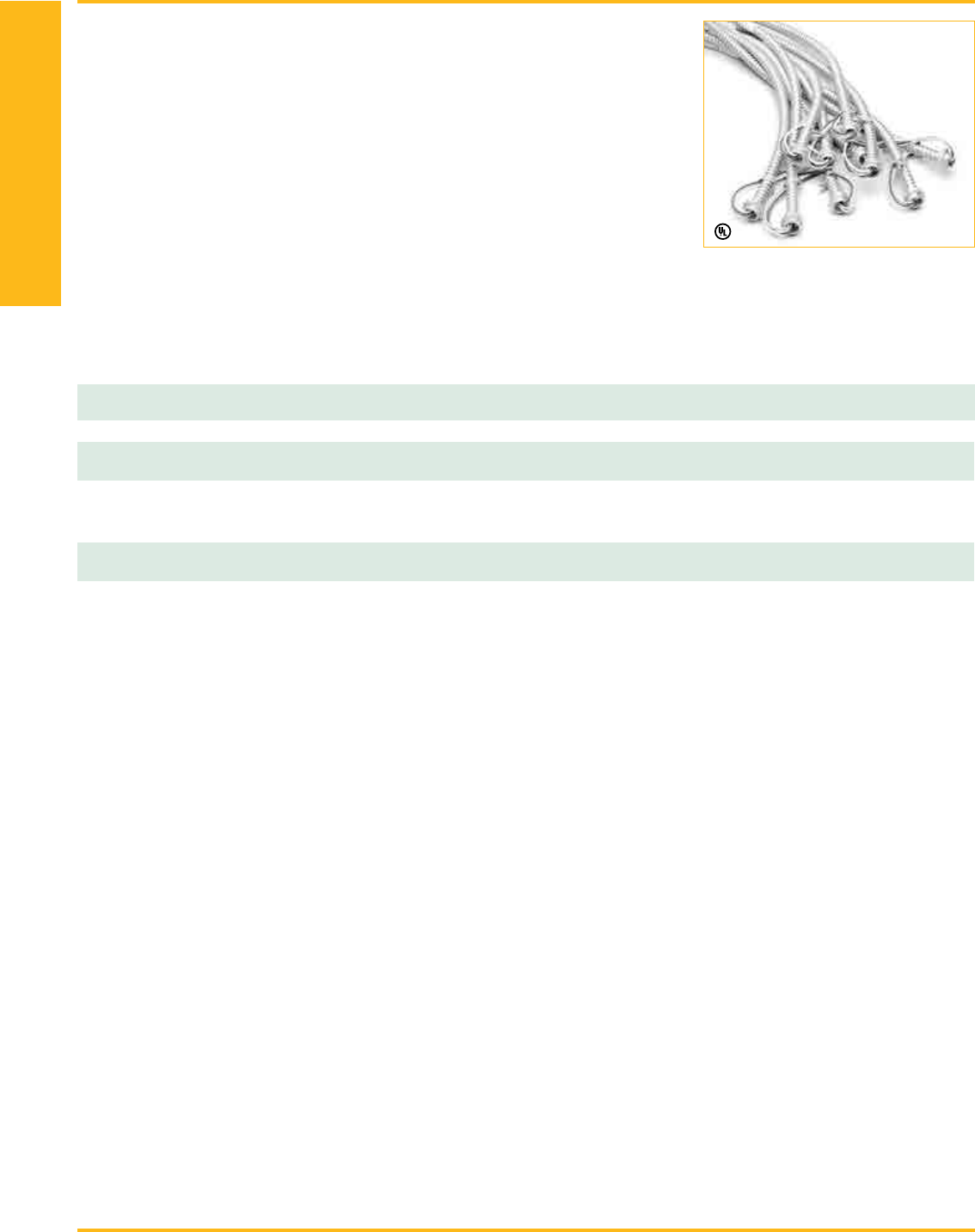

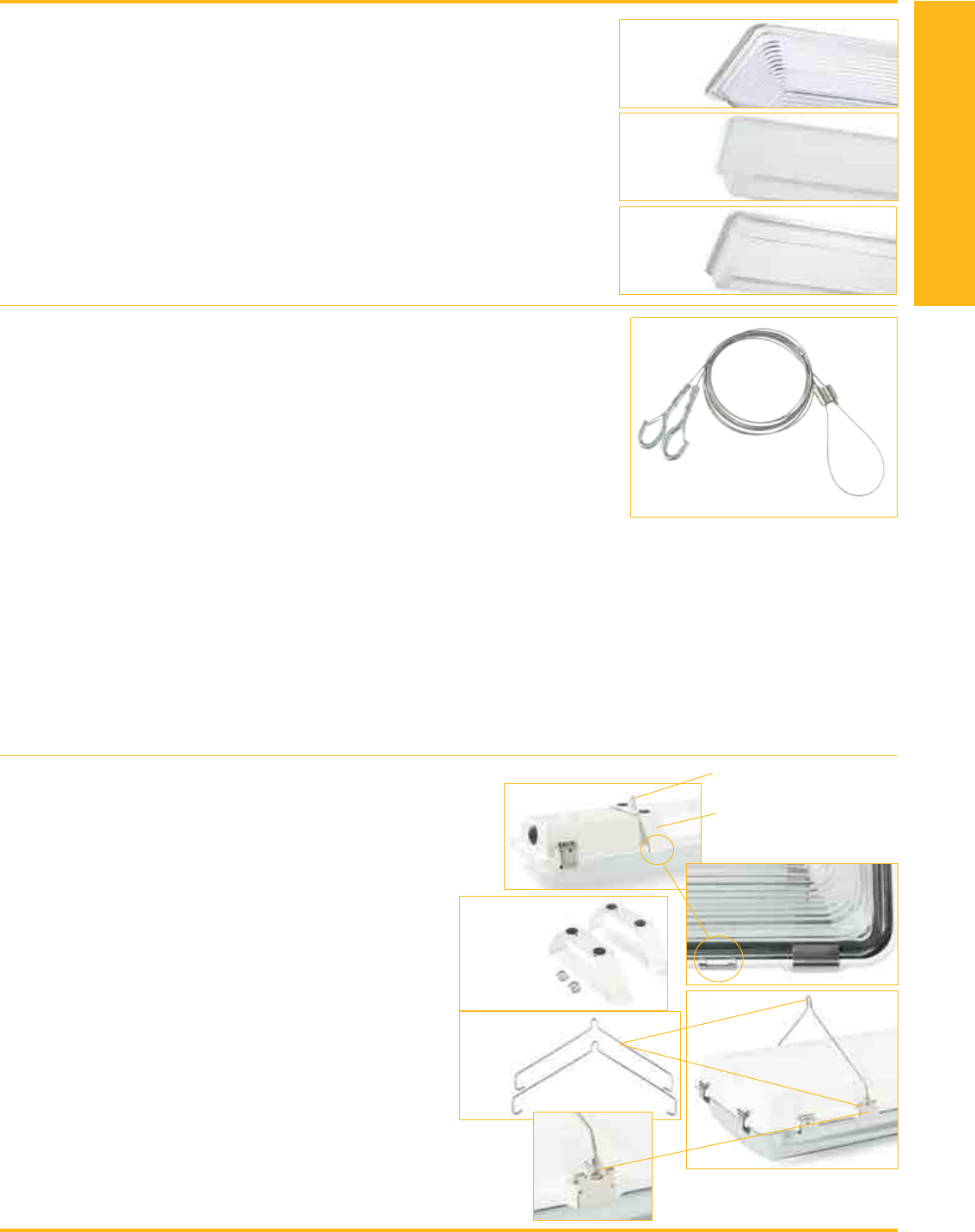

FIXTURE SUSPENSION SYSTEM KIT

The Suspension Kit (P/N: GFF-FSSK) provides instant and “tool-less" infinite height

adjustment when installing our light fixtures.

n Easily suspends light fixtures, signage, mechanical, HVAC systems, and other objects

that require suspension from beams, trusses, or joists.

n Eliminates the need for chain, S-Hooks, threaded rods and strut support nuts.

n Maintenance-free and requires no ongoing adjustments.

nSuspension Cable Length: 100-inches with two (2) 20-inch Y-cables and two (2) swaged

spring-loaded steel hooks with bright nickel plating on Y-cable ends with fuse cut

cable to prevent fraying.

n Safe Working Load: 75 lbs. (34 kg.)

n Minimal breaking strength: 420 lbs. (190.5 kg.)

n Maximum load rating for one (1) cable: 62 lbs. (28.1 kg.); two (2) cables: 124 lbs. (56.2 kg.)

n Warranty - one (1) year.

n One (1) kit includes:

– Two (2) 1/16" (1.587 mm) x 10-foot galvanized steel cables with two (2) attached spring-loaded steel hooks ensure positive

attachment. Steel Hook Inside Diameter: 0.5 inches.

– Two (2) tool-less suspension cable adjustment blocks.

S-Hook: use for chain or cable

hanging installations.

Mounting Bracket: use for

ceiling and wall mount

installations.

FIXTURE MOUNTING HARDWARE

Fixture Mounting Hardware eliminates drilling through the xture

housing to maintain the IP66/IP67 “wet" location ingress protection

rating.

n The Fixture Mounting Hardware (Option M or P/N: GFF-MH)

includes two (2) “snap-on" mounting brackets that attach to the

outside edge of the fixture housing. The mounting brackets are

suitable for ceiling or wall mount applications but can also be

used with chain or cable mounting applications when using the

S-Hooks.

n The GFFW and GLFW Hanging Hardware (Option V or

P/N: W-VHOOK) uses two (2) V-Hooks that are used for chain

or cable mounting applications to expedite fixture installation.

V-Hooks: attach to the GFFW and

GLFW Fixture Hanging Bracket

GFFW and GLFW

Hanging

Hardware

(Option V)

IMPACT RESISTANT UV STABILIZED DIFFUSERS

n 100% Impact Resistant Acrylic Diffusers.

n No tools or fasteners are required to attach the Diffuser to the fixture housing.

GFF and GLF Acrylic Clear Ribbed Diuser is standard on all GFF Series Light

Fixtures. The Basic Specular Reector can be used with this Diuser.

GFF and GLF Acrylic Clear (Option Q) and Ribbed Frosted Diuser (Option P) is

intended for use with the Basic and Wide Specular Reectors.

GFFW and GLFW Acrylic Clear Diuser is standard on all GFFW and GLFW Series

Light Fixtures.

Note: Each end of the Acrylic Clear Diuser is frosted to minimize untargeted light dispersion.

GFF and GLF

Clear Acrylic

Ribbed Diuser

(Standard

with all GFFs)

GFF and GLF

Acrylic Clear

(Option Q) and

Ribbed Frosted

Diuser (Option P)

Suspension System Kit

(P/N: GFF-FSSK)

Fixture Hanging

Bracket

GFF, GLF, GFFW,

and GLFW

Ceiling or Wall

Mount Fixture

Mounting

Hardware

(Option M)

Installation Notice: We recommend the purchase and use of the Fixture Mounting

Hardware when installing a 2-foot, 4-foot or 8-foot light fixture and the V-Hooks when

installing a 4-foot GFFW or GLFW Series Light Fixture. Any light fixture that has been

incorrectly installed by drilling, puncturing, piercing or any other means that will alter

the integrity of the light fixture housing will void the warranty!

GFFW and

GLFW Acrylic

Clear Diuser

(Standard with

GFFW and GLFW)

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

14 LIGHTING PRODUCTS

UTILITY LIGHTING

GFF, GLF, GFFW & GLFW SERIESTM LIGHT FIXTURES

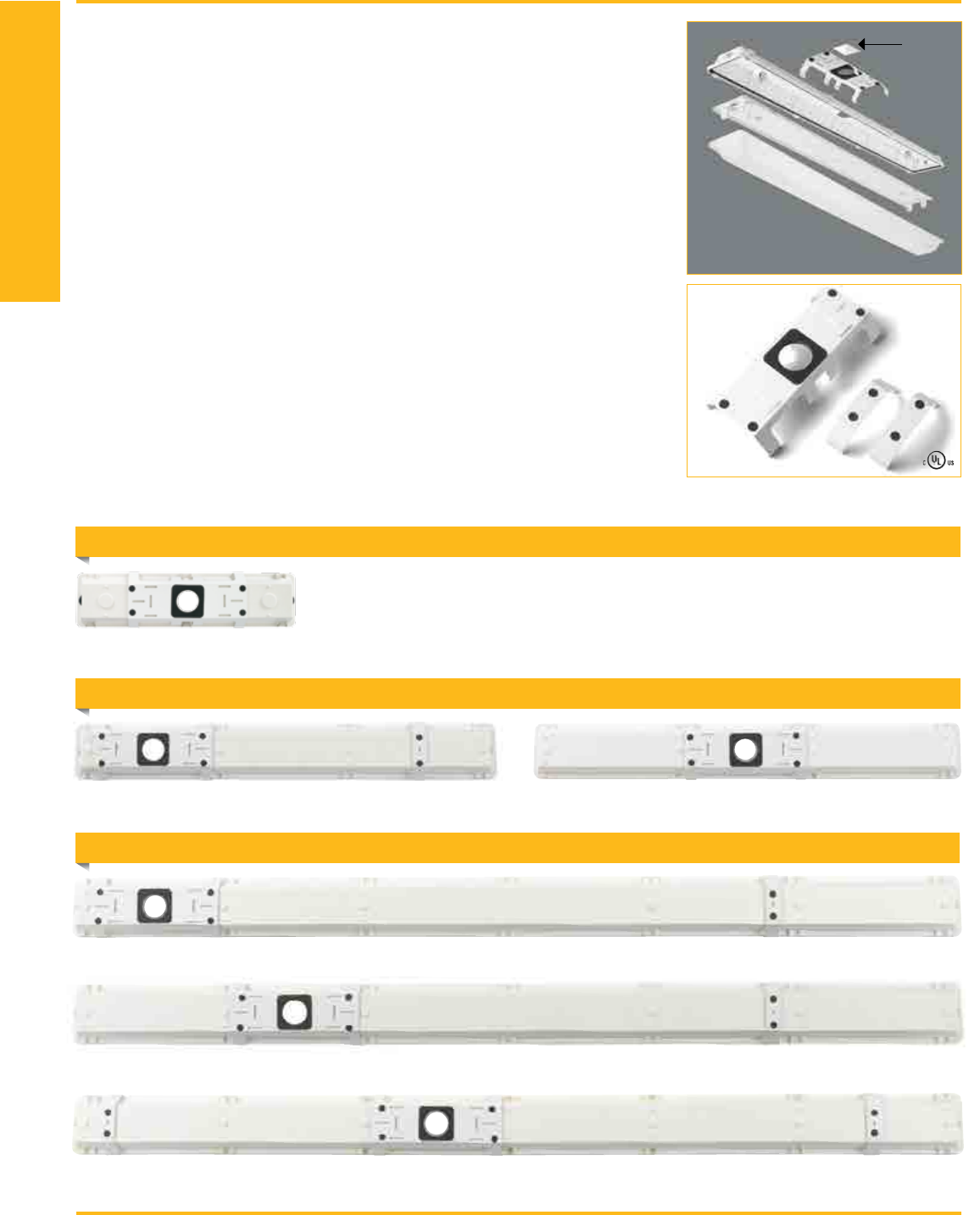

SURFACE MOUNT BRACKET: 4-FT GFF OR GLF FIXTURE

SURFACE MOUNT BRACKET: 2-FT GFF OR GLF FIXTURE

SURFACE MOUNT BRACKET: 8-FT GFF OR GLF FIXTURE

Option - Y1

Large and Small Bracket

Option - Y

Large Bracket

Option - Y2

Large Bracket

Option - Y2

Large and Small Bracket

Option - Y3

Large and Small Brackets (2)

Option - Y1

Large and Small Bracket

Patent

Pending

Junction

Box

SURFACE MOUNT BRACKET  “Y" OPTION

The Surface Mount Bracket (SMB) provides the contractor with the ability to locate and

install a 2-foot, 4-foot or 8-foot GFF or GLF Series Light Fixture directly under or over a

junction box to surface mount the fixture to a ceiling or wall.

n The ability to wire the GFF or GLF Series fixtures directly under the junction box.

n Eliminates the cost and installation of a fixture whip and junction box cover plate.

nReduces installation time and lowers labor cost.

n Providing a water and bug resistant seal that protects the critical area between the

junction box’s supply conductors and the light fixture. No adhesive sealant or

gasket material is required.

n The finished installation of the light fixture is more pleasing to the building owner

without a fixture whip running across the ceiling.

n The SMB in combination with the GFF or GLF Light Fixture maintains its UL Listing

for “wet" location applications.

n Eight (8) slotted holes simplify and expedite installation.

n Compliant with 2014 National Electrical Code: Article 410.24(B).

Note: The Surface Mount Bracket is a “factory installed" option and IS NOT available for Sale as an Accessory

or for field retrofit.

We will pre-drill a hole in the GFF or GLF Series Light Fixture housing at the designated “number" location

shown in the following diagrams to facilitate pulling the supply conductors from the junction box and

into the light fixture.

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

15LIGHTING PRODUCTS

UTILITY LIGHTING

GFF, GLF, GFFW & GLFW SERIESTM LIGHT FIXTURES

SPECIFICATIONS

GFF, GLF, GFFW and GLFW Series Light Fixtures provide a degree of protection against the ingress of solid foreign objects

(e.g., falling dirt), the ingress of water (e.g., hose directed water), protection against corrosion, and will be undamaged by the

external formation of ice on the enclosure.

n UL Listed and approved for use in wet locations.

n LED Tubes are UL 1598C Classified.

n Meets the requirements of the 2014 National Electrical Code: Article 410.10(A).

n NEMA 4X and IP66/67 rated as a water resistant luminaire; protected against dust and strong jets of water.

n Meets the requirements of NSF ANSI Standard 2.*

n Operating Voltage for Fluorescent: 120V - 277 VAC @ 60 Hz.

n Operating Voltage for LED: 110V - 277 VAC @ 60 Hz.

*National Sanitation Foundation (NSF International) is a leader in product certification and standards development. The NSF mark ( ) is your assurance

that all GFF, GLF, GFFW and GLFW Series Light Fixtures have been tested and certified. This Standard establishes minimum food protection and sanitation

requirements for the materials, design, fabrication, construction, and performance of the GFF, GLF, GFFW and GLFW Series Light Fixtures in the area of food

handling and food processing equipment.

SHIPPING WEIGHT APPROXIMATE:

n

2-Foot GFF Series Light Fixture: 8 Lbs. (3.62kg)

n

4-Foot GFF Series Light Fixture: 13 Lbs. (4.98kg)

n 8-Foot GFF Series Light Fixture: 21 Lbs. (8.61kg)

n 4-Foot GFFW Series Light Fixture: 26 Lbs. (11.79kg)

n

2-Foot GLF Series Light Fixture: 7 Lbs. (3.175kg)

n

4-Foot GLF Series Light Fixture: 12 Lbs. (5.44kg)

n 8-Foot GLF Series Light Fixture: 19 Lbs. (8.61kg)

n 4-Foot GLFW Series Light Fixture: 24 Lbs. (10.88kg)

Note: Bulk packaging is available for GFF and GLF Series Light Fixtures - Option Z (25 or 50 per skid).

See photo to the right for an example of bulk packaging.

RECOMMENDED LAMP TYPES

n T5 Lamps

n T8 Lamps

n T8 LED Lamps (22-watt equivalent to 32-watt fluorescent)

Warning: T8 HO and T8 VHO Lamps must not be used under any circumstances! You will damage the light fixture and void the warranty!

BALLAST TYPE/MINIMUM STARTING TEMPERATURE:

Electronic T5 or T8 Class P Thermally Protected and CEE NEMA Premium Compliant:

n T5 - High/Standard Output: -20F / 29C.

n T8 - Standard Output Ballast: 0F / 18C.

n T8 - High Ballast Factor (HBF): -20F / 29C.

Note: High Ballast Factor is a system operating a standard output lamp to a higher wattage and lumen performance within standard lamp design. High

Output (HO) lamps operate with a higher current, thereby requiring ballasts to match the high output lamp designation and design.

GLF AND GLFW LUMEN OUTPUT

n Light Source: High power LEDs (±5%) n Emitters: 50,000+ hour life

n Lumens: 1700 Min. (@4100K) n Color Temperature: 4,100 or 5,000K

n Color Rendering Index (CRI): >80

GFF and GLF Bulk

Packaging (Option Z)

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

16 LIGHTING PRODUCTS

UTILITY LIGHTING

GFF, GLF, GFFW & GLFW SERIESTM LIGHT FIXTURES

A B C D E F G H I

4.25" (1) / 5.75" (2) 6.812" 2.44" 49.7" 51.7" 100" 98.0" 27.7" 25.7"

Note: Dimensions “E”, “F” and “H” reference the 1/2" trade size knockouts on each end of the light fixture.

D

I

E

H

G

F

A

B

C

A

B

C

(1)

Acrylic Ribbed Diffuser

(2)

Acrylic Clear Diffuser

Note: 1. Top down view of 2-foot, 4-foot and 8-foot GFF and GLF Series Gear Tray.

2. The GFF Series 8-foot Light Fixture will not accommodate 8-foot T8 lamps.

GFF AND GLF SERIES LIGHT FIXTURES - LAMPS PER FIXTURE

4-Foot Fixture

2-Foot Fixture

Maximum of three (3) T5, T8 or T8 LED Lamps

8-Foot Fixture

Maximum of six (6) T5, T8 or T8 LED Lamps

GFF and GLF Series

Light Fixtures

Note: Dimension “E” references the 1/2" trade size knockouts on each end of the light fixture.

A B C D E

6.125" 14.6" 3.0" 49.5" 51.5"

B

C

A

D

E

Note: Top down view of 4-foot GFFW and GLFW Series Gear Tray.

Minimum of four (4) or Maximum of six (6) T5, T8 or T8 LED Lamps

GFFW AND GLFW SERIES LIGHT FIXTURE - LAMPS PER FIXTURE

GFFW and GLFW

Series Light Fixtures

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

17LIGHTING PRODUCTS

UTILITY LIGHTING

GFF, GLF, GFFW & GLFW SERIESTM LIGHT FIXTURES

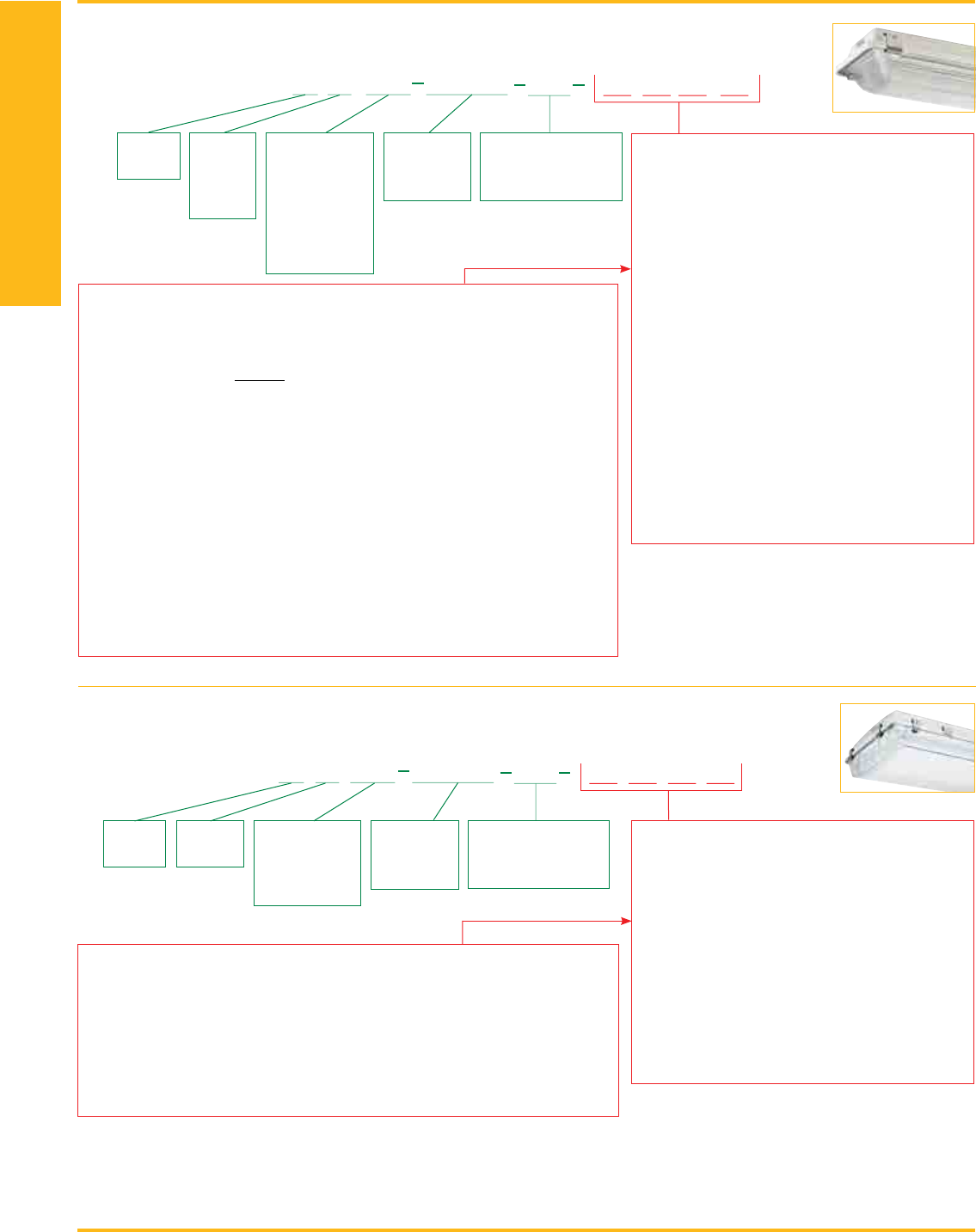

Fixture

[G]

Length

2 = 2-Feet

4 = 4-Feet

8 = 8-Feet

Ballast Type

T5 = High Output

T8 = Standard Output

T8HBF = High Ballast Factor

G 8 L 6 T8

B L S Y 3

GFF Fixture Options

A. 6-Foot Power Cord (PSS6)

B. Basic Specular Reflector (can be used with either the

Acrylic Ribbed of Clear Diffuser)

C. Acetal (Plastic) Latches (See Note 2)

E. Emergency Battery Back-up Ballast (See Note 3)

F. One (1) 1/2" Water Resistant Hub (See Note 8)

(required for Pendant Mounting a 2-foot or 4-foot fixture)

G. Two (2) 1/2" Water Resistant Hubs (See Note 8)

(required for Pendant Mounting an 8-foot fixture)

H. One (1) 3/4" Water Resistant Hub (See Note 8)

(required for Pendant Mounting a 2-foot or 4-foot fixture)

I. Two (2) 3/4" Water Resistant Hubs (See Note 8)

(required for Pendant Mounting an 8-foot fixture)

K. 3-Port Luminaire Disconnect

(required when a second ballast is installed)

L. 2-Port Luminaire Disconnect

(included on all GFF Series Fixtures)

M. Fixture Mounting Hardware for Ceiling and Wall

Mount Applications (two (2) per package)

O. Wire Lamp Guard (See Note 6)

P. Ribbed Frosted Diffuser (Note: Can be used for

fluorescent and LED lamps.)

Q. Clear Diffuser (Note: The Acrylic Ribbed Diffuser is

standard with all GFF Series Fixtures unless otherwise

specified. Not available for the 2-foot GFF Light Fixture)

R1. Occupancy Sensor (for dry locations)

R2. Occupancy Sensor (for dry/cold locations)

R3. Occupancy Sensor (for wet locations)

S. Stainless Steel Latches

T. Tamper Resistant Screws

W. Wide Specular Reflector (See Notes 4 and 5)

Y. Surface Mount Bracket (See Note 7)

Z. Bulk Packaging (25 or 50 per skid)

Number

of Lamps

L1 = 1 Lamp

L2 = 2 Lamps

L3 = 3 Lamps

L4 = 4 Lamps

L6 = 6 Lamps

The GFF Fixture can be built to your specifications by adding the respective item numbers.

Note:

1. When entering Bulk orders, do not include Mounting Hardware or Tamper Resistant

Screws in your part numbering scheme.

2. Acetal (Plastic) Latches ARE NOT recommended for the following applications:

- Swimming Pools because of the chlorine.

- Food Processing because of the cleaning chemicals.

- Car Washes because of the chemicals used.

- Agriculture because of the ammonia.

3. Two (2) lamps is the maximum lamp configuration when specifying a T5 2-foot light fixture

with an Emergency Battery Back-up Ballast.

4. The Wide Reflector for T5 and T8 lamps can only be used with two (2) lamp 4-foot GFF

Fixtures or four (4) lamp 8-foot GFF Fixtures.

5. The Wide Reflector can only be used in conjunction with the Acrylic Clear Diffuser

(Option Q). The Standard Acrylic Ribbed Diffuser will not fit! The Wide Reflector WILL NOT

fit a 2-foot GFF Light Fixture.

6. When your part number includes the Wire Lamp Guard:

- The Acrylic Diffuser is not included with the light fixture.

- UL listing changes from a “wet" location to a “damp" location light fixture.

7. When adding the Surface Mounting Bracket (SMB - Y Option) to your part number, we will

pre-drill a hole in the fixture housing at the designated “number" location shown in the

diagrams, on page 10, to facilitate pulling the supply conductors from the junction box

and into the light fixture.

When specifying the Y Option for the 2-foot GFF Light Fixture,

there is no designated “number" location. Just include the Y Option as part of your

2-foot light fixture order configuration.

8. When adding the Water Resistant Hubs the UL listing changes from a "wet" location to a

"damp" location light fixture.

GFF SERIES - ORDERING INFORMATION EXAMPLE FOR FLUORESCENT LAMPS

GFF Series Light Fixture

Note: GFF Series Light Fixtures do not include T5 or T8 lamps!

Fixture

[W]

Length

4 = 4-Feet

Ballast Type

T5 = High Output

T8 = Standard Output

T8HBF = High Ballast Factor

W 4 L 6 T5

GFFW Fixture Options

A. 6-Foot Power Cord (PSS6)

E. Emergency Battery Back-up Ballast

G. Two (2) 1/2" Water Resistant Hubs (See Note 3)

I. Two (2) 3/4" Water Resistant Hubs (See Note 3)

L. Luminaire Disconnect

(included on all GFFW Series Fixtures)

M. Fixture Mounting Hardware for Ceiling and Wall

Mount Applications (two (2) per package)

N. Specular Reflector

O. Wire Lamp Guard (See Note 2)

R1. Occupancy Sensor (for dry locations)

R2. Occupancy Sensor (for dry/cold locations)

R3. Occupancy Sensor (for wet locations)

S. Stainless Steel Latches

T. Tamper Resistant Screws

V. V-Hooks for Chain (two (2) per Package)

X. Two (2) Circuit Fixture

Number

of Lamps

L4 = 4 Lamps

L6 = 6 Lamps

The GFFW Fixture can be built to your specifications by adding the respective item numbers.

Note:

1. Six (6) GFFW Fixtures is the minimum order quantity. We will not ship any GFFW Fixtures

that do not meet the minimum order quantity requirement!

2. When your part number includes the Wire Lamp Guard:

- The Acrylic Diffuser is not included with the light fixture.

- UL listing changes from a “wet" location to a “damp" location light fixture.

3. When adding the Water Resistant Hubs the UL listing changes from a "wet" location to a

"damp" location light fixture.

L N V

GFFW SERIES - ORDERING INFORMATION EXAMPLE FOR FLUORESCENT LAMPS

Note: GFFW Series Light Fixtures do not include T5 or T8 lamps!

GFFW Series Light Fixture

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

18 LIGHTING PRODUCTS

UTILITY LIGHTING

GFF, GLF, GFFW & GLFW SERIESTM LIGHT FIXTURES

GLF SERIES - ORDERING INFORMATION EXAMPLE FOR T8 LED LAMPS

Fixture

[G]

Length

2 = 2-Feet

4 = 4-Feet

8 = 8-Feet

Lamp

Type

T8LED = LED

Color Type

C4 = Color 4,000K

C5 = Color 5,000K

G 4 L 2

A C M T

GLF Fixture Options

A. 6-Foot Power Cord (PSS6)

C. Acetal (Plastic) Latches (See Note 2)

F. One (1) 1/2" Water Resistant Hub (See Note 5)

(required for Pendant Mounting a 2-foot or 4-foot fixture)

G. Two (2) 1/2" Water Resistant Hubs (See Note 5)

(required for Pendant Mounting an 8-foot fixture)

H. One (1) 3/4" Water Resistant Hub (See Note 5)

(required for Pendant Mounting a 2-foot or 4-foot fixture)

I. Two (2) 3/4" Water Resistant Hubs (See Note 5)

(required for Pendant Mounting an 8-foot fixture)

M. Fixture Mounting Hardware for Ceiling and Wall

Mount Applications (two (2) per package)

O. Wire Lamp Guard (See Note 3)

P. Ribbed Frosted Diffuser (Note: Can be used for

fluorescent and LED lamps.)

R1. Occupancy Sensor (for dry locations)

R2. Occupancy Sensor (for dry/cold locations)

R3. Occupancy Sensor (for wet locations)

S. Stainless Steel Latches

T. Tamper Resistant Screws

Y. Surface Mount Bracket (See Note 4)

Z. Bulk Packaging (25 or 50 per skid)

Number

of Lamps

L1 = 1 Lamp

L2 = 2 Lamps

L3 = 3 Lamps

L4 = 4 Lamps

L6 = 6 Lamps

The GLF Fixture can be built to your specifications by adding the respective item numbers.

Note:

1. When entering Bulk orders, do not include Mounting Hardware or Tamper Resistant

Screws in your part numbering scheme.

2. Acetal (Plastic) Latches ARE NOT recommended for the following applications:

- Swimming Pools because of the chlorine.

- Food Processing because of the cleaning chemicals.

- Car Washes because of the chemicals used.

- Agriculture because of the ammonia.

3. When your part number includes the Wire Lamp Guard:

- The Acrylic Diffuser is not included with the light fixture.

- UL listing changes from a “wet" location to a “damp" location light fixture.

4. When adding the Surface Mounting Bracket (SMB - Y Option) to your part number, we will

pre-drill a hole in the fixture housing at the designated “number" location shown in the

diagrams, on page 14, to facilitate pulling the supply conductors from the junction box

and into the light fixture.

When specifying the Y Option for the 2-foot GLF Light Fixture,

there is no designated “number" location. Just include the Y Option as part of your

2-foot light fixture order configuration.

5. When adding the Water Resistant Hubs the UL listing changes from a "wet" location to a

"damp" location light fixture.

GLF Series Light Fixture

GLFW Fixture Options

A. 6-Foot Power Cord (PSS6)

G. Two (2) 1/2" Water Resistant Hubs (See Note 3)

I. Two (2) 3/4" Water Resistant Hubs (See Note 3)

M. Fixture Mounting Hardware for Ceiling and Wall

Mount Applications (two (2) per package)

O. Wire Lamp Guard (See Note 2)

R1. Occupancy Sensor (for dry locations)

R2. Occupancy Sensor (for dry/cold locations)

R3. Occupancy Sensor (for wet locations)

S. Stainless Steel Latches

T. Tamper Resistant Screws

V. V-Hooks for Chain (two (2) per Package)

X. Two (2) Circuit Fixture

The GLFW Fixture can be built to your specifications by adding the respective item numbers.

Note:

1. Six (6) GLFW Fixtures is the minimum order quantity. We will not ship any GLFW Fixtures

that do not meet the minimum order quantity requirement!

2. When your part number includes the Wire Lamp Guard:

- The Acrylic Diffuser is not included with the light fixture.

- UL listing changes from a “wet" location to a “damp" location light fixture.

3. When adding the Water Resistant Hubs the UL listing changes from a "wet" location to a

"damp" location light fixture.

GLFW SERIES - ORDERING INFORMATION EXAMPLE FOR T8 LED LAMPS

GLFW Series Light Fixture

Note: GLF Series Light Fixtures includes T8 LED lamps!

Note: GLFW Series Light Fixtures includes T8 LED lamps!

T8LED C4

Fixture

[W]

Length

4 = 4-Feet

Lamp

Type

T8LED = LED

Color Type

C4 = Color 4,000K

C5 = Color 5,000K

W 4 L 4

A M S T

Number

of Lamps

L4 = 4 Lamps

L6 = 6 Lamps

T8LED C4

Note: GLF 2-foot light fixture uses a 17-watt T8

LED lamp. GLF 4 and 8-foot light fixtures use a

22-watt T8 LED lamp.

GLF AND GLFW

SERIES - AVAILABLE

JULY 1, 2014

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

19LIGHTING PRODUCTS

UTILITY LIGHTING

GFF, GLF, GFFW & GLFW SERIESTM LIGHT FIXTURES

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

GFF and GLF Series Light Fixture Accessories

GFF-DC2 14335 Replacement Clear Acrylic Diffuser: EA 1 BX 5 5 5 Yes 10

for 2-FT GFF and GLF Series Light Fixtures

GFF-DC4 14251 Replacement Clear Acrylic Diffuser: EA 1 BX 5 5 5 Yes 10

for 4-FT GFF and GLF Series Light Fixtures

GFF-DC8 14252 Replacement Clear Acrylic Diffuser: EA 1 BX 5 5 5 Yes 21

for 8-FT GFF and GLF Series Light Fixtures

GFF-DR2 14334 Replacement Ribbed Acrylic Diffuser: EA 1 BX 5 5 5 Yes 5

for 2-FT GFF and GLF Series Light Fixtures

GFF-DR4 14253 Replacement Ribbed Acrylic Diffuser: EA 1 BX 5 5 5 Yes 10

for 4-FT GFF and GLF Series Light Fixtures

GFF-DR8 14254 Replacement Ribbed Acrylic Diffuser: EA 1 BX 5 5 5 Yes 21

for 8-FT GFF and GLF Series Light Fixtures

GFF-FSSK 14256 Fixture Suspension System Kit BG 2 BG 12 12 12 Yes 5

GFF-L2C 14336 Replacement Acetal (Plastic) Latches: BG 6 BG 0 0 6 Yes 1

for 2-FT GFF and GLF Series Light Fixtures

GFF-L2SS 14337 Replacement Stainless Steel Latches: BG 6 BG 0 0 6 Yes 1

for 2-FT GFF and GLF Series Light Fixtures

GFF-L4C 14240 Replacement Acetal (Plastic) Latches: BG 8 BG 0 0 8 Yes 1

for 4-FT GFF and GLF Series Light Fixtures

GFF-L4SS 14239 Replacement Stainless Steel Latches: BG 8 BG 0 0 8 Yes 1

for 4-FT GFF and GLF Series Light Fixtures

GFF-L8C 14250 Replacement Acetal (Plastic) Latches: BG 14 BG 0 0 14 Yes 1

for 8-FT GFF and GLF Series Light Fixtures

GFF-L8SS 14249 Replacement Stainless Steel Latches: BG 14 BG 0 0 14 Yes 1

for 8-FT GFF and GLF Series Light Fixtures

GFF-MH 14241 Fixture Mounting Hardware: BG 2 BG 0 0 2 Yes 1

for Ceiling and Wall Mount Applications

GFF-SWLG4/8 14255 Steel Wire Lamp Guard: EA 1 BX 5 5 5 Yes 15

for 4-FT or 8-FT GFF and GLF Series Light Fixtures

GFF-TPS-C 14248 Tamper Resistant Stainless Steel Screws: BG 100 BG 0 0 1 Yes 1

for Acetal (Plastic) Latches

GFF-TPS-S 14245 Tamper Resistant Stainless Steel Screws: BG 100 BG 0 0 1 Yes 1

for Stainless Steel Latches

GFFW and GLFW Series Light Fixture Accessories

GFF-FSSK 14256 Fixture Suspension Kit BG 2 BG 12 12 12 Yes 5

GFF-L4SS 14239 Replacement Stainless Steel Latches: BG 8 BG 0 0 8 Yes 1

for 4-FT GFFW and GLFW Series Light Fixtures

GFF-MH 14241 Fixture Mounting Hardware: BG 2 BG 0 0 2 Yes 1

for Ceiling and Wall Mount Applications

GFF-TPS-S 14245 Tamper Resistant Stainless Steel Screws: BG 100 BG 0 0 1 Yes 1

for Stainless Steel Latches

W-DC4 14238 Replacement Clear Acrylic Diffuser: EA 1 BX 5 5 5 Yes 27

for 4-FT GFFW and GLFW Series Light Fixtures

W-SWLG 50001 Wire Lamp Guard: EA 1 BX 5 5 5 Yes 19

for 4-FT GFFW and GLFW Series Light Fixtures

W-VHOOK 50002 Fixture Hanging Hardware: BG 2 BG 0 0 2 Yes 2

for 4-FT GFFW and GLFW Series Light Fixtures

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

20 LIGHTING PRODUCTS

UTILITY LIGHTING

GFF, GLF, GFFW & GLFW SERIESTM LIGHT FIXTURES

GFF Bulk Packaging

Option Z

GFF, GLF, GFFW and GLFW Limited Warranty

Engineered Products Company (herein known as EPCO) warrants that it will repair, replace or refund, at EPCO‘s sole option, any GFF, GLF, GFFW, or GLFW

Series Light Fixture that is defective in materials or workmanship for a period of one (1) year from the date of original purchase. This warranty only applies to

the original purchaser/installation and is not transferable.

This warranty does not apply to any of the following:

n Any GFF, GLF, GFFW or GLFW Series Light Fixture that has been incorrectly installed by drilling holes, puncturing, piercing or any other means that will

alter the integrity of the xture housing.

n Product damage as determined by EPCO to be caused by a crash, impact, or obvious signs of abuse to the GFF, GLF, GFFW or GLFW Series Light Fixture.

n Damage resulting from use of the GFF, GLF, GFFW or GLFW Series Light Fixture in what EPCO, at its sole discretion, considers extreme applications.

n Damage caused by the use of parts, components, and/or other equipment(s) that is not compatible, suitable, and/or authorized by EPCO for use with the

GFF, GLF, GFFW or GLFW Series Light Fixture.

n No charge-backs for any labor required to remove, re-install, or re-power the GFF , GLF, GFFW or GLFW Series Light Fixture.

n Note: The Chemical Resistance of Plastics Chart (posted on EPCO’s web site) provides an overview of those chemical compounds where these light

xtures should not be installed.

The Ballast and the T8 LED Lamp Warranty is ve (5) years and is limited to the original installation only. Contact the ballast manufacturer directly for more

specic information on their warranty policy and procedures.

EPCO GFF, GLF, GFFW and GLFW Series Light Fixtures are Made in the USA. Complies with the American Recovery and Reinvestment Act - Buy American Provision.

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

21LIGHTING PRODUCTS

UTILITY LIGHTING

PROSERIESTM LED LIGHT FIXTURE & LED LIGHT UPRADE

TYPICAL

APPLICATIONS:

n Commercial and Industrial

Facilities

n

Agricultural Buildings

n

Animal Confinement

Areas

n

Walk-in Refrigerators/

Freezers

n

Tunnels, Corridors, and

Walkways

n

Athletic Areas

n

Storage Buildings

ProSeries LED Light Fixture

LED Light Upgrade

PROSERIES LED UTILITY LIGHT FIXTURE & LED LIGHT UPGRADE

The ProSeries LED Utility Light Fixture and LED Light Upgrade is an energy efficient “wet

location”, sustainable and cost effective alternative lighting solution for indoor environments

where ingress protection from dust and moisture is highly desirable.

BENEFITS

n ETL Listed.

n Ceiling (wet location) or wall mount (damp location) LED Light Fixture. Suitable for use in

indoor wet location applications.

n 75-Watts of incandescent lumen output that consumes 14-watts of electricity.

n Affordable LED lighting that provides dramatically better visibility.

n Reliable, durable, maintenance free performance.

n Optimal illumination, significant energy savings and virtually no luminaire maintenance.

n Eliminates ongoing replacement lamp cost when compared to incandescent or

compact fluorescent lamps.

n Appropriate for use with all non-metallic wiring systems.

n Labor Savings! Fast, simple installation reduces labor cost.

n 3-Year 50,000 - Hour Limited Warranty

FEATURES

n 14-Watt LED Light Engine produces 1,000+ lumens.

n Dimmable down to 10% of rated output.

n UV resistant high impact polycarbonate fixture dome protects LEDs and provides

even light distribution.

n The cast-aluminum LED Light Heat Sink is finished in a black “E” coat

material that will not rust or corrode in the harshest environment.

n Silicone gasket protects against ingress of moisture and dust.

n

High impact, diffusion effective polycarbonate lens.

n Can be used where high-pressure wash down is required.

PROSERIES LED UTILITY LIGHT FIXTURE INCLUDES:

n LED Light and Aluminum Heat Sink

n Junction Box

n Silicone Gasket

LED UTILITY LIGHT UPGRADE INCLUDES:

n LED Light and Aluminum Heat Sink

n Adapter Ring: To mount the LED Utility Light to a standard 4” Round Junction Box

n Silicone Gasket

n Two (2) Screws

EPCO ProSeries LED Utility Light Fixture and LED Light Upgrade are Made in the USA. (from domestic and globally sourced components.)

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

22 LIGHTING PRODUCTS

UTILITY LIGHTING

PROSERIESTM LED LIGHT FIXTURE & LED LIGHT UPGRADE

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

EPCO ProSeries LED Utility Light Fixture and LED Light Upgrade are Made in the USA. (from domestic and globally sourced components.)

PROSERIES LED LIGHT FIXTURE AND LED LIGHT UPGRADE SPECIFICATIONS

n ProSeries Light Fixture Dimensions: 8.75” (222.25mm) H; Footprint (including Junction box): 5.5” (139.7 mm)

n LED Light Upgrade Dimensions (including Junction Box Adapter): 6.25 ” (158.75 mm) H

n Power Consumption: .12 Amps n Operating Voltage: 120 Volts only

n Power Factor: .98 (minimum) n Ambient Operating Temperature: -20°C to 45°C.

LUMEN OUTPUT

n Light Source: High power LEDs (±5%) n Total Harmonic Distortion (THD): <20%

n Lumens: 1000 Min. (@.98 PF) n Emitters: 50,000+ hour life

n Color: 5,000-5,400K n Dimmable: Down to 10% of rated output

n Color Rendering Index (CRI): >82.

WIRING HARNESS

n 75°C minimum supply wire required

n 3-Wire (Black, Neutral, and Ground) quick connect/disconnect with pre-stripped 3/8” (.375) leads.

Catalog UPC Order Order Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

15910 15910 ProSeries LED Utility Light Fixture: includes LED Light and EA 1 BX 12 12 1 No 2

Aluminum Heat Sink, Silicone Gasket and Junction Box

15970 15970 LED Light Upgrade: includes LED Light, Aluminum Heat Sink, Adapter, EA 1 BX 12 12 1 No 1

Silicone Gasket and Two (2) Screws

PROSERIES LED UTILITY LIGHT FIXTURE PART NUMBERS

Installation Requirement - ProSeries LED Utility Light Fixture or LED Light Upgrade

n If the working environment of the ProSeries LED Light Fixture or LED Light Upgrade will create a class 3 or greater surge voltage as defined by IEC International Standard

61000-4-5 installation classification of the ProSeries LED Light Fixture or LED Light Upgrade the Purchaser/Installer must install a type 2 Supco SCM 150 Surge Protector

120-240V, 150 Amps or equivalent type 2 surge protector with the equivalent voltage and current specifications prior to installation of the ProSeries LED Light Fixture or

LED Light Upgrade. For class 3 or 4 surge voltage, failure to install the Surge Protector prior to the installation and use of ProSeries LED Light Fixture or LED Light Upgrade

will automatically VOID this warranty and Engineered Products Company is not responsible for any and all reinstallation activities, cost, or expenses associated with the use

of the ProSeries LED Light Fixture or LED Light Upgrade or replacement of the ProSeries LED Light Fixture or LED Light Upgrade.

n If the working environment of the ProSeries LED Light Fixture or LED Light Upgrade creates a class 5 surge voltage as defined by IEC International Standard 61000-4-5

installation classification on the ProSeries LED Light Fixture or LED Light Upgrade, such use shall automatically VOID this warranty and Engineered Products Company is

not responsible for any and all reinstallation activities, cost, or expenses associated with use of the ProSeries LED Light Fixture or LED Light Upgrade or replacement of the

ProSeries LED Light Fixture or LED Light Upgrade.

n If the working environment of the ProSeries LED Light Fixture or LED Light Upgrade is unknown, Engineered Products Company recommends the Purchaser/Installer install a

type 2 Supco SCM 150 Surge Protector 120V-240V, 150 Amps or equivalent type 2 Surge Protector with equivalent voltage and current specifications prior to installation of the

ProSeries LED Light Fixture or LED Light Upgrade in order to prevent the voiding of this warranty.

ProSeries LED Utility Light Fixture/LED Light Upgrade Limited Warranty

Engineered Products Company (herein known as EPCO) warrants that it will repair, replace or refund, at EPCO‘s sole option, any ProSeries LED Utility Light or LED Light

Upgrade that is determined to be defective in materials or workmanship for a period of three (3) years from the date of original purchase. This warranty only applies to the

original Purchaser/Installer and is not transferable.

This Limited Warranty does not apply to any of the following:

n Any ProSeries LED Utility Light Fixture or LED Light Upgrade that has been incorrectly installed by drilling holes, puncturing, piercing or any other means that will alter the

product’s integrity.

n Damage caused by the use of parts, components, and/or other equipment(s) that is not compatible, suitable, or unauthorized by EPCO for use with the ProSeries LED

Utility Light Fixture or LED Light Upgrade.

n Damage resulting from use of the ProSeries LED Utility Light Fixture or LED Light Upgrade in what EPCO, at its sole discretion, considers extreme applications.

n Product damage as determined by EPCO to be caused by a crash, impact, or obvious signs of abuse to the ProSeries LED Utility Light Fixture or LED Light Upgrade.

n No charge-backs for any labor required to remove, re-install, or re-power the ProSeries LED Utility Light Fixture or LED Light Upgrade.

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

23LIGHTING PRODUCTS

UTILITY LIGHTING

PROSERIESTM MEDIUM-BASE & GU24 LIGHT FIXTURES

3.875"

*9.5"

10.5"

7.25"

5.5"

3.5"

4.1"

ENGINEERED PRODUCTS COMPANY

MINNETONKA, MN

SERIES 15800

SUITABLE FOR WET LOCATIONS

FOR USE WITH NON-METALLIC

WIRING SYSTEMS ONLY

18 CUBIC INCH

*Note: Measured without the Optional Safety Cage

PROSERIES MEDIUMBASE AND PROSERIES GU24 UTILITY LIGHT FIXTURES

n

UL Listed. Suitable for use in wet locations. File Number: E182610.

n

Appropriate for use with all non-metallic wiring systems.

n

Provides the contractor and facility manager with reliable, durable, maintenance free performance!

n

Labor savings! Fast installation saves time and reduces labor cost.

n

Versatile light fixture is suitable for numerous applications.

n

Rated for use with circuit conductors up to 150°C.

n

Can be used where high-pressure wash-down is required.

n

UV resistant, high impact, corrosion resistant construction.

n Integrated Octi-Junction Box™ Cover:

– Meets requirements of the 2014 National Electrical Code: Articles 314.15, 314.16(A)(2), 314.17(C),

410.10(A), 410.104(A), 547.5(C)(1) and (2) and 547.8(A) and (B).

– Provides extra junction box capacity for adding an additional power circuit.

– Easy to install; uses eight (8) mounting brackets that are “in-line" with 1/2" and 3/4" trade

size knockouts; eliminates a 2" x 4" stub-in by the installer.

Note: The Octi-Junction Box is not sold separately and will not t our Ceiling Mount Light Fixture

P/Ns: 15050, 15051, 15055, and 15056.

n Optional impact resistant quarter-turn safety cage attaches to the Octi-Junction Box without tools.

n T

he 18 Cubic Inch Octi-Junction Box and the “optional" Safety Cage are made from Polybutylene

Terephthalate (PBT) material.

Shown with optional

Safety Cage

18 Cubic Inch Octi-Junction Box uses eight (8) mounting brackets

that are “in-line" knockouts; eliminates a 2" x 4" stub-in.

Meets the box ll requirements as referenced in the 2014 National Electrical Code:

Articles 314.15, 314.16(A)(2), 314.17(C), 410.10(A), 410.104(A),

547.5(C)(1) and (2) and 547.8(A) and (B). The Octi-Junction Box

provides additional capacity for an extra power circuit.

Captive stainless steel set screw and posi-stop detent tab

on Octi-Junction Box Cover expedites xture installation.

Recessed Octi-Junction Box Cover with integral nickel-plated brass screw shell

accommodates high prole incandescent or compact uorescent lamps.

Captive stainless steel set screw secures the Octi-Junction

Box Cover to the Octi-Box – expedites xture installation.

Recessed Octi-Junction Box Cover with integral GU24 socket base accommodates

high prole Bi-Pin Compact Fluorescent Lamps.

1/2" and 3/4" trade size knockouts.

ProSeries GU24

Octi-Junction Box Cover

Octi-Junction Box with ProSeries

GU24 Octi-Junction Box Cover

Octi-Junction Box with

ProSeries Medium-Base

Octi-Junction Box Cover

ProSeries Medium-Base

Octi-Junction Box Cover

TYPICAL APPLICATIONS:

n

Food Processing Facilities

n

Commercial Kitchens

n

Industrial Facilities

n

Livestock Containment Buildings

n

Saunas

n

Laundries

n

Car Washes

n

Elevator Shafts

n

Storage Buildings

n

Refrigerators and Freezers

n

Pedestrian and Road Tunnels

PROSERIES

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

24 LIGHTING PRODUCTS

UTILITY LIGHTING

PROSERIESTM MEDIUM-BASE & GU24 LIGHT FIXTURES

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

ProSeries Medium-Base Utility Light Fixtures

15800 15800 ProSeries Utility Light: Standard Glass Globe; EA 1 BX 12 12 1 No 38

Rated for 150-watt Incandescent Lamp (maximum)

15800B 15850 ProSeries Utility Light (BULK): Standard Glass Globe; EA 1 BN 12 12 12 Yes 38

Rated for 150-watt Incandescent Lamp (maximum)

15801 15801 ProSeries Utility Light: Standard Glass Globe and Safety Cage; EA 1 BX 12 12 1 No 38

Rated for 150-watt Incandescent Lamp (maximum)

15801B 15851 ProSeries Utility Light (BULK): Standard Glass Globe and Safety Cage; EA 1 BN 12 12 12 Yes 38

Rated for 150-watt Incandescent Lamp (maximum)

15805B 15855 ProSeries Utility Light (BULK): Acrylic Prismatic Globe; EA 1 BN 12 12 12 Yes 38

Rated for 150-watt Incandescent Lamp (maximum)

15806* 15806

ProSeries Utility Light: Polycarbonate Clear Globe;

EA 1 BX 12 12 1 No 38

Rated for 60-watt Incandescent Lamp (maximum)

15806B 15856 ProSeries Utility Light (BULK): Polycarbonate Clear Globe; EA 1 BN 12 12 12 Yes 38

Rated for 150-watt Incandescent Lamp (maximum)

15807B 15857 ProSeries Utility Light (BULK): Tall Acrylic Prismatic Globe; EA 1 BN 12 12 12 Yes 38

Rated for 150-watt Incandescent Lamp (maximum)

15810B 15860 ProSeries Utility Light (BULK): Tempered Glass Globe; EA 1 BN 12 12 12 Yes 38

Rated for 150-watt Incandescent Lamp (maximum)

15811B 15861 ProSeries Utility Light (BULK): Tempered Glass Globe and Safety Cage; EA 1 BN 12 12 12 Yes 38

Rated for 150-watt Incandescent Lamp (maximum)

ProSeries Medium-Base Utility Light Accessories

15812 15812 Safety Cage: 1/4 Turn Attachment EA 1 BX 12 12 1 No 6

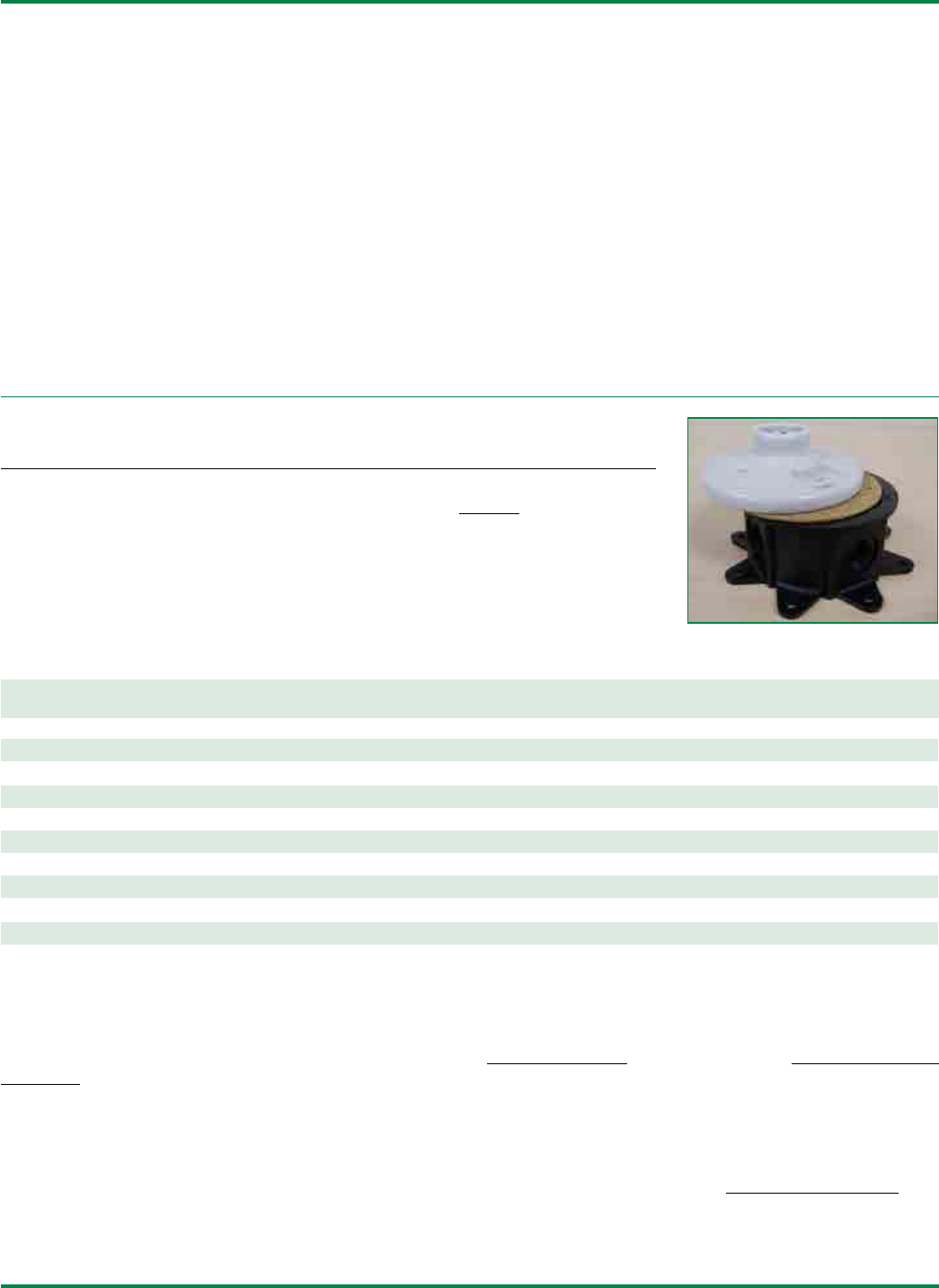

15815 15815 Octi-Junction Box Cover: with Porcelain Lamp Holder EA 1 BX 12 12 1 No 4

15680 15680 Compact Fluorescent Lamp: 23-watt, Self-Ballasted Lamp (5000K); EA 1 BX 50 50 1 No 8

Light output is equal to 90-watt incandescent lamp

ProSeries GU24 Utility Light Fixtures

15865 15865

ProSeries GU24 Utility Light: Standard Glass Globe;

EA 1 BX 12 12 1 No 38

Rated for 23-watt GU24 Lamp (maximum)

15867 15867

ProSeries GU24 Utility Light: Standard Glass Globe and Safety Cage;

EA 1 BX 12 12 1 No 39

Rated for 23-watt GU24 Lamp (maximum)

15880 15880

ProSeries GU24 Utility Light: Tempered Glass Globe;

EA 1 BX 12 12 1 No 38

Rated for 23-watt GU24 Lamp (maximum)

ProSeries GU24 Utility Light Accessories

15812 15812 Safety Cage: 1/4 Turn Attachment EA 1 BX 12 12 1 No 6

15890 15890 Octi-Junction Box Cover: with GU24 Lamp Socket EA 1 BX 12 12 1 No 4

15670 15670

Compact Fluorescent Lamp: 23-watt, GU24 Bi-Pin, Self-Ballasted Lamp (5000K);

EA 1 BX 50 50 1 No 8

Light output is equal to 90-watt incandescent lamp

*Note: Optional Safety Cage (Part Number 15812) will not fit ProSeries Part Number 15806.

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

25LIGHTING PRODUCTS

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

UTILITY LIGHTING

15000 SERIES: CEILING MOUNT LIGHT FIXTURES

TYPICAL APPLICATIONS:

n

Walk-in Refrigerators

n

Elevator Shafts

n

Tunnels

n

Storage Buildings

n

Maintenance Areas

n

Hog and Poultry

Confinement Buildings

CEILING MOUNT LIGHT FIXTURES MEDIUM BASE

n

Medium-Base, UL Listed. File Number: E182610. Suitable for use

in damp locations.

n

Meets the requirements of the 2014 National Electrical Code:

Articles 314.16(A)(2), 314.17(C), 410.10(A) and 547.5(C)(1) and (2).

n

High impact, corrosion resistant, compression molded

phenolic junction box and fixture base.

n

Standard and Tempered Glass Globes rated for 150-watt/

A21 incandescent lamp (maximum), medium-base compact

fluorescent or LED lamps.



n

Polycarbonate and Acrylic Prismatic Globes rated for

60-watt/A19 incandescent lamp (maximum), medium-base

compact fluorescent or LED lamps.

n

All Ceiling Mount Fixtures are supplied with a cork mounting

gasket and corrosion resistant screws with rubber washer.

Wired with 50°C (302°F) minimum supply wires (THHN).

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

With 12 Cubic Inch Junction Box (15045)

15000 15000 Utility Light: 1/2" & 3/4" Knockout Combo - Standard Glass Globe EA 1 BX 12 12 12 Yes 24

15001 15001 Utility Light: 1/2" & 3/4" Knockout Combo - Tempered Glass Globe EA 1 BX 12 12 12 Yes 24

15002 15002 Utility Light: 3/4" Knockout - Standard Glass Globe EA 1 BX 12 12 12 Yes 24

15005 15005 Utility Light: 1/2" & 3/4" Knockout Combo - Polycarbonate Globe EA 1 BX 12 12 1 No 18

15006 15006

Utility Light: 1/2" & 3/4" Knockout Combo - Acrylic Prismatic Globe (Tall)

EA 1 BX 12 12 1 No 19

15007 15007 Utility Light: 1/2" & 3/4" Knockout Combo - Acrylic Prismatic Globe EA 1 BX 12 12 1 No 19

Without Junction Box

15050 15050 Utility Light: Standard Glass Globe EA 1 BX 12 12 12 Yes 20

15051 15051 Utility Light: Tempered Glass Globe EA 1 BX 12 12 12 Yes 20

15055 15055 Utility Light: Polycarbonate Clear Globe EA 1 BX 12 12 1 No 14

15056 15056 Utility Light: Acrylic Prismatic Globe (Tall) EA 1 BX 12 12 1 No 15

15090 15090 Medium-Type Fixture Base: Globe not included EA 1 BX 12 12 1 No 7

Part Numbers

15050 15051

7.4375"

3.3"

6.7"

7.875" 6"

3.72"

3.28"

Part Numbers

15005 15055

9.4375"

11.625"

Part Numbers

15006 15056

3.7"

7.86"

3.3"

1.9375"

With Polycarbonate Clear Globe Standard and Tempered Glass Globes With Acrylic Prismatic Globe (Tall)

FIXTURE GLOBE AND JUNCTION BOX DIMENSIONAL REFERENCE

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

26 LIGHTING PRODUCTS

UTILITY LIGHTING

15000 SERIES ACCESSORIES

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

SPIDERBOX™ NONMETALLIC JUNCTION BOXES

n

UL Listed. File Number: E182992.

n

Suitable for use in “wet or damp" locations.

n

Corrosion resistant.

n

Easy to install using the eight (8) mounting

brackets that are in-line with knockouts.

n

Eliminates a 2" x 4" stub-in.

n

High impact compression molded phenolic

plastic rated to 150°C (302°F).

n

Meets the requirements of the 2014

National Electrical Code: Articles 314.15,

314.16(A)(2), 314.17(C), 547.5(C)(1) and (2).

COMPACT FLOURESCENT LAMPS

STANDARD NONMETALLIC JUNCTION BOXES

n

UL Listed. File Number: E182992.

n

High impact, compression molded

phenolic plastic rated to 150°C (302°F).

n

Meets the requirements of the 2014

National Electrical Code: Articles

314.15, 314.16(A)(2), 314.17(C),

and 547.5(C)(1) and (2).

n

Suitable for use in “wet or damp"

locations.

n

Corrosion resistant.

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

15045 15045 12 Cubic Inch Junction Box: 1/2" and 3/4" Knockout Combo EA 1 BX 12 12 12 Yes 6

15046 15046 12 Cubic Inch Junction Box: 1/2" Knockouts EA 1 BX 12 12 12 Yes 6

15047 15047 12 Cubic Inch Junction Box: 3/4" Knockouts EA 1 BX 12 12 12 Yes 6

15049 15049 19 Cubic Inch Junction Box: 3/4" Knockouts EA 1 BX 12 12 12 Yes 6

15070 15070 16 Cubic Inch Single-Gang FS-C Type Junction Box: 1/2" Knockouts EA 1 BX 12 12 12 Yes 6

15071 15071 16 Cubic Inch Single-Gang FS-C Type Junction Box: 3/4" Knockouts EA 1 BX 12 12 12 Yes 6

15075 15075 Single-Gang Junction Box Cover and Gasket EA 1 BX 12 12 12 Yes 2

15905 15905 Round Junction Box Cover and Gasket EA 1 BX 12 12 12 Yes 2

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

SPIDERBOX Non-Metallic Junction Boxes

15246 15246 12 Cubic Inch SPIDERBOX Junction Box: 1/2" Knockouts EA 1 BX 12 12 12 Yes 6

15247 15247 12 Cubic Inch SPIDERBOX Junction Box: 3/4" Knockouts EA 1 BX 12 12 12 Yes 6

15905 15905 Round Junction Box Cover and Gasket EA 1 BX 12 12 12 Yes 2

Compact Fluorescent Lamps

15680 15680 Compact Fluorescent Lamp: 23-watt, Self-Ballasted Lamp (5000K); EA 1 BX 50 50 1 No 8

Light output is equal to a 90-watt Incandescent Lamp

12 Cubic Inch

16 Cubic Inch

19 Cubic Inch

Single-Gang

Junction

Box Cover

and

Gasket

Round

Junction Box

Cover and

Gasket

23-Watt Spiral

Compact

Fluorescent

Lamp

(P/N: 15680)

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

27LIGHTING PRODUCTS

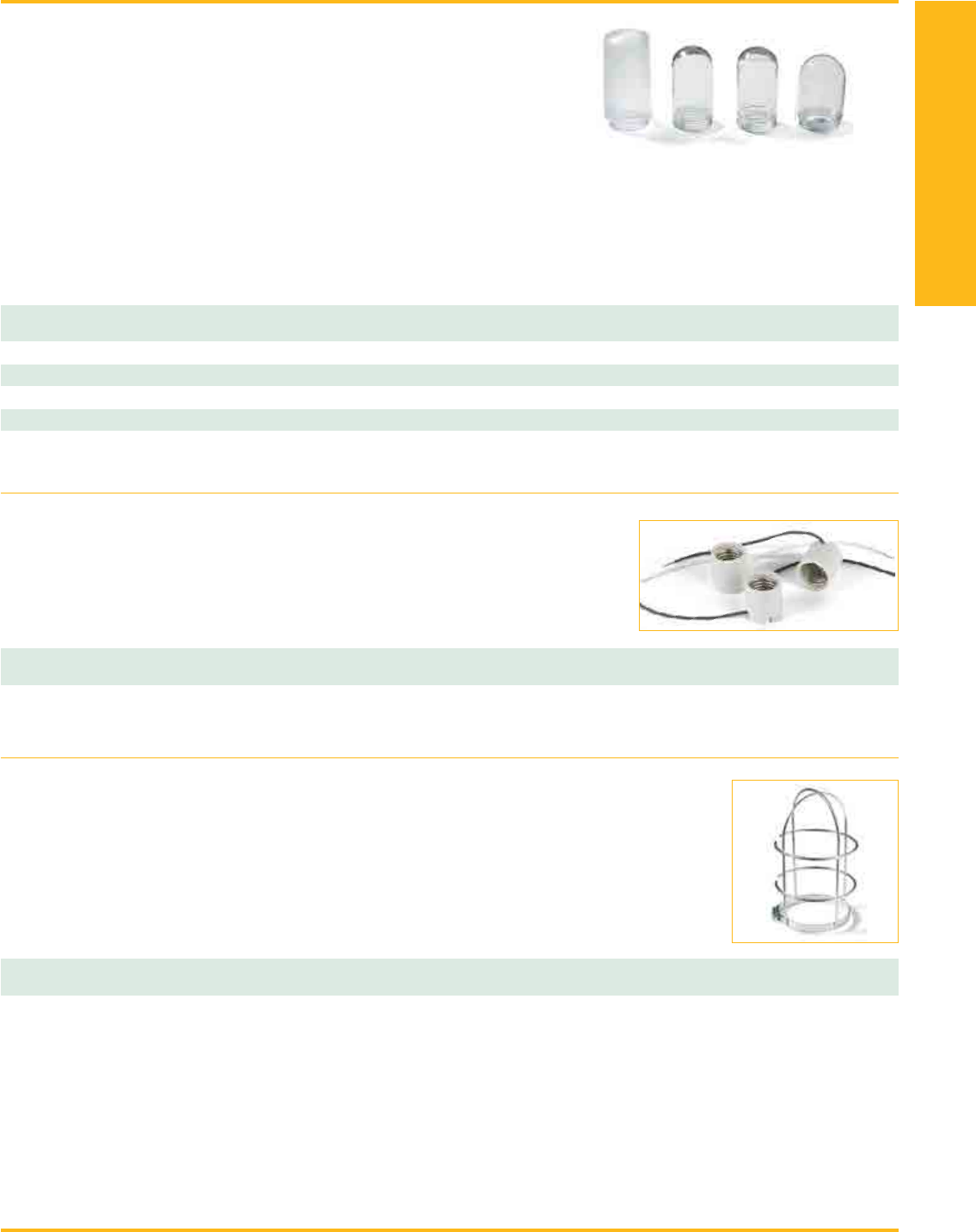

UTILITY LIGHTING

15000 SERIES ACCESSORIES

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

WIRE GUARD

n

Fits Standard Glass, Tempered Glass and Acrylic Prismatic (short) Globes only.

n

8 AWG steel, with a three-coat electrolytic plating.

n

Clamp-type attachment.

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

15063 15063 Wire Guard EA 1 BX 0 0 1 No 2

FIXTURE GLOBES

STANDARD AND TEMPERED GLASS GLOBES

n

Withstands extreme temperature changes.

n

 Rated for use with a 150-watt/A21 incandescent

lamp (maximum), medium-base compact

fluorescent or LED lamp.

ACRYLIC PRISMATIC AND POLYCARBONATE GLOBES

n

UV stabilized material. The Acrylic Prismatic Globes resist discoloration four times longer than polycarbonate material.

n

3 Year guarantee against discoloration from UV exposure. For applications that require high-pressure washdown.

n

Acrylic Prismatic Globes feature internal ribbing and smooth exterior.

n

Rated for use with a 60-watt/A19 incandescent lamp (maximum), medium-base compact fluorescent or LED lamps.

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

15015 15015 Standard Glass Globe EA 1 BX 32 32 32 Yes 34

15016 15016 Tempered Glass Globe EA 1 BX 32 32 32 Yes 34

15020 15020 Polycarbonate Clear Globe EA 1 BX 12 12 12 No 5

15025 15025 Acrylic Prismatic Globe (Tall) EA 1 BX 12 12 12 No 5

(a) Acrylic Prismatic Globe (Tall)

(b) Standard Glass Globe

(c) Tempered Glass Globe

(d) Polycarbonate Clear Globe

Note: Fixture Globes are sold ONLY in case quantities.

REPLACEMENT LAMP SOCKET

n

High temperature porcelain lamp socket with 6-inch 18 AWG stranded wire leads.

n

Includes corrosion resistant nickel-plated brass screw shell.

n

Can be used with 150-watt/A21 incandescent lamp (maximum), medium-base

compact fluorescent or LED lamps.

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

15031 15031 Replacement Lamp Socket: Porcelain BG 12 BG 0 0 12 Yes 1

Note: Porcelain lamp sockets are not interchangable with light fixtures built with phenolic sockets.

(a) (b) (c) (d)

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

28 LIGHTING PRODUCTS

UTILITY LIGHTING

15000 SERIES: WALL MOUNT LIGHT FIXTURE

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

WALL MOUNT LIGHT FIXTURES MEDIUM BASE

n

UL Listed. Suitable for use in damp locations. File Number: E182610, Volume 2.

n

Meets the requirements of the 2014 National Electrical Code: Articles 314.16(A)(2), 314.17(C), 410.10(A) and 547.5(C)(1) and (2).

n

Can be used with A21 incandescent lamp rated up to 150-watts.*

n

Includes Tempered Glass Globe.

n

High impact, corrosion resistant construction.

n

Medium-Base – fits 3.25" or 4.0" Junction Box.

n

Low cost alternative to Vapor Tight Light Fixtures.

n

Nickel-plated Brass Screw Shell.

n

UV resistant – will not fade or discolor.

6.7"

3.4"

3.3"

Black Fixture with

Tempered

Glass

Globe

Tempered

Glass

Globe

23-Watt Spiral

Fluorescent

Lamp

(P/N: 15680)

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

Wall Mount Utility Light Fixture

15605 15605 Utility Light: Tempered Glass Globe; 12 Cubic Inch Junction EA 1 BX 12 12 1 No 28

Box with Combination 1/2" and 3/4" Knockouts - Black

Fluorescent Lamp

15680 15680

Compact Fluorescent Lamp:

23-watt, Self-Ballasted (5000K); EA 1 BX 50 50 1 No 8

Light output is equal to a 90-watt Incandescent Lamp

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

29LIGHTING PRODUCTS

UTILITY LIGHTING

LAMP HOLDERS

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

16500 16500 Porcelain Lamp Holder: Keyless, 4-Terminal EA 1 BX 48 48 48 Yes 33

16502 16502 Porcelain Lamp Holder: Pull Chain EA 1 BX 48 48 48 Yes 35

16510 16510 Plastic Lamp Holder: Keyless, 4-Terminal EA 1 BX 48 48 48 Yes 11

16512 16512 Plastic Lamp Holder: Pull Chain EA 1 BX 48 48 48 Yes 13

16514 16514 Porcelain Lamp Holder: Pull Chain and 15 AMP Receptacle EA 1 BX 48 48 48 Yes 40

16520 16520 Porcelain Lamp Holder: Keyless, 4-Terminal with EA 1 BX 48 48 48 Yes 33

7" Black and White Conductors

16522 16522 Porcelain Lamp Holder: EA 1 BX 48 48 48 Yes 35

Pull Chain with 7" Black and White Conductors

16524 16524 Plastic Lamp Holder: Keyless, 4-Terminal with EA 1 BX 48 48 48 Yes 11

7" Black and White Conductors

16526 16526 Plastic Lamp Holder: EA 1 BX 48 48 48 Yes 13

Pull Chain with 7" Black and White Conductors

16100 16100 Safety Cage: Yellow EA 1 BX 10 10 10 Yes 1

16501 16501 Safety Cage: Metal EA 1 BX 12 12 12 Yes 6

Note: Lamp Holders are sold ONLY in case quantities of 48 per Carton.

For Poultry Applications please review the information on Page 80.

PORCELAIN AND PLASTIC LAMP HOLDERS

n

UL Listed. File Number: E236781.

n

Nickel-plated brass screw shell will not corrode.

n

For Commercial, Industrial, Residential and Agricultural Lighting Applications.

n

Medium-Base fits 3.25 inch or 4.0 inch outlet box.

n

UV resistant Lamp Holders will not fade or discolor.

n

Optional Plastic and Metal Safety Cages fit all Lamp Holders.

n

Includes corrosion resistant mounting screws.

n

Meets the requirements of the

2014 National Electrical Code:

– Part Numbers: 16500, 16502, 16510, 16512 and 16514 - Articles 410.74(A)(B) and 410.122

– Part Numbers: 16520, 16522, 16524 and 16526 - Articles 410.52, 410.74(A)(B) and 410.122

Part Number:

16500

Part Number:

16514

Part Number:

16526

Part Number:

16502

Part Number:

16520

Part Number:

16100

Part Number:

16510

Part Number:

16522

Part Number:

16501

Part Number:

16512

Part Number:

16524

Lamp Holder

(P/N: 16512)

shown with

Metal Safety

Cage

(P/N: 16501)

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

30 LIGHTING PRODUCTS

UTILITY LIGHTING

GU24 LAMP HOLDERS

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

3.10"

4.60"

3.75"

5.03"

Note: Lamp Holders are sold ONLY in case quantities of 24 per Carton.

n

UL Listed.

n

Includes 13-watt GU24 Bi-Pin compact fluorescent lamp (CFL) and polycarbonate lamp diffuser.

n

Can be used with a standard wall switch.

n

13-Watt GU24 Bi-Pin compact fluorescent lamp:

– Lamp Output = 900 lumens

– Lamp Color = 2700K

– Lamp Life (approximately 10,000 hours)

n

Lamp Holder Rating: 120V-250VAC, 60Hz

n Impact resistant construction.

n 7" Conductors simplify installation.

n Suitable for indoor use only.

n

Medium-Base fits 3.25 inch or 4.0 inch Outlet Box.

n Meets the requirements of the 2014 National Electrical Code: Articles 410.16(A)(2), 410.52, 410.74(A)(B), 410.122.

PULL CHAIN

KEYLESS

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

16530 16530 GU24 Lamp Holder: Keyless EA 1 BX 24 24 24 Yes 11

16535 16535 GU24 Lamp Holder: Pull Chain EA 1 BX 24 24 24 Yes 11

15675 15675 Compact Fluorescent Lamp: 13-watt, GU24 Bi-Pin, EA 1 BX 25 25 1 No 8

Self Ballasted Lamp (2700K)

GU24 LAMP HOLDERS

TYPICAL APPLICATIONS:

n

Closets

n Garages

n Attics

n Utility Rooms

n Basements

n Storage Buildings

n Commercial, Industrial, Residential,

and Agricultural Lighting

n And more...

LIGHTING PRODUCTS

31

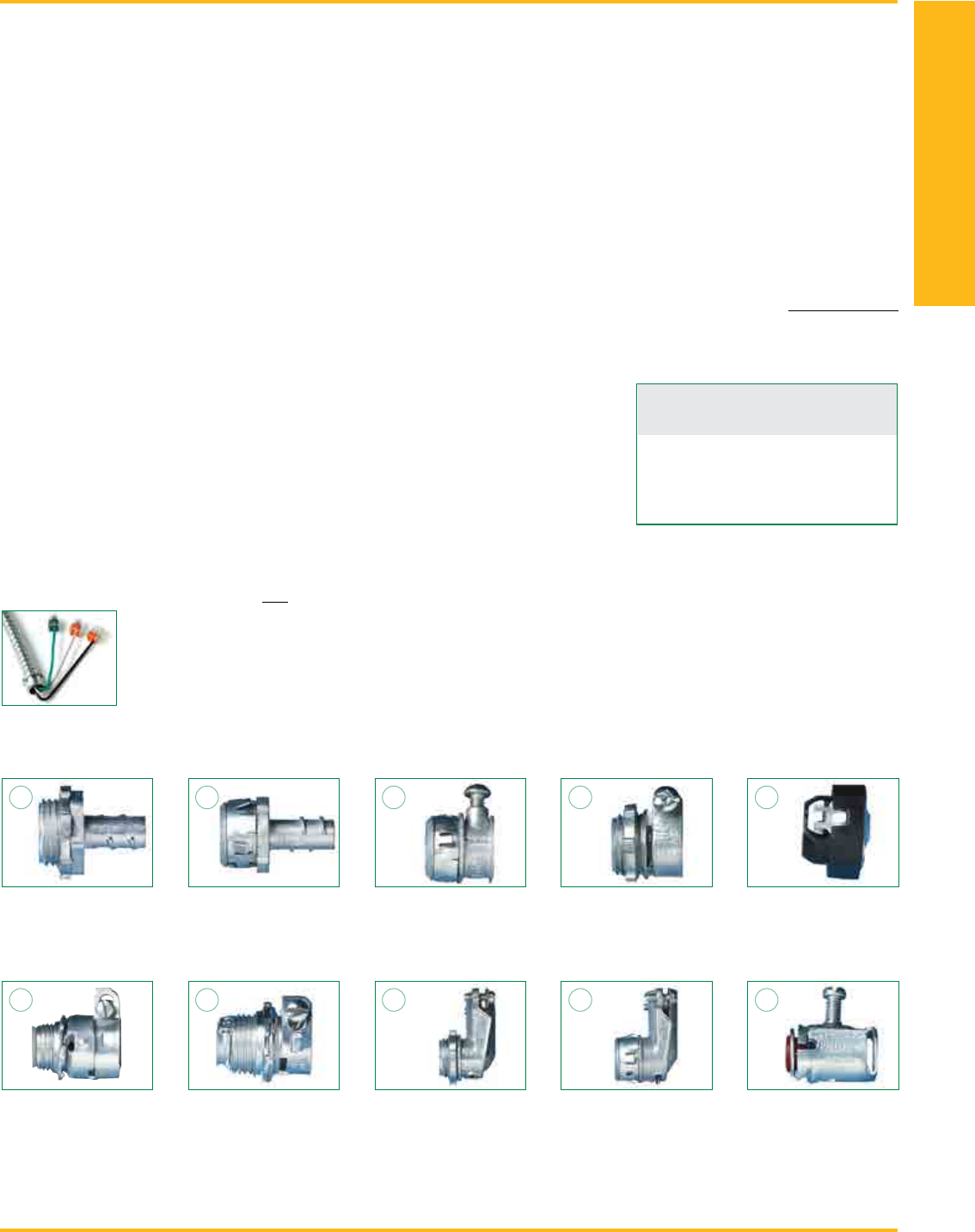

We are the leading American manufacturer of fixture whips for the electrical construction industry. Our

pre-wired armored cable fixture whips are factory fabricated wiring assemblies typically used for lighting

and power distribution in commercial buildings.

Our Fixture Whips consist of flexible metal conduit (FMC), .375mm (3/8”) and .5” (1/2”) trade sizes and meet all

requirements of the National Electrical Code (NEC), Article 348. These pre-assembled Fixture Whips provide an

excellent mechanical protection and a cost-effective, reliable installation. The connectors used are designed to

simplify the connection to metallic junction boxes and lighting fixtures. Typical applications include both new and

remodeled commercial buildings, industrial facilities, shopping centers, hotels, as well as health care, educational

and recreational facilities.

ADVANTAGES FOR THE CONTRACTOR

n A cost-effective and efficient alternative to traditional labor-intensive pipe and wire installation methods.

n Significantly reduces installation time to connect branch circuit power distribution and lighting systems.

n Fixture whip accessory products are available for the contractor to expedite and facilitate installation.

n We can also build “custom” labor-saving Fixture Whips to the contractor’s specifications. Please review page 37

for more specific information.

WHY CONTRACTORS USE UL LISTED EPCO FIXTURE WHIPS

n 100% of our Fixture Whips are assembled in our facility using UL Listed or UL Recognized components.

n Permitted for use by virtually all local building codes and approved by electrical inspectors in the majority of

municipalities across the U.S.

n A UL label attached to every Fixture Whip is an immediate identifier to the electrical inspector and

contractor that our fixture whips have been inspected at the factory, listed by UL (File Number E87199) and

comply with the NEC.

n We provide product liability insurance as additional protection in the event of product defects that may cause a

liability to the contractor.

The table to the right shows the maximum number of insulated conductors

in 3/8 inch flexible metal conduit.

Column A = With fitting inside conduit.

Column B = With fitting outside conduit.

In addition, one covered or bare equipment grounding conductor of the same

size shall be permitted (per the 2014 NEC, Table 348.22).

Wire Types TFN aNd THHN

Wire size

(aWG) a B

18 5 8

16 4 6

14 3 4

12 2 3

10 1 1

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

32 LIGHTING PRODUCTS

FIXTURE WHIPS

FIXTURE WHIPS WITH DIE CAST SCREW-IN CONNECTORS

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

Stranded Wire Fixture Whips - 3/8" (.375") Conduit

EPW1262 10311 2-12 AWG Stranded Wire: 6-FT - Black, White EA 1 BRL 100 100 10 Yes 175

EPW1263 10315 3-12 AWG Stranded Wire: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 190

EPW1462 10303 2-14 AWG Stranded Wire: 6-FT - Black, White EA 1 BRL 100 100 10 Yes 160

EPW1463 10307 3-14 AWG Stranded Wire: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 170

EPW1464 10308 4-14 AWG Stranded Wire: 6-FT - Black, Red, White, Green EA 1 BRL 100 100 10 Yes 180

EPW1662 10300 2-16 AWG Stranded Wire: 6-FT - Black, White EA 1 BRL 100 100 10 Yes 155

EPW1663 10301 3-16 AWG Stranded Wire: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 165

EPW1664 10302 4-16 AWG Stranded Wire: 6-FT - Black, Red, White, Green EA 1 BRL 100 100 10 Yes 175

EPW1862 10297 2-18 AWG Stranded Wire: 6-FT - Black, White EA 1 BRL 100 100 10 Yes 155

EPW1863 10298 3-18 AWG Stranded Wire: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 160

EPW1864 10299 4-18 AWG Stranded Wire: 6-FT - Black, Red, White, Green EA 1 BRL 100 100 10 Yes 170

Solid Wire Fixture Whips - 3/8" (.375") Conduit

EPW1262S 10336 2-12 AWG Solid Wire: 6-FT - Black, White EA 1 BRL 100 100 10 Yes 175

EPW1263S 10337 3-12 AWG Solid Wire: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 190

EPW1462S 10333 2-14 AWG Solid Wire: 6-FT - Black, White EA 1 BRL 100 100 10 Yes 160

EPW1463S 10334 3-14 AWG Solid Wire: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 170

EPW1464S 10335 4-14 AWG Solid Wire: 6-FT - Black, Red, White, Green EA 1 BRL 100 100 10 Yes 180

EPW1662S 10330 2-16 AWG Solid Wire: 6-FT - Black, White EA 1 BRL 100 100 10 Yes 155

EPW1663S 10331 3-16 AWG Solid Wire: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 165

EPW1664S 10332 4-16 AWG Solid Wire: 6-FT - Black, Red, White, Green EA 1 BRL 100 100 10 Yes 175

EPW1862S 10327 2-18 AWG Solid Wire: 6-FT - Black, White EA 1 BRL 100 100 10 Yes 155

EPW1863S 10328 3-18 AWG Solid Wire: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 160

EPW1864S 10329 4-18 AWG Solid Wire: 6-FT - Black, Red, White, Green EA 1 BRL 100 100 10 Yes 170

Stranded Wire Fixture Whips - 1/2" (.5") Conduit

EPW1263-1/2 11600 3-12 AWG Stranded Wire: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 186

EPW1264-1/2 10286 4-12 AWG Stranded Wire: 6-FT - Black, Red, White, Green EA 1 BRL 100 100 10 Yes 195

EPW1463-1/2 10309 3-14 AWG Stranded Wire: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 175

EPW1464-1/2 10313 4-14 AWG Stranded Wire: 6-FT - Black, Red, White, Green EA 1 BRL 100 100 10 Yes 180

Solid Wire Fixture Whips - 1/2" (.5") Conduit

EPW1263S-1/2 10314 3-12 AWG Solid Wire: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 186

EPW1264S-1/2 10289 4-12 AWG Solid Wire: 6-FT - Black, Red, White, Green EA 1 BRL 100 100 10 Yes 195

EPW1463S-1/2 10575 3-14 AWG Solid Wire: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 175

EPW1464S-1/2 10577 4-14 AWG Solid Wire: 6-FT - Black, Red, White, Green EA 1 BRL 100 100 10 Yes 180

FIXTURE WHIPS WITH DIE CAST SCREWIN CONNECTORS

n

UL Listed. File Number: E87199.

n

Stranded and Solid THHN Conductors.

n

Includes Die Cast Screw-In Connectors on each end.

n

Packaging - 30 per Carton or 100 in an extra strong fiber drum.

n

Meets the requirements of the 2014 National Electrical Code: Articles 348.20(A)(2), 348.22,

410.177(A), (B) and (C), and 410.137(C).

Note: Specify packaging requirements when placing your order. Add the “C” suffix to indicate 30 Fixture Whips per Carton.

All stranded and solid wire conductors are stripped 5/8" (.625") from the end of the conductor and

securely tied to prevent damage to the conductors.

We manufacture Fixture Whips for 277 Volt applications. Contact our Inside Sales Department

(800.336.1976 or sales@engproducts.com) for more specific information.

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

33LIGHTING PRODUCTS

FIXTURE WHIPS

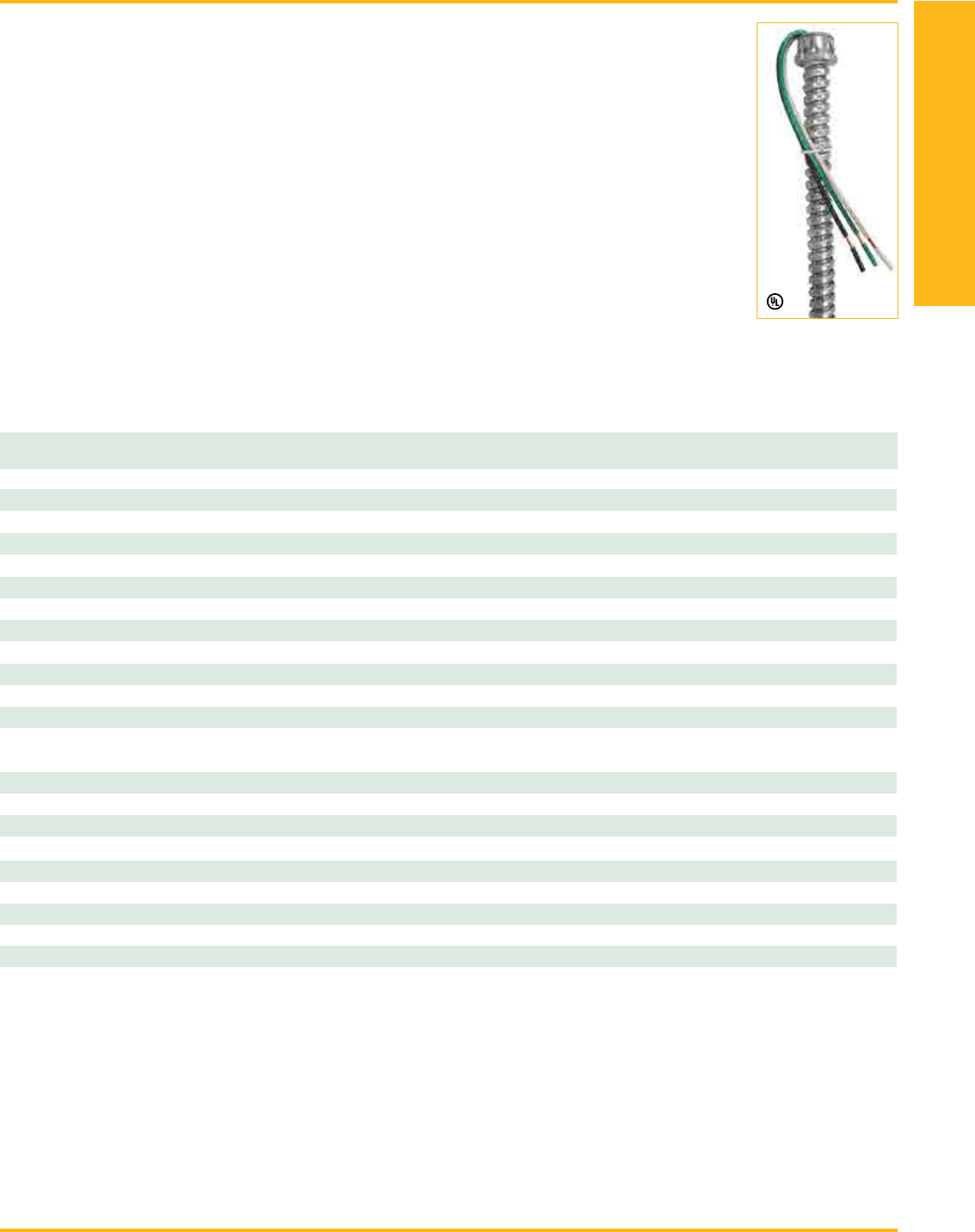

FIXTURE WHIPS WITH DIE CAST SNAP-IN CONNECTORS

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

FIXTURE WHIPS WITH DIE CAST SNAPIN CONNECTORS

n

UL Listed. File Number: E87199.

n

Significant Labor Savings!

n

3/8" Flexible Steel Conduit; 6-foot length – Standard.

n

Stranded and Solid THHN Conductors – Standard.

n

Manufactured using UL Listed or UL recognized components.

n

Packaging – 30 per Carton or 100 in an extra strong fiber drum.

n

Meets the requirements of the 2014 National Electrical Code: Articles 348.20(A)(2), 348.22, 410.117(A),

(B) and (C), and 410.137(C).

Note: Specify packaging requirements when placing your order. Add the “C” suffix to indicate 30 Fixture Whips per Carton.

All stranded and solid wire conductors are stripped 5/8" (.625") from the end of the conductor and

securely tied to prevent damage to the conductors.

We manufacture Fixture Whips for 277 Volt applications. Contact our Inside Sales

Department (800.336.1976 or sales@engproducts.com) for more specific information.

Die Cast Snap-In Fixture Whips Part Number Reference Example: E P W 1 8 6 4 S A D

18 = Wire Gauge; 6 = Length (in feet); 4 = Wires; S = Solid Wire; AD = Die Cast Snap-In Connector

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

Stranded Wire Fixture Whips

EPW1262AD 10554 2-12 AWG Stranded Wire: 6-FT - Black, White EA 1 BRL 100 100 10 Yes 175

EPW1263AD 10556 3-12 AWG Stranded Wire: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 190

EPW1264AD 10558 4-12 AWG Stranded Wire: 6-FT - Black, Red, White, Green EA 1 BRL 100 100 10 Yes 170

EPW1462AD 10560 2-14 AWG Stranded Wire: 6-FT - Black, White EA 1 BRL 100 100 10 Yes 160

EPW1463AD 10369 3-14 AWG Stranded Wire: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 170

EPW1464AD 10442 4-14 AWG Stranded Wire: 6-FT - Black, Red, White, Green EA 1 BRL 100 100 10 Yes 180

EPW1662AD 10566 2-16 AWG Stranded Wire: 6-FT - Black, White EA 1 BRL 100 100 10 Yes 155

EPW1663AD 10517 3-16 AWG Stranded Wire: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 165

EPW1664AD 10568 4-16 AWG Stranded Wire: 6-FT - Black, Red, White, Green EA 1 BRL 100 100 10 Yes 175

EPW1862AD 10569 2-18 AWG Stranded Wire: 6-FT - Black, White EA 1 BRL 100 100 10 Yes 155

EPW1863AD 10281 3-18 AWG Stranded Wire: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 160

EPW1864AD 10280 4-18 AWG Stranded Wire: 6-FT - Black, Red, White, Green EA 1 BRL 100 100 10 Yes 170

Solid Wire Fixture Whips

EPW1262SAD 10555 2-12 AWG Solid Wire: 6-FT - Black, White EA 1 BRL 100 100 10 Yes 175

EPW1263SAD 10557 3-12 AWG Solid Wire: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 190

EPW1264SAD 10559 4-12 AWG Solid Wire: 6-FT - Black, Red, White, Green EA 1 BRL 100 100 10 Yes 170

EPW1462SAD 10561 2-14 AWG Solid Wire: 6-FT - Black, White EA 1 BRL 100 100 10 Yes 160

EPW1463SAD 10450 3-14 AWG Solid Wire: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 170

EPW1464SAD 10451 4-14 AWG Solid Wire: 6-FT - Black, Red, White, Green EA 1 BRL 100 100 10 Yes 180

EPW1862SAD 10570 2-18 AWG Solid Wire: 6-FT - Black, White EA 1 BRL 100 100 10 Yes 155

EPW1863SAD 10367 3-18 AWG Solid Wire: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 160

EPW1864SAD 10368 4-18 AWG Solid Wire: 6-FT - Black, Red, White, Green EA 1 BRL 100 100 10 Yes 170

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

34 LIGHTING PRODUCTS

FIXTURE WHIPS

FIXTURE WHIPS WITH POLYCARBONATE SNAP-IN CONNECTORS

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

FIXTURE WHIPS WITH POLYCARBONATE SNAPIN CONNECTORS

n

UL Listed. File Number: E87199.

n

Significant Labor Savings!

n

Stranded and Solid THHN conductors – Standard.

n

Manufactured using UL Listed or UL recognized components.

n

Packaging – 30 per Carton or 100 in an extra strong fiber drum.

n

Meets the requirements of the 2014 National Electrical Code: Articles 348.20(A)(2), 348.22, 410.117(A),

(B) and (C), and 410.137(C).

Note: Specify packaging requirements when placing your order. Add the “C" suffix to indicate 30 Fixture Whips per Carton.

All stranded and solid wire conductors are stripped 5/8" (.625") from the end of the conductor and

securely tied to prevent damage to the conductors.

We manufacture Fixture Whips for 277 Volt applications. Contact our Inside Sales

Department (800.336.1976 or sales@engproducts.com) for more specific information.

Polycarbonate Snap-In Fixture Whips Part Number Reference Example: E P W 1 8 6 4 S A

18 = Wire Gauge; 6 = Length (in feet); 4 = Wires; S = Solid Wire; A = Polycarbonate Snap-In Connector

Catalog UPC Order Unit Unit Units/ TL Case Min MM S hip Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

Stranded Wire Fixture Whips

EPW1262A 10318 2-12 AWG Stranded Wire: 6-FT - Black, White EA 1 BRL 100 100 10 Yes 175

EPW1263A 10319 3-12 AWG Stranded Wire: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 190

EPW1462A 10316 2-14 AWG Stranded Wire: 6-FT - Black, White EA 1 BRL 100 100 10 Yes 160

EPW1463A 10317 3-14 AWG Stranded Wire: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 170

EPW1464A 10326 4-14 AWG Stranded Wire: 6-FT - Black, Red, White, Green EA 1 BRL 100 100 10 Yes 180

EPW1662A 10323 2-16 AWG Stranded Wire: 6-FT - Black, White EA 1 BRL 100 100 10 Yes 155

EPW1663A 10324 3-16 AWG Stranded Wire: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 165

EPW1664A 10325 4-16 AWG Stranded Wire: 6-FT - Black, Red, White, Green EA 1 BRL 100 100 10 Yes 175

EPW1862A 10320 2-18 AWG Stranded Wire: 6-FT - Black, White EA 1 BRL 100 100 10 Yes 155

EPW1863A 10321 3-18 AWG Stranded Wire: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 160

EPW1864A 10322 4-18 AWG Stranded Wire: 6-FT - Black, Red, White, Green EA 1 BRL 100 100 10 Yes 170

Solid Wire Fixture Whips

EPW1262SA 10347 2-12 AWG Solid Wire: 6-FT - Black, White EA 1 BRL 100 100 10 Yes 175

EPW1263SA 10348 3-12 AWG Solid Wire: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 190

EPW1462SA 10344 2-14 AWG Solid Wire: 6-FT - Black, White EA 1 BRL 100 100 10 Yes 160

EPW1463SA 10345 3-14 AWG Solid Wire: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 170

EPW1464SA 10346 4-14 AWG Solid Wire: 6-FT - Black, Red, White, Green EA 1 BRL 100 100 10 Yes 180

EPW1662SA 10341 2-16 AWG Solid Wire: 6-FT - Black, White EA 1 BRL 100 100 10 Yes 155

EPW1663SA 10342 3-16 AWG Solid Wire: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 165

EPW1664SA 10343 4-16 AWG Solid Wire: 6-FT - Black, Red, White, Green EA 1 BRL 100 100 10 Yes 175

EPW1862SA 10338 2-18 AWG Solid Wire: 6-FT - Black, White EA 1 BRL 100 100 10 Yes 155

EPW1863SA 10339 3-18 AWG Solid Wire: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 160

EPW1864SA 10340 4-18 AWG Solid Wire: 6-FT - Black, Red, White, Green EA 1 BRL 100 100 10 Yes 170

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

35LIGHTING PRODUCTS

FIXTURE WHIPS

QUIKWHIP™ FIXTURE WHIPS

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

QUIKWHIP FIXTURE WHIPS

n

UL Listed as a complete wire assembly that complies with the 2014 National

Electrical Code: Articles 348.20(A)(2), 348.22, 410.117(A), (B) and (C), and 410.137(C).

File #E87199.

n

Significant contractor time and labor savings!

n

Pre-attached connectors add speed and dependability when finalizing fixture

whip terminations.

– Two (2) Die Cast “Snap-In” Connectors on each end of the QuikWhip.

Snaps directly into the fixture housing.

– WAGO® Pushwire 4-port connectors on each end of the QuikWhip.

n

No tools required to install the QuikWhip! A cost-effective solution that eliminates

lock nuts and wire nuts.

n

Easily insert the fixture’s conductors into the corresponding ports on the WAGO connector and you’re finished. No wire

nuts to twist or taping required.

n

Average Time Savings: 45% or up to three (3) minutes per fixture installation.

n

Approximate “installed” cost savings per fixture: $2.00 - $3.00.

n

Solid or Stranded THHN Conductors enclosed in 6-feet of 3/8" (.375") Flexible Steel Conduit – Standard.

When you add-up your time and material cost, it makes economic sense to buy “pre-fabricated,” ready-to-install QuikWhips

from EPCO.

Note: The ground bonding conductor on each end of the QuikWhip includes a “green” WAGO grounding conductor.

QuikWhip Fixture Whips Part Number Reference Example: E P W 1 8 6 4 S A D P 2 - H N G

18 = Wire Gauge; 6 = Length (in feet); 4 = Wires; S = Solid Wire; AD = Die Cast Snap-In Connector; P = Pushwire Style Connector; 2 = Each End.

WAGO Connectors will be pre-attached to each end of the QuikWhip on the HOT, Neutral and Ground wires. HNG = Hot/Neutral/Ground.

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

Stranded Wire QuikWhips

EPW1463ADP1-HN

10546 3-14 AWG: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 171

EPW1463ADP1-HNG

10540 3-14 AWG: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 171

EPW1463ADP2-HNG

10531 3-14 AWG: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 171

EPW1464ADP2-HNG

10532 4-14 AWG: 6-FT - Black, Red, White, Green EA 1 BRL 100 100 10 Yes 171

Solid Wire QuikWhips

EPW1263SADP1-HN

10548 3-12 AWG: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 191

EPW1263SADP1-HNG

10542 3-12 AWG: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 191

EPW1263SADP2-HNG

10535 3-12 AWG: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 191

EPW1863SADP1-HN

10544 3-18 AWG: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 161

EPW1863SADP1-HNG

10538 3-18 AWG: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 161

EPW1863SADP2-HNG

10533 3-18 AWG: 6-FT - Black, White, Green EA 1 BRL 100 100 10 Yes 161

EPW1864SADP1-HN

10545 4-18 AWG: 6-FT - Black, Red, White, Green EA 1 BRL 100 100 10 Yes 171

EPW1864SADP1-HNG

10539 4-18 AWG: 6-FT - Black, Red, White, Green EA 1 BRL 100 100 10 Yes 171

EPW1864SADP2-HNG

10534 4-18 AWG: 6-FT - Black, Red, White, Green EA 1 BRL 100 100 10 Yes 171

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

36 LIGHTING PRODUCTS

FIXTURE WHIPS

RETROFIT FIXTURE WHIPS WITH DIE CAST SCREW-IN CONNECTORS

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

Stranded Wire Retrofit Fixture Whips

EPW18103 10400 3-18 AWG Stranded Wire: 3/8" Conduit, 10-FT Length - EA 1 BRL 100 100 10 Yes 133

Black, White, Green

EPW18104 10402 4-18 AWG Stranded Wire: 3/8" Conduit, 10-FT Length - EA 1 BRL 100 100 10 Yes 142

Black, Red, White, Green

Solid Wire Retrofit Fixture Whips

EPW18103S 10401 3-18 AWG Solid Wire: 3/8" Conduit, 10-FT Length - EA 1 BRL 100 100 10 Yes 133

Black, White, Green

EPW18104S 10403 2-16 AWG Solid Wire: 3/8" Conduit, 10-FT Length - EA 1 BRL 100 100 10 Yes 142

Black, Red, White, Green

RETROFIT FIXTURE WHIPS WITH DIE CAST

SCREWIN CONNECTORS

n

UL Listed. File Number: E87199.

n

Labor saving Fixture Whips that expedite the installation process when

contractors upgrade existing fluorescent fixtures with new energy saving ballast.

n

All stranded and solid wire conductors are stripped 5/8" (.625") from the end

of the conductor and securely tied to prevent damage to the conductors and

eliminate lost lock nuts.

n

Includes Die Cast Screw-In Connectors on each end.

Meets the requirements of the 2014 National Electrical Code: Article 410.137(C) as follows:

Wired luminaire (fixture) sections are paired, with a ballast(s) supplying a lamp or lamps in both. For

interconnection between paired units, it shall be permissible to use metric designator 12 (trade size 3/8")

flexible metal conduit in lengths not exceeding 7.5 m (25 ft) in conformance with Article 348. Luminaire

(fixture) wire operating at line voltage, supplying only the ballast(s) of one of the paired luminaires

(fixtures), shall be permitted in the same raceway as the lamp supply wires of the paired luminaires

(fixtures).

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

37LIGHTING PRODUCTS

FIXTURE WHIPS

CUSTOM FIXTURE WHIP ORDER FORM

Note: Connector options are not sold separately. Other connectors, not listed, can be specified for your custom fixture whip. Contact the EPCO Inside Sales

Department (800.336.1976 or sales@engproducts.com) for other connector options.

Wire (TFFN or THHN):



Solid



Stranded Wire Lead Length:



6-inch



12-inch



Other (specify) ___________

Wire Gauge:



12



14



16



18 Connector Type:



Left End



Right End (specify) ___________________

Wire Colors:



Black



White



Red Conduit Material:



3/8-inch



1/2-inch (Flexible Metal, Steel)



Green



Blue



Gray Insulated Throat:



Yes



No



Brown



Purple



Pink



Orange



Yellow



Other* (specify): ___________________

Conduit Length:



6-Foot



8-Foot



10-Foot



12-Foot



Other* ________________ * require longer lead times

Quantity Needed: __________________ Requested Shipping Date: __________________

Description: _____________________________________________________________________________________________________________________

_________________________________________________________________________________________________________________________________

Push-in Wire Connectors: Select wire color AND choose which end requires a Push-in Wire Connector:

CUSTOM FIXTURE WHIP ORDER FORM

We will build “Labor Saving” Fixture Whips to your specifications. Please use the information below to specify your non-Catalog

Custom Fixture Whip requirements. Complete this form and fax to:

Engineered Products Company, Attention: Inside Sales Department, FAX: 952.767.8786

If you need a quote on more than one Custom Fixture Whip, please complete a separate form for each variation.

Distributor: ________________________________________________ Contact: ______________________________________________________________

Address: __________________________________________________ City: _______________________________________ State/Zip: _______________

Sales Agency: ______________________________________________ Contact Name: ______________________________ Target Price ($):___________

(required)

Select a connector type (number) for each Fixture Whip

from the Connector Reference Guide shown below.

If your application requires a Connector other

than what is shown in the Reference Guide,

please indicate the following:

Connector Type: ______________________

Manufacturer: _______________________

Part Number: _______________________

Size: 3/8": P/N E00-041-002

Type: Set Screw, Squeeze

Material: Steel

Insulated: No

Size: 1/2": P/N E00-042-002

Type: Set Screw, Squeeze

Material: Steel

Insulated: Yes or No (circle one)

Size: 3/8": P/N E00-007-000

1/2": P/N E00-010-000

Type: Set Screw, 90º

Material: Die Cast

Insulated: Yes or No (circle one)

Size: 3/8": P/N E00-015-000

1/2": P/N E00-005-001

Type: Snap-in, 90º

Material: Die Cast

Insulated: No

Size: 3/8": P/N E00-003-003

1/2": P/N E00-004-003

Type: Speed Lock Style, Snap-in

Material: Steel

Insulated: Yes

CONNECTOR REFERENCE GUIDE

Common connectors used on pre-made assembly.

Size: 3/8": P/N E00-001-000

1/2": P/N E00-026-000

Type: Screw-in

Material: Die Cast

Insulated: Yes or No (circle one)

Size: 3/8": P/N E00-003-000

1/2": P/N E00-005-000

Type: Screw-in/Snap-in

Material: Die Cast

Insulated: Yes or No (circle one)

Size: 3/8": P/N E00-003-001

Type: Set Screw, Snap-in

Material: Die Cast

Insulated: No

Size: 3/8": P/N E00-041-000

1/2": P/N E00-042-000

Type: Set Screw, Squeeze

Material: Die Cast

Insulated: No

Size: 3/8": P/N E00-002-000

1/2": P/N E00-013-000

Type: Exterior, Snap-in

Material: Plastic w/Steel

Insulated: Yes



Left End



Right End



Black



Left End



Right End



White



Left End



Right End



Red



Left End



Right End



Green



Left End



Right End



Blue



Left End



Right End



Grey



Left End



Right End



Brown



Left End



Right End



Purple



Left End



Right End



Pink



Left End



Right End



Orange



Left End



Right End



Yellow

1

6

2

7

3

8

4

9

5

10

LIGHTING PRODUCTS

38

Make us your resource for Standard and UV filtering fluorescent tube guards! Their primary function is to provide

superior protection against broken glass and sparks that can result when fluorescent lamps shatter.

Our Tube Guards are “add-on” polycarbonate sleeves that are held in place around the linear fluorescent lamp

by two (2) plastic end caps. We always recommend using the end caps to maintain an air space between the

fluorescent lamp wall and the inside of the tube guard when placed around the lamp.

Note: It is extremely important to properly install our tube guards utilizing the supplied end caps. Improperly installed tube guards that come

into direct contact with the fluorescent lamp wall may cause premature lamp failure.

The average temperature to manufacturer polycarbonate tube guards is approximately 500°F. While some

manufacturers might use recycled polycarbonate material for tube guard production, we only use virgin

polycarbonate material for the best stability and long-term reliability. This means the melting point for our tube

guards is much higher and lowers the probability of them melting or deforming at the end of the fluorescent

lamp’s life. When the lamp and ballast system is wired correctly, the lamp and tube guard combination will function

satisfactorily during normal lamp life. However, toward the end of the lamp’s life, the ends of the lamp create

excessive heat that may cause the tube guard to heat up, distort and discolor. We always recommend using Heat

Sink Screens (P/N: 17893 - T5 HD, 17800 - T8, 17860 - T12) during the initial installation of new tube guards or when

retrofitting and reusing tube guards.

ADVANTAGES FOR THE CONTRACTOR, FACILITY MANAGER AND BUILDING OWNER

n Standard Tube Guards satisfy OSHA, FDA and USDA requirements for food processing, commercial businesses

and industrial plants.

n UV Filtering Tube Guards screen out harmful ultra-violet light emissions.

WHY CONTRACTORS USE EPCO TUBE GUARDS

n Our Standard and UV Filtering Tube Guards are always “in-stock” and available for immediate shipping.

n End caps are included.

n Easy to install without the use of tools.

n Efficient, cost-effective, and provides maximum protection against lamp breakage.

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

39LIGHTING PRODUCTS

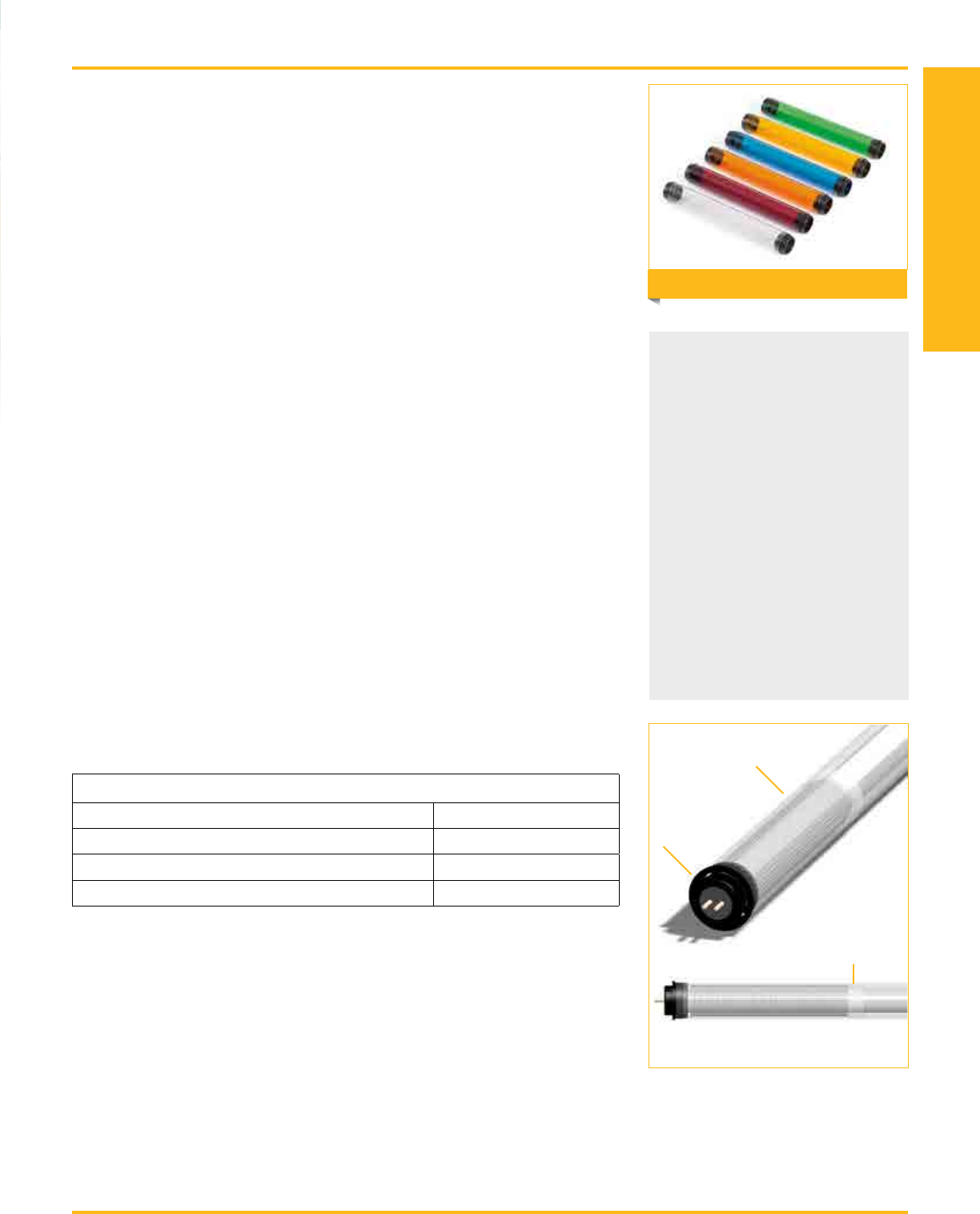

TUBE GUARDS

STANDARD TUBE GUARDS

The Standard Tube Guard is a light stabilized polycarbonate and has 0%

transmittance below 365 nanometers (Clear Tube Guards only). Available Colors:

Clear, Amber, Red, Green, Yellow and Blue. Available Sizes: T5, T8, and T12.

n An efficient economical solution where fluorescent lamp breakage would be

hazardous to personnel, product, equipment or animals.

n Slip over fluorescent lamps to retain shattered glass and control the release of

mercury vapor and phosphorescent material.

n Constructed of unbreakable lexan polycarbonate.

n “Cut-to-order” custom lengths are also available. Contact our Inside Sales

Department (800.336.1976 or sales@engproducts.com) for more information.

T5 HD SERIES TUBE GUARDS

Using T5 lamps is a cost-effective lighting systems solution for a variety of reasons.

Unfortunately the average T5 lamp will dissipate about 73% of its total lamp power

as heat. And when this lamp is used in combination with a tube guard, that heat

must be properly dissipated from the lamp.

Our T5 HD (Heat Dissipation) Series Tube Guard takes into consideration two major

factors; the temperature on the inside of the tube guard, and how close the T5 lamp

is actually located to the tube guard.

n Our T5 HD Series Tube Guard’s larger diameter and its “vented” End Caps allow a

layer of air to absorb heat from the lamp and cool it before making contact with

the inside wall of the tube guard. This results in a 25F temperature drop.*

n The larger diameter of the T5 HD Series Tube Guard allows it to accommodate

Heat Sink Screens to control and distribute heat, in addition to lowering the

temperatures over a larger area on the end of the tube guard.

Note: We strongly recommend using Heat Sink Screens with our T5 HD Series Tube Guards. Part

Numbers 17185 and 17186 arrive with the Heat Sink Screen built into the Tube Guard. See photo to

the right below.

n The combination of the T5 HD Series Tube Guard, “vented” End Caps, and Heat Sink

Screens lower the inside temperature of the tube guard approximately 30F.**

n Together, these components provide a unique operational advantage over other

competitors T5 tube guards and still fits all T5 lamp applications.

TEMPERATURE TESTING

CONFIGURATION TEMPERATURE*

Competitors T5 Tube Guard 215F

T5 HD Series Tube Guard and “Vented” End Caps 190F*

T5 HD Series Tube Guard, “Vented” End Caps and Heat Sink Screen 185F**

*Note: The temperature is measured on the inside surface of the Tube Guard. The ambient testing

temperature was 72ºF using a T5 F54 HO Lamp.

Fast, Efficient and Repeatable Results

EPCO always recommends using “Heat Sink Screens” when installing T5 HD Series

Tube Guards. Heat sink screens help distribute excessive heat on both ends of the

fluorescent lamp. But when installing a large number of tube guards and heat sink

screen combinations, time is money.

High volume installers can now reduce their installation time by using our T5 HD

Series Tube Guard with “pre-installed” Heat Sink Screens. In addition to saving time and

money, EPCO’s T5 HD Series Tube Guard with “pre-installed” Heat Sink Screens provide

a convenient and economical solution to expedite the installation by eliminating the

process of having the contractor pre-roll two Heat Sink Screens (per tube guard).

Simply insert the lamp into the T5 HD Series Tube Guard, insert the “vented” end

cap on each end of the tube guard and install the “tubed” lamp into the fixture.

TYPICAL APPLICATIONS:

n

Food Processing Facilities

n

Commercial Kitchens

n

Grocery Stores

n

Laundries

n

Industrial Facilities

n

Saunas

n

Car Washes

n

Storage Buildings

n

Pedestrian and Road Tunnels

n

Parking Garages

n

Elevator Shafts

n

Refrigerators and Freezers

n

Locker Rooms

n

And more...

STANDARD TUBE GUARDS

Part Numbers 17185 and 17186

Note: T5 HD Series Tube Guards, Part Numbers

17185 and 17186, are bundled with the T5 HD

Heat Sink Screen built into the Tube Guard as

shown above.

T5 HD Series Heat Sink

Screen Stopper

T5 HD Series Tube Guard with

Built-In Heat Sink Screen

T5 HD Series

“Vented”

End Cap

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

40 LIGHTING PRODUCTS

TUBE GUARDS

STANDARD TUBE GUARDS

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

T5 HD SERIES TUBE GUARDS

DIM. “A” DIM. “B” NOMINAL

LENGTH

44.68 45.27 4'

“A” – Cut Tube Length

“B” – Overall Length

T12 TUBE GUARDS

DIM. “A” DIM. “B” NOMINAL

LENGTH

45.97 47.10 4'

68.17 69.28 6'

91.97 93.10 8'

T8 TUBE GUARDS

DIM. “A” DIM. “B” NOMINAL

LENGTH

46.38 47.10 4'

68.38 69.10 6'

92.38 93.10 8'

Note: End Caps for T5 HD Series, T8 and T12 Tube Guards fit inside the Tube Guard.

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

17103 17103 Standard End Caps: for T5 HD Series, “Vented” BG 48 BG 0 0 48 Yes 1

17100 17100 Standard End Caps: for T8 Tube Guard BG 48 BG 0 0 48 Yes 1

17101 17101 Standard End Caps: for T12 Tube Guard BG 48 BG 0 0 48 Yes 1

STANDARD TUBE GUARD END CAPS BLACK

STANDARD AND UV FILTERING TUBE GUARD DIMENSIONS

“A” – Cut Tube Length

“B” – Overall Length

“A” – Cut Tube Length

“B” – Overall Length

Note: Dimension “B” includes End Caps.

EPCO’s YELLOW TUBE GUARDS - How do they work?

Insects and humans have different visual perceptions. Light sources that radiate

ultraviolet energy and blue light are most attractive to insects. Light sources that

insects have a difficult time seeing are “yellow” hues in the color spectrum. Our

yellow tube guards will minimize the number of insects.

TYPICAL APPLICATIONS

n Commercial businesses that maintain night-time operations such as gas stations,

fast food restaurants, etc.

n Commercial food preparation and serving areas

n Parking lots loading areas

n Airport, Train and Bus Stations

n Building entrances

n

Decks and patios

YELLOW TUBE GUARDS

.94

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

41LIGHTING PRODUCTS

TUBE GUARDS

STANDARD TUBE GUARDS

T12 TUBE GUARDS

DIM. “A” DIM. “B” NOMINAL

LENGTH

45.97 47.10 4'

68.17 69.28 6'

91.97 93.10 8'

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

EPCO Standard Tube Guards are Made in the USA. Complies with the American Recovery and Reinvestment Act – Buy American Provision.

Note: *1. Standard Tube Guards are sold ONLY in case quantities of 24 per Carton. We will not break case carton quantities!

The exception is the T5 HD Series - Clear, which is available in carton quantities of 48 and 120 Units (P/Ns: 17183 and 17184).

**2. T5 HD Series Tube Guards, Part Numbers 17185 and 17186 include the built-in T5 HD Heat Sink Screen.

†3. Indicates long lead time. Contact our Inside Sales Department (800.336.1976 or sales@engproducts.com) for more information.

4. Standard Tube Guards are not intended for use with HO or VHO Lamps! The exception is the T5 HD Series Tube Guard that is

rated for use with a T5 HO Lamp.

5. Tube Guards, other than sizes and colors listed, can be special ordered. Contact our Inside Sales Department (800.336.1976 or

sales@engproducts.com) for more information.

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

4-FT T5 HD Series Tube Guard

17183* 17183 Clear Polycarbonate: with “Vented” Black End Caps EA 1 BX 48 48 48 Yes 6

17184* 17184 Clear Polycarbonate: with “Vented” Black End Caps EA 1 BX 120 120 120 Yes 16

17194† 17194 Amber Polycarbonate: with “Vented” Black End Caps EA 1 BX 24 24 24 Yes 4

17195† 17195 Red Polycarbonate: with “Vented” Black End Caps EA 1 BX 24 24 24 Yes 4

17196† 17196 Green Polycarbonate: with “Vented” Black End Caps EA 1 BX 24 24 24 Yes 4

17197† 17197 Blue Polycarbonate: with “Vented” Black End Caps EA 1 BX 24 24 24 Yes 4

17199† 17199 Yellow Polycarbonate: with “Vented” Black End Caps EA 1 BX 24 24 24 Yes 4

4-FT T5 HD Series Tube Guard with Built-In Heat Sink Screens

17185** 17185 Clear Polycarbonate: with “Vented” Black End Caps and EA 1 BX 48 48 48 Yes 6

built-in Heat Sink Screen

17186** 17186 Clear Polycarbonate: with “Vented” Black End Caps and EA 1 BX 120 120 120 Yes 16

built-in Heat Sink Screen

4-FT T8 Tube Guard

17000 17000 Clear Polycarbonate: with Black End Caps EA 1 BX 24 24 24 Yes 6

17005 17005 Amber Polycarbonate: with Black End Caps EA 1 BX 24 24 24 Yes 6

17010 17010 Red Polycarbonate: with Black End Caps EA 1 BX 24 24 24 Yes 6

17015 17015 Green Polycarbonate: with Black End Caps EA 1 BX 24 24 24 Yes 6

17020 17020 Blue Polycarbonate: with Black End Caps EA 1 BX 24 24 24 Yes 6

17025 17025 Yellow Polycarbonate: with Black End Caps EA 1 BX 24 24 24 Yes 6

6-FT T8 Tube Guard

17050 17050 Clear Polycarbonate: with Black End Caps EA 1 BX 24 24 24 Yes 8

8-FT T8 Tube Guard

17030 17030 Clear Polycarbonate: with Black End Caps EA 1 BX 24 24 24 Yes 10

17031 17031 Amber Polycarbonate: with Black End Caps EA 1 BX 24 24 24 Yes 10

17032 17032 Red Polycarbonate: with Black End Caps EA 1 BX 24 24 24 Yes 10

17033 17033 Green Polycarbonate: with Black End Caps EA 1 BX 24 24 24 Yes 10

17034 17034 Blue Polycarbonate: with Black End Caps EA 1 BX 24 24 24 Yes 10

17035 17035 Yellow Polycarbonate: with Black End Caps EA 1 BX 24 24 24 Yes 10

4-FT T12 Tube Guard

17060 17060 Clear Polycarbonate: with Black End Caps EA 1 BX 24 24 24 Yes 7

6-FT T12 Tube Guard

17040 17040 Clear Polycarbonate: with Black End Caps EA 1 BX 24 24 24 Yes 10

8-FT T12 Tube Guard

17090 17090 Clear Polycarbonate: with Black End Caps EA 1 BX 24 24 24 Yes 10

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

42 LIGHTING PRODUCTS

TUBE GUARDS

UV FILTERING TUBE GUARDS

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

UV FILTERING TUBE GUARDS

n Our UV Filtering Tube Guards provide the basic reduction of harmful UV energy

by filtering 99% of harmful UV rays up to 390 nanometers.*

n Manufactured using thin-wall high tensile and impact resistant polycarbonate

material that is flexible to grasp the lamp to facilitate lamp changes; does not

easily crack.

n Special UV additive filters UV rays better than acrylic materials with comparable

wall thickness (0.016" wall thickness).

n Minimizes premature color shifting (fading) and deterioration that can be

detrimental to food products, paper, natural and synthetic textiles, paints,

coatings, wood and polymer materials, inc.

n Provides years of protection from dangerous UV light.

n Can readily be “field-cut” to length if desired.

n Manufactured to the highest quality standards.

n Sizes: T5, T8, and T12.

n Available in nominal 4-foot and 8-foot lengths.

*Note: Tested by two independent light testing laboratories.

TYPICAL APPLICATIONS:

n

Food Service

n

Commercial Kitchens

n

Photography Studios

n

Grocery Stores

n

Fabric Stores

n

Movie Theaters

n

Book Stores

n

Libraries

n

Furniture Stores

n

Warehouses

n

Special lighting applications where

UV protection is required

UV FILTERING TUBE GUARDS

Note: 1. UV Filtering Tube Guards are sold ONLY in case quantities of 24 per Carton. We will not break case carton quantities.

2.

UV Filtering Tube Guards are not to be used with HO or VHO fluorescent lamps! The exception is the UV Filtering T5 HD Series Tube

Guard that is rated for use with a T5 HO lamp.

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

4-FT T5 HD Series Tube Guard

17206 17206 Clear UV Filtering: with “Vented” Green End Caps EA 1 BX 24 24 24 Yes 4

4-FT T8 Tube Guard

17201 17201 Clear UV Filtering: with Green End Caps EA 1 BX 24 24 24 Yes 7

8-FT T8 Tube Guard

17202 17202 Clear UV Filtering: with Green End Caps EA 1 BX 24 24 24 Yes 12

4-FT T12 Tube Guard

17203 17203 Clear UV Filtering: with Green End Caps EA 1 BX 24 24 24 Yes 8

8-FT T12 Tube Guard

17204 17204 Clear UV Filtering: with Green End Caps EA 1 BX 24 24 24 Yes 15

Note: End Caps for T5, T8 and T12 Tube Guards fit inside the Tube Guard.

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

17303 17303 UV Filtering End Caps: for T5 HD Series, “Vented” BG 48 BG 0 0 48 Yes 1

17300 17300 UV Filtering End Caps: for T8 Tube Guard BG 48 BG 0 0 48 Yes 1

17301 17301 UV Filtering End Caps: for T12 Tube Guard BG 48 BG 0 0 48 Yes 1

UV FILTERING TUBE GUARD END CAPS GREEN

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

43LIGHTING PRODUCTS

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

Note: Heat Sink Screens are not to be used with HO or VHO lamps! The exception is the T5 HD Series Heat Sink Screen that is rated for use with a T5 HO lamp.

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

17893 17893 Heat Sink Screen: for T5 HD Series Tube Guards BG 2 BG 0 0 2 Yes 1

17800 17800 Heat Sink Screen: for T8 Tube Guards BG 2 BG 0 0 2 Yes 1

17860 17860 Heat Sink Screen: for T12 Tube Guards BG 2 BG 0 0 2 Yes 1

HEAT SINK SCREENS

We recommend the use of Heat Sink Screens with all of our Tube Guards to aid in

controlling heat that is generated by the fluorescent lamp. The primary function

of our Heat Sink Screens is to distribute heat and lower the temperatures of the

fluorescent lamp over a larger area at each end of the Tube Guard.

The Heat Sink Screens are available in sizes for the T5 HD Series Tube Guard, as well

as T8 and T12 Tube Guards.

We recommend using Heat Sink Screens with all Tube Guards.

It is safe to use our Tube Guards preferably in conjunction

with electronic high efficiency ballasts that are designed

to prevent over-heating of the lamp during use and at the

lamp’s “end of life.”

We do not recommend using our Tube Guards under any

condition where the surface temperature of the lamp

can exceed 225°F (107°C) or in any enclosed light fixture

where normal venting is prohibited.

Heat Sink Screens T5 HD Series: Part Number 17893

Heat Sink Screens T8: Part Number 17800

Heat Sink Screens T12: Part Number 17860

Note: Our Tube Guards should not be used in any

application where power surges or voltage spikes can cause

arcing or over-burning the lamps.

T5 HD SERIES HEAT SINK SCREEN

T8 HEAT SINK SCREEN T12 HEAT SINK SCREEN

T8 End Cap

T8 Heat Sink

Screen

T8 Tube Guard

WARNING

!

FDA Plant Construction and Design ... 110.20 Section B, Part 5

(5) Provide adequate lighting in hand-washing areas, dressing and locker rooms, and toilet rooms and in all areas

where food is examined, processed, or stored and where equipment or utensils are cleaned; and provide safety-

type light bulbs, xtures, skylights, or other glass suspended over exposed food in any step of preparation or

otherwise protect against food contamination in case of glass breakage.

FDA Food Code Chapter 6, Section 202.11

“Shielding of light bulbs helps prevent breakage. Light bulbs that are shielded, coated, or otherwise shatter

resistant are necessary to protect exposed food, clean equipment, utensils and linens, and unwrapped single-

service and single-use articles from glass fragments should the bulb break.”

Engineered Product Company (EPCO) Standard and UV Filtering Tube Guards Comply with the following Regulations:

TUBE GUARDS

HEAT SINK SCREENS

44

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

44 LIGHTING PRODUCTS

New buildings under construction or retrofitting an existing building is an ever changing environment for

temporary lighting. Adequate temporary lighting is necessary for the safety and productivity of the workers, as well

as the quality of the completed work.

The electrical contractor is typically responsible for providing temporary lighting on the job site. And when it’s time

to specify temporary lighting, 9 out of 10 times the electrical contractor chooses Engineered Products Company,

well-known for providing the best value for temporary lighting applications.

TYPEO PULSESTART LIGHTING TECHNOLOGY

n High-intensity light fixtures enhance productivity and provide increased security and safety.

n Energy efficient high lumen maintenance lowers operating expenses.

n Compact size and dependable high performance lighting source.

n Reliable operation and performance in a wide range of ambient temperatures.

COMPACT FLUORESCENT LIGHTING TECHNOLOGY

n High-intensity light fixtures enhance productivity and provide increased security and safety.

n Energy efficient high lumen maintenance lowers operating expenses.

n Compact size and dependable high performance lighting source.

n Reliable operation and performance in a wide range of ambient temperatures.

CORDLIGHTS™

n Weather resistant lamp sockets feature rigid-mounted eyelets for hooks or wire to simplify hanging.

n Suitable for indoor and outdoor use.

n Unique open and secure closure clasp on the heavy duty lamp cage easily facilitates lamp changes.

n A patented detent “snap-off, snap-on” fitting on the lamp socket enables quick replacement if the Safety Cage

becomes damaged.

HID, CFL Temp Lights and CordLight products are always in stock!

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

45LIGHTING PRODUCTS

TEMPORARY LIGHTING

TIGER 400 & TIGERCUB 175 HIDTM

During the construction phase, a skeletal framework is used which forms an interior subspace called a “bay," which in turn

marks the space as either “high-bay" or “low-bay." We reference high-bay spaces as greater than 30-feet off the floor and low-

bay spaces as less than 25-feet off the floor.

TYPICAL HIGH-BAY APPLICATIONS FOR TIGER 400 HID:

n

Construction Sites

n

Industrial Facilities

n

Arena Lighting

n

High Rise Buildings

n

Manufacturing Facilities

n

Large Retail Centers

n

Big Box Stores

n

Discount Warehouses

TYPICAL LOW-BAY APPLICATIONS FOR TIGERCUB 175 HID:

n

Parking Garages

n

Grocery Stores

n

Retail Stores

n

Mezzanine Areas

n

Outdoor Areas

n

Schools and University Gymnasiums

METAL HALIDE LAMP SPECIFICATIONS

Color Lumen Average Rated Color Rendering

Temperature Output Life (In Hours) Index Voltage (AMPs)

TIGER 400 HID 4000K 38,000 15,000 60 120 3.25

TIGERcub 175 HID 4000K 16,600 12,000 60 120 1.5

*Note: These fixtures comply with the 2007 Energy Independence and Security Act (EISA) effective January 1, 2009. The intent of this federal legislation focuses on

improving the efficiency of certain consumer and electrical products – including metal halide fixtures – as well as moving the United States toward reducing energy

consumption and energy independence.

In compliance with EISA, EPCO’s TIGER 400-watt and TIGERcub 175-watt fixtures clearly display a capital letter “E" printed within a circle ( ) on the product carton

and the ballast as specified by the Federal Trade Commission (FTC).

† The Illuminating Engineering Society of North America (IESNA), the authority in lighting, categorizes spaces as either high-bay (greater than 30-feet) or low-bay

(less than 25-feet).

TIGER 400 AND TIGERCUB 175 HID TEMPORARY LIGHT FIXTURES

n

Complies with the 2007 Energy Independence and Security Act (EISA).*

n

Meets the requirements of the 2014 National Electrical Code: Articles 410.62(C)(1) and (2),

410.104(A), 410.122, 410.130(F)(5) and 590.4(F).

n

Compact size, lightweight and balanced construction.

n

Easy to carry and install. UL Listed. Suitable for use in damp locations. TIGER 400 and TIGERcub

175 HID Light Fixtures and lamp combinations increase light levels up to 60% over traditional

probe-start fixtures while using the same number of fixture locations and wiring.

†

PULSE-START BALLAST

n

Reliable, durable, maintenance free performance!

n

A cost-effective solution to incandescent string

lighting.

n

Compact size, lightweight and balanced construction.

Easy to carry and install.

n

Faster warm-up time (2 min. vs. 4 min.)

n

Faster “hot" restrike (3-4 min. vs. 15-20 min.)

n

Improved cold weather starting performance.

n

Lower maintenance and operating cost –

ballast efficiency is 88%.

n

Pre-wired at the factory for 120V operation.

The multi-tap ballast can be re-configured for

208V, 240V or 277V applications.

n

Improved efficacy (up to 45% more lumens per watt).

FIXTURE LAMP WITH CERAMIC ARC TUBE

n

Improved lumen maintenance

(up to 25%).

n

Reduced color shift –

more consistent lamp-to-lamp color.

n

Longer lamp life – up to 30%

improvement over traditional

probe-start fixtures.

– 15,000+ hours for the TIGER 400 HID.

– 12,000+ hours for the TIGERcub 175 HID.

n

Higher initial lumen output.

n

Superior color rendering and

light stability.

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

46 LIGHTING PRODUCTS

TEMPORARY LIGHTING

TIGER 400 & TIGERCUB 175 HIDTM

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

Front View 9.875"

2.312"

8.0"

4.75"

Side View

20.5"

23.25"

12.875"

Rear View Two .75" Knockouts

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

TIGER 400 HID Temporary Lighting

15702 15702 TIGER 400 HID Temporary Light Fixture: 400-watt EA 1 BX 1 1 1 No 22

Type-O Metal Halide Lamp, Safety Cage and Lamp Guard

15752 15752 Type-O 400-Watt Metal Halide Lamp: Pulse-Start EA 1 BX 20 20 1 No 2

TIGERcub 175 HID Temporary Lighting

15711 15711 TIGERcub 175 HID Temporary Light Fixture: 175-watt EA 1 BX 1 1 1 No 20

Type-O Metal Halide Lamp, Safety Cage and Lamp Guard

15757 15757 Type-O 175-Watt Metal Halide Lamp: Pulse-Start EA 1 BX 20 20 1 No 2

HID Temporary Lighting Accessories

15760* 15760 Universal Replacement HID Safety Cage and Lamp EA 1 BX 5 5 1 No 9

Guard: Clamp Mount

* Note: Fits majority of manufacturer's HID Type-O and Type-S Temporary HID Lighting Fixtures.

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

47LIGHTING PRODUCTS

TEMPORARY LIGHTING

TIGRESSTM 105-WATT CFL

Engineered Products Company’s TIGRESS Temporary Light Fixture is a low cost, energy

efficient lighting solution that is highly functional for use in low to medium bay lighting

applications and a recommended alternative to metal halide light fixtures.

A 105-Watt Compact Fluorescent Lamp is included and provides a productive work

environment during building construction or major renovation, consumes less than one-

half of the total energy costs compared to metal halide lamps, and is approximately 3

to 5 times more efficient than standard incandescent lamps and can last up to 10 times

longer.

BENEFITS

n

Meets the requirements of the 2014 National Electrical Code:

Articles 410.62(C)(1) and (2), 410.104(A), 410.122, 410.130(F)(5) and 590.4(F).

n

Compact size, lightweight and balanced construction.

n

Certification Standard: ETL Listed.

n

Low maintenance and operating cost.

n

Reliable, durable, maintenance free performance!

n

Long lamp life.

n

CFL lamp will not decay significantly when compared to metal halide lamps.

n

Suitable for compact spaces - minimum 10-feet height.

n

Instant restart in the event of a power outage.

FEATURES

n

Hanging Hook.

n

Cord Type: 18/3 SJTW.

n

High luminous efficacy and durability.

n

E39 mogul-base for self-ballasted compact fluorescent lamp.

n

For 120V operation ONLY.

n

Cord Length: 5-FT (1524mm).

n Steel housing; durable white powder-coat finish.

n Heavy-duty 11 AWG welded Lamp Guard - Silver.

TIGRESS 105WATT CFL TEMPORARY LIGHT FIXTURE

Incandescent Minimum Starting Color Lumen Lumens Average Rated Color Rendering

Equivalent* Temperature Temperature Output per Watt Life (In Hours) Index Voltage (AMPs)

TIGRESS 105-Watt CFL 300-Watt 10°F 5000K 6900 65 8,000 82 120 .875

TYPICAL

APPLICATIONS:

n

Parking Garages

n

Grocery Stores

n

Retail Stores

n

Mezzanine Areas

n

Outdoor Areas

n

Schools and University

Gymnasiums

n

New Building

Construction or

Renovation

TIGRESS™

105-Watt Compact Fluorescent Lamp Specications

*Equivalent to 175-watt metal halide lamp (including lumen depreciation).

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

48 LIGHTING PRODUCTS

TEMPORARY LIGHTING

TIGRESSTM 105-WATT CFL

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

15720 15720 TIGRESS Temporary Light Fixture: 105-Watt Compact EA 1 BX 0 0 1 No 7

Fluorescent Lamp, Safety Cage and Lamp Guard

15725 15725 105-Watt Compact Fluorescent Lamp EA 1 BX 10 10 1 No 1

Front View 7" (177.8mm)

2.25" (57.15mm)

1.75" (44.45mm)

4.92”

(125.4mm)

Side View

15.7"

(398.8mm)

18"

(457.2mm)

14"

(355.6mm)

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

49LIGHTING PRODUCTS

TEMPORARY LIGHTING

CORDLIGHTS

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

TYPICAL APPLICATIONS:

n

Construction Sites

n

Parking Lots

n

Walkways

n

Festivals

n

Circus Tents

n

Christmas Tree Lots

n

Farmer’s Markets

TEMPORARY CORDLIGHTS

n

Deluxe CordLights are UL Listed. File Number: E190858. Meets all OSHA Standards.

n

Meets the requirements of the 2014 National Electrical Code: Article 590.4(F).

n

Suitable for indoor and outdoor use.

n

Weather-resistant lamp sockets feature rigid-mounted eyelets for hooks or wire to

expedite and simplify hanging.

n

Unique open and secure closure clasp on the heavy-duty Safety Cage easily

facilitates bulb changes.

n

A patented detent “snap-off, snap-on" fitting on the lamp socket enables quick

replacement if the Safety Cage becomes damaged.

n

Rated only for use with Type A23 incandescent lamp - 150-watt rating (maximum),

compact fluorescent or LED lamps.

n

U.S. Patent Number: D.439,697.

DELUXE CORDLIGHTS

Deluxe CordLights are intended

for severe environments and are

impervious to dust, dirt, chemical

vapors, salt spray and other corrosive

elements. Constructed of heavy-duty

14/2, 14/3 or 12/3 SJTW round cord

with a 75°C (167°F) temperature

rating, Deluxe CordLights are UL

Listed and complies with UL Standard

1088 for Temporary Lighting Strings.

CONTRACTOR GRADE

CORDLIGHTS

Contractor Grade CordLight

is designed for medium-duty

applications and is ideal for

budget-minded Contractors who

need quality temporary lighting at

an affordable price. The Contractor

Grade CordLight is constructed

of heavy-duty 14/2 flat cord. Only

available in a 100-foot length.

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

Deluxe CordLights

16010† 16010 Deluxe CordLights: 14/2 SJTW Round Cord, 100-FT Length, EA 1 BX 0 0 1 No 13

10-FT Centers (without Plug) - Yellow

16301† 16301 Deluxe CordLights: 14/3 SJTW Round Cord, 100-FT Length, EA 1 BX 0 0 1 No 14

10-FT Centers (with Molded Plug) - Yellow

16350† 16350 Deluxe CordLights: 12/3 SJTW Round Cord, 100-FT Length, EA 1 BX 0 0 1 No 19

10-FT Centers (without Plug) - Yellow

16353† 16353 Deluxe CordLights: 12/3 SJTW Round Cord, 100-FT Length, EA 1 BX 0 0 1 No 19

10-FT Centers (with Molded Plug) - Yellow

16100 16100 Safety Cage: for Deluxe CordLight - Yellow EA 1 BX 10 10 10 Yes 1

Contractor Grade CordLights

16030* 16030 Contractor Grade CordLight: 14/2 Flat Cord, 100-FT Length, EA 1 BX 0 0 1 No 7

Ten (10) Lamp Sockets on 10-FT Centers - Yellow

16110 16110 Safety Cage: for Contractor Grade CordLight - Yellow EA 1 BX 10 10 10 Yes 1

†U.L. 1008 - Article 17.2 – lamp guard shall be constructed of polymeric material. The actual molded product is polypropylene. Flame class is V-0 meets U.L. 746C.

*Note: The Contractor Grade CordLight is not UL Listed.

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

50 LIGHTING PRODUCTS

TEMPORARY LIGHTING

CORDLIGHT ACCESSORIES

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

SAFETY CAGES

n

Suitable for indoor and outdoor use.

n

Unique open and secure closure clasp on the heavy-duty Safety Cage easily

facilitates lamp changes.

INSULATION PIERCING LAMP SOCKET

n

Suitable for indoor and outdoor use.

n

Use to repair Contractor Grade CordLights, signage, appliances or other lighting fixtures.

n

 Integrally designed terminals and contacts provide a superior electrical connection.

n

Use with 12 or 14 AWG THHN insulated stranded wire.

n

No cutting, wire stripping, wire nuts or soldering required.

n

Rated only for use with Type A23 incandescent lamp - 150-watt rating (maximum),

compact fluorescent or LED lamps.

PIGTAIL LAMP SOCKET

n

A patented detent “snap-off, snap-on" fitting on the lamp socket

enables quick replacement if the Safety Cage becomes damaged.

Can be used with EPCO Safety Cage (P/N: 16100).

n

Suitable for indoor or outdoor use.

n

6-Inch leads, pre-stripped 5/8" (.625").

n

Rated only for use with Type A23 incandescent lamp - 150-watt rating

(maximum), compact fluorescent or LED lamps.

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

16100 16100 Safety Cage: for Deluxe CordLight - Yellow EA 1 BX 10 10 10 Yes 1

16110 16110 Safety Cage: for Contractor Grade CordLight - Yellow EA 1 BX 10 10 10 Yes 1

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

16022 16022 Insulation Piercing Lamp Socket EA 5 BG 0 0 5 Yes 1

16110 16110 Safety Cage: for Contractor Grade CordLight - Yellow EA 1 BX 10 10 10 Yes 1

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

16023 16023 Pigtail Lamp Socket: with 6-Inch Leads EA 5 BG 0 0 5 Yes 1

16100 16100 Safety Cage: for Deluxe CordLight - Yellow EA 1 BX 10 10 10 Yes 1

LIGHTING PRODUCTS

51

LIGHTING PRODUCTS

51

The specific design of an outdoor lighting system is influenced by a variety of factors, including the site

characteristics, the scope of the landscape, its function, as well as the building owners requirements. But the

creation of an outdoor lighting system should always include our Landscape SplicePost™ or LightPost™. A few of

the value-added benefits include:

n

Suitable for use in wet locations.

n Ready to install. No assembly required.

n 3” Outside diameter PVC LightPost fixture fitting.

n Replaces EMT, conduit connectors and weatherproof boxes.

n 100% UV, corrosion and shatter-resistant.

n Accommodates a 1/2” trade size conduit nipple to mount a variety of light fixtures.

n The Uni-Stabilizer™ is made of durable polycarbonate material featuring four (4) uniquely shaped concaved

stabilizing blades. This design enables ground material to be easily packed around the Landscape LightPost

or SplicePost as well as provide solid in-ground support. The uni-stabilizer also helps resist against ground

movement typically caused by ground freezing and thawing.

n The 20° slanted top virtually eliminates water pooling or leakage into the interior of the Landscape LightPost

and SplicePost.

n 65° angled to bottom enables easy entry of UF Cable or conduit.

n Compact and attractive regardless of final height placement.

Compared to other designs, these landscape light fixture fittings are a cost-effective and simple solution for

permanent landscape, accent lighting or sign facade.

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

52 LIGHTING PRODUCTS

LANDSCAPE LIGHTING

LANDSCAPE SPLICEPOST™

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

Note: Cut-away shows wiring

connections inside the SplicePost Cap.

5.0"

15.25"

Buried

LANDSCAPE SLICEPOST

Our Landscape SplicePost for outdoor lighting fixtures is different from any other “hollow pipe" style

landscape lightpost on the market. It features an internal wiring compartment/junction box, rated

for 19 cubic inches that easily accommodates two (2) 20 AMP circuits. The Landscape SplicePost

allows the installer to make a proper ground connection to safeguard people and property from

electrical shock hazards.

n

The Landscape SplicePost is UL Listed as a “Luminaire Fixture Fitting,"

suitable for use in wet locations.

n

Meets the requirements of the 2014 National Electrical Code:

Articles 314.15, 314.16(A)(2) and 314.17(B).

n

The Landscape SplicePost features a Separator Disk™ and SpliceCap™

that creates an integral “junction box" suitable for splicing.

n

The PVC SpliceCap is non-metallic and suitable for the majority of

outdoor lighting fixtures on the market.

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

Landscape SplicePost

LSPB 17200 Landscape SplicePost: PVC - Black EA 1 BX 9 9 9 Yes 21

17230 17230 Landscape SplicePost Cap: PVC, Separator Disk - Black EA 1 BX 0 0 1 Yes 1

Note: Landscape SplicePosts are ONLY sold in case quantities of 9 per Carton.

SpliceCap

compartment

fully encloses and

protects the circuit

conductors from

moisture, dirt

and abrasion.

Raised “Grips”

simplify installation

and removal of the

SpliceCap.

UF Connector

secures the

incoming supply

line cable to

the Separator Disk.

Incoming supply

line cable.

The SpliceCap’s 19 cubic inch box volume can house

two (2) 20 AMP circuit conductors.

Eight (8) internal “Stops” seat and rmly hold the

Separator Disk in place when the SpliceCap is

positioned on the PVC Pipe.

LANDSCAPE SPLICEPOST -

SPLICECAP CUT-AWAY EXAMPLE

Separator Disk with attached Ground

Wire. Use with non-grounded metallic

light xtures to make a safe ground

connection.

NEC Article 314.15 … boxes,

conduit bodies and ttings

installed in wet locations

shall be listed for use in wet

locations.

NEC Article 314.16(A)(2) –

Boxes 1650 cm

3

(100 in

3

)

or less, other than those

described in Table 314.16(A),

and non-metallic boxes shall

be durably and legibly marked

by the manufacturer with

their volume.

The Landscape SplicePost is

shatter resistant to denting

or cracking typically caused

by landscape maintenance

equipment. It is also

corrosion and UV resistant

and impervious to changing

environmental conditions.

When wiring multiple

lighting xtures in series, the

Landscape SplicePost’s angled

bottom allows UF Cable or

Conduit to easily enter at

dierent depths to eliminate

cable congestion.

SpliceCap accommodates a

1/2" trade size conduit nipple.

NEC Article 314.17 – Conductors

entering boxes, conduit bodies

or ttings shall be protected from

abrasion and shall comply with

314.17(B).

… Where raceway or cable is

installed with metal boxes or

conduit bodies, the raceway or

cable shall be secured to such

boxes and conduit bodies.

NEC Article 314.4 – All metal boxes

shall be grounded and bonded

in accordance with Parts I, IV,

V, VI, VII, and X of Article 250 as

applicable, except as permitted

in 250.112(I).

Replaces EMT, conduit connectors

and weatherproof boxes.

Uni-Stabilizer™ features unique

concave stabilizing blades that

allow ground material to be easily

packed around the Landscape

SplicePost for fast, easy and secure

installation.

The Uni-Stabilizer helps minimize

the Landscape SplicePost’s

movement typically caused by

ground freezing and thawing.

LIGHTING PRODUCTS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

53LIGHTING PRODUCTS

LANDSCAPE LIGHTING

LANDSCAPE LIGHTPOST™

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

Landscape LightPost

LLPN25B 12701

Landscape LightPost: 17.5" - Black

EA 1 BX 9 9 9 Yes 21

E04-002-004 14025 Landscape LightPost Cap: Black EA 1 BX 0 0 1 No 1

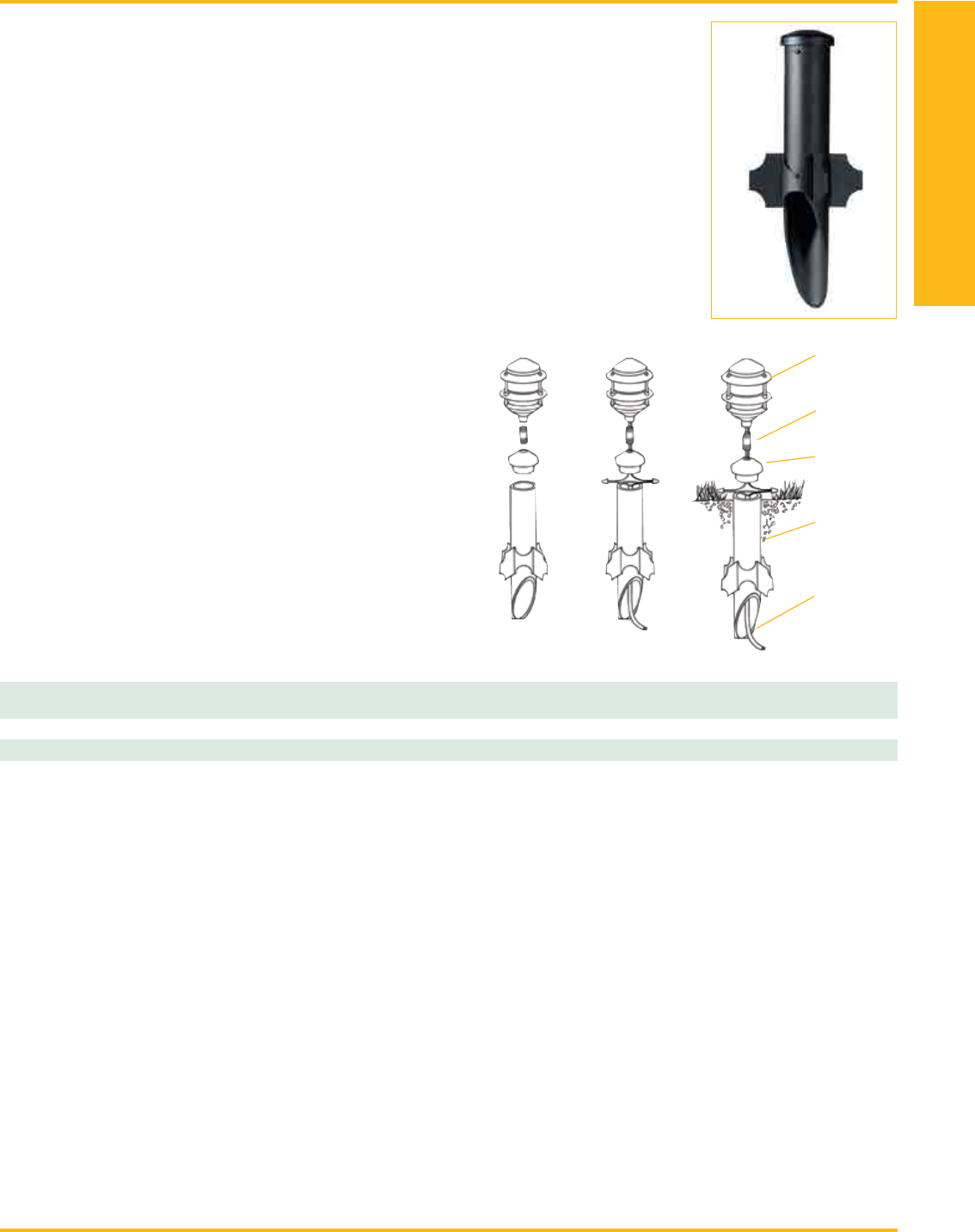

LANDSCAPE LIGHTPOST

The Landscape LightPost is UL Listed as a “Luminaire Fixture Fitting," suitable for use

in wet locations and complies with the 2014 National Electrical Code: Article 314.15.

It is designed for line voltage landscape light fixtures but can also be used for low

voltage fixtures.

*Note: The Landscape LightPost should always be used with a UL Listed Fixture and a grounding

means (i.e., ground bonded third wire) suitable for use in wet locations.

Note: Landscape LightPosts are ONLY sold in case quantities of nine (9) per Carton.

ASSEMBLY INSTRUCTIONS

1. Feed the light fixture’s black, white and ground wires through

the 1/2" nipple (not supplied) and Nesting Cap. Thread and

tighten the 1/2" nipple into the top of the Nesting Cap.

2. Using wire nuts or another appropriate connector, connect

the supply wires to the light fixture’s wires. Then push the

light fixture and Nesting Cap onto the top of the Landscape

LightPost.

3. Place the wired Landscape LightPost into the excavated trench

and position to the desired height.

Light Fixture

(not supplied)

1/2” Nipple

(not supplied)

Nesting Cap

Landscape

LightPost

Incoming UF

supply line or

conduit

54

GROUND BONDING

n GROUND BONDING

PIGTAILS™

n POWERTAILS® DEVICE

WIRING CONDUCTORS

n GROUND SCREWS

n GROUND CLIP

GROUND BONDING

55

GROUND BONDING

TM

We introduced the Stranded Grounding PigTail over 37 years ago. Today, we have sold millions of Ground Bonding

PigTails. Our manufacturing expertise, quality, reliability, and expedited delivery time have always met customer

expectations.

Our Ground Bonding products provide a permanent and positive connection for the grounding system to ensure an

effective, low-impedance ground-fault current path to safeguard people and property from electrical hazards.

WHY CONTRACTORS USE EPCO GROUND BONDING PIGTAILS™ AND POWERTAILS®

No other company manufacturers more combinations of PigTails and PowerTails Device Wiring Conductors than we do.

Our solid and stranded wire single and dual-gang Ground Bonding PigTails are available in 6.5”, 8”, 10”, and 12” lengths

and include a grounding screw, a machine-formed and insulated crimped Ring or Flanged Spade Fork Terminal.

n The Ring Terminal used is a true grounding ring that actually “bites” into the screw head and receptacle box to ensure

an excellent “ground” connection.

n The factory made insulation crimp on the Ring Terminal and Flanged Fork Spade Terminal puts less stress on the

conductor’s strands to ensure an excellent ground and power connection because the strands will not break or

separate when these conductors are pushed into the junction box.

n The Flanged Fork Spade Terminal has “angled” flanges on the end of the “fork” that will stay in place to help the

installer connect the PigTail or PowerTail to the appropriate screw on the receptacle, switch or device.

ADVANTAGES FOR THE CONTRACTOR

nInstallation speed and reliability!

n Cost-effective and efficient.

n Quickly connect receptacles, switches or other devices.

n The perfect products for pre-fabrication work in the shop or on the job site.

n A variety of configurations and lengths that meet a broad range of applications.

n Ground Bonding PigTails and PowerTail products are available in re-usable tubes.

n 12 AWG is the standard wire size. 14 AWG Ground Bonding PigTails are available.

n Solid Wire Ground Bonding PigTails: THHN Building Wire.

n Stranded Wire Ground Bonding PigTails: THHN Building Wire (19 or 65 strand).

n Ground Bonding PigTails in bulk quantities of 1,000 are available. Contact our Inside Sales Department

(800.336.1976 or sales@engproducts.com) for more information.

GROUND SCREW CHOICES

n Self-tapping GSC Ground Screw is used by contractors when the metallic junction box’s ground screw hole is not

tapped or is not “cleanly” tapped.

n Tapered Point GSH Ground Screw is a labor savings screw used by contractors. This ground screw is easy to start in

the pre-tapped hole.

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

56 GROUND BONDING

GROUND BONDING

GROUND BONDING PIGTAILSTM

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

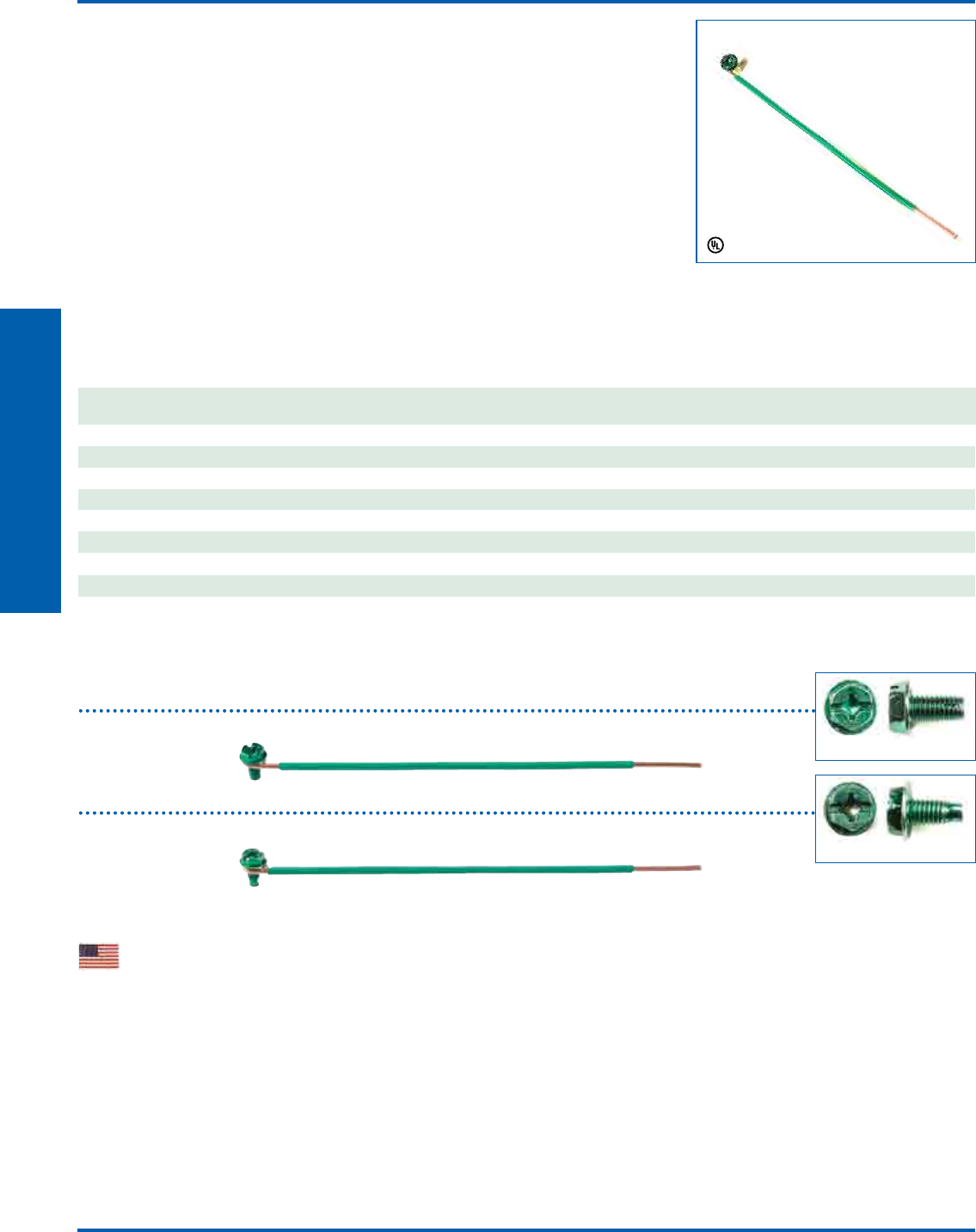

GROUND BONDING PIGTAILS 

INSULATED SOLID WIRE 12 AWG AND 14 AWG

n

UL Listed.

n

Our Solid Wire Ground Bonding PigTails are recommended for use

in metal box applications.

n

Features a captive GSH or GSC Green Ground Screw on one end, the other

end is pre-stripped 1".

Note: See Page 61 for detailed descriptions on the differences between the GSC and GSH Ground Screws.

n

Available in 6.5", 8", 10" and 12" lengths.

n

Typical applications:

– Ground bonding in a power distribution box, junction box or multi-gang

receptacle box.

– When a standard Stranded Wire PigTail is not required.

n

Meets the requirements of the 2014 National Electrical Code:

Articles 110.14(A) and (B) and 250.8(A).

*Contractor preferred

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

With GSC Ground Screw

20016 20016 6.5" PigTail: Captive GSC Ground Screw – Stripped 1" PKG 50 PKG 10 500 50 Yes 9

20086 20086 8" PigTail: Captive GSC Ground Screw – Stripped 1" PKG 50 PKG 10 500 50 Yes 11

20088 20088 10" PigTail: Captive GSC Ground Screw – Stripped 1" PKG 50 PKG 10 500 50 Yes 13

With GSH Ground Screw

20009* 20009 6.5" PigTail: Captive GSH Ground Screw – Stripped 1" PKG 50 PKG 10 500 50 Yes 9

20010 20010 6.5" PigTail (14 AWG): Captive GSH Ground Screw – Stripped 1" PKG 50 PKG 10 500 50 Yes 7

20011* 20011 8" PigTail: Captive GSH Ground Screw – Stripped 1" PKG 50 PKG 10 500 50 Yes 11

20087 20087 10" PigTail: Captive GSH Ground Screw – Stripped 1" PKG 50 PKG 10 500 50 Yes 13

REFERENCE GUIDE – INSULATED SOLID WIRE PIGTAILS (12 AWG AND 14 AWG)

20009: 6.5-Inch* PigTail: With captive GSH Ground Screw - Stripped 1".

20011: 8-Inch*

20087: 10-Inch

20010: 6.5-Inch (14 AWG)

PART NUMBERS

20016: 6.5-Inch PigTail: With captive GSC Ground Screw - Stripped 1".

20086: 8-Inch

20088: 10-Inch

GSC Ground Screw

EPCO Ground Bonding PigTails are Made in the USA. Complies with the American Recovery and Reinvestment Act – Buy American Provision.

Part Number: 20009

GSH Ground Screw

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

57GROUND BONDING

GROUND BONDING

GROUND BONDING PIGTAILSTM

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

GROUND BONDING PIGTAILS 

INSULATED STRANDED WIRE 12 AWG AND 14 AWG

n

UL Listed.

n

Labor and Time Savings!

n

Our Stranded Wire Ground Bonding PigTails can save the contractor

up to 50 cents per installation.

n

Meets the requirements of the 2014 National Electrical Code:

Articles 110.14(A) and (B) and 250.8(A).

n

Factory-crimped Flanged Spade Terminal or Ring Terminal meets the

requirements of the 2014 National Electrical Code: Article 110.4 and

provides precise electrical terminations.

n

Typical applications: Ground bonding in a power distribution box,

junction box or multi-gang receptacle box.

Note: See Page 61 for detailed descriptions on the differences between the GSC and GSH Ground Screws.

Part Number: 20004

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

Without Ground Screws

20008* 20008 8" PigTail: One (1) Flanged Spade Terminal – Stripped 5/8" PKG 50 PKG 10 500 50 Yes 13

With GSC Ground Screw

20020 20020 10" PigTail: Ring Terminal, captive GSC Ground Screw, PKG 50 PKG 10 500 50 Yes 15

One (1) Flanged Spade Terminal

20026 20026 12" PigTail: Ring Terminal, captive GSC Ground Screw, PKG 50 PKG 10 500 50 Yes 17

One (1) Flanged Spade Terminal

20035 20035 10" PigTail: Ring Terminal, captive GSC Ground Screw - Stripped 5/8" PKG 50 PKG 10 500 50 Yes 14

20036 20036 8" PigTail: Ring Terminal, captive GSC Ground Screw - Stripped 5/8" PKG 50 PKG 10 500 50 Yes 12

20041 20041 8" PigTail: Ring Terminal, captive GSC Ground Screw, PKG 50 PKG 10 500 50 Yes 13

One (1) Flanged Spade Terminal

With GSH Ground Screw

20003 20003 8" PigTail (14 AWG): One (1) Flanged Spade Terminal, captive GSH Ground Screw PKG 50 PKG 10 500 50 Yes 16

20004* 20004 8" PigTail: One (1) Flanged Spade Terminal, captive GSH Ground Screw PKG 50 PKG 10 500 50 Yes 13

20019 20019 10" PigTail: One (1) Flanged Spade Terminal, captive GSH Ground Screw PKG 50 PKG 10 500 50 Yes 15

20025 20025 12" PigTail: One (1) Flanged Spade Terminal, captive GSH Ground Screw PKG 50 PKG 10 500 50 Yes 17

20029* 20029 8" PigTail: Ring Terminal, captive GSH Ground Screw - Stripped 5/8" PKG 50 PKG 10 500 50 Yes 12

*Contractor preferred

EPCO Ground Bonding PigTails are Made in the USA. Complies with the American Recovery and Reinvestment Act – Buy American Provision.

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

58 GROUND BONDING

GROUND BONDING

GROUND BONDING PIGTAILSTM

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

SINGLE AND DUALGANG GROUND BONDING PIGTAILS 12 AWG

n

Labor and Time Savings!

n

UL Listed.

n

Matched Flanged Spade and Ring Terminals

ensure a safe, reliable ground connection.

n

Meets the requirements of the 2014 National

Electrical Code: Articles 110.14(A) and (B) and 250.8(A).

Reprinted from the 2014 National Electrical Code: Article 250.148 –

Continuity and Attachment of Equipment Grounding Conductors

to Boxes: Where circuit conductors are spliced within a box, or

terminated on equipment within, or supported by a box, any

equipment grounding conductor(s) associated with those circuit

conductors shall be connected within the box or to the box with

devices suitable for the use in accordance with 250.148(A) through (E).

EPCO Ground Bonding PigTails are Made in the USA. Complies with the American Recovery and Reinvestment Act – Buy American Provision.

20041: 8-Inch PigTail: One (1) Flanged Spade Terminal and a captive GSC Ground Screw.

20020: 10-Inch

20026: 12-Inch

PART NUMBERS

20008: 8-Inch* PigTail: One (1) Flanged Spade Terminal - Stripped 5/8".

20036: 8-Inch PigTail: Ring Terminal and a captive GSC Ground Screw - Stripped 5/8".

20035: 10-Inch

REFERENCE GUIDE – INSULATED STRANDED WIRE PIGTAILS (12 AWG AND 14 AWG)

20003: 8-Inch (14 AWG) PigTail: One (1) Flanged Spade Terminal and a captive GSH Ground Screw.

20004: 8-Inch*

20019: 10-Inch

20025: 12-Inch

20029: 8-Inch* PigTail: Ring Terminal and a captive GSH Ground Screw - Stripped 5/8".

Part Number: 20074

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

20067 20067 Single-Gang PigTail: One (1) 8" Solid Wire Incoming Lead - PKG 20 PKG 10 200 20 Yes 9

Stripped 1", One (1) 8" Stranded Wire Conductor with One (1)

Flanged Spade Terminal, captive GSH Ground Screw

20068 20068 Single-Gang PigTail: One (1) 8" Stranded Wire Incoming Lead - PKG 20 PKG 10 200 20 Yes 9

Stripped 5/8", One (1) 8" Stranded Wire Conductor with One (1)

Flanged Spade Terminal, captive GSH Ground Screw

20070* 20070 Dual-Gang PigTail: Two (2) 8" Stranded Wire Conductors, each PKG 20 PKG 10 200 20 Yes 10

with One (1) Flanged Spade Terminal, captive GSH Ground Screw

20074* 20074 Dual-Gang PigTail: One (1) 8" Solid Wire Incoming Lead - PKG 20 PKG 10 200 20 Yes 11

Stripped 1",Two (2) 8" Stranded Wire Conductors, each with

One (1) Flanged Spade Terminal, captive GSH Ground Screw

20075 20075 Dual-Gang PigTail: One (1) 8" Stranded Wire Incoming Lead - PKG 20 PKG 10 200 20 Yes 13

Stripped 5/8", Two (2) 8" Stranded Wire Conductors, each with

One (1) Flanged Spade Terminal, captive GSH Ground Screw

PowerTails with One (1) Flanged

Terminal Part Numbers: 20065 (Black)

and 20062 (White)

Dual-Gang Grounding PigTails

Part Numbers: 20074 or 20075

*Contractor preferred

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

59GROUND BONDING

GROUND BONDING

GROUND BONDING PIGTAILSTM

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

(THHN)

(UL 1015)

(THHN)

(UL 1015)

(THHN)

(UL 1015)

EPCO PowerTails are Made in the USA. Complies with the American Recovery and Reinvestment Act – Buy American Provision.

REFERENCE GUIDE – SINGLE AND DUAL-GANG GROUND BONDING PIGTAILS (12 AWG)

PART NUMBERS

20067: 8-Inch Single-Gang PigTail: One (1) 8" Solid Wire Incoming

Lead - Stripped 1", One (1) 8" Stranded Wire

Conductor with One (1) Flanged Spade Terminal

and a captive GSH Ground Screw.

20068: 8-Inch Single-Gang PigTail: One (1) 8" Stranded Wire

Incoming Lead - Stripped 5/8", One (1) 8" Stranded

Wire Conductor with One (1) Flanged Spade Terminal

and a captive GSH Ground Screw.

20070: 8-Inch* Dual-Gang PigTail: Two (2) 8" Stranded Wire Conductors,

each with One (1) Flanged Spade Terminal and a

captive GSH Ground Screw.

20074: 8-Inch* Dual-Gang PigTail: One (1) 8" Solid Wire Incoming

Lead - Stripped 1", Two (2) 8" Stranded Wire

Conductors with Two (2) Flanged Spade Terminals

and a captive GSH Ground Screw.

20075: 8-Inch Dual-Gang PigTail: One (1) 8" Stranded Wire Incoming

Lead - Stripped 5/8", Two (2) 8" Stranded Wire

Conductors with Two (2) Flanged Spade Terminals

and a captive GSH Ground Screw.

REFERENCE GUIDE – POWERTAILS DEVICE WIRING CONDUCTORS (12 AWG)

20062: White PowerTail: Stranded Wire Conductor with One (1) Flanged Spade Terminal – Stripped 5/8".

20065: Black (THHN)

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

20062 20062 8" PowerTail: White, Stranded Wire Conductor with PKG 50 PKG 10 500 50 Yes 8

One (1) Flanged Spade Terminal – Stripped 5/8"

20065 20065 8" PowerTail: Black, Stranded Wire Conductor with PKG 50 PKG 10 500 50 Yes 9

One (1) Flanged Spade Terminal – Stripped 5/8"

POWERTAILS® DEVICE WIRING CONDUCTORS 12 AWG

n

UL Listed.

n

Labor Savings Tool! Used by contractors that wire Commercial and Industrial buildings when using single and/or multi-gang

metal boxes.

n

Provides installation speed and a reliable connection when bringing power to multiple devices. Perfect for pre-wiring devices

in the contractor's shop or on the job site.

n

8" Length Black and White leads feature a factory crimped Flanged Spade Terminal that slips under the terminal screw on the device.

n

Manufactured using flexible 12 AWG stranded wire to easily push into the junction box.

n

Meets the requirements of the 2014 National Electrical Code: Articles 110.14(A) and (B).

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

60 GROUND BONDING

GROUND BONDING

GROUND BONDING PIGTAILSTM

SINGLEGANG SOLID WIRE: P/N 20067

SINGLEGANG STRANDED WIRE: P/N 20068

DUALGANG STRANDED WIRE: P/N 20070

DUALGANG SOLID WIRE: P/N 20074

DUALGANG STRANDED WIRE: P/N 20075

SINGLE AND DUALGANG GROUND BONDING PIGTAILS  APPLICATION EXAMPLES

The ground screw is screwed into and bonds the metal junction box. The two (2)

stranded wire grounding conductors with the anged spade terminals from this PigTail

grounds each receptacle. The solid wire conductor on the PigTail connects by wire nut to

the incoming ground conductor in the conduit and bonds back to the service panel.

The ground screw is screwed into and bonds the metal junction box. The single

stranded wire grounding conductor with the anged spade terminal from this same

PigTail grounds the receptacle. The solid wire grounding conductor on the PigTail

will ground the receptacle. The solid wire grounding conductor on the PigTail

connects to the MC Cable and bonds back to the service panel.

The ground screw is screwed into and “grounds" the metal junction box. The single

stranded wire grounding conductor with the anged spade terminal from this PigTail

grounds the receptacle. The stranded wire grounding conductor on the PigTail connects

(by wire nut) the incoming ground conductor in the MC Cable and bonds back to the

service panel.

The ground screw is screwed into the 10/32 tapped grounding hole opening in the

metal junction box, bonding the junction box to the conduit system and grounded

back to the service panel. The two (2) stranded wire ground PigTails with the anged

spade terminals would then connect to the grounding screw of the receptacles or

switches to be wired.

The ground screw is screwed into and “grounds" the metal junction box and is bonded

back to the service-grounded panel. Two (2) stranded wire grounding conductors with

anged spade terminals from this PigTail ground each receptacle. The stranded wire

grounding conductor on the PigTail connects by wire nut to the ground conductor

from the incoming cable.

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

61GROUND BONDING

GROUND BONDING

GROUND SCREWS AND GROUND CLIPS

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

GSC 10053 GSC: Slotted, #2 Phillips, Hex Head with Cutting Point - Green PKG 100 PKG 10 1000 100 Yes 1

GSCT 30053 GSC: Slotted, #2 Phillips, Hex Head with Cutting Point - Green PKG 250 PKG 10 2500 250 Yes 2

20053 20053 GSC: Bulk C 1000 BN 0 0 1000 Yes 10

GSH 10051 GSH: Slotted, #2 Phillips, Hex Head, #2 Robertson with PKG 100 PKG 10 1000 100 Yes 1

Tapered Die Point - Green

GSHT 30051 GSH: Slotted, #2 Phillips, Hex Head, #2 Robertson with PKG 250 PKG 10 2500 250 Yes 2

Tapered Die Point - Green

20051 20051 GSH: Bulk C 1000 BN 0 0 1000 Yes 10

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

GC 10052 Ground Clip: for 14 AWG -12 AWG Solid Wire BG 100 BG 10 1000 100 Yes 1

20052 20052 GC: Bulk C 1000 BN 0 0 1000 Yes 10

GROUND SCREWS

Our Ground Screws are manufactured in compliance with the Restriction of

Hazardous Substances (RoHS) European Directive. These Green Ground Screws

(#10-32 x .375") meet the requirements of the 2014 National Electrical Code:

Article 250.8.

GSC – Cutting Point Screw – Combination hex head, slotted, phillips and square

drive screw for use in metal boxes when holes have not been pre-tapped.

GSH – Hex Head Screw – Combination slotted, phillips and square drive tapered

point screw used to simplify wiring installations when pre-tapped holes exist in

metal boxes.

Note: Beginning July 1, 2006, Directive 2002/95/EC, of the European Union (EU), restricts the use of certain hazardous substances in

electrical and electronic equipment. Those substances are Lead, Mercury, Cadmium, Hexavalent Chromium, PBBs.

GROUND CLIPS

n

Excellent time and labor saving alternative to using Ground Screws.

n

Meets the requirements of the 2014 National Electrical Code: Article 250.8.

Our Ground Clips are specifically designed for termination of the grounding

conductor and should be used when a 10-32 hole is not pre-drilled or tapped into

a metallic junction box.

Since ground clips are forced onto the outside edge of the junction box, we

recommend using a “new" ground clip instead of re-using the old ground clip.

Ground clips should never be forced onto the round portion of a plaster ring or a

poor electrical connection will result.

INSTALLATION PROCEDURE

The correct way to install a ground clip is to feed the grounding conductor into the

ground clip with the shorter part of the ground clip placed inside the junction box.

Then use the flat blade of a screwdriver to force the ground clip onto the junction

box to ensure a good electrical connection. See illustration.

Note: Ground Screws listed above are used in our Ground Bonding PigTails.

EPCO

Ground

Clip

Grounding

Conductor

GSH Ground Screw-

Hex Head Screw

GSC Ground Screw-

Cutting Point Screw

62

SPLICE KITS/

HEAT SHRINK TUBING

n SPLICE KITS

n HEAT SHRINK TUBING

SPLICE KITS/

HEAT SHRINK TUBING

63

SPLICE KITS/

HEAT SHRINK TUBING

Our Splice Kits provide a permanent water resistant seal that eliminates expensive crimping tools when splicing

aluminum or copper conductors. These splice kits are specifically intended for direct burial applications and

designed to eliminate any cable deterioration and other problems that can lead to open circuits and cable failure.

Our Splice Kits are labor savings solutions that meet or exceed the electrical contractors requirements and can

easily encapsulate 18 AWG to 1/0 AWG multi-conductor wire splices as well as single service conductors up to

250 MCM. Heating the heat shrink tubing over the mechanical connector melts the adhesive to the cable, sealing

the splice from moisture and provide insulation and protection. Only a standard screwdriver is required to

terminate the wire into the mechanical connector.

Our kits are available in five (5) kit types and include the tubing, sealant and mechanical connectors to ensure

a safe and reliable splice.

SPLICE KIT COMMONALITIES

n UL Listed.

n Meets the requirements of the 2014 National Electrical Code: Article 110.14(B).

n Eliminates epoxies, tapes or separate mastics.

n Creates a waterproof splice.

n 600 Volt maximum, 105°C rating.

Note: Our Heat Shrink Torch is always recommended for use with all EPCO Splice Kits. A torch used for sweating copper tubing will not work

and could burn a hole in the shrink tubing!

SPLICE KITS AWG CHART

Dual Rated Butt

Splice Kits

Logical AWG

Number

AWG (and

“Aught" */0

Equivalent)

MCM

or

kcmil

DRBSK

8 8 17

7 7 21

6 6 26

5 5 33

4 4 42

DRBSK1

2 2 66

1 1 84

0 1/0 106

DRBSK3

-1 2/0 133

-2 3/0 168

-3 4/0 212

-3.7 4.7/0 250

Copper Butt

Splice Kits AWG

BSK1

BSK2

14

13

12

11

10

9

8 8

BSK3

BSK4

7

6

5

4

3

2

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

64 SPLICE KITS/HEAT SHRINK TUBING

SPLICE KITS/

HEAT SHRINK TUBING

SPLICE KITS

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

UFC2B 10711 UF Cable Splice Kit – for Direct Burial: EA 1 BG 24 24 1 No 6

Accommodates Cable Sizes – 14/3 without

Ground (minimum),

8/3 without Ground (maximum)

COPPER BUTT SPLICE KITS

n UL Listed. File Number: E103228.

n Labor Savings! Designed to simplify splicing discreet copper conductors.

n Sizes: 14 AWG to 2 AWG.

n BSK series is rated for 600 Volts maximum, 105°C (221°F) temperature rating.

n Meets the requirements of the 2014 National Electrical Code:

Articles 110.14(B), 300.5(E) and 300.50(D).

BSK Splice Kits include a mechanical copper butt splice connector and an 8-inch

piece of thick wall heat shrink tubing to create a fully insulated butt splice.

Before After

Heat Shrink Torch

After

Heat Shrink Tubing

Heat Shrink Torch

Heat Shrink Tubing Connector

Before

UF CABLE SPLICE KIT  FOR DIRECT BURIAL

n UL Listed for direct burial. File Number: E123896.

n Labor Savings! Obsoletes messy, two part Splice Kits.

n Accommodates UF Cables sizes: 14/3 without ground

minimum, 8/3 without ground maximum.

n 600 Volts maximum, 105°C (221°F) temperature rating.

n Meets the requirements of the 2014 National Electrical Code:

Articles 110.14(B), 300.5(E) and 300.50(D).

The UF Cable Splice Kit includes one (1) 4-position mechanical connector

and one (1) piece of heat shrink tubing to splice and insulate 14 AWG to 8 AWG UF Cable.

By using Thick Wall Heat Shrink Tubing with sealant and the mechanical connector, the

repair of UF Cable is a quick, easy and reliable process. No epoxies, tape or separate

mastics are required.

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

BSK1 10705 Butt Splice Kit: 14 AWG to 8 AWG Assembled EA 1 BG 24 24 1 No 2

BSK2 10706 Butt Splice Kit: 14 AWG to 8 AWG Assembled EA 1 BG 24 24 1 No 2

BSK3 10708 Butt Splice Kit: 8 AWG to 2 AWG Assembled EA 1 BG 24 24 1 No 2

BSK4 10709 Butt Splice Kit: 8 AWG to 2 AWG Assembled EA 1 BG 24 24 1 No 2

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

65SPLICE KITS/HEAT SHRINK TUBING

SPLICE KITS/

HEAT SHRINK TUBING

SPLICE KITS

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

SELF SEALING UF SPLICE KIT  FOR DIRECT BURIAL

n UL Listed for direct burial. File Number: E123896.

n Labor Savings! Simplifies the assembly of a moisture resistant splice.

n Protects electrical connections and allows for re-entry if needed.

n Eliminates use of epoxies, tape or mastics.

n 600 Volts maximum, 105°C (221°F) temperature rating.

n Meets the requirements of the 2014 National Electrical Code:

Articles 110.14(B), 300.5(E) and 300.50(D).

The uniquely designed interference t cover enables direct burial of UF Cable to be a

quick and reliable process. The kit includes a mechanical connector, silicone lubricant

and the interference t covers. Accommodates 14 AWG to 8 AWG wire sizes.

Before

After

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

UFC3/4 10703 Self Sealing UF Splice Kit – for Direct Burial: EA 1 BG 24 24 1 No 10

Accommodates Cable Sizes – 14/3 without Ground (minimum),

8/3 with Ground (maximum)

DUAL RATED BUTT SPLICE KITS  FOR DIRECT BURIAL

n Eliminates expensive crimping tools when splicing aluminum or copper

conductors for direct burial.

n UL Listed components.

n 600 Volts maximum, 105°C (221°F) temperature rating.

n For use with aluminum and copper conductors.

n Meets the requirements of the 2014 National Electrical Code:

Articles 110.14(B), 300.5(E) and 300.50(D).

The kits include a pair of thick wall heat shrink tubing (2 pieces) and one (1) mechanical

connector. Popular splicing applications include repair and/or extending type USE Cable.

Before

After

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

DRBSK 11499

Dual Rated Butt Splice Kit: 8 AWG to 4 AWG Assembled

EA 1 BG 24 24 1 No 10

DRBSK1 11500

Dual Rated Butt Splice Kit: 2 AWG to 1/0 AWG Assembled

EA 1 BG 24 24 1 No 1

DRBSK3 11501

Dual Rated Butt Splice Kit: 2/0 AWG to 250 MCM Assembled

EA 1 BG 24 24 1 No 10

UF STRETCHER KIT  FOR DIRECT BURIAL

n UL Listed for direct burial. File Number: E123896.

n Labor Savings! Includes one 11.5" mechanical connector that eliminates the need to use

two (2) UF Cable Splice Kits (P/N: UFC2B) and a short piece of cable when repairing a

longer section of damaged UF Cable.

n 600 Volts maximum, 105°C (221°F) temperature rating.

n Meets the requirements of the 2014 National Electrical Code:

Articles 110.14(B), 300.5(E) and 300.50(D).

Simplify UF Cable repairs after a trencher or backhoe has damaged or destroyed a 7" to 10"

section of UF Cable. Utilize our Thick Wall Heat Shrink Tubing with sealant to make a quick

and reliable repair. Eliminates epoxies, tapes or separate mastics and creates a waterproof

splice. The kit includes one (1) 4-position 11.5" connector and one (1) piece of heat shrink

tubing. Designed to splice and insulate 14 AWG to 8 AWG UF Cable.

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

UFS2 10714

UF Stretcher Kit – for Direct Burial: Accommodates Cable Sizes –

EA 1 BG 12 12 1 No 12

14/3 without Ground (minimum), 8/3 without Ground (maximum)

66

SPLICE KITS/

HEAT SHRINK TUBING

Our Thick Wall Heat Shrink Tubing for direct burial applications is made from cross-linked polyolefin. This tough,

versatile tubing can be used for insulation, harnessing, strain relief, and identification purposes for residential,

commercial and industrial applications.

Heat Shrink Tubing is designed and tested to meet the most demanding requirements of IEEE, UL, CSA

and ANSI as well as many other international standards for performance and long-term reliability.

BENEFITS

n For direct burial applications; withstands severe mechanical requirements.

n Seals, protects and insulates electrical connections and terminations; provides excellent mechanical protection.

n Superior jacket tear resistance and elastomer characteristic allows better conformance over irregular contours

without splitting or cracking.

n Accommodates most applications contractors will encounter.

n Excellent sealing efficiency ensuring no moisture ingress as the hot melt adhesive enables fill encapsulation

of cables and connectors.

n Provides maximum reliability protecting splices and terminations.

n High impact, abrasion, corrosion and chemical resistance.

n Provides a moisture and soil resistant seal.

n Rated for 600 Volts, 90°C continuous use.

n Standard Shrink Ratio: 3:1

n Shrink temperature: 120°C

TYPICAL APPLICATIONS

n Splice covers for repair of electrical cables and splice connections.

n Insulation cover or jacket repair on low voltage cables.

n Strain relief and environmental protection.

n HVAC systems for pipes and ducts.

Note: We recommend always using our Heat Shrink Torch for shrinking Thick Wall Heat Shrink Tubing. A torch used for sweating copper

tubing will not work and could burn a hole in the shrink tubing!

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

67SPLICE KITS/HEAT SHRINK TUBING

SPLICE KITS/

HEAT SHRINK TUBING

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

THICK WALL HEAT SHRINK TUBING  FOR DIRECT BURIAL

n UL Listed for direct burial. File Number: E123896.

n Meets the requirements of the 2014 National Electrical Code: Articles 110.14(B),

300.5(E) and 300.50(D).

n Installs and shrinks easily for labor savings. Most effective when insulating

over large transitions.

n 3:1 Shrink ratio enables wider cable range and fewer tubing sizes.

n Excellent abrasion, corrosion and environmental resistance properties.

n UV and fungi resistant.

Thick Wall Heat Shrink Tubing (HST) is used to dielectrically insulate and

encapsulate electrical connections. The HST internal coating has an adhesive

and sealant that melts when the tubing is heated to provide a moisture and

soil resistant seal. The standard color is black.

BULK THICK WALL HEAT SHRINK TUBING  FOR DIRECT BURIAL

Our Bulk Heat Shrink Tubing is used for direct burial and is the same quality

tubing as our popular packaged HST Thick Wall Tubing. Available in cut lengths

from 2" up to 48".

Please specify the length by adding the correct length in inches to the end of the

part number. Example: One (1) 13" piece of 14 AWG to 10 AWG tubing; E00-902-013.

Note: All Bulk Tubing is quoted per inch.

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

HST1410 10170 Heat Shrink Tubing: Conductor Size – 14 AWG to 10 AWG, BG 6 BG 12 72 6 Yes 5

Shrink Range – .36-Inch to .12-Inch; Includes Six (6) 8-Inch

Pieces per Package

HST84 10171 Heat Shrink Tubing: Conductor Size – 6 AWG to 2 AWG, BG 6 BG 12 72 6 Yes 7

Shrink Range – .75-Inch to .24-Inch; Includes Six (6) 8-Inch

Pieces per Package

HST23/0 10172 Heat Shrink Tubing: Conductor Size – 1/0 AWG to 3/0 AWG, BG 6 BG 12 72 6 Yes 9

Shrink Range – 1.10-Inch to .35-Inch; Includes Six (6) 8-Inch

Pieces per Package

HST2/0300 10173

Heat Shrink Tubing: Conductor Size – 2/0 AWG to 350 MCM

, BG 4 BG 12 72 6 Yes 10

Shrink Range – 1.50-Inch to .47-Inch; Includes Four (4) 8-Inch

Pieces per Package

HST300650 10174

Heat Shrink Tubing: Conductor Size – 250 MCM to 500 MCM,

BG 3 BG 12 72 6 Yes 13

Shrink Range – 2.0-Inch to .63-Inch; Includes Three (3) 12-Inch

Pieces per Package

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

Conductor Size: 1 AWG / 3/0 AWG

E00-901-0__* n/a Thick Wall Tubing EA 1 BG 0 0 1 No 1

E00-901-005 13911 Thick Wall Tubing: One (1) 5-Inch Piece EA 1 BG 0 0 1 No 1

E00-901-006 13912 Thick Wall Tubing: One (1) 6-Inch Piece EA 1 BG 0 0 1 No 1

E00-901-008 13913 Thick Wall Tubing: One (1) 8-Inch Piece EA 1 BG 0 0 1 No 1

E00-901-009 13914 Thick Wall Tubing: One (1) 9-Inch Piece EA 1 BG 0 0 1 No 1

E00-901-010 13915 Thick Wall Tubing: One (1) 10-Inch Piece EA 1 BG 0 0 1 No 1

E00-901-012 13916 Thick Wall Tubing: One (1) 12-Inch Piece EA 1 BG 0 0 1 No 1

E00-901-024 13918 Thick Wall Tubing: One (1) 24-Inch Piece EA 1 BG 0 0 1 No 1

E00-901-036 13919 Thick Wall Tubing: One (1) 36-Inch Piece EA 1 BG 0 0 1 No 1

E00-901-048 13920 Thick Wall Tubing: One (1) 48-Inch Piece EA 1 BG 0 0 1 No 1

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

68 SPLICE KITS/HEAT SHRINK TUBING

SPLICE KITS/

HEAT SHRINK TUBING

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

HEAT SHRINK TORCH

Recommended for shrinking Thick Wall Heat Shrink Tubing and for use with all our

Splice Kits. The trigger-start ignition starts fast and easy. Features a fully adjustable

regulator valve and air inlet port for adjustable flame settings.

Connects directly to a standard 14.1 propane tank (not included).

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

HST-T1 12200 Heat Shrink Torch EA 1 BX 20 20 1 No 22

BULK THICK WALL HEAT SHRINK TUBING CONTINUED

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

Conductor Size: 14 AWG / 10 AWG

E00-902-0__* n/a Thick Wall Tubing EA 1 BG 0 0 1 No 1

E00-902-006 13925 Thick Wall Tubing: One (1) 6-Inch Piece EA 1 BG 0 0 1 No 1

E00-902-008 13926 Thick Wall Tubing: One (1) 8-Inch Piece EA 1 BG 0 0 1 No 1

E00-902-009 13927 Thick Wall Tubing: One (1) 9-Inch Piece EA 1 BG 0 0 1 No 1

E00-902-012 13928 Thick Wall Tubing: One (1) 12-Inch Piece EA 1 BG 0 0 1 No 1

E00-902-024 13929 Thick Wall Tubing: One (1) 24-Inch Piece EA 1 BG 0 0 1 No 1

E00-902-048 13931 Thick Wall Tubing: One (1) 48-Inch Piece EA 1 BG 0 0 1 No 1

Conductor Size: 6 AWG / 2 AWG

E00-903-0__* n/a Thick Wall Tubing EA 1 BG 0 0 1 No 1

E00-903-006 13937 Thick Wall Tubing: One (1) 6-Inch Piece EA 1 BG 0 0 1 No 1

E00-903-008 13938 Thick Wall Tubing: One (1) 8-Inch Piece EA 1 BG 0 0 1 No 1

E00-903-009 13939 Thick Wall Tubing: One (1) 9-Inch Piece EA 1 BG 0 0 1 No 1

E00-903-010 13940 Thick Wall Tubing: One (1) 10-Inch Piece EA 1 BG 0 0 1 No 1

E00-903-012 13941 Thick Wall Tubing: One (1) 12-Inch Piece EA 1 BG 0 0 1 No 1

E00-903-024 13943 Thick Wall Tubing: One (1) 24-Inch Piece EA 1 BG 0 0 1 No 1

E00-903-048 13945 Thick Wall Tubing: One (1) 48-Inch Piece EA 1 BG 0 0 1 No 1

Conductor Size: 2/0 AWG / 350 MCM

E00-904-0__* n/a Thick Wall Tubing EA 1 BG 0 0 1 No 1

E00-904-006 13949 Thick Wall Tubing: One (1) 6-Inch Piece EA 1 BG 0 0 1 No 1

E00-904-008 13950 Thick Wall Tubing: One (1) 8-Inch Piece EA 1 BG 0 0 1 No 1

E00-904-009 13951 Thick Wall Tubing: One (1) 9-Inch Piece EA 1 BG 0 0 1 No 1

E00-904-012 13952 Thick Wall Tubing: One (1) 12-Inch Piece EA 1 BG 0 0 1 No 1

E00-904-024 13953 Thick Wall Tubing: One (1) 24-Inch Piece EA 1 BG 0 0 1 No 1

E00-904-030 13954 Thick Wall Tubing: One (1) 30-Inch Piece EA 1 BG 0 0 1 No 1

E00-904-048 13955 Thick Wall Tubing: One (1) 48-Inch Piece EA 1 BG 0 0 1 No 1

Conductor Size: 250 MCM / 500 MCM

E00-905-0__* n/a Thick Wall Tubing EA 1 BG 0 0 1 No 1

E00-905-006 13957 Thick Wall Tubing: One (1) 6-Inch Piece EA 1 BG 0 0 1 No 1

E00-905-008 13958 Thick Wall Tubing: One (1) 8-Inch Piece EA 1 BG 0 0 1 No 1

E00-905-009 13959 Thick Wall Tubing: One (1) 9-Inch Piece EA 1 BG 0 0 1 No 1

E00-905-012 13960 Thick Wall Tubing: One (1) 12-Inch Piece EA 1 BG 0 0 1 No 1

E00-905-024 13963 Thick Wall Tubing: One (1) 24-Inch PIece EA 1 BG 0 0 1 No 1

E00-905-048 13965 Thick Wall Tubing: One (1) 48-Inch Piece EA 1 BG 0 0 1 No 1

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

69SPLICE KITS/HEAT SHRINK TUBING

SPLICE KITS/

HEAT SHRINK TUBING

Fully recovered after heating

Expanded as supplied $

#

$

#

w

d

#

$

D

Property Typical Performance

Physical

Tensile Strength 2100 psi (14.5 MPa)

Specific Gravity 1.1

Heat Shock (4 hrs at 225ºC (437ºF)) No cracking or flowing

Low Temperature Flexibility No cracking

(4 hrs at -55ºC (-67ºF))

Electrical

Dielectric Strength 500 V/Mil (20kV/mm)

Dielectric Voltage Withstand No breakdown, 24kV-1 min,

(2500 V, 60 Hz, 1 min) 15kV-4 hrs

Volume Resistivity 1016 ohm-cm

Chemical

Fluid Resistance Good to Excellent

Copper Corrosion No corrosion

Water Absorption 0.1%

Fungus Resistance No growth

Adhesive

Adhesive Softening Point 92ºC (197ºF) +/- 5ºC (41ºF)

Adhesive Lap Shear 125 psi (0.875 MPa)

Adhesive Blocking (30ºC (86ºF)) No blocking

Water Penetration No penetration after 236 hrs (min)

of continuous immersion

Expanded Recovered 600 / 1000 V

Internal Diameter Internal Diameter Wall Thickness Application Range for Single Conductor

(min) D (max) d (nom) W General Use Size

Part Number Inches MM Inches MM Inches MM Inches MM AWG / MCM

HST1410 0.35 8.9 0.12 3.0 0.7 1.8 .15 - .3 3.5 - 8 #14 - #10

HST84 0.75 19.1 0.24 6.1 0.12 3.0 .25 - .65 6.5 - 16.5 #6 - #2

HST23/0 1.10 27.9 0.35 8.9 0.12 3.0 .4 - .95 10 / 24 #1 - 3/0

HST2/0300 1.50 38.1 0.47 11.9 0.14 3.6 .5 - 1.4 13 - 35 2/0 - 350

HST300650 2.0 50.8 0.63 16 0.14 3.6 .7 - 1.75 17.5 - 44 250 - 500

Refer to the table shown below to select the Heat Shrink Tubing

size which will shrink to t snugly over the component to be

covered. If recovery is restricted the resulting wall thickness

will be less than specied.

DIMENSIONS

SPECIFICATIONS

70

PRODUCT ACCESSORIES

n RESIDENTIAL

n COMMERCIAL

PRODUCT ACCESSORIES

71

PRODUCT ACCESSORIES

Whether it’s a large multi-family housing complex, town houses, or even a single family home, the benefits of using

our Residential Products Accessories increases the electrical contractor’s productivity, expedites the installation

time — and meets the electrical contractor’s budget and application needs.

We are an excellent source for the contractor’s residential product accessory needs. We use only quality

components to ensure they operate as specified. All of our products in this section reduce the electrical

contractor’s time and labor costs when compared to other competitive offerings.

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

72 PRODUCT ACCESSORIES

PRODUCT ACCESSORIES

RESIDENTIAL ACCESSORIES

AIR CONDITIONER WHIPS

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

EPCO AC Whips and AC Whip Connectors are Made in the USA. Complies with the American Recovery and Reinvestment Act – Buy American Provision.

Catalog UPC Order Unit Unit Units/ TL Case Min MM ShipWt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

ACWNM1043-1RA 11202 AC Whip: 4-FT, 1/2", One (1) Straight and One (1) Right Angle EA 1 BRL 20 20 1 No 47

Connector, Three (3) 10 AWG Stranded - Red, Black, Green

ACWNM1063-1RA 11204 AC Whip: 6-FT, 1/2", One (1) Straight and One (1) Right Angle EA 1 BRL 20 20 1 No 49

Connector, Three (3) 10 AWG Stranded - Red, Black, Green

ACWNM843-1RA 11205 AC Whip: 4-FT, 3/4", One (1) Straight and One (1) Right Angle EA 1 BRL 20 20 1 No 49

Connector, Two (2) 8 AWG Stranded - Red, Black; One (1) 10 AWG

Stranded - Green

ACWNM863-1RA 11208 AC Whip: 6-FT, 3/4", One (1) Straight and One (1) Right Angle EA 1 BRL 10 10 1 No 36

Connector, Two (2) 8 AWG Stranded - Red, Black; One (1) 10 AWG

Stranded - Green

ACWNM843-1RA-1/2 11214 AC Whip: 4-FT, 1/2", One (1) Straight and One (1) Right Angle EA 1 BRL 20 20 1 No 49

Connector, Two (2) 8 AWG Stranded - Red, Black; One (1) 10 AWG

Stranded - Green

ACWNM863-1RA-1/2 11213 AC Whip: 6-FT, 1/2", One (1) Straight and One (1) Right Angle EA 1 BRL 20 20 1 No 50

Connector, Two (2) 8 AWG Stranded - Red, Black; One (1) 10 AWG

Stranded - Green

AIR CONDITIONER WHIPS

n

Meets the requirements of the 2014 National Electrical Code: Articles 310.10(C)(H)(2)

and (4), Table 310.15(B)(2)(A), 356.10(1), (2) and (3), 350.22(A), 350.30(A), 356.10,

356.20, 440.6 and 440.31.

n

Labor and Time Savings! Cost-effective Non-Metallic AC Whips save the contractor

time and money.

n

Reducing washers included.

n

Convenient packaging of ten (10) or twenty (20) AC Whips per Carton.

n

UL Listed. File Number: E87199.

Designed to save the contractor installation time and labor, our Air Conditioner

Whips are typically used to connect the Central Air Conditioner Compressor to the

AC disconnect box. Air Conditioner Whips include one (1) Straight and one (1) 90°

Connector. Three (3) Conductors are included in 1/2" or 3/4" Non-Metallic Liquid Tight

Conduit using either 8 or 10 AWG THHN Conductors.

We will also build “custom” Air Conditioner Whips to your specifications in any length

using UL Listed components. Contact our Inside Sales Department (800.336.1976 or

sales@engproducts.com) for more specific information.

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

10938 10938 Wall Plate Insulation Gasket BG 100 BG 0 0 100 Yes 2

WALL PLATE INSULATION GASKET

Energy saving gasket prevents heat and cold loss through outlets

and switches that are located on outside walls.

n

Easy to install. Only a screwdriver is required.

n

Flame retardant closed cell polyethylene insulating foam.

n

One-piece design fits toggle, duplex receptacle or Decora style wall plates.

n

Fits duplex receptacles and multi-gang boxes.

Note: Each gasket is perforated.

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

73PRODUCT ACCESSORIES

PRODUCT ACCESSORIES

RESIDENTIAL ACCESSORIES

CORD VARIETY

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

POWER/APPLIANCE CORDS

n

UL Listed.

n Meets the requirements of the 2014 National Electrical Code: Articles 422.16(B)(1) and (2).

SPT Flat and SJT Round Power/Appliance Cords are used for typical applications such as

installation of garbage disposals, dishwashers or similar appliances. These Power/Appliance

Cords can also be used for repairs of appliances, power tools or other electrical equipment.

The cords are 16 AWG or 14 AWG 3 wire heavy-duty vinyl conductors. One end is pre-stripped

at the factory, the other end has a straight or right angle grounded male plug.

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

SPT 14/3 Flat Cord

10950 10950 3-FT: Straight Plug, 15 AMP - Beige EA 1 BX 25 25 25 Yes 9

10953 10953 6-FT: Straight Plug, 15 AMP - Beige EA 1 BX 25 25 25 Yes 17

10956 10956 9-FT: Straight Plug, 15 AMP - Beige EA 1 BX 25 25 25 Yes 25

SPT 16/3 Flat Cord

PCR3 10178 3-FT: Right Angle Plug, 13 AMP - Black EA 1 BX 25 25 25 Yes 8

PCR6 10181 6-FT: Right Angle Plug, 13 AMP - Black EA 1 BX 25 25 25 Yes 12

PCR8 10182 8-FT: Right Angle Plug, 13 AMP - Black EA 1 BX 25 25 25 Yes 13

PCS3 10179 3-FT: Straight Plug, 13 AMP - Black EA 1 BX 25 25 25 Yes 8

PCS4 10183 4-FT: Straight Plug, 13 AMP - Black EA 1 BX 25 25 25 Yes 8

PCS6 10184 6-FT: Straight Plug, 13 AMP - Black EA 1 BX 25 25 25 Yes 12

PCS8 10185 8-FT: Straight Plug, 13 AMP - Black EA 1 BX 25 25 25 Yes 13

PCS12 10169 12-FT: Straight Plug, 13 AMP - Black EA 1 BX 25 25 25 Yes 22

SJT 16/3 Round Cord

PSS3 10186 3-FT: Straight Plug, 13 AMP - Black EA 1 BX 25 25 25 Yes 8

PSS6 10187 6-FT: Straight Plug, 13 AMP - Black EA 1 BX 25 25 25 Yes 12

PSS8 10188 8-FT: Straight Plug, 13 AMP - Black EA 1 BX 25 25 25 Yes 13

RSS3 10219 3-FT: Straight Plug with Receptacle, 15 AMP - Black EA 1 BX 25 25 25 Yes 12

RANGE AND DRYER CORDS

n

Meets Canadian Standards Association (CSA) Approval.

n

Meets the requirements of the 2014 National Electrical Code: Articles

220.5,4 422.16(B)(3)(4) and 422.33(A) and (B).

n

Heavy-duty terminals ensure an excellent power quality connection.

n

Right angle plug for fit-to-wall.

n

Strain Relief protects Range and Dryer Cord from damage.

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

Range Cords

40000 40000 Range Cord: 4-FT, SRDT 6/2 and 8/1, 3 Wire, 50 AMP - Gray EA 1 BX 16 16 1 No 27

40001 40001 Range Cord: 6-FT, SRDT 6/2 and 8/1, 3 Wire, 50 AMP - Gray EA 1 BX 16 16 1 No 35

40010 40010 Range Cord: 4-FT, SRDT 6/2 and 8/2, 4 Wire, 50 AMP - Black EA 1 BX 12 12 1 No 33

40011 40011 Range Cord: 6-FT, SRDT 6/2 and 8/2, 4 Wire, 50 AMP - Black EA 1 BX 12 12 1 No 38

Dryer Cords

40020 40020 Dryer Cord: 4-FT, SRDT 10/3, 3 Wire, 30 AMP - Gray EA 1 BX 32 32 1 No 35

40021 40021 Dryer Cord: 6-FT, SRDT 10/3, 3 Wire, 30 AMP - Gray EA 1 BX 32 32 1 No 51

40030 40030 Dryer Cord: 4-FT, SRDT 10/4, 4 Wire, 30 AMP - Black EA 1 BX 16 16 1 No 27

40031 40031 Dryer Cord: 6-FT, SRDT 10/4, 4 Wire, 30 AMP - Black EA 1 BX 16 16 1 No 35

74

PRODUCT ACCESSORIES

Whether from plan and specification, design/build or negotiated, our Commercial Product Accessories represent

the highest level of product quality and value that solves the electrical contractors problems quickly and easily.

This product quality and value is realized in the form of increased productivity and expedited installation times

at a price that meets the electrical contractor’s budgetary requirements and application needs.

Be it a small retrofit project or a new “ground up” construction project, you’ll want the most dependable and

reliable electrical product accessories working for you. All of our products are manufactured with unmatched

workmanship and shipped on-time.

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

75PRODUCT ACCESSORIES

PRODUCT ACCESSORIES

COMMERCIAL ACCESSORIES

DUCT SEAL, TIE WIRE & FIXTURE HANGERS

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

EPD1 10101 Duct Seal: 1 Lb. Brick LB 1 BX 50 50 1 No 50

EPD5 10102 Duct Seal: Package of Five (5) 1 Lb. Bricks LB 5 BX 10 10 5 Yes 50

EPD5B 10105 Duct Seal: 5 Lb. Brick LB 5 BX 10 10 5 No 50

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

SMH 10726 11 AWG Plated Fixture Hangers: Side Mount BX 100 BX 0 0 100 Yes 5

TMH 10725 10 AWG Plated Fixture Hangers: Top Mount BX 100 BX 0 0 100 Yes 7

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

TY16 10150 16 AWG Black Tie Wire: 350’ per Roll EA 1 BX 20 20 20 Yes 70

TY16G 10152 16 AWG Galvanized Tie Wire: 350’ per Roll EA 1 BX 20 20 20 Yes 70

TY18G 10151 18 AWG Galvanized Tie Wire: 30" Length EA 1 BX 1750 1750 1750 Yes 25

TY18G-50B

12000 18 AWG Galvanized Tie Wire: 30" Length, 50 per Bundle EA 1 BX 35 35 1 No 25

Tie Wire: 18 AWG Galvanized Straight Wire

Carbon: C1008 Soft Annealed

Yield: LB/FT = .0104 (104 FT/LB)

Size: .047" Diameter (plus/minus .001")

Tensile/Breaking Strength: 75 lb. max. PSI;

105-135 lbs.

ASTM: Zinc Coating; Meets A641 that

requires no minimum ounces of zinc per

square foot of surface area.

Federal Specification: QQ-W-461

Tie Wire: 16 AWG Black

and Galvanized Coiled Wire

Carbon: C1008 Soft Annealed

Yield: LB/FT = .0104 (104 FT/LB)

Size: .0625" Diameter (plus/minus .001")

Tensile/Breaking Strength: 45-60,000 PSI

ASTM: Zinc Coating; Meets A641 that requires

no minimum ounces of zinc per square foot of

surface area.

Federal Specification: QQ-W-461

EPCO Fixture Hangers are Made in the USA. Complies with the American Recovery and Reinvestment Act – Buy American Provision.

EPCO Duct Seal Compound is Made in the USA. Complies with the American Recovery and Reinvestment Act – Buy American Provision.

TIE WIRE

Supports a variety of uses on the job site including bundling, supporting and

hanging cable conduit and suspended fixtures. Available in 16 AWG Black Annealed

or Galvanized rolls. Also available in 18 AWG Galvanized 30" pre-cut lengths.

DUCT SEAL COMPOUND

Our UL Listed Duct Seal Compound is used to seal around junction boxes, flashings,

service mast and cable entries. Duct Seal Compound is available in individual 1 lb.

bricks, five (5) 1 lb. bricks in one (1) package, or a 5 lb. brick. Each Duct Seal package

is individually wrapped in release paper to simplify handling and repackaging.

n

Asbestos-free compound

n

Odorless, non-sticky formula.

n

Temperature tolerance: -40˚C (-40˚F)

n

Can be painted immediately.

to 82˚C (180˚F).

n

Excellent adhesive properties for use on wood, glass, aluminum and steel.

n

Meets the requirements of the 2014 National Electrical Code: Article 230.8.

FIXTURE HANGERS

These labor saving Fixture Hangers are available in Side Mount or Top Mount styles

and can be used with our Chain and S-Hook products. Top Mount Hangers are used

when the mounting holes are located on top of a troffer type lighting fixture. Side

Mount Hangers are used when the mounting holes are located on the side of a

troffer type lighting fixture. Both Fixture Hanger styles are plated for durability and

precisely bent to simplify installation and ensure a secure fit.

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

76 PRODUCT ACCESSORIES

PRODUCT ACCESSORIES

COMMERCIAL ACCESSORIES

SINGLE LOOP CHAIN & S-HOOKS

UNITS OF MEASURE KEY Order Unit: The Unit to be ordered; Unit Qty: Number of pieces in each Unit; Unit Pkg: Unit Packages contained in the case - Packaging types - BG (Bag), BRL (Barrel), BX (Box), BN (Bulk),

PKG (Package), EA (Each), RL (Roll), LB (Pound), C (Hundred), M (Thousand); Units/Case: Unit packages contained in the Case; TL Case Qty: The total number of items in each Master Case; Min Order Qty: The smallest

Unit that can be ordered; MM Req: Must order multiples of the Unit in the stated quantities; Ship Wt (Lbs): Total weight of the units per Carton

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

JC10B/100B 10201 10 AWG

Bright Jack Chain: 100-FT per Carton

FT 100 BX 5 500 100 Yes 80

JC12B/100 11703 12 AWG Bright Jack Chain: 100-FT Spool FT 100 BX 5 500 100 Yes 45

JC12B/100B 10203 12 AWG

Bright Jack Chain: 100-FT per Carton FT 100 BX 5 500 100 Yes 45

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

SH10 10251 10 AWG Plated S-Hooks: 1.25" Length BG 100 BG 10 1000 100 Yes 11

SH12 10252 12 AWG Plated S-Hooks: 1.125" Length BG 100 BG 10 1000 100 Yes 10

Trade Wire Wire Diameter Length Per 100 Weight Per 100 Working Load Break Test

Size Gauge Inches Link Inches Feet Pounds Limit Pounds Load Pounds

12 13 .105 75 8.5 29 LBS/FT 115 LBS/FT

10 12 .135 95 14.7 43 LBS/FT 170 LBS/FT

Trade Wire Wire Diameter Working Load Minimum

Size Gauge Inches Length Limit Pounds Strength

SH10 10 .135 1.25" 48 LBS/FT 190 LBS/FT

SH12 12 .105 1.125" 32 LBS/FT 97 LBS/FT

SINGLE LOOP JACK CHAIN

Single Loop Jack Chain is used to support suspended light fixtures and is often

required by code in many cities. We package the chain in convenient 50 and

100-foot boxes.

SHOOKS

S-Hooks are used with Jack Chain and Double Loop Chain

to support suspended light fixtures. All S-Hooks are plated

for lasting durability. Two (2) sizes are available ranging from

1.125" length 12 AWG wire to 1.25" length 10 AWG wire.

EPCO Loop Chain is Made in the USA. Complies with the American Recovery and Reinvestment Act – Buy American Provision.

EPCO S-Hooks are Made in the USA. Complies with the American Recovery and Reinvestment Act – Buy American Provision.

Single Loop Jack Chain

S-HOOK LOAD LIMITS

SINGLE LOOP JACK CHAIN LOAD LIMITS

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

77

Catalog No. UPC No. Page

10938 10938 72

10950 10950 73

10953 10953 73

10956 10956 73

14050 14050 9

14050B 14052 9

14051 14051 9

14051B 14053 9

14055 14055 9

14056 14056 9

14057 14057 9

14060 14060 9

14065 14065 9

14066 14066 9

14067 14067 9

14070 14070 9

14071 14071 9

14076 14076 9

14077 14077 9

14080 14080 9

14085 14085 9

14090 14090 9

14091 14091 9

14092 14092 9

14095 14095 9

14096 14096 9

15000 15000 25

15001 15001 25

15002 15002 25

15005 15005 25

15006 15006 25

15007 15007 25

15015 15015 27

15016 15016 27

15020 15020 27

15025 15025 27

15031 15031 27

15045 15045 26

15046 15046 26

15047 15047 26

15049 15049 26

15050 15050 25

15051 15051 25

15055 15055 25

15056 15056 25

15063 15063 27

15070 15070 26

15071 15071 26

15075 15075 26

15090 15090 25

15246 15246 26

15247 15247 26

15605 15605 28

15670 15670 24

15675 15675 30

15680 15680 26

15702 15702 46

15711 15711 46

15720 15720 48

15725 15725 48

15752 15752 46

15757 15757 46

15760 15760 46

15800 15800 24

15800B 15850 24

15801 15801 24

15801B 15851 24

15805B 15855 24

15806 15806 24

15806B 15856 24

15807B 15857 24

15810B 15860 24

15811B 15861 24

15812 15812 24

15815 15815 24

15865 15865 24

15867 15867 24

15880 15880 24

15890 15890 24

15905 15905 26

15910 15910 22

15970 15970 22

16010 16010 49

16022 16022 50

16023 16023 50

16030 16030 49

16100 16100 50

16110 16110 50

16301 16301 49

16350 16350 49

16353 16353 49

16500 16500 29

16501 16501 29

16502 16502 29

16510 16510 29

16512 16512 29

16514 16514 29

16520 16520 29

16522 16522 29

16524 16524 29

16526 16526 29

16530 16530 30

16535 16535 30

17000 17000 41

17005 17005 41

17010 17010 41

17015 17015 41

17020 17020 41

17025 17025 41

17030 17030 41

17031 17031 41

17032 17032 41

17033 17033 41

17034 17034 41

17035 17035 41

17040 17040 41

17050 17050 41

17060 17060 41

17090 17090 41

17100 17100 40

17101 17101 40

17103 17103 40

17183 17183 41

17184 17184 41

17185 17185 41

17186 17186 41

17194 17194 41

17195 17195 41

17196 17196 41

17197 17197 41

17199 17199 41

17201 17201 42

17202 17202 42

17203 17203 42

17204 17204 42

17206 17206 42

17230 17230 52

17300 17300 42

17301 17301 42

17303 17303 42

17800 17800 43

17860 17860 43

17893 17893 43

20003 20003 57

20004 20004 57

20008 20008 57

20009 20009 56

20010 20010 56

20011 20011 56

20016 20016 56

20019 20019 57

20020 20020 57

20025 20025 57

20026 20026 57

20029 20029 57

20035 20035 57

20036 20036 57

20041 20041 57

20051 20051 61

20052 20052 61

20053 20053 61

20062 20062 59

20065 20065 59

20067 20067 58

20068 20068 58

20070 20070 58

20074 20074 58

20075 20075 58

20086 20086 56

20087 20087 56

20088 20088 56

40000 40000 73

40001 40001 73

40010 40010 73

40011 40011 73

40020 40020 73

40021 40021 73

40030 40030 73

40031 40031 73

72001 72001 6

72002 72002 6

72003 72003 6

72004 72004 6

72051 72051 6

72052 72052 6

72053 72053 6

72054 72054 6

720010 720010 6

720011 720011 6

ACWNM1043-1RA 11202 72

ACWNM1063-1RA 11204 72

ACWNM843-1RA 11205 72

ACWNM863-1RA 11208 72

ACWNM

843-1RA-1/2 11214 72

ACWNM

863-1RA-1/2 11213 72

BSK1 10705 64

BSK2 10706 64

BSK3 10708 64

BSK4 10709 64

DRBSK 11499 65

DRBSK1 11500 65

DRBSK3 11501 65

E00-901-0 n/a 67

E00-901-005 13911 67

E00-901-006 13912 67

E00-901-008 13913 67

E00-901-009 13914 67

E00-901-010 13915 67

E00-901-012 13916 67

E00-901-024 13918 67

E00-901-036 13919 67

E00-901-048 13920 67

E00-902-0 n/a 68

E00-902-006 13925 68

E00-902-008 13926 68

E00-902-009 13927 68

E00-902-012 13928 68

E00-902-024 13929 68

E00-902-048 13931 68

E00-903-0 n/a 68

E00-903-006 13937 68

E00-903-008 13938 68

E00-903-009 13939 68

E00-903-010 13940s 68

E00-903-012 13941 68

E00-903-024 13943 68

E00-903-048 13945 68

E00-904-0 n/a 68

E00-904-006 13949 68

E00-904-008 13950 68

E00-904-009 13951 68

E00-904-012 13952 68

E00-904-024 13953 68

E00-904-030 13954 68

E00-904-048 13955 68

E00-905-0 n/a 68

E00-905-006 13957 68

E00-905-008 13958 68

E00-905-009 13959 68

E00-905-012 13960 68

E00-905-024 13963 68

E00-905-048 13965 68

E04-002-004 14025 53

EPD1 10101 75

EPD5 10102 75

EPD5B 10105 75

EPW1262 10311 32

EPW1262A 10318 34

EPW1262AD 10554 33

EPW1262S 10336 32

EPW1262SA 10347 34

EPW1262SAD 10555 33

EPW1263 10315 32

EPW1263-1/2" 11600 32

EPW1263A 10319 34

EPW1263AD 10556 33

EPW1263S 10337 32

EPW1263S-1/2" 10314 32

EPW1263SA 10348 34

EPW1263SAD 10557 33

EPW1263SADP1-HN 10548 35

EPW1263SADP1-HNG 10542 35

EPW1263SADP2-HNG 10535 35

EPW1264-1/2" 10286 32

EPW1264AD 10558 33

EPW1264S-1/2" 10289 32

EPW1264SAD 10559 33

EPW1462 10303 32

EPW1462A 10316 34

EPW1462AD 10560 33

EPW1462S 10333 32

EPW1462SA 10344 34

EPW1462SAD 10561 33

EPW1463 10307 32

EPW1463-1/2" 10309 32

EPW1463A 10317 34

EPW1463AD 10369 33

EPW1463ADP1-HN 10546 35

EPW1463ADP1-HNG 10540 35

EPW1463ADP2-HNG 10531 35

EPW1463S 10334 32

EPW1463S-1/2" 10575 32

EPW1463SA 10345 34

EPW1463SAD 10450 33

EPW1464 10308 32

EPW1464-1/2" 10313 32

EPW1464A 10326 34

EPW1464AD 10442 33

EPW1464ADP2-HNG 10532 35

EPW1464S 10335 32

EPW1464S-1/2" 10577 32

EPW1464SA 10346 34

EPW1464SAD 10451 33

EPW1662 10300 32

EPW1662A 10323 34

EPW1662AD 10566 33

EPW1662S 10330 32

EPW1662SA 10341 34

EPW1663 10301 32

EPW1663A 10324 34

EPW1663AD 10517 33

EPW1663S 10331 32

EPW1663SA 10342 34

EPW1664 10302 32

EPW1664A 10325 34

EPW1664AD 10568 33

EPW1664S 10332 32

EPW1664SA 10343 34

EPW1862 10297 32

EPW1862A 10320 34

EPW1862AD 10569 33

EPW1862S 10327 32

EPW1862SA 10338 34

EPW1862SAD 10570 33

EPW1863 10298 32

EPW1863A 10321 34

EPW1863AD 10281 33

EPW1863S 10328 32

EPW1863SA 10339 34

EPW1863SAD 10367 33

EPW1863SADP1-HN 10544 35

EPW1863SADP1-HNG 10538 35

EPW1863SADP2-HNG 10533 35

EPW1864 10299 32

EPW1864A 10322 34

EPW1864AD 10280 33

EPW1864S 10329 32

EPW1864SA 10340 34

EPW1864SAD 10368 33

EPW1864SADP1-HN 10545 35

EPW1864SADP1-HNG 10539 35

EPW1864SADP2-HNG 10534 35

EPW18103 10400 36

EPW18103S 10401 36

EPW18104 10402 36

EPW18104S 10403 36

GC 10052 61

GFF-DC2 14335 19

GFF-DC4 14251 19

GFF-DC8 14252 19

GFF-DR2 14334 19

GFF-DR4 14253 19

GFF-DR8 14254 19

GFF-FSSK 14256 19

GFF-L2C 14336 19

Catalog No. UPC No. Page Catalog No. UPC No. Page Catalog No. UPC No. Page Catalog No. UPC No. Page

PART NUMBER/UPC INDEX

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

78

PART NUMBER/UPC INDEX

Catalog No. UPC No. Page

GFF-FSSK 14256 19

GFF-L2C 14336 19

GFF-L4C 14240 19

GFF-L8C 14250 19

GFF-L2SS 14337 19

GFF-L4SS 14239 19

GFF-L8SS 14249 19

GFF-MH 14241 19

GFF-SWLG4/8 14255 19

GFF-TPS-C 14255 19

GFF-TPS-S 14256 19

GSC 10053 61

GSCT 30053 61

GSH 10051 61

GSHT 30051 61

HST-T1 12200 68

HST1410 10170 67

HST2/0300 10173 67

HST23/0 10172 67

HST300650 10174 67

HST84 10171 67

JC10B/100B 10201 76

JC12B/100 11703 76

JC12B/100B 10203 76

LLPN25B 12701 53

LSPB 17200 52

PCR3 10178 73

PCR6 10181 73

PCR8 10182 73

PCS3 10179 73

PCS4 10183 73

PCS6 10184 73

PCS8 10185 73

PCS12 10169 73

PSS3 10186 73

PSS6 10187 73

PSS8 10188 73

RSS3 10219 73

SH10 10251 76

SH12 10252 76

SMH 10726 75

TMH 10725 75

TY16 10150 75

TY16G 10152 75

TY18G 10151 75

TY18G-50B 12000 75

UFC2B 10711 64

UFC3/4 10703 65

UFS2 10714 65

W-DC4 14238 19

W-SWLG 50001 19

W-VHOOK 50002 19

Catalog No. UPC No. Page Catalog No. UPC No. Page Catalog No. UPC No. Page Catalog No. UPC No. Page

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

79

SALES REPRESENTATIVES

ALABAMA

Kam Sales, Inc.

1755 MacArthur Boulevard NW

Atlanta, GA 30318

P 404.351.0814 • F 404.351.7665

E charlie@kamsalesinc.com

ALASKA

Electrical Sales Associates, Inc.

1131 Andover Park West

Seattle, WA 98188

P 206.574.0092 • F 206.575.0674

E fred@repesa.com

ARIZONA

Abbott Associates

4101 West Van Buren Street, Suites 5 and 6

Phoenix, AZ 85009

P 602.484.7777 • F 602.484.0301

E david@abbottphx.com

ARKANSAS

Commodore Sales, Inc.

450 Goodlett Street

Memphis, TN 38117

P 501.350.4348 • F 501.868.1249

E mmccarthy@commsalesinc.com

CALIFORNIA

ELR Sales

(Northern California)

2790 Tivoli Court

Livermore, CA 94550

P 925.292.0021 • F 925.264.0737

E erich@elrsales.com or jim@elrsales.com

Stellar Sales, Inc.

(Southern California)

14300 Alondra Boulevard

La Mirada, CA 90638

P 714.690.6400 • F 714.690.6410

E dan@stellarsalesinc.com

COLORADO

Professional Electrical Solutions

2750 South Shoshone Street, Suite 305

Englewood, CO 80110

P 303.650.5162 • F 303.650.5165

E rhunt@profelecsolutions.com

CONNECTICUT

Engineered Products Company

5401 Smetana Drive

Minnetonka, MN 55343

P 800.336.1976 • F 800.336.2801

E sales@engproducts.com

DELAWARE

Ertel Company

1024 East Lancaster Avenue

Rosemont, PA 19010

P 800.628 9473 • F 610.525.2306

E ertel@ertelco.com

DISTRICT of COLUMBIA

R. C. Colerick, Inc.

1244 Ritchie Highway, Suite 13

Arnold, MD 21012

P 410.421.9511 • F 410.421.9514

E craig@colerick.com

FLORIDA

Florida Electrical Sales

8100 Broadway Avenue, Suite E

Tampa, FL 33619

P 800.277.0318 • F 813.881.9624

E fesrbado@aol.com

Kam Sales, Inc.

(Florida Panhandle Only)

1755 MacArthur Boulevard NW

Atlanta, GA 30318

P 404.351.0814 • F 404.351.7665

E charlie@kamsalesinc.com

GEORGIA

Kam Sales, Inc.

1755 MacArthur Boulevard NW

Atlanta, GA 30318

P 404.351.0814 • F 404.351.7665

E charlie@kamsalesinc.com

HAWAII

Schaefer Lighting and Electric

5496 Kalanianole Highway

Honolulu, HI 96821

P 808.381.2578

E schaefer808@gmail.com

IDAHO

Electrical Sales Associates, Inc.

(Northern Idaho)

1131 Andover Park West

Seattle, WA 98188

P 206.574.0092 • F 206.575.0674

E fred@repesa.com

Interwest Electrical Sales

(Southern Idaho)

536 West 8360 South

Sandy, UT 84070

P 801.233.8800 • F 801.233.8801

E ies@interwestut.com

ILLINOIS

Becker Sales Company, Inc.

(Northern Illinois)

1850 Brummel Drive

Elk Grove Village, IL 60007

P 847.981.1776 • F 847.981.1977

E gary@beckersalesco.com

Hendrix Company, Inc.

(Southern Illinois)

11811 Westline Industrial Drive

St. Louis, MO 63146

P 314.994.0034 • F 314.994.1373

E ustrut@sbcglobal.net

INDIANA

Wiltrout Sales, Inc.

(Central Indiana)

9296 Waldemar Road

Indianapolis, IN 46268

P 317.704.8800 • F 317.704.8810

E tmwiltrout@wiltroutsales.com

A. L. Pickens Company, Inc.

(Southern Indiana)

2500 Data Drive, Bluegrass Industrial Park

Louisville, KY 40299

P 502.491.4215 • F 502.491.3040

E sebooker@alpickens.com

IOWA

Perry & Associates

7559 Main Street, Suite 302

Omaha, NE 68127

P 402.596.1062 • F 402.596.1319

E don@pa.omhcoxmail.com

KANSAS

Schooler & Associates

PO Box 14012

Kansas City, MO 64101

P 816.842.0733 • F 816.842.0737

E schooler01@aol.com

KENTUCKY

Aero Sales

(Northern Kentucky)

29313 Clemens Road, #2-J

Westlake, OH 44145

P 440.250.9940 • F 440.250.9941

E jweissinger@aerosalesinc.com

A. L. Pickens Company, Inc.

(Southern Kentucky)

2500 Data Drive, Bluegrass Industrial Park

Louisville, KY 40299

P 502.491.4215 • F 502.491.3040

E sebooker@alpickens.com

LOUISIANA

SERG, Inc.

12522 Stanga Road

Covington, LA 70433

P 985.892.4343 • F 985.892.4951

E serginc@bellsouth.net

MAINE

Engineered Products Company

5401 Smetana Drive

Minnetonka, MN 55343

P 800.336.1976 • F 800.336.2801

E sales@engproducts.com

MARYLAND

R. C. Colerick, Inc.

1244 Ritchie Highway, Suite 13

Arnold, MD 21012

P 410.421.9511 • F 410.421.9514

E craig@colerick.com

MASSACHUSETTS

Engineered Products Company

15401 Smetana Drive

Minnetonka, MN 55343

P 800.336.1976 • F 800.336.2801

E sales@engproducts.com

MICHIGAN

Premier/Spectrum Sales, Inc.

720 Madison Street, Suite 1

Jackson, MI 49202

P 517.783.6020 • F 517.783.6040

E pssg@ameritech.net

Lakeshore Electrical Sales, Inc.

(Upper Peninsula Only)

6000 West Executive Drive, Suite A

Mequon, WI 53092

P 262.478.0680 • F 262.478.0595

E john.walter@lakeshoreelectrical.com

MINNESOTA

Lee Noonan Company

2230 County Road H2

Moundsview, MN 55112

P 763.560.1228 • F 763.560.3282

E jay@leenoonan.com

MISSISSIPPI

SERG, Inc.

322 2nd Street South

Columbus, MS 39701

P 662.574.3519 • F 662.327.8495

E jefflcaldwell@bellsouth.net

MISSOURI

Schooler & Associates

(Western Missouri)

PO Box 14012

Kansas City, MO 64101

P 816.842.0733 • F 816.842.0737

E schooler01@aol.com

Hendrix Company, Inc.

(Eastern Missouri)

11811 Westline Industrial Drive

St. Louis, MO 63146

P 314.994.0034 • F 314.994.1373

E ustrut@sbcglobal.net

MONTANA

Northern Rockies Agency, Inc.

246 Timberline Drive

Bozeman, MT 59718

P 406.587.0513 • F 406.587.3677

E nra@nrarep.com

NEBRASKA

Perry & Associates

7559 Main Street, Suite 302

Omaha, NE 68127

P 402.596.1062 • F 402.596.1319

E don@pa.omhcoxmail.com

NEVADA

Engineered Products Company

5401 Smetana Drive

Minnetonka, MN 55343

P 800.336.1976 • F 800.336.2801

E sales@engproducts.com

NEW HAMPSHIRE

Engineered Products Company

5401 Smetana Drive

Minnetonka, MN 55343

P 800.336.1976 • F 800.336.2801

E sales@engproducts.com

NEW JERSEY

Tri-Tech Sales Associates, Inc.

(Northern New Jersey)

66 A Southern Boulevard

Nesconset, NY 11767

P 631.642.0087 • F 631.642.1544

E rtuniewicz@tri-techsales.com

Ertel Company

(Southern New Jersey)

1024 East Lancaster Avenue

Rosemont, PA 19010

P 800.628.9473 • F 610.525.2306

E ertel@ertelco.com

NEW MEXICO

FP Sales, LLC

3636 Menaul NE, Suite 200

Albuquerque, NM 87110

P 505.884.8338 • F 505.884.5069

E john.fpsllc@comcast.net

NEW YORK

Tri-Tech Sales Associates, Inc.

(Metro New York; Five Burrows and Long Island)

66 A Southern Boulevard

Nesconset, NY 11767

P 631.642.0087 • F 631.642.1544

E rtuniewicz@tri-techsales.com

Robert H. Schaub & Associates, Inc.

(Upstate New York)

114 Kreischer Road, Stop 4

North Syracuse, NY 13212

P 315.452.0302 • F 315.452.0547

E mcgrew278@aol.com

NORTH CAROLINA

E. F. Lombardi Company

2101 Freedom Drive

Charlotte, NC 28266

P 704.334.1637 • F 704.372.6078

E remery@eflombardi.com

NORTH DAKOTA

Lee Noonan Company

2230 County Road H2

Moundsview, MN 55112

P 763.560.1228 • F 763.560.3282

E jay@leenoonan.com

OHIO

Aero Sales

29313 Clemens Road, #2-J

Westlake, OH 44145

P 440.250.9940 • F 440.250.9941

E jweissinger@aerosalesinc.com

OKLAHOMA

Triple C - Conrad Sales

1212 West Main

Oklahoma City, OK 73106

P 405.235.5456 • F 405.235.4180

E conrads@theshop.net

OREGON

Electrical Pacific Agencies, LLC

4307 NW St. Helens Road

Portland, OR 97210

P 503.248.0042 • F 503.248.0924

E bplasker@electri-pac.com

PENNSYLVANIA

Ertel Company

(Eastern Pennsylvania)

1024 East Lancaster Avenue

Rosemont, PA 19010

P 800.628 9473 • F 610.525.2306

E ertel@ertelco.com

Engineered Products Company

(Western Pennsylvania)

5401 Smetana Drive

Minnetonka, MN 55343

P 800.336.1976 • F 800.336.2801

E sales@engproducts.com

RHODE ISLAND

Engineered Products Company

5401 Smetana Drive

Minnetonka, MN 55343

P 800.336.1976 • F 800.336.2801

E sales@engproducts.com

SOUTH CAROLINA

E. F. Lombardi Company

2101 Freedom Drive

Charlotte, NC 28266

P 704.334.1637 • F 704.372.6078

E remery@eflombardi.com

SOUTH DAKOTA

Lee Noonan Company

2230 County Road H2

Moundsview, MN 55112

P 763.560.1228 • F 763.560.3282

E jay@leenoonan.com

TENNESSEE

Commodore Sales, Inc.

(Western Tennessee)

450 Goodlett Street

Memphis, TN 38117

P 501.350.4348 • F 501.868.1249

E mmccarthy@commsalesinc.com

Associated Products Company, Inc

(Eastern Tennessee - East of the Tennessee River)

147 Neil Street

Memphis, TN 38112

P 901.324.3725 • F 901.323.3919

E jrsteel@bellsouth.net

TEXAS

DSI Southwest

(Northern Texas)

6333 Denton Drive, Suite 900

Dallas, TX 75235

P 214.630.0200 • F 214.751.3649

E dtipton@dsisw.com

FP Sales, LLC

(El Paso Area)

3636 Menaul NE, Suite 200

Albuquerque, NM 87110

P 505.884.8338 • F 505.884.5069

E john.fpsllc@comcast.net

Enhanced Electrical Sales, Inc.

(Southern Texas)

4650 South Pinemont, Suite 125

Houston, TX 77041

P 713.895.0300 • F 713.895.7204

E ljohnson@eestexas.com

UTAH

Interwest Electrical Sales

536 West 8360 South

Sandy, UT 84070

P 801.233.8800 • F 801.233.8801

E ies@interwestut.com

VERMONT

Engineered Products Company

5401 Smetana Drive

Minnetonka, MN 55343

P 800.336.1976 • F 800.336.2801

E sales@engproducts.com

VIRGINIA

R. C. Colerick, Inc.

(Northern Virgina)

1244 Ritchie Highway, Suite 13

Arnold, MD 21012

P 410.421.9511 • F 410.421.9514

E craig@colerick.com

W. E. Sullivan

(Southern Virgina)

3751 B Westerre Parkway

Richmond, VA 23233

P 804.273.0905 • F 804.273.0907

E wesullivanco@netzero.com

WASHINGTON

Electrical Sales Associates, Inc.

1131 Andover Park West

Seattle, WA 98188

P 206.574.0092 • F 206.575.0674

E fred@repesa.com

WEST VIRGINIA

Engineered Products Company

5401 Smetana Drive

Minnetonka, MN 55343

P 800.336.1976 • F 800.336.2801

E sales@engproducts.com

WISCONSIN

Lakeshore Electrical Sales, Inc.

(Eastern Wisconsin)

6000 West Executive Drive, Suite A

Mequon, WI 53092

P 262.478.0680 • F 262.478.0595

E john.walter@lakeshoreelectrical.com

Lee Noonan Company

(Western Wisconsin)

2230 County Road H2

Moundsview, MN 55112

P 763.560.1228 • F 763.560.3282

E jay@leenoonan.com

WYOMING

Professional Electrical Solutions

(Southeast Wyoming)

2750 South Shoshone Street, Suite 305

Englewood, CO 80110

P 303.650.5162 • F 303.650.5165

E rhunt@profelecsolutions.com

Northern Rockies Agency, Inc.

(Northern Wyoming)

246 Timberline Drive

Bozeman, MT 59718

P 406.587.0513 • F 406.587.3677

E jim@nrarep.com

Interwest Electrical Sales

(Western Wyoming)

536 West 8360 South

Sandy, UT 84070

P 801.233.8800 • F 801.233.8801

E ies@interwestut.com

Engineered Products Co.

| P

800.336.1976

| F

800.336.2801

| www.engproducts.com

Specications subject to change without prior notice.

80

PRODUCT WARRANTY

GENERAL PRODUCT WARRANTY

Engineered Products Company warrants that the products described herein, will be furnished free from defects in material and

workmanship for 1 year. Any exceptions to this Warranty Statement will be detailed within the respective product section in

this catalog, noted on the product, or the product packaging.

Engineered Products Company sole obligation for any breach of warranty under the terms herein shall be, at our option, to

repair or provide replacement for the Product to which such warranty is breached, or to return all payments made with respect

to such Product. Any Product(s) that are deemed to be defective must be specified by the Purchaser in a written notice to

Engineered Products Company’s Warranty Department within 1 year after receipt of such goods. Under no circumstances will

Engineered Products Company be liable for loss of profits or incidental, indirect, consequential or special damages of any kind

beyond the replacement cost of the defective merchandise.

Engineered Products Company shall not be liable for any losses arising from governmental action, an act of God, or the

result of war, riot, strikes, civil commotion, sovereign conduct, or the act or conduct of any person or persons not party to or

associated with Engineered Products Company.

For Poultry Farming Applications (continued on page 29)

EPCO recommends using Porcelain Lamp Holder(s) only for poultry farming applications.

The lamp holder must be installed in a manner that will not permit dust or moisture to

enter the junction box. In addition, the porcelain lamp holder must be mounted vertically

with the lamp positioned below the lamp holder on a water-tight, dust-tight non-metallic

junction box with an effective gasket between the junction box and the lamp holder as

shown.

Use the following part numbers to facilitate and complete the installation as shown:

Catalog UPC Order Unit Unit Units/ TL Case Min MM Ship Wt

Number Number Description Unit Qty Pkg Case Qty Order Qty Req (Lbs)

E05-003-000 N/A Cork Gasket EA 1 BG 12 12 12 Yes 1

15045 15045 12 Cubic Inch Junction Box: 1/2” and 3/4” Knockout Combo EA 1 BX 12 12 12 Yes 6

15046 15046 12 Cubic Inch Junction Box: 1/2” Knockouts EA 1 BX 12 12 12 Yes 6

15047 15047 12 Cubic Inch Junction Box: 3/4” Knockouts EA 1 BX 12 12 12 Yes 6

15049 15049 19 Cubic Inch Junction Box: 3/4” Knockouts EA 1 BX 12 12 12 Yes 6

15246 15246 12 Cubic Inch SPIDERBOX Junction Box: 1/2” Knockouts EA 1 BX 12 12 12 Yes 6

15247 15247 12 Cubic Inch SPIDERBOX Junction Box: 3/4” Knockouts EA 1 BX 12 12 12 Yes 6

16500 16500 Porcelain Lamp Holder: Keyless, 4-Terminal EA 1 BX 48 48 48 Yes 33

16502 16502 Porcelain Lamp Holder: Pull Chain EA 1 BX 48 48 48 Yes 35

16514 16514 Porcelain Lamp Holder: Pull Chain and 15 AMP Receptacle EA 1 BX 48 48 48 Yes 40

Note: 1. Junction boxes include screws to affix the lamp holder to the junction box.

2. Plastic Lamp Holders are NOT suitable for this application!

WARNING: EPCO Lamp Holders Must Be Installed in Accordance with the following National Electric Code Articles that state:

“Where the wiring method is conduit, tubing, Type AC cable, or other cables, a box or conduit body shall be installed at each conductor splice point,

outlet point, switch point, junction point, termination point, or pull point, unless otherwise permitted in NEC 300.15(A) through (L).

In addition, Article 502.130(2)(3) requires luminaires for fixed lighting shall be provided with enclosures that are dust tight or otherwise identified

for the location as well as protected from physical damage by suitable guards for areas described in Article 547.1(A).

If the Contractor has taken care to install the porcelain lamp holder(s) in the proper manner as described and shown above

and believes the lamp holder is defective, and wants to file a warranty claim, EPCO will require an “Affidavit of Inspection” from

the Contractors local Electrical Inspector to validate the defined installation procedure. This document is intended to protect

the integrity of the company (EPCO) and the Distributor.

Porcelain Lamp Holder (P/N 16500),

Cork Gasket, and Junction Box (P/N 15246)

Our Most Important Product

Doesn’t Come In A Box!

At Engineered Products Company (EPCO), our most important Product is Service. This means every shipment you

receive includes some very important extras.

• Prompt Customer Response • Exceptional Order Fill Rates

• On Time Delivery • Lower Transaction Cost

• Sales Order Accuracy • Competitive Prices

You get nationwide support from our network of EPCO Representatives, professionals who can answer all your

questions. And we also pack a promise...”Our Guaranteed Sales Policy”. Any Products you are unable to sell may

be returned to EPCO for a 100% credit - Guaranteed!

For the name of the Engineered Products Company Sales Representative nearest you, call 800.336.1976 or visit

www.engproducts.com/LocateMySalesRep. See why there isn’t a box big enough to hold our most important

product.

ENGINEERED PRODUCTS COMPANY

5401 Smetana Drive • Minnetonka, MN 55343

P 952.767.8780 / 800.336.1976 • F 952.767.8786 / 800.336.2801

Visit our Web Site at www.engproducts.com

www.engproducts.com

5401

SMETANA DRIVE | MINNETONKA, MN

55343

P

800.336.1976

| F

800.336.2801

DISTRIBUTED BY:

Octi-Juntion Box, Landscape LightPost and SplicePost, TIGER 400 HID, TIGERcub 175 HID, TIGRESS, SPIDERBOX, and CordLights are either trademarks or registered

trademarks of Engineered Products Company in the United States and/or in other countries. All other trademarks are the property of their respective holders.

E02-001-000 I1 (04/14 - AK)

160404 Catalog

163115-Brochure 163115-Brochure 163115-Brochure 780321 Batch4 unilog cesco-content

101327-Attachment 101327-Attachment 101327-Attachment 780321 Batch5 unilog cesco-content

431807-Catalog 431807-Catalog 431807-Catalog 780321 batch2_2 unilog cesco-content

125755-Catalog 125755-Catalog 125755-Catalog 780321 Batch4 unilog cesco-content

173569-Brochure 173569-Brochure 173569-Brochure 780321 batch2_2 unilog cesco-content

Navigation menu

Versions of this User Manual:

Views

Navigation
