EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL130
2
2
763.422.2211
763.422.2600
STAINLESS STEEL
Stainless Steel
CHAPTER
2
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 131
2
CHAPTER CONTENTS
HINGE-COVER
Continuous-Hinge with Clamps, Type 4X. . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Continuous Hinge with Clamps, EMC, Type 4X .......................134
CLAMP-COVER
Clamp Cover, Type 4X ..........................................136
FLUSH-MOUNT ENCLOSURES

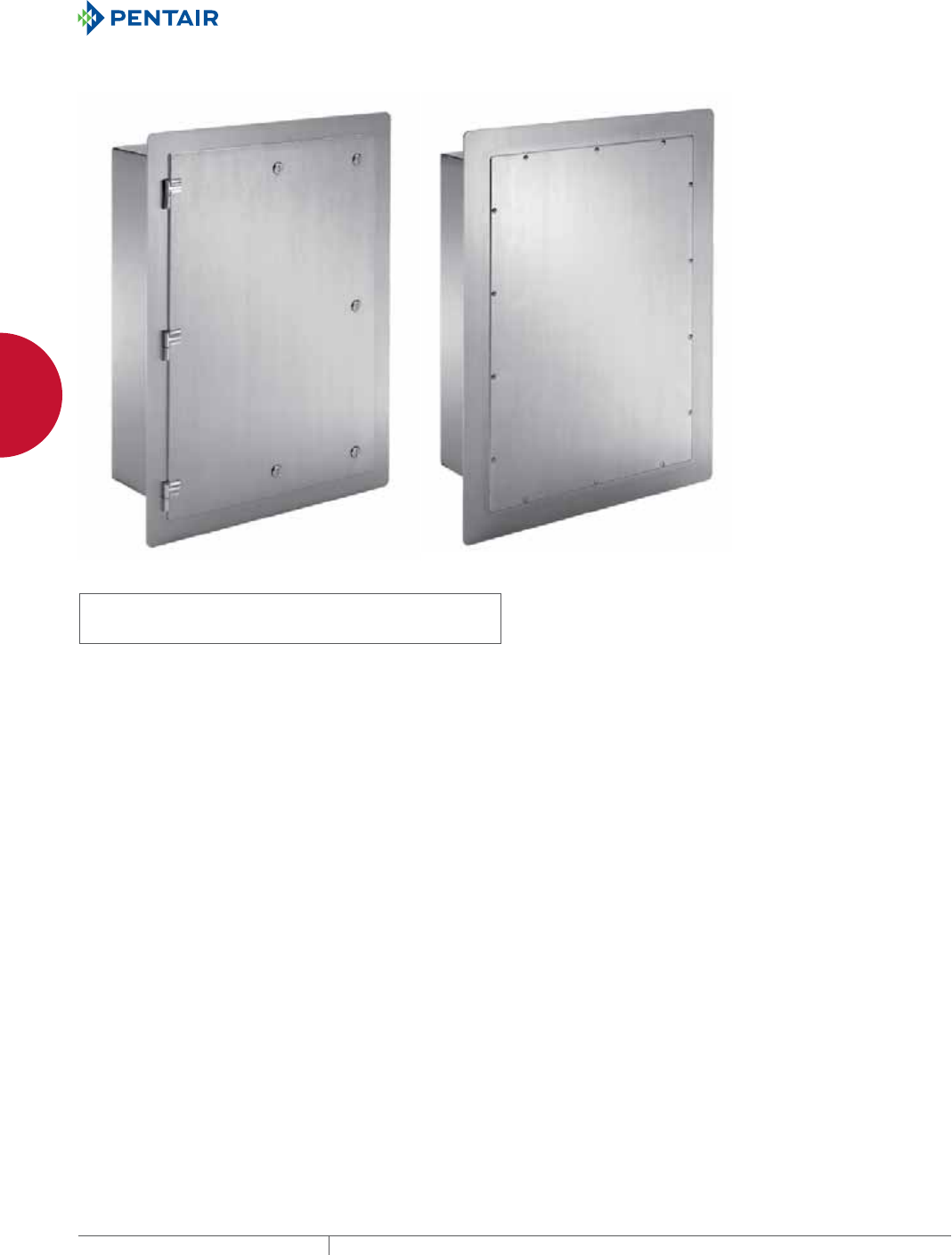

PHARMAPRO, Type 4X ........................................138
Mounting System .............................................141
INLINE™ INSTRUMENTATION ENCLOSURES
INLINE, Type 4X .............................................142
INLINE™ LANDSCAPE INSTRUMENTATION ENCLOSURES AND ACCESSORIES
INLINE Landscape, Type 4X ....................................146
Optional Components Selection Guide .............................147
INLINE Landscape Panels .....................................147
CONSOLETS

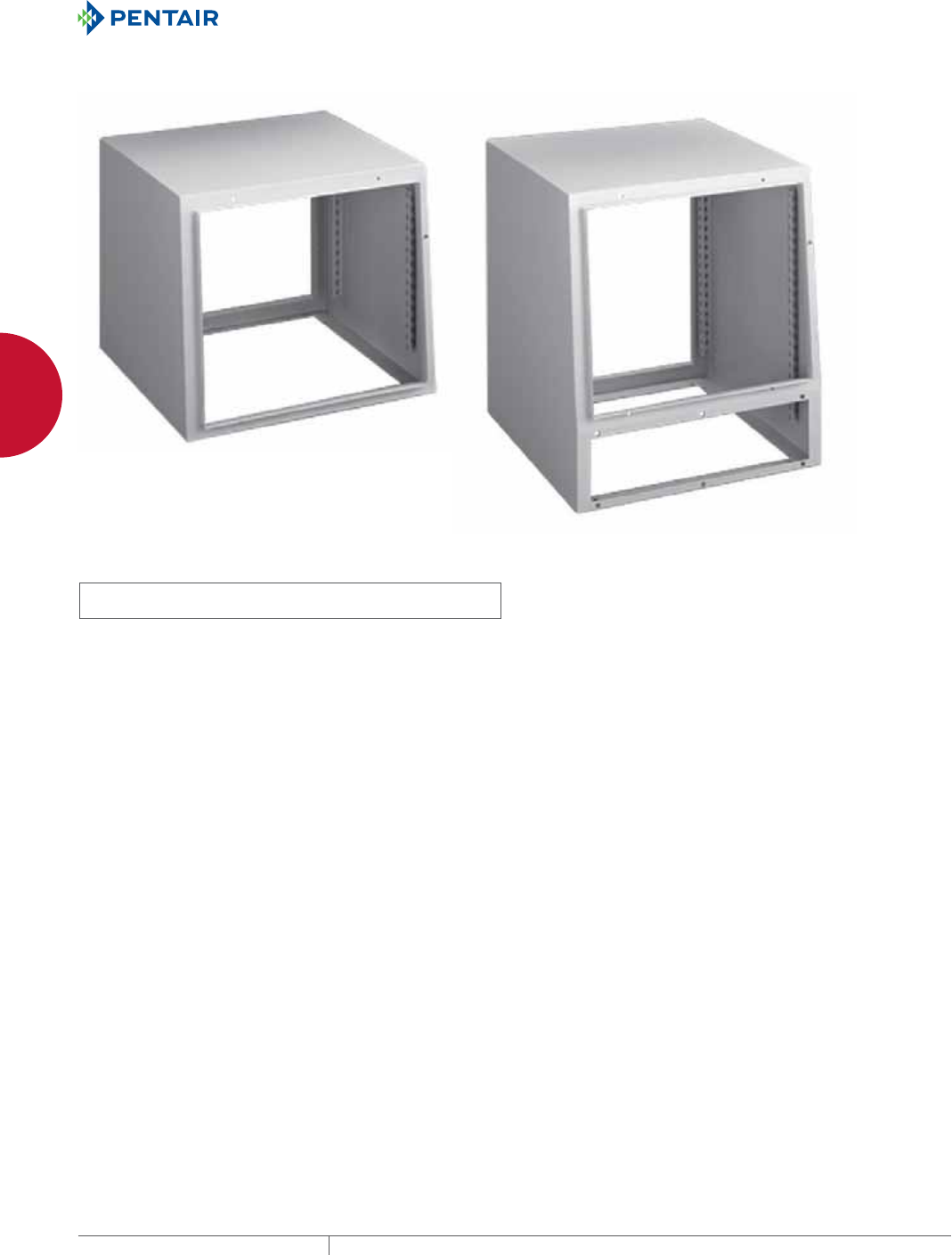

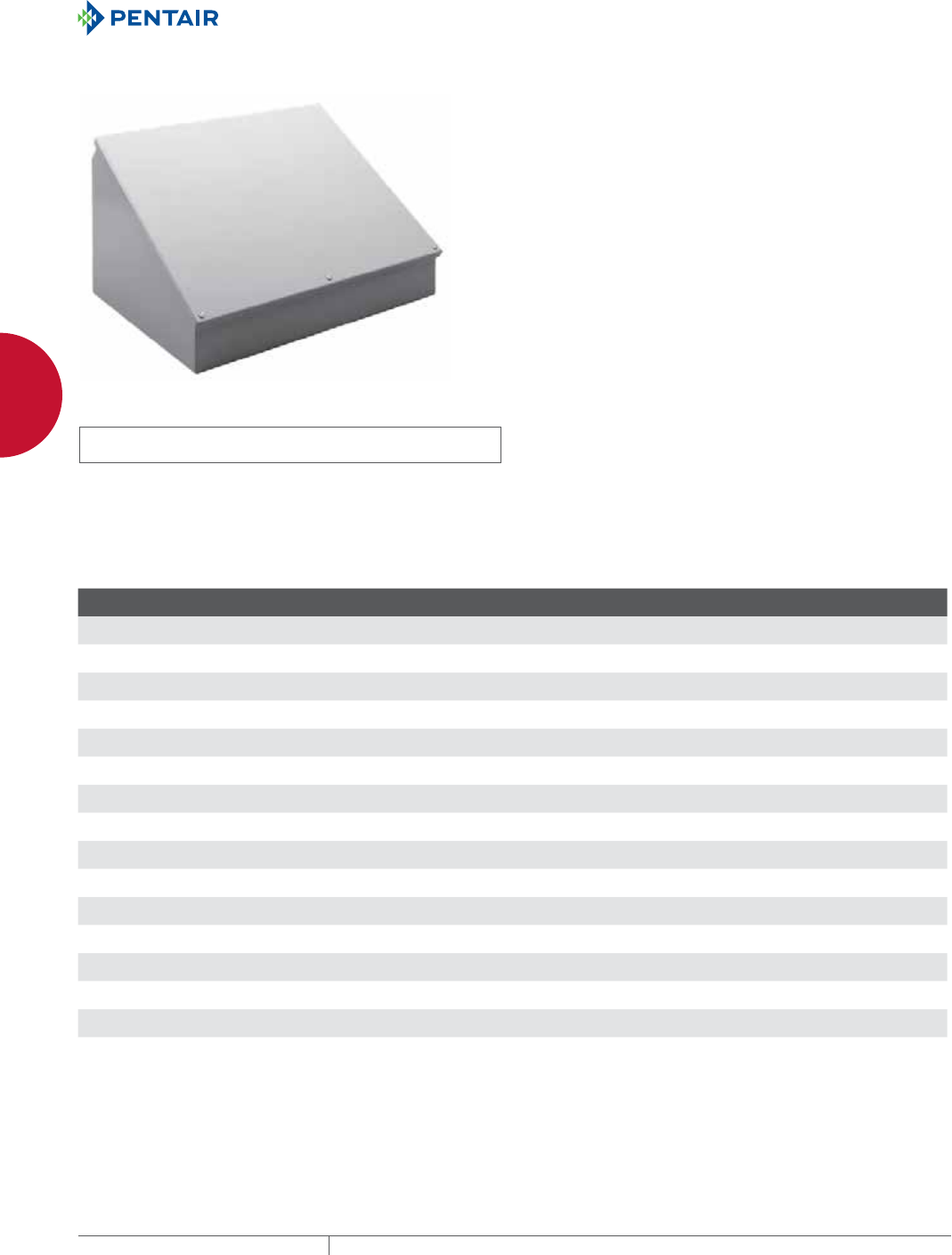

Consolets, Type 12 ............................................148
PUSHBUTTON ENCLOSURES

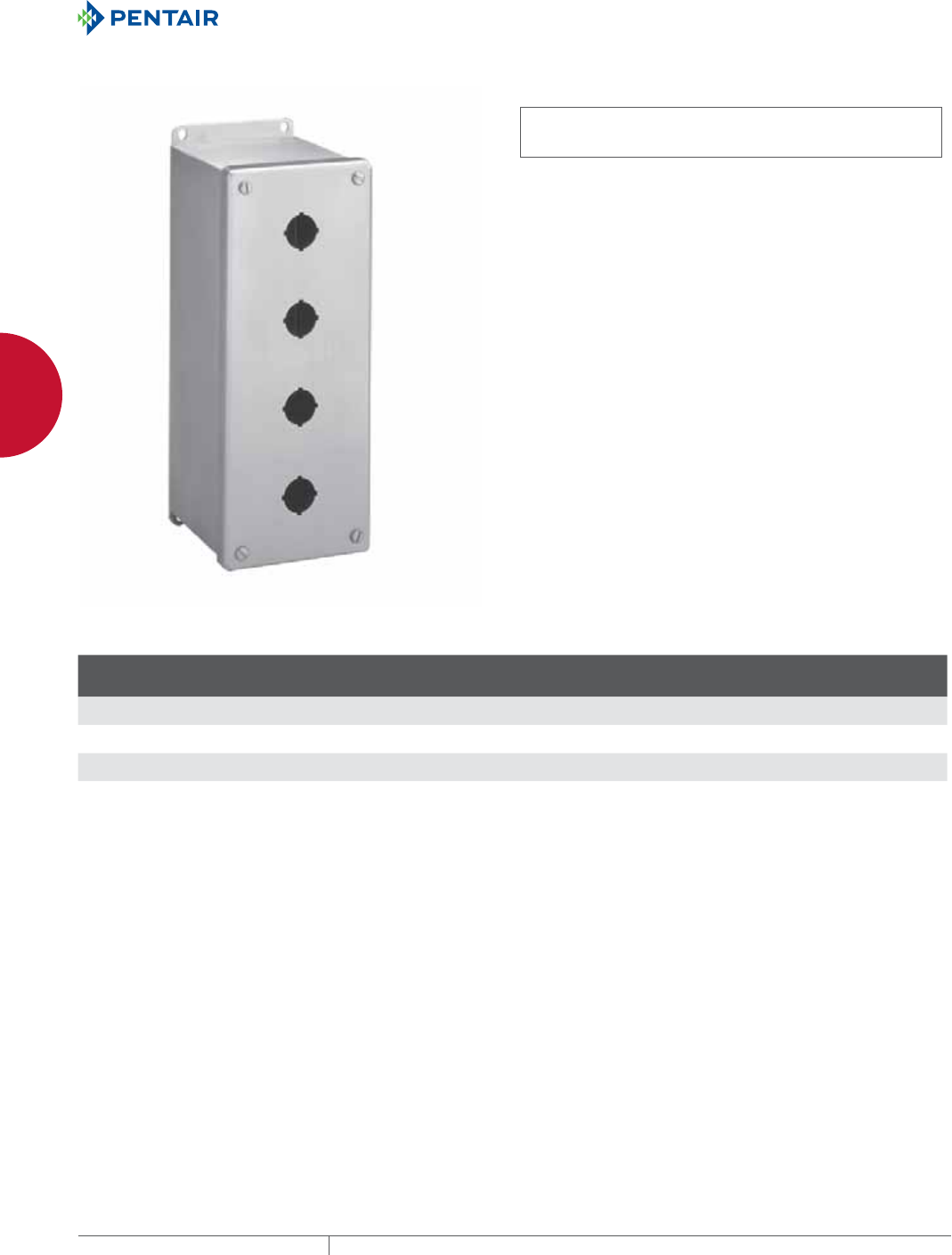

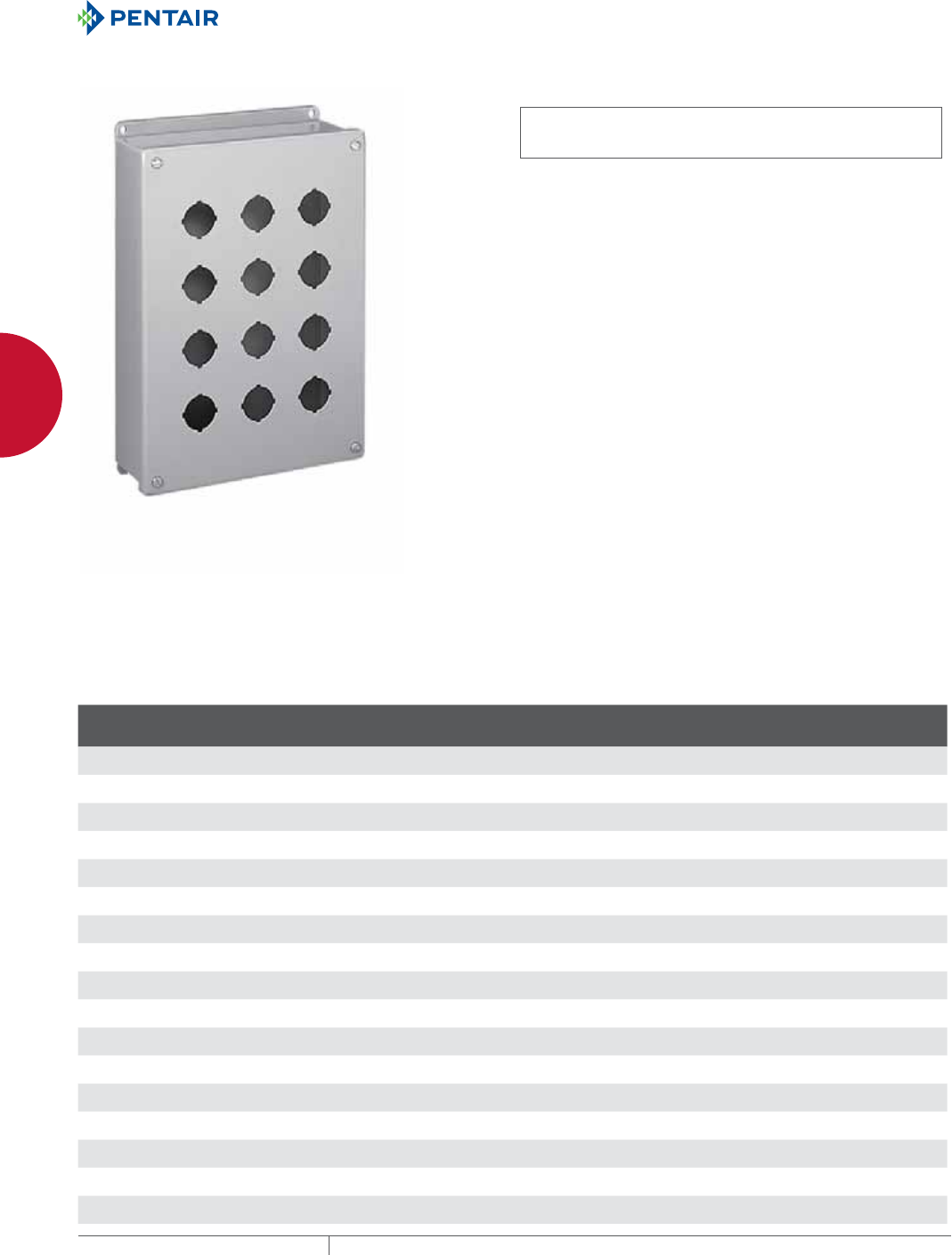

Extra-Deep 30.5-mm Pushbutton Enclosures, Type 4X .................150
Extra-Deep 22.5-mm Pushbutton Enclosures, Type 4X. . . . . . . . . . . . . . . . . 152

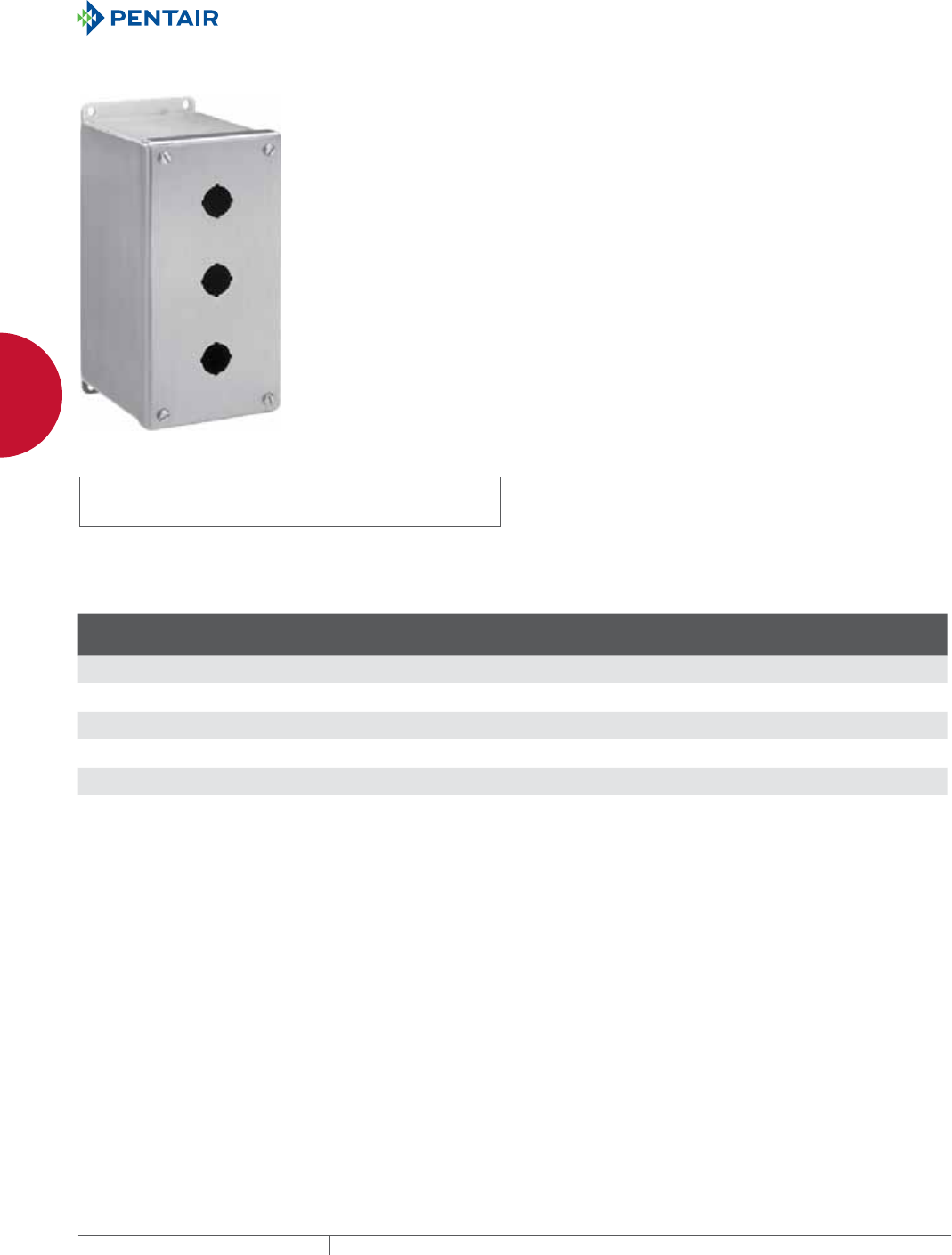

30.5-mm and 22.5-mm Pushbutton Enclosures, Type 4X ...............154
CONCEPT™ WALL-MOUNT ENCLOSURES

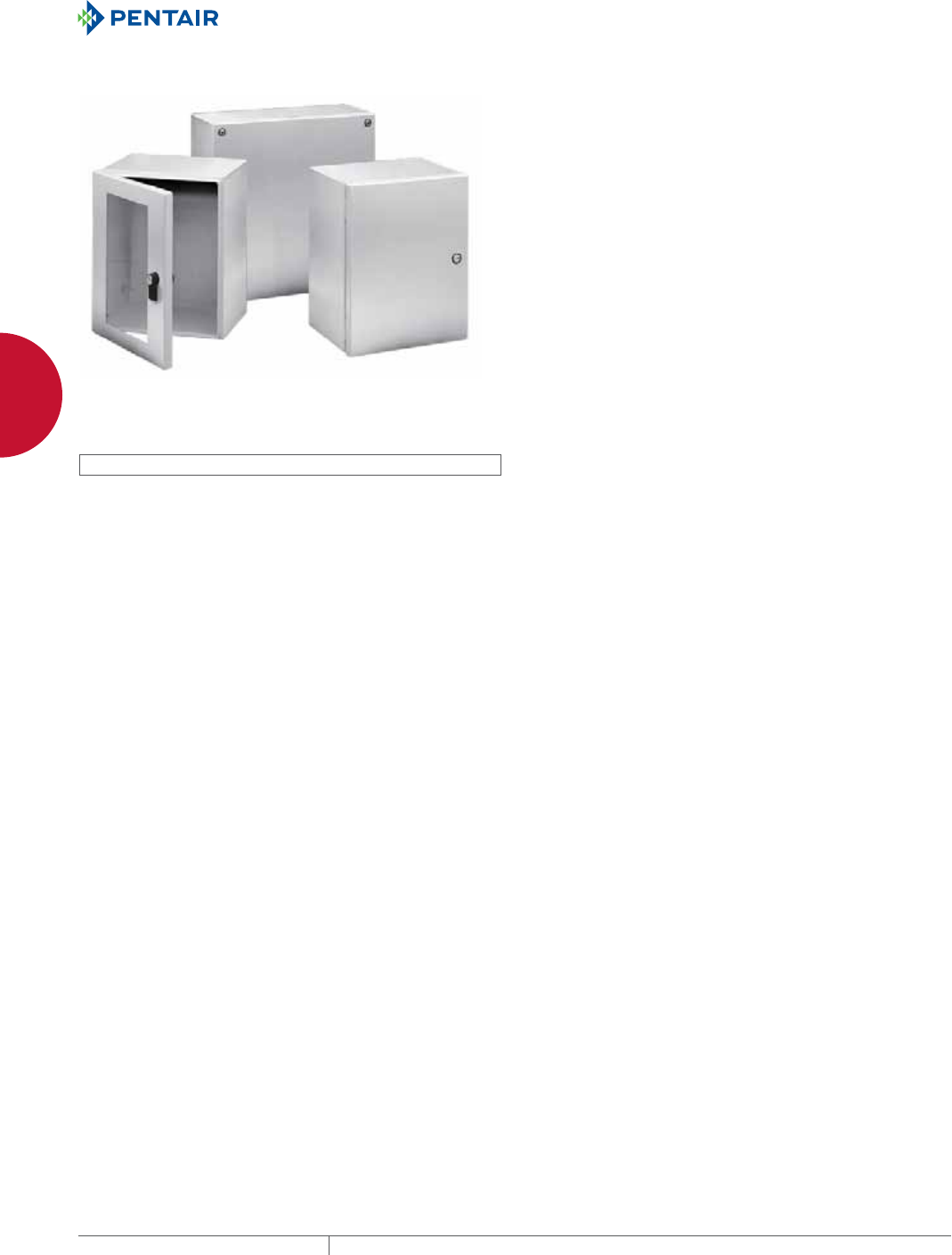

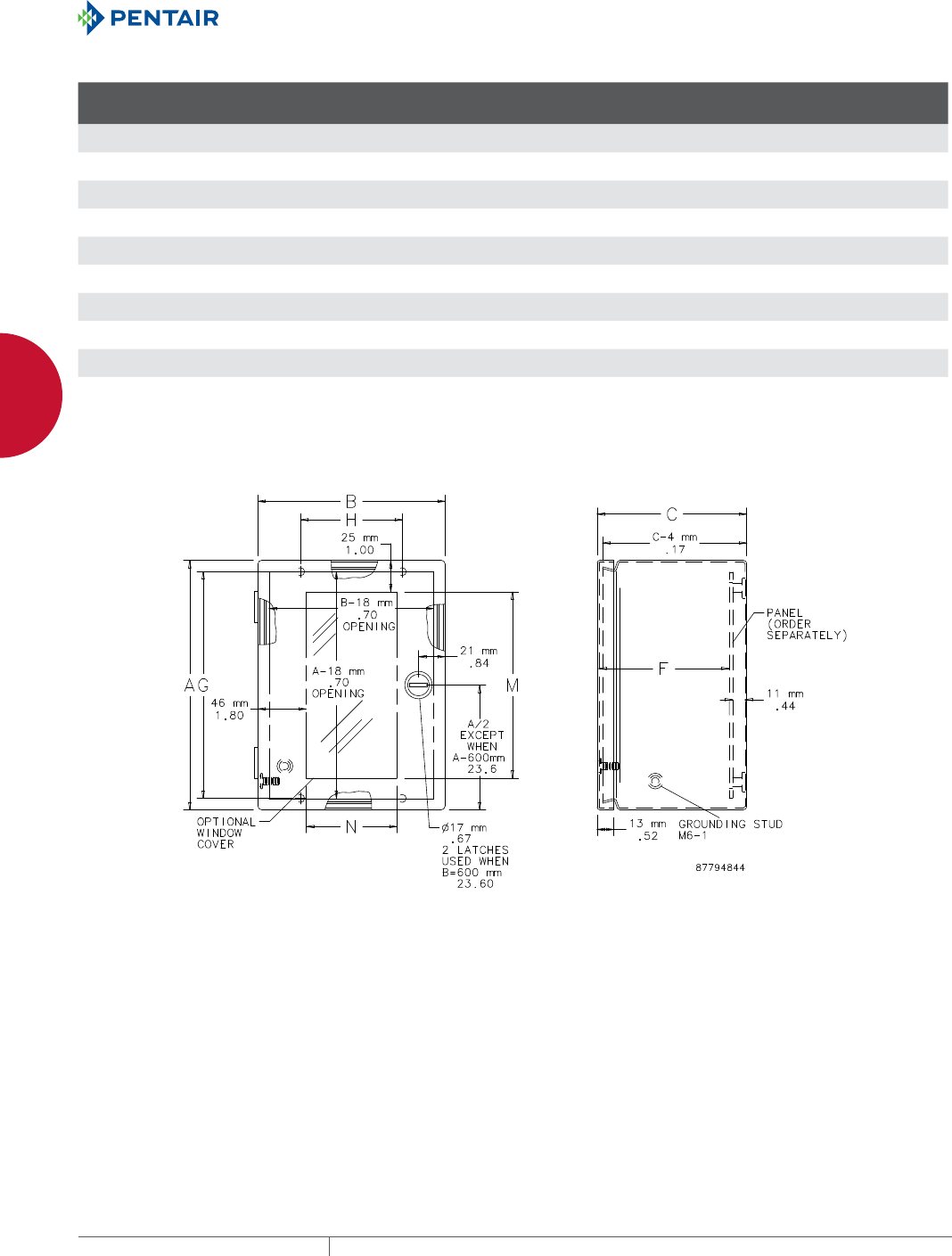

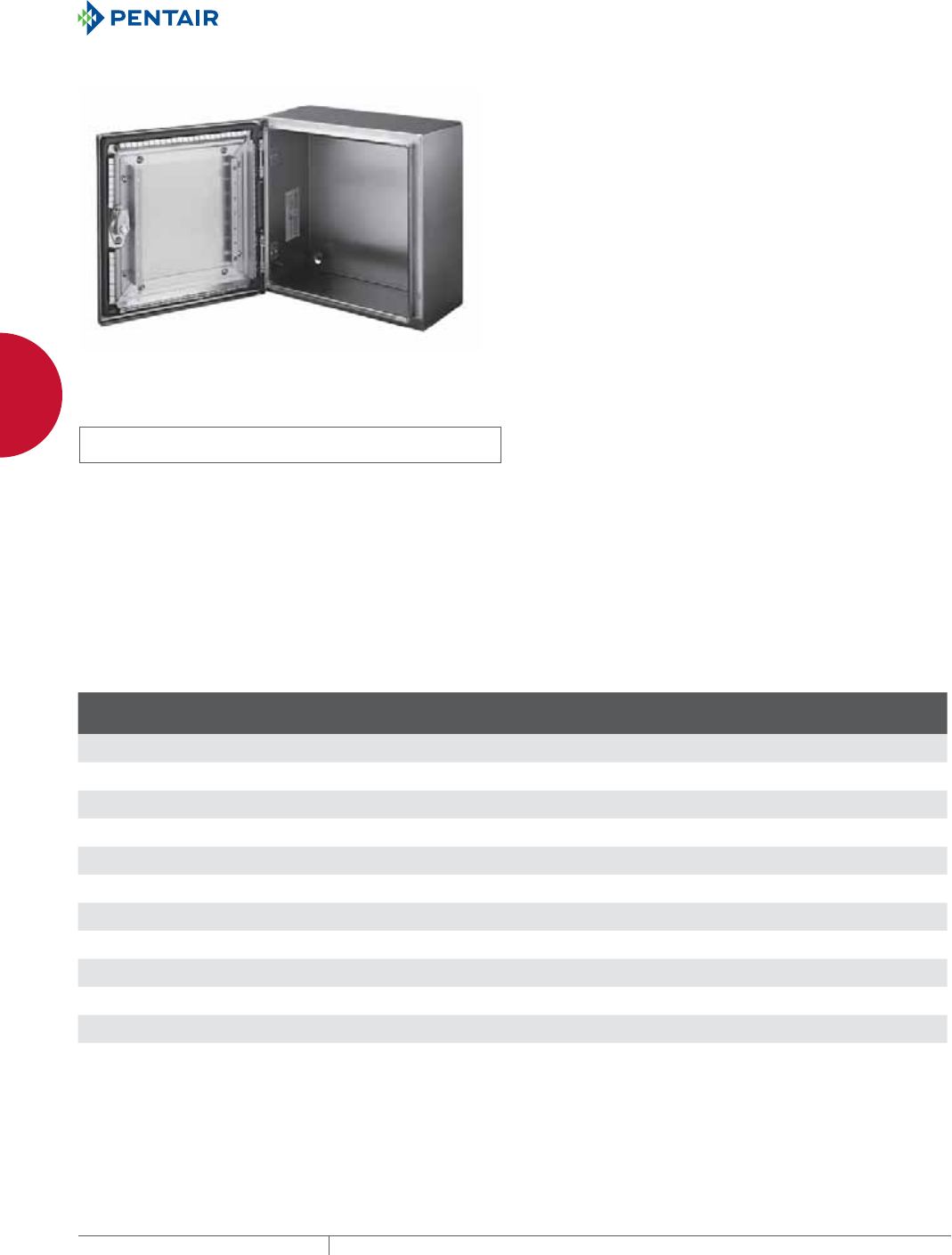

CONCEPT, Type 4X ...........................................156
CONCEPT with Additional Quarter-Turn Latches, Type 4X .............160

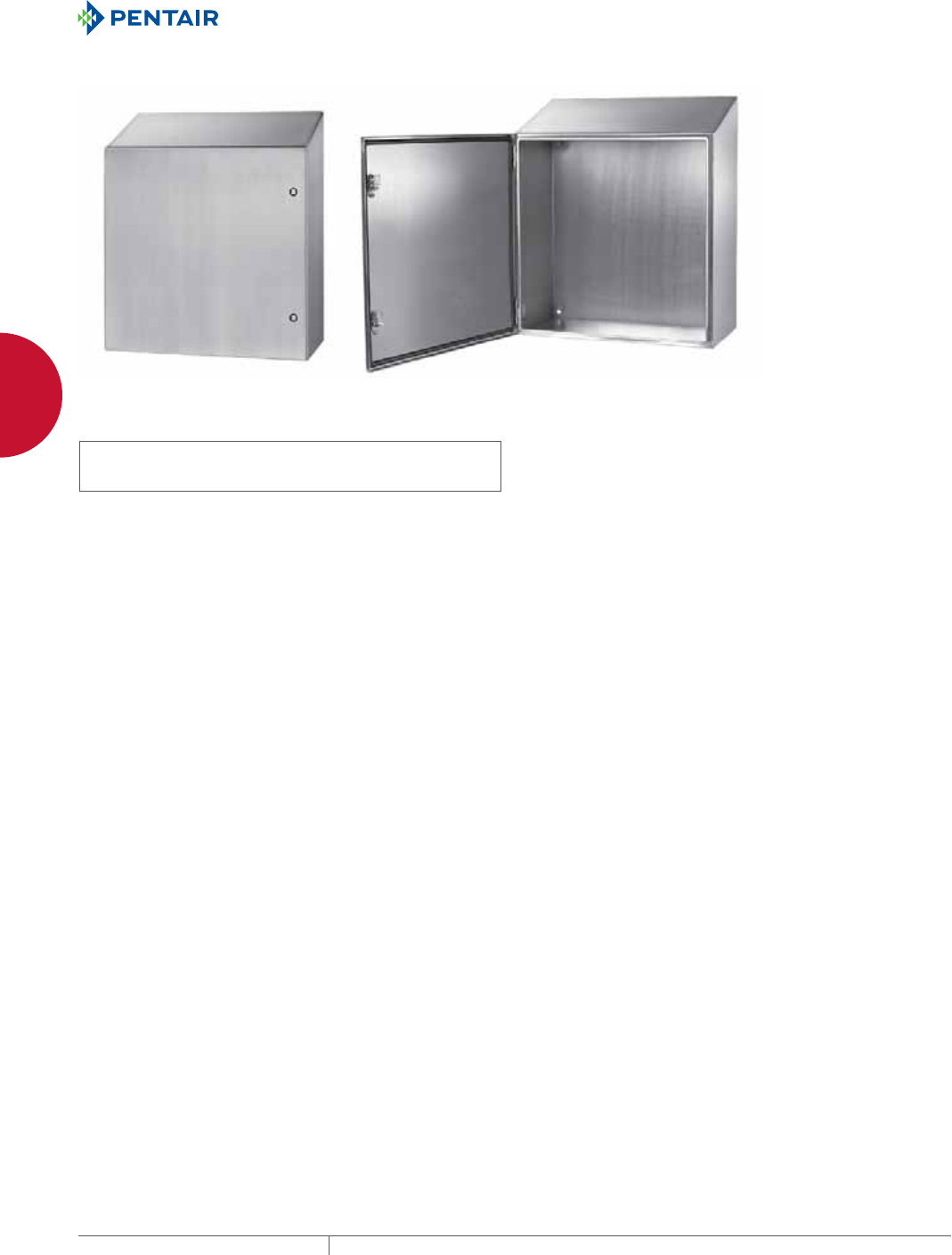

CONCEPT Sloped Top, Type 4X ..................................162
CONCEPT EMC, Type 4X .......................................164
WALL-MOUNT ENCLOSURES AND ACCESSORIES
Continuous Hinge with 3-Point Latch, Type 4X .......................166
Continuous Hinge with Clamps, Type 4X ............................168
Continuous Hinge with Clamps, EMC, Type 4X .......................172
Continuous Hinge Two-Door with 3-Point Latch, Type 4X ...............174
Continuous Hinge Two-Door with 3-Point Latch, Type 12 ...............175
Replacement Door with 3-Point Latch, Type 4X ......................178
Painted White with 3-Point Latch, Type 4X ..........................180
WATERSHED™ WALL-MOUNT ENCLOSURES AND ACCESSORIES
Hoffman WATERSHED™, Type 4X .................................182

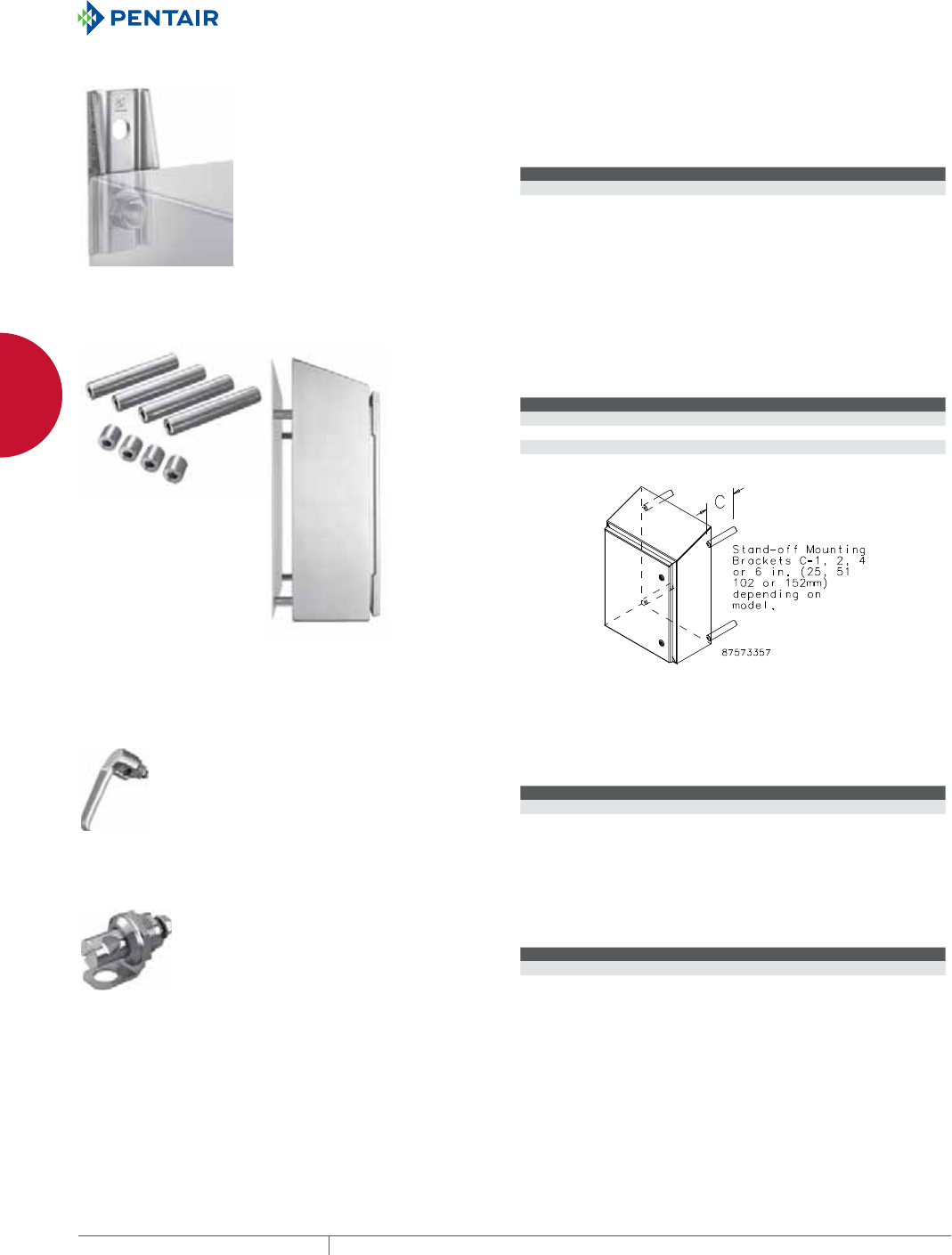

Mounting Bracket Kit ..........................................184
Stand-Off Kit ................................................184
Padlocking Handle Kit .........................................184
Padlocking Latch Kit ..........................................184
CONSOLES AND ACCESSORIES
CONCEPT Console, Type 4X ....................................186
Caster Kit ...................................................187
Side Panels ..................................................187
FLOOR-MOUNT AND FREE-STAND ENCLOSURES

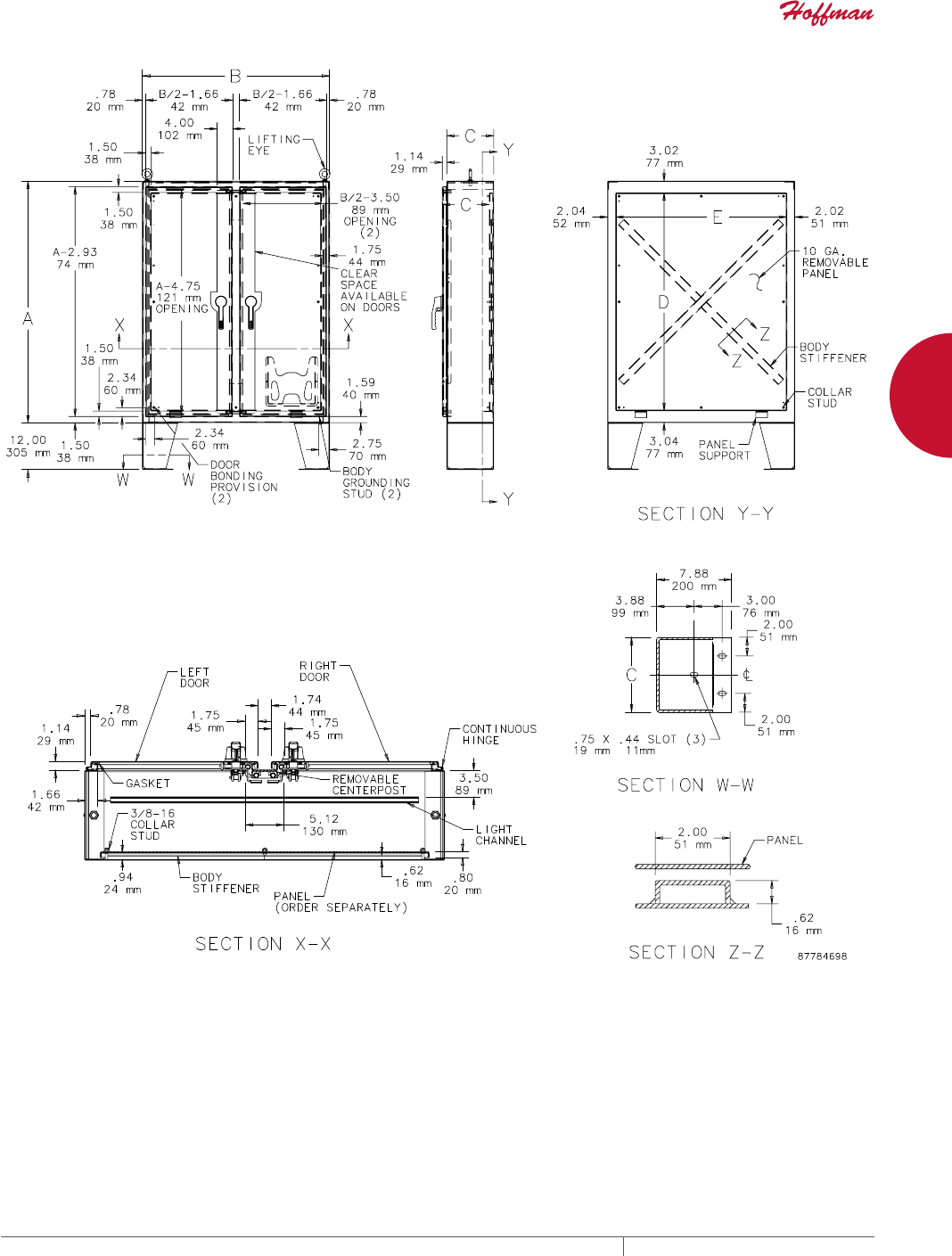

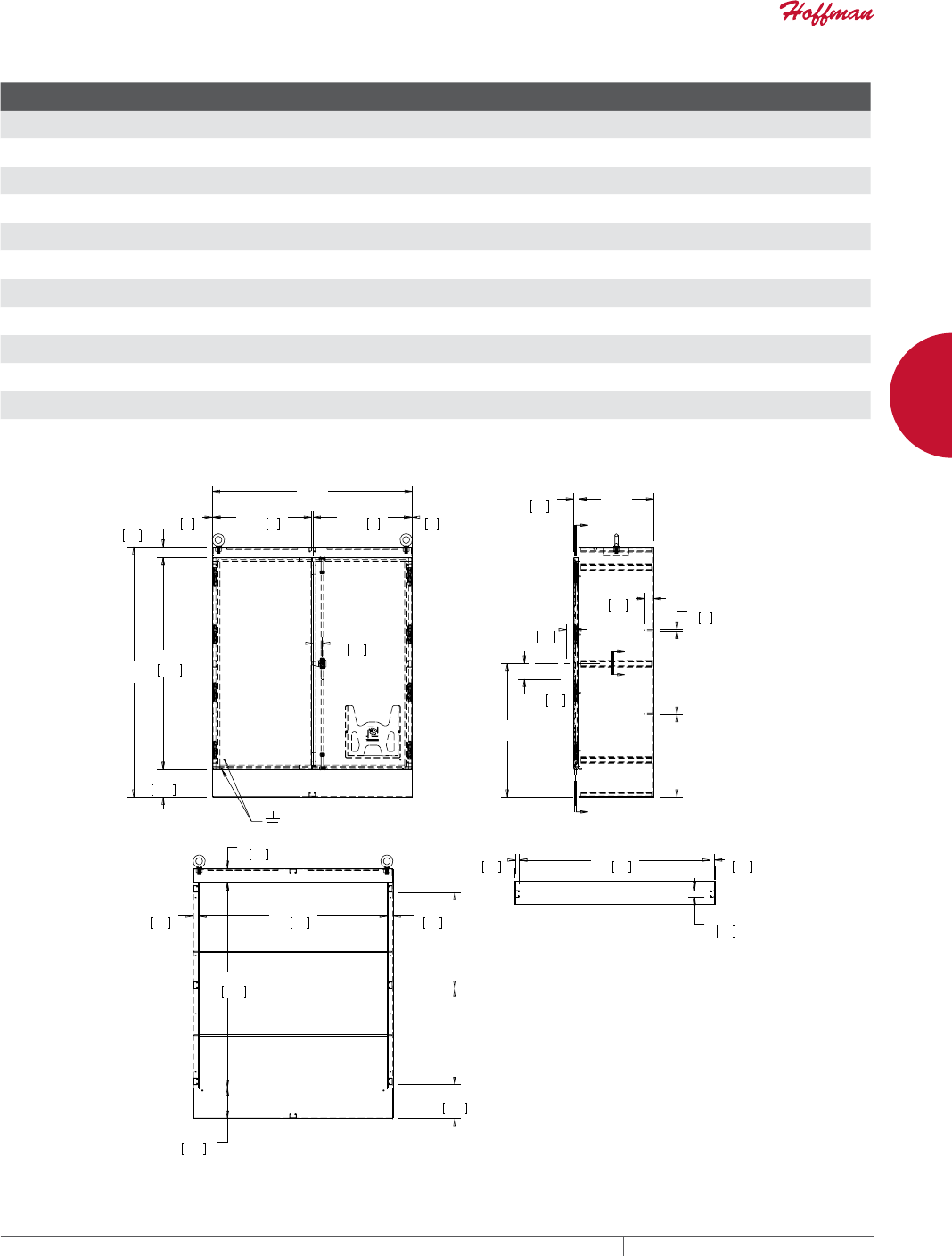

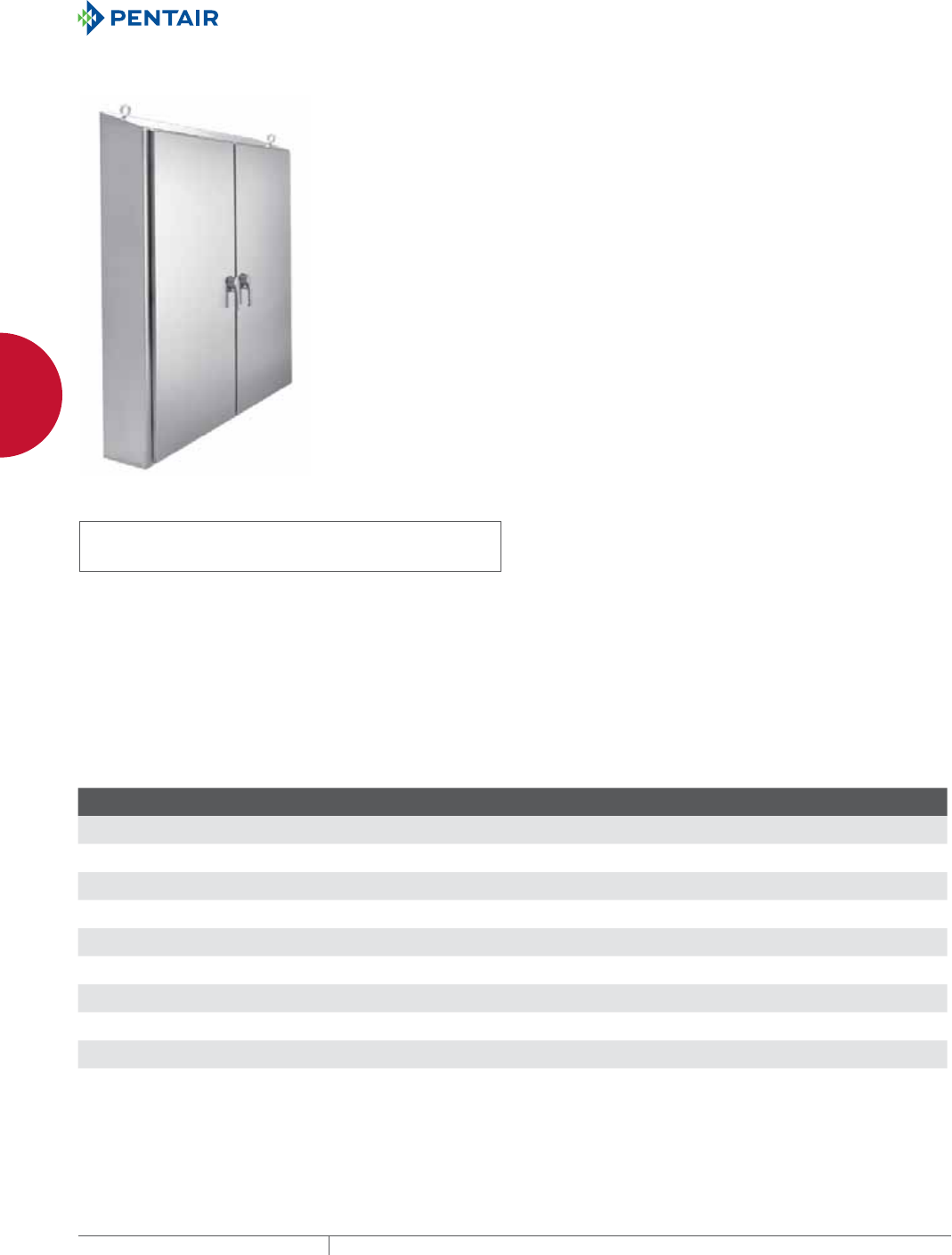

Two-Door with 3-Point Latches, Type 4X ...........................188

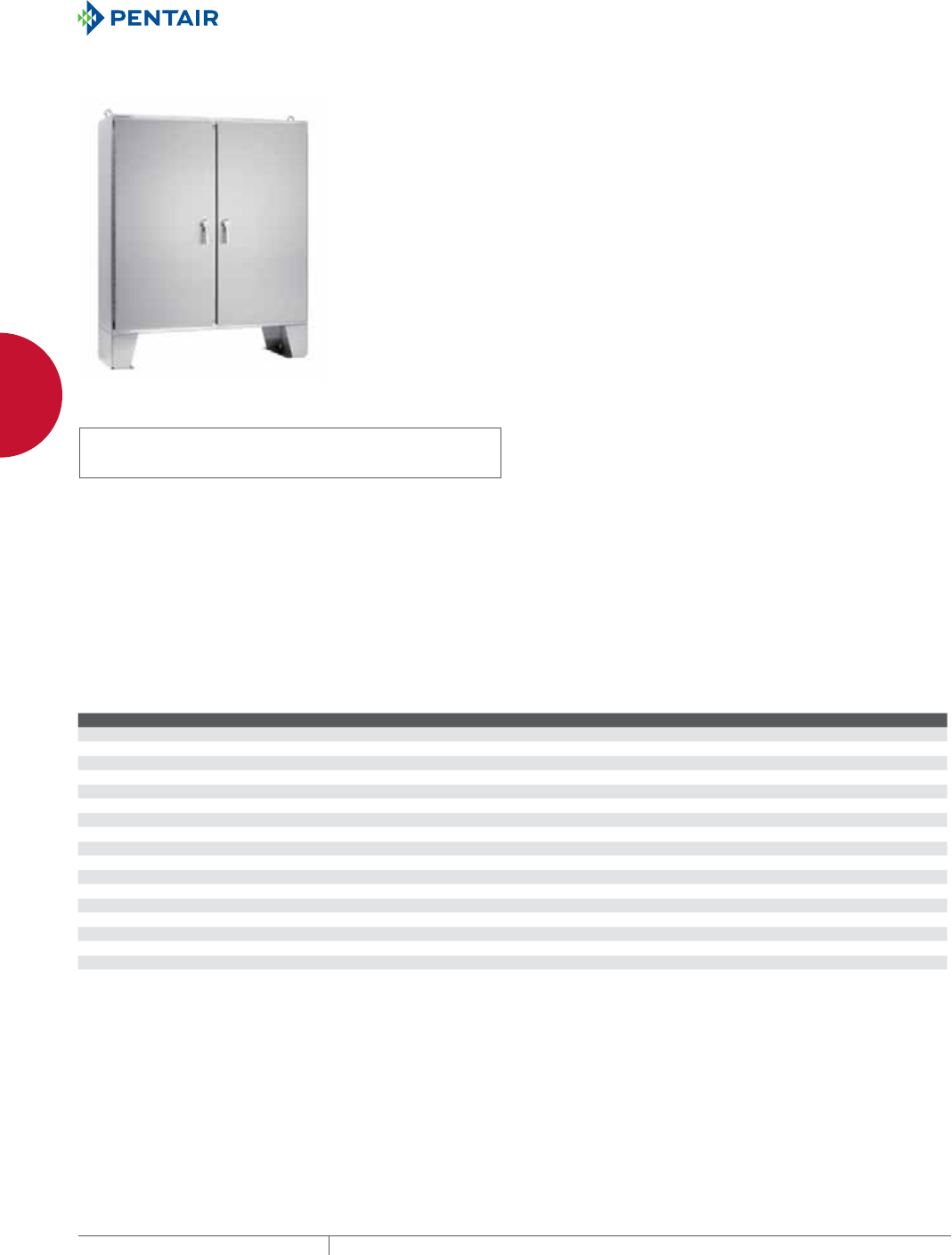

Two-Door with Floor-Stands, Type 4X ..............................190
General Purpose Two-Door with Quarter-Turn Latches and Floor Stands, Type 4X
192
General Purpose Single-Door Free-Stand with Quarter-Turn Latches, Type 4X 194
Two-Door with 3-Point Latches and Floor-Stands, Type 12 ..............196

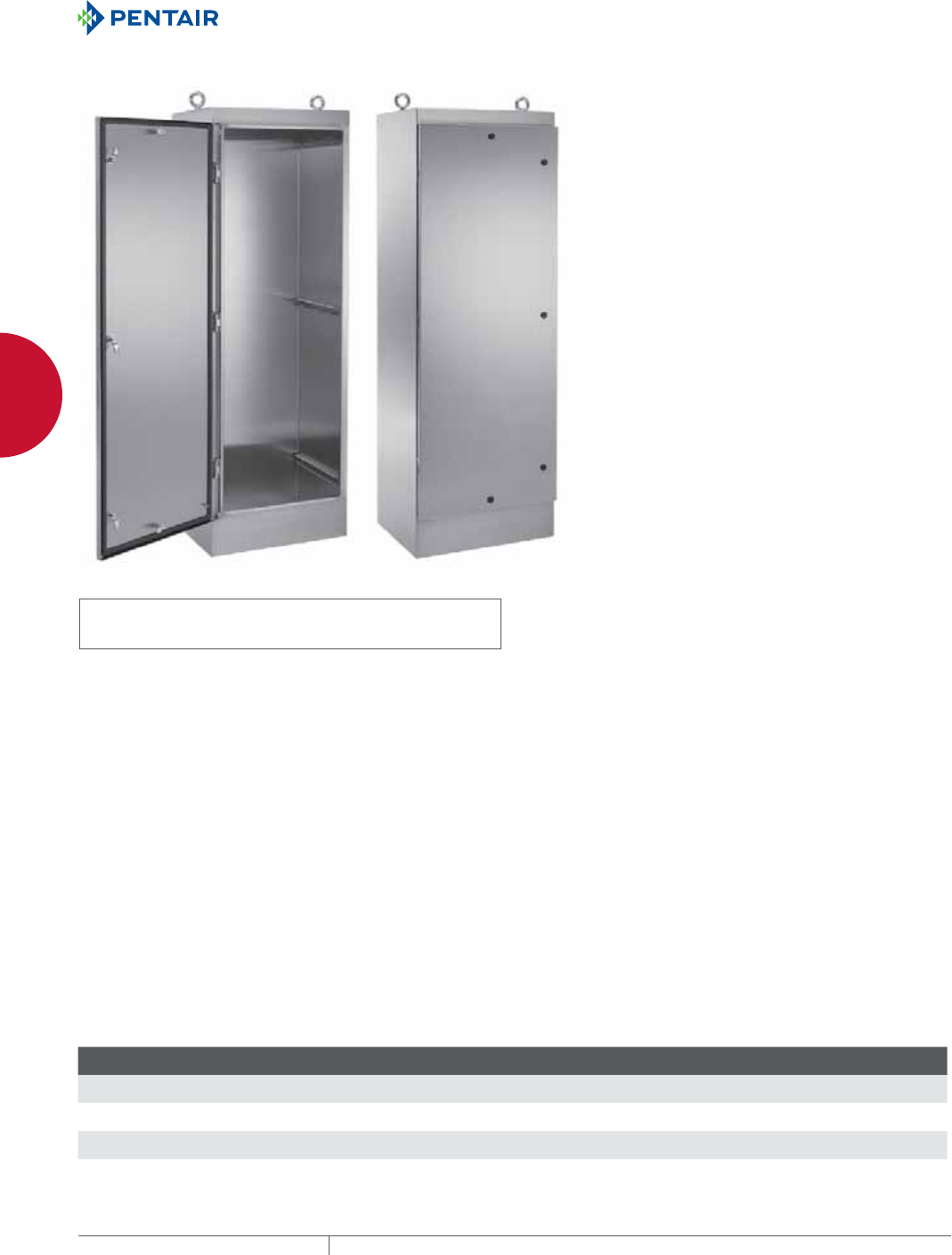

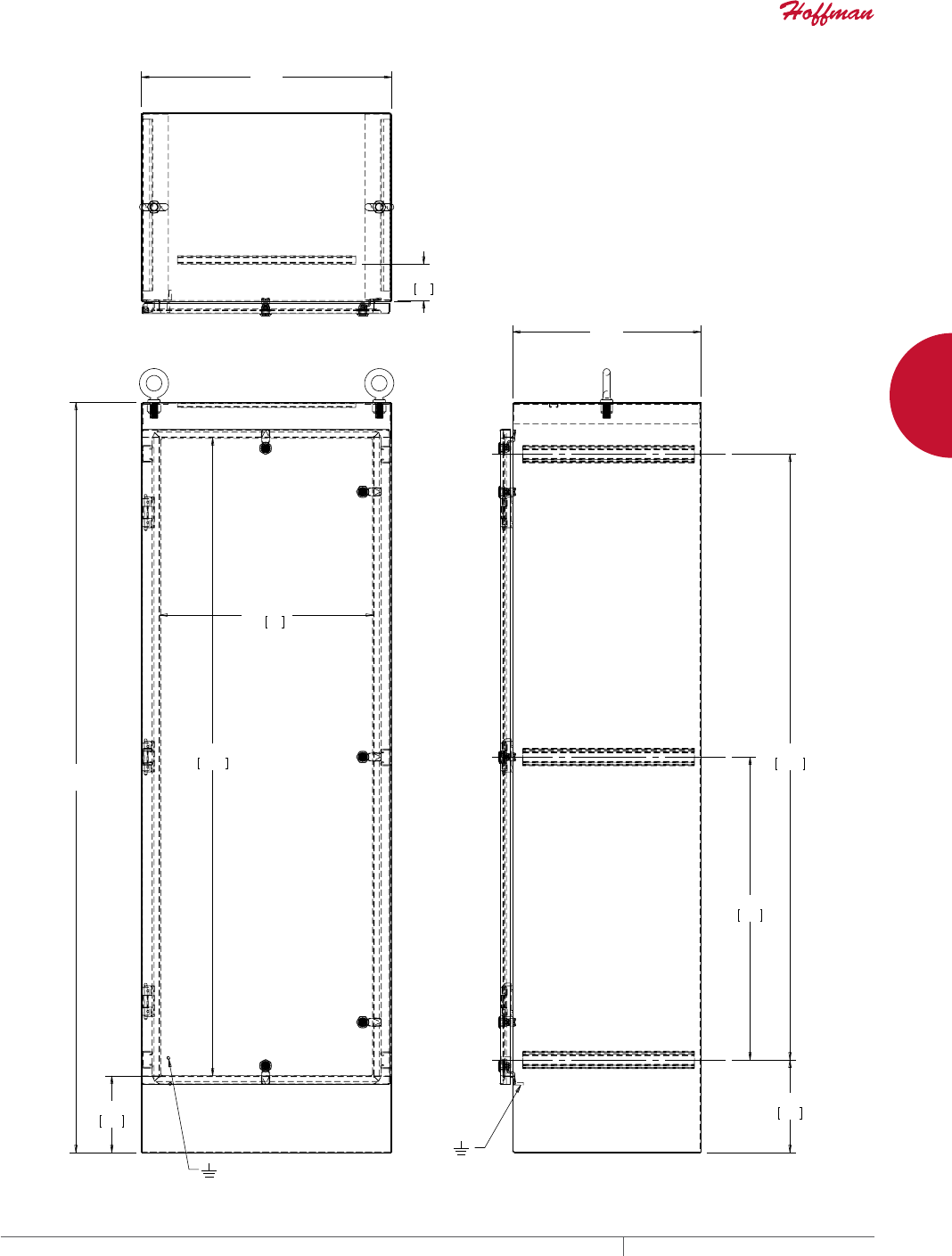

Free-Stand, Type 4X ...........................................198
Free-Stand Single and Dual Access with 3-Point Latches, Type 4X .......200
Free-Stand Accessories Selection Guide ...........................206
Free-Stand, Type 12 ...........................................214
HOFFMAN WATERSHED™ FREE-STAND
WATERSHED™ Free-Stand, Type 4X ...............................216
Sanitary Leg Kits .............................................217
Floor Stand Kit, Stainless Steel ..................................218
PROLINE™ HMI ENCLOSURES

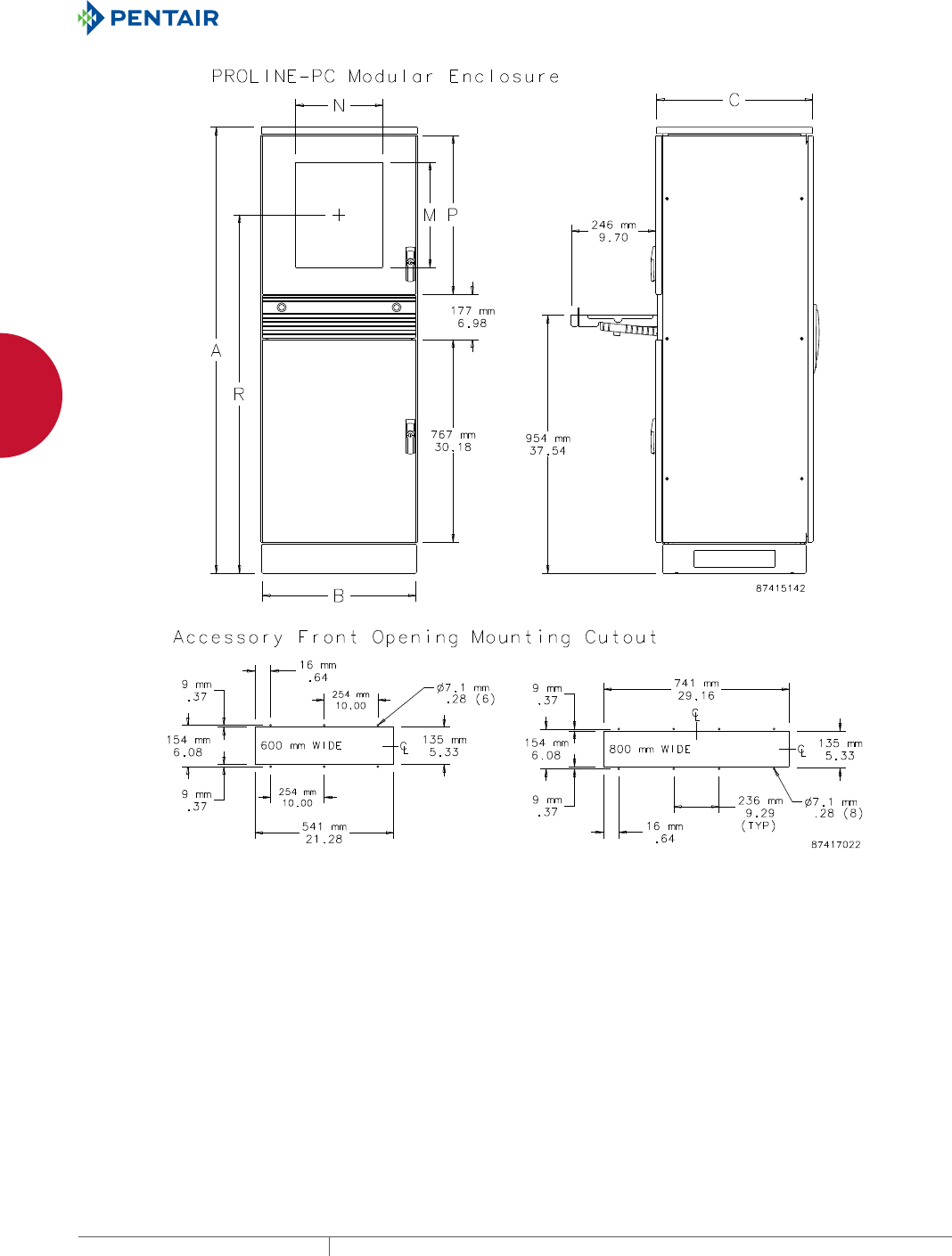

PROLINE Stainless Steel HMI Enclosures .........................220
Sloped Front .................................................222
Covers for Upper Front of PROLINE Sloped Fronts ...................222
Doors for Upper Front of PROLINE Sloped Fronts ....................223
Covers for Rear of PROLINE Sloped Fronts ........................223

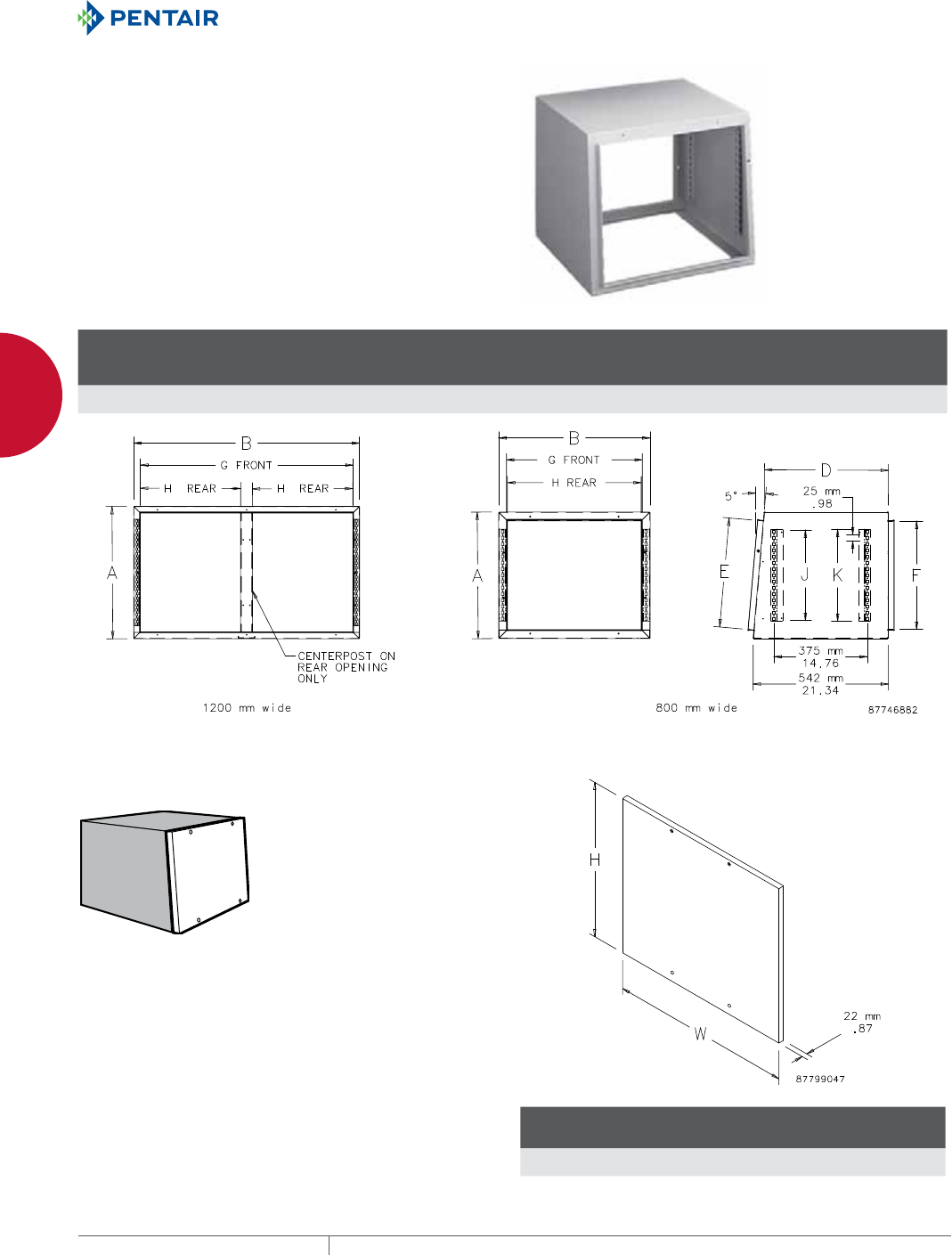

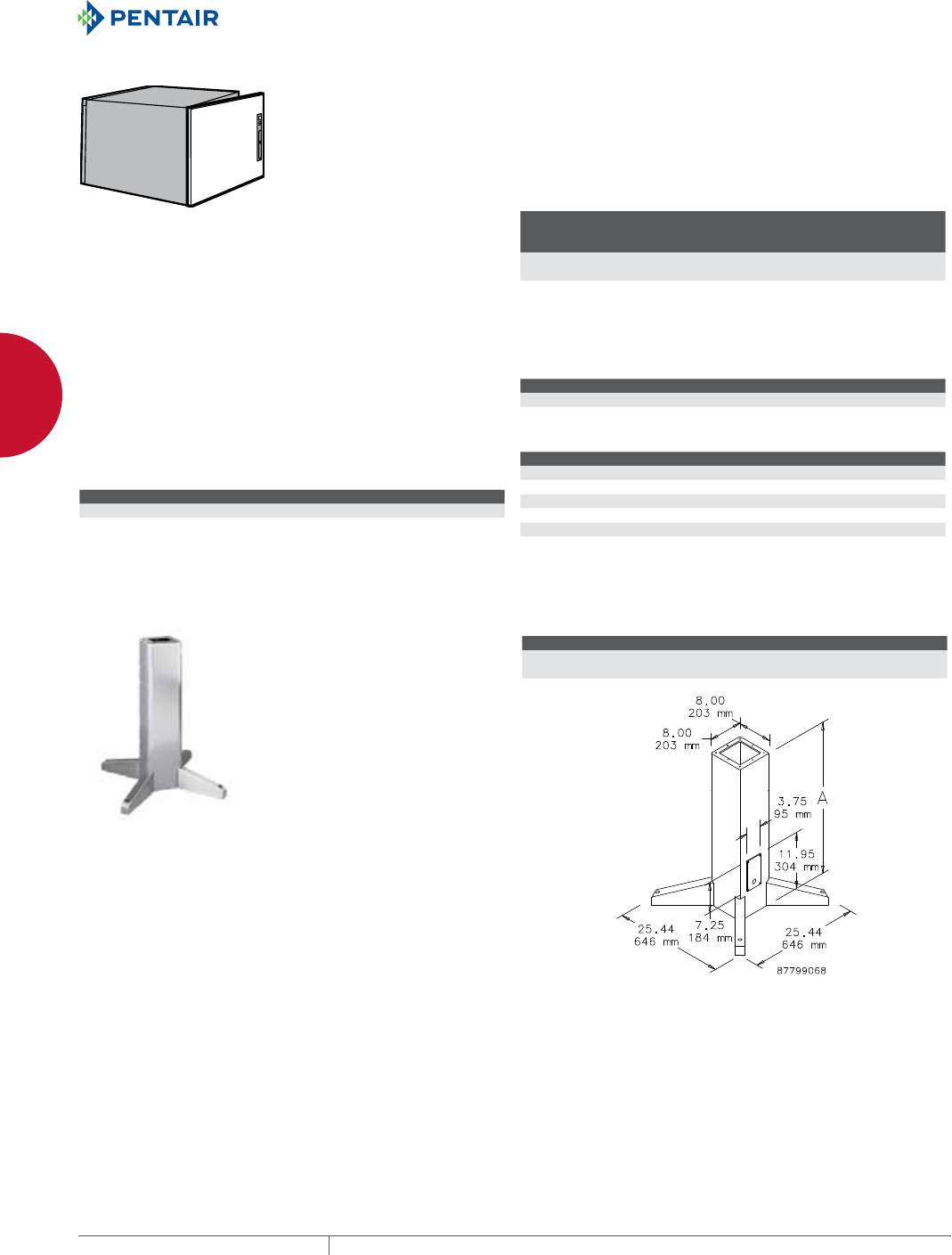

Stainless Steel Pedestal .......................................224
Doors for Rear of PROLINE Sloped Fronts .........................224
PROLINE Solid Rear Door Accessories ............................224
Stainless Steel Extension .......................................225

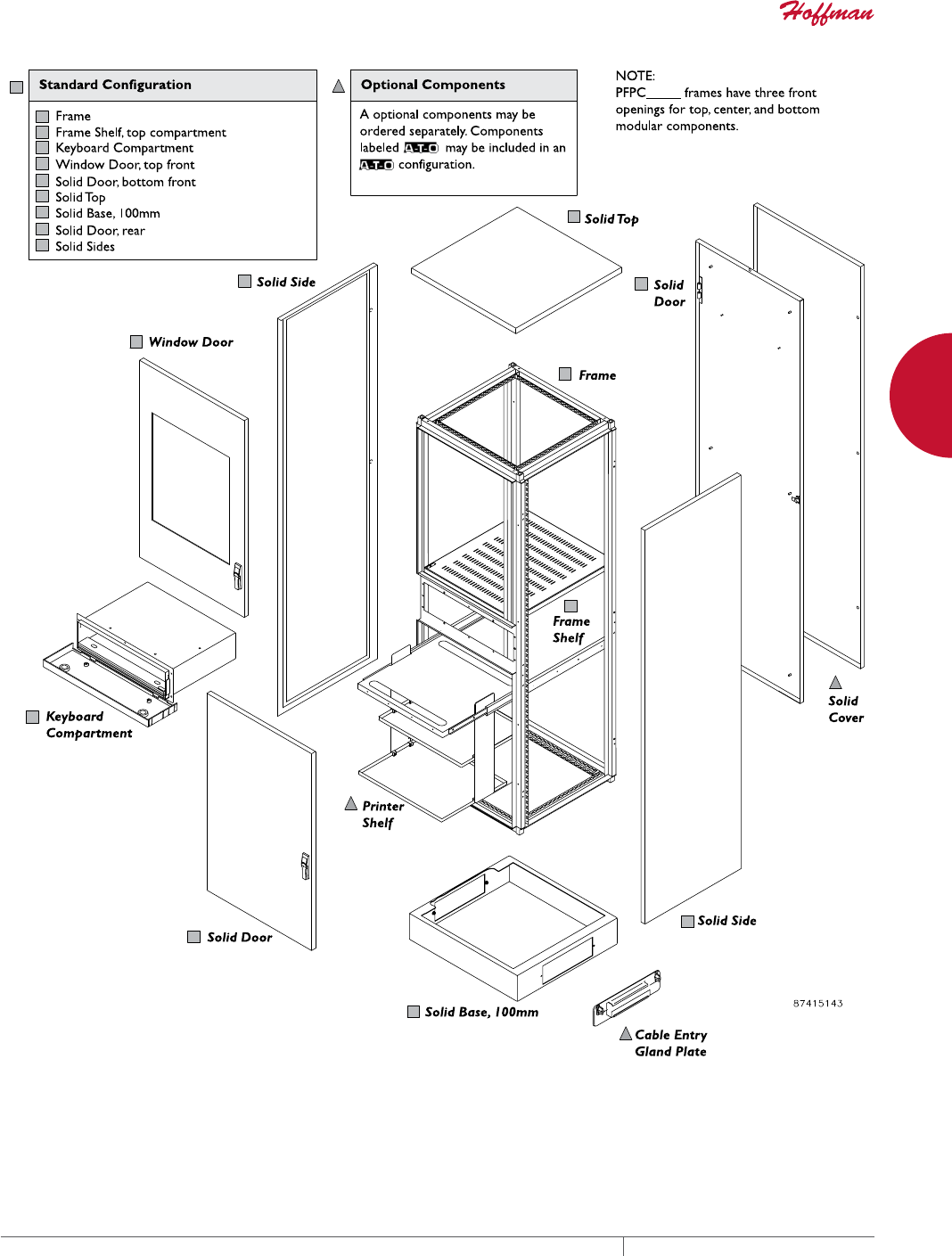

Stainless Steel PROLINE-PC Package, Type 12 .....................226
Stainless Steel PROLINE-SY Package, Type 12 .....................230
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL132
2
JUNCTION BOXES HINGE-COVER
JUNCTION BOXES
HINGE-COVER

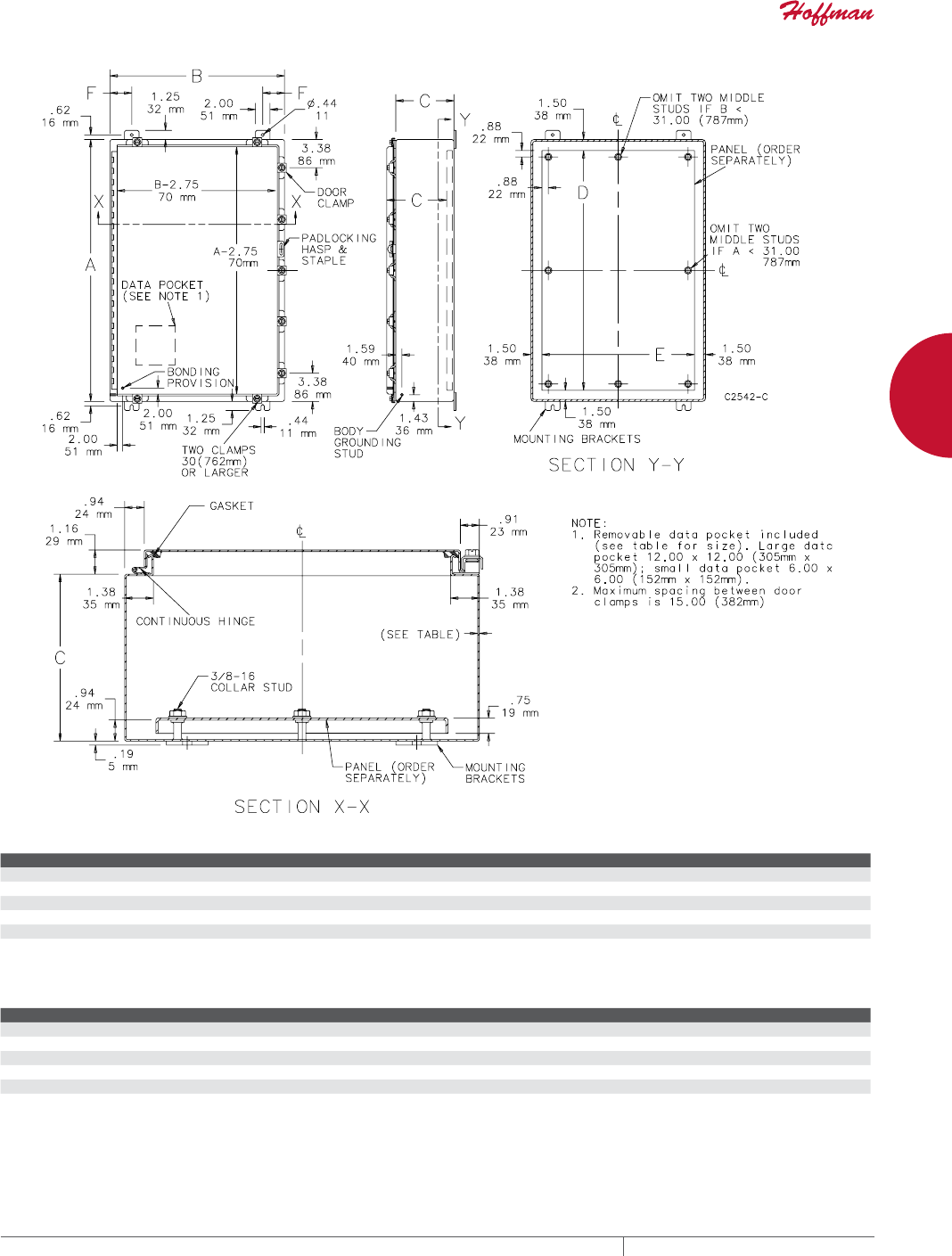

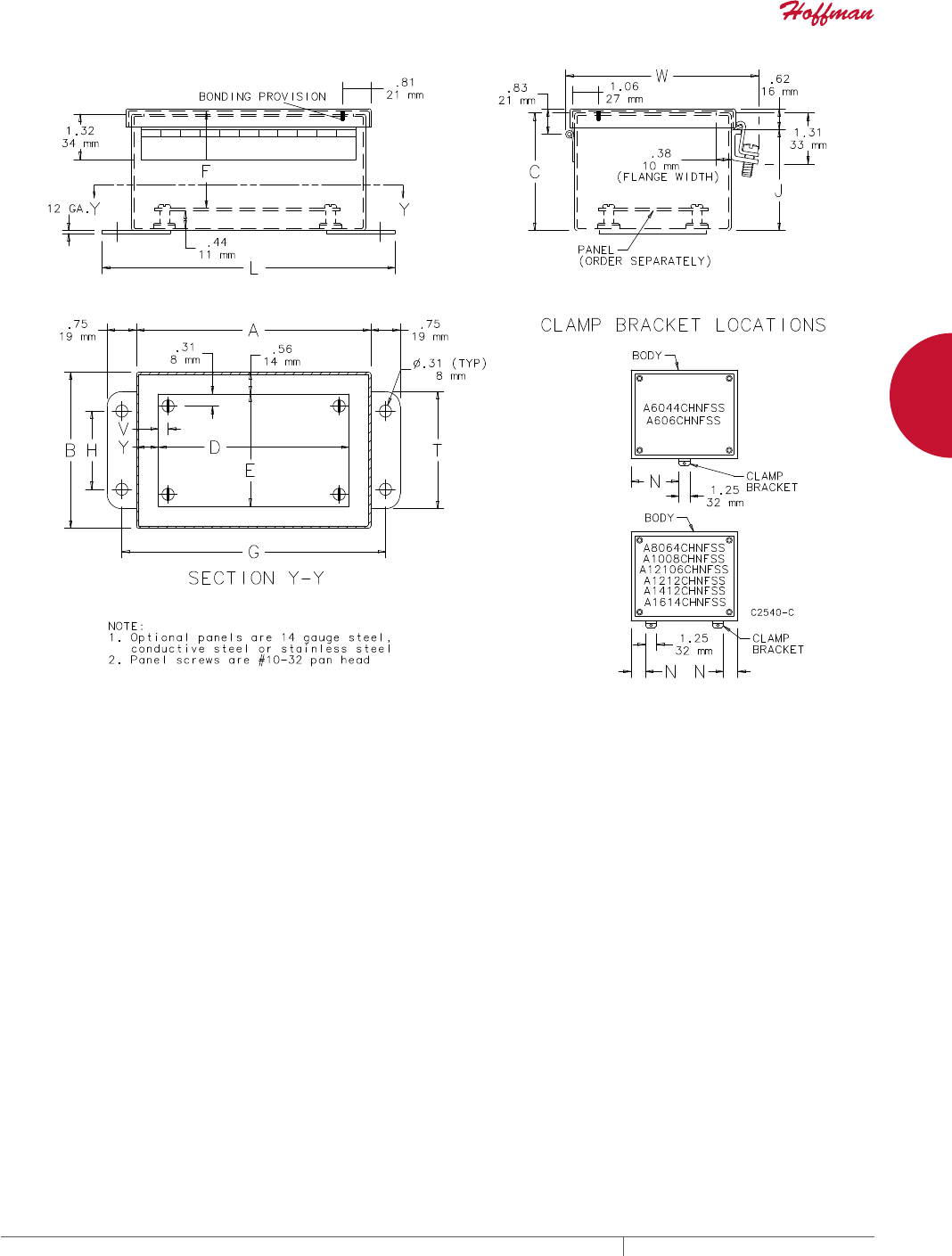

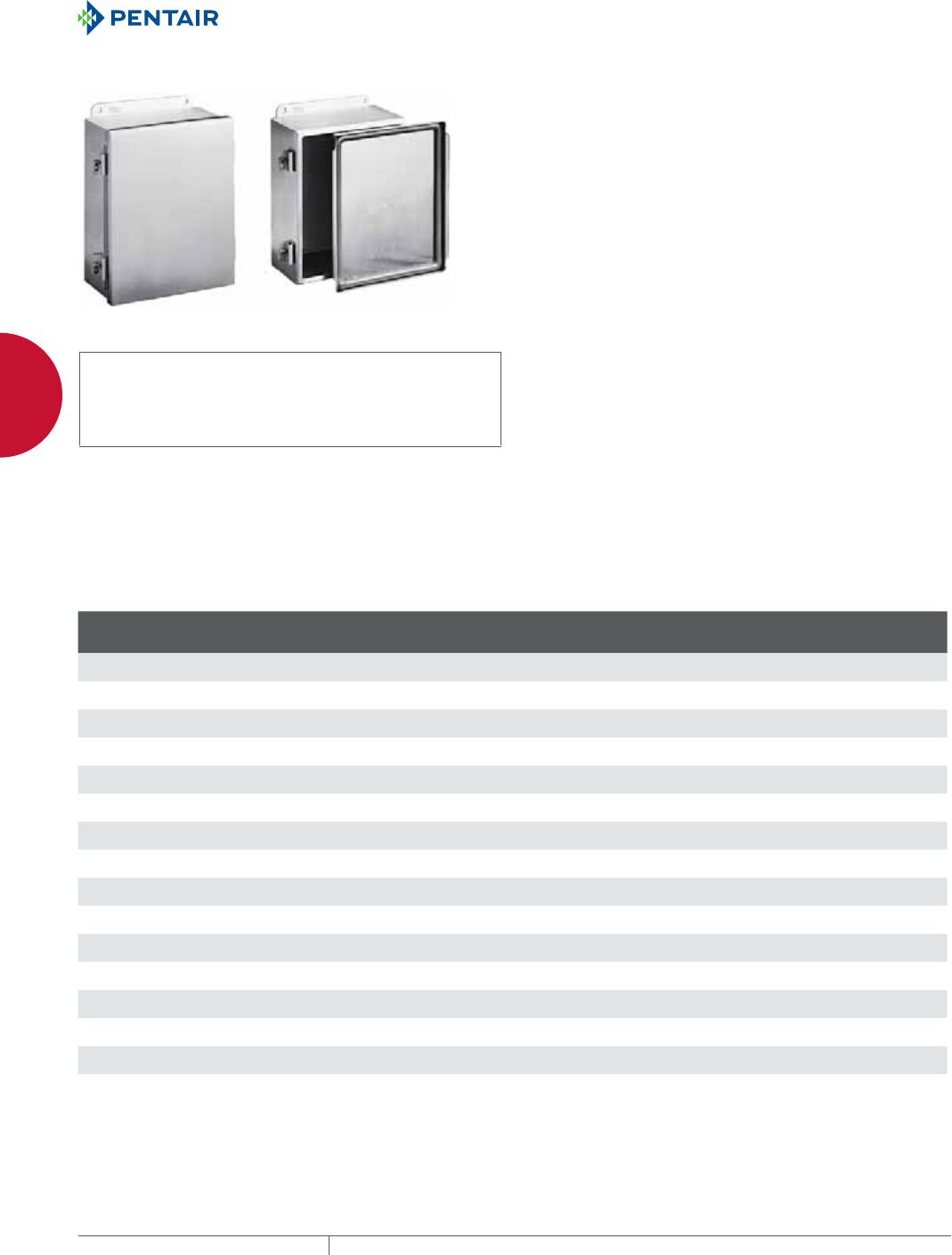

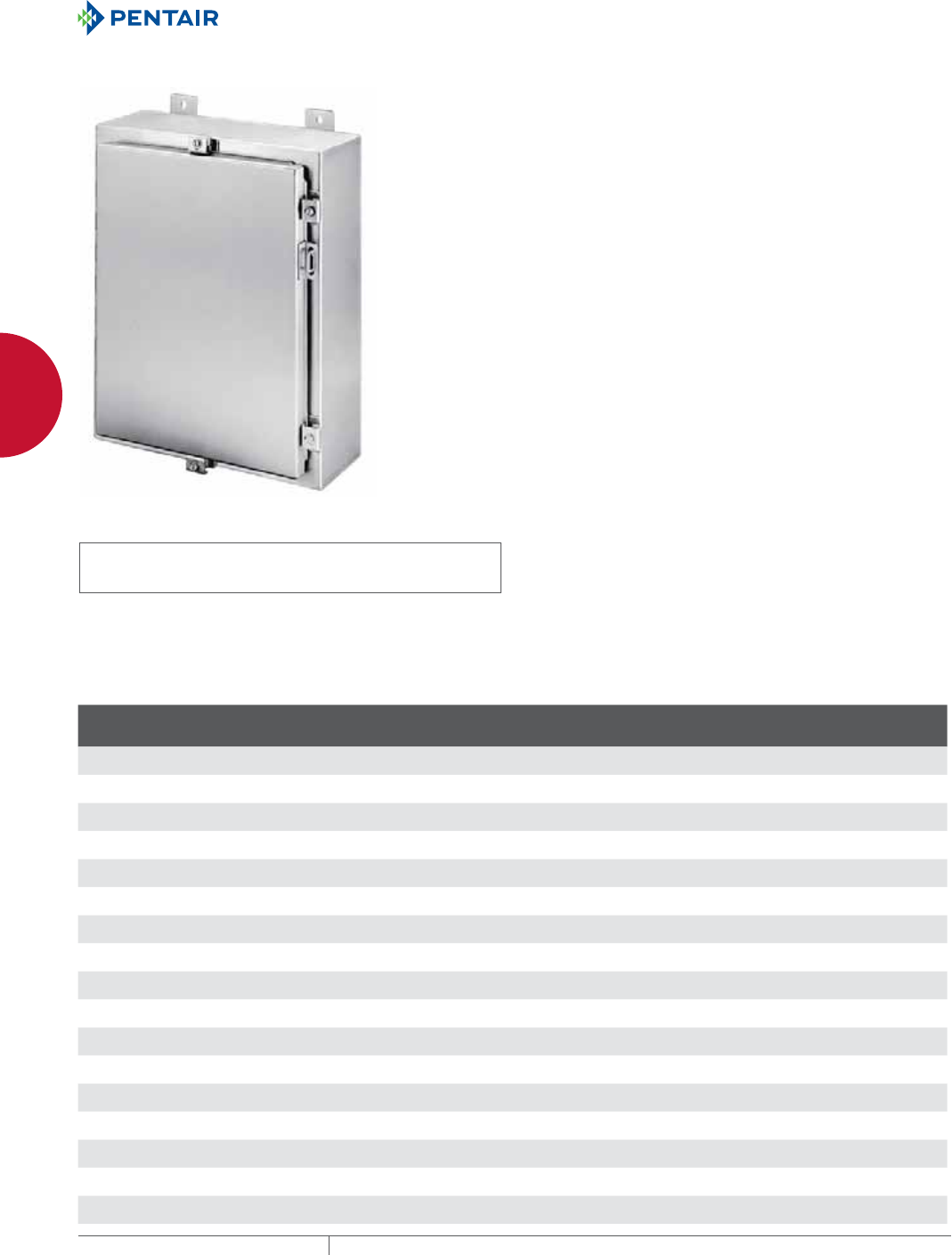

CONTINUOUSHINGE WITH CLAMPS, TYPE 4X
INDUSTRY STANDARDS
UL 50, 50E Listed; Type 3R, 4, 4X, 12; File No. E27567
cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No.
E27567
UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No.
E61997
NEMA/EEMAC Type 3R, 4, 4X, 12, 13
CSA File No. 42184: Type 4, 4X, 12
IEC 60529, IP66
Meets NEMA Type 3RX requirements
APPLICATION
Used in either indoor or outdoor applications, these enclosures
combine a rugged continuous hinge, seamless foam-in-place
gasket and stainless steel screw-down clamps for a reliable seal
that protects components from corrosive environments.
SPECIFICATIONS
16 and 14 gauge Type 304 or 316L stainless steel
Seams continuously welded and ground smooth
Seamless foam-in-place gasket
Stainless steel screws and clamps
Pull stainless steel continuous hinge pin to remove door
Weldnuts provided for mounting optional panels and terminal
block kits
Bonding provision on door and body
FINISH
Cover and sides of body have smooth #4 brushed finish.
ACCESSORIES
See also Accessories.
Fast-Operating Clamp-Cover Junction Box Clamp
Lock Kit for Clamp Cover Junction Boxes
Panels for Junction Boxes
Terminal Block Kit Assembly for Junction Boxes Overview
MODIFICATION AND CUSTOMIZATION
Hoffman excels at modifying and customizing products to your
specifications. Contact your local Hoffman sales office or distributor
for complete information.
BULLETIN: A51S
Standard Product
Catalog Number AxBxC in./mm
Stainless
Steel Type UL Listed
Body
Gauge
Cover
Gauge
Steel
Panel
Conductive
Panel
Panel Size
D x E
in./mm
Mounting
G x H
in./mm
Overall
L x W
in./mm
F
in./mm
J
in./mm
N
in./mm
T
in./mm
V
in./mm
Y
in./mm
A6044CHNFSS 6.00 x 4.00 x 4.00
152 x 102 x 102
304 508A 16 16 A6P4 A6P4G 4.88 x 2.88
124 x 73
6.75 x 2.00
171 x 51
7.50 x 4.94
191 x 125
3.50
89
3.62
92
2.38
60
3.00
76
0.31
8
0.56
14
A606CHNFSS 6.00 x 6.00 x 4.00
152 x 152 x 102
304 50, 50E 16 16 A6P6 A6P6G 4.88 x 4.88
124 x 124
6.75 x 4.00
171 x 102
7.50 x 6.94
191 x 176
3.50
89
3.62
92
2.38
60
5.00
127
0.31
8
0.56
14
A8064CHNFSS 8.00 x 6.00 x 4.00
203 x 152 x 102
304 50, 50E 14 16 A8P6 A8P6G 6.75 x 4.88
171 x 124
8.75 x 4.00
222 x 102
9.50 x 6.94
241 x 176
3.50
89
3.62
92
1.38
35
5.00
127
0.25
6
0.62
16
A1008CHNFSS 10.00 x 8.00 x 4.00
254 x 203 x 102
304 50, 50E 14 16 A10P8 A10P8G 8.75 x 6.88
222 x 175
10.75 x 6.00
273 x 152
11.50 x 8.94
292 x 227
3.50
89
3.62
92
1.38
35
7.00
178
0.25
6
0.62
16
A12106CHNFSS 12.00 x 10.00 x 6.00
305 x 254 x 152
304 50, 50E 14 16 A12P10 A12P10G 10.75 x 8.88
273 x 225
12.75 x 8.00
324 x 203
13.50 x 10.94
343 x 278
5.50
140
5.62
143
2.38
60
9.00
229
0.25
6
0.62
16
A1212CHNFSS 12.00 x 12.00 x 6.00
305 x 305 x 152
304 50, 50E 14 16 A12P12 A12P12G 10.75 x 10.88
273 x 276
12.75 x 10.00
324 x 254
13.50 x 12.94
343 x 329
5.50
140
5.62
143
2.38
60
11.00
279
0.25
6
0.62
16
A1412CHNFSS 14.00 x 12.00 x 6.00
356 x 305 x 152
304 50, 50E 14 16 A14P12 A14P12G 12.75 x 10.88
324 x 276
14.75 x 10.00
375 x 254
15.50 x 12.94
394 x 329
5.50
140
5.62
143
2.38
60
11.00
279
0.25
6
0.62
16
A1614CHNFSS 16.00 x 14.00 x 6.00
406 x 356 x 152
304 508A 14 16 A16P14 A16P14G 14.75 x 12.88
375 x 327
16.75 x 12.00
425 x 305
17.50 x 14.94
445 x 379
5.50
140
5.62
143
2.38
60
13.00
330
0.25
6
0.62
16
A6044CHNFSS6 6.00 x 4.00 x 4.00
152 x 102 x 102
316L 50, 50E 16 16 A6P4 A6P4G 4.88 x 2.88
124 x 73
6.75 x 2.00
171 x 51
7.50 x 4.94
191 x 125
3.50
89
3.62
92
2.38
60
3.00
76
0.31
8
0.56
14
A606CHNFSS6 6.00 x 6.00 x 4.00
152 x 152 x 102
316L 50, 50E 16 16 A6P6 A6P6G 4.88 x 4.88
124 x 124
6.75 x 4.00
171 x 102
7.50 x 6.94
191 x 176
3.50
89
3.62
92
2.38
60
5.00
127
0.31
8
0.56
14
A8064CHNFSS6 8.00 x 6.00 x 4.00
203 x 152 x 102
316L 50, 50E 14 16 A8P6 A8P6G 6.75 x 4.88
171 x 124
8.75 x 4.00
222 x 102
9.50 x 6.94
241 x 176
3.50
89
3.62
92
1.38
35
5.00
127
0.25
6
0.62
16
A1008CHNFSS6 10.00 x 8.00 x 4.00
254 x 203 x 102
316L 50, 50E 14 16 A10P8 A10P8G 8.75 x 6.88
222 x 175
10.75 x 6.00
273 x 152
11.50 x 8.94
292 x 227
3.50
89
3.62
92
1.38
35
7.00
178
0.25
6
0.62
16
A12106CHNFSS6 12.00 x 10.00 x 6.00
305 x 254 x 152
316L 50, 50E 14 16 A12P10 A12P10G 10.75 x 8.88
273 x 225
12.75 x 8.00
324 x 203
13.50 x 10.94
343 x 278
5.50
140
5.62
143
2.38
60
9.00
229
0.25
6
0.62
16
A1212CHNFSS6 12.00 x 12.00 x 6.00
305 x 305 x 152
316L 50, 50E 14 16 A12P12 A12P12G 10.75 x 10.88
273 x 276
12.75 x 10.00
324 x 254
13.50 x 12.94
343 x 329
5.50
140
5.62
143
2.38
60
11.00
279
0.25
6
0.62
16
A1412CHNFSS6 14.00 x 12.00 x 6.00
356 x 305 x 152
316L 50, 50E 14 16 A14P12 A14P12G 12.75 x 10.88
324 x 276
14.75 x 10.00
375 x 254
15.50 x 12.94
394 x 329
5.50
140
5.62
143
2.38
60
11.00
279
0.25
6
0.62
16
A1614CHNFSS6 16.00 x 14.00 x 6.00
406 x 356 x 152
316L 50, 50E 14 16 A16P14 A16P14G 14.75 x 12.88
375 x 327
16.75 x 12.00
425 x 305
17.50 x 14.94
445 x 379
5.50
140
5.62
143
2.38
60
13.00
330
0.25
6
0.62
16
A6044CHNFSS and A6044CHNFSS6 UL 508A Listed. The remaining catalog numbers are UL 50 Listed.
Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 133
2
JUNCTION BOXES HINGE-COVER
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL134
2
JUNCTION BOXES HINGE-COVER

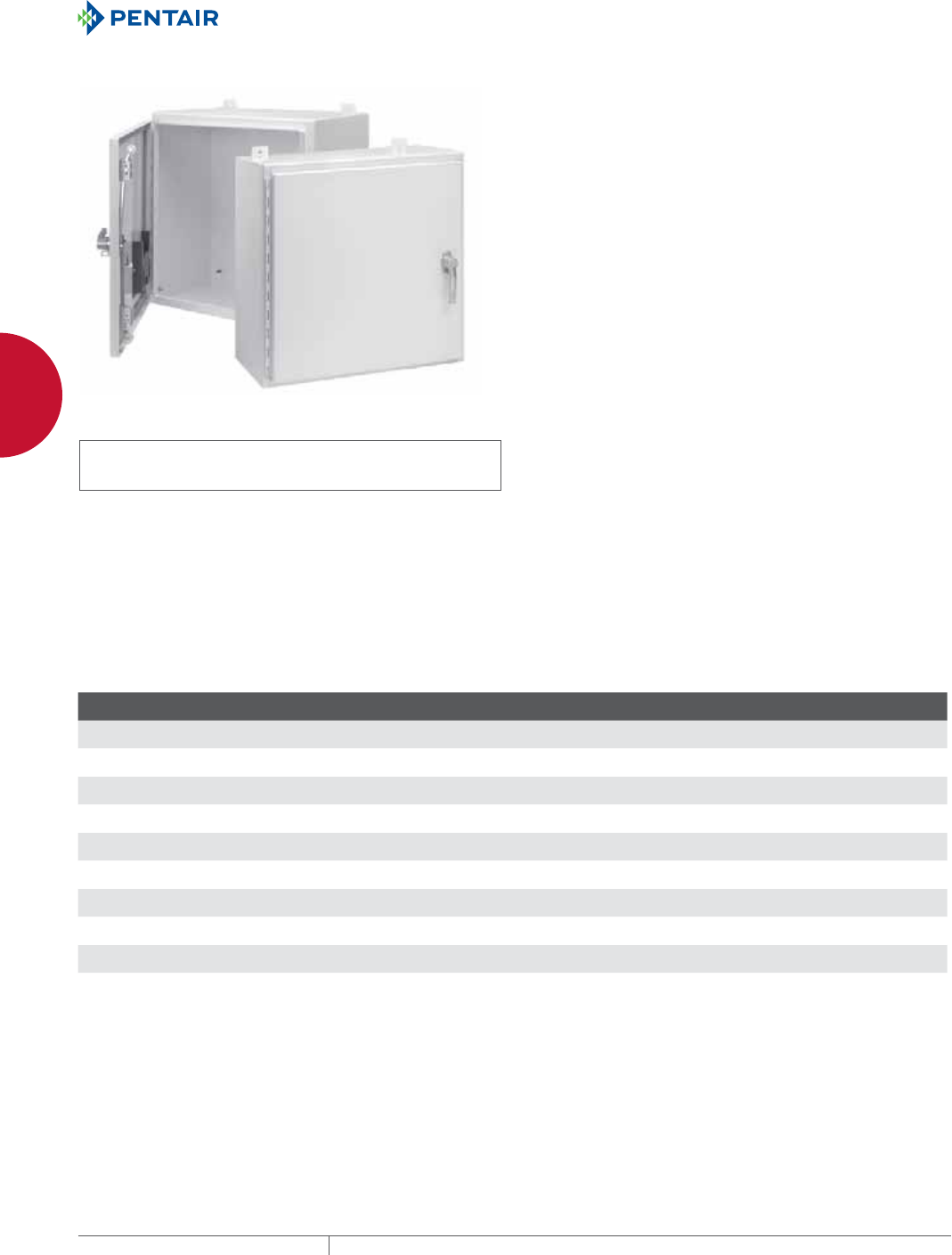

CONTINUOUS HINGE WITH CLAMPS, EMC, TYPE 4X
INDUSTRY STANDARDS
UL 50, 50E Listed; Type 4, 4X, 12; File No. E27567
cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12; File No. E27567
UL 508A Listed; Type 4, 4X, 12; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12; File No. E61997
NEMA/EEMAC Type 4, 4X, 12, 13
CSA File No. 42184: Type 4, 4X, 12
IEC 60529, IP66
APPLICATION
Use this enclosure in corrosive indoor or outdoor applications to
contain stray electromagnetic interference (EMI) signals produced
by internal components and to shield those components from
external EMI/RFI interference.
SPECIFICATIONS
16 and 14 gauge Type 304 stainless steel
Seams continuously welded and ground smooth
Seamless foam-in-place gasket adjacent to monel mesh assures
water-tight, dust-tight and EMI seal
Stainless steel screws and clamps
Removable door with continuous hinge
Weldnuts provided for mounting optional panels and terminal kits
Bonding provision on door
FINISH
Cover and sides of body have a smooth #4 brushed finish.
ACCESSORIES
See also Accessories.
Fast-Operating Clamp-Cover Junction Box Clamp
Panels for Junction Boxes
Terminal Block Kit Assembly for Junction Boxes Overview
Steel and Stainless Steel Window Kits
BULLETIN: A51SE
Standard Product
Catalog Number AxBxC in./mm UL Listed
Body
Gauge
Cover
Gauge
Stainless
Steel
Panel
Conductive
Steel
Panel
Panel Size
D x E
in./mm
Mounting
G x H
in./mm
Overall
L x W
in./mm
F
in./mm
J
in./mm
N
in./mm
T
in./mm
V
in./mm
Y
in./mm
A6044CHEMCSS 6.00 x 4.00 x 4.00
152 x 102 x 102
508A 16 16 A6P4SS A6P4G 4.88 x 2.88
124 x 73
6.75 x 2.00
171 x 51
7.50 x 4.94
191 x 125
3.50
89
3.62
92
2.38
60
3.00
76
0.31
8
0.56
14
A606CHEMCSS 6.00 x 6.00 x 4.00
152 x 152 x 102
50, 50E 16 16 A6P6SS A6P6G 4.88 x 4.88
124 x 124
6.75 x 4.00
171 x 102
7.50 x 6.94
191 x 176
3.50
89
3.62
92
2.38
60
5.00
127
0.31
8
0.56
14
A8064CHEMCSS 8.00 x 6.00 x 4.00
203 x 152 x 102
50, 50E 14 16 A8P6SS A8P6G 6.75 x 4.88
171 x 124
8.75 x 4.00
222 x 102
9.50 x 6.94
241 x 176
3.50
89
3.62
92
1.38
35
5.00
127
0.25
6
0.62
16
A1008CHEMCSS 10.00 x 8.00 x 4.00
254 x 203 x 102
50, 50E 14 16 A10P8SS A10P8G 8.75 x 6.88
222 x 175
10.75 x 6.00
273 x 152
11.50 x 8.94
292 x 227
3.50
89
3.62
92
1.38
35
7.00
178
0.25
6
0.62
16
A12106CHEMCSS 12.00 x 10.00 x 6.00
305 x 254 x 152
50, 50E 14 16 A12P10SS A12P10G 10.75 x 8.88
273 x 225
12.75 x 8.00
324 x 203
13.50 x 10.94
343 x 278
5.50
140
5.62
143
2.38
60
9.00
229
0.25
6
0.62
16
A1212CHEMCSS 12.00 x 12.00 x 6.00
305 x 305 x 152
50, 50E 14 16 A12P12SS A12P12G 10.75 x 10.88
273 x 276
12.75 x 10.00
324 x 254
13.50 x 12.94
343 x 329
5.50
140
5.62
143
2.38
60
11.00
279
0.25
6
0.62
16
A1412CHEMCSS 14.00 x 12.00 x 6.00
356 x 305 x 152
50, 50E 14 16 A14P12SS A14P12G 12.75 x 10.88
324 x 276
14.75 x 10.00
375 x 254
15.50 x 12.94
394 x 329
5.50
140
5.62
143
2.38
60
11.00
279
0.25
6
0.62
16
A1614CHEMCSS 16.00 x 14.00 x 6.00
406 x 356 x 152
50, 50E 14 16 A16P14SS A16P14G 14.75 x 12.88
375 x 327
16.75 x 12.00
425 x 305
17.50 x 14.94
445 x 379
5.50
140
5.62
143
2.38
60
13.00
330
0.25
6
0.62
16
Purchase panels separately.
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 135
2
JUNCTION BOXES HINGE-COVER
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL136
2
JUNCTION BOXES CLAMP-COVER
CLAMP-COVER
CLAMP COVER, TYPE 4X
INDUSTRY STANDARDS
UL 50 Listed; Type 3R, 4, 4X, 12; File No. E27525
cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No.
E27525
UL 508A, 508 Listed; Type 3R, 4, 4X, 12; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No.
E61997
NEMA/EEMAC Type 3R, 4, 4X, 12, 13
CSA File No. 42184: Type 4, 4X, 12
IEC 60529, IP66
Meets Type 3RX requirements
APPLICATION
Used in either corrosive or outdoor applications, Clamp Cover
Enclosures combine a seamless foam-in-place gasket with
stainless steel screw-down clamps for a consistent and reliable
seal, yet the cover is easily removed for access and modifications.
SPECIFICATIONS
16 and 14 gauge Type 304 or 316L stainless steel
Seams continuously welded and ground smooth
Seamless foam-in-place gasket
Stainless steel screws and clamps
Weldnuts provided for mounting optional panels and terminal
block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
Bonding provision on door and body
FINISH
Cover and sides of body have smooth #4 brushed finish.
ACCESSORIES
See also Accessories.
Fast-Operating Clamp-Cover Junction Box Clamp
Panels for Junction Boxes
Terminal Block Kit Assembly for Junction Boxes Overview
Steel and Stainless Steel Window Kits
See also the Popular Accessories table following the Standard Products
table.
MODIFICATION AND CUSTOMIZATION
Hoffman excels at modifying and customizing products to your
specifications. Contact your local Hoffman sales office or distributor
for complete information.
BULLETIN: A51S
Standard Product
Catalog Number AxBxC in./mm UL Listed
Body
Gauge
Cover
Gauge
Steel
Panel
Conductive
Steel
Panel
Panel Size
D x E
in./mm
Mounting
G x H
in./mm
Overall
L x W
in./mm
F
in./mm
J
in./mm
M
in./mm
N
in./mm
T
in./mm
V
in./mm
Y
in./mm
A404NFSS 4.00 x 4.00 x 3.00
102 x 102 x 76
508A 16 16 No Panel No Panel No Panel
No Panel
4.75 x 2.00
121 x 51
5.50 x 5.38
140 x 137
2.56
65
1.38
35
1.38
35
3.00
76
A404NFSS6 4.00 x 4.00 x 3.00
102 x 102 x 76
508A 16 16 No Panel No Panel No Panel
No Panel
4.75 x 2.00
121 x 51
5.50 x 5.38
140 x 137
2.56
65
1.38
35
1.38
35
3.00
76
A6044NFSS 6.00 x 4.00 x 4.00
152 x 102 x 102
508A 16 16 A6P4 A6P4G 4.88 x 2.88
124 x 73
6.75 x 2.00
171 x 51
7.50 x 5.38
191 x 137
3.50
89
3.56
90
1.38
35
1.38
35
3.00
76
0.31
8
0.56
14
A6044NFSS6 6.00 x 4.00 x 4.00
152 x 102 x 102
508A 16 16 A6P4 A6P4G 4.88 x 2.88
124 x 73
6.75 x 2.00
171 x 51
7.50 x 5.38
191 x 137
3.50
89
3.56
90
1.38
35
1.38
35
3.00
76
0.31
8
0.56
14
A8064NFSS 8.00 x 6.00 x 4.00
203 x 152 x 102
50, 50E 14 16 A8P6 A8P6G 6.75 x 4.88
171 x 124
8.75 x 4.00
222 x 102
9.50 x 7.38
241 x 187
3.50
89
3.56
90
1.38
35
5.00
127
0.25
6
0.62
16
A8064NFSS6 8.00 x 6.00 x 4.00
203 x 152 x 102
50, 50E 14 16 A8P6 A8P6G 6.75 x 4.88
171 x 124
8.75 x 4.00
222 x 102
9.50 x 7.38
241 x 187
3.50
89
3.56
90
1.38
35
5.00
127
0.25
6
0.62
16
A606NFSS 6.00 x 6.00 x 4.00
152 x 152 x 102
50, 50E 16 16 A6P6 A6P6G 4.88 x 4.88
124 x 124
6.75 x 4.00
171 x 102
7.50 x 7.38
191 x 187
3.50
89
3.56
90
2.38
60
1.38
35
5.00
127
0.31
8
0.56
14
A606NFSS6 6.00 x 6.00 x 4.00
152 x 152 x 102
50, 50E 16 16 A6P6 A6P6G 4.88 x 4.88
124 x 124
6.75 x 4.00
171 x 102
7.50 x 7.38
191 x 187
3.50
89
3.56
90
2.38
60
1.38
35
5.00
127
0.31
8
0.56
14
A1008NFSS 10.00 x 8.00 x 4.00
254 x 203 x 102
50, 50E 14 16 A10P8 A10P8G 8.75 x 6.88
222 x 175
10.75 x 6.00
273 x 152
11.50 x 9.38
292 x 238
3.50
89
3.56
90
1.38
35
7.00
178
0.25
6
0.62
16
A1008NFSS6 10.00 x 8.00 x 4.00
254 x 203 x 102
50, 50E 14 16 A10P8 A10P8G 8.75 x 6.88
222 x 175
10.75 x 6.00
273 x 152
11.50 x 9.38
292 x 238
3.50
89
3.56
90
1.38
35
7.00
178
0.25
6
0.62
16
A12106NFSS 12.00 x 10.00 x 6.00
305 x 254 x 152
50, 50E 14 16 A12P10 A12P10G 10.75 x 8.88
273 x 225
12.75 x 8.00
324 x 203
13.50 x 11.38
343 x 289
5.50
140
5.56
141
2.38
60
9.00
229
0.25
6
0.62
16
A12106NFSS6 12.00 x 10.00 x 6.00
305 x 254 x 152
50, 50E 14 16 A12P10 A12P10G 10.75 x 8.88
273 x 225
12.75 x 8.00
324 x 203
13.50 x 11.38
343 x 289
5.50
140
5.56
141
2.38
60
9.00
229
0.25
6
0.62
16
A1412NFSS 14.00 x 12.00 x 6.00
356 x 305 x 152
50, 50E 14 16 A14P12 A14P12G 12.75 x 10.88
324 x 276
14.75 x 10.00
375 x 254
15.50 x 13.38
394 x 340
5.50
140
5.56
141
2.38
60
11.00
279
0.25
6
0.62
16
A1412NFSS6 14.00 x 12.00 x 6.00
356 x 305 x 152
50, 50E 14 16 A14P12 A14P12G 12.75 x 10.88
324 x 276
14.75 x 10.00
375 x 254
15.50 x 13.38
394 x 340
5.50
140
5.56
141
2.38
60
11.00
279
0.25
6
0.62
16
A1614NFSS 16.00 x 14.00 x 6.00
406 x 356 x 152
50, 50E 14 16 A16P14 A16P14G 14.75 x 12.88
375 x 327
16.75 x 12.00
425 x 305
17.50 x 15.38
445 x 391
5.50
140
5.56
141
2.38
60
13.00
330
0.25
6
0.62
16
A1614NFSS6 16.00 x 14.00 x 6.00
406 x 356 x 152
50, 50E 14 16 A16P14 A16P14G 14.75 x 12.88
375 x 327
16.75 x 12.00
425 x 305
17.50 x 15.38
445 x 391
5.50
140
5.56
141
2.38
60
13.00
330
0.25
6
0.62
16
A404NFSS, A404NFSS6, A6044NFSS and A6044NFSS6 are UL 508A Listed.
The remaining catalog numbers are UL 50 Listed.
Catalog numbers ending in “6” are Type 316L stainless steel.
Purchase panels separately. Optional stainless steel, composite and aluminum panels are also available for most sizes.
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 137
2
JUNCTION BOXES CLAMP-COVER
Popular Accessories
Enclosure Width (b Dimension) Hole Seals
4 in. (102 mm) AS050SS
6 in. (152 mm) AS050SS
8 in. (203 mm) AS050SS
10 in. (254 mm) AS050SS
12 in. (305 mm) AS050SS
14 in. (356 mm) AS050SS
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL138
2
FLUSHMOUNT ENCLOSURES FLUSH-MOUNT ENCLOSURES
FLUSH-MOUNT ENCLOSURES
FLUSH-MOUNT ENCLOSURES
PHARMAPRO™, TYPE 4X
INDUSTRY STANDARDS
UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No.
E61997
NEMA/EEMAC Type 4, 4X, 12, 13
IEC 60529, IP66
APPLICATION
PHARMAPRO™ Enclosures are specifically designed for the
pharmaceutical industry with flush mounting and a low RA value
finish that minimizes surface crevices for thorough wipe-downs
and eliminates areas where contaminants can accumulate. The
mounting system pulls the enclosure flush and tight to the wall and
can be used on block or stud walls.
FEATURES
Specifically designed for pharmaceutical industry—flush
mounting and flat surfaces eliminate areas where contaminants
can accumulate
Low RA value of PHARMAPRO finish minimizes surface crevices,
allowing for a thorough wipe-down
Enclosure does not protrude into the manufacturing area
Mounting system included
SPECIFICATIONS
Enclosure body manufactured from 14 gauge Type 304 stainless
steel
Mounting flange manufactured from 10 gauge Type 316L stainless
steel
Screw cover and hinged door manufactured from 12 gauge Type
316L stainless steel
Seams continuously welded and ground smooth
Type 316L stainless steel lift-off hinges used with hinged door
Type 316L stainless steel slotted oval-head fasteners used with
screw cover
Stainless steel quarter-turn latches used with hinged door
FDA-approved silicone gasket
Grounding stud on body; bonding provision on cover or door
FINISH
PHARMAPRO low RA finish (typically 15-20 RA) applied to cover,
door and mounting flange
ACCESSORIES
See also Accessories.
Industrial Corrosion Inhibitors
CONCEPT™ Panels
MODIFICATION AND CUSTOMIZATION
Hoffman excels at modifying and customizing products to your
specifications. Contact your local Hoffman sales office or distributor
for complete information.
BULLETIN: A20S
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 139
2
FLUSHMOUNT ENCLOSURES FLUSH-MOUNT ENCLOSURES
Standard Product Hinged-Door
Catalog Number AxBxC in./mm
Door
Gauge
Body
Gauge
Size of
Mounting Cutout
in./mm Panel
Latches
Qty.
AFM20144SS 20.00 x 14.00 x 4.00
508 x 356 x 102
12 14 21.00 x 15.00
533 x 381
CP2014 3
AFM20204SS 20.00 x 20.00 x 4.00
508 x 508 x 102
12 14 21.00 x 21.00
533 x 533
CP2020 5
AFM12126SS 12.00 x 12.00 x 6.00
305 x 305 x 152
12 14 13.00 x 13.00
330 x 330
CP1212 2
AFM16126SS 16.00 x 12.00 x 6.00
406 x 305 x 152
12 14 17.00 x 13.00
432 x 330
CP1612 3
AFM20166SS 20.00 x 16.00 x 6.00
508 x 406 x 152
12 14 21.00 x 17.00
533 x 432
CP2016 5
AFM20206SS 20.00 x 20.00 x 6.00
508 x 508 x 152
12 14 21.00 x 21.00
533 x 533
CP2020 5
AFM24206SS 24.00 x 20.00 x 6.00
610 x 508 x 152
12 14 25.00 x 21.00
635 x 533
CP2420 5
AFM24248SS 24.00 x 24.00 x 8.00
610 x 610 x 203
12 14 25.00 x 25.00
635 x 635
CP2424 7
AFM30248SS 30.00 x 24.00 x 8.00
762 x 610 x 203
12 14 21.00 x 25.00
533 x 635
CP3024 8
AFM242010SS 24.00 x 20.00 x 10.00
610 x 508 x 254
12 14 25.00 x 21
635 x 533
CP2420 5
AFM302410SS 30.00 x 24.00 x 1.00
762 x 610 x 25
12 14 31.00 x 25.00
787 x 635
CP3024 8
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL140
2
FLUSHMOUNT ENCLOSURES FLUSH-MOUNT ENCLOSURES

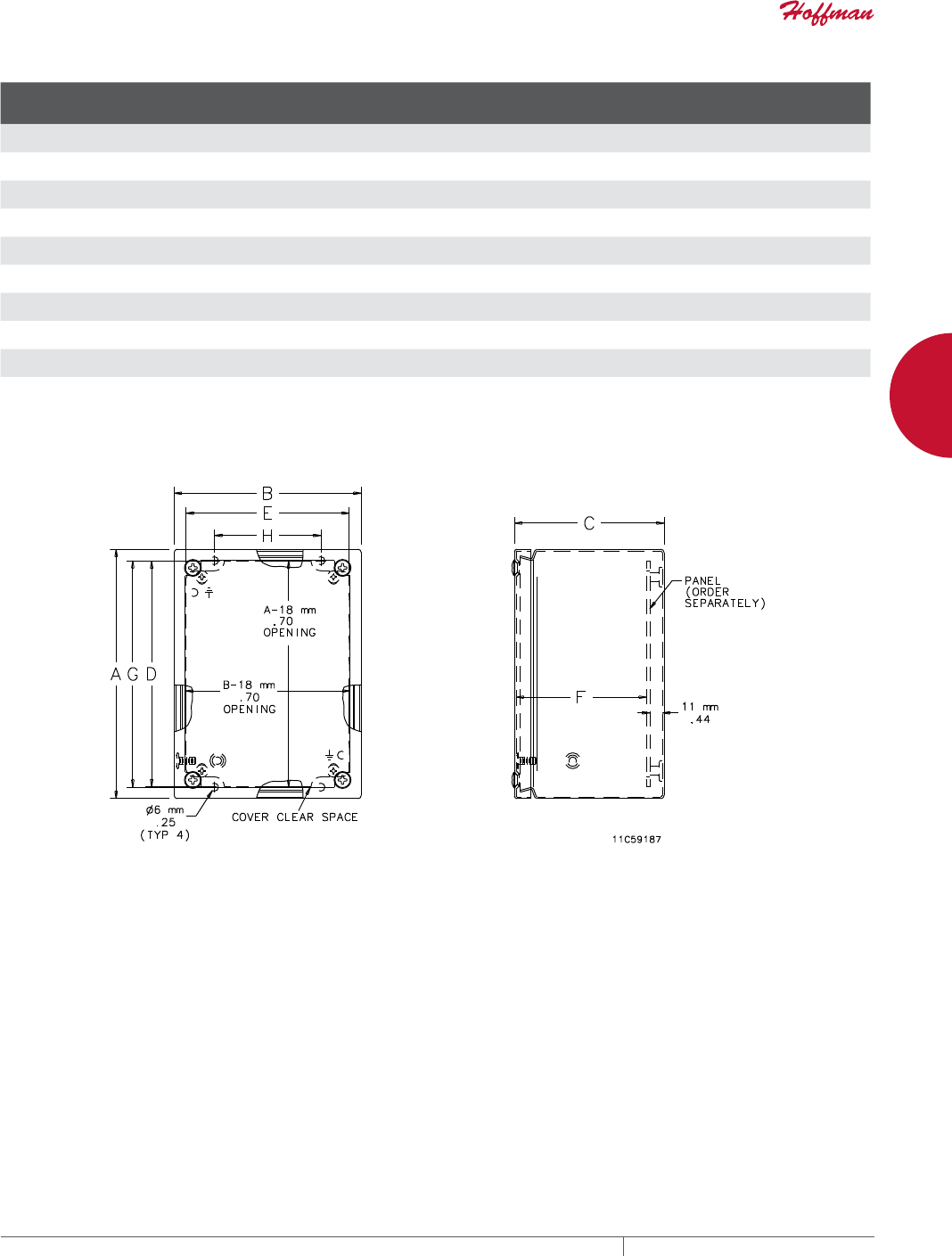

Standard Product Screw-Cover
Catalog Number AxBxC in./mm
Door
Gauge
Body
Gauge
Size of
Mounting Cutout
in./mm Panel
Latches
Qty.
AFMSC20124SS 20.00 x 12.00 x 4.00
508 x 305 x 102
12 14 22.50 x 14.25
565 x 362
CP2012 NA
AFMSC20204SS 20.00 x 20.00 x 4.00
508 x 508 x 102
12 14 22.25 x 22.25
565 x 565
CP2020 NA
AFMSC12126SS 12.00 x 12.00 x 6.00
305 x 305 x 152
12 14 14.25 x 14.25
362 x 362
CP1212 NA
AFMSC16126SS 16.00 x 12.00 x 6.00
406 x 305 x 152
12 14 18.25 x 14.25
464 x 362
CP1612 NA
AFMSC20166SS 20.00 x 16.00 x 6.00
508 x 406 x 152
12 14 22.25 x 18.25
565 x 464
CP2016 NA
AFMSC20206SS 20.00 x 20.00 x 6.00
508 x 508 x 152
12 14 22.25 x 22.25
565 x 565
CP2020 NA
AFMSC24206SS 24.00 x 20.00 x 6.00
610 x 508 x 152
12 14 26.25 x 22.25
667 x 565
CP2420 NA
AFMSC24248SS 24.00 x 24.00 x 8.00
610 x 610 x 203
12 14 26.25 x 26.25
667 x 667
CP2424 NA
AFMSC30248SS 30.00 x 24.00 x 8.00
762 x 610 x 203
12 14 32.25 x 26.25
819 x 667
CP3024 NA
AFMSC242010SS 24.00 x 20.00 x 10.00
610 x 508 x 254
12 14 26.25 x 22.25
667 x 565
CP2420 NA
AFMSC302410SS 30.00 x 24.00 x 10.00
762 x 610 x 254
12 14 32.25 x 26.25
819 x 667
C3024 NA
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 141
2
FLUSHMOUNT ENCLOSURES FLUSH-MOUNT ENCLOSURES

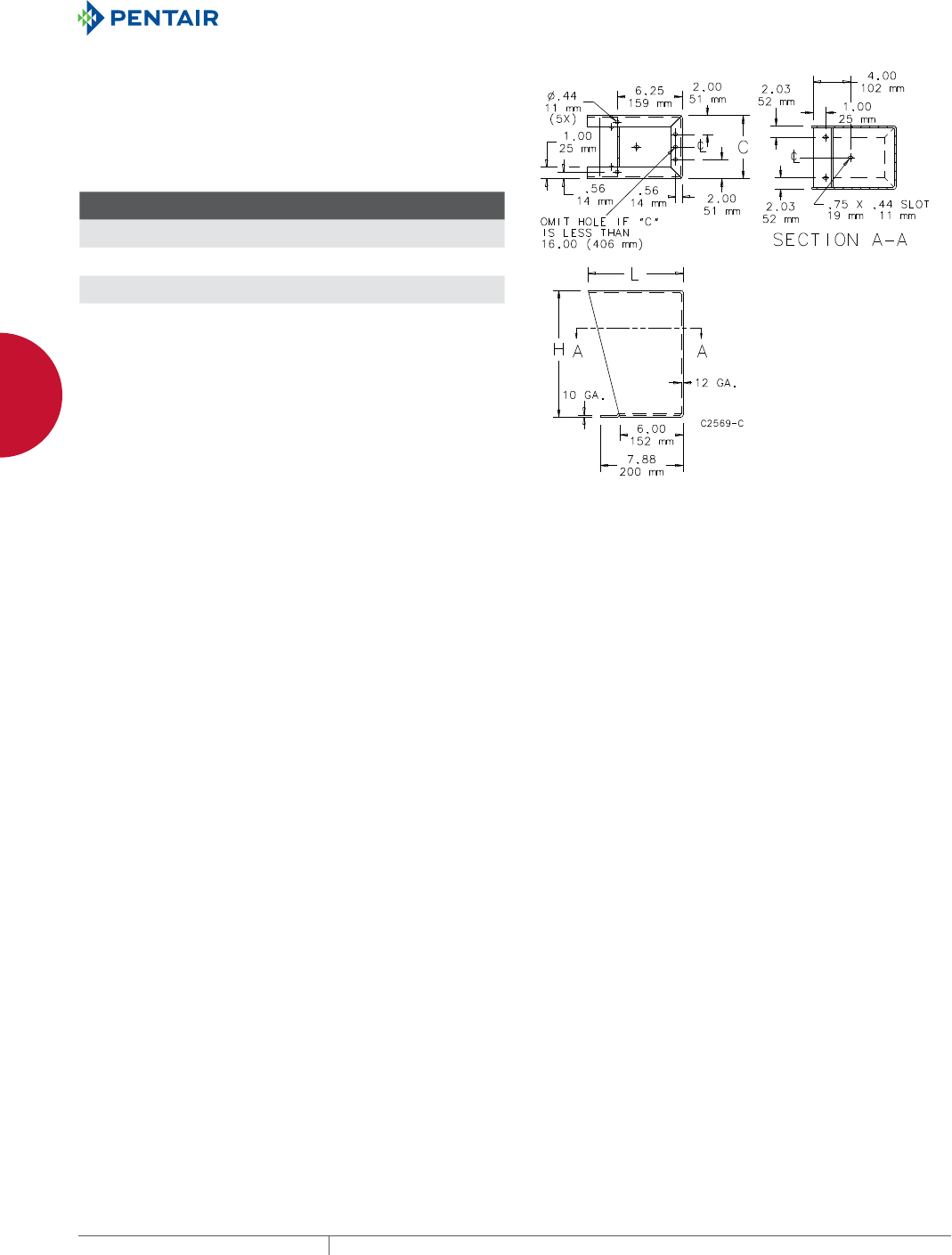

MOUNTING SYSTEM
Adjustable-depth mounting system is included with each enclosure.
Mounting system can be used on either block or stud walls.
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL142
2

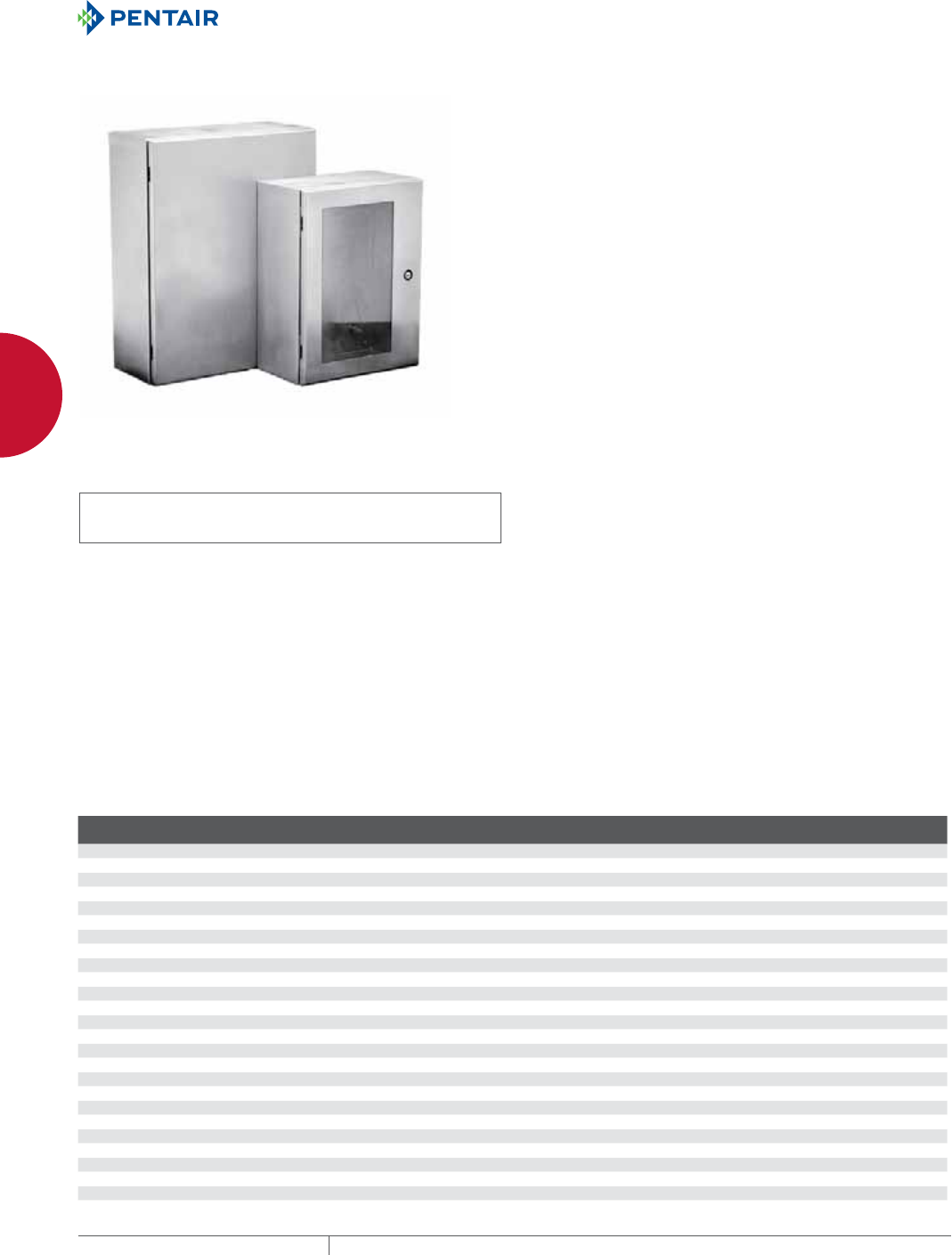

INSTRUMENTATION ENCLOSURES AND ACCESSORIES INLINE™ INSTRUMENTATION ENCLOSURES
INSTRUMENTATION ENCLOSURES AND ACCESSORIES
INLINE™ INSTRUMENTATION ENCLOSURES
INLINE™, TYPE 4X
INDUSTRY STANDARDS
Mounting brackets required to meet UL/CSA external mounting
requirements.
UL 508A Listed; Type 4, 4X, 12; File No. E61997
NEMA/EEMAC Type 4, 4X, 12
CSA File No. 42186: Type 4, 4X, 12
IEC 60529, IP66
APPLICATION

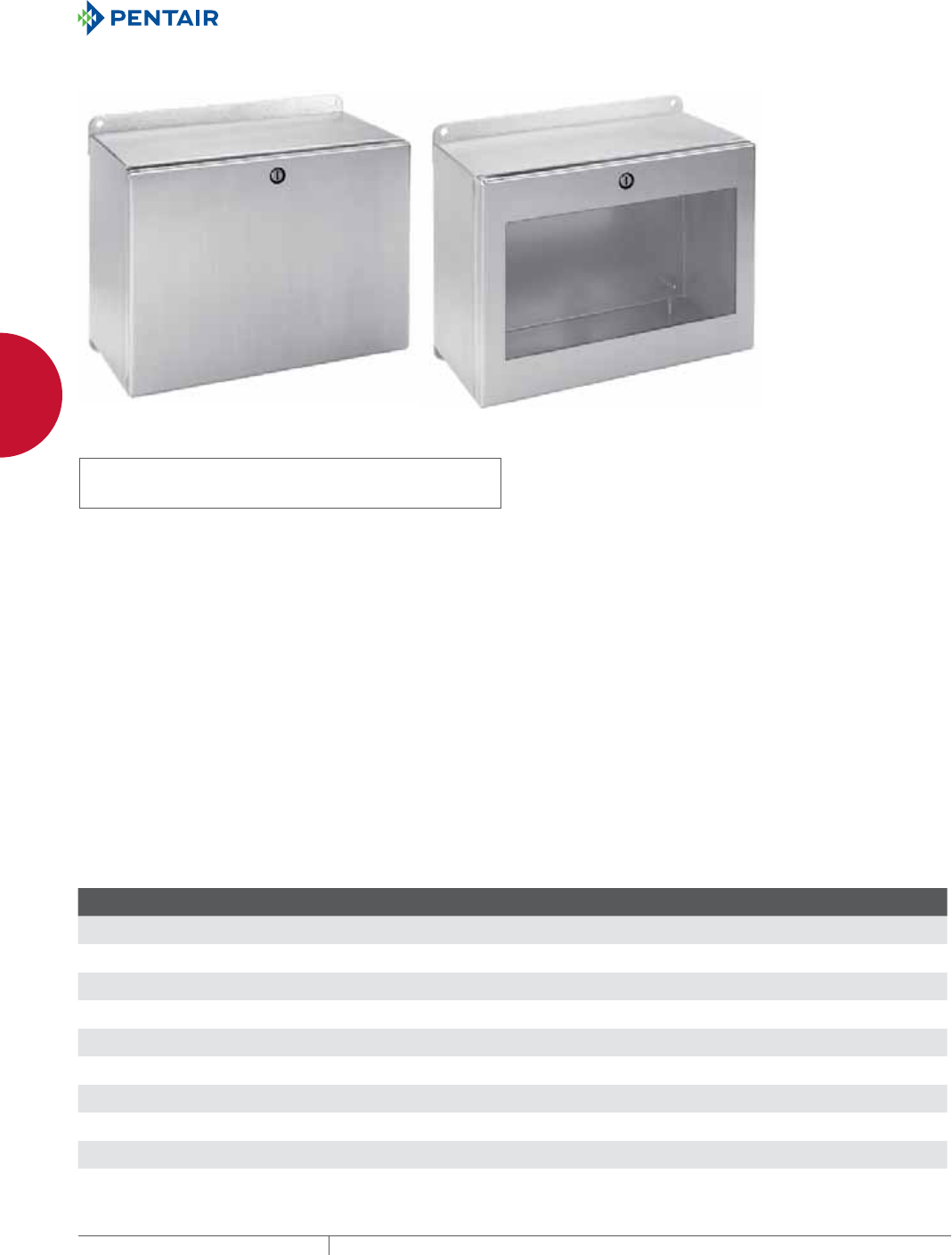

Aesthetic styling, flush latches and an attractive, stroked finish
make INLINE™ Enclosures an excellent choice when style and
functionality are important. INLINE Enclosures have an outward
formed body flange to prevent contaminants from entering the
enclosure and are available in three cover styles: hinged window
door, hinged solid door and solid screw cover.
SPECIFICATIONS
16 gauge covers and doors and 14 gauge bodies; Type 304 or 316L
stainless steel
Seams continuously welded and ground smooth
External formed body flange trough
Large perimeter body opening
Fastening holes in back of body for direct mounting or optional
external mounting brackets
Seamless foam-in-place gasket
M6 bonding provision on cover, M6 ground stud in body
Furnished hardware kit includes panel mounting screws,
grounding hardware and sealing washers for wall-mounting
holes
INLINE Screw-Cover Enclosures
Captivated Type 316 stainless steel cover screws with sealing
bushings made of a durable composite material
Integral compression stops maintain optimal gasket compression
INLINE Hinged-Door Enclosures
180-degree door opening
Removable Type 316 stainless steel hinge pins
Standard self-grounding, slotted, quarter-turn Type 316 stainless
steel latch system with double seal

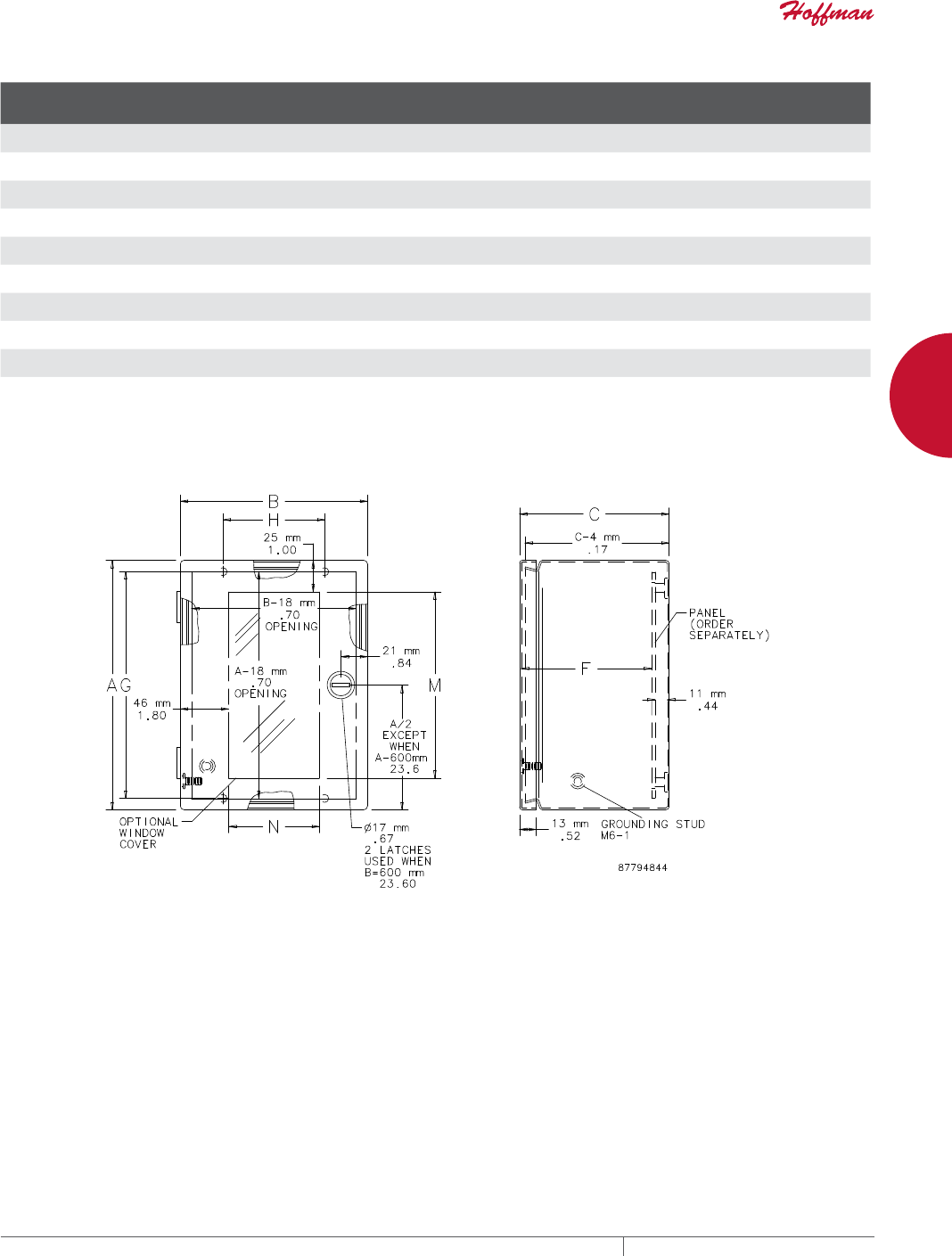

INLINE Window-Door Enclosures
3/16-in. (4.8-mm) clear polycarbonate window is mounted flush
with cover surface
180-degree door opening
Removable Type 316 stainless steel hinge pins
Standard self-grounding, slotted, quarter-turn Type 316 stainless
steel latch system with double seal
FINISH
Cover and body have smooth #4 brushed finish.
ACCESSORIES
See also Accessories.
DIN Rail or Panel Mounting Brackets
DIN3 Type Rails
Key Inserts
Mounting Bracket Kit
INLINE™ Panels
Wing Knob Latch
MODIFICATION AND CUSTOMIZATION
Hoffman excels at modifying and customizing products to your
specifications. Contact your local Hoffman sales office or distributor
for complete information.
BULLETIN: A54S
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 143
2
INSTRUMENTATION ENCLOSURES AND ACCESSORIES INLINE™ INSTRUMENTATION ENCLOSURES
Standard Product Screw-Cover
Catalog Number AxBxC in./mm
Stainless
Steel Type
Steel
Panel
Conductive
Panel
Panel Size
D x E
mm/in.
Mounting
G x H
mm/in.
F
mm/in.
LSC151512SS 5.91 x 5.91 x 4.72
150 x 150 x 120
304 LP1515 LP1515G 131 x 131
5.16 x 5.16
132 x 85
5.18 x 3.36
105
4.13
LSC151512SS6 5.91 x 5.91 x 4.72
150 x 150 x 120
316L LP1515 LP1515G 131 x 131
5.16 x 5.16
132 x 85
5.18 x 3.36
105
4.13
LSC201512SS 7.87 x 5.91 x 4.72
200 x 150 x 120
304 LP2015 LP2015G 181 x 131
7.13 x 5.16
182 x 85
7.15 x 3.35
105
4.13
LSC201512SS6 7.87 x 5.91 x 4.72
200 x 150 x 120
316L LP2015 LP2015G 181 x 131
7.13 x 5.16
182 x 85
7.15 x 3.35
105
4.13
LSC252015SS 9.84 x 7.87 x 5.91
250 x 200 x 150
304 LP2520 LP2520G 231 x 181
9.09 x 7.13
232 x 135
9.12 x 5.33
135
5.31
LSC252015SS6 9.84 x 7.87 x 5.91
250 x 200 x 150
316L LP2520 LP2520G 231 x 181
9.09 x 7.13
232 x 135
9.12 x 5.33
135
5.31
LSC302515SS 11.81 x 9.84 x 5.91
300 x 250 x 150
304 LP3025 LP3025G 281 x 231
11.06 x 9.09
281 x 185
11.08 x 7.30
135
5.31
LSC302515SS6 11.81 x 9.84 x 5.91
300 x 250 x 150
316L LP3025 LP3025G 281 x 231
11.06 x 9.09
281 x 185
11.08 x 7.30
135
5.31
LSC353020SS 13.78 x 11.81 x 7.87
350 x 300 x 200
304 LP3530 LP3530G 331 x 281
13.03 x 11.06
331 x 235
13.05 x 9.27
185
7.28
LSC353020SS6 13.78 x 11.81 x 7.87
350 x 300 x 200
316L LP3530 LP3530G 331 x 281
13.03 x 11.06
331 x 235
13.05 x 9.27
185
7.28
Purchase panels separately.
Catalog numbers ending in 6 are Type 316L stainless steel.
,1/,1(6WDLQOHVV6WHHO6FUHZ&RYHU(QFORVXUH
1RWHV
3DQHOVDUHPPJDXJHVWHHORUFRQGXFWLYHVWHHO
3DQHOVFUHZVDUH0SDQKHDG
5HDUPRXQWLQJKROHVZLOODFFRPPRGDWH0RU81&
PRXQWLQJVFUHZVVXSSOLHGE\FXVWRPHU
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL144
2
INSTRUMENTATION ENCLOSURES AND ACCESSORIES INLINE™ INSTRUMENTATION ENCLOSURES
Standard Product Hinged-Cover
Catalog Number AxBxC in./mm
Stainless
Steel Type
Steel
Panel
Conductive
Panel
Panel Size
D x E
in./mm
Mounting
G x H
mm/in.
F
in./mm
LHC151512SS 5.91 x 5.91 x 4.72
150 x 150 x 120
304 LP1515 LP1515G 5.16 x 5.16
131 x 131
132 x 85
5.18 x 3.36
4.13
105
LHC151512SS6 5.91 x 5.91 x 4.72
150 x 150 x 120
316L LP1515 LP1515G 5.16 x 5.16
131 x 131
132 x 85
5.18 x 3.36
4.13
105
LHC201512SS 7.87 x 5.91 x 4.72
200 x 150 x 120
304 LP2015 LP2015G 7.13 x 5.16
181 x 131
182 x 85
7.15 x 3.36
4.13
105
LHC201512SS6 7.87 x 5.91 x 4.72
200 x 150 x 120
316L LP2015 LP2015G 7.13 x 5.16
181 x 131
182 x 85
7.15 x 3.36
4.13
105
LHC252015SS 9.84 x 7.87 x 5.91
250 x 200 x 150
304 LP2520 LP2520G 9.09 x 7.13
231 x 181
232 x 135
9.12 x 5.33
5.31
135
LHC252015SS6 9.84 x 7.87 x 5.91
250 x 200 x 150
316L LP2520 LP2520G 9.09 x 7.13
231 x 181
232 x 135
9.12 x 5.33
5.31
135
LHC302515SS 11.81 x 9.84 x 5.91
300 x 250 x 150
304 LP3025 LP3025G 11.06 x 9.09
281 x 231
281 x 185
11.08 x 7.30
5.31
135
LHC302515SS6 11.81 x 9.84 x 5.91
300 x 250 x 150
316L LP3025 LP3025G 11.06 x 9.09
281 x 231
281 x 185
11.08 x 7.30
5.31
135
LHC353020SS 13.78 x 11.81 x 7.87
350 x 300 x 200
304 LP3530 LP3530G 13.03 x 11.06
331 x 281
331 x 235
13.05 x 9.27
7.28
185
LHC353020SS6 13.78 x 11.81 x 7.87
350 x 300 x 200
316L LP3530 LP3530G 13.03 x 11.06
331 x 281
331 x 235
13.05 x 9.27
7.28
185
Purchase panels separately.
Catalog numbers ending in 6 are Type 316L stainless steel.
,1/,1(6WDLQOHVV6WHHO+LQJHG'RRUDQG:LQGRZ'RRU(QFORVXUH
1RWH+LQJHGRQಯ%ರVLGHRIHQFORVXUH
ZKHQ% PPRUPP
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 145
2
INSTRUMENTATION ENCLOSURES AND ACCESSORIES INLINE™ INSTRUMENTATION ENCLOSURES
Standard Product Window-Door
Catalog Number AxBxC in./mm
Stainless
Steel Type
Steel
Panel
Conductive
Panel
Panel Size
D x E
in./mm
Mounting
G x H
mm/in.
Window Size
M x N
in./mm
F
in./mm
LWC201512SS 7.87 x 5.91 x 4.72
200 x 150 x 120
304 LP2015 LP2015G 7.13 x 5.16
181 x 131
182 x 85
7.15 x 3.36
5.87 x 2.56
149 x 65
3.98
101
LWC201512SS6 7.87 x 5.91 x 4.72
200 x 150 x 120
316L LP2015 LP2015G 7.13 x 5.16
181 x 131
182 x 85
7.15 x 3.36
5.87 x 2.56
149 x 65
3.98
101
LWC252015SS 9.84 x 7.87 x 5.91
250 x 200 x 150
304 LP2520 LP2520G 9.09 x 7.13
231 x 181
232 x 135
9.12 x 5.33
7.83 x 4.53
199 x 115
5.16
131
LWC252015SS6 9.84 x 7.87 x 5.91
250 x 200 x 150
316L LP2520 LP2520G 9.09 x 7.13
231 x 181
232 x 135
9.12 x 5.33
7.83 x 4.53
199 x 115
5.16
131
LWC302515SS 11.81 x 9.84 x 5.91
300 x 250 x 150
304 LP3025 LP3025G 11.06 x 9.09
281 x 231
281 x 185
11.08 x 7.30
9.80 x 6.50
249 x 165
5.16
131
LWC302515SS6 11.81 x 9.84 x 5.91
300 x 250 x 150
316L LP3025 LP3025G 11.06 x 9.09
281 x 231
281 x 185
11.08 x 7.30
9.80 x 6.50
249 x 165
5.16
131
LWC204015SS 7.87 x 15.75 x 5.91
200 x 400 x 150
304 LP2040 LP2040G 7.13 x 15.00
181 x 381
182 x 335
7.15 x 13.20
4.53 x 13.74
115 x 349
5.16
131
LWC204015SS6 7.87 x 15.75 x 5.91
200 x 400 x 150
316L LP2040 LP2040G 7.13 x 15.00
181 x 381
182 x 335
7.15 x 13.20
4.53 x 13.74
115 x 349
5.16
131
LWC206015SS 7.87 x 23.62 x 5.91
200 x 600 x 150
304 LP2060 LP2060G 7.13 x 22.87
181 x 581
182 x 535
7.15 x 21.08
4.53 x 21.61
115 x 549
5.16
131
LWC206015SS6 7.87 x 23.62 x 5.91
200 x 600 x 150
316L LP2060 LP2060G 7.13 x 22.87
181 x 581
182 x 535
7.15 x 21.08
4.53 x 21.61
115 x 549
5.16
131
Purchase panels separately.
Catalog numbers ending in 6 are Type 316L stainless steel.
,1/,1(6WDLQOHVV6WHHO+LQJHG'RRUDQG:LQGRZ'RRU(QFORVXUH
1RWH+LQJHGRQಯ%ರVLGHRIHQFORVXUH
ZKHQ% PPRUPP
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL146
2
INSTRUMENTATION ENCLOSURES AND ACCESSORIES INLINE™ LANDSCAPE INSTRUMENTATION ENCLOSURES AND ACCESSORIES
INLINE™ LA NDSCAPE INS TRUMENTATION ENC LOSURES AND AC CESSORIE S
INLINE™ LANDSCAPE, TYPE 4X
INDUSTRY STANDARDS
UL 508A Listed; Type 4, 4X, 12; File Number E61997
cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12; File Number
E61997
NEMA/EEMAC Type 4, 4X, 12
CSA File Number 42186: Type 4, 4X, 12
IEC 60529, IP66
APPLICATION
When applications require mounting electrical components the full
width of the enclosure, the landscape orientation of this aesthetic
INLINE™ Enclosure makes this possible. The full-width mounting
brackets can be drilled anywhere along their length, providing
maximum mounting flexibility.
SPECIFICATIONS
14 gauge Type 304 stainless steel body; 16 gauge Type 304
stainless steel door
Seams continuously welded and ground smooth
External formed body flange trough
Large perimeter body opening
Mounting brackets are spot-welded to top and bottom of
enclosure
Mounting brackets have predrilled mounting holes; customer-
specific location holes can be drilled for mounting flexibility
Seamless foam-in-place gasket
M6 ground stud with base flange on body; M6 bonding provision
with base flange on door
Furnished hardware kit includes panel mounting screws and
grounding hardware
Hinged door with removable hinge pins and self-grounding
quarter-turn latch system with double seal
Door opens 180 degrees
Window door models include 3/16-in. (4.8-mm) clear
polycarbonate window mounted flush with door surface
FINISH
Type 304 stainless steel with #4 brushed finish. Back is not
brushed.
ACCESSORIES
See also Accessories.
Mounting Bracket Kit
Lock Inserts
Wing Knob Latch
Grounding Kit
DIN3 Type Rail
DIN Rail or Panel-Mounting Brackets
BULLETIN: A54S
Standard Product
Catalog Number AxBxC in./mm
Enclosure B
mm/in.
Window N
mm/in.
Mtg. Holes H
mm/in.
Mtg. Studs J
mm/in.
Clear Space Above Panel
mm/in.
LHC233116SS 9.06 x 12.20 x 6.10
230 x 310 x 155
310
12.21
281
11.08
265
10.45
140
5.51
LWC233116SS 9.06 x 12.20 x 6.10
230 x 310 x 155
310
12.21
259
10.20
281
11.08
265
10.45
140
5.51
LHC234616SS 9.06 x 18.11 x 6.10
230 x 460 x 155
460
18.11
431
16.99
416
16.36
140
5.51
LWC234616SS 9.06 x 18.11 x 6.10
230 x 460 x 155
460
18.11
409
16.11
431
16.99
416
16.36
140
5.51
LHC236016SS 9.06 x 23.62 x 6.10
230 x 600 x 155
600
23.62
571
22.50
556
21.88
140
5.51
LWC236016SS 9.06 x 23.62 x 6.10
230 x 600 x 155
600
23.62
549
21.62
571
22.50
556
21.88
140
5.51
LHC237716SS 9.06 x 30.31 x 6.10
230 x 770 x 155
770
30.32
741
29.19
726
28.57
140
5.51
LWC237716SS 9.06 x 30.31 x 6.10
230 x 770 x 155
770
30.32
719
28.31
741
29.19
726
28.57
140
5.51
LHC239316SS 9.06 x 36.61 x 6.10
230 x 930 x 155
925
36.42
896
35.29
881
34.67
140
5.51
LWC239316SS 9.06 x 36.61 x 6.10
230 x 930 x 155
925
36.42
874
34.42
896
35.29
881
34.67
140
5.51
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 147
2
INSTRUMENTATION ENCLOSURES AND ACCESSORIES INLINE™ LANDSCAPE INSTRUMENTATION ENCLOSURES AND ACCESSORIES

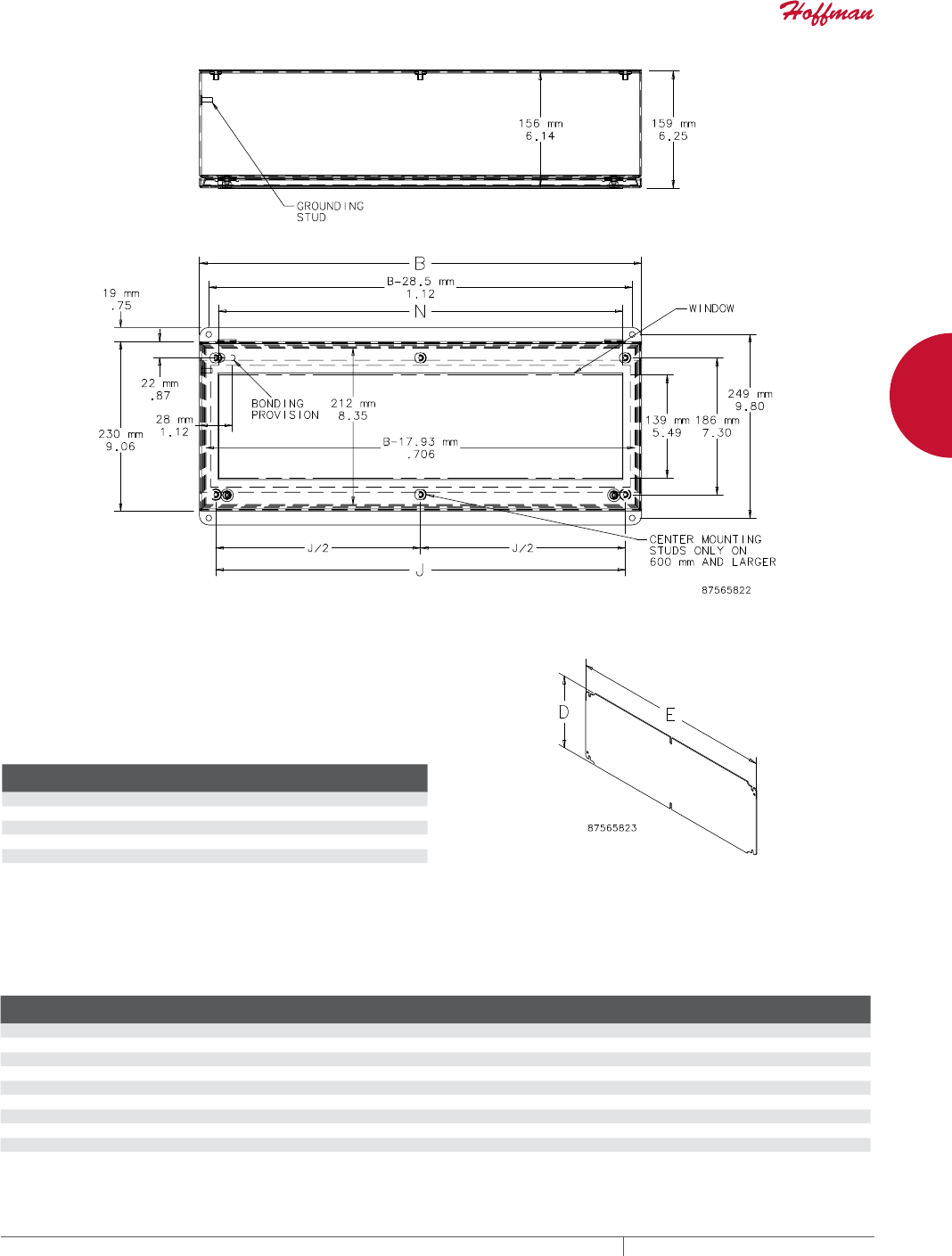

INLINE™ LANDSCAPE PANELS
Panels are 12 gauge steel with a white polyester powder paint or
conductive finish. They include a labeled ground hole sized for an
M6 screw. Panels mount on studs provided in the enclosure or to
optional DIN mounting brackets.
BULLETIN: A54P
Catalog Number
Conductive
Panel
Panel Size
D x E (mm)
Panel Size
D x E (in.)
LP2331 LP2331G 211 x 291 8.31 x 11.46
LP2346 LP2346G 211 x 441 8.31 x 17.36
LP2360 LP2360G 211 x 581 8.31 x 22.87
LP2377 LP2377G 211 x 751 8.31 x 29.57
LP2393 LP2393G 211 x 906 8.31 x 35.67
OPTIONAL COMPONENTS SELECTION GUIDE
Use the table to assist with selection of the optional components for the appropriate INLINE enclosure.
BULLETIN: A54S
Catalog Number AxBxC in. AxBxC mm
Solid or Window
Cover Enclosure Panel Conductive DIN Rail
DIN Rail or Panel
Mounting Bracket
LHC233116SS 9.06 x 12.20 x 6.10 230 x 310 x 155 Solid Cover LP2331 LP2331G LDR3P31 LMK23
LWC233116SS 9.06 x 12.20 x 6.10 230 x 310 x 155 Window Cover LP2331 LP2331G LDR3P31 LMK23
LHC234616SS 9.06 x 18.11 x 6.10 230 x 460 x 155 Solid Cover LP2346 LP2346G LDR3P46 LMK23
LWC234616SS 9.06 x 18.11 x 6.10 230 x 460 x 155 Window Cover LP2346 LP2346G LDR3P46 LMK23
LHC236016SS 9.06 x 23.62 x 6.10 230 x 600 x 155 Solid Cover LP2360 LP2360G LDR3P60 LMK23
LWC236016SS 9.06 x 23.62 x 6.10 230 x 600 x 155 Window Cover LP2360 LP2360G LDR3P60 LMK23
LHC237716SS 9.06 x 30.31 x 6.10 230 x 770 x 155 Solid Cover LP2377 LP2377G LDR3P77 LMK23
LWC237716SS 9.06 x 30.31 x 6.10 230 x 770 x 155 Window Cover LP2377 LP2377G LDR3P77 LMK23
LHC239316SS 9.06 x 36.61 x 6.10 230 x 930 x 155 Solid Cover LP2393 LP2393G LDR3P93 LMK23
LWC239316SS 9.06 x 36.61 x 6.10 230 x 930 x 155 Window Cover LP2393 LP2393G LDR3P93 LMK23
600-mm and longer enclosures require two sets of brackets for mounting panels.
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL148
2
CONSOLETS CONSOLETS
CONSOLETS
CONSOLETS
CONSOLETS, TYPE 12
INDUSTRY STANDARDS
UL 508A Listed; Type 12, 13; File Number E61997
cUL Listed per CSA C22.2 No 94; Type 12, 13; File Number E61997
NEMA/EEMAC Type 12
CSA File Number 42186: Type 12
IEC 60529, IP65
APPLICATION
Consolets are ideal for mounting small control or instrumentation
devices where the desirable access requires a 30- or 60-degree
surface. These enclosures can be mounted on either of two sides for
placement on desktops, pedestals or other flat surfaces.
See the HMI chapter for related mild steel consolets.
SPECIFICATIONS
Type 304 stainless steel
Seams continuously welded and ground smooth
Captivated cover screws thread into sealed wells
Cover attached with continuous hinge
Oil-resistant gasket
Bonding provision on door
FINISH
Cover and sides of body have smooth #4 brushed finish.
ACCESSORIES
See also Accessories.
Industrial Corrosion Inhibitors
Steel and Stainless Steel Window Kits
MODIFICATION AND CUSTOMIZATION
Hoffman excels at modifying and customizing products to your
specifications. Contact your local Hoffman sales office or distributor
for complete information.
BULLETIN: C5S
Standard Product
Catalog Number AxBxC in./mm
E
in./mm
H
in./mm
J
in./mm
K
in./mm
L
in./mm
N
in./mm
C8C8SS 8.00 x 8.00 x 7.09
203 x 203 x 180
5.62
143
8.28
210
8.28
210
7.50
191
6.62
168
7.44
189
C8C12SS 8.00 x 12.00 x 7.09
203 x 305 x 180
5.62
143
8.28
210
12.28
312
11.50
292
6.62
168
7.44
189
C8C16SS 8.00 x 16.00 x 7.09
203 x 406 x 180
5.62
143
8.28
210
16.28
414
15.50
394
6.62
168
7.44
189
C8C20SS 8.00 x 20.00 x 7.09
203 x 508 x 180
5.62
143
8.28
210
20.28
515
19.50
495
6.62
168
7.44
189
C12C12SS 12.00 x 12.00 x 9.09
305 x 305 x 231
7.62
194
12.28
312
12.28
312
11.50
292
10.62
270
10.91
277
C12C16SS 12.00 x 16.00 x 9.09
305 x 406 x 231
7.62
194
12.28
312
16.28
414
15.50
394
10.62
270
10.91
277
C12C20SS 12.00 x 20.00 x 9.09
305 x 508 x 231
7.62
194
12.28
312
20.28
515
19.50
495
10.62
270
10.91
277
C12C24SS 12.00 x 24.00 x 9.09
305 x 610 x 231
7.62
194
12.28
312
24.28
617
23.50
597
10.62
270
10.91
277
C16C16SS 16.00 x 16.00 x 11.09
406 x 406 x 282
9.62
244
16.28
414
16.28
414
15.50
394
14.62
371
14.38
365
C16C20SS 16.00 x 20.00 x 11.09
406 x 508 x 282
9.62
244
16.28
414
20.28
515
19.50
495
14.62
371
14.38
365
C16C24SS 16.00 x 24.00 x 11.09
406 x 610 x 282
9.62
244
16.28
414
24.28
617
23.50
597
14.62
371
14.38
365
C16C30SS 16.00 x 30.00 x 11.09
406 x 762 x 282
9.62
244
16.28
414
30.28
769
29.50
749
14.62
371
14.38
365
C16C36SS 16.00 x 36.00 x 11.09
406 x 914 x 282
9.62
244
16.28
414
36.28
922
35.50
902
14.62
371
14.38
365
C20C20SS 20.00 x 20.00 x 13.09
508 x 508 x 332
11.62
295
20.28
515
20.28
515
18.62
473
18.62
473
17.84
453
C20C24SS 20.00 x 24.00 x 13.09
508 x 610 x 332
11.62
295
20.28
515
24.28
617
22.62
575
18.62
473
17.84
453
C20C30SS 20.00 x 30.00 x 13.09
508 x 762 x 332
11.62
295
20.28
515
30.28
769
28.62
727
18.62
473
17.84
453
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 149
2
CONSOLETS CONSOLETS
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL150
2
PUSHBUTTON ENCLOSURES PUSHBUTTON ENCLOSURES
PUSHBUTTON ENCLOSURES
PUSHBUTTON ENCLOSURES

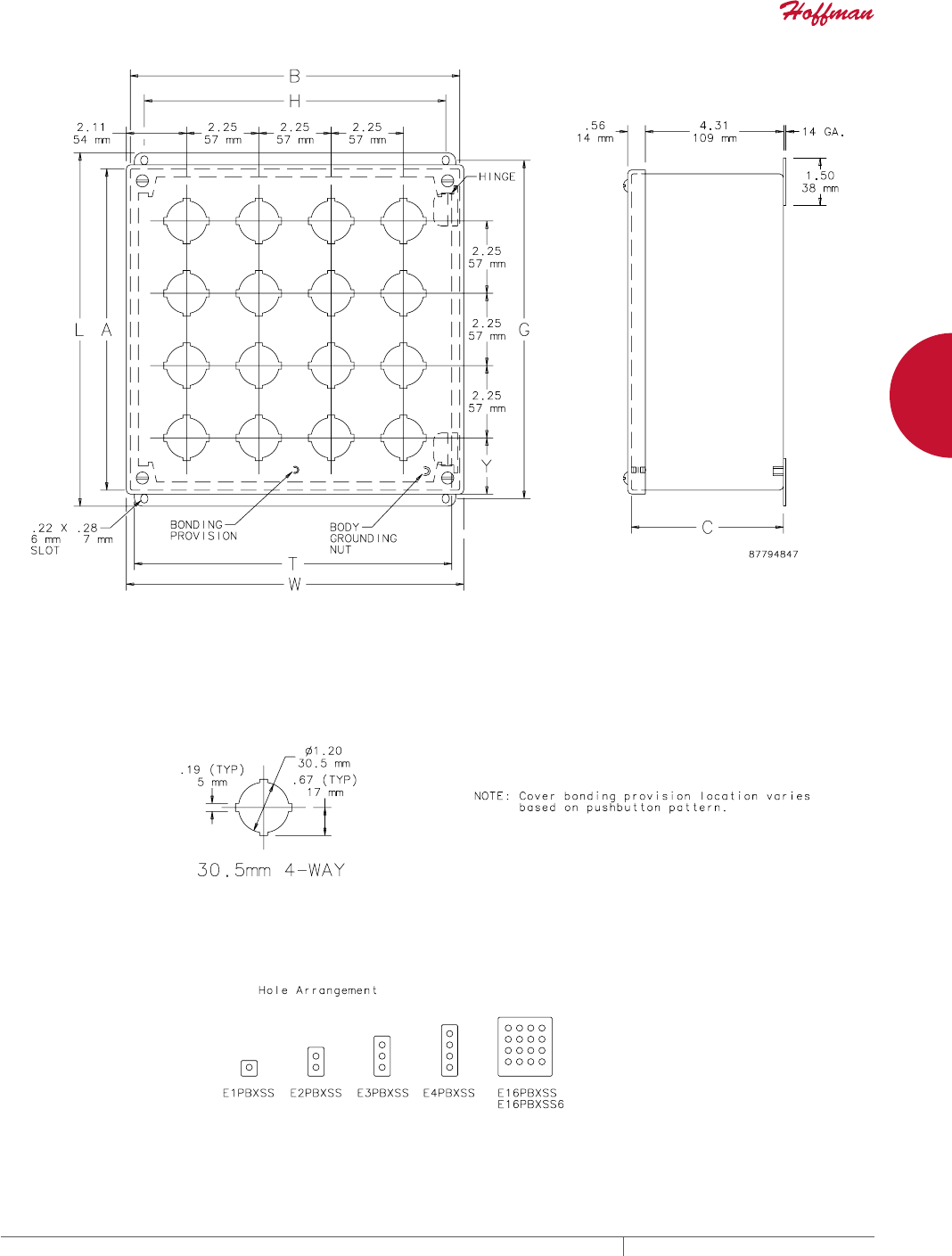

EXTRADEEP 30.5MM PUSHBUTTON ENCLOSURES, TYPE 4X
INDUSTRY STANDARDS
UL 508A Listed; Type 4, 4X, 12; File Number E61997
cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12; File Number
E61997
NEMA/EEMAC Type 4X, 12, 13
CSA File Number 42186: Type 4, 4X, 12
IEC 60529, IP66
APPLICATION
Designed to house 30.5-mm oil-tight pushbuttons, switches and
pilot lights. Enclosures provide protection against dirt, dust, oil and
water. Extra-deep design accommodates additional contact blocks
for pushbuttons.
See Mild Steel chapter for related mild steel enclosures.
SPECIFICATIONS
14 gauge bodies, 16 gauge covers; Type 304 or Type 316 stainless
steel
Seams continuously welded and ground smooth
Captivated cover screws thread into sealed wells
Bonding provision on door; grounding nut on body
4-way pushbutton holes accept all brands of oil-tight
pushbuttons, switches and pilot lights
Enclosures 6.00 x 4.00 x 4.75 in. (152 x 102 x 121 mm) and larger
have internal detachable hinge to hold cover open during wiring,
yet permit immediate removal
Oil-resistant gasket
FINISH
Cover and sides of body have smooth #4 brushed finish.
ACCESSORIES
See also Accessories.
Industrial Corrosion Inhibitors
HOL-SEALERSTM Hole Seals
Tamper-Resistant Screws
BULLETIN: PB1S
Standard Product
Catalog Number AxBxC in./mm
Stainless
Steel
Type Gauge
Number
of Holes
Mounting
G x H
in./mm
Overall
L x W
in./mm
T
in./mm
Y
in./mm
E1PBXSS 4.00 x 4.00 x 4.75
102 x 102 x 121
304 16 1 4.50 x 3.12
114 x 79
5.00 x 4.22
127 x 107
3.75
95
2.11
54
E2PBXSS 6.00 x 4.00 x 4.75
152 x 102 x 121
304 14 2 6.50 x 3.12
165 x 79
7.00 x 4.22
178 x 107
3.75
95
1.98
50
E3PBXSS 8.00 x 4.00 x 4.75
203 x 102 x 121
304 14 3 8.50 x 3.12
216 x 79
9.00 x 4.22
229 x 107
3.75
95
1.86
47
E4PBXSS 10.00 x 4.00 x 4.75
254 x 102 x 121
304 14 4 10.50 x 3.12
267 x 79
11.00 x 4.22
279 x 107
3.75
95
1.73
44
E16PBXSS 11.75 x 10.75 x 4.75
298 x 273 x 121
304 14 16 12.25 x 9.88
311 x 251
12.75 x 10.97
324 x 279
10.50
267
2.61
66
E16PBXSS6 11.75 x 10.75 x 4.75
298 x 273 x 121
316 14 16 12.25 x 9.88
311 x 251
12.75 x 10.97
324 x 279
10.50
267
2.61
66
Catalog number ending in 6 is Type 316L stainless steel.
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 151
2
PUSHBUTTON ENCLOSURES PUSHBUTTON ENCLOSURES
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL152
2
PUSHBUTTON ENCLOSURES PUSHBUTTON ENCLOSURES

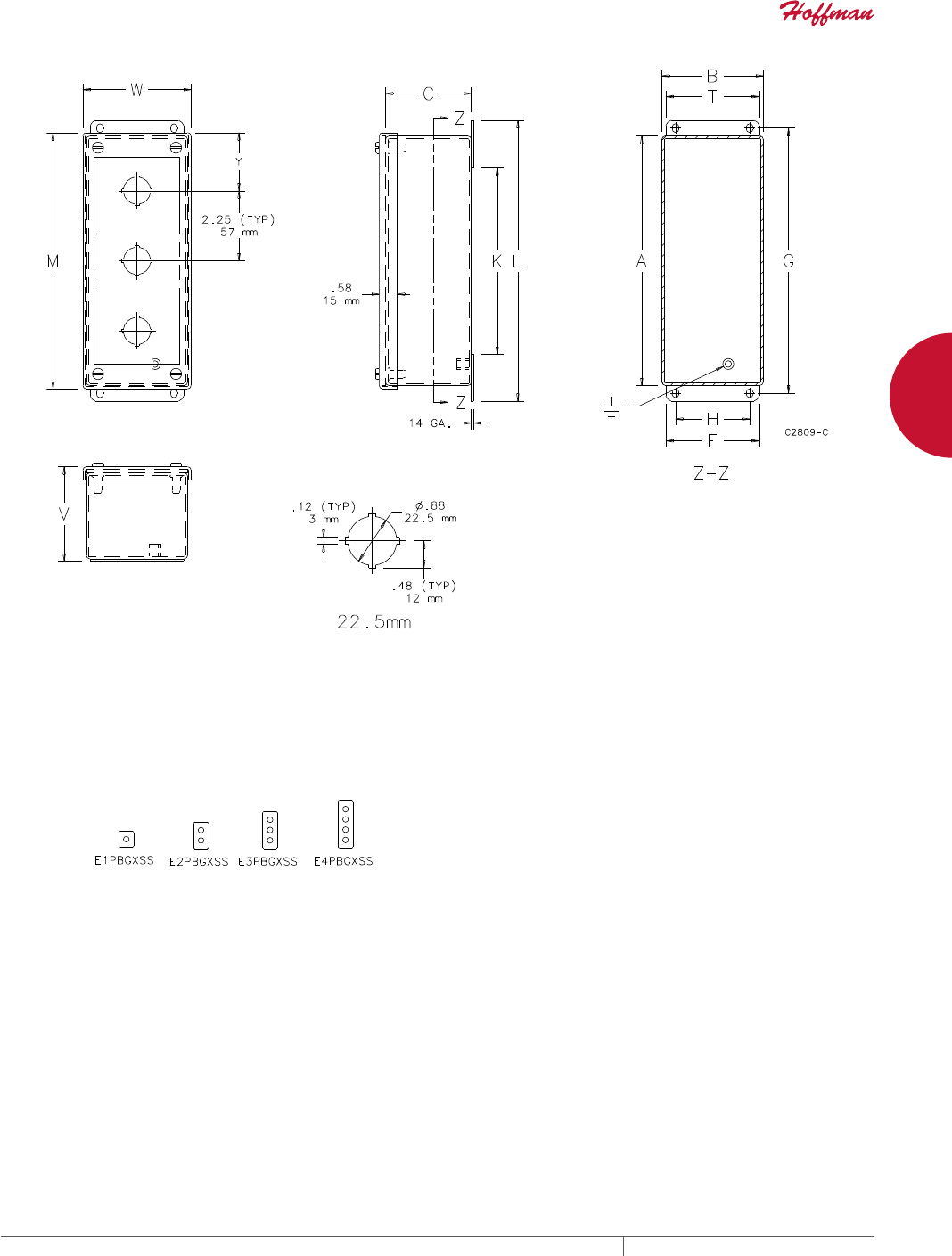

EXTRADEEP 22.5MM PUSHBUTTON ENCLOSURES, TYPE 4X
INDUSTRY STANDARDS
UL 508A Listed; Type 4, 4X, 12; File Number E61997
cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12; File Number
E61997
NEMA/EEMAC Type 4X, 12, 13
CSA File Number 42186: Type 4, 4X, 12
IEC 60529, IP66
APPLICATION
Designed to house 22.5-mm oil-tight pushbuttons, switches and
pilot lights. Enclosures provide protection against dust, dirt, oil and
water. Extra-deep design accommodates additional contact blocks
for pushbuttons.
SPECIFICATIONS
Type 304 stainless steel
Seams continuously welded and ground smooth
Captivated stainless steel cover screws thread into sealed wells
Enclosures 8.50 x 4.00 x 4.75 in. (216 x 102 x 121 mm) and larger
have internal detachable hinge to hold cover open during wiring,
yet permit immediate removal
Bonding provision on door; grounding nut on body
Oil-resistant gasket
FINISH
Covers and sides of body have a smooth #4 brushed finish.
ACCESSORIES
See also Accessories.
Industrial Corrosion Inhibitors, page 1248
HOL-SEALERSTM Hole Seals
Tamper-Resistant Screws
BULLETIN: PB1S
Standard Product
Catalog Number AxBxC in./mm Body Gauge Cover Gauge Holes
Mounting
G x H
in./mm
Overall
L x W
in./mm
F
in./mm
K
in./mm
M
in./mm
T
in./mm
V
in./mm
Y
in./mm
E1PBGXSS 4.00 x 4.00 x 4.75
102 x 102 x 121
16 16 1 4.50 x 3.13
114 x 80
5.00 x 4.22
127 x 107
3.75
95
2.00
51
4.18
106
3.75
95
5.00
127
E2PBGXSS 6.00 x 4.00 x 4.75
152 x 102 x 121
14 16 2 6.50 x 3.13
165 x 80
7.00 x 4.22
178 x 107
3.75
95
4.00
102
6.18
157
3.75
95
5.00
127
1.98
50
E3PBGXSS 8.00 x 4.00 x 4.75
203 x 102 x 121
14 16 3 8.50 x 3.13
216 x 80
9.00 x 4.22
229 x 107
3.75
95
6.00
152
8.18
208
3.75
95
5.00
127
1.86
47
E4PBGXSS 10.00 x 4.00 x 4.75
254 x 102 x 121
14 16 4 10.50 x 3.13
267 x 80
11.00 x 4.22
270 x 107
3.75
95
8.00
203
10.18
259
3.75
95
5.00
127
1.73
44
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 153
2
PUSHBUTTON ENCLOSURES PUSHBUTTON ENCLOSURES
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL154
2
PUSHBUTTON ENCLOSURES PUSHBUTTON ENCLOSURES

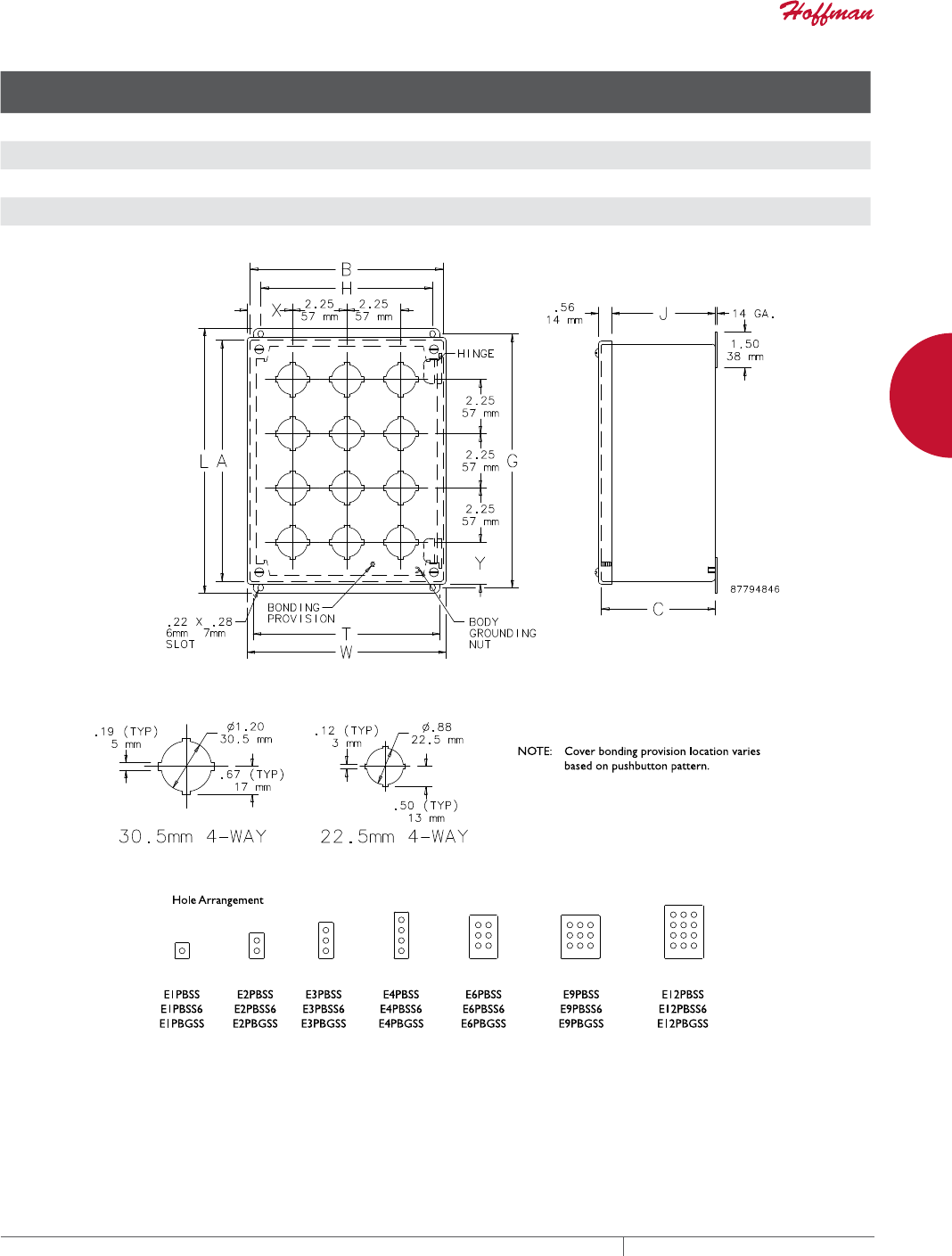

30.5MM AND 22.5MM PUSHBUTTON ENCLOSURES, TYPE 4X
INDUSTRY STANDARDS
UL 508A Listed; Type 4, 4X, 12; File Number E61997
cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12; File Number
E61997
NEMA/EEMAC Type 4X, 12, 13
CSA File Number 42186: Type 4, 4X, 12
IEC 60529, IP66
APPLICATION
Punched specifically to house either 30.5-mm or 22.5-mm oil-
tight pushbuttons, switches and pilot lights. Enclosures provide
protection against dirt, dust, oil and water.
See Mild Steel chapter for related mild steel enclosures.
SPECIFICATIONS
14 gauge bodies, 16 gauge covers; Type 304 or Type 316 stainless
steel
Seams continuously welded and ground smooth
Captivated cover screws thread into sealed wells
Bonding provision on door; grounding nut on body
4-way pushbutton holes accept all brands of oil-tight
pushbuttons, switches and pilot lights
Enclosures with more than one column of pushbutton holes have
internal detachable hinge to hold cover open during wiring, yet
permit immediate removal
Oil-resistant gasket
FINISH
Cover and sides of body have smooth #4 brushed finish.
ACCESSORIES
See also Accessories.
Industrial Corrosion Inhibitors, page 1248
HOL-SEALERSTM Hole Seals
Tamper-Resistant Screws
BULLETIN: PB1S
Standard Product
Catalog Number AxBxC in./mm Hole Size Stainless Steel Type Gauge Number of Holes
Mounting
G x H
in./mm
Overall
L x W
in./mm
J
in./mm
T
in./mm
X
in./mm
Y
in./mm
E1PBSS 3.50 x 4.25 x 2.75
89 x 108 x 70
30.5 mm Type 304 16 1 4.00 x 2.38
102 x 60
4.50 x 3.47
114 x 88
2.31
59
3.00
76
1.73
47
1.86
47
E1PBSS6 3.50 x 4.25 x 2.75
89 x 108 x 70
30.5 mm Type 316 16 1 4.00 x 2.38
102 x 60
4.50 x 3.47
114 x 88
2.31
59
3.00
76
1.73
47
1.86
47
E1PBGSS 3.50 x 4.25 x 2.75
89 x 108 x 70
22.5 mm Type 304 16 1 4.00 x 2.38
102 x 60
4.50 x 3.47
114 x 88
2.31
59
3.00
76
1.73
47
1.86
47
E2PBSS 5.75 x 3.25 x 2.75
146 x 83 x 70
30.5 mm Type 304 16 2 6.25 x 2.38
159 x 60
6.75 x 3.47
171 x 88
2.31
59
3.00
76
1.73
44
1.86
47
E2PBSS6 5.75 x 3.25 x 2.75
146 x 83 x 70
30.5 mm Type 316 16 2 6.25 x 2.38
159 x 60
6.75 x 3.47
171 x 88
2.31
59
3.00
76
1.73
44
1.86
47
E2PBGSS 5.75 x 3.25 x 2.75
146 x 83 x 70
22.5 mm Type 304 16 2 6.25 x 2.38
159 x 60
6.75 x 3.47
171 x 88
2.31
59
3.00
76
1.73
44
1.86
47
E3PBSS 8.00 x 3.25 x 2.75
203 x 83 x 70
30.5 mm Type 304 14 3 8.50 x 2.38
216 x 60
9.00 x 3.47
229 x 88
2.31
59
3.00
76
1.73
44
1.86
47
E3PBSS6 8.00 x 3.25 x 2.75
203 x 83 x 70
30.5 mm Type 316 14 3 8.50 x 2.38
216 x 60
9.00 x 3.47
229 x 88
2.31
59
3.00
76
1.73
44
1.86
47
E3PBGSS 8.00 x 3.25 x 2.75
203 x 83 x 70
22.5 mm Type 304 14 3 8.50 x 2.38
216 x 60
9.00 x 3.47
229 x 88
2.31
59
3.00
76
1.73
44
1.86
47
E4PBSS 10.00 x 3.25 x 2.75
254 x 83 x 70
30.5 mm Type 304 14 4 10.75 x 2.38
273 x 60
11.25 x 3.47
286 x 88
2.31
59
3.00
76
1.73
44
1.86
47
E4PBSS6 10.00 x 3.25 x 2.75
254 x 83 x 70
30.5 mm Type 316 14 4 10.75 x 2.38
273 x 60
11.25 x 3.47
286 x 88
2.31
59
3.00
76
1.73
44
1.86
47
E4PBGSS 10.00 x 3.25 x 2.75
254 x 83 x 70
22.5 mm Type 304 14 4 10.75 x 2.38
273 x 60
11.25 x 3.47
286 x 88
2.31
59
3.00
76
1.73
44
1.86
47
E6PBSS 9.50 x 6.25 x 3.00
241 x 159 x 76
30.5 mm Type 304 14 6 10.00 x 5.38
254 x 137
10.50 x 6.47
267 x 164
2.56
65
6.00
152
2.11
54
2.61
66
E6PBSS6 9.50 x 6.25 x 3.00
241 x 159 x 76
30.5 mm Type 316 14 6 10.00 x 5.38
254 x 137
10.50 x 6.47
267 x 164
2.56
65
6.00
152
2.11
54
2.61
66
E6PBGSS 9.50 x 6.25 x 3.00
241 x 159 x 76
22.5 mm Type 304 14 6 10.00 x 5.38
254 x 137
10.50 x 6.47
267 x 164
2.56
65
6.00
152
2.11
54
2.61
66
E9PBSS 9.50 x 8.50 x 3.00
241 x 216 x 76
30.5 mm Type 304 14 9 10.00 x 7.62
254 x 194
10.50 x 8.72
267 x 221
2.56
65
8.25
210
2.11
54
2.61
66
E9PBSS6 9.50 x 8.50 x 3.00
241 x 216 x 76
30.5 mm Type 316 14 9 10.00 x 7.62
254 x 194
10.50 x 8.72
267 x 221
2.56
65
8.25
210
2.11
54
2.61
66
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 155
2
PUSHBUTTON ENCLOSURES PUSHBUTTON ENCLOSURES
Catalog Number AxBxC in./mm Hole Size Stainless Steel Type Gauge Number of Holes
Mounting
G x H
in./mm
Overall
L x W
in./mm
J
in./mm
T
in./mm
X
in./mm
Y
in./mm
E9PBGSS 9.50 x 8.50 x 3.00
241 x 216 x 76
22.5 mm Type 304 14 9 10.00 x 7.62
254 x 194
10.50 x 8.72
267 x 221
2.56
65
8.25
210
2.11
54
2.61
66
E12PBSS 11.75 x 8.50 x 3.00
298 x 216 x 76
30.5 mm Type 304 14 12 12.25 x 7.62
311 x 194
12.75 x 8.72
324 x 221
2.56
65
8.25
210
2.11
54
2.61
66
E12PBSS6 11.75 x 8.50 x 3.00
298 x 216 x 76
30.5 mm Type 316 14 12 12.25 x 7.62
311 x 194
12.75 x 8.72
324 x 221
2.56
65
8.25
210
2.11
54
2.61
66
E12PBGSS 11.75 x 8.50 x 3.00
298 x 216 x 76
22.5 mm Type 304 14 12 12.25 x 7.62
311 x 194
12.75 x 8.72
324 x 221
2.56
65
8.25
210
2.11
54
2.61
66
Catalog number ending in 6 is Type 316L stainless steel.
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL156
2

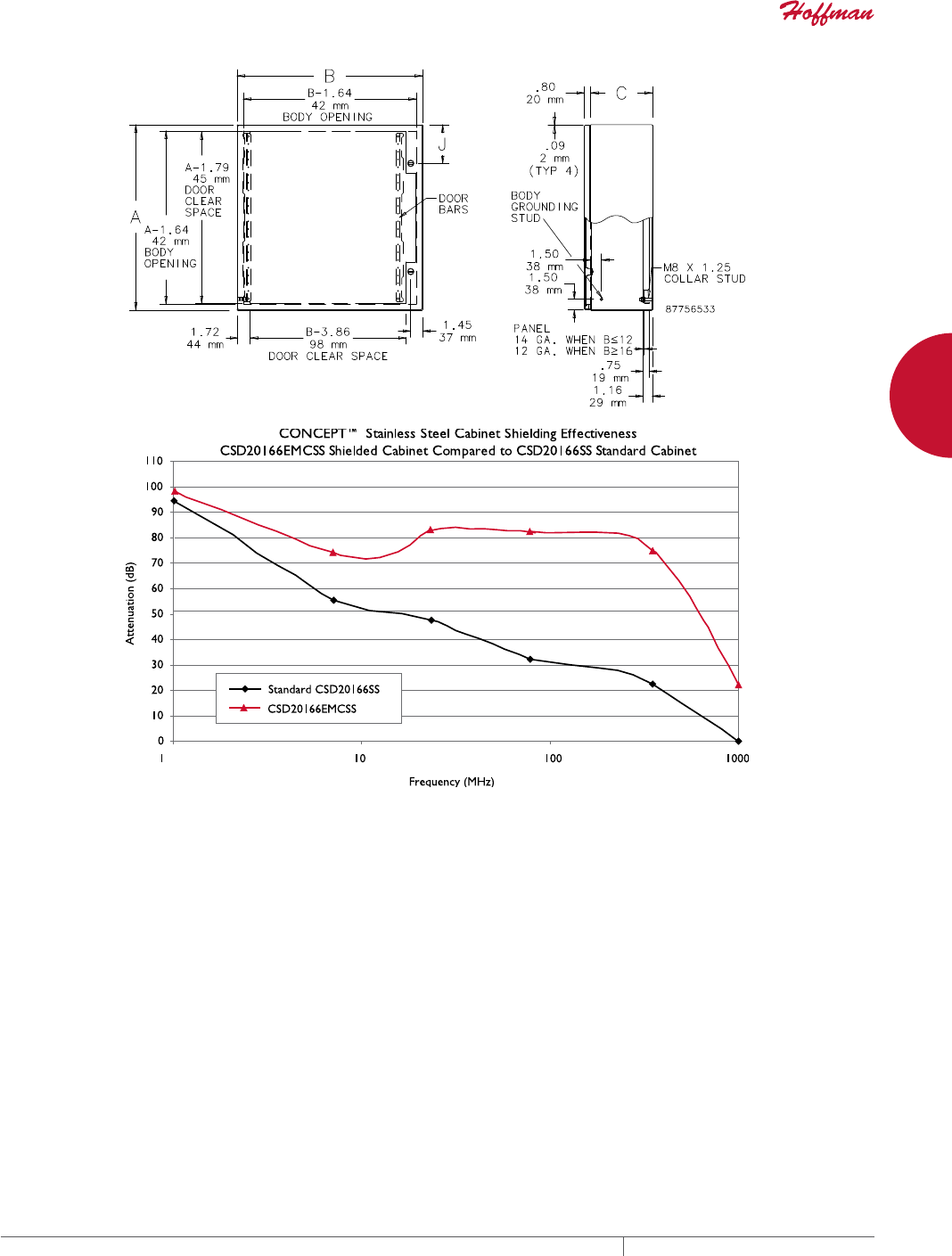

WALLMOUNT ENCLOSURES CONCEPT WALL-MOUNT ENCLOSURES
WALL-MOUNT ENCLOSURES

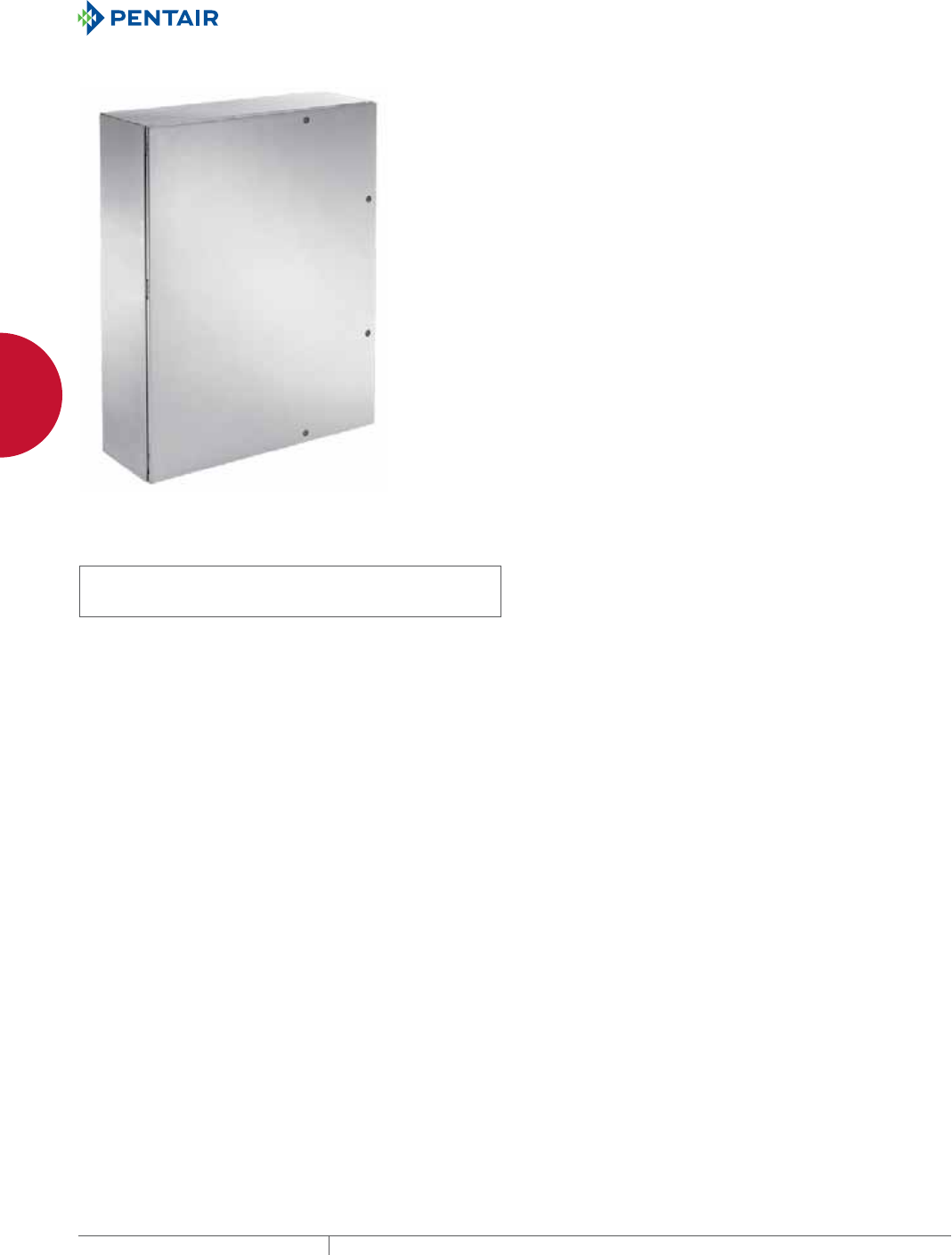

CONCEPT™ WALL-MOUNT ENCLOSURES
CONCEPT™, TYPE 4X
INDUSTRY STANDARDS
Mounting brackets required to meet UL/CSA external mounting
requirements.
UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No.
E61997
NEMA/EEMAC Type 3R, 4, 4X, 12, 13
CSA File No. 42186: Type 4, 4X, 12
VDE IP66
IEC 60529, IP66
Meets NEMA Type 3RX requirements
APPLICATION
For indoor or outdoor applications that require corrosion protection
from chemicals and water. CONCEPT™ Enclosures feature
streamlined styling with an attractive stroked finish and flush
quarter-turn latches for secure closure. Available in solid- and
window-door models.
SPECIFICATIONS
Manufactured from Type 304 or Type 316L stainless steel
Minimum-width body flange provides maximum body opening
External formed 90-degree body flange
Panel mounting studs fit optional CONCEPT panels and other
accessories
Mounting holes in back of body for direct mounting or for optional
external mounting brackets
Type 316 stainless steel hidden hinges promote clean aesthetic
appearance
Corner formed doors are interchangeable and easily removed by
pulling clip-style hinge pins
Provision on door (except window-door style and when B = 12 in.)
for thermoplastic data pocket
Provision on door (except window-door style and when B = 12 in.)
for optional doorstop kit
Quarter-turn latches furnished with flush slotted insert
Seamless foam-in-place gasket
Self-grounding latch system with double seal
Bonding provision on door; grounding stud on body
Furnished hardware kit consists of panel-mounting nuts, panel-
grounding hardware and sealing washers for wall-mounting
holes
Installation instructions
Window doors have a clear polycarbonate window
FINISH
Door and body have smooth #4 brushed finish.
ACCESSORIES
See also Accessories.
Type 316 Stainless Steel Door Stop Kit
CONCEPT™ Panels
H2OMIT™ Vent Drains, Type 4X
H2OMIT™ Thermoelectric Dehumidifier
Handles
Lock Inserts
See also the Popular Cooling Products and Accessories tables following
the Standard Products tables.
MODIFICATION AND CUSTOMIZATION
Hoffman excels at modifying and customizing products to your
specifications. Contact your local Hoffman sales office or distributor
for complete information.
BULLETIN: CWS
Standard Product One-Door
Catalog Number AxBxC in. AxBxC mm
Door
Gauge
Body
Gauge Panel
Conductive
Panel
Panel Size
D x E (in.)
Panel Size
D x E (mm)
Mounting
G x H (in.)
Mounting
G x H (mm)
Latches
Qty. Style J (in.) J (mm)
CSD12126SS 12.00 x 12.00 x 6.00 305 x 305 x 152 16 16 CP1212 CP1212G 10.20 x 10.20 259 x 259 10.50 x 10.50 267 x 267 1 Quarter-turn 6.00 152
CSD12126SS6 12.00 x 12.00 x 6.00 305 x 305 x 152 16 16 CP1212 CP1212G 10.20 x 10.20 259 x 259 10.50 x 10.50 267 x 267 1 Quarter-turn 6.00 152
CSD16126SS 16.00 x 12.00 x 6.00 406 x 305 x 152 16 16 CP1612 CP1612G 14.20 x 10.20 361 x 259 14.50 x 10.50 368 x 267 1 Quarter-turn 8.00 203
CSD16126SS6 16.00 x 12.00 x 6.00 406 x 305 x 152 16 16 CP1612 CP1612G 14.20 x 10.20 361 x 259 14.50 x 10.50 368 x 267 1 Quarter-turn 8.00 203
CSD16166SS 16.00 x 16.00 x 6.00 406 x 406 x 152 16 16 CP1616 CP1616G 14.20 x 14.20 361 x 361 14.50 x 14.50 368 x 368 1 Quarter-turn 8.00 203
CSD16166SS6 16.00 x 16.00 x 6.00 406 x 406 x 152 16 16 CP1616 CP1616G 14.20 x 14.20 361 x 361 14.50 x 14.50 368 x 368 1 Quarter-turn 8.00 203
CSD20166SS 20.00 x 16.00 x 6.00 508 x 406 x 152 16 16 CP2016 CP2016G 18.20 x 14.20 462 x 361 18.50 x 14.50 470 x 368 1 Quarter-turn 10.00 254
CSD20166SS6 20.00 x 16.00 x 6.00 508 x 406 x 152 16 16 CP2016 CP2016G 18.20 x 14.20 462 x 361 18.50 x 14.50 470 x 368 1 Quarter-turn 10.00 254
CSD20206SS 20.00 x 20.00 x 6.00 508 x 508 x 152 16 16 CP2020 CP2020G 18.20 x 18.20 462 x 462 18.50 x 18.50 470 x 470 1 Quarter-turn 10.00 254
CSD20206SS6 20.00 x 20.00 x 6.00 508 x 508 x 152 16 16 CP2020 CP2020G 18.20 x 18.20 462 x 462 18.50 x 18.50 470 x 470 1 Quarter-turn 10.00 254
CSD16128SS 16.00 x 12.00 x 8.00 406 x 305 x 203 16 16 CP1612 CP1612G 14.20 x 10.20 361 x 259 14.50 x 10.50 368 x 267 1 Quarter-turn 8.00 203
CSD16128SS6 16.00 x 12.00 x 8.00 406 x 305 x 203 16 16 CP1612 CP1612G 14.20 x 10.20 361 x 259 14.50 x 10.50 368 x 267 1 Quarter-turn 8.00 203
CSD16168SS 16.00 x 16.00 x 8.00 406 x 406 x 203 16 16 CP1616 CP1616G 14.20 x 14.20 361 x 361 14.50 x 14.50 368 x 368 1 Quarter-turn 8.00 203
CSD16168SS6 16.00 x 16.00 x 8.00 406 x 406 x 203 16 16 CP1616 CP1616G 14.20 x 14.20 361 x 361 14.50 x 14.50 368 x 368 1 Quarter-turn 8.00 203
CSD16208SS 16.00 x 20.00 x 8.00 406 x 508 x 203 16 16 CP2016 CP2016G 18.20 x 14.20 462 x 361 14.50 x 18.50 368 x 470 1 Quarter-turn 8.00 203
CSD16208SS6 16.00 x 20.00 x 8.00 406 x 508 x 203 16 16 CP2016 CP2016G 18.20 x 14.20 462 x 361 14.50 x 18.50 368 x 470 1 Quarter-turn 8.00 203
CSD20168SS 20.00 x 16.00 x 8.00 508 x 406 x 203 16 16 CP2016 CP2016G 18.20 x 14.20 462 x 361 18.50 x 14.50 470 x 368 1 Quarter-turn 10.00 254
CSD20168SS6 20.00 x 16.00 x 8.00 508 x 406 x 203 16 16 CP2016 CP2016G 18.20 x 14.20 462 x 361 18.50 x 14.50 470 x 368 1 Quarter-turn 10.00 254
CSD20208SS 20.00 x 20.00 x 8.00 508 x 508 x 203 16 16 CP2020 CP2020G 18.20 x 18.20 462 x 462 18.50 x 18.50 470 x 470 1 Quarter-turn 10.00 254
CSD20208SS6 20.00 x 20.00 x 8.00 508 x 508 x 203 16 16 CP2020 CP2020G 18.20 x 18.20 462 x 462 18.50 x 18.50 470 x 470 1 Quarter-turn 10.00 254
CSD24168SS 24.00 x 16.00 x 8.00 610 x 406 x 203 16 16 CP2416 CP2416G 22.20 x 14.20 564 x 361 22.50 x 14.50 572 x 368 1 Quarter-turn 12.00 305
CSD24168SS6 24.00 x 16.00 x 8.00 610 x 406 x 203 16 16 CP2416 CP2416G 22.20 x 14.20 564 x 361 22.50 x 14.50 572 x 368 1 Quarter-turn 12.00 305
CSD24208SS 24.00 x 20.00 x 8.00 610 x 508 x 203 16 16 CP2420 CP2420G 22.20 x 18.20 564 x 462 22.50 x 18.50 572 x 470 1 Quarter-turn 12.00 305
CSD24208SS6 24.00 x 20.00 x 8.00 610 x 508 x 203 16 16 CP2420 CP2420G 22.20 x 18.20 564 x 462 22.50 x 18.50 572 x 470 1 Quarter-turn 12.00 305
CSD24248SS 24.00 x 24.00 x 8.00 610 x 610 x 203 14 16 CP2424 CP2424 22.20 x 22.20 564 x 564 22.50 x 22.50 572 x 572 2 Quarter-turn 5.00 127
CSD24248SS6 24.00 x 24.00 x 8.00 610 x 610 x 203 14 16 CP2424 CP2424G 22.20 x 22.20 564 x 564 22.50 x 22.50 572 x 572 2 Quarter-turn 5.00 127
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 157
2
WALLMOUNT ENCLOSURES CONCEPT™ WALL-MOUNT ENCLOSURES
Catalog Number AxBxC in. AxBxC mm
Door
Gauge
Body
Gauge Panel
Conductive
Panel
Panel Size
D x E (in.)
Panel Size
D x E (mm)
Mounting
G x H (in.)
Mounting
G x H (mm)
Latches
Qty. Style J (in.) J (mm)
CSD24308SS 24.00 x 30.00 x 8.00 610 x 762 x 203 14 16 CP3024 CP30240G 28.20 x 22.20 716 x 564 28.50 x 22.50 724 x 572 2 Quarter-turn 5.00 127
CSD24308SS6 24.00 x 30.00 x 8.00 610 x 762 x 203 14 16 CP3024 CP3024G 28.20 x 22.20 716 x 564 28.50 x 22.50 724 x 572 2 Quarter-turn 5.00 127
CSD30248SS 30.00 x 24.00 x 8.00 762 x 610 x 203 14 16 CP3024 CP3024G 28.20 x 22.20 716 x 564 28.50 x 22.50 724 x 572 2 Quarter-turn 5.00 127
CSD30248SS6 30.00 x 24.00 x 8.00 762 x 610 x 203 14 16 CP3024 CP3024G 28.20 x 22.20 716 x 564 28.50 x 22.50 724 x 572 2 Quarter-turn 5.00 127
CSD30308SS 30.00 x 30.00 x 8.00 762 x 762 x 203 14 16 CP3030 CP3030G 28.20 x 28.20 716 x 716 28.50 x 28.50 724 x 724 2 Quarter-turn 5.00 127
CSD30308SS6 30.00 x 30.00 x 8.00 762 x 762 x 203 14 16 CP3030 CP3030G 28.20 x 28.20 716 x 716 28.50 x 28.50 724 x 724 2 Quarter-turn 5.00 127
CSD36248SS 36.00 x 24.00 x 8.00 914 x 610 x 203 14 16 CP3624 CP3624G 34.20 x 22.20 869 x 564 34.50 x 22.50 876 x 572 2 Quarter-turn 5.00 127
CSD36248SS6 36.00 x 24.00 x 8.00 914 x 610 x 203 14 16 CP3624 CP3624G 34.20 x 22.20 869 x 564 34.50 x 22.50 876 x 572 2 Quarter-turn 5.00 127
CSD36308SS 36.00 x 30.00 x 8.00 914 x 762 x 203 14 16 CP3630 CP3630G 34.20 x 28.20 869 x 716 34.50 x 28.50 876 x 724 2 Quarter-turn 5.00 127
CSD36308SS6 36.00 x 30.00 x 8.00 914 x 762 x 203 14 16 CP3630 CP3630G 34.20 x 28.20 869 x 716 34.50 x 28.50 876 x 724 2 Quarter-turn 5.00 127
CSD161210SS 16.00 x 12.00 x 10.00 406 x 305 x 254 16 16 CP1612 CP1612G 14.20 x 10.20 361 x 259 14.50 x 10.50 368 x 267 1 Quarter-turn 8.00 203
CSD161210SS6 16.00 x 12.00 x 10.00 406 x 305 x 254 16 16 CP1612 CP1612G 14.20 x 10.20 361 x 259 14.50 x 10.50 368 x 267 1 Quarter-turn 8.00 203
CSD161610SS 16.00 x 16.00 x 10.00 406 x 406 x 254 16 16 CP1616 CP1616G 14.20 x 14.20 361 x 361 14.50 x 14.50 368 x 368 1 Quarter-turn 8.00 203
CSD161610SS6 16.00 x 16.00 x 10.00 406 x 406 x 254 16 16 CP1616 CP1616G 14.20 x 14.20 361 x 361 14.50 x 14.50 368 x 368 1 Quarter-turn 8.00 203
CSD162010SS 16.00 x 20.00 x 10.00 406 x 508 x 254 16 16 CP2016 CP2016G 18.20 x 14.20 462 x 361 14.50 x 18.50 368 x 470 1 Quarter-turn 8.00 203
CSD162010SS6 16.00 x 20.00 x 10.00 406 x 508 x 254 16 16 CP2016 CP2016G 18.20 x 14.20 462 x 361 14.50 x 18.50 368 x 470 1 Quarter-turn 8.00 203
CSD201610SS 20.00 x 16.00 x 10.00 508 x 406 x 254 16 16 CP2016 CP2016G 18.20 x 14.20 462 x 361 18.50 x 14.50 470 x 368 1 Quarter-turn 10.00 254
CSD201610SS6 20.00 x 16.00 x 10.00 508 x 406 x 254 16 16 CP2016 CP2016G 18.20 x 14.20 462 x 361 18.50 x 14.50 470 x 368 1 Quarter-turn 10.00 254
CSD202010SS 20.00 x 20.00 x 10.00 508 x 508 x 254 16 16 CP2020 CP2020G 18.20 x 18.20 462 x 462 18.50 x 18.50 470 x 470 1 Quarter-turn 10.00 254
CSD202010SS6 20.00 x 20.00 x 10.00 508 x 508 x 254 16 16 CP2020 CP2020G 18.20 x 18.20 462 x 462 18.50 x 18.50 470 x 470 1 Quarter-turn 10.00 254
CSD202410SS 20.00 x 24.00 x 10.00 508 x 610 x 254 16 16 CP2420 CP2420G 22.20 x 18.20 464 x 462 18.50 x 22.50 470 x 572 1 Quarter-turn 10.00 254
CSD202410SS6 20.00 x 24.00 x 10.00 508 x 610 x 254 16 16 CP2420 CP2420G 22.20 x 18.20 464 x 462 18.50 x 22.50 470 x 572 1 Quarter-turn 10.00 254
CSD241610SS 24.00 x 16.00 x 10.00 610 x 406 x 254 16 16 CP2416 CP2416G 22.20 x 14.20 564 x 361 22.50 x 14.50 572 x 368 1 Quarter-turn 12.00 305
CSD241610SS6 24.00 x 16.00 x 10.00 610 x 406 x 254 16 16 CP2416 CP2416G 22.20 x 14.20 564 x 361 22.50 x 14.50 572 x 368 1 Quarter-turn 12.00 305
CSD242010SS 24.00 x 20.00 x 10.00 610 x 508 x 254 16 16 CP2420 CP2420G 22.20 x 18.20 564 x 462 22.50 x 18.50 572 x 470 1 Quarter-turn 12.00 305
CSD242010SS6 24.00 x 20.00 x 10.00 610 x 508 x 254 16 16 CP2420 CP2420G 22.20 x 18.20 564 x 462 22.50 x 18.50 572 x 470 1 Quarter-turn 12.00 305
CSD242410SS 24.00 x 24.00 x 10.00 610 x 610 x 254 14 16 CP2424 CP2424G 22.20 x 22.20 564 x 564 22.50 x 22.50 572 x 572 2 Quarter-turn 5.00 127
CSD242410SS6 24.00 x 24.00 x 10.00 610 x 610 x 254 14 16 CP2424 CP2424 22.20 x 22.20 564 x 564 22.50 x 22.50 572 x 572 2 Quarter-turn 5.00 127
CSD243010SS 24.00 x 30.00 x 10.00 610 x 762 x 254 14 16 CP3024 CP3024G 28.20 x 22.20 716 x 564 22.50 x 28.50 572 x 724 2 Quarter-turn 5.00 127
CSD243010SS6 24.00 x 30.00 x 10.00 610 x 762 x 254 14 16 CP3024 CP3024G 28.20 x 22.20 716 x 564 22.50 x 28.50 572 x 724 2 Quarter-turn 5.00 127
CSD302010SS 30.00 x 20.00 x 10.00 762 x 508 x 254 14 16 CP3020 CP3020G 28.20 x 18.20 716 x 462 28.50 x 18.50 724 x 470 2 Quarter-turn 5.00 127
CSD302010SS6 30.00 x 20.00 x 10.00 762 x 508 x 254 14 16 CP3020 CP3020G 28.20 x 18.20 716 x 462 28.50 x 18.50 724 x 470 2 Quarter-turn 5.00 127
CSD302410SS 30.00 x 24.00 x 10.00 762 x 610 x 254 14 16 CP3024 CP3024G 28.20 x 22.20 716 x 564 28.50 x 22.50 724 x 572 2 Quarter-turn 5.00 127
CSD302410SS6 30.00 x 24.00 x 10.00 762 x 610 x 254 14 16 CP3024 CP3024G 28.20 x 22.20 716 x 564 28.50 x 22.50 724 x 572 2 Quarter-turn 5.00 127
CSD303010SS 30.00 x 30.00 x 10.00 762 x 762 x 254 14 16 CP3030 CP3030G 28.20 x 28.20 716 x 716 28.50 x 28.50 724 x 724 2 Quarter-turn 5.00 127
CSD303010SS6 30.00 x 30.00 x 10.00 762 x 762 x 254 14 16 CP3030 CP3030G 28.20 x 28.20 716 x 716 28.50 x 28.50 724 x 724 2 Quarter-turn 5.00 127
CSD362410SS 36.00 x 24.00 x 10.00 914 x 610 x 254 14 16 CP3624 CP3624G 34.20 x 22.20 869 x 564 34.50 x 22.50 876 x 572 2 Quarter-turn 5.00 127
CSD362410SS6 36.00 x 24.00 x 10.00 914 x 610 x 254 14 16 CP3624 CP3624G 34.20 x 22.20 869 x 564 34.50 x 22.50 876 x 572 2 Quarter-turn 5.00 127
CSD363010SS 36.00 x 30.00 x 10.00 914 x 762 x 254 14 16 CP3630 CP3630G 34.20 x 28.20 869 x 716 34.50 x 28.50 876 x 724 2 Quarter-turn 5.00 127
CSD363010SS6 36.00 x 30.00 x 10.00 914 x 762 x 254 14 16 CP3630 CP3630G 34.20 x 28.20 869 x 716 34.50 x 28.50 876 x 724 2 Quarter-turn 5.00 127
CSD482410SS 48.00 x 24.00 x 10.00 1219 x 610 x 254 14 14 CP4824 CP4824G 46.20 x 22.20 1173 x 564 46.50 x 22.50 1181 x 572 1 3-point 24.00 610
CSD482410SS6 48.00 x 24.00 x 10.00 1219 x 610 x 254 14 14 CP4824 CP4824G 46.20 x 22.20 1173 x 564 46.50 x 22.50 1181 x 572 1 3-point 24.00 610
CSD202012SS 20.00 x 20.00 x 12.00 508 x 508 x 305 14 16 CP2020 CP2020G 18.20 x 18.20 462 x 462 18.50 x 18.50 470 x 470 1 Quarter-turn 10.00 254
CSD202012SS6 20.00 x 20.00 x 12.00 508 x 508 x 305 14 16 CP2020 CP2020G 18.20 x 18.20 462 x 462 18.50 x 18.50 470 x 470 1 Quarter-turn 10.00 254
CSD242412SS 24.00 x 24.00 x 12.00 610 x 610 x 305 14 16 CP2424 CP2424G 22.20 x 22.20 564 x 564 22.50 x 22.50 572 x 572 2 Quarter-turn 5.00 127
CSD242412SS6 24.00 x 24.00 x 12.00 610 x 610 x 305 14 16 CP2424 CP2424G 22.20 x 22.20 564 x 564 22.50 x 22.50 572 x 572 2 Quarter-turn 5.00 127
CSD302412SS 30.00 x 24.00 x 12.00 762 x 610 x 305 14 16 CP3024 CP3024G 28.20 x 22.20 716 x 564 28.50 x 22.50 724 x 572 2 Quarter-turn 5.00 127
CSD302412SS6 30.00 x 24.00 x 12.00 762 x 610 x 305 14 16 CP3024 CP3024G 28.20 x 22.20 716 x 564 28.50 x 22.50 724 x 572 2 Quarter-turn 5.00 127
CSD303012SS 30.00 x 30.00 x 12.00 762 x 762 x 305 14 16 CP3030 CP3030 28.20 x 28.20 716 x 716 28.50 x 28.50 724 x 724 2 Quarter-turn 5.00 127
CSD303012SS6 30.00 x 30.00 x 12.00 762 x 762 x 305 14 16 CP3030 CP3030G 28.20 x 28.20 716 x 716 28.50 x 28.50 724 x 724 2 Quarter-turn 5.00 127
CSD362412SS 36.00 x 24.00 x 12.00 914 x 610 x 305 14 16 CP3624 CP3624G 34.20 x 22.20 869 x 564 34.50 x 22.50 876 x 572 2 Quarter-turn 5.00 127
CSD362412SS6 36.00 x 24.00 x 12.00 914 x 610 x 305 14 16 CP3624 CP3624G 34.20 x 22.20 869 x 564 34.50 x 22.50 876 x 572 2 Quarter-turn 5.00 127
CSD363012SS 36.00 x 30.00 x 12.00 914 x 762 x 305 14 14 CP3630 CP3630G 34.20 x 28.20 869 x 716 34.50 x 28.50 876 x 724 2 Quarter-turn 5.00 127
CSD363012SS6 36.00 x 30.00 x 12.00 914 x 762 x 305 14 14 CP3630 CP3630G 34.20 x 28.20 869 x 716 34.50 x 28.50 876 x 724 2 Quarter-turn 5.00 127
Catalog numbers ending in 6 are Type 316L stainless steel.
Purchase panels separately. Optional stainless steel, composite and aluminum panels are also available for most sizes.
Optional NEMA style steel and stainless steel panels require conversion kit catalog number CCPM4.
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL158
2
WALLMOUNT ENCLOSURES CONCEPT WALL-MOUNT ENCLOSURES
Standard Product One-Door with Window
Catalog Number AxBxC in. AxBxC mm
Door
Ga.
Body
Ga. Panel
Panel Size
D x E (in.)
Panel Size
D x E (mm)
Mounting
G x H (in.)
Mounting
G x H (mm)
Window Size
M x N (in.)
Window Size
M x N (mm)
Latch
Qty. Style J (in.) J (mm)
CSD12126WSS 12.00 x 12.00 x 6.00 305 x 305 x 152 16 16 CP1212 10.20 x 10.20 259 x 259 10.50 x 10.50 267 x 267 8.74 x 7.10 222 x 180 1 Quarter-turn 6.00 152
CSD16126WSS 16.00 x 12.00 x 6.00 406 x 305 x 152 16 16 CP1612 14.20 x 10.20 361 x 259 14.50 x 10.50 368 x 267 12.74 x 7.10 324 x 180 1 Quarter-turn 8.00 203
CSD20166WSS 20.00 x 16.00 x 6.00 508 x 406 x 152 16 16 CP2016 18.20 x 14.20 462 x 361 18.50 x 14.50 470 x 368 16.74 x 11.10 425 x 282 1 Quarter-turn 10.00 254
CSD20206WSS 20.00 x 20.00 x 6.00 508 x 508 x 152 16 16 CP2020 18.20 x 18.20 462 x 462 18.50 x 18.50 470 x 470 16.74 x 15.10 425 x 384 1 Quarter-turn 10.00 254
CSD20168WSS 20.00 x 16.00 x 8.00 508 x 406 x 203 16 16 CP2016 18.20 x 14.20 462 x 361 18.50 x 14.50 470 x 368 16.74 x 11.10 425 x 282 1 Quarter-turn 10.00 254
CSD20208WSS 20.00 x 20.00 x 8.00 508 x 508 x 203 16 16 CP2020 18.20 x 18.20 462 x 462 18.50 x 18.50 470 x 470 16.74 x 15.10 425 x 384 1 Quarter-turn 10.00 254
CSD24208WSS 24.00 x 20.00 x 8.00 610 x 508 x 203 16 16 CP2420 22.20 x 18.20 564 x 462 22.50 x 18.50 572 x 470 20.74 x 15.10 527 x 384 1 Quarter-turn 12.00 305
CSD24248WSS 24.00 x 24.00 x 8.00 610 x 610 x 203 14 16 CP2424 22.20 x 22.20 564 x 564 22.50 x 22.50 572 x 572 20.74 x 17.68 527 x 449 2 Quarter-turn 5.00 127
CSD30248WSS 30.00 x 24.00 x 8.00 762 x 610 x 203 14 16 CP3024 28.20 x 22.20 716 x 564 28.50 x 22.50 724 x 572 26.74 x 17.68 679 x 449 2 Quarter-turn 5.00 127
CSD161210WSS 16.00 x 12.00 x 10.00 406 x 305 x 254 16 16 CP1612 14.20 x 10.20 361 x 259 14.50 x 10.50 368 x 267 12.74 x 7.10 324 x 180 1 Quarter-turn 8.00 203
CSD201610WSS 20.00 x 16.00 x 10.00 508 x 406 x 254 16 16 CP2016 18.20 x 14.20 462 x 361 18.50 x 14.50 470 x 368 16.74 x 11.10 425 x 282 1 Quarter-turn 10.00 254
CSD202010WSS 20.00 x 20.00 x 10.00 508 x 508 x 254 16 16 CP2020 18.20 x 18.20 462 x 462 18.50 x 18.50 470 x 470 16.74 x 15.10 425 x 384 1 Quarter-turn 10.00 254
CSD242010WSS 24.00 x 20.00 x 10.00 610 x 508 x 254 16 16 CP2420 22.20 x 18.20 564 x 462 22.50 x 18.50 572 x 470 20.74 x 15.10 527 x 384 1 Quarter-turn 12.00 305
CSD242410WSS 24.00 x 24.00 x 10.00 610 x 610 x 254 14 16 CP2424 22.20 x 22.20 564 x 564 22.50 x 22.50 572 x 572 20.74 x 17.68 527 x 449 2 Quarter-turn 5.00 127
CSD302410WSS 30.00 x 24.00 x 10.00 762 x 610 x 254 14 16 CP3024 28.20 x 22.20 716 x 564 28.50 x 22.50 724 x 572 26.74 x 17.68 679 x 449 2 Quarter-turn 5.00 127
CSD202012WSS 20.00 x 20.00 x 12.00 508 x 508 x 305 14 16 CP2020 18.20 x 18.20 462 x 462 18.50 x 18.50 470 x 470 16.74 x 15.10 425 x 384 1 Quarter-turn 10.00 254
CSD302412WSS 30.00 x 24.00 x 12.00 762 x 610 x 305 14 16 CP3024 28.20 x 22.20 716 x 564 28.50 x 22.50 724 x 572 26.74 x 17.68 679 x 449 2 Quarter-turn 5.00 127
Purchase panels separately.
Optional NEMA style steel and stainless steel panels require conversion kit catalog number CCPM4.
Material is stainless steel Type 304.
For Conductive Panels, add a “G” to the panel catalog number.
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 159
2
WALLMOUNT ENCLOSURES CONCEPT™ WALL-MOUNT ENCLOSURES
Popular Cooling Products
Enclosure Depth (C Dimension) Filter Fans*
6 in. (152 mm) SF0416414
8 in. (203 mm) SF0516414
10 in. (254 mm) SF0916414
12 in. (305 mm) SF1016414
*Important: Visit tools.hoffmanonline.com/attachments to access our Cooling Selection Tool to determine the appropriate cooling solution for your application.
Popular Accessories
Enclosure Width (B Dimension) Lights Hole Seals Window Kits
12 in. (305 mm) LEDPUCK AS050SS APWK53NFSS
16 in. (406 mm) LEDA2M35 AS050SS APWK53NFSS
20 in. (508 mm) LED24V15 AS050SS APWK53NFSS
24 in. (610 mm) LED24V15 AS050SS APWK53NFSS
30 in. (762 mm) LED24V15 AS050SS APWK53NFSS
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL160
2
WALLMOUNT ENCLOSURES CONCEPT WALL-MOUNT ENCLOSURES
CONCEPT™ WITH ADDITIONAL QUARTERTURN LATCHES, TYPE 4X
INDUSTRY STANDARDS
Mounting brackets required to meet UL/CSA external mounting
requirements.
UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File Number
E61997
NEMA/EEMAC Type 3R, 4, 4X, 12, 13
IEC 60529, IP66
Meets NEMA Type 3RX requirements
APPLICATION
For indoor or outdoor applications that require corrosion protection
from chemicals and water, CONCEPT™ enclosures house larger
controls and feature streamlined styling with an attractive stroked
finish, flush quarter-turn latches and an integral door ramp that
ensures the door gasket sealing surface aligns with the enclosure
body for secure closure.
SPECIFICATIONS
Manufactured from 14 gauge Type 304 or Type 316L stainless
steel
Seams continuously welded and ground smooth
Minimum-width body flange provides maximum body opening
Corner formed doors
External formed 90-degree body flange
Stainless steel quarter-turn latches with flush slotted insert
provided on three sides of enclosure door
Integral door alignment device to properly align door and gasket
to body offset
Panel mounting studs fit optional CONCEPT panels and other
accessories
Mounting holes in back of body for direct mounting or for optional
external mounting brackets
Stainless steel hidden hinges
Doors are interchangeable and easily removed by pulling clip-
style hinge pins
Provision on door for thermoplastic data pocket
Provision on door for optional doorstop kit
Seamless foam-in-place gasket
Self-grounding latch system with double seal
Bonding provision on door; grounding stud on body
Furnished hardware kit consists of panel mounting nuts, panel
grounding hardware and sealing washers for wall-mounting
holes
Installation instructions
FINISH
Door and body have smooth #4 brushed finish.
ACCESSORIES
See also Accessories.
Industrial Corrosion Inhibitors
Type 316 Stainless Steel Door Stop Kit
CONCEPT™ Panels
H2OMIT™ Vent Drains, Type 4X
H2OMIT™ Thermoelectric Dehumidifier
Handles
Lock Inserts
MODIFICATION AND CUSTOMIZATION
Hoffman excels at modifying and customizing products to your
specifications. Contact your local Hoffman sales office or distributor
for complete information.
BULLETIN: CWS
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 161
2
WALLMOUNT ENCLOSURES CONCEPT™ WALL-MOUNT ENCLOSURES
Standard Product
Catalog Number AxBxC in./mm
Door
Gauge
Body
Gauge Panel
Conductive
Panel
Panel Size
D x E
in./mm
Mounting
G x H
in./mm
Latches
Qty. Style
J
in./mm
CSD363610SSR 36.00 x 36.00 x 10.00
914 x 914 x 254
14 14 CP3636 CP3636G 34.20 x 34.20
869 x 869
34.50 x 34.50
876 x 876
4 Quarter-turn 10.00
254
CSD363610SS6R 36.00 x 36.00 x 10.00
914 x 914 x 254
14 14 CP3636 CP3636G 34.20 x 34.20
869 x 869
34.50 x 34.50
876 x 876
4 Quarter-turn 10.00
254
CSD423610SSR 42.00 x 36.00 x 10.00
1067 x 914 x 254
14 14 CP4236 CP4236G 40.20 x 34.20
1021 x 869
40.50 x 34.50
1029 x 876
4 Quarter-turn 13.00
330
CSD423610SS6R 42.00 x 36.00 x 10.00
1067 x 914 x 254
14 14 CP4236 CP4236G 40.20 x 34.20
1021 x 869
40.50 x 34.50
1029 x 876
4 Quarter-turn 13.00
330
CSD483610SSR 48.00 x 36.00 x 10.00
1219 x 914 x 254
14 14 CP4836 CP4836G 46.20 x 34.20
1173 x 869
46.50 x 34.50
1181 x 876
4 Quarter-turn 14.00
356
CSD483610SS6R 48.00 x 36.00 x 10.00
1219 x 914 x 254
14 14 CP4836 CP4836G 46.20 x 34.20
1173 x 869
46.50 x 34.50
1181 x 876
4 Quarter-turn 14.00
356
CSD603610SSR 60.00 x 36.00 x 10.00
1524 x 914 x 254
14 14 CP6036 CP6036G 58.20 x 34.20
1478 x 869
58.50 x 34.50
1486 x 876
4 Quarter-turn 17.00
432
CSD603610SS6R 60.00 x 36.00 x 10.00
1524 x 914 x 254
14 14 CP6036 CP6036G 58.20 x 34.20
1478 x 869
58.50 x 34.50
1486 x 876
4 Quarter-turn 17.00
432
CSD363612SSR 36.00 x 36.00 x 12.00
914 x 914 x 305
14 14 CP3636 CP3636G 34.20 x 34.20
869 x 869
34.50 x 34.50
876 x 876
4 Quarter-turn 10.00
254
CSD363612SS6R 36.00 x 36.00 x 12.00
914 x 914 x 305
14 14 CP3636 CP3636G 34.20 x 34.20
869 x 869
34.50 x 34.50
876 x 876
4 Quarter-turn 10.00
254
CSD423612SSR 42.00 x 36.00 x 12.00
1067 x 914 x 305
14 14 CP4236 CP4236G 40.20 x 34.20
1021 x 869
40.50 x 34.50
1029 x 876
4 Quarter-turn 13.00
330
CSD423612SS6R 42.00 x 36.00 x 12.00
1067 x 914 x 305
14 14 CP4236 CP4236G 40.20 x 34.20
1021 x 869
40.50 x 34.50
1029 x 876
4 Quarter-turn 13.00
330
CSD483612SSR 48.00 x 36.00 x 12.00
1219 x 914 x 305
14 14 CP4836 CP4836G 46.20 x 34.20
1173 x 869
46.50 x 34.50
1181 x 876
4 Quarter-turn 14.00
356
CSD483612SS6R 48.00 x 36.00 x 12.00
1219 x 914 x 305
14 14 CP4836 CP4836G 46.20 x 34.20
1173 x 869
46.50 x 34.50
1181 x 876
4 Quarter-turn 14.00
356
CSD603612SSR 60.00 x 36.00 x 12.00
1524 x 914 x 305
14 14 CP6036 CP6036G 58.20 x 34.20
869 x 462
58.50 x 34.50
1486 x 876
4 Quarter-turn 17.00
402
CSD603612SS6R 60.00 x 36.00 x 12.00
1524 x 914 x 305
14 14 CP6036 CP6036G 58.20 x 34.20
869 x 462
58.50 x 34.50
1486 x 876
4 Quarter-turn 17.00
402
CSD723612SSR 72.00 x 36.00 x 12.00
1829 x 914 x 305
14 14 CP7236 70.20 x 34.20
1783 x 462
70.50 x 34.50
1791 x 876
4 Quarter-turn 23.00
584
CSD723616SSR 72.00 x 36.00 x 16.00
1829 x 914 x 406
14 14 CP7236 70.20 x 34.20
1783 x 462
70.50 x 34.50
1791 x 876
4 Quarter-turn 23.00
584
Purchase panels separately.
Optional NEMA style steel and stainless steel panels require conversion kit catalog number CCPM-4.
Catalog numbers ending in 6R are Type 316L stainless steel.
%
$

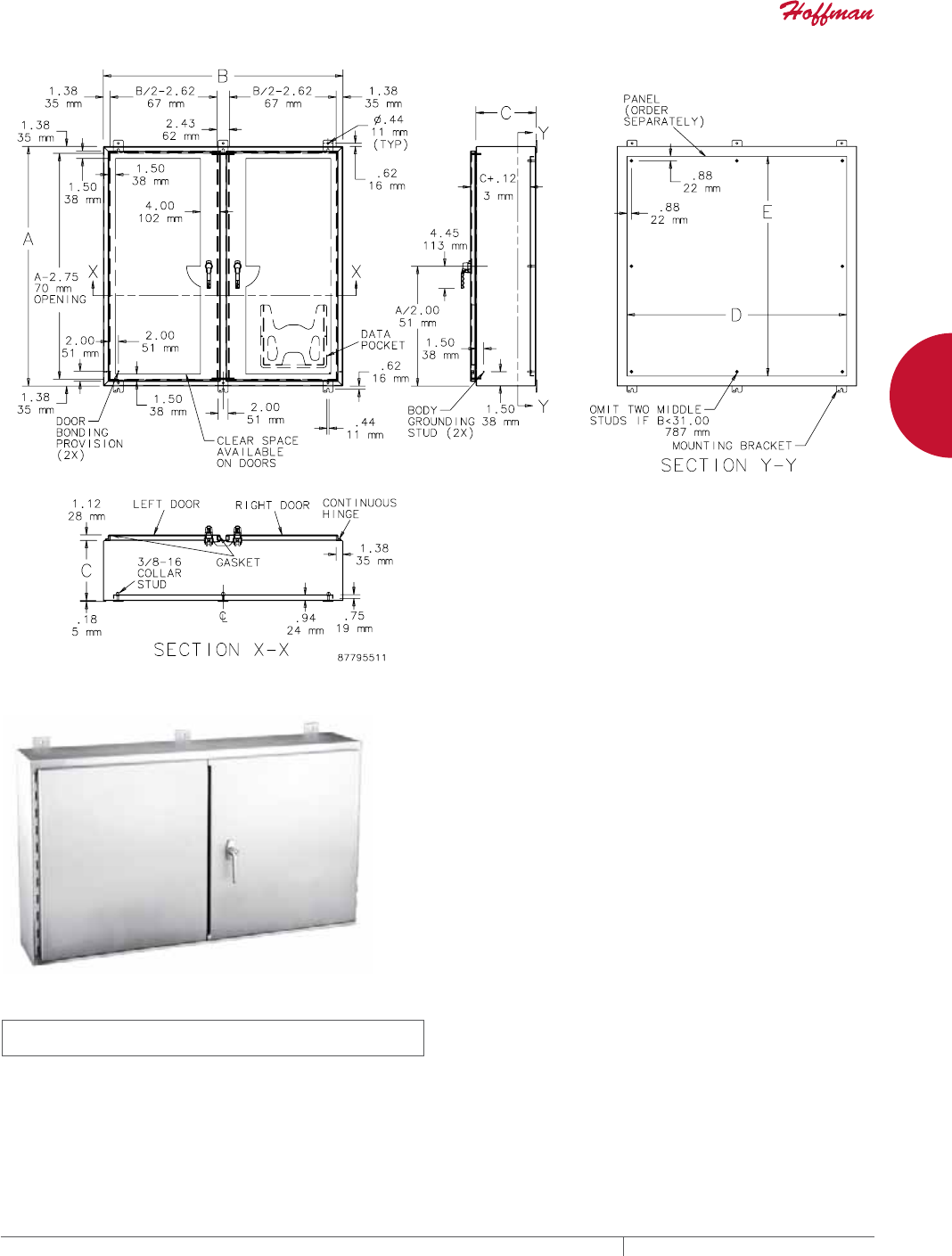

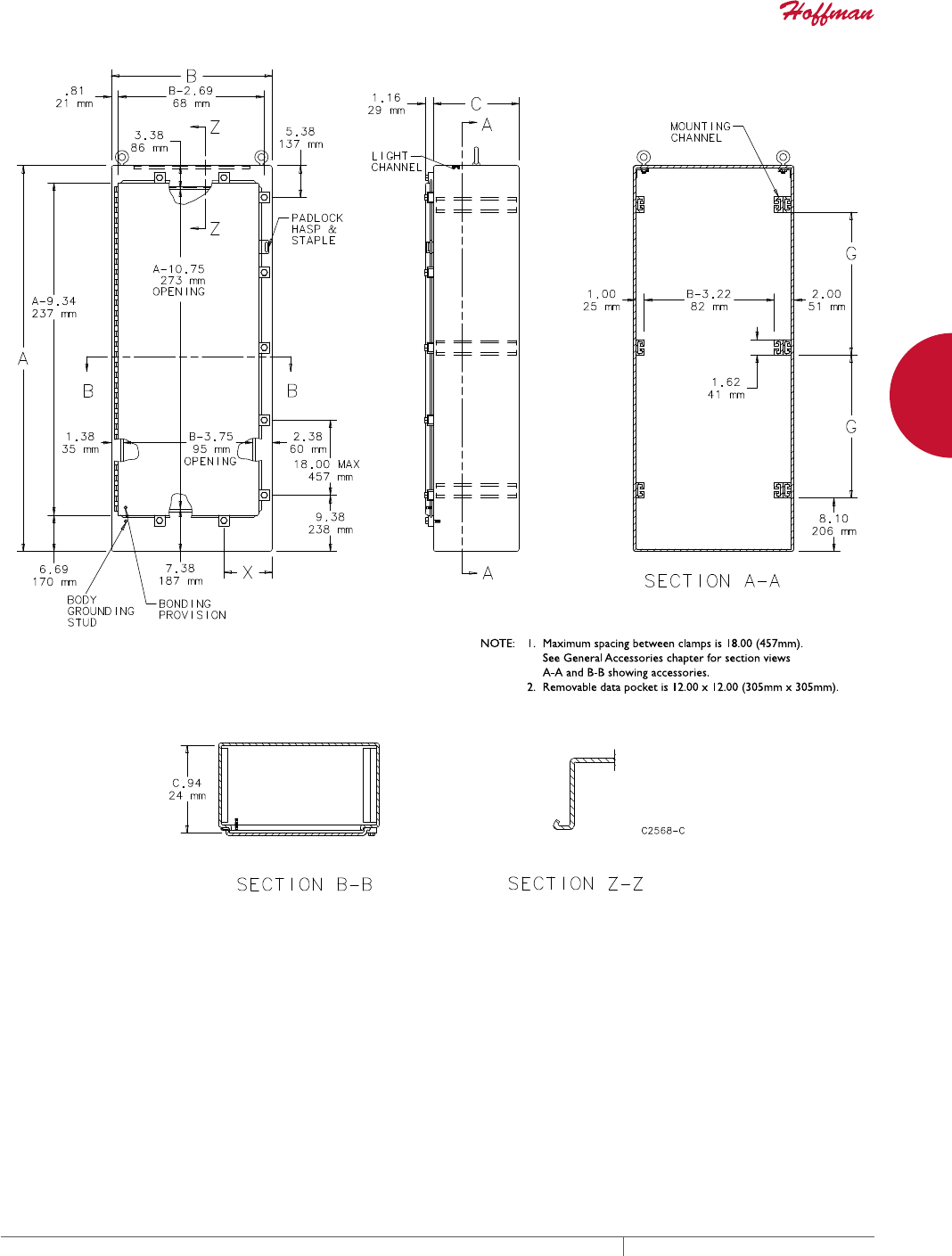

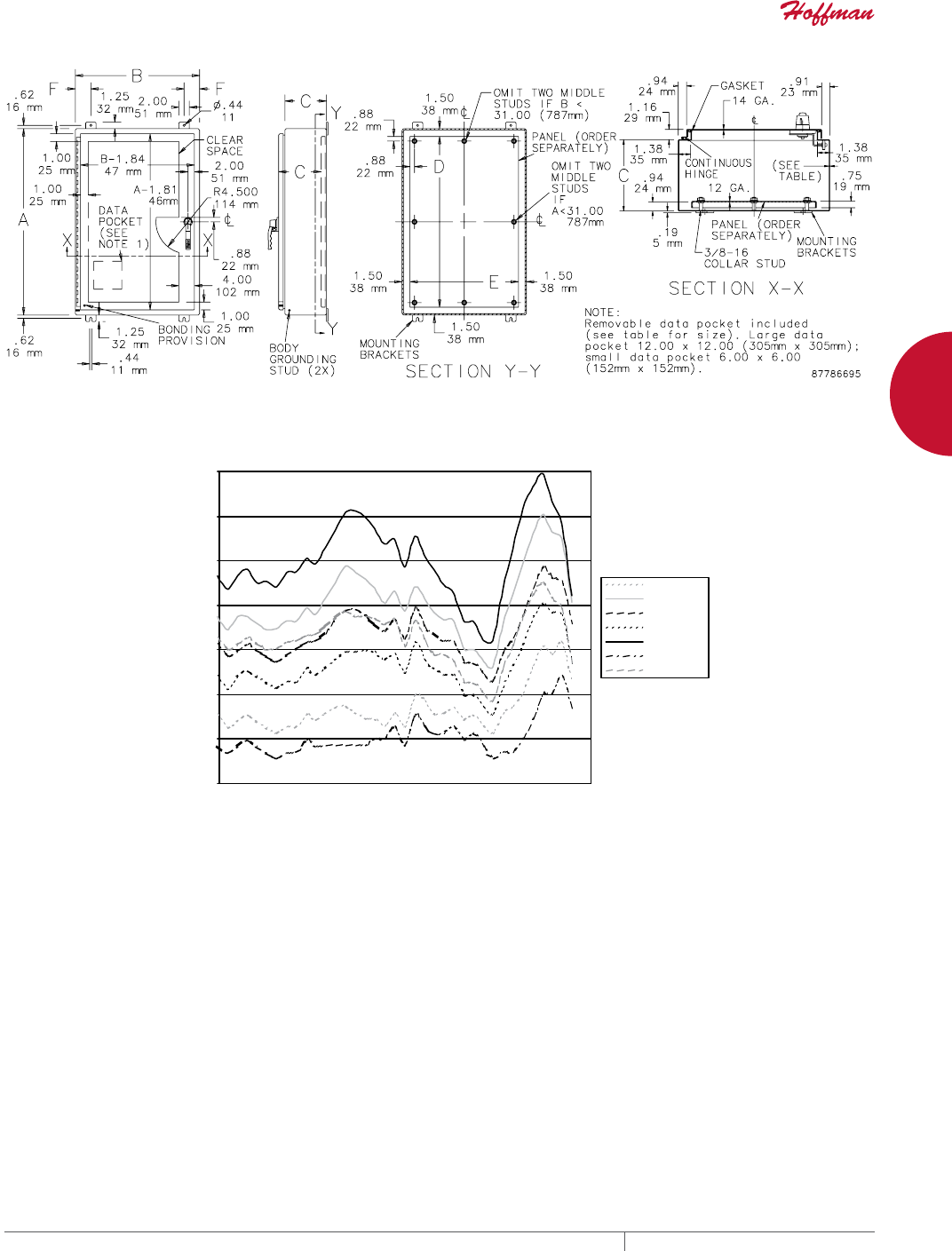

%RG\2SHQLQJ
%
PP
2SHQLQJ
$
PP
%RG\
6SDFH
$
PP
'RRU
&OHDU

PP
'RRU&OHDU6SDFH
%
-
DUHXVHG
$-
:KHQ
ODWFKHV
-

PP

PP
'RRU
$OLJQPHQW
'HYLFH
'RRU%RQGLQJ
3URYLVLRQ

PP

PP

PP 
PP

PP
&

PP
<
<
6HH
'HWDLO
3DQHO
*D
ZKHQ%

*D
ZKHQ%
!

%RG\
*URXQGLQJ
6WXG
0;
PP
&ROODU
6WXG
(
'
+
*

PP

PP 
PP

PP

PP

PP
6(&7,21<<
2PLW
0LGGOH
6WXGV
LI$

3DQHO
2UGHU
6HSDUDWHO\

PP

PP

PP
'(7$,/

EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL162
2
WALLMOUNT ENCLOSURES CONCEPT WALL-MOUNT ENCLOSURES

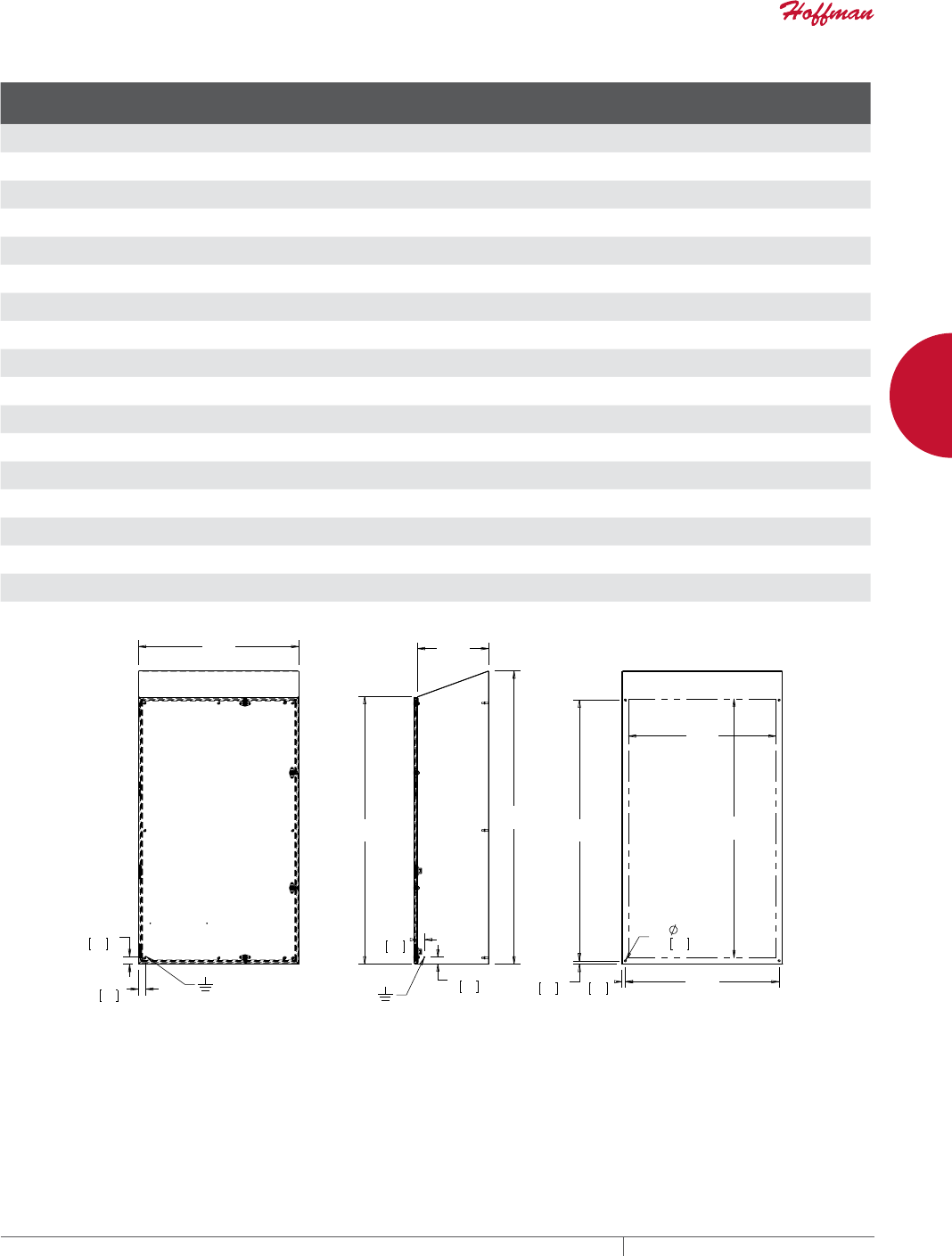

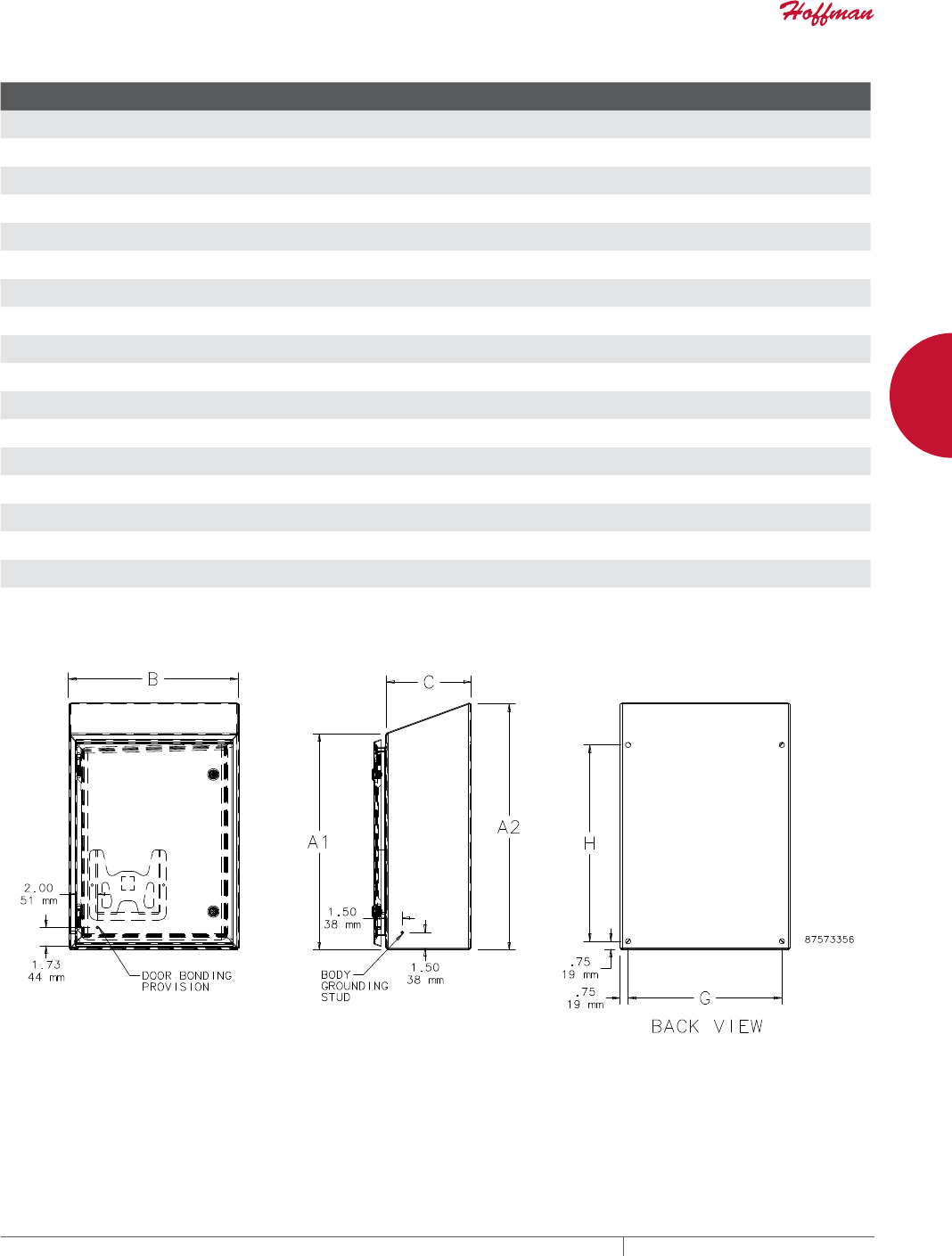

CONCEPT™ SLOPED TOP, TYPE 4X
INDUSTRY STANDARDS
Mounting brackets required to meet UL/CSA external mounting
requirements.
UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No.
E61997
NEMA/EEMAC Type 3R, 4, 4X, 12, 13
CSA File No. 42186: Type 4, 4X, 12
VDE IP66
IEC 60529, IP66
Meets NEMA Type 3RX requirements
APPLICATION
For indoor or outdoor applications that require a sloped top and
corrosion protection from chemicals and water. CONCEPT
Enclosures feature streamlined styling with an attractive stroked
finish and flush, stainless steel quarter-turn latches for secure
closure.
SPECIFICATIONS
Manufactured from 16 and 14 gauge Type 304 stainless steel
20 degree sloped top prevents pooling of liquids and
accumulation of other debris
Minimum-width body flange provides maximum body opening
External formed 90-degree body flange
Panel mounting studs fit optional CONCEPT panels and other
accessories
Mounting holes in back of body for direct mounting or for optional
external mounting brackets
Type 304 stainless steel hidden hinges promote clean aesthetic
appearance (two hinges on models under 36 in. in height; three
hinges for models 36 in. and taller)
Corner-formed doors are interchangeable and easily removed by
pulling clip-style hinge pins
Provision on door for thermoplastic data pocket
Provision on door for optional door stop kit
Seams continuously welded and ground smooth
Stainless steel quarter-turn latches furnished with flush slotted
insert
Seamless foam-in-place gasket
Self-grounding latch system with double seal
Bonding provision on door; grounding stud on body
Furnished hardware kit consists of panel-mounting nuts, panel-
grounding hardware and sealing washers for wall-mounting
holes
Installation instructions
FINISH
Door and body have smooth, #4 brushed finish.
ACCESSORIES
See also Accessories.
Panels
Type 316 Stainless Steel Door Stop Kit
CONCEPT™ Panels
H2OMIT™ Vent Drains, Type 4X
H2OMIT™ Thermoelectric Dehumidifier
Handles
Lock Inserts
MODIFICATION AND CUSTOMIZATION
Hoffman excels at modifying and customizing products to your
specifications. Contact your local Hoffman sales office or distributor
for complete information.
BULLETIN: CWS2
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 163
2
WALLMOUNT ENCLOSURES CONCEPT™ WALL-MOUNT ENCLOSURES
Standard Product
Catalog Number AxBxC in./mm
A2
in./mm Door Gauge Body Gauge Panel
Conductive
Panel
Panel
Size D x E
in./mm
Mounting
H x G
in./mm Latch Qty.
CSD16128SSST 16.00 x 12.00 x 8.00
406 x 305 x 203
18.88
480
16 16 CP162 CP1612G 14.20x10.20
361x259
14.50x10.50
368x267
1
CSD16168SSST 16.00 x 16.00 x 8.00
406 x 406 x 203
18.88
480
16 16 CP1616 CP1616G 14.20x14.20
361x361
14.50x14.50
368x368
1
CSD20168SSST 20.00 x 16.00 x 8.00
508 x 406 x 203
22.88
582
16 16 CP2016 CP2016G 18.20x14.20
462x361
18.50x14.50
470x368
1
CSD20208SSST 20.00 x 20.00 x 8.00
508 x 508 x 203
22.88
582
16 16 CP2020 CP2020G 18.20x18.20
462x462
18.50x18.50
470x470
1
CSD202012SSST 20.00 x 20.00 x 12.00
508 x 508 x 305
24.34
619
14 16 CP2020 CP2020G 18.20x18.20
462x462
18.50x18.50
470x470
1
CSD24208SSST 24.00 x 20.00 x 8.00
610 x 508 x 203
26.88
683
16 16 CP2420 CP2420G 22.20x18.20
564x462
22.50x18.50
572x470
1
CSD24248SSST 24.00 x 24.00 x 8.00
610 x 610 x 203
26.88
683
14 16 CP2424 CP2424G 22.20x22.20
254x254
22.50x22.50
572x572
2
CSD242412SSST 24.00 x 24.00 x 12.00
610 x 610 x 305
28.34
720
14 16 CP2424 CP2424G 22.20x22.20
254x254
22.50x22.50
572x572
2
CSD30248SSST 30.00 x 24.00 x 8.00
762 x 610 x 203
32.88
836
14 16 CP3024 CP3024G 28.20x22.20
716x564
28.50x22.50
724x572
2
CSD302412SSST 30.00 x 24.00 x 12.00
762 x 610 x 305
34.34
873
14 16 CP3024 CP3024G 28.20x22.20
716x564
28.50x22.50
724x572
2
CSD30308SSST 30.00 x 30.00 x 8.00
762 x 762 x 203
32.88
988
14 16 CP3030 CP3030G 28.20x28.20
716x716
28.50x28.50
724x724
2
CSD36248SSST 36.00 x 24.00 x 8.00
914 x 610 x 203
38.88
988
14 16 CP3624 CP3624G 34.20x22.20
869x564
34.50x22.50
876x572
2
CSD36308SSST 36.00 x 30.00 x 8.00
914 x 762 x 203
38.88
988
14 14 CP3630 CP3630G 34.20x28.20
869x716
34.500x28.50
876x724
2
CSD363012SSST 36.00 x 30.00 x 12.00
914 x 762 x 305
40.33
1025
14 14 CP3630 CP3630G 34.20x28.20
869x716
34.50x28.50
876x724
4
CSD363612SSST 36.00 x 36.00 x 12.00
914 x 914 x 305
40.33
1025
14 14 CP3636 CP3636G 34.20x34.20
869x869
34.50x34.50
876x876
4
CSD483616SSST 48.00 x 36.00 x 16.00
1219 x 914 x 406
53.78
1637
14 14 CP4836 CP4836G 46.20x34.20
1173x869
34.50x46.50
876x1181
4
CSD603616SSST 60.00 x 36.00 x 16.00
1524 x 914 x 406
65.78
1671
14 14 CP6036 CP6036G 58.20x34.20
1477x869
34.50x58.50
876x1486
4
Purchase panels separately.
%




&
$




$
+


*


;


(
'

EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL164
2
WALLMOUNT ENCLOSURES CONCEPT WALL-MOUNT ENCLOSURES
CONCEPT™ EMC, TYPE 4X
INDUSTRY STANDARDS
Mounting brackets required to meet UL/CSA external mounting
requirements.
UL 508A Listed; Type 4, 4X, 12; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12; File No. E61997
NEMA/EEMAC Type 4, 4X, 12, 13
CSA File No. 42186: Type 4, 4X, 12
VDE IP66
IEC 60529, IP66
APPLICATION
Use stylish CONCEPT™ EMC Enclosures with their convenient
quarter-turn latches in corrosive indoor or outdoor applications to
contain stray electromagnetic interference (EMI) signals produced
by internal components and to shield those components from
external EMI/RFI interference.
SPECIFICATIONS
Manufactured from 18, 16 and 14 gauge Type 304 stainless steel
Seams continuously welded and ground smooth
Minimum-width body flange provides maximum body opening
External formed 90-degree body flange
Panel mounting studs fit optional CONCEPT panels and other
accessories
Mounting holes in back of body for direct mounting or for optional
external mounting brackets
Stainless steel hidden hinges
Easy-to-remove clip-style hinge pins
Removable corner formed door
Seamless foam-in-place gasket adjacent to spring finger EMC
gasket
Quarter-turn latches with flush slotted insert
Self-grounding latch system with double seal
Integral body grounding stud
Furnished hardware kit includes panel mounting nuts, grounding
hardware and sealing washers for wall-mounting holes
Installation instructions
FINISH
Cover and body have smooth brushed #4 finish.
ACCESSORIES
See also Accessories.
Industrial Corrosion Inhibitors
CONCEPT™ Panels
Handles
Lock Inserts
BULLETIN: CWSEM
Standard Product
Catalog Number AxBxC in./mm
Door
Gauge
Body
Gauge Panel
Conductive
Panel
Panel Size
D x E
in./mm
Mounting
G x H
in./mm
Latches
Qty.
J
in./mm
CSD12126EMCSS 12.00 x 12.00 x 6.00
305 x 305 x 152
16 18 CP1212 CP1212G 10.20 x 10.20
259 x 259
10.50 x 10.50
267 x 267
1 6.00
152
CSD16126EMCSS 16.00 x 12.00 x 6.00
406 x 305 x 152
16 18 CP1612 CP1612G 14.20 x 10.20
361 x 259
14.50 x 10.50
368 x 267
1 8.00
203
CSD16166EMCSS 16.00 x 16.00 x 6.00
406 x 406 x 152
16 18 CP1616 CP1616G 14.20 x 14.20
361 x 361
14.50 x 14.50
368 x 368
1 8.00
203
CSD20166EMCSS 20.00 x 16.00 x 6.00
508 x 406 x 152
16 18 CP2016 CP2016G 18.20 x 14.50
462 x 361
18.50 x 14.50
470 x 368
1 10.00
254
CSD16208EMCSS 16.00 x 20.00 x 8.00
406 x 508 x 203
16 18 CP2016 CP2016G 18.20 x 14.20
462 x 361
14.50 x 18.50
368 x 470
1 8.00
203
CSD24208EMCSS 24.00 x 20.00 x 8.00
610 x 508 x 203
16 18 CP2420 CP2420G 22.20 x 18.20
564 x 462
22.50 x 18.50
572 x 470
1 12.00
305
CSD24248EMCSS 24.00 x 24.00 x 8.00
610 x 610 x 203
14 16 CP2424 CP2424G 22.20 x 22.20
564 x 564
22.50 x 22.50
572 x 572
2 5.00
127
CSD30248EMCSS 30.00 x 24.00 x 8.00
762 x 610 x 203
14 16 CP3024 CP3024G 28.20 x 22.20
716 x 564
28.50 x 22.50
724 x 572
2 5.00
127
CSD36308EMCSS 36.00 x 30.00 x 8.00
914 x 762 x 203
14 16 CP3630 CP3630G 34.20 x 28.20
869 x 716
34.50 x 28.50
876 x 724
2 5.00
127
CSD242412EMCSS 24.00 x 24.00 x 12.00
610 x 610 x 305
14 16 CP2424 CP2424G 22.20 x 22.20
564 x 564
22.50 x 22.50
572 x 572
2 5.00
127
CSD362412EMCSS 36.00 x 24.00 x 12.00
914 x 610 x 305
14 16 CP3624 CP3624G 34.20 x 22.20
869 x 564
34.50 x 22.50
876 x 572
2 5.00
127
Purchase panels separately.
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 165
2
WALLMOUNT ENCLOSURES CONCEPT™ WALL-MOUNT ENCLOSURES
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL166
2
WALLMOUNT ENCLOSURES WALL-MOUNT ENCLOSURES AND ACCESSORIES
WALL-MOUNT ENCLOSU RES AND ACCES SORIES
CONTINUOUS HINGE WITH 3POINT LATCH, TYPE 4X
INDUSTRY STANDARDS
UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No.
E61997
NEMA/EEMAC Type 3R, 4, 4X, 12, 13
IEC 60529, IP66
Meets NEMA Type 3RX requirements
APPLICATION
These enclosures feature Hoffman’s exclusive POWERGLIDE
Handle with 3-point latching, ideal for indoor or outdoor applications
that require corrosion protection, convenient access, and
padlocking security.
SPECIFICATIONS
14 gauge Type 304 or 316L stainless steel bodies and doors
Seams continuously welded and ground smooth
Seamless foam-in-place gasket
Rolled lip around three sides of door
Internal 3-point latch and Type 316L stainless steel padlocking
POWERGLIDE Handle
Remove door by pulling stainless steel continuous hinge pin
Data pocket is high-impact thermoplastic
Collar studs provided for mounting optional panels
Exterior hardware on Type 316L stainless steel enclosures
matches enclosure material
Bonding provision on door; grounding stud on body
FINISH
Door, sides, top and bottom have smooth #4 brushed finish. Handle
is electropolished.
ACCESSORIES
See also Accessories.
Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
Steel and Stainless Steel Window Kits
H2OMIT™ Vent Drains, Type 4X
H2OMIT™ Thermoelectric Dehumidifier
MODIFICATION AND CUSTOMIZATION
Hoffman excels at modifying and customizing products to your
specifications. Contact your local Hoffman sales office or distributor
for complete information.
BULLETIN: A4SW3
Standard Product
Catalog Number AxBxC in./mm
Stainless
Steel Type
F
in./mm
Steel
Panel
Conductive
Panel
Stainless
Steel Panel
Panel Size
D x E
in./mm
Data
Pocket
A24H2006SSLP3PT 24.00 x 20.00 x 6.00
610 x 508 x 152
304 3.00
76
A24P20 A24P20G A24P20SS6 21.00 x 17.00
533 x 432
Small
A24H2006SS6LP3PT 24.00 x 20.00 x 6.00
610 x 508 x 152
316L 3.00
76
A24P20 A24P20G A24P20SS6 21.00 x 17.00
533 x 432
Small
A24H2008SSLP3PT 24.00 x 20.00 x 8.00
610 x 508 x 203
304 3.00
76
A24P20 A24P20G A24P20SS6 21.00 x 17.00
533 x 432
Small
A24H2008SS6LP3PT 24.00 x 20.00 x 8.00
610 x 508 x 203
316L 3.00
76
A24P20 A24P20G A24P20SS6 21.00 x 17.00
533 x 432
Small
A24H2408SSLP3PT 24.00 x 24.00 x 8.00
610 x 610 x 203
304 3.00
76
A24P24 A24P24G A24P24SS6 21.00 x 21.00
533 x 533
Small
A24H2408SS6LP3PT 24.00 x 24.00 x 8.00
610 x 610 x 203
316L 3.00
76
A24P24 A24P24G A24P24SS6 21.00 x 21.00
533 x 533
Small
A30H2408SSLP3PT 30.00 x 24.00 x 8.00
762 x 610 x 203
304 3.00
76
A30P24 A30P24G A30P24SS6 27.00 x 21.00
686 x 533
Large
A30H2408SS6LP3PT 30.00 x 24.00 x 8.00
762 x 610 x 203
316L 3.00
76
A30P24 A30P24G A30P24SS6 27.00 x 21.00
686 x 533
Large
A30H3008SSLP3PT 30.00 x 30.00 x 8.00
762 x 762 x 203
304 3.00
76
A30P30 A30P30G A30P30SS6 27.00 x 27.00
686 x 686
Large
A30H3008SS6LP3PT 30.00 x 30.00 x 8.00
762 x 762 x 203
316L 3.00
76
A30P30 A30P30G A30P30SS6 27.00 x 27.00
686 x 686
Large
A36H2408SSLP3PT 36.00 x 24.00 x 8.00
914 x 610 x 203
304 3.00
76
A36P24 A36P24G A36P24SS6 33.00 x 21.00
838 x 533
Large
A36H2408SS6LP3PT 36.00 x 24.00 x 8.00
914 x 610 x 203
316L 3.00
76
A36P24 A36P24G A36P24SS6 33.00 x 21.00
838 x 533
Large
A36H3008SSLP3PT 36.00 x 30.00 x 8.00
914 x 762 x 203
304 3.00
76
A36P30 A36P30G A36P30SS6 33.00 x 27.00
838 x 686
Large
A36H3008SS6LP3PT 36.00 x 30.00 x 8.00
914 x 762 x 203
316L 3.00
76
A36P30 A36P30G A36P30SS6 33.00 x 27.00
838 x 686
Large
A48H3608SSLP3PT 48.00 x 36.00 x 8.00
1219 x 914 x 203
304 3.00
76
A48P36 A48P36G A48P36SS6 45.00 x 33.00
1143 x 838
Large
A48H3608SS6LP3PT 48.00 x 36.00 x 8.00
1219 x 914 x 203
316L 3.00
76
A48P36 A48P36G A48P36SS6 45.00 x 33.00
1143 x 838
Large
A24H2010SSLP3PT 24.00 x 20.00 x 10.00
610 x 508 x 254
304 3.00
76
A24P20 A24P20G A24P20SS6 21.00 x 17.00
533 x 432
Small
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 167
2
WALLMOUNT ENCLOSURES WALL-MOUNT ENCLOSURES AND ACCESSORIES
Catalog Number AxBxC in./mm
Stainless
Steel Type
F
in./mm
Steel
Panel
Conductive
Panel
Stainless
Steel Panel
Panel Size
D x E
in./mm
Data
Pocket
A24H2010SS6LP3PT 24.00 x 20.00 x 10.00
610 x 508 x 254
316L 3.00
76
A24P20 A24P20G A24P20SS6 21.00 x 17.00
533 x 432
Small
A36H3010SSLP3PT 36.00 x 30.00 x 10.00
914 x 762 x 254
304 3.00
76
A36P30 A36P30G A36P30SS6 33.00 x 27.00
838 x 686
Large
A36H3010SS6LP3PT 36.00 x 30.00 x 10.00
914 x 762 x 254
316L 3.00
76
A36P30 A36P30G A36P30SS6 33.00 x 27.00
838 x 686
Large
A42H3010SSLP3PT 42.00 x 30.00 x 10.00
1067 x 762 x 254
304 3.00
76
A42P30 A42P30G A42P30SS6 39.00 x 27.00
991 x 686
Large
A48H3610SSLP3PT 48.00 x 36.00 x 10.00
1219 x 914 x 254
304 3.00
76
A48P36 A48P36G A48P36SS6 45.00 x 33.00
1143 x 838
Large
A48H3610SS6LP3PT 48.00 x 36.00 x 10.00
1219 x 914 x 254
316L 3.00
76
A48P36 A48P36G A48P36SS6 45.00 x 33.00
1143 x 838
Large
A24H2412SSLP3PT 24.00 x 24.00 x 12.00
610 x 610 x 305
304 3.00
76
A24P24 A24P24G A24P24SS6 21.00 x 21.00
533 x 533
Small
A24H2412SS6LP3PT 24.00 x 24.00 x 12.00
610 x 610 x 305
316L 3.00
76
A24P24 A24P24G A24P24SS6 21.00 x 21.00
533 x 533
Small
A30H2412SSLP3PT 30.00 x 24.00 x 12.00
760 x 610 x 305
304 3.00
76
A30P24 A30P24G A30P24SS6 27.00 x 21.00
686 x 533
Large
A30H2412SS6LP3PT 30.00 x 24.00 x 12.00
762 x 610 x 305
316L 3.00
76
A30P24 A30P24G A30P24SS6 27.00 x 21.00
686 x 533
Large
A36H3012SSLP3PT 36.00 x 30.00 x 12.00
914 x 762 x 305
304 3.00
76
A36P30 A36P30G A36P30SS6 33.00 X 27.00
838 x 686
Large
A36H3012SS6LP3PT 36.00 x 30.00 x 12.00
914 x 762 x 305
316L 3.00
76
A36P30 A36P30G A36P30SS6 33.00 X 27.00
838 x 686
Large
A36H3612SSLP3PT 36.00 x 36.00 x 12.00
914 x 914 x 305
304 3.00
76
A36P36 A36P36G A36P36SS6 33.00 x 33.00
838 x 838
Large
A36H3612SS6LP3PT 36.00 x 36.00 x 12.00
914 x 914 x 305
316L 3.00
76
A36P36 A36P36G A36P36SS6 33.00 x 33.00
838 x 838
Large
A42H3612SSLP3PT 42.00 x 36.00 x 12.00
1067 x 914 x 305
304 3.00
76
A42P36 A42P36G A42P36SS6 39.00 x 33.00
991 x 838
Large
A48H3612SSLP3PT 48.00 x 36.00 x 12.00
1219 x 914 x 305
304 3.00
76
A48P36 A48P36G A48P36SS6 45.00 x 33.00
1143 x 838
Large
A48H3612SS6LP3PT 48.00 x 36.00 x 12.00
1219 x 914 x 305
316L 3.00
76
A48P36 A48P36G A48P36SS6 45.00 x 33.00
1143 x 838
Large
A60H3612SSLP3PT 60.00 x 36.00 x 12.00
1524 x 914 x 305
304 3.00
76
A60P36 A60P36G A60P36SS6 57.00 x 33.00
1448 x 838
Large
A60H3612SS6LP3PT 60.00 x 36.00 x 12.00
1524 x 914 x 305
316L 3.00
76
A60P36 A60P36G A60P36SS6 57.00 x 33.00
1448 x 838
Large
A48H3616SSLP3PT 48.00 x 36.00 x 16.00
1219 x 914 x 406
304 3.00
76
A48P36 A48P36G A48P36SS6 45.00 x 33.00
1143 x 838
Large
A48H3616SS6LP3PT 48.00 x 36.00 x 16.00
1219 x 914 x 406
316L 3.00
76
A48P36 A48P36G A48P36SS6 45.00 x 33.00
1143 x 838
Large
A60H3616SSLP3PT 60.00 x 36.00 x 16.00
1524 x 914 x 406
304 3.00
76
A60P36 A60P36G A60P36SS6 57.00 x 33.00
1448 x 838
Large
A60H3616SS6LP3PT 60.00 x 36.00 x 16.00
1524 x 914 x 406
316L 3.00
76
A60P36 A60P36G A60P36SS6 57.00 x 33.00
1448 x 838
Large
Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL168
2
WALLMOUNT ENCLOSURES WALL-MOUNT ENCLOSURES AND ACCESSORIES
CONTINUOUS HINGE WITH CLAMPS, TYPE 4X
INDUSTRY STANDARDS
UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No.
E61997
NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13
CSA File No. 42186: Type 4, 4X, 12
IEC 60529, IP66
Meets NEMA Type 3RX requirements
APPLICATION
For use in indoor and outdoor corrosive environments that require
a water-tight seal, this enclosure’s seamless foam-in-place
gasket and screw-down clamps provide a secure seal against
contaminants.
SPECIFICATIONS
14 gauge Type 304 or Type 316L stainless steel bodies and doors
Seams continuously welded and ground smooth
Seamless foam-in-place gasket
Rolled lip around three sides of door
Stainless steel door clamp assembly
Hasp and staple for padlocking
Door removed by pulling stainless steel continuous hinge pin
Data pocket is high-impact thermoplastic
Collar studs provided for mounting optional panels
Exterior hardware on Type 316L stainless steel enclosures
matches enclosure material
Bonding provision on door; grounding stud on body
FINISH
Door, sides, top and bottom have smooth #4 brushed finish.
ACCESSORIES
See also Accessories.
Fast-Operating Clamp Assembly
Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
Junction Box and Wall-Mount Enclosure Swing Out Panel Kit
Steel and Stainless Steel Window Kits
H2OMIT™ Vent Drains, Type 4X
H2OMIT™ Thermoelectric Dehumidifier
MODIFICATION AND CUSTOMIZATION
Hoffman excels at modifying and customizing products to your
specifications. Contact your local Hoffman sales office or distributor
for complete information.
BULLETIN: A4S
Standard Product
Catalog Number AxBxC in./mm
Stainless
Steel Type Steel Panel
Conductive
Steel Panel
Stainless
Steel Panel
Panel Size
D x E
in./mm
F
in./mm
Clamps
Qty.
Data
Pocket
A16H1206SSLP 16.00 x 12.00 x 6.00
406 x 305 x 152
304 A16P12 A16P12G A16P12SS6 13.00 x 9.00
330 x 229
1.25
32
4 Small
A16H1206SS6LP 16.00 x 12.00 x 6.00
406 x 305 x 152
316L A16P12 A16P12G A16P12SS6 13.00 x 9.00
330 x 229
1.25
32
4 Small
A16H1606SSLP 16.00 x 16.00 x 6.00
406 x 406 x 152
304 A16P16 A16P16G A16P16SS6 13.00 x 13.00
330 x 330
3.00
76
4 Small
A16H1606SS6LP 16.00 x 16.00 x 6.00
406 x 406 x 152
316L A16P16 A16P16G A16P16SS6 13.00 x 13.00
330 x 330
3.00
76
4 Small
A16H2006SSLP 16.00 x 20.00 x 6.00
406 x 508 x 152
304 A20P16 A20P16G A20P16SS6 17.00 x 13.00
432 x 330
3.00
76
4 Small
A16H2006SS6LP 16.00 x 20.00 x 6.00
406 x 508 x 152
316L A20P16 A20P16G A20P16SS6 17.00 x 13.00
432 x 330
3.00
76
4 Small
A20H1606SSLP 20.00 x 16.00 x 6.00
508 x 406 x 152
304 A20P16 A20P16G A20P16SS6 17.00 x 13.00
432 x 330
3.00
76
4 Small
A20H1606SS6LP 20.00 x 16.00 x 6.00
508 x 406 x 152
316L A20P16 A20P16G A20P16SS6 17.00 x 13.00
432 x 330
3.00
76
4 Small
A20H2006SSLP 20.00 x 20.00 x 6.00
508 x 508 x 152
304 A20P20 A20P20G A20P20SS6 17.00 x 17.00
432 x 432
3.00
76
4 Small
A20H2006SS6LP 20.00 x 20.00 x 6.00
508 x 508 x 152
316L A20P20 A20P20G A20P20SS6 17.00 x 17.00
432 x 432
3.00
76
4 Small
A24H2006SSLP 24.00 x 20.00 x 6.00
610 x 508 x 152
304 A24P20 A24P20G A24P20SS6 21.00 x 17.00
533 x 432
3.00
76
5 Small
A24H2006SS6LP 24.00 x 20.00 x 6.00
610 x 508 x 152
316L A24P20 A24P20G A24P20SS6 21.00 x 17.00
533 x 432
3.00
76
5 Small
A24H2406SSLP 24.00 x 24.00 x 6.00
610 x 610 x 152
304 A24P24 A24P24G A24P24SS6 21.00 x 21.00
533 x 533
3.00
76
5 Small
A24H2406SS6LP 24.00 x 24.00 x 6.00
610 x 610 x 152
316L A24P24 A24P24G A24P24SS6 21.00 x 21.00
533 x 533
3.00
76
5 Small
A16H1208SSLP 16.00 x 12.00 x 8.00
406 x 305 x 203
304 A16P12 A16P12G A16P12SS6 13.00 x 9.00
330 x 229
1.25
32
4 Small
A16H1208SS6LP 16.00 x 12.00 x 8.00
406 x 305 x 203
316L A16P12 A16P12G A16P12SS6 13.00 x 9.00
330 x 229
1.25
32
4 Small
A20H1608SSLP 20.00 x 16.00 x 8.00
508 x 406 x 203
304 A20P16 A20P16G A20P16SS6 17.00 x 13.00
432 x 330
3.00
76
4 Small
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 169
2
WALLMOUNT ENCLOSURES WALL-MOUNT ENCLOSURES AND ACCESSORIES
Catalog Number AxBxC in./mm
Stainless
Steel Type Steel Panel
Conductive
Steel Panel
Stainless
Steel Panel
Panel Size
D x E
in./mm
F
in./mm
Clamps
Qty.
Data
Pocket
A20H1608SS6LP 20.00 x 16.00 x 8.00
508 x 406 x 203
316L A20P16 A20P16G A20P16SS6 17.00 x 13.00
432 x 330
3.00
76
4 Small
A20H2008SSLP 20.00 x 20.00 x 8.00
508 x 508 x 203
304 A20P20 A20P20G A20P20SS6 17.00 x 17.00
432 x 432
3.00
76
4 Small
A20H2008SS6LP 20.00 x 20.00 x 8.00
508 x 508 x 203
316L A20P20 A20P20G A20P20SS6 17.00 x 17.00
432 x 432
3.00
76
4 Small
A20H2408SSLP 20.00 x 24.00 x 8.00
508 x 610 x 203
304 A24P20 A24P20G A24P20SS6 21.00 x 17.00
533 x 432
3.00
76
4 Small
A20H2408SS6LP 20.00 x 24.00 x 8.00
508 x 610 x 203
316L A24P20 A24P20G A24P20SS6 21.00 x 17.00
533 x 432
3.00
76
4 Small
A24H1608SSLP 24.00 x 16.00 x 8.00
610 x 406 x 203
304 A24P16 A24P16G A24P16SS6 21.00 x 13.00
533 x 330
3.00
76
5 Small
A24H1608SS6LP 24.00 x 16.00 x 8.00
610 x 406 x 203
316L A24P16 A24P16G A24P16SS6 21.00 x 13.00
533 x 330
3.00
76
5 Small
A24H2008SSLP 24.00 x 20.00 x 8.00
610 x 508 x 203
304 A24P20 A24P20G A24P20SS6 21.00 x 17.00
533 x 432
3.00
76
5 Small
A24H2008SS6LP 24.00 x 20.00 x 8.00
610 x 508 x 203
316L A24P20 A24P20G A24P20SS6 21.00 x 17.00
533 x 432
3.00
76
5 Small
A24H2408SSLP 24.00 x 24.00 x 8.00
610 x 610 x 203
304 A24P24 A24P24G A24P24SS6 21.00 x 21.00
533 x 533
3.00
76
5 Small
A24H2408SS6LP 24.00 x 24.00 x 8.00
610 x 610 x 203
316L A24P24 A24P24G A24P24SS6 21.00 x 21.00
533 x 533
3.00
76
5 Small
A24H3008SSLP 24.00 x 30.00 x 8.00
610 x 762 x 203
304 A30P24 A30P24G A30P24SS6 27.00 x 21.00
686 x 533
3.00
76
7 Small
A24H3008SS6LP 24.00 x 30.00 x 8.00
610 x 762 x 203
316L A30P24 A30P24G A30P24SS6 27.00 x 21.00
686 x 533
3.00
76
7 Small
A30H2008SSLP 30.00 x 20.00 x 8.00
762 x 508 x 203
304 A30P20 A30P20G A30P20SS6 27.00 x 17.00
686 x 432
3.00
76
5 Small
A30H2008SS6LP 30.00 x 20.00 x 8.00
762 x 508 x 203
316L A30P20 A30P20G A30P20SS6 27.00 x 17.00
686 x 432
3.00
76
5 Small
A30H2408SSLP 30.00 x 24.00 x 8.00
762 x 610 x 203
304 A30P24 A30P24G A30P24SS6 27.00 x 21.00
686 x 533
3.00
76
5 Large
A30H2408SS6LP 30.00 x 24.00 x 8.00
762 x 610 x 203
316L A30P24 A30P24G A30P24SS6 27.00 x 21.00
686 x 533
3.00
76
5 Large
A30H3008SSLP 30.00 x 30.00 x 8.00
762 x 762 x 203
304 A30P30 A30P30G A30P30SS6 27.00 x 27.00
686 x 686
3.00
76
7 Large
A30H3008SS6LP 30.00 x 30.00 x 8.00
762 x 762 x 203
316L A30P30 A30P30G A30P30SS6 27.00 x 27.00
686 x 686
3.00
76
7 Large
A36H2408SSLP 36.00 x 24.00 x 8.00
914 x 610 x 203
304 A36P24 A36P24G A36P24SS6 33.00 x 21.00
838 x 533
3.00
76
5 Large
A36H2408SS6LP 36.00 x 24.00 x 8.00
914 x 610 x 203
316L A36P24 A36P24G A36P24SS6 33.00 x 21.00
838 x 533
3.00
76
5 Large
A36H3008SSLP 36.00 x 30.00 x 8.00
914 x 762 x 203
304 A36P30 A36P30G A36P30SS6 33.00 x 27.00
838 x 686
3.00
76
7 Large
A36H3008SS6LP 36.00 x 30.00 x 8.00
914 x 762 x 203
316L A36P30 A36P30G A36P30SS6 33.00 x 27.00
838 x 686
3.00
76
7 Large
A42H3608SSLP 42.00 x 36.00 x 8.00
1067 x 914 x 203
304 A42P36 A42P36G A42P36SS6 39.00 x 33.00
991 x 838
3.00
76
8 Large
A42H3608SS6LP 42.00 x 36.00 x 8.00
1067 x 914 x 203
316L A42P36 A42P36G A42P36SS6 39.00 x 33.00
991 x 838
3.00
76
8 Large
A48H3608SSLP 48.00 x 36.00 x 8.00
1219 x 914 x 203
304 A48P36 A48P36G A48P36SS6 45.00 x 33.00
1143 x 838
3.00
76
8 Large
A48H3608SS6LP 48.00 x 36.00 x 8.00
1219 x 914 x 203
316L A48P36 A48P36G A48P36SS6 45.00 x 33.00
1143 x 838
3.00
76
8 Large
A20H1610SSLP 20.00 x 16.00 x 10.00
508 x 406 x 254
304 A20P16 A20P16G A20P16SS6 17.00 x 13.00
432 x 330
3.00
76
4 Small
A20H1610SS6LP 20.00 x 16.00 x 10.00
508 x 406 x 254
316L A20P16 A20P16G A20P16SS6 17.00 x 13.00
432 x 330
3.00
76
4 Small
A24H2010SSLP 24.00 x 20.00 x 10.00
610 x 508 x 254
304 A24P20 A24P20G A24P20SS6 21.00 x 17.00
533 x 432
3.00
76
5 Small
A24H2010SS6LP 24.00 x 20.00 x 10.00
610 x 508 x 254
316L A24P20 A24P20G A24P20SS6 21.00 x 17.00
533 x 432
3.00
76
5 Small
A30H2410SSLP 30.00 x 24.00 x 10.00
762 x 610 x 254
304 A30P24 A30P24G A30P24SS6 27.00 x 21.00
686 x 533
3.00
76
5 Large
A30H2410SS6LP 30.00 x 24.00 x 10.00
762 x 610 x 254
316L A30P24 A30P24G A30P24SS6 27.00 x 21.00
686 x 533
3.00
76
5 Large
A36H2410SSLP 36.00 x 24.00 x 10.00
914 x 610 x 254
304 A36P24 A36P24G A36P24SS6 33.00 x 21.00
838 x 533
3.00
76
5 Large
A36H2410SS6LP 36.00 x 24.00 x 10.00
914 x 610 x 254
316L A36P24 A36P24G A36P24SS6 33.00 x 21.00
838 x 533
3.00
76
5 Large
A36H3010SSLP 36.00 x 30.00 x 10.00
914 x 762 x 254
304 A36P30 A36P30G A36P30SS6 33.00 x 27.00
838 x 686
3.00
76
7 Large
A36H3010SS6LP 36.00 x 30.00 x 10.00
914 x 762 x 254
316L A36P30 A36P30G A36P30SS6 33.00 x 27.00
838 x 686
3.00
76
7 Large
A42H3010SSLP 42.00 x 30.00 x 10.00
1067 x 762 x 254
304 A42P30 A42P30G A42P30SS6 39.00 x 27.00
991 x 686
3.00
76
8 Large
A42H3010SS6LP 42.00 x 30.00 x 10.00
1067 x 762 x 254
316L A42P30 A42P30G A42P30SS6 39.00 x 27.00
991 x 686
3.00
76
8 Large
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL170
2
WALLMOUNT ENCLOSURES WALL-MOUNT ENCLOSURES AND ACCESSORIES
Catalog Number AxBxC in./mm
Stainless
Steel Type Steel Panel
Conductive
Steel Panel
Stainless
Steel Panel
Panel Size
D x E
in./mm
F
in./mm
Clamps
Qty.
Data
Pocket
A48H3610SSLP 48.00 x 36.00 x 10.00
1219 x 914 x 254
304 A48P36 A48P36G A48P36SS6 45.00 x 33.00
1143 x 838
3.00
76
8 Large
A48H3610SS6LP 48.00 x 36.00 x 10.00
1219 x 914 x 254
316L A48P36 A48P36G A48P36SS6 45.00 x 33.00
1143 x 838
3.00
76
8 Large
A24H2412SSLP 24.00 x 24.00 x 12.00
610 x 610 x 305
304 A24P24 A24P24G A24P24SS6 21.00 x 21.00
533 x 533
3.00
76
5 Small
A24H2412SS6LP 24.00 x 24.00 x 12.00
610 x 610 x 305
316L A24P24 A24P24G A24P24SS6 21.00 x 21.00
533 x 533
3.00
76
5 Small
A30H2412SSLP 30.00 x 24.00 x 12.00
762 x 610 x 305
304 A30P24 A30P24G A30P24SS6 27.00 x 21.00
686 x 533
3.00
76
5 Large
A30H2412SS6LP 30.00 x 24.00 x 12.00
762 x 610 x 305
316L A30P24 A30P24G A30P24SS6 27.00 x 21.00
686 x 533
3.00
76
5 Large
A36H3012SSLP 36.00 x 30.00 x 12.00
914 x 762 x 305
304 A36P30 A36P30G A36P30SS6 33.00 x 27.00
838 x 686
3.00
76
7 Large
A36H3012SS6LP 36.00 x 30.00 x 12.00
914 x 762 x 305
316L A36P30 A36P30G A36P30SS6 33.00 x 27.00
838 x 686
3.00
76
7 Large
A36H3612SSLP 36.00 x 36.00 x 12.00
914 x 914 x 305
304 A36P36 A36P36G A36P36SS6 33.00 x 33.00
838 x 838
3.00
76
7 Large
A36H3612SS6LP 36.00 x 36.00 x 12.00
914 x 914 x 305
316L A36P36 A36P36G A36P36SS6 33.00 x 33.00
838 x 838
3.00
76
7 Large
A48H3612SSLP 48.00 x 36.00 x 12.00
1219 x 914 x 305
304 A48P36 A48P36G A48P36SS6 45.00 x 33.00
1143 x 838
3.00
76
8 Large
A48H3612SS6LP 48.00 x 36.00 x 12.00
1219 x 914 x 305
316L A48P36 A48P36G A48P36SS6 45.00 x 33.00
1143 x 838
3.00
76
8 Large
A60H3612SSLP 60.00 x 36.00 x 12.00
1524 x 914 x 305
304 A60P36 A60P36G A60P36SS6 57.00 x 33.00
1448 x 838
3.00
76
9 Large
A60H3612SS6LP 60.00 x 36.00 x 12.00
1524 x 914 x 305
316L A60P36 A60P36G A60P36SS6 57.00 x 33.00
1448 x 838
3.00
76
9 Large
A30H2416SSLP 30.00 x 24.00 x 16.00
762 x 610 x 406
304 A30P24 A30P24G A30P24SS6 27.00 x 21.00
686 x 533
3.00
76
5 Large
A30H2416SS6LP 30.00 x 24.00 x 16.00
762 x 610 x 406
316L A30P24 A30P24G A30P24SS6 27.00 x 21.00
686 x 533
3.00
76
5 Large
A36H3016SSLP 36.00 x 30.00 x 16.00
914 x 762 x 406
304 A36P30 A36P30G A36P30SS6 33.00 x 27.00
838 x 686
3.00
76
7 Large
A36H3016SS6LP 36.00 x 30.00 x 16.00
914 x 762 x 406
316L A36P30 A36P30G A36P30SS6 33.00 x 27.00
838 x 686
3.00
76
7 Large
A48H3616SSLP 48.00 x 36.00 x 16.00
1219 x 914 x 406
304 A48P36 A48P36G A48P36SS6 45.00 x 33.00
1143 x 838
3.00
76
8 Large
A48H3616SS6LP 48.00 x 36.00 x 16.00
1219 x 914 x 406
316L A48P36 A48P36G A48P36SS6 45.00 x 33.00
1143 x 838
3.00
76
8 Large
A60H3616SSLP 60.00 x 36.00 x 16.00
1524 x 914 x 406
304 A60P36 A60P36G A60P36SS6 57.00 x 33.00
1448 x 838
3.00
76
9 Large
A60H3616SS6LP 60.00 x 36.00 x 16.00
1524 x 914 x 406
316L A60P36 A60P36G A60P36SS6 57.00 x 33.00
1448 x 838
3.00
76
9 Large
Purchase panels separately. Optional composite and aluminum panels are available for most sizes.
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 171
2
WALLMOUNT ENCLOSURES WALL-MOUNT ENCLOSURES AND ACCESSORIES
Popular Cooling Products
Enclosure Depth (C Dimension) Thermoelectric Controller
6 in. (152 mm) TE090624011
8 in. (203 mm) TE162024011
10 in. (254 mm) TE162024011
12 in. (305 mm) TE162024011
16 in. (406 mm) TE162024011
*Important: Visit tools.hoffmanonline.com/attachments to access our Cooling Selection Tool to determne the appropriate cooling solution for your application.
Popular Accessories
Enclosure Width (B Dimension) Lights Hole Seals Window Kits
12 in. (305 mm) LEDPUCK AS050SS APWK53NFSS
16 in. (406 mm) LEDA2M35 AS050SS APWK53NFSS
20 in. (508 mm) LED24V15 AS050SS APWK53NFSS
24 in. (610 mm) LED24V15 AS050SS APWK53NFSS
30 in. (762 mm) LED24V15 AS050SS APWK53NFSS
36 in. (914 mm) LED24V15 AS050SS APWK53NFSS
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL172
2
WALLMOUNT ENCLOSURES WALL-MOUNT ENCLOSURES AND ACCESSORIES
CONTINUOUS HINGE WITH CLAMPS, EMC, TYPE 4X
INDUSTRY STANDARDS
UL 508A Listed; Type 4, 4X, 12; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12; File No. E61997
NEMA/EEMAC Type 3, 4, 4X, 12, 13
CSA File No. 42186: Type 4, 4X, 12
IEC 60529, IP66
APPLICATION
Ideal for indoor or outdoor EMC applications to contain larger
controls in corrosive environments. Features a stainless steel,
woven-mesh encased gasket to keep out contaminants and provide
EMI/RFI shielding to internal components.
SPECIFICATIONS
14 gauge Type 304 stainless steel bodies and doors
Seams continuously welded and ground smooth
Seamless foam-in-place gasket adjacent to woven monel EMC
mesh gasket
Rolled lip around three sides of door
Stainless steel door clamp assemblies
Hasp and staple for padlocking
Removable door with continuous hinge
Data pocket is high impact thermoplastic
Collar studs provided for mounting optional panels
Bonding provision on door; grounding stud on body
FINISH
Door, sides, top and bottom have a smooth brushed #4 finish.
ACCESSORIES
See also Accessories.
Fast-Operating Clamp Assembly
PANELITE™ Enclosure Lights Overview
Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
Rack Mounting Angle Kit - L Style
Junction Box and Wall-Mount Enclosure Swing Out Panel Kit
Terminal Block Kit Assembly for Junction Boxes Overview
BULLETIN: A4SEM
Standard Product
Catalog Number AxBxC in./mm
Conductive
Steel Panel
Panel Size
D x E
in./mm
F
in./mm
Clamps
Qty. Data Pocket
A161206LPEMCSS 16.00 x 12.00 x 6.00
406 x 305 x 152
A16P12G 13.00 x 9.00
330 x 229
1.25
32
4 Small
A201606LPEMCSS 20.00 x 16.00 x 6.00
508 x 406 x 152
A20P16G 17.00 x 13.00
432 x 330
3.00
76
4 Small
A242006LPEMCSS 24.00 x 20.00 x 6.00
610 x 508 x 152
A24P20G 21.00 x 17.00
533 x 432
3.00
76
5 Small
A242408LPEMCSS 24.00 x 24.00 x 8.00
610 x 610 x 203
A24P24G 21.00 x 21.00
533 x 533
3.00
76
5 Small
A302408LPEMCSS 30.00 x 24.00 x 8.00
762 x 610 x 203
A30P24G 27.00 x 21.00
686 x 533
3.00
76
5 Large
A363008LPEMCSS 36.00 x 30.00 x 8.00
914 x 762 x 203
A36P30G 33.00 x 27.00
838 x 686
3.00
76
7 Large
A483608LPEMCSS 48.00 x 36.00 x 8.00
1219 x 914 x 203
A48P36G 45.00 x 33.00
1143 x 838
3.00
76
8 Large
A603612LPEMCSS 60.00 x 36.00 x 12.00
1524 x 914 x 305
A60P36G 57.00 x 33.00
1448 x 838
3.00
76
9 Large
Purchase panels separately. Optional conductive, mild steel, stainless steel, aluminum and composite panels are available for most sizes. See Accessories.
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 173
2
WALLMOUNT ENCLOSURES WALL-MOUNT ENCLOSURES AND ACCESSORIES
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL174
2
WALLMOUNT ENCLOSURES WALL-MOUNT ENCLOSURES AND ACCESSORIES

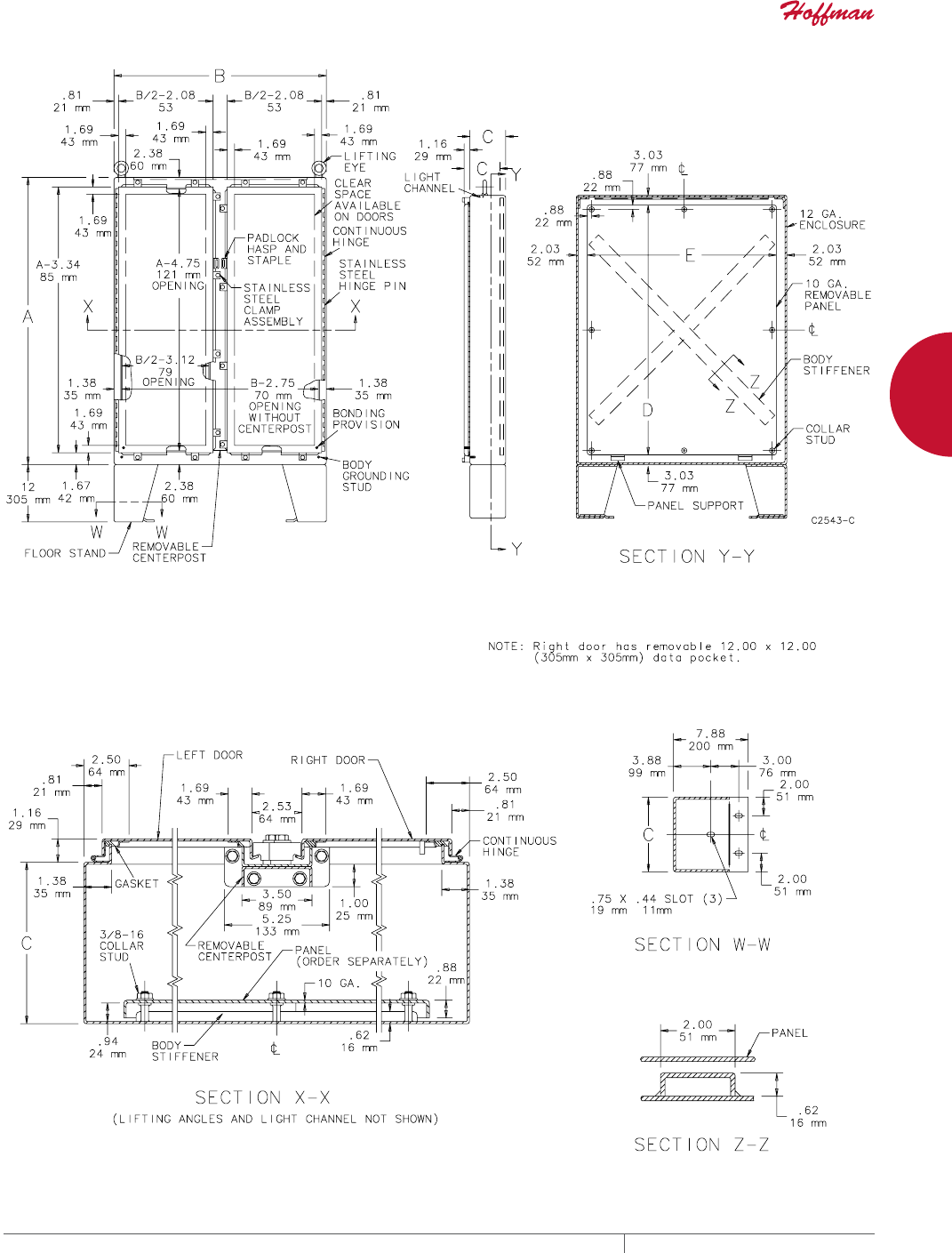

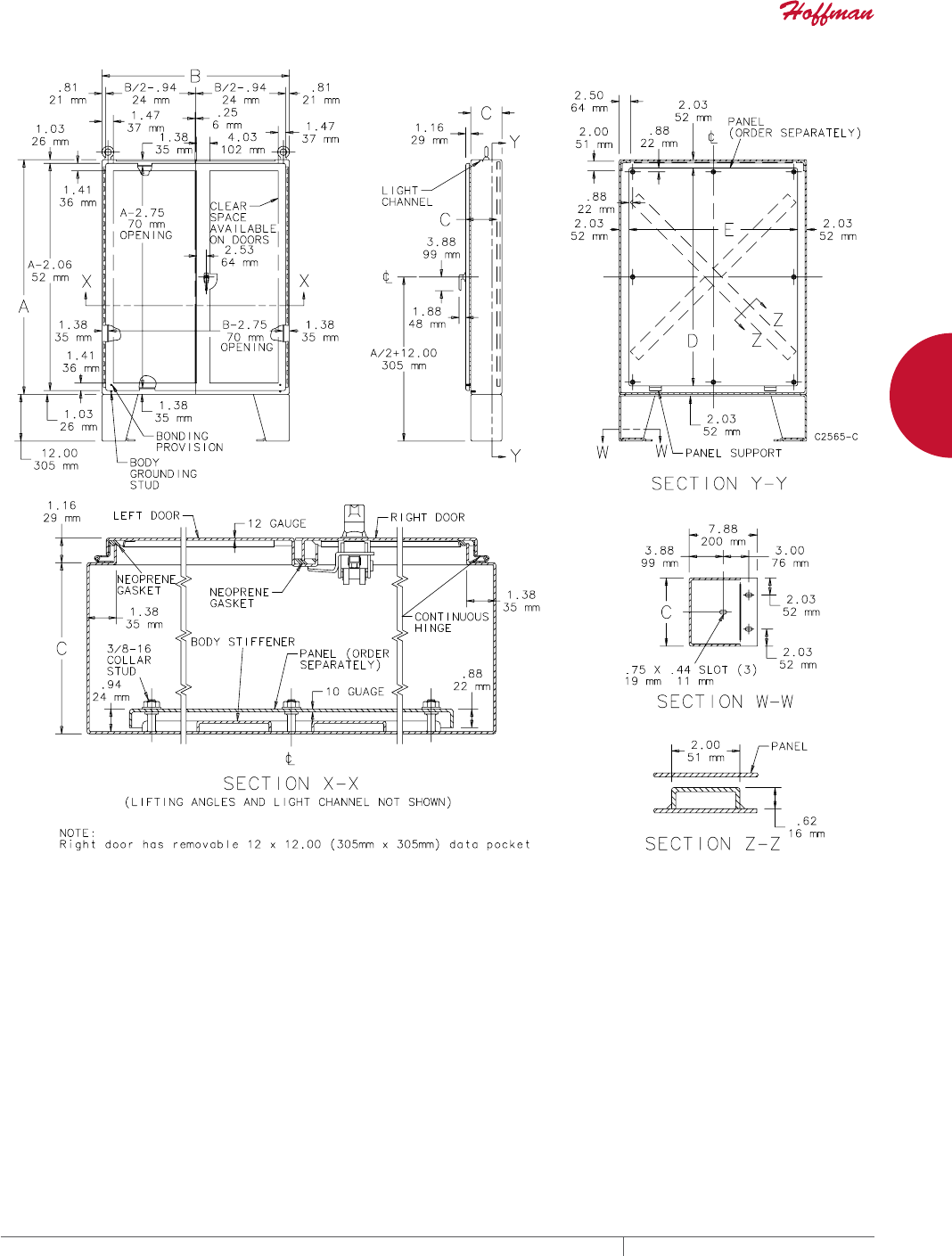

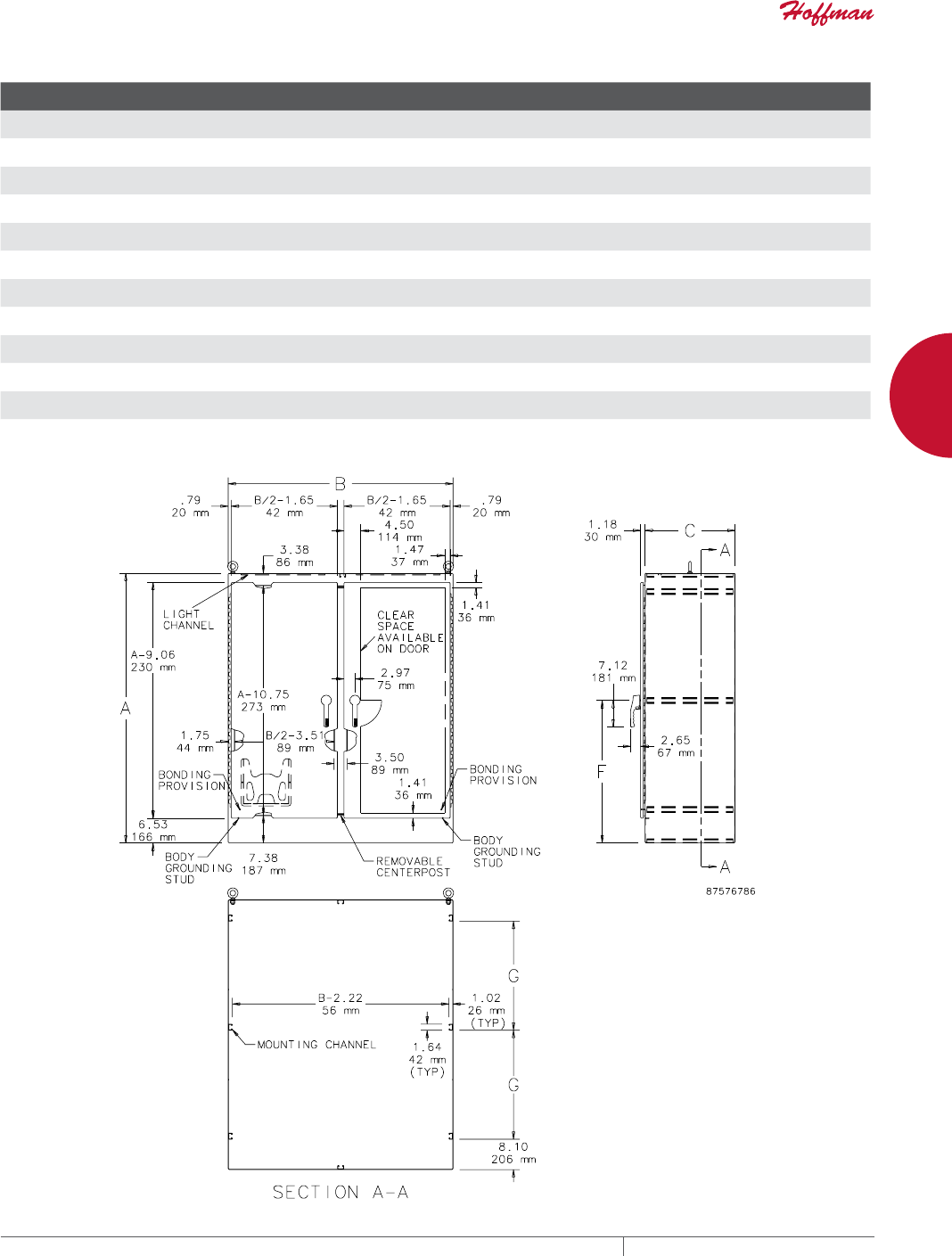

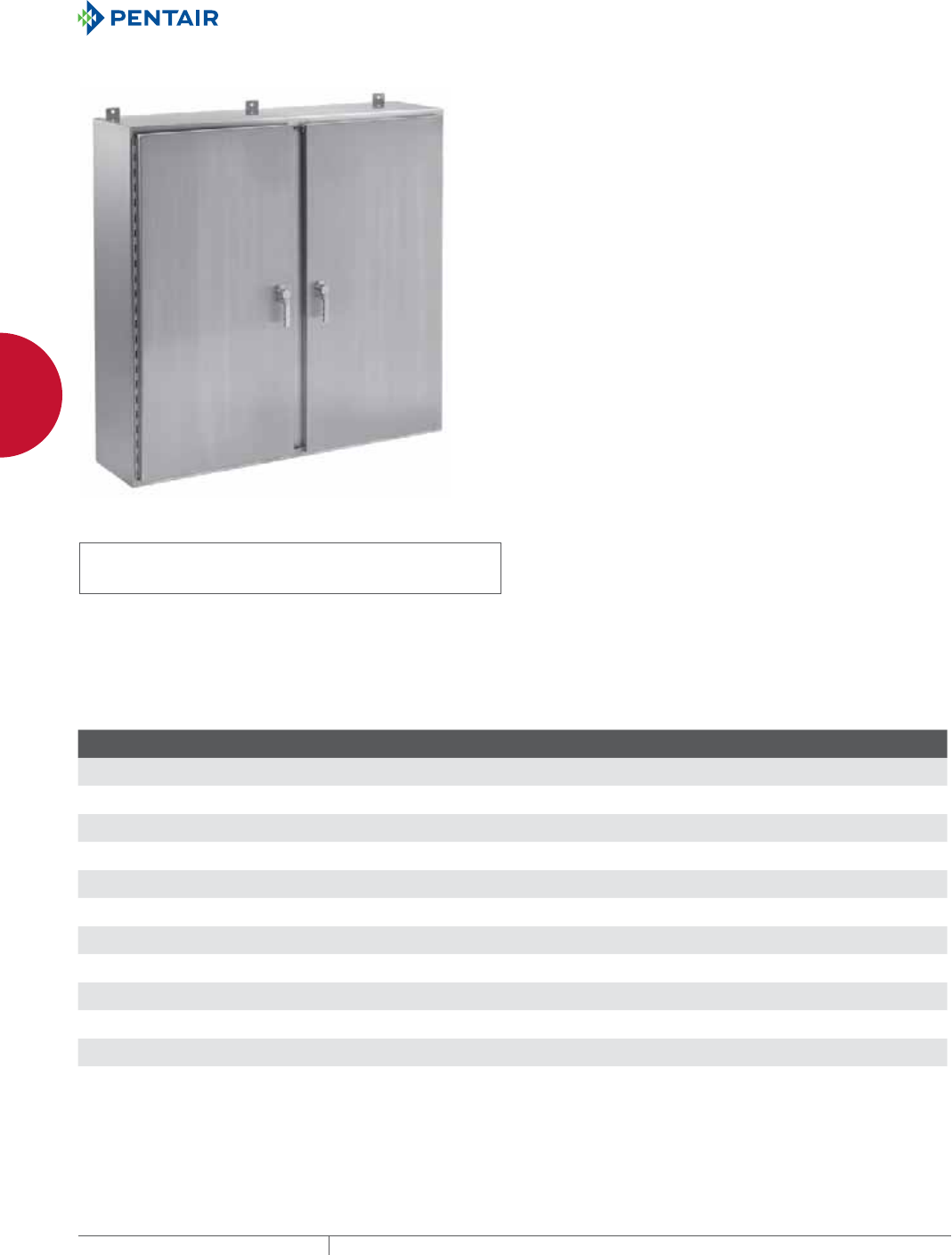

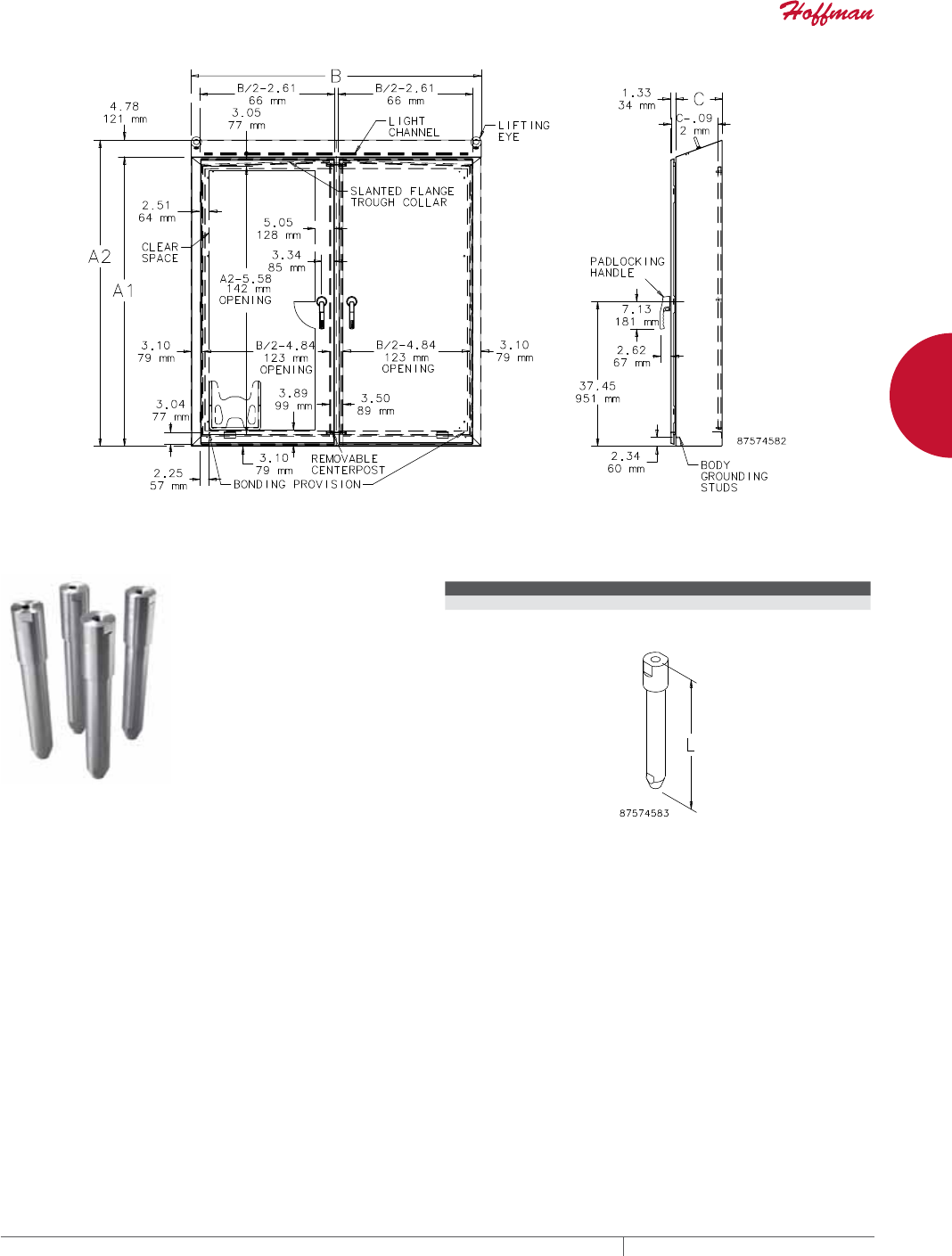

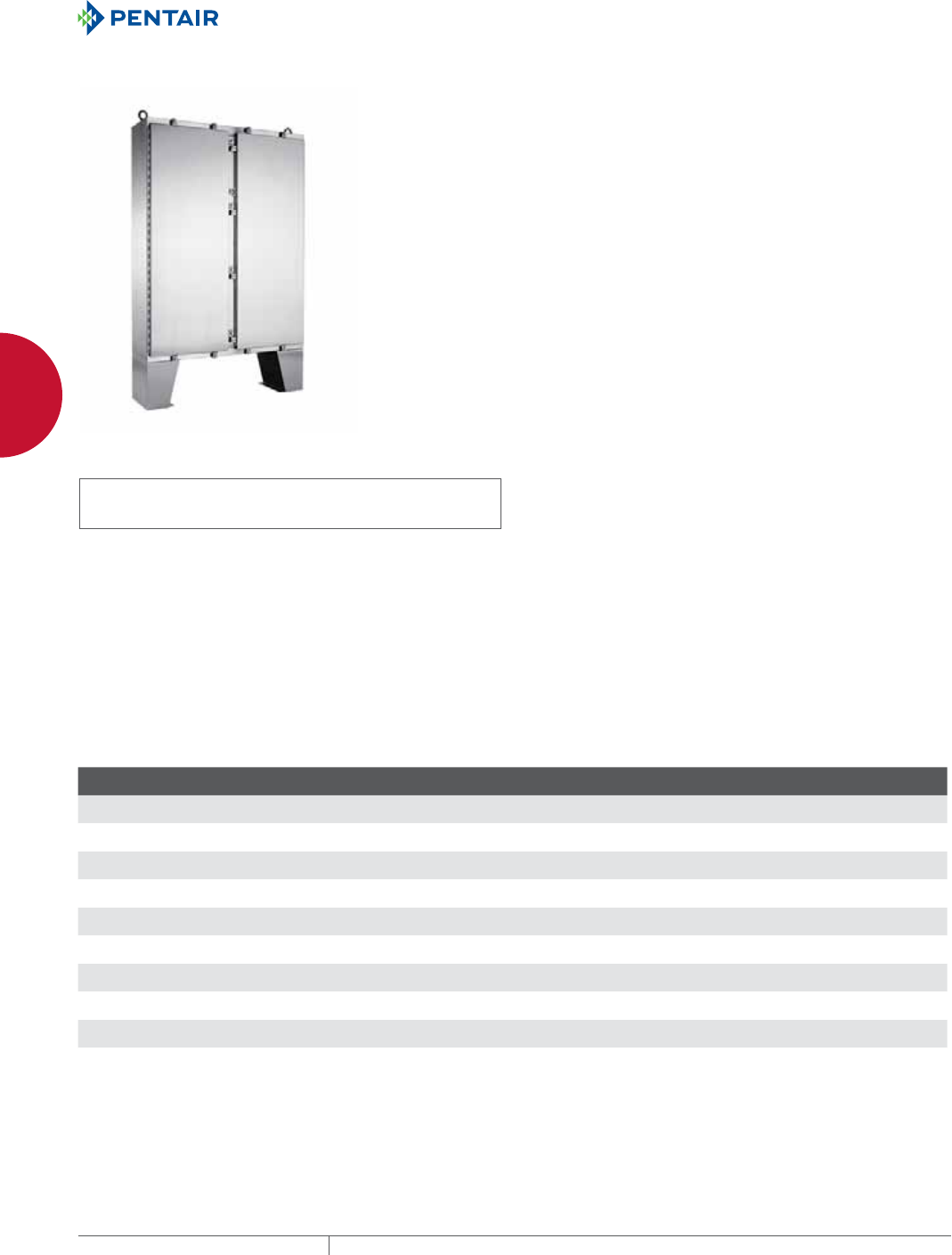

CONTINUOUS HINGE TWODOOR WITH 3POINT LATCH, TYPE 4X
INDUSTRY STANDARDS
UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File Number
E61997
NEMA Type 3, 3R, 4, 4X, 12, 13
IEC 60529, IP66
Meets NEMA Type 3RX requirements
APPLICATION
These two-door wall-mount enclosures provide industry-leading
protection for components in corrosive or wet environments.
Enclosures have a removable centerpost for easy panel installation,
3-point latching with Hoffman’s exclusive POWERGLIDE™ Handles,
and a seamless foam-in-place gasket for sealing protection from
contaminants.
SPECIFICATIONS
Manufactured from 14 gauge Type 304 stainless steel
Seams continuously welded and ground smooth
Removable centerpost for easy panel installation
Flange trough collar around all sides of enclosure door openings
External mounting brackets
Heavy-duty 3-point latching mechanism operated by Type 316
stainless steel POWERGLIDE padlocking handles
Easily removable doors by pulling heavy gauge continuous hinge
pin
Data pocket is high-impact thermoplastic
Seamless foam-in-place gasket
Collar studs provided for mounting optional panels
Bonding provisions on doors; grounding studs on body
FINISH
Doors, sides, top and bottom have smooth #4 brushed finish.
ACCESSORIES
See also Accessories.
Floor Stand Kit, Stainless Steel
PANELITE™ Enclosure Lights Overview
Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
Steel and Stainless Steel Window Kits
H2OMIT™ Vent Drains, Type 4X
H2OMIT™ Thermoelectric Dehumidifier
MODIFICATION AND CUSTOMIZATION
Hoffman excels at modifying and customizing products to your
specifications. Contact your local Hoffman sales office or distributor
for complete information.
BULLETIN: A4SW
Standard Product
Catalog Number AxBxC in./mm Mild Steel Panel Conductive Panel
Panel
Gauge
Panel Size D x E
in./mm
Y
in./mm
A24H4208WFSSLP3PT 24.00 x 42.00 x 8.00
610 x 1067 x 203
A42P24 A42P24G 12 39.00 x 21.00
991 x 533
1.50
38
A24H4808WFSSLP3PT 24.00 x 48.00 x 8.00
610 x 1219 x 203
A48P24 A48P24G 12 45.00 x 21.00
1143 x 533
1.50
38
A30H4210WFSSLP3PT 30.00 x 42.00 x 10.00
762 x 1067 x 254
A42P30 A42P30G 12 39.00 x 27.00
991 x 686
1.50
38
A30H4810WFSSLP3PT 30.00 x 48.00 x 10.00
762 x 1219 x 254
A48P30 A48P30G 12 45.00 x 27.00
1143 x 686
1.50
38
A30H6010WFSSLP3PT 30.00 x 60.00 x 10.00
762 x 1524 x 254
A60P30 A60P30G 12 57.00 x 27.00
1448 x 686
1.50
38
A36H4212WFSSLP3PT 36.00 x 42.00 x 12.00
914 x 1067 x 305
A42P36 A42P36G 12 39.00 x 33.00
991 x 838
1.50
38
A36H4812WFSSLP3PT 36.00 x 48.00 x 12.00
914 x 1219 x 305
A48P36 A48P36G 12 45.00 x 33.00
1143 x 838
1.50
38
A36H6012WFSSLP3PT 36.00 x 60.00 x 12.00
914 x 1524 x 305
A60P36 A60P36G 12 57.00 x 33.00
1448 x 838
1.50
38
A42H4212WFSSLP3PT 42.00 x 42.00 x 12.00
1067 x 1067 x 305
A42P42 A42P42G 12 39.00 x 39.00
991 x 991
1.50
38
A42H4812WFSSLP3PT 42.00 x 48.00 x 12.00
1067 x 1219 x 305
A48P42 A48P42G 12 45.00 x 39.00
1143 x 991
1.50
38
A42H6012WFSSALP3PT 42.00 x 60.00 x 12.00
1067 x 1524 x 305
A60BFP42 A60BFP42G 10 56.00 x 38.00
1422 x 965
2.00
51
A48H4812WFSSLP3PT 48.00 x 48.00 x 12.00
1219 x 1219 x 305
A48P48 A48P48G 10 44.00 x 44.00
1118 x 1118
2.00
51
Purchase panels separately. Optional stainless steel panels are available for most sizes.
Enclosure backs for A42H4212WFSSLP3PT, A42H4812WFSSLP3PT and A42H6012WFSSALP3PT have internal stiffeners.
A48H4812WFSSLP3PT is 14 gauge with a 12 gauge back.
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 175
2
WALLMOUNT ENCLOSURES WALL-MOUNT ENCLOSURES AND ACCESSORIES

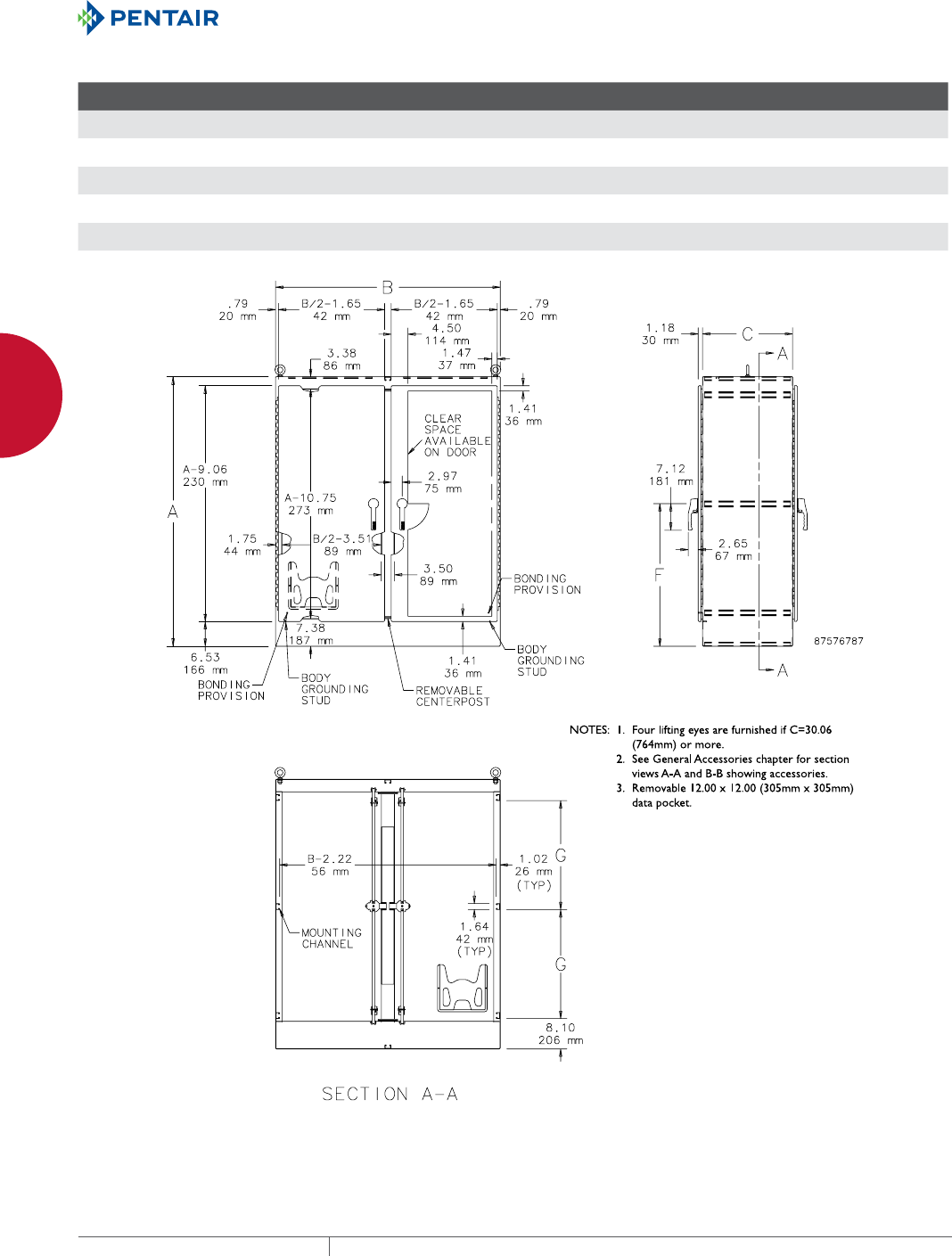

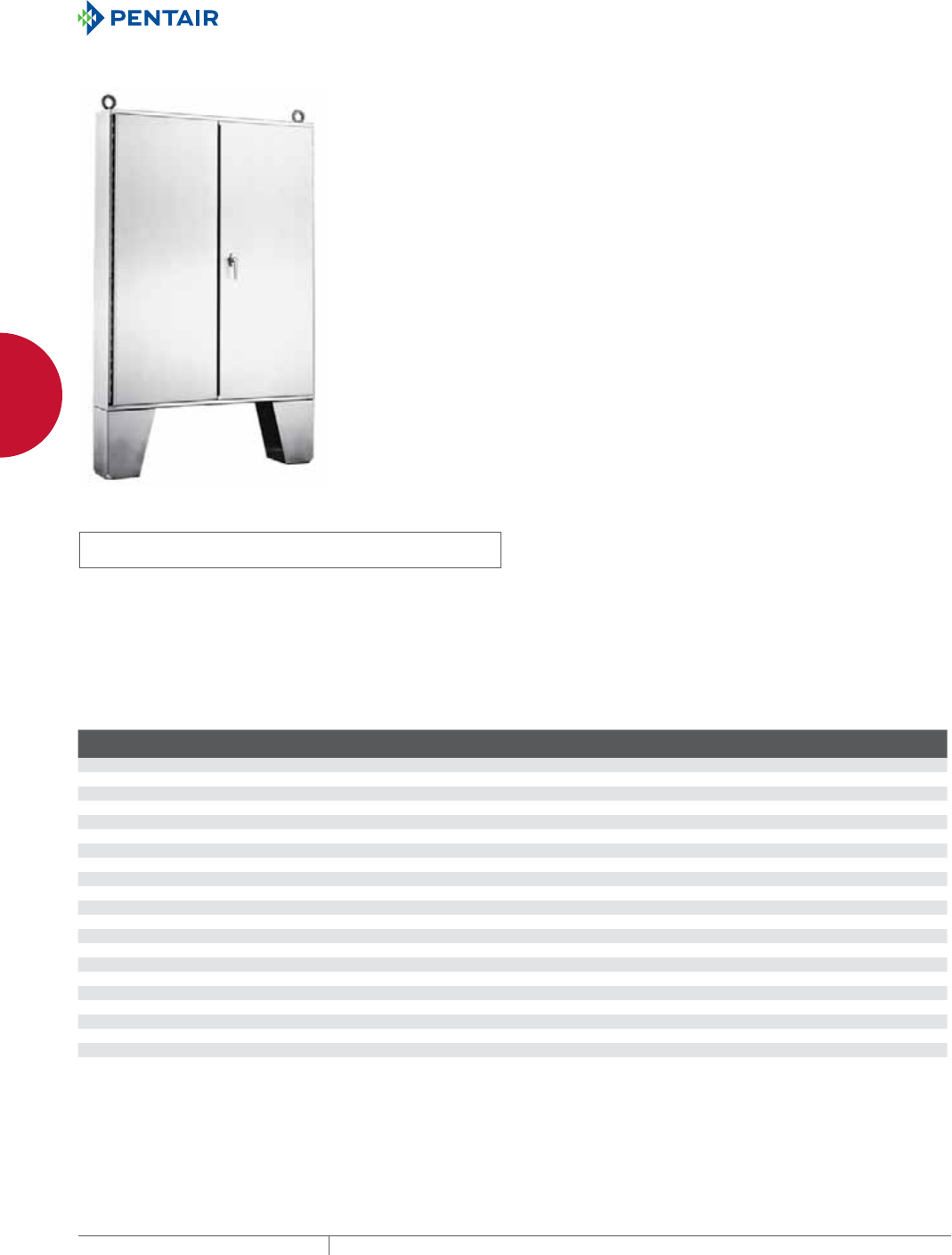

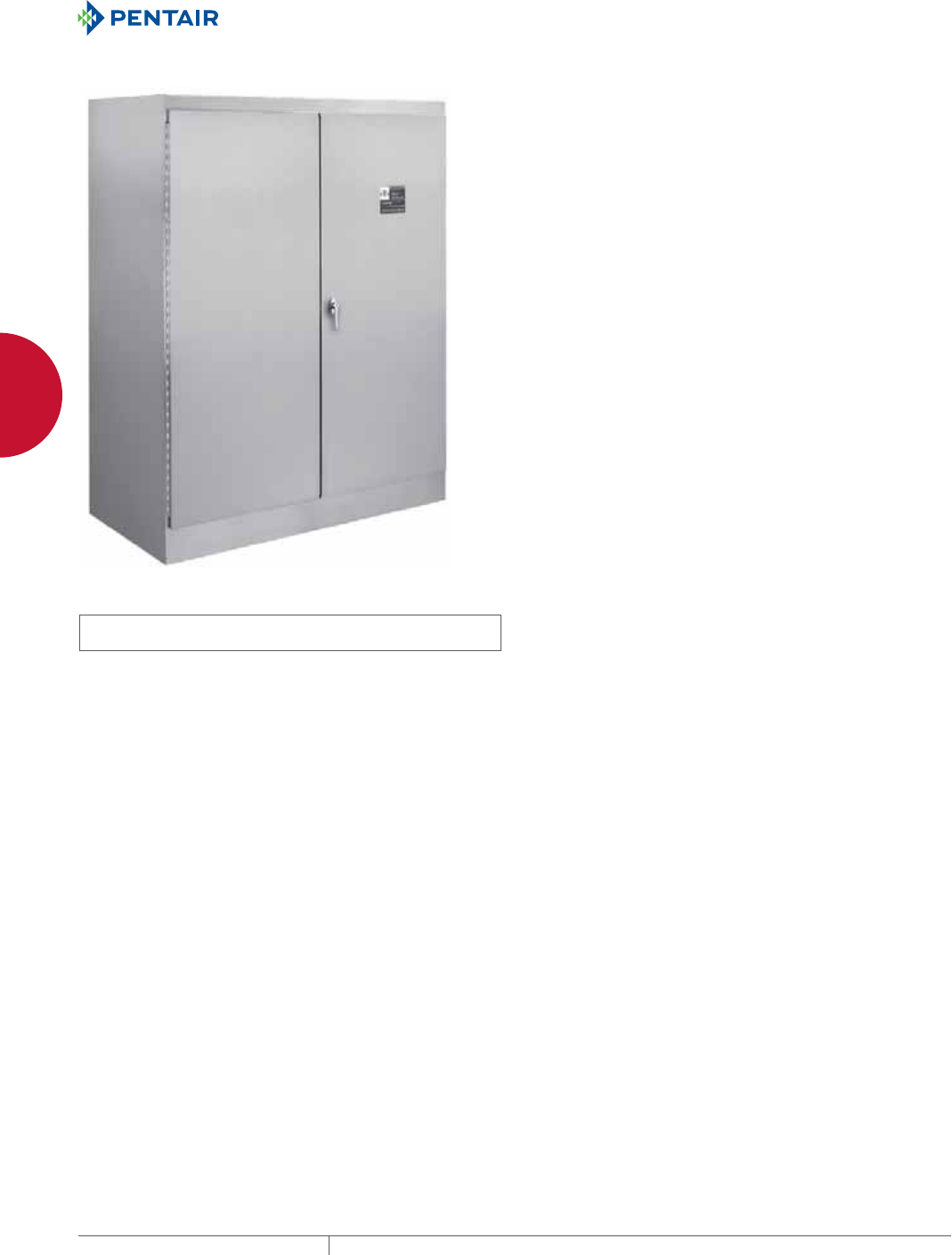

CONTINUOUS HINGE TWODOOR WITH 3POINT LATCH, TYPE 12
INDUSTRY STANDARDS
UL 508A Listed; Type 12; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 12; File No. E61997
NEMA/EEMAC Type 12
CSA File No. 42186: Type 12
IEC 60529, IP55
APPLICATION
For indoor applications requiring stainless steel, enclosure features
overlapping doors and a centerpost-free interior for easy panel and
component installation. The enclosure is secured by a single key-
locking handle and three-point latching.
SPECIFICATIONS
14 gauge Type 304 stainless steel
Seams continuously welded and ground smooth
Rolled lip around all sides of enclosure body opening
Gasketed overlapping doors eliminate need for centerpost
External mounting brackets
Plated steel 3-point latching mechanism and keylocking handle
Easily removable doors by pulling heavy-gauge continuous hinge
pin
Data pocket is high-impact thermoplastic
Collar studs provided for mounting optional panels
Bonding provision on doors; grounding studs on body
FINISH
Doors, sides, top and bottom have smooth #4 brushed finish.
ACCESSORIES
See also Accessories.
Floor Stand Kit, Stainless Steel
PANELITE™ Enclosure Lights Overview
Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
Steel and Stainless Steel Window Kits
H2OMIT™ Vent Drains, Type 4X
H2OMIT™ Thermoelectric Dehumidifier
MODIFICATION AND CUSTOMIZATION
Hoffman excels at modifying and customizing products to your
specifications. Contact your local Hoffman sales office or distributor
for complete information.
BULLETIN: A12SW
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL176
2
WALLMOUNT ENCLOSURES WALL-MOUNT ENCLOSURES AND ACCESSORIES
Standard Product
Catalog Number AxBxC in./mm Panel Conductive Panel
Panel
Gauge
Panel Size D x E
in./mm
Y
in./mm
A244208WFSSLP 24.00 x 42.00 x 8.00
610 x 1067 x 203
A42P24 A42P24G 12 39.00 x 21.00
991 x 533
1.50
38
A244808WFSSLP 24.00 x 48.00 x 8.00
610 x 1219 x 203
A48P24 A48P24G 12 45.00 x 21.00
1143 x 533
1.50
38
A304210WFSSLP 30.00 x 42.00 x 10.00
762 x 1067 x 254
A42P30 A42P30G 12 39.00 x 27.00
991 x 686
1.50
38
A304810WFSSLP 30.00 x 48.00 x 10.00
762 x 1219 x 254
A48P30 A48P30G 12 45.00 x 27.00
1143 x 686
1.50
38
A306010WFSSLP 30.00 x 60.00 x 10.00
762 x 1524 x 254
A60P30 A60P30G 12 57.00 x 27.00
1448 x 686
1.50
38
A364212WFSSLP 36.00 x 42.00 x 12.00
914 x 1067 x 305
A42P36 A42P36G 12 39.00 x 33.00
991 x 838
1.50
38
A364812WFSSLP 36.00 x 48.00 x 12.00
914 x 1219 x 305
A48P36 A48P36G 12 45.00 x 33.00
1143 x 838
1.50
38
A366012WFSSLP 36.00 x 60.00 x 12.00
914 x 1524 x 305
A60P36 A60P36G 12 57.00 x 33.00
1448 x 838
1.50
38
A424212WFSSLP 42.00 x 42.00 x 12.00
1067 x 1067 x 305
A42P42 A42P42G 12 39.00 x 39.00
991 x 991
1.50
38
A424812WFSSLP 42.00 x 48.00 x 12.00
1067 x 1219 x 305
A48P42 A48P42G 12 45.00 x 39.00
1143 x 991
1.50
38
A426012WFSSALP 42.00 x 60.00 x 12.00
1067 x 1524 x 305
A60BFP42 A60BFP42G 10 56.00 x 38.00
1422 x 965
2.00
51
A484812WFSSLP 48.00 x 48.00 x 12.00
1219 x 1219 x 305
A48P48 A48P48G 10 44.00 x 44.00
1118 x 1118
2.00
51
Purchase panels separately. Optional stainless steel and aluminum panels are available for most sizes.
A424212WFSSLP, A424812WFSSLP, A426012WFSSALP enclosure backs have internal stiffeners.
A484812WFSSLP back is 12 gauge.
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 177
2
WALLMOUNT ENCLOSURES WALL-MOUNT ENCLOSURES AND ACCESSORIES
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL178
2
WALLMOUNT ENCLOSURES WALL-MOUNT ENCLOSURES AND ACCESSORIES
REPLACEMENT DOOR WITH 3POINT LATCH, TYPE 4X
INDUSTRY STANDARDS
Maintains NEMA Type 4X rating when properly installed on Hoffman
SSLP clamp cover or SSLP3PT stainless steel wall-mount enclosures.
APPLICATION
Replacement door for SSLP and SSLP3PT style enclosures.
Maintains NEMA Type 4X rating and converts clamp covers to a
3-point latch. Replacement door is ideal for corrosive enclosure
installations that require frequent access and the security of a
POWERGLIDE™ padlocking handle.
SPECIFICATIONS
14 gauge Type 304 or Type 316L stainless steel material
Seamless foam-in-place gasket
Type 316L stainless steel POWERGLIDE handle
Internal 3-point latching hardware installed
Data pocket is high-impact thermoplastic
Hinge halves and stainless steel hinge pin
Bonding provision
FINISH
Door has a smooth #4 brushed finish on the exterior. The Type 316L
stainless steel handle is electropolished.
MODIFICATION AND CUSTOMIZATION
Hoffman excels at modifying and customizing products to your
specifications. Contact your local Hoffman sales office or distributor
for complete information.
BULLETIN: A4SW3, A4SY
Standard Product
Catalog Number Material Fits (in.)
Z24208SS3PT 304 A = 24.00, B = 20.00
Z24208SS63PT 316L A = 24.00, B = 20.00
Z24248SS3PT 304 A = 24.00, B = 24.00
Z24248SS63PT 316L A = 24.00, B = 24.00
Z30248SS3PT 304 A = 30.00, B = 24.00
Z30248SS63PT 316L A = 30.00, B = 24.00
Z36248SS3PT 304 A = 36.00, B = 24.00
Z36248SS63PT 316L A = 36.00, B = 24.00
Z36308SS3PT 304 A = 36.00, B = 30.00
Z36308SS63PT 316L A = 36.00, B = 30.00
Z36368SS3PT 304 A = 36.00, B = 36.00
Z36368SS63PT 316L A = 36.00, B = 36.00
Z48368SS3PT 304 A = 48.00, B = 36.00
Z48368SS63PT 316L A = 48.00, B = 36.00
Z60368SS3PT 304 A = 60.00, B = 36.00
Z60368SS63PT 316L A = 60.00, B = 36.00
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 179
2
WALLMOUNT ENCLOSURES WALL-MOUNT ENCLOSURES AND ACCESSORIES
Notes
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL180
2
WALLMOUNT ENCLOSURES WALL-MOUNT ENCLOSURES AND ACCESSORIES

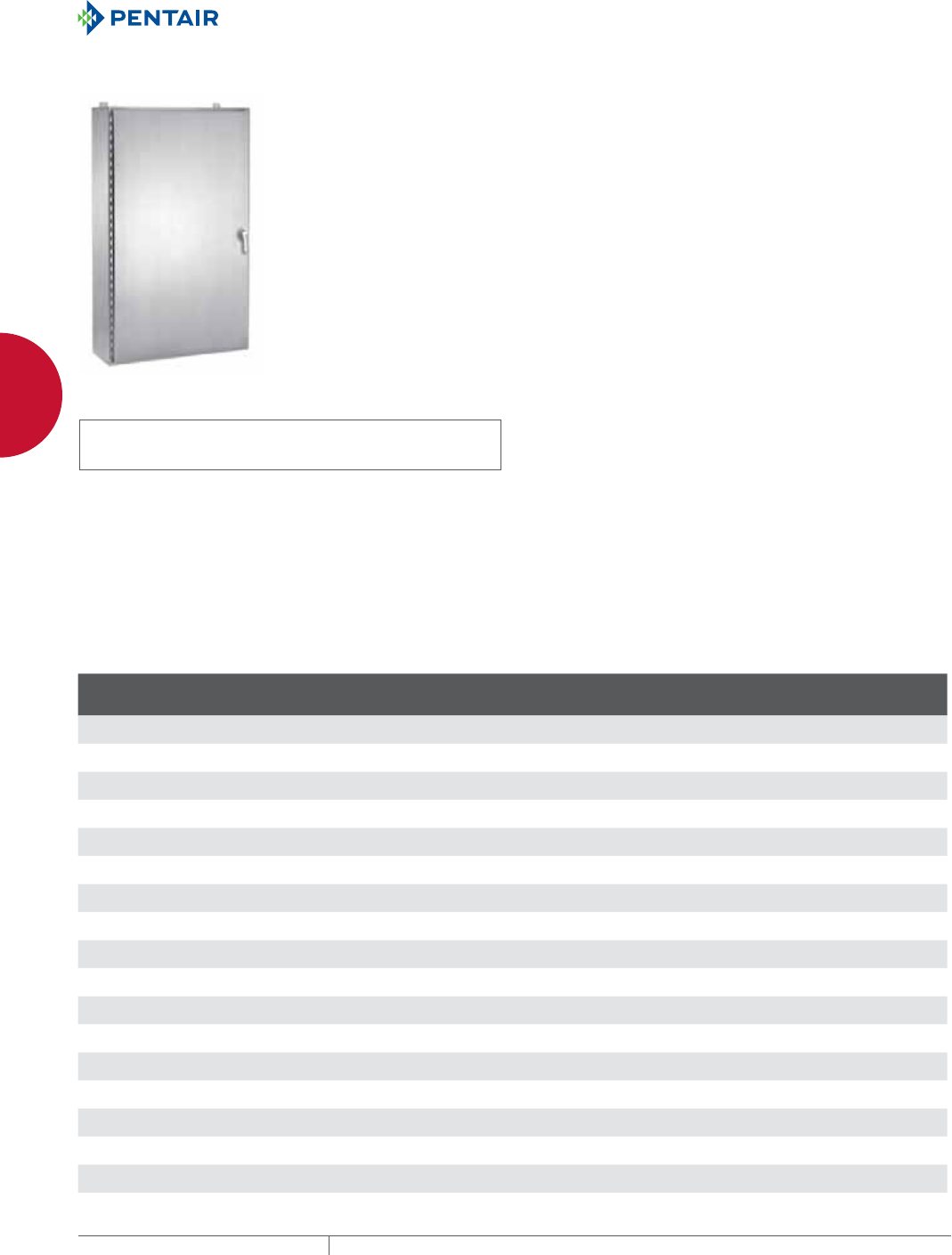

PAINTED WHITE WITH 3POINT LATCH, TYPE 4X
INDUSTRY STANDARDS
UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No.
E61997
NEMA/EEMAC Type 3R, 4, 4X, 12, 13
IEC 60529, IP66
Meets NEMA Type 3RX requirements
APPLICATION
These single-door stainless steel enclosures provide industry-
leading protection for housing electrical components and controls
in outdoor or corrosive environments. White polyester powder
reduces absorption of solar radiation, which keeps internal
components cooler. Hoffman’s exclusive Type 316L stainless steel
small POWERGLIDE™ padlocking handle and internal 3-point
latching combine ease of access with security.
SPECIFICATIONS
14 gauge Type 304 stainless steel bodies and doors
Seams continuously welded and ground smooth
Type 4-rated gasket
90-degree external formed flange on top of body opening
Type 316L stainless steel padlocking POWERGLIDE Handle and
3-point latching
Door removed by pulling stainless steel continuous hinge pin
Data pocket is high-impact thermoplastic
Collar studs provided for mounting optional panels
FINISH
Enclosures have white polyester powder paint finish inside and out.
Handle is electropolished.
ACCESSORIES
See also Accessories.
PANELITE™ Enclosure Lights Overview
Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
Junction Box and Wall-Mount Enclosure Swing Out Panel Kit
Steel and Stainless Steel Window Kits
H2OMIT™ Vent Drains, Type 4X
H2OMIT™ Thermoelectric Dehumidifier
MODIFICATION AND CUSTOMIZATION
Hoffman excels at modifying and customizing products to your
specifications. Contact your local Hoffman sales office or distributor
for complete information.
BULLETIN: A4SW3
Standard Product
Catalog Number AxBxC in./mm
F
in./mm Steel Panel
Conductive
Panel
Stainless Steel
Panel
Panel Size D x E
in./mm Data Pocket
A24H2408SSLP3PTW 24.00 x 24.00 x 8.00
610 x 610 x 203
3.00
76
A24P24 A24P24G A24P24SS6 21.00 x 21.00
533 x 533
Small
A30H2408SSLP3PTW 30.00 x 24.00 x 8.00
762 x 610 x 203
3.00
76
A30P24 A30P24G A30P24SS6 27.00 x 21.00
686 x 533
Large
A24H2010SSLP3PTW 24.00 x 20.00 x 10.00
610 x 508 x 254
3.00
76
A24P20 A24P20G A24P20SS6 21.00 x 17.00
533 x 432
Small
A24H2412SSLP3PTW 24.00 x 24.00 x 12.00
610 x 610 x 305
3.00
76
A24P24 A24P24G A24P24SS6 21.00 x 21.00
533 x 533
Small
A36H3012SSLP3PTW 36.00 x 30.00 x 12.00
914 x 762 x 305
3.00
76
A36P30 A36P30G A36P30SS6 33.00 x 27.00
838 x 686
Large
A36H3612SSLP3PTW 36.00 x 36.00 x 12.00
914 x 914 x 305
3.00
76
A36P36 A36P36G A36P36SS6 33.00 x 33.00
838 x 838
Large
A42H3612SSLP3PTW 42.00 x 36.00 x 12.00
1067 x 914 x 305
3.00
76
A42P36 A42P36G A42P36SS6 39.00 x 33.00
911 x 838
Large
A48H3612SSLP3PTW 48.00 x 36.00 x 12.00
1219 x 914 x 305
3.00
76
A48P36 A48P36G A48P36SS6 45.00 x 33.00
1143 x 838
Large
A60H3612SSLP3PTW 60.00 x 36.00 x 12.00
1524 x 914 x 305
3.00
76
A60P36 A60P36G A60P36SS6 57.00 x 33.00
1448 x 838
Large
A48H3616SSLP3PTW 48.00 x 36.00 x 16.00
1219 x 914 x 406
3.00
76
A48P36 A48P36G A48P36SS6 45.00 x 33.00
1143 x 838
Large
Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.
Panels have a formed flange along any side longer than 21.00 in. (533 mm). Panel A24P20 has a flange on all four sides.
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 181
2
WALLMOUNT ENCLOSURES WALL-MOUNT ENCLOSURES AND ACCESSORIES
Internal Temperature °F
Date/Time
7/22/0
2:00 PM
7/22/00
1:00 PM
7/22/00
12:00 PM
7/22/00
11:00 AM
Internal Enclosure Temperature above Outside Ambient
Fiberglass
White
Black
RAL 7035
Stainless
ANSI 61
Aluminum
0
5
10
15
20
25
30
35
Temperature Rise Example
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL182
2
WATERSHED™ WALLMOUNT ENCLOSURES AND ACCESSORIES WATERSHED™ WALL-MOUNT ENCLOSURES AND ACCESSORIES
WATERSHED™ WALL-MOUNT ENC LOSURES AND A CCESSORIE S
WATERSHED™ WALL-MOUNT ENC LOSURES AND A CCESSORIE S
HOFFMAN WATERSHED™, TYPE 4X
INDUSTRY STANDARDS
Mounting brackets required to meet UL/cUL external mounting
requirement.
UL 508A Listed; Type 4, 4X, 12; File Number E61997
cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12; File Number
E61997
NSF 169
NEMA/EEMAC Type 4, 4X, 12
IEC 60529, IP66
APPLICATION
Specifically designed for use in sanitary washdown production
environments, particularly food and beverage manufacturing.
Hoffman WATERSHED™ Enclosures feature a sloped top, sloped
door edges, bullet-style hinges and additional unique features that
facilitate washdown runoff.
SPECIFICATIONS
Manufactured from 14 gauge Type 304 stainless steel
Seams continuously welded and ground smooth
Smooth Type 304 stainless steel lift-off bullet-style hinges
Hinges are shielded by door
Hinged side of door has provisions to allow direct flushing of
hinge area
20-degree sloped top facilitates runoff of water and cleaning
solutions and prohibits the placement of objects on the top of the
enclosure
170-degree door opening
Door edges are sloped 20-degrees at top and bottom edges to
facilitate runoff
Slanted flange trough collar prohibits pooling of fluids along the
top edge of the enclosure opening
Stainless steel quarter-turn latches furnished with flush slotted
insert
Seamless foam-in-place gasket
Self-grounding latch system with double seal
Bonding provision on door; grounding stud on body
Panel studs fit optional NEMA style panels
Mounting holes in back of body for direct mounting, optional
stand-off kit or mounting bracket kit
Furnished hardware kit consists of panel mounting nuts,
grounding hardware and sealing washers for wall-mounting
holes
FINISH
External surfaces have a #4 brushed finish.
ACCESSORIES
See also Accessories.
Mounting Bracket Kit
Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
Stand-Off Kit
Padlocking Handle Kit
Padlocking Latch Kit
H2OMITTM Vent Drains, Type 4X
H2OMITTM Thermoelectric Dehumidifier
BULLETIN: WS1
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 183
2
WATERSHED™ WALLMOUNT ENCLOSURES AND ACCESSORIES WATERSHED™ WALL-MOUNT ENCLOSURES AND ACCESSORIES
Standard Product
Catalog Number AxBxC in./mm Panel
Conductive
Panel
A1
in./mm
A2
in./mm
G
in./mm
H
in./mm
Latch
Qty.
WS161208SS 16.00 x 12.00 x 8.00
406 x 305 x 203
A16P12 A16P12G 16.20
411
19.10
485
10.50
267
14.50
368
2
WS161608SS 16.00 x 16.00 x 8.00
406 x 406 x 203
A16P16 A16P16G 16.30
414
19.20
488
14.50
368
14.50
368
2
WS201608SS 20.00 x 16.00 x 8.00
508 x 406 x 203
A20P16 A20P16G 20.30
516
23.20
589
14.50
368
18.50
470
2
WS202008SS 20.00 x 20.00 x 8.00
508 x 508 x 203
A20P20 A20P20G 20.40
518
23.31
592
18.50
470
18.50
470
2
WS242008SS 24.00 x 20.00 x 8.00
610 x 508 x 203
A24P20 A24P20G 24.40
620
27.31
694
18.50
470
22.50
572
2
WS242408SS 24.00 x 24.00 x 8.00
610 x 610 x 203
A24P24 A24P24G 24.51
623
27.41
696
22.50
572
22.50
572
4
WS302408SS 30.00 x 24.00 x 8.00
762 x 610 x 203
A30P24 A30P24G 30.51
785
33.41
849
22.50
572
28.50
724
4
WS303008SS 30.00 x 30.00 x 8.00
762 x 762 x 203
A30P30 A30P30G 30.67
779
33.57
853
28.50
724
28.50
724
4
WS363008SS 36.00 x 30.00 x 8.00
914 x 762 x 203
A36P30 A36P30G 36.67
931
39.57
1005
28.50
724
34.50
876
5
WS201612SS 20.00 x 16.00 x 12.00
508 x 406 x 305
A20P16 A20P16G 20.30
516
24.66
626
14.50
368
18.50
470
2
WS202012SS 20.00 x 20.00 x 12.00
508 x 508 x 305
A20P20 A20P20G 20.40
518
24.76
629
18.50
470
18.50
470
2
WS242412SS 24.00 x 24.00 x 12.00
610 x 610 x 305
A24P24 A24P24G 24.51
623
28.87
733
22.50
572
22.50
572
4
WS302412SS 30.00 x 24.00 x 12.00
762 x 610 x 305
A30P24 A30P24G 30.51
775
34.87
886
22.50
572
28.50
724
4
WS363012SS 36.00 x 30.00 x 12.00
914 x 762 x 305
A36P30 A36P30G 36.67
931
41.03
1042
28.50
724
34.50
876
5
WS363612SS 36.00 x 36.00 x 12.00
914 x 914 x 305
A36P36 A36P36G 36.82
935
41.18
1046
34.50
876
34.50
876
5
WS363016SS 36.00 x 30.00 x 16.00
914 x 762 x 406
A36P30 A36P30 36.82
935
42.64
1083
28.50
724
34.50
876
5
WS483616SS 48.00 x 36.00 x 16.00
1219 x 914 x 406
A48P36 A48P36G 48.82
1240
54.64
1388
34.50
876
46.50
1181
5
WS603616SS 60.00 x 36.00 x 16.00
1524 x 914 x 406
A60P36 A60P36G 60.82
1545
66.64
1693
34.50
876
58.50
1486
5
Purchase panels separately. Optional stainless steel, conductive or aluminum panels are available.
WS603616SS back is 10 gauge stainless steel.
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL184
2
WATERSHED™ WALLMOUNT ENCLOSURES AND ACCESSORIES WATERSHED™ WALL-MOUNT ENCLOSURES AND ACCESSORIES
MOUNTING BRACKET KIT Type 304 stainless steel brackets are field-installable. Brackets
maintain Type 4X rating. All hardware is included. Four brackets per
kit.
Top brackets must be mounted to the sides of enclosure.
BULLETIN: A80
Catalog Number Description
CMFKSS Type 304 stainless steel mounting bracket kit
STANDOFF KIT Stand-offs provide space between wall-mount enclosure and wall
for better washdown accessibility. Maintains Type 4X rating. Sealing
washers included. Four stand-offs per kit.
BULLETIN: WSY
Catalog Number C (in.) C (mm)
WSSOK1SS 1.00 25
WSSOK2SS 2.00 51
WSSOK4SS 4.00 102
WSSOK6SS 6.00 152
PADLOCKING HANDLE KIT Type 304 stainless steel padlocking handle for use on Hoffman
WATERSHED™ Wall-Mount Enclosures. Maintains Type 4X rating.
BULLETIN: WSY
Catalog Number Description
WSHPL Stainless Steel Padlocking Handle
PADLOCKING LATCH KIT Type 304 stainless steel padlocking latch for use on Hoffman
WATERSHED™ Wall-Mount Enclosures. Maintains Type 4X rating.
BULLETIN: WSY
Catalog Number Description
WSLPL Padlocking Latch Kit
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 185
2
WATERSHED™ WALLMOUNT ENCLOSURES AND ACCESSORIES WATERSHED™ WALL-MOUNT ENCLOSURES AND ACCESSORIES
Notes
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL186
2
CONSOLES AND ACCESSORIES CONSOLES AND ACCESSORIES
CONSOLES AND ACCESSORIES
CONSOLES AND ACCESSORIES
CONCEPT™ CONSOLE, TYPE 4X
INDUSTRY STANDARDS
UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No.
E61997
NEMA Type 3R, 4, 4X, 12, 13
CSA File No. 42186: Type 4, 4X, 12
Meets NEMA Type 3RX requirements
APPLICATION
Sloped CONCEPT™ Consoles provide a convenient surface for
mounting and monitoring components. Ergonomically designed
so users can sit or stand while working, consoles feature a large
internal capacity for mounting components and controls.
SPECIFICATIONS
14 gauge Type 304 stainless steel
Ergonomically designed for sitting or standing operation
Solid bottom
Corner-formed doors
External-formed 90-degree body flange
20-degree sloped-top cover for 38.00-in. (965-mm) tall console
or 30-degree top cover for 48.00-in. (1219-mm) console
Quarter-turn stainless steel latches hold top cover securely
closed
Door props hold top cover open at 90-degrees
Integral water-shedding trough
Collar studs for optional back panel
Optional side panels (mounted to collar studs) expand equipment
mounting space
Tool-to-open 3-point latch on front access door; door is
removable and reversible; 170-degree full-access opening
Seamless foam-in-place gasket
Bonding provision on door; grounding stud on body
Provision for data pocket on lower front door
Easy-to-remove clip-style hinge pins
FINISH
Doors and body have smooth #4 brushed finish.
ACCESSORIES
See also Accessories.
Caster Kit
Side Panels
MODIFICATION AND CUSTOMIZATION
Hoffman excels at modifying and customizing products to your
specifications. Contact your local Hoffman sales office or distributor
for complete information.
BULLETIN: C1S
Standard Product
Catalog Number AxBxC in./mm
Back
Panel
Conductive
Panel
Back Panel
Height x Width
in./mm
F
in./mm
P
in./mm
Q
in./mm
R
in./mm
S
in./mm
T
in./mm
U
in./mm V
W
in./mm
Data
Pocket
CFC382416SS 38.00 x 24.00 x 15.00
965 x 610 x 381
CP3624 CP3624G 34.20 x 22.20
869 x 564
14.57
370
22.40
569
18.40
467
22.37
568
30.44
773
19.82
503
3.79
96
20º 20.00
508
Small
CFC383616SS 38.00 x 36.00 x 15.00
965 x 914 x 381
CP3636 CP3636G 34.20 x 34.20
869 x 869
14.57
370
34.40
874
18.40
467
22.37
568
30.44
773
19.82
503
3.79
96
20º 20.00
508
Large
CFC482423SS 48.00 x 24.00 x 18.00
1219 x 610 x 457
CP2442 CP2442G 40.20 x 22.20
1021 x 564
17.57
446
22.40
569
23.36
593
28.35
720
35.35
898
23.84
606
2.54
64
30º 24.00
610
Large
CFC483623SS 48.00 x 36.00 x 18.00
1219 x 914 x 457
CP4236 CP4236G 40.20 x 34.20
1021 x 869
17.57
446
34.40
874
23.36
593
28.35
720
35.35
898
23.84
606
2.54
64
30º 24.00
610
Large
Order Back Panel and Data Pocket separately.
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 187
2
CONSOLES AND ACCESSORIES CONSOLES AND ACCESSORIES
3
3
%

PP

PP

PP
;;
'RRU
*URXQGLQJ
3URYLVLRQ
%RG\
*URXQGLQJ
6WXG
%RG\
*URXQGLQJ
6WXG
'RRU
*URXQGLQJ
3URYLVLRQ
'RRU
&OHDU
6SDFH
2SHQLQJ
2SHQLQJ
4
7
8
5
6
$
&

PP
9
:
:
2SHQLQJ
2SHQLQJ
%

PP

PP

PP

PP
9,(:::
'RRU
&OHDU
6SDFH
7ZR'RRU6WRSV
:KHQ% 
PP
+LQJH
6LGH
)

PP
6(&7,21;;
%DFNDQG6LGH3DQHOV
2UGHU6HSDUDWHO\

CASTER KIT
Order two swivel caster kits or one
swivel caster kit plus one stationary
caster kit.
Height = 3.72 in. (94 mm)
Wheel diameter = 3.00 in. (76 mm)
Load rating each = 210 lb. (95 kg)
BULLETIN: C1
Catalog Number Description
AC4M6ST Caster kit, stationary (2 casters per kit)
AC4M6SV Caster lit, swivel (2 casters per kit)
CCPK18 Caster plate kit, 18 in., (2 plates per kit)
Order two swivel caster kits or one swivel caster kit plus one stationary caster kit.

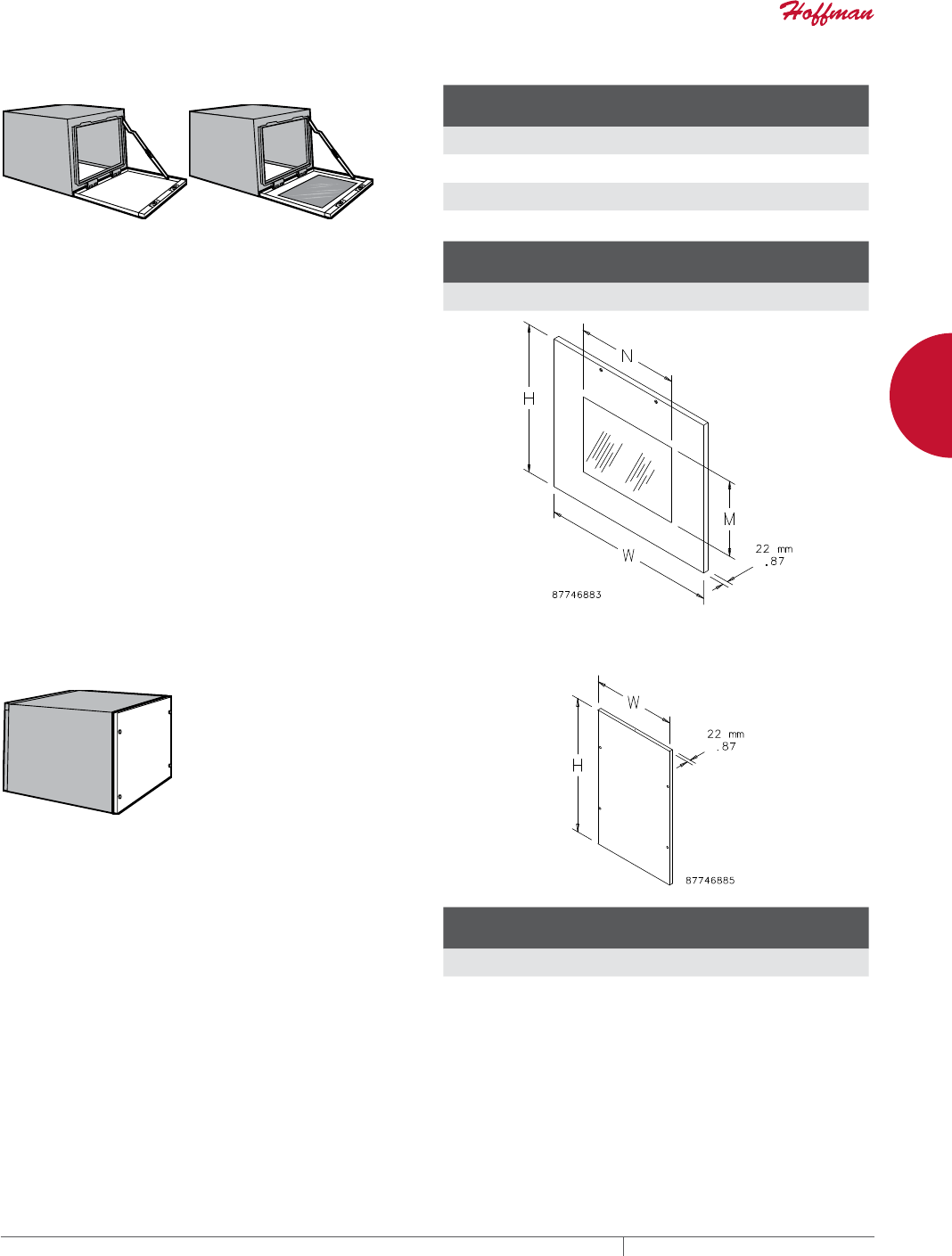

SIDE PANELS
One panel per kit. Two kits required if a panel is needed on each
side.
BULLETIN: C1
Catalog Number
D
in./mm
E
in./mm
G
in./mm
CPC3816 27.15
690
13.65
347
4.33
110
CPC4823 31.57
802
16.65
423
3.54
40
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL188
2
FLOORMOUNT AND FREESTAND ENCLOSURES FLOOR-MOUNT AND FREE-STAND ENCLOSURES
FLOOR-MOUNT AN D FREE-STAND ENCLOS URES
FLOOR-MOUNT AN D FREE-STAND ENCLOS URES

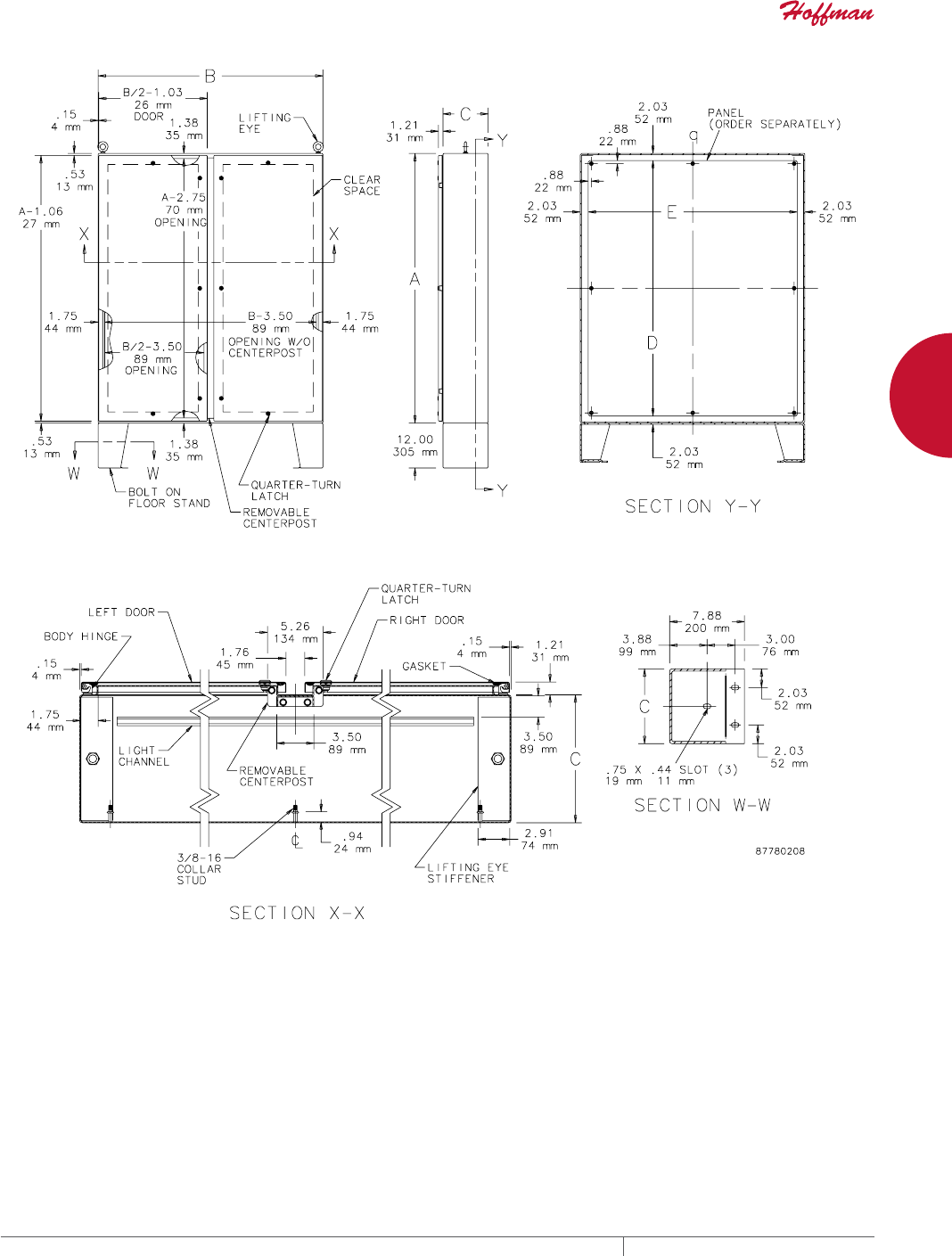

TWODOOR WITH 3POINT LATCHES, TYPE 4X
INDUSTRY STANDARDS
UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No.
E61997
NEMA Type 3, 3R, 4, 4X, 12, 13
IEC 60529, IP66
Meets NEMA Type 3RX requirements
APPLICATION
These two-door enclosures provide industry-leading protection for
large components or complex mounting configurations in highly-
corrosive environments. Three-point latching with the Hoffman
POWERGLIDE™ padlocking handles and a foam-in-place gasket
combine convenience with security. They are well-suited for use in
petrochemical plants; pulp and paper processing; water treatment
facilities; and food, pharmaceutical and packaging applications.
SPECIFICATIONS
Manufactured from 12 gauge Type 304 or 316L stainless steel
Backs are 10 or 12 gauge stainless steel with x-form stiffeners
Seams continuously welded and ground smooth; no holes or
knockouts
Removable centerpost for easy panel installation
Collar studs provided for mounting optional panels
Panel supports included
Heavy-duty lifting eyes are Type 316L stainless steel
Heavy-duty 3-point latching mechanism operated by Type 316L
stainless steel POWERGLIDE padlocking handles
Body flange trough collar excludes liquids and contaminants
Heavy-duty stainless steel continuous hinges support each door
Bonding provision on doors; grounding studs on body
Accessory mounting channel provided in enclosure top
Data pocket is high-impact thermoplastic
12-in. (305-mm) removable floor stands are bolted to enclosure
Seamless foam-in-place one-piece gasket provides oil-tight and
dust-tight seal against contaminants
External hardware manufactured of Type 316 stainless steel
FINISH
Enclosures are unpainted. Front, sides, top and back have smooth
#4 brushed finish. Optional mild steel panels are painted white.
Optional conductive panels are available.
ACCESSORIES
See also Accessosries.
Industrial Corrosion Inhibitors
Electric Heater
Electrical Interlocks
PANELITE™ Enclosure Lights Overview
Panel Support Kit
MODIFICATION AND CUSTOMIZATION
Hoffman excels at modifying and customizing products to your
specifications. Contact your local Hoffman sales office or distributor
for complete information.
BULLETIN: A4S3
Standard Product
Catalog Number AxBxC in. AxBxC mm Stainless Steel Type Panel Conductive Panel Panel Size D x E (in.) Panel Size D x E (mm)
A62H4812SSLP3PT 62.06 x 48.06 x 12.06 1576 x 1221 x 306 304 A60P48 A60P48G 56.00 x 44.00 1422 x 1118
A62H4812SS6LP3PT 62.06 x 48.06 x 12.06 1576 x 1221 x 306 316L A60P48 A60P48G 56.00 x 44.00 1422 x 1118
A62H6012SSLP3PT 62.06 x 60.06 x 12.06 1576 x 1526 x 306 304 A60P60 A60P60G 56.00 x 56.00 1422 x 1422
A62H6012SS6LP3PT 62.06 x 60.06 x 12.06 1576 x 1526 x 306 316L A60P60 A60P60G 56.00 x 56.00 1422 x 1422
A74H6012SSLP3PT 74.06 x 60.06 x 12.06 1881 x 1526 x 306 304 A72P60 A72P60G 68.00 x 56.00 1727 x 1422
A74H6012SS6LP3PT 74.06 x 60.06 x 12.06 1881 x 1526 x 306 316L A72P60 A72P60G 68.00 x 56.00 1727 x 1422
A74H7212SSLP3PT 74.06 x 72.06 x 12.06 1881 x 1830 x 306 304 A72P72 A72P72G 68.00 x 68.00 1727 x 1727
A74H7212SS6LP3PT 74.06 x 72.06 x 12.06 1881 x 1830 x 306 316L A72P72 A72P72G 68.00 x 68.00 1727 x 1727
A62H4818SSLP3PT 62.06 x 48.06 x 18.06 1576 x 1221 x 459 304 A60P48 A60P48G 56.00 x 44.00 1422 x 1118
A62H4818SS6LP3PT 62.06 x 48.06 x 18.06 1576 x 1221 x 459 316L A60P48 A60P48G 56.00 x 44.00 1422 x 1118
A62H6018SSLP3PT 62.06 x 60.06 x 18.06 1576 x 1526 x 459 304 A60P60 A60P60G 56.00 x 44.00 1422 x 1118
A62H6018SS6LP3PT 62.06 x 60.06 x 18.06 1576 x 1526 x 459 316L A60P60 A60P60G 56.00 x 44.00 1422 x 1118
A74H6018SSLP3PT 74.06 x 60.06 x 18.06 1881 x 1526 x 459 304 A72P60 A72P60G 68.00 x 56.00 1727 x 1422
A74H6018SS6LP3PT 74.06 x 60.06 x 18.06 1881 x 1526 x 459 316L A72P60 A72P60G 68.00 x 56.00 1727 x 1422
A74H7218SSLP3PT 74.06 x 72.06 x 18.06 1881 x 1830 x 459 304 A72P72 A72P72G 68.00 x 68.00 1727 x 1727
A74H7218SS6LP3PT 74.06 x 72.06 x 18.06 1881 x 1830 x 459 316L A72P72 A72P72G 68.00 x 68.00 1727 x 1727
A74H7224SSLP3PT 74.06 x 72.06 x 24.06 1881 x 1830 x 611 304 A72P72 A72P72G 68.00 x 68.00 1727 x 1727
A74H7224SS6LP3PT 74.06 x 72.06 x 24.06 1881 x 1830 x 611 316L A72P72 A72P72G 68.00 x 68.00 1727 x 1727
Purchase panels separately.
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 189
2
FLOORMOUNT AND FREESTAND ENCLOSURES FLOOR-MOUNT AND FREE-STAND ENCLOSURES
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICESTAINLESS STEEL190
2
FLOORMOUNT AND FREESTAND ENCLOSURES FLOOR-MOUNT AND FREE-STAND ENCLOSURES

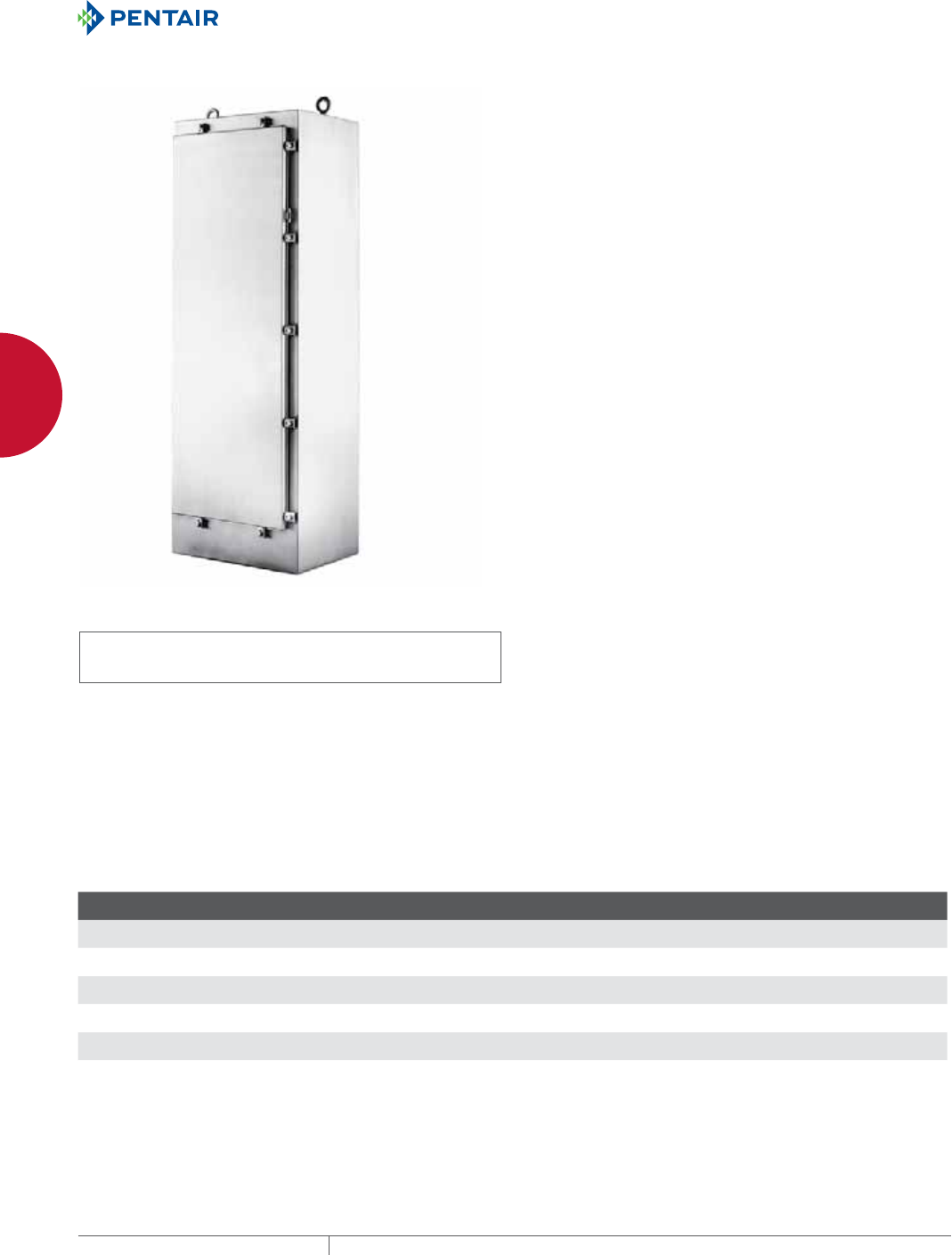

TWODOOR WITH FLOORSTANDS, TYPE 4X
INDUSTRY STANDARDS
UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No.
E61997
NEMA Type 3, 3R, 4, 4X, 12, 13
CSA File No. 42186: Type 4, 4X, 12
IEC 60529, IP66
Meets NEMA Type 3RX requirements
APPLICATION
This two-door enclosure provides industry-leading protection for
systems incorporating large components or complex mounting
configurations in highly corrosive environments. It is typically used
in food processing plants, pharmaceutical manufacturing facilities,
petrochemical plants, pulp and paper processing and water
treatment facilities.
SPECIFICATIONS
12 gauge Type 304 or 316L stainless steel
Seams continuously welded and ground smooth; no holes or
knockouts
Backs are 10 or 12 gauge stainless steel with x-form stiffeners
Removable centerpost for easy panel installation
Panel supports
Heavy-duty lifting eyes are Type 316 stainless steel
Stainless steel screws and clamps on three sides of each door
assure water-tight seal
Rolled lip around three sides of door and along top of enclosure
opening excludes liquids and contaminants
Heavy-gauge stainless steel continuous hinge
Data pocket is high-impact thermoplastic
12-in. (305-mm) floor stands are welded to enclosure
Hasp and staple for padlocking
Seamless foam-in-place gasket provides oil-tight and dust-tight
seal against contaminants
Collar studs provided for mounting optional panels
External hardware manufactured of Type 316 stainless steel
Bonding provision on doors; gounding studs on body
Accessory mounting channel provided in enclosure top
Type 316L stainless steel lifting eyes
FINISH
Enclosures are unpainted. Front, sides, top and back have smooth
#4 brushed finish. Optional mild steel panels are painted white.
Optional conductive panels are available.
ACCESSORIES
See also Accessories.
Electric Heater
PANELITE™ Enclosure Lights Overview
Panel Support Kit
Steel and Stainless Steel Window Kits
MODIFICATION AND CUSTOMIZATION
Hoffman excels at modifying and customizing products to your
specifications. Contact your local Hoffman sales office or distributor
for complete information.
BULLETIN: A4SL
Standard Product
Catalog Number AxBxC in./mm
Stainless
Steel Type Panel
Conductive
Panel
Panel Size D x E
in./mm
Number
of Clamps
A62H4812SSLP 62.06 x 48.06 x 12.06
1576 x 1221 x 306
304 A60P48 A60P48G 56.00 x 44.00
1422 x 1118
16
A62H4812SS6LP 62.06 x 48.06 x 12.06
1576 x 1221 x 306
316L A60P48 A60P48G 56.00 x 44.00
1422 x 1118
16
A62H6012SSLP 62.06 x 60.06 x 12.06
1576 x 1526 x 306
304 A60P60 A60P60G 56.00 x 56.00
1422 x 1422
16
A62H6012SS6LP 62.06 x 60.06 x 12.06
1576 x 1526 x 306
316L A60P60 A60P60G 56.00 x 56.00
1422 x 1422
16
A74H6012SSLP 74.06 x 60.06 x 12.06
1881 x 1526 x 306
304 A72P60 A72P60G 68.00 x 56.00
1727 x 1422
18
A74H6012SS6LP 74.06 x 60.06 x 12.06
1881 x 1526 x 306
316L A72P60 A72P60G 68.00 x 56.00
1727 x 1422
18
A74H7212SSLP 74.06 x 72.06 x 12.06
1881 x 1830 x 306
304 A72P72 A72P72G 68.00 x 68.00
1727 x 1727
18
A74H7212SS6LP 74.06 x 72.06 x 12.06
1881 x 1830 x 306
316L A72P72 A72P72G 68.00 x 68.00
1727 x 1727
18
A74H7224SSLP 74.06 x 72.06 x 24.06
1881 x 1830 x 611
304 A72P72 A72P72G 68.00 x 68.00
1727 x 1727
18
A74H7224SS6LP 74.06 x 72.06 x 24.06
1881 x 1830 x 611
316L A72P72 A72P72G 68.00 x 68.00
1727 x 1727
18
Purchase panels separately.
A74H7212SSLP, A74H7212SS6LP, A74H7224SSLP and A74H7224SS6LP have 10 gauge back.
PH 763.422.2211 • FAX 763.422.2600 • PENTAIRPROTECT.COMEQUIPMENT PROTECTION STAINLESS STEEL 191
2
FLOORMOUNT AND FREESTAND ENCLOSURES FLOOR-MOUNT AND FREE-STAND ENCLOSURES
EQUIPMENT PROTECTIONSUB
