REPORT NO. : E900840-1
Page 1 of 13
REVISION
REPORT NO. E900840-1
INSPECTION, TEST, AND EVALUATION
OF THE USB Share Switch
RENDERED TO
NEOSTAR TECHNOLOGY CO., LTD.
The following revisions have been made to Report No. E900840
for USB Share Switch
DATE PAGE DESCRIPTION
DEC. 07, 2001 The Original Model No.
( USB-401P, USB-401, USB-201,
USB-201P )
APR. 17, 2003 Add Model No.
( USB-411, USB-211 )
APR. 17, 2003 3-11 Test Model No.
( USB-411, USB-211 )
APR. 17, 2003 12-13 Photo Model No.
( USB-411, USB-211 )
PLACE THIS PAGE AT FRONT OF YOUR REPORT.
Approved By : JASON GONG
REPORT NO. : E900840-1
Page 2 of 13
EUT DECLARATION FOR CE-EMC PERMISSIVE CHANGE
We hereby declare that both of the major electrical design and construction of these requested
models: USB-211 and USB-411 are identical to the original models: USB-201, USB-201P,
USB-401 and USB-401P listed in PEP Report No. E900840 except their appearances are
different. From technical point of view, we verified EUT by radiated emission test in chamber
and ESD immunity test. We attached model USB-211 and USB-411 in original report as
additional models.
Applicant : NEOSTAR TECHNOLOGY CO., LTD.
Address : 14F, NO. 150, SEC. 2, SHIN TA WU ROAD, HSICHIH TAIPEI,
TAIWAN, R. O. C.
Signature :
PANNY CHEN / ENGINEERING MANAGER
Date : / /
REPORT NO. : E900840-1
Page 3 of 13
EN 61000-4-2 Electrostatic Discharge Test
Test standard Model No. Result
EN 61000-4-2 USB-411, USB-211 B
The test results shall be classified on the basis of the operating conditions and the
functional specifications of the equipment under test , as in the following , unless
different specifications are given by product committees or product specifications :
Performance Criterion :
A) normal performance within the specification limits ;
B) temporary degradation or loss of function or performance which is self-recoverable ;
C) temporary degradation or loss of function or performance which requires operator
intervention or system reset ;
REPORT NO. : E900840-1
Page 4 of 13

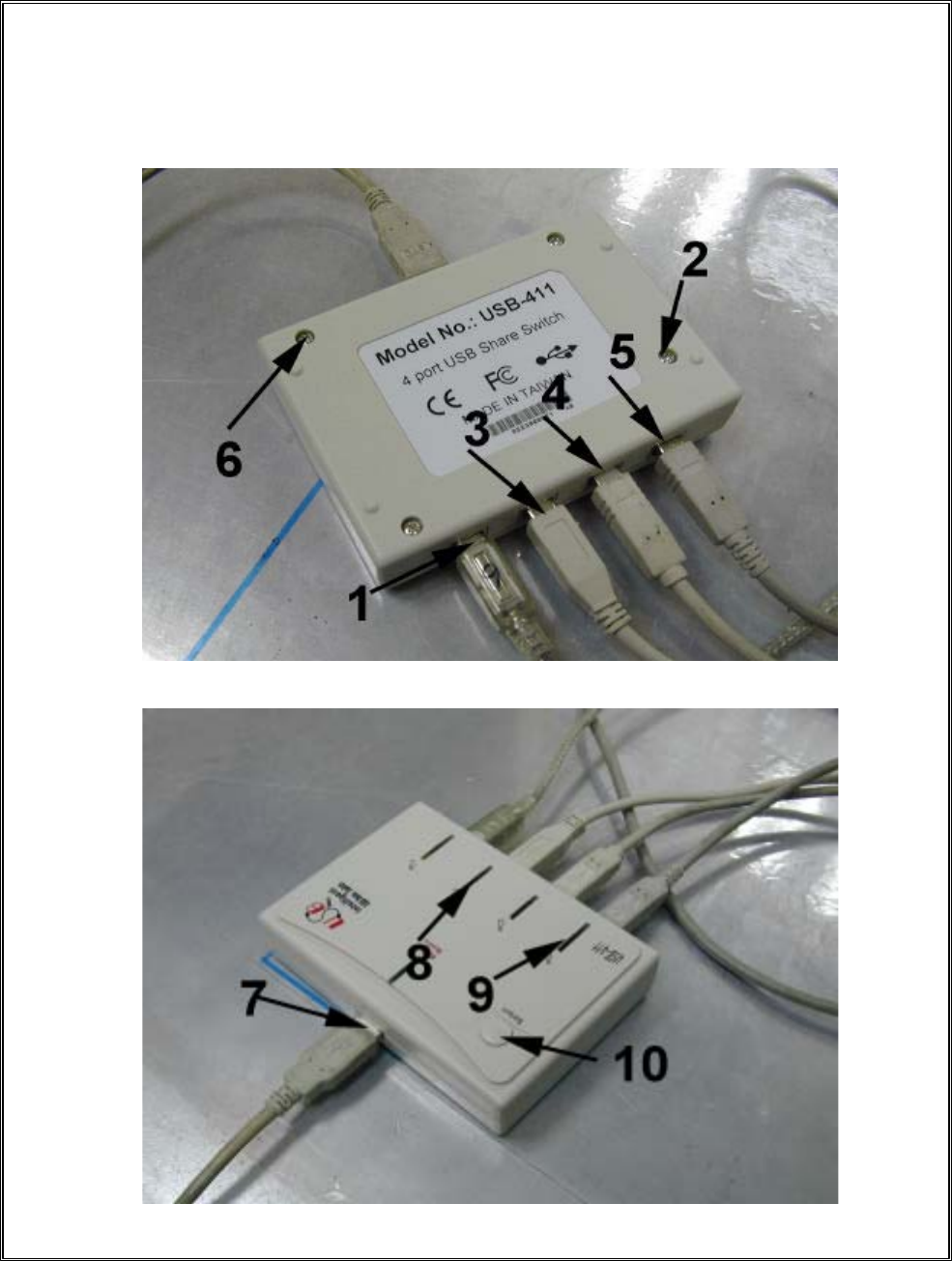

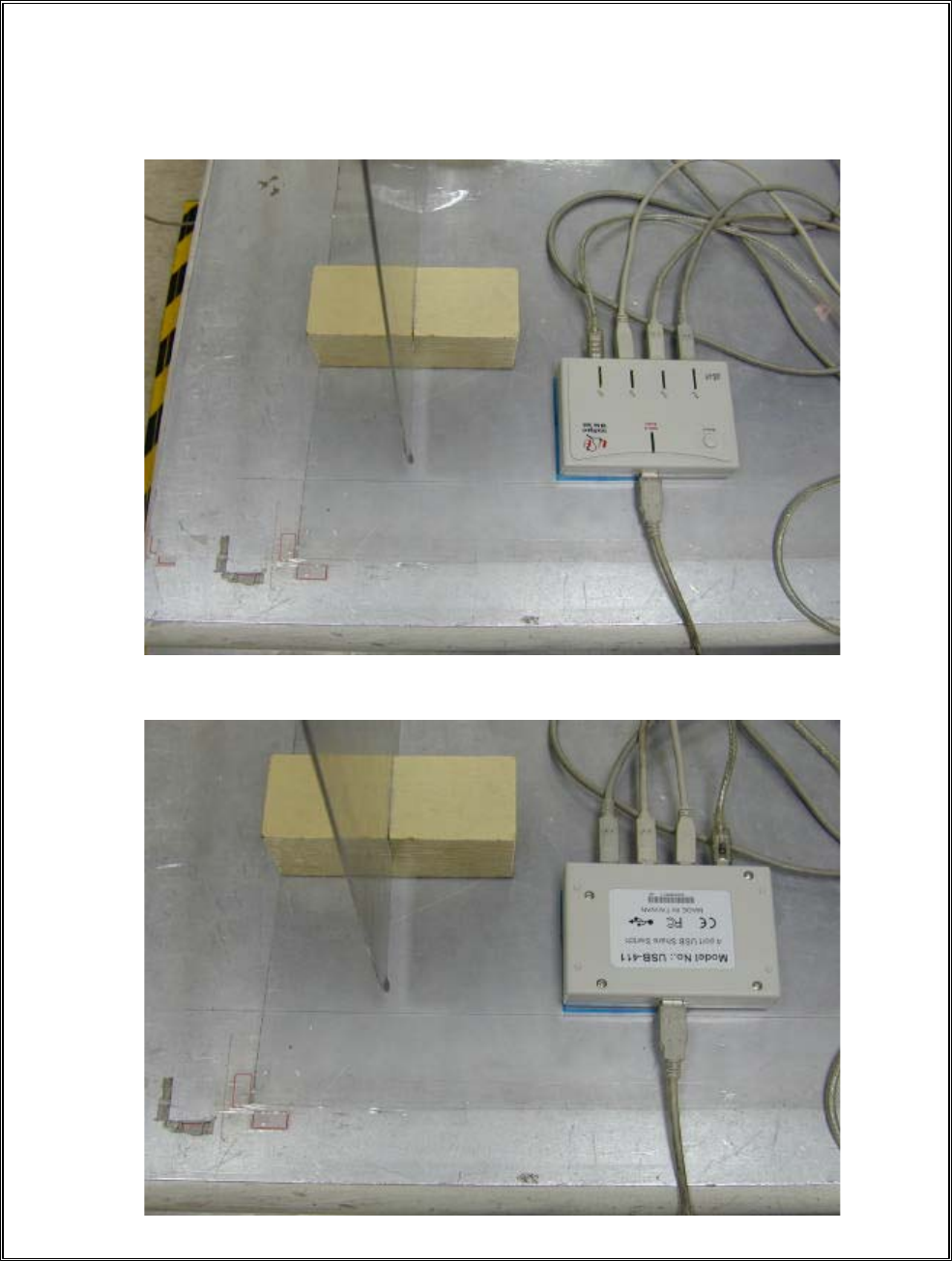

Direct Discharge Test Drawing
Model No. : USB-411
REPORT NO. : E900840-1
Page 5 of 13
Indirect Discharge Test Drawing
REPORT NO. : E900840-1
Page 6 of 13

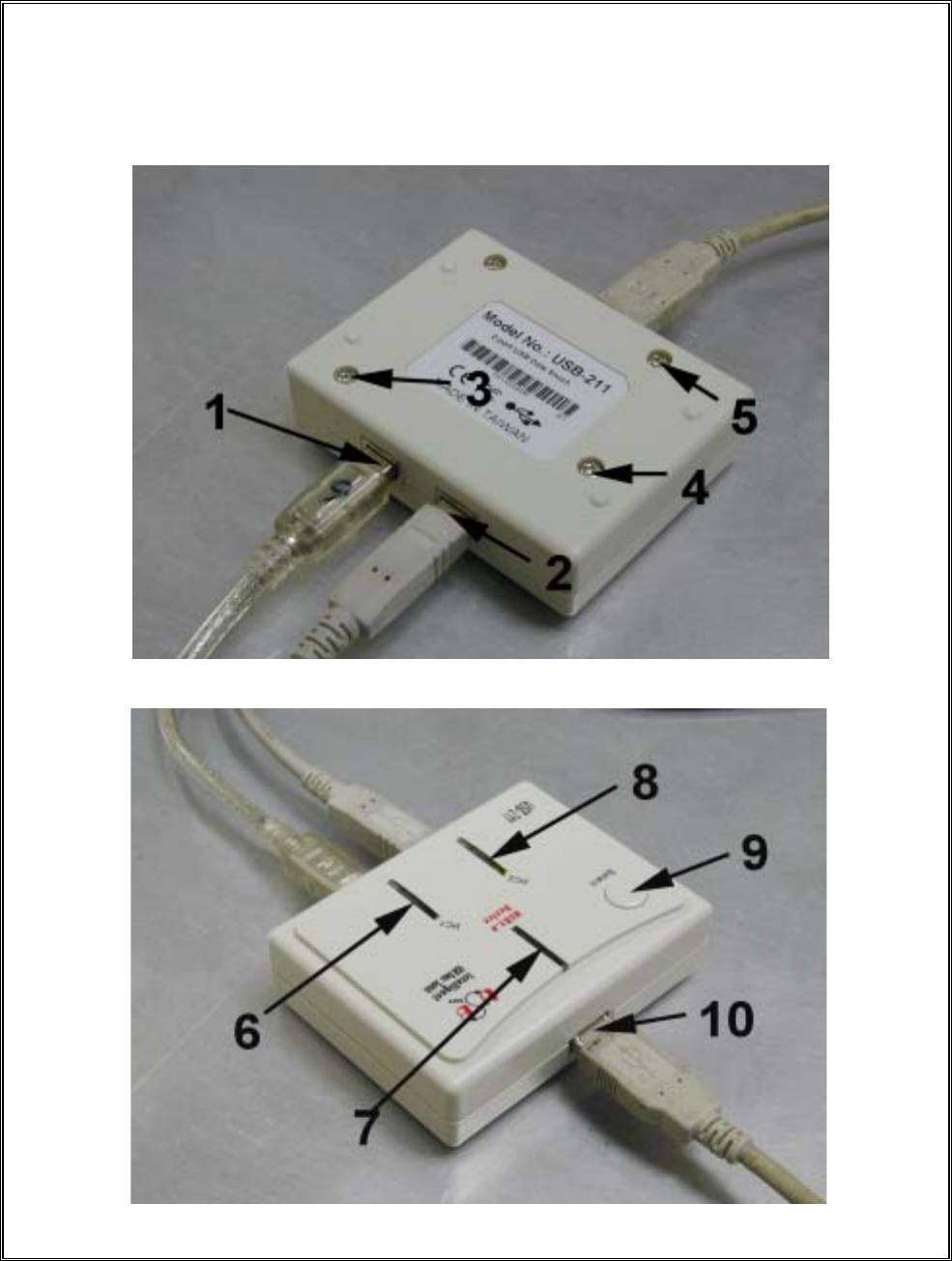

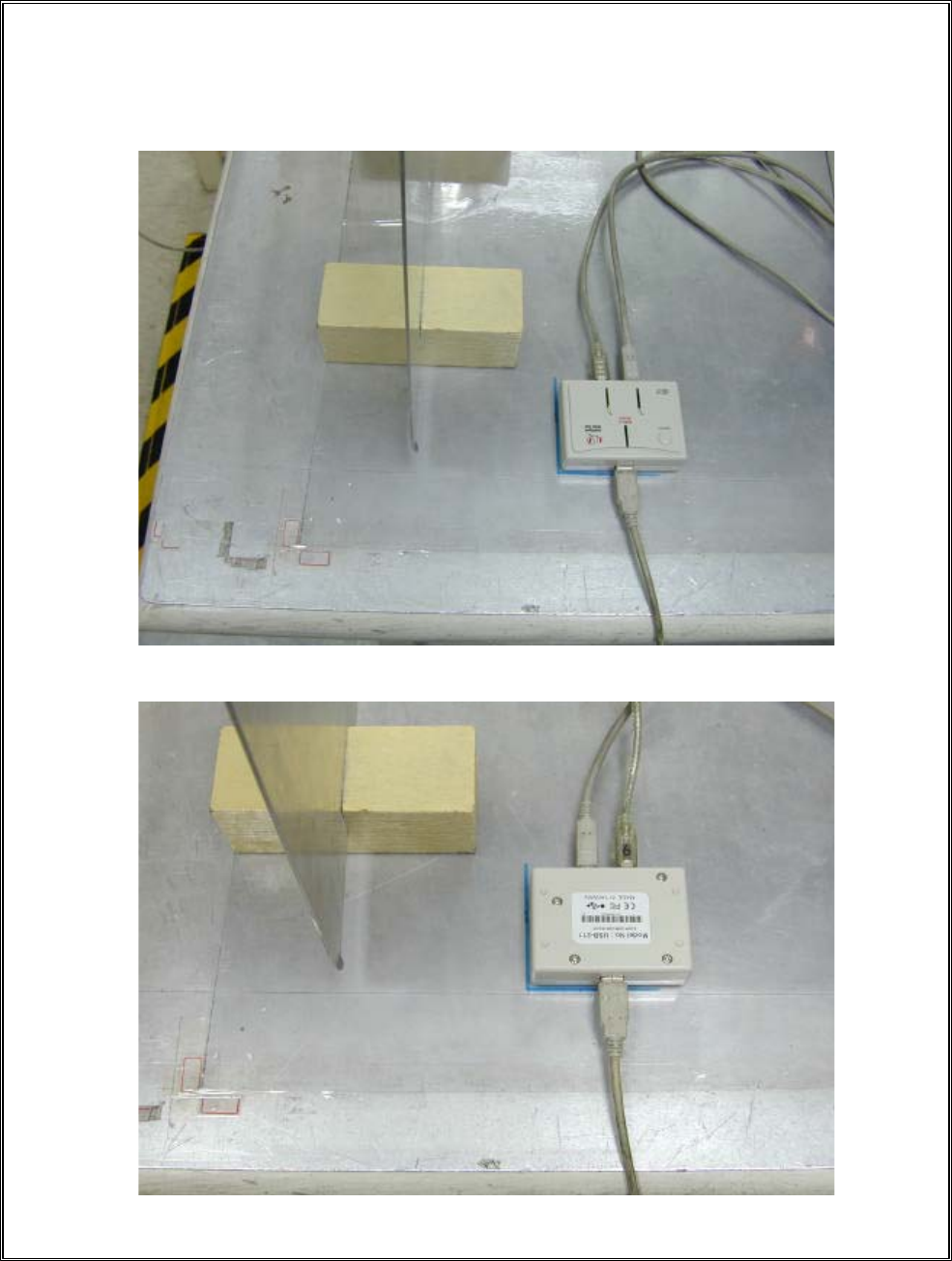

Direct Discharge Test Drawing
Model No. : USB-211
REPORT NO. : E900840-1
Page 7 of 13
Indirect Discharge Test Drawing
REPORT NO. : E900840-1
Page 8 of 13
Electrostatic Discharge Test Data (Direct Discharge)
Model No. : USB-411
Test Item : Direct Discharge Instrument : NoiseKen ESS-100L
Temperature : 26 к Relative Humidity : 48 %RH
Storage Capacitor : 150 pf Discharge Resistor : 330 Ohm
Discharge Rate : < 1 / Sec
Contact Discharge Air Discharge
2 KV 4 KV 6 KV 8 KV 2 KV 4 KV 6 KV 8 KV
+-+-+-+-+-+-+-+-
1PPPP/ / / / PPPPPPPP
2PPPP/ / / / PPPPPPPP
3PPPP/ / / / PPPPPPPP
4////////PPPPPPPP
5////////PPPPPPPP
6////////PPPPPPPP
7////////PPPPPPPP
8////////PPPPPPPP
9////////PPPPPPPP
10////////PPPPPPPP
1.“ P ”---- means the EUT function is correct during the test .
2.“ / ”----no test.
REPORT NO. : E900840-1
Page 9 of 13
Electrostatic Discharge Test Data (Indirect Discharge)
Model No. : USB-411
Test Item : Indirect Discharge Instrument : NoiseKen ESS-100L
Temperature : 26 кRelative Humidity : 48 %RH
Storage Capacitor : 150 pf Discharge Resistor : 330 Ohm
Discharge Rate : < 1 / Sec
Contact Discharge Air Discharge
2 KV 4 KV 6 KV 8 KV 2 KV 4 KV 6 KV 8 KV
+-+-+-+-+-+-+-+-
1PPPP////////////
2////////////////
3////////////////
4////////////////
5////////////////
6////////////////
7////////////////
8////////////////
9////////////////
10////////////////
1.“ P ”---- means the EUT function is correct during the test .
2.“ / ”----no test.
REPORT NO. : E900840-1
Page 10 of 13
Electrostatic Discharge Test Data (Direct Discharge)
Model No. : USB-211
Test Item : Direct Discharge Instrument : NoiseKen ESS-100L
Temperature : 26 к Relative Humidity : 48 %RH
Storage Capacitor : 150 pf Discharge Resistor : 330 Ohm
Discharge Rate : < 1 / Sec
Contact Discharge Air Discharge
2 KV 4 KV 6 KV 8 KV 2 KV 4 KV 6 KV 8 KV
+-+-+-+-+-+-+-+-
1PPPP/ / / / PPPPPPPP
2PPPP/ / / / PPPPPPPP
3PPPP/ / / / PPPPPPPP
4////////PPPPPPPP
5////////PPPPPPPP
6////////PPPPPPPP
7////////PPPPPPPP
8////////PPPPPPPP
9////////PPPPPPPP
10////////PPPPPPPP
1.“ P ”---- means the EUT function is correct during the test .
2.“ / ”----no test.
REPORT NO. : E900840-1
Page 11 of 13
Electrostatic Discharge Test Data (Indirect Discharge)
Model No. : USB-211
Test Item : Indirect Discharge Instrument : NoiseKen ESS-100L
Temperature : 26 кRelative Humidity : 48 %RH
Storage Capacitor : 150 pf Discharge Resistor : 330 Ohm
Discharge Rate : < 1 / Sec
Contact Discharge Air Discharge
2 KV 4 KV 6 KV 8 KV 2 KV 4 KV 6 KV 8 KV
+-+-+-+-+-+-+-+-
1PPPP////////////
2////////////////
3////////////////
4////////////////
5////////////////
6////////////////
7////////////////
8////////////////
9////////////////
10////////////////
1.“ P ”---- means the EUT function is correct during the test .
2.“ / ”----no test.
REPORT NO. : E900840-1
Page 12 of 13

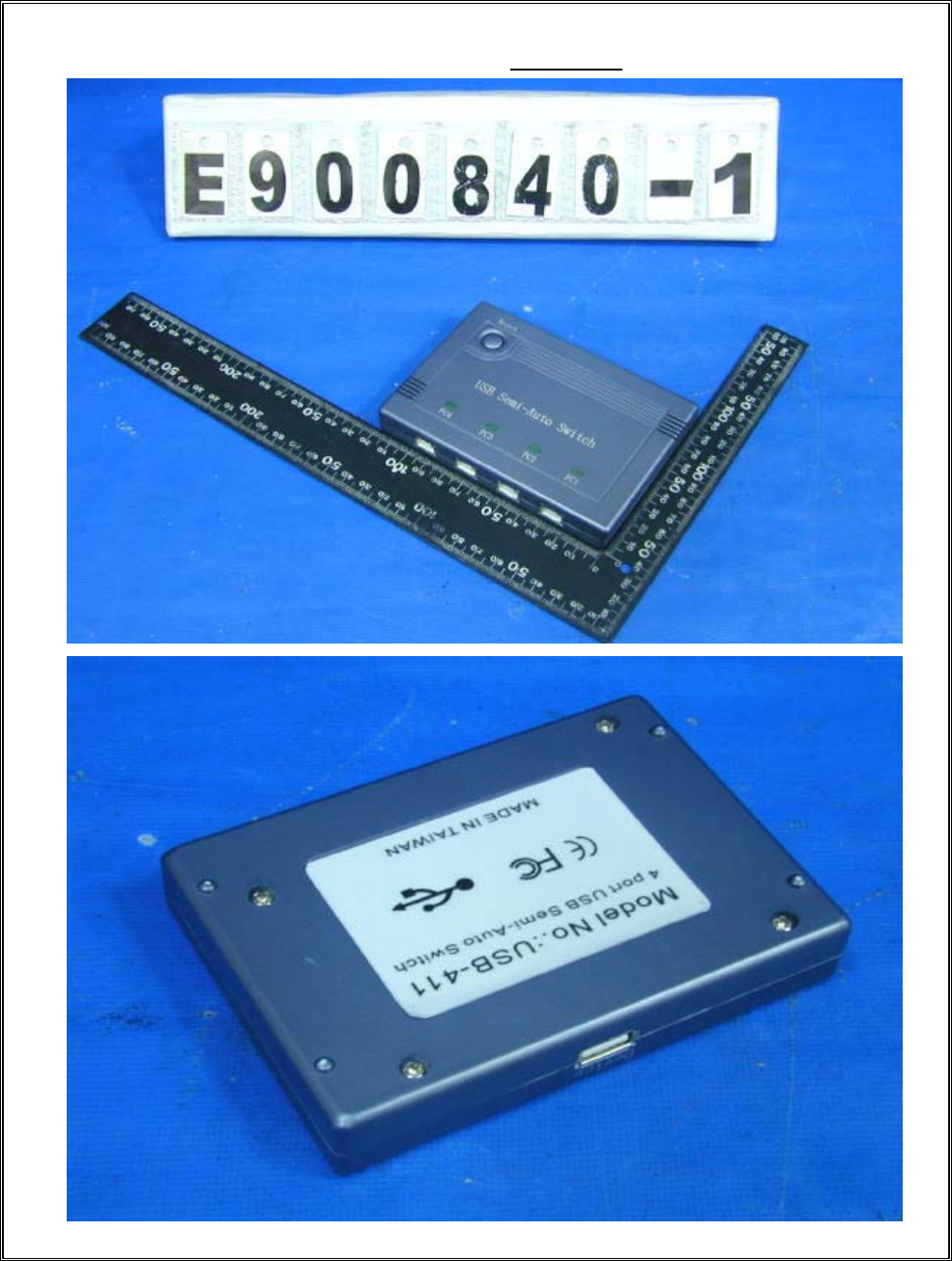

EUT Photos
MODEL NO. : USB-411 ;
REPORT NO. : E900840-1
Page 13 of 13

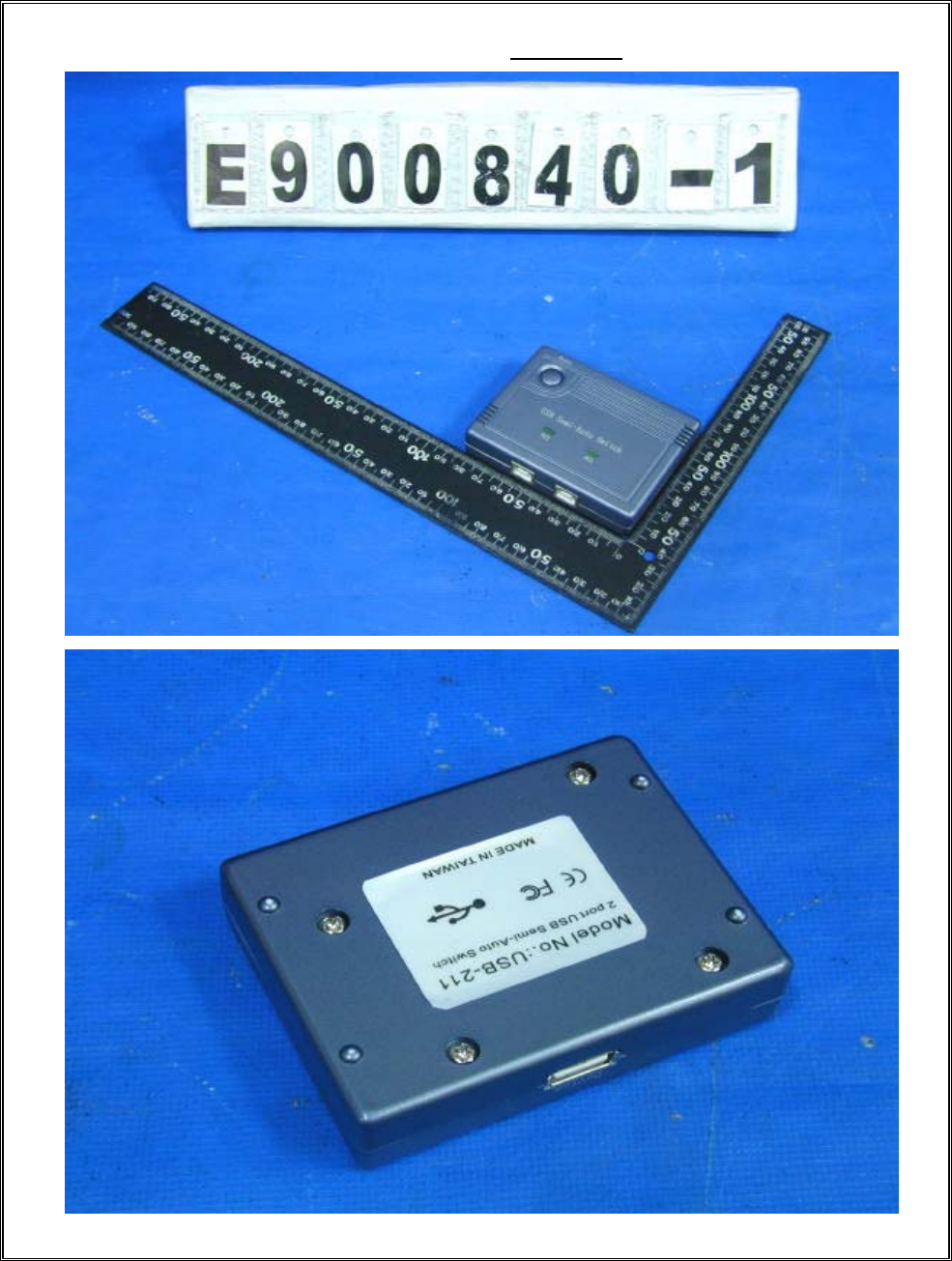

MODEL NO. : USB-211 ;
Declaration of Conformity
The following
Applicant : NEOSTAR TECHNOLOGY CO., LTD.
Equipment : USB Share Switch
Model No. : USB-401P, USB-401, USB-201, USB-201P
USB-411, USB-211
Report No. : E900840-1
is herewith confirmed to comply with the requirements set out in the Council Directive on
the Approximation of the Laws of the Member States relating to Electromagnetic
Compatibility(89/336/EEC) and the amendments in the Council Directive 92/31/EEC,
93/68/EEC.
For the evaluation of above mentioned Directives, the following standards were applied:
1) EN 55022: 1998+A1 : 2000 Class B
2) EN 61000-3-2 : 2000
3) EN 61000-3-3 : 1995
4) EN 55024 : 1998+A1 : 2001
EN 61000-4-2 : 1995+A1: 1998
EN 61000-4-3 : 1996+A1: 1998
EN 61000-4-4 : 1995
EN 61000-4-5 : 1995
EN 61000-4-6 : 1996
EN 61000-4-8 : 1993
EN 61000-4-11 : 1994
The following manufacturer is responsible for this declaration:
NEOSTAR TECHNOLOGY CO., LTD.
14F, NO. 150, SEC. 2, SHIN TA WU ROAD,
HSICHIH TAIPEI,
TAIWAN, R. O. C.
Taiwan / APR. 17, 2003
Place and Date Signature of responsible Person
VERIFICATION
of conformity with
European EMC Directive
No. E900840-1
Document holder
:NEOSTAR TECHNOLOGY CO., LTD.
Type of equipment:
USB Share Switch
Type designation
:USB-401P, USB-401, USB-201, USB-201P,USB-411, USB-211
A sample of the equipment has been tested for CE-marking according to the EMC Directive, 89/336/EEC. &
92/31/EEC & 93/68/EEC
Standard(s) used for showing compliance with the essential requirements of the directive:
EMC Standard(s): Performance Criterion
EN 55022: 1998+A1: 2000 Class B
EN 61000-3-2: 2000
EN 61000-3-3: 1995
EN 55024: 1998+A1: 2001 EN 61000-4-2: 1995+A1: 1998 B
EN 61000-4-3: 1996+A1: 1998
EN 61000-4-4: 1995
EN 61000-4-5: 1995
EN 61000-4-6: 1996
EN 61000-4-8: 1993
EN 61000-4-11: 1994
The referred test report(s) show that the product fulfills the requirements in the EMC Directive for CE marking. On this basis,
together with the manufacturer’s own documented production control, the manufacturer (or his European authorized representative)
can in his EC Declaration of Conformity verify compliance with the EMC Directive.
Signed for and on behalf of
PEP Testing Laboratory
Date: APR. 17, 2003 M. Y. Tsui / President
