2015
Application Selection and
Cross-Reference Guide
Residential Combustion
2
Phone:
Residential Technical Support:
1-800-468-1502
Sales Support: 1-800-328-5111
Customer Service: 1-888-793-8193
Residential Zoning: 1-800-828-8367
Online:
www.customer.honeywell.com
www.forwardthinking.honeywell.com
www.literature.honeywell.com
Contractor PRO:
Phone: 1-800-919-4835
Fax: 1-800-745-4999
Exclusive Technical Support
for Contractor PRO members:
1-877-880-3383
www.contractorpro.com
Support
Online Tools
Find everything you need to be successful in selling
Honeywell products online. Product information,
cross-references, demos and more are available at
www.customer.honeywell.com.
Training
Honeywell offers a variety of on-site and web-based training options
at www.customer.honeywell.com.
Rewards
Make your business count with Honeywell's Contractor PRO™ Program.
Honeywell's Contractor PRO program gives contractors reward points
($) back on Honeywell purchases. Visit www.contractorpro.com for
more information.
Customer Service
Honeywell provides toll-free access to product
application, installation and support experts.
Technical Support: 1-800-468-1502
Customer Service: 1-888-793-8193
Sales Literature
With Honeywell, you’ll have access to sales materials that you can use to
help grow your business. Visit www.literature.honeywell.com.
3
Gas Controls
Table Of Contents
New Products 4
GAS CONTROLS
Gas Valves 6

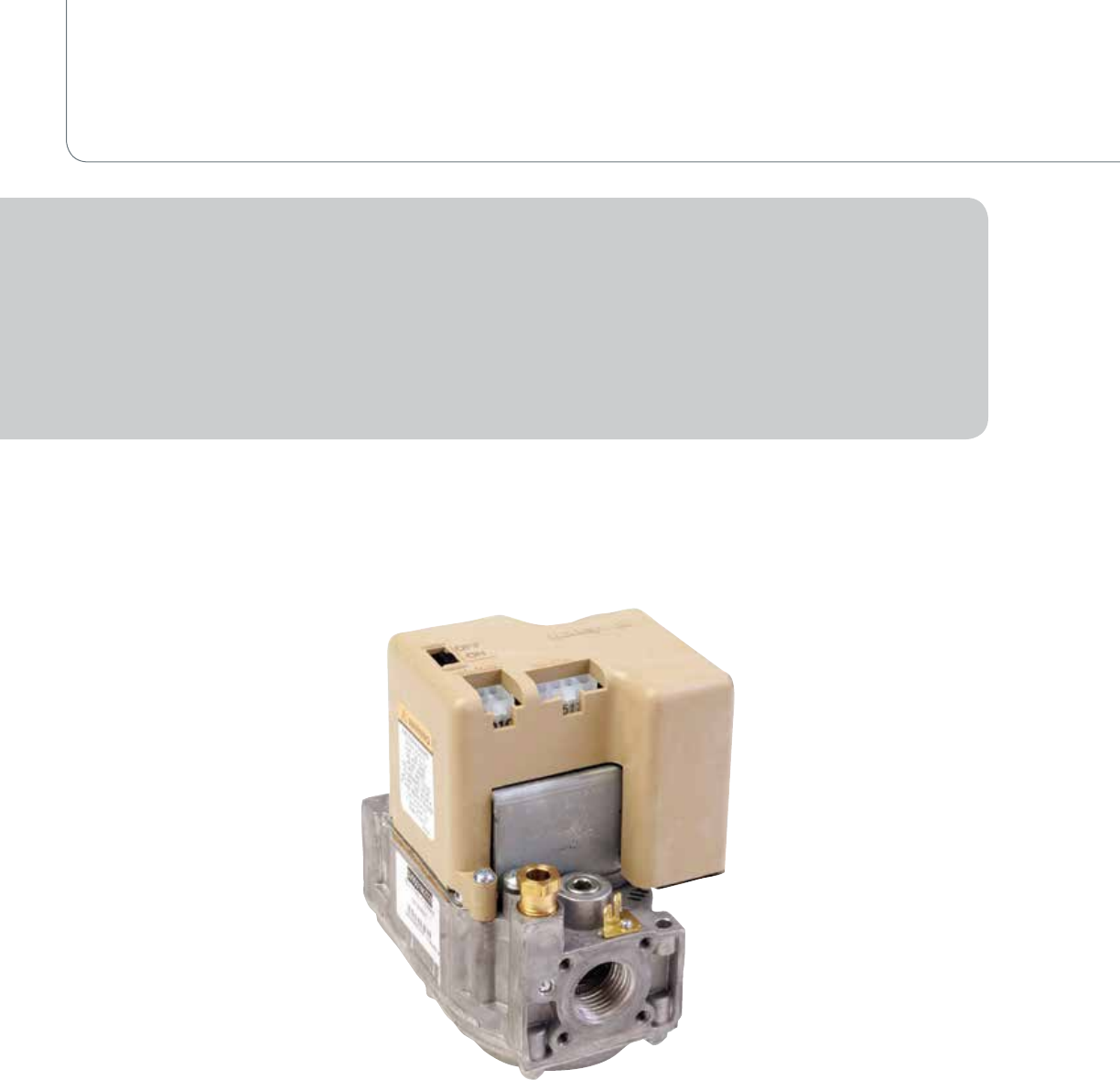

SmartValve™ System Controls 10

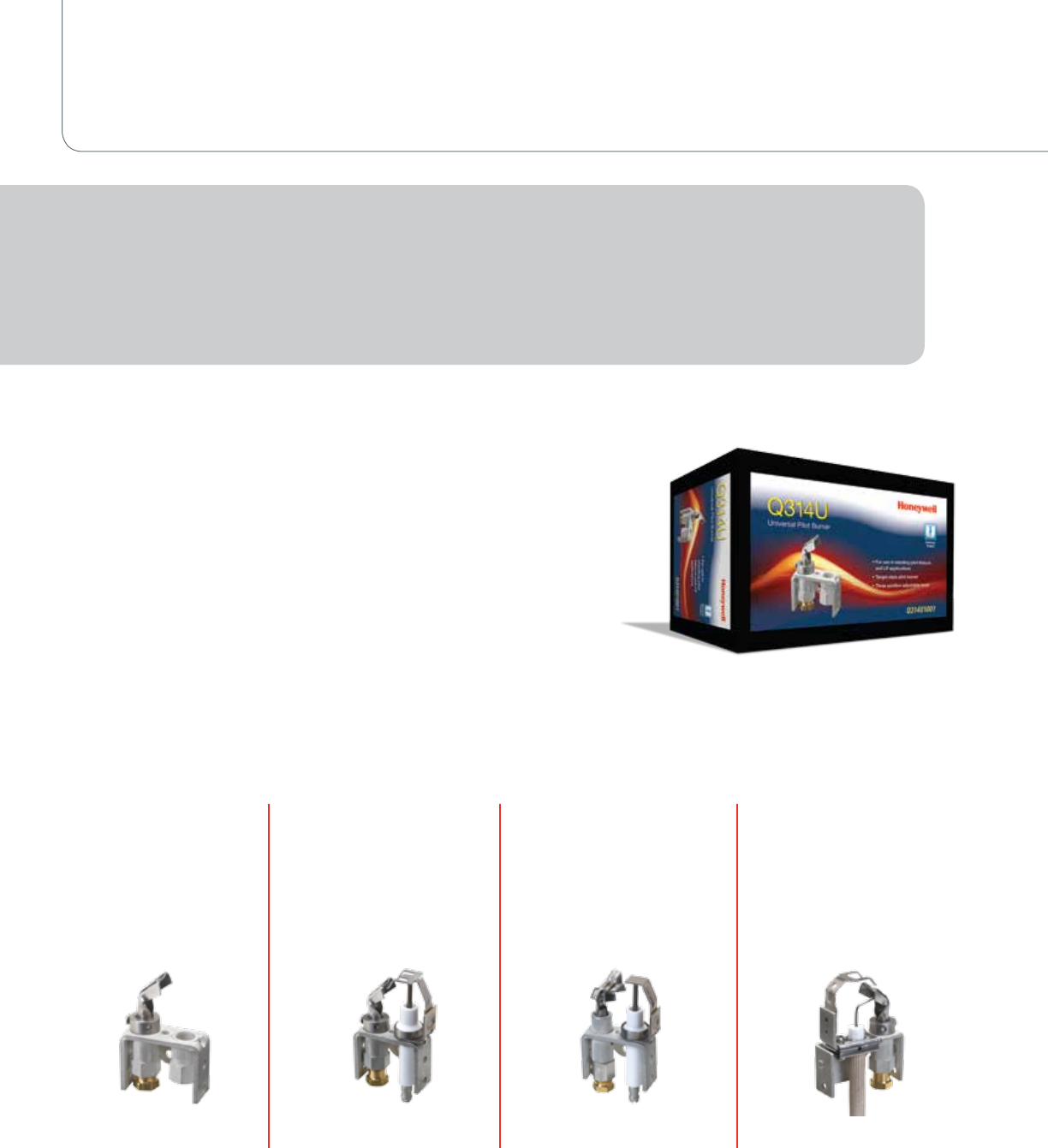

Universal Pilot Burners 14

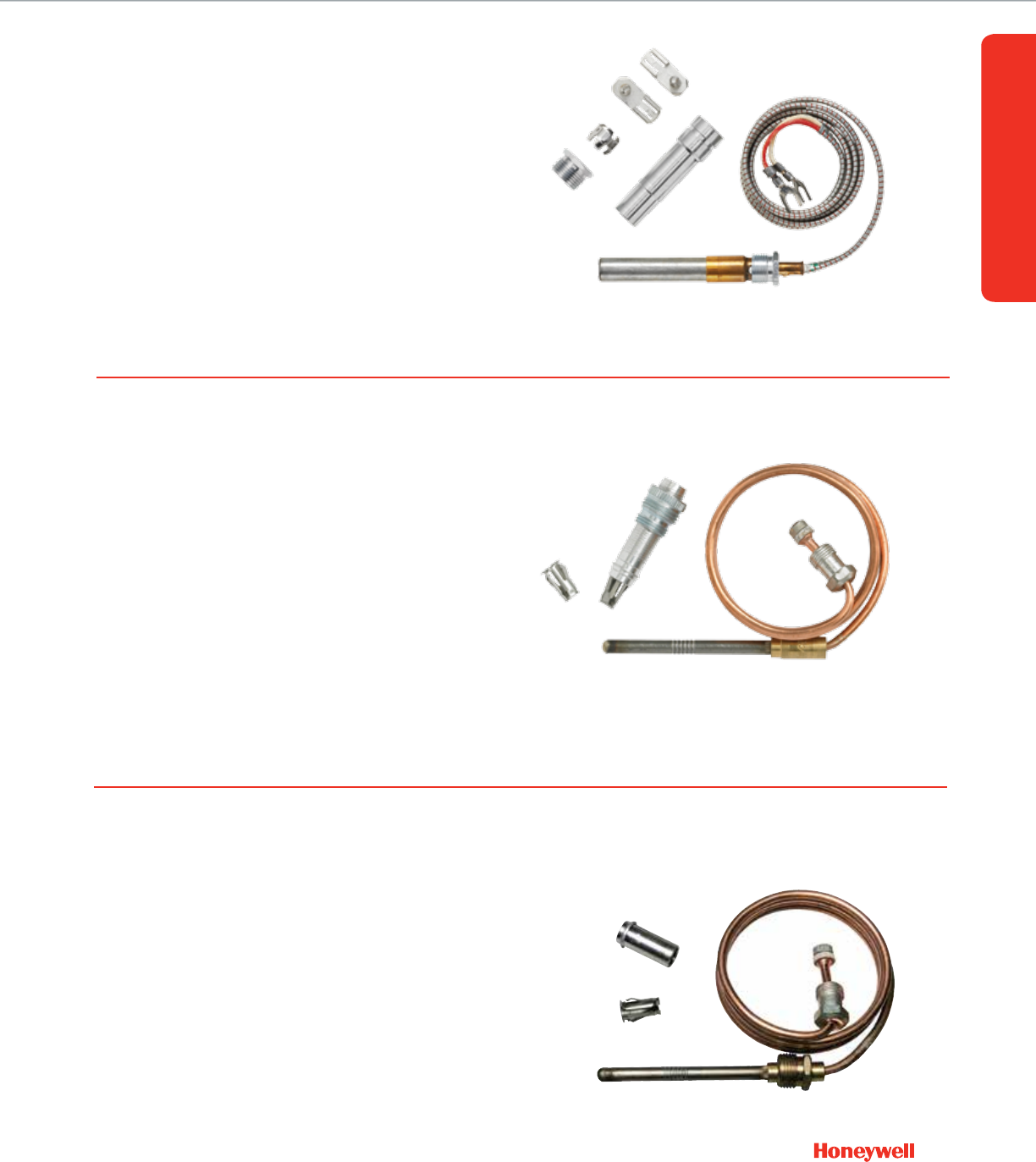

Thermocouples/Thermopiles 18
Ignition Modules 20

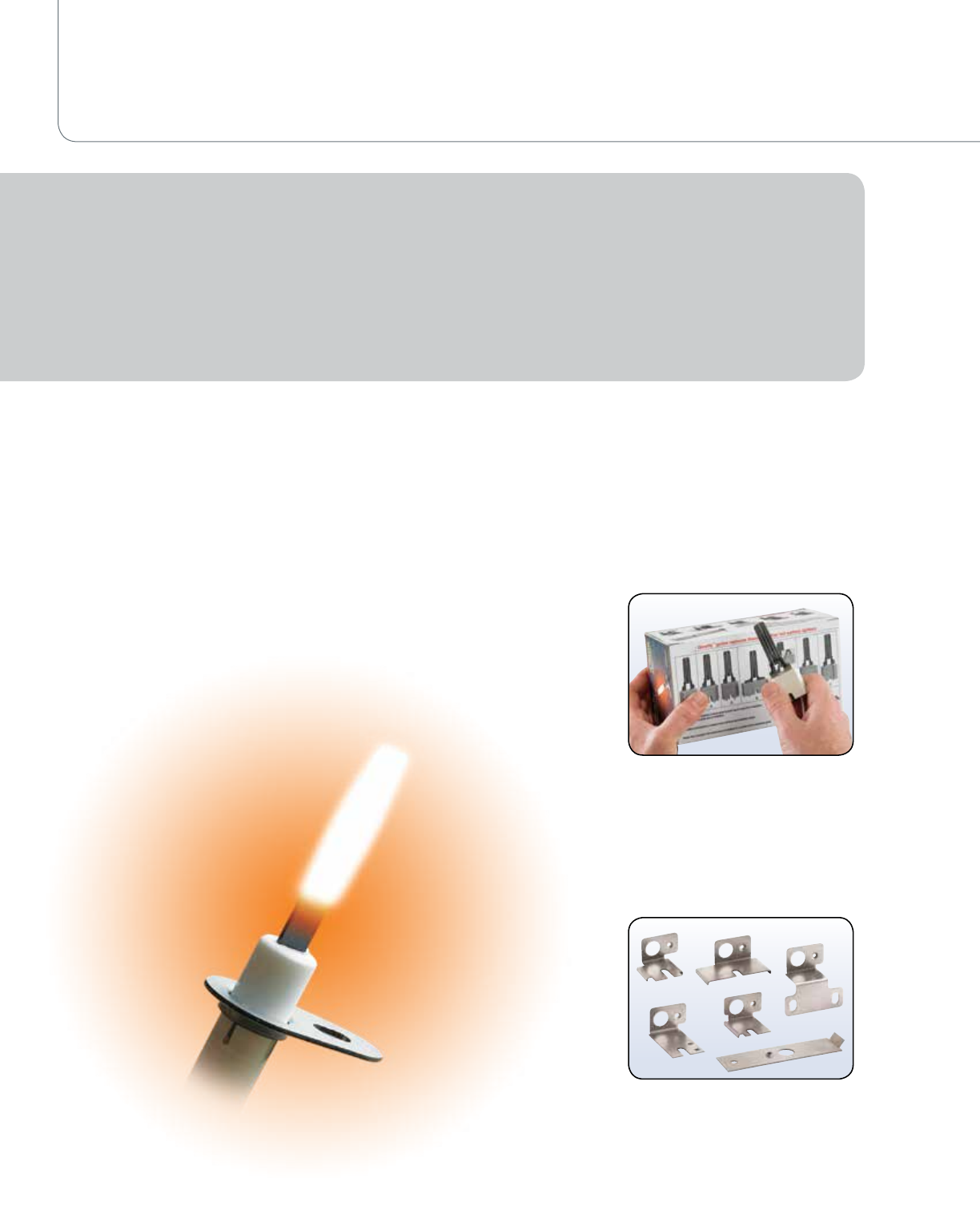

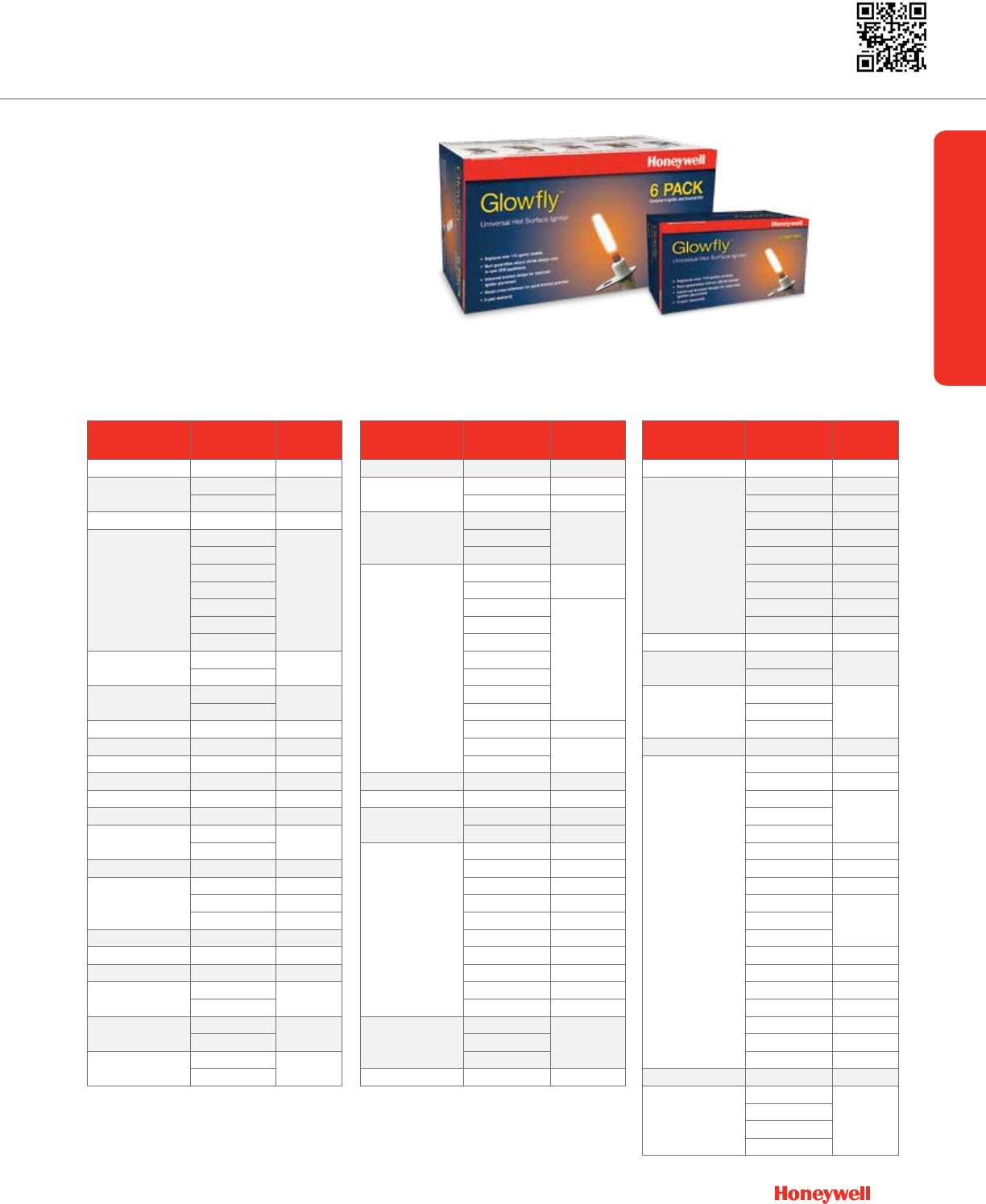

Glowfly® Universal Hot Surface Igniter 24
Silicon Carbide Igniters 26
Universal Electronic Fan Timer 28

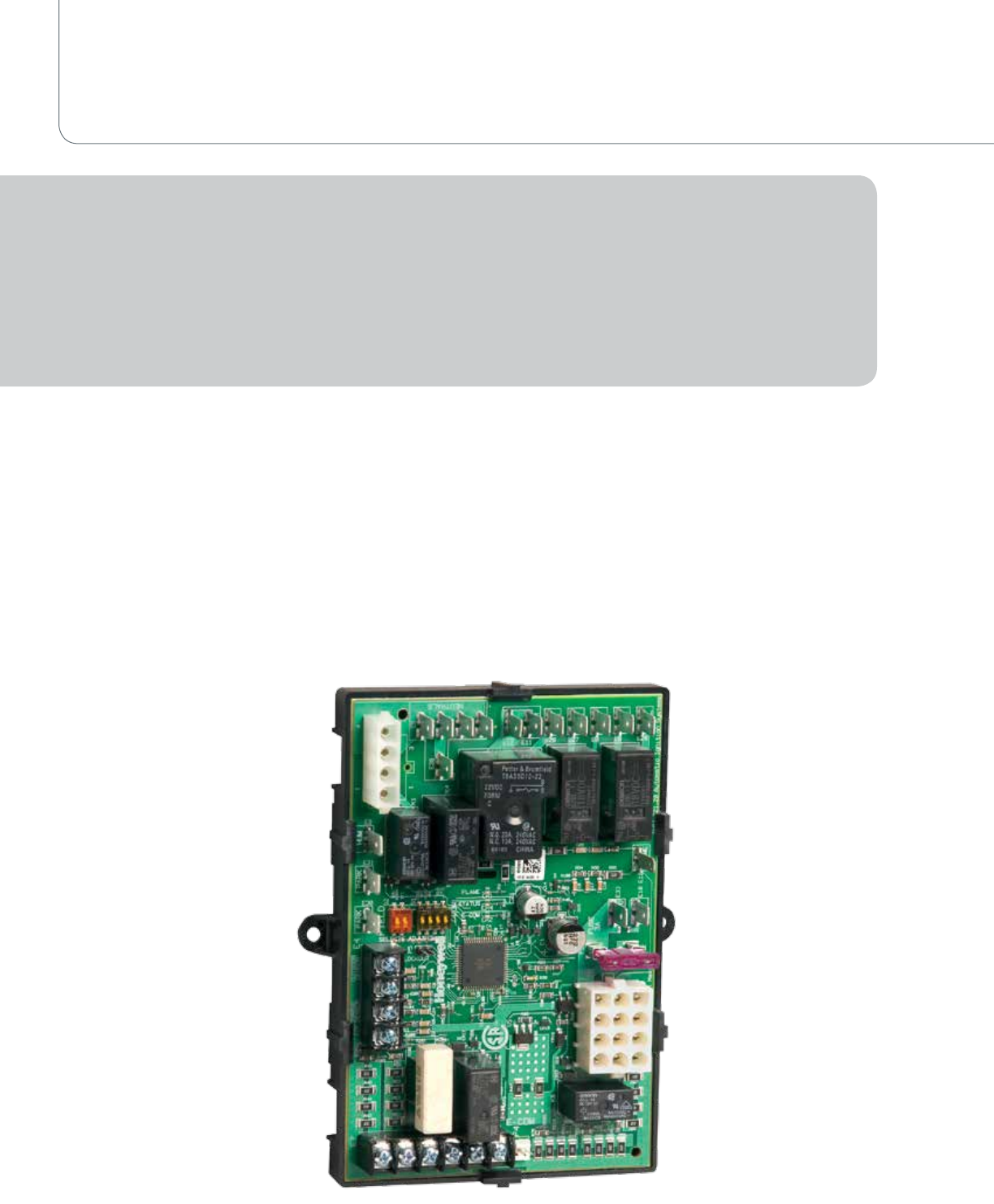

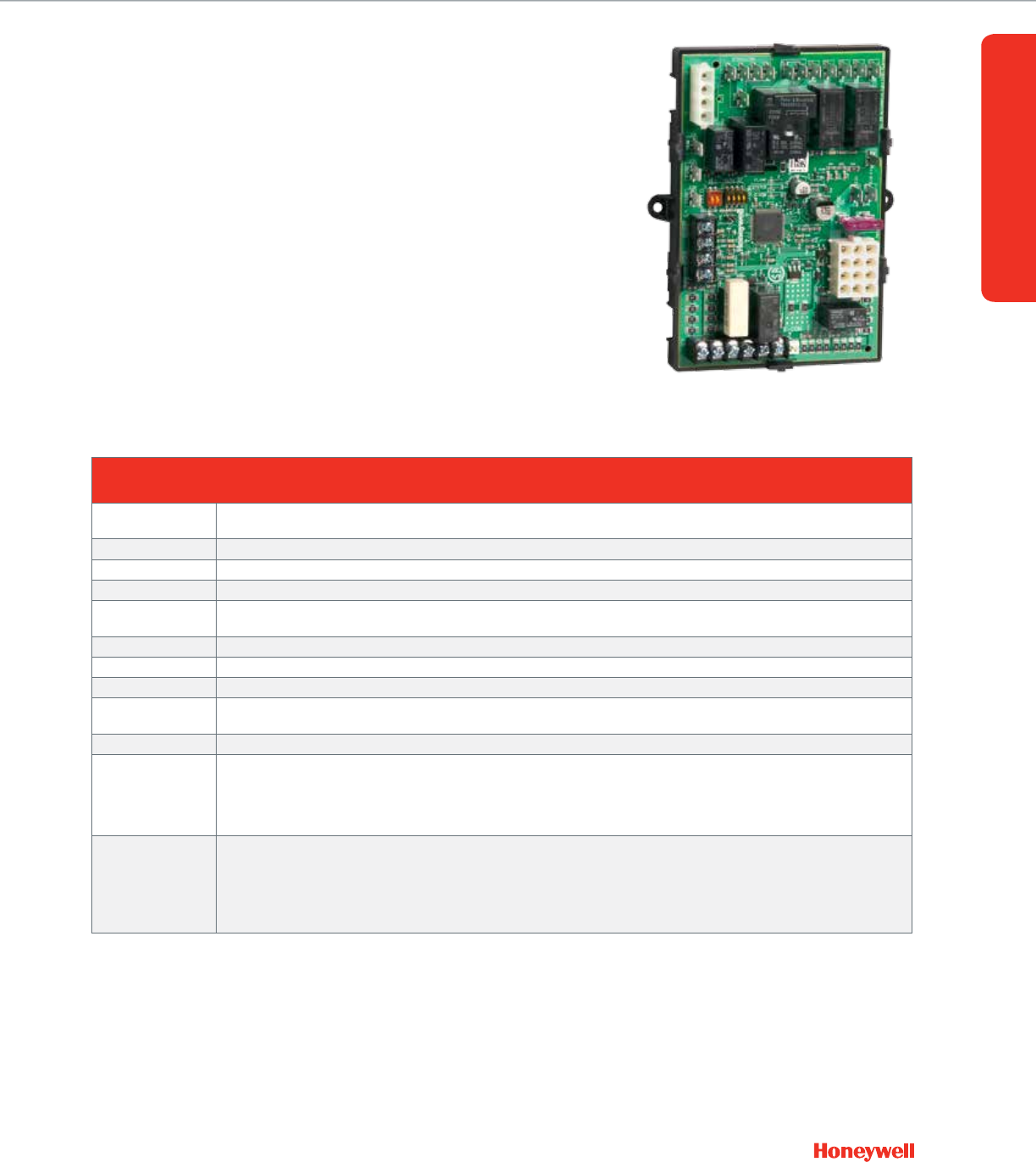

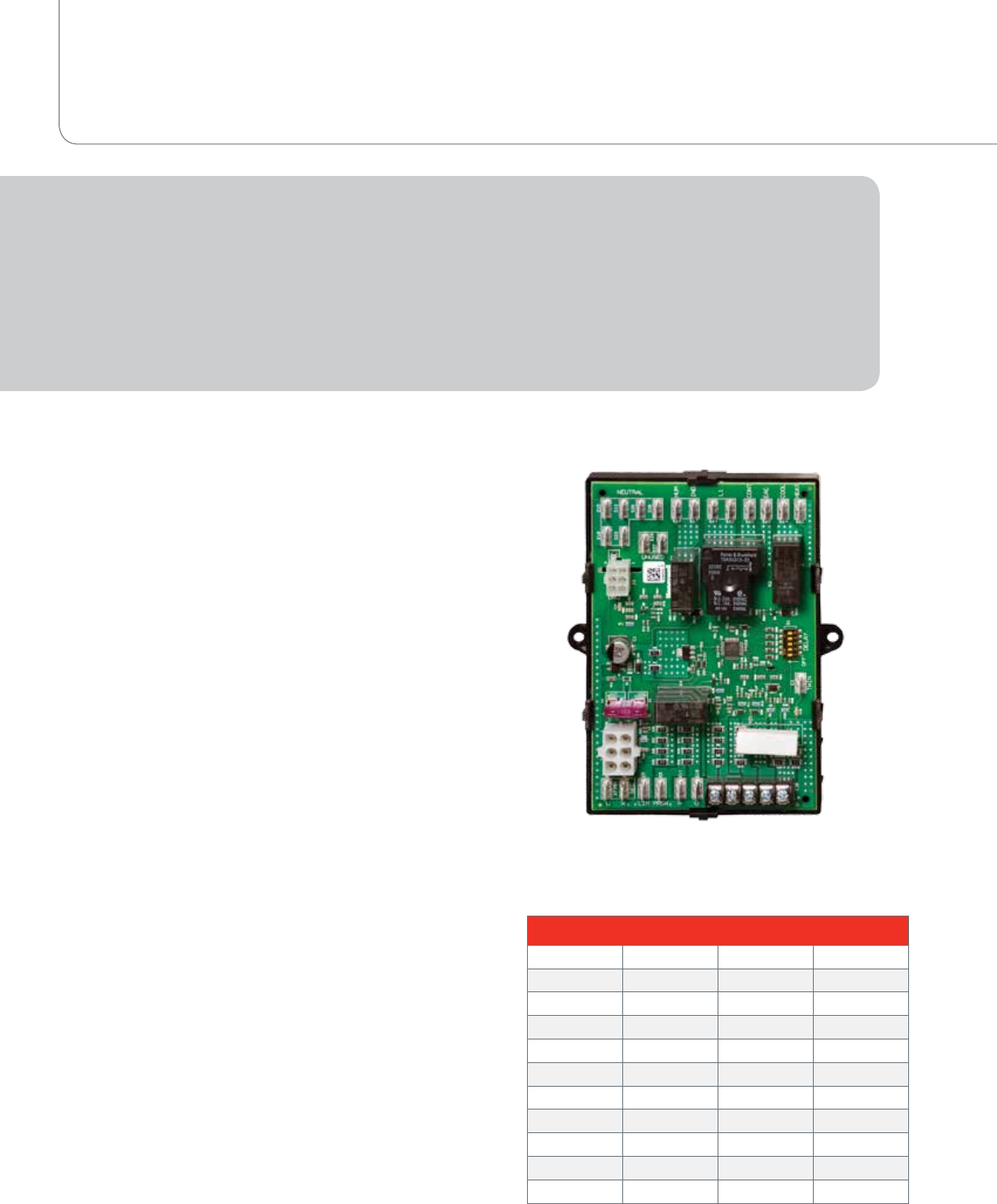

Universal Integrated Furnace Control 30

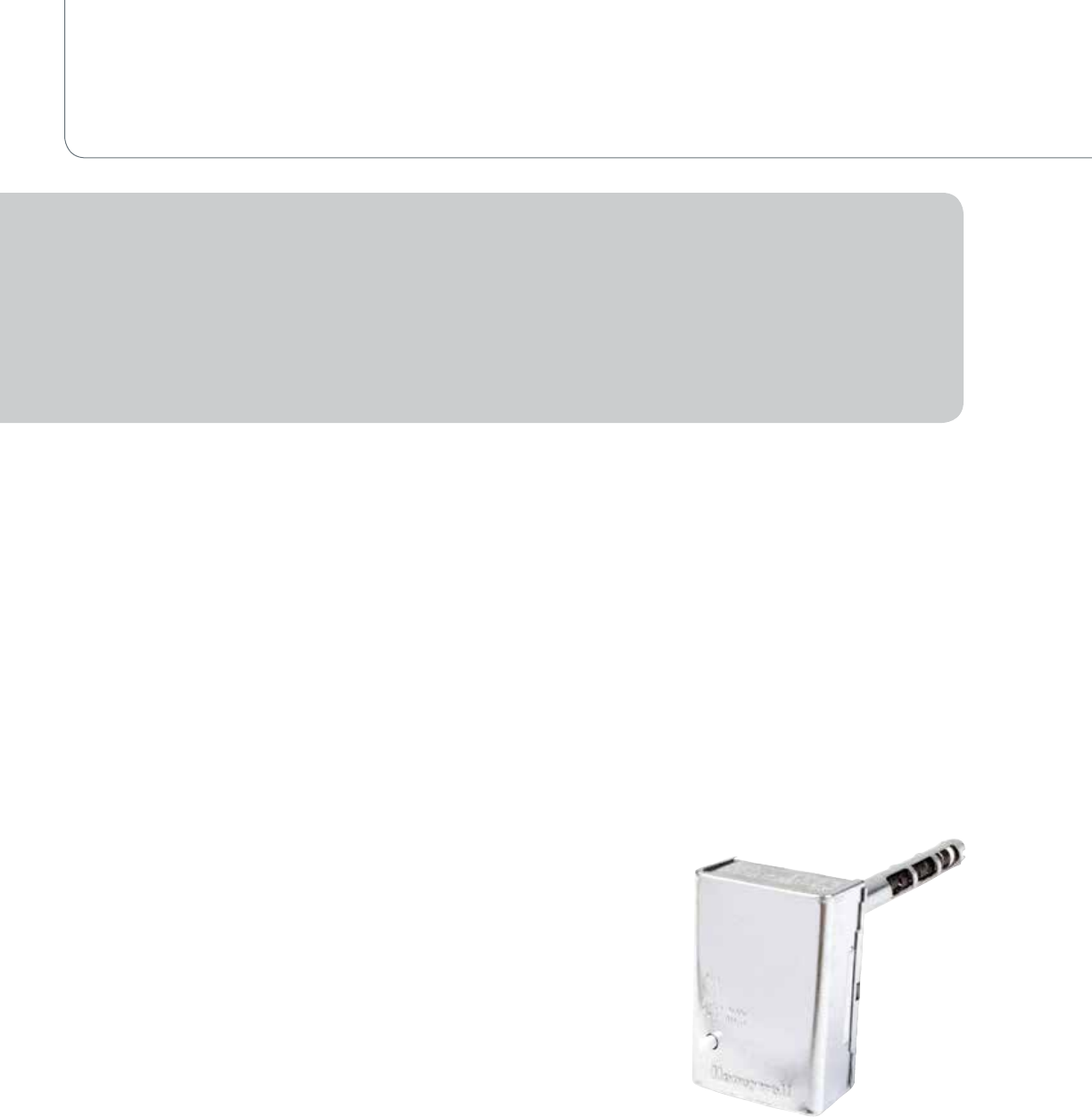

Fan and Limit Controls 36

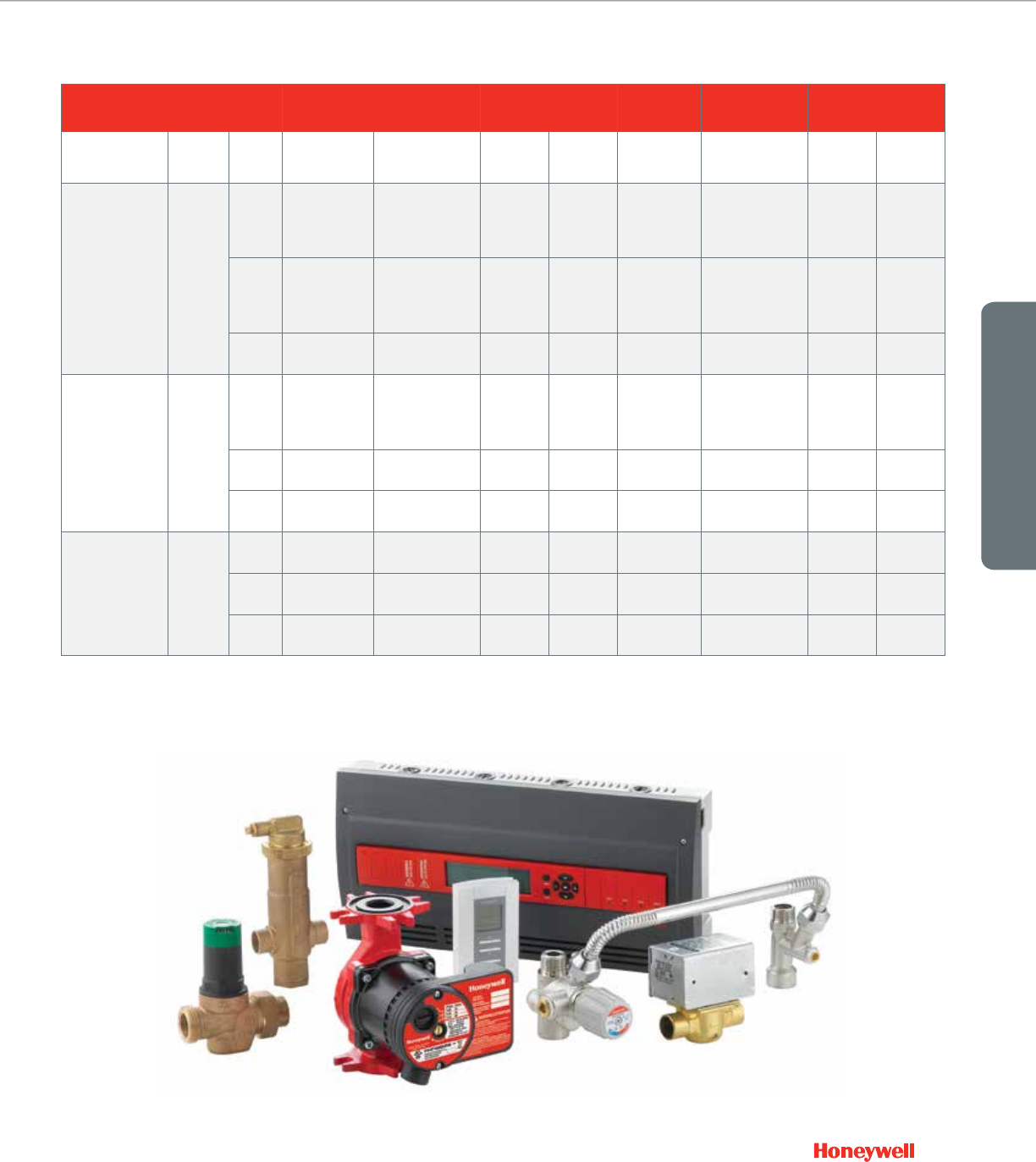

OIL/HYDRONIC CONTROLS

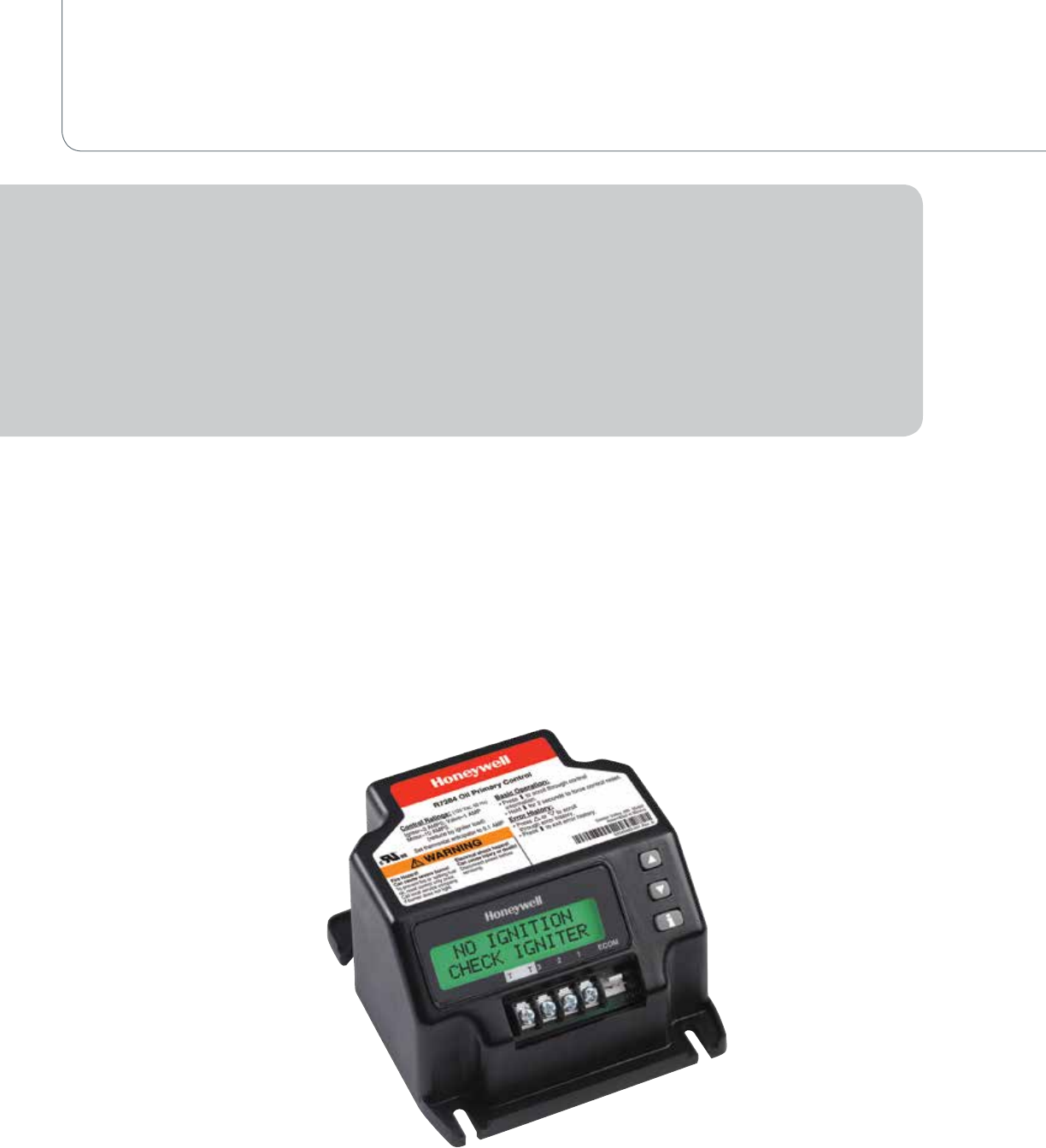

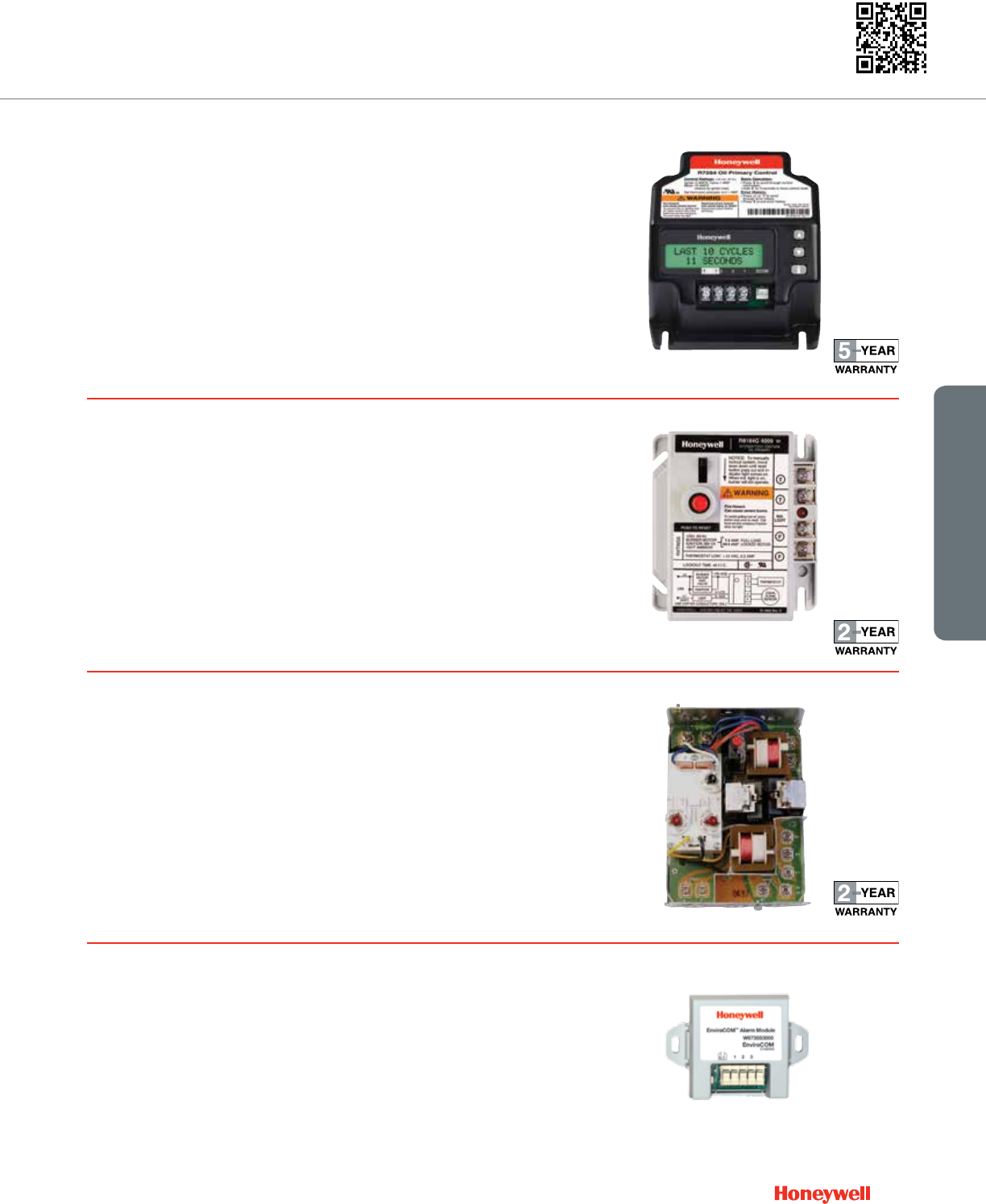

Oil Primaries 38

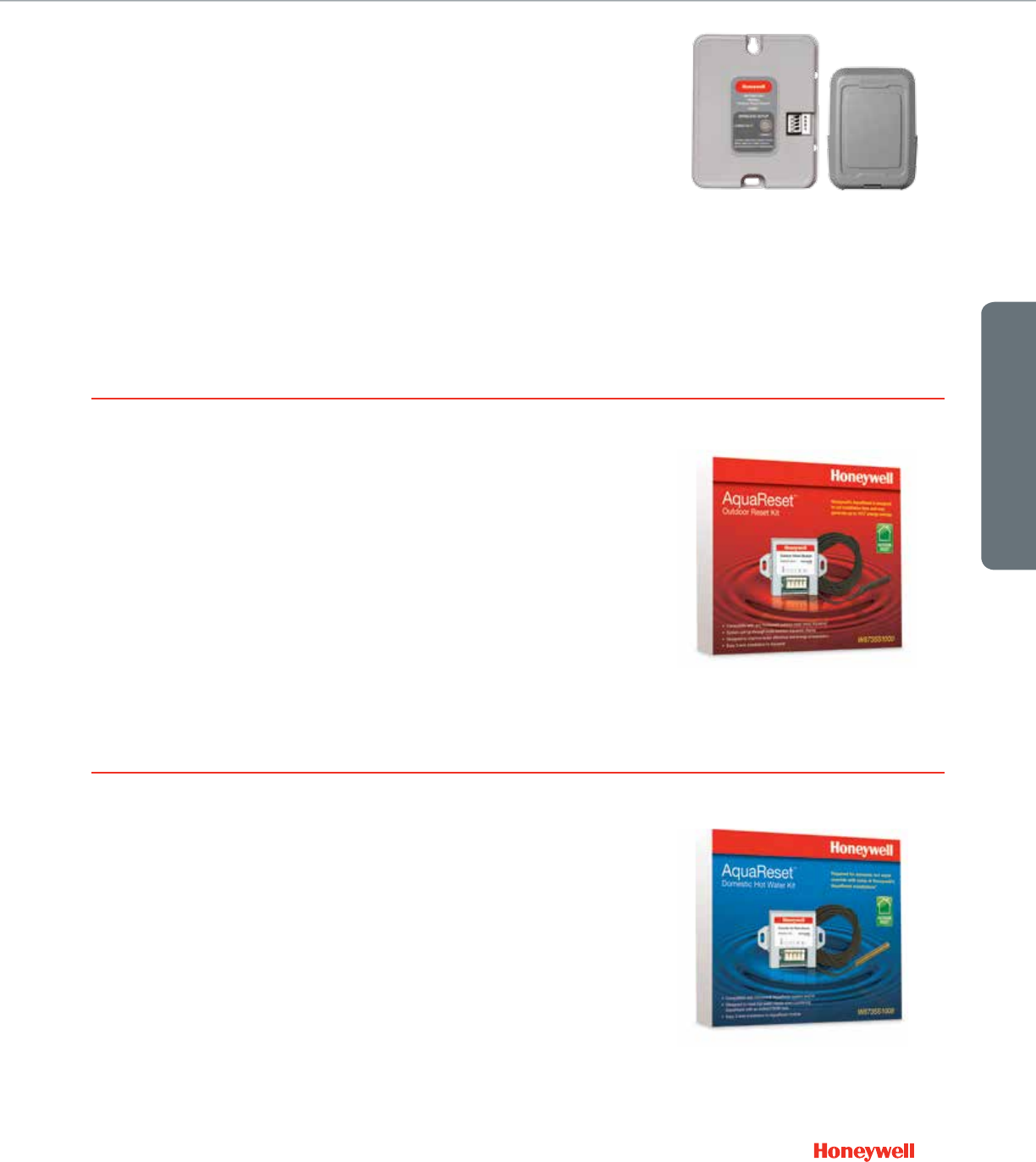

Outdoor Reset 42

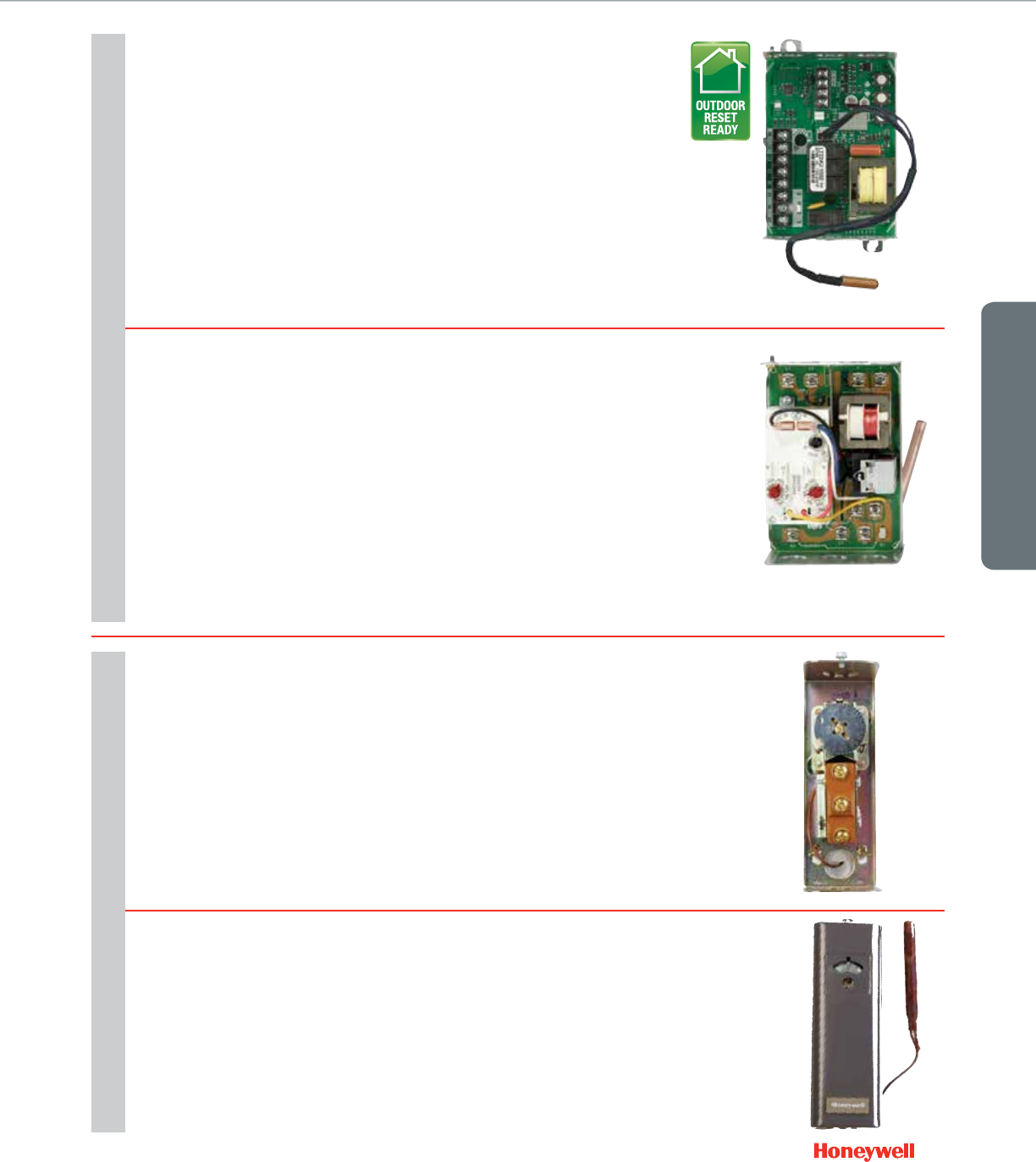

Aquastats® 44

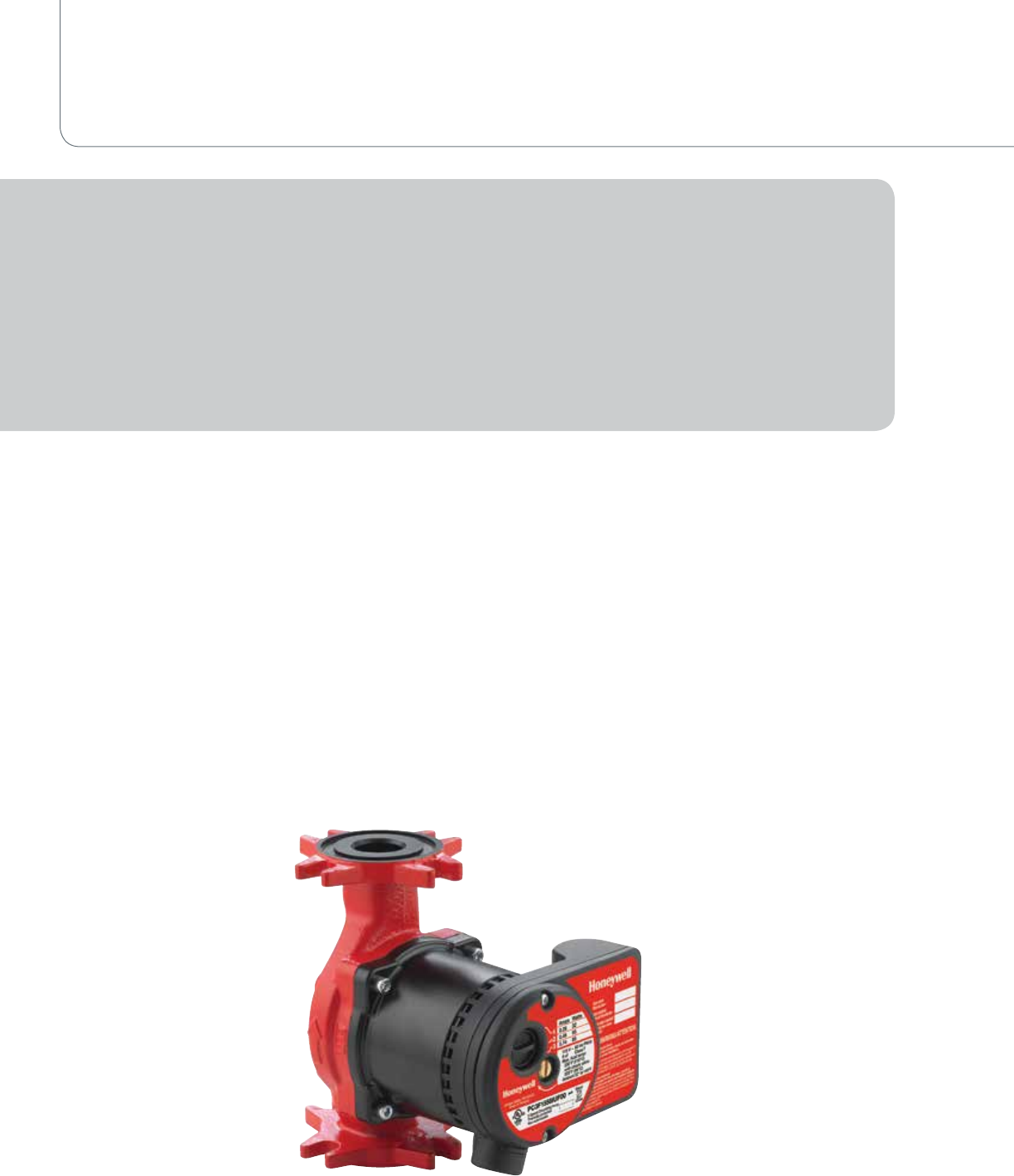

AquaPump 50
HEATING/COOLING DEVICES

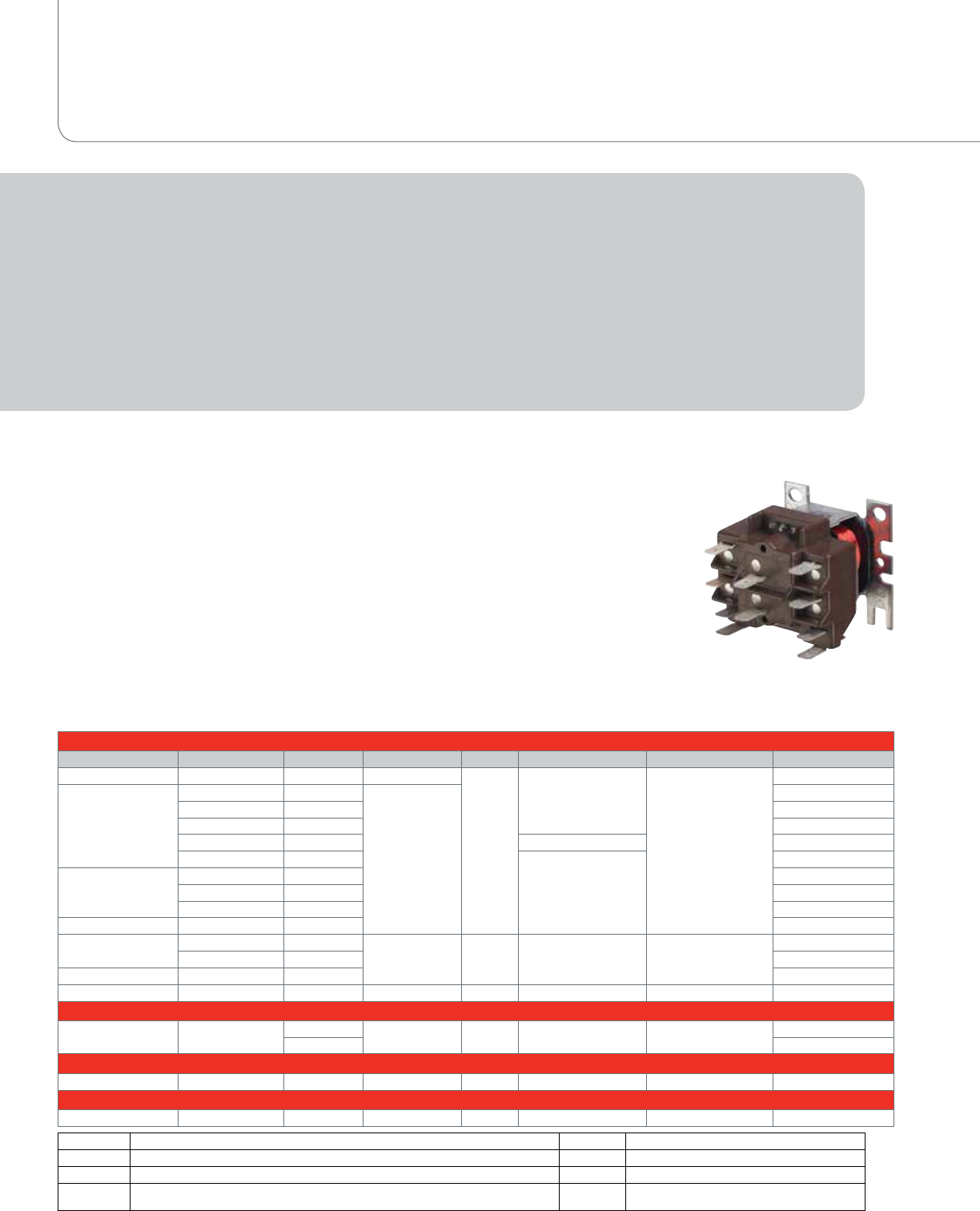

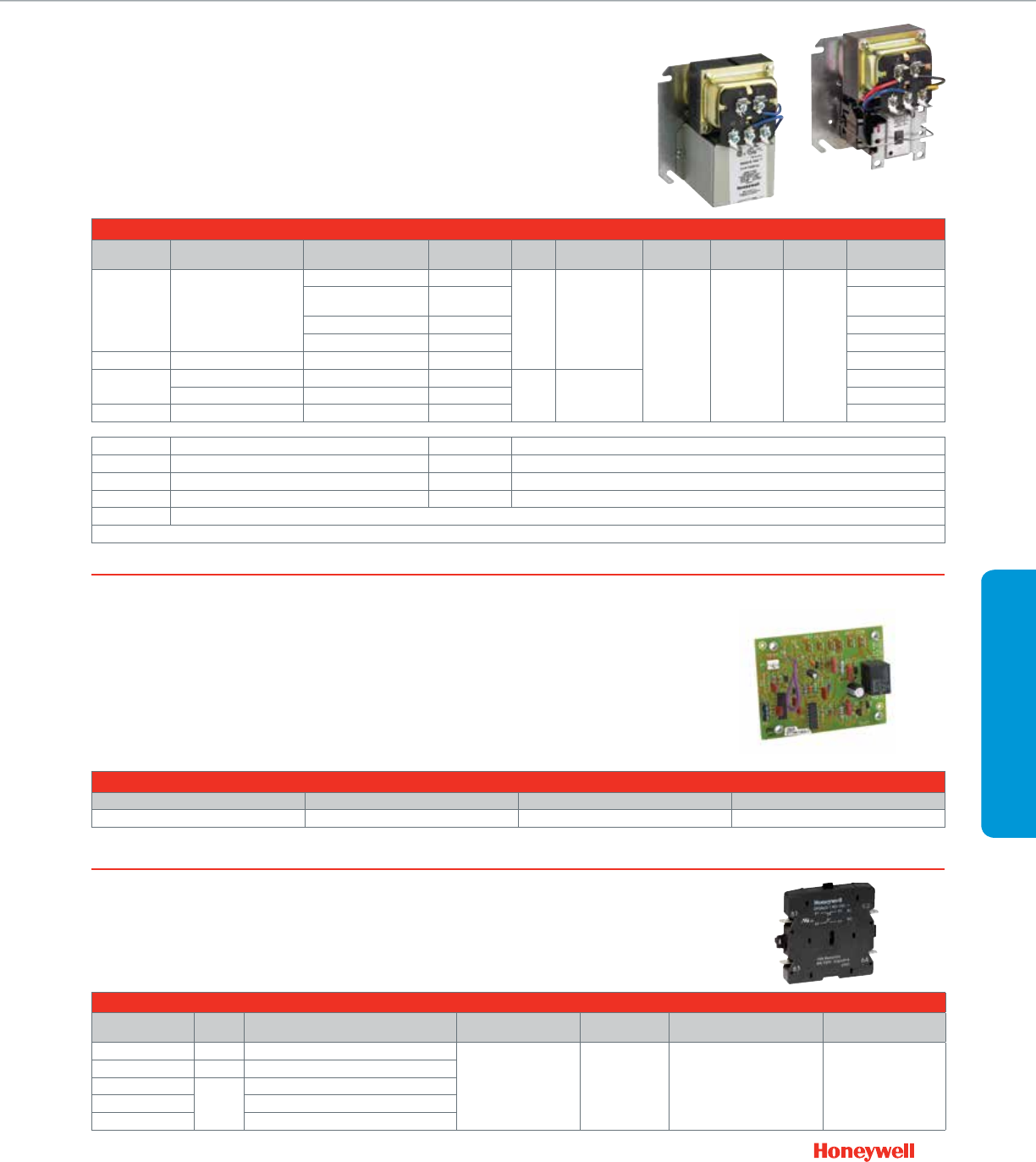

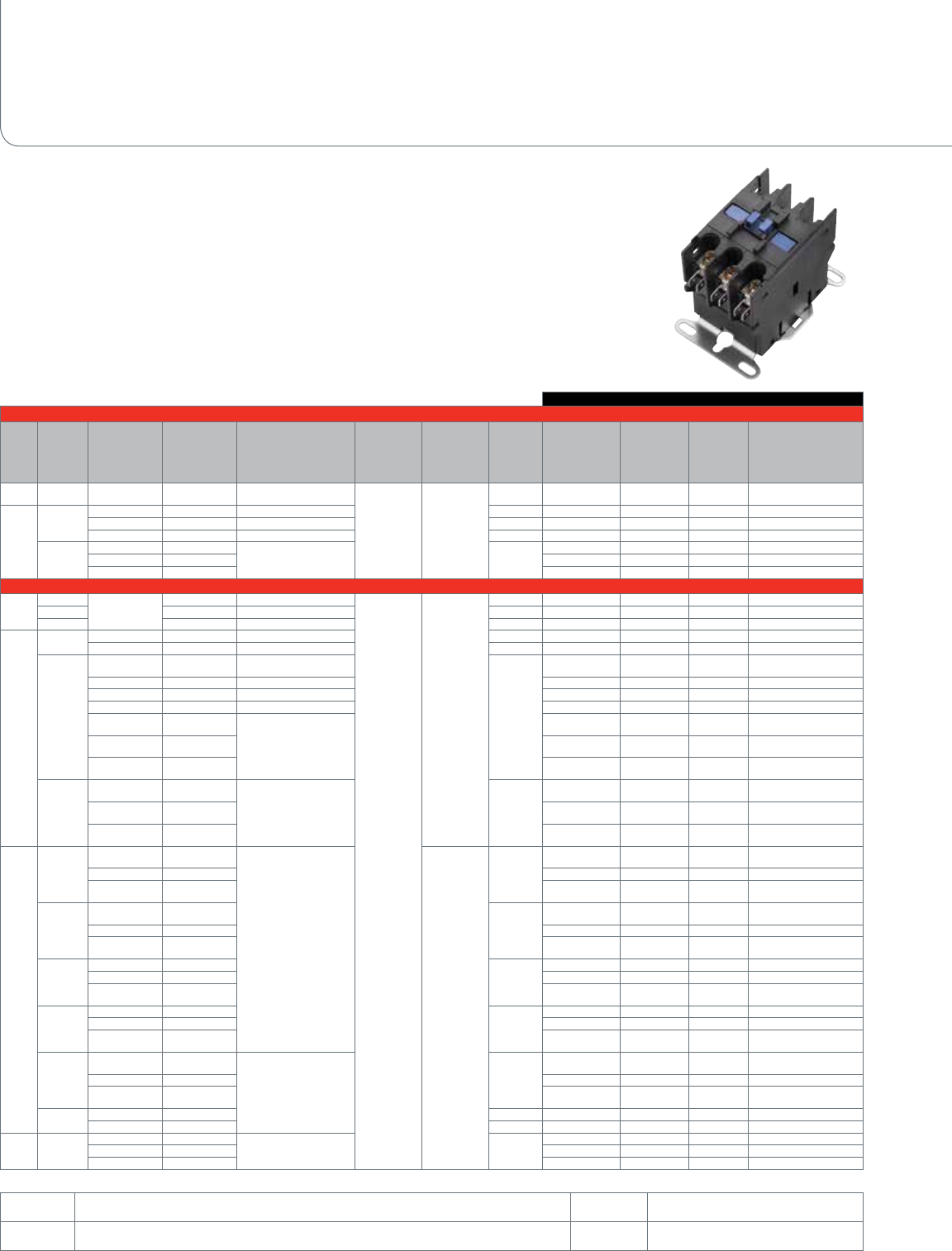

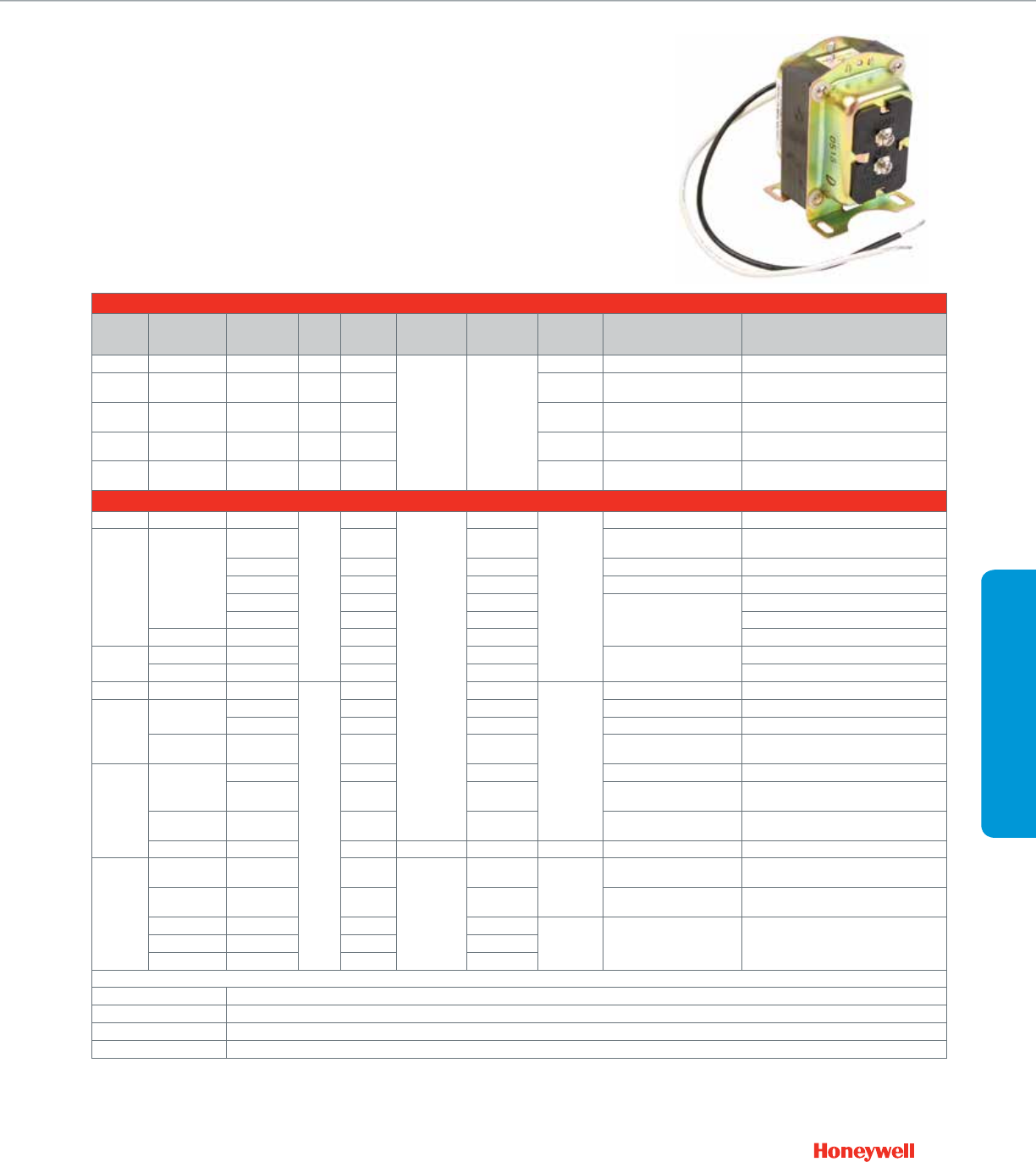

Relays/Contactors/Transformers 52
Gas ControlsHeating/Cooling Devices Oil/Hydronic Controls
PAGE
4

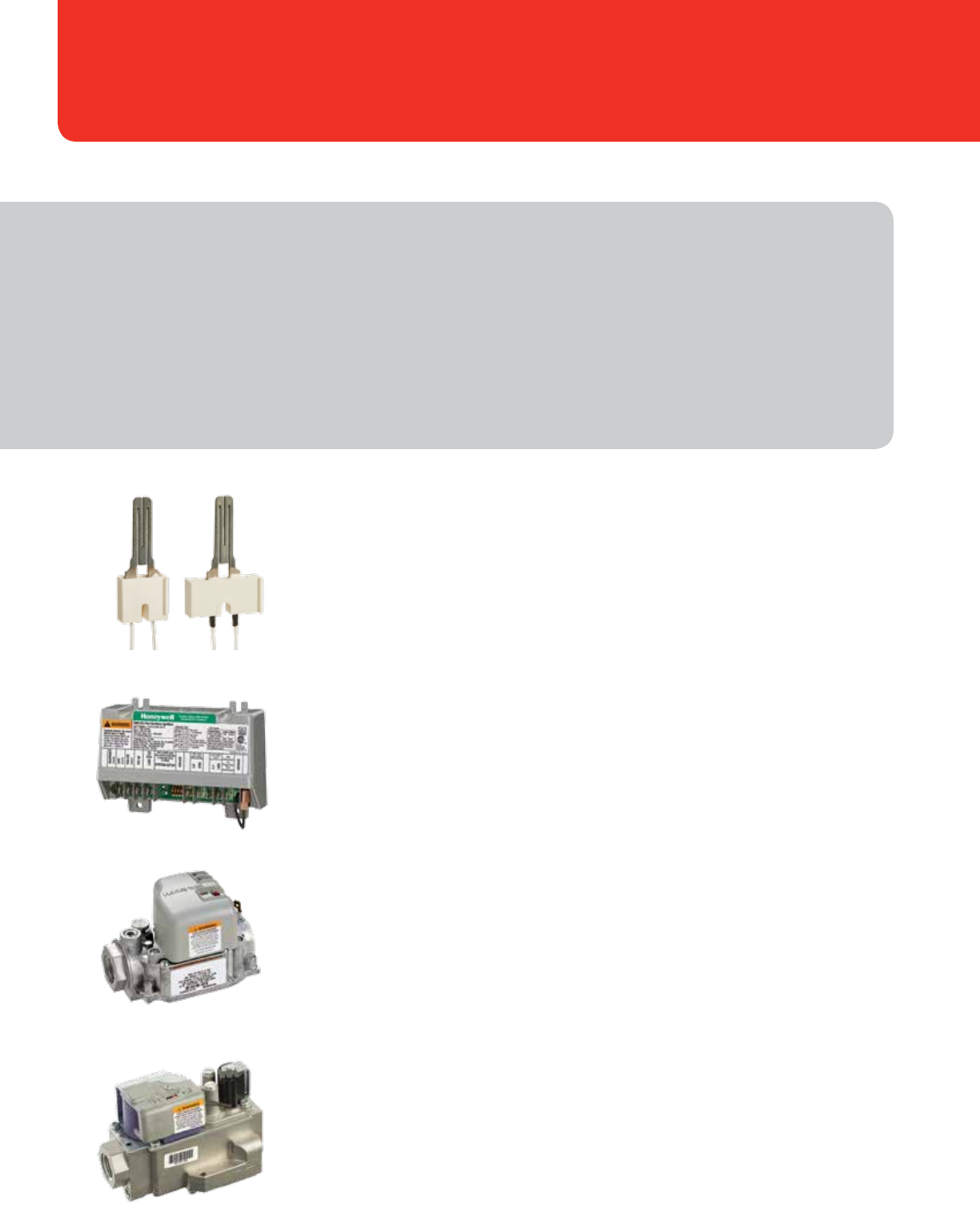

New for 2015
As an industry leader in innovation and new product development, Honeywell provides solutions to make
your job easier and more profitable. This heating season we're introducing several new products, including
a full line of direct replacement 120 V silicon carbide igniters. For distributors who want to simplify their
ordering, this full line presents a new vendor consolidation opportunity. Honeywell is also enhancing the
S8910U Universal Hot Surface Ignition Module to expand the cross reference and simplify trouble-shooting.
Enhanced S8910U Universal Hot Surface Ignition Module
Now you can fix more problems while carrying fewer parts. Field-selectable dip
switches expand the cross reference from 650 to over 800 controls. A three-color
LED makes trouble-shooting quick and easy. We’ve also added microammeter
ports for testing the igniter.
VR9205Q Two Stage Gas Valve
A growing replacement opportunity exists for VR9205Q two stage gas
valves. The VR9205Q1507 Trade replacement valve enables distributors to
capture this replacement opportunity if they do not have access to the OEM
replacement.

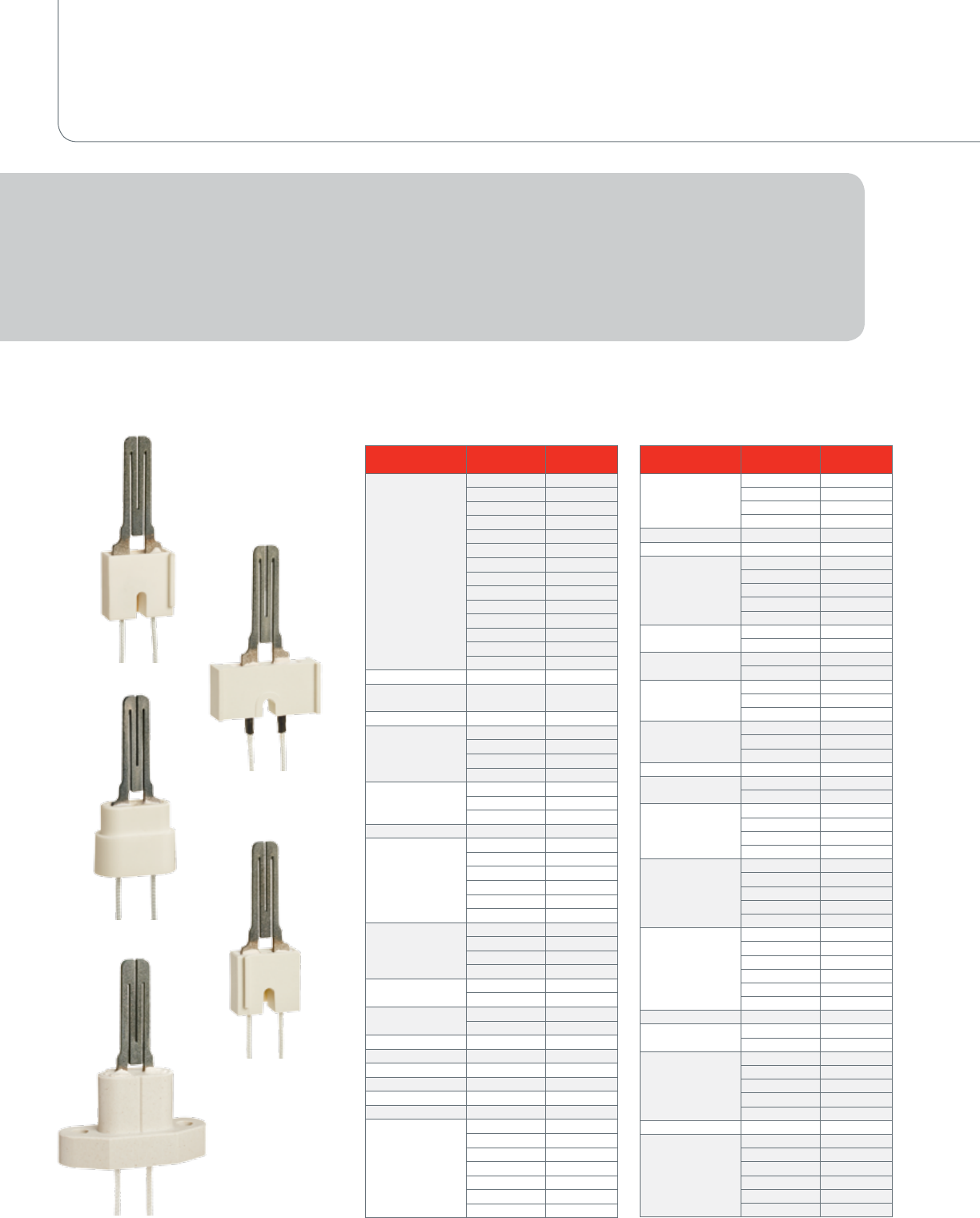

Silicon Carbide Igniters
Honeywell is offering a full line of direct replacement 120 V silicon carbide
igniters. The igniters work with most configurations of brackets, element shapes,
connectors, and lead wire lengths. Made in the USA and backed by a 2-year
warranty, these igniters will help distributors to simplify their ordering.
VR8215 Direct Ignition Gas Valves
Make fewer stocking trips, take more jobs, make more money. Two new gas
valves replace most slow- and standard-opening VR8205 and VR8215 direct
ignition gas valves. These two new valves replace over 61 OEM and competitor
controls.
5
Universal Products
In the HVAC industry today time is money, particularly in the service department, and time lost is money lost.
Every time your tech can’t complete a job, you could lose money. Every time the tech has to head to the
supply house, you could lose money. Every time the tech can’t make it to that last call of the day because
of extra trips to the supply house, you could lose money. Honeywell's Universal Product portfolio gives you
more right parts for more right places. You and your techs complete more jobs, make fewer trips to the
supply house, and can maximize your day—and your money.
The stocking recommendations included in this guide are shown by regional area, U.S. and Canada, and are
averaged by product sales. They should be adjusted accordingly to your business size and needs.
Universal
Product
RESIDENTIAL COMBUSTION UNIVERSAL PRODUCTS RECOMMENDED INVENTORY GUIDE
Product
Line Universal Service Part
U.S.
NorthEast
U.S.
Mid-Atlantic
U.S.
North-NW
U.S.
South-SE
U.S.
West
Canada
Eastern
Canada
Central - West Direct Service Part
Replacement (Gas
Valves)
RECOMMENDED BRANCH INVENTORY
Ignition
Controls

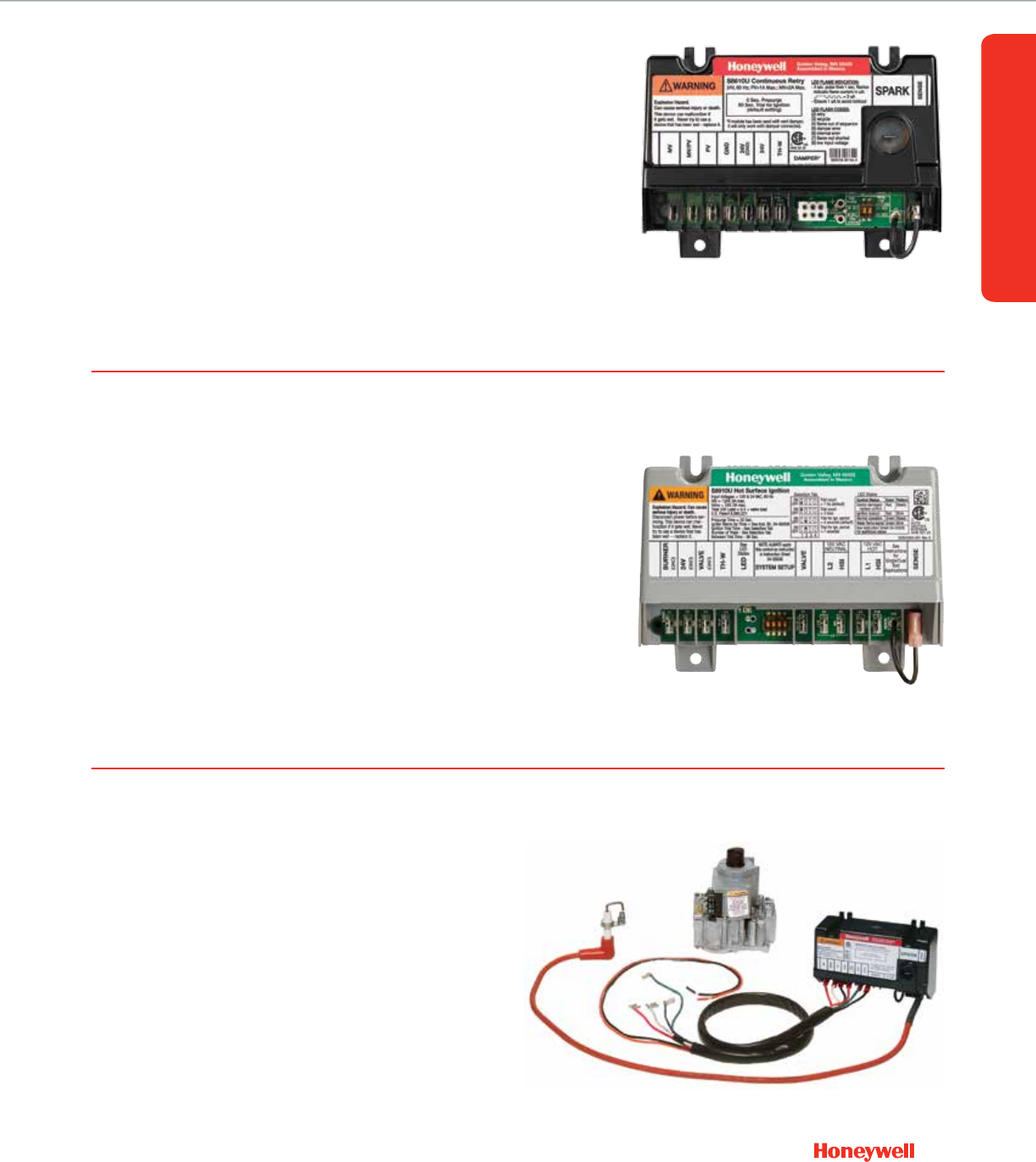

S9200U1000 10 10 10 10 10 6 6
S8610U3009 24 24 24 12 12 24 24
S8910U3000 10 10 10 3 6 6 6
Y8610U4001 4 4 4 2 6
Y8610U6006 6 6 6 2 6 2 2
Igniters
Q3200U1004 20 20 20 20 20 20 20
Q3200U2002 6 6 6 6 6 6 6
Warm
Air
Limit
ST9120U10011 12 12 12 6 6 12 8
Thermo-
couple

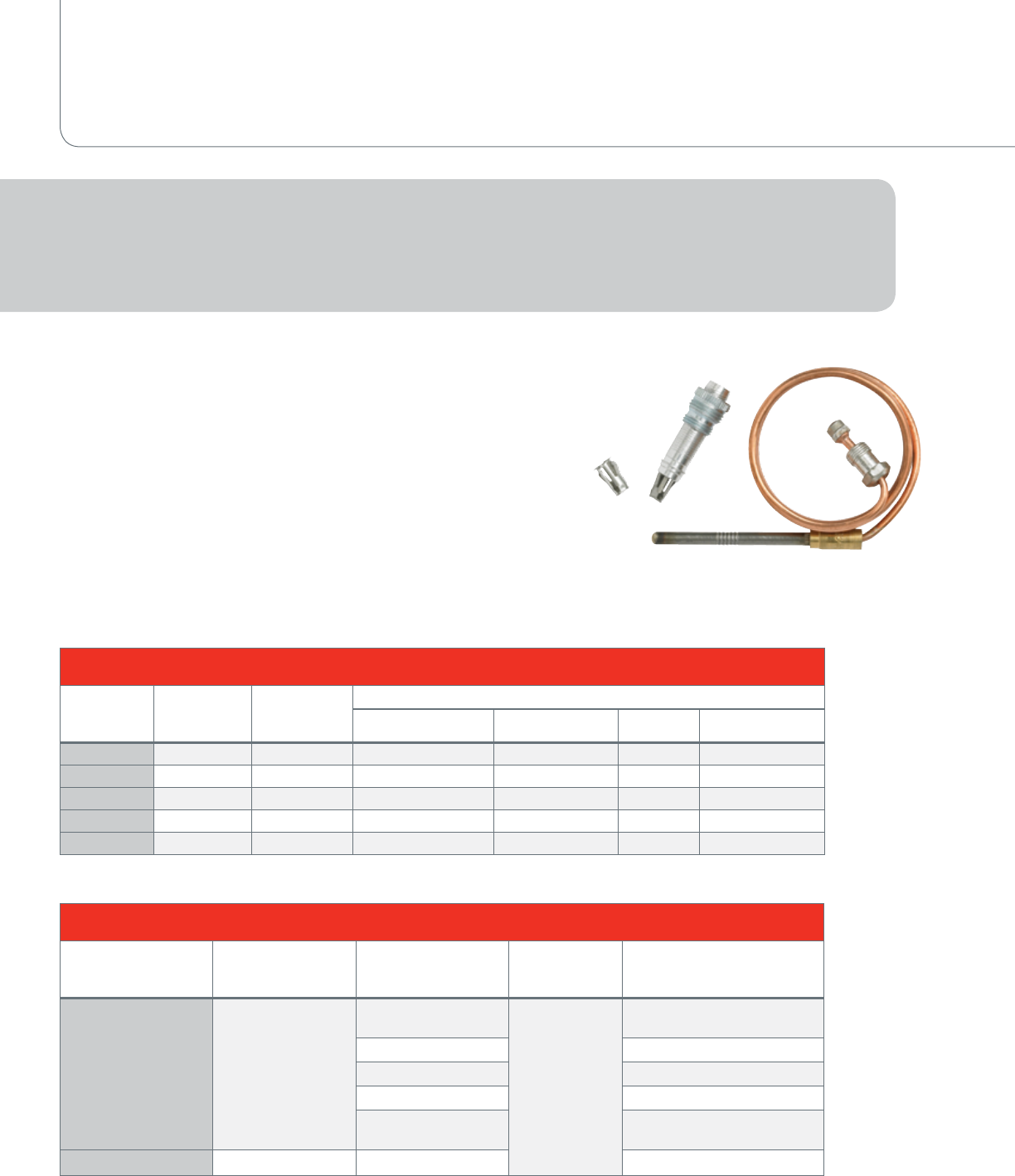

Q340A1090 (U.S.)
100 100 100 20 20 100 100
Q340A1439 (Canada)
Gas Valves
VR8200A2322 (Canada) 6 10
VR8200H1236 (Canada) 12 12
VR8345M4302 12 12 12 6 8 8 12
VR8304M3509
VR8304M4507
VR8305M3506
VR8300M4406 12 12 12 3 6 4 6 VR8300A4508
VR8300A3500
VR8245M2530 3 3 6 2 2 6 8
VR8204A2076
VR8204M1091
VR8205A2024
VR8345K4809 3 3 3 2 2 2 2 VR8205H1003
VR8304H4503
VR8345Q4563 2 2 2 NA NA 1 2
VR8205Q2555
VR8304Q4511
VR8305Q4500
VS820M1309 6 6 6 NA 3 4
(VS820A1054)
6
(VS820A1054)
VS820A1054
VS820A1336
Hydronic
Controls

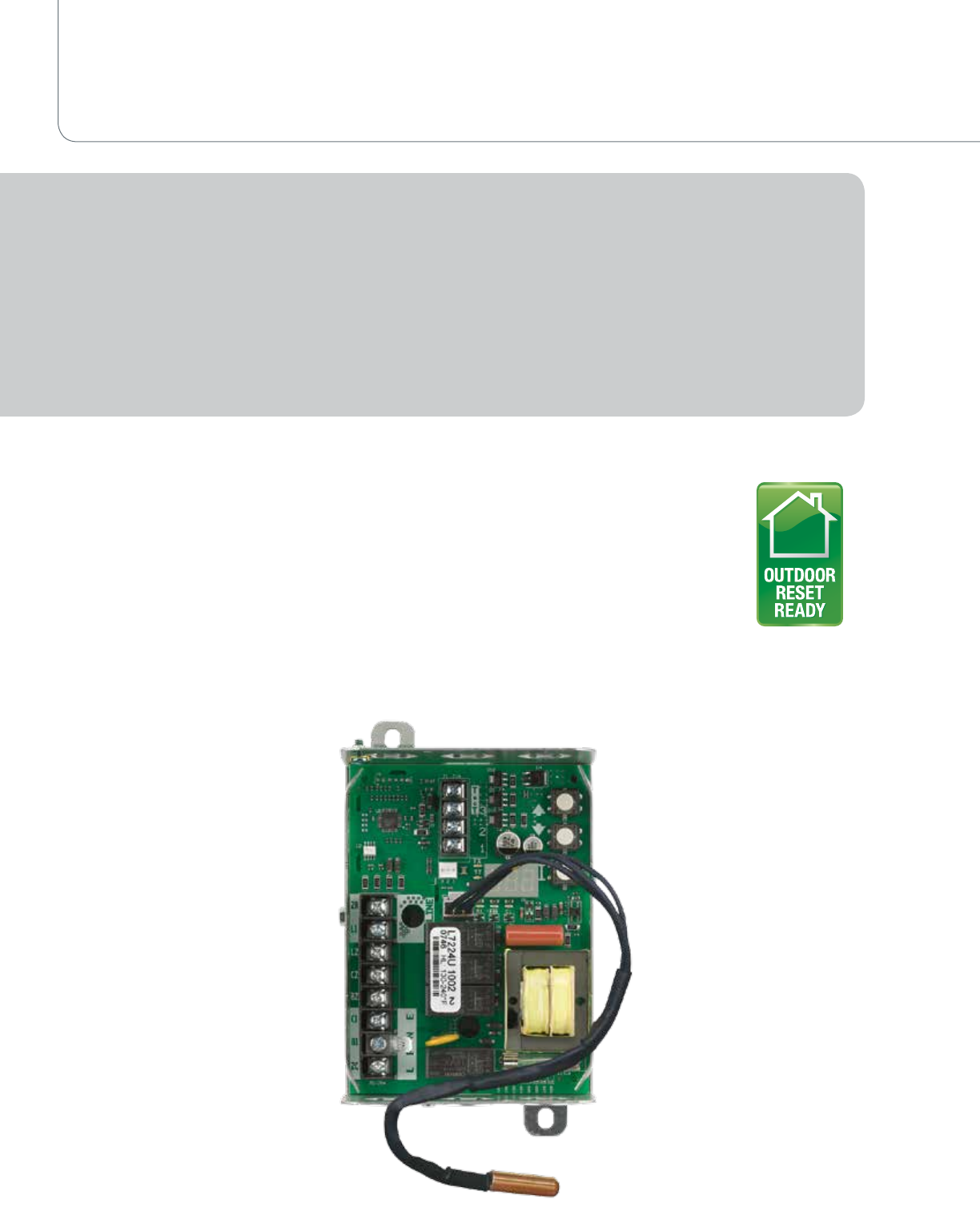

L7224U1002 18 18 2 NA NA 12 8

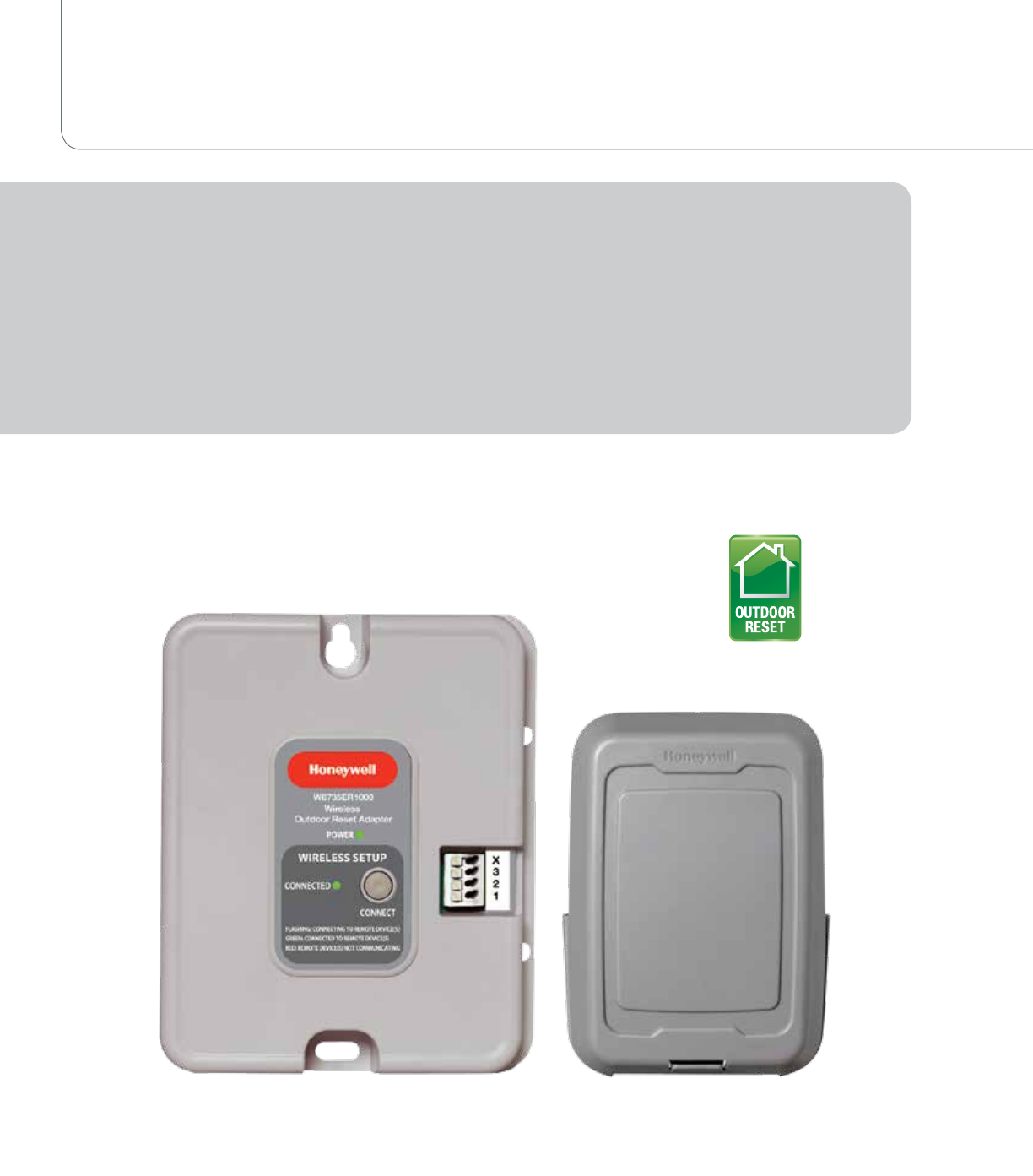

W8735Y1000 6 6 2 NA NA 6 4
W8735S1008 6 6 2 NA NA 6 4
Oil
Controls
R7284U1004 10 10 4 NA NA 12 4
Universal
Pilot Burners
Q314U1001 12 6 12 6 12 12 12
Q345U1005 12 6 12 6 12 12 12
Q348U1009 12 6 12 6 12 12 12
Q3451U1000 12 6 12 6 12 12 12
6
Gas Valves
Honeywell has taken the guesswork out of gas valve selection with our complete line of universal
gas valves. Contractors appreciate the reliability, ease of installation and time saved by carrying a
select few gas valves on their truck. Carrying a few Honeywell Universal gas valves on each truck
reduces the amount of inventory needed while still making sure technicians can complete the job
in one trip. Honeywell's tried and tested gas valves ensure you will be getting the best product
available on the market, every time.

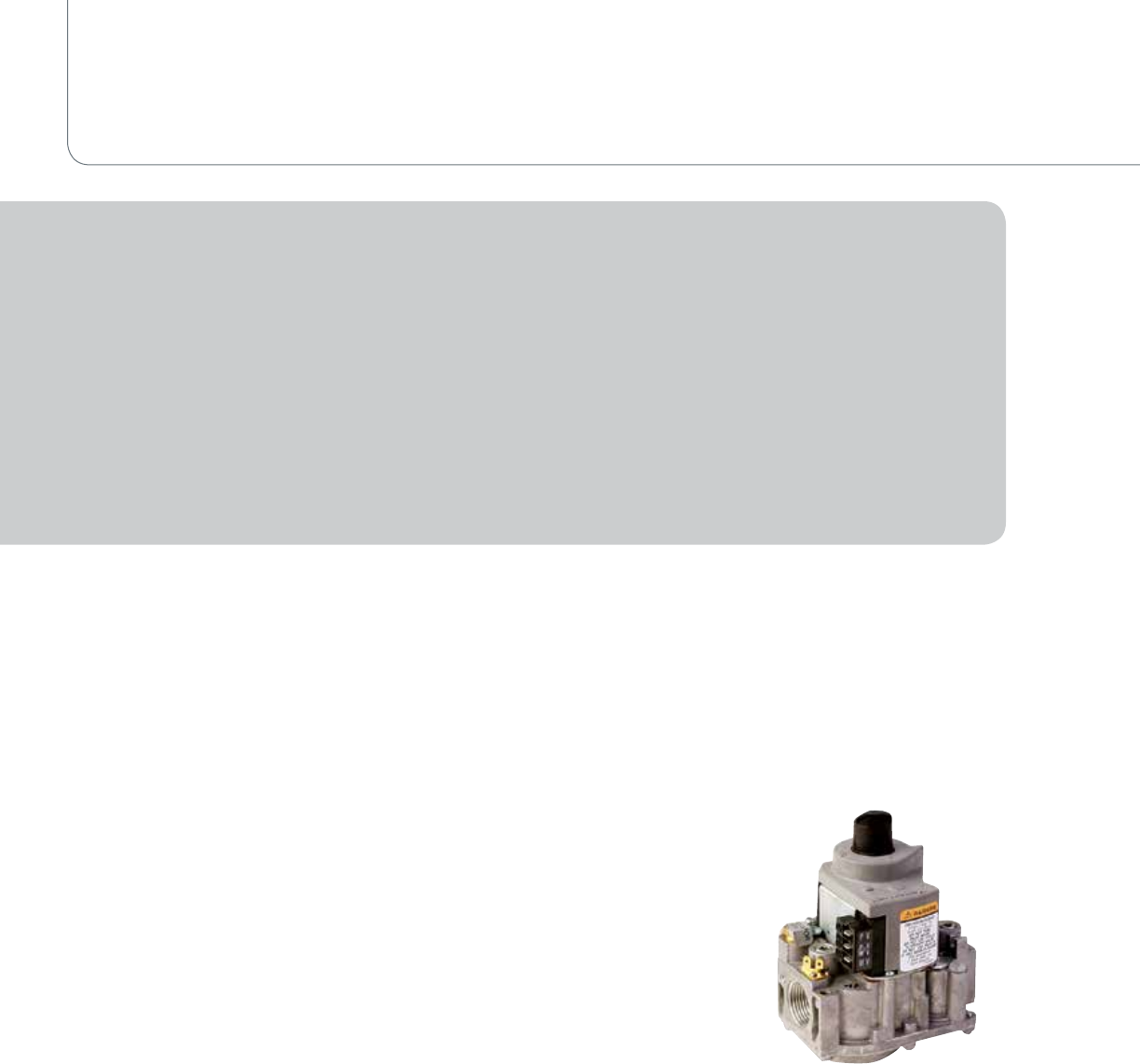

VR8345/VR8245
Universal Electronic Ignition Gas Valve
• Wide-capacity controls for almost any IP, HSI or DSI gas-fired appliances
• Compact fit simplifies field replacement
• Use with 24 Vac, 50/60 Hz, heating appliances, using natural, manufactured
or LP gas
• Use the VR8345Q for a two-stage application, VR8345M for
a standard and VR8345K for a slow-opening application
• Capacities from 20 to 200 (VR8245) cfh or 30 to 415 (VR8345) cfh
natural gas
• Dual-redundant gas valve design
7

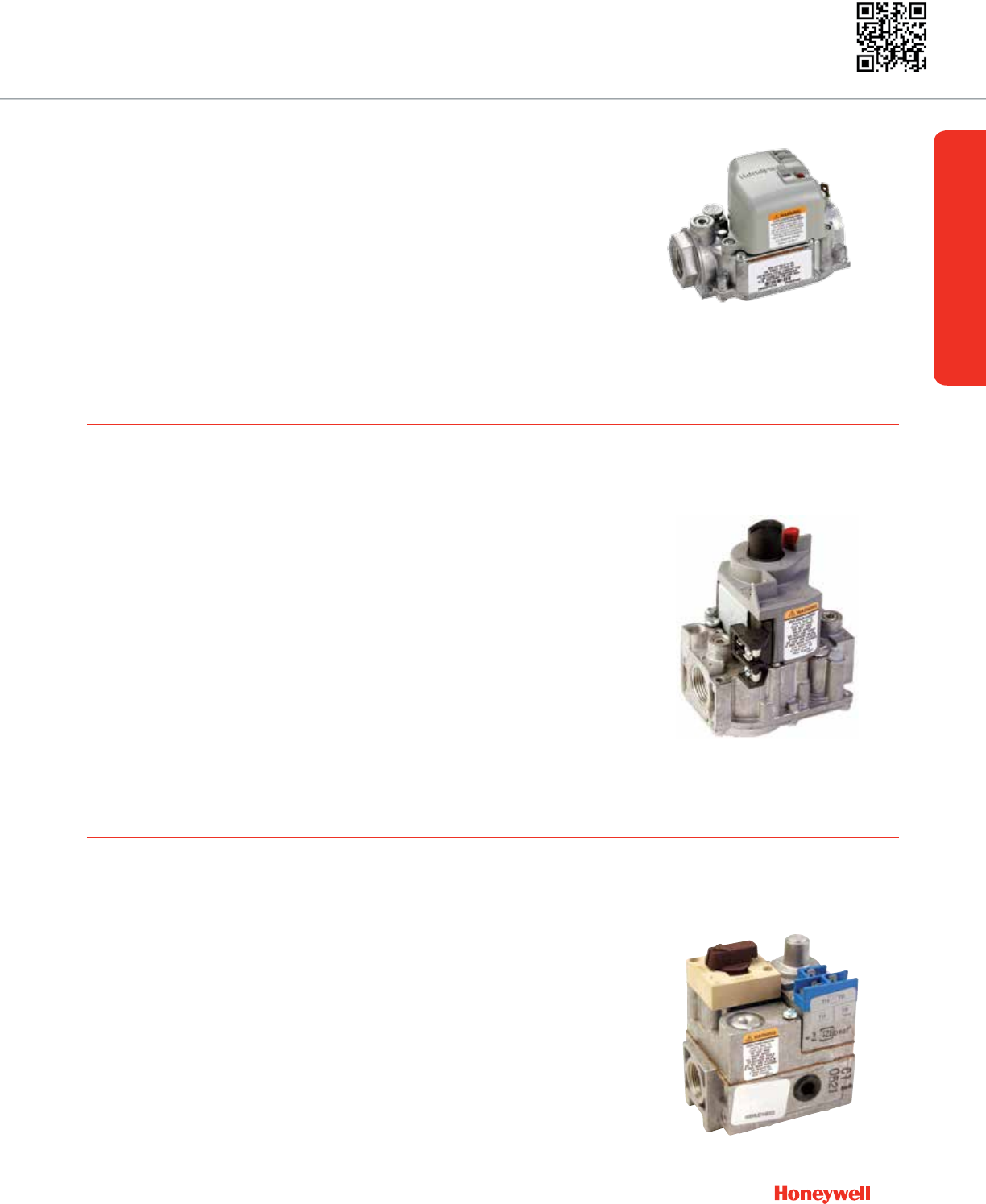

VR8300
Universal Standing Pilot Gas Valve
• Combination gas controls for use in 24 Vac, 50/60 Hz, gas-fired,
standing pilot appliances with capacities from 30 to 300 cfh natural gas
• Includes safety shutoff, manual valve, two automatic
operators, pressure regulator and pilot adjustment
• Universal replacement for most Honeywell and competitive
standing pilot valve models
• Dual-redundant gas valve design
VS820
Millivolt Combination Gas Valve
• Self-powered automatic control
• Use with 750 mV pilot generator
• Easy to install and service with all the adjustments and
connections accessible from the top of the control
• 34 to 425 cfh capacity
Gas Controls
Scan here for installation and
product information.
VR8215
Direct Ignition Gas Valve
• Combination gas controls for use in 24 Vac, 50/60 Hz, single stage,
direct ignition, gas fired appliances
• Capacities from 15 to 200 cfh natural gas
• Multipoise – can be mounted in any direction
• 2.35 inch swing radius
• Dual-redundant gas valve
8
WW
Gas Valves Selection Guide
TRADE REPLACEMENTS
(Double-Check Specifications
Before Replacement)
SPECIFICATIONS ACCESSORIES
Universal
Service Part
Direct
Service Part
Replacement
Opening
Characteristics
(standard, step)
Inlet/
Outlet
Size (in.)
Pressure Regulator
Setting (psi)
Temperature
Range
Includes
Q340
Thermocouple
3/4" x 1/2"
Reducer Bushing
Natural to LP
Conversion Kit
3/4" Straight
Flange
1/2" x 3/8"
Reducer Bushing
Remote Rod
Adapter
VR8345M4302
VR8345M4302 Standard 3/4 x 3/4 3.5 in. wc (0.87 kPa) -40˚ to 175˚ F
(-40˚ to 79˚ C) None Two One None None None
VR8304M3509 Standard 1/2 x 3/4 3.5 in. wc (0.87 kPa) -40˚ to 175˚ F
(-40˚ to 79˚ C) None One One None None None
VR8304M4507 Standard 3/4 x 3/4 3.5 in. wc (0.87 kPa) -40˚ to 175˚ F
(-40˚ to 79˚ C) None Two One None None None
VR8305M3506 Standard 1/2 x 3/4 3.5 in. wc (0.87 kPa) -40˚ to 175˚ F
(-40˚ to 79˚ C) None One One One None None
VR8345K4809
VR8345K4809 Slow 3/4 x 3/4 3.5 in. wc (0.87 kPa) -40˚ to 175°F
(-40˚ to 79°C) None Two One None None None
VR8205H1003 Slow 1/2 x 1/2 3.5 in. wc (0.87 kPa) 0˚ to 175˚ F
(-18˚ to 79˚ C) None None None None None None
VR8304H4503 Slow 3/4 x 3/4 3.5 in. wc (0.87 kPa) 0˚ to 175˚ F
(-18˚ to 79˚ C) None None One None None None
VR8345Q4563 VR8345Q4563 2-Stage 3/4 x 3/4 1.7 in. wc Low Fire;
3.5 in. wc High Fire
-40˚ to 175˚ F
(-40˚ to 79˚ C) None Two One None None None
VR8245M2530
VR8245M2530 Standard 1/2 x 1/2 3.5 in. wc (0.87 kPa) -40˚ to 175˚ F
(-40˚ to 79˚ C) None None One None One None
VR8204A2076 Standard 1/2 x 1/2 3.5 in. wc (0.87 kPa) 0˚ to 175˚ F
(-18˚ to 79˚ C) None None One One One None
VR8204M1091 Standard 1/2 x 1/2 3.5 in. wc (0.87 kPa) -40˚ to 175˚ F
(-40˚ to 79˚ C) None None One One One None
VR8205A2024 Standard 1/2 x 1/2 3.5 in. wc (0.87 kPa) 0˚ to 175˚ F
(-18˚ to 79˚ C) None None One One One None
VR8215
VR8215S1503 Standard 1/2 x 1/2 3.5 in. wc -40˚ to 175˚ F
(-40˚ to 79˚ C) None None One None None None
VR8215T1502 Slow 1/2 x 1/2 3.5 in. wc -40˚ to 175˚ F
(-40˚ to 79˚ C) None None One None None None
VR9205Q VR9205Q1507 2-stage 1/2 x 1/2
1.7 in. wc
(0.42 kPa) low;
3.5 in. wc
(0.87 kPa) high
-40˚ to 175˚ F
(-40˚ to 79˚ C) None None One None None None
VR8300M4406
VR8300M4406 Standard 3/4 x 3/4 3.5 in. wc (0.87 kPa) -40˚ to 175°F
(-40˚ to 79°C) None Two One None None None
VR8300A4508 Standard 3/4 x 3/4 3.5 in. wc (0.87 kPa) 0˚ to 175˚ F
(-18˚ to 79˚ C) None Two One None None None
VR8300A3500 Standard 1/2 x 3/4 3.5 in. wc (0.87 kPa) 0˚ to 175˚ F
(-18˚ to 79˚ C) None One One None None None
VR8200A2124 Standard 1/2 x 1/2 3.5 in. wc (0.87 kPa) 0˚ to 175˚ F
(-18˚ to 79˚ C) One None One One One None
VR8200A2132 Standard 1/2 x 1/2 3.5 in. wc (0.87 kPa) 0˚ to 175˚ F
(-18˚ to 79˚ C) None None One One One None
VR8200A2744 Standard 1/2 x 1/2 3.5 in. wc (0.87 kPa) 0˚ to 175˚ F
(-18˚ to 79˚ C) None None One One
+ One Elbow One None
VS820M1309
VS820M1309 Standard 3/4 x 3/4 3.5 in. wc (0.87 kPa) -40˚ to 175°F
(-40˚ to 79°C) None Two One None One Yes
VS820A1054 Standard 3/4 x 3/4 3.5 in. wc (0.87 kPa) 32˚ to 175˚ F
(0˚ to 79˚ C) None Two None None One None
VS820A1336 Standard 3/4 x 3/4 10.0 in. wc (2.49
kPa)
32˚ to 175˚ F
(0˚ to 79˚ C) None Two None None One None
Notes:
All piloted valves have a 1/4" compression fitting.
All the VR valves come set for natural gas, but can be converted to LP gas.
The VS820A1054 is for natural gas. The VS820A1336 is for LP gas.
All the VR valves have inlet and outlet pressure taps. The VS820 valves have just an outlet pressure tap.
9
WW
COMPETITIVE REPLACEMENT
Universal
Service Part Honeywell White-Rodgers Robertshaw
VR8345M4302
36E36-304, 36C68-423,
36H32-423
VR8304M2501
VR8304M4002, VR8304M4804
VR8305M4066, VR8305M4165, VR8305M4231 36G22-214, 36C68-423 720-051 (7200DER)
VR8345K4809
VR8304K3808, VR8304K4814 36E98-304, 36E24-214,
36E52-214 700-052
VR8205H2605, VR8305H4013, VR8305H4039,
VR8204H1006, VR8204H1055
720-070 (7200IPER-S7C), 720-071 (7200IPER-S7C),
720-072 (7200IPER-S7C), 720-073
(7200IPER-LP-S7C)
VR8345Q4563
VR8205Q2381, VR8205Q2555, VR8205Q2662, VR8205Q2746, VR8205Q2787,
VR8304Q4453, VR8304Q4511, VR8305Q4138, VR8305Q4146, VR8305W4195,
VR8305Q4500
36C76-406, 36C76-420,
36C76-463 36D13-208,
36D13-405, 36E54-214,
36E96-314, 36G54-214
720-082 (7200IPER2-4)
VR8245M2530
VR8204A2852, VR8205M1080, VR8205M1106, VR8205M2310, VR8205M2443,
VR8205M2450, VR8205M2476 36E36-304, 36E22-214 720-079 (7200IPER), 720-080 (7200IPER-LP)
722-079 (2000IPERHC)
VR8204A1201, VR8204A1219, VR8204A2001, VR8204A2035, VR8204A2043,
VR8204A2175, VR8204A2183, VR8204A2241, VR8204A2225, VR8204A2803
VR8204M1075, VR8204M1232 36E01-204, 36E01-205,
36E01-206, 36E01-305, 36E93-304
VR8205A2008, VR8205A2081 36G22-214, 36J22-214 722-051 (2000DERHC), 720-051
VR8215S1503
VR8205S2262, VR8205S2270, VR8205S2296, VR8205S2338, VR8205S2353,
VR8205S2361, VR8205S2379, VR8205S2395, VR8205S2437, VR8205S2858,
VR8205S2882, VR8205S5802, VR8205S5828, VR8205S5836, VR8205S5844,
VR8215S1222, VR8215S1263, VR8215S5207, VR8215S5215, VR8205A2008,
VR8205A2016, VR8205A2024, VR8205A2065, VR8205A2081, VR8205A2131,
VR8205A2263, VR8205A2800, VR8205M1080, VR8205M1106, VR8205M1122,
VR8205M1130, VR8205M1148, VR8205M1155, VR8205M1163, VR8205M2310,
VR8205M2401, VR8205M2476, VR8205M2484, VR8205M2831, VR8205M2864,
VR8205M2872, VR8205M2880, VR8205M5024, VR8205M5032
36G22-214, 36J22-214,
36G22-207
VR8215T1502
VR8205H1003, VR8205H1011, VR8205H2605, VR8205H2621, VR8205K1157,
VR8205K1173, VR8205K2247, VR8205K2593, VR8205K2619, VR8205T5801,
VR8215T1205, VR8215T1239, VR8215T5206, VR8215T5214
VR9205Q1507 VR9205Q1006, VR9205Q1010, VR9205Q1028, VR9205Q1101, VR9205Q1127,
VR9205Q1218
VR8300M4406
VR8300A4003, VR8300A4011, VR8300A4037, VR8200A2827 VR8300A4045,
VR8300A4557, VR8300A4565 36C03-400, 36C03-433 700-400
VR8300A4003, VR8300A4011, VR8300A4037, VR8300A4045, VR8300A4557,
VR8300A4565 36C01-405 700-400, 720-406 (7200ER)
VR8300A3104, VR8300A3120, VR8300A3153, VR8300A3161, VR8300A3203,
VR8300A3559, VR8300A3567, VR8300A3575 36C03-300, 36C03-258 720-404 (7200ER), 720-400, 720-402
VR8200A2009, VR8200A2082, VR8200A2116, VR8200A2215, VR8200A2264,
VR8200A2322*, VR8200A2348
720-400 (7200ER), 720-402 (7200ER)
720-400 (7200ER), 720-402 (7200ER)
VR8200A2322*
VS820M1309
VS820A1039, VS820A1807, VS820A1815, VS820A2003, VS820A2011 36C03U-300, 36C03U-333,
36C03U-400, 36C03U-433
VS820A1005, VS820A1013, VS820A1047, VS820A1260, VS820A1278, VS820A1922,
VS820A5204
VS820A1120, VS820A1211, VS820A1740, VS820A1872, VS820A1898, VS820A1906
Gas Valves Selection Guide
For a complete cross-reference, visit www.customer.honeywell.com
Gas Controls
*Canadian Numbers
10

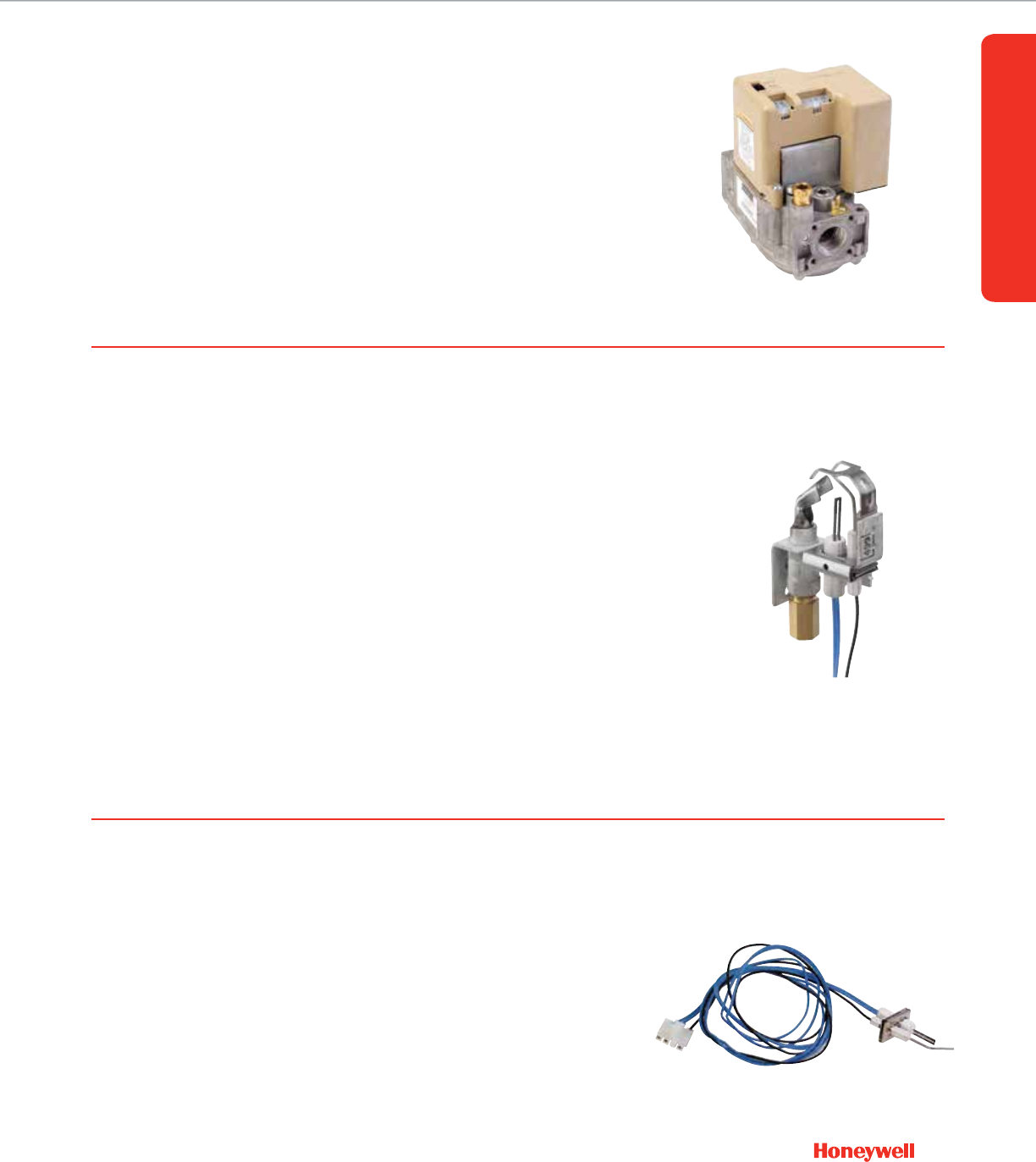

Honeywell SmartValve™ combines gas flow control and electronic ignition into a single unit,
providing safety and simplified wiring and appliance construction. You’ll find Honeywell
SmartValves on equipment ranging from furnaces, water heaters, boilers and rooftops to
infrared heaters, cooking units and much more.
SmartValve™ System Controls
11
Q3450C1185/Q3450C2092
SmartValve Pilot Burner
The Q3450 SmartValve pilot burners provide pilot flame ignition and sensing for SmartValve
intermittent pilot systems. They consist of replaceable igniter-flame rod assembly, bracket
assembly, pilot target, ground electrode, orifice assembly, compression fitting and spring
clip. The igniter lights the pilot burner. The flame rod proves the pilot flame and the pilot
flame lights the main burner
• Used with SV9500/SV9600 SmartValve™ System.
• Replaceable Igniter-Flame Rod Assembly (Q3400A).
• Integral keyed plug provides quick, convenient connection of igniter and sensor to
SV9500/SV9600.
• Q3450 has front or 20 degree right, left flame pattern.
• Natural and LP gas orifices available.
• Variety of target styles available.
• Variety of mounting brackets available.
SmartValve™
• Family members cover the full range of opening characteristics
(slow, normal, fast) and ignition systems (hot surface, hot surface pilot)
• Universal kits include natural to LP conversion and 3⁄4" to 1⁄2" bushings
• Universal family increases service efficiency and reduces
truck and warehouse inventory
Q3400
Hot Surface Pilot/Sensor Assembly
The Q3400A Igniter-Flame Rod Assembly replaces the original igniter-flame rod
assembly in the Q3450 and Q3480 pilot hardware used with the SV9500 and
SV9600 SmartValve system. The Q3400A has a unique keyed plug connector
that will only fit the SV9500/SV9600 systems.
• Can be replaced without removing the pilot burner
• Max temp 250˚ C
• Order SKU Q3400A1024
* Diagnostic Testers
Input Voltage Harness #396085
Gas Controls
12
SmartValve™ Control Systems Selection Guide
SPECIFICATIONS
Ignition/Application Universal
Service Part Gas Type Opening
Characteristics
Ambient
Temperature
Range
Includes
Natural to LP
Conversion Kit
3/4" x 1/2"
Reducer
Bushings
Intermittent HSI Pilot
with Combustion
Air Control and Limit Monitoring
Forced Air Furnace
SV9541Q2561
Natural
2-Stage
-40˚ to 175˚ F
(-40˚ to 79˚ C)
Yes None
SV9641M4510 Standard Opening Yes Two
Direct Ignition,
General Application
SV9510M2511
Natural
Standard Opening
-40˚ to 175˚ F
(-40˚ to 79˚ C)
Yes None
SV9520M2536
SV9510K2539 Slow Opening
SV9520H8513 Fast-Slow Opening 0˚ to 175˚ F
(-18˚ to 79˚ C)
Intermittent HSI Pilot,
General Application
SV9601M4571
Natural
Standard Opening
-40˚ to 175˚ F
(-40˚ to 79˚ C)
Yes
Two
SV9501M2528
None
SV9501M8129 Fast-Fast
SV9502H2522 Slow Opening 0˚ to 175˚ F
(-18˚ to 79˚ C)
SV9602P4816
Step Opening -40˚ to 175˚ F
(-40˚ to 79˚ C) None Two
SV9602P4824
SV9602P4832
SV9602P4840
13
SmartValve™ Control Systems Selection Guide
SPECIFICATIONS CROSS-REFERENCE
Universal
Service Part
Includes
OEM Brands Replaces
Extension
Harness
SV9541Q2561
No
ICP, Heil, Tempstar, Arcoaire,
Comfortmaker, KeepRite SV9540Q2464, SV9541Q3098
SV9641M4510 ICP, Heil, Tempstar, Arcoaire, Comfortmaker,
KeepRite, Mestek, Slant/Fin
SV9541M2094, SV9540M2229, SV9540M2260, SV9640M4116, SV9640M4124,
SV9540M2278, SV9540M2245, SV9640M3126, SV9640M4132
SV9510M2511
No
Modine SV9510M2347, SV9510M2362, SV9410M2902, SV9510M2412, SV9510M2354,
SV9410M2910, SV9510M2388, SV9510M2420
SV9520M2536 SV9420M2331, SV9520M2403, SV9420M2323
SV9510K2539 Roberts Gordon SV9510H2228, SV9510K2133, SV9510K2158, SV9510K2141, SV9510K2166
SV9520H8513 Armstrong, Concord, AirEase SV9520H8042, SV9520H8034, SV9520H8067, SV9520H8026
SV9601M4571
No
SV9601M4167, SV9601M3003,SV9601M4225
SV9501M2528 ICP, Heil, Tempstar, Arcoaire,
Comfortmaker, KeepRite
SV9501M2056, SV9501M2080, SV9501M2718, SV9501M2726, SV9501M2031,
SV9501M2049, SV9501M2239, SV9501M2700, SV9501M2734, SV9501M2742,
SV9501M2064
SV9501M8129
Yes
SV9501M8103
SV9502H2522 Laars, Utica, Armstrong, Concord, AireEase SV9501H3415, SV9501H2417, SV9501H2409, SV9502H1706, SV9502H2704,
SV9501H3423, SV9501H2425
SV9602P4816
Yes
Burnham, ICP, Heil, Tempstar, Arcoaire,
Comfortmaker, KeepRite SV9501P2004, SV9601P4107, SV9501P2053, SV9502P2101, SV9602P4105
SV9602P4824 Burnham SV9501P2087, SV9601P4172, SV9502P2127, SV9602P4121
SV9602P4832 Burnham SV9501P2020, SV9501P2046, SV9601P4149, SV9601P4164, SV9502P2119,
SV9502P2135, SV9602P4113, SV9602P4139
SV9602P4840 SV9601P4115
For a complete cross-reference, visit www.customer.honeywell.com
Gas Controls
14
Honeywell has made replacing pilots easy with their new line of universal pilot burners. Now four pilots
replace over 120 so you can finish the job on the first trip. Reduce costs and make more money with
Honeywell Universal Pilots.
Universal Pilot Burners
When selecting universal pilot burners for your
next job, look for these Honeywell features:
• For use in Natural and LP applications
• Peel-N-Seal Packaging label with cross reference and
installation instructions on outside of packaging
Q314U
Standing Pilot
• Target-style pilot burner
• Three position adjustable
hood
Q345U
Intermittent Pilot
• Target-style pilot burner
• Three position adjustable
hood
Q348U
Intermittent Pilot
• 1" Batwing-style pilot burner
Q3451U
Intermittent Pilot
• Target-style pilot burner with
integral ignition lead
• Three position adjustable
hood
15
Q314U1001 Cross Reference
Model
Number Hood Hood Angle Orifice Gas Type Compression
Fitting Auxiliary Bracket
Q314A3471 As Shipped As Shipped (L) Left As Shipped NAT 1/8" No
Q314A3513 As Shipped (F) Front As Shipped NAT As Shipped (1/4") Yes
Q314A3547 As Shipped As Shipped (L) Left As Shipped NAT As Shipped (1/4") Yes
Q314A3679 As Shipped As Shipped (L) Left As Shipped NAT As Shipped (1/4") No
Q314A3687 As Shipped (F) Front As Shipped NAT As Shipped (1/4") No
Q314A3703 As Shipped As Shipped (L) Left Green = BBR-10 (0.010 in.) LP As Shipped (1/4") No
Q314A3729 As Shipped (K) Right As Shipped NAT As Shipped (1/4") No
Q314A3737 As Shipped (F) Front As Shipped NAT As Shipped (1/4") No
Q314A3802 As Shipped (F) Front Green = BBR-10 (0.010 in.) LP As Shipped (1/4") No
Q314A3828 As Shipped (F) Front Green = BBR-10 (0.010 in.) LP As Shipped (1/4") No
Q314A4586 As Shipped (F) Front Check Application Check Application As Shipped (1/4") Check Application
Q314A6094 As Shipped As Shipped (L) Left Check Application Check Application As Shipped (1/4") Check Application
Q314A6102 As Shipped (K) Right Check Application Check Application As Shipped (1/4") Check Application
Q314A6557 As Shipped (F) Front As Shipped NAT As Shipped (1/4") No
Q314A6631 As Shipped (F) Front As Shipped NAT 1/8" No
Q314A6862 As Shipped (F) Front Check Application Check Application Check Application No
Q314A6946 As Shipped As Shipped (L) Left As Shipped NAT As Shipped (1/4") No
Q314A6953 As Shipped As Shipped (L) Left Green = BBR-10 (0.010 in.) LP As Shipped (1/4") No
Q314A6961 As Shipped (K) Right As Shipped NAT As Shipped (1/4") No
Q314A9015 As Shipped (K) Right As Shipped NAT As Shipped (1/4") Yes
Q314AFA As Shipped (F) Front Check Application Check Application Check Application Yes
Q314AFB As Shipped (F) Front Check Application Check Application Check Application No
Q314AFK As Shipped (F) Front Check Application Check Application Check Application No
Q314AKA As Shipped (K) Right Check Application Check Application Check Application Yes
Q314AKB As Shipped (K) Right Check Application Check Application Check Application No
Q314ALA As Shipped As Shipped (L) Left Check Application Check Application Check Application Yes
Q314ALB As Shipped As Shipped (L) Left Check Application Check Application Check Application No
Q314U1001 Check Application Check Application Check Application Check Application Check Application Check Application
Q350A1065 Low BTU Hood (F) Front Pink = CAR-12 (0.012 in.) NAT As Shipped (1/4") No
Q350A1222 Low BTU Hood (L) Left Pink = CAR-12 (0.012 in.) NAT As Shipped (1/4") No
Q350A1271 Low BTU Hood (K) Right Lt blue = CAR-13 (0.013 in.) NAT As Shipped (1/4") No
Q350A1305 Low BTU Hood (K) Right Pink = CAR-12 (0.012 in.) NAT As Shipped (1/4") No
Q350A1321 Low BTU Hood (L) Left Pink = CAR-12 (0.012 in.) NAT As Shipped (1/4") No
Q350A1545 Low BTU Hood (L) Left Pink = CAR-12 (0.012 in.) NAT As Shipped (1/4") Yes
Q350A1644 Low BTU Hood (L) Left Pink = CAR-12 (0.012 in.) NAT 1/8" No
Q350A1677 Low BTU Hood (L) Left Pink = CAR-12 (0.012 in.) NAT 1/8" No
Q350A1859 Low BTU Hood (K) Right Yellow = BBF-8 (0.008 in.) LP As Shipped (1/4") No
Q350A1867 Low BTU Hood (L) Left Yellow = BBF-8 (0.008 in.) LP As Shipped (1/4") Yes
Q350A2097 Low BTU Hood (F) Front Lt blue = CAR-13 (0.013 in.) NAT As Shipped (1/4") No
Q350A2212 Low BTU Hood (F) Front Pink = CAR-12 (0.012 in.) NAT As Shipped (1/4") No
Q350A2287 Low BTU Hood (K) Right Check Application Check Application Check Application Yes
Q350AFB Low BTU Hood (F) Front Check Application Check Application Check Application No
Q350AFK Low BTU Hood (F) Front Check Application Check Application Check Application No
Q350AKA Low BTU Hood (K) Right Check Application Check Application Check Application Yes
Q350AKB Low BTU Hood (K) Right Check Application Check Application Check Application No
Q350AKK Low BTU Hood (K) Right Check Application Check Application Check Application No
Q350ALA Low BTU Hood (L) Left Check Application Check Application Check Application Yes
Q350ALB Low BTU Hood (L) Left Check Application Check Application Check Application No
Q350ALK Low BTU Hood (L) Left Check Application Check Application Check Application No
Colors refer to the color of the label on the bag.
Gas Controls
Scan here for installation and
product information.
16
Universal Pilot Burners Cross Reference
Q345U1005 Cross Reference
Model
Number Hood Angle: Orifice: Gas Type Compression
Fitting Auxiliary Bracket
Q345A1008 As Shipped (L) Left Orange = BCR-18 (0.018 in.) NAT As Shipped (1/4") No
Q345A1016 As Shipped (L) Left Gray = BBR-12 (0.012 in.) LP As Shipped (1/4") No
Q345A1024 (F) Front Orange = BCR-18 (0.018 in.) NAT As Shipped (1/4") No
Q345A1065 (F) Front Orange = BCR-18 (0.018 in.) NAT As Shipped (1/4") Yes
Q345A1156 (F) Front As Shipped NAT As Shipped (1/4") No
Q345A1305 (F) Front Orange = BCR-18 (0.018 in.) NAT As Shipped (1/4") Check Application
Q345A1313 As Shipped (L) Left Orange = BCR-18 (0.018 in.) NAT As Shipped (1/4") Check Application
Q345A1321 (K) Right Orange = BCR-18 (0.018 in.) NAT As Shipped (1/4") Check Application
Q345A1446 As Shipped (L) Left Red = BBR-11 (0.011 in.) LP As Shipped (1/4") Yes
Q345A1701 (F) Front Orange = BCR-18 (0.018 in.) NAT As Shipped (1/4") No
Q345A1750 (F) Front Orange = BCR-18 (0.018 in.) NAT 1/8" No
Q345A1818 As Shipped (L) Left Orange = BCR-18 (0.018 in.) NAT 1/8" No
Q345A2030 As Shipped (L) Left As Shipped NAT As Shipped (1/4") No
Q345A2055 (F) Front As Shipped NAT As Shipped (1/4") No
Q345A2196 As Shipped (L) Left As Shipped NAT As Shipped (1/4") Yes
Q345A2360 As Shipped (L) Left Orange = BCR-18 (0.018 in.) NAT As Shipped (1/4") No
Q345A2386 As Shipped (L) Left Red = BBR-11 (0.011 in.) LP As Shipped (1/4") No
Q345A2402 As Shipped (L) Left As Shipped NAT As Shipped (1/4") No
Q345A2816 As Shipped (L) Left Orange = BCR-18 (0.018 in.) NAT As Shipped (1/4") No
Q345A2824 As Shipped (L) Left Gray = BBR-12 (0.012 in.) LP As Shipped (1/4") No
Q345AFA (F) Front Check Application Check Application Check Application Yes
Q345AFB (F) Front Check Application Check Application Check Application No
Q345AFK (F) Front Check Application Check Application Check Application No
Q345AKB (K) Right Check Application Check Application Check Application No
Q345ALA As Shipped (L) Left Check Application Check Application Check Application Yes
Q345ALB As Shipped (L) Left Check Application Check Application Check Application No
Q345U1005 Check Application Check Application Check Application Check Application Check Application
Q348U1009 Cross Reference
Model
Number Orifice Gas Type Compression Fitting Auxiliary Bracket
Q348A1002 As Shipped NAT As Shipped (1/4") No
Q348A1010 Brown = KR14 (0.014 in.) LP As Shipped (1/4") No
Q348A1101 As Shipped NAT As Shipped (1/4") Yes
Q348A1226 Blue = A26 (0.026 in.) NAT As Shipped (1/4") No
Q348A1275 White = KF24 (0.024 in.) NAT 1/8" No
Q348A1333 As Shipped NAT 1/8" No
Q348A1341 Brown = KR14 (0.014 in.) LP 1/8" No
Q348AAA Check Application Check Application Check Application Yes
Q348AAB Check Application Check Application Check Application No
Q348U1009 Check Application Check Application Check Application Check Application
Colors refer to the color of the label on the bag.
17
Universal Pilot Burners Cross Reference
For a complete cross-reference, visit www.customer.honeywell.com
Gas Controls
Q3451U1000 Cross Reference
Model
Number Hood Angle Orifice Gas Type Compression
Fitting Igniter Lead
Q3451B1004 (L) Left Orange = BCR-18 (0.018 in.) NAT As Shipped (1/4") As Shipped (36" igniter)
Q3451B1079 As Shipped (F) Front Purple = BCR-10 (0.010 in.) LP As Shipped (1/4") As Shipped (36" igniter)
Q3451B1095 As Shipped (F) Front Orange = BCR-18 (0.018 in.) NAT As Shipped (1/4") As Shipped (36" igniter)
Q3451B1103 (L) Left Orange = BCR-18 (0.018 in.) NAT As Shipped (1/4") 55" igniter lead packed seperately
Q3451B1178 (L) Left Orange = BCR-18 (0.018 in.) NAT As Shipped (1/4") 55" igniter lead packed seperately
Q3451B1186 As Shipped (F) Front Orange = BCR-18 (0.018 in.) NAT As Shipped (1/4") 55" igniter lead packed seperately
Q3451B1194 As Shipped (F) Front Purple = BCR-10 (0.010 in.) LP As Shipped (1/4") 55" igniter lead packed seperately
Q3451B1236 (L) Left Gray = BBR-12 (0.012 in.) LP As Shipped (1/4") 55" igniter lead packed seperately
Q3451B1244 (L) Left Orange = BCR-18 (0.018 in.) NAT As Shipped (1/4") 55" igniter lead packed seperately
Q3451B1301 (L) Left As Shipped (BCR-20 (0.020 in)) NAT As Shipped (1/4") As Shipped (36" igniter)
Q3451B1707 (L) Left Red = BBR-11 (0.011 in.) LP As Shipped (1/4") As Shipped (36" igniter)
Q3451B1715 (L) Left Check Application Check Application As Shipped (1/4") As Shipped (36" igniter)
Q3451B2002 As Shipped (F) Front Orange = BCR-18 (0.018 in.) NAT As Shipped (1/4") As Shipped (36" igniter)
Q3451B2010 As Shipped (F) Front Orange = BCR-18 (0.018 in.) NAT 1/8" As Shipped (36" igniter)
Q3451B2036 As Shipped (F) Front Orange = BCR-18 (0.018 in.) NAT As Shipped (1/4") As Shipped (36" igniter)
Q3451B2044 As Shipped (F) Front Orange = BCR-18 (0.018 in.) NAT As Shipped (1/4") 55" igniter lead packed seperately
Q3451B2077 As Shipped (F) Front As Shipped (BCR-20 (0.020 in)) NAT As Shipped (1/4") As Shipped (36" igniter)
Q3451B2085 As Shipped (F) Front Gray = BBR-12 (0.012 in.) LP As Shipped (1/4") As Shipped (36" igniter)
Q3451B2101 As Shipped (F) Front Orange = BCR-18 (0.018 in.) NAT As Shipped (1/4") 55" igniter lead packed seperately
Q3451B3018 (K) Right Orange = BCR-18 (0.018 in.) NAT As Shipped (1/4") As Shipped (36" igniter)
Q3451B3026 (K) Right Orange = BCR-18 (0.018 in.) NAT 1/8" As Shipped (36" igniter)
Q3451B3067 (K) Right Orange = BCR-18 (0.018 in.) NAT As Shipped (1/4") As Shipped (36" igniter)
Q3451B3083 (K) Right Orange = BCR-18 (0.018 in.) NAT As Shipped (1/4") As Shipped (36" igniter)
Q3451BF As Shipped (F) Front Check Application Check Application Check Application Check Application
Q3451BK (K) Right Check Application Check Application Check Application Check Application
Q3451BL (L) Left Check Application Check Application Check Application Check Application
Q3451K2002 As Shipped (F) Front As Shipped (BCR-20 (0.020 in)) NAT As Shipped (1/4") 55" igniter lead packed seperately
Q3451K2010 As Shipped (F) Front Gray = BBR-12 (0.012 in.) LP As Shipped (1/4") 55" igniter lead packed seperately
Q3451K2028 As Shipped (F) Front As Shipped (BCR-20 (0.020 in)) NAT As Shipped (1/4") 55" igniter lead packed seperately
Q3451KF As Shipped (F) Front Check Application Check Application Check Application Check Application
Q3451U1000 Check Application Check Application Check Application Check Application Check Application
Colors refer to the color of the label on the bag.
18
Contractors depend on Honeywell for easy installation and reliable performance. Built for long service life,
the Honeywell Q313U, Q340A and Q390A will work for nearly all pilot generated millivolt applications.
Thermocouples/Thermopiles
Thermocouple and Thermopile Selection Guide
THERMOPILES
Lead Length
(in.) Universal Direct Replacement Connection Includes
35 Q313U3000
Q313U3000
Spade Terminal
Push-In clip, PG9 adapter, 1/2" attaching
nut, Split nut, spade to QC adapter
Q313A1022
Q313A1139 Push-In clip
Q313A1170 PG9 adapter
Q313A1188 Push-In clip, 1/2" attaching nut,
PG9 adapter
47 Q313A1055 Q313A1055 1/2" attaching nut
When selecting a thermocouple or thermopile for your
next job, look for these Honeywell features:
• Variety of lead lengths
• Easy installation
• Many accessories included
• Durability
For a complete cross-reference, visit www.customer.honeywell.com
THERMOCOUPLES
Lead Length
(in.) Universal Tradeline
Cross-Reference
White-Rodgers Robertshaw Husky Johnson Controls
18 Q340A1066 Q390A1095 H06E-518, HO6E-18 K16BT-18 K19AT-18
24 Q340A1074 Q390A1046 H06E-524, HO6E-24 1970-24, 1980-24 K16BT-24 K19AT-24
30 Q340A1082 Q390A1053 H06E-530, HO6E-30 1970-30 K16BT-30 K19AT-30
36 Q340A1090 Q390A1061 H06E-536, HO6E-36 1970-36, 1980-36 K16BT-36 K19AT-36
48 Q340A1108 Q390A1103 H06E-548, HO6E-48 K16BT-48 K19AT-48
19
Q313
Replacement Thermopile
• Variety of lead lengths
• Push-in clip, split nut and adapter assembly included
• Male nut connector for Pilotstat included
• Generates 750 mV in a millivolt heating system
Q340A
Universal Thermocouple
• The Q340A, with a maximum amount of copel, is a
premium thermocouple with the long life and durability
that your customers demand
• Variety of lead lengths
• Push-in clip, split nut and adapter assembly included
• Male nut connector for Pilotstat included
• Generates 30 mV in standing pilot systems
Q390A
Thermocouple
• Variety of lead lengths
• Push-in clip, split nut and adapter assembly included
• Male nut connector for Pilotstat included
• Generates 30 mV in standing pilot systems
• For situations where a utility grade thermocouple is
the best solution, the Q390A is the right choice
Gas Controls
20
Honeywell ignition controls have a long history of safe and reliable performance. Grow your business
while reducing inventory with Universal ignition modules. A full lineup of Universal replacement
electronic control is available for nearly all intermittent or hot surface ignition applications from
gas-fired furnaces to boilers.
Ignition Modules
When selecting ignition modules for your next job,
look for these Honeywell features:
• Universal application with field adjustable timings
• Flexibility for use in single-rod or dual-rod systems
• Quality, reliability and safety of field proven controls
• Simplified installation
21
S8610U
Universal Intermittent Pilot Ignition Module
• Flame voltage auto-adjusts for consistent operation
• Usable in both single-rod or dual-rod systems
• Field-selectable pre-purge and ignition trial timings
• Simple diagnostic LED helps direct service effort
• Direct pilot flame current readout with standard micro-ammeter
• Plug in vent damper connection simplifies installation
• Replaces over 400 Honeywell and competitive models
Y8610U
Universal IP Retrofit Ignition System Kit
• Use with 24 Vac gas-fired atmospheric furnaces,
boiler and heating appliances
• Convert standing pilot appliance to electronic ignition
• Natural or LP gas
S8910U
Universal Hot Surface Ignition Module
• Replaces over 800 Honeywell and competitive products
• Easy field replacement for most hot surface ignition modules
• Three-color LED and microammeter ports for easy diagnostics
• Single-rod or dual-rod systems
• Natural or LP gas
• All retrofit accessories included
Gas Controls
22
APPLICATIONS TIMINGS
Universal
Service Part Ignition System Flame
Sensor
Ignition
Sequence
(Note 1)
Ignition
Trials To
Lockout
(Note 1)
Ignition Trial
Time Between Trial
Time Pre-Purge
Flame
Failure
Response
Time
S8910U3000 Line Volt Hot
Surface Ignition 1 or 2 Rods P 1 or 3
Field Selectable
4 sec. or 7 sec.
Field Selectable
96 sec., 3 Trial
Mode Only 32 sec or less 1.5 sec.
S8610U3009 Intermittent Pilot 1 or 2 Rods C C
15 sec. or
90 sec.
Field Selectable
5 Minute Delay
After Failed Trial
for Ignition
0 sec. or 30 sec.
Field Selectable 2.0 sec. max.
Y8610U6006 Conversion for
Standing Pilot Single Rod C C
15 sec. or
90 sec.
Field Selectable
5 Minute Delay
After Failed Trial
for Ignition
0 sec. 2.0 sec. max.
Y8610U4001 Conversion for
Standing Pilot Single Rod C C
15 sec. or
90 sec.
Field Selectable
5 Minute Delay
After Failed Trial
for Ignition
0 sec. 2.0 sec. max.
Ignition Modules Selection Guide
1. Ignition Sequence
C Continuous retry — After trial for ignition, pilot gas shuts off for
five minutes, then another trial for pilot ignition takes place.
P
The number of trials for ignition and trial time is determined by
the selection tab. If a selection tab is not installed, the module
will operate at four seconds trial time and one ignition trial.
Notes:
23
FEATURES AND FUNCTIONS CROSS-REFERENCE
Universal
Service Part
Type
of Gas
Ignition
Source
Typical
Ignition
Hardware
Includes Honeywell White-Rodgers Robertshaw Johnson
Controls
S8910U3000 Nat or LP
Switched
Line
Voltage
Norton 201,
Norton 271,
Hot Surface
Elements,
Q354 Flame
Rod
S89C1004, S89C1012,
S89C1046, S89C1087,
S89C1103, S89D1002,
S89G1005, S89G1013,
S89G1021, S89G1047,
S89H1003, S89H1011,
S89H1029, S89J1008,
S890C1007, S890D1006,
S890G1003, S890G1011,
S890G1029, S890G1037,
S890H1002, S890H1010,
S890H1028
50E47-1 thru 50E47-79,
50E47-101 thru 50E47-179,
50E47-201 thru 50E47-279,
50E47-301 thru 50E47-379,
50F47-1 thru 50F47-79,
50F47-101 thru 50F47-179,
50F47-201 thru 50F47-279,
50F47-301 thru 50F47-379
HS780-17NL-104A,
HS780-17NL-108A,
HS780-17NL-304A,
HS780-17NL-308A,
HS780-17NR-104A,
HS780-17NR-306A,
HS780-17NR-308A,
HS780-34NL-108A,
HS780-34NL-304A,
HS780-34NL-306A,
HS780-34NL-308A,
HS780-34NL-312A,
HS780-34NR-104A,
HS780-34NR-306A,
HS780-34NR-308A,
HS780-34NR-312A,
HS780-34PL-308A,
S8610U3009 Nat or LP Internal Q345, Q3451,
Q3452
Integral
Damper
Connector
S86 Series ,S90 Series,
S8600 Series,
S8610 Series,
S8620 Series,
S8660 Series,
S8670 Series,
S8680 Series
50D49-350, 50D49-360,
50D49-361, 50D50-843,
50D49-401
780-002, 780-003,
780-715, 780-735,
780-736, 780-737,
780-845, SP715,
SP715A, SP735D,
SP735L, USI715U,
SP735, SP750 Series
CSA42, 43,
44, 45, 46, 48,
49, G60, G65,
G67, G770
Series
Y8610U6006 Nat or LP Internal
Adapter for
Pilot Burner
Included
VR8304M3558
gas valve Y8610U3003
Y8610U4001 Nat or LP Internal
Adapter for
Pilot Burner
Included
VR8204A2142
gas valve
APPLICATIONS TIMINGS
Universal
Service Part Ignition System Flame
Sensor
Ignition
Sequence
(Note 1)
Ignition
Trials To
Lockout
(Note 1)
Ignition Trial
Time Between Trial
Time Pre-Purge
Flame
Failure
Response
Time
S8910U3000 Line Volt Hot
Surface Ignition 1 or 2 Rods P 1 or 3
Field Selectable
4 sec. or 7 sec.
Field Selectable
96 sec., 3 Trial
Mode Only 32 sec or less 1.5 sec.
S8610U3009 Intermittent Pilot 1 or 2 Rods C C
15 sec. or
90 sec.
Field Selectable
5 Minute Delay
After Failed Trial
for Ignition
0 sec. or 30 sec.
Field Selectable 2.0 sec. max.
Y8610U6006 Conversion for
Standing Pilot Single Rod C C
15 sec. or
90 sec.
Field Selectable
5 Minute Delay
After Failed Trial
for Ignition
0 sec. 2.0 sec. max.
Y8610U4001 Conversion for
Standing Pilot Single Rod C C
15 sec. or
90 sec.
Field Selectable
5 Minute Delay
After Failed Trial
for Ignition
0 sec. 2.0 sec. max.
Ignition Modules Selection Guide
For a complete cross-reference, visit www.customer.honeywell.com
Gas Controls
24
Replacing a hot surface igniter can be a tricky job. Furnace designs and specifications change.
Appliance designs can be tight and difficult to maneuver in. Then there’s the need to carry a variety
of replacement parts to match the range of hot surface igniter configurations out there. Now, those
challenges have one reliable solution: Glowfly® from Honeywell.
Universal Hot Surface Igniter
Six brackets. 110+ possibilities.
Every Glowfly comes fully equipped with
six custom mounting brackets that are
optimized to replace over 110 igniter
applications from nearly every furnace
manufacturer without modification.
Match and mount simplicity.
Simply remove the old igniter and
compare it with the diagrams on Glowfly’s
unique packaging guide to determine the
correct mounting bracket for the job.
When selecting an igniter for your next job,
look for these Honeywell features:
• Next-generation OEM silicon nitride quality for any installation
• Custom designed bracketing for universal installation
• The strongest warranty in the industry
• Avoid being caught unprepared with the unique truck-ready six-pack
• Graphic instructions provide for quick and accurate bracket selection
and installation
25
Q3200U2002
Six Pack
Q3200U1004
Single Pack
MANUFACTURER OEM # Q3200U
BRACKETb
American Road Equip. 201W A
Arco Air 1096048 D
1380680
Armstrong Air 38322B001 A
Carrier/
Bryant/
Payne
LH33ZS001
B or Ec
LH33ZS001A
LH33ZS002
LH33ZS002A
LH33ZS003
LH33ZS003A
LH33ZS004
Claire Bros. C-238 A
C242
Coleman 1474-051 A
1474-052
Comfort Maker 1096048 D
Detroit Radiant 201D A
DMO Ind. 20834 A
Dornback Furnace 271W A
Ducane 20015201 B
Enero Tech 10399 A
Evcon 1474-051 A
1474-052
Evcon Coleman 025-32625-000 B
Goodman
B1401009 D
B1401018 C
B1401018S D
HB Smith 50018 A
Heil 1096048 D
Hupp Industries 09050 A
Intercity 1009604 D
1096048
Majestic 75-92-104 A
75-92-105
Metzger 201N A
201W
MANUFACTURER OEM # Q3200U
BRACKETb
Modine 5H76032A C
Mor-Flo 3200618 A
511-330-193 B
Nordyne
105141000
A632-0770
632-0880
Norton/St Gobain
201 B
271
201D
A
201K
201L
201N
201R
201W
271N
271NM D
271P A
271W
Raypak 600915 B
Rheem 62-22441-01 A
Roberts Gordon 90434300 B
90436600 A
Robertshaw
41-402 A
41-403 B
41-404 B
41-405 A
41-407 B
41-408 A
41-409 B
41-410 A
41-412 D
41-418 C
Snyder General
1380654
B1380672
1380680
Superior Fireplace 94851 A
MANUFACTURER OEM # Q3200U
BRACKETb
Tempstar 1096048 D
Trane
340039P01 A
B138196P01 B
B144676P01 A
B144676P02 B
B340039P01 A
IGN23 A
IGN26 B
IGN30 B
IGN34 A
Viessman 9302-094 A
Wayne Home Equip. 62821-001 A
62821-002
Weil McLain
511-330-139
B511-330-190
511-330-193
White LB 120-07549 A
White-Rodgers
767A-301 A
767A-303 F
767A-306
A767A-311
767A-350
767A-353 F
767A-354 A
767A-357 F
767A-361
A767A-364
767A-366
767A-370 B
767A-371 A
767A-372 A
767A-373 D
767A-376 B
767A-377 A
767A-382 B
Williamson 9050 A
York
025-27766-000
A
025-27774-000
025-29043-000
025-29050-000
Igniter Bracket Replacement Cross Referencea
a Table data is correct to the best of Honeywell’s knowledge as of this publication’s date. However, some appliances may have igniter
applications that are beyond the capabilities of this kit.
b For igniters that require bracket A, use the template to determine the tab to be removed.
c For Carrier sealed combustion furnaces, you must use bracket E and retain the existing orange gasket for use with bracket E.
Gas Controls
For a complete cross-reference, visit www.customer.honeywell.com
Scan here for installation and
product information.
26
Honeywell offers a full line of 120 V direct replacement silicon carbide igniters. Q4100 igniters work
with most configurations of element shapes, brackets, connectors, and lead wire lengths. Honeywell
igniters are made in the USA and backed by a 2-year warranty.
Silicon Carbide Igniters
MANUFACTURER PART # HONEYWELL
PART #
Amana
601 Q4100C9048
10041601 Q4100C9042
10755002 Q4100C9046
20165703 Q4100C9054
10735003A Q4100C9046
138196P01 Q4100C9056
201657-03 Q4100C9048
20165703S Q4100C9048
B1336102 Q4100C9042
B144676P01 Q4100C9058
B144676P02 Q4100C9052
B340039P01 Q4100C9054
D99182 Q4100C9042
D9918202A Q4100C9042
American Appliance 271B Q4100C9050
American Road
Equipment 201W Q4100C9046
American Standard IGN0030 Q4100C9056
American Water Heater
6901800 Q4100C9050
6903767 Q4100C9050
6903768 Q4100C9050
6905032 Q4100C9046
Arco Air
1096048 Q4100C9066
1380680 Q4100C9066
100-9980 Q4100C9046
Armstrong 38322B001 Q4100C9046
Barnett Brass
661923 Q4100C9042
661925 Q4100C9050
661926 Q4100C9052
661927 Q4100C9056
661928 Q4100C9060
661929 Q4100C9054
Carrier/ Bryant/ Payne
LH33ZS001A Q4100C9056
LH33ZS002 Q4100C9056
LH33ZS003 Q4100C9056
LH33ZS004 Q4100C9056
Claire Brothers C-238 Q4100C9046
C-242 Q4100C9046
Coleman 1474-051 Q4100C9046
1474-052 Q4100C9046
Comfort Maker 1096048 Q4100C9066
Comfort Zone 150114-04-01 Q4100C9050
Detroit Radiant 201D Q4100C9068
DMO Industries 20834 Q4100C9046
Dornback 271W Q4100C9046
Ducane 20015201 Q4100C9056
Eaton
F1-402 Q4100C9046
F1-403 Q4100C9046
F1-404 Q4100C9048
F1-407 Q4100C9052
FI-401 Q4100C9042
FI-405 Q4100C9068
FI-406 Q4100C9050
MANUFACTURER PART # HONEYWELL
PART #
Eaton
FI-408 Q4100C9054
FI-409 Q4100C9056
FI-410 Q4100C9058
FI-412 Q4100C9062
Enerco 10399 Q4100C9046
EZFLOW 62374 Q4100C9062
Frigidaire
6320770 Q4100C9046
6320880 Q4100C9046
6323540 Q4100C9046
632-3540 Q4100C9046
RH622286893 Q4100C9046
Gemline IG-106 Q4100C9050
IG-107 Q4100C9062
General Electric WG37X11 Q4100C9056
WG37X34 Q4100C9056
Glow Core
1950001 Q4100C9050
FY 009 Q4100C9050
HSRK7 Q4100C9050
Goodman
B11726-06 Q4100C9046
B1401009 Q4100C9062
B14010-15S Q4100C9066
Grimsby Stove ZCO-350 Q4100C9046
GSW 71082 Q4100C9062
86483 Q4100C9062
HB Smith
9050 Q4100C9046
50018 Q4100C9068
101344 Q4100C9068
11148245 Q4100C9068
Heatmaker
2400-048 Q4100C9042
2400-286 Q4100C9042
2400-359 Q4100C9042
3079-100 Q4100C9042
9330-102 Q4100C9042
Heil-Quaker
1001344 Q4100C9068
1009604 Q4100C9062
1009648 Q4100C9062
1096048 Q4100C9066
1148145 Q4100C9068
10096047 Q4100C9062
Integra 3260618 Q4100C9046
Intercity 1009604 Q4100C9062
1096048 Q4100C9066
Janitrol Goodman
0230K00001 Q4100C9048
B1401009 Q4100C9062
B1401015S Q4100C9066
B1401018 Q4100C9066
B140109S Q4100C9066
LB White 120-07549 Q4100C9046
Lennox
36N77 Q4100C9056
36N7701 Q4100C9056
96P01 Q4100C9042
96P0101 Q4100C9042
98P77 Q4100C9068
98P78 Q4100C9054
Silicon Carbide Igniters
Cross Reference
27
Gas Controls
MANUFACTURER PART # HONEYWELL
PART #
Lochinvar LCVT27021G Q4100C9050
PLT2702 Q4100C9050
Luxaire 25326250000 Q4100C9046
Maddox 201 Q4100C9056
Majestic 75-92-104 Q4100C9046
75-92-105 Q4100C9046
Metzger 201N Q4100C9046
201W Q4100C9046
Mor-Flo
3200580 Q4100C9050
3200618 Q4100C9046
3210401 Q4100C9050
Nordyne
105141000 Q4100C9046
632-0770 Q4100C9046
632-0880 Q4100C9046
Norton/ St. Gobain
201 Q4100C9056
271 Q4100C9056
201A Q4100C9042
201B Q4100C9050
201D Q4100C9068
201J Q4100C9050
201K Q4100C9046
201L Q4100C9046
201M Q4100C9050
201N Q4100C9046
201P Q4100C9046
201R Q4100C9046
201R Q4100C9046
201W Q4100C9046
201Y Q4100C9050
271A Q4100C9042
271M Q4100C9048
271M Q4100C9050
271M Q4100C9056
271N Q4100C9046
271NM Q4100C9062
271NM Q4100C9066
271P Q4100C9068
271Q Q4100C9042
271W Q4100C9046
271Y Q4100C9050
MB258909 Q4100C9042
MB258910 Q4100C9056
MB258911 Q4100C9046
MB258912 Q4100C9048
MB457025 Q4100C9054
MB457025 Q4100C9066
MB457026 Q4100C9068
MB457027 Q4100C9050
MB457038 Q4100C9052
MB457551 Q4100C9058
MB457555 Q4100C9056
MB458902 Q4100C9062
MB478264 Q4100C9046
MB478265 Q4100C9048
MB478266 Q4100C9054
MB478267 Q4100C9068
MB478268 Q4100C9050
MB478270 Q4100C9058
MB478272 Q4100C9062
MB478601 Q4100C9050
Olsen 26789 Q4100C9046
Perfection Schwank 108803-G1 Q4100C9050
Raypak 50015 Q4100C9056
600915 Q4100C9056
Raytheion D9918202A Q4100C9042
Rheem
904343000 Q4100C9056
62-22441-01 Q4100C9046
62-22441-01 Q4100C9054
62-22668-93 Q4100C9054
62-22868-02 Q4100C9046
62-22868-82 Q4100C9060
62-22868-82 Q4100C9060
62-22868-93 Q4100C9046
MANUFACTURER PART # HONEYWELL
PART #
Roberts Gordon 90436600 Q4100C9046
904343000 Q4100C9056
Robertshaw
41-401 Q4100C9042
41-401N Q4100C9042
41-402 Q4100C9046
41-402N Q4100C9046
41-403 Q4100C9056
41-403N Q4100C9056
41-404 Q4100C9048
41-404N Q4100C9048
41-405 Q4100C9068
41-405N Q4100C9068
41-406 Q4100C9050
41-406N Q4100C9050
41-407 Q4100C9052
41-407N Q4100C9052
41-408 Q4100C9054
41-408N Q4100C9054
41-409 Q4100C9056
41-409N Q4100C9056
41-410 Q4100C9058
41-410N Q4100C9058
41-411 Q4100C9060
41-411N Q4100C9060
41-412 Q4100C9062
41-412N Q4100C9062
41-414 Q4100C9066
Ruud 62-22868-02 Q4100C9046
62-22868-93 Q4100C9046
Snyder General
1380654 Q4100C9056
1380672 Q4100C9056
1380680 Q4100C9056
Starlite
11120-100-1401 Q4100C9042
11120-100-1402 Q4100C9046
11120-100-1403 Q4100C9056
11120-100-1405 Q4100C9048
11120-100-1406 Q4100C9050
11120-100-1407 Q4100C9052
11120-100-1408 Q4100C9054
11120-100-1409 Q4100C9056
Supco
SIG-106 Q4100C9050
SIG107 Q4100C9062
SIG-108 Q4100C9060
SIG-401 Q4100C9042
SIG-402 Q4100C9046
SIG-403 Q4100C9056
SIG-405 Q4100C9068
SIG-406 Q4100C9050
SIG-407 Q4100C9052
SIG-408 Q4100C9054
SIG-409 Q4100C9056
SIG-410 Q4100C9058
SIG-412 Q4100C9062
SIG-414 Q4100C9066
Superior Fireplace 94851 Q4100C9046
Temp Controls 9302-094 Q4100C9068
Tempstar 1096048 Q4100C9066
Trane
B138196P01 Q4100C9056
B144676P01 Q4100C9058
B144676P02 Q4100C9052
B340039P01 Q4100C9054
IGN00026 Q4100C9056
IGN00030 Q4100C9052
IGN00034 Q4100C9054
IGN00054 Q4100C9050
IGN-0034 Q4100C9054
IGN21 Q4100C9046
IGN23 Q4100C9046
IGN23 Q4100C9056
IGN26 Q4100C9056
IGN30 Q4100C9052
IGN34 Q4100C9054
ING00023 Q4100C9046
MANUFACTURER PART # HONEYWELL
PART #
Uni-Line
10530 Q4100C9062
63467 Q4100C9046
63468 Q4100C9056
63469 Q4100C9048
63470 Q4100C9068
63472 Q4100C9052
63473 Q4100C9054
63474 Q4100C9056
63475 Q4100C9058
63477 Q4100C9060
64346 Q4100C9066
66201310530 Q4100C9062
41-238 Q4100C9046
41-242 Q4100C9046
Viessman 9302-094 Q4100C9068
Wayne Home Equipment 62821-001 Q4100C9046
62821-002 Q4100C9046
Weil McLain
79074 Q4100C9046
511-330-139 Q4100C9056
511-330-188 Q4100C9050
511-330-190 Q4100C9048
511-330-193 Q4100C9056
Whirlpool
99794322 Q4100C9042
99794323 Q4100C9046
99794326 Q4100C9050
99794328 Q4100C9054
999794327 Q4100C9052
White Rodgers
99796417 Q4100C9068
99911563 Q4100C9070
99911564 Q4100C9072
5E809 Q4100C9044
5E810 Q4100C9040
5E811 Q4100C9068
767-301 Q4100C9068
767-A303 Q4100C9040
767A-306 Q4100C9068
767A-309 Q4100C9070
767A-310 Q4100C9070
767A-311 Q4100C9072
767A-35 Q4100C9046
767A-350 Q4100C9068
767A-352 Q4100C9042
767A353 Q4100C9040
767A-354 Q4100C9068
767A-356 Q4100C9042
767A-356 Q4100C9044
767A-357 Q4100C9040
767A-361 Q4100C9068
767A-364 Q4100C9072
767A-365 Q4100C9070
767A-366 Q4100C9072
767A-369 Q4100C9042
767A-369 Q4100C9042
767A-370 Q4100C9056
767A-371 Q4100C9046
767A-372 Q4100C9054
767A-373 Q4100C9062
767A-374 Q4100C9050
767A-376 Q4100C9052
767A-377 Q4100C9058
767A-382 Q4100C9048
767A-383 Q4100C9060
767A-384 Q4100C9066
Williamson 950 Q4100C9046
York
025-25435-000 Q4100C9070
025-27766-000 Q4100C9068
025-27774-000 Q4100C9068
025-29043-000 Q4100C9068
025-29050-000 Q4100C9068
025-32625-000 Q4100C9046
28
Replaces all others. The new universal platform that will not only integrate control of all combustion
blower and circulating an operations in a gas warm air appliance but also replace most ST9120,
ST9141 and ST9160 fan timer boards. Save room on your truck or on your shelves with a supply of
ST9120U1011 timers and know you’re covered.
Universal Electronic Fan Timer
When selecting fan timers for your next job,
look for these Honeywell features:
• Universal application
• Easy installation
• Quality construction for long service life
ST9120U1011
• Replaces 44 existing Honeywell controls to reduce
inventory
• Integrates control of all combustion blower and
circulating fan operations in a gas warm-air appliance
• Replaceable fuse
• DIP switch selectable heat and cool delay on and
off times
• Diagnostic LED
• EAC and HUM convenience terminal connections
and continuous low speed indoor air circulation
are provided
ST9120U REPLACES OVER 44 EXISTING MODELS
ST9101A1006 ST9120C3018 ST9120G4038 ST9160B1001
ST9101A1014 ST9120C4008 ST9120U1003 ST9160B1019
ST9101A1022 ST9120C4016 ST9141A1002 ST9160B1027
ST9120A2004 ST9120C4040 ST9141A1028 ST9160B1035
ST9120B1005 ST9120C4057 ST9141B1001 ST9160B1043
ST9120C1012 ST9120C5005 ST9150A1003 ST9160B1050
ST9120C1020 ST9120C5013 ST9150B2000 ST9160B1068
ST9120C2002 ST9120D3009 ST9150B2018 ST9160B1076
ST9120C2010 ST9120G2024 ST9150B2026 ST9160B1084
ST9120C2028 ST9120G2032 ST9150B2034 ST9160C1000
ST9120C3000 ST9120G4004 ST9160A1002 ST9160C1018
29
Universal Electronic Fan Timer OEM Replacement Guide
RECOMMENDED DIP SWITCH SETTING
Replaced Control
Model Number Original OEM Appliance 12345
ST9101A1006 Rheem off off off off off
ST9101A1014 Rheem off off off off off
ST9101A1022 Trade off off off off off
ST9120A1006 Armstrong off off off off off
ST9120A2004 Armstrong on off on off off
ST9120B1005 Ducane off on off off off
ST9120C1012 Snyder General on off off off off
ST9120C1020 Nordyne on off off off off
ST9120C2002 York off off off off off
ST9120C2010 Ducane off off off off off
ST9120C2028 Armstrong off off off off on
ST9120C3000 ICP off off on on off
ST9120C3018 Bard on off off off on
ST9120C4008 ICP off off on on off
ST9120C4016 ICP off off on on off
ST9120C4040 ICP off off on on off
ST9120C4057 ICP off off on on off
ST9120C5005 ICP off off on off off
ST9120C5013 ICP off off on off off
ST9120D3009 Goodman off off on off on
ST9120G2008 ICP on off off on off
ST9120G2016 ICP off off off on off
ST9120G2024 Skymark off on off on off
ST9120G2032 Skymark off on off off on
ST9120G4004 ICP off off on on off
ST9120G4012 ICP off off on on off
ST9120G4038 Trade off off on on off
ST9120U1003 Trade off off on off off
ST9141A1002 Consolidated Industries off off on off on
ST9160B1035 off off off off off
ST9160B1068 Armstrong on off off off on
ST9160B1076 Ducane off off off off off
ST9160B1084 ICP off off on off on
ST9120U Factory Default Setting off off off off off
For a complete cross-reference, visit www.customer.honeywell.com
Gas Controls
30
The Honeywell Hot Surface Ignition Universal Integrated Furnace Control offers universal
compatibility and remote monitoring and diagnostics. Able to replace a large number of furnace
controls in single-stage heating and cooling appliances. Honeywell UIFCs are the only controls
you need for residential natural or liquid propane fueled furnaces.
Universal Integrated Furnace Control
When selecting furnace controls for your next job,
look for these Honeywell features:
• Replaces over 195 furnace controls
• Complete set of wiring harnesses for universal compatibility, simplified
installation and field-adjustable timings
• LED indicators provide system status, performance and diagnostic information
• EnviraCOM™ communications enabled
31
S9200U1000 REPLACES THESE INTEGRATED FURNACE CONTROLS
Amana/Goodman 10207704, 10207706, 10207714, 10207719, 102077-02, 102077-03, 102077-04, 102077-09, 102077-19, 1809913, 10207701, 10207702, 10207703,
10207710, B1809913, B18099-13
ICM ICM280
ICP 1010806, 1380686, 1380698, 1380699, 1380-686, 1380-699
Lennox X445901, 1214201
Nordyne 624591, 624557, 624564, 624628, 902378, 902696, 903106, 6245570, 6245640, 6246310, 624557-0, 624591A, 624591-A, 624591-B, 624591-C,
624591-D, 624628-0, 624631-0, 624631A, 624631-A, 624631-B, 710128A, CAR903106
Other Manufacturers 350486, 8068142, 8068561, 8068563, 10334901, 99958174, 99958175, X13120666010
Rheem/Robertshaw 62-24268-01, 62-24268-02, 62-24268-03, 695-200
Texas Instruments 41F-5, 61F3, 6DT-1, 6DT-2
Trane CNT03740, CNT1309, CNT1616, CNT1848, CNT1849, CNT2181, CNT2182, CNT2183, CNT2789, D340790P01, D341122P01, D330927P01,
D330930P01, D330934P01, D340035P01, D340354P01, D340774P01, D341235P01
United Technologies 1012-83-9336AHSC1, 1012-83-9337A, 1012-83-9651B, 1012-925A, 1012-925B, 1012-925C, 1012933D, 1012-933D, 1012955A, 1012-955A
White-Rodgers
50A50-130, 50A50-131, 50A50-208, 50A50-210, 50A50-215, 50A50-216, 50A50-229, 50A50-240, 50A50-245, 50A50-298, 50A50-407, 50A50-472,
50A50-475, 50A55-245, 50A55-250, 50A55-288-05, 50A50-110, 50A50-111, 50A50-112, 50A50-113, 50A50-142, 50A50-143, 50A50-205,
50A50-206, 50A50-207, 50A50-209, 50A50-230, 50A50-241, 50A50-285, 50A50-286, 50A50-288, 50A50-295, 50A50-296, 50A50-405, 50A50-406,
50A50-408, 50A50-438, 50A50-471, 50A50-473, 50A50-474, 50A50-571, 50A55-120, 50A55-143, 50A55-241, 50A55-285, 50A55-286, 50A55-288,
50A55-438, 50A55-474, 50A55-571, 50A55-843, 50T35730, 50T35-730, 50T35743, 50T35-743
York
3101250000, 5253733900, 43101972100, 52537074000, 52537077000, 031.01234.000, 031-00662000, 031-01250-700, 031-01266-700,
031-01267-00, 331-09167-000, 431-01972-100, 31011140002, 031-00662, 031-00662, 031-00662-000, 031-00662-700, 031-01140-000,
031-01140-001, 031-01140-002, 031-01140-701, 031-01140-702, 031-01234-700, 031-01235-000, 031-01235-700, 031-01250-000, 031-01266-000,
031-01267-000, 031-01267-001, 031-01267-001A, 031-01284-000, 031-01933-000, 031-01972-000, 031-01973-000, 031-02166-000, 031-09166-000,
031-09167-000, 331-01933-000, 331-01972-200, CAR03101973000, CAR33101972200, CAR50A55843, G951ADB1401, G951ADB1401C,
G951ADB-1401C, G951ADB1402, G951ADB-1402, G951AEB-1403, P03101267001, P031-01267-001, PTH031011400-00
HSI Universal Integrated
Furnace Control
• Complete set of wiring harnesses for universal compatibility
and simplified installation allowing for direct replacement of
competitive boards
• LED indicators provide system status, performance and
diagnostic information
• EnviraCOM™-enabled for easy setup of local or remote monitoring
and diagnostic systems
• Ready for remote services, whether you’re replacing old controls
or installing new equipment like the VisionPRO™ IAQ, Telephone
Access Module or EnviraZONE™
• Engineered for reliability and long-term performance
Gas Controls
For a complete cross-reference, visit www.customer.honeywell.com
32
SKU HARNESS FIELD SETTINGS RECOMMENDATION SAFETY TIME SETTINGS
SW1 SW2 SW3 SW4 SW1 SW2
Amana/Goodman ¹
1809913, B1809913,
B18099-13 Main Connector - E Inducer & HSI Connector - F
ON OFF
60/90/120/180 60/90/120/180
OFF
ON
10207701
Inducer & HSI Connector - G
ON OFF10207702
10207703
10207704 60/90/120/180 60/90/120/180 OFF
10207706
10207710 ON OFF ON
10207714
60/90/120/180 60/90/120/180 OFF
10207719
102077-02
102077-03
102077-04
102077-09
102077-19
ICM
ICM280 Main Harness E & Inducer/HSI Harness F Check Control Field Settings Check Control Safety Timings
ICP
1010806
Inducer/HSI Harness A ON OFF 60/90/120/180 OFF
OFF
1380686 ON
1380698 OFF
1380699
1380-686 ON
1380-699
Lennox
1214201
Inducer/HSI Harness A ON OFF
ON OFF
OFF OFF
X445901 60/90/120/180 60/90/120/180
Nordyne
624557
Main Harness D & Inducer/HSI Harness B ON OFF 60/90/120/180 60/90/120/180 ON OFF
624564
624591
624628
902378
902696
903106
6245570
6245640
6246310
624557-0
624591A
624591-A
624591-B
624591-C
624591-D
624628-0
624631-0
624631A
624631-A
624631-B
710128A
CAR903106
1 Wiring harness G should be used if the control being replaced has a 2-pin inducer/igniter connector instead of a 4-pin inducer/igniter connector.
Universal Integrated Furnace Control Selection Guide
Use with only 120 VAC Appliances
33
Universal Integrated Furnace Control Selection Guide
SKU HARNESS FIELD SETTINGS RECOMMENDATION SAFETY TIME SETTINGS
SW1 SW2 SW3 SW4 SW1 SW2
Other Manufacturers
350486
Inducer & HSI Connector - A ON OFF 60/90/120/180 60/90/120/180 OFF OFF
8068142
8068561
8068563
10334901
99958174
99958175
X13120666010
Rheem/Robert Shaw
62-24268-01
Main Connector - D Inducer & HSI
Connector - C ON OFF 60/90/120/180 60/90/120/180 ON ON
62-24268-02
62-24268-03
695-200
Texas Instruments
41F-5
Main Connector - E
Inducer & HSI Connector - F
ON OFF 60/90/120/180 60/90/120/180 OFF ON
50T35730
50T35-730
50T35743
50T35-743
61F3
Inducer/HSI Harness A6DT-1
6DT-2
Trane
CNT03740
Inducer & HSI Connector - A
Add jumper on harness connector
(Roll-out switch)
ON OFF
60/90/120/180 60/90/120/180 OFF
OFF
CNT1309 Inducer & HIS Connector - G
Check Settings ON ON
CNT1616
Inducer & HSI Connector - A
Add jumper on harness connector
(Roll-out switch)
CNT1848
CNT1849
CNT2181
CNT2182
CNT2183
CNT2789
D330927P01 ON
OFF
OFF
D330930P01
OFF ON
D330934P01
D340035P01
D340354P01
D340774P01
D340790P01 Check Settings ON OFFD341122P01
D341235P01 ON OFF ON OFF
United Technologies
1012-83-9336AHSC1 Main Connector - E
Inducer & HSI Connector - F
ON OFF
ON OFF OFF
ON
1012-83-9337A
1012-83-9651B
60/90/120/180 60/90/120/180
1012-925A Inducer & HSI Connector - A
ON1012-925B
Main Connector - D
Inducer & HSI Connector - C
1012-925C
1012933D ON OFF OFF
1012-933D
1012955A Main Connector - E
Inducer & HSI Connector - F 60/90/120/180 60/90/120/180 ON OFF
1012-955A
For a complete cross-reference, visit www.customer.honeywell.com
Gas Controls
34
Universal Integrated Furnace Control Selection Guide
SKU HARNESS FIELD SETTINGS RECOMMENDATION SAFETY TIME SETTINGS
SW1 SW2 SW3 SW4 SW1 SW2
White-Rodgers
50A50-110
Inducer & HSI Connector - A
ON
OFF 60/90/120/180 60/90/120/180
OFF
ON
50A50-111
50A50-112
50A50-113
50A50-130
OFF50A50-131
50A50-142
50A50-143 Check Settings
ON
50A50-205
OFF
ON OFF
50A50-206
50A50-207 Inducer & HSI Connector - G
50A50-208
Inducer & HSI Connector - A
60/90/120/180 60/90/120/180 OFF
50A50-209 ON ON ON
50A50-210
60/90/120/180 60/90/120/180 OFF
50A50-215
50A50-216
50A50-229
50A50-230
50A50-240
50A50-241
50A50-245
50A50-285 Inducer & HSI Connector - G OFF ON OFF
50A50-286 Inducer & HSI Connector - A
ON
60/90/120/180 60/90/120/180
ON
50A50-288
Inducer & HSI Connector - G
ON OFF
50A50-295
50A50-296
60/90/120/180 60/90/120/180
50A50-298 OFF
50A50-405 Inducer & HSI Connector - A
Add jumper on harness connector
(Roll-out switch)
OFF ON
50A50-406
50A50-407
Inducer & HSI Connector - A ON OFF
50A50-408
ON
50A50-438 Check Settings ON
50A50-471
Inducer & HSI Connector - A
Add jumper on harness connector
(Roll-out switch)
OFF OFF
50A50-472 Inducer & HSI Connector - A Check Settings ON OFF
50A50-473
Inducer & HSI Connector - A
Add jumper on harness connector
(Roll-out switch) OFF
OFF
ON
50A50-474
Inducer & HSI Connector - A
Add jumper on harness connector
(Roll-out switch)
50A50-475 Inducer & HSI Connector - A
ON
OFF
50A50-571
Inducer & HSI Connector - A
Add jumper on harness connector
(Roll-out switch)
50A55-120
Inducer & HSI Connector - A
OFF ON OFF
50A55-143
ON
30/60 60/90/120/180 60/90/120/180
50A55-241
OFF
ON ON ON
50A55-245
60/90/120/180 60/90/120/180
OFF50A55-250
50A55-285
50A55-286 ON
50A55-288 Inducer & HSI Connector - G
OFF
50A55-288-05
50A55-438 Inducer & HSI Connector - A
Add jumper on harness connector
(Roll-out switch)
Check Settings
50A55-474 OFF ON OFF
50A55-571
50A55-843 - universal Inducer & HSI Connector - A Check Settings Check Settings 60/90/120/180 60/90/120/180
Use with only 120 VAC Appliances
35
Universal Integrated Furnace Control Selection Guide
For a complete cross-reference, visit www.customer.honeywell.com
Gas Controls
SKU HARNESS FIELD SETTINGS RECOMMENDATION SAFETY TIME SETTINGS
SW1 SW2 SW3 SW4 SW1 SW2
York
3101250000
Inducer & HSI Connector - A ON OFF 60/90/120/180 60/90/120/180 OFF
OFF
5253733900
31011140002 ON
43101972100
52537074000 OFF
52537077000
031.01234.000 ON
031-00662 OFF
031-00662
ON
031-00662000
031-00662-000
031-00662-700
031-01140-000
031-01140-001
031-01140-002
031-01140-701
031-01140-702
031-01234-700
031-01235-000
031-01235-700
031-01250-000
031-01250-700 OFF
031-01266-000 ON
031-01266-700 OFF
031-01267-00
ON
031-01267-000
031-01267-001
031-01267-001A
031-01284-000
031-01933-000
031-01972-000
031-01973-000
031-02166-000
031-09166-000
031-09167-000
331-01933-000
331-01972-200
331-09167-000
431-01972-100
CAR03101973000
CAR33101972200
CAR50A55843
G951ADB1401
G951ADB1401C
G951ADB-1401C
G951ADB1402
G951ADB-1402
G951AEB-1403
P03101267001
P031-01267-001
PTH031011400-00
36
Honeywell fan and limits combines high temperature limit with circulating blower control. As an
industry standard for many years, these controls have a large and varied installed base. You’ll find
Honeywell fan and limits on a wide range of furnace equipment. Our universal family increases
service efficiency and reduces truck and warehouse inventory.
Fan and Limit Controls
Key features for the family of universal fan and limits:
• Family members cover the full range of insertion — 5", 8", 11-1/2"
• Adjustment tool and cross-reference allow for field adjustment to factory settings
• Universal kit accessories reduce inventory
L4064
High Limit and Fan Controller
• Used in all types of forced-air heating systems
• Three wiring terminal options available for easy installation
• Available in a variety of fan and high-limit setting ranges
• Controls adapt to many competitive mounting holes
in replacement applications
• Push-in receptacles for stripped wire
• L4064 models for timed fan on
• Special high temperature limit models available
• Suitable for line voltage, low voltage or
millivoltage control applications
37
MODEL OS# REGION
ELEMENT
INSERTION
LENGTH (IN.)
REPLACES
HIGH
LIMIT
STOP
FAN-ON
STOP
FAN-OFF
STOP
MANUAL
FAN
BUTTON
MANUAL
RESET
SWITCHING
ACTION
L4064
L4064B2228 US/
Canada 5
L4064A1339, L4064A1503
L4064A1586, L4064A2402
L4064A2659, L4064A2980
L4064B1469, L4064B1683
L4064B2228, L4064B2640
L4064B2657, L4064B2681
L4064B2889, L4064B2897
L4064B2947, L4064B3010
L4064B3143, L4064B3143
L4064B3374, L4064B3432
L4064B3440, L4064B3473
L4064B3598, L4064E1983
L4064E2437, L4064E2544
L4064L1046
200°F
97°C
125°F
52°C
100°F
38°C Yes No
Fan: SPST — N.O. (make
on rise), Limit: SPST —
N.C. (break on rise)
L4064R1159 US/
Canada 5
L4064E1835, L4064E2551
L4064L1145, L4064R1043
L4064R1050, L4064R1159
250°F
121°C
125°F
52°C
100°F
38°C Yes No
Fan: SPST — N.O. (make
on rise), Limit: SPST —
N.C. (break on rise)
L4064B2236 US/
Canada 8
L4064A1347, L4064A1511
L4064A1719, L4064A1735
L4064A2030, L4064A2279
L4064A2998, L4064B1618
L4064B2236, L4064B2608
L4064B2772, L4064B2822
L4064B2905, L4064B2905
L4064B2962, L4064B3051
L4064B3085, L4064B3325
L4064B3333, L4064B3341
L4064B3366, L4064B3457
L4064B3499, L4064B3572
L4064E1777, L4064E2163
L4064E2171, L4064E2452
L4064E2502, L4064E2684
L4064F1023, L4064F1031
L4064F1080, L4064F1098
L4064L1004, L4064A2774
200°F
97°C
125°F
52°C
100°F
38°C Yes No
Fan: SPST — N.O. (make
on rise), Limit: SPST —
N.C. (break on rise)
L4064R1142 US/
Canada 8
L4064A2469, L4064B1691
L4064B2616, L4064B2806
L4064B2814, L4064B2830
L4064B3390, L4064B3481
L4064B3507, L4064R1019,
L4064R1118, L4064R1126,
L4064R1142
250°F
121°C
125°F
52°C
100°F
38°C Yes No
Fan: SPST — N.O. (make
on rise), Limit: SPST —
N.C. (break on rise)
L4064B2210 US/
Canada 11.5
L4064A1321, L4064A1453
L4064A2758, L4064A3012
L4064A3020, L4064A3038
L4064A3046, L4064B1451
L4064B1592, L4064B1717
L4064B1725, L4064B1931
L4064B2210, L4064B2723
L4064B2749, L4064B2848
L4064B2954, L4064B3036
L4064B3044, L4064B3077
L4064B3184, L4064B3465
L4064B3580, L4064E2056
L4064E2114, L4064E2130
L4064E2155
200°F
97°C
125°F
52°C
100°F
38°C Yes No
Fan: SPST — N.O. (make
on rise), Limit: SPST —
N.C. (break on rise)
L4064R1134 US/
Canada 11.5
L4064A2972, L4064B2756
L4064J1008, L4064K1006
L4064L1129, L4064N1074
L4064R1027, L4064R1035
L4064R1068, L4064R1134
L4064R1167
250°F
121°C
125°F
52°C
100°F
38°C Yes No
Fan: SPST — N.O. (make
on rise), Limit: SPST —
N.C. (break on rise)
For a complete cross-reference, visit www.customer.honeywell.com
* Fan On and Fan Off may need to be adjusted.
Fan and Limits Selection Guide
Gas Controls
38
Honeywell has set the standard for oil-fired furnaces, boilers and water heaters when it comes to oil
primary controls. In addition to delivering dependability and high quality products, Honeywell has
gone one step further to create an easy-to-use oil primary control designed to simplify installation
and enhance maintenance. Our latest innovation will redefine that standard as the next generation of
controls proves, it takes a legend to make one.
Oil Primaries
When selecting an oil primary for your next job, look for these
Honeywell features:
• Universal application with field adjustable timings
• Integrated display allows for setup without using and external tool
• Advanced diagnostics that direct the technician to the likely cause of ignition failure
• Legendary performance and reliability
39
R8184
Protectorelay® Oil Burner Control
• Industry-standard intermittent ignition control
• Solid-state, flame-sensing circuit
• 45-second timing, safety switch
• Mounts on standard 4" x 4" junction box
• External button to manually reset safety switch after lockout
W8735S3000
EnviraCOM™ Alarm Module
• Works with any alarm generating EnviraCOM enabled control
• Local LED alarm present and communication active indication
• Simple low-voltage, 5-wire installation
R8182
Combination Protectorelay® and Hydronic
Heating Controllers
• Immersion-type Aquastat® controller and oil burner primary control
• Provides high limit and low limit/circulator control
• Use in intermittent ignition applications
• Circulator zone control with ZC and ZR terminals on R8182D, E, H, J
R7284U1004
Universal Digital Electronic Oil Primary
• A single part number for nearly all applications helps reduce inventory cost
• 16 character two line tri-lingual display provides simple programming
and diagnostics
• No additional tool to purchase to take advantage of all control features
• Monitors igniter and cad cell and alerts technician what component
caused ignition failure
• Error history and baseline readings provide system performance trends
Oil/Hydronic Controls
Scan here for installation and
product information.
40
OIL PRIMARIES
Specifications
Ignition Type Universal Service Part Lockout
Time (sec.)
Valve On Delay
(sec.)
Blower Off Delay
(min.)
Alarm
Contacts
Manual Trip Lever
w/ LED Indicator
Interrupted R7284U1004
15
0/15 0/2/4/6
Yes* Yes
15
15 0.25
30
0/15 0/2/4/6
No
45 0/15 0/2/4/6 Yes* No
Intermittent R7284U1004
15 Yes*
30
45 Yes
Yes*
R8184M1051 45
Oil Primaries Selection Guide
(1) Includes 40 VA transformers and heat/cool thermostat connections for warm-air furnace applications.
*Alarm accessory module required. EnviraCOM™ Alarm Module W8735S3000
R8182 COMBINATION AQUASTAT AND OIL PRIMARY
Direct Service Part
Features and Functions
Includes
Upgraded
Cross-Reference
Mounting
Differential Temperature (˚F)
Honeywell
High Limit Low Limit/
Circulator
R8182D1079 Vertical 10 fixed 10 to 25 Heat-Conductive Compound R8182E1118
R8182D1111 Horizontal 10 fixed 10 to 25 Heat-Conductive Compound R8182D1129
R8182H1070 J Box 10 fixed 10 to 25 Heat-Conductive Compound
R8182J1042 J Box 15 fixed Heat-Conductive Compound R8182J1059
STACK SWITCHES
Model Number Ignition Type Replaces
RA116A1055 Intermittent RA116A1063
RA117A1047 Interrupted
41
Oil Primaries Selection Guide
Cross-Reference
Ignition Type Universal Service
Part Honeywell Beckett Carlin White-Rodgers
Interrupted R7284U1004
R7184U1004, R7184P1031, R7184P1049, R7184P1056,
R7184P1064, R7184P1072 7505P125M
50200-02S,
602000-02S,
6020002S015120,
6020002S030015,
6020002S030030,
6020002S030120,
6020002S030300,
6020002S030010
R7184A1026, R7184A1075, R7184A1000 7505A0000 40200-02S 669-640,669-670
R7184B1024, R7184B1032, R7184B1016 7505B1500
R7184P1080, R7184P1098 7505P1515
R7184U1012
R7184A1018, R7184A1034 42230-02S 669-440, 669-445,
669-470, 669-540
R7184U1020
R7184A1042
Intermittent R7284U1004
R8184G1294, R8184G1302, R8184G4066, R8184G4074,
R8184G4033, R8184G4090, R8184G1427, R8184G4058 7505A0000 668-601, 668-670
R8184G1393, R8184G1302, R8184G4074, R8184G4033 668-501
R8184G1286, R8184G1427, R8184G1458, R8184G4009,
R8184G4025, R8184G4082, R8184G4108 48245-S 668-401, 668-415,
668-430, 668-515
668-430
R8184M1051 R8184M1002 668-441, 668-451, 668-454
For a complete cross-reference, visit www.customer.honeywell.com
CAD CELL SELECTOR GUIDE
Product
Number
CAD
Cells (1)
Lead
Length
(in.)
Wire
Termination
Mounting
Bracket Includes Tradeline
Value Replaces White-Rodgers Westwood
C554A1463 130367 60 2 Flag 1/4" QC Type R
A, B, E, J and P
Mounting Brackets
and Fuel Line
Adaptor
Super
Tradeline
C554A1307, C554A1315,
C554A1398, C554A1133,
C554A1174, C554A1372,
C554C1570, C554A1216,
C554A1927, C554A1794
956-154 TMK-60
C554A1794 130367 60 Stripped Type R
E Mounting Bracket
and Fuel Line
Adaptor
Tradeline C554A1307, C554A1927 956-11
956-154 TMK-60
Notes:
*120320 replacement CAD cell 7.5 MA minimum sensitivity at 2' candles.
*130367 high-sensitivity CAD cell 12 MA minimum sensitivity at 2' candles.
Oil/Hydronic Controls
42
The AquaReset improves comfort and efficiency inside because it knows the weather outside. Our new
product is designed to help homeowners save on energy costs by operating their boiler at more efficient
settings based on the actual outdoor temperature while providing the necessary heat to maintain a
comfortable indoor temperature. Integrating easily into any Honeywell outdoor reset ready electronic
Aquastat, this product provides easy installation and up to 15 percent* energy savings for the homeowner.
Outdoor Reset
*Honeywell Inc. 1979 Study; Control Systems Providing Energy Savings with single and multi-zone Hydronic Heating. 15% is the average energy
savings and can only be achieved when installing an outdoor reset model, domestic hot water priority is off and the unit is installed as directed.
43
W8735Y1000
Honeywell AquaReset
Wireless Outdoor Reset Kit
• Upsell opportunity for contractors during a new boiler installation
when an Outdoor Reset Ready Aquastat (L7224/L7248) is present
• Improves boiler efficiency by resetting the boiler water temperature
based on the outdoor temperature
• Quick and easy install thanks to RedLINK™ wireless communication
• Compatible with any L7224/L7248 Outdoor Reset Ready Aquastat,
S9361A Integrated Boiler Control, and R7910 SOLA Controls
• Kit includes Wireless AquaReset module (W8735ER1000) and
wireless sensor (C7089R1013)
W8735S1000
Honeywell AquaReset
Outdoor Reset Kit
• Designed to improve boiler efficiency by automatically resetting boiler
water temperature based on outdoor temperature
• Upsell opportunity for contractors during a new boiler installation when
an Outdoor Reset Ready Aquastat is present
• Simple installation with three wire connection to the Aquastat
• Compatible with any L7224/L7248 Outdoor Reset Ready Aquastat,
S9361A Integrated Boiler Control, and R7910 SOLA Controls
W8735S1008
Honeywell AquaReset
Domestic Hot Water Kit
Required for domestic hot water override with some Honeywell
AquaReset installations*
• Compatible with Honeywell AquaReset wired and wireless kits
• Ensures domestic hot water needs are met when combining
AquaReset with an indirect DHW tank.
• Easy three-wire installation to AquaReset module
* Kit required to enable domestic hot water override functionality with Indirect DHW tank
when the Zr terminal on the Aquastat® is not used or available for DHW demand. See
instructions or visit customer.honeywell.com for complete details.
Oil/Hydronic Controls
44
The boiler industry standard, Honeywell Aquastats have a proven track record, wide OEM new
equipment usage and a large installed base. Our electronic Aquastat family builds on this reputation
while adding performance-enhancing features. Honeywell service parts have you covered, offering
universal compatibility and improved service call efficiency — while keeping both distributor and
contractor satisfaction in mind.
Aquastats®
When selecting an Aquastat for your next job, look for these
Honeywell features:
• Enhanced to comply with 2012 Department of Energy Standards
• Broad range and flexibility covers a variety of applications and needs
• Universal versions allow multiple mounting and configuration capability
• Universal versions reduce inventory and assure truck availability
• Electronic versions include communications as a standard feature,
allowing add-on efficiency, troubleshooting and monitoring capability
• EnviraCOM™ communications enabled
45
L6006/L4006
Aquastat Controller
• Totally enclosed Micro Switch snap-acting switches operate on
temperature rise to setpoint
• Visible control point scale and external adjustment screw permit easy setting
• Horizontal or vertical insertion of sensing element
• Direct or well immersion of the sensing element
• SPST and SPDT switching action
L6008/L4008
Aquastat Controller
• Visible control point scale and external adjustment screw permit easy setting
• Horizontal or vertical mounting of the remote element into boiler,
tank or other container
• Fast-responding remote temperature sensor
• SPDT or SPST switching action
L8124/L8148
Triple Aquastat Relay
• Oil and gas versions
• High-limit or high-and-low-limit versions
• Mounts directly on boiler horizontally or vertically
• Provides multizone control
• Immersion-type controllers that combine high limit protection with
low limit and circulator control in forced hydronic heating systems
• The L8148 includes a transformer to provide power for the
low-voltage control circuit
• Gas versions include a transformer to provide power for the low voltage circuit
L7224
Universal Oil Electronic Aquastat
• Complies with 2012 Department of Energy Standards
• Diagnostic updates through easy-to-read LED displays
• +/- 2˚ F accuracy and faster response times
• Adjustable high- and low-limit differential
• Outdoor reset functionality available with W8735S1000 and W8735Y1000
• Provides multizone control
• Thermowell horizontal or vertical and flush mounting
• EnviraCOM™ communications enabled
• Compatible with W8735S3000 Alarm Module
Oil/Hydronic Controls
SINGLE-FUNCTION MULTI-FUNCTION
46
Single-Function Aquastat® Selection Guide
All mounting is universal horizontal or vertical mounting unless noted. All Tradeline Aquastats®
include heat-conductive compound.
1 Product Numbering
400X=SPST, 600X=SPDT
X006=Thermowell Sense, X008=Remote Sense
A Break on Rise
B Make on Rise
D Break on Rise w/o Cover
E Break on Rise w/Manual Reset
G Two SPDT
H Make on Rise w/Strap-On Mount
2 Capillary Length
If less then 3" then insulation depth of thermowell
3 All manual reset models comply with the CSD-1 requirement for Manual Reset. Devices with
maximum Range of 200°F, 190°F 180°F are designed to meet local code requirements regarding
maximum setpoints. Units having scale ranges above 240°F do not comply with ASME Section
IV for boilers, use 240 Maximum range Aquastats.
4 Electrical Ratings
A Millivolt: 0.25 A @ 0.25 to 12 Vdc; AFL: 8 A @ 120 Vac/5.1 A @ 240 Vac ALR: 48 A @
120 Vac/30.6 A @ 240 Vac
D Millivolt: 0.25 A @ 0.25 to 12 Vdc; AFL: 1.3 A @ 240 Vac/8 A @ 120 Vac; ALR: 48 A @
120 Vac/30.6 A @ 240 Vac
B AFL: 2.6 A @ 120 Vac/1.3 A @ 240 Vac; ALR: 15.6 A @ 120 Vac/7.8 A @ 240 Vac
H AFL: 8 A @ 120 Vac/1.3 A @ 240 Vac; ALR: 48 A @ 120 Vac/30.6 A @ 240 Vac
SENSOR AND
THERMOWELL FEATURES AND FUNCTIONS
Product Number1Switch
Configuration
Thermowell
Included
Thermowell Spud
Size —
14 NPT (in.)
Capillary
Length
(in.)2
Manual
Reset
Operating
Temperature Range
(˚F)
Factory
Stop
(˚F)
Differential
Temperature
(˚F)
Electrical
Ratings4
L4006A1009
SPST - N.C.
(break on rise)
Yes 1/2 1-1/2 100 to 240 5 Fixed A
L4006A1017 Yes 1/2 1-1/2 100 to 240 5 to 30 A
L4006A1132 Yes 3/4 3100 to 240 160 5 Fixed A
L4006A1678 3100 to 240 5 to 30 A
L4006A1959 340 to 180 2 Fixed B
L4006A1967 Yes 1/2 1-1/2 100 to 24035 to 30 A
L4006A2007 3100 to 240 5 to 30 A
L4006A2148 3100 to 200 5 to 30 A
L4006E1042 Yes 130 to 2703240 A
L4006E1067 3Yes 130 to 270 A
L4006E1091 3Yes 130 to 270 A
L4006E1125 3Yes 100 to 200 D
L4006H1004 1-1/2 100 to 2403240 D
L4006G1022 3 100 to 200 7 H
L4008A1015 66 100 to 24035 to 30 A
L4008A1130 120 130 to 270 5 to 30 A
L4008A1189 66 130 to 270 5 to 30 A
L4008E1156 66 Yes 130 to 270 250 A
L4008E1305 66 Yes 100 to 240 240 A
L4008E1313 66 Yes 100 to 2003A
L4008E1347 66 Yes 40 to 1803A
L4006B1007 SPST - N.O.
(make on rise)
Yes 1/2 1-1/2 100 to 240 5 Fixed A
L4006B1155 3100 to 240 5 to 30 A
L6006A1004
SPDT
Yes 1/2 100 to 240 5 A
L6006A1012 Yes 1/2 1-1/2 100 to 240 5 to 30 A
L6006A1145 3100 to 240 240 5 to 30 A
L6006A1244 3100 to 240 5 to 30 A
L6006C1018 65 to 200 5 to 30 A
L6008A1093 66 -30 to 7035 to 30 A
L6008A1192 66 100 to 240 240 5 to 30 A
L6008A1242 66 100 to 20035 to 30 A
47
Single-Function Aquastat® Selection Guide
NOTES CROSS-REFERENCE
Product Number1Notes OEM or Trade Product Number
L4006A1009
L4006A1017 L4080B, L4080D Families, L4006A1058, L4006A1827, L4006A2015
L4006A1132 L4006A2023
L4006A1678
L4006A1959
L4006A1967
L4006A2007
L4006A2148
L4006E1042 Canada Only
L4006E1067 L4006E1091, L4006E1109, L4006E1117, L4006E1125, L4006E1133
L4006E1091
L4006E1125
L4006H1004 Bracket for Strap-On Mounting
L4006G1022 Canada Only
L4008A1015
L4008A1130
L4008A1189
L4008E1156 L4008E1040, L4008E1248, L4008E1321
L4008E1305 L4008E1271, L4008E1313
L4008E1313 Meets Certain State Specific Boiler Inspector Requirements
L4008E1347
L4006B1007
L4006B1155 L4006B1189, L4008B1163
L6006A1004
L6006A1012 L6006A1160, L6006A1269, L6006A1301, L6006A1327, L6006A1335
L6006A1145 Horizontal Mount Only L4006A1004
L6006A1244
L6006C1018 Includes Surface Mount Using 1/4" NPT Female
Threads or Surface Mount Through Base of Case L6006C1034, L6006C1059
L6008A1093 L6008A1010
L6008A1192
L6008A1242
For a complete cross-reference, visit www.customer.honeywell.com
Oil/Hydronic Controls
48
Multi-Function Aquastat® Selection Guide
* Replacement Sensors for the L7224U.
OS Number Length
50001464-001 12"
50001464-004 36"
50001464-005 48"
FUEL LOW LIMIT HIGH LIMIT
Product Number Gas Oil Operating Range,
Low Limit (˚F)
Differential
Temperature, Low
Limit (˚F)
Operating Range,
High Limit (˚F)
Differential
Temperature,
High Limit (˚F)
L6081A1036 • • 110 to 220 10-25 130 to 240 10 fixed
L8148E1265 •180 to 240 15 fixed
L8124E1016 •110 to 220 10 to 25 130 to 240 10 fixed
L8148J1009 •120 to 240 8 fixed
L7224U1002 •110 to 220 10 to 25 130 to 240 5 to 20 adj.
L8124A1007 •110 to 220 10 to 25 130 to 240 10 fixed
L8124C1003 •110 to 220 10 to 25 130 to 240 10 fixed
L8124G1020 •110 to 220 10 to 25 130 to 240 10 fixed
L8124L1011 •110 to 220 10 to 25 130 to 240 10 fixed
L8148A1017 •140 to 240 8 fixed
49
Oil/Hydronic Controls
Multi-Function Aquastat® Selection Guide
FEATURES AND FUNCTIONS CROSS-REFERENCE
Product
Number
Factory
Stop (˚F)
Switching
Action
Anticipator
Setting Mounting Notes OEM Part Number
L6081A1036 SPDT HL6081A1010, L6081A1069, L4081A1023, L4081A1148,
L4081A1155, L4081A1171, L4081A1189, L4081A1197
L8148E1265 2 SPST: High
Limit & Circulator 0.2 A VL8148E1158, L8148E1182,
L8148E1216, L8148E1065
L8124E1016 2 SPST: High &
Low Limit 0.2 A
L8148J1009 240 2 SPST: High
Limit & Circulator 0.2 A V/H
L7224U1002
3 SPST: High
and Low Limit,
Circulator
0.1 A V/H/F
Universal Oil, Digital Display and
Settings, Used with Oil Burner
Applications, EnviraCOM®
Communications
Replaces all members of these families: L8124A or C,
L8148A or C, L7224A or C, L7248A or C, L8151A
L8124A1007 0.2 A VL8124A1015, L8124A1015, L8124A1049, L8124A1106,
L8124A1114, L8124A1130, L8124A1155, L8124A1015
L8124C1003 2 SPST: High &
Low Limit 0.2 A HL8124C1094, L8124C1102
L8124G1020 2 SPST: High &
Low Limit 0.2 A VL8124G1004, L8124G1012
L8124L1011 2 SPST: High &
Low Limit 0.2 A HL8124L1003, L8124L1029,
L8124G1038, L8124G1046
L8148A1017 240 2 SPST: High
Limit & Circulator 0.2 A HL8148A1165, L8148A1157, L8148A1124,
L8148A1090, L8148A1082, L8148A1009
For a complete cross-reference, visit www.customer.honeywell.com
50
With our popular zone valves, Aquastats, and the energy-saving Aquatrol™ you can meet just about
every boiler room need with just one brand. AquaPUMP is the latest in Honeywell’s complete lineup
of hydronic heating solutions.
AquaPUMP
AquaPUMP eliminates the guesswork in the boiler room. With three
sizes, multiple speeds for each size and the unique Twist-To-Fit
flange, AquaPUMP has you covered for every application. And
because a single AquaPUMP can replace a wide range of competitive
models, you can handle nearly all retrofits with just one brand.
• Twist-To-Fit Universal Flange rotates 90° to fit every application
• Threaded conduit connection
• Stainless steel plate and can
• Impeller engineered for a quieter, more efficient operation
• Ceramic bearings and shaft
• Check valve available for all pumps separately
• 5-year Limited Warranty
51
Oil/Hydronic Controls
Use this cross-reference tool to meet your installation needs. Each Honeywell circulator replaces
both regular and rotated flange models.
HONEYWELL GRUNDFOS TACO BELL &
GOSSETT ARMSTRONG WILO
Model Pump
Length Speed Single
Speed 3-Speed Single
Speed 3-Speed Single
Speed 3-Speed
PC3F1558IUF00 6.5"
High
UP-42F
UP-42F-FC
UPS15-58 High
UPS15-58-FC High
005F
007F
008F
008F-IFC
00R High
00R Med
NRF-22
LR-20WR
Astro 30
Astro 30-3
Astro 50-3
Astro 230C1
Star 16 Star S16
High
Medium
UP15-42FC UPS15-58 Low
UPS15-58-FC Low
005F-IFC
006F
006F-IFC
007F-IFC
00R Low NRF9F/LW
NRF-25 Med
Star S16
Med
Low UP15-18F
UP15-18F-FC
Star 5
S16 Low
PC3F2699IUF00 6.5"
High
UP26-96F
UP26-96F-FC
UP26-116F
UP26-116F-FC
UPS26-99 High
UPS26-99-FC High
0011F
0011F-IFC
0013F
0013F-IFC
NRF-36 Med
NRF-45 Med
H-41
E7
Astro 50
Astro 50-3
S21 High
Medium UP26-64F
UP26-99FC
UPS26-99 Low
UPS26-99-FC Low
0014F
0014F-IFC
Series 100 S21 Med
Low NRF-33 Star S21
Low
PC3F4344IUF00 8.5"
High UP43-44F
UP43-44F-FC
UPS43-44 High
UPS43-44-FC High
HV
H-32
E16
Medium UPS43-44 Med
UPS43-44-FC Med
0010F
0012F-IFC
0010 Med NRF-33 H32
Low UPS43-44 Low
UPS43-44-FC Low
0010F-IFC 0010 Low
The information in this table is based on publicly available information as of the date of this publication. Honeywell is not liable if information is found to be incorrect.
If the cross referenced model uses a flow check valve, then use a flow check with the Honeywell model as well.
52
Honeywell offers a complete range of relays, contactors and transformers for all your residential
and commercial HVAC applications. All Honeywell products are designed to exceed safety and
industry life cycle standards. In order to meet these criteria, a statistically significant sample of
Honeywell products are tested to failure and to our stringent qualification requirements. This testing
methodology enables Honeywell to verify that these products will exceed industry standards.
Relays/Contactors/Transformers
Relays
Honeywell’s switching relays are available in multiple configurations for various applications. For
whatever you need — general purpose relays or electric heat relays — Honeywell has you covered.
• General Purpose and Heavy-Duty Switching Relays — R4222, R8222, R4228 and R8228 for use in
refrigeration and air-conditioning equipment, appliances and vending machines
• Time Delay Relay — ST82 combines the R8222 or R8228 relay for use in compressor-run air
conditioning and heat pump systems; this product features an electronic timer that delays blower shut
off after the compressor has shut off.
• Fully Enclosed Line and Low-Voltage Fan Relays — R4225 and R8225 for control of line voltage fan
motors and auxiliary circuits.
RELAYS
Input Voltage/Coil Voltage Switching Product Number Full Load Amp Rating Frequency Dimensions (in.) H x W X D Electrical Connections (main) Special Features
24 Vac DPST N.O. R8228D1018 5.5
A
1 7/8 x 2 5/32 x 2 3/8
Q
24 Vac
DPDT (1 P & 1 P Duty) R8222V1003
12
DPDT — Pilot Duty R8222N1011 Pilot duty
DPDT R8222D1014
DPDT ST82D1004 2 7/32 x 2 1/16 x 2 9/16 80 sec shut off delay
SPDT R8222B1067
1 7/8 x 2 5/32 x 2 3/8 120 Vac
DPDT — Pilot Duty R4222N1002
DPDT R4222D1013
SPDT R4222B1082
208/240 Vac DPDT R4222D1021
24 Vac SPDT R8225A1017
14 B2 11/16 x 2 1/2 x 3 7/16 LDPST N.O. R8225D1003
120 Vac SPDT, 1 N.O., 1 N.C. R4225A1008
24 Vac SPDT R8228B1012 18 A1 7/8 x 2 5/32 x 2 3/8 Q
ELECTRIC HEAT RELAYS
24 Vac DPST R8229A1005 7 B 2 3/16 x 2 3/32 x 2 1/4 CHS
R8229A1021 Extra mounting hardware
ELECTRIC FURNACE SEQUENCER
24 Vac R8330D1039 7.2 B3 1/16 x 4 13/16 x 2 11/32 T
ELECTRIC HEAT CONTACTOR
24 Vac DPST R8246A1038 30 2 3/16 x 2 1/4 x 3 5/16 Q, S
Frequency: A — 60 Hz/50 Hz; B — 60 Hz, C — 50 Hz SPST: Single Pole Single Throw
Approvals: UL, CSA DPST: Double Pole Single Throw
Temp Rating: -20˚ F to +150˚ F; 115˚ F max for R8225 DPDT Double Pole Double Throw
Connectors: CHS — Combination Head Screw; L — Leadwires; Q — Quick connect;
T — Terminals SPDT: Single Pole Double Throw
53
UNIVERSAL TRANSFORMERS
Electrical
Ratings
(VA)
Electrical
Ratings
(Input Voltage)
Product
Number
NEMA
Rated Mounting Main
Connections
Secondary
Connections Frequency Dimensions (in.)
H x W X D NOTES
40 VA 208/240 Vac AT72D1733 Ye s M
L S
A3 7/32 x 2 7/32 x 3 1/16 Only in Canada
50 VA 120/208/
240 Vac AT87A1106 Ye s M A 2 15/16 x 2 7/32 x 2 1/4 Built-in protection; Primary winding
burnout
20 VA 120/208/
240 Vac AT120A1004 No M B 2 7/8 x 1 7/8 x 2 15/16 Metal end bells
40 VA 120/208/
240 Vac AT140A1018 No M B 3 3/16 x 2 3/8 x 3 1/8 Metal end bells
75 VA 120/208/
240 Vac AT175A1008 No M B 3 3/16 x 2 3/8 x 3 5/8 Metal end bells
TRANSFORMERS
19 VA 120 Vac AT20A1123
Ye s
F
L
L
A
2 x 2 1/4 x 1 7/8
40 VA 120 Vac
AT72D1006 P S 3 7/32 x 2 7/32 x (1 1/16
into x 2 in. above plate)
AT72D1089 F S 3 7/32 x 2 7/32 x 3 1/16
AT72D1188 P L 3 7/32 x 2 7/32 x 2 15/16
AT72D1683 M S
3 7/32 x 2 7/32 x 3 1/16
AT72D1956 M L Only in Canada
208/240 Vac AT72D1691 M S
48 VA 277 Vac AT87A1189 F L 2 15/16 x 2 7/32 x 2 1/4 Energy limiting overload protection
480 Vac AT87A1155 F L Energy limiting overload protection
20 VA 120 Vac AT120B1028
No
F L
B
1 11/16 x 3 3/16 x 1 3/4 Metal end bells
40 VA
120 Vac AT140A1000 M S 3 3/16 x 2 3/8 x 3 1/8 Metal end bells
AT140B1206 F L 1 11/16 x 3 1/2 x 1 3/4 Plastic end caps
120/208/
240 Vac AT140B1214 F L 1 11/16 x 3 1/2 x 1 3/4 Plastic end caps
50 VA
120/208/
240 Vac
AT150A1007 M S 1 11/16 x 3 3/16 x 1 3/4 Metal end bells
AT150F1022 M L 3 3/16 x 2 3/16 x 3 5/8 Button for resetting circuit breaker &
metal end bells
208/277/
480 Vac AT150F1030 M L 3 3/16 x 2 3/16 x 3 5/8 Button for resetting circuit breaker &
metal end bells
277 Vac AT150B1252 FL, Q L, Q A1 11/16 x 3 1/2 x 1 3/4 Plastic end caps
75 VA
120/208/
240 Vac AT175F1023 M
L
L
B
3 3/16 x 2 3/16 x 3 15/16 Button for resetting circuit breaker &
metal end bells
208/277/
480 Vac AT175F1031 M L 3 3/16 x 2 3/16 x 3 15/16 Button for resetting circuit breaker &
metal end bells
120 Vac AT88A1005 F L
A2 15/16 x 2 3/16 x 3 5/16 Internally fused secondary for overload
protection
208/240 Vac AT88A1021 F L
480 Vac AT88A1047 F L
Frequency: A — 60 Hz/50 Hz; B — 60 Hz;
Mounting; C — Conduit ; F — Foot; P — Plate; M — Foot, Conduit, Plate (F models do not come with plate options)
Connections: L — Leadwires (9 in. to 13 in.); Q — Quick Connects; S — Screw Terminals
Approval: UL, CSA
Transformers
Honeywell offers NEMA — standard DC20-1992 and general purpose
transformers. These transformers are available with single or multiple input
voltages and with foot, conduit and plate mounting options. Transformers with
circuit breakers that can be manually reset by pressing a button are also available.
Honeywell also designs transformers for specific environmental requirements and
with specialized termination options.
Heating/Cooling Devices
54
Relays/Contactors/Transformers
Contactors
Honeywell offers definite-purpose contactors for heating, cooling and refrigeration applications.
• Replace most competitive models
• Compact size for easier installation
• Meet ARI 780 and UL/CSA/CUR standards.
• Box lugs for easier installation (Deluxe PowerPRO)
• Sealed coils extends life (Deluxe PowerPRO)
• Baked finish for added durability
Connectors: BHS — Binding Head Screw; Q — Quick Connect; SS — Sems Screw; CHS — #10-32 Combination Head
Screw; S — #6 Screw; TCS — Terminal Clamp Screw; LC — Lug Connector Approvals: UL, CSA
Temp Rating: -4˚ F to 149˚ F ARI - 780: 500,000 cycle mechanical life; 200,000 cycle
electrical life; 10,000 cycle recycle life
Cross Reference Information
ECONOMY CONTACTORS
Poles
Contact
Ratings
(AFL @
240, 277,
480, 600
Vac)
Input Voltage/
Coil Voltage
Product
Number
Dimensions (in.)
H x W x D
Main
Connections
Coil
Connections
Contact
Ratings
(Resistive
@ 240,
277, 480,
600 Vac)
Honeywell Cutler
Hammer Furnas Mars
1 with
shunt 30 24 Vac DP1030A1001 2 7/32 x 2 1/2 x 3 5/16
Screw
Terminal Q
48 A DP1030A1000 C25CNB130T
45EG10AJA
91320, 17311
2
30
24 Vac DP2030A1004 3 1/4 x 3 5/8 x 3 7/8 48 A DP2030A1003 C25BNB230T 45EG2OAJ 61354, 17321
120 Vac DP2030B1003 2 7/32 x 3 5/16 x 2 5/32 40 A DP2030B1002 C25BNB230A 45EG2OAF 61346, 17322
208/240 Vac DP2030C1002 2 7/32 x 2 1/2 x 3 5/16 40 A DP2030C1001 C25BNB230B 45EG2OAG 61347, 17323
40
24 Vac DP2040A1003
2 3/8 x 3 5/16 x 2 50 A
DP2040A1002 C25BNB240T 45GG20AJ 61355, 17421
120 Vac DP2040B1002 DP2040B1001 C25BNB240A 45GG20AF 61356, 17422
208/240 Vac DP2040C1001 DP2040C1000 C25BNB240B 45GG20AG 61357, 17423
POWERPRO CONTACTORS — ARI 780/790 RATED
1 with
shunt
25
24 Vac
DP1025A5006 2 7/32 x 2 1/2 x 3 5/16
Box Lug
Q
30 A DP1025A5005 Not Available 45DG10AJA 61315
30 DP1030A5014 2 7/32 x 2 1/2 x 3 5/16 48 A DP1030A5013 Not Available
45EG10AJA
13101, 61320, 61720
40 DP1040A5005 2 23/64 x 2 1/2 x 3 5/16 50 A DP1040A5004 Not Available 45GG10AJA 61330
2
20 24 Vac DP2020A5022 2 7/32 x 2 1/2 x 3 5/16 30 A DP2020A5021 Not Available 45CG20AJ 61310
120 Vac DP2020B5039 2 7/32 x 2 1/2 x 3 5/16 30 A DP2020B5038 Not Available 45CG20AF 61336, 14122
30
24 Vac DP2030A5005 3 1/4 x 2 5/8 x 3 3/4
48 A
DP2030A5004 C25DND230T 45EG2OAJ 61345, 13104, 91321,
60510
24 Vac DP2030A5013 3 1/4 x 2 5/8 x 3 3/4 DP2030A5012 60510
120 Vac DP2030B5004 2 7/32 x 3 5/16 x 2 5/32 DP2030B5003 C25DND230A 45EG2OAF 61346, 13105,
120 Vac DP2030B5012 2 5/16 x 3 5/16 x 2 5/32 DP2030B5011 Not Available 60031
208/240 Vac DP2030C5003
2 7/32 x 2 1/2 x 3 5/16
DP2030C5002 C25DND230B 45EG2OAG 61347, 13106, 60512,
60032
208/240 Vac DP2030C5011 DP2030C5010 Not Available Not
Available 60512 91323
277 Vac DP2030D5002 DP2030D5001 Not Available Not
Available 60153
40
24 Vac DP2040A5004
2 23/64 x 3 3/16 x 1 15/16 50 A
DP2040A5003 C25DNF240T 45GG20AJ 13107, 91421, 61355,
61755, 60525,
120 Vac DP2040B5003 DP2040B5002 C25DNF240A 45GG20AF 13108, 91422, 61356,
61756,
208/240 Vac DP2040C5002 DP2040C5001 C25DNF240B 45GG20AG 13109, 91423, 61357,
61757, 60527, 14423
3
30
24 Vac DP3030A5004
3 7/64 x 3 5/8 x 2 13/32
Q, S
40 A
DP3030A5003 C25DND330T 42BF35AJ 61430, 13113, 60515,
13007, 91331
120 Vac DP3030B5003 DP3030B5002 C25DND330A 42BF35AF 61431, 13114, 91332
208/240 Vac DP3030C5002 DP3030C5001 C25DND330B 42BF35AG 61432, 13115, 91333,
60517, 13009
40
24 Vac DP3040A5003
50 A
DP3040A5002 C25DNF340T 42CF35AJ 60530, 61445, 13013
91431
120 Vac DP3040B5002 DP3040B5001 C25DNF340A 42CF35AF 61446
208/240 Vac DP3040C5001 DP3040C5000 C25DNF340B 42CF35AG 60532, 60182, 61447,
13015, 91433
50
24 Vac DP3050A5002
63 A
DP3050A5001 C25DNJ350T 42DF35AJ 61460, 13619, 91531
120 Vac DP3050B5001 DP3050B5000 C25DNJ350A 42DF35AF 61461
208/240 Vac DP3050C5010 DP3050C5009 C25DNJ350B 42DF35AG 60217, 60202, 61462,
13621, 91533
60
24 Vac DP3060A5001
75 A
DP3060A5000 C25FNF360T 42EF35AJ 61470 13625 91631
120 Vac DP3060B5010 DP3060B5009 C25FNF360A 42EF35AF 61471
208/240 Vac DP3060C5009 DP3060C5008 C25FNF360B 42EF35AG 60227, 60207, 61472,
13627, 91633
75
24 Vac DP3075A5017 4 7/16 x 5 x 3 3/4
4 7/16 x 5 x 3 3/4
4 7/16 x 5 x 3 3/4
4 7/16 x 5 x 3 3/4
4 7/16 x 5 x 3 3/4
95 A
DP3075A5016 C25FNF375T 42FE35AJ 60235, 61475, 13240,
91731
120 Vac DP3075B5016 DP3075B5015 C25FNF375A 42FE35AF 60237, 61476
208/240 Vac DP3075C5015 DP3075C5014 C25FNF375B 42FE35AG 60245, 61477, 13242,
91733
90 120 Vac DP3090B5007 120 A DP3090B5006 C25GNF390A 42GE35AF 61491
208/240 Vac DP3090C5006 120 A DP3090C5005 C25GNF390B 42GE35AG 60247, 61492, 13262
440
24 Vac DP4040A5002
2 5/8 x 3 3/4 x 3 7/64 50 A
DP4040A5001 C25ENF440T 42CF25AJ 61450, 13016
120 Vac DP4040B5001 DP4040B5000 C25ENF440A 42CF25AF 61451
208/240 Vac DP4040C5010 DP4040C5009 C25ENF440B 42CF25AG 61452
55
Heating/Cooling Devices
Fan Centers
For fan centers (relay and transformer combination), R8285 and R8239 NEMA
rated units offer low-voltage control of line-voltage fan motors and
auxiliary circuits in heating, cooling or air-conditioning systems.
FAN CENTERS
Electrical
Ratings (VA)
Electrical Ratings
(Input Voltage) Switching Product
Number
NEMA
Rated
Dimensions (in.)
H x W X D
Main
Connections
Secondary
Connections Frequency Special Features
40 VA 120 Vac
DPDT R8239B1043
Ye s 4 1/2 x 4 3/16 x
3 3/32
L L A
Super Tradeline*
DPST R8239D1007 Available only in
Canada
DPST (1 Power, 1 Pilot) R8239D1015 Tradeline
SPDT R8239A1052 Tradeline
50 VA 120/208/240 Vac DPDT R8239B1076 Super Tradeline
40 VA 120 Vac SPDT R8285A1048
No 4 3/16 x 4 1/2 x
2 13/16
Tradeline
120/208/240 Vac DPDT R8285B1053 Tradeline
50 VA 120 Vac DPDT R8285D5001
Frequency: A — 60 Hz/50 Hz; B — 60 Hz SPST: Single Pole Single Throw
Approvals: UL, CSA DPST: Double Pole Single Throw
Temp Rating: -20˚ F to +105˚ F DPDT: Double Pole Double Throw
Connectors: L — Leadwires SPDT: Single Pole Double Throw
Mounting: Standard 4 x 4 in. junction box
* Super Tradeline models include extra hardware.
DEFROST CONTROLLER
Operation Time On Time Off — Selectable Product Number
Remote Contact Closure 10 min. 50/70/90 min. ST74A1053
Defrost Controller
Choose the ST74 low-voltage time/temperature defrost controller for heat pumps.
• Resets the defrost cycle by remote contact closure.
• Mounts in outdoor section of heat pump.
• Utilizes special moisture barrier to protect circuitry.
AUXILIARY SWITCHES
Product Number Circuits Configuration Dimensions (in.)
H x W x D
Contact Ratings
(Resistive)
Maximum (inrush) Current
at 120/240/480/600 V Use With
DP3AUX-1NO 1 Normally Open snap-on
2 26/32 x 2 17/32 x 7/16 10 A 60/30/15/12 Amps DP3030 – DP3090
Contactors
DP3AUX-1NC 1 Normally Closed snap-on
DP3AUX-1NO-1NC
2
Normally Closed/Normally Open snap-on
DP3AUX-2NO Normally Open snap-on
DP3AUX-2NC Normally Closed snap-on
Auxiliary Switches
Honeywell Auxiliary Switches work Honeywell models of 3-pole contactors.
YouTube:
@honeywellcpro
Learn More
Call toll-free 1-800-328-5111,
e-mail info@honeywell.com or
visit www.customer.honeywell.com.
Automation and Control Solutions
In the U.S.:
Honeywell
1985 Douglas Drive North
Golden Valley, MN 55422-3992
www.honeywell.com
63-9575 PR
July 2015
© 2015 Honeywell International Inc.
