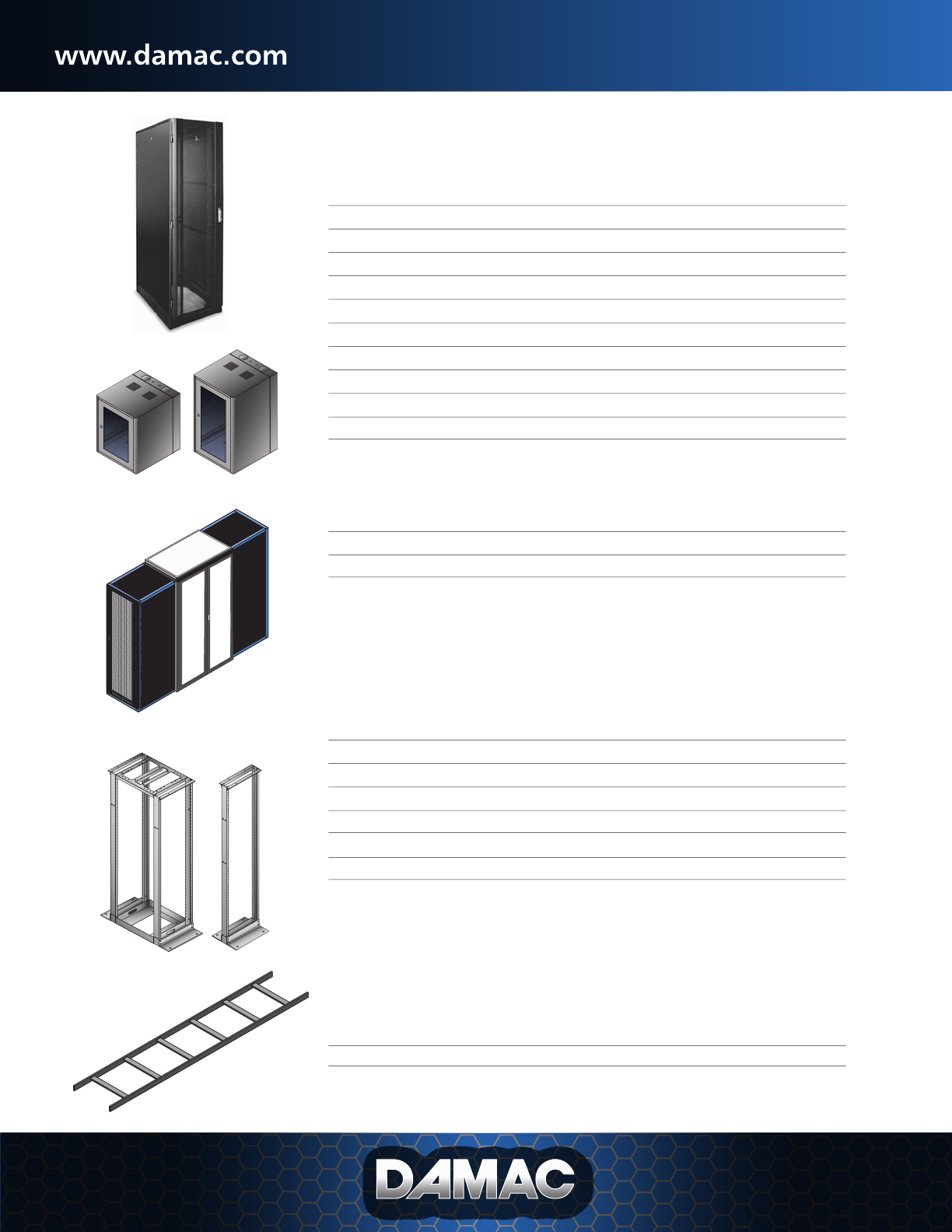

Schools/Retail Products

Storage

Universal Application: Axis Series - page 2-4

Open Frames: Free-Standing or Rolling - page 18-19

Wall Cabinets: Dual-Swing and Low Profile - page 28-35

Network

Equipment Racks: Two Post and Tandem - page 38-39

Cable Management: Vertical and Horizontal - page 44-47

Cable Runway Systems - page 50-57

Shelves

Rack-Mount: 19" and 23", Solid or Perf - page 48-49

Celebrating 30 Years of Manufacturing Excellence

Data Center

Products

Storage

Universal Application: Axis Series - page 2-4

High Density: Seismic Series - page 6-9

Open Frames: Free-Standing or Rolling - page 18-19

Network

Swich Cabinet w/ side air flow: CableAxis Series - page 14-17

Equipment Racks: Two Post and Tandem - page 38-39

Cable Management: Vertical Manager w/ cable fingers - page 44-45

Over-Head Cable Routing: Cable Runway Systems - page 50-57

Thermal

Cabinet Air Management: Air Dam and Exhaust Routing - page 22-23

Aisle Containment: Hot or Cold Aisle Systems - page 36-37

Co-Location Products

Storage

Multiple Secure Compartments: Co-Location Series - page 10-13

Open Frames: Free-Standing or Rolling - page 18-19

Network

Equipment Racks: Two Post and Tandem - page 38-39

Over-Head Cable Routing: Cable Runway Systems - page 50-57

Thermal

Cabinet Air Management: Air Dam and Exhaust Routing - page 22-23

Aisle Containment: Hot or Cold Aisle Systems - page 36-37

New

Aisle Containment, pg 36-37

Cabinet Air Exhaust, pg 22

This year marks our 30th year in operation. A lot has changed in that time. What has

not is our continued dedication to our customers to build the highest quality products

that exceed their demands and that of the equipment they house.

New

Cabinet Systems 2-27

Axis™ Series: Universal Server Cabinet 2-5

Seismic Series: NEBS Certified, High Density Server Cabinet 6-9

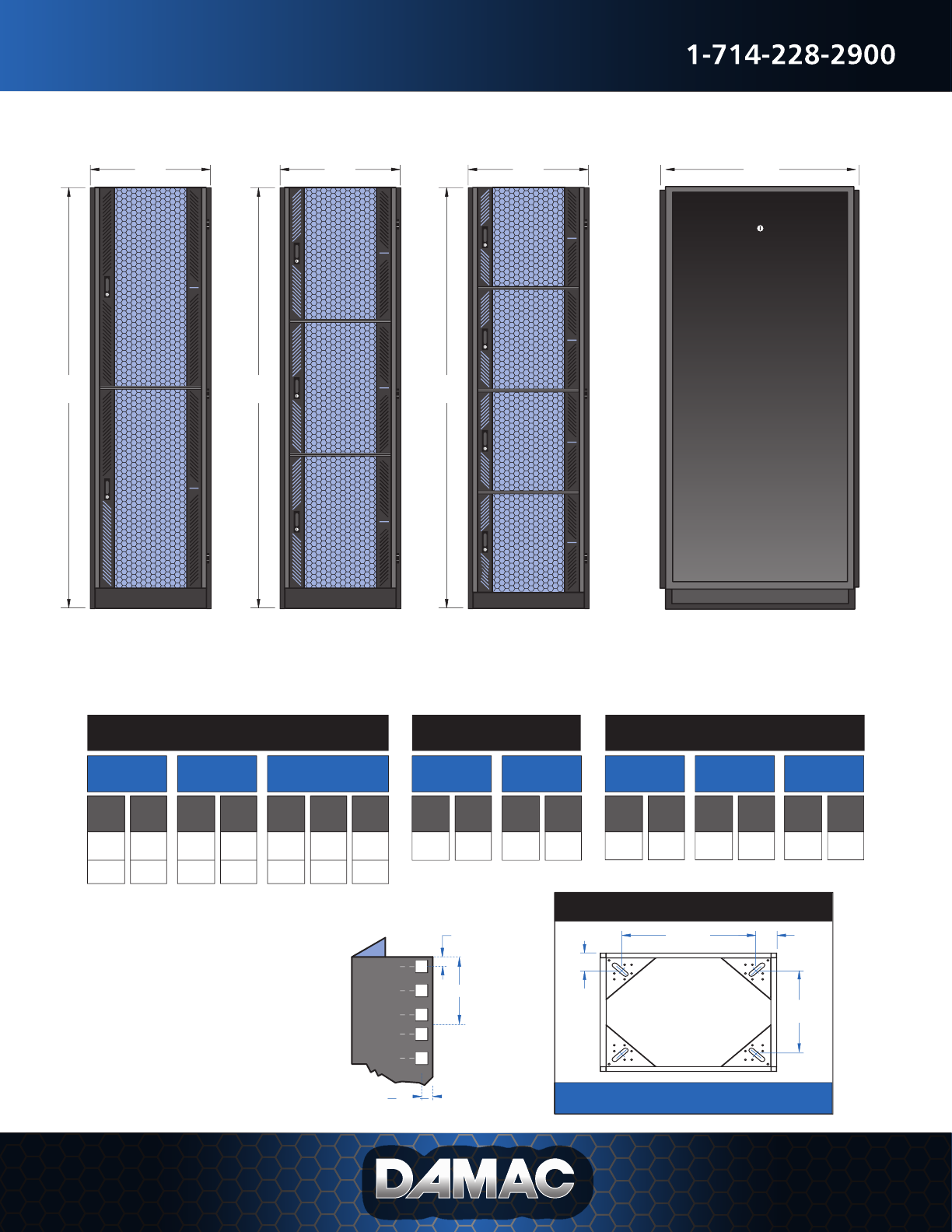

Co-Location Series: Multi-Compartment Cabinet 10-13

CableAxis™ Series: Networking, Switch Cabinet 14-17

Open Frames: High Density, Open Chassis Solution 18-19

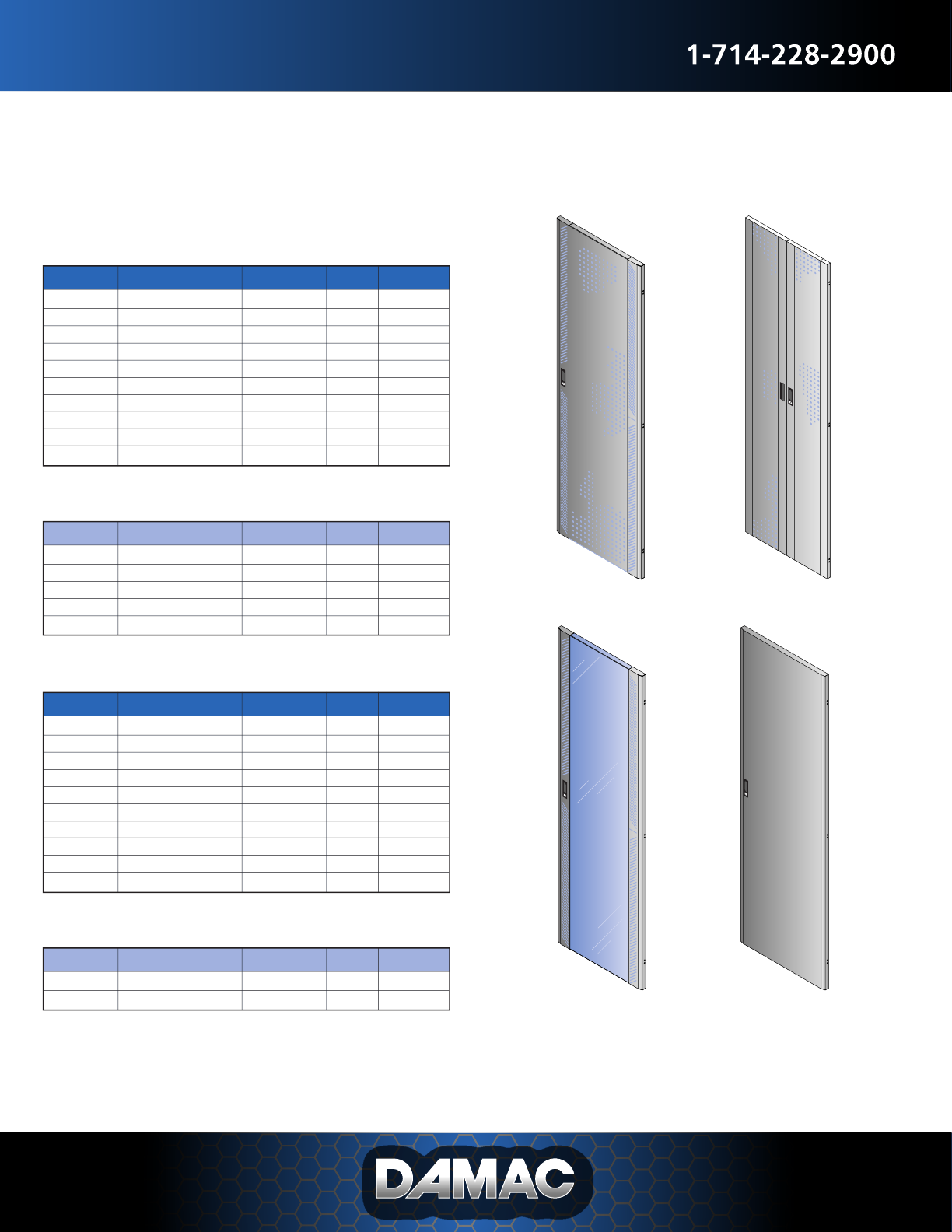

Doors and Side Panels 20-21

Top Panels 22

Mounting Rails, Air Dam Kits 23

Cable Management 24-25

Equipment Shelves 26

Accessories 27

Wall Cabinet Systems 28-35

Dual-Swing Wall Cabinets: Standard and Heavy Duty 28-31

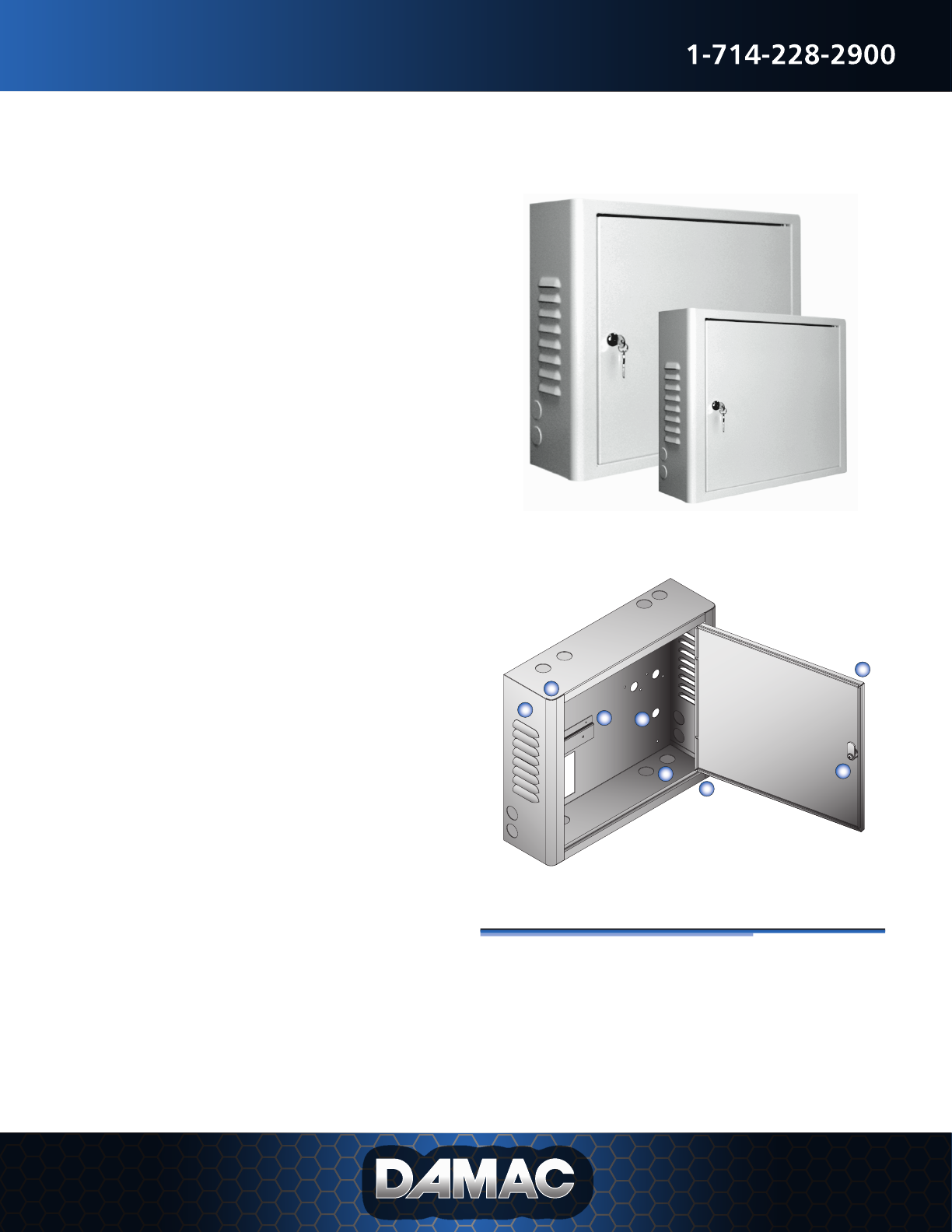

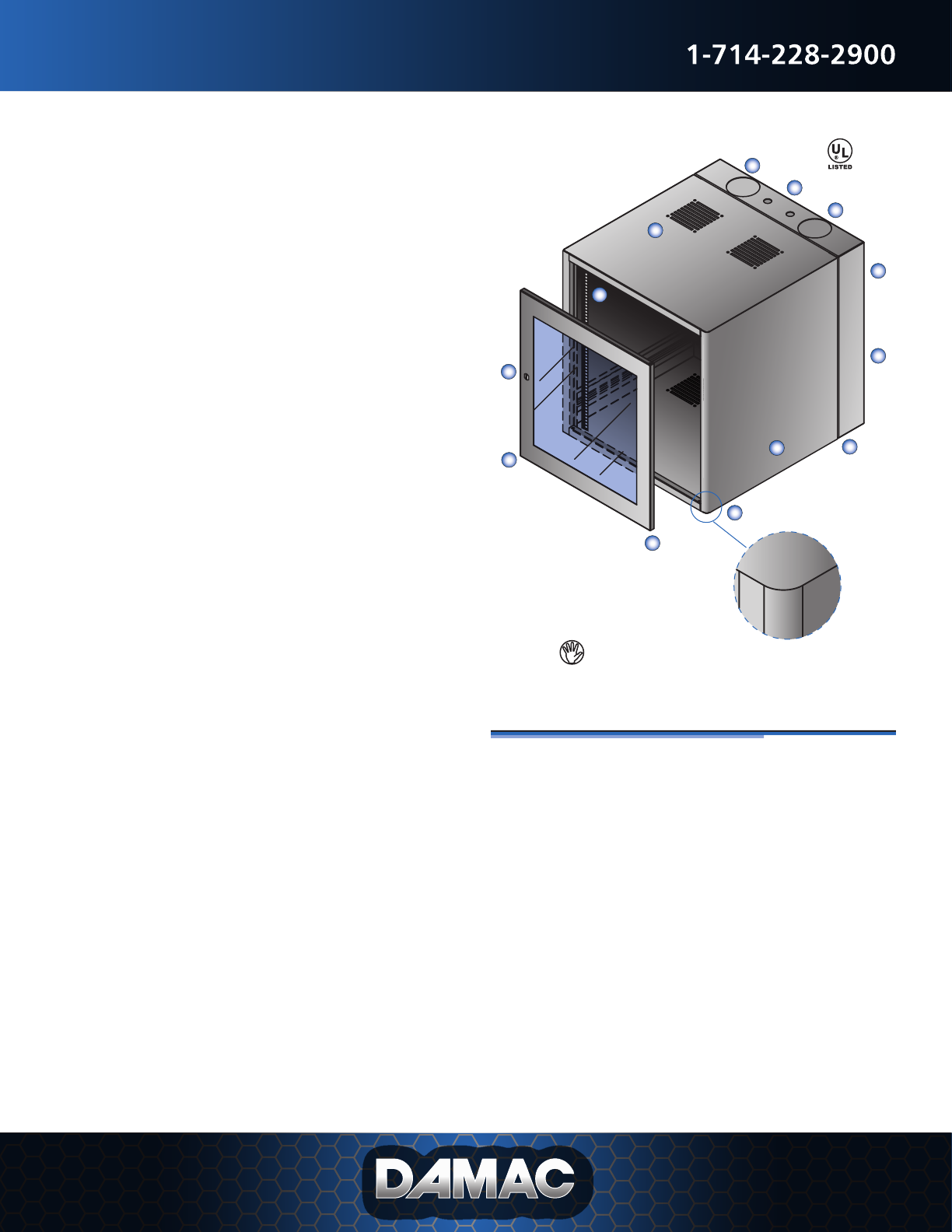

TransIT Box: Low Profile Wall Enclosure 32-33

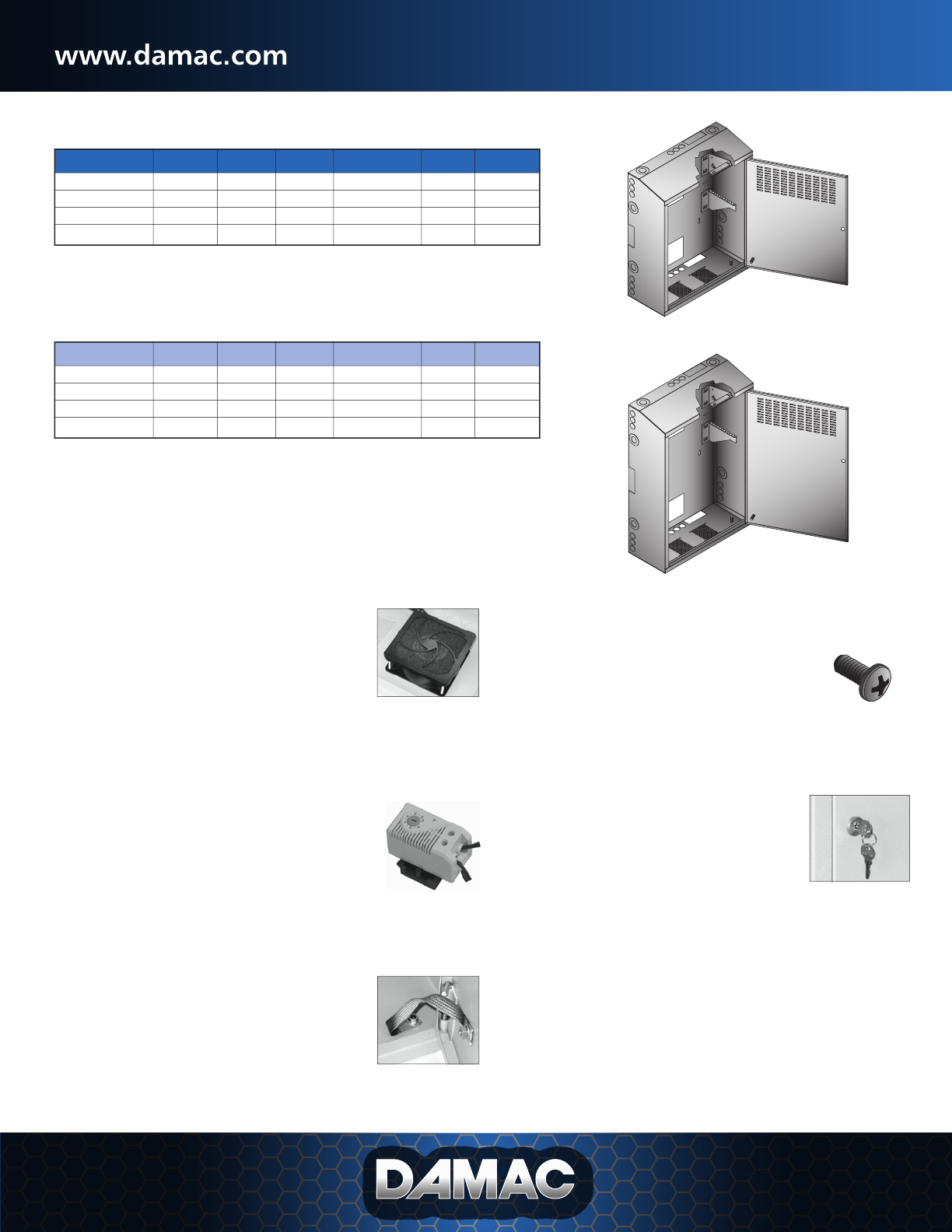

Multi-Box and Wireless Enclosures 34-35

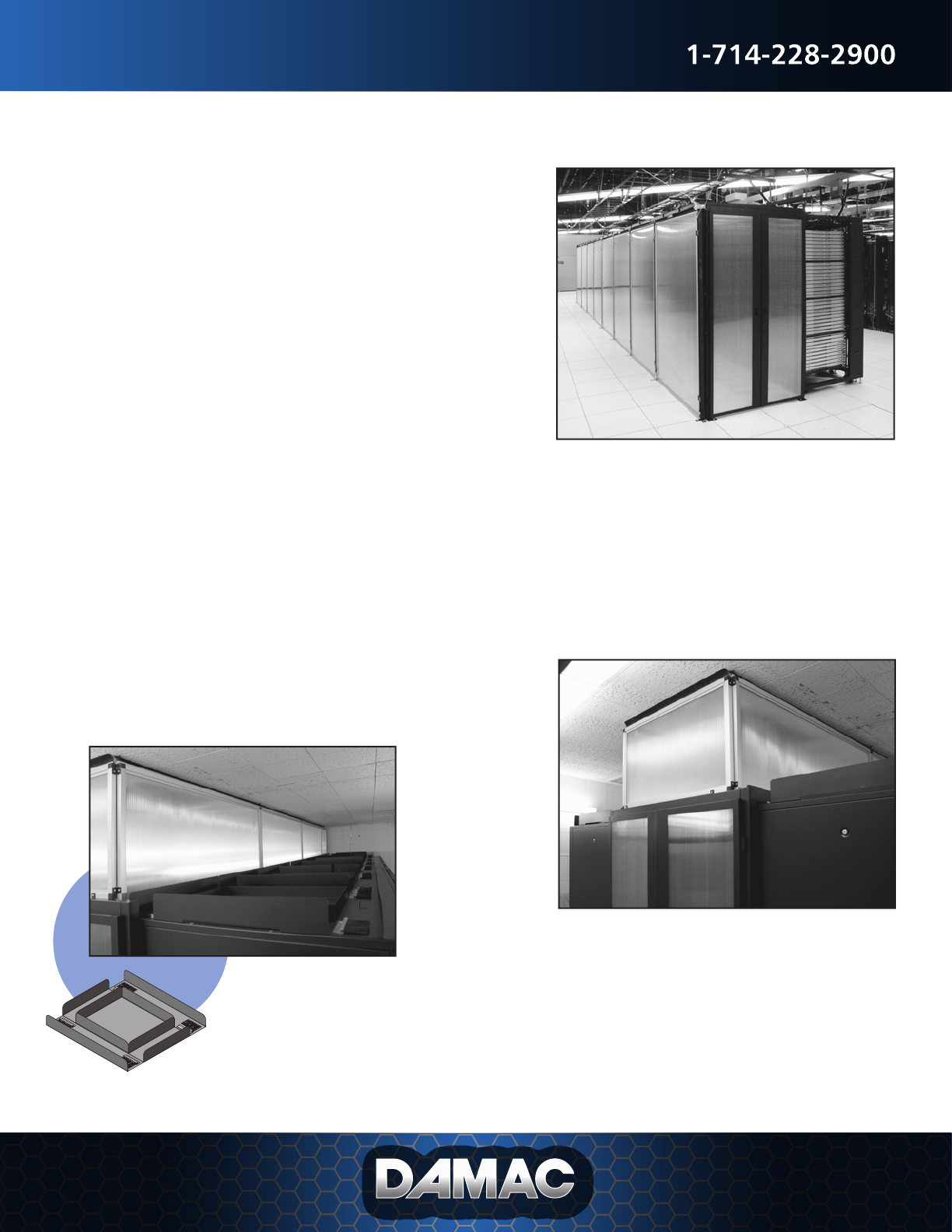

Aisle Containment System 36-37

Cable Runway 50-57

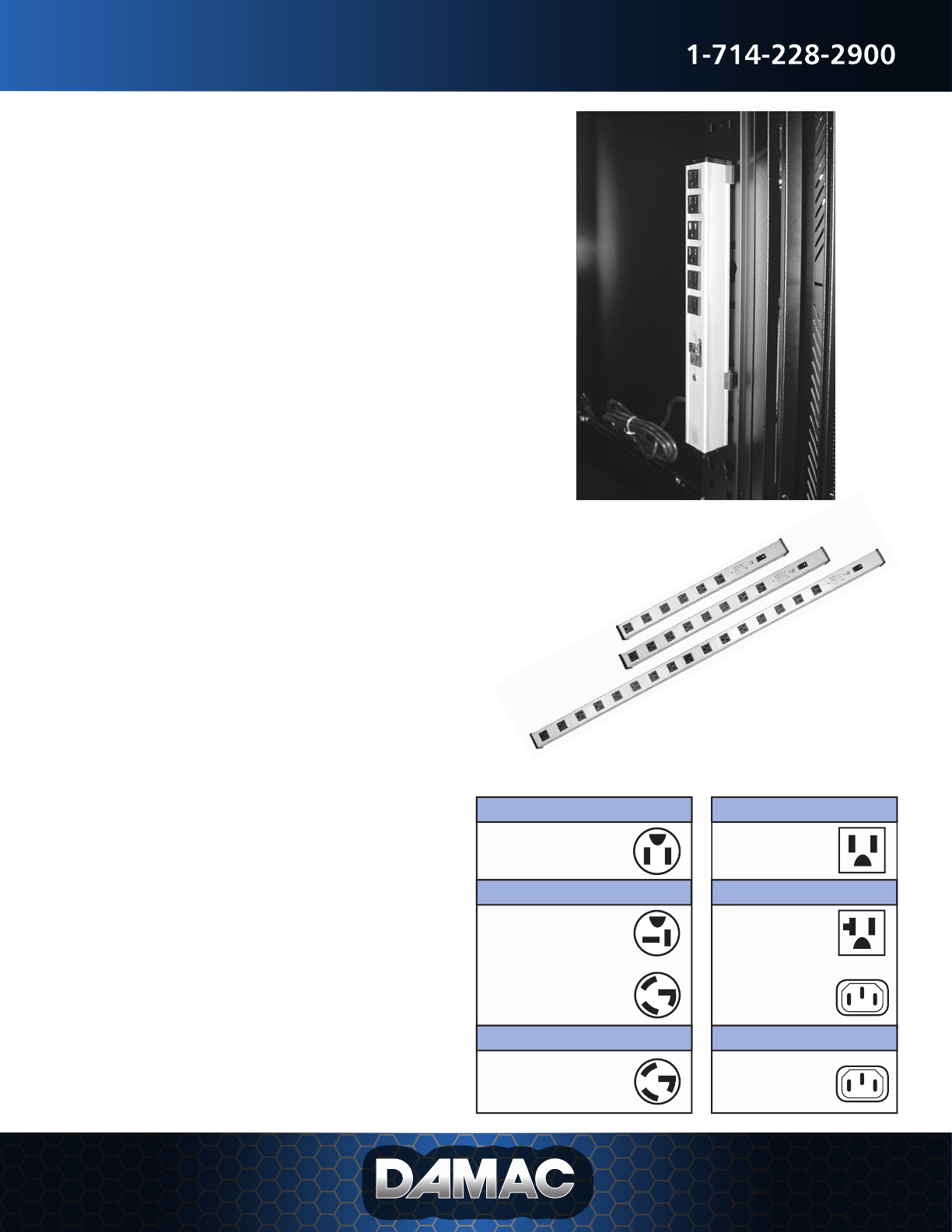

Power Distribution 58-61

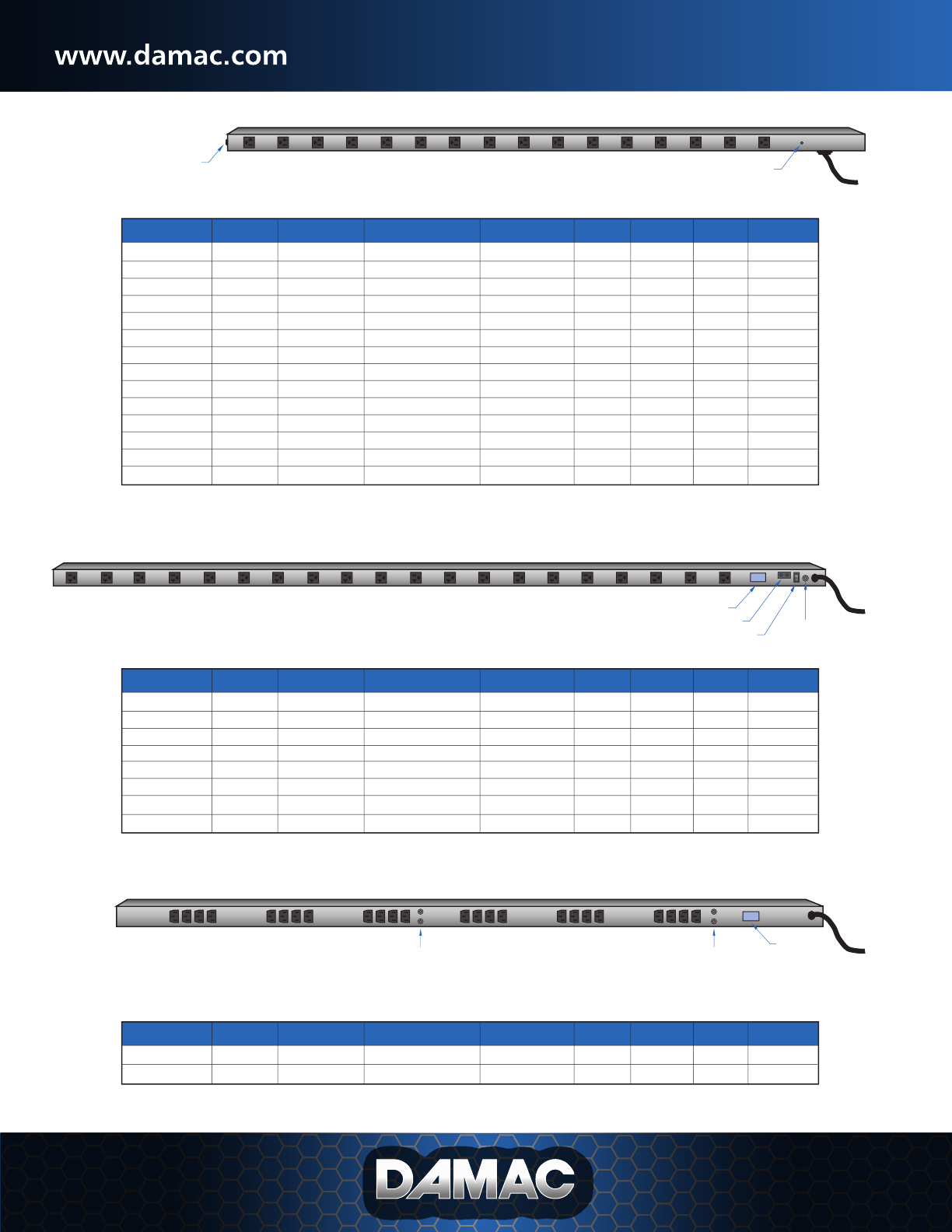

Powerstrips 58-59

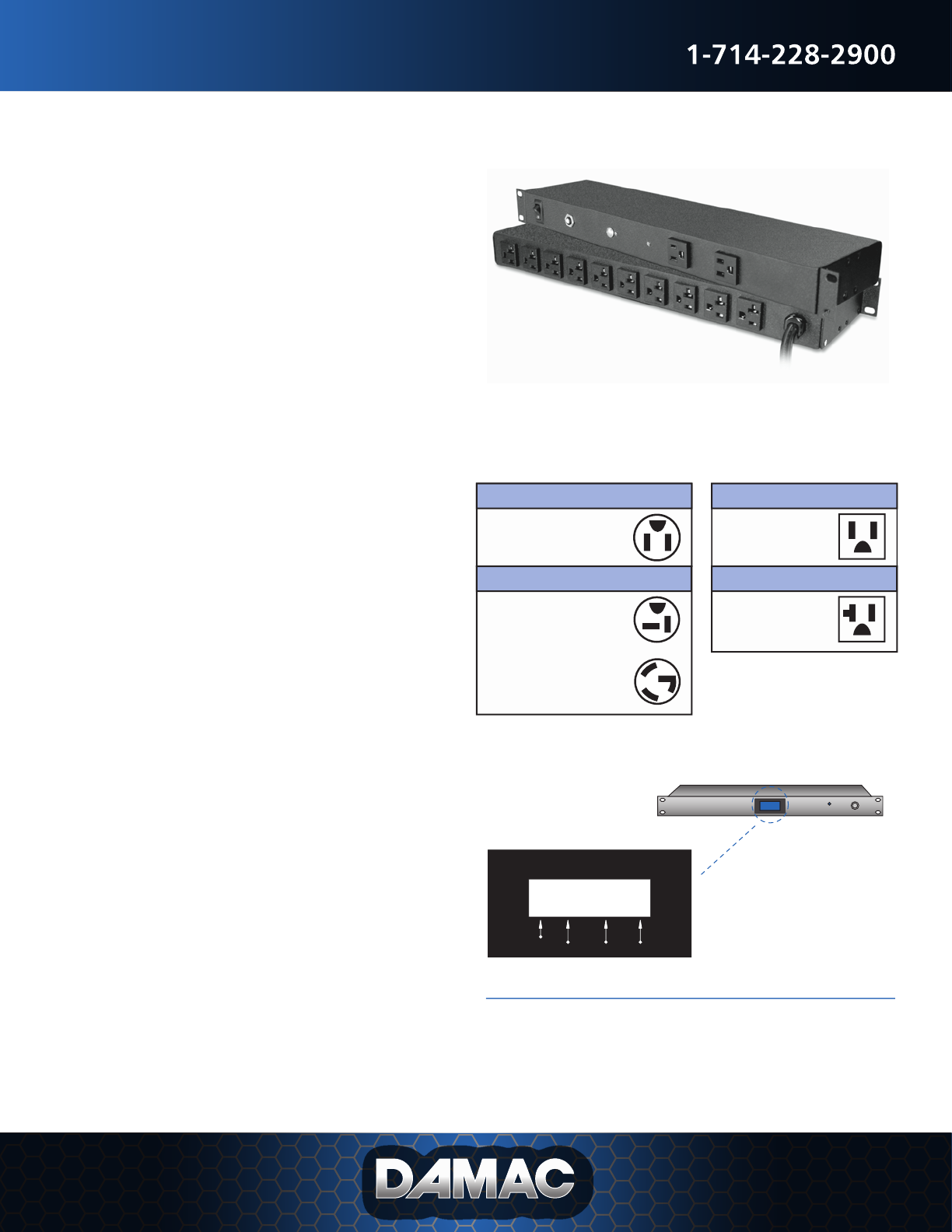

Rack-Mount PDU 60-61

Rack Systems 38-49

Tandem Rack: 4 Post Equipment Rack, 45U-51U 38

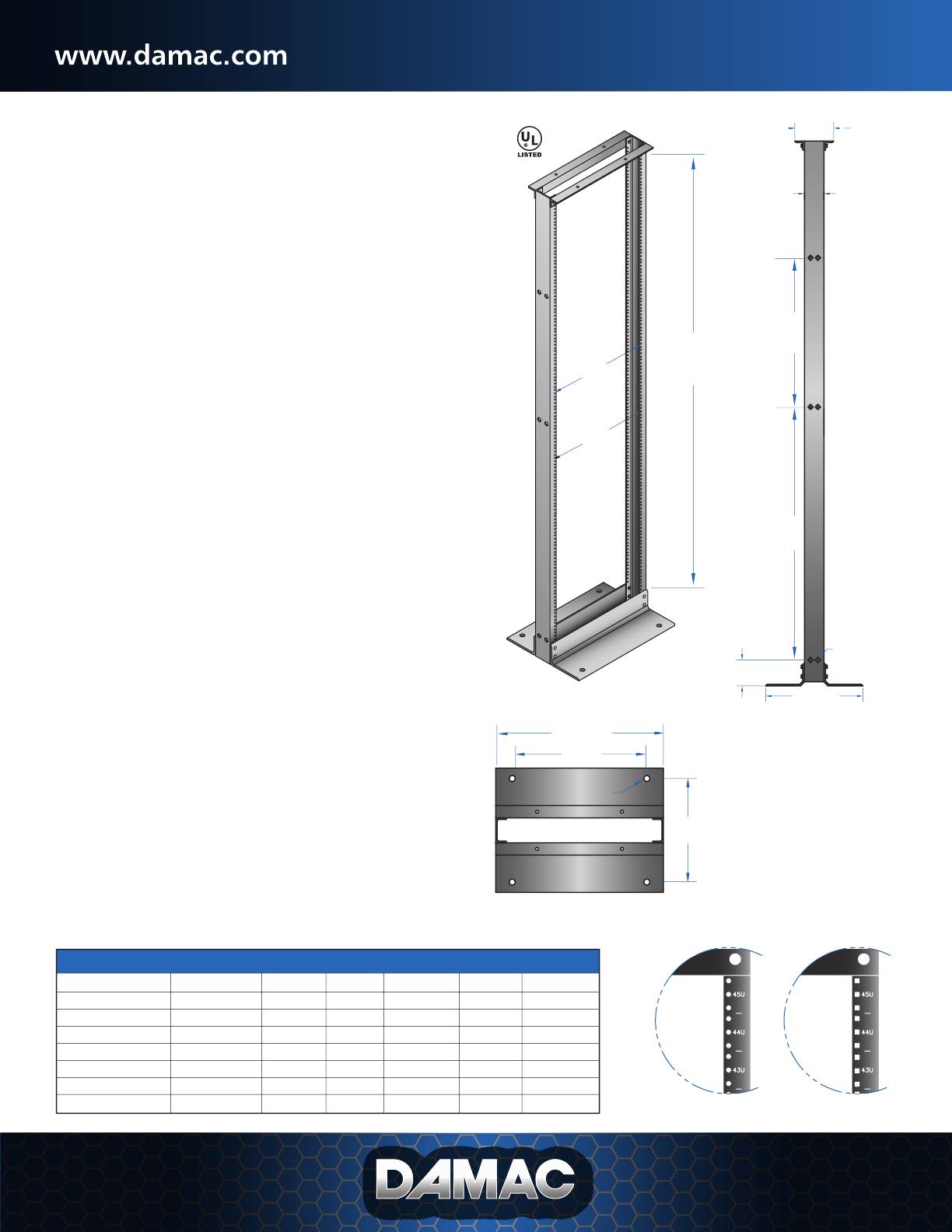

Two Post Rack: 45U-51U 39

Seismic Rack 40

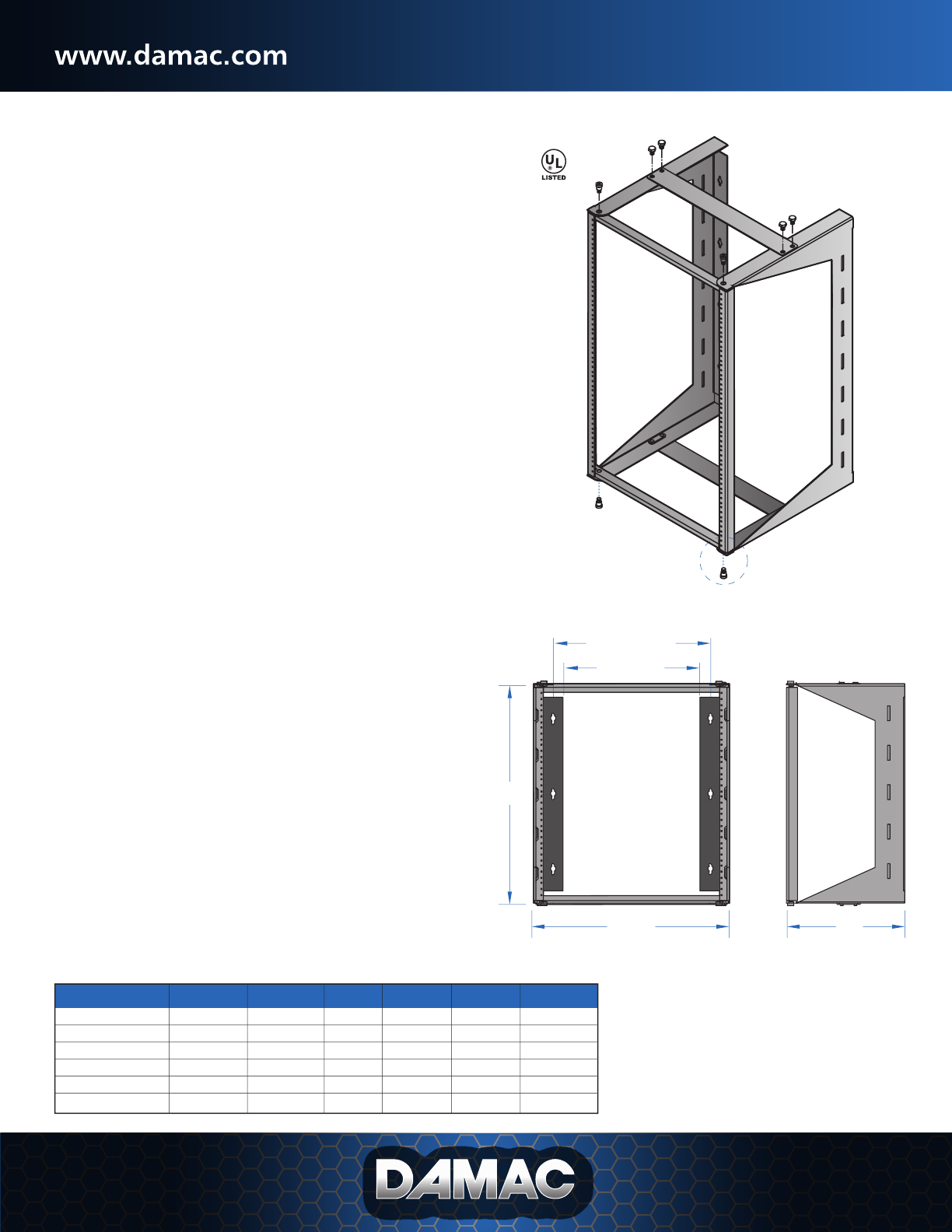

Wall Racks and Brackets 41-42

Accessories 43

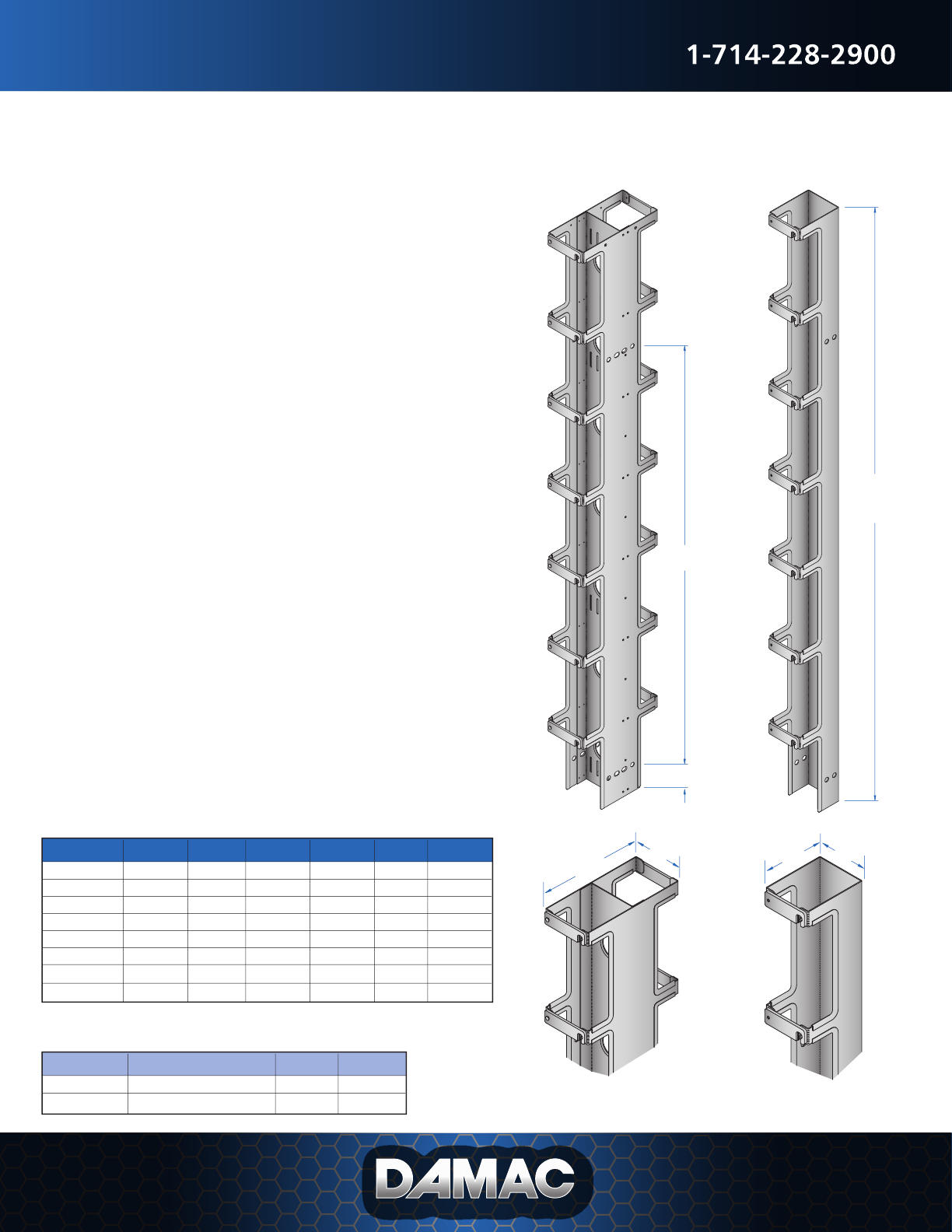

Cable Management 44-47

Rack-Mount Shelves 48-49

Cabinet Systems

48", 78", 84"

24", 28"

30", 36", 40", 42"

10-32, Cage Nut

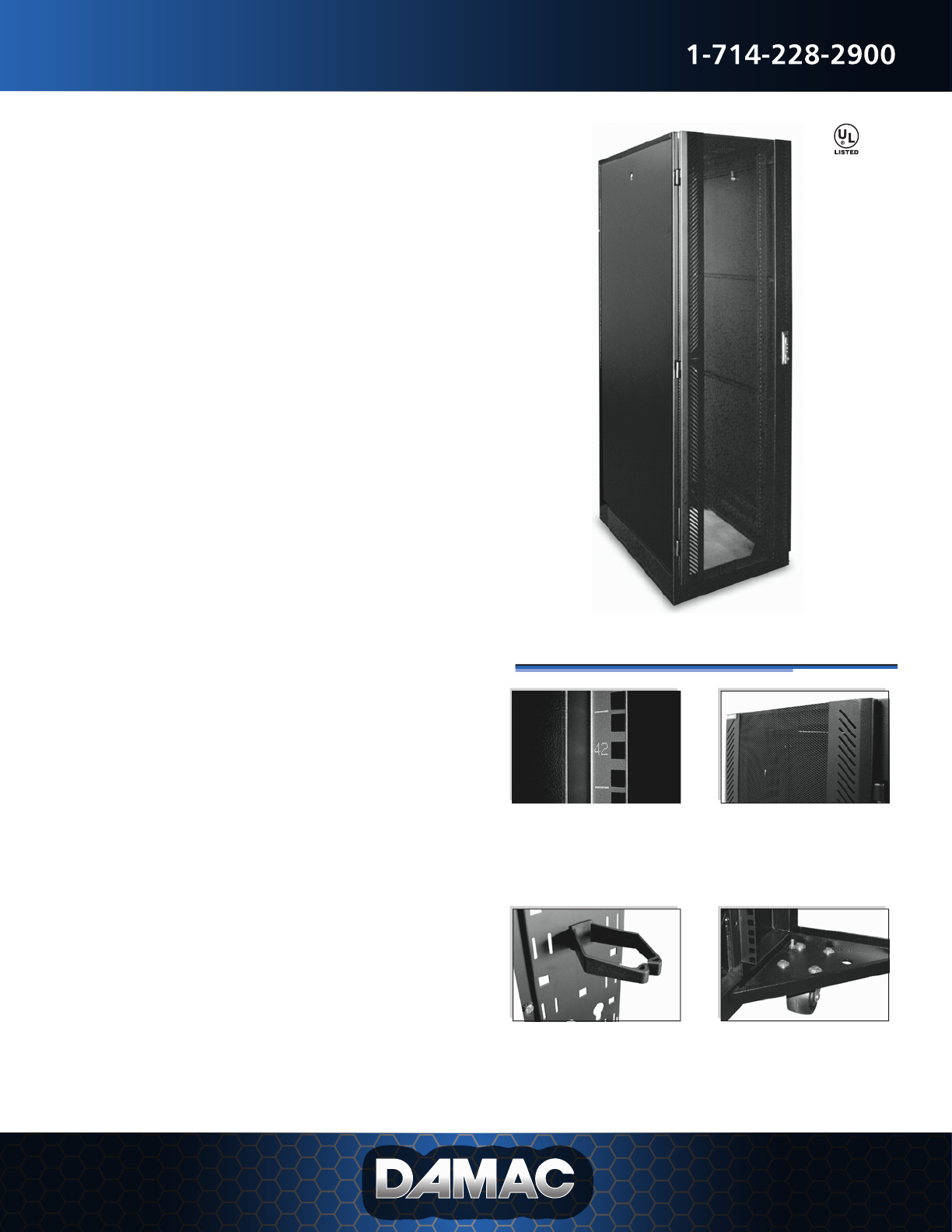

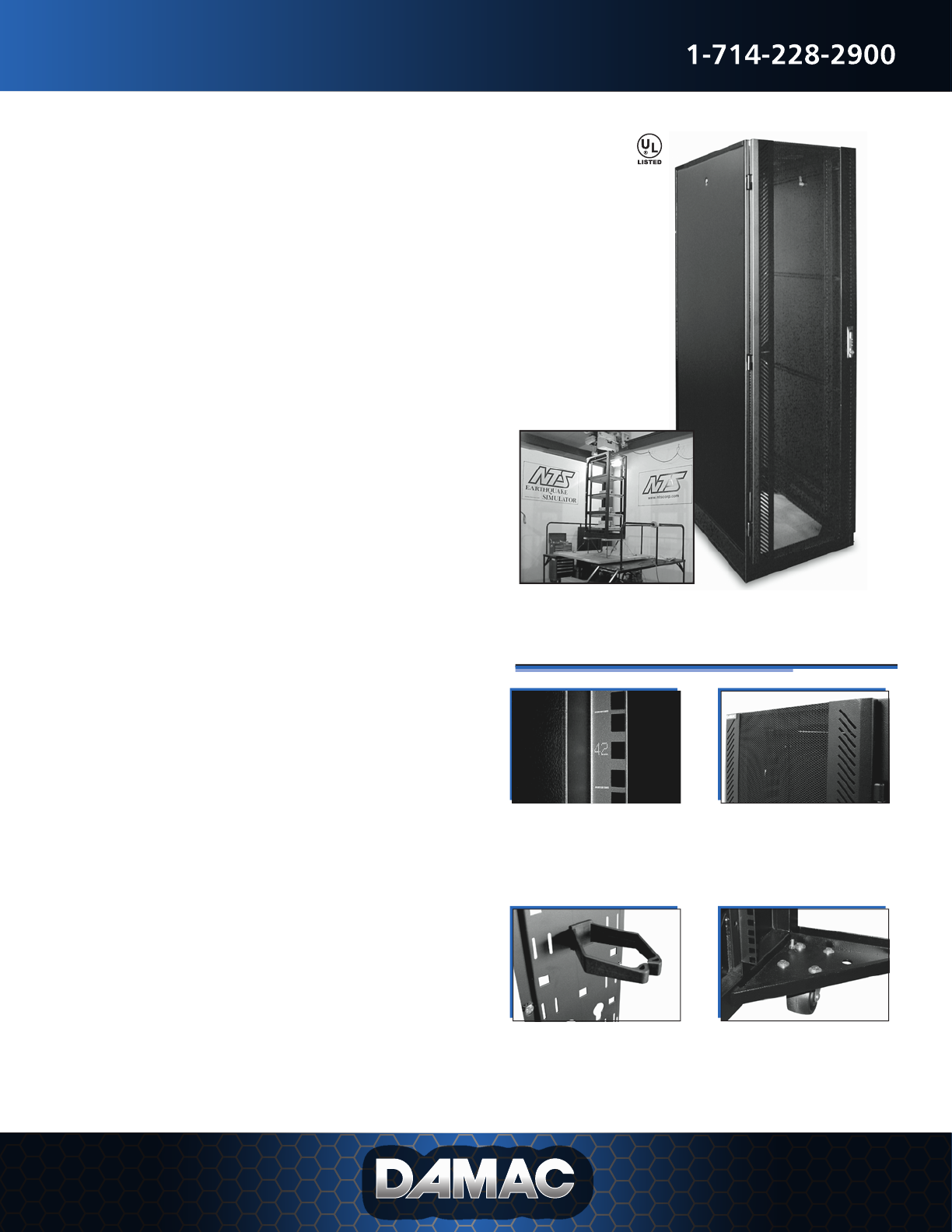

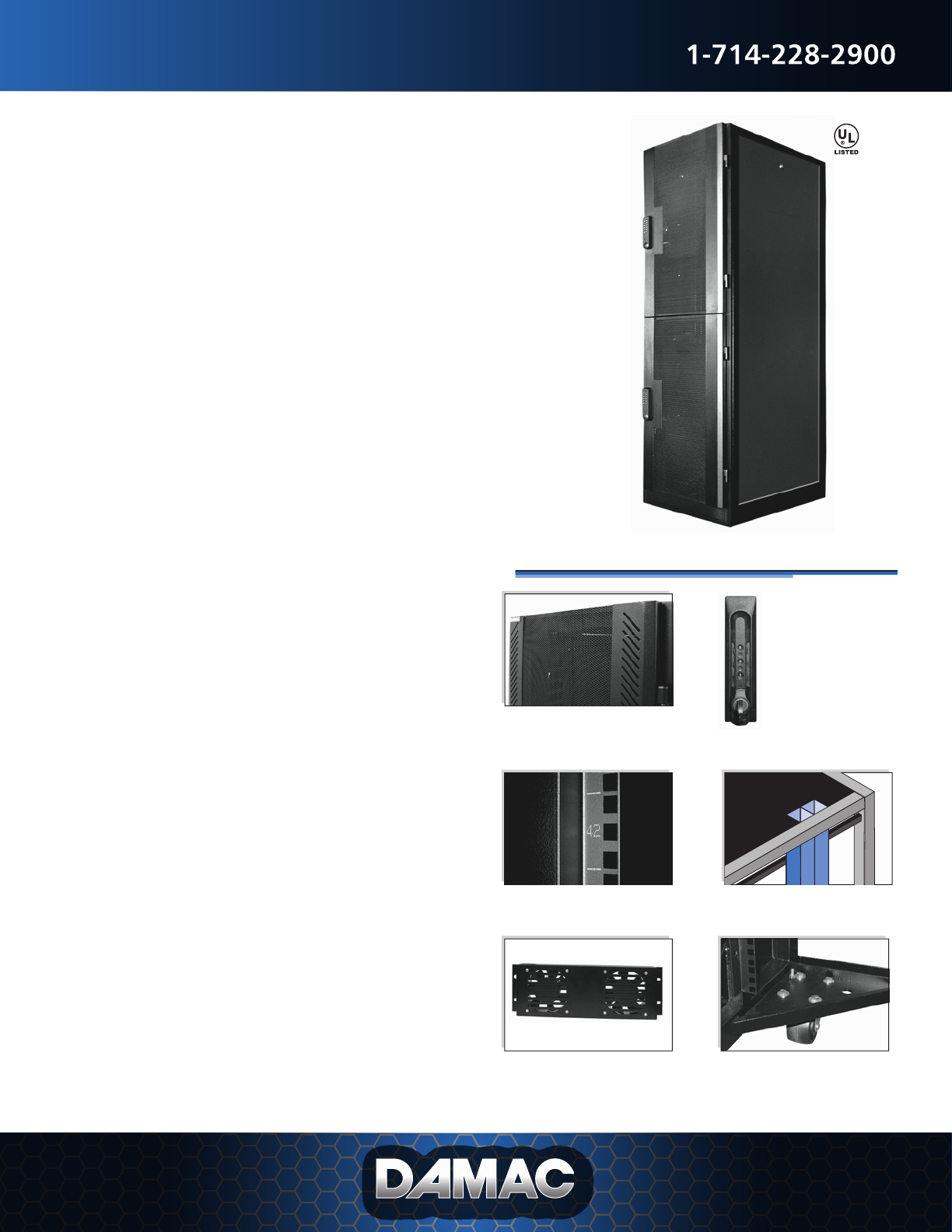

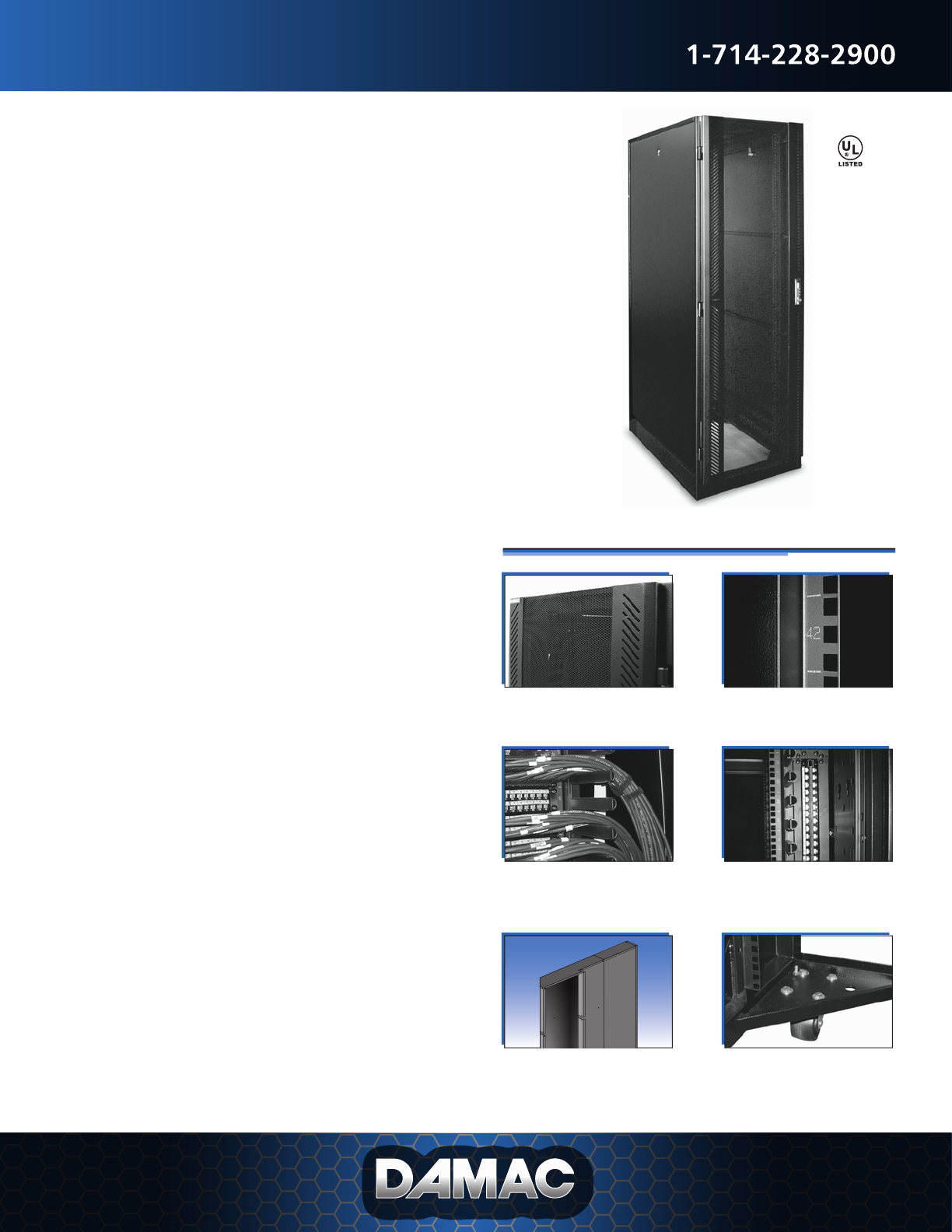

Axis™ Series Cabinet System

The Axis Cabinet System is our most popular and versatile single

compartment data cabinet. The patented modular design makes it

an ideal solution for 19" rack-mounted equipment. Constructed

of tubular steel, this robust design provides more interior room

for equipment and cooling compared to a traditional sheet metal

design. Available in several configurations, the Axis Series

embraces superior strength and reliability in a high value

equipment-ready design.

• Fully Welded Construction: 2000 lb. static wt. / 1000 lb. rackable

• Two sets of mounting rails w/ EIA spacing: 5/8 x 5/8 x 1/2

• 19" or 23" rack-mount equipment, 24U - 45U

• Meets Seismic Zone 4 requirements

• Reinforced doors, removable w/ locks and security hinges

• Doors exceed active equipment req. for air-flow, hot/cold aisle ready

• Locking/removable flush side panels

• Flush top panels w/ cable knock-outs, removable

• Open bottom for raised floor access and ventilation

• Seismic floor mounting plates w/ levelers, casters optional

• Zero clearance coupling, 24"W model, width of standard floor tile

• Integrated unistrut for rail free mounting of accessories and power

• Textured epoxy powder-coat finish

• Cabinet ships fully assembled

• Custom configurations are available

• Fits multiple vendor environments

• UL Listed

Height:

Width:

Depth:

Rails:

Application:

Model Sizes:

Specifications:

Cabinet Features:

Replaces: APC, Dell, HP

General Purpose

Server/Networking

Co-Location

Retail/Schools

(2) sets, 19" EIA-310-D compliant

mounting rails w/ RMU markings.

Rails are fully adjustable. No air gap

around the front rails, no air mixing.

82% open door perforation pattern.

Exceeds equipment requirements for

air flow. Door is reinforced and

includes a keyed or combination lock.

Optional universal cable management

bracket w/ PDU button mounting

provisions. Install up to two PDU's or

three columns of d-rings or Velcro™

loops. *sold separately, #APCBU

Fully welded seismic floor mounting

gussets included. Accepts optional

caster kits or a grounding lug.

Caster Kit, #AFCHD

Cabinet Systems

Replace (3) in part# with

alternative color choice: (1) Putty,

(2) Blue, (4) Gray, (5) White,

(6) Dark Gray

84"/45U Popular Pre-Configured Models

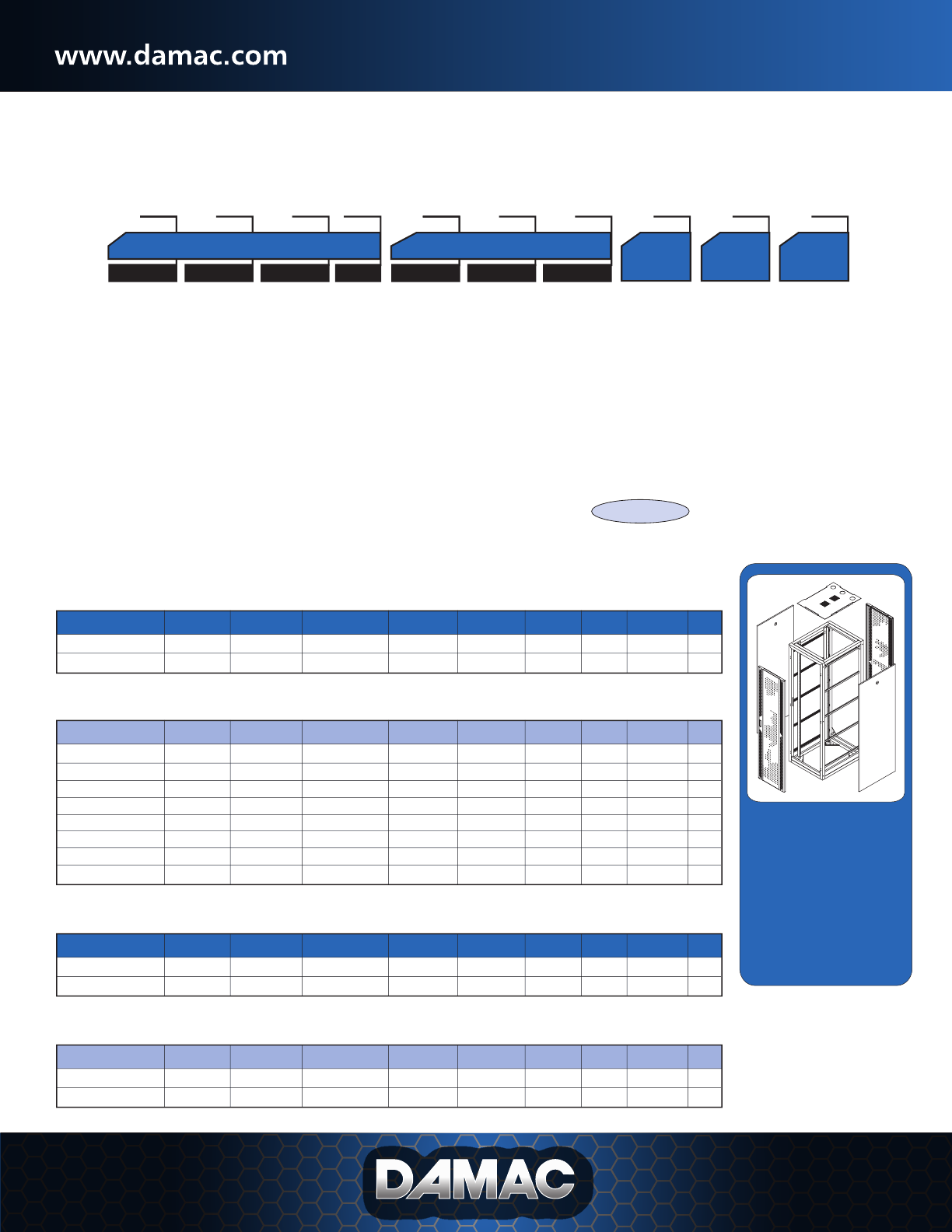

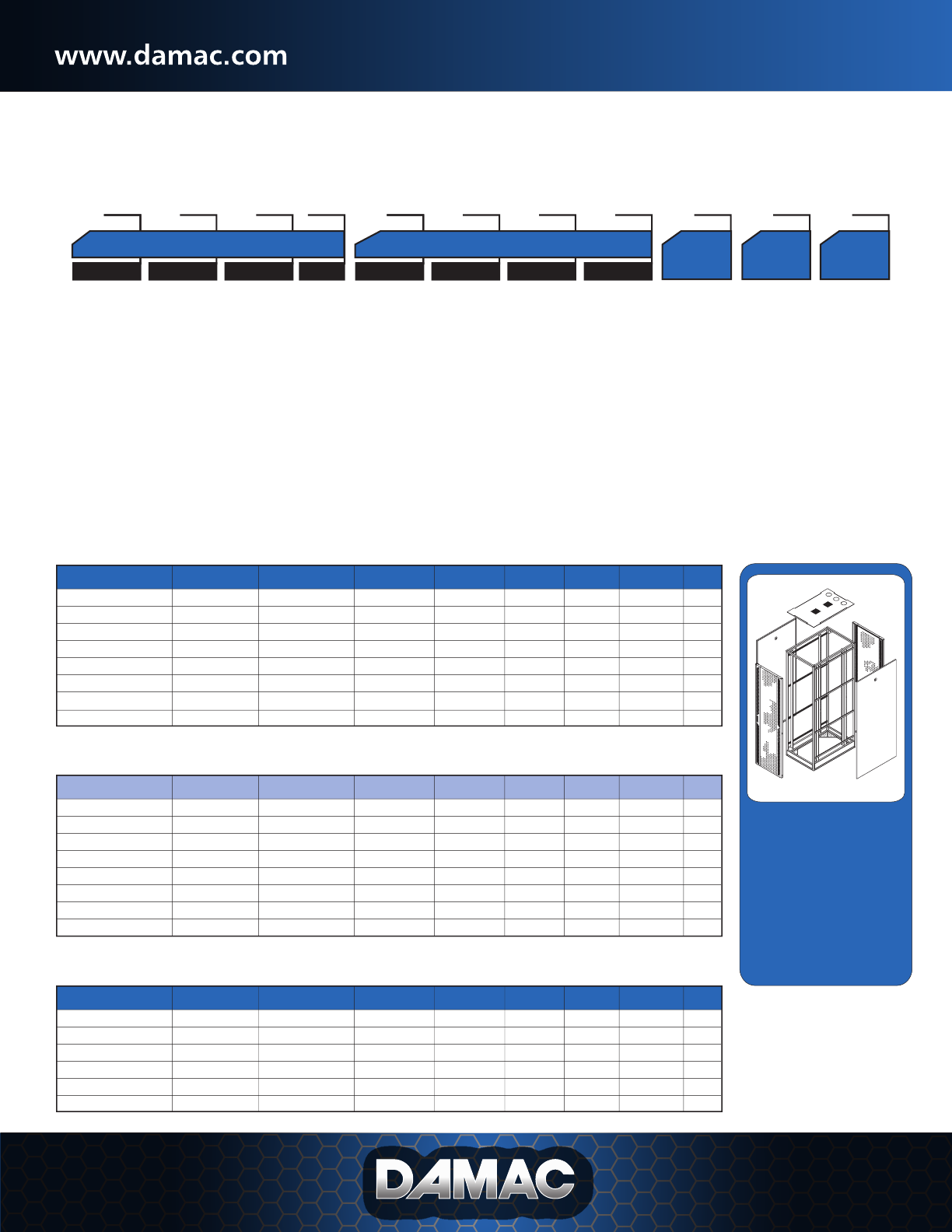

Use the part matrix below to build a Axis Cabinet to your specific requirements. Choose the Height, Width/Rail Style, Depth,

Front Door, Door Hinge Location, Lock, Rear Door, Side Panel, Top and Color.

Pre-Configured Cabinet options shown with ordering codes. Sample Part #: CCO84EDB1SBSV3

TYPE

CCO

Axis

48” / 24U

78” / 42U

84” / 45U

24” Wide

19” Rackable

10-32 Rail

24” Wide

19” Rackable

Cage Nut Rail

28” Wide

19”-23" Rackable

Cage Nut Rail

Mesh

Split-Mesh

2pc Door

Mesh

w/ Fans

Vent Plex

None

Front: right

Rear: right

Front: right

Rear: left

Front: left

Rear: right

Front: left

Rear: left

Mesh

Split-Mesh

2pc Door

Mesh

w/ Fans

Vent Plex

None

Solid, pair

Solid, 1 only

None

Vertical

Air Duct

2 Fan

4 Fan

Solid

Vented

None

Putty

Blue

Black

Gray

White

Dark Gray

30”

36”

40”

42”

HEIGHT/U# WIDTH/RAILS DEPTH FRONT DOOR DOOR HINGE REAR DOOR

Unalike

Key and

Combo

Alike

KEY/LATCH

CCO 84 E D B 1 S B S V 3

FRAME DOORS SIDES TOP COLOR

CC084EBB1SBSV3 84 x 24 x 30 19"/Cage-Nut Mesh Mesh (2) Solid Vent Black 230

CC084EBV1SBSV3 84 x 24 x 30 19"/Cage-Nut Vent Plexi Mesh (2) Solid Vent Black 230

CC084EDB1SBSV3 84 x 24 x 36 19"/Cage-Nut Mesh Mesh (2) Solid Vent Black 260

CC084EDV1SBSV3 84 x 24 x 36 19"/Cage-Nut Vent Plexi Mesh (2) Solid Vent Black 260

CC084EPB1SBSV3 84 x 24 x 40 19"/Cage-Nut Mesh Mesh (2) Solid Vent Black 280

CC084EPV1SBSV3 84 x 24 x 40 19"/Cage-Nut Vent Plexi Mesh (2) Solid Vent Black 280

CC084EQB1SBSV3 84 x 24 x 42 19"/Cage-Nut Mesh Mesh (2) Solid Vent Black 285

CC084EQV1SBSV3 84 x 24 x 42 19"/Cage-Nut Vent Plexi Mesh (2) Solid Vent Black 285

78"/42U Popular Pre-Configured Models

CC078EBB1SBSV3 78 x 24 x 30 19"/Cage-Nut Mesh Mesh (2) Solid Vent Black 215

CC078EBV1SBSV3 78 x 24 x 30 19"/Cage-Nut Vent Plexi Mesh (2) Solid Vent Black 215

CC078EDB1SBSV3 78 x 24 x 36 19"/Cage-Nut Mesh Mesh (2) Solid Vent Black 230

CC078EDV1SBSV3 78 x 24 x 36 19"/Cage-Nut Vent Plexi Mesh (2) Solid Vent Black 230

CC078EPB1SBSV3 78 x 24 x 40 19"/Cage-Nut Mesh Mesh (2) Solid Vent Black 250

CC078EPV1SBSV3 78 x 24 x 40 19"/Cage-Nut Vent Plexi Mesh (2) Solid Vent Black 250

CC078EQB1SBSV3 78 x 24 x 42 19"/Cage-Nut Mesh Mesh (2) Solid Vent Black 255

CC078EQV1SBSV3 78 x 24 x 42 19"/Cage-Nut Vent Plexi Mesh (2) Solid Vent Black 255

48"/24U Popular Pre-Configured Models

Part # H x W x D Mnt. Rail F.Door R.Door Sides Top Color Wt.

Cabinet Includes:

Color Option:

• (1) fully welded four-post frame

• (4) mounting rails, tapped or cage-nut

• (2) locking solid side panel (optional)

• (1) locking mesh front door (optional)

• (1) locking mesh rear door (optional)

• (1) vented top panel (optional)

• (4) leveling feet

• (4) seismic floor mounting gussets

• (1) bag of 30pc mounting hardware

CC048EBB1SBSV3 48 x 24 x 30 19"/Cage-Nut Mesh Mesh (2) Solid Vent Black 125

CC048EBV1SBSV3 48 x 24 x 30 19"/Cage-Nut Vent Plexi Mesh (2) Solid Vent Black 125

CC048EDB1SBSV3 48 x 24 x 36 19"/Cage-Nut Mesh Mesh (2) Solid Vent Black 140

CC048EDV1SBSV3 48 x 24 x 36 19"/Cage-Nut Vent Plexi Mesh (2) Solid Vent Black 140

CC048EPB1SBSV3 48 x 24 x 40 19"/Cage-Nut Mesh Mesh (2) Solid Vent Black 150

CC048EPV1SBSV3 48 x 24 x 40 19"/Cage-Nut Vent Plexi Mesh (2) Solid Vent Black 150

* special order

Cabinet Systems

23.25"

29.25"

33.25"

35.25"

23.25"

29.25"

33.25"

35.25"

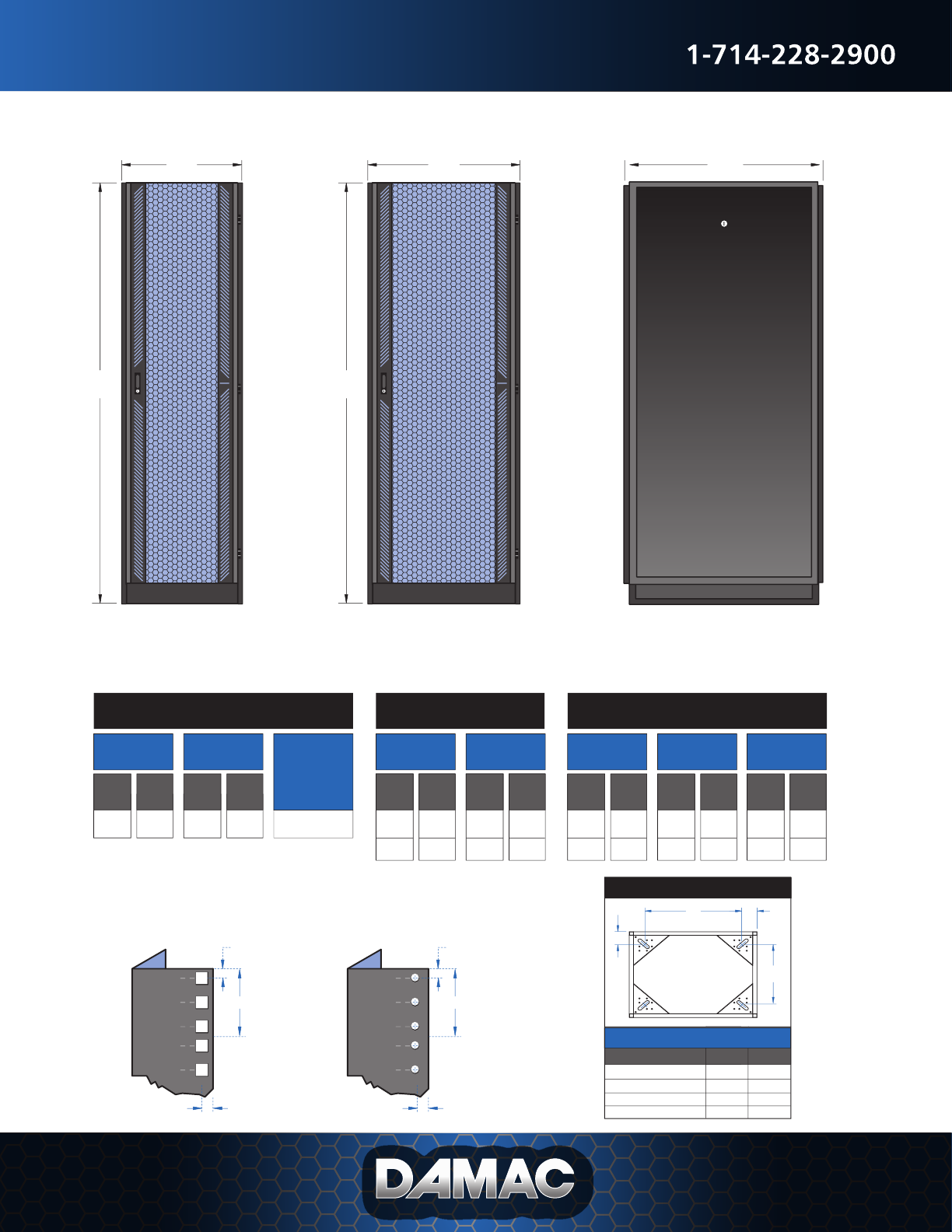

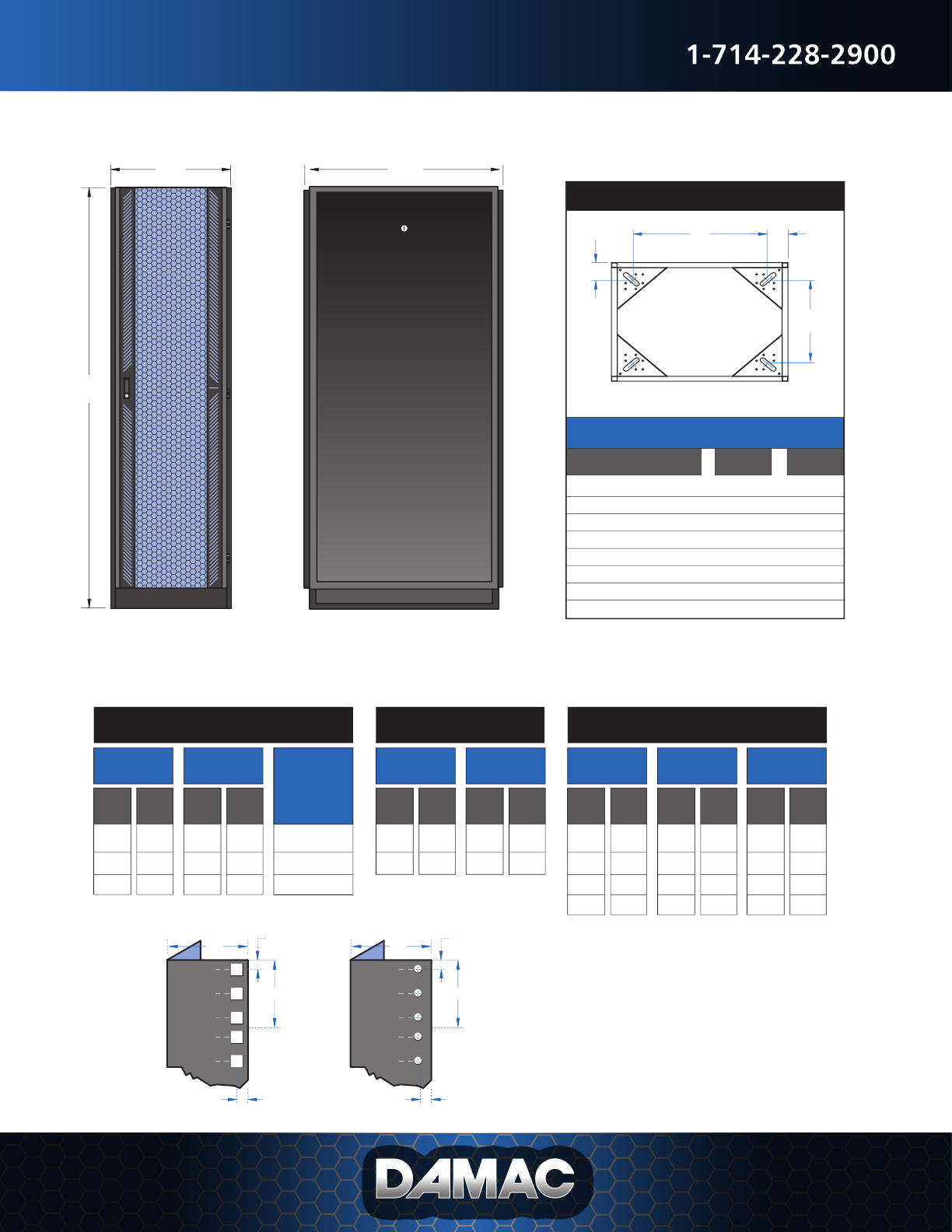

Axis™ Series Technical Specifications

Cabinet dimensions include doors, sides & top. Usable dimensions are maximum usable interior dimensions.

Front View Side View

BOTTOM VIEW

Cabinet Dimensions: see drawing for A, B, and C

3.38 3.38

Floor Mounting Dimensions

Cabinet Dim. D

Mounting Dims - CENTER TO CENTER

24.0"W x 30.0"D

24.0"W x 36.0"D

24.0"W x 40.0"D

24.0"W x 42.0"D

28.0"W x 30.0"D

28.0"W x 36.0"D

28.0"W x 40.0"D

28.0"W x 42.0"D

17.25"

21.25"

Cage-Nut Rail Tapped Rail

2.00

A - Height

Cabinet

in mm

Frame RMU

in mm

C - Depth

Cabinet

in mm

Frame

in mm

B - Width

Cabinet

in mm

Frame

in mm

48.0 1219 48.0 1219 24u 33.0 838 30.0 76224.0 610 24.0 610

78.0 1981 78.0 1981 42u

84.0 2133 84.0 2133 45u

39.0 990 36.0 914

43.0 1092 40.0 1016

45.0 1143 42.0 1066

28.0 711 28.0 711

Usable

in mm

28.0 711

34.0 864

38.0 965

40.0 1016

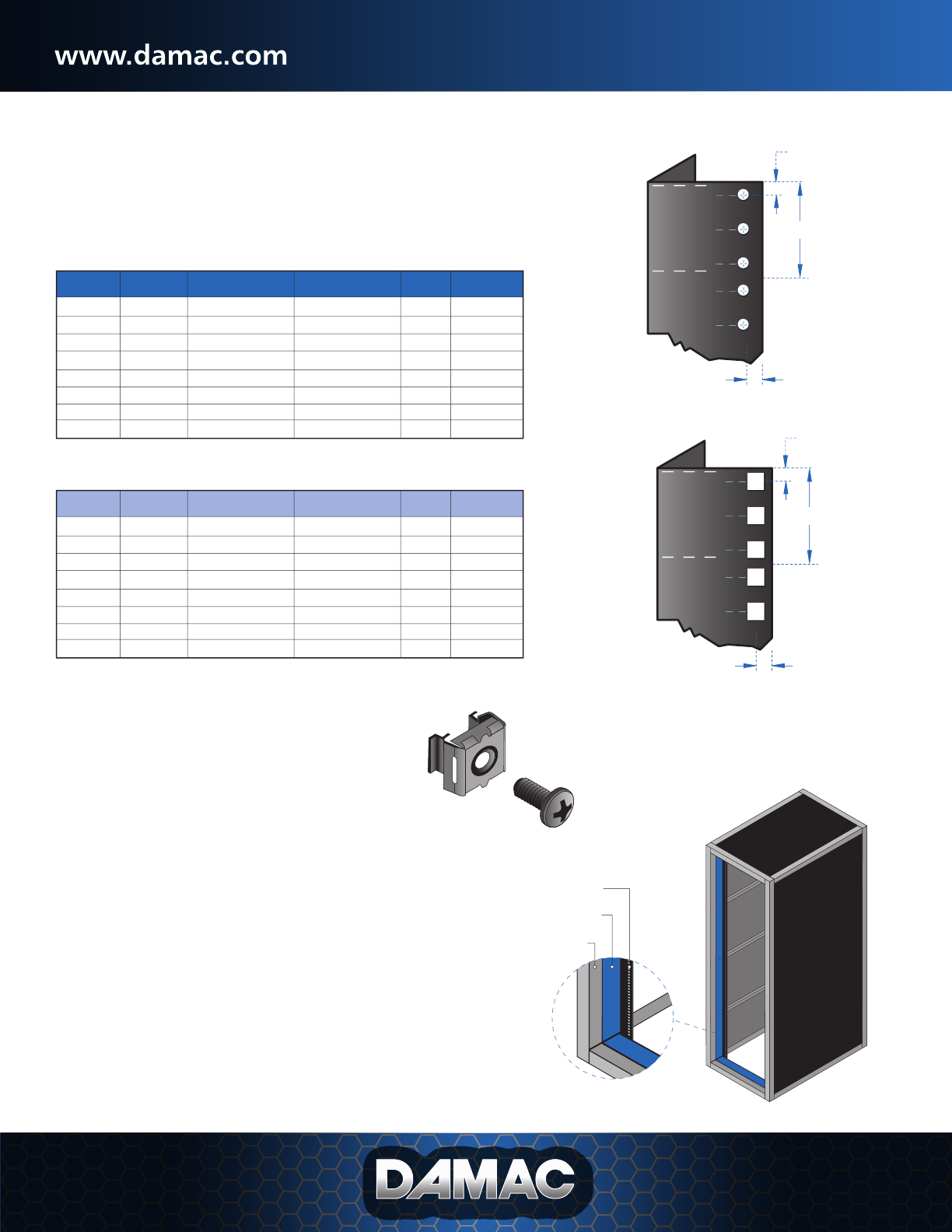

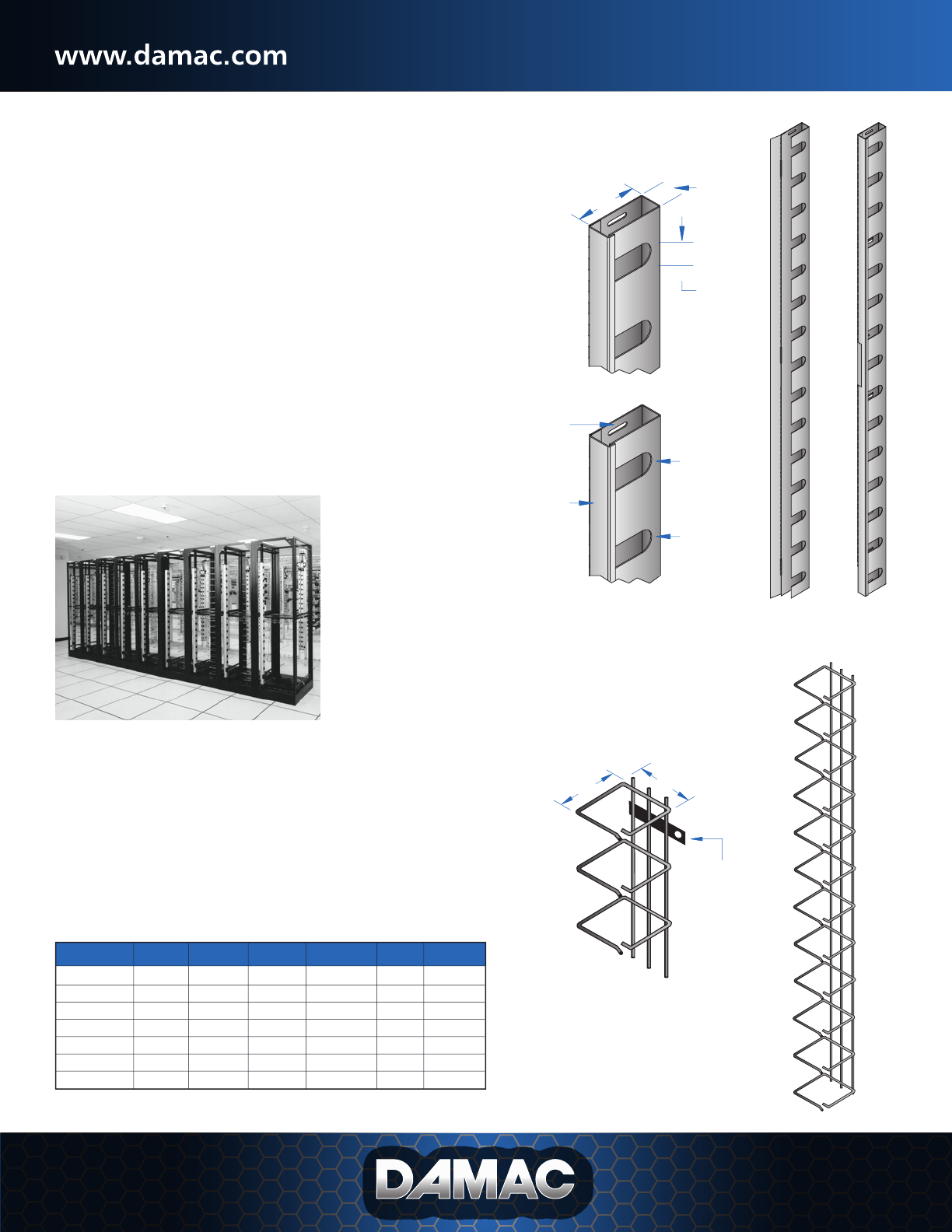

Mounting Rail Detail

Mounting rails support 19" rack mount equipment.

Meet EIA-310-D industry standard hole spacing.

Feature M6 cage-nut (square) or 10-32 tapped (round)

mounting holes. Finished in black powder-coat.Rails are

fully adjustable to meet any equipment requirement.

Multiple rail sets can be added to all Damac cabinets for

multiple applications.

0.25

1.75 / 1 RMU

1/2

5/8

2.00 0.25

0.25

1.75 / 1 RMU

1/2

5/8

B C

Cabinet Systems

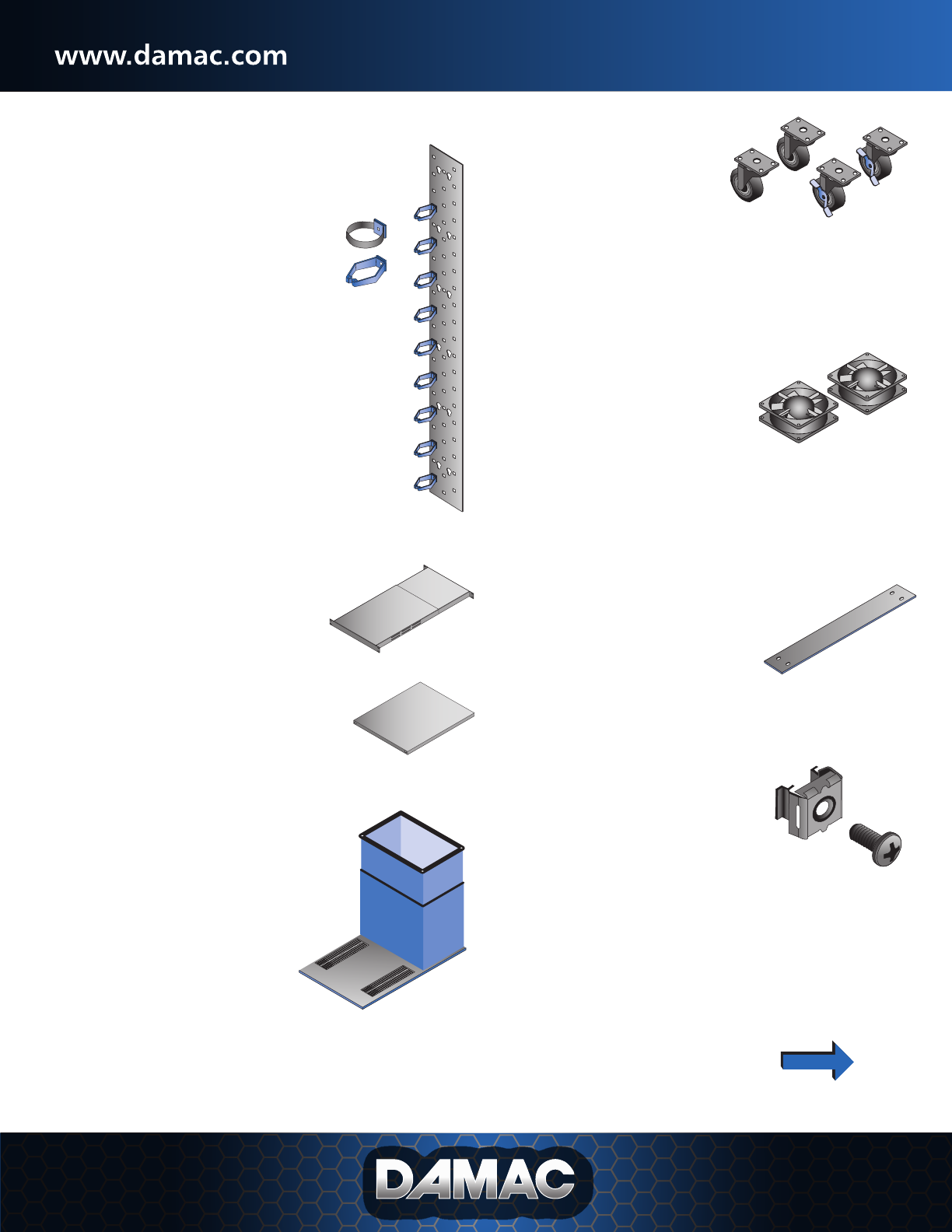

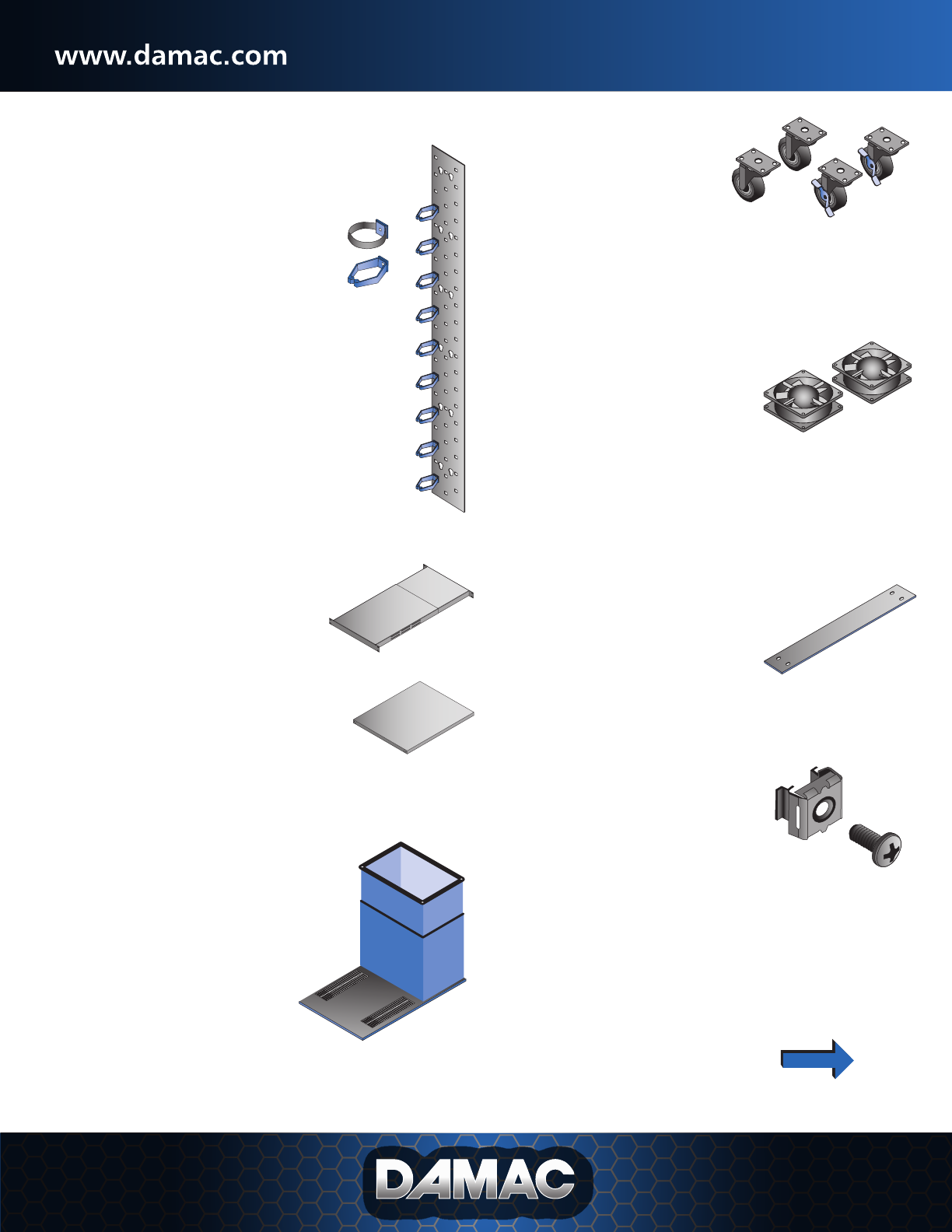

Axis™ Series Accessories

D-Rings or loops

snap into place

and rotate

360 degrees

Creates a vertical pathway for cable routing or

PDU mounting. Installs to the cabinets horizontal

unistrute. Requires 6.75" of usable depth. PDU

mounting requires button style mounting

provisions. Three vertical rows of squares

receptacle holes included for installation of cable

D-Rings or Velcro™ loops.

• Dims: 71.75"H x 6.75"W

• PDU button mounting spaces @ 12.25" centers

• Add D-Rings or Velcro™ loops

Universal Cable/PDU Bracket

Part# Description Weight

APCBU Cable/PDU Bracket 3 lb

ABCBUR10 D-Rings, 10pc 1 lb

ABCBUV10 Velcro™ Loops, 10pc 1 lb

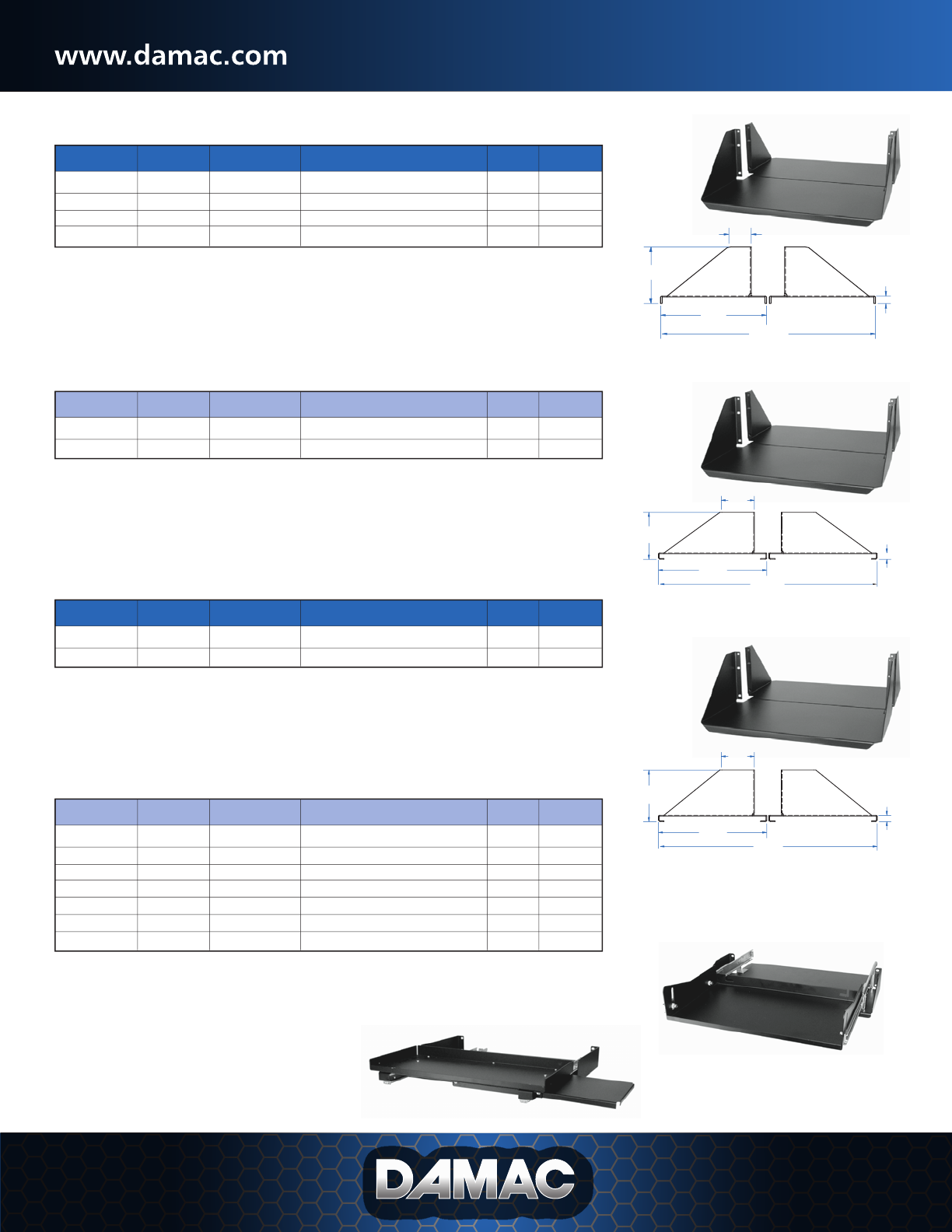

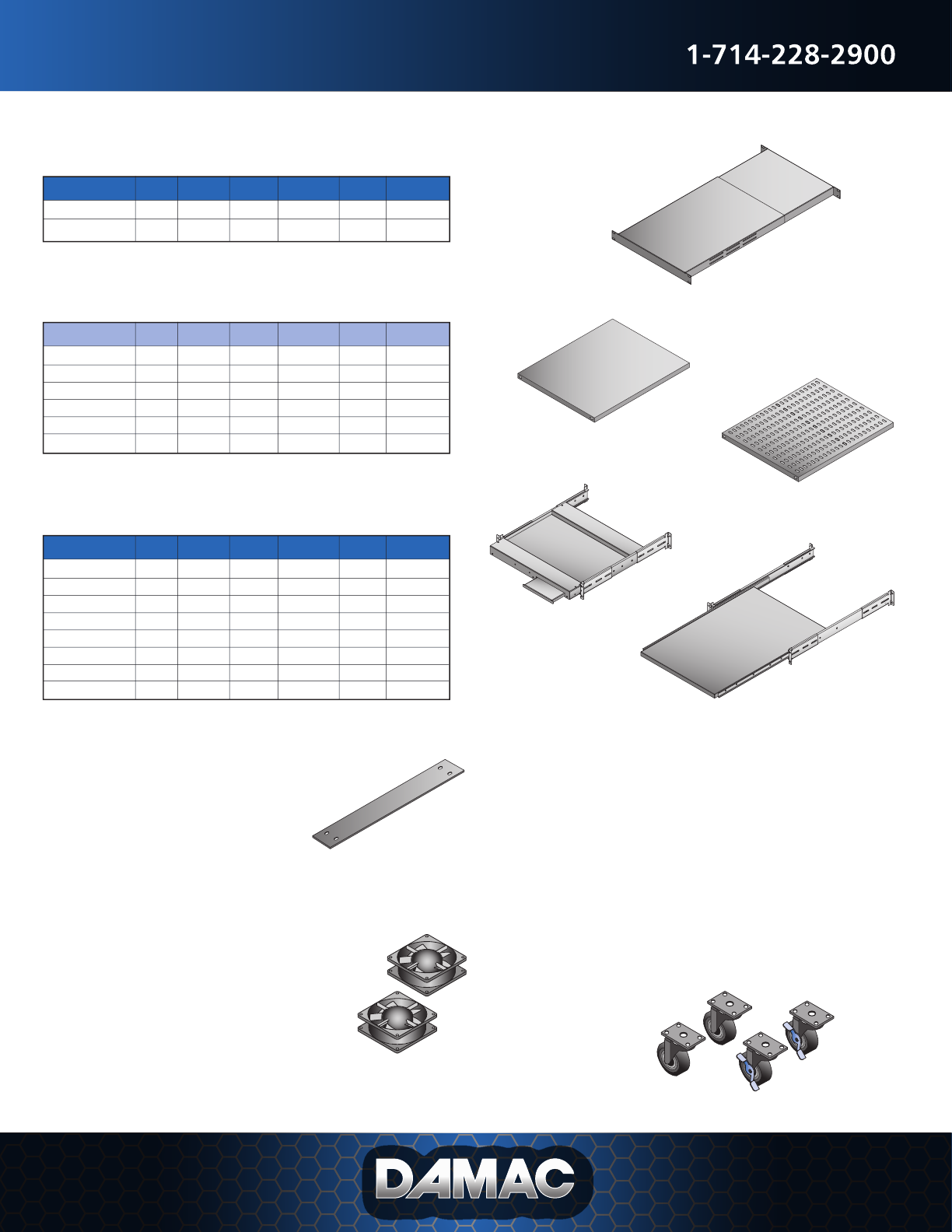

For equipment that does not support rack-mounted

brackets, equipment shelves are an ideal solution.

Available in fixed or adjustable depth.

• Available in fixed or adjustable depth.

• Includes mounting hardware

• Epoxy powder-coat finish, black

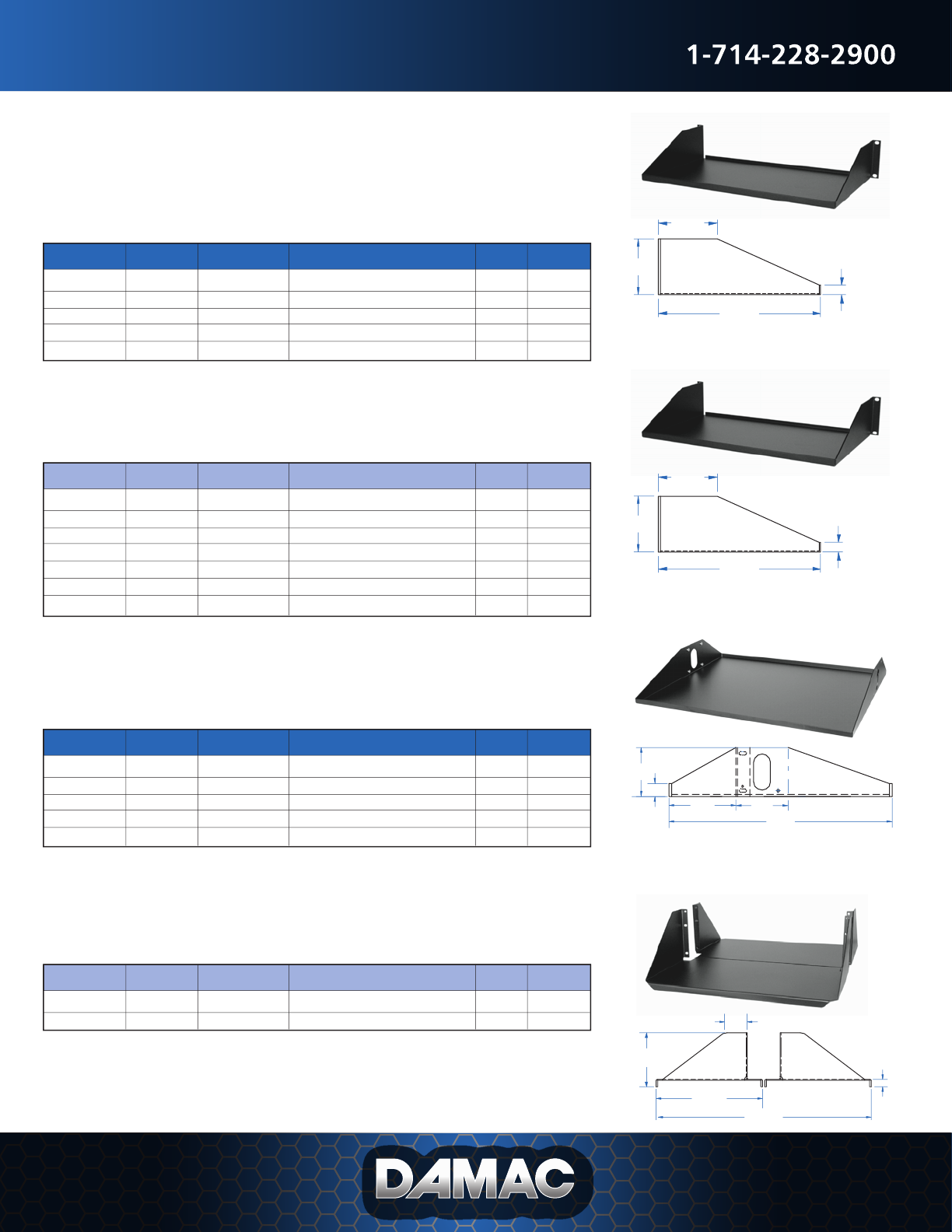

Equipment Shelves

Part# Description Weight

SHA1924S-3 Solid, adjustable 24"-36" 12 lb

SH1924S-3 Solid, fixed 24" 12 lb

SH1929S-3 Solid, fixed 29" 14 lb

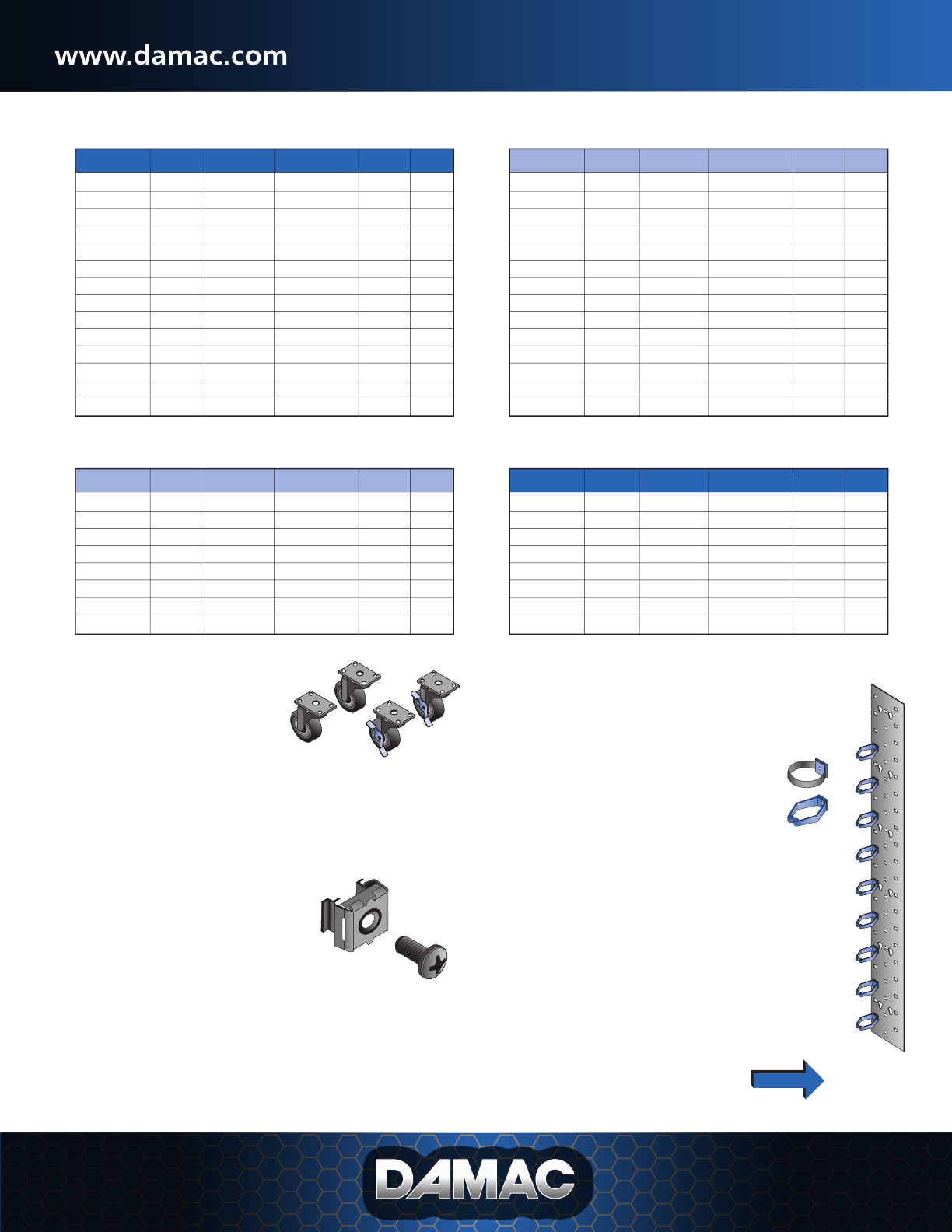

Caster kits bolt directly to the cabinets

weld-in seismic floor mounting gussets.

* add caster height to cabinet for total unit height

Caster Kits

Part# Description Height Weight

AFCHD 2000 lb cap. (2) w/ brake 4.5 in 8 lb

AFCYO 1600 lb cap. no brake 4.5 in 8 lb

AFCHL 2000 lb cap, low-profile 2.8 in 6 lb

Fan kits can be added to any size vented

cabinet top. Kits include mounting hardware.

Fan Kits

Additional Accessories

Part# Description Weight

ATFK2 (2) Fans, 120 VAC 8 lb

ATFK2L (2) Low Noise Fans, 120 VAC 10 lb

ATFK2-220 (2) Fans, 220 VAC 6 lb

Joins two cabinets side by side. Cabinets must

be the came height. Mounts to the two

coupling holes found in the top of the cabinet

frame. Mounting hardware included.

See the cabinet accessories section

for additional items.

Cabinet Coupling Kit

Part# Description Weight

ATMCK2-3 Cabinet Coupling Kit, black 5 lb

Adjustable

Fixed

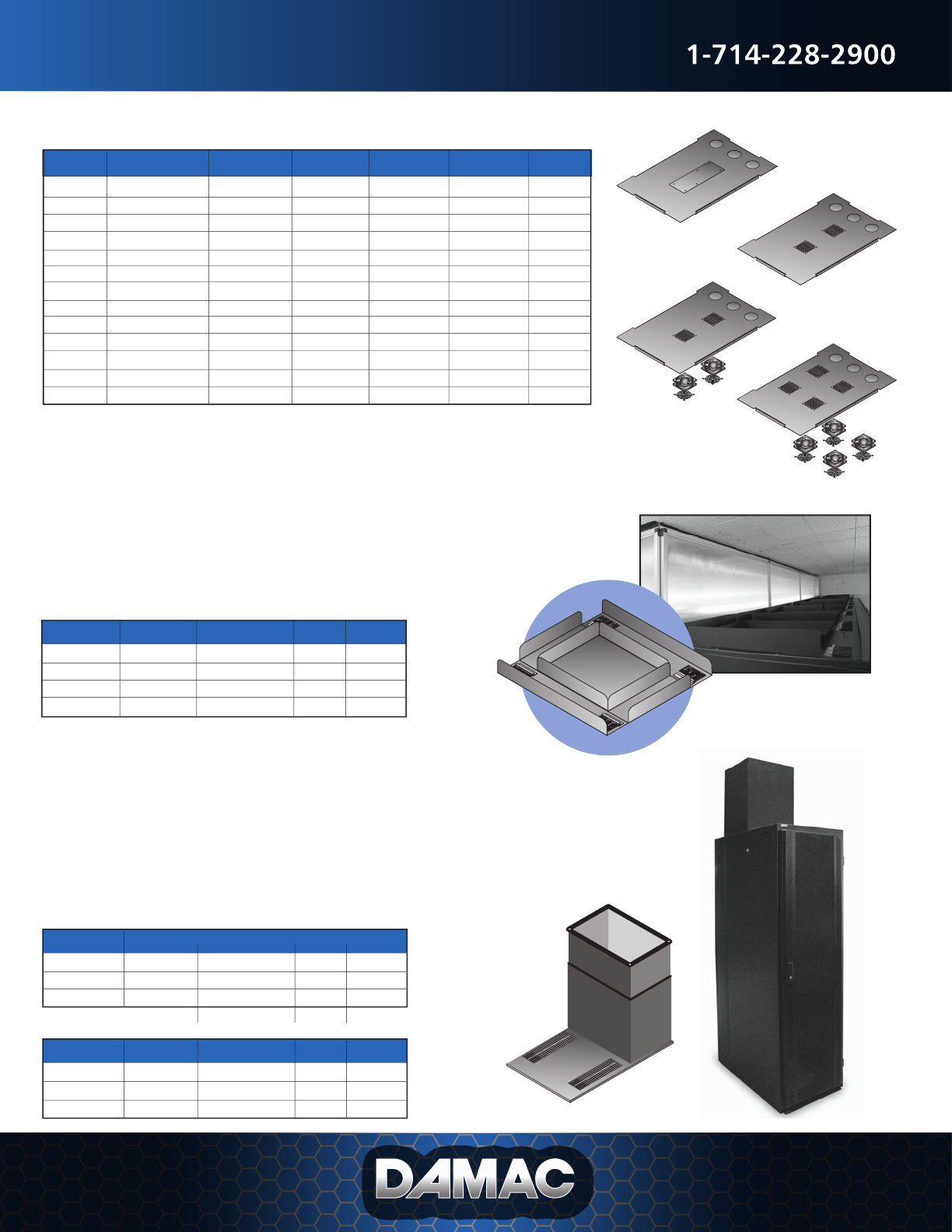

Adding a Vertical Air Duct directs the internal

equipments exhaust air vertically out of the cabinet

and directly into the rooms return air supply. This

eliminates air mixing and creates negative pressure,

accelerating the dispersion of hot air without the

assistance of fans.

• 42"D cabinets only

• Adjustable height: 26" - 48" or 48"-60"

• Bolt-On design, easy to retrofit

• (2) brush sealed cable openings

Vertical Air Duct

Part# Description Weight

TA2442E48-3 Air Duct, 26"-48"H 25 lb

TA2442E60-3 Air Duct, 48"-60"H 29 lb

Additional mounting hardware packs for

rackmounting equipment to the cabinet

mounting rails.

Mounting Hardware

Part# Description Weight

AHPF1032-30 30pc, 10-32 screw 1 lb

AHPF1032CN-30 30pc, 10-32 cage-nut 1 lb

AHPFM6-30 30pc, M6 screw 1 lb

AHPFM6CN-30 30pc, M6 cage-nut 1 lb

AHPFCN-30 30pc, M6 screw w/ cage-nut 2 lb

AHPFCN-100 100pc, M6 screw w/ cage-nut 6 lb

Cabinet Systems

Seismic Series Cabinet System

The Seismic Series of cabinets have been designed to withstand the

forces produced by seismic events while ensuring the rack-mounted

equipment within remains unharmed and operational.

The enhanced structural design of the Seismic Series exceeds the

performance standard for Seismic Zone 4 set forth by Network

Equipment Building Systems (NEBS), Bellcore and the Uniform

Building Code (UBC).

Application:

CS Model Sizes:

72", 84"

24", 30"

30", 36", 40", 42", 48"

10-32, Cage Nut

Height:

Width:

Depth:

Rails:

78", 84", 88", 102"

24"

30", 36", 40", 42", 48"

10-32, Cage Nut

Height:

Width:

Depth:

Rails:

CZ Model Sizes:

Specifications:

Cabinet Features:

Government

Military

Seismic Prone Locations

Mission Critical Services

Off-Site Systems Integration

(2) sets, 19" EIA-310-D compliant

mounting rails w/ RMU markings.

Rails are fully adjustable. No air gap

around the front rails, no air mixing.

82% open door perforation pattern.

Exceeds equipment requirements for

air flow. Door's are reinforced and

include a keyed or combination lock.

Optional universal cable management

bracket w/ PDU button mounting

provisions. Install up to two PDU's or

three columns of D-Rings or Velcro™

loops. *sold separately, #APCBU

Fully welded seismic floor mounting

gussets included. Accepts optional

caster kits or a grounding lug.

Supports up to 2500 lbs on casters.

• CS Series tested/certified to NEBS™-Telcordia GR-63-CORE standard

• CZ Series meets Uniform Building Code (UBC) Seismic Zone 4 req.

• Weight capacity: CS Series - 3500 lb. static / CZ Series - 2800 lb. static

• Fully welded tubular steel construction

• 19" EIA width

• (2) sets of adjustable mounting rails per compartment

• EIA-310-D Standard Universal 5/8 x 5/8 x 1/2 hole spacing

• M6 Cage-Nut (square) or 10-32 tapped mounting holes

• Tubular steel reinforced doors, removable w/ locks and security hinges

• Mesh doors exceed active equipment req. for air-flow

• Locking/removable flush side panels

• Flush top panels w/ cable knock-outs, removable

• Open bottom for raised floor access and ventilation

• HD Seismic floor mounting plates w/ levelers, casters optional

• Zero clearance coupling, 24"W model, width of standard floor tile

• Integrated unistrut for rail free mounting of accessories and power

• Textured epoxy powder-coat finish

• Cabinet ships fully assembled

• Custom configurations are available

• Fits multiple vendor environments

• UL Listed

Cabinet Systems

Replace (3) in part# with

alternative color choice: (1) Putty,

(2) Blue, (4) Gray, (5) White,

(6) Dark Gray

102"/54U Popular Pre-Configured Models

Use the part matrix below to build a Seismic Cabinet to your specific requirements. Choose the Height, Width/Rail Style, Depth,

Front Door, Door Hinge Location, Lock, Rear Door, Side Panel, Top and Color.

Pre-Configured Cabinet options shown with ordering codes. Sample Part #: CZ84EPB1BSV3

TYPE

Seismic

UBC Zone 4

Seismic

GR-63-CORE

Certified

72” / 38U

78” / 42U

84” / 45U

88*

88” / 48U

102*

102” / 54U

24” Wide

19” Rackable

10-32 Rail

24” Wide

19” Rackable

Cage Nut Rail

30” Wide

23” Rackable

10-32 Rail

30” Wide

23” Rackable

Cage Nut Rail

Mesh

w/ Fans

Vent Plex

None

Front: right

Rear: right

Front: right

Rear: left

Front: left

Rear: right

Front: left

Rear: left

Solid, pair

Solid, 1 only

None

Vertical

Air Duct

2 Fan

4 Fan

Solid

Vented

None

Putty

Blue

Black

Gray

White

Dark Gray

30”

36”

40”

42”

48”

HEIGHT/U# WIDTH/RAILS DEPTH FRONT DOOR DOOR HINGE

CZ 84 E P B 1 B S V 3

FRAME DOORS SIDES TOP COLOR

CZ102EDB1BSV3 UBC 102x24x36 19"/Cage-Nut Mesh Mesh (2) Solid Vent Black 310

CZ102EQB1BSV3 UBC 102x24x42 19"/Cage-Nut Mesh Mesh (2) Solid Vent Black 340

Part # Rating HxWxD Mnt. Rail F.Door R.Door Sides Top Color Wt

Cabinet Includes:

Color Option:

• (1) fully welded four-post frame

• (4) mounting rails, tapped or cage-nut

• (2) locking solid side panel (optional)

• (1) locking mesh front door (optional)

• (1) locking mesh rear door (optional)

• (1) vented top panel (optional)

• (4) leveling feet

• (4) seismic floor mounting gussets

• (1) bag of 30pc mounting hardware

Mesh

w/ Fans

Vent Plex

None

REAR DOOR

84"/45U Popular Pre-Configured Models

CZ84EBB1BSV3 UBC 84x24x30 19"/Cage-Nut Mesh Mesh (2) Solid Vent Black 260

CZ84EDB1BSV3 UBC 84x24x36 19"/Cage-Nut Mesh Mesh (2) Solid Vent Black 275

CZ84EPB1BSV3 UBC 84x24x40 19"/Cage-Nut Mesh Mesh (2) Solid Vent Black 280

CZ84ESB1BSV3 UBC 84x24x48 19"/Cage-Nut Mesh Mesh (2) Solid Vent Black 300

CS84EBB1BSV3 NEBS 84x24x30 19"/Cage-Nut Mesh Mesh (2) Solid Vent Black 260

CS84EDB1BSV3 NEBS 84x24x36 19"/Cage-Nut Mesh Mesh (2) Solid Vent Black 275

CS84EPB1BSV3 NEBS 84x24x40 19"/Cage-Nut Mesh Mesh (2) Solid Vent Black 280

CS84ESB1BSV3 NEBS 84x24x48 19"/Cage-Nut Mesh Mesh (2) Solid Vent Black 300

Part # Rating HxWxD Mnt. Rail F.Door R.Door Sides Top Color Wt

78"/42U Popular Pre-Configured Models

CZ78EPB1BSV3 UBC 78x24x40 19"/Cage-Nut Mesh Mesh (2) Solid Vent Black 265

CZ78ESB1BSV3 UBC 78x24x48 19"/Cage-Nut Mesh Mesh (2) Solid Vent Black 285

Part # Rating HxWxD Mnt. Rail F.Door R.Door Sides Top Color Wt

72"/38U Popular Pre-Configured Models

CS72EDB1BSV3 NEBS 72x24x36 19"/Cage-Nut Mesh Mesh (2) Solid Vent Black 235

CS72EPB1BSV3 NEBS 72x24x40 19"/Cage-Nut Mesh Mesh (2) Solid Vent Black 240

Part # Rating HxWxD Mnt. Rail F.Door R.Door Sides Top Color Wt

* Special Order Item

Cabinet Systems

21.25"

27.25"

31.25"

33.25"

39.25"

Seismic Series Technical Specifications

Cabinet dimensions include doors, sides & top. Usable dimensions are maximum usable interior dimensions.

BOTTOM VIEW

Cabinet Dimensions: see drawing for A, B, and C

4.38 4.38

Floor Mounting Dimensions

Cabinet Dim. D

Mounting Dims - CENTER TO CENTER

24.0"W x 30.0"D

24.0"W x 36.0"D

24.0"W x 40.0"D

24.0"W x 42.0"D

24.0"W x 48.0"D

15.25"

Cage-Nut Rail Tapped Rail

A - Height

Cabinet

in mm

Frame RMU

in mm

C - Depth

Cabinet

in mm

Frame

in mm

B - Width

Cabinet

in mm

Frame

in mm

72.0 1828 72.0 1828 38u 33.0 838 30.0 76224.0 610 24.0 610

78.0 1981 78.0 1981 42u

84.0 2133 84.0 2133 45u

88.0 2235 88.0 2235 48u

102.0 2590 102.0 2590 54u

39.0 990 36.0 914

43.0 1092 40.0 1016

45.0 1143 42.0 1066

30.0 762 30.0 762

Usable

in mm

26.0 660

32.0 813

36.0 914

38.0 965

21.25"

27.25"

31.25"

33.25"

39.25"

30.0"W x 30.0"D

30.0"W x 36.0"D

30.0"W x 40.0"D

30.0"W x 42.0"D

30.0"W x 48.0"D

21.25"

Mounting Rail Detail

Mounting rails support 19" rack mount equipment.

Meet EIA-310-D industry standard hole spacing.

Feature M6 cage-nut (square) or 10-32 tapped (round)

mounting holes. Finished in black powder-coat. Rails are

fully adjustable to meet any equipment requirement.

Multiple rail sets can be added to all Damac cabinets for

multiple applications.

0.25

1.75 / 1 RMU

1/2

5/8

0.25

1.75 / 1 RMU

1/2

5/8

51.0 1295 48.0 1219 44.0 1117

B C

Front View Side View

Cabinet Systems

Seismic Series Accessories

D-Rings or loops

snap into place

and rotate

360 degrees

Creates a vertical pathway for cable routing or

PDU mounting. Installs to the cabinets horizontal

unistrut. Requires 6.75" of usable depth. PDU

mounting requires button style mounting

provisions. Three vertical rows of squares

receptacle holes included for installation of cable

D-Rings or Velcro™ loops.

• Dims: 71.75"H x 6.75"W

• PDU button mounting spaces @ 12.25" centers

• Add D-Rings or Velcro™ loops

Universal Cable/PDU Bracket

Part# Description Weight

APCBU Cable/PDU Bracket 3 lb

ABCBUR10 D-Rings, 10pc 1 lb

ABCBUV10 Velcro™ Loops, 10pc 1 lb

For equipment that does not support rack-mounted

brackets, equipment shelves are an ideal solution.

Available in fixed or adjustable depth.

• Available in fixed or adjustable depth.

• Includes mounting hardware

• Epoxy powder-coat finish, black

Equipment Shelves

Part# Description Weight

SHA1924S-3 Solid, adjustable 24"-30" 12 lb

SH1924S-3 Solid, fixed 24" 12 lb

SH1929S-3 Solid, fixed 29" 14 lb

Caster kits bolt directly to the cabinets

weld-in seismic floor mounting gussets.

* add caster height to cabinet for total unit height

Caster Kits

Part# Description Height Weight

AFCHD 2000 lb cap. (2) w/ brake 4.5 in 8 lb

AFCYO 1600 lb cap. no brake 4.5 in 8 lb

AFCHL 2500 lb cap, low-profile 2.8 in 6 lb

Fan kits can be added to any size vented

cabinet top. Kits include mounting hardware.

Fan Kits

Additional Accessories

Part# Description Weight

ATFK2 (2) Fans, 120 VAC 8 lb

ATFK2L (2) Low Noise Fans, 120 VAC 10 lb

ATFK2-220 (2) Fans, 220 VAC 6 lb

Joins two cabinets side by side. Cabinets must

be the came height. Mounts to the two

coupling holes found in the top of the cabinet

frame. Mounting hardware included.

See the cabinet accessories section

for additional items.

Cabinet Coupling Kit

Part# Description Weight

ATMCK2-3 Cabinet Coupling Kit, black 5 lb

Adding a Vertical Air Duct directs the internal

equipments exhaust air vertically out of the cabinet

and directly into the rooms return air supply. This

eliminates air mixing and creates negative pressure,

accelerating the dispersion of hot air without the

assistance of fans.

• 42"D and 48"D cabinets only

• Adjustable height: 26" - 48" or 48"-60"

• Bolt-On design, easy to retrofit

• (2) brush sealed cable openings

Vertical Air Duct

Part# Description Weight

TS2442E48-3 Air Duct, 26"-48"H, 42"D cabinet 25 lb

TS2442E60-3 Air Duct, 48"-60"H, 42"D cabinet 29 lb

TS2448E48-3 Air Duct, 26"-48"H, 48"D cabinet 27 lb

TS2448E60-3 Air Duct, 48"-60"H, 48"D cabinet 31 lb

Additional mounting hardware packs for rack

mounting equipment to the cabinet mounting

rails.

Mounting Hardware

Part# Description Weight

AHPF1032-30 30pc, 10-32 screw 1 lb

AHPF1032CN-30 30pc, 10-32 cage-nut 1 lb

AHPFM6-30 30pc, M6 screw 1 lb

AHPFM6CN-30 30pc, M6 cage-nut 1 lb

AHPFCN-30 30pc, M6 screw w/ cage-nut 2 lb

AHPFCN-100 100pc, M6 screw w/ cage-nut 6 lb

Adjustable

Fixed

Cabinet Systems

84", 102"

24"

40"

Cage Nut (square hole)

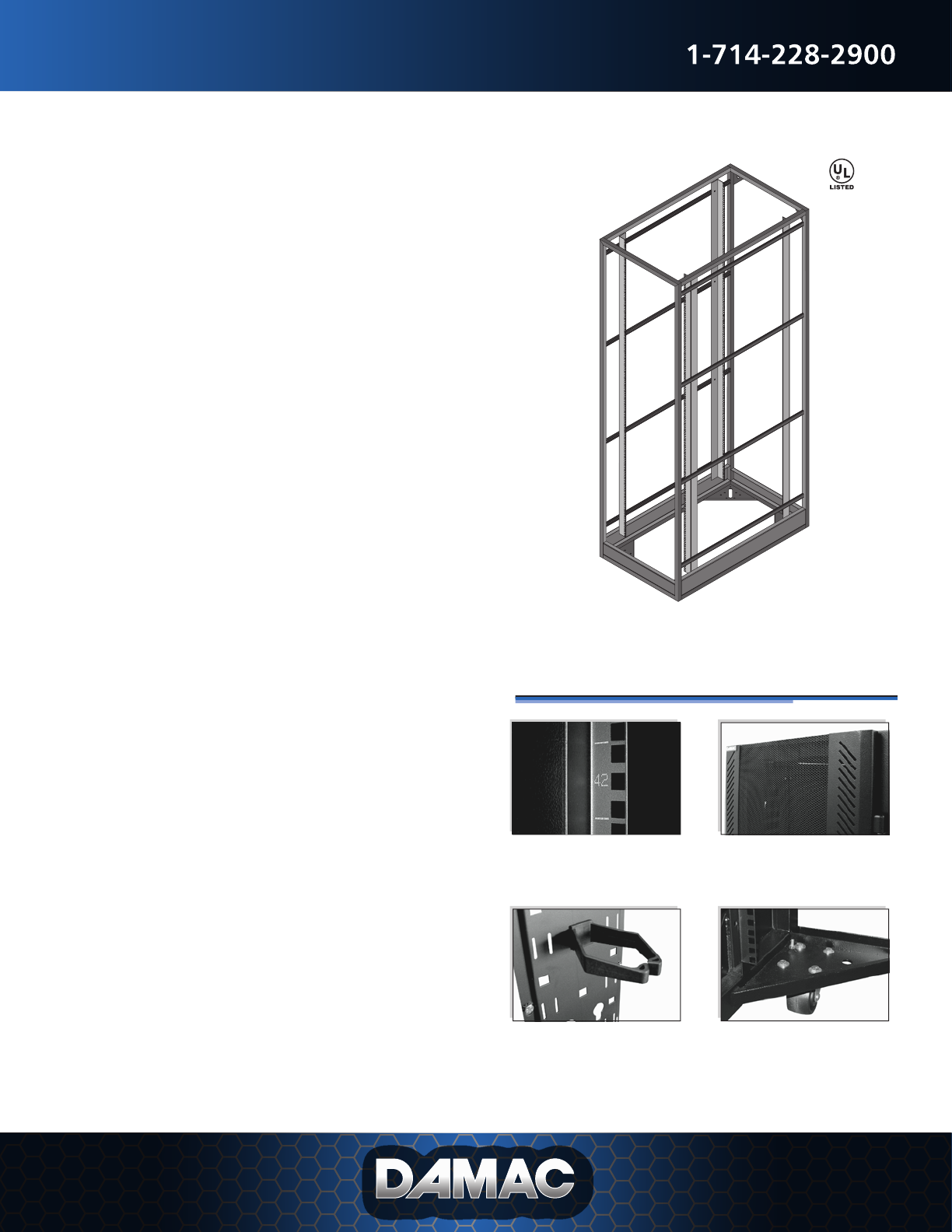

Co-Location Series Cabinet System

The Co-Location Cabinet is available in a 2, 3 and 4 secure

compartment configuration. The cabinet doors feature a

combination lock with a master key over-ride.

Each compartment includes two independent sets 19" rackable

mounting rails. The mounting rails are adjustable allowing for

compartment specific mounting depths.

A secure cable channel separates compartment specific cable

runs. This unique channel ensures no tampering with neighboring

compartment data and power cables. Supports over-head or

raised floor cable entry.

• Fully Welded Construction: 2000 lb. static wt.

• 19" EIA width

• (2) sets of adjustable mounting rails per compartment

• EIA-310-D Standard Universal 5/8 x 5/8 x 1/2 hole spacing

• M6 Cage-Nut (square) mounting holes

• Up to four secure equipment compartments

• Pre-drilled for field compartment changes

• Secure, isolated data and power cable channels, top or bottom entry

• Reinforced doors, removable w/ combo locks and security hinges

• Doors exceed active equipment req. for air-flow, hot/cold aisle ready

• Locking/removable flush side panels

• Flush top panels w/ cable knock-outs, removable

• Open bottom for raised floor access and ventilation

• Seismic floor mounting plates w/ levelers, casters optional

• Zero clearance coupling, 24"W model, width of standard floor tile

• Integrated unistrut for rail free mounting of accessories and power

• Textured epoxy powder-coat finish

• Cabinet ships fully assembled

• Custom configurations are available

• UL Listed

Height:

Width:

Depth:

Rails:

Application:

Model Sizes:

Specifications:

Cabinet Features:

Co-Location

Web Hosting

ISP, Internet Service Provider

Secure/Multi-Compartment

82% open door perforation pattern.

Exceeds equipment requirements for

air flow.

Secure, isolated data and power

cable channels, top or bottom entry

Combination locks are

standard for all mesh

doors. User sets the

combination code. Also

includes a keyed lock for

combination over-ride.

Key is included.

Fully welded seismic floor mounting

gussets included. Accepts optional

caster kits or a grounding lug.

NEW

54U Model

NEW

Standard Feature

(2) sets of adjustable mounting rails

per compartment.

Optional FloTrac™ fan kit adds

compartment specific cooling.

Mounts to mesh doors and is

adjustable (top-bottom)

Cabinet Systems

Replace (3) in part# with

alternative color choice: (1) Putty,

(2) Blue, (4) Gray, (5) White,

(6) Dark Gray

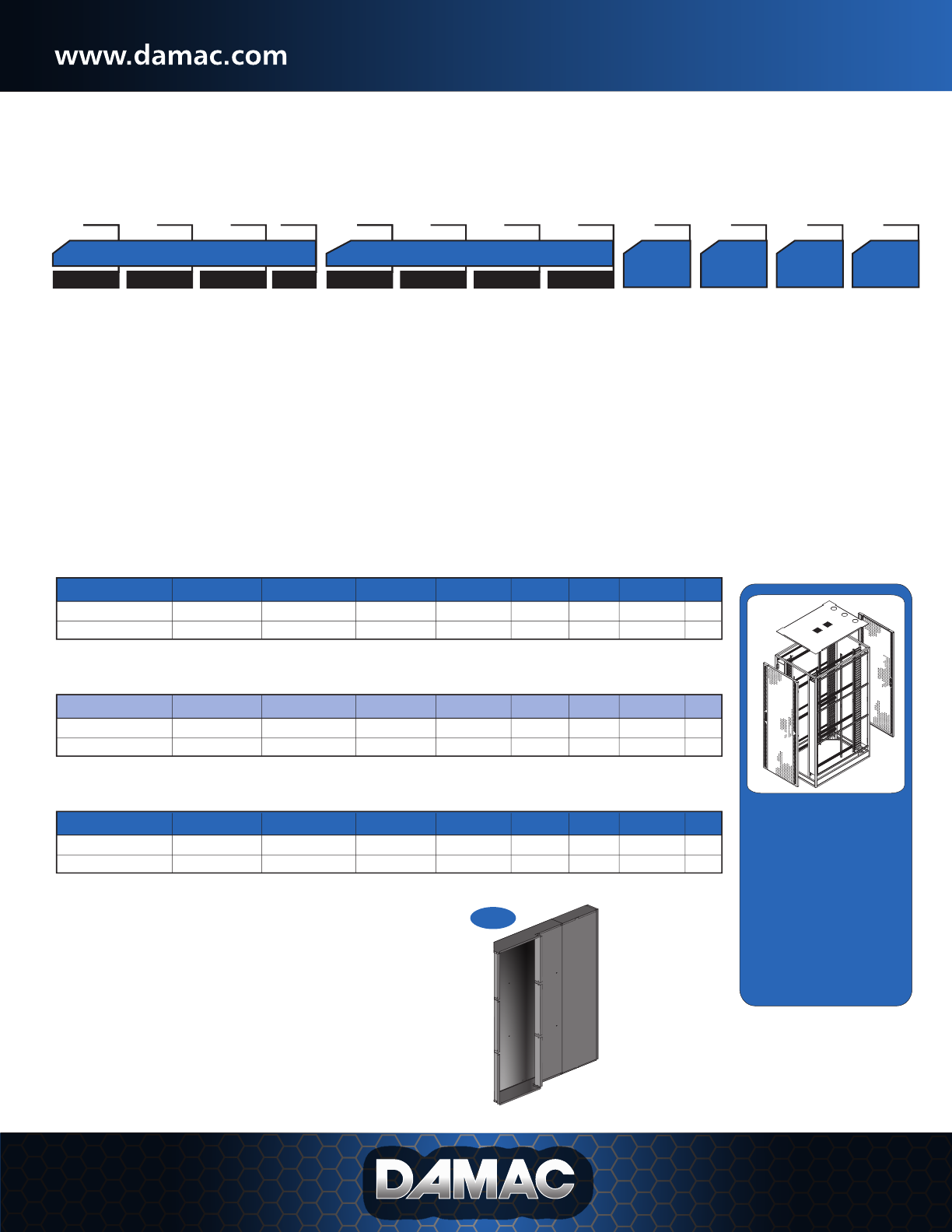

Use the part matrix below to build a Co-Location Cabinet to your specific requirements. Choose the Height, Width/Rail Style,

Depth, Front Door, Door Hinge Location, Lock, Rear Door, Side Panel, Top and Color.

Pre-Configured Cabinet options shown with ordering codes. Sample Part #: CC284EPB1CBSV3

TYPE

CC2

2 Compartment

CS2

2 Compartment

102"H only

CC3

3 Compartment

CS3

3 Compartment

102"H only

CS4

4 Compartment

102"H only

84”

102

102”

24” Wide

19” Rackable

Cage Nut Rail

Mesh

w/ FloTrac

Mesh

FloTrac Ready

Vent Plex

None

Front: right

Rear: right

Front: right

Rear: left

Front: left

Rear: right

Front: left

Rear: left

Mesh

w/ FloTrac

Mesh

FloTrac Ready

Vent Plex

None

Solid, pair

Solid, 1 only

None

Solid

Vented

Putty

Blue

Black

Gray

White

Dark Gray

40”

HEIGHT/U# WIDTH/RAILS DEPTH FRONT DOOR DOOR HINGE REAR DOOR

Unalike

Key and

Combo

Alike

KEY/LATCH

CC2 84 E P B 1 C B S V 3

FRAME DOORS SIDES TOP COLOR

Cabinet Includes:

Color Option:

• (1) fully welded four-post frame

• 19" cage-nut mounting rails.

• (2) locking solid side panel (optional)

• locking mesh front door (optional)

• locking mesh rear door (optional)

• combo lock w/ master key per door

• (1) vented top panel (optional)

• (1) secure cable channel

• (4) leveling feet

• (4) seismic floor mounting gussets

• (1) bag of 30pc mounting hardware

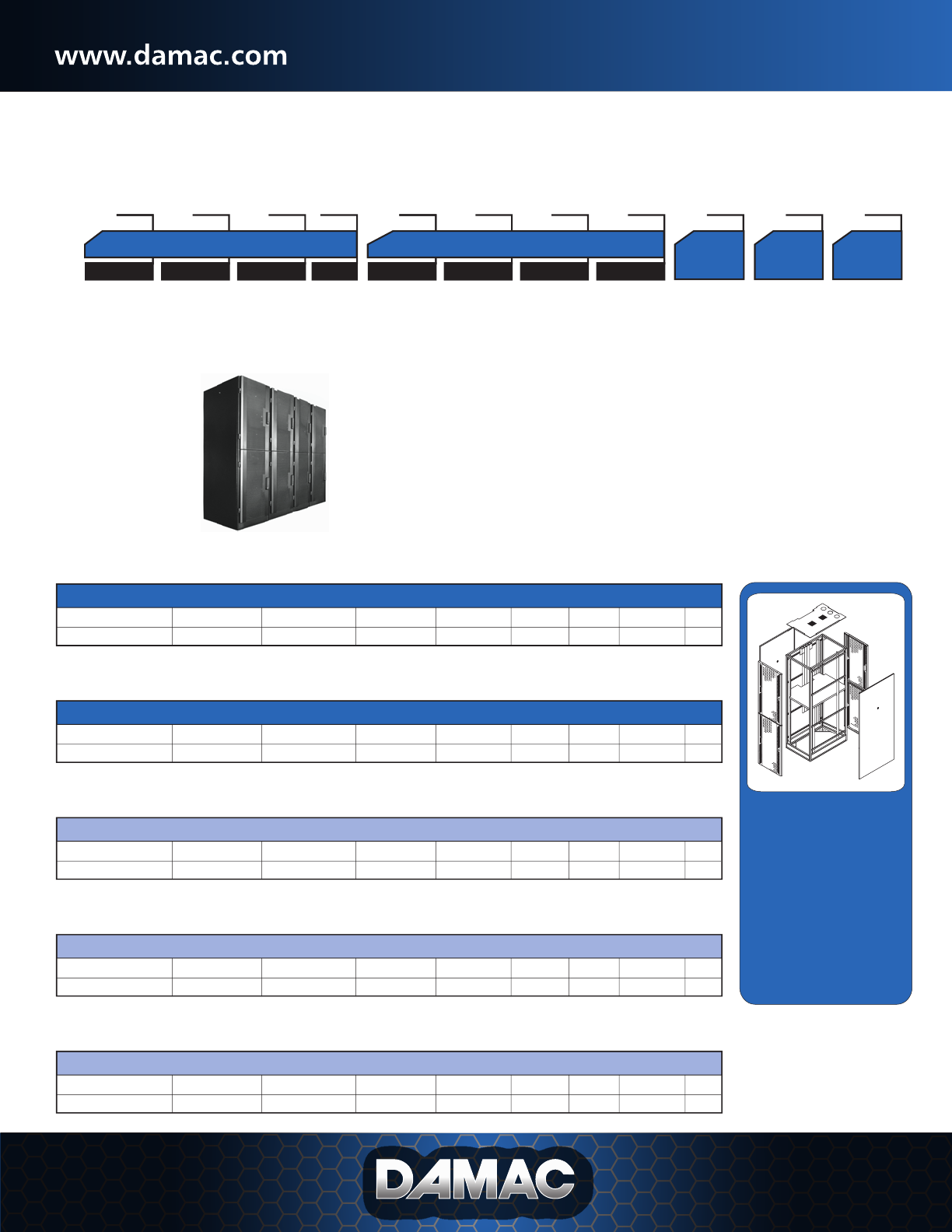

84" - (2) Compartment Cabinet

Part # H x W x D Mnt. Rail F.Door R.Door Sides Top Color Wt.

CC284EPB1SBSV3 84 x 24 x 40 19"/Cage-Nut Mesh Mesh Solid Vent Black 250

CC284EPV1SBSV3 84 x 24 x 40 19"/Cage-Nut Vent Plexi Mesh Solid Vent Black 250

22U per compartment

84" - (3) Compartment Cabinet

Part # H x W x D Mnt. Rail F.Door R.Door Sides Top Color Wt.

CC384EPB1SBSV3 84 x 24 x 40 19"/Cage-Nut Mesh Mesh Solid Vent Black 265

CC384EPV1SBSV3 84 x 24 x 40 19"/Cage-Nut Vent Plexi Mesh Solid Vent Black 265

14U per compartment

102" - (2) Compartment Cabinet

Part # H x W x D Mnt. Rail F.Door R.Door Sides Top Color Wt.

CS2102EPB1SBSV3 102 x 24 x 40 19"/Cage-Nut Mesh Mesh Solid Vent Black 315

CS2102EPV1SBSV3 102 x 24 x 40 19"/Cage-Nut Vent Plexi Mesh Solid Vent Black 315

27U per compartment

102" - (3) Compartment Cabinet

Part # H x W x D Mnt. Rail F.Door R.Door Sides Top Color Wt.

CS3102EPB1SBSV3 102 x 24 x 40 19"/Cage-Nut Mesh Mesh Solid Vent Black 325

CS3102EPV1SBSV3 102 x 24 x 40 19"/Cage-Nut Vent Plexi Mesh Solid Vent Black 325

17U per compartment

102" - (4) Compartment Cabinet

Part # H x W x D Mnt. Rail F.Door R.Door Sides Top Color Wt.

CS4102EPB1SBSV3 102 x 24 x 40 19"/Cage-Nut Mesh Mesh Solid Vent Black 340

CS4102EPV1SBSV3 102 x 24 x 40 19"/Cage-Nut Vent Plexi Mesh Solid Vent Black 340

13U per compartment

Cabinet Systems

Co-Location Series Technical Specifications

Cabinet dimensions include doors, sides & top. Usable dimensions are maximum usable interior dimensions.

Side View

Cabinet Dimensions: see drawing for A, B, and C

0.25

1.75 / 1 RMU

B - Width

Cabinet

in mm

Frame

in mm

24.0 610 24.0 610

A - Height

Cabinet

in mm

Frame RMU

in mm

84.0 2133 84.0 2133

102.0 2590 102.0 2590

2 3

22u 14u

27u 17u

n/a

13u

C - Depth

Cabinet

in mm

Frame

in mm

43.0 1092 40.0 1016

Usable

in mm

36.0 914

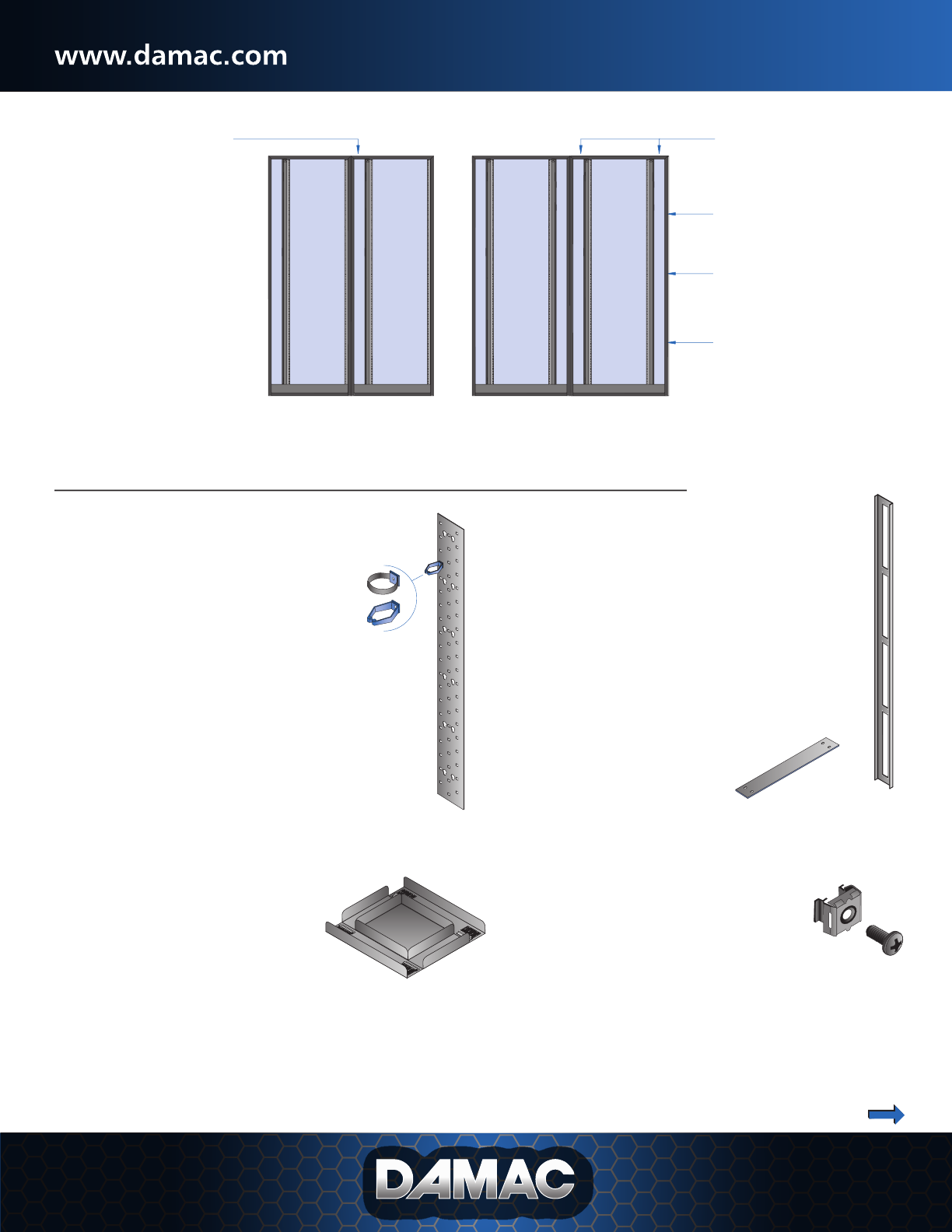

Mounting Rail Detail

Mounting rails support 19" rack mount

equipment. Meet EIA-310-D industry

standard hole spacing. Feature M6 cage-

nut (square) mounting holes. Finished in

black powder-coat.

per compartment

2 Compartment 3 Compartment 4 Compartment

102" height only

1/2

5/8

33.25"

17.25"

3.38 3.38

Floor Mounting Dimensions

Mounting Dims - CENTER TO CENTER

B C

Side View

4 Compartment

102" height only

Cabinet Systems

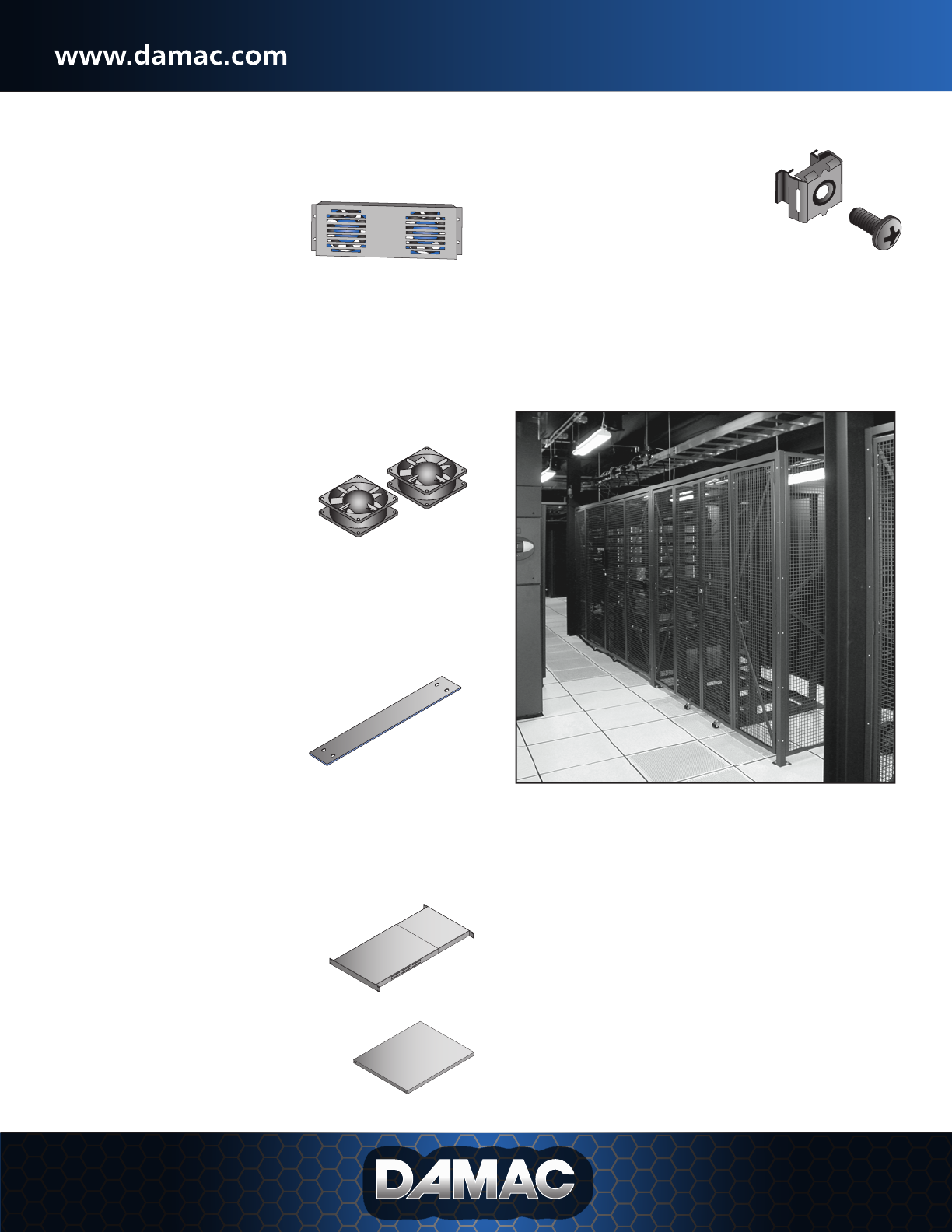

Co-Location Series Accessories

Need Security Cages?

Contact customer service for more information

Additional M6 mounting hardware packs for

rack mounting equipment to the cabinet

mounting rails.

Mounting Hardware

For equipment that does not support rack-mounted

brackets, equipment shelves are an ideal solution.

Available in fixed or adjustable depth.

• Available in fixed or adjustable depth.

• Includes mounting hardware

• Epoxy powder-coat finish, black

Equipment Shelves

Part# Description Weight

SHA1924S-3 Solid, adjustable 24"-36" 12 lb

SH1924S-3 Solid, fixed 24" 12 lb

SH1929S-3 Solid, fixed 29" 14 lb

Fan kits can be added to any size vented

cabinet top. Kits include mounting hardware.

Fan Kits

Part# Description Weight

ATFK2 (2) Fans, 120 VAC 8 lb

ATFK2L (2) Low Noise Fans, 120 VAC 10 lb

ATFK2-220 (2) Fans, 220 VAC 6 lb

Joins two cabinets side by side. Cabinets must

be the came height. Mounts to the two

coupling holes found in the top of the cabinet

frame. Mounting hardware included.

Cabinet Coupling Kit

Part# Description Weight

ATMCK2-3 Cabinet Coupling Kit, black 5 lb

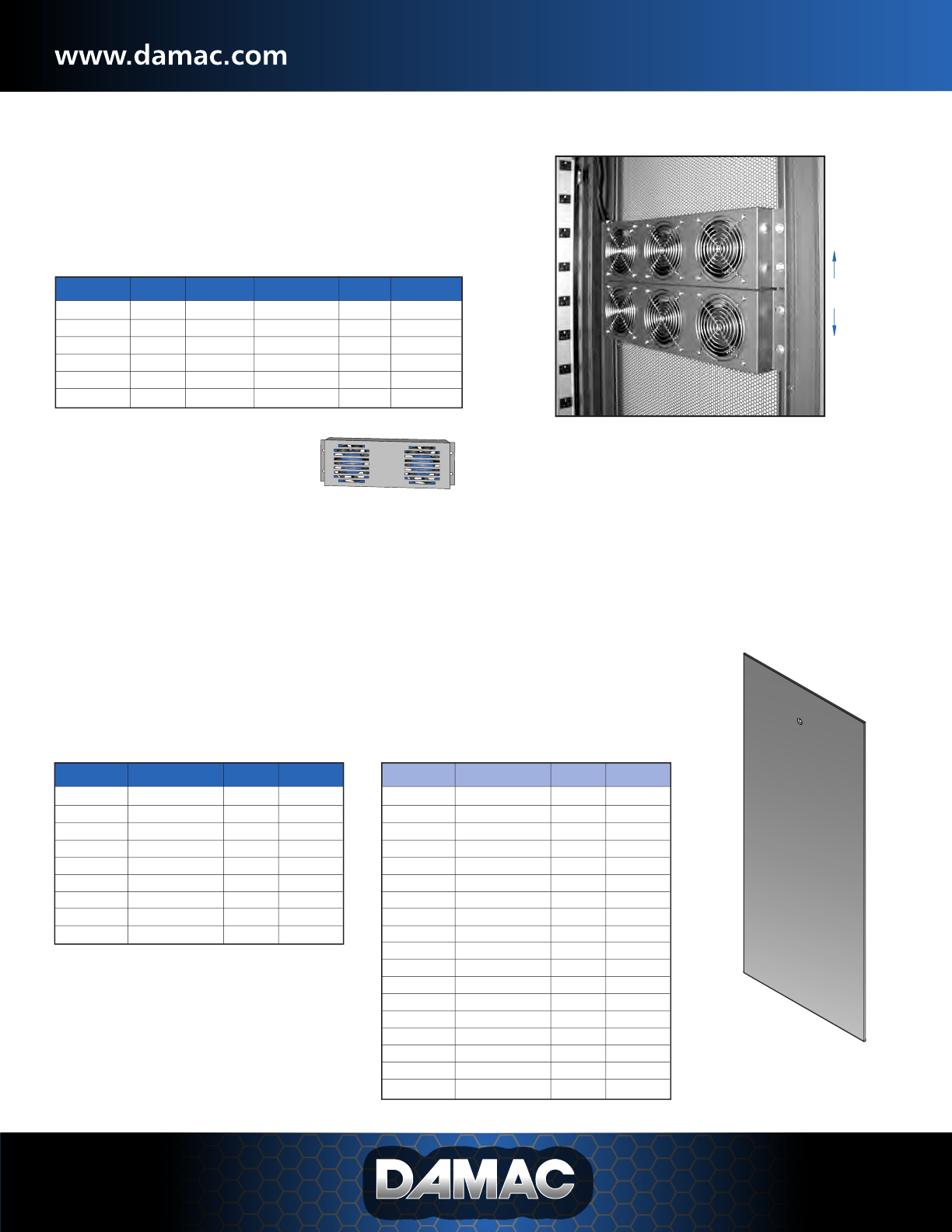

Increases front to back air flow by 20%. Kits

mount to the inside of mesh doors that are

ordered FloTrac ready: ("O" as the door

designation symbol in the cabinet part#).

Kits can be installed at any vertical position

on the door. Multiple kits can be installed.

• Increases air flow by 20%

• available for fan ready mesh doors only

• Bolt-on design

FloTrac™ Fan Kits

Part# Description Weight

AD2FTK24 FloTrac Unit, 120VAC 3 lb

Part# Description Weight

AHPFM6-30 30pc, M6 screw 1 lb

AHPFM6CN-30 30pc, M6 cage-nut 1 lb

AHPFCN-30 30pc, M6 screw w/ cage-nut 2 lb

AHPFCN-100 100pc, M6 screw w/ cage-nut 6 lb

Damac security cages are a completely modular cage solution

designed for co-location and data center deployments. Cage

panels are easily installed and anchored via our unique pedestal

system. The simple bolt together design allows for a quick

installation therefore reducing infrastructure and maintenance

costs. Cages are available in a variety of configurations and

include a locking slide door. All cage parts are finished in a

durable black epoxy powder-coat.

• Various Sizes

• Completely Secure

• Co-Location Ready

• High Value

• Quick Turn

• Easy Assembly

Adjustable

Fixed

Adjustable

Fixed

Cabinet Systems

84"

28", 32"

40", 48"

Cage Nut, Tapped

CableAxis™ Network Cabinet System

The CableAxis Cabinet address the additional needs found in high

density applications within a data center environment. Featuring

specific enhancements to manage network switches, high density

cabling, side-to-side airflow while maintaining a hot/cold aisle layout.

The unique cabinet design adds additional internal cabinet clearance

to the sides of the mounting rails. This dedicated cabinet area

promotes improved cabling and air management. Install an optional

air duct to manage side to side air flow produced by some types of

network switches.

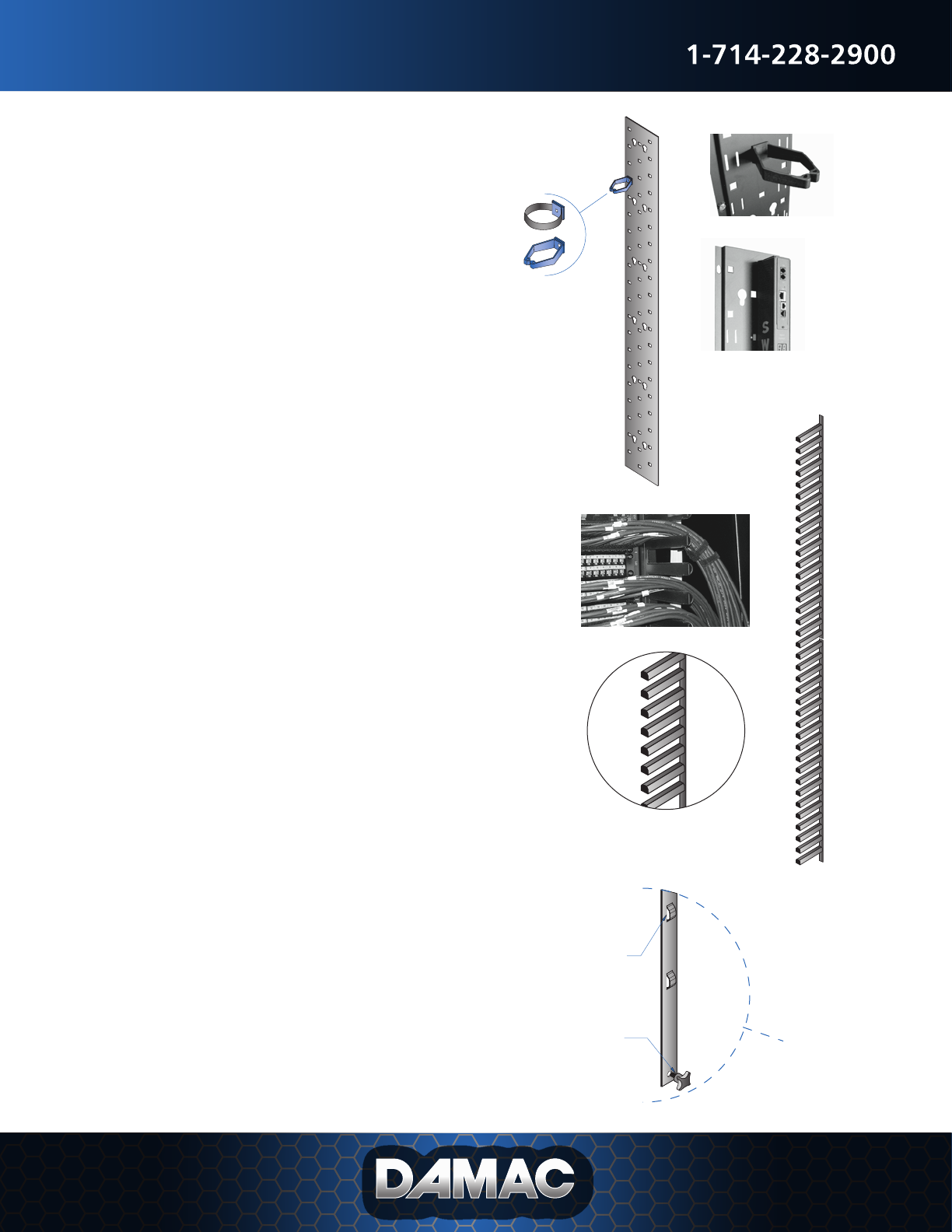

Vertical cable fingers are included in the front and rear for cable and

power cord routing flexibility. The cable fingers align with

corresponding rack spaces and ensure proper cable bend radius.

• Fully Welded Construction: 2000 lb. static wt.

• 19" EIA width, 45 RMU

• (2) sets of adjustable mounting rails per compartment

• EIA-310-D Standard Universal 5/8 x 5/8 x 1/2 hole spacing

• M6 cage-nut (square) or 10-32 tapped mounting holes

• Dedicated cable management section: single or double sided

• Vertical cable fingers in the front and rear, align with rack spaces

• Network switch side-to-side air duct available

• Grounding lug included in the cabinet bottom

• Reinforced mesh doors w/ key locks and security hinges

• Doors exceed active equipment req. for air-flow, hot/cold aisle ready

• Locking/removable flush side panels

• Flush top panels w/ cable knock-outs, removable

• Open bottom for raised floor access and ventilation

• Seismic floor mounting plates w/ levelers, casters optional

• Zero clearance coupling, 24"W model, width of standard floor tile

• Integrated unistrut for rail free mounting of accessories and power

• Textured epoxy powder-coat finish

• Cabinet ships fully assembled

• Custom configurations are available

• UL Listed

Height:

Width:

Depth:

Rails:

Application:

Model Sizes:

Specifications:

Cabinet Features:

Network Switches

Side-to-Side Air Flow

High Density Applications

82% open door perf pattern. Exceeds

equipment requirements for air flow.

Optional "zero-u" patch panel

bracket. Vertically mount up to

(4) 1U copper or fiber patch panels.

Fully welded seismic floor mounting

gussets included. Accepts optional

caster kits, grounding lug included.

NEW

optional switch

side air flow duct

Vertical cable routing fingers installed

in the front and back. Fingers align

with corresponding rack units

(2) sets of adjustable mounting rails

with RMU markings.

Optional in-cabinet Air Duct System.

Redirects network equipment side air

flow to the cabinet rear.

Cabinet Systems

Replace (3) in part# with

alternative color choice: (1) Putty,

(2) Blue, (4) Gray, (5) White,

(6) Dark Gray

Use the part matrix below to build a CableAxis Network Cabinet to your specific requirements. Choose the Height, Width/Rail

Style, Depth, Front Door, Door Hinge Location, Lock, Rear Door, Side Panel, Top and Color.

Pre-Configured Cabinet options shown with ordering codes. Sample Part #: CCD84ESB1SBSD3AD

TYPE

CCS

Left

Single Side

CCT

Right

Single Side

CCD

Double Side

84”/45U

28” Wide

19” Rackable

10-32 Rail

28” Wide

19” Rackable

Cage Nut Rail

32” Wide

19” Rackable

Cage Nut Rail

Mesh

w/ FloTrac

Mesh

FloTrac Ready

Vent Plex

None

Front: right

Rear: right

Front: right

Rear: left

Front: left

Rear: right

Front: left

Rear: left

Mesh

w/ FloTrac

Mesh

FloTrac Ready

Vent Plex

None

Solid, pair

Solid, 1 only

None

Solid

Vented

Cable Routing

System

None

Putty

Blue

Black

Gray

White

Dark Gray

40”

48”

HEIGHT/U# WIDTH/RAILS DEPTH FRONT DOOR DOOR HINGE REAR DOOR

Unalike

Key and

Combo

Alike

KEY/LATCH

CCD 84 E S B 1 S B S D 3 AD

FRAME DOORS SIDES TOP COLOR

Side-to-Side

Air Duct

* 32"W Cab Only

AIR

DUCT

Cabinet Includes:

Color Option:

• (1) fully welded four-post frame

• (2) pair, 19" cage-nut mounting rails.

• (2) locking solid side panel (optional)

• (1) locking mesh front door (optional)

• (1) locking mesh rear door (optional)

• (4) vertical cable routing fingers

• (1) vented top panel (optional)

• (1) grounding lug

• (4) leveling feet

• (4) seismic floor mounting gussets

• (1) bag of 30pc mounting hardware

Single Sided, Left - Cable Management on the left side of the mounting rails

Part Number H x W x D Mnt. Rail F.Door R.Door Sides Top Color Wt.

CCS84EPB1SBSV3 84 x 28 x 40 19"/Cage-Nut Mesh Mesh Solid Vent Black 310

CCS84ESB1SBSV3 84 x 28 x 48 19"/Cage-Nut Mesh Mesh Solid Vent Black 330

Single Sided, Right - Cable Management on the left side of the mounting rails

Part Number H x W x D Mnt. Rail F.Door R.Door Sides Top Color Wt.

CCT84EPB1SBSV3 84 x 28 x 40 19"/Cage-Nut Mesh Mesh Solid Vent Black 310

CCT84ESB1SBSV3 84 x 28 x 48 19"/Cage-Nut Mesh Mesh Solid Vent Black 330

Double Sided - Cable Management on both sides of the mounting rails

Part Number H x W x D Mnt. Rail F.Door R.Door Sides Top Color Wt.

CCD84EPB1SBSV3 84 x 32 x 40 19"/Cage-Nut Mesh Mesh Solid Vent Black 340

CCD84ESB1SBSV3 84 x 32 x 48 19"/Cage-Nut Mesh Mesh Solid Vent Black 360

In-Cabinet Air Duct

The new in-cabinet Air Duct System redirects the

side-to-side airflow of network switch gear to the rear of the cabinet.

This increases cooling efficiencies by eliminating air flow restrictions,

cabinet-to-cabinet air mixing and establishes front to back air flow within

the cabinet. Ideal solution for supporting hot and cold aisle ways in a data

center.

Add (AD) to the end of the cabinet part# to include an Air Duct in your

preferred cabinet configuration. Factory installed only. 32"W (CCD)

cabinets only.

NEW

Cabinet Systems

CableAxis™ Series Technical Specifications

Cabinet dimensions include doors, sides & top. Usable dimensions are maximum usable interior dimensions.

Front View-Single Sided

Cabinet Dimensions: see drawing for A, B, and C

3.38 3.38

Floor Mounting Dimensions

Cabinet Dim. D

CENTER TO CENTER

28.0"W x 40.0"D

28.0"W x 48.0"D

32.0"W x 40.0"D

32.0"W x 48.0"D

21.25"

25.25"

33.25"

41.25"

33.25"

41.25"

A - Height

Cabinet

in mm

Frame RMU

in mm

C - Depth

Cabinet

in mm

Frame

in mm

B - Width

Cabinet

in mm

Frame

in mm

28.0 711 28.0 71184.0 2133 84.0 2133 45u 43.0 1092 40.0 1016

51.0 1295 48.0 121932.0 813 32.0 813

Usable

in mm

38.0 965

46.0 1168

Mounting Rail Detail

Mounting rails support 19" rack mount equipment. Meet EIA-310-D industry

standard hole spacing. Feature M6 cage-nut (square) or 10-32 tapped (round)

mounting holes. Finished in black powder-coat.

Cage-Nut Rail

0.25

1.75 / 1 RMU

1/2

5/8

Tapped Rail

0.25

1.75 / 1 RMU

1/2

5/8

Front View-Double Sided

Side View

Cabinet Systems

CableAxis™ Series Accessories

optional d-rings

or loops snap into

place and rotate

360 degrees

Additional Accessories See the cabinet accessories section for additional items.

Mount up to four 1U/19" fiber or copper patch

panels vertically along the sides of the cabinets

mounting rails. Aligns patch panels with the

desired rack spaces. Reduce cost and clutter by

using standard length patch cords.

Zero-U Patch Panel Bracket

Part# Description Weight

ACVPB Vertical Patch Panel Brkt 3 lb

Eliminates the need for an expensive

overhead cable routing system. Includes

multiple brush sealed cable openings. The

large cable channels can accommodate large

density cable runs. Channels align with

neighboring cabinet top panels creating aisle

long routing pathways and keeping the cables

hidden for improved esthetics.

Top Panel w/ Cable Routing

Part# Description Weight

TA3240D-3 Top Panel, fits 32"W x 42"D Cabinet 17 lb

TA3248D-3 Top Panel, fits 32"W x 48"D Cabinet 22 lb

Joins two cabinets side by side.

Cabinets must be the came height.

Mounts to the two coupling holes

found in the top of the cabinet

frame. Mounting hardware included.

Cabinet Coupling Kit

Part# Description Weight

ATMCK2-3 Cabinet Coupling Kit, black 5 lb

Additional mounting hardware packs for rack

mounting equipment to the cabinet mounting rails.

Mounting Hardware

Part# Description Weight

AHPF1032-30 30pc, 10-32 screw 1 lb

AHPF1032CN-30 30pc, 10-32 cage-nut 1 lb

AHPFM6-30 30pc, M6 screw 1 lb

AHPFM6CN-30 30pc, M6 cage-nut 1 lb

AHPFCN-30 30pc, M6 screw w/ cage-nut 2 lb

AHPFCN-100 100pc, M6 screw w/ cage-nut 6 lb

• PDU button mounting spaces @ 12.25" centers

• Add D-Rings or Velcro™ loops, sold separately

Universal PDU/Cable Bracket

Part# Description Weight

APCBU Cable/PDU Bracket 3 lb

ABCBUR10 D-Rings, 10pc 1 lb

ABCBUV10 Velcro™ Loops, 10pc 1 lb

Creates a vertical pathway for cable routing or PDU

mounting. Installs to the cabinets horizontal unistrut.

Requires 6.75" of usable depth. PDU mounting

requires button style mounting provisions. Three

vertical rows of squares receptacle holes included

for installation of cable D-Rings or Velcro loops.

Double Sided Bayed RowSingle Sided Bayed Row

6" dedicated cabling channel with

overhead or raised floor entry

Vertical cable routing fingers installed

in the front and back. Fingers align

with corresponding rack units

Optional "zero-u" patch panel

bracket. (4) 2U mounting positions

w/ block-out plates

Cab #1

Cab #1Cab #1 Cab #2 Cab #2

Additional internal cabinet cabling

clearance to the sides of the

mounting rails. The cable channel

can be shared between two

cabinets for interior cabinet to

cabinet cross-connect, patching

and power sharing.

Optional in-cabinet Air Duct System.

Redirects network equipment side air

flow to the cabinet rear.

Cabinet Systems

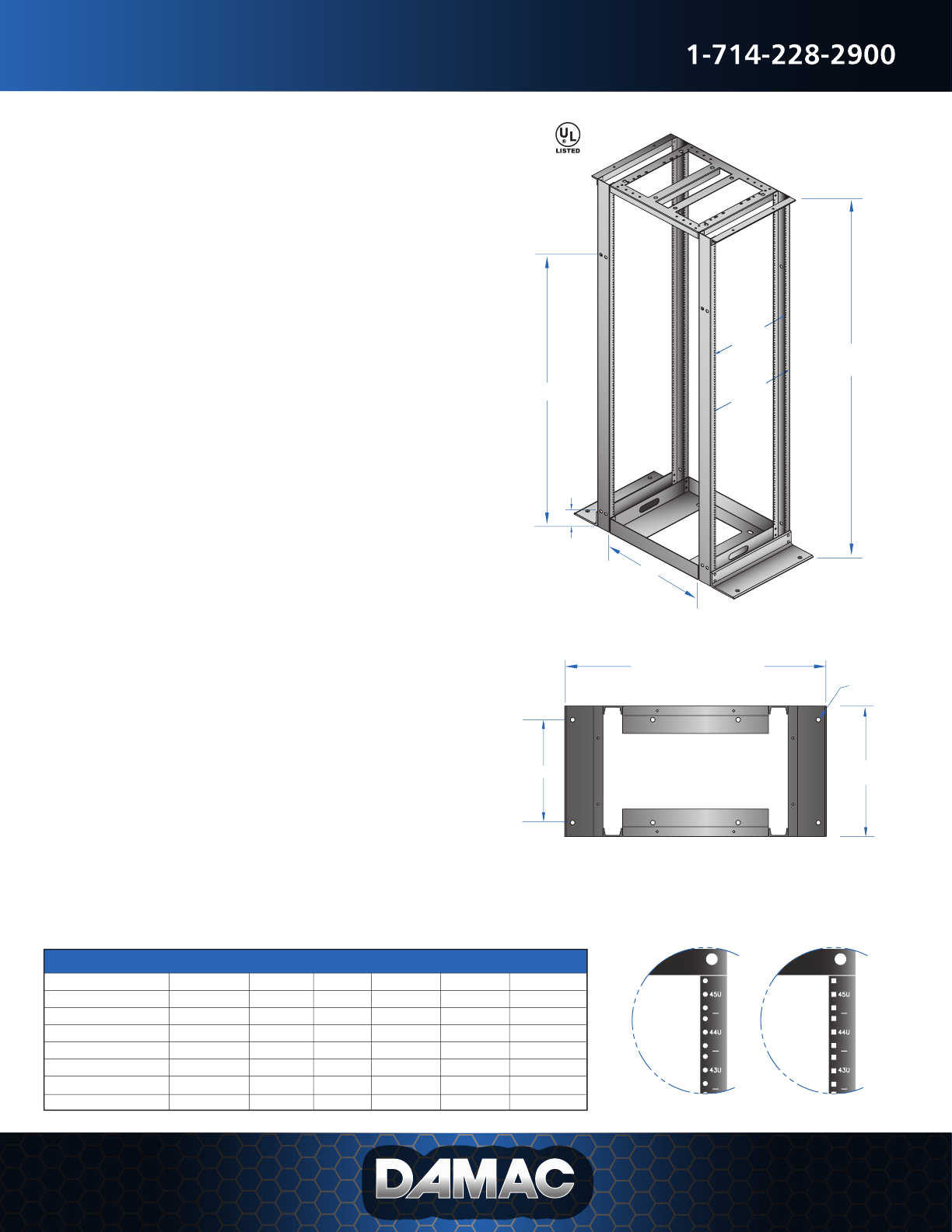

Open Frame Cabinet System

Open Frames provide flexibility and a cost saving solution for

supporting a wide variety of equipment. The unique frame design

supports 19" rack-mounted equipment in a stationary or rolling

(on casters) environment, fully loaded with up to 2500 lbs.

Frames include provisions for adding doors, sides and a top panel.

• Fully welded construction: up to 2500 lbs load rating

• 19" EIA width, 42U - 54U

• (2) sets of adjustable mounting rails per compartment

• EIA-310-D Standard Universal 5/8 x 5/8 x 1/2 hole spacing

• M6 cage-nut (square) or 10-32 tapped mounting holes

• Provisions for mounting doors, sides and top

• Open bottom for raised floor access and ventilation

• Seismic floor mounting plates w/ levelers, casters optional

• Zero clearance coupling, 24"W model, width of standard floor tile

• Integrated unistrut for rail free mounting of accessories and power

• Textured epoxy powder-coat finish

• Cabinet ships fully assembled

• Custom configurations are available

• UL Listed

Specifications:

Cabinet Features:

(2) sets, 19" EIA-310-D compliant

mounting rails w/ RMU markings.

Rails are fully adjustable.

Mounting provisions for doors, side

panels and top.

Optional universal cable management

bracket w/ PDU button mounting

provisions. Install up to two PDU's or

three columns of D-Rings or Velcro™

loops. *sold separately, #APCBU

Fully welded seismic floor mounting

gussets included. Accepts optional

caster kits or a grounding lug.

Caster Kit, #AFCHD

FC Model Sizes:

78", 84"

24"

36", 40", 42"

10-32, Cage Nut

1500 lbs

Height:

Width:

Depth:

Rails:

Weight Cap:

78", 84", 88", 102"

24"

36", 40", 42", 48"

10-32, Cage Nut

2500 lbs

Height:

Width:

Depth:

Rails:

Weight Cap:

FZ Model Sizes:

Application:

General Purpose

Server/Networking

Co-Location

Retail/Schools

Off-Site Systems Integration

Cabinet Systems

Replace (-3) in part# with alt. color: (1)Putty, (2)Blue, (4)Gray, (5)White, (6)Dark Gray

42U Open Frame

FC078ED-3 1500 lbs 78x24x36 19"/Cage-Nut Black 85

FC078BD-3 1500 lbs 78x24x36 19"/10-32 Tap Black 85

FC078EP-3 1500 lbs 78x24x40 19"/Cage-Nut Black 90

FC078BP-3 1500 lbs 78x24x40 19"/10-32 Tap Black 90

FC078EQ-3 1500 lbs 78x24x42 19"/Cage-Nut Black 95

FC078BQ-3 1500 lbs 78x24x42 19"/10-32 Tap Black 95

FZ78ED-3 2500 lbs 78x24x36 19"/Cage-Nut Black 105

FZ78BD-3 2500 lbs 78x24x36 19"/10-32 Tap Black 105

FZ78EP-3 2500 lbs 78x24x40 19"/Cage-Nut Black 110

FZ78BP-3 2500 lbs 78x24x40 19"/10-32 Tap Black 110

FZ78EQ-3 2500 lbs 78x24x42 19"/Cage-Nut Black 115

FZ78BQ-3 2500 lbs 78x24x42 19"/10-32 Tap Black 115

FZ78ES-3 2500 lbs 78x24x48 19"/Cage-Nut Black 125

FZ78BS-3 2500 lbs 78x24x48 19"/10-32 Tap Black 125

Part # Rating HxWxD Mnt. Rail Color Wt.

45U Open Frame

FC084ED-3 1500 lbs 84x24x36 19"/Cage-Nut Black 90

FC084BD-3 1500 lbs 84x24x36 19"/10-32 Tap Black 90

FC084EP-3 1500 lbs 84x24x40 19"/Cage-Nut Black 95

FC084BP-3 1500 lbs 84x24x40 19"/10-32 Tap Black 95

FC084EQ-3 1500 lbs 84x24x42 19"/Cage-Nut Black 100

FC084BQ-3 1500 lbs 84x24x42 19"/10-32 Tap Black 100

FZ84ED-3 2500 lbs 84x24x36 19"/Cage-Nut Black 130

FZ84BD-3 2500 lbs 84x24x36 19"/10-32 Tap Black 130

FZ84EP-3 2500 lbs 84x24x40 19"/Cage-Nut Black 135

FZ84BP-3 2500 lbs 84x24x40 19"/10-32 Tap Black 135

FZ84EQ-3 2500 lbs 84x24x42 19"/Cage-Nut Black 140

FZ84BQ-3 2500 lbs 84x24x42 19"/10-32 Tap Black 140

FZ84ES-3 2500 lbs 84x24x48 19"/Cage-Nut Black 150

FZ84BS-3 2500 lbs 84x24x48 19"/10-32 Tap Black 150

Part # Rating HxWxD Mnt. Rail Color Wt.

48U Open Frame

FZ88ED-3 2500 lbs 88x24x36 19"/Cage-Nut Black 130

FZ88BD-3 2500 lbs 88x24x36 19"/10-32 Tap Black 130

FZ88EP-3 2500 lbs 88x24x40 19"/Cage-Nut Black 135

FZ88BP-3 2500 lbs 88x24x40 19"/10-32 Tap Black 135

FZ88EQ-3 2500 lbs 88x24x42 19"/Cage-Nut Black 140

FZ88BQ-3 2500 lbs 88x24x42 19"/10-32 Tap Black 140

FZ88ES-3 2500 lbs 88x24x48 19"/Cage-Nut Black 150

FZ88BS-3 2500 lbs 88x24x48 19"/10-32 Tap Black 150

Part # Rating HxWxD Mnt. Rail Color Wt.

54U Open Frame

FZ102ED-3 2500 lbs 84x24x36 19"/Cage-Nut Black 170

FZ102BD-3 2500 lbs 84x24x36 19"/10-32 Tap Black 170

FZ102EP-3 2500 lbs 84x24x40 19"/Cage-Nut Black 175

FZ102BP-3 2500 lbs 84x24x40 19"/10-32 Tap Black 175

FZ102EQ-3 2500 lbs 84x24x42 19"/Cage-Nut Black 180

FZ102BQ-3 2500 lbs 84x24x42 19"/10-32 Tap Black 180

FZ102ES-3 2500 lbs 84x24x48 19"/Cage-Nut Black 190

FZ102BS-3 2500 lbs 84x24x48 19"/10-32 Tap Black 190

Part # Rating HxWxD Mnt. Rail Color Wt.

D-Rings or loops

snap into place

and rotate

360 degrees

Creates a vertical pathway for cable routing or

PDU mounting. Installs to the cabinets horizontal

unistrute. Requires 6.75" of usable depth. PDU

mounting requires button style mounting

provisions. Three vertical rows of squares

receptacle holes included for installation of cable

D-Rings or Velcro™ loops.

• Dims: 71.75"H x 6.75"W

• PDU button mounting spaces @ 12.25" centers

• Add D-Rings or Velcro™ loops

Universal Cable/PDU Bracket

Part# Description Weight

APCBU Cable/PDU Bracket 3 lb

ABCBUR10 D-Rings, 10pc 1 lb

ABCBUV10 Velcro™ Loops, 10pc 1 lb

Caster kits bolt directly to the cabinets

weld-in seismic floor mounting gussets.

* add caster height to frame for total unit height

Caster Kits

Part# Description Height Weight

AFCHD 2000 lb cap. (2) w/ brake 4.5 in 8 lb

AFCYO 1600 lb cap. no brake 4.5 in 8 lb

AFCHL 2000 lb cap, low-profile 2.8 in 6 lb

Additional M6 mounting hardware packs for

rack mounting equipment to the cabinet

mounting rails.

Mounting Hardware

Part# Description Weight

AHPF1032-30 30pc, 10-32 screw 1 lb

AHPF1032CN-30 30pc, 10-32 cage-nut 1 lb

AHPFM6-30 30pc, M6 screw 1 lb

AHPFM6CN-30 30pc, M6 cage-nut 1 lb

AHPFCN-30 30pc, M6 screw w/ cage-nut 2 lb

AHPFCN-100 100pc, M6 screw w/ cage-nut 6 lb

Additional Accessories

See the cabinet accessories section

for additional items.

Cabinet Accessories

Cabinet Doors Cabinet System

A variety of cabinet door options are available. Each cabinet door

includes a standard latch with key lock, hinge assembly, lock catch

plate and mounting hardware.

Double Mesh

Vented Plexiglass

Note: Match door with cabinet height, width and color. Doors

add 1 inch to total cabinet depth.

Mesh

Solid

High Airflow Mesh Cabinet Door

DC4824B-3 Mesh Axis 48"H x 24"W Black 18 lb.

DS7224B-3 Mesh Seismic 72"H x 24"W Black 25 lb.

DC7824B-3 Mesh Axis 78"H x 24"W Black 30 lb.

DS7824B-3 Mesh Seismic 78"H x 24"W Black 30 lb.

DC8424B-3 Mesh Axis 84"H x 24"W Black 35 lb.

DS8424B-3 Mesh Seismic 84"H x 24"W Black 35 lb.

DC8428B-3 Mesh CableAxis 84"H x 28"W Black 40 lb.

DC8432B-3 Mesh CableAxis 84"H x 32"W Black 42 lb.

DS8824B-3 Mesh Seismic 88"H x 24"W Black 38 lb.

DS10224B-3 Mesh Seismic 102"H x 24"W Black 48 lb.

Part # Type Cabinet Size HxW Color Ship Wt.

Vented Plexiglass Cabinet Door

DC4824V-3 Vent Plex Axis 48"H x 24"W Black 18 lb.

DS7224V-3 Vent Plex Seismic 72"H x 24"W Black 25 lb.

DC7824V-3 Vent Plex Axis 78"H x 24"W Black 30 lb.

DS7824V-3 Vent Plex Seismic 78"H x 24"W Black 30 lb.

DC8424V-3 Vent Plex Axis 84"H x 24"W Black 35 lb.

DS8424V-3 Vent Plex Seismic 84"H x 24"W Black 35 lb.

DC8428V-3 Vent Plex CableAxis 84"H x 28"W Black 40 lb.

DC8432V-3 Vent Plex CableAxis 84"H x 32"W Black 42 lb.

DS8824V-3 Vent Plex Seismic 88"H x 24"W Black 38 lb.

DS10224V-3 Vent Plex Seismic 102"H x 24"W Black 48 lb.

Part # Type Cabinet Size HxW Color Ship Wt.

Double Mesh Cabinet Door

DC7824A-3 Dbl Mesh Axis 78"H x 24"W Black 30 lb.

DS7824A-3 Dbl Mesh Seismic 78"H x 24"W Black 30 lb.

DC8424A-3 Dbl Mesh Axis 84"H x 24"W Black 35 lb.

DS8424A-3 Dbl Mesh Seismic 84"H x 24"W Black 35 lb.

DS8824A-3 Dbl Mesh Seismic 88"H x 24"W Black 38 lb.

Part # Type Cabinet Size HxW Color Ship Wt.

Solid Metal Cabinet Door

DC8424S-3 Solid Axis 84"H x 24"W Black 35 lb.

DS8424S-3 Solid Seismic 84"H x 24"W Black 35 lb.

Part # Type Cabinet Size HxW Color Ship Wt.

Replace (-3) in part# with alternative color choice:

(-1) Putty, (-2) Blue, (-4) Gray, (-5) White, (-6) Dark Gray

Color Option:

Mesh doors feature 82% open door

perforation pattern. Exceeds equipment

requirements for air flow.

Cabinet Accessories

FloTrac™ Door Cabinet System

The FloTrac system promotes front-to-back air flow in a hot and cold aisle

environment. This unique system amplifies the effectiveness of your cold aisle inlet

and exhaust air outlet (hot aisle). This additional air-flow amplification provides

increased efficiencies and performance of the rack mounted equipments internal

cooling fans. FloTrac units mount to a vertical track on the inside of a mesh cabinet

door. Fan units can be positioned at any location on the internal vertical door area.

Doors include one FloTrac fan unit. Up to 11 additional units can be installed.

Side Panel, Solid Cabinet System

Cabinet side panels include a keyed lock. The recessed design allows for side

panel installation without adding any additional space requirement beyond

the cabinet frame. This creates zero clearance cabinet-to-cabinet coupling.

DC7824H-3 FloTrac Axis 78"H x 24"W Black 38 lb.

DS7824H-3 FloTrac Seismic 78"H x 24"W Black 38 lb.

DC8424H-3 FloTrac Axis 84"H x 24"W Black 43 lb.

DS8424H-3 FloTrac Seismic 84"H x 24"W Black 43 lb.

DS8824H-3 FloTrac Seismic 88"H x 24"W Black 46 lb.

DS10224H-3 FloTrac Seismic 102"H x 24"W Black 56 lb.

Part # Type Cabinet Size HxW Color Ship Wt.

Replace (-3) in part# with alternative color choice:

(-1) Putty, (-2) Blue, (-4) Gray, (-5) White, (-6) Dark Gray

Color Option:

Add additional FloTrac kits to an existing

install as your cooling requirements change.

FloTrac™ Fan Kits

Part# Description Weight

AD2FTK24 FloTrac Unit, 120VAC 3 lb

Note: Match side panel with cabinet height, depth

and color. Side panels are recessed into the cabinet

requiring no additional floor space. Side panels are

lockable and removable.

Cabinet Models:

Axis (CCO), CableAxis (CCS, CCT, CCD) and

Co-Location (CC2, CC3)

SC7830S-3 78"H x 30"D Black 18 lb.

SC7836S-3 78"H x 36"D Black 22 lb.

SC7840S-3 78"H x 40"D Black 28 lb.

SC7842S-3 78"H x 42"D Black 30 lb.

SC8430S-3 84"H x 30"D Black 20 lb.

SC8436S-3 84"H x 36"D Black 25 lb.

SC8440S-3 84"H x 40"D Black 30 lb.

SC8442S-3 84"H x 42"D Black 32 lb.

SC8448S-3 84"H x 48"D Black 37 lb.

Part # Cabinet HxD Color Ship Wt.

Cabinet Models:

Seismic (CS, CZ), Co-Location (CS2, CS3, CS4)

SS7230S-3 72"H x 30"D Black 18 lb.

SS7236S-3 72"H x 36"D Black 22 lb.

SS7240S-3 72"H x 40"D Black 27 lb.

SS7242S-3 72"H x 42"D Black 29 lb.

SS7242S-3 72"H x 48"D Black 31 lb.

SS7830S-3 78"H x 30"D Black 18 lb.

SS7836S-3 78"H x 36"D Black 22 lb.

SS7840S-3 78"H x 40"D Black 28 lb.

SS7842S-3 78"H x 42"D Black 32 lb.

SS7842S-3 78"H x 48"D Black 38 lb.

SS8430S-3 84"H x 30"D Black 20 lb.

SS8436S-3 84"H x 36"D Black 25 lb.

SS8440S-3 84"H x 40"D Black 30 lb.

SS8442S-3 84"H x 42"D Black 32 lb.

SS8442S-3 84"H x 48"D Black 38 lb.

SS8840S-3 88"H x 40"D Black 32 lb.

SS8842S-3 88"H x 48"D Black 40 lb.

SS10240S-3 102"H x 40"D Black 56 lb.

Part # Cabinet HxD Color Ship Wt.

FloTrac kits

adjust top-bottom

Cabinet Accessories

Replace (-3) in part# with alternative color choice: (-1) Putty, (-2) Blue, (-4) Gray, (-5) White, (-6) Dark Gray

Cabinet Models:

CableAxis (CCD) and Seismic (CS, CZ)

TS2442D-3 Seismic 24" x 42" Black 18 lb.

TS2448D-3 Seismic 24" x 48" Black 24 lb.

TA3240D-3 CableAxis 32" x 40" Black 28 lb.

TA3248D-3 CableAxis 32" x 48" Black 30 lb.

Part # Cabinet Cabinet WxD Color Ship Wt.

Adjustable Exhaust Height: 26" - 48"

TA2442E48-3 Axis 24" x 42" Black 25 lb.

TS2442E48-3 Seismic 24" x 42" Black 25 lb.

TS2448E48-3 Seismic 24" x 48" Black 32 lb.

Part # Cabinet Cabinet WxD Color Ship Wt.

Adjustable Exhaust Height: 48" - 60"

TA2442E60-3 Axis 24" x 42" Black 29 lb.

TS2442E60-3 Seismic 24" x 42" Black 29 lb.

TS2448E60-3 Seismic 24" x 48" Black 36 lb.

Part # Cabinet Cabinet WxD Color Ship Wt.

Top Panel Flush Mounted and Removable

Cabinet Cabinet WxD Solid Vented 2 Fan 4 Fan Color

Axis 24"W x 30"D TA2430S-3 TA2430V-3 TA2430F-3 TA2430R-3 Black

Seismic 24"W x 30"D TS2430S-3 TS2430V-3 TS2430F-3 TS2430R-3 Black

Axis 24"W x 36"D TA2436S-3 TA2436V-3 TA2436F-3 TA2436R-3 Black

Seismic 24"W x 36"D TS2436S-3 TS2436V-3 TS2436F-3 TS2436R-3 Black

Axis 24"W x 40"D TA2440S-3 TA2440V-3 TA2440F-3 TA2440R-3 Black

Seismic 24"W x 40"D TS2440S-3 TS2440V-3 TS2440F-3 TS2440R-3 Black

Axis 24"W x 42"D TA2442S-3 TA2442V-3 TA2442F-3 TA2442R-3 Black

Seismic 24"W x 42"D TS2442S-3 TS2442V-3 TS2442F-3 TS2442R-3 Black

Seismic 24"W x 48"D TS2448S-3 TS2448V-3 TS2448F-3 TS2448R-3 Black

CableAxis 28"W x 40"D TA2840S-3 TA2840V-3 TA2840F-3 TA2840R-3 Black

CableAxis 28"W x 48"D TA2848S-3 TA2848V-3 TA2848F-3 TA2848R-3 Black

CableAxis 32"W x 40"D TA3240S-3 TA3240V-3 TA3240F-3 TA3240R-3 Black

CableAxis 32"W x 48"D TA3248S-3 TA3248V-3 TA3248F-3 TA3248R-3 Black

Eliminates the need for an expensive overhead cable routing system.

Includes multiple brush sealed cable openings. The large cable channels

can accommodate large density cable runs. Channels align with

neighboring cabinet top panels creating aisle long routing pathways and

keeping the cables hidden for improved esthetics.

Top Panel w/ Cable Routing

Adding a Cabinet Air Exhaust directs the internal equipments hot exhaust air

vertically out of the cabinet and directly into the rooms return air supply. This

eliminates air mixing and creates negative pressure, accelerating the dispersion of

hot air without the assistance of fans.

• Bolt-On design, easy to retrofit

• (2) brush sealed cable openings

Cabinet Air Exhaust

Adjustable

Height

Cabinet Accessories

Mounting Rails Cabinet System

Cabinet mounting rails support 19" EIA 310-D compliant rack-mounted equipment.

Rails are fully adjustable to meet any equipment requirement. Multiple rail sets can be

added to all Damac cabinets for varying applications. Available in cage nut (square hole)

or 10-32 tapped mounting holes. Finished in a flat black epoxy powder-coat finish.

Optional silkscreened RMU marks are available. Sold in pairs.

ARC48B 19" Axis 48"H X 24"W 24U 13 lb.

ARC78B 19" Axis 78"H X 24"W 42U 19 lb.

ARC84B 19" Axis/CoLo 84"H X 24"W 45U 22 lb.

ARS72B 19" Seismic 72"H X 24"W 38U 17 lb.

ARS78B 19" Seismic 78"H X 24"W 45U 19 lb.

ARS84B 19" CableAxis, Seismic 84"H X 24"W 45U 22 lb.

ARS88B 19" Seismic 88"H X 24"W 48U 24 lb.

ARS102B 19" Seismic 102"H X 24"W 51U 26 lb.

10/32 Tapped, Pair

Part # Rackable Cabinet Model Fits Frame/Cab RMU Ship Wt.

Additional mounting hardware packs for rack mounting

equipment to the cabinet mounting rails.

Mounting Hardware

Part# Description Weight

AHPF1032-30 30pc, 10-32 screw 1 lb.

AHPF1032CN-30 30pc, 10-32 cage-nut 1 lb.

AHPFM6-30 30pc, M6 screw 1 lb.

AHPFM6CN-30 30pc, M6 cage-nut 1 lb.

AHPFCN-30 30pc, M6 screw w/ cage-nut 2 lb.

AHPFCN-100 100pc, M6 screw w/ cage-nut 6 lb.

Part# Height RMU Depth Ship Wt.

Cage-Nut Rail

0.25

1.75 / 1 RMU

1/2

5/8

Tapped Rail

0.25

1.75 / 1 RMU

1/2

5/8

ARC48E 19" Axis 48"H X 24"W 24U 13 lb.

ARC78E 19" Axis 78"H X 24"W 42U 19 lb.

ARC84E 19" Axis/CoLo 84"H X 24"W 45U 22 lb.

ARS72E 19" Seismic 72"H X 24"W 38U 17 lb.

ARS78E 19" Seismic 78"H X 24"W 45U 19 lb.

ARS84E 19" CableAxis, Seismic 84"H X 24"W 45U 22 lb.

ARS88E 19" Seismic 88"H X 24"W 48U 24 lb.

ARS102E 19" Seismic 102"H X 24"W 51U 26 lb.

M6 Cage-Nut, Pair

Part # Rackable Cabinet Model Fits Frame/Cab RMU Ship Wt.

Cabinet Air Dam Kit

Adding an air dam kit to your cabinet eliminates air mishandling by blocking the cool

intake air from mixing with the hot exhaust air around the sides, top and bottom of rack-

mounted equipment. Filler panels must be used to block open rack-mounting locations.

• Available for 24" wide cabinet models: Axis, Seismic

• Requires a 1.00" front rail setback from the cabinet frame

• Bolt-On design, easy to retrofit existing installs

AC01DK7824-3 78.00 in. 42U 1.00 in. 2.0 lb.

AC02DK7824-3 78.00 in. 42U 2.00 in. 3.0 lb.

AC01DK8424-3 84.00 in. 45U 1.00 in. 3.0 lb.

AC02DK8424-3 84.00 in. 45U 2.00 in. 4.0 lb.

Frame

Air Dam

Mnt. Rail

Cabinet Accessories

Cabinet PDU/Cable Bracket

Creates a vertical pathway for cable routing or PDU mounting. Installs to the

cabinets horizontal unistrut. Requires 6.75" of usable depth. PDU mounting

requires button style mounting provisions. Three vertical rows of squares

receptacle holes included for installation of cable D-Rings or Velcro™ loops.

• PDU button mounting spaces @ 12.25" centers

• Add D-Rings or Velcro™ loops, sold separately

• Cable routing finger can only be installed in 84"H/45U cabinets

• Mounts to the vertical mounting rails in (4) locations

Cabinet Cable Finger Manager

The Cable Finger Manager promotes superior cable management, maintains

proper bend radius and organizes your data cables, patch cords and power

cables. Cables can be routed through the vertical cable routing fingers for

optimal organization and patching. Cable fingers are evenly spaced at 1U

increments allowing cables to transition smoothly to rack mounted

equipment. Each cable finger is rounded ensuring proper cable bend radius.

optional D-Rings

or loops snap into

place and rotate

360 degrees

Part# Description Weight

APCBU Cable/PDU Bracket, 78"-84"H cabinets 3 lb.

APCBU96 Cable/PDU Bracket, 102"H cabinets 6 lb.

ABCBUR10 D-Rings, 10pc 1 lb

ABCBUV10 Velcro™ Loops, 10pc 1 lb

Part# Description Weight

ACCF684 Vertical Cable Fingers, 78"H x 7"D 10 lb

Cabinet Lacing Bar

The Vertical Lacing Bar provides 16 lance bridges for securing cable ties or

Velcro straps to organize cables within the cabinet. Includes Tool-less

mounting and installs to the side of a 78" or 84" height Damac cabinet.

Part# Description Weight

ACLB78 Vertical Lacing Bar, 1.0" wide 2 lb.

7" finger w/ radius edge

Lance

Bridge x16

Install Knob

Tooless, Black 71.50"L

Fits 78" and 84"

Cabinets

Cable

Management

PDU

Mounting

Cabinet Accessories

DETAIL VIEW

cabinet unistrut

mounting clip

Equipment frames with CableControl installed

Cabinet Cable Closet™

The Cable Closet is a cost effective and easy solution for organizing power or

data cables as they enter and exit the cabinet. The top and bottom are open

for overhead or raised floor cable runs. Featuring cable pass-thru slots, tie

down lances and a hinged cover. Attaches to the cabinet side unistrut, free of

the mounting rails. Easily adjusts front to back for precise placement.

Part# Description Weight

F532-003 Cable Closet w/ Cover, 78"H cabinets 9 lb.

F532-004 Cable Closet w/ Cover, 84"H cabinets 11 lb.

open closed

1.50

3.00

cable slot

grommet

hinged cover

cabinet unistrut

mounting slot

CableControl™ Rack Systems

CableControl is a cost effective vertical cable management solution. Utilizing a

patented wire-form design, makes organizing and bundling of cables simple.

The top and bottom are open for overhead or raised floor cable runs. The full

length D-Ring channel is constructed of rolled steel promoting proper bend

radius and a smooth protective surface. Attaches to the mounting rails surface

via a universal mounting bracket. Finished in durable black epoxy powder-coat.

F533-001-8 18.80" 2.50 2.50" 19" Rackable Black 2 lb.

F533-002-8 18.80" 3.50" 3.50" 19" Rackable Black 2 lb.

F533-003-8 18.80" 4.75" 4.75" 19" Rackable Black 3 lb.

F533-004-8 18.80" 4.75" 5.50" 19" Rackable Black 3 lb.

F533-015-8 68.00" 2.50" 2.50" Vertical Mnt. Black 5 lb.

F533-012-8 68.00" 3.50" 3.50" Vertical Mnt. Black 6 lb.

F533-014-8 68.00" 4.75" 5.50" Vertical Mnt. Black 7 lb.

Part # Height A-width B-depth Type Color Ship Wt.

Cabinet Accessories

Cabinet Shelves, Adjustable

SH1924S-3 Solid 19" 24"-36" 125 lb. Black 12 lb.

SH1924P-3 Perf 19" 24"-36" 125 lb. Black 12 lb.

Part # Type Width Depth Wt. Cap. Color Ship Wt.

SH1924S-3 Solid 19" 24" 125 lb. Black 12 lb.

SH1924H-3 Solid 19" 24" 200 lb. Black 12 lb.

SH1924P-3 Perf 19" 24" 125 lb. Black 12 lb.

SH1929S-3 Solid 19" 29" 125 lb. Black 14 lb.

SH1929H-3 Solid 19" 29" 230 lb. Black 14 lb.

SH1929P-3 Perf 19" 29" 125 lb. Black 14 lb.

Part # Type Width Depth Wt. Cap. Color Ship Wt.

SH19KMM-3 KeyBrd 19" 18" 100 lb. Black 13 lb.

SH1924R-3 Solid 19" 24" 100 lb. Black 14 lb.

SH1924RHS-3 Solid 19" 24" 225 lb. Black 15 lb.

SH1924RHP-3 Perf 19" 24" 225 lb. Black 15 lb.

SH1929R-3 Solid 19" 29" 100 lb. Black 15 lb.

SH1929RHS-3 Solid 19" 29" 225 lb. Black 16 lb.

SH1929RHP-3 Perf 19" 29" 225 lb. Black 16 lb.

SH19KMM29-3 KeyBrd 19" 29" 100 lb. Black 15 lb.

Part # Type Width Depth Wt. Cap. Color Ship Wt.

Adjustable, Solid

Fixed, Solid

Fixed, Perf

SH19KMM-3

SH1929RHS-3

Adjustable Depth Equipment Shelve: 24"-30"D

Cabinet Shelves, Fixed

Fixed Depth Equipment Shelve

Cabinet Shelves, Roll-Out

Roll-Out Equipment Shelves and Keyboard Trays

RHS/RHP Series: 16.25" usable width

Casters and levelers bolt directly to the cabinets weld-in

seismic floor mounting gussets.

Casters and Levelers

Part# Description Height Weight

AFCHD 2000 lb cap. (2) w/ brake 4.5 in 8 lb.

AFCYO 1600 lb cap. no brake 4.5 in 8 lb.

AFCHL 2000 lb cap, low-profile 2.8 in 6 lb.

AFLG Nylon Leveling Feet (4) 3.0 in 2 lb.

C130 Leveling Feet Extension (4) 3.0 in 2 lb.

Joins two cabinets side by side. Cabinets must

be the came height. Mounts to the two

coupling holes found in the top of the cabinet

frame. Mounting hardware included.

Cabinet Coupling Kit

Part# Description Weight

ATMCK2-3 Cabinet Coupling Kit, black 5 lb.

Fan kits can be added to vented cabinet top. Add a filter

kit to keep dust and other particles out of the cabinet.

Fan and Filter Kits

Part# Description Weight

ATFK2 (2) Fans, 120 VAC 8 lb.

ATFK2L (2) Low Noise Fans, 120 VAC 10 lb.

ATFK2-220 (2) Fans, 220 VAC 6 lb.

ATFF (1) NEMA Fan Filter 1 lb.

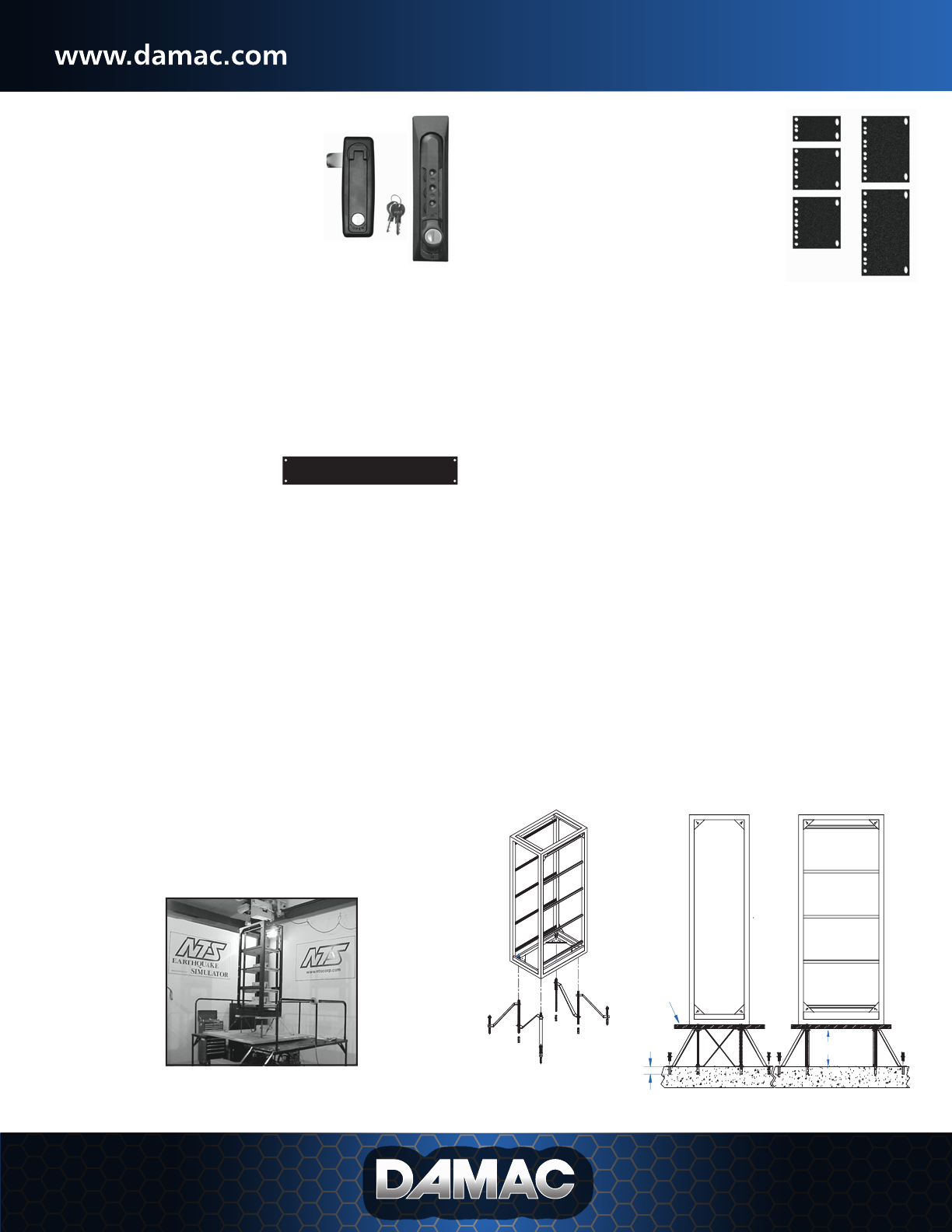

Cabinet Accessories

1U 4U

Cabinet door locks are available in keyed alike,

unalike or combination configurations.

Door Locks

Part# Description Weight

ADL-1S Keyed Alike, 1 Unit 2 lb.

ADL-2S Keyed Alike, 2 Units 4 lb.

ADL-2A Keyed Unalike, Master Key Ready, 2 Units 4 lb.

ADL-MK Master Key 1 lb.

ADL-1ECL Combo w/ Key Override, 1 Unit 2 lb.

ADL-2ECL Combo w/ Key Override, 2 Units 3 lb.

Bracket converts 23" rackable mounting rails to EIA

19" Rackable. Rail Reducer Brackets are sold in pairs.

Rail Reducer Brackets

Part# Description Weight

AFRA2319S-1 1U, EIA 10-32 Tapped 2 lb..

AFRA2319S-2 2U, EIA 10-32 Tapped 3 lb.

AFRA2319S-3 3U, EIA 10-32 Tapped 3 lb..

AFRA2319S-4 4U, EIA 10-32 Tapped 4 lb.

AFRA2319S-5 5U, EIA 10-32 Tapped 4 lb.

Add a cabinet Isolation Kit to isolate a cabinet

electrically from a concrete floor. Grounding bars and

straps are also available

Grounding

Part# Description Weight

AFIK2430 Isolation Kit, Cabinet: 24" x 30" 6 lb..

AFIK2436 Isolation Kit, Cabinet: 24" x 36" 7 lb..

AFIK2440 Isolation Kit, Cabinet: 24" x 40" 8 lb..

AFGB 8" Copper Grounding Bar 2 lb.

AFGS 3' Mesh Grounding Strap 1 lb.

Install to empty rack locations to block

cold and hot air mixing. in a cabinet.

Filler Panels

Part# Description Weight

FPB191-3 1U, 19" Rackmount, Black 1 lb.

FPB192-3 2U, 19" Rackmount, Black 2 lb.

FPB193-3 3U, 19" Rackmount, Black 2 lb.

FPB194-3 4U, 19" Rackmount, Black 3 lb.

FPB231-3 1U, 23" Rackmount, Black 1 lb.

FPB232-3 2U, 23" Rackmount, Black 2 lb.

FPB233-3 3U, 23" Rackmount, Black 2 lb.

FPB234-3 4U, 23" Rackmount, Black 3 lb.

Use to securely anchor the cabinet to a raised floor or concrete slab. Seismic

kits include additional sub-floor brackets for added strength and additional

protection against a potential seismic event.

Cabinet Floor Mounting Kit

Part# Description Weight

ARRFCK-58 Concrete Floor Kit, 5/8" Hrdwr 3 lb.

ACRFK18 Raised Floor Kit, 20"H max, 5/8" Hrdwr 3 lb.

AFSB18 Seismic Raised Floor Kit, 18"-20"H, 3/4" Hrdwr 35 lb.

Seismic Raised Floor Kit: NEBS-Telcordia GR-63 CORE Zone 4 Certified

Seismic testing of the Raised Floor Kit.

PART# AFSB18, cabinet sold separately

This kit has been rigorously test and certified to exceed NEBS-Telcordia

GR-63-CORE Seismic Zone 4 specifications. Each kit includes all the necessary

hardware and eight sub-floor seismic brackets. Floor height: 18"-20"

Raised

Floor

2.88 MIN.

Anchor Depth

PART# AFSB18

18"-20"

Wall Cabinets

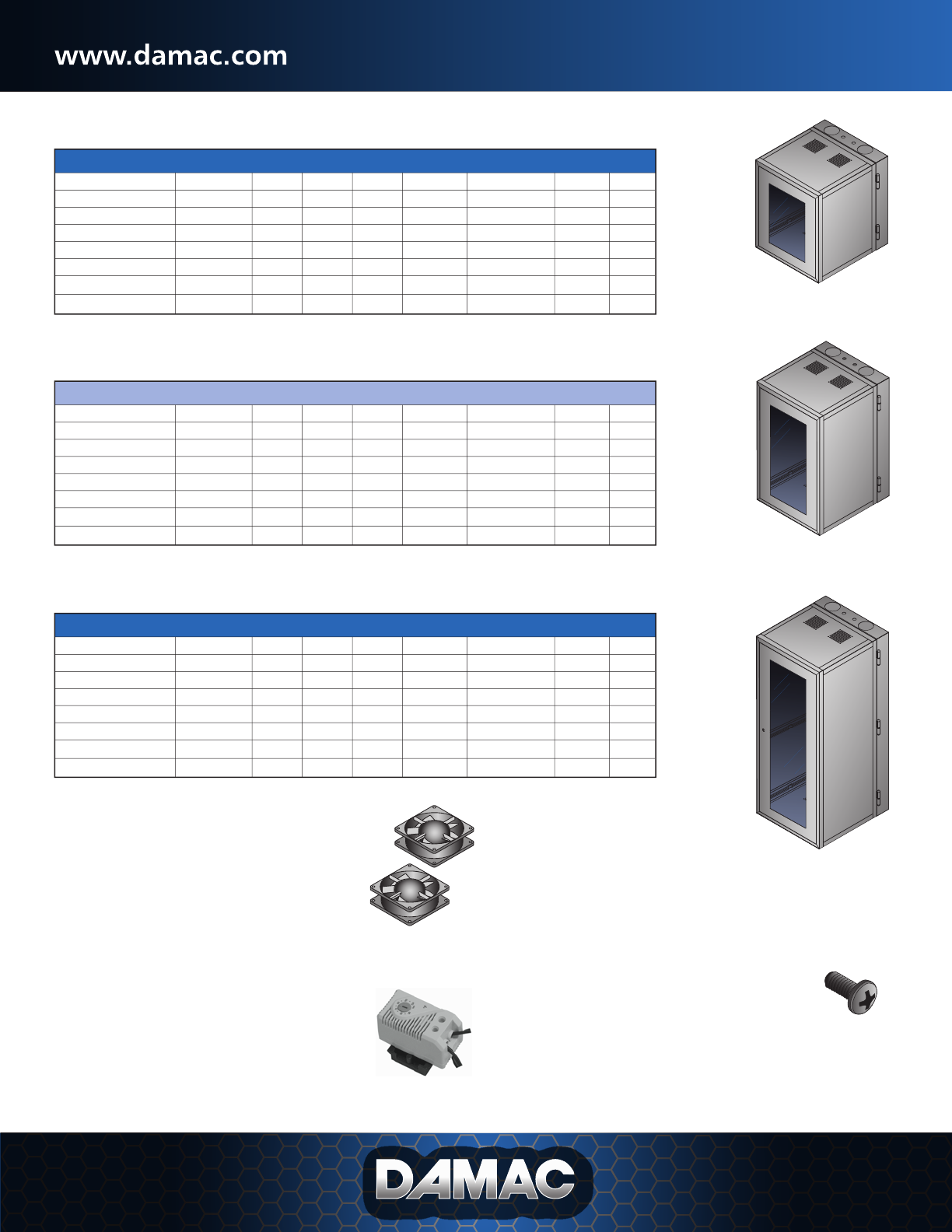

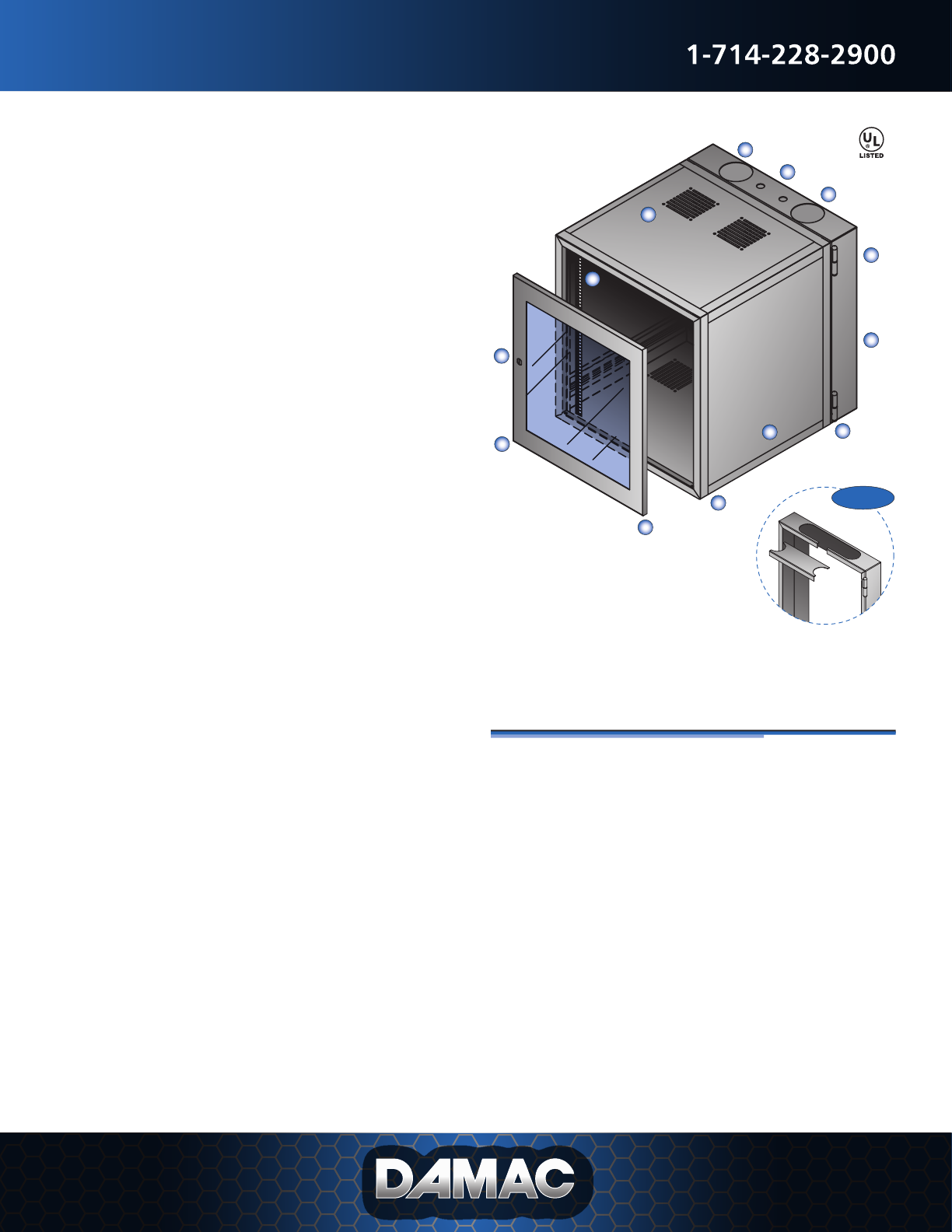

Safety Edge Dual-Swing Wall Cabinet

The Safety Edge wallmount cabinet is an ideal solution for

wall-mounted applications in high traffic areas. The cabinet

exterior has rounded edges and corners for optimal safety.

This enhanced safety feature is ideal for schools and retail

locations where exposed sharp corners are a liability.

The enclosure features swing-out capabilities, providing front

and rear equipment access. Cable knock-outs in the top and

bottom providing flexibility for specific cable and conduit

configurations. The rear sub-panel is lockable. Solid side

panels minimize internal dust collection and reduce the noise

produced by the equipment housed within. The vented top

and bottom panels promote proper cooling and accept fan kits

and filters. The locking cabinet door is removable and

reversible and is available in a plexiglass or solid configuration.

• Fully Welded Construction: 125 lbs. weight capacity

• Rounded Safety Edge - minimizes risk of exposure to sharp edges

• 19" EIA width, 12U - 26U

• (2) sets of adjustable mounting rails

• EIA-310-D Standard Universal 5/8 x 5/8 x 1/2 hole spacing

• 10-32 tapped mounting holes

• Continuous hinge, promotes "no sag"

• Locking sub-panel w/ top & bottom cable access knock-outs

• Right or left hinge locations, box can be flipped for L or R swing-out

• Locking door and rear compartments, keyed alike

• Removable and reversible door with quick release pin

• Flush solid side panels minimize dust and equipment noise

• Flush top panels: solid, vented or w/ fans

• Textured epoxy powder-coat finish

• Cabinet ships fully assembled

• NEMA and custom configurations are available

• UL Listed

Specifications:

24", 36", 48"

23.50"

24"

10-32 Tapped

Height:

Width:

Depth:

Rails:

Model Sizes:

Application:

High Traffic Areas

Retail/Schools

Space Limited Areas

Warehouse

Security Systems

Sharp Edges

Rounded Safety Edge

- eliminates sharp exposed corners

Cabinet Features:

Front door is removable/reversible

Recessed front door eliminates bump-in's and snags

Locking front door available in plex or solid

(1) set of 19" EIA 10-32 tapped rails, adjustable "front to back"

Solid, vented or (2) fan top panels w/ optional NEMA fan fillers

Sub-panel has keyed lock, key matches door lock

Open rear for wall access, optional filler plate available

Cable k/o's in the top and bottom: (2) @ 3.0", (2) @ 0.88"

4.0" deep sub-panel with four sets of wall mounting

slots @ 12" and 16" centers

Interior lances for cable management

Continuous hinge and steel guiding pins, "no sag"

Solid side panels, minimizes noise and interior dust collection

Rounded safety edge, no hazardous exposed sharp corners

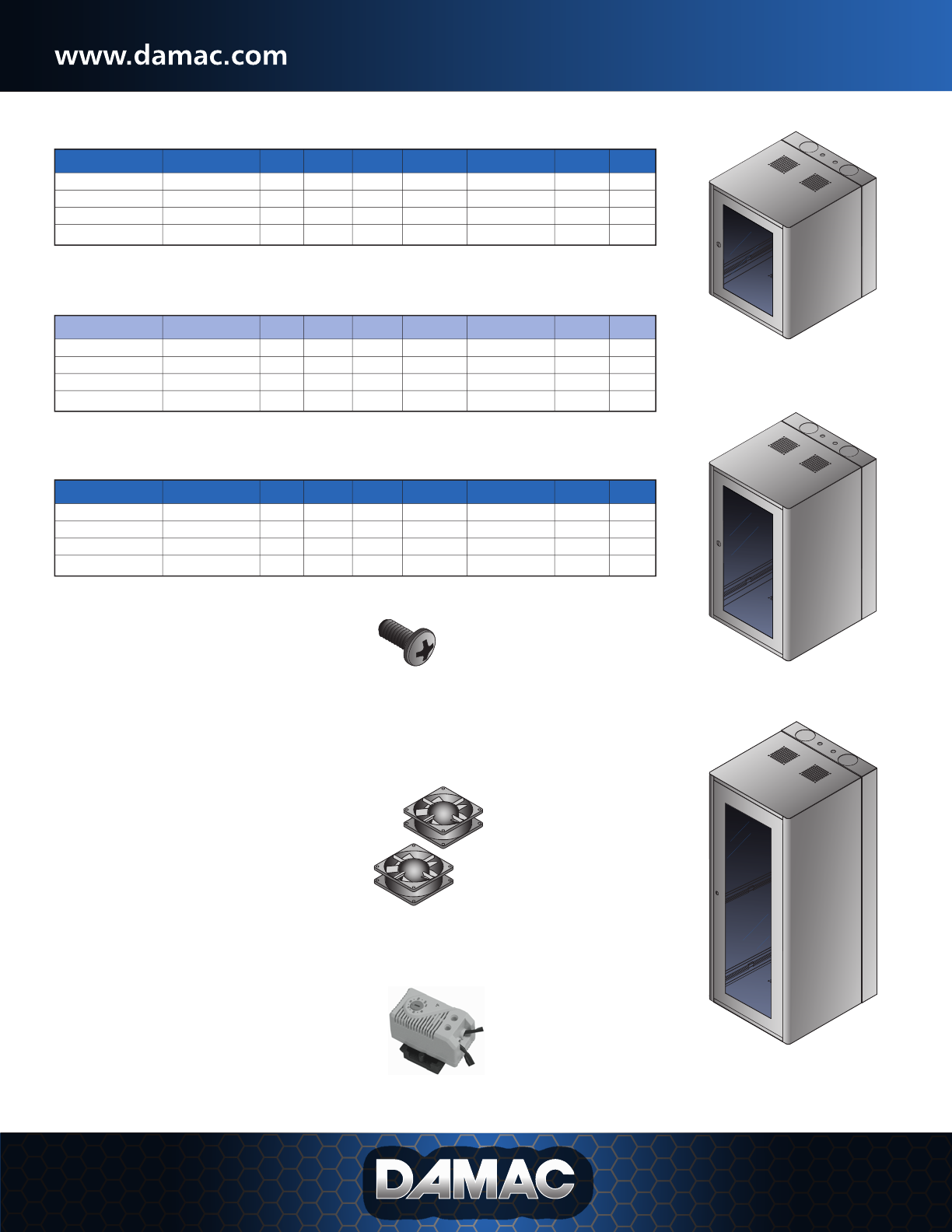

Wall Cabinets

replace (-3) in part# with alternative color choice: (-1) Putty, (-2) Blue, (-4) Gray, (-5) White, (-6) Dark GrayColor Option:

24"/12U Safety Edge Wallmount Cabinet, 19" EIA 10-32 Tapped Rails

WLR24AKP1SVV-3 24" x 23.25" x 24" Plexi Solid Vent Vent Knock Outs Black 50 lb.

WLR24AKP1SFV-3 24" x 23.25" x 24" Plexi Solid (2) Fan Vent Knock Outs Black 52 lb.

WLR24AKS1SVV-3 24" x 23.25" x 24" Solid Solid Vent Vent Knock Outs Black 50 lb.

WLR24AKS1SFV-3 24" x 23.25" x 24" Solid Solid (2) Fan Vent Knock Outs Black 52 lb.

Part Number H x W x D Door Sides Top Bottom Cable Entry Color WT

36"/18U Safety Edge Wallmount Cabinet, 19" EIA 10-32 Tapped Rails

WLR36AKP1SVV-3 36" x 23.25" x 24" Plexi Solid Vent Vent Knock Outs Black 60 lb.

WLR36AKP1SFV-3 36" x 23.25" x 24" Plexi Solid (2) Fan Vent Knock Outs Black 62 lb.

WLR36AKS1SVV-3 36" x 23.25" x 24" Solid Solid Vent Vent Knock Outs Black 60 lb.

WLR36AKS1SFV-3 36" x 23.25" x 24" Solid Solid (2) Fan Vent Knock Outs Black 62 lb.

Part Number H x W x D Door Sides Top Bottom Cable Entry Color WT

48"/26U Safety Edge Wallmount Cabinet, 19" EIA 10-32 Tapped Rails

WLR48AKP1SVV-3 48" x 23.25" x 24" Plexi Solid Vent Vent Knock Outs Black 70 lb.

WLR48AKP1SFV-3 48" x 23.25" x 24" Plexi Solid (2) Fan Vent Knock Outs Black 72 lb.

WLR48AKS1SVV-3 48" x 23.25" x 24" Solid Solid Vent Vent Knock Outs Black 70 lb.

WLR48AKS1SFV-3 48" x 23.25" x 24" Solid Solid (2) Fan Vent Knock Outs Black 72 lb.

Part Number H x W x D Door Sides Top Bottom Cable Entry Color WT

WLR48AKP1SVV-3

WLR36AKP1SVV-3

WLR24AKP1SVV-3

Fan kits can be added to vented cabinet top. Add a filter

kit to keep dust and other particles out of the cabinet.

Fan and Filter Kits

Part# Description Weight

ATFK2 (2) Fans, 120 VAC 8 lb.

ATFK2L (2) Low Noise Fans, 120 VAC 10 lb.

ATFK2-220 (2) Fans, 220 VAC 6 lb.

ATFF (1) NEMA Fan Filter 1 lb.

Additional wallmount cabinet 10-32 tapped rail sets and

mounting hardware packs.

Mounting Rails and Hardware

Electronic Thermostat Module activates the cooling fans

only when the user specified internal cabinet temperature

is reached. Saves energy and reduces noise.

Thermostat Fan Control Module

Part# Description Weight

ATFPAT Thermostat Fan Module, 120 VAC 1 lb.

Part# Description Weight

ARW24A 24"H Cabinet, Pair:10-32 Mnt. Rail 6 lb.

ARW36A 36"H Cabinet, Pair:10-32 Mnt. Rail 9 lb.

ARW48A 48"H Cabinet, Pair:10-32 Mnt. Rail 12 lb.

AHPF1032-30 30pc, 10-32 screw 1 lb.

Wall Cabinets

Heavy Duty Dual-Swing Wall Cabinet

Designed for wall-mounted applications requiring larger load

capacities, up to 300 lbs. This heavy-duty wall cabinet is an ideal

solution for high density applications in a secure and diminishing

floor space environment.

The enclosure features swing-out capabilities, providing front and

rear equipment access. Cable knock-outs in the top and bottom

providing flexibility for specific cable and conduit configurations.

The lockable rear sub-panel is removable and can be wall

mounted prior to hanging the enclosure body. Solid side panels

minimize internal dust collection and reduce the noise produced

by the equipment housed within. The vented top and bottom

panels promote proper cooling and accept fan kits and filters.

The locking cabinet door is removable and reversible and is

available in a plexiglass or solid configuration.

• Fully Welded Construction: 300 lbs. weight capacity

• 19" EIA width, 12U - 26U

• (2) sets of adjustable mounting rails

• EIA-310-D Standard Universal 5/8 x 5/8 x 1/2 hole spacing

• 10-32 tapped mounting holes

• Right or left hinge locations available, R-side standard

• HD bullet hinge and steel guiding pins promotes "no sag"

• Locking sub-panel w/ top & bottom cable access knock-outs

• Rear sub-panel is removable for easy installations

• Locking door and rear compartments, keyed alike

• Removable and reversible door with quick release pin

• Flush solid side panels minimize dust and equipment noise

• Flush top panels: solid, vented or w/ fans

• Textured epoxy powder-coat finish

• Cabinet ships fully assembled

• NEMA and custom configurations are available

• UL Listed

Specifications:

Cabinet Features:

24", 36", 48"

22""

24", 30"

10-32 Tapped

Height:

Width:

Depth:

Rails:

Application:

Model Sizes:

Retail/Schools

Space Limited Areas

Warehouse

Security Systems

Replaces: CPI, B-Line, Hoffman

Front door is removable/reversible

Recessed front door eliminates bump-in's and snags

Locking front door available in plex or solid

(1) set of 19" EIA 10-32 tapped rails, adjustable "front to back"

Solid, vented or (2) fan top panels w/ optional NEMA fan fillers

Sub-panel has keyed lock, key matches door lock

Open rear for wall access, optional filler plate available

Cable k/o's in the top and bottom: (2) @ 3.0", (2) @0.88"

- Removable cable gland plate version available.

Removable 4" deep sub-panel with four sets of wall mounting

slots @ 12" and 16" centers

Interior lances for cable management

Welded bullet hinges and steel guiding pins

Solid side panels, minimizes noise and interior dust collection

Fully welded tubular steel frame

Removable Rear Cable Gland Plate

Allows for cabling and patch panel installation without

removing the cabinet wall support. Great for retrofits.

New

300 lb.

Capacity

Wall Cabinets

Replace (3) in part# with alternative color choice:

(1) Putty, (2) Blue, (4) Gray, (5) White, (6) Dark Gray

Color Option:

24"/12U HD Wallmount Cabinet, 19" EIA 10-32 Tapped Rails

WS24AKP1SVV-3 24 x 22 x 24 Plexi Solid Vent Vent Knock Outs Black 60 lb.

WS24AKP1SVV-3GP 24 x 22 x 24 Plexi Solid Vent Vent Gland Plate Black 60 lb.

WS24AKP1SFV-3 24 x 22 x 24 Plexi Solid (2) Fan Vent Knock Outs Black 62 lb.

WS24AKP1SFV-3GP 24 x 22 x 24 Plexi Solid (2) Fan Vent Gland Plate Black 62 lb.

WS24ABP1SVV-3 24 x 22 x 30 Plexi Solid Vent Vent Knock Outs Black 70 lb.

WS24ABP1SVV-3GP 24 x 22 x 30 Plexi Solid Vent Vent Gland Plate Black 70 lb.

WS24ABP1SFV-3 24 x 22 x 30 Plexi Solid (2) Fan Vent Knock Outs Black 72 lb.

WS24ABP1SFV-3GP 24 x 22 x 30 Plexi Solid (2) Fan Vent Gland Plate Black 72 lb.

Part Number H x W x D Door Sides Top Bottom Cable Entry Color WT

36"/18U HD Wallmount Cabinet, 19" EIA 10-32 Tapped Rails

WS36AKP1SVV-3 36 x 22 x 24 Plexi Solid Vent Vent Knock Outs Black 70 lb.

WS36AKP1SVV-3GP 36 x 22 x 24 Plexi Solid Vent Vent Gland Plate Black 70 lb.

WS36AKP1SFV-3 36 x 22 x 24 Plexi Solid (2) Fan Vent Knock Outs Black 72 lb.

WS36AKP1SFV-3GP 36 x 22 x 24 Plexi Solid (2) Fan Vent Gland Plate Black 72 lb.

WS36ABP1SVV-3 36 x 22 x 30 Plexi Solid Vent Vent Knock Outs Black 80 lb.

WS36ABP1SVV-3GP 36 x 22 x 30 Plexi Solid Vent Vent Gland Plate Black 80 lb.

WS36ABP1SFV-3 36 x 22 x 30 Plexi Solid (2) Fan Vent Knock Outs Black 82 lb.

WS36ABP1SFV-3GP 36 x 22 x 30 Plexi Solid (2) Fan Vent Gland Plate Black 82 lb.

Part Number H x W x D Door Sides Top Bottom Cable Entry Color WT

48"/26U HD Wallmount Cabinet, 19" EIA 10-32 Tapped Rails

WS48AKP1SVV-3 48 x 22 x 24 Plexi Solid Vent Vent Knock Outs Black 80 lb.

WS48AKP1SVV-3GP 48 x 22 x 24 Plexi Solid Vent Vent Gland Plate Black 80 lb.

WS48AKP1SFV-3 48 x 22 x 24 Plexi Solid (2) Fan Vent Knock Outs Black 82 lb.

WS48AKP1SFV-3GP 48 x 22 x 24 Plexi Solid (2) Fan Vent Gland Plate Black 82 lb.

WS48ABP1SVV-3 48 x 22 x 30 Plexi Solid Vent Vent Knock Outs Black 90 lb.

WS48ABP1SVV-3GP 48 x 22 x 30 Plexi Solid Vent Vent Gland Plate Black 90 lb.

WS48ABP1SFV-3 48 x 22 x 30 Plexi Solid (2) Fan Vent Knock Outs Black 92 lb.

WS48ABP1SFV-3GP 48 x 22 x 30 Plexi Solid (2) Fan Vent Gland Plate Black 92 lb.

Part Number H x W x D Door Sides Top Bottom Cable Entry Color WT

Replace (P) in part# w/ (S) for a solid metal front door w/ lock.

Fan kits can be added to vented cabinet top. Add a filter

kit to keep dust and other particles out of the cabinet.

Fan and Filter Kits

Part# Description Weight

ATFK2 (2) Fans, 120 VAC 8 lb.

ATFK2L (2) Low Noise Fans, 120 VAC 10 lb.

ATFK2-220 (2) Fans, 220 VAC 6 lb.

ATFF (1) NEMA Fan Filter 1 lb.

Additional wallmount cabinet 10-32 tapped rail sets and

mounting hardware packs.

Mounting Rails and Hardware

Electronic Thermostat Module activates the cooling fans

only when the user specified internal cabinet temperature

is reached. Saves energy and reduces noise.

Thermostat Fan Control Module

Part# Description Weight

ATFPAT Thermostat Fan Module, 120 VAC 1 lb.

Part# Description Weight

ARW24A 24"H Cabinet, Pair:10-32 Mnt. Rail 6 lb.

ARW36A 36"H Cabinet, Pair:10-32 Mnt. Rail 9 lb.

ARW48A 48"H Cabinet, Pair:10-32 Mnt. Rail 12 lb.

AHPF1032-30 30pc, 10-32 screw 1 lb.

WS24AKP1SVV-3

WS36AKP1SVV-3

WS48AKP1SVV-3

Wall Cabinets

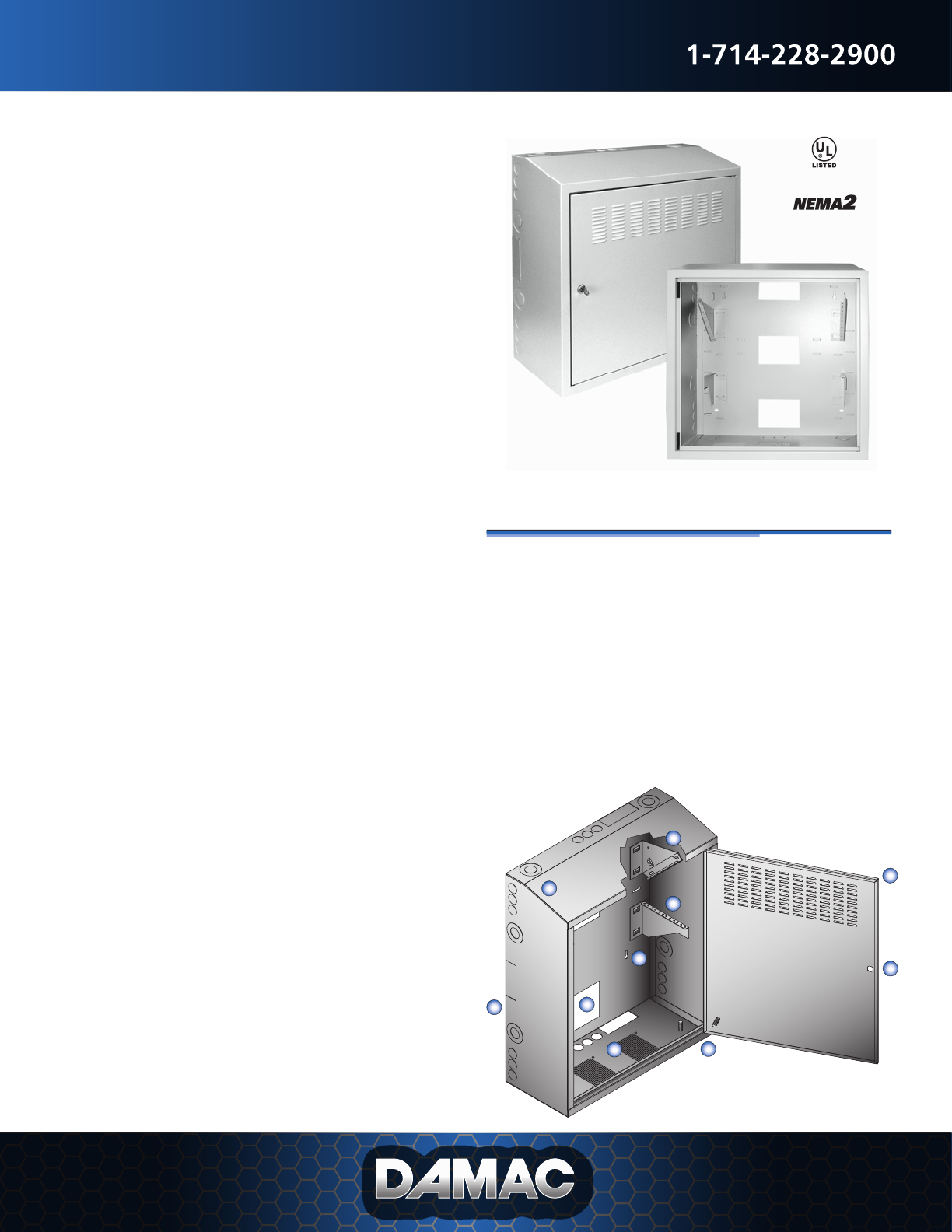

TransIT Box Wall Cabinet

The TransIT™ Box Wallmount Enclosure is a cost saving

solution for securely storing 19" rack-mount equipment such

as patch panels and network equipment. The low-profile,

wall-mounted design is ideal for installation in classrooms,

retail stores and other high traffic areas. The non-intrusive

design wont interfere in space restrictive areas.

The TransIT Box maximizes interior space with a unique

mounting system. Included in each box are two sets of 19"

mounting rails. One set features a swivel down hinge for easy

access to the rear of installed equipment. An additional set of

fixed rails is also included. Rail sets can be positioned any

were in the cabinet allowing equipment and cabling flexibility.

The TransIT box is an ideal solution for patch panels, servers,

switch, cable management and fiber-optic equipment.

• Fully welded steel construction: 100 lb. weight capacity

• (1) pair of angled patch panel rails, 19" EIA 12-24 tapped

• Mounting rails swivel for accessing the rear of mounted equipment

• 7"D model: one 19"/2U hub mounting bracket, EIA 12-24 tapped

• 10"D model: one 19"/4U hub mounting bracket, EIA 12-24 tapped

• Multiple lances for mounting of brackets and cable management

• Vented/fan ready bottom with a tamper resistant ventilation pattern

• Multiple conduit entrances on the top, bottom and sides

• 5" Wiremold™ knock-out on side for protective cable ducts

• Recessed and removable door w/ tamper resistant ventilation pattern

• Slanted top - eliminates flat area for unwanted items to rest on

• Three J-box cut-outs in rear

• Meets NEMA2 Specification

• Key lock standard, other lock option's available

• Textured epoxy powder-coat finish

• NEMA and custom configurations are available

• UL Listed

Specifications:

24", 32", 42"

24.00"

7", 10"

12-24 Tapped

Height:

Width:

Depth:

Rails:

Model Sizes:

Application:

High Traffic Areas

Retail/Schools

Space Limited Areas

Warehouse

Security Systems

Cabinet Features:

Front door fits flush and is removable with spring hinge pins

Door lock included, tamper proof lock options available

Ground stud on the door and cabinet body

Tamper resistant ventilation pattern, fan ready

(2) Cable openings on back with multiple tie-down lances

Multiple cable and raceway k/o's on top, bottom and sides

Slanted top eliminates potential hazardous material resting place

Patch panel mounting bracket, 4U, rotates downward

12-24 tapped hub mounting bracket: 7"D/2U, 10"D/4U

Keyhole wall mounting slots @ 16" centers

Wall Cabinets

replace (-4) in part# with alternative color choice: (-1) Putty, (-2) Blue, (-3) Black, (-5) White, (-6) Dark GrayColor Option:

24" TransIT Wall Cabinet

WTB24L-4 24.0" 24.0" 7.0" Right Gray 40 lb.

WTB24LL-4 24.0" 24.0" 7.0" Left Gray 40 lb.

WTB24M-4 24.0" 24.0" 10.0" Right Gray 42 lb.

WTB24ML-4 24.0" 24.0" 10.0" Left Gray 42 lb.

Part Number Height Width Depth Door Hinge Color Ship Wt.

replace (-4) in part# with alternative color choice: (-1) Putty, (-2) Blue, (-3) Black, (-5) White, (-6) Dark GrayColor Option:

32" TransIT Wall Cabinet

42" TransIT Wall Cabinet, special order.

WTB32L-4 32.0" 24.0" 7.0" Right Gray 45 lb.

WTB32LL-4 32.0" 24.0" 7.0" Left Gray 45 lb.

WTB32M-4 32.0" 24.0" 10.0" Right Gray 47 lb.

WTB32ML-4 32.0" 24.0" 10.0" Left Gray 47 lb.

Part Number Height Width Depth Door Hinge Color Ship Wt.

Fan kits can be added to vented cabinet top. Add a filter

kit to keep dust and other particles out of the cabinet.

Fan and Filter Kits

Part# Description Weight

ATFK1 (1) Fans, 120 VAC 4 lb.

ATFK1L (1) Low Noise Fans, 120 VAC 4 lb.

ATFK2 (2) Fans, 120 VAC 8 lb.

ATFK2L (2) Low Noise Fans, 120 VAC 8 lb.

ATFF (1) NEMA Fan Filter 1 lb.

Additional wallmount cabinet 12-24 hardware packs.

12-24 Mounting Hardware

Electronic Thermostat Module activates the cooling fans

only when the user specified internal cabinet temperature

is reached. Saves energy and reduces noise.

Thermostat Fan Control Module

Part# Description Weight

ATFPAT Thermostat Fan Module, 120 VAC 1 lb.

Includes a braided grounding strap and mounting

hardware for grounding the door to the cabinet body.

Grounding Strap

Part# Description Weight

AFGS Grounding Kit, TransIT Box 1 lb.

Part# Description Weight

AHPF1224-30 30pc, 12-24 screws 1 lb.

Special door lock for installations requiring additional

security and lock resistance to potential tampering

and vandalism.

Tamper Resistant Door Locks

Part# Description Weight

ADL-CAT60 #60 Corbin™ Lock, (2) keys 1 lb.

ADL-CAT70 #70 Corbin™ Lock, (2) keys 1 lb.

ADL-CAT80 #80 Corbin™ Lock, (2) keys 1 lb.

WTB32M-4

WTB24M-4

Wall Cabinets

Multi-Box Wall Cabinet

The Multi-Box Wallmount is ideal for networking your

remote equipment in high traffic areas. This wallmount has

no sharp exposed areas and mounts easily to any wall

surface. The perfect application for warehouses, classrooms

and retail locations.

Featuring dedicated mounting for hubs, switches, ups and

what ever else you need to mount in a secure environment.

With a lockable, removable door, which can easily be

reversed for left or right opening, your needs will be

covered.

Save floor space and securely house your smaller networking

needs with this completely customizable and cost effective

wall cabinet solution.

• Fully welded 18 GA cold rolled steel construction

• Removable/reversible door with quick release pin and key lock

• Rounded corners for high traffic areas

• Louvered sides for added ventilation

• Conduit entrances on the top, bottom and sides

• Ideal solution for routers, switches, etc.

• Standard lock included

• Textured epoxy powder-coat finish: white

• Cabinet ships fully assembled

• Custom configurations are available

Specifications:

Application:

High Traffic Areas

Retail/Schools

Space Limited Areas

Warehouse

Security Systems

No sharp exposed edges, Safety for high traffic areas

Customized Wall Cabinet Solution.

Any Shape, Any Size!

Cabinet Customizable Options:

Front door fits flush and is removable with spring hinge pins

Door lock included, tamper proof lock options available

Optional ground stud on the door and cabinet body

Multiple cable and raceway options

Keyhole wall mounting slots @ 16" centers

Mounting rails or equipment specific mounting brackets

Several air venting patterns

Rounded safety corners, no sharp exposed corners

Wall Cabinets

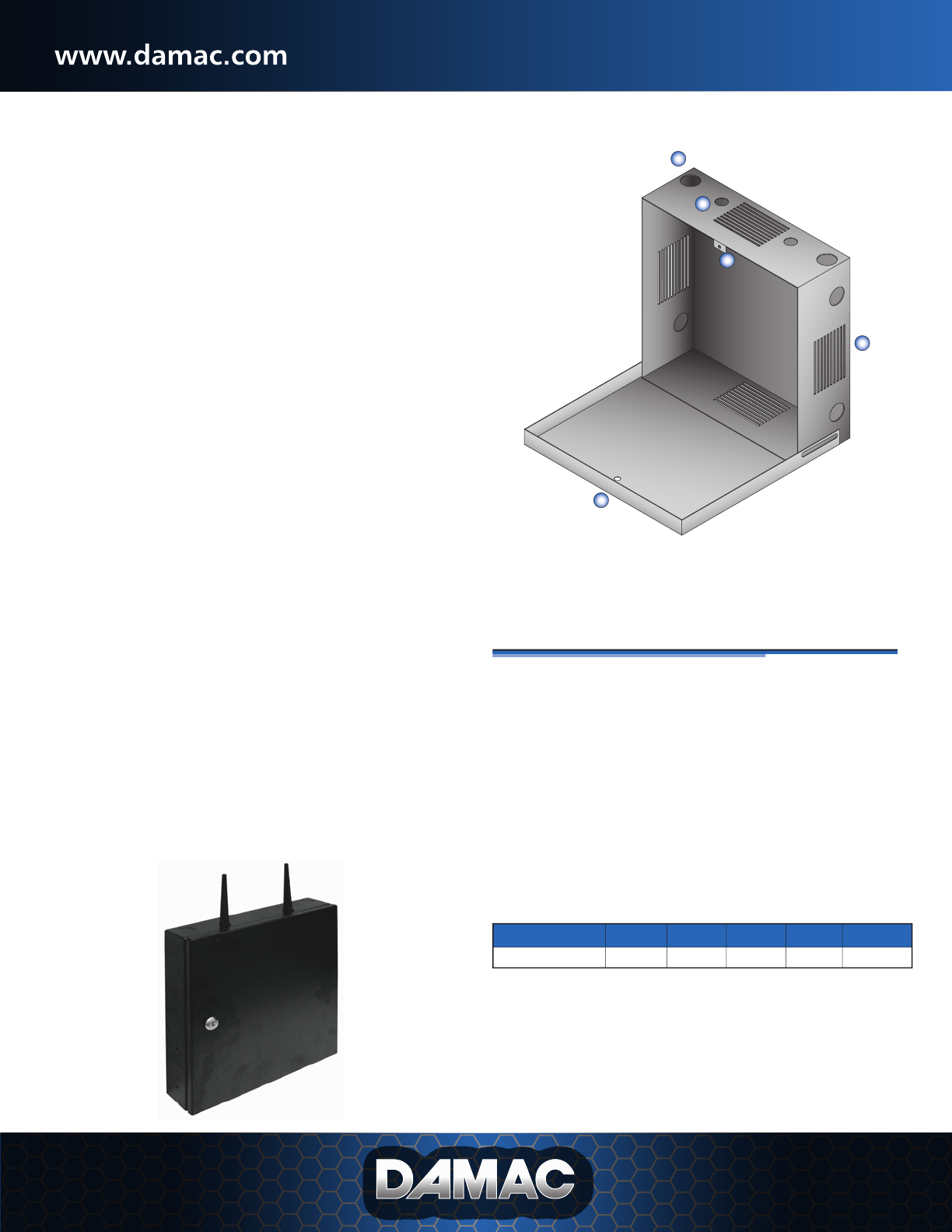

Wireless Access Point Wall Enclosure

Provides wall mounting in a secured enclosure for wireless

access point devices. In some environments, wall-mounted

access points provide better signal coverage,

Damac offer a completely customizable enclosure solution

for a variety of access points and bridges. Manufacturing a

solution specific to the users requirements ensures all of the

equipments needs are addressed.

• Fully welded 20 GA cold rolled steel construction

• Ultra slim design for an eye pleasing install

• Hinged door, secures with a 10-32 screw, lock option available

• Conduit knock-outs on all sides

• Two antenna pass-thru's

• Textured epoxy powder-coat finish: 6 colors available

• Custom configurations are available

Specifications:

Application:

Schools

Hospitals

Warehouses

Retail Locations

Cabinet Customizable Options:

Hinge down front door, secures with a screw

Door locking plate

Multiple cable k/o's, 1.25"

Two top mounted antenna pass-thru's

Ventilation pattern on all sides

Access Point mounting clip

Customized Access Point Solutions.

Any Shape, Any Size, Any WAP.

* replace (-Q1) in part# with alternative color choice: (-2) Blue, (-3) Black, (-4) Gray, (-6) Dark Gray

Wireless Access Point Wall Box

WD10Z20567-Q1 10.0" 10.0" 4.0" White 6.0

Part Number Height Width Depth Color Ship Wt.

Aisle Containment

Aisle Containment Hot or Cold Cabinet Aisles

DAMAC Products new Aisle Containment Structure is designed to

increase cooling and airflow efficiencies while reducing operational

costs. Isolating hot and cold air not only reduces operational cost

associated with cooling, but also allows for greater equipment

densities. The unique design of this system incorporates the

flexibility to quickly install to any Damac cabinet and can also be

used with any 24" wide third party rack or cabinet.

• Hot or cold aisle containment

• Fits standard aisle widths: 36" and 48"

• Improves airflow and energy savings

• Panel framing constructed of light aluminum extrusion

• Clear panel inserts are 8mm polycarbonate structured sheeting

• Twin wall design is an excellent air insulator

• Panels mount horizontally across a 24"W cabinet

• Optional fuse-link panel attachment for fire safety

• Allows sprinkler access to the aisle way

• Modular design promotes quick assembly

• Easily customized to meet specific requirements

• Qualifies for some energy rebate programs

• NFPA Fire Rated materials

Application:

Specifications:

Create isolated cold aisle ways with Damac aisle top

panels and end door kits. Panels horizontally attach to

cabinet. Door kits bolt to the raised floor or slab.

If the aisle only has one row of cabinets, use additional

false wall panels to create a complete aisle way.

Cold Aisle

Isolate the hot aisle with vertical panels. This solution

directs the equipments hot exhaust air directly into the

hot air return or into a drop-down ceiling grid.

This system includes user specified vertical panels,

cabinet brackets and end-of-row door kits.

Hot Aisle

Data Center

High Density Applications

Energy Rebate Programs

Achieve aisle containment and a structured

over-head cable routing system with the

addition of a cable-routing top panel. Let

Damac design the perfect system for you.

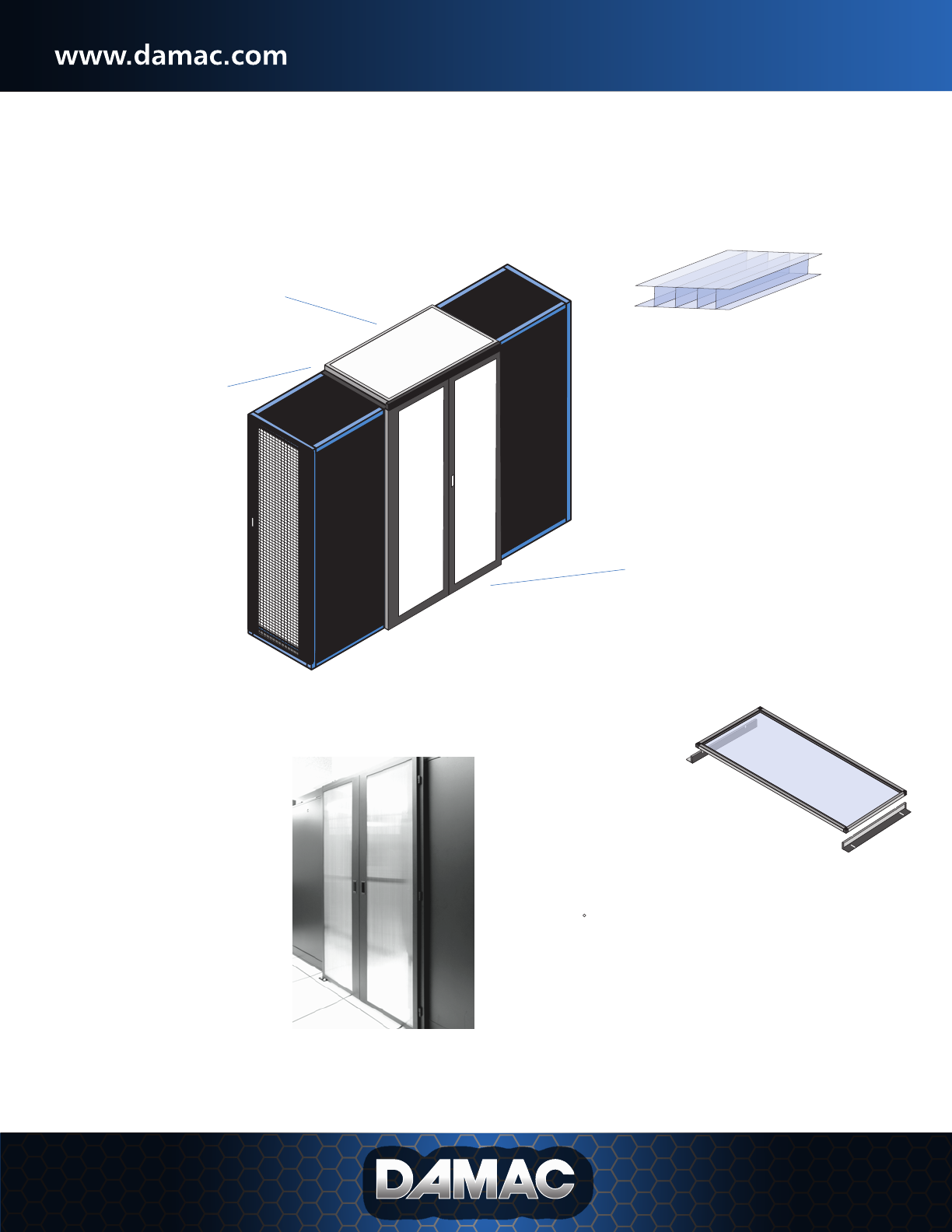

Aisle Containment

with Cable Routing

Aisle Containment

Panel Material

• polycarbonate structured sheet

• clear for light penetration

• light weight material

• twin wall design promotes insulation

• self extinguishing material

• meets Class A parameters of the

NFPA Safety Code 101, Section 6-5.3

Door kits fit aisle widths of 36" - 48". Kit

includes double doors with clear inserts,

door latch and bottom brush kit. The

double doors are supported by a floor

mounted support structure.

Aisle Door Kit

Part# Description Weight

ACERK8448-3 Door Kit, 48"W x 90"H, Black 60 lb.

Aisle Door

• clear polycarbonate insert

• dual doors w/ slam latch and handles

• tubular steel support frame, floor mount

• brush kit bottom, no air leakage

• no bottom door threshold, eliminates potential

tripping hazard

• gasket perimeter ensures proper seal

Panel-to-Cabinet Bracket

• fits 24"W cabinets

• adds 2" of height

• 6" mounting slot for

panel adjustment

Aisle Top Panel

• 36"-48" aisle widths

• clear polycarbonate structured sheet

• aluminum extrusion framing

• individual 24"W panels, removable

We Build Containment Solutions To Your Exact Aisle Needs.

Let us design, build and deliver your containment products.

Rigid aisle panels are available for 36" and 48" aisle

widths. Panels include button mounts that lock into

keyholes in the included cabinet mating brackets.

Brackets allow for up to 6 inches of panel adjustability

for centering over the aisle way. Optional fuse-link

mating model available for added fire safety. Fuse-

links separate at 135 F, dropping the panel for

sprinkler access to the aisle way.

• Includes (2) cabinet mounting brackets

Aisle Top Panels

Part# Description Weight

ACCTK2436-3 36" Aisle Top Panel, standard mounting 8 lb.

ACCTK2448-3 48" Aisle Top Panel, standard mounting 11 lb.

ACCTK2436F-3 36" Aisle Top Panel, fuse-link mounting 8 lb.

ACCTK2448F-3 48" Aisle Top Panel, fuse-link mounting 11 lb.

Rack Systems

84", 96"

24"

29", 36"

12-24, M6 Cage Nut

Tandem™ Series Dual Equipment Rack

The Tandem Rack provides the superior strength and mounting

flexibility in a cabinet, but in an open frame design. The unique

dual-rack uprights are an ideal solution for rack mounting 19 in.

equipment such as servers, switches and other equipment were a

two post rack can not accommodate adequate mounting support.

The open frame design enhances airflow, cabling and equipment

mounting. Product ships unassembled and individually boxed for

quick and convenient shipping and job-site handling.

• Weight capacity 2000 lbs.

•12-24 Tapped Model: 6061-T6 aluminum extrusion

• M6 Cage-Nut Model: 14 gauge steel

• 19" rack-mount width

• Two sets of mounting rails w/ EIA spacing: 5/8 x 5/8 x 1/2

• 12-24 threaded or cage-nut mounting provisions

• Mounting rails are tapped on both sides

• Double sided RMU markings on both sides of mounting rails

• Side channels include cable manager mounting holes

• UL™ Listed

• UPS or FedEx shippable, one container

• Easily assembled, hardware included

• Black epoxy powder-coat finish

Height:

Width:

Depth:

Rails:

Application:

Model Sizes:

Specifications:

General Purpose

Server/Networking

Structured Cabling

Tandem Rack Part Numbers

R4A19084B-3MU 12-24 Tap 84" 45 29 Black 100 lb.

R4A19084D-3MU 12-24 Tap 84" 45 36 Black 110 lb.

R4A19096B-3MU 12-24 Tap 96" 51 29 Black 114 lb.

R4A19096D-3MU 12-24 Tap 96" 51 36 Black 124 lb.

R4S19084CNB-3MU Cage Nut 84" 45 29 Black 100 lb.

R4S19084CND-3MU Cage Nut 84" 45 36 Black 110 lb.

R4S19096CNB-3MU Cage Nut 96" 51 29 Black 114 lb.

R4S19096CND-3MU Cage Nut 96" 51 36 Black 124 lb.

PART # Rail Type Height RMU Depth Color Ship Wt.

17.75"

18.31"

(Rackable Width)

(Flange to Flange)

66.00"

4.00"

20.25"

16.00"

0.75"

29.00" or 36.00"

TOP VIEW

29"D Model: 41.00"

36"D Model: 48.00"

84.00"/45U

96.00"/51U

Tapped Rail Cage-Nut Rail

Double Sided

RMU Marked Rail

Rack Systems

84", 96"

24"

12-24, M6 Cage Nut

Two Post Equipment Rack

Two Post Rack's are a vital component to any structured cabling

installation. This durable equipment rack provides unsurpassed

strength and stability for supporting 19 in. rackable equipment

such as patch panels, servers, switches and other networking

equipment. Product ships unassembled and individually boxed

for quick and convenient shipping and job-site handling.

• Weight capacity 700 lbs.

•12-24 Tapped Model: 6061-T6 aluminum extrusion

• M6 Cage-Nut Model: 14 gauge steel

• 19" rack-mount width

• Upright channel widths: 3.00" and 6.00"

• Two sets of mounting rails w/ EIA spacing: 5/8 x 5/8 x 1/2

• 12-24 threaded or cage-nut mounting provisions

• Mounting rails are tapped on both sides

• Double sided RMU markings on both sides of mounting rails

• Side channels include cable manager mounting holes

• UL™ Listed

• UPS or FedEx shippable, one container

• Easily assembled, hardware included

• Black epoxy powder-coat finish

• Clear finish, milled aluminum *special order

Height:

Width:

Rails:

Application:

Model Sizes:

Specifications:

General Purpose

Networking

Structured Cabling

Two Post Rack Part Numbers

RRA19084-3MU 3.00" Deep 84" 45u 12-24 Tap Black 35 lb.

RRS19084CN-3MU 3.00" Deep 84" 45u Cage Nut Black 35 lb.

RRA19096-3MU 3.00" Deep 96" 51u 12-24 Tap Black 40 lb.

RRS19096CN-3MU 3.00" Deep 96" 51u Cage Nut Black 40 lb.

RA619084-3MU 6.00" Deep 84" 45u 12-24 Tap Black 40 lb.

RS619084CN-3MU 6.00" Deep 84" 45u Cage Nut Black 40 lb.

RA619096-3MU 6.00" Deep 96" 51u 12-24 Tap Black 45 lb.

RS619096CN-3MU 6.00" Deep 96" 51u Cage Nut Black 45 lb.

PART # Channel Height RMU Rail Type Color Ship Wt.

84"/45U

96"/51U

17.75"

18.31"

39.00"

23.00"

15.00"

4.00"

20.25"

12.50"

.75"

16.00"

BOTTOM

0.656 DIA HOLE

(6 PLACES)

(Rackable Width)

(Flange to Flange)

6.00"

3.00"

Double Sided

RMU Marked Rail

Tapped Rail Cage-Nut Rail

Rack Systems

84"

24"

06"

12-24 Tapped

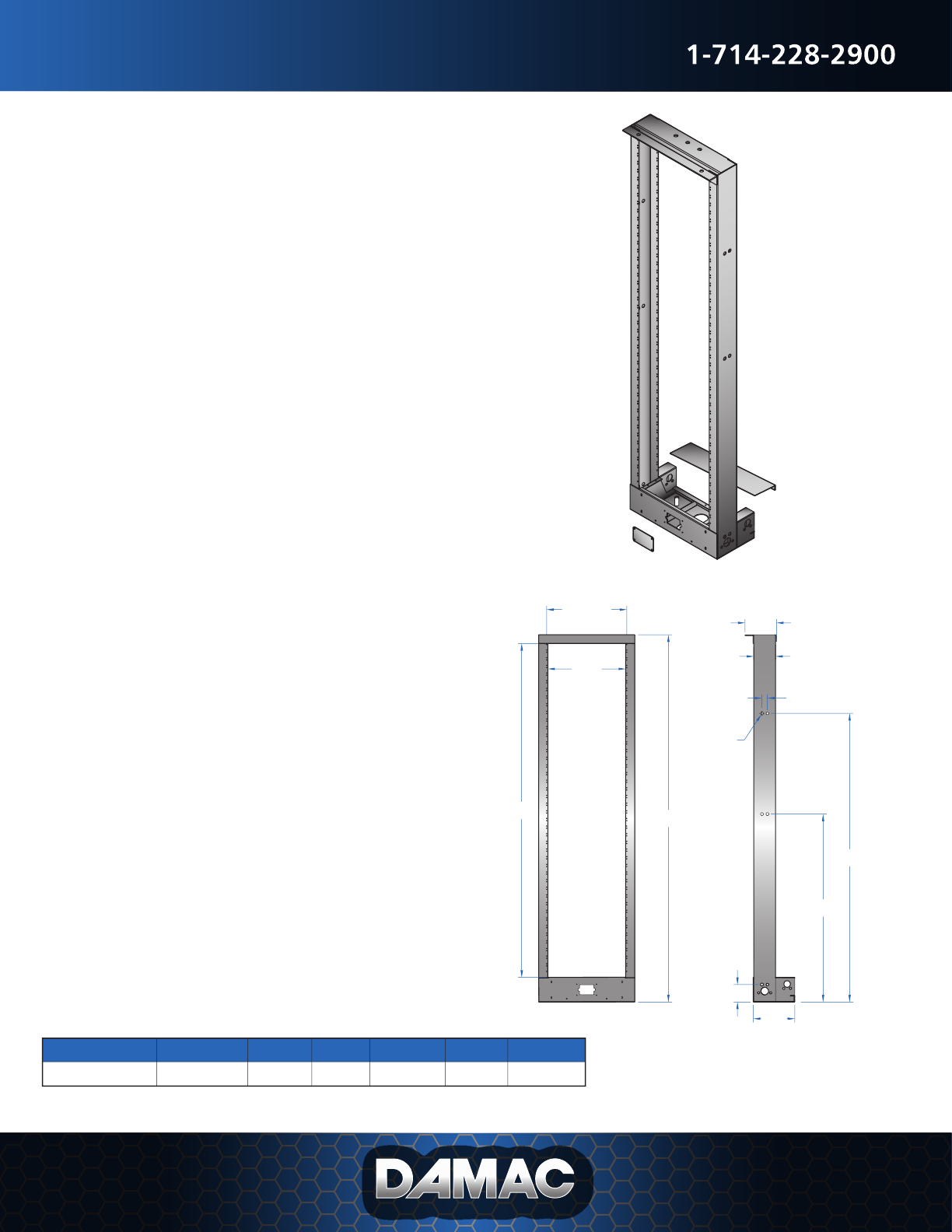

Seismic Two Post Equipment Rack

Damac's Seismic Rack is designed to support networking

equipment in seismic prone areas. The enhanced rack

construction features a fully welded 11 gauge steel design,

able to withstand the motion created during a seismic event.

Installing a seismic rack ensures no down-time to the

mounted equipment due to seismic vulnerability. Supports

19 in. EIA-310-D rack mounted equipment.

• Meets NEBS GR-63-CORE Seismic Requirements

• Weight capacity 1000 lbs.

• Fully welded 11 GA steel construction

• 19" EIA width

• Rack uprights are tapped on both sides

• 12-24 UNC threaded mounting provisions

• EIA universal hole pattern: 5/8"-5/8"-1/2"

• EIA-310-D Compliant

• Side channels include cable manager mounting holes

• Black epoxy powder-coat finish

• Full line of shelves and accessories available

Height:

Width:

Depth:

Rails:

Application:

Model Size:

Specifications:

Government

Military

Seismic Prone Locations

Mission Critical Services

Telecommunications

Seismic Two Post Rack Part Number

RSE19084-3 6.00" Deep 84" 45U 12-24 Tap Black 85 lb.

PART # Channel Height RMU Rail Type Color Ship Wt.

19.00

Rackable

76.38

17.82

84.00

4.00

9.50

7.19

5.00

1.25

66.00

43.00

00.67

TYP.

Rack Systems

12u, 18u, 24u

19.86"

12", 18"

10-32 Tapped

Swing-Out Wall Rack

For those installations were floor space is a premium, the

Damac Swing-Out Wall Rack is a cost effective solution. Ideal

application for an equipment or telecommunications room for

supporting security equipment, patch panels, routers, switches

and other 19 in. equipment. The swing-out mounting rail

allows access to the rear of the mounted equipment without

interrupting the equipments functionality.

• Weight capacity 100 lbs.

• Heights: 2 ft./12U, 3 ft./18U and 4 ft./24U

• Depths: 12 in. and 18 in.

• 19" rack-mount width

• Threaded rack-mounting provisions, 10-32 UNC

• EIA universal hole pattern: 5/8"-5/8"-1/2"

• Opens right or left, 180 degrees

• Keyhole wall mounting slots @ 16 in. centers

• Lances in the rear for cable ties and straps

• UL™ Listed

• UPS or FedEx shippable, one container

• Easily assembled, hardware included

• Black epoxy powder-coat finish

Height:

Width:

Depth:

Rails:

Application:

Model Sizes:

Specifications:

Retail/School

Equipment Rooms

Telecommunications

Wall Rack Part Numbers

WR24S12-3 10-32 Tap 22.25" 12U 12 in Black 25 lb.

WR24S-3 10-32 Tap 22.25" 12U 18 in Black 27 lb.

WR36S12-3 10-32 Tap 32.75" 18U 12 in Black 30 lb.

WR36S-3 10-32 Tap 32.75" 18U 18 in Black 32 lb.

WR48S12-3 10-32 Tap 43.25" 24U 12 in Black 35 lb.

WR48S-3 10-32 Tap 43.25" 24U 18 in Black 37 lb.

PART # Rail Type A-Height RMU B-Depth Color Ship Wt.

FRONT VIEW SIDE VIEW

19.86"

13.86"

16.00

CTR. TO CTR.

mounting rail swings

from left or right

Rack Systems

18.31"

19.00"

16.00"

FRONT

TOP

Mounting rail swings

out for quick access

1U, 2U, 4U

19" Rackable

06"

10-32 Tapped

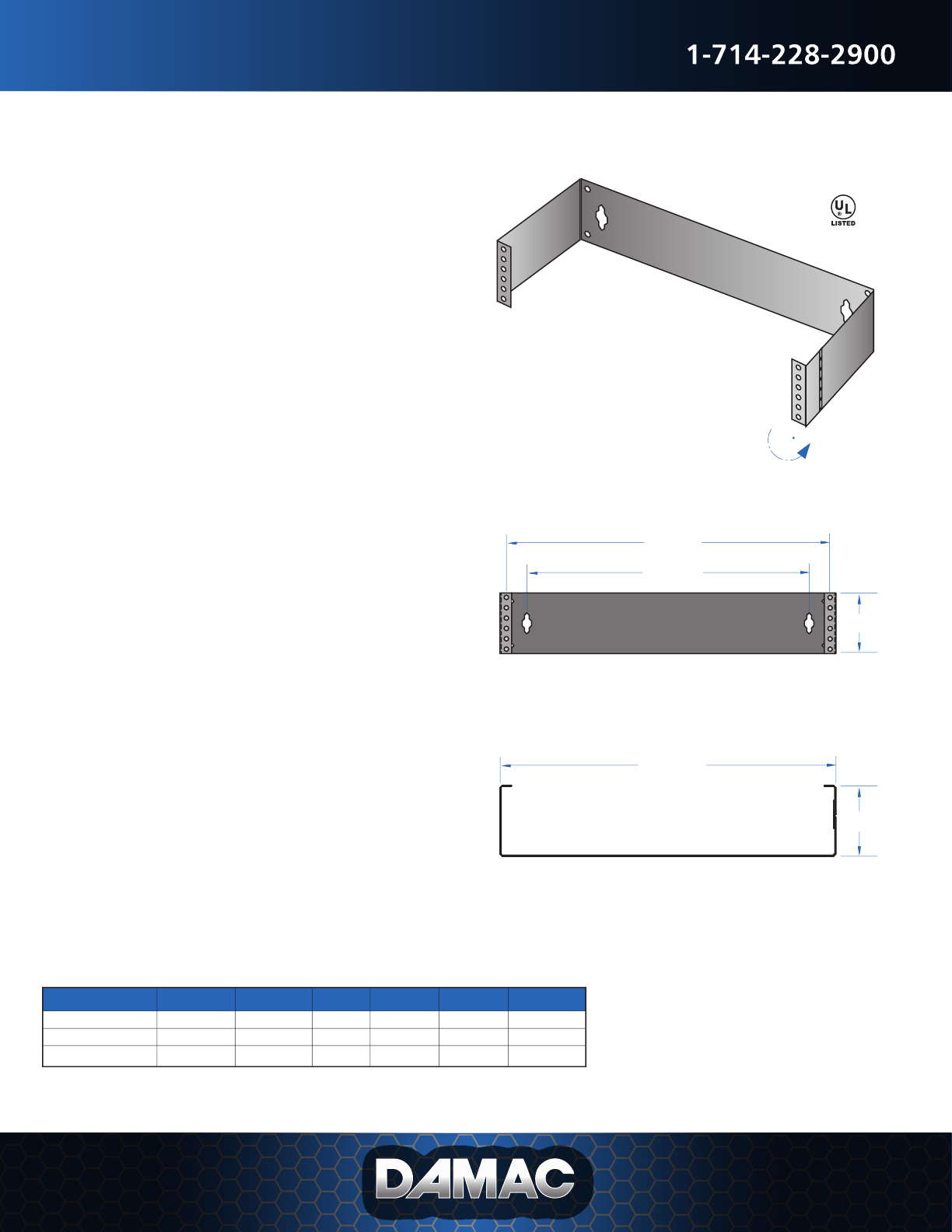

Wall Bracket Hinged Rails

Save rack space or better organize your telco closet with a

Hinged Wallmount Bracket. Mounts easily to any wall surface

and features wall mounting holes set at 16" on center for wall

studs. The hinged rail easily swings open for quick and easy

access to equipment cables. The EIA 19" mounting rails are

10-32 tapped. an ideal solution for mounting patch panels,

routers and switches. All brackets come 19" rackable and are

finished in durable, black epoxy powder coat.

• 16 GA cold rolled steel construction

• 25 LBS load rating

• 19" rackable

• EIA 10-32 tapped mounting rails

• Mounts to all wall surfaces: 16" center mnt. holes

• 1U to 4U models available

• One hinged side for easy access and installation

• Left or right hinge location

• Ideal solution for patch panels, routers and switch

• Durable black epoxy powder-coat finish

Height:

Width:

Depth:

Rails:

Application:

Model Size:

Specifications:

Retail/School

Equipment Rooms

Telecommunications

Wall Bracket Part Numbers

WPB19016 10-32 Tap 1.75" 1U 6 in Black 1 lb.

WPB19026 10-32 Tap 3.50" 2U 6 in Black 2 lb.

WPB19046 10-32 Tap 8.00" 4U 6 in Black 3 lb.

PART # Rail Type A-Height RMU B-Depth Color Ship Wt.

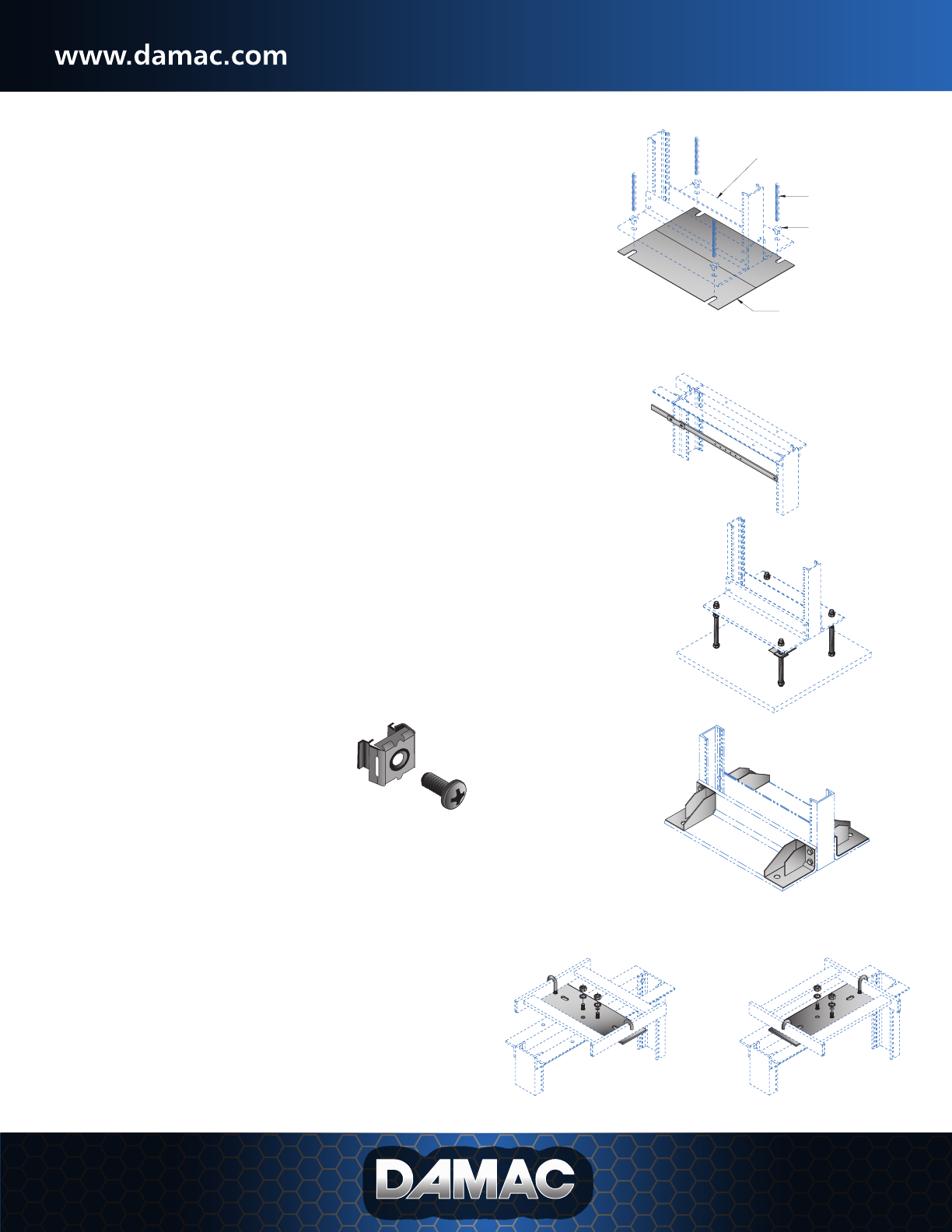

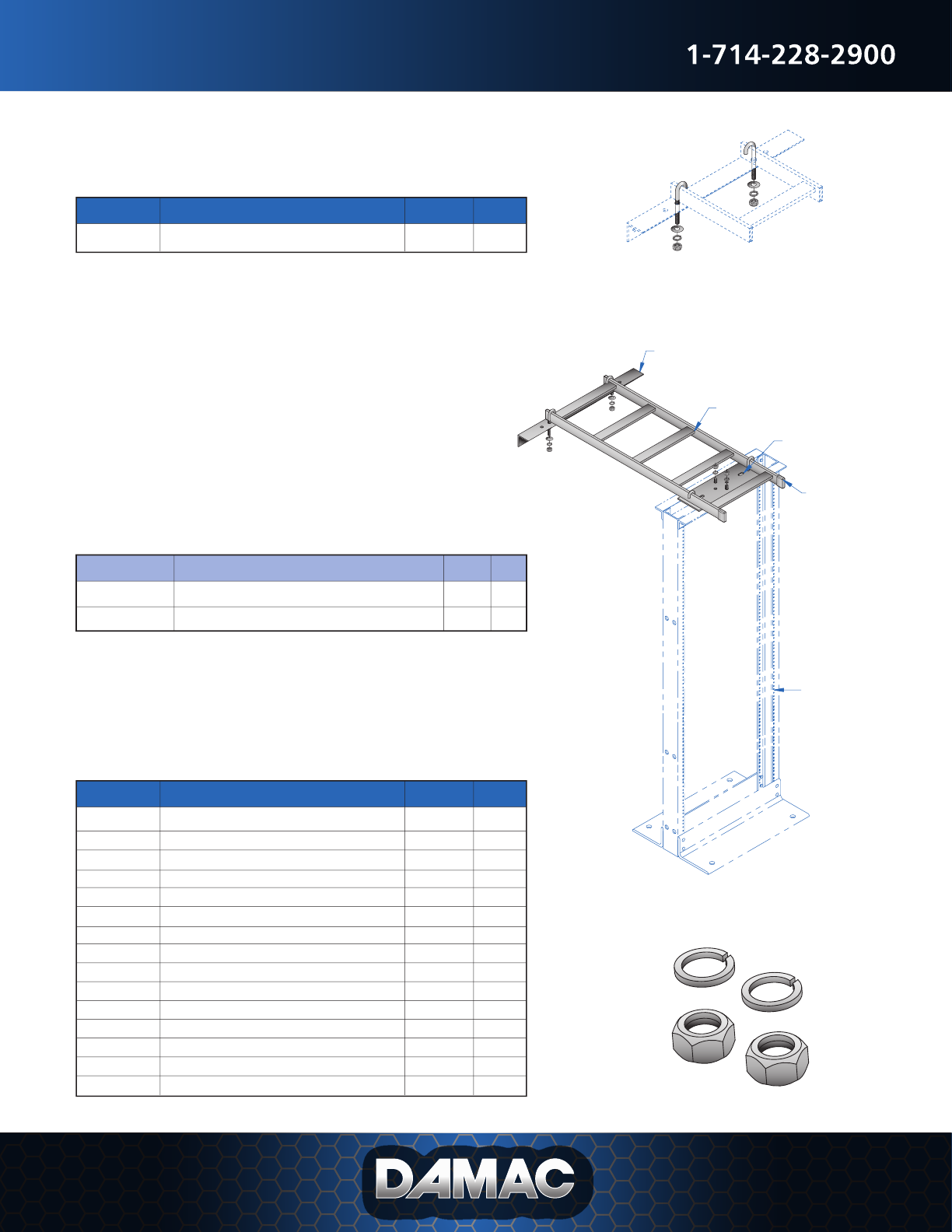

Rack Accesories

Use a bus bar to ground and isolate electrical currents of

rack-mounted equipment.

Rack Grounding

Part# Description Ship Wt.

ARR019IK 19" Relay Rack Isolation Kit 3 lb.

ARRGB Relay Rack Grounding Block 1 lb.

ARRGS Relay Rack Grounding Strap 1 lb.

AGRB019 19" Rackmount Grounding Bar 2 lb.

AGRB023 23" Rackmount Grounding Bar 3 lb.

AGWB010 10" x 4" Wallmount Bus Bar Kit 5 lb.

AGWB020 20" x 4" Wallmount Bus Bar Kit 10 lb.

Several kits available to floor mount and brace free standing

Two Post and Tandem Racks.

Rack Bracing and Mounting

Part# Description Ship Wt.

ARRCP3 Relay Rack Coupler Kit w/ 3" Spacer 2 lb.

ARREK Relay Rack Seismic Bracing Kit (rod not incld.) 3 lb.

ARRSK-3 Relay Rack Seismic Gusset Kit, 4 PC 12 lb.

ARRFCK-58 Concrete Floor Mounting Kit w/ 5/8" Hardware 3 lb.

ARRFRK-18 Raised Floor Mounting Kit w/ 5/8" Hardware 6 lb.

PLB12RS-3 12"W Ladder to Rack Mounting Kit, J-Bolts Incld. 3 lb.

PLB18RS-3 18"W Ladder to Rack Mounting Kit, J-Bolts Incld. 4 lb.

Additional M6 mounting hardware packs for rack mounting

equipment to the cabinet mounting rails.

Mounting Hardware

Part# Description Weight

AHPF1032-30 30pc, 10-32 screw 1 lb.

AHPF1032CN-30 30pc, 10-32 cage-nut 1 lb.

AHPFM6-30 30pc, M6 screw 1 lb.

AHPFM6CN-30 30pc, M6 cage-nut 1 lb.

AHPFCN-30 30pc, M6 screw w/ cage-nut 2 lb.

AHPFCN-100 100pc, M6 screw w/ cage-nut 6 lb.

Rack Ground Bar

Part# AGRB019

Rack Isolation Kit

Part# ARR019IK

Raised Floor Kit

Part# ARRFRK-18

Seismic Gusset Kit

Part# ARRSK

Relay Rack Outline

Threaded Rod

(not included)

Grommet

Isolation Pad

Runway/Rack Mounting Kit

FIG. 1 FIG. 2

Rack Accessories

84.00"

3.65", 6.00"

6.38", 12.75"

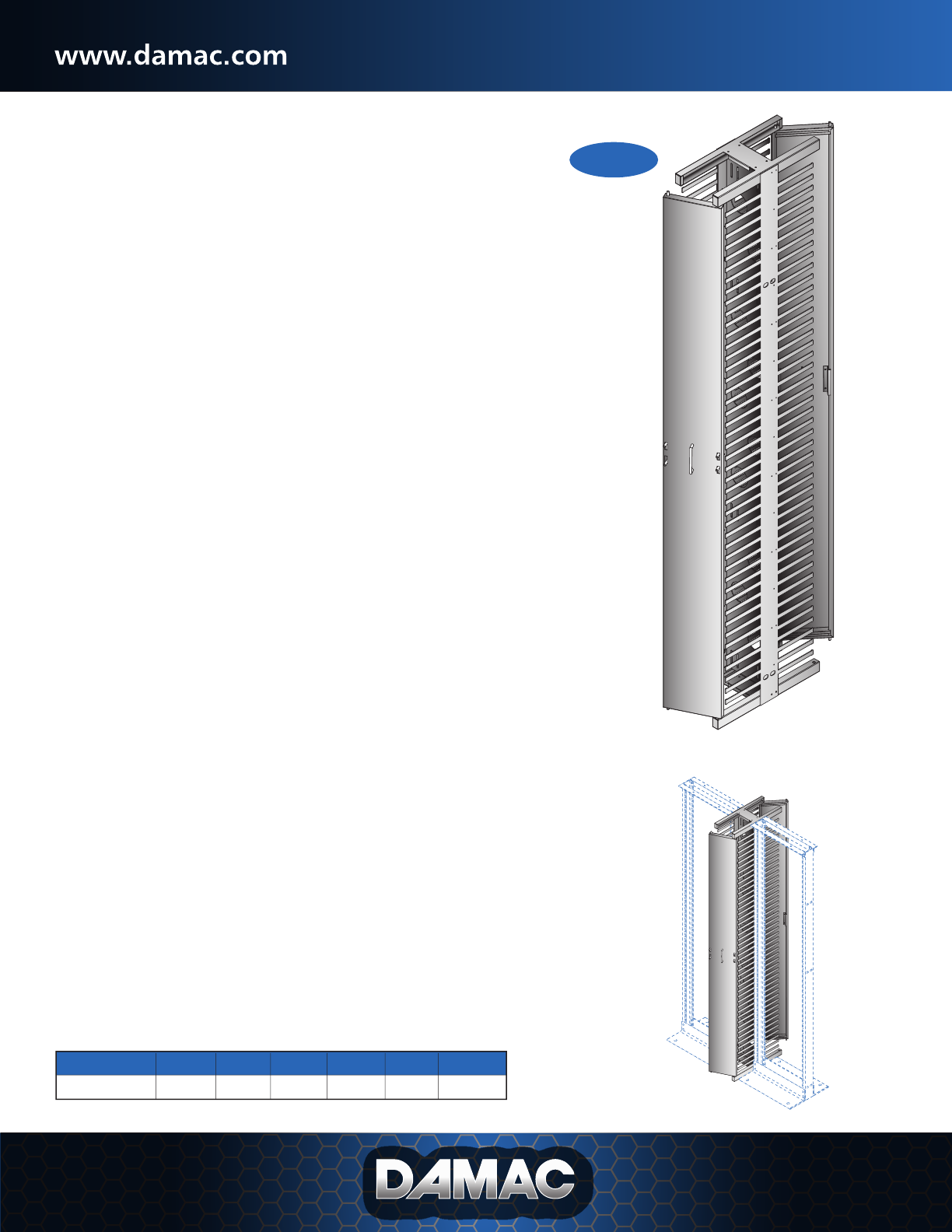

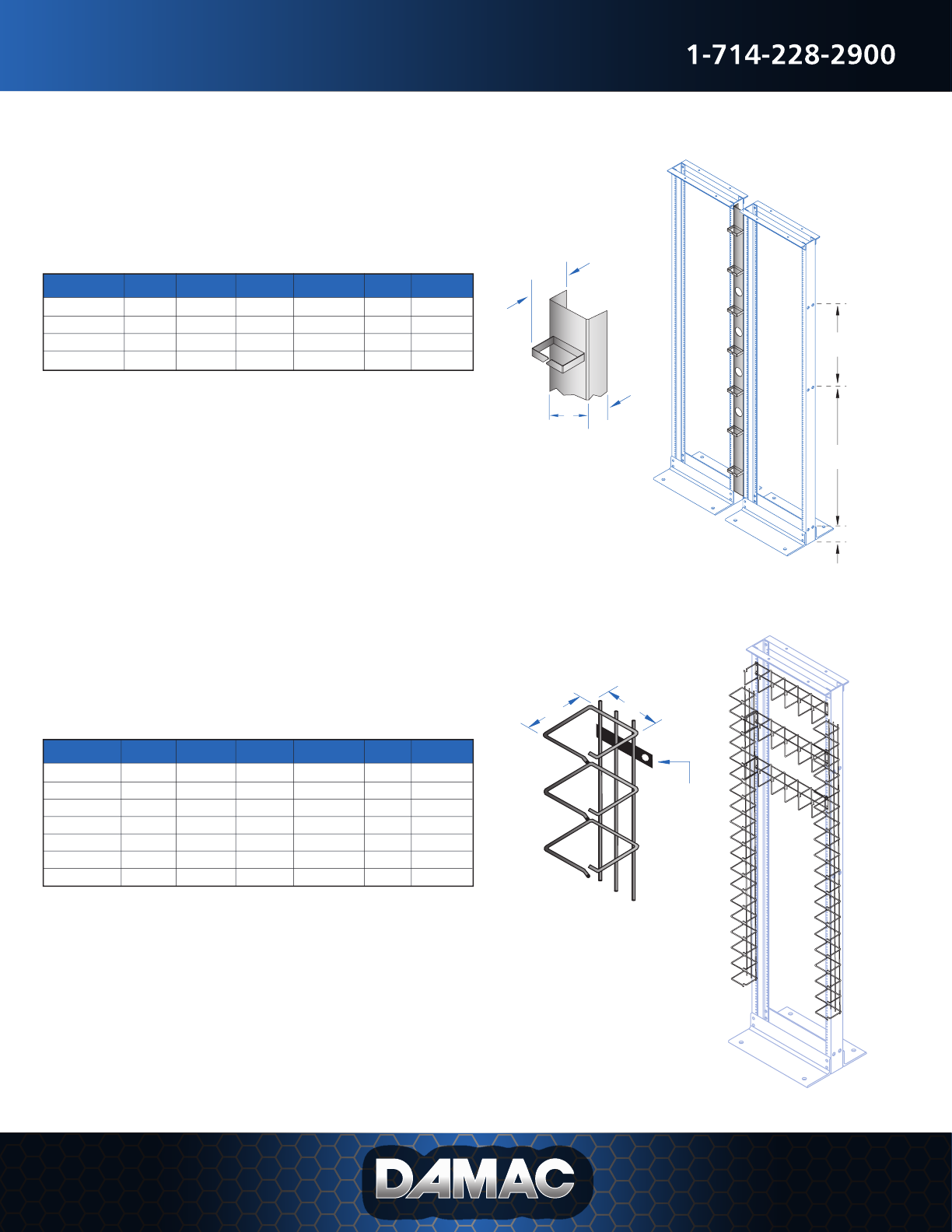

Vertical Cable Manager Rack Systems

Vertical cable managers provide structured vertical cable

management. Managers mount to the sides or between Two

Post Racks or Tandem Racks. Promotes a clean and organized

cable system for patch cords and general cabling.

The vertical cable channel includes snap-shut metal swing gates.

The swing gates are set 12 in. apart for clear viewing and

maintaining bend radii. Molded plastic edge protectors along

the aluminum frame protect cable jackets.

• Provides easy rack cable management

• Constructed of strong, light-weight aluminum

• Single or double-sided sections available

• Narrow or wide channel models

• Molded plastic edge protectors throughout

• Metal snap-shut swing gates

• Convenient cable pass-through ports

• Integrated lances throughout for cable tie-down

• Metal removable cover, optional

• Clear or black finishes standard

• Shipped fully assembled in one box

• Mounts to other popular vendor racks

Height:

Width:

Depth:

Application:

Model Sizes:

Specifications:

Networking

Structured Cabling

Two Post and Tandem Racks

Vertical Manager Part Numbers

MRS084N 84.00" Single 3.65" 6.38" Clear 15 lb.

MRS084N-3 84.00" Single 3.65" 6.38" Black 15 lb.

MRS084W 84.00" Single 6.00" 6.38" Clear 16 lb.

MRS084W-3 84.00" Single 6.00" 6.38" Black 16 lb.

MRD084N 84.00" Double 3.65" 12.75" Clear 18 lb.

MRD084N-3 84.00" Double 3.65" 12.75" Black 18 lb.

MRD084W 84.00" Double 6.00" 12.75" Clear 19 lb.

MRD084W-3 84.00" Double 6.00" 12.75" Black 19 lb.

PART # Height Sided A-width B-depth Color Ship Wt.

Cover Metal lift-off covers

MRC084N-3 MRD084N, MRS084N Black 8 lb.

MRC084W-3 MRD084W, MRS084W Black 8 lb.

PART # Fits Manager# Color Ship Wt.

62.00"

4.00"

84.00"

Double: Model MRD Single: Model MRS

Use with Two Post or Tandem Racks.

Fits multi-vendor racks.

Rack Accessories

84.00"

8.00"

18.50"

Cable Finger Manager Rack Systems

The Cable Finger Manager provides structured vertical cable

management for high density installs. Mounts to the sides or

between Damac Two Post Racks or Tandem Racks. Promotes a

clean and organized cable system for patch cords, jumper cables and

large cable bundles.

Includes front and back doors with spring loaded, two point latching

mechanism. Doors are hinged for both left or right opening. Doors

are removable.

The cable manager body has vertical cable routing fingers on the left

and right side, front and back. Cable finger align with rack spaces and

have rounded edges for cable protection. The center section

includes cable pass thru's and cable tie slots.

• Provides high density vertical cable management

• Front and back covers, dual hinged for left or right opening

• Covers are removable

• Full height vertical cable routing fingers on both sides

• Vertical fingers align with rack spaces and have rounded edges

• Convenient cable pass-through ports

• Integrated lances throughout for cable tie-down

• Ridged design for minimal deflection when installed at the end of a row

• Clear or black finishes standard

• Shipped fully assembled in one box

• Mounts to other popular vendor racks

Height:

Width:

Depth:

Application:

Model Size:

Specifications:

Data Center

Networking

Structured Cabling

Two Post and Tandem Racks

Cable Finger Manager Part Numbers

MRDF084W08-3 84.00" Double 8.00" 18.50" Clear 28 lb.

PART # Height Sided Width Depth Color Ship Wt.

New

Rack Accessories

MRM Vertical Organizer Rack Systems

The new MRM Vertical Organizer is a cost effective solution for cross connecting

relay racks and promotes user friendly cable management. Featuring seven

4" x 3" or 4" x 5" cable rings evenly spaced and convenient rack to rack mounting

holes compatible will all EIA-310E equipment racks. Narrow and wide models

available with cable pass-thru ports for front to back cable runs.

MRM084N-3 79.00 3.75 5.65 4.00 x 3.00 Black 5.5 lb.

MRM084N-4F 79.00 3.75 5.65 4.00 x 3.00 Gray 5.5 lb.

MRM084W-3 79.00 6.00 5.65 4.00 x 5.00 Black 8.5 lb.

MRM084W-4F 79.00 6.00 5.65 4.00 x 5.00 Gray 8.5 lb.

Part # Height A-width B-depth Ring Color Ship Wt.

CableControl™ Rack Systems

CableControl is a cost effective vertical cable management solution. Utilizing a

patented wire-form design, makes organizing and bundling of cables simple. The

top and bottom are open for overhead or raised floor cable runs. The full length

D-Ring channel is constructed of rolled steel promoting proper bend radius and a

smooth protective surface. Attaches to the mounting rails surface via a universal

mounting bracket. Finished in durable black epoxy powder-coat.

F533-001-8 18.80" 2.50 2.50" 19" Rackable Black 2 lb.

F533-002-8 18.80" 3.50" 3.50" 19" Rackable Black 2 lb.

F533-003-8 18.80" 4.75" 4.75" 19" Rackable Black 3 lb.

F533-004-8 18.80" 4.75" 5.50" 19" Rackable Black 3 lb.

F533-015-8 68.00" 2.50" 2.50" Vertical Mnt. Black 5 lb.

F533-012-8 68.00" 3.50" 3.50" Vertical Mnt. Black 6 lb.

F533-014-8 68.00" 4.75" 5.50" Vertical Mnt. Black 7 lb.

Part # Height A-width B-depth Type Color Ship Wt.

23.00"

39.00"

4.00"

install on any EIA-310E racks

DETAIL VIEW

Rail Mount

Clip

1.75

Rack Accessories

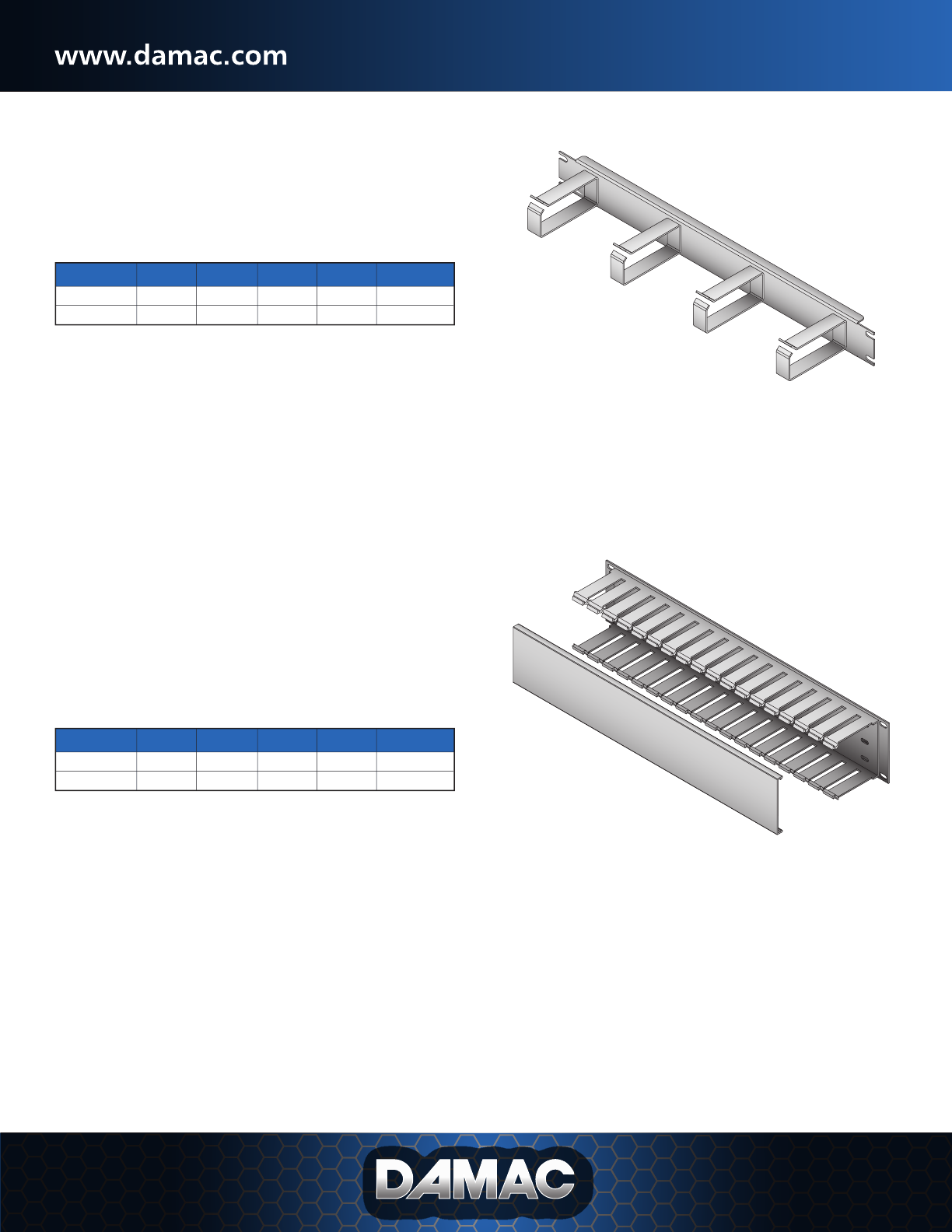

19" Horizontal Manager

Organize your horizontal cable runs with this cost effective solution.

Constructed of 16 GA sheet metal, promotes durability compared to cheap

plastic versions. Featuring smooth, radius edges adds protect to vital cables

while organizing. Easy to install in any 19" EIA rack or cabinet. An optional snap

on metal cover is available. Finished in durable epoxy powder-coat.

19" Cable Management Panels

Panels are 19" rackable and are perfect for managing Coax, Fiber Optic and

multimedia cables. The versatile cable channel maintains proper cable bend

radius and are available in depths of 3" or a compact 2" depth. All panels

include a snap on cover.

F533-1901 1U 19" 3.50" Black 2.5 lb.

F533-1902 2U 19" 3.50" Black 2.5 lb.

Part # Height Width Depth Color Ship Wt.

F533-P1932 2U 19" 2.25" Black 2.5 lb.

F533-P1933 2U 19" 3.25" Black 2.5 lb.

Part # Height Width Depth Color Ship Wt.

MCC1901 Cover for Part: F533-1901

MCC1902 Cover for Part: F533-1902

Rack Accessories

Rack-Mount Shelves Rack Systems

A variety of rack shelf options are available in 19" and 23" rack mount

configurations. Shelves are universal and will fit third party racks.

10" Deep Single Sided Shelves

Part # Rackable HxWxD Type Color Ship Wt.

SRA1910S 19" 2U x 19 x 10 Aluminum, Solid, 50LB Cap. Clear 5 lb.

SRS1910S-3 19" 2U x 19 x 10 Steel, Solid, 50LB Cap. Black 6 lb.

SRA1910P 19" 2U x 19 x 10 Aluminum, Perf, 50LB Cap. Clear 5 lb.

SRA1910P-3 19" 2U x 19 x 10 Aluminum, Perf, 50LB Cap. Black 5 lb.

SRS2310S-3 23" 2U x 23 x 10 Steel, Solid, 100LB Cap. Black 7 lb.

SRA1910S-3

3.63

0.59

3.46

10.00

SRA1914S-3

3.63

0.59

3.46

14.50

SRA1919CS-3

3.45

0.50

5.0 5.0

19.0

SRA1919HD-3

1.75

0.75

7.125

10.188

20.376

14" Deep Single Sided Shelves

Part # Rackable HxWxD Type Color Ship Wt.

SRA1914S 19" 2U x 19 x 14.5 Aluminum, Solid, 50LB Cap. Clear 7 lb.

SRS1914S-3 19" 2U x 19 x 14.5 Steel, Solid, 100LB Cap. Black 8 lb.

SRA1914P 19" 2U x 19 x 14.5 Aluminum, Perf, 50LB Cap. Clear 7 lb.

SRS1914P-3 19" 2U x 19 x 14.5 Steel, Perf, 100LB Cap. Black 8 lb.

SRA2314S-3 23" 2U x 23 x 14.5 Aluminum, Solid, 50LB Cap. Black 10 lb.

SRS2314S-3 23" 2U x 23 x 14.5 Steel, Solid, 100LB Cap. Black 10 lb.

SRA2314P-3 23" 2U x 23 x 14.5 Aluminum, Perf, 50LB Cap. Black 10 lb.

19" Deep Double Sided Shelves, 1pc

Part # Rackable HxWxD Type Color Ship Wt.

SRA1919CS 19" 2U x 19 x 19 Aluminum, Solid, 50LB Cap. Clear 10 lb.

SRA1919CS-3 19" 2U x 19 x 19 Aluminum, Solid, 50LB Cap. Black 10 lb.

SRS1919CS-3 19" 2U x 19 x 19 Steel, Solid, 150LB Cap. Black 11 lb.

SRA1919CP 19" 2U x 19 x 19 Aluminum, Perf, 50LB Cap. Clear 10 lb.

SRA1919CP-3 19" 2U x 19 x 19 Aluminum, Perf, 50LB Cap. Black 10 lb.

19" Deep HD Double Sided Shelves, 2pc

Part # Rackable HxWxD Type Color Ship Wt.

SRA1919HD 19" 4U x 19 x 19 Aluminum, Solid, 200LB Cap. Clear 12 lb.

SRA1919HD-3 19" 4U x 19 x 19 Aluminum, Solid, 200LB Cap. Black 12 lb.

Rack Accessories

21" Deep HD Double Sided Shelves, 2pc

Part # Rackable HxWxD Type Color Ship Wt.

SRA1921RD 19" 4U x 19 x 21 Aluminum, Solid, 100LB Cap. Clear 11 lb.

SRA1921RD-3 19" 4U x 19 x 21 Aluminum, Solid, 100LB Cap. Black 11 lb.

SRA1921RDP 19" 4U x 19 x 21 Aluminum, Perf, 100LB Cap. Clear 11 lb.

SRA2321RD-3 23" 4U x 23 x 21 Aluminum, Solid, 100LB Cap. Black 12 lb.

26" Deep HD Double Sided Shelves, 2pc

Part # Rackable HxWxD Type Color Ship Wt.

SRA1926HD 19" 4U x 19 x 26 Aluminum, Solid, 200LB Cap. Clear 13 lb.

SRA1926HD-3 19" 4U x 19 x 26 Aluminum, Solid, 200LB Cap. Black 13 lb.

30" Deep HD Double Sided Shelves, 2pc

Part # Rackable HxWxD Type Color Ship Wt.

SRA1930HD 19" 4U x 19 x 30 Aluminum, Solid, 200LB Cap. Clear 14 lb.

SRA1930HD-3 19" 4U x 19 x 30 Aluminum, Solid, 200LB Cap. Black 14 lb.

Fixed & Roll-Out Keyboard Trays

Part # Rackable HxWxD Type Color Ship Wt.

SRS19KF-3 19" 2U x 19 x 8.5 Fixed Keyboard Black 7 lb.

SRA19KS 19" 2U x 19 x 8 Roll-Out Keyboard Clear 7 lb.

SRA19KS-3 19" 2U x 19 x 8 Roll-Out Keyboard Black 7 lb.

SRA19KSM 19" 2U x 19 x 8 Roll-Out Keybrd w/ Mouse Clear 8 lb.

SRA19KSM-3 19" 2U x 19 x 8 Roll-Out Keybrd w/ Mouse Black 8 lb.

SRA19KMT 19" 2U x 19 x 8 Roll-Out Keyboard w/ Tilt Clear 8 lb.

SRA19KMT-3 19" 2U x 19 x 8 Roll-Out Keyboard w/ Tilt Black 8 lb. SRA19KMT-3

SRA19KSM-3

SRA1921RD-3

2.34

7.125

10.84

21.68

0.75

SRA1926HD-3

0.75

4.00

26.00

13.00

7.125

SRA1930HD-3

0.75

30.00

15.00

4.00

7.125

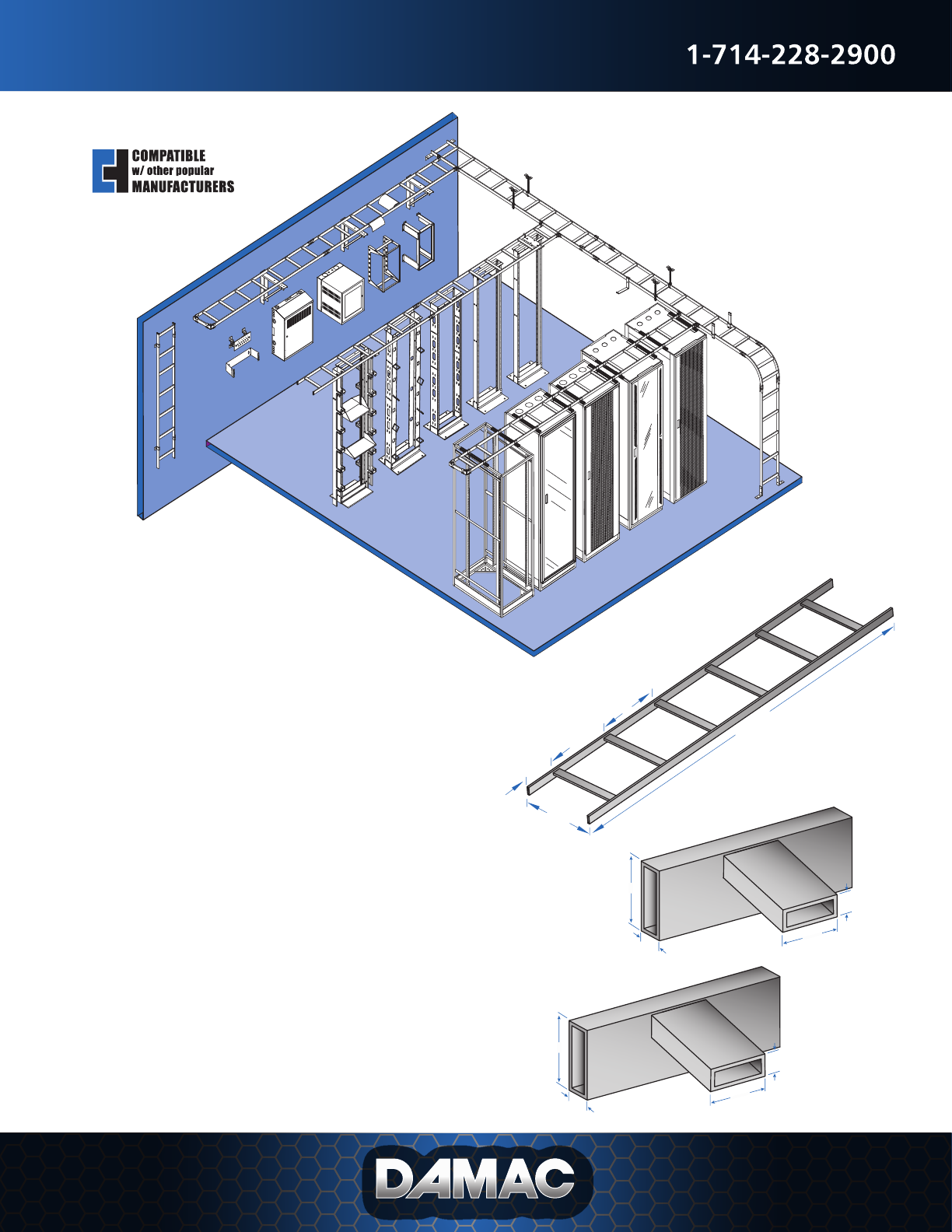

Cable Runway

Cable runway is constructed of tubular steel, providing superior

strength and less weight. Each stick of cable runway is individually

boxed for easy shipment. Available in standard or Telco versions.

Completely compatible with other cable runway systems. Save

up to 20% of the cost compared to similar runway systems.

Available in black or gray epoxy powder-coat finish.

• Construction:16 GA, 3/8" x 1-1/2" x .065" tubular steel

• Standard length: 9' 11-1/2"

• Standard: cross members positioned on 12” centers

• Telco: cross members positioned on 9” centers

• Compatible with other tubular cable runway systems

• Full line of hardware and accessories available

• Individually boxed for easy shipment

• Epoxy powder-coat finish: black or gray

Specifications:

.375

1.50

1.00

.50

.375

1.50

.375

Telco Runway

Standard Runway

12"

18"

119.50"

60.00"

5.75"

Telco: 09"

Standard: 12"

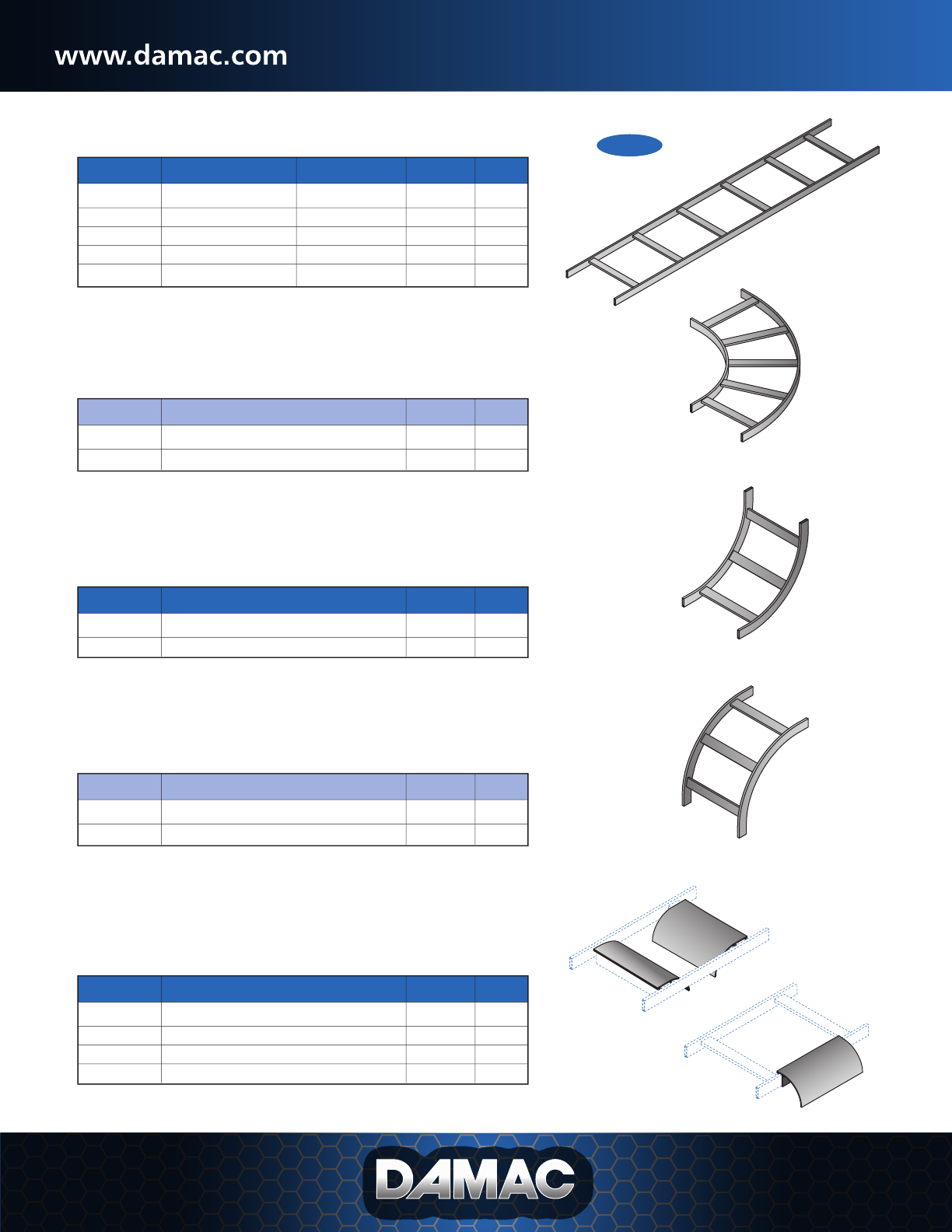

Cable Runway

Radius E-Bend

Inside Radius Bend

Outside Radius Bend

Cable Runway

PLR1205-3 1.5" x 12" x 60.00" 12" Runway Black 10 lb.

PLR1210-3 1.5" x 12" x 119.50" 12" Runway Black 20 lb.

PLR1805-3 1.5" x 18" x 60.00" 18" Runway Black 15 lb.

PLR1810-3 1.5" x 18" x 119.50" 18" Runway Black 30 lb.

PLR1210T-3 1.5" x 12" x 116.50" 12" Telco Runway Black 20 lb.

Part # H x W x L Type Color Wt.

90 Degree Radius E-Bends

PLR12RE-3 12" Runway, 90 Degree Horizontal Radius Black 8 lb.

PLR18RE-3 18" Runway, 90 Degree Horizontal Radius Black 11 lb.

Part # Description Color Wt.

Provides a gradual bend for cable runway, maintains min. cable bend radius

Radius Bends: Inside

PLR12RI-3 12" Runway, Inside Radius Bend Black 8 lb.

PLR18RI-3 18" Runway, Inside Radius Bend Black 11 lb.

Part # Description Color Wt.

Inside bend for cascading cables, maintains min. cable bend radius

Radius Bends: Outside

PLR12RO-3 12" Runway, Inside Radius Bend Black 8 lb.

PLR18RO-3 18" Runway, Inside Radius Bend Black 11 lb.

Part # Description Color Wt.

Outside bend for cascading cables, maintains min. cable bend radius

Radius Drop

PLBDS-3 Runway Side Drop Black 2 lb.

PLBDST-3 Telco Runway Side Drop Black 2 lb.

PLA12DC-3 12" Runway, Center Drop Black 2 lb.

PLA18DC-3 18" Runway, Center Drop Black 3 lb.

Part # Description Color Wt.

Maintains cable bend radius for center cascading cables. Attaches to cable

runway stringer our cross-bar. Fits 12" and 18" cable runway.

Center Drop

Side Drop

New

5 ft. Sections

* replace (-3) in part# with (-4F) for Gray finish

Cable Runway

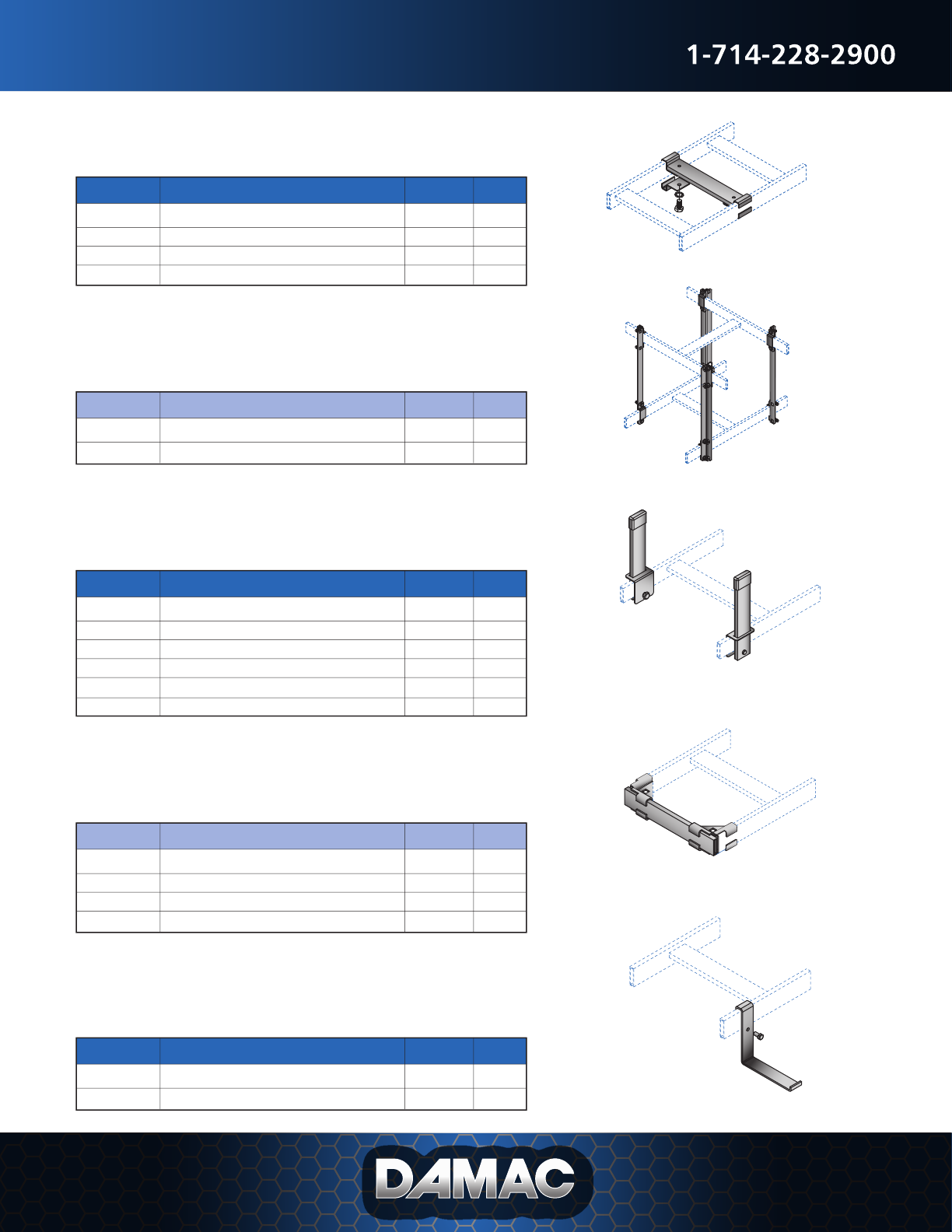

Adjustable Cross Member

PLA12CM-3 12" Adjustable Cross Member Black 2 lb.

PLA12CM-4F 12" Adjustable Cross Member Gray 2 lb.

PLA18CM-3 18" Adjustable Cross Member Black 2 lb.

PLA18CM-4F 18" Adjustable Cross Member Gray 2 lb.

Part # Description Color Wt.

Facilitates the cascading of cables between runway cross-members.

Kit includes cross-member w/ hardware.

Retaining Post

PLB06RP-3 06" Retaining Post Black 2 lb.

PLB06RP-4F 06" Retaining Post Gray 2 lb.

PLB08RP-3 08" Retaining Post Black 2 lb.

PLB08RP-4F 08" Retaining Post Gray 2 lb.

PLB10RP-3 10" Retaining Post Black 3 lb.

PLB10RP-4F 10" Retaining Post Gray 3 lb.

Part # Description Color Wt.

Adds additional depth to cable runway for dense cabling. Kit includes

one 6", 8" or 10" retaining post, mounting bracket, protective end caps

and all required hardware.

Termination Kits

PLBTK12-3 12" Runway, Termination Black 3 lb.

PLBTK12-4F 12" Runway, Termination Gray 3 lb.

PLBTK18-3 18" Runway, Termination Black 5 lb.

PLBTK18-4F 18" Runway, Termination Gray 5 lb.

Part # Description Color Wt.

Termination kits close an un-spliced end of cable runway. Kits feature two

junction "T" brackets, one piece of 1 1/2" tube at a length equal to the

un-spliced cable runway and all needed hardware.

Stand-Off Support Bracket

PLB12SK-3 12" Stand-Off Support Bracket Black 2 lb.

PLB12SK-4F 12" Stand-Off Support Bracket Gray 2 lb.

Part # Description Color Wt.

Add an additional cable runway system directly above, perpendicular or

parallel, to an existing runway system. Kit includes four support brackets,

two steel 12" angled stand-off beams and all required hardware.

L Bracket

PLA5LB-3 "L" Bracket Cable Runway Black 1 lb.

PLA5LB-4F "L" Bracket Cable Runway Gray 1 lb.

Part # Description Color Wt.

Ideal for physically separating required cables. By adding the "L" bracket, an

alternative runway is created for separating harmful power cables from data

cables. Kit includes "L" bracket and hardware.

Stand-Off Bracket

Retaining Post

Termination Kit

"L" Bracket

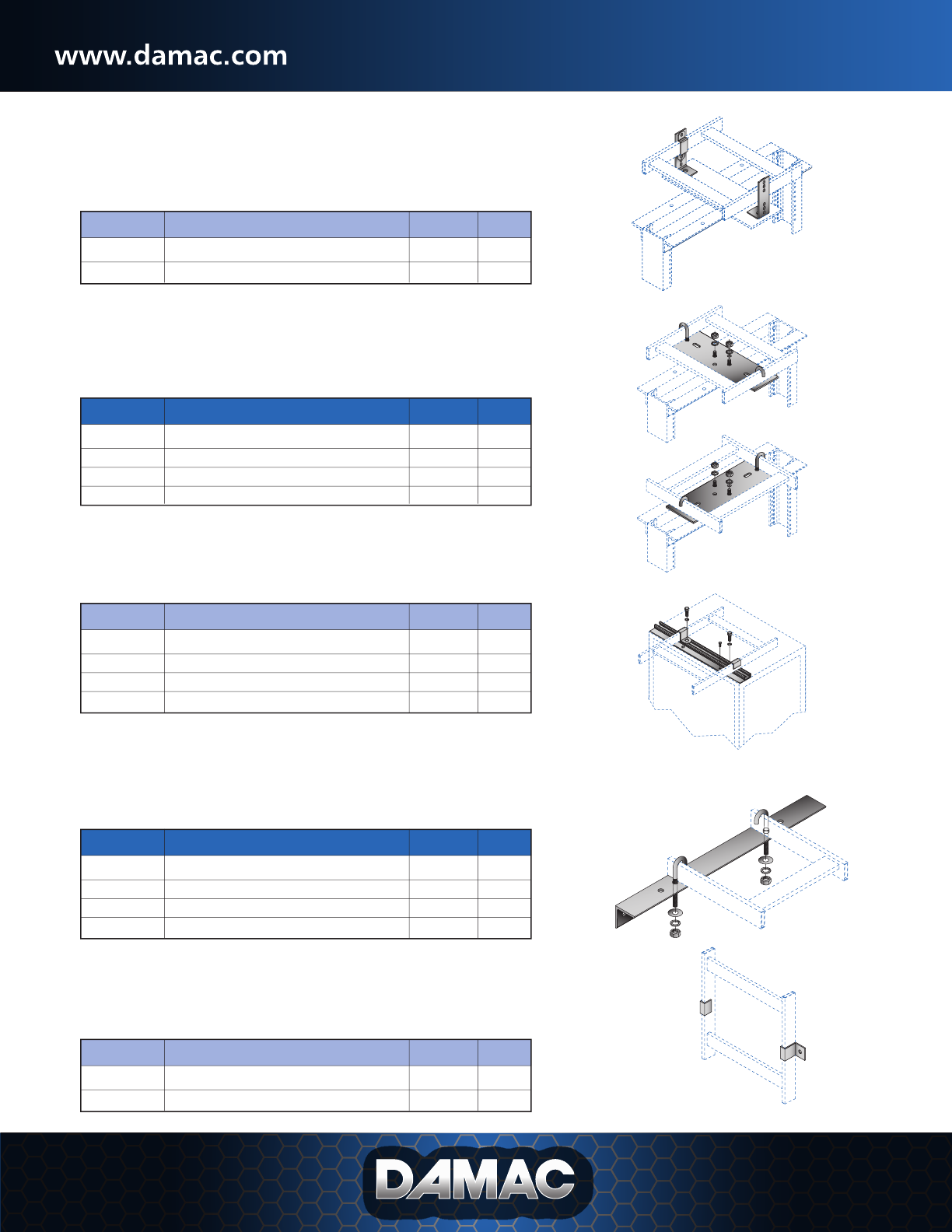

Cable Runway

Elevation Kit

Runway/Rack Mounting Kit

Rack-To-Runway Elevation Kit

PLBSC06-3 Rack-Runway Elevation Kit, 4" - 6" High Black 8 lb.

PLBSC03-3 Rack-Runway Elevation Kit, 2" - 3" High Black 8 lb.

Part # Description Color Wt.

Support runway above racks with added top spacing for cable transitions. Mounts to

rack-to-runway mounting plate (PLBXXRS-3) and to side stringer of runway with

elevation adjustments from 2"-3" and 4"-6" high. Kit includes two elevation brackets

w/ hardware. Top plate sold separately.

Runway-To-Cabinet Mounting Kit

PLB24CS-3 12"-18"W Runway to 24"-30"D Cabinet Kit Black 7 lb.

PLB24CS-4F 12"-18"W Runway to 24"-30"D Cabinet Kit Gray 7 lb.

PLB28CS-3 12"-18"W Runway to 28"-40"D Cabinet Kit Black 7 lb.

PLB28CS-4F 12"-18"W Runway to 28"-40"D Cabinet Kit Gray 7 lb.

Part # Description Color Wt.

Securely attaches runway to the top of cabinets. Kit includes mounting plate

that allows you to adjust runway into the desired position.

Wall Angle Support Kit

PLBWA12-3 12" Runway Wall Angle Bracket Black 4 lb.

PLBWA12-4F 12" Runway Wall Angle Bracket Gray 4 lb.

PLBWA18-3 18" Runway Wall Angle Bracket Black 5 lb.

PLBWA18-4F 18" Runway Wall Angle Bracket Gray 5 lb.

Part # Description Color Wt.

Wall angles function as a wall support and seismic bracing for cable runway.

Kit includes a pre-drilled, steel wall angle plate and a two 5/16-18 x 3" J-bolts

and all needed hardware.

Runway-To-Rack Mounting Kit

PLB12RS-3 12"W Runway to Two Post Rack Black 2 lb.

PLB12RS-4F 12"W Runway to Two Post Rack Gray 2 lb.

PLB18RS-3 18"W" Runway to Two Post Rack Black 3 lb.

PLB18RS-4F 18"W" Runway to Two Post Rack Gray 3 lb.

Part # Description Color Wt.

Securely attaches cable runway to the top angles of standard 3" channel relay racks.

Allows mounting runway either parallel or perpendicular to the rack. Kit includes

one steel, pre-drilled mounting plate and two 5/16-18 x 3" J-bolts w/ hardware.

Wall Mounting Clamps

PLBWHC2-3 Wall Mounting Hold Down Brackets (2) Black 1 lb.

PLBWHC2-4F Wall Mounting Hold Down Brackets (2) Gray 1 lb.

Part # Description Color Wt.

Wall clamps are a quick and easy solution for attaching cable runway to

wall surfaces. Kit includes two mounting clamps and all needed hardware.

FIG. 1

FIG. 2

Runway/Cabinet Mounting Kit

Wall Angle Support Kit

Wall Mounting Clamps

Cable Runway

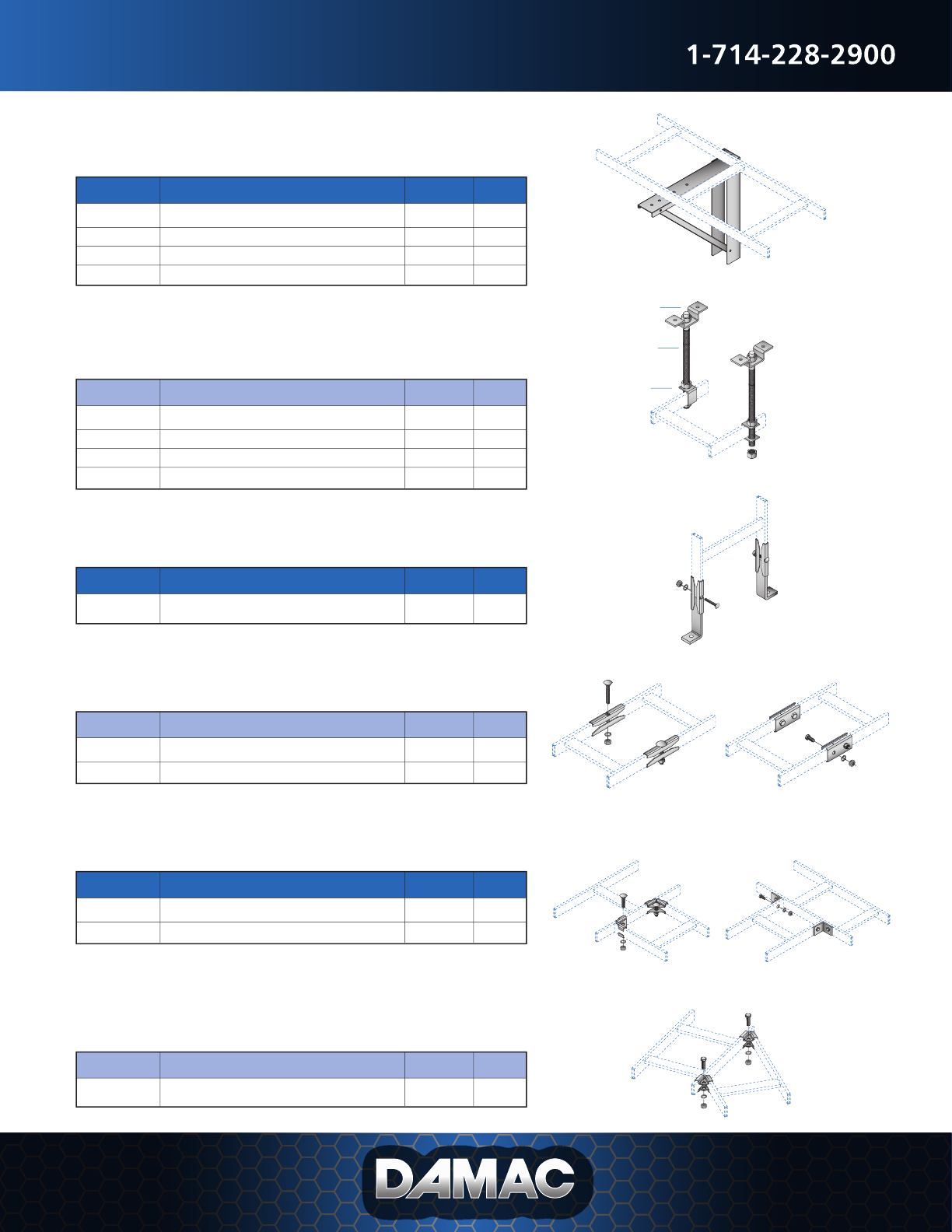

Wall Triangle Support Kit

PLBWT12-3 12" Runway Triangle Sup. Bracket Black 5 lb.

PLBWT12-4F 12" Runway Triangle Sup. Bracket Gray 5 lb.

PLBWT18-3 18" Runway Triangle Sup. Bracket Black 8 lb.

PLBWT18-4F 18" Runway Triangle Sup. Bracket Gray 8 lb.

Part # Description Color Wt.

The steel triangle wall support bracket provides wall support for cable runway.

Kit features a pre-drilled, triangle bracket, two 5/16-18 x 3" J-bolts and hardware.

Floor Mounting Kits

PLBFS-3 Floor Mounting Kit (2) Black 6 lb.

Part # Description Color Wt.

The floor mounting kit includes two butt splice brackets, floor angles

and all needed hardware.

Butt Splice Kit

PLBE00-3 Bracket, Butt Splice Kit (2) Black 2 lb.

PLBE00HD-3 Bracket, HD Butt Splice Kit (2) Black 2 lb.

Part # Description Color Wt.

Use to splice cable runway. Kit includes two brackets w/ hardware.

The HD model requires drilling.

Ceiling Support Kits

PLBCRK58 5/8" Ceiling Support Kit w/ rod Black 5 lb.

PLBC58-3 5/8" Ceiling Bracket, 1 only Black 1 lb.

PLBSS58-3 5/8" Slotted Support Bracket, 1 only Black 1 lb.

PLA58072TR 5/8" Threaded Rod, 6 ft. Piece, 1 only Zinc 5 lb.

Part # Description Color Wt.

Suspend runway from the ceiling. Kit includes one rack support bracket,

one ceiling support bracket and one 6' piece of 5/8" threaded rod w/ all

needed 5/8" hardware. Note: two kits are req. for standard configuration.

Junction-T Kit

PLBJT-3 Bracket, Junction T Kit (2) Black 2 lb.

PLBJTHD-3 HD Bracket, Junction T Kit (2) Black 3 lb.

Part # Description Color Wt.

Create a 90 degree junction splice. Kit includes two brackets

w/ hardware. HD model requires drilling.

* replace (-3) in part# with (-4F) for Gray finish

30-90 Adjustable Junction Kit

PLBJ3090-3 Bracket, 30-90 Adj. Junction Kit (2) Black 5 lb.

Part # Description Color Wt.

Form virtually any adjustable angle for splicing to cable runway. Bracket

attaches to side stringer of runway and easily slides between cross-bars.

Kit includes two adjustable junction brackets w/ hardware.

* replace (-3) in part# with (-4F) for Gray finish

30-90 Junction Kit

Ceiling Bracket

5/8" Rod

Slotted

Support

Bracket

Runway Ceiling Support Kit

Runway Floor Mounting Kit's

Butt Splice HD Butt Splice

Junction T HD Junction T

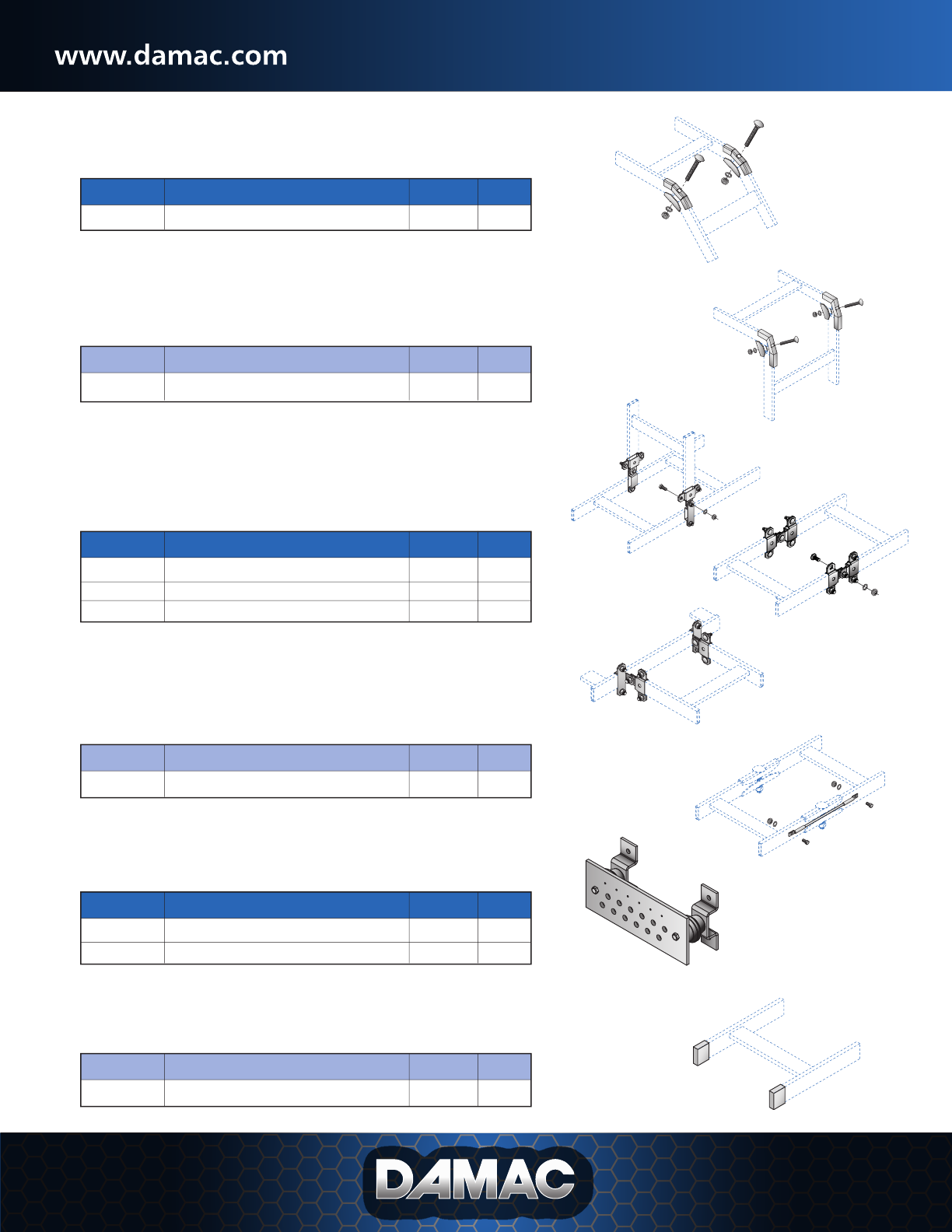

Cable Runway

45 Degree Splice Kit

PLBE45-3 Bracket, 45 Degree Splice Kit (2) Black 2 lb.

Part # Description Color Wt.

Use to splice cable runway at a 45 degree angle. Kit includes two 45 degree

splice brackets w/ hardware.

Swivel Splice Kit

PLBSE-3 Bracket, Butt-Swivel Splice Kit (2) Black 2 lb.

PLBSJ-3 Bracket, Junction-Swivel Splice Kit (2) Black 2 lb.

PLBSV-3 Bracket, Vertical-Swivel Splice Kit (2) Black 2 lb.

Part # Description Color Wt.

Butt splices cable runway horizontally, vertically or perpendicularly. Adjusts

to virtually and angle making it easy to install runway around existing

obstacles. Kit includes two swivel splice brackets w/ hardware.

Grounding Strap

PLA12GK 12" Grounding Strap w/ Hardware Zinc 1 lb.

Part # Description Color Wt.

Creates a common ground between spliced ladder rack sections. Kit includes one

braided copper ground strap and all needed hardware. Installation requires

drilling of two holes for mounting.

Protective End Caps

PLAEC Runway Rubberized End Caps (2) Black 1 lb.

Part # Description Color Wt.

Rubberized end caps for exposed ends of cable runway. Helps protect

workers and equipment from exposed areas. Sold in pairs.

90 Degree Splice Kit

PLBE90-3 Bracket, 90 Degree Splice Kit (2) Black 2 lb.

Part # Description Color Wt.

Use to splice cable runway at a 90 degree angle. Kit includes two 90 degree

splice brackets w/ hardware.

Wall Mounted Copper Bus Bar

AGWB010 10" x 4" Wall Mount Bus Bar Kit Copper 5 lb.

AGWB020 20" x 4" Wall Mount Bus Bar Kit Copper 9 lb.

Part # Description Color Wt.

Wall mounted bus bar includes a 10" x 4" or 20" x 4" copper grounding bar

and all needed mounting hardware

* replace (-3) in part# with (-4F) for Gray finish

Runway Grounding Strap

Wall Mounted Copper Bus Bar

End Caps

45 Degree Splice Kit

90 Degree Splice Kit

Butt-Swivel Kit

Junction-Swivel Kit

Vertical-Swivel Kit

Cable Runway

J-Bolt Kits

PLA300JK 5/16" x 3" J Bolts w/ Hardware Zinc 1 lb.

Part # Description Color Wt.

Used to attach ladder rack to framing, channels, etc. J bolts come in 5/16-18

and are available in lengths of 2.25" or 3.00". Finished in gold zinc, kits include

two J-bolts, washers and hex nuts.

Wall-to-Rack Bundle Kit

PLA12Z21090-3 (1) 60" Runway, (1) Wall angle, (1) Rack Kit, (2) Caps Black 18 lb.

RRA19084-3MU Two Post Rack, 84"H/45U, 19" 12-24 tap rails Black 35 lb.

Part # Description Color Wt.

The all-in-one solution for supporting cable from the wall to a two post

equipment rack. This time saving and cost effective solution comes in one

single box and is UPS shippable.

Hardware

PLA58072TR 5/8-11 x 72" Threaded Rod Zinc 5 lb.

PLA58144TR 5/8-11 x 144" Threaded Rod Zinc 10 lb.

PLA58TC-3 5/8" Rod Plastic Cover (3ft) Black 2 lb.

PLA58TC-5 5/8" Rod Plastic Cover (5ft) Black 2 lb.

PLA3816RC 3/8-16UNC Rod Coupler Zinc 3 lb.

PLA5811RC 5/8-11UNC Rod Coupler Zinc 3 lb.

PLA3816HN 3/8-16UNC Hex Nut (10) Zinc 1 lb.

PLA5160HN 5/16-18UNC Hex Nut (10) Zinc 1 lb.

PLA5811HN 5/8-11UNC Hex Nut (10) Zinc 1 lb.

PLA380FW 3/8" Flat Washer (10) Zinc 1 lb.

PLA516FW 5/16" Flat Washer (10) Zinc 1 lb.

PLA580FW 5/8" Flat Washer (10) Zinc 1 lb.

PLA380LW 3/8" Lock Washer (10) Zinc 1 lb.

PLA516LW 5/16" Lock Washer (10) Zinc 1 lb.

PLA580LW 5/8" Lock Washer (10) Zinc 1 lb.

Part # Description Color Wt.

Hex Nuts, Washers, Threaded Rod

Runway J-Bolt Kit

Kit includes:

• (1) 60" long 12"W cable runway section

• (1) Wall angle support bracket w/ J-bolts

• (1) Rack-to-runway mounting kit w/ J-bolt

• (1) Pair of runway end caps

(1) PLBWA12-3

(1) PLR1205-3

(1) PLB12RS-3

(1 set) PLAEC

Rack Sold

Separately

Cable Runway

We provide a fast a smooth process for

designing, quoting and delivery of all your

unique data center needs. From unique

cabinets and wall boxes to wireless access point

enclosures and powerstrips, we have your next

challenge solved.

1. Identify your needs

2. Engineer preliminary drawing, 48 hours

3. Generate quote pending approval, 24 hours

4. Prototype fabricated and shipped, 4 weeks

5. Final product ships, 4-6 weeks

Custom products to your door in 6 weeks.

That's not amazing, That's DAMAC!

SEISMIC PRODUCTS

NEMA12 ENCLOSURES

WIRELESS ENCLOSURES

CUSTOM CABINETS

JOB SPECIFIC PRODUCTS

POWER DISTRIBUTION

Power Distribution

15amp, 20amp, 30amp

17", 28", 40", 66"

5-15R, 5-20R, C-13

Blade, Twist-Lock

125V, 250V

Powerstrips Vertical and Rack-Mount

Powerstrips by DAMAC provide a safe and cost effective

solution for power distribution to racks and cabinets. The

vertical powerstrip offers a large numbers of power outlets for

dense equipment installs without occupying valuable rack space.

All powerstrips easy install to racks and cabinets via a universal

mounting bracket. Available in a large variety of configurations.

Damac also offers custom built power solutions. If you have a

unique project, Damac can build a custom solution for you.

• UL™ listed components

• 125 Volt and 250 Volt Models

• Amp: 15amp, 20amp and 30amp

• Available in 6 - 24 outlet variations

• Optional power meter with digital display

• Optional circuit break and surge protection

• Transformer spaced receptacles

• Standard and twist-lock plug's

• Black or Silver Finish

• Universal mounting clip included

• Install in cabinets and racks

AMP:

Length:

Receptacle:

Plug:

Volt:

Application:

Model Sizes:

Specifications:

Data Cabinets

Relay Rack

Audio/Visual Cabinets

Telecom Cabinets

Process Control Systems

Office, Retail Store

15 AMP

STANDARD

125V, NEMA 5-15P

20 AMP

STANDARD

125V, NEMA 5-20P

TWIST-LOCK

125V/250V, NEMA L5-20P

30 AMP

TWIST-LOCK

125V/250V, NEMA L5-30P

Plug

15 AMP

STANDARD

125V, NEMA 5-15R

20 AMP

STANDARD

125V, NEMA 5-20R

STANDARD

125V/250V, IEC320

30 AMP

STANDARD

125V/250V, IEC320

Receptacles

Power Distribution

P0617AC201 15amp 06 / 5-15R 17"x1.75"x1.75" NEMA 5-15P 10 Ft 125 V 2 lb

P0617BC201 15amp 06 / 5-15R 17"x1.75"x1.75" NEMA 5-15P 10 Ft Yes 125 V 2 lb

P0828AC201 15amp 08 / 5-15R 28"x1.75"x1.75" NEMA 5-15P 10 Ft 125 V 3 lb

P0828BC201 15amp 08 / 5-15R 28"x1.75"x1.75" NEMA 5-15P 10 Ft Yes 125 V 3 lb

P0840AC201 15amp 08 / 5-15R 40"x1.75"x1.75" NEMA 5-15P 10 Ft 125 V 5 lb

P0840BC201 15amp 08 / 5-15R 40"x1.75"x1.75" NEMA 5-15P 10 Ft Yes 125 V 5 lb

P1666AC201 15amp 16 / 5-15R 66"x1.75"x1.75" NEMA 5-15P 10 Ft 125 V 8 lb

P1666BC201 15amp 16 / 5-15R 66"x1.75"x1.75" NEMA 5-15P 10 Ft Yes 125 V 8 lb

P0828FM201 20amp 08 / 5-20R 28"x1.75"x1.75" NEMA 5-20P 10 Ft 125 V 3 lb

P0828GM201 20amp 08 / 5-20R 28"x1.75"x1.75" NEMA 5-20P 10 Ft Yes 125 V 3 lb

P0840FM201 20amp 08 / 5-20R 40"x1.75"x1.75" NEMA 5-20P 10 Ft 125 V 5 lb

P0840GM201 20amp 08 / 5-20R 40"x1.75"x1.75" NEMA 5-20P 10 Ft Yes 125 V 5 lb

P1666FM201 20amp 16 / 5-20R 66"x1.75"x1.75" NEMA 5-20P 10 Ft 125 V 8 lb

P1666GM201 20amp 16 / 5-20R 66"x1.75"x1.75" NEMA 5-20P 10 Ft Yes 125 V 8 lb

Part # Amp Outlet Dims Plug Cord Surge Volt Ship Wt.

Standard Vertical Powerstrip / 125 Volts / Silver Finish

NEMA L5-20P TWIST LOCK PLUG: replace (M) in part number w/ (N).

P2066Z21773 20 amp 20 / 5-20R 66.25"x1.61"x1.61" NEMA 5-20P 10 Ft 125 V 12 lb

P2066Z21774 20 amp 20 / 5-20R 66.25"x1.61"x1.61" NEMA 5-20P 10 Ft Yes 125 V 12 lb

P2066Z21775 20 amp 20 / 5-20R 66.25"x1.61"x1.61" NEMA L5-20P 10 Ft 125 V 12 lb

P2066Z21776 20 amp 20 / 5-20R 66.25"x1.61"x1.61" NEMA L5-20P 10 Ft Yes 125 V 12 lb

P2466Z21777 20 amp 24 / IEC320 66.25"x1.72x1.61" NEMA 5-20P 10 Ft 125 V 12 lb

P2466Z21778 20 amp 24 / IEC320 66.25"x1.72x1.61" NEMA L5-20P 10 Ft 125 V 12 lb

P2466Z21779 20 amp 24 / IEC320 66.25"x1.72x1.61" NEMA 6-20P 10 Ft 250 V 12 lb

P2466Z21780 20 amp 24 / IEC320 66.25"x1.72x1.61" NEMA L6-20P 10 Ft 250 V 12 lb

Part # Amp Outlet Dims Plug Cord Surge Volt Ship Wt.

Vertical Powerstrip w/ Power Meter / Black Finish

P2466Z21781 30 amp 24 / IEC320 66.25"x1.72x1.61" NEMA L5-30P 10 Ft 125 V 12 lb

P2466Z21782 30 amp 24 / IEC320 66.25"x1.61"x1.61" NEMA L6-30P 10 Ft 250 V 12 lb

Part # Amp Outlet Dims Plug Cord Surge Volt Ship Wt.

Vertical Powerstrip w/ Power Meter / Black Finish

4 - 15 Amp Thermal Breakers / IEC320 Receptacles (C-13) / Black Finish

power meter

power LED

on/off switch

Circuit

Breaker

power LED

Circuit

Breaker

note: 12 outlets per set of 2 breakers, 3 banks of 4

power meter

circuit breaker circuit breaker

Power Distribution

15amp, 20amp

19" Rack-Mount

5-15R, 5-20R

Blade, Twist-Lock

125V

PDU 19" Rack-Mount

A compact power solution for 19" rack-mounted applications.

PDU models require only 1 rack unit of space. Easily installed

on EIA standard 19" mounting rails. An ideal power solution for

cabinets and racks. Available in 15 amp and 20 amp models. In

addition to our complete line of PDU's, Damac also offers

custom made power solutions.

• UL™ listed components

• 125 Volts

• Amp: 15amp and 20amp

• 19" EIA rack-mount, brackets included

• Compact 1U size

• Available in 6 - 12 outlet variations

• Optional power meter with digital display

• Optional circuit break and surge protection

• Optional on/off switch

• LED power indicator light

• Standard and twist-lock plug's

• Black or Silver Finish

• Install in cabinets and racks

AMP:

Length:

Receptacle:

Plug:

Volt:

Application:

Model Sizes:

Specifications:

Data Cabinets

Relay Rack

Audio/Visual Cabinets

Telecom Cabinets

Process Control Systems

Office, Retail Store 15 AMP

STANDARD

125V, NEMA 5-15P

20 AMP

STANDARD

125V, NEMA 5-20P

TWIST-LOCK

125V/250V, NEMA L5-20P

Plug

15 AMP

STANDARD

125V, NEMA 5-15R

20 AMP

STANDARD

125V, NEMA 5-20R

Receptacles

Digital Power Meter Specifications

POWER METER

xx.xx

POWER

FACTOR

AMPS VOLTS WATTS

• Current 0 - 30.0A

• Voltage 90 - 250VAC

• Power Factor 0 - 1.00

• +/- 2% Accuracy with Full Scale 60Hz sine wave input

• Power 0 - 7200W

15 AMP

xx.xx

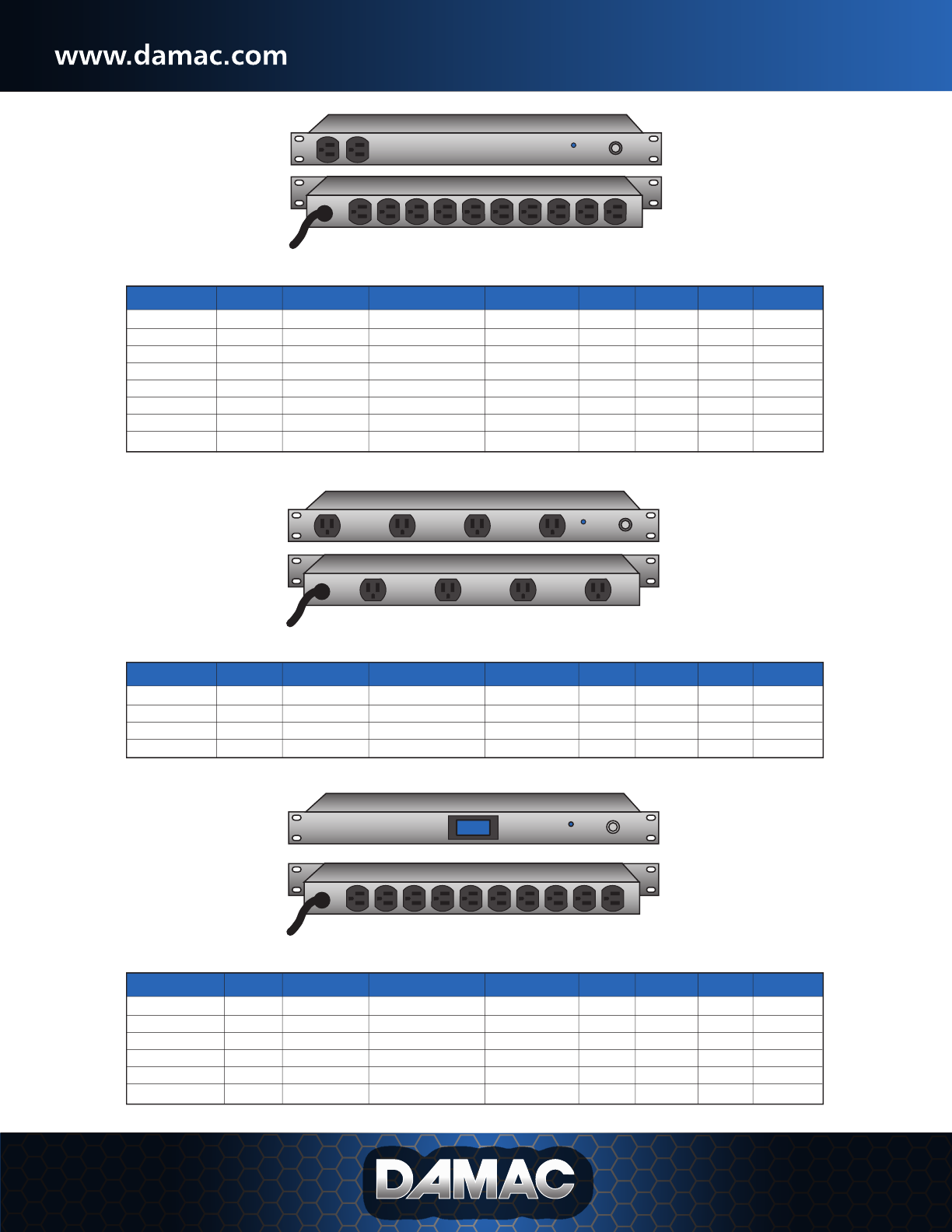

Power Distribution

P0619AC103 15amp 06 / 5-15R 19" x 1.72" x 1.75" NEMA 5-15P 10 Ft 125 V 2 lb

P0619BC103 15amp 06 / 5-15R 19" x 1.72" x 1.75" NEMA 5-15P 10 Ft Yes 125 V 2 lb

PD1219AC101 15amp 12 / 5-15R 19" x 1.72" x 4.50" NEMA 5-15P 10 Ft 125 V 4 lb

PD1219BC101 15amp 12 / 5-15R 19" x 1.72" x 4.50" NEMA 5-15P 10 Ft Yes 125 V 4 lb

PD1219FM101 20amp 12 / 5-20R 19" x 1.72" x 4.50" NEMA 5-20P 10 Ft 125 V 4 lb

PD1219GM101 20amp 12 / 5-20R 19" x 1.72" x 4.50" NEMA 5-20P 10 Ft Yes 125 V 4 lb

PD1219FN101 20amp 12 / 5-20R 19" x 1.72" x 4.50" NEMA L5-20P 10 Ft 125 V 4 lb

PD1219GN101 20amp 12 / 5-20R 19" x 1.72" x 4.50" NEMA L5-20P 10 Ft Yes 125 V 4 lb

Part # Amp Outlet Dims Plug Cord Surge Volt Ship Wt.

Standard 19" Rack-Mount PDU w/ LED Light

PD1019AC111M 15amp 08 / 5-15R 19" x 1.72" x 4.50" NEMA 5-15P 10 Ft 125 V 4 lb

PD1019BC111M 15amp 08 / 5-15R 19" x 1.72" x 4.50" NEMA 5-15P 10 Ft Yes 125 V 4 lb

PD1219FM111M 20amp 12 / 5-20R 19" x 1.72" x 4.50" NEMA 5-20P 10 Ft 125 V 4 lb

PD1219GM111M 20amp 12 / 5-20R 19" x 1.72" x 4.50" NEMA 5-20P 10 Ft Yes 125 V 4 lb

PD1219FN111M 20amp 12 / 5-20R 19" x 1.72" x 4.50" NEMA L5-20P 10 Ft 125 V 4 lb

PD1219GN111M 20amp 12 / 5-20R 19" x 1.72" x 4.50" NEMA L5-20P 10 Ft Yes 125 V 4 lb

Part # Amp Outlet Dims Plug Cord Surge Volt Ship Wt.

19" Rack-Mount PDU w/ Digital Power Meter

PD4419AC101T 15amp 08 / 5-15R 19" x 1.72" x 4.50" NEMA 5-15P 10 Ft 125 V 4 lb

PD4419BC101T 15amp 08 / 5-15R 19" x 1.72" x 4.50" NEMA 5-15P 10 Ft Yes 125 V 4 lb

PD4419FM101T 20amp 08 / 5-20R 19" x 1.72" x 4.50" NEMA 5-20P 10 Ft 125 V 4 lb

PD4419GM101T 20amp 08 / 5-20R 19" x 1.72" x 4.50" NEMA 5-20P 10 Ft Yes 125 V 4 lb

Part # Amp Outlet Dims Plug Cord Surge Volt Ship Wt.

Transformer Spacing 19" Rack-Mount PDU w/ LED Light

15 AMP

FRONT

BACK

15 AMP

FRONT

BACK

15 AMP

FRONT

BACK

xx.xx

Terms/Conditions

Building For The Future

Founded in 1983, DAMAC Products has grown to become a leading provider of products designed to store and organize

equipment for the data communications industry. For the past twenty years DAMAC has committed itself to building the strongest

and most durable line of products available. Using the finest material and state of the art manufacturing processes ensures the

highest quality and craftsmanship. As the technology used in the Datacom and Telecom industries change, DAMAC is in step to

provide accurate solutions. Not all solutions are achieved with standard catalog products. Some projects require specialized

applications. For those unique and specialized needs, DAMAC has been one of the few manufacturers with the ability to custom

build product to your exact specifications. DAMAC’s commitment to facilitating the needs of our customers is at the core of every

product we build.

Manufacturing & Engineering

DAMAC produces over 2,500 standard products and 2,000 accessory items that are manufactured in our 120,000 square foot

manufacturing facility. Our state-of-the-art metal processing, automated powder coating system and in-line assembly process is

essential to maintaining the highest quality standards and on time delivery of goods. Our Engineering and Marketing departments

have the capacity to produce full CAD designs, production implementation, R&D, product literature and market communications.

All of our products meet rigorous standards of quality control, EIA specifications and are backed by a solid 10-Year Warranty.

Conditions, Exceptions and Warranties

Damac Products, Inc. warranties all products free from defects in material or workmanship and to be in conformity with Damac's

specifications or any specification provided by the customer and expressly agreed to in writing by Damac for a period of (10) ten

years from date of shipment. Damac warrants all other goods sold hereunder free from defects in material or workmanship and

to be in conformity with Damac's specifications or any specification provided by the customer for a period of (1) one-year from

the date of shipment. Claims of breach of this warranty will be valid only upon written notice within a reasonable amount of time

of discovery of the defect to Damac Products, Inc. and within the ten-year or the one-year period, as applicable. Within that

period, if the customer determines the product to be defective in material or workmanship, the product shall be repaired or

replaced at the discretion of Damac Products. Under no circumstances will Damac be held responsible for any amount beyond

the price of the product. This warranty does not cover the ordinary wear and tear, abuse, improper use (including attempts to

make repairs by or on behalf of the customer), alterations or products which have not been installed, operated or maintained in

accordance with Damac Products' written instructions. The repair or replacement of such defective product fulfills the liability to

Damac Products. Only the original purchaser may make any claims under this warranty policy.

Damac Products, Inc. will not be liable for any incidental, consequential or special damages, or for any loss, damage or expense

arising from the sale, use or installation of the products or for any other cause whatsoever, whether based on any warranty

expressed or implied, regardless of any advise or representations not in writing by Damac concerning the sale, use or installation

of the products

Pricing

Prices are subject to change without notice. Prices are exclusive of federal, state and local taxes. Wherever applicable, such taxes

will be added to the invoice to be paid by the purchaser.

Terms/Conditions

Quotes

Quotations are good for 30 days from issue date, unless otherwise specified. Quotations are made exclusive of any freight

charges and are given F.O.B. La Mirada, CA

Order Confirmation

Damac must receive written confirmation of all orders. Purchase orders may be sent via email, fax or mailed.

Lead Time

While we keep a substantial inventory at our factory and regional warehouses, an estimated shipping date is based on production

time at the time of quote generation. The lead-time is confirmed with an order acknowledgement after receipt of order.

However, unforeseen circumstances can arise and Damac will not be held responsible for missed dates when this occurs. In the

event it is necessary to revise the design, specifications or conditions of the sale, the shipping date shall be adjusted by the period

of time required by the revision.

Return Procedure

Product being returned for repair or replacement must have prior approval and an authorized RMA number. The RMA number

must appear on all packages and paperwork and must be shipped prepaid to:

Damac Products

14489 Industry Circle

La Mirada, CA 90638

RMA: ____________

Products being returned for reasons other than repair or replacement are subject to a restocking charge of $20.00 or 25% of the

invoice (whichever is greater). If the product was purchased over six months ago, the restock charge is 30%. The restocking

charge does not release the customer’s responsibility to properly package, and return the product in reusable condition. Product

not eligible for return: 1) Custom “Z” number items, 2) Special order products, 3) Products over one year old from initial

purchase date. The issuance of an RMA is not an authorization for credit. RMA’s will not show a value, only a list of products

eligible for return. Credit will be issued after the product is received and inspected by Damac and deemed in good/resalable

condition. Approval in writing must be obtained from the customer on any custom or special product. Upon approval and

receipt of custom product, no return of such product is permitted except for repair of damages or modifications.

Canceled Orders

Canceled orders may be subject to a cancellation fee, up to the total purchase price of the product.

Payment Terms

Accounts will only be opened after approval of credit. Approved account terms are as follows: 2% discount 10 days, net 30

days. Past due accounts are subject to a 1.5% late charge for each 30 days that the outstanding balance remains unpaid. Past due

accounts beyond 60 days are subject to credit hold.

Terms/Conditions

Freight Policy and Options

Damac will provide freight quotes upon request. Damac is not liable for accuracy of these estimates. Transit times, and

product weight is approximate. Estimates should be treated as such, as there are variables involved in freight costs.

Examples of variables are inside delivery, lift gate, beyond metropolitan area, union delivery charges.

All freight is F.O.B. Damac Products, La Mirada, CA. Types of freight service available are Regular 3 - 5 day, 2 day or

overnight service. Billing methods for these options are as follows:

Third Party Billing: Customer specifies the carrier on the purchase order. Freight is billed to a party other than Damac.

The customer must supply a third party account number and third party address.

Freight Collect: Customer specifies the carrier on Purchase order. The freight account number is supplied or freight

charges are paid at destination upon delivery.

Prepay and Add: Damac Products, Inc specifies the carrier and adds freight charges to the product invoice. Damac offers

this service provided the customer agrees to the following conditions:

1. Based on agreements with selected carriers to minimize freight costs the carrier is specified by Damac Products, Inc.

2. Payment will not be withheld due to "proof of delivery".

3. Customer agrees to pay all freight charges that appear on product invoices without requesting additional freight

documentation.

4. Customer agrees to pay freight charges associated with a shipment but not included on original product invoice.

Damac Products will provide a separate invoice for these charges. An example of additional cost may be inside delivery

not specified on the purchase order but required at the delivery point by the end user or lift-gate service.

5. Customer agrees to these conditions when specifying prepaid freight when placing purchase order with Damac

Products.

6. Prepaid freight option is a service for our customers but may be withdrawn at any time.

Accessorial Charges

Additional freight charges often back-charged by the freight carrier after delivery based on unforeseen cost scenarios

1. Inside delivery: A single driver moves product from the receiving area to a specified room or office. A loading dock or

freight elevator and an unobstructed path to the location must be provided. Drivers not permitted to unpack or remove

cartons or packaging.

Terms/Conditions

2. Liftgate Service: A liftgate is located at the rear of specified delivery trucks which is used to lower heavy equipment when a loading

dock is not available. A liftgate must be requested at time of ordering. Liftgate service only delivers product to the ground level inside

the customer's door. All delivery trucks are not equipped with a liftgate. This is not the same as an inside delivery charge.

3. Reconsignment: Changes to the original destination after product has left the shippers dock will result in a reconsignment charge.

The reconsignment charge may be equal to the original freight charge.

4. Redeliver: When an attempt is made to deliver product and the carrier is unable to complete the delivery (for reasons that are no

fault of the carriers) and a redeliver is required the carrier will charge an additional cost.

5. AM Delivery: Should a customer require that product be delivered at a specified time prior to noon there is an additional AM

Delivery charge by the carrier.

6. Beyond Metropolitan Area: Carriers deliver to locations within most metropolitan areas. However, if the delivery destination is

outside the carrier area an additional charge will be incurred.

7. Waiting or Appointment: Anytime a carrier is required to call ahead and make an appointment for delivery, or is required to wait

at the destination, the carrier will charge a fee.

Damaged Product

Freight damaged product is the responsibility of the customer and freight company. However, to expedite a replacement Damac

Products will handle the freight claim for damaged product based on the conditions below:

1. If a customer chooses 3rd party billing of freight, then it is the sole responsibility of the customer to file the necessary freight claim

with the freight company.

2. Customer must notify Damac Products of damage (visible or concealed) within 24 hours after receipt of product. Claims made

after this period will not be the responsibility of Damac Products.

3. Note any damage to the packaging on the bill of lading upon receipt of shipment to aid in freight claims for concealed damage.

4. A replacement order may be placed, however credit will not be issued on the original shipment until settlement of the freight

claim.

5. Replacement order can only be placed with a new purchase order and/or will be invoiced at original value with credit given upon

return and inspection of damaged product.

6. Product that has been determined by the carrier as damaged may be: sent back to Damac Products, shipped to the freight carrier

(at their expense) or retained by the customer in place of receiving a credit.

Part Index

ABCBUR10 24

ABCBUV10 24

AC01DK7824-3 23

AC01DK8424-3 23

AC02DK7824-3 23

AC02DK8424-3 23

ACCF684 24

ACCTK2436-3 37

ACCTK2436F-3 37

ACCTK2448-3 37

ACCTK2448F-3 37

ACERK8448-3 37

ACLB78 24

ACRFK18 27

AD2FTK24 21

ADL-1ECL 27

ADL-1S 27

ADL-2A 27

ADL-2ECL 27

ADL-2S 27

ADL-CAT60 33

ADL-CAT70 33

ADL-CAT80 33

ADL-MK 27

AFCHD 26

AFCHL 26

AFCYO 26

AFGB 27

AFGS 27

AFIK2430 27

AFIK2436 27

AFIK2440 27

AFLG 26

AFRA2319S-1 27

AFRA2319S-2 27

AFRA2319S-3 27

AFRA2319S-4 27

AFRA2319S-5 27

AFSB18 27

AGRB019 43

AGRB023 43

AGWB010 43

AGWB010 55

AGWB020 43

AGWB020 55

AHPF1032-30 23

AHPF1032CN-30 23

AHPFCN-100 23

AHPFCN-30 23

AHPFM6-30 23

AHPFM6CN-30 23

APCBU 24

APCBU96 24

ARC48B 23

ARC48E 23

ARC78B 23

ARC78E 23

ARC84B 23

ARC84E 23

ARR019IK 43

ARRCP3 43

ARREK 43

ARRFCK-58 27

ARRFRK-18 43

ARRGB 43

ARRGS 43

ARRSK-3 43

ARS102B 23

ARS102E 23

ARS72B 23

ARS72E 23

ARS78B 23

ARS78E 23

ARS84B 23

ARS84E 23

ARS88B 23

ARS88E 23

ATFF 26

ATFK2L 26

ATFK2 26

ATFK2-220 26

ATMCK2-3 26

C130 26

CC048EBB1SBSV3 3

CC048EBV1SBSV3 3

CC048EDB1SBSV3 3

CC048EDV1SBSV3 3

CC048EPB1SBSV3 3

CC048EPV1SBSV3 3

CC078EBB1SBSV3 3

CC078EBV1SBSV3 3

CC078EDB1SBSV3 3

CC078EDV1SBSV3 3

CC078EPB1SBSV3 3

CC078EPV1SBSV3 3

CC078EQB1SBSV3 3

CC078EQV1SBSV3 3

CC084EBB1SBSV3 3

CC084EBV1SBSV3 3

CC084EDB1SBSV3 3

CC084EDV1SBSV3 3

CC084EPB1SBSV3 3

CC084EPV1SBSV3 3

CC084EQB1SBSV3 3

CC084EQV1SBSV3 3

CC284EPB1SBSV3 11

CC284EPV1SBSV3 11

CC384EPB1SBSV3 11

CC384EPV1SBSV3 11

CCD84EPB1SBSV3 15

CCD84ESB1SBSV3 15

CCS84EPB1SBSV3 15

CCS84ESB1SBSV3 15

CCT84EPB1SBSV3 15

CCT84ESB1SBSV3 15

CS2102EPB1SBSV3 11

CS2102EPV1SBSV3 11

CS3102EPB1SBSV3 11

CS3102EPV1SBSV3 11

CS4102EPB1SBSV3 11

CS4102EPV1SBSV3 11

CS72EDB1BSV3 7

CS72EPB1BSV3 7

CS84EBB1BSV3 7

CS84EDB1BSV3 7

CS84EPB1BSV3 7

CS84ESB1BSV3 7

CZ102EDB1BSV3 7

CZ102EQB1BSV3 7

CZ78EPB1BSV3 7

CZ78ESB1BSV3 7

CZ84EBB1BSV3 7

CZ84EDB1BSV3 7

CZ84EPB1BSV3 7

CZ84ESB1BSV3 7

DC4824B-3 20

DC4824V-3 20

DC7824B-3 20

DC7824B-3 21

DC7824V-3 20

DC8424B-3 20

DC8424B-3 21

DC8424S-3 20

DC8424V-3 20

DC8428B-3 20

DC8428V-3 20

DC8432B-3 20

DC8432V-3 20

DS10224B-3 20

DS10224B-3 21

DS10224V-3 20

DS7224B-3 20

DS7224V-3 20

DS7824B-3 20

DS7824B-3 21

DS7824V-3 20

DS8424B-3 20

DS8424B-3 21

DS8424S-3 20

DS8424V-3 20

DS8824B-3 20

DS8824B-3 21

DS8824V-3 20

F532-003 25

F532-004 25

F533-001-8 25

F533-001-8 46

F533-002-8 25

F533-002-8 46

F533-003-8 25

F533-003-8 46

F533-004-8 25

F533-004-8 46

F533-012-8 25

F533-012-8 46

F533-014-8 25

F533-014-8 46

F533-015-8 25

F533-015-8 46

F533-1901 47

F533-1902 47

F533-P1932 47

F533-P1933 47

FC078BD-3 19

FC078BP-3 19

FC078BQ-3 19

FC078ED-3 19

FC078EP-3 19

FC078EQ-3 19

FC084BD-3 19

FC084BP-3 19

FC084BQ-3 19

FC084ED-3 19

FC084EP-3 19

FC084EQ-3 19

FPB191-3 27

FPB192-3 27

FPB193-3 27

FPB194-3 27

FPB231-3 27

FPB232-3 27

FPB233-3 27

FPB234-3 27

FZ102BD-3 19

FZ102BP-3 19

FZ102BQ-3 19

FZ102BS-3 19

FZ102ED-3 19

FZ102EP-3 19

FZ102EQ-3 19

FZ102ES-3 19

FZ78BD-3 19

FZ78BP-3 19

FZ78BQ-3 19

FZ78BS-3 19

FZ78ED-3 19

FZ78EP-3 19

FZ78EQ-3 19

FZ78ES-3 19

FZ84BD-3 19

FZ84BP-3 19

FZ84BQ-3 19

FZ84BS-3 19

FZ84ED-3 19

FZ84EP-3 19

FZ84EQ-3 19

FZ84ES-3 19

FZ88BD-3 19

FZ88BP-3 19

FZ88BQ-3 19

FZ88BS-3 19

Part Index

FZ88ED-3 19

FZ88EP-3 19

FZ88EQ-3 19

FZ88ES-3 19

MCC1901 47

MCC1902 47

MRC084N-3 44

MRC084W-3 44

MRD084N 44

MRD084N-3 44

MRD084W 44

MRD084W-3 44

MRDF084W08-3 45

MRM084N-3 46

MRM084N-4F 46

MRM084W-3 46

MRM084W-4F 46

MRS084N 44

MRS084N-3 44

MRS084W 44

MRS084W-3 44

P0617AC201 59

P0617BC201 59

P0619AC103 61

P0619BC103 61

P0828AC201 59

P0828BC201 59

P0828FM201 59

P0828GM201 59

P0840AC201 59

P0840BC201 59

P0840FM201 59

P0840GM201 59

P1666AC201 59

P1666BC201 59

P1666FM201 59

P1666GM201 59

P2066Z21773 59

P2066Z21774 59

P2066Z21775 59

P2066Z21776 59

P2466Z21777 59

P2466Z21778 59

P2466Z21779 59

P2466Z21780 59

P2466Z21781 59

P2466Z21782 59

PD1019AC111M 61

PD1019BC111M 61

PD1219AC101 61

PD1219BC101 61

PD1219FM101 61

PD1219FM111M 61

PD1219FN101 61

PD1219FN111M 61

PD1219GM101 61

PD1219GM111M 61

PD1219GN101 61

PD1219GN111M 61

PD4419AC101T 61

PD4419BC101T 61

PD4419FM101T 61

PD4419GM101T 61

PLA12CM-3 52

PLA12CM-4F 52

PLA12DC-3 51

PLA12GK 55

PLA12Z21090-3 56

PLA18CM-3 52

PLA18CM-4F 52

PLA18DC-3 51

PLA300JK 56

PLA380FW 56

PLA380LW 56

PLA3816HN 56

PLA3816RC 56

PLA5160HN 56

PLA516FW 56

PLA516LW 56

PLA58072TR 54

PLA58072TR 56

PLA580FW 56

PLA580LW 56

PLA5811HN 56

PLA5811RC 56

PLA58144TR 56

PLA58TC-3 56

PLA58TC-5 56

PLA5LB-3 52

PLA5LB-4F 52

PLAEC 55

PLB06RP-3 52

PLB06RP-4F 52

PLB08RP-3 52

PLB08RP-4F 52

PLB10RP-3 52

PLB10RP-4F 52

PLB12RS-3 43

PLB12RS-3 53

PLB12RS-4F 53

PLB12SK-3 52

PLB12SK-4F 52

PLB18RS-3 43

PLB18RS-3 53

PLB18RS-4F 53

PLB24CS-3 53

PLB24CS-4F 53

PLB28CS-3 53

PLB28CS-4F 53

PLBC58-3 54

PLBCRK58 54

PLBDS-3 51

PLBDST-3 51

PLBE00-3 54

PLBE00HD-3 54

PLBE45-3 55

PLBE90-3 55

PLBFS-3 54

PLBJ3090-3 54

PLBJT-3 54

PLBJTHD-3 54

PLBSC03-3 53

PLBSC06-3 53

PLBSE-3 55

PLBSJ-3 55

PLBSS58-3 54

PLBSV-3 55

PLBTK12-3 52

PLBTK12-4F 52

PLBTK18-3 52

PLBTK18-4F 52

PLBWA12-3 53

PLBWA12-4F 53

PLBWA18-3 53

PLBWA18-4F 53

PLBWHC2-3 53

PLBWHC2-4F 53

PLBWT12-3 54

PLBWT12-4F 54

PLBWT18-3 54

PLBWT18-4F 54

PLR1205-3 51

PLR1210-3 51

PLR1210T-3 51

PLR12RE-3 51

PLR12RI-3 51

PLR12RO-3 51

PLR1805-3 51

PLR1810-3 51

PLR18RE-3 51

PLR18RI-3 51

PLR18RO-3 51

R4A19084B-3MU 38

R4A19084D-3MU 38

R4A19096B-3MU 38

R4A19096D-3MU 38

R4S19084CNB-3MU 38

R4S19084CND-3MU 38

R4S19096CNB-3MU 38

R4S19096CND-3MU 38

RA619084-3MU 39

RA619096-3MU 39

RRA19084-3MU 39

RRA19084-3MU 56

RRA19096-3MU 39

RRS19084CN-3MU 39

RRS19096CN-3MU 39

RS619084CN-3MU 39

RS619096CN-3MU 39

RSE19084-3 40

SC7830S-3 21

SC7836S-3 21

SC7840S-3 21

SC7842S-3 21

SC8430S-3 21

SC8436S-3 21

SC8440S-3 21

SC8442S-3 21

SC8448S-3 21

SH1924H-3 26

SH1924P-3 26

SH1924R-3 26

SH1924RHP-3 26

SH1924RHS-3 26

SH1924S-3 26

SH1929H-3 26

SH1929P-3 26

SH1929R-3 26

SH1929RHP-3 26

SH1929RHS-3 26

SH1929S-3 26

SH19KMM29-3 26

SH19KMM-3 26

SRA1910P 48

SRA1910P-3 48

SRA1910S 48

SRA1914P 48

SRA1914S 48

SRA1919CP 48

SRA1919CP-3 48

SRA1919CS 48

SRA1919CS-3 48

SRA1919HD 48

SRA1919HD-3 48

SRA1921RD 49

SRA1921RD-3 49

SRA1921RDP 49

SRA1926HD 49

SRA1926HD-3 49

SRA1930HD 49

SRA1930HD-3 49

SRA19KMT 49

SRA19KMT-3 49

SRA19KS 49

SRA19KS-3 49

SRA19KSM 49

SRA19KSM-3 49

SRA2314P-3 48

SRA2314S-3 48

SRA2321RD-3 49

SRS1910S-3 48

SRS1914P-3 48

SRS1914S-3 48

SRS1919CS-3 48

SRS19KF-3 49

SRS2310S-3 48

SRS2314S-3 48

SS10240S-3 21

SS7230S-3 21

SS7236S-3 21

SS7240S-3 21

SS7242S-3 21

SS7830S-3 21

Part Index

SS7836S-3 21

SS7840S-3 21

SS7842S-3 21

SS8430S-3 21

SS8436S-3 21

SS8440S-3 21

SS8442S-3 21

SS8840S-3 21

SS8842S-3 21

TA2430F-3 22

TA2430R-3 22

TA2430S-3 22

TA2430V-3 22

TA2436F-3 22

TA2436R-3 22

TA2436S-3 22

TA2436V-3 22

TA2440F-3 22

TA2440R-3 22

TA2440S-3 22

TA2440V-3 22

TA2442E48-3 22

TA2442E60-3 22

TA2442F-3 22

TA2442R-3 22

TA2442S-3 22

TA2442V-3 22

TA2840F-3 22

TA2840R-3 22

TA2840S-3 22

TA2840V-3 22

TA2848F-3 22

TA2848R-3 22

TA2848S-3 22

TA2848V-3 22

TA3240D-3 22

TA3240F-3 22

TA3240R-3 22

TA3240S-3 22

TA3240V-3 22

TA3248D-3 22

TA3248F-3 22

TA3248R-3 22

TA3248S-3 22

TA3248V-3 22

TS2430F-3 22

TS2430R-3 22

TS2430S-3 22

TS2430V-3 22

TS2436F-3 22

TS2436R-3 22

TS2436S-3 22

TS2436V-3 22

TS2440F-3 22

TS2440R-3 22

TS2440S-3 22

TS2440V-3 22

TS2442D-3 22

TS2442E48-3 22

TS2442E60-3 22

TS2442F-3 22

TS2442R-3 22

TS2442S-3 22

TS2442V-3 22

TS2448D-3 22

TS2448E48-3 22

TS2448E60-3 22

TS2448F-3 22

TS2448R-3 22

TS2448S-3 22

TS2448V-3 22

WD10Z20567-Q1 35

WLR24AKP1SFV-3 29

WLR24AKP1SVV-3 29

WLR24AKS1SFV-3 29

WLR24AKS1SVV-3 29

WLR36AKP1SFV-3 29

WLR36AKP1SVV-3 29

WLR36AKS1SFV-3 29

WLR36AKS1SVV-3 29

WLR48AKP1SFV-3 29

WLR48AKP1SVV-3 29

WLR48AKS1SFV-3 29

WLR48AKS1SVV-3 29

WPB19016 42

WPB19026 42

WPB19046 42

WR24S12-3 41

WR24S-3 41

WR36S12-3 41

WR36S-3 41

WR48S12-3 41

WR48S-3 41

WS24ABP1SFV-3 31

WS24ABP1SFV-3GP 31

WS24ABP1SVV-3 31

WS24ABP1SVV-3GP 31

WS24AKP1SFV-3 31

WS24AKP1SFV-3GP 31

WS24AKP1SVV-3 31

WS24AKP1SVV-3GP 31

WS36ABP1SFV-3 31

WS36ABP1SFV-3GP 31

WS36ABP1SVV-3 31

WS36ABP1SVV-3GP 31

WS36AKP1SFV-3 31

WS36AKP1SFV-3GP 31

WS36AKP1SVV-3 31

WS36AKP1SVV-3GP 31

WS48ABP1SFV-3 31

WS48ABP1SFV-3GP 31

WS48ABP1SVV-3 31

WS48ABP1SVV-3GP 31

WS48AKP1SFV-3 31

WS48AKP1SFV-3GP 31

WS48AKP1SVV-3 31

WS48AKP1SVV-3GP 31

WTB24L-4 33

WTB24LL-4 33

WTB24M-4 33

WTB24ML-4 33

WTB32L-4 33

WTB32LL-4 33

WTB32M-4 33

WTB32ML-4 33

Innovative Custom Solutions

We provide a fast a smooth process for

designing, quoting and delivery of all your

unique data center needs. From unique

cabinets and wall boxes to aisle containment

systems and powerstrips, we have your next

challenge solved.

1. Identify your needs

2. Engineer preliminary drawing, 48 hours

3. Generate quote pending approval, 24 hours

4. Prototype fabricated and shipped, 4 weeks

5. Final product ships, 4-6 weeks

Custom products to your door in 6 weeks.

That's not amazing, That's DAMAC!

SEISMIC PRODUCTS

NEMA12 ENCLOSURES

WIRELESS ENCLOSURES

CUSTOM CABINETS

JOB SPECIFIC PRODUCTS

POWER DISTRIBUTION

AISLE CONTAINMENT

2010 Damac Catalog 162894

162438-Attachment 162438-Attachment 162438-Attachment 004919 Batch8 unilog cesco-content

320793-Catalog 320793-Catalog 320793-Catalog 004919 Batch10 unilog cesco-content

162896-Catalog 162896-Catalog 162896-Catalog 004919 Batch10 unilog cesco-content

Navigation menu

Versions of this User Manual:

Views

Navigation
