milwaukeetool.ca 1

CORDED

POWER TOOLS &

ACCESSORIES

2014/2015

CUTTING

SAWZALL® 1

SAWZALL® BLADES 4

SAWZALL® BLADES CROSS REFERENCE 8

BAND SAWS 18

BAND SAW BLADES 20

MITER SAWS 21

CIRCULAR SAWS 22

CIRCULAR SAW BLADES 24

JIG SAWS 25

JIG SAW BLADES 26

PANEL SAWS 27

PANEL SAW BLADES 27

DRILLING & FASTENING

CORDED DRILLS 29

THUNDERBOLT® TWIST DRILL BITS 36

WOOD BORING BITS 39

METAL DRILLING BITS 41

HOLE SAWS 43

BI-METAL HOLE SAW CROSS-REFERENCE CHART 46

HOLE SAW ARBOUR CROSS-REFERENCE CHART 48

D-HANDLE DRILLS 50

HOLE-HAWG® DRILLS 53

SUPER HAWG™ DRILLS AND CHUCK KEYS 54

WOOD BORING SELFEED BITS 55

SELFEED BIT CROSS REFERENCE 57

BIG HAWG™ WOOD BORING 58

RIGHT ANGLE DRILLS 59

SPECIALTY DRILLS 61

ADJUSTABLE CLUTCH SCREWDRIVERS 64

SCREWDRIVERS 65

SHOCKWAVE™ DRIVING 68

SHOCKWAVE™ NUT DRIVERS 71

SHOCKWAVE™ HOLE SAWS 71

IMPACT WRENCHES 72

SHOCKWAVE™ SOCKETS & ADAPTERS 75

AUGERS & EXTENSIONS 76

CONCRETE DRILLING

HAMMER DRILLS 77

HAMMER DRILL BITS 79

HAMMER DRILL BITS CROSS-REFERENCE 80

ROTARY HAMMERS 81

SDS–PLUS MASONRY BITS 85

SDS–PLUS CROSS-REFERENCE 87

SDS-MAX BITS 90

SDS-MAX & SPLINE CROSS-REFERENCE 91

ROTARY AND DEMOLITION HAMMERS 93

CORE BITS, TUNNEL BITS AND EXTENSIONS 95

MULTI-BIT CORE BITS 96

LHS COMPONENT SYSTEM 97

DEMOLITION HAMMER ACCESSORIES 98

DEMO BITS CROSS-REFERENCE 99

DYMO DRILLS (DIAMOND CORING) 101

DIAMOND CORING ATTACHMENTS 107

DIAMOND CORE BITS AND ACCESSORIES 108

METAL WORKING

METAL CUTTING CIRCULAR SAWS & BLADES 109

ABRASIVE SAWS 110

CUT-OFF BLADES & WHEELS 111

SHEARS 112

SHEARS & NIBBLERS 113

ELECTROMAGNETIC DRILL PRESSES 115

ELECTROMAGNETIC DRILL PRESS MOTORS 119

COMPACT ELECTROMAGNETIC DRILL PRESS 121

ANNULAR CUTTERS 122

STEEL HAWG® CUTTERS 123

STEEL HAWG® CUTTER ARBORS 124

GRINDING & SANDING

LARGE ANGLE GRINDERS 125

SMALL ANGLE GRINDERS 127

NEW SMALL ANGLE GRINDERS 132

ABRASIVE WHEELS 139

ABRASIVE SANDING DISCS 140

FLAP DISCS & WIRE BRUSHES/WHEELS 141

FLAP DISCS & UNIVERSAL GRINDING DUST SHROUDS 142

SANDERS 143

DIE GRINDERS 146

DIE GRINDERS & BANDFILE 148

ROUTERS 149

ROUTER ACCESSORIES 152

OTHER SECTION

VACUUM CLEANERS 153

VACUUM ACCESSORIES 155

HEAT GUNS 158

HEAT GUNS & ACCESSORIES 159

HOISTS 160

TOOL INDEX BY CATALOG NUMBER 164

WARRANTY INFORMATION 165

TABLE OF CONTENTS

milwaukeetool.ca 1

12A SAWZALL® 3/4" Stroke

6509-31

FEATURES

n Powerful 12 Amp Motor: Delivers 0-3,000 SPM for high

performance cutting in a variety of materials

n 3/4" Stroke Length: Provides maximum cut control

n Gear Protecting Clutch*: Extends gear and motor life by absorbing

high impact forces caused by blade lock-ups

n Counter Weighted Mechanism*: Provides reduced vibration for

smoother operation

n Reverse The Blade: For cutting with no starting hole

n QUIK-LOK™ Blade Clamp: Provides fast, tool-free blade changes

Includes: (1) Carrying Case

SPECIFICATIONS

Length 19"

Weight 7.1 lbs

Voltage 120V AC

Tool Warranty 5 Years

Amps 12

Keyless Blade Clamp Yes

Stroke Length 3/4"

SPM 0-3,000

* Patented

FEATURES

n Powerful 12 Amp Motor: Delivers 0-3,000 SPM for high

performance cutting in a variety of materials

n 1-1/8" Stroke Length: Provides maximum cutting speed

n Gear Protecting Clutch*: Extends gear and motor life by absorbing

high impact forces caused by blade lock-ups

n Counter Weighted Mechanism*: Provides reduced vibration for

smoother operation

n QUIK-LOK™ Blade Clamp: Provides fast, tool-free blade changes

n Adjustable Pivot Shoe*: Allows more effi cient use of blade and

depth-of-cut control

n Reverse The Blade: For cutting with no starting hole

Includes: (1) 12 Amp Sawzall® Recip Saw (6519-30)

SPECIFICATIONS

Length 19"

Weight 7.1 lbs

Voltage 120V AC

Tool Warranty 5 Years

Amps 12

Keyless Blade Clamp Yes

Stroke Length 1-1/8"

SPM 0-3,000

* Patented

6519-31

12A SAWZALL® 1-1/8" Stroke with Case

Includes: (1) 12 Amp Sawzall® Recip Saw (6519-30);

(1) Carrying Case

SAWZALL®

THE BEST JUST

GOT BETTER

SAWZALL® Blades

Pg 4

12A SAWZALL® 1-1/8" Stroke

6519-30

2

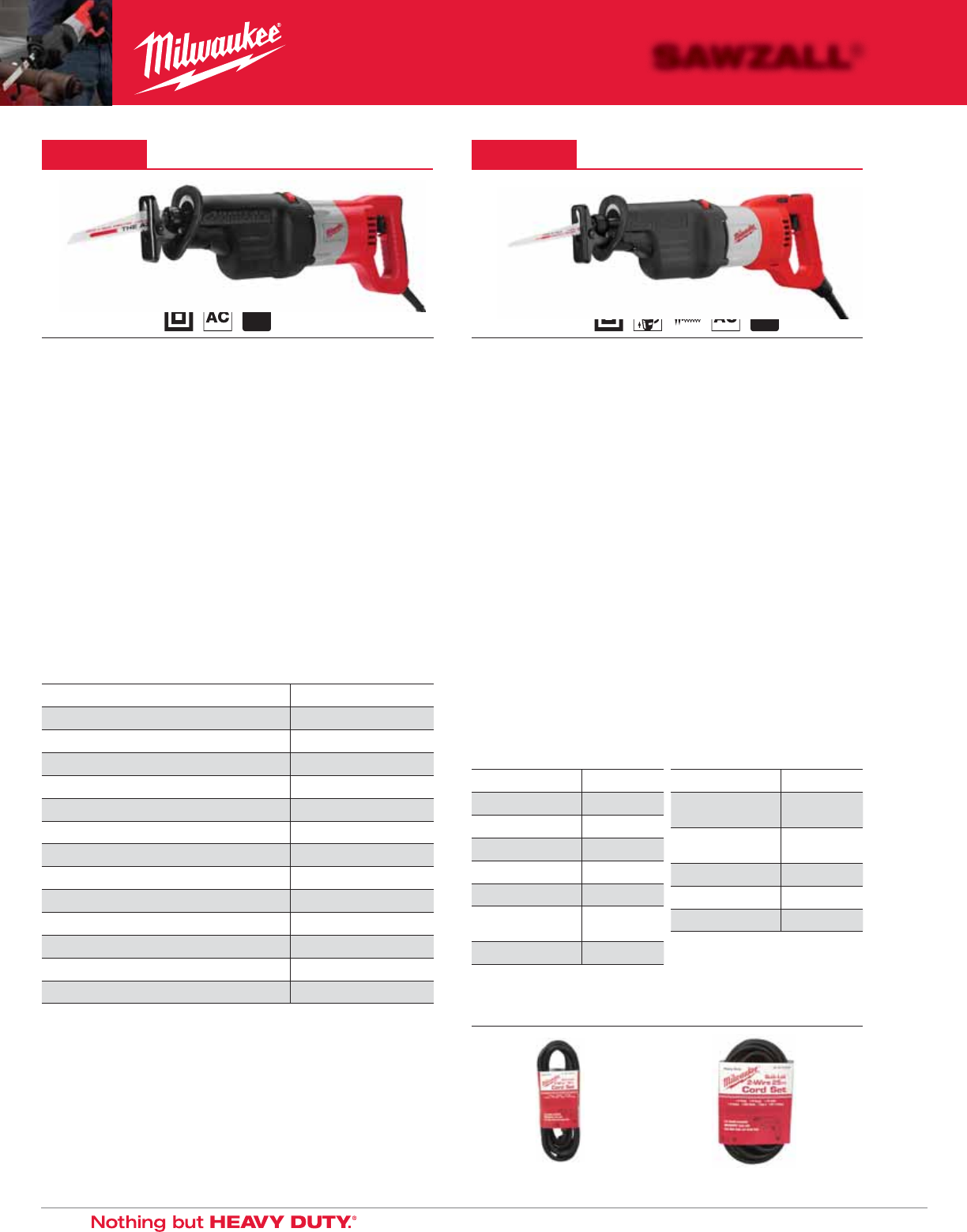

SAWZALL®

13A Orbital SAWZALL®

13A Rotating Handle Orbital

Super SAWZALL®

6523-21 6520-21

FEATURES

n 13 Amp Milwaukee Built Motor

n 360° Rotating Handle, locks at 45º increments

n Orbital Cutting Action

n Variable Speed Trigger, 0-3000 SPM

n 1-1/4 in. Stroke

n Counter Balanced*: For reduced vibration and smoother operation

n Gear Protecting Clutch*: Unique gear clutch absorbs high impact

forces caused by sudden blade lock-ups. Extends life of tool in

extreme cutting applications

n Speed Dial for repetitive cuts

n QUIK-LOK™ Blade Clamp: Larger, heavy-duty, with new gripping

ribs, provides fast and easy blade changes

n QUIK-LOK® Cord for easy fi eld replacement

n Heavy-Duty Double Bearing Wobble Plate Mechanism*: For extra

long life

n Reverse The Blade: For cutting with no starting hole

n Constant Power Technology™ – maintains constant speed under

load for unmatched cutting performance

Includes: (1) 360° Rotating Handle Orbital Super Sawzall® Recip

Saw (6523-21); (1) Carrying Case

SPECIFICATIONS

Length 19"

Weight 10.0 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 10' QUIK-LOK®

Amps 13

Construction Type Double

Insulated

Dial Speed Control Yes

Adjustable Handle Yes

Keyless Adjustable

Shoe Yes

Keyless Blade

Clamp Yes

Orbital Action Yes

Stroke Length 1-1/4"

SPM 0-3,000

* Patented

FEATURES

n 13 amp Milwaukee built motor

n 0-2,800 strokes per minute, variable speed trigger

n 1-1/8 in. Stroke

n Orbital cutting action for faster cuts

n Exclusive gear protecting clutch

n QUIK-LOK™ Blade Clamp: Provides fast, tool-free blade changes

n 9-Position Orbit Selector: Allows the user to set the degree of orbital

versus straight reciprocating action

n Gear Protecting Clutch*: Unique gear clutch absorbs high impact

forces caused by sudden blade lock-ups. Extends life of tool in

extreme cutting applications

n Pivot Shoe*: For maximum support against work surface

n Reverse The Blade: For cutting with no starting hole

Includes: (1) 13 Amp Orbital Sawzall® Recip Saw (6520-21);

(1) Carrying Case

SPECIFICATIONS

Length 18-3/4"

Weight 8.8 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 8' Fixed

Amps 13

Construction Type

Grounded

Dial Speed Control No

Adjustable Handle No

Keyless Adjustable Shoe Yes

Keyless Blade Clamp Yes

Orbital Action Yes

Stroke Length 1-1/8"

SPM 0-2,800

* Patented ATTACHMENTS

48-76-5010: 10' Quik-Lok®48-76-5025: 25' Quik-Lok®

15A Super SAWZALL®

6538-21

milwaukeetool.ca 3

FEATURES

n 13 Amp Milwaukee Built Motor

n Orbital Cutting Action

n Variable Speed Trigger, 0-3000 SPM

n 1-1/4 in. Stroke

n QUIK-LOK™ Blade Clamp: Larger, heavy-duty, with new gripping

ribs, provides fast and easy blade changes.

n Constant Power Technology™ – maintains constant speed under

load for unmatched cutting performance

n 9-Position Orbit Selector*: Allows the user to set the degree of

orbital versus straight reciprocating action.

n Counter Balanced*: For reduced vibration and smoother operation.

n Gear Protecting Clutch*: Unique gear clutch absorbs high impact

forces caused by sudden blade lock-ups. Extends life of tool in

extreme cutting applications.

n Heavy-Duty Double Bearing Wobble Plate Mechanism*: For extra long life.

n Reverse The Blade: For cutting with no starting hole

n Pivot Shoe*: For maximum support against work surface.

Includes: (1) 13 Amp Orbital Super Sawzall® Recip Saw (6536-21);

(1) Carrying Case

SPECIFICATION

Length 18-3/4"

Weight 9.8 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 8' Fixed

Clutch Yes

Amps 13

Construction Type Grounded

Adjustable Handle No

Keyless Adjustable Shoe Yes

Keyless Blade Clamp Yes

Orbital Action Yes

Stroke Length 1-1/4"

SPM 0-3,000

* Patented

6536-21

13A Orbital Super SAWZALL®

FEATURES

n 15.0 Amp Milwaukee Motor – highest overload protection in the

industry; prevents motor burn up / failure

n Constant Power Technology™ – maintains constant speed under

load for unmatched cutting performance

n Gear Protecting Clutch* – extends gear and motor life by absorbing

high impact forces caused by sudden blade lock-ups

n Counter Balanced Mechanism* – smoothest running, lowest

vibrating reciprocating saw in the industry

n Variable Speed Trigger and Dial Speed Control – maximum speed control

n Quik-Lok™ Blade Clamp System – provides fast and easy blade changes

n Reverse The Blade: For cutting with no starting hole

n Heavy-Duty Double Bearing Wobble Plate Mechanism*: For extra

long life.

Includes: (1) 15.0 Amp Super Sawzall® Recip Saw (6538-21);

(1) Carrying Case

SPECIFICATIONS

Length 18-3/4"

Weight 9.8 lbs

Voltage 120V AC

Tool Warranty 5 Years

Amps 15

Adjustable Handle No

Keyless Adjustable Shoe Yes

Keyless Blade Clamp Yes

Ortibal Action Yes

Stroke Length 1-1/4"

SPM 0-2,800

* Patented

SAWZALL®

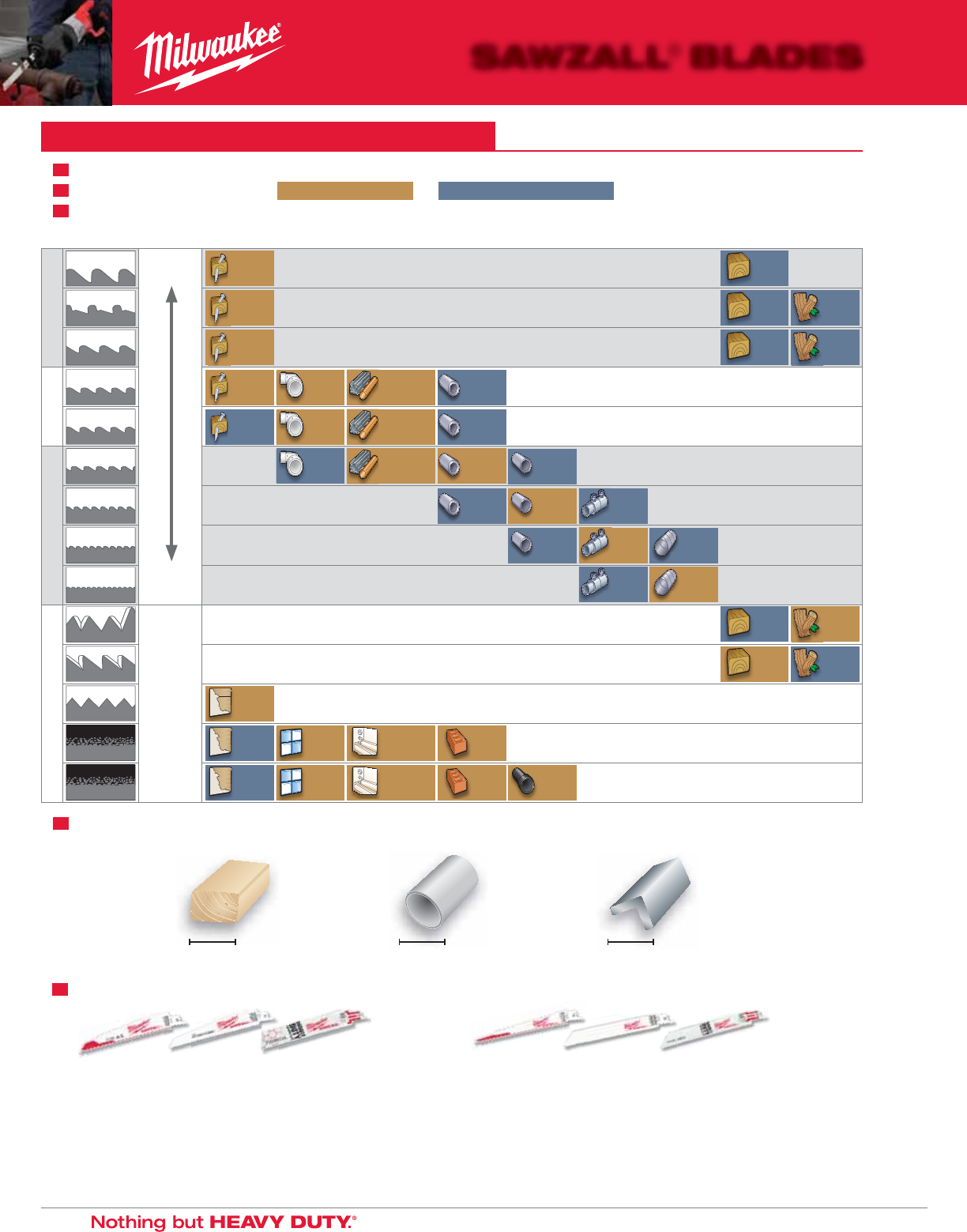

SAWZALL® BLADES

4

EXAMPLE

Width

Angle Iron

Width

Schedule 40 PVC Pipe

Width

2x4

4 Choose the Blade Length (Width of Material + 3" = Minimum Blade Length)

5 Choose the Blade Profi le

DEMO BLADES FOR TOUGH STRAIGHT CUTS: THIN KERF BLADES FOR FAST FLEXIBLE CUTS:

MAXIMUM DURABILITY

n A thicker, more rigid blade body resists fracturing and bending.

STRAIGHTER CUTS

n The 1" tall blade body reduces blade twisting for straighter, more accurate cuts.

FASTER CUTS

n A thinner kerf and blade body allow for faster cutting through material.

FLEXIBLE CUTS

n The 3/4" tall blade body and thinner blade width allow for fl exible cutting

like fl ush or scroll cuts.

1 Identify the material to be cut in the columns below

2 Follow the column down to fi nd BEST PERFORMANCE or ACCEPTABLE PERFORMANCE

3 Follow the row to the left to identify the appropriate teeth per inch (TPI) or specialty blade

Note: Fewer TPI cut faster but rougher, while more TPI cut smoother but slower

SAWZALL

® BLADE SELECTION GUIDE

4/6 TPI

FASTER/

ROUGHER

5 TPI

6 TPI

8 TPI

8/12 TPI

10 TPI10 TPI

14 TPI

18 TPI

24 TPI

SLOWER/

SMOOTHER

PRUNING

CLEAN WOOD

PLASTER

CARBIDE GRIT

DIAMOND GRIT

GENERAL PURPOSESPECIALTY WOOD CUTTINGMETAL CUTTING

WOOD

WITH

NAILS

WOOD

WITH

NAILS

WOOD

WITH

NAILS

WOOD

WITH

NAILS

WOOD

WITH

NAILS

PVC

&

PLASTICS

P

PVC

&

PLASTICS

P

PVC

&

PLASTICS

P

ALUMINUM

& OTHER

NON-

FERROUS

METALS

FE

ALUMINUM

& OTHER

NON-

FERROUS

METALS

FE

ALUMINUM

& OTHER

NON-

FERROUS

METALS

FE

THICK

METAL

(3/8" - 9/16")

(

(

80

THICK

METAL

(3/8" - 9/16")

(

(

80

THICK

METAL

(3/8" - 9/16")

(

(

80

THICK

METAL

(3/8" - 9/16")

(

(

80

MEDIUM

METAL

(1/4" - 7/16")

(

40

MEDIUM

METAL

(1/4" - 7/16")

(

40

MEDIUM

METAL

(1/4" - 7/16")

(

40

THIN

METAL

(1/8" - 5/16")

M

(

(

(1

(1/8

THIN

METAL

(1/8" - 5/16")

M

(

(

(1

(1/8

THIN

METAL

(1/8" - 5/16")

SHEET

METAL

(1/16" - 3/16")

(

(

(1

(1/

(

(

(

(1

(

(

1

SHEET

METAL

(1/16" - 3/16")

(

(

(

(

(1

(1/

(

(

(

(

(

(

1

CLEAN

WOOD

CLEAN

WOOD

CLEAN

WOOD

CLEAN

WOOD

CLEAN

WOOD

TIMBER

& GREEN

WOOD

TIMBER

& GREEN

WOOD

TIMBER

& GREEN

WOOD

TIMBER

& GREEN

WOOD

PLASTER/

DRYWALL

PLASTER/

DRYWALL

PLASTER/

DRYWALL

TILE

TILE

FIBERGLASS

FIBERGLASS

BRICK

BRICK

CAST

IRON

SAWZALL® BLADES

milwaukeetool.ca 5

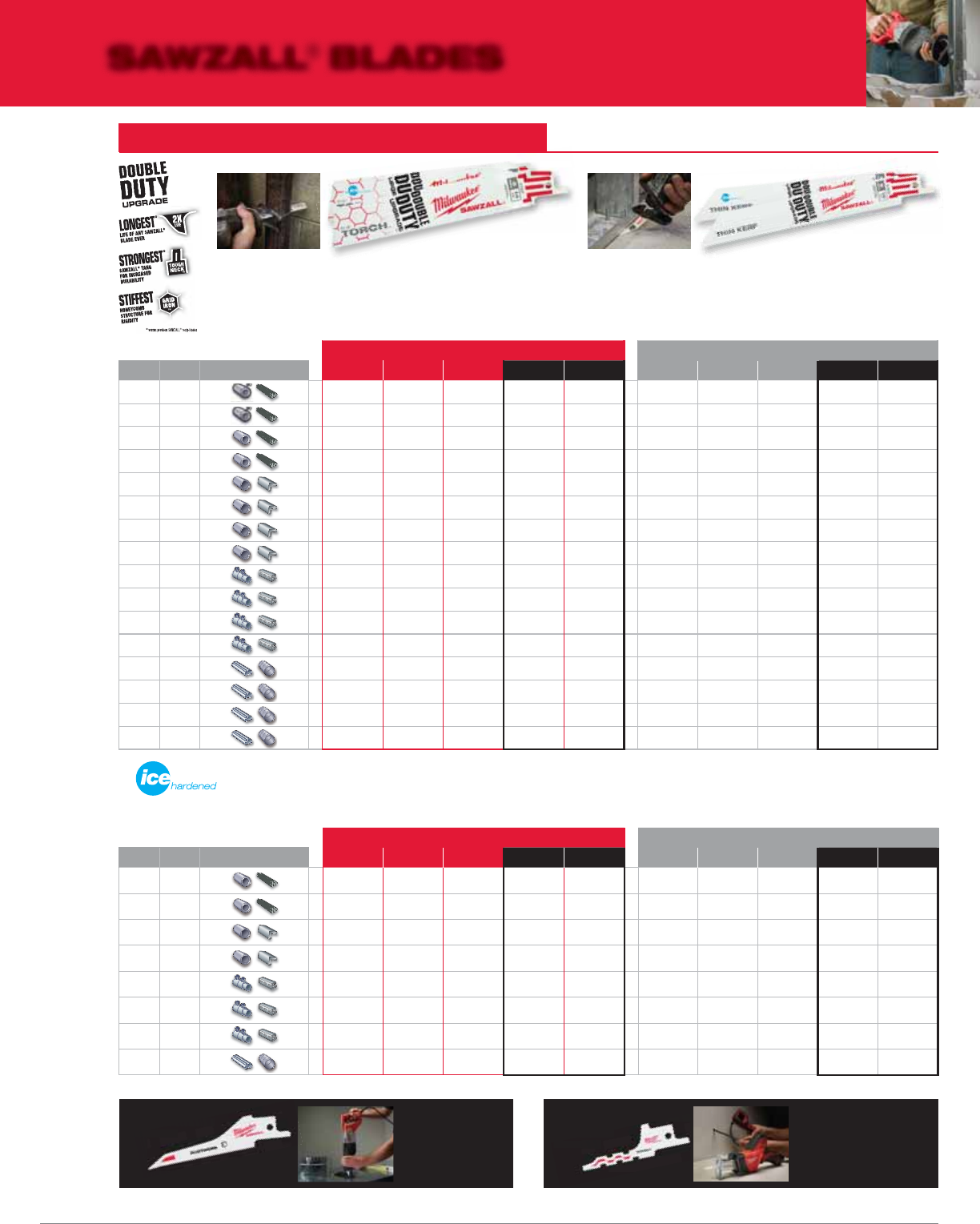

Thin Kerf metal-cutting blades are designed to provide fast, fl exible cuts in all

metal materials. Choose Thin Kerf blades when you need fl exibility for fl ush

cuts or scroll cuts, or when you want faster cuts in solid materials like threaded

rod or bar stock. Thin Kerf metal-cutting blades are 3/4" tall and .035" thick.

MC

THE TORCH™ TOUGH STRAIGHT CUTS THIN KERF FAST FLEXIBLE CUTS

TPI Length Materials

5 Packs 25 Packs 50 Packs Bulk (25) Bulk (100) 5 Packs 25 Packs 50 Packs Bulk (25) Bulk (100)

10 4"

80

—————48-00-5090 — — — —

10 6"

80

48-00-5712 48-00-8712 — 48-01-2712 48-01-7712 48-00-5092 — 48-01-6092 — 48-01-7092

10 9"

80

48-00-5713 48-00-8713 — 48-01-2713 48-01-7713 —————

10 12"

80

48-00-5714 — — 48-01-2714 — —————

14 4"

40

—————48-00-5181 — — — —

14 6"

40

48-00-5782 48-00-8782 — 48-01-2782 48-01-7782 48-00-5182 48-00-8182 48-01-6182 48-01-2182 48-01-7182

14 9"

40

48-00-5787 48-00-8787 — 48-01-2787 48-01-7787 48-00-5187 — 48-01-6187 48-01-2187 48-01-7187

14 12"

40

48-00-5794 — — 48-01-2794 — —————

18 4" —————48-00-5183 — — — —

18 6" 48-00-5784 48-00-8784 — 48-01-2784 48-01-7784 48-00-5184 48-00-8184 48-01-6184 48-01-2184 48-01-7184

18 9" 48-00-5788 48-00-8788 — 48-01-2788 48-01-7788 48-00-5188 — 48-01-6188 48-01-2188 48-01-7188

18 12" 48-00-5789 48-00-8789 — 48-01-2789 48-01-7789 48-00-5189 — 48-01-6189 — 48-01-7189

24 4" —————48-00-5185 — — — —

24 6" 48-00-5786 — — — — 48-00-5186 48-00-8186 48-01-6186 48-01-2186 48-01-7186

24 9" 48-00-5790 — — — — —————

24 12" 48-00-5791 — — —— —————

Ice Hardened™ cryogenic treatment is available on both Thin Kerf and The Torch™ metal-cutting blades. Choose Ice Hardened™ blades when cutting

thick or hard materials like angle iron, rebar and Schedule 80 pipe that cause excessive heat build up. In these extreme applications, Ice Hardened™

cryogenics will extend the wear life of the blade.

The Torch™ metal-cutting blades are designed to provide tough, straight cuts

in all metal materials. Choose The Torch™ blades when you need straight

cuts in pipe or tube, or when you need greater tooth durability in hollow

materials like strut or conduit. The Torch™ blades are 1" tall and .042" thick.

THE TORCH™ TOUGH STRAIGHT CUTS THIN KERF FAST FLEXIBLE CUTS

TPI Length Materials

5 Packs 25 Packs 50 Packs Bulk (25) Bulk (100) 5 Packs 25 Packs 50 Packs Bulk (25) Bulk (100)

10 6"

80

48-00-4712 — 48-01-8712 — 48-01-9712 —————

10 9"

80

48-00-4713 — 48-01-8713 — 48-01-9713 —————

14 6"

40

48-00-4782 — 48-01-8782 — 48-01-9782 48-00-4182 — 48-01-8182 — 48-01-9182

14 9"

40

48-00-4787 — 48-01-8787 — 48-01-9787 48-00-4187 — 48-01-8187 — 48-01-9187

18 6" 48-00-4784 — 48-01-8784 — 48-01-9784 48-00-4184 — 48-01-8184 — 48-01-9184

18 9" 48-00-4788 — 48-01-8788 — 48-01-9788 48-00-4188 — 48-01-8188 — 48-01-9188

18 12" —————48-00-4189 — — — —

24 6" —————

48-00-4186 — 48-01-8186 — 48-01-9186

DUCTWORK

48-00-1630 IDEAL FOR

INSTALLING

TAKE-OFFS

UCTWORK

00

48-

0

TWO

RK

00-

163

0

DRYWALL

ACCESS

48-00-1640

IDEAL FOR

SERVICING

PLUMBING AND

ELECTRICAL

YWALL

C

ESS

C

48-

00-

C

ESS

164

0

MC

Up to 50%

Longer Life

METAL CUTTING SAWZALL® BLADES

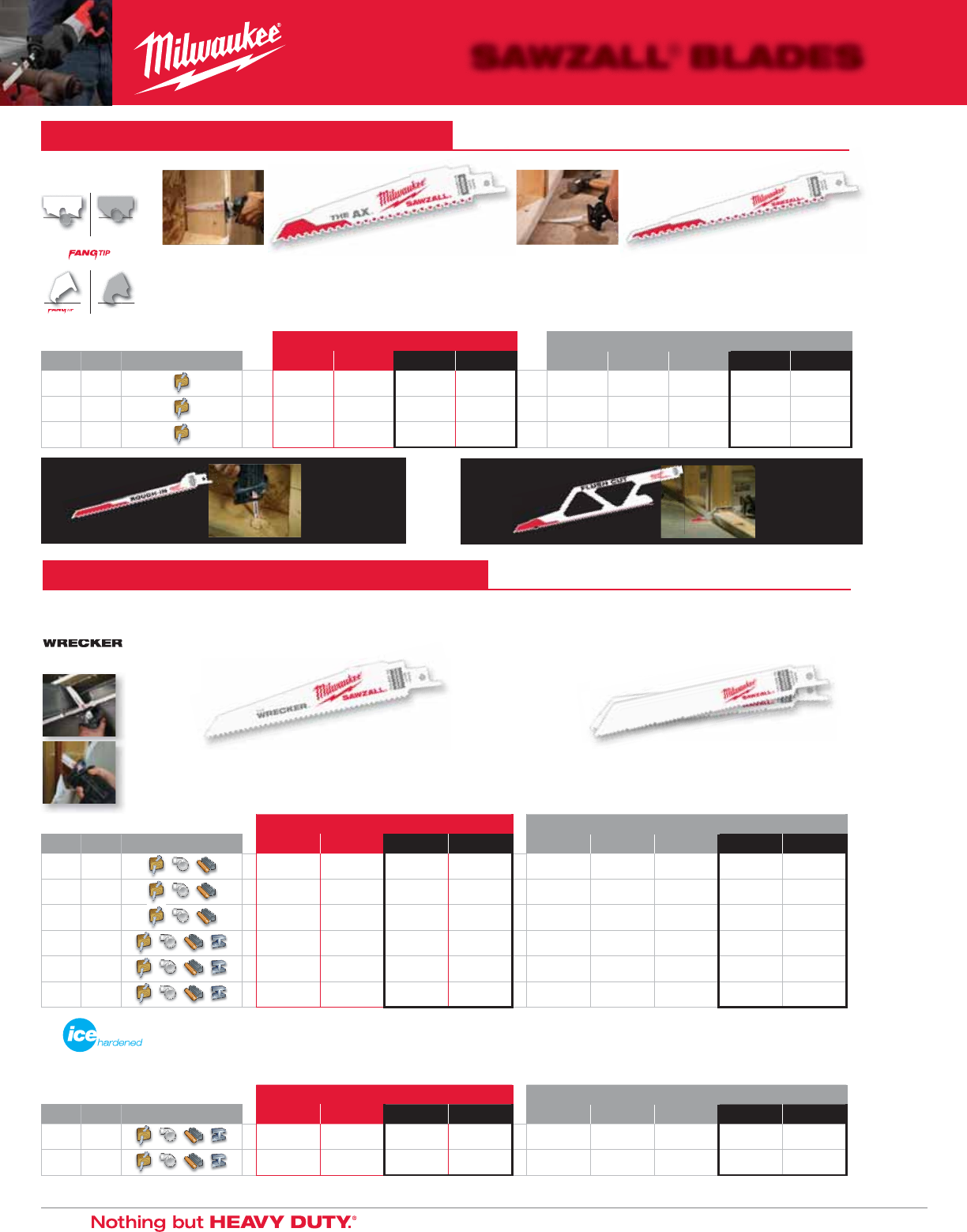

6

THE WRECKER™ TOUGH STRAIGHT CUTS THIN KERF FAST FLEXIBLE CUTS

TPI Length Materials

5 Packs 25 Packs Bulk (25) Bulk (100) 5 Packs 25 Packs 50 Packs Bulk (25) Bulk (100)

8/12 6" ————48-00-4091 — 48-01-8091 — 48-01-9091

8/12 8" ————

48-00-4093 — 48-01-8093 — 48-01-9093

Thin Kerf wood-cutting blades are designed to provide fast, fl exible cuts in

nail-embedded wood and engineered lumber. Choose Thin Kerf blades for

fl ush cuts and scroll cuts or for slightly faster cutting in dimensional lumber,

plywood and OSB. Thin Kerf wood-cutting blades are 3/4" tall and .050" thick.

The Ax™ wood-cutting blades are designed to provide tough, straight cuts

in nail-embedded wood and engineered lumber. Choose The Ax™ blades

for straighter door and window cut-outs or for greater tooth durability when

cutting a lot of nails. The Ax™ blades are 1" tall and .060" thick.

THE AX™ TOUGH STRAIGHT CUTS THIN KERF FAST FLEXIBLE CUTS

TPI Length Materials

5 Packs 25 Packs Bulk (25) Bulk (100) 5 Packs 25 Packs 50 Packs Bulk (25) Bulk (100)

56" 48-00-5021 48-00-8021 48-01-2021 48-01-7021 48-00-5035 — 48-01-6035 48-01-2035 48-01-7035

59" 48-00-5026 48-00-8026 48-01-2026 48-01-7026 48-00-5036 48-00-8036 48-01-6036 48-01-2036 48-01-7036

5 12" 48-00-5027 48-00-8027 48-01-2027 48-01-7027 48-00-5037 — 48-01-6037 48-01-2037 48-01-7037

THE WRECKER™ TOUGH STRAIGHT CUTS THIN KERF FAST FLEXIBLE CUTS

TPI Length Materials

5 Packs 25 Packs Bulk (25) Bulk (100) 5 Packs 25 Packs 50 Packs Bulk (25) Bulk (100)

86" 48-00-5701 48-00-8701 48-01-2701 48-01-7701 —————

89" 48-00-5706 48-00-8706 48-01-2706 48-01-7706 —————

8 12" 48-00-5711 48-00-8711 48-01-2711 48-01-7711 —————

8/12 6" ————48-00-5091 — 48-01-6091 — 48-01-7091

8/12 8" ————48-00-5093 48-00-8093 48-01-6093 48-01-2093 48-01-7093

8/12 12" ————

48-00-5094 — 48-01-6094 48-01-2094 —

Thin Kerf general purpose blades are designed to provide fast,

fl exible cuts in woods, plastics and metals. Thin Kerf general

purpose blades are 3/4" tall and .050" thick.

The Wrecker™ general purpose blades are designed for true demolition work. Choose

The Wrecker™ blades when you need tough cuts in nail-embedded wood, plaster and

ferrous and non-ferrous metals. The Wrecker™ blades are 1" tall and .060" thick.

IDEAL FOR

TIGHT

RADIUS

CUTS

ROUGH-IN

48-00-1610

0

FLUSH

CUT

48-00-1600

IDEAL FOR

DOOR

CUT-OUTS

H

-

16

60

0

The same Ice Hardened™ cryogenic treatment that is available in metal cutting blades is also available in general purpose blades.

MC

Up to 50%

Longer Life

ORDINARY TOOTH

NAIL

NAIL

N

AIL

N

AIL

N

AIL

NAIL GUARDMC

NAIL GUARD

MEILLEURE PROTECTION CONTRE

ORDINARY TIP

DINARY TIP

OR

RD

RD

MC

PLONGÉE PLUS RAPIDE

WOOD CUTTING SAWZALL® BLADES

TACKLE ANYTHING

MC

Both Thin Kerf and The Wrecker™ general purpose blades are designed to handle the broadest spectrum of applications. Choose general purpose blades when cutting

wood, plastic and metal at the same time or when you need to quickly switch between applications without changing your blade.

GENERAL PURPOSE SAWZALL® BLADES

SAWZALL® BLADES

milwaukeetool.ca 7

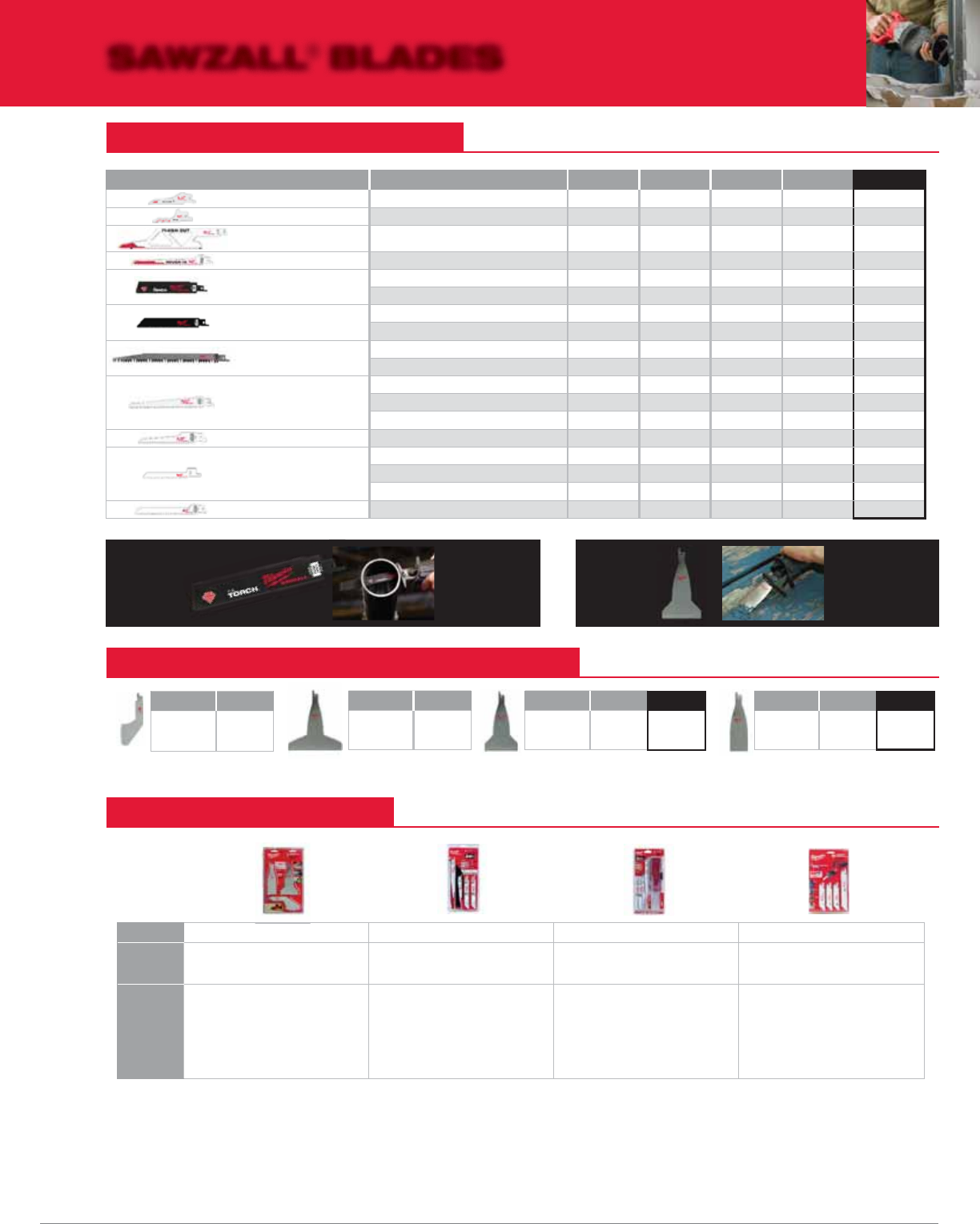

SAWZALL® BLADES

Description

1 Pack

GROUT

REMOVAL

TOOL

49-00-5450

Description

1 Pack

5" SCRAPER

BLADE

49-00-5455

Description

TPI Length Height Width 1 Pack 3 Pack 5 Pack 50 Pack

Bulk (100)

DUCTWORK 30 3.33" 0.75" 0.050" — - 48-00-1630 — —

DRYWALL ACCESS — 2.5" 0.75" 0.062" 48-00-1640 — — — —

FLUSH CUT 5 12" 2-1/8" 0.062" 48-00-1600 — — — —

ROUGH-IN 5 7-3/8" 1/2" 0.062" — — 48-00-1610 — —

THE TORCH™ DIAMOND GRIT GRIT 6" 1" 0.042" 48-00-1440 — — — —

GRIT 9" 1" 0.042" 48-00-1450 — — — —

CARBIDE GRIT GRIT 6" 3/4" 0.032" 48-00-1421 48-00-1420 — 48-01-6420 —

GRIT 9" 3/4" 0.032" 48-00-1431 48-00-1430 — 48-01-6430 —

PRUNING 5 9" 3/4" 0.049" 48-00-1304 — 48-00-1301 — —

5 12" 3/4" 0.049" 48-00-1305 — 48-00-1303 — —

CLEAN WOOD

6 6" 3/4" 0.050" — — 48-00-5015 — 48-01-7015

6 9" 3/4" 0.050" — — 48-00-5016 — 48-01-7016

6 12" 3/4" 0.050" — — 48-00-5017 — —

PLASTER 6 5" 3/4" 0.050" — — 48-00-5052 — —

METAL SCROLLING

10 3-5/8" 5/16" 0.035" — — 48-00-5161 — —

14 3-5/8" 5/16" 0.035" — — 48-00-5162 — —

18 3-5/8" 5/16" 0.035" — — 48-00-5163 — —

WOOD SCROLLING 4/6 6" 1/2" 0.050" — — 48-00-5041 — —

Product No. 49-22-5403 49-22-0240 49-22-1145 49-22-0220

Description

3 PC MATERIAL

REMOVAL SET

8 PC THIN KERF

SAWZALL® BLADE SET

9 PC THIN KERF

SAWZALL® BLADE SET

10 PC M12™ HACKZALL™ BLADE

SET

Contents

(1) 1-1/2" scraper blade

(1) 3" scraper blade

(1) grout removal tool

(2) 6" 5TPI Thin Kerf wood blades

(2) 9" 5TPI Thin Kerf wood blades

(2) 6" 14TPI Thin Kerf Ice Hardened™

metal blades

(2) 6" 18TPI Thin Kerf Ice Hardened™

metal blades

(3) 6" 24TPI Thin Kerf metal blades

(3) 6" 14TPI Thin Kerf metal blades

(2) 6" 5TPI Thin Kerf wood blades

(1) 9" 5TPI Thin Kerf wood blade

(2) wood blades

(3) EMT blades

(2) duct blades

(3) PVC blades

DIAMOND GRIT

THE TORCH™

48-00-1440 and

48-00-1450

IDEAL FOR

CAST IRON

GRIT

H

™

d

SCRAPER

BLADES

49-00-5455,

49-00-5456 and

49-00-5463

IDEAL FOR

MATERIAL

REMOVAL

R

d

R

Description

1 Pack Bulk (5)

3" SCRAPER

BLADE

49-00-5456 49-01-5456

Description

1 Pack Bulk (5)

1-1/2"

SCRAPER

BLADE

49-00-5463 49-01-5463

SPECIALTY SAWZALL® BLADES

SAWZALL® / HACKZALL™ UTILITY BLADES

SAWZALL® BLADE SETS

8

SAWZALL® BLADES CROSS REFERENCE CHART

SAWZALL® BLADES

CROSS REFERENCE

CATEGORY TPI LENGTH QTY LENOX DeWALT MORSE BOSCH IRWIN GREENLEE STARRETT MILWAUKEE

362 BT63-2

3 6 5 DW4801 BT63-5

3122 BT123-2

3125 BT123-5

4 6 1 20574

4 6 5 20575

6 6 1 372645F

6 6 5 RW66 48-00-5015

6 6 25 RW66-25B

6 6 100 48-01-7015

6 9 5 RW96 48-00-5016

6 9 25 RW96-25B

6 9 100 48-01-7016

6 12 5 RW126 48-00-5017

6 12 25 RW126-25B

6/10 8 5 RPRW8

6/10 8 25 RPRW8-25B

RPRW8-25P

Progressive 8 5 353-234

5.5 6 5 RBMC65005T05

5.5 6 25 RBMC65005T25

5.5 9 5 RBMC95005T05

5.5 9 25 RBMC95005T25

5.5 12 5 RBMC125005T05

5.5 12 25 RBMC125005T25

6 6 1 20559 372606

6 6 2 RB65006CC2

6 6 2 RB606STC2 B66-2

6 6 2 372606P2

6 6 5 20560 RB606STT05 B66-5

6 6 5 RB63506T05 RN66

6 6 5 372606P5

6 6 15 RB63506T15

6620 B66-20

6 6 25 20492 RB63506T25 RN66-25B 372606B

6 6 50 RB606STT50 B66-50

6 6 50 RB63506T50

6 6 1 20573 372656

6 6 2 DW4802-2 RB65006C2 372656P2 BT66-2

6 6 5 DW4816

6 6 5 DW4850 353-646 48-00-5012

6 6 5 20572 DW4802 RB65006T05 372656P5 353-656 BT66-5 48-00-5035 (5TPI)

6 6 10 DW4802-10

6 6 15 RB65006T15

6 6 25 20530 DW4802B25 RB65006T25 372656B 48-01-2035 (5TPI)

6 6 50 22750 RB65006T50 372656BB 48-01-6035 (5TPI)

6 6 100 DW4802B 48-01-7035 (5TPI)

6 6 1 20557

6 6 5 20556 RB65006CT05

6 6 50 RB65006CT50

6 6 5 21060

6 6 5 21063

6 6 25 21074

6 6 25 21077

6 9 5 RB93506T05 RN96

6 9 25 RN96-25B

6 9 50 RB93506T50

6 9 1 20587 372956

6 9 2 RB95006C2 372956P2

695 353-956

6 9 5 20582 DW4803 RB95006T05 372956P5 BT96-5 48-00-5036 (5TPI)

6 9 15 RB95006T15

6 9 25 20558 DW4803B25 RB95006T25 372956B 48-00-8036 (5TPI)

48-01-2036 (5TPI)

6 9 50 22752 RB95006T50 372956BB 48-01-6036 (5TPI)

6 9 100 DW4803B 48-01-7036 (5TPI)

6 9 5 21062

WOOD STANDARD

milwaukeetool.ca 9

SAWZALL® BLADES

CROSS REFERENCE

CATEGORY TPI LENGTH QTY LENOX DeWALT MORSE BOSCH IRWIN GREENLEE STARRETT MILWAUKEE

6 9 25 21076

6 12 5 RB123506T05 RN126

6 12 25 RN126-25B

6 12 50 RB123506T50

6 12 1 20586 372156

6 12 2 DW4804-2 RB125006C 372156P2 BT126-2

6 12 5 20585 DW4804 RB125006T05 372156P5 353-156 BT126-5 48-00-5037 (5TPI)

6 12 15 RB125006T15

6 12 25 20495 DW4804B25 RB125006T25 372156B 48-01-2037 (5TPI)

6 12 50 22755 RB125006T50 372156BB 48-01-6037 (5TPI)

6 12 100 DW4804B 48-01-7037 (5TPI)

6 12 5 21061

6 12 25 21075

2/3 12 5 RB125023T05

2/3 12 50 RB125023T50

4/6 6 5 48-00-5041

5/8 6 5 RB658T05

5/8 6 50 RB658T50

5/8 6 2 DW4847-2 RB65058C2

5/8 6 5 DW4847 RB65058T05 RSN6V

5/8 6 25 DW4847B25 RSN6V-25B

RSN6V-25P

5/8 6 50 RB65058T50

5/8 6 100

5/8 9 5 DW4848 RSN9V

5/8 9 25 RSN9V-25B

RSN9V-25P

5/8 12 5 RB125058STT05

5/8 12 50 RB125058STT50

5/8 12 5 DW4849 RB125058T05

5/8 12 50 RB125058T50

6/10 6 2 BT6610-2

6/10 6 5 BT6610-5

6/10 12 2 BT12610-2

6/10 12 5 BT12610-5

6/12 6 5 RPRAP6

6/12 6 10 RPRAP6-10B

6/12 6 25 RPRAP6-25B

RPRAP6-25P

6/12 8 5 RPRAP8

6/12 9 10 RPRAP8-10B

6/12 9 25 RPRAP8-25B

RPRAP8-25P

6 6 5 DW4862

6 6 1 RB66206C 372666

6 6 2 20512

6 6 3 RB66206T03

6 6 5 20370 RHN66 372666P5

6 6 10 RHN66-10B

6 6 20 RB66206T20

6 6 25 20514 RHN66-25B

RHN66-25P

6 6 50 22763 372666BB

6 6 5 21088

6 6 25 21220

6 9 5 DW4863

6 9 25 DW4863B25

6 9 100 DW4863B

6 9 1 RB96206C 372966

6 9 2 20598 353-966

6 9 3 RB96206T03

6 9 5 20371 RHN96 372966P5

6 9 20 RB96206T20

6 9 25 20523 RHN96-25B

RHN96-25P

6 9 50 372966BB

6 9 5 21090

6 9 25 21222

6 12 5 DW4860

6 12 20 RB126206T20

6 12 1 RB126206C

WOOD DEMOLITION WOOD STANDARD

10

SAWZALL® BLADES

CROSS REFERENCE

CATEGORY TPI LENGTH QTY LENOX DeWALT MORSE BOSCH IRWIN GREENLEE STARRETT MILWAUKEE

6 12 2 20500

6 12 3 RB126206T03

6 12 5 20373 RHN126

6 12 25 20485 RHN126-25B

RHN126-25P

6 12 5 21091

6 12 25 21223

5/8 6 5 RDN6V 48-00-5021 (5TPI)

5/8 6 25 RDN6V-25B

RDN6V-25P

48-00-8021 (5TPI)

48-01-2021 (5TPI)

5/8 6 100 48-01-7021 (5TPI)

5/8 9 5 RDN9V 48-00-5026 (5TPI)

5/8 9 25 RDN9V-25B

RDN9V-25P

48-00-8026 (5TPI)

48-01-2026 (5TPI)

5/8 9 100 48-01-7026 (5TPI)

5/8 12 5 RDN12V 48-00-5027 (5TPI)

5/8 12 25 RDN12V-25B

RDN12V-25P

48-00-8027 (5TPI)

48-01-2027 (5TPI)

5/8 12 100 48-01-7027 (5TPI)

6/10 6 2 BTR6610-2

6/10 6 5 BTR6610-5

6/10 6 20 BTR6610-20

6/10 6 50 BTR6610-50

6/10 8 2 BTR8610-2

6/10 8 5 BTR8610-5

6/10 8 20 BTR8610-20

6/10 8 50 BTR8610-50

6/10 9 2 BTR9610-2

6/10 9 5 BTR9610-5

6/10 9 20 BTR9610-20

6/10 9 50 BTR9610-50

6/10 12 2 BTR12610-2

6/10 12 5 BTR12610-5

6/10 12 20 BTR12610-20

6/10 12 50 BTR12610-50

10 4 5 48-00-5090

10 6 1 20561 372610

10 6 2 RB610C2 372610P2 B610-2

10 6 5 20562 RB610T05

RBMC610T05 RAP610 372610P5 B610-5 48-00-5092

10 6 20 B610-20

10 6 25 20493 RB610T25

RBMC610T25 RAP610-25B 372610B

10 6 50 22761 RB610T50 372610BB B610-50 48-01-6092

10 6 100 48-01-7092

10 6 5 21064

10 6 25 21078

10 6 2 DW4806-2

10 6 5 DW4806 RB65010T05

10 6 25 DW4806B25

10 6 50 RB65010T50

10 6 100 DW4806B

10 8 5 RB810T05

RBMC810T05 RAP810

10 8 25 RB810T25

RBMC810T25 RAP810-25B

10 8 50 RB810T50

10 8 1 20581 372810

10 8 2 372810P2

10 8 5 20580 372810P5

10 8 25 20590 372810B

10 8 50 22753 372810BB

10 8 5 21065

10 8 25 21079

10 9 5 RAP910

10 9 25 RAP910-25B

10 9 2 BT910-2

10 9 5 BT910-5

10 10 5 RB1010T05

10 10 50 RB1010T50

10 12 5 RB1210T05 RAP1210

WOOD DEMOLITIONGENERAL PURPOSE STANDARD

milwaukeetool.ca 11

SAWZALL® BLADES

CROSS REFERENCE

CATEGORY TPI LENGTH QTY LENOX DeWALT MORSE BOSCH IRWIN GREENLEE STARRETT MILWAUKEE

10 12 25 RAP1210-25B

10 12 50 RB1210T50

10 12 50 22758

10 3-5/8 5 48-00-5161

8/12 6 5 48-00-4091

8/12 6 50 48-01-8091

8/12 6 100 48-01-9091

8/12 6 5 48-00-5091

8/12 6 50 48-01-6091

8/12 6 100 48-01-7091

8/12 8 5 48-00-4093

8/12 8 5 RB850812T05 48-00-5093

8/12 8 25 48-01-2093

8/12 8 50 RB850812T50 48-01-6093

8/12 8 100 48-01-7093

8/12 8 50 48-01-8093

8/12 8 100 48-01-9093

8/12 8 500 48-01-6000

8/12 12 50 RB1250812T50

8/12 12 5 RB1250812T05 48-00-5094

8/12 12 25 48-01-2094

8/12 12 50 48-01-6094

8/14 6 5 RPRM6

8/14 6 25 RPRM6-25B

RPRM6-25P

9/12 10 5 RFM10V

9/12 10 25 RFM10V-25B

9/12 10 25 RFM10V-25P

10/14 4 5 RB41014T05

10/14 4 50 RB41014T50

10/14 6 2 RB61014C2 BR61014-2

10/14 6 5 12112 RB61014T05 RAP6V BR61014-5

10/14 6 20 BR61014-20

10/14 6 25 RAP6V-25B

10/14 6 50 RB61014T50 BR61014-50

10/14 6 2 20592 RB6501014C2

10/14 6 5 20374 RB6501014T05

RB6501014TT05 RRD6V

10/14 6 25 20515 RRD6V-25P

10/14 6 50 RB6501014T50

RB6501014TT50

10/14 8 2 RB81014C2

10/14 8 5 12130 RB81014T05

10/14 8 15 RB81014T15

10/14 8 25 RB81014T25

10/14 8 50 RB81014T50

10/14 8 5 48-00-5193

10/14 8 1 20588 353-804

10/14 8 2 RB8501014C2 BR81014-2

10/14 8 5 20577 RB8501014T05 BR81014-5

10/14 8 20 BR81014-20

10/14 8 25 20535

10/14 8 50 RB8501014T50 BR81014-50

10/14 9 5 RAP9V

10/14 9 25 RAP9V-25B

10/14 9 2 BR91014-2

10/14 9 5 DW4846 RD9V BR91014-5

10/14 9 20 BR91014-20

10/14 9 25 DW4846B25 RRD9V-25P

10/14 9 100 DW4846B

10/14 9 25 RD9V-25B

RD9V-25P

10/14 9 50 BR91014-50

10/14 12 1 RB121014C

10/14 12 5 RB121014T05 RAP12V

10/14 12 25 DW4839B25 RAP12V-25B

10/14 12 50 RB121014T50

10/14 12 100 DW4839B

10/14 12 5 48-00-5194

10/14 12 1 20584 372110

GENERAL PURPOSE STANDARD

12

SAWZALL® BLADES

CROSS REFERENCE

CATEGORY TPI LENGTH QTY LENOX DeWALT MORSE BOSCH IRWIN GREENLEE STARRETT MILWAUKEE

10/14 12 2 RB12501014C 372110P2 BR121014-2

10/14 12 5 20583

RB12501

014STT05

RB12501014T05

RRD12V 372110P5 BR121014-5

10/14 12 20 BR121014-20

10/14 12 25 20491 DW4839B25 RB12501014T25 RRD12V-25P 372110B

10/14 12 25 RD12V-25B

RD12V-25P

10/14 12 50 RB12501014STT50

RB12501014T50 372110BB BR121014-50

10/14 12 100 DW4839B

Progressive 8 1 353-345

8 6 2 24900

8 6 5 20192

8 6 25 20196

8 6 5 21092

8 6 25 21224

865 48-00-5701

8625 48-00-8701

48-01-2701

8 6 100 48-01-7701

8 9 2 24904

8 9 5 20193

8 9 25 20195

8 9 5 21096

8 9 25 21228

895 48-00-5706

8925 48-00-8706

48-01-2706

8 9 100 48-01-7706

8 12 2 24908

8 12 5 20194

8 12 25 20197

8125 48-00-5711

81225 48-00-8711

48-01-2711

8 12 100 48-01-7711

10 4 5 DW4861

10 9 5 RBMC95010T05

10 9 25 RBMC95010T25

10 9 2 20597

10 9 5 20372

10 9 25 20524

10 9 50 22762

10 9 1 372960

10 9 5 372960P5

10 9 50 372960BB

10 9 5 21089

10 9 25 21221

10 12 25 RBMC125010T25

8/10 6 5 RSM62

8/10 6 25 RSM62-25B

RSM62-25P

8/10 6 5 RDM62

8/10 6 25 RDM62-25P

8/10 7 5 RSM72

8/10 7 25 RSM72-25B

RSM72-25P

8/10 9 5 RSM92

8/10 9 25 RSM92-25B

RSM92-25P

8/10 9 5 RDM92

8/10 9 25 RDM92-25P

8/10 9 2 353-969

8/10 12 5 RSM122

8/10 12 25 RSM122-25B

RSM122-25P

10/14 6 2 BTR61014-2

10/14 6 5 BTR61014-5

10/14 6 20 BTR61014-20

10/14 6 50 BTR61014-50

GENERAL PURPOSE DEMOLITION

milwaukeetool.ca 13

SAWZALL® BLADES

CROSS REFERENCE

CATEGORY TPI LENGTH QTY LENOX DeWALT MORSE BOSCH IRWIN GREENLEE STARRETT MILWAUKEE

10/14 8 2 BTR81014-2

10/14 8 5 BTR81014-5

10/14 8 20 BTR81014-20

10/14 8 50 BTR81014-50

10/14 9 2 BTR91014-2

10/14 9 5 BTR91014-5

10/14 9 20 BTR91014-20

10/14 9 50 BTR91014-50

10/14 12 2 BT121014-2

BTR121014-2

10/14 12 5 BT121014-5

BTR121014-5

10/14 12 20 BTR121014-20

10/14 12 50 BTR121014-50

14 4 1 20551

14 4 2 RB414C2 372414P2 B414-2

14 4 5 20550 DW4807 RB414T05 372414P5 B414-5 48-00-5181

14 4 20 B414-20

14 4 25 20488 DW4807B25

14 4 50 22760 RB414T50 B414-50

14 4 100 DW4807B

14 4 2 SB414-2

14 4 5 SB414-5

14 4 20 SB414-20

14 6 1 20565 372614

14 6 2 DW4808-2 RB614C2 372614P2 B614-2

14 6 5 20564 DW4808 RB614T05

RBMC614T05 RM614 372614P5 353-614 B614-5 48-00-5182

14 6 15 RB614T15

14 6 20 B614-20

14 6 25 20494 DW4808B25 RB614T25

RBMC614T25 RM614-25B 372614B 48-00-8182

48-01-2182

14 6 50 22756 RB614T50 372614BB B614-50 48-01-6182

14 6 100 DW4808B 48-01-7182

14 6 5 RB65014T05

14 6 50 RB65014T50

14 8 2 RB814C2

14 8 5 21519 DW4809 RB814T05

RBMC814T05

14 8 25 DW4809B25 RB814T25

RBMC814T25

14 8 50 RB814T50

14 8 100 DW4809B

14 8 2 353-814

14 9 5 RB914T05 RM914 48-00-5187

14 9 25 RM914-B25 48-01-2187

14 9 50 RB914T50 48-01-6187

14 9 100 48-01-7187

14 9 2 20511

14 12 5 DW4838 RB1214T05

14 12 50 RB1214T50

14 3-5/8 5 20520 DW4814 48-00-5162

18 4 1 20553

18 4 2 DW4810-2 RB418C2 372418P2 B418-2

18 4 5 20552 DW4810 RB418T05 372418P5 353-418 B418-5 48-00-5183

18 4 20 B418-20

18 4 25 20489 DW4810B25

18 4 50 22759 RB418T50 B418-50

18 6 1 20567 372618

18 6 2 DW4811-2 RB618C2 372618P2 B618-2

18 6 5 20566 DW4811 RB618T05

RBMC618T05 RM618 372618P5 353-618 BR618-5

B618-5 48-00-5184

18 6 10 DW4811-10 RM618-10B

18 6 15 RB618T15

18 6 20 BR618-20

B618-20

18 6 25 20529 DW4811B25 RB618T25

RBMC618T25 RM618-25B 372618B 48-00-8184

48-01-2184

METAL STANDARD

14

SAWZALL® BLADES

CROSS REFERENCE

CATEGORY TPI LENGTH QTY LENOX DeWALT MORSE BOSCH IRWIN GREENLEE STARRETT MILWAUKEE

18 6 50 22751 RB618T50 372618BB B618-50

BR618-50 48-01-6184

18 6 100 DW4811B 48-01-7184

18 6 5 RB65018T05

18 6 50 RB65018T50

18 8 1 20563 372818

18 8 2 372818P2 BR818-2

B818-2

18 8 5 20578 DW4821 RB818T05

RBMC818T05 372818P5 B818-5

BR818-5

18 8 20 B818-20

BR818-20

18 8 25 20487 DW4821B25 RB818T25

RBMC818T25 372818B

18 8 50 22754 RB818T50 372818BB B818-50

BR818-50

18 8 100 DW4821B

18 8 2 353-818

18 9 5 RB918T05 RM918 48-00-5188

18 9 25 RM918-25B 48-01-2188

18 9 50 RB918T50 48-01-6188

18 9 100 48-01-7188

18 10 5 RB1018T05

18 10 50 RB1018T50

18 12 5 21510 RB1218T05

RBMC1218T05 RM1218 372118P5 48-00-5189

18 12 25 21511 DW4822B25 RB1218T25

RBMC1218T25 RM1218-25B

18 12 50 RB1218T50 48-01-6189

18 12 100 48-01-7189

18 3-5/8 1 20522

18 3-5/8 2 RB318SC2

18 3-5/8 5 20521 DW4815 RB318ST05 RSM418 353-318 48-00-5163

18 3-5/8 50 RB318ST50

24 4 1 20555

24 4 2 RB424C2 372424P2 B424-2

24 4 5 20554 DW4812 RB424T05 372424P5 B424-5 48-00-5185

24 4 20 B424-20

24 4 25 20490 DW4812B25

24 4 50 RB424T50 B424-50

24 6 1 20569 372624

24 6 2 DW4813-2 RB624C2 372624P2 B624-2

24 6 5 20568 DW4813 RB624T05

RBMC624T05 RM624 372624P5 353-624 B624-5 48-00-5186

24 6 10 RM624-10B

24 6 15 RB624T15

24 6 20 B624-20

24 6 25 20496 DW4813B25 RB624T25

RBMC624T25 RM624-25B 372624B 48-00-8186

48-01-2186

24 6 50 22757 RB624T50 372624BB 48-01-6186

24 6 100 DW4813B 48-01-7186

24 8 5 20579

24 9 5 RM924

24 9 25 RM924-25B

24 3-5/8 2 SB424-2

24 3-5/8 5 SB424-5

24 3-5/8 20 SB424-20

Progressive 6 5 353-123

6 2 24901

10 6 5 20170 RBMC64210T05 48-00-5712

10 6 25 20171 RBMC64210T25 48-00-8712

48-01-2712

10 6 100 48-01-7712

10 6 5 DW4864

10 6 25 DW4864B25

10 6 100 DW4864B

10 6 20 RB66210T20

METAL STANDARD

milwaukeetool.ca 15

SAWZALL® BLADES

CROSS REFERENCE

CATEGORY TPI LENGTH QTY LENOX DeWALT MORSE BOSCH IRWIN GREENLEE STARRETT MILWAUKEE

10 6 3 RB66210T03

RBFR66210WT03

10 6 5 RB66210C

RBFR66210WC

10 6 20 RBFR66210WT20

10 9 2 24905

10 9 5 20176 RBMC94210T05 48-00-5713

10 9 25 20177 RBMC94210T25 48-00-8713

48-01-2713

10 9 100 48-01-7713

10 9 5 DW4865

10 9 25 DW4865B25

10 9 100 DW4865B

10 9 20 RB96210T20

10 9 1 RB96210C

RBFR96210WC

10 9 3 RB96210T03

RBFR96210WT03

10 9 20 RBFR96210WT20

10 12 2 24909

10 12 5 20182 RBMC124210T05 48-00-5714

10 12 25 20183 RBMC124210T25 48-01-2714

10 12 5 DW4870 RBMC125010T05

10 12 20 RB126210T20

RBFR126210WC

10 12 1 RB126210C

10 12 3 RB126210T03

RBFR126210WT03

10 12 20 RBFR126210WT20

14 6 2 24902

14 6 5 20172 RBMC64214T05 48-00-5782

14 6 25 20173 RBMC64214T25 48-00-8782

48-01-2782

14 6 100 48-01-7782

14 6 50 22764

14 6 5 DW4866

14 6 100 DW4866B

14 6 3 RBFR66214WT03

14 6 5 RBFR66214WC

14 6 20 RBFR66214WT20

14 9 2 24906

14 9 5 20178 RBMC94214T05 48-00-5787

14 9 25 20179 RBMC94214T25 48-00-8787

48-01-2787

14 9 100 48-01-7787

14 9 50 22766

14 9 5 DW4868

14 9 25 DW4868B25

14 9 100 DW4868B

14 9 5 RBMC95014T05

14 9 25 RBMC95014T25

14 9 1 RBFR96214WC

14 9 3 RBFR96214WT03

14 9 20 RBFR96214WT20

14 12 2 24910

14 12 5 20184 RBMC124214T05

14 12 25 20185 RBMC124214T25

14 12 5 RBMC125014T05 48-01-2794

14 12 25 RBMC125014T25

14 12 1 RBFR126214WC

14 12 3 RBFR126214WT03

14 12 25 RBMC124214T05 48-00-5794

18 6 2 24903

18 6 5 20174 RBMC64218T05 48-00-5784

18 6 25 20175 RBMC64218T25 48-00-8784

48-01-2784

18 6 50 22765

18 6 100 48-01-7784

18 6 5 DW4867

18 9 2 24907

METAL DEMOLITION

16

SAWZALL® BLADES

CROSS REFERENCE

CATEGORY TPI LENGTH QTY LENOX DeWALT MORSE BOSCH IRWIN GREENLEE STARRETT MILWAUKEE

18 9 5 20180 RBMC94218T05 48-00-5788

18 9 25 20181 RBMC94218T25 48-00-8788

48-01-2788

18 9 100 48-01-7788

18 9 50 22767

18 9 5 DW4869 RBMC95018T05

18 9 25 RBMC95018T25

18 12 2 24911

18 12 5 20190 RBMC124218T05 48-00-5789

18 12 25 20191 RBMC124218T25 48-00-8789

48-01-2789

18 12 100 48-01-7789

18 12 5 DW4871 RBMC125018T05

18 12 25 RBMC125018T25

24 6 5 RBMC64224T05 48-00-5786

24 6 25 RBMC64224T25

24 9 5 48-00-5790

24 12 5 48-00-5791

14/18 6 5 RCTM62

14/18 6 10 RCTM62-10B

14/18 6 25 RCTM62-25B

RCTM62-25P

14/18 6 5 RCM62

14/18 6 25 RCM62-25B

RCM62-25P

14/18 9 5 RCM92

14/18 9 25 RCM92-25B

RCM92-25P

14/18 12 5 RCM122

14/18 12 25 RCM122-25B

RCM122-25P

10 6 5 21093 48-00-4712

10 6 25 21225

10 6 50 48-01-8712

10 6 100 48-01-9712

10 9 5 21097 48-00-4713

10 9 25 21229

10 9 50 48-01-8713

10 9 100 48-01-9713

10 12 5 21100

10 12 25 21237

14 6 5 21094 48-00-4782

14 6 25 21226

14 6 50 48-01-8782

14 6 100 48-01-9782

14 9 5 21098 48-00-4787

14 9 25 21235

14 9 50 48-01-8787

14 9 100 48-01-9787

14 12 5 21101

14 12 25 21238

18 6 5 21095 48-00-4784

18 6 25 21227

18 6 50 48-01-8784

18 6 100 48-01-9784

18 9 5 21099 48-00-4788

18 9 25 21236

18 9 50 48-01-8788

18 9 100 48-01-9788

18 12 5 21102

18 12 25 21239

14 4 5 21066

14 4 25 21080

14 6 5 21067 48-00-4182

14 6 25 21081

14 6 50 48-01-8182

14 6 100 48-01-9182

14 9 5 48-00-4187

14 9 50 48-01-8187

14 9 100 48-01-9187

18 4 5 21068

18 4 25 21082

METAL DEMOLITION

milwaukeetool.ca 17

SAWZALL® BLADES

CROSS REFERENCE

CATEGORY TPI LENGTH QTY LENOX DeWALT MORSE BOSCH IRWIN GREENLEE STARRETT MILWAUKEE

18 6 5 21069 48-00-4184

18 6 25 21083

18 6 50 48-01-8184

18 6 100 48-01-9184

18 8 5 21070

18 8 25 21084

18 9 5 48-00-4188

18 9 50 48-01-8188

18 9 100 48-01-9188

18 12 5 48-00-4189

24 4 5 21071

24 4 25 21085

24 6 5 21072 48-00-4186

24 6 25 21086

24 6 50 48-01-8186

24 6 100 48-01-9186

24 8 5 21073

24 9 25 21087

- 2-1/2" 1 48-00-1640

5 7-3/8" 5 48-00-1610

591 48-00-1304

5 9 5 RC905T05 RP95 48-00-1301

5 9 25 RC905T25 RP95-25B

5121 48-00-1305

5 12 5 RP125 48-00-1303

5 12 25 RP125-25B

5121 48-00-1600

4/5 9 1 372945F

3 8 1 20599 372803C

3 9 2 RCFP93-2

3 12 2 RCFP123-2

6 4 5 20449

655 48-00-5052

6 6 2 RB606PC2 VB66-2

6 6 5 RB606PT05 VB66-5

6 6 50 RB606PT50

6 6 2 RCFP66-2

6 6 1 20571

6 6 5 20570 DW4851 RDW66

6 6 25 20497

6 6 1 20596

6 6 1 20595 372606C

18 4 2 RS418-2

18 6 2 RS618-2

30 3 5 48-00-1630

Carbide Grit 4 3 RTCG4T03

Carbide Grit 4 1 RTCG4

Carbide Grit 4 25 RTCG4T25

Carbide Grit 6 1 RTCG6 R6-1 48-00-1421

Carbide Grit 6 2 20505 RCB6G-2

Carbide Grit 6 3 RTCG6T03 48-00-1420

Carbide Grit 6 5 DW4844

Carbide Grit 6 20 R6-20

Carbide Grit 6 25 RTCG6T25

Carbide Grit 6 50 48-01-6420

Carbide Grit 8 1 10833 RTCG8

Carbide Grit 8 2 20576

Carbide Grit 8 3 RTCG8T03

Carbide Grit 8 5 DW4843

Carbide Grit 8 25 RTCG8T25

Carbide Grit 9 1 48-00-1431

Carbide Grit 9 3 48-00-1430

Carbide Grit 9 50 48-01-6430

Carbide Grit 9 2 RCB9G-2

Carbide Grit 10 2 20506

Diamond Grit 6 1 RBDG6C

Diamond Grit 6 1 48-00-1440

Diamond Grit 8 1 10833 RCB8DG

Diamond Grit 9 1 RBDG9C

Diamond Grit 9 1 48-00-1450

SPECIALTY

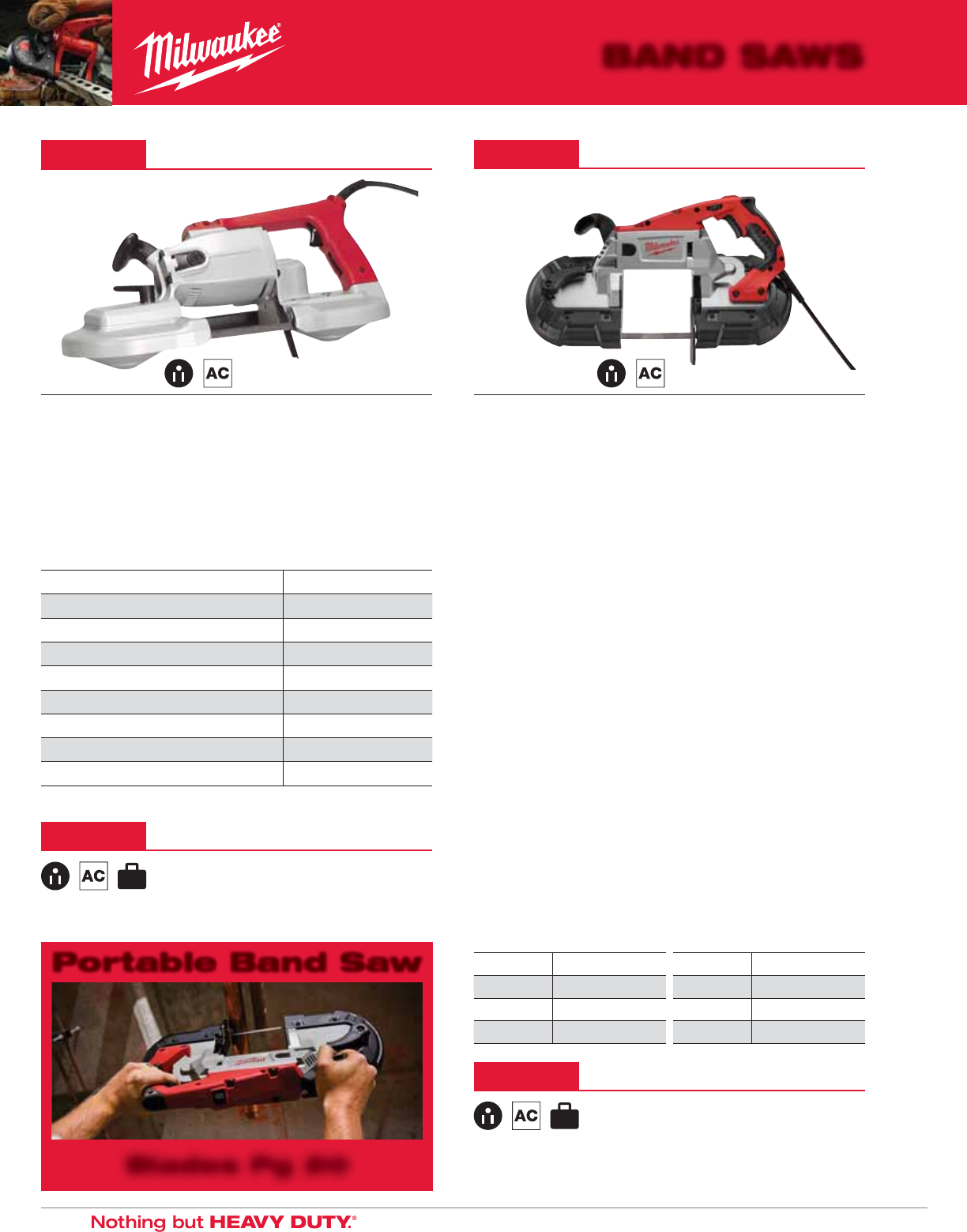

BAND SAWS

18

Band Saw AC 6/5A

6225

FEATURES

n Cuts up to 3-1/2 in. x 4-1/2 in. rectangular stock and 3-1/2 in.

round stock

n 6.0/5.0 amp, AC only

n Two-speeds: 200 and 250 sfpm

n Uses standard 44-7/8 in. x 1/2 in. x .020 in. band saw blades

Includes: (1) Portable Band Saw (6225)

SPECIFICATIONS

Length 20"

Weight 16 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type Grounded

Cord Length 8'

Amps 6-5

Blade Length

44-7/8" x 1/2" x .02"

Capacity

3-1/2" x 4-1/2"

FEATURES

n Powerful 11 Amp Motor w/ CPT™ : Provides maximum performance

and durability

n Job Site Armor™ Technology: Proprietary composite material and

crush zone barriers provide long lasting rugged protection

n All Metal Direct Drive: Delivers maximum tool life with all metal direct

drive gearing system, while requiring less servicing than a chain drive

n Gear Protecting Clutch: Extends gear and motor life by absorbing

high impact forces caused by blade lock-ups

n CPT™ Constant Power Technology: Maintains cut speed in the

toughest applications for optimal performance

n Revolutionary Cut Visibility: Slimmer motor housing increases user

line of site delivering superior cut accuracy

n Balanced Body Design: Allows tool to rest naturally and comfortably

in users hands

n Lighter Weight, 14.5 Lbs.: Delivers more control over the tool and

less fatigue at the conclusion of the work day

n LED Light: Illuminates work surface for increased accuracy

and productivity

n Tool-Free Locking Adjustable Shoe: Button actuated tool-free design

allows user to quickly adjust from extended shoe to no shoe in seconds

n Industry’s Largest Cut Capacity: Versatility to cut up to 5" by 5"

material in one pass and adjustable shoe allows for less tool

rotation when cutting material above 5"

n Debris Protection System: Delivers longer pulley life by removing

debris during use

Includes: (1) Deep Cut Variable Speed Band Saw (6232-20)

SPECIFICATIONS

Length 21"

Weight 14.5 lbs

Voltage 120V AC

Amps 11

Cord Type Grounded

Capacity 5" X 5"

SFPM 0-380

Blade Length

44-7/8" x 1/2" x .020"

6226

Band Saw AC 6/5A with Case

Includes: (1) Portable Band Saw (6225); (1) Carrying Case

Deep Cut Band Saw

6232-20

Deep Cut Band Saw with Case

Includes: (1) Deep Cut Variable Speed Band Saw (6232-20);

(1) Carrying Case

6232-21

Portable Band Saw

Blades Pg 20

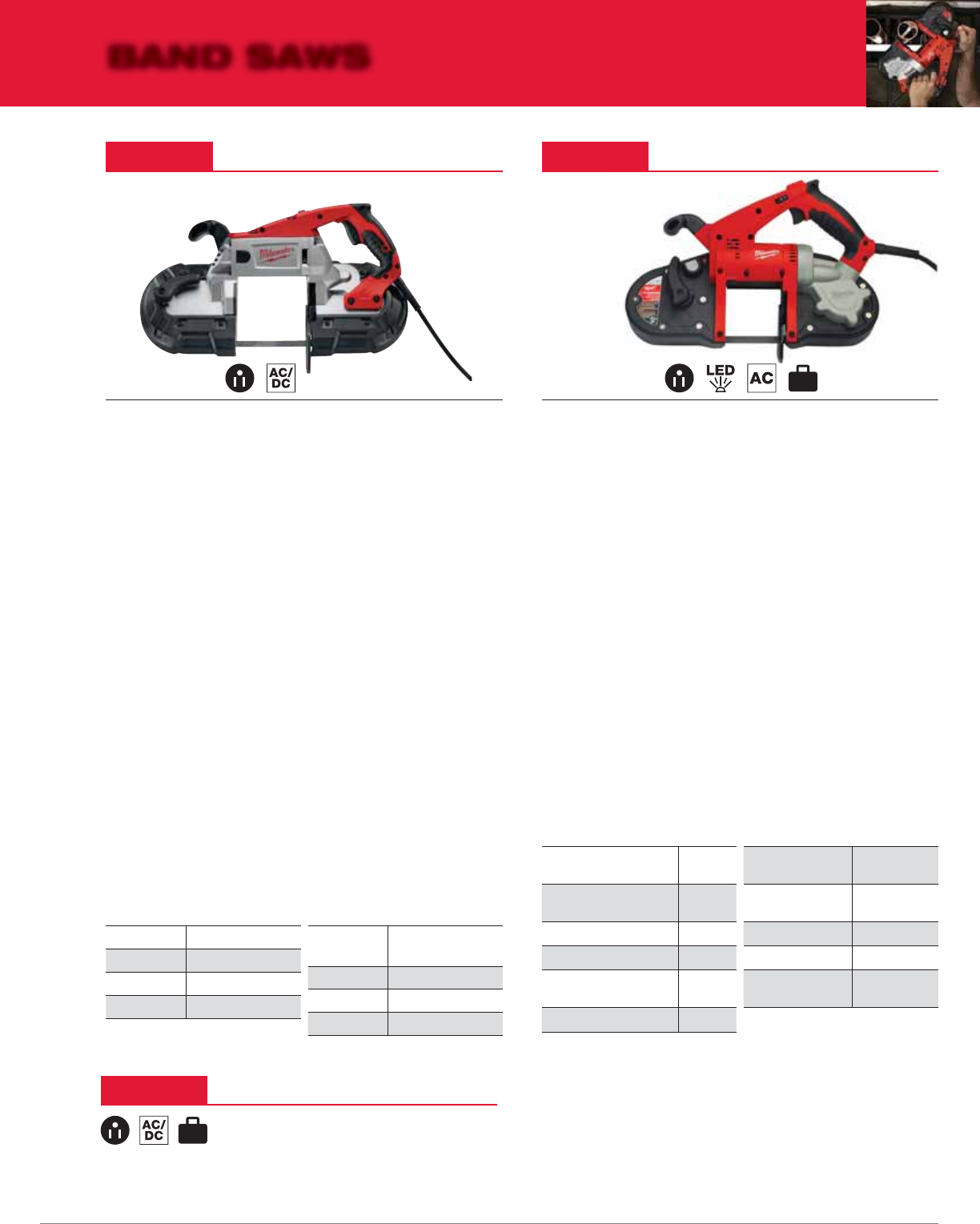

BAND SAWS

milwaukeetool.ca 19

SPECIFICATIONS

Length 21"

Weight 14.5 lbs

Voltage 120 AC/DC

Amps 11

Construction

Type Grounded

Capacity 5" X 5"

SFPM 300/380

Blade Length

44-7/8" x 1/2" x .020"

Deep Cut Band Saw (AC/DC)

6238-20

FEATURES

n Powerful 11 Amp Motor: Provides maximum performance and

durability

n Job Site Armor™ Technology: Proprietary composite material and

crush zone barriers provide long lasting rugged protection

n All Metal Direct Drive: Delivers maximum tool life with all metal

direct drive gearing system, while requiring less servicing than a

chain drive

n Gear Protecting Clutch: Extends gear and motor life by absorbing

high impact forces caused by blade lock-ups

n Revolutionary Cut Visibility: Slimmer motor housing increases user

line of site delivering superior cut accuracy

n Balanced Body Design: Allows tool to rest naturally and comfortably

in users hands

n Lighter Weight, 14.5 Lbs.: Delivers more control over the tool and

less fatigue at the conclusion of the work day

n Tool-Free Locking Adjustable Shoe: Button actuated tool-free design

allows user to quickly adjust from an extended shoe to no shoe in

seconds

n Industry’s Largest Cut Capacity: Versatility to cut up to 5" by 5"

material in one pass and adjustable shoe allows for less tool

rotation when cutting material above 5"

n Debris Protection System: Delivers longer pulley life by removing

debris during use

Includes: (1) Deep Cut AC/DC Band Saw (6238-20)

Deep Cut Band Saw (AC/DC) with Case

Includes: (1) Deep Cut AC/DC Band Saw Kit (6238-20);

(1) Carrying Case

6238-21

FEATURES

n 45% Lighter than Deep Cut - 9.5 Lbs compact light weight design

for cutting overhead and in tight places

n 200-360 SFPM Variable Speed Dial - adjusts the speed for more

accurate cuts and hard materials

n 3-1/4" Cut Capacity - cuts most common materials for Electrician,

Plumber and Mechanical cutting applications. Single pass cut on 3"

copper, 3" angle iron, 2-1/2" conduit

n Tool-Free Adjustable Material Shoe - quickly adjusts the shoe and

allows fl ush cuts when working with installed materials against

walls and ceilings

n LED Work Light - illuminates the cut line in tight spaces and dark

areas

n Blade Ejection System-Quickly change the blade by moving the

material guide into the up position and depressing the blade

ejection button

n Drop Resistant Pulley Guard-Engineered geometries & high impact

polymer

n Cast Aluminum Gear Case-Withstands jobsite abuse & maintains

gear positioning

Includes: (1) Compact Band Saw (6242-6); (1) Carrying Case

SPECIFICATIONS

Length 16" Capacity 3-1/4" X

3-1/4"

Weight 9.5 lbs Keyless Adjustable

Shoe Yes

Voltage 120V AC Blade 35-3/8"

Cord Type 3-Wire SFPM 200/360

Cord Length 8' Blade Length 35-3/8" x

1/2" x .020"

Amps 7

Band Saw Compact

6242-6

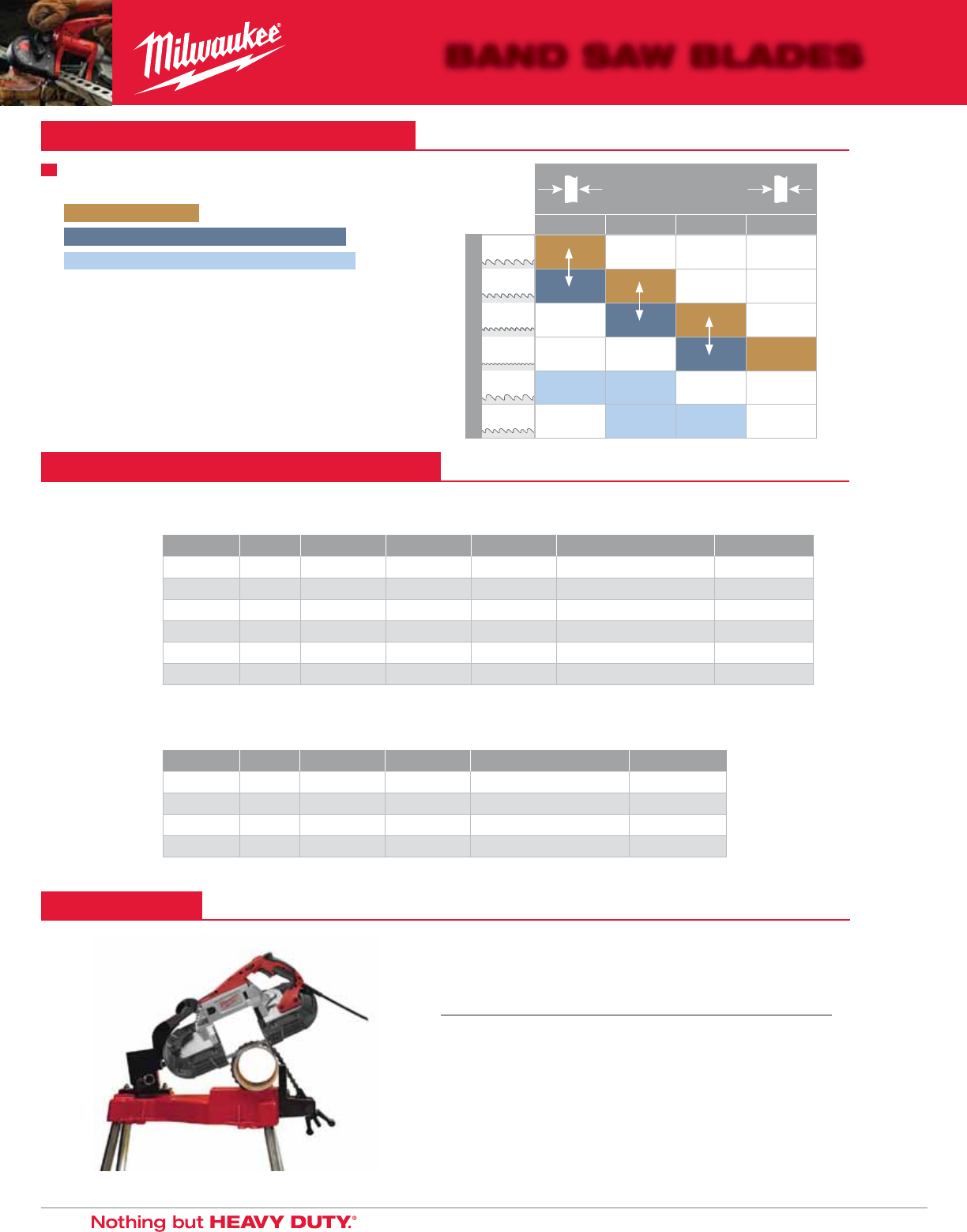

BAND SAW BLADES

20

MAXIMUM

DURABILITY

 Matrix II high speed

steel protects teeth

from chipping and

breaking

EXTENDED

LIFE

 Alloy backing steel

resists kinking and

snapping

CLEAN CUTS

 Precision formed

teeth cut quickly

and smoothly Compact Blades

 Designed to maximize performance of Milwaukee® Compact Band Saws

Length TPI 1 Pack 3 Pack Bulk Qty

35-3/8" 10 48-39-0508 48-39-0509 48-39-0507 100

35-3/8" 14 48-39-0518 48-39-0519 48-39-0517 100

35-3/8" 18 48-39-0528 48-39-0529 48-39-0527 100

35-3/8" 24 48-39-0538 48-39-0539 48-39-0537 100

Length TPI 1 Pack 2 Pack 3 Pack Bulk Qty

44-7/8" 10 48-39-0500 — 48-39-0501 48-39-0502 100

44-7/8" 14 48-39-0510 48-39-0514 48-39-0511 48-39-0512 100

44-7/8" 18 48-39-0520 48-39-0524 48-39-0521 48-39-0522 100

44-7/8" 24 48-39-0530 48-39-0534 48-39-0531 48-39-0532 100

44-7/8" 10/14 48-39-0550 48-39-0554 48-39-0551 48-39-0552 100

44-7/8" 14/18 48-39-0560 — 48-39-0561 48-39-0562 100

Deep Cut Blades

 Designed to maximize performance of any portable band saw that takes a 44-7/8" blade

1 Identify the work piece thickness in the columns

2 Follow the column down to fi nd work piece type:

MOST SOLID MATERIALS or

VERY HARD SOLID MATERIALS (like stainless steel) or

INTERRUPTED CUTTING (like structurals and profi les)

3 Follow the row to the left to identify the

appropriate teeth per inch (TPI)

Note: Fewer TPI cut faster but rougher,

while more TPI cut smoother but slower

WORK PIECE THICKNESS

5/16" - 1/2" 3/16" - 5/16" 5/32" - 3/16" UP TO 5/32"

BAND SAW BLADES

10 TPI10 TPI SOFTEST MATERIAL

14 TPI

HARDEST MATERIAL

SOFTEST MATERIAL

18 TPI

HARDEST MATERIAL

SOFTEST MATERIAL

24 TPI

HARDEST MATERIAL

10/14 TPI

14/18 TPI

BAND SAW BLADE SELECTION GUIDE

BI-METAL PORTABLE BAND SAW BLADES

Portable Bandsaw Table (fi ts all Milwaukee band saws)

48-08-0260

FEATURES

n Converts all Milwaukee portable band saws to stationary units

n Can be mounted on work bench or used with 3/4" diameter pipe for legs

n Heavy-duty clamping chain and crank nut easily secures all shapes

of material

n Additional block and arm now included fi ts all new Milwaukee band

saw designs

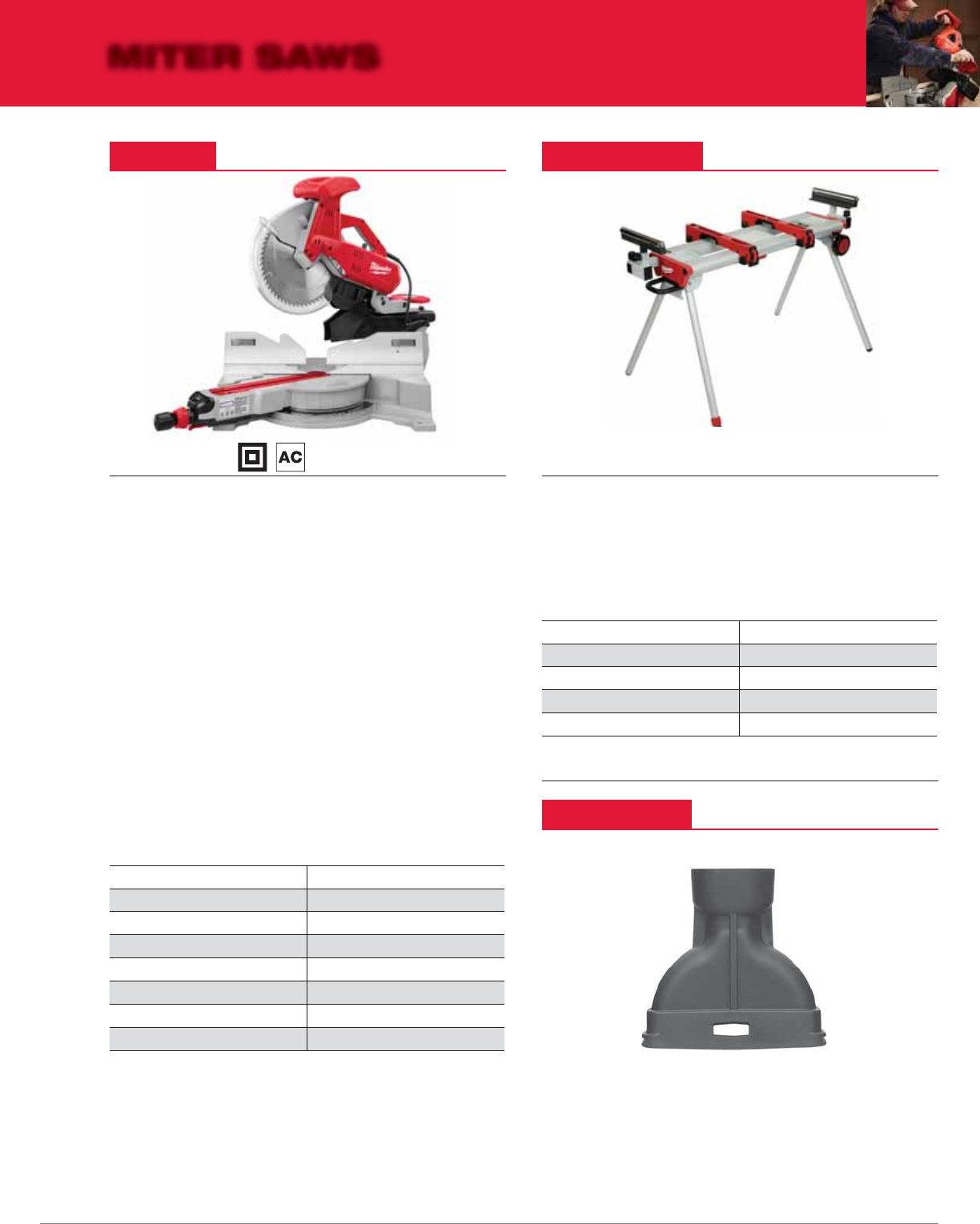

MITER SAWS

milwaukeetool.ca 21

12" Sliding Dual Bevel Compound

Miter Saw Miter Saw Stand

6955-20 48-08-0550S

FEATURES

n Miter Angle Digital Readout- provides repeatable accuracy to 0.1°

n Miter Angle Fine Adjust with Detent Override- makes it simple to

dial-in precise miter angles

n Dual Integral Jobsite Lights- fully illuminate the work piece and cut

line from either side of the blade

n Powerful 15.0 Amp, 3.3 Max HP Direct Drive Motor- provides

increased power for high performance cutting in hard lumber

n Constant Power Technology with Soft Start -maintains constant

cutting speed under load and decreases start up head movement

n Integral Dust Channel- captures up to 75% of the dust and debris cut

n Dual Horizontal Steel Rails with Three Large Linear Bearings-deliver

smooth sliding action

n Oversized Single Lever Bevel Adjustment with (9) Positive Bevel

Stops allows the saw to easily bevel left and right 0°- 48°and

provides fast and accurate adjustments

Includes: (1) 12" Dual-Bevel Sliding Compound Miter Saw (6955-20);

(1) Blade Wrench; (1) Carbide Tipped Blade; (1) Dust Bag

SPECIFICATIONS

Weight 65 lbs

Voltage 120V AC

Tool Warranty 5 Years

No Load Speed 3,200 RPM

Amps 15

Arbor Size 5/8" or 1"

Blade 12"

Maximum Bevel Capacity 48 degrees

FEATURES

n Guide Rollers

n Wheels

n Quick Release Mounting Brackets

n Approximately 12' Extension Arm Span

n Levelling Foot

SPECIFICATIONS

Standard Dimensions 55" x 24" x 39.5"

Extended Dimensions 119" x 24" x 39.5"

Folded Dimensions 48" x 14" x 9"

Load Capacity 550 lbs.

Stand Weight 56.3 lbs.

ATTACHMENTS

Vacuum Hose Adapter

48-03-0200

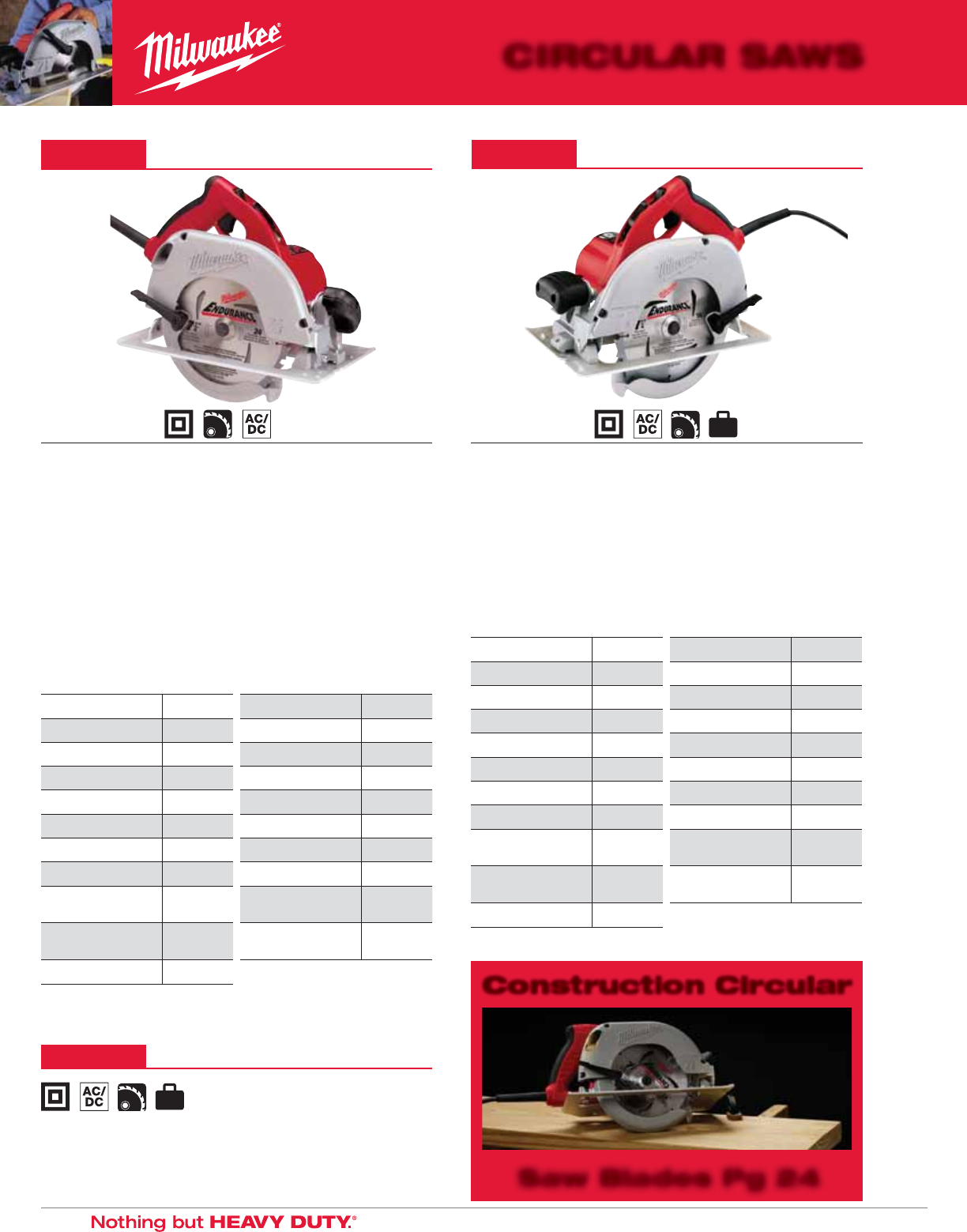

CIRCULAR SAWS

22

Tilt-Lok™ Circular Saw 7-1/4"

6390-20

FEATURES

n Exclusive TILT-LOK™ main handle adjusts to the work or most

comfortable work position

n 10.4 pounds net weight - lightest 7-1/4 inch, 3.25 maximum

horsepower saw reduces operator fatigue, easier to handle

n 15 amp, 3.25 peak horsepower motor - most powerful circle saw

cuts tough materials including headers, microlams and wet lumber

with ease

n Wide, clear sight line - superior blade visibility from either side

Includes: (1) TILT-LOK™ 7-1/4" Circular Saw (6390-20); (1) Blade

Wrench; (1) Circular Saw Blade

SPECIFICATIONS

Length 13-3/4" Adjustable Handle Yes

Weight 10.4 lbs Arbor Size 5/8"

Voltage 120 AC/DC Depth of Cut at 45º 1-13/16"

Tool Warranty 5 Years Depth of Cut at 50º 1-11/16"

Cord Type 9' Fixed Depth of Cut at 90º 2-7/ 16"

No Load RPM 5,800 Electrical Brake No

Amps 15 Blade Position Right

Spindle 5/8" Blade 7-1/4"

Construction Type Double

Insulated Tool Free Bevel Yes

Soft Grip Handle Yes Maximum Bevel

Capacity 50º

Spindle Lock Yes

Tilt-Lok™ Circular Saw 7-1/4"

Left Blade with Case

Includes: (1) TILT-LOK™ 7-1/4" Circular Saw with Case (6390-21);

(1) Blade Wrench; (1) Carrying Case; (1) Circular Saw Blade

6390-21

Tilt-Lok™ Circular Saw 7-1/4"

Left Blade with Case

6391-21

FEATURES

n Blade is mounted on the left for superior visibility to the cut line

n 3.25 max. horsepower exceeds worm drive saws with 35% less weight

n Full 50 degree bevel capacity

n Exclusive Tilt-Lok™ main handle adjusts to the work for most

comfortable work position

Includes: (1) 7-1/4" Left Blade Circular Saw with Case (6391-21);

(1) Blade Wrench; (1) Circular Saw Blade

SPECIFICATIONS

Length 13-3/4" Adjustable Handle Yes

Weight 10.4 lbs Arbor Size 5/8"

Voltage 120 AC/DC Depth of Cut at 45º 1-13/16"

Tool Warranty 5 Years Depth of Cut at 50º 1-11/16"

Cord Type 9' Fixed Depth of Cut at 90º 2-7/16"

No Load RPM 5,800 Electrical Brake No

Amps 15 Blade Position Left

Spindle 5/8" Blade 7-1/4"

Construction Type Double

Insulated Tool Free Bevel Yes

Soft Grip Handle Yes Maximum Bevel

Capacity 50º

Spindle Lock Yes

Construction Circular

Saw Blades Pg 24

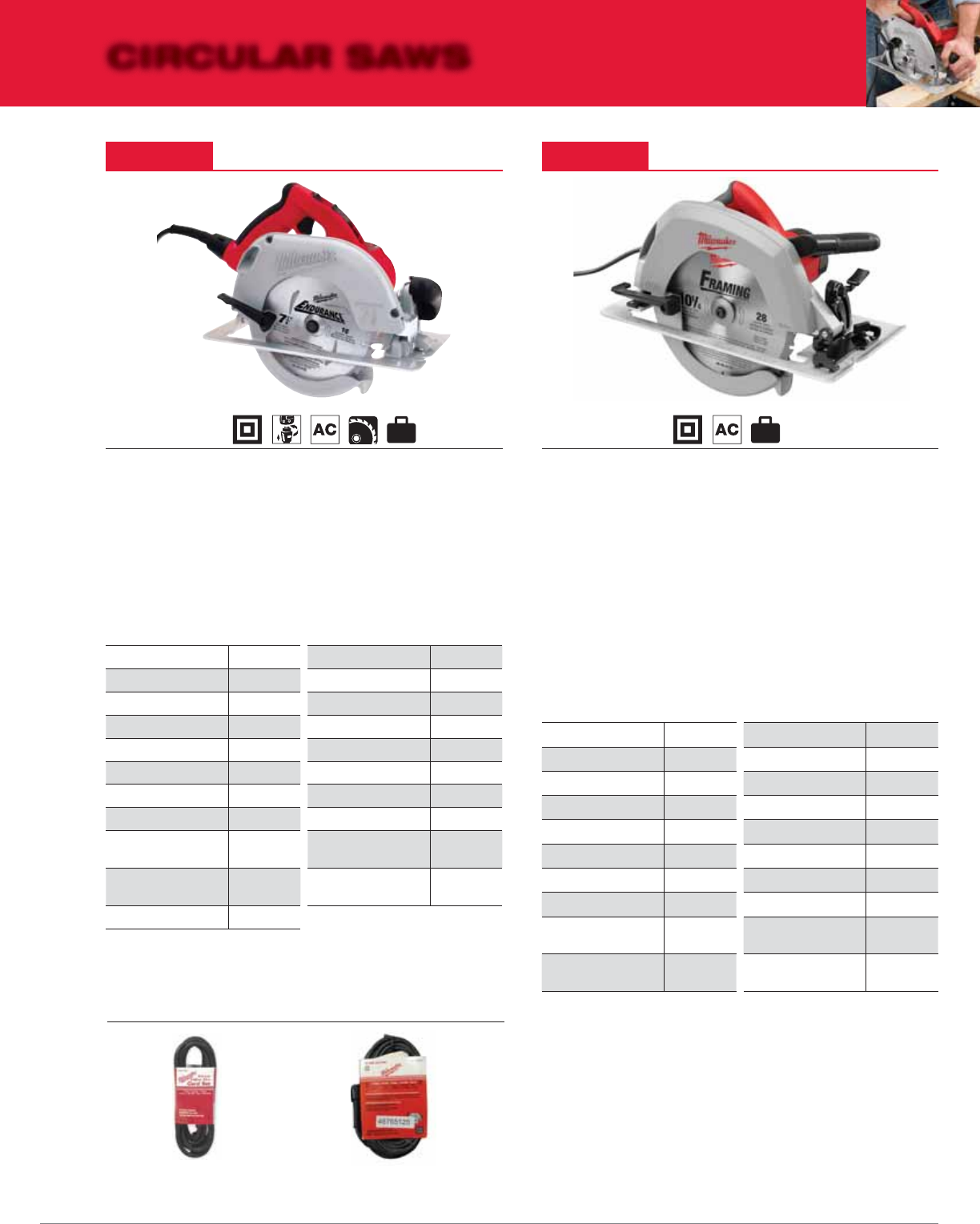

CIRCULAR SAWS

milwaukeetool.ca 23

Circular Saw 7-1/4" with QUIK-LOK®

Cord, Brake and Case

6394-21

FEATURES

n Exclusive TILT-LOK™ main handle adjusts to the work for most

comfortable work position

n Patented power assisted electric brake stops blade in seconds

n Quik-Lok® cord makes job site replacement fast and easy

n Powerful 3.0 max. horsepower, 15 amp motor

Includes: (1) 7-1/4" Circular Saw with QUIK-LOK® cord, Brake and

Case (6394-21); (1) Blade Wrench; (1) Circular Saw Blade

SPECIFICATIONS

Length 13-3/4" Adjustable Handle Yes

Weight 10.6 lbs Arbor Size 5/8"

Voltage 120V AC Depth of Cut at 45º 1-13/16"

Tool Warranty 5 Years Depth of Cut at 50º 1-11/16"

Cord Type

10' QUIK-LOK®

Depth of Cut at 90º 2-7/16"

No Load RPM 5,800 Electrical Brake Yes

Amps 15 Blade Position Right

Spindle 5/8" Blade 7-1/4"

Construction Type Double

Insulated Tool Free Bevel Yes

Soft Grip Handle Yes Maximum Bevel

Capacity 50º

Spindle Lock Yes

ATTACHMENTS

48-76-5110: 10' Quik-Lok®

(standard equipment for 6394-21)

48-76-5125: 25' Quik-Lok®

(optional for 6394-21)

FEATURES

n Powerful 15 Amp, 5,200 RPM Motor – delivers maximum power for

high performance cutting without bogging down under load

n 3-13/16" Depth of Cut Capacity – Provides enough capacity to cut

4" material in a single pass

n Aircraft Aluminum Shoe – will not bend or warp in extreme cutting

applications

n Electric Brake - increases productivity by stopping the blade in seconds

n 60° Bevel Capacity – provides maximum bevel capacity for cutting

roof rafters, trusses and joists

Includes: (1) 10-1/4" Circular Saw (6470-20); (1) Rip Fence;

(1) Case

SPECIFICATIONS

Length 17-1/2" Spindle Lock Yes

Weight 17.8 lbs Arbor Size 5/8"

Voltage 120V AC Depth of Cut at 45º 2-3/4"

Tool Warranty 5 Years Depth of Cut at 60º 1-3/4"

Cord Type 2-Wire Depth of Cut at 90º 3-13/16"

No Load RPM 5,200 Electrical Brake Yes

Amps 15 Blade Position Right

Spindle 5/8" Blade 10-1/4"

Construction Type Double

Insulated Tool Free Bevel Yes

Soft Grip Handle Yes Maximum Bevel

Capacity 60º

6470-21

Circular Saw 10-1/4" 15A

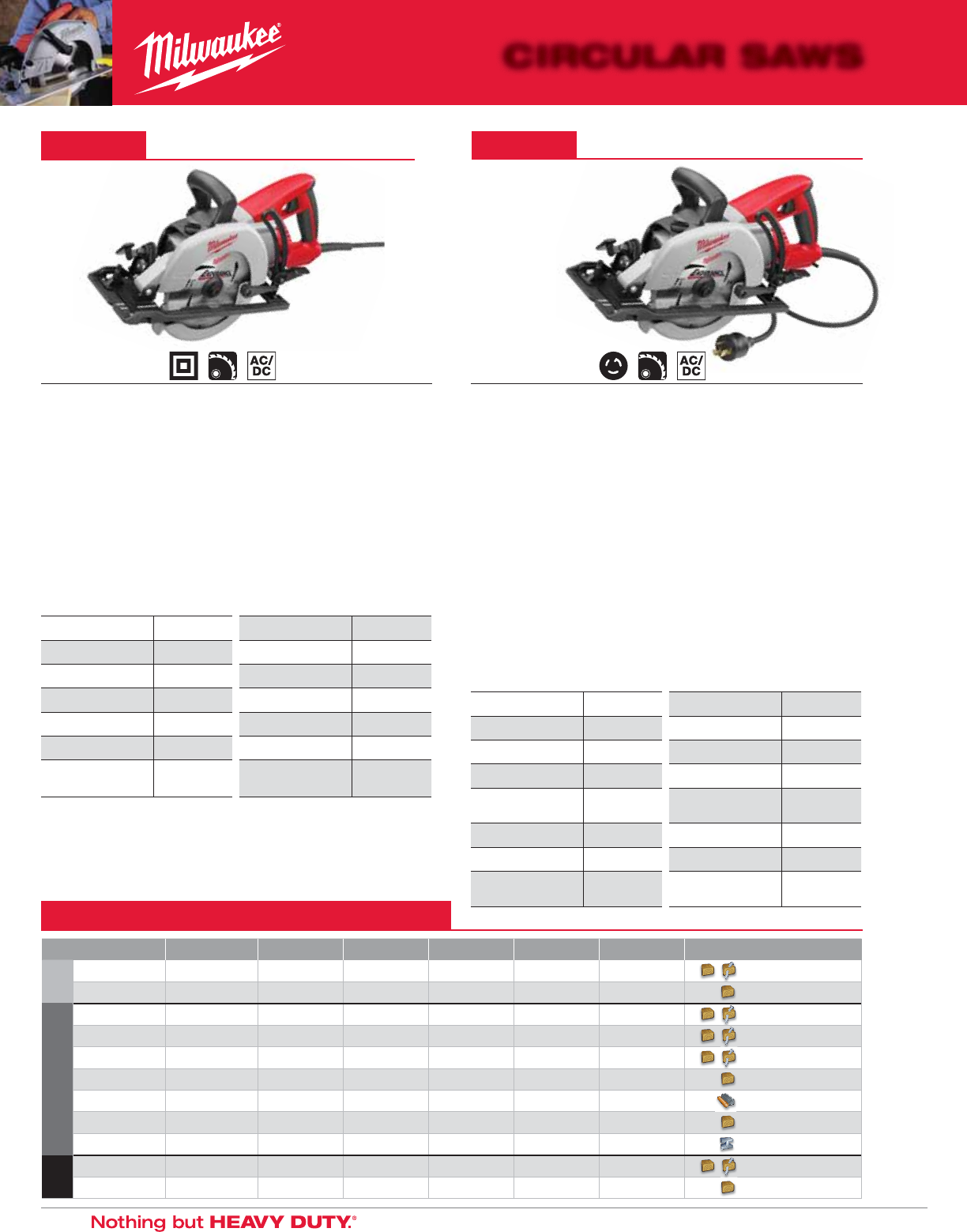

CIRCULAR SAWS

24

FEATURES

n 15.0 Amp, 4,400 RPM Motor – delivers maximum cutting

performance and does not bog down, even under heavy loads

n Hardened steel worm gearing – provides maximum torque in the

toughest applications

n Magnesium Construction – durable, lightweight

n Heavy-Duty Composite Shoe – will not warp, bend or kick up a burr

n Exclusive Oil Site Glass – instantly gauge current oil level

Includes: (1) 7-1/4" Worm Drive Circular Saw (6477-20);

(1) Carbide Tipped Blade

SPECIFICATIONS

Length 19" Spindle Lock Yes

Weight 15 lbs Depth of Cut at 45 º 1-25/32"

Voltage 120 AC/DC Depth of Cut at 50º 1-9/16"

Tool Warranty 5 Years Depth of Cut at 90º 2-7/16"

Cord Type 2-Wire Blade Position Left

No Load RPM 4,400 Blade 7-1/4"

Amps 15 Maximum Bevel

Capacity 51.5º

Worm Drive Circular Saw 7-1/4"

6477-20

Worm Drive Circular Saw 7-1/4" with

Twist Plug (6577-20)

6577-20

FEATURES

n 15.0 Amp, 4,400 RPM Motor – delivers maximum cutting

performance and does not bog down, even under heavy loads

n Hardened steel worm gearing – provides maximum torque in the

toughest applications

n Magnesium Construction – durable, lightweight

n Heavy-Duty Composite Shoe – will not warp, bend or kick up a burr

n Exclusive Oil Site Glass – instantly gauge current oil level

n Folding Rafter Hook – Allows quick, convenient storage of tool from

a rafter, joist or nail

n Highly Visible Depth and Bevel Scales – visible from behind the

body of the saw; provides quick, accurate adjustments

Includes: (1) 7-1/4" Worm Drive Circular Saw with Twist Plug

(6577-20); (1) Carbide Tipped Blade

SPECIFICATIONS

Length 19" Spindle Lock Yes

Weight 14.3 lbs Adjustable Handle No

Voltage 120 AC/DC Depth of Cut at 45º 1-25/32"

Tool Warranty 5 Years Depth of Cut at 50º 1-9/16"

Cord Type Double

Insulated Depth of Cut at 90º 2-7/16"

No Load RPM 4,400 Blade Position Left

Amps 15 Blade 7-1/4"

Soft Grip Handle Yes Maximum Bevel

Capacity 51.5º

Diameter Part Number # of Teeth Tooth Material Arbor Max RPM Pkg Qty Materials

6-1/2" 48-40-4108 24 Carbide 5/8" 7,000 1

Framing

6-1/2" 48-40-4112 40 Carbide 5/8" 7,000 1

Trim

7-1/4" 48-40-4116 16 Carbide 5/8" 7,000 1 Framing

7-1/4" 48-40-4120 24 Carbide 5/8" 7,000 1 Ripping

7-1/4" 48-40-4123 24 Carbide 5/8" 7,000 25 Ripping

7-1/4" 48-40-4126 40 Carbide 5/8" 7,000 1

Trim

7-1/4" 48-40-4132 48 Carbide 5/8" 7,000 1 Non-Ferrous

7-1/4" 48-40-4138 140 Steel 5/8" 7,000 1

Plywood

7-1/4" 48-40-4140 — Steel 5/8" 7,000 1 Ferrous

10-1/4" 48-40-4170 28 Carbide 5/8" 6,000 1 Ripping

10-1/4" 48-40-4172 40 Carbide 5/8" 6,000 1

Trim

CONSTRUCTION CIRCULAR SAW BLADES

CORDED & CORDLESS

CORDLESSAC

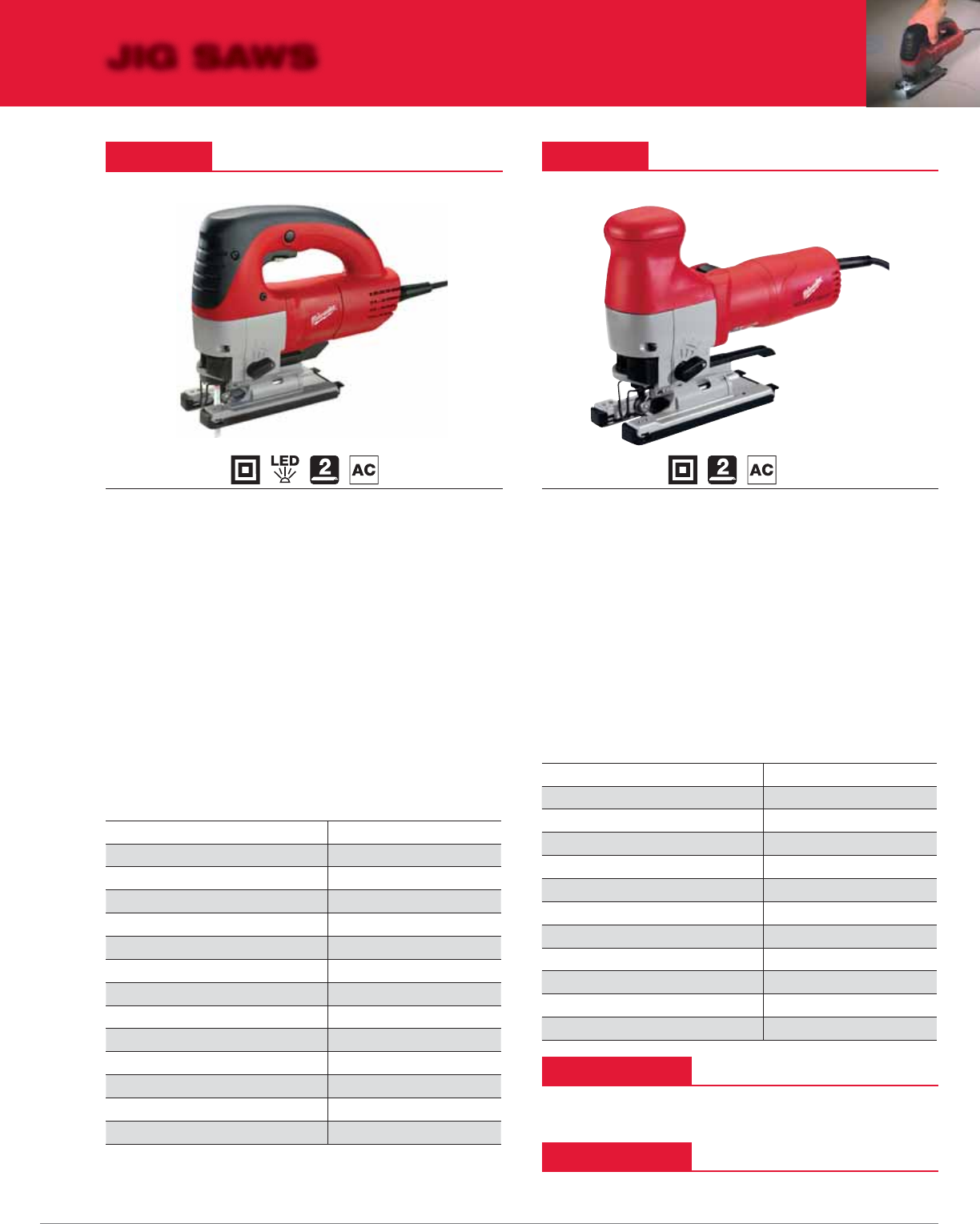

JIG SAWS

milwaukeetool.ca 25

Orbital Jig Saw

6268-21

FEATURES

n LED light for improved sightline

n Powerful 6.5 amp motor

n Orbital action with 4 adjustment levels and 1 in. stroke length for

faster cutting

n Variable speed trigger – 0-3,000 SPM

n Variable speed dial for repetitive cuts

n QUIK-LOK™ blade change system

n Keyless Shoe Adjustment – 45° in both directions

n Precision roller blade guide for accurate cuts

n Counter balanced for reduced vibration

n Tachometer feedback for constant cutting speed

n Cushion grip for superior gripping and control

Includes: (1) Orbital Jig Saw (6268-21); (2) Blade; (1) Carrying Case;

(1) Dust Shield

SPECIFICATIONS

Length 9-1/2"

Weight 6.4 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 12-2/3' Fixed

Amps 6.5

Constuction Type Double Insulated

Keyless Blade Clamp Yes

Orbital Action Yes - 4 Position

Stroke Length 1"

Blade T-Shank

SPM 0-3,000

Tool Free Bevel Yes

Maximum Bevel Capacity 45º

FEATURES

n Powerful 6.2 amp motor

n Orbital action with 4 adjustment levels for faster cutting

n 7 setting dial speed control 500-3000 SPM

n Quik-Lok™ blade change system

n Keyless 45° bevel adjustment

n 10 position dust blower and built-in dust collection port for easy

attachment to vacuum

n Die cast aluminum shoe and all metal gear case

n Low position roller guide for blade stability and precision cuts

n Counter balanced for reduced vibration

Includes: (1) Body Grip Orbital Jig Saw (6276-21); (2) Blade

SPECIFICATIONS

Length 11-3/4"

Weight 5.0 lbs

Voltage 120V AC

Tool Warranty 5 Years

Construction Type Double Insulated

Keyless Blade Clamp Yes

Orbital Action Yes - 4 Position

Stroke Length 1"

Blade T-Shank

SPM 500-3,000

Tool Free Bevel Yes

Maximum Bevel Capacity 45º

Body Grip Orbital Jig Saw

6276-21

Anti-Splintering Device

n Fits 6276-21 and 6268-21

n For clean cutting edge

48-08-0531

Plastic Shoe Cover

n Fits 6276-21 and 6268-21

n Prevents scratches on delicate surfaces

48-08-0533

JIG SAW BLADES

26

T-Shank

Length TPI Part Number Qty Blade Material Recommended Use Shank

GENERAL

PURPOSE

4" 6 48-42-5300 5 Bi-Metal Fast cutting, nail embedded wood T-Shank

4" 10 48-42-5310 5 Bi-Metal Fast cutting, nail embedded wood T-Shank

3" 12 48-42-5390 5 Bi-Metal Scroll cutting in wood & metal T-Shank

4" 6 48-42-5200 5 High Carbon Steel Very fast rough cutting, wood T-Shank

4" 8 48-42-5220 5 High Carbon Steel Fast straight cutting, wood T-Shank

4" 6 48-42-2300 5 Bi-Metal Fast cutting, nail embedded wood U-Shank

4-1/8" 10 48-42-2310 5 Bi-Metal Fast cutting, nail embedded wood U-Shank

2-3/4" 12 48-42-2390 5 Bi-Metal Scroll cutting in wood & metal U-Shank

4" 6 48-42-0200 5 High Carbon Steel Very fast rough cutting, wood U-Shank

4" 8 48-42-0220 5 High Carbon Steel Fast straight cutting, wood U-Shank

WOOD

CUTTING

4" 6 48-42-5302 5 Bi-Metal Very fast clean cutting T-Shank

4" 10 48-42-5311 5 Bi-Metal Fast clean cutting T-Shank

3" 20 48-42-5385 5 Bi-Metal Scroll cutting in wood & laminates T-Shank

4" 6 48-42-5421 5 High Carbon Steel Very fast rough cutting T-Shank

4" 6 48-42-5500 5 High Carbon Steel Very fast clean cutting T-Shank

4" 6 48-42-5512 5 High Carbon Steel Very fast, rough curve cutting T-Shank

4" 10 48-42-5240 5 High Carbon Steel Clean cutting T-Shank

4" 10 48-42-5540 5 High Carbon Steel Reverse tooth, no top splinters T-Shank

3" 12 48-42-5640 5 High Carbon Steel Clean scroll cutting T-Shank

4" 6 48-42-2302 5 Bi-Metal Very fast clean cutting U-Shank

4" 10 48-42-2311 5 Bi-Metal Fast clean cutting U-Shank

2-3/4" 20 48-42-2385 5 Bi-Metal Scroll cutting in wood & laminates U-Shank

4" 6 48-42-0421 5 High Carbon Steel Very fast rough cutting U-Shank

4" 6 48-42-0500 5 High Carbon Steel Very fast clean cutting U-Shank

3-1/8" 8 48-42-0240 5 High Carbon Steel Clean cutting U-Shank

3-5/8" 10 48-42-0540 5 High Carbon Steel Straight clean cutting U-Shank

4" 10 48-42-0640 5 High Carbon Steel Reverse tooth, no top splinters U-Shank

2-3/4" 12 48-42-0650 5 High Carbon Steel Clean scroll cutting U-Shank

METAL

CUTTING

4" 8 48-42-5850 5 Bi-Metal Aluminum, non-ferrous metals T-Shank

3" 14 48-42-5190 5 Bi-Metal Thick metal over 1/4 inch thick T-Shank

5-1/4" 14 48-42-5192 5 Bi-Metal Thick metal, tubing, etc. T-Shank

3" 18 48-42-5121 5 Bi-Metal Metal over 1/8 inch thick T-Shank

3" 24 48-42-5161 5 Bi-Metal Metal under 1/8 inch thick T-Shank

5-1/4" 24 48-42-5166 5 Bi-Metal Thin metal under 1/8 inch thick T-Shank

3" 14 48-42-5101 5 High Speed Steel Metal over 1/4 inch thick T-Shank

4" 8 48-42-0850 5 Bi-Metal Aluminum, non-ferrous metals U-Shank

3-5/8" 14 48-42-2190 5 Bi-Metal Thick metal over 1/4 inch thick U-Shank

5" 14 48-42-2192 5 Bi-Metal Thick metal, tubing, etc. U-Shank

2-3/4" 18 48-42-2120 5 Bi-Metal Metal over 1/8 inch thick U-Shank

2-3/4" 24 48-42-2160 5 Bi-Metal Metal under 1/8 inch thick U-Shank

5" 24 48-42-2166 5 Bi-Metal Thin metal under 1/8 inch thick U-Shank

2-3/4" 14 48-42-0101 5 High Speed Steel Metal over 1/4 inch thick U-Shank

2-3/4" 18 48-42-0120 5 High Speed Steel Metal over 1/8 inch thick U-Shank

2-3/4" 24 48-42-0140 5 High Speed Steel Metal under 1/8 inch thick U-Shank

SPECIALTY

2-3/4" GRIT 48-42-0801 5 Carbide-Tipped Ceramics, tile U-Shank

BI-METAL BLADES

 Combines high speed steel and high carbon steel for extreme versatility

HIGH SPEED STEEL BLADES

 Fully hardened blade for cutting ferrous and non-ferrous metals

HIGH CARBON STEEL BLADES

 Good for soft materials like wood and plastic

U-Shank

JIG SAW BLADE SETS

5 Pk T-Shank Blade Assortment 49-22-1178 5 Pk U-Shank Blade Assortment 49-22-1168

Includes:

 48-42-5121 Metal cutting blade  48-42-5161 Metal cutting blade

 48-42-5190 Metal cutting blade  48-42-5300 General purpose blade

 48-42-5310 General purpose blade

Includes:

 48-42-2120

Metal cutting blade

 48-42-2160

Metal cutting blade

 48-42-2300

General purpose blade

 48-42-2190

Metal cutting blade

 48-42-2310

General purpose blade

JIG SAW BLADES

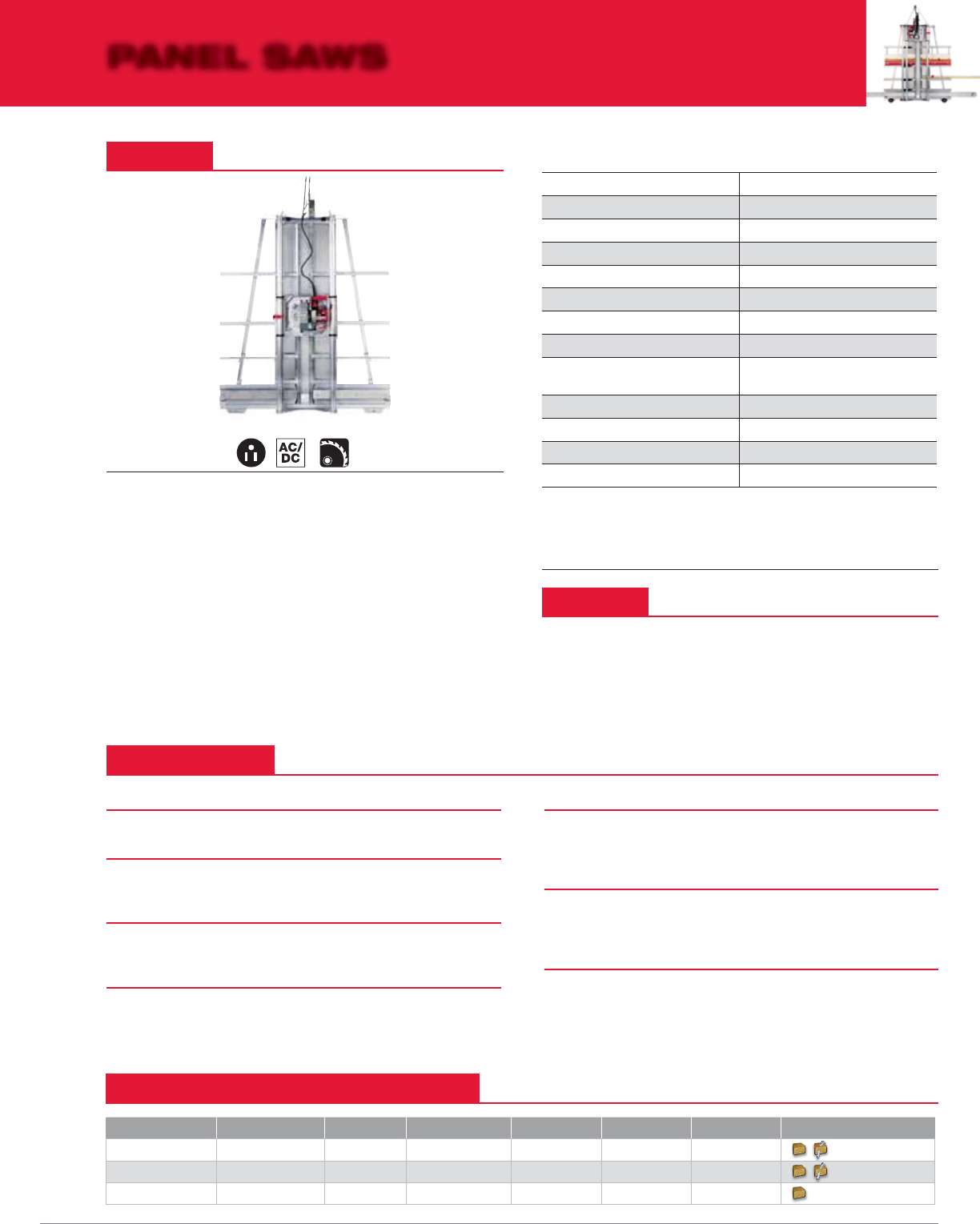

PANEL SAWS

milwaukeetool.ca 27

Panel Saw 15 Amp

6480-20

\ Panel Saw Replacement Motor 15A

6486-20

REPLACEMENT MOTOR

SPECIFICATIONS

Length 60"

Weight 180.0 lbs

Voltage 120V AC/DC

Tool Warranty 5 Years

Cord Type 20' Fixed

No Load RPM 5,800

Amps 15

Spindle 5/8"

Construction Type Steel,

Square Tube

Arbor Size 5/8"

Blade 8-1/4"

Height 70"

Capacity Thickness 1-3/4"

FEATURES

n Powerful 15 amp (3-1/4 max hp) Milwaukee motor (AC/DC)

n Rigid all steel frame, square tubing is electrically welded to prevent

warping or twisting

n Comfortable horizontal handle for convenient on/off operation

n 20 amp commercial-grade paddle switch for durability and long life

n Cutting accuracy to within 1/32 in. in either cross-cutting or

ripping directions

n The Perfect Tool For: Lumber Yards, Building Contractors,

Building Material Suppliers, Cabinet Shops, Remodelers, Sign Shops,

Rental Outlets

Includes: (1) 15 Amp (3-1/4 Max HP) 8-1/4 in. Panel Saw (6480-20);

(1) Blade Wrench; (1) Blade (48-40-4152)

Diameter Part Number # of Teeth Tooth Material Arbor Max RPM Pkg Qty Materials

8-1/4" 48-40-4148 18 Carbide 5/8" 7,000 1 Framing

8-1/4" 48-40-4150 24 Carbide 5/8" 7,000 1 Ripping

8-1/4" 48-40-4152 40 Carbide 5/8" 7,000 1 Trim

CONSTRUCTION PANEL SAW BLADES

ACCESSORIES

49-22-8100 Hold Down Bar Kit

Holds thin, fl exible material in place.

49-22-8102 Quick Stop Gauging Kit

Allows you to quickly and accurately position a sliding aluminum stop block without the

need for a wrench. Best suited when custom cutting dimensions are always changing.

49-22-8105 Dust Collecting Kit

Self-contained kit collects dust and debris. Consists of blade guard, dust tube, vinyl

hose and roller assembly. Vacuum not included.

49-22-8106 Wheel Kit

Includes two wheels and allows the Panel Saw to be wheeled from one location to another.

49-22-8108 Extension Kit

Should be purchased whenever material over 6’ in length will be cut frequently. Extends

the roller material carriage 18” on each end, making the overall roller material carriage

8’ in length.

49-22-8110 Mid-Way Fence Kit

Allows you to cut small panels waist high on the panel saw frame. System includes

both right and left sides. 30” rulers, a manual stop block and quick change wood

fences.

48-50-0030 Motor Upgrade Kit For 6480

Includes 15.0 Amp motor, 20.0 Amp paddle switch, handle, blade guard, saw base and

mounting hardware.

28

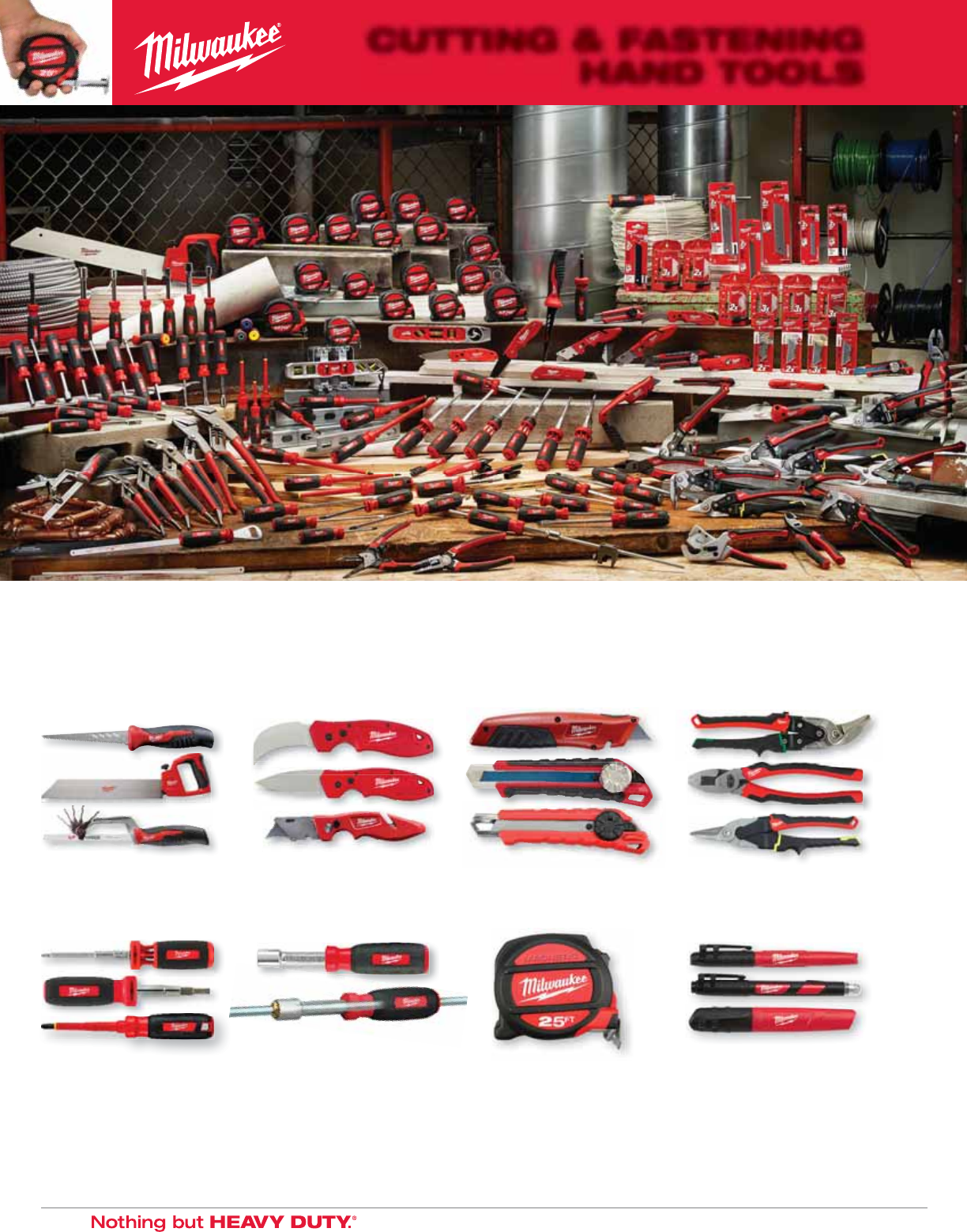

CUTTING & FASTENING

HAND TOOLS

ULTIMATE PRODUCTIVITY.

SUPERIOR PERFORMANCE.

SCREWDRIVERS

SAWS FASTBACK KNIVES

& BLADES

SNAP KNIVES &

UTILITY KNIVES

SNIPS & PLIERS

NUTDRIVERS TAPE MEASURES INKZALL® MARKERS

Contact your Milwaukee Sales Rep or visit www.milwaukeetool.ca for a

complete listing of Milwaukee Hand Tools.

milwaukeetool.ca 29

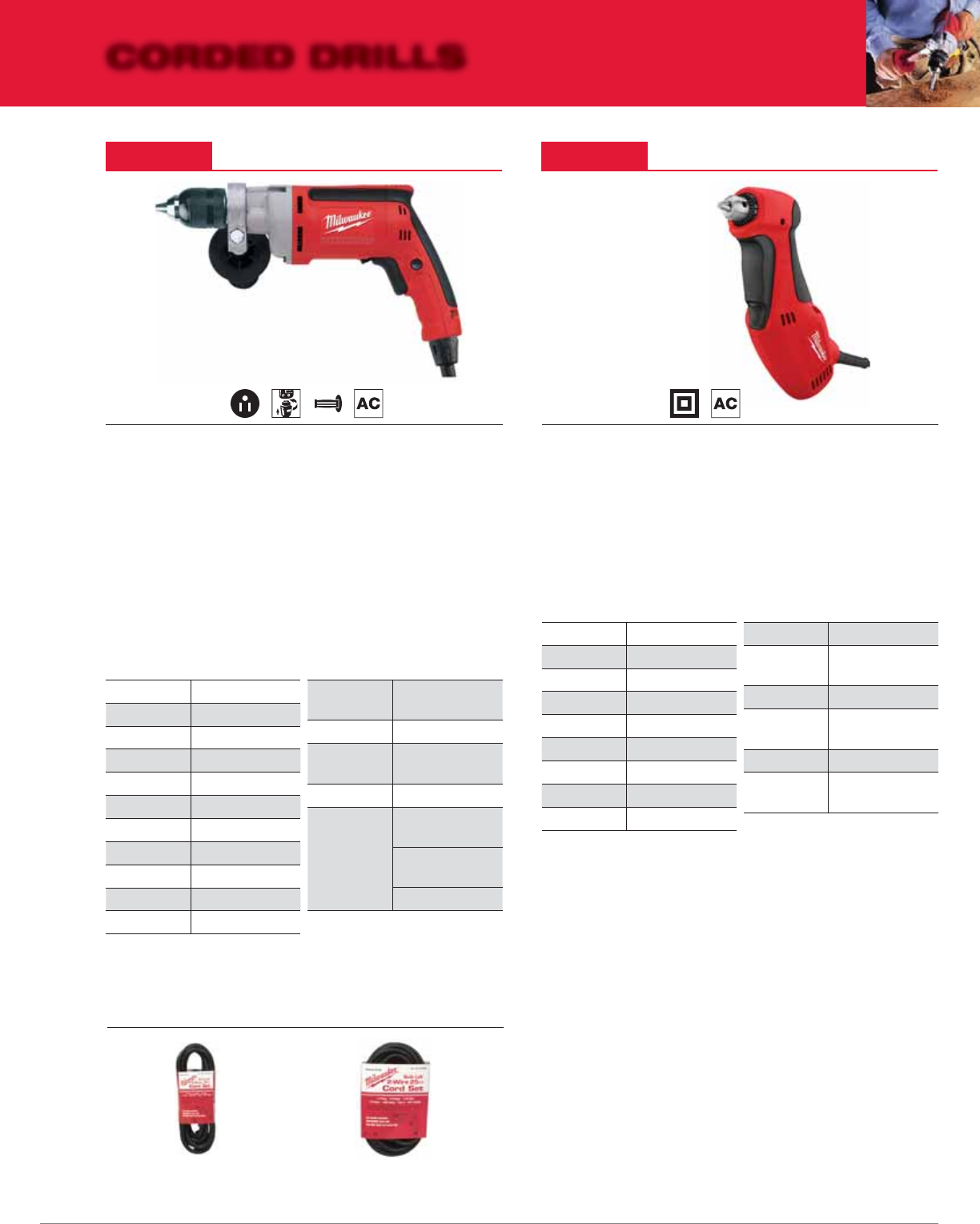

CORDED DRILLS

0100-20 0101-20

1/4" Magnum® Drill, 2,500RPM 1/4" Magnum® Drill, 4000RPM

FEATURES

n Powerful 7.0-amp motor: Delivers up to 2500 RPM with variable-

speed control and reverse

n Heavy-duty keyed chuck with holder: Provides an industrial hold

during drilling and fastening

n 360° Locking Side Handle: Produces maximum maneuverability and

control

n QUIK-LOK® Cord: 8-ft. 3-wire grounded rubber cord provides easy

storage and fi eld replacement

Includes: (1) 1/4" Magnum Drill, 0-2500 RPM with QUIK-LOK® Cord

(0100-20); (1) Chuck Key with Holder; (1) Side Handle

FEATURES

n Powerful 7.0-amp motor: Delivers up to 4000 RPM with variable-

speed control and reverse

n Heavy-duty keyed chuck with holder: Provides an industrial hold

during drilling and fastening

n QUIK-LOK® Cord: 8-ft. 3-wire grounded rubber cord provides easy

storage and fi eld replacement

Includes: (1) 1/4" Magnum Drill, 0-4000 RPM with QUIK-LOK® Cord

(0101-20); (1) Chuck Key with Holder

ATTACHMENTS

48-76-4008: 8' Quik-Lok®48-76-4025: 25' Quik-Lok®

ATTACHMENTS

48-76-4008: 8' Quik-Lok®48-76-4025: 25' Quik-Lok®

Length 11-1/2"

Weight 4.7 lbs

Cord Type 8' QUIK-LOK®

No Load RPM 0-2,500

Amps 7

Trigger Lock Yes

Spindle 3/8" -24

Chuck Size 1/4"

Chuck Type Keyed

Construction Type Grounded

Gear Train Double

Soft Grip Handle Yes

Spindle Lock No

Capacity in Steel Twist Bit 1/4"

Capacity in Wood Flat Boring Bit

1-1/2"

SPECIFICATIONS Length 10-13/64"

Weight 3.8 lbs

Cord Type 8' QUIK-LOK®

No Load RPM 0-4,000

Amps 7

Trigger Lock Yes

Spindle 3/8" - 24

Chuck Size 1/4"

Chuck Type Keyed

Construction Type Grounded

Gear Train Single

Soft Grip Handle Yes

Spindle Lock No

Capacity in Steel Twist Bit 1/4"

Capacity in Wood Flat Boring Bit

1-1/2"

SPECIFICATIONS

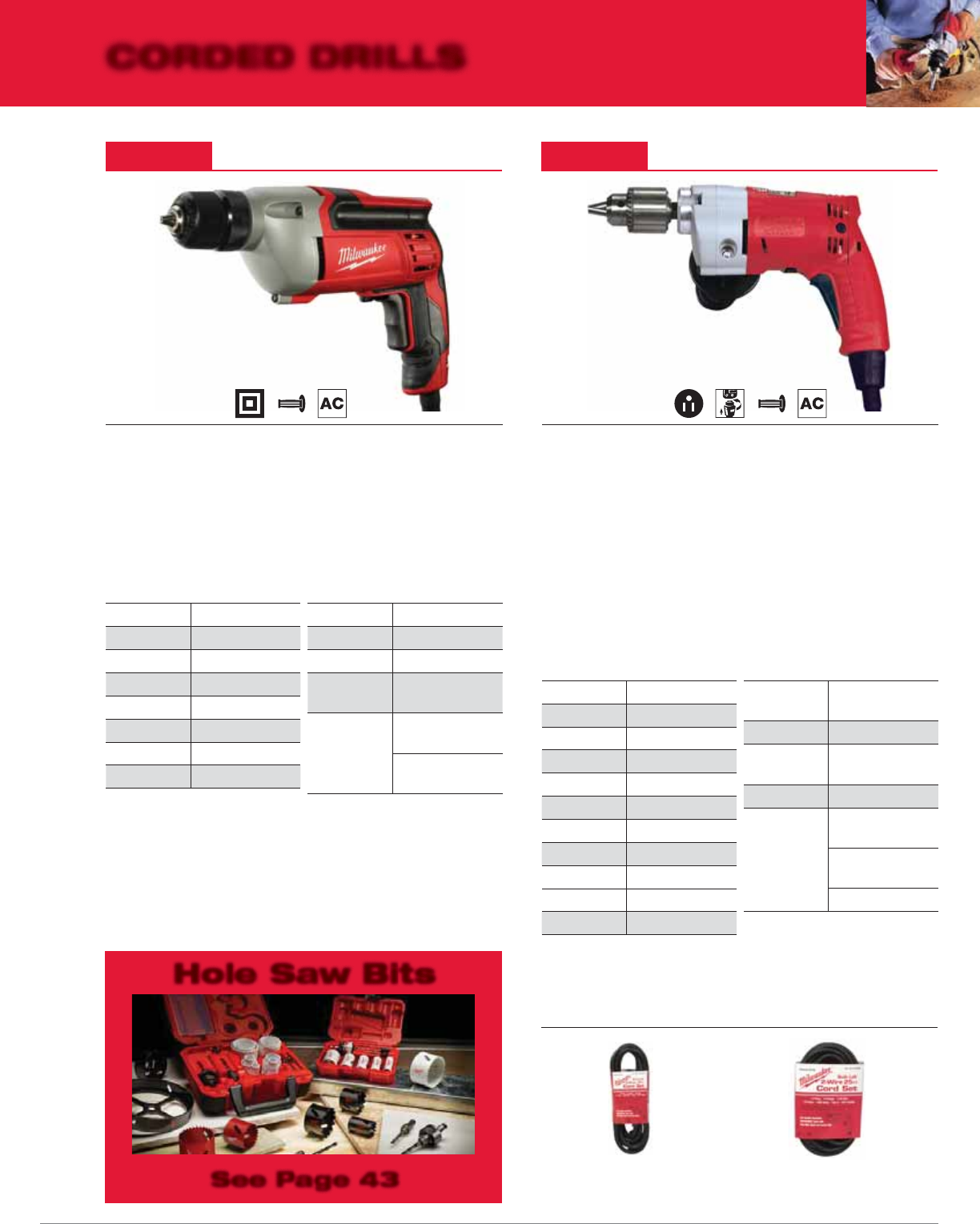

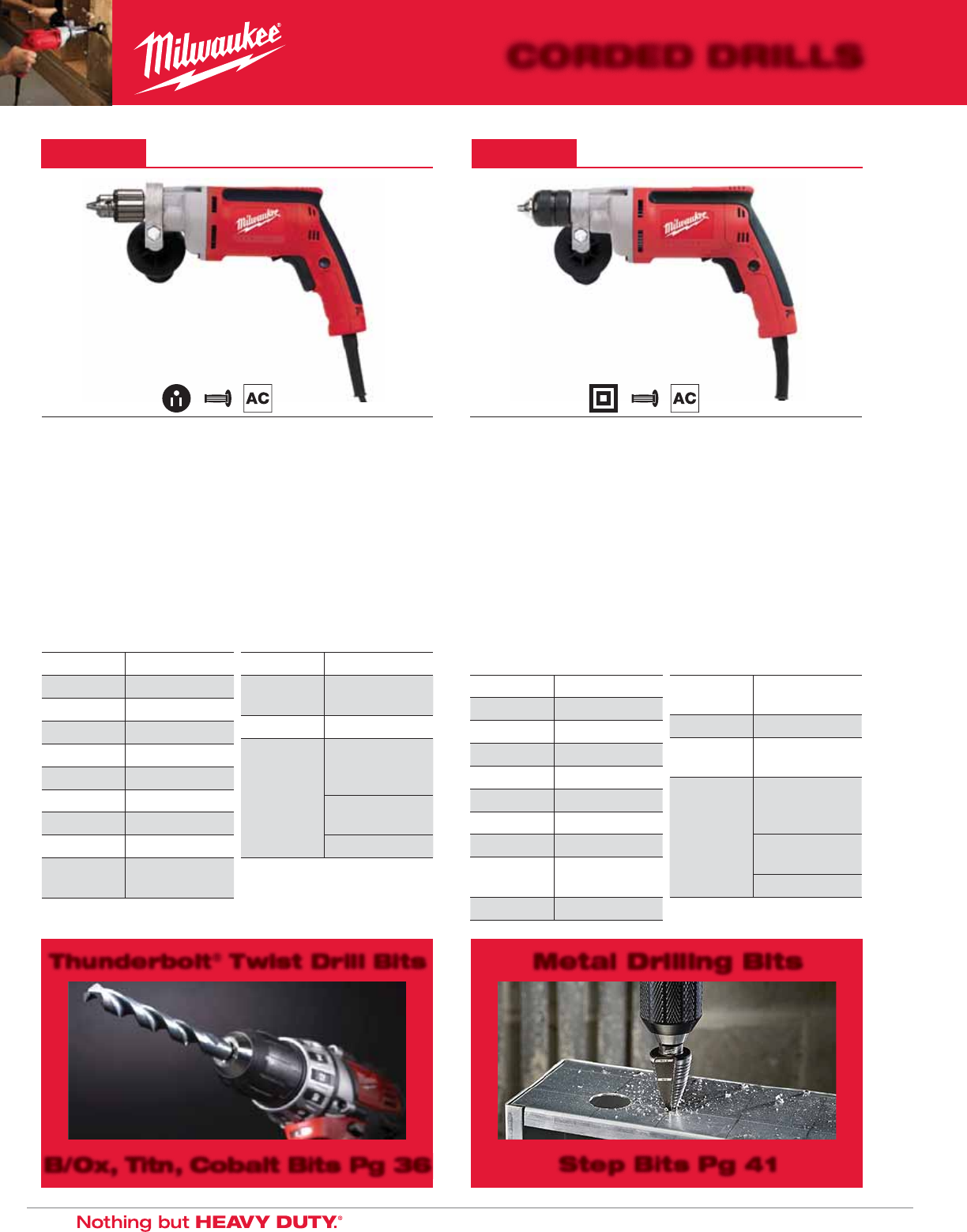

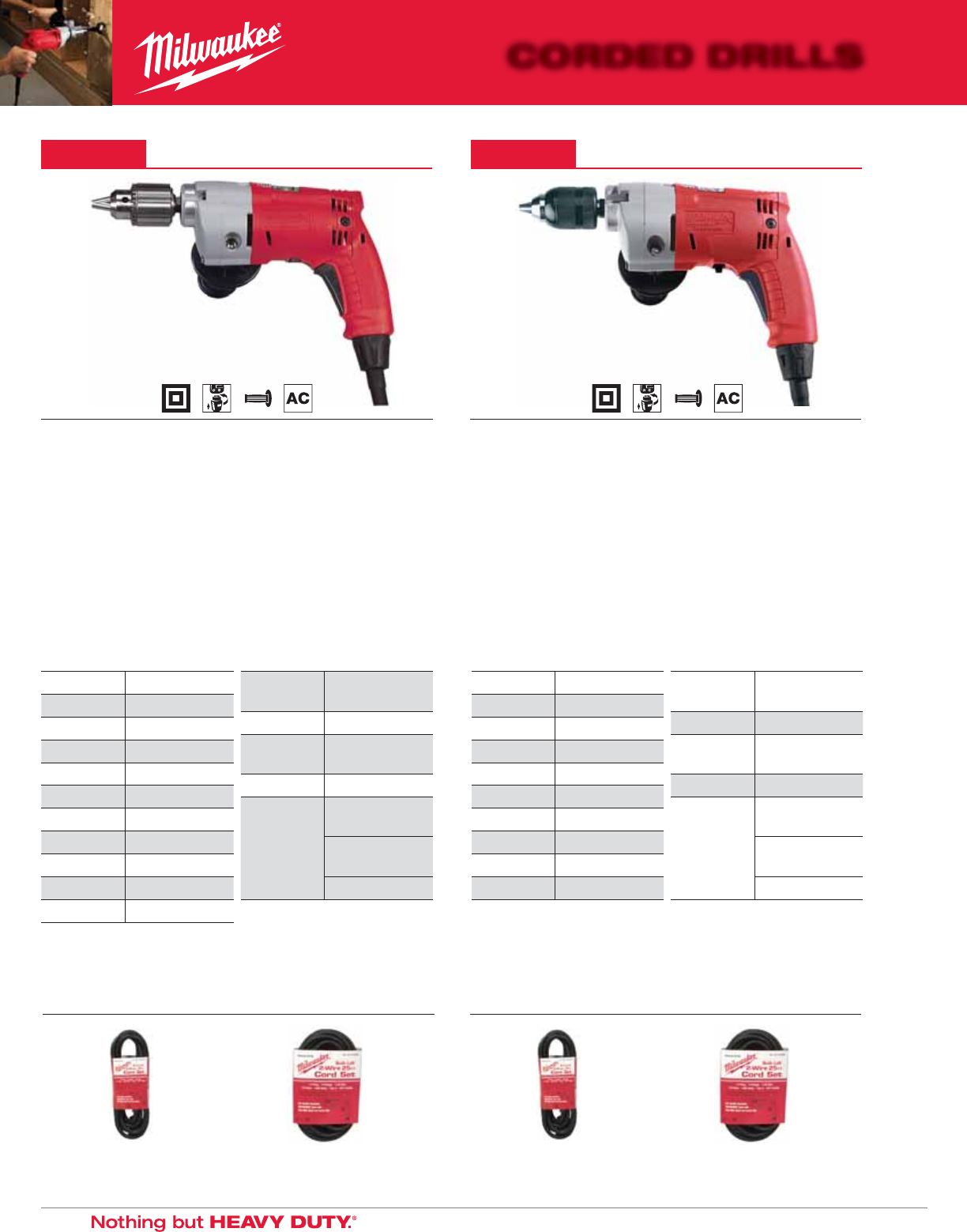

30

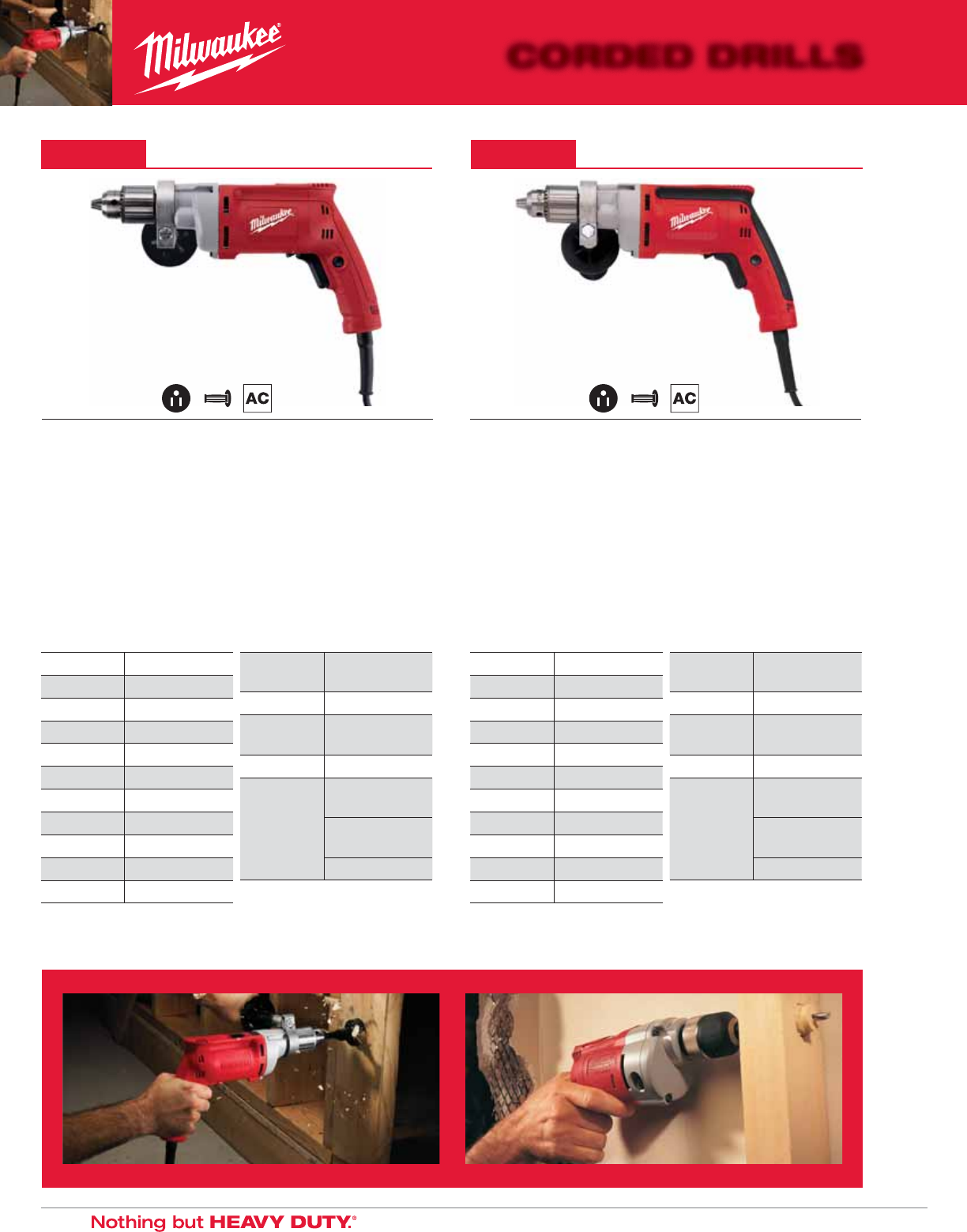

3/8" Magnum® Drill, 1200 RPM 3/8" Magnum® Drill, 2500RPM

0200-20 0201-20

FEATURES

n Powerful 7.0-amp motor: Delivers up to 1200 RPM with variable

speed control and reverse

n Heavy-duty keyed chuck with holder: Provides an industrial hold

during drilling and fastening

n 360° Locking Side Handle: Produces maximum maneuverability

and control

n 8-ft. 3-wire fi xed rubber cord: Durable construction for longer tool life

Includes: (1) 3/8" Magnum Drill, 0-1200 RPM (0200-20);

(1) Chuck Key with Holder

FEATURES

n Powerful 7.0-amp motor: Delivers up to 2500 RPM with variable-

speed control and reverse

n GRIP-LOK™ chuck: All-metal, two-sleeve keyless chuck with

hardened jaws for high grip strength and reduced slippage

n 360° Locking Side Handle: Produces maximum maneuverability

and control

n 10-ft. 2-wire fi xed rubber cord: Durable construction for longer

tool life

Includes: (1) 3/8" Magnum Drill, 0-2500 RPM with All Metal Chuck

(0201-20); (1) Side Handle

Length 12"

Weight 4.2 lbs

Cord Type 8' Fixed

No Load RPM 0-1,200

Amps 7

Trigger Lock Yes

Spindle 1/2” - 20

Chuck Size 3/8"

Chuck Type Keyed

Construction

Type Grounded

Gear Train Double

Soft Grip

Handle Yes

Spindle Lock No

Capacity in

Wood

Flat

Boring

Bit

1-1/2"

Hole

Saw 3-1/4"

Auger 1"

SPECIFICATIONS

Length 12"

Weight 4.1 lbs

Cord Type 10' Fixed

No Load RPM 0-2,500

Amps 7

Trigger Lock Yes

Spindle 3/8"-24

Chuck Size 3/8"

Construction

Type Double Insulated

Gear Train Double

Soft Grip

Handle Yes

Spindle Lock No

Capacity in

Steel Twist Bit 1/2"

Capacity in

Wood

Flat

Boring

Bit

1-1/2"

Hole

Saw 2-1/4"

Auger 7/8"

SPECIFICATIONS

CORDED DRILLS

Thunderbolt® Twist Drill Bits

B/Ox, Titn, Cobalt Bits Pg 36

Metal Drilling Bits

Step Bits Pg 41

milwaukeetool.ca 31

3/8" Magnum® Drill, 2800RPM with

Keyless Chuck

3/8" Magnum® Drill, 1200RPM with

All Metal Chuck

0202-20 0233-20

FEATURES

n Powerful 7.0-amp motor: Delivers up to 1200 RPM with variable

speed control and reverse

n GRIP-LOK™ chuck: All-metal, single-sleeve keyless chuck with

hardened jaws for high grip strength and reduced slippage

n 360° Locking Side Handle: Produces maximum maneuverability

and control

n QUIK-LOK® Cord: 8-ft. 3-wire grounded rubber cord provides easy

storage and fi eld replacement

Includes: (1) 3/8" Magnum® Drill, 0-1200 RPM with All Metal Chuck

and QUIK-LOK® cord (0202-20); (1) Side Handle

Length 12"

Weight 4.9 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 8' QUIK-LOK®

No Load RPM 0-1,200

Amps 7

Trigger Lock Yes

Spindle 1/2" -20

Chuck Size 3/8"

Chuck Type Single Sleeve

Construction

Type Grounded

Gear Train Double

Soft Grip Yes

Spindle Lock Yes

Capacity in

Wood

Flat

Boring

Bit

1-1/2"

Hole

Saw 3-1/4"

Auger 1"

SPECIFICATIONS Length 10"

Weight 4.0 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 8' Fixed

No Load RPM 0-2,800

Amps 5.5

Trigger Lock Yes

Spindle 3/8" - 24

Chuck Size 3/8"

Construction

Type Double Insulated

Gear Train Single

Soft Grip

Handle No

Spindle Lock No

Capacity in

Wood

Flat

Boring

Bit

1"

Hole

Saw 1-3/4"

Auger 1"

SPECIFICATIONS

FEATURES

n Powerful 5.5-amp motor: Delivers up to 2800 RPM, with trigger

speed control and reverse

n Heavy-duty keyless chuck: Single sleeve all metal chuck for high

grip strength and reduced slippage

n 8-ft. 2-wire fi xed rubber cord: Durable construction for longer tool life

n Exclusive brush cartridge system: Changes brushes in less than one

minute, and includes a spare set of brushes

Includes: (1) 3/8" Magnum® Drill, 0-2800 RPM with Keyless Chuck

(0233-20); (1) Side Handle

CORDED DRILLS

ATTACHMENTS

48-76-4008: 8' Quik-Lok®48-76-4025: 25' Quik-Lok®

Wood Boring Drill Bits

Speed Feed Bits Pg 39

CORDED DRILLS

32

1/2" Magnum® Drill, 950RPM

1/2" Magnum® Drill, 950RPM with

All Metal Keyless Chuck

0234-6 0235-21

FEATURES

n Powerful 5.5-amp motor: Delivers up to 950 RPM, with trigger-speed

control and reverse

n Heavy-duty keyed chuck with holder: Provides an industrial hold

during drilling and fastening

n QUIK-LOK® Cord: 8-ft. 3-wire grounded rubber cord provides easy

storage and fi eld replacement

n Exclusive brush cartridge system: Changes brushes in less than one

minute, and includes a spare set of brushes

Includes: (1) 1/2" Magnum® Drill, 0-950 RPM (0234-6);

(1) Chuck Key with Holder; (1) Side Handle

FEATURES

n Powerful 5.5-amp motor: Delivers up to 950 RPM, with trigger-speed

control and reverse

n Heavy-duty keyless chuck: Single sleeve all-metal chuck for high

grip strength and reduced slippage

n QUIK-LOK® Cord: 8-ft. 3-wire grounded rubber cord provides easy

storage and fi eld replacement

n Exclusive brush cartridge system: Changes brushes in less than one

minute, and includes a spare set of brushes

Includes: (1) 1/2" Magnum® Drill, 0-950 RPM with All Metal Keyless

Chuck (0235-21); (1) Side Handle

Length 10-1/2"

Weight 4.8 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 8' QUIK-LOK®

No Load RPM 0-950

Amps 5.5

Trigger Lock Yes

Spindle 1/2"- 20

Chuck Size 1/2"

Chuck Type Keyed

Construction

Type Grounded

Gear Train Double

Soft Grip

Handle No

Spindle Lock No

Capacity in

Wood

Flat

Boring Bit 1-1/2"

Hole

Saw 4-1/2"

Auger 1-1/2"

SPECIFICATIONS

Length 10-1/2"

Weight 4.9 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 8' QUIK-LOK®

No Load RPM 0-950

Amps 5.5

Trigger Lock Yes

Spindle 1/2"- 20

Chuck Size 1/2"

Construction

Type Grounded

Gear Train Double

Soft Grip

Handle No

Spindle Lock Yes

Capacity in

Wood

Flat

Boring Bit 1-1/2"

Hole

Saw 4-1/2"

Auger 1-1/2"

SPECIFICATIONS

ATTACHMENTS

48-76-4008: 8' Quik-Lok®48-76-4025: 25' Quik-Lok®

ATTACHMENTS

48-76-4008: 8' Quik-Lok®48-76-4025: 25' Quik-Lok®

CORDED DRILLS

milwaukeetool.ca 33

1/2" Magnum® Drill, 700RPM 3/8" Drill 0244-10240-20

FEATURES

n Powerful 8.0-amp motor: Delivers up to 2800 RPM, with variable-

speed trigger and reverse

n Heavy-duty keyless chuck: All-metal chuck for high grip strength

and reduced slippage

n 8-ft. 2-wire fi xed rubber cord: Durable construction for longer tool life

Includes: (1) 3/8” Drill (0240-20)

Length 10.25"

Weight 4.25 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 2-Wire

Cord Length 8'

No Load RPM 0-2,800

Amps 8

Trigger Lock No

Chuck Size 3/8"

Spindle Lock No

Capacity in

Steel Twist bit 3/8"

Capacity in

Wood

Flat

Boring Bit 1"

Hole

Saw 1-3/4"

SPECIFICATIONS

ATTACHMENTS

48-76-4008: 8' Quik-Lok®48-76-4025: 25' Quik-Lok®

Hole Saw Bits

See Page 43

FEATURES

n Powerful 5.5-amp motor: Delivers up to 700 RPM, with trigger

speed control and reverse

n Heavy-duty keyed chuck with holder: Provides an industrial hold

during drilling and fastening

n QUIK-LOK® Cord: 8-ft. 3-wire grounded rubber cord provides easy

storage and fi eld replacement

n Exclusive brush cartridge system: Changes brushes in less than one

minute, and includes a spare set of brushes

Includes: (1) 1/2" Magnum® Drill, 0-700 RPM (0244-1); (1) Chuck

Key with Holder; (1) Side Handle

Length 10-1/2"

Weight 4.8 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 8' QUIK-LOK®

No Load RPM 0-700

Amps 5.5

Trigger Lock Yes

Spindle 1/2"- 20

Chuck Size 1/2"

Chuck Type Keyed

Construction

Type Grounded

Gear Train Double

Soft Grip

Handle No

Spindle Lock No

Capacity in

Wood

Flat

Boring Bit 1-1/2"

Hole

Saw 4-1/2"

Auger 1-1/2"

SPECIFICATIONS

34

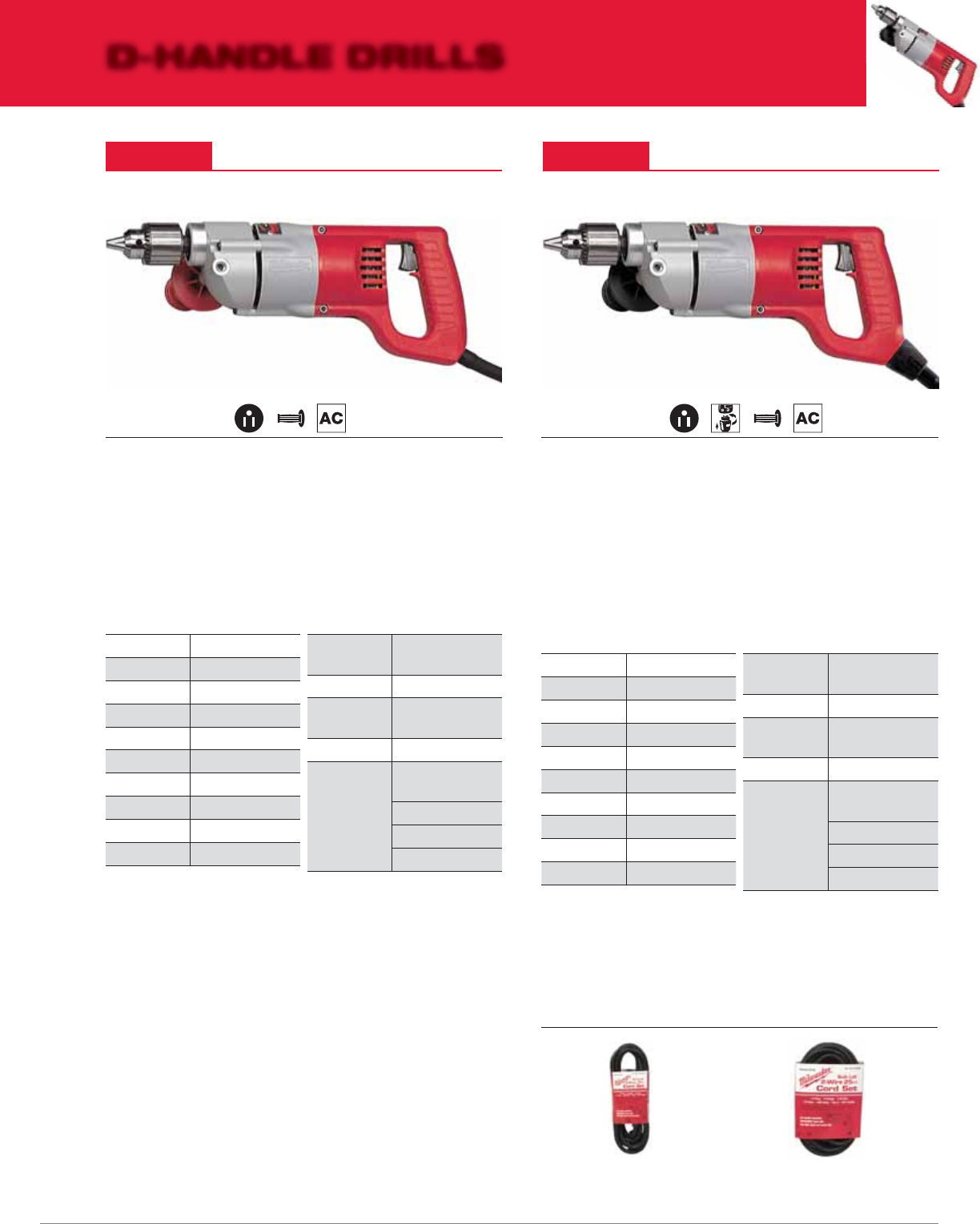

1/2" Magnum® Drill, 850RPM 1/2" Magnum® Drill, 850RPM

0299-20 0300-20

FEATURES

n Powerful 8.0-amp motor: Delivers up to 850 RPM with variable-

speed control and reverse

n Heavy-duty keyed chuck with holder: Provides an industrial hold

during drilling and fastening

n 360° Locking Side Handle: Produces maximum maneuverability

and control

n 8-ft. 3-wire fi xed rubber cord: Durable construction for longer tool life

Includes: (1) 1/2" Magnum® Drill, 0-850 RPM (0299-20);

(1) Chuck Key with Holder; (1) Side Handle

FEATURES

n Powerful 8.0-amp motor: Delivers up to 850 RPM with variable

speed control

n Heavy-duty keyed chuck with holder: Provides an industrial hold

during drilling and fastening

n 360° Locking Side Handle: Produces maximum maneuverability

and control

n 8-ft. 3-wire fi xed rubber cord: Durable construction for longer tool life

Includes: (1) 1/2" Magnum® Drill, 0-850 RPM (0300-20);

(1) Chuck Key with Holder; (1) Side Handle

Length 12-13/64"

Weight 5.4 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 8' Fixed

No Load RPM 0-850

Amps 8

Trigger Lock Yes

Spindle 1/2"- 20

Chuck Size 1/2"

Chuck Type Keyed

Construction

Type Grounded

Gear Train Double

Soft Grip

Handle No

Spindle Lock No

Capacity in

Wood

Flat

Boring Bit 1-1/2"

Hole

Saw 3-5/8”

Auger 1-1/2"

SPECIFICATIONS

Length 12-13/64"

Weight 5.4 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 8' Fixed

No Load RPM 0-850

Amps 8

Trigger Lock Yes

Spindle 1/2"- 20

Chuck Size 1/2"

Chuck Type Keyed

Construction

Type Grounded

Gear Train Double

Soft Grip

Handle Yes

Spindle Lock No

Capacity in

Wood

Flat

Boring Bit 1-1/2"

Hole

Saw 3-5/8”

Auger 1-1/2"

SPECIFICATIONS

CORDED DRILLS

milwaukeetool.ca 35

3/8" Close Quarter Angle Drill

1/2" Magnum® Drill, 850RPM with

All Metal Chuck 0370-200302-20

FEATURES

n Powerful 8.0-amp motor: Delivers up to 850 RPM with variable

speed control and reverse

n GRIP-LOK™ chuck: All-metal, single-sleeve keyless chuck with

hardened jaws for high grip strength and reduced slippage

n 360° Locking Side Handle: Produces maximum maneuverability

and control

n QUIK-LOK® Cord: 8-ft. 3-wire grounded rubber cord provides easy

storage and fi eld replacement

Includes: (1) 1/2" Magnum® Drill, 0-850 RPM with All Metal Chuck

and QUIK-LOK® cord (0302-20); (1) Side Handle

FEATURES

n 3.5-amp motor: Produces up to 1300 RPM with reverse

n Metal frame gear train: Provides longer service life

n Textured palm grip: Offers comfort, control and reduces slippage

n Angle cord exit: Keeps the durable 8-ft. fi xed rubber cord out of the

work area

Includes: (1) 3/8" Close Quarter Angle Drill (0370-20);

(1) Chuck Key with Holder

Length 12-1/2"

Weight 5.6 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 8' QUIK-LOK®

No Load RPM 0-850

Amps 8

Trigger Lock Yes

Spindle 1/2"- 20

Chuck Size 1/2"

Chuck Type Single Sleeve

Construction

Type Grounded

Gear Train Double

Soft Grip

Handle Yes

Spindle Lock Yes

Capacity in

Wood

Flat

Boring Bit 1-1/2"

Hole

Saw 3-5/8”

Auger 1-1/2"

SPECIFICATIONS

Length 11"

Weight 3.9 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 8'

No Load RPM 0-1,300

Amps 3.5

Spindle 1/2"- 20

Chuck Size 3/8"

Chuck Type Keyed

Construction

Type Double Insulated

Gear Train Double

Soft Grip

Handle Yes

Spindle Lock No

Capacity in

Steel Twist bit 3/8"

SPECIFICATIONS

CORDED DRILLS

ATTACHMENTS

48-76-4008: 8' Quik-Lok®48-76-4025: 25' Quik-Lok®

36

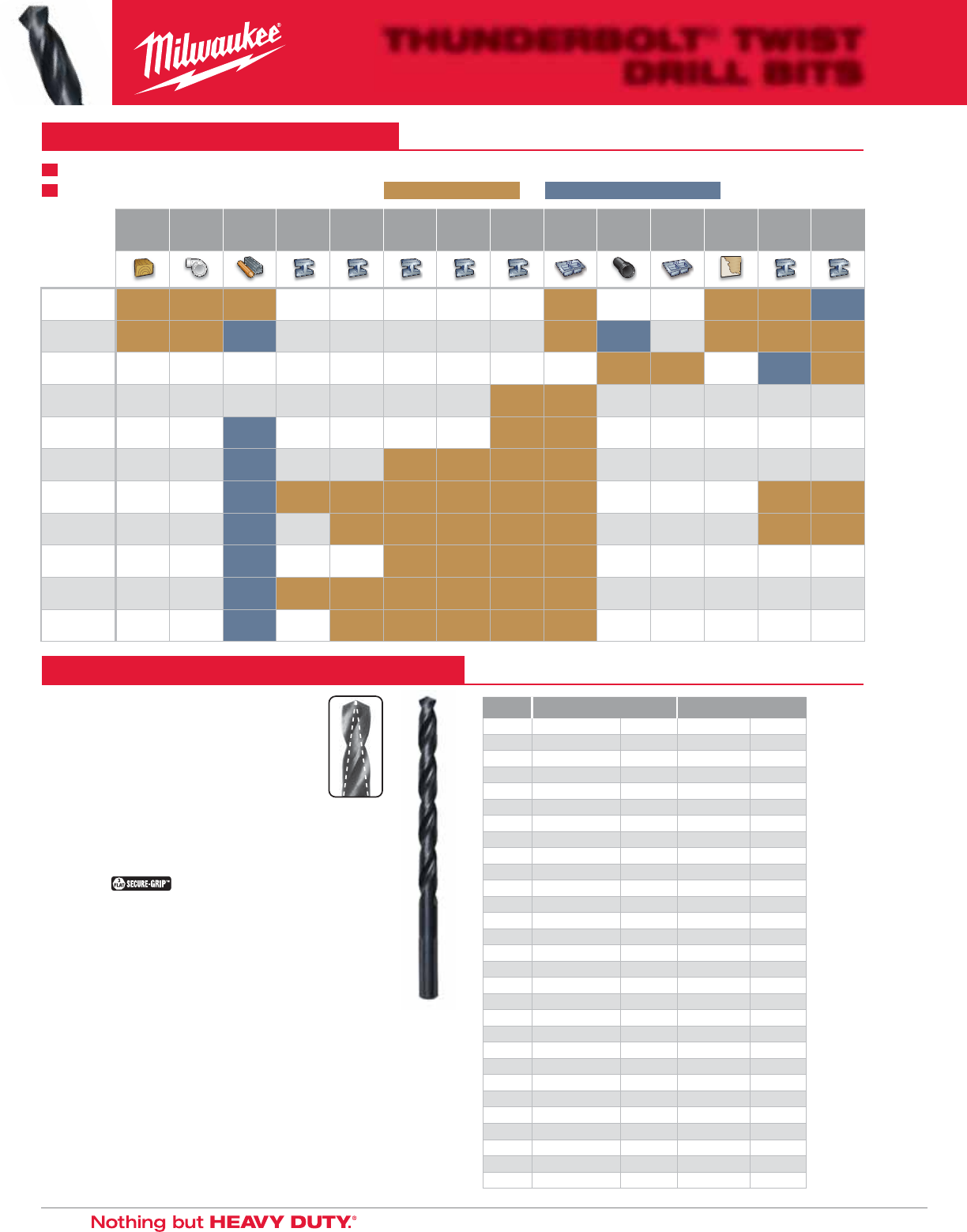

1 Identify the material to be cut in the columns below

2 Follow the column down to fi nd the accessory with BEST PERFORMANCE or ACCEPTABLE PERFORMANCE

CLEAN

WOOD

PVC &

PLASTICS

ALUMINUM

& OTHER

NON-FERROUS

METALS

PLATE

STEEL

(1" - 2")

PLATE

STEEL

(1/2" - 1")

PLATE

STEEL

(1/4" - 1/2")

METAL (3/16"

- 1/4")

METAL

(1/8" - 3/16")

SHEET METAL

(UP TO 1/8") CAST IRON STAINLESS

STEEL

PLASTER/

DRYWALL MILD STEEL HIGH ALLOY

STEEL

BLACK OXIDE

TITANIUM

COBALT

STEP BITS

CARBIDE TOOTH

SHEET METAL

CUTTERS

CARBIDE TOOTH

PLATE STEEL

CUTTERS

1" ANNULAR

CUTTERS

2" ANNULAR

CUTTERS

1 PC STEEL

HAWG® CUTTER

THREADED

STEEL HAWG®

CUTTER

QUICK CHANGE

TANG STEEL

HAWG® CUTTER

LONG LIFE

THUNDERBOLT® drill bits are designed with a

thicker web, providing greater strength and longer life

EFFICIENT CHIP REMOVAL

Parabolic fl ute clears chips fast

PRECISION STARTS, NO WALKING

135° split point geometry starts fast, on contact

CORROSION RESISTANT

Black oxide coating provides lubricity and resists

corrosion of the bit

NO SPIN

3-Flat shank holds bit secure in drill chuck

Size Part Number Qty/Card Bulk Pack Bulk Qty

1/16" 48-89-2710 2 48-89-2820 12

5/64" 48-89-2711 2 48-89-2821 12

3/32" 48-89-2712 2 48-89-2822 12

7/64" 48-89-2713 2 48-89-2823 12

1/8" 48-89-2714 2 48-89-2824 12

9/64" 48-89-2715 1 48-89-2825 12

5/32" 48-89-2716 1 48-89-2826 12

11/64" 48-89-2717 1 48-89-2827 12

3/16" 48-89-2718 1 48-89-2828 12

13/64" 48-89-2719 1 48-89-2829 12

7/32" 48-89-2720 1 48-89-2830 12

15/64" 48-89-2721 1 48-89-2831 12

1/4" 48-89-2722 1 48-89-2832 12

17/64" 48-89-2723 1 48-89-2833 6

9/32" 48-89-2724 1 48-89-2834 6

19/64" 48-89-2725 1 48-89-2835 6

5/16" 48-89-2726 1 48-89-2836 6

21/64" 48-89-2727 1 48-89-2837 6

11/32" 48-89-2728 1 48-89-2838 6

23/64" 48-89-2729 1 48-89-2839 6

3/8" 48-89-2730 1 48-89-2840 6

25/64" 48-89-2731 1 48-89-2841 6

13/32" 48-89-2732 1 48-89-2842 6

27/64" 48-89-2733 1 48-89-2843 6

7/16" 48-89-2734 1 48-89-2844 6

29/64" 48-89-2735 1 48-89-2845 6

15/32" 48-89-2736 1 48-89-2846 6

31/64" 48-89-2737 1 48-89-2847 6

1/2" 48-89-2738 1 48-89-2848 6

METAL DRILLING SELECTION GUIDE

THUNDERBOLT® BLACK OXIDE DRILL BITS

THUNDERBOLT® TWIST

DRILL BITS

milwaukeetool.ca 37

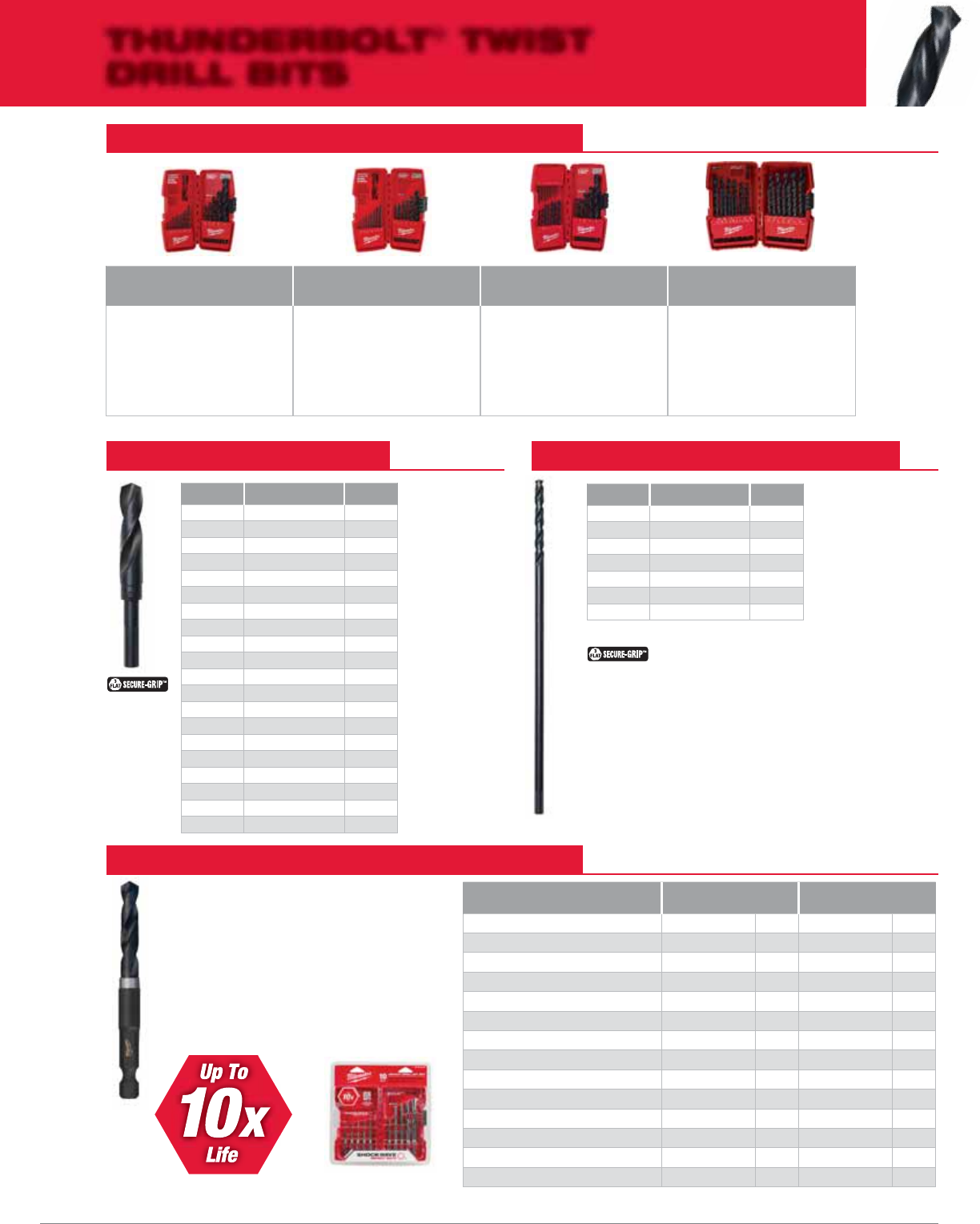

Size Part Number Qty/Card

17/32" 48-89-2739 1

9/16" 48-89-2740 1

19/32" 48-89-2741 1

5/8" 48-89-2742 1

21/32" 48-89-2743 1

11/16" 48-89-2744 1

23/32" 48-89-2745 1

3/4" 48-89-2746 1

25/32" 48-89-2747 1

13/16" 48-89-2748 1

27/32" 48-89-2749 1

7/8" 48-89-2750 1

29/32" 48-89-2751 1

15/16" 48-89-2752 1

31/32" 48-89-2753 1

1" 48-89-2754 1

1-1/16" 48-89-2755 1

1-1/8" 48-89-2756 1

1-3/16" 48-89-2757 1

1-1/4" 48-89-2758 1

Size Part Number Qty/Card

1/8" 48-89-2770 1

3/16" 48-89-2771 1

1/4" 48-89-2772 1

5/16" 48-89-2773 1

3/8" 48-89-2774 1

7/16" 48-89-2775 1

1/2" 48-89-2776 1

14 Pc THUNDERBOLT® Black Oxide

Drill Bit Set

48-89-2800

15 Pc THUNDERBOLT® Black Oxide

Drill Bit Set

48-89-2803

21 Pc THUNDERBOLT® Black Oxide

Drill Bit Set

48-89-2801

29 Pc THUNDERBOLT® Black Oxide

Drill Bit Set

48-89-2802

Includes:

1/16", 5/64", 3/32", 7/64", (2) 1/8",

9/64", 5/32", 3/16", 7/32", 1/4",

5/16", 3/8", 1/2"

Includes:

1/16", 5/64", 3/32", 7/64", 1/8",

9/64", 5/32", 11/64", 3/16", 13/64",

7/32", 1/4", 9/32", 5/16", 3/8"

Includes:

(2) 1/16", (2) 5/64", 3/32", 7/64",

(2) 1/8", 9/64", 5/32", 11/64",

(2) 3/16", 13/64", 7/32", 15/64",

(2) 1/4", 5/16", 3/8, 1/2"

Includes:

1/16", 5/64", 3/32", 7/64", 1/8",

9/64", 5/32", 11/64", 3/16", 13/64",

7/32", 15/64", 1/4", 17/64", 9/32",

19/64", 5/16", 21/64", 11/32",

23/64", 3/8", 25/64", 13/32", 27/64",

7/16", 29/64", 15/32", 31/64", 1/2"

LONG LIFE

THUNDERBOLT® drill bits are designed with a thicker

web, providing greater strength and longer life

EFFICIENT CHIP REMOVAL

Parabolic fl ute clears chips fast

PRECISION STARTS, NO WALKING

135° split point geometry starts fast, on contact

QUICK CHANGE

1/4" Hex power groove shank

Description Individual

Part Number Qty Bulk Part Number Qty

1/16" Shockwave™ Impact Hex Drill Bit 48-89-4401 1

3/32" Shockwave™ Impact Hex Drill Bit 48-89-4403 1

1/8" Shockwave™ Impact Hex Drill Bit 48-89-4405 1 48-89-4705 10

9/64" Shockwave™ Hex Drill Bit 48-89-4406 1

5/32" Shockwave™ Impact Hex Drill Bit 48-89-4407 1

11/64" Shockwave™ Hex Drill Bit 48-89-4408 1

3/16" Shockwave™ Impact Hex Drill Bit 48-89-4409 1

7/32" Shockwave™ Impact Hex Drill Bit 48-89-4411 1

1/4" Shockwave™ Impact Hex Drill Bit 48-89-4413 1 48-89 -4713 10

5/16" Shockwave™ Hex Drill Bit 48-89-4414 1

3/8" Shockwave™ Hex Drill Bit 48-89-4415 1

1/2"

Shockwave™

Hex Drill Bit

48-89-4417 1

4Pc Shockwave™ Impact Hex Drill Bit Set 48-89-4444 4

(5) 10Pc

Shockwave™ Hex Drill Bit

Set

48-89-4445 10

THUNDERBOLT® BLACK OXIDE DRILL BIT SETS

BLACK OXIDE S&D DRILL BITS

BLACK OXIDE 12” AIRCRAFT LENGTH BITS

SHOCKWAVE IMPACT DUTY

™

HEX SHANK DRILL BITS

THUNDERBOLT® TWIST

DRILL BITS

38

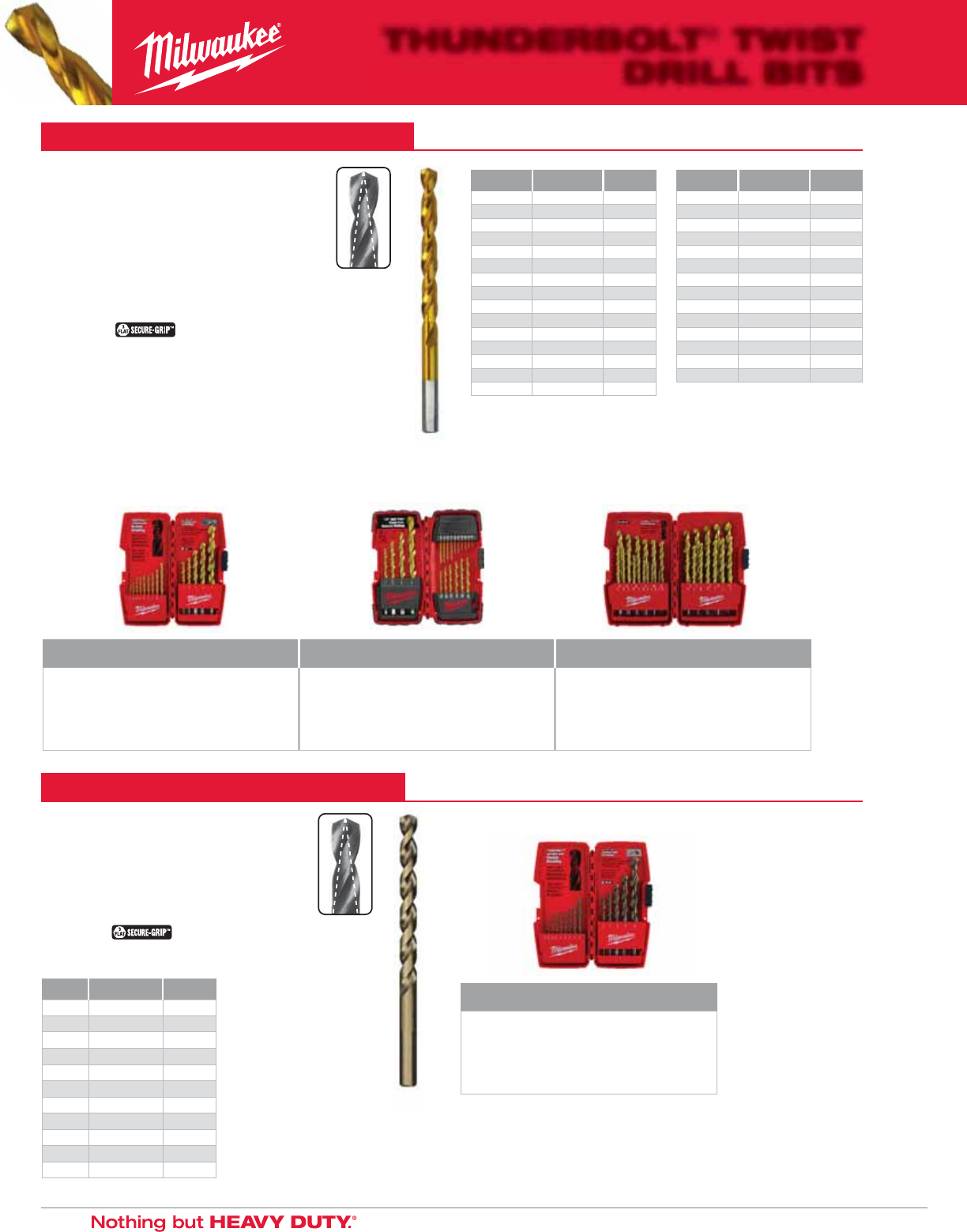

THUNDERBOLT® TITANIUM DRILL BITS

Size Part Number Qty/Card

3/32" 48-89-2303 1

7/64" 48-89-2304 1

1/8" 48-89-2305 1

9/64" 48-89-2306 1

5/32" 48-89-2307 1

3/16" 48-89-2309 1

1/4" 48-89-2313 1

5/16" 48-89-2317 1

3/8" 48-89-2321 1

7/16" 48-89-2325 1

1/2" 48-89-2329 1

LONG LIFE

THUNDERBOLT® drill bits are designed with a thicker

web, providing greater strength and longer life

EFFICIENT CHIP REMOVAL

Parabolic fl ute clears chips fast

PRECISION STARTS, NO WALKING

NO SPIN

3-Flat Shank holds bit secure

Size Part Number Qty/Card

1/16" 48-89-2201 2

5/64" 48-89-2202 2

3/32" 48-89-2203 2

7/64" 48-89-2204 2

1/8" 48-89-2205 2

9/64" 48-89-2206 1

5/32" 48-89-2207 1

11/64" 48-89-2208 1

3/16" 48-89-2209 1

13/64" 48-89-2210 1

7/32" 48-89-2211 1

15/64" 48-89-2212 1

1/4" 48-89-2213 1

17/64" 48-89-2214 1

9/32" 48-89-2215 1

Size Part Number Qty/Card

19/64" 48-89-2216 1

5/16" 48-89-2217 1

21/64" 48-89-2218 1

11/32" 48-89-2219 1

23/64" 48-89-2220 1

3/8" 48-89-2221 1

25/64" 48-89-2222 1

13/32" 48-89-2223 1

27/64" 48-89-2224 1

7/16" 48-89-2225 1

29/64" 48-89-2226 1

15/32" 48-89-2227 1

31/64" 48-89-2228 1

1/2" 48-89-2229 1

LONG LIFE

Titanium coating reduces heat build-up for up to 3X life

EFFICIENT CHIP REMOVAL

Parabolic fl ute clears chips fast

PRECISION STARTS, NO WALKING

135° split point geometry starts fast, on contact

CORROSION RESISTANT

Titanium coating provides added protection from heat build-up

NO SPIN

3-Flat shank holds bit secure in drill chuck

THUNDERBOLT® TITANIUM DRILL BIT SETS

14 Pc THUNDERBOLT® Titanium Drill Bit Set

48-89-0011

20 Pc Titanium Drill Bit Set

48-89-1105

29 Pc THUNDERBOLT® Titanium Drill Bit Set

48-89-0012

Includes:

1/16", 5/64", 3/32", 7/64", (2)1/8", 9/64", 5/32",

3/16", 7/32", 1/4", 5/16", 3/8", 1/2"

Includes:

(2) 1/16", (2) 5/64", (2) 3/32", (2) 7/64", (2) 1/8",

9/64", 5/32", 11/64, 3/16", 13/64", 7/32", 1/4",

5/16", 3/8", 1/2"

Includes:

1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64",

3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32",

19/64", 5/16", 21/64", 11/32", 23/64", 3/8", 25/64",

13/32", 27/64", 7/16", 29/64", 15/32", 31/64", 1/2"

THUNDERBOLT® COBALT DRILL BIT SET

14 Pc THUNDERBOLT® Cobalt Drill Bit Set

48-89-0026

Includes:

1/16", 5/64", 3/32", 7/64", (2)1/8", 9/64", 5/32",

3/16", 7/32", 1/4", 5/16", 3/8", 1/2"

THUNDERBOLT® COBALT DRILL BITS

THUNDERBOLT® TWIST

DRILL BITS

milwaukeetool.ca 39

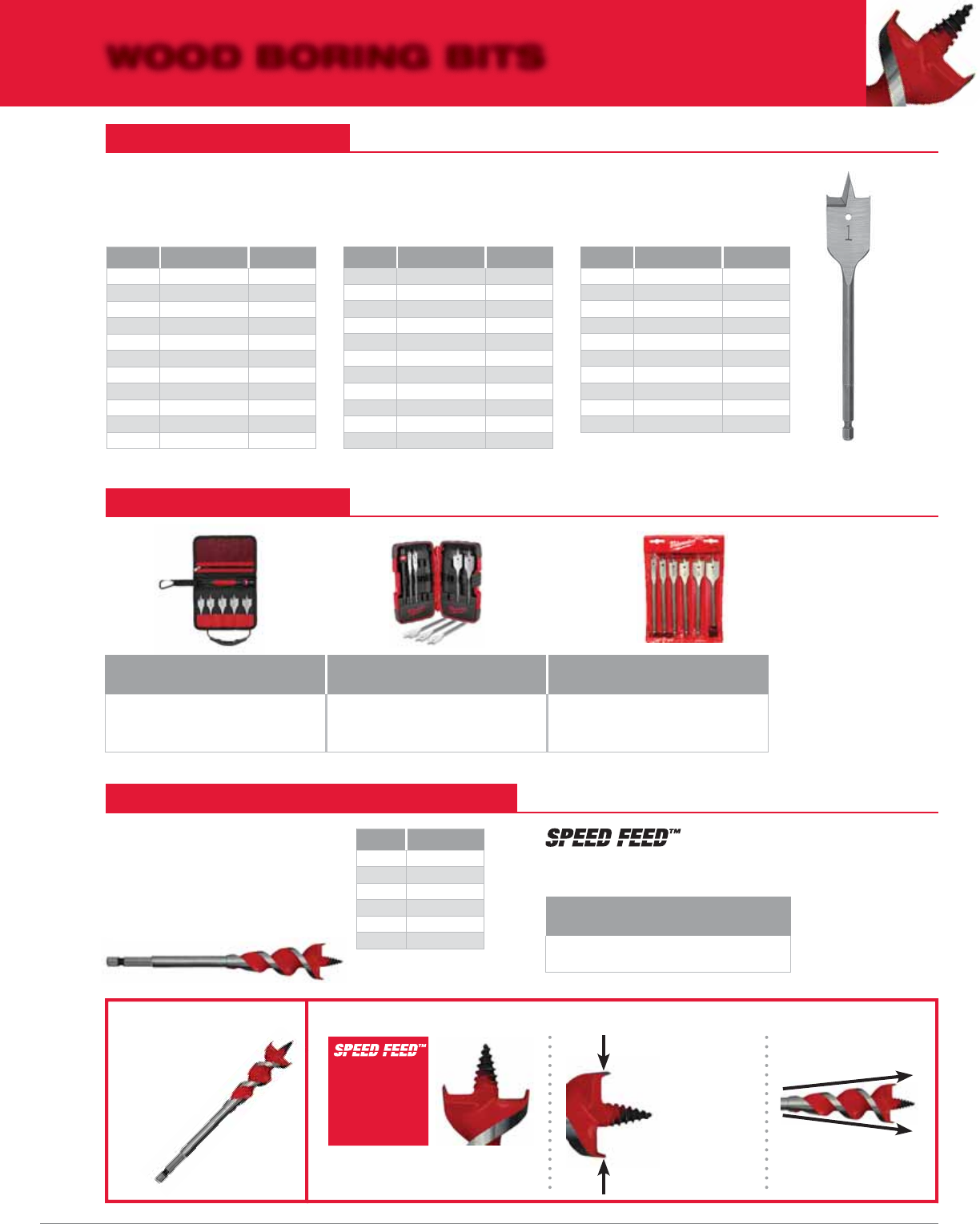

FAST CUTTING

n Up to 10X faster than fl at boring bits

CLEAN HOLES

n Double wing spurs for clean hole cutting

FAST CHIP REMOVAL

n Coated fl utes for fast chip removal

Size Part Number

1/2" 48-13-0048

5/8" 48-13-0058

3/4" 48-13-0068

7/8" 48-13-0078

1" 48-13-0088

1-1/4" 48-13-0108

n

Coated

fl

utes

for

fast

chip

removal

SPEED FEED™ SELF-FEEDING

WOOD BIT SET

4 Pc Speed Feed™ Self-Feeding Wood Bit Set

48-13-0400

Includes:

n 1/2", 5/8", 3/4", 1"

Size Part Number Length

1/2" 48-27-0070 3-1/2"

5/8" 48-27-0075 3-1/2"

3/4" 48-27-0080 3-1/2"

7/8" 48-27-0085 3-1/2"

15/16" 48-27-0090 3-1/2"

1" 48-27-0095 3-1/2"

1-1/8" 48-27-0100 3-1/2"

1-1/4" 48-27-0200 3-1/2"

1-1/2" 48-27-0205 3-1/2"

1/4" 48-27-0251 6"

5/16" 48-27-0311 6"

FAST CUTTING

n Cutting edge designed for fast, easy wood boring

CLEAN HOLES

n Double wing spurs for clean hole cutting

6 Pc Stubby Flat Boring Bit Set

(3-1/2")

49-22-0185

8 Pc Universal QUIK-LOK™

Flat Boring Set (6")

49-22-0175

6 Pc Flat Boring Bit Kit (6")

49-22-0071

Includes:

n 3/4", 7/8", 15/16", 1", 1-1/8" and 6"

QUIK-LOK™ extension

Includes:

n 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-1/8", and 6"

QUIK-LOK™ extension

Includes:

n 3/8", 1/2", 5/8", 3/4", 7/8", 1"

Size Part Number Length

3/8" 48-27-0371 6"

7/16" 48-27-0441 6"

1/2" 48-27-0501 6"

9/16" 48-27-0561 6"

5/8" 48-27-0621 6"

11/16" 48-27-0681 6"

3/4" 48-27-0751 6"

13/16" 48-27-0811 6"

7/8" 48-27-0871 6"

15/16" 48-27-0941 6"

1" 48-27-1001 6"

Size Part Number Length

1-1/8" 48-27-1121 6"

1-1/4" 48-27-1251 6"

1-3/8" 48-27-1371 6"

1-1/2" 48-27-1501 6"

3/8" 48-27-0170 16"

1/2" 48-27-0175 16"

5/8" 48-27-0180 16"

3/4" 48-27-0185 16"

7/8" 48-27-0190 16"

1" 48-27-0195 16"

SPEED FEED™ SELF-FEEDING WOOD BITS

FLAT BORING BIT SETS

FLAT BORING BITS

WOOD BORING BITS

USER NEEDS

n Speed of Cut

n Clean Holes

n Low Effort

MILWAUKEE SOLUTION

S

r

t

10

x

x

UP TO

FASTER

VS. FLAT BORING BITS

Self Feed Tip = Less Drilling Force &

Faster Drilling

Double Wing

Spurs

Feed Screw and

Tapered Design

Feed Screw and

Tapered Design

Minimizes Drag =

Effortless & Faster

Hole Cutting

Clean Hole

Cutting

&

Increases

Life of Bit

40

WOOD BORING BITS

Size Part Number

3/8" 48-14-0376

1/2" 48-14-0501

5/8" 48-14-0626

3/4" 48-14-0751

1" 48-14-1001

1-3/8" 48-14-1374

35 mm 48-14-1376

ACCURATE HOLES

n Precision ground kerf cutters create accurate holes

CLEAN HOLE FINISH

n Polished surface fi nish makes very clean, fl at holes

PRECISION CONTROL

n Round shank style reduces runout for more precise holes

Size Part Number

1/8" 48-15-0125

3/16" 48-15-0185

1/4" 48-15-0250

5/16" 48-15-0312

3/8" 48-15-0375

7/16" 48-15-0437

1/2" 48-15-0500

EASY VISUAL REFERENCE

n 1/4" depth marks for easy identifi cation

ACCURATE, CLEAN HOLES

n Brad point style tip for accurate hole placement

LONG LASTING

n Precision ground tip maintains a sharp cutting edge

VERSATILE

n Wire pulling hole for easy wire installation

FAST CHIP REMOVAL

n Coated fl utes for fast chip removal

NO SPIN

n 3-Flat shank holds bit secure in drill chuck

Size Part Number Length

1/4" 48-13-7125 12"

5/16" 48-13-7131 12"

3/8" 48-13-7137 12"

3/16" 48-13-7218 18"

1/4" 48-13-7225 18"

5/16" 48-13-7231 18"

3/8" 48-13-7237 18"

7/16" 48-13-7243 18"

1/2" 48-13-7249 18"

1/4" 48-13-7325 24"

3/8" 48-13-7337 24"

Size Part Number Length

3/8" 48-13-8237 54"

1/2" 48-13-8250 54"

9/16" 48-13-8256 54"

3/4" 48-13-8275 54"

3/8" 48-13-8337 72"

1/2" 48-13-8350 72"

9/16" 48-13-8356 72"

3/4" 48-13-8375 72"

FLEXIBLE

n Flexible steel shaft allows user to reach areas between or behind walls

VERSATILE

n Wire pulling holes at both ends for easy wire installation

Placement Guide

48-08-0275

FORSTNER BIT SET

4 Pc Forstner Bit Set

48-14-0004

Includes:

n 1/4", 1/2", 5/8", 3/4"

FORSTNER BITS

BELLHANGER BITS

CABLE BITS

BRAD POINT BITS

FORSTNER BITS

milwaukeetool.ca 41

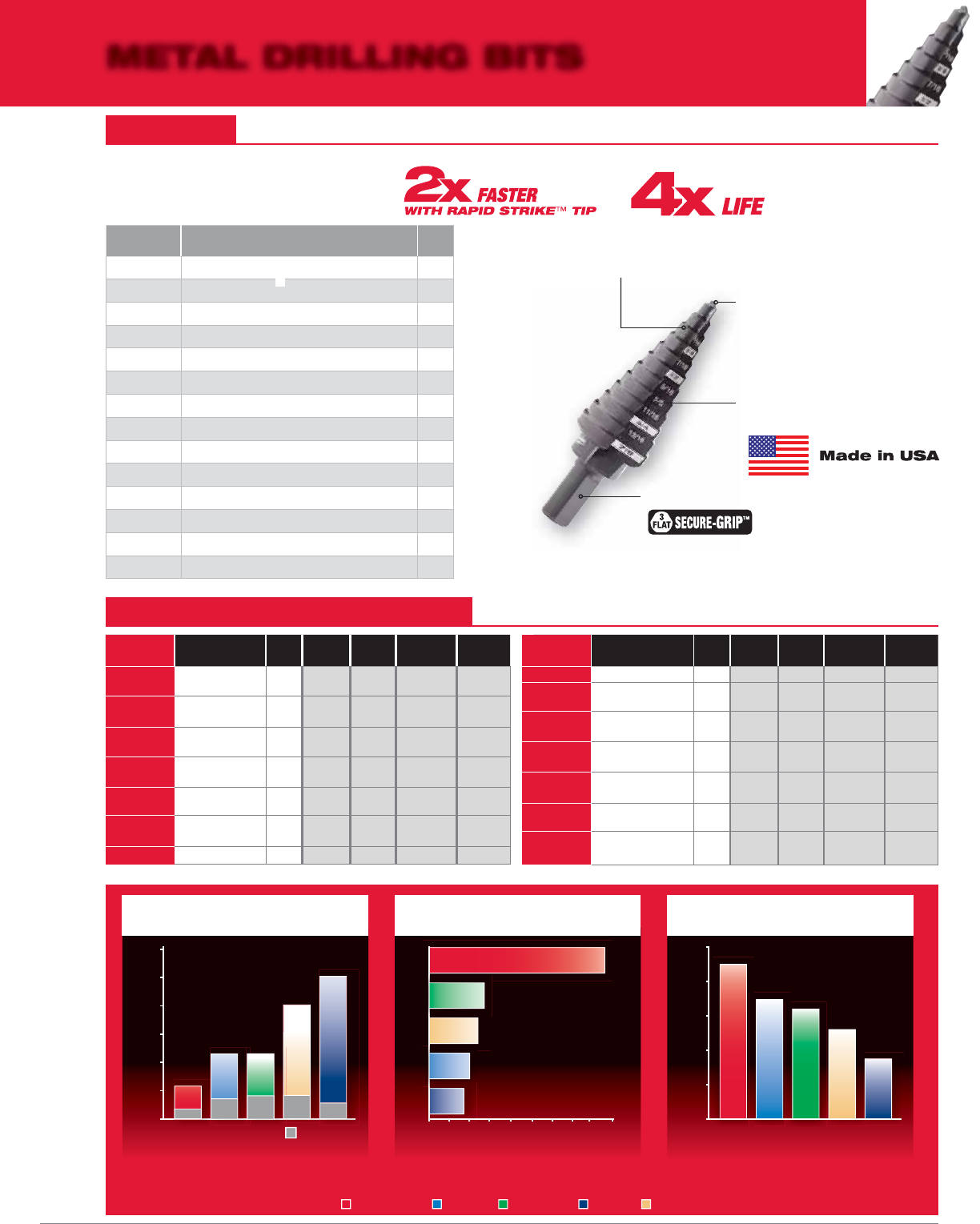

STEP BITS

JAM-FREE*

PERFORMANCE

Laser Engraved ID

Reduced

3-Flat Shank

Rapid Strike™

Tip

Patent Pending

Black Oxide

Coating

Model # Description Holes

48-89-9201 #1 Step Drill Bit 1/8" - 1/2" 13

48-89-9202 #2 Step Drill Bit 3/16" - 1/2" 6

48-89-9203 #3 Step Drill Bit 1/4" - 3/4" 9

48-89-9204 #4 Step Drill Bit 3/16" - 7/8" 12

48-89-9205 #5 Step Drill Bit 1/4" - 1-3/8" 10

48-89-9206 #6 Step Drill Bit 3/8" & 1/2" 2

48-89-9207 #7 Step Drill Bit 7/8" 1

48-89-9208 #8 Step Drill Bit 1/2" - 1" 9

48-89-9209 #9 Step Drill Bit 7/8" & 1-1/8" 2

48-89-9211 #11 Step Drill Bit 7/8", 1-1/8", 1-7/32" 13

48-89-9212 #12 Step Drill Bit 7/8", 1-1/8", 1-7/32", 1-3/8" 5

48-89-9221 3 Pc Step Drill Bit Set (#1, #2, #4) –

48-89-9223 4 Pc Step Drill Bit Set (#1, #4, #7, #12) –

48-89-9224 6 Pc Step Drill Bit Set (#1, #4, #6, #7, #8, #9) –

UP TO

UP TO 50%

MORE HOLES

PER CHARGE*

CROSS REFERENCE FOR STEP BITS

METAL DRILLING BITS

Milwaukee®

Part # Description Holes Lenox®

Part #

Irwin®

Part #

Greenlee®

Part #

DeWalt®

Part #

48-89-9201 #1 Step Drill Bit

1/8" - 1/2" 13 VB1 10231 34401 DWA1783IR

48-89-9202 #2 Step Drill Bit

3/16" - 1/2" 6 VB4 10232 36402 DWA1784IR

48-89-9203 #3 Step Drill Bit

1/4" - 3/4" 9VB31023330005 –

48-89-9204 #4 Step Drill Bit

3/16" - 7/8" 12 VB8 10234 34403 DWA1786IR

48-89-9205 #5 Step Drill Bit

1/4" - 1-3/8 10 – 10235 – –

48-89-9206 #6 Step Drill Bit

3/8" & 1/2" 2VB6 – 34410 –

48-89-9207 #7 Step Drill Bit 7/8" 1 VB7 10311 34411 –

Milwaukee®

Part # Description Holes Lenox®

Part #

Irwin®

Part #

Greenlee®

Part #

DeWalt®

Part #

48-89-9208 #8 Step Drill Bit 1/2" - 1" 9 VB2 10220 – –

48-89-9209 #9 Step Drill Bit

7/8" & 1-1/8" 2 VB11 10239 30008 DWA1789IR

48-89-9211 #11 Step Drill Bit

7/8", 1-1/8", 1-7/32" 13 VB9 – – –

48-89-9212 #12 Step Drill Bit 7/8",

1-1/8", 1-7/32", 1-3/8" 5VB12 – 36414 –

48-89-9221 3 Pc Step Drill Bit

Set (#1, #2, #4) –3088910502 3607DWA1790IR

48-89-9223 4 Pc Step Drill Bit Set

(#1, #4, #7, #12) –30929 – – –

48-89-9224

6 Pc

Step Drill Bit

Set

(#1, #4, #6, #7, #9)

–

30927

–

35884

–

* in cordless drill

Milwaukee®Lenox®Greenlee®Irwin®DeWalt®

18

32

26

45

35

0

10

20

30

40

50

Holes Drilled

Completed Holes Per Battery Charge

*Tested with #9 1-1/8" Step Bits or equivalent with M18 FUEL™

2604-22 1/2" Hammer Drill/Driver in 14 gauge 1008 steel

HIGHEST

PRODUCTIVITY

Number of Holes

843

177

235

0 100 200 300 400 500 600 700 800

Completed Holes Over Bit Life

*Tested with #1 1/2" Step Bit or equivalent

with slide fi xture in 14 gauge 1008 steel

900

267

207

LONGEST

LIFE

Tip Speed

0

10

15

20

25

30

Seconds

30.62

5.42

8.42

25.43

10.22

2.96

17.04

7.91

Average Completed Hole Speed

*Tested with #9 1-1/8" Step Bits or equivalent with M18 FUEL™

2604-22 1/2" Hammer Drill/Driver in 14 gauge 1008 steel

17.06

8.33

35

FASTEST HOLE

SPEED

UP TO

METAL DRILLING BITS

42

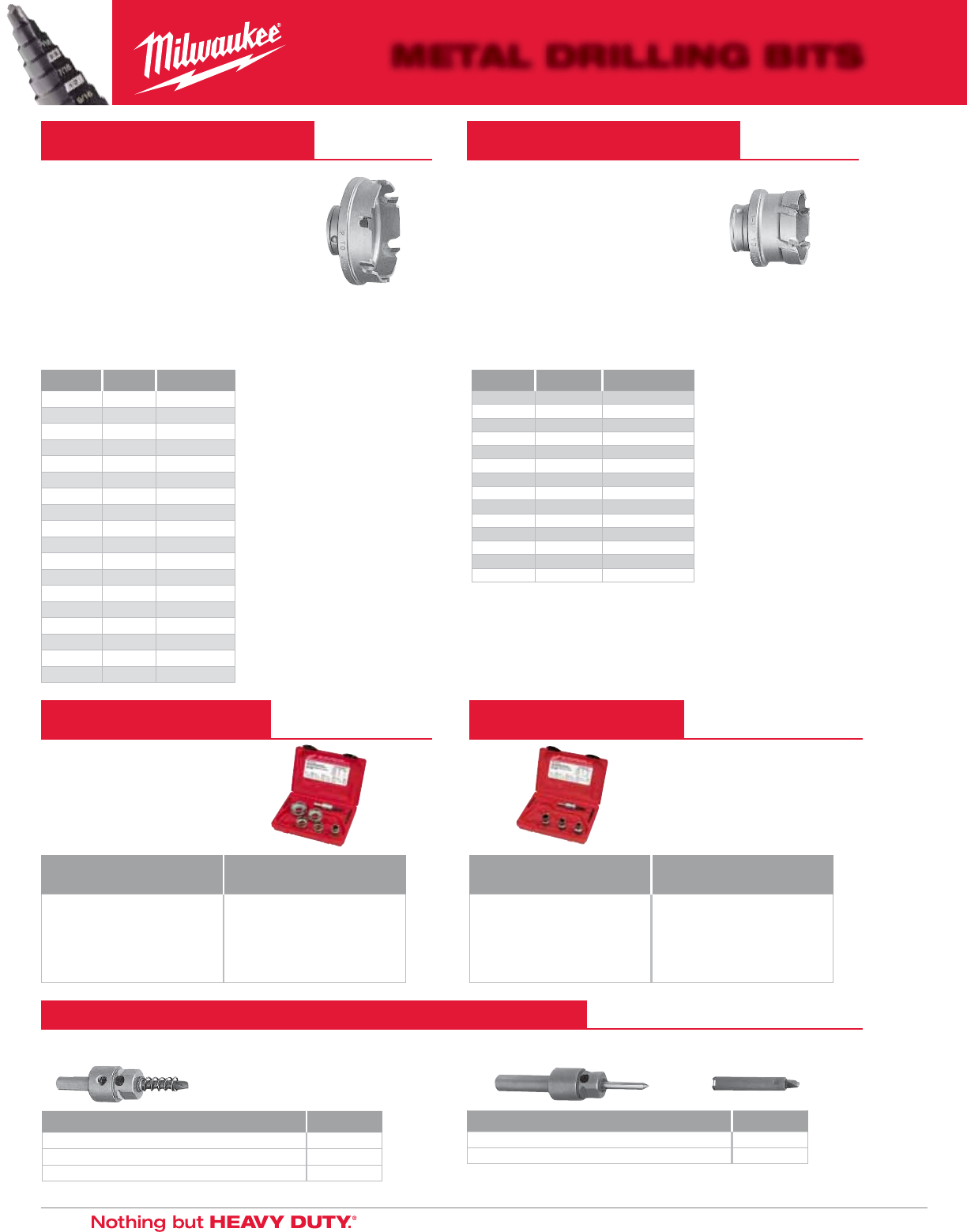

Description Part Number

Quick Change Arbor For All Carbide Cutters 49-57-0035

Pilot Bit For 49-57-0035 Quick Change Arbor 49-57-0038

Ejector Spring For 49-57-0035 Quick Change Arbor 40-50-8780

Description Part Number

Centering Pin Arbor With Detachable Drill Cap* 49-57-0037

Drill Cap For 49-57-0037 Quick Change Arbor* 42-52-1015

*Drill cap is for drilling a pilot hole if used in a hand held application

CLEAN HOLES

Drills burr-free holes

LONG LIFE

Carbide tips stay sharper longer than high-

speed steel or bi-metal cutters

VERSATILE

For material up to 1/2" thick

Ideal for stainless steel, structural steel studs

and electrical boxes

Size Metric Part Number

11/16" 18 mm 49-57-8201

3/4" 19 mm 49-57-8203

13/16" 21 mm 49-57-8205

7/8" 22 mm 49-57-8207

15/16" 24 mm 49-57-8209

1" 25 mm 49-57-8211

1-1/16" 27 mm 49-57-8213

1-1/8" 29 mm 49-57-8215

1-3/16" 30 mm 49-57-8217

1-1/4" 32 mm 49-57-8219

1-5/16" 33 mm 49-57-8221

1-3/8" 35 mm 49-57-8223

1-7/16" 37 mm 49-57-8225

1-1/2" 38 mm 49-57-8227

RETRACTABLE PIN ARBOR

5 Pc Contractor’s Kit

49-22-8200

7 Pc Contractor’s Kit

49-22-8210

Includes:

11/16", 13/16" & 15/16" carbide

steel plate cutters

Arbor with pilot bit and one additional

pilot bit

Includes:

11/16", 13/16", 15/16", 1-1/8" &

1-3/8" carbide steel plate cutters

Arbor with pilot bit and one additional

pilot bit

CLEAN HOLES

Drills burr-free holes

Specifi cally designed for hand held applications to

produce drill press quality holes

LONG LIFE

Carbide tips stay sharper longer than high-speed

steel or bi-metal cutters

VERSATILE

For material up to 3/16" thick

Ideal for stainless steel, structural steel studs and

electrical boxes

Size Metric Part Number

3/4" 19 mm 49-57-8305

7/8" 22 mm 49-57-8309

1" 25 mm 49-57-8311

1-1/8" 29 mm 49-57-8315

1-7/32" 31 mm 49-57-8317

1-1/4" 32 mm 49-57-8319

1-5/16" 33 mm 49-57-8321

1-3/8" 35 mm 49-57-8323

1-7/16" 37 mm 49-57-8325

1-1/2" 38 mm 49-57-8327

1-3/4" 44 mm 49-57-8329

2" 51 mm 49-57-8331

2-1/8" 54 mm 49-57-8333

2-1/4" 57 mm 49-57-8335

2-3/8" 60 mm 49-57-8337

2-1/2" 64 mm 49-57-8339

2-5/8" 67 mm 49-57-8341

3" 76 mm 49-57-8343

QUICK CHANGE ARBOR

5 Pc Electrician’s Kit

49-22-8300

7 Pc Electrician’s Kit

49-22-8310

Includes:

7/8", 1-1/8", 1-3/8" carbide steel

plate cutters

Arbor with pilot bit and one additional

pilot bit

Includes:

7/8", 1-1/8", 1-3/8", 1-3/4" & 2"

carbide sheet metal cutters

Arbor with pilot bit and one additional

pilot bit

ARBORS AND PILOT BITS FOR CARBIDE TOOTH CUTTERS

SHEET METAL CARBIDE

TOOTH CUTTER KITS

STEEL PLATE CARBIDE

TOOTH CUTTER KITS

CARBIDE TOOTH CUTTERS

FOR SHEET METAL

CARBIDE TOOTH CUTTERS

FOR STEEL PLATE

HOLE SAWS

milwaukeetool.ca 43

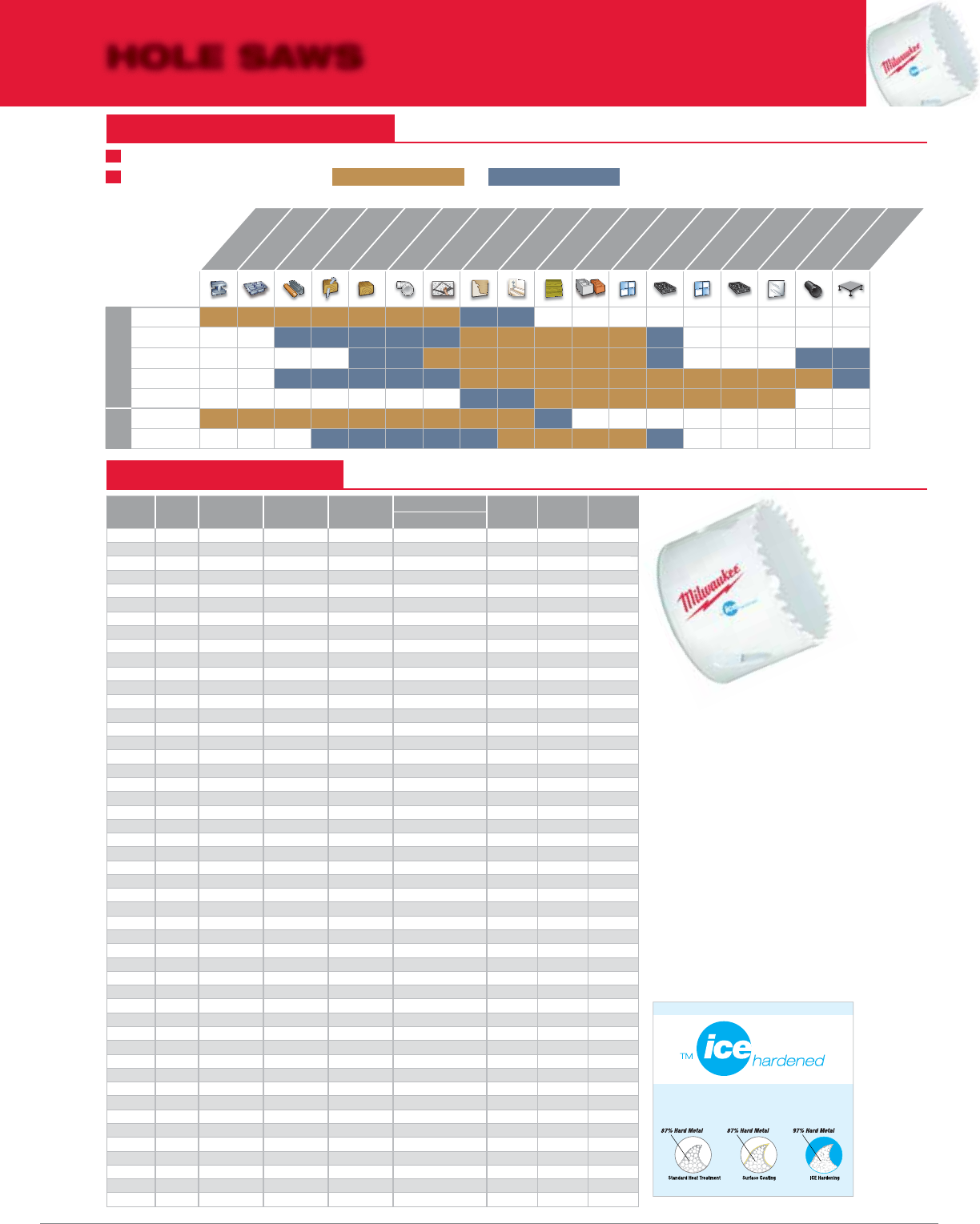

LONG LIFE

n ICE HARDENED™ cryogenically treated for up to

50% longer life

n Bi-metal construction with 8% cobalt for increased

wear resistance

FAST CUTTING

n Optimized tooth form for up to 2X faster cutting

EASY PLUG REMOVAL

n Wide, angled and offset slots for easy plug access

GENERAL PURPOSE CUTTING

n Designed for cutting machinable and non-ferrous

metals, wood products and plastics

Size Metric Hanging

Container

Shrink

Wrap

Packaged

with Arbor

Bulk Package Conduit

& Pipe

Pipe

Tap

Copper

Tube

Item Qty

5/8" 16 mm 49-56-0012 49-56-9603 1/4"

11/16" 18 mm 49-56-0017 49-56-9604 3/8"

3/4" 19 mm 49-56-0023 49-56-9605 49-56-5090 25 3/8" 1/2" 1/2"

13/16" 21 mm 49-56-0027 49-56-9606

7/8" 22 mm 49-56-0032 49-56-9607 49-56-5100 25 1/2" 3/4" 5/8"

15/16" 24 mm 49-56-0037 49-56-9608

1" 25 mm 49-56-0043 49-56-9609 49-56-9662 49-56-5110 25 3/4"

1-1/16" 27 mm 49-56-0047 49-56-9610

1-1/8" 29 mm 49-56-0052 49-56-9611 49-56-9663 49-56-5120 25 3/4" 1"

1-3/16" 30 mm 49-56-0057 49-56-9612

1-1/4" 32 mm 49-56-0062 49-56-9613 49-56-9664 49-56-5130 25 1"

1-5/16" 33 mm 49-56-0067 49-56-9614

1-3/8" 35 mm 49-56-0072 49-56-9615 49-56-5140 25 1"

1-7/16" 37 mm 49-56-0077 49-56-9616

1-1/2" 38 mm 49-56-0082 49-56-9617 49-56-9665 49-56-5150 25 1-1/4" 1-1/4"

1-9/16" 40 mm 49-56-0087 49-56-9618

1-5/8" 41 mm 49-56-0092 49-56-9619 49-56-5152 25

1-11/16" 43 mm 49-56-0097 49-56-9620

1-3/4" 44 mm 49-56-0102 49-56-9621 49-56-9666 49-56-5155 25 1-1/4" 1-1/2" 1-1/2"

1-13/16" 46 mm 49-56-0107 49-56-9622

1-7/8" 48 mm 49-56-0112 49-56-9623

2" 51 mm 49-56-0117 49-56-9624 49-56-9667 49-56-5160 25 1-1/2"

2-1/16" 52 mm 49-56-0122 49-56-9625

2-1/8" 54 mm 49-56-0127 49-56-9626 49-56-9668 49-56-5165 25

2-1/4" 57 mm 49-56-0132 49-56-9628 49-56-5167 25 2" 2"

2-5/16" 59 mm 49-56-0137 49-56-9629

2-3/8" 60 mm 49-56-0142 49-56-9630

2-1/2" 64 mm 49-56-0147 49-56-9631 49-56-9669 49-56-5170 25 2"

2-9/16" 65 mm 49-56-0153 49-56-9632

2-5/8" 67 mm 49-56-0158 49-56-9633 49-56-5175 16 2-1/2"

2-3/4" 70 mm 49-56-0163 49-56-9635

2-7/8" 73 mm 49-56-0167 49-56-9636

3" 76 mm 49-56-0173 49-56-9637 49-56-9670 49-56-5180 16 2-1/2" 2-1/2"

3-1/8" 79 mm 49-56-0177 49-56-9638

3-1/4" 83 mm 49-56-0183 49-56-9639 3"

3-3/8" 86 mm 49-56-0187 49-56-9640

3-1/2" 89 mm 49-56-0193 49-56-9641 49-56-5190 9

3-5/8" 92 mm 49-56-0197 49-56-9642 49-56-5195 9 3"

3-3/4" 95 mm 49-56-0203 49-56-9643 3-1/2"

3-7/8" 98 mm 49-56-0207 49-56-9644

4" 102 mm 49-56-0213 49-56-9645 49-56-5200 9

4-1/8" 105 mm 49-56-0217 49-56-9646 49-56-5205 9 3-1/2" 3-1/2"

4-1/4" 108 mm 49-56-0223 49-56-9647 4" 4"

4-3/8" 111 mm 49-56-0227 49-56-9648

4-1/2" 114 mm 49-56-0233 49-56-9649 4"

4-3/4" 121 mm 49-56-0237 49-56-9650

5" 127 mm 49-56-0243 49-56-9652

5-1/2" 140 mm 49-56-0247 49-56-9654 5" 5"

6" 152 mm 49-56-0253 49-56-9656

Up to 50% Longer Life

1 Identify the material to be cut in the columns below

2 Follow the column down to fi nd RECOMMENDED or ACCEPTABLE

HOLE SAWS

BI-METAL

CARBIDE GRIT

CARBIDE TIPPED

DIAMOND HOLE

SAWS

DIAMOND TILE

BITS

PILOT BITS

THUNDERBOLT®

CARBIDE TIPPED

METAL

STAINLESS

STEEL

WOOD WITH

NAILS

CLEAN WOOD

PVC & PLASTICS

CEILING TILE

PLASTER/

DRYWALL

FIBERGLASS

CEMENT BOARD

BRICK & BLOCK

SOFT TILE

(CERAMIC)

SOFT STONE

(MARBLE)

HARD TILE

(PORCELAIN)

HARD STONE

(GRANITE)

GLASS

CAST IRONS

COMPUTER

FLOORING

ALUMINUM & OTHER

NON-FERROUS METALS

BI-METAL HOLE SAWS

HOLE SAW SELECTION GUIDE

HOLE SAWS

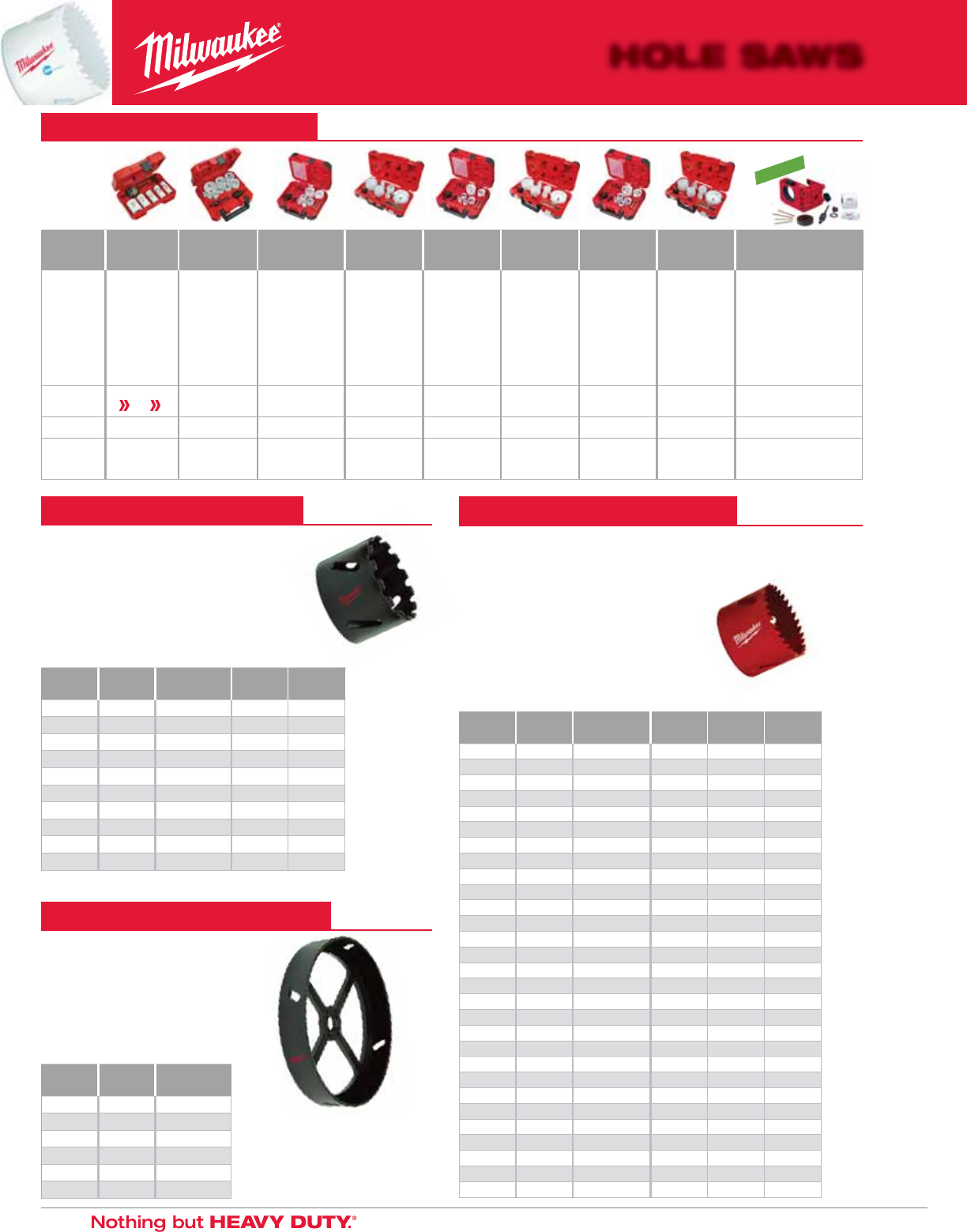

44

SPECIALTY APPLICATIONS

n Designed for cutting cement board, ceramic tiles,

fi berglass, cast iron and wood products such as

fi berboard, fl akeboard and plywood

LONG LIFE

n Tungsten carbide tipped for long life

FAST CUTTING

n Aggressive tooth form for fast cutting

EASY PLUG REMOVAL

n Wide, angled and offset slots for easy plug access

Size Metric Individual

Package

Conduit

& Pipe

Pipe

Tap

Copper

Tube

5/8" 16 mm 49-56-0623

3/4" 19 mm 49-56-0753 3/8" 1/2" 1/2"

7/8" 22 mm 49-56-0873 1/2" 3/4" 5/8"

1" 25 mm 49-56-1003 3/4"

1-1/8" 29 mm 49-56-1123 3/4" 1"

1-1/4" 32 mm 49-56-1253 1"

1-3/8" 35 mm 49-56-1373 1"

1-1/2" 38 mm 49-56-1503 1-1/4" 1-1/4"

1-5/8" 41 mm 49-56-1623

1-3/4" 44 mm 49-56-1753 1-1/4" 1-1/2" 1-1/2"

1-7/8" 48 mm 49-56-1873

2" 51 mm 49-56-2003 1-1/2"

2-1/8" 54 mm 49-56-2123

2-1/4" 57 mm 49-56-2253 2" 2"

2-3/8" 60 mm 49-56-2373

2-1/2" 64 mm 49-56-2503 2"

2-5/8" 67 mm 49-56-2623 2-1/2"

2-3/4" 70 mm 49-56-2753

2-7/8" 73 mm 49-56-2873

3" 76 mm 49-56-3003 2-1/2" 2-1/2"

3-1/4" 83 mm 49-56-3253 3"

3-1/2" 89 mm 49-56-3503

3-5/8" 92 mm 49-56-3623 3"

3-3/4" 95 mm 49-56-3753 3-1/2"

4" 102 mm 49-56-4003

4-1/4" 108 mm 49-56-4253 4" 4"

4-1/2" 114 mm 49-56-4503 4"

5" 127 mm 49-56-5003

6" 152 mm 49-56-6003

SPECIALTY APPLICATIONS

n Designed for cutting abrasive materials such as

brick, block, cement board, fi berglass and tile

FAST CUTTING

n Coarse grit and segmented edge for fast cutting

EASY PLUG REMOVAL

n Wide, angled and offset slots for easy plug access

Size Metric Individual

Package

Conduit

& Pipe

Copper

Tube

3/4" 19 mm 49-56-0405 3/8" 1/2"

7/8" 22 mm 49-56-0409 1/2" 5/8"

1" 25 mm 49-56-0413 3/4"

1-1/8" 29 mm 49-56-0417 3/4"

1-1/4" 32 mm 49-56-0422 1"

1-3/8" 35 mm 49-56-0426 1"

1-3/4" 44 mm 49-56-0437 1-1/4" 1-1/2"

2" 51 mm 49-56-0444 1-1/2"

2-1/4" 57 mm 49-56-0449 2"

2-1/2" 64 mm 49-56-0456 2"

All sizes include carbide tipped pilot bit

SMOOTH CUTS

Continuous grit edge for smooth cuts

ACCURATE HOLE SIZES

Solid, welded construction provides

accurately sized holes

EASY PLUG REMOVAL

Open back for easy plug removal

Size Metric Individual

Package

3-1/8" 79 mm 49-56-0296

4-3/8" 111 mm 49-56-0300

5-3/8" 137 mm 49-56-0303

6-3/8" 162 mm 49-56-0305

6-5/8" 168 mm 49-56-0310

6-7/8" 175 mm 49-56-0315

Contents

8 Pc General

Purpose Kit

49-22-4005

13 Pc General

Purpose Kit

49-22-4025

15 Pc General

Purpose Kit

49-22-4175

28 Pc General

Purpose Kit

49-22-4185

10 Pc

Plumber’s Kit

49-22-4145

18 Pc

Plumber’s Kit

49-22-4155

10 Pc

Electrician’s Kit

49-22-4095

19 Pc

Electrician’s Kit

49-22-4105

Door Lock Kit

49-22-4073

Hole Saws

3/4"

7/8"

1"

1-1/8"

1-1/2"

3/4"

7/8"

1-1/8"

1-3/8"

1-1/2"

1-3/4"

2"

2-1/8"

2-1/2"

3/4"

7/8"

1"

1-1/8"

1-3/8"

1-1/2"

1-3/4"

2"

2-1/8"

2-1/4"

2-1/2"

3/4"

1"

1-1/4"

1-1/2"

2"

2-1/4"

2-5/8"

3-1/4"

3-5/8"

4-1/8"

4-1/2"

7/8"

1-1/8"

1-3/8"

1-3/4"

2-1/8"

2-1/2"

3"

3-3/8"

3-3/4"

4-1/4"

4-3/4"

3/4"

7/8"

1-1/8"

1-1/2"

1-3/4"

2-1/4"

3/4" 7/8"

1-1/8" 1-3/8"

1-1/2" 1-3/4"

2-1/4" 2-5/8"

3" 3-1/2"

4" 4-1/4"

4-1/2"

7/8"

1-1/8"

1-3/8"

1-3/4"

2"

2-1/2"

3/4" 7/8"

1-1/8" 1-3/8"

1-1/2" 1-3/4"

2" 2-1/4"

2-1/2" 2-5/8"

3" 3-5/8"

4-1/8" 4-3/4"

1"

2-1/8"

Arbors 49-56-7210

TWIST

RELEASE

™

49-56-7010

49-56-7250

49-56-7010

49-56-9100

49-56-7000

49-56-7010

49-56-9100

49-56-7010

49-56-9100

49-56-7010

49-56-9100

49-56-7010

49-56-9100

49-56-7010

49-56-9100 49-56-7010

Pilot Bits Additional

49-56-8010 (2) 49-56-8010 (2) Additional

49-56-8010

(3) Additional

49-56-8010

(2) Additional

49-56-8010

(3) Additional

49-56-8010

(2) Additional

49-56-8010

(3) Additional

49-56-8010

(2) 3/32" Drill Bit

(2) 1/8" Drill Bit

Other

49-56-6560

Adapter

49-67-0120 Spacer

1/8" Hex Key

49-56-6560 Adapter

49-67-0120 Spacer

49-56-6560 Adapter

49-67-0120 Spacer

49-56-6560 Adapter

49-67-0120 Spacer

49-56-6560 Adapter

49-67-0120 Spacer

49-56-6560 Adapter

49-67-0120 Spacer

49-56-6560 Adapter

49-67-0120 Spacer

49-56-6571 Installation Guide

49-56-6572 Breakthrough Stop

NEW!

BI-METAL HOLE SAW KITS

RECESSED LIGHT HOLE SAWS

CARBIDE GRIT HOLE SAWS

CARBIDE TIPPED HOLE SAWS

™

™

UP TO

LIFE

*

X

n Higher Grade Diamonds

n Improved Braze

n Large Slot Geometry

HOLE SAWS

milwaukeetool.ca 45

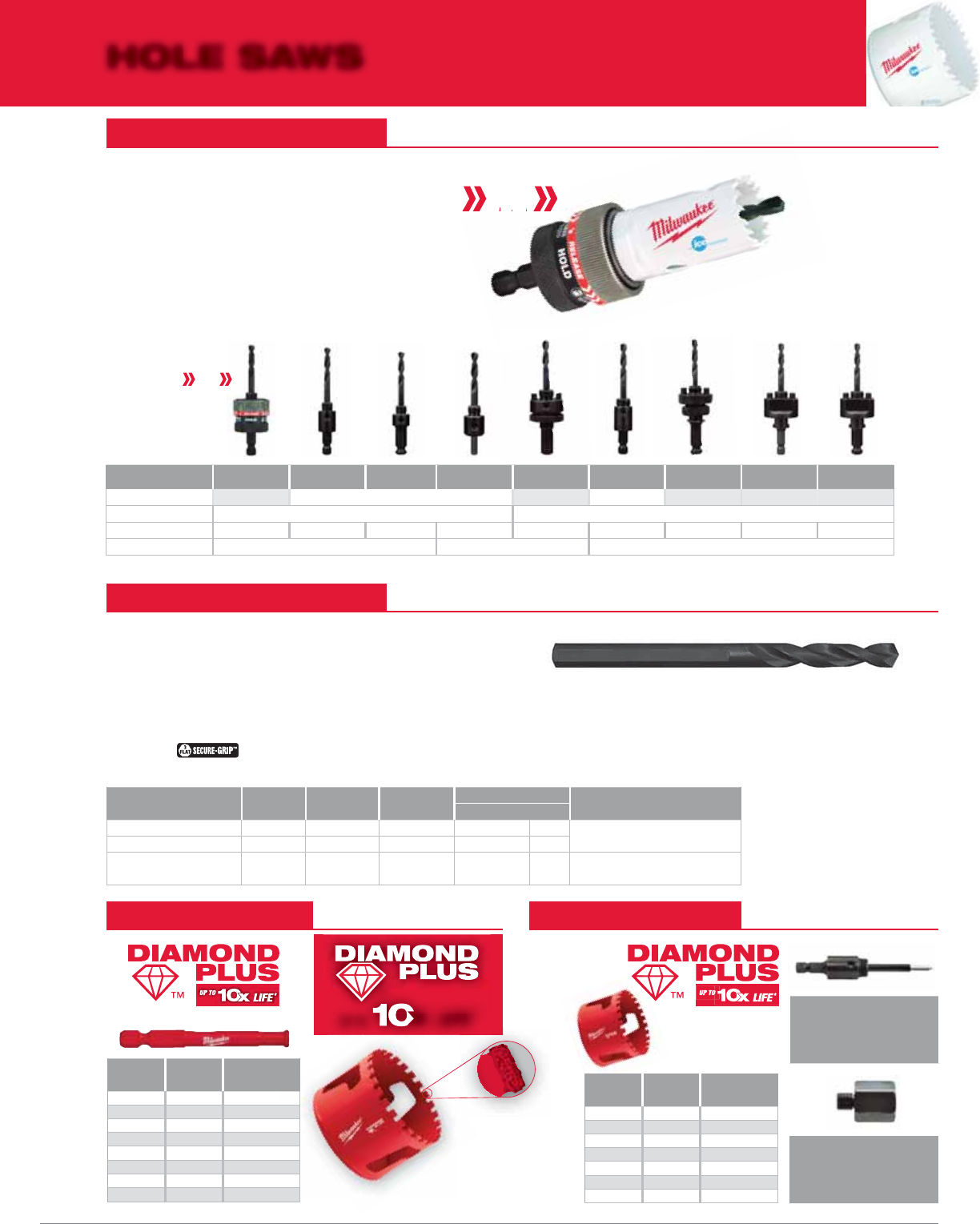

UNIVERSAL FIT

n Works with all major brands of hole saws

n Accepts any 1/4" straight or 3-fl at shank pilot bit

DURABLE

n Made from hardened steel and alloy steel for greater durability

QUICK CHANGE ARBORS

n Tool-free operation

n Universal, quick change with all brands of hole saws

n No adapters required

49-56-7210 49-56-7010 49-56-7000 49-56-6950 49-56-7055 49-56-7040 49-56-9100 49-56-7250 49-56-7240

Quick Change Quick Change Quick Change Quick Change Quick Change

Hole Saw Size Range

Up to 1-3/16" 1-1/4" & Larger

Minimum Chuck Size

3/8" 3/8" 1/2" 1/4" 1/2" 3/8" 1/2" 3/8" 1/2"

Works with Pilot Bits

49-56-8000, 49-56-8010, 49-56-8005 49-56-8000, 49-56-8005 49-56-8000, 49-56-8010, 49-56-8005

TWIST

RELEASE

™

TWIST

RELEASE

™

Description Length Diameter Individual

Package

Bulk Package For Use With

Item Qty

HSS THUNDERBOLT® Bit 3-1/2" 1/4" 49-56-8010 49-56-8033 12 Metal, wood, drywall, plaster,

plastics, fi berglass

HSS THUNDERBOLT® Bit 4" 1/4" 49-56-8000 49-56-8031 12

Carbide Tipped Bit 4" 1/4" 49-56-8005 Fiberglass, cement board,

tile, brick, block

DURABLE

n THUNDERBOLT® tapered web resists breaking

UNIVERSAL FIT

n Will work with most brands of arbors

STARTS ON CONTACT

n 135° split point for precision start and no walking

No SPIN

n 3-Flat shank won’t slip in arbor or chuck on THUNDERBOLT® bits

RE

LE

EE

AS

EE

E

S

S

™

TOOL FREE OPERATION

Size Metric Individual

Package

7/8" 4.76 mm 49-56-5605

1-1/8" 6.35 mm 49-56-5615

1-1/4" 7.94 mm 49-56-5620

1-3/8" 9.53 mm 49-56-5625

1-1/2" 12.7 mm 49-56-5630

2" 15.88 mm 49-56-5645

2-1/2" 19.05 mm 49-56-5660

5/8" - 18" Grinder Adaptor

49-56-7105

1/2" - 20 Grinder Adaptor

49-56-7103

Retractable Pilot Bit w/ Arbor

49-56-7135

Retractable Pilot Bit

49-56-8025

Size Metric Individual

Package

3/16" 4.76 mm 49-56-0503

1/4" 6.35 mm 49-56-0505

5/16" 7.94 mm 49-56-0507

3/8" 9.53 mm 49-56-0509

1/2" 12.7 mm 49-56-0511

5/8" 15.88 mm 49-56-0513

3/4" 19.05 mm 49-56-0515

1" 25.4 mm 49-56-0517

DIAMOND TILE BITS

PILOT BITS FOR HOLE SAWS

ARBORS FOR HOLE SAWS

DIAMOND HOLE SAWS

46

BI-METAL HOLE SAW

CROSS-REFERENCE CHART

Hole Saw

Diameter

Milwaukee Ice

Hardened

Lenox MK Morse DeWalt Bosch Irwin Klein Disston

Blu-Mol

Boxed Clamshell Boxed Carded

5/8" 49-56-0012 30010-10L 30010-K10L AV10 AVC10 D180010 PC58 373058BX 31510 510

11/16" 49-56-0017 30011-11L AV11 AVC11 D180011 PC1116 373011BX 511

3/4" 49-56-0023 30012-12L 30012-K12L AV12 AVC12 D180012 PC34 373034BX 31512 512

3/4" 49-56-5090

13/16" 49-56-0027 30013-13L AV13 AVC13 D180013 373013BX 513

7/8" 49-56-0032 30014-14L 30014-K14L AV14 AVC14 D180014 PC78 373078BX 31514 514

7/8" 49-56-5100 AV14B25

15/16" 49-56-0037 30015-15L AV15 AVC15 D180015 373015BX 515

1" 49-56-0043 30016-16L 30016-K16L AV16 AVC16 D180016 PC1 373100BX 31516 516

1" 49-56-5110 AV16B25

1-1/16" 49-56-0047 30017-17L 30017-K17L AV17 AVC17 D180017 PC116 373110BX 517

1-1/8" 49-56-0052 30018-18L 30018-K18L AV18 AVC18 D180018 PC118 373118BX 31518 518

1-1/8" 49-56-5120 AV18B25

1-3/16" 49-56-0057 30019-19L AV19 AVC19 D180019 PC1316 373130BX 519

1-3/16" 49-56-5125

1-1/4" 49-56-0062 30020-20L 30020-K20L AV20 AVC20 D180020 PC114 373114BX 31520 520

1-1/4" 49-56-5130 AV20B25

1-5/16" 49-56-0067 30021-21L AV21 AVC21 D180021 PC1516 373150BX 521

1-3/8" 49-56-0072 30022-22L 30022-K22L AV22 AVC22 D180022 PC138 373138BX 31522 522

1-3/8" 49-56-5140

1-7/16" 49-56-0077 30023-23L AV23 AVC23 D180023 PC1716 373170BX 523

1-1/2" 49-56-0082 30024-24L 30024-K24L AV24 AVC24 D180024 PC112 373112BX 31524 524

1-1/2" 49-56-5150 AV24B25

1-9/16" 49-56-0087 20025-25L AV25 AVC25 D180025 PC1916 373190BX 525

1-5/8" 49-56-0092 30026-26L 30026-K26L AV26 AVC26 D180026 PC158 373158BX 31526 526

1-5/8" 49-56-5152

1-11/16" 49-56-0097 30027-27L AV27 AVC27 D180027 PC11116 373111BX 527

1-3/4" 49-56-0102 30028-28L 30028-K28L AV28 AVC28 D180028 PC134 373134BX 31528 528

1-3/4" 49-56-5155

1-13/16" 49-56-0107 30029-29L AV29 AVC29 D180029 PC11316 373113BX 529

1-7/8" 49-56-0112 30030-30L 30030-K30L AV30 AVC30 D180030 PC178 373178BX 530

2" 49-56-0117 30032-32L 30032-K32L AV32 AVC32 D180032 PC2 373200BX 31532 532

2" 49-56-5160 AV32B25

2-1/16" 49-56-0122 30033-33L AV33 AVC33 D180033 PC2116 373210BX 533

2-1/8" 49-56-0127 30034-34L 30034-K34L AV34 AVC34 D180034 PC218 373218BX 31534 534

2-1/8" 49-56-5165

2-1/4" 49-56-0132 30036-36L 30036-K36L AV36 AVC36 D180036 PC214 373214BX 31536 536

2-1/4" 49-56-5167

2-5/16" 49-56-0137 30037-37L AV37 AVC37 PC2516 373250BX 537

2-3/8" 49-56-0142 30038-38L 30038-K38L AV38 AVC38 D180038 PC238 373238BX 31538 538

2-1/2" 49-56-0147 30040-40L 30040-K40L AV40 AVC40 D180040 PC212 373212BX 31540 540

2-1/2" 49-56-5170

2-9/16" 49-56-0153 30041-41L AV41 AVC41 D180041 PC2916 373290BX 541

2-5/8" 49-56-0158 30042-42L 30042-K42L AV42 AVC42 D180042 PC258 373258BX 31542 542

2-5/8" 49-56-5175

2-3/4" 49-56-0163 30044-44L 30044-K44L AV44 AVC44 D180044 PC234 373234BX 31544 544

2-7/8" 49-56-0167 30046-46L AV46 AVC46 D180046 PC278 373278BX 546

3" 49-56-0173 30048-48L 30048-K48L AV48 AVC48 D180048 PC3 373300BX 31548 548

3" 49-56-5180

3-1/8" 49-56-0177 30050-50L 30050-K50L AV50 AVC50 D180050 PC318 373318BX 550

3-1/4" 49-56-0183 30052-52L 30052-K52L AV52 AVC52 D180052 PC314 373314BX 31552 552

3-3/8" 49-56-0187 30054-54L AV54 AVC54 D180054 PC338 373338BX 554

3-1/2" 49-56-0193 30056-56L 30056-K56L AV56 AVC56 D180056 PC312 373312BX 31556 556

3-1/2" 49-56-5190

3-5/8" 49-56-0197 30058-58L 30058-K58L AV58 AVC58 D180058 PC358 373358BX 31558 558

3-5/8" 49-56-5195

3-3/4" 49-56-0203 30060-60L AV60 AVC60 D180060 PC334 373334BX 560

3-7/8" 49-56-0207 30062-62L AV62 AVC62 D180062 PC378 373378BX 562

4" 49-56-0213 30064-64L 30064-K64L AV64 AVC64 D180064 PC4 373400BX 31564 564

4" 49-56-5200

4-1/8" 49-56-0217 30066-66L 30066-K66L AV66 AVC66 D180066 PC418 373418BX 31566 566

4-1/8" 49-56-5205

4-1/4" 49-56-0223 30068-68L 30068-K68L AV68 AVC68 D180068 PC414 373414BX 31568 568

4-3/8" 49-56-0227 30070-70L AV70 AVC70 PC438 373438BX 570

4-1/2" 49-56-0233 30072-72L 30072-K72L AV72 AVC72 D180072 PC412 373412BX 31572 572

4-3/4" 49-56-0237 30076-76L 30076-K76L AV76 AVC76 D180076 PC434 373434BX 31576 576

5" 49-56-0243 30080-80L AV80 AVC80 D180080 PC5 373500BX 31580 580

5-1/2" 49-56-0247 30088-88L AV88 AVC88 D180088 PC512 373512BX 588

6" 49-56-0253 30096-96L AV96 AVC96 D180096 PC6 373600BX 31596 596

milwaukeetool.ca 47

BI METAL HOLE SAW

CROSS-REFERENCE CHART

Hole Saw

Diameter

Milwaukee Ice

Hardened

Greenlee Ideal Starrett Simmons Bahco

Boxed Clamshell Variable Pitch Straight 6 TPI Box Display Package

5/8" 49-56-0012 825-5/8 35-341 VH0058 SH0058 36-000900 3830-16-US 3830-16-C

11/16" 49-56-0017 825-11/16 35-342 VH1016 SH1016 36-001100 3830-17-US 3830-17-C

3/4" 49-56-0023 825-3/4 826-3/4 35-343 VH0034 SH0034 36-001200 3830-19-US 3830-19-C

3/4" 49-56-5090

13/16" 49-56-0027 825-13/16 35-344 VH1036 SH1036 36-001300 3830-21-US 3830-21-C

7/8" 49-56-0032 825-7/8 826-7/8 35-345 VH0078 SH0078 36-001400 3830-22-US 3830-22-C

7/8" 49-56-5100

15/16" 49-56-0037 825-15/16 35-346 VH1056 SH1056 36-001500 3830-24-US 3830-24-C

1" 49-56-0043 825-1 35-347 VH0100 SH0100 36-001600 3830-25-US 3830-25-C

1" 49-56-5110

1-1/16" 49-56-0047 825-1-1/16 35-348 VH0116 SH0116 36-001700 3830-27-US 3830-27-C

1-1/8" 49-56-0052 825-1-1/8 826-1-1/8 35-349 VH0118 SH0118 36-001800 3830-29-US 3830-29-C

1-1/8" 49-56-5120

1-3/16" 49-56-0057 825-1-3/16 35-350 VH0136 SH0136 36-001900 3830-30-US 3830-30-C

1-3/16" 49-56-5125

1-1/4" 49-56-0062 825-1-1/4 35-351 VH0114 SH0114 36-002000 3830-32-US 3830-32-C

1-1/4" 49-56-5130

1-5/16" 49-56-0067 825-1-5/16 35-352 VH0156 SH0156 36-002100 3830-33-US 3830-33-C

1-3/8" 49-56-0072 825-1-3/8 826-1-3/8 35-353 VH0138 SH0138 36-002200 3830-35-US 3830-35-C

1-3/8" 49-56-5140

1-7/16" 49-56-0077 825-1-7/16 35-354 VH0176 SH0176 36-002300 3830-37-US 3830-37-C

1-1/2" 49-56-0082 825-1-1/2 35-355 VH0112 SH0112 36-002400 3830-38-US 3830-38-C

1-1/2" 49-56-5150

1-9/16" 49-56-0087 825-1-9/16 35-356 VH0196 SH0196 36-002500 3830-40-US 3830-40-C

1-5/8" 49-56-0092 825-1-5/8 35-357 VH0158 SH0158 36-002600 3830-41-US 3830-41-C

1-5/8" 49-56-5152

1-11/16" 49-56-0097 825-1-11/16 35-358 VH1116 SH1116 36-002700 3830-43-US 3830-43-C

1-3/4" 49-56-0102 825-1-3/4 826-1-3/4 35-359 VH0134 SH0134 36-002800 3830-44-US 3830-44-C

1-3/4" 49-56-5155

1-13/16" 49-56-0107 825-1-13/16 35-360 VH1136 SH1136 36-002900 3830-46-US 3830-46-C

1-7/8" 49-56-0112 825-1-7/8 35-361 VH0178 SH0178 36-003000 3830-48-US 3830-48-C

2" 49-56-0117 825-2 826-2 35-362 VH0200 SH0200 36-003200 3830-51-US 3830-51-C

2" 49-56-5160

2-1/16" 49-56-0122 825-2-1/16 35-363 VH0216 SH0216 36-003300 3830-52-US 3830-52-C

2-1/8" 49-56-0127 825-2-1/8 35-364 VH0218 SH0218 36-003400 3830-54-US 3830-54-C

2-1/8" 49-56-5165

2-1/4" 49-56-0132 825-2-1/4 35-365 VH0214 SH0214 36-003600 3830-57-US 3830-57-C

2-1/4" 49-56-5167

2-5/16" 49-56-0137 825-2-5/16 35-366 VH0256 SH0256 36-003700 3830-59-US 3830-59-C

2-3/8" 49-56-0142 825-2-3/8 35-367 VH0238 SH0238 36-003800 3830-60-US 3830-60-C

2-1/2" 49-56-0147 825-2-1/2 826-2-1/2 35-368 VH0212 SH0212 36-004000 3830-64-US 3830-64-C

2-1/2" 49-56-5170

2-9/16" 49-56-0153 825-2-9/16 35-369 VH0296 SH0296 36-004100 3830-65-US 3830-65-C

2-5/8" 49-56-0158 825-2-5/8 35-370 VH0258 SH0258 36-004200 3830-67-US 3830-67-C

2-5/8" 49-56-5175

2-3/4" 49-56-0163 825-2-3/4 35-371 VH0234 SH0234 36-004400 3830-70-US 3830-70-C

2-7/8" 49-56-0167 825-2-7/8 35-372 VH0278 SH0278 36-004600 3830-73-US 3830-73-C

3" 49-56-0173 825-3 826-3 35-373 VH0300 SH0300 36-004800 3830-76-US 3830-76-C

3" 49-56-5180

3-1/8" 49-56-0177 825-3-1/8 35-374 VH0318 SH0318 36-005000 3830-79-US 3830-79-C

3-1/4" 49-56-0183 825-3-1/4 35-375 VH0314 SH0314 36-005200 3830-83-US 3830-83-C

3-3/8" 49-56-0187 825-3-3/8 35-376 VH0338 SH0338 36-005400 3830-86-US 3830-86-C

3-1/2" 49-56-0193 825-3-1/2 35-377 VH0312 SH0312 36-005600 3830-89-US 3830-89-C

3-1/2" 49-56-5190

3-5/8" 49-56-0197 825-3-5/8 826-3-5/8 35-378 VH0358 SH0358 36-005800 3830-92-US 3830-92-C

3-5/8" 49-56-5195

3-3/4" 49-56-0203 825-3-3/4 35-379 VH0334 SH0334 36-006000 3830-95-US 3830-95-C

3-7/8" 49-56-0207 825-3-7/8 35-380 VH0378 SH0378 36-006200 3830-98-US 3830-98-C

4" 49-56-0213 825-4 35-381 VH0400 SH0400 36-006400 3830-102-US 3830-102-C

4" 49-56-5200

4-1/8" 49-56-0217 825-4-1/8 826-4-1/8 35-382 VH0418 SH0418 36-006600 3830-105-US 3830-105-C

4-1/8" 49-56-5205

4-1/4" 49-56-0223 825-4-1/4 35-383 VH0414 SH0414 36-006800 3830-108-US 3830-108-C

4-3/8" 49-56-0227 825-4-3/8 35-384 VH0438 SH0438 36-007000 3830-111-US 3830-111-C

4-1/2" 49-56-0233 825-4-1/2 826-4-1/2 35-385 VH0412 SH0412 36-007200 3830-114-US 3830-114-C

4-3/4" 49-56-0237 825-4-3/4 35-386 VH0434 SH0434 36-007600 3830-121-US 3830-121-C

5" 49-56-0243 825-5 35-387 VH0500 SH0500 36-008000 3830-127-US 3830-127-C

5-1/2" 49-56-0247 825-5-1/2 35-388 VH0512 SH0512 36-008800 3830-140-US 3830-140-C

6" 49-56-0253 825-6 35-390 VH0600 SH0600 36-009600 3830-152-US 3830-152-C

HOLE SAW ARBOUR

CROSS-REFERENCE CHART

BI-METAL & CARBIDE TIP HOLE SAWS

48

Hole Saw Diameter Milwaukee Ice

Hardened

Lenox MK Morse DeWalt Bosch Irwin Klein

Boxed Clamshell Boxed Carded

Twist ReleaseTM,

Quick Change Arbour 49-56-7210

Arbour; 3/8"

Hex Shank 1/2-20 49-56-7010 30005-5L M34 M34C DW1801 373001 31655

Arbour; 7/16"

Hex Shank 1/2-20 49-56-7000 30001-1L M44 M44C 31660

Arbour; 1/4" Shank

1/2-20 49-56-6950 30004-4L M24K M24KC DW1800 31650

Arbour; 1/2" Hex

Shank 5/8-18; Drive

Pins by Round Nut

49-56-7055 M45P M45PC 31670

Arbour; 3/8"

Hex Shank 5/8-18 49-56-7040

Quick Change Arbour;

1/2" Hex Shank

5/8-18; Drive Pins

w/ Hex Push Plate

49-56-9100 30003-3L

Arbour; 3/8" Hex

Shank 5/8-18;

Snap-In Drive Pins

30006-6L

Arbour; 7/16" Hex

Shank 5/8-18;

Snap-In Drive Pins

31168

Quick Change Arbour;

3/8" Hex Shank

5/8-18; Drive Pins

49-56-7250

Quick Change Arbour;

1/2" Hex Shank

5/8-18; Drive Pins

49-56-7240

Long Pilot Bit;

Split Point 49-56-8000 30850-4321 MPD4N01 TACPD4 DW1808 31672

Long Pilot Bit;

Split Point; 12-pack 49-56-8031

Long Pilot Bit;

Split Point with Short

Pilot Bit Flutes for

Sheet Metal

49-56-8002

Short Pilot Bit;

Split Point 49-56-8003 30851-56PD TACPD325 DW1807 373000 31674

Short Pilot Bit;

Split Point; 12-pack 49-56-8032

Short Pilot Bit;

Split Point 49-56-8010 MPD4S01 TACPD4S

Short Pilot Bit;

Split Point; 12-pack 49-56-8033

Long Pilot Bit;

Carbide Tipped 49-56-8005 30297-123CT MPD4CT01

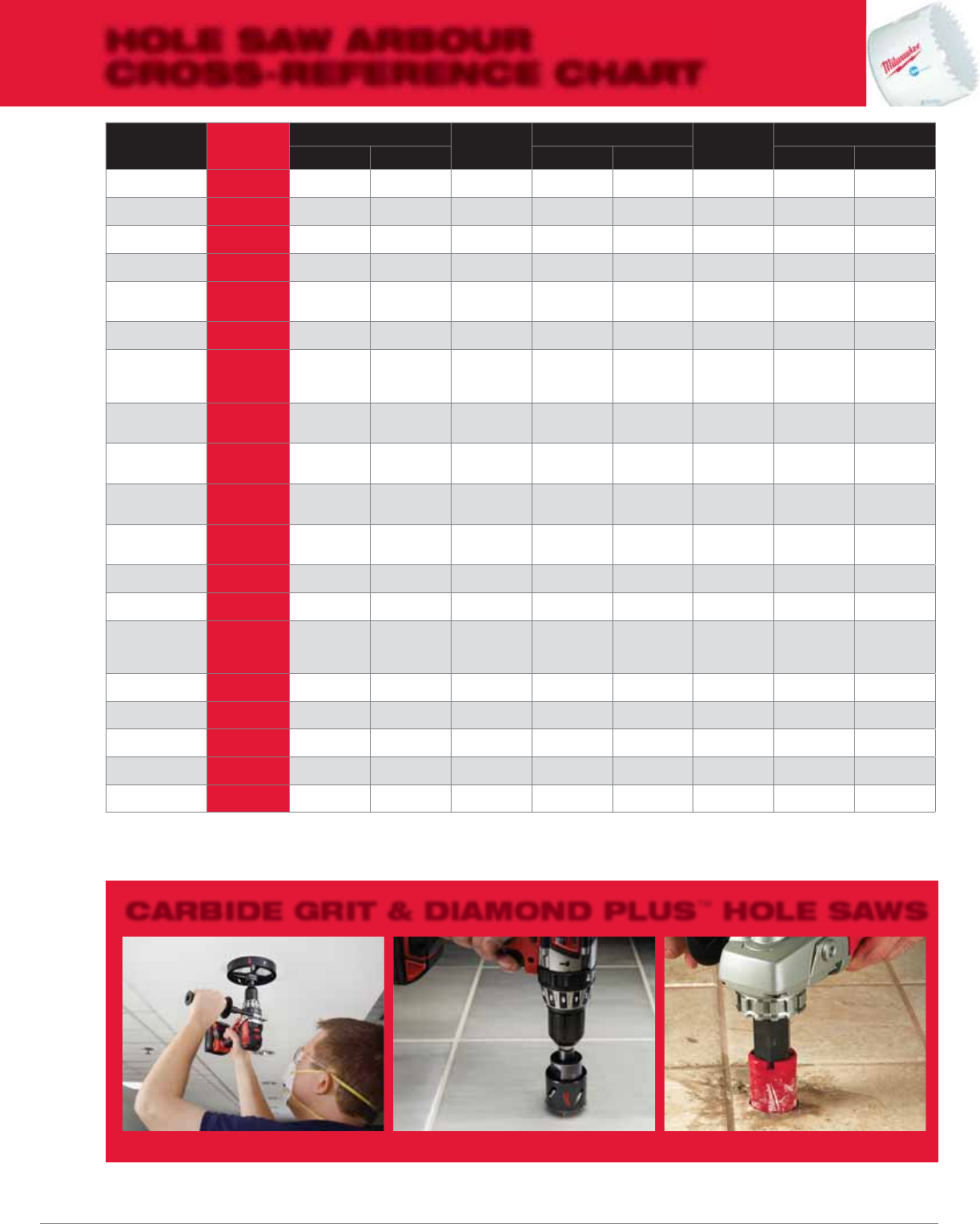

HOLE SAW ARBOUR

CROSS-REFERENCE CHART

CARBIDE GRIT & DIAMOND PLUS™ HOLE SAWS

milwaukeetool.ca 49

Hole Saw Diameter Milwaukee Ice

Hardened

Greenlee Ideal Starrett Simmons Bahco

Boxed Clamshell Variable Pitch Straight 6 TPI Box Display Package

Twist ReleaseTM,

Quick Change Arbour 49-56-7210

Arbour; 3/8"

Hex Shank 1/2-20 49-56-7010 35-392 A1 36-010050 3834-ARBR-930 3834-ARBR-930-C

Arbour; 7/16"

Hex Shank 1/2-20 49-56-7000 37155 38505 35-393 36-010100 3834-ARBR-1130 3834-ARBR-

1130-C

Arbour; 1/4" Shank

1/2-20 49-56-6950 37157 38507 35-391 A4 36-010000 3834-ARBR-730 3834-ARBR-730-C

Arbour; 1/2" Hex

Shank 5/8-18; Drive

Pins by Round Nut

49-56-7055 35-394 36-010200

Arbour; 3/8"

Hex Shank 5/8-18 49-56-7040

Quick Change Arbour;

1/2" Hex Shank

5/8-18; Drive Pins

w/ Hex Push Plate

49-56-9100 37156 38506 A17-12 36-010300

Arbour; 3/8" Hex

Shank 5/8-18;

Snap-In Drive Pins

35-537 A10 36-010080 3834-ARBR-

9100QC 3834-ARBR-

9100QC-C

Arbour; 7/16" Hex

Shank 5/8-18;

Snap-In Drive Pins

35-536 A2 3834-ARBR-

11152QC

3834-ARBR-

11152QC-C

Quick Change Arbour;

3/8" Hex Shank

5/8-18; Drive Pins

49-56-7250

Quick Change Arbour;

1/2" Hex Shank

5/8-18; Drive Pins

49-56-7240

Long Pilot Bit;

Split Point 49-56-8000 37623 39873 35-397 A014CE

Long Pilot Bit;

Split Point; 12-pack 49-56-8031

Long Pilot Bit;

Split Point with Short

Pilot Bit Flutes for

Sheet Metal

49-56-8002

Short Pilot Bit;

Split Point 49-56-8003 38526 39893 35-398 A014C 36-015150 3834-DRL

Short Pilot Bit;

Split Point; 12-pack 49-56-8032

Short Pilot Bit;

Split Point 49-56-8010

Short Pilot Bit;

Split Point; 12-pack 49-56-8033

Long Pilot Bit;

Carbide Tipped 49-56-8005 10082

D-HANDLE DRILLS

50

1/2" D-Handle Drill, 600RPM 1/2" D-Handle Drill, 600RPM 1007-11001-1

FEATURES

n Powerful 7.0-amp motor: Delivers up to 600 RPM, with trigger

speed control and reverse

n Torque: Offers ½" capacity in steel

n Heavy-duty keyed chuck with holder: Provides an industrial hold

during drilling and fastening

n 8-ft. fi xed rubber cord: Durable construction for longer tool life

Includes: (1) 1/2 in. D-Handle Drill 0-600 RPM (1001-1);

(1) Chuck Key with Holder; (1) Side Handle

FEATURES

n Powerful 7.0-amp motor: Delivers up to 600 RPM, with trigger

speed control and reverse

n Torque: Offers ½" capacity in steel

n Heavy-duty keyed chuck with holder: Provides an industrial hold

during drilling and fastening

n QUIK-LOK® Cord: 8-ft. 3-wire grounded rubber cord provides easy

storage and fi eld replacement

Includes: (1) 1/2 in. D-Handle Drill 0-600 RPM (1007-1);

(1) Chuck Key with Holder; (1) Side Handle

Length 14-3/4"

Weight 6.8 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 8' Fixed

No Load RPM 0-600

Amps 7

Spindle 1/2"- 20

Chuck Size 1/2"

Chuck Type Keyed

Construction

Type Grounded

Gear Train Triple

Soft Grip

Handle No

Spindle Lock No

Capacity in

Wood

Flat

Boring Bit 1-1/2"

Hole Saw 5"

Auger 1-1/2"

Self-Feed 3-5/8"

SPECIFICATIONS

Length 14-3/4"

Weight 6.8 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 8' QUIK-LOK®

No Load RPM 0-600

Amps 7

Spindle 1/2"- 20

Chuck Size 1/2"

Chuck Type Keyed

Construction

Type Grounded

Gear Train Triple

Soft Grip

Handle No

Spindle Lock No

Capacity in

Wood

Flat

Boring Bit 1-1/2"

Hole Saw 5"

Auger 1-1/2"

Self-Feed 3-5/8"

SPECIFICATIONS

ATTACHMENTS

48-76-4008: 8' Quik-Lok®48-76-4025: 25' Quik-Lok®

D-HANDLE DRILLS

milwaukeetool.ca 51

1/2" D-Handle Drill, 500RPM 1/2" D-Handle Drill, 500RPM 1107-61101-1

FEATURES

n Powerful 7.0-amp motor: Delivers up to 500 RPM, with reverse

n Torque: Offers ½" capacity in steel

n Heavy-duty keyed chuck with holder: Provides an industrial hold

during drilling and fastening

n 8-ft. fi xed rubber cord: Durable construction for longer tool life

Includes: (1) 1/2 D-Handle Drill 500 RPM (1101-1); (1) Chuck Key

with Holder; (1) Side Handle

FEATURES

n Powerful 7.0-amp motor: Delivers up to 500 RPM, with trigger

speed control and reverse

n Torque: Offers ½" capacity in steel

n Heavy-duty keyed chuck with holder: Provides an industrial hold

during drilling and fastening

n QUIK-LOK® Cord: 8-ft. 3-wire grounded rubber cord provides easy

storage and fi eld replacement

Includes: (1) Chuck Key with Holder, (1) Side Handle

Length 14-3/4"

Weight 6.8 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 8' Fixed

No Load RPM 500

Amps 7

Spindle 1/2"- 20

Chuck Size 1/2"

Chuck Type Keyed

Construction

Type Grounded

Gear Train Triple

Soft Grip

Handle No

Spindle Lock No

Capacity in

Wood

Flat

Boring Bit 1-1/2"

Hole Saw 5"

Auger 1-1/2"

Self-Feed 3-5/8"

SPECIFICATIONS

Length 14-3/4"

Weight 6.8 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 8' QUIK-LOK®

No Load RPM 0-500

Amps 7

Spindle 1/2"- 20

Chuck Size 1/2"

Chuck Type Keyed

Construction

Type Grounded

Gear Train Triple

Soft Grip

Handle No

Spindle Lock No

Capacity in

Wood

Flat

Boring Bit 1-1/2"

Hole Saw 5"

Auger 1-1/2"

Self-Feed 3-5/8"

SPECIFICATIONS

ATTACHMENTS

48-76-4008: 8' Quik-Lok®48-76-4025: 25' Quik-Lok®

52

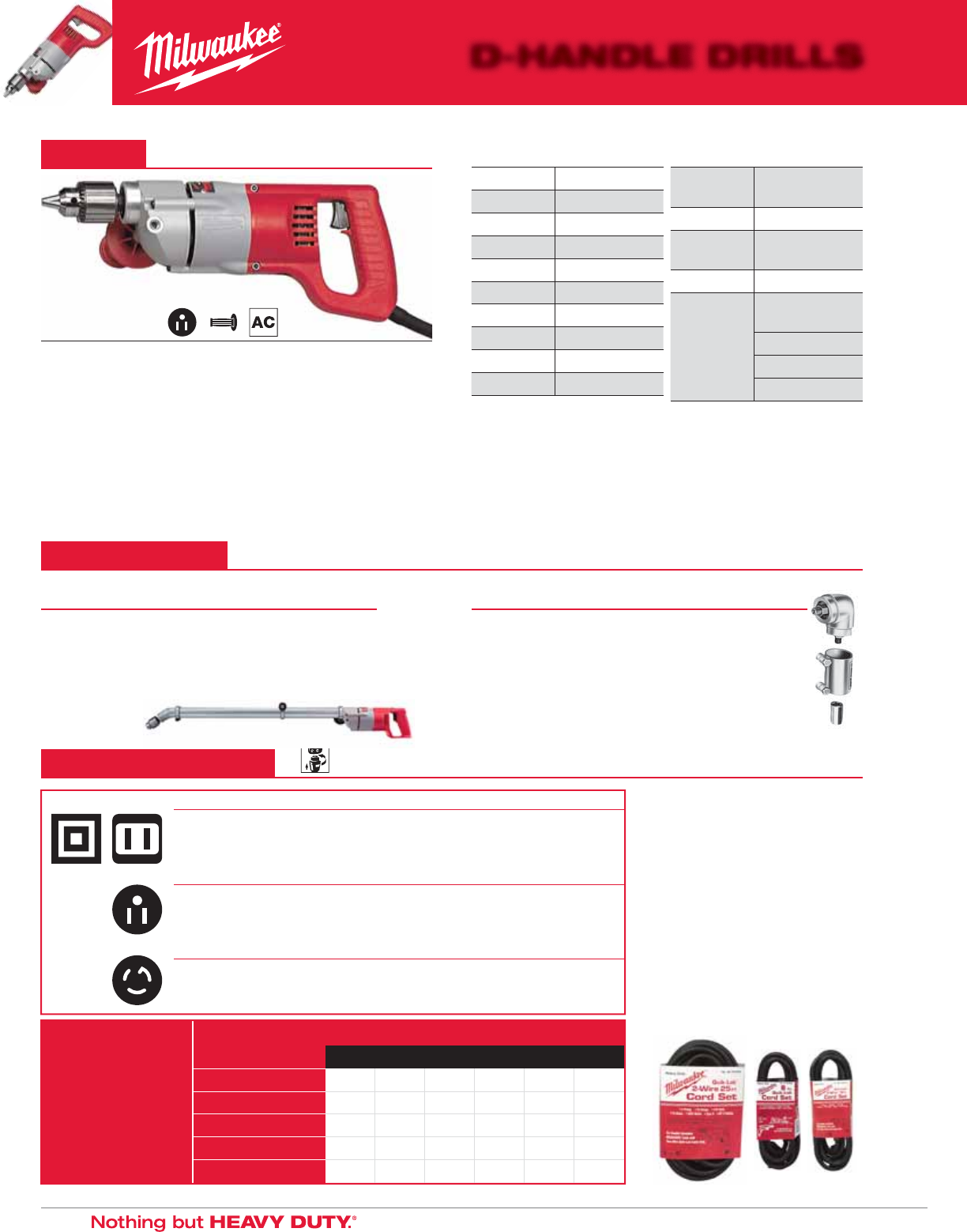

D-HANDLE DRILLS

1/2" D-Handle Drill, 1000RPM

1250-1

FEATURES

n Powerful 7.0-amp motor: Delivers up to 1000 RPM, with trigger

speed control and reverse

n Torque: Offers ½" capacity in steel

n Heavy-duty keyed chuck with holder: Provides an industrial hold

during drilling and fastening

n 8-ft. fi xed rubber cord: Durable construction for longer tool life

Includes: (1) 1/2" D-Handle Drill 0-1000 RPM (1250-1); (1) Chuck Key

with Holder; (1) Side Handle

Length 14-3/4"

Weight 6.5 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 8' Fixed

No Load RPM 0-1,000

Amps 7

Spindle 1/2"- 20

Chuck Size 1/2"

Chuck Type Keyed

Construction

Type Grounded

Gear Train Double

Soft Grip

Handle No

Spindle Lock No

Capacity in

Wood

Flat

Boring Bit 1-1/2"

Hole Saw 3-1/8"

Auger 1-1/2"

Self-Feed 2-1/4"

SPECIFICATIONS

ATTACHMENTS

QUIK-LOK® CORDS

2-WIRE QUIK-LOK

®

CORD SETS FOR DOUBLE INSULATED TOOLS

Cat. No. Description NEMA Plug Type

48-76-5010 2-Wire 10' Quik-Lok® 1-15P

48-76-5025 2-Wire 25’ Quik-Lok® 1-15P

3-WIRE QUIK-LOK® CORD SETS

Cat. No. Description NEMA Plug Type

48-76-4008 3-Wire 8’ Quik-Lok® 5-15P

48-76-4025 3-Wire 25’ Quik-Lok® 5-15P

3-WIRE QUIK-LOK® CORD SETS WITH TWIST LOCK PLUG

Cat. No. Description NEMA Plug Type

48-76-4108 3-Wire 8’ Quik-Lok® With Twist Lock Plug L5-20P

48-76-4125 3-Wire 25’ Quik-Lok® With Twist Lock Plug L5-20P

Recommended

Minimum Wire

Gauge For

Extension Cords*

* Based on limiting the line voltage

drop to fi ve volts at 150% of the

rated amperes.

Nameplate Extension Cord Length

Amperes 25' 50' 75' 100' 150' 200'

0 – 5.0 16 16 16 14 12 12

5.1 – 8.0 16 16 14 12 10 –

8.1 – 12.0 14 14 12 10 – –

12.1 – 15.0 12 12 10 10 – –

15.1 – 20.0 10 10 10 – – –

2-WIRE AND 3-WIRE QUIK-LOK®

CORD SETS

 Premium Grade Hi-Flex Wire And

Insulating System

 Quick Detachment From Tool

For Tangle Free Carrying And

Storage

 Instant Field Repair

 Quik-Lok With Twist Lock Plug

Cord Sets Also Available

48-06-2871 Right Angle Drive Unit

n For use with Milwaukee 1/2" D-Handle Drills

n Provides 2 Additional Drilling Speeds

n Includes coupling No. 42-90-0175 for 0234-6 and 0244-1

n For 50% More Torque or 50% More Speed

n Length: 5-1/2"

48-06-2860 33˚ Angle Drive Kit (tool not included)

n Stretches drilling reach up to 30 in.

n Allows drilling up to 2-9/16 in. diameter holes

n Use 33 degree angle drive with 30 in. extension only

n

For use with Drills 1001-1, 1007-1, 1101-1, 1107-6, 1201-1,

and 1250-1

n Length: 30"

milwaukeetool.ca 53

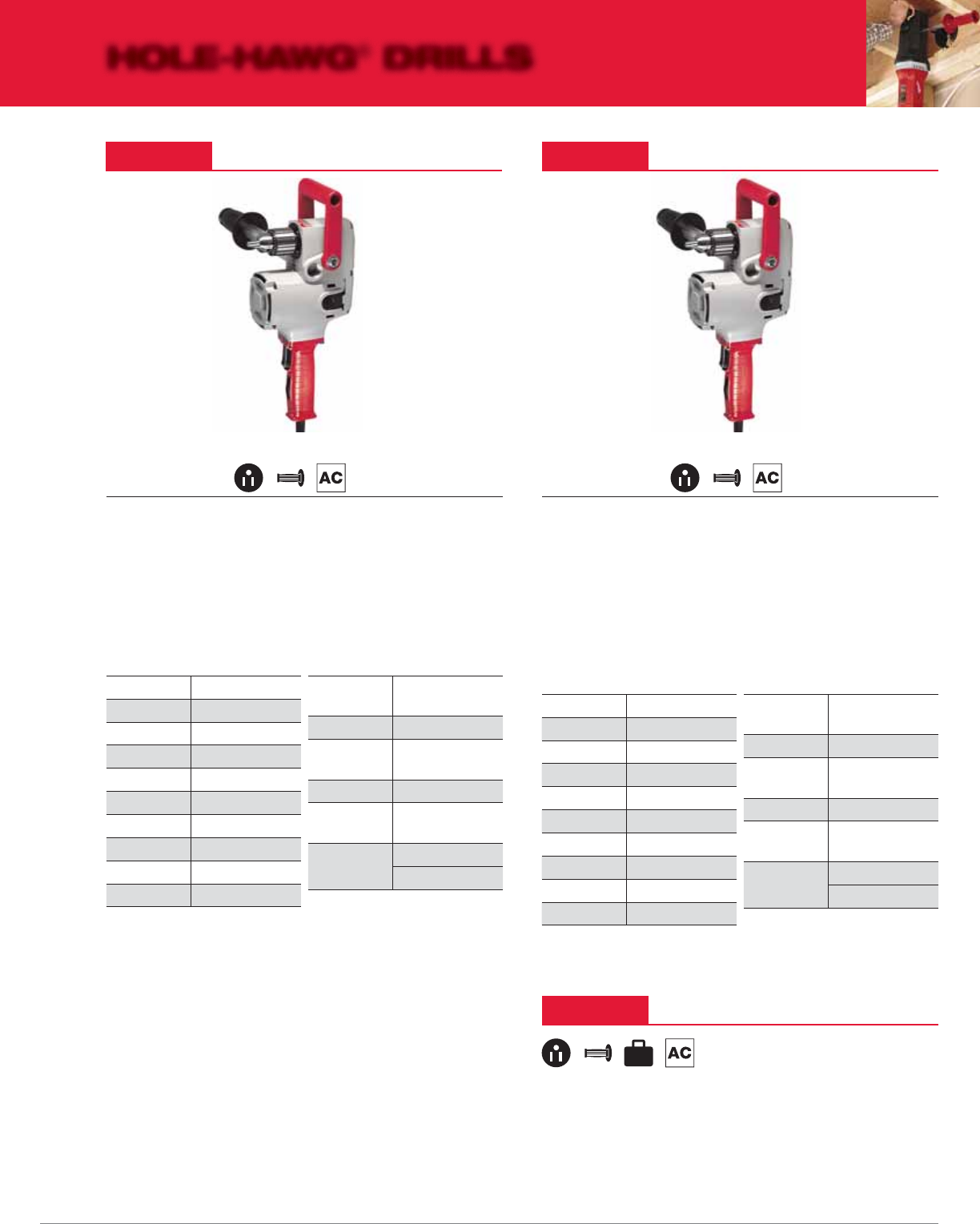

HOLE-HAWG® DRILLS

1/2" Hole Hawg® Drill, 300/1200RPM

with Carrying Case

Includes: (1) 1/2 in. Hole-Hawg® Drill 300/1200 RPM KIT (1676-6);

(1) Carrying Case; (1) Pipe Handle

1676-6

1/2" Hole Hawg® Drill 300/1200RPM

1675-61670-1

1/2" Hole Hawg® Drill, 900 RPM

FEATURES

n Powerful 7.5-amp motor: Delivers 900 RPM with reverse

n Self-Feed Bit Capacity: Handles up to a 2-9/16" bit

n Reinforced nylon resin casing: Provides durability and a reduced

weight with greater heat dissipation and resistance to chemicals

Includes: (1) 1/2" Hole Hawg® Drill 900 RPM (1670-1);

(1) Pipe Handle

FEATURES

n Powerful 7.5-amp motor: Delivers 300 RPM - 1,200 RPM

with reverse

n Self-Feed Bit Capacity: Handles up to a 4-5/8" bit

n Reinforced nylon resin casing: Provides durability and a reduced

weight with greater heat dissipation and resistance to chemicals

Includes: (1) 1/2" Hole-Hawg® Drill 300/1200 RPM (1675-6);

(1) Pipe Handle

Length 6-1/2"

Weight 11.5 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 8' Fixed

No Load RPM 900

Amps 7.5

Spindle 5/8"- 16

Chuck Size 1/2"

Chuck Type Keyed

Construction

Type Grounded

Gear Train Triple

Soft Grip

Handle No

Spindle Lock No

Capacity in

Steel Twist Bit 7/16"

Capacity in

Wood

Auger 1-1/2"

Self-Feed 2-9/16"

SPECIFICATIONS

Length 6-1/2"

Weight 11.5 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 8' Fixed

No Load RPM 300 and 1,200

Amps 7.5

Spindle 5/8"- 16

Chuck Size 1/2"

Chuck Type Keyed

Construction

Type Grounded

Gear Train Triple

Soft Grip

Handle No

Spindle Lock No

Capacity in

Steel Twist Bit 1/2"

Capacity in

Wood

Auger 1-1/2"

Self-Feed 4-5/8"

SPECIFICATIONS

54

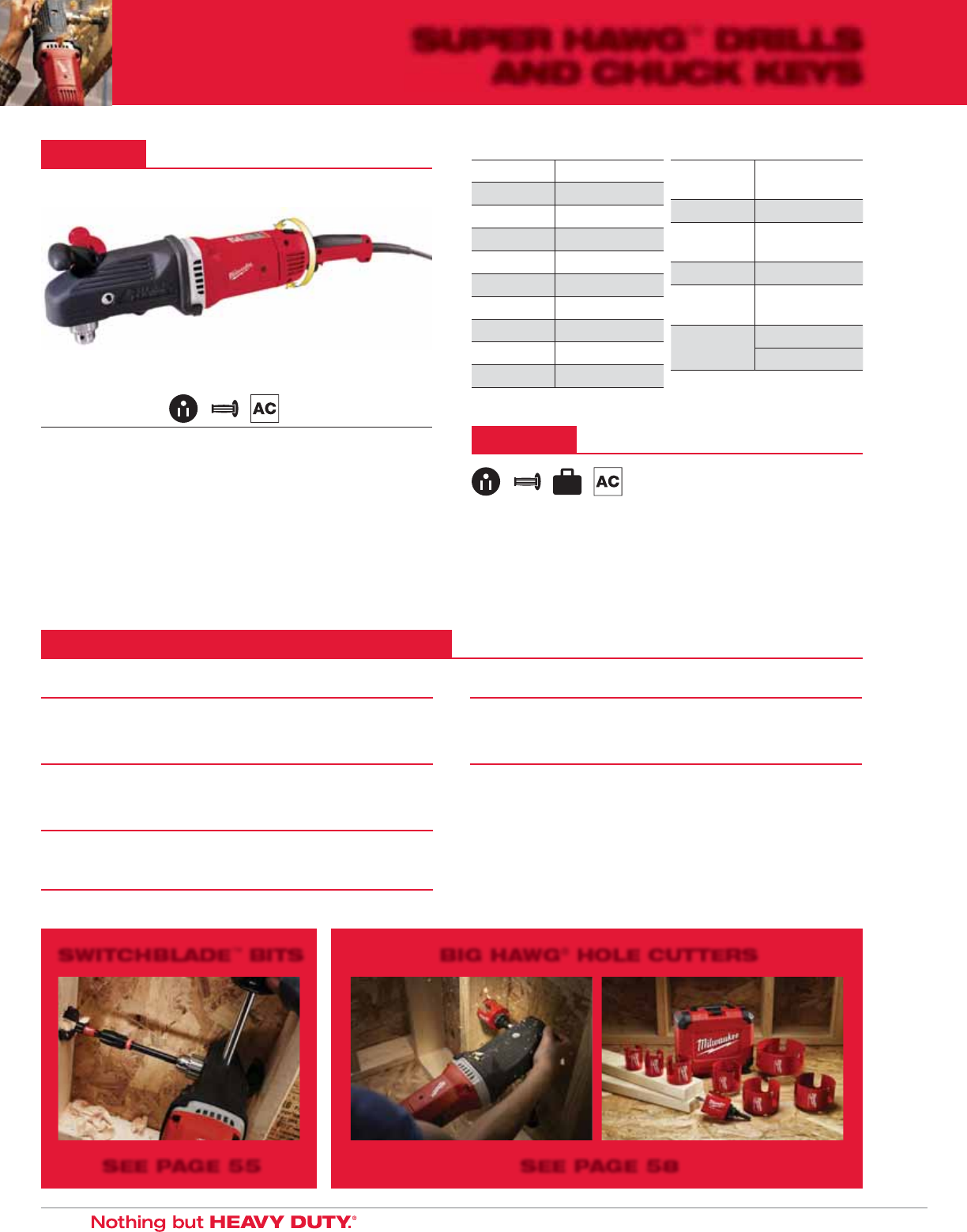

SUPER HAWG™ DRILLS

AND CHUCK KEYS

1680-21

1/2" Super Hawg™ with Carrying Case

Includes: (1) 1/2” Super Hawg™ (1680-20); (1) Side Handle

Length 22"

Weight 14.7 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 8' Fixed

No Load RPM 450-1,750

Amps 13

Spindle 5/8"- 16

Chuck Size 1/2"

Chuck Type Keyed

Construction

Type Gounded

Gear Train Triple

Soft Grip

Handle Yes

Spindle Lock No

Capacity in

Steel Twist Bit 1/2"

Capacity in

Wood

Auger 1-1/2"

Self-Feed 4-5/8"

SPECIFICATIONS

CHUCK KEYS AND CHUCK KEY HOLDERS

SWITCHBLADE™ BITS BIG HAWG® HOLE CUTTERS

SEE PAGE 55 SEE PAGE 58

48-66-2110 Chuck Key & 48-66-4040 Chuck Key Holder

n For use with 5378-20, 5380-20, 5381-20

48-66-3080 Chuck Key & 48-66-4040 Chuck Key Holder

n For use with 0200-20

48-66-3160 Chuck Key & 48-66-4020 Chuck Key Holder

n For use with 1854-1, 4262-1

48-66-3200 Chuck Key & 48-66-4080 Chuck Key Holder

n For use with 0100-20, 0101-20

48-66-3240 Chuck Key & 48-66-4040 Chuck Key Holder

n For use with 0370-20

48-66-3280 Chuck Key & 48-66-4040 Chuck Key Holder

n For use with 0234-6, 0244-1, 0299-20, 0300-20, 1001-1, 1007-1,

1101-1, 1107-6, 1250-1, 3002-1, 3102-6, 3107-6, 1610-1,

1630-1, 1660-6, 1663-20

1/2" Super Hawg™

1680-20

FEATURES

n Powerful 13.0-amp motor: Delivers 450 RPM - 1,750 RPM with a

clutch in low gear

n Roto-Lok® handle: Features 90° left-right rotations for maximum

comfort in all applications

n Reinforced nylon resin casing: Provides durability and less weight

than metal with greater heat dissipation and resistance to chemicals

Includes: (1) 1/2" Super Hawg™ (1680-20); (1) Side Handle

milwaukeetool.ca 55

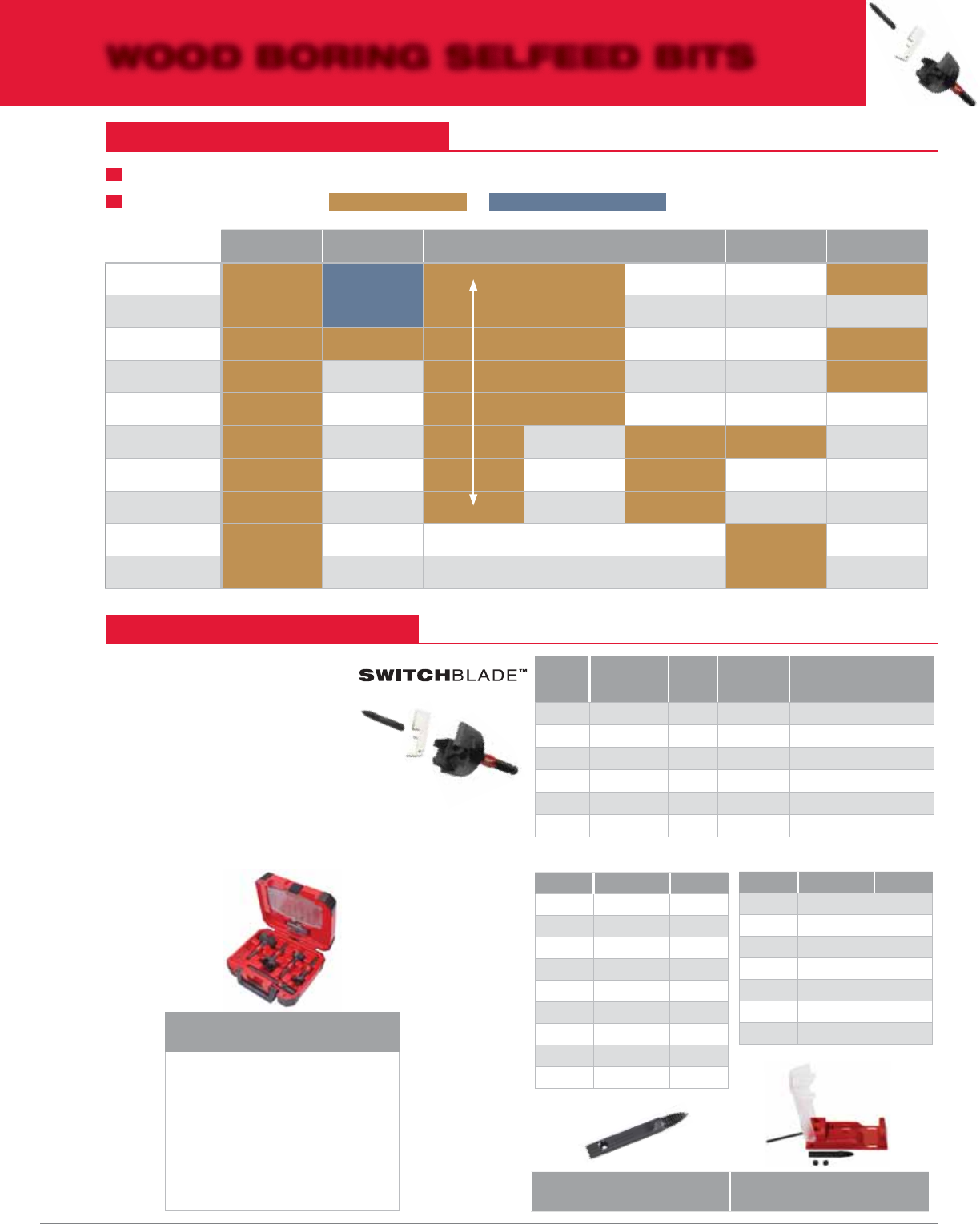

WOOD BORING SELFEED BITS

WOOD BORING SELECTION GUIDE

CLEAN WOOD WOOD WITH NAILS HOLE FINISH FAST DRILLING DRILLS POCKET

HOLES WIRE PULLING IMPACT RATED

SELFEED BIT ROUGH

BIG HAWG®

SHIP AUGER

SPUR AUGER

SPEED FEED™

FLAT BORING

BRAD POINT

FORSTNER FINE

BELLHANGER

CABLE

1 Identify the material to be cut in the columns below

2 Follow the column down to fi nd BEST PERFORMANCE or ACCEPTABLE PERFORMANCE

Size Part Number Qty Shank

Type

Entrance

For Pipe

and Rigid

Conduit

Entrance For

Tubing

1-3/8" 48-25-5120 1 7/16" Hex 1" 1-1/4"

1-1/2" 48-25-5125 1 7/16" Hex 1-3/8"

2" 48-25-5135 1 7/16" Hex 1-1/2" 1-7/8"

2-1/8" 48-25-5140 1 7/16" Hex 2"

2-1/4" 48-25-5143 1 7/16" Hex 2-1/8"

2-9/16" 48-25-5150 1 7/16" Hex 2" 2-1/2"

LONG LIFE

n Cutting edge is replaceable, made with

hardened steel to increase bit life

FAST DRILLING

n Aggressive feed screw design allows the bit to

pull through the wood faster

EASY SIZE REFERENCE

n Bit and blades are engraved for quick and easy

size identifi cation

SWITCHBLADE™ SELFEED BIT KIT

5 Pc SWITCHBLADE™ Plumber’s Kit

49-22-5100

Includes:

n (1) E ach SWITCHBLADE™ selfeed bits

(1-3/8", 1-1/2", 2-1/8", 2-9/16")

n (1) 5-1/2" QUIK-LOK™ extension

n (1) Each replacement blades

n (4) Feed screws

n (4) Set screws

n (1) Hex wrench

n Case with bulk storage container

Size Part Number Qty

1-3/8" 48-25-5420 1

1-1/2" 48-25-5425 1

2" 48-25-5435 1

2-1/8" 48-25-5440 1

2-1/4" 48-25-5443 1

2-9/16" 48-25-5450 1

1-3/8" 48-25-5220 3*

1-1/2" 48-25-5225 3*

2" 48-25-5235 3*

Size Part Number Qty

2-1/8" 48-25-5240 3*

2-9/16" 48-25-5250 3*

1-3/8" 48-25-5320 10*

1-1/2" 48-25-5325 10*

2" 48-25-5335 10*

2-1/8" 48-25-5340 10*

2-9/16" 48-25-5350 10*

*Includes hex wrench and case

Replacement Feedscrew Pack

48-25-5275

SWITCHBLADE™ Accessory

Service Kit

48-25-5280

SWITCHBLADE™ SELFEED BITS

SWITCHBLADE

™

REPLACEMENT BLADES

56

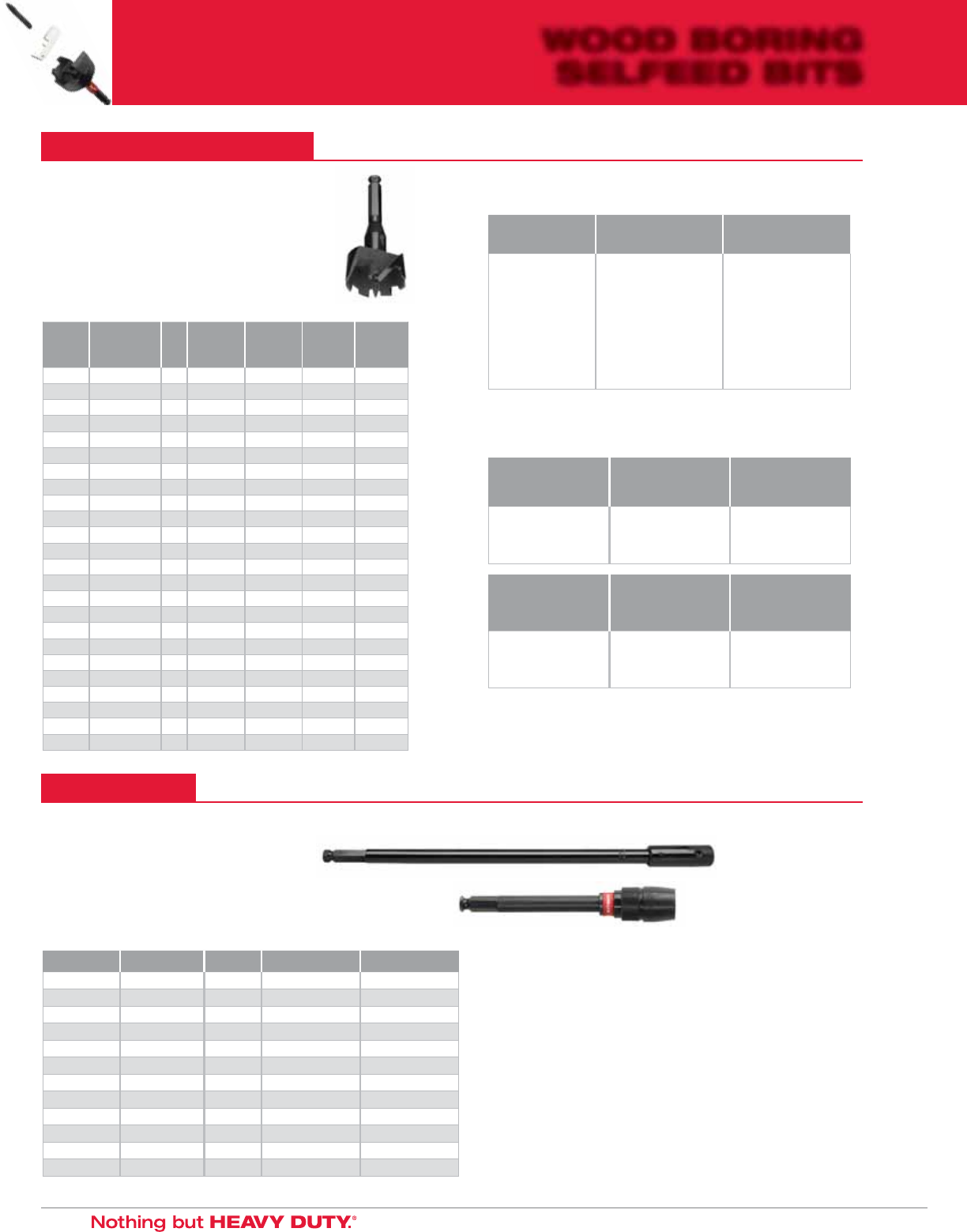

WOOD BORING

SELFEED BITS

FAST DRILLING

n Aggressive feed screw design allows the bit to pull through

the wood faster

CLEAN HOLES

n Alloy steel kerf cutters provide clean holes

RESHARPENABLE

n Cutting edge can be resharpened

Size Part Number Qty Shank Type

Entrance

For Pipe

and Rigid

Conduit

Entrance

For

Tubing

Package

Type

1" 48-25-1001 1 7/16" Hex 1/2" 7/8" Carton

1" 48-25-1002 1 7/16" Hex 1/2" 7/8" Clamshell

1-1/8" 48-25-1121 1 7/16" Hex 1/2" 1" Carton

1-1/8" 48-25-1122 1 7/16" Hex 1/2" 1" Clamshell

1-1/4" 48-25-1251 1 7/16" Hex 3/4" 1-1/8" Carton

1-1/4" 48-25-1252 1 7/16" Hex 3/4" 1-1/8" Clamshell

1-3/8" 48-25-1371 1 7/16" Hex 1" 1-1/4" Carton

1-3/8" 48-25-1372 1 7/16" Hex 1" 1-1/4" Clamshell

1-1/2" 48-25-1501 1 7/16" Hex 1-3/8" Carton

1-1/2" 48-25-1502 1 7/16" Hex 1-3/8" Clamshell

1-3/4" 48-25-1751 1 7/16" Hex 1-1/4" 1-1/2" Carton

1-3/4" 48-25-1752 1 7/16" Hex 1-1/4" 1-1/2" Clamshell

2" 48-25-2001 1 7/16" Hex 1-1/2" 1-7/8" Carton

2" 48-25-2002 1 7/16" Hex 1-1/2" 1-7/8" Clamshell

2-1/8" 48-25-2121 1 7/16" Hex 2" Carton

2-1/8" 48-25-2122 1 7/16" Hex 2" Clamshell

2-1/4" 48-25-2251 1 7/16" Hex 2-1/8" Carton

2-1/4" 48-25-2252 1 7/16" Hex 2-1/8" Clamshell

2-9/16" 48-25-2561 1 7/16" Hex 2" 2-1/2" Carton

2-9/16" 48-25-2562 1 7/16" Hex 2" 2-1/2" Clamshell

3" 48-25-3001 1 3-Flat 2-1/2" 2-7/8" Carton

3-5/8" 48-25-3621 1 3-Flat 3" 3-1/2" Carton

4-1/8" 48-25-4125 1 3-Flat 3"* Carton

4-5/8" 48-25-4621 1 3-Flat 4" 4-1/2" Carton

UNIVERSAL FIT

n All extensions work with all major brands

QUIK-LOK™ EXTENSIONS

n Fits any 1/4" or 7/16" hex shank product

n Impact rated for maximum durability

n Releases by hand for quick operation

Part Number Shank Size Length Type Accepts Shank Size

48-28-1000 1/4" 3" QUIK-LOK™ 1/4"

48-28-1010 1/4" 6" QUIK-LOK™ 1/4"

48-28-1020 1/4" 12" QUIK-LOK™ 1/4"

48-28-4008 3/8" 12" Hex Wrench 3/8"

48-28-1030 7/16" 5-1/2" QUIK-LOK™ 7/16"

48-28-1040 7/16" 12" QUIK-LOK™ 7/16"

48-28-1050 7/16" 18" QUIK-LOK™ 7/16"

48-28-1060 7/16" 24" QUIK-LOK™ 7/16"

48-28-4001 7/16" 5-1/2" Hex Wrench 7/16"

48-28-4006 7/16" 12" Hex Wrench 7/16"

48-28-4011 7/16" 18" Hex Wrench 7/16"

48-28-4016 7/16" 24" Hex Wrench 7/16"

STANDARD SELFEED BIT KITS

STANDARD SELFEED BIT ACCESSORIES

Small Standard

Selfeed Bit

Accessory Kit

48-25-6000

Coarse Thread Feed

Screw for Selfeed Bit

48-28-6870

1/8" Hex Wrench for

Selfeed Bit

49-96-0060

Includes set screws,

feed screws and

hex key for sizes:

n 1" - 2-9/16"

Includes feed screw

for sizes:

n 1" - 2-9/16"

Includes hex wrench

for sizes:

n 1" - 2-9/16"

Large Standard

Selfeed Bit

Accessory Kit

48-25-7000

Replacement Feed

Screw for Selfeed Bit

48-28-6880

5/32" Hex Wrench for

Selfeed Bit

49-96-0070

Includes set screws,

feed screws and

hex key for sizes:

n 3" - 4-5/8"

Includes feed screw

for sizes:

n 3" - 4-5/8"

Includes hex wrench

for sizes:

n 3" - 4-5/8"

7 Pc Plumber’s Kit

49-22-0065

7 Pc Contractor’s Kit

49-22-0130

4 Pc Contractor’s Kit

49-22-0135

Includes:

n (1) Each augers

(7/8", 1-1/8",

1-1/4", 1-1/2")

n (1) Each selfeed

bits (1-3/4", 2-1/8",

2-9/16")

n (1) 5-1/2" Hex key

extension

Includes:

n (2) Each augers (7/8",

1-1/8", 1-1/4", 1-1/2")

n (1) Each selfeed bits (1",

1-1/8", 1-1/4", 1-1/2",

1-3/4", 2-1/8", 2-9/16")

n (1) 5-1/2" Hex key

extension

Includes:

n (1) Each selfeed bits

(1-3/8", 1-1/2", 2-1/8",

2-9/16")

n (1) 5-1/2" Hex key

extension

HEX WRENCH

QUIK-LOK™

STANDARD SELFEED BITS

EXTENSIONS

milwaukeetool.ca 57

SELFEED BIT

CROSS REFERENCE

DIAMETER LENOX IRWIN DeWALT BOSCH MK MORSE MILWAUKEE

CLAMSHELL

MILWAUKEE

BOX

1" 33100 43016 3046004 DW1630 SF1001 WSF1000 48-25-1002 48-25-1001

1-1/8" 33112 43018 3046005 DW1631 SF1121 WSF1125 48-25-1122 48-25-1121

1-1/4" 33125 43020 3046006 DW1632 SF1251 WSF1250 48-25-1252 48-25-1251

1-3/8" 33137 43022 3046007 DW1633 SF1371 WSF1375 48-25-1372 48-25-1371

1-1/2" 33150 43024 3046008 DW1634 SF1501 WSF1500 48-25-1502 48-25-1501

1-3/4" 33175 43028 3046009 DW1635 SF1751 WSF1750 48-25-1752 48-25-1751

2" 33200 43032 3046010 DW1636 SF2001 WSF2000 48-25-2002 48-25-2001

2-1/8" 33212 43034 3046011 DW1637 SF2121 WSF2125 48-25-2122 48-25-2121

2-1/4" 33225 43036 3046012 DW1638 SF2251 WSF2250 48-25-2252 48-25-2251

2-9/16" 33256 43041 3046013 DW1639 SF2561 WSF2562 48-25-2562 48-25-2561

3" 33300 43047 3046014 DW1640 SF3001 WSF3000 48-25-3001

3-5/8" 33362 43058 3046015 DW1641 SF3621 WSF3625 48-25-3621

4-1/8" 48-25-4125

4-5/8" 33462 43074 3046016 DW1642 SF4621 WSF4625 48-25-4621

BIT SELFEED SERV.

KIT SM

WSFRKIT1 48-25-6000

BIT SELFEED SERV.

KIT LG WSFRKIT2 48-25-7000

3 PC PLUMBERS

SELFEED KIT 49-22-0030

8 PC BIT KIT PLUMB-

ERS

(3 SELFEED & 4 AU-

GER & Extension)

31700 49-22-0065

8 PC BIT KIT CON-

TRACTOR 33700 DW1649 WSFKIT2 49-22-0130

5 PC BIT KIT CON-

TRACTOR 33400 DW1648 WSFKIT1 49-22-0135

1-3/8" 48-25-5120

1-1/2" 48-25-5125

2" 48-25-5135

2-1/8" 48-25-5140

2-9/16" 48-25-5150

5 PC SWITCH-

BLADE™ SET 49-22-5100

SELFEED BIT CROSS-REFERENCE CHART

SELFEED BITS

SWITCHBLADE

SELFEED BITS

58

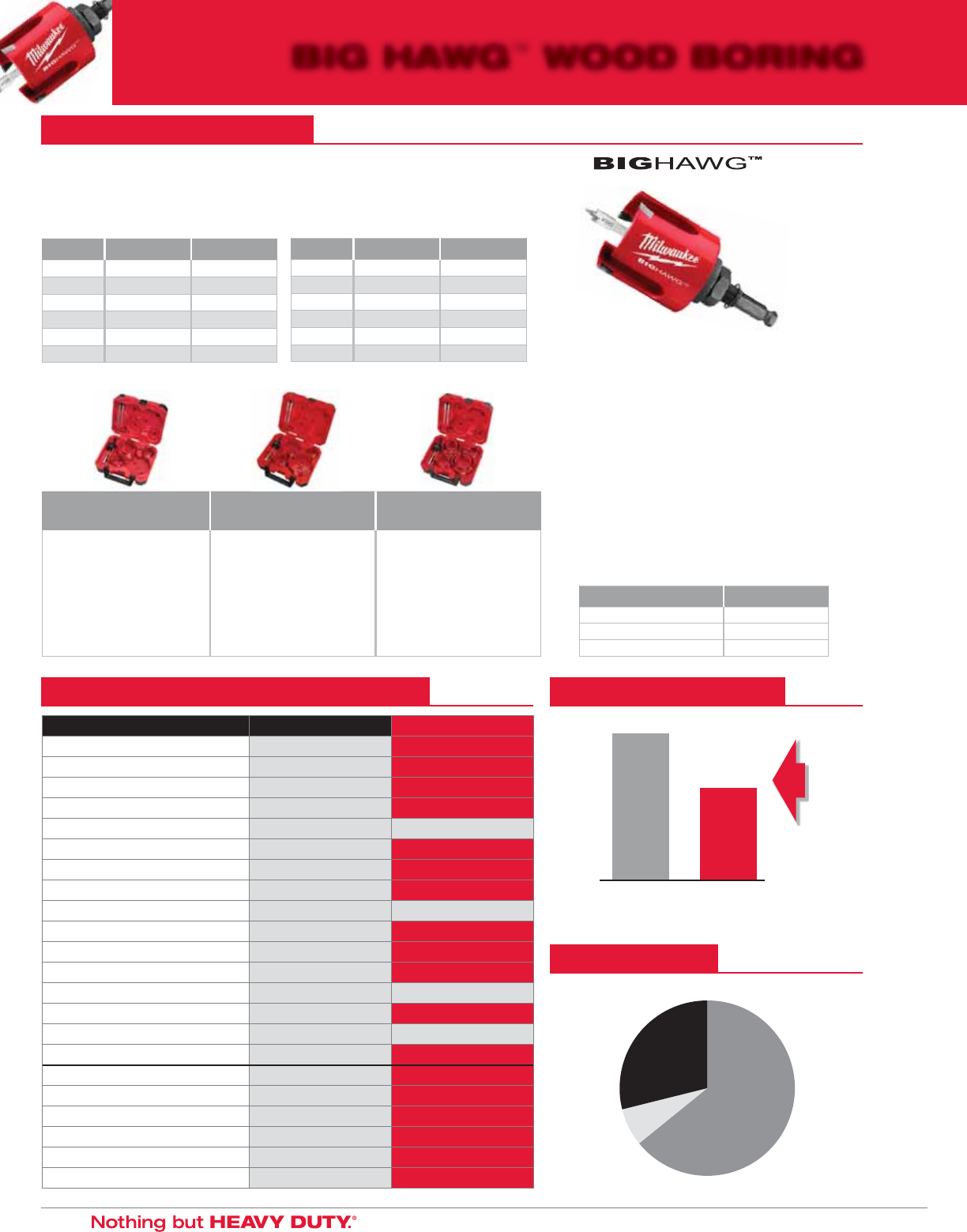

BIG HAWG™ WOOD BORING

BIG HAWG™ HOLE CUTTERS

BIG HAWG™ CROSS-REFERENCE CHART SPEED PERFORMANCE

PLUG REMOVAL

BIG HAWG™ HOLE CUTTER KITS

7 Pc BIG HAWG™

Hole Cutter Kit

49-56-9075

8 Pc Plumbers BIG HAWG™

Hole Cutter Kit

49-56-9080

10 Pc BIG HAWG™

Hole Cutter Kit

49-56-9085

Includes:

n (1) Each BIG HAWG™ hole cutters

(2-1/8", 2-9/16", 3-5/8")

n (1) Arbor with pilot bit

n (2) Additional pilot bits

n (1) Diamond fi le

n (1) Hex wrench

Includes:

n (1) Each BIG HAWG™

hole cutters (2-1/8", 2-9/16",

3-5/8", 4-5/8")

n (1) Arbor with pilot bit

n (2) Additional pilot bits

n (1) Diamond fi le

n (1) Hex wrench

Includes:

n (1) Each BIG HAWG™ hole

cutters (2-1/8", 2-1/4", 2-9/16",

3", 3-5/8", 4-1/4")

n (1) Arbor with pilot bit

n (2) Additional pilot bits

n (1) Diamond fi le

n (1) Hex wrench

Description Part Number

Big Hawg™ File 48-09-5055

Big Hawg™ Pilot Bit 48-27-1401

Big Hawg™ Hole Cutter Arbor 49-56-9105

Size Part Number With Pilot Bit

1-3/8" 49-56-8995 49-56-9110

2-1/8" 49-56-9000 49-56-9120

2-1/4" 49-56-9005 -

2-9/16" 49-56-9010 49-56-9130

3" 49-56-9020 -

3-3/8" 49-56-9025 -

FAST CUTTING

n Aggressive tooth geometry for up to 10X

faster cutting than hole saws

LONG LIFE

n Cuts up to 600 holes in wood without

needing to be resharpened

Size Part Number With Pilot Bit

3-5/8" 49-56-9030 -

4-1/4" 49-56-9045 -

4-5/16" 49-56-9047 -

4-5/8" 49-56-9050 -

5-1/4" 49-56-9055 -

6-1/4" 49-56-9065 -

DURABLE

n Three hardened steel teeth provide maximum

durability against unintended nail impacts

EASY PLUG REMOVAL

n Wide and deep gullets for easy plug removal

10 x

UP TO

UP TO

FASTER THAN

HOLE SAWS

600

HOLES WITHOUT

RESHARPENING

DIAMETER LENOX ONE-TOOTH MILWAUKEE BIG HAWG

1-3/8" 25422 49-56-8995

2-1/8" 25434 49-56-9000

2-1/4" 25436 49-56-9005

2-9/16" 25441 49-56-9010

2-3/4" 25444

3" 49-56-9020

3-3/8" 25454 49-56-9025

3-5/8" 25456 49-56-9030

4" 25464

4-1/4" 49-56-9045

4-5/16" 25469 49-56-9047

4-5/8" 25474 49-56-9050

5" 25480

5-1/4" 49-56-9055

5-1/2" 25487

6-1/4" 25500 49-56-9065

Hole Cutter Pilot Bit 25310 48-27-1401

Hole Cutter Diamond File 25312 48-09-5055

Hole Cutter Arbor 30002 49-56-9105

7-Piece Hole Cutter Kit 25476 49-56-9075

8 Pc Plumbers Big Hawg® Hole Cutter Kit 49-56-9080

10-Piece Hole Cutter Kit 25477 49-56-9085

BIG HAWG™ HOLE CUTTER

ACCESSORIES

DESIGNED FOR

ROUGH WOOD

DRILLING

2.63

1.65

Average Time to Cut

(2-9/16" hole cutters through wood)

Competitor A

Plug Falls Out

29%

Plug Pried Out

7% Plug Removed

by Hand

64%

Up to 37% Faster than Competition

93% of Plugs Are Removed Effortlessly

BIG HAWG™

Hole Cutter

DRILLS

FASTER

milwaukeetool.ca 59

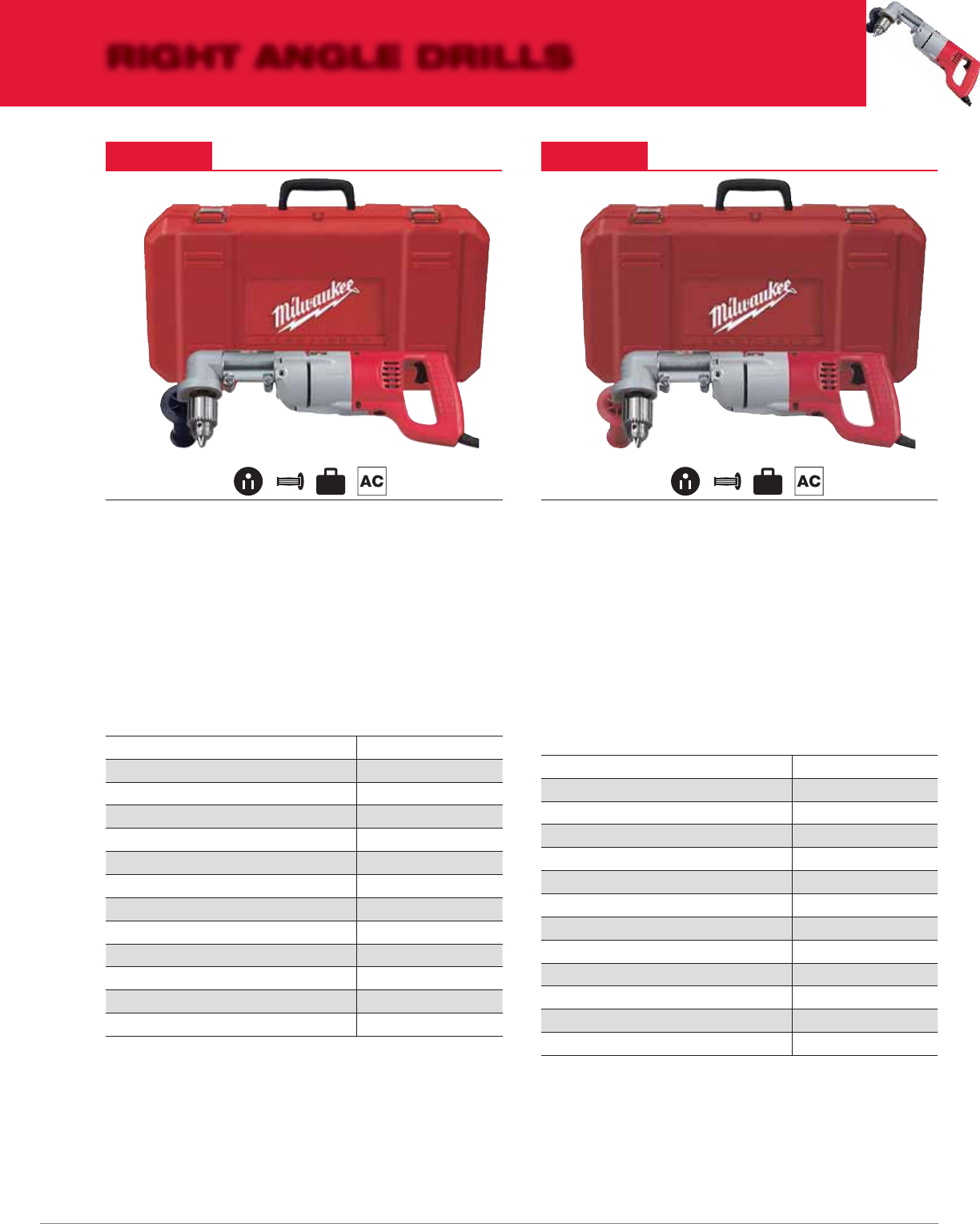

1/2" D-Handle Right Angle Drill Kit

1/2" D-Handle Right Angle Drill Kit 3102-63002-1

FEATURES

n Powerful 7-amp motor: Delivers trigger speed control in two ranges

– 0-600/0-900 RPM – plus reverse

n Torque: Offers ½" capacity in steel

n Heavy-duty ½" keyed chuck with holder: Provides an industrial hold

during drilling and fastening

n Versatile: Handles up to a 2-9/16" Selfeed bit

n Unrestricted Access: Head and handle swivel 360°

Includes: (1) 1/2" D-Handle Right Angle Drill Kit (3002-1); (1) RAD

Assembly; (1) Side Handle

SPECIFICATIONS

Length 16-3/4"

Weight 10.3 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 8' Fixed

No Load RPM 0-600

Amps 7

Chuck Size 1/2"

Chuck Type Keyed

Construction Type Grounded

Gear Train Quadruple

Soft Grip Handle No

Spindle Lock No

FEATURES

n Powerful 7-amp motor: Delivers trigger speed control in two ranges

– 0-335/0-750 RPM – plus reverse

n Torque: Offers ½" capacity in steel

n Heavy-duty ½" keyed chuck with holder: Provides an industrial hold

during drilling and fastening

n Versatile: Handles up to a 2-9/16" Selfeed bit

n Unrestricted Access: Head and handle swivel 360°

Includes: (1) 1/2" D-Handle Right Angle Drill Kit (3102-6);

(1) 3/16" Socket Wrench; (1) 9/16" Open End Wrench;

(1) RAD Assembly; (1) Side Handle

SPECIFICATIONS

Length 16-3/4"

Weight 10.3 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 8' Fixed

No Load RPM 0-500

Amps 7

Chuck Size 1/2"

Chuck Type Keyed

Construction Type Grounded

Gear Train Quadruple

Soft Grip Handle No

Spindle Lock No

RIGHT ANGLE DRILLS

60

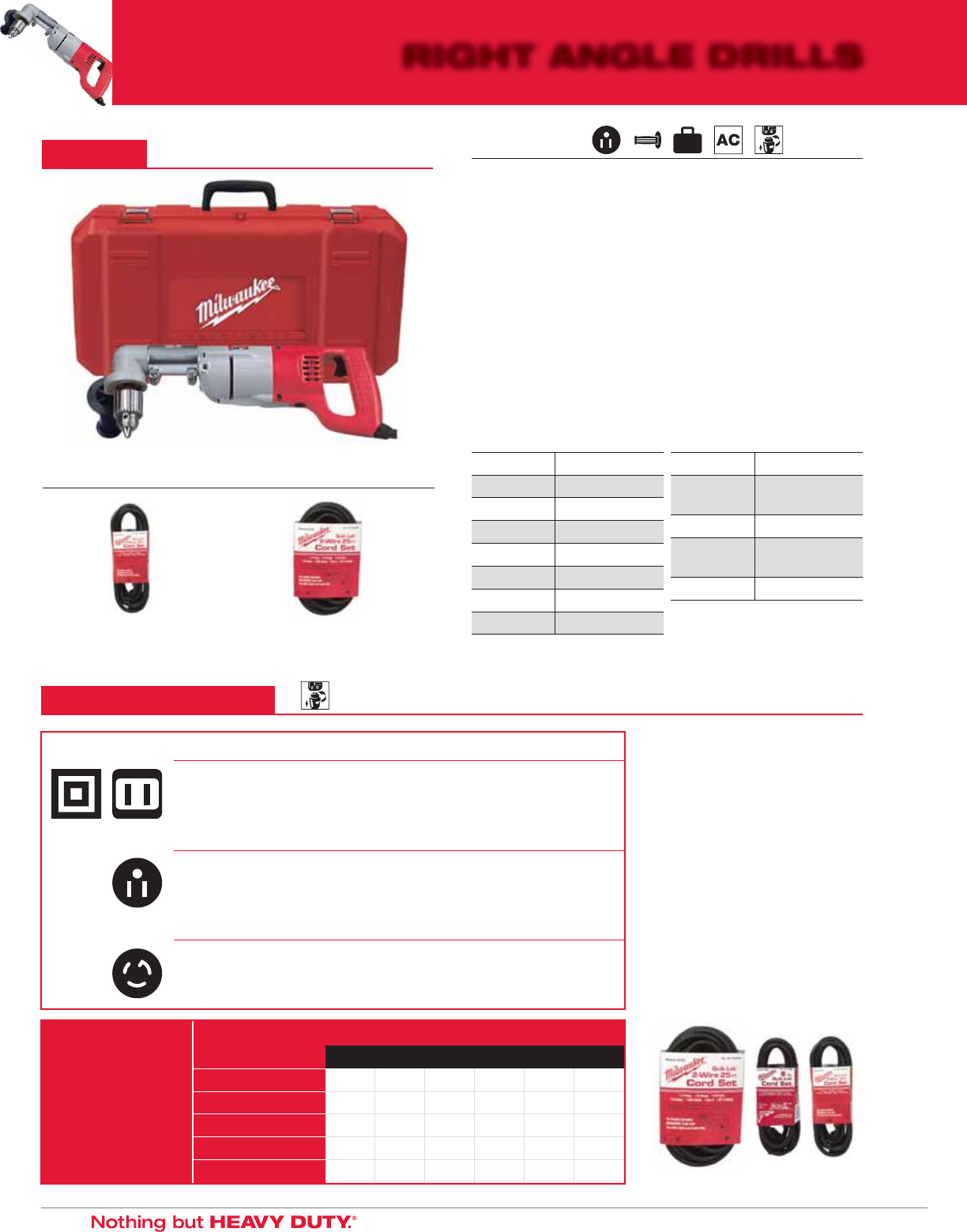

RIGHT ANGLE DRILLS

1/2" D-Handle Right Angle Drill Kit

3107-6 FEATURES

n Powerful 7-amp motor: Delivers trigger speed control in two ranges

– 0-335/0-750 RPM – plus reverse

n Torque: Offers ½" capacity in steel

n Heavy-duty ½" keyed chuck with holder: Provides an industrial hold

during drilling and fastening

n Versatile: Handles up to a 4-5/8" Selfeed bit

n Unrestricted Access: Head and handle swivel 360°

n QUIK-LOK® Cord: 8-ft. 3-wire grounded rubber cord provides easy

storage and fi eld replacement

Includes: (1) 1/2" D-Handle Right Angle Drill Kit (3107-6); (1) 3/16"

Socket Wrench; (1) 9/16" Open End Wrench; (1) RAD Assembly;

(1) Side Handle

ATTACHMENTS

48-76-4008: 8' Quik-Lok®48-76-4025: 25' Quik-Lok®

Length 16-3/4"

Weight 10.3 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 8' QUIK-LOK®

No Load RPM 0-500

Amps 7

Chuck Size 1/2"

Chuck Type Keyed

Construction

Type Grounded

Gear Train Quadruple

Soft Grip

Handle No

Spindle Lock No

SPECIFICATIONS

QUIK-LOK® CORDS

2-WIRE QUIK-LOK® CORD SETS FOR DOUBLE INSULATED TOOLS

Cat. No. Description NEMA Plug Type

48-76-5010 2-Wire 10' Quik-Lok® 1-15P

48-76-5025 2-Wire 25’ Quik-Lok® 1-15P

3-WIRE QUIK-LOK® CORD SETS

Cat. No. Description NEMA Plug Type

48-76-4008 3-Wire 8’ Quik-Lok® 5-15P

48-76-4025 3-Wire 25’ Quik-Lok® 5-15P

3-WIRE QUIK-LOK® CORD SETS WITH TWIST LOCK PLUG

Cat. No. Description NEMA Plug Type

48-76-4108 3-Wire 8’ Quik-Lok® With Twist Lock Plug L5-20P

48-76-4125 3-Wire 25’ Quik-Lok® With Twist Lock Plug L5-20P

Recommended

Minimum Wire

Gauge For

Extension Cords*

* Based on limiting the line voltage

drop to fi ve volts at 150% of the

rated amperes.

Nameplate Extension Cord Length

Amperes 25' 50' 75' 100' 150' 200'

0 – 5.0 16 16 16 14 12 12

5.1 – 8.0 16 16 14 12 10 –

8.1 – 12.0 14 14 12 10 – –

12.1 – 15.0 12 12 10 10 – –

15.1 – 20.0 10 10 10 – – –

2-WIRE AND 3-WIRE QUIK-LOK®

CORD SETS

 Premium Grade Hi-Flex Wire And

Insulating System

 Quick Detachment From Tool

For Tangle Free Carrying And

Storage

 Instant Field Repair

 Quik-Lok With Twist Lock Plug

Cord Sets Also Available

milwaukeetool.ca 61

1/2" Compact Drill, 900RPM

1/2" Compact Drill, 650RPM 1630-11610-1

FEATURES

n Powerful 7.0-amp motor: Delivers up to 650 RPM with reverse

n Torque: Offers 1/2" capacity in steel

n Heat-treated gears: Helical-cut for quiet performance

n 8-ft. 3-wire fi xed rubber cord: Durable construction for longer tool life

Includes: (1) 1/2" Compact Drill 650 RPM (1610-1); (1) Pipe Handle

SPECIFICATIONS

Length 12-1/4"

Weight 11.2 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 8' Fixed

No Load RPM 0-650

Amps 7

Spindle 5/8"- 16

Chuck Size 1/2"

Chuck Type Keyed

Construction Type Grounded

Gear Train Double

Soft Grip Handle No

Spindle Lock No

Capacity in Wood

Flat

Boring Bit 1-1/2"

Hole Saw 3-1/2"

Auger 1-1/2"

Self-Feed 2-9/16"

FEATURES

n Powerful 7.0-amp motor: Delivers up to 900 RPM with reverse

n Torque: Offers 1/2" capacity in steel

n Heat-treated gears: Helical-cut for quiet performance

n 8-ft. 3-wire fi xed rubber cord: Durable construction for longer tool life

Includes: (1) 1/2" Compact Drill 900 RPM (1630-1); (1) Pipe Handle

SPECIFICATIONS

Length 12-1/4"

Weight 11.2 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 8' Fixed

No Load RPM 0-1,000

Amps 7

Spindle 5/8"- 16

Chuck Size 1/2"

Chuck Type Keyed

Construction Type Grounded

Gear Train Double

Soft Grip Handle No

Spindle Lock No

Capacity in Steel Twist Bit 1/2"

Hole Saw 1-3/4"

Capacity in Wood

Flat

Boring Bit 1-1/2"

Hole Saw 3"

Auger 1-1/2"

Self-Feed 2-1/4"

SPECIALTY DRILLS

62

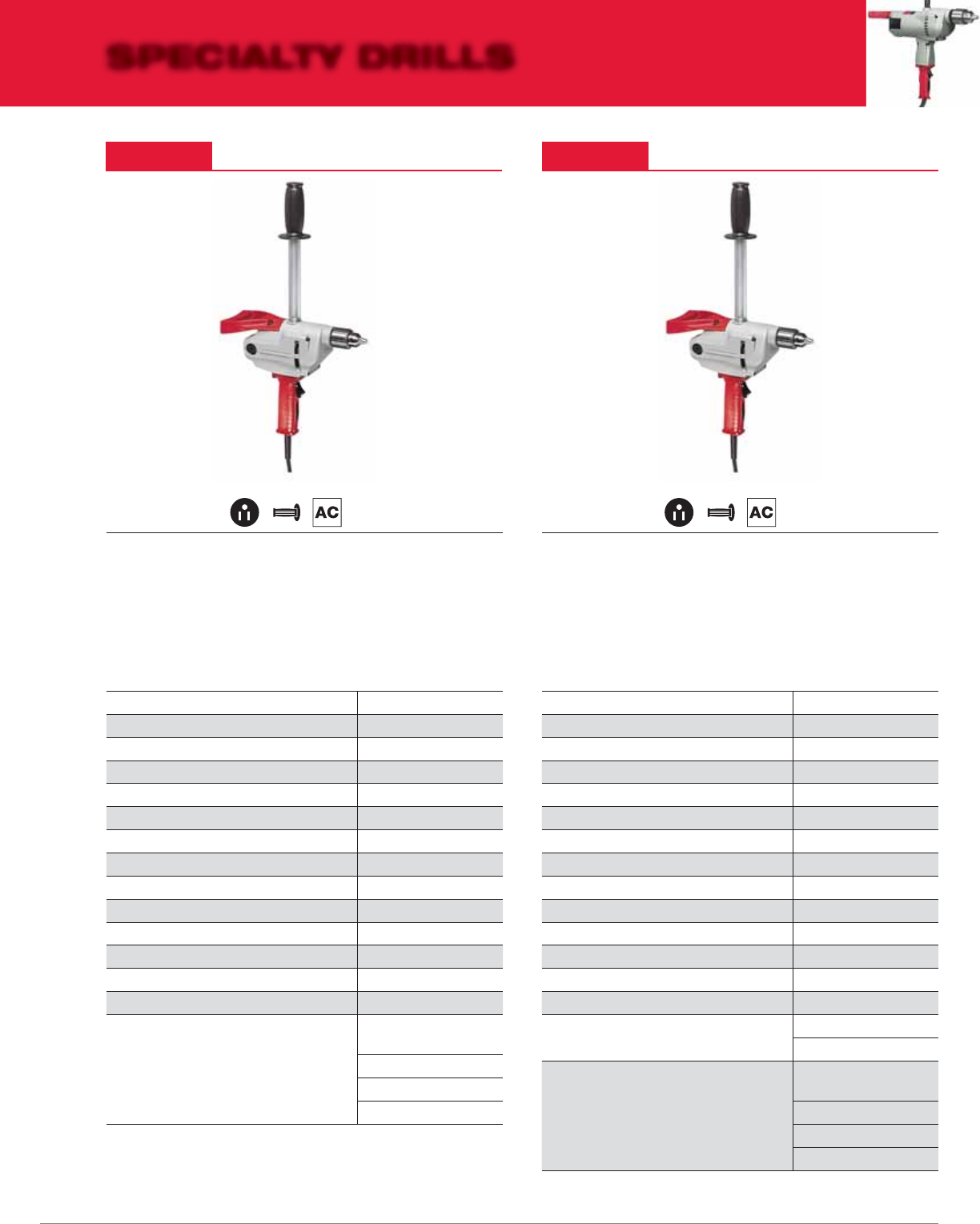

SPECIALTY DRILLS

1/2" Compact Drill, 115-450RPM

1/2" Compact Drill, 450 RPM 1663-201660-6

FEATURES

n Powerful 7.0-amp motor: Delivers up to 450 RPM with reverse

n Torque: Offers 1/2" capacity in steel

n Heat-treated gears: Helical-cut for quiet performance

n 8-ft. 3-wire fi xed rubber cord: Durable construction for longer tool life

Includes: (1) 1/2" Compact Drill 450 RPM (1660-6); (1) Pipe Handle

SPECIFICATIONS

Length 12-1/4"

Weight 11.4 lbs

Voltage 120 AC/DC

Tool Warranty 5 Years

Cord Type 8' Fixed

No Load RPM 0-450

Amps 7

Spindle 5/8"- 16

Chuck Size 1/2"

Chuck Type Keyed

Construction Type Grounded

Gear Train Triple

Soft Grip Handle No

Spindle Lock No

Capacity in Wood

Flat

Boring Bit 1-1/2"

Hole Saw 4"

Auger 1-1/2"

Self-Feed 3"

FEATURES

n Powerful 7.0-amp motor: Delivers up to 450 RPM with reverse

n Speed control dial: Vary speed from 115 to 450 RPM depending on

your material

n Torque: Offers 1/2" capacity in steel

n QUIK-LOK® Cord: 8-ft. 3-wire grounded rubber cord provides easy

storage and fi eld replacement

Includes: 1/2" Compact Drill 115-450 RPM (1663-20; (1) Pipe Handle

ATTACHMENTS

48-76-4008: 8' Quik-Lok®48-76-4025: 25' Quik-Lok®

Length 12-1/4"

Weight 11.9 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 8' QUIK-LOK®

No Load RPM 115-450

Amps 7

Spindle 5/8"- 16

Chuck Size 1/2"

Chuck Type Keyed

Construction

Type Grounded

Gear Train Triple

Soft Grip No

Spindle Lock No

Capacity in

Wood

Flat

Boring Bit 1-1/2"

Hole Saw 4"

Auger 1-1/2"

Self-Feed 3"

SPECIFICATIONS

milwaukeetool.ca 63

SPECIALTY DRILLS

1-1/4" Large Drill, 250RPM

3/4" Large Drill, 350RPM 2404-11854-1

FEATURES

n Powerful 10.0-amp motor: Delivers up to 350 RPM with reverse

n Torque: Offers 3/4" capacity in steel

n Heat-treated gears: Helical-cut for quiet performance

n 8-ft. fi xed rubber cord: Durable construction for longer tool life

Includes: (1) 3/4" Large Drill, 350 RPM (1854-1); (1) Pipe Handle

SPECIFICATIONS

Length 18-1/2”

Weight 19.0 lbs

Voltage 120 AC/DC

Tool Warranty 5 Years

Cord Type 8’ Fixed

No Load RPM 350

Amps 10

Spindle #3 J.T.

Chuck Size 3/4"

Chuck Type Keyed

Construction Type Grounded

Gear Train Triple

Soft Grip Handle No

Spindle Lock No

Capacity in Steel Twist Bit 3/4"

Capacity in Wood

Flat

Boring Bit 1-1/2"

Hole Saw 6"

Auger 1-1/2"

Self-Feed 4-5/8"

FEATURES

n Powerful 10.0-amp motor: Delivers up to 250 RPM with reverse

n Torque: Offers 1-1/4" capacity in steel

n Heat-treated gears: Helical-cut for quiet performance

n 8-ft. fi xed rubber cord: Durable construction for longer tool life

Includes: 1-1/4" Large Drill, 250 RPM (2404-1); (1) Pipe Handle

SPECIFICATIONS

Length 18-3/4"

Weight 23.8 lbs

Voltage 120 AC/DC

Tool Warranty 5 Years

Cord Type 8' Fixed

No Load RPM 250

Amps 10

Spindle #3 M.T.

Chuck Size 1-1/4"

Construction Type Grounded

Gear Train Triple

Soft Grip Handle No

Spindle Lock No

Capacity in Steel Twist Bit 1-1/4"

Capacity in Wood

Flat

Boring Bit 1-1/2"

Hole Saw 6"

Auger 1-1/2"

Self-Feed 4-5/8"

64

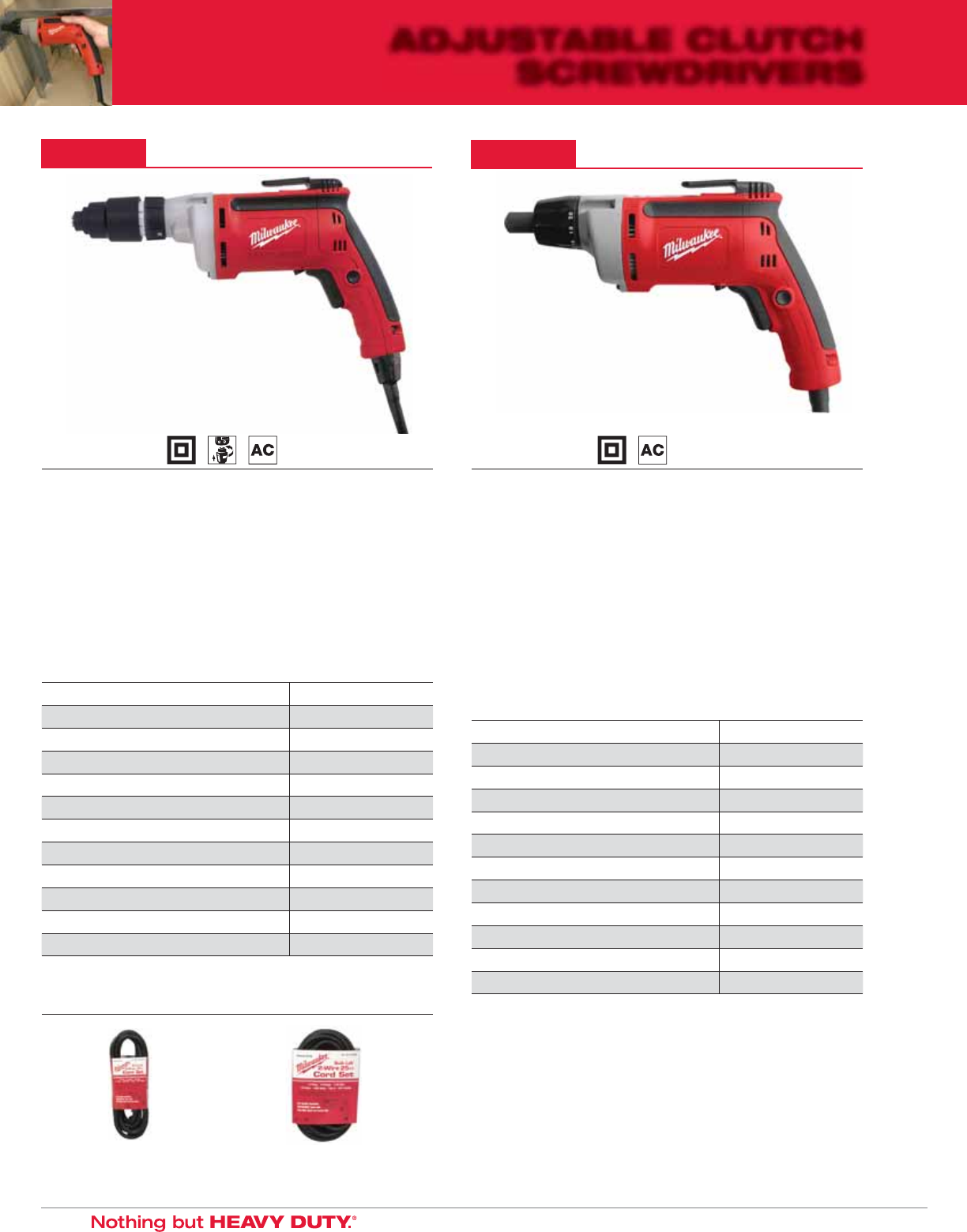

ADJUSTABLE CLUTCH

SCREWDRIVERS

Adjustable Clutch Screwdriver

6580-20

FEATURES

n Powerful 6.5-amp motor: Delivers up to 1,200 RPM of driving power

n Multi-position clutch: Easily adjusts from 10 to 140 in-lbs of torque

n All metal gearcase and diaphram: Provides high durability

n Ergonomic grip and two-fi nger trigger: Optimize user comfort

and balance

n QUIK-LOK® Cord: 10-ft. 2-wire grounded rubber cord provides easy

storage and fi eld replacement

Includes: (1) Adjustable Clutch Screwdriver (6580-20); (1) Belt Clip

SPECIFICATIONS

Voltage 2.4 DC

Tool Warranty 5 Years

Length 12-3/4"

Weight 0.9 lbs

Trigger Lock Yes

Drive Size 1/4" Hex

Max HP 0.9

Construction Type Double Insulated

Cord Type 10' QUIK-LOK®

Soft Grip Handle Yes

Clutch Adjustable

Spindle Offset 0.92"

ATTACHMENTS

48-76-5010: 10' Quik-Lok®48-76-5025: 25' Quik-Lok®

Metal Fastening Adjustable Clutch

Screwdriver

6780-20

FEATURES

n Powerful 6.5-amp motor: Delivers up to 2,500 RPM of driving

power and 140 in-lbs of torque

n 21-position clutch: Provides maximum fastening control with

minimum reaction force

n Ergonomic grip and two-fi nger trigger: Optimize user comfort

and balance

n 10-ft. 2-wire fi xed rubber cord: Durable construction for longer

tool life

Includes:

(1) Metal Fastening Adjustable Clutch Screwdriver (6780-20);

(1) Belt Clip

SPECIFICATIONS

Length 12-1/4"

Weight 3.8 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 10' Fixed

Amps 6.5

Trigger Lock Yes

Construction Type Double Insulated

Soft Grip Handle Yes

Drive Size 1/4" Hex

Max HP 0.9

Spindle Offset 0.92"

milwaukeetool.ca 65

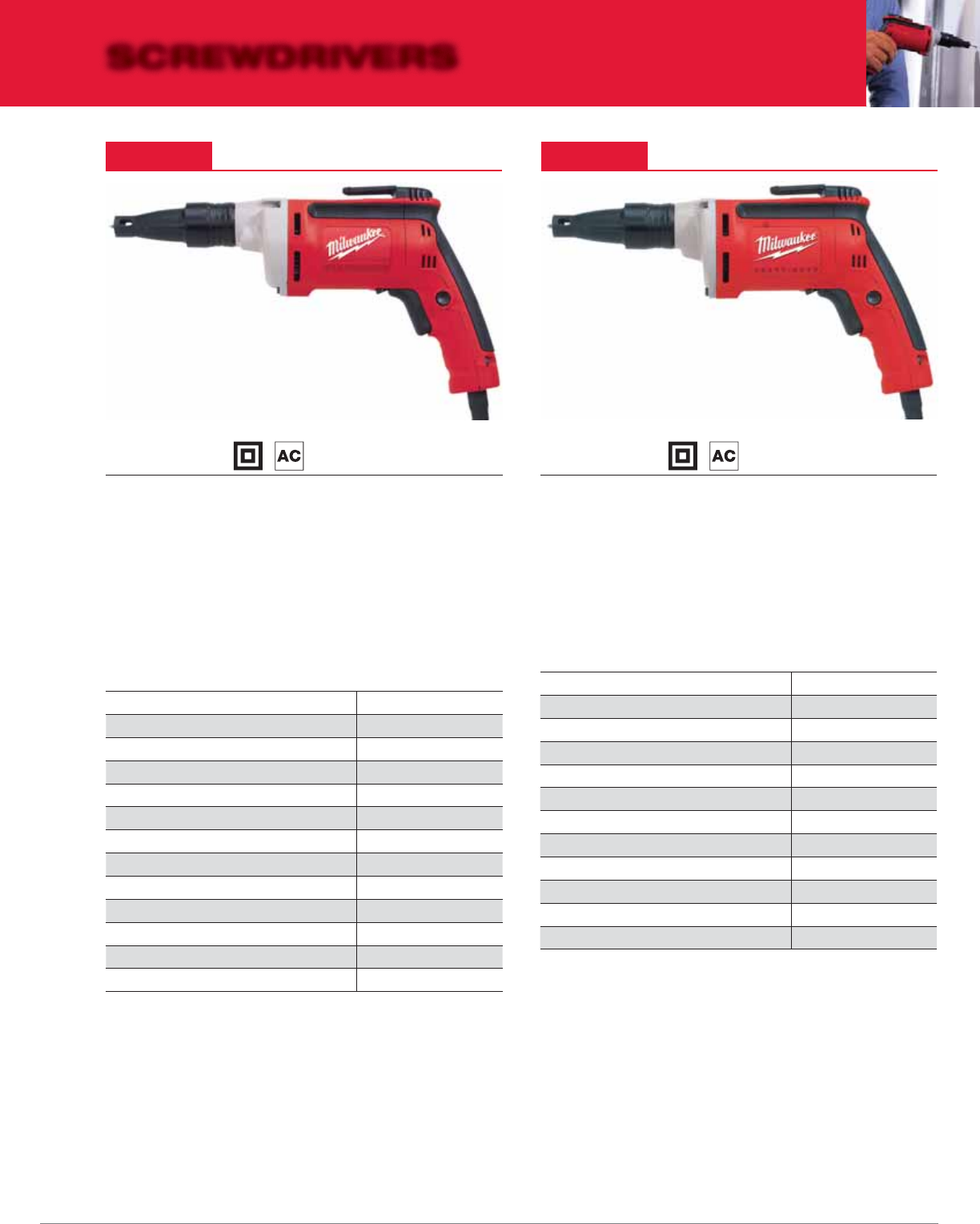

SCREWDRIVERS

Decking, Drywall and Framing

Screwdriver Drywall Screwdriver

6740-20 6742-20

FEATURES

n Powerful 6.5-amp motor: Delivers up to 2,500 RPM with variable-

speed control and reverse

n Ramp-off depth locator: Provides easy, no-slip depth adjustments

n Ergonomic grip and two-fi nger trigger: Optimize user comfort

and balance

n 10-ft. 2-wire fi xed rubber cord: Durable construction for longer tool life

Includes: (1) Decking, Drywall and Framing Screwdriver (6740-20);

(1) Belt Clip

SPECIFICATIONS

Length 13-1/8"

Weight 3.7lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 10' Fixed

Clutch Snap-Action

Amps 6.5

Trigger Lock Yes

Construction Type Double Insulated

Soft Grip Handle Yes

Drive Size 1/4" Hex

Max HP 0.9

Spindle Offset 0.92"

FEATURES

n Powerful 6.5-amp motor: Delivers up to 4,000 RPM with variable-

speed control

n Ramp-off depth locator: Provides easy, no-slip depth adjustments

n Ergonomic grip and two-fi nger trigger: Optimize user comfort

and balance

n

10-ft. 2-wire fi xed rubber cord: Durable construction for longer tool life

Includes: (1) Drywall Screwdriver (6742-20); (1) Belt Clip

SPECIFICATIONS

Length 12-3/4"

Weight 3.5 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 10' Fixed

Amps 6.5

Trigger Lock Yes

Construction Type Double Insulated

Soft Grip Handle Yes

Drive Size 1/4" Hex

Max HP 0.9

Spindle Offset 0.92"

66

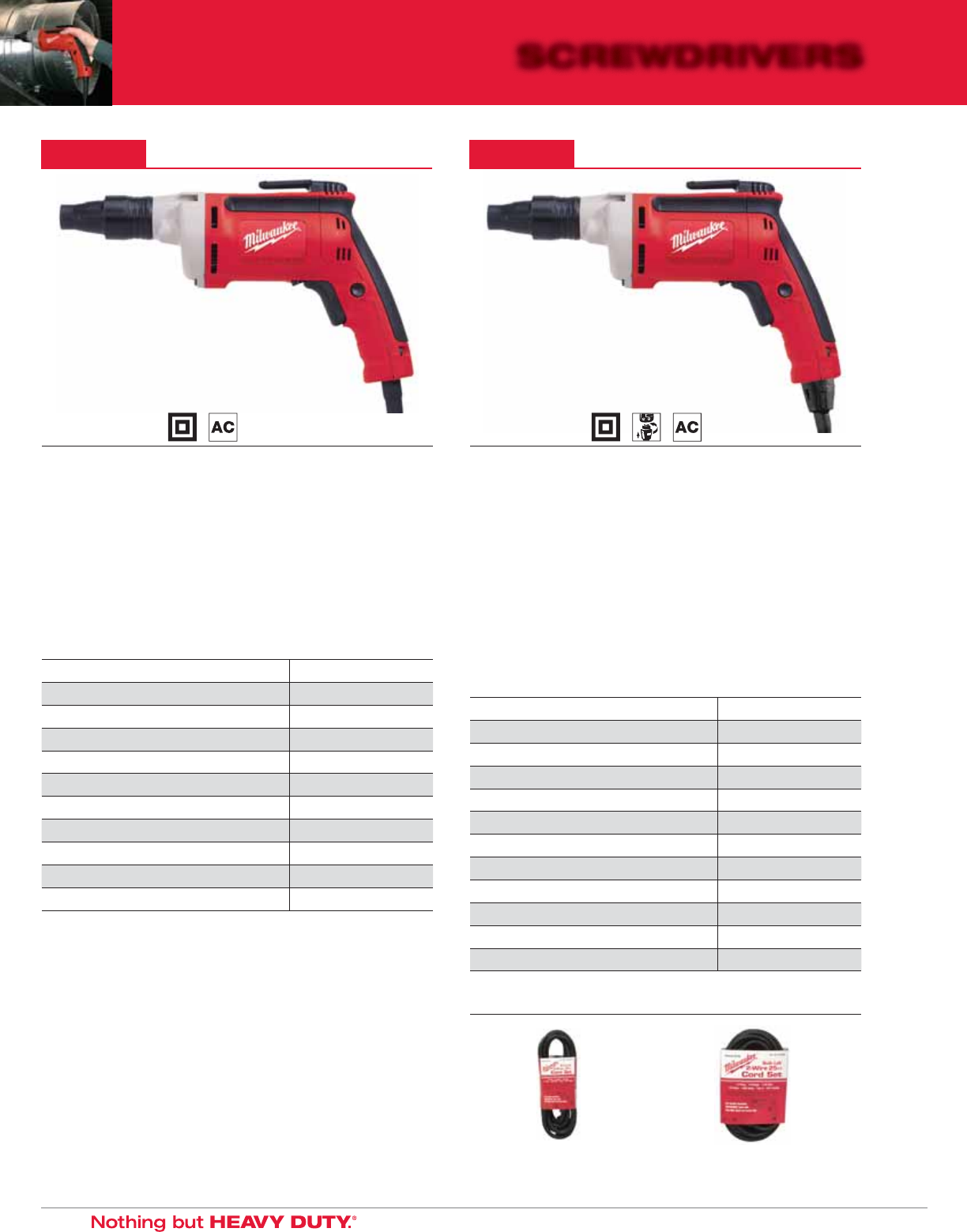

SCREWDRIVERS

Self Drill Fastener Screwdriver

6790-20

FEATURES

n Powerful 6.5-amp motor: Delivers up to 2,500 RPM with variable-

speed control and reverse

n Ramp-off depth locator: Provides easy, no-slip depth adjustments

n Ergonomic grip and two-fi nger trigger: Optimize user comfort

and balance

n 10-ft. 2-wire fi xed rubber cord: Durable construction for longer

tool life

Includes: (1) Self Drill Fastener Screwdriver (6790-20); (1) Belt Clip

SPECIFICATIONS

Length 12-1/8"

Weight 3.7 lbs

Voltage 120V AC

Cord Type 10' Fixed

Amps 6.5

Trigger Lock Yes

Construction Type Double Insulated

Soft Grip Handle Yes

Drive Size 1/4" Hex

Max HP 0.9

Spindle Offset 0.92"

Remodeler’s Screwdriver Kit

6791-21

FEATURES

n Powerful 6.5-amp motor: Delivers up to 2,500 RPM with variable-

speed control and reverse

n Two ramp-off depth locators: Provide easy, no-slip depth

adjustments

n Ergonomic grip and two-fi nger trigger: Optimize user comfort

and balance

n QUIK-LOK® Cord: 10-ft. 2-wire grounded rubber cord provides easy

storage and fi eld replacement

Includes: (1) Self Drill Fastener Screwdriver (6790-20); (1) Belt Clip;

(1) Carrying Case

SPECIFICATIONS

Length 12-1/8"

Weight 3.7 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 10' QUIK-LOK®

Amps 6.5

Trigger Lock Yes

Construction Type Double Insulated

Soft Grip Handle Yes

Drive Size 1/4" Hex

Max HP 0.9

Spindle Offset 0.92"

ATTACHMENTS

48-76-5010: 10' Quik-Lok®48-76-5025: 25' Quik-Lok®

milwaukeetool.ca 67

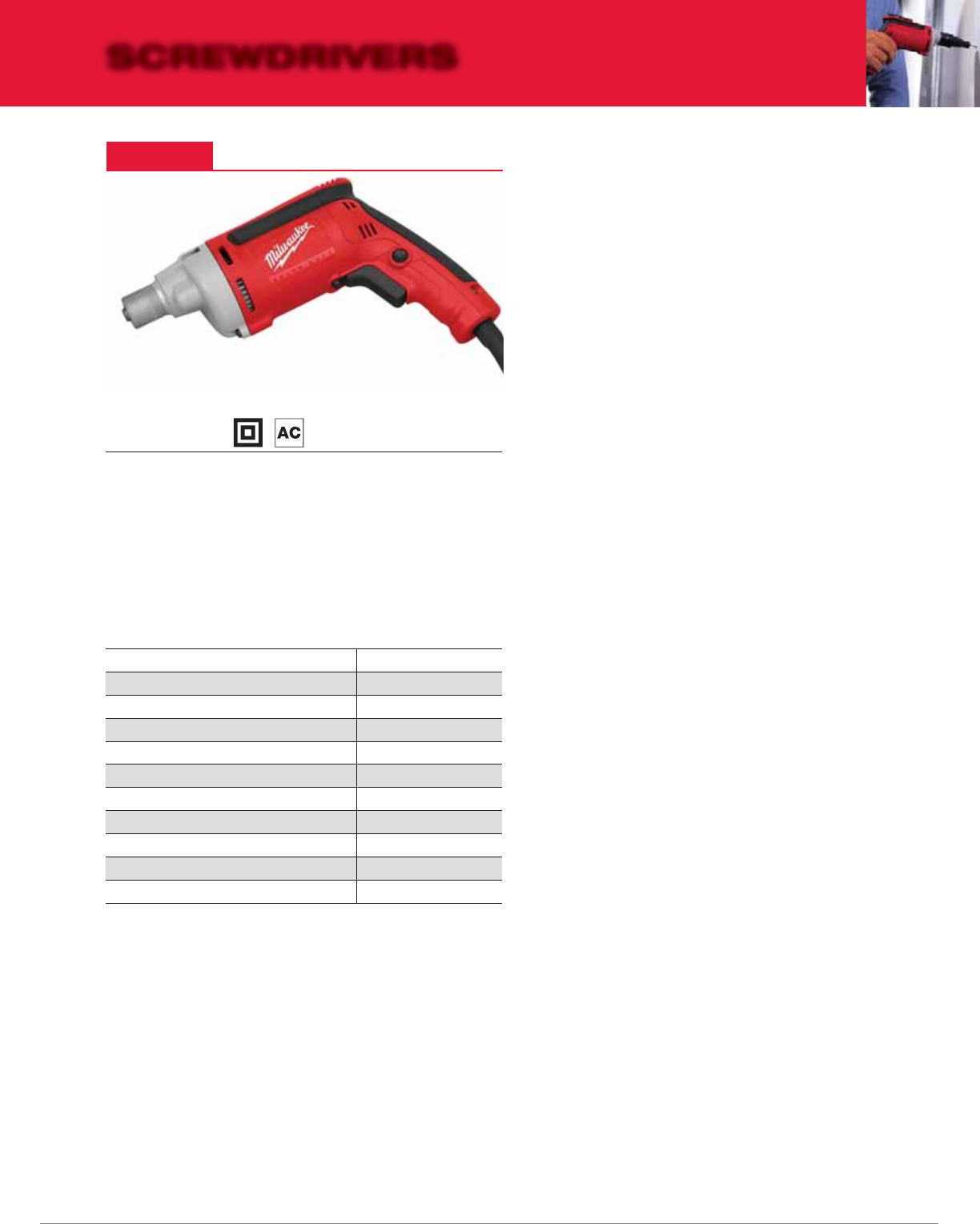

SCREWDRIVERS

Screwdriver Power Unit

6792-20

FEATURES

n Powerful 6.5-amp motor: Delivers up to 2,500 RPM with variable-

speed control

n Metal gearcase and heat-treated steel gears: Designed for durability

n Ergonomic handle: Aligns hand pressure with center axis of drill for

effi cient driving force

n

10-ft. 2-wire fi xed rubber cord: Durable construction for longer tool life

Includes: (1) Screwdriver Power Unit (6792-20)

SPECIFICATIONS

Length 10-1/4"

Weight 3.2 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 10' Fixed

Amps 6.5

Trigger Lock Yes

Construction Type Double Insulated

Soft Grip Handle Yes

Max HP 0.9

Spindle Offset 0.92"

68

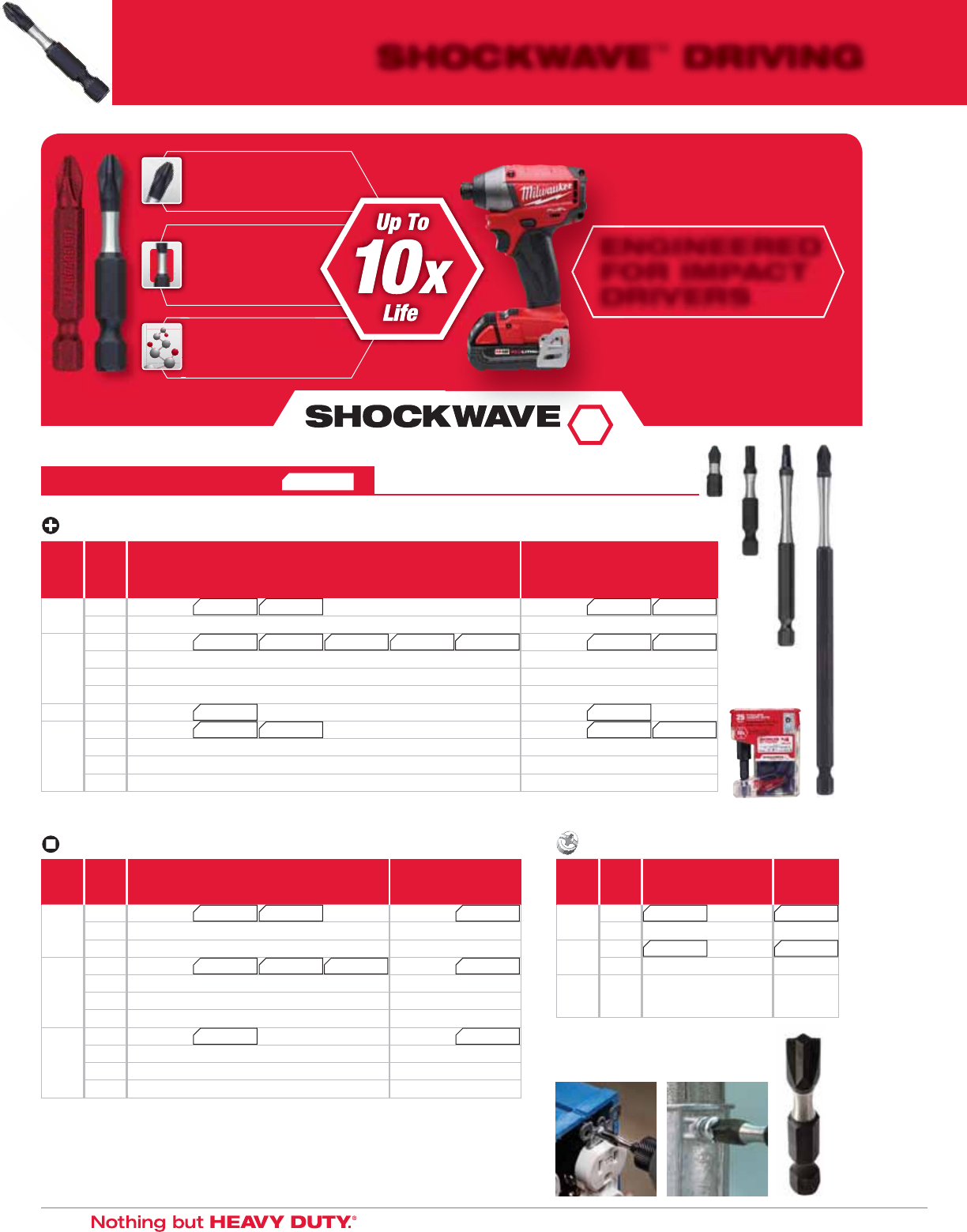

SHOCKWAVE™ DRIVING

IMPACT DUTY ™

* patent pending

Shock Zone

Geometry™ *

Designed to fl ex with

spring-like action

Reduces stress

at the tip

Custom Engineered

Steel & Heat Treatment

High shock resistance

Compression

Forged Tip

Ideal fi t and

reduces breakage

C

S

ENGINEERED

FOR IMPACT

DRIVERS

E

E

N

F

O

D

PHILLIPS® BITS

Bit Length 2 Pack 5 Pack Bulk

25 Pack

ECX1 1" 48-32-4441 - 48-32-4741

2" - 48-32- 4491 48-32-4744

ECX2 1" 48-32-4442 - 48-32-4742

2" - 48-32-4492 48-32-4745

ECX

Combo

(#1, #2)

2" 48-32-4443 - -

25 Pack

+ Bit Holder

Bit Length 1 Pack 2 Pack 5 Pack 15 Pack 25 Pack

25 Pack +

Compact

Magnetic Bit

Holder

Bulk

10 Pack

Bulk

25 Pack

Bulk

250 Pack

P1 1" - 48-32-4411 48-32-4661 - - - - 48-32-4711 48-32-4880

2" 48-32-4461 ----- -48-32-4760 -

P2

1" - 48-32-4412 48-32-4601 48-32-5003 48-32-4604 48-32-5009 - 48-32-4712 48-32-4881

2" 48-32-4462 - 48-32-4602 48-32-5004 - - - 48-32-4762 48-32-4862

3.5" 48-32-4562 - 48-32-4564 - - - - 48-32-4791 -

6" 48-32-4802 -----48-32-4807 - -

P2R 1" - 48-32-4444 -----

48-32-4746 -

P3

1" - 48-32-4413 48-32-4663 - - - - 48-32-4713 48-32-4882

2" 48-32-4463 ----- -48-32-4763 48-32-4863

3.5" 48-32-4563 ----- -48-32-4792 -

6"------48-32-4808 - -

Bit Length 1 Pack 2 Pack 5 Pack 10 Pack Bulk

10 Pack

Bulk

25 Pack

SQ1

1" - 48-32-4421 48-32-4621 - - 48-32-4761

2" 48-32-4471 - - - - 48-32-4771

3.5" - - - - - 48-32-4794

SQ2

1" - 48-32-4422 48-32-4605 48-32-5008 - 48-32-4722

2" 48-32-4472 - 48-32-4606 - - 48-32-4772

3.5" 48-32-4572 - - - - 48-32-4795

6" 48-32-4805 - - - 48-32-4815 -

SQ3

1" - 48-32-4423 - - - 48-32-4723

2" 48-32-4473 48-32-4910 - - - 48-32-4773

3.5" 48-32-4573 - - - - 48-32-4796

6" - - - - 48-32-4816 -

3-1/2"

Power

Bit

2"

Power

Bit

1"

Insert

Bit

6"

Power

Bit

* TORX® is a registered trademark of Acument Intellectual Properties, LLC.

** Phillips® is a registered trademark of Phillips Screw Company.

ANTI-STRIP TIP

Designed for Phillips, Slotted,

and Square combination

on eletrical fasteners

SQUARE RECESS BITS ECX™ BITS

DRIVER BITS INCLUDING

EXPAND

COMPETITIVE OFFERING

EXPAND

SHOCKWAVE IMPACT DUTY™

VS

OVER 100 ITEMS 31 ITEMS

0˚30˚

Size 1 Pack 10 Pack 11 Pack Bulk

250 Pack

Compact Bit Holder 48-32-4502 48-32-4504 --

3" Bit Holder 48-32-4503 48-32-4505 - 48-32-4803

3" Drive Guide 48-32-4508 48-32-4509 - -

6" Bit Holder 48-32-4511 48-32-4521 --

12" Bit Holder 48-32-4512 48-32-4522 --

11 Pc 30°KNUCKLE

™

Pivoting Bit Holder - - 48-32-2301 -

Compact Bit Holder

3" Bit Holder

6" Bit Holder

12" Bit Holder

30°KNUCKLE™

Pivoting Bit

Holder

Holds

Bit

RING

Holds

Fastener

DO MORE CARRY LESS

milwaukeetool.ca 69

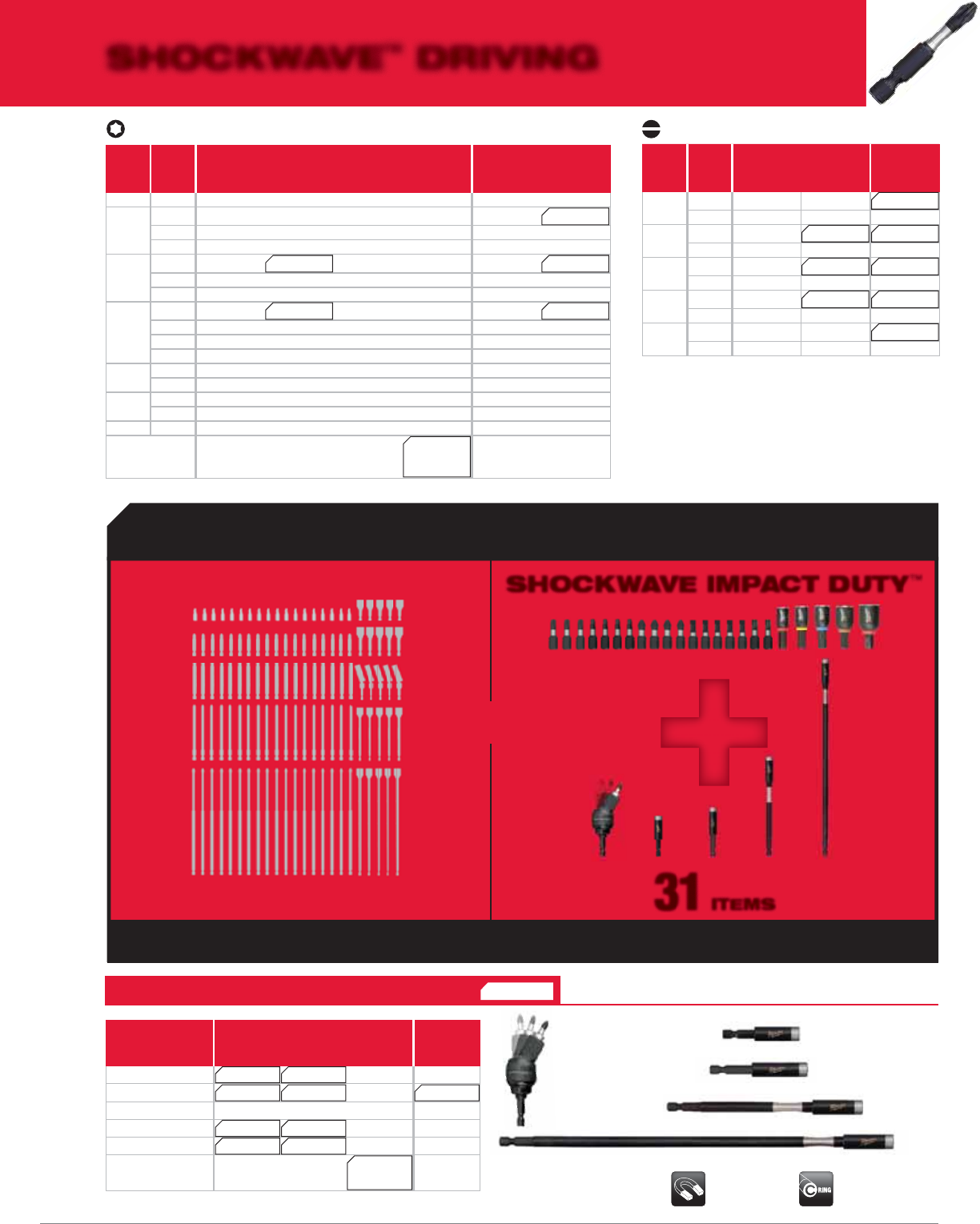

SHOCKWAVE™ DRIVING

Bit Length 1 Pack 2 Pack Bulk

25 Pack

SL 7/64"

(3-4)

1" - - 48-32-4715

2" - - 48-32-4755

SL 1/8"

(4-5)

1" - 48-32-4416 48-32-4716

2" 48-32-4916 - 48-32-4756

SL 3/16"

(6-8)

1" - 48-32-4417 48-32-4717

2" 48-32-4919 - 48-32-4757

SL 1/4"

(8-10)

1" - 48-32-4418 48-32-4718

2" 48-32-4918 - 48-32-4758

SL 9/32"

(10-12)

1" - - 48-32-4719

2" - - 48-32-4759

Bit Length 1 Pack 2 Pack 5 Pack 7 Pack Bulk

10 Pack

Bulk

25 Pack

T10 2" 48-32-4482 - - - - 48-32-4782

T15

1" - - - - - 48-32-4734

2" 48-32-4483 - - - - 48-32-4783

3.5" - - - - - 48-32-4594

T20

1" - 48-32-4414 - - - 48-32-4735

2" 48-32-4484 48-32-4984 - - - 48-32-4784

3.5" - - - - - 48-32-4595

T25

1" - 48-32-4436 - - - 48-32-4736

2" 48-32-4485 48-32-4985 48-32-4685 - - 48-32-4785

3.5" 48-32-4561 - - - - 48-32-4596

6" - - - - 48-32-4846 -

T27 2" 48-32-4486 - - - - 48-32-4786

3.5" - - - - - 48-32-4597

T30 2" 48-32-4487 48-32-4914 - - - 48-32-4787

3.5" - - - - - 48-32-4598

T40 2" - - - - - 48-32-4788

7 Pc Torx

®

Insert

Bits (T10, T15, T20,

T25, T27, T30, T40)

- - - 48-32-4615 --

TORX® BITS SLOTTED BITS

MAGNETIC BIT HOLDERS INCLUDING

EXPAND

70

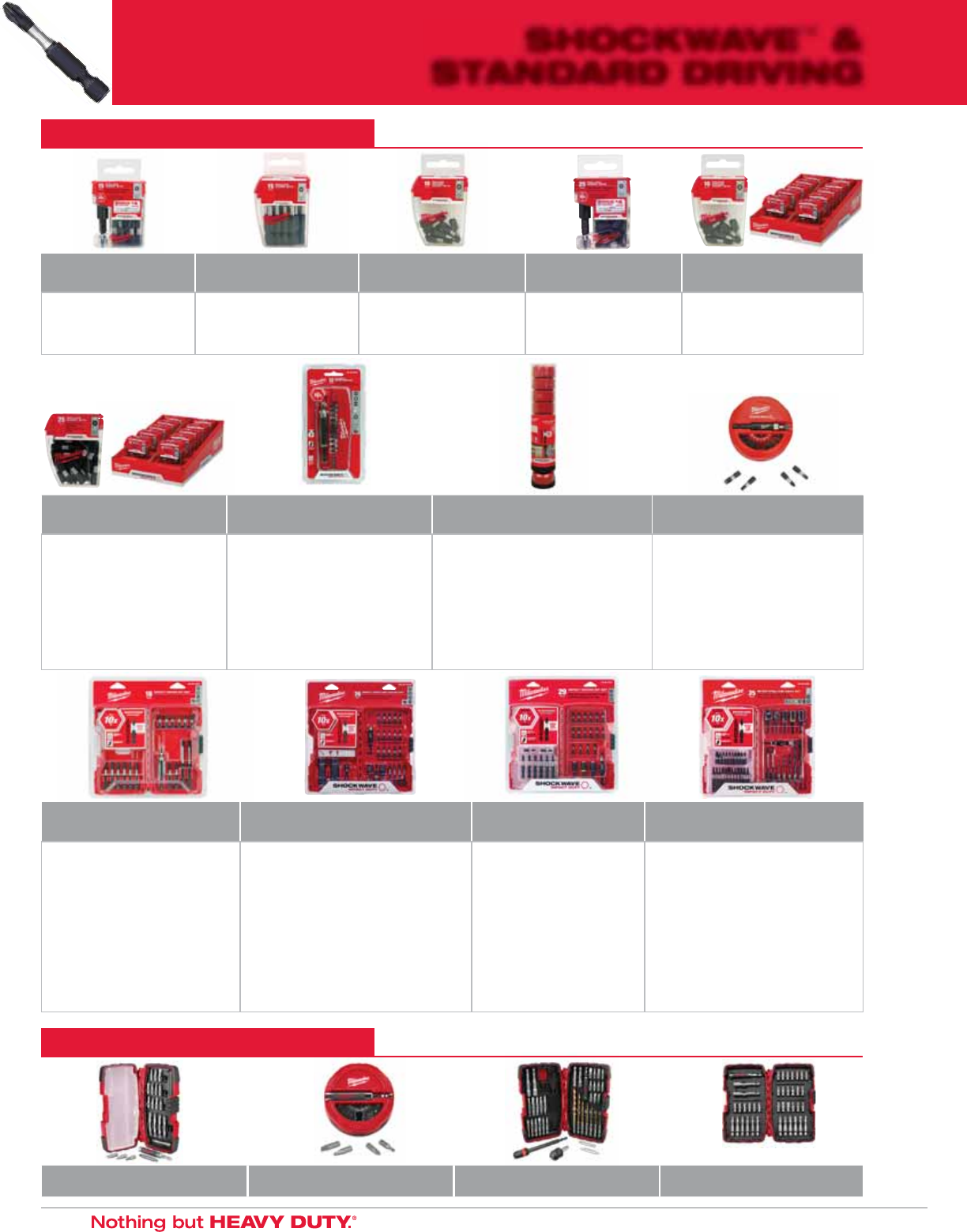

SHOCKWAVE™ &

STANDARD DRIVING

SHOCKWAVE™ IMPACT DUTY SETS

15 Pc SHOCKWAVE™ 1" Insert

Bit Phillips #2 Set

48-32-5003

15 Pc SHOCKWAVE™ 2" Power

Bit Phillips #2 Set

48-32-5004

10 Pc SHOCKWAVE™ 1" Square

Recess Insert Bit #2 Set

48-32-5008

25 Pc SHOCKWAVE™ 1" Insert

Bit Phillips #2 Set

48-32-5009

10 Pc SHOCKWAVE™ 1" Square

Recess Insert Bit Phillips #2 Set

48-32-4607

Includes:

(15) 1" Phillips #2

(Gravity Feed Merchandiser)

Includes:

(15) 2" Phillips #2

(Gravity Feed Merchandiser)

Includes:

(10) 1" Square Recess #2

(Gravity Feed Merchandiser)

Includes:

(25) 1" Phillips #2

(1) SHOCKWAVE™ 2.36"

Magnetic Bit Tip Holder

Includes:

(10) 1" Square Recess #2

(PDQ Tray Merchandiser)

25 Pc SHOCKWAVE™ 1" Insert Bit

Phillips #2 Set

48-32-4604

12 Pc SHOCKWAVE™ Drive Guide Set

48-32-4507

22 Pc SHOCKWAVE™ Puck

(10 per Tube)

48-32-4011

22 Pc SHOCKWAVE™ Puck

48-32-4012

Includes:

(25) 1" Phillips #2

(PDQ Tray Merchandiser)

Includes:

1" ECX™ Bits: (1) ECX #1, (1) ECX #2

1" Phillips Bits: (2) PH #2, (1) PH #3

1" Slotted Bits: (1) SL 1/4", (1) SL 3/16"

1" Square Bits: (1) SQ #2

1" TORX® Bits: (1) TX15, (1) TX20, (1) TX25

(1) SHOCKWAVE™ 3" Magnetic Drive Guide

(1) Drive Guide Case

Includes:

1" Slotted Bits: (1) SL 1/8", (1) SL 3/16",

(1) SL 1/4", (1) SL 9/32"

1" Phillips Bits: (1) PH #1, (3) PH #2, (2) PH #3

1" Square Bits: (1) SQ #1, (3) SQ #2, (1) SQ #3

1" TORX® Bits: (1) TX10, (1) TX15, (1) TX20, (1) TX25,

(1) TX27, (1) TX30

(1) SHOCKWAVE™ 2.36" Magnetic Bit Holder

(Gravity Feed Merchandiser)

Includes:

1" Slotted Bits: (1) SL 1/8", (1) SL 3/16",

(1) SL 1/4", (1) SL 9/32"

1" Phillips Bits: (1) PH #1, (3) PH #2, (2) PH #3

1" Square Bits: (1) SQ #1, (3) SQ #2, (1) SQ #3

1" TORX® Bits: (1) TX10, (1) TX15, (1) TX20, (1) TX25,

(1) TX27, (1) TX30

(1) SHOCKWAVE™ 2.36" Magnetic Bit Holder

(PDQ Tray Merchandiser)

18 Pc SHOCKWAVE™

Driver Bit Set

48-32-4403

26 Pc SHOCKWAVE™

Drive and Fasten Set

48-32-4408

29 Pc SHOCKWAVE™

Driver Bit Set

48-32-4401

35 Pc SHOCKWAVE™

Drill and Drive Set

48-32-4402

Includes:



Phillips Bits: 1" - (1) PH #1, (1) PH #2, (1) PH #3;

2" - (2) PH #2, (1) PH #3; 3-1/2" - (1) PH #2

Slotted Bits: 1" - (1) SL 1/4", (1) SL 3/16"

Square Bits: 1" - (1) SQ #1, (1) SQ #2;

2" - (2) SQ #2, (1) SQ #3; 3-1/2" - (1) SQ #2

TORX® Bits: 2" - (1) TX15, (1) TX20

(1) Case with Bulk Storage Container

(1) SHOCKWAVE™ Magnetic Bit Holder

Includes:

Phillips Bits: 1" - (1) PH #1, (3) PH #2, (1) PH #3; 2" -

(1) PH #2

Square Bits: 1" - (1) SQ #1, (2) SQ #2, (1) SQ #3;

2" - (1) SQ #2

TORX® Bits: 1" - (2) TX20, (2) TX25, (1) TX30;

2" - (1) TX20, (1) TX25

Slotted Bits: 1" - (1) SL 3/16"

(1) 1/4" Hex to 3/8" Square Adapter

Magnetic Nut Drivers: (1) 1/4", (1) 3/8", (1) 5/16"

3/8" Drives: (1) 1/2" Socket, (1) 9/16" Socket

(1) SHOCKWAVE™ Compact Magnetic Bit Holder

Includes:



Phillips Bits: 1" - (1) PH #1, (7) PH #2,

(2) PH #3; 2" Power - (2) PH #2, (1) PH #3



Square Bits: 1" - (1) SQ #1, (4) SQ #2,

(1) SQ #3;

2" Power - (2) SQ #2

Torx® Bits: 1" - (1) TX15, (1) TX20,

(1) TX25; 2" Power - (1) TX25

Magnetic Nut Drivers: (1) 1/4" Red,

(1) 5/16" Amber, (1) 3/8" Blue

Magnetic Bit Holder

Case with Bulk Storage Container

Includes:

Phillips Bits: 1" - (1) PH #1, (2) PH #2, (1) PH #3;

2" - (1) PH #2, (1) PH #3; 3-1/2" - (1) PH #2



Square Bits: 1" - (1) SQ #1, (2) SQ #2, (1) SQ #3;

2" - (1) SQ #1, (1) SQ #2, (1) SQ #3; 3-1/2" - (1) SQ #2

1" ECX™ Bits: (1) ECX #1, (1) ECX #2

1" Slotted Bits: (1) SL 1/8", (1) SL 3/16", (1) SL 1/4"



2" TORX

®

Bits: (1) TX15, (1) TX20, (1) TX25, (1) TX 30

(1) 1/4" Hex to 3/8" Square Adapter; (1) 1/4" Hex to 1/2"

Square Adapter

Compact Magnetic Bit Holder

Impact Drill Bits: (1) 7/32", (1) 1/4", (1) 1/8”, (1) 5/32”,

(1) 3/16”

7/8" Impact Magnetic Nut Drivers: (1) 1/4", (1) 5/16", (1) 3/8"

SHOCKWAVE™ IMPACT DUTY SETS

STANDARD DRIVING BIT SETS

21 Pc Driver Bit Set

48-32-0221

21 Pc Drive Guide Set

48-32-1700

38 Pc QUIK-LOK

™

Drill and Drive Set

48-32-1500

40 Pc Drive Guide Set

48-32-1505

milwaukeetool.ca 71

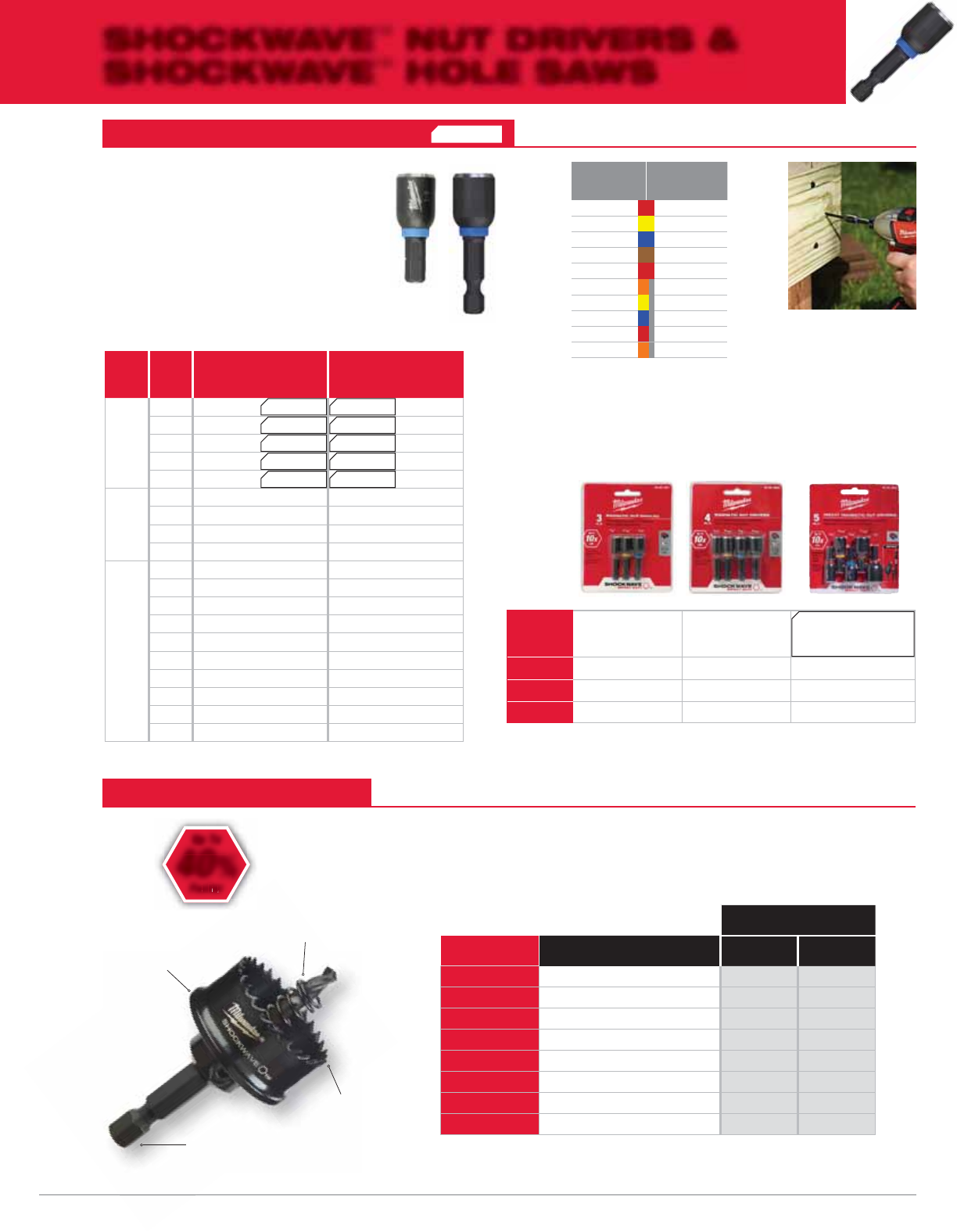

SHOCKWAVE™ NUT DRIVERS &

SHOCKWAVE™ HOLE SAWS

Length Size 1 Pack 3 Pack Bulk

10 Pack

Bulk

250 Pack

Insert

1/4" - 49-66-4512 49-66-4712 -

5/16" - 49-66-4513 49-66-4713 -

3/8" - 49-66-4515 49-66-4715 -

7/16" - 49-66-4516 49-66-4716 -

1/2" - 49-66-4517 49-66-4717 -

1-7/8"

1/4" 49-66-4502 49-66-4522 49-66-4702 -

5/16" 49-66-4503 49-66-4523 49-66-4703 -

3/8" 49-66-4505 49-66-4525 49-66-4705 -

7/16" 49-66-4506 49-66-4526 49-66-4706 -

2-9/16"

1/4" 49-66-4532 - 49-66-4732 49-66-4832

5/16" 49-66-4533 - 49-66-4733 49-66-4833

3/8" 49-66-4535 - 49-66-4735 49-66-4835

7/16" 49-66-4536 - 49-66-4736 -

1/2" 49-66-4537 - 49-66-4737 -

7mm - - 49-66-4607 -

8mm - - 49-66-4608 -

10mm - - 49-66-4610 -

12mm - - 49-66-4612 -

13mm - - 49-66-4613 -

Product

No. 49-66-4561 49-66-4562 49-66-4563

Description 3 Pc Set 4 Pc Set 5 Pc Insert Set

Length 1-7/8" 1-7/8" Insert

Contents 1/4", 5/16", 3/8" 1/4", 5/16", 3/8", 7/16" 1/4", 5/16", 3/8", 7/16", 1/2"

Hex

Size

Color

Identification

Band

1/4" Red

5/16" Yellow

3/8" Blue

7/16" Brown

1/2" Red

7 mm Orange/Gray

8 mm Yellow/Gray

10 mm Blue/Gray

12 mm Red/Gray

13 mm Orange/Gray

n Color Coded Band

For easy identifi cation

n Chamfered Edge

For improved clearance

n Radius Corners

Drives on fl ats to reduce

stripping and breakage

MAGNETIC NUT DRIVERS INCLUDING

EXPAND

1/4" HEX SHANK

For Use in Impact Drivers

EJECTION SPRING

Automatically Removes Slugs

THIN WALL 8 TPI

Fast, Burr-Free Holes

STOP SHOULDER

Prevents Over-Drilling

ENGINEERED FOR IMPACT DRIVERS

Up To

Faster

Up

p

p

T

o

Fa

s

a

a

t

e

t

t

r

e

e

40%

CROSS REFERENCE

Milwaukee® Part # Description DeWalt®

Part #

Bosch®

Part #

49-22-4800 3 Pc Shockwave™ Thin Wall Hole Saw Kit D1800IR5 HTWS

49-56-9805 3/4" Shockwave™ Thin Wall Hole Saw D180012IR HTW34

49-56-9810 7/8" Shockwave™ Thin Wall Hole Saw D180014IR HTW78

49-56-9815 1" Shockwave™ Thin Wall Hole Saw D180016IR HTW1

49-56-9820 1-1/8" Shockwave™ Thin Wall Hole Saw D180018IR HTW118

49-56-9825 1-1/4" Shockwave™ Thin Wall Hole Saw D180020IR HTW114

49-56-9830 1-3/8" Shockwave™ Thin Wall Hole Saw D180022IR HTW138

49-56-9835 1-1/2" Shockwave™ Thin Wall Hole Saw D180024IR HTW112

SHOCKWAVE™ HOLE SAWS

72

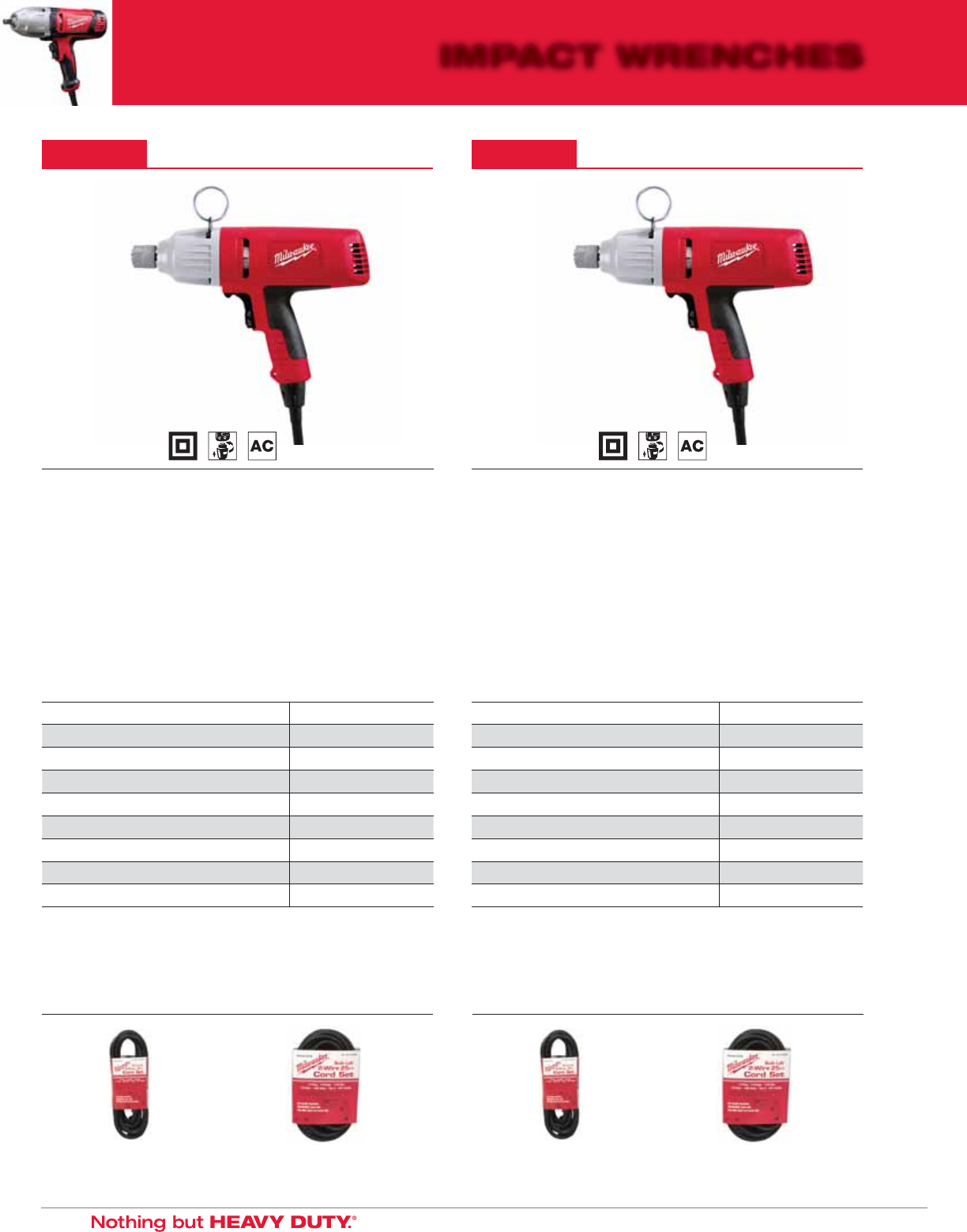

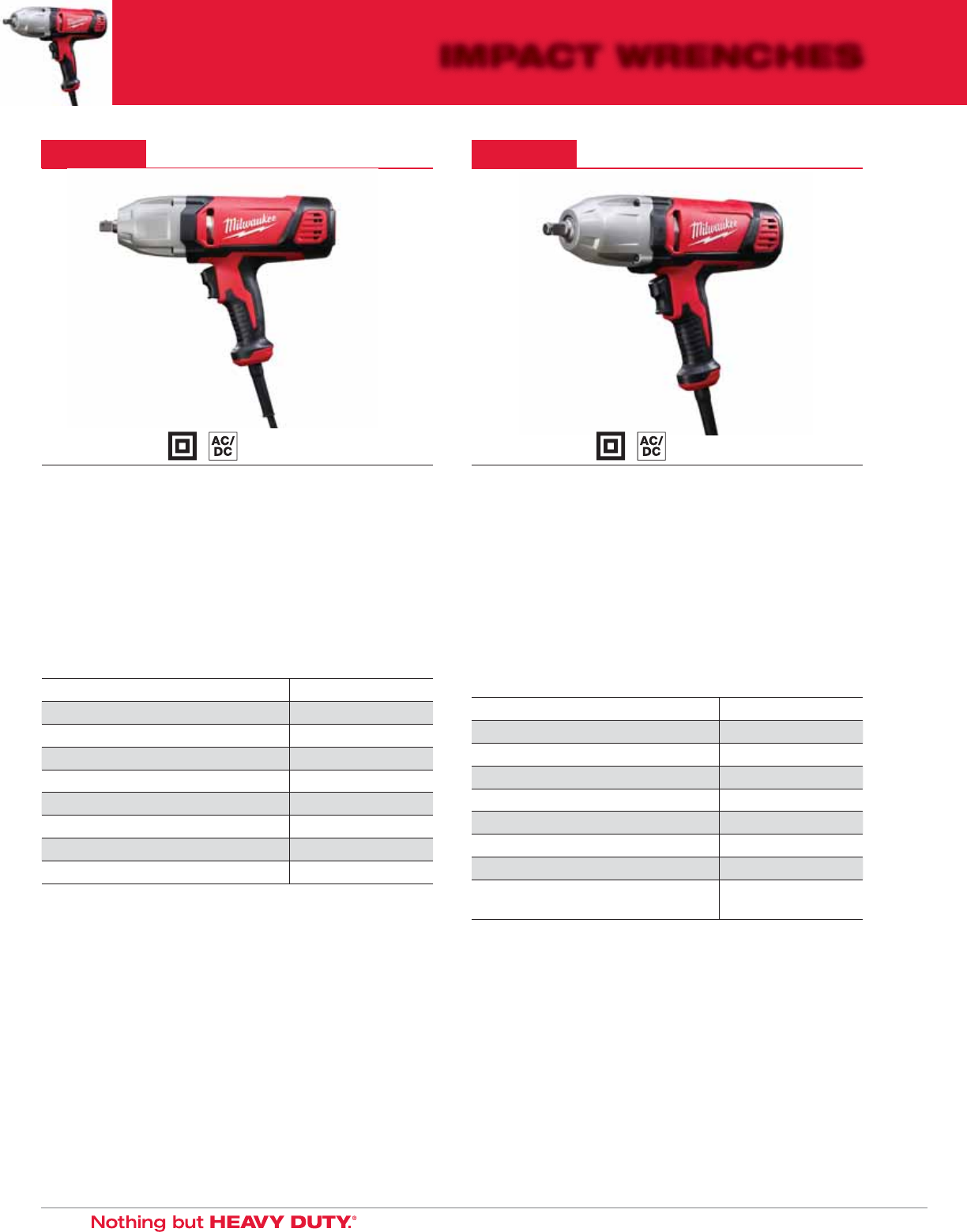

IMPACT WRENCHES

1/2" Impact Wrench with

Rocker Switch and Fricition Ring

1/2" Impact Wrench with

Rocker Switch and Detent Pin 9071-209070-20

FEATURES

n Powerful 7.0 amp motor: Produces 300 ft-lbs of torque and 1800

RPM for maximum productivity

n AC/DC rocker switch: Enables quick selection of forward

and reverse

n Detent pin: Provides secure retention of sockets and adapters

n 8-ft. fi xed rubber cord: Durable construction for longer tool life

Includes: (1) 1/2 in. Impact Wrench with Rocker Switch and Detent

Pin Socket Retention (9070-20)

SPECIFICATIONS

Length 11-5/8"

Weight 6.0 lbs

Voltage 120 AC/DC

Tool Warranty 5 Years

No Load Speed 0-1,800 RPM

Cord Type 8' Fixed

Peak Torque 300 ft-lbs

No Load IPM 0-2,600

Anvil Size and Type 1/2" Square - Pin Detent

FEATURES

n Powerful 7.0-amp motor: Produces 300 ft-lbs of torque and 1800

RPM for maximum productivity

n AC/DC rocker switch: Enables quick selection of forward

and reverse

n Friction ring socket retention system: Reduces downtime on

applications involving frequent changing of accessories

n 8-ft. fi xed rubber cord: Durable construction for longer tool life

Includes: (1) 1/2 in. Impact Wrench with Rocker Switch and Friction

Ring Socket Retention (9071-20)

SPECIFICATIONS

Length 11-5/8"

Weight 6.0 lbs

Voltage 120 AC/DC

Tool Warranty 5 Years

No Load Speed 0-1,800 RPM

Cord Type 8' Fixed

Peak Torque 300 ft-lbs

No Load IPM 0-2,600

Anvil Size and Type 1/2" Square - Friction

Ring with Thru Hole

milwaukeetool.ca 73

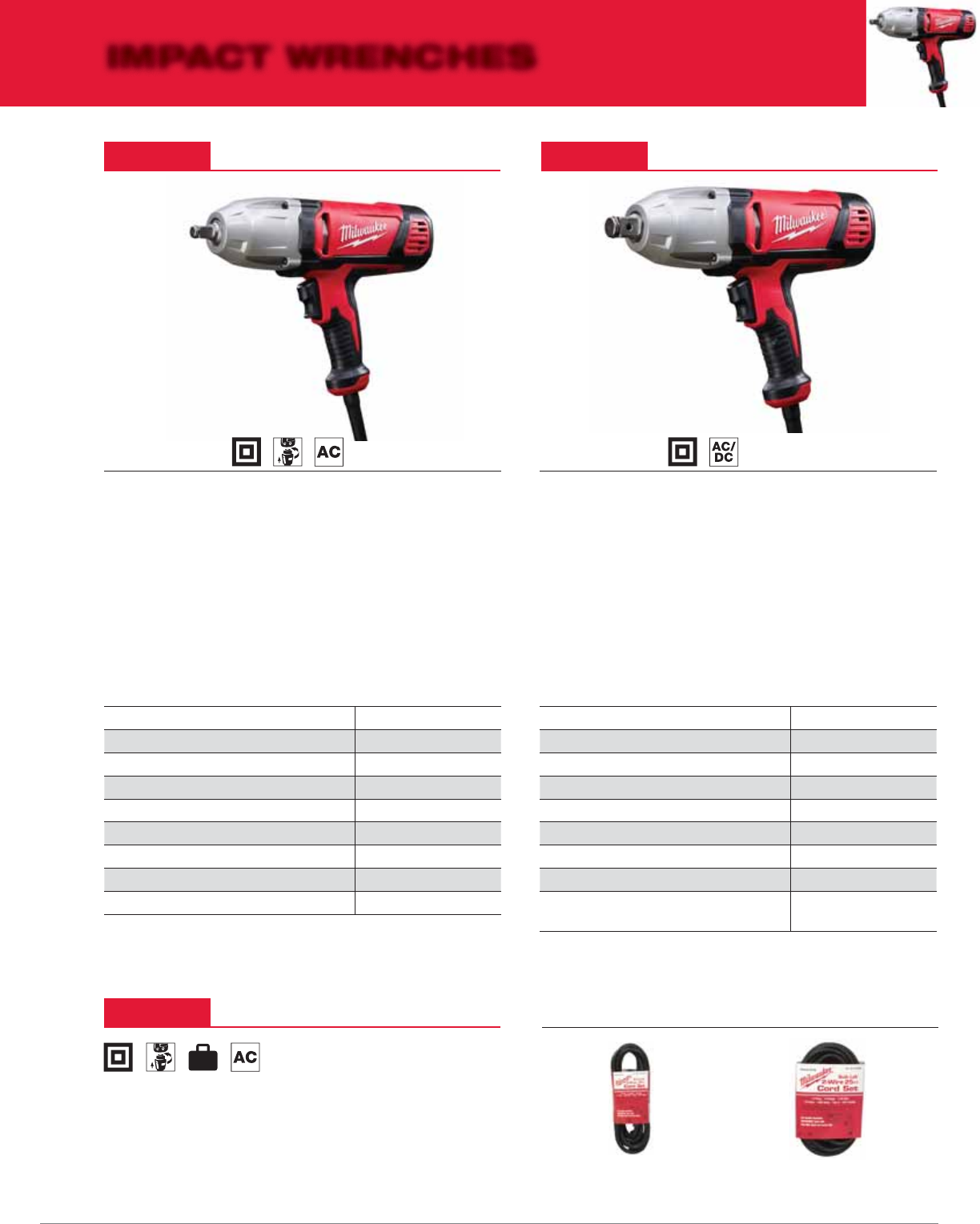

IMPACT WRENCHES

3/4" Impact Wrench with

Rocker Switch and Friction Ring

1/2" VSR Impact Wrench with

Detent Pin

1/2" VSR Impact Wrench with Case

and 6 Sockets

Includes: (1) 1/2 in. VSR Impact Wrench with Case and 6 Sockets

(9072-22), (1) 6 Socket Set

9075-209072-20

9072-22

FEATURES

n Powerful 7.0 amp motor: Produces 300 ft-lbs of torque and 1800

RPM for maximum productivity

n Variable-speed reversing switch with speed dial setting: Offers

added control in drilling and heavy-duty driving applications

n Detent pin: Provides secure retention of sockets and adapters

n QUIK-LOK® Cord: 10-ft. 2-wire grounded rubber cord provides easy

storage and fi eld replacement

Includes: (1) 1/2 in. VSR Impact Wrench with Detent Pin Socket

Retention (9072-20)

SPECIFICATIONS

Length 11-5/8"

Weight 6.0 lbs

Voltage 120V AC

Tool Warranty 5 Years

No Load Speed 0-1,800 RPM

Cord Type 10' QUIK-LOK®

Peak Torque 300 ft-lbs

No Load IPM 0-2,600

Anvil Size and Type 1/2" Square - Pin Detent

FEATURES

n Powerful 7.0-amp motor: Produces 380 ft-lbs of torque and 1750

RPM for maximum productivity

n

3/4" square anvil: More resistant to long term fatigue than a 1/2" anvil

n AC/DC rocker switch: Enables quick selection of forward and reverse

n Friction ring socket retention system: Reduces downtime on

applications involving frequent changing of accessories

n 8-ft. fi xed rubber cord: Durable construction for longer tool life

Includes: (1) 3/4 in. Impact Wrench with Rocker Switch and Friction

Ring Socket Retention (9075-20)

SPECIFICATIONS

Length 11-5/8"

Weight 6.2 lbs

Voltage 120 AC/DC

Tool Warranty 5 Years

No Load Speed 600-1,800 RPM

Cord Type 8' Fixed

Peak Torque 380 ft-lbs

No Load IPM 1,000-2,600

Anvil Size and Type 3/4" Square - Friction

Ring with Thru Hole

ATTACHMENTS

48-76-5010: 10' Quik-Lok®48-76-5025: 25' Quik-Lok®

74

IMPACT WRENCHES

7/16" Hex Quick-Change

Impact Wrench

5/8" Hex Quick Change

Impact Wrench

9092-20 9096-20

FEATURES

n Milwaukee-built motor with large ram and anvil: Produce 315 ft-lbs

of torque and 1800 RPM for maximum productivity

n Variable-speed switch: Offers added control in heavy-duty drilling

and driving applications

n 7/16" hex quick-change system: Provides fast yet secure insertion

and removal of auger bits and socket adaptors

n QUIK-LOK® Cord: 10-ft. 2-wire grounded rubber cord provides easy

storage and fi eld replacement

Includes: (1) 7/16 in. Hex Quick-Change Impact Wrench (9092-20)

SPECIFICATIONS

Length 12-1/4"

Weight 6.5 lbs

Voltage 120 AC/DC

Tool Warranty 5 Years

No Load Speed 600-1,800 RPM

Cord Type 10' QUIK-LOK®

Peak Torque 315 ft-lbs

No Load IPM 1,000-2,600

Anvil Size and Type 7/16" Hex Quick Change

FEATURES

n Milwaukee-built motor with large ram and anvil: Produce 315 ft-lbs

of torque and 1800 RPM for maximum productivity

n Variable-speed switch: Offers added control in heavy-duty drilling

and driving applications

n 7/16" hex quick-change system: Provides fast yet secure insertion

and removal of auger bits and socket adaptors

n QUIK-LOK® Cord: 10-ft. 2-wire grounded rubber cord provides easy

storage and fi eld replacement

Includes: (1) 7/16 in. Hex Quick-Change Impact Wrench (9092-20)

SPECIFICATIONS

Length 12-1/4"

Weight 6.5 lbs

Voltage 120 AC/DC

Tool Warranty 5 Years

No Load Speed 600-1,800 RPM

Cord Type 10' QUIK-LOK®

Peak Torque 315 ft-lbs

No Load IPM 1,000-2,600

Anvil Size and Type 7/16" Hex Quick Change

ATTACHMENTS

48-76-5010: 10' Quik-Lok®48-76-5025: 25' Quik-Lok®

ATTACHMENTS

48-76-5010: 10' Quik-Lok®48-76-5025: 25' Quik-Lok®

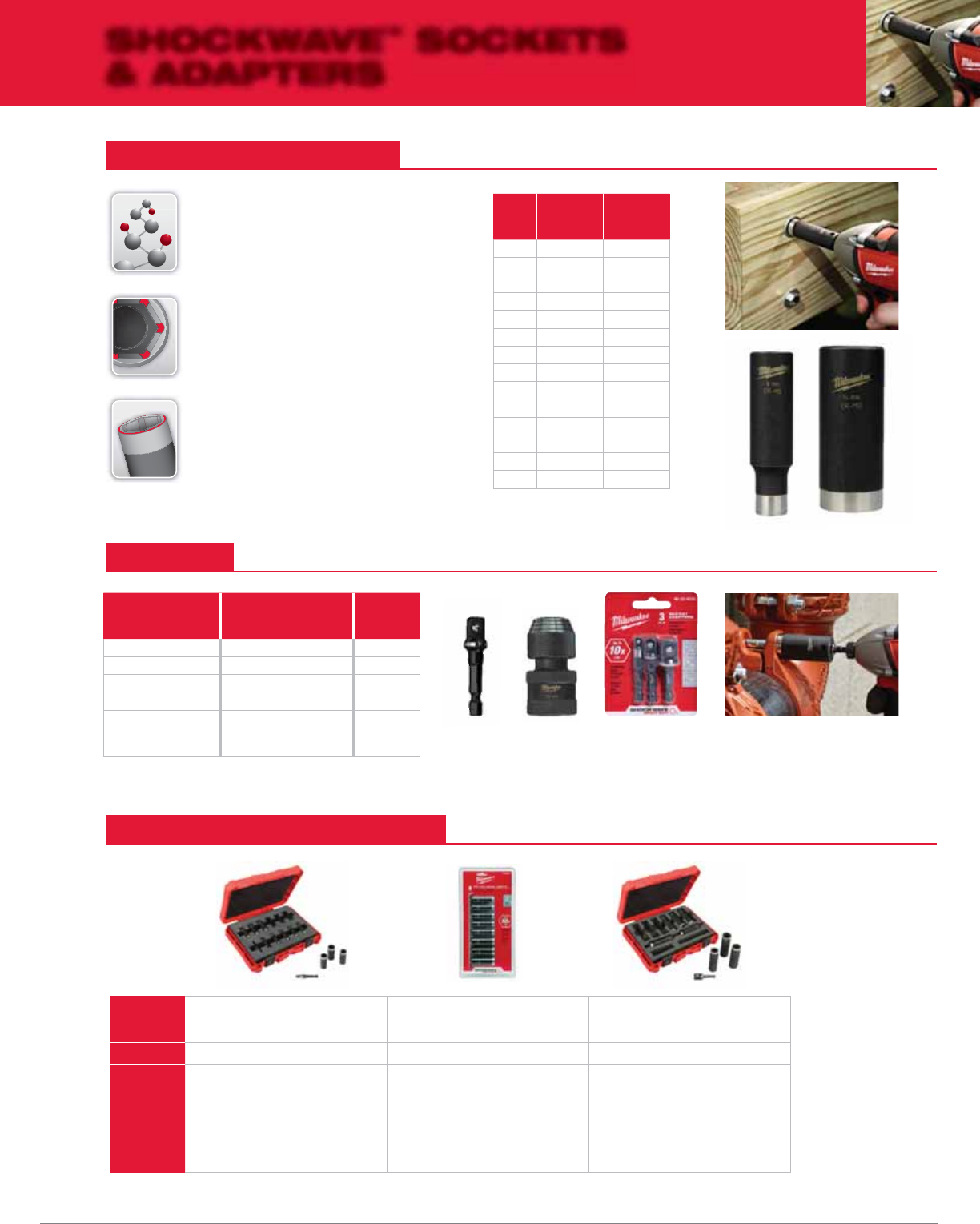

Chromoly Steel &

Custom Heat Treat

Maximum Durability in

High Torque Applications

Radius Corners

Drives on Flats to Reduce

Stripping & Breakage

Thin Wall Construction

Impact Strength in Tight

Clearance Applications

Size 1 Pack 3 Pack Bulk

10 Pack

1/4" Hex to 1/4" Socket 48-32-5030 - 48-32-5730

1/4" Hex to 3/8" Socket 48-32-5031 - 48-32-5731

1/4" Hex to 1/2" Socket 48-32-5032 - 48-32-5732

3/8" Socket to 1/4" Hex 48-03-4405 - -

1/2" Socket to 1/4" Hex 48-03-4410 - -

3 Pc Socket Adapters

(1/4", 3/8", 1/2") - 48-32-5033 -

Size 3/8" Drive

1 Pack

1/2" Drive

1 Pack

5/16" 49-66-4422 -

3/8" 49-66-4424 49-66-4461

7/16" 49-66-4425 49-66-4462

1/2" 49-66-4426 49-66-4463

9/16" 49-66-4427 49-66-4464

5/8" 49-66-4428 49-66-4465

11/16" 49-66-4429 49-66-4466

3/4" 49-66-4430 49-66-4467

13/16" 49-66-4431 49-66-4468

7/8" 49-66-4432 49-66-4469

1" - 49-66-4471

1-1/16" - 49-66-4472

1-1/8" - 49-66-4473

1-1/4" - 49-66-4475

Socket

to Hex

Adapter

Hex to

Socket

Adapter

3 Pc Socket

Adapters

Product

No. 49-66-4301 49-66-4419 49-66-4484

Description 12 Pc Deep Well Impact Socket Set 8 Pc Deep Well Impact Socket Set 9 Pc Deep Well Impact Socket Set

Drive 1/4" 3/8" 1/2"

Measurement

Standard Metric SAE SAE

Contents

5.5mm, 6mm, 7mm, 8mm, 9mm, 10mm,

11mm, 12mm, 13mm, 14mm, 15mm,

1/4" Hex to 1/4" Square Adapter

5/16", 3/8", 7/16", 1/2", 9/16",

5/8", 11/16", 3/4"

3/8", 7/16", 1/2", 9/16", 5/8",

11/16", 3/4", 7/8",

1/4" Hex to 1/2" Square Adapter

milwaukeetool.ca 75

SHOCKWAVE™ SOCKETS

& ADAPTERS

DEEP WELL IMPACT SOCKETS

ADAPTERS

DEEP WELL IMPACT SOCKET SETS

76

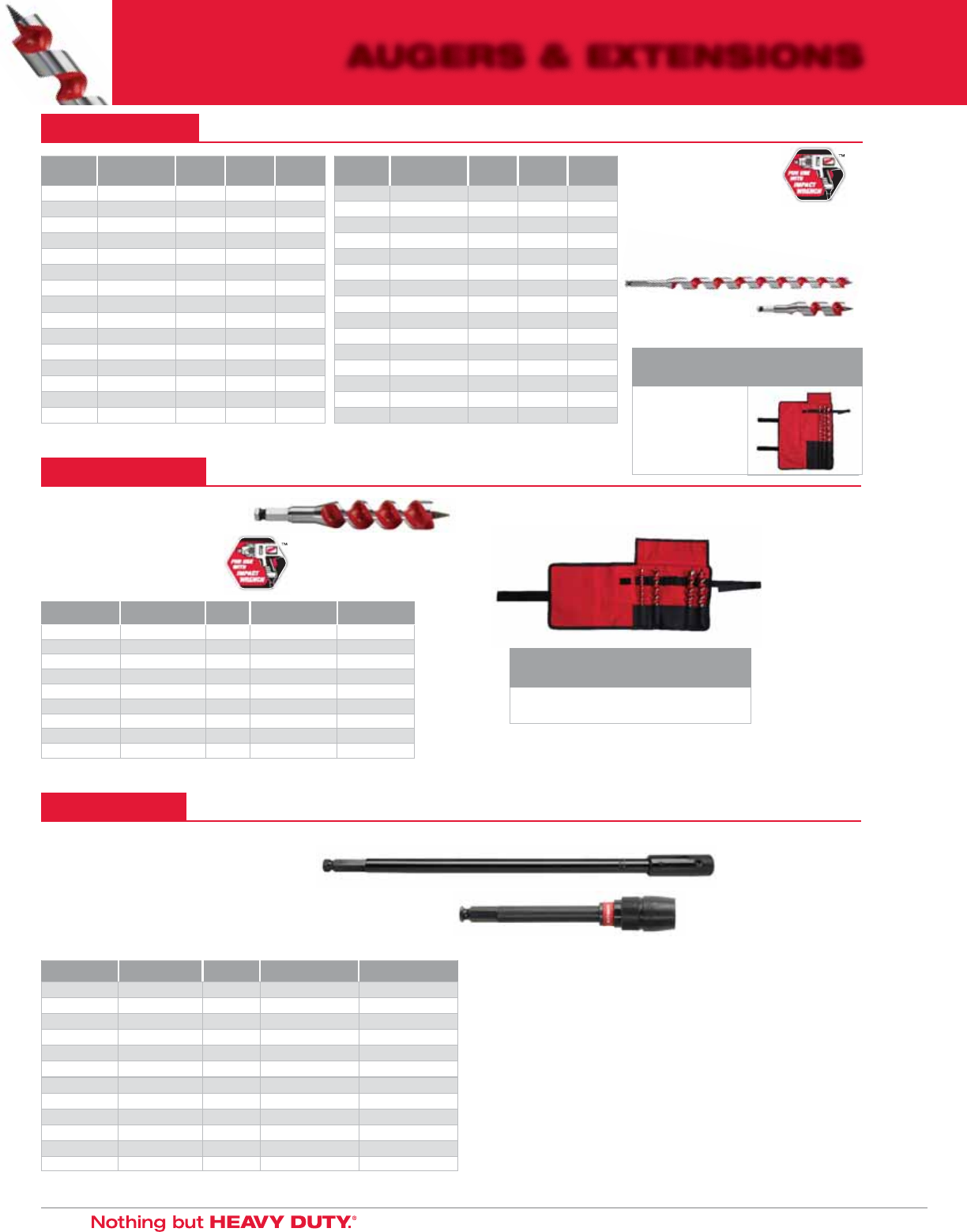

AUGERS & EXTENSIONS

CLEAN HOLES

n Double wing spurs for clean hole cutting

FAST CHIP REMOVAL

n Coated fl utes for fast chip removal

IMPACT RATED

Size Part Number Shank Overall Length Twist Length

1/2" 48-13-0700 5/16" 6-1/2" 4"

5/8" 48-13-0725 7/16" 6-1/2" 4"

3/4" 48-13-0750 7/16" 6-1/2" 4"

7/8" 48-13-0870 7/16" 6-1/2" 4"

1" 48-13-1000 7/16" 6-1/2" 4"

1-1/8" 48-13-1120 7/16" 6-1/2" 4"

1-1/4" 48-13-1250 7/16" 6-1/2" 4"

1-3/8" 48-13-1370 7/16" 6-1/2" 4"

1-1/2" 48-13-1500 7/16" 6-1/2" 4"

SPUR AUGER SET

4 Pc Spur Auger Bit Set (6-1/2")

48-13-4000

Includes:

n 1/2", 3/4", 7/8", 1"

UNIVERSAL FIT

n All extensions work with all major brands

QUIK-LOK™ EXTENSIONS

n Fits any 1/4" or 7/16" hex shank product

n Impact rated for maximum durability

n Releases by hand for quick operation

Part Number Shank Size Length Type Accepts Shank Size

48-28-1000 1/4" 3" QUIK-LOK® 1/4"

48-28-1010 1/4" 6" QUIK-LOK® 1/4"

48-28-1020 1/4" 12" QUIK-LOK®1/4"

48-28-4008 3/8" 12" Hex Wrench 3/8"

48-28-1030 7/16" 5-1/2" QUIK-LOK® 7/16"

48-28-1040 7/16" 12" QUIK-LOK® 7/16"

48-28-1050 7/16" 18" QUIK-LOK® 7/16"

48-28-1060 7/16" 24" QUIK-LOK® 7/16"

48-28-4001 7/16" 5-1/2" Hex Wrench 7/16"

48-28-4006 7/16" 12" Hex Wrench 7/16"

48-28-4011 7/16" 18" Hex Wrench 7/16"

48-28-4016 7/16" 24" Hex Wrench 7/16"

HEX WRENCH

QUIK-LOK™

SPUR AUGERS

EXTENSIONS

SHIP AUGERS

DURABLE

n Hardened tip for added nail durability

FAST CHIP REMOVAL

n Coated fl utes for fast chip removal

IMPACT RATED

SHIP AUGER SET

3 Pc Ship Auger Bit Set (18")

49-13-3000

Includes:

n 1/2", 3/4", 1"

Size Part Number Shank Overall

Length

Twist

Length

3/8" 48-13-0373 5/16" 6" 3"

1/2" 48-13-0503 5/16" 6" 3"

5/8" 48-13-0623 7/16" 6" 3"

11/16" 48-13-0683 7/16" 6" 3"

3/4" 48-13-0753 7/16" 6" 3"

13/16" 48-13-0813 7/16" 6" 3"

7/8" 48-13-0873 7/16" 6" 3"

15/16" 48-13-0933 7/16" 6" 3"

1" 48-13-1003 7/16" 6" 3"

1-1/16" 48-13-1063 7/16" 6" 3"

1-1/8" 48-13-1123 7/16" 6" 3"

1-1/4" 48-13-1253 7/16" 6" 3"

1-3/8" 48-13-1373 7/16" 6" 3"

1-1/2" 48-13-1503 7/16" 6" 3"

3/8" 48-13-5500 5/16" 18" 15"

Size Part Number Shank Overall

Length

Twist

Length

7/16" 48-13-5520 5/16" 18" 15"

1/2" 48-13-5540 5/16" 18" 15"

9/16" 48-13-5560 7/16" 18" 15"

5/8" 48-13-5620 7/16" 18" 15"

11/16" 48-13-5680 7/16" 18" 15"

3/4" 48-13-5750 7/16" 18" 15"

13/16" 48-13-5810 7/16" 18" 15"

7/8" 48-13-5870 7/16" 18" 15"

15/16" 48-13-5930 7/16" 18" 15"

1" 48-13-6000 7/16" 18" 15"

1-1/16" 48-13-6010 7/16" 18" 15"

1-1/8" 48-13-6120 7/16" 18" 15"

1-1/4" 48-13-6250 7/16" 18" 15"

1-3/8" 48-13-6370 7/16" 18" 15"

1-1/2" 48-13-6500 7/16" 18" 15"

milwaukeetool.ca 77

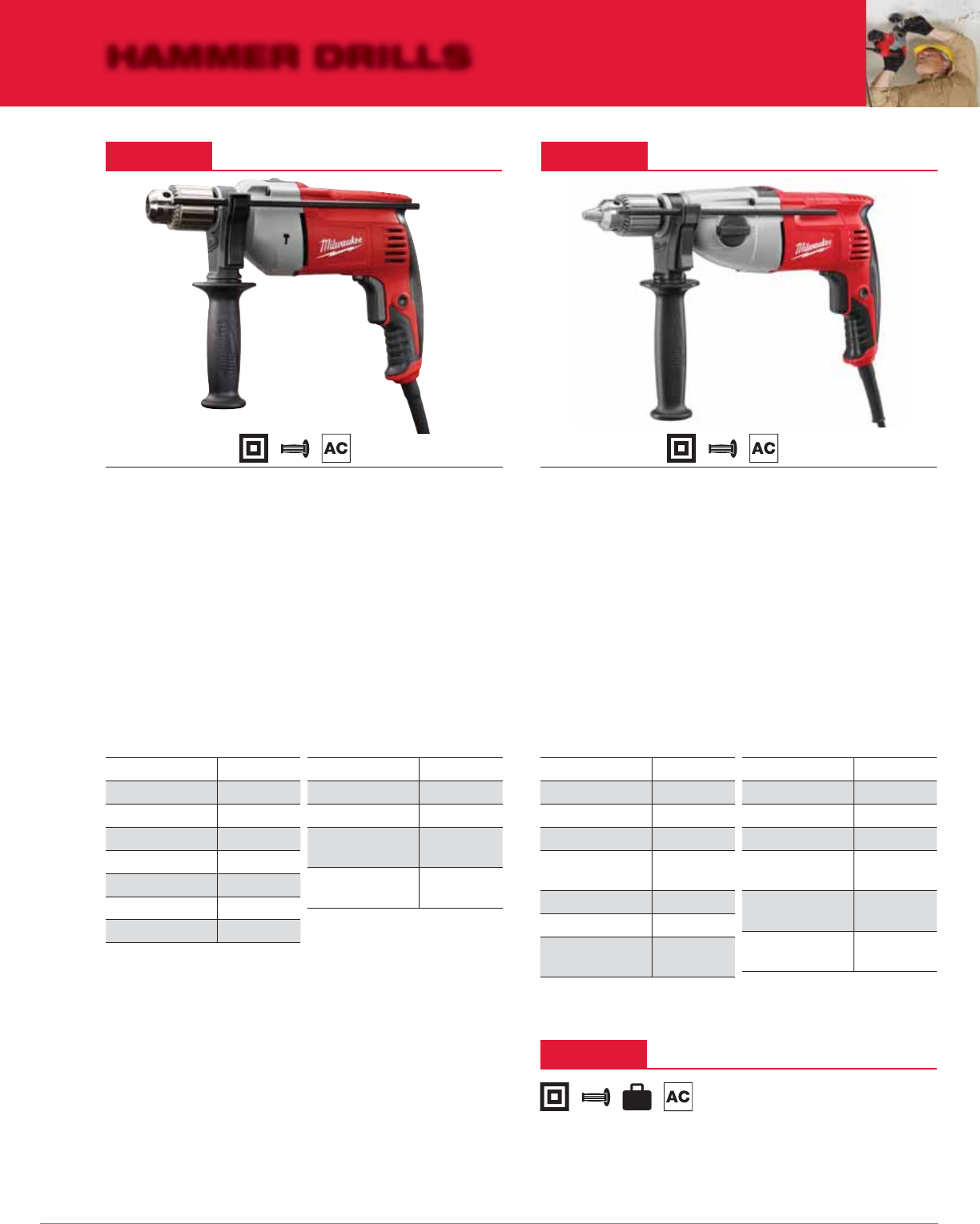

HAMMER DRILLS

5376-20 5378-20

1/2" Hammer Drill

1/2" Pistol Grip Dual Torque Hammer

Drill, 0-1350/0-2500RPM

FEATURES

n Powerful 8-amp motor: Delivers 0-2,800 RPM and 0-48,000 BPM

for superior performance

n Compact 11.5" length: Allows for work in tight spaces

n All-metal gear case: Provides 2X more durability than the

leading competitor

n 2-Mode operation: Hammer Drill and drill-only modes for concrete,

wood and metal

n Heavy-duty metal chuck: Provides superior durability and bit retention

n Over-mold: Increases grip and reduces vibration

n 360° Locking side handle with depth gauge: Permits maximum

maneuverability and control

Includes: (1) 1/2" Hammer Drill (5376-20); (1) Side Handle

SPECIFICATIONS

Length 11-1/2"

Weight 4.9 lbs

Voltage 120V

Tool Warranty 5 Years

No Load BPM 48,000

Cord Type 8' Fixed

No Load RPM 0-2,800

Amps 8

Trigger Lock Yes

Chuck Type Keyed

Capacity in Steel Twist Bit 1/2"

Capacity in Wood Hole Saw

1-1/4"

Capacity in

Concrete 5/8"

FEATURES

n Powerful 7.5-amp dual-torque motor: Optimized for concrete fastening

with overload protection. Choose trigger-speed control in two ranges:

0-1,350 RPM/0-22,000 BPM or 0-2,500 RPM/0-40,000 BPM

n 2-Mode operation: Drill-only mode for wood, steel and plastic;

hammer and rotation setting easily sets concrete screw fasteners

and drills small holes for anchors

n 2-Speed gear box: Select the correct drilling speed for the material

and accessory

n Self-stopping brushes: Protects the motor and increases the life of

the tool

Includes: (1) 1/2" Pistol Grip Dual Torque Hammer Drill,

0-1350/0-2500RPM (5378-20); (1) Chuck Key; (1) Side Handle

SPECIFICATIONS

Length 13"

Weight 6.0 lbs

Voltage 120V AC

Tool Warranty 5 Years

No Load BPM 0-20,000,

0-40,000

Cord Type 8' Fixed

Cord Length 8'

No Load RPM 0-1,350,

0-2,500

Amps 7.5

Trigger Lock Yes

Chuck Type Keyed

Capacity in Steel Twist Bit 1/2"

Capacity in Wood Hole Saw

3-3/4"

Selfeed Bit

Capacity 1-3/4"

Capacity in

Concrete 3/4"

5378-21

1/2" Pistol Grip Dual Torque Hammer

Drill, 0-1350/0-2500RPM with Case

Includes: 1/2" Pistol Grip Dual Torque Hammer Drill, 0-1350/0-2500

RPM (5378-20); (1) Chuck Key; (1) Side Handle; (1) Carrying Case

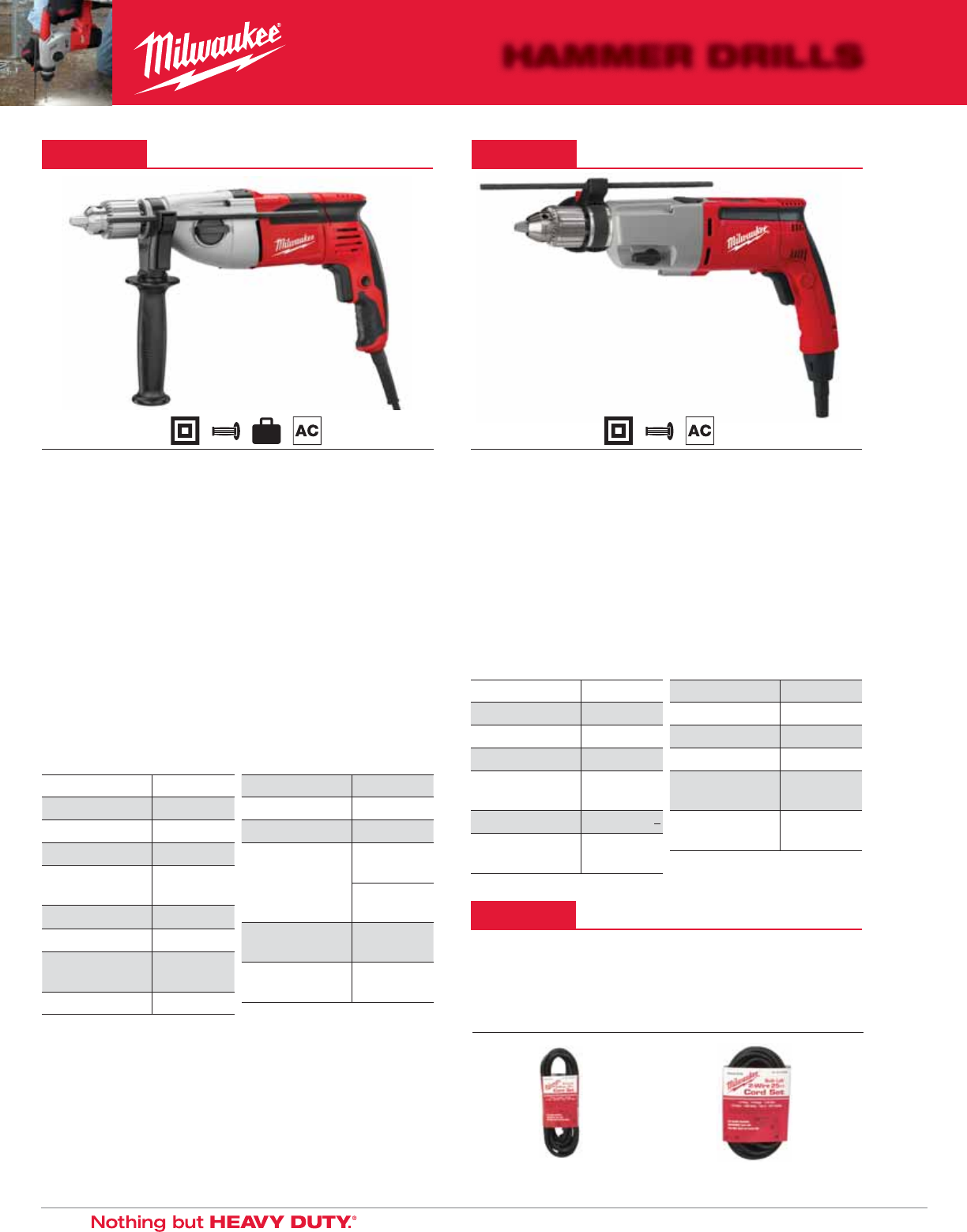

HAMMER DRILLS

78

5380-21 5387-20

1/2" Hammer Drill with Carrying Case 1/2" Dual Speed Hammer Drill

FEATURES

n Powerful 9.0-amp motor: Delivers 0-1,500 RPM/0-24,000 BPM

and 0-3,500 RPM/0-56,000 BPM

n Anti-Vibration System (AVS): Delivers maximum comfort by

minimizing vibration

n 2-Mode operation: Hammer drill/drill for maximum versatility in

wood, metal and concrete

n 2-Speed gear box: Select the correct drilling speed for the material

and accessory

n Self-stopping brushes: Protects the motor and increases the life of

the tool

n 360° Locking side handle with depth gauge: Permits maximum

maneuverability and control

Includes: (1) 1/2" Hammer Drill (5380-21); (1)Carrying Case;

(1) Chuck Key; (1) Side Handle

SPECIFICATIONS

Length 14"

Weight 7.3 lbs

Voltage 120V AC

Tool Warranty 5 Years

No Load BPM 0-24,000,

0-56,000

Cord Type 8' Fixed

Cord Length 8'

No Load RPM 0-1,500,

0-3,500

Trigger Lock Yes

Chuck Type Keyed

Soft Grip Handle Yes

Capacity in Steel Twist Bit 1/2"

Capacity in Wood

Hole Saw

3-1/2"

Hole Saw

1-3/4"

Selfeed Bit

Capacity 1-3/4"

Capacity in

Concrete 3/4"

FEATURES

n Powerful 8.5-amp dual-speed motor: Optimized for concrete

fastening with overload protection. Choose 0-1,000 RPM/0-16,000

BPM or 0-2,500 RPM/0-40,000 BPM

n Heavy-duty metal gear case: Withstands daily jobsite use, yet is light

enough to reduce operator fatigue

n QUIK-LOK® Cord: 10-ft. 2-wire grounded rubber cord provides easy

storage and fi eld replacement

Includes: (1) 1/2 in. Dual Speed Hammer-Drill (5387-20);

(1) Chuck Key; (1) Side Handle

SPECIFICATIONS

Length 14-3/4"

Weight 6.4 lbs

Voltage 120V AC

Tool Warranty 5 Years

No Load BPM 0-16,000,

0-40,000

Cord Type 10' QUIK-LOK®

No Load RPM 0-1,000,

0-2,500

Amps 8.5

Trigger Lock No

Chuck Type Keyed

Capacity in Steel Twist Bit 1/2"

Selfeed Bit

Capacity 2"

Capacity in

Concrete 3/4"

1/2" Dual Speed Hammer-Drill Kit

Includes: (1) 1/2 in. Dual Speed Hammer-Drill (5387-20);

(1) Carrying Case; (1) Chuck Key; (1) Side Handle

5387-22

ATTACHMENTS

48-76-5010: 10' Quik-Lok®48-76-5025: 25' Quik-Lok®

HAMMER DRILL BITS

milwaukeetool.ca 79

Size Part Number Useable

Length

Overall

Length

Pack

Qty

1/8"

48-20-8800 1-1/2" 3" 2

5/32"

48-20-8801 4" 6" 2

3/16"

48-20-8805 2" 4" 2

3/16"

48-20-8806 4" 6" 2

1/4"

48-20-8810 2" 4" 1

1/4"

48-20-8811 4" 6" 1

1/4"

48-20-8812 10" 12" 1

5/16"

48-20-8816

4" 6" 1

5/16"

48-20-8817

10" 12" 1

3/8"

48-20-8821

4" 6" 1

3/8"

48-20-8822

10" 12" 1

3/8"

48-20-8823

16" 18" 1

7/16"

48-20-8825

4" 6" 1

1/2"

48-20-8830

4" 6" 1

1/2"

48-20-8831

10" 12" 1

1/2"

48-20-8832

16" 18" 1

9/16"

48-20-8835

4" 6" 1

5/8"

48-20-8840

4" 6" 1

5/8"

48-20-8841

10" 12" 1

5/8"

48-20-8842

16" 18" 1

FASTER DRILLING

n Unique fl ute geometry provides effi cient dust and debris removal

STARTS ON CONTACT & EXACT SPOT DRILLING

n Patented self-centering carbide tip maintains hole placement

INCREASED TIP STRENGTH

n Patented Rebar Chamfers for increased strength and reduced wear

OPTIMIZED IMPACT ENERGY TRANSFER

n Reinforced and patented high volume KVS fl ute for higher resistance to breaking

NO SPIN

n 3-Flat shank holds bit secure in drill chuck

DESIGNED FOR DRILLING

n in brick, block and softer aggregate concrete

Useable Length

Overall Length

HAMMER DRILL BIT SETS

3 Pc 3-Flat SECURE-GRIP™

Hammer Drill Bit Set

48-20-8850

5 Pc 3-Flat SECURE-GRIP™

Hammer Drill Bit Set

48-20-8851

Includes:

n 5/32" x 6"

n 3/16" x 6"

n 1/4" x 6"

Includes:

n 5/32" x 6"

n 3/16" x 6"

n 1/4" x 6"

n 5/16" x 6"

n 3/8" x 6"

Size Part Number Useable

Length

Overall

Length

Pack

Qty

3/4"

48-20-8845

4" 6" 1

3/4"

48-20-8846

10" 12" 1

7/8"

48-20-8847

4" 6" 1

7/8"

48-20-8848

10" 12" 1

1"

48-20-8849

4" 6" 1

1"

48-20-8854

10" 12" 1

3/16"

48-20-8957

4" 6" 5

1/4"

48-20-8961

2" 4" 5

1/4"

48-20-8962

4" 6" 5

1/8"

48-20-8900

1-1/2" 3" 25

5/32"

48-20-8901

4" 6" 25

3/16"

48-20-8905

2" 4" 25

3/16"

48-20-8906

4" 6" 25

1/4"

48-20-8910

2" 4" 25

1/4"

48-20-8911

4" 6" 25

5/16"

48-20-8916

4" 6" 25

3/8"

48-20-8921

4" 6" 20

7/16"

48-20-8925

4" 6" 20

1/2"

48-20-8930

4" 6" 15

5/8"

48-20-8940

4" 6" 10

6 Pc 3-Flat SECURE-GRIP™

Hammer Drill Bit Set

48-20-8856

7 Pc 3-Flat SECURE-GRIP™

Hammer Drill Bit Set

48-20-8852

Includes:

n (2) 1/4" x 6"

n 5/32" x 6"

n 3/16" x 6"

n 5/16" x 6"

n 3/8" x 6"

Includes:

n (2) 3/16" x 6"

n (2) 1/4" x 6"

n 5/32" x 6"

n 5/16" x 6"

n 3/8" x 6"

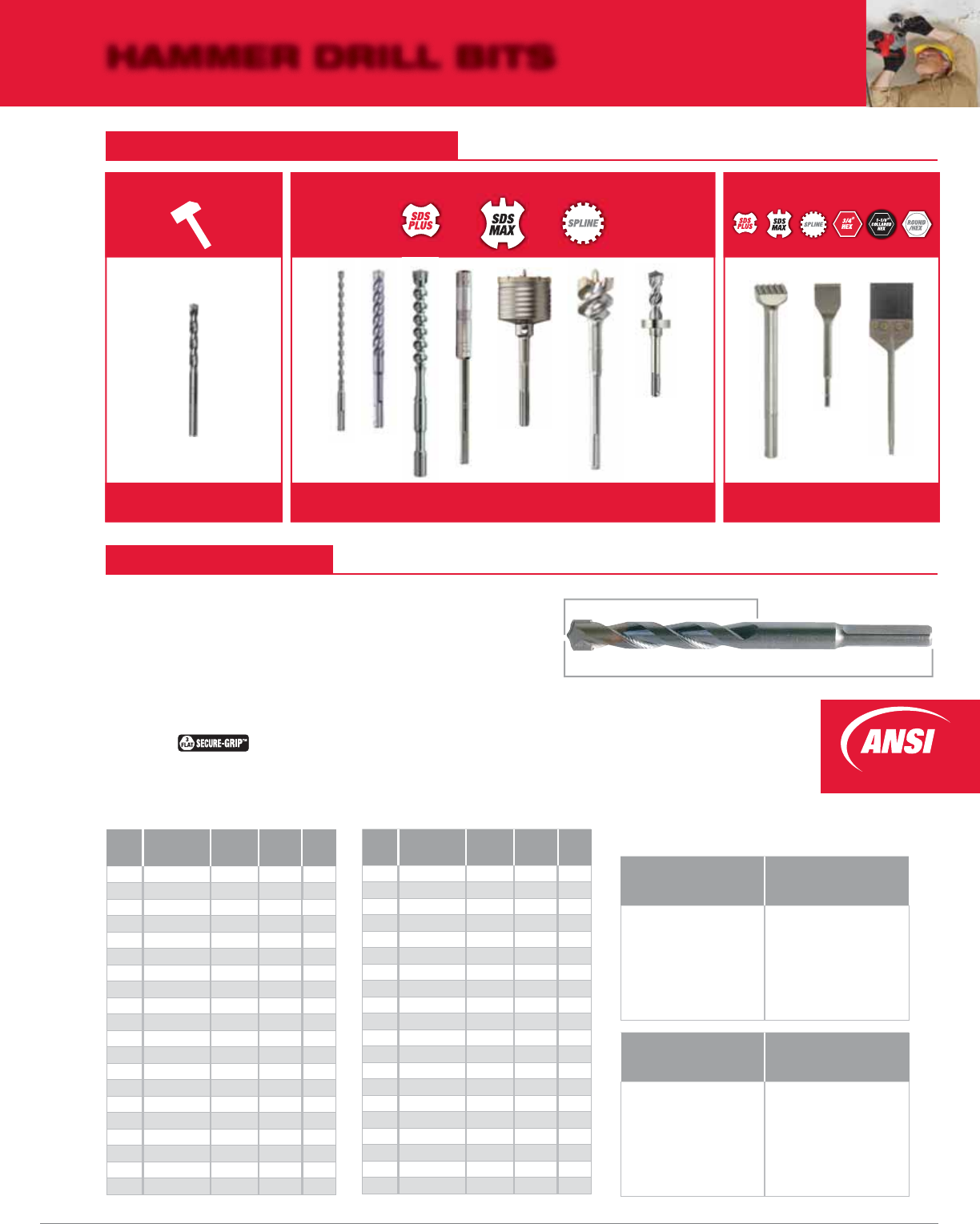

HAMMER DRILL BITS

STANDARD COMPLIANT

MILWAUKEE MASONRY BIT RANGE

HAMMER DRILL /

PERCUSSION BITS

HAMMER DRILL

ROTARY HAMMER DRILL BITS

ROTARY HAMMERS

DEMOLITION STEEL

DEMOLITION HAMMERS

HAMMER DRILL BITS

CROSS-REFERENCE

80

Diameter Useable

Length

Overall

Length Qty Milwaukee Bosch DeWalt Metabo

1/8 1-1/2 3 2 48-20-8800 HCBG01 DW5221 74 004

5/32 4 6 2 48-20-8801 HCBG02 DW5227

3/16 2 4 2 48-20-8805 HCBG03 DW5222 74 006

3/16 4 6 2 48-20-8806 HCBG04 DW5223 74 206

1/4 2 4 1 48-20-8810 DW5224 74 008

1/4 4 6 1 48-20-8811 HCBG06 DW5225 74 108

1/4 10 2 1 48-20-8812 HCBG08 DW5226

5/16 4 6 1 48-20-8816 HCBG09 DW5228 74 010

5/16 10 2 1 48-20-8817 HCBG11 DW5229 74 410

3/8 4 6 1 48-20-8821 HCBG12 DW5230 74 012

3/8 10 2 1 48-20-8822 HCBG14 DW5231 74 412

3/8 16 8 1 48-20-8823 DW5232

7/16 4 6 1 48-20-8825 HCBG15 DW5234 74 014

1/2 4 6 1 48-20-8830 HCBG16 DW5235 74 016

1/2 10 2 1 48-20-8831 HCBG18 DW5236 74 416

1/2 16 8 1 48-20-8832 DW5237

9/16 4 6 1 48-20-8835 DW5217 74 018

5/8 4 6 1 48-20-8840 HCBG20 DW5241 74 020

5/8 10 2 1 48-20-8841 HCBG21 DW5242 74 420

5/8 16 18 1 48-20-8842

3/4 4 6 1 48-20-8845 HCBG22 DW5244 74 024

3/4 10 2 1 48-20-8846 HCBG23 DW5245 74 424

7/8 4 6 1 48-20-8847 HCBG24 74 028

7/8 10 2 1 48-20-8848 HCBG25 DW5219

146148-20-8849 HCBG26 74 100

1102 148-20-8854 HCBG27 DW5249

3/16 4 6 5 48-20-8957 HCBG0405

1/4 4 3 5 48-20-8961

1/4 4 6 5 48-20-8962 HCBG0605

1/8 1-1/2 3 25 48-20-8900 HCBG01B25 DW5221B25

5/32 4 6 25 48-20-8901 HCBG02B25 DW5227B25 74 475

3/16 2 4 25 48-20-8905 HCBG03B25 DW5222B25 74 456

3/16 4 6 25 48-20-8906 HCBG04B25 DW5223B25 74 256

1/4 2 4 25 48-20-8910 DW5224B25 74 058

1/4 4 6 25 48-20-8911 HCBG06B25 DW5225B25 74 158

5/16 4 6 25 48-20-8916 HCBG09B25 DW5228B25

3/8 4 6 20 48-20-8921 HCBG12B25 DW5230B25

7/16 4 6 20 48-20-8925 HCBG15B25

1/2 4 6 15 48-20-8930 HCBG16B25 DW5235B25

5/8 4 6 10 48-20-8940 HCBG20B25

3 PC. BIT KIT SET 48-20-8850

5 PC. BIT KIT SET 48-20-8851 DW5205

7 PC. BIT KIT SET 48-20-8852

6 PC. BIT KIT SET 48-20-8856

HAMMER DRILL BITS

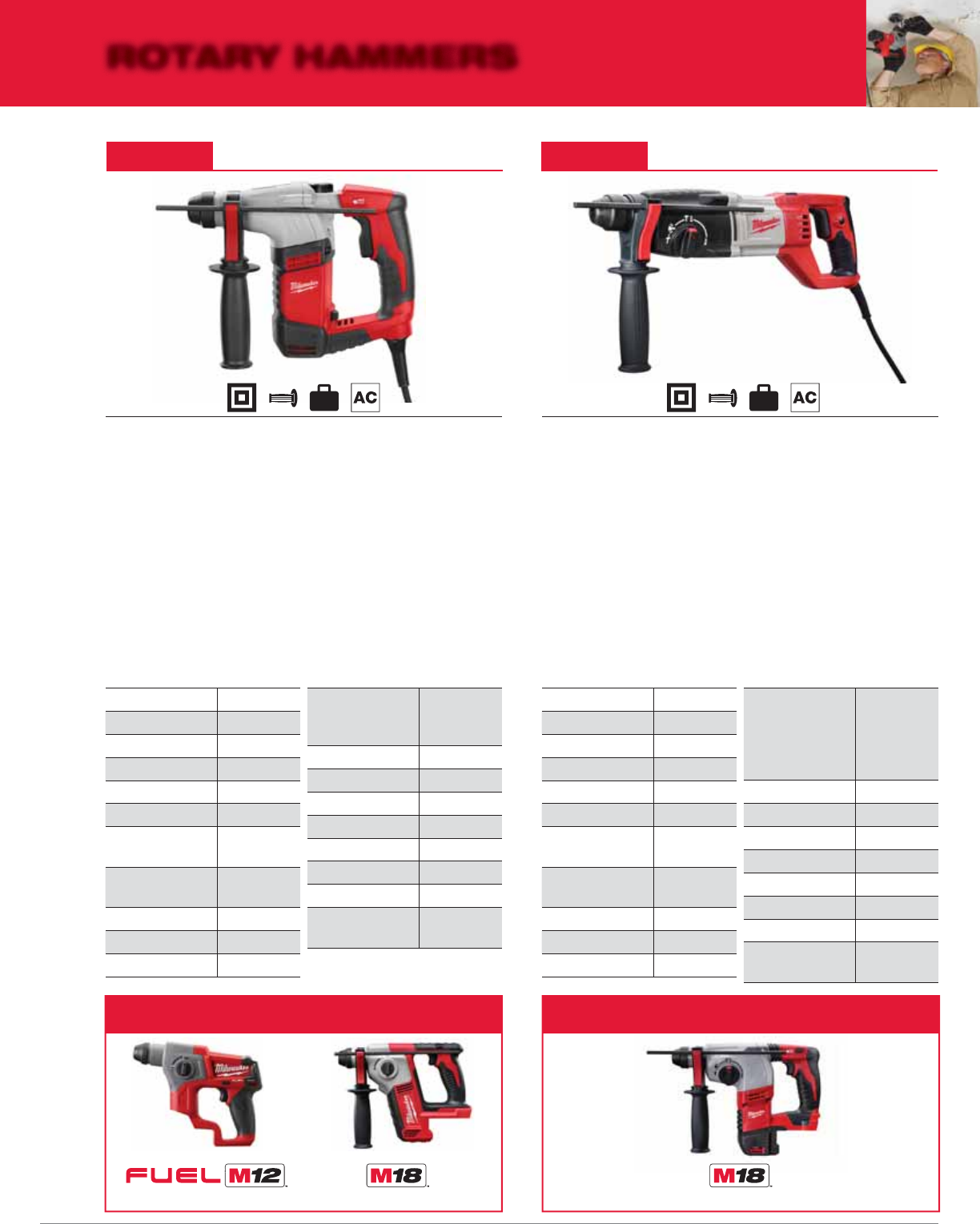

ROTARY HAMMERS

milwaukeetool.ca 81

5262-21

7/8" SDS Plus Rotary Hammer Kit

FEATURES

n Powerful 7-amp motor: Delivers 0-1,500 RPM, 0-5,625 BPM with

up to 40% faster drilling speeds than the competition

n 1.8 Ft-lbs of torque: Provides 10% faster drilling and up to 35%

harder hits

n 3-Mode operation: Choose rotary hammer, hammer only and

rotation only for added versatility

n Mechanical clutch: Protects the motor when the bit binds

n Variable Position Chisel Stop: Allows material to be adjusted,

regardless of orientation

Includes: (1) 7/8" SDS Plus Rotary Hammer Kit (5262-21);

(1) Carrying Case; (1) Depth Rod; (1) Side Handle

SPECIFICATIONS

Length 17"

Weight 5.8 lbs

Voltage 120V

Tool Warranty 5 Years

No Load Speed 0-1,500

No Load BPM 0-5,625

Cord Type Double

Insulated

Electronic

Feedback No

Bit Shank SDS-PLUS

Blow Energy 1.8 ft-lbs

Clutch Yes

Drilling Mode

3-Mode:

Rotary

Hammer,

Hammer Only,

Rotation Only

Handle Style D-Handle

Vibration Reduction No

Cord Length 10'

No Load RPM 0-1,500

Amps 7

Trigger Lock Yes

Solid Bit Capacity 7/8"

Thin Wall Core Bit

Capacity 2-1/2"

5263-21

5/8" SDS Plus Rotary Hammer Kit

FEATURES

n Powerful 5.5-amp motor: Delivers 0-3,700 RPM, 0-4,400 BPM and

1.5 ft-lbs of torque, providing up to 65% faster drilling speeds

n Lightweight 4.6-lb design: Reduces fatigue when you drill overhead

and in horizontal applications

n Compact 10.9" profi le: Lets you work more effi ciently in tights spaces

n 2-Mode operation: Choose rotary hammer or rotation only for

added versatility

n AVS Anti-Vibration System: Minimizes vibration for maximum comfort

n Mechanical clutch: Protects the motor when the bit binds

Includes: (1) 5/8" SDS Plus Rotary Hammer Kit (5263-21);

(1)Carrying Case; (1) Depth Rod; (1) Side Handle

SPECIFICATIONS

Length 10.9"

Weight 4.6 lbs

Voltage 120V

Tool Warranty 5 Years

No Load Speed 0-3,700

No Load BPM 0-4,400

Cord Type Double

Insulated

Electronic

Feedback No

Bit Shank SDS-PLUS

Blow Energy 1.5 ft-lbs

Clutch Yes

Drilling Mode

2-Mode:

Rotary Hammer,

Rotation Only

Handle Style Drop Motor

Vibration Reduction Yes

Cord Length 10'

No Load RPM 0-3,700

Amps 5.5

Trigger Lock NO

Solid Bit Capacity 5/8"

Thin Wall Core Bit

Capacity 2-1/8"

ALSO AVAILABLE IN CORDLESS ALSO AVAILABLE IN CORDLESS

2416 2612 2605

5/8" SDS+ Rotary Hammer 5/8" SDS+ Rotary Hammer 7/8" SDS+ Rotary Hammer

ROTARY HAMMERS

82

2712 2715

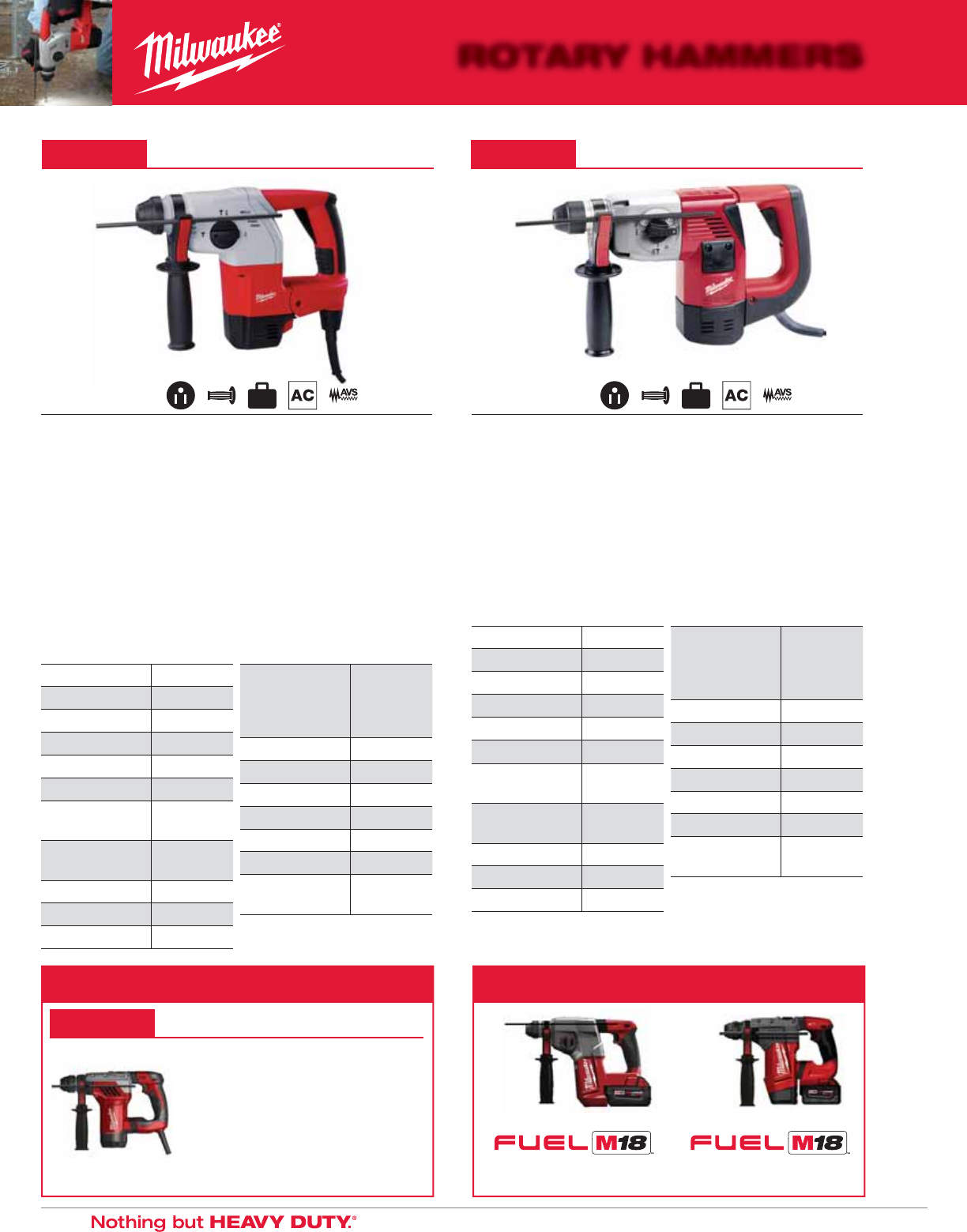

5363-21

1" SDS Plus Rotary Hammer with

Anti-Vibration System

FEATURES

n Powerful 7-amp reversible motor: Delivers a hard-hitting 2 ft-lbs of

impact energy, 0-1,400 RPM and 0-5,980 BPM

n All-metal gear case and block construction: Provides optimal

bearing and gear seating for long-term durability

n Rotating brush plate: Provides equal power in forward and reverse

for easy removal of jammed bits, plus extends brush life

n Compact, lightweight design: L-shape provides excellent balance

and hand position for maximum control, especially overhead

Includes: (1) 1" SDS Plus Rotary Hammer with Anti-Vibration System

(5363-21); (1) Carrying Case; (1) Side Handle

SPECIFICATIONS

Length 12-1/4"

Weight 8.0 lbs

Voltage 120V AC

Tool Warranty 5 Years

No Load Speed 0-1,400

No Load BPM 0-5,980

Cord Type Double

Insulated

Electronic

Feedback No

Bit Shank SDS-PLUS

Blow Energy 2.0 ft-lbs

Clutch Yes

Drilling Mode

3-Mode: Rotary

Hammer,

Hammer Only,

Rotation Only

Handle Style D-Handle

Vibration Reduction Yes - AVS™

No Load RPM 0-1,400

Amps 7

Trigger Lock No

Solid Bit Capacity 1"

Thin Wall Core Bit

Capacity 2-1/2"

5359-21

1-1/8" SDS Plus L-Shape

Rotary Hammer

FEATURES

n Powerful 7.4-amp motor: Delivers a hard-hitting 2.5 ft-lbs of

blow energy

n Speed control switch: You control the starts for less bit walk and

more accurate hole positioning

n 10-ft. 3-wire fi xed rubber cord: Durable construction for longer

tool life

Includes: (1) 1-1/8" SDS Plus L-Shape Rotary Hammer (5359-21);

(1) Carrying Case; (1) Depth Rod; (1) Side Handle

SPECIFICATIONS

Length 14"

Weight 8.3 lbs

Voltage 120V AC

Tool Warranty 5 Years

No Load Speed 0-980

No Load BPM 0-4,200

Cord Type Double

Insulated

Electronic

Feedback No

Bit Shank SDS-PLUS

Blow Energy 2.5 ft-lbs

Clutch Yes

Drilling Mode

3-Mode:

Rotary Hammer,

Hammer Only,

Rotation Only

Handle Style D-Handle

Vibration Reduction Yes - AVS™

No Load RPM 0-980

Amps 7.4

Trigger Lock No

Solid Bit Capacity 1-1/8"

Thin Wall Core Bit

Capacity 4"

n High Performance 8 amp motor

n Mechanical clutch protects the tool

during bit bind up

n Anti-Vibration System (AVS): minimizes

vibration for less operator fatigue

n 3 mode for maximum versatility in

concrete, masonry or other materials

COMING FALL 2014 ALSO AVAILABLE IN CORDLESS

COMING FALL 2014

5268-21

1-1/8" SDS Plus Rotary Hammer

1" SDS Plus* 1-1/8" SDS Plus*

*dedicated dust extractors will also be available

ROTARY HAMMERS

milwaukeetool.ca 83

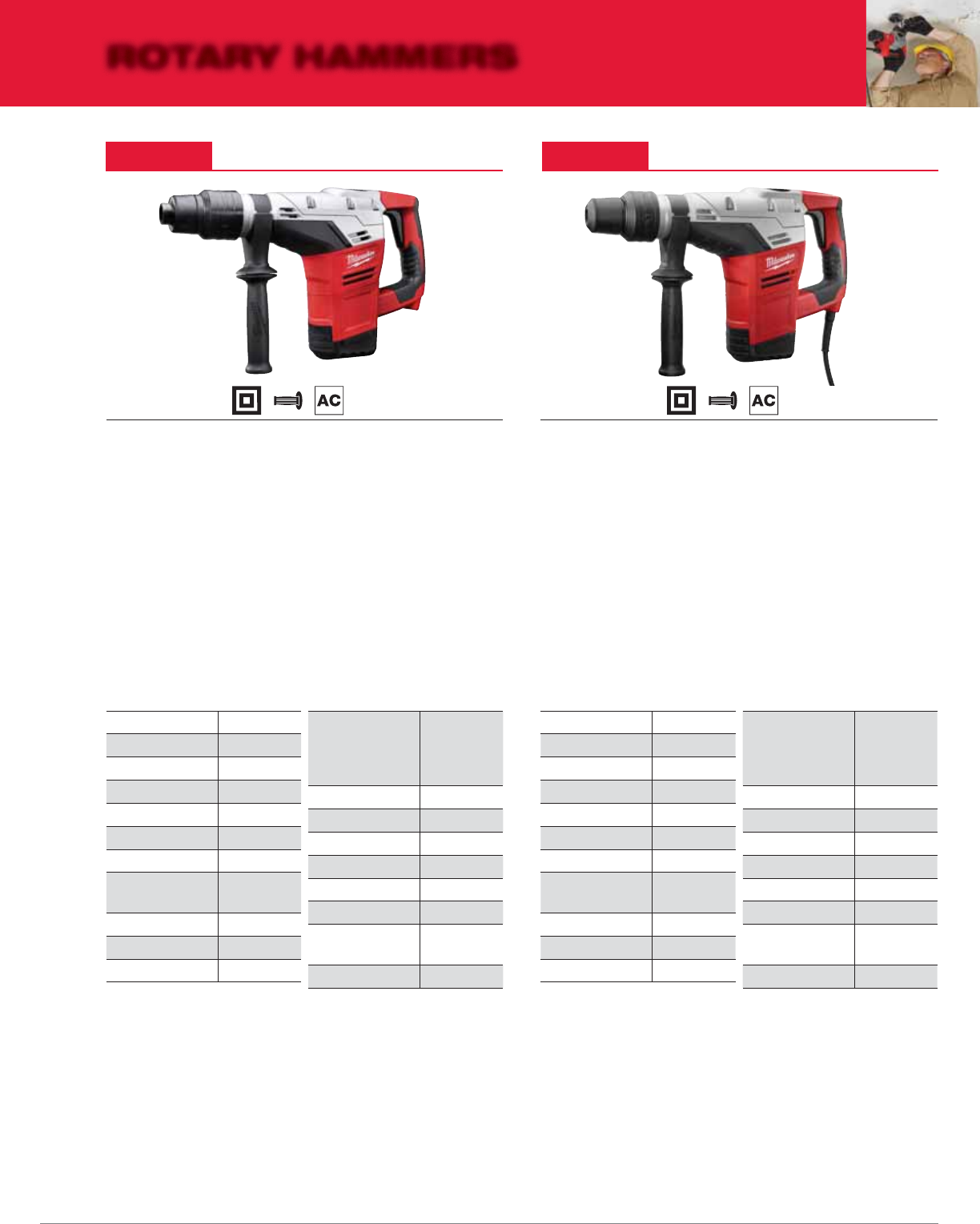

5316-21 5317-21

1-9/16" Spline Rotary Hammer 1-9/16" SDS Max Rotary Hammer

FEATURES

n Powerful 10.5 Amp Motor: Delivers 450 RPM and 3,000 BPM

n Powerful Hammer Mechanism: Delivers 5.5 ft-lbs (7.5J) of impact

energy for drilling in hard aggregate

n CPT™ - Constant Power Technology: Delivers consistent

performance in tough applications

n Mechanical Clutch: Protects the tool when the bit binds up

n 2-Mode Operation: Rotary hammer and hammer only for

maximum versatility

n 12-Position Chipping Adjustment: Allows the user to maintain the

desired hammer position while chipping in any orientation

Includes: (1) 1-9/16" Spline Rotary Hammer (5316-21);

(1) Carrying Case; (1) Side Handle

SPECIFICATIONS

Length 17-3/4"

Weight 15 lbs

Voltage 120V AC

Tool Warranty 5 Years

No Load Speed 450

No Load BPM 3,000

Cord Type Grounded

Electronic

Feedback Yes

Bit Shank Spline

Blow Energy 5.5 ft-lbs

Clutch Yes

Drilling Mode

2-Mode:

Rotary Hammer

and

Hammer Only

Handle Style Drop Motor

Vibration Reduction No

Cord Length 13'

No Load RPM 0-450

Amps 10.5

Trigger Lock No

Thick Wall Core Bit

Capacity 4"

Solid Bit Capacity 1-9/16"

FEATURES

n Powerful 10.5 Amp Motor: Delivers 450 RPM and 3,000 BPM

n Powerful Hammer Mechanism: Delivers 5.5 ft-lbs (7.5J) of impact

energy for drilling in hard aggregate

n CPT™ - Constant Power Technology: Delivers consistent

performance in tough applications

n Mechanical Clutch: Protects the tool when the bit binds up

n 2-Mode Operation: Rotary hammer and hammer only for

maximum versatility

n 12-Position Chipping Adjustment: Allows the user to maintain the

desired hammer position while chipping in any orientation

Includes: (1) 1-9/16" SDS Max Rotary Hammer (5317-21);

(1) Carrying Case; (1) Depth Rod; (1) Side Handle

SPECIFICATIONS

Length 17-3/8"

Weight 15 lbs

Voltage 120V AC

Tool Warranty 5 Years

No Load Speed 450

No Load BPM 3,000

Cord Type Grounded

Electronic

Feedback Yes

Bit Shank SDS Max

Blow Energy 5.5 ft-lbs

Clutch Yes

Drilling Mode

2-Mode:

Rotary Hammer

and

Hammer Only

Handle Style Drop Motor

Vibration Reduction No

Cord Length 13'

No Load RPM 0-450

Amps 10.5

Trigger Lock No

Thick Wall Core Bit

Capacity 4"

Solid Bit Capacity 1-9/16"

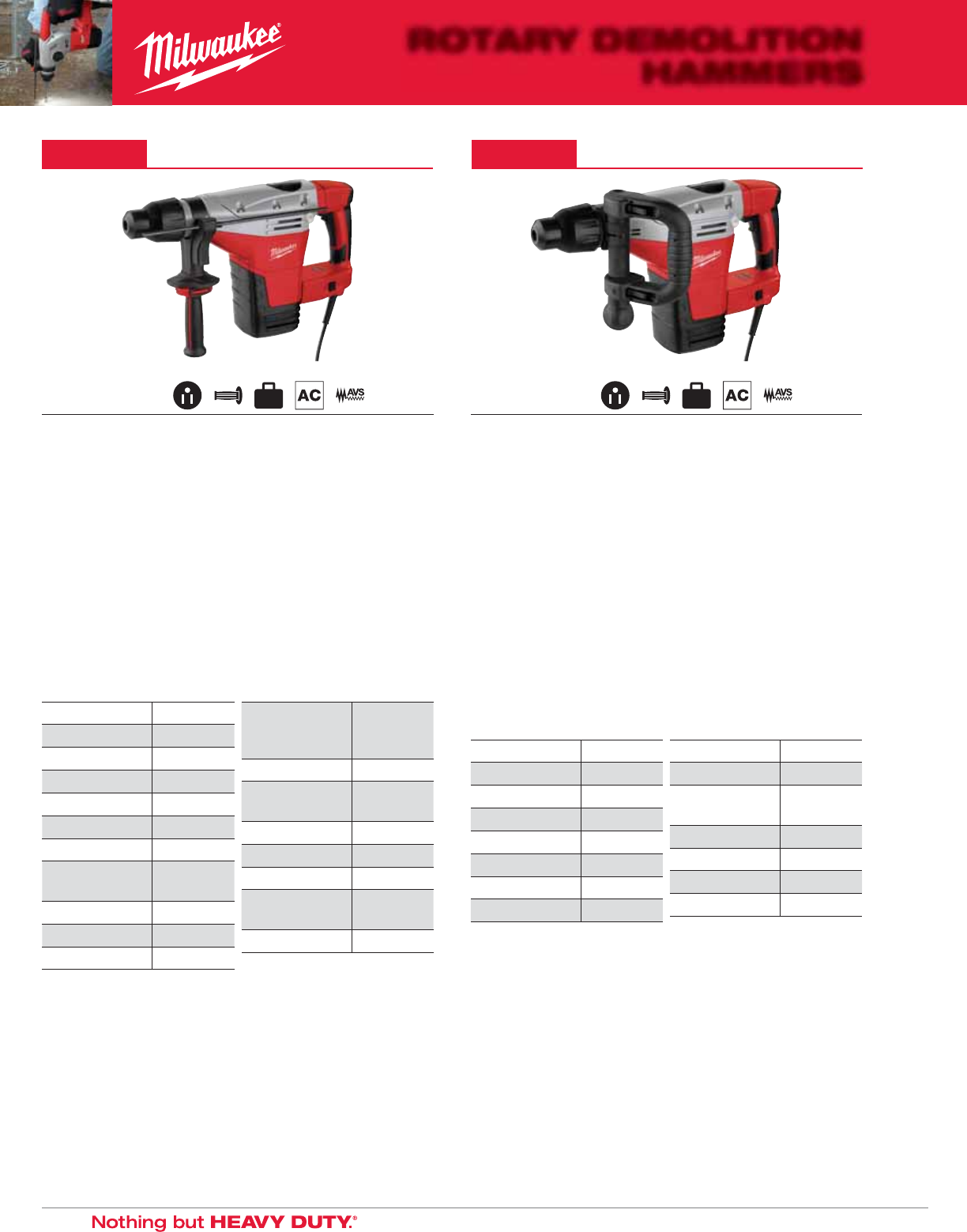

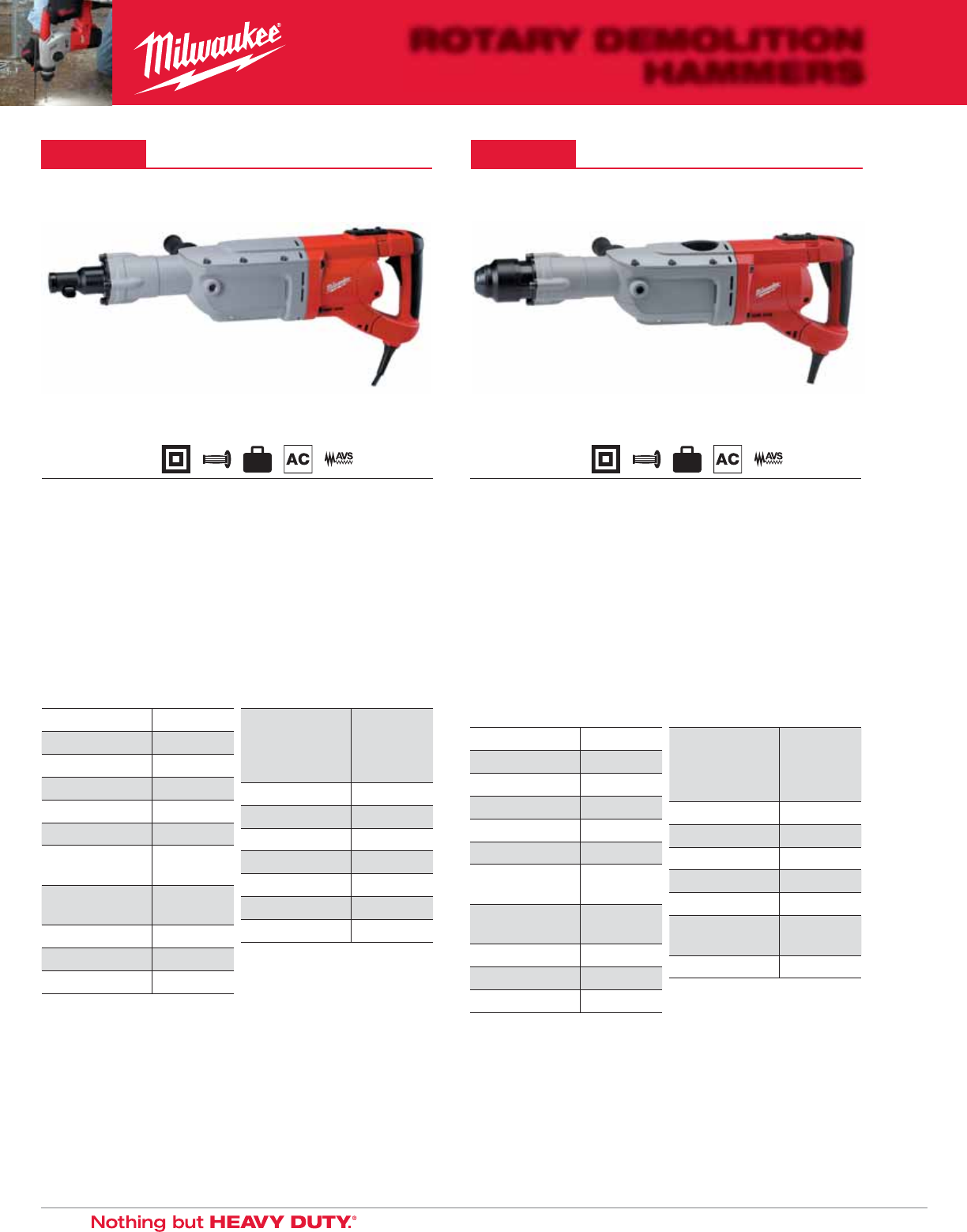

ROTARY DEMOLITION

HAMMERS

84

5426-21

1-3/4" SDS Max Rotary Hammer 5446-21

1-3/4" SDS Max Demolition Hammer

FEATURES

n Powerful 14-amp 1,300 MWO Milwaukee motor: Provides best-in-

class power and highest overload protection

n Two-speed impact mode: Use low (350 RPM/2,200 BPM) for light

materials or high (450 RPM/2,840 BPM) for the toughest concrete

n Durable hammer mechanism: Provides 8.8 ft-lbs of torque for hard

hitting performance

n CPT™ Constant Power Technology: Delivers consistent performance

when the tool is under load

n Mechanical clutch: Protects the motor when the bit binds

n AVS Anti-Vibration System: Minimizes vibration for maximum comfort

Includes: (1) 1-3/4" SDS Max Rotary Hammer (5426-21);

(1) Carrying Case; (1) Side Handle

SPECIFICATIONS

Length 18"

Weight 16.2 lbs

Voltage 120V AC

Tool Warranty 5 Years

No Load Speed 350/450

No Load BPM 2,200/2,840

Cord Type Grounded

Electronic

Feedback Yes

Bit Shank SDS Max

Blow Energy 8.8 ft-lbs

Clutch Yes

Drilling Mode

2-Mode: Rotary

Hammer and

Hammer Only

Handle Style Drop Motor

Voibration

Reduction Yes - AVS™

No Load RPM 350/450

Amps 14

Trigger Lock No

Thick Wall Core Bit

Capacity 4.5"

Solid Bit Capacity 1-3/4"

FEATURES

n Powerful 14-amp 1,300 MWO Milwaukee motor: Provides best-in-class

power and highest overload protection

n Two-speed impact mode: Use low (2,200 BPM) for light materials or

high (2,840 BPM) for the toughest concrete

n Heavy-duty crank piston mechanism: Provides 8.8 ft-lbs of torque for

hard hitting performance

n CPT™ Constant Power Technology: Delivers consistent performance

when the tool is under load

n Variable-position chisel stop: Fixes the chisel in 12 positions for

various applications

n Mechanical clutch: Protects the motor when the bit binds

n AVS Anti-Vibration System: Minimizes vibration for maximum comfort

Includes: (1) 1-3/4" SDS Max Demolition Hammer (5446-21);

(1) Carrying Case; (1) Side Handle

SPECIFICATIONS

Length 18"

Weight 15.9 lbs

Voltage 120V AC

Tool Warranty 5 Years

No Load Speed 350/450

No Load BPM 2,200/2,840

Cord Type Grounded

Electronic Feedback Yes

Bit Shank SDS Max

Blow Energy 8.8 ft-lbs

Drilling Mode Single Mode:

Hammer Only

Handle Style Drop Motor

Vibration Reduction Yes - AVS™

Amps 14

Trigger Lock Yes

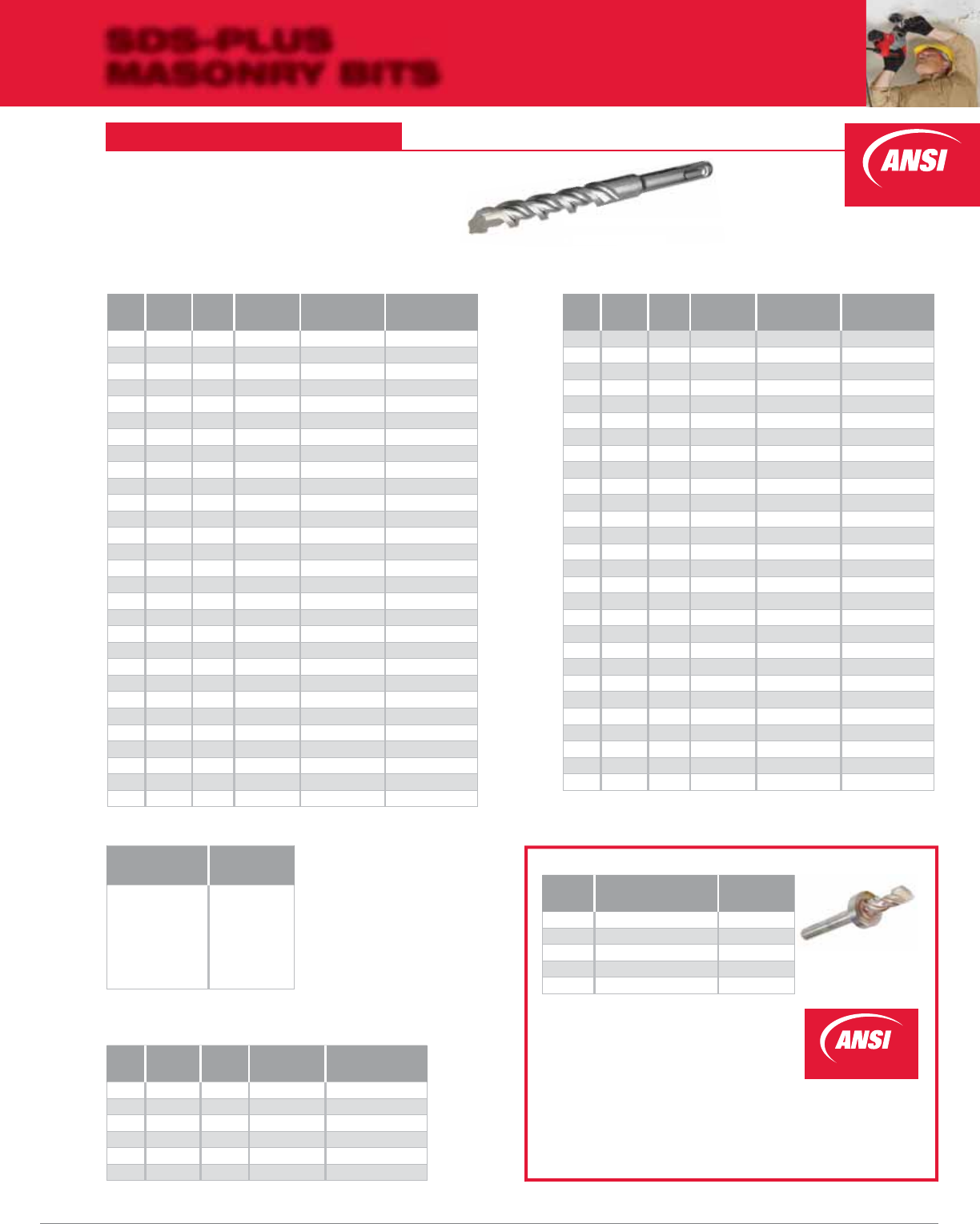

SDS–PLUS

MASONRY BITS

milwaukeetool.ca 85

2-CUTTER SDS+ CARBIDE BIT SETS

5 Pc SDS+ Kit

48-20-7490

6 Pc SDS+ Kit

48-20-7495

Includes:

3/16" x 4-1/2"

1/4" x 6"

5/16" x 6"

3/8" x 6"

1/2" x 6"

Includes:

(2) 3/16" x 6"

(2) 1/4" x 6"

(1) 3/8" x 6"

(1) 1/2" x 6"

ACCURATE STARTS

 Centering point ensures correct hole placement

FAST DRILLING

 Chisel shaped head for fast drilling in hard materials

 High volume fl ute entrance quickly channels debris to the fl ute

4 FLUTED SPIRAL IN SMALL DIAMETERS

 Fast debris removal

 Minimizes bending and breaking

 Minimizes vibrations

Size Useable

Length

Overall

Length

Individual

Part Number

Bulk Part

Number

Bulk

Qty

Monster Pack

Part Number

Qty

5/32"

2" 4-1/2" 48-20-7400 48-20-7500 25 --

5/32"

4" 6" 48-20-7401 48-20-7501 25 - -

3/16"

2" 4-1/2" 48-20-7410 48-20-7510 25 48-20-7810 200

3/16"

4" 6" 48-20-7411 48-20-7511 25 48-20-7811 200

3/16"

6" 8" 48-20-7412 48-20-7512 25 - -

3/16"

8" 10" 48-20-7413 48-20-7513 25 - -

3/16"

10" 12" 48-20-7414 48-20-7514 25 - -

3/16"

12" 14" 48-20-7415 48-20-7515 25 - -

3/16"

14" 16" 48-20-7416 48-20-7516 25 - -

7/32"

4" 6" 48-20-7421 48-20-7521 25 - -

7/32"

6" 8" 48-20-7422 48-20-7522 25 - -

7/32"

9" 11" 48-20-7424 48-20-7524 25 - -

7/32"

12" 14" 48-20-7425 48-20-7525 25 - -

7/32"

14" 16" 48-20-7426 48-20-7526 25 - -

1/4"

2" 4-1/2" 48-20-7430 48-20-7530 25 48-20-7830 200

1/4"

4" 6" 48-20-7431 48-20-7531 25 48-20-7831 200

1/4"

6" 8" 48-20-7432 48-20-7532 25 - -

1/4"

9" 11" 48-20-7434 48-20-7534 25 - -

1/4"

12" 14" 48-20-7435 48-20-7535 25 - -

1/4"

14" 16" 48-20-7436 48-20-7536 25 - -

1/4"

18" 20" 48-20-7438 - - - -

5/16"

4" 6" 48-20-7441 48-20-7541 25 48-20-7841 150

5/16"

10" 12" 48-20-7444 - - - -

3/8"

4" 6" 48-20-7451 48-20-7551 20 48-20-7851 125

3/8"

6" 8" 48-20-7452 - - - -

3/8"

8" 10" 48-20-7453 - - - -

3/8"

10" 12" 48-20-7454 48-20-7554 20 - -

3/8"

16" 18" 48-20-7457 - - - -

3/8"

22" 24" 48-20-7459 - - - -

2-CUTTER SDS+ CARBIDE BITS

4 F

LUT

ED

SPI

RAL IN

S



Fas

t debris rem

ova

l

2-CUTTER SDS+ BITS WITH HEX SHOULDER

 Fits hex 5/16" CONDRIVE™ sleeve for Tap-Con® screw system

Size Useable

Length

Overall

Length

Individual

Part Number

Bulk Part

Number

Bulk

Qty

5/32"

2" 5" 48-20-7090 - -

5/32"

3" 6" 48-20-7096 48-20-7196 25

5/32"

4" 7" 48-20-7091 48-20-7191 25

3/16"

2" 5" 48-20-7097 - -

3/16"

3" 6" 48-20-7098 48-20-7198 25

3/16"

4" 7" 48-20-7092 48-20-7192 25

Size Useable

Length

Overall

Length

Individual

Part Number

Bulk Part

Number

Bulk

Qty

Monster Pack

Part Number

Qty

7/16"

4" 6" 48-20-7461 - - - -

7/16"

10" 12-1/2" 48-20-7464 - - - -

7/16"

16" 18" 48-20-7467 - - - -

1/2"

4" 6" 48-20-7471 48-20-7571 15 48-20-7871 100

1/2"

8" 10" 48-20-7473 - - - -

1/2"

10" 12" 48-20-7474 48-20-7574 15 - -

1/2"

16" 18" 48-20-7477 - - - -

1/2"

22" 24" 48-20-7479 - - - -

9/16"

4" 6-1/2" 48-20-7481 - - - -

9/16"

10" 12-1/2" 48-20-7484 - - - -

9/16"

16" 18" 48-20-7487 - - - -

5/8"

4" 6" 48-20-7601 - - - -

5/8"

6" 8" 48-20-7602 48-20-7702 10 - -

5/8"

10" 12" 48-20-7604 - - - -

5/8"

16" 18" 48-20-7607 - - - -

5/8"

22" 24" 48-20-7609 - - - -

11/16" 6" 8" 48-20-7058 - - - -

3/4"

6" 8" 48-20-7061 - - - -

3/4"

8" 10" 48-20-7063 - - - -

3/4"

10" 12" 48-20-7065 - - - -

3/4"

16" 18" 48-20-7066 - - - -

3/4"

22" 24" 48-20-7067 - - - -

27/32" 6" 8" 48-20-7069 - - - -

7/8"

6" 8" 48-20-7071 - - - -

7/8"

10" 12" 48-20-7072 - - - -

7/8"

16" 18" 48-20-7075 - - - -

1"

8" 10" 48-20-7080 - - - -

1"

16" 18" 48-20-7085 - - - -

SDS+ ROTARY HAMMER BITS

STANDARD COMPLIANT

SDS+ STOP BITS

Overall

Length Diameter Individual

Part Number

1-1/16"

3/8" (1/4" Drop-in) 48-20-7651

13/16"

1/2" (3/8" Drop-in, Short) 48-20-7652

1-11/16"

1/2" (3/8" Drop-in) 48-20-7653

1-1/16"

5/8" (1/2" Drop-in, Short) 48-20-7654

2-1/16"

5/8" (1/2" Drop-in) 48-20-7655

STANDARD COMPLIANT

MAXIMIZES PRODUCTIVITY

WHEN USING DROP-IN

ANCHORS

n Drill accurate depths repeatedly

n Patented fl ute geometry to rapidly remove

debris and maximize impact energy

n Centering tip for exact spot drillling

n Common applications: hanging unistrut, pipe,

cable trays, duct

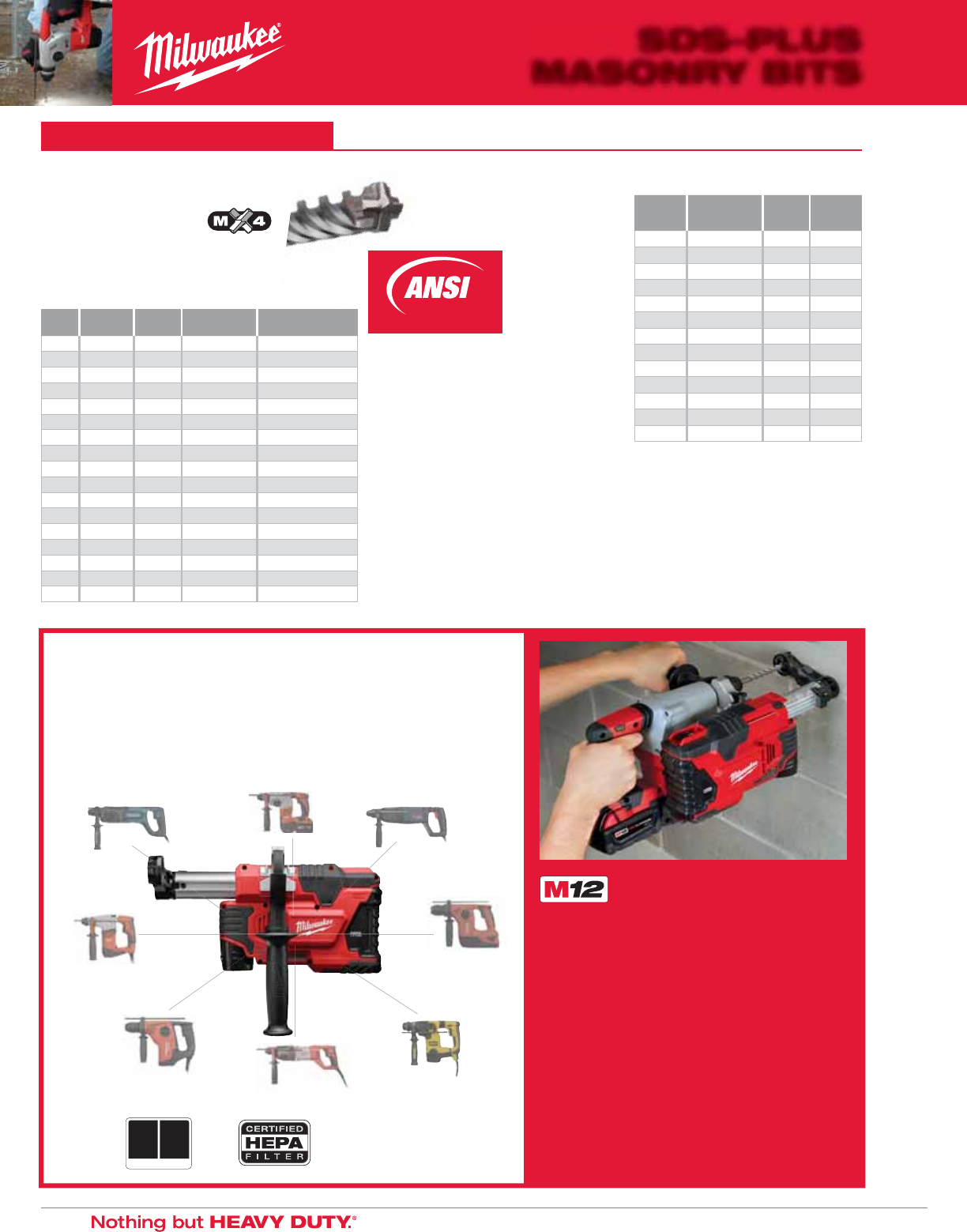

SDS–PLUS

MASONRY BITS

86

DURABLE

 4-Cutter design

lasts longer when

encountering small

diameter rebar

and mesh

ACCURATE

STARTS

 Centering point

ensures correct

hole placement

FASTER

DRILLING

 Unique face design

directs dust through

the 4 fl uted spiral for

faster drilling

Size Part Number Useable

Length

Overall

Length

5/8" 48-20-7200 6" 8"

5/8" 48-20-7203 10" 12"

5/8" 48-20-7206 16" 18"

3/4" 48-20-7210 6" 8"

3/4" 48-20-7215 10" 12"

3/4" 48-20-7220 16" 18"

7/8" 48-20-7225 6" 8"

7/8" 48-20-7230 10" 12"

7/8" 48-20-7236 16" 18"

1" 48-20-7240 8" 10"

1" 48-20-7246 16" 18"

1-1/8" 48-20-7250 8" 10"

1-1/8" 48-20-7256 16" 18"

4-CUTTER SDS+ BITS

LONG LIFE

 4-Cutter solid carbide tip

for up to 3X life in rebar

ACCURATE HOLES

 Centering tip and 4-Cutter design drills more accurate holes

for anchoring applications

Size Useable

Length

Overall

Length

Individual

Part Number

Bulk Part

Number

Bulk

Qty

3/16"

2" 4" 48-20-7310 - -

3/16"

4" 6" 48-20-7311 48-20-7911 15

3/16"

6" 8" 48-20-7312 - -

3/16"

8" 10" 48-20-7313 - -

3/16"

10" 12" 48-20-7314 - -

1/4"

2" 4" 48-20-7330 - -

1/4"

4" 6" 48-20-7331 48-20-7931 15

1/4"

6" 8" 48-20-7332 - -

1/4"

8" 10" 48-20-7334 - -

1/4"

10" 12" 48-20-7335 - -

5/16"

4" 6" 48-20-7341 - -

3/8"

4" 6" 48-20-7351 48-20-7951 10

3/8"

10" 12" 48-20-7354 - -

3/8"

16" 18" 48-20-7357 - -

1/2"

4" 6" 48-20-7371 48-20-7971 10

1/2"

10" 12" 48-20-7374 - -

1/2"

16" 18" 48-20-7377 - -

4-CUTTER PREMIUM MX4 SDS+

CARBIDE BITS

SDS+ ROTARY HAMMER BITS

STANDARD COMPLIANT

HAMMERVAC™ Universal Dust

Extractor Kit (2306-22)

Universal Handle System:

Compatible with major brands of SDS Plus Rotary

Hammers and AC & DC Hammer Drills

Replaceable Certifi ed HEPA Filter:

High quality debris fi ltration and lowest cost of ownership

Self-Powered by M12™ REDLITHIUM™

Batteries:

No cords or hoses for maximum portability

3-Mode Switch with Auto-On:

Auto-on mode turns HAMMERVAC™ on and off

automatically

Powerful Suction for Dust Extraction:

Reduces the potential for silica dust inhalation by user

TM

Compatible with major power tool brands of SDS Plus Rotary Hammers and

AC/DC Hammer Drills, the M12™ HAMMERVAC™ Universal Dust Extractor is the

industry’s only UNIVERSAL dust extractor.

99.97% EFFICIENT

AT REMOVING

PARTICLES 0.3μM

AND ABOVE

TM

TOOL BATTERY

WARRANTY

52

YEAR YEAR

INDUSTRY’S ONLY

UNIVERSAL

DUST EXTRACTOR

SDS–PLUS

CROSS-REFERENCE

milwaukeetool.ca 87

DIAMETER USEABLE

LENGTH

OVERALL

LENGTH QTY MILWAUKEE BOSCH DEWALT METABO VULCAN HILTI

5/32 2 4 1 48-20-7400 HC2000 DW5400 VC100

5/32 4 6 1 48-20-7401 HC2001 DW5401 VC101

3/16 2 4 1 48-20-7410 HC2010 DW5402 VC102

3/16 4 6 1 48-20-7411 HC2011 DW5403 74606 VC103

3/16 6 8 1 48-20-7412 HC2012 DW5404 VC104

3/16 8 10 1 48-20-7413 HC2013 DW5405 VC105

3/16 10 12 1 48-20-7414 HC2014 DW5406 VC106

3/16 12 14 1 48-20-7415 HC2015 DW5407

3/16 14 16 1 48-20-7416 DW5408

7/32 4 6 1 48-20-7421 HC2031 DW5410 VC112

7/32 6 8 1 48-20-7422 HC2032 VC113

7/32 9 11 1 48-20-7424 HC2034 DW5412 VC114

7/32 12 14 1 48-20-7425

7/32 14 16 1 48-20-7426

1/4 2 4 1 48-20-7430 HC2040 DW5416 VC115

1/4 4 6 1 48-20-7431 HC2041 DW5417 74708 VC116

1/4 6 8 1 48-20-7432 HC2042 DW5418 74808 VC117

1/4 9 11 1 48-20-7434 HC2043 DW5420 VC118

1/4 12 14 1 48-20-7435 HC2045 DW5421 VC119

1/4 14 16 1 48-20-7436

1/4 18 20 1 48-20-7438

5/16 4 6 1 48-20-7441 HC2051 DW5424 VC120

5/16 10 12 1 48-20-7444 HC2054 DW5426 VC121

3/8 4 6 1 48-20-7451 HC2061 DW5427 74512 VC124

3/8 6 8 1 48-20-7452 VC122

3/8 8 10 1 48-20-7453 DW5429 74712

3/8 10 12 1 48-20-7454 HC2064 DW5430 VC123

3/8 16 18 1 48-20-7457 HC2067 DW5431 VC125

3/8 22 24 1 48-20-7459 HC2068 DW5432

7/16 4 6 1 48-20-7461 HC2071 DW5433 74514

7/16 10 12 1 48-20-7464 HC2074 DW5435

7/16 16 18 1 48-20-7467 DW5436

1/2 4 6 1 48-20-7471 HC2081 DW5437 74516 VC128

1/2 8 10 1 48-20-7473 DW5438 74716 VC127

1/2 10 12 1 48-20-7474 HC2084 DW5439 VC129

1/2 16 18 1 48-20-7477 HC2087 DW5440 VC130

1/2 22 24 1 48-20-7479 HC2088 DW5441

9/16 4 6 1 48-20-7481 HC2091 DW5442

9/16 10 12 1 48-20-7484 HC2094 DW5443 VC131

9/16 16 18 1 48-20-7487 HC2097 DW5444

5/8 4 6 1 48-20-7601 VC140

5/8 6 8 1 48-20-7602 HC2102 DW5446 VC137

5/8 10 12 1 48-20-7604 HC2104 DW5447 74620 VC138

5/8 16 18 1 48-20-7607 HC2107 DW5448 74720 VC139

5/8 22 24 1 48-20-7609 HC2108 DW5449

11/16 6 8 1 48-20-7058 HC2112 DW5450

SDS+ 2-CUTTER BITS

SDS–PLUS

CROSS-REFERENCE

88

DIAMETER USEABLE

LENGTH

OVERALL

LENGTH QTY MILWAUKEE BOSCH DEWALT METABO VULCAN HILTI

3/4 6 8 1 48-20-7061 HC2122 DW5453 74524

3/4 8 10 1 48-20-7063

3/4 10 12 1 48-20-7065 HC2124 DW5455 74624

3/4 16 18 1 48-20-7066 HC2127 DW5456 74724

3/4 22 24 1 48-20-7067 HC2128 DW5457 74824

27/32 6 8 1 48-20-7069

7/8 6 8 1 48-20-7071 HC2142 DW5460

7/8 10 12 1 48-20-7072 HC2144 DW5461

7/8 16 18 1 48-20-7075 HC2147 DW5462 74728

1 8 10 1 48-20-7080 HC2163 DW5464 74600

11618148-20-7085 HC2167 DW5466 74800

5/32 2 4 25 48-20-7500

5/32 4 6 25 48-20-7501 HC2001B25 DW5401B25

3/16 2 4 25 48-20-7510 HC2010B25 DW5402B25

3/16 4 6 25 48-20-7511 HC2011B25 DW5403B25

3/16 6 8 25 48-20-7512 HC2012B25 DW5404B25

3/16 8 10 25 48-20-7513 HC2013B25 DW5405B25

3/16 10 12 25 48-20-7514 HC2014B25 DW5406B25

3/16 12 14 25 48-20-7515 HC2015B25

3/16 14 16 25 48-20-7516

7/32 4 6 25 48-20-7521 HC2031B25 DW5410B25

7/32 6 8 25 48-20-7522 HC2032B25

7/32 9 11 25 48-20-7524 HC2034B25

7/32 12 14 25 48-20-7525

7/32 14 16 25 48-20-7526

1/4 2 4 25 48-20-7530 HC2040B25 DW5416B25

1/4 4 6 25 48-20-7531 HC2041B25 DW5417B25

1/4 6 8 25 48-20-7532 HC2042B25 DW5418B25

1/4 9 11 25 48-20-7534

1/4 12 14 25 48-20-7535

1/4 14 16 25 48-20-7536

5/16 4 6 25 48-20-7541 HC2051B25 DW5424B25

3/8 4 6 20 48-20-7551 HC2061B25 DW5427B25

3/8 10 12 20 48-20-7554 HC2064B25

1/2 4 6 15 48-20-7571 HC2081B25 DW5437B25

1/2 10 12 15 48-20-7574 HC2084B25

5/8 6 8 10 48-20-7702 HC2102B25 DW5446B25

3/16 2 4 200 48-20-7810

3/16 4 6 200 48-20-7811

1/4 2 4 200 48-20-7830

1/4 4 6 200 48-20-7831

5/16 4 6 150 48-20-7841

3/8 4 6 125 48-20-7851

1/2 4 6 100 48-20-7871

SDS+ 2-CUTTER BITS

SDS–PLUS

CROSS-REFERENCE

milwaukeetool.ca 89

DIAMETER USEABLE

LENGTH

OVERALL

LENGTH QTY MILWAUKEE BOSCH DEWALT METABO VULCAN HILTI

5/32 2 5 1 48-20-7090 DW5359 74505

5/32 3 6 1 48-20-7096 HC2301 DW5360

5/32 4 7 1 48-20-7091 HC2302 DW5361 74605

3/16 2 5 1 48-20-7097 HC2310 DW5362

3/16 3 6 1 48-20-7098 HC2311 DW5363

3/16 4 7 1 48-20-7092 HC2312 DW5364 74606

5/32 3 6 25 48-20-7196 HC2301B25

5/32 4 7 25 48-20-7191 HC2302B25

3/16 3 6 25 48-20-7198 HC2311B25

3/16 4 7 25 48-20-7192 HC2312B25 DW5364B25

5/8 6 8 1 48-20-7200

5/8 10 12 1 48-20-7203

5/8 16 18 1 48-20-7206

3/4 6 8 1 48-20-7210 HC2222

3/4 10 12 1 48-20-7215 HC2224

3/4 16 18 1 48-20-7220 HC2227

7/8 6 8 1 48-20-7225 HC2242

7/8 10 12 1 48-20-7230 HC2244

7/8 16 18 1 48-20-7236 HC2247

1 8 10 1 48-20-7240 HC2263

11618148-20-7246 HC2267

1-1/8 8 10 1 48-20-7250 HC2283 DW5468

1-1/8 16 18 1 48-20-7256 HC2287 DW5469

3/16 2 4 48-20-7310 HCFC2010 206662

3/16 4 6 48-20-7311 HCFC2011 206663

3/16 6 8 48-20-7312 HCFC2012 206664

3/16 8 10 48-20-7313

3/16 10 12 48-20-7314 HCFC2014 206665

1/4 2 4 48-20-7330 HCFC2040 206667

1/4 4 6 48-20-7331 HCFC2041 206668

1/4 6 8 48-20-7332 HCFC2042 206669

1/4 8 10 48-20-7334

1/4 10 12 48-20-7335 HCFC2044 206670

5/16 4 4 48-20-7341 HCFC2051 206671

3/8 4 6 48-20-7351 HCFC2061 206674

3/8 10 8 48-20-7354 HCFC2064 206675

3/8 16 10 48-20-7357 HCFC2067 206676

1/2 4 12 48-20-7371 HCFC2081 206711

1/2 10 12 48-20-7374 HCFC2084 206712

1/2 16 18 48-20-7377 HCFC2087 206713

3/16 4 6 15 48-20-7911

1/4 4 6 15 48-20-7931

3/8 4 6 10 48-20-7951

1/2 4 6 10 48-20-7971

PREMIUM SDS+ 4-CUTTER BITS SDS+ 4-CUTTER BITS SDS+ 2-CUTTER BITS

WITH HEX SHOULDER

SDS-MAX BITS

90

LONG LIFE

 Brazing formula optimizes drilling for up to 20% longer life

FAST DUST REMOVAL

 Unique fl ute geometry provides effi cient dust removal

PRECISE ROUND HOLES

 Centering point and 4-Cutter design provide accurate

and precise round holes

4-CUTTER WITH 4X90º SYMMETRY

 Will not lock-up in rebar

Size Useable

Length

Overall

Length

2-Cutter

Part Number

4-Cutter

Part Number

3/8" 7-1/2" 13" 48-20-3901

1/2" 7-1/2" 13" 48-20-3902

1/2"

11-1/2" 17" 48-20-3903

1/2" 15-1/2" 21" 48-20-3904

1/2"

22-1/2" 28" 48-20-3905

1/2"

30-1/2" 36" 48-20-3906

1/2"

54" 60" 48-20-3909

9/16" 7-1/2" 13" 48-20-3910

9/16" 15-1/2" 21" 48-20-3912

5/8" 7-1/2" 13" 48-20-3916

5/8"

11-1/2" 17" 48-20-3917

5/8" 15-1/2" 21" 48-20-3918

5/8" 30-1/2" 36" 48-20-3922

5/8"

54" 60" 48-20-3923

11/16"

15-1/2" 21"

48-20-3926

3/4" 8" 13"

48-20-3930

3/4" 12" 17" 48-20-3931

3/4" 16" 21"

48-20-3932

3/4" 31" 36"

48-20-3936

Size Useable

Length

Overall

Length

2-Cutter

Part Number

4-Cutter

Part Number

13/16" 16" 21"

48-20-3938

7/8" 8" 13"

48-20-3944

7/8" 12" 17" 48-20-3945

7/8" 16" 21"

48-20-3946

7/8" 31" 36"

48-20-3949

1" 8" 13"

48-20-3952

1" 12" 17" 48-20-3953

1" 16" 21"

48-20-3954

1" 31" 36"

48-20-3956

1-1/16" 18" 23"

48-20-3958

1-1/8" 12" 17"

48-20-3964

1-1/8" 16" 21"

48-20-3966

1-3/16" 18" 23"

48-20-3968

1-1/4" 10" 15"

48-20-3970

1-1/4" 18" 23"

48-20-3972

1-1/4" 31" 36"

48-20-3974

1-3/8" 12" 17" 48-20-3975

1-3/8" 18" 23"

48-20-3980

1-3/8" 31" 36" 48-20-3983

1-7/16" 18" 23"

48-20-3984

1-1/2" 12" 17" 48-20-3986

1-1/2" 18" 23"

48-20-3988

1-9/16" 18" 23"

48-20-3990

1-5/8" 18" 23"

48-20-3991

1-3/4" 18" 23"

48-20-3992

2" 18" 23"

48-20-3993

LONG LIFE

 Brazing formula optimizes drilling for up to 20% longer life

FAST DUST REMOVAL

 Unique fl ute geometry provides effi cient dust removal

ACCURATE PRECISE ROUND HOLES

 Centering point and 4-Cutter design provides accurate and

precise round holes

Size Useable

Length

Overall

Length 2-Cutter 4-Cutter

3/8"

4" 10" 48-20-4037

1/2"

4" 10" 48-20-4050

1/2"

10" 16" 48-20-4051

1/2"

16" 22" 48-20-4052

1/2"

22" 27" 48-20-4053

1/2"

31" 36" 48-20-4054

9/16"

4" 10" 48-20-4056

9/16"

18" 23" 48-20-4057

5/8"

5" 10" 48-20-4062 48-20-4300

5/8"

11" 16" 48-20-4063 48-20-4305

5/8"

16" 22" 48-20-4064 48-20-4310

5/8"

24" 29" 48-20-4315

5/8"

31" 36" 48-20-4320

11/16"

11" 16" 48-20-4068 48-20-4325

3/4"

5" 10" 48-20-4075 48-20-4330

3/4"

11" 16" 48-20-4076 48-20-4335

3/4"

17" 22" 48-20-4078 48-20-4340

3/4"

24" 29" 48-20-4345

3/4"

31" 36" 48-20-4350

Size Useable

Length

Overall

Length 2-Cutter 4-Cutter

13/16"

11" 16" 48-20-4081

7/8"

11" 16" 48-20-4087 48-20-4360

7/8"

17" 22" 48-20-4088 48-20-4365

7/8"

31" 36" 48-20-4367

1"

11" 16" 48-20-4100 48-20-4370

1"

17" 22" 48-20-4101 48-20-4375

1"

31" 36" 48-20-4380

1-1/8"

11" 16" 48-20-4112 48-20-4385

1-1/8"

17" 22" 48-20-4113 48-20-4390

1-1/4"

11" 16" 48-20-4125 48-20-4395

1-1/4"

17" 22" 48-20-4126 48-20-4400

1-1/4"

31" 36" 48-20-4405

1-3/8"

11" 16" 48-20-4137

1-3/8"

17" 22" 48-20-4138 48-20-4410

1-1/2"

11" 16" 48-20-4150

1-1/2"

17" 22" 48-20-4151 48-20-4415

1-5/8"

17" 22" 48-20-4153

1-3/4" 18" 23" 48-20-4418

2" 18" 23" 48-20-4419

SDS-MAX ROTARY HAMMER BITS

SPLINE ROTARY HAMMER BITS

STANDARD COMPLIANT

STANDARD COMPLIANT

SDS-MAX & SPLINE

CROSS-REFERENCE

milwaukeetool.ca 91

DIAMETER USEABLE

LENGTH

OVERAL

LENGTH QTY MILWAUKEE BOSCH DEWALT METABO VULCAN

3/8 7-1/2 13 1 48-20-3901

1/2 7-1/2 13 1 48-20-3902 HC5010 DW5803 76516 VC211

1/2 11-1/2 17 1 48-20-3903

1/2 15-1/2 21 1 48-20-3904 HC5011 DW5804 76716 VC212

1/2 22-1/2 28 1 48-20-3905

1/2 30-1/2 36 1 48-20-3906

1/2 54 60 1 48-20-3909

9/16 7-1/2 13 1 48-20-3910 HC5015 DW5801 VC215

9/16 15-1/2 21 1 48-20-3912 HC5016 DW5802 VC216

5/8 7-1/2 13 1 48-20-3916 HC5020 DW5806 76520 VC219

5/8 11-1/2 17 1 48-20-3917

5/8 15-1/2 21 1 48-20-3918 HC5021 DW5809 76720 VC220

5/8 30 36 1 48-20-3922 HC5023 DW5807 76820

11/16 15-1/2 21 1 48-20-3926 HC5026 DW5808 76722

3/4 8 13 1 48-20-3930 HC5030 DW5810 76624 VC224

3/4 12 17 1 48-20-3931

3/4 16 21 1 48-20-3932 HC5031 DW5812 76724 VC225

3/4 31 36 1 48-20-3936 HC5033 DW5813 76824

13/16 16 21 1 48-20-3938 HC5036 DW5814

7/8 8 13 1 48-20-3944 HC5040 DW5815 76528 VC230

7/8 12 17 1 48-20-3945

7/8 16 21 1 48-20-3946 HC5041 DW5816 76728 VC231

7/8 31 36 1 48-20-3949

1 8 13 1 48-20-3952 HC5050 DW5818 76700 VC233

112171

48-20-3953

11621148-20-3954 HC5051 DW5819 76900 VC234

131361

48-20-3956 HC5053 DW5820 VC236

1-1/16 18 23 1 48-20-3958 HC5056 DW5823

1-1/8 12 17 1 48-20-3964 HC5060 DW5821 76804 VC239

1-1/8 16 21 1 48-20-3966 HC5061 DW5822 76904 VC240

1-3/16 18 23 1 48-20-3968

1-1/4 10 15 1 48-20-3970 HC5070 DW5824 76808 VC241

1-1/4 18 23 1 48-20-3972 HC5071 DW5825 VC242

1-1/4 31 36 1 48-20-3974 HC5073 DW5826

1-3/8 12 17 1 48-20-3975

1-3/8 18 23 1 48-20-3980 HC5081 DW5827 76912 VC245

1-7/16 18 23 1 48-20-3984 HC5086 DW5829

1-1/2 12 17 1 48-20-3986

1-1/2 18 23 1 48-20-3988 HC5091 DW5828 76916 VC247

1-9/16 18 23 1 48-20-3990 HC5096 DW5861

1-5/8 18 23 1 48-20-3991 VC248

1-3/4 18 23 1 48-20-3992 HC5098 DW5830 VC250

218231

48-20-3993 HC5099 DW5831 VC251

3/8 4 10 1 48-20-4037 HC4501 DW5700 VC191

1/2 4 10 1 48-20-4050 HC4510 DW5703 76 016 VC192

1/2 10 16 1 48-20-4051 HC4511 DW5704 76116 VC194

1/2 16 22 1 48-20-4052 HC4512 DW5705 VC195

1/2 22 27 1 48-20-4053 HC4513 DW5706

1/2 31 36 1 48-20-4054 HC4514 DW5707

SDS-MAX BITS

SDS-MAX & SPLINE

CROSS-REFERENCE

92

DIAMETER USEABLE

LENGTH

OVERAL

LENGTH QTY MILWAUKEE BOSCH DEWALT METABO VULCAN

9/16 4 10 1 48-20-4056 DW5708

9/16 18 23 1 48-20-4057 DW5735

5/8 5 10 1 48-20-4062 HC4520 DW5709 VC198

5/8 11 16 1 48-20-4063 HC4521 DW5710 VC199

5/8 16 22 1 48-20-4064 HC4522 DW5711 VC200

11/16 11 16 1 48-20-4068

3/4 5 10 1 48-20-4075 HC4530 DW5714 VC201

3/4 11 16 1 48-20-4076 HC4531 DW5715 VC202

3/4 17 22 1 48-20-4078 HC4532 DW5716 VC203

13/16 11 16 1 48-20-4081

7/8 11 16 1 48-20-4087 HC4540 DW5719 VC204

7/8 17 22 1 48-20-4088 HC4541 DW5720 VC205

111161

48-20-4100 HC4550 DW5721 VC206

117221

48-20-4101 HC4551 DW5722 VC207

1-1/8 11 16 1 48-20-4112 DW5725

1-1/8 17 22 1 48-20-4113 HC4561 DW5726

1-1/4 11 16 1 48-20-4125 DW5727 VC208

1-1/4 17 22 1 48-20-4126 HC4571 DW5728 VC209

1-3/8 11 16 1 48-20-4137 DW5729

1-3/8 17 22 1 48-20-4138 DW5730

1-1/2 11 16 1 48-20-4150 DW5731

1-1/2 17 22 1 48-20-4151 HC4591 DW5732 VC210

5/8 5 10 1 48-20-4300 HC4020 DW5740 76 020

5/8 11 16 1 48-20-4305 HC4021 DW5741 76120 VC168

5/8 16 22 1 48-20-4310 HC4022 DW5742 VC169

5/8 24 29 1 48-20-4315 HC4023 DW5743

5/8 31 36 1 48-20-4320 HC4024 DW5744

11/16 11 16 1 48-20-4325 HC4026 DW5745

3/4 5 10 1 48-20-4330 HC4030 DW5746

3/4 11 16 1 48-20-4335 HC4031 DW5747 76 124 VC174

3/4 17 22 1 48-20-4340 HC4032 DW5748 76324 VC175

3/4 24 29 1 48-20-4345 HC4033 DW5749

3/4 31 36 1 48-20-4350 HC4034 DW5750

7/8 11 16 1 48-20-4360 HC4040 DW5752 76128

7/8 17 22 1 48-20-4365 HC4041 DW5753 76 328

7/8 31 36 1 48-20-4367

11116148-20-4370 HC4050 DW5755 76 200 VC181

117221

48-20-4375 HC4051 DW5756 76 400 VC182

131361

48-20-4380 HC4053 DW5757 VC182-36

1-1/8 11 16 1 48-20-4385 HC4060 DW5758 76 204

1-1/8 17 22 1 48-20-4390 HC4061 DW5759 76 404

1-1/4 11 16 1 48-20-4395 HC4070 DW5760 76 208

1-1/4 17 22 1 48-20-4400 HC4071 DW5761 76 408

1-1/4 31 36 1 48-20-4405 HC4073 DW5762

1-3/8 17 22 1 48-20-4410 HC4081 DW5765 76 412

1-1/2 17 22 1 48-20-4415 HC4091 DW5764 76 416 VC190

1-5/8 17 22 1 48-20-4153

1-3/4 18 23 1 48-20-4418 HC6001 DW5768

218231

48-20-4419 DW5769

SPLINE BITS

DEMOLITION HAMMERS

milwaukeetool.ca 93

5337-21 5339-21

2" 3/4" Hex Demolition Hammer 2" SDS Max Demolition Hammer

FEATURES

n Powerful 14-amp motor: Delivers 19.9 ft-lbs of blow energy

n Heavy-duty robust construction: Digs and drills under the most

demanding jobsite conditions

n Comfortable inline design: Three side handle positions plus soft-grip

D-handle offer greater user comfort

n Variable-speed dial: Maximizes user control

n AVS Anti-Vibration System: Minimizes vibration for maximum comfort

n Service reminder light: Indicates when service will be needed

n Lock-on trigger: Enhances safety and peace of mind

Includes: (1) 2" 3/4" Hex Demolition Hammer (5337-21);

(2) Auxiliary Handle; (1) Carrying Case

SPECIFICATIONS

Length 27-1/2"

Weight 27.75 lbs

Voltage 120V AC

Tool Warranty 5 Years

No Load Speed 125-250

No Load BPM 975-1,950

Cord Type Double

Insulated

Electronic

Feedback Yes

Bit Shank 3/4" Hex

Blow Energy 19.9 ft-lbs

Drilling Mode Single Mode:

Hammer Only

Handle Style D-Handle

Vibration Reduction Yes- AVS™

Amps 14

Trigger Lock Yes

FEATURES

n Powerful 14-amp motor: Delivers 19.9 ft-lbs of blow energy

n Heavy-duty robust construction: Digs and drills under the most

demanding jobsite conditions

n Comfortable inline design: Three side handle positions plus

D-handle offer greater user comfort

n Variable-speed dial: Maximizes user control

n AVS Anti-Vibration System: Minimizes vibration for maximum comfort

n Service reminder light: Indicates when service will be needed

n Lock-on trigger: Enhances safety and peace of mind

Includes: (1) 2" SDS Max Demolition Hammer (5339-21);

(1) Carrying Case; (1) Depth Rod; (1) Side Handle

SPECIFICATIONS

Length 27-1/2"

Weight 27.75 lbs

Voltage 120V AC

Tool Warranty 5 Years

No Load Speed 125-250

No Load BPM 975-1,950

Cord Type Double

Insulated

Electronic

Feedback Yes

Bit Shank SDS Max

Blow Energy 19.9 ft-lbs

Drilling Mode Single Mode:

Hammer Only

Handle Style D-Handle

Vibration Reduction Yes- AVS™

Amps 14

Trigger Lock Yes

ROTARY DEMOLITION

HAMMERS

94

5340-21 5342-21

2" Spline Rotary Hammer 2" SDS Max Rotary Hammer

FEATURES

n Powerful 15-amp motor: Delivers 19.9 ft-lbs of blow energy

n Heavy-duty robust construction: Digs and drills under the most

demanding jobsite conditions

n Comfortable inline design: Three handle positions offer greater

user comfort

n Variable-speed dial: Maximizes user control

n

Vibration Isolation System: Minimizes vibration for less operator fatigue

Includes: (1) 2" Spline Rotary Hammer (5340-21); (1) Carrying Case;

(1) Side Handle

SPECIFICATIONS

Length 27-1/2"

Weight 27.75 lbs

Voltage 120V AC

Tool Warranty 5 Years

No Load Speed 125-250

No Load BPM 975-1,950

Cord Type Double

Insulated

Electronic

Feedback Yes

Bit Shank Spline

Blow Energy 19.9 ft-lbs

Clutch Yes

Drilling Mode

2-Mode:

Rotary

Hammer and

Hammer Only

Handle Style D-Handle

Vibration Reduction Yes - AVS™

No Load RPM 125-250

Amps 15

Trigger Lock No

6"

Solid Bit Capacity 2"

FEATURES

n Powerful 15-amp motor: Delivers 19.9 ft-lbs of blow energy

n Heavy-duty robust construction: Digs and drills under the most

demanding jobsite conditions

n Comfortable inline design: Three handle positions offer greater

user comfort

n Variable-speed dial: Maximizes user control

n

Vibration Isolation System: Minimizes vibration for less operator fatigue

n Service reminder light: Indicates when service will be needed

Includes: (1) 2" SDS Max Rotary Hammer (5342-21);

(1) Carrying Case; (1) Side Handle

SPECIFICATIONS

Length 27-1/2"

Weight 27.75 lbs

Voltage 120V AC

Tool Warranty 5 Years

No Load Speed 125-250

No Load BPM 975-1,950

Cord Type Double

Insulated

Electronic

Feedback Yes

Bit Shank SDS Max

Blow Energy 19.9 ft-lbs

Clutch Yes

Drilling Mode

2-Mode

Rotary

Hammer and

Hammer Only

Handle Style D-Handle

Vibration Reduction Yes - AVS™

No Load RPM 125-250

Amps 15

Trigger Lock No

Thick Wall Core Bit

Capacity 6"

Solid Bit Capacity 2"

CORE BITS, TUNNEL BITS

AND EXTENSIONS

milwaukeetool.ca 95

Diameter Inner Core

Depth

Overall

Length

SDS-MAX

Part No.

SPLINE

Part No.

1-1/2" 3" 11-3/8" 48-20-5400

48-20-5450

1-1/2" 3" 22" 48-20-5402

48-20-5452

1-3/4" 3" 11-3/8" 48-20-5404

48-20-5454

1-3/4" 3" 22" 48-20-5406

48-20-5456

2" 3" 11-3/8" 48-20-5408

48-20-5458

2" 3" 22" 48-20-5410

48-20-5460

2-5/8" 3"

11-3/8" 48-20-5412

48-20-5462

2-5/8" 3"

22" 48-20-5414

48-20-5464

3-1/8" 3"

11-3/8" 48-20-5420

48-20-5470

3-1/8" 3"

22" 48-20-5422

48-20-5472

3-9/16" 3"

11-3/8" 48-20-5428

48-20-5478

3-9/16" 3"

22"

48-20-5430 48-20-5480

4" 3"

11-3/8"

48-20-5432 48-20-5482

4" 3"

22"

48-20-5434 48-20-5484

5" 3"

11-3/8"

48-20-5436 48-20-5486

5" 3"

22"

48-20-5438 48-20-5488

6" 3"

22"

48-20-5440 48-20-5490

Diameter Overall Length Part No.

1-1/2" 12-1/4" 48-20-5300

1-1/2" 22" 48-20-5302

1-3/4" 12-1/4" 48-20-5304

1-3/4" 22" 48-20-5306

1-3/4" 39" 48-20-5308

2-1/8" 12-1/4" 48-20-5310

2-1/8" 22"

48-20-5312

2-1/8" 39"

48-20-5314

2-1/2" 12-1/4"

48-20-5316

2-1/2" 22"

48-20-5318

2-1/2" 39"

48-20-5320

3-1/8" 12-1/4"

48-20-5322

3-1/8" 22"

48-20-5324

Replacement Parts Part No.

1Pc Core Centering Pin 48-20-5495

1Pc Core Drift Pin 48-20-5497

Part No. Description

48-20-6950 Max-Lok™ Connection, includes grease 49-08-5385

CONNECTION

48-20-6960 12-1/2"

48-20-6962 29-1/2"

48-20-6964 43"

48-20-6966 63"

48-20-6968 82-1/2"

SDS-MAX EXTENSIONS

48-20-6970 12-1/2"

48-20-6972 29-1/2"

48-20-6974 43"

SPLINE EXTENSIONS

Part No. Length

48-20-6980 12-1/2"

48-20-6982 29-1/2"

SDS-PLUS EXTENSIONS

Part No. Description

49-08-5385 Max-Lok™ Replacement Grease

GREASE

ONE-PIECE CORE BITS

MAX-LOK™ EXTENSION SYSTEM

SDS-MAX TUNNEL BITS

IDEAL FOR LARGE DIAMETER HOLES

 Asymmetrical and alternating teeth for faster

material pulverization

 Thick-wall core body for durability

IDEAL FOR LARGE DIAMETER HOLES

 Centering tip for exact spot drilling

 Three wide fl utes for fast debris removal and true round holes

 Chisel and Raker teeth for fast material penetration and pulverization

EXTEND BIT REACH UP TO 82"

 Drill deeper holes

 Leverage shorter, less expensive bits

 Maximum energy transfer

MUST BE ORDERED SEPARATELY

FOR ONE-PIECE CORE BITS

MULTI-BIT CORE BITS

96

Size Depth

Core Body w/

Guide Plate &

Centering Pin*

8" SDS+

Adapter Shank

12" SDS+

Adapter Shank

7-1/2"

Extension

Replacement

Guide Plate

Replacement

Centering Pin

1" 3-3/16" 48-20-5005* 48-03-3545 48-03-3551 48-95-6070 - -

1-1/8" 3-3/16" 48-20-5010* 48-03-3545 48-03-3551 48-95-6070 - -

1-1/4" 3-3/16" 48-20-5015 48-03-3545 48-03-3551 48-95-6070 48-20-6151 48-20-6150

1-3/8" 3-3/16" 48-20-5020 48-03-3545 48-03-3551 48-95-6070 48-20-6152 48-20-6150

1-1/2" 3-3/16" 48-20-5025 48-03-3545 48-03-3551 48-95-6070 48-20-6153 48-20-6150

1-3/4" 2-13/16" 48-20-5030 48-03-3555 48-03-3561 48-95-6075 48-20-6156 48-20-6155

2" 2-13/16"

48-20-5035 48-03-3555 48-03-3561 48-95-6075 48-20-6157 48-20-6155

2-1/2" 2-13/16"

48-20-5040 48-03-3555 48-03-3561 48-95-6075 48-20-6158 48-20-6155

3" 2-13/16"

48-20-5045 48-03-3555 48-03-3561 48-95-6075 48-20-6159 48-20-6155

3-1/2" 2-13/16"

48-20-5050 48-03-3555 48-03-3561 48-95-6075 48-20-6160 48-20-6155

4" 2-13/16"

48-20-5055 48-03-3555 48-03-3561 48-95-6075 48-20-6161 48-20-6155

Size Depth

Core Body w/

Guide Plate &

Centering Pin

12" SPLINE

Adapter Shank

18" SPLINE

Adapter Shank

12" SDS-MAX

Adapter Shank

18" SDS-MAX

Adapter Shank

7-1/2"

Extension

Replacement

Guide Plate

Replacement

Centering Pin

THICK WALL

1-1/2" 4-1/16" 48-20-5125 48-03-3564 48-03-3565 48-03-3572 48-03-3573 48-95-6085 48-20-5168 48-20-5199

1-3/4" 4-1/16" 48-20-5130 48-03-3564 48-03-3565 48-03-3572 48-03-3573 48-95-6085 48-20-5169 48-20-5199

2" 4-1/16" 48-20-5135 48-03-3564 48-03-3565 48-03-3572 48-03-3573 48-95-6085 48-20-5170 48-20-5199

2-1/2" 4-1/16" 48-20-5140 48-03-3564 48-03-3565 48-03-3572 48-03-3573 48-95-6085 48-20-5171 48-20-5199

3" 4-1/16" 48-20-5145 48-03-3564 48-03-3565 48-03-3572 48-03-3573 48-95-6085 48-20-5172 48-20-5199

3-1/2" 4-1/16" 48-20-5150 48-03-3564 48-03-3565 48-03-3572 48-03-3573 48-95-6085 48-20-5173 48-20-5199

4"

4-1/16" 48-20-5155 48-03-3564 48-03-3565 48-03-3572 48-03-3573 48-95-6085 48-20-5174 48-20-5199

5"

4-1/16" 48-20-5160 48-03-3564 48-03-3565 48-03-3572 48-03-3573 48-95-6085 48-20-5175 48-20-5199

6"

4-1/16" 48-20-5165 48-03-3564 48-03-3565 48-03-3572 48-03-3573 48-95-6085 48-20-5176 48-20-5199

THIN WALL

5"

2-13/16" 48-20-5060 48-03-3540 – 48-03-3574 – 48-95-6075 48-20-6162 48-20-6155

6"

2-13/16" 48-20-5065 48-03-3540 – 48-03-3574 – 48-95-6075 48-20-6163 48-20-6155

*Guide plate and centering pin not included with 1" & 1-1/8" diameter core bits

SDS+ THIN WALL CARBIDE TIPPED CORE BITS

SDS-MAX AND SPLINE THICK WALL CARBIDE TIPPED CORE BITS

LHS COMPONENT SYSTEM

milwaukeetool.ca 97

Size Part Number Depth

1-1/8"

48-20-5070 18"

1-1/4"

48-20-5071 18"

LHS 4-CUTTER FLUTED BITS

Size Part Number Depth

1-3/8"

48-20-5082 35 mm

1-1/2"

48-20-5083 40 mm

1-3/4"

48-20-5084 45 mm

2-1/8"

48-20-5085 55 mm

2-5/8"

48-20-5087 68 mm

3-1/8"

48-20-5089 80 mm

TURBO TUNNEL BITS

Size Part Number Depth Metric

1-1/2"

48-20-5090 3" 40 mm

1-3/4"

48-20-5091 3" 45 mm

2-1/8"

48-20-5092 3" 55 mm

2-5/8"

48-20-5093 3" 68 mm

3-1/8"

48-20-5094 3" 80 mm

3-1/2"

48-20-5095 3" 90 mm

4"

48-20-5096 3" 100 mm

5"

48-20-5097 3" 120 mm

48-20-5099 Replacement Centering Bit

Description Part Number

7" SPLINE Shank

48-20-5075

7-1/2" SDS-MAX Shank

48-20-5077

11" Extension

48-20-5079

2-1/2" Replacement Threaded Stud

48-20-5081

Core Bit

(with Centering Bit)

Turbo Tunnel Bit

4-Cutter Fluted Bit

Extension

Replacement Stud

SDS-MAX Shank

SPLINE Shank

LHS REPLACEMENT PARTSLHS THICK WALL CARBIDE-TIPPED

CORE BITS

Description Part Number

SPLINE to "B" Taper Adapter 48-66-6503

SPLINE to "A" Taper Adapter 48-66-6502

SPLINE TO SDS MAX 48-03-3010

SDS MAX TO SPLINE 48-03-3012

SPLINE To SDS+ Bit Adapter 48-03-3015

SDS-MAX To SDS+ Bit Adapter 48-03-3025

SDS+ to 3-Jaw Chuck Adapter Kit 48-66-1370

SDS+ Dust Shield 48-03-3030

LHS SYSTEM

CARBIDE BIT ADAPTERS

DEMOLITION HAMMER

ACCESSORIES

98

Type Description Size

SDS+SDS-MAX

(Slotted 18 mm Round)

SPLINE or Round Hex

(3/4" Hex with 21/32" Round) 3/4" Hex

Individual

Part Number

Bulk

Part Number Qty Individual

Part Number

Bulk

Part Number Qty Individual

Part Number

Bulk

Part Number Qty Individual

Part Number

Bulk

Part Number Qty

BULL POINT

Starts holes in concrete

slabs, general chipping and

breaking

10" 48-62-6010 48-62-6110 25 - - - - - -

12" - - - 48-62-4075 48-62-4175 25 48-62-2000 48-62-2100 25 48-62-3000 - -

18" - - - 48-62-4077 48-62-4177 25 48-62-2010 48-62-2110 25 48-62-3005 - -

FLAT CHISEL

General chipping and

breaking

3/4" x 10" 48-62-6015 48-62-6115 25 - - - - - -

1" x 12" - - - 48-62-4079 48-62-4179 25 48-62-2020 48-62-2120 25 48-62-3010 48-62-3110 25

1" x 18" - - - 48-62-4081 48-62-4181 25 48-62-2030 48-62-2130 25 48-62-3015 - -

SCALING CHISEL

Cleans concrete, scale,

rust, cuts troughs and

some asphalt

1-1/2" x 10" 48-62-6020 48-62-6120 25 - - - - - -

1-1/2" x 12" - - - 48-62-4082 - 48-62-2040 - - 48-62-3020 - -

2" x 12" - - - 48-62-4085 48-62-4185 25 48-62-2050 48-62-2150 25 48-62-3035 - -

3" x 12" - - - 48-62-4087 48-62-4187 25 48-62-2055 48-62-2155 25 48-62-3030 48-62-3130 25

SCRAPING CHISEL

Scrapes surface rather than

breaking material on top 2" x 12" - - - 48-62-4089 - 48-62-2065 - - 48-62-3025 - -

SLOTTING TOOL

Breaks out the "web"

between closely spaced

drilled holes to make a

large opening

1-1/4" x 15" - - - 48-62-4073 - - - - - - -

1-1/2" x 12" - - - - - 48-62-2060 - - - - -

SEAM TOOL

Removes mortar between

brick or block, cuts narrow

channels

1" x 15" - - - 48-62-4080 - 48-62-2080 - - - - -

BUSHING TOOL -

ONE PIECE

Removes excess concrete,

produces exterior fi nish,

roughens surface before

surface coating

1-3/4" Sq. x

10-1/2" - - - 48-62-4065 - - - - - - -

1-3/4" Sq. x

9-3/4" - - - - - 48-62-2070 48-62-2170 15 48-62-3085 48-62-3185 15

ASPHALT CUTTER

Cuts asphalt or hard packed

gravel (Do NOT use for

concrete)

5" x 16-1/2" - - - 48-62-4066 - - - - 48-62-3090 - -

CLAY SPADE

Digging clay, hard packed

gravel (Do NOT use for

concrete)

4-1/2" x

16-5/8" - - - 48-62-4068 48-62-4168 12 - - - - - -

4-1/2" x

16-3/4" - - - - - 48-62-2095 - 48-62-3040 48-62-3140 12

GROUND ROD

DRIVER

Drives soft ground rods.

Socket depth - 2-3/4", inner

dia. - .906"

9-3/4"L -

5/8" & 3/4"

Rod Dia.

- - - 48-62-4091 - - - - 48-62-3070 - -

10"L -

5/8" & 3/4"

Rod Dia.

- - - - - 48-62-2046 - - - - -

TAMPER PLATE

SHANK

Used to mount tamper plate 12" - - - 48-62-4092 - 48-62-2097 - - 48-62-3065 - -

TAMPER PLATE

Compacts dirt, tamps

asphalt 5" x 5" - - - 48-62-3060 - 48-62-3060 - - 48-62-3060 - -

Type Description Size Individual

Part Number

Bulk

Part Number Qty

MOIL POINT

Starts holes in concrete slabs, general chipping and breaking 20" 48-62-4000 48-62-4100 8

NARROW CHISEL

General chipping and breaking 20-1/2" 48-62-4005 48-62-4105 8

CHISEL

Wide chisel with two 60" cutting angles cleans

concrete, scale, rust, cuts troughs and some asphalt 3" x 20-1/2" 48-62-4010 48-62-4110 8

ASPHALT CUTTER

Cuts asphalt or hard ground

(DO NOT use for concrete) 5" x 17-1/2" 48-62-4020 48-62-4120 6

CLAY SPADE

Digs clay, hard packed gravel, dirt

(DO NOT use for concrete) 5-1/2" x 20" 48-62-4030 48-62-4130 5

SPIKE PIN DRIVER

Drives anchoring pins for concrete forms 14-1/2" 48-62-4040 - -

GROUND ROD DRIVER

Drives ground rods 15-1/2" long /

3" Depth 48-62-4045 - -

TAMPER PLATE

Compacts dirt, tamps asphalt. Use with 48-62-4060 6" x 6" 48-62-4050 - -

8" x 8" 48-62-4055 - -

TAMPER SHANK

For use with 48-62-4050, 48-62-4055 and 48-62-4061 15-1/2" 48-62-4060 - -

TENT STAKE DRIVER

Used to drive in large tent stakes. Use with 48-62-4060 5-1/2" L / 3-1/2" OD

/ 2-3/4" ID 48-62-4061 - -

Demolition Accessory Set

48-20-4200 Includes:

48-20-4051, 48-20-4063, 48-20-4076, 48-62-2000, 48-62-2020

DEMOLITION HAMMER ACCESSORIES (SDS+, SDS-MAX, SPLINE, 3/4” HEX)

DEMOLITION HAMMER ACCESSORIES (1-1/8” COLLARED HEX WITH NOTCH)

DEMO BITS

CROSS-REFERENCE

milwaukeetool.ca 99

Description Qty Category Milwaukee Bosch DeWalt

BULL PT.10 1 SDS+ Demo Steel Bits 48-62-6010 HS1415 DW5348

FLAT CHISEL 3/4X10 1 SDS+ Demo Steel Bits 48-62-6015 HS1420 DW5350

SCAL.CHISEL 1-1/2X8 1 SDS+ Demo Steel Bits 48-62-6020 HS1425 DW5349

CHISEL BULL POINT 25 SDS+ Demo Steel Bits 48-62-6110

CHISEL NARROW 25 SDS+ Demo Steel Bits 48-62-6115

CHISEL WIDE 25 SDS+ Demo Steel Bits 48-62-6120

BUSHING TOOL1-3/4X10-1/2 1 SDS-Max Demo Steel Bits 48-62-4065 HS1909 DW5843

ASPHALT CUTTER5X16-1/2 1 SDS-Max Demo Steel Bits 48-62-4066 HS1906 DW5846

CLAY SPADE4-1/2X16-5/8 1 SDS-Max Demo Steel Bits 48-62-4068 HS1922 DW5848B

SLOTTING TOOL,1-1/4X15 1 SDS-Max Demo Steel Bits 48-62-4073 HS1921 DW5842

12 BULL POINT, 1 SDS-Max Demo Steel Bits 48-62-4075 HS1913 DW5832

BULL POINT, 18 1 SDS-Max Demo Steel Bits 48-62-4077 HS1914 DW5833

FLAT CHISEL, 1 X 12 1 SDS-Max Demo Steel Bits 48-62-4079 HS1911 DW5834

SEAM TOOL, 1 X 15 1 SDS-Max Demo Steel Bits 48-62-4080 HS1920

FLAT CHISEL, 1 X 18 , 1 SDS-Max Demo Steel Bits 48-62-4081 HS1912 DW5835

SCALING CHISEL,1-1/2X12 1 SDS-Max Demo Steel Bits 48-62-4082 HS1916

SCALING CHISEL,2 X12 1 SDS-Max Demo Steel Bits 48-62-4085 HS1917 DW5837

SCALING CHISEL,3 X12 1 SDS-Max Demo Steel Bits 48-62-4087 HS1910 DW5838

SCRAPING CHISEL,2X12 1 SDS-Max Demo Steel Bits 48-62-4089 HS1915

GROUND ROD DRIVER 9-3/4 1 SDS-Max Demo Steel Bits 48-62-4091 HS1924 DW5847

TAMPER PLATE SHANK 12 1 SDS-Max Demo Steel Bits 48-62-4092 HS1927

CLAY SPADE4-1/2X16-5/8 12 SDS-Max Demo Steel Bits 48-62-4168 0

BULL POINT, 12 25 SDS-Max Demo Steel Bits 48-62-4175 HS1913B25 DW5832B15

BULL POINT, 18 25 SDS-Max Demo Steel Bits 48-62-4177 HS1914B25 DW5833B15

FLAT CHISEL,1 X12 25 SDS-Max Demo Steel Bits 48-62-4179 HS1911B25 DW5834B15

FLAT CHISEL,1 X18 25 SDS-Max Demo Steel Bits 48-62-4181 HS1912B25 DW5835B15

SCALING CHISEL2X12 25 SDS-Max Demo Steel Bits 48-62-4185

SCALING CHISEL3X12 25 SDS-Max Demo Steel Bits 48-62-4187 DW5838B10

12 BULL POINT CHISEL 1 Spline & Round/Hex Demo Steel Bits 48-62-2000 HS1813 DW5770

BULL POINT, 18 1 Spline & Round/Hex Demo Steel Bits 48-62-2010 HS1814 DW5771

FLAT CHISEL,1 X12 1 Spline & Round/Hex Demo Steel Bits 48-62-2020 HS1811 DW5779

FLAT CHISEL,1 X18 1 Spline & Round/Hex Demo Steel Bits 48-62-2030 HS1812 DW5780

SCALING CHISEL1-1/2X12 1 Spline & Round/Hex Demo Steel Bits 48-62-2040 HS1816 DW5773

GROUND ROD DRIVER10 1 Spline & Round/Hex Demo Steel Bits 48-62-2046 HS1824 DW5785

SCALING CHISEL2X12 1 Spline & Round/Hex Demo Steel Bits 48-62-2050 HS1817 DW5774

SCALING CHISEL3X12 1 Spline & Round/Hex Demo Steel Bits 48-62-2055 HS1810 DW5775

SLOTTING TOOL1-1/2 X12 1 Spline & Round/Hex Demo Steel Bits 48-62-2060 HS1821 DW5772

SCRAPING CHISEL2X12 1 Spline & Round/Hex Demo Steel Bits 48-62-2065 HS1815

BUSHING TOOL1-3/4X9-3/4 1 Spline & Round/Hex Demo Steel Bits 48-62-2070 HS1809 DW5783

SEAM TOOL,1 X 12 1 Spline & Round/Hex Demo Steel Bits 48-62-2080 HS1820

CLAY SPADE4-1/2X16-3/4 1 Spline & Round/Hex Demo Steel Bits 48-62-2095 HS1822 DW5786B

TAMPER PLATE SHANK12 1 Spline & Round/Hex Demo Steel Bits 48-62-2097 HS1827

BULL POINT, 12 25 Spline & Round/Hex Demo Steel Bits 48-62-2100 HS1813B25 DW5770B15

BULL POINT 18 25 Spline & Round/Hex Demo Steel Bits 48-62-2110 HS1814B25 DW5771B15

FLAT CHISEL,1 X12 25 Spline & Round/Hex Demo Steel Bits 48-62-2120 HS1811B25 DW5779B15

FLAT CHISEL,1 X18 25 Spline & Round/Hex Demo Steel Bits 48-62-2130 HS1812B25 DW5780B15

SCALING CHISEL2X12 25 Spline & Round/Hex Demo Steel Bits 48-62-2150 HS1817B25

SDS+ DEMO

STEEL

SDS-MAX DEMO STEELSPLINE & ROUND/HEX DEMO STEEL

DEMO BITS

CROSS-REFERENCE

100

Description Qty Category Milwaukee Bosch DeWalt

SCALING CHISEL3X12 25 Spline & Round/Hex Demo Steel Bits 48-62-2155 HS1810B25 DW5775B10

BUSHING TOOL1-3/4X9-3/4 15 Spline & Round/Hex Demo Steel Bits 48-62-2170 HS1809B15 DW5783B10

TAMPER PLATE 5 IN X 5 IN Max / Spline / 3/4" Hex Demo Steel Bit 48-62-3060 HS1828

BULL POINT, 12 3/4 HEX 1 3/4" Hex Demo Steel Bits 48-62-3000 HS1515 DW5950

BULL POINT, 18 1 3/4" Hex Demo Steel Bits 48-62-3005 HS1516 DW5951

FLAT CHISEL,1 X12 1 3/4" Hex Demo Steel Bits 48-62-3010 HS1517 DW5953

FLAT CHISEL,1 X18 1 3/4" Hex Demo Steel Bits 48-62-3015 HS1518 DW5954

SCALING CHISEL1-1/2X12 1 3/4" Hex Demo Steel Bits 48-62-3020

SCRAPING CHISEL,2X12 1 3/4" Hex Demo Steel Bits 48-62-3025

SCALING CHISEL,3X12 1 3/4" Hex Demo Steel Bits 48-62-3030 HS1503 DW5952

SCALING CHISEL,2X12 1 3/4" Hex Demo Steel Bits 48-62-3035 HS1502

CLAY SPADE4-1/2X16- 1 3/4" Hex Demo Steel Bits 48-62-3040 HS1504 DW5959B

TAMPER PLATE SHANK,12 1 3/4" Hex Demo Steel Bits 48-62-3065 HS1527

GROUND ROD DRIVER9-3/4 1 3/4" Hex Demo Steel Bits 48-62-3070 HS1524 DW5958

BUSHING TOOL1-3/4X9-3/4 1 3/4" Hex Demo Steel Bits 48-62-3085 HS1520 DW5949

ASPHALT CUTTER5X16-1/2 1 3/4" Hex Demo Steel Bits 48-62-3090 HS1506 DW5957

FLAT CHISEL,1 X12 25 3/4" Hex Demo Steel Bits 48-62-3110 HS1517B25 DW5953B15

SCALING CHISEL3X12 25 3/4" Hex Demo Steel Bits 48-62-3130 HS1503B25 DW5952B10

CLAY SPADE4-1/2X16- 12 3/4" Hex Demo Steel Bits 48-62-3140

BUSHING TOOL1-3/4X9- 25 3/4" Hex Demo Steel Bits 48-62-3185 HS1520B15 DW5949B10

MOIL PT 20 IN. 1 1-1/8" Collared Hex Demo Steel Bits 48-62-4000 HS2161 DW5960

NARROW CHISEL 1 1-1/8" Collared Hex Demo Steel Bits 48-62-4005 HS2163 DW5962

3 IN CHISEL 20-1/2 IN 1 1-1/8" Collared Hex Demo Steel Bits 48-62-4010 HS2164 DW5961

5 IN ASPHALT CUTTER 1 1-1/8" Collared Hex Demo Steel Bits 48-62-4020 HS2167 DW5963

5-1/2 CLAY SPADE 20 IN 1 1-1/8" Collared Hex Demo Steel Bits 48-62-4030 HS2169 DW5965

SPIKE DRIVER 14-1/2 IN 1 1-1/8" Collared Hex Demo Steel Bits 48-62-4040 HS2171

GROUND ROD DRIVER151/2 1 1-1/8" Collared Hex Demo Steel Bits 48-62-4045 HS2172 DW5964

TAMPER 6 IN X 6 IN 1 1-1/8" Collared Hex Demo Steel Bits 48-62-4050 HS2124 DW5966

TAMPER 8 IN X 8IN 1 1-1/8" Collared Hex Demo Steel Bits 48-62-4055 HS2125

TAMPER SHANK 15-1/2 IN 1 1-1/8" Collared Hex Demo Steel Bits 48-62-4060 HS2173 DW5967

TENT STAKE DRIVER-HEAD

ONLY 1 1-1/8" Collared Hex Demo Steel Bits 48-62-4061 HS2126

MOIL POINT 20 8 1-1/8" Collared Hex Demo Steel Bits 48-62-4100 HS2161B8

CHISEL NARROW 18 8 1-1/8" Collared Hex Demo Steel Bits 48-62-4105 HS2163B8

CHISEL WIDE 3 8 1-1/8" Collared Hex Demo Steel Bits 48-62-4110 HS2164B8

ASPHALT CUTTER 6 1-1/8" Collared Hex Demo Steel Bits 48-62-4120 HS2167B6

CLAY SPADE 5 1-1/8" Collared Hex Demo Steel Bits 48-62-4130 HS2169B5

ALL3/4” HEX DEMO STEEL1-1/8” COLLARED HEX DEMO STEEL

DYMO DRILLS

(DIAMOND CORING)

milwaukeetool.ca 101

4079 4090

Diamond Coring Motor, 300/600RPM,

20 Amp with Shear Pin

Diamond Coring Motor, 375/750 RPM,

15 Amp with Shear Pin

FEATURES

n Two speeds: 300 and 600 rpm

n 20 amp motor

n Shear pin protection protects gears and motor against overload

n Built-in water swivel

n For diamond coring in reinforced concrete, tile, masonry or

natural stone

Includes: (1) Diamond Coring Motor, 300/600 RPM, 20 Amp with

Shear Pin (4079); (1) Built-In Water Swivel; (6) Extra Shear Pins;

(1) Open End Wrench; (1) Water Control Valve; (1) Water Hose Adapter

SPECIFICATIONS

Weight 24.0 lbs

Voltage 120V

Tool Warranty 5 Years

No Load RPM 300-600

Amps 20

Spindle 1-1/4"-7

Max HP 4.8

Motor Protection Shear Pin

Plug Type L5-20P

Suggested Dia in Med Aggregate 7"-14"/4"-7"

FEATURES

n Two speeds: 375 and 750 rpm

n 15 amp motor

n Shear pin protection protects gears and motor against overload

n Built-in water swivel

n For diamond coring in reinforced concrete, tile, masonry or

natural stone

Includes: (1) Diamond Coring Motor, 375/750 RPM, 15 Amp with

Shear Pin (4090); (1) Built-In Water Swivel; (6) Extra Shear Pins;

(1) Open End Wrench; (1) Water Control Valve; (1) Water Hose Adapter

SPECIFICATIONS

Weight 26.0 lbs

Voltage 120V

Tool Warranty 5 Years

No Load RPM 375-750

Amps 15

Spindle 1-1/4"-7

Max HP 2.5

Motor Protection Shear Pin

Plug Type L5-20P

Suggested Dia in Med Aggregate 5"-8"/ 2-1/2"-5"

DYMO DRILLS

(DIAMOND CORING)

102

4094

Diamond Coring Motor 450/900RPM,

20 Amp with Shear Pin

FEATURES

n Two speeds: 450 and 900 rpm

n 20 amp motor

n Shear pin protection protects gears and motor against overload

n Built-in water swivel

n For diamond coring in reinforced concrete, tile, masonry or

natural stone

Includes: (1) Diamond Coring Motor 450/900 RPM, 20 Amp with

Shear Pin (4094); (1) Built-In Water Swivel; (6) Extra Shear Pins;

(1) Open End Wrench; (1) Water Control Valve; (1) Water Hose Adapter

SPECIFICATIONS

Weight 24.0 lbs

Voltage 120V

Tool Warranty 5 Years

No Load RPM 450-900

Amps 20

Spindle 1-1/4"-7

Max HP 4.8

Motor Protection Shear Pin

Plug Type L5-20P

Suggested Dia in Med Aggregate 6"-10"/2"-6"

4004

Diamond Coring Motor, 300/600RPM,

20 Amp with Clutch

FEATURES

n Two speeds: 300 and 600 rpm

n 20 amp motor

n Clutch protection protects gears and motor against overload

n Built-in water swivel

n For diamond coring in reinforced concrete, tile, masonry or

natural stone

Includes: (1) Diamond Coring Motor, 300/600 RPM, 20 Amp with

Clutch (4004); (1) Built-In Water Swivel; (1) Open End Wrench;

(1) Water Control Valve; (1) Water Hose Adapter

SPECIFICATIONS

Weight 24.0 lbs

Voltage 120V

Tool Warranty 5 Years

No Load RPM 300-600

Amps 20

Spindle 1-1/4"-7

Max HP 4.8

Motor Protection Clutch

Plug Type L5-20P

Suggested Dia in Med Aggregate 7"-14"/4"-7"

DYMO DRILLS

(DIAMOND CORING)

milwaukeetool.ca 103

4096

Diamond Coring Motor 450/900RPM,

20 Amp with Clutch

FEATURES

n Two speeds: 450 and 900 rpm

n 20 amp motor

n Clutch protection protects gears and motor against overload

n Built-in water swivel

n For diamond coring in reinforced concrete, tile, masonry or

natural stone

Includes: (1) Diamond Coring Motor 450/900 RPM, 20 Amp with

Clutch (4096); (1) Built-In Water Swivel; (1) Open End Wrench;

(1) Water Control Valve; (1) Water Hose Adapter

SPECIFICATIONS

Weight 24.0 lbs

Voltage 120V

Tool Warranty 5 Years

No Load RPM 450-900

Amps 20

Spindle 1-1/4"-7

Max HP 4.8

Motor Protection Clutch

Plug Type L5-20P

Suggested Dia in Med Aggregate 6"-10"/2"-6"

4005

Diamond Coring Motor,

600/1200RPM, 20 Amp with Clutch

FEATURES

n Two speeds: 600 and 1200 rpm

n 20 amp motor

n Clutch protection protects gears and motor against overload

n Built-in water swivel

n For diamond coring in reinforced concrete, tile, masonry or

natural stone

Includes: (1) Diamond Coring Motor, 600/1200 RPM, 20 Amp with

Clutch (4005); (1) Built-In Water Swivel; (1) Open End Wrench;

(1) Water Control Valve; (1) Water Hose Adapter

SPECIFICATIONS

Weight 24.0 lbs

Voltage 120V

Tool Warranty 5 Years

Amps 20

Spindle 1-1/4"-7

Max HP 4.8

Motor Protection Clutch

Plug Type L5-20P

Suggested Dia in Med Aggregate At 600RPM the capacity is

4"-7"

DYMO DRILLS

(DIAMOND CORING)

104

Diamond Coring Small Base Stand

4097-20

Diamond Coring Motor

500/1000RPM, 15 Amp with Clutch

FEATURES

n Two speeds: 500 and 1000 rpm

n 15 amp motor

n Clutch protection protects gears and motor against overload

n Built-in water swivel

n For diamond coring in reinforced concrete, tile, masonry or

natural stone

Includes: (1) Diamond Coring Motor 500/1000 RPM, 15 Amp with

Clutch (4097-20); (1) Built-In Water Swivel; (1) Open End Wrench;

(1) Water Control Valve; (1) Water Hose Adapter

SPECIFICATIONS

Weight 26.0 lbs

Voltage 120V

Tool Warranty 5 Years

Amps 15

Spindle 1-1/4"-7

Max HP 2.5

Motor Protection Clutch

Plug Type L5-20P

Suggested Dia in Med Aggregate 3"-5"/1-1/4"-3"

4125

Replacement Small Base

n Included with Dymo-Rig 4125

n May be used with 4130 and 4136 for work in restricted areas

n Includes two wheels and four leveling screws

n Dimensions (without wheels) 7-1/4 in. x 13 in.

48-10-0080

FEATURES

n Small base for confi ned drilling situations

n Right or left hand operation

n Capable of 45° angle drilling – columns can be set at any angle up

to 45º

n Small base stand only

Includes: (1) Diamond Coring Small Base Stand (4125)

SPECIFICATIONS

Weight 71.0 lbs

Tool Warranty 5 Years

Angle Drilling Yes

Meter Box No

Vac Base and Pump No

Wheels Yes

Height 47"

DYMO DRILLS

(DIAMOND CORING)

milwaukeetool.ca 105

4130 4136

Diamond Coring Large Base Stand

Diamond Coring Rig with Large Base

Stand. Vac-U-Rig® Kit and Meter Box

FEATURES

n Cast aluminum base with four leveling screws for fast accurate

leveling adjustment

n Adjustable, tilting 2-7/8" x 43-1/2" steel column

n Four spoke wheel feed control

n Motor mount cradle

n Bubble level

n Jackscrew

n Large base with wheels

n Base can be fl oor or wall mounted with bolt type anchor

Includes: (1) Diamond Coring Large Base Stand (4130)

SPECIFICATIONS

Weight 82.5 lbs

Tool Warranty 5 Years

Angle Drilling Yes

Meter Box No

Vac Base Pump No

Wheels Yes

Height 47"

FEATURES

n Cast aluminum base with four leveling screws for fast accurate

leveling adjustment

n Adjustable, tilting 2-7/8” x 43-1/2” steel column

n Four spoke wheel feed control

n Motor mount cradle

n Bubble level

n Jackscrew

n Large base with wheels

n Base can be fl oor or wall mounted with bolt type anchor

Includes: (1) Diamond Coring Rig with Large Base Stand, Vac-U-Rig®

Kit and Meter Box (4136); (1) Meter Box

SPECIFICATIONS

Weight 106.0 lbs

Tool Warranty 5 Years

Angle Drilling Yes

Meter Box Yes

Vac Base and Pump Yes

Wheels Yes

Height 47"

Replacement Large Base

n Included with Dymo-Rig 4130 and Vac-U-Rig® 4136

n May be used with 4125 for greater support

n Includes two wheels and four leveling screws

n Dimensions (without wheels) 13-1/4 in. x 17-1/8 in.

48-10-0090

DYMO DRILLS

(DIAMOND CORING)

106

4120

Diamond Coring Large Base Stand

FEATURES

n Cast aluminum base with four leveling screws for fast accurate

leveling adjustment

n Durable precision-ground 2-1/2 in. steel column, 43-1/2 in. high

n Rear mounted rack and pinion feed

n Jackscrew for ceiling and backwall bracing

n Lightweight, portable coring stands for the contractor with

heavyweight applications

n Reversible feed handle

n Locking carriage

n Heavy-duty, solid rubber 5” wheels

n Universal motor adapter plate

Includes: (1) Diamond Coring Large Base Stand (4120)

SPECIFICATIONS

Weight 67.0 lbs

Tool Warranty 5 Years

Angle Drilling No

Meter Box No

Vac Base and Pump Yes

Wheels Yes

Height 43-1/2"

4115-22 4120-22

Diamond Coring Rig with Small Base Stand,

Vac-U-Rig®, Meter Box and Diamond Coring Meter

n Weight: 111.5 lbs.

Includes: (1) Diamond Coring Small Base Stand (4115); (1) Diamond

Coring Motor; (1) Meter Box; (1) Small Base Stand; (1) Vac-U-Rig® Kit

See motor specs on page 103.

Diamond Coring Rig with Small Base Stand,

Vac-U-Rig®, Meter Box and Diamond Coring Meter

n Weight: 115.3 lbs.

Includes: (1) Diamond Coring Small Base Stand (4120); (1) Diamond

Coring Motor; (1) Meter Box; (1) Large Base Stand; (1) Vac-U-Rig® Kit;

(1) Diamond Coring Rig

See motor specs on page 103.

4115

Diamond Coring Small Base Stand

FEATURES

n Cast aluminum base with four leveling screws for fast accurate

leveling adjustment

n Durable precision-ground 2-1/2 in. steel column, 43-1/2 in. high

n Rear mounted rack and pinion feed

n Jackscrew for ceiling and backwall bracing

n Lightweight, portable coring stands for the contractor with

heavyweight applications

n Reversible feed handle

n Locking carriage

n Heavy-duty, solid rubber 5" wheels

n Universal motor adapter plate

Includes: (1) Diamond Coring Small Base Stand (4115)

SPECIFICATIONS

Weight 54.0 lbs

Tool Warranty 5 Years

Angle Drilling No

Meter Box No

Vac Base and Pump No

Wheels Yes

Height 43-1/2"

4115 41204115-22

Comes with 4096

Diamond Coring Motor

4120-22

Comes with 4096

Diamond Coring Motor

DIAMOND CORING

ATTACHMENTS

milwaukeetool.ca 107

48-51-0100* Meter Boxes 30 AMP 120 Volt

Supplied with No. 4136. Ammeter and power switch on front panel

receptacle for motor’s plug. One outlet also located on back of unit.

NET WEIGHT 4.8 lbs.

SHIPPING WEIGHT 6 lbs.

* Not Available In Canada

48-51-0120 20 AMP 120 Volt

Supplied with Nos. 4115-22, and 4120-22. Also available as an

accessory. Ammeter and power switch on front panel with single 20

amp twist lock receptacle for drill motor’s plug.

NET WEIGHT 3.8 lbs.

SHIPPING WEIGHT 5.3 lbs.

48-10-0090 Large Base Assembly

Large base is included with Nos. 4130 and 4136. Can be used with No. 4125

for greater support. Includes two wheels and four leveling screws.

LARGE BASE DIMENSIONS (Less Whee|s) 13-1/4" x 17-1/8"

NET WEIGHT 33.5 lbs.

SHIPPING WEIGHT 37.5 lbs.

48-10-0080 Small Base Assembly

Small base is included with No. 4125 and can be used with Nos. 4130 and 4136.

Works well In restricted areas. includes two wheels and four leveling screws.

SMALL BASE DIMENSIONS (Less Wheels) 7-1/4" x 13"

NET WEIGHT 22 lbs.

SHIPPING WE|GHT 26 lbs.

49-76-0055 Water Tank

3-112 gallon heavy-duty, impact resistant poly tank. For use where a regular

tap water supply is not available.

SHIPPING WEIGHT 4 lbs.

48-70-0060 Water Collecting Ring

For use where water llow from drilling operation must be trapped and

drained. Dike-type collector ring holds water for last disposal when used with

bits up to 10” In diameter. A built-In vacuum hose fi tting permits use with a

wet or dry vacuurn cleaner.

SHIPPING WEIGHT 8.8 lbs.

43-44-0660 Collector Ring Gasket

Replacement gasket for 48-70-0060.

49-18-0055 Water Hose 5/8" I.D. x 8'

8 foot water hose with standard brass male and femalE water hose fi ttings.

SHIPPING WEIGHT 1.8 lbs.

44-60-0032 Hardened Shear Pin

Standard Equipment

44-60-0065 Shear Pin

Optional Equipment

49-08-4220 Type “J” Grease For All Two Speed Motors

1 lb. can

49-50-0200 Vacuum Pump Assembly 115 Volt

Heavy-duty 1/3 H.P. pump complete with vacuum gauge. air litter. air hose

and cord. May be mounted to base of unit if desired. Same as furnished with

Nos. 4115-22 and 4120-22. Can be used with No. 4120 and 4136.

RECOMMENDED ONLY FOR SINGLE PAD USE

NET WEIGHT 19.5 lbs.

SHIPPING WEIGHT 26.5 lbs.

49-22-7100 Vacuum Pad Assembly (Single Pad)

For use with models with detachable vacuum pads 4115. 4125, 4130 and

4135. Single vacuum pad which provides approximately 1800 lbs. of holding

force. Same as supplied witH Nos. 4136 VAC-U-RIG®, 4115-22 and 4120-22.

NET WEIGHT 8.8 lbs.

SHIPPING WEIGHT 13 lbs.

108

DIAMOND CORE BITS

AND ACCESSORIES

Size Thread Premium Contractor Pre-Stressed

3/4"

5/8" - 11 48-16-0756 - -

7/8"

5/8" - 11 48-16-0876 - -

1"

5/8" - 11 48-16-1006 - 48-16-1007

1-1/4"

5/8" - 11 48-16-1260 - -

1-1/2"

5/8" - 11 48-16-1506 - 48-16-1507

2"

1-1/4" - 7 48-16-2013 48-16-2007 48-16-2014

2-1/2"

1-1/4" - 7 48-16-2513 48-16-2507 48-16-2514

2-3/4"

1-1/4" - 7 48-16-2756 - -

3"

1-1/4" - 7 48-16-3013 48-16-3007 48-16-3014

3-1/2"

1-1/4" - 7 48-16-3511 48-16-3507 48-16-3512

4"

1-1/4" - 7 48-16-4013 48-16-4007 48-16-4014

4-1/4"

1-1/4" - 7 - 48-16-4257 -

4-1/2"

1-1/4" - 7 48-16-4506 - 48-16-4507

5"

1-1/4" - 7 48-16-5013 48-16-5007 48-16-5014

6"

1-1/4" - 7 48-16-6013 48-16-6007 48-16-6014

7"

1-1/4" - 7 48-16-7006 - -

8"

1-1/4" - 7 48-16-8006 - -

9"

1-1/4" - 7 48-16-9006 - -

10"

1-1/4" - 7 48-16-9506 - -

12"

1-1/4" - 7 48-16-9605 - -

14"

1-1/4" - 7 48-16-9705 - -

Premium Series

n Designed to offer exceptional drilling life and

speed in cured concrete with hard aggregate and

medium steel reinforcement

Contractor Series

n Optimized to provide value for coring fewer holes

in cured concrete with no reinforcement or with

small diameter steel mesh and rebar

Pre-Stressed Series

n Designed specifi cally for the extra demands of

drilling pre-stressed concrete

9" Bit Extension

48-95-1500

10-1/2" Bit Extension

48-95-2100

n Extension threaded on both ends with 1-1/4"-7 thread, for use with

Diamond Core Bits over 2" diameter with 1-1/4"-4 thread

n Extension mounts directly to DYMODRILL – up to two can be coupled together

for extended coring

n Extension threaded on both ends with 5/8"-11 thread, for use with 1-1/4" and

1-1/2" diameter Diamond Core bits with 5/8"-11 thread

n Extension requires 48-04-0160 threaded adapter for mounting to DYMODRILLS –

up to two can be coupled together for extended coring

DIAMOND CORE BITS

DIAMOND CORE BIT ACCESSORIES

Threaded Adaptor

48-04-0160

Copper Spindle Spacer

45-88-8565

n Reduces 1-1/4"-7 threads to

5/8"-11 for diamond core bits

and extensions

n Minimizes friction lock

Spacer Assembly

49-67-0110

Spacer Assembly

49-67-0115

n For use with models: 4125, 4130, and 4136

n Mounts between cradle and DYMODRILL

motor to increase DYMO-RIG bit capacity from

10" to 14"

n Net weight 3 lbs. Shipping weight 5 lbs

n For use with models 4115, 4120, 4115-21,

4115-22, 4120-21 and 4120-22 to increase

bit capacity from 10" to 14"

n

Net weight 3-1/2 lbs. Shipping weight 5-1/2 lbs

FEATURES

n MILWAUKEE Diamond Coring Bits – “Dymobits” are designed to

optimize drilling performance over a broad range of applications. We

defi ne drilling performance as the best balance of speed, life and overall

drilling costs. State-of-the-art manufacturing techniques and the latest

diamond matrix technology result in a complete line of bits to meet your

most demanding requirements.

n For Wet Diamond Coring In Cured Concrete, Reinforced Concrete

And Pre-Stressed Concrete

n 14" Coring Depth

n Segments’ Widths Provide Interior And Exterior Clearance For

Easy Bit And Core Removal

n 1-1/4"-7 Threads – For bits 2" and larger for direct connection to

Milwaukee Dymodrill motors.

n 5/8"-11 Threads – For bits 2" (use 48-04-0160 thread adapter)

milwaukeetool.ca 109

8" Metal Cutting Saw Kit with Case

Includes: (1) 8" Metal Cutting Saw Kit (6370-21); (1) Blade Wrench;

(1) Carrying Case; (1) Circular Saw Blade

6370-21

METAL CUTTING

CIRCULAR SAWS & BLADES

8" Metal Cutting Saw

6370-20

FEATURES

n Dry-cut technology provides faster, cleaner, more affordable metal

cutting

n Durable blade shield with integral chiptank defl ects/collects hot

chips and sparks

n Plunge lever for fast, effective plunge cuts

n Exclusive quick-release shield latch for fast waste disposal and

blade changes

n 2-9/16 in. cut depth for one-pass cuts through most common

materials

n Powerful 13.0 amp, 3,700 rpm motor

n Premium cermet-tipped blades cut faster, cleaner, and longer than

other carbide-tipped or friction blades

Includes: (1) 8" Metal Cutting Saw (6370-20); (1) Blade Wrench;

(1) Circular Saw Blade

Diameter Part Number # of Teeth Tooth Material Arbor Max RPM Pkg Qty Materials

5-3/8" 48-40-4070 30 Carbide 20mm 4,200 1 Ferrous

5-3/8” 48-40-4075 50 Carbide 20mm 4,200 1 Non-Ferrous

6-1/2" 48-40-4005 60 Carbide 5/8" 4,200 1 Non-Ferrous

6-1/2" 48-40-4015 48 Carbide 5/8" 4,200 1 Ferrous

6-7/8" 48-40-4006 52 Carbide 20mm 4,200 1 Non-Ferrous

6-7/8" 48-40-4016 36 Carbide 20mm 4,200 1 Ferrous

8" 48-40-4515 42 Cermet 5/8" 5,000 1 Ferrous

8" 48-40-4520 50 Cermet 5/8" 5,000 1 Ferrous

8" 48-40-4530 60 Carbide 5/8" 5,000 1 Non-Ferrous

8" 48-40-4540 60 Carbide 5/8" 5,000 1 Non-Ferrous

Length 16-1/2"

Weight 13.3 lbs

Voltage 120V AC

No Load RPM 3,700

Amps 13

Spindle 5/8"

Construction

Type Grounded

Soft Grip

Handle Yes

Spindle Lock Yes

Adjustable

Handle No

Arbor Size 5/8"

Depth of Cut

at 90º 2-9/16"

Electrical

Brake No

Blade Position Right

Blade 8"

SPECIFICATIONS

LONG LIFE

n Micro ground carbide teeth stay sharper longer

ACCURATE CUTS

n Fully hardened, tensioned steel plate prevents warping

FAST CUTTING

n Extra thin kerf for faster, cleaner cuts

8" Metal Cutting Saw

DRY CUT METAL CIRCULAR SAW BLADES

CORDLESSCORDED

110

ABRASIVE SAWS

6177-20 6185-20

14" Abrasive Cut-Off Machine 14" Hand Held Cut-Off Machine

FEATURES

n Powerful 15-amp, 4.0 maximum horsepower motor: Delivers

maximum cutting performance in various materials

n Large cutting capacity: Accommodates a wide range of cutting

applications up to 5"

n Durable, lightweight design: Permits portability without sacrifi cing

durability

n Oversized wheel guards: Provides added protection from debris

n 45° Miter capacity with adjustable fence: Allows for quick and

accurate miter cuts without fl ipping heavy material

n Large spindle lock button: Make quick and easy blade changes

wearing gloves

n Quick-adjust vise clamp: Adjusts quickly for different material sizes

n All-ball-bearing construction: Delivers maximum durability

Includes: (1) 14" Abrasive Cut-Off Machine (6177-20); (1) Abrasive

Wheel; (1) Hex Wrench; (1) Vise

SPECIFICATIONS

Length 16"

Voltage 120 AC/DC

Tool Warranty 5 Years

No Load RPM 3,900

Amps 15

Spindle 1"

Spindle Lock Yes

Wheel Diameter 14"

Capacity 4-5/8 X 4-5/8"

Arbor Size 1"

Maximum Bevel Capacity 45 degrees

FEATURES

n

Powerful 15-amp, 4.8 maximum horsepower motor: Delivers maximum

cutting performance for heavy-duty concrete and metal cutting

n 20-amp overload protection switch: Trips the tool, not a remote

breaker, for greater convenience and minimal downtime

n Downward cutting rotation: Pulls the tool through the work to

minimize jamming and kickback while providing a clear sight-line

n Externally accessible brushes and brush cutout feature: Protect the

epoxy-coated armature as the brushes wear down

Includes: (1) 14" Hand Held Cut-Off Machine (6185-20); (1) Allen

Wrench; (1) Back Flange; (1) Flange Nuts; (1) Top Flange

SPECIFICATIONS

Length 19-1/4"

Weight 27.3 lbs

Voltage 120 AC/DC

No Load RPM 4,600

Amps 15

Spindle 1"

Spindle Lock Yes

Capacity

HVAC 1/2" to

1-1/8" OD

Plumbing 3/8" to

1" ID

Arbor Size 1"

CUT-OFF BLADES & WHEELS

milwaukeetool.ca 111

8" Metal Cutting Saw

TYPE 1 PREMIUM ABRASIVE CUT-OFF WHEELS FOR CUT-OFF MACHINES

Diameter Part Number # of Teeth Tooth Material Arbor Max RPM Pkg Qty Materials

14" 48-40-4505 72 Carbide 1" 1,800 1 Ferrous

14" 48-40-4510 90 Carbide 1" 1,800 1 Ferrous

LONG LIFE

n Micro ground carbide teeth stay sharper longer

ACCURATE CUTS

n Fully hardened, tensioned steel plate prevents warping

FAST CUTTING

n Extra thin kerf for faster, cleaner cuts

8" Metal Cutting Saw

DRY CUT METAL CIRCULAR SAW BLADES

Size Thickness Arbor Part Number Abrasive Type Abrasive Spec. Application Max RPM Qty

For Stationary Abrasive Cut-Off Machines (Not intended for use on hand held cut-off machines)

12" 3/32" 1" 49-94-1220 Aluminum Oxide A36P General Purpose - Metal 5,095 10

14" 3/32" 1" 49-94-1405 Aluminum Oxide A36P General Purpose - Metal (Double Reinforced) 4,365 5

14" 3/32" 1" 49-94-1410 Aluminum Oxide A36P Metal Stud 4,365 10

14" 3/32" 1" 49-94-1415 Aluminum Oxide A36P General Purpose - Metal (Center Reinforced) 4,365 5

For Hand Held Abrasive Cut-Off Machines (Not intended for use on stationary cut-off machines)

12" 1/8" 20mm 49-94-1270 Aluminum Oxide A24R General Purpose - Metal 6,360 10

12" 1/8" 1" 49-94-1275 Aluminum Oxide A24R General Purpose - Metal 6,360 10

12" 1/8" 20mm 49-94-1280 Silicon Carbide C24T Masonry 6,360 10

12" 1/8" 1" 49-94-1285 Silicon Carbide C24T Masonry 6,360 10

14" 1/8" 20mm 49-94-1470 Aluminum Oxide A24R General Purpose - Metal 5,400 10

14" 1/8" 1" 49-94-1475 Aluminum Oxide A24R General Purpose - Metal 5,400 10

14" 1/8" 20mm 49-94-1480 Silicon Carbide C24T Masonry 5,400 10

14" 1/8" 1" 49-94-1485 Silicon Carbide C24T Masonry 5,400 10

TYPE 1 CUT-OFF WHEELS

n Designed for fast cutting and long life

n Type 1 cut-off wheels are designed for cutting only

TYPE 27 DEPRESSED CENTER WHEELS

n Designed for fast cutting and long life

TYPE 27 GRINDING WHEELS

n

Designed for grinding, blending and other general purpose applications

TYPE 27 DEPRESSED

CENTER WHEELS WITH

5/8"-11 THREADED HUB

n Designed for grinding, blending and

other general purpose applications

SHEARS

112

6805 6815

16 Gauge Shear 14 Gauge Shear

FEATURES

n 4 amps, 4,000 SPM

n Clear unobstructed visibility

n Cuts close curves either left or right

n Blade design eliminates jamming

Includes: (1) 16 Gauge Shear (6805); (1) Allen Wrench; (1) Feeler Gauge

SPECIFICATIONS

Length 10-1/4"

Voltage 120 AC/DC

Tool Warranty 5 Years

Cord Type 8' Fixed

Amps 4

Trigger Lock On/Off

Capacity in Steel 16ga

Construction Type Double Insulated

Capacity in Stainless 18ga

Minimum Radius Left 1-2"

Minimum Radius Right 1"

FEATURES

n 5 amps, 4,000 SPM

n Clear unobstructed visibility

n Cuts close curves either left or right

n Blade design eliminates jamming

Includes: (1) 14 Gauge Shear (6815); (1) Allen Wrench; (1) Feeler Gauge

SPECIFICATIONS

Length 10-1/4"

Weight 5.0 lbs

Voltage 120 AC/DC

Tool Warranty 5 Years

Cord Type 8' Fixed

Amps 5

Trigger Lock On/Off

Capacity in Steel 14ga

Construction Type Double Insulated

Capacity in Stainless 16ga

Minimum Radius Left 3-4"

Minimum Radius Right 1"

SHEARS & NIBBLERS

milwaukeetool.ca 113

6852-20 6880

18 Gauge Shear 10 Gauge Nibbler

FEATURES

n 6.8 amp Milwaukee motor, trigger speed control: 0-2,500 rpm

spindle speed

n 360° swivel head

n Ergonomic tactile grip for optimal user comfort

n 10 ft. fl exible durable runner cord

Includes: (1) 18 Gauge Shear (6852-20); (1) Hex Wrench

SPECIFICATIONS

Length 12-1/4"

Tool Warranty 5 Years

Cord Type 10' Fixed

Trigger Lock On

Construction Type Double Insulated

FEATURES

n 4.0 amp, 1,000 SPM

n Cuts up to 8.75 ft. per minute

n 1.65 in. starting hole required

n AC-DC toggle switch allows for two-handed operation

Includes: (1) 10 Gauge Nibbler (6880); (1) Allen Wrench; (1) Side Handle

SPECIFICATIONS

Length 12-1/4"

Voltage 120 AC/DC

Tool Warranty 5 Years

Cord Type 8' Fixed

Amps 4

Trigger Lock On/Off

Capacity in Steel 10ga

Construction Type Double Insulated

Capacity in Stainless 12ga

Minimum Cutting Radius 2 -1/2"

Starting Hole 1-2/3"

SHEARS

114

6890

16 Gauge Nibbler FEATURES

n 3.8 amp, 1,900 spm

n Cuts up to 7 ft. per minute

n 0.87 in. starting hole required

n AC-DC paddle switch

Includes: (1) 16 Gauge Nibbler (6890); (1) Allen Wrench;

(1) Plate Wrench

SPECIFICATIONS

Length 11-1/4"

Voltage 120 AC/DC

Tool Warranty 5 Years

Cord Type 8' Fixed

Amps 4

Capacity in Steel 16ga

Construction Type Double Insulated

Capacity in Stainless 18ga

Minimum Cutting Radius 1-3/4"

Starting Hole 7/8"

8" Metal Cutting Saw

SHEAR AND NIBBLER ACCESSORIES

SHEAR ACCESSORIES

Replacement Swivel Shear

Head Assembly

48-08-0500

Description Part Number For Use With

14 Gauge Shear

Blade Set 48-44-0112 6815

16 and 18 Gauge

Shear Blade Set 48-44-0122 6805

Shear Blade Set 48-44-0070 6800

Center Blade 48-44-0150 6852-20

Left Blade 48-44-0160 6852-20

Right Blade 48-44-0170 6852-20

NIBBLER ACCESSORIES

Description Part Number For Use With

16ga Replacement Punch 48-44-0260 6890

10ga Replacement Punch 48-44-0265 6880

16ga Replacement Die 48-44-0270 6890

10ga Replacement Die 48-44-0275 6880

ELECTROMAGNETIC

DRILL PRESSES

milwaukeetool.ca 115

Electromagnetic Drill Press Base,

Adjustable Position

42034202

Electromagnetic Drill Press Base,

Fixed Position

FEATURES

n 120 Volt AC only, 12.5 amp max. rating

n 9 inch drill travel

n Fixed position, variable speed base

n For use on any fl at ferrous material, 1/2 inch and thicker

Includes: (1) Electromagnetic Drill Press Base, Fixed Position (4202)

SPECIFICATIONS

Length 11"

Weight 41.0 lbs

Voltage 120V AC

Tool Warranty 5 Years

Electric Feedback Yes

Construction Type Grounded

Adjustable Base No

Drill Travel 9"

Height 15"

Width 4-1/4"

FEATURES

n 120 Volt AC only, 12.5 amp max. rating

n 11 inch drill travel

n Adjustable position, variable speed base

n For use on any fl at ferrous material, 1/2 inch and thicker

Includes:

(1) Electromagnetic Drill Press Base, Adjustable Position (4203)

SPECIFICATIONS

Length 11"

Weight 49.0 lbs

Voltage 120V AC

Tool Warranty 5 Years

Electronic Feedback Yes

Construction Type Grounded

Adjustable Base Yes

Drill Travel 11"

Height 17-1/4"

Width 4-1/4"

Select one of these 4 Miwaukee motors for your 4202 or 4203 Electromagnetic Drill Stand.

4253-1

n 600 NO LOAD RPM

4262-1

n 350 NO LOAD RPM

4292-1

n TWO SPEED

n 750/375 NO LOAD RPM

4297-1

n TWO SPEED

n 500/250 NO LOAD RPM

ELECTROMAGNETIC

DRILL PRESSES

116

Adjustable Position Electromagnetic

Drill Press with 3/4" Motor

Adjustable Position Electromagnetic

Drill Press with 1/2" Motor 4206-14204-1

FEATURES

n Powerful 7.2-amp motor: Engineered for the toughest applications,

delivering 600 RPM

n Dual-Mount Gear Case/Reverse Mount: Permits tight quarter drilling

n ½" Capacity: Taps up to 5/8-inch/18 threaded holes (5/8-11 and

½-13 taps are not recommended.)

n Maximum force: Develops up to 1650 pounds of drill point pressure

with a 1-inch steel plate

n Solid state electronic switching: Offers faster, smoother and quieter

switching for a longer product lifespan

n Line Lockout: Prevents tool from operating if voltage is restored to

an interrupted line

Includes: (1) Electromagnetic Drill Press Base, Adjustable Position

(4203); (1) 1/2" Motor (4253-1) for Electromagnetic Drill Press

SPECIFICATIONS

Weight 57.0 lbs

Voltage 120V AC

Cord Type 9' Fixed

Electronic Feedback Yes

No Load RPM 0-600

Amps 7.2

Construction Type Grounded

Adjustable Base Yes

Drill Travel 9"

Chuck or Taper Chuck

Drill Capacity 1/2"

Drill Point Pressure 1,610/1,650 lbs

Tap Capacity 5/8"- 18

Replacement Chuck (48-66-1360)

Replacement Chuck Key (48-66-3280)

FEATURES

n Powerful 11.5-amp motor: Engineered for the toughest applications,

delivering 350 RPM

n Dual-Mount Gear Case/Reverse Mount: Permits tight quarter drilling

n 3/4" Capacity: Taps up to 1-inch, 14-threaded holes

n Maximum force: Develops up to 1670 pounds of drill point pressure

with a 1-inch steel plate

n Solid state electronic switching: Offers faster, smoother and quieter

switching for a longer product lifespan

n Line Lockout: Prevents tool from operating if voltage is restored to

an interrupted line

Includes: (1) Electromagnetic Drill Press Base, Adjustable Position

(4203); (1) 3/4" Motor for Electromagnetic Drill Press (4262-1)

SPECIFICATIONS

Weight 70.0 lbs

Voltage 120V AC

Cord Type 9' Fixed

Electronic Feedback Yes

No Load RPM 0-350

Amps 12.5

Construction Type Grounded

Adjustable Base Yes

Drill Travel 11"

Chuck or Taper Chuck

Drill Capacity 3/4"

Drill Point Pressure 1,630/1,670 lbs

Tap Capacity 1"- 14

Replacement Chuck (48-66-2085)

Replacement Chuck Key (48-66-3160)

* arbour and cutter

not included

* arbour and cutter

not included

ELECTROMAGNETIC

DRILL PRESSES

milwaukeetool.ca 117

Adjustable Position Electromagnetic

Drill Press with No. 3MT Motor

4209-1

Adjustable Position Electromagnetic

Drill Press with No. 3 MT Motor

4208-1

FEATURES

n Powerful, 11.5-amp motor: Engineered for the toughest

applications, delivering 250/500 RPM

n Dual-Mount Gear Case/Reverse Mount: Permits tight quarter drilling

n 1-1/4" Capacity: Taps up to 1-inch, 14-threaded holes

n Maximum force: Develops up to 1600 pounds of drill point pressure

with a 1-inch steel plate

n Solid state electronic switching: Offers faster, smoother and quieter

switching for a longer product lifespan

n Line Lockout: Prevents tool from operating if voltage is restored to

an interrupted line

Includ

es: (1) Electromagnetic Drill Press Base, Adjustable Position (4203),

(1) #3 Morse Motor (4297-1)

SPECIFICATIONS

Weight 72.0 lbs

Voltage 120V AC

Cord Type 9' Fixed

Electronic Feedback Yes

No Load RPM 0-500, 0-250

Amps 12.5

Construction Type Grounded

Adjustable Base Yes

Drill Travel 11"

Chuck or Taper No. 3MT

Drill Capacity 1-1/4"

Drill Point Pressure 1,530/1,600 lbs

Tap Capacity 1"- 14

FEATURES

n Powerful 11.5-amp motor: Engineered for the toughest applications,

delivering 375/750 RPM

n Dual-Mount Gear Case/Reverse Mount: Permits tight quarter drilling

n 1-1/4" Capacity: Taps up to 1-inch, 14-threaded holes

n Maximum force: Develops up to 1600 pounds of drill point pressure

with a 1-inch steel plate

n Solid state electronic switching: Offers faster, smoother and quieter

switching for a longer product lifespan

n Line Lockout: Prevents tool from operating if voltage is restored to

an interrupted line

Includes:

(1) Electromagnetic Drill Press Base, Adjustable Position (4203),

(1) #3 Morse Motor (4292-1)

SPECIFICATIONS

Weight 72.0 lbs

Voltage 120V AC

Cord Type 9' Fixed

Electronic Feedback Yes

No Load RPM 0-750, 0-375

Amps 12.5

Construction Type Grounded

Adjustable Base Yes

Drill Travel 11"

Chuck or Taper No. 3MT

Drill Capacity 1-1/4"

Drill Point Pressure 1,530/1,600 lbs

Tap Capacity 1"- 14

* arbour and cutter

not included

* arbour and cutter

not included

ELECTROMAGNETIC

DRILL PRESSES

118

Fixed Position Electromagnetic Drill

Press with 3/4" Motor

4210-1 FEATURES

n Powerful 12.5-amp motor: Engineered for the toughest applications,

delivering 350 RPM

n Dual-Mount Gear Case/Reverse Mount: Permits tight quarter drilling

n 3/4" Capacity: Taps up to 1-inch-14 threaded holes

n Maximum force: Develops up to 1670 pounds of drill point pressure

with a 1-inch steel plate

n Solid state electronic switching: Offers faster, smoother and quieter

switching for a longer product lifespan

n Line Lockout: Prevents tool from operating if voltage is restored to

an interrupted line

Includes: (1) Electromagnetic Drill Press Base, Fixed Position (4202);

(1) No. 3 MT Motor for Electromagnetic Drill Press (4262-1)

SPECIFICATIONS

Weight 62.0 lbs

Voltage 120V AC

Cord Type 9' Fixed

Electronic Feedback Yes

No Load RPM 0-350

Amps 12.5

Construction Type Grounded

Adjustable Base No

Drill Travel 9"

Chuck or Taper Chuck

Drill Capacity 3/4"

Drill Point Pressure 1,630/1,670 lbs

Tap Capacity 1"-14

Replacement Chuck (48-66-2085)

Replacement Chuck Key (48-66-3160)

ELECTROMAGNETIC DRILL ATTACHMENTS

Description Part # Motor Compatibility Cutter Compatibility

#3 Morse Taper Quick Change w/Chip Breaker 49-57-0012 4292-1, 4297-1 Quick Change Tang Drive

#3 Morse Taper Quick Change 49-57-0013 4292-1, 4297-1 Quick Change Tang Drive

3/4" Straight Shank Quick Change 49-57-0032 4262-1 Quick Change Tang Drive

3/4" Straight Shank Threaded 49-57-0030 4262-1 Threaded Steel Hawg® cutters

#3 Morse Taper Threaded 49-57-0010 4292-1, 4297-1 Threaded Steel Hawg® cutters

#3 Morse Taper Weldon Shank 49-57-0025 4208-1, 4209-1 HSS Annular

1/2" Drill Chuck Adapter 48-66-2125 4270-20, 4270-21 All 1/2" Shanks

Hawg Wash®49-32-0081 All Motors All Tools

#3 Morse Taper, 3/4" Chuck Adapter 49-22-1550 4292-1, 4297-1 All 3/4" Shanks

* arbour and cutter

not included

ELECTROMAGNETIC

DRILL PRESS MOTORS

milwaukeetool.ca 119

1/2" Motor for Electromagnetic

Drill Press

4253-1

FEATURES

n Powerful 6.2-amp motor: Engineered for the toughest applications,

delivering 600 RPM

n Dual-Mount Gear Case/Reverse Mount: Permits tight quarter drilling

n ½" Capacity: Taps up to 5/8-inch, 18-threaded holes.

(5/8-11 and ½-13 taps are not recommended.)

n Maximum force: Develops up to 1650 pounds of drill point pressure

with a 1-inch steel plate

Includes: (1) 1/2" Motor for Electromagnetic Drill Press (4253-1)

SPECIFICATIONS

Weight 8.0 lbs

Voltage 120V AC

Tool Warranty 5 Years

Amps 6.2

Chuck or Taper Chuck

Drill Capacity 1/2"

Drill Point Pressure 1,610/1,650 lbs

Tap Capacity 5/8"-18

Replacement Chuck (48-66-1360)

Replacement Chuck Key (48-66-3280)

CHUCK CENTER DISTANCE FROM BASE

IN OUT

Magnetic Stand 4202 1-1/4" *

Plate Forward 4203 1-23/32" *

Plate Back 4203 31/32" *

IN = Closest to Base OUT = Farthest away from base

* Motor 4253-1 has only one chuck position.

Stand 4203 is adjustable 3/4" in direction of base length and 20º right or left.

All models furnished with 6 ft. safety chain.

No. 3MT Motor for Electromagnetic

Drill Press

4262-1

FEATURES

n Powerful 11.5-amp motor: Engineered for the toughest applications,

delivering 350 RPM

n Dual-Mount Gear Case/Reverse Mount: Permits tight quarter drilling

n 3/4" Capacity: Taps up to 1-inch, 14-threaded holes

n Maximum force: Develops up to 1670 pounds of drill point pressure

with a 1-inch steel plate

Includes: (1) No. 3 MT Motor for Electromagnetic Drill Press (4262-1)

SPECIFICATIONS

Weight 21.0 lbs

Voltage 120V AC

Tool Warranty 5 Years

No Load RPM 0-350

Amps 11.5

Chuck or Taper Chuck

Drill Capacity 3/4"

Drill Point Pressure 1,630/1,670 lbs

Tap Capacity 1"-14

Replacement Chuck (48-66-2085)

Replacement Chuck Key (48-66-3160)

CHUCK CENTER DISTANCE FROM BASE

IN OUT

Magnetic Stand 4202 1-23/32" 4-11/16"

Plate Forward 4203 2-1/8" 5-3/32"

Plate Back 4203 1-3/8" 4-11/32"

IN = Closest to Base OUT = Farthest away from base

Stand 4203 is adjustable 3/4" in direction of base length and 20º right or left.

All models furnished with 6 ft. safety chain.

ELECTROMAGNETIC

DRILL PRESS MOTORS

120

No. 3MT Motor for Electromagnetic

Drill Press

4297-1

FEATURES

n Powerful 11.5-amp motor: Engineered for the toughest applications,

delivering 250/500 RPM

n Dual-Mount Gear Case/Reverse Mount: Permits tight quarter drilling

n 1-1/4" Capacity: Taps up to 1-inch, 14-threaded holes

n Maximum force: Develops up to 1600 pounds of drill point pressure

with a 1-inch steel plate

Includes:

(1) No. 3 MT Motor for Electromagnetic Drill Press (4297-1)

SPECIFICATIONS

Weight 23.0 lbs

Voltage 120V AC

Tool Warranty 5 Years

No Load RPM 0-500, 0-250

Amps 11.5

Chuck or Taper No. 3MT

Drill Capacity 1-1/4"

Drill Point Pressure 1,530/1,600 lbs

Tap Capacity 1"- 14

CHUCK CENTER DISTANCE FROM BASE

IN OUT

Magnetic Stand 4202 2-3/16" 4-3/8"

Plate Forward 4203 2-9/16" 4-11/16"

Plate Back 4203 1-13/16" 3-15/16"

IN = Closest to Base OUT = Farthest away from base

Stand 4203 is adjustable 3/4" in direction of base length and 20º right or left.

All models furnished with 6 ft. safety chain.

No. 3MT Motor for Electromagnetic

Drill Press

4292-1

FEATURES

n Powerful 11.5-amp motor: Engineered for the toughest applications,

delivering 375/750 RPM

n Dual-Mount Gear Case/Reverse Mount: Permits tight quarter drilling

n 1-1/4" Capacity: Taps up to 1-inch, 14-threaded holes

n Maximum force: Develops up to 1600 pounds of drill point pressure

with a 1-inch steel plate

Includes: (1) No. 3 MT Motor for Electromagnetic Drill Press (4292-1)

SPECIFICATIONS

Weight 23.0 lbs

Voltage 120V AC

Tool Warranty 5 Years

No Load RPM 0-750, 0-375

Amps 11.5

Chuck or Taper No. 3MT

Drill Capacity 1-1/4"

Drill Point Pressure 1,530/1,600 lbs

Tap Capacity 1"- 14

CHUCK CENTER DISTANCE FROM BASE

IN OUT

Magnetic Stand 4202 2-3/16" 4-3/8"

Plate Forward 4203 2-9/16" 4-11/16"

Plate Back 4203 1-13/16" 3-15/16"

IN = Closest to Base OUT = Farthest away from base

Stand 4203 is adjustable 3/4" in direction of base length and 20º right or left.

All models furnished with 6 ft. safety chain.

On-board

wrench storage

9.0 amp motor,

1.1 max hp

System positively

ejects slugs

cut after cut

Up to 1-1/2"

diameter

annular cutter

48-58-0090

Replacement Safety

Strap

Illuminated

rocker switch

for magnet

Large mushroom

motor stop button

Ergonomic

carrying handle

Right or left

side feed handle

mount

Simple two button

control panel located

on back for

unobstructed operation

Two coil magnet

2,300 lbs. dead lift

(1" steel)

For use on any

fl at ferrous material

3/8" and thicker

COMPACT ELECTROMAGNETIC

DRILL PRESS

milwaukeetool.ca 121

Weight 26.5 lbs

Voltage 120V AC

Cord Type 8' Fixed

Electronic

Feedback Yes

No Load RPM 450

Amps 9

Construction

Type Grounded

Adjustable

Base No

Drill Travel 6.6"

Chuck or

Taper Weldon

Drill Capacity 1/2"

Drill Point

Pressure 750 lbs

SPECIFICATIONS

Compact Electromagnetic Drill Press Kit

with Case

Includes: (1) Compact Electromagnetic Drill Press Kit (4270-21);

(1) Carrying Case; (1) Lubricant Spray Bottle; (1) Nylon Safety Strap;

(1) Two Hex Wrenches

4270-21

Compact Electromagnetic Drill Press

4270-20

FEATURES

n Powerful 9.0-amp, 1.1 max HP motor: Maneuvers easily

and conveniently

n Lightweight design: Only 26.5 pounds, with a comfortable

carrying handle

n Superior capacity: Cuts up to 1-½-in. diameter holes through 2-in.

steel with annular cutters, or ½-in. diameter holes, 4-¼-in. deep

with twist drill bits

n Strong two-coil magnet: Engineered to stay in place with 2,300 of

dead-lift force

n Flexible feed handle: Switch between two feed handle positions

without using tools

n Accessible and comfortable operation: Simple two-button control

panel, unobstructed by feed handle

Includes: (1) Compact Electromagnetic Drill Press (4270-20);

(1) Lubricant Spray Bottle; (1) Nylon Safety Strap; (1) Two Hex Wrenches

ANNULAR CUTTERS

122

ANNULAR CUTTERS

Description Part Number

#3 Morse Taper To Weldon® Shank Arbor 49-56-0025

Arbor Wrench Set 49-96-0010

(2) 1" Ejector Pins 44-60-1720

(2) 2" Ejector Pins 44-60-1721

HAWG WASH® Lubricant (16 Oz Bottle) 49-32-0081

HAWG WASH® Hand Pump 44-46-0090

HAWG WASH® Hand Pump Oil Hose 43-75-0010

ANNULAR CUTTER SETS

6 Pc Annular Cutter Set (1" Depth)

49-22-8400

9 Pc Annular Cutter Set (2" Depth)

49-22-8410

Includes:

 9/16", 5/8", 11/16", 13/16",

15/16", 1-1/16" and ejector pin

Includes:

 1/2", 9/16", 5/8", 11/16", 3/4",

13/16", 7/8", 15/16", 1-1/16"

and (2) ejector pins

ANNULAR CUTTER ACCESSORIES

FASTER CUTTING

Thinner wall design for faster, more effi cient cutting

LONG LIFE

Proprietary steel, optimized for steel cutting

UNIVERSAL SHANK

Fits directly into Milwaukee® compact magnetic drill press

Works with 3/4" Weldon® style shank arbor

Size 1" Depth 2" Depth

1/2" 49-59-0500 49-59-2050

9/16" 49-59-0562 49-59-2056

5/8" 49-59-0625 49-59-2063

11/16" 49-59-0687 49-59-2069

3/4" 49-59-0750 49-59-2075

13/16" 49-59-0812 49-59-2081

7/8" 49-59-0875 49-59-2089

15/16" 49-59-0937 49-59-2094

1" 49-59-1000 49-59-2100

1-1/16" 49-59-1062 49-59-2106

1-1/8" 49-59-1125 49-59-2113

1-3/16" 49-59-1187 49-59-2119

1-1/4" 49-59-1250 49-59-2125

Size 1" Depth 2" Depth

1-5/16" 49-59-1312 49-59-2131

1-3/8" 49-59-1375 49-59-2138

1-7/16" 49-59-1437 49-59-2144

1-1/2" 49-59-1500 49-59-2150

1-9/16" 49-59-1562 49-59-2156

1-5/8" 49-59-1625 49-59-2163

1-11/16" 49-59-1687 49-59-2169

1-3/4" 49-59-1750 49-59-2175

1-13/16" 49-59-1812 49-59-2181

1-7/8" 49-59-1875 49-59-2188

1-15/16" 49-59-1937 49-59-2194

2" 49-59-2000 49-59-2200

UNIQUE TOOTH GEOMETRY

(Every other tooth is double beveled)

THIN WALL DESIGN

ENLARGED VIEW OF

DOUBLE BEVELED TOOTH

1" AND 2" DEPTH ANNULAR CUTTERS FEATURING 3/4" SHANK

n Fit Directly Into Milwaukees’s 4270-20 Compact Magnetic

Drill Stand

n Use Arbor 49-57-0025, To Fit Cutters Into Milwaukee’s Large

Stands 4208-2 and 4209-1

n 3/4" Diameter Shank – Industry standard.

n Unique Tooth Geometry – Allows for better centering and

faster cutting.

n Thin Wall Design – Enables cutters to cut faster and more

effi ciently by removing less material during drilling.

n Ejector Pins Can Be Used On All Diameters – (44-60-1720 for

1" depth and 44-60-1721 for 2" depth). Ejector pin sold separately.

n Ejector Pin Extends 1/2" Beyond Tooth Tip – Allows for easier/

faster location of pin on hole.

n Flute Design – Shorter fl ute design allows chips to fall freely

from cutter.

STEEL HAWG® CUTTERS

milwaukeetool.ca 123

FAST CUTTING

Alternating tooth geometry for up to 3X faster cutting

LONG LIFE

Hardened carbide steel teeth provide longer life

2" CUTTING DEPTH

Size Part Number

3/4" 49-57-0750

13/16" 49-57-0812

7/8" 49-57-0875

15/16" 49-57-0937

1" 49-57-1000

1-1/16" 49-57-1062

1-1/8" 49-57-1125

1-3/16" 49-57-1187

1-1/4" 49-57-1250

1-5/16" 49-57-1312

1-3/8" 49-57-1375

1-7/16" 49-57-1437

1-1/2" 49-57-1500

1-9/16" 49-57-1562

1-5/8" 49-57-1625

1-11/16" 49-57-1687

1-3/4" 49-57-1750

1-13/16" 49-57-1812

1-7/8" 49-57-1875

1-15/16" 49-57-1937

2" 49-57-2000

2-1/16" 49-57-2060

2-1/8" 49-57-2120

2-1/4" 49-57-2250

2-5/16" 49-57-2310

Size Part Number

2-3/8" 49-57-2370

2-1/2" 49-57-2500

2-9/16" 49-57-2560

2-5/8" 49-57-2620

2-3/4" 49-57-2750

2-7/8" 49-57-2870

3" 49-57-3000

3-1/8" 49-57-3120

3-1/4" 49-57-3250

3-3/8" 49-57-3370

3-1/2" 49-57-3500

3-5/8" 49-57-3620

3-3/4" 49-57-3750

3-7/8" 49-57-3870

4" 49-57-4000

4-1/8" 49-57-4120

4-1/4" 49-57-4250

4-3/8" 49-57-4370

4-1/2" 49-57-4500

4-5/8" 49-57-4620

4-3/4" 49-57-4750

5" 49-57-5000

5-1/2" 49-57-5500

6" 49-57-6000

FAST CUTTING

Alternating tooth geometry for up to 3X faster cutting with less

pressure and better results than twist drill bits

No pre-punching or pilot holes

LONG LIFE

Hardened carbide steel teeth provide longer life

QUICK CHANGE

Tool-free operation for fast changes

1" CUTTING DEPTH

Size Part Number

1/2" 49-57-0251

9/16" 49-57-0564

5/8" 49-57-0626

11/16" 49-57-0689

3/4" 49-57-0752

13/16" 49-57-0814

7/8" 49-57-0877

15/16" 49-57-0939

1" 49-57-1002

1-1/16" 49-57-1064

1-1/8" 49-57-1127

1-3/16" 49-57-1189

1-1/4" 49-57-1252

Size Part Number

1-5/16" 49-57-1314

1-3/8" 49-57-1377

1-7/16" 49-57-1439

1-1/2" 49-57-1502

1-9/16" 49-57-1564

1-5/8" 49-57-1627

1-11/16" 49-57-1689

1-3/4" 49-57-1752

1-13/16" 49-57-1814

1-7/8" 49-57-1877

1-15/16" 49-57-1939

2" 49-57-2002

ARBORS

ARBORS

#3 Morse Taper Arbor

49-57-0010

3/4" Shank Arbor

49-57-0030

Works with threaded STEEL

HAWG® cutters

Use with motors 4292-1 and 4297-1

Works with threaded STEEL

HAWG® cutters

Use with 4262-1 motor

Includes:

Oil hose and hand pump

Includes:

Oil hose and hand pump

Size Part Number

11/16" 49-57-8068

13/16" 49-57-8081

Pilot Bit 49-57-0038

1/2" CUTTING DEPTH

Recommended for use with Milwaukee®

electromagnetic drill presses or hand drill

#3 Morse Taper Quick

Change Arbor

49-57-0012

#3 Morse Taper Quick

Change Arbor w/Chip

Breaker

49-57-0013

3/4" Straight Shank Quick

Change Arbor

49-57-0032

Works with quick-change

tang STEEL HAWG® cutters

Use with motors

4292-1 and 4297-1

Works with quick-change

tang STEEL HAWG® cutters

Use with motors

4292-1 and 4297-1

Works with quick-change

tang STEEL HAWG® cutters

Use with 4262-1 motor

Includes:

Oil hose and hand pump

Includes:

Oil hose and hand pump

Includes:

Oil hose and hand pump

THREADED STEEL HAWG® CUTTERS

QUICK CHANGE TANG STEEL HAWG® CUTTERS

ONE PIECE STEEL HAWG® CUTTERS

FOR USE WITH MILWAUKEE ELECTROMAGNETIC DRILL PRESSES

AND DRILL STANDS

n Two Styles: Threaded Or Quik-Lok WIth Appropriate Arbor Assemblies

n Carbide-Tipped Multiple Cutting Edges – MILWAUKEE steel hawg cutters

are high effi cient carbide-tipped cutting tools. Alternating inside and outside

cutting edges are carefully honed to cut holes rapidly with great precision.

n Hardened Carbide – Last longer than regular twist drills. The steel hawg

cutters’ multiple cutting edges uniformly distribute cutting over a wider area

than a two fl ute twist drill tip.

n Large Hole Cutters, Maximum 2" Depth, Up To 6" Diameter For Steel

Plate, Stainless Steel, Cast Iron Or Aluminum

n 3 Times Faster Than Twist Drills In Steel, Stainless Or Non-Ferrous Metals

124

STEEL HAWG®

CUTTER ARBORS

ARBOR ASSEMBILIES FOR THREADED SHANK STEEL HAWG CUTTERS

(Metric thread size M 18 x 1.5, 4 Lead)

49-57-0030 3/4" Shank Arbor Assembly

49-96-0010 Arbor Wrench Set

44-46-0090 Hawg Wash® Hand Pump

43-75-0010 HAWG Wash® Hand Pump Oil Hose

49-32-0081 HAWG Wash®

49-57-0020 No. 2 Morse Taper Arbor Assembly

49-57-0010 No. 3 Morse Taper Arbor Assembly

49-57-0025 No. 3 Morse Taper Assembly

FEATURES

n For use on Motor 4262-1

Includes: (1) 3/4" Shank to Threaded Steel Hawg® Cutter Arbor

(49-57-0030); (1) Hand Pump; (1) Oil Hose

Necessary to disassemble arbor body. FEATURES

Twelve 16 oz. bottles per case (Sold only in case lots).

ELIMINATE CUTTING FLUID EXPERIMENTATION – USE HAWG

WASH® WITH STEEL HAWG CUTTERS. Hawg Wash® is a water

soluble chemical fl uid concentrate containing stable sulphur and

chlorine additives. This product is designed for extreme pressure

applications (tough alloys and severe operations) but is also excellent

for general machining assignments. Hawg Wash® is very effi cient

due to its combination of high cooling and strong lubricating

characteristics. One 16 oz. bottle makes one gallon of solution. Proper

mixing of concentrate requires mixing the concentrate into the water.

FEATURES

n For threaded shank Steel HAWG

®

cutters

Includes: (1) #2 Morse Taper to Threaded Steel Hawg® Cutter Arbor

(49-57-0020); (1) Hand Pump; (1) Oil Hose

FEATURES

n For use on Motor 4292-1 and 4297-1

Includes: (1) #3 Morse Taper to Threaded Steel Hawg® Cutter Arbor

(49-57-0010); (1) Hand Pump; (1) Oil Hose

FEATURES

n For use on Motor 4292-1 and 4297-1. #3 Morse Taper Assembly

will allow 3/4" Weldon® Style Shank cutters to be used with

Milwaukee’s large magnetic drill stands.

n Oil Hose and hand pump NOT included.

Includes: (1) #3 Morse Taper to Weldon Shank Arbor (49-57-0025)

milwaukeetool.ca 125

LARGE ANGLE GRINDERS

6088-30 6088-31

15 Amp 7"/9" Large Angle Grinder

with Lock-on

15 Amp 7"/9" Large Angle Grinder

(Non Lock-on)

FEATURES

n 15.0 Amp, 4.2 HP Motor -high overload protection and power for

diffi cult applications

n 6,000 RPM- optimal wheel speed for material removal

n Debris Baffl es- protect internal components by defl ecting damaging

debris out of the airfl ow at the intake vents

n External Brush Doors- reduces service time by providing easy

access to brushes

n Soft-Grip Main Handle-provides better control and comfort

n Tool Free, Burst Resistant Guard-quickly adjust the guard without

a tool

n 7" & 9" Type 27 Guard Included-for added productivity

n Compatible with multiple Grinder Guards and Flanges

Includes: (1) 15 Amp 7"/9" Large Angle Grinder w/ Lock-on (6088-30);

(1) Flange; (1) Spanner Wrench; (1) Type 27 Guard

SPECIFICATIONS

Length 21" Max HP 4.2

Voltage 120 AC/DC Adjustable Handle Yes

Tool Warranty 5 Years Wheel Diameter 7"/9"

No Load Speed 6,000 RPM Burst Resistant

Guard Yes

Cord Type 2-Wire Easy Actuation

Spindle Lock Yes

Cord Length 8' Exhaust System Multi-Port

No Load RPM 6,000 Gears Spiral Bevel

Amps 15 Max Watts Out 3,130 MWO

Spindle 5/8"-11 Spindle Thread 5/8"-11

Construction Type Double

Insulated

Use Wheels RPM

Above 6,600 RPM

Soft Grip Handle Yes

FEATURES

n 15.0 Amp, 4.2 HP Motor-high overload protection and power for

diffi cult applications

n 6,000 RPM- optimal wheel speed for material removal

n Debris Baffl es- protect internal components by defl ecting damaging

debris out of the airfl ow at the intake vents

n External Brush Doors-reduces service time by providing easy

access to brushes

n Soft-Grip Main Handle-provides better control and comfort

n Tool Free, Burst Resistant Guard-quickly adjust the guard without

a tool

n 7" & 9" Type 27 Guard Included- for added productivity

n Compatible with multiple Grinder Guards and Flanges

Includes: (1) 15 Amp 7"/9" Large Angle Grinder (Non Lock-on) (6088-31);

(1) Flange; (1) Side Handle; (1) Spanner Wrench; (1) Type 27 Guard

SPECIFICATIONS

Length 21" Max HP 4.2

Voltage 120 AC/DC Adjustable Handle Yes

Tool Warranty 5 Years Wheel Diameter 7"/9"

No Load Speed 6,000 RPM Burst Resistant

Guard Yes

Cord Type 2-Wire Easy Actuation

Spindle Lock Yes

Cord Length 8' Epoxy Motor

Protection

25 Longer

Lasting

No Load RPM 6,000 Exhaust System Multi-Port

Amps 15 Gears Spiral Bevel

Spindle 5/8"-11 Max Watts Out 3,130 MWO

Construction Type Double

Insulated Spindle Thread 5/8"-11

Soft Grip Handle Yes Use Wheels RPM

Above 6,600 RPM

LARGE ANGLE GRINDERS

126

6089-30

15 Amp 7"/9" ROTO-LOK® Large

Angle Grinder with Lock-on

FEATURES

n 15.0 Amp, 4.2 HP Motor- high overload protection and power for

diffi cult applications

n 6,000 RPM- optimal wheel speed for material removal

n 9-Position Rotating Handle-allows the user to adjust the main

handle for better control

n Debris Baffl es- protect internal components by defl ecting damaging

debris out of the airfl ow at the intake vents

n External Brush Doors- reduces service time by providing easy

access to brushes

n Soft-Grip Main Handle-provides better control and comfort

n Tool Free, Burst Resistant Guard-quickly adjust the guard without

a tool

n 7" & 9" Type 27 Guard Included- for added productivity

n Compatible with multiple Grinder Guards and Flanges

Includes: (1) 15 Amp 7"/9" ROTO-LOK® – Large Angle Grinder

w/ Lock-on (6089-30); (1) Flange; (1) Side Handle; (1) Spanner

Wrench; (1) Type 27 Guard

SPECIFICATIONS

Voltage 120 AC/DC Adjustable Handle Yes

Tool Warranty 5 Years Wheel Diameter 7"/9"

No Load Speed 6,000 RPM Burst Resistant

Guard Yes

Cord Type 2-Wire Easy Actuation

Spindle Lock Yes

Cord Length 8' Epoxy Motor

Protection

25 Longer

Lasting

No Load RPM 6,000 Exhaust System Multi-Port

Amps 15 Gears Spiral Bevel

Spindle 5/8"-11 Max Watts Out 3,130 MWO

Construction Type Double

Insulated Spindle Thread 5/8"-11

Soft Grip Handle Yes Use Wheels RPM

Above 6,600 RPM

Max HP 4.2

6089-31

15 Amp 7"/9" ROTO-LOK® Large

Angle Grinder (Non Lock-on)

FEATURES

n 15.0 Amp, 4.2 HP Motor- high overload protection and power for

diffi cult applications

n 6,000 RPM- optimal wheel speed for material removal

n 9-Position Rotating Handle-allows the user to adjust the main

handle for better control

n Debris Baffl es- protect internal components by defl ecting damaging

debris out of the airfl ow at the intake vents

n External Brush Doors- reduces service time by providing easy

access to brushes

n Soft-Grip Main Handle- provides better control and comfort

n Tool Free, Burst Resistant Guard- quickly adjust the guard without

a tool

n 7" & 9" Type 27 Guard Included- for added productivity

n Compatible with multiple Grinder Guards and Flanges

Includes: (1) 15 Amp 7"/9" ROTO-LOK® – Large Angle Grinder

(Non Lock-on) (6089-31); (1) Flange; (1) Side Handle; (1) Spanner Wrench;

(1) Type 27 Guard

SPECIFICATIONS

Voltage 120 AC/DC Adjustable Handle Yes

Tool Warranty 5 Years Wheel Diameter 7"/9"

No Load Speed 6,000 RPM Burst Resistant

Guard Yes

Cord Type 2-Wire Easy Actuation

Spindle Lock Yes

Cord Length 8' Epoxy Motor

Protection

25 Longer

Lasting

No Load RPM 6,000 Exhaust System Multi-Port

Amps 15 Gears Spiral Bevel

Spindle 5/8"-11 Max Watts Out 3,130 MWO

Construction Type Double

Insulated Spindle Thread 5/8"-11

Soft Grip Handle Yes Use Wheels RPM

Above 6,600RPM

Max HP 4.2

milwaukeetool.ca 127

SMALL ANGLE GRINDERS

6121-31

11 Amp 4-1/2" Small Angle Grinder

Trigger Grip, No-Lock

FEATURES

n Powerful 11 Amp, 11,000 RPM Motor: Provides maximum

performance and durability

n Overload Protection: Maximizes motor life

n Electronic Clutch: Extends tool life and prevents bind-up

n Tool-Free Accessory Change: Easily change “All Accessories”

without a wrench

n Tool-Free Adjustable Guard: Provides quick guard installations

and adjustments

n Advanced Airfl ow System: Maximizes airfl ow and reduces debris

ingress, improving motor life and performance

n Debris Baffl es – protect internal components by defl ecting

damaging debris out of the airfl ow at the intake vents

n External Brush Doors – reduces service time by providing easy

access to brushes

n Trigger Grip Handle – provides better control, reach and leverage

n Compatible with multiple Grinder Guards and Flanges

Includes: (1) 11 Amp 4-1/2" Small Angle Grinder Trigger Grip, No-Lock

(6121-31); (1) Flange; (1) Side Handle; (1) Spanner Wrench;

(1) Type 27 Guard

SPECIFICATIONS

Length 15.6" Construction Type Double

Insulated

Voltage 120V AC Adjustable Handle Yes

Tool Warranty 5 Years Wheel Diameter 4-1/2"

Cord Type 2-Wire Overload Protection Yes

Electronic Feedback Yes Burst Resistant

Guard Yes

Cord Length 8' Max Watts Out 1,400 MWO

Amps 11 Spindle Thread 5/8"-11

Spindle 5/8"-11

6121-30

11 Amp 4-1/2" Small Angle Grinder

Trigger Grip, Lock-On

FEATURES

n Powerful 11 Amp, 11,000 RPM Motor: Provides maximum

performance and durability

n Overload Protection: Maximizes motor life

n Electronic Clutch: Extends tool life and prevents bind-up

n Tool-Free Accessory Change: Easily change “All Accessories”

without a wrench

n Tool-Free Adjustable Guard: Provides quick guard installations

and adjustments

n Advanced Airfl ow System: Maximizes airfl ow and reduces debris

ingress, improving motor life and performance

n Debris Baffl es – protect internal components by defl ecting

damaging debris out of the airfl ow at the intake vents

n External Brush Doors – reduces service time by providing easy

access to brushes

n Trigger Grip Handle – provides better control, reach and leverage

n Compatible with multiple Grinder Guards and Flanges

Includes: (1) 11 Amp 4-1/2" Small Angle Grinder Trigger Grip, Lock-On

(6121-30); (1) Flange; (1) Side Handle; (1) Spanner Wrench;

(1) Type 27 Guard

SPECIFICATIONS

Length 15.6" Spindle 5/8"-11

Voltage 120V AC Construction Type Double

Insulated

Tool Warranty 5 Years Adjustable Handle Yes

No Load Speed 11,000 RPM Wheel Diameter 4-1/2"

Cord Type 2-Wire Overload Protection Yes

Electronic Feedback Yes Burst Resistant

Guard Yes

Cord Length 8' Max Watts Out 1,400 MWO

Amps 11 Spindle Thread 5/8"-11

SMALL ANGLE GRINDERS

128

6121-31A

11 Amp 5" Small Angle Grinder

Trigger Grip, AC/DC

FEATURES

n Powerful 11 Amp, 11,000 RPM Motor: Provides maximum

performance and durability

n AC/DC : Versatility to be used with AC or DC power supplies

n Tool-Free Accessory Change: Easily change “All Accessories”

without a wrench

n Tool-Free Adjustable Guard: Provides quick guard installations

and adjustments

n Advanced Airfl ow System: Maximizes airfl ow and reduces debris

ingress, improving motor life and performance

n Debris Baffl es – protect internal components by defl ecting

damaging debris out of the airfl ow at the intake vents

n External Brush Doors – reduces service time by providing easy

access to brushes

n Trigger Grip Handle – provides better control, reach and leverage

n Compatible with multiple Grinder Guards and Flanges

Includes: (1) 11 Amp 5" Small Angle Grinder Trigger Grip, AC/DC

(6121-31A); (1) Flange; (1) Side Handle; (1) Spanner Wrench;

(1) Type 27 Guard

SPECIFICATIONS

Voltage 120 AC/DC Construction Type Double

Insulated

Tool Warranty 5 Years Adjustable Handle Yes

Cord Type 2-Wire Wheel Diameter 5"

Electronic Feedback No Overload Protection No

Cord Length 8' Burst Resistant

Guard Yes

No Load RPM 11,000 Max Watts Out 1,400 MWO

Amps 11 Spindle Thread 5/8"-11

Spindle 5/8"-11

6130-33

7.0 AMP 4-1/2" Small Angle Grinder

FEATURES

n Compact, Lightweight Design: At 10.2" long and 3.5 lbs it is the

most compact & lightest grinder in the Milwaukee line

n 7.0 Amp, 750 MWO Motor- powerful for daily applications

n Debris Baffl es- protect internal components by defl ecting damaging

debris out of the airfl ow at the intake vents

n Multi-Port Exhaust-reduces motor burn-up by effi ciently venting hot

air out of the grinder

n Tool Free, Burst Resistant Guard- the only grinder in its class with a

tool free guard

n Compatible with multiple Grinder Guards and Flanges

Includes: (1) 7.0 AMP 4-1/2" Small Angle Grinder (6130-33); (1) Spanner

Wrench; (1) Type 27 Guard

SPECIFICATIONS

Length 10.25" Spindle 5/8"-11

Weight 3.5 lbs Adjustable Handle Yes

Voltage 120V AC Wheel Diameter 4-1/2"

Tool Warranty 5 Years Overload Protection No

No Load Speed 11,000 RPM Burst Resistant

Guard Yes

Cord Type Double

Insulated

Easy Actuation

Spindle Lock Yes

Electronic Feedback No Epoxy Motor

Protection Yes

Cord Length 8' Exhaust System Multi-Port

No Load RPM 11,000 Max Watts Out 750 MWO

Amps 7

SMALL ANGLE GRINDERS

milwaukeetool.ca 129

6140-30

7.5 Amp 4-1/2" Small Angle Grinder

FEATURES

n 7.5 Amp, 825 MWO Motor-overload protection and power for

daily applications

n 25% Longer Lasting Epoxy Protection-extends motor life by

protecting the copper wire from abrasion

n Debris Baffl es- protect internal components by defl ecting damaging

debris out of the airfl ow at the intake vents

n Multi-Port Exhaust-reduces motor burn-up by effi ciently venting hot

air out of the grinder

n X-Large Paddle Switch-increased comfort and ease-of-use when

operating in various positions

n Multi-Port Exhaust-reduces motor burn-up by effi ciently venting hot

air out of the grinder

n Tool Free, Burst Resistant Guard- the only grinder in its class with a

tool free guard

n Compatible with multiple Grinder Guards and Flanges

Includes: (1) 7.5 Amp 4-1/2" Small Angle Grinder (6140-30);

(1) Flange; (1) Side Handle; (1) Spanner Wrench; (1) Wheel Guard

SPECIFICATIONS

Length 11.8" Soft Grip Handle No

Weight 6.52 lbs Adjustable Handle Yes

Voltage 120V AC Wheel Diameter 4-1/2"

Tool Warranty 5 Years Burst Resistant

Guard Yes

No Load Speed 10,000 RPM Easy Actuation

Spindle Lock Yes

Cord Type 2-Wire Epoxy Motor

Protection

25 Longer

Lasting

Cord Length 8' Exhaust System Multi-Port

No Load RPM 10,000 Gears Spiral Bevel

Amps 7.5 Max Watts Out 825 MWO

Spindle 5/8"-11

6146-30

11 Amp 4-1/2" Small Angle Grinder

Paddle, Lock-On

FEATURES

n Powerful 11 Amp, 11,000 RPM Motor: Provides maximum

performance and durability

n Overload Protection: Maximizes motor life

n Electronic Clutch: Extends tool life and prevents bind-up

n Tool-Free Accessory Change: Easily change “All Accessories”

without a wrench

n Tool-Free Adjustable Guard: Provides quick guard installations

and adjustments

n Advanced Airfl ow System: Maximizes airfl ow and reduces debris

ingress, improving motor life and performance

n Debris Baffl es – protect internal components by defl ecting

damaging debris out of the airfl ow at the intake vents

n Compatible with multiple Grinder Guards and Flanges

Includes: (1) 11 Amp 4-1/2" Small Angle Grinder Paddle, Lock-On

(6146-30); (1) Contractor Bag; (1) Flange; (1) Grinding Wheel;

(1) Side Handle; (1) Spanner Wrench; (1) Type 27 Guard

SPECIFICATIONS

Weight 8.16 lbs Amps 11

Tool Warranty 5 Years Spindle 5/8"-11

Cord Type 2-Wire Adjustable Handle Yes

Electronic Feedback Yes Overload Protection Yes

Cord Length 8' Burst Resistant

Guard Yes

SMALL ANGLE GRINDERS

130

6146-33

11 Amp 4-1/2" Small Angle Grinder

Slide, Lock-On

6146-31

11 Amp 4-1/2" Small Angle Grinder

Paddle, No-Lock

FEATURES

n Powerful 11 Amp, 11,000 RPM Motor: Provides maximum

performance and durability

n Overload Protection: Maximizes motor life

n Electronic Clutch: Extends tool life and prevents bind-up

n Tool-Free Accessory Change: Easily change “All Accessories”

without a wrench

n Tool-Free Adjustable Guard: Provides quick guard installations

and adjustments

n Advanced Airfl ow System: Maximizes airfl ow and reduces debris

ingress, improving motor life and performance

n Debris Baffl es – protect internal components by defl ecting

damaging debris out of the airfl ow at the intake vents

n Compatible with multiple Grinder Guards and Flanges

Includes: (1) 11 Amp 4-1/2" Small Angle Grinder Paddle, No Lock

(6146-30); (1) Flange; (1) Side Handle; (1) Spanner Wrench;

(1) Type 27 Guard

SPECIFICATIONS

Weight 8.16 lbs Amps 11

Tool Warranty 5 Years Spindle 5/8"-11

Cord Type 2-Wire Adjustable Handle Yes

Electronic Feedback Yes Overload Protection Yes

Cord Length 8' Burst Resistant

Guard Yes

FEATURES

n Powerful 11 Amp, 11,000 RPM Motor: Provides maximum

performance and durability

n Overload Protection: Maximizes motor life

n Electronic Clutch: Extends tool life and prevents bind-up

n Tool-Free Accessory Change: Easily change “All Accessories”

without a wrench

n Tool-Free Adjustable Guard: Provides quick guard installations and

adjustments

n Advanced Airfl ow System: Maximizes airfl ow and reduces debris

ingress, improving motor life and performance

n Debris Baffl es – protect internal components by defl ecting

damaging debris out of the airfl ow at the intake vents

n Compatible with multiple Grinder Guards and Flanges

Includes:

(1) 11 Amp 4-1/2" Small Angle Grinder Slide, Lock-On

(6146-33); (1) Flange; (1) Side Handle; (1) Spanner Wrench;

(1) Type 27 Guard

SPECIFICATIONS

Weight 8.16 lbs Amps 11

Tool Warranty 5 Years Spindle 5/8"-11

Cord Type 2-Wire Adjustable Handle Yes

Electronic Feedback Yes Overload Protection Yes

Cord Length 8' Burst Resistant

Guard Yes

SMALL ANGLE GRINDERS

milwaukeetool.ca 131

6147-30

11 Amp 4-1/2" Small Angle Grinder

Paddle, Lock-On

FEATURES

n Powerful 11 Amp, 11,000 RPM Motor: Provides maximum

performance and durability

n Tool-Free Accessory Change: Easily change “All Accessories”

without a wrench

n Tool-Free Adjustable Guard: Provides quick guard installations

and adjustments

n Advanced Airfl ow System: Maximizes airfl ow and reduces debris

ingress, improving motor life and performance

n Debris Baffl es – protect internal components by defl ecting

damaging debris out of the airfl ow at the intake vents

n Compatible with multiple Grinder Guards and Flanges

Includes: (1) 11 Amp 4-1/2" Small Angle Grinder Paddle, Lock-On

(6147-30); (1) Side Handle; (1) Spanner Wrench; (1) Type 27 Guard

SPECIFICATIONS

Tool Warranty 5 Years Spindle 5/8"-11

Cord Type 2-Wire Adjustable Handle Yes

Electronic Feedback No Overload Protection No

Cord Length 8' Burst Resistant

Guard Yes

Amps 11

6147-31

11 Amp 4-1/2" Small Angle Grinder

Paddle, No-Lock

FEATURES

n Powerful 11 Amp, 11,000 RPM Motor: Provides maximum

performance and durability

n Tool-Free Accessory Change: Easily change “All Accessories”

without a wrench

n Tool-Free Adjustable Guard: Provides quick guard installations

and adjustments

n Advanced Airfl ow System: Maximizes airfl ow and reduces debris

ingress, improving motor life and performance

n Debris Baffl es – protect internal components by defl ecting

damaging debris out of the airfl ow at the intake vents

n Compatible with multiple Grinder Guards and Flanges

Includes: (1) 11 Amp 4-1/2" Small Angle Grinder Paddle, No-Lock

(6147-31); (1) Side Handle

SPECIFICATIONS

Tool Warranty 5 Years Spindle 5/8"-11

Cord Type 2-Wire Adjustable Handle Yes

Electronic Feedback No Overload Protection No

Cord Length 8' Burst Resistant

Guard Yes

Amps 11

Advanced Airfl ow

System

Maximizes airfl ow, improving

motor performance and life

Anti-Vibration Side Handle

Reduces vibration, increasing user

comfort during extended use

Debris Baffl es

Engineered L-shape intake vents

protect the motor and other

components by defl ecting debris

particles out of the airfl ow before

entering the grinder

Oversized Brush

Extends use-life of the tool

before repair needed

Small Angle

Grinder Gear

Durability

Large gears allow

maximum protection

and longest life

Milwaukee®

Gear

Leading

Competitor

UP TO 3X MORE DURABLE

NEW SMALL

ANGLE GRINDERS

132

100% Tool-Free

Accessory Change

5-piece spindle assembly

allows user to change

“All Accessories”

without a wrench

100% Tool-Free

Adjustable Guard

Allows the user to quickly

adjust the guard without

the use of a tool

100% TOOL-FREE

MILWAUKEE® METALWORKING.

THE INDUSTRIAL STANDARD.

NEW Milwaukee® Motor

E

W M

il

wau

k

ee

®

Mot

o

Leading Competitor

L

eadin

g

Com

p

etito

NEW POWERFUL MILWAUKEE®

BUILT MOTOR

UP TO 50% MORE POWER

NEW SMALL

ANGLE GRINDERS

milwaukeetool.ca 133

Overload

Protection

Maximizes motor life by

reducing motor burn-up

Electronic

Clutch

Extends life of tool and

helps reduce bind-up

Line Lock-Out

Helps reduce automatic

start-up after power loss

Soft Start

Allows maximum

control at start-up

CPT — Constant Power

Technology™

Maintains speed under load

Electronic Brake

Rapidly stops grinding wheel

when trigger is released

Dial Speed Control

Flexibility to adjust speed range

for specifi c applications

ADVANCED ELECTRONICS

MILWAUKEE® ELECTRONICS ADVANTAGE

NEW SMALL

ANGLE GRINDERS

134

6117-31

13 Amp 5" Small Angle Grinder

Paddle, No-Lock

FEATURES

n Powerful 13 Amp, 11,000 RPM Motor: Provides maximum

performance and durability

n Overload Protection: Maximizes motor life

n Electronic Clutch: Extends tool life and prevents bind-up

n Constant Power Technology™: Maintains constant speed under load

n Tool-Free Accessory Change: Easily change “All Accessories”

without a wrench

n Tool-Free Adjustable Guard: Provides quick guard installations

and adjustments

n Advanced Airfl ow System: Maximizes airfl ow and reduces debris

ingress, improving motor life and performance

n Anti-Vibration Side Handle: Reduces vibration, increasing user

comfort during extended use

n Soft Start: Allows maximum control at start-up

n Compatible with multiple Grinder Guards and Flanges

Includes: (1) 13 Amp 5" Small Angle Grinder Paddle, No-Lock (6117-31);

(1) Flange; (1) Side Handle; (1) Spanner Wrench; (1) Type 27 Guard

SPECIFICATIONS

Length 12.2" Construction Type Double

Insulated

Voltage 120V AC Adjustable Handle Yes

Tool Warranty 5 Years Wheel Diameter 5"

Cord Type 2-Wire Overload Protection Yes

Electronic Feedback Yes Burst Resistant

Guard Yes

Cord Length 8' Max Watts Out 2,100 MWO

Amps 13 Spindle Thread 5/8"-11

Spindle 5/8"-11

6117-30

13 Amp 5" Small Angle Grinder

Paddle, Lock-On

FEATURES

n Powerful 13 Amp, 11,000 RPM Motor: Provides maximum

performance and durability

n Overload Protection: Maximizes motor life

n Electronic Clutch: Extends tool life and prevents bind-up

n Constant Power Technology™: Maintains constant speed under load

n Tool-Free Accessory Change: Easily change "All Accessories"

without a wrench

n Tool-Free Adjustable Guard: Provides quick guard installations

and adjustments

n Advanced Airfl ow System: Maximizes airfl ow and reduces debris

ingress, improving motor life and performance

n Anti-Vibration Side Handle: Reduces vibration, increasing user

comfort during extended use

n Soft Start: Allows maximum control at start-up

n Compatible with multiple Grinder Guards and Flanges

Includes: (1) 13 Amp 5" Small Angle Grinder Paddle, Lock-On

(6117-30); (1) Flange; (1) Side Handle; (1) Spanner Wrench;

(1) Type 27 Guard

SPECIFICATIONS

Length 12.2" Spindle 5/8"-11

Voltage 120V AC Construction Type Double

Insulated

Tool Warranty 5 Years Adjustable Handle Yes

No Load Speed 11,000 RPM Wheel Diameter 5"

Cord Type 2-Wire Overload Protection Yes

Electronic Feedback Yes Burst Resistant

Guard Yes

Cord Length 8' Max Watts Out 2,100 MWO

Amps 13 Spindle Thread 5/8"-11

NEW SMALL

ANGLE GRINDERS

milwaukeetool.ca 135

6117-33 6117-33D

13 Amp 5" Small Angle Grinder Slide,

Lock-On

13 Amp 5" Small Angle Grinder Slide,

Lock-On With Dial Speed

FEATURES

n Powerful 13 Amp, 11,000 RPM Motor: Provides maximum

performance and durability

n Overload Protection: Maximizes motor life

n Electronic Clutch: Extends tool life and prevents bind-up

n Constant Power Technology™: Maintains constant speed under load

n Tool-Free Accessory Change: Easily change “All Accessories”

without a wrench

n Tool-Free Adjustable Guard: Provides quick guard installations

and adjustments

n Advanced Airfl ow System: Maximizes airfl ow and reduces debris

ingress, improving motor life and performance

n Anti-Vibration Side Handle: Reduces vibration, increasing user

comfort during extended use

n Soft Start: Allows maximum control at start-up

n Compatible with multiple Grinder Guards and Flanges

Includes: ( 1) 13 Amp 5" Small Angle Grinder Slide, Lock-On (6117-

33); (1) Flange; (1) Side Handle; (1) Spanner Wrench; (1) Type 27 Guard

SPECIFICATIONS

Length 12.2" Spindle 5/8"-11

Voltage 120V AC Construction Type Double

Insulated

Tool Warranty 5 Years Adjustable Handle Yes

No Load Speed 11,000 RPM Wheel Diameter 5"

Cord Type 2-Wire Overload Protection Yes

Electronic Feedback Yes Burst Resistant

Guard Yes

Cord Length 8' Max Watts Out 2,100 MWO

Amps 13 Spindle Thread 5/8"-11

FEATURES

n Powerful 13 Amp, 2,800 - 11,000 RPM Motor: Provides maximum

performance and durability

n Dial Speed Control: Provides fl exibility to adjust speed range for

specifi c applications

n Overload Protection: Maximizes motor life

n Electronic Clutch: Extends tool life and prevents bind-up

n Constant Power Technology™: Maintains constant speed under load

n Tool-Free Accessory Change: Easily change “All Accessories”

without a wrench

n Tool-Free Adjustable Guard: Provides quick guard installations

and adjustments

n Advanced Airfl ow System: Maximizes airfl ow and reduces debris

ingress, improving motor life and performance

n Anti-Vibration Side Handle: Reduces vibration, increasing user

comfort during extended use

n Compatible with multiple Grinder Guards and Flanges

Includes: (1) 13 Amp 5" Small Angle Grinder Slide, Lock-On (6117-33D);

(1) Flange; (1) Side Handle; (1) Spanner Wrench; (1) Type 27 Guard

SPECIFICATIONS

Length 12.2" Spindle 5/8"-11

Voltage 120V AC Construction Type Double

Insulated

Tool Warranty 5 Years Adjustable Handle Yes

No Load Speed 2,800-

11,000 RPM Wheel Diameter 5"

Cord Type 2-Wire Overload Protection Yes

Electronic Feedback Yes Burst Resistant

Guard Yes

Cord Length 8' Max Watts Out 2,100 MWO

Amps 13 Spindle Thread 5/8"-11

NEW SMALL

ANGLE GRINDERS

136

6124-30

13 Amp 5" Small Angle Grinder

Trigger Grip, Lock-On

FEATURES

n Powerful 13 Amp, 9,000 RPM Motor: Provides maximum

performance and durability

n Overload Protection: Maximizes motor life

n Electronic Clutch: Extends tool life and prevents bind-up

n Constant Power Technology™: Maintains constant speed under load

n Tool-Free Accessory Change: Easily change “All Accessories”

without a wrench

n Tool-Free Adjustable Guard: Provides quick guard installations

and adjustments

n Advanced Airfl ow System: Maximizes airfl ow and reduces debris

ingress, improving motor life and performance

n Anti-Vibration Side Handle: Reduces vibration, increasing user

comfort during extended use

n Trigger Grip Handle – provides better control, reach and leverage

n Compatible with multiple Grinder Guards and Flanges

Includes: (1) 13 Amp 5" Small Angle Grinder Trigger Grip, Lock-On

(6124-30); (1) Flange; (1) Spanner Wrench; (1) Type 27 Guard

SPECIFICATIONS

Length 15.6" Spindle 5/8"-11

Voltage 120V AC Construction Type Double

Insulated

Tool Warranty 5 Years Adjustable Handle Yes

No Load Speed 9,000 RPM Wheel Diameter 5"

Cord Type 2-Wire Overload Protection Yes

Electronic Feedback Yes Burst Resistant

Guard Yes

Cord Length 8' Max Watts Out 2,100 MWO

Amps 13 Spindle Thread 5/8"-11

6124-31

13 Amp 5" Small Angle Grinder

Trigger Grip, No-Lock

FEATURES

n Powerful 13 Amp, 9,000 RPM Motor: Provides maximum

performance and durability

n Overload Protection: Maximizes motor life

n Electronic Clutch: Extends tool life and prevents bind-up

n Constant Power Technology™: Maintains constant speed under load

n Tool-Free Accessory Change: Easily change “All Accessories”

without a wrench

n Tool-Free Adjustable Guard: Provides quick guard installations

and adjustments

n Advanced Airfl ow System: Maximizes airfl ow and reduces debris

ingress, improving motor life and performance

n Anti-Vibration Side Handle: Reduces vibration, increasing user

comfort during extended use

n Trigger Grip Handle – provides better control, reach and leverage

n Compatible with multiple Grinder Guards and Flanges

Includes: (1) 13 Amp 5" Small Angle Grinder Trigger Grip, No-Lock

(6124-31); (1) Flange; (1) Spanner Wrench; (1) Type 27 Guard

SPECIFICATIONS

Voltage 120V AC Construction Type Double

Insulated

Tool Warranty 5 Years Adjustable Handle Yes

No Load Speed 9,000 RPM Wheel Diameter 5"

Cord Type 2-Wire Overload Protection Yes

Electronic Feedback Yes Burst Resistant

Guard Yes

Cord Length 8' Max Watts Out 2,100 MWO

Amps 13 Spindle Thread 5/8"-11

Spindle 5/8"-11

NEW SMALL

ANGLE GRINDERS

milwaukeetool.ca 137

6161-31

13 Amp 6" Small Angle Grinder

Paddle, No-Lock

6161-30

13 Amp 6" Small Angle Grinder

Paddle, Lock-On

FEATURES

n Powerful 13 Amp, 9,000 RPM Motor: Provides maximum

performance and durability

n Overload Protection: Maximizes motor life

n Electronic Clutch: Extends tool life and prevents bind-up

n Constant Power Technology™: Maintains constant speed under load

n Tool-Free Accessory Change: Easily change “All Accessories”

without a wrench

n Tool-Free Adjustable Guard: Provides quick guard installations

and adjustments

n Advanced Airfl ow System: Maximizes airfl ow and reduces debris

ingress, improving motor life and performance

n Anti-Vibration Side Handle: Reduces vibration, increasing user

comfort during extended use

n Soft Start: Allows maximum control at start-up

n Compatible with multiple Grinder Guards and Flanges

Includes:

(1) 13 Amp 6" Small Angle Grinder Paddle, Lock-On (6161-30);

(1) Flange; (1) Side Handle; (1) Spanner Wrench; (1) Type 27 Guard

SPECIFICATIONS

Length 12.2" Spindle 5/8"-11

Voltage 120V AC Construction Type Double

Insulated

Tool Warranty 5 Years Adjustable Handle Yes

No Load Speed 9,000 RPM Wheel Diameter 6"

Cord Type 2-Wire Overload Protection Yes

Electronic Feedback Yes Burst Resistant

Guard Yes

Cord Length 8' Max Watts Out 2,100 MWO

Amps 13 Spindle Thread 5/8"-11

FEATURES

n Powerful 13 Amp, 9,000 RPM Motor: Provides maximum

performance and durability

n Overload Protection: Maximizes motor life

n Electronic Clutch: Extends tool life and prevents bind-up

n Constant Power Technology™: Maintains constant speed under load

n Tool-Free Accessory Change: Easily change “All Accessories”

without a wrench

n Tool-Free Adjustable Guard: Provides quick guard installations

and adjustments

n Advanced Airfl ow System: Maximizes airfl ow and reduces debris

ingress, improving motor life and performance

n Anti-Vibration Side Handle: Reduces vibration, increasing user

comfort during extended use

n Soft Start: Allows maximum control at start-up

n Compatible with multiple Grinder Guards and Flanges

Includes: (1) 13 Amp 6" Small Angle Grinder Paddle, No-Lock (6161-31);

(1) Flange; (1) Spanner Wrench; (1) Type 27 Guard

SPECIFICATIONS

Length 12.2" Spindle 5/8"-11

Voltage 120V AC Construction Type Double

Insulated

Tool Warranty 5 Years Adjustable Handle Yes

No Load Speed 9,000 RPM Wheel Diameter 6"

Cord Type 2-Wire Overload Protection Yes

Electronic Feedback Yes Burst Resistant

Guard Yes

Cord Length 8' Max Watts Out 2,100 MWO

Amps 13 Spindle Thread 5/8"-11

NEW SMALL

ANGLE GRINDERS

138

6161-33

13 Amp 6" Small Angle Grinder Slide,

Lock-On FEATURES

n Powerful 13 Amp, 9,000 RPM Motor: Provides maximum

performance and durability

n Overload Protection: Maximizes motor life

n Electronic Clutch: Extends tool life and prevents bind-up

n Constant Power Technology™: Maintains constant speed under load

n Tool-Free Accessory Change: Easily change “All Accessories”

without a wrench

n Tool-Free Adjustable Guard: Provides quick guard installations

and adjustments

n Advanced Airfl ow System: Maximizes airfl ow and reduces debris

ingress, improving motor life and performance

n Anti-Vibration Side Handle: Reduces vibration, increasing user

comfort during extended use

n Soft Start: Allows maximum control at start-up

n Compatible with multiple Grinder Guards and Flanges

Includes: (1) 13 Amp 6" Small Angle Grinder Slide, Lock-On (6161-33;

(1) Flange; (1) Spanner Wrench; (1) Type 27 Guard

SPECIFICATIONS

Length 12.2" Spindle 5/8"-11

Voltage 120V AC Construction Type Double

Insulated

Tool Warranty 5 Years Adjustable Handle Yes

No Load Speed 9,000 RPM Wheel Diameter 6"

Cord Type 2-Wire Overload Protection Yes

Electronic Feedback Yes Burst Resistant

Guard Yes

Cord Length 8' Max Watts Out 2,100 MWO

Amps 13 Spindle Thread 5/8"-11

SAG APPLICATION GUIDE

11.0 Amp SAG

6147-30 4-1/2" SAG – Paddle, Lock-On

■■

●

●■

●

●

●

●

●

●

●

●

●

●

●

●■

●

●

●

●

6147-31 4-1/2" SAG – Paddle, Non-Lock

■■

●

●■

●

●

●

●

●

●

●

●

●

●

●

●■

●

●

●

●

6146-30 4-1/2" SAG – Paddle, Lock-On

■■

●

●■

●

●

●

●

●

●

●

●

●

●

●

●■

●

●

●

●

6146-31 4-1/2" SAG – Paddle, Non-Lock

■■

●

●■

●

●

●

●

●

●

●

●

●

●

●

●■

●

●

●

●

6146-33 4-1/2" SAG – Slide, Lock-On

■■

●

●■

●

●

●

●

●

●

●

●

●

●

●

●■

●

●

●

●

6121-30 4-1/2" SAG – Trigger Grip, Lock-On

■■■■

●

●

●

●

●

●

●

●

●

●

●

●■

●

●

●

●

6121-31 4-1/2" SAG – Trigger Grip, Non-Lock

■■■■

●

●

●

●

●

●

●

●

●

●

●

●■

●

●

●

●

6121-31A 5" SAG – Trigger Grip, Non-Lock AC/DC

●

●■■■

●

●

●

●

●

●

●

●

●

●

●

●■

●

●

●

●

13.0 Amp SAG

6117-30 5" SAG – Paddle, Lock-On

■■

●

●■

●

●

●

●

●

●

●

●

●

●

●

●■

●

●

●

●

6117-31 5" SAG – Paddle, Non-Lock

■■

●

●■

●

●

●

●

●

●

●

●

●

●

●

●■

●

●

●

●

6117-33 5" SAG – Slide, Lock-On

■■

●

●■

●

●

●

●

●

●

●

●

●

●

●

●■

●

●

●

●

6117-33D 5" SAG – Slide,

Lock-On w/Dial Speed

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●■■■

6161-30 6" SAG – Paddle, Lock-On

■■

●

●■■■■■■■■

●

●

●

●

6161-31 6" SAG – Paddle, Non-Lock

■■

●

●■■■■■■■■

●

●

●

●

6161-33 6" SAG – Slide, Lock-On

■■

●

●■■■■■■■■

●

●

●

●

6124-30 6" SAG – Trigger Grip, Lock-On

■■■■■■■ ■ ■■ ■

●

●

●

●

6124-31 6" SAG – Trigger Grip, Non-Lock

■■■■■■■ ■ ■■ ■

●

●

●

●

Bevel Removal (Shop)

Bevel Removal (Jobsite)

Large Surface Area

Weld Bead Blending

Small Diameter Pipe

(Below 8”)

Large Diameter Pipe

(Above 8”)

Steel Plate

Construction Material (Angle

Iron, Threaded Rod, Unistrut,

Rebar, Etc.)

Concrete/Masonry

Tuck Pointing

Surface Grinding / Prep

(All Metal)

Surface Grinding / Prep

(Concrete)

Surface Grinding /

Prep (Granite)

■ OPTIMAL

For Application

●

● GOOD

For Application

Material Removal

Cutting

Surface Conditioning

ABRASIVE WHEELS

milwaukeetool.ca 139

Size Thickness Arbor Part Number Abrasive Type Abrasive

Spec. Application Max RPM Qty

FOR STATIONARY ABRASIVE CUT-OFF MACHINES (NOT INTENDED FOR USE ON HAND HELD CUT-OFF MACHINES)

12"

3/32" 1" 49-94-1220 Aluminum Oxide A36P General Purpose - Metal 5,095 10

14"

3/32" 1" 49-94-1405 Aluminum Oxide A36P General Purpose - Metal (Double Reinforced) 4,365 5

14"

3/32" 1" 49-94-1410 Aluminum Oxide A36P Metal Stud 4,365 10

14"

3/32" 1" 49-94-1415 Aluminum Oxide A36P General Purpose - Metal (Center Reinforced) 4,365 5

FOR HAND HELD ABRASIVE CUT-OFF MACHINES (NOT INTENDED FOR USE ON STATIONARY CUT-OFF MACHINES)

12"

1/8" 20mm 49-94-1270 Aluminum Oxide A24R General Purpose - Metal 6,360 10

12"

1/8" 1" 49-94-1275 Aluminum Oxide A24R General Purpose - Metal 6,360 10

12"

1/8" 20mm 49-94-1280 Silicon Carbide C24T Masonry 6,360 10

12"

1/8" 1" 49-94-1285 Silicon Carbide C24T Masonry 6,360 10

14"

1/8" 20mm 49-94-1470 Aluminum Oxide A24R General Purpose - Metal 5,400 10

14"

1/8" 1" 49-94-1475 Aluminum Oxide A24R General Purpose - Metal 5,400 10

14"

1/8" 20mm 49-94-1480 Silicon Carbide C24T Masonry 5,400 10

14"

1/8" 1" 49-94-1485 Silicon Carbide C24T Masonry 5,400 10

TYPE 1 CUT-OFF WHEELS

n Designed for fast cutting and long life

n Type 1 cut-off wheels are designed for cutting only

TYPE 27 DEPRESSED CENTER WHEELS

n Designed for fast cutting and long life

TYPE 27 GRINDING WHEELS

n

Designed for grinding, blending and other general purpose applications

Size Thickness Arbor Part Number Abrasive

Spec. Applications Characteristics Max

RPM

Case

Qty

TYPE 1 CUT-OFF WHEELS

4-1/2"

0.045" 7/8" 49-94-4500 A60T Metal/Stainless Cutting Fast Cut/Long Life 13,580 25

5"

0.045" 7/8" 49-94-5000 A60T Metal/Stainless Cutting Fast Cut/Long Life 12,225 25

6"

0.045" 7/8" 49-94-6300 A60T Metal/Stainless Cutting Fast Cut/Long Life 10,185 25

7"

3/32" 5/8"* 49-94-7050 A24R General Purpose - Metal Fast Cut/Long Life 8,730 25

7"

1/8" 5/8"* 49-94-7055 C24T Masonry Cutting Fast Cut/Long Life 8,730 25

TYPE 27 CUT-OFF WHEELS

4-1/2"

0.045" 7/8" 49-94-4505 A60T Metal/Stainless Cutting Fast Cut/Long Life 13,580 25

5"

0.045" 7/8" 49-94-5005 A60T Metal/Stainless Cutting Fast Cut/Long Life 12,225 25

6"

0.045" 7/8" 49-94-6305 A60T Metal/Stainless Cutting Fast Cut/Long Life 10,185 25

TYPE 27 GRINDING WHEELS

4-1/2"

1/8" 7/8" 49-94-4510 A30S Pipeline - Light Grinding/Cutting Fast Cut 13,580 10

4-1/2"

1/4" 5/8"-11 49-94-4515 A24R Metal/Stainless Grinding Long Life 13,580 5

4-1/2"

1/4" 7/8" 49-94-4520 A24R Metal/Stainless Grinding Long Life 13,580 10

4-1/2"

1/8" 5/8"-11 49-94-4525 A30S Pipeline - Light Grinding/Cutting Fast Cut 13,580 5

4-1/2"

1/4" 7/8" 49-94-4570 C24T Concrete Grinding Aggressive Material Removal 13,580 10

4-1/2"

1/4" 7/8" 49-94-4580 ZA24R Metal Grinding Extra Long Life 13,580 10

4-1/2"

1/4" 5/8"-11 49-94-4585 ZA24R Metal Grinding Extra Long Life 13,580 5

5"

1/8" 7/8" 49-94-5010 A30S Pipeline - Light Grinding/Cutting Fast Cut 12,225 10

5"

1/4" 7/8" 49-94-5020 A24R Metal/Stainless Grinding Long Life 12,225 10

5"

1/4" 7/8" 49-94-5730 C24T Concrete Grinding Aggressive Material Removal 12,225 10

5"

1/8" 7/8" 49-94-5740 C24T Concrete Grinding Aggressive Material Removal 12,225 10

5"

1/4" 7/8" 49-94-5080 ZA24R Metal/Stainless Cutting Extra Long Life 12,225 10

6"

1/4" 5/8"-11 49-94-6330 A24R Metal/Stainless Grinding Long Life 10,185 5

6"

1/4" 5/8" 49-94-6340 A24R Metal/Stainless Grinding Long Life 10,185 10

6"

1/8" 5/8"-11 49-94-6360 A30S Pipeline - Light Grinding/Cutting Fast Cut 10,185 5

7"

1/8" 5/8"-11 49-94-7015 A30S Pipeline - Light Grinding/Cutting Fast Cut 8,600 5

7 "

1/4" 7/8" 49-94-7020 A24R Metal/Stainless Grinding Long Life 8,600 10

7"

1/4" 5/8"-11 49-94-7025 A24R Metal/Stainless Grinding Long Life 8,600 5

7"

1/4" 5/8"-11 49-94-7735 C24T Concrete Grinding Aggressive Material Removal 8,600 5

7"

1/8" 5/8"-11 49-94-7075 ZA24R Pipeline - Light Grinding/Cutting Extra Long Life 8,600 5

7"

1/4" 5/8"-11 49-94-7085 ZA24R Metal Grinding Extra Long Life 8,600 5

9"

1/8" 5/8"-11 49-94-9015 A30S Pipeline - Light Grinding/Cutting Fast Cut 6,600 10

9"

1/4" 5/8"-11 49-94-9025 A24R Metal/Stainless Grinding Long Life 6,600 10

9"

1/4" 5/8"-11 49-94-9735 C24T Concrete Grinding Aggressive Material Removal 6,600 10

9"

1/4" 5/8"-11 49-94-9085 ZA24R Metal Grinding Extra Long Life 6,600 10

ALUMINUM OXIDE RESINOID BOND GRINDING WHEELS (FOR USE WITH STRAIGHT GRINDERS ONLY)

2-1/2"

1/2" 3/8" 49-92-0200 60 Grit For use with Straight Grinders Long Life 21,000 1

2-1/2"

1/2" 3/8" 49-92-0250 36 Grit For use with Straight Grinders Long Life 21,000 1

3"

1/2" 3/8" 49-92-0500 36 Grit For use with Straight Grinders Long Life 18,000 1

3"

1/2" 3/8" 49-92-0510 60 Grit For use with Straight Grinders Long Life 18,000 1

5"

1" 5/8" 49-92-2240 24 Grit For use with Straight Grinders Long Life 7,260 1

6"

1" 5/8" 49-92-3260 24 Grit For use with Straight Grinders Long Life 6,000 1

*Includes diamond knockout

TYPE 27 DEPRESSED

CENTER WHEELS WITH

5/8"-11 THREADED HUB

n Designed for grinding, blending and

other general purpose applications

TYPE 1 PREMIUM ABRASIVE CUT-OFF WHEELS FOR CUT-OFF MACHINES

TYPE 1 AND TYPE 27 REINFORCED DEPRESSED CENTER WHEELS

ABRASIVE SANDING DISCS

140

Part Number Diameter Thread Max RPM

SPIRAL RUBBER PAD ASSEMBLIES (INCLUDES RUBBER PAD AND DISC NUT)

49-36-3800 7" 5/8"-11 7,500

49-36-3850 9" 5/8"-11 6,000

49-40-0360 Disc Nut Only 5/8"-11 –

RUBBER PAD ASSEMBLIES (INCLUDES RUBBER PAD AND DISC NUT)

49-36-3700 7" 5/8"-11 8,500

49-36-3750 9" 5/8"-11 7,500

49-40-0360 Disc Nut Only 5/8"-11 –

STANDARD PHENOLIC DISC ASSEMBLIES (INCLUDES RUBBER PAD AND DISC NUT)

49-36-6000 7" 5/8"-11 6,000

49-36-6050 9" 5/8"-11 5,000

49-40-0350 Disc Nut Only 5/8"-11 –

PHENOLIC DISC ONLY (WHEN PURCHASED SEPARATELY)

48-80-6000 7" 5/8"-11 7,000

48-80-6050 9" 5/8"-11 7,000

49-36-3500 Rubber Pad Only – 7,000

49-40-0350 Disc Nut Only 5/8"-11 –

Grit

4-1/2"

13,000

MAX RPM

5"

13,000

MAX RPM

7"

7,000

MAX RPM

9"

7,000

MAX RPM

Qty

ALUMINA ZIRCONIA RESIN FIBRE DISCS - FOR HEAVY WELD AND METAL GRINDING – IDEAL FOR ALL FERROUS METALS

24

48-80-0681 48-80-0693 48-80-0705 48-80-0717 25

36

48-80-0683 48-80-0695 48-80-0707 48-80-0719 25

50

48-80-0685 48-80-0697 48-80-0709 48-80-0723 25

60

48-80-0687 48-80-0699 48-80-0713 48-80-0725 25

80

48-80-0689 48-80-0703 48-80-0715 48-80-0727 25

ALUMINUM OXIDE RESIN FIBRE DISCS - FOR ALUMINUM AND NON-FERROUS METALS, WOOD AND FIBERGLASS

24

48-80-0622 48-80-0636 48-80-0652 - 5

24

48-80-0623 48-80-0637 48-80-0653 48-80-0667 25

36

48-80-0626 48-80-0642 48-80-0656 - 5

36

48-80-0627 48-80-0643 48-80-0657 48-80-0673 25

50

48-80-0632 48-80-0646 48-80-0662 - 5

50

48-80-0633 48-80-0647 48-80-0663 48-80-0677 25

CERAMIC RESIN FIBRE DISCS - FOR CARBON ALLOY APPLICATIONS ONLY - LONG LASTING AND SUPERIOR PERFORMANCE

24

48-80-0770 48-80-0812 48-80-0820 48-80-0830 5

36

48-80-0780 48-80-0814 48-80-0822 48-80-0832 5

50

48-80-0790 48-80-0815 48-80-0824 48-80-0834 5

60

48-80-0800 48-80-0816 48-80-0826 48-80-0836 5

80

48-80-0810 48-80-0817 48-80-0828 48-80-0838 5

ALUMINUM OXIDE RESIN FIBRE DISCS - GENERAL PURPOSE - FOR RUST AND SCALE REMOVAL LIGHT GRINDING OF VARIOUS METALS

ASSORT*

48-80-0501 48-80-0534 48-80-0572 - 5

16

- - 48-80-0575 - 5

16

- - 48-80-0576 48-80-0603 25

24

48-80-0504 48-80-0536 48-80-0579 - 5

24

48-80-0505 48-80-0537 48-80-0580 48-80-0605 25

36

48-80-0508 48-80-0542 48-80-0583 - 5

36

48-80-0509 48-80-0543 48-80-0584 48-80-0607 25

50

48-80-0514 48-80-0548 48-80-0587 - 5

50

48-80-0515 48-80-0549 48-80-0588 48-80-0609 25

60

48-80-0518 48-80-0554 48-80-0591 - 5

60

48-80-0519 48-80-0555 48-80-0592 48-80-0613 25

80

48-80-0524 48-80-0560 48-80-0595 - 5

80

48-80-0525 48-80-0561 48-80-0596 48-80-0615 25

120

48-80-0528 48-80-0566 48-80-0599 - 5

120

48-80-0529 48-80-0567 48-80-0601 48-80-0617 25

Part Number Diameter Thread Max RPM

POLYPROPYLENE PAD KITS (INCLUDES BACKING PAD AND DISC NUT)

49-36-3455 4-1/2" 5/8"-11 13,000

49-36-3450 4-1/2" 1/2"-13 13,000

49-36-3465 5" 5/8"-11 13,000

49-36-3460 5" 1/2"-13 13,000

POLYPROPYLENE PADS

49-36-3452 4-1/2" 1/2"-13 13,000

49-36-3453 4-1/2" 5/8"-11 13,000

49-36-3462 5" 1/2"-13 13,000

49-36-3463 5" 5/8"-11 13,000

49-36-3900 7" 5/8"-11 10,000

49-36-3950 9" 5/8"-11 5,000

49-40-0350 Disc Nut 5/8"-11 –

49-40-0360 Disc Nut 5/8"-11 –

49-40-0370 Disc Nut 1/2"-13 –

POLYPROPYLENE

PAD

ABRASIVE

SANDING DISC

DISC NUT

RUBBER PAD

STANDARD

PHENOLIC

DISC

RUBBER

PAD SPIRAL

RUBBER

PAD

Disc Trimmer

49-80-1000

Upper and Lower Blade Set

49-80-1155

*Includes one each of: 36, 50, 60, 80 and 120 grit discs

BACKING PAD ASSEMBLIES

RESIN BONDED ABRASIVE SANDING DISCS DISC TRIMMER

FLAP DISCS &

WIRE BRUSHES/WHEELS

milwaukeetool.ca 141

Description Diameter Thread Wire

Thickness

Max

RPM Carbon Steel Stainless Steel

KNOT WIRE CUP BRUSH

2-3/4"

5/8"-11 0.020" 12,000 48-52-5040 48-52-5050

3-1/2"

5/8"-11 0.020" 13,000 48-52-5067 -

4"

5/8"-11 0.020" 7,000 48-52-1350 -

6"

5/8"-11 0.020" 6,000 48-52-1650 -

CRIMPED WIRE

CUP BRUSH

3"

5/8"-11 0.012" 12,000 48-52-5060 -

3-1/2"

5/8"-11 0.014" 12,000 48-52-5065 -

4"

5/8"-11 0.014" 7,000 48-52-1300 -

5"

5/8"-11 0.020" 8,000 48-52-1400 -

6"

5/8"-11 0.014" 6,000 48-52-1600 -

BEVEL KNOT BRUSH 4"

5/8"-11 0.020" 12,000 48-52-1305 48-52-1315

BEVEL CRIMPED BRUSH

4" 5/8"-11 0.014" 12,000 48-52-1325 48-52-1335

WIRE BRUSHES

Description Diameter Thread Wire

Thickness

Max

RPM Carbon Steel Stainless Steel

STRINGER BEAD

WIRE WHEEL

4"

5/8"-11

0.020" 12,000 48-52-5010 48-52-5000

4"

1/2"-13

0.020" 12,000

- -

5"

5/8"-11

0.020" 12,500 48-52-1700

-

6"

5/8"-11

0.020" 9,500 48-52-1715

-

FULL CABLE TWIST KNOT

WIRE WHEEL

4" 5/8"-11 0.020" 12,000 48-52-5030 48-52-5020

4" 1/2"-13 0.020" 12,000

- -

5" 5/8"-11 0.020" 12,500

-

-

6" 5/8"-11 0.020" 9,500 48-52-1725 -

RADIAL CRIMPED

WIRE WHEEL

4" 5/8"-11 0.014" 12,000 48-52-5070 -

4" 1/2"-13 0.014" 12,000

-

-

KNOT WIRE WHEEL -

FOR USE WITH STRAIGHT

GRINDERS ONLY

3" 3/8"-1/2" 0.014" 25,000

- -

5" 5/8" 0.014" 8,000

- -

6" 1/2"-5/8" 0.014" 8,000

- -

WIRE WHEELS

Part Number Description

48-03-1005

5/8"-11 - M10 x 1.25

48-03-1010

5/8"-11 - M10 x 1.50

THREADED ADAPTERS

Size Arbor Part Number Abrasive Spec. Grit Spec. Applications Max RPM Case Qty

TYPE 27

4-1/2"

7/8" 48-80-8100 Zirconia Alumina 36

Stock removal, deburring, blending welds, edge chamfering

13,300 5

4-1/2"

7/8" 48-80-8101 Zirconia Alumina 60 Surface preparation, cleaning and fi nishing 13,300 5

4-1/2"

7/8" 48-80-8102 Zirconia Alumina 80 Surface preparation, cleaning and fi nishing 13,300 5

4-1/2"

5/8"-11 48-80-8110 Zirconia Alumina 36

Stock removal, deburring, blending welds, edge chamfering

13,300 5

4-1/2"

5/8"-11 48-80-8111 Zirconia Alumina 60 Surface preparation, cleaning and fi nishing 13,300 5

4-1/2"

5/8"-11 48-80-8112 Zirconia Alumina 80 Surface preparation, cleaning and fi nishing 13,300 5

TYPE 27 - EXTRA THICK

4-1/2"

7/8" 48-80-8200 Zirconia Alumina 36

Stock removal, deburring, blending welds, edge chamfering

13,000 5

4-1/2"

7/8" 48-80-8201 Zirconia Alumina 60 Surface preparation, cleaning and fi nishing 13,000 5

4-1/2"

7/8" 48-80-8202 Zirconia Alumina 80 Surface preparation, cleaning and fi nishing 13,000 5

TYPE 29

4-1/2"

7/8" 48-80-8000 Zirconia Alumina 36

Stock removal, deburring, blending welds, edge chamfering

13,300 5

4-1/2"

7/8" 48-80-8001 Zirconia Alumina 60 Surface preparation, cleaning and fi nishing 13,300 5

4-1/2"

7/8" 48-80-8002 Zirconia Alumina 80 Surface preparation, cleaning and fi nishing 13,300 5

4-1/2"

5/8"-11 48-80-8010 Zirconia Alumina 36

Stock removal, deburring, blending welds, edge chamfering

13,300 5

4-1/2"

5/8"-11 48-80-8011 Zirconia Alumina 60 Surface preparation, cleaning and fi nishing 13,300 5

4-1/2"

5/8"-11 48-80-8012 Zirconia Alumina 80 Surface preparation, cleaning and fi nishing 13,300 5

5"

7/8" 48-80-8020 Zirconia Alumina 36

Stock removal, deburring, blending welds, edge chamfering

12,000 5

5"

7/8" 48-80-8021 Zirconia Alumina 60 Surface preparation, cleaning and fi nishing 12,000 5

5"

7/8" 48-80-8022 Zirconia Alumina 80 Surface preparation, cleaning and fi nishing 12,000 5

7"

7/8" 48-80-8030 Zirconia Alumina 36

Stock removal, deburring, blending welds, edge chamfering

8,600 5

7"

7/8" 48-80-8031 Zirconia Alumina 60 Surface preparation, cleaning and fi nishing 8,600 5

7"

7/8" 48-80-8032 Zirconia Alumina 80 Surface preparation, cleaning and fi nishing 8,600 5

7"

5/8"-11 48-80-8040 Zirconia Alumina 36

Stock removal, deburring, blending welds, edge chamfering

8,600 5

7"

5/8"-11 48-80-8041 Zirconia Alumina 60 Surface preparation, cleaning and fi nishing 8,600 5

7"

5/8"-11 48-80-8042 Zirconia Alumina 80 Surface preparation, cleaning and fi nishing 8,600 5

TYPE 27 TYPE 27 EXTRA THICK TYPE 29

FLAP DISCS

FLAP DISCS & UNIVERSAL

GRINDING DUST SHROUDS

142

Diameter Depth of Pile Part Number Description Application

8"

2" 49-36-0650* White Foam Polishing Pad Removes swirls on clearcoat, gelcoat and most fi nishes. Produces medium to high gloss

7-1/2"

1-3/8" 49-36-1550* Yellow Foam Compounding Pad Compounding removes 1500-2000 sand scratches. Produces low to medium gloss

8"

2" 49-36-0670* Red Foam Finishing Pad Final fi nishing on clearcoat, gelcoat and most fi nishes. For applying waxes and polish/sealants, produces

high gloss fi nish

7-1/2"

1-1/2" 49-36-0600* Blended Wool Pad For polishing clearcoat, gelcoat and most fi nishes. Produces medium gloss

7-1/2"

1-1/2" 49-36-0500** Blended Wool Pad For polishing clearcoat, gelcoat and most fi nishes. Produces medium gloss

9"

1-1/2" 49-36-0700** Blended Wool Pad For polishing clearcoat, gelcoat and most fi nishes. Produces medium gloss

7-1/2"

1-1/2" 49-36-1500* Twisted, Tufted 100%

Wool Pad

Deep cleaning and compounding removes 1200-1500 sand scratches on clearcoat, gelcoat and most

fi nishes. Produces low gloss

7-1/2"

1-1/2" 49-36-1450** Twisted, Tufted 100%

Wool Pad

Deep cleaning and compounding removes 1200-1500 sand scratches on clearcoat, gelcoat and most

fi nishes. Produces low gloss

7-1/2"

2" 49-36-1455** Twisted, Tufted 100%

Wool Pad

Deep cleaning and compounding removes 1200-1500 sand scratches on clearcoat, gelcoat and most

fi nishes. Produces low gloss

9"

1-1/2" 49-36-1600** Twisted, Tufted 100%

Wool Pad

Deep cleaning and compounding removes 1200-1500 sand scratches on clearcoat, gelcoat and most

fi nishes. Produces low gloss

7"

1-1/2" 48-48-0500** Blended Wool Acrylic Pad (tie on) For polishing clearcoat, gelcoat and most fi nishes. Produces medium gloss

9"

1-1/2" 48-48-1000** Blended Wool Acrylic Pad (tie on) For polishing clearcoat, gelcoat and most fi nishes. Produces medium gloss

6-1/4"

– 49-36-2175 Hook and Loop Molded Urethane

Back Up Plate

Flexible molded urethane provides forgiving fl exibility lowering risk of spot heating and fi nish burning

(includes centering tool)

7"

– 49-36-2500 Molded Rubber Backing Pad Specifi cally designed to bolt buffi ng/polishing pads onto 5460-6, 5540 and 5455 speed control polishers

(nut and washer sold separately)

8-1/2"

– 49-36-2200 Molded Rubber Backing Pad Specifi cally designed to bolt buffi ng/polishing pads onto 5460-6, 5540 and 5455 speed control polishers

(nut and washer sold separately)

–

– 49-67-0130 Pad Centering Tool

*Hook and loop attachment, no disc nut needed

**Traditional bolt-on and tie attachment, requires appropriate rubber backing pad (49-36-2500 or 49-36-2200)

49-48-0500 49-36-2175 49-36-0670 49-36-250049-36-0600

HOOK AND LOOP FOAM PADS, BLENDED WOOL PADS, AND TWISTED, TUFTED WOOL PADS

49-40-6100 49-40-6105

4"-5" Universal Surface

Grinding Dust Shroud

7" Universal Surface

Grinding Dust Shroud

FEATURES

n Provides a dust free environment during concrete fi nishing, concrete

material removal and Paint/Surface coating removal

n 5" shroud fi ts on most 4-1/2" to 6" Small Angle Grinders

(maximum accessory size of 5")

n Quick and easy installation – attach, tighten and go

n Removable front edge clip for grinding against walls

n High density bristles provide maximum dust collection and containment

FEATURES

n Provides a dust free environment during concrete fi nishing, concrete

material removal and Paint/Surface coating removal

n 7" shroud fi ts on most 7" to 9" Large Angle Grinders

(maximum accessory size of 7")

n Quick and easy installation – attach, tighten and go

n Removable front edge clip for grinding against walls

n High density bristles provide maximum dust collection and containment

ATTACHMENTS

49-40-6190: 18" Hose Adaptor

ATTACHMENTS

49-40-6190: 18" Hose Adaptor

SANDERS

milwaukeetool.ca 143

6020-21 6021-21

1/4" Sheet Palm Sander 5" Random Orbit Palm Sander

FEATURES

n 3.0 Amp Permanent Magnet Motor with 14,000 Orbits Per Minute –

Powerful, light weight motor produces dependable speed and power

n Pad Cushioning and Break- Reduces swirl marks and ensures a

smoother fi nish

n Tactile Rubber Top and Body Grip Surface and Narrow Sander Body-

Ergonomic design provides added comfort and control and reduces

user fatigue from any angle

n Large Paper Clamp Tabs -Allows for effortless paper changes

n Integrated Vacuum Ports -Fits 1-1/4" or 2-1/4" hoses for effi cient

dust removal

n In-Line Dust Port with Flexible Dust Collection Bag- Captures

maximum amount of dust without compromising site line

n Removable Top- Allows for easy service and brush replacement

Includes: (1) 1/4" Sheet Palm Sander (6020-21); (1) 1/4" Sheet

Punch Pad; (1) Carrying Case; (1) Dust Bag; (3) Pieces of 1/4" Sheet

Sandpaper: 180 Grit, 200 Grit, 220 Grit

SPECIFICATIONS

Length 5-1/2"

Weight 3.3 lbs

Voltage 120V AC

Cord Type 8' Fixed

Amps 3

Construction Type Double Insulated

No Load OPM 14,000

Pad Size 4-1/4" x 4"

Dust Collection Yes

Dia of Orbit 1/16"

Sandpaper Size 1/4" Sheet

Motor Permanent Magnet

FEATURES

n 3.0 Amp Permanent Magnet Motor- Powerful, light weight motor

produces dependable speed and power

n Variable Speed Dial: 7,000-12,000 Orbits Per Minute- Match

optimal sanding speed to various applications

n Electronic Soft Start- quickly, steadily ramps the motor up in stages,

thus reducing tool jerking and wear on the brushes and bearings

n Pad Cushioning and Break- Reduces swirl marks and ensures a

smoother fi nish

n Integrated Vacuum Ports- Fits 1-1/4" or 2-1/4" hoses for effi cient

dust removal

n Tactile Rubber Top and Body Grip Surface and Narrow Sander

Body – Ergonomic design provides added comfort and control and

reduces user fatigue from any angle

Includes: (1) 5" Random Orbit Palm Sander (6021-21); (1) Carrying Case;

(1) Dust Bag

SPECIFICATIONS

Length 5-1/2"

Weight 3.3 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 8' Fixed

Amps 3

Construction Type Double Insulated

No Load OPM 7,000-12,000

Pad Size 5"

Dust Collection Yes

Dia of Orbit 3-32"

Sandpaper Size 5"

Motor Permanent Magnet

SANDERS

144

6065-6 6066-6

3.5 max HP, 7"/9" Sander, 5000 RPM 3.5 max HP, 7"/9" Sander, 6000RPM

FEATURES

n 3.5 maximum horsepower, 15 amp motor

n 7 inch or 9 inch capacity, 6000 RPM, AC-DC

n Spiral bevel gearing for performance and durability

n Sander may be converted to grinder by using the proper wheel guard

Includes: (1) 3.5 max HP, 7"/9" Sander, 6000 RPM (6066-6); (1) Flange;

(1) Nylon Washer; (1) Side Handle

SPECIFICATIONS

Length 17-1/2"

Weight 12.0 lbs

Voltage 120 AC/DC

Cord Type 9' Fixed

Electronic Feedback No

No Load RPM 6,000

Amps 15

Trigger Lock Yes

Spindle 5/8"-11

Construction Type Grounded

Max HP 3.5

Spindle Lock Yes

Adjustable Handle No

Wheel Diameter 7"/9"

FEATURES

n 3.5 maximum horsepower, 15 amp motor

n 7 inch or 9 inch capacity, 5,000 RPM, AC-DC

n Spiral bevel gearing for performance and durability

n Sander may be converted to grinder by using the proper wheel guard

Includes: (1) 3.5 max HP, 7"/9" Sander, 5000 RPM (6065-6);

(1) Flange; (1) Nylon Washer; (1) Side Handle

SPECIFICATIONS

Length 17-1/2"

Weight 12.0 lbs

Voltage 120 AC/DC

Cord Type 9' Fixed

Electronic Feedback No

No Load RPM 5,000

Amps 15

Trigger Lock Yes

Spindle 5/8"-11

Construction Type Grounded

Max HP 3.5

Spindle Lock Yes

Adjustable Handle No

Wheel Diameter 7"/9"

SANDERS

milwaukeetool.ca 145

6072 6078

2.25 max HP, 7"/9" Sander, 5000RPM 2.25 max HP, 7"/9" Sander, 6000RPM

FEATURES

n 2.25 maximum horsepower, 13 amp motor

n 7 inch or 9 inch capacity, AC only

n Dial speed control 0-6000 RPM

n 10 ft., 2-wire Quik-Lok® cord set

Includes: (1) 2.25 max HP, 7"/9" Sander, 6000 RPM (6078); (1) Flange;

(1) Nylon Washer; (1) Side Handle

SPECIFICATIONS

Length 17"

Weight 9.3 lbs

Cord Type 10' QUIK-LOK®

Electronic Feedback No

No Load RPM 0-6,000

Amps 13

Trigger Lock Yes

Spindle 5/8"-11

Construction Type Double Insulated

Max HP 2.2

Spindle Lock Yes

Adjustable Handle No

Wheel Diameter 7"/9"

FEATURES

n 2.25 maximum horsepower, 13 amp motor

n 7 inch or 9 inch capacity, 5,000 RPM, AC-DC

n Spiral bevel gearing for performance and durability

n Sander may be converted to grinder by using the proper wheel guard

Includes: (1) 2.25 max HP, 7"/9" Sander, 5000 RPM (6072); (1)

Flange; (1) Nylon Washer; (1) Side Handle

SPECIFICATIONS

Length 17"

Weight 9.3 lbs

Voltage 120 AC/DC

Cord Type 9' Fixed

Electronic Feedback No

No Load RPM 5,000

Amps 13

Trigger Lock Yes

Spindle 5/8"-11

Construction Type Double Insulated

Max HP 2.2

Spindle Lock Yes

Adjustable Handle No

Wheel Diameter 7"/9"

ATTACHMENTS

48-76-5010: 10' Quik-Lok®48-76-5025: 25' Quik-Lok®

DIE GRINDERS

146

5192 5194

4.5-Amp Die Grinder 4.5-Amp Die Grinder

FEATURES

n Powerful 4.5-amp motor: Delivers up to 21,000 RPM for

faster grinding

n All ball and roller bearings: Built for endurance

n Versatile chuck: Accepts 1/4" and 1/8" collets for greater utility

n 8-ft. fi xed rubber cord: Durable construction for long tool life

Includes:

(1) 4.5-Amp Die Grinder (5192); (1) 11/16" Open End Wrench;

(1) 1/2" Open End Wrench

SPECIFICATIONS

Length 13-1/2"

Weight 4.5 lbs

Voltage 120 AC/DC

Tool Warranty 5 Years

No Load Speed 21,000 RPM

Cord Type 8' Fixed

No Load RPM 21,000

FEATURES

n Powerful 4.5-amp motor: Delivers up to 21,000 RPM for

faster grinding

n All ball and roller bearings: Built for endurance

n Versatile chuck: Accepts 1/4" and 1/8" collets for greater utility

n 8-ft. fi xed rubber cord: Durable construction for long tool life

Includes: (1) 4.5-Amp Die Grinder (5194); (1) 11/16" Open End Wrench;

(1) 1/2" Open End Wrench

SPECIFICATIONS

Length 13-1/2"

Weight 4.5 lbs

Voltage 120 AC/DC

Tool Warranty 5 Years

No Load Speed 21,000 RPM

Cord Type 8' Fixed

No Load RPM 21,000

DIE GRINDERS

milwaukeetool.ca 147

5196 5211

11-Amp Die Grinder 3" Diameter Straight Grinder

FEATURES

n Powerful 11-amp motor: Delivers up to 14,500 RPM for faster

grinding

n 3 in. diameter wheel

n Coated spindle housing for cool gripping surface

n Hinged face plate for quick easy wheel replacement

Includes: (1) 1" Wrench; (1) 3" Diameter Straight Grinder (5211);

(1) 9/16" Wrench; (1) Wheel Guard

SPECIFICATIONS

Length 21"

Weight 7.8 lbs

Voltage 120 AC/DC

Tool Warranty 5 Years

No Load Speed 14,500 RPM

Cord Type 9' Fixed

No Load RPM 14,500

Amps 11

Trigger Lock On

Spindle 3/8"-24

Wheel Diameter 3"

FEATURES

n Powerful 11-amp motor: Delivers up to 14,500 RPM for faster

grinding

n All ball and roller bearings: Built for endurance

n Versatile chuck: Accepts 1/4" and 1/8" collets for greater utility

n 8-ft. fi xed rubber cord: Durable construction for long tool life

Includes: (1) 11-Amp Die Grinder (5196); (1) 1" Open End Wrench;

(1) 11/16" Open End Wrench; (1) 1/2" Open End Wrench

SPECIFICATIONS

Length 21-1/2"

Weight 7.8 lbs

Voltage 120 AC/DC

Tool Warranty 5 Years

No Load Speed 14,500 RPM

No Load RPM 14,500

Amps 11

Trigger Lock On

DIE GRINDERS & BANDFILE

148

5243

6" Diameter Straight Grinder

FEATURES

n 5500 rpm, 15 amp

n 6 in. diameter wheel

n Coated spindle housing for cool gripping surface

n Hinged face plate for quick easy wheel replacement

Includes: (1) 6" Diameter Straight Grinder (5243); (1) 1-1/16" Inch

Wrench; (1) Grinding Wheel; (1) Spanner Wrench; (1) Wheel Guard

SPECIFICATIONS

Length 22"

Weight 16.5 lbs

Voltage 120 AC/DC

Tool Warranty 5 Years

No Load Speed 5,500 RPM

Cord Type 9' Fixed

No Load RPM 5,500

Amps 15

Trigger Lock On

Spindle 5/8"-11

Wheel Diameter 6"

6101-6

5.5 Amp Bandfi le

FEATURES

n 5.5 amp, 2,300 SFPM, AC/DC

n 1/2 inch x 18 inch Contact Arm

n 180° adjustable head

n 3 position side handle

Includes: (1) 5.5 Amp Bandfi le (6101-6); (1) 1/2" Arm; (1) Bandfi le

Belt Assortment; (1) Side Handle

SPECIFICATIONS

Length 18-1/2"

Weight 6.0 lbs

Voltage 120 AC/DC

Tool Warranty 5 Years

Cord Type 8' Fixed

Amps 5.5

Spindle 5/8"-11

Construction Type Double Insulated

Capacity 1/2" x 18"

ROUTERS

milwaukeetool.ca 149

5615-20

5615-21

1-3/4 Max HP BodyGrip® Router

1-3/4 Max HP BodyGrip® Router Kit

Includes: (1) 1-3/4 Max HP BodyGrip® Router (5615-20); (2) 1 1/8" Collet

Wrenches; (1) 1/2" Collet; (1) 1/4" Collet; (1) Carrying Case

FEATURES

n Exclusive BodyGrip® Design

n 1-3/4 Max HP, 11 Amp, 24,000 RPM Milwaukee Motor

n Exclusive Linear Depth Adjustment System

n 1/4" and 1/2" premium self-releasing collets

Includes:

(1) 1-3/4 Max HP BodyGrip® Router (5615-20); (2) 1-1/8"

Collet Wrenches; (1) 1/2" Collet; (1) 1/4" Collet

SPECIFICATIONS

Weight 8.8 lbs

Voltage 120 AC/DC

Tool Warranty 5 Years

Cord Type 8' Fixed

Electronic Feedback No

No Load RPM 24,000 RPM

Amps 11

Construction Type Double Insulated

Max HP 1.7

Base 6" Body Grip

Depth Adjustment 1-21/32"

Collet Diameter 1/4"-1/2"

Dial Speed Control No

Height 8-1/2"

5615-24

1-3/4 Max HP Multi-Base Router Kit

FEATURES

n Premium plunge system with exclusive four-point PM bushing

design and constant spring tension to deliver smooth, non-binding

plunge action throughout the entire plunge range (2-7/8 in.)

n Patented BodyGrip® design with precise macro/micro linear depth

adjustment system and patented above the table height adjustment

n Precise macro/micro depth adjustment system to 1/64 in.

increment, 3 in. metal depth scale, adjustable pointer, and

6-position (1/8 in. increment) adjustable metal turret stops for

precise, multiple-pass routing

Includes: (1) 1-3/4 Max HP BodyGrip® Router (5615-20); (2) 1 1/8"

Collet Wrenches; (1) 1/2" Collet; (1) 1/4" Collet; (1) Carrying Case;

(2) Clear Sub-Bases; (1) Concentricity Gauge; (1) Dust Shield; (1) Fixed

Based Assembly; (1) Plunge Base Assembly

SPECIFICATIONS

Weight 8.8 lbs

Voltage 120 AC/DC

Tool Warranty 5 Years

Cord Type 8' Fixed

Electronic Feedback No

No Load RPM 24,000 RPM

Amps 11

Construction Type Double Insulated

Max HP 1.7

Base 6" Plunge

Depth Adjustment 1-21/32"

Collet Diameter 1/4"-1/2"

Plunge Stroke 2-7/8"

Dial Speed Control No

Height 8-1/2"

ROUTERS

150

5616-20

2-1/4 Max HP EVS BodyGrip® Router

FEATURES

n Exclusive BodyGrip® design

n Powerful 13 amp, 2-1/4 max hp Milwaukee motor

n Premium electronic motor feedback maintains speed and power

under load

n Electronic variable speed with soft start (10,000-24,000 rpm)

n Micro-fi ne linear depth adjustment to within 1/64 in.

n Exclusive above-the-table depth adjustment system

n Exclusive motor contamination shield minimizes damage,

maximizes airfl ow

Includes: (1) 2-1/4 Max HP EVS BodyGrip® Router (5616-20); (2) 1 1/8"

Collet Wrenches; (1) 1/2" Collet; (1) 1/4" Collet; (1) T-Handle Wrench

SPECIFICATIONS

Weight 8.8 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 8' Fixed

Electronic Feedback Yes

No Load RPM 10,000-24,000

Amps 13

Construction Type Double Insulated

Max HP 2.2

Depth Adjustment 1-21/32"

Collet Diameter 1/4"-1/2"

Height 8-1/2"

5616-21

2-1/4 Max HP EVS BodyGrip®

Router Kit with Case

Includes: (1) 2-1/4 Max HP EVS BodyGrip® Router (5616-20);

(2) 1-1/8" Collet Wrenches; (1) 1/2" Collet; (1) 1/4" Collet;

(1) Carrying Case; (1) T-Handle Wrench

5616-24

2-1/4 Max HP EVS Multi-Base Router Kit

FEATURES

n Premium plunge system with exclusive four-point PM bushing

design and constant spring tension to deliver smooth, non-binding

plunge action throughout the entire plunge range (2-7/8 in.)

n Patented BodyGrip® design with precise macro/micro linear depth

adjustment system and patented above the table height adjustment

n Precise macro/micro depth adjustment system to 1/64 in.

increment, 3 in. metal depth scale, adjustable pointer, and

6-position (1/8 in. increment) adjustable metal turret stops for

precise, multiple-pass routing

n Exclusive motor shield design

n Electronic variable speed with soft start (10,000 - 24,000 RPM)

Includes: (

1) 2-1/4 Max HP EVS Multi-Base Router Kit (5616-24);

(2) 1-1/8" Collet Wrenches; (1) 1/2" Collet; (1) 1/4" Collet;

(1) Carrying Case; (2) Clear Sub-Bases; (1) Concentricity Gauge;

(1) Dust Shield; (1) Fixed Based Assembly; (1) Plunge Base Assembly

SPECIFICATIONS

Weight 8.8 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 8' Fixed

Electronic Feedback Yes

No Load RPM 10,000-24,000

Amps 13

Construction Type Double Insulated

Max HP 2.2

Base 6" Plunge

Depth Adjustment 1-21/32"

Collet Diameter 1/4"-1/2"

Plunge Stroke 2-7/8"

Dial Speed Control Yes

Height 8-1/2"

ROUTERS

milwaukeetool.ca 151

5619-20 5625-20

1-3/4 Max HP D-Handle Router

3-1/2 Max HP Fixed-base

Production Router

FEATURES

n Powerful 15 Amp, 3-1/2 max hp EVS Milwaukee Motor

n Electronic variable speed (10,000-22,000 rpm)

n Premium electronic feedback circuitry

n Exclusive Linear Depth Adjustment System with Above-the-Table

Access

Includes:

(1) 3-1/2 Max HP Fixed-Base Production Router (5625-20);

(2) 1-1/8" Collet Wrenches; (1) 1/2" Collet; (1) 2-1/2" Sub-base;

(1) T-Handle Wrench

SPECIFICATIONS

Weight 11.8 lbs

Voltage 120V AC

Tool Warranty 5 Years

Cord Type 8' Fixed

Electronic Feedback Yes

No Load RPM 10,000-22,000

Amps 15

Construction Type Double Insulated

Max HP 3.5

Base 7" Fixed 2 Handle

Depth Adjustment 1-21/32"

Collet Diameter 1/4"-1/2"

Dial Speed Control Yes

Height 9-1/4"

FEATURES

n 1-3/4 Max HP, 11 Amp, 24,000 RPM Milwaukee Motor

n Soft-Grip D-Handle with lock-on trigger switch

n Exclusive Linear Depth Adjustment System

n 1/4 in. and 1/2 in. premium self-releasing collets

Includes: (1) 1-3/4 Max HP D-Handle Router (5619-20); (2) 1-1/8"

Collet Wrenches; (1) 1/2" Collet; (1) 1/4" Collet

SPECIFICATIONS

Weight 9.2 lbs

Voltage 120 AC/DC

Tool Warranty 5 Years

Cord Type 8' Fixed

Electronic Feedback No

No Load RPM 24,000 RPM

Amps 11

Construction Type Double Insulated

Max HP 1.7

Base D-Handle

Depth Adjustment 1-21/32"

Collet Diameter 1/4"-1/2"

Height 8-1/2"

152

ROUTER ACCESSORIES

IMAGE CATALOG NO. PURPOSE QTY

PKG*

(A)

INNER DIM.

(B)

OUTER DIM.

(C)

DISTANCE

PAST BASE

WIDTH DEPTH HEIGHT WEIGHT

(LBS.)

49-54-0715 General Routing + lock-nut 1 9/32" 3/8" 5/16" 5.6" 3.8" .8" 0.15

49-54-0720 Dovetail 1/2" & General

Routing + lock-nut 1 11/32" 7/16" 5/32" 5.6" 3.8" .8" 0.15

49-54-0730 General Routing +

lock-nut 1 17/32" 5/8" 9/16" 5.6" 3.8" .8" 0.15

49-54-0740 Lock Face Routing + lock-nut 1 21/32" 3/4" 9/16" 5.6" 3.8" .8" 0.15

44-40-0170 Lock Nut For Template

Guides 1 – – – 5.6" 3.8" .8" 0.15

* Not available in Masterpacks

Collets For Previous Milwaukee Routers

1.5 & 2.0 Max. HP Models

For Milwaukee Routers: 5610, 5620, 5650, 5660, 5670, 5680,

5681, 5682

48-66-0985 1/4" Collet

48-66-1000 3/8" Collet

48-66-1010 1/2" Collet

49-54-0700 Template Guide Kit - 9 Piece

Kit includes case, 7 template guides - 1 of each

and 2 lock-nuts.

Note: Template guides must be

used with 1-3/16" sub-base

49-54-0101 Door And Jamb Butt Template Kit

Includes case, template, link rail assemblies, template nails, end gauges

and hinge butt guide (49-54-0730) for use with MILWAUKEE Routers.

Will mortise any 6'6", 6'8" or 7' door and any hinge size 2-1/2" to

5-1/2". Detailed instructions included. Additional template nails

(12 per package) are available (49-54-0600).

48-10-5615 Bodygrip® Base Assembly

For all BodyGrip® units (5615 & 5616 series). Base includes D-Handle,

2-1/2" center hole sub-base, two handles and motor lock lever.

48-10-5619 D-Handle Base Assembly

For 1-3/4” max horsepower D-Handle units (5619). Base includes

D-Handle, 2-1/2” center hole sub-base, one handle and motor lock lever.

48-10-5600 Plunge Base Assembly

For 5615-24 or 5616-24.

48-10-5625 Base Assembly

For 3-1/2” max horsepower fi xed base unit (5625-20). Base includes

two tactile grip, removable handles, 2-1/2” center hole sub-base and

motor lock lever.

Sub-Bases

Black

49-54-1040* 6" dia., 1-3/16" Center hole sub-base

49-54-1045* 6" dia., 2-1/2" Center hole sub-base

* For use with 5615, 5616, 5619

Clear

49-54-1026** 7" dia., 1-3/16" Center hole clear sub-base

** For use with 5625

Collet & Nut Assemblies

For Milwaukee Routers: 5615, 5616, 5619, 5625

48-66-1015 1/4" Collet & Nut Assemblies

48-66-1020 1/2" Collet & Nut Assemblies

49-96-0370 Above-The-Table Depth Wrench

3/8" Hex drive wrench for use with above-the-table depth adjustment

system – all models.

49-96-0365 Collet Wrench

1-1/8" Forged collet wrench.

milwaukeetool.ca 153

VACUUM CLEANERS

SPECIFICATIONS

CATALOG

NUMBER WEIGHT VOLTAGE AMPS CAPACITY

SEALED

SUCTION

IN WATER

MAX AIR

FLOW MOTOR MATERIAL HEIGHT WIDTH

8950 20 lbs 120V AC 8 8 Gal and 7/8 Bu 45" 143 CFM 1 Stage Bypass Wet/Dry 22-1/2" 16-3/4"

8955 30.5 lbs 120V AC 8 10 Gal and 1-1/8 Bu 45" 143 CFM 1 Stage Bypass Wet/Dry 38-1/2" 19-1/2"

8965 44.5 lbs 120V AC 6.2 10 Gal and 1-1/8 Bu 45" 133 CFM 1 Stage Bypass Wet/Dry 35-5/8" 19-1/2"

8911 56.0 lbs 120V AC 7.5 11 Gal and 1-1/2 Bu — 94 CFM 2 Stage Bypass Wet/Dry 37" 22"

8912 56.0 lbs 120V AC 9.2 11 Gal and 1-1/2 Bu 134" 92 CFM 3 Stage Bypass Wet/Dry 37" 22

8925 56.0 lbs 120V AC 9.2 15 Gal and 2 Bu 134" 92 CFM 3 Stage Bypass Wet/Dry 41" 22"

8926 56.0 lbs 120V AC 9.2 21 Gal and 2-1/4" Bu 134" 92 CFM 3 Stage Bypass Wet/Dry 40' 21"

STANDARD EQUIPMENT: All models are equipped with 1-1/2" O.D. hose connections, cord with 3-prong grounded plug, 3 hold-down clamps and 3 or 4-wheel caddie (except no.

8950) with non-marring wheels. FOR 8911, 8912 AND 8925 – Three paper fi lter bags, cloth fi lter, wire frame assembly, wet pick-up conversion pan, swivel connector and store-all

tool bag. FOR 8950 – 1-1/2" O.D. hose connections, cord with 3-prong grounded plug, 3 hold-down clamps, 7' x 1-1/2" I.D. vinyl hose, hose adapter and fi lter cartridge. FOR 8955

– 1'1/2" O.D. hose connections, cord with 3-prong grounded plug, 3 hold-down clamps, 7' x 1-1/2" I.D. vinyl hose, hose adapter, fi lter cartridge and 3 wheel dolly. FOR 8965 – 7'

x 1-1/2" I.D. vinyl hose, hose adapter, cloth fi lter assembly, foam fi lter sleeve, 3 wheel dolly and three paper fi lter bags. FOR 8926 – Five paper fi lter bags, cloth fi lter, wire frame

assembly, wet pick-up conversion pan, swivel connector and store-all tool pouch.

1-Stage Wet/Dry

Vacuum Cleaner

8950

FEATURES

n 8 gal., 7/8 bu. recovery capacity, 8.0 amp motor

n Positive water shut-off

n Can be used as a blower

n One-stage bypass motor for wet/dry operation

1-Stage Wet/Dry

Vacuum Cleaner

8955

FEATURES

n 10 gal., 1-1/8 bu. recovery capacity, 8.0 amp motor

n Positive water shut-off

n Can be used as a blower

n One-stage bypass motor for wet/dry operation

1-Stage Wet/Dry

Vacuum Cleaner

8965

FEATURES

n 10 gal., 1-1/8 bu. recovery capacity, 6.2 amp motor

n Positive water shut-off

n Three Wheel Dolly

n One-stage bypass motor for wet/dry operation

2-Stage Wet/Dry

Vacuum Cleaner

8911

FEATURES

n 11 gal., 1-1/2 bu. recovery capacity, 7.5 amp motor

n For Wet or Dry pick-up with Positive water shut-off

n Heavy-duty fi lter system

n Two-stage bypass motor for wet/dry operation

3-Stage Wet/Dry

Vacuum Cleaner

8912

FEATURES

n 11 gal., 1-1/2 bu. recovery capacity, 9.2 amp motor

n For Wet or Dry pick-up with Positive water shut-off

n Heavy-duty fi lter system

n Three-stage bypass motor for wet/dry operation

3-Stage Wet/Dry

Vacuum Cleaner

8925

FEATURES

n 15 gal., 2 bu. recovery capacity, 9.2 amp motor

n For Wet or Dry pick-up with Positive water shut-off

n Stainless Steel Tank

n Three-stage bypass motor for wet/dry operation

n Bottom drain valve for easy water removal

3-Stage Wet/Dry

Vacuum Cleaner

8926

FEATURES

n 21 gal., 2-1/4 bu. recovery capacity, 9.2 amp motor

n Front drain valve with hose connector

n Polyethylene tank resists rust and corrosive

materials

n Three-stage bypass motor for wet/dry operation

n Use as blower – switch hose to exhaust for

cleaning inaccessible areas

VACUUM CLEANERS

154

FEATURES

n Easily Maneuverable

n High Effi ciency Filtration System

n Durable Polypropylene Tank

n Handy Tool Caddy

n Ideal Applications – Manufacturing Plants, Utility Plants, Schools,

Construction Sites, Service Stations, Warehouses, Shopping Malls,

Hotels and many more.

n 3-Position Switch –On/Off/On Demand

n Built-In Sensor relay – Activates Vacuum When Power is Turned On

n 8.0 Amp Outlet Accepts 3-Prong Plug

n 12.0 Amp Circuit Breaker

Includes: (1) 1-Stage Wet/Dry Vacuum Cleaner (8936-20); (1) 1-1/2"

Conversion Unit; (1) 7' x 1 1/2" Hose; (1) Filter Cartridge; (1) Dolly

Caster Assembly; (1) Filter Bag; (1) Tool Basket

SPECIFICATIONS

Weight 20.94 lbs

Voltage 120VAC

Amps 9.5

Capacity 7-1/2 Gal and 7/8 Bu

Sealed Suction In Water 59"

Max Air Flow 143 CFM

Motor 1-Stage Bypass

Material Wet/Dry

Height 20-3/4"

Width 14-5/8"

FEATURES

n Easily Maneuverable

n High Effi ciency Filtration System

n Durable Polypropylene Tank

n Handy Tool Caddy

n Ideal Applications – Manufacturing Plants, Utility Plants, Schools,

Construction Sites, Service Stations, Warehouses, Shopping Malls,

Hotels and many more.

n Rear Drain Plug

n 35' Cord Set

Includes: (1) 2-Stage Wet/Dry Vacuum Cleaner (8938-20); (1) 1 1/2"

Conversion Unit; (1) 7' x 1 1/2" Hose; (1) Filter Cartridge; (1) Filter

Bag; (1) Tool Basket; (1) Vac Dolly

SPECIFICATIONS

Weight 39.16 lbs

Voltage 120VAC

Amps 7.4

Capacity 9 Gal and 1 Bu

Sealed Suction In Water 84"

Max Air Flow 102 CFM

Motor 2 Stage Bypass

Material Wet/Dry

Height 33-1/2"

Width 16-1/8"

1-Stage Wet/Dry Vacuum Cleaner

8936-20

2-Stage Wet/Dry Vacuum Cleaner

8938-20

milwaukeetool.ca 155

49-90-1590 Drum Adapter

Fits your 55 gallon drum. Gasket secures tightly to drum when vacuum is in operation.

Adaptable to Motor Head No. 8945 and those on Nos. 8911, 8912, 8925, 8926, 8927

and previous model 8916. Use 16" diameter accessories. Net weight 10.0 lbs. Shipping

weight 11.0 lbs.

49-90-1100 Dolly

For 55 gallon drum. Sturdy steel construction with 4 wheels and long hinged handle.

Drum easily tips off or on. Net weight 43.0 lbs. Shipping weight 45.0 lbs.

49-90-1670 Wet and Dry Cleaning Kit

A complete kit of accessories for the maintenance department.

Kit consists of 1 of each of the following:

49-90-0060 10' Hose

49-90-0550 Major Floor Tool

49-90-0580 Squeegee Shoe

49-90-0400 15" Crevice Tool

49-90-0600 14" Carpet Insert

49-90-0740 Utility Nozzle

49-90-1000 Double Bend Floor Wand

49-90-1810 Vacuum Accessory Kit

Accessories for general cleanup applications.

Kit consists of 1 pt each of the following:

49-90-1865 Wand

49-90-1770 Crevice Tool

49-90-1775 6" Nozzle

49-90-1845 14" Squeegee Shoe

49-90-1850 14" Rug Shoe

49-90-1840 Master Nozzle

49-90-1860 3" Round Brush

49-90-1855 14" Brush Insert

49-90-1650 Furnace Cleaning Kit

All accessories needed for cleaning furnaces.

Kit consists of 1 of each of the following:

49-90-0020 10' Hose

49-90-0080 6' Metal Hose

49-90-0410 27" Crevice Tool

49-90-0460 Rubber Blower Nozzle

49-90-0740 Utility Nozzle

49-90-1660 Automotive Kit

A kit especially designed for automotive cleanup work.

Kit consists of 1 of each of the following:

49-90-0060 10' Hose

49-90-0400 15" Crevice Tool

49-90-0740 Utility Nozzle

8945 3-Stage Vacuum Cleaner Motor Head

More powerful 3-stage motor head adapts to all 16"

diameter. 11 gallon units and larger for extra-duty

applications. Same as furnished with models 8912,

8925 and 8926. Maximum airfl ow is 92 Cu. Ft./Min.

with sealed suction water lift of 134". Unit comes

with a 30' cord and requires the use of 16" diameter

conversion pan for wet pickup. Wire frame fi lter cage,

cloth fi lter, gasket assembly and 16" dacron fi lter bag required for dry pickup. Order

these and all accessories separately. Unit includes a swivel end connector, No. 49-90-0150.

Net weight 19.0 ibs. Shipping weight 21.0 lbs.

VACUUM ACCESSORIES

49-90-0020 Canvas Hose 10'

Canvas covered, wire reinforced, rubber lined vacuum hose.

1-1/2" I.D. Two straight molded cut ends. Order swivel-end

connector separately.

49-90-0030 Black Canvas Hose 10'

Canvas covered, wire reinforced, rubber lined vacuum hose, Strong,

resilient. 1-1/2" I.D. with two straight molded cuff ends.

Order swivel-end connector separately.

49-90-0040 15' Black Neoprene Hose

49-00-0050 25' Black Neoprene Hose

Neoprene lined, oil resistant, wire reinforced. 1-1/2" 1.0. with two

straight molded cuff ends, Order swivel-end connector separately.

Store-All Tool Pouch

49-90-0250 For Models 8911, 8912 and 8925

49-90-0295 For Models 8924, 8926 and 8927.

Strong durable vinyl pouch… makes toting extra tools easy.

49-90-0195 Steel Hose Connector

Used to connect 1-1/2" hoses.

49-90-0155 Hose Adapter

Adapts 1-1/2" I.D. hose to Models 8936-20, 8938-20, 8950 and

8955. Same as furnished with each unit.

49-90-0150 Swivel-End Connector

Quick connect/disconnect feature for attaching hoses to MlLWAUKEE

vacuum cleaners, except Models 8950, 8955, 8936-20 and 8938-20.

Fits into 1-1/2" l.D. hoses. Same as furnished with each unit.

49-90-0080 Metal Hose 6'

For cleaning boiler tubes and furnaces. 1-1/4" O.D. fi ts into standard

1-1/2" l.D. hoses.

Hose Carrier

49-90-0170 For Model 8935

49-90-0180 For Models 8911, 8912 and 8925

Ideal for neat, safe storage of vacuum hoses. Makes moving from

one location to another easier.

49-90-0090 7" Wireless Vinyl Hose

49-90-0060 10' Wireless Vinyl Hose

49-90-0070 25' Wireless Vinyl Hose

Crushproof multi-fl ex hose with no wire reinforcement. 1-1/2" I.D.

with two molded cuff ends. Order swivel-end connector or hose

adapter separately.

VACUUM ACCESSORIES

156

49-90-1865 Two Piece Double Bend Floor Wand

Two piece construction for easy storage. Made of chrome‚ plated steel. Adapts

to all MILWAUKEE 1-1/2" I.D. hose. Snap lock connector accommodates Major

Floor Tool 49-90-1840.

49-90-1840 14" Major Floor Tool

Economical, high impact, durable plastic

construction. Master Nozzle with snap lock feature

for use with rug shoe and squeegee shoe listed

below. Attaches to 49-90-1965 wand.

49-90-1850 14" Carpet Insert

Ideal for cleaning rugs and carpets. Attaches to

Major Floor Tool 49-90-1840.

49-90-1845 14" Squeegee Insert

For fast drying of wet fl oors. Attaches to for Major

Floor Tool 49-90-1840.

49-90-1855 14" Brush Insert

Ideal for dry pick-up on hard surfaces. Attaches to

Major Floor Tool 49-90-1840.

49-90-1000 Double Bend Floor Wand

Built-in swivel connection adapts with compression fi tting to the major fl oor tool

49-90-0550.

Wand connects to 1-1/2" I.D. hose. Made of chrome plated steel.

49-90-0550 Major Floor Tool

Major fl oor tool with two “quick turn” thumb

screws for quick tool changing. Accommodates

interchangeable 14" inserts and replacements.

Supplied with No. 49-90-0010 bumper. Attaches to

49-90-1000 wand.

49-90-0610 14" Replacement Bumper

Attaches to Major Floor Tool 49-90-0550.

49-90-0560 14" Brush Insert

For rough fl oors, large well and ceiling area. Attaches

to Major Floor Tool 49-90-0550.

49-90-0630 14" Replacement Brush Strips (2)

49-90-0580 14" Squeegee Insert

For fast drying of washed fl oors. Attaches to Major

Floor Tool 49-90-5500.

49-90-0640 Replacement squeegee blades (3).

49-90-0600 14" Carpet Insert

Bottom plate perfectly designed for cleaning rugs,

carpeting. Attaches to major fl oor tool 49-90-0550.

49-90-0570 14" Fabric Attachment Shoe

Suited for cleaning cement and concrete fl oors.

Attaches to Major Floor Tool 49-90-0550.

49-90-0620 14" replacement fabric strips (2).

49-90-0590 14" Felt Attachment Shoe

For walls and smooth hard fl oors such as tile,

hardwood. Attaches to Major Floor Tool 49-90-0550.

49-90-0760 10" Nylon Bristle Brush

Heavy-duty cast aluminum, wide mouth nozzle.

10" cleaning path. Compression type. Attaches to

Double Bend Floor Wand No. 49-90-1000.

49-90-0540 12" Wide Mouth Gulper

Ideal for use on bare fl oors or rugs. 12" cleaning path.

Compression type. Attaches to Double Bend Floorwand

No. 49-90-1000.

49-90-1150 Dolly

For use with Model 8950 only.

milwaukeetool.ca 157

VACUUM ACCESSORIES

49-90-0400 15" / 49-90-0410 27" Metal Crevice Tools

For cleaning behind radiators, other hard to reach areas, corners and crevices. Fits 1-1/2"

I.D. hose.

49-90-1745 Plastic Crevice Tool

Fits 1-1/4" on hoses 49-90-0095 and 49-90-0100 hose only.

49-90-1770 Plastic Crevice Tool

Economical, high impact, durable plastic construction. Ideal for cleaning around equipment,

behind radiators, hard to reach corners and crevices. Fits 1-1/2" I.D. hose.

49-90-0740 Aluminum 6" Utility Nozzle

Taper fi t utility and upholstery nozzle. Fits 1-1/2" l.D. hose.

6" cleaning path.

Wire Frame Filter Cage, Cloth Filter And Gasket Assembly

Available for both 14" and 16" dia. tanks. The fi lter assembly acts as a fi nal fi lter

for air leaving tank.

Tub Style Filters And Wire Frames

49-90-0290 Wire Filter Cage 14" Dia. Fits: 8935 only

49-90-0270 Wire Filter Cage 16" Dia.

Fits: 8911, 8912, 8925, 8945

49-90-0280 Cloth Filter and Gasket 14" Dia.

Fits: 8935 and 8965

49-90-0260 Cloth Filter and Gasket 16" Dia.

Fits: 8911, 8912, 8925, 8945

Disposable High Effi ciency Micro-Ply Paper Filter Bags

FILTERS DUST PARTICLES DOWN TO 0.1 MICRON

49-90-0302 5-pack. For Vacuum Cleaner Nos. 8911, 8912 and 8965.

49-90-0312 5-pack. For Vacuum Cleaner No. 8935.

49-90-0351 5-pack. For Vacuum Cleaner No. 8925.

49-90-0445 5-pack. For Vacuum Cleaner Nos. 8950,

8955, 8936-20 and 8938-20.

Disposable High Effi ciency Micro-Ply Paper Filter

FILTERS DUST PARTICLES DOWN TO 0.1 MICRON

49-90-0332 5-pack. For 8911, 8912, 8925, 8926, 8927,

8935, 8945 and 8965. Quick and easy to install on

vacuum tank. Suited for vacuuming extremely fi ne

dust directly into vacuum tank. Fits over cloth fi lter

assembly.

Wet/Dry Pick-Up Cartridge Filter

49-90-1830 For 8950, 8955, 8936-20 and 8938-20. Interchangeable

with Cloth Filter Assembly and Foam Filter Sleeve.

Foam Filter Sleeves

49-90-0770 Motor Filter for 8950, 8955, 8936-20 and 8938-20.

49-90-1820 For 8926, 8927 and 8965.

Disposable Filter Bags

49-90-0305 3-pack. For Vacuum Cleaner No. 8934-6.

Dacron Filter

49-90-0320 For 8911, 8912, 8925, 8926, 8927, 8935, 8945 and 8965. Bag is suited

for pick-up of medium fi ne dust and coarse, sharp material. Fits over cloth fi lter assembly.

Saucer Style Filter And Frame

49-90-0265 Cloth fi lter and gasket 16" dia.

49-90-0275 Wire Filter Cage 16" dia.

Fits: 8911, 8912, 8925, 8945

Above Filter and Wire Frame Fits: 8911, 8912, 8925,

8926, 8927 and 8945.

Wet Pick-Up Conversion Pans

49-90-1610 Wet Pick-Up Conversion Pan 16" Dia.

(Standard on Models 8911, 8912, 8925

and 8945).

49-90-1620 Wet Pick-Up Conversion Pan 14" Dia.

(Standard on Model 8935).

49-90-1640 Wet Pick-Up Conversion Pan 16" Dia.

(Standard on Models 8926 and 8927).

Clamp-On Nylon Bristle

49-90-0480 Brush With Bumper

Attach directly to utility nozzle.

49-90-0730 3" Round Dust Brushes

3" round dust brush with nylon bristles. Fits 1-1/2" l.D.

hose.

49-90-1860 Round Dust Brush 3"

For all purpose dry pick-up of dirt and saw dust. Ideal for

cleaning furniture, venetian blinds, etc. Fits 1-1/2" |.D. hoses.

49-90-0460 Rubber Blower Nozzle

For blowing dust and dirt out of cracks and inaccessible

areas. Excellent for machinery. Fits 1-1/2" I.D. hose.

49-90-1755 6" Plastic Utility Nozzles

Economical, high impact, durable plastic construction.

Fits 1-1/4" |.D. hose for upholstery cleaning and other

small jobs. Fits 8934-6, 49-90-0095 and 49-90-0100

hose only.

49-90-1775 Economical, high impact, durable plastic

construction. Fits 1-1/2" I.D. hose for upholstery cleaning

and other small jobs.

49-90-0660 Nylon Brush Insert

Replacement brush insert for round dust brush.

FILTER CAGES & CONVERSION PANS

FILTERS

158

HEAT GUNS

Dual Temperature Heat Gun

8975-6 Variable Temperature Heat Gun

8977-20

FEATURES

n Dual temperature 570 and 1000 degrees F, 11.6 amp motor

n Unique impact resistant heating element

n Three position rocker switch – off, high and low

n Effi cient Soft Air Velocity – Increases surface temperature to the

required working temperature faster than conventional hot air

heat guns. Maintains higher surface temperature, allowing faster

completion of standard commercial or industrial applications.

n Cool Air Inlet Design – Allows air movement at peak effi ciency, even

when resting on support stand.

n Support Stand – Enables gun to be stationary for workbench or

assembly work, freeing both hands for use.

n Users – Plumbers, Painters, Floor Covering Installers, Technicians,

Boat Builders, Food Processing, Industry, Mechanics Contractors,

Body Shops, Photographers, Schools, Laboratories.

n Applications – Softens, molds, bends and forms plastics. Pre-dries

surfaces for fast preparation, softens caulking, putty and plastics,

strips paint, varnish and lacquer. Repairs auto top vinyl, thaws

frozen pipes, shrink fi ts plastic tubing, dries electric lines and

cables, removes tiles, fl oor covering materials, loosens over-tightened

screws and joints, welds plastics, PVC coated fabrics and foils.

SPECIFICATIONS

Length 10-1/2"

Weight 1.8 lbs

Voltage 120V AC

Tool Warranty 5 Years

Amps 11.6

Air Temperature 570 and 1,000 Degrees F

FEATURES

n Variable temperature 100 to 1,040 degrees F, 11.6 amp tool

n Unique impact resistant heating element

n Dial control to select temperature

n Effi cient Soft Air Velocity – Increases surface temperature to the

required working temperature faster than conventional hot air

heat guns. Maintains higher surface temperature, allowing faster

completion of standard commercial or industrial applications.

n Cool Air Inlet Design – Allows air movement at peak effi ciency, even

when resting on support stand.

n Support Stand – Enables gun to be stationary for workbench or

assembly work, freeing both hands for use.

n Users – Plumbers, Painters, Floor Covering Installers, Technicians,

Boat Builders, Food Processing, Industry, Mechanics Contractors,

Body Shops, Photographers, Schools, Laboratories.

n Applications – Softens, molds, bends and forms plastics. Pre-dries

surfaces for fast preparation, softens caulking, putty and plastics,

strips paint, varnish and lacquer. Repairs auto top vinyl, thaws

frozen pipes, shrink fi ts plastic tubing, dries electric lines and

cables, removes tiles, fl oor covering materials, loosens over-tightened

screws and joints, welds plastics, PVC coated fabrics and foils.

SPECIFICATIONS

Length 10-1/2"

Weight 1.8 lbs

Voltage 120V AC

Tool Warranty 5 Years

Amps 11.6

Air Temperature 100 to 1,040 Degrees F

milwaukeetool.ca 159

HEAT GUNS &

ACCESSORIES

Variable Temperature Heat Gun with

LCD Digital Readout Display

8988-20

FEATURES

n Ceramic encapsulated heating element found only in the highest

quality heat guns. Maintains shape of helix and uniform coil which

results in longer tool life.

n LCD Digital Readout Display shows present temperature in

increments of 10° F

n One hand operation with lightweight and easy grip handle

n Upright stationary use with pads on back cap and lower handle

n Removable air fi lter keeps debris out

n Thermo Protected – Automatically prevents the tool from

overheating by maintaining set temperature.

n Users – Aerospace Industries. Defense Department. Computer

Industries. Harness Shops.

n Applications – Plastic Curing on Aircraft. Solder Sleeve Splicing

Devices. Shrink Tube Insulator Applications. Wire Harnessing.

Welding Thermoplastics. Shaping and Bending Plastics.

SPECIFICATIONS

Length 11-1/2"

Weight 2.8 lbs

Voltage 120V AC

Tool Warranty 5 Years

Amps 12.5

Air Temperature 90 to 1050 Degrees F

FOR USE WITH HEAT GUN: 8988-20

FOR USE WITH ALL HEAT GUNS:

8988-20, 8975-6, 8977-20

49-80-0297 Air Reducer Nozzle

n Intensifi ed heat for removing fl oor coverings,

paint burning, vinyl top removal

49-80-0292 Hook Nozzle

n When heat is needed to surround-bending,

soldering pipe, shrinking tubing.

49-80-0293 Defl ector Nozzle

n Defl ects air away from glass when stripping paint

or softening putty

49-80-0294 Air Spreader Nozzle

n Intensifi ed heat for removing fl oor coverings,

paint burning, vinyl top removal

49-80-0300 Heat Gun Accessory Assortment

n Includes 49-80-0292 Hook Nozzle, 49-80-0293 Defl ector Nozzle,

49-80-0294 Air Spreader Nozzle, 49-80-0297 Air Reduction Nozzle

n For most common applications

49-80-0305 Reduction Nozzle 3/8"

n Intensifi ed, spot directed for corners, bending

plexiglass, soldering

49-80-0306 Reduction Nozzle 9/16"

n Intensifi ed, spot directed for corners, bending

plexiglass, soldering

n Similar to 49-80-0305 but for larger work areas

49-80-0308 Still Nozzle

n Intensifi ed air fl ow for lap welding PVC canvasses

and sheets

n Must be used with 49-80-0305 Air Reduction Nozzle

49-80-0307 Refl ector Nozzle 3/8"

n For small diameter tubing, wires, shrink wrap tubing

HOISTS

160

1/2 – 5 TON CAPACITY

ELECTRIC CHAIN HOISTS

HAND CHAIN HOISTS

FEATURES

n Built-in, Multiple-Disc, Magnetic Brake

Provides positive load holding and spotting.

n Adjustable Upper And Lower Limit Switches

For maximum fl exibility in regulating load travel.

n Duty Service Classifi cation

H-3 on time up to 25% of work period. 3-phase on time up to 33% of work period.

n Overload Limiting Clutch

Guards against lifting damaging overloads while operating hoist.

n Single or Three-Phase Dual Voltage Motors

Choose between 115V/230V and 230V/460V (AC) units to meet your operation

power requirements.

n Latch-Type Ridged Top Hook On All Models

n Rugged, Lightweight, Aluminum Housing

Corrosion-resistant. Reduced weight allows greater portability.

n 24-Volt Pushbutton Station

Fits user's hand to allow thumb, trigger or two-handed operation.

See specifi cations on page 162

FEATURES

n Hardened Load Chain For Flexibility And Long Wear

n Weston-Type Load Brake Requires No Lubrication

n Wheel Cover with Guide Slots Minimizes Jamming And Slipping

n Forged Swivel Hooks With Latches Reduces Twisting Of Chain And

Unhooking Of Load When Chain Is Slack

n Standard Hand Chain Drop Is 2 Feet Less Than Lift

(Example: 8 foot lift hoist has 6 foot hand chain drop.)

n Simple, Effi cient, Compact Design, Lightw eight For Easy Installation,

Even In Confi ned Spaces

See specifi cations on page 162

CATALOG

NUMBER

9667-20

9668-20

9669-20

9670-20

9671-20

9672-20

9673-20

9674-20

9675-20

9676-20

9677-20

9678-20

9679-20

9680-20

9681-20

CATALOG

NUMBER

9560

9561

9562

9565

9566

9567

9568

9570

9571

9572

9573

milwaukeetool.ca 161

HOISTS

3/4 - 3 TON CAPACITY

LEVER HOISTS

FEATURES

n Weston-Type Automatic Braking System For Positive Load Control

n Forged Upper And Lower Hooks With Cast Steel Latches Standard

n Steel Chain Guide Roller And Chain Stripper For Smooth Chain Feed

n Double Reduction Dual Load Sharing Steel Gears

n Double Pawl Arrangement For Optimum Load Control

n Impact Resistant All-Steel Frame, Gear Case And Cover

n Minimal Maintenance With No Special Tools

n Hardened Link Type Alloy Steel Load Chain For Strength And Long Wear Life

n Free Wheeling Chain For Fast Load Attachment

See specifi cations on page 162

CATALOG

NUMBER

9682-20

9683-20

9684-20

9685-20

9686-20

9687-20

9688-20

9689-20

9690-20

9691 -20

EYE AND EYE STYLE

SYNTHETIC WEB SLINGS MILWAUKEE SLING WEBBING

SLINGS SLINGS

FEATURES

n Heavy-Duty Synthetic Webbing

Features Red Core Warning Yarn

System And Abrasion Resistant

Treatment

n Polymer coated Edge Yarns

67% more resistant to edge abrasion and

30% more resistant to edge cutting.

n Silver Colored Web Treatment

Fights abrasion for additional sling life.

n Tuff-Tag Identifi cation Tag

Provides required OSHA And ANSI

requirement information for the life of the

sling. Serial numbered identifi cation for

traceability.

FEATURES

n Sling Webbing Has Its Surface Yarns

Connected From Side To Side, Which Not

Only Protects The Core Yarns, But Positions

All Surface And Tensile Yarns To Work

Together To Support The Load

n Wear Or Damage To Sling Webbing Face

Yarns Cause An Immediate Strength Loss.

This Is Why Sling Webbing Has Red Gore

Yarns To Visually Reveal Damage And Act As

A Basis For Sling Rejection

See specifi cations on page 162

HOISTS

162

Model Width Length A

Minimum Tensile

Strength

(Vertical Hitch)

Capacity

Vertical

Hitch

Choker

Hitch

Basket

Hitch

49-58-0030 1" 3' ± 1" 8,000 lbs 1,600 lbs 1,250 lbs 3,200 lbs

49-58-0035 1" 4' ± 1" 8,000 lbs 1,600 lbs 1,250 lbs 3,200 lbs

49-58-0040 1" 6' ± 1.5" 8,000 lbs 1,600 lbs 1,250 lbs 3,200 lbs

49-58-0045 1" 8' ± 2" 8,000 lbs 1,600 lbs 1,250 lbs 3,200 lbs

49-58-0050 2" 6' ± 1.5" 16,000 lbs 3,200 lbs 2,500 lbs 6,400 lbs

49-58-0055 2" 8' ± 2" 16,000 lbs 3,200 lbs 2,500 lbs 6,400 lbs

Model Width Length A

Minimum Tensile

Strength (Vertical

Hitch)

Capacity

Vertical

Hitch

Choker

Hitch

Basket

Hitch

49-58-0060 2" 10' ± 2.5" 16,000 lbs 3,200 lbs 2,500 lbs 6,400 lbs

49-58-0065 2" 12' ± 3" 16,000 lbs 3,200 lbs 2,500 lbs 6,400 lbs

49-58-0070 4" 10' ± 2.5" 32,000 lbs 6,400 lbs 5,000 lbs 12,800 lbs

49-58-0075 4" 12' ± 3" 32,000 lbs 6,400 lbs 5,000 lbs 12,800 lbs

49-58-0080 4" 15' ± 3" 32,000 lbs 6,400 lbs 5,000 lbs 12,800 lbs

Model

Rated

Capacity

Std.

Lift

Chain Pull to Lift

Rated Load

Feet of Chain Overhauled

to Lift Load One Foot

9667-20 1/2 ton 8' 53 lbs 29 lbs

9668-20 1/2 ton 15' 53 lbs 29 lbs

9669-20 1/2 ton 20' 53 lbs 29 lbs

9670-20 1 ton 8' 77 lbs 37 lbs

9671-20 1 ton 15' 77 lbs 37 lbs

9672-20 1 ton 20' 77 lbs 37 lbs

9673-20 1 ton 25' 77 lbs 37 lbs

9674-20 2 tons 8' 82 lbs 80 lbs

9675-20 2 tons 15' 82 lbs 80 lbs

9676-20 2 tons 20' 82 lbs 80 lbs

9677-20 3 tons 8' 65 lbs 154 lbs

9678-20 3 tons 15' 65 lbs 154 lbs

9679-20 3 tons 20' 65 lbs 154 lbs

9680-20 5 tons 8' 105 lbs 147 lbs

9681-20 5 tons 20' 105 lbs 147 lbs

Model Rated

Load

Lifting

Speed

Lift

Height* ABC D E

9560 1/2 ton 16 FPM 10' 18" 7/8" 1" 1-1/16" 9-11/16"

9561 1/2 ton 16 FPM 15' 18" 7/8" 1" 1-1/16" 9-11/16"

9562 1/2 ton 16 FPM 20' 18" 7/8" 1" 1-1/16" 9-11/16"

9565 1 ton 16 FPM 10' 18" 7/8" 1" 1-1/16" 9-11/16"

9566 1 ton 16 FPM 10' 18" 7/8" 1" 1-1/16" 9-11/16"

9567 1 ton 16 FPM 15' 18" 7/8" 1" 1-1/16" 10-11/16"

Model Rated

Load

Lifting

Speed

Lift

Height* ABC D E

9568 1 ton 16 FPM 20' 18" 7/8" 1" 1-1/16" 10-11/16"

9570 2 tons 8 FPM 10'

19-3/4"

1" 1-1/16" 1-1/16" 10-11/16"

9571 2 tons 8 FPM

10' 19-3/4"

1" 1-1/16" 1-1/16" 10-11/16"

9572 2 tons 8 FPM

15' 19-3/4"

1" 1-1/16" 1-1/16" 10-11/16"

9573 2 tons 8 FPM

20' 19-3/4"

1" 1-1/16" 1-1/16" 10-11/16"

* Push-button cable length: 4' less than lift.

Rated

Capacity

A

Headroom

B

Width

C

Depth

D

Diameter

E

Hook

Openings

1/2 ton 11-5/8" 4-15/16" 4-5/16" 4-15/16" 1-1/16"

1 ton 13" 5-19/32" 5-1/16" 5-19/32" 1-1/32"

2 ton 18-1/8" 8-5/16" 6-5/8" 8-5/16" 1-1/4"

3 ton 21-29/32" 8-5/16" 6-5/8" 8-5/16" 1-5/16"

5 ton 23-7/8" 8-5/16" 6-5/8" 8-5/16" 1-13/16"

ELECTRIC CHAIN HOISTS

Model

Rated

Capacity

Std.

Lift

Chain Pull

to Lift

Rated Load

9682-20 3/4 ton 5' 33 lbs

9683-20 3/4 ton 10' 33 lbs

9684-20 3/4 ton 20' 33 lbs

9685-20 1-1/2 ton 5' 51 lbs

9686-20 1-1/2 ton 10' 51 lbs

9687-20 1-1/2 ton 20' 51 lbs

9688-20 1-1/2 ton 25' 51 lbs

9689-20 3 tons 5' 77 lbs

9690-20 3 tons 10' 77 lbs

9691-20 3 tons 20' 77 lbs

Rated

Capacity

A

Headroom

B

Outside

Clearance

C

Width

D

Outside

Clearance

E

Outside

Clearance

F

Lever

Length

G

Hook

Opening

3/4 ton 12-5/8" 2-3/16" 4-3/8" 3-9/16" 5-15/16" 11" 1-1/8"

1-1/2 ton 14-13/16" 2-3/8" 4-3/4" 3-15/16" 6-7/8" 16-1/4" 1-1/4"

3 ton 18-11/16" 4-3/16" 7-1/2" 4-9/16" 7-7/8" 16-1/4" 1-9/16"

LEVER HOISTS

HEAVY DUTY SLINGS

CHAIN HOISTS

FULL SYSTEM COMPATIBILITY

Milwaukee continues to lead the industry – delivering a steady stream of advanced

solutions for the trades that offer increased productivity and unmatched durability.

TOOL INDEX BY

MODEL NUMBER

164

0100-20 29

0101-20 29

0200-20 30

0201-20 30

0202-20 31

0233-20 31

0234-6 32

0235-21 32

0240-20 33

0244-1 33

0299-20 34

0300-20 34

0302-20 35

0370-20 35

1001-1 50

1007-1 50

1101-1 51

1107-6 51

1250-1 52

1610-1 61

1630-1 61

1660-6 62

1663-20 62

1670-1 53

1675-6 53

1676-6 53

1680-20 54

1680-21 54

1854-1 63

2404-1 63

3002-1 59

3102-6 59

3107-6 60

4004 102

4005 103

4079 101

4090 101

4094 102

4096 103

4097-20 104

4115 106

4115-22 106

4120 106

4120-22 106

4125 104

4130 105

4136 105

4202 115

4203 115

4204-1 116

4206-1 116

4208-1 117

4209-1 117

4210-1 118

4253-1 115

4262-1 115

4270-20 121

4270-21 121

4292-1 115

4297-1 115

5192 146

5194 146

5196 147

5211 147

5243 148

5262-21 81

5263-21 81

5268-21 82

5316-21 83

5317-21 83

5337-21 93

5339-21 93

5340-21 94

5342-21 94

5359-21 82

5363-21 82

5376-20 77

5378-20 77

5378-21 77

5380-21 78

5387-20 78

5387-22 78

5426-21 84

5446-21 84

5615-20 149

5615-21 149

5615-24 149

5616-20 150

5616-21 150

5616-24 150

5619-20 151

5625-20 151

6020-21 143

6021-21 143

6065-6 144

6066-6 144

6072 145

6078 145

6088-30 125

6088-31 125

6089-30 126

6089-31 126

6101-6 148

6117-30 134

6117-31 134

6117-33 135

6117-33D 135

6121-30 127

6121-31 127

6121-31A 128

6124-30 136

6124-31 136

6130-33 128

6140-30 129

6146-30 129

6146-31 130

6146-33 130

6147-30 131

6147-31 131

6161-30 137

6161-31 137

6161-33 138

6177-20 110

6185-20 110

6225 18

6226 18

6232-20 18

6232-21 18

6238-20 19

6238-21 19

6242-6 19

6268-21 25

6276-21 25

6370-20 109

6370-21 109

6390-20 22

6390-21 22

6391-21 22

6394-21 23

6470-21 23

6477-20 24

6480-20 27

6486-20 27

6509-31 1

6519-30 1

6519-31 1

6520-21 2

6523-21 2

6536-21 3

6538-21 3

6577-20 24

6580-20 64

6740-20 65

6742-20 65

6780-20 64

6790-20 66

6791-21 66

6792-20 67

6805 112

6815 112

6852-20 113

6880 113

6890 114

6955-20 21

6955-20HP 21

8911 153

8912 153

8925 153

8926 153

8936-20 154

8938-20 154

8945 155

8950 153

8955 153

8965 153

8975-6 158

8977-20 158

8988-20 159

9070-20 72

9071-20 72

9072-20 73

9072-22 73

9075-20 73

9092-20 74

9096-20 74

9560 160

9561 160

9562 160

9565 160

9566 160

9567 160

9568 160

9570 160

9571 160

9572 160

9573 160

9667-20 160

9668-20 160

9669-20 160

9670-20 160

9671-20 160

9672-20 160

9673-20 160

9674-20 160

9675-20 160

9676-20 160

9677-20 160

9678-20 160

9679-20 160

9680-20 160

9681-20 160

9682-20 161

9683-20 161

9684-20 161

9685-20 161

9686-20 161

9687-20 161

9688-20 161

9689-20 161

9690-20 161

9691-20 161

MODEL # PAGE MODEL # PAGE MODEL # PAGE MODEL # PAGE

milwaukeetool.ca 165

Milwaukee Electric Tool (Canada) Ltd. (“Milwaukee”, “we” or similar pronouns) sells its products (the “Products”) through authorized distributors appointed on a non-exclusive, market oriented basis to provide coverage for the various trades and

industries for which we make tools. Milwaukee’s authorized distributors (“Distributors”) are defi ned as those fi rms that have been selected by Milwaukee to represent it in their respective areas of responsibility and who are responsible for carrying a

suffi cient stock of tools and accessories, both in quantity and assortment, to properly service the type of trade in their respective areas, and who actively promote and sell Products. Milwaukee retains the right to determine the retail environment in which

the Products are distributed and sold. Milwaukee desires to support only resellers that add value and service to Milwaukee’s existing distribution structure and enhance the Milwaukee brand.

INTELLECTUAL PROPERTY: Milwaukee considers its corporate name, Milwaukee logo, the red and black colours and the red, gray, and black colours for power tools and accessories and its trademarks (e.g. Sawzall, Magnum, and Heavy Duty), trade

names, domain names, and other intellectual property, to be valuable corporate assets and Distributors acknowledge that Milwaukee is the exclusive owner of all right, title and interest in all such intellectual property. A Distributor may use Milwaukee’s

trademarks, trade names and trade dress colours only in the advertisement of authentic Milwaukee Products, and then only with the prior authorization of Milwaukee or in accordance with Milwaukee’s corporate identity guidelines as they are amended

from time to time, and shall not use them in a false, misleading, or objectionable manner. Milwaukee retains the right of ultimate approval or disapproval, in the exercise of its sole discretion, of the use of any of its intellectual property.

No Distributor shall register, attempt to register, or use Milwaukee’s name, trademarks, trade names or confusingly similar names or marks, as part of the Distributor’s business or corporate name or as part of the Distributor’s domain name and/or its

internet website name, without the prior written consent of Milwaukee.

No Distributor shall directly or indirectly represent that it has any connection or affi liation with Milwaukee other than as an authorized Distributor in accordance with this Sales Policy. When requested in writing by Milwaukee, a Distributor will promptly

discontinue any use, or take such steps as Milwaukee deems appropriate to modify its use of, any Milwaukee trademark, trade name, trade dress or any confusingly similar imitation of the same.

No Distributor will do, or cause to be done, any act or thing contesting, or in any way impairing or tending to impair, any part of Milwaukee’s exclusive ownership and right, title and interest in Milwaukee’s trademarks, trade names, trade dress colours or

other intellectual property.

ORIGINAL PACKAGING: Milwaukee allows Distributors to resell only fi nished goods in their original packaging, which includes original UPC codes, warranty statements and user manuals. Dismantling or breaking up combo kits, including the sale of

individual components of a combo kit, is not allowed and constitutes an infringement of Milwaukee’s trademark rights. No Distributor shall remove from any Products any of Milwaukee’s trademarks or product identifi cation, nor will it affi x to the Products

any other trade name or trademarks.

TERMS OF SALE: All purchases of Products accepted by Milwaukee will be at prices, discounts and rebates and on terms and conditions which are established by Milwaukee and in effect at the time of acceptance of the order. A copy of the current

version of such standard terms and conditions of sale is available upon request. All purchase orders must be in a form acceptable to Milwaukee. Any provisions contained in any purchase order or any other document which are inconsistent with, different

from or in addition to Milwaukee’s standard terms and conditions of sale which are then in effect shall be inapplicable, void and of no effect unless expressly accepted by Milwaukee in writing.

CREDIT POLICY: New accounts must furnish satisfactory credit references and fi nancial information. Past records of payment will largely infl uence our extension of credit to present distributors. All discrepancies must be reported within 90 days of

invoice date. No orders will be shipped to delinquent accounts.

DELIVERY: All orders will be shipped promptly in the most economical way as determined by Milwaukee. We are not liable for delays in shipment occasioned by strike, fi re, accidents or other conditions beyond our control. At the Distributor’s request,

orders can be shipped air collect.

FREIGHT: Freight is prepaid on all single orders that are shipped from the Distribution Centre to one destination within the limits of Canada (whether shipped partial or complete) with a TOTAL NET value of $1,000 or more where there is at least one tool,

or if the order contains $250 or more of Accessories, Hand Tools and/or Parts only. All shipments are F.O.B. our Distribution Centre. All risk of loss or damage shall be upon the Distributor after delivery to the carrier. We reserve the right to ship in the most

economical way and to make complete shipment where maximum discount and freight allowances apply. Any claims for packing shortages must be made within 30 days. Claims for shipping damage or loss must be made with the carrier.

ADDITIONS TO ORDERS: Additions to orders cannot be accepted to apply against orders already placed.

MINIMUM ORDER: Net billing value of $30.00.

DROP SHIPMENTS: Drop Shipments made to resale accounts that are not approved by Milwaukee’s Customer Service Department will be assessed a 5% Drop Ship fee.

PAYMENT: We will allow a 2% cash discount on all payments made to us by the 10th of the month following (prox 26th). No cash discount is allowed when a past due status exists or on C.O.D. shipments. All obligations are due NET by the 25th of the

month following. Milwaukee may offset any amounts owed by Distributor to Milwaukee against amounts owed by Milwaukee. All accounts not paid in accordance with these terms will be assessed a service fee at the maximum amount permitted by law,

not to exceed 1 -1 1/2% per month. In addition, Distributor shall be liable for all costs and defi ciencies that may result from the repossession and/or resale of the Tools. Payment terms are governed by invoice date, not by the date of receipt of material or

invoice. All disputed invoices and payments will be reviewed by us provided that written notice is received by us within 60 days of the statement due date.

TAXES: All taxes are extra.

PRICING REBATES AND SPECIFICATlONS: Milwaukee reserves the right to change the construction, specifi cations, prices, discounts, rebates or terms of sale of its Products without notice, and without obligation as to Products previously shipped or

sold. Refunds or rebates will not be made on Distributor’s shelf stock due to price decreases. Milwaukee reserves the right at any time without notice to add Products and lines of Products to the coverage of a Distributor, to change Products and lines of

Products covered by a Distributor and to discontinue Products and lines of Products from the coverage of a Distributor.

RETURNED MERCHANDISE: Distributors must contact their Milwaukee Territory Manager to request a “Returned Goods Authorization.” The authorization will include instructions as to where the merchandise is to be returned. Merchandise returned must

be new (e.g. a current model), listed in the current product brochure/catalogue, in good, useable/saleable condition and accompanied by a purchase order for other Products of equivalent value. Acceptance of the merchandise by Milwaukee is fi nal only

after inspection. Transportation charges must be paid by the Distributor on all goods returned for credit. Credit will be based upon lowest price paid in previous 12 months less a 10% handling charge. Any waiver for the handling charge must be approved

by the VP of Sales and Marketing. For Annual Returns, refer to the Stock Adjustment Policy.

Any returned merchandise received that does not follow or otherwise does not meet the above policy will be returned to the Distributor, freight collect.

ACCEPTANCE OF ORDERS: All orders are subject to acceptance by Milwaukee and shall be binding on Milwaukee only when accepted in writing or by shipment.

CANCELLATIONS: Cancellations from unshipped or partially shipped orders will result in a charge back to the Distributor if the resulting order no longer meets the quantity and freight requirements at which the original order was discounted.

SPECIAL PRODUCTS: A Distributor may not quote price or delivery on any Product not listed as standard in the Milwaukee Electric Tool Catalogue or literature. All specifi cations of products other than standard shall be forwarded to Milwaukee. If orders

for special products are accepted, they are not subject to cancellation. Milwaukee is not responsible for any commitments or specifi cations not presented for approval.

GOVERNMENT AND O.E.M. BUSINESS: Milwaukee reserves the right to quote and sell direct on requirements for any government or governmental authority or agency. Milwaukee reserves the right to quote on and sell direct to any fi rm using standard

or special Milwaukee product as an Original Equipment Manufacturer.

NEW DISTRIBUTOR QUALIFICATION: A minimum total net order of $5,000 including tools and accessories must be purchased to qualify as an authorized Distributor.

ACCESSORY MERCHANDISERS: All Accessory Merchandisers are provided at no additional cost when they are ordered complete with contents.

ACCESSORY SHIPMENTS: For greatest protection in shipment, it is suggested that you plan your Accessory orders in multiples of recommended MASTER PACK QUANTITIES. See MASTER PACK QUANTITY column.

OPERATOR/OWNER MANUALS AND SERVICE PARTS LISTS are available at no charge on our website, www.milwaukeetool.com. In the Parts & Service section, you will need to enter the catalogue number and serial or ID number of the product.

RESTRICTION ON PURCHASES: A Distributor shall only purchase Products from Milwaukee or an authorized wholesaler unless prior authorization is obtained from the Vice President of Sales and Marketing. A Distributor shall only purchase Products for

its own account. A Distributor is required to disclose where all products are purchased from upon request by Milwaukee. A failure to do so will be considered a violation of this sales policy.

RESTRICTION ON SALES: A Distributor may not sell any Products to any other person or fi rm other than fi nal end users located in Canada unless prior authorization is obtained from the Vice President of Sales and Marketing. Also, a Distributor shall not

advertise the retail of any product for less than the acquisition cost. Doing so would contradict Milwaukee’s defi nition of a value added customer.

BONUS ITEMS: Finished goods that are sold to a Distributor on promotion as a “bonus” are to be treated as such and are to be advertised as value added items. At no time are these items authorized to be sold individually at a reduced retail.

INTERNET SALES: To qualify as an authorized on-line distributor, a Distributor must fi rst sign the Authorized Internet Retailer Registration form and agree to the Canadian Internet Brand Integrity Policy.

REPORTS: A Distributor shall provide such reports to Milwaukee as Milwaukee shall request from time to time.

WARRANTIES: A Distributor shall make no warranty or representation on behalf of Milwaukee, its parent, subsidiaries or its affi liates with respect to the Products, except as provided in any written materials specifi cally relating to Limited Product

Warranties that are supplied to the Distributor by Milwaukee. If a Distributor elects to afford any additional warranty to its customers, Milwaukee shall have no liability whatsoever in connection therewith. THE WARRANTIES SET FORTH IN MILWAUKEE’S

MANUFACTURER’S WARRANTY ARE OFFERED EXCLUSIVELY TO END-USERS (NOT TO THE DISTRIBUTOR OR ANY OTHER INTERMEDIATE PURCHASER) AND ARE IN LIEU OF AND SUPERCEDE, EXCLUDE AND EXTINGUISH ANY AND ALL OTHER

WARRANTY, REPRESENTATION OR CONDITION WHATSOEVER, WHETHER EXPRESS OR IMPLIED, ORAL OR WRITTEN, IN RELATION TO THIS POLICY, ANY AGREEMENT, THE PRODUCTS AND THE SALE OF SUCH PRODUCTS HEREUNDER, AND MILWAUKEE

EXPRESSLY DISCLAIMS, TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ANY AND ALL OTHER REPRESENTATIONS, WARRANTIES, COVENANTS OR CONDITIONS, INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OR CONDITIONS

OF MERCHANTABLE QUALITY AND FITNESS FOR A PARTICULAR PURPOSE, THAT THE PRODUCTS WILL MEET THE END USER’S REQUIREMENTS, AND THOSE ARISING BY STATUTE OR OTHERWISE IN LAW FROM A COURSE OF DEALING OR USAGE OF

TRADE. Milwaukee’s limited warranties shall not be enlarged or affected by and no liability or obligation shall arise from Milwaukee’s rendering of technical or other advice, or of service, in connection with the Products.

PROPRIETARY INFORMATION: A Distributor shall use Milwaukee’s Confi dential Information, as well as reproduce or create materials containing such Confi dential Information, only as necessary to advertise and sell the Products in accordance with this

Sales Policy. A Distributor shall restrict disclosure of Milwaukee’s Confi dential Information to the Distributor’s employees, agents and independent contractors who have a need to know such information to advertise and sell the Products in accordance

with this Sales Policy and who have been informed of the confi dential nature of such information. A Distributor shall be liable for any unauthorized disclosure or use of Milwaukee’s Confi dential Information by the Distributor or any of the Distributor’s

current and former employees, agents and independent contractors. Within 10 days after receiving a written request from Milwaukee, a Distributor shall destroy or return (as instructed by Milwaukee) any materials containing Milwaukee’s Confi dential

Information. In this policy, “Confi dential Information” shall consist of: (i) all information relating to Products, marketing and sales information, pricing, cost, inventory, operations, plans and programs; (ii) all trade secrets, including any and all customer

lists, customer survey responses and any other information concerning Milwaukee’s customers; (iii) patent applications, copyrights and other intellectual property; and (iv) any other information that is not publicly available and designated by Milwaukee

as Confi dential Information, provided that Confi dential Information will not include information which is or becomes publicly available without the Distributor’s breach of this Sales Policy, is independently developed by the Distributor without using any of

Milwaukee’s Confi dential Information as established by documentary evidence or is received by the Distributor from a third party that does not have an obligation of confi dentiality to Milwaukee.

TERMINATION: Milwaukee reserves the right to terminate the right of a Distributor to advertise and sell the Products at any time for any reason or no reason upon giving the Distributor 60 days prior written notice provided that Milwaukee may terminate

a Distributor immediately in any of the following events: (i) any act of insolvency or bankruptcy by the Distributor; (ii) the appointment of a receiver for all or any part of the property of Distributor or an assignment for the benefi t of creditors by Distributor;

(iii) any breach by the Distributor of this Sales Policy, any other present or future policy of Milwaukee that is or becomes applicable to the Distributor or any present or future agreement between Milwaukee and the Distributor, each as it may be amended

from time to time; or (iv) the Distributor provides false information to Milwaukee. Milwaukee shall not be liable in any manner whatsoever on account of any termination permitted hereunder.

CONSEQUENCES OF TERMINATION: In the event of the termination the right of a Distributor to advertise and sell the Products, (i) Distributor shall be immediately obligated to pay Milwaukee for all Products received by Distributor prior to termination;

(ii) Milwaukee may withhold or set-off any payments due to the Distributor until all amounts or obligations otherwise due from the Distributor to Milwaukee have been paid or satisfi ed, (iii) for a period of 60 days following such termination, Milwaukee

shall have the option but not the obligation to repurchase all or any Products held by the Distributor in inventory at the net price paid by the Distributor to Milwaukee and Distributor shall allow Milwaukee reasonable access to the places in which Products

are stored for the purpose of inspecting the Products, (iv) all pending orders which have not been shipped shall be terminated but the obligations of the parties with respect to orders which have been shipped shall continue, and (v) the Distributor shall

immediately deliver to Milwaukee the originals and copies of all of Milwaukee’s Confi dential Information, demonstration equipment, advertising material and other property provided by Milwaukee to the Distributor.

www.milwaukeetool.ca / Telephone: 1-800-268-4015. Fax: 1-866-285-9049 / custservcanada@ttigroupna.com

WARRANTY INFORMATION

166

Milwaukee® Electric Tool Corp.

7303 Warden Avenue, Suite 202

Markham, ON. Canada L3R 5Y6

Customer Service Tel: 1.800.268.4015

Fax: 1.866.285.9049

Email: custservcanada@ttigroupna.com

Website: www.milwaukeetool.ca

MILWAUKEE® FACTORY SERVICE

Repair/Tech Line1-877-948-2360

ONTARIO

140 Fernstaff Crt. Unit 4

Toronto, ON

L4K 3L8

EDMONTON

14506 – 115 Ave NW

Edmonton, AB

T5M 3B9

SASKATOON

3530 Millar Avenue,

Unit 630,

Saskatoon, SK

S7P 0B6

HALIFAX

50 Akerley Boulevard,

Unit 102,

Dartmouth, NS

B3B 1R8

VANCOUVER

9000 Bill Fox Way

Burnaby, BC

V5J 5J3

Tool Repairs by Factory Trained Technicions

Reconditioned Tool Sales & Accessories
