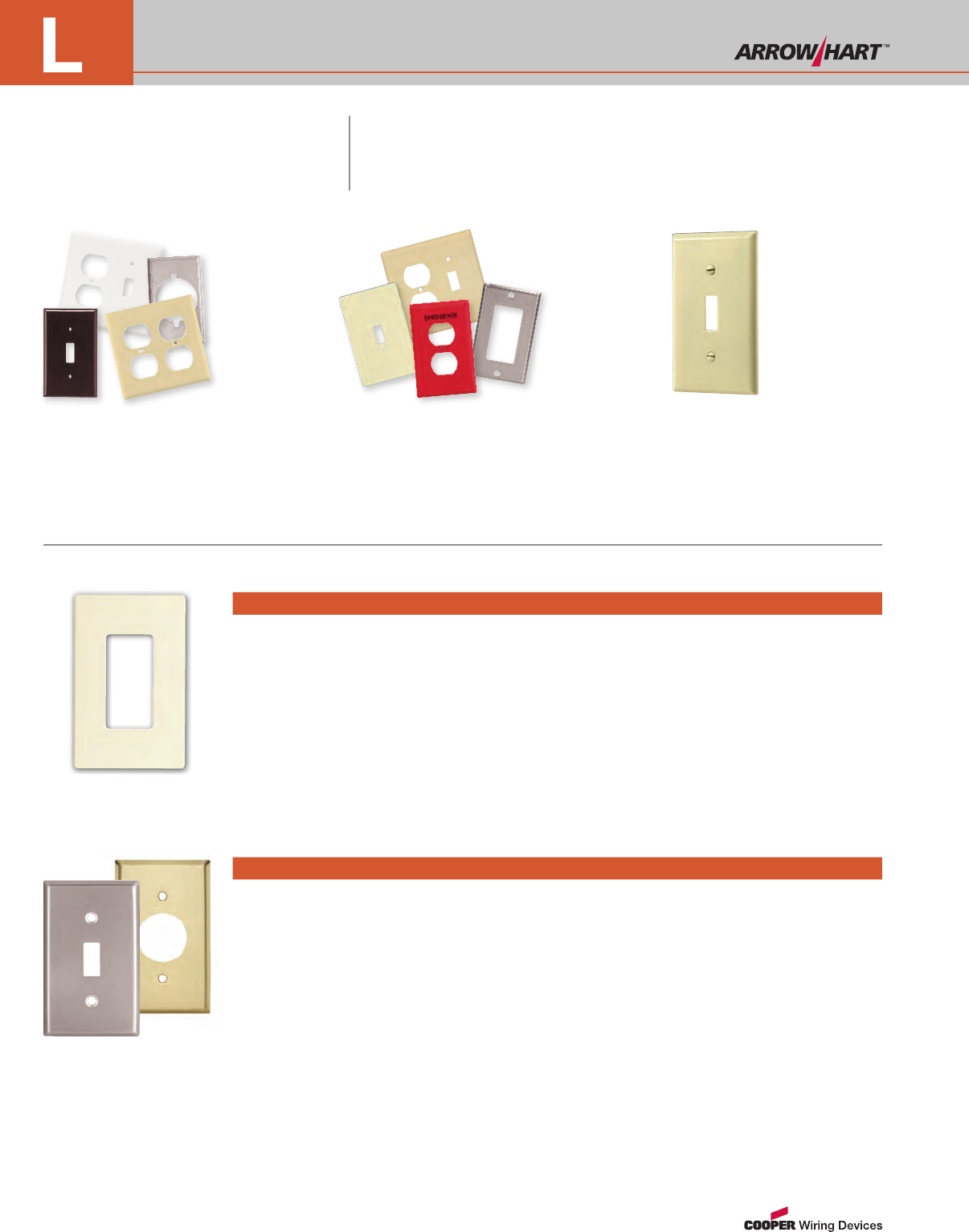

Wallplate Families
Rugged Design and Quality
Materials Make Arrow Hart
Wallplates the Best Choice
Whether faced with a commercial, institutional or
industrial setting, you will find the desired material,
configuration, style, size and color you need
Standard Size
wallplates for precision cuts
Mid-Size and Oversize
wallplates for applications that
require additional wall coverage
Extra Depth
wallplates to provide a ush
t to the wall when an old
work outlet box is used
Specification Grade Thermoplastic
•Available in both Nylon and Polycarbonate
constructions
•Virtually unbreakable plates reduce
installation and replacement costs
•Preferred for industrial, institutional, and
other high-trafc areas
•Exclusive timesaving Screw-Catch™ feature holds
mounting screws captive and simplies installation
•High gloss nish is soil-resistant
•Available in Standard Size and Mid-Size
congurations with screwless and Pre-Marked
Special Use versions available
Specification Grade Metal Wallplates
•Constructed of non-corrosive 302/304
Stainless Steel, Brass, or Chrome
•Available in Standard, Mid-Size, and Oversize
congurations with Pre-Marked Special Use
versions available
•302/304 Stainless is non-magnetic and
non-corrosive for rugged durability
•Solid brass is coated with transparent lacquer
to resist premature oxidation
•Shipped with removable protective lm
•Recommended for industrial, institutional, and
commercial applications
SECTION
www.arrowhart.com L-3
CuVerro® Wallplates
Same Style, Same Durable
Quality Now With CuVerro®
Antimicrobial Copper Surfaces
The Arrow Hart™ line of devices featuring CuVerro®
Antimicrobial Copper Surfaces, offer specification
grade decorator switches and wallplates in multiple
gangs and configurations
Features & Benefits
Wallplates with CuVerro®
Antimicrobial Touch Surface
Touch surfaces constructed
of EPA registered CuVerro®
Antimicrobial Copper
When cleaned regularly, delivers
continuous and ongoing antibacterial
action, remaining effective in killing greater
than 99.9% of bacteria within 2 hours
Surfaces should be cleaned
to regular protocols
1
2
Unlike coatings, CuVerro® surfaces
are wear resistant and the durable
antibacterial properties will remain
effective for as long as the product
remains in place and is used as directed
4Tarnish resistant with minimal
color change over time
Durable enough for hospital
grade cleaners
5
6
3
Laboratory testing shows that, when cleaned regularly, CuVerro® antimicrobial copper surfaces kill greater than 99.9% of the following
bacteria within 2 hours of exposure: MRSA, Staphylococcus aureus, Enterobacter aerogenes, Pseudomonas aeruginosa, and E. coli
O157:H7. CuVerro® antimicrobial copper surfaces are a supplement to and not a substitute for standard infection control practices and
have been shown to reduce microbial contamination, but do not necessarily prevent cross contamination; users must continue to follow
all current infection control practices, including those practices related to cleaning and disinfection of environmental surfaces. CuVerro®
is a registered trademark of GBC Metals, LLC and is used with permission, CW-0013-1207.
EPA Registration Number 85353-5 (7600CUR Series) and 85353-3 (7600CU Series)
Specifications and availability are subject to change without notice.
SECTION
www.arrowhart.com
L-20

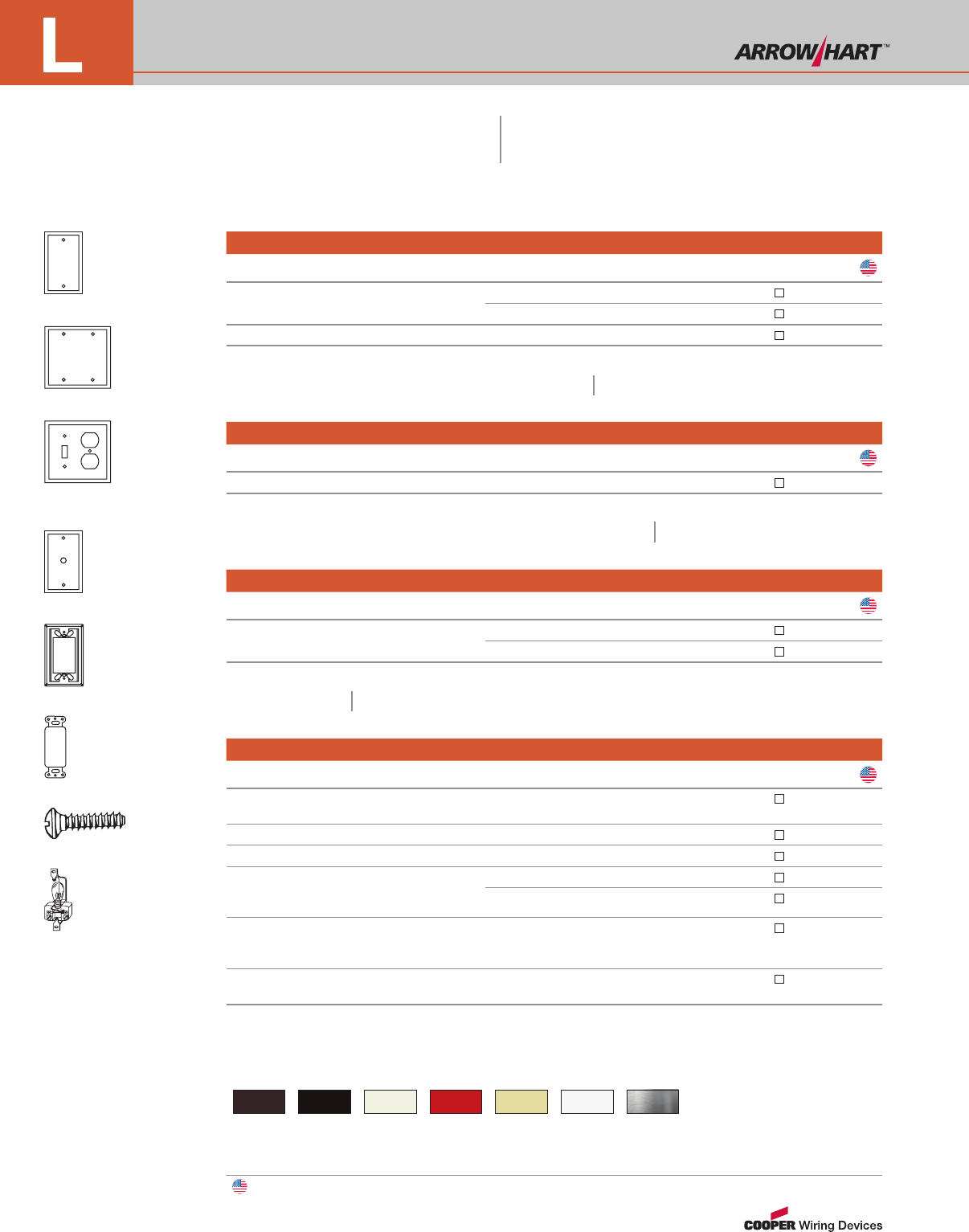

Oversize Wallplates
Blank - Box Mounted
Description Material Color Suffix Catalog No.
1-Gang Thermoset V, W 2729__ •
302/304 Stainless Steel — 93851 •
2-Gang 302/304 Stainless Steel — 93852 •
Combination 2-Gang
Description Material Color Suffix Catalog No.
Toggle & Duplex Receptacle Thermoset B, V, W 2148__ •
Telephone & Coax
Description Material Color Suffix Catalog No.
1-Gang with 0.37" (9.5mm) Hole Thermoset V, W 2728__ •
302/304 Stainless Steel — 93896 •
Wallplate Accessories
Description Material Color Suffix Catalog No.
GFCI Extension Ring for use with GFCIs,
7/8" spacer (cULus)
— B, BLK, LA, V, W GFER-__**
Adapter - Decorator to Blank — B, LA, V, W 2160__ •
Adapter - Decorator to Toggle — V, W 2161__ •
Toggle & Receptacle Wallplate Screws
#6-32 x 1/2" (12.7mm) for Toggle
& Receptacle Wallplates
Baked Enamel Head/Metal B, LA, V, W 231__
Nylon RD, V, W 232__
Toggle & Receptacle Wallplate Screws
#6-32 x 5/16" (7.9mm) for Toggle
& Receptacle Wallplates
Baked Enamel Head/Metal LA, V, W 2231__
Recessed Pilot Light Lamp Holder
with 6 Watt Clear S-6 Bulb (cULus)
— — 153__**†•
*For use with louver wallplate, ** cULus Listed, † UL Listed, CSA certified
1-Gang
2-Gang
2-Gang Toggle & Duplex
Receptacle
1-Gang with 0.375" Hole
GFER
2160
231
153
Oversize Blank
Box Mounted Wallplates
1-Gang, 2-Gang
Oversize Combination Wallplates 2-Gang
Oversize Telephone & Coax Wallplates 2-Gang
Wallplates Accessories
Certification Information: 2000, 4000, 5000, ST & PJ series wallplates are cULus Listed; 93000 series wallplates are UL Listed and CSA
Certified; 94000 series wallplates are only UL Listed. Specification Information: L-22
Specifications and availability are subject to change without notice.
Indicates NAFTA Compliant - Page R-30
Color Ordering Information:
For ordering devices, include Catalog No. followed by the Color Suffix: B (Brown), BLK (Black), LA (Light Almond), RD (Red), V (Ivory),
W (White)
B BLK LA RD V W
(Brown) (Black) (Lt. Almond) (Red) (Ivory) (White) (Stainless Steel)
SECTION
www.arrowhart.com
L-22
Wallplate Specification & Performance Data
Wallplate Sizes: Standard Size, Mid-Sized & Oversize Wallplates Wallplate Size: Standard Size
Material Type
Thermoset Nylon Stainless Steel Polycarbonate CuVerro® Antimicrobial
Copper Surfaces*
Manufacturing
Process
Injection
Molded Injection Molded Stamped Injection
Molded Stamped
Testing & Code Compliance
UL Listed to UL 514D,
le no. E33216
UL Listed to UL 514D,
le no. E33216
UL Listed to 514D,
le no. E92003
UL Listed to UL 514D,
le no. E33216
UL Listed to UL514D,
le no. E92003
cUL Listed to C22.2,
no. 42.1, UL le
E33216
cUL Listed to C22.2,
no. 42.1, UL le E33216
CSA certied
to C22.2,
no. 42.1
cUL, UL le E33216
certied to C22.2,
no. 42.1
CuVerro® Antimicrobial Copper
EPA Registration Number 85353-5
(9000CUR series) and 85353-3
(9000CU series)
Environmental Specifications:
Flammability
Meets UL94
requirements;
5VA rated
Meets UL94
requirements;
5VA rated
N/A
Meets UL94
requirements
5VA rated
N/A
Temperature
Rating
-40ºC to 90ºC
(-40°F to 194°F)
-40ºC to 70ºC
(-40°F to 158°F)
-40ºC to 70ºC
(-40°F to 158°F)
-40º to 70º C
(-40°F to 158°F) -40ºC to 70ºC (-40ºF to 158ºF)
Materials:
Body
0.080" thick
thermoset urea
or phenolic
0.060" thick
thermoplastic
0.032" thick stainless steel
alloy, 18% chromium and 8%
nickel for corrosion resistance
0.08" thick thermoplastic
polycarbonate
0.040" thick CuVerro® Antimicrobial
Copper Alloy, 99.5% containing copper,
nickel, iron, manganese, zinc, and
0.05% lead
Inner
Wallplate
N/A N/A N/A
0.071" thick
polycarbonate
(PJS Series)
N/A
Wallplates Standard Size, Mid-Size, Oversize
Footnote:
Laboratory testing shows that, when cleaned regularly, CuVerro® antimicrobial copper surfaces kill greater than 99.9% of the following
bacteria within 2 hours of exposure: MRSA, Staphylococcus aureus, Enterobacter aerogenes, Pseudomonas aeruginosa, and E. coli
O157:H7. CuVerro® antimicrobial copper surfaces are a supplement to and not a substitute for standard infection control practices and
have been shown to reduce microbial contamination, but do not necessarily prevent cross contamination; users must continue to follow
all current infection control practices, including those practices related to cleaning and disinfection of environmental surfaces. CuVerro®
is a registered trademark of GBC Metals, LLC and is used with permission, CW-0013-1207.
