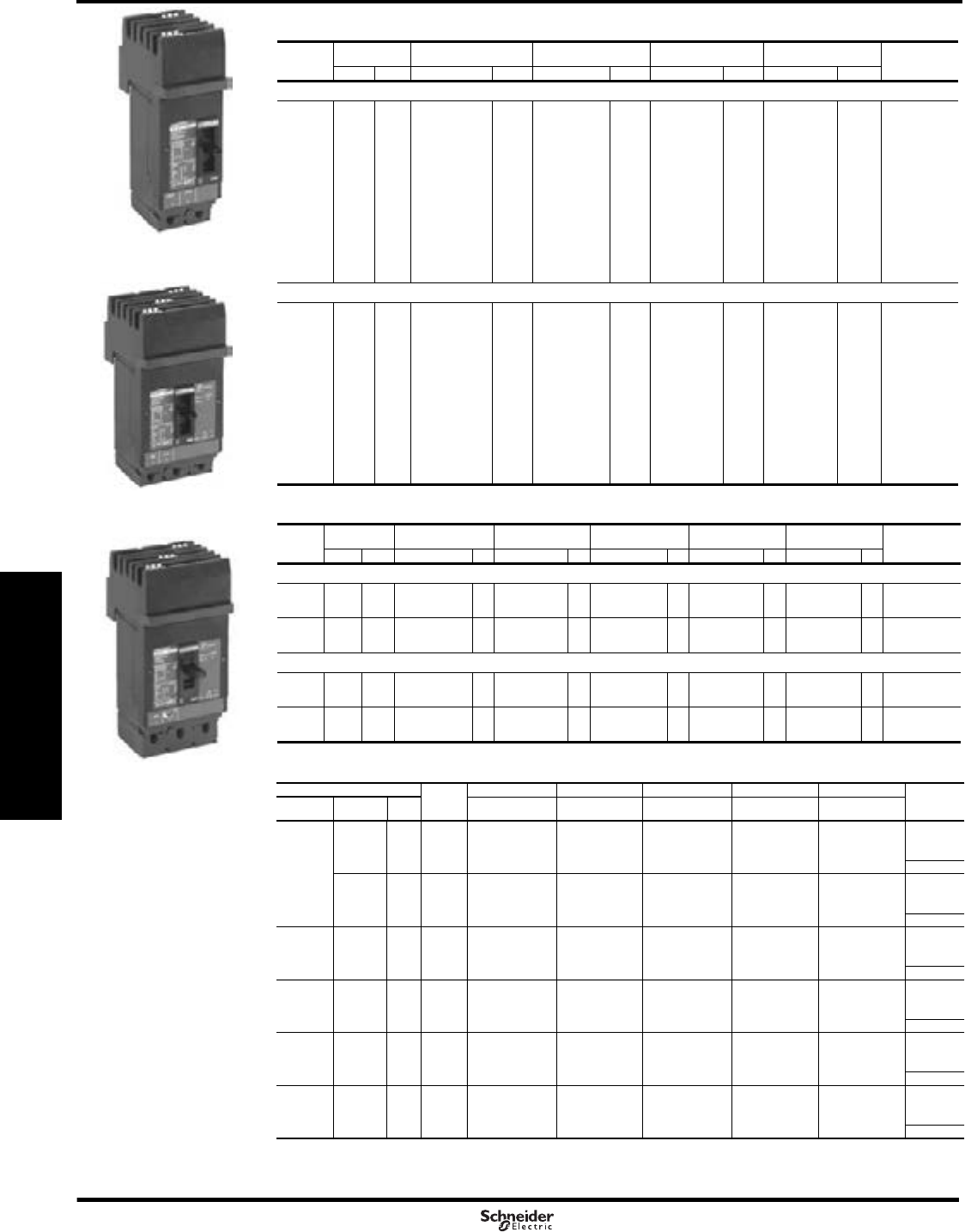

Panelboards

I-Line®–PowerPact H- and J-Frame Circuit Breakers

H-frame 150 A Thermal Magnetic CSA/UL Current-Limiting Circuit Breakers (600 Vac, 250 Vdc) with Factory

Sealed Trip Units Suitable for Reverse Connection

Ampere

Rating

AC Magnetic

Trip Setting D Interrupting G Interrupting J Interrupting ▲L Interrupting ▲Terminal

Wire Range

Hold Trip Catalogue No. Catalogue No. Catalogue No. Catalogue No.

H-Frame, 150A 2P, 600 Vac 50/60 Hz, 250 Vdc

15 350 750 HDA26015( ) HGA26015( ) HJA26015( ) HLA26015( )

AL150HD

#14–#3/0 AWG

Al or Cu

20 350 750 HDA26020( ) HGA26020( ) HJA26020( ) HLA26020( )

25 350 750 HDA26025( ) HGA26025( ) HJA26025( ) HLA26025( )

30 350 750 HDA26030( ) HGA26030( ) HJA26030( ) HLA26030( )

35 400 850 HDA26035( ) HGA26035( ) HJA26035( ) HLA26035( )

40 400 850 HDA26040( ) HGA26040( ) HJA26040( ) HLA26040( )

45 400 850 HDA26045( ) HGA26045( ) HJA26045( ) HLA26045( )

50 400 850 HDA26050( ) HGA26050( ) HJA26050( ) HLA26050( )

60 800 1450 HDA26060( ) HGA26060( ) HJA26060( ) HLA26060( )

70 800 1450 HDA26070( ) HGA26070( ) HJA26070( ) HLA26070( )

80 800 1450 HDA26080( ) HGA26080( ) HJA26080( ) HLA26080( )

90 800 1450 HDA26090( ) HGA26090( ) HJA26090( ) HLA26090( )

100 900 1700 HDA26100( ) HGA26100( ) HJA26100( ) HLA26100( )

110 900 1700 HDA26110( ) HGA26110( ) HJA26110( ) HLA26110( )

125 900 1700 HDA26125( ) HGA26125( ) HJA26125( ) HLA26125( )

150 900 1700 HDA26150( ) HGA26150( ) HJA26150( ) HLA26150( )

H-Frame, 150A 3P, 600 Vac 50/60 Hz, 250 Vdc

15 350 750 HDA36015 HGA36015 HJA36015 HLA36015

AL150HD

#14–#3/0 AWG

Al or Cu

20 350 750 HDA36020 HGA36020 HJA36020 HLA36020

25 350 750 HDA36025 HGA36025 HJA36025 HLA36025

30 350 750 HDA36030 HGA36030 HJA36030 HLA36030

35 400 850 HDA36035 HGA36035 HJA36035 HLA36035

40 400 850 HDA36040 HGA36040 HJA36040 HLA36040

45 400 850 HDA36045 HGA36045 HJA36045 HLA36045

50 400 850 HDA36050 HGA36050 HJA36050 HLA36050

60 800 1450 HDA36060 HGA36060 HJA36060 HLA36060

70 800 1450 HDA36070 HGA36070 HJA36070 HLA36070

80 800 1450 HDA36080 HGA36080 HJA36080 HLA36080

90 800 1450 HDA36090 HGA36090 HJA36090 HLA36090

100 900 1700 HDA36100 HGA36100 HJA36100 HLA36100

110 900 1700 HDA36110 HGA36110 HJA36110 HLA36110

125 900 1700 HDA36125 HGA36125 HJA36125 HLA36125

150 900 1700 HDA36150 HGA36150 HJA36150 HLA36150

J-frame 250 A Thermal Magnetic CSA/UL Current Limiting Circuit Breakers (600 Vac, 250 Vdc) with Factory

Sealed Trip Units Suitable for Reverse Connection

Ampere

Rating

AC Magnetic

Trip Setting D Interrupting G Interrupting J Interrupting ▲L Interrupting ▲R Interrupting ▲Terminal

Wire Range

Hold Trip Catalogue No. Catalogue No. Catalogue No. Catalogue No. Catalogue No.

J-Frame 250A 2P, 600 Vac 50/60 Hz, 250 Vdc

150 750 1500 JDA26150( ) JGA26150( ) JJA26150( ) JLA26150( ) AL175JD

#4–4/0 AWG

Al or Cu

175 875 1750 JDA26175( ) JGA26175( ) JJA26175( ) JLA26175( )

200 1000 2000 JDA26200( ) JGA26200( ) JJA26200( ) JLA26200( ) AL250JD

#3/0–350 kcmil

Al or Cu

225 1125 2250 JDA26225( ) JGA26225( ) JJA26225( ) JLA26225( )

250 1250 2500 JDA26250( ) JGA26250( ) JJA26250( ) JLA26250( )

J-Frame 250A 3P, 600 Vac 50/60 Hz, 250 Vdc

150 750 1500 JDA36150 JGA36150 JJA36150 JLA36150 JRA36150 AL175JD

#4–4/0 AWG

Al or Cu

175 875 1750 JDA36175 JGA36175 JJA36175 JLA36175 JLA36175

200 1000 2000 JDA36200 JGA36200 JJA36200 JLA36200 JRA36200 AL250JD

#3/0–350 kcmil

Al or Cu

225 1125 2250 JDA36225 JGA36225 JJA36225 JLA36225 JRA36225

250 1250 2500 JDA36250 JGA36250 JJA36250 JLA36250 JRA36250

HD/HG 2-pole

3 in (76 mm)

Mounting Height

H-frame 3-pole

4.5 in (114 mm)

Mounting Height

J-frame 3-pole

4.5 in (114 mm)

Mounting Height

▲Circuit breakers with J, L, and R interrupting ratings are CSA/UL certified as current limiting.

sAL150HD wire range is 14–3/0 AWG Al or Cu.

dAL250JD wire range is 3/0 AWG–350 kcmil Al or Cu. For smaller wire range (4–4/0 AWG Al or Cu), replace the lug’s wire binding screws with the larger

binding screws provided.

h3P circuit breakers with this trip unit can be used for 2P applications.

H-frame 150A and J-frame 250 A Electronic Trip CSA/UL Current Limiting Circuit Breakers (600 Vac) with

Factory Sealed Trip Units Suitable for Reverse Connection

Electronic Trip Unit Ampere

Rating

D Interrupting G Interrupting J Interrupting ▲L Interrupting ▲R Interrupting ▲

Terminal

Type Function Trip

Unit Catalogue No. Catalogue No. Catalogue No. Catalogue No. Catalogue No.

Micrologic

Standard

LI 3.2h

60 HDA36060U31X HGA36060U31X HJA36060U31X HLA36060U31X HRA36060U31X

AL150HDs

100 HDA36100U31X HGA36100U31X HJA36100U31X HLA36100U31X HRA36100U31X

150 HDA36150U31X HGA36150U31X HJA36150U31X HLA36150U31X HRA36150U31X

250 JDA36250U31X JGA36250U31X JJA36250U31X JLA36250U31X JRA36250U31X AL250JDd

LSI 3.2Sh

60 HDA36060U33X HGA36060U33X HJA36060U33X HLA36060U33X HRA36060U33X

AL150HDs

100 HDA36100U33X HGA36100U33X HJA36100U33X HLA36100U33X HRA36100U33X

150 HDA36150U33X HGA36150U33X HJA36150U33X HLA36150U33X HRA36150U33X

250 JDA36250U33X JGA36250U33X JJA36250U33X JLA36250U33X JRA36250U33X AL250JDd

Micrologic

Ammeter LSI 5.2A

60 HDA36060U43X HGA36060U43X HJA36060U43X HLA36060U43X HRA36060U43X

AL150HDs

100 HDA36100U43X HGA36100U43X HJA36100U43X HLA36100U43X HRA36100U43X

150 HDA36150U43X HGA36150U43X HJA36150U43X HLA36150U43X HRA36150U43X

250 JDA36250U43X JGA36250U43X JJA36250U43X JLA36250U43X JRA36250U43X AL250JDd

Micrologic

Energy LSI 5.2E

60 HDA36060U53X HGA36060U53X HJA36060U53X HLA36060U53X HRA36060U53X

AL150HDs

100 HDA36100U53X HGA36100U53X HJA36100U53X HLA36100U53X HRA36100U53X

150 HDA36150U53X HGA36150U53X HJA36150U53X HLA36150U53X HRA36150U53X

250 JDA36250U53X JGA36250U53X JJA36250U53X JLA36250U53X JRA36250U53X AL250JDd

Micrologic

Ammeter LSIG 6.2A

60 HDA36060U44X HGA36060U44X HJA36060U44X HLA36060U44X HRA36060U44X

AL150HDs

100 HDA36100U44X HGA36100U44X HJA36100U44X HLA36100U44X HRA36100U44X

150 HDA36150U44X HGA36150U44X HJA36150U44X HLA36150U44X HRA36150U44X

250 JDA36250U44X JGA36250U44X JJA36250U44X JLA36250U44X JRA36250U44X AL250JDd

Micrologic

Energy LSIG 6.2E

60 HDA36060U54X HGA36060U54X HJA36060U54X HLA36060U54X HRA36060U54X

AL150HDs

100 HDA36100U54X HGA36100U54X HJA36100U54X HLA36100U54X HRA36100U54X

150 HDA36150U54X HGA36150U54X HJA36150U54X HLA36150U54X HRA36150U54X

250 JDA36250U54X JGA36250U54X JJA36250U54X JLA36250U54X JRA36250U54X AL250JDd

DE5_NEW.book Page 26 Friday, January 18, 2013 1:00 PM

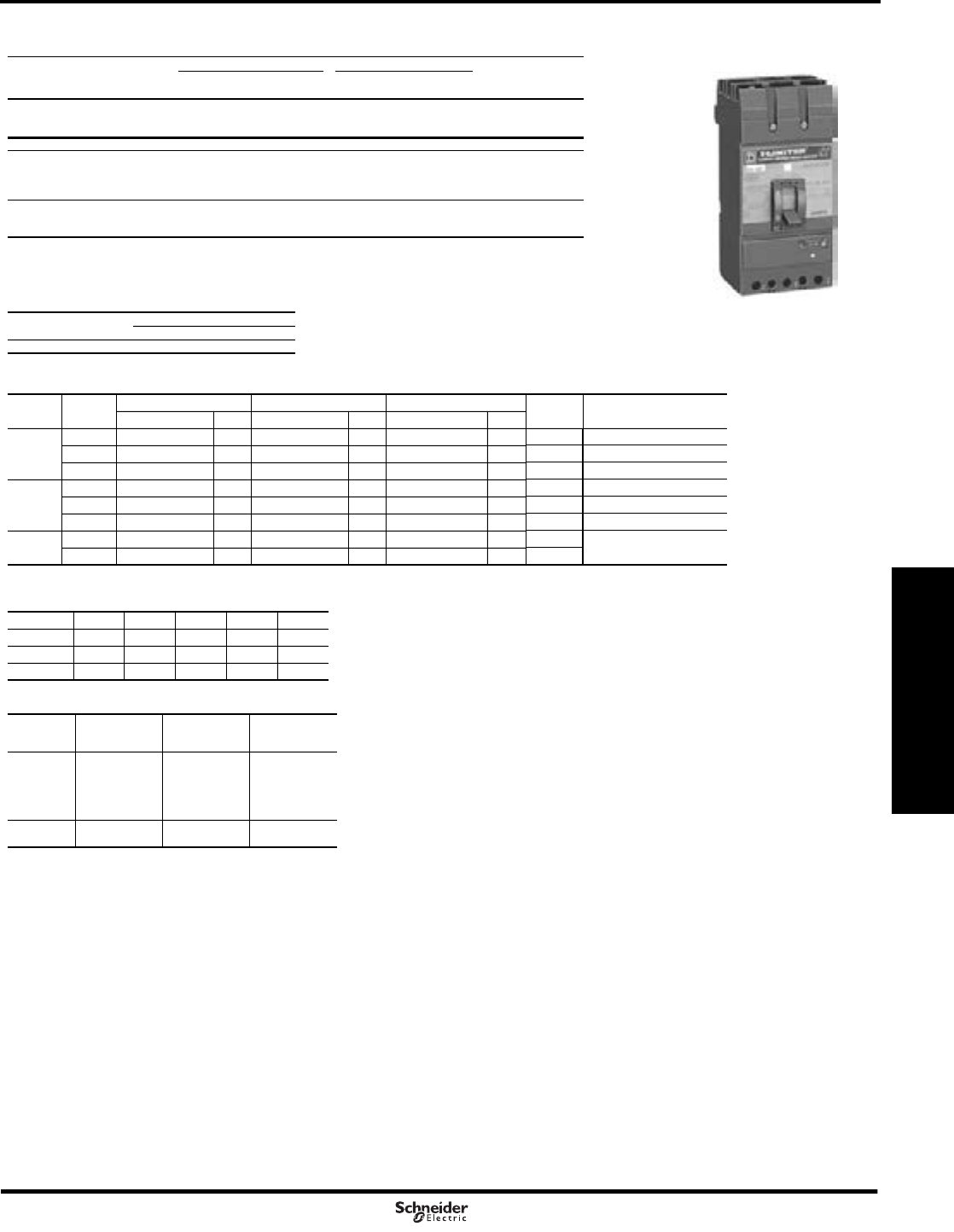

DE5-27

DE5 PANELBOARDS

06/12

Ampere

Rating

AC Magnetic

Trip Settings

Amperes

Two Pole

★

Three Pole Standard

Lug Kit

Wire Range

Catalogue No. Price Catalogue No. Price

250 Ampere Frame

KI Current Limiting I-LIMITER

Low High 600Vac 600Vac

110 550 1100 KI26110( ) KI36110

125 625 1250 KI26125( ) KI36125 AL250KA

150 750 1500 KI26150( ) KI36150 1-#4-350 kcmil

175 875 1750 KI26175( ) KI36175

200 1000 2000 KI26200( ) KI36200 AL250KI

225 1125 2250 KI26225( ) KI36225 1-1/0-350 kcmil

250 1250 2500 KI26250( ) KI36250

★Two pole catalogue numbers are completed by

adding required phase connection letters as

suffix to catalogue number (ex. KI26110AB).

CSA Listed Interrupting Rating Amperes

Breaker Catalogue System Voltage AC

No. Prefix 250 480 600

KI 200k 200k 100k

PowerPact™ H-, J-, and L-frame Automatic Molded Case Switches, 600 Vac

Ampere

Rating

Ampere

Rating

G Interrupting L Interrupting R Interrupting Terminal Wire Range

Catalogue Number Catalogue Number Catalogue Number

2-pole

150 HGA26000S15( ) HLA26000S15( ) --- — —

175 JGA26000S17( ) JLA26000S17( ) --- — —

250 JGA26000S25( ) JLA26000S25( ) --- — —

3-pole

150 HGA36000S15 HLA36000S15 --- AL150HD 14 AWG–3/0 AWG Al/Cu

175 JGA36000S17 JLA36000S17 JRA36000S17 AL175JD 4–4/0 AWG Al/Cu

250 JGA36000S25 JLA36000S25 JRA36000S25 AL250JD 3/0 AWG–350 kcmil Al/Cu

3-pole 400 LGA36000S40X LLA36000S40X LRA36000S40X AL150HD AL600LS52K3

(2) 2/0 AWG–500 kcmil Al/Cu

600 LGA36000S60X LLA36000S60X LRA36000S60X AL250JD

Interrupting Ratings (kA)

Voltage D G J L R

240 V 25 65 100 125 200

480 V 18 35 65 100 200

600V14182550100

Phase Options—Example HDA26150( )

Phase

Option

Number

Phase

Connection 2-pole 3-pole

1 AB HDA261501 . . .

2 AC HDA261502 . . .

3 BA HDA261503 . . .

4 BC HDA261504 . . .

5 CA HDA261505 . . .

6 CB HDA261506 . . .

Standard ABC . . . HDA36150

6 CBA . . . HDA361506

Panelboards

I-Line®–K-, PowerPact H-, J-, L-Frame Circuit Breakers

KI36250

2- and 3-pole

4.5 in (114 mm)

Mounting Height

DE5_NEW.book Page 27 Friday, January 18, 2013 1:00 PM

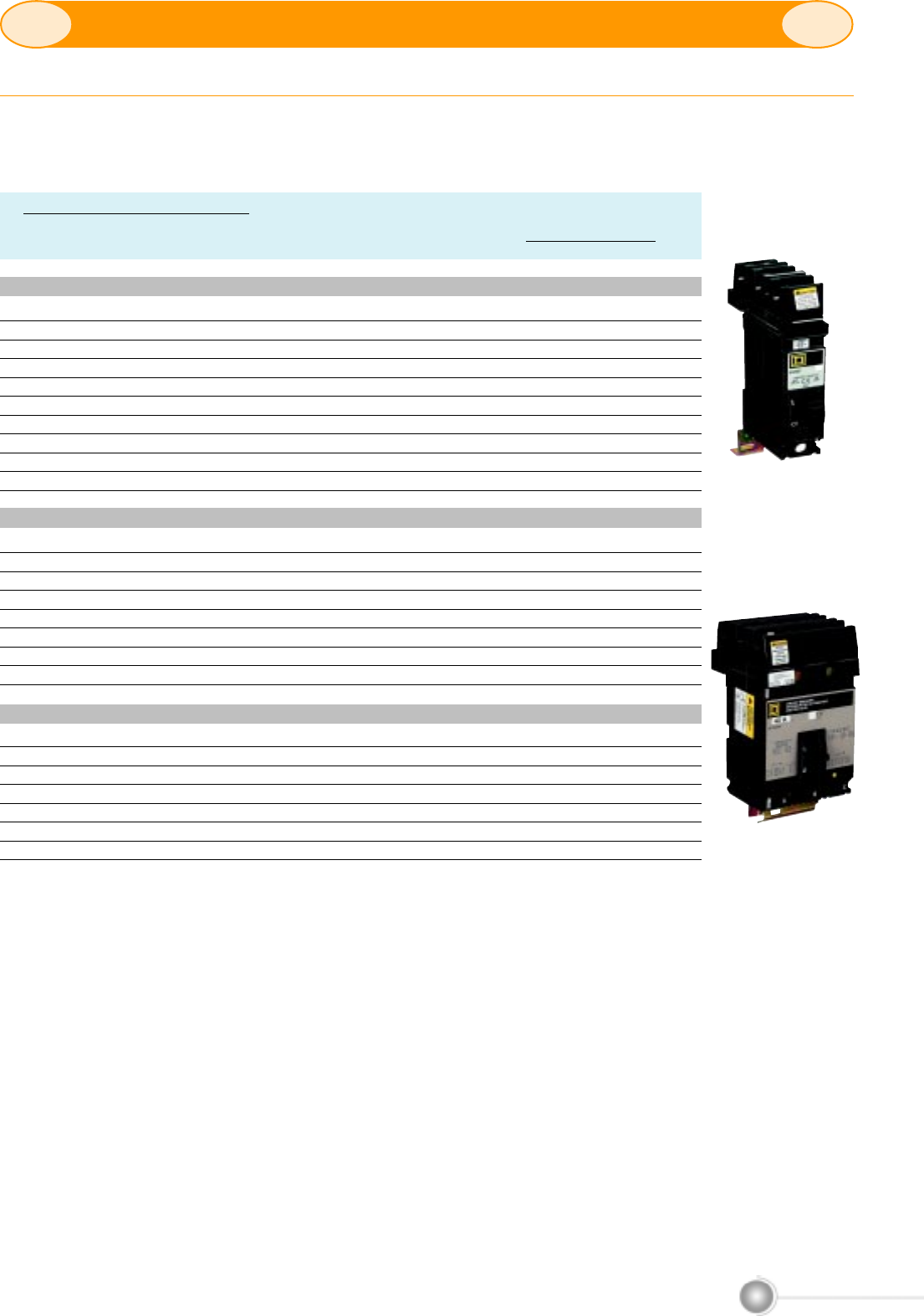

Circuit breakers have a factory set thermal trip and instantaneous magnetic trip release.

Please refer to accessories table for electrical auxiliaries, page 8-9.

16A to 160A

SFA3040

SFA1080

**Catalogue Number Current Terminal Instantaneous Maximum Earth Fault

Rating Capacity Trip Setting Loop Impedance Zs

Single Double Triple OHMS at 240V AC

Pole Pole Pole A mm2A5 Seconds 0.4 Seconds

Short Circuit Capacity 25kA - 1 / 2 / 3 Module Ways Occupied in I-LINE Panelboard

SFA1016 SFA2016 SFA3016 16 2.5-25 400 2.46 0.60

SFA1020 SFA2020 SFA3020 20 2.5-25 400 1.97 0.60

SFA1032 SFA2032 SFA3032 32 2.5-25 480 1.17 0.50

SFA1040 SFA2040 SFA3040 40 2.5-50 600 0.94 0.40

SFA1050 SFA2050 SFA3050 50 2.5-50 600 0.75 0.40

SFA1063 SFA2063 SFA3063 63 2.5-50 1000 0.60 0.24

SFA1080 SFA2080 SFA3080 80 2.5-50 1200 0.47 0.20

SFA1100 SFA2100 SFA3100 100 2.5-50 1200 0.38 0.20

--SFA3125 125 50-95 1440 0.30 0.17

--SFA3160 160 50-95 1440 0.23 0.17

Short Circuit Capacity 65kA - 3 Modules Ways Occupied in I-LINE Panelboard

--SFH3016 16 2.5-6 400 2.46 0.60

--SFH3020 20 2.5-6 400 1.97 0.60

--SFH3032 32 2.5-6 480 1.17 0.50

--SFH3040 40 2.5-50 600 0.94 0.40

--SFH3050 50 2.5-50 600 0.75 0.40

--SFH3063 63 2.5-50 1000 0.60 0.24

--SFH3080 80 2.5-50 1200 0.47 0.20

--SFH3100 100 2.5-50 1200 0.38 0.20

Short Circuit Capacity 150kA - 3 Modules Ways Occupied in I-LINE Panelboard

--SFI3020 20 2.5-25 400 1.20 0.60

--SFI3032 32 2.5-25 480 0.75 0.50

--SFI3040 40 2.5-50 600 0.65 0.40

--SFI3050 50 2.5-50 600 0.55 0.40

--SFI3063 63 2.5-50 1000 0.42 0.24

--SFI3080 80 2.5-50 1200 0.34 0.20

--SFI3100 100 2.5-50 1200 0.28 0.20

** Catalogue numbers for circuit breakers of single and double pole construction require the addition of a suffix

corresponding to the phase connection details.

■Suffix A supply red phase.

■Suffix B supply yellow phase.

■Suffix C supply blue phase.

■Suffix AB supply red-yellow phase.

■Suffix BC supply yellow-blue phase.

■Suffix AC supply red-blue phase.

Example SFA1080B supply yellow phase connection.

Example SFA2080AB supply red-yellow phase connection.
