Cable Tray System
Cable Tray
Fittings
Covers
Barrier Strips
Accessoires
138
CABLE TRAY SYSTEM
The Niedax Cable Tray is an extremely versatile and cost effective solution for your cabling needs.
You can select from a wide range of tray sizes, fi ttings and accessories in various material thick-
nesses and fi nishes. Niedax Cable Tray is adaptable to your special needs, customized dimensions
are available upon request
All straight sections of cable tray as well as their corresponding system components (fi ttings, splice plates, covers, ...)
are classifi ed by UL in acccordance with NEMA VE 1 for the USA and CSA E22.2 No. 126.1 for Canada.
Please add an ‚X‘ after the fi rst sequence of characters in the part number to get your products labeled for UL conformity
(f.e. RLV 60.200 becomes RLVX 60.200 or GRS 110.300 becomes GRSX 110.300).
139
Available Side Rail Heights
Mini Cable Tray RL Page 143
Mini Cable Tray RLU Page 143
Distribution Cable Tray RSV Page 144
Edge Protection Ring KSR...A Page 145
Cover for Mini Cable Tray RD Page 145
Cover for Mini Cable Tray RDV Page 145
Cover for Distribution Cable Tray RDSV Page 145
Turn-bolt Lock RDRS Page 145/146
Universal Splice Plate RVV 50 Page 146
Extension Horizontal Tee RTAK Page 146
Cover for Horizontal Extension Tee RTAKDV Page 146
Horizontal Elbow 90° RESK Page 146
Cover for 90° Horizontal Elbow RESKDV Page 147
Horizontal Tee RTSK Page 147
Cover for Horizontal Tee RTSKDV Page 147
35
50
SYSTEM
ACCESSORIES
140
CABLE TRAY SYSTEM
Available Side Rail Heights
141
One-Piece Cable Tray Specifi cations:
A. CABLE TRAY DESIGN
1. Cable Tray shall be made of straight sections, fi ttings and accessories as defi ned in the latest NEMA standards
per NEMA VE-1. Standard cable trays shall be UL classifi ed as equipment grounding conductors.
B. MATERIAL
1. Pre-galvanized steel. The structural quality of the steel shall meet the minimum yield and tensile strength
of the ASTM standards (ASTM A 653) with G 90 coating thickness. All cable trays to be labeled for material
identifi cation purposes.
2. Hot dipped galvanized steel. All trays to be hot-dipped galvanized in accordance with ASTM A123.
All trays to be labeled for material identifi cation.
3. Stainless steel. All trays are to be constructed of AISI type 304 or type 316 stainless steel.
All trays to be labeled for material identifi cation.
C. TRAY TYPES
1. Ventilated cable tray. Trays are to be fabricated from continuous roll-formed structural quality steel.
Tray shall be ventilated on both the bottom of the tray and on the sides for maximum ventilation of the cables.
2. Solid cable tray. Trays are to be fabricated from continuous roll-formed structural quality steel.
Sides are to be solid as well as bottom for maximum cable enclosure and support.
3. Distribution cable tray. Trays are to be fabricated from continuous roll-formed structural quality steel.
Tray shall be ventilated on sides and bottom and will also contain larger openings on both bottom and side for
cables to exit and enter the cable tray. Openings shall be insulated with plastic edge protection rings that are
purchased separately for cable protection where needed.
D. TRAY SIZE
1. Height: Trays shall have an overall height of 1.4”, 2”, 2.3”, 3.3”, and 4.3” (35, 50, 60, 85 and 110 mm).
Loading depth is the same as the overall height, as there are no rungs to reduce the fi ll of the tray.
2. Width: Widths shall be 2”, 4”, 6”, 8’, 12”, 16“, 20“ and 24” (50, 100, 150, 200, 300, 400, 500 and 600 mm).
3. Length: Length shall be a nominal 10’ or 3 meters.
E. ACCESSORIES
1. Covers. Covers shall be supplied as an option to protect tray cable where needed. Covers will be solid
and have the option of containing three pair of turn-bolt locks to secure the covers to the lips of the cable tray.
Covers can also be plain, and locks can be installed separately.
2. Splice plates. Splice plates shall be supplied with the straight sections of the tray
and are installed with four sets of nuts/bolts that are also supplied.
Splice plates fi t internally to the tray and are one-piece U shaped to fi t into both adjoining pieces of cable tray.
3. Other accessories shall be furnished as required to protect, support, and install a cable tray system.
Fittings shall made of the same material as the cable tray whenever possible.
Fittings can be of factory construction or may also be of a type that allows fi eld constructed fi ttings.
F. LOADING CAPABILITIES
1. Cable tray shall meet the load/span class designation in accordance with NEMA VE 1 and CSA E22.2 No 126.1.
Cable tray shall also meet load/span designation in accordance with IEC 61537
G. DESIGN AND MANUFACTURE
1. Cable tray design shall be manufactured by The Niedax Group, series RLCX/RLCPVX/RLX/RLVX/RLUX,
RSX/RSUX/RSVX series.
142
CABLE TRAY SYSTEM
143
Mini Cable Tray
ventilated, with return flange
perforation allows easy mounting of splice plates and fittings
One RV… splice plate included with every piece of cable tray.
RL 50.050
50 | 2 50 | 2 0,75 3000 | 118,1
RL 50.050/6 50 | 2 50 | 2 0,75 6000 | 236,2
S
S
model no. height
Hwidth
Bthick-
ness t length
A
mm | Inch mm | Inch mm mm | Inch
Pack /
Box Qty
2 x 3 m
2 x 6 m
Weight
per 100
m
kg
114
114
Centered punchholes allow hanging with M12 (1/2") threaded rod.
Mini Cable Tray
solid, splice plate included
One RV… splice plate included with every piece of cable tray.
RLU 50.050
50 | 2 50 | 2 0,75
S
model no. height
Hwidth
Bthick-
ness t
mm | Inch mm | Inch mm
Pack /
Box Qty
2 x 3 m
Weight
per 100
m
kg
104,7
144
CABLE TRAY SYSTEM
Distribution Cable Tray
ventilated, with return flange
bottom and side plates perforated with staggered punch holes
square punch holes of 30x65 mm (bottom) and of 20x65 mm (side rail) are provided for cable or pipe
dropouts
Spice plates are not included. Please order two RVV 50 per joint.
RSV 50.050
50 | 2 50 | 2 1,5 3000 | 118,1
RSV 50.050/6 50 | 2 50 | 2 1,5 6000 | 236,2
RSV 50.050 F
50 | 2 50 | 2 1,5 3000 | 118,1
RSV 50.050 E3
50 | 2 50 | 2 1,5 3000 | 118,1
S
S
F
E3
model no. height
Hwidth
Bthick-
ness t length
A
mm | Inch mm | Inch mm mm | Inch
Pack /
Box Qty
2 x 3 m
2 x 6 m
2 x 3 m
2 x 3 m
Weight
per 100
m
kg
126,10
126,10
138,71
126,90
Distribution Cable Tray
ventilated, with return flange
bottom and side plates perforated with staggered punch holes
square punch holes of 30x65 mm (bottom) and of 20x65 mm (side rail) are provided for cable or pipe
dropouts
Spice plates are not included. Please order two RVV 50 per joint.
RSV 50.100
50 | 2 100 | 3,9 1,5 3000 | 118,1
RSV 50.100/6 50 | 2 100 | 3,9 1,5 6000 | 236,2
RSV 50.100 F
50 | 2 100 | 3,9 1,5 3000 | 118,1
RSV 50.100 E3
50 | 2 100 | 3,9 1,5 3000 | 118,1
S
S
F
E3
model no. height
Hwidth
Bthick-
ness t length
A
mm | Inch mm | Inch mm mm | Inch
Pack /
Box Qty
2 x 3 m
2 x 6 m
2 x 3 m
2 x 3 m
Weight
per 100
m
kg
162,20
162,20
178,45
163,30
145
Edge Protection Ring
UV resistant
to protect cables at the knockouts of tray or surface metal raceways
Suitable for: RSV 50… distribution cable tray
KSR 20 A
black 14,5 | 0,6 58 | 2,3
KSR 30 Ablack 24,0 | 0,9 58 | 2,3
K04
K04
model no. color inside
height H inside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
20
20
Weight
per 100
pcs
kg
0,32
0,38
Cover for Mini Cable Tray
Suitable for: RL... and RLU 50... tray
RD 50
50 | 2
S
model no. width
B
mm | Inch
Pack /
Box Qty
2 x 3 m
Weight
per 100
m
kg
43,5
Cover for Mini Cable Tray
with turnbolt locks
Suitable for: RL... and RLU 50... tray
RDV 50
50 | 2
S
model no. width
B
mm | Inch
Pack /
Box Qty
2 x 3 m
Weight
per 100
m
kg
44,2
Cover for Distribution Cable Tray
with turnbolt locks
Suitable for: distribution cable tray RSV 50… and RSV 100...
RDSV 50
50 | 2
RDSV 100 100 | 3,9
RDSV 50 F
50 | 2
RDSV 100 F100 | 3,9
RDSV 50 E3
50 | 2
RDSV 100 E3 100 | 3,9
S
S
F
F
E3
E3
model no. width
B
mm | Inch
Pack /
Box Qty
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
Weight
per 100
m
kg
38,6
68,3
42,8
75,9
40,4
74,0
Please use turnbolt lock RDRS 2 for RDSV 100 covers and RDRS 2/50 for RDSV 50 covers.
Turn-bolt Lock
locking nut included
for field modifications of covers
Suitable for: distribution cable tray covers and fittings in 100 mm width
RDRS 2
RDRS 2 E3
S
E3
model no. Pack /
Box Qty
100
100
Weight
per 100
pcs
kg
1,3
1,5
Turnbolt locks or cover clamps need to be installed at a minimum distance of 50 mm (2") from each
end of the cover.
146
CABLE TRAY SYSTEM
Turn-bolt Lock
locking nut included
for field modifications of covers
Suitable for: distribution cable tray covers and fittings in 50 mm width
RDRS 2/50
RDRS 2/50 E3
S
E3
model no. Pack /
Box Qty
100
100
Weight
per 100
pcs
kg
1,3
1,5
Turnbolt locks or cover clamps need to be installed at a minimum distance of 50 mm (2") from each
end of the cover.
Universal Splice Plate
2 pieces required per joint
RVV 50
44 | 1,7 135 | 5,3
RVV 50 F
44 | 1,7 135 | 5,3
RVV 50 E3
44 | 1,7 135 | 5,3
S
F
E3
model no. height
Hwidth
B
mm | Inch mm | Inch
Pack /
Box Qty
20
20
20
Weight
per 100
pcs
kg
8,36
7,00
7,00
Extension Horizontal Tee
Suitable for: mini cable tray RL 50.050 and distribution cable trays RSV 50...
RTAK 50.050
50 | 2 52 | 2
RTAK 50.100 50 | 2 102 | 4
RTAK 50.050 F
50 | 2 52 | 2
S
S
F
model no. height
Hinside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
Weight
per 100
pcs
kg
25,02
29,73
27,36
Cover for Horizontal Extension Tee
with turnbolt locks
Suitable for: RTAK… horizontal extension tee
Hot-dip galvanized finish available on request.
RTAKDV 50
54 | 2,1
RTAKDV 100 104 | 4,1
S
S
model no. inside
dimension
(B)
mm | Inch
Pack /
Box Qty
1
1
Weight
per 100
pcs
kg
13,2
17,0
Horizontal Elbow 90°
Suitable for: mini cable tray RL 50.050 and distribution cable trays RSV 50...
RESK 50.050
50 | 2 52 | 2
RESK 50.100 50 | 2 102 | 4
RESK 50.050 F
50 | 2 52 | 2
S
S
F
model no. height
Hinside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
Weight
per 100
pcs
kg
31,99
51,01
35,03
147
Cover for 90° Horizontal Elbow
with turnbolt locks
Suitable for: RESK… horizontal 90° elbow
Hot-dip galvanized finish available on request.
RESKDV 50
54 | 2,1
RESKDV 100 104 | 4,1
S
S
model no. inside
dimension
(B)
mm | Inch
Pack /
Box Qty
1
1
Weight
per 100
pcs
kg
16,8
32,0
Horizontal Tee
Suitable for: mini cable tray RL 50.050 and distribution cable trays RSV 50...
RTSK 50.050
50 | 2 52 | 2
RTSK 50.100 50 | 2 102 | 4
RTSK 50.050 F
50 | 2 52 | 2
S
S
F
model no. height
Hinside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
Weight
per 100
pcs
kg
129
170
110
Cover for Horizontal Tee
with turnbolt locks
Suitable for: RTSK… horizontal tee
Hot-dip galvanized finish available on request.
RTSKDV 50
54 | 2,1
RTSKDV 100 104 | 4,1
S
S
model no. inside
dimension
(B)
mm | Inch
Pack /
Box Qty
1
1
Weight
per 100
pcs
kg
28,9
40,1
Available Side Rail Heights
Cable Tray RLVC Page 151
Distribution Cable Tray RLI Page 151
Cable Tray RL Page 152
Cable Tray RLU Page 152
Heavy Duty Cable Tray RS Page 153
Heavy Duty Cable Tray RSU Page 153
U-Shaped Splice Plate RV Page 154
Universal Splice Plate RVV 50 Page 154
Barrier Strip RW 50+60 Page 154
Splice Plate for Barrier Strip RTV 50+60 Page 154
Mounting Plate for Barrier Strip RTPH 50+M6 Page 155
Extension Horizontal Tee RTA Page 156
Horizontal Elbow Building Block REK Page 156
Fexible Horizontal Elbow 0-90° RBAV Page 156
Horizontal Elbow 45° RBA Page 157
Horizontal Elbow 90° RES Page 157
Horizontal Tee RTS Page 157
Horizontal Cross RKS Page 158
Reducer / Blind End RA Page 158
Adjustable Horizontal Splice / Reducer / Blind End RAW Page 158
Adjustable Vertical Splice Plate RGV Page 158
Splice / Link Kit RGE Page 159
Vertical Inside Elbow 90° RSD Page 159
Vertical Outside Elbow 90° RFD Page 159
Vertical Tee Down, lengthwise RTL Page 160
Vertical Tee Down, crosswise RTQ Page 160
Edge Protection Plate RKB Page 160
The covers of the cable tray system starting from page 188.
SYSTEM
ACCESSORIES
60
148
CABLE TRAY SYSTEM
Available Side Rail Heights
149
Load / Span Class Designation in accordance
with NEMA VE 1 and CSA E22.2 No. 126.1
Niedax Series
Minimum Area Load class in accordance to
NEMA VE 1
(calculational)
mm2 / in.2
in accordance
to NEMA VE 2
mm2 / in.2
Rated Load
Kg/m / lb./ft.
Support
spacing
m / ft.
Load/Span
Class
RLVX 60.100, ... E3, ... E5 141 / 0.22 129 / 0.2 66 / 44.3 2 / 6.6 A
RLVX 60.150 179 / 0.28 129 / 0.2 66 / 44.3 2 / 6.6 A
RLVX 60.200, ... E3, ... E5 198 / 0.31 129 / 0.2 66 / 44.3 2 / 6.6 A
RLVX 60.300, ... E3, ... E5 216 / 0.33 129 / 0.2 66 / 44.3 2 / 6.6 A
RLVX 60.400, ... E3, ... E5 285 / 0.44 258 / 0.4 126.5 / 85.0 2 / 6.6 8A, A
RLVX 60.500 324 / 0.50 258 / 0.4 126.5 / 85.0 2 / 6.6 8A, A
RLVX 60.600 388 / 0.60 258 / 0.4 126.5 / 85.0 2 / 6.6 8A, A
RLX 60.100, ... F 169 / 0.26 129 / 0.2 93 / 62.5 2 / 6.6 A
RLX 60.150, ... F 202 / 0.31 129 / 0.2 93 / 62.5 2 / 6.6 A
RLX 60.200, ... F 234 / 0.36 129 / 0.2 93 / 62.5 2 / 6.6 A
RLX 60.250, ... F 296 / 0.46 258 / 0.4 93 / 62.5 2 / 6.6 A
RLX 60.300, ... F 332 / 0.51 258 / 0.4 93 / 62.5 2 / 6.6 A
RLX 60.400, ... F 404 / 0.63 258 / 0.4 93 / 62.5 2 / 6.6 A
RLX 60.500, ... F 476 / 0.74 452 / 0.7 93 / 62.5 2 / 6.6 A
RLX 60.600, ... F 548 / 0.85 452 / 0.7 93 / 62.5 2 / 6.6 A
RLX 60.500 E3 428 / 0.66 258 / 0.4 93 / 62.5 2 / 6.6 A
RLX 60.600 E3 493 / 0.76 452 / 0.7 93 / 62.5 2 / 6.6 A
RLUX 60.100, ... F 220 / 0.34 129 / 0.2 93 / 62.5 2 / 6.6 A
RLUX 60.150, ... F 265 / 0.41 258 / 0.4 93 / 62.5 2 / 6.6 A
RLUX 60.200, ... F 310 / 0.48 258 / 0.4 93 / 62.5 2 / 6.6 A
RLUX 60.250, ... F 394 / 0.61 258 / 0.4 93 / 62.5 2 / 6.6 A
RLUX 60.300, ... F 444 / 0.69 258 / 0.4 93 / 62.5 2 / 6.6 A
RLUX 60.400, ... F 544 / 0.84 452 / 0.7 93 / 62.5 2 / 6.6 A
RLUX 60.500, ... F 644 / 1.00 645 / 1.0 93 / 62.5 2 / 6.6 A
RLUX 60.600, ... F 744 / 1.15 645 / 1.0 93 / 62.5 2 / 6.6 A
RLUX 60.100 E3 195 / 0.30 129 / 0.2 93 / 62.5 2 / 6.6 A
RLUX 60.200 E3 275 / 0.43 258 / 0.4 93 / 62.5 2 / 6.6 A
RLUX 60.300 E3 355 / 0.55 258 / 0.4 93 / 62.5 2 / 6.6 A
RLUX 60.400 E3 435 / 0.67 258 / 0.4 93 / 62.5 2 / 6.6 A
RLUX 60.500 E3 580 / 0.90 452 / 0.7 93 / 62.5 2 / 6.6 A
RLUX 60.600 E3 670 / 1.04 645 / 1.0 93 / 62.5 2 / 6.6 A
RSX 60.100, ... F 278 / 0.43 258 / 0.4 173 / 116.3 2 / 6.6 8A, C
RSX 60.200, ... F 386 / 0.60 258 / 0.4 173 / 116.3 2 / 6.6 8A, C
RSX 60.300, ... F 494 / 0.77 452 / 0.7 173 / 116.3 2 / 6.6 8A, C
RSX 60.400, ... F 602 / 0.93 452 / 0.7 173 / 116.3 2 / 6.6 8A, C
RSX 60.500, ... F 710 / 1.10 645 / 1.0 173 / 116.3 2 / 6.6 8A, C
RSX 60.600, ... F 818 / 1.27 645 / 1.0 173 / 116.3 2 / 6.6 8A, C
RSUX 60.100, ... F 362 / 0.56 258 / 0.4 173 / 116.3 2 / 6.6 8A, C
RSUX 60.200, ... F 512 / 0.79 452 / 0.7 173 / 116.3 2 / 6.6 8A, C
RSUX 60.300, ... F 662 / 1.03 645 / 1.0 173 / 116.3 2 / 6.6 8A, C
RSUX 60.400, ... F 812 / 1.26 645 / 1.0 173 / 116.3 2 / 6.6 8A, C
RSUX 60.500, ... F 962 / 1.49 645 / 1.0 173 / 116.3 2 / 6.6 8A, C
RSUX 60.600, ... F 1112 / 1.72 968 / 1.5 173 / 116.3 2 / 6.6 8A, C
150
CABLE TRAY SYSTEM
151
Cable Tray
ventilated, with integrated molded splice plate
Support Span (m)
Uniformly distributed load q
Hole pattern may vary based on width of tray.
bottom plate and side rail perforated with staggered punch holes, extra row of centric punch holes
(diameter 11 mm) in the bottom of the tray
Load Chart: q = uniformly distributed load (tested according to DIN EN IEC 61537 standard)
RLVC 60.100
60 | 2,4 100 | 3,9 0,75
RLVC 60.200 60 | 2,4 200 | 7,9 0,75
RLVC 60.300 60 | 2,4 300 | 11,8 0,75
RLVC 60.400 60 | 2,4 400 | 15,7 0,90
RLVC 60.500 60 | 2,4 500 | 19,7 0,90
RLVC 60.600 60 | 2,4 600 | 23,6 0,90
RLVC 60.100 E3
60 | 2,4 100 | 3,9 0,80
RLVC 60.200 E3 60 | 2,4 200 | 7,9 0,80
RLVC 60.300 E3 60 | 2,4 300 | 11,8 0,80
RLVC 60.400 E3 60 | 2,4 400 | 15,7 0,80
RLVC 60.500 E3 60 | 2,4 500 | 19,7 0,80
RLVC 60.600 E3 60 | 2,4 600 | 23,6 0,80
S
S
S
S
S
S
E3
E3
E3
E3
E3
E3
model no. height
Hwidth
Bthick-
ness t
mm | Inch mm | Inch mm
Pack /
Box Qty
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
Weight
per 100
kg
129,10
187,50
244,16
358,70
425,80
500,17
138,40
201,10
261,90
321,40
381,30
447,83
50
Distribution Cable Tray
Support Span (m)
Uniformly distributed load q
Load Chart: q = uniformly distributed load (tested according to DIN EN IEC 61537 standard)
RLI 60.100 S
60 | 2,4 100 | 3,9 0,9
RLI 60.200 S60 | 2,4 200 | 7,9 0,9
RLI 60.300 S60 | 2,4 300 | 11,8 1,0
RLI 60.400 S60 | 2,4 400 | 15,7 1,0
RLI 60.500 S60 | 2,4 500 | 19,7 1,0
RLI 60.600 S60 | 2,4 600 | 23,6 1,0
N
N
N
N
N
N
S
S
S
S
S
S
model no. height
Hwidth
Bthick-
ness t
mm | Inch mm | Inch mm
Pack /
Box Qty
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
Weight
per 100
kg
127,4
181,6
260,6
315,2
369,2
423,3
51
152
CABLE TRAY SYSTEM
Cable Tray
ventilated
Support Span (m)
Uniformly distributed load q
One RV… splice plate included with every piece of cable tray.
Load Chart: q = uniformly distributed load (tested according to DIN EN IEC 61537 standard)
RL 60.100
60 | 2,4 100 | 3,9 0,9
RL 60.150 60 | 2,4 150 | 5,9 0,9
RL 60.200 60 | 2,4 200 | 7,9 0,9
RL 60.300 60 | 2,4 300 | 11,8 1,0
RL 60.400 60 | 2,4 400 | 15,7 1,0
RL 60.500 60 | 2,4 500 | 19,7 1,0
RL 60.600 60 | 2,4 600 | 23,6 1,0
RL 60.100 F
60 | 2,4 100 | 3,9 0,9
RL 60.150 F60 | 2,4 150 | 5,9 0,9
RL 60.200 F60 | 2,4 200 | 7,9 0,9
RL 60.300 F60 | 2,4 300 | 11,8 1,0
RL 60.400 F60 | 2,4 400 | 15,7 1,0
RL 60.500 F60 | 2,4 500 | 19,7 1,0
RL 60.600 F60 | 2,4 600 | 23,6 1,0
S
S
S
S
S
S
S
F
F
F
F
F
F
F
model no. height
Hwidth
Bthick-
ness t
mm | Inch mm | Inch mm
Pack /
Box Qty
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
Weight
per 100
m
kg
159,00
187,00
216,03
306,06
364,00
450,00
530,00
170,04
187,00
237,08
336,75
372,39
485,96
560,20
Centered punchholes allow hanging with M10 (3/8") threaded rod.
Bottom plate and side rail perforated with staggered punch holes.
Cable Tray
solid, but with splice plate perforation
One RV… splice plate included with every piece of cable tray.
RLU 60.100
60 | 2,4 100 | 3,9 0,9
RLU 60.150 60 | 2,4 150 | 5,9 0,9
RLU 60.200 60 | 2,4 200 | 7,9 0,9
RLU 60.300 60 | 2,4 300 | 11,8 1,0
RLU 60.400 60 | 2,4 400 | 15,7 1,0
RLU 60.500 60 | 2,4 500 | 19,7 1,0
RLU 60.600 60 | 2,4 600 | 23,6 1,0
RLU 60.100 F
60 | 2,4 100 | 3,9 0,9
RLU 60.200 F60 | 2,4 200 | 7,9 0,9
RLU 60.300 F60 | 2,4 300 | 11,8 1,0
RLU 60.400 F60 | 2,4 400 | 15,7 1,0
RLU 60.500 F60 | 2,4 500 | 19,7 1,0
RLU 60.600 F60 | 2,4 600 | 23,6 1,0
RLU 60.100 E3
60 | 2,4 100 | 3,9 0,8
RLU 60.200 E3 60 | 2,4 200 | 7,9 0,8
RLU 60.300 E3 60 | 2,4 300 | 11,8 0,8
RLU 60.400 E3 60 | 2,4 400 | 15,7 0,8
RLU 60.500 E3 60 | 2,4 500 | 19,7 0,9
RLU 60.600 E3 60 | 2,4 600 | 23,6 0,9
S
S
S
S
S
S
S
F
F
F
F
F
F
E3
E3
E3
E3
E3
E3
model no. height
Hwidth
Bthick-
ness t
mm | Inch mm | Inch mm
Pack /
Box Qty
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
Weight
per 100
m
kg
178,40
214,75
251,10
358,60
439,63
520,18
600,73
196,37
276,38
394,68
483,87
572,52
661,16
159,00
215,00
292,00
352,00
472,00
539,00
153
Heavy Duty Cable Tray
ventilated
Support Span (m)
Uniformly distributed load q
One RV… splice plate included with every piece of cable tray.
Load Chart: q = uniformly distributed load (tested according to DIN EN IEC 61537 standard)
RS 60.100
60 | 2,4 100 | 3,9 1,5
RS 60.200 60 | 2,4 200 | 7,9 1,5
RS 60.300 60 | 2,4 300 | 11,8 1,5
RS 60.400 60 | 2,4 400 | 15,7 1,5
RS 60.500 60 | 2,4 500 | 19,7 1,5
RS 60.600 60 | 2,4 600 | 23,6 1,5
RS 60.100 F
60 | 2,4 100 | 3,9 1,5
RS 60.200 F60 | 2,4 200 | 7,9 1,5
RS 60.300 F60 | 2,4 300 | 11,8 1,5
RS 60.400 F60 | 2,4 400 | 15,7 1,5
RS 60.500 F60 | 2,4 500 | 19,7 1,5
RS 60.600 F60 | 2,4 600 | 23,6 1,5
S
S
S
S
S
S
F
F
F
F
F
F
model no. height
Hwidth
Bthick-
ness t
mm | Inch mm | Inch mm
Pack /
Box Qty
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
Weight
per 100
m
kg
249,60
349,94
464,00
560,00
704,00
787,00
260,00
350,00
464,00
560,00
704,00
787,00
Centered punchholes allow hanging with M10 (3/8") threaded rod.
Bottom plate and side rail perforated with staggered punch holes.
Heavy Duty Cable Tray
solid, but with splice plate perforation
One RV… splice plate included with every piece of cable tray.
RSU 60.100
60 | 2,4 100 | 3,9 1,5
RSU 60.200 60 | 2,4 200 | 7,9 1,5
RSU 60.300 60 | 2,4 300 | 11,8 1,5
RSU 60.400 60 | 2,4 400 | 15,7 1,5
RSU 60.500 60 | 2,4 500 | 19,7 1,5
RSU 60.600 60 | 2,4 600 | 23,6 1,5
RSU 60.100 F
60 | 2,4 100 | 3,9 1,5
RSU 60.200 F60 | 2,4 200 | 7,9 1,5
RSU 60.300 F60 | 2,4 300 | 11,8 1,5
RSU 60.400 F60 | 2,4 400 | 15,7 1,5
RSU 60.500 F60 | 2,4 500 | 19,7 1,5
RSU 60.600 F60 | 2,4 600 | 23,6 1,5
S
S
S
S
S
S
F
F
F
F
F
F
model no. height
Hwidth
Bthick-
ness t
mm | Inch mm | Inch mm
Pack /
Box Qty
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
Weight
per 100
m
kg
289,84
409,66
529,92
650,21
770,00
889,79
318,60
450,36
582,66
714,85
846,64
978,41
154
CABLE TRAY SYSTEM
U-shaped Splice Plate
Suitable for: RL/RS… cable trays
RV 60.100
49 | 1,9 96 | 3,8
RV 60.150 49 | 1,9 146 | 5,7
RV 60.200 49 | 1,9 196 | 7,7
RV 60.300 49 | 1,9 296 | 11,7
RV 60.100 F
49 | 1,9 96 | 3,8
RV 60.200 F49 | 1,9 196 | 7,7
RV 60.300 F49 | 1,9 296 | 11,7
RV 60.100 E3
49 | 1,9 96 | 3,8
RV 60.200 E3 49 | 1,9 196 | 7,7
RV 60.300 E3 49 | 1,9 296 | 11,7
S
S
S
S
F
F
F
E3
E3
E3
model no. height
Hwidth
B
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
1
1
1
Weight
per 100
pcs
kg
17,64
20,71
25,37
31,51
19,56
28,11
34,86
18,59
26,58
32,76
Universal Splice Plate
2 pieces required per joint
RVV 50
44 | 1,7 135 | 5,3
RVV 50 F
44 | 1,7 135 | 5,3
RVV 50 E3
44 | 1,7 135 | 5,3
RVV 50 E5
44 | 1,7 135 | 5,3
S
F
E3
E5
model no. height
Hwidth
B
mm | Inch mm | Inch
Pack /
Box Qty
20
20
20
20
Weight
per 100
pcs
kg
8,36
7,00
7,00
7,00
Barrier Strip
to separate wires and cables of different voltage levels or with different functions
RW 50
47 | 1,9 0,75
RW 60 55 | 2,2 0,75
RW 60 F
55 | 2,2 0,75
RW 50 E3
47 | 1,9 0,80
RW 60 E3 55 | 2,2 0,80
S
S
F
E3
E3
model no. height
Hthick-
ness t
mm | Inch mm
Pack /
Box Qty
10 x 3 m
10 x 3 m
10 x 3 m
10 x 3 m
10 x 3 m
Weight
per 100
m
kg
44,62
49,85
54,73
46,53
53,32
64 66
Splice Plate for Barrier Strip
for positive locking connections and proper bonding of barrier strips
RTV 50 E2
46,5 | 1,8 80 | 3,1
RTV 60 E2 54,5 | 2,1 80 | 3,1
E2
E2
model no. height
Hlength
A
mm | Inch mm | Inch
Pack /
Box Qty
20
20
Weight
per 100
pcs
kg
1,18
1,39
64
155
Mounting Plate for Barrier Strip
RTPH 50
83 | 3,3 59 | 2,3 0,9
S
model no. length
Awidth
Bthick-
ness t
mm | Inch mm | Inch mm
Pack /
Box Qty
20
Weight
per 100
pcs
kg
4
Mounting plate with latching mechanism for fast installation of barrier strips in ventilated RL/RS series
cable trays.
Mounting Plate for Barrier Strip with M6 Stud
RTPH 50 M6
83 | 3,3 59 | 2,3 0,9
S
model no. length
Awidth
Bthick-
ness t
mm | Inch mm | Inch mm
Pack /
Box Qty
50
Weight
per 100
pcs
kg
3,4
Mounting plate with latching mechanism for fast installation of barrier strips in ventilated RL/RS series
cable trays. With M6 locking stud.
156
CABLE TRAY SYSTEM
Extension Horizontal Tee
with integrated splice
RTA 60.100
60 | 2,4 102 | 4
RTA 60.150 60 | 2,4 152 | 6
RTA 60.200 60 | 2,4 202 | 8
RTA 60.300 60 | 2,4 302 | 11,9
RTA 60.400 60 | 2,4 402 | 15,8
RTA 60.500 60 | 2,4 502 | 19,8
RTA 60.600 60 | 2,4 602 | 23,7
RTA 60.100 F
60 | 2,4 102 | 4
RTA 60.150 F60 | 2,4 152 | 6
RTA 60.200 F60 | 2,4 202 | 8
RTA 60.300 F60 | 2,4 302 | 11,9
RTA 60.400 F60 | 2,4 402 | 15,8
RTA 60.500 F60 | 2,4 502 | 19,8
RTA 60.600 F60 | 2,4 602 | 23,7
RTA 60.100 E3
60 | 2,4 102 | 4
RTA 60.200 E3 60 | 2,4 202 | 8
RTA 60.300 E3 60 | 2,4 302 | 11,9
RTA 60.400 E3 60 | 2,4 402 | 15,8
RTA 60.500 E3 60 | 2,4 502 | 19,8
RTA 60.600 E3 60 | 2,4 602 | 23,7
S
S
S
S
S
S
S
F
F
F
F
F
F
F
E3
E3
E3
E3
E3
E3
model no. height
Hinside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Weight
per 100
pcs pc./
kg
78,0
86,5
94,9
111,9
129,1
145,5
162,4
85,0
94,4
103,6
122,3
141,2
159,3
177,8
70,7
85,7
100,9
135,6
154,0
173,0
Horizontal Elbow Building Block
with integrated splice
for building customized horizontal cable tray fittings
REK 60
60 | 2,4
REK 60 F
60 | 2,4
REK 60 E3
60 | 2,4
REK 60 E5
60 | 2,4
S
F
E3
E5
model no. height
H
mm | Inch
Pack /
Box Qty
10
10
10
10
Weight
per 100
pcs
kg
37,6
40,1
34,1
34,4
Flexible Horizontal Elbow 0-90°
with integrated splice
RBAV 60.100
60 | 2,4 100 | 3,9
RBAV 60.150 60 | 2,4 150 | 5,9
RBAV 60.200 60 | 2,4 200 | 7,9
RBAV 60.300 60 | 2,4 300 | 11,8
RBAV 60.400 60 | 2,4 400 | 15,7
RBAV 60.500 60 | 2,4 500 | 19,7
RBAV 60.600 60 | 2,4 600 | 23,6
S
S
S
S
S
S
S
model no. height
Hinside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
Weight
per 100
pcs pc./
kg
44,8
58,8
74,4
116,1
167,8
237,8
316,1
157
Horizontal Elbow 45°
with integrated splice
RBA 60.100
60 | 2,4 102 | 4
RBA 60.150 60 | 2,4 152 | 6
RBA 60.200 60 | 2,4 202 | 8
RBA 60.300 60 | 2,4 302 | 11,9
RBA 60.400 60 | 2,4 402 | 15,8
RBA 60.500 60 | 2,4 502 | 19,8
RBA 60.600 60 | 2,4 602 | 23,7
RBA 60.100 F
60 | 2,4 102 | 4
RBA 60.150 F60 | 2,4 152 | 6
RBA 60.200 F60 | 2,4 202 | 8
RBA 60.300 F60 | 2,4 302 | 11,9
RBA 60.400 F60 | 2,4 402 | 15,8
RBA 60.500 F60 | 2,4 502 | 19,8
RBA 60.600 F60 | 2,4 602 | 23,7
S
S
S
S
S
S
S
F
F
F
F
F
F
F
model no. height
Hinside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Weight
per 100
pcs pc./
kg
42,9
57,0
72,8
109,1
152,1
201,5
257,5
46,2
46,0
78,3
117,4
163,6
216,6
276,8
Horizontal Elbow 90°
with integrated splice
RES 60.100
60 | 2,4 102 | 4
RES 60.150 60 | 2,4 152 | 6
RES 60.200 60 | 2,4 202 | 8
RES 60.300 60 | 2,4 302 | 11,9
RES 60.400 60 | 2,4 402 | 15,8
RES 60.500 60 | 2,4 502 | 19,8
RES 60.600 60 | 2,4 602 | 23,7
RES 60.100 F
60 | 2,4 102 | 4
RES 60.150 F60 | 2,4 152 | 6
RES 60.200 F60 | 2,4 202 | 8
RES 60.300 F60 | 2,4 302 | 11,9
RES 60.400 F60 | 2,4 402 | 15,8
RES 60.500 F60 | 2,4 502 | 19,8
RES 60.600 F60 | 2,4 602 | 23,7
RES 60.100 E3
60 | 2,4 102 | 4
RES 60.200 E3 60 | 2,4 202 | 8
RES 60.300 E3 60 | 2,4 302 | 11,9
RES 60.400 E3 60 | 2,4 402 | 15,8
RES 60.500 E3 60 | 2,4 502 | 19,8
RES 60.600 E3 60 | 2,4 602 | 23,7
S
S
S
S
S
S
S
F
F
F
F
F
F
F
E3
E3
E3
E3
E3
E3
model no. height
Hinside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Weight
per 100
pcs pc./
kg
87,50
115,70
156,80
237,70
333,80
446,10
574,00
99,42
125,00
168,60
255,50
358,90
479,50
617,10
81,08
135,39
201,53
280,78
372,20
476,26
Horizontal Tee
with integrated splice
RTS 60.100
60 | 2,4 102 | 4
RTS 60.150 60 | 2,4 152 | 6
RTS 60.200 60 | 2,4 202 | 8
RTS 60.300 60 | 2,4 302 | 11,9
RTS 60.400 60 | 2,4 402 | 15,8
RTS 60.500 60 | 2,4 502 | 19,8
RTS 60.600 60 | 2,4 602 | 23,7
RTS 60.100 F
60 | 2,4 102 | 4
RTS 60.150 F60 | 2,4 152 | 6
RTS 60.200 F60 | 2,4 202 | 8
RTS 60.300 F60 | 2,4 302 | 11,9
RTS 60.400 F60 | 2,4 402 | 15,8
RTS 60.500 F60 | 2,4 502 | 19,8
RTS 60.600 F60 | 2,4 602 | 23,7
S
S
S
S
S
S
S
F
F
F
F
F
F
F
model no. height
Hinside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Weight
per 100
pcs pc./
kg
115,40
147,20
195,40
294,80
399,68
511,90
648,80
124,00
159,00
210,00
322,62
420,00
550,30
697,50
158
CABLE TRAY SYSTEM
Horizontal Cross
with integrated splice
RKS 60.100
60 | 2,4 102 | 4
RKS 60.150 60 | 2,4 152 | 6
RKS 60.200 60 | 2,4 202 | 8
RKS 60.300 60 | 2,4 302 | 11,9
RKS 60.400 60 | 2,4 402 | 15,8
RKS 60.500 60 | 2,4 502 | 19,8
RKS 60.600 60 | 2,4 602 | 23,7
RKS 60.100 F
60 | 2,4 102 | 4
RKS 60.150 F60 | 2,4 152 | 6
RKS 60.200 F60 | 2,4 202 | 8
RKS 60.300 F60 | 2,4 302 | 11,9
RKS 60.400 F60 | 2,4 402 | 15,8
RKS 60.500 F60 | 2,4 502 | 19,8
RKS 60.600 F60 | 2,4 602 | 23,7
S
S
S
S
S
S
S
F
F
F
F
F
F
F
model no. height
Hinside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Weight
per 100
pcs pc./
kg
150,6
190,2
233,7
332,4
446,9
577,1
722,9
161,9
205,0
251,2
357,4
480,4
620,3
777,1
Reducer / Blind End
can be used as blind end or as reducer for cable trays
RA 60.050
60 | 2,4 50 | 2 172
RA 60.150 60 | 2,4 150 | 5,9 272
RA 60.200 60 | 2,4 200 | 7,9 322
RA 60.400 60 | 2,4 400 | 15,7 522
RA 60.500 60 | 2,4 500 | 19,7 622
RA 60.600 60 | 2,4 600 | 23,6 722
RA 60.150 F
60 | 2,4 150 | 5,9 272
RA 60.200 F60 | 2,4 200 | 7,9 322
RA 60.400 F60 | 2,4 400 | 15,7 522
RA 60.500 F60 | 2,4 500 | 19,7 622
RA 60.600 F60 | 2,4 600 | 23,6 722
RA 60.200 E3
60 | 2,4 200 | 7,9 322
RA 60.400 E3 60 | 2,4 400 | 15,7 522
RA 60.500 E3 60 | 2,4 500 | 19,7 622
RA 60.600 E3 60 | 2,4 600 | 23,6 722
S
S
S
S
S
S
F
F
F
F
F
E3
E3
E3
E3
model no. height
Hwidth
Bwidth
B1
mm | Inch mm | Inch mm | Inch
Pack /
Box Qty
20
20
20
20
20
20
1
1
1
1
1
20
20
20
20
Weight
per 100
pcs pc./
kg
11,1
17,0
19,9
31,8
37,7
43,7
18,4
21,6
34,7
41,2
47,7
18,1
32,0
39,0
46,0
Adjustable Horizontal Splice / Reducer / Blind End
adjustable horizontal splice plate for solid and ventilated cable tray
can be used as blind end or as reducer for cable trays
RAW 60.100
60 | 2,4 100 | 3,9 222
RAW 60.300 60 | 2,4 300 | 11,8 422
RAW 60.100 F
60 | 2,4 100 | 3,9 222
RAW 60.300 F60 | 2,4 300 | 11,8 422
RAW 60.100 E3
60 | 2,4 100 | 3,9 222
RAW 60.300 E3 60 | 2,4 300 | 11,8 422
S
S
F
F
E3
E3
model no. height
Hwidth
Bwidth
B1
mm | Inch mm | Inch mm | Inch
Pack /
Box Qty
20
20
1
1
20
20
Weight
per 100
pcs
kg
13,00
25,76
14,80
26,00
13,00
26,00
Adjustable Vertical Splice Plate
2 pieces required per joint
RGV 60
47 | 1,9
RGV 60 F
47 | 1,9
RGV 60 E3
47 | 1,9
S
F
E3
model no. height
H
mm | Inch
Pack /
Box Qty
50
50
20
Weight
per 100
pcs
kg
19,23
20,58
14,38
159
Splice / Link Kit
for linking sections of tray with a vertical displacement
RGE 60.100
60 | 2,4 100 | 3,9
RGE 60.150 60 | 2,4 150 | 5,9
RGE 60.200 60 | 2,4 200 | 7,9
RGE 60.300 60 | 2,4 300 | 11,8
RGE 60.400 60 | 2,4 400 | 15,7
RGE 60.500 60 | 2,4 500 | 19,7
RGE 60.600 60 | 2,4 600 | 23,6
RGE 60.100 F
60 | 2,4 100 | 3,9
RGE 60.150 F60 | 2,4 150 | 5,9
RGE 60.200 F60 | 2,4 200 | 7,9
RGE 60.300 F60 | 2,4 300 | 11,8
RGE 60.400 F60 | 2,4 400 | 15,7
RGE 60.500 F60 | 2,4 500 | 19,7
RGE 60.600 F60 | 2,4 600 | 23,6
S
S
S
S
S
S
S
F
F
F
F
F
F
F
model no. height
Hwidth
B
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Weight
per 100
pcs pc./
kg
52,51
57,65
62,79
73,07
83,35
93,63
103,91
57,42
63,07
68,73
80,03
91,34
102,65
113,96
Vertical Inside Elbow 90°
with integrated splice
RSD 60.100
60 | 2,4 102 | 4
RSD 60.150 60 | 2,4 152 | 6
RSD 60.200 60 | 2,4 202 | 8
RSD 60.300 60 | 2,4 302 | 11,9
RSD 60.400 60 | 2,4 402 | 15,8
RSD 60.500 60 | 2,4 502 | 19,8
RSD 60.600 60 | 2,4 602 | 23,7
RSD 60.100 F
60 | 2,4 102 | 4
RSD 60.200 F60 | 2,4 202 | 8
RSD 60.300 F60 | 2,4 302 | 11,9
RSD 60.400 F60 | 2,4 402 | 15,8
RSD 60.500 F60 | 2,4 502 | 19,8
RSD 60.600 F60 | 2,4 602 | 23,7
S
S
S
S
S
S
S
F
F
F
F
F
F
model no. height
Hinside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
Weight
per 100
pcs pc./ /
kg
84,90
102,10
119,30
153,70
194,35
222,50
256,90
76,40
105,20
133,90
162,80
191,60
220,30
Vertical Outside Elbow 90°
with integrated splice
RFD 60.100
60 | 2,4 102 | 4
RFD 60.150 60 | 2,4 152 | 6
RFD 60.200 60 | 2,4 202 | 8
RFD 60.300 60 | 2,4 302 | 11,9
RFD 60.400 60 | 2,4 402 | 15,8
RFD 60.500 60 | 2,4 502 | 19,8
RFD 60.600 60 | 2,4 602 | 23,7
RFD 60.100 F
60 | 2,4 102 | 4
RFD 60.200 F60 | 2,4 202 | 8
RFD 60.300 F60 | 2,4 302 | 11,9
RFD 60.400 F60 | 2,4 402 | 15,8
RFD 60.500 F60 | 2,4 502 | 19,8
RFD 60.600 F60 | 2,4 602 | 23,7
S
S
S
S
S
S
S
F
F
F
F
F
F
model no. height
Hinside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
Weight
per 100
pcs pc./ /
kg
71,10
84,50
97,90
124,60
157,67
178,20
204,90
91,30
128,20
165,20
202,20
239,20
276,20
160
CABLE TRAY SYSTEM
Vertical Tee Down, lengthwise
with integrated splice
RTL 60.100
60 | 2,4 100 | 3,9 201 | 7,9
RTL 60.150 60 | 2,4 150 | 5,9 251 | 9,9
RTL 60.200 60 | 2,4 200 | 7,9 401 | 15,8
RTL 60.300 60 | 2,4 300 | 11,8 701 | 27,6
RTL 60.400 60 | 2,4 400 | 15,7 801 | 31,5
RTL 60.500 60 | 2,4 500 | 19,7 901 | 35,5
RTL 60.600 60 | 2,4 600 | 23,6 1001 | 39,4
S
S
S
S
S
S
S
model no. height
Hwidth
Blength
A
mm | Inch mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
Weight
per 100
pcs pc./
kg
100
119
200
438
557
691
841
Size of run and tap tray is identical.
Vertical Tee Down, crosswise
with integrated splice
RTQ 60.100
60 | 2,4 100 | 3,9 311 | 12,2
RTQ 60.150 60 | 2,4 150 | 5,9 311 | 12,2
RTQ 60.200 60 | 2,4 200 | 7,9 311 | 12,2
RTQ 60.300 60 | 2,4 300 | 11,8 311 | 12,2
RTQ 60.400 60 | 2,4 400 | 15,7 311 | 12,2
RTQ 60.500 60 | 2,4 500 | 19,7 311 | 12,2
RTQ 60.600 60 | 2,4 600 | 23,6 311 | 12,2
S
S
S
S
S
S
S
model no. height
Hwidth
Blength
A
mm | Inch mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
Weight
per 100
pcs pc./
kg
105
125
145
175
215
250
285
Size of run and tap tray is identical.
Edge Protection Plate
with rounded edges to protect cables at the joint and
to reinforce the bottom of cable trays
RKB 100
92 | 3,6
RKB 150 142 | 5,6
RKB 200 192 | 7,6
RKB 300 292 | 11,5
RKB 400 392 | 15,4
RKB 500 492 | 19,4
RKB 600 592 | 23,3
RKB 100 F
92 | 3,6
RKB 150 F142 | 5,6
RKB 200 F192 | 7,6
RKB 300 F292 | 11,5
RKB 400 F392 | 15,4
RKB 500 F492 | 19,4
RKB 600 F592 | 23,3
S
S
S
S
S
S
S
F
F
F
F
F
F
F
model no. width
B
mm | Inch
Pack /
Box Qty
10
10
10
10
10
10
10
10
10
10
10
10
10
10
Weight
per 100
pcs
kg
5,00
6,89
10,00
15,00
20,00
25,00
31,00
5,00
7,29
10,00
15,00
20,00
25,00
31,00
161
NOTES

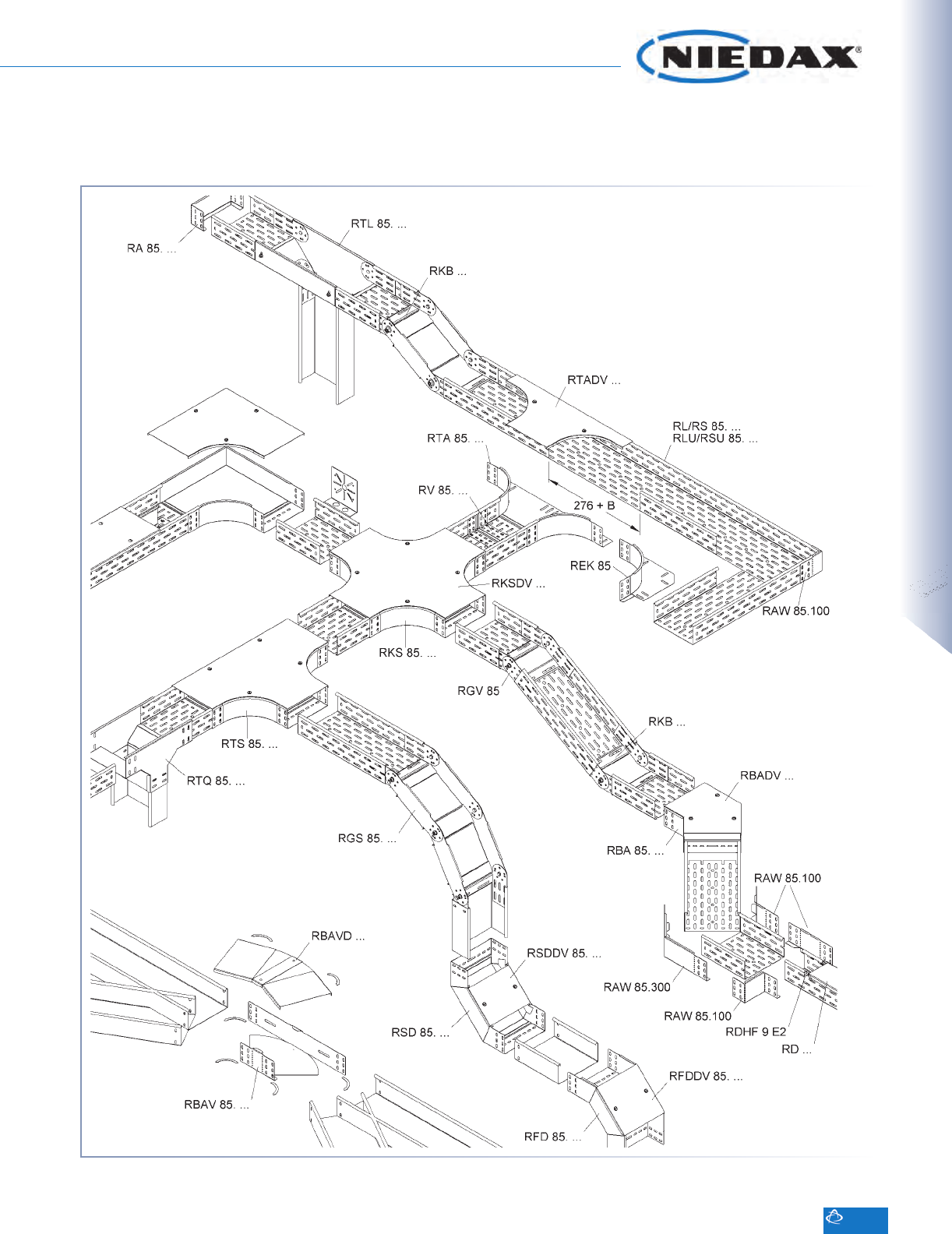

Available Side Rail Heights
SYSTEM
ACCESSORIES
85
Cable Tray RL Page 165
Cable Tray RLU Page 165
Distribution Cable Tray RLCPV...OV Page 166
Boltless Splice Plate RVC Page 166
Edge Protection Ring KSR...A Page 166
Heavy Duty Cable Tray RS Page 167
Heavy Duty Cable Tray RSU Page 167
U-shaped Splice Plate RV Page 168
Barrier Strip RW 85 Page 168
Splice Plate Barrier Strip RTV 85 Page 168
Mounting Plate for Barrier Strip RTPH 50+M6 Page 168/169
Extension Horizontal Tee RTA Page 169
Horizontal Elbow Building Block REK Page 169
Fexible Horizontal Elbow 0-90° RBAV Page 170
Horizontal Elbow 45° RBA Page 170
Horizontal Elbow 90° RES Page 170
Horizontal Tee RTS Page 170
Horizontal Cross RKS Page 171
Reducer / Blind End RA Page 171
Adjustable Horizontal Splice / Reducer / Blind End RAW Page 171
Adjustable Vertical Splice Plate RGV Page 171
Splice / Link Kit RGE Page 172
Vertical Inside Elbow 90° RSD Page 172
Vertical Outside Elbow 90° RFD Page 172
Vertical Tee Down, lengthwise RTL Page 173
Vertical Tee Down, crosswise RTQ Page 173
Edge Protection Plate RKB Page 173
The covers of the cable tray system starting from page 188.
162
CABLE TRAY SYSTEM
Available Side Rail Heights
163
Load / Span Class Designation in accordance
with NEMA VE 1 and CSA E22.2 No. 126.1
Niedax Series
Minimum Area Load class in accordance to
NEMA VE 1
(calculational)
mm2 / in.2
in accordance
to NEMA VE 2
mm2 / in.2
Rated Load
Kg/m / lb./ft.
Support
spacing
m / ft.
Load/Span
Class
RLX 85.100, ... F 201.6 / 0.31 129 / 0.2 93 / 62.5 2 / 6.6 A
RLX 85.200, ... F 296.0 / 0.46 258 / 0.4 93 / 62.5 2 / 6.6 A
RLX 85.300, ... F 368.0 / 0.57 258 / 0.4 93 / 62.5 2 / 6.6 A
RLX 85.400, ... F 440.0 / 0.68 258 / 0.4 92 / 62.5 2 / 6.6 A
RLX 85.500, ... F 512.0 / 0.79 452 / 0.7 93 / 62.5 2 / 6.6 A
RLX 85.600, ... F 584.0 / 0.91 452 / 0.7 93 / 62.5 2 / 6.6 A
RLUX 85.100, ... F 264,6 / 0.41 258 / 0.4 93 / 62.5 2 / 6.6 A
RLUX 85.200, ... F 394.0 / 0.61 258 / 0.4 93 / 62.5 2 / 6.6 A
RLUX 85.300, ... F 494.0 / 0.77 452 / 0.7 93 / 62.5 2 / 6.6 A
RLUX 85.400, ... F 594.0 / 0.92 452 / 0.7 93 / 62.5 2 / 6.6 A
RLUX 85.500, ... F 694.0 / 1.08 645 / 1.0 93 / 62.5 2 / 6.6 A
RLUX 85.600, ... F 794.0 / 1.23 645 / 1.0 93 / 62.5 2 / 6.6 A
RSX 85.100, ... F 331.5 / 0.51 258 / 0.4 266.5 / 179 2 / 6.6 8A, 8B, 8C, A, C
RSX 85.200, ... F 439.5 / 0.68 258 / 0.4 266.5 / 179 2 / 6.6 8A, 8B, 8C, A, C
RSX 85.300, ... F 547.5 / 0.85 452 / 0.7 266.5 / 179 2 / 6.6 8A, 8B, 8C, A, C
RSX 85.400, ... F 655.5 / 1.02 645 / 1.0 266.5 / 179 2 / 6.6 8A, 8B, 8C, A, C
RSX 85.500, ... F 763.5 / 1.18 645 / 1.0 266.5 / 179 2 / 6.6 8A, 8B, 8C, A, C
RSX 85.600, ... F 871.5 / 1.35 645 / 1.0 266.5 / 179 2 / 6.6 8A, 8B, 8C, A, C
RSUX 85.100, ... F 436.5 / 0.68 258 / 0.4 266.5 / 179 2 / 6.6 8A, 8B, 8C, A, C
RSUX 85.200, ... F 586.5 / 0.91 452 / 0.7 266.5 / 179 2 / 6.6 8A, 8B, 8C, A, C
RSUX 85.300, ... F 736.5 / 1.14 645 / 1.0 266.5 / 179 2 / 6.6 8A, 8B, 8C, A, C
RSUX 85.400, ... F 886.5 / 1.37 645 / 1.0 266.5 / 179 2 / 6.6 8A, 8B, 8C, A, C
RSUX 85.500, ... F 1036.5 / 1.61 968 / 1.5 266.5 / 179 2 / 6.6 8A, 8B, 8C, A, C
RSUX 85.600, ... F 1186.5 / 1.84 968 / 1.5 266.5 / 179 2 / 6.6 8A, 8B, 8C, A, C
164
CABLE TRAY SYSTEM
165
Cable Tray
ventilated
Support Span (m)
Uniformly distributed load q
One RV… splice plate included with every piece of cable tray.
Load Chart: q = uniformly distributed load (tested according to DIN EN IEC 61537 standard)
RL 85.100
85 | 3,3 100 | 3,9 0,9
RL 85.200 85 | 3,3 200 | 7,9 1,0
RL 85.300 85 | 3,3 300 | 11,8 1,0
RL 85.400 85 | 3,3 400 | 15,7 1,0
RL 85.500 85 | 3,3 500 | 19,7 1,0
RL 85.600 85 | 3,3 600 | 23,6 1,0
RL 85.100 F
85 | 3,3 100 | 3,9 0,9
RL 85.200 F85 | 3,3 200 | 7,9 1,0
RL 85.300 F85 | 3,3 300 | 11,8 1,0
RL 85.400 F85 | 3,3 400 | 15,7 1,0
RL 85.500 F85 | 3,3 500 | 19,7 1,0
RL 85.600 F85 | 3,3 600 | 23,6 1,0
S
S
S
S
S
S
F
F
F
F
F
F
model no. height
Hwidth
Bthick-
ness t
mm | Inch mm | Inch mm
Pack /
Box Qty
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
Weight
per 100
m
kg
185,56
272,98
340,52
405,00
474,00
542,00
207,00
272,00
329,00
405,00
474,00
542,00
Centered punchholes allow hanging with M10 (3/8") threaded rod.
Cable Tray
solid, but with splice plate perforation
One RV… splice plate included with every piece of cable tray.
RLU 85.100
85 | 3,3 100 | 3,9 0,9
RLU 85.200 85 | 3,3 200 | 7,9 1,0
RLU 85.300 85 | 3,3 300 | 11,8 1,0
RLU 85.400 85 | 3,3 400 | 15,7 1,0
RLU 85.500 85 | 3,3 500 | 19,7 1,0
RLU 85.600 85 | 3,3 600 | 23,6 1,0
RLU 85.100 F
85 | 3,3 100 | 3,9 0,9
RLU 85.200 F85 | 3,3 200 | 7,9 1,0
RLU 85.300 F85 | 3,3 300 | 11,8 1,0
RLU 85.400 F85 | 3,3 400 | 15,7 1,0
RLU 85.500 F85 | 3,3 500 | 19,7 1,0
RLU 85.600 F85 | 3,3 600 | 23,6 1,0
S
S
S
S
S
S
F
F
F
F
F
F
model no. height
Hwidth
Bthick-
ness t
mm | Inch mm | Inch mm
Pack /
Box Qty
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
Weight
per 100
m
kg
214,51
319,05
399,56
480,60
561,15
641,70
236,87
350,99
439,58
528,71
617,31
705,92
166
CABLE TRAY SYSTEM
Distribution Cable Tray
ventilated
Support Span (m)
Uniformly distributed load q
Please order two RVC 85 splice plates for every piece of tray.
Load Chart: q = uniformly distributed load (tested according to DIN EN IEC 61537 standard)
RLCPV 85.100 OV
85 | 3,3 100 | 3,9 1
RLCPV 85.200 OV 85 | 3,3 200 | 7,9 1
RLCPV 85.300 OV 85 | 3,3 300 | 11,8 1
RLCPV 85.400 OV 85 | 3,3 400 | 15,7 1
RLCPV 85.500 OV 85 | 3,3 500 | 19,7 1
RLCPV 85.600 OV 85 | 3,3 600 | 23,6 1
N
N
N
N
N
N
S
S
S
S
S
S
model no. height
Hwidth
Bthick-
ness t
mm | Inch mm | Inch mm
Pack /
Box Qty
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
Weight
per 100
m
kg
210,65
276,15
341,65
407,15
472,65
538,15
48
Precut cable outlets of 40x150 mm.
Boltless Splice Plate
2 pieces required per joint
Suitable for: RLCPV 85… OV cable trays
RVC 85
85 | 3,3
NS
model no. height
H
mm | Inch
Pack /
Box Qty
50
Weight
per 100
pcs
kg
23,54
Edge Protection Ring
UV resistant
to protect cables at the knockouts of tray or surface metal raceways
Suitable for: RLCPV 85... OV and RSV 110… distribution cable tray
KSR 40 A
black 34,5 | 1,4 144,5 | 5,7
K04
model no. color inside
height H inside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
20
Weight
per 100
pcs
kg
0,97
167
Heavy Duty Cable Tray
ventilated
Support Span (m)
Uniformly distributed load q
One RV… splice plate included with every piece of cable tray.
Load Chart: q = uniformly distributed load (tested according to DIN EN IEC 61537 standard)
RS 85.100
85 | 3,3 100 | 3,9 1,5
RS 85.200 85 | 3,3 200 | 7,9 1,5
RS 85.300 85 | 3,3 300 | 11,8 1,5
RS 85.400 85 | 3,3 400 | 15,7 1,5
RS 85.500 85 | 3,3 500 | 19,7 1,5
RS 85.600 85 | 3,3 600 | 23,6 1,5
RS 85.100 F
85 | 3,3 100 | 3,9 1,5
RS 85.200 F85 | 3,3 200 | 7,9 1,5
RS 85.300 F85 | 3,3 300 | 11,8 1,5
RS 85.400 F85 | 3,3 400 | 15,7 1,5
RS 85.500 F85 | 3,3 500 | 19,7 1,5
RS 85.600 F85 | 3,3 600 | 23,6 1,5
S
S
S
S
S
S
F
F
F
F
F
F
model no. height
Hwidth
Bthick-
ness t
mm | Inch mm | Inch mm
Pack /
Box Qty
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
Weight
per 100
m
kg
310
414
480
607
744
857
310
414
480
607
744
857
Centered punchholes allow hanging with M10 (3/8") threaded rod.
Heavy Duty Cable Tray
solid, but with splice plate perforation
One RV… splice plate included with every piece of cable tray.
RSU 85.100
85 | 3,3 100 | 3,9 1,5
RSU 85.200 85 | 3,3 200 | 7,9 1,5
RSU 85.300 85 | 3,3 300 | 11,8 1,5
RSU 85.400 85 | 3,3 400 | 15,7 1,5
RSU 85.500 85 | 3,3 500 | 19,7 1,5
RSU 85.600 85 | 3,3 600 | 23,6 1,5
RSU 85.100 F
85 | 3,3 100 | 3,9 1,5
RSU 85.200 F85 | 3,3 200 | 7,9 1,5
RSU 85.300 F85 | 3,3 300 | 11,8 1,5
RSU 85.400 F85 | 3,3 400 | 15,7 1,5
RSU 85.500 F85 | 3,3 500 | 19,7 1,5
RSU 85.600 F85 | 3,3 600 | 23,6 1,5
S
S
S
S
S
S
F
F
F
F
F
F
model no. height
Hwidth
Bthick-
ness t
mm | Inch mm | Inch mm
Pack /
Box Qty
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
Weight
per 100
m
kg
349,75
470,08
589,82
710,09
829,89
949,69
384,74
517,12
648,87
781,14
912,92
1.044,70
168
CABLE TRAY SYSTEM
U-shaped Splice Plate
Suitable for: RL/RS… cable trays
RV 85.100
74 | 2,9 97 | 3,8
RV 85.200 74 | 2,9 197 | 7,8
RV 85.300 74 | 2,9 297 | 11,7
RV 85.400 74 | 2,9 397 | 15,6
RV 85.500 74 | 2,9 497 | 19,6
RV 85.600 74 | 2,9 597 | 23,5
RV 85.100 F
74 | 2,9 97 | 3,8
RV 85.200 F74 | 2,9 197 | 7,8
RV 85.300 F74 | 2,9 297 | 11,7
RV 85.400 F74 | 2,9 397 | 15,6
RV 85.500 F74 | 2,9 497 | 19,6
RV 85.600 F74 | 2,9 597 | 23,5
S
S
S
S
S
S
F
F
F
F
F
F
model no. height
Hwidth
B
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
1
1
1
1
1
Weight
per 100
pcs
kg
20,71
28,44
34,58
42,31
48,45
54,59
22,14
30,48
37,24
45,58
52,34
59,09
Barrier Strip
to separate wires and cables of different voltage levels or with different functions
RW 85
80 | 3,1 0,9
RW 85 F
80 | 3,1 0,9
S
F
model no. height
Hthick-
ness t
mm | Inch mm
Pack /
Box Qty
10 x 3 m
10 x 3 m
Weight
per 100
m
kg
78,39
86,12
64
Splice Plate for Barrier Strip
for positive locking connections and proper bonding of barrier strips
RTV 85 E2
79,5 | 3,1 80 | 3,1
E2
model no. height
Hlength
A
mm | Inch mm | Inch
Pack /
Box Qty
20
Weight
per 100
pcs
kg
2,03
64
Mounting Plate for Barrier Strip
RTPH 50
83 | 3,3 59 | 2,3 0,9
S
model no. length
Awidth
Bthick-
ness t
mm | Inch mm | Inch mm
Pack /
Box Qty
20
Weight
per 100
pcs
kg
4
Mounting plate with latching mechanism for fast installation of barrier strips in ventilated RL/RS series
cable trays.
169
Mounting Plate for Barrier Strip with M6 Stud
RTPH 50 M6
83 | 3,3 59 | 2,3 0,9
S
model no. length
Awidth
Bthick-
ness t
mm | Inch mm | Inch mm
Pack /
Box Qty
50
Weight
per 100
pcs
kg
3,4
Mounting plate with latching mechanism for fast installation of barrier strips in ventilated RL/RS series
cable trays. With M6 locking stud.
Extension Horizontal Tee
with integrated splice
RTA 85.100
85 | 3,3 102 | 4
RTA 85.200 85 | 3,3 202 | 8
RTA 85.300 85 | 3,3 302 | 11,9
RTA 85.400 85 | 3,3 402 | 15,8
RTA 85.500 85 | 3,3 502 | 19,8
RTA 85.600 85 | 3,3 602 | 23,7
RTA 85.100 F
85 | 3,3 102 | 4
RTA 85.200 F85 | 3,3 202 | 8
RTA 85.300 F85 | 3,3 302 | 11,9
RTA 85.400 F85 | 3,3 402 | 15,8
RTA 85.500 F85 | 3,3 502 | 19,8
RTA 85.600 F85 | 3,3 602 | 23,7
S
S
S
S
S
S
F
F
F
F
F
F
model no. height
Hinside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
1
1
1
1
1
Weight
per 100
pcs
kg
94,6
111,5
128,4
145,6
162,1
179,0
103,3
121,9
140,4
159,4
177,5
196,1
Horizontal Elbow Building Block
with integrated splice
for building customized horizontal cable tray fittings
REK 85
85 | 3,3
REK 85 F
85 | 3,3
S
F
model no. height
H
mm | Inch
Pack /
Box Qty
1
1
Weight
per 100
pcs
kg
41,1
44,1
170
CABLE TRAY SYSTEM
Flexible Horizontal Elbow 0-90°
with integrated splice
RBAV 85.100
85 | 3,3 100 | 3,9
RBAV 85.200 85 | 3,3 200 | 7,9
RBAV 85.300 85 | 3,3 300 | 11,8
RBAV 85.400 85 | 3,3 400 | 15,7
RBAV 85.500 85 | 3,3 500 | 19,7
RBAV 85.600 85 | 3,3 600 | 23,6
S
S
S
S
S
S
model no. height
Hinside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
Weight
per 100
pcs
kg
55,2
87,5
132,6
187,4
260,6
338,9
Horizontal Elbow 45°
with integrated splice
RBA 85.100
85 | 3,3 102 | 4
RBA 85.200 85 | 3,3 202 | 8
RBA 85.300 85 | 3,3 302 | 11,9
RBA 85.400 85 | 3,3 402 | 15,8
RBA 85.500 85 | 3,3 502 | 19,8
RBA 85.600 85 | 3,3 602 | 23,7
RBA 85.100 F
85 | 3,3 102 | 4
RBA 85.200 F85 | 3,3 202 | 8
RBA 85.300 F85 | 3,3 302 | 11,9
RBA 85.400 F85 | 3,3 402 | 15,8
RBA 85.500 F85 | 3,3 502 | 19,8
RBA 85.600 F85 | 3,3 602 | 23,7
S
S
S
S
S
S
F
F
F
F
F
F
model no. height
Hinside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
1
1
1
1
1
Weight
per 100
pcs
kg
54,7
86,7
125,2
170,4
221,8
280,0
58,8
93,2
134,6
183,1
238,5
301,0
Horizontal Elbow 90°
with integrated splice
RES 85.100
85 | 3,3 102 | 4
RES 85.200 85 | 3,3 202 | 8
RES 85.300 85 | 3,3 302 | 11,9
RES 85.400 85 | 3,3 402 | 15,8
RES 85.500 85 | 3,3 502 | 19,8
RES 85.600 85 | 3,3 602 | 23,7
RES 85.100 F
85 | 3,3 102 | 4
RES 85.200 F85 | 3,3 202 | 8
RES 85.300 F85 | 3,3 302 | 11,9
RES 85.400 F85 | 3,3 402 | 15,8
RES 85.500 F85 | 3,3 502 | 19,8
RES 85.600 F85 | 3,3 602 | 23,7
S
S
S
S
S
S
F
F
F
F
F
F
model no. height
Hinside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
1
1
1
1
1
Weight
per 100
pcs
kg
110,5
185,0
271,1
372,4
489,9
623,1
118,8
198,9
291,4
400,4
526,6
669,8
Horizontal Tee
with integrated splice
RTS 85.100
85 | 3,3 102 | 4
RTS 85.200 85 | 3,3 202 | 8
RTS 85.300 85 | 3,3 302 | 11,9
RTS 85.400 85 | 3,3 402 | 15,8
RTS 85.500 85 | 3,3 502 | 19,8
RTS 85.600 85 | 3,3 602 | 23,7
RTS 85.100 F
85 | 3,3 102 | 4
RTS 85.200 F85 | 3,3 202 | 8
RTS 85.300 F85 | 3,3 302 | 11,9
RTS 85.400 F85 | 3,3 402 | 15,8
RTS 85.500 F85 | 3,3 502 | 19,8
RTS 85.600 F85 | 3,3 602 | 23,7
S
S
S
S
S
S
F
F
F
F
F
F
model no. height
Hinside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
1
1
1
1
1
Weight
per 100
pcs
kg
143,9
226,5
318,9
427,0
550,8
690,3
154,6
243,4
342,8
459,0
592,1
742,1
171
Horizontal Cross
with integrated splice
RKS 85.100
85 | 3,3 102 | 4
RKS 85.200 85 | 3,3 202 | 8
RKS 85.300 85 | 3,3 302 | 11,9
RKS 85.400 85 | 3,3 402 | 15,8
RKS 85.500 85 | 3,3 502 | 19,8
RKS 85.600 85 | 3,3 602 | 23,7
RKS 85.100 F
85 | 3,3 102 | 4
RKS 85.200 F85 | 3,3 202 | 8
RKS 85.300 F85 | 3,3 302 | 11,9
RKS 85.400 F85 | 3,3 402 | 15,8
RKS 85.500 F85 | 3,3 502 | 19,8
RKS 85.600 F85 | 3,3 602 | 23,7
S
S
S
S
S
S
F
F
F
F
F
F
model no. height
Hinside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
1
1
1
1
1
Weight
per 100
pcs
kg
182,9
266,0
364,8
479,2
609,4
755,3
196,6
285,9
392,1
515,2
655,1
811,9
Reducer / Blind End
can be used as blind end or as reducer for cable tray
RA 85.200
85 | 3,3 200 | 7,9 322
RA 85.400 85 | 3,3 400 | 15,7 522
RA 85.500 85 | 3,3 500 | 19,7 622
RA 85.600 85 | 3,3 600 | 23,6 722
RA 85.200 F
85 | 3,3 200 | 7,9 322
RA 85.400 F85 | 3,3 400 | 15,7 522
RA 85.500 F85 | 3,3 500 | 19,7 622
RA 85.600 F85 | 3,3 600 | 23,6 722
S
S
S
S
F
F
F
F
model no. height
Hwidth
Bwidth
B1
mm | Inch mm | Inch mm | Inch
Pack /
Box Qty
20
20
20
20
1
1
1
1
Weight
per 100
pcs
kg
25
42
50
59
25
42
50
59
Adjustable Horizontal Splice / Reducer / Blind End
adjustable horizontal splice plate for solid and ventilated cable tray
can be used as blind end or as reducer for cable tray
RAW 85.100
85 | 3,3 100 | 3,9 222
RAW 85.300 85 | 3,3 300 | 11,8 422
RAW 85.100 F
85 | 3,3 100 | 3,9 222
RAW 85.300 F85 | 3,3 300 | 11,8 422
S
S
F
F
model no. height
Hwidth
Bwidth
B1
mm | Inch mm | Inch mm | Inch
Pack /
Box Qty
20
20
1
1
Weight
per 100
pcs
kg
17
33
17
33
Adjustable Vertical Splice Plate
2 pieces required per joint
RGV 85
73 | 2,9
RGV 85 F
73 | 2,9
S
F
model no. height
H
mm | Inch
Pack /
Box Qty
25
25
Weight
per 100
pcs
kg
29,63
32,02
172
CABLE TRAY SYSTEM
Splice / Link Kit
for linking sections of tray with a vertical displacement
RGE 85.100
85 | 3,3 100 | 3,9
RGE 85.200 85 | 3,3 200 | 7,9
RGE 85.300 85 | 3,3 300 | 11,8
RGE 85.400 85 | 3,3 400 | 15,7
RGE 85.500 85 | 3,3 500 | 19,7
RGE 85.600 85 | 3,3 600 | 23,6
RGE 85.100 F
85 | 3,3 100 | 3,9
RGE 85.200 F85 | 3,3 200 | 7,9
RGE 85.300 F85 | 3,3 300 | 11,8
RGE 85.400 F85 | 3,3 400 | 15,7
RGE 85.500 F85 | 3,3 500 | 19,7
RGE 85.600 F85 | 3,3 600 | 23,6
S
S
S
S
S
S
F
F
F
F
F
F
model no. height
Hwidth
B
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
1
1
1
1
1
Weight
per 100
pcs
kg
55
68
80
92
104
145
55
68
80
92
104
145
Vertical Inside Elbow 90°
with integrated splice
RSD 85.100
85 | 3,3 102 | 4
RSD 85.200 85 | 3,3 202 | 8
RSD 85.300 85 | 3,3 302 | 11,9
RSD 85.400 85 | 3,3 402 | 15,8
RSD 85.500 85 | 3,3 502 | 19,8
RSD 85.600 85 | 3,3 602 | 23,7
S
S
S
S
S
S
model no. height
Hinside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
Weight
per 100
pcs
kg
96
130
165
200
234
269
Vertical Outside Elbow 90°
with integrated splice
RFD 85.100
85 | 3,3 102 | 4
RFD 85.200 85 | 3,3 202 | 8
RFD 85.300 85 | 3,3 302 | 11,9
RFD 85.400 85 | 3,3 402 | 15,8
RFD 85.500 85 | 3,3 502 | 19,8
RFD 85.600 85 | 3,3 602 | 23,7
S
S
S
S
S
S
model no. height
Hinside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
Weight
per 100
pcs
kg
94
120
147
174
200
227
173
Vertical Tee Down, lengthwise
with integrated splice
RTL 85.100
85 | 3,3 100 | 3,9 201 | 7,9
RTL 85.200 85 | 3,3 200 | 7,9 401 | 15,8
RTL 85.300 85 | 3,3 300 | 11,8 701 | 27,6
RTL 85.400 85 | 3,3 400 | 15,7 801 | 31,5
RTL 85.500 85 | 3,3 500 | 19,7 901 | 35,5
RTL 85.600 85 | 3,3 600 | 23,6 1001 | 39,4
S
S
S
S
S
S
model no. height
Hwidth
Blength
A
mm | Inch mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
Weight
per 100
pcs
kg
137
244
493
614
750
903
Size of run and tap tray is identical.
Vertical Tee Down, crosswise
with integrated splice
RTQ 85.100
85 | 3,3 100 | 3,9 336 | 13,2
RTQ 85.200 85 | 3,3 200 | 7,9 336 | 13,2
RTQ 85.300 85 | 3,3 300 | 11,8 336 | 13,2
RTQ 85.400 85 | 3,3 400 | 15,7 336 | 13,2
RTQ 85.500 85 | 3,3 500 | 19,7 336 | 13,2
RTQ 85.600 85 | 3,3 600 | 23,6 336 | 13,2
S
S
S
S
S
S
model no. height
Hwidth
Blength
A
mm | Inch mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
Weight
per 100
pcs
kg
130
170
210
230
275
320
Size of run and tap tray is identical.
Edge Protection Plate
with rounded edges to protect cables at the joint and
to reinforce the bottom of cable trays
RKB 100
92 | 3,6
RKB 200 192 | 7,6
RKB 300 292 | 11,5
RKB 400 392 | 15,4
RKB 500 492 | 19,4
RKB 600 592 | 23,3
RKB 100 F
92 | 3,6
RKB 200 F192 | 7,6
RKB 300 F292 | 11,5
RKB 400 F392 | 15,4
RKB 500 F492 | 19,4
RKB 600 F592 | 23,3
S
S
S
S
S
S
F
F
F
F
F
F
model no. width
B
mm | Inch
Pack /
Box Qty
10
10
10
10
10
10
10
10
10
10
10
10
Weight
per 100
pcs
kg
5
10
15
20
25
31
5
10
15
20
25
31
Available Side Rail Heights
SYSTEM
ACCESSORIES
Cable Tray RL Page 177
Cable Tray RLU Page 177
Heavy Duty Cable Tray RS Page 178
Heavy Duty Cable Tray RSU Page 178
Distribution Cable Tray RSV Page 179
Edge Protection Ring KSR 40... A Page 179
U-shaped Splice Plate RV Page 179
Three Piece Splice Plate Kit RVV Page 180
Barrier Strip RW 110 Page 180
Splice Plate for Barrier Strip RTV 110 Page 180
Mounting Plate for Barrier Strip RTPH 50+M Page 181
Extension Horizontal Tee RTA Page 181
Horizontal Elbow Building Block REK Page 182
Fexible Horizontal Elbow 0-90° RBAV Page 182
Horizontal Elbow 45° RBA Page 182
Horizontal Elbow 90° RES Page 182
Horizontal Tee RTS Page 183
Horizontal Cross RKS Page 183
Reducer / Blind End RA Page 183
Adjustable Horizontal Splice / Reducer / Blind End RAW Page 184
Adjustable Vertical Splice Plate RGV Page 184
Splice / Link Kit RGE Page 184
Vertical Inside Elbow 45° RSB Page 184
Vertical Inside Elbow 90° RSD Page 185
Vertical Outside Elbow 45° RFB Page 185
Vertical Outside Elbow 90° RFD Page 185
Vertical Tee Down, lengthwise RTL Page 185
Vertical Tee Down, crosswise RTQ Page 186
Edge Protection Plate RKB Page 186
The covers of the cable tray system starting from page 188.
110
174
CABLE TRAY SYSTEM
Available Side Rail Heights
175
Load / Span Class Designation in accordance
with NEMA VE 1 and CSA E22.2 No. 126.1
Niedax Series
Minimum Area Load class in accordance to
NEMA VE 1
(calculational)
mm2 / in.2
in accordance
to NEMA VE 2
mm2 / in.2
Rated Load
Kg/m / lb./ft.
Support
spacing
m / ft.
Load/Span
Class
RLX 110.100, ... F 234 / 0.36 129 / 0.2 113 / 76 2 / 6.6 8A, A
RLX 110.200, ... F 332 / 0.51 258 / 0.4 113 / 76 2 / 6.6 8A, A
RLX 110.300, ... F 404 / 0.63 258 / 0.4 113 / 76 2 / 6.6 8A, A
RLX 110.400, ... F 476 / 0.74 452 / 0.7 113 / 76 2 / 6.6 8A, A
RLX 110.500, ... F 548 / 0.85 452 / 0.7 113 / 76 2 / 6.6 8A, A
RLX 110.550, ... F 584 / 0.91 452 / 0.7 113 / 76 2 / 6.6 8A, A
RLX 110.100 ... E3 208 / 0.32 129 / 0.2 113 / 76 2 / 6.6 8A, A
RLX 110.200 ... E3 266 / 0.41 258 / 0.4 113 / 76 2 / 6.6 8A, A
RLX 110.300 ... E3 323 / 0.50 258 / 0.4 113 / 76 2 / 6.6 8A, A
RLX 110.400 ... E3 428 / 0.66 258 / 0.4 113 / 76 2 / 6.6 8A, A
RLX 110.500 ... E3 493 / 0.76 452 / 0.7 113 / 76 2 / 6.6 8A, A
RLX 110.550 ... E3 526 / 0.82 452 / 0.7 113 / 76 2 / 6.6 8A, A
RLUX 110.100, ... F 310 / 0.48 258 / 0.4 113 / 76 2 / 6.6 8A, A
RLUX 110.200, ... F 444 / 0.69 258 / 0.4 113 / 76 2 / 6.6 8A, A
RLUX 110.300, ... F 544 / 0.84 452 / 0.7 113 / 76 2 / 6.6 8A, A
RLUX 110.400, ... F 644 / 1.00 645 / 1.0 113 / 76 2 / 6.6 8A, A
RLUX 110.500, ... F 744 / 1.15 645 / 1.0 113 / 76 2 / 6.6 8A, A
RLUX 110.550, ... F 794 / 1.23 645 / 1.0 113 / 76 2 / 6.6 8A, A
RLUX 110.100 ... E3 275 / 0.43 258 / 0.4 113 / 76 2 / 6.6 8A, A
RLUX 110.200 ... E3 355 / 0.55 258 / 0.4 113 / 76 2 / 6.6 8A, A
RLUX 110.300 ... E3 435 / 0.67 258 / 0.4 113 / 76 2 / 6.6 8A, A
RLUX 110.400 ... E3 580 / 0.90 452 / 0.7 113 / 76 2 / 6.6 8A, A
RLUX 110.500 ... E3 670 / 1.04 645 / 1.0 113 / 76 2 / 6.6 8A, A
RLUX 110.550 ... E3 715 / 1.11 645 / 1.0 113 / 76 2 / 6.6 8A, A
RSX 110.100, ... F 386 / 0.60 258 / 0.4 224 / 151 2 / 6.6 8A, 8B, 8C, A, C
RSX 110.200, ... F 494 / 0.77 452 / 0.7 224 / 151 2 / 6.6 8A, 8B, 8C, A, C
RSX 110.300, ... F 602 / 0.93 452 / 0.7 224 / 151 2 / 6.6 8A, 8B, 8C, A, C
RSX 110.400, ... F 710 / 1.10 645 / 1.0 224 / 151 2 / 6.6 8A, 8B, 8C, A, C
RSX 110.500, ... F 818 / 1.27 645 / 1.0 224 / 151 2 / 6.6 8A, 8B, 8C, A, C
RSX 110.550, ... F 872 / 1.35 645 / 1.0 224 / 151 2 / 6.6 8A, 8B, 8C, A, C
RSUX 110.100, ... F 512 / 0.79 452 / 0.7 224 / 151 2 / 6.6 8A, 8B, 8C, A, C
RSUX 110.200, ... F 662 / 1.03 645 / 1.0 224 / 151 2 / 6.6 8A, 8B, 8C, A, C
RSUX 110.300, ... F 812 / 1.26 645 / 1.0 224 / 151 2 / 6.6 8A, 8B, 8C, A, C
RSUX 110.400, ... F 961 / 1.49 645 / 1.0 224 / 151 2 / 6.6 8A, 8B, 8C, A, C
RSUX 110.500, ... F 1112 / 1.72 968 / 1.5 224 / 151 2 / 6.6 8A, 8B, 8C, A, C
RSUX 110.550, ... F 1187 / 1.84 968 / 1.5 224 / 151 2 / 6.6 8A, 8B, 8C, A, C
RSVX 110.100, ... F * 368 / 0.57 258 / 0.4 67 / 45 3 / 9.8 8A, A
RSVX 110.150, ... F * 383 / 0.59 258 / 0.4 67 / 45 3 / 9.8 8A, A
RSVX 110.200, ... F * 437 / 0.68 258 / 0.4 67 / 45 3 / 9.8 8A, A
RSVX 110.300, ... F * 587 / 0.91 452 / 0.7 67 / 45 3 / 9.8 8A, A
RSVX 110.400, ... F * 716 / 1.11 645 / 1.0 67 / 45 3 / 9.8 8A, A
* - tested by UL with the three piece splice plate kit RVVX in the middle of two supports
176
CABLE TRAY SYSTEM
177
Cable Tray
ventilated
Support Span (m)
Uniformly distributed load q
One RV… splice plate included with every piece of cable tray.
Load Chart: q = uniformly distributed load (tested according to DIN EN IEC 61537 standard)
RL 110.100
110 | 4,3 100 | 3,9 0,9
RL 110.200 110 | 4,3 200 | 7,9 1,0
RL 110.300 110 | 4,3 300 | 11,8 1,0
RL 110.400 110 | 4,3 400 | 15,7 1,0
RL 110.100 F
110 | 4,3 100 | 3,9 0,9
RL 110.200 F110 | 4,3 200 | 7,9 1,0
RL 110.300 F110 | 4,3 300 | 11,8 1,0
RL 110.400 F110 | 4,3 400 | 15,7 1,0
RL 110.100 E3
110 | 4,3 100 | 3,9 0,8
RL 110.200 E3 110 | 4,3 200 | 7,9 0,8
RL 110.300 E3 110 | 4,3 300 | 11,8 0,8
RL 110.400 E3 110 | 4,3 400 | 15,7 0,9
S
S
S
S
F
F
F
F
E3
E3
E3
E3
model no. height
Hwidth
Bthick-
ness t
mm | Inch mm | Inch mm
Pack /
Box Qty
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
Weight
per 100
m
kg
234,00
306,44
374,00
442,09
234,00
299,00
374,00
404,00
184,00
254,00
307,00
402,26
Centered punchholes allow hanging with M10 (3/8") threaded rod.
Cable Tray
solid, but with splice plate perforation
One RV… splice plate included with every piece of cable tray.
RLU 110.100
110 | 4,3 100 | 3,9 0,9
RLU 110.200 110 | 4,3 200 | 7,9 1,0
RLU 110.300 110 | 4,3 300 | 11,8 1,0
RLU 110.400 110 | 4,3 400 | 15,7 1,0
RLU 110.100 F
110 | 4,3 100 | 3,9 0,9
RLU 110.200 F110 | 4,3 200 | 7,9 1,0
RLU 110.300 F110 | 4,3 300 | 11,8 1,0
RLU 110.400 F110 | 4,3 400 | 15,7 1,0
RLU 110.100 E3
110 | 4,3 100 | 3,9 0,8
RLU 110.200 E3 110 | 4,3 200 | 7,9 0,8
RLU 110.300 E3 110 | 4,3 300 | 11,8 0,8
RLU 110.400 E3 110 | 4,3 400 | 15,7 0,9
S
S
S
S
F
F
F
F
E3
E3
E3
E3
model no. height
Hwidth
Bthick-
ness t
mm | Inch mm | Inch mm
Pack /
Box Qty
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
Weight
per 100
m
kg
251,65
359,32
439,82
520,85
276,86
394,70
483,88
573,01
226,68
292,55
357,77
474,14
178
CABLE TRAY SYSTEM
Heavy Duty Cable Tray
ventilated
Support Span (m)
Uniformly distributed load q
Load rating with heavy duty splice plate RVV 110... in red.
One RV… splice plate included with every piece of cable tray.
Load Chart: q = uniformly distributed load (tested according to DIN EN IEC 61537 standard)
RS 110.100
110 | 4,3 100 | 3,9 1,5
RS 110.200 110 | 4,3 200 | 7,9 1,5
RS 110.300 110 | 4,3 300 | 11,8 1,5
RS 110.400 110 | 4,3 400 | 15,7 1,5
RS 110.100 F
110 | 4,3 100 | 3,9 1,5
RS 110.200 F110 | 4,3 200 | 7,9 1,5
RS 110.300 F110 | 4,3 300 | 11,8 1,5
RS 110.400 F110 | 4,3 400 | 15,7 1,5
S
S
S
S
F
F
F
F
model no. height
Hwidth
Bthick-
ness t
mm | Inch mm | Inch mm
Pack /
Box Qty
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
Weight
per 100
m
kg
350,00
450,00
564,00
651,87
350,00
450,00
564,00
610,00
Centered punchholes allow hanging with M10 (3/8") threaded rod.
Heavy Duty Cable Tray
solid, but with splice plate perforation
One RV… splice plate included with every piece of cable tray.
RSU 110.100
110 | 4,3 100 | 3,9 1,5
RSU 110.200 110 | 4,3 200 | 7,9 1,5
RSU 110.300 110 | 4,3 300 | 11,8 1,5
RSU 110.400 110 | 4,3 400 | 15,7 1,5
RSU 110.100 F
110 | 4,3 100 | 3,9 1,5
RSU 110.200 F110 | 4,3 200 | 7,9 1,5
RSU 110.300 F110 | 4,3 300 | 11,8 1,5
RSU 110.400 F110 | 4,3 400 | 15,7 1,5
S
S
S
S
F
F
F
F
model no. height
Hwidth
Bthick-
ness t
mm | Inch mm | Inch mm
Pack /
Box Qty
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
Weight
per 100
m
kg
409,65
529,99
649,72
769,99
450,63
583,01
714,76
847,03
179
Distribution Cable Tray
ventilated
Support Span (m)
Uniformly distributed load q
Load rating with heavy duty splice plate RVV 110... in red.
Hole pattern may vary based on width of tray.
One RV… splice plate included with every piece of cable tray.
Load Chart: q = uniformly distributed load (tested according to DIN EN IEC 61537 standard)
RSV 110.100 S
110 | 4,3 100 | 3,9 1,5
RSV 110.150 S110 | 4,3 150 | 5,9 1,5
RSV 110.200 S110 | 4,3 200 | 7,9 1,5
RSV 110.300 S110 | 4,3 300 | 11,8 1,5
RSV 110.400 S110 | 4,3 400 | 15,7 1,5
RSV 110.100 F
110 | 4,3 100 | 3,9 1,5
RSV 110.150 F110 | 4,3 150 | 5,9 1,5
RSV 110.200 F110 | 4,3 200 | 7,9 1,5
RSV 110.300 F110 | 4,3 300 | 11,8 1,5
RSV 110.400 F110 | 4,3 400 | 15,7 1,5
S
S
S
S
S
F
F
F
F
F
model no. height
Hwidth
Bthick-
ness t
mm | Inch mm | Inch mm
Pack /
Box Qty
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
Weight
per 100
m
kg
333,62
383,76
433,91
537,44
647,42
366,66
421,82
476,98
590,86
711,84
48
Cable outlets of 40x150 mm in bottom and flange of cable tray.
Edge Protection Ring
UV resistant
to protect cables at the knockouts of tray or surface metal raceways
Suitable for: RLCPV 85... OV and RSV 110… distribution cable tray
KSR 40 A
black 34,5 | 1,4 144,5 | 5,7
K04
model no. color inside
height H inside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
20
Weight
per 100
pcs
kg
0,97
U-shaped Splice Plate
Suitable for: RL/RS… cable trays
RV 110.100
99 | 3,9 97 | 3,8
RV 110.150 99 | 3,9 147 | 5,8
RV 110.200 99 | 3,9 197 | 7,8
RV 110.300 99 | 3,9 297 | 11,7
RV 110.400 99 | 3,9 397 | 15,6
RV 110.100 F
99 | 3,9 97 | 3,8
RV 110.150 F99 | 3,9 147 | 5,8
RV 110.200 F99 | 3,9 197 | 7,8
RV 110.300 F99 | 3,9 297 | 11,7
RV 110.400 F99 | 3,9 397 | 15,6
RV 110.100 E3
99 | 3,9 97 | 3,8
RV 110.200 E3 99 | 3,9 197 | 7,8
RV 110.300 E3 99 | 3,9 297 | 11,7
RV 110.400 E3 99 | 3,9 397 | 15,6
S
S
S
S
S
F
F
F
F
F
E3
E3
E3
E3
model no. height
Hwidth
B
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Weight
per 100
pcs
kg
23,77
26,84
31,51
37,65
45,38
26,31
29,68
34,86
41,62
50,16
24,76
32,76
38,94
46,93
180
CABLE TRAY SYSTEM
Three Piece Splice Plate Kit
heavy duty splice kit to extend support span
Suitable for: extending support span of RS/RSV 110… tray up to 5 meters
RVV 110.100
111 | 4,4 100 | 3,9
RVV 110.150 111 | 4,4 150 | 5,9
RVV 110.200 111 | 4,4 200 | 7,9
RVV 110.300 111 | 4,4 300 | 11,8
RVV 110.400 111 | 4,4 400 | 15,7
RVV 110.100 F
111 | 4,4 100 | 3,9
RVV 110.150 F111 | 4,4 150 | 5,9
RVV 110.200 F111 | 4,4 200 | 7,9
RVV 110.300 F111 | 4,4 300 | 11,8
RVV 110.400 F111 | 4,4 400 | 15,7
S
S
S
S
S
F
F
F
F
F
model no. height
Hwidth
B
mm | Inch mm | Inch
Pack /
Box Qty
5
5
5
5
5
5
5
5
5
5
Weight
per 100
pcs
kg
120
125
130
140
145
120
125
130
140
145
Splice Plate
2 pieces required per joint
heavy duty splice kit to extend support span
RVV 110 E3
111 | 4,4
E3
model no. height
H
mm | Inch
Pack /
Box Qty
10
Weight
per 100
pcs
kg
51,01
Barrier Strip
to separate wires and cables of different voltage levels or with different functions
RW 110
98 | 3,9 0,9
RW 110 F
98 | 3,9 0,9
RW 110 E3
98 | 3,9 0,9
S
F
E3
model no. height
Hthick-
ness t
mm | Inch mm
Pack /
Box Qty
10 x 3 m
10 x 3 m
10 x 3 m
Weight
per 100
m
kg
90,37
99,30
90,94
64
Splice Plate for Barrier Strip
for positive locking connections and proper bonding of barrier strips
RTV 110 E2
97,5 | 3,8 80 | 3,1
E2
model no. height
Hlength
A
mm | Inch mm | Inch
Pack /
Box Qty
20
Weight
per 100
pcs
kg
2,5
64
181
Mounting Plate for Barrier Strip
RTPH 50
83 | 3,3 59 | 2,3 0,9
S
model no. length
Awidth
Bthick-
ness t
mm | Inch mm | Inch mm
Pack /
Box Qty
20
Weight
per 100
pcs
kg
4
Mounting plate with latching mechanism for fast installation of barrier strips in ventilated RL/RS series
cable trays.
Mounting Plate for Barrier Strip with M6 Stud
RTPH 50 M6
83 | 3,3 59 | 2,3 0,9
S
model no. length
Awidth
Bthick-
ness t
mm | Inch mm | Inch mm
Pack /
Box Qty
50
Weight
per 100
pcs
kg
3,4
Mounting plate with latching mechanism for fast installation of barrier strips in ventilated RL/RS series
cable trays. With M6 locking stud.
Extension Horizontal Tee
with integrated splice
RTA 110.100
110 | 4,3 102 | 4
RTA 110.150 110 | 4,3 152 | 6
RTA 110.200 110 | 4,3 202 | 8
RTA 110.300 110 | 4,3 302 | 11,9
RTA 110.400 110 | 4,3 402 | 15,8
RTA 110.100 F
110 | 4,3 102 | 4
RTA 110.150 F110 | 4,3 152 | 6
RTA 110.200 F110 | 4,3 202 | 8
RTA 110.300 F110 | 4,3 302 | 11,9
RTA 110.400 F110 | 4,3 402 | 15,8
RTA 110.100 E3
110 | 4,3 102 | 4
RTA 110.200 E3 110 | 4,3 202 | 8
RTA 110.300 E3 110 | 4,3 302 | 11,9
RTA 110.400 E3 110 | 4,3 402 | 15,8
S
S
S
S
S
F
F
F
F
F
E3
E3
E3
E3
model no. height
Hinside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Weight
per 100
pcs
kg
100,3
108,8
117,2
134,2
151,3
109,5
118,9
128,1
146,8
165,6
97,0
112,0
127,2
151,3
182
CABLE TRAY SYSTEM
Horizontal Elbow Building Block
with integrated splice
for building customized horizontal cable tray fittings
REK 110
110 | 4,3
REK 110 F
110 | 4,3
REK 110 E3
110 | 4,3
S
F
E3
model no. height
H
mm | Inch
Pack /
Box Qty
1
1
1
Weight
per 100
pcs
kg
43,9
47,2
42,4
Flexible Horizontal Elbow 0-90°
with integrated splice
RBAV 110.100
110 | 4,3 100 | 3,9
RBAV 110.150 110 | 4,3 150 | 5,9
RBAV 110.200 110 | 4,3 200 | 7,9
RBAV 110.300 110 | 4,3 300 | 11,8
RBAV 110.400 110 | 4,3 400 | 15,7
S
S
S
S
S
model no. height
Hinside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
Weight
per 100
pcs
kg
64,5
81,6
101,1
148,1
206,0
Horizontal Elbow 45°
with integrated splice
RBA 110.100
110 | 4,3 102 | 4
RBA 110.150 110 | 4,3 152 | 6
RBA 110.200 110 | 4,3 202 | 8
RBA 110.300 110 | 4,3 302 | 11,9
RBA 110.400 110 | 4,3 402 | 15,8
RBA 110.100 F
110 | 4,3 102 | 4
RBA 110.150 F110 | 4,3 152 | 6
RBA 110.200 F110 | 4,3 202 | 8
RBA 110.300 F110 | 4,3 302 | 11,9
RBA 110.400 F110 | 4,3 402 | 15,8
S
S
S
S
S
F
F
F
F
F
model no. height
Hinside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
1
1
1
Weight
per 100
pcs
kg
63,3
79,3
96,9
137,0
183,8
68,0
85,2
104,1
147,3
197,6
Horizontal Elbow 90°
with integrated splice
RES 110.100
110 | 4,3 102 | 4
RES 110.150 110 | 4,3 152 | 6
RES 110.200 110 | 4,3 202 | 8
RES 110.300 110 | 4,3 302 | 11,9
RES 110.400 110 | 4,3 402 | 15,8
RES 110.100 F
110 | 4,3 102 | 4
RES 110.150 F110 | 4,3 152 | 6
RES 110.200 F110 | 4,3 202 | 8
RES 110.300 F110 | 4,3 302 | 11,9
RES 110.400 F110 | 4,3 402 | 15,8
S
S
S
S
S
F
F
F
F
F
model no. height
Hinside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
1
1
1
Weight
per 100
pcs
kg
118,7
150,4
195,1
283,0
386,2
127,6
161,7
209,7
304,2
415,2
183
Horizontal Tee
with integrated splice
RTS 110.100
110 | 4,3 102 | 4
RTS 110.150 110 | 4,3 152 | 6
RTS 110.200 110 | 4,3 202 | 8
RTS 110.300 110 | 4,3 302 | 11,9
RTS 110.400 110 | 4,3 402 | 15,8
RTS 110.100 F
110 | 4,3 102 | 4
RTS 110.150 F110 | 4,3 152 | 6
RTS 110.200 F110 | 4,3 202 | 8
RTS 110.300 F110 | 4,3 302 | 11,9
RTS 110.400 F110 | 4,3 402 | 15,8
S
S
S
S
S
F
F
F
F
F
model no. height
Hinside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
1
1
1
Weight
per 100
pcs
kg
153,9
187,5
237,4
330,8
439,8
165,4
201,6
255,2
355,6
472,8
Horizontal Cross
with integrated splice
RKS 110.100
110 | 4,3 102 | 4
RKS 110.150 110 | 4,3 152 | 6
RKS 110.200 110 | 4,3 202 | 8
RKS 110.300 110 | 4,3 302 | 11,9
RKS 110.400 110 | 4,3 402 | 15,8
RKS 110.100 F
110 | 4,3 102 | 4
RKS 110.150 F110 | 4,3 152 | 6
RKS 110.200 F110 | 4,3 202 | 8
RKS 110.300 F110 | 4,3 302 | 11,9
RKS 110.400 F110 | 4,3 402 | 15,8
S
S
S
S
S
F
F
F
F
F
model no. height
Hinside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
1
1
1
Weight
per 100
pcs
kg
194,4
233,9
277,4
376,2
490,7
208,9
251,5
298,2
404,4
527,5
Reducer / Blind End
can be used as blind end or as reducer for cable trays
RA 110.050
110 | 4,3 50 | 2 172
RA 110.150 110 | 4,3 150 | 5,9 272
RA 110.350 110 | 4,3 350 | 13,8 472
RA 110.400 110 | 4,3 400 | 15,7 522
RA 110.050 F
110 | 4,3 50 | 2 172
RA 110.150 F110 | 4,3 150 | 5,9 272
RA 110.200 F110 | 4,3 200 | 7,9 322
RA 110.350 F110 | 4,3 350 | 13,8 472
RA 110.400 F110 | 4,3 400 | 15,7 522
RA 110.050 E3
110 | 4,3 50 | 2 172
RA 110.200 E3 110 | 4,3 200 | 7,9 322
RA 110.400 E3 110 | 4,3 400 | 15,7 522
S
S
S
S
F
F
F
F
F
E3
E3
E3
model no. height
Hwidth
Bwidth
B1
mm | Inch mm | Inch mm | Inch
Pack /
Box Qty
20
20
20
20
1
1
1
1
1
20
20
20
Weight
per 100
pcs
kg
15
26
47
52
15
26
31
47
52
15
31
52
184
CABLE TRAY SYSTEM
Adjustable Horizontal Splice / Reducer / Blind End
adjustable horizontal splice plate for solid and ventilated cable tray
can be used as blind end or as reducer for cable trays
RAW 110.100
110 | 4,3 100 | 3,9 222
RAW 110.300 110 | 4,3 300 | 11,8 422
RAW 110.100 F
110 | 4,3 100 | 3,9 222
RAW 110.300 F110 | 4,3 300 | 11,8 422
RAW 110.100 E3
110 | 4,3 100 | 3,9 222
RAW 110.300 E3 110 | 4,3 300 | 11,8 422
S
S
F
F
E3
E3
model no. height
Hwidth
Bwidth
B1
mm | Inch mm | Inch mm | Inch
Pack /
Box Qty
20
20
1
1
20
20
Weight
per 100
pcs
kg
21,0
41,0
22,8
41,0
21,0
41,0
Adjustable Vertical Splice Plate
2 pieces required per joint
RGV 110
93 | 3,7
RGV 110 F
93 | 3,7
RGV 110 E3
93 | 3,7
S
F
E3
model no. height
H
mm | Inch
Pack /
Box Qty
25
25
25
Weight
per 100
pcs
kg
40,99
44,51
28,98
Splice / Link Kit
for linking sections of tray with a vertical displacement
RGE 110.100
110 | 4,3 100 | 3,9
RGE 110.150 110 | 4,3 150 | 5,9
RGE 110.200 110 | 4,3 200 | 7,9
RGE 110.300 110 | 4,3 300 | 11,8
RGE 110.400 110 | 4,3 400 | 15,7
RGE 110.100 F
110 | 4,3 100 | 3,9
RGE 110.150 F110 | 4,3 150 | 5,9
RGE 110.200 F110 | 4,3 200 | 7,9
RGE 110.300 F110 | 4,3 300 | 11,8
RGE 110.400 F110 | 4,3 400 | 15,7
S
S
S
S
S
F
F
F
F
F
model no. height
Hwidth
B
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
1
1
1
Weight
per 100
pcs
kg
66
71
79
91
103
66
71
79
91
103
Vertical Inside Elbow 45°
with integrated splice
RSB 110.100
110 | 4,3 102 | 4
RSB 110.150 110 | 4,3 152 | 6
RSB 110.200 110 | 4,3 202 | 8
RSB 110.300 110 | 4,3 302 | 11,9
RSB 110.400 110 | 4,3 402 | 15,8
S
S
S
S
S
model no. height
Hinside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
Weight
per 100
pcs
kg
70,3
82,3
91,8
113,4
134,9
185
Vertical Inside Elbow 90°
with integrated splice
RSD 110.100
110 | 4,3 102 | 4
RSD 110.150 110 | 4,3 152 | 6
RSD 110.200 110 | 4,3 202 | 8
RSD 110.300 110 | 4,3 302 | 11,9
RSD 110.400 110 | 4,3 402 | 15,8
S
S
S
S
S
model no. height
Hinside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
Weight
per 100
pcs
kg
106,00
123,40
141,00
175,00
216,09
Vertical Outside Elbow 45°
with integrated splice
RFB 110.100
110 | 4,3 102 | 4
RFB 110.150 110 | 4,3 152 | 6
RFB 110.200 110 | 4,3 202 | 8
RFB 110.300 110 | 4,3 302 | 11,9
RFB 110.400 110 | 4,3 402 | 15,8
S
S
S
S
S
model no. height
Hinside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
Weight
per 100
pcs
kg
62,0
70,6
76,5
91,0
105,4
Vertical Outside Elbow 90°
with integrated splice
RFD 110.100
110 | 4,3 102 | 4
RFD 110.150 110 | 4,3 152 | 6
RFD 110.200 110 | 4,3 202 | 8
RFD 110.300 110 | 4,3 302 | 11,9
RFD 110.400 110 | 4,3 402 | 15,8
S
S
S
S
S
model no. height
Hinside
dimension
(B)
mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
Weight
per 100
pcs
kg
113,0
126,9
140,0
167,0
194,0
Vertical Tee Down, lengthwise
with integrated splice
RTL 110.150
110 | 4,3 150 | 5,9 251 | 9,9
RTL 110.200 110 | 4,3 200 | 7,9 301 | 11,9
RTL 110.300 110 | 4,3 300 | 11,8 501 | 19,7
RTL 110.400 110 | 4,3 400 | 15,7 801 | 31,5
S
S
S
S
model no. height
Hwidth
Blength
A
mm | Inch mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
Weight
per 100
pcs
kg
210,00
242,71
380,00
691,27
Size of run and tap tray is identical.
186
CABLE TRAY SYSTEM
Vertical Tee Down, crosswise
with integrated splice
RTQ 110.100
110 | 4,3 100 | 3,9 361 | 14,2
RTQ 110.150 110 | 4,3 150 | 5,9 361 | 14,2
RTQ 110.200 110 | 4,3 200 | 7,9 361 | 14,2
RTQ 110.300 110 | 4,3 300 | 11,8 361 | 14,2
RTQ 110.400 110 | 4,3 400 | 15,7 361 | 14,2
S
S
S
S
S
model no. height
Hwidth
Blength
A
mm | Inch mm | Inch mm | Inch
Pack /
Box Qty
1
1
1
1
1
Weight
per 100
pcs
kg
150
170
190
245
260
Size of run and tap tray is identical.
Edge Protection Plate
with rounded edges to protect cables at the joint and
to reinforce the bottom of cable trays
RKB 100
92 | 3,6
RKB 150 142 | 5,6
RKB 200 192 | 7,6
RKB 300 292 | 11,5
RKB 400 392 | 15,4
RKB 100 F
92 | 3,6
RKB 150 F142 | 5,6
RKB 200 F192 | 7,6
RKB 300 F292 | 11,5
RKB 400 F392 | 15,4
RKB 100 E3
92 | 3,6
RKB 200 E3 192 | 7,6
RKB 300 E3 292 | 11,5
RKB 400 E3 392 | 15,4
S
S
S
S
S
F
F
F
F
F
E3
E3
E3
E3
model no. width
B
mm | Inch
Pack /
Box Qty
10
10
10
10
10
10
10
10
10
10
10
10
10
10
Weight
per 100
pcs
kg
5,00
6,89
10,00
15,00
20,00
5,00
7,29
10,00
15,00
20,00
5,00
10,00
15,00
20,00
187
NOTES
188
CABLE TRAY SYSTEM COVERS
Cover for Cable Tray / Ladder
Suitable for: all straight sections of cable tray (other than RSV 50...) as well as for KL... cable ladders
RD 100
100 | 3,9
RD 150 150 | 5,9
RD 200 200 | 7,9
RD 300 300 | 11,8
RD 400 400 | 15,7
RD 500 500 | 19,7
RD 600 600 | 23,6
RD 100 F
100 | 3,9
RD 150 F150 | 5,9
RD 200 F200 | 7,9
RD 300 F300 | 11,8
RD 400 F400 | 15,7
RD 500 F500 | 19,7
RD 600 F600 | 23,6
RD 100 E3
100 | 3,9
RD 200 E3 200 | 7,9
RD 300 E3 300 | 11,8
RD 400 E3 400 | 15,7
RD 500 E3 500 | 19,7
RD 600 E3 600 | 23,6
S
S
S
S
S
S
S
F
F
F
F
F
F
F
E3
E3
E3
E3
E3
E3
model no. inside
dimension
(B)
mm | Inch
Pack /
Box Qty
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
Weight
per 100
m
kg
73,00
102,42
131,90
228,80
332,70
411,20
489,70
80,30
112,70
145,00
251,70
366,00
452,30
538,70
78,33
141,53
203,47
266,67
372,49
443,59
For outdoor service covers need to be secured against windloads using heavy duty cover clamps or
steel cable ties.
Cover for Cable Tray / Ladder
with turnbolt locks
Suitable for: all straight sections of cable tray (other than RSV 50...) as well as for KL... cable ladders
RDV 100
100 | 3,9
RDV 150 150 | 5,9
RDV 200 200 | 7,9
RDV 300 300 | 11,8
RDV 400 400 | 15,7
RDV 500 500 | 19,7
RDV 600 600 | 23,6
RDV 100 F
100 | 3,9
RDV 150 F150 | 5,9
RDV 200 F200 | 7,9
RDV 300 F300 | 11,8
RDV 400 F400 | 15,7
RDV 500 F500 | 19,7
RDV 600 F600 | 23,6
RDV 100 E3
100 | 3,9
RDV 200 E3 200 | 7,9
RDV 300 E3 300 | 11,8
RDV 400 E3 400 | 15,7
RDV 500 E3 500 | 19,7
RDV 600 E3 600 | 23,6
S
S
S
S
S
S
S
F
F
F
F
F
F
F
E3
E3
E3
E3
E3
E3
model no. inside
dimension
(B)
mm | Inch
Pack /
Box Qty
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
2 x 3 m
Weight
per 100
m
kg
74,40
103,80
133,20
230,20
334,10
412,60
491,10
81,80
114,20
146,60
253,20
367,50
453,80
540,20
80,42
143,62
205,56
268,76
374,58
445,68
For outdoor service covers need to be secured against windloads using heavy duty cover clamps or
steel cable ties.
189
Cover for Horizontal Extension Tee
with turnbolt locks
Suitable for: RTA... extension horizontal tees
RTADV 100
104 | 4,1
RTADV 150 154 | 6,1
RTADV 200 204 | 8
RTADV 300 304 | 12
RTADV 400 404 | 15,9
RTADV 500 504 | 19,8
RTADV 600 604 | 23,8
RTADV 100 F
104 | 4,1
RTADV 150 F154 | 6,1
RTADV 200 F204 | 8
RTADV 300 F304 | 12
RTADV 400 F404 | 15,9
RTADV 500 F504 | 19,8
RTADV 600 F604 | 23,8
RTADV 100 E3
104 | 4,1
RTADV 200 E3 204 | 8
RTADV 300 E3 304 | 12
RTADV 400 E3 404 | 15,9
RTADV 500 E3 504 | 19,8
RTADV 600 E3 604 | 23,8
S
S
S
S
S
S
S
F
F
F
F
F
F
F
E3
E3
E3
E3
E3
E3
model no. inside
dimension
(B)
mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Weight
per 100
pcs
kg
50
60
70
90
140
160
190
50
60
70
90
140
160
190
50
70
90
140
160
190
For outdoor service covers need to be secured against windloads using heavy duty cover clamps or
steel cable ties.
Cover for Flexible Horizontal Fitting
adjustable from 0 - 90°
Suitable for: RBAV… flexible horizontal elbow
4 x RDHF 9 E2 cover clips required per cover. Please order separately.
RBAVD 100
102 | 4
RBAVD 150 152 | 6
RBAVD 200 202 | 8
RBAVD 300 302 | 11,9
RBAVD 400 402 | 15,8
RBAVD 500 502 | 19,8
RBAVD 600 602 | 23,7
S
S
S
S
S
S
S
model no. inside
dimension
(B)
mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
Weight
per 100
pcs
kg
32,50
61,00
97,65
198,20
332,60
501,80
705,20
RDHF... cover clamps shall not be used when covers are installed vertically.
190
CABLE TRAY SYSTEM COVERS
Cover for 90° Horizontal Elbow
with turnbolt locks
Suitable for: RES… horizontal 90° elbows
RESDV 100
104 | 4,1
RESDV 150 154 | 6,1
RESDV 200 204 | 8
RESDV 300 304 | 12
RESDV 400 404 | 15,9
RESDV 500 504 | 19,8
RESDV 600 604 | 23,8
RESDV 100 F
104 | 4,1
RESDV 150 F154 | 6,1
RESDV 200 F204 | 8
RESDV 300 F304 | 12
RESDV 400 F404 | 15,9
RESDV 500 F504 | 19,8
RESDV 600 F604 | 23,8
RESDV 100 E3
104 | 4,1
RESDV 200 E3 204 | 8
RESDV 300 E3 304 | 12
RESDV 400 E3 404 | 15,9
RESDV 500 E3 504 | 19,8
RESDV 600 E3 604 | 23,8
S
S
S
S
S
S
S
F
F
F
F
F
F
F
E3
E3
E3
E3
E3
E3
model no. inside
dimension
(B)
mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Weight
per 100
pcs
kg
38,80
77,40
96,60
160,80
239,60
368,50
487,00
42,90
85,10
106,30
176,90
263,60
405,40
535,70
42,60
87,24
144,51
267,58
370,82
489,87
For outdoor service covers need to be secured against windloads using heavy duty cover clamps or
steel cable ties.
Cover for Horizontal Tee
with turnbolt locks
Suitable for: RTS... horizontal tee
RTSDV 100
104 | 4,1
RTSDV 150 154 | 6,1
RTSDV 200 204 | 8
RTSDV 300 304 | 12
RTSDV 400 404 | 15,9
RTSDV 500 504 | 19,8
RTSDV 600 604 | 23,8
RTSDV 100 F
104 | 4,1
RTSDV 150 F154 | 6,1
RTSDV 200 F204 | 8
RTSDV 300 F304 | 12
RTSDV 400 F404 | 15,9
RTSDV 500 F504 | 19,8
RTSDV 600 F604 | 23,8
S
S
S
S
S
S
S
F
F
F
F
F
F
F
model no. inside
dimension
(B)
mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Weight
per 100
pcs
kg
72,04
104,94
141,76
227,18
328,30
445,13
577,65
80,40
80,00
157,00
251,20
362,30
490,80
636,50
For outdoor service covers need to be secured against windloads using heavy duty cover clamps or
steel cable ties.
191
Cover for Horizontal Cross
with turnbolt locks
Suitable for: RKS… horizontal crosses
RKSDV 100
104 | 4,1
RKSDV 150 154 | 6,1
RKSDV 200 204 | 8
RKSDV 300 304 | 12
RKSDV 400 404 | 15,9
RKSDV 500 504 | 19,8
RKSDV 600 604 | 23,8
RKSDV 100 F
104 | 4,1
RKSDV 150 F154 | 6,1
RKSDV 200 F204 | 8
RKSDV 300 F304 | 12
RKSDV 400 F404 | 15,9
RKSDV 500 F504 | 19,8
RKSDV 600 F604 | 23,8
S
S
S
S
S
S
S
F
F
F
F
F
F
F
model no. inside
dimension
(B)
mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Weight
per 100
pcs
kg
96,4
136,4
180,4
280,1
395,5
526,6
673,4
103,6
146,6
193,9
301,1
425,1
566,0
723,8
For outdoor service covers need to be secured against windloads using heavy duty cover clamps or
steel cable ties.
Cover for Vertical Outside Elbow Kit
with turnbolt locks
Suitable for: vertical inside/outside elbow kit with a side rail height of 60 mm, type RFD 60... and RSD
60...
RFSDDV 60.100
104 | 4,1
RFSDDV 60.150 154 | 6,1
RFSDDV 60.200 204 | 8
RFSDDV 60.300 304 | 12
S
S
S
S
model no. inside
dimension
(B)
mm | Inch
Pack /
Box Qty
1
1
1
1
Weight
per 100
pcs
kg
18
25
32
46
For outdoor service covers need to be secured against windloads using heavy duty cover clamps or
steel cable ties.
Cover for Vertical Outside Elbow Kit
with turnbolt locks
Suitable for: vertical inside/outside elbow kit with a side rail height of 85 mm, type RFD 85...
RFDDV 85.100
104 | 4,1
RFDDV 85.200 204 | 8
RFDDV 85.300 304 | 12
RFDDV 85.400 404 | 15,9
RFDDV 85.500 504 | 19,8
RFDDV 85.600 604 | 23,8
S
S
S
S
S
S
model no. inside
dimension
(B)
mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
Weight
per 100
pcs
kg
20,7
36,4
52,1
67,8
83,5
99,2
For outdoor service covers need to be secured against windloads using heavy duty cover clamps or
steel cable ties.
Cover for Vertical Inside Elbow
with turnbolt locks
Suitable for: cable tray vertical inside/outside elbow for side rail height of 85 mm, type RSD 85...
RSDDV 85.100
104 | 4,1
RSDDV 85.200 204 | 8
RSDDV 85.300 304 | 12
RSDDV 85.400 404 | 15,9
RSDDV 85.500 504 | 19,8
RSDDV 85.600 604 | 23,8
S
S
S
S
S
S
model no. inside
dimension
(B)
mm | Inch
Pack /
Box Qty
1
1
1
1
1
1
Weight
per 100
pcs
kg
16,4
28,7
40,9
53,2
65,4
77,7
For outdoor service covers need to be secured against windloads using heavy duty cover clamps or
steel cable ties.
192
CABLE TRAY SYSTEM COVERS
Cover for Vertical Outside Elbow Kit
with turnbolt locks
Suitable for: vertical inside/outside elbow kit with a side rail height of 110 mm, type RFD 110...
RFDDV 110.100
104 | 4,1
RFDDV 110.200 204 | 8
RFDDV 110.300 304 | 12
RFDDV 110.400 404 | 15,9
S
S
S
S
model no. inside
dimension
(B)
mm | Inch
Pack /
Box Qty
1
1
1
1
Weight
per 100
pcs
kg
22,60
39,31
57,10
74,40
For outdoor service covers need to be secured against windloads using heavy duty cover clamps or
steel cable ties.
Cover for Vertical Inside Elbow
with turnbolt locks
Suitable for: cable tray vertical inside/outside elbow for side rail height of 110 mm, type RSD 110 ...
RSDDV 110.100
104 | 4,1
RSDDV 110.200 204 | 8
RSDDV 110.300 304 | 12
RSDDV 110.400 404 | 15,9
S
S
S
S
model no. inside
dimension
(B)
mm | Inch
Pack /
Box Qty
1
1
1
1
Weight
per 100
pcs
kg
14,40
24,69
35,60
46,20
For outdoor service covers need to be secured against windloads using heavy duty cover clamps or
steel cable ties.
Turn-bolt Lock
locking nut included
for field modifications of covers
Suitable for: fitting covers
RDRS 9
RDRS 9 F
RDRS 9 E3
S
F
E3
model no. Pack /
Box Qty
100
100
100
Weight
per 100
pcs
kg
1,2
1,6
1,6
Turnbolt locks or cover clamps need to be installed at a minimum distance of 50 mm (2") from each
end of the cover.
Turn-bolt Lock
locking nut included
for field modifications of covers
Suitable for: distribution cable tray covers and fittings in 100 mm width
RDRS 2
RDRS 2 E3
S
E3
model no. Pack /
Box Qty
100
100
Weight
per 100
pcs
kg
1,3
1,5
Turnbolt locks or cover clamps need to be installed at a minimum distance of 50 mm (2") from each
end of the cover.
193
Cover Clamp
for fixing covers without turnbolt locks on cable trays
Suitable for: RD… cable tray covers
RDHK 60 E2
58 | 2,3
RDHK 110 E2 108 | 4,3
E2
E2
model no. height
H
mm | Inch
Pack /
Box Qty
50
50
Weight
per 100
pcs
kg
1,71
2,57
For horizontally mounted covers only. Please maintain a minimum distance of 50 mm from both ends
of the cover.
Cover Clamp
for fixing covers without turnbolt locks on cable trays
Suitable for: RD… cable tray covers
RDHF 9 E2
E2
model no. Pack /
Box Qty
60
Weight
per 100
pcs
kg
0,47
63
For horizontally mounted covers only. Please maintain a minimum distance of 50 mm from both ends
of the cover when installing the stainless steel clamp RDHF 9 E2.

Navigation menu
