Bulletin
Polycarbonate and
abS encloSureS
Q41
QLINE® E Polycarbonate and ABS
Type 4X and Type 6 Enclosures
2
Subject to change without notice PH 763 422 2211 • FX 763 422 2600 • www.hoffmanonline.com © 2007 Hoffman Enclosures Inc.
Corrosion-Resistant
Enclosures
Catalog
Number
Internal
Dimensions
A x B x C
mm (in.) Material
Cover
Style
External
Dimensions
L x W
mm (in.)
Panel
Catalog
Number
Panel Size
D x E
mm (in.)
Mounting
G x H
mm (in.)
F
mm (in.)
K
mm (in.)
P
mm (in.)
Q
mm (in.)
S
mm (in.)
Q18138PCE 169 x 119 x 67
(6.65 x 4.69 x 2.64)
Polycarbonate Opaque 175 x 125
(6.89 x 4.92)
Q1813PE 148 x 98
(5.83 x 3.86)
160 x 110
(6.30 x 4.33)
61
(2.40)
25
(0.98)
90
(3.54)
100
(3.94)
140
(5.51)
Q18138ABE 169 x 119 x 67
(6.65 x 4.69 x 2.64)
ABS Opaque 175 x 125
(6.89 x 4.92)
Q1813PE 148 x 98
(5.83 x 3.86)
160 x 110
(6.30 x 4.33)
61
(2.40)
25
(0.98)
90
(3.54)
100
(3.94)
140
(5.51)
Q18138PCECC 169 x 119 x 67
(6.65 x 4.69 x 2.64)
Polycarbonate Clear 175 x 125
(6.89 x 4.92)
Q1813PE 148 x 98
(5.83 x 3.86)
160 x 110
(6.30 x 4.33)
61
(2.40)
25
(0.98)
90
(3.54)
100
(3.94)
140
(5.51)
Q18138ABECC 169 x 119 x 67
(6.65 x 4.69 x 2.64)
ABS Clear 175 x 125
(6.89 x 4.92)
Q1813PE 148 x 98
(5.83 x 3.86)
160 x 110
(6.30 x 4.33)
61
(2.40)
25
(0.98)
90
(3.54)
100
(3.94)
140
(5.51)
Q18188PCE 169 x 169 x 67
(6.65 x 6.65 x 2.64)
Polycarbonate Opaque 175 x 175
(6.89 x 6.89)
Q1818PE 148 x 148
(5.83 x 5.83)
160 x 160
(6.30 x 6.30)
61
(2.40)
25
(0.98)
140
(5.51)
125
(4.92)
140
(5.51)
Q18188ABE 169 x 169 x 67
(6.65 x 6.65 x 2.64)
ABS Opaque 175 x 175
(6.89 x 6.89)
Q1818PE 148 x 148
(5.83 x 5.83)
160 x 160
(6.30 x 6.30)
61
(2.40)
25
(0.98)
140
(5.51)
125
(4.92)
140
(5.51)
Q18188PCECC 169 x 169 x 67
(6.65 x 6.65 x 2.64)
Polycarbonate Clear 175 x 175
(6.89 x 6.89)
Q1818PE 148 x 148
(5.83 x 5.83)
160 x 160
(6.30 x 6.30)
61
(2.40)
25
(0.98)
140
(5.51)
125
(4.92)
140
(5.51)
Q18188ABECC 169 x 169 x 67
(6.65 x 6.65 x 2.64)
ABS Clear 175 x 175
(6.89 x 6.89)
Q1818PE 148 x 148
(5.83 x 5.83)
160 x 160
(6.30 x 6.30)
61
(2.40)
25
(0.98)
140
(5.51)
125
(4.92)
140
(5.51)
Q25188PCE 244 x 169 x 67
(9.61 x 6.65 x 2.64)
Polycarbonate Opaque 250 x 175
(9.84 x 6.89)
Q2518PE 223 x 148
(8.78 x 5.83)
235 x 160
(9.25 x 6.30)
61
(2.40)
25
(0.98)
139
(5.47)
202
(7.95)
215
(8.46)
Q25188ABE 244 x 169 x 67
(9.61 x 6.65 x 2.64)
ABS Opaque 250 x 175
(9.84 x 6.89)
Q2518PE 223 x 148
(8.78 x 5.83)
235 x 160
(9.25 x 6.30)
61
(2.40)
25
(0.98)
139
(5.47)
202
(7.95)
215
(8.46)
Q25188PCECC 244 x 169 x 67
(9.61 x 6.65 x 2.64)
Polycarbonate Clear 250 x 175
(9.84 x 6.89)
Q2518PE 223 x 148
(8.78 x 5.83)
235 x 160
(9.25 x 6.30)
661
(2.40)1
25
(0.98)
139
(5.47)
202
(7.95)
215
(8.46)
Q25188ABECC 244 x 169 x 67
(9.61 x 6.65 x 2.64)
ABS Clear 250 x 175
(9.84 x 6.89)
Q2518PE 223 x 148
(8.78 x 5.83)
235 x 160
(9.25 x 6.30)
61
(2.40)
25
(0.98)
139
(5.47)
202
(7.95)
215
(8.46)
Q13810PCE 119 x 69 x 92
(4.69 x 2.72 x 3.62)
Polycarbonate Opaque 125 x 75
(4.92 x 2.95)
Q138PE 98 x 48
(3.86 x 1.89)
110 x 60
(4.33 x 2.36)
86
(3.39)
50
(1.97)
40
(1.57)
75
(2.95)
90
(3.54)
Q13810ABE 119 x 69 x 92
(4.69 x 2.72 x 3.62)
ABS Opaque 125 x 75
(4.92 x 2.95)
Q138PE 98 x 48
(3.86 x 1.89)
110 x 60
(4.33 x 2.36)
86
(3.39)
50
(1.97)
40
(1.57)
75
(2.95)
90
(3.54)
Q13810PCECC 119 x 69 x 92
(4.69 x 2.72 x 3.62)
Polycarbonate Clear 125 x 75
(4.92 x 2.95)
Q138PE 98 x 48
(3.86 x 1.89)
110 x 60
(4.33 x 2.36)
86
(3.39)
50
(1.97)
40
(1.57)
75
(2.95)
90
(3.54)
Q13810ABECC 119 x 69 x 92
(4.69 x 2.72 x 3.62)
ABS Clear 125 x 75
(4.92 x 2.95)
Q138PE 98 x 48
(3.86 x 1.89)
110 x 60
(4.33 x 2.36)
86
(3.39)
50
(1.97)
40
(1.57)
75
(2.95)
90
(3.54)
Q131310PCE 119 x 119 x 92
(4.69 x 4.69 x 3.62)
Polycarbonate Opaque 125 x 125
(4.92 x 4.92)
Q1313PE 98 x 98
(3.86 x 3.86)
110 x 110
(4.33 x 4.33)
86
(3.39)
50
(1.97)
90
(3.54)
75
(2.95)
90
(3.54)
Q131310ABE 119 x 119 x 92
(4.69 x 4.69 x 3.62)
ABS Opaque 125 x 125
(4.92 x 4.92)
Q1313PE 98 x 98
(3.86 x 3.86)
110 x 110
(4.33 x 4.33)
86
(3.39)
50
(1.97)
90
(3.54)
75
(2.95)
90
(3.54)
Q131310PCECC 119 x 119 x 92
(4.69 x 4.69 x 3.62)
Polycarbonate Clear 125 x 125
(4.92 x 4.92)
Q1313PE 98 x 98
(3.86 x 3.86)
110 x 110
(4.33 x 4.33)
86
(3.39)
50
(1.97)
90
(3.54)
75
(2.95)
90
(3.54)
Q131310ABECC 119 x 119 x 92
(4.69 x 4.69 x 3.62)
ABS Clear 125 x 125
(4.92 x 4.92)
Q1313PE 98 x 98
(3.86 x 3.86)
110 x 110
(4.33 x 4.33)
86
(3.39)
50
(1.97)
90
(3.54)
75
(2.95)
90
(3.54)
Q181310PCE 169 x 119 x 92
(6.65 x 4.69 x 3.62)
Polycarbonate Opaque 175 x 125
(6.89 x 4.92)
Q1813PE 148 x 98
(5.83 x 3.86)
160 x 110
(6.30 x 4.33)
86
(3.39)
50
(1.97)
90
(3.54)
100
(3.94)
140
(5.51)
Q181310ABE 169 x 119 x 92
(6.65 x 4.69 x 3.62)
ABS Opaque 175 x 125
(6.89 x 4.92)
Q1813PE 148 x 98
(5.83 x 3.86)
160 x 110
(6.30 x 4.33)
86
(3.39)
50
(1.97)
90
(3.54)
100
(3.94)
140
(5.51)
Q181310PCECC 169 x 119 x 92
(6.65 x 4.69 x 3.62)
Polycarbonate Clear 175 x 125
(6.89 x 4.92)
Q1813PE 148 x 98
(5.83 x 3.86)
160 x 110
(6.30 x 4.33)
86
(3.39)
50
(1.97)
90
(3.54)
100
(3.94)
140
(5.51)
Q181310ABECC 169 x 119 x 92
(6.65 x 4.69 x 3.62)
ABS Clear 175 x 125
(6.89 x 4.92)
Q1813PE 148 x 98
(5.83 x 3.86)
160 x 110
(6.30 x 4.33)
86
(3.39)
50
(1.97)
90
(3.54)
100
(3.94)
140
(5.51)
Q181810PCE 169 x 169 x 92
(6.65 x 6.65 x 3.62)
Polycarbonate Opaque 175 x 175
(6.89 x 6.89)
Q1818PE 148 x 148
(5.83 x 5.83)
160 x 160
(6.30 x 6.30)
86
(3.39)
50
(1.97)
140
(5.51)
125
(4.92)
140
(5.51)
Q181810ABE 169 x 169 x 92
(6.65 x 6.65 x 3.62)
ABS Opaque 175 x 175
(6.89 x 6.89)
Q1818PE 148 x 148
(5.83 x 5.83)
160 x 160
(6.30 x 6.30)
86
(3.39)
50
(1.97)
140
(5.51)
125
(4.92)
140
(5.51)
Q181810PCECC 169 x 169 x 92
(6.65 x 6.65 x 3.62)
Polycarbonate Clear 175 x 175
(6.89 x 6.89)
Q1818PE 148 x 148
(5.83 x 5.83)
160 x 160
(6.30 x 6.30)
86
(3.39)
50
(1.97)
140
(5.51)
125
(4.92)
140
(5.51)
Q181810ABECC 169 x 169 x 92
(6.65 x 6.65 x 3.62)
ABS Clear 175 x 175
(6.89 x 6.89)
Q1818PE 148 x 148
(5.83 x 5.83)
160 x 160
(6.30 x 6.30)
86
(3.39)
50
(1.97)
140
(5.51)
125
(4.92)
140
(5.51)
Q251810PCE 244 x 169 x 92
(9.61 x 6.65 x 3.62)
Polycarbonate Opaque 250 x 175
(9.84 x 6.89)
Q2518PE 223 x 148
(8.78 x 5.83)
235 x 160
(9.25 x 6.30)
86
(3.39)
50
(1.97)
139
(5.47)
202
(7.95)
215
(8.46)
Q251810ABE 244 x 169 x 92
(9.61 x 6.65 x 3.62)
ABS Opaque 250 x 175
(9.84 x 6.89)
Q2518PE 223 x 148
(8.78 x 5.83)
235 x 160
(9.25 x 6.30)
86
(3.39)
50
(1.97)
139
(5.47)
202
(7.95)
215
(8.46)
Q251810PCECC 244 x 169 x 92
(9.61 x 6.65 x 3.62)
Polycarbonate Clear 250 x 175
(9.84 x 6.89)
Q2518PE 223 x 148
(8.78 x 5.83)
235 x 160
(9.25 x 6.30)
86
(3.39)
50
(1.97)
139
(5.47)
202
(7.95)
215
(8.46)
Q251810ABECC 244 x 169 x 92
(9.61 x 6.65 x 3.62)
ABS Clear 250 x 175
(9.84 x 6.89)
Q2518PE 223 x 148
(8.78 x 5.83)
235 x 160
(9.25 x 6.30)
86
(3.39)
50
(1.97)
139
(5.47)
202
(7.95)
215
(8.46)
Standard Sizes QLINE E Polycarbonate and ABS Type 4X and Type 6 Enclosures (Cont.)
Bulletin
POLYCARBONATE AND
ABS ENCLOSURES
QLINE® E Polycarbonate and ABS
Type 4X and Type 6 Enclosures Q41
1Subject to change without notice PH 763 422 2211 • FX 763 422 2600 • www.hoffmanonline.com © 2007 Hoffman Enclosures Inc.

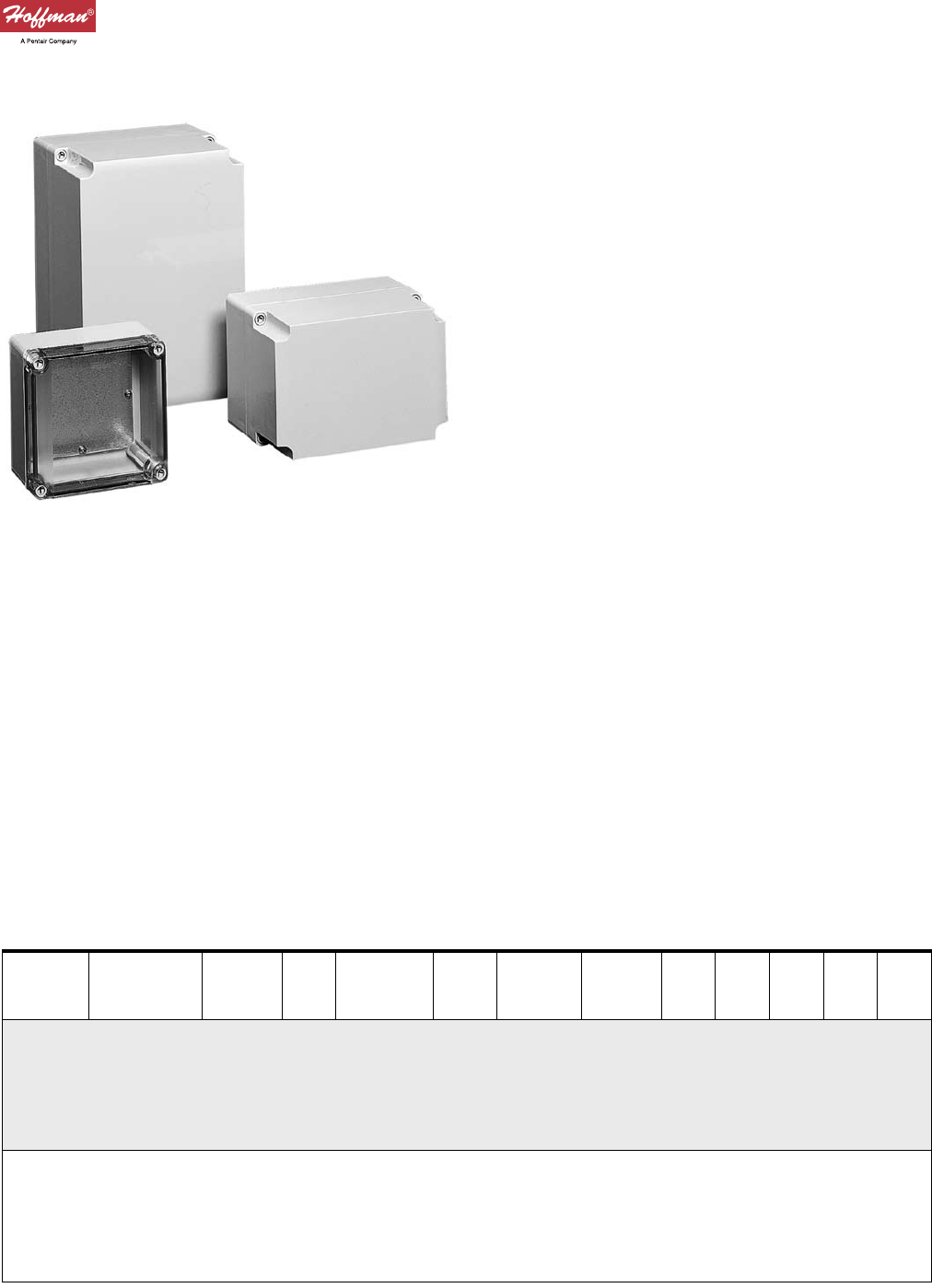

Application
Contoured body with flush cover screws provides an attractive
and contemporary appearance. Enclosures can be used as insulated
electrical junction boxes, terminal wiring boxes, instrument housings,
and as housings for electrical controls in wet, dusty, and/or corrosive
environments that may also be subject to occasional submersion.
The ABE series of enclosures provides the same features and similar
physical properties as its polycarbonate counterpart, the PCE series
of enclosures, but at a lower cost.
Construction
Body is impact-resistant polycarbonate for PCE series and ABS for
ABE series
Opaque and clear covers are impact-resistant polycarbonate for
PCE, opaque covers are ABS for ABE series
Polycarbonate and ABS material is easily punched, drilled, filed,
or sawed
Cross-point flush cover screws are strong, durable polyamide
Cover includes a molded-in wire lead hole
Mounting tracks along body side walls for PC card installation
•
•
•
•
•
•
Molded internal pads for mounting optional panels, rails, and other
components
Seamless foam-in-place gasket assures watertight and dusttight seal
Material is halogen free
Finish
Polycarbonate and ABS enclosure material is RAL 7035 light gray
inside and out. Optional panels are plated steel.
Industry Standards
Polycarbonate Enclosure
UL 508A, File No. E61997: Type 4, 4X, 6, 12, and 13
NEMA/EEMAC Type 4, 4X, 6, 12, and 13
CSA File No. 42186: Type 4, 4X, 12, and 13
Enclosure flammability rating per UL 508A
IEC 60529, IP67
ABS Enclosure
NEMA/EEMAC Type 4, 4X, 6, 12, and 13
Enclosure flammability rating UL94-HB
IEC 60529, IP67
Accessories
Brass Insert Kit
DIN Rails
Hardware Kit
Hinge Kit
Mounting Bracket Kit
Modification Services Program
You can customize this product to your unique requirements by
specifying from these options:
Colors
Holes and cutouts in body, doors, subpanels
Doors
Subpanels
Standard accessories
To order, contact your local Hoffman sales representative.
NOTE: For information about modifications outside the scope of the
Modification Services program, contact your Hoffman sales representative.
•
•
•
•
•
•
•
•

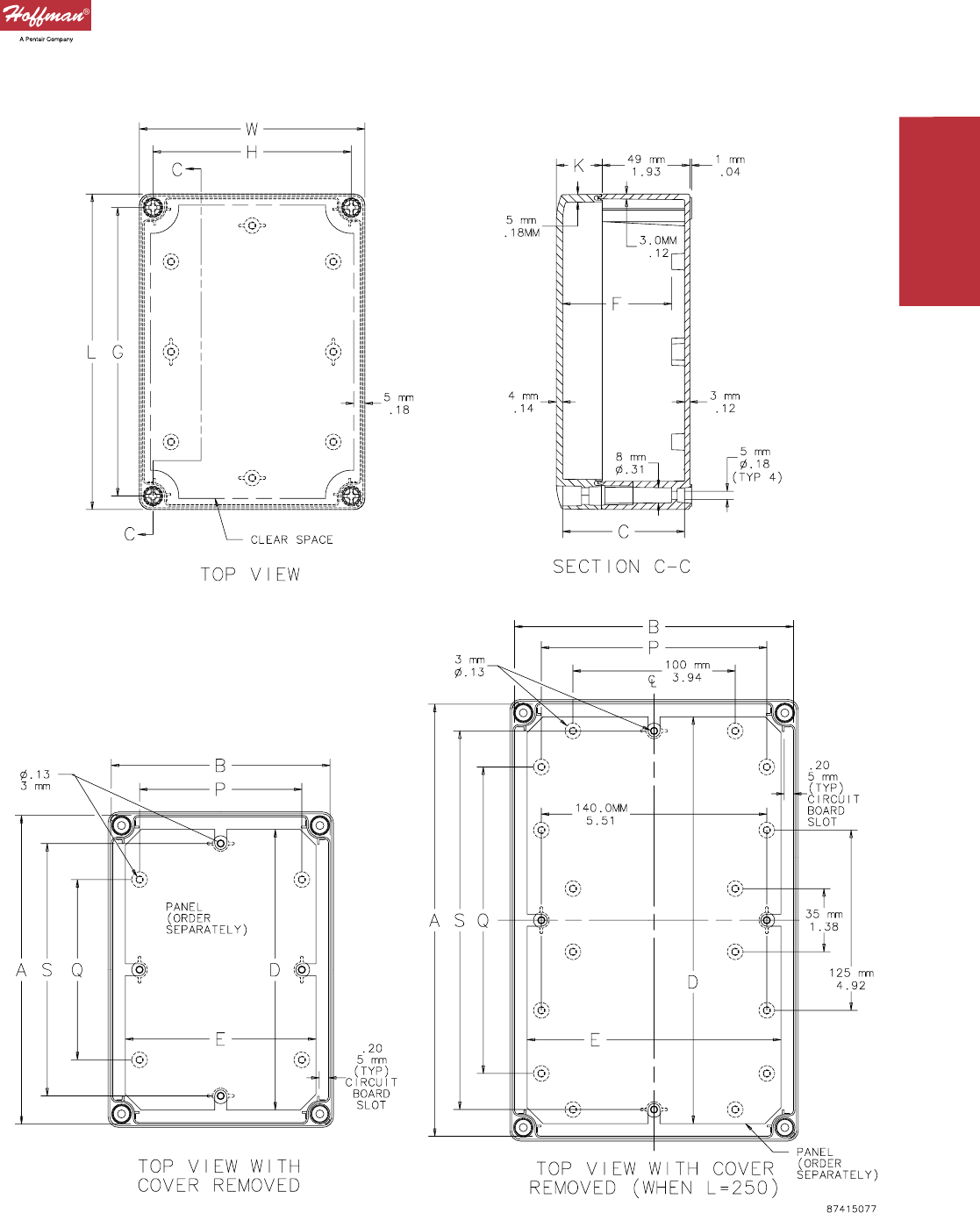

Standard Sizes QLINE E Polycarbonate and ABS Type 4X and Type 6 Enclosures
Catalog
Number
Internal
Dimensions
A x B x C
mm (in.) Material
Cover
Style
External
Dimensions
L x W
mm (in.)
Panel
Catalog
Number
Panel Size
D x E
mm (in.)
Mounting
G x H
mm (in.)
F
mm (in.)
K
mm (in.)
P
mm (in.)
Q
mm (in.)
S
mm (in.)
Q1388PCE 119 x 69 x 67
(4.69 x 2.72 x 2.64)
Polycarbonate Opaque 125 x 75
(4.92 x 2.95)
Q138PE 98 x 48
(3.86 x 1.89)
110 x 60
(4.33 x 2.36)
61
(2.40)
25
(0.98)
40
(1.57)
75
(2.95)
90
(3.54)
Q1388ABE 119 x 69 x 67
(4.69 x 2.72 x 2.64)
ABS Opaque 125 x 75
(4.92 x 2.95)
Q138PE 98 x 48
(3.86 x 1.89)
110 x 60
(4.33 x 2.36)
61
(2.40)
25
(0.98)
40
(1.57)
75
(2.95)
90
(3.54)
Q1388PCECC 119 x 69 x 67
(4.69 x 2.72 x 2.64)
Polycarbonate Clear 125 x 75
(4.92 x 2.95)
Q138PE 98 x 48
(3.86 x 1.89)
110 x 60
(4.33 x 2.36)
61
(2.40)
25
(0.98)
40
(1.57)
75
(2.95)
90
(3.54)
Q1388ABECC 119 x 69 x 67
(4.69 x 2.72 x 2.64)
ABS Clear 125 x 75
(4.92 x 2.95)
Q138PE 98 x 48
(3.86 x 1.89)
110 x 60
(4.33 x 2.36)
61
(2.40)
25
(0.98)
40
(1.57)
75
(2.95)
90
(3.54)
Q13138PCE 119 x 119 x 67
(4.69 x 4.69 x 2.64)
Polycarbonate Opaque 125 x 125
(4.92 x 4.92)
Q1313PE 98 x 98
(3.86 x 3.86)
110 x 110
(4.33 x 4.33)
61
(2.40)
25
(0.98)
90
(3.54)
75
(2.95)
90
(3.54)
Q13138ABE 119 x 119 x 67
(4.69 x 4.69 x 2.64)
ABS Opaque 125 x 125
(4.92 x 4.92)
Q1313PE 98 x 98
(3.86 x 3.86)
110 x 110
(4.33 x 4.33)
61
(2.40)
25
(0.98)
90
(3.54)
75
(2.95)
90
(3.54)
Q13138PCECC 119 x 119 x 67
(4.69 x 4.69 x 2.64)
Polycarbonate Clear 125 x 125
(4.92 x 4.92)
Q1313PE 98 x 98
(3.86 x 3.86)
110 x 110
(4.33 x 4.33)
61
(2.40)
25
(0.98)
90
(3.54)
75
(2.95)
90
(3.54)
Q13138ABECC 119 x 119 x 67
(4.69 x 4.69 x 2.64)
ABS Clear 125 x 125
(4.92 x 4.92)
Q1313PE 98 x 98
(3.86 x 3.86)
110 x 110
(4.33 x 4.33)
61
(2.40)
25
(0.98)
90
(3.54)
75
(2.95)
90
(3.54)
Bulletin
POLYCARBONATE AND
ABS ENCLOSURES
Q41
QLINE® E Polycarbonate and ABS
Type 4X and Type 6 Enclosures
4
Subject to change without notice PH 763 422 2211 • FX 763 422 2600 • www.hoffmanonline.com © 2007 Hoffman Enclosures Inc.
Corrosion-Resistant
Enclosures
Spec-00410 Rev. A 04/07

Navigation menu
