Pilot Devices
Modular Range
22mm
8.4 Low Voltage Products & Systems
1SXU000023C0202 ABB Inc. • 888-385-1221 • www.abb-control.com
8
Discount schedule CA
Flush and extended pushbuttons
Non-illuminated
Momentary and maintained

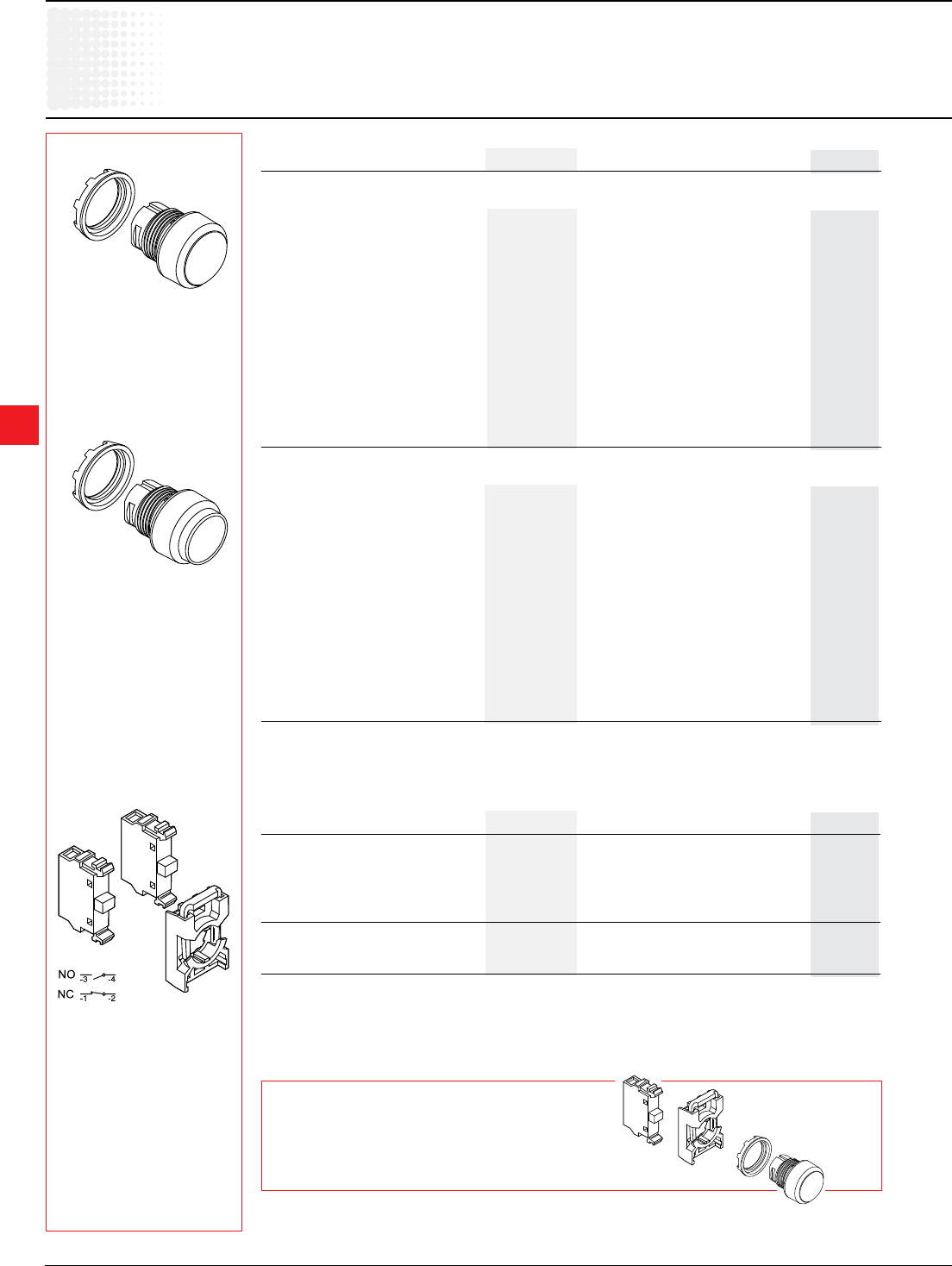

Ordering example
Requested: A modular pushbutton, momentary,
with red ush button and one NO contact.
Ref.: 1 piece of MP1-10R + 1 piece of MCBH-10
Operator ...
Description Catalog No. Ref. Code List Price
with ush button
Momentary
Red MP1-10R 1SFA 611 100 R1001
Green MP1-10G 1SFA 611 100 R1002
Yellow MP1-10Y 1SFA 611 100 R1003
Blue MP1-10L 1SFA 611 100 R1004 $ 6.10
White MP1-10W 1SFA 611 100 R1005
Black MP1-10B 1SFA 611 100 R1006
Clear MP1-10C 1SFA 611 100 R1008
Maintained
Red MP2-10R 1SFA 611 101 R1001
Green MP2-10G 1SFA 611 101 R1002
Yellow MP2-10Y 1SFA 611 101 R1003
Blue MP2-10L 1SFA 611 101 R1004 17.30
White MP2-10W 1SFA 611 101 R1005
Black MP2-10B 1SFA 611 101 R1006
Clear MP2-10C 1SFA 611 101 R1008
with extended button
Momentary
Red MP3-10R 1SFA 611 102 R1001
Green MP3-10G 1SFA 611 102 R1002
Yellow MP3-10Y 1SFA 611 102 R1003
Blue MP3-10L 1SFA 611 102 R1004 6.10
White MP3-10W 1SFA 611 102 R1005
Black MP3-10B 1SFA 611 102 R1006
Clear MP3-10C 1SFA 611 102 R1008
Maintained
Red MP4-10R 1SFA 611 103 R1001
Green MP4-10G 1SFA 611 103 R1002
Yellow MP4-10Y 1SFA 611 103 R1003
Blue MP4-10L 1SFA 611 103 R1004 17.30
White MP4-10W 1SFA 611 103 R1005
Black MP4-10B 1SFA 611 103 R1006
Clear MP4-10C 1SFA 611 103 R1008
Contact blocks, and holder
Blocks Catalog No. Ref. Code List Price
1 NO with holder MCBH-10 1SFA 611 605 R1101 $ 10.00
1 NC with holder MCBH-01 1SFA 611 605 R1110 10.00
2 NO with holder MCBH-20 1SFA 611 605 R1102 18.00
2 NC with holder MCBH-02 1SFA 611 605 R1120 18.00
1 NO + 1 NC with holder MCBH-11 1SFA 611 605 R1111 18.00
1 NO without holder MCB-10 1SFA 611 610 R1001 8.00
1 NC without holder MCB-01 1SFA 611 610 R1010 8.00
Holder for 3 blocks MCBH-00 1SFA 611 605 R1100 2.00
Bezel in black plastic as standard
Bezel in metal:
Replace ‘1’ in the:
Cat No. MPX-1 0X
3 for metal bezel
Pilot Devices
Modular Range
22mm
Low Voltage Products & Systems 8.1
ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU000023C0202
8
Discount schedule CA
Modular range
22mm
General construction
• Snap-on feature reduces installation time
• Bezels: Black plastic, chrome metal.
Grey plastic available as an option
• Contact block holder features rear
mounting with quick-release locking
mechanism for high security
• Buttons available in several colors
• Engraved text caps available
• Custom-specic markings on request
• UL File# E57057
• CSA File# LR19700
Operators
• Pushbuttons, illuminated and non-
illuminated
• Double pushbuttons, illuminated and
non-illuminated
• Mushroom pushbuttons, illuminated
and non-illuminated, Ø 40 mm and
Ø 60 mm
• Emergency stop pushbuttons, illumi-
nated and non-illuminated, twist or pull
release
• Selector switches, illuminated and non-
illuminated, 2 or 3 position, short or long
handle
• Key operated selector switches, 2 or 3
position
• Toggle switches, 2 or 3 position
Pilot lights
• Full voltage, resistor and transformer
• LED & lament bulbs available for illumi-
nated pushbuttons and pilot lights
Contact blocks
• Quick-mount, quick-release contact block
holder for fast and easy assembly
• NO & NC contact blocks are color coded
for easy identication: Green = NO,
Red = NC
• Silver tipped contacts
• Wiping action for high reliability
• Low energy gold plated contact blocks
• Base mounted contact blocks which
snap onto a 35 mm DIN rail or into a
plastic enclosure
• Contact block holder for three or ve
blocks in a single row
Additional products
• Buzzer, continuous and pulsating
• 5 kΩ and 10 kΩ potentiometers
• Denite purpose pushbuttons
• Reset pushbuttons
• Broad range of accessories
Modular range
Pilot devices
Pilot Devices
Modular Range
22mm
Low Voltage Products & Systems 8.27
ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU000023C0202
8
Discount schedule CA
Approvals
The pushbuttons, selector switches and pilot lights are approved by:
- National approval agencies: UL, CSA and China Compulsory Product
Certication
For detail information please contact ABB
Standards
IEC 60947-1 Low-voltage switchgear and controlgear - Part 1:
General rules
IEC 60947-5-1 Low-voltage switchgear and controlgear - Part 5-1:
Control circuit devices and switching elements -
Electromechanical control circuit devices
IEC 60947-5-5 Low-voltage switchgear and controlgear - Part 5-5:
Control circuit devices and switching elements -
Electrical emergency stop device with mechanical
latching function
IEC 60073 Basic and safety principles for man-machine
interface, marking and identication - Coding
principles for indicators and actuators
IEC 60529
Degrees of protection provided by enclosures (IP Code)
EN 60947-1 Low-voltage switchgear and controlgear - Part 1:
General rules
EN 60947-5-1 Low-voltage switchgear and controlgear - Part 5-1:
Control circuit devices and switching elements -
Electromechanical control circuit devices
EN 60947-5-5 Low-voltage switchgear and controlgear - Part 5-5:
Control circuit devices and switching elements -
Electrical emergency stop device with mechanical
latching function
EN 60073 Basic and safety principles for man-machine
interface, marking and identication - Coding
principles for indication devices and actuators
EN 60529
Degrees of protection provided by enclosures (IP Code)
EN 50013 Low-voltage switchgear and controlgear for
industrial use - Terminal marking and distinctive
number for particular control switches
UL 508 Industrial Control Equipment
CSA C22.2 No 14 Industrial Control Equipment
Degrees of protection
Operators IP UL/CSA
Pushbutton with ush or
extended button, MP IP 66 Type 1, 3R, 4, 4X, 12, 13
Double pushbutton, MPD IP 66 Type1, 3R, 4, 4X, 12, 13
Mushroom pushbutton,
momentary, MPM IP 66 Type 1, 3R, 4, 4X, 12, 13
Emergency stop pushbutton,
MPMT/P IP 66 Type 1, 3R, 4, 4X, 12, 13
Selector switch, M2SS/M3SS IP 66 Type 1, 3R, 4, 4X, 12, 13
Key operated selector switch,
M2SSK/M3SSK IP 66 Type 1, 3R, 4, 4X, 12
Toggle switch, MTS2/MTS3 IP 66 Type 1, 3R, 4, 4X, 12, 13
Denite purpose pushbutton,
30 mm, KP6 IP 66 Type 1, 3R, 4, 4X
Reset button, KPR IP 66 Type 1, 3R, 4, 4X, 12, 13
Pilot lights, ML IP 66 Type 1, 3R, 4, 4X, 12, 13
Buzzer, KB IP 65 Type 4X
Potentiometer, KT IP 66 Type 1, 3R, 4, 4X, 12, 13
Contact block & transformer
block IP 20
Enclosures
Plastic enclosures IP 66
Metallic enclosures IP 67
Material
No ozone depleting substances in the products.
All front parts are made of polycarbonate
Material
PC Polycarbonate High impact strength, good outdoor resis-
tance. Can withstand light acid solutions,
aliphatic hydrocarbons, parafn, alcohols,
animal and vegetable greases.
PSU Polysulphone Can withstand high temperatures, acids,
basic solutions, alkaline compounds,
oils, alcohols.
PA Polyamide Can withstand high temperatures, ali-
phatic, aromatic and chlorinated hydro -
carbons, esters, ketone-aldehydes,
alcohols and basic solutions.
PBT Can withstand high temperature, aliphatic and
aromatic hydrocarbons, acids, basic
solutions, alcohols, grease and oils
Zinc Good corrosion resistance in inland-,
sea and industrial atmosphere.
Light-alloy Good corrosion resistance in inland-,
sea and industrial atmosphere.
Rubber Chloroprene
Nitrile
Technical data
E 57057
Low Voltage Products & Systems 8.55
ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU000023C0202
Pilot Devices
Modular Range
Assembled, 22mm
Discount Schedule CA

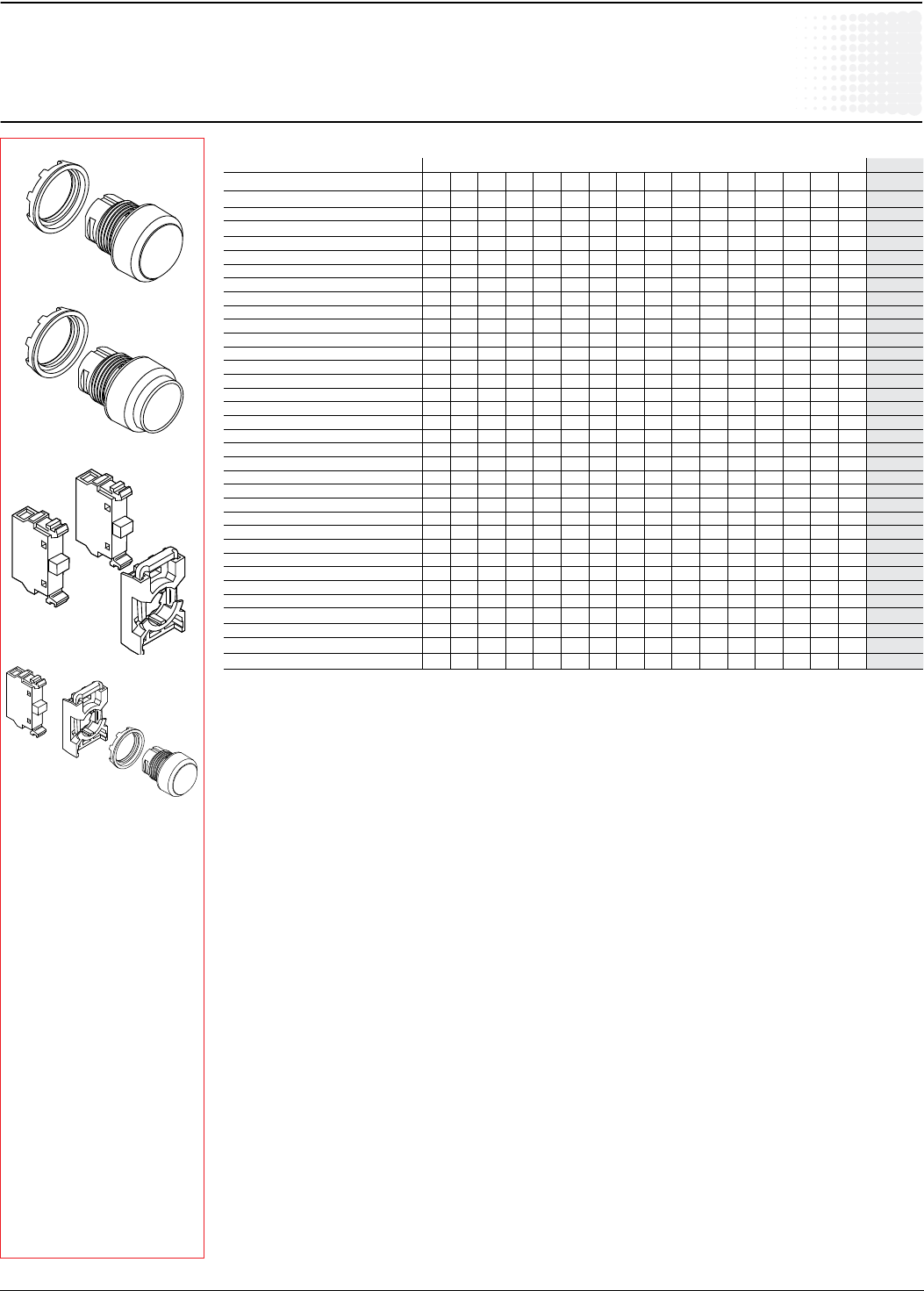

Pushbuttons
Non-illuminated
Pushbuttons, non-illuminated
Options Catalog Number Characters List Price
Momentary Flush M P 1 -$ 6.10
Maintained Flush 1M P 2 - 17.30
Momentary Extended M P 3 - 6.10
Maintained Extended 1M P 4 - 17.30
Bezel, Black Plastic, with Holder - 4 0 2.00
Bezel, Chrome Metal, with Holder - 6 0 2.00
Button Color - Red - R—
Button Color - Green - G —
Button Color - Yellow - Y —
Button Color - Blue - L—
Button Color - White - W —
Button Color - Black - B—
Button Color - Clear - C—
Contact Blocks, 1NO - 108.00
Contact Blocks, 2NO - 2 0 16.00
Contact Blocks, 3NO - 3 0 24.00
Contact Blocks, 1NC - 0 18.00
Contact Blocks, 2NC - 0 2 16.00
Contact Blocks, 3NC - 0 3 24.00
Contact Blocks, 1NO+1NC - 1 1 16.00
Contact Blocks, 2NO+1NC - 2 124.00
Contact Blocks, 1NO+2NC - 1224.00
Contact Blocks, 1NO, Gold - 10 G 16.00
Contact Blocks, 2NO, Gold - 2 0 G 32.00
Contact Blocks, 3NO, Gold - 3 0 G 48.00
Contact Blocks, 1NC, Gold - 0 1G16.00
Contact Blocks, 2NC, Gold - 0 2 G 32.00
Contact Blocks, 3NC, Gold - 0 3 G 48.00
Contact Blocks, 1NO+1NC, Gold - 1 1 G32.00
Contact Blocks, 2NO+1NC, Gold - 2 1G48.00
Contact Blocks, 1NO+2NC, Gold - 12 G 48.00
Text Caps with Clear Lens Only - C C X X20.90
5 Block Holder - 54.00
30mm Black Plastic Adaptor Ring 3
G1-8.00
30mm Chrome Metal Adaptor Ring 3
G 2 - 10.00
See catalog number explanation on page 4.
1 No contact block in center position.
2 Replace "XX" with text cap legends from pages 33 - 34.
3 For 30mm devices, use Discount Schedule CC
Flush
Extended
