FCC Report_CISPR22 179041 Certification Magic Control

: Pdf 179041 Fcc Certification Magic Control 179041_FCC_certification--Magic_Control CertsReports 179041 ProductFiles

Open the PDF directly: View PDF .
Page Count: 41

of

Applicant: Magic Control Technology Corporation

Address: 6F,.#120-11, Chung Shan Rd, Sec. 3, Chung Ho, 235 Taipei,

Taiwan, R. O. C.

Tested and Prepared

by

ETS DR. GENZ TAIWAN PS CO., LTD

FCC Registration No.: 930600

Industry Canada filed test laboratory Reg. No. IC 5679

A2LA Cert.No.: 2300.01

PTCRB Accredited Type Certification Test House

Report No.: W6M20705-8118-P-15B

6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C.

TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: ets@ets-bzt.com.tw

FCC TEST REPORT

for

USB 2.0 VGA Adapter II

Model No.: UVA200

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd. Page 1 of 21

TABLE OF CONTENTS

1 General Information 2

1.1 Notes 2

1.2 Tester 4

1.3 Testing laboratory 5

1.3.1 Location 5

1.3.2 Details of accreditation status 5

1.3.3 Test location, where different from ETS Dr.Genz Taiwan PS Co., Ltd. 5

1.4 Details of applicant 6

1.5 Application details 6

1.6 Test item 6

1.6.1 Description of test item 6

1.6.2 Manufacturer (if different from applicant in point 1.4) 7

1.6.3 Frequency behavior 7

1.7 Test standards 7

2 Technical test 8

2.1 Summary of test results 8

2.2 Test environment 8

2.3 Test equipment utilized 9

2.4 Test results 11

2.4.1 Radiated Emission 12

2.4.2 Conducted Emission 13

2.5 Test protocols 14

2.5.1 Radiated Emission 14

2.5.2 Conducted Emission 18

2.6 Equipment Modification 20

3 Normative references 21

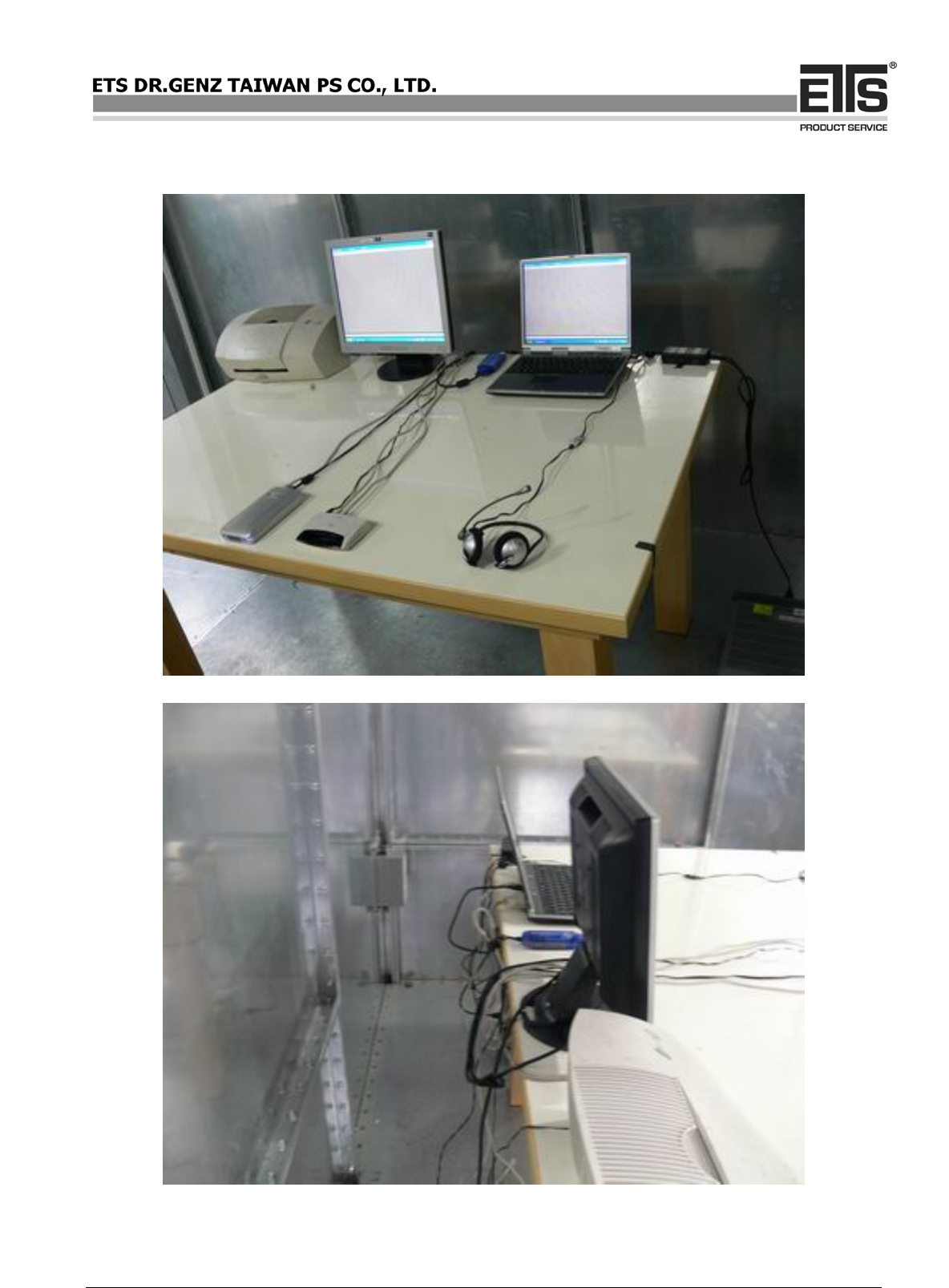

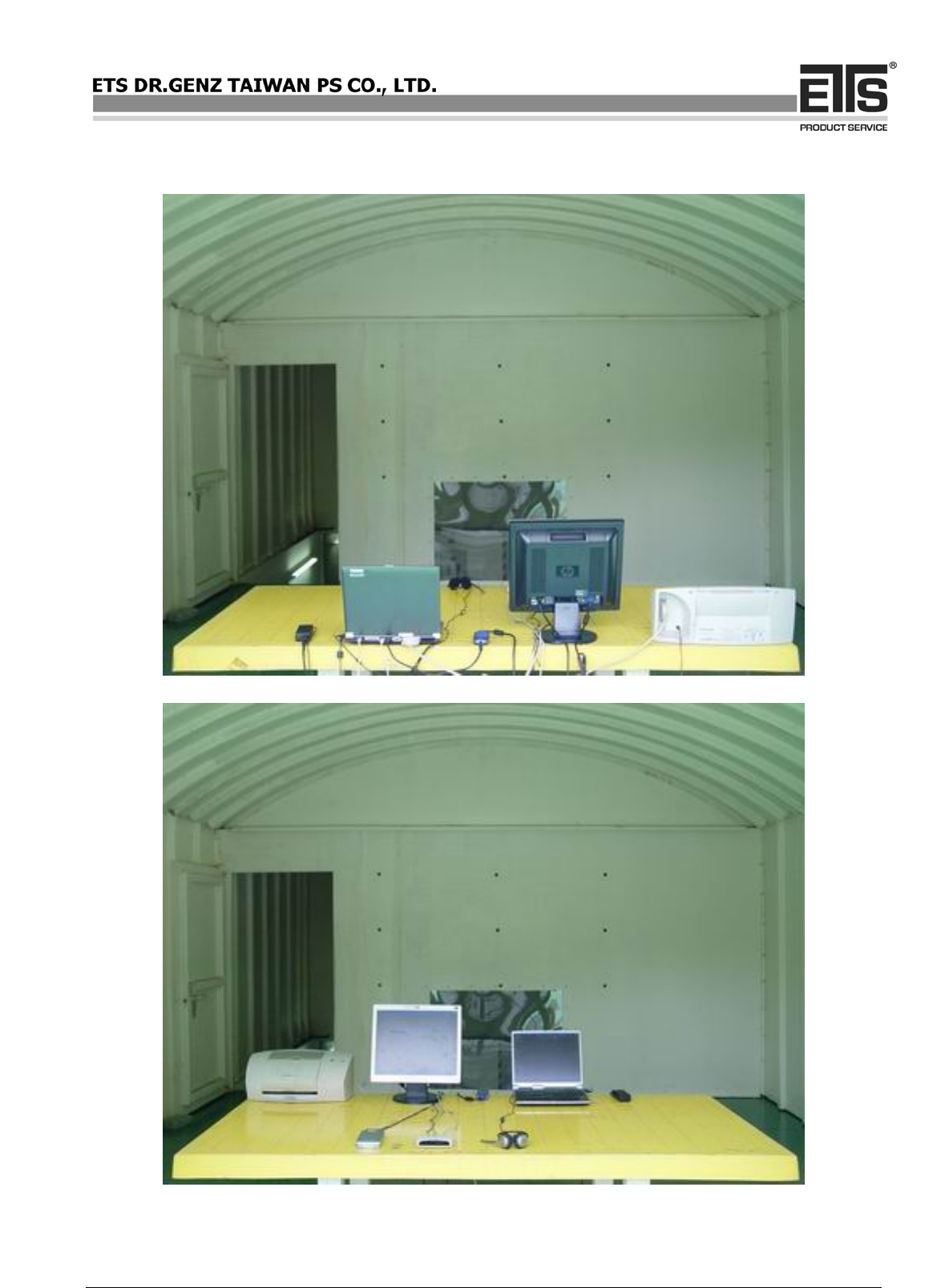

Appendix : Pictures and diagrams

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd. Page 2 of 21

1 General Information

1.1 Notes

The purpose of conformity testing is to increase the probability of adherence to the essential

requirements or conformity specifications, as appropriate.

The tests were carried out and passed in accordance to the standards:

FCC part 15 : August 2006

The complexity of the technical specifications, however, means that full and thorough testing is

impractical for both technical and economic reasons.

Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms

to a specification (only telecommunication products).

Neither is there any guarantee that such a test sample will interwork with other genuinely open

systems.

The existence of the tests nevertheless provides the confidence that the test sample possesses the

qualities as maintained and that its performance generally conforms to representative cases of

communications equipment.

The test results of this test report relate exclusively to the item tested as specified in 1.6.

The test report may only be reproduced or published in full.

Reproduction or publication of extracts from the report requires the prior written approval of the

ETS Dr.Genz Taiwan PS Co., Ltd.

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd. Page 3 of 21

Important Notes:

Proper labeling is required for each device. Devices shall be labeled in accordance with labeling

requirements pursuant to section 15.19 and section 2.1074 of the FCC rules.

Devices subject to a Declaration of Conformity shall be uniquely identified by the responsible party.

This identification shall not be of a format which could be confused with the FCC Identifier required

on certified, notified type accepted or type approved equipment.

The responsible party shall maintain adequate identification records to facilitate positive identification

for each device.

The user manual or instruction manual shall included also a warning statement that changes or

modifications not expressly approved by the party responsible for compliance could void the user’s

authority to operate the equipment.

Reference Section 15.21

Furthermore an information to the user regarding to the interference potential of the device and about

simple measures that can be taken to correct interference is required.

Reference Section 15.105

The responsible party must warrant that each unit of equipment marketed under a Declaration of

Conformity is identical to the unit tested and found acceptable with the standards and that the records

maintained by the responsible party continue to reflect the equipment being produced under the

Declaration of Conformity within the variation that can be expected due to quantity production and

testing on a statistical basis.

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd. Page 4 of 21

1.2 Tester

May 28, 2007 Jay Chaing

___________________________________________________________________

Date ETS-Lab. Test Engineer Signature

Technical responsibility for area of testing:

May 28, 2007 Steven Chuang

____________________________________________________________________

Date ETS Name Signature

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd. Page 5 of 21

1.3 Testing laboratory

1.3.1 Location

OATS

No.5-1, Shuang Sing Village,

LiShuei Rd., Wanli Township,

Taipei County 207, Taiwan (R.O.C.)

Company

ETS Dr.Genz Taiwan PS Co., Ltd.

6F, NO. 58, LANE 188, RUEY-KUANG RD.

NEIHU, TAIPEI 114, TAIWAN R.O.C.

Tel : 886-2-66068877

Fax : 886-2-66068875

1.3.2 Details of accreditation status

Accredited testing laboratory

A2LA-registration number: 2300.01

FCC filed test laboratory Reg. No. 930600

Industry Canada filed test laboratory Reg. No. IC 5679

PTCRB Accredited Type Certification Test House

1.3.3 Test location, where different from ETS Dr.Genz Taiwan PS Co., Ltd.

Name: ./.

Street: ./.

Town: ./.

Country: ./.

Telephone: ./.

Fax: ./.

Teletex: ./.

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd. Page 6 of 21

1.4 Details of applicant

Name : Magic Control Technology Corporation

Street : 6F,.#120-11,Chung Shan Rd, Sec. 3, Chung Ho,

City : 235 Taipei,

Country : Taiwan, R. O. C.

Telephone : +886-2-3234-6616

Fax : +886-2-3234-6606

1.5 Application details

Date of receipt of application : May 23, 2007

Date of receipt of test item : May 24, 2007

Date of test : from May 25, 2007 to May 28, 2007

1.6 Test item

1.6.1 Description of test item

Type of product : USB 2.0 VGA Adapter II

Type identification : UVA200

Multi-listing model number : ./.

Brand Name : ./.

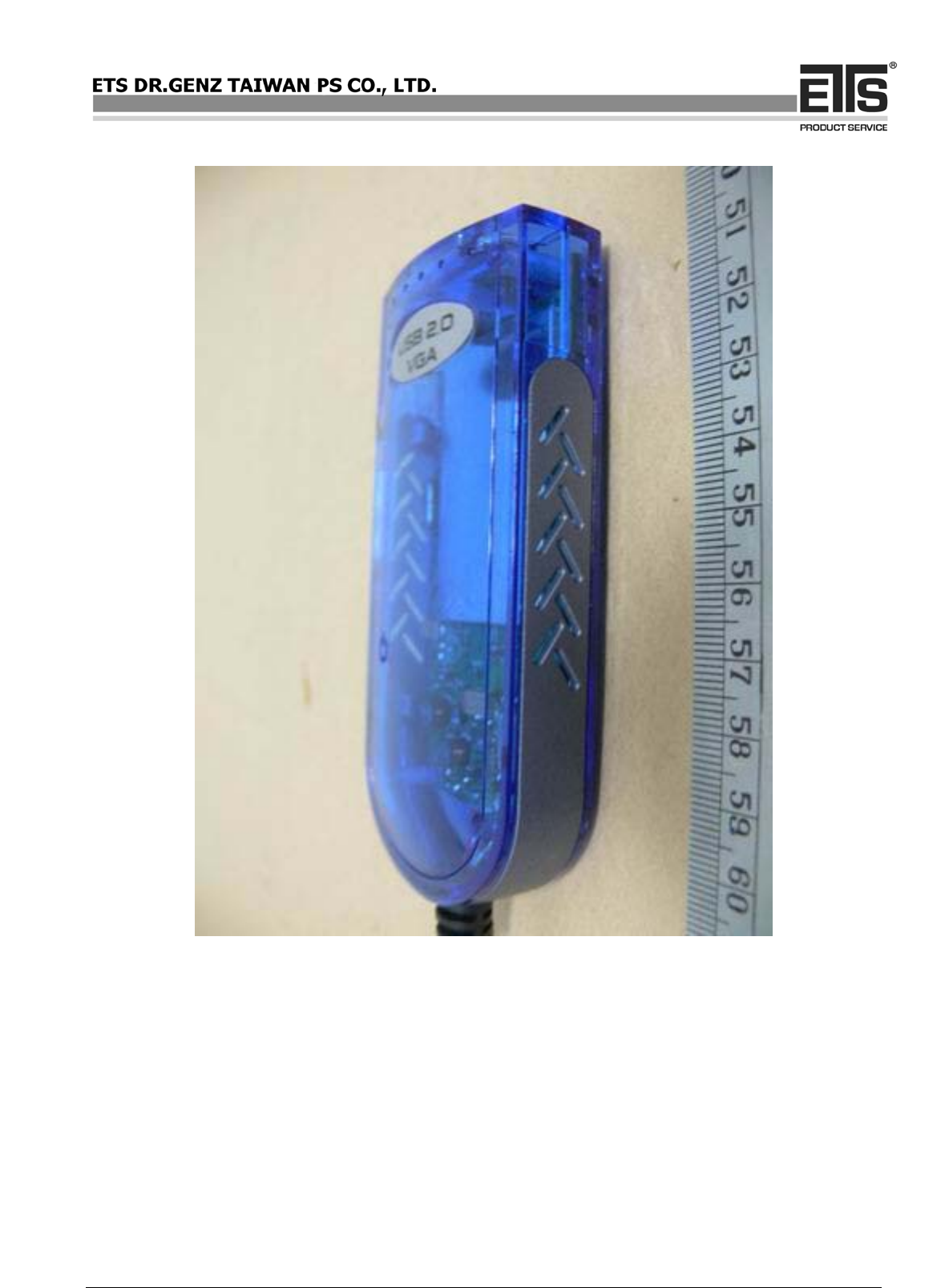

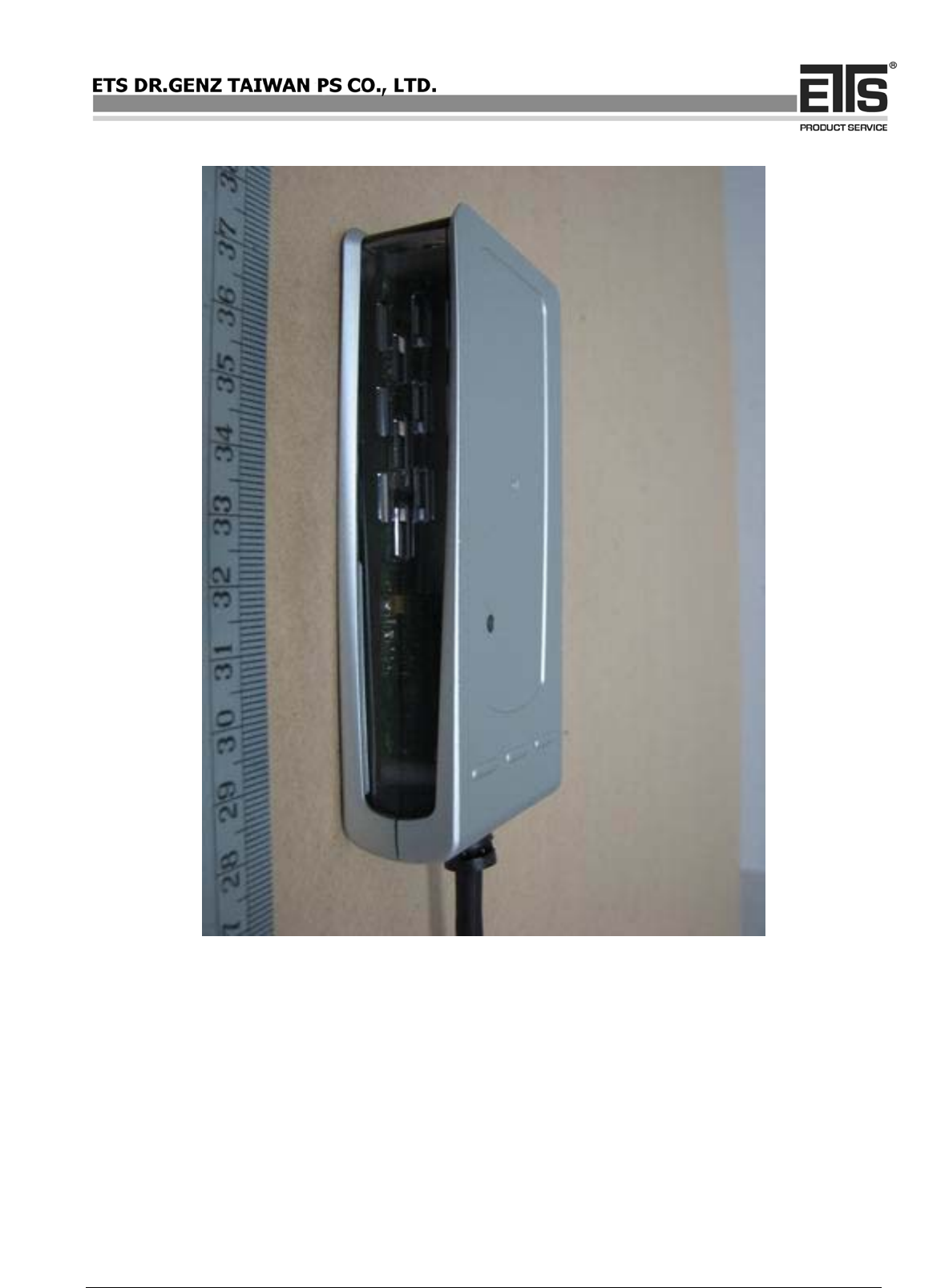

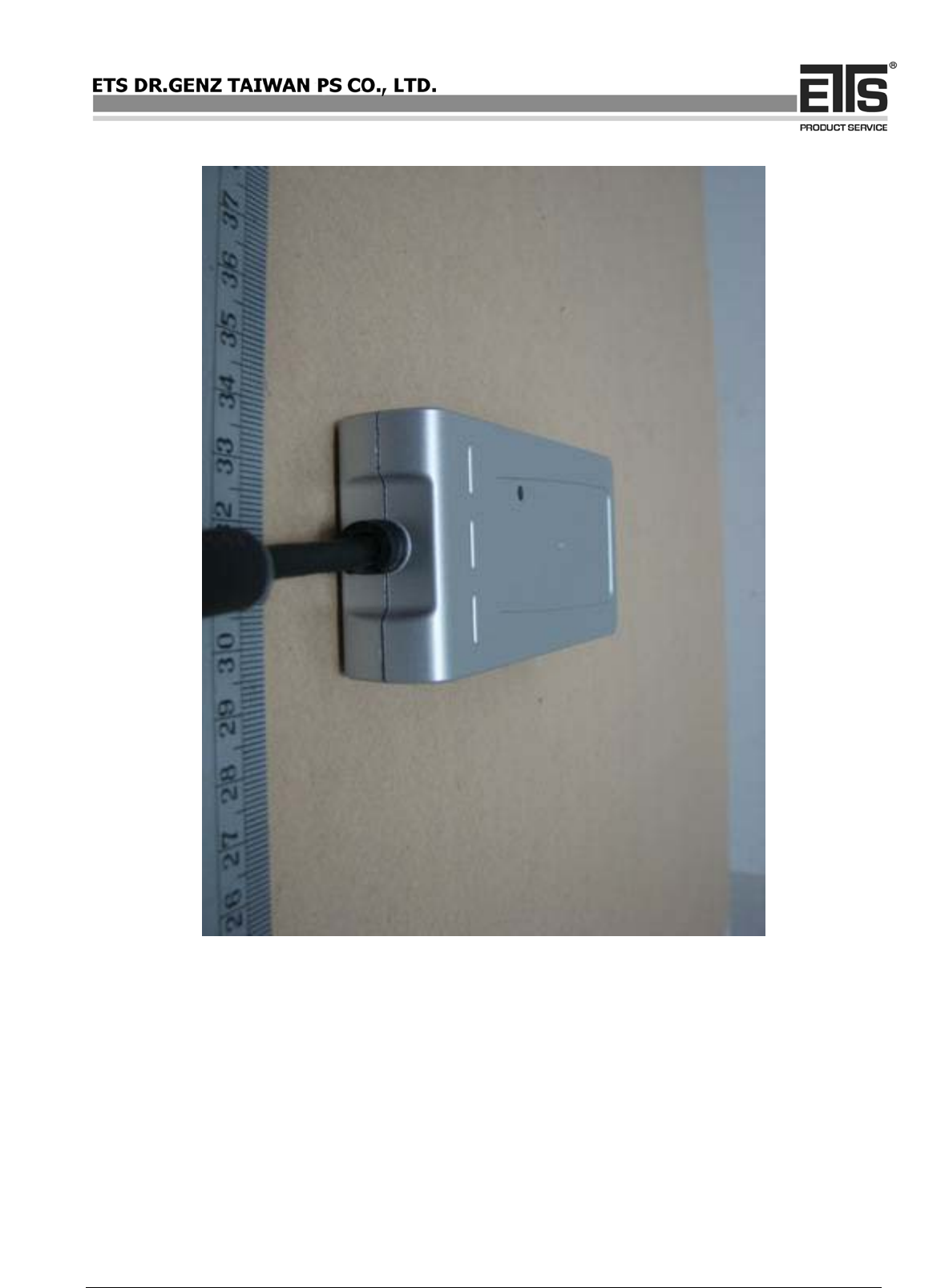

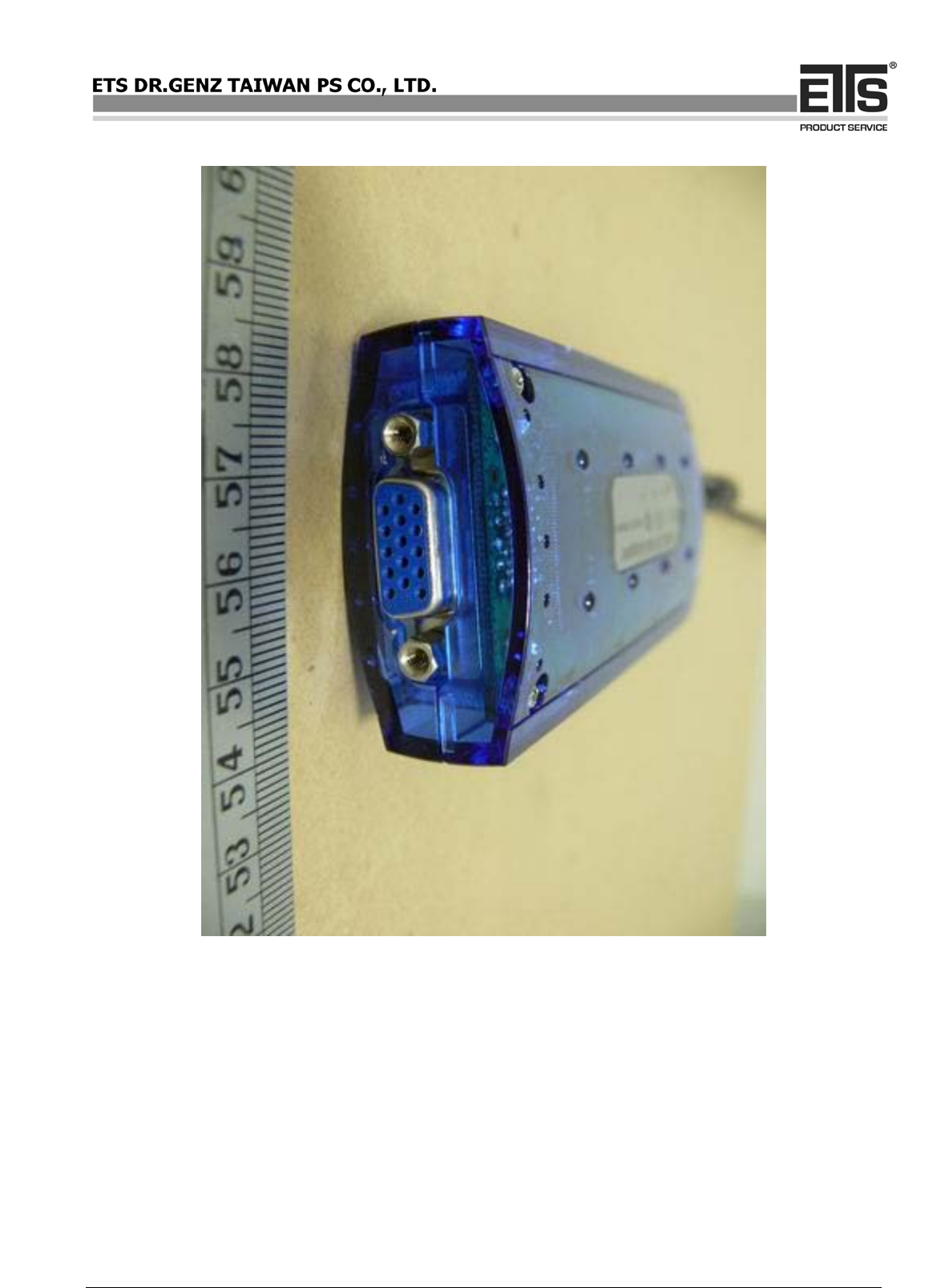

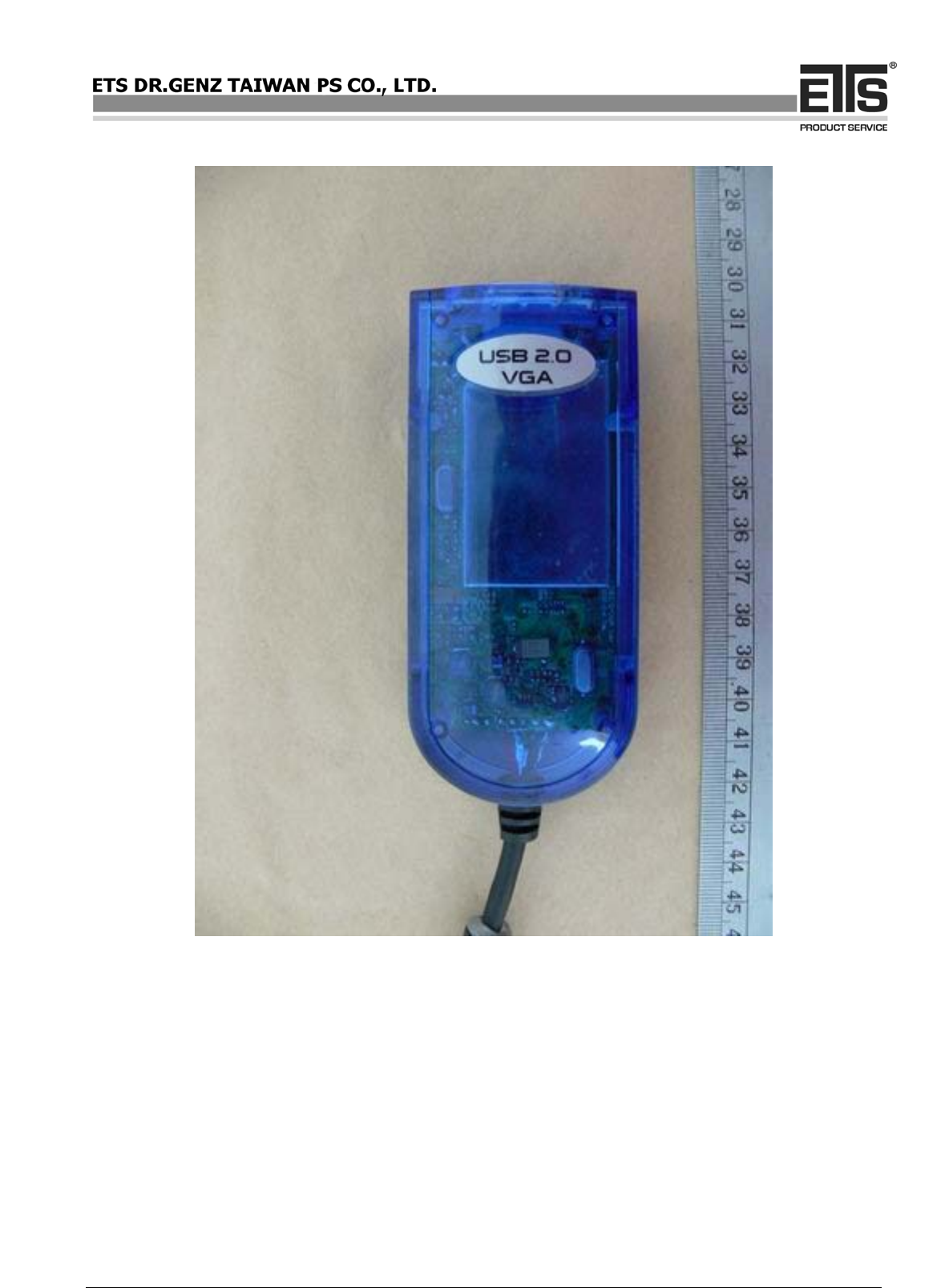

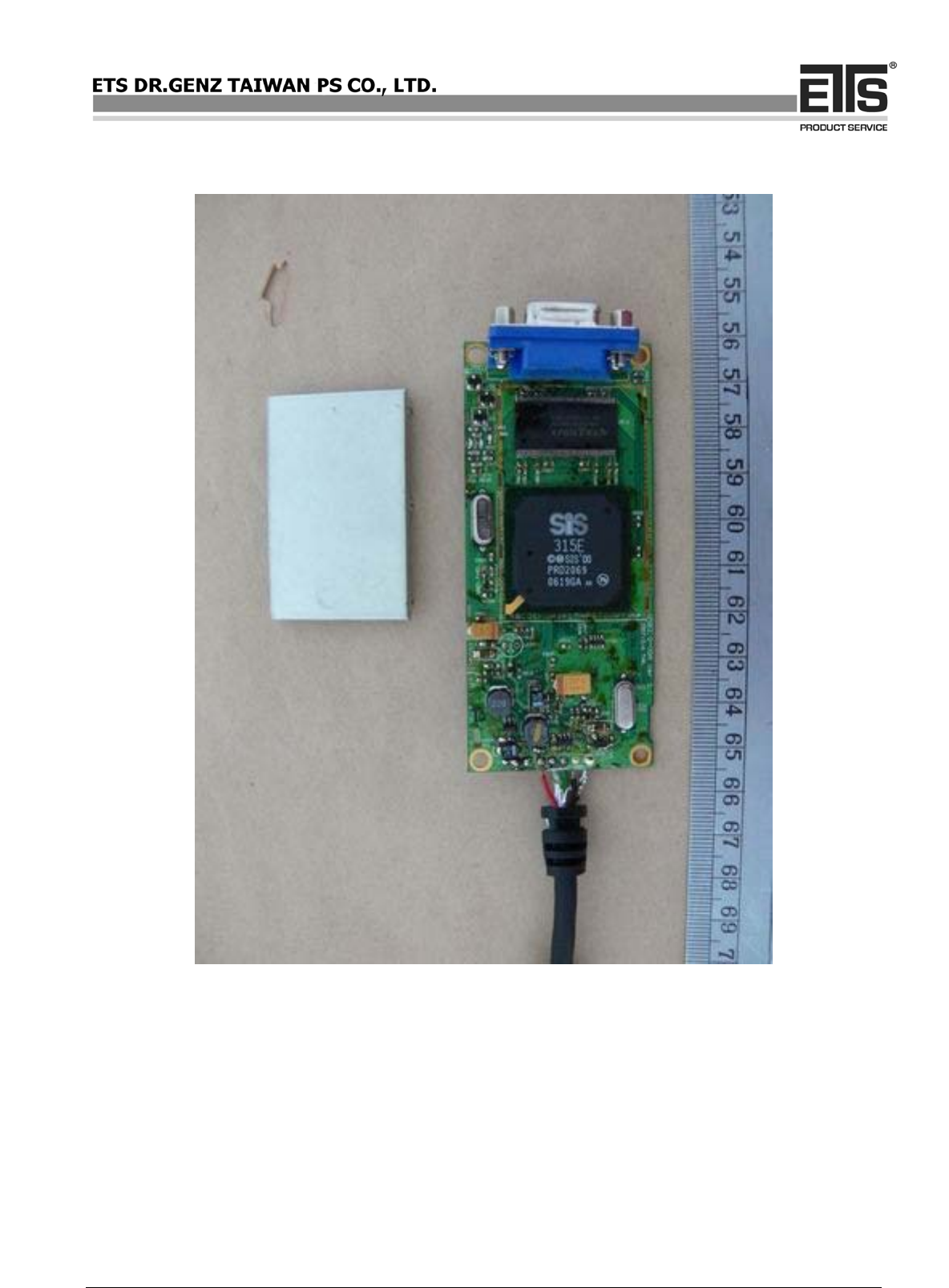

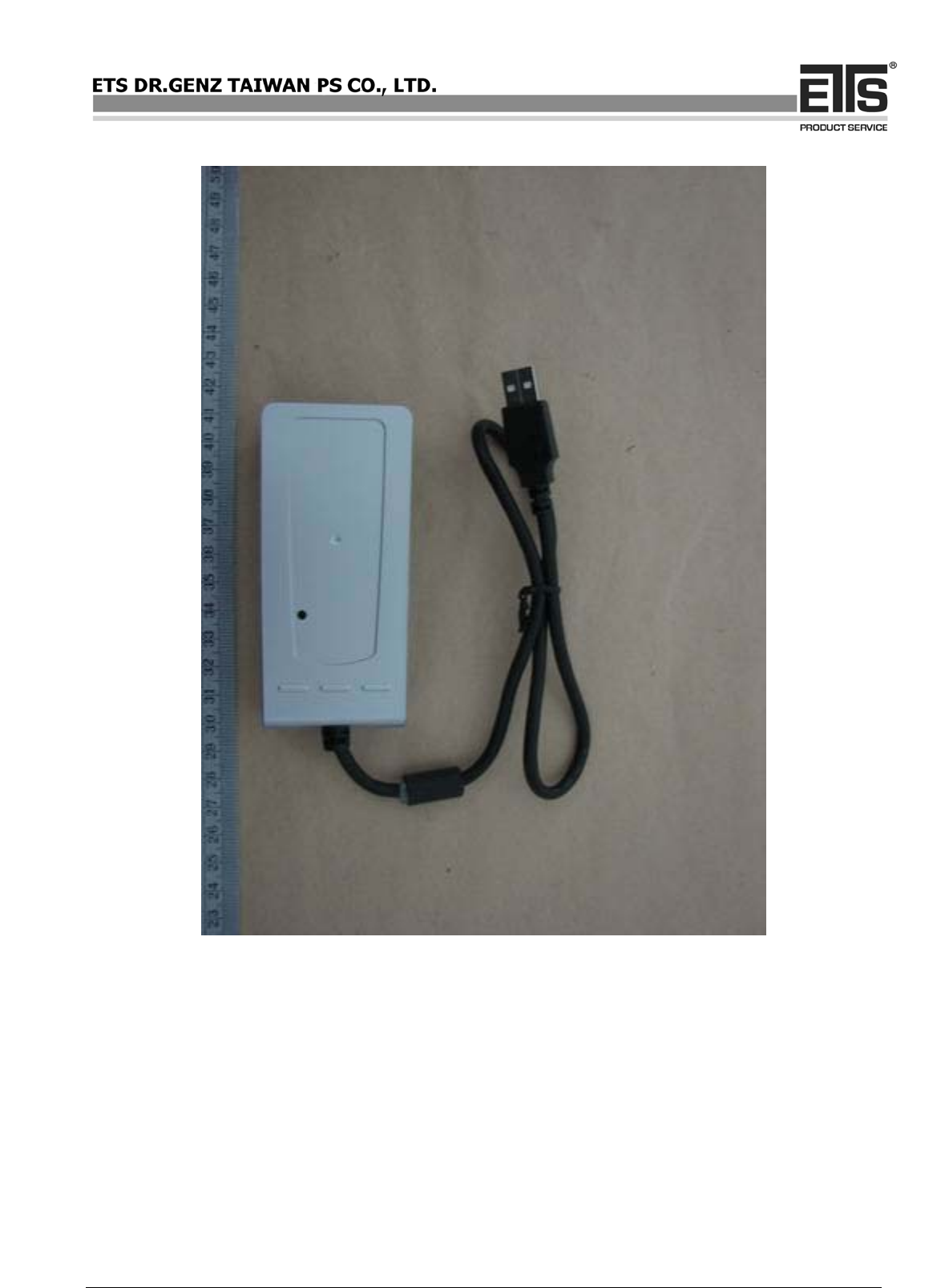

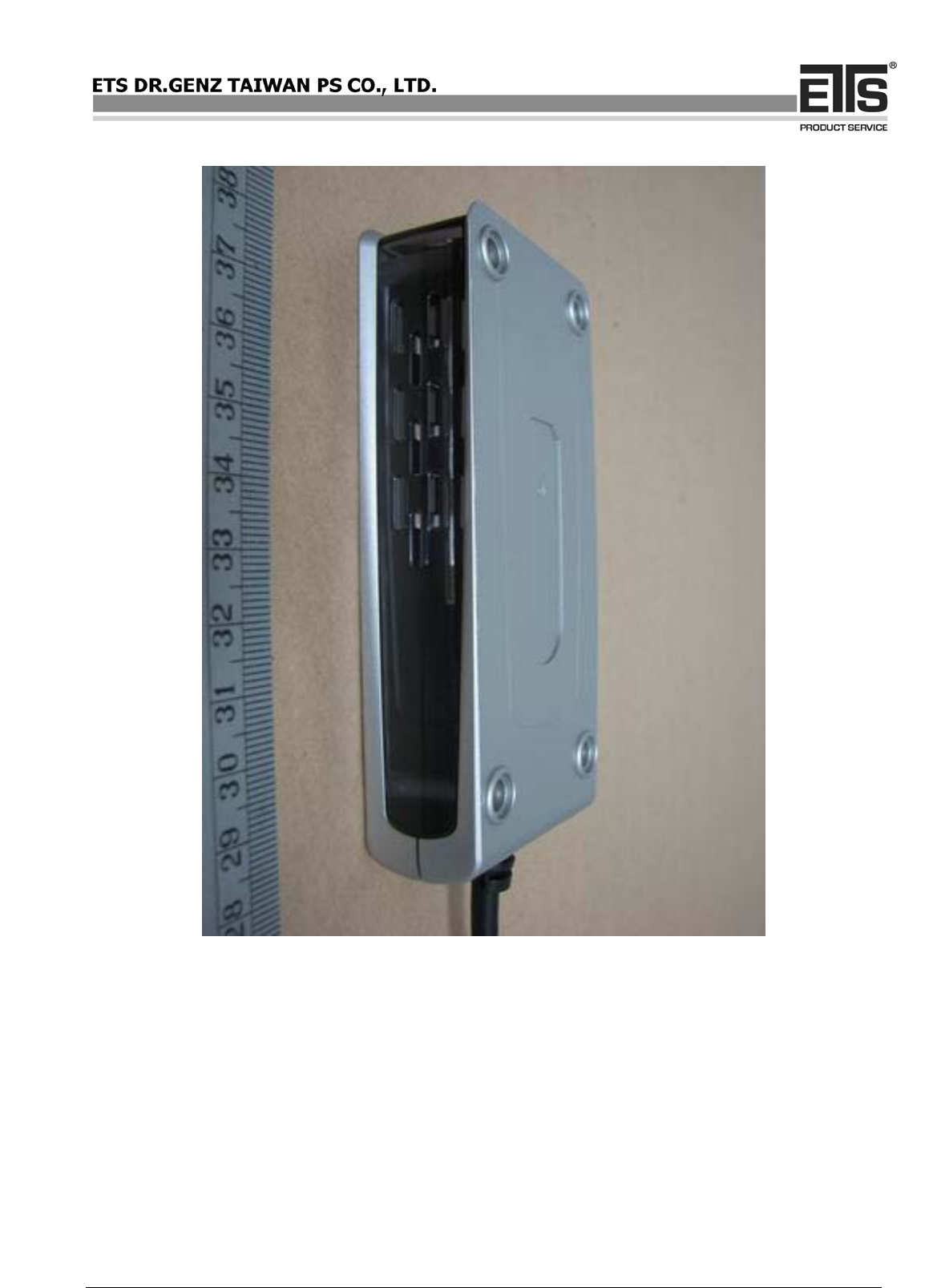

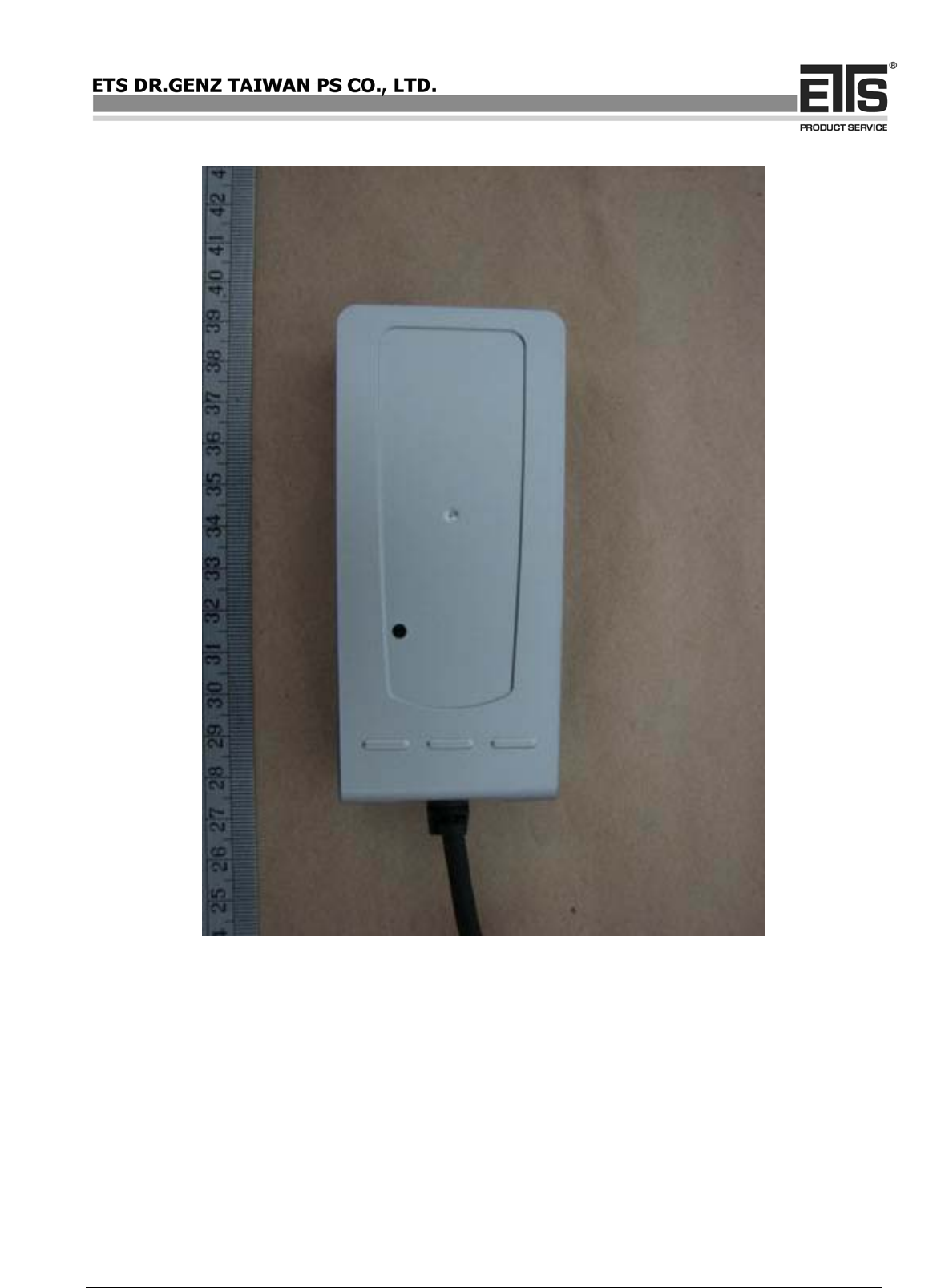

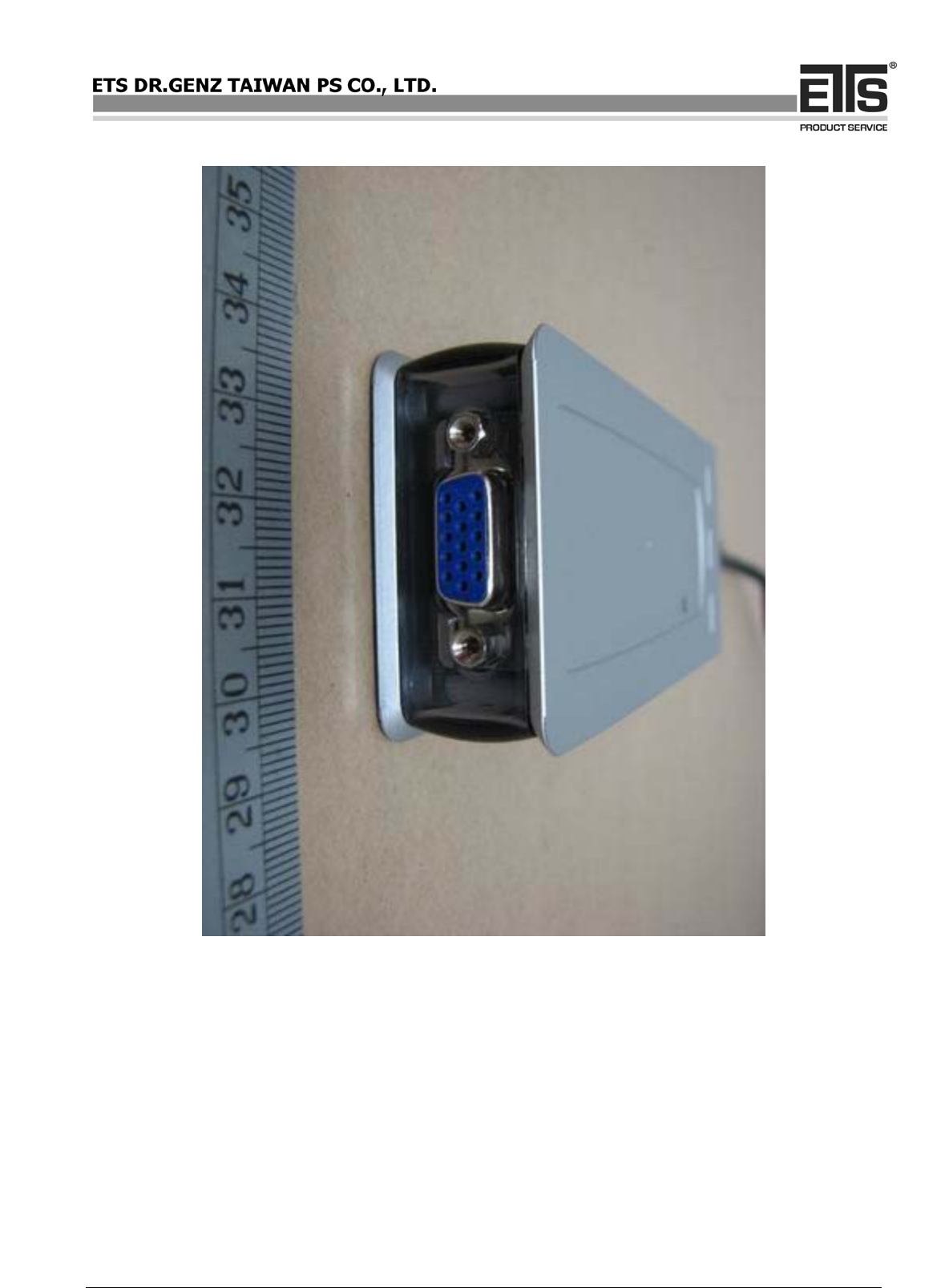

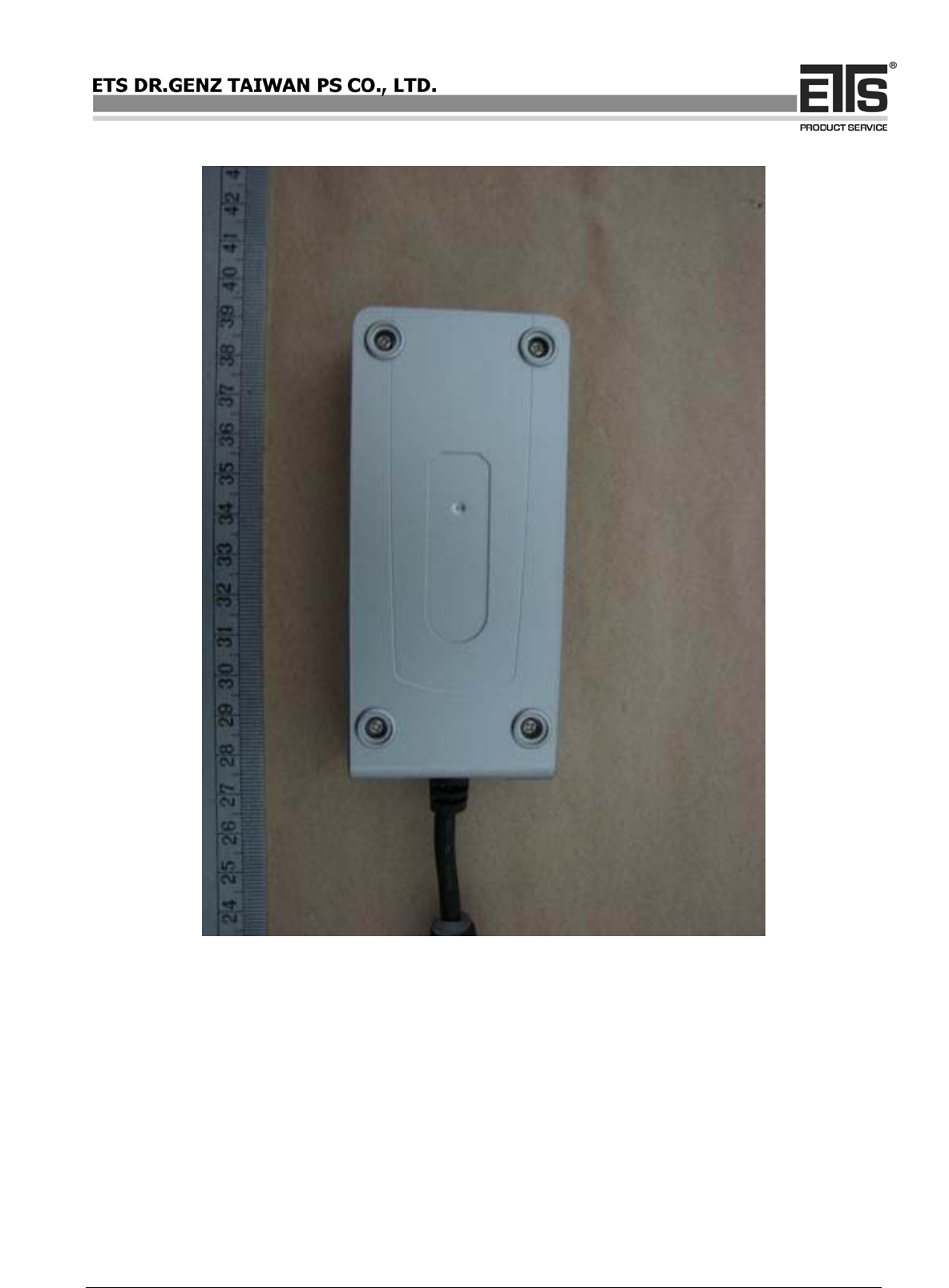

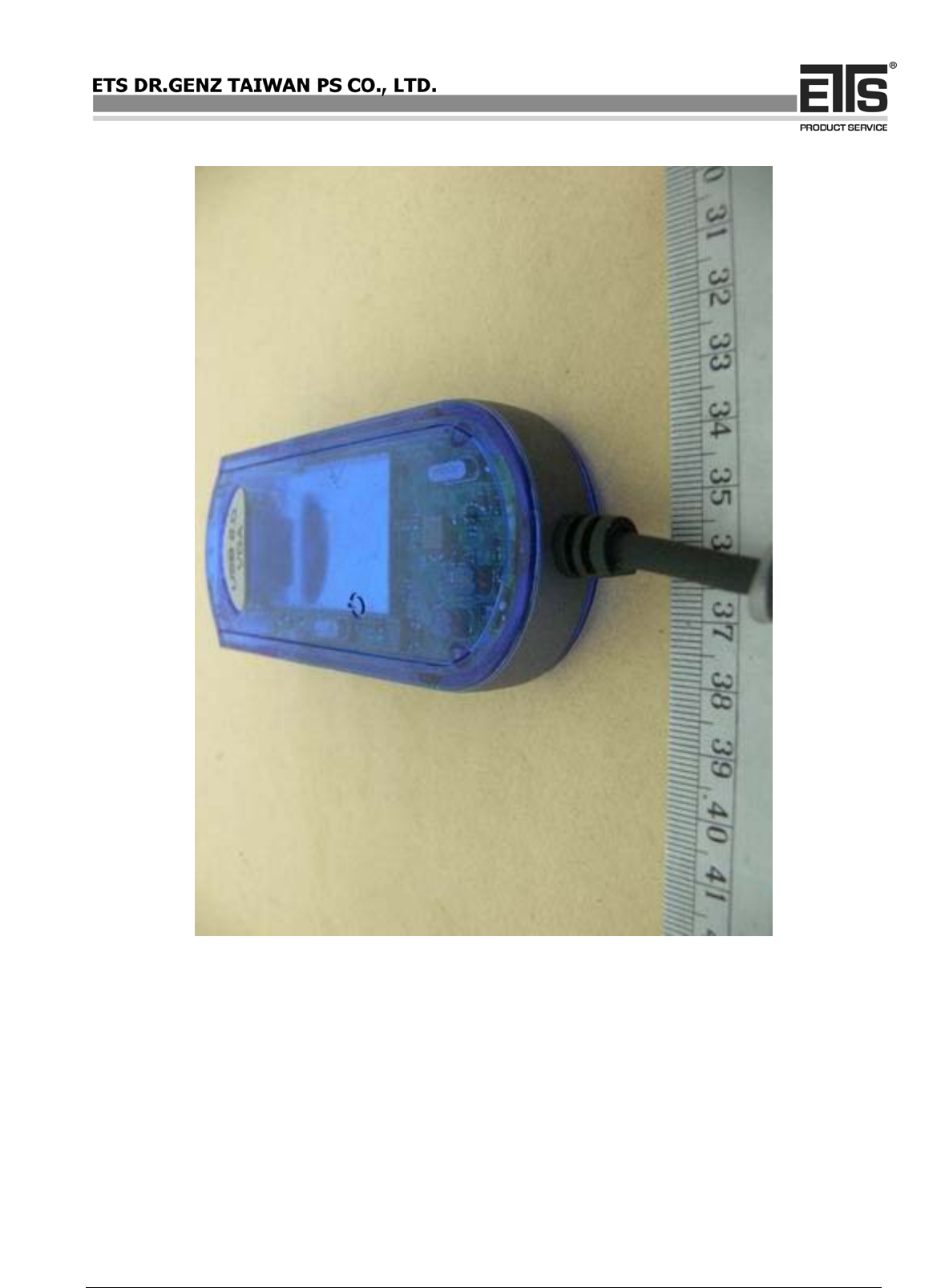

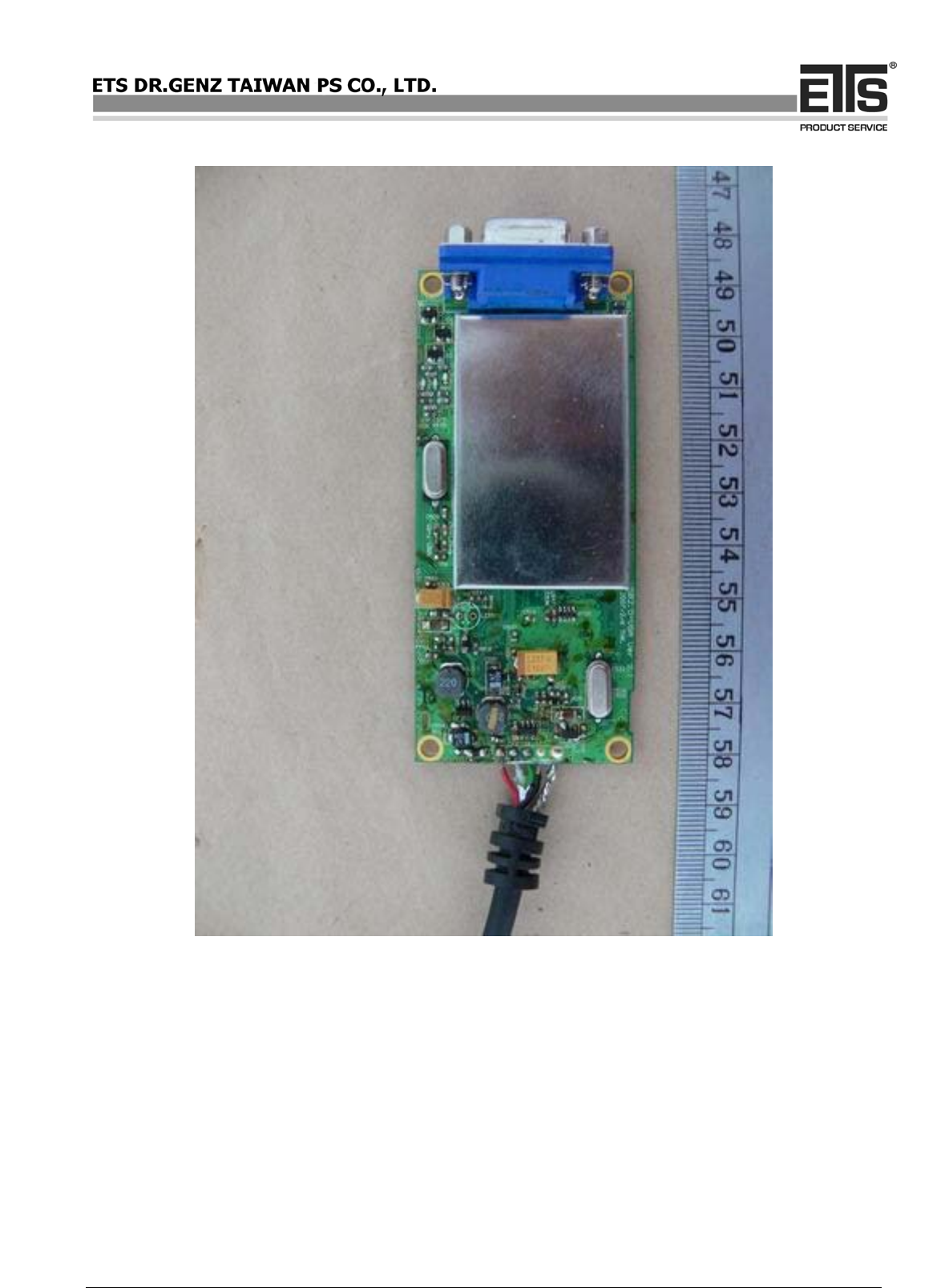

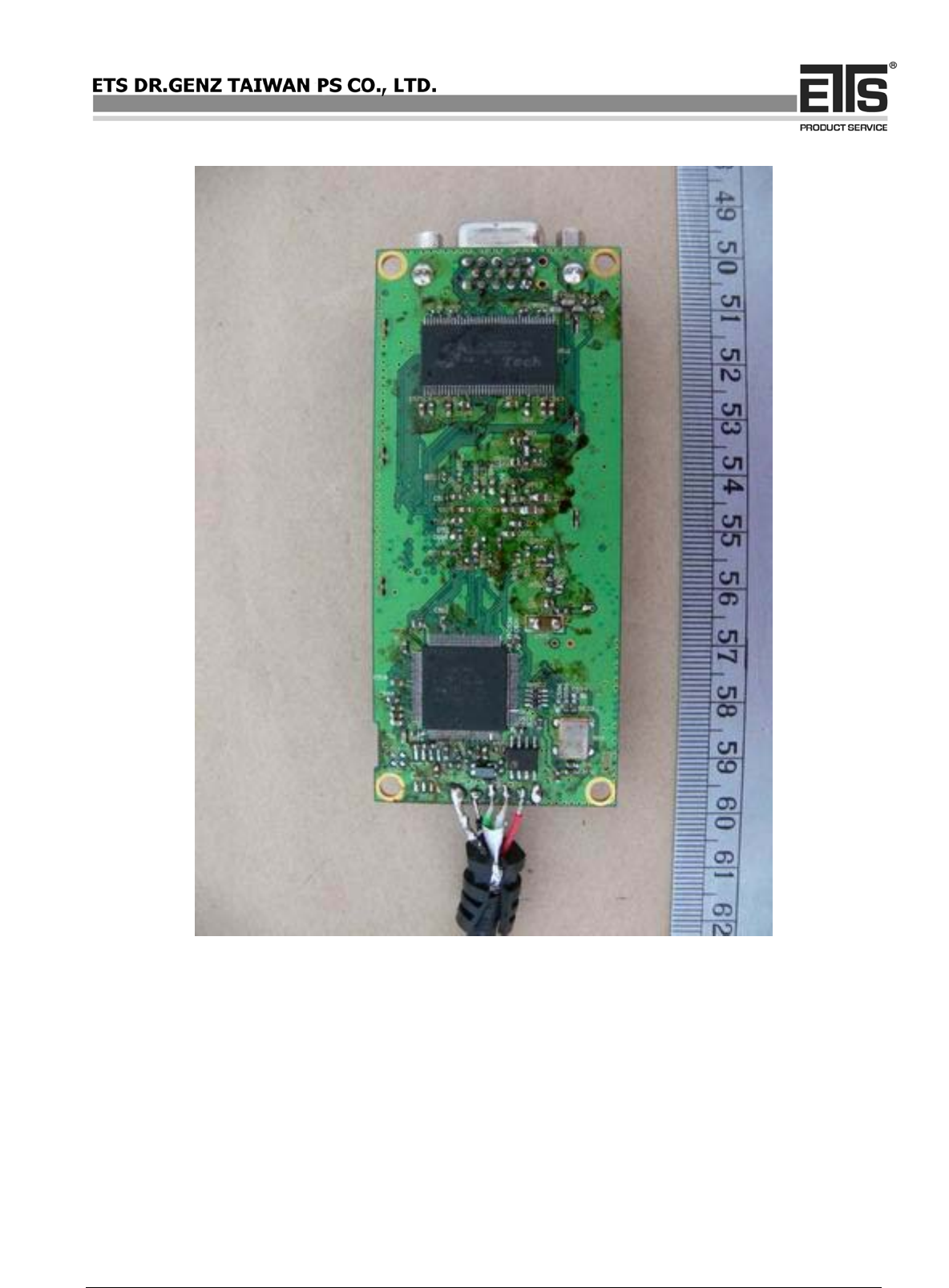

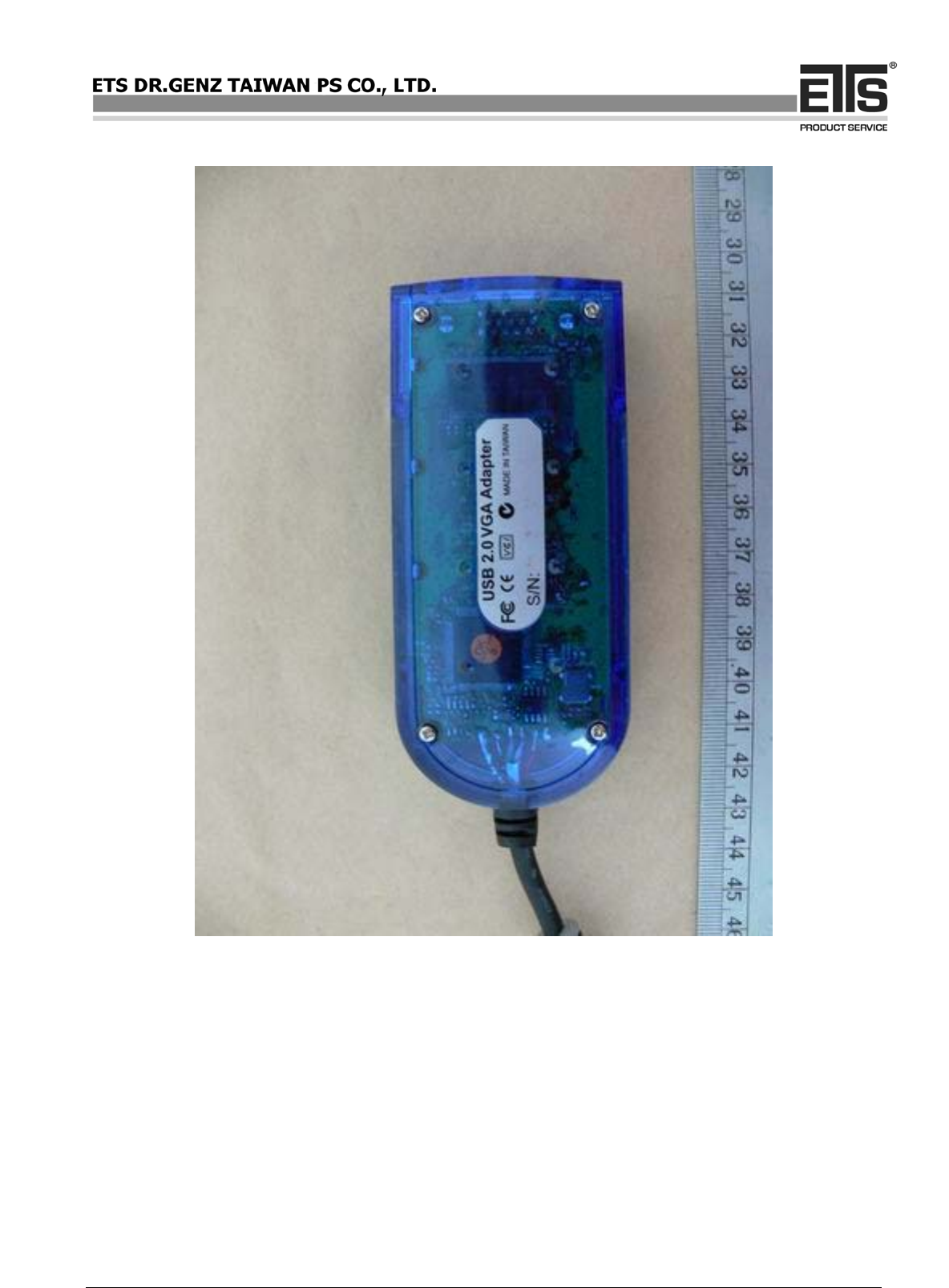

Photos : Please find in Appendix.

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd. Page 7 of 21

1.6.2 Manufacturer (if different from applicant in point 1.4)

Name : ./.

Street : ./.

Town : ./.

Country : ./.

Contact : ./.

Phone : ./.

1.6.3 Frequency behavior

Highest clock Frequency <200 MHz

1.7 Test standards

FCC part 15 : August 2006

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd. Page 8 of 21

2 Technical test

2.1 Summary of test results

No deviations from the technical specification(s) were ascertained in the course :

of the tests performed.

Or

The deviations as specified in 2.4 were ascertained in the course of the tests 

performed.

2.2 Test environment

Temperature: 18 ... 25 oC

Relative humidity content 20 ... 75 %

Air pressure: 860 ... 1030 hPa

Details of power supply: 5 VDC (Power on PC)

Other parameters: without

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd. Page 9 of 21

2.3 Test equipment utilized

No. Test equipment Type Serial No. Manufacturer Cal. Date Next Cal.

Date

ETSTW-CE 001 EMI TEST RECEIVER ESHS10 842121/013 R&S 2006/10/16 2007/10/15

ETSTW-CE 002 PREREULATOR MODE DC

POWER SUPPLY None None Function Test

ETSTW-CE 003 AC POWER SOURCE APS-9102 D161137 GW Function Test

ETSTW-CE 004

ZWEILEITER-V-

NETZNACHBILDUNG TWO-

LINE V-NETWORK

ESH3-Z5 840731/011 R&S 2006/10/16 2007/10/15

ETSTW-CE 005 Line-Impedance Stabilisation

Network NNBM 8126D 137 Schwarzbeck 2006/10/16 2007/10/15

ETSTW-CE 006 IMPULSBEGRENZER PULSE

LIMITER ESH3-Z2 100226 R&S In House Certificate

ETSTW-CE 008 ABSORBING CLAMP MDS 21 3469 Schwarzbeck 2005/10/24 2007/10/23

ETSTW-CE 009 TEMP.&HUMIDITY CHAMBER GTH-225-40-1P-U MAA0305-009 GIANT FORCE 2006/8/17 2007/8/16

ETSTW-CE 013

CISPR 22 TWO BALANCED

TELECOM PAIRS IMPEDANCE

STABILIZATION NETWORK

FCC-TLISN-T4-02 20242 FCC 2005/12/8 2007/12/7

ETSTW-CE 014

CISPR 22 TWO BALANCED

TELECOM PAIRS IMPEDANCE

STABILIZATION NETWORK

FCC-TLISN-T2-02 20241 FCC 2005/12/7 2007/12/6

ETSTW-CE 015

CISPR 22 TWO BALANCED

TELECOM PAIRS IMPEDANCE

STABILIZATION NETWORK

FCC-TLISN-T8-02 20307 FCC 2006/11/7 2008/11/6

ETSTW-CE 016 TWO-LINE V-NETWORK ENV216 100050 R&S 2006/11/21 2007/11/20

ETSTW-RE 002 Function Generator 33220A MY43004982 Agilent 2005/10/14 2007/10/13

ETSTW-RE 003 EMI TEST RECEIVER ESI 26 831438/001 R&S 2006/10/20 2007/10/19

ETSTW-RE 004 EMI TEST RECEIVER ESI 40 832427/004 R&S 2006/10/30 2007/10/29

ETSTW-RE 005 EMI TEST RECEIVER ESVS10 843207/020 R&S 2006/10/12 2007/10/11

ETSTW-RE 010 PROGRAMMABLE LINEAR

POWER SUPPLY LPS-305 30503070181 MOTECH Function Test

ETSTW-RE 011 PROGRAMMABLE LINEAR

POWER SUPPLY LPS-305 30503070165 MOTECH Function Test

ETSTW-RE 017 Log-Periodic Antenna HL025 352886/001 R&S 2006/5/4 2008/5/3

ETSTW-RE 018 MICROWAVE HORN

ANTENNA AT4560 27212 AR 2004/11/8 2007/11/7

ETSTW-RE 020 MICROWAVE HORN

ANTENNA AT4002A 306915 AR Function Test

ETSTW-RE 021 SWEEP GENERATOR SWM05 835130/010 R&S 2006/10/11 2007/10/10

ETSTW-RE 027 Passive Loop Antenna 6512 00034563 EMCO 2004/6/30 2007/6/29

ETSTW-RE 028 Log-Periodic DipoleArray Antenna 3148 34429 EMCO 2006/5/26 2008/5/25

ETSTW-RE 029 Biconical Antenna 3109 33524 EMCO 2006/5/26 2008/5/25

ETSTW-RE 030 Double-Ridged Guide Horn

Antenna 3117 00035224 EMCO 2006/5/3 2008/5/2

ETSTW-RE 032 Millivoltmeter URV 55 849086/013 R&S 2006/10/11 2007/10/10

ETSTW-RE 033 WaveRunner 6000A Serise

Oscilloscope

WAVERUNNER

6100A LCRY0604P14508 LeCroy 2006/7/27 2007/7/26

ETSTW-RE 034 Power Sensor URV5-Z4 839313/006 R&S 2005/10/17 2007/10/16

ETSTW-RE 042 Biconical Antenna HK116 100172 R&S 2007/1/11 2009/1/10

ETSTW-RE 043 Log-Periodic Dipole Antenna HL223 100166 R&S 2006/5/8 2008/5/7

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd. Page 10 of 21

ETSTW-RE 044 Log-Periodic Antenna HL050 100094 R&S 2006/5/29 2008/5/28

ETSTW-RE 048 Triple Loop Antenna HXYZ 9170 HXYZ 9170-134 Schwarzbeck 2005/3/22 2008/3/21

ETSTW-RE 049 TRILOG Super Broadband test

Antenna VULB 9160 9160-3185 Schwarzbeck 2007/5/02 2009/5/01

ETSTW-RE 055 SPECTRUM ANALYZER FSU-26 200074 R&S 2006/7/28 2007/7/27

ETSTW-RE 064 Bluetooth Test Set MT8852B-042 6K00005709 Anritsu Function Test

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd. Page 11 of 21

2.4 Test results

: 1

st test  test after modification  production test

Test

Emission / Immunity

Done Test

passed

Test

failed

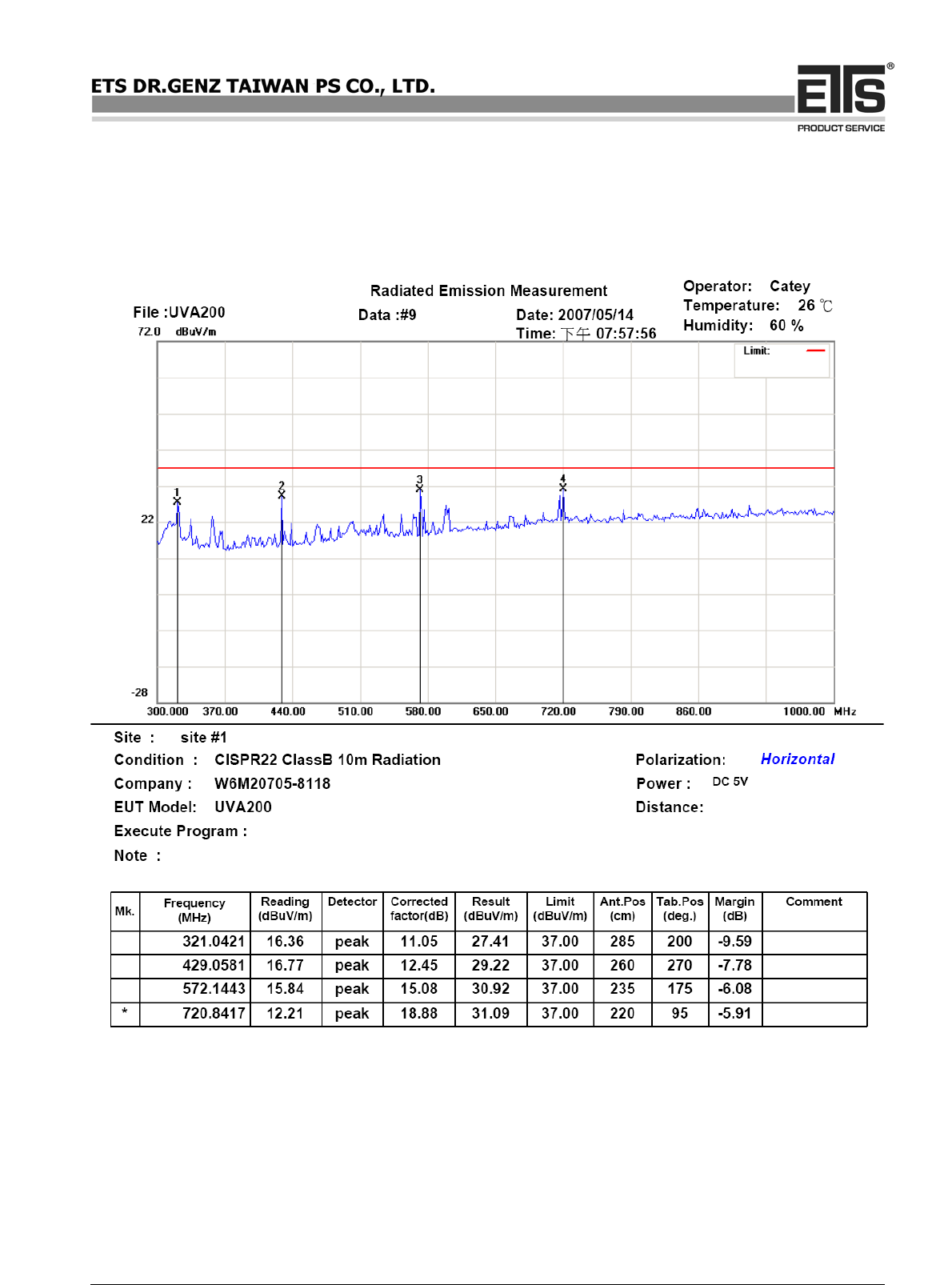

Emission Radiated Emission FCC part 15.109 : : 

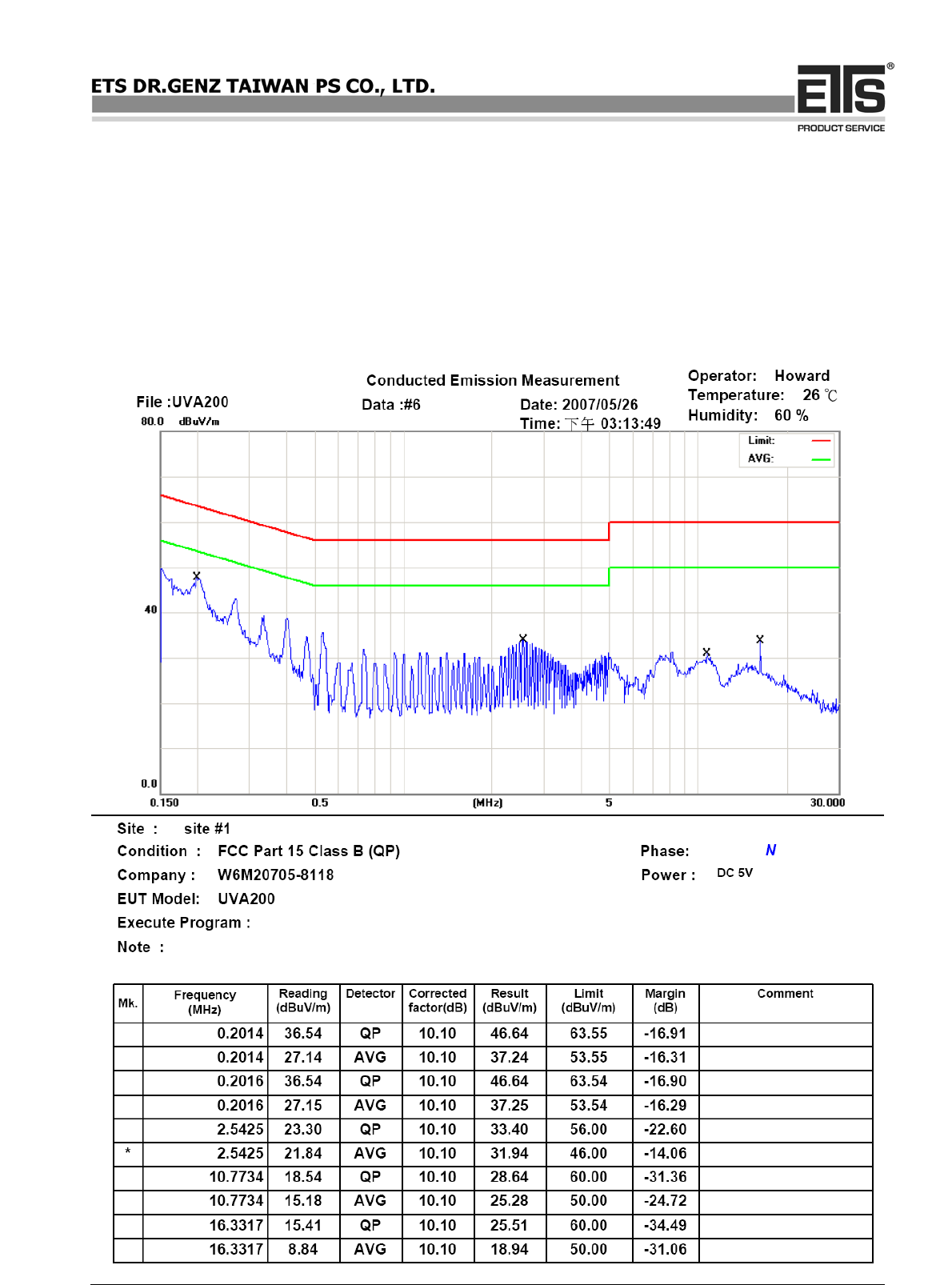

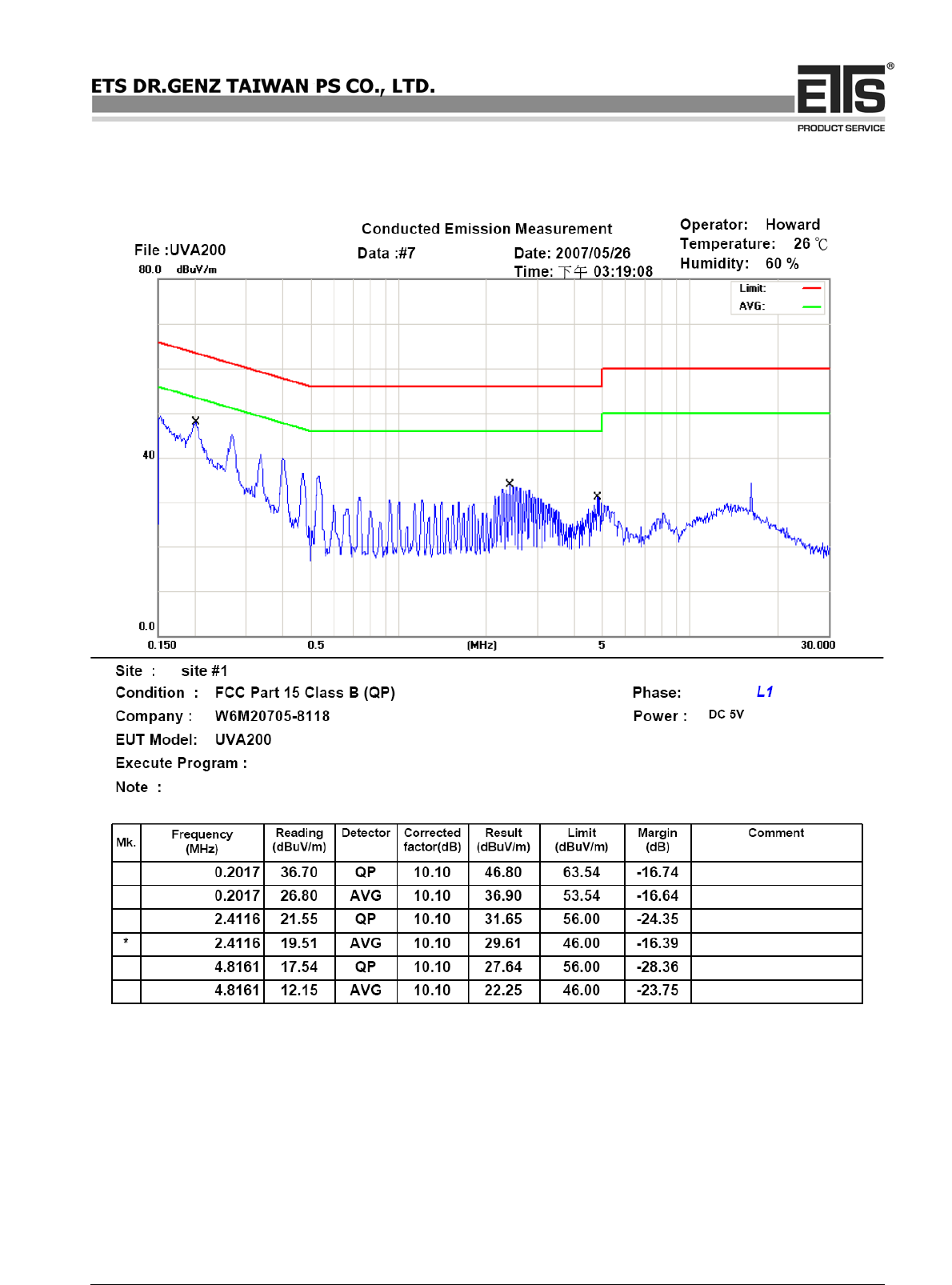

Emission Conducted Emission FCC part 15.107 : : 

Note: According to FCC part 15.109 (g), digital devices may be shown to comply with the standards

contained in Third Edition of the International Special Committee on Radio Interference (CISPR), Pub.

22, “Information Technology Equipment - Radio Disturbance Characteristics - Limits and Methods of

Measurement”.

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd. Page 12 of 21

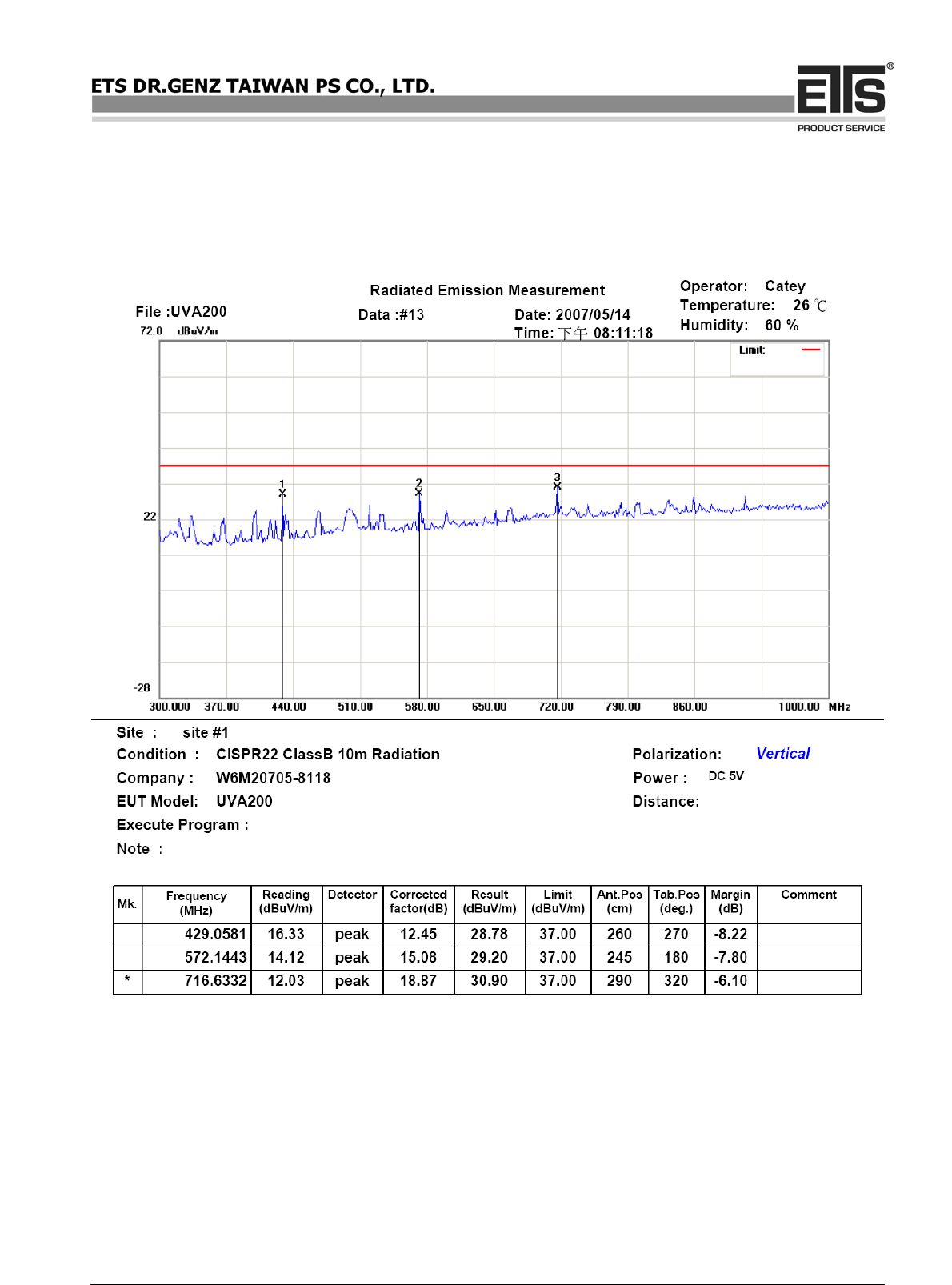

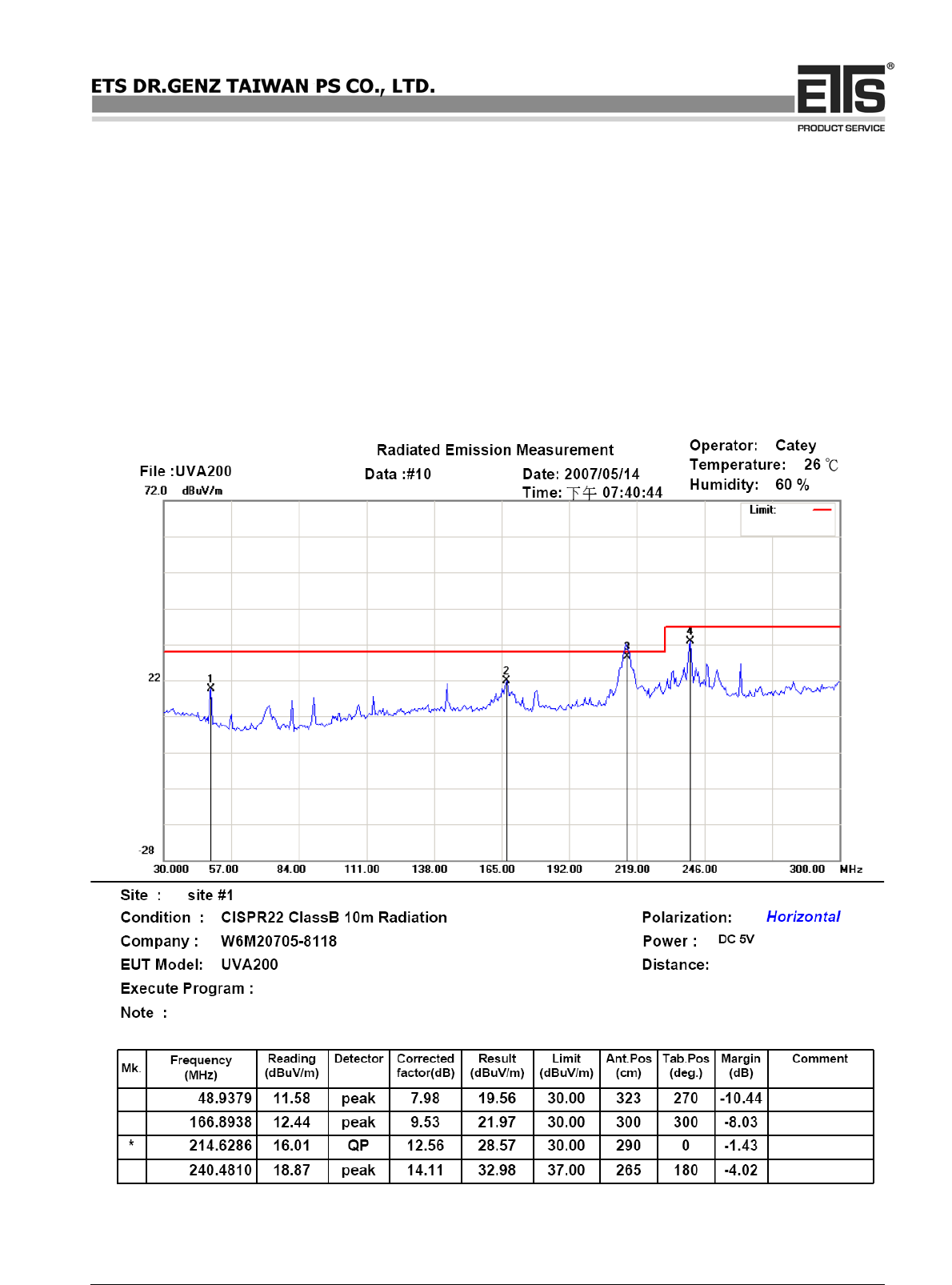

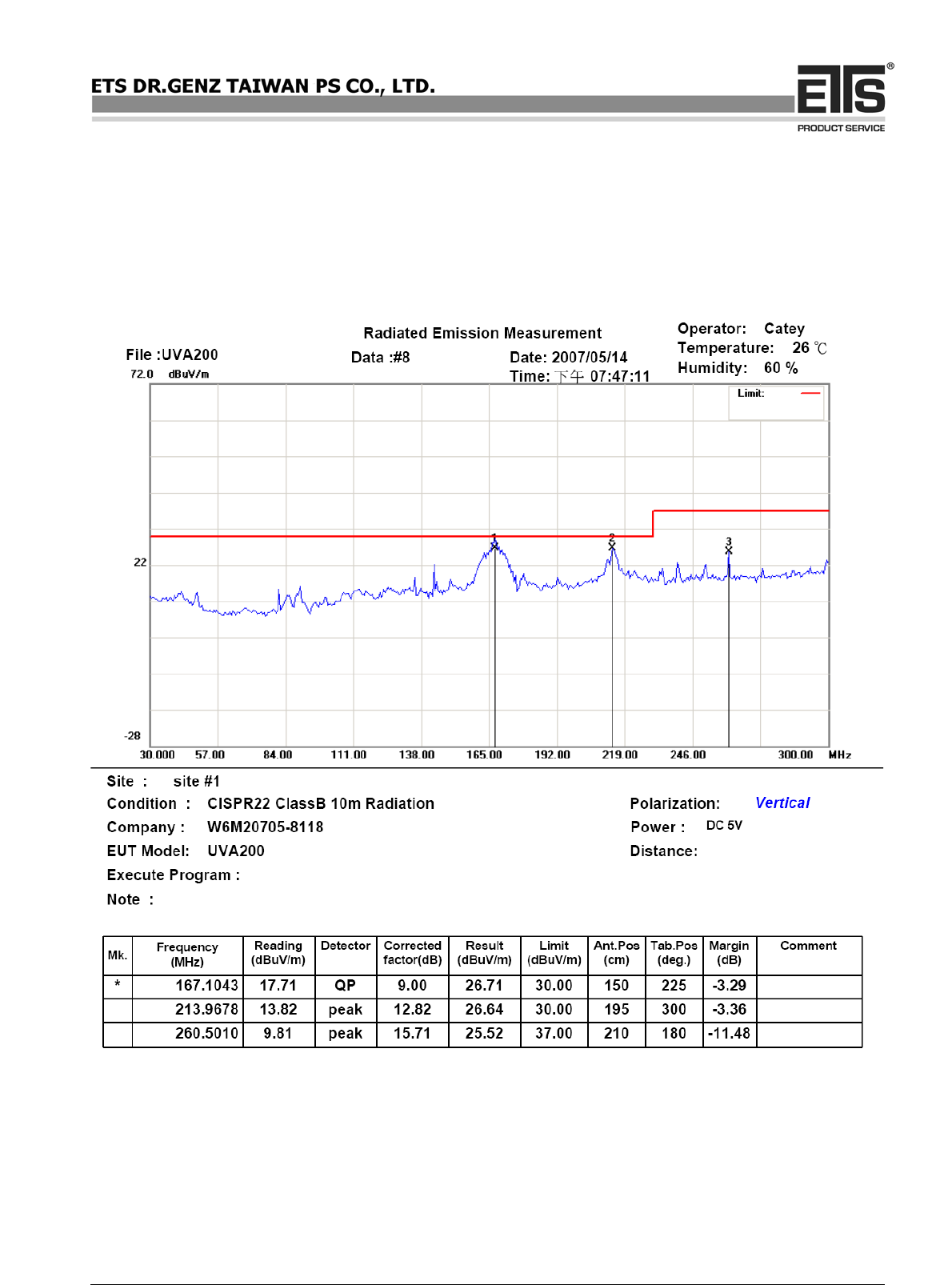

2.4.1 Radiated Emission

2.4.1.1 Test Equipment

a) Biconical Antenna (HK116)

For your reference please find it in our test equipment list at page 9 to 10 as number : ETSTW-RE 042

b) Log-Periodic Dipole Antenna (HL223)

For your reference please find it in our test equipment list at page 9 to 10 as number : ETSTW-RE 043

c) EMI TEST RECEIVER (ESI-26)

For your reference please find it in our test equipment list at page 9 to 10 as number : ETSTW-RE 003

d) EMI TEST RECEIVER (ESI 40)

For your reference please find it in our test equipment list at page 9 to 10 as number : ETSTW-RE 004

e) Log-Periodic Antenna (HL025)

For your reference please find it in our test equipment list at page 9 to 10 as number : ETSTW-RE 017

f) Log-Periodic DipoleArray Antenna (3148)

For your reference please find it in our test equipment list at page 9 to 10 as number : ETSTW-RE 028

g) Biconical Antenna (3109)

For your reference please find it in our test equipment list at page 9 to 10 as number : ETSTW-RE 029

h) Double-Ridged Waveguide Horm Antenna (3117)

For your reference please find it in our test equipment list at page 9 to 10 as number : ETSTW-RE 030

i) Log-Periodic Antenna (HL050)

For your reference please find it in our test equipment list at page 9 to 10 as number : ETSTW-RE 044

2.4.1.2 Test Procedures

• Test configuration

The test configuration corresponds to the standard CISPR 22. The equipment under test is placed on a

non metallic table with 0,8m height. The power supply and the RF connection points are close to the

equipment under test at the floor inside a connection box. The cables to this connection box are

shielded and below the double floor. The receiving antenna is placed in a height at 1,0 to 4,0m, in a

distance of 10m. The measurement receiver are placed in a special room. The observation of the

equipment under test is realized by 3 video cameras and by a microphone.

• Test parameters and marginal conditions

The test are carried out with horizontal and vertical polarization of the antenna in a frequency range of

30 MHz to 5000 MHz . Further information please find in the test protocol.

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd. Page 13 of 21

2.4.2 Conducted Emission

2.4.2.1 Test Equipment

a) ZWEILEITER-V-NETZNACHBILDUNG TWO-LINE V-NETWORK (ESH3-Z5)

For your reference please find it in our test equipment list at page 9 to 10 as number : ETSTW-CE 004

b) IMPULS-BEGRENZER PULSE LIMITER (ESH3-Z2)

For your reference please find it in our test equipment list at page 9 to 10 as number : ETSTW-CE 006

c) EMI TEST RECEIVER (ESHS10)

For your reference please find it in our test equipment list at page 9 to 10 as number : ETSTW-CE 001

d) AC Power Source (APS-9102)

For your reference please find it in our test equipment list at page 9 to 10 as number : ETSTW-CE 003

• Test configuration

The test configuration is contained inside of a shielded chamber and corresponds to the standard

CISPR 22. The equipment under test is placed in the facility on a wooden table 0.8m high. The

equipment under test is connected with the artificial mains network (AMN) in a distance of 0,8m and

also 0,8m from other subassembly and metallic area. The measurement receiver are placed in a special

room adjacent to the chamber. The observation of the equipment under test is realized by 3 video

cameras and by a microphone.

• Test parameters and marginal conditions

The test are carried out with a nominal impedance by 50Ω / 50μH of the AMN in a frequency range

150 kHz to 30 MHz. This measurement was transact first with instrumentation using an average and

peak detector and a 10 kHz bandwidth. If the peak detector achieves a calculated level, the

measurement is repeated by an instrumentation using a quasi-peak detector,

Further information please find in test report.

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd. Page 14 of 21

2.5 Test protocols

2.5.1 Radiated Emission

Radio Noise Field Strength

Emission

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd. Page 15 of 21

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd. Page 16 of 21

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd. Page 17 of 21

Note 1. Correction Factor = Antenna factor + Cable loss - Preamplifier

2. The formula of measured value as: Test Result = Reading + Correction Factor

3. Detector function in the form : PK = Peak, QP = Quasi Peak, AV = Average

4. All not in the table noted test results are more than 20 dB below the relevant limits.

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd. Page 18 of 21

2.5.2 Conducted Emission

Conducted Emission

Emission

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd. Page 19 of 21

Note 1. The formula of measured value as: Test Result = Reading + Correction Factor

2. The Correction Factor = Cable Loss + LISN Insertion Loss + Pulse Limit Loss

3. Detector function in the form : PK = Peak, QP = Quasi Peak, AV = Average

4. All not in the table noted test results are more than 20 dB below the relevant limits.

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd. Page 20 of 21

2.6 Equipment Modification

No modification was made to pass all tests.

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd. Page 21 of 21

3 Normative references

/1/ FCC part 15

Radio Frequency Devises

/2/ CISPR 22

Limits and Methods of Measurement of Radio Interference Characteristics of Information

Technology Equipment

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd.

Appendix

Photos

1. External Photos

2. Internal Photos

3. Set Up Photo of Radiated Emission

4. Set Up Photo of Conducted Emission

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd.

Pictures

External Photos

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd.

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd.

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd.

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd.

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd.

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd.

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd.

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd.

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd.

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd.

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd.

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd.

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd.

Internal Photos

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd.

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd.

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd.

Set Up Photo of Radiated Emission

Registration number: W6M20705-8118-P-15B

ETS. Dr.Genz Taiwan PS Co., Ltd.

Set Up Photo of Conducted Emission
