TELECOMMUNICATIONS

OUTSIDE PLANT WIRE & CABLE

FOR TELECOMMUNICATIONS

september 2012

Telecommunications

Cables

This catalog contains in-

depth information on the

most comprehensive line of

Telecommunications cables for the

distribution of telecommunication

signals for outside use.

The product and technical

sections have been developed

with an easy-to-use “spec-

on-a-page” format. It features

the latest information on

Telecommunications cables, from

applications and construction

to detailed technical and

specification data. There’s also a

numerical part number index.

Our cables are readily available

through our network of authorized

stocking distributors and

distribution centers.

We are dedicated to customer

service and satisfaction—so call

our team of professionally trained

sales personnel to meet your

application needs.

All information in this catalog is presented solely

as a guide to product selection and is believed

to be reliable. All printing errors are subject to

correction in subsequent releases of this catalog.

Although General Cable has taken precautions to

ensure the accuracy of the product specifications

at the time of publication, the specifications of all

products contained herein are subject to change

without notice.

GENERAL CABLE, BICC BRAND, CAROL

BRAND, GENSPEED, NEXTGEN BRAND,

PULL-PAC and TRU-MARK are trademarks of

General Cable Technologies Corporation.

©2012. General Cable Technologies Corporation.

Highland Heights, KY 41076

All rights reserved. Printed in USA.

Our Cables

KEEP INFORMATION FLOWING

QUALITY

General Cable is committed to meeting

customer requirements through continuous

quality improvements. As a significant

part of our commitment to quality, General

Cable’s manufacturing facilities are certified

to the ISO 9001:2000 quality standard. Our

telecommunications cable manufacturing facility

has received TL 9000 quality standards registration

as a supplement to the ISO program. This quality

system is based on the ISO 9001 program with added telecommunications-specific performance

metrics. We strive to provide value optimization through innovation and quality solutions.

 • Ourin-housetestingcapabilitiesareextensive,withstrictadherencetoourproduct

specifications as well as industry standards.

 • Cablesaresafetylistedandveried.

 • Third-partytestinglabslikeETLareutilizedtoquantifyandconrmourqualityandprovide

final qualification data that sets the foundation for our extended product warranty.

 • GeneralCableproductshavestoodthetestoftimewithprovenreliabilityandperformance.

CUSTOMER SERVICE

General Cable is dedicated to customer

service and satisfaction. Call our team of

professionally trained sales associates at

800-424-5666

with any questions to meet your

application needs.

MAnUfACTURIng ExCELLEnCE

All of General Cable's Telecommunications wire and cable

products are produced at facilities that have won the

prestigious IndustryWeek’s Best Plants Award, given to the

top 10 manufacturing plants in North America across all

industries. This award annually honors a facility’s world-

class manufacturing capabilities and its commitment to

continuous improvement.

Product Selection Locator

Air Core Cable ................................PE-22 AL .................... Spec. 2003 ........2

Figure 8 Air Core Cable .........................PE-38 AL .................... Spec. 2003-F8 .....3

Air Core ALPETH Cable.........................Bell Type BH*A & BK*A ......... Spec. 2101 ........4

Figure 8 Air Core ALPETH Cable..................Bell Type BH*S & BK*S ......... Spec. 2102 ........5

Figure 8 Air Core ALPETH-GP Cable ..............Bell Type BH*P & BK*P ......... Spec. 2108 ........6

Air Core Bonded PASP Cable ....................Bell Type BH*H & BK*H......... Spec. 2107 ........7

Air Core Foam Skin Bonded STALPETH Cable.......Bell Type DC*Z ............... Spec. 2106 ........8

Filled Solid Cable ..............................RDUP (RUS) PE-39 AL ......... Spec. 2002 .......10

Filled Solid 5-Mil Copper Cable...................RDUP (RUS) PE-39 CU ......... Spec. 2002 .......11

Filled Solid Copper-Bearing Gopher-Resistant Cable..RDUP (RUS) PE-39 GR ......... Spec. 2002 .......12

Filled Foam Skin Cable .........................RDUP (RUS) PE-89 AL ......... Spec. 2007 .......13

Filled Foam Skin CACSP Cable ..................RDUP (RUS) PE-89 CACSP ..... Spec. 2007 .......14

Filled Foam Skin ALPETH Cable .................Bell Type AN*A................ Spec. 2111 .......15

Filled Foam Skin ASP Cable .....................Bell Type AN*W ............... Spec. 2100 .......16

Filled Foam Skin “S” Screened ASP Cable..........Bell Type KN*W ............... Spec. 2109-F .....17

Glass Supported Drop Wire 2, 3 and 6 Pair .........Bell Type and RDUP (RUS) ...... Spec. 4292-4294 ..19

Drop Wire ....................................Bell Type and RDUP (RUS) PE-7.. Spec. 4295 .......20

C Rural Wire..................................Bell Type .................... Spec. 4283 .......20

Ground Wire..................................Bell Type .................... Spec. 2621/2622...21

Multiple Pair Aerial Service Wire ..................Bell Type .................... Spec. 4298 .......22

Buried Service Wire - Gopher-Resistant ............RDUP (RUS) PE-86 ............ Spec. 4284 .......23

Buried Service Wire - Aluminum Shield ............ICEA S-86-634 ............... Spec. 4287 .......24

Buried Service Wire - Gopher-Resistant ............Bell Type .................... Spec. 3503 .......25

Buried Service Wire - Bronze or CCS Shield ........Bell Type .................... Spec. 3502 . . . . . . . 26

Local Distribution Network ....................... . . . . . . . . . . . . . . . . . . . . . . . . . . . ..............28-29

Color Code Chart............................... . . . . . . . . . . . . . . . . . . . . . . . . . . . ..............30-31

Glossary ...................................... . . . . . . . . . . . . . . . . . . . . . . . . . . . ..............32-34

Part Number Index.............................. . . . . . . . . . . . . . . . . . . . . . . . . . . . ..............35-36

Section Page

2 Filled Core Cables 9-17

4 Technical Information 27-36

3 Wire Products 18-26

1 Air Core Cables 1-8

Our Green Initiative symbol recognizes our role

and responsibility in promoting sustainability.

The symbol also reflects our commitment to achieving

industry-leading standards and responding

proactively to environmental global issues.

Look for our products with the RoHS symbol

for your green building initiatives.

Visit www.generalcable.com

Select “COMPANY,” then select “Corporate Social Responsibility”

General Cable is a leader in the

development, design, manufacture,

marketing and distribution of copper,

aluminum and fiber optic wire and cable

for the energy, industrial, specialty and

communications markets.

Our products inspire progress worldwide …

customers use our value-added products

to create global infrastructure that

improves the standard of living for

people everywhere.

Each day we’re building business

momentum — developing ideas into

innovative solutions and industry-leading

products, expanding geographic access and

furthering our investment in highly capable

associates, Lean Manufacturing, material

science and technology resources.

General Cable is influencing the world … with more than two-thirds

of our sales generated outside North America and with more than

12,000 associates in 50 manufacturing facilities throughout

26 countries. As one of the largest wire and cable manufacturers,

we are the One Company Connecting the World.

Energy Cables

Our cables carry energy across the world — through the air,

underground and under the sea. Increasing demand for energy is

accelerating investment in exploration, extraction, power generation,

transmission and distribution — whether based on coal, natural gas,

oil, nuclear, wind, solar or water.

Industrial & Specialty Cables

Our cables channel the power and signals that make equipment hum

and engines run. From oil rigs and broadcast studios to cars and trains,

and in commercial buildings, public venues, factory floors and special

applications such as military, nuclear, marine and mining — we serve

an extensive range of markets.

Communications Cables

Our cables keep information flowing — facilitating a non-stop stream

of words and images around the world. We meet the high-speed

bandwidth needs of global communications networks, from fiber

optic submarine communications cables, copper and fiber aerial and

underground cables to copper and fiber optic enterprise cables and

system solutions.

World Headquarters

General Cable

4 Tesseneer Drive

Highland Heights, KY

41076-9753 U.S.A.

Building Bridges in the Sky

Making Contact with the World

Directing Traffic without Gridlock

Telecommunications

1

Telecommunications

Air Core Cables 1

Plastic insulated Air Core Cables

provide a broad range of pair

sizes for the distribution of

telecommunication signals for

outside use. These cables can be

installed in underground ducts or

strung between poles, lashed to a

steel messenger or equipped with a

built-in messenger wire.

An industry-standard coIor-coding

system provides full identification

of every pair through the use of 10

different insulating coIors and non-

hygroscopic unit binders.

Different optional sheath designs

provide electrical shielding

necessary for proper grounding

and mechanical protection

against rodents and other physical

damage. A black, weather-resistant

polyethylene jacket is used on all

constructions for protection against

long-term outdoor exposure.

The temperature range that

Telecommunications cable can

withstand is:

For storage and operation:

-45˚C to 80˚C

-49˚F to 176˚F

For installation:

-30˚C to 60˚C

-22˚F to 140˚F

All cables are equipped with

surface-printed identification and

sequential footage markings.

The cable design for 19, 22 and 24

AWG sizes has the transmission

performance capability of 100,

Category 3 Backbone UTP Cables

specified in TIA/EIA 568-C.

Our Telecommunications cable

constructions contain no halogens

(chlorine, fluorine, bromine or

iodine), which means they are less

toxic and more environmentally

friendly. Look for the 17 FREE™

logo.

General Cable Air Core Cables are

all proudly made in the U.S.A.

Index Page

Air Core Cable

PE-22 AL

Spec. 2003 2

Figure 8 Air Core Cable

PE-38 AL

Spec. 2003-F8 3

Air Core ALPETH Cable

Bell System Type BH*A & BK*A

Spec. 2101 4

Figure 8 Air Core

ALPETH Cable

Bell System Type BH*S & BK*S

Spec. 2102 5

Figure 8 Air Core

ALPETH-GP Cable

Bell System Type BH*P & BK*P

Spec. 2108 6

Air Core Bonded PASP Cable

Bell System Type BH*H & BK*H

Spec. 2107 7

Air Core Foam Skin

Bonded STALPETH Cable

Bell System Type DC*Z

Spec. 2106 8

2

Air Core Cables Telecommunications

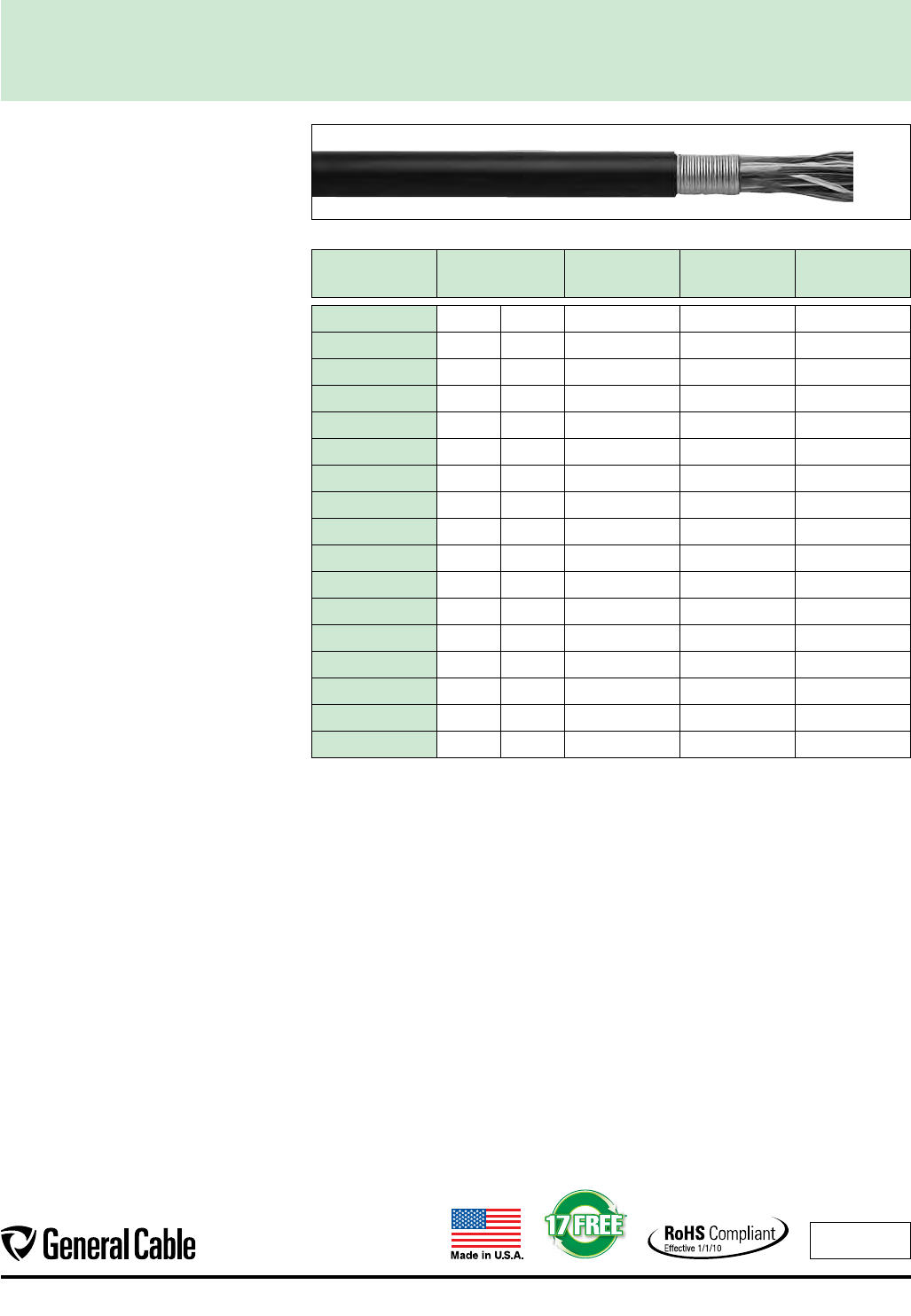

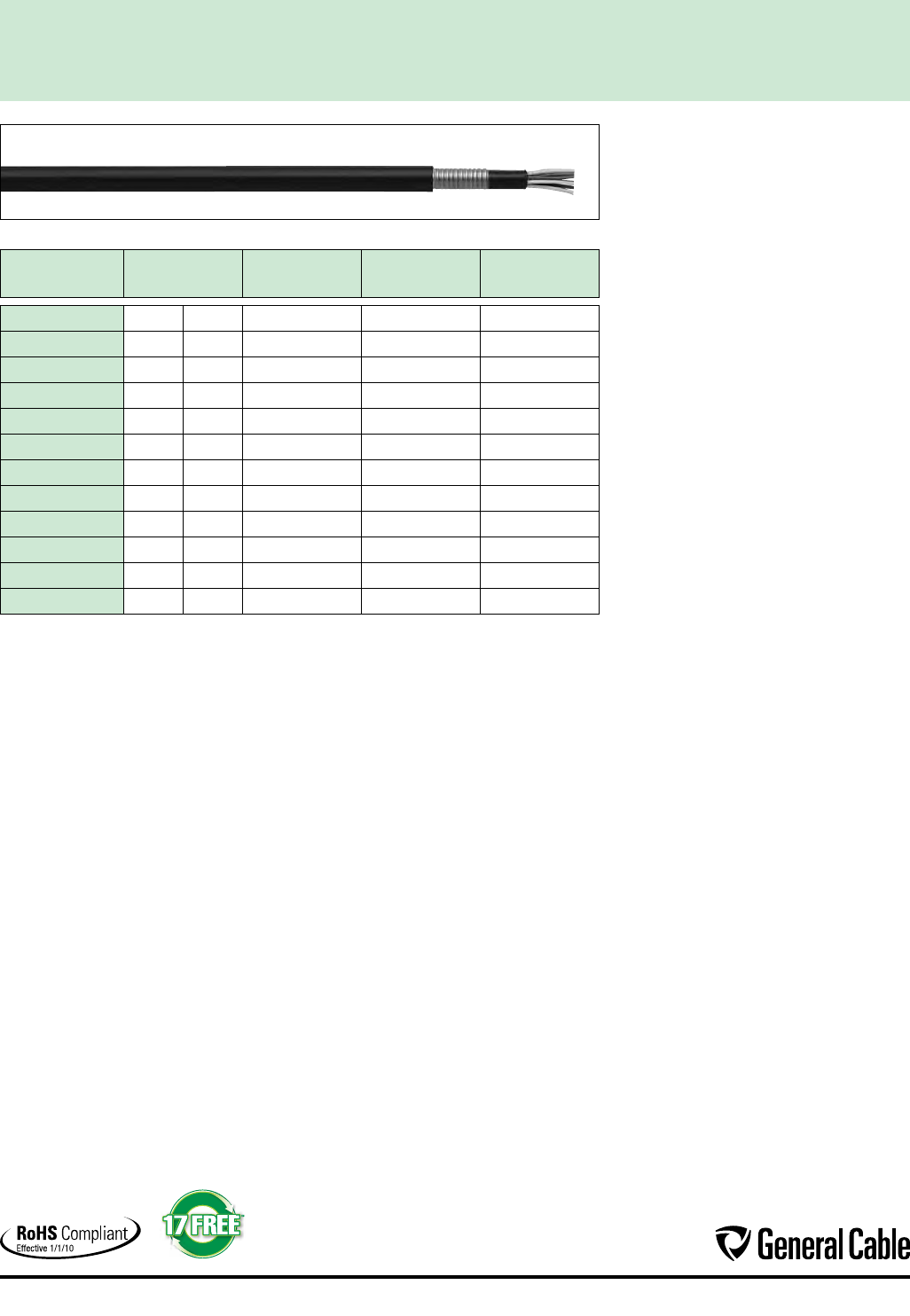

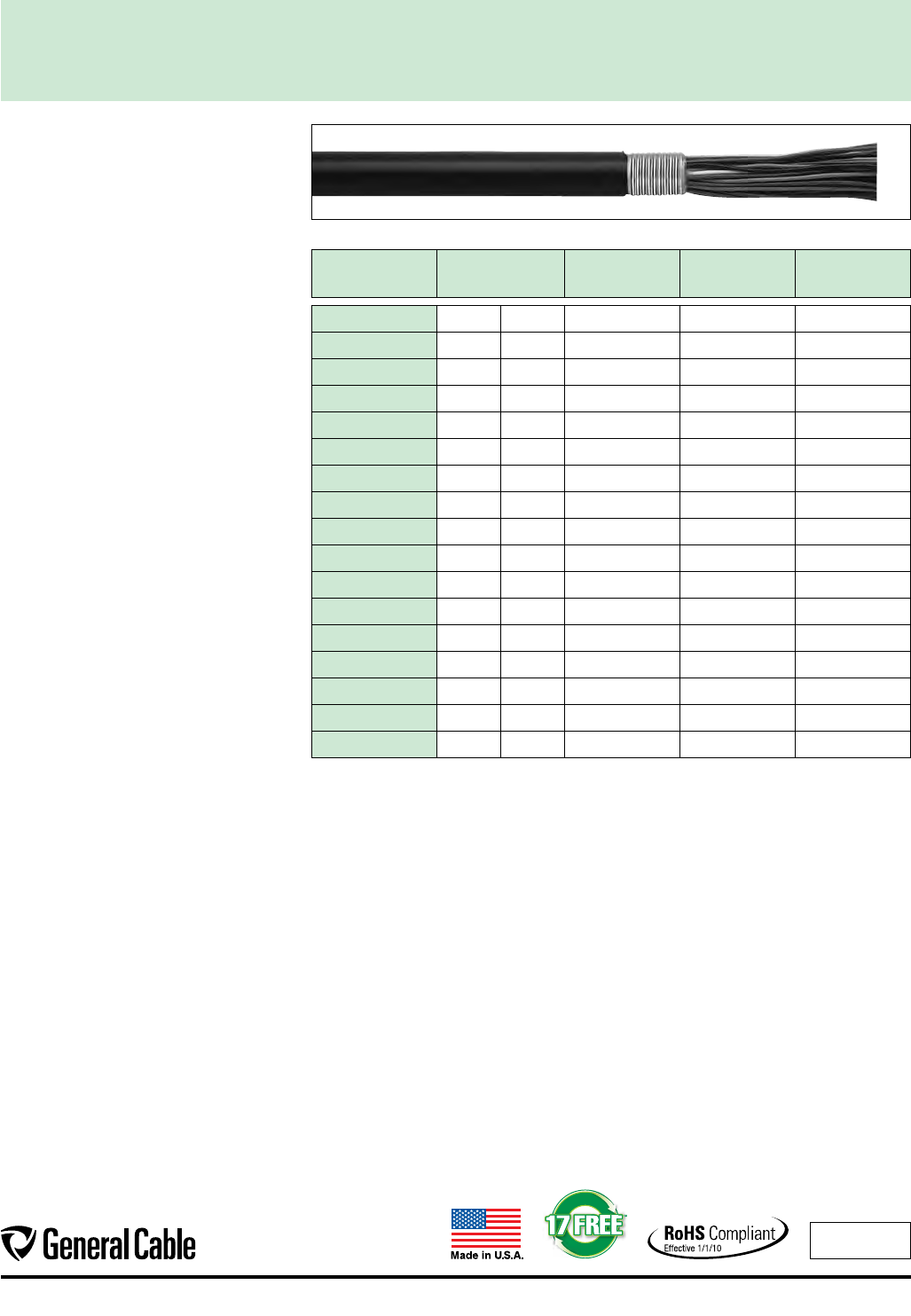

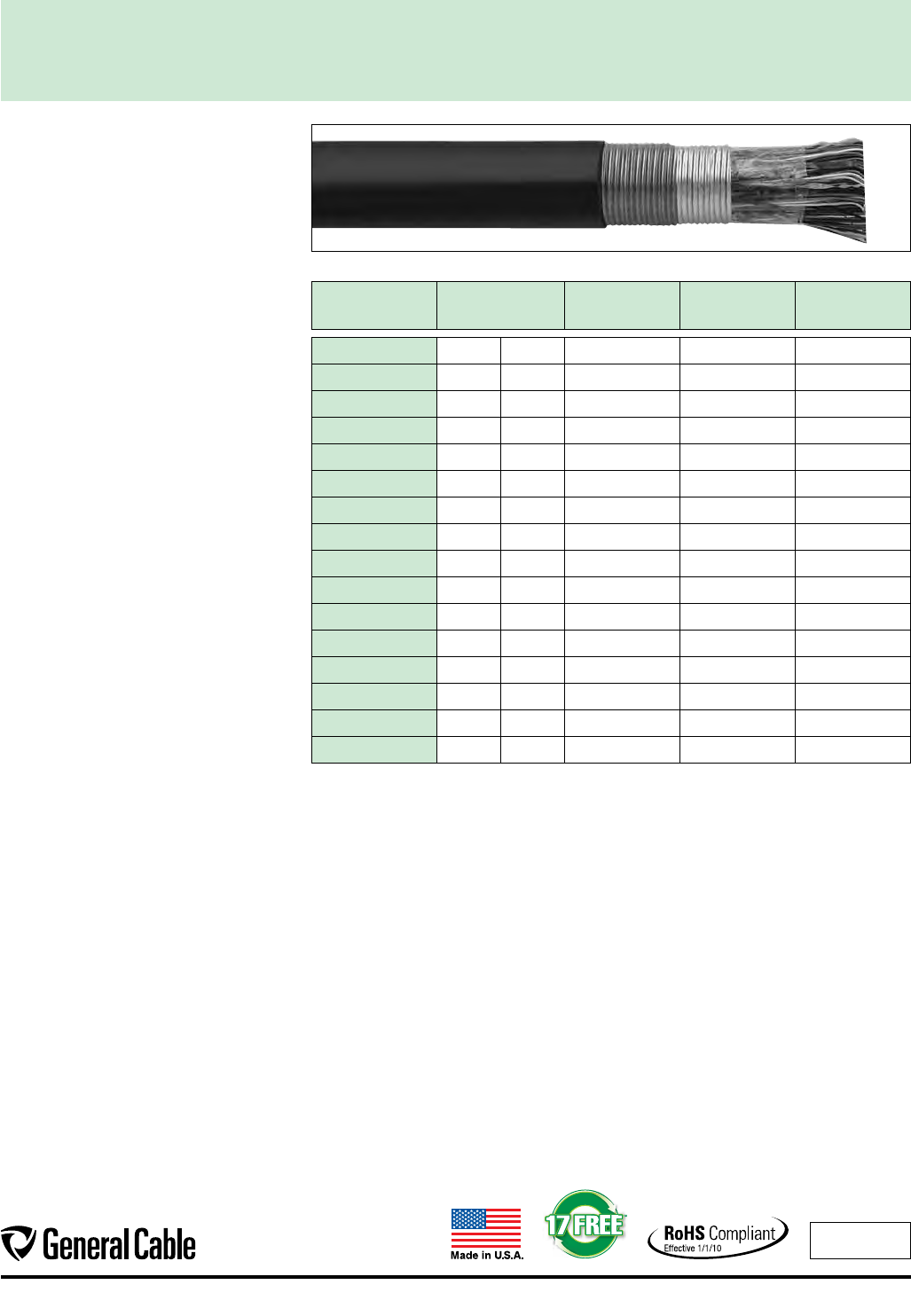

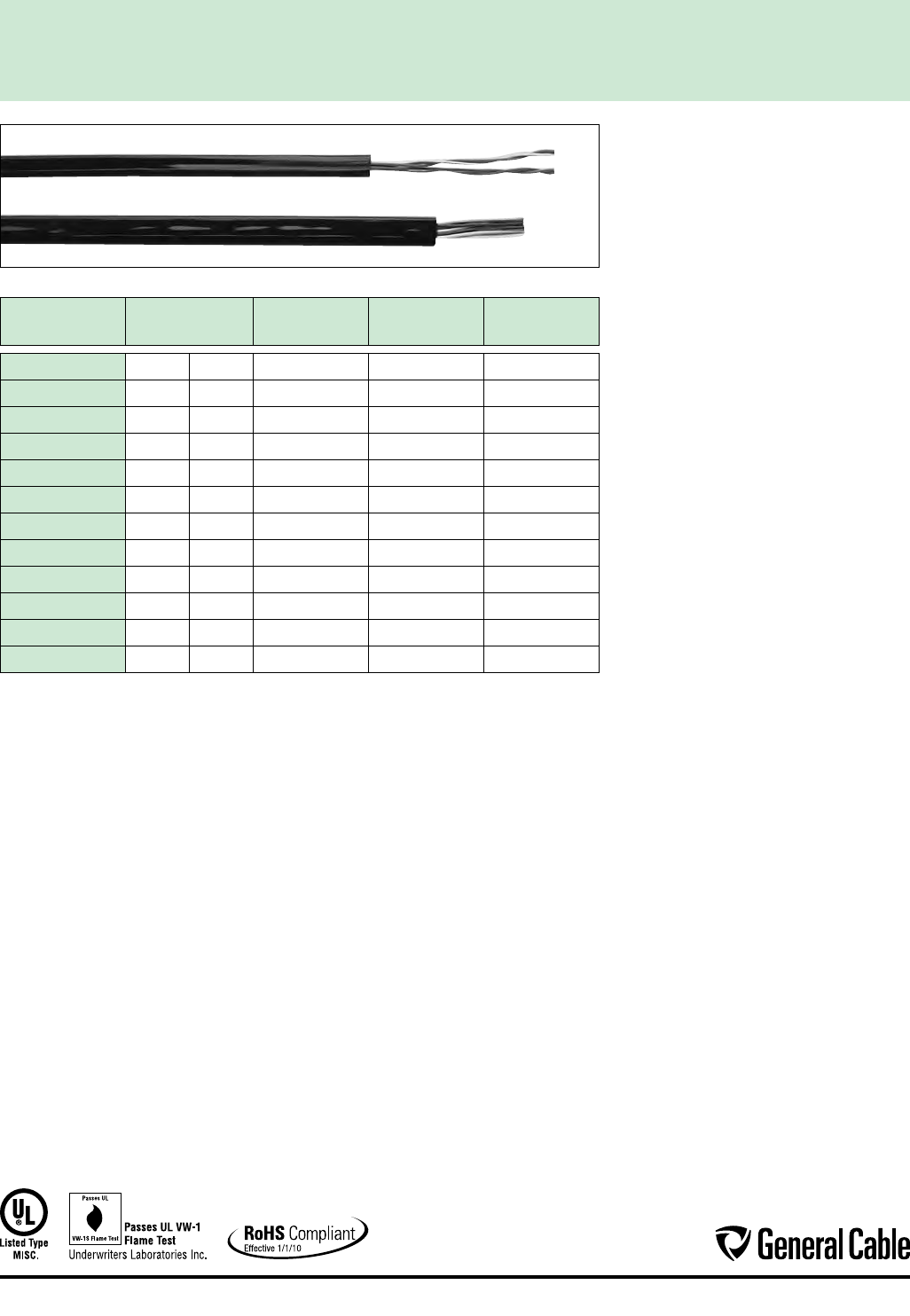

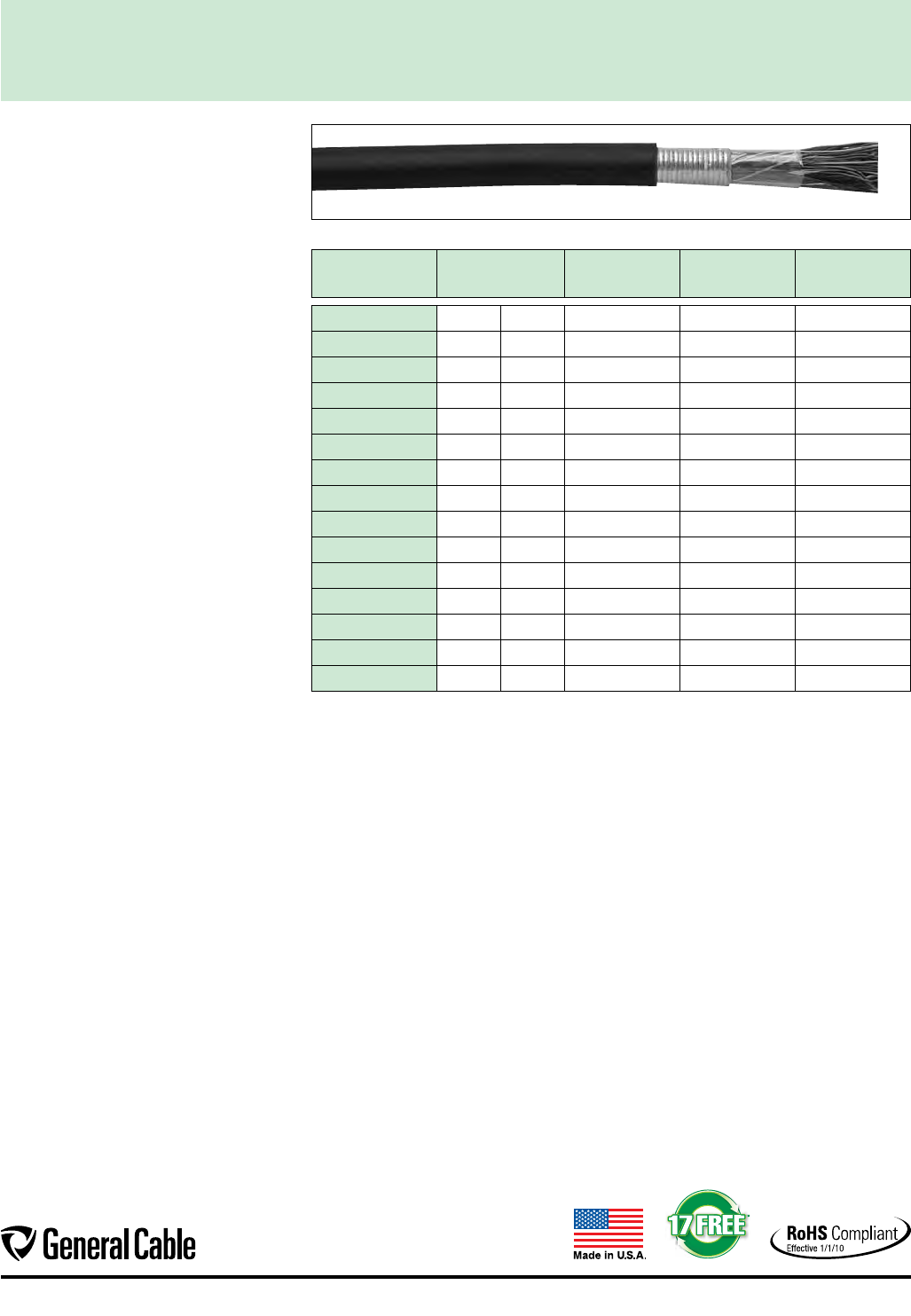

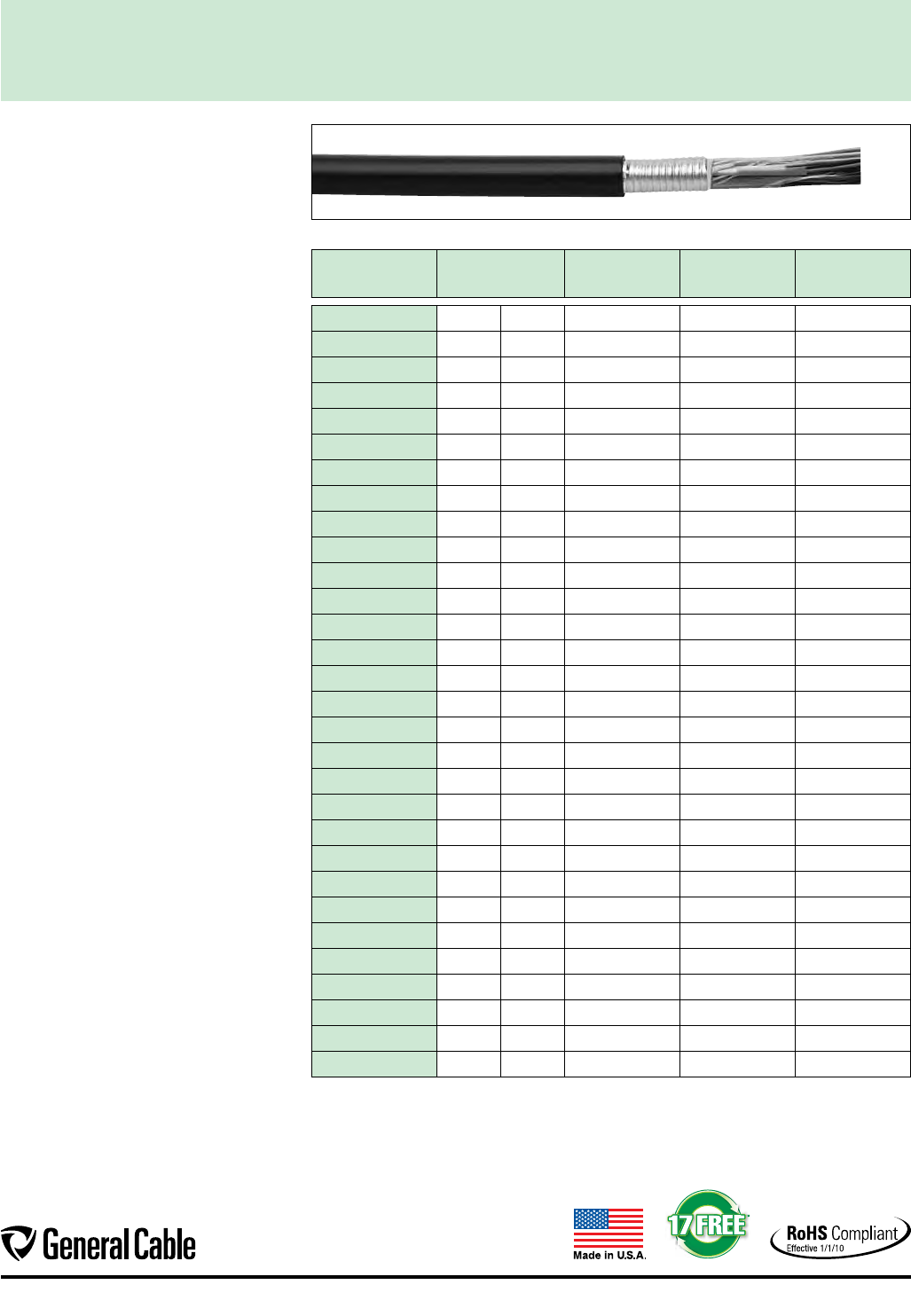

Air Core Cable Spec. 2003

PE-22 AL

Core Construction:

Conductors:

•Solid,annealedcopper;sizes19,22and24AWG

Insulation:

•Solid,highdensitypolyethylene,color-codedin

accordance with telephone industry standards

Twisted Pairs:

•Insulatedconductorsaretwistedintopairswith

varying lay lengths to minimize crosstalk

Core Assembly:

•25pairsandless:pairsareassembledtogetherin

a single group

•Morethan25pairs:pairsarearrangedingroups,

each group having a color-coded unit binder

Core Wrap:

•Non-hygroscopicdielectrictapeapplied

longitudin

ally with an overlap

Sheath:

Aluminum Shield:

•Corrugated,copolymercoated,0.008"aluminum

tape applied longitudinally with an overlap

Jacket:

•Black,linear low density polyethylene

Application(s):

•Foraerialinstallationbyattachmenttoasupport

strand

•Forundergroundinstallationwhenplacedina

duct (pressurization is recommended)

Compliances:

•FormerlyRDUP(RUS)SpecificationPE-22

•RoHSCompliant(effective1/1/10)

•ANSI/ICEAS-85-625-2007

Packaging:

•Standardlengthsareshippedonnon-returnable

wood reels

•Non-standardpackagingisavailableuponrequest

Nominal Cable Data

CATALOG

NUMBER

PAIRS

AWG

O.D.

(INCHES)

WEIGHT

(LBS/MFT)

STANDARD

LENGTH (FT)

7527757 6 19 0.49 102 5000

7527765 12 19 0.62 168 5000

7527781 25 19 0.79 310 5000

7527005 6 22 0.40 65 5000

7527013 12 22 0.49 102 5000

7527021 25 22 0.63 174 5000

7527039 50 22 0.90 308 5000

7527112 6 24 0.37 51 5000

7527120 12 24 0.43 74 5000

7527138 25 24 0.54 122 5000

7527146 50 24 0.67 209 5000

7527161 100 24 0.88 385 5000

7527187 200 24 1.18 720 2500

7527195 300 24 1.40 1060 2500

7527203 400 24 1.60 1375 2500

Data subject to change without notice. Contact your Customer Service Representative for latest information.

3

Telecommunications Air Core Cables

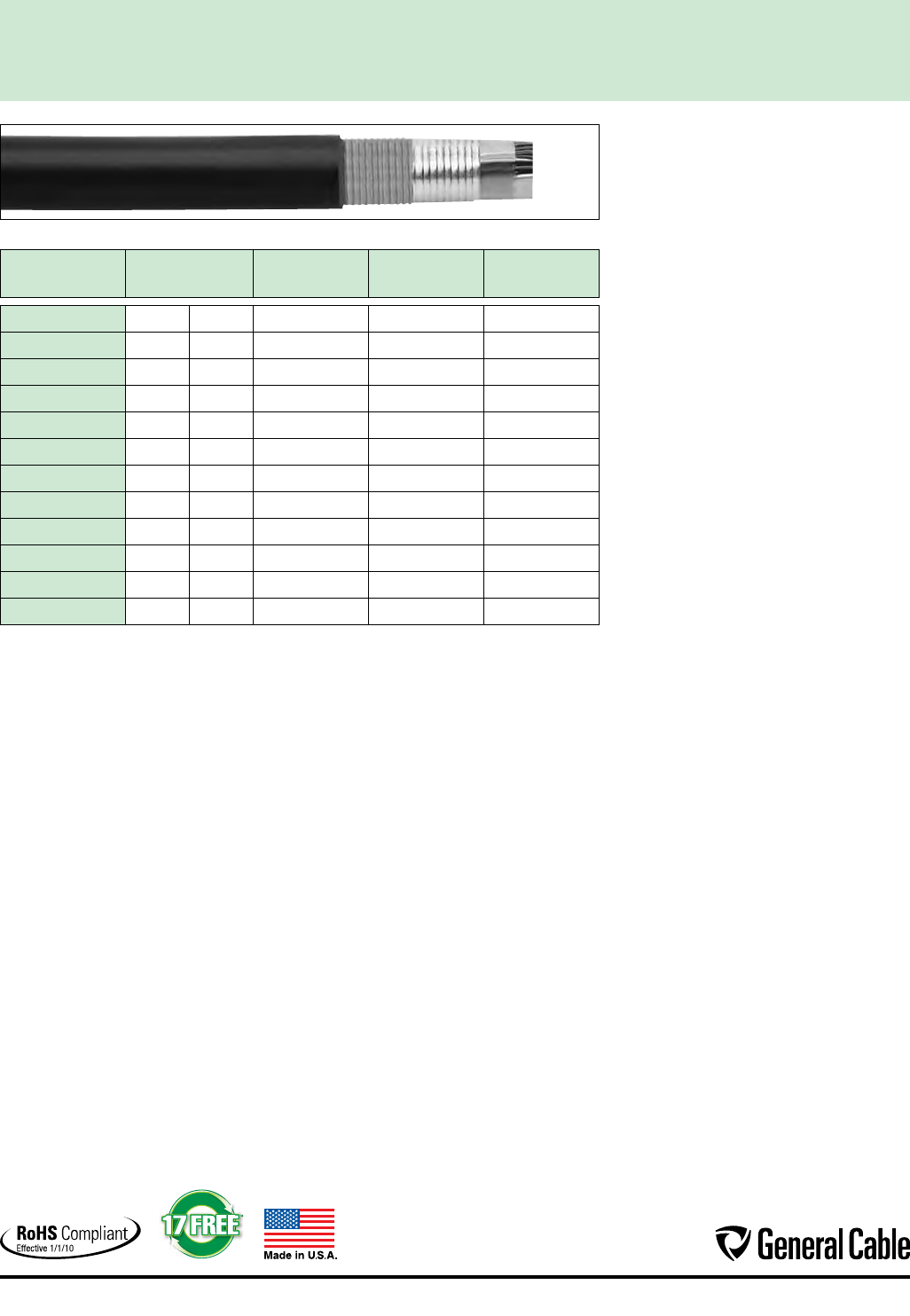

Figure 8 Air Core Cable Spec. 2003-F8

PE-38 AL

Core Construction:

Conductors:

•Solid,annealedcopper;sizes19,22

and 24 AWG

Insulation:

•Solid,highdensitypolyethylene,color-codedin

accordance with telephone industry standards

Twisted Pairs:

•Insulatedconductorsaretwistedintopairswith

varying lay lengths to minimize crosstalk

Core Assembly:

•25pairsandless:pairsareassembledtogetherin

a single group

•Morethan25pairs:pairsarearrangedingroups,

each group having a color-coded unit binder

Core Wrap:

•Non-hygroscopicdielectrictapeapplied

longitudinally with an overlap

Figure 8 Sheath:

Aluminum Shield:

•Corrugated,copolymercoated,0.008"aluminum

tape applied longitudinally with an overlap

Support Messenger:

•A1/4",7strand,extrahighstrengthgalvanized

steel wire, fully flooded for corrosion protection

Jacket:

•Black,linearlowdensitypolyethyleneisjacketed

in an integral extrusion with the shielded core

and support messenger to form a “Figure 8”

configuration

Application(s):

•Intendedforaerialinstallation

Compliances:

•FormerlyRDUP(RUS)SpecificationPE-38

•RoHSCompliant(effective1/1/10)

•ANSI/ICEAS-85-625-2007

Packaging:

•Standardlengthsareshippedonnon-returnable

wood reels

•Non-standardpackagingisavailableuponrequest

Nominal Cable Data

CATALOG

NUMBER

PAIRS

AWG

O.D.

(INCHES)

WEIGHT

(LBS/MFT)

STANDARD

LENGTH (FT)

2012020 6 19 0.96 x 0.49 229 5000

2012010 6 22 0.87 x 0.40 234 5000

2012011 12 22 0.96 x 0.49 259 5000

2012000 25 22 1.08 x 0.61 339 5000

2012001 50 22 1.28 x 0.81 466 5000

2012015 6 24 0.84 x 0.37 221 5000

2012016 12 24 0.90 x 0.43 242 5000

2012004 25 24 1.01 x 0.54 280 5000

2012005 50 24 1.14 x 0.67 376 5000

2012006 100 24 1.37 x 0.90 535 5000

Data subject to change without notice. Contact your Customer Service Representative for latest information.

4

Air Core Cables Telecommunications

Core Construction:

Conductors:

•Solid,annealedcopper;sizes19,22,24and26

AWG

InsuIation:

•Solid,highdensitypolyethylene,color-codedin

accordance with telephone industry standards

Twisted Pairs:

•Insulatedconductorsaretwistedintopairswith

varying lay lengths to minimize crosstalk

Core Assembly:

•25pairsandless:pairsareassembledtogetherin

a single group

•Morethan25pairs:pairsarearrangedingroups,

each group having a color-coded unit binder

•1200pairsandlargeraremirrorimagecolorcode

Core Wrap:

•Non-hygroscopicdielectrictapeapplied

Iongitudinally with an overlap

ALPETH Sheath:

Aluminum Shield:

•Corrugated0.008"aluminumtapeapplied

Iongitudinally with an overlap

Jacket:

•Black,linearlowdensitypolyethylene

Application(s):

•Intendedforaerialinstallationbyattachmenttoa

support strand

Compliances:

•Telcordia(Bellcore)SpecificationGR-421-CORE

•RoHSCompliant(effective1/1/10)

Packaging:

•Standardlengthsareshippedonreturnablesteel

reels or on non-returnable wood reels when

requested

•Non-standardpackagingisalsoavailable

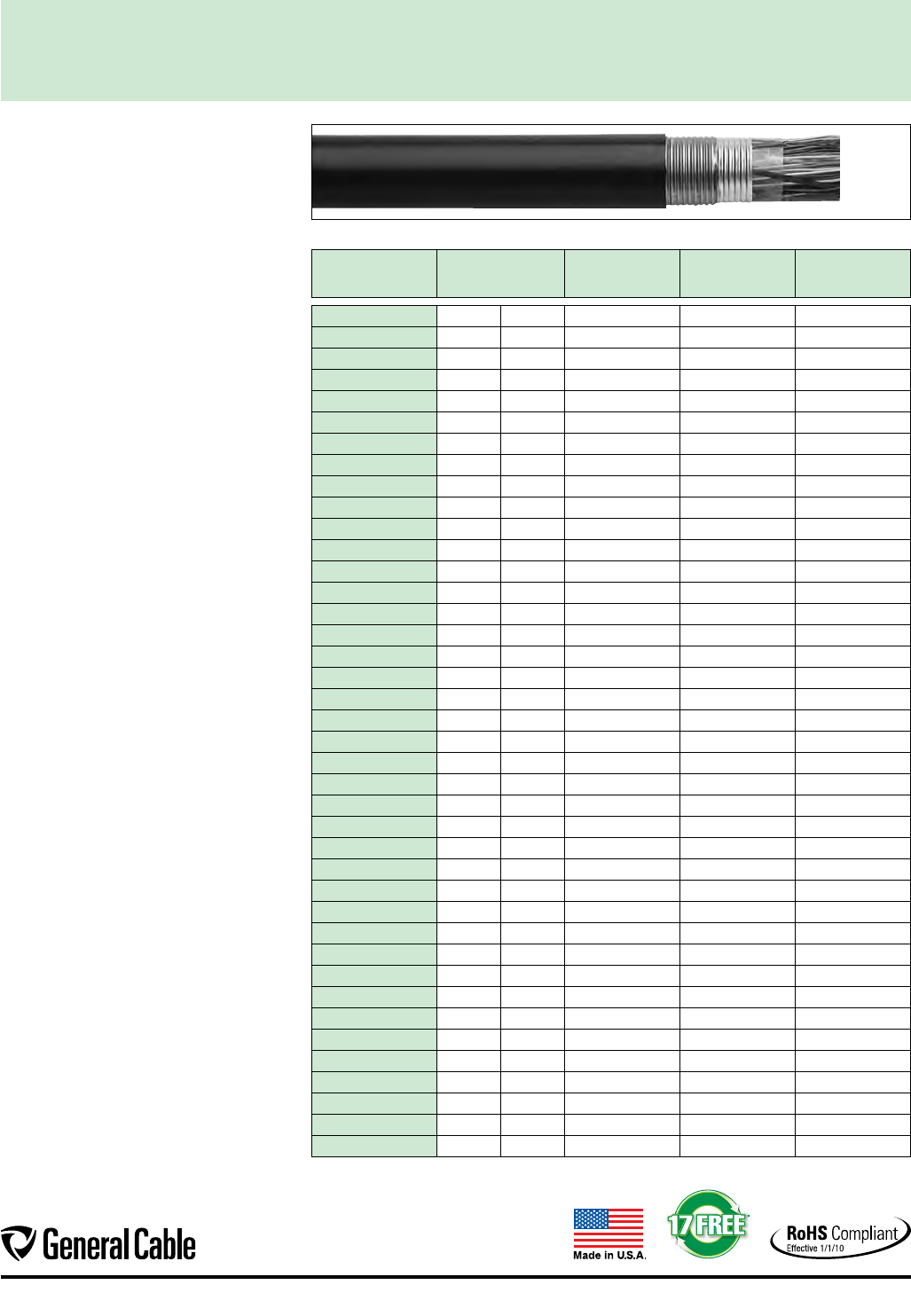

Air Core ALPETH Cable Spec. 2101

BELL SYSTEM TYPE BHBA (19 AWG) BKMA (24 AWG)

BHAA (22 AWG) BKTA (26 AWG)

Nominal Cable Data

CATALOG

NUMBER

PAIRS

AWG

O.D.

(INCHES)

WEIGHT

(LBS/MFT)

STANDARD

LENGTH (FT)

7506975 50 19 1.10 582 3000

7506983 100 19 1.50 1080 3000

7506991 200 19 1.90 2087 1000

7510506 300 19 2.40 3099 1000

7506876 25 22 0.61 169 5000

7506884 50 22 0.79 305 3000

7506892 100 22 1.10 577 5000

6968770 200 22 1.50 1086 4000

7506900 300 22 1.70 1584 2500

6968762 400 22 1.90 2101 2500

6987275 600 22 2.30 3140 1000

6937817 900 22 2.80 4648 700

7506918 25 24 0.55 124 5000

7506926 50 24 0.65 208 10000

6937064 100 24 0.86 378 3000

6964803 200 24 1.10 716 6000

6964811 300 24 1.40 1034 5000

6964795 400 24 1.50 1350 4000

6964787 600 24 1.78 2037 1000

6983381 900 24 2.20 2982 1600

6937833 1200 24 2.50 3962 1000

7506777 1500 24 2.77 4894 800

6937841 1800 24 3.10 5889 800

7503485 400 26 1.30 886 2500

6987218 600 26 1.50 1317 3300

7508252 900 26 1.80 1934 2200

6937858 1200 26 2.05 2540 1000

6937866 1500 26 2.30 3155 1000

7506785 1800 26 2.50 3756 1000

6937767 2100 26 2.70 4382 1000

Data subject to change without notice. Contact your Customer Service Representative for latest information.

5

Telecommunications Air Core Cables

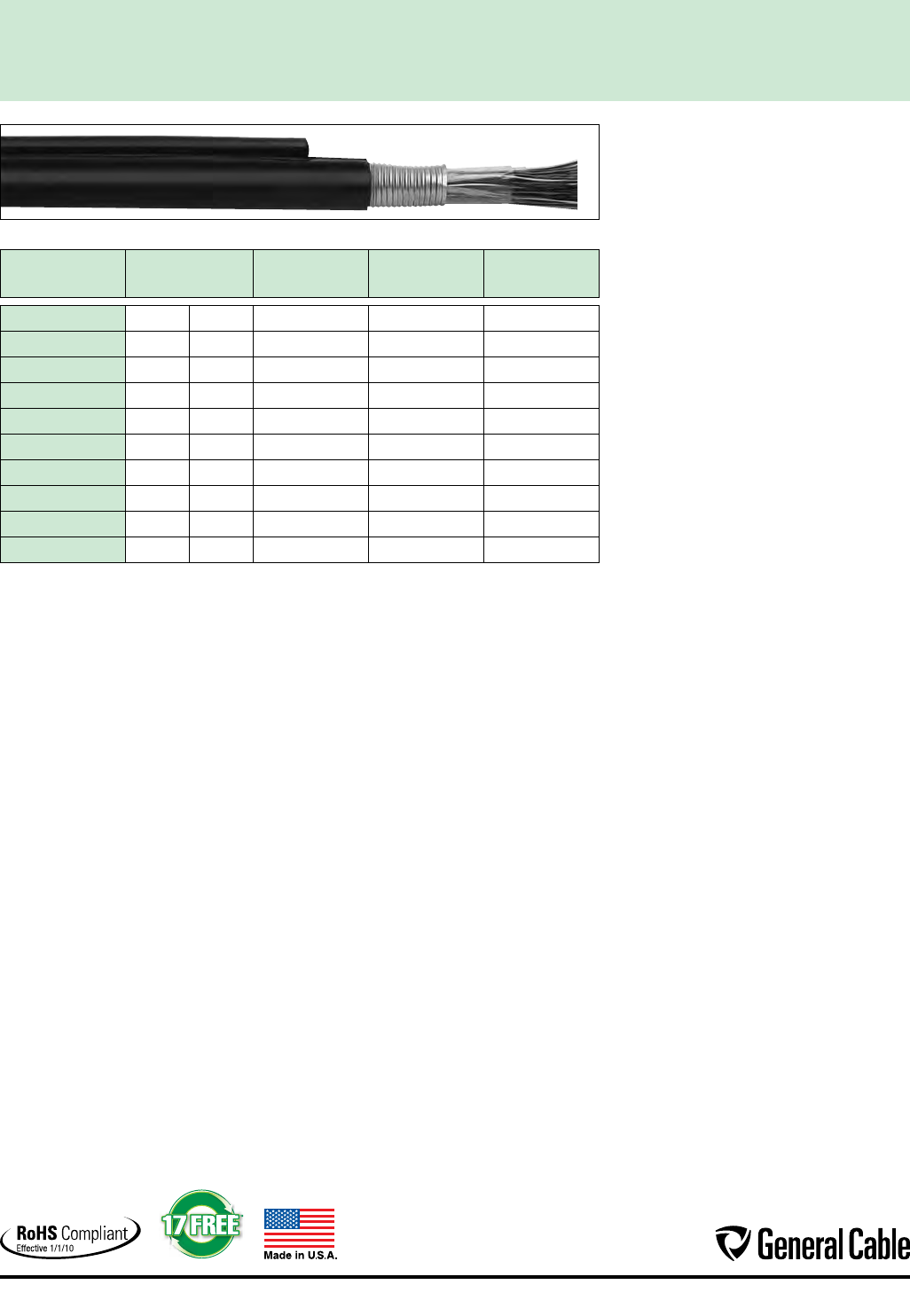

Figure 8 Air Core ALPETH Cable Spec. 2102

BELL SYSTEM TYPE BHBS (19 AWG) BKMS (24 AWG)

BHAS (22 AWG) BKTS (26 AWG)

Core Construction:

Conductors:

•Solid,annealedcopper;sizes19,22,24and26

AWG

Insulation:

•Solid,highdensitypolyethylene,color-codedin

accordance with telephone industry standards

Twisted Pairs:

•Insulatedconductorsaretwistedintopairswith

varying lay lengths to minimize crosstalk

Core Assembly:

•25pairsandless:pairsareassembledtogetherin

a single group

•Morethan25pairs:pairsarearrangedingroups,

each group having a color-coded unit binder

Core Wrap:

•Non-hygroscopicdielectrictapeapplied

longitudinally with an overlap

Figure 8 Alpeth Sheath:

Aluminum Shield:

•Corrugated0.008"aluminumtapeapplied

longitudinally with an overlap

Support Messenger:

•A1/4",7strand,extrahighstrengthgalvanized

steel wire, fully flooded for corrosion protection

Jacket:

•Black,linearlowdensitypolyethyleneisjacketed

in an integral extrusion with the shielded core

and support messenger to form a “Figure 8”

configuration

AppIication(s):

•Intendedforaerialinstallation

CompIiances:

•Telcordia(Bellcore)Specification

GR-421-CORE

•RoHSCompliant(effective1/1/10)

Packaging:

•Standardlengthsareshippedonreturnablesteel

reels or on non-returnable wood reels when

requested

•Non-standardpackagingisalsoavailable

Nominal Cable Data

CATALOG

NUMBER

PAIRS

AWG

O.D.

(INCHES)

WEIGHT

(LBS/MFT)

STANDARD

LENGTH (FT)

7516461 25 19 1.36 x 0.86 477 5000

7516479 50 19 1.61 x 1.11 746 2500

7516487 25 22 1.20 x 0.70 342 5000

7516495 50 22 1.35 x 0.85 480 5000

7517261 100 22 1.56 x 1.06 748 5000

7517279 25 24 1.12 x 0.62 287 10000

7517287 50 24 1.23 x 0.73 380 10000

7517303 100 24 1.42 x 0.92 556 5000

7517329 200 24 1.66 x 1.16 884 5000

Data subject to change without notice. Contact your Customer Service Representative for latest information.

6

Air Core Cables Telecommunications

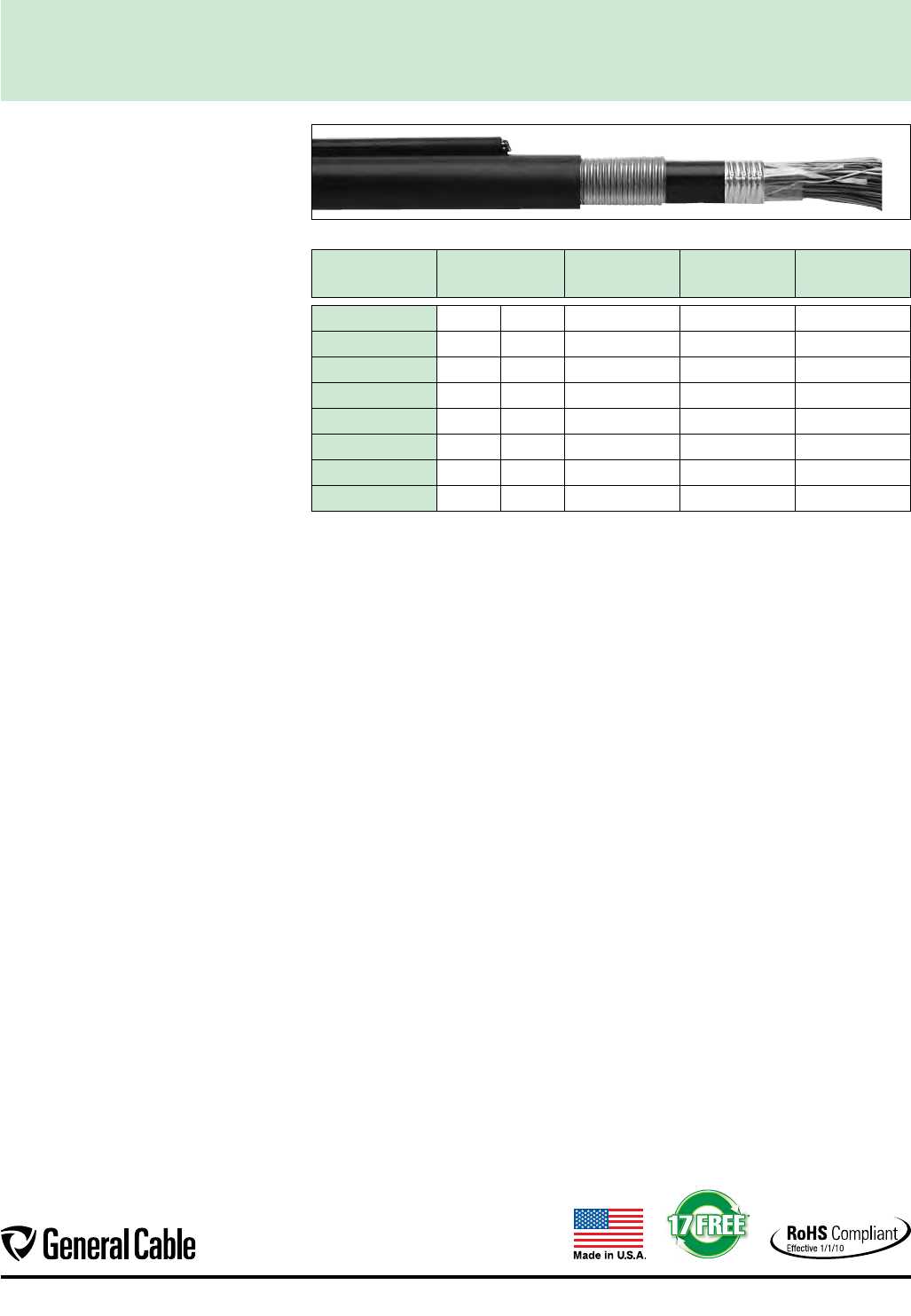

Figure 8 Air Core ALPETH-GP Cable Spec. 2108

BELL SYSTEM TYPE BHBP (19 AWG) BKMP (24 AWG)

BHAP (22 AWG) BKTP (26 AWG)

Core Construction:

Conductors:

•Solid,annealedcopper;sizes19,22,24and26

AWG

Insulation:

•Solid,highdensitypolyethylene,color-codedin

accordance with telephone industry standards

Twisted Pairs:

•Insulatedconductorsaretwistedintopairswith

varying lay lengths to minimize crosstalk

Core Assembly:

•25pairsandless:pairsareassembledtogetherin

a single group

•Morethan25pairs:pairsarearrangedingroups,

each group having a color-coded unit binder

Core Wrap:

•Non-hygroscopicdielectrictapeapplied

longitudinally with an overlap

Figure 8 ALPETH-GP Sheath:

Aluminum Shield:

•Corrugated,0.008"aluminumtapeapplied

longitudinally with an overlap

First Jacket:

•Black,linearlowdensitypolyethylenejacketover

the aluminum tape

Steel Tape:

•Corrugated,0.006"steeltapefloodedonboth

sides applied longitudinally over the first jacket

with an overlap

Support Messenger:

•A1/4",7strand,extrahighstrengthgalvanized

steel wire, fully flooded for corrosion protection

Outer Jacket:

•Black,linearlowdensitypolyethyleneisapplied

in an integral extrusion over the steel tape

and support messenger to form a “Figure 8”

configuration

Application(s):

•Intendedforaerialinstallationwhereadditional

mechanical protection is required

Compliances:

•Telcordia(Bellcore)SpecificationGR-421-CORE

•RoHSCompliant(effective1/1/10)

Packaging:

•Standardlengthsareshippedonreturnablesteel

reels or on non-returnable wood reels when

requested

•Non-standardpackagingisalsoavailable

Nominal Cable Data

CATALOG

NUMBER

PAIRS

AWG

O.D.

(INCHES)

WEIGHT

(LBS/MFT)

STANDARD

LENGTH (FT)

7517394 25 19 1.63 x 1.13 675 5000

7517410 25 22 1.38 x 0.88 497 5000

7517428 50 22 1.56 x 1.06 664 5000

7517444 100 22 1.84 x 1.34 971 2500

7517451 25 24 1.33 x 0.83 433 5000

7517469 50 24 1.45 x 0.95 547 5000

7517485 100 24 1.63 x 1.13 758 5000

7517501 200 24 1.90 x 1.40 1129 2500

Data subject to change without notice. Contact your Customer Service Representative for latest information.

7

Telecommunications Air Core Cables

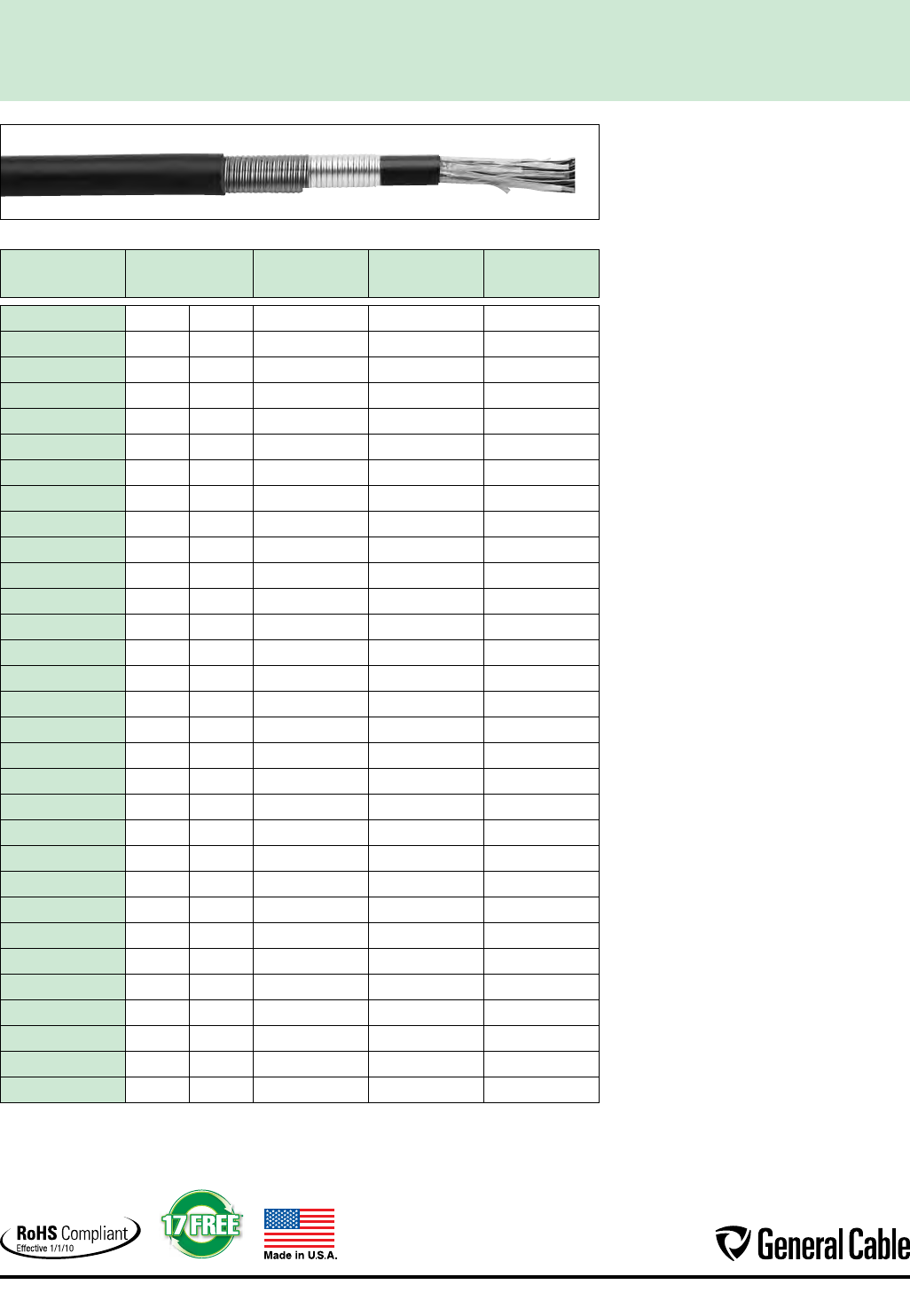

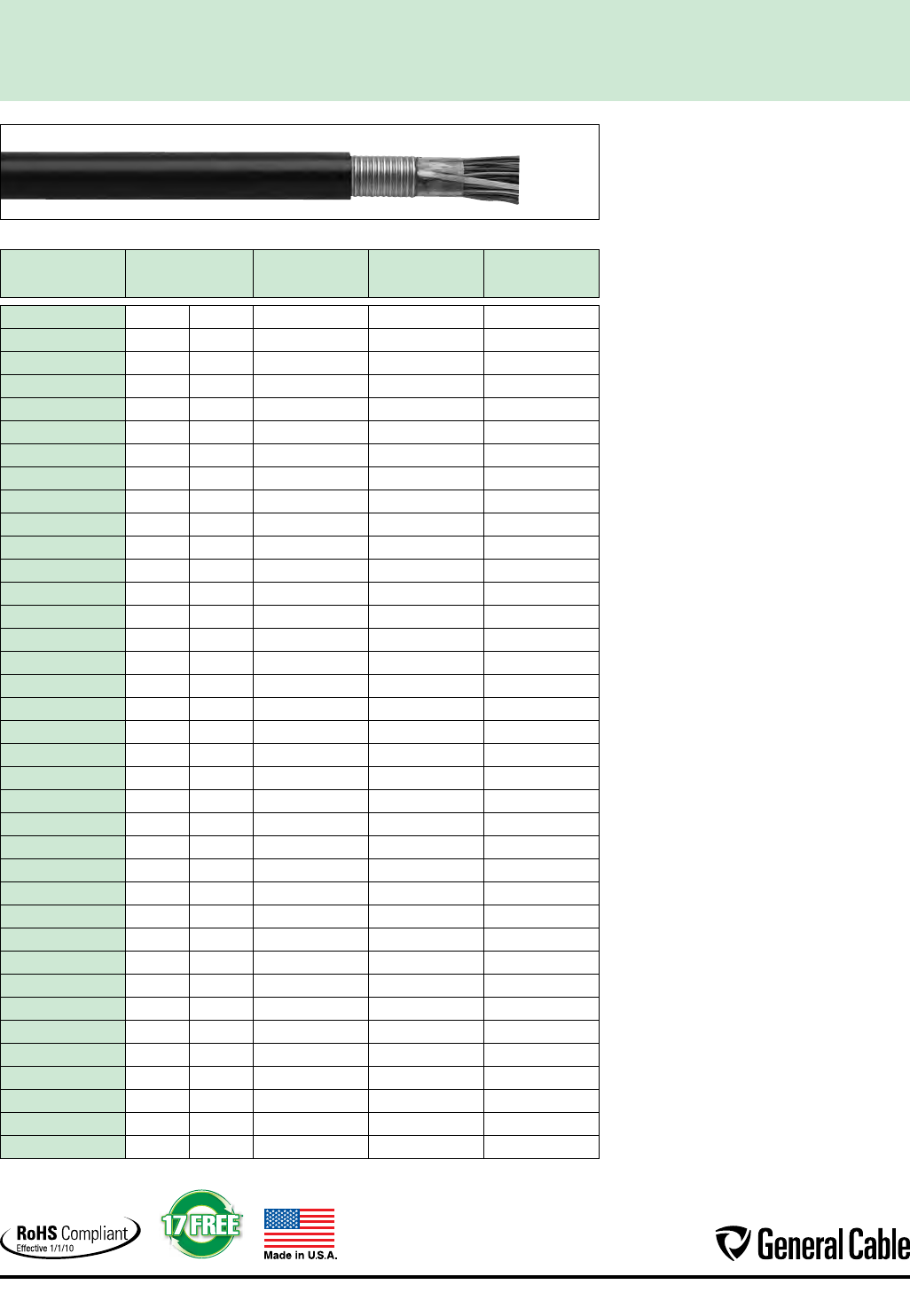

Air Core Bonded PASP Cable Spec. 2107

BELL SYSTEM TYPE BHBH (19 AWG) BKMH (24 AWG)

BHAH (22 AWG) BKTH (26 AWG)

Core Construction:

Conductors:

•Solid,annealedcopper;sizes19,22,24and26

AWG

Insulation:

•Solid,highdensitypolyethylene,color-codedin

accordance with telephone industry standards

Twisted Pairs:

•Insulatedconductorsaretwistedintopairswith

varying lay lengths to minimize crosstalk

Core Assembly:

•25pairsandless:pairsareassembledtogetherin

a single group

•Morethan25pairs:pairsarearrangedingroups,

each group having a color-coded unit binder

•1200pairsandlargeraremirrorimagecolorcode

Core Wrap:

•Non-hygroscopicdielectrictapeapplied

longitudinally with an overlap

Bonded PASP Sheath:

Inner Jacket:

•Black,linearlowdensitypolyethylenejacketover

the core wrap

Aluminum Shield:

•Corrugated,0.008"aluminumtapeapplied

longitudinally

Steel Shield:

•Corrugated,copolymercoated,0.006"steeltape

applied longitudinally over the aluminum tape with

an overlap

Outer Jacket:

•Black,linearlowdensitypolyethylenejacket

bonded to the coated steel

Application(s):

•Intendedforpressurizeddirectburiedinstallation

in situations in which resistance to lightning and

mechanical damage is required

Compliances:

•Telcordia(Bellcore)SpecificationGR-421-CORE

•RoHSCompliant(effective1/1/10)

Packaging:

•Standardlengthsareshippedonreturnablesteel

reels or on non-returnable wood reels when

requested

•Non-standardpackagingisalsoavailable

Nominal Cable Data

CATALOG

NUMBER

PAIRS

AWG

O.D.

(INCHES)

WEIGHT

(LBS/MFT)

STANDARD

LENGTH (FT)

7502180 25 19 0.98 440 5000

7502198 50 19 1.21 750 3000

7502214 100 19 1.62 1365 3000

7502230 200 19 2.10 2475 1000

7502248 300 19 2.59 3530 1000

7503543 25 22 0.76 280 5000

7503550 50 22 0.96 445 3000

7503576 100 22 1.20 750 3000

7503592 200 22 1.60 1360 4000

7503600 300 22 1.80 1893 1000

7503618 400 22 2.10 2490 2000

7503626 600 22 2.50 3582 1500

7503634 900 22 3.00 5265 700

7503659 25 24 0.68 220 10000

7503667 50 24 0.81 325 10000

7503683 100 24 1.00 530 10000

7503709 200 24 1.30 900 5000

7503717 300 24 1.50 1270 2500

7503725 400 24 1.68 1635 2500

7502073 600 24 2.00 2339 2000

7502040 900 24 2.40 3424 1600

7502081 1200 24 2.70 4418 900

7502065 1500 24 3.02 5422 900

7502057 1800 24 3.30 6580 800

7503816 400 26 1.40 1110 2500

7502024 600 26 1.70 1554 3300

7502032 900 26 2.05 2237 2200

7502099 1200 26 2.30 2923 1000

7503824 1500 26 2.51 3556 1000

7503832 1800 26 2.68 4205 1000

7503840 2100 26 2.83 4827 900

Data subject to change without notice. Contact your Customer Service Representative for latest information.

8

Air Core Cables Telecommunications

Core Construction:

Conductors:

•Solid,annealedcopper;sizes22,24and26AWG

Insulation:

•Dualinsulationconsistingofaninnerlayerof

foamed polyolefin surrounded by a solid polyolefin

skin, color-coded in accordance with telephone

industry standards

Twisted Pairs:

•Insulatedconductorsaretwistedintopairswith

varying lay lengths to minimize crosstalk

Core Assembly:

•3600pairsandless:madeupof100pairsuper-

units consisting of four (4) 25 pair sub-units

•4200pairdesign:madeupof300pairsuper-units

consisting of twelve (12) 25 pair sub-units

•Eachgroupisindividuallyidentifiablebycolor-

coded unit binders

•Allsizesaremirrorimagecolorcode

Core Wrap:

•Non-hygroscopicdielectrictapeapplied

longitudinally with an overlap

Bonded STALPETH Sheath:

Aluminum Shield:

•Corrugated,0.008"aluminumtapeapplied

longitudinally

Steel Shield:

•Corrugated,copolymercoated,0.006"steeltape

applied longitudinally over the aluminum tape with

an overlap

Outer Jacket:

•Black,linearlowdensitypolyethylenejacket

bonded to the coated steel

Application(s):

•Intendedforpressurizedurbanundergroundduct

installation

•Designedforlargepair-countsubscriber-serving

cables leaving Central Offices where duct

congestion is a prime concern

Compliances:

•Telcordia(Bellcore)SpecificationGR-421-CORE

•RoHSCompliant(effective1/1/10)

Packaging:

•Standardlengthsareshippedonreturnablesteel

reels or on non-returnable wood reels when

requested

•Non-standardpackagingisalsoavailable

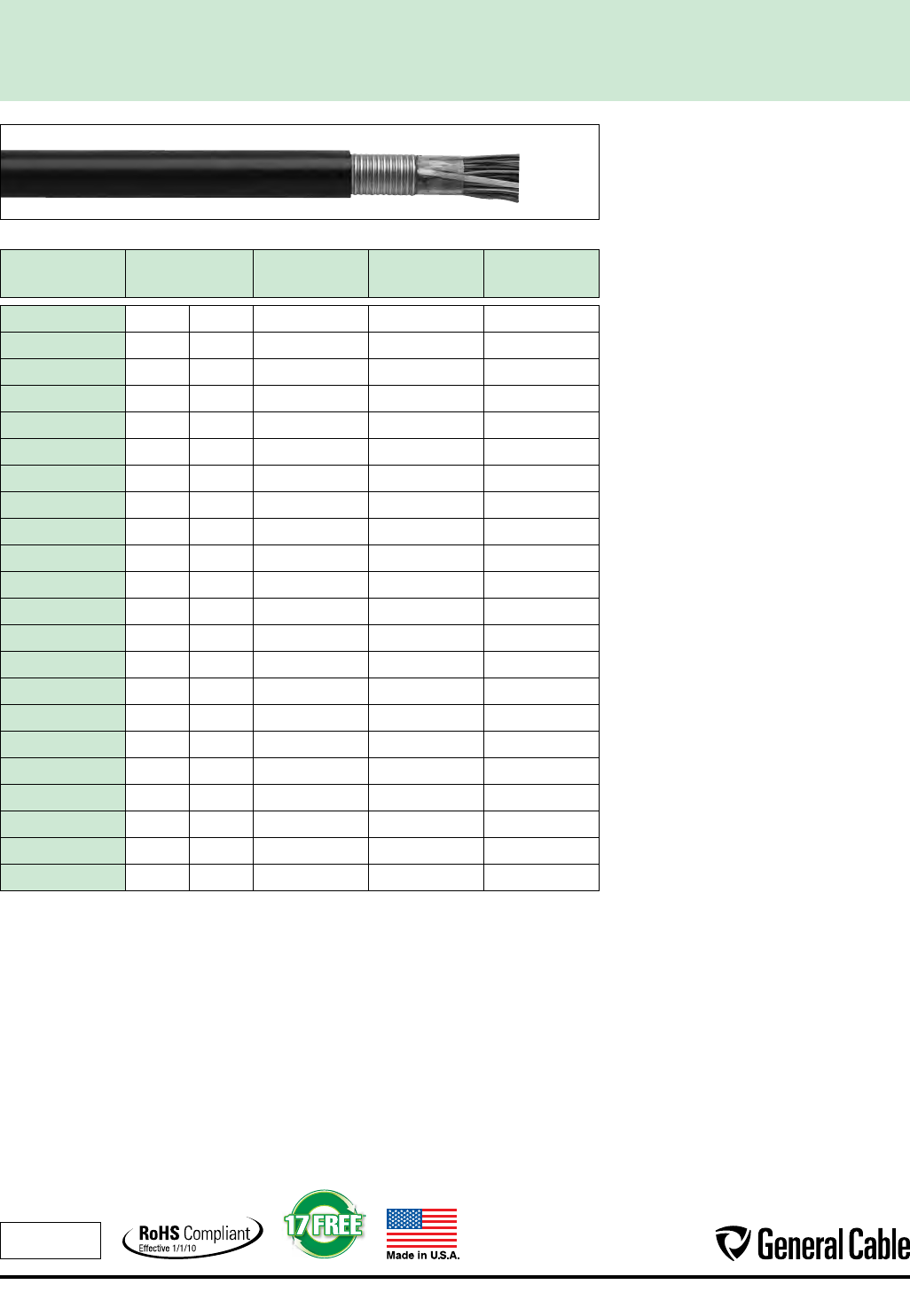

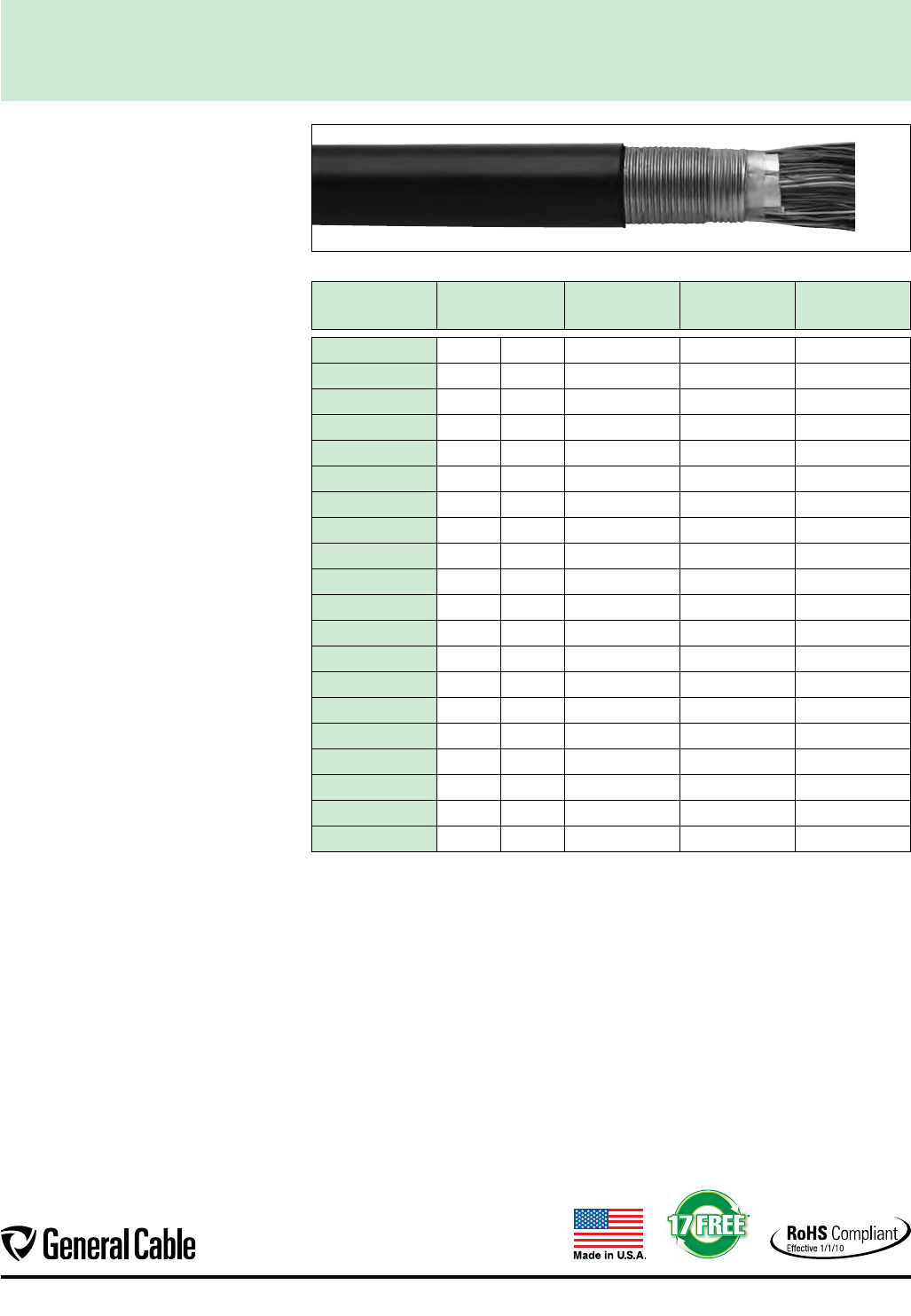

Air Core Foam Skin Bonded STALPETH Cable Spec. 2106

BELL SYSTEM TYPE DCAZ (22 AWG) DCTZ (26 AWG)

DCMZ (24 AWG)

Nominal Cable Data

CATALOG

NUMBER

PAIRS

AWG

O.D.

(INCHES)

WEIGHT

(LBS/MFT)

STANDARD

LENGTH (FT)

2010083 900 22 2.50 4505 1000

2010084 1200 22 2.95 5948 1000

2010078 600 24 1.70 2022 1000

2010079 900 24 2.10 2960 1000

7516438 1200 24 2.35 3881 1000

7510712 1500 24 2.60 4795 1000

7502008 1800 24 2.80 5698 1000

7502107 2100 24 2.98 6583 1000

7510720 2400 24 3.21 7502 1000

2010080 600 26 1.44 1342 1000

7512510 900 26 1.70 1937 1000

6987374 1200 26 1.90 2524 1000

7513351 1500 26 2.10 3116 2000

6987382 1800 26 2.30 3687 1000

7513252 2100 26 2.44 4263 1000

6987390 2400 26 2.63 4832 1000

2010081 2700 26 2.70 5409 1000

6987408 3000 26 2.85 5978 1000

6987416 3600 26 3.15 7116 1000

6987424 4200 26 3.30 8246 1000

Data subject to change without notice. Contact your Customer Service Representative for latest information.

9

Telecommunications

Filled Core Cables 2

Plastic insulated Filled Core

Cables provide a broad range of

pair sizes for the distribution of

telecommunication signals for

outside use. These cables can be

installed in underground ducts

and direct buried applications

where protection against water and

moisture entry is required and may

also be installed aerially.

An industry standard color-coding

system provides full identification

of every pair through the use of 10

different insulating colors and non-

hygroscopic unit binders. Designs

are available using either a solid,

polyolefin insulation or foamed

polyolefin with a solid polyolefin

skin. The solid insulation provides

a more robust Core Construction,

whereas the foam skin insulation

offers space saving advantages.

A variety of sheath designs are

avail able that provide electrical

shielding necessary for proper

grounding and mechanical

protection against rodents and

other physical damage. A black,

weather-resistant polyethylene

jacket is used on all constructions

for protection against long-term

outdoor exposure.

The temperature range that

Telecommunications cable can

withstand is:

For storage and operation:

-45˚C to 80˚C

-49˚F to 176˚F

For installation:

-30˚C to 60˚C

-22˚F to 140˚F

All cables are equipped with

surface-printed identification and

sequential footage markings.

The cable design for 19, 22 and 24

AWG sizes has the transmission

performance capability of 100,

Category 3 Backbone UTP Cables

specified in TIA/EIA 568-C.

Our Telecommunications cable

constructions contain no halogens

(chlorine, fluorine, bromine or

iodine), which means they are less

toxic and more environmentally

friendly. Look for the 17 FREE™

logo.

General Cable Filled Core Cables

are all proudly made in the U.S.A.

Index Page

Filled Solid Cable

RDUP (RUS) PE-39 AL

Spec. 2002 10

Filled Solid 5-Mil Copper Cable

RDUP (RUS) PE-39 CU

Spec. 2002 11

Filled Solid Copper-Bearing

Gopher-Resistant Cable

RDUP (RUS) PE-39 GR

Spec. 2002 12

Filled Foam Skin Cable

RDUP (RUS) PE-89 AL

Spec. 2007 13

Filled Foam Skin CACSP Cable

RDUP (RUS) PE-89 CACSP

Spec. 2007 14

Filled Foam Skin ALPETH Cable

Bell System Type AN*A

Spec. 2111 15

Filled Foam Skin ASP Cable

Bell System Type AN*W

Spec. 2100 16

Filled Foam Skin

“S” Screened ASP Cable

Bell System Type KN*W

Spec. 2109-F 17

10

Filled Core Cables Telecommunications

RDUP

Listed

Filled Solid Cable Spec. 2002

RDUP (RUS) PE-39 AL

Core Construction:

Conductors:

•Solid,annealedcopper;sizes19,22and24AWG

Insulation:

•Solid,highdensitypolyethylene,color-codedin

accordance with telephone industry standards

Twisted Pairs:

•Insulatedconductorsaretwistedintopairswith

varying lay lengths to minimize crosstalk

Core Assembly:

•25pairsandless:pairsareassembledtogetherin

a single group

•Morethan25pairs:pairsarearrangedingroups,

each group having a color-coded unit binder

Filling Compound:

•Theentirecoreassemblyiscompletelyfilledwith

ETPR compound, filling the interstices between

the pairs and under the core tape

Core Wrap:

•Non-hygroscopicdielectrictapeapplied

longitudinally with an overlap

Sheath:

Aluminum Shield:

•Corrugated,copolymercoated,0.008"aluminum

tape applied longitudinally with an overlap

•Thesheathinterfacesarefloodedwithan

adhesive water-blocking compound

Jacket:

•Black,linearlowdensitypolyethylene

Application(s):

•Intendedforductanddirectburiedinstallations

where protection against water and moisture entry

is required and may also be installed aerially

Compliances:

•RuralDevelopmentUtilityProgram(RDUP)7CFR

1755.390 (RUS PE-39)

•RoHSCompliant(effective1/1/10)

•ANSI/ICEAS-84-608-2007

Packaging:

•Standardlengthsareshippedon

non-returnable wood reels

•Non-standardpackagingisavailableuponrequest

Nominal Cable Data

CATALOG

NUMBER

PAIRS

AWG

O.D.

(INCHES)

WEIGHT

(LBS/MFT)

STANDARD

LENGTH (FT)

7524507 6 19 0.60 140 5000

7524515 12 19 0.75 250 5000

7524523 25 19 0.97 450 5000

7524556 6 22 0.49 90 5000

7524564 12 22 0.57 137 5000

7524572 25 22 0.70 245 5000

7524580 50 22 0.95 425 5000

7524598 100 22 1.20 765 2500

7524614 6 24 0.46 68 5000

7524622 12 24 0.51 105 5000

7524648 25 24 0.60 170 5000

7524655 50 24 0.78 285 5000

7524671 100 24 1.00 525 5000

7524697 200 24 1.30 960 2500

7524705 300 24 1.60 1380 2500

7524713 400 24 1.82 1810 2500

7524721 600 24 2.20 2750 1250

Data subject to change without notice. Contact your Customer Service Representative for latest information.

11

Telecommunications Filled Core Cables

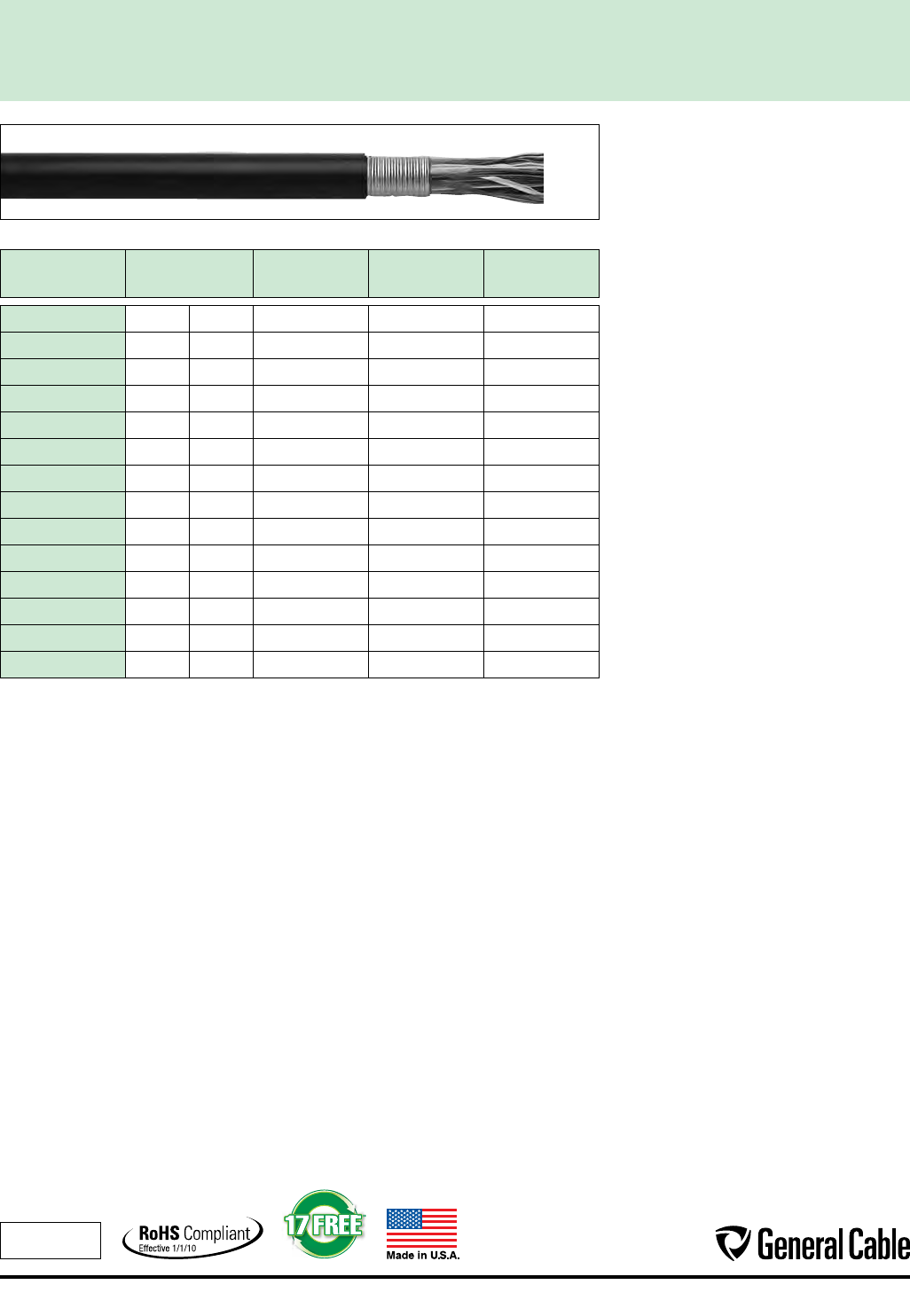

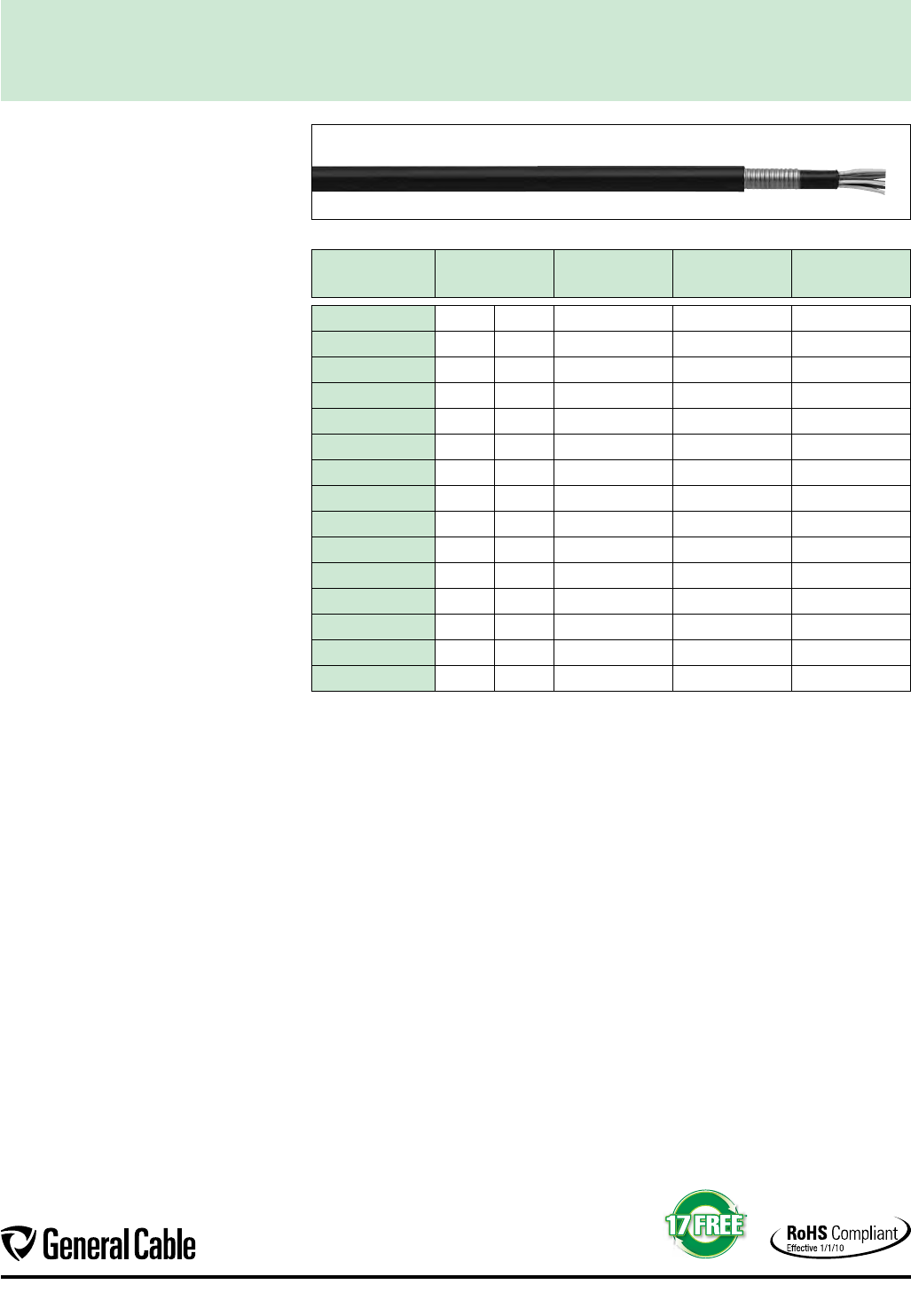

Filled Solid 5-Mil Copper Cable Spec. 2002

RDUP (RUS) PE-39 CU

Core Construction:

Conductors:

•Solid,annealedcopper;sizes19,22and24AWG

Insulation:

•Solid,highdensitypolyethylene,color-codedin

accordance with telephone industry standards

Twisted Pairs:

•Insulatedconductorsaretwistedintopairswith

varying lay lengths to minimize crosstalk

Core Assembly:

•25pairsandless:pairsareassembledtogetherin

a single group

•Morethan25pairs:pairsarearrangedingroups,

each group having a color-coded unit binder

Filling Compound:

•Theentirecoreassemblyiscompletelyfilledwith

ETPR compound, filling the interstices between

the pairs and under the core tape

Core Wrap:

•Non-hygroscopicdielectrictapeapplied

longitudinally with an overlap

Sheath:

Copper Shield:

•Corrugated0.005"coppertapeapplied

longitudinally with an overlap

•Thesheathinterfacesarefloodedwith

an adhesive water-blocking compound

Jacket:

•Black,linearlowdensitypolyethylene

Application(s):

•Intendedforductanddirectburiedinstallations

where protection against water and moisture entry

is required and may also be installed aerially

Compliances:

•RuralDevelopmentUtilityProgram(RDUP)7CFR

1755.390 (RUS PE-39)

•RoHSCompliant(effective1/1/10)

•ANSI/ICEAS-84-608-2007

Packaging:

•Standardlengthsareshippedon

non-returnable wood reels

•Non-standardpackagingisavailableuponrequest

RDUP

Listed

Nominal Cable Data

CATALOG

NUMBER

PAIRS

AWG

O.D.

(INCHES)

WEIGHT

(LBS/MFT)

STANDARD

LENGTH (FT)

7525058 6 22 0.46 100 5000

7525066 12 22 0.57 150 5000

7525074 25 22 0.71 265 5000

7525082 50 22 0.93 450 5000

7525090 100 22 1.20 805 2500

7525116 6 24 0.43 78 5000

7525124 12 24 0.50 115 5000

7525140 25 24 0.60 185 5000

7525157 50 24 0.77 305 5000

7525173 100 24 1.00 555 5000

7525199 200 24 1.35 995 2500

7525207 300 24 1.60 1425 2500

7525215 400 24 1.82 1870 2500

7525223 600 24 2.20 2810 1250

Data subject to change without notice. Contact your Customer Service Representative for latest information.

12

Filled Core Cables Telecommunications

Filled Solid Copper-Bearing Gopher-Resistant Cable Spec. 2002

RDUP (RUS) PE-39 GR

Core Construction:

Conductors:

•Solid,annealedcopper;sizes19,22and24AWG

Insulation:

•Solid,highdensitypolyethylene,color-codedin

accordance with telephone industry standards

Twisted Pairs:

•Insulatedconductorsaretwistedintopairswith

varying lay lengths to minimize crosstalk

Core Assembly:

•25pairsandless:pairsareassembledtogether

in a single group

•Morethan25pairs:pairsarearrangedingroups,

each group having a color-coded unit binder

Filling Compound:

•Theentirecoreassemblyiscompletelyfilledwith

ETPR compound, filling the interstices between

the pairs and under the core tape

Core Wrap:

•Non-hygroscopicdielectrictapeapplied

longitudinally with an overlap

Sheath:

Copper-Bearing Shield:

•Corrugated,copper-bearinggopher-

resistant tape applied longitudinally with an

overlap

•Thesheathinterfacesarefloodedwithan

adhesive water-blocking compound

Jacket:

•Black,linearlowdensitypolyethylene

Application(s):

•Intendedforductanddirectburiedinstallations

where protection against water and moisture

entry is required and may also be installed

aerially

•Thecopper-bearingtapeprovidesincreased

mechanical protection and gopher resistance

Compliances:

•RuralDevelopmentUtilityProgram(RDUP)7

CFR 1755.390 (RUS PE-39)

•RoHSCompliant(effective1/1/10)

•ANSI/ICEAS-84-608-2007

Packaging:

•Standardlengthsareshippedon

non-returnable wood reels

•Non-standardpackagingisavailableupon

request

RDUP

Listed

Nominal Cable Data

CATALOG

NUMBER

PAIRS

AWG

O.D.

(INCHES)

WEIGHT

(LBS/MFT)

STANDARD

LENGTH (FT)

7528755 6 19 0.58 155 5000

7528763 12 19 0.75 265 5000

7528789 25 19 0.97 475 5000

7528003 6 22 0.48 101 5000

7528011 12 22 0.55 150 5000

7528037 25 22 0.70 260 5000

7528045 50 22 0.93 445 5000

7528060 100 22 1.20 795 2500

7528102 6 24 0.43 77 5000

7528110 12 24 0.50 115 5000

7528136 25 24 0.60 180 5000

7528144 50 24 0.78 300 5000

7528169 100 24 1.00 550 5000

7528185 200 24 1.36 985 2500

7528193 300 24 1.60 1410 2500

7528201 400 24 1.80 1855 2500

7528219 600 24 2.20 2805 1250

Data subject to change without notice. Contact your Customer Service Representative for latest information.

13

Telecommunications Filled Core Cables

Filled Foam Skin Cable Spec. 2007

RDUP (RUS) PE-89 AL

Core Construction:

Conductors:

•Solid,annealedcopper;sizes19,22and24AWG

Insulation:

•Dualinsulationconsistingofaninnerlayerof

foamed polyolefin surrounded by a solid polyolefin

skin, color-coded in accordance with telephone

industry standards

Twisted Pairs:

•Insulatedconductorsaretwistedintopairswith

varying lay lengths to minimize crosstalk

Core Assembly:

•25pairsandless:pairsareassembledtogetherin

a single group

•Morethan25pairs:pairsarearrangedingroups,

each group having a color-coded unit binder

Filling Compound:

•Theentirecoreassemblyiscompletelyfilledwith

ETPR compound, filling the interstices between

the pairs and under the core tape

Core Wrap:

•Non-hygroscopicdielectrictapeapplied

longitudinally with an overlap

Sheath:

Aluminum Shield:

•Corrugated,copolymer-coated,0.008"aluminum

tape applied longitudinally with an overlap

•Thesheathinterfacesarefloodedwithan

adhesive water-blocking compound

Jacket:

•Black,linearlowdensitypolyethylene

Application(s):

•Intendedforductanddirectburiedinstallations

where protection against water and moisture entry

is required and may also be installed aerially

Compliances:

•RuralDevelopmentUtilityProgram(RDUP)7CFR

1755.890 (RUS PE-89)

•RoHSCompliant(effective1/1/10)

•ANSI/ICEAS-84-608-2007

Packaging:

•Standardlengthsareshippedon

non-returnable wood reels

•Non-standardpackagingisavailableuponrequest

RDUP

Listed

Nominal Cable Data

CATALOG

NUMBER

PAIRS

AWG

O.D.

(INCHES)

WEIGHT

(LBS/MFT)

STANDARD

LENGTH (FT)

7525504 6 19 0.57 127 5000

7525512 12 19 0.65 210 5000

7525538 25 19 0.85 395 5000

7525595 6 22 0.48 85 5000

7525603 12 22 0.52 125 5000

7525629 25 22 0.62 205 5000

7525637 50 22 0.78 365 5000

7525652 100 22 1.01 665 2500

7525678 200 22 1.36 1255 2500

7525751 6 24 0.39 63 5000

7525769 12 24 0.48 87 5000

7525785 25 24 0.54 142 5000

7525793 50 24 0.64 240 5000

7525819 100 24 0.84 435 5000

7525835 200 24 1.18 795 2500

7525843 300 24 1.37 1145 2500

7525850 400 24 1.48 1510 2500

7525868 600 24 1.82 2260 1250

7525876 900 24 2.22 3390 1250

7526973 1200 24 2.54 4430 1000

7526981 1500 24 2.80 5500 1000

7526999 1800 24 3.03 6660 1000

Data subject to change without notice. Contact your Customer Service Representative for latest information.

14

Filled Core Cables Telecommunications

Filled Foam Skin CACSP Cable Spec. 2007

RDUP (RUS) PE-89 CACSP

Core Construction:

Conductors:

•Solid,annealedcopper;sizes22and

24 AWG

Insulation:

•Dualinsulationconsistingofaninnerlayerof

foamed polyolefin surrounded by a solid polyolefin

skin, color-coded in accordance with telephone

industry standards

Twisted Pairs:

•Insulatedconductorsaretwistedintopairswith

varying lay lengths to minimize crosstalk

Core Assembly:

•25pairsandless:pairsareassembledtogetherin

a single group

•Morethan25pairs:pairsarearrangedingroups,

each group having a color-coded unit binder

Filling Compound:

•Theentirecoreassemblyiscompletelyfilledwith

ETPR compound, filling the interstices between

the pairs and under the core tape

Core Wrap:

•Non-hygroscopicdielectrictapeapplied

longitudinally with an overlap

CACSP Sheath:

Aluminum Shield:

•Corrugated,copolymer-coated,0.008"aluminum

tape applied longitudinally over the core wrap

Steel Shield:

•Corrugated,copolymer-coated,0.006"

steel tape applied longitudinally over the aluminum

tape with an overlap

•Thesheathinterfacesarefloodedwithan

adhesive water-blocking compound

Jacket:

•Black,linearlowdensitypolyethylene

Application(s):

•Intendedforductanddirectburiedinstallations

where protection against water and moisture entry

is required and may also be installed aerially

•Theadditionofthesteeltapearmorprovides

increased mechanical protection and gopher

resistance

Compliances:

•RuralDevelopmentUtilityProgram(RDUP)7CFR

1755.890 (RUS PE-89)

•RoHSCompliant(effective1/1/10)

•ANSI/ICEAS-84-608-2007

Packaging:

•Standardlengthsareshippedon

non-returnable wood reels

•Non-standardpackagingisavailableuponrequest

RDUP

Listed

Nominal Cable Data

CATALOG

NUMBER

PAIRS

AWG

O.D.

(INCHES)

WEIGHT

(LBS/MFT)

STANDARD

LENGTH (FT)

7526551 6 22 0.46 116 5000

7526569 12 22 0.55 170 5000

7526577 25 22 0.66 257 5000

7526585 50 22 0.85 440 5000

7526601 100 22 1.10 765 2500

7071608 6 24 0.41 90 5000

7526668 12 24 0.46 120 5000

7526684 25 24 0.57 183 5000

7526692 50 24 0.68 300 5000

7526718 100 24 0.88 510 5000

7526734 200 24 1.15 900 2500

7526742 300 24 1.45 1265 2500

7526759 400 24 1.55 1655 2500

7526767 600 24 1.82 2435 1250

7526775 900 24 2.20 3585 1250

7071616 1200 24 2.52 4635 1000

Data subject to change without notice. Contact your Customer Service Representative for latest information.

15

Telecommunications Filled Core Cables

Core Construction:

Conductors:

•Solid,annealedcopper;sizes19,22,24and26

AWG

Insulation:

•Dualinsulationconsistingofaninnerlayerof

foamed polyolefin surrounded by a solid polyolefin

skin, color-coded in accordance with telephone

industry standards

Twisted Pairs:

•Insulatedconductorsaretwistedintopairswith

varying lay lengths to minimize crosstalk

Core Assembly:

•25pairsandless:pairsareassembledtogetherin

a single group

•Morethan25pairs:pairsarearrangedingroups,

each group having a color-coded unit binder

•1200pairsandlargeraremirrorimagecolorcode

Filling Compound:

•Theentirecoreassemblyiscompletelyfilledwith

ETPR compound, filling the interstices between

the pairs and under the core tape

Core Wrap:

•Non-hygroscopicdielectrictapeapplied

longitudinally with an overlap

Sheath:

Aluminum Shield:

•Corrugated,0.008"aluminumtapeapplied

longitudinally with an overlap

•Thesheathinterfacesarefloodedwithan

adhesive water-blocking compound

Jacket:

•Black,linearlowdensitypolyethylene

Application(s):

•Intendedforductanddirectburiedinstallations

where protection against water and moisture entry

is required and may also be installed aerially

Compliances:

•Telcordia(Bellcore)Specification

GR-421-CORE

•RoHSCompliant(effective1/1/10)

Packaging:

•Standardlengthsareshippedon

returnable steel reels or on non-returnable wood

reels when requested

•Non-standardpackagingisalsoavailable

Filled Foam Skin ALPETH Cable Spec. 2111

BELL SYSTEM TYPE ANBA (19 AWG) ANMA (24 AWG)

ANAA (22 AWG) ANTA (26 AWG)

Nominal Cable Data

CATALOG

NUMBER

PAIRS

AWG

O.D.

(INCHES)

WEIGHT

(LBS/MFT)

STANDARD

LENGTH (FT)

2036300 25 19 0.83 392 5000

2036301 50 19 0.98 717 2500

2036302 100 19 1.50 1316 2500

2036303 200 19 2.00 2565 1250

2036307 25 22 0.61 208 5000

2036308 50 22 0.77 367 5000

2036309 100 22 1.02 683 2500

2036310 200 22 1.37 1286 2500

2036311 300 22 1.66 1867 1250

2036312 400 22 1.95 2503 1250

2036313 600 22 2.40 3747 1250

2036314 900 22 3.00 5653 1000

2036320 25 24 0.53 147 5000

2036321 50 24 0.64 245 5000

2036322 100 24 0.83 438 5000

2036323 200 24 1.10 815 2500

2036324 300 24 1.31 1165 2500

2036325 400 24 1.50 1532 2500

2036326 600 24 1.81 2304 1250

2036327 900 24 2.21 3436 1250

2036328 1200 24 2.50 4531 1000

2036329 1500 24 2.84 5617 1000

2036330 1800 24 3.09 6525 1000

2036331 2100 24 3.35 7897 750

2036334 25 26 0.45 104 5000

2036335 50 26 0.59 179 5000

2036336 100 26 0.75 314 5000

2036337 200 26 0.98 570 5000

2036338 300 26 1.20 833 2500

2036339 400 26 1.29 1062 2500

2036340 600 26 1.60 1534 1250

2036341 900 26 1.90 2248 1250

2036342 1200 26 2.14 2986 1250

2036343 1500 26 2.37 3677 1250

2036344 1800 26 2.57 4369 1000

2036345 2100 26 2.90 5181 1000

2036346 2400 26 3.00 5876 1000

Data subject to change without notice. Contact your Customer Service Representative for latest information.

16

Filled Core Cables Telecommunications

Filled Foam Skin ASP Cable Spec. 2100

BELL SYSTEM TYPE ANBW (19 AWG) ANMW (24 AWG)

ANAW (22 AWG) ANTW (26 AWG)

Core Construction:

Conductors:

•Solid,annealedcopper;sizes19,22,24and26

AWG

Insulation:

•Dualinsulationconsistingofaninnerlayerof

foamed polyolefin surrounded by a solid polyolefin

skin, color-coded in accordance with telephone

industry standards

Twisted Pairs:

•Insulatedconductorsaretwistedintopairswith

varying lay lengths to minimize crosstalk

Core Assembly:

•25pairsandless:pairsareassembledtogetherin

a single group

•Morethan25pairs:pairsarearrangedingroups,

each group having a color-coded unit binder

•1200pairsandlargeraremirrorimagecolorcode

Filling Compound:

•Theentirecoreassemblyiscompletelyfilledwith

ETPR compound, filling the interstices between

the pairs and under the core tape

Core Wrap:

•Non-hygroscopicdielectrictapeapplied

longitudinally with an overlap

ASP Sheath:

Aluminum Shield:

•Corrugated,0.008"aluminumtapeapplied

longitudinally over the core wrap

Steel Shield:

•Corrugated,0.006"steeltapeapplied

longitudinally over the aluminum tape with an

overlap

•Thesheathinterfacesarefloodedwithan

adhesive water-blocking compound

Jacket:

•Black,linearlowdensitypolyethylene

Application(s):

•Intendedforductanddirectburiedinstallations

where protection against water and moisture entry

is required and may also be installed aerially

Compliances:

•Telcordia(Bellcore)Specification

GR-421-CORE

•RoHSCompliant(effective1/1/10)

Packaging:

•Standardlengthsareshippedonreturnablesteel

reels or on non-returnable wood reels when

requested

•Non-standardpackagingisalso

available

Nominal Cable Data

CATALOG

NUMBER

PAIRS

AWG

O.D.

(INCHES)

WEIGHT

(LBS/MFT)

STANDARD

LENGTH (FT)

6987481 25 19 0.87 454 5000

6987499 50 19 1.15 788 2500

6987507 100 19 1.45 1410 2500

6987515 200 19 2.03 2710 1250

6987523 300 19 2.45 3980 1250

6987572 25 22 0.65 254 5000

6987580 50 22 0.82 431 5000

6987606 100 22 1.06 757 2500

6987622 200 22 1.45 1377 2500

6987630 300 22 1.75 1997 1250

6987648 400 22 1.96 2638 1250

6987655 600 22 2.38 3917 1250

6987663 900 22 2.87 5773 1000

6987671 1200 22 3.32 7549 750

6987705 25 24 0.55 173 5000

6987713 50 24 0.70 295 5000

6987721 100 24 0.90 509 5000

6987739 200 24 1.14 898 2500

6987747 300 24 1.34 1263 2500

6987754 400 24 1.54 1651 2500

6987762 600 24 1.83 2430 1250

6987770 900 24 2.25 3601 1250

6987788 1200 24 2.55 4687 1000

6987796 1500 24 2.82 5792 1000

6987804 1800 24 3.09 6414 1000

6987812 25 26 0.50 139 5000

6987820 50 26 0.61 221 5000

6987838 100 26 0.80 371 5000

6987846 200 26 1.00 646 5000

6987853 300 26 1.19 915 5000

6987861 400 26 1.30 1169 2500

6987879 600 26 1.55 1654 3300

6987887 900 26 1.87 2376 2500

6987895 1200 26 2.15 3124 2000

7507007 1500 26 2.45 3836 1600

7507015 1800 26 2.50 4542 1400

7502958 2100 26 2.74 5350 1000

7507023 2400 26 2.95 6042 1000

7512650 2700 26 3.10 6792 1000

7512668 3000 26 3.32 7415 750

Data subject to change without notice. Contact your Customer Service Representative

for latest information. This design is for duct installation only.

17

Telecommunications Filled Core Cables

Filled Foam Skin “S” Screened ASP Cable Spec. 2109-F

BELL SYSTEM TYPE KNAW (22 AWG)

KNMW (24 AWG)

Core Construction:

Conductors:

•Solid,annealedcopper;size22and24AWG

Insulation:

•Dualinsulationconsistingofaninnerlayerof

foamed polyolefin surrounded by a solid polyolefin

skin, color-coded in accordance with telephone

industry standards

Twisted Pairs:

•Insulatedconductorsaretwistedintopairswith

varying lay lengths to minimize crosstalk

Core Assembly:

•Twistedpairsareassembledinto12,13and25

pair units, or into 50 pair multi-units

•Servicepairunitsof4to18pairsareassembled

for inclusion into the cable

“S” Screen:

•Eachhalfofthecablecoreisseparatedfromthe

otherbyuseofa0.004"plastic-coatedaluminum

screen which divides the core into two electrically

isolated compartments

Filling Compound:

•Theentirecoreassemblyiscompletelyfilledwith

ETPR compound, filling the interstices between

the pairs and under the core tape

Core Wrap:

•Non-hygroscopicdielectrictapeapplied

longitudinally with an overlap

ASP Sheath:

Aluminum Shield:

•Corrugated,0.008"aluminumtapeapplied

longitudinally over the core wrap

Steel Shield:

•Corrugated,0.006"steeltapeapplied

longitudinally over the aluminum tape with an

overlap

•Thesheathinterfacesarefloodedwithan

adhesive water-blocking compound

Jacket:

•Black,linearlowdensitypolyethylene

Application(s):

•Intendedfordirectburiedinstallation

•Designedfordigitaltwo-wayT-Carriersignal

operation under one cable sheath

Compliances:

•Telcordia(Bellcore)SpecificationGR-421-CORE

•RoHSCompliant(effective1/1/10)

Packaging:

•Standardlengthsareshippedonreturnablesteel

reels or on non-returnable wood reels when

requested

•Non-standardpackagingisalsoavailable

Nominal Cable Data

CATALOG

NUMBER

PAIRS

AWG

O.D.

(INCHES)

WEIGHT

(LBS/MFT)

STANDARD

LENGTH (FT)

7528250 28 22 0.80 321 9000

7528268 54 22 0.95 511 9000

7528276 106 22 1.20 861 6000

7528284 158 22 1.40 1209 4500

7528292 210 22 1.60 1550 3000

7528300 314 22 1.92 2220 3000

7528318 418 22 2.20 3167 2000

7528326 616 22 2.50 4140 1500

2039061 28 24 0.62 222 9000

2039062 54 24 0.75 344 9000

2039063 106 24 1.00 547 6000

2039064 210 24 1.30 1002 4500

Data subject to change without notice. Contact your Customer Service Representative for latest information.

18

Telecommunications

Wire Products 3

Wire products are small size

distribution wires used as the last

link in bringing telecommunication

services to the subscriber. These

services can incorporate voice, data

and video channels.

Wire products are used in

constructions from one pair to six

pairs. They are made for either

self-supported aerial or for buried

service applications.

Aerial Services Wires are supported

by either an integral steel wire, glass

fibers imbedded in the jacket, or by

the use of high tensile copper-clad

steel conductors.

Buried Service Products are

water-resistant and can be made

with different shielding materials

for mechanical protection during

installation and against damage by

rodents. All Buried Service Wire is

equipped with sequential footage

markings.

The temperature range that

Telecommunications cable can

withstand is:

For storage and operation:

-45˚C to 80˚C

-49˚F to 176˚F

For installation:

-30˚C to 60˚C

-22˚F to 140˚F

Multi-pair Aerial and Filled Service

Wires have the transmission

performance capability of 100,

Category 3 Horizontal UTP Cables

specified in TIA/EIA-568-C.

Most of our Telecommunications

wire constructions contain no

halogens (chlorine, fluorine,

bromine or iodine), which means

they are less toxic and more

environmentally friendly. Look for

the 17 FREE™ logo.

Index Page

Glass Supported Drop Wire

2, 3 and 6 Pair

Bell System Type

and RDUP (RUS)

Spec. 4292-4294 19

Drop Wire

Bell System Type F Drop

and RDUP (RUS) PE-7

Spec. 4295 20

C Rural Wire

Bell System Type

Spec. 4283 20

Ground Wire

Bell System Type

Spec. 2621/2622 21

Multiple Pair Aerial Service Wire

Bell System Type

Spec. 4298 22

Buried Service Wire

Gopher-Resistant

RDUP (RUS) PE-86

ICEA S-86-634

Spec. 4284 23

Buried Service Wire

Aluminum Shield

ICEA S-86-634

Spec. 4287 24

Buried Service and

Distribution Wire

Gopher-Resistant

Bell System Type

Spec. 3503 25

Buried Service Wire

Bronze or CCS Shield

Bell System Type C Service

Spec. 3502 26

19

Telecommunications Wire Products

Glass Supported Drop Wire 2, 3 and 6 Pair Spec. 4292-4294

BELL SYSTEM TYPE AND RDUP (RUS)

Product Construction:

Conductors:

•22AWGsolidannealedcopper

Insulation:

•Color-codedhighdensitypolyethylene

Assembly:

•2,3or6twistedpairsandripcordplacedparallel

between the glass strength members

Jacket:

•Black,flame-retardant,weather-andabrasion-

resistant PVC compound extruded over core

assembly

Application(s):

•Self-supportingdropwireintendedforaerial

service connection to the subscriber

•Compatiblewith“P”Clamp/Wedgetypehardware

•Glassstrengthmemberislightweight,easyto

install

•Noneedforsupportwiregrounding

•Notaffectedbysaltairandcorrosive

environments

Compliances:

•Telcordia(Bellcore)Specification

GR-3163-CORE

•RuralDevelopmentUtilityProgram(RDUP)Bulletin

1753 F-204

•RoHSCompliant(effective1/1/10)

Packaging:

•AvailableinPull-Pac

®

cartons (PP), coils (CL),

reels (RL) and reelsaver (RS)

Nominal Cable Data

CATALOG

NUMBER

PAIRS

AWG

O.D.

(INCHES)

WEIGHT

(LBS/MFT)

STANDARD

LENGTH (FT)

2090021 2 22 0.20 x 0.40 39 500 RS

2090008* 2 22 0.20 x 0.40 39 750 PP

2090012 2 22 0.20 x 0.40 39 750 CL

2090010 2 22 0.20 x 0.40 39 1000 CL

2090053 2 22 0.20 x 0.40 39 3500 RL

2090052* 3 22 0.28 x 0.44 56 600 PP

2090018* 6 22 0.27 x 0.50 79 400 PP

2090014 6 22 0.27 x 0.50 79 400 CL

2090055 6 22 0.27 x 0.50 79 500 CL

2090051 6 22 0.27 x 0.50 79 1000 RL

2090056 6 22 0.27 x 0.50 79 2500 RL

2090013 6 22 0.27 x 0.50 79 3500 RL

Data subject to change without notice. Contact your Customer Service Representative for latest information.

* These Telecommunications wire items have sequential markings.

20

Wire Products Telecommunications

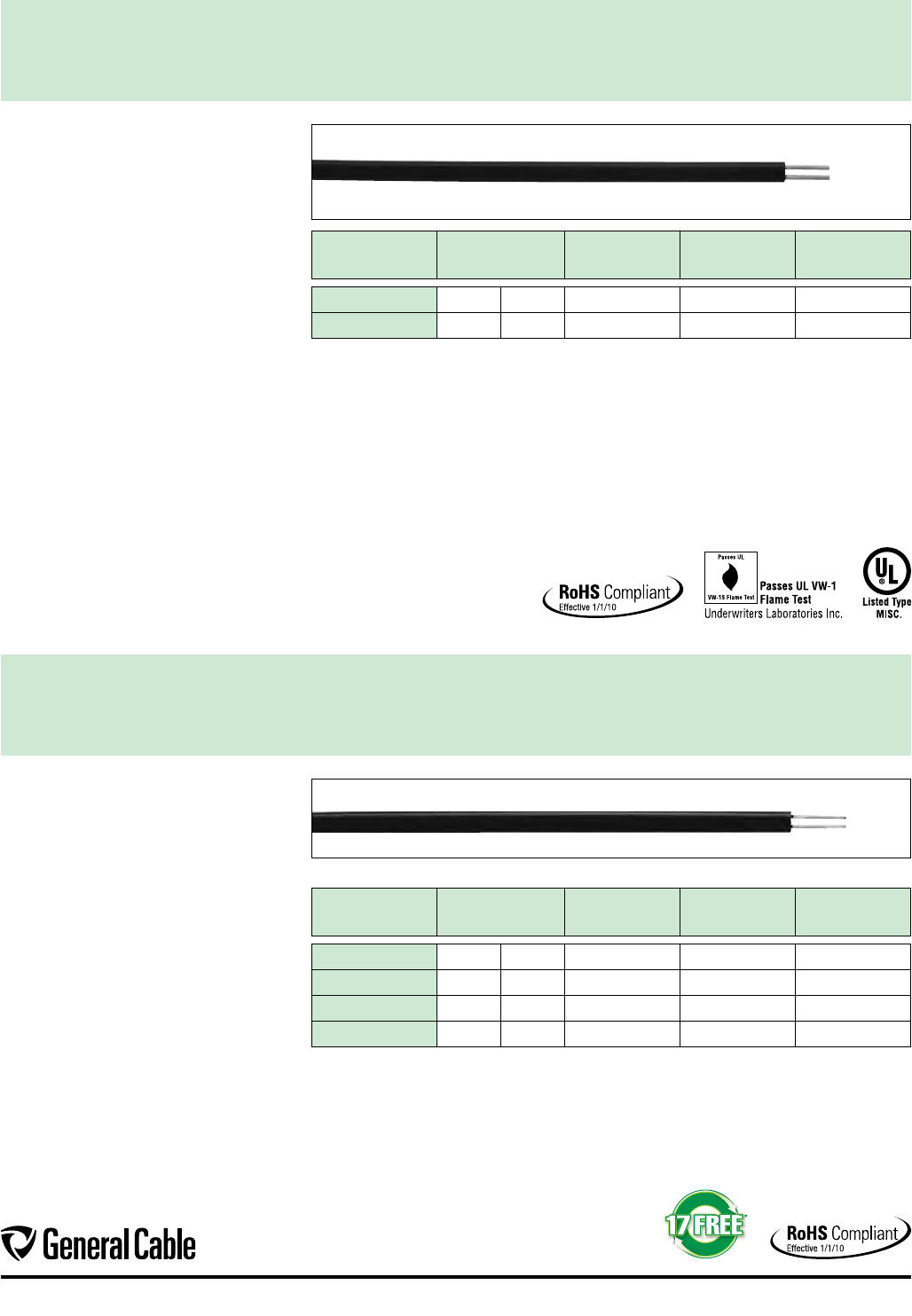

Drop Wire Spec. 4295

BELL SYSTEM TYPE F DROP AND RDUP (RUS) PE-7

Product Construction:

Conductors:

•181/2 AWG solid 30% conductivity extra high

strength copper-covered steel

Sheath:

•Black,flame-,weather-andabrasion-resistant

PVC compound extruded over two conductors in

a parallel configuration

Polarity Identification:

•Polarityridgeononelegoftheweblocatedat45˚

above the major axis of the wire cross-section

Application(s):

•Self-supportingonepairparallelconductordrop

wire intended for aerial service connection to the

subscriber

Compliances:

•Telcordia(Bellcore)SpecificationGR-3163-CORE

•RuralDevelopmentUtilityProgram(RDUP)Bulletin

1753 F-204 (RUS PE-7)

•ANSI/ICEAS-89-648-1993

•RoHSCompliant(effective1/1/10)

Packaging:

•Availableincoils(CL)andPull-Pac

®

cartons (PP)

C Rural Wire Spec. 4283

BELL SYSTEM TYPE

Product Construction:

Conductors:

•14or12AWGsolid30%conductivityextrahigh

strength copper-covered steel

Sheath:

•Black,highdensitypolyethylenecompound

extruded over two conductors in a parallel

configuration

Polarity Identification:

•Polarityridgeononeminorfaceoftheinsulation

located at 45˚ above the major axis of the wire

cross-section

Application(s):

•Self-supportingonepairparallelconductor

drop wire intended for aerial distribution in rural

exchange areas

Compliances:

•Telcordia(Bellcore)SpecificationTA-TSY-000125

•RoHSCompliant(effective1/1/10)

Packaging:

•Availableincoils(CL)andreels(RL)

CATALOG

NUMBER

PAIRS

AWG

O.D.

(INCHES)

WEIGHT

(LBS/MFT)

STANDARD

LENGTH (FT)

7021421 1 18½ 0.130 x 0.255 24 1000 CL

7021496 1 18½ 0.130 x 0.255 24 1000 PP

Data subject to change without notice. Contact your Customer Service Representative for latest information.

Nominal Cable Data

CATALOG

NUMBER

PAIRS

AWG

O.D.

(INCHES)

WEIGHT

(LBS/MFT)

STANDARD

LENGTH (FT)

6307482 1 14 0.160 x 0.280 35 1000 CL

3114733 1 14 0.160 x 0.280 35 5000 (21") RL

7013881 1 14 0.160 x 0.280 35 5500 (29") RL

2091013 1 12 0.190 x 0.315 58 4000 (21") RL

Data subject to change without notice. Contact your Customer Service Representative for latest information.

21

Telecommunications Wire Products

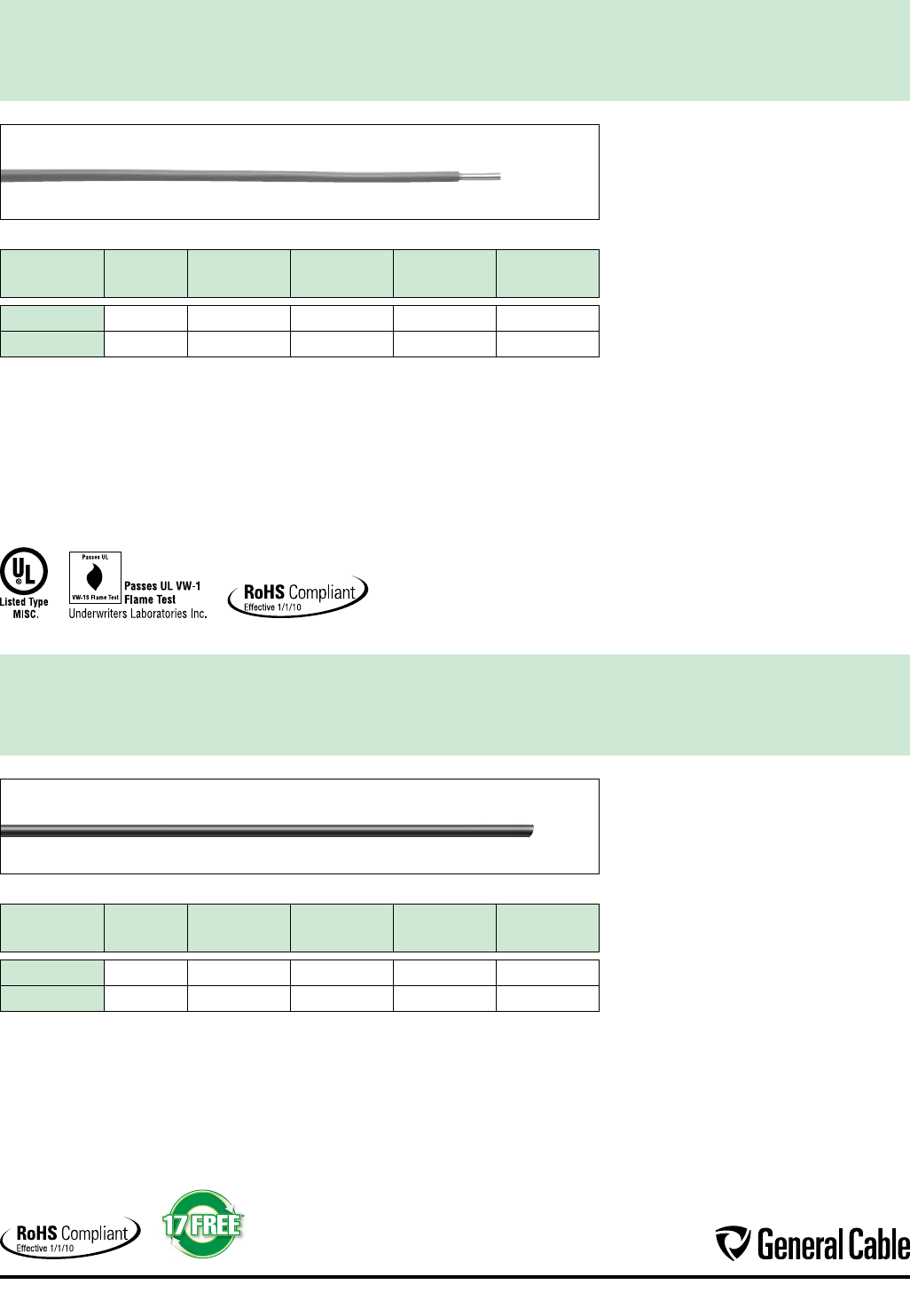

PVC Insulated Ground Wire Spec. 2621

BELL SYSTEM TYPE

Product Construction:

Conductor:

•Solidannealedcopper

Insulation:

•Lightolivegray,flame-retardant,weather-and

abrasion-resistant PVC compound extruded over

the conductor

Application(s):

•Singleconductorforconnectiontogroundfor

customer premises or network equipment and

station protectors

Compliances:

•Telcordia(Bellcore)SpecificationTA-TSY-000120

•ULListedVW-1

•RoHSCompliant(effective1/1/10)

Packaging:

•Availableincoils(CL)andcoilsincartons

(CL/CTN)

Bare Ground Wire Spec. 2622

BELL SYSTEM TYPE

Product Construction:

Conductor:

•Solidannealedcopper

Application(s):

•Singleconductorforgroundingaerialcablesand

pole-mounted equipment. Proper telephone co.

grounding practices must be followed

Compliances:

•Telcordia(Bellcore)Specification

TA-TSY-000120

•ASTMB-3

•RoHSCompliant(effective1/1/10)

Packaging:

•Availableincoils(CL)andcoilsincartons

(CL/CTN)

Nominal Cable Data

CATALOG

NUMBER

AWG

CABLE

CODE

NOM. O.D.

(INCHES)

WEIGHT

(LBS/MFT)

STANDARD

LENGTH (FT)

7515307 6 V-61-C 0.22 102 600 CL

7515265 10 V-101-C 0.15 39 200 CL/CTN

Data subject to change without notice. Contact your Customer Service Representative for latest information.

Nominal Cable Data

CATALOG

NUMBER

AWG

CABLE

CODE

NOM. O.D.

(INCHES)

WEIGHT

(LBS/MFT)

STANDARD

LENGTH (FT)

2091090 6B-6 0.16 86 50 CL/CTN

2091093 6 B-6 0.16 86 600 CL

Data subject to change without notice. Contact your Customer Service Representative for latest information.

22

Wire Products Telecommunications

Multiple Pair Aerial Service Wire Spec. 4298

BELL SYSTEM TYPE

Product Construction:

Conductors:

•22AWGsolidannealedcopper

Insulation:

•Color-codedhighdensitypolyethylene

Jacket:

•Thepairsanda.083"diametergalvanized

steel messenger are enclosed in a black flame-

retardant, weather- and abrasion-resistant PVC

jacket in a Figure 8 configuration

Application(s):

•Providesmultiplelinetelecommunicationservice

connection to the subscriber

Compliances:

•Telcordia(Bellcore)SpecificationGR-3163-CORE

•RoHSCompliant(effective1/1/10)

Packaging:

•Availableincoils(CL)andreels(RL)

Nominal Cable Data

CATALOG

NUMBER

PAIRS

AWG

O.D.

(INCHES)

WEIGHT

(LBS/MFT)

STANDARD

LENGTH (FT)

2091021 6 22 0.380 x 0.615 82 400 CL

2091015 6 22 0.380 x 0.615 82 500 RL

2091016 6 22 0.380 x 0.615 82 3500 RL

Data subject to change without notice. Contact your Customer Service Representative for latest information.

23

Telecommunications Wire Products

Double Jacketed Buried Service Wire Spec. 4284

GOPHER-RESISTANT RDUP (RUS) PE-86

ICEA S-86-634

Product Construction:

Conductors:

•Solidannealedcopper

Insulation:

•Highdensitypolyethylene

Pairing:

•Varyingpairlays

Core Filling:

•80˚Cfillingandfloodingcompounds

Inner Jacket:

•Linearlowdensitypolyethylene

Shield:

•0.005"corrugatedcopper-cladalloysteeltape

Rip Cord:

•Undertheouterjacket

Outer Jacket:

•Black,linearlowdensitypolyethylene

Application(s):

•Intendedforuseinburiedserviceapplicationto

the subscriber loops

•Theshieldingmaterialprovidesresistanceto

gopher damage

Compliances:

•ICEAS-86-634

•RDUP7CFR1755.860(RUSPE-86)for2and3

pair constructions, formerly PE-54 CCS

•RoHSCompliant(effective1/1/10)

Packaging:

•Non-returnableplywoodreelsinlengthsasshown

above

Nominal Cable Data

CATALOG

NUMBER

PAIRS

AWG

O.D.

INCHES

WEIGHT

LBS/MFT

STANDARD

LENGTH (FT)

2095061 2 22 0.32 56 2500

2095002 2 22 0.32 56 5000

2095151 3 22 0.34 66 1000

2095064 3 22 0.34 66 2500

2095016 3 22 0.34 66 5000

2095150 6 22 0.40 95 1000

2095065 6 22 0.40 95 2500

2095063 6 22 0.40 95 5000

2095067 3 24 0.31 54 2500

2095066 3 24 0.31 54 5000

2095068 6 24 0.36 74 2500

2095069 6 24 0.36 74 5000

Data subject to change without notice. Contact your Customer Service Representative for latest information.

24

Wire Products Telecommunications

Double Jacketed Buried Service Wire Spec. 4287

WITH ALUMINUM SHIELD ICEA S-86-634

Product Construction:

Conductors:

•Solidannealedcopper

Insulation:

•Highdensitypolyethylene

Pairing:

•Varyingpairlays

Core Filling:

•80˚Cfillingandfloodingcompounds

Inner Jacket:

•Linearlowdensitypolyethylene

Shield:

•Polymer-coated0.008”aluminumtape

Rip Cord:

•Undertheouterjacket

Outer Jacket:

•Black,linearlowdensitypolyethylene

Application(s):

•Intendedforuseinburiedservice

application to the subscriber loops

Compliances:

•ICEAS-86-634

•RoHSCompliant(effective1/1/10)

Packaging:

•Non-returnableplywoodreelsinlengthsasshown

above

Nominal Cable Data

CATALOG

NUMBER

PAIRS

AWG

O.D.

(INCHES)

WEIGHT

(LBS/MFT)

STANDARD

LENGTH (FT)

2095138 2 22 0.33 51 1000

2095125 2 22 0.33 51 2500

2095126 2 22 0.33 51 5000

2095146 3 22 0.35 62 1000

2095127 3 22 0.35 62 2500

2095128 3 22 0.35 62 5000

2095137 6 22 0.41 88 1000

2095129 6 22 0.41 88 2500

2095130 6 22 0.41 88 5000

2095131 2 24 0.30 42 2500

2095132 2 24 0.30 42 5000

2095133 3 24 0.32 54 2500

2095134 3 24 0.32 54 5000

2095135 6 24 0.33 68 2500

2095136 6 24 0.33 68 5000

Data subject to change without notice. Contact your Customer Service Representative for latest information.

25

Telecommunications Wire Products

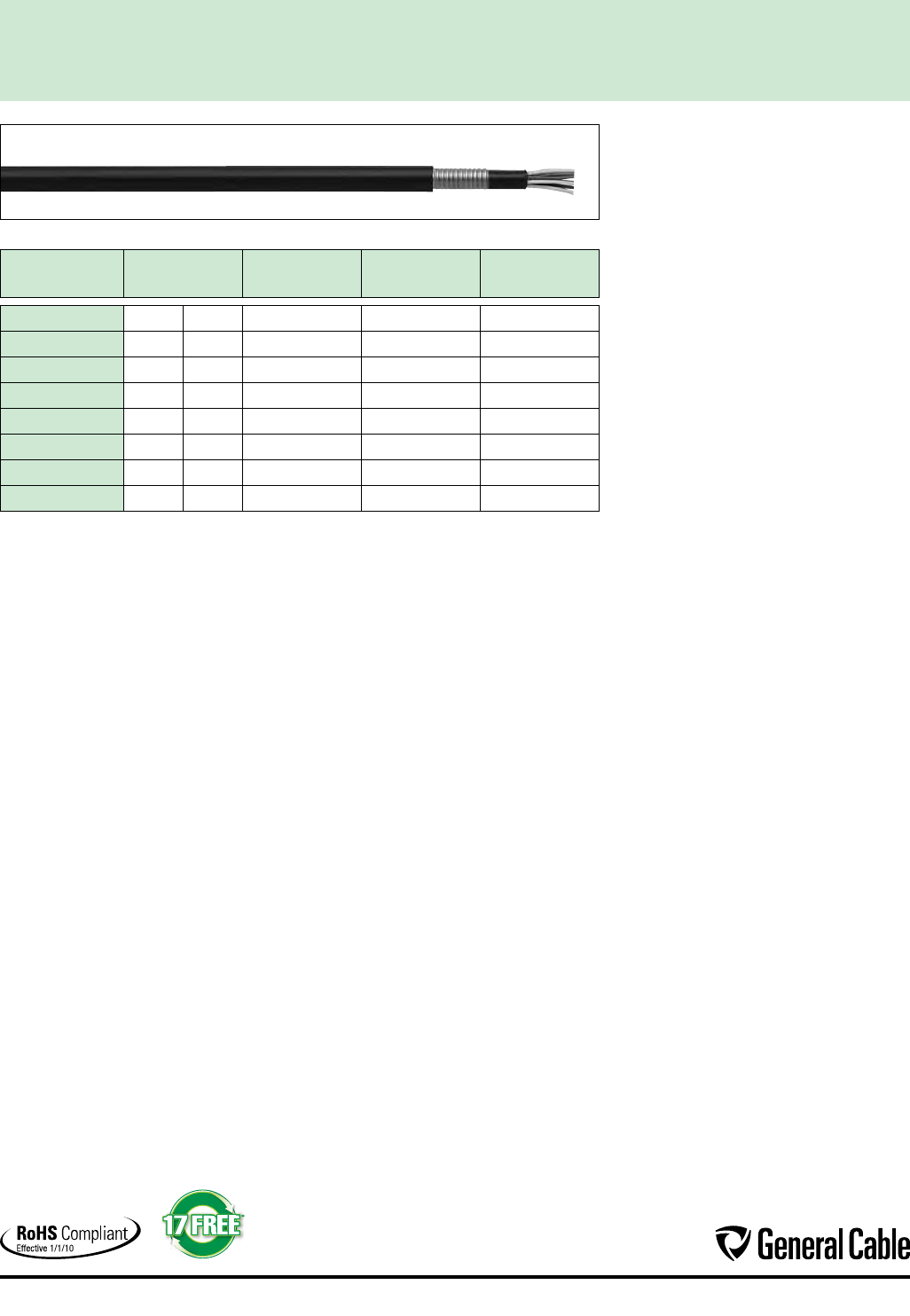

Double Jacketed Buried Service and Distribution Wire

Spec. 3503

BELL SYSTEM TYPE—GOPHER-RESISTANT

Product Construction:

Conductors:

•22or19AWGsolidannealedcopper

Insulation:

•Highdensitypolyethylene

Pairing:

•Varyingpairlays

Core Filling:

•80˚Cfillingcompound

Inner Jacket:

•Linearlowdensitypolyethylene

Shield:

•0.005"corrugatedcopper-cladalloy

steel tape

Rip Cords:

•Undereachjacket

Outer Jacket:

•Black,linearlowdensitypolyethylene

Application(s):

•Intendedforuseinburiedserviceapplicationto

the subscriber loops

•Theshieldingmaterialprovidesresistanceto

gopher damage

Compliances:

•Telcordia(Bellcore)SpecificationGR-3163-CORE

•RoHSCompliant(effective1/1/10)

Packaging:

•Non-returnableplywoodreelsinlengthsasshown

above

Nominal Cable Data

CATALOG

NUMBER

PAIRS

AWG

O.D.

(INCHES)

WEIGHT

(LBS/MFT)

STANDARD

LENGTH (FT)

2095102 3 19 0.42 99 5000

2095106 6 19 0.51 152 5000

2095089 3 22 0.34 67 1200

2095090 3 22 0.34 67 3000

2095091 3 22 0.34 67 5000

2095094 6 22 0.40 95 800

2095095 6 22 0.40 95 3000

2095096 6 22 0.40 95 5000

Data subject to change without notice. Contact your Customer Service Representative for latest information.

26

Wire Products Telecommunications

Single Jacketed Buried Service Wire Spec. 3502

BELL SYSTEM TYPE C SERVICE

Product Construction:

Conductors:

•22AWGsolidannealedcopper

Insulation:

•Highdensitypolyethylene

Pairing:

•Varyingpairlays

Core Filling:

•80˚Cfillingandfloodingcompounds

Core Wrap:

•Polyestertape

Shield:

•0.004"corrugatedcommercialbronzeorcopper-

clad steel tape

Rip Cord:

•Underthejacket

Jacket:

•Black,linearlowdensitypolyethylene

Application(s):

•Intendedforuseinburiedserviceapplicationto

the subscriber loops

Compliances:

•Telcordia(Bellcore)SpecificationGR-3163-CORE

•RoHSCompliant(effective1/1/10)

Packaging:

•Non-returnableplywoodreelsinlengthsasshown

above

Nominal Cable Data

CATALOG

NUMBER

PAIRS

AWG

O.D.

(INCHES)

WEIGHT

(LBS/MFT)

STANDARD

LENGTH (FT)

2095160 3 22 0.30 55 1200

2095084 3 22 0.30 55 3000

2095086 3 22 0.30 55 5000

2095161 6 22 0.37 77 800

2095098 6 22 0.37 77 3000

2095099 6 22 0.37 77 5000

Data subject to change without notice. Contact your Customer Service Representative for latest information.

27

Telecommunications

Technical Information 4

The complexity of today’s Outside

Voice and Data transmissions has

generated an increasing demand for

more technical information. In the

current business world, customer

service representatives, engineers,

distributors and end-users do not

have time to search for answers to

their technical questions.

To this end, General Cable is

including a limited technical section

to help simplify these decisions and

enable you to more expeditiously

locate the products you need and

answer product-specific questions.

Reel size and weight charts based

on O.D. are available upon request

from your Customer Service

Representative.

Sag and Tension tables are available

on the Telecommunications Web

page under “Resources/Services.”

For additional technical information,

please contact your sales

representative, our customer

service department or visit

www.generalcable.com. Select

“Telecommunications” under

Products, then select “Technical

Information.”

Index Page

Local Distribution Network 28-29

Color Code Chart 30-31

Glossary 32-34

Part Number Index 35-36

28

Technical Information Telecommunications

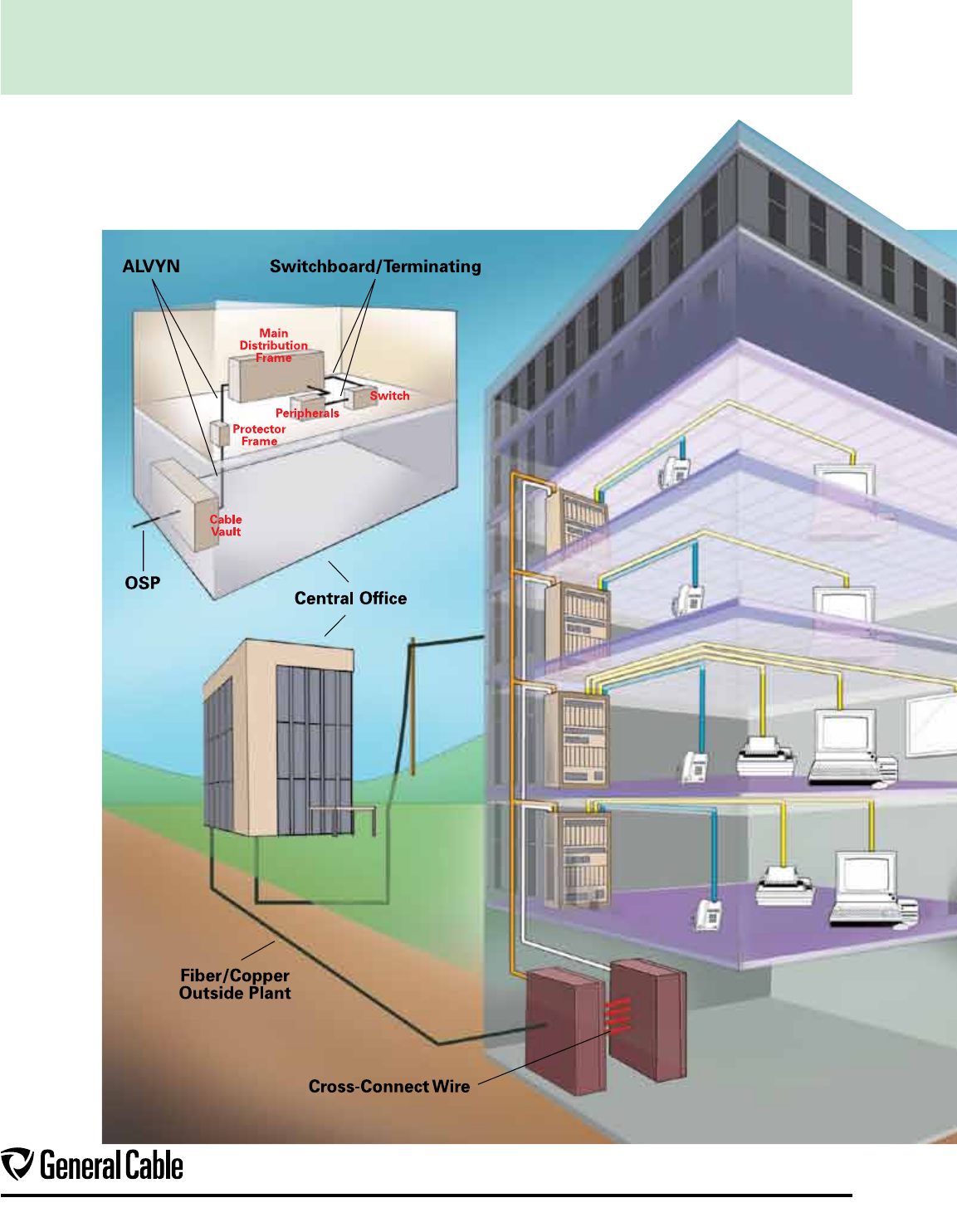

Local Distribution Network

29

Telecommunications Technical Information

Local Distribution Network

30

Technical Information Telecommunications

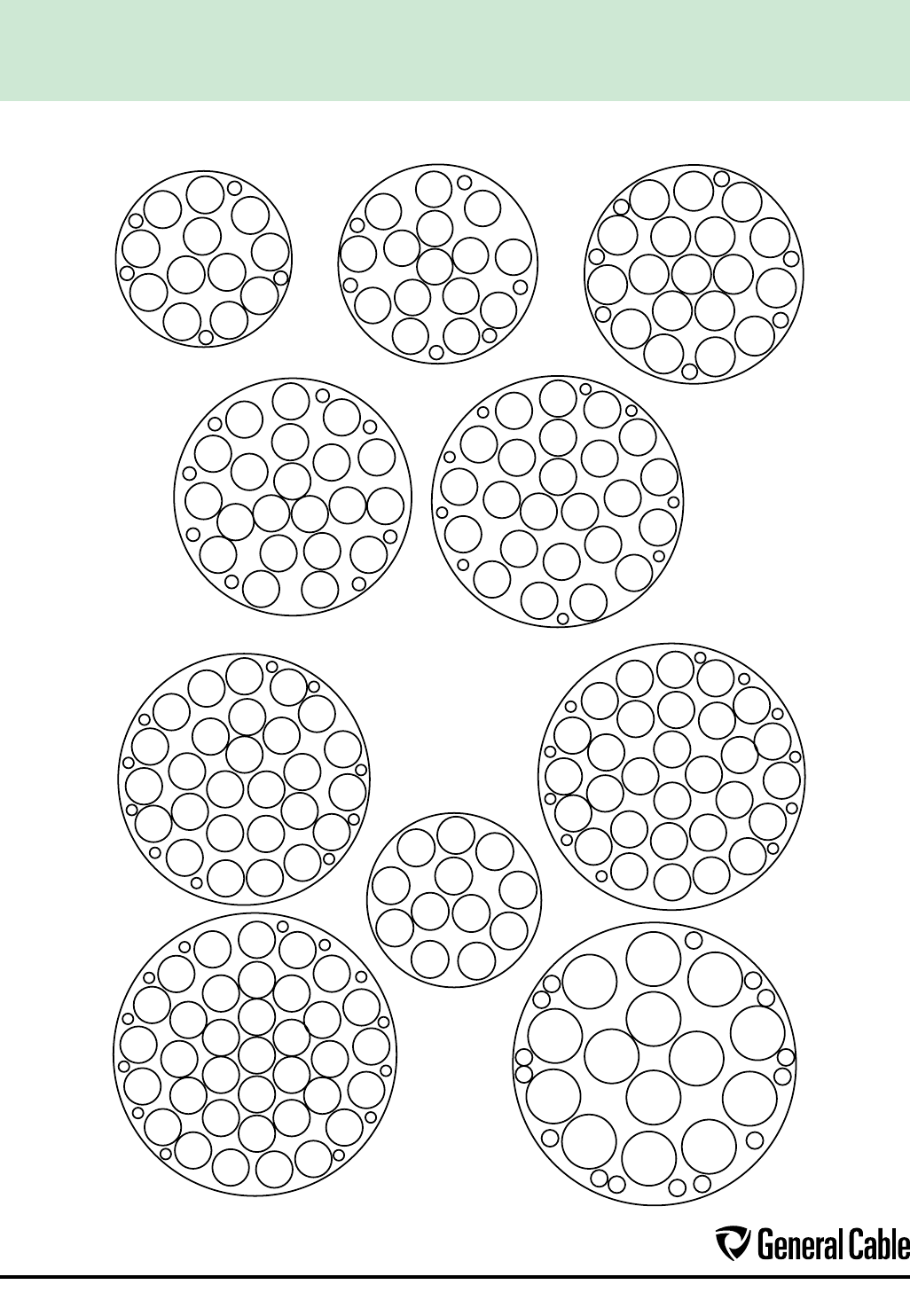

Color Code Chart

PLASTIC INSULATED COMMUNICATION CABLES

25 PAIR UNIT COLORS

PAIR

NUMBER

RING

COLOR

TIP

COLOR

PAIR

NUMBER

RING

COLOR

TIP

COLOR

1Blue White 13 Green Black

2Orange White 14 Brown Black

3Green White 15 Slate Black

4Brown White 16 Blue Yellow

5Slate White 17 Orange Yellow

6Blue Red 18 Green Yellow

7Orange Red 19 Brown Yellow

8Green Red 20 Slate Yellow

9Brown Red 21 Blue Violet

10 Slate Red 22 Orange Violet

11 Blue Black 23 Green Violet

12 Orange Black 24 Brown Violet

25 Slate Violet

UNIT BINDER COLORS

FOR FULL COLOR CODE

GROUP

NUMBER

BINDER

COLORS

PAIR

RANGE

1White - Blue 1 - 25

2White - Orange 26 - 50

3White -Green 51 - 75

4White -Brown 76 - 100

5White -Slate 101 - 125

6Red - Blue 126 - 150

7Red - Orange 151 - 175

8Red - Green 176 - 200

9Red - Brown 201 - 225

10 Red - Slate 226 - 250

11 Black - Blue 251 - 275

12 Black - Orange 276 - 300

13 Black - Green 301 - 325

14 Black - Brown 326 - 350

15 Black - Slate 351 - 375

16 Yellow - Blue 376 - 400

17 Yellow - Orange 401 - 425

18 Yellow - Green 426 - 450

19 Yellow - Brown 451 - 475

20 Yellow - Slate 476 - 500

21 Violet - Blue 501 - 525

22 Violet - Orange 526 - 550

23 Violet - Green 551 - 575

24 Violet - Brown 576 - 600

UNIT BINDER COLORS

FOR MIRROR IMAGE

100 PAIR SUPER-UNIT

GROUP

NUMBER

BINDER

COLORS

PAIR

RANGE

1Blue 1 - 25

2Orange 26 - 50

3Green 51 - 75

4Brown 76 - 100

SPARE PAIRS FOR

MIRROR IMAGE

PAIR

NUMBER

PAIR

COLORS

1White - Red

2White - Black

3White - Yellow

4White - Violet

5Red - Black

6Red - Yellow

7Red - Violet

8Black - Yellow

9Black - Violet

10 Yellow - Violet

11 Blue - Orange

12 Blue - Green

13 Blue - Brown

14 Blue - Slate

15 Orange - Green

SUPER-UNIT BINDER

COLORS FOR

FULL COLOR CODE

S.U. BINDER

COLOR PAIR RANGE

White 1 - 600

Red 601 - 1200

Black 1201 - 1800

Yellow 1800 - 2400

300 PAIR SUPER-UNIT

GROUP

NUMBER

BINDER

COLORS

PAIR

RANGE

1White - Blue 1 - 25

2White - Orange 26 - 50

3White - Green 51 - 75

4White - Brown 76 - 100

5White - Slate 101 - 125

6Red - Blue 126 - 150

7Red - Orange 151 - 175

8Red - Green 176 - 200

9Red - Brown 201 - 225

10 Red - Slate 226 - 250

11 Black - Blue 251 - 275

12 Black - Orange 276 - 300

SUPER-UNIT BINDER COLORS

FOR MIRROR IMAGE

(See drawings on the next page)

31

Telecommunications Technical Information

Color Code Chart

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

S3-5

G-Y S3-6

R-Y

S3-7

BL-Y

S3-8

R-Y

S3-2

R-BK

S3-1

G-BK

S3-14

R-Y

S3-13

BL-Y S3-4

R-BK

S3-3

BL-BK

S3-9

BL-Y

S3-10

R-Y

S3-11

BL-Y

S3-12

R-Y

U-25

W-BR

U-25

W-BL

U-25

R-S

U-25

R-BR

U-25

W-G

U-25

W-O

U-25

R-G

U-25

R-O

U-25

R-BL

U-25

W-S

U-25

BK-O

U-25

BL-BK

S-4

R-Y

1

2

3

4

5

6

7

8

9

10

11

S-5

G-BK

S-15

G-Y

S-1

G-Y

S-3

BL-Y

S-10

R-BK

S-23

BL-Y

S-24

R-Y

S-25

BL-Y

S-26

R-Y

S-27

BL-Y

S-28

R-Y

S-29

BL-Y

S-30

R-Y

S-16

R-Y

S-17

BL-Y

S-18

R-Y

S-19

BL-Y

S-20

R-Y

S-21

BL-Y

S-22

R-Y

S-11

BL-BK

S-12

R-BK

S-13

BL-BK

S-14

R-BK

S-9

BL-BK

S-8

R-BK

S-7

BL-BK

S-2

R-Y

S-6

R-BK

1

2

3

4

5

6

7

8

9

10

S-1

G-Y

S-4

G-BK

S-13

G-Y S-14

R-Y

S-15

BL-Y

S-16

R-Y

S-17

BL-Y

S-18

R-Y

S-7

R-BK

S-6

BL-BK

S-5

R-BK

S-2

R-Y

S-3

R-Y

S-12

R-BK

S-27

R-Y

S-26

BL-Y

S-25

R-Y

S-24

BL-Y

S-11

BL-BK

S-23

R-Y

S-10

R-BK S-9

BL-BK

S-8

BL-BK

S-19

BL-Y

S-20

R-Y

S-21

R-Y

S-22

BL-Y

1

2

3

4

5

6

7

8

S-1

G-Y

S-10

R-BK

S-4

G-BK S-5

R-BK

S-6

BL-BK

S-2

R-Y

S-3

R-Y

S-9

BL-BK

S-19

R-Y

S-20

BL-Y

S-21

R-Y

S-11

G-Y S-12

R-Y

S-13

BL-Y

S-14

R-Y

S-15

BL-Y

S-7

R-BK

S-8

R-BK

S-18

BL-Y

S-17

R-Y

S-16

R-Y

1

2

3

4

5

6

7

8

9

S-12

G-Y S-13

R-Y

S-14

BL-Y

S-15

R-Y

S-16

BL-Y

S-17

R-Y

S-18

BL-Y

S-19

BL-Y

S-20

R-Y

S-21

BL-Y

S-22

R-Y

S-23

BL-Y

S-24

R-Y

S-4

G-BK S-5

R-BK

S-6

BL-BK

S-7

R-BK

S-8

BL-BK

S-9

R-BK

S-10

BL-BK

S-11

R-BK S-1

G-Y

S-3

R-Y

S-2

R-Y

1

2

3

4

5

6

7

S-1

G-Y

S-2

G-BK

S-3

R-BK

S-4

BL-BK

S-5

R-BK

S-15

BL-Y

S-6

BL-BK

S-7

R-BK

S-8

G-Y S-9

R-Y

S-10

BL-Y

S-11

R-Y

S-12

BL-Y

S-13

R-Y

S-14

R-Y

S-16

R-Y

S-17

BL-Y

S-18

R-Y

1

2

3

4

5

6

S-7

G-Y

S-15

R-Y

S-14

BL-Y

S-13

R-Y

S-12

BL-Y

S-11

BL-Y

S-10

R-Y

S-4

BL-BK

S-5

BL-BK

S-6

R-BK

S-2

G-BK

S-1

G-Y

S-3

R-BK

S-9

BL-Y

S-8

R-Y

1200 PAIR

1500 PAIR

1800 PAIR

2100 PAIR 2400 PAIR

2700 PAIR

3600 PAIR 4200 PAIR

300 PAIR

SUPER-UNIT

3000 PAIR

S-1

G-BK

S-5

R-Y

5

4

3

2

1

S-6

BL-Y

S-4

G-Y

S-12

R-Y

S-11

BL-Y

S-10

R-Y

S-9

BL-Y

S-8

BL-Y

S-7

R-Y

S-2

R-BK

S-3

R-BK

1

2

3

4

5

6

7

8

9

10

11

12

13

S-1

G-BK

S-2

G-Y

S-8

G-BK

S-28

BL-Y

S-14

BL-BK

S-5

R-Y

S-20

G-Y S-21

R-Y

S-9

R-BK

S-3

R-Y

S-4

BL-Y

S-13

R-BK

S-12

BL-BK

S-11

R-BK

S-10

BL-BK

S-22

BL-Y

S-23

R-Y

S-24

BL-Y

S-25

R-Y

S-26

BL-Y

S-27

R-Y

S-29

BL-Y

S-30

R-Y

S-31

BL-Y

S-32

R-Y

S-33

BL-Y

S-34

R-Y

S-15

R-BK

S-16

BL-BK

S-17

R-BK S-6

BL-Y

S-7

R-Y

S-18

BL-BK

S-35

BL-Y

S-36

R-Y

S-19

R-BK

SUPER-UNIT BINDER COLORS FOR MIRROR IMAGE

32

Technical Information Telecommunications

Glossary

Access Line:

A local access connection (fixed

or wireless) between a customer’s premises

and a carrier’s central office switch.

Aerial Cable:

Cable suspended in

the air on poles or other overhead

structures.

Air Core:

A telephone outside plant cable

construction for aerial and duct installation

in which the insulated conductors in the

cable core are surrounded by air.

Alloy:

A combination of two or more metals

to form a new or different metal, having

specific or desirable qualities.

ALPETH:

Telephone cable sheath employing a

corrugated aluminum shield and an outer

polyethylene jacket.

American Wire Gauge:

(AWG)

A standard used in the determination of the

physical size of a conductor determined

by its circular mil area. AWG is used in

the U.S. to designate the size of wire

and conductors. The gauge numbers are

retrogressive—the larger the gauge number

the smaller the wire.

Analog Signal:

A signal in which the intelligence

is represented by continuously varying

quantities.

Anneal:

The act of softening a metal, such as

copper, by means of heat to render it less

brittle.

Armor:

Mechanical protection usually

accomplished by a metallic layer of tape,

braid or served wires. Normally found only

over the outer sheath.

ASP:

A cable sheath consisting of a corrugated

aluminum (A) shield, corrugated steel (S)

shield, flooding compound and an outer

polyethylene (P) jacket.

ASTM:

Abbreviation of the American Society

for Testing and Materials, a non-profit

industry-wide organization which publishes

standards, methods of test, recommended

practices, definitions and other related

material.

Attenuation:

Power loss in an electrical system.

In cables, generally expressed in dB per

unit length, usually 1,000 feet.

Bandmarking:

A circumferential color band

applied to an insulated conductor at regular

intervals for identification.

Bandwidth:

The frequency range of electrical

signals transmitted.

Binder:

Usually spirally wrapped tape or

thread used for holding assembled cable

components in place.

Buried Cable:

A cable installed directly in the

earth without use of underground conduit.

Also called direct buried cable.

Cable:

Insulated conductors or twisted group

of insulated conductors used for the

transmission of electrical energy.

Cabling:

The act of twisting together two or

more insulated components by machine to

form a cable.

Capacitance:

The ratio of the electrostatic

charge on a conductor to a potential

difference between the conductors required

to maintain that charge.

Carrier:

A telco that owns and operates its

own network and provides transmission

services to other service providers through

its facilities.

Central Office:

A building housing the telephone

switching apparatus.

Cold Bend:

A laboratory test procedure whereby

a sample of wire or cable is wound around

a mandrel of a specified size at a specified

temperature for a given number of turns

at a given rate of speed and examined for

defects.

Color Code:

A color system for circuit

identification by use of solid colors, tracers,

braids, surface marking, etc.

Compound:

A term used to designate an

insulating or jacketing material made

by mixing two or more ingredients. To

Compound: the combining of two or more

different materials to make one material.

Conductivity:

A term used in describing the

capability of a material to carry an electrical

charge. Usually expressed as a percentage

of copper conductivity—copper being one

hundred (100%) percent. Conductivity is

expressed for a standard configuration of

conductor.

Conductor:

Any material capable of easily

carrying an electrical charge.

Conduit:

A tube or trough for protecting

electrical wires and cables. It may be a

rigid or flexible tube into which insulated

electrical wires are pulled.

Core:

In cables, a component or assembly

of components over which additional

components (shield, sheath, etc.) are

applied.

Crosstalk:

Signal interference between nearby

conductors caused by the pickup of stray

energy.

Decibel (dB):

A standard of unit based

on a logarithmic scale for expressing

transmission gain or loss and relative

power levels.

Dielectric:

Any insulating medium which

intervenes between two conductors

and permits electrostatic attraction and

repulsion to take place across it.

Dielectric Constant:

The ratio of the

capacitance of an insulated wire with that

of the same wire uninsulated In air.

Dielectric Strength:

The voltage which an

insulation can withstand before breakdown

occurs. Usually expressed as a voltage

gradient (such as volts per mil).

Dielectric Test:

A test in which a voltage higher

than the rated voltage is applied for a

specified time to determine the adequacy

of the insulation under normal conditions.

Digital Signal:

A signal in which the data is

represented by a series of discrete steps

or pulses.

Digital Subscriber Line (DSL):

A technology

used to increase the capacity of copper

telephone lines.

Distribution Cable:

The cable portion of the

local outside plant network between the

feeder cable and the subscriber.

Drain Wire:

An uninsulated wire in a cable used

to facilitate shield connection.

Drawing:

In the manufacture of wire, pulling

the metal through a die or series of dies in

order to reduce the diameter to a specified

size.

Drop Wire:

A wire designed for use as service

drops from aerial distribution terminals to

subscriber station protectors.

Duct:

An underground or overhead tube for

carrying electrical conductors.

Elongation:

The fractional increase in length of a

material stressed in tension.

Embossing:

A means of marker identification by

means of thermal indentation leaving raised

lettering on a cable’s sheath material.

Ethernet:

A local area network (LAN) which

uses the CSMA/CD (Carrier Sense Multiple

Access with Collision Detection) access

method on a bus topography.

Extrusion:

Method of continuously forcing

plastic, rubber, or elastomer material

through an orifice to apply insulation or

jacketing over a conductor or cable core.

Figure 8 Cable:

An aerial cable configuration

in which the conductors and steel strand,

which supports the cable, are integrally

jacketed. A cross-section of the finished

cable approximates the figure “eight”.

33

Telecommunications Technical Information

Glossary

Filled Cable:

A telephone outside plant cable

construction for direct buried installation in

which the cable core is filled with a material

that will prevent moisture from entering or

passing through the cable.

Flame Resistance:

Measure of a material’s

ability not to propagate flame once the

source of heat is removed.

Flammability:

Measure of a material’s ability to

support combustion.

Foam Skin Cable:

A cable utilizing a foamed

polyolefin inner layer covered by a solid

polyolefin skin as the conductor insulation.

Frequency:

The number of cycles, now

expressed as hertz, by an alternating

current in one second. The hertz is

equivalent to the older unit cycles per

second.

Gauge:

A term used to denote the physical size

of a wire.

Ground:

1) An electrical term meaning to

connect to the earth or other large

conducting body to serve as an earth thus

making a complete electrical circuit;

2) A wire intended to be used for grounding

(also called grounding conductor).

Helical Stripe:

A continuous, colored, spiral

stripe applied over the outer perimeter

of an insulated conductor for circuit

identification purposes.

Hygroscopic:

Capable of absorbing moisture

from the air.

Impact Strength:

A test designed to ascertain

the abuse a cable configuration can

absorb, without physical or electrical

breakdown, by impacting with a given

weight, dropped from a given height, in a

controlled environment.

Impedance:

The total opposition that a circuit

offers to the flow of alternating current at

a particular frequency. It is a combination

of resistance R and reactance X, measured

in ohms.

Inductance:

The property of a circuit or circuit

element that opposes a change in current

flow, thus causing current changes to lag

behind voltage changes. It is measured in

henrys.

Insulated Wire:

A conductor of electricity

covered with a non-conducting material.

Insulation:

A non-conductive material usually

surrounding or separating two conductive

materials. Often called the dielectric in a

radio frequency cable.

Insulation Resistance:

That property of an

insulating material which resists electrical

current flow through the insulating material

when a potential difference is applied.

Integrated Service Digital Network (ISDN):

A digital data communications network

providing full integration of data, voice

and video.

Interconnect Companies:

Companies which

sell, install and maintain telephone systems

for end users.

Interexchange Carrier (IXC):

A long-distance

telephone carrier authorized to carry

transmissions between local access and

transport areas.

Internet Protocol (IP):

The set of rules that

defines how information is packaged and

addressed for delivery across the Internet.

Internet Service Provider (ISP):

A company that

offers consumers and businesses access to

the internet and other related services.

Interstices:

In cable construction, the spaces,

valleys or voids between or around the

cable’s components.

Jacket:

A material covering over a wire insulation

or an assembly of components. An overall

jacket on a complex cable grouping. Also

called a sheath.

Lay:

A term used in cable manufacturing to

denote the distance of advance of one

member of a group of spirally twisted

members, in one turn, measured axially.

Local Area Network (LAN):

A network spanning

a limited geographical area, providing data

communications between computers and

peripherals, and switching equipment.

Local Exchange Carrier (LEC):

A telephone

company that provides the dial tone to the

end consumer. Incumbent local exchange

carriers (ILECs) are the Bell Operating

companies and smaller independent phone

companies that originally provided local

phone services to specific geographic

communities on a regulated, monopoly

basis. CLECs are competitive local carriers

created out of the Telecommunications Act

of 1996.

Local Number Portability (LNP):

The practice

of letting a customer switch service from

one local company to another without

having to change their telephone number.

Longitudinal Wrap:

A tape applied longitudinally

with the axis of the core being covered,

as opposed to a helical, or spiral, tape

wrapped core.

Marker Thread:

A colored thread laid parallel

and adjacent to the strands of an

insulated conductor which identifies the

cable manufacturer. It may also denote a

temperature rating or the specification to

which the cable is made.

Mil:

1/1000 of an inch.

Moisture Resistance:

The ability of a material

to resist absorbing moisture from the air or

when immersed in water.

Mutual Capacitance (Cm):

The capacitance

between two conductors when all other

conductors, including the shield, are short

circuited to ground.

National Electrical Code (NEC):

A consensus standard published by the

National Fire Protection Association (NFPA)

and incorporated in OSHA regulations.

Network:

1) Series of points connected by

communications channels; 2) Network

of telephone lines normally used for

dialed telephone calls; 3) Network of

communications channels connected to the

use of one customer. For purposes of data

communications applications, components

in a common geographical area, served

by a common computer, or performing a

common function may be defined as one

network. Also defined as one or more

interconnected data links.

Ohm:

A unit of electrical resistance, the

resistance of a circuit in which a potential

difference of one volt produces a current of

one ampere.

Outside Plant (OSP):

All cables and wires

extending outward from the network

protectors on the main distribution frame

to connect the terminal equipment to the

Outside Plant.

Pair:

Two wires forming a single circuit,

held together by twisting, binding, or

a common jacket.

Parallel:

A construction in which two or more

conductors are laid parallel and surrounded

and separated by an insulating material.

PASP:

A cable sheath consisting of an inner

polyethylene (P) jacket, corru

gated

aluminum (A) shield, corrugated steel (S)

and an outer polyethylene (P) jacket.

PIC:

An abbreviation for Plastic Insulated

Conductor: conductors covered with an

extruded coating of plastic.

Plasticizer:

A chemical agent added in

compounding plastics to make them softer

and more flexible.

34

Technical Information Telecommunications

Glossary

Polyethylene:

A family of insulating materials

derived from polymerization of ethylene

gas. They are basically pure hydrocarbon

resins with excellent dielectric properties.

Polyvinyl Chloride (PVC):

A general purpose

thermoplastic widely used for wire and

cable insulations and jackets.

Pressurization:

The use of pressurized gas or

dry air inside Air Core cables to prevent

the entry of water at faulty splices or minor

sheath cracks. It can also trigger an alarm

when major faults occur and can assist in

locating the damaged areas.

Pulling Eye:

A device which may be fastened

to the conductor(s) or jacket of a cable or

formed by or fastened to the wire armor

and to which a hook or rope may be

directly attached in order to pull the cable

through a duct.

Put-Up:

Refers to the packaging of wire and

cable. The term itself refers to the quantity

of product that is ready to be stored or

shipped.

Regional Bell Operating Company (RBOC):

A

holding company formed by the divestiture

of AT&T to provide both regulated and non-

regulated telephone services.

Resistance:

The property of an electric circuit

which determines for a given current the

rate at which electric energy is converted

into heat and has a value such that the

current squared multiplied by the resistance

gives the power converted.

Restriction on Hazardous Substances

(RoHS):

The European Commission’s

Directive 2002/95/EC adopted January 27,

2003, also know as “RoHS,” which restricts

the use of certain hazardous substances in

electrical and electronic equipment.

Ring Banding:

See Bandmarking.

Rip Cord:

A cord placed directly under the jacket

of a cable in order to facilitate stripping

(removal) of the jacket.

Screened Cables:

A cable core design where an

aluminum shield divides the cable core into

two electrically separate compartments.

Sheath:

The combination of a metallic shield

and an extruded plastic jacket applied as

the outermost covering on a cable. In the

absence of a shield, the extruded jacket

may be designated as a sheath.

Shield:

A metallic layer placed around an

insulated conductor or group of conductors

to prevent electrostatic or electromagnetic

interference between the enclosed wires and

external fields. This shield can be braided

or served wires, foil wrap, foil backed tape,

a metallic tube, or conductive vinyl or

rubber. When a metallic braid of tinned or

bare copper is applied over the insulated

conductor, the shielding effectiveness is

in proportion to the amount of coverage,

usually expressed as a percentage.

Spark Test:

A test designed to locate pinholes

in a wire’s insulation by application of an

electrical potential across the material for

a very short period of time while the wire is

drawn through an electrode field with one

end of the wire grounded.

STALPETH:

A cable sheath consisting of a

corrugated steel (ST) shield applied over

a corrugated aluminum (AL) shield and an

outer polyethylene (PETH) jacket.

Stranding:

The manufacturing process by which

cable components are assembled around a

central piece, forming a round core.

Tank Test:

A voltage dielectric test in which the

wire or cable test sample is submerged in

water and voltage is applied between the

conductor and water as ground.

Temperature Rating:

The maximum temperature

at which the insulating material may be

used in continuous operation without loss

of its basic properties.

Tensile Strength:

A term denoting the greatest

longitudinal tensile stress a substance can

bear without tearing apart or rupturing.

Thermoplastic:

Material that will resoften and

distort from its formed shape by heating

above a critical temperature peculiar to

the material.

Tinned Wire:

Copper wire that has been

coated with a layer of tin or solder to

simplify soldering.

Tracer Stripe:

When more than one color coding

stripe is required, the first, or widest, stripe

is the base stripe; the other, usually narrower

stripes, being termed tracer stripes.

Twisted Pair:

Two insulated conductors

spiraled together.

UL:

Abbreviation for Underwriters Laboratories,

a non-profit independent organization,

which operates a listing service for electrical

and electronic materials and equipment.

Unbundled Network Element Provider

(UNE-P):

The wholesale purchase of all network

elements from the RBOC, with the CLEC

retaining the responsibility for integrating

the elements together in order to complete

connections and provide service.

Voice Frequency:

Any of the frequencies that

are audible to the human ear. For telephone

transmission the range is generally from

300 to 3,400 Hz.

Volt:

The standard unit of electromotive force

or electrical pressure. One volt is the

amount of pressure that will cause one

ampere of current to flow through one ohm

of resistance.

Voltage Rating:

The highest voltage that may be

continuously applied to a wire in conformance

with standards or specifications.

VW-1:

A test used by Underwriters Laboratories

to classify wires and cables with regard

to their resistance to burning. (Formerly

designated as FR-1.)

Wall Thickness:

A term expressing the thickness

of a layer of applied insulation or jacket.

Wide Area Network (WAN):

A network spanning

a broad geographical area, providing data

communications between computers and

peripherals, and switching equipment.

Wire:

1) A single piece of slender, flexible metal,

ranging in approximate size from a piece

that is difficult to bend by hand to a fine

thread. 2) Several wires as in (1) twisted

together.

35

Telecommunications Technical Information

Part Number Index

2095065 ......................23

2095066 ......................23

2095067 ......................23

2095068 ......................23

2095069 ......................23

2095084 ......................26

2095086 ......................26

2095089 ......................25

2095090 ......................25

2095091 ......................25

2095094 ......................25

2095095 ......................25

2095096 ......................25

2095098 ......................26

2095099 ......................26

2095102 ......................25

2095106 ......................25

2095125 ......................24

2095126 ......................24

2095127 ......................24

2095128 ......................24

2095129 ......................24

2095130 ......................24

2095131 ......................24

2095132 ......................24

2095133 ......................24

2095134 ......................24

2095135 ......................24

2095136 ......................24

2095137 ......................24

2095138 ......................24

2095146 ......................24

2095150 ......................23

2095151 ......................23

2095160 ......................26

2095161 ......................26

3114733 ......................20

6307482 ......................20

6937064 ........................4

6937767 ........................4

2010078 ........................8

2010079 ........................8

2010080 ........................8

2010081 ........................8

2010083 ........................8

2010084 ........................8

2012000 ........................3

2012001 ........................3

2012004 ........................3

2012005 ........................3

2012006 ........................3

2012010 ........................3

2012011 ........................3

2012015 ........................3

2012016 ........................3

2012020 ........................3

2036300 ......................15

2036301 ......................15

2036302 ......................15

2036303 ......................15

2036307 ......................15

2036308 ......................15

2036309 ......................15

2036310 ......................15

2036311 ......................15

2036312 ......................15

2036313 ......................15

2036314 ......................15

2036320 ......................15

2036321 ......................15

2036322 ......................15

2036323 ......................15

2036324 ......................15

2036325 ......................15

2036326 ......................15

2036327 ......................15

2036328 ......................15

2036329 ......................15

2036330 ......................15

2036331 ......................15

2036334 ......................15

2036335 ......................15

2036336 ......................15

2036337 ......................15

2036338 ......................15

2036339 ......................15

2036340 ......................15

2036341 ......................15

2036342 ......................15

2036343 ......................15

2036344 ......................15

2036345 ......................15

2036346 ......................15

2039061 ......................17

2039062 ......................17

2039063 ......................17

2039064 ......................17

2090008 ......................19

2090010 ......................19

2090012 ......................19

2090013 ......................19

2090014 ......................19

2090018 ......................19

2090021 ......................19

2090051 ......................19

2090052 ......................19

2090053 ......................19

2090055 ......................19

2090056 ......................19

2091013 ......................20

2091015 ......................22

2091016 ......................22

2091021 ......................22

2091090 ......................21

2091093 ......................21

2095002 ......................23

2095016 ......................23

2095061 ......................23

2095063 ......................23

2095064 ......................23

6937817 ........................4

6937833 ........................4

6937841 ........................4

6937858 ........................4

6937866 ........................4

6964787 ........................4

6964795 ........................4

6964803 ........................4

6964811 ........................4

6968762 ........................4

6968770 ........................4

6983381 ........................4

6987218 ........................4

6987275 ........................4

6987374 ........................8

6987382 ........................8

6987390 ........................8

6987408 ........................8

6987416 ........................8

6987424 ........................8

6987481 ......................16

6987499 ......................16

6987507 ......................16

6987515 ......................16

6987523 ......................16

6987572 ......................16

6987580 ......................16

6987606 ......................16

6987622 ......................16

6987630 ......................16

6987648 ......................16

6987655 ......................16

6987663 ......................16

6987671 ......................16

6987705 ......................16

6987713 ......................16

6987721 ......................16

6987739 ......................16

6987747 ......................16

6987754 ......................16

6987762 ......................16

6987770 ......................16

6987788 ......................16

6987796 ......................16

6987804 ......................16

6987812 ......................16

6987820 ......................16

6987838 ......................16

6987846 ......................16

6987853 ......................16

6987861 ......................16

6987879 ......................16

6987887 ......................16

6987895 ......................16

7013881 ......................20

7021421 ......................20

7021496 ......................20

7071608 ......................14

7071616 ......................14

7502008 ........................8

7502024 ........................7

7502032 ........................7

7502040 ........................7

7502057 ........................7

7502065 ........................7

7502073 ........................7

7502081 ........................7

7502099 ........................7

7502107 ........................8

7502180 ........................7

7502198 ........................7

7502214 ........................7

7502230 ........................7

7502248 ........................7

7502958 ......................16

7503485 ........................4

7503543 ........................7

7503550 ........................7

7503576 ........................7

7503592 ........................7

CATALOG

NUMBER PAGE

CATALOG

NUMBER PAGE

CATALOG

NUMBER PAGE

CATALOG

NUMBER PAGE

CATALOG

NUMBER PAGE

36

Technical Information Telecommunications

Part Number Index

7503600 ........................7

7503618 ........................7

7503626 ........................7

7503634 ........................7

7503659 ........................7

7503667 ........................7

7503683 ........................7

7503709 ........................7

7503717 ........................7

7503725 ........................7

7503816 ........................7

7503824 ........................7

7503832 ........................7

7503840 ........................7

7506777 ........................4

7506785 ........................4

7506876 ........................4

7506884 ........................4

7506892 ........................4

7506900 ........................4

7506918 ........................4

7506926 ........................4

7506975 ........................4

7506983 ........................4

7506991 ........................4

7507007 ......................16

7507015 ......................16

7507023 ......................16

7508252 ........................4

7510506 ........................4

7510712 ........................8

7510720 ........................8

7512510 ........................8

7512650 ......................16

7512668 ......................16

7513252 ........................8

7513351 ........................8

7515265 ......................21

7515307 ......................21

7516438 ........................8

7516461 ........................5

7516479 ........................5

7516487 ........................5

7516495 ........................5

7517261 ........................5

7517279 ........................5

7517287 ........................5

7517303 ........................5

7517329 ........................5

7517394 ........................6

7517410 ........................6

7517428 ........................6

7517444 ........................6

7517451 ........................6

7517469 ........................6

7517485 ........................6

7517501 ........................6

7524507 ......................10

7524515 ......................10

7524523 ......................10

7524556 ......................10

7524564 ......................10

7524572 ......................10

7524580 ......................10

7524598 ......................10

7524614 ......................10

7524622 ......................10

7524648 ......................10

7524655 ......................10

7524671 ......................10

7524697 ......................10

7524705 ......................10

7524713 ......................10

7524721 ......................10

7525058 ......................11

7525066 ......................11

7525074 ......................11

7525082 ......................11

7525090 ......................11

7525116 ......................11

7525124 ......................11

7525140 ......................11

7525157 ......................11

7525173 ......................11

7525199 ......................11

7525207 ......................11

7525215 ......................11

7525223 ......................11

7525504 ......................13

7525512 ......................13

7525538 ......................13

7525595 ......................13

7525603 ......................13

7525629 ......................13

7525637 ......................13

7525652 ......................13

7525678 ......................13

7525751 ......................13

7525769 ......................13

7525785 ......................13

7525793 ......................13

7525819 ......................13

7525835 ......................13

7525843 ......................13

7525850 ......................13

7525868 ......................13

7525876 ......................13

7526551 ......................14

7526569 ......................14

7526577 ......................14

7526585 ......................14

7526601 ......................14

7526668 ......................14

7526684 ......................14

7526692 ......................14

7526718 ......................14

7526734 ......................14

7526742 ......................14

7526759 ......................14

7526767 ......................14

7526775 ......................14

7526973 ......................13

7526981 ......................13

7526999 ......................13

7527005 ........................2

7527013 ........................2

7527021 ........................2

7527039 ........................2

7527112 ........................2

7527120 ........................2

7527138 ........................2

7527146 ........................2

7527161 ........................2

7527187 ........................2

7527195 ........................2

7527203 ........................2

7527757 ........................2

7527765 ........................2

7527781 ........................2

7528003 ......................12

7528011 ......................12

7528037 ......................12

7528045 ......................12

7528060 ......................12

7528102 ......................12

7528110 ......................12

7528136 ......................12

7528144 ......................12

7528169 ......................12

7528185 ......................12

7528193 ......................12

7528201 ......................12

7528219 ......................12

7528250 ......................17

7528268 ......................17

7528276 ......................17

7528284 ......................17

7528292 ......................17

7528300 ......................17

7528318 ......................17

7528326 ......................17

7528755 ......................12

7528763 ......................12

7528789 ......................12

CATALOG

NUMBER PAGE

CATALOG

NUMBER PAGE

CATALOG

NUMBER PAGE

CATALOG

NUMBER PAGE

CATALOG

NUMBER PAGE

General Cable

4 Tesseneer Drive

Highland Heights,

Kentucky 41076-9753

U.S.A.

info@generalcable.com

Form No. OVD-0001-R0912

42271

Telephone (800) 424-5666

Fax (859) 547-8249

International Telephone +1 859 572 8000

International Fax +1 859 572 8058

www.generalcable.com

COMMODORE®

CATALOG

MOR® POLYRAD®

CATALOG

MV-RIG®

CATALOG

CCW®

CATALOG

X-TRACT® ESP

CATALOG

GEPCO®

CATALOG

Other General Cable Products Offered

SHEERWIRE™

CATALOG

Use your smartphone to view

Interactive Catalog online
