TSQ 8000 Evo

Mass Spectrometer

Preinstallation Requirements Guide

1R120586-0001 Revision C December 2015

© 2015 Thermo Fisher Scientific Inc. All rights reserved.

TSQ, ISQ, TRACE, TriPlus, and TraceFinder are trademarks, and Xcalibur is a registered trademark of

Thermo Fisher Scientific in the United States.

The following are registered trademarks in the United States and other countries: Microsoft, Windows, Office,

Skydrive, and Excel are registered trademarks of Microsoft. Swagelok® is a registered trademark of Swagelok

Company.

All other trademarks are the property of Thermo Fisher Scientific and its subsidiaries.

Thermo Fisher Scientific Inc. provides this document to its customers with a product purchase to use in the

product operation. This document is copyright protected and any reproduction of the whole or any part of this

document is strictly prohibited, except with the written authorization of Thermo Fisher Scientific Inc.

The contents of this document are subject to change without notice. All technical information in this

document is for reference purposes only. System configurations and specifications in this document supersede

all previous information received by the purchaser.

Thermo Fisher Scientific Inc. makes no representations that this document is complete, accurate or error-

free and assumes no responsibility and will not be liable for any errors, omissions, damage or loss that might

result from any use of this document, even if the information in the document is followed properly.

This document is not part of any sales contract between Thermo Fisher Scientific Inc. and a purchaser. This

document shall in no way govern or modify any Terms and Conditions of Sale, which Terms and Conditions of

Sale shall govern all conflicting information between the two documents.

Release history: Revision A, July 2014; Revision B, March 2015; Revision C, December 2015.

For Research Use Only. Not for use in diagnostic procedures.

IMPORTANT PREINSTALLATION INFORMATION... PLEASE READ

TSQ 8000 Evo Installation Request Form

Dear Customer:

Read the TSQ 8000 Evo Preinstallation Requirements Guide, and then print and complete the following installation request form.

After all items on the form are fulfilled, sign and date the form. Then, scan and email, mail, or fax this form to your local

Thermo Fisher Scientific sales/service office. The address and fax number for your local office are located on the following pages.

Print your name, company name, and company address clearly below:

Name ________________________________________________________

Company _____________________________________________________ Telephone____________________

Address ___________________________________________________________________________________

City ___________________________________ State ____________ Country ___________________

Signature ________________________________________________ Date _____________________

Principal Operator Level of Experience

GC, Injector and Column Knowledge:  Experienced  Moderate  Limited

Mass Spectrometer Theory Knowledge:  Experienced  Moderate  Limited

TraceFi nde r Data System Knowledge:  Experienced  Moderate  Limited

Additional Information

Have any special acceptance specifications been agreed to in the contract? Yes  No 

If YES, attach full details of specifications.

Is there any additional equipment that needs to be interfaced to the system? Yes  No

If YES, attach full details of additional equipment.

Note We reserve the right to invoice you for the Field Service Engineer’s time if the installation requirements are

not met on the date of the installation. To avoid any additional cost, please ensure your site is properly prepared.

1. All laboratory remodeling has been completed.

2. Your TSQ 8000 Evo system is on site.

3. The principal operator is scheduled to be available

during the installation / certification period.

4. Doorways, hallways, and so on are a minimum width of

81 cm (32 in.).

5. Available floor area is sufficient and flooring will

support the load.

6. Sufficient bench space is available for all of the

equipment. List the following:

Width: ________________________________

Depth: ________________________________

Height: ________________________________

7. Workbench can support the load of the system and is

free from vibration.

8. Lighting is adequate.

9. Work area is free of magnetic disruption and

electrostatic discharge.

10. Main power is installed and is in compliance with local

electrical codes.

11. Power for test and cleaning equipment is installed.

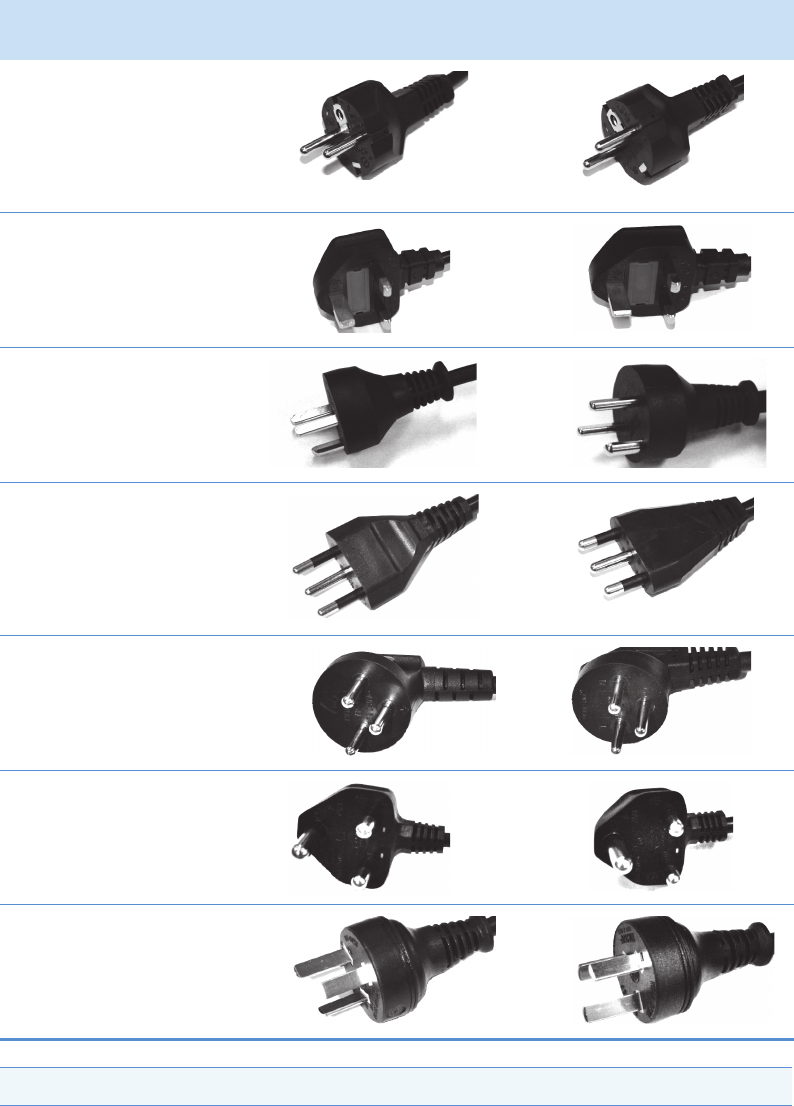

12. Match power cables specified on the sales order. Refer

to the power requirements for more information.

13. Voltage of power outlet has been measured. Note

measured voltage: ________________________

14. Air conditioning is adequate for temperature, humidity,

and particulate matter control. The laboratory can be

maintained at a constant temperature, between 15 and

35 °C (59 and 95 °F).

15. Relative humidity is between 5% and 95% with no

condensation.

16. All gases required are on site, gas lines are installed, and

gas regulators that terminate in 1/8” fittings are

available.

List gases and purity:______________________

17. All relevant safety regulations have been followed.

18. I have read and agree to the End User License

Agreements for any software purchased with my system:

Signature:

North America

United States

1400 North Point Pkwy #10

West Palm Beach, FL 33407

E-mail:

us.customer-support.analyze@thermofisher.com

Phone.........................[1] 800 532 4752

Fax .............................[1] 877 373 4006

Canada

2845 Argentia Road, Unit 4

Mississauga, Ontario, L5N 8G6

E-mail:

us.customer-support.analyze@thermofisher.com

Phone.........................[1] 800 530 8447

Fax .............................[1] (905) 890 9161

Europe

Austria

Wehlistrasse 27b

A-1200 Wien

E-mail: service.sid.austria@thermofisher.com

Phone.........................[43] (0) 1 333 50 34-0

Fax .............................[43] (0) 1 333 50 34-26

Belgium

Clintonpark “Keppekouter”

Ninovesteenweg 198

B-9320 ERMEBODEGEM - AALST

E-mail: service.sid.benelux@thermofisher.com

Phone.........................[32] (0) 2 482 3030

Fax .............................[32] (0) 2 482 3031

Denmark

Fruebjergvej 3

2100 København Ø

E-mail: service.sid.dk@thermofisher.com

Phone.........................[45] (70) 236267

Fax .............................[45] (70) 236263

Finland—see “Sweden, Norway, and Finland”

France

(Also representing French-speaking North Africa,

Algeria, Morocco, and Tunisia)

16 Avenue du Québec

Silic 765

Z.A. de Courtaboeuf

F-91963 Les Ulis Cédex

E-mail: service.sid.lesulis@thermofisher.com

Phone.........................[33] (0) 1 60 92 49 50

Fax .............................[33] (0) 1 60 92 48 99

Germany

Im Steingrund 4-6

D-63303 Dreieich

E-mail: service.dreieich@thermofisher.com

Phone.........................[49] (0) 6103 408 1050

Fax .............................[49] (0) 6103 408 1213

Italy

Strada Rivoltana

I-20090 Rodano (Milano)

E-mail: assistenza.tecnica.it@thermofisher.com

Phone.........................Numero Verde (800) 823 162

Fax .............................[39] (02) 95320 225

Netherlands

Takkebijsters 1

NL-4817 BL Breda

E-mail: service.sid.benelux@thermofisher.com

Phone.........................[31] (0) 76 579 55 55

Fax .............................[31] (0) 76 581 09 61

Norway—see “Sweden, Norway, and Finland”

Spain

C/Valportillo I, no22 1a Planta

Edificio Caoba

ES-28108 Alcobendas - Madrid

E-mail: service.sid.spain@thermofisher.com

Phone.........................[34] (914) 845 965

Fax .............................[34](914) 843 598

Offices for Thermo Scientific CMD Products

For up-to-date contact information, visit www.thermoscientific.com.

Notes: The country code is enclosed in square brackets.

The city code or area code is enclosed in parenthesis ( ). For countries other than the U.S., when you are dialing from within the specified country, dial the 0 of the

city code. For countries other than Italy, when you are dialing from outside the country, do not dial the 0 of the city code.

Europe—continued

Sweden, Norway, and Finland

Pyramidbacken 3

S-141 75 Kungens Kurva (Stockholm)

Sweden

E-mail: service.sid.nordic@thermofisher.com

Phone.........................[46] (0) 8 556 468 20

Fax .............................[46] (0) 8 556 468 08

Switzerland

Neuhofstrasse 11

4153 Reinach

E-mail: service.sid.ch@thermofisher.com

Phone.........................[41] (617) 16 77 40

Fax .............................[41] (617) 16 77 20

United Kingdom

Stafford House

1 Boundary Park

Boundary Way

Hemel Hempstead

Hertfordshire HP2 7GE

E-mail: service.sid.hemel@thermofisher.com

Phone ........................[44] (0) 870 241 1034

Fax .............................[44] (0) 1442 233 667

Australasia and Asia

Australia

P.O. Box 9092

5 Caribbean Drive

Scoresby, VIC 3179

E-mail: analyze.au@thermofisher.com

Phone.........................[61] 39757 4300

Fax .............................[61] 9763 1169

Japan

C-2F

3-9 Moriya-cho, Kanagawa-ku

Yokohama 221-0022

E-mail: analyze.jp@thermofisher.com

Phone.........................[81] (45) 453 9100

Fax .............................[81] (45) 453 9110

P.R. China

7th Floor, 7F Tower West, Younghe Plaza

No. 28, Andingmen East Street

Dong Cheng District

Beijing 100007

E-mail: analyze.cn@thermofisher.com

Phone (free lines).......800 810 5118

...................................400 650 5118

Fax ............................[86] (010) 8419 3589

Building 6

No.27 Xin Jinqiao Road

Pudong District

Shanghai 201206

Phone.........................[86] (21) 6865 4588

Fax ............................[86] (21) 6445 7830

Offices for Thermo Scientific CMD Products—Continued

Thermo Scientific TSQ 8000 Evo Preinstallation Requirements Guide vii

C

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xiii

About Your System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xiii

Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xiv

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv

Safety and Special Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv

Special Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv

Safety Symbols and Signal Words . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xvi

Hydrogen Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvii

Using Hydrogen with TSQ 8000 Evo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xix

Hydrogen Connection Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xix

Purchasing Hydrogen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xxi

Properly Storing Hydrogen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xxi

Hydrogen Safety Codes, Standards and References . . . . . . . . . . . . . . . . . . .xxiii

Hazardous Substances Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxiv

Biological Hazard Warning Note. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxiv

Venting Toxic Gases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxv

Contacting Us . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxv

Chapter 1 Site Preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Entrance Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Workbench and Space Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Lighting Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Environmental Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Gas Equipment Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

GC Carrier Gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

CI Gas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Collision Gas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Other Gas Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Using Hydrogen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Receiving Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

What Happens Next? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Appendix A End User License Agreements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Contents

Contents

viii TSQ 8000 Evo Preinstallation Requirements Guide Thermo Scientific

End-User License Agreement–Apache OpenOffice 4.0.1 and TraceFinder

4.0. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

End-User License Agreement–Microsoft Office Professional Plus 2013 and

TraceFinder 4.0. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Declaration

Manufacturer: Thermo Fisher Scientific

Thermo Fisher Scientific is the manufacturer of the instrument described in this manual and, as such, is responsible for

the instrument safety, reliability and performance only if:

• installation,

•recalibration, and

•changes and repairs

have been carried out by authorized personnel and if:

• the local installation complies with local law regulations,

• the instrument is used according to the instructions provided, and

• if its operation is only entrusted to qualified trained personnel.

Thermo Fisher Scientific is not liable for any damages derived from the non-compliance with the aforementioned

recommendations.

Regulatory Compliance

Thermo Fisher Scientific performs complete testing and evaluation of its products to ensure full compliance with

applicable domestic and international regulations. When the system is delivered to you, it meets all pertinent

electromagnetic compatibility (EMC) and safety standards as described in the next section or sections by product name.

Changes that you make to your system may void compliance with one or more of these EMC and safety standards.

Changes to your system include replacing a part or adding components, options, or peripherals not specifically

authorized and qualified by Thermo Fisher Scientific. To ensure continued compliance with EMC and safety standards,

replacement parts and additional components, options, and peripherals must be ordered from Thermo Fisher Scientific

or one of its authorized representatives.

EMC and Safety Standards

• ITQ, and Ion Trap Series standards: EMC: EN 61326-1:2006. Safety: IEC 61010-1:2001, IEC 61010-2-081:2001

• Direct Probe Controller (DPC) standards: EMC: EN 61326-1:2013. Safety: IEC 61010-1:2001,

IEC 61010-2-081:2001

• ISQ Series standards: EMC: EN 61326-1:2013. Safety: IEC 61010-1:2010 (ed. 3); IEC 61010-2-081:2015 (ed.

2); IEC 61010-2-010:2014 (ed. 3); IECEE CB SCHEME CERT NO. DE 3-30000

• TSQ 8000 Evo and TSQ Duo standards: EMC: EN 61326-1:2013. Safety: IEC 61010-1:2010 (ed. 3); IEC

61010-2-081:2015 (ed. 2); IEC 61010-2-010:2014 (ed. 3); IECEE CB SCHEME CERT NO. DE 3-30034

Low Voltage Safety Compliance

This device complies with Low Voltage Directive 2011/95/EC.

FCC Compliance Statement

Notice on Lifting and Handling of

Thermo Scientific Instruments

For your safety, and in compliance with international regulations, the physical handling of this Thermo Fisher Scientific

instrument requires a team effort to lift and/or move the instrument. This instrument is too heavy and/or bulky for one

person alone to handle safely.

Notice on the Proper Use of

Thermo Scientific Instruments

In compliance with international regulations: Use of this instrument in a manner not specified by Thermo Fisher

Scientific could impair any protection provided by the instrument.

Notice on the Susceptibility

to Electromagnetic Transmissions

Your instrument is designed to work in a controlled electromagnetic environment. Do not use radio frequency

transmitters, such as mobile phones, in close proximity to the instrument.

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO

THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL

INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,

INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

CAUTION Read and understand the various precautionary notes, signs, and symbols

contained inside this manual pertaining to the safe use and operation of this product before

using the device.

For manufacturing location, see the label on the instrument.

WEEE Compliance

This product is required to comply with the European Union’s Waste Electrical & Electronic Equipment (WEEE)

Directive 2002/96/EC. It is marked with the following symbol:

Thermo Fisher Scientific has contracted with one or more recycling or disposal companies in each European Union

(EU) Member State, and these companies should dispose of or recycle this product. See www.thermoscientific.com/

rohsweee for further information on Thermo Fisher Scientific’s compliance with these Directives and the recyclers in

your country.

WEEE Konformität

Dieses Produkt muss die EU Waste Electrical & Electronic Equipment (WEEE) Richtlinie 2002/96/EC erfüllen.

Das Produkt ist durch folgendes Symbol gekennzeichnet:

Thermo Fisher Scientific hat Vereinbarungen mit Verwertungs-/Entsorgungsfirmen in allen EU-Mitgliedsstaaten

getroffen, damit dieses Produkt durch diese Firmen wiederverwertet oder entsorgt werden kann. Mehr Information

über die Einhaltung dieser Anweisungen durch Thermo Fisher Scientific, über die Verwerter, und weitere Hinweise,

die nützlich sind, um die Produkte zu identifizieren, die unter diese RoHS Anweisung fallen, finden sie unter

www.thermoscientific.com/rohsweee.

Conformité DEEE

Ce produit doit être conforme à la directive européenne (2002/96/EC) des Déchets d'Equipements Electriques et

Electroniques (DEEE). Il est marqué par le symbole suivant:

Thermo Fisher Scientific s'est associé avec une ou plusieurs compagnies de recyclage dans chaque état membre de

l’union européenne et ce produit devrait être collecté ou recyclé par celles-ci. Davantage d'informations sur la

conformité de Thermo Fisher Scientific à ces directives, les recycleurs dans votre pays et les informations sur les

produits Thermo Fisher Scientific qui peuvent aider la détection des substances sujettes à la directive RoHS sont

disponibles sur www.thermoscientific.com/rohsweee.

Thermo Scientific TSQ 8000 Evo Preinstallation Requirements Guide xiii

P

Preface

This guide contains detailed information for preparing your site for installing a Thermo

Scientific™ TSQ 8000™ Evo triple-quadrupole mass spectrometer.

About Your System

Thermo Scientific systems provide the highest caliber gas chromatography/mass spectrometry

(GC/MS) instrumentation available on today’s market.

GC/MS represents a combination of two powerful analytical techniques: GC, which acts as a

separation technique, and MS, which acts as a detection technique. Complex mixtures of

individual compounds can be injected into the GC, either manually or by an autosampler and

then separated for presentation to the MS. The MS will generate a mass spectrum of the GC

eluate and its components. The mass spectrum can then be used for qualitative identification

as well as accurate and precise quantification of the individual compounds present in the

sample.

A triple-quadrupole GC/MS/MS system provides the extra selectivity required for trace

analysis of compounds in complex matrices.

Contents

•About Your System

•Related Documentation

•System Requirements

•Safety and Special Notices

•Hydrogen Safety Precautions

•Hazardous Substances Precautions

•Contacting Us

Preface

Related Documentation

xiv TSQ 8000 Evo Preinstallation Requirements Guide Thermo Scientific

Related Documentation

The TSQ 8000 Evo system includes Help and these manuals as PDF files:

•TSQ 8000 Evo Preinstallation Guide, PN 1R120586-0001

•TSQ 8000 Evo User Guide, PN 1R120586-0002

•TSQ 8000 Evo Hardware Manual, PN 1R120586-0003

•TSQ 8000 Evo Spare Parts Guide, PN 1R120586-0004

•TSQ 8000 AutoSRM User Guide, PN 1R120586-0005

•Q Exactive GC, ISQ LT, and TSQ 8000 Evo Direct Probe System User Guide, PN

1R120505-0006

To view product manuals

Go to the desktop and then Manuals > TSQ 8000 Evo.

To open Help

• From the TSQ 8000 Evo window, choose Help > TSQ 8000 Evo Help.

• If available for a specific window or dialog box, click Help or press the F1 key for

information about setting parameters.

For more information, visit www.thermoscientific.com.

WARNING Thermo Scientific systems operate safely and reliably under carefully

controlled environmental conditions. If the equipment is used in a manner not specified

by the manufacturer, the protections provided by the equipment might be impaired. If you

maintain a system outside the specifications listed in this guide, failures of many types,

including personal injury or death, might occur. The repair of instrument failures caused

by operation in a manner not specified by the manufacturer is specifically excluded from

the standard warranty and service contract coverage.

Preface

System Requirements

Thermo Scientific TSQ 8000 Evo Preinstallation Requirements Guide xv

System Requirements

Your TSQ 8000 Evo data system must meet these minimum requirements.

Safety and Special Notices

Make sure you follow the precautionary statements presented in this guide. The safety and

other special notices appear in boxes.

Special Notices

Special notices include the following:

System Requirements

Hardware • 4.6 GHz processor with 16GB RAM

•DVD/CD-ROM drive

• Quad Core Processor

• Video card and monitor capable of 1680 × 1050 resolution

• 1000 GB hard drive

•NTFS format

Software • Microsoft™ Windows™ 7 SP1 Operating System (64-bit)

• Thermo Scientific™ Xcalibur™ and Foundation1

• Thermo Scientific™ TraceFinder™2

1Check release notes for compatibility with TSQ Series instrument control software.

2Check release notes for compatibility with Thermo Foundation, Xcalibur, and TSQ 8000 Evo instrument

control software.

IMPORTANT Highlights information necessary to prevent damage to software, loss of

data, or invalid test results; or might contain information that is critical for optimal

performance of the system.

Note Highlights information of general interest.

Tip Highlights helpful information that can make a task easier.

Preface

Safety and Special Notices

xvi TSQ 8000 Evo Preinstallation Requirements Guide Thermo Scientific

Safety Symbols and Signal Words

All safety symbols are followed by WARNING or CAUTION, which indicates the degree of risk

for personal injury, instrument damage, or both. Cautions and warnings are following by a

descriptor. A WARNING is intended to prevent improper actions that could cause personal

injury. A CAUTION is intended to prevent improper actions that might cause personal injury

or instrument damage. You can find the following safety symbols on your instrument or in

this guide.

BIOHAZARD: Indicates that a biohazard will, could, or might occur.

BURN HAZARD: Alerts you to the presence of a hot surface that could or might

cause burn injuries.

ELECTRICAL SHOCK HAZARD: Indicates that an electrical shock could or

might occur.

FIRE HAZARD: Indicates a risk of fire or flammability could or might occur.

FLAMMABLE GAS HAZARD: Alerts you to gases that are compressed,

liquefied or dissolved under pressure and can ignite on contact with an

ignition source. This symbol indicates this risk could or might cause physical

injury.

GLOVES REQUIRED: Indicates that you must wear gloves when performing a

task or physical injury could or might occur.

HAND AND CHEMICAL HAZARD: Indicates that chemical damage or physical

injury could or might occur.

INSTRUMENT DAMAGE: Indicates that damage to the instrument or

component might occur. This damage might not be covered under the

standard warranty.

LIFTING HAZARD: Indicates that a physical injury could or might occur if two

or more people do not lift an object.

Preface

Hydrogen Safety Precautions

Thermo Scientific TSQ 8000 Evo Preinstallation Requirements Guide xvii

Hydrogen Safety Precautions

Hydrogen is a colorless, odorless, highly flammable gas with the molecular formula H2 and an

atomic weight of 1.00794, making it the lightest element. Hydrogen gas presents a hazard as

it is combustible over a wide range of concentrations: at ambient temperature and pressure,

this ranges from about 4% to 74.2% by volume.

Hydrogen has a flash point of - 423 °F (- 253 °C) and an auto-ignition temperature of

1,040 °F (560 °C). It has a very low ignition energy and the highest burning velocity of any

gas. If hydrogen is allowed to expand rapidly from high pressure, it can self-ignite. Hydrogen

burns with a flame that can be invisible in bright light.

Before you begin using hydrogen, you should conduct a risk assessment based on the quantity

of hydrogen to be used and the conditions of your laboratory. You should ask yourself:

“What hydrogen hazards associated with this project are most likely to occur?”

MATERIAL AND EYE HAZARD: Indicates that eye damage could or might

occur.

RADIOACTIVE HAZARD: Indicates that exposure to radioactive material could

or might occur.

READ MANUAL: Alerts you to carefully read your instrument’s

documentation to ensure your safety and the instrument’s operational ability.

Failing to carefully read the documentation could or might put you at risk for a

physical injury.

TOXIC SUBSTANCES HAZARD: Indicates that exposure to a toxic substance

could occur and that exposure could or might cause personal injury or death.

For the prevention of personal injury, this general warning symbol precedes

the WARNING safety alert word and meets the ISO 3864-2 standard . In the

vocabulary of ANSI Z535 signs, this symbol indicates a possible personal

injury hazard exists if the instrument is improperly used or if unsafe actions

occur. This symbol and another appropriate safety symbol alerts you to an

imminent or potential hazard that could cause personal injury.

WARNING FIRE HAZARD: The use of hydrogen as a carrier gas is dangerous. Hydrogen is

potentially explosive and must be used with extreme care. Any use of hydrogen gas must

be reviewed by appropriate health and safety staff and all installations of hydrogen systems

must be performed to applicable codes and standards. Thermo Fisher Scientific assumes

no liability for the improper use of hydrogen as a carrier gas.

Preface

Hydrogen Safety Precautions

xviii TSQ 8000 Evo Preinstallation Requirements Guide Thermo Scientific

“What hydrogen hazards associated with this project have the potential to result in the

worst consequences?”

• Try to reduce or eliminate the higher risks by using the proper ventilation to remove

hydrogen gas before an ignitable concentration can accumulate. You should also consider

purging the hydrogen to further reduce hazards and ensure anyone who will be working

with hydrogen has basic hydrogen safety training.

• As with laboratory safety in general, be sure to wear safety glasses, laboratory coats, gloves,

etc. Typically there are no specific requirements for gaseous hydrogen, other than eye

protection when working with a compressed gas. If working with liquid (cryogenic)

hydrogen, insulated gloves and protective shoes should be worn in addition to eye

protection.

• You should post “No Smoking” and “No Open Flames” signs to identify hydrogen

sources and cylinders. Maintain, inspect and leak-test all hydrogen sources regularly.

• All hydrogen shutoff valves should be clearly marked and permanent hydrogen piping

should be labeled as such at the supply or discharge point and at regular intervals along its

length. Where hydrogen gas piping passes through a wall, the piping should be labeled on

both sides of the wall.

• There should also be contingency plans in place should an incident occur.

• The site emergency response team, as well as the local fire department, should know the

location of all hydrogen storage tanks.

Preface

Hydrogen Safety Precautions

Thermo Scientific TSQ 8000 Evo Preinstallation Requirements Guide xix

Using Hydrogen with TSQ 8000 Evo

To use hydrogen with the TSQ 8000 Evo, you must always shut off the GC carrier gas before

venting or turning off the TSQ 8000Evo. There are three hydrogen safety screws on the

TSQ 8000 Evo that must be in place. These are attached to your instrument at the factory.

Before powering on the TSQ 8000 Evo system, ensure that:

• All the covers and panels of the TSQ 8000 Evo system are firmly attached.

• The vent valve is tightly closed if you vented the system.

• All fittings, ferrules, and o-rings are sealed.

Hydrogen Connection Guidelines

Use the following guidelines to safely connect hydrogen to your system:

•Piping—Hydrogen must be delivered to equipment using appropriate piping and be

done in such a way as to pose essentially no hazard to end-users. Piping systems for the

delivery of hydrogen should be designed and installed by a person qualified by specific

training and experience with hydrogen piping systems.

Figure 1. Hydrogen Safety Screws on the TSQ 8000 Evo

Right Top Cover

Screw

Front Panel

Left Top

Cover

Preface

Hydrogen Safety Precautions

xx TSQ 8000 Evo Preinstallation Requirements Guide Thermo Scientific

Stainless steel is usually recommended because it is a safe, cost-effective material. Piping

of black iron or copper must not be used, as the pipe can become brittle with age.

Elastomeric/plastic tubing of various plastics and polymers should not be used, unless the

tubing is approved for use with hydrogen. If elastomeric/plastic tubing is used for

hydrogen gas delivery, the tubing should be tested for hydrogen permeability to minimize

leakage.

The hydrogen piping system must be flexible enough to endure routine thermal

expansion and contraction. The system should also include considerations for the most

severe condition of temperature and pressure expected during service. Piping and

supports must be able to withstand static loading introduced by such things as ice and

snow; and dynamic loading from high wind and earthquake.

Caution should be used if burying hydrogen piping. Proper controls should be used to

protect against damage and corrosion, and also to prevent Hydrogen from entering a

building if there is any leakage.

•Fittings—All fittings must be of the proper type approved or designed for use with

hydrogen gas. Use as few fittings as possible to minimize the potential for leaks. After

installation, ensure that leak testing is carried out prior to system use, and on a regular

basis.

There must be no PTFE tape or other things like plumber's putty used to enhance a seal, as

this actually is a detriment to a good seal. Ideally the best installation would use stainless

steel tubing with appropriate gas-tight fittings.

Welding is usually preferred for joints in hydrogen piping systems since welding provides

a better connection and reduces the potential for leaks compared to mechanical fittings.

Soft solder joints are not permitted for hydrogen systems (due to the low melting point of

soft solder and its potential for brittle failure at cryogenic temperatures). Brazed joints are

permitted, but such joints should be protected against the possibility of external fire.

Tubing connections should be clamped to barbed or press-fit type connections. Hose

clamps or jubilee clamps must not be used.

•Valves—All valves must be suitable for hydrogen service and for the specific operating

conditions. Valves, including regulators, must not be used for hydrogen, unless they are

designed and identified for such a use. Ball valves are often chosen because of their

superior leak tightness through the valve seat. Pneumatic operators are usually chosen for

remotely operated valves so that potential ignition sources (electricity) are remote from

the valve.

Manual shutoff valves should be provided near each point of use, within immediate reach.

If a hydrogen cylinder or hydrogen generation system is located within immediate reach,

a separate point-of-use shutoff valve is usually not necessary.

Line regulators that have their source away from the point of use should have a manual

shutoff valve near the point of use.

Preface

Hydrogen Safety Precautions

Thermo Scientific TSQ 8000 Evo Preinstallation Requirements Guide xxi

An emergency gas shutoff device in an accessible location outside the use area should be

provided in addition to the manual point-of-use valve in each educational and

instructional laboratory space that has a piped gas supply system.

If necessary, the piping system should have uninterruptible pressure relief. The pressure

relief system should be designed to provide a discharge rate sufficient to avoid further

pressure increase and should vent to a safe location outside or to a ventilation system

exhaust.

Purchasing Hydrogen

Use the following guidelines when purchasing hydrogen:

• Hydrogen Generator—Because it minimizes the amount of hydrogen present and reduces

the degree of hazard, a hydrogen generator (also called an electrolyzer) is the safest way to

purchase hydrogen in the quantity used in GC/MS.

However, to minimize the degree of hazard, the hydrogen generator must only be

operated in a non-explosive environment because hydrogen buildup can be ignitable.

This means that your ventilation system for the room or lab hood must maintain an air

exchange rate that is at least two orders of magnitude greater than the maximum

hydrogen production rate of the hydrogen generator. Be sure to follow the manufacturers'

directions about proper use and maintenance of the regulator.

To prevent the possibility of releasing hydrogen, the hydrogen generator should be set to

shut down if:

– There is a loss of flow to the ventilation system

– A hydrogen detector alarms at 25% of the lower flammable limit of hydrogen in air.

The oxygen exhausted by the electrolyzer should be vented to the outside as well.

• Hydrogen Cylinder—Hydrogen can be delivered in standard laboratory gas bottles or

cylinders. These cylinders have a limited amount of hydrogen in them and are a safe way

to transport and store hydrogen. However, compressed hydrogen gas cylinders, like all

compressed gas cylinders, must be secured in an upright position, ideally with a

non-combustible chain or cable. If the cylinder falls over, the valve can be knocked off

and the pressurized cylinder can take off like a rocket, which leads to the release of

hydrogen and possibly an explosion, severe injury, or death. Never crack a hydrogen

cylinder valve to remove dust or dirt from fittings prior to attaching a regulator, as there is

a risk of self-ignition.

Properly Storing Hydrogen

Storing and handling compressed hydrogen gas and cryogenic liquid hydrogen present

potential health and safety hazards. Using proper storage and handling techniques is essential

to maintaining a safe work environment.

Preface

Hydrogen Safety Precautions

xxii TSQ 8000 Evo Preinstallation Requirements Guide Thermo Scientific

Use the following guidelines when storing hydrogen:

• Store spare hydrogen gas cylinders outside and away from doors, windows, building air

intake vents, structures, and vehicle routes. This precaution applies when the hydrogen is

or is not in use. Indoor storage of spare hydrogen cylinders has special requirements,

which is beyond the scope of this document. Documentation for each vessel should

include a description of the vessel, a list of available drawings or other documents, the

most recent inspection results, and the responsible person's name.

• Prevent spare cylinders from toppling by wrapping them with chains. The chains should

also be protected against corrosion and excessive heat.

• Separate spare hydrogen cylinders from oxidizing gases (such as oxygen) with a 5 ft

(1.5 m) tall fire barrier with a half-hour fire rating or place the cylinders at least 20 ft

(6 m) apart.

• When moving hydrogen cylinders:

– Remove the regulator and replace the cylinder valve cap before moving.

– Move cylinders on cylinder carts or with other appropriate transport devices.

– Never roll or drop a cylinder and never lift a cylinder by its protective cap.

• Bulk hydrogen systems include either gaseous or liquid hydrogen in fixed installations; in

some gas systems a semi-permanent trailer (tube trailer) can be used. Storage vessels for

compressed hydrogen gas or liquid hydrogen should be designed, constructed, tested, and

maintained in accordance with applicable codes and standards. Bulk hydrogen systems

represent a level of complexity again which is beyond the scope of this document;

however some general guidelines are provided.

• The bulk hydrogen storage system should not be located beneath electric power lines,

close to other flammable gases/liquids, or close to public areas. It should be readily

accessible to authorized personnel and delivery equipment, but protected from physical

damage or tampering.

• As liquid hydrogen systems also have a cryogenic hazard, additional safety considerations

for the use of cryogenic liquids might be necessary.

Preface

Hydrogen Safety Precautions

Thermo Scientific TSQ 8000 Evo Preinstallation Requirements Guide xxiii

Hydrogen Safety Codes, Standards and References

The following list of safety codes, standards and references is in no way an exhaustive list. In

fact, there might be federal, state or local codes that apply to your specific location. Check

with all appropriate agencies with jurisdiction before installing or using a hydrogen system.

• Air Products Safetygram #4 Gaseous Hydrogen

• ANSI/AIAA standard for hydrogen safety guidelines is AIAA G-095-2004, Guide to

Safety of Hydrogen and Hydrogen Systems

• ASME B31.1, Power Piping Code

• ASME B31.3, Process Piping Code

• ASME B31.8, Gas Transmission and Distribution Systems

• BCGA Code Of Practice CP4 Industrial Gas Cylinder Manifolds and Gas Distribution

Pipework

• BCGA Code Of Practice CP33 The Bulk Storage of Gaseous Hydrogen at Users'

Premises

• CGA G-5, Hydrogen

• CGA G-5.4, Standard for Hydrogen Piping Systems at Consumer Locations

• CGA G-5.5, Hydrogen Vent Systems

• CGA G-5.6, Hydrogen Pipeline Systems

• CGA G-5.8, High Pressure Hydrogen Piping Systems at Consumer Locations.

• FM Global Property Loss Prevention Data Sheets 7-50: Compressed Gases in Cylinders

• FM Global Property Loss Prevention Data Sheets 7-91: Hydrogen

• IGC Doc 121/04/E, Hydrogen Transportation Pipelines System Design Features

• NASA

• NSS 1740.16 Safety Standard For Hydrogen And Hydrogen Systems Guidelines for

Hydrogen System Design, Materials Selection, Operations, Storage, and Transportation

• NFPA 52, Vehicular Fuel Systems Code

• NFPA 55, Standard for the Storage, Use, and Handling of Compressed Gases and

Cryogenic Fluids in Portable and Stationary Containers, Cylinders, and Tanks, 2005

Edition

• NFPA 68, Standard on Explosion Protection by Deflagration Venting

• NFPA 70, National Electrical Code

Preface

Hazardous Substances Precautions

xxiv TSQ 8000 Evo Preinstallation Requirements Guide Thermo Scientific

• NFPA 497, Recommended Practice for the Classification of Flammable Liquids, Gases,

or Vapors and of Hazardous (Classified) Locations for Electrical Installations in Chemical

Process Areas

• NFPA 13, Standard for the Installation of Sprinkler Systems

• NFPA 45, Standard on Fire Protection for Laboratories Using Chemicals

• NFPA 55, Standard for the Storage, Use, and Handling of Compressed Gases and

Cryogenic Fluids in Portable and Stationary Containers, Cylinders, and Tanks

• NFPA 68, 2007 Standard on Explosion Protection by Deflagration Venting

• NFPA 69, Standard on Explosion Prevention Systems

• NFPA 91, Standard for Exhaust Systems for Air Conveying of Vapors

• NFPA 255, Standard Method of Test of Surface Burning Characteristics of Building

Materials

• OSHA 29CFR1910.103 1910.103 Hydrogen

Hazardous Substances Precautions

Biological Hazard Warning Note

In laboratories where samples with potential biological hazards are handled, the user must

label any equipment or parts which might become contaminated with biohazardous material.

The appropriate warning labels are included with the shipment of the instrument. It is the

user’s responsibility to label the relevant parts of the equipment.

When working with biohazardous materials, you are responsible for fulfilling the following

mandatory requirements:

• Providing instructions on how to safely handle biohazardous material.

• Training operators to be aware of potential hazards.

WARNING Before using hazardous substances (toxic, harmful, and so on), please read the

hazard indications and information reported in the applicable Material Safety Data Sheet

(MSDS). Use personal protective equipment according to the safety requirements.

Preface

Contacting Us

Thermo Scientific TSQ 8000 Evo Preinstallation Requirements Guide xxv

• Providing personal protective equipment.

• Providing instructions for what to do if operators are exposed to aerosols or vapors

during normal operation (within the intended use of the equipment) or in case of

single fault situations such as a broken vial. The protective measures must consider

potential contact with the skin, mouth, nose (respiratory organs), and eyes.

• Providing instructions for decontamination and safe disposal of relevant parts.

Venting Toxic Gases

When analyzing toxic compounds, be aware that during the normal operation of the GC

some of the sample might be vented outside the instrument through the split and purge flow

vents; therefore, be sure to vent the exhaust gases to a fume hood. Consult local

environmental and safety regulations for instructions in exhausting fumes from your system.

Contacting Us

There are several ways to contact Thermo Fisher Scientific for the information you need.

To find out more about our products

Go to www.thermo.com/ms for information about our products.

To get local contact information for sales or service

Go to www.thermoscientific.com/wps/portal/ts/contactus.

To suggest changes to documentation or to Help

• Fill out a reader survey online at www.surveymonkey.com/s/PQM6P62.

• Send an e-mail message to the Technical Publications Editor at

techpubs-austin@thermofisher.com.

WARNING The user or operator is responsible for the safe handling of hazardous

chemicals or biological compounds including (but not limited to) bacterial or viral

samples and the associated waste, according to international and local regulations.

Thermo Scientific TSQ 8000 Evo Preinstallation Requirements Guide 1

Site Preparation

This chapter describes how to prepare your site before the Thermo Scientific Field Service

Engineer arrives to install the TSQ 8000 Evo mass spectrometer.

Contents

•Entrance Requirements

•Workbench and Space Requirements

•Lighting Requirements

•Power Requirements

•Environmental Requirements

•Gas Equipment Requirements

•Receiving Requirements

•What Happens Next?

1 Site Preparation

Entrance Requirements

2TSQ 8000 Evo Preinstallation Requirements Guide Thermo Scientific

Entrance Requirements

Use the following guidelines to ensure the entrance to your site will allow for the delivery of

your TSQ 8000 Evo system:

1. Ensure the width of your delivery door opening is at least 81 cm (32 in.).

2. Make sure you have enough room to move boxes around corners, into elevators, or

through doorways. The table below contains the dimensions and weight of shipping

boxes, so that you can make accommodations.

Table 1. Shipping Box Dimensions and Weight

Box Contents Length Width Height Weight

cm in. cm in. cm in. kg lbs.

TSQ 8000 Evo MS*107 43 71 28 112 45 138 304

TRACE 1300 or TRACE 1310 GC 60 24 80 31 80 31 64 140

AI/AS 1310 autosampler 3614512036141022

TriPlus RSH (with standard X-axis) 65 26 100 39 32 13 45-55 99-121

TriPlus RSH (with extended X-axis) 65 26 136 54 32 13 60 132

TriPlus 100 Liquid Sampler 65 26 100 39 32 13 45-55 99-121

TriPlus 300 Headspace Autosampler

(Box 1 of 2)

77 30 72 28 84 33 70 154

TriPlus 300 Headspace Autosampler

(Box 2 of 2)

79 31 64 25 100 39 25 55

* The computer, keyboard, monitor, foreline pump, and TSQ 8000 Evo Installation Kit are included in the box with the TSQ 8000 Evo.

1 Site Preparation

Workbench and Space Requirements

Thermo Scientific TSQ 8000 Evo Preinstallation Requirements Guide 3

Workbench and Space Requirements

Use the following guidelines to ensure you have enough space to set up the TSQ 8000 Evo

system. See Figure 3 and Figure 4 for system orientation.

1. Ensure you have adequate workbench space for the system. Refer to the table below for

exact measurements of each component. Use the information in the table below to

configure the workbench. Be sure to leave 46 cm (18 in.) of extra space to the left of the

TSQ 8000 Evo system for performing maintenance. You will also need space near the

instrument for the monitor and keyboard.

Table 2. Workbench and Space Requirements

Instrument Depth Width Height Weight

cm in. cm in. cm in. kg lbs

TSQ 8000 Evo MS 89 35 40 16 45 18 61 135

Foreline Pump146 18 20 8 25 10 24 52

Computer2 48 19 20 8 43 17 12 27

Monitor2 16 7 46 18 32 13 4 8

Keyboard2 23 9 46 18 5 2 1 2

TRACE 1300 GC 60 24 44 17 45 18 353773

TRACE 1310 GC 67 26 44 17 45 18 353773

AI 1310 Auto Injector428 11 23 9 40 19 6 13

AS 1310 Autosampler428 11 41 16 40 19 6 13

TriPlus RSH standard X axis autosampler 80 32 99 39 74 29 25 55

TriPlus RSH extended X-axis autosampler 80 32 135 53 74 29 27 60

TriPlus 300 Headspace autosampler 55 22 82 32 73 29 63 139

TriPlus 100 Liquid Sampler 50520585 34 54 21 156346

Direct Probe Controller758 23 33 13 12 5 6 13

1 This item is placed on the floor under the system.

2 Dimensions vary per manufacturer.

3Add 0.8 kg (1.8 lbs) for each injector/detector module.

4Mounts on top of the TRACE 1300/TRACE 1310.

5About 20 cm (8 in.) of the orthogonal crossrail (Y-axis) protrudes from the rear of the GC.

6Weight without accessories.

7Mounts on top of the TSQ 8000 Evo.

1 Site Preparation

Workbench and Space Requirements

4TSQ 8000 Evo Preinstallation Requirements Guide Thermo Scientific

2. Be sure the TRACE 1300/TRACE 1310 instrument’s feet fit securely on the workbench.

See Figure 1 for the dimensions of the feet on the bottom of the instrument.

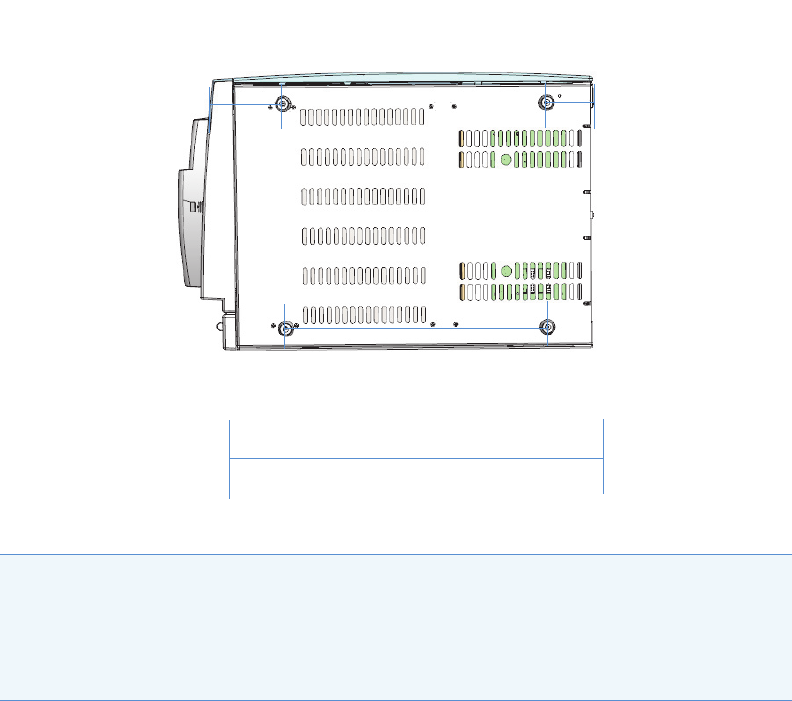

Figure 1. Dimensions of the Feet on the Bottom of the TRACE 1310/TRACE 1310 Instrument

Tip Thermo Fisher Scientific requires that all four of the instrument's feet be positioned

on a bench. Overhang of the front, the back, or both ends of the instrument off the bench

front or back is acceptable. If the depth of your bench is less than the distance between the

factory-installed feet, please contact the factory (usaus.gcms.licensing@thermofisher.com)

for your other options of positioning the instrument on such a narrow bench.

21.3in. (54 cm) from Back to Front of

Instrument with Door Closed

15.5 in. (40 cm) Between Feet

4.9 in. (12.5 cm) from

Front Foot to Front of

Instrument with Door

Closed

2.6 in. (6.5 cm) from

Back Foot to Back of

Instrument

1 Site Preparation

Workbench and Space Requirements

Thermo Scientific TSQ 8000 Evo Preinstallation Requirements Guide 5

3. Be sure the TSQ 8000 Evo instrument’s feet fit securely on the workbench. See Figure 2

for the dimensions of the feet on the bottom of the instrument.

4. Supply a 1-in. i.d. hose to the building exhaust air system, an oil mist filter, or other

scrubbing device. The pump exhaust contains carrier gas, solvents, analytes, and a small

amount of oil vapor. These materials may be flammable, poisonous, or corrosive. Do not

allow the exhaust from the foreline pump, which includes your analytes, to accumulate to

unsafe levels in your laboratory. Consult your local Environmental and Safety Regulations

for information about how to properly exhaust fumes from your laboratory.

5. Make sure you have at least 91 cm (3 ft.) of clearance above the system. This space allows

room for optional accessories (such as autosamplers) and proper heat dissipation.

6. Make sure your workbench can support a standard TSQ 8000 Evo system. Keep in mind,

additional instruments add to the total weight.

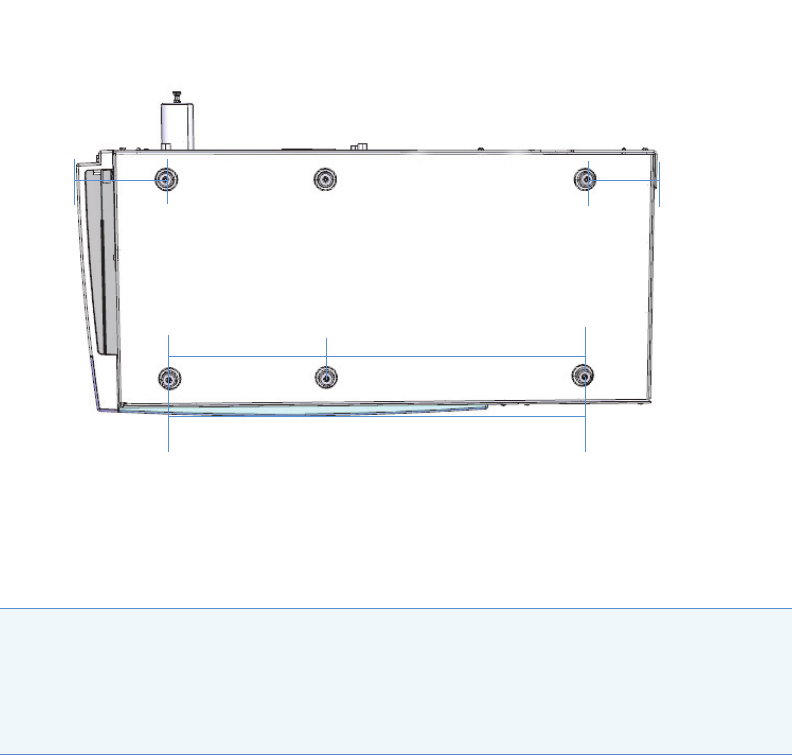

Figure 2. Dimensions of the Feet on the Bottom of the TSQ 8000 Evo Instrument

Tip Thermo Fisher Scientific requires that all six of the instrument's feet be positioned on

a bench. Overhang of the front, the back, or both ends of the instrument off the bench

front or back is acceptable. If the depth of your bench is less than the distance between the

factory-installed feet, please contact the factory (usaus.gcms.licensing@thermofisher.com)

for your other options of positioning the instrument on such a narrow bench.

24 in. (61 cm) Between

Front and Back Feet

10 in. (25 cm)

from Front to

Middle Foot

4.5 in. (12 cm) from

Front Foot to Front of

Instrument with

Door Closed

4 in. (10 cm) from

Back Foot to Back of

Instrument

14 in. (36 cm)

from Middle to

Back Foot

1 Site Preparation

Lighting Requirements

6TSQ 8000 Evo Preinstallation Requirements Guide Thermo Scientific

7. Ensure that your work area is stable and free of vibration from nearby equipment. The

TSQ 8000 Evo system is a sensitive instrument. For this reason, the foreline pump must

be placed on the floor below the system.

Figure 3. TSQ 8000 Evo MS and TRACE1300/TRACE 1310 GC bench setup

Figure 4. TSQ 8000 Evo and TRACE 1300/TRACE 1310 system dimensions

Lighting Requirements

Use the following guidelines to ensure your site has the proper lighting:

1. Ensure that the work area is properly lit. You may need an overhead lamp to light your

work area.

TRACE 1310

GC

TSQ 8000 Evo

MS

Foreline Pump

89 cm

(39 in.)

87 cm

(34 in.)

1 Site Preparation

Power Requirements

Thermo Scientific TSQ 8000 Evo Preinstallation Requirements Guide 7

2. You may need a small, high-intensity lamp when you clean the TSQ 8000 Evo or work

inside the GC column oven.

Power Requirements

Use the following guidelines to ensure your site is equipped with enough power to support the

system. All circuits should be 50/60 Hz ± 2 Hz, single-phase with < 6% total harmonic

distortion.

• Circuit 1: TSQ 8000 Evo MS plus the foreline pump and optional mech pump.

100-240 Vac, 15 AMAX. The foreline pump and mech pump must be set to the line

voltage used at your location.

• Circuit 2: GC. 120 Vac +6/-10%, 16 AMAX or 230 Vac ±10%, 10 AMAX. Refer to

your customer sales order to determine if the GC is 120 Vac or 230 Vac. The GC

cannot be reconfigured in the field.

• Additional Circuits: Additional circuits are needed for the computer or other

equipment. 120 Vac +6/-10% or 230 Vac ±10%.

Note Due to the power draw of the TSQ 8000 Evo MS and GC, each instrument must

be on its own dedicated circuit. These two circuits must be separate from the circuits used

for the computer and other equipment such as the autosampler.

Table 3. System Power Requirements (Sheet 1 of 2)

Equipment Circuits

Max Current

(A) at 120 Vac

(+ 6/- 10%)

Max Current

(A) at 230 Vac

(± 10%)

Maximum Power (W)

TSQ 8000 Evo MS11 5.9 3.1 710

Foreline pump2N/A 4.6 2.7 550

Optional mech pump2,3 N/A 4.6 2.7 550

TRACE 1300 and TRACE 13101216102000

Computer4Additional

(as needed)

52.6600

Monitor4Additional

(as needed)

21240

AI/AS 1310 Sampling systems Additional

(as needed)

0.8 0.4 95

TriPlus RSH5 Sampling system Additional

(as needed)

3.2 1.7 200 with one power module

400 with two power modules

TriPlus 100 Liquid Sampler Additional

(as needed)

– – 200 with one power module

400 with two power modules

1 Site Preparation

Power Requirements

8TSQ 8000 Evo Preinstallation Requirements Guide Thermo Scientific

1. The power quality supplied to your system is very important. It must be stable and within

the minimum specifications listed in this section.

• Test the power source quality in your laboratory to offset line voltage problems.

Improving power source quality is a complex task best handled by a company or

consultant specializing in that field. Contact your regional Thermo Fisher Scientific

Customer Service office for assistance in locating a power consultant. Having a poor

quality power source degrades TSQ 8000 Evo system performance. Some examples of

poor power source quality are:

– Harmonic distortion causes noise in the power supply lines and degrades

instrument performance. Harmonic distortion is a high-frequency disturbance

that may affect operation of your TSQ 8000 Evo MS. This disturbance appears

as distortion of the fundamental sine wave. Total harmonic distortion should be

less than 6%. For more information, refer to the EMC and Safety Standards.

However, the power specifications for the TSQ 8000 Evo system are more exact

than those of the IEC.

– Slow changes are gradual, long-term changes in average root mean square (RMS)

voltage level, with typical durations greater than 2 s.

– Sags and swells are slow changes in average root mean square (RMS) voltage

level, with typical durations between 50 ms and 2 s.

– Transients, even of a few microseconds duration cause electronic devices to fail or

to degrade and significantly shorten their lives. Transients (or impulses) are brief

voltage excursions of up to several thousand volts with durations less than 50 ms.

• Voltage variations must not exceed 10% of the nominal value.

• Transient overvoltages must not exceed those specified in category II of IEC

60364-4-443.

2. Use Tabl e 3 or to determine how many circuits and wall outlets you need. Keep in mind:

TriPlus 300 Headspace Additional

(as needed)

10.8 5.7 1300

Direct Probe Controller Additional

(as needed)

21240

1This instrument must be on its own circuit.

2Foreline pump and optional mech pump plug into the TSQ 8000 Evo MS. At startup, the foreline pump and optional mech pump draw an

additional 30.8 A at 120 Vac and an additional 17 A at 230 Vac.

3If using the foreline pump and optional mech pump at the same time, the peak power may reach up to 905 W for a brief period of time.

4Power requirements vary by manufacturer.

5If the using the temperature controlled drawer option, one additional circuit is needed.

Table 3. System Power Requirements (Sheet 2 of 2)

Equipment Circuits

Max Current

(A) at 120 Vac

(+ 6/- 10%)

Max Current

(A) at 230 Vac

(± 10%)

Maximum Power (W)

1 Site Preparation

Power Requirements

Thermo Scientific TSQ 8000 Evo Preinstallation Requirements Guide 9

• Power must be single-phase.

• Wall outlets must have earth-ground hard-wired to the main panel.

• Included power cords are 2 m (6 ft) long .

Contact your local Customer Service office to discuss power cordset concerns.

3. The TSQ 8000 Evo MS comes with the required number and type of power cords for

your region. Ta ble 4 will help you identify the correct power cord for your region and

instrument. If you need to replace your power cord or buy an additional cord, you may

use any brand of power cord, as long as it is appropriate for your region.

Table 4. Power cord identification information by region. (Sheet 1 of 2)

Region C13 Power Cords (For PC, Monitors,

and Autosamplers)

C19 Power Cords (For GC

and MS)

North American 120V

North American 250V

Japanese 125V

Switzerland 250V

Australian 250V

China 250V

1 Site Preparation

Power Requirements

10 TSQ 8000 Evo Preinstallation Requirements Guide Thermo Scientific

Europe-Schuko 250V

United Kingdom 250V

Danish 250V

Italian 250V

Israeli 250V

Indian 250V

Argentina 250V

Note The 250V region power cords will work with the 230V circuits.

Table 4. Power cord identification information by region. (Sheet 2 of 2)

Region C13 Power Cords (For PC, Monitors,

and Autosamplers)

C19 Power Cords (For GC

and MS)

1 Site Preparation

Environmental Requirements

Thermo Scientific TSQ 8000 Evo Preinstallation Requirements Guide 11

Environmental Requirements

The normal operating environment for the TSQ 8000 Evo MS must have the following

characteristics:

• Indoor use only

• Altitude up to 2000 meters

• Maximum relative humidity between 5% and 95% up to 31 °C. The maximum relative

humidity decreases linearly to 67% as the temperature climbs to 35 °C.

Use the following guidelines to ensure your site has the proper environmental conditions for

the system:

1. Ensure that your room temperature is 15–35 °C (59–95 °F). The analytical performance

is only confirmed for these temperatures. For best performance, the operating

temperature should be constant. Use Tab le 5 to calculate the amount of heat your system

will generate and ensure your air-conditioning system can handle that amount of heat.

2. Ensure that the relative humidity in your laboratory is between 5 and 95% with no

condensation. A temperature and humidity monitor in your laboratory helps ensure that

the climate is within these specifications.

IMPORTANT If you are not operating the TSQ 8000 Evo MS, it is safe to leave the

instrument powered on in a room with a temperature between 5 and 40 °C.

Table 5. Heat output of system components

Instrument Heat Output (BTU

per Hr) Heat Output (W)

TSQ 8000 Evo, including foreline pump 4300 1260

TRACE 1300 and TRACE 1310 6830 2000

Computer12050 600

Monitor1820 240

Optional mech pump 1880 550

AI/AS 1310 auto-injector/autosampler 325 95

TriPlus RSH autosampler 6832 or 136632002 or 4003

TriPlus 100 Liquid Sampler 6832 or 136632002 or 4003

TriPlus 300 Headspace autosampler 4440 1300

Direct Probe Controller 820 240

1Power requirements vary by manufacturer.

2With one power module.

3With two power modules.

1 Site Preparation

Gas Equipment Requirements

12 TSQ 8000 Evo Preinstallation Requirements Guide Thermo Scientific

3. Ensure that the air in your site is free of excess particulate matter.

For reference, the air should contain fewer than 100,000 particles (larger than 5 μm) per

cubic meter. If the concentration is larger than this amount, dust can accumulate on

electronic components. This accumulation reduces their ability to cool off properly and

could cause them to overheat. If your environment is particularly dusty, we recommend

that you purchase the optional dust filter for your system.

4. Ensure that your site is free of electrostatic discharge (ESD), which may damage the

electronic components of your system. Ensure your static has been discharged before

touching internal components of the instrument. ESD can damage sensitive components,

resulting in premature failures.

Gas Equipment Requirements

Use the following guidelines to ensure you have the proper gas supplies ready in advance of

installation:

GC Carrier Gas

• You will need a supply of ultra-high purity GC carrier gas. Typical cylinders are about

23 cm (9 in.) wide by 140 cm (55 in.) tall and output >15,000 kPa (>2200 psig). A single

full-size tank will last about three months with a typical usage rate of 50 mL/min. If you

have additional detectors or optional accessories, please refer to your GC or autosampler

manuals for information about gas requirements.

Note Thermo Fisher Scientific installation specifications require helium as a carrier gas

and argon as a collision gas. You must have one tank of each gas at installation, or the field

service engineer will not be able to run specifications on your TSQ 8000 Evo MS.

Table 6. Carrier Gas Specifications

Gas Type Purity1 Outlet Pressure Regulator Connector2

Helium 99.999% 400-700 kPa

(58-100 psig)

Dual-stage brass

regulator with stainless

steel diaphragm

CGA-580

Hydrogen 99.999% 400-700 kPa

(58-100 psig)

Dual-stage brass

regulator with stainless

steel diaphragm

CGA-350

1 Ultra-high purity with less than 1.0 ppm each of water, oxygen, and total hydrocarbons and contained in one tank.

2 Connectors will vary with cylinder size. Confirm that your regulator will work with your gas tank. All connections

to the GC/MS are 1/8 in. Swagelok fittings.

1 Site Preparation

Gas Equipment Requirements

Thermo Scientific TSQ 8000 Evo Preinstallation Requirements Guide 13

• Oxygen and moisture cannot be prevented from entering the system during cylinder

changes. To minimize the impact of these contaminants on the GC system, high purity

gas handling equipment should be used. To further protect the system from oxygen and

moisture, point-of-use purifiers should be installed in the carrier gas lines just prior to the

GC to remove any residual contaminants.

CI Gas

• If your TSQ 8000 Evo system is equipped with the Chemical Ionization (CI) Reagent

Gas Flow module, make sure you have the proper gas for it. Typical flow rates are only

1-3 mL/min, so smaller tanks like lecture bottles can be used.

WARNING FIRE HAZARD: When using hydrogen, be aware that it can flow into the oven

and create a fire hazard. Turn off the supply until the GC column is in the inlet of the

TSQ 8000 Evo MS. Whenever you use hydrogen, it is critical to test all connections, lines,

and valves for leaks before using the instrument. When performing maintenance, be sure

to turn off the hydrogen supply.

Note Thermo Fisher Scientific installation specifications require methane as a CI gas. You

must have one tank of methane at installation, or the field service engineer will not be able

to run specifications on your TSQ 8000 Evo MS.

Table 7. CI Gas Specifications

Gas Type Purity Outlet Pressure Regulator Connector*

Methane 99.99%

high-purity

35-240 kPa

(5-35 psig)

Dual-stage brass

regulator with

stainless steel

diaphragm

CGA-350

Isobutane 99.9%

instrument

grade

35-240 kPa

(5-35 psig),

Dual-stage brass

regulator with

stainless steel

diaphragm

CGA-510

Ammonia 99.99%,

anhydrous

grade

35-240 kPa,

(5-35 psig)

Consult your gas

supplier for

specific regulator

requirements.

CGA-240

* Connectors will vary with cylinder size. Confirm that your regulator will work with your gas tank. All connections

to the GC/MS are 1/8 in. Swagelok fittings.

1 Site Preparation

Gas Equipment Requirements

14 TSQ 8000 Evo Preinstallation Requirements Guide Thermo Scientific

Collision Gas

• You may use argon or nitrogen as collision gases for the TSQ 8000 Evo MS. Typical

cylinders are about 23 cm (9 in.) in diameter by 140 cm (55 in.) tall and output >15,000

kPa (>2200 psig). A cylinder should last about three years at a constant purge flow rate of

5.0 atm-mL/min. Tab le 8 provides the various collision gas specifications.

WARNING FIRE HAZARD: Some CI gases, such as methane and isobutane, are flammable.

Make sure these gases are properly exhausted and all gas fittings on the system are

leak-free. Consult your local Environmental and Safety Regulations for information about

how to properly exhaust fumes from your laboratory.

WARNING TOXIC SUBSTANCES HAZARD: Some CI gases, such as ammonia, are toxic.

Make sure these gases are properly exhausted and all gas fittings on the system are

leak-free. Consult your local Environmental and Safety Regulations for information about

how to properly exhaust fumes from your laboratory.

CAUTION INSTRUMENT DAMAGE: Do not exceed 240 kPa (35 psig) or you could

damage the CI reagent gas flow module.

Table 8. Collision Gas Specifications

Gas Type Purity Input Pressure Regulator Connector*

Argon 99.999% 407-421 kPa

(59-61 psig)

Dual-stage brass

regulator with

stainless steel

diaphragm

CGA-580

Nitrogen 99.999% 386-400 kPa

(56-58 psig)

Dual-stage brass

regulator with

stainless steel

diaphragm

CGA-580

* Connectors will vary with cylinder size. Confirm that your regulator will work with your gas tank. All connections

to the GC/MS are 1/8 in. Swagelok fittings.

CAUTION Collision gas input pressure must remain constant for proper instrument

performance. The regulator you use to supply the collision gas must be able to deliver 60

± 1 psig for argon or 57 ± 1 psig for nitrogen. It should be marked clearly at 60 or 57 psig

and be stable enough to supply constant pressure at 60 ± 1 psig for argon or 57 ± 1 psig

for nitrogen.

1 Site Preparation

Gas Equipment Requirements

Thermo Scientific TSQ 8000 Evo Preinstallation Requirements Guide 15

Other Gas Specifications

• If your TSQ 8000 Evo system will be equipped with a Direct Insertion Probe, make sure

you have compressed air, which is used to cool the probe.

• If you have a TriPlus RSH autosampler with the SPME conditioning station or a

TriPlus 300 Headspace autosampler, you need to obtain a low-pressure, single-stage

regulator (0-30 psi) for nitrogen purging.

•Gas lines should be:

– As short as possible and close to the TSQ 8000 Evo system.

– Made of copper or stainless steel when using helium, hydrogen, methane or

isobutane.

– Made of stainless steel when using ammonia or other corrosive gases.

– Free of oil and moisture

• Obtain the proper gas line filters, which help prevent impurities and contaminants from

entering your system. Water, oxygen, and total hydrocarbons should be less than 1 ppm

to avoid high background noise and prevent contamination. The GC is equipped with

two intake filters that trap moisture, oxygen, and hydrocarbons.

• Store gas tanks and bottles properly so they will not damage cables or gas lines. Ensure

they are secured in accordance with standard safety practices.

CAUTION If your TRACE 1300/TRACE 1310 and PTV injector will be equipped with a

cryogenic cooling option, see the TRACE 1300 and TRACE 1310 Preinstallation

Requirements Guide for more information.

Table 9. Other Gas Specifications

Equipment Gas Type Purity Maximum

Pressure Regulator Connector

Direct

Insertion

Probe

Air 90%1700 kPa

(100 psig)

Dual-stage brass

regulator

CGA-346

Tr i P l u s

SPME

Headspace

Nitrogen 99.999% 200 kPa

(30 psi)

Dual-stage brass

regulator with

stainless steel

diaphragm

CGA-580

1 Pure, particle and oil free, and contained in one tank.

2 Connectors will vary with cylinder size. Confirm that your regulator will work with your gas tank. All connections

to the GC/MS are 1/8 in. Swagelok fittings.

1 Site Preparation

Receiving Requirements

16 TSQ 8000 Evo Preinstallation Requirements Guide Thermo Scientific

Using Hydrogen

To safely use hydrogen in your TSQ 8000 Evo system, you should have a hydrogen sensor

installed in your GC. Field Service Engineers can install a sensor. but they are not authorized

to install or repair any instrument using hydrogen as a carrier gas unless the instrument is

equipped with the appropriate sensor. The sensor must be calibrated occasionally, as described

in the sensor’s documentation.

Use the following safety precautions when using hydrogen:

• Ensure that all hydrogen cylinders comply with the safety requirements for proper use

and storage. Hydrogen cylinders and delivery systems must comply with local regulations.

• Make sure the gas supply is turned completely off when connecting hydrogen lines.

• Ensure your GC has a Thermo Fisher Scientific hydrogen sensor installed. A hydrogen

sensor continuously monitors the hydrogen level in the oven.

• Always turn off the GC and shut off the hydrogen at its source before venting the TSQ

8000 Evo MS.

• If you use a hydrogen pump, ensure it has a palladium drier.

• Remove as many sources of ignition as possible from your laboratory. Sources can include

open flames, electrostatic discharges, or devices that spark.

• Do not open a cylinder of hydrogen without a regulator attached because it may

self-ignite.

Receiving Requirements

When you receive the TSQ 8000 Evo system:

1. Inspect the boxes for damage when the instrument arrives. Our instruments are shipped

by electronic equipment carriers who specialize in the handling of delicate equipment.

Occasionally, however, equipment is inadvertently damaged in transit. If you notice

evidence of external damage, do not refuse shipment. Instead, call Customer Service.

2. Once you are finished inspecting your shipment, move the cartons to a protected

location, preferably the installation site. Leave the boxes as complete as possible and do

not unpack or open the boxes without our Field Service Engineer (FSE) present. Doing

otherwise may void your warranty or order.

3. Complete the Installation Request Form located at the front of this guide and forward it

to Customer Support.

1 Site Preparation

What Happens Next?

Thermo Scientific TSQ 8000 Evo Preinstallation Requirements Guide 17

What Happens Next?

Review the “End User License Agreements” on page 19 and fill out the TSQ 8000 Evo

Installation Request Form. After the Installation Request Form is received, Customer Support

will contact you to schedule the installation of your system. It is important to confirm that all

the requirements on the form are met BEFORE the Field Service Engineer arrives.

The Field Service Engineer will install the system and confirm that all performance tests pass.

Thermo Scientific TSQ 8000 Evo Preinstallation Requirements Guide 19

A

End User License Agreements

This appendix contains the end user license agreements (EULA) for TraceFinder 4.0 with

Apache OpenOffice 4.0.1 with TraceFinder 4.0, and Microsoft Office Professional Plus 2013

with TraceFinder 4.0. Read the agreement and sign the designated area of the Preinstallation

Survey.

End-User License Agreement–Apache OpenOffice 4.0.1 and

TraceFinder 4.0

IF YOU PURCHASED TRACEFINDER 4.0 SOFTWARE PACKAGE THEN YOU ALSO

HAVE RECEIVED APACHE OPENOFFICE 4.0.1 AND YOU AGREE TO BE BOUND

BY BOTH OF THE END-USER LICENSE AGREEMENTS (EULA) FOR THERMO

FISHER SCIENTIFIC TRACEFINDER 4.0 AND APACHE OPENOFFICE 4.0.1

Is OpenOffice really free for any user? OpenOffice is free for use by everybody. You may

take this copy of OpenOffice and install it on as many computers as you like, and use it for

any purpose you like (including commercial, government, public administration and

educational use). For further details see the license text delivered together with OpenOffice or

http://www.openoffice.org/license.html

Why is OpenOffice free for any user? You can use this copy of OpenOffice today free of

charge because individual contributors and corporate sponsors have designed, developed,

tested, translated, documented, supported, marketed, and helped in many other ways to make

OpenOffice what it is today - the world's leading open-source office software.

Contents

End-User License Agreement–Apache OpenOffice 4.0.1 and TraceFinder 4.0

End-User License Agreement–Microsoft Office Professional Plus 2013 and

Tr a c e Fi n d e r 4 . 0

END-USER LICENSE AGREEMENT – APACHE OPENOFFICE 4.0.1

A End User License Agreements

End-User License Agreement–Apache OpenOffice 4.0.1 and TraceFinder 4.0

20 TSQ 8000 Evo Preinstallation Requirements Guide Thermo Scientific

If you appreciate their efforts, and would like to ensure Apache OpenOffice continues into

the future, please consider contributing to the project - see

http://openoffice.apache.org/get-involved.html for details on contributing time and

http://www.apache.org/foundation/contributing.html for details on donations. Everyone has

a contribution to make.

1. Definitions.

"License" shall mean the terms and conditions for use, reproduction, and distribution as

defined by Sections 1 through 9 of this document.

"Licensor" shall mean the copyright owner or entity authorized by the copyright owner that is

granting the License.

"Legal Entity" shall mean the union of the acting entity and all other entities that control, are

controlled by, or are under common control with that entity. For the purposes of this

definition, "control" means (i) the power, direct or indirect, to cause the direction or

management of such entity, whether by contract or otherwise, or (ii) ownership of fifty

percent (50%) or more of the outstanding shares, or (iii) beneficial ownership of such entity.

"You" (or "Your") shall mean an individual or Legal Entity exercising permissions granted by

this License.

"Source" form shall mean the preferred form for making modifications, including but not

limited to software source code, documentation source, and configuration files.

"Object" form shall mean any form resulting from mechanical transformation or translation

of a Source form, including but not limited to compiled object code, generated

documentation, and conversions to other media types.

"Work" shall mean the work of authorship, whether in Source or Object form, made available

under the License, as indicated by a copyright notice that is included in or attached to the

work (an example is provided in the Appendix below).

"Derivative Works" shall mean any work, whether in Source or Object form, that is based on

(or derived from) the Work and for which the editorial revisions, annotations, elaborations, or

other modifications represent, as a whole, an original work of authorship. For the purposes of

this License, Derivative Works shall not include works that remain separable from, or merely

link (or bind by name) to the interfaces of, the Work and Derivative Works thereof.

"Contribution" shall mean any work of authorship, including the original version of the Work

and any modifications or additions to that Work or Derivative Works thereof, that is

intentionally submitted to Licensor for inclusion in the Work by the copyright owner or by an

individual or Legal Entity authorized to submit on behalf of the copyright owner. For the

purposes of this definition, "submitted" means any form of electronic, verbal, or written

communication sent to the Licensor or its representatives, including but not limited to

A End User License Agreements

End-User License Agreement–Apache OpenOffice 4.0.1 and TraceFinder 4.0

Thermo Scientific TSQ 8000 Evo Preinstallation Requirements Guide 21

communication on electronic mailing lists, source code control systems, and issue tracking

systems that are managed by, or on behalf of, the Licensor for the purpose of discussing and

improving the Work, but excluding communication that is conspicuously marked or

otherwise designated in writing by the copyright owner as "Not a Contribution."

"Contributor" shall mean Licensor and any individual or Legal Entity on behalf of whom a

Contribution has been received by Licensor and subsequently incorporated within the Work.

2. Grant of Copyright License. Subject to the terms and conditions of this License, each

Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge,

royalty-free, irrevocable copyright license to reproduce, prepare Derivative Works of, publicly

display, publicly perform, sublicense, and distribute the Work and such Derivative Works in

Source or Object form.

3. Grant of Patent License. Subject to the terms and conditions of this License, each

Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge,

royalty-free, irrevocable (except as stated in this section) patent license to make, have made,

use, offer to sell, sell, import, and otherwise transfer the Work, where such license applies only

to those patent claims licensable by such Contributor that are necessarily infringed by their

Contribution(s) alone or by combination of their Contribution(s) with the Work to which

such Contribution(s) was submitted. If You institute patent litigation against any entity

(including a cross-claim or counterclaim in a lawsuit) alleging that the Work or a

Contribution incorporated within the Work constitutes direct or contributory patent

infringement, then any patent licenses granted to You under this License for that Work shall

terminate as of the date such litigation is filed.

4. Redistribution. You may reproduce and distribute copies of the Work or Derivative Works

thereof in any medium, with or without modifications, and in Source or Object form,

provided that You meet the following conditions:

1. You must give any other recipients of the Work or Derivative Works a copy of this

License; and

2. You must cause any modified files to carry prominent notices stating that You changed

the files; and

3. You must retain, in the Source form of any Derivative Works that You distribute, all

copyright, patent, trademark, and attribution notices from the Source form of the Work,

excluding those notices that do not pertain to any part of the Derivative Works; and

4. If the Work includes a "NOTICE" text file as part of its distribution, then any

Derivative Works that You distribute must include a readable copy of the attribution

notices contained within such NOTICE file, excluding those notices that do not pertain

to any part of the Derivative Works, in at least one of the following places: within a

NOTICE text file distributed as part of the Derivative Works; within the Source form or

documentation, if provided along with the Derivative Works; or, within a display

generated by the Derivative Works, if and wherever such third-party notices normally

appear. The contents of the NOTICE file are for informational purposes only and do not

A End User License Agreements

End-User License Agreement–Apache OpenOffice 4.0.1 and TraceFinder 4.0

22 TSQ 8000 Evo Preinstallation Requirements Guide Thermo Scientific

modify the License. You may add Your own attribution notices within Derivative Works

that You distribute, alongside or as an addendum to the NOTICE text from the Work,

provided that such additional attribution notices cannot be construed as modifying the

License.

You may add Your own copyright statement to Your modifications and may provide

additional or different license terms and conditions for use, reproduction, or distribution of

Your modifications, or for any such Derivative Works as a whole, provided Your use,

reproduction, and distribution of the Work otherwise complies with the conditions stated in

this License.

5. Submission of Contributions. Unless You explicitly state otherwise, any Contribution

intentionally submitted for inclusion in the Work by You to the Licensor shall be under the

terms and conditions of this License, without any additional terms or conditions.

Notwithstanding the above, nothing herein shall supersede or modify the terms of any

separate license agreement you may have executed with Licensor regarding such

Contributions.

6. Tra dema rks. This License does not grant permission to use the trade names, trademarks,

service marks, or product names of the Licensor, except as required for reasonable and

customary use in describing the origin of the Work and reproducing the content of the

NOTICE file.

7. Disclaimer of Warranty. Unless required by applicable law or agreed to in writing,

Licensor provides the Work (and each Contributor provides its Contributions) on an "AS IS"

BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or

implied, including, without limitation, any warranties or conditions of TITLE,

NON-INFRINGEMENT, MERCHANTABILITY, or FITNESS FOR A PARTICULAR

PURPOSE. You are solely responsible for determining the appropriateness of using or

redistributing the Work and assume any risks associated with Your exercise of permissions

under this License.

8. Limitation of Liability. In no event and under no legal theory, whether in tort (including

negligence), contract, or otherwise, unless required by applicable law (such as deliberate and

grossly negligent acts) or agreed to in writing, shall any Contributor be liable to You for

damages, including any direct, indirect, special, incidental, or consequential damages of any

character arising as a result of this License or out of the use or inability to use the Work

(including but not limited to damages for loss of goodwill, work stoppage, computer failure or

malfunction, or any and all other commercial damages or losses), even if such Contributor has

been advised of the possibility of such damages.

9. Accepting Warranty or Additional Liability. While redistributing the Work or Derivative

Works thereof, You may choose to offer, and charge a fee for, acceptance of support, warranty,

indemnity, or other liability obligations and/or rights consistent with this License. However,

in accepting such obligations, You may act only on Your own behalf and on Your sole

A End User License Agreements

End-User License Agreement–Apache OpenOffice 4.0.1 and TraceFinder 4.0

Thermo Scientific TSQ 8000 Evo Preinstallation Requirements Guide 23

responsibility, not on behalf of any other Contributor, and only if You agree to indemnify,

defend, and hold each Contributor harmless for any liability incurred by, or claims asserted

against, such Contributor by reason of your accepting any such warranty or additional

liability.

A. THE PARTIES

1. The parties to this Agreement are Thermo Finnigan LLC and the Customer. “Thermo”

and "Thermo Fisher Scientific" means Thermo Finnigan LLC, the licensor of the

TraceFinder version 4.0 software that is the subject of this Agreement (“Software”). The

"Customer" is the person or organization that orders, uses and pays the applicable license

fee, if any, for the Software.

2. In granting this license to the Customer, Thermo may also be acting on behalf of

Information Partners. "Information Partners" are entities that have licensed to Thermo

software for sublicensing or programs or code included as part of the Software. Each

Information Partner retains its right to enforce its trademarks, copyrights, patents, trade

secrets and other rights concerning the Software directly against the Customer.

B. LICENSE GRANT

1. Thermo grants to the Customer a non-exclusive, non-transferable license to use the

Software and any accompanying manuals and reference and instructional materials

(“Documentation”) solely for the purposes for which the Software is intended as set forth

in the Documentation and only for Customer’s internal business, scientific and research

purposes.

2. The Customer is authorized to install and use two (2) copies of the Software and

maintain one (1) uninstalled copy for backup purposes. T

3. The Software and the Documentation are and shall remain the property of Thermo or an

Information Partner as applicable and are protected by all applicable intellectual property,

copyright, and patent laws, as well as international treaties and other contractual rights.

The Software and Documentation are and shall remain the confidential and proprietary

information of Thermo and Information Partners, and Customer shall not disclose the

Software and Documentation to any third party or place such items in the public domain.

4. No title, ownership or interest in the Software or Documentation is transferred to

Customer by this Agreement or by the payment of any fee.

5. Any rights not expressly granted herein to Customer are reserved to Thermo and

Information Partners.

C. WHAT CUSTOMER MAY DO

END-USER LICENSE AGREEMENT – THERMO FISHER SCIENTIFIC

TRACEFINDER 4.0

A End User License Agreements

End-User License Agreement–Apache OpenOffice 4.0.1 and TraceFinder 4.0

24 TSQ 8000 Evo Preinstallation Requirements Guide Thermo Scientific

1. Use the Software only to perform the functions for which the Software was designed as set

forth in the applicable Documentation and only in connection with Customer’s internal

business, scientific and research purposes.

D. WHAT CUSTOMER MAY NOT DO

1. Create derivative works of, decompile, reverse engineer or attempt to determine the

source code of the Software.

2. Sell, distribute or commercially exploit the Software and Documentation without the

prior written consent of Thermo.

3. Transfer, assign or sublicense the Software or Documentation without the prior written

approval of Thermo; provided, however, that Customer may transfer the Software, upon

written notification to Thermo, to an affiliate or successor in interest of Customer for

such affiliate’s or successor’s use in accordance with the terms and conditions of this

Agreement.

E. LIMITATION OF WARRANTIES AND LIABILITY

1. The Software provided under this Agreement is a tool. Its successful use and operation is

dependent on the skill of the operator, and it is not a substitute for skilled human

judgment. It is possible to obtain erroneous results by giving inappropriate instructions to

the Software.

2. THERMO AND ITS INFORMATION PARTNERS PROVIDE THE SOFTWARE

AND DOCUMENTATION TO CUSTOMER ON AN “AS IS” BASIS AND MAKE

NO REPRESENTATIONS OR WARRANTIES OF ANY KIND WITH RESPECT

TO THE SOFTWARE AND DOCUMENTATION, INCLUDING BUT NOT

LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A

PARTICULAR PURPOSE AND NONINFRINGEMENT. THERMO DISCLAIMS

ALL WARRANTIES WITH RESPECT TO THIRD-PARTY PRODUCTS,

INCLUDING SOFTWARE PROVIDED BY INFORMATION PARTNERS.

3. THERMO AND INFORMATION PARTNERS ASSUME NO RESPONSIBILITY

FOR THE USE OF THE SOFTWARE AND DOCUMENTATION BY THE

CUSTOMER OR ANY OTHER PARTY, AND THERMO AND INFORMATION

PARTNERS SHALL NOT BE LIABLE FOR LOSS OF PROFITS, USE, BUSINESS,

REVENUES, DATA, INFORMATION OR GOODWILL OR FOR INCIDENTAL,

CONSEQUENTIAL, INDIRECT, PUNITIVE OR EXEMPLARY DAMAGES AS A

RESULT OF SUCH USE, EVEN IF THERMO AND/OR INFORMATION

PARTNERS ARE EXPRESSLY MADE AWARE OF THE POSSIBILITY THEREOF

OR ARE NEGLIGENT. Thermo cannot and does not guarantee or warrant that the

Software or files available for downloading through any Thermo download Web Site are

or will be free of infection or viruses, worms, Trojan horses or other code that manifest

contaminating or destructive properties. Customer is responsible for implementing

sufficient procedures and checkpoints to satisfy its particular requirements for accuracy of

data input and output, and for maintaining a means external to the Site for the

reconstruction of any lost data. It is solely Customer’s responsibility to evaluate the

A End User License Agreements

End-User License Agreement–Apache OpenOffice 4.0.1 and TraceFinder 4.0

Thermo Scientific TSQ 8000 Evo Preinstallation Requirements Guide 25

accuracy, completeness and usefulness of all Software. Thermo does not warrant the

accuracy, currency, and completeness of Software or that the Software is error-free, will

accomplish any particular result or will operate without interruption.

4. IN NO EVENT MAY ANY ACTION BE BROUGHT AGAINST THERMO OR

INFORMATION PARTNERS ARISING OUT OF THIS AGREEMENT MORE

THAN ONE YEAR AFTER THE CLAIM OR CAUSE OF ACTION ARISES,

DETERMINED WITHOUT REGARD TO WHEN THE CUSTOMER SHALL

HAVE LEARNED OF THE ALLEGED DEFECT, INJURY, OR LOSS.

5. IN NO EVENT SHALL THE TOTAL LIABILITY OF INFORMATION PARTNERS

AND THERMO EXCEED THE LICENSE FEE PAID BY CUSTOMER FOR THE

SOFTWARE GIVING RISE TO THE CLAIM (WHETHER SUCH LIABILITY

ARISES FROM TORT, NEGLIGENCE, STRICT LIABILITY, BREACH OF

WARRANTY, BREACH OF CONTRACT OR OTHERWISE).

6. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION

OF IMPLIED WARRANTIES OR LIABILITY FOR INCIDENTAL OR

CONSEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSIONS OR

LIMITATIONS MAY NOT APPLY TO EVERY CUSTOMER WHERE

APPLICABLE.

F. APPLICABLE LAW

1. This Agreement will be governed by and construed in accordance with the laws of the

Commonwealth of Massachusetts without giving effect to the principles of conflict of

laws thereof, and both parties consent to the jurisdiction of the federal and state courts

situated in the Commonwealth of Massachusetts in any action arising under this

Agreement. In the event of any legal proceeding between Thermo and Customer relating

to this Agreement, neither party may claim the right to a trial by jury, and both parties

waive any right to a trial by jury. The application of the U.N. Convention on Contracts

for the International Sale of Goods to this Agreement is hereby expressly excluded.

G. EXPORT COMPLIANCE

1. Customer acknowledges that the Software and Documentation is subject to export

controls of the U.S. Government, which may include those of the Export Administration

Regulations of the U.S. Department of Commerce. Customer agrees to comply with the

Export Administration Regulations and all other applicable laws and regulations relating

to the export, re-export, or import of the Software and Documentation.

H. ENTIRE UNDERSTANDING

1. This Agreement constitutes the entire understanding of the parties with respect to the

subject matter hereof. Without limiting the generality of the foregoing, it is expressly

agreed that the terms of any prior Customer purchase order will be subject to the terms of

this license and that any acceptance of a purchase order by Thermo will be for

acknowledgment purposes only and none of the terms set forth in the purchase order will

be binding upon Thermo. Any representation, promise, warranty, covenant or

A End User License Agreements

End-User License Agreement–Apache OpenOffice 4.0.1 and TraceFinder 4.0

26 TSQ 8000 Evo Preinstallation Requirements Guide Thermo Scientific

undertaking not expressly set forth in this license shall not be deemed a part of the

Agreement or otherwise legally effective.

I. SEVERABILITY

1. If a term or condition of this Agreement is held to be invalid or unenforceable, the

remaining terms and conditions of this Agreement will remain in full force and effect.

J. AUDIT

1. Customer grants Thermo the right to audit, during regular business hours, Customer’s

use of the Software and Documentation to ensure compliance with this Agreement.

K. INDEMNIFICATION

1. Customer agrees to indemnify, defend and hold harmless Thermo and Information

Partners from and against any and all claims of third parties arising out of or related to

Customer’s use of the Software, regardless whether such claims were foreseeable by

Thermo or the Information Partners.

L. TERMINATION

1. Thermo may, in addition to its other legal rights and remedies and upon written notice to

Customer, terminate this Agreement in the event Customer breaches any term of this

Agreement or becomes insolvent, files or has filed against it a petition in bankruptcy or

undergoes a reorganization pursuant to a petition in bankruptcy filed with respect to it.

2. Upon termination, Customer will, unless otherwise agreed to in writing by Thermo,

immediately return to Thermo the Software and Documentation, and all copies thereof,

and will erase all electronic storage of copies of the Software.

3. Termination of this Agreement will not affect any obligation or liability of Customer

arising prior to termination, and the following sections shall survive: 2b, 2c, 2d, 2.2, 3

through 9, 10b, 10c, 11 and 12.

M. FORCE MAJEURE

1. Neither Thermo nor Information Partners will be responsible for any delay or failure in

performance resulting from any cause beyond their control.

N. RESTRICTED RIGHTS APPLICABLE TO U.S. GOVERNMENT ONLY

1. Use, duplication or disclosure of any included database, Software or associated materials

by the U.S. Government is subject to the restricted rights applicable to commercial

computer software (under FAR 52.227019 and DFARS 252.227-7013 or parallel

regulations). The manufacturer for this purpose is Thermo Finnigan LLC, 355 River

Oaks Parkway, San Jose, CA 95134-1908 or the applicable Information Partner.

A End User License Agreements

End-User License Agreement–Microsoft Office Professional Plus 2013 and TraceFinder 4.0

Thermo Scientific TSQ 8000 Evo Preinstallation Requirements Guide 27

End-User License Agreement–Microsoft Office Professional Plus

2013 and TraceFinder 4.0

IF YOU PURCHASED THE TRACEFINDER 4.0 WITH MICROSOFT OFFICE

SOFTWARE PACKAGE THEN YOU AGREE TO BE BOUND BY THIS COMBINED

END-USER LICENSE AGREEMENT (EULA) FOR THERMO FISHER SCIENTIFIC

TRACEFINDER 4.0 AND MICROSOFT OFFICE PROFESSSIONAL PLUS 2013

Thank you for choosing a software application that includes Microsoft Office 2013. This is a

license agreement between the licensor of the software application or suite of applications with

which you acquired the Microsoft software (“licensor”) and you. For your convenience, we’ve

organized this agreement into two parts. The first part includes introductory terms; the

Additional Terms follow and contain greater detail. You should review the entire agreement,

including any linked terms, because all of the terms are important and together create this

contract that applies to you. You can review linked terms by pasting the forward link into your

browser window. THE ADDITIONAL TERMS CONTAIN A BINDING ARBITRATION

CLAUSE AND CLASS ACTION WAIVER. IF YOU LIVE IN THE UNITED STATES,

THESE AFFECT YOUR RIGHTS TO RESOLVE A DISPUTE WITH THE LICENSOR

OR MICROSOFT, AND YOU SHOULD READ THEM CAREFULLY.

BY ACCEPTING THIS AGREEMENT OR USING THE SOFTWARE, YOU AGREE

TO ALL OF THESE TERMS AND CONSENT TO THE TRANSMISSION OF

CERTAIN INFORMATION DURING ACTIVATION AND FOR INTERNET-BASED

FEATURES OF THE SOFTWARE. IF YOU DO NOT ACCEPT AND COMPLY WITH

THESE TERMS, YOU MAY NOT USE THE SOFTWARE OR FEATURES. Instead, you

should return it to the place where you purchased the software license, for a refund or credit.

How can I use the software? We do not sell our software or your copy of it – we only license

it. Under our license we grant you the right to install and run that one copy on one computer

(the licensed computer) for use by one person at a time, but only if you comply with all the

terms of this agreement. Our software license is permanently assigned to the licensed

computer. Please refer to the Additional Terms for licenses and conditions that are specific to
