1 Introduction
1.1 About
FIRST®
FIRST® (For Inspiration and Recognition of Science and Technology) was founded by inventor Dean
Kamen to inspire young people’s interest in science and technology. Based in Manchester, New
Hampshire, FIRST is a 501(c)(3) not-for-profit public charity.
FIRST provides four programs:
FIRST® Robotics Competition for grades 9-12, ages 14-18
FIRST® Tech Challenge for grades 7-12, ages 12-18
FIRST® LEGO® League for grades 4-8, ages 9-14 (ages 9-16 outside of North America)
FIRST® LEGO® League Jr. for grades K-4, ages 6-10
Please visit our website: www.firstinspires.org for more information about FIRST programs.
1.2
FIRST
® Robotics Competition
FIRST Robotics Competition pairs high school students with adult mentors (primarily engineers and
teachers) to design and build ROBOTS that compete against one another in a high-energy environment.
This varsity Sport for the Mind combines the excitement of sport with the rigors of science and
technology. Under strict rules, limited resources and time limits, teams of students are challenged to raise
funds, design a team “brand,” hone teamwork skills, and build and program ROBOTS to perform
prescribed tasks against a field of competitors. It’s as close to “real-world” engineering as a student can
get.
Each January at an event known as Kickoff, a new, challenging game is introduced. These exciting
competitions combine the practical application of science and technology with the fun, intense energy and
excitement of a championship-style sporting event. Teams are encouraged to display Gracious
Professionalism®, help other teams, and cooperate while competing. This is known as Coopertition®.
In 2018, FIRST Robotics Competition will reach 90,000 high-school students representing more than
3,600 teams. Teams come from nearly every state in the United States, as well as many other countries.
FIRST Robotics Competition teams will participate in 63 Regional Competitions, 85 District Competitions,
and 10 District Championships. In addition, approximately 800 teams will qualify to go to one of the two
FIRST Championships at the end of April, 2018.
This year’s game, and this manual, were presented at the 2018 FIRST Robotics Competition Kickoff on
Saturday, January 6, 2018.
At the Kickoff, all teams:
saw the 2018 game, FIRST® POWER UPSM, for the first time
learned about the 2018 game rules and regulations
received a Kickoff Kit that provides a starting point for robot build
1.3
Gracious Professionalism
®, a
FIRST®
Credo
Gracious Professionalism® is part of the ethos of FIRST. It’s a way of doing things that encourages high
quality work, emphasizes the value of others, and respects individuals and the community.
Section 1 Introduction
V0
8 of 133
Gracious Professionalism is not clearly defined for a reason. It can and should mean different things to
everyone.
Some possible meanings of Gracious Professionalism include:
Gracious attitudes and behaviors are win-win
Gracious folks respect others and let that respect show in their actions
Professionals possess special knowledge and are trusted by society to use that knowledge
responsibly
Gracious Professionals make a valued contribution in a manner pleasing to others and to
themselves
In the context of FIRST, this means that all teams and participants should:
Learn to be strong competitors, but also treat one another with respect and kindness in the
process
Avoid leaving anyone feeling as if they are excluded or unappreciated
Knowledge, pride and empathy should be comfortably and genuinely blended.
In the end, Gracious Professionalism is part of pursuing a meaningful life. When professionals use
knowledge in a gracious manner and individuals act with integrity and sensitivity, everyone wins and
society benefits.
“The FIRST spirit encourages doing high-quality, well-
informed work in a manner that leaves everyone feeling
valued. Gracious Professionalism seems to be a good
descriptor for part of the ethos of FIRST. It is part of what
makes FIRST different and wonderful.”
- Dr. Woodie Flowers, National Advisor for FIRST
It is a good idea to spend time going over this concept with your team and reinforcing it regularly. We
recommend providing your team with real-life examples of Gracious Professionalism in practice, such as
when a team loans valuable materials or expertise to another team that they will later face as an
opponent in competition. Routinely highlight opportunities to display Gracious Professionalism at events,
and encourage team members to suggest ways in which they can demonstrate this quality themselves
and through outreach activities.
1.4 Coopertition®
At FIRST, Coopertition® is displaying unqualified kindness and respect in the face of fierce competition.
Coopertition is founded on the concept and philosophy that teams can and should help and cooperate
with one another even as they compete. Coopertition involves learning from teammates and mentors.
Coopertition means competing always, but assisting and enabling others when you can.
A Message from Woodie Flowers Award Recipients
The Woodie Flowers Award is the most prestigious mentoring award in FIRST. The award recipients as of
the 2015 FIRST Championship created an important message for all FIRST Robotics Competition teams
to consider as we tackle each season.
“Performing at your best is important. Winning is important. This is a competition.
However, winning the right way and being proud of what you have accomplished and how you have
accomplished it is more important. FIRST could create rules and penalties to cover almost any scenario
Section 1 Introduction
V0
9 of 133
or situation, but we prefer an understandable game with simpler rules that allow us to think and be
creative in our designs.
We want to know that our partners and opponents are playing at their best in every match. We want to
know they are playing with integrity and not using strategies based on questionable behaviors.
As you create your robots and award presentations, prepare for competition and match play, create and
implement game strategies, and live your daily lives, remember what Woodie has said time and time
again, and let’s ‘Make your Grandmother proud.’”
Woodie Flowers
Liz Calef (88)
Mike Bastoni (23)
Ken Patton (51, 65)
Kyle Hughes (27)
Bill Beatty (71)
Dave Verbrugge (5110, 67)
Andy Baker (3940, 45)
Dave Kelso (131)
Paul Copioli (3310, 217)
Rob Mainieri (2735, 812, 64)
Dan Green (111)
Mark Breadner (188)
John Novak (16, 323)
Chris Fultz (234)
John Larock (365)
Earl Scime (2614)
Fredi Lajvardi (842)
Lane Matheson (932)
Mark Lawrence (1816)
Eric Stokely (258, 360, & 2557)
Glenn Lee (359)
1.5 This Document and its Conventions
The 2018 Game and Season Manual is a resource for all FIRST Robotics Competition teams for
information specific to the 2018 season and the FIRST® POWER UPSM game. Its audience will find the
following detail:
a general overview of the FIRST POWER UP game
detail about the FIRST POWER UP playing field
description of how to play the FIRST POWER UP game
all season rules (e.g. safety, conduct, game play, inspection, etc.)
description of how teams advance at 2018 tournaments and throughout the season
The intent of this manual is that the text means exactly, and only, what it says. Please avoid interpreting
the text based on assumptions about intent, implementation of past rules, or how a situation might be in
“real life.” There are no hidden requirements or restrictions. If you’ve read everything, you know
everything.
Specific methods are used throughout this section to highlight warnings, cautions, key words and
phrases. These conventions are used to alert the reader to important information and are intended help
teams in constructing a ROBOT that complies with the rules in a safe manner.
Links to other section headings in this manual and external articles appear in blue underlined text.
Key words that have a particular meaning within the context of the FIRST Robotics Competition and
FIRST POWER UP are defined in Section 11 Glossary, and indicated in ALL CAPS throughout this
document.
The rule numbering scheme uses an indication of the section in which the rule is stated plus a serial
numbering system (e.g. safety rules begin with “S,” game rules begin with “G,” etc.). References to
specific rules use this scheme (e.g. “S01” is the first rule in Section 5 Safety Rules).
Section 1 Introduction
V_Nov28
10 of 133
Warnings, cautions and notes appear in blue boxes. Pay close attention
to their contents as they’re intended to provide insight into the reasoning
behind a rule, helpful information on understanding or interpreting a rule,
and/or possible “best practices” for use when implementing systems
affected by a rule.
While blue boxes are part of the manual, they do not carry the weight of
the actual rule (if there is an inadvertent conflict between a rule and its
blue box, the rule supersedes the language in the blue box).
With the exception of nominal dimensions, imperial dimensions are followed by comparable metric
dimensions in parentheses to provide metric users with the approximate size, weight, etc. Metric
conversions for non-rules (e.g. FIELD dimensions) round to the nearest whole unit e.g. "17 in. (~43 cm)
and “6 ft. 4 in. (~193 cm).” Metric conversions in rules round such that the metric dimension is compliant
with the rule (i.e. maximums round down, minimums round up). The metric conversions are offered for
convenient reference only and do not overrule or take the place of the imperial dimensions presented in
this manual and the field drawings (i.e. FIELD dimensions and rules will always defer to measurements
using imperial units).
Some sections and rules include colloquial language, also called headlines, in an effort to convey an
abbreviated intent of the rule or rule set. This language is differentiated using bold blue text. Any
disagreement between the specific language used in the rules and the colloquial language is an error,
and the specific rule language is the ultimate authority. If you discover a disparity, please let us know and
we will correct it.
Team resources that aren’t generally season specific (e.g. what to expect at an event, communication
resources, team organization recommendations, ROBOT transportation procedures, and award
descriptions) can be found on the FIRST Robotics Competition website.
1.6 Translations & Other Versions
The FIRST® POWER UPSM manual is originally and officially written in English, but is occasionally
translated into other languages for the benefit of FIRST Robotics Competition Teams whose native
language may not be English.
A text-based version can be provided only for use with assistive devices for visually and hearing-impaired
persons, and not for redistribution. For more information, please contact
frcteamadvocate@firstinspires.org.
In the event that a rule or description is a modified in an alternate version of this manual, the English pdf
version as published on the FIRST website is the commanding version.
1.7 Team Updates
Team updates are used to notify the FIRST Robotics Competition community of revisions to the official
season documentation (e.g. the manual, drawings, etc.) or important season news. Between Kickoff and
Stop Build Day, Team Updates are posted each Tuesday and Friday. Between Stop Build Day and the
week before FIRST Championship Houston, Team Updates are posted each Tuesday. Team updates are
posted on the FIRST® POWER UPSM Game and Season Materials website and generally posted before 5
pm, Eastern Time.
Generally, Team Updates follow the following convention:
Additions are highlighted in yellow. This is an example.
Section 1 Introduction
V_Nov28
11 of 133
Deletions are indicated with a strikethrough. This is an example.
Notes that are added for clarity or explanation for the change but are not retained as part of
the manual appear in bold. This is an example.
1.8 Question and Answer System
Questions about any 2018 Game and Season Manual content and FIRST® Robotics Competition
Event Experience web page content may be asked to FIRST using the official Question and Answer
System (i.e. “the Q&A”), which opens on January 10, 2018, noon Eastern. Details on the Q&A can be
found on the FIRST® POWER UPSM Game and Season Materials website. The Q&A is intended to help
clarify rules, and sometimes the responses result in revisions to the text in the official document (which is
communicated using Team Updates).
The Q&A is not a resource for rulings on hypothetical strategies or situations or a design review of a
ROBOT system for legality. The responses in the Q&A do not supersede the text in the manual, although
every effort will be made to eliminate inconsistencies between the two. While responses provided in the
Q&A may be used to aid discussion at each event, per Section 10.6 REFEREE Interaction and Section 9
Inspection & Eligibility Rules, REFEREES and Inspectors are the ultimate authority on rules. If you have
concerns about enforcement trends by volunteer authorities, please notify FIRST at
firstroboticscompetition@firstinspires.org.
Some examples of questions that will not be answered in the Q&A are:
Is this part/design legal?
How would a REFEREE rule if this specific, hypothetical game play happened?
Technical questions, e.g. an inquiry about how to check the image version on the roboRIO should be
posted to the FIRST Robotics Competition section of the FIRST Forums (any technical questions
submitted to the Q&A will be redirected there.)
Section 2 Overview
V0
13 of 133
2
FIRST®
POWER UPSM Overview
FIRST® POWER UPSM, the 2018 FIRST® Robotics Competition game, includes two alliances of video
game characters and their human operators who are trapped in an arcade game. Both alliances are
working to defeat the boss in order to escape!
Each three-team alliance prepares to defeat the boss in three ways:
1. Control the Switches and the Scale. Robots collect Power Cubes and place them on
Plates to control Switches or the Scale. When the Scale or their Switch is tipped in their
favor, it is considered owned by that Alliance. Alliances work to have Ownership for as
much time as possible.
2. Earn Power Ups. Robots deliver Power Cubes to their humans who then place them into
the Vault earning the Alliance Power Ups. Alliances use Power Ups to gain a temporary
advantage during the Match. There are three Power Ups available to teams: Force, Boost,
and Levitate.
o Force gives the alliance ownership of the Switch, Scale, or both for a limited period of
time
o Boost doubles the rate points are earned for a limited period of time
o Levitate gives a robot a free climb
3. Climb the Scale. Robots Climb the Scale in order to be ready to Face The Boss.

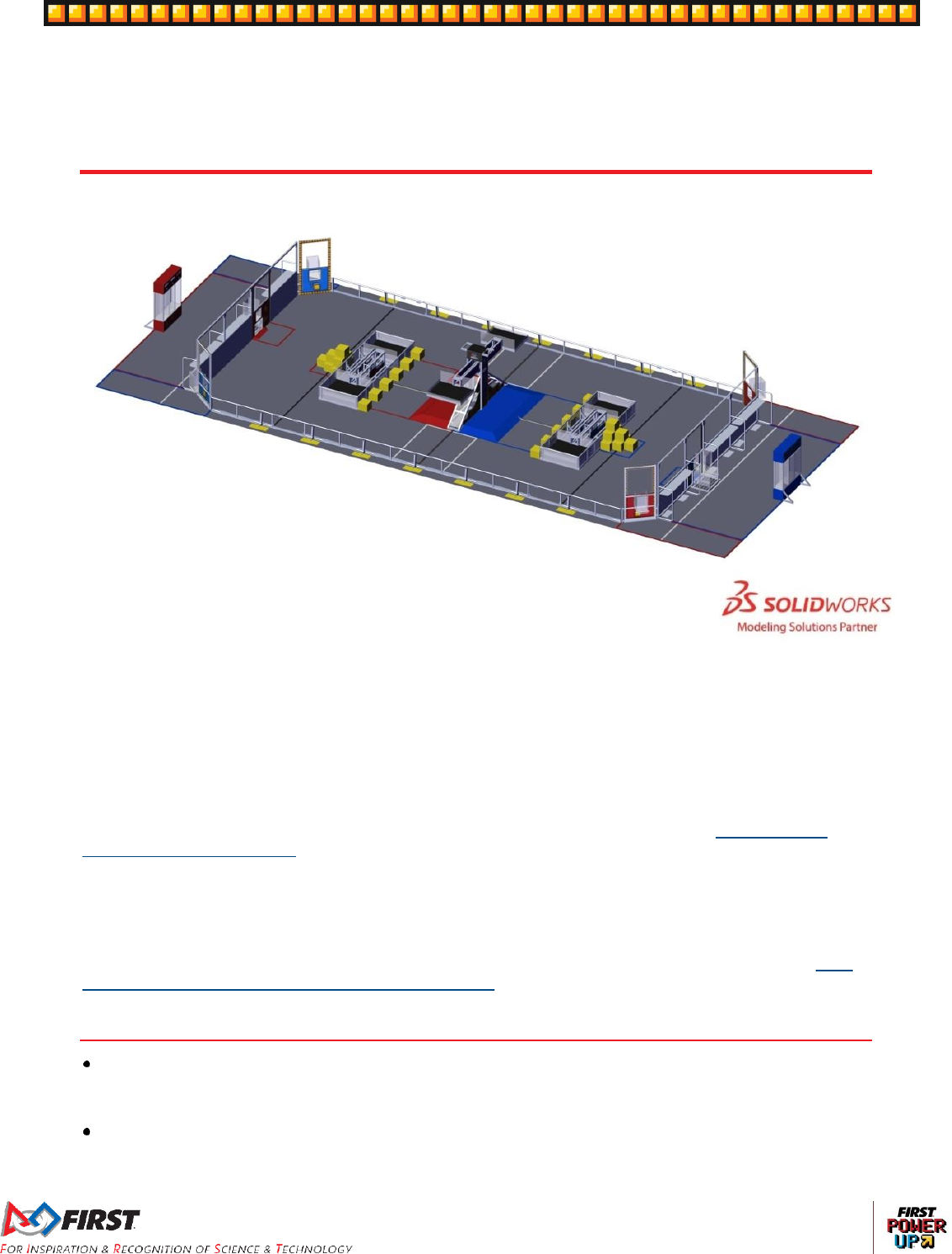

Figure 2-1: FIRST® POWER UPSM playing area
Each match begins with a 15-second Autonomous period in which Robots operate only on pre-
programmed instructions. During this period, Robots work to support the three efforts listed above as well
as earn points for crossing their Auto Line.
Section 2 Overview
V0
14 of 133
Table 2-1: Autonomous Point Values
Action
Value
Cross the Auto Line (a.k.a Auto-Run)
5 points
Switch Ownership
2, + 2 points per second
Scale Ownership
2, + 2 points per second
During the remaining 2 minutes and 15 seconds of the match, the Teleoperated period, student drivers
control Robots. Teams on an Alliance work together to continue to control their Switch and the Scale.
They can also trade in their Power Cubes for Power Ups. During the final 30 seconds, teams work
together to Climb to Face the Boss. Points for these efforts are awarded as shown in Table 2-2.
Table 2-2: Teleoperated Point Values
Action
Value
Switch Ownership
1, + 1 point per second
Scale Ownership
1, + 1 point per second
Power Cube in Vault
5 points
Boost Power Up Bonus
2 points per second
Parked on Platform
5 points
Successful Climb
30 points
Alliances are seeded in the Qualification tournament using ranking points which are awarded based on a
combination of their Win-Loss-Tie record (2 points for a win, 1 point for a tie), the number of times they
achieve three Climbs (1 point), and the number of times during Autonomous they complete three Auto-
Runs and gain Ownership of their Switch (a.k.a the Auto-Quest) (1 point).
For full details, read on!
Section 3 ARCADE
V0
15 of 133
3 ARCADE

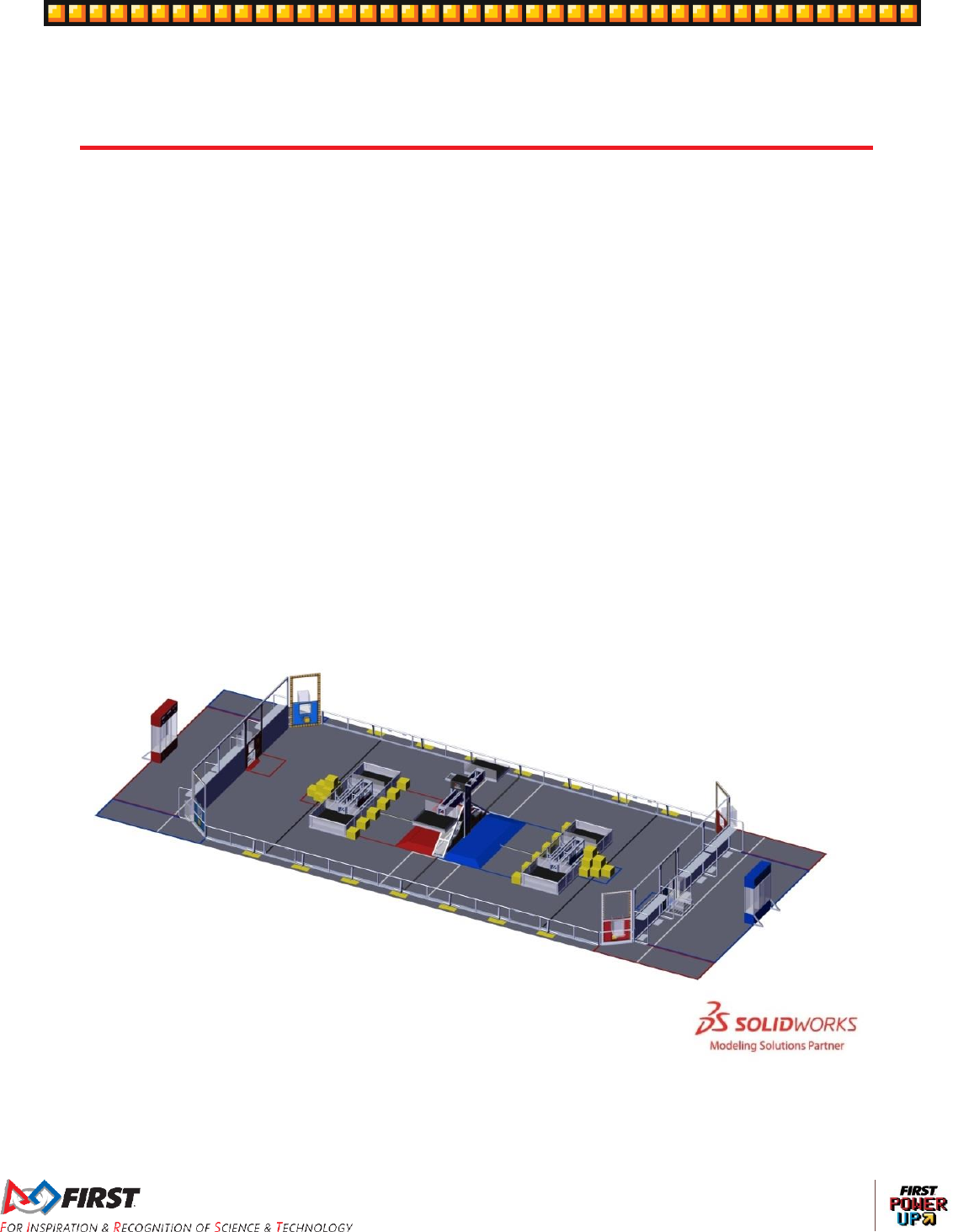

Figure 3-1: FIRST® POWER UPSM playing area
The ARCADE includes all elements of the game infrastructure that are required to play FIRST® POWER
UPSM: the FIELD, SWITCHES, the SCALE, VAULTS, carpet, the POWER CUBES, and all equipment
needed for FIELD control, ROBOT control, and scorekeeping.
The competition ARCADE is modular and assembled, used, disassembled, and shipped many times
during the competition season. It will undergo wear and tear. The ARCADE is designed to withstand
rigorous play and frequent shipping. Every effort is made to ensure that ARCADES are consistent from
event to event. However, ARCADES are assembled in different venues by different event staff and some
small variations occur. For details regarding assembly tolerances, please refer to the 2018 ARCADE
Layout and Marking Drawing. Successful Teams will design ROBOTS that are insensitive to these
variations.
Illustrations included in this section are for a general visual understanding of the FIRST® POWER UPSM
ARCADE, and dimensions included in the manual are nominal. Please refer to the official drawings for
exact dimensions, tolerances, and construction details. The official drawings, CAD models, and drawings
for low-cost versions of important elements of the FIRST® POWER UPSM FIELD are posted on the 2018
FIRST® POWER UPSM Game & Season Materials page on the FIRST® website.
3.1 Zones and Markings
ALLIANCE STATION: a 22 ft. (~671 cm) wide by 10 ft. (~305 cm) deep by 10 ft. (~305 cm) tall
volume formed by, and including three (3) PLAYER STATIONS, an EXCHANGE wall, and 2 in.
ALLIANCE colored gaffers tape.
AUTO LINE: a line of 2 in. (~5 cm), black gaffers tape that is the width of the FIELD and is 10 ft.
(~305 cm) from each ALLIANCE WALL to the leading edge of the tape.
Section 3 ARCADE
V0
16 of 133
EXCHANGE ZONE: A rectangular area 4 ft. (~122 cm) wide by 3 ft. (~91 cm) deep and infinitely tall
volume bounded by the EXCHANGE wall and 2 in. (~5 cm) ALLIANCE colored gaffers tape. The
EXCHANGE ZONE includes the tape, but excludes the wall.
NULL TERRITORY: one of two, 7 ft. 11 ¼ in. (~242 cm) wide by 6 ft. (~183 cm) deep and infinitely
tall volumes formed by 2 in. (~5 cm), white gaffers tape and the GUARDRAILS. The NULL
TERRITORY includes the gaffers tape, but excludes the GUARDRAILS. The ALLIANCE’S NULL
TERRITORY for a MATCH corresponds to the SCALE PLATE color in that NULL TERRITORY and
does not change when the FORCE POWER UP is played.
PLATFORM ZONE: a 11 ft. 1 ½ in. (~339 cm) wide by 9 ft. 11 ¾ in. (~304 cm) deep and infinitely tall
volume bounded by 2 in. (~5 cm) ALLIANCE colored gaffers tape, the faces of the OUTRIGGERS,
TOWER, and the SWITCH. The PLATFORM ZONE includes the gaffers tape, but excludes the
SWITCH and the faces of the OUTRIGGERS AND TOWER.
PORTAL: a 4 ft. (~122 cm) wide by 12 ft. 11 in. (~394 cm) deep infinitely tall volume bounded by,
and including, 2 in. (~5 cm). ALLIANCE colored gaffers tape and the PORTAL wall.
POWER CUBE ZONE: A rectangular area 3 ft. 9 in. (~114 cm) wide by 3 ft. 6 in. (~107 cm) deep,
bounded by the SWITCH and 2 in. (~5 cm) ALLIANCE colored gaffers tape. The POWER CUBE
ZONE includes the gaffers tape, but excludes the SWITCH.
STARTING LINE: a line of 2 in. (~5 cm), white gaffers tape that runs the width of the carpet and is 2
ft. 6 in. (~76 cm) behind the ALLIANCE WALL diamond plate.
Figure 3-2: Zones and Markings
3.2 FIELD
The FIELD for FIRST® POWER UPSM is a 27 ft. (~823 cm) by 54 ft. (~1646 cm) carpeted area, bound by
and including the inward-facing surfaces of the GUARDRAILS, PORTALS, EXCHANGE WALLS and
ALLIANCE WALLS. The carpet used for the FIELD is gray in color (Shaw Floors, Philadelphia
Commercial, Neyland II 20, “Ground Pepper”).
Section 3 ARCADE
V0
17 of 133
There are two versions of GUARDRAILS and PLAYER STATIONS used for competitions. One design
has been used at FIRST® Robotics Competitions for several years and matches the 2018 Official FIRST
Field Drawings & Models. The other is designed and sold by AndyMark. While the designs are slightly
different, the critical dimensions, performance, and expected user experience between the two are the
same. Detailed drawings for the AndyMark design are posted on the AndyMark website. All illustrations in
the Game Manual show the traditional FIELD design.
3.2.1 GUARDRAIL
The GUARDRAIL is a system that consists of transparent polycarbonate supported on the top and bottom
by aluminum extrusion. The GUARDRAIL prevents ROBOTS from inadvertently exiting the FIELD during
a MATCH.
There are four (4) gates in the GUARDRAIL that allow access to the FIELD for placement and removal of
ROBOTS. The gates are 3 ft. 2 in. (~97 cm) wide and closed and shielded during the MATCH.
Figure 3-3: Gate locations
3.3 SCALE
There is one (1) SCALE centered in the field, and oriented so that the SCALE arm is parallel to the
ALLIANCE WALL. The SCALE features an arm, RUNGS, PLATES, OUTRIGGERS, PLATFORMS, and
TOWER. All frame surfaces are covered in polycarbonate panels. A cable protector extends from the
center of each side of the PLATFORM and is 2 ½ in. (~6 cm) wide and ¾ in. (~2 cm) high (Electriduct,
Inc. CSX-3, black). These cable protectors extend to the GUARDRAILS and the SWITCHES.
Section 3 ARCADE
V0
18 of 133

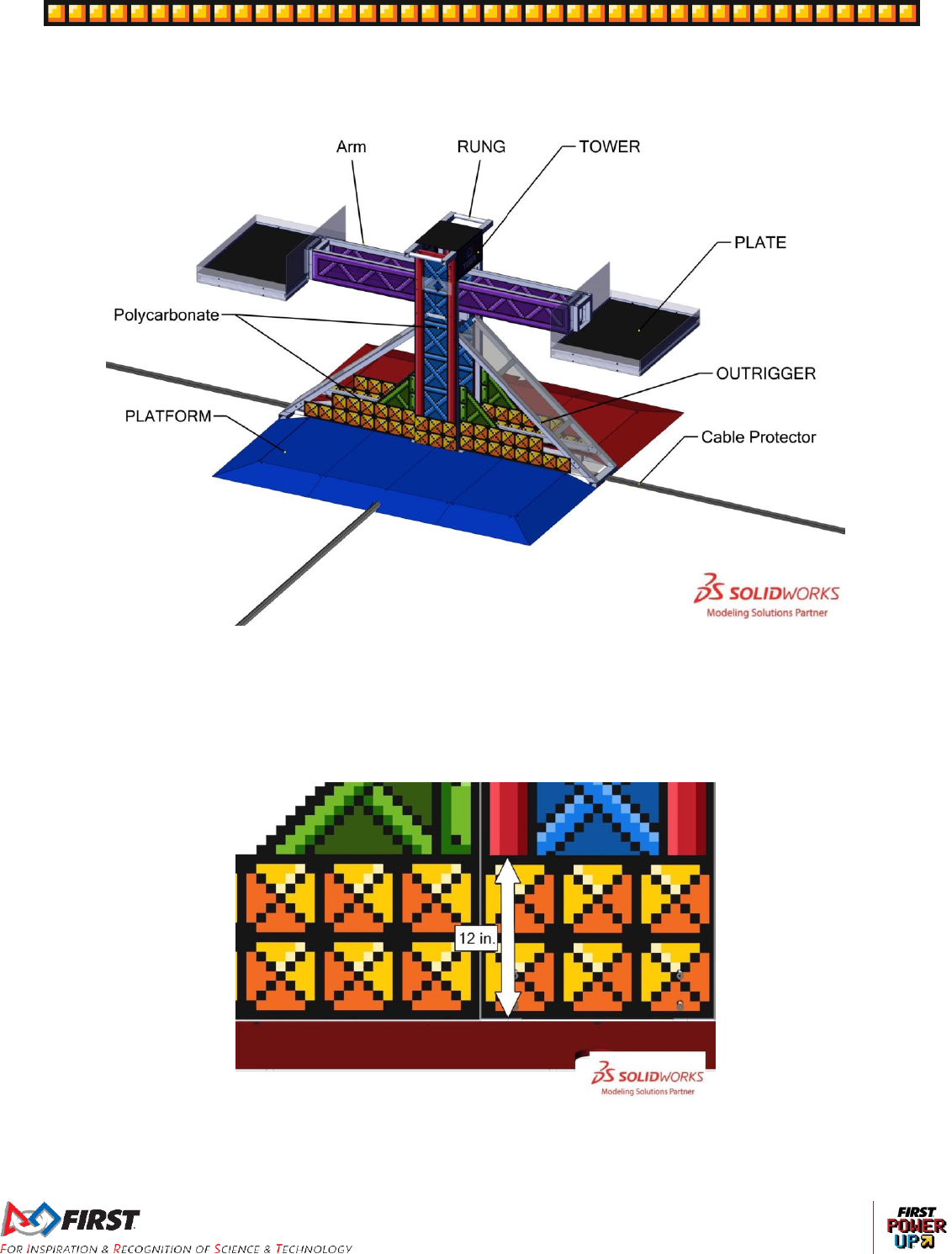

Figure 3-4: The SCALE
The BRICKS are graphics depicting golden squares surrounded by a black outline that extends 12 in.
(~30cm) above the surface of the PLATFORM. The BRICKS cover the polycarbonate panels at the base
of the TOWER and OUTRIGGERS.
Figure 3-5: The BRICKS
Section 3 ARCADE
V0
19 of 133
3.3.1 SCALE PLATES
Each SCALE features two (2) PLATES which are 3 ft. (~91 cm) wide and 4 ft. (~122 cm) deep. The
outside edges of the two PLATES are 15 ft. (~457 cm) apart. Each PLATE has four polycarbonate walls
which contain Philips Color Kinetics LED lights. The wall closest to the center of the FIELD extends 1 ft. 3
in. (~38 cm) above the PLATE surface. The other walls extend up 3 ½ in (~9 cm) above the PLATE
surface.
At the start of the MATCH the PLATES are even, such that the outside edges of each PLATE are 5 ft.
(~152 cm) +/- 1 in. (~2.5 cm) above the FIELD carpet. The SCALE can tilt and rest in different positions
depending on the number and location of the POWER CUBES on the PLATES. During the MATCH, the
SCALE is in one of three (3) states based on the magnitude of its tilt:
1. OWNERSHIP by the Red ALLIANCE, or
2. OWNERSHIP by the Blue ALLIANCE, or
3. neither ALLIANCE has OWNERSHIP
If the outside edge of an ALLIANCE colored PLATE is positioned between 4 ft. (~122 cm) and 4 ft. 8 in.
(~142 cm) above the FIELD carpet then the ALLIANCE has OWNERSHIP of the SCALE. If the outside
edge of an alliance colored PLATE is positioned between 5 ft. 4 in. (~163 cm) and 6 ft. (~182 cm) above
the FIELD carpet then the opposing ALLIANCE has OWNERSHIP. When neither ALLIANCE has
OWNERSHIP of the SCALE, the outside edges of the PLATES are between 5 ft. 4 in. (~163 cm) and 4 ft.
8 in. (~142 cm) above the FIELD carpet. See Figure 3-6. The time required to move between states is
dependent on the weight difference and the distribution of the weight on the SCALE PLATES. Details on
OWNERSHIP can be found in Section 4.2 Scoring.
Figure 3-6: SCALE range of motion
Note: It’s possible to have the same quantity of POWER CUBES on the
PLATES on each side of the SCALE and have the SCALE not be
balanced. The location of the POWER CUBES on the SCALE/SWITCH
is a factor in its position.
Section 3 ARCADE
V0
20 of 133
Figure 3-7: SCALE PLATE dimensions
Figure 3-8: SCALE PLATE wall dimensions
Section 3 ARCADE
V0
21 of 133
3.3.2 RUNGS
At the top of each SCALE there are two RUNGS, one per ALLIANCE. An ALLIANCE’S RUNG extends
into their PLATFORM ZONE. RUNGS consist of a 1 ft. 1 ft. 1 in. (~33 cm) long 1 ¼ in. Schedule 40
aluminum pipe supported by 2 in. (~5 cm) box tubing. Each RUNG extends 8 ¼ in. (~21 cm). from the
vertical face of the SCALE supports and 7 ft. (~213 cm) from the carpet to the top of the RUNG. The
RUNG in Figure 3-9 is highlighted for clarity. Figure 3-9: RUNGS
3.3.3 OUTRIGGERS
The OUTRIGGERS are supports for the TOWER constructed from aluminum shielded by polycarbonate
3.3.4 TOWER
The TOWER is the central structure of the SCALE constructed from aluminum shielded by polycarbonate
which supports the RUNGS and SCALE PLATES. The tower is 17 in. (~43 cm) wide and extends 2 in.
(~5 cm) from the face of the OUTRIGGERS.
Section 3 ARCADE
V0
22 of 133
Figure 3-10: Tower dimensions
.
Section 3 ARCADE
V0
23 of 133
3.3.5 PLATFORM
Located at the base of the SCALE, on each side, is a PLATFORM covered with ALLIANCE colored
HDPE. The TOWER and OUTRIGGERS separate one PLATFORM from the other. Each PLATFORM is 8
ft. 8 in. (~264 cm) wide by 3 ft. 5 ¼ in. (~105 cm) deep and 3 ½ in. (~9 cm) tall. The ramps leading to the
PLATFORM are 1 ft. 1 in. (~33 cm) long with a 15.35 deg. angle.

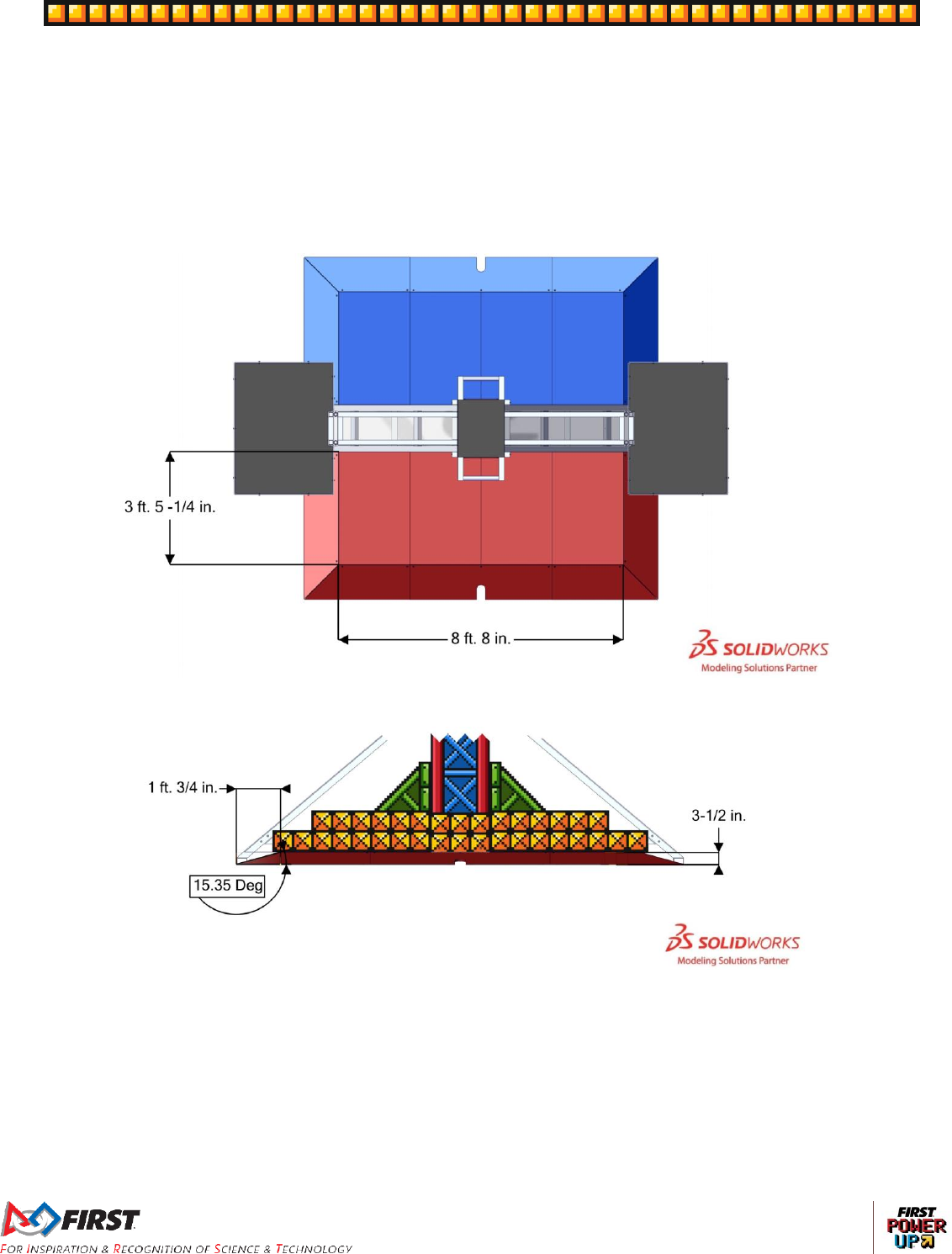

Figure 3-11: PLATFORM length and width dimensions
Figure 3-12: PLATFORM height and ramp dimensions
Section 3 ARCADE
V0
24 of 133
3.4 SWITCH
There are two (2) SWITCHES on the FIELD, one per ALLIANCE. Each SWITCH is centered across the
width of the FIELD, with the center of the SWITCH located 14 ft. (~427 cm) from the ALLIANCE
STATION. Each SWITCH is surrounded by a FENCE. An ALLIANCE’S SWITCH is the one located
closest to its ALLIANCE STATION.
Figure 3-13: SWITCH
3.4.1 SWITCH PLATES
Each SWITCH features two (2) PLATES which are 3 ft. (~91 cm) wide and 4 ft. (~122 cm) deep. The
outside edges of the two PLATES are 12 ft. (~366 cm) apart. Each PLATE has four polycarbonate walls
which contain Philips Color Kinetics LED lights. The wall closest to the center of the FIELD extends 1 ft. 3
in. (~38 cm) above the PLATE surface. The other walls extend up 3 ½ in (~9 cm) above the PLATE
surface
The PLATES are 9 in. (~23 cm) above the carpet when the SWITCH is level. Like the SCALE, the
SWITCH tilts and rests in different positions based on the placement of POWER CUBES. During the
MATCH, the SWITCH is in one of three (3) states based on the magnitude of its tilt:
1. OWNERSHIP by the Red ALLIANCE, or
2. OWNERSHIP by the Blue ALLIANCE, or
3. neither ALLIANCE has OWNERSHIP
If the outside edge of an ALLIANCE colored PLATE is positioned between 3 in. (~8 cm) and 6 in. (~15
cm) above the FIELD carpet then the ALLIANCE has OWNERSHIP of the SWITCH. If the outside edge of
an ALLIANCE colored PLATE is positioned between 12 in (~30 cm) and 15 in. (~38 cm) above the FIELD
carpet then the opposing ALLIANCE has OWNERSHIP. When neither ALLIANCE has OWNERSHIP of
the SWITCH, the outside edges of the PLATES are between 6 in (~15 cm) and 12 in. (~30 cm) above the
FIELD carpet. See Figure 3-15. The time required to move between states is dependent on the weight
difference and the distribution of the weight on the SWITCH PLATES. Details on OWNERSHIP can be
found in Section 4.2 Scoring
Section 3 ARCADE
V0
25 of 133
Figure 3-14: SWITCH PLATE dimensions
Figure 3-15: SWITCH range of motion
3.4.2 FENCE
Each SWITCH is surrounded by a FENCE constructed from aluminum shielded by polycarbonate. The
FENCE is 12 ft. 9 ½ in. (~390 cm) wide by 4 ft. 8 in. (~142 cm) deep by 1 ft. 6 ¾ in. (~48 cm) tall. The gap
between the FENCE and the sides of the PLATES is approximately 1 ½ in. (~4 cm). When the SWITCH is
level, the gap between the FENCE and the outer edges of the PLATES is approximately 2 ¼ in (~8 cm).
Section 3 ARCADE
V0
26 of 133

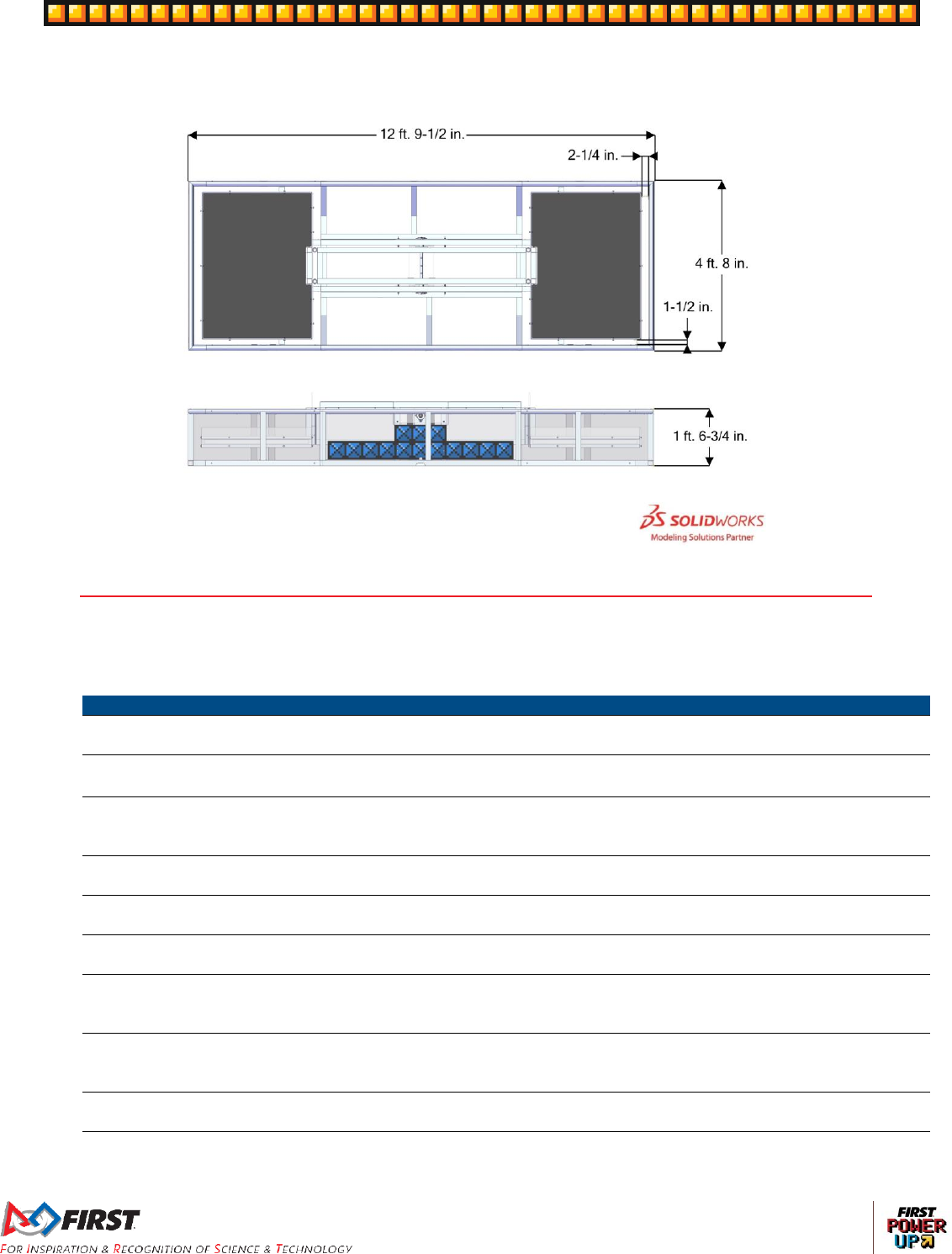

Figure 3-16: FENCE
3.5 PLATE Lighting
Each PLATE is highlighted by Philips Color Kinetics Flex LED light strings. These lights indicate
ALLIANCE color and OWNERSHIP. The lights have the following states:
Table 3-1: PLATE Lighting
Color
Pre-MATCH
AUTO
TELEOP
Post-MATCH
Blue at 100%
brightness
N/A
ALLIANCE color
ALLIANCE color
N/A
Blue (pulsing)
N/A
Blue OWNERSHIP
Blue OWNERSHIP
N/A
Blue (pulsing)
with solid red
corners
N/A
Blue FORCE POWER UP
is active
Blue FORCE POWER UP
is active
N/A
Blue at 25%
brightness
N/A
Red OWNERSHIP
Red OWNERSHIP
N/A
Blue
(chase pattern)
N/A
N/A
Blue BOOST POWER UP
is active
N/A
Red at 100%
brightness
N/A
ALLIANCE color
ALLIANCE color
N/A
Red (pulsing)
N/A
Red OWNERSHIP or
FORCE POWER UP is
active
Red OWNERSHIP or
FORCE POWER UP is
active
N/A
Red (pulsing)
with solid blue
corners
N/A
Red FORCE POWER UP
is active
Red FORCE POWER UP
is active
N/A
Red at 25%
brightness
N/A
Blue OWNERSHIP
Blue OWNERSHIP
N/A
Red
(chase pattern)
N/A
N/A
Red BOOST POWER UP
is active
N/A
Section 3 ARCADE
V0
27 of 133
Purple (pulsing)
N/A
N/A
N/A
FIELD is safe for
FIELD STAFF
Green
N/A
N/A
N/A
FIELD is safe for
all
OFF
MATCH ready
to start
N/A
N/A
N/A
ALLIANCE color of the PLATES is provided to the Driver Station software by the Field Management
System. More details are in Section 3.10 The Field Management System
Section 3 ARCADE
V0
28 of 133
3.6 ALLIANCE WALL
The ALLIANCE WALL is the structure that separates ROBOTS from DRIVE TEAMS (except the
TECHNICIAN) and consists of three (3) PLAYER STATIONS, and an EXCHANGE wall.
Figure 3-17: ALLIANCE STATION
3.6.1 PLAYER STATION
A PLAYER STATION is one (1) of three (3) assigned positions in an ALLIANCE WALL from where a
DRIVE TEAM operates their ROBOT. Each PLAYER STATION is made from a 3 ft. (~91 cm) tall diamond
plate panel base topped with a 3 ft. 6 in. (~107 cm) tall transparent plastic panel. An aluminum shelf is
attached to each PLAYER STATION to support the DRIVE TEAM’S OPERATOR CONSOLE. The shelf is
5 ft. 9 in. (~175 cm) wide and 1 ft. (~30 cm) deep. There is a 4 ft. 6 in. (~137 cm) long by 2 in. (nominal)
wide strip of hook-and-loop tape (“loop” side) along the center of the support shelf that may be used to
secure the OPERATOR CONSOLE to the shelf.
Each PLAYER STATION contains the following components for Teams:
One Ethernet Cable: attaches to the Ethernet port of the OPERATOR CONSOLE and
provides connectivity to the FIELD Management System.
One 120VAC NEMA 5-15R power outlet: located on each PLAYER STATION shelf and
protected by its own 2-Amp circuit breaker. It can be used to power the OPERATOR
CONSOLE. DRIVE TEAMS are responsible for monitoring their power consumption as a
tripped breaker in the outlet does not constitute an ARCADE fault.
One Emergency Stop (E-Stop) button: located on the left side of the PLAYER STATION shelf
and should be used to deactivate a ROBOT in an emergency.
One Team sign: displays the Team number and located at the top of each PLAYER
STATION.
One Team LED: indicates ALLIANCE color, ROBOT status, and E-Stop status and centered
at the top of each PLAYER STATION. Team LED states include:
Solid: indicates that the ROBOT is connected and enabled. This will only happen during a
MATCH.
Section 3 ARCADE
V0
29 of 133
Blinking: indicates that either the Field Management System is preset for the MATCH or it’s
during a MATCH and the corresponding ROBOT has lost connectivity.
Off: indicates that the MATCH has not started yet, but the ROBOT is linked and disabled.
If the amber LED is on, the E-stop button has been pressed.
One Timer (in the PORTAL adjacent to PLAYER STATION 1): displays the official time
remaining in AUTO, TELEOP, and TIMEOUTS and marked with white tape along the bottom
edge.
Field Management System hardware and wiring: mostly located below the center PLAYER
STATION shelf.
3.6.2 EXCHANGE
An EXCHANGE is a polycarbonate wall 6 ft. 5 ¾ in. (~197 cm) tall by 4 ft. (~122 cm) wide located
between PLAYER STATION 1 and PLAYER STATION 2 and used by ROBOTS to deliver POWER
CUBES to HUMAN PLAYERS. HUMAN PLAYERS can then either place POWER CUBES in the VAULT
or feed them back to the ROBOT through the RETURN.

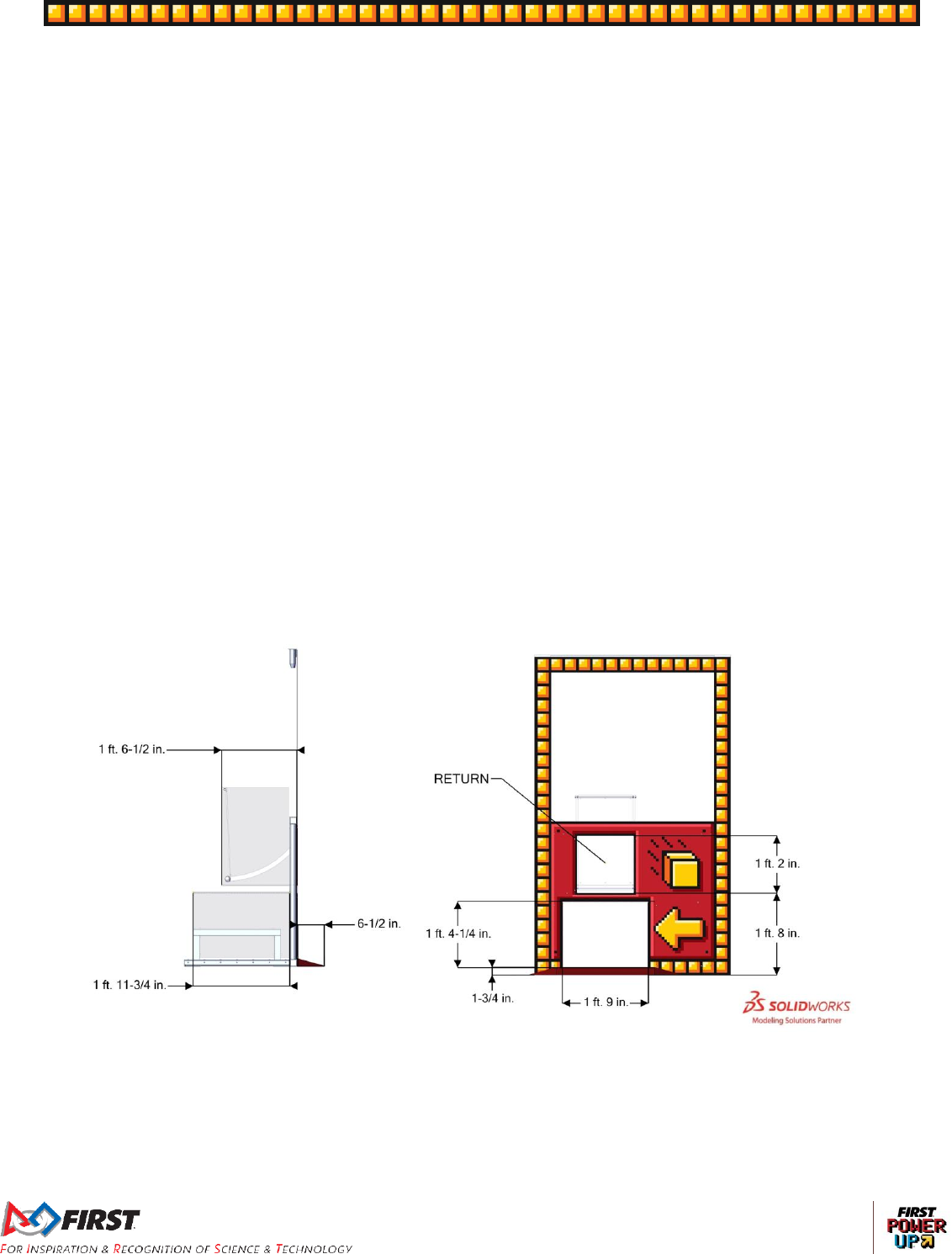

Each EXCHANGE has a lower opening 1 ft. 4 ¼ in. (~41 cm) tall and is 1 ft. 9 in. (~53 cm) wide used to
deliver POWER CUBES to the HUMAN PLAYER. A small ramp, 1 ¾ in. (~4 cm) tall by 6 ½ in. (~17 cm)
deep, leads to a series of conveyor rollers. The conveyor rollers are spun by the HUMAN PLAYER to
move the POWER CUBE through a polycarbonate tunnel that is 1 ft. 11 ¾ in. (~60 cm) deep.
Each EXCHANGE also features a RETURN used to deliver POWER CUBES to ROBOTS. The RETURN
opening is a 1ft. 2 in. (~36 cm) square, centered above the lower opening and is located 1 ft. 8 in. (~51
cm) above the carpet. Behind the RETURN opening is a 1 ft. 6 ½ in. (~47 cm) deep polycarbonate chute.
The chute features a swinging wall designed to push the POWER CUBE onto the FIELD.
Figure 3-18: EXCHANGE
3.6.3 VAULT
The VAULT is an aluminum and plastic structure used by HUMAN PLAYERS to turn POWER CUBES in
to POWER UPS. There are three (3) columns within the VAULT. Each column is 1 ft. 1-1/2 in. (~34 cm)
wide by 3 ft. 3-1/4 in. (~100 cm) tall with the bottom located 1 ft. 3-1/2 in. (~39 cm) above the carpet.
Each of the three (3) columns in the VAULT correspond to a POWER UP. When standing in the
Section 3 ARCADE
V0
30 of 133
ALLIANCE STATION and facing the open columns of the VAULT the column to the left is the FORCE
POWER UP, the center column is the LEVITATE POWER UP and the column on the right is the BOOST
POWER UP.

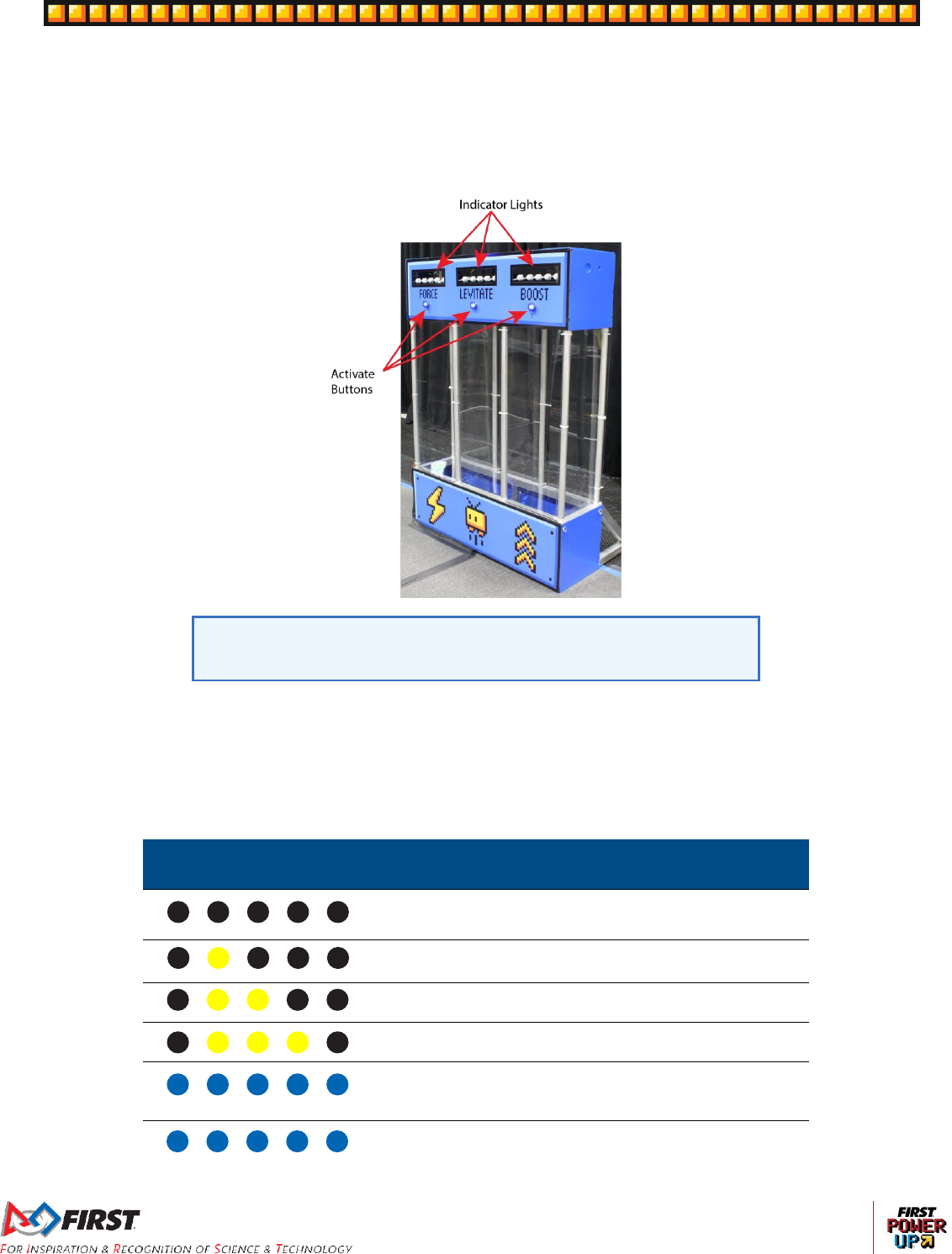

Figure 3-19: Blue ALLIANCE VAULT
Caution, there are orientations where all three (3) POWER CUBES will
not fit in a VAULT column, but if HUMAN PLAYERS place POWER
CUBES logo side up they’ll fit.
3.6.3.1 VAULT lighting
Lights at the top of each VAULT column display the POWER CUBE count for that column. The lights
have the following states:
Table 3-2: VAULT Lighting
Color
Meaning
No POWER CUBES in column
One (1) POWER CUBE in column
Two (2) POWER CUBES in column
Three (3) POWER CUBES in column
(pulsing)
Blue POWER UP in queue
Blue POWER UP played
Section 3 ARCADE
V0
31 of 133
(pulsing)
Red POWER UP in queue
Red POWER UP played
The lights illuminate one bulb per POWER CUBE and show one (1), two (2), three (3) or none (0) by
lighting up from left to right. To play a POWER UP, the button corresponding to the column and
associated POWER UP is pressed by the HUMAN PLAYER. Once played, all five (5) lights in the
corresponding column are illuminated in the ALLIANCE color. If an ALLIANCE plays a POWER UP during
the time when an opposing ALLIANCE’s POWER UP is active, the POWER UP is queued, indicated by
five (5) pulsing lights. See Section 4.3 POWER UPS for more details.
3.7 PORTAL
HUMAN PLAYERS may deliver POWER CUBES to ROBOTS through either of the PORTAL walls. Each
PORTAL wall features a 1 ft. 2 in. (~36 cm) square opening, centered across the width of the panel and
located 1 ft. 8 in. (~51 cm) from the carpet. Behind the opening is a 1 ft. 6 ½ in. (~47 cm) polycarbonate
chute. The chute featues a swinging wall that the HUMAN PLAYER uses to push the POWER CUBE onto
the FIELD.
Figure 3-20: PORTAL
3.8 POWER CUBE
POWER CUBES are used to affect the position of the SCALE and SWITCH PLATES, and can be traded
in for POWER UPS. A POWER CUBE is a 1 ft. 1 in. (~33 cm) wide by 1 ft. 1 in. (~33 cm) deep by 11 in.
(~27 cm) tall HDPE milk crate covered in a yellow nylon (600 Denier) cover. The FIRST® logo covers the
open face of the milk crate. Each POWER CUBE weighs 3 ½ lbs (~1.6 kg). POWER CUBES may be
Section 3 ARCADE
V0
32 of 133
purchased from AndyMark (am-3818 and am-3741), Innovation First (217-6188 and 217-6193), and Rev
Robotics (REV-21-1217 and REV-21-1218).
Figure 3-21: POWER CUBE
3.9 Vision Targets
Vision targets are located on the SWITCH FENCE using 2 in. (~5 cm) strips of 3M 8830 Scotchlite
Reflective Material and are used to highlight the locations of the PLATES on the SWITCH.
Each vision target consists of two vertical, 16 in. (~41 cm) tall strips of reflective material, with a 4 in. (~10
cm) gap between them. Elements of the SWITCH obscure the top and bottom of the target, resulting in
approximately 15.3 in. (~39 cm) of viewable height when viewed straight on. The center of each target is
located 51 7/8” in. (~132 cm) from the center of the SWITCH.
Figure 3-22: Vision Target locations
Section 3 ARCADE
V0
33 of 133
3.10 The FIELD Management System
The FIELD Management System (FMS) is the electronics core responsible for controlling the FIRST
Robotics Competition playing field. The FMS encompasses all field electronics, including the computers,
REFEREE touchscreens, wireless access point, sensors, stack lights, E-Stops, etc.
When a DRIVE TEAM connects the Ethernet cable from their assigned PLAYER STATION to their
OPERATOR CONSOLE, the Driver Station software on the OPERATOR CONSOLE computer will begin
to communicate with the Field Management System (FMS). Once connected to FMS, the only open ports
available are described in Table 3-3.
Table 3-3: Open FMS Ports
Port
Designation
Bi-directional?
UDP/TCP 1180-1190
Camera data from the roboRIO to the Driver
Station (DS) when the camera is connected
the roboRIO via USB
Yes
TCP 1735
SmartDashboard
Yes
UDP 1130
Dashboard-to-ROBOT control data
Yes
UDP 1140
ROBOT-to-Dashboard status data
Yes
HTTP 80
Camera connected via switch on the ROBOT
Yes
HTTP 443
Camera connected via switch on the ROBOT
Yes
UDP/TCP 554
Real-Time Streaming Protocol for h.264
camera streaming
Yes
UDP/TCP 5800-5810
Team Use
Yes
Teams may use these ports as they wish if they do not employ them as outlined above (e.g. TCP 1180
can be used to pass data back and forth between the ROBOT and the Driver Station software if the Team
chooses not to use the camera on USB). Note that ROBOT code cannot be deployed while connected to
the FMS. Additional information about the FMS may be found in the FMS Whitepaper.
The FMS provides the ALLIANCE color assigned to each PLATE to the Driver Station software.
Immediately following the assignment of PLATE color prior to the start of AUTO. Specific details on the
format of the data can be found on the 2018 FRC Control System website.
While FMS does provide the ALLIANCE PLATE color to each team’s
Driver Station, teams must write the necessary ROBOT code to make
use of the information during a MATCH.
Section 4 MATCH Play
V0
35 of 133
4 MATCH Play
During each FIRST® POWER UPSM MATCH, two ALLIANCES (cooperatives of up to four (4) FIRST®
Robotics Competition Teams) play out a multiplayer video game to defeat the boss by gaining
OWNERSHIP of a SCALE and SWITCHES by tipping them in their favor or by using POWER UPS.
4.1.1 Stages
Each MATCH is divided in to two stages. The first stage, called AUTONOMOUS (AUTO), is the first
fifteen (0:15) seconds of a MATCH in which ROBOTS operate without any DRIVE TEAM control or input.
Prior to the start of AUTO the assignments of ALLIANCE colors for SWITCH and SCALE PLATES are
randomized and transmitted to the OPERATOR CONSOLE by the Field Management System (FMS).
During AUTO, ROBOTS attempt to deliver preloaded POWER CUBES to PLATES, retrieve additional
POWER CUBES from around the FIELD, and cross their AUTO LINE any time before the end of the
stage.
TELEOPERATED (TELEOP) is the second stage in a MATCH and is two minutes and fifteen seconds
(2:15) long. During this stage, DRIVERS remotely operate ROBOTS to retrieve and place POWER
CUBES on the PLATES and feed POWER CUBES through the EXCHANGE for placement in the VAULT
to earn POWER UPS. The final thirty (30) seconds of the TELEOP stage is considered the ENDGAME,
during which ROBOTS prepare to FACE THE BOSS.
In addition to the two (2) minutes and thirty (30) seconds of game play, each MATCH also has pre- and
post-MATCH time for setup and reset of the ARCADE. During ARCADE reset, the ARCADE is cleared of
ROBOTS and OPERATOR CONSOLES from the MATCH that just ended. The ROBOTS and
OPERATOR CONSOLES for the subsequent MATCH are loaded into the ARCADE by DRIVE TEAMS at
this time. FIELD STAFF also use this time to reset ARCADE elements and POWER CUBES.
Prior to the start of each MATCH, POWER CUBES, elements used to affect the position of the SCALE
and SWITCHES and earn POWER UPS, are staged as shown in Figure 4-1. Staging details are as
follows:
A. Seven (7) in each PORTAL (on the carpet between the PORTAL wall and the STARTING
LINE), minus any preloaded POWER CUBES,
B. Six (6) next to each SWITCH. They are arranged approximately equidistant from each other
along the face of the FENCE closest to the SCALE
C. Ten (10) located in each ALLIANCE POWER CUBE PILE (in a pyramid formation, with six on
the bottom, three in the middle, and one on top, justified toward the SWITCH.)
Section 4 MATCH Play
V0
36 of 133
Figure 4-1: POWER CUBE staging
When a DRIVE TEAM loads their ROBOT onto the FIELD for a MATCH they may elect to preload up to
one (1) POWER CUBE in or on their ROBOT such that it is fully and only supported by the ROBOT. A
minimum of five (5) POWER CUBES must remain in each of their two (2) PORTALS after any preloads.
If order placement of ROBOTS matters to either or both ALLIANCES, the ALLIANCE must notify the
Head REFEREE during setup for that MATCH. Upon notification, the Head REFEREE will require
ALLIANCES alternate placement of all ROBOTS. In a Qualification MATCH, ROBOTS will be placed in
the following order: Red Station 1 ROBOT, Blue Station 1 ROBOT, Red Station 2 ROBOT, Blue Station 2
ROBOT, Red Station 3 ROBOT, Blue Station 3 ROBOT. In a PLAYOFF MATCH, the same pattern is
applied, but instead of Red ALLIANCE placing, the higher seeded ALLIANCE (regardless of color) will
place last.
Section 4 MATCH Play
V0
37 of 133
4.2 Scoring
ALLIANCES are rewarded for accomplishing various actions throughout the course of a MATCH,
including autonomous movement, having OWNERSHIP of their SWITCH or the SCALE, CLIMBING to
FACE THE BOSS, and winning or tying MATCHES. Rewards are granted either via MATCH points (which
contribute to the ALLIANCE’S MATCH score) or Ranking Points (which increase the measure used to
rank teams in the Qualification tournament). Such actions, their criteria for completion, and their point
values are listed in Table 4-1. Scores are assessed and updated throughout the MATCH.
The primary method of earning points in FIRST® POWER UPSM is by placing POWER CUBES on the
PLATES of the SWITCH or SCALE to establish OWNERSHIP. OWNERSHIP is a state of the SWITCH or
SCALE where it is tilted in favor of an ALLIANCE colored PLATE, such that the outside edge of the
ALLIANCE colored PLATE is at or less than a specified height above the carpet. ALLIANCES earn points
when OWNERSHIP is established and additional points for each additional second of OWNERSHIP.
The SWITCH located closest to its ALLIANCE STATION is considered that ALLIANCE’S SWITCH. While
any ROBOT can place POWER CUBES on the PLATES of either SWITCH, an ALLIANCE can only have
OWNERSHIP of, and accumulate points for, their SWITCH.
An ALLIANCE has OWNERSHIP of their SWITCH when:
A. the SWITCH is tilted in favor of their ALLIANCE colored PLATE, such that the outside
edge of the ALLIANCE colored PLATE is at or less than 6 in. (~15 cm) from the floor,
or
B. they have played the FORCE POWER UP at level 1 or 3 (see Section 4.3 POWER
UPS)
The Blue ALLIANCE’S SWITCH accumulates points for the Blue
ALLIANCE when the PLATE illuminated and pulsing with blue lights is
down.
The SWITCH does not accumulate points for either ALLIANCE when the
blue PLATE is above 6 in (~15 cm).
An ALLIANCE has OWNERSHIP of the SCALE when:
A. the SCALE is tilted in favor of their ALLIANCE colored PLATE, such that the outside
edge of the ALLIANCE’S colored PLATE is at or lower than 4 ft. 8 in. (~142 cm) from
the floor, or
B. they have played the FORCE POWER UP at level 2 or 3 (see Section 4.3 POWER
UPS)
Note that points for the SWITCH and SCALE are accrued over time and
not a direct function of the number of POWER CUBES placed on the
SWITCH or SCALE.
Points are not taken away when OWNERSHIP changes, but rather stop
accumulating (if balanced) or start accumulating for the opposite
ALLIANCE if they take OWNERSHIP of the SCALE.
ROBOTS deliver POWER CUBES to HUMAN PLAYERS through the EXCHANGE. Once a POWER
CUBE is delivered through the EXCHANGE, HUMAN PLAYERS may:
1. place the POWER CUBE into the VAULT for points and application toward a POWER UP, or
2. return the POWER CUBE to the FIELD using the RETURN in the EXCHANGE wall, or
Section 4 MATCH Play
V0
38 of 133
3. keep the POWER CUBE inside the ALLIANCE STATION (effectively delaying the selection until a
later time or not using it all.)
An ALLIANCE can earn up to four (4) Ranking Points (RP) per Qualification MATCH, as described in
Table 4-1. There are no RP, or comparable point bonuses, in Playoff MATCHES.
Table 4-1: FIRST® POWER UPSM rewards
Action
Criteria
MATCH Points
Ranking
Points
AUTO
TELEOP
AUTO-RUN
For each ROBOT that breaks the vertical plane of the
AUTO LINE with its BUMPER at any point in the
AUTO stage
5
-
-
OWNERSHIP
SCALE
2 + 2/sec
1 + 1/sec
-
ALLIANCE’S SWITCH
2 + 2/sec
1 + 1/sec
-
VAULT
For each POWER CUBE placed in the VAULT
-
5
-
PARKING
For each ROBOT fully supported by the SCALE
(either directly or transitively), not at all in the
opponent’s PLATFORM ZONE, and has not
CLIMBED
-
5
-
CLIMBING
For each ROBOT fully supported by the SCALE
(either directly or transitively) with BUMPERS fully
above the BRICKS at T=0, and not at all in the
opponent’s PLATFORM ZONE
-
30
-
FACE THE
BOSS
All three (3) ALLIANCE ROBOTS have CLIMBED or
two (2) ROBOTS have CLIMBED and the ALLIANCE
has played the LEVITATE POWER UP
-
-
1
AUTO
QUEST
ALLIANCE completes three (3) AUTO-RUNS and has
OWNERSHIP of their SWITCH at T=0 of the AUTO
stage
-
-
1
Win
ALLIANCE’s final MATCH score exceeds their
opponents
-
-
2
Tie
ALLIANCE’s final MATCH score equals their
opponents’
-
-
1
Points are earned for establishing OWNERSHIP, with additional points
earned for each additional second of OWNERSHIP. For example, a team
that establishes OWNERSHIP of their SWITCH three (3) seconds after
the start of AUTO and maintains OWNERSHIP for five (5) seconds earns
two (2) points + ten (10) points, for a total of twelve (12) points.
The MATCH points listed in Table 4-1 for OWNERSHIP during the
TELEOP stage are increased if the BOOST POWER UP is played. See
Section 4.3 for details on BOOST.
Section 4 MATCH Play
V0
39 of 133
4.3 POWER UPS
POWER UPS are advantages an ALLIANCE can earn and play throughout the TELEOP stage of the
MATCH. ALLIANCES earn POWER UPS by delivering POWER CUBES through their EXCHANGE to
their HUMAN PLAYERS who place them into their VAULT. Table 4-2 lists the POWER UPS, their cost,
and the effect when it is played by an ALLIANCE.
Table 4-2: POWER UPS
If LEVITATE is played the CLIMB is credited randomly to any ROBOT on the ALLIANCE who is not
PARKING or CLIMBING at the end of the MATCH. If all ROBOTS on the ALLIANCE are either PARKING
or CLIMBING, one randomly chosen PARKING ROBOT will be upgraded from PARKING to CLIMBING.
An ALLIANCE plays a POWER UP by pressing the corresponding button on the VAULT. Only one (1)
instance of the FORCE or BOOST POWER UP can be active at a time. The LEVITATE POWER UP can
be played at any time during the TELEOP stage.
A POWER UP is active for the duration listed in Table 4-2. If an ALLIANCE plays BOOST of FORCE
during the time when an opposing ALLIANCE’s POWER UP is active, the POWER UP is queued and
becomes active immediately upon the conclusion of the currently active POWER UP. Once a POWER UP
is played, it cannot be cancelled.
Name
# of POWER
CUBES
Effect
Duration
(seconds)
LEVITATE
3
An additional CLIMBING ROBOT, up to a maximum of
three (3) ROBOTS, is credited to the ALLIANCE at the
end of the MATCH
N/A
FORCE
1
ALLIANCE earns OWNERSHIP points from their
SWITCH regardless of PLATE position
10
2
ALLIANCE earns OWNERSHIP points from the SCALE
regardless of PLATE position
10
3
ALLIANCE earns OWNERSHIP points from the SWITCH
and the SCALE regardless of PLATE position
10
BOOST
1
Increases the points for OWNERSHIP of the ALLIANCE’S
SWITCH from one (1) point per second to two (2) points
per second.
10
2
Increases the points for OWNERSHIP of the SCALE from
one (1) point per second to two (2) points per second
10
3
Increases the points for OWNERSHIP of both the
ALLIANCE’S SWITCH and the SCALE from one (1) point
per second to two (2) points per second
10
Section 4 MATCH Play
V0
40 of 133
Figure 4-2: POWER UP timeline example
Example: the Red ALLIANCE plays FORCE with sixty (60) seconds
remaining in the MATCH. FORCE is in-progress from sixty (60) seconds
to fifty (50) seconds, during which time no additional instances of
FORCE or BOOST can be active.
The Blue ALLIANCE plays BOOST with fifty-five (55) seconds remaining
in the MATCH, but it does not become active until the Red ALLIANCE
FORCE ends at fifty (50) seconds.
The Red ALLIANCE plays BOOST with forty-eight (48) seconds
remaining in the MATCH, but it does not become active until the Blue
ALLIANCE BOOST ends at forty (40) seconds.
The Blue ALLIANCE plays LEVITATE with thirty-five (35) seconds
remaining in the MATCH. It is immediately active for the Blue ALLIANCE
and added to their score.
FORCE and BOOST can be played with as few as one (1) or as many as three (3) POWER CUBES in
their corresponding column of the VAULT. However, an ALLIANCE may only play each POWER UP one
time in the MATCH. Additional POWER CUBES placed into the FORCE or BOOST columns after the
activation of the corresponding POWER UP do earn points for the ALLIANCE.
Example: the RED ALLIANCE places two (2) POWER CUBES in the
FORCE column of their VAULT. With ninety (90) seconds remaining in
the MATCH, a HUMAN PLAYER plays FORCE on the SCALE. The Red
ALLIANCE has now played their FORCE, and cannot play another
FORCE during the MATCH. Additional POWER CUBES placed into the
FORCE column will earn points for the Red ALLIANCE, per Table 4-1.
Section 4 MATCH Play
V0
41 of 133
4.4 Rule Violations
Upon a rule violation, one or more of the penalties listed in Table 4-3 will be assessed.
Table 4-3: Penalty Table
Action
Penalty
FOUL
5 points credited towards the opponent’s total score.
TECH FOUL
25 points credited towards the opponent’s total score.
YELLOW
CARD
a warning issued by the Head REFEREE for egregious ROBOT or Team
member behavior or rule violations. A subsequent YELLOW CARD
within the same tournament phase will lead to a RED CARD.
RED CARD
a penalty assessed for egregious ROBOT or Team member behavior, or
rule violations, which results in a Team being DISQUALIFIED for the
MATCH.
DISABLED
ROBOT will be commanded to deactivate all outputs, rendering the
ROBOT inoperable for the remainder of the MATCH.
DISQUALIFIED
the state of a Team in which they receive zero (0) MATCH points in a
qualification MATCH or causes their ALLIANCE to receive zero (0)
MATCH points in a Playoff MATCH
4.5 DRIVE TEAM
A DRIVE TEAM is a set of up to five (5) people from the same FIRST Robotics Competition Team
responsible for Team performance for a specific a MATCH. There are four (4) specific roles on a DRIVE
TEAM which ALLIANCES can use to assist ROBOTS with FIRST® POWER UPSM.
Table 4-4: DRIVE TEAM roles
Role
Description
Max./
DRIVE TEAM
Criteria
COACH
a guide or advisor
1
Pre-college student or adult mentor
Must wear Coach button
DRIVER
an operator and controller of
the ROBOT
3
Pre-college student
Must wear one (1) of the three (3)
“Drive Team” buttons
HUMAN
PLAYER
a POWER CUBE manager
TECHNICIAN
a resource for ROBOT
troubleshooting, setup, and
removal from the FIELD
1
Pre-college student
Must wear “Technician” button
The TECHNICIAN is a new role for the 2018 season and provides teams
with a technical resource for pre-MATCH setup, ROBOT connectivity,
OPERATOR CONSOLE troubleshooting, and post-MATCH removal of
the ROBOT. Some pre-MATCH responsibilities for the TECHNICIAN
may include, but are not limited to:
location of the ROBOT radio, its power connection, and
understanding of its indicator lights
location of the roboRIO and understanding of its indicator lights
username and password for the OPERATOR CONSOLE
Section 4 MATCH Play
V0
42 of 133
restarting the Driver Station and Dashboard software on the
OPERATOR CONSOLE
changing the bandwidth utilization (e.g. camera resolution, frame
rate, etc.)
changing a BATTERY
charging pneumatics
While the TECHNICIAN may be the primary technical member of the
DRIVE TEAM, all members of the DRIVE TEAM are encouraged to have
knowledge of the basic functionality of the ROBOT, such as the location
and operation of the main circuit breaker, connecting and resetting
joysticks or gamepads from the OPERATOR CONSOLE, and releasing
the ROBOT from the SCALE.
4.6 Logistics
Any POWER CUBE that leaves the FIELD will not be returned to MATCH play. POWER CUBES that
inadvertently deflect back in to the FIELD will be considered fair game.
Note that ROBOTS may not deliberately cause POWER CUBES to leave
the FIELD (see G21), except through the lower opening of the
EXCHANGE.
There will not be an ARCADE FAULT called for MATCHES that accidentally begin with an incorrect
number of, or damaged POWER CUBES. Damaged POWER CUBES will not be replaced until the next
FIELD reset period. DRIVE TEAMS should alert the FIELD STAFF to any missing or damaged POWER
CUBES prior to the start of the MATCH.
Once the MATCH is over, if the Head REFEREE determines that the FIELD is safe for FIELD STAFF but
not safe for everyone (e.g. the SCALE is full of POWER CUBES that create a falling hazard for a DRIVE
TEAM carrying a ROBOT), they will turn the LED lights on the PLATES purple. Once the FIELD is ready
for DRIVE TEAM traffic, the Head REFEREE will change the LED lights to green and DRIVE TEAMS may
retrieve their ROBOT in accordance with S02.
Section 5 Safety Rules
V0
43 of 133
5 Safety Rules
Safety is paramount at all times during any Tournament, and each rule below is intended to establish
norms at each event that will mitigate injury risk to all participants.
Event staff have the final decision authority for all safety-related issues within a venue.
Veterans of the FIRST® Robotics Competition may notice the absence of
some long-standing rules from this section, e.g. the requirements for
safety glasses, closed-toed shoes, and limitations on the wireless use of
ROBOTS. These rules remain enforced for the 2018 FIRST® POWER
UPSM season, but have been moved to the FIRST® Robotics Competition
Event Experience web page because they are not season specific. As
with all violations in this Game Manual any of the Event Experience rules
also carry the consequence of a YELLOW or RED CARD.
S01. Dangerous ROBOTS: not allowed. ROBOTS whose operation or design is dangerous or unsafe
are not permitted.
Violation: If before the MATCH, the offending ROBOT will not be allowed to participate in the
MATCH. If during the MATCH, the offending ROBOT will be DISABLED.
Examples include, but are not limited to:
A. Uncontrolled motion that cannot be stopped by the DRIVE TEAM
B. ROBOT parts “flailing” outside of the FIELD
C. ROBOTS dragging their battery
D. ROBOTS that consistently extend beyond the FIELD
S02. Wait for the green lights. DRIVE TEAMS may only enter the FIELD if the LED strings are green,
unless explicitly instructed by a REFEREE or an FTA.
Violation: Verbal warning. If repeated, YELLOW CARD. If egregious, RED CARD.
S03. Never step/jump over the GUARDRAIL. DRIVE TEAMS may only enter or exit the FIELD
through open gates.
Violation: Verbal warning. If repeated, YELLOW CARD. If egregious, RED CARD.
Teams are encouraged to ensure that all members of their DRIVE TEAM
are aware of this rule. It’s easy to violate, particularly when teams are
doing their best to move on and off the FIELD quickly. The violations of
S03 are intended to avoid nuisance penalties, but still enforce safety
requirements around the FIELD. There is the potential for injury when
stepping over the GUARDRAIL.
Violations of S03 apply to the entire team, not specifically to any one
individual. For example, a member of team 9999 steps over the
GUARDRAIL prior to MATCH 3, and a different member steps over the
GUARDRAIL prior to MATCH 25. The team receives a verbal warning for
the first violation and a YELLOW CARD for the second. Jumping over
the GUARDRAIL is considered an egregious violation of S03.
Section 5 Safety Rules
V0
44 of 133
S04. Humans, stay off the FIELD during the MATCH. DRIVE TEAMS may not extend any body part
into the FIELD during the MATCH.
Violation: YELLOW CARD
Examples of egregious violations that are likely to escalate the Violation
to a RED CARD include, but are not limited to, walking onto the FIELD
during a MATCH or reaching into the FIELD and grabbing a ROBOT
during a MATCH.
S05. ROBOTS, stay on the FIELD during the MATCH. ROBOTS and anything they control, e.g. a
POWER CUBE, may not contact anything outside the FIELD with the exception of brief incursions
beyond the EXCHANGE or the opening in the PORTAL wall.
Violation: Offending ROBOT will be DISABLED.
Please be conscious of REFEREES, and FIELD STAFF working around
the ARCADE who may be in close proximity to your ROBOT.
S06. Stay out of the tunnels. DRIVE TEAMS may not extend any body part into the RETURN chute,
the PORTAL chute, or the EXCHANGE tunnel. Momentary encroachment into these volumes is
an exception to this rule
Violation: FOUL.
Section 6 Conduct Rules
V0
45 of 133
6 Conduct Rules
C01. Egregious or exceptional violations. In addition to rule violations explicitly listed in this manual
and witnessed by a REFEREE, the Head REFEREE may assign a YELLOW or RED CARD for
egregious ROBOT actions or Team member behavior at the event. This includes violations of the
event rules found on the FIRST® Robotics Competition Event Experience web page. Please see
Section 10.7 YELLOW and RED CARDS for additional detail.
C02. Be a good person. All Teams must be civil towards their own Team members, other Teams,
competition personnel, FIELD STAFF, and event attendees while at a FIRST® Robotics
Competition event.
Violation: Behavior will be discussed with Team or individual. Violations of this rule are likely to
escalate to YELLOW or RED CARDS rapidly (i.e. the threshold for egregious or repeated violations
is relatively low.)
Examples of inappropriate behavior include, but are not limited to,
repeated use of offensive language or other uncivil conduct.
We’ve learned that, although intended with no ill will, “clothes pinning” (a
game played by some event participants where they try to clip a
clothespin to an unsuspecting person) can and does make people
uncomfortable. Understandable; it’s unwelcome contact that may or may
not have been from someone you know and trust. As a result, this is
considered an example of uncivil conduct.
C03. Asking other Teams to throw a MATCH not cool. A Team may not encourage an ALLIANCE,
of which it is not a member, to play beneath its ability.
NOTE: This rule is not intended to prevent an ALLIANCE from planning and/or executing its own
strategy in a specific MATCH in which all the Teams are members of the ALLIANCE.
Violation: Behavior will be discussed with Team or individua l. Violations of this rule are likely to
escalate rapidly to YELLOW or RED CARDS, and may lead to dismissal from the event (i.e. the
threshold for egregious or repeated violations is relatively low.)
Example 1: A MATCH is being played by Teams A, B, and C, in which
Team C is encouraged by Team D to not run their AUTO program on
their ROBOT, resulting in Teams A, B, and C not being able to earn a
Ranking Point for the AUTO QUEST achievement. Team D’s motivation
for this behavior is to prevent Team A from rising in the Tournament
rankings and negatively affecting Team D’s ranking.
Example 2: A MATCH is being played by Teams A, B, and C, in which
Team A is assigned to participate as a SURROGATE. Team D
encourages Team A to not participate in the MATCH so that Team D
gains ranking position over Teams B and C.
FIRST® considers the action of a Team influencing another Team to
throw a MATCH, to deliberately miss Ranking Points, etc. incompatible
with FIRST values and not a strategy any team should employ.
Section 6 Conduct Rules
V0
46 of 133
C04. Letting someone coerce you in to throwing a MATCH also not cool. A Team, as the result
of encouragement by a Team not on their ALLIANCE, may not play beneath its ability.
NOTE: This rule is not intended to prevent an ALLIANCE from planning and/or executing its own
strategy in a specific MATCH in which all the ALLIANCE members are participants.
Violation: Behavior will be discussed with Team or individual. Violations of this rule are likely to
escalate rapidly to YELLOW or RED CARDS, and may lead to dismissal from the event (i.e. the
threshold for egregious or repeated violations is relatively low.)
Example 1: A MATCH is being played by Teams A, B, and C. Team D
requests Team C to not run their AUTO program on their ROBOT,
resulting in Teams A, B, and C not earning a Ranking Point for the AUTO
QUEST achievement. Team C accepts this request from Team D. Team
D’s motivation for this behavior is to prevent Team A from rising in the
Tournament rankings negatively affecting Team D’s ranking.
Example 2: A MATCH is being played by Teams A, B, and C, in which
Team A is assigned to participate as a SURROGATE. Team A accepts
Team D’s request to not participate in the MATCH so that Team D gains
ranking position over Teams B and C.
FIRST considers the action of a Team influencing another Team to throw
a MATCH, to deliberately miss Ranking Points, etc. incompatible with
FIRST values and not a strategy any team should employ.
C05. Compete with only one (1) ROBOT. Each registered FIRST Robotics Competition team may
enter only one (1) ROBOT (or ‘Robot’, which to a reasonably astute observer, is a ROBOT built to
play FIRST® POWER UPSM) into the 2018 FIRST Robotics Competition Season.
“Entering” a ROBOT (or Robot) into a FIRST Robotics Competition
means bringing it to the event such that it’s an aid to your Team (e.g. for
spare parts, judging material, or for practice). Spare FABRICATED
ITEMS may be brought to the event in a bag or part of a WITHHOLDING
ALLOWANCE.
This rule does not prohibit teams from bringing in robots from other
FIRST programs for the purposes of awards presentations or pit
displays.
Violation: Verbal warning. Repeated violations will be addressed by the H ead REFEREE, the Lead
ROBOT Inspector and/or Event Management.
Section 6 Conduct Rules
V0
47 of 133
C06. Show up to your MATCHES. Each team must send at least one (1) member of its DRIVE TEAM
to the FIELD and participate in each of the team’s assigned Qualification and Playoff MATCHES.
The team should inform the Lead Queuer if the Team’s ROBOT is not able to participate.
Violation: If ROBOT has passed an initial, complete Inspection, RED CARD. If ROBOT has not
passed an initial, complete Inspection, DISQUALIFIED per I02.

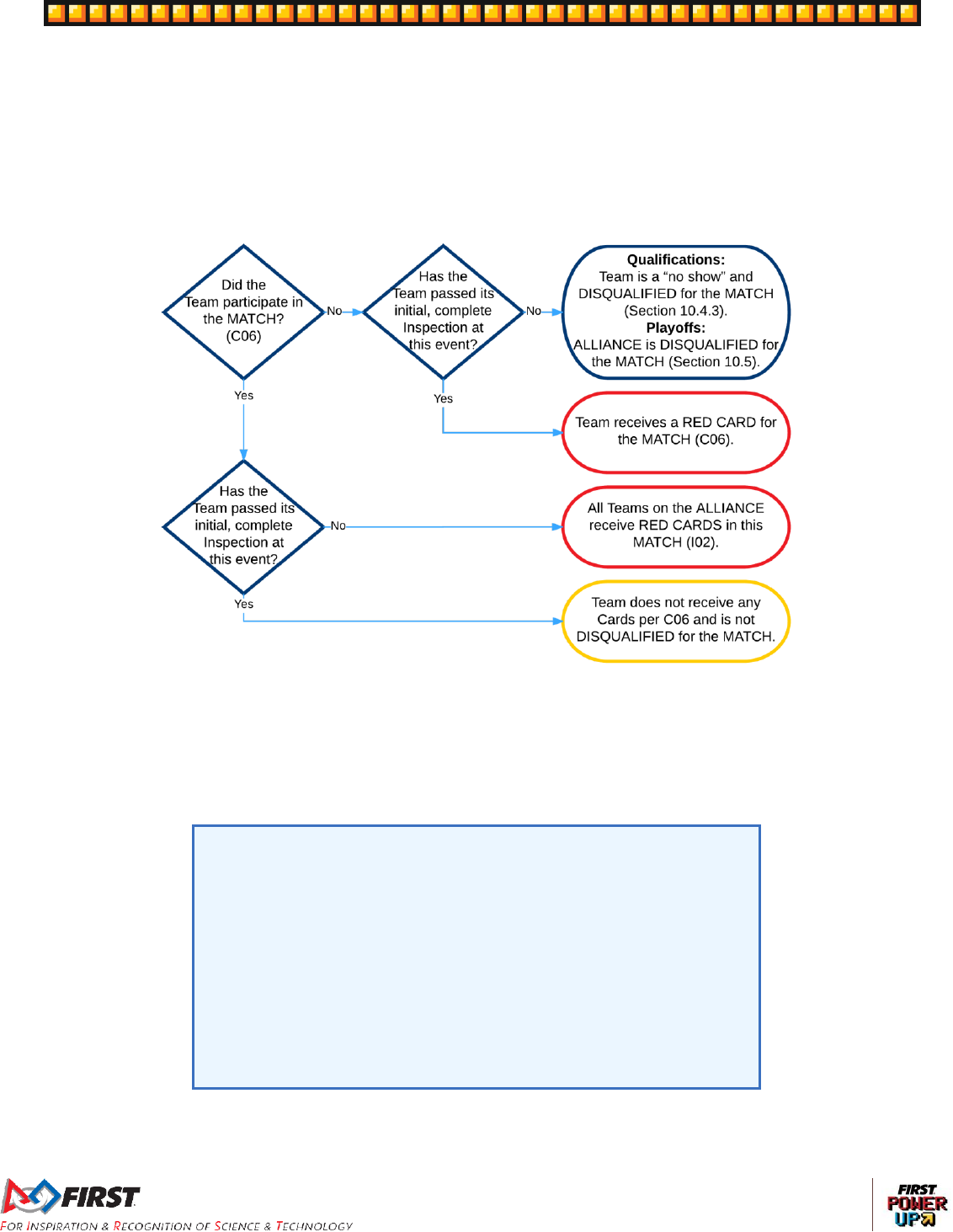

Figure 6-1: Match participation flowchart
C07. Don’t expect to gain by doing others harm. Strategies clearly aimed at forcing the opposing
ALLIANCE to violate a rule are not in the spirit of FIRST® Robotics Competition and not allowed.
Rule violations forced in this manner will not result in an assignment of a penalty to the targeted
ALLIANCE.
Violation: FOUL. If egregious or repeated, TECH FOUL and YELLOW CARD.
C07 does not apply for strategies consistent with standard gameplay,
e.g. contacting an opponent during the ENDGAME while in your
PLATFORM ZONE and attempting to CLIMB.
C07 requires an intentional act with limited or no opportunity for the
TEAM being acted on to avoid the penalty, such as:
A. placing a POWER CUBE on/in an opponent who’s already
controlling a POWER CUBE such that they cannot help but violate
G22.
B. forcing an opposing ALLIANCE ROBOT to become wedged under a
SCALE PLATE such that they cannot help but violate G16 and/or
G25.
C08. One student, one Head REFEREE. A Team may only send one (1) pre-college student from its
DRIVE TEAM to address the Head REFEREE.
Section 6 Conduct Rules
V0
48 of 133
Violation: The Head REFEREE will not address additional, non-compliant Team members or
peripheral conversations.
Please see Section 10.6 REFEREE Interaction for more information
about process and expectations.
C09. Plug in to/be in your PLAYER STATION. The OPERATOR CONSOLE must be used in the
PLAYER STATION to which the Team is assigned, as indicated on the Team sign.
Violation: The MATCH will not start until the situation is corrected. If during a MATCH, DISABLED.
One intent of C09 is to prevent unsafe situations where long tethers to
OPERATOR CONSOLE devices increase tripping hazards as the
operator moves about the ALLIANCE STATION. In the interest of
avoiding nuisance penalties associated with an operator stepping outside
of a prescribed area, we prefer to offer a general guideline as to what it
means to use the OPERATOR CONSOLE in the ALLIANCE STATION.
Provided the operator is within close proximity of their PLAYER
STATION, there will be no repercussions. However, if an operator is
located more than approximately ½ PLAYER STATION width away from
their own PLAYER STATION, that would be considered a violation of
C09.
C10. No work outside your pit. Throughout the event, from load-in to load-out, Teams may only
produce FABRICATED ITEMS during pit hours, and:
a. in their pit area, or
b. in other Teams’ pit areas with permission from that team, or
c. as permitted at provided machine shops that are available to all teams.
Violation: Verbal warning. Repeated or egregious violations will be addressed by the H ead
REFEREE, the Lead ROBOT Inspector and/or Event Management.
Section 7 Game Rules
V0
49 of 133
7 Game Rules
7.1 Before the MATCH
G01. Know your ROBOT setup. When placed on the FIELD for a MATCH, each ROBOT must be:
A. in compliance with all ROBOT rules, i.e. has passed Inspection (for exceptions
regarding Practice MATCHES, see Section 9 Inspection & Eligibility Rules),
B. the only item left on the FIELD by the DRIVE TEAM,
C. confined to its STARTING CONFIGURATION,
D. set on the carpet,
E. in contact with its ALLIANCE WALL diamond plate,
F. not in contact with the EXCHANGE wall,
G. not breaking the plane of the EXCHANGE ZONE, and
H. supporting not more than one (1) POWER CUBE (as described in Section 4.1.1
Stages).
Violation: If fix is a quick remedy, the MATCH wont start until all requirements are met. If it is not
a quick remedy the offending ROBOT will be DISABLED and, at the discretion of the Head
REFEREE, must be re-inspected.
If a ROBOT is BYPASSED prior to the start of the MATCH, the DRIVE
TEAM may not remove the ROBOT from the FIELD without permission
from the Head REFEREE or the FIRST® Technical Advisor (FTA).
G02. Be prompt/safe when coming to and going from the FIELD. DRIVE TEAMS may not cause
significant or repeated delays to the start of a MATCH and/or to the FIELD reset after the
MATCH.
Violation: If prior to the MATCH, the offending DRIVE TEAM’S ROBOT will be DISABLED. If after
the MATCH, YELLOW CARD.
DRIVE TEAMS are expected to stage their ROBOTS for a MATCH, and
remove it from the FIELD afterwards, safely and swiftly. Examples
include, but are not limited to:
A. late arrival to the FIELD
B. failing to exit the FIELD once the LED strings have turned off
(indicating MATCH ready)
C. installing BUMPERS, charging pneumatic systems, or any other
ROBOT maintenance, once on the FIELD
D. use of alignment devices that are external to the ROBOT (e.g. a
DRIVE TEAM could bring and use a measuring tape, as long as
there is no delay to the MATCH by doing so)
E. failing to remove OPERATING CONSOLES from the PLAYER
STATIONS in a timely manner
Section 7 Game Rules
V0
50 of 133
G03. Know your DRIVE TEAM positions. Prior to the start of the MATCH, DRIVE TEAMS must be
positioned as follows:
A. DRIVERS and COACHES must be in their ALLIANCE STATION and behind the
STARTING LINE
B. HUMAN PLAYERS must be behind the STARTING LINE and either in their
ALLIANCE STATION or one of their ALLIANCE PORTALS
C. TECHNICIANS must be in their designated area outside the ALLIANCE STATION
and PORTALS.
Violation: MATCH will not start until the situation is corrected .
The specific location for the TECHNICIAN to stand during a MATCH may
vary by event due to space restrictions around the FIELD. In general,
TECHNICIANS are located with their Teams ROBOT cart and within
close proximity to the FIELD.
G04. Leave the POWER CUBES alone. Prior to the start of the MATCH, DRIVE TEAMS may not
rearrange the POWER CUBES within a PORTAL, or transfer POWER CUBES from one PORTAL
to another.
Violation: MATCH will not start until the situation is corrected .
Section 7 Game Rules
V0
51 of 133
7.2 ROBOT Restrictions
G05. Don’t overextend yourself. ROBOTS may not extend more than 16 in (41 cm). beyond their
FRAME PERIMETER (see Figure 8-1). This rule doesn’t apply to a ROBOT fully within its
PLATFORM ZONE during the ENDGAME.
Violation: FOUL. If strategic, (e.g. expansion results in scoring a POWER CUBE), RED CARD.
Teams should be cognizant of venue height, camera poles, lighting
trusses etc. when designing their ROBOT.
Examples of compliance and non-compliance of G05 are shown in
Figure 7-1.
Yellow bars represent the limits of the FRAME PERIMETER and are
drawn in the same orientation of the ROBOT’S FRAME PERIMETER.
Green bars represent a measured extension from the FRAME
PERIMETER that has not been exceeded. Red bars represent a
measured extension from the FRAME PERIMETER that has exceeded
the limit in G05). ROBOT A violates G05, whereas ROBOT B and C do
not.
Figure 7-1: Examples of G05 compliance and non-compliance
G06. Keep it together. ROBOTS may not intentionally detach or leave parts on the FIELD.
Violation: RED CARD
This rule is not intended to penalize ROBOTS that encounter accidental
breakage (e.g. a failed MECHANISM that falls off), as those actions are
not intentional.
G07. Keep your BUMPERS together. ROBOTS must be in compliance with BUMPER rules
throughout the MATCH.
Section 7 Game Rules
V0
52 of 133
Violation: FOUL. DISABLED if any BUMPER segment becomes completely detached, any side of a
ROBOT is completely exposed (without BUMPER), or the Team number or ALLIANCE color
becomes indeterminate.
G08. ROBOTS must be removed from the FIELD by hand (i.e. no enabling, power, etc.). ROBOTS
will not be re-enabled after the conclusion of the MATCH, nor will Teams be permitted to tether to
the ROBOT except in special circumstances (e.g. during TIMEOUTS, after Opening Ceremonies,
before an immediate MATCH replay, etc.) and with the express permission from the FTA or a
REFEREE.
Violation: YELLOW CARD.
Tethering includes any wired or wireless connection used to electrically
energize and/or control elements on the ROBOT. The safety of teams
and volunteers in close proximity to ROBOTS and ARCADE elements on
the FIELD is of the utmost importance, therefore ROBOTS or ROBOT
COMPONENTS may not be energized or powered in any way on the
FIELD once the MATCH has concluded.
Keep in mind that ROBOTS need to be safely transported off the FIELD
and back to the pits after the MATCH, and there may be bystanders,
doorways or height restrictions along the route.
G09. Launching POWER CUBES is okay, but keep it short. A ROBOT is not permitted to launch
POWER CUBES except:
A. When any part of its BUMPERS are inside its ALLIANCE’S NULL TERRITORY, and
its attempting to place a POWER CUBE on the SCALE PLATE in its ALLIANCE’S
NULL TERRITORY, or
B. when any part of its BUMPERS are contacting a FENCE, and it’s attempting to place
a POWER CUBE on the nearest PLATE of that FENCE’s SWITCH, or
C. when any part of its BUMPERS are inside its ALLIANCE’S EXCHANGE ZONE, and
it’s attempting to place a POWER CUBE in its ALLIANCE’S EXCHANGE tunnel.
Violation: TECH FOUL per POWER CUBE. Repeated violations of this rule are likely to escalate
rapidly to YELLOW or RED CARDS
A ROBOT in contact with a FENCE and straddling the midpoint (i.e.
BUMPERS in both halves of the FIELD) may launch towards either of the
corresponding SWITCH’S PLATES.
Figure 7-2: Launching examples
Section 7 Game Rules
V0
53 of 133
7.3 ROBOT to ROBOT Interaction
G10. Don’t tear others down to lift yourself up. Strategies aimed at the destruction or inhibition of
ROBOTS via attachment, damage, tipping, or entanglements are not allowed.
Violation: FOUL and YELLOW CARD. If harm or incapacitation occurs as a result of the strategy,
RED CARD
For example, use of a wedge-like MECHANISM to tip ROBOTS is a
violation of G10.
MECHANISMS outside the FRAME PERIMETER are particularly
susceptible to causing such damage, drawing this penalty, and/or
drawing penalties associated with violations of G11.
Teams are encouraged to be cautious in their use of such
MECHANISMS when engaging in ROBOT to ROBOT MATCH play.
G11. Stay out of other ROBOTS. Initiating deliberate or damaging contact with an opponent ROBOT
on or inside the vertical extension of its FRAME PERIMETER, including transitively through a
POWER CUBE, is not allowed.
Violation: FOUL and YELLOW CARD.
High speed accidental collisions may occur during the MATCH and are
expected. Generally, ROBOTS extend elements outside of the FRAME
PERIMETER at their own risk.
A ROBOT with an element outside its FRAME PERIMETER may be
penalized under G11 if it appears they are using that element to
purposefully contact another ROBOT inside its FRAME PERIMETER.
G12. Don’t collude with your partners to shut down major parts of game play. Two or more
ROBOTS may not isolate or close off any major component of MATCH play, e.g. blocking the
EXCHANGE, shutting down all access to POWER CUBES, quarantining all opponents to a small
area of the FIELD, etc.
Violation: YELLOW CARD for the ALLIANCE.
A single ROBOT blocking access to a particular area of the FIELD is not
a violation of G12.
Two ROBOTS independently playing defense on two opposing
ROBOT’S is not a violation of this rule.
G13. If an opponent’s down, back off. Fallen (i.e. tipped over) ROBOTS attempting to right
themselves (either by themselves or with assistance from a partner ROBOT) have one ten (10)
second grace period in which they may not be contacted by an opponent ROBOT. This protection
lasts for either ten (10) seconds or until the protected ROBOT has completed the righting
operation, whichever comes first.
Violation: FOUL. If intentional, YELLOW CARD.
G14. There’s a 5-count on pins. ROBOTS may not pin an opponent’s ROBOT for more than five (5)
seconds. A ROBOT will be considered pinned until the ROBOTS have separated by at least six
(6) feet. The pinning ROBOT(s) must then wait for at least three (3) seconds before attempting to
pin the same ROBOT again. Pinning is transitive through other objects. If the pinned ROBOT
Section 7 Game Rules
V0
54 of 133
chases the pinning ROBOT upon retreat, the pinning ROBOT will not be penalized, and the pin
will be considered complete.
Violation: FOUL, plus an additional FOUL for every five (5) secon ds in which the situation is not
corrected. If extended and egregious, RED CARD.
There is no FIRST® Robotics Competition specific definition of pin, so a
general definition applies; “to prevent or stop something from moving.”
As a result, contact is not required for pinning to occur. For example, a
ROBOT parked right behind an opponent that is against its PORTAL wall
could be considered pinning because the wall and the parked ROBOT
prevent the opponent from moving.
Generally, pins that exceed fifteen (15) seconds are considered
extended and egregious, regardless of a pinning ROBOT’s mobility,
however circumstances vary and the assessment is open to REFEREE
discretion.
G15. Opponent’s EXCHANGE ZONE: no camping. A ROBOT may not block their opponent’s
EXCHANGE ZONE for more than five (5) seconds. A ROBOT is considered “blocking” if any part
of their ROBOT is breaking the plane of the EXCHANGE ZONE, and will continue to be
considered blocking until the ROBOT has moved at least six (6) feet from the EXCHANGE
ZONE. If an opposing ROBOT attempts to stop the blocking ROBOT from moving the required
distance to clear the block, the blocking ROBOT will not be penalized, and the block will be
considered complete.
A ROBOT that is being pinned is exempt from G15. Once the pin is over, the 5-second count
begins for this rule.
Violation: FOUL, plus an additional FOUL for every five (5) seconds in which the situation is not
corrected. If extended and egregious, YELLOW CARD.
Generally, blocking that exceeds fifteen (15) seconds is considered
extended and egregious, regardless of a blocking ROBOT’s mobility,
however circumstances vary and the assessment is open to REFEREE
discretion.
G16. The NULL TERRITORY is safe. A ROBOT whose BUMPERS are breaking the plane of its NULL
TERRITORY and not breaking the plane of the opponent’s PLATFORM ZONE may not be
contacted by an opposing ROBOT, regardless of who initiates the contact. A ROBOT forced into
breaking the plane of an opponent’s NULL TERRITORY resulting in it being wedged underneath
the SCALE is not a violation of this rule.
Violation: TECH FOUL
TEAMS should note that they are putting themselves at great risk of
TECH FOULS near their opponent’s NULL TERRITORY.
G17. Don’t climb on each other until the end. Unless during the ENDGAME, or attempting to right a
fallen (i.e. tipped over) ALLIANCE partner, ROBOTS may neither fully nor partially strategically
support the weight of partner ROBOTS.
Violation: TECH FOUL.
G18. Don’t mess with opponents in their PLATFORM ZONE. During the ENDGAME, ROBOTS may
not contact an opponent ALLIANCE ROBOT, completely contained within their ALLIANCE’S
PLATFORM ZONE, regardless of who initiates the contact.
Section 7 Game Rules
V0
55 of 133
Violation: The contacted opponent ROBOT, and all partner ROBOTS its fully supporting, are
considered to have CLIMBED at the end of the MATCH.
Teams are encouraged to consider rule C07 when developing their
strategies, such as attempting to draw violations of this rule.
7.4 FIELD Interaction
G19. Be careful about what you interact with. DRIVE TEAMS, ROBOTS, and OPERATOR
CONSOLES are prohibited from the following actions with regards to interaction with ARCADE
elements.
Items A and B exclude DRIVE TEAM interaction with FIELD elements in their areas.
Item C excludes use of the PLAYER STATION hook-and-loop tape, plugging in to the provided
power outlet, and plugging the provided Ethernet cable in to the OPERATOR CONSOLE.
Items A-D exclude RUNGS and POWER CUBES.
A. Grabbing
B. Grasping
C. Attaching to (including the use of hook-and-loop tape against the FIELD carpet)
D. Hanging
E. Deforming
F. Becoming entangled
G. Damaging
Violation: If prior to MATCH, and situation can be corrected quickly, it must be remedied before
the MATCH will start. If during a MATCH, FOUL. If during a MATCH and extended or repeated,
YELLOW CARD. If offense is via a ROBOT and the Head REFEREE determines that further
damage is likely to occur, offending ROBOT will be DISABLED. Corrective action (such as
eliminating sharp edges, removing the damaging MECHANISM, and/or re-Inspection) may be
required before the ROBOT will be allowed to compete in subsequent MATCHES.
POWER CUBES are expected to undergo a reasonable amount of wear
and tear as they are handled by ROBOTS, such as scratching, marking,
or small cracks. Gouging, tearing off pieces, routinely marking POWER
CUBES, or causing large cracks that weaken rigidity are violations of this
rule. Humans causing POWER CUBE wear and tear, e.g. slicing a
POWER CUBE, are subject to a CARD per C01.
G20. POWER CUBES: use as directed. With the exception of placing a POWER CUBES on PLATES,
ROBOTS may not deliberately use POWER CUBES in an attempt to ease or amplify the
challenge associated with FIELD elements.
Violation: TECH FOUL per additional POWER CUBE. Repeated or egregious violations of this rule
are likely to escalate rapidly to YELLOW or RED CARDS .
Examples include, but are not limited to:
A. stacking POWER CUBES underneath a PLATE
B. climbing on POWER CUBES
C. using POWER CUBES to explicitly impede opponent mobility
Section 7 Game Rules
V0
56 of 133
D. Placing a POWER CUBE on the top of the SCALE to block the
opponent ALLIANCE RUNGS is an egregious violation of G20.
G21. Keep POWER CUBES in bounds. With the exception of feeding POWER CUBES through the
lower opening of the EXCHANGE, ROBOTS may not intentionally eject POWER CUBES from the
FIELD.
Violation: FOUL per POWER CUBE. Repeated or extended violations of this rule are likely to
escalate rapidly to YELLOW or RED CARDS.
G22. One POWER CUBE per ROBOT. ROBOTS may not control more than one (1) POWER CUBE at
a time.
Violation: FOUL per additional POWER CUBE. Repeated violations of this rule are likely to
escalate rapidly to YELLOW or RED CARDS
Moving or positioning a POWER CUBE to gain advantage is considered
“control.” Examples include, but are not limited to:
E. “carrying” (holding a POWER CUBE inside a ROBOT)
F. “herding” (intentionally pushing a POWER CUBE to a desired
location or direction)
G. “trapping” (holding a POWER CUBE against a FIELD element in an
attempt to shield or guard it)
H. “launching” (shooting POWER CUBES into the air, kicking across the
floor, or throwing in a forceful way)
Examples of interaction with POWER CUBES that are not “control”
include, but are not limited to:
I. “bulldozing” (inadvertent contact with POWER CUBES while in the
path of the ROBOT moving about the FIELD)
J. “deflecting” (being hit by a POWER CUBE that bounces into or off of
a ROBOT)
K. “plowing” (brief contact with a large quantity of POWER CUBES
while attempting to break up a pile, or gain access to an area of the
FIELD. Sustained contact or contact after the brief plowing action will
be subject to “herding”)
L. “nudging” (contact with a POWER CUBE that is on a PLATE while
attempting to place additional POWER CUBES on that PLATE)
If a POWER CUBE becomes lodged in or on a ROBOT, it will be
considered controlled by the ROBOT. It is important to design your
ROBOT so that it is impossible to inadvertently or unintentionally control
more than the allowed maximum.
G23. POWER CUBES in opponent’s POWER CUBE ZONE – off limits. ROBOTS may not remove
POWER CUBES, or cause POWER CUBES to be removed, from the opponent’s POWER CUBE
ZONE. A POWER CUBE has been removed from the POWER CUBE ZONE when it starts fully
contained by the POWER CUBE ZONE, and ends completely outside of the POWER CUBE
ZONE. A POWER CUBE removed through transitive contact with another POWER CUBE and/or
an opponent ROBOT is a violation of this rule.
Violation: FOUL per POWER CUBE removed
Section 7 Game Rules
V0
57 of 133
G24. POWER CUBES stay on PLATES. Strategies aimed at removing POWER CUBES from
PLATES are prohibited.
Violation: TECH FOUL per POWER CUBE removed
Examples of actions that violate this rule include, but are not limited to:
using an arm to sweep POWER CUBES off a PLATE.
launching a POWER CUBE at a stack on an opponent’s PLATE,
causing the stack to topple.
G25. PLATES are moved by POWER CUBES, not ROBOTS. Except via the placement of POWER
CUBES, ROBOTS may not affect the movement of PLATES. Incidental contact that does not
result in PLATES changing scoring state is not a violation of this rule. A ROBOT forced to affect
the position of a PLATE (e.g. a ROBOT wedged underneath the SCALE by the opposing
ALLIANCE either intentionally or accidentally) is not a violation of this rule.
Violation: FOUL per instance plus an additional TECH FOUL for every five (5) seconds in which
the situation is not corrected. Repeated or extended violations of this rule are likely to escalate
rapidly to YELLOW or RED CARDS.
Example 1: A ROBOT may not hold the SCALE PLATE in a “balanced
state.
Example 2: A ROBOT may not hold a plate up.
Section 7 Game Rules
V0
58 of 133
7.5 AUTO Period Rules
A01. Behind the lines. During AUTO, DRIVE TEAM members in ALLIANCE STATIONS and
PORTALS may not contact anything in front of the STARTING LINES, unless for personal or
equipment safety.
Violation: FOUL per item contacted.
Pointing, gesturing or otherwise extending across the STARTING LINE
such that contact is not made with carpet or other ARCADE elements is
not a violation of this rule.
One example of an exception for equipment safety is if an OPERATOR
CONSOLE starts to slide from, or has already fallen off of, the PLAYER
STATION shelf. In that circumstance, DRIVE TEAM members may step
forward to catch it, or pick it up off the ground, and return it to the shelf.
A02. During AUTO, let the ROBOT do its thing. During AUTO, DRIVE TEAMS may not directly or
indirectly interact with ROBOTS or OPERATOR CONSOLES unless for personal safety,
OPERATOR CONSOLE safety, or pressing an E-Stop for ROBOT safety.
Violation: FOUL and YELLOW CARD.
Making an adjustment to the OPERATOR CONSOLE or interacting with
the ROBOT after the assignment of PLATE colors is a violation of this
rule. Teams can use the information from the FMS to determine PLATE
color assignments using preprogrammed instructions (see section 3.10).
A03. Disconnect or set down controllers. During AUTO, any control devices worn or held by the
DRIVERS and/or HUMAN PLAYERS must be disconnected from the OPERATOR CONSOLE.
Violation: FOUL.
A04. Stay out of your opponent’s side of the FIELD. During AUTO, no part of a ROBOTS
BUMPERS may pass from the NULL TERRITORY to the opponent’s side of the FIELD.
Violation: FOUL. If contact is made with an opponent ROBOT in their side of the FIELD (either
direct contact or transitive contact through a POWER CUBE), TECH FOUL. Violations of this rule
are likely to escalate rapidly to YELLOW or RED CARDS.
A05. POWER CUBES are off-limits. During AUTO, DRIVE TEAMS may not contact any POWER
CUBES, unless for personal safety.
Violation: FOUL per POWER CUBE.
7.6 Human Action Rules
H01. COACHES and other Teams: hands off the controls. A ROBOT shall be operated solely by
the DRIVERS and/or HUMAN PLAYERS of that Team.
Violation: Offending ROBOT will be DISABLED.
Exceptions may be made before a MATCH for major conflicts, e.g.
religious holidays, major testing, transportation issues, etc.
H02. Wireless devices not allowed. During a MATCH, DRIVE TEAMS may not use electronic
devices which have the capability of receiving communications from persons outside of the
ARCADE (e.g. cell phones or wearable technology).
Violation: YELLOW CARD.
Section 7 Game Rules
V0
59 of 133
H03. Don’t trick the sensors. Teams may not interfere with any automated scoring hardware.
Violation: RED CARD for the ALLIANCE.
A POWER CUBE must rest on any of its six (6) faces when placed within
a column of the VAULT. Failure to do so may result in a violation of H03.
H04. By invitation only. Only DRIVE TEAMS for the current MATCH are allowed in their respective
ALLIANCE STATIONS or PORTALS.
Violation: MATCH will not start until the situ ation is corrected.
H05. Identify yourself. DRIVE TEAMS must wear proper identification while in the ARCADE. Proper
identification consists of:
A. All DRIVE TEAM members wearing their designated buttons above the waist in a
clearly visible location at all times while in the ARCADE.
The COACH wearing the "Coach" labeled DRIVE TEAM button
The DRIVERS and HUMAN PLAYERS each wearing a DRIVE TEAM button
The TECHNICIAN wearing the “Technician” labeled DRIVE TEAM button
B. During a Playoff MATCH, the ALLIANCE CAPTAIN clearly displaying the designated
ALLIANCE CAPTAIN identifier (e.g. hat or armband).
Violation: MATCH will not start until the situation is corrected. Those not displaying identification
must leave the ARCADE.
H06. No wandering. DRIVE TEAM members may not contact anything outside the zone in which they
started the MATCH (e.g. the ALLIANCE STATION, PORTAL, designated area for the
TECHNICIAN) during the MATCH. Exceptions will be granted for inadvertent, momentary, and
inconsequential infractions and in cases concerning safety.
Violation: FOUL. If strategic, RED CARD.
H07. You can’t bring/use anything you want. The only equipment that may be brought to the
ARCADE and used by DRIVE TEAMS during a MATCH is listed below. Regardless if equipment
fits criteria below, it may not be employed in a way that breaks any other rules, introduces a
safety hazard (e.g. a step stool or large signaling device in the confined space of the PORTAL
are safety concerns), blocks visibility for FIELD STAFF or audience members, or jams or
interferes with the remote sensing capabilities of another Team, or the FIELD, including vision
systems, acoustic range finders, sonars, infrared proximity detectors, etc. (e.g. including imagery
that, to a reasonably astute observer, mimics the Vision Targets used on the FIELD).
A. the OPERATOR CONSOLE,
B. non-powered signaling devices,
C. reasonable decorative items,
D. special clothing and/or equipment required due to a disability,
E. devices used solely for planning or tracking strategy,
F. devices used solely to record gameplay,
G. non-powered Personal Protective Equipment (examples include, but aren’t limited to,
gloves, eye protection, and hearing protection)
Items brought to the ARCADE under allowances B-G must meet all of the following conditions:
do not connect or attach to the OPERATOR CONSOLE
do not connect or attach to the FIELD or ARCADE
Section 7 Game Rules
V0
60 of 133
do not connect or attach to another ALLIANCE member (other than items in
category G)
do not communicate with anything or anyone outside of the ARCADE.
do not communicate with the TECHNICIAN
do not include any form of enabled wireless electronic communication (e.g. radios,
walkie-talkies, cell phones, Bluetooth communications, Wi-Fi, etc.)
do not in any way affect the outcome of a MATCH, other than by allowing the
DRIVE TEAM to plan or track strategy for the purposes of communication of that
strategy to other ALLIANCE members.
Violation: MATCH will not start until situation remedied. If discovered or used inappropriately
during a MATCH, YELLOW CARD.
H08. TECHNICIANS, no coaching. TECHNICIANS may not verbally coach or use non-powered
signaling devices. Exceptions will be granted for inconsequential infractions and in cases
concerning safety.
Violation: YELLOW CARD
The TECHNICIAN’s role is help the team prepare the ROBOT so it can
perform at its full potential during a MATCH. The TECHNICIAN is not an
additional COACH, DRIVER or HUMAN PLAYER.
H09. Don’t mess with the POWER CUBES. Teams may not modify POWER CUBES in any way.
Violation: RED CARD.
Opening the zipper pockets on a POWER CUBE to add additional
weight, or cracking / bending a POWER CUBE, are examples of
violations.
H10. It doesn’t support you. Teams may not sit or stand on POWER CUBES.
Violation: Behavior will be discussed with Team or individual. Violations of this rule are likely to
escalate rapidly to YELLOW or RED CARDS.
H11. COACHES, no POWER CUBES. During a MATCH, COACHES may not touch POWER CUBES
unless for safety purposes.
Violation: TECH FOUL per instance.
H12. COACHES, stay clear of the VAULT. During a MATCH, COACHES may not touch any
component of the VAULT (including the buttons) unless for safety purposes.
Violation: TECH FOUL per instance
H13. POWER CUBES only enter the FIELD as designated. DRIVE TEAMS may only deliberately
cause POWER CUBES to leave an ALLIANCE STATION or PORTAL
A. during TELEOP,
B. by a HUMAN PLAYER or DRIVER, and
C. through a PORTAL wall or the RETURN
Violation: FOUL per POWER CUBE. If strategic, RED CARD.
An example of a strategic violation of this rule would be transferring a
POWER CUBE from an ALLIANCE’S PORTAL to the opponent’s
ALLIANCE STATION in order for it to be used in the opponent’s VAULT.
Section 7 Game Rules
V0
61 of 133
Note that H13 prohibits returning a POWER CUBE to the FIELD through
the lower opening on the EXCHANGE wall, only the upper (RETURN)
opening.
H14. POWER CUBES stay in the VAULT. POWER CUBES may not be removed from the VAULT.
Violation: FOUL. If strategic (i.e. re-used within the VAULT or introduced to the FIELD), RED
CARD.
A POWER CUBE is considered in the VAULT when the LEDs in the
corresponding column indicate its presence.
Section 7 Game Rules
V0
62 of 133
Section 8 ROBOT Rules
V0
63 of 133
8 ROBOT Rules
This section of the 2018 FIRST® Robotics Competition Game Manual presents legislation relevant to the
construction of a 2018 FIRST® Robotics Competition ROBOT. ROBOTS must pass Inspection at each
FIRST® Robotics Competition event to confirm compliance before being allowed to compete, per Section
9 Eligibility & Inspection.
8.1 Overview
The rules listed below explicitly address legal parts and materials and how those parts and materials may
be used on a 2018 ROBOT. There are many reasons for the structure of the rules, including safety,
reliability, parity, creation of a reasonable design challenge, adherence to professional standards, impact
on the competition, and compatibility with the Kit of Parts (KOP). The KOP is the collection of items listed
on any Kickoff Kit Checklists, distributed via FIRST® Choice, or paid for completely (except shipping) with
a Product Donation Voucher (PDV).
Another intent of these rules is to have all energy sources and active actuation systems on the ROBOT
(e.g. batteries, compressors, motors, servos, cylinders, and their controllers) drawn from a well-defined
set of options. This is to ensure that all teams have access to the same actuation resources and that the
Inspectors are able to accurately and efficiently assess the legality of a given part.
ROBOTS are made up of COMPONENTS and MECHANISMS. A COMPONENT is any part in its most
basic configuration, which cannot be disassembled without damaging or destroying the part or altering its
fundamental function. A MECHANISM is a COTS or custom assembly of COMPONENTS that provide
specific functionality on the ROBOT. A MECHANISM can be disassembled (and then reassembled) into
individual COMPONENTS without damage to the parts.
Many rules in this section reference Commercial-Off-The-Shelf (COTS) items. A COTS item must be a
standard (i.e. not custom order) part commonly available from a VENDOR for all teams for purchase. To
be a COTS item, the COMPONENT or MECHANISM must be in an unaltered, unmodified state (with the
exception of installation or modification of any software). Items that are no longer commercially available
but are functionally equivalent to the original condition as delivered from the VENDOR are considered
COTS and may be used.
Example 1: A Team orders two (2) ROBOT grippers from
RoboHands Corp. and receives both items. They put one in their
storeroom and plan to use it later. Into the other, they drill “lightening
holes” to reduce weight. The first gripper is still classified as a COTS
item, but the second gripper is now a FABRICATED ITEM, as it has
been modified.
Example 2: A Team obtains openly available blueprints of a drive
module commonly available from Wheels-R-Us Inc. and has local
machine shop “We-Make-It, Inc.” manufacture a copy of the part for
them. The produced part is NOT a COTS item, because it is not
commonly carried as part of the standard stock of We-Make-It, Inc.
Example 3: A Team obtains openly available design drawings from a
professional publication during the pre-season, and uses them to
fabricate a gearbox for their ROBOT during the build period following
Kickoff. The design drawings are considered a COTS item, and may
be used as “raw material” to fabricate the gearbox. The finished
gearbox itself would be a FABRICATED ITEM, and not a COTS item.
Section 8 ROBOT Rules
V0
64 of 133
Example 4: A COTS part that has non-functional label markings
added would still be considered a COTS part, but a COTS part that
has device-specific mounting holes added is a FABRICATED ITEM.
Example 5: A team has a COTS single-board processor version 1.0,
which can no longer be purchased. Only the COTS single-board
processor version 2.0 may be purchased. If the COTS single-board
processor version 1.0 is functionally equivalent to its original
condition, it may be used.
Example 6: A team has a COTS gearbox which has been
discontinued. If the COTS gearbox is functionally equivalent to its
original condition, it may be used.
A VENDOR is a legitimate business source for COTS items that satisfies all of the following criteria:
A. has a Federal Tax Identification number. In cases where the VENDOR is outside of
the United States, they must possess an equivalent form of registration or license
with the government of their home nation that establishes and validates their status
as a legitimate business licensed to operate within that country.
B. is not a “wholly owned subsidiary” of a FIRST Robotics Competition Team or
collection of Teams. While there may be some individuals affiliated with both a Team
and the VENDOR, the business and activities of the Team and VENDOR must be
completely separable.
C. must be able to ship any general (i.e., non-FIRST unique) product within five
business days of receiving a valid purchase request. It is recognized that certain
unusual circumstances (such as 1,000 FIRST Teams all ordering the same part at
once from the same VENDOR) may cause atypical delays in shipping due to
backorders for even the largest VENDORS. Such delays due to higher-than-normal
order rates are excused.
D. should maintain sufficient stock or production capability to fill Teams’ orders within a
reasonable period during the season (less than 1 week). (Note that this criterion may
not apply to custom-built items from a source that is both a VENDOR and a
fabricator. For example, a VENDOR may sell flexible belting that the Team wishes to
procure to use as treads on their drive system. The VENDOR cuts the belting to a
custom length from standard shelf stock that is typically available, welds it into a loop
to make a tread, and ships it to a Team. The fabrication of the tread takes the
VENDOR two weeks. This would be considered a FABRICATED ITEM, and the two-
week ship time is acceptable.) Alternately, the Team may decide to fabricate the
treads themselves. To satisfy this criterion, the VENDOR would just have to ship a
length of belting from shelf stock (i.e. a COTS item) to the Team within five business
days and leave the welding of the cuts to the Team.)
E. makes their products available to all FIRST Robotics Competition Teams. A
VENDOR must not limit supply or make a product available to just a limited number
of FIRST Robotics Competition Teams.
The intent of this definition it to be as inclusive as possible to permit
access to all legitimate sources, while preventing ad hoc organizations
from providing special-purpose products to a limited subset of Teams in
an attempt to circumvent the cost accounting rules.
FIRST desires to permit Teams to have the broadest choice of legitimate
sources possible, and to obtain COTS items from the sources that
provide them with the best prices and level of service available. Teams
also need to protect against long delays in availability of parts that will
Section 8 ROBOT Rules
V0
65 of 133
impact their ability to complete their ROBOT. The build season is brief,
so the VENDOR must be able to get their product, particularly FIRST
unique items, to a Team in a timely manner.
Ideally, chosen VENDORS should have national distributors (e.g. Home
Depot, Lowes, MSC, Radio Shack, McMaster-Carr, etc.). Remember,
FIRST Robotics Competition events are not always near home when
parts fail, local access to replacement materials is often critical.
A FABRICATED ITEM is any COMPONENT or MECHANISM that has been altered, built, cast,
constructed, concocted, created, cut, heat treated, machined, manufactured, modified, painted, produced,
surface coated, or conjured partially or completely into the final form in which it will be used on the
ROBOT.
Note that it is possible for an item (typically raw materials) to be neither
COTS nor a FABRICATED ITEM. For example, a 20 ft. length of
aluminum which has been cut into 5 ft. (~152 cm) pieces by the Team for
storage or transport is neither COTS (it’s not in the state received from
the VENDOR), nor a FABRICATED ITEM (the cuts were not made to
advance the part towards its final form on the ROBOT).
Teams may be asked to provide documentation proving legality of non-2018 KOP items during Inspection
where a Rule specifies limits for a legal part (e.g. pneumatic items, current limits, COTS electronics, etc.).
Some of these rules make use of English unit requirements for parts. If your team has a question about a
metric-equivalent part’s legality, please e-mail your question to frcparts@firstinspires.org for an official
ruling. To seek approval for alternate devices for inclusion in future FIRST Robotic Competition seasons,
please contact frcparts@firstinspires.org with item specifications.
Teams should acknowledge the support provided by the corporate Sponsors and Mentors with an
appropriate display of their school and Sponsors names and/or logos (or the name of the supporting
youth organization, if appropriate).
FIRST Robotics Competition can be a full-contact competition and may include rigorous game play. While
the rules aim to limit severe damage to ROBOTS, Teams should design their ROBOTS to be robust.
Section 8 ROBOT Rules
V0
66 of 133
8.2 General ROBOT Design
R01. The ROBOT (excluding BUMPERS) must have a FRAME PERIMETER, contained within the
BUMPER ZONE, that is comprised of fixed, non-articulated structural elements of the ROBOT.
Minor protrusions no greater than ¼ in. (~6.3 mm) such as bolt heads, fastener ends, weld
beads, and rivets are not considered part of the FRAME PERIMETER.
To determine the FRAME PERIMETER, wrap a piece of string around
the ROBOT (excluding BUMPERS) at the BUMPER ZONE described in
R24 and pull it taut. The string outlines the FRAME PERIMETER.
Example: A ROBOT’s chassis is shaped like the letter ‘V’, with a large
gap between chassis elements on the front of the ROBOT. When
wrapping a taut string around this chassis, the string extends across the
gap and the resulting FRAME PERIMETER is a triangle with three sides.
Note: to permit a simplified definition of the FRAME PERIMETER and
encourage a tight, robust connection between the BUMPERS and the
FRAME PERIMETER, minor protrusions such as bolt heads, fastener
ends, rivets, etc. are excluded from the determination of the FRAME
PERIMETER.
R02. In the STARTING CONFIGURATION (the physical configuration in which a ROBOT starts a
MATCH), no part of the ROBOT shall extend outside the vertical projection of the FRAME
PERIMETER, with the exception of its BUMPERS and minor protrusions such as bolt heads,
fastener ends, rivets, cable ties, etc.
If a ROBOT is designed as intended and each side is pushed up against
a vertical wall (in STARTING CONFIGURATION and with BUMPERS
removed), only the FRAME PERIMETER (or minor protrusions) will be in
contact with the wall.
The allowance for minor protrusions in R02 is intended to allow
protrusions that are both minor in extension from the FRAME
PERIMETER and cross sectional area.
R03. In the STARTING CONFIGURATION, the maximum ROBOT size (excluding BUMPERS) must be
constrained to a volume of 33 in. by 28 in. by 55 in. tall (~83 cm by ~71 cm by ~139 cm tall)
Expect to have to demonstrate a ROBOT’S ability to constrain itself per
above during Inspection. Constraints may be implemented with either
hardware or software.
Be sure to consider the size of the ROBOT on its cart to make sure it will
fit through doors. Also consider the size of the ROBOT to ensure that it
will fit into a shipping crate, bag, vehicle, etc.
Section 8 ROBOT Rules
V0
67 of 133
R04. ROBOTS may not extend more than 16 in. (~40 cm) beyond their FRAME PERIMETER (see
Figure 8-1), except during the ENDGAME (see G05).
Figure 8-1: FRAME PERIMETER Extension
R05. The ROBOT weight must not exceed 120 lbs. When determining weight, the basic ROBOT
structure and all elements of all additional MECHANISMS that might be used in different
configurations of the ROBOT shall be weighed together (see I03).
For the purposes of determining compliance with the weight limitations, the following items are
excluded:
A. ROBOT BUMPERS
B. ROBOT battery and its associated half of the Anderson cable quick
connect/disconnect pair (including no more than 12 in. (~30 cm) of cable per leg, the
associated cable lugs, connecting bolts, and insulation)
8.3 Robot Safety & Damage Prevention
R06. Traction devices must not have surface features such as metal, sandpaper, hard plastic studs,
cleats, hook-loop fasteners or similar attachments that could damage the ARCADE. Traction
devices include all parts of the ROBOT that are designed to transmit any propulsive and/or
braking forces between the ROBOT and FIELD carpet.
R07. Protrusions from the ROBOT and exposed surfaces on the ROBOT shall not pose hazards to the
ARCADE elements (including the GAME PIECES) or people.
If the ROBOT includes protrusions that form the “leading edge” of the
ROBOT as it drives and have a surface area of less than 1 in.2 (~6 cm2),
it will invite detailed Inspection. For example, forklifts, lifting arms, or
grapplers may be carefully inspected for these hazards..
R08. ROBOT parts shall not be made from hazardous materials, be unsafe, cause an unsafe condition,
or interfere with the operation of other ROBOTS.
Examples of items that will violate R08 include (but are not limited to):
Section 8 ROBOT Rules
V0
68 of 133
A. Shields, curtains, or any other devices or materials designed or used
to obstruct or limit the vision of any DRIVERS and/or COACHES
and/or interfere with their ability to safely control their ROBOT
B. Speakers, sirens, air horns, or other audio devices that generate
sound at a level sufficient to be a distraction
C. Any devices or decorations specifically intended to jam or interfere
with the remote sensing capabilities of another ROBOT, including
vision systems, acoustic range finders, sonars, infrared proximity
detectors, etc. (e.g. including imagery on your ROBOT that, to a
reasonably astute observer, mimics the retro-reflective features of
vision targets described in Section 3.9 Vision Targets)
D. Exposed lasers other than Class I.
E. Flammable gasses
F. Any device intended to produce flames or pyrotechnics
G. Hydraulic fluids or hydraulic items
H. Switches or contacts containing liquid mercury
I. Circuitry used to create voltages in excess of 24 Volts
J. Any ballast not secured sufficiently, including loose ballast e.g. sand,
ball bearings, etc., such that it may become loose during a MATCH.
K. Exposed, untreated hazardous materials (e.g. lead weights) used on
the ROBOT. These materials may be permitted if painted,
encapsulated or otherwise sealed to prevent contact. These
materials may not be machined in any way at an event.
L. Tire sealant
M. High intensity light sources used on the ROBOT (e.g. super bright
LED sources marketed as ‘military grade’ or ‘self-defense’) may only
be illuminated for a brief time while targeting and may need to be
shrouded to prevent any exposure to participants. Complaints about
the use of such light sources will be followed by re-inspection and
possible disablement of the device.
Teams should provide MSD Sheets for any materials they use that might
be considered questionable during ROBOT Inspection.
R09. ROBOTS must allow removal of POWER CUBES from the ROBOT and the ROBOT from FIELD
elements while DISABLED and powered off.
ROBOTS will not be re-enabled after the MATCH, so Teams must be
sure that POWER CUBES and ROBOTS can be quickly, simply, and
safely removed.
R10. Lubricants may be used only to reduce friction within the ROBOT. Lubricants must not
contaminate the ARCADE or other ROBOTS.
8.4 Budget Constraints & Fabrication Schedule
R11. The total cost of all items on the ROBOT shall not exceed $4000 USD. All costs are to be
determined as explained in Section 8.4 Budget Constraints & Fabrication Schedule. Exceptions
are as follows:
C. individual COTS items that are less than $5 USD each and
Section 8 ROBOT Rules
V0
69 of 133
D. KOP items
Teams should be prepared to disclose to Inspectors the cost of any non-
KOP item and the total cost of the ROBOT.
Per I05, Teams must be prepared to display a Cost Accounting
Worksheet (CAW) to Inspectors during Inspection. The CAW may be
displayed in either printed or electronic form.
If the item is a KOP item, it does not need to be on the CAW.
Individual COMPONENTS or MECHANISMS, not excluded in R11, that
are retrieved from previous ROBOTS and used on 2018 ROBOTS must
have their undepreciated cost included in the 2018 CAW and applied to
the overall cost assessment.
R12. No individual, non-KOP item shall have a value that exceeds $500 USD. The total cost of
COMPONENTS purchased in bulk may exceed $500 USD as long as the cost of an individual
COMPONENT does not exceed $500 USD.
If a COTS item is part of a modular system that can be assembled in
several possible configurations, then each individual module must fit
within the price constraints defined in R12.
If the modules are designed to assemble into a single configuration, and
the assembly is functional in only that configuration, then the total cost of
the complete assembly including all modules must fit within the price
constraints defined in R12.
In summary, if a VENDOR sells a system or a kit, a team must use the
entire system/kit Fair Market Value and not the value of its
COMPONENT pieces.
Example 1: VENDOR A sells a gearbox that can be used with a number
of different gear sets, and can mate with two different motors they sell. A
team purchases the gearbox, a gear set, and a motor (which are not
offered together as an assembly or kit), then assembles them together.
Each part is treated separately for the purpose of CAW costing, since the
purchased pieces can each be used in various configurations.
Example 2: VENDOR B sells a robotic arm assembly that the team
wants to use. However, it costs $700 USD, so they cannot use it. The
VENDOR sells the “hand”, “wrist”, and “arm” as separate assemblies, for
$200 USD each. A team wishes to purchase the three items separately,
then reassemble them. This would not be legal, as they are really buying
and using the entire assembly, which has a Fair Market Value of $700
USD.
Example 3: VENDOR C sells a set of wheels or wheel modules that are
often used in groups of four. The wheels or modules can be used in
other quantities or configurations. A team purchases four and uses them
in the most common configuration. Each part is treated separately for the
purpose of CAW costing, since the purchased pieces can be used in
various configurations.
R13. The CAW cost of each non-KOP item must be calculated based on the unit fair market value for
the material and/or labor, except for labor provided by Team members (including sponsor
Section 8 ROBOT Rules
V0
70 of 133
employees who are members of the team), members of other Teams, event provided Machine
Shops and shipping.
Example 1: A Team orders a custom bracket made by a company to the
Team's specification. The company’s material cost and normally charged
labor rate apply.
Example 2: A Team receives a donated sensor. The company would
normally sell this item for $52 USD, which is therefore its fair market
value.
Example 3: Special price discounts from National Instruments and other
FIRST Suppliers are being offered to Teams. The discounted purchase
price of items from these sources may be used in the additional parts
accounting calculations.
Example 4: A Team purchases steel bar stock for $10 USD and has it
machined by a local machine shop. The machine shop is not considered
a team Sponsor, but donates two (2) hours of expended labor anyway.
The Team must include the estimated normal cost of the labor as if it
were paid to the machine shop, and add it to the $10 USD.
Example 5: A Team purchases steel bar stock for $10 USD and has it
machined by a local machine shop that is a recognized Sponsor of the
Team. If the machinists are considered members of the Team, their labor
costs do not apply. The total applicable cost for the part would be $10
USD.
It is in the best interests of the Teams and FIRST to form relationships
with as many organizations as possible. Teams are encouraged to be
expansive in recruiting and including organizations in their team, as that
exposes more people and organizations to FIRST. Recognizing
supporting companies as Sponsors of, and members in, the Team is
encouraged, even if the involvement of the Sponsor is solely through the
donation of fabrication labor.
Example 6: A Team purchases steel bar stock for $10 USD and has it
machined by another Team. The total applicable cost for the part would
be $10 USD.
Example 7: A Team purchases a 4 ft. by 4 ft. (~122 cm by 122 cm) sheet
of aluminum, but only uses a piece 10 in. by 10 in. (~25 cm by 25 cm) on
their ROBOT. The Team identifies a source that sells aluminum sheet in
1 by 1 ft. pieces. The Team may cost their part on the basis of a 1 by 1 ft.
piece, even though they cut the piece from a larger bulk purchase. They
do not have to account for the entire 4 by 4 ft. bulk purchase item.
R14. Physical ROBOT elements created before Kickoff are not permitted. Exceptions are:
A. OPERATOR CONSOLE,
B. BUMPERS (a protective assembly designed to attach to the exterior of the ROBOT
and constructed as specified in Section 8.5 Bumper Rules),
C. battery assemblies per R05-B,
D. FABRICATED ITEMS consisting of one COTS electrical device (e.g. a motor or
motor controller) and attached components associated with any of the following
modifications:
Section 8 ROBOT Rules
V0
71 of 133
Wires modified to facilitate connection to a ROBOT (including removal of
existing connectors)
Connectors and any materials to secure and insulate those connectors
added
Motor shafts modified and/or gears, pulleys, or sprockets added
Please note that this means that FABRICATED ITEMS from ROBOTS
entered in previous FIRST competitions may not be used on ROBOTS in
the 2018 FIRST® Robotics Competition (other than those allowed per
R14-B through R14-D). Before the formal start of the Build Season,
Teams are encouraged to think as much as they please about their
ROBOTS. They may develop prototypes, create proof-of-concept
models, and conduct design exercises. Teams may gather all the raw
stock materials and COTS COMPONENTS they want.
Example 1: A Team designs and builds a two-speed shifting
transmission during the fall as a training exercise. After Kickoff, they
utilize all the design principles they learned in the fall to design their
ROBOT. To optimize the transmission design for their ROBOT, they
improve the transmission gear ratios and reduce the size, and build two
new transmissions, and place them on the ROBOT. All parts of this
process are permitted activities.
Example 2: A Team re-uses a 2018-legal motor from a previous ROBOT
which has had connectors added to the wires. This is permitted, per
exception D, because the motor is a COTS electrical COMPONENT.
R15. Software and mechanical/electrical designs created before Kickoff are only permitted if the source
files (complete information sufficient to produce the design) are available publicly prior to Kickoff.
Example 1: A Team realizes that the transmission designed and built in
the fall perfectly fits their need for a transmission to drive the ROBOT
arm. They build an exact copy of the transmission from the original
design plans, and bolt it to the ROBOT. This would be prohibited, as the
transmission although made during the competition season was built
from detailed designs developed prior to Kickoff.
Example 2: A Team developed an omni-directional drive system for the
2011 competition. Over the summer of 2011 they refined and improved
the control software (written in C++) to add more precision and
capabilities. They decided to use a similar system for the 2018
competition. They copied large sections of unmodified code over into the
control software of the new ROBOT (also written in C++). This would be
a violation of the schedule constraint, and would not be allowed.
Example 3: The same Team decides to use LabVIEW as their software
environment for 2018. Following Kickoff, they use the previously-
developed C++ code as a reference for the algorithms and calculations
required to implement their omni-directional control solution. Because
they developed new LabVIEW code as they ported over their algorithms,
this would be permitted.
Example 4: A different Team develops a similar solution during the fall,
and plans to use the developed software on their competition ROBOT.
After completing the software, they post it in a generally accessible
public forum and make the code available to all Teams. Because they
Section 8 ROBOT Rules
V0
72 of 133
have made their software publicly available before Kickoff, they can use
it on their ROBOT.
Example 5: A Team develops a transmission during the fall. After
completing the project, they publish the CAD files on a generally
accessible public forum and make them available to all Teams. Because
they have made the design publicly available before Kickoff, they can
use the design to create an identical transmission, fabricated after
Kickoff, for use on their 2018 ROBOT.
R16. All ROBOT elements (including items intended for use during the competition in alternative
configurations of the ROBOT), with the exception of the WITHHOLDING ALLOWANCE per R22,
BUMPERS, and COTS items, must be bagged and sealed, by 04:59 UTC on Stop Build Day,
Wednesday, February 21, 2018.
PLEASE NOTE: THIS TIME IS DICTATED IN UTC (UNIVERSAL
COORDINATED TIME). YOU WILL NEED TO CONVERT TO YOUR
LOCAL TIMEZONE. THIS WILL RESULT IN A TIME ON THE
PREVIOUS DAY (TUESDAY, FEBRUARY 20, 2018) FOR MANY
TIMEZONES.
To bag your ROBOT:
Locate the “Bag and Tag” kit from your Kickoff Kit which contains two
plastic bags large enough to contain your ROBOT and at least ten
tags with individual serial numbers.
Set the bag on the floor, leaving room for the ROBOT in the center.
Place the ROBOT in the center of the bag and pull the bag up
around the ROBOT. Be careful not to catch the bag on the corners or
sharp edges.
Tightly seal the bag with your next numbered tag.
Complete the ROBOT Lock-up Form to verify the date and time that
the bag was sealed. The ROBOT Lock-up Form must be signed by
an adult, 18 years old or older, who is not a student on the team.
This form must be brought with you to all events.
R17. For convenience, Teams may disassemble their ROBOT and use up to three (3) bags to “Bag
and Tag” the pieces. Each bag must have its own numbered tag and entry on the ROBOT Lock-
up Form.
Note: The KOP only contains two (2) bags. Teams wishing to use three
(3) bags must acquire the third bag themselves.
When transporting their ROBOT, Teams may use any transportation
method they wish (at their own risk and expense), as long as the ROBOT
remains sealed in the bag.
R18. If you are attending another event, such as a FIRST Championship or another Regional or District
event, you must re-seal your ROBOT in the bag with a new tag and enter the new tag number on
the ROBOT Lock-up Form prior to leaving the event.
Section 8 ROBOT Rules
V0
73 of 133
R19. Teams must stay “hands-off” their bagged ROBOT elements during the following time periods:
A. between Stop Build Day and their first event,
B. during the period(s) between their events, and
C. outside of Pit hours while attending events.
Modifying parts at night offsite (e.g. pits have closed and you bring a
MECHANISM back to the hotel to fix it) is a violation of R19-C.
Additional time is allowed as follows:
D. After Kickoff, there are no restrictions on when software may be developed.
E. On days a team is not attending an event, they may continue development of any
items permitted per R22, including items listed as exempt from R22, but must do so
without interfacing with the ROBOT.
F. ROBOTS may be unbagged for unofficial pre-inspection, with a certified 2018 LRI
present. No work on or operation of the ROBOT is permitted beyond what is
necessary to emulate the Inspection process. The purpose of this unofficial pre-
inspection is to identify, in advance, potential issues with the ROBOT that may be
found during the official inspection that takes place at the event. The ROBOT Lock-
up Form must be used to track the unbagging and rebagging of the ROBOT during
this period. In the “Explanation” column of the form, enter “LRI Pre-Inspection.”
G. ROBOTS may be unbagged and operated briefly after “Stop Build Day” for brief
display purposes only, or for any other purpose that could be reasonably considered
‘display only’ provided the following requirements are met:
The ROBOT Lock-up Form must be used to track the unbagging and
rebagging of the ROBOT during this period. In the “Explanation” column of
the form, enter “Robot Display”.
No activity that could be considered “work on” or “practice with” the ROBOT
is allowed.
Brief displays of robot functions, driving for example, are allowed, but not to
the extent that they could be considered practice
The intent of this option is to allow Teams to briefly show off their
ROBOT (e.g. to their community, sponsors, judges, or potential
sponsors) after “Stop Build Day”. The intent is not to allow 'exhibition
matches', or other similar activities, as this would be considered practice.
Unbagging a ROBOT and putting it on display for many hours (i.e., more
than four (4)) at a time is not considered a “brief” display.
A good way to avoid turning a ROBOT display period in to a practice
session is to have non-DRIVE TEAM members operate the ROBOT, and
only for as short a time as necessary to show the ROBOT’S capabilities.
If you have any questions about the ROBOT Display option, please email
frcparts@firstinspires.org.
H. Teams attending 2-day events may access their ROBOTS using the ROBOT Access
Period.
Teams attending 2-day events will not have as much time to work on
their ROBOTS at events as Teams attending traditional 3-day Regional
events. Due to this, teams are granted an additional “Robot Access
Section 8 ROBOT Rules
V0
74 of 133
Period” to un-bag their ROBOT between the “Stop Build Day” and their
2-day district events. 2-day events for the 2018 season include District
Qualifier events for the following areas:
FIRST Chesapeake District (DC, MD, VA)
FIRST Israel District (IS)
FIRST Mid-Atlantic District (DE, NJ, Eastern PA)
FIRST North Carolina District (NC)
FIRST in Michigan District (MI)
Ontario District (ON)
Indiana FIRST District (IN)
NE FIRST District (CT, MA, ME, NH, RI, VT)
Pacific Northwest (AK, OR, WA)
Peachtree District (GA)
R20. Teams permitted to use the ROBOT Access Period per R19-G may only unlock their ROBOT for
a total of six (6) hours during the 7-day period preceding any 2-day event in which their Team will
be competing with their ROBOT.
The six hours may be broken up in any way the team wishes, with the exception that no single
access period may be shorter than two (2) hours.
The ROBOT must be locked up between sessions which must be documented on the ROBOT
Lock-up Form.
R21. If the ROBOT is accessed before the event, the unbagging must be noted on the ROBOT Lock-
up form and the ROBOT must be rebagged. The ROBOT must remain sealed in the bag until:
I. Your ROBOT Lock-up Form has been checked and approved by an Inspector and
J. The pits have officially been opened for ROBOT work.
R22. At an Event, Teams may have access to a WITHHOLDING ALLOWANCE. The WITHHOLDING
ALLOWANCE is a static set of FABRICATED ITEMS that shall not exceed 30 lbs. (~13 kg.),
brought to an event (or ROBOT Access Period) in addition to the bagged items, to be used to
repair and/or upgrade their ROBOT. With permission from another Team, Teams may also have
access to FABRICATED ITEMS that are part of that other Team’s WITHOLDING ALLOWANCE
to repair and/or upgrade their ROBOT. The WITHHOLDING ALLOWANCE may only be brought
into the Venue when the Team initially loads in at the Event. Items made at an Event do not count
towards this weight limit.
Teams should be prepared to show their WITHOLDING ALLOWANCE
items, and potentially have them weighed, during load-in.
This means teams may not store FABRICATED ITEMS outside the pits
to be brought to the event at a later time. This set may be changed
between events (i.e. a Team may leave a different set of items out of the
bag and/or fabricate new items to bring to their next event) provided the
total weight of FABRICATED ITEMS brought to the next event does not
exceed thirty (30) lbs. (~13 kg.).
There is no restriction on the quantity of COTS items or items which do
not meet the definitions of COTS or FABRICATED ITEMS (e.g. raw
materials) that may be accessed by a Team at an Event.
Section 8 ROBOT Rules
V0
75 of 133
For Teams attending 2-Day Events, these FABRICATED ITEMS may be used during the ROBOT
Access Period and/or brought to the Event, but the total weight may not exceed 30 lbs. (~13 kg.)
FABRICATED ITEMS constructed during the ROBOT Access Period and bagged with the
ROBOT are exempt from this limit.
Items specified as exempt from R14 are also exempt from the WITHOLDING ALLOWANCE limit.
Example 1: A team creates 10 lbs (~4 kg.) of FABRICATED ITEMS after
Stop Build Day. During their first ROBOT Access Period before their first
event, they install these items on the ROBOT and bag them with the
ROBOT. The team may bring up to 20 lbs. (~9 kg.) of FABRICATED
ITEMS (which may be items removed from the ROBOT before bagging
at the end of the ROBOT Access Period) with them to the event.
Example 2: A team creates 30 lbs (~13 kg.) of FABRICATED ITEMS
after Stop Build Day. During their first ROBOT Access Period before their
first event, they install these items on the ROBOT and bag them with the
ROBOT. The team may not bring any FABRICATED ITEMS (including
any initially bagged on Stop Build Day and removed during the ROBOT
Access Period) with them to the event.
8.5 BUMPER Rules
A BUMPER is a required assembly which attaches to the ROBOT frame. BUMPERS are important
because they protect ROBOTS from damaging/being damaged by other ROBOTS and FIELD elements.
Criteria used in writing these rules included the following:
Minimize variety of BUMPERS so teams can expect consistency
Minimize the amount of design challenge in creating BUMPERS
Minimize cost of BUMPER materials
Maximize use of relatively ubiquitous materials
R23. ROBOTS are required to use BUMPERS to protect all outside corners of the FRAME
PERIMETER. For adequate protection, at least 6 in. (~16 cm) of BUMPER must be placed on
each side of each outside corner (see Figure 8-2). If a FRAME PERIMETER side is shorter than
6 in. (~16 cm), that entire side must be protected by BUMPER (see Figure 8-3). A round or
circular FRAME PERIMETER, or segment of the FRAME PERIMETER, is considered to have an
infinite number of corners, therefore the entire frame or frame segment must be completely
protected by BUMPER(S).
The dimension defined in R23 is measured along the FRAME
PERIMETER. The portion of the BUMPER that extends beyond the
corner of the FRAME PERIMETER is not included in the 6 in. (~16 cm)
requirement. See Figure 8-2 below.
Section 8 ROBOT Rules
V0
76 of 133

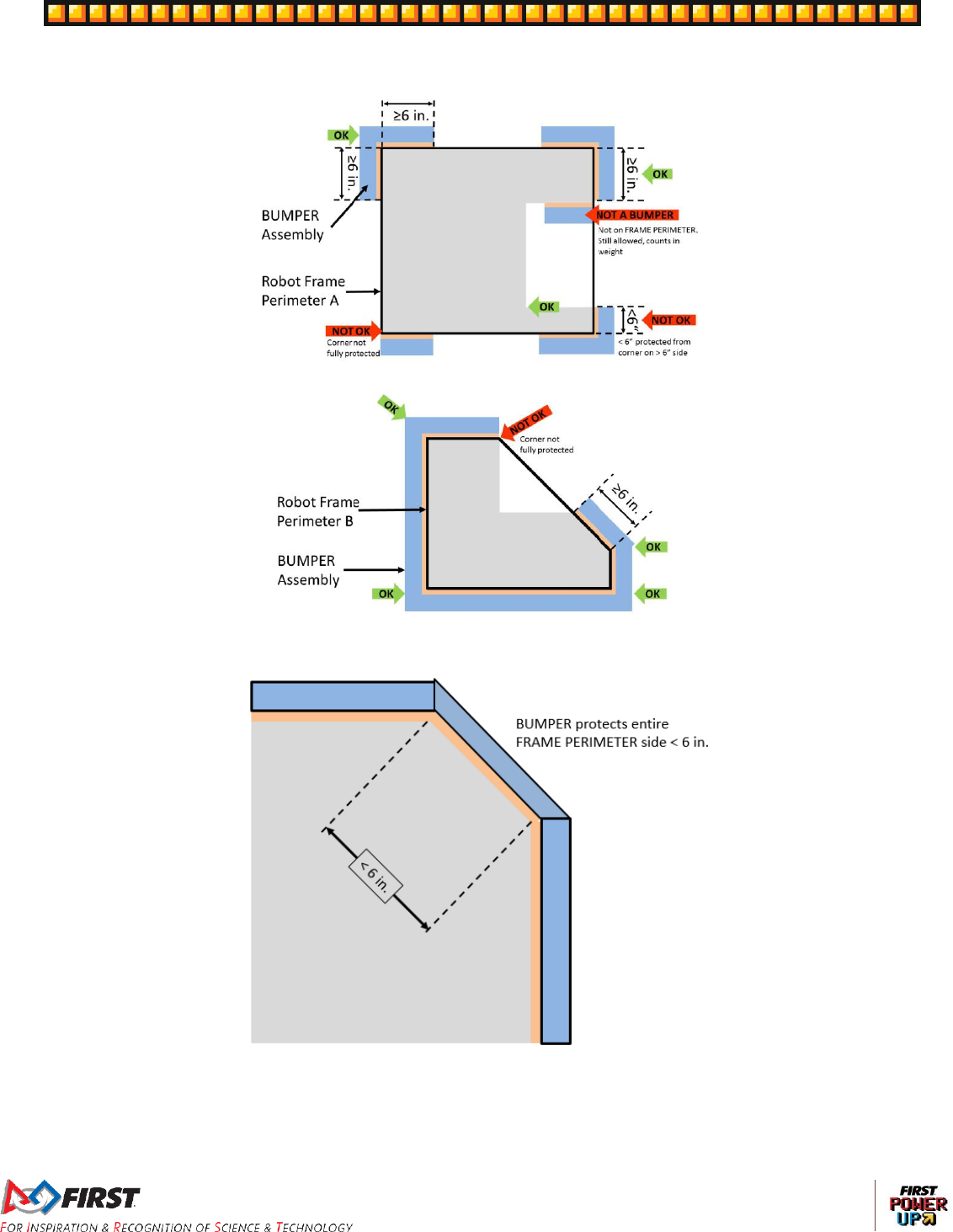

Figure 8-2: BUMPER corner examples
Figure 8-3: BUMPER around full side/corner.
Section 8 ROBOT Rules
V0
77 of 133
R24. BUMPERS must be located entirely within the BUMPER ZONE, which is the volume contained
between the floor and a virtual horizontal plane 7 in. (~17 cm) above the floor in reference to the
ROBOT standing normally on a flat floor. BUMPERS do not have to be parallel to the floor.
This measurement is intended to be made as if the ROBOT is resting on
a flat floor (without changing the ROBOT configuration), not relative to
the height of the ROBOT from the FIELD carpet. Examples include:
Example 1: A ROBOT that is at an angle while navigating the FIELD has
its BUMPERS outside the BUMPER ZONE. If this ROBOT were virtually
transposed onto a flat floor, and its BUMPERS are in the BUMPER
ZONE, it meets the requirements of R24.
Example 2: A ROBOT deploys a MECHANISM which lifts the BUMPERS
outside the BUMPER ZONE (when virtually transposed onto a flat floor).
This violates R24.
R25. BUMPERS must not be articulated (relative to the FRAME PERIMETER).
R26. BUMPERS (the entire BUMPER, not just the cover) must be designed for quick and easy
installation and removal to facilitate inspection and weighing.
As a guideline, BUMPERS should be able to be installed or removed by
two (2) people in fewer than five (5) minutes.
R27. Each ROBOT must be able to display Red or Blue BUMPERS to MATCH their ALLIANCE color,
as assigned in the MATCH schedule distributed at the event (as described in Section 10.1
MATCH Schedules). BUMPER Markings visible when installed on the ROBOT, other than the
following, are prohibited:
A. those required per R28,
B. hook-and-loop fastener or snap fasteners backed by the hard parts of the BUMPER,
and
C. solid white FIRST logos between 4¾ in. (~13 cm) and 5¼ in. wide (~13 cm) (i.e.
comparable to those distributed in the 2017 Kickoff Kit) and available in 2018 FIRST
Choice.
R28. Team numbers must be displayed and positioned on the BUMPERS such that an observer
walking around the perimeter of the ROBOT can unambiguously tell the Team’s number from any
point of view and meet the following additional criteria:
A. consist of numerals at least 4 in. (~11 cm) high, at least ½ in. (~12.7 mm) in stroke
width, and be either white in color or outlined in white with a minimum 1/16 in.
(~1.6mm) outline
B. must not wrap around sharp corners (less than 160 degrees) of the FRAME
PERIMETER
C. may not substitute logos or icons for numerals
There is no prohibition against splitting Team numbers onto different
sections of BUMPER. The intent is that the Team’s number is clearly
visible and unambiguous so that Judges, REFEREES, Announcers, and
other Teams can easily identify competing ROBOTS.
This marking is intended to display the Team number only, not to
intentionally change the surface characteristics of the BUMPER.
Section 8 ROBOT Rules
V0
78 of 133
Excessive material usage as part of any Team number marking will invite
close scrutiny.
R29. Each set of BUMPERS (including any fasteners and/or structures that attach them to the
ROBOT) must weigh no more than 20 lbs (~9 kg).
If a multi-part attachment system is utilized (e.g. interlocking brackets on
the ROBOT and the BUMPER), then the elements permanently attached
to the ROBOT will be considered part of the ROBOT, and the elements
attached to the BUMPERS will be considered part of the BUMPER.
Each element must satisfy all applicable rules for the relevant system.
R30. BUMPERS must be constructed as follows (see Figure 8-6):
A. be backed by ¾ in. (nominal) thick (~19mm) by 5 in. ± ½ in. (~127 mm ± 12.7 mm)
tall plywood or solid, robust wood. Small clearance pockets and/or access holes in
the plywood backing are permitted, as long as they do not significantly affect the
structural integrity of the BUMPER.
Particle board or chipboard is not likely to survive the rigors of FIRST
Robotics Competition gameplay and thus not compliant with R30-A.
Note: ¾” plywood is now often marked according to the actual dimension
(23/32”) not the nominal size. Plywood sold as 23/32” meets the
requirements of R30-A.
B. hard BUMPER parts allowed per R30-A, R30-E, R30-F, and R30-G must not extend
more than 1 in. (~25 mm) beyond the FRAME PERIMETER with the exception of
minor protrusions such as bolt heads, fastener ends, rivets, etc. (Figure 8-4 and
Figure 8-6).
Section 8 ROBOT Rules
V0
79 of 133

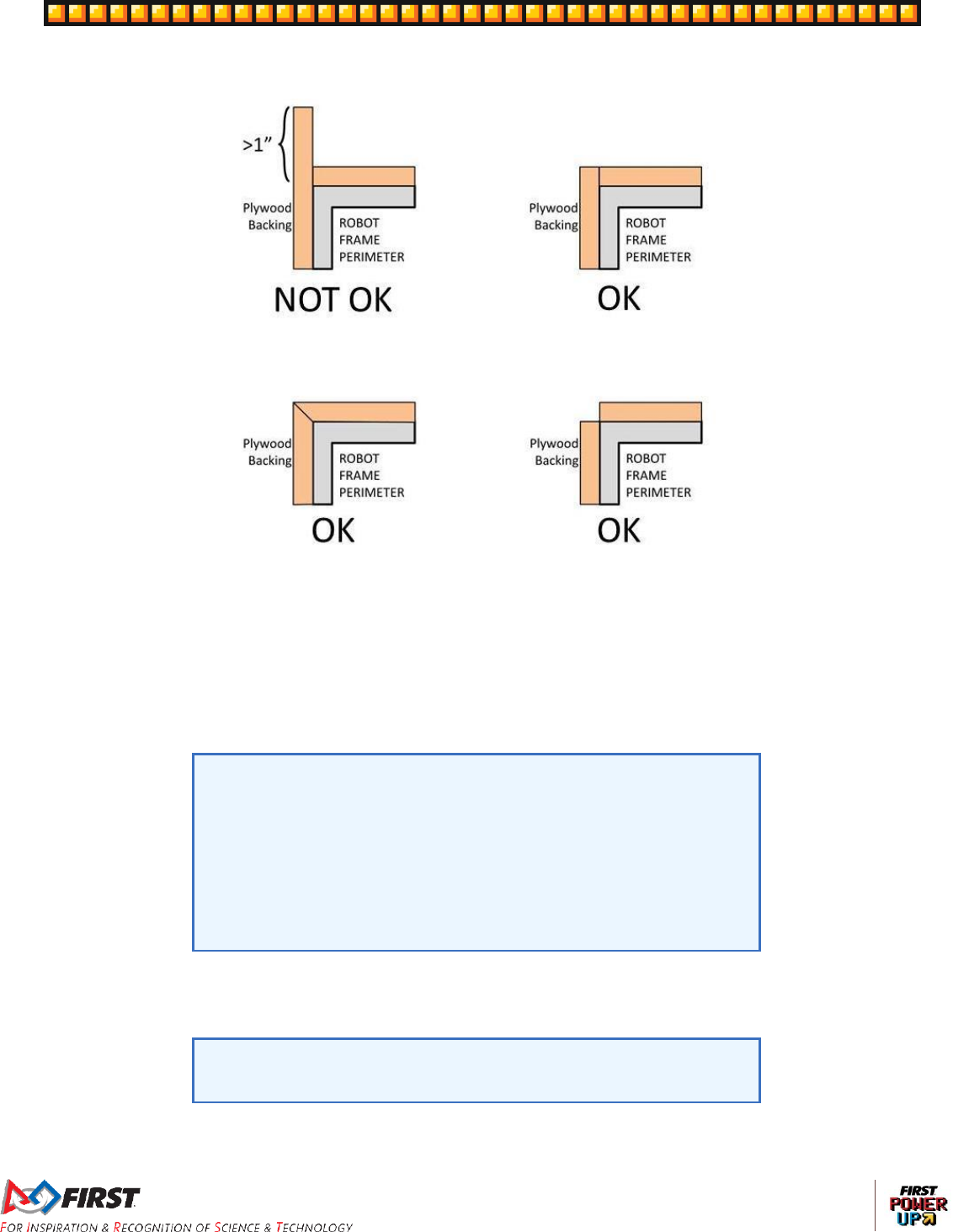

Figure 8-4: Hard Parts of BUMPER Corners
C. use a stacked pair of approximately 2½ in. (nominal) round, petal, or hex “pool
noodles” (solid or hollow) as the BUMPER cushion material (see Figure 8-6). All pool
noodles used in a BUMPER set (e.g. Red set of BUMPERS) may not be deformed
and must be the same diameter, cross-section, and density (e.g. all round hollow or
all hex solid). Cushion material may extend up to 2½ in. (~63 mm) beyond the end of
the plywood (see Figure 8-7). To assist in applying the fabric covering, soft fasteners
may be used to attach the pool noodles to the wood backing, so long as the cross
section in Figure 8-6 is not significantly altered (e.g. tape compressing the pool
noodles).
All pool noodles used on a ROBOT must be the same in order to
maintain the desired interaction between ROBOTS in the cases of
BUMPER-to-BUMPER contact. BUMPERS containing pool noodles of
vastly different construction may cause a “ramp” effect when interacting
with other BUMPERS.
Noodle compression as a result of smoothing BUMPER fabric is not
considered deformed. Any compression beyond that, e.g. for the
purposes of flattening the noodle, is deformation and a violation of R30-
C.
D. be covered with a rugged, smooth cloth. (multiple layers of cloth and seams are
permitted if needed to accommodate R27, provided the cross section in Figure 8-6 is
not significantly altered).
Silk and bedding are not considered rugged cloths, however 1000D
Cordura is. Tape (e.g. gaffer’s tape) matching the BUMPER color is
allowed to patch small holes on a temporary basis.
Section 8 ROBOT Rules
V0
80 of 133
The cloth must completely enclose all exterior surfaces of the wood and pool noodle
material when the BUMPER is installed on the ROBOT. The fabric covering the
BUMPERS must be solid in color.
E. optionally use aluminum angle, as shown in Figure 8-6 or other fasteners (e.g.
staples, screws, etc.) to clamp cloth.
F. optionally use aluminum brackets (i.e. angle or sheet metal) to attach BUMPER
segments to each other (see Figure 8-5).

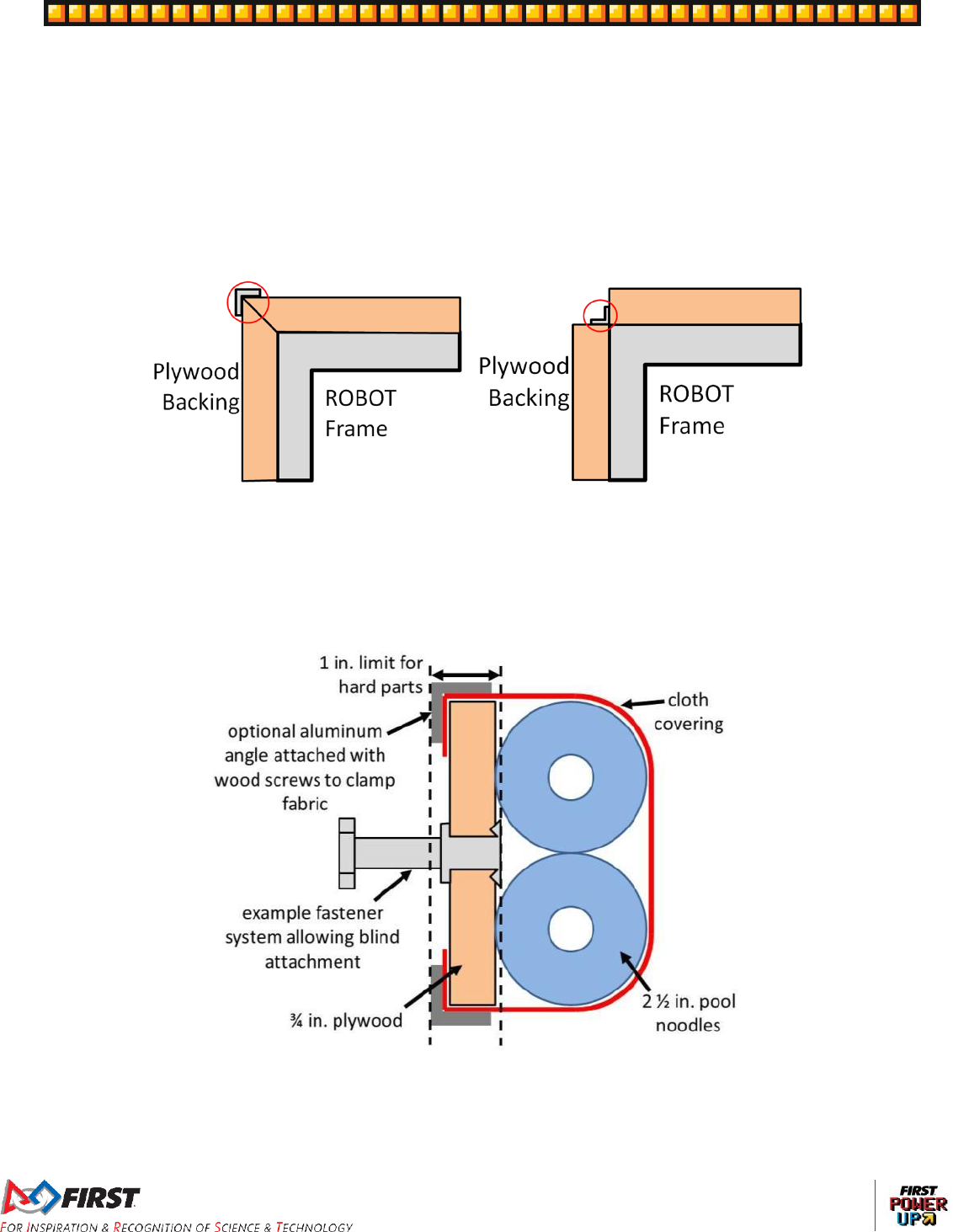

Figure 8-5: Hard Parts of BUMPER Corners
G. must attach to the FRAME PERIMETER of the ROBOT with a rigid fastening system
to form a tight, robust connection to the main structure/frame (e.g. not attached with
hook-and-loop, tape, or tie-wraps). The attachment system must be designed to
withstand vigorous game play. All removable fasteners (e.g. bolts, locking pins, pip-
pins, etc.) will be considered part of the BUMPERS.
Figure 8-6: BUMPER Vertical Cross Section
R31. Corner joints between BUMPERS must be filled with pool noodle material. Examples of
implementation are shown in Figure 8-7.
Section 8 ROBOT Rules
V0
81 of 133
Figure 8-7: Soft Parts of BUMPER Corners
Section 8 ROBOT Rules
V0
82 of 133
R32. BUMPERS must be supported by the structure/frame of the ROBOT (see Figure 8-8). To be
considered supported, a minimum of ½ in. (~12.7 mm) at each end of each BUMPER wood
segment must be backed by the FRAME PERIMETER. “Ends” exclude hard BUMPER parts
which extend past the FRAME PERIMETER permitted by R30, part B. Additionally, any gap
between the backing material and the frame:
A. must not be greater than ¼ in. (~6 mm) deep, or
B. not more than 8 in. (~20 cm) wide
Figure 8-8: BUMPER support examples
Section 8 ROBOT Rules
V0
83 of 133
8.6 Motors & Actuators
R33. The only motors and actuators permitted on 2018 ROBOTS include the following (in any
quantity):
Table 8-1: Motor allowances
Motor Name
Part Numbers Available
CIM
FR801-001
M4-R0062-12
AM802-001A
217-2000
PM25R-44F-1005
PM25R-45F-1004
PM25R-45F-1003
PMR25R-45F-1003
PMR25R-44F-1005
am-0255
West Coast Products RS775 Pro
217-4347
Banebots
M7-RS775-18
RS775WC-8514
M5 RS550-12
RS550VC-7527
RS550
AndyMark 9015
am-0912
VEX BAG
217-3351
VEX mini-CIM
217-3371
AndyMark PG
am-2161 (alt. PN am-2765)
am-2194 (alt. PN am-2766
Select Automotive Motors
(Window, Door, Windshield wiper,
Seat, Throttle)
Various
Snow Blower Motor
am-2235
AndyMark NeveRest
am-3104
AndyMark RedLine Motor
am-3775
Nidec Dynamo BLDC Motor
am-3740
DM3012-1063
Electrical solenoid actuators, no greater than 1 in. (nominal) stroke and rated
electrical input power no greater than 10 watts (W) continuous duty at 12 volts
(VDC)
Hard drive motors or fans that are: included in any Kickoff Kit, distributed via
FIRST Choice, part of a legal motor controller (including manufacturer
provided accessories), or part of a legal COTS computing device
Factory installed vibration and autofocus motors resident in COTS computing
devices (e.g. rumble motor in a smartphone).
PWM COTS servos with a retail cost < $75.
Motors integral to a COTS sensor (e.g. LIDAR, scanning sonar, etc.),
provided the device is not modified except to facilitate mounting
For servos, note that the roboRIO is limited to a max current output of
2.2A on the 6V rail (12.4W of electrical input power). Teams should
make sure that their total servo power usage remains below this limit at
all times.
This is the total number of each motor a Team may use on their ROBOT,
not the quantity per part number. For example, each team may use up to
Section 8 ROBOT Rules
V0
84 of 133
six (6) CIM motors on their ROBOT, regardless of the quantity or
combination of each individual part number used.
Given the extensive amount of motors allowed on the ROBOT, Teams
are encouraged to consider the total power available from the ROBOT
battery during the design and build of the ROBOT. Drawing large
amounts of current from many motors at the same time could lead to
drops in ROBOT battery voltage that may result in tripping the main
breaker or trigger the brownout protection of the roboRIO. For more
information about the roboRIO brownout protection and measuring
current draw using the PDP, see roboRIO Brownout and Understanding
Current Draw.
R34. The integral mechanical and electrical system of any motor must not be modified. Motors, servos,
and electric solenoids used on the ROBOT shall not be modified in any way, except as follows:
A. The mounting brackets and/or output shaft/interface may be modified to facilitate the
physical connection of the motor to the ROBOT and actuated part.
B. The electrical input leads may be trimmed to length as necessary and connectors or
splices to additional wiring may be added.
C. The locking pins on the window motors (P/N: 262100-3030 and 262100-3040) may
be removed.
D. The connector housings on window, door, windshield wiper or seat motors and Bosch
motors (P/N: 6004 RA3 353-01) may be modified to facilitate lead connections.
E. Servos may be modified as specified by the manufacturer (e.g. re-programming or
modification for continuous rotation).
The intent of this rule is to allow teams to modify mounting tabs and the
like, not to gain a weight reduction by potentially compromising the
structural integrity of any motor. The integral mechanical and electrical
system of the motor is not to be modified.
Note that for the previous KOP Window motors and the Bosch motor, the
gearbox is considered integral to the motor, thus the motor may not be
used without the gearbox.
R35. With the exception of servos, fans, or motors integral to sensors of COTS computing devices
permitted in R33, each actuator must be controlled by a power regulating device. The only power
regulating devices for actuators permitted on the ROBOT include:
A. Motor Controllers
DMC 60 Motor Controller (P/N: 410-334-1)
Nidec Dynamo BLDC Motor with Controller to control integral actuator only (
P/N 840205-000, am-3740)
Jaguar Motor Controller (P/N: MDL-BDC, MDL-BDC24, and 217-3367)
connected to PWM only
SD540 Motor Controller (P/N: SD540x1, SD540x2, SD540x4, SD540Bx1,
SD540Bx2, SD540Bx4, SD540C)
Spark Motor Controller (P/N: REV-11-1200)
Talon Motor Controller (P/N: CTRE_Talon, CTRE_Talon_SR, and am-2195)
Talon SRX Motor Controller (P/N: 217-8080, am-2854, 14-838288)
Section 8 ROBOT Rules
V0
85 of 133
Victor 884 Motor Controller (P/N: VICTOR-884-12/12)
Victor 888 Motor Controller (P/N: 217-2769)
Victor SP Motor Controller (P/N: 217-9090, am-2855, 14-868380)
Victor SPX Motor Controller (P/N: 217-9191, 17-868388, am-3748)
B. Relay Modules
Spike H-Bridge Relay (P/N: 217-0220 and SPIKE-RELAY-H)
C. Pneumatics controllers
Pneumatics Control Module (P/N: am-2858, 217-4243)
R36. Each power regulating device may control electrical loads per Table 8-2. Unless otherwise noted,
each power regulating device shall control one and only one electrical load.
Table 8-2: Power regulating device allotments
Electrical Load
Motor Controller
Relay Module
Pneumatics
Controller
CIM
AndyMark 9015
WCP RS775 Pro
VEX BAG/MiniCIM
Banebots
AndyMark RedLine
Motor
Yes
No
No
Automotive
Window/Door/Windshield
Wiper/Seat/Throttle
Motors
AndyMark PG
Snow-Blower Motor
NeverRest
Yes
(up to 2 per
controller)
Yes
No
Nidec Dynamo BLDC
Motor with Controller
Yes (integrated
controller only)
No
No
Compressor
No
Yes
Yes
Pneumatic Solenoid
Valves
No
Yes1
Yes (1 per
channel)
Electric Solenoids
No
Yes1
Yes (1 per
channel
CUSTOM CIRCUITS2
Yes
Yes1
Yes (1 per
channel)
1 Multiple low-load, pneumatic solenoid valves, electric solenoids or CUSTOM CIRCUITS may be
connected to a single relay module. This would allow one (1) relay module to drive multiple
pneumatic actions or multiple CUSTOM CIRCUITS. No other electrical load can be connected to
a relay module used in this manner.
2 A CUSTOM CIRCUIT is any electrical COMPONENT of the ROBOT other than motors,
pneumatic solenoids, roboRIO, PDP, PCM, VRM, RSL, 120A breaker, motor controllers, relay
modules (per R35-B), wireless bridge, or batteries.
R37. Servos must be connected to, and only to, one of the following:
A. PWM ports on the roboRIO
Section 8 ROBOT Rules
V0
86 of 133
B. PWM ports on a WCP Spartan Sensor Board (P/N: WCP-0045)
C. REV Servo Power Module (P/N: REV-11-1144)
8.7 Power Distribution
R38. The only legal source of electrical energy for the ROBOT during the competition, the ROBOT
battery, must be a non-spillable sealed lead acid (SLA) battery with the following specifications:
A. Nominal voltage: 12V
B. Nominal capacity at 20-hour discharge rate: minimum 17Ah, maximum 18.2Ah
C. Shape: Rectangular
D. Nominal Dimensions:7.1 in. x 3 in. x 6.6 in., +/- .1 in. for each dimension (~ 180 mm x
76mm x 168 mm, +/- 2.5 mm for each dimension)
E. Nominal weight: 11lbs. to 14.5 lbs. (~5 kg. to 6.5 kg.)
F. Terminals: Nut and bolt style
Examples of batteries which meet these criteria include:
A. Enersys (P/N: NP18-12, NP18-12B, NP18-12BFR)
B. MK Battery (P/N: ES17-12)
C. Battery Mart (P/N: SLA-12V18)
D. Sigma (P/N: SP12-18)
E. Universal Battery (P/N: UB12180)
F. Power Patrol (P/N: SLA1116)
G. Werker Battery (P/N: WKA12-18NB)
H. Power Sonic (P/N: PS-12180NB)
I. Yuasa (P/N: NP18-12B)
J. Panasonic (P/N: LC-RD-1217)
K. Interstate Batteries (P/N: BSL1116)
L. Duracell Ultra Battery (P/N: DURA12-18NB)
Teams should be aware that they may be asked to provide
documentation of the specifications of any battery not listed above.
Batteries should be charged in accordance with manufacturer’s
specification. (Please see the FIRST Safety Manual for additional
information.)
R39. COTS USB battery packs with a capacity of 100Wh or less (20000mAh at 5V) and 2.5 Amp max
output per port, or batteries integral to and part of a COTS computing device or self-contained
camera (e.g. laptop batteries, GoPro style camera, etc.) may be used to power COTS computing
devices and any peripheral COTS input or output devices connected to the COTS computing
device provided they are:
A. securely fastened to the ROBOT.
B. connected only using unmodified COTS cables
C. charged according to manufacturer recommendations
Section 8 ROBOT Rules
V0
87 of 133
R40. Any battery charger used to charge a ROBOT battery must have the corresponding Anderson SB
connector installed.
R41. Any battery charger used to charge a ROBOT battery may not be used such that it exceeds 6-
Amp peak charge current.
R42. No batteries other than those allowed per R38 and R39 are allowed on the ROBOT, whether or
not they are being used to supply power.
This means teams may not use additional batteries as extra weight on
their ROBOTS, for example.
R43. The ROBOT battery must be secured such that it will not dislodge during vigorous ROBOT
interaction including if the ROBOT is turned over or placed in any arbitrary orientation.
R44. Each electrical terminal on the ROBOT battery, main breaker, and their connections (lugs,
stripped wire ends, etc.) to the wire must be fully insulated at all times.
R45. Non-electrical sources of energy used by the ROBOT, (i.e., stored at the start of a MATCH), shall
come only from the following sources:
A. compressed air stored in the pneumatic system that has been charged in compliance
with R85 and R87,
B. a change in the altitude of the ROBOT center of gravity,
C. storage achieved by deformation of ROBOT parts,
D. closed-loop COTS pneumatic (gas) shocks, and
E. air-filled (pneumatic) wheels.
R46. The one (1) ROBOT battery, a single pair of Anderson Power Products (or APP) 2-pole SB type
connectors, the one (1) main 120-amp (120A) surface mount circuit breaker (Cooper Bussman
P/N: CB185-120 or CB185F-120), and the one (1) CTR Electronics Power Distribution Panel
(PDP, P/N: am-2856, 217-4244, 14-806880) shall be connected with 6 AWG (7 SWG or 16 mm2)
copper wire or larger, with no additional devices or modifications, as shown in Figure 8-9.
Section 8 ROBOT Rules
V0
88 of 133
Figure 8-9: Electrical connection diagram
“SB type” refers to SB type only (e.g. SB-50, SB-120, etc.), not SBS or
any other part type beginning with SB. All batteries supplied by FIRST
(such as Spare Parts and international batteries) will have a Red or Pink
SB50 connector installed which may not be removed.
The pink connectors included in the 2018 KOP mate with the Red SB50
connector.
R47. All circuits, with the exceptions of those listed in R52 and R54, must connect to, and have power
sourced solely by, a single protected 12VDC WAGO connector pair (i.e. the Load Terminals, as
shown in Figure 8-9) of the one (1) CTR Electronics Power Distribution Panel, not the M6 cap
screws.
R48. All wiring and electrical devices, including all Control System COMPONENTS, shall be electrically
isolated from the ROBOT frame. The ROBOT frame must not be used to carry electrical current.
R48 is checked by observing a >3kΩ resistance between either the (+) or
(-) post within the APP connector that is attached to the PDP and any
point on the ROBOT.
The Victor-SP and Talon-SRX motor controller cases are electrically
isolated. They may be mounted directly to ROBOT frame
COMPONENTS.
Note that some cameras, decorative lights and sensors (e.g. the Axis
206 camera, some encoders, some IR sensors, etc.) have grounded
enclosures. These devices must be electrically isolated from the ROBOT
frame to ensure compliance with R48.
R49. The 120A circuit breaker must be quickly and safely accessible from the exterior of the ROBOT.
This is the only 120A circuit breaker allowed on the ROBOT.
Section 8 ROBOT Rules
V0
89 of 133
Examples considered not “quickly and safely accessible” include
breakers covered by an access panel or door, or mounted on,
underneath or immediately adjacent to moving components.
It is strongly recommended that the 120A circuit breaker location be
clearly and obviously labeled so it can be easily found by FIELD STAFF
during a MATCH.
R50. The PDP, associated wiring, and all circuit breakers must be easily visible for Inspection.
R51. Any active electrical item that is not an actuator (specified in R33) or core Control System item
(specified in R72) is considered a CUSTOM CIRCUIT. CUSTOM CIRCUITS shall not produce
voltages exceeding 24V.
R52. The roboRIO power input must be connected to the dedicated supply terminals on the PDP
shown in Figure 8-10. No other electrical load shall be connected to these terminals.

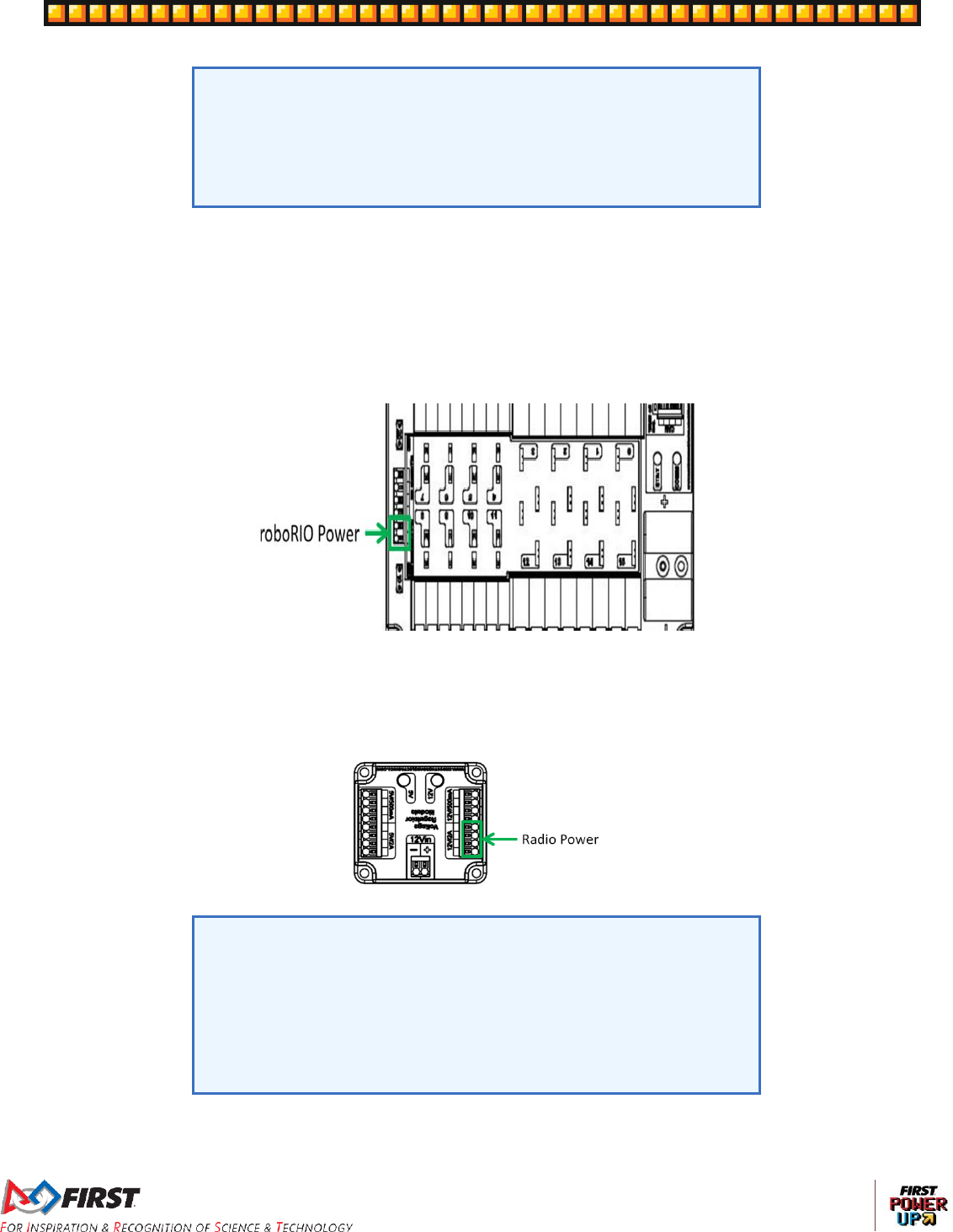

Figure 8-10: roboRIO power source
R53. The Wireless Bridge (Radio) power must be supplied directly by the 12V 2A output of a CTR
Electronics Voltage Regulator Module (VRM) (P/N: am-2857, 217-4245) and must be the only
load connected to those terminals.
Figure 8-11: Radio power source
Note that this wiring is different from the wiring for the radio used in
2015, but is identical to the wiring from 2016 and 2017. When using a
2015 VRM with the OM5P-AN or OM5P-AC radio, the radio should be
connected as described above, not to the terminals labeled “Radio”.
Note that this prohibits using any active POE Injector device to power the
radio, but does not prohibit using any PASSIVE CONDUCTORS to inject
the VRM power into an Ethernet cable plugged into the radio port labeled
“18-24v POE”.
R54. The VRM supplying power to the Wireless Bridge per R53 must be connected to the designated
supply terminals at the end of the PDP, and not the main WAGO connectors along the sides of
Section 8 ROBOT Rules
V0
90 of 133
the PDP as shown in Figure 8-12. With the exception of a single CTR Electronics Pneumatics
Control Module (PCM, P/N: am-2858), no other electrical load shall be connected to these PDP
terminals.

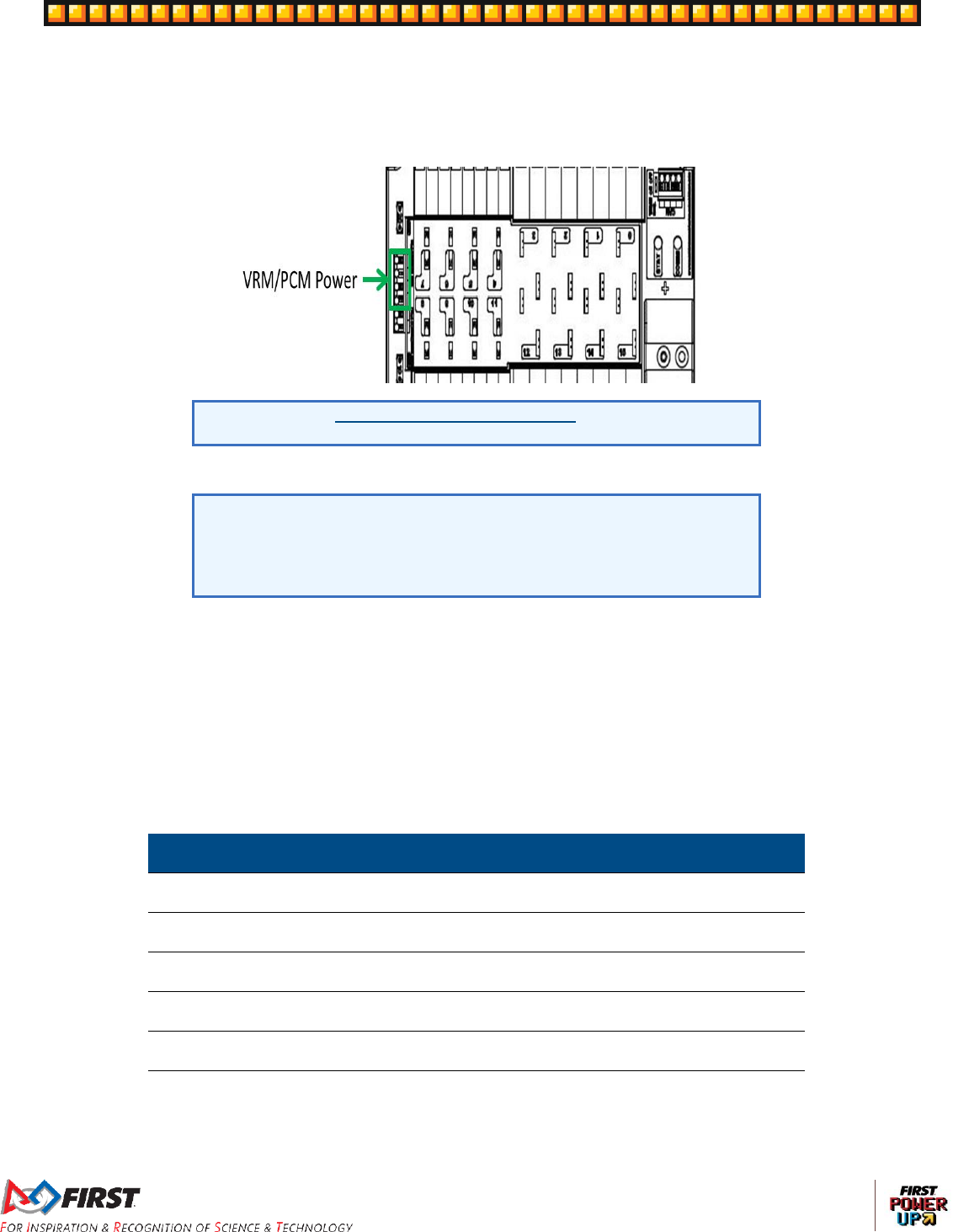

Figure 8-12: VRM and PCM power source
Please reference Wiring the FRC Control System for Wireless Bridge
wiring information.
R55. Only one wire shall be connected to each WAGO connector on the PDP.
If multi-point distribution of circuit power is needed (e.g. to provide power
to multiple PCMs and/or VRMs from one 20A circuit), then all incoming
wires may be appropriately spliced into the main lead (e.g. using an
insulated terminal block, crimped splice or soldered wire splice), and the
single main lead inserted into the WAGO connector to power the circuit.
R56. The only circuit breakers permitted for use in the PDP are:
A. Snap Action VB3-A Series, terminal style F57
B. Snap Action MX5-A or MX5-L Series, 40A rating or lower
R57. The fuses in the PDP shall only be replaced with functionally identical fuses (mini automotive
blade fuses with values matching those printed on the PDP)
R58. Each branch circuit must be protected by one and only one circuit breaker on the PDP per Table
8-3. No other electrical load can be connected to the breaker supplying this circuit.
Table 8-3: Branch circuit protection requirements
Branch Circuit
Circuit Breaker
Value
Quantity Allowed
Per Breaker
Motor Controller
Up to 40A
1
CUSTOM CIRCUIT
Up to 40A
1
Fans permitted per Table 8-1 and not
already part of COTS computing devices
Up to 20A
No limit
Relay Module
Up to 20A
1
PCM with compressor
20A
1
Additional VRM (non-radio)/Additional
PCM (non-compressor)
20A
3 total
Section 8 ROBOT Rules
V0
91 of 133
R58 does not prohibit the use of smaller value breakers in the PDP or
any fuses or breakers within CUSTOM CIRCUITS for additional
protection.
R59. All circuits shall be wired with appropriately sized insulated copper wire:
Table 8-4: Wire sizes
Application
Minimum Wire Size
31 40A protected circuit
12 AWG
(13 SWG or 4 mm2)
21 30A protected circuit
14 AWG
(16 SWG or 2.5 mm2)
6 20A protected circuit
18 AWG
(19 SWG or 1 mm2)
Between the PDP dedicated terminals and the VRM or PCM
Compressor outputs from the PCM
Between the PDP and the roboRIO
22 AWG
(22 SWG or 0.5 mm2)
≤5A protected circuit
VRM 2A circuits
24 AWG
(24 SWG or .25mm2)
roboRIO PWM port outputs
26 AWG
(27 SWG or 0.14 mm2)
SIGNAL LEVEL circuits (i.e. circuits which draw ≤1A continuous
and have a source incapable of delivering >1A, including but not
limited to roboRIO non-PWM outputs, CAN signals, PCM
Solenoid outputs, VRM 500mA outputs and Arduino outputs)
28 AWG
(29 SWG or .08 mm2)
Wires that are recommended by the device manufacturer or originally attached to legal devices
are considered part of the device and by default legal. Such wires are exempt from R59.
R60. Branch circuits may include intermediate elements such as COTS connectors, splices, COTS
flexible/rolling/sliding contacts, and COTS slip rings, as long as the entire electrical pathway is via
appropriately gauged/rated elements.
R61. All non-SIGNAL LEVEL wiring with a constant polarity (i.e., except for outputs of relay modules,
motor controllers, or sensors) shall be color-coded along their entire length from the manufacturer
as follows:
A. Red, yellow, white, brown, or black-with-stripe on the positive (e.g. +24VDC,
+12VDC, +5VDC, etc.) connections
B. Black or blue for the common or negative side (-) of the connections.
Wires that are originally attached to legal devices are considered part of the device and by default
legal. Such wires are exempt from R61.
R62. CUSTOM CIRCUITS shall not directly alter the power pathways between the ROBOT battery,
PDP, motor controllers, relays (per R35-B), motors and actuators (per R33), pneumatic solenoid
valves, or other elements of the ROBOT control system (items explicitly mentioned in R72).
Custom high impedance voltage monitoring or low impedance current monitoring circuitry
connected to the ROBOT’S electrical system is acceptable, if the effect on the ROBOT outputs is
inconsequential.
A noise filter may be wired across motor leads or PWM leads. Such
filters will not be considered CUSTOM CIRCUITS and will not be
considered a violation of R62 or R79.
Section 8 ROBOT Rules
V0
92 of 133
Acceptable signal filters must be fully insulated and must be one of the
following:
A one microfarad (1 µF) or less, non-polarized, capacitor may be
applied across the power leads of any motor on your ROBOT (as
close to the actual motor leads as reasonably possible).
A resistor may be used as a shunt load for the PWM control signal
feeding a servo.
8.8 Control, Command & Signals System
R63. ROBOTS must be controlled via one (1) programmable National Instruments roboRIO (P/N:
am3000), with image version FRC_2018_v16.
There are no rules that prohibit co-processors, provided commands
originate from the roboRIO to configure, enable, and specify all operating
points for all power regulating devices. This includes motor controllers
legally wired to the CAN-bus.
R64. One (1) OpenMesh Wireless Bridge (P/N: OM5P-AN or OM5P-AC), that has been configured with
the appropriate encryption key for your team number at each event, is the only permitted device
for communicating to and from the ROBOT during the MATCH.
R65. The roboRIO Ethernet port must be connected to the Wireless Bridge port labeled “18-24 vPOE,”
closest to the power connector (either directly, via a switch, or via a CAT5 Ethernet pigtail).
Note: Placing a switch between the roboRIO and radio may impede the
ability for FIELD STAFF to troubleshoot roboRIO connection issues on
the FIELD. Teams may be asked to try directly connecting from the radio
to roboRIO as part of troubleshooting efforts.
R66. Communication between the ROBOT and the OPERATOR CONSOLE is restricted as follows:
A. Network Ports:
HTTP 80: Camera connected via switch on the ROBOT, bi-directional
HTTP 443: Camera connected via switch on the ROBOT, bi-directional
UDP/TCP 554: Real-Time Streaming Protocol for h.264 camera streaming,
bi-directional
UDP 1130: Dashboard-to-ROBOT control data, uni-directional
UDP 1140: ROBOT-to-Dashboard status data, uni-directional
UDP/TCP 1180-1190: Camera data from the roboRIO to the Driver Station
(DS) when the camera is connected the roboRIO via USB, bi-directional.
TCP 1735: SmartDashboard, bi-directional
UDP/TCP 5800-5810: Team Use, bi-directional
Teams may use these ports as they wish if they do not employ them as outlined
above (i.e. TCP 1180 can be used to pass data back and forth between the ROBOT
and the DS if the Team chooses not to use the camera on USB).
B. Bandwidth: no more than 7 Mbits/second.
Note that the 7 Mbit limit will be strictly enforced by the Wireless Bridge.
Section 8 ROBOT Rules
V0
93 of 133
The FMS Whitepaper has more details on how to check and optimize
bandwidth usage.
While FIRST® makes every effort to provide a wireless environment that
allows teams access to a full 7 Mbits/second data rate (with about 100
Kbit used for ROBOT control and status), at some events wireless
conditions may not accommodate this.
R67. The roboRIO, Driver Station software, and Wireless Bridge must be configured to correspond to
the correct Team number, per the procedures defined in Getting Started with the 2018 Control
System.
R68. All signals must originate from the OPERATOR CONSOLE and be transmitted to the ROBOT via
the ARCADE Ethernet network.
R69. No form of wireless communication shall be used to communicate to, from, or within the ROBOT,
except those required per R64 and R68.
Devices that employ signals in the visual spectrum (e.g. cameras) and
non-RF sensors that don’t receive human-originated commands (e.g.
“beam break sensors or IR sensors on the ROBOT used to detect
FIELD elements) aren’t wireless communication devices and thus R69
doesn’t apply.
R70. The Wireless Bridge must be mounted on the ROBOT such that the diagnostic lights are visible to
ARCADE personnel.
Teams are encouraged to mount the wireless bridge away from noise
generating devices such as motors, PCM(s), and VRM(s).
R71. ROBOTS must use at least one (1), but no more than two (2), diagnostic Robot Signal Lights
(RSL) (P/N: 855PB-B12ME522).
Any RSL must be:
A. mounted on the ROBOT such that it is easily visible while standing three 3 ft. (~ 100
cm) in front of the ROBOT,
B. connected to the “RSL” supply terminals on the roboRIO,
C. wired for solid light operation, by placing a jumper between the “La” and “Lb”
terminals on the light per Figure 8-13.
Please see Wiring the 2018 FRC Control System for connection details.

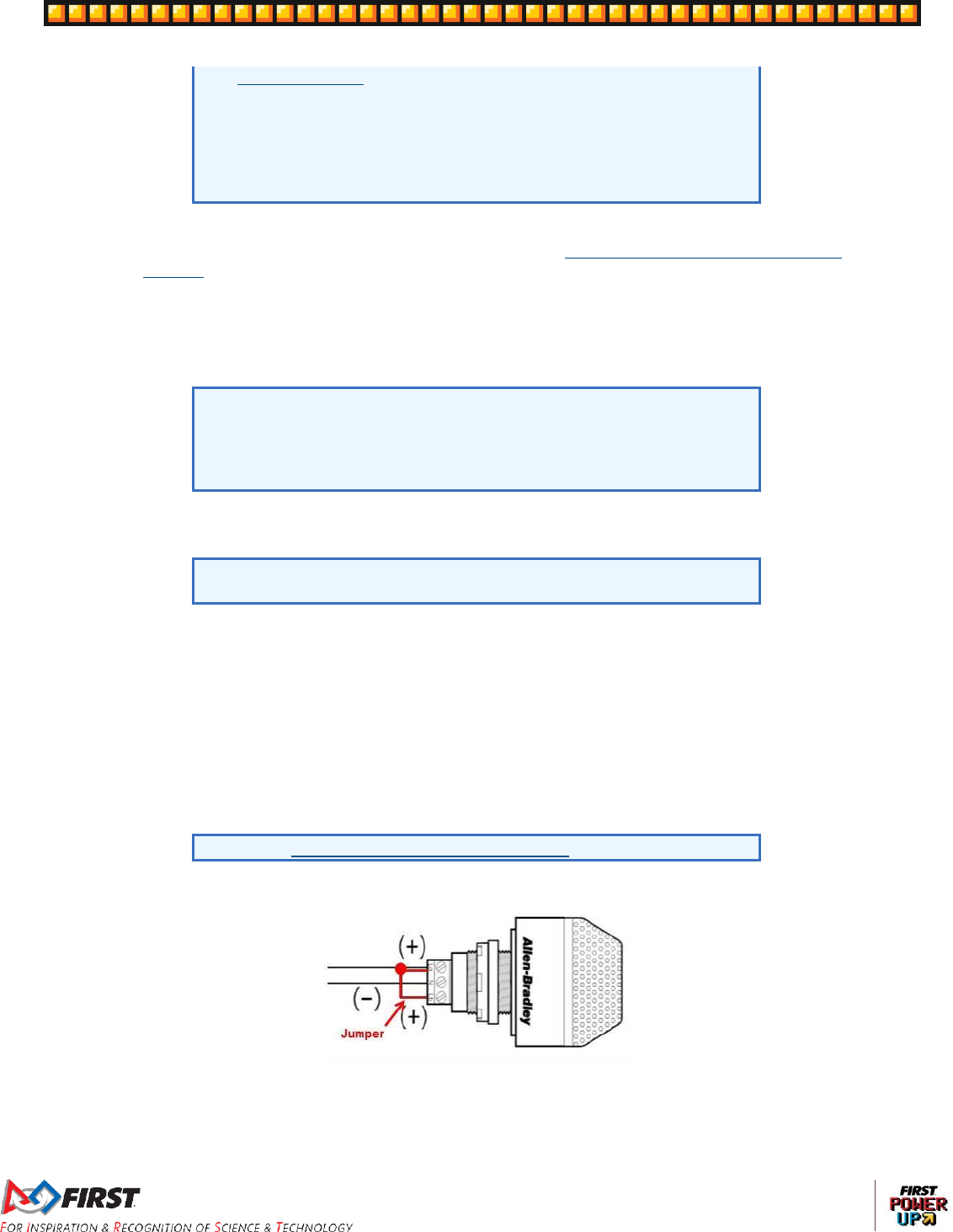

Figure 8-13: RSL jumper wiring
Section 8 ROBOT Rules
V0
94 of 133
R72. The Driver Station software, roboRIO, Power Distribution Panel, Pneumatics Control Modules,
Voltage Regulator Modules, RSL, 120A breaker, motor controllers, relay modules (per R35-B),
Wireless Bridge, and batteries shall not be tampered with, modified, or adjusted in any way
(tampering includes drilling, cutting, machining, rewiring, disassembling, painting, etc.), with the
following exceptions:
Please note that the Driver Station application is a separate application
from the Dashboard. The Driver Station software may not be modified,
while teams are expected to customize their Dashboard code.
A. User programmable code in the roboRIO may be customized.
B. Motor controllers may be calibrated as described in owner's manuals.
C. Fans may be attached to motor controllers and may be powered from the power input
terminals.
D. If powering the compressor, the fuse on a Spike H-Bridge Relay may be replaced
with a 20A Snap-Action circuit breaker.
E. Wires, cables, and signal lines may be connected via the standard connection points
provided on the devices.
F. Fasteners (including adhesives) may be used to attach the device to the OPERATOR
CONSOLE or ROBOT or to secure cables to the device.
G. Thermal interface material may be used to improve heat conduction.
H. Labeling may be applied to indicate device purpose, connectivity, functional
performance, etc.
I. Jumpers may be changed from their default location.
J. Limit switch jumpers may be removed from a Jaguar motor controller and a custom
limit switch circuit may be substituted.
K. Device firmware may be updated with manufacturer supplied firmware.
L. Integral wires on the Victor SP, Victor SPX, or Talon SRX may be cut, stripped,
and/or connectorized.
M. Devices may be repaired, provided the performance and specifications of the device
after the repair are identical to those before the repair.
N. The cover may be removed from the Talon SRX data port.
Please note that while repairs are permitted, the allowance is
independent of any manufacturer’s warranty. Teams make repairs at
their own risk and should assume that any warranty or RMA options are
forfeited. Be aware that diagnosing and repairing COMPONENTS such
as these can be difficult.
R73. Neither 12VDC power nor relay module or motor controller outputs shall be directly connected to
the roboRIO (with the exception of the designated 12VDC input).
R74. Every relay module (per R35-C), servo controller, and PWM motor controller shall be connected
to a corresponding port (relays to Relay ports, servo controllers and PWM controllers to PWM
ports) on the roboRIO (either directly or through a WCP Spartan Sensor Board) or via a legal
MXP connection (per R75). They shall not be controlled by signals from any other source, with
the exception of the Nidec Dynamo motor controller which must also be connected to the
roboRIO Digital I/O.
Section 8 ROBOT Rules
V0
95 of 133
R75. If a motor is controlled via the MXP, its power regulating device must be connected by one of the
following methods:
A. directly to any PWM pins,
B. via a network of PASSIVE CONDUCTORS used to extend the PWM pins, or
C. via one approved ACTIVE DEVICE:
Kauai Labs navX MXP
RCAL MXP Daughterboard
REV Robotics RIOduino
REV Robotics Digit Board
West Coast Products Spartan Sensor Board
Huskie Robotics HUSKIE 2.0 Board
A PASSIVE CONDUCTOR is any device or circuit whose capability is
limited to the conduction and/or static regulation of the electrical energy
applied to it (e.g. wire, splices, connectors, printed wiring board, etc.).
An ACTIVE DEVICE is any device capable of dynamically controlling
and/or converting a source of electrical energy by the application of
external electrical stimulus.
The “network of PASSIVE CONDUCTORS” only applies to the pins
being used for PWM output to motors or servos. This means that
connecting an ACTIVE DEVICE, such as a sensor to one MXP pin does
not prevent other MXP pins from being used in accordance with R75-B.
R76. Each CAN motor controller must be controlled with signal inputs sourced from the roboRIO and
passed via either a PWM (wired per R74) or CAN-bus (either directly or daisy-chained via another
CAN-bus device) signal, but both shall not be wired simultaneously on the same device.
As long as the CAN bus is wired legally so that the heartbeat from the
roboRIO is maintained, all closed loop control features of the CAN motor
controller may be used. (That is, commands originating from the roboRIO
to configure, enable, and specify an operating point for all CAN motor
controller closed loop modes fit the intent of R63.
R77. Each PCM must be controlled with signal inputs sourced from the roboRIO and passed via a
CAN-bus connection from the roboRIO (either directly or daisy-chained via another CAN-bus
device).
R78. The PDP CAN interface must be connected to the CAN-bus on the roboRIO (either directly or
daisy-chained via another CAN-bus device).
For documentation on how to wire the CAN-bus connections of the PDP
see Wiring the 2018 FRC Control System.
R79. The CAN-bus must be connected to the roboRIO CAN port.
A. Additional switches, sensor modules, CUSTOM CIRCUITS, third-party modules, etc.
may also be placed on the CAN-bus.
B. No device that interferes with, alters, or blocks communications among the roboRIO
and the PDP, PCMs, and/or CAN Motor Controllers on the bus will be permitted.
Section 8 ROBOT Rules
V0
96 of 133
Only one wire should be inserted into each Weidmuller CAN connector
terminal. For documentation on how to wire the CAN-bus connections of
the roboRIO, PCM, PDP and CAN motor controllers, see Wiring the FRC
Control System.
8.9 Pneumatic System
R80. To satisfy multiple constraints associated with safety, consistency, Inspection, and constructive
innovation, no pneumatic parts other than those explicitly permitted in Section 8.9 Pneumatic
System shall be used on the ROBOT.
R81. All pneumatic items must be COTS pneumatic devices and either:
A. rated by their manufacturers for pressure of at least 125psi (~862 kPa), or
B. installed downstream of the primary relieving regulator (see R88), and rated for
pressure of at least 70psi (~483 kPa)
Any pressure specification such as “working,” “operating,” “proof,
“maximum,” “burst,” etc. may be used to satisfy the requirements of R81.
It is recommended that all pneumatic items be rated by their
manufacturers for a working pressure of at least 60 psi (~414 kPa).
R82. All pneumatic COMPONENTS must be used in their original, unaltered condition. Exceptions are
as follows:
A. tubing may be cut,
B. wiring for pneumatic devices may be modified to interface with the control system,
C. assembling and connecting pneumatic COMPONENTS using the pre-existing
threads, mounting brackets, quick-connect fittings, etc.,
D. removing the mounting pin from a pneumatic cylinder, provided the cylinder itself is
not modified,
E. labeling applied to indicate device purpose, connectivity, functional performance, etc.
Do not, for example, paint, file, machine, or abrasively remove any part
of a pneumatic COMPONENT this would cause the part to become a
prohibited item. Consider pneumatic COMPONENTS sacred.
R83. The only pneumatic system items permitted on ROBOTS include the items listed below.
A. Items available in the KOP (except as noted in K),
B. Pneumatic pressure vent plug valves functionally equivalent to those provided in the
KOP,
Parker valves PV609-2 or MV709-2 are recommended.
C. Pressure relief valves functionally equivalent to those provided in the KOP,
Norgren 16-004-011, 16-004-003 or McMaster-Carr 48435K714
recommended.
To be considered functionally equivalent the valve must be preset or
adjustable to 125 psi (~862 kPA) and capable of relieving at least 1 scfm
(~472 cm3/s).
Section 8 ROBOT Rules
V0
97 of 133
D. Solenoid valves with a maximum ⅛ in. (nominal) NPT, BSPP, or BSPT port diameter,
E. Additional pneumatic tubing, with a maximum ¼ in. (nominal) outside diameter,
F. Pressure transducers, pressure gauges, passive flow control valves (specifically
“needle valve”), manifolds, and connecting fittings (including COTS pneumatic U-
tubes),
G. Check and quick exhaust valves, provided that the requirements of R96 are still met.
H. Shutoff valves which relieve downstream pressure to atmosphere when closed (may
also be known as 3-way or 3-way exhausting valves).
I. Pressure regulators with the maximum outlet pressure adjusted to no more than 60
psi (~413 kPa),
J. Pneumatic cylinders, pneumatic linear actuators, and rotary actuators,
K. Pneumatic storage tanks (with the exception of White Clippard tanks P/N: AVT-PP-
41), and
L. Compressors compliant with R85.
The following devices are not considered pneumatic devices and are not
subject to pneumatic rules (though they must satisfy all other rules):
A. a device that creates a vacuum
B. closed-loop COTS pneumatic (gas) shocks
C. air-filled (pneumatic) wheels
R84. If pneumatic COMPONENTS are used, the following items are required as part of the pneumatic
circuit and must be used in accordance with this section, as illustrated in Figure 8-14.
A. One (1) FRC legal Compressor (per R85)
B. Pressure relief valve (per R83-C) connected via legal rigid fittings (e.g. brass, nylon,
etc.)
C. Nason pressure switch, P/N SM-2B-115R/443
D. At least one Pressure vent plug
E. “Stored” pressure gauge (upstream from Primary Regulator, must show psi or kPa)
F. “Working” pressure gauge (downstream from Primary Regulator, must show psi or
kPa)
G. Working” pressure regulator
Section 8 ROBOT Rules
V0
98 of 133

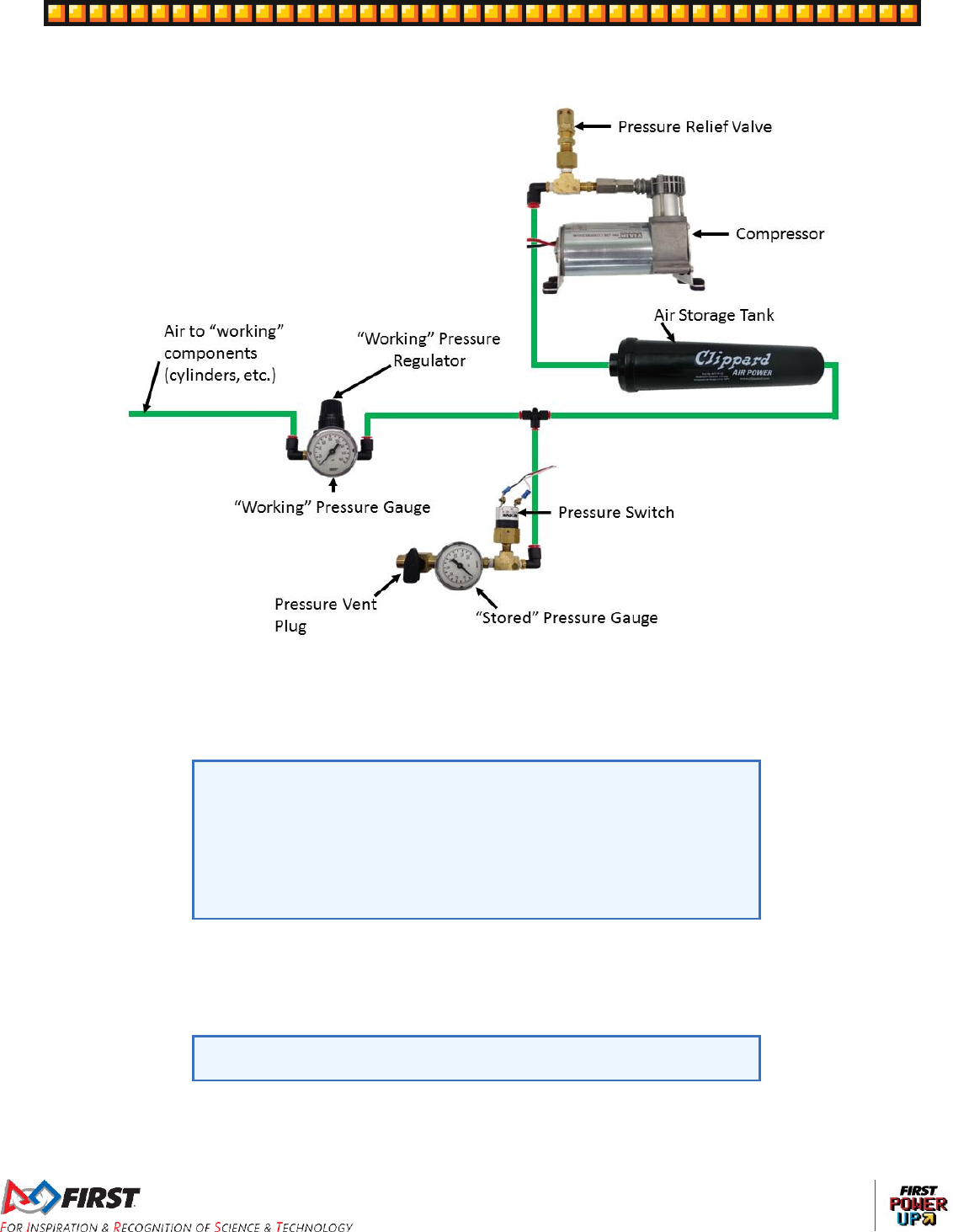

Figure 8-14: Pneumatic circuitry
R85. Compressed air on the ROBOT must be provided by one and only one compressor. Compressor
specifications must not exceed nominal 1.10 cfm (~519 cm3/s) flow rate @ 12VDC.
R86. The compressor (permitted per R85) may be located off-board the ROBOT, however the
compressor must still be controlled and powered by the ROBOT when used.
The compressor may be mounted on the ROBOT, or it may be left off the
ROBOT and used to pre-charge compressed air in storage tanks on the
ROBOT provided the additional restrictions of R91 are met.
The intent of this rule is to permit teams to take advantage of the weight
savings associated with keeping the compressor off-board. However,
using the compressor off-board of the ROBOT does NOT permit non-
compliance with any other applicable rules.
R87. “Stored” air pressure on the ROBOT must be no greater than 120 psi (~827 kPa). No stored air
pressure intended for the ROBOT may be located off-board the ROBOT.
R88. “Working” air pressure on the ROBOT must be no greater than 60 psi (~413 kPa) and must be
provided through a single primary adjustable, relieving, pressure regulator.
Norgren regulator P/N: R07-100-RNEA or Monnier P/N: 101-3002-1
recommended.
R89. Only the compressor, relief valve (P/N: 16-004-011 or 16-004-003), pressure switch, pressure
vent plug, pressure gauge, storage tanks, tubing, pressure transducers, and connecting fittings
may be in the high-pressure pneumatic circuit upstream from the regulator.
Section 8 ROBOT Rules
V0
99 of 133
It is recommended that all COMPONENTS in the high-pressure
pneumatic circuit upstream from the regulator be rated for at least 115
psi (~793 kPa) working pressure.
R90. Pressure gauges must be placed in easily visible locations upstream and downstream of the
regulator to display the “stored” and “working” pressures.
R91. If the compressor is not included on the ROBOT (under the provisions of R87) the “stored”
pressure gauge and pressure switch may be located on-board (Figure 8-15) or off-board (Figure
8-16) (but must be together), provided all other pneumatic rules are satisfied.
Figure 8-15: Off board compressor with stored pressure gauge and pressure switch on the ROBOT
R92. If the stored pressure gauge is kept off-board the ROBOT with the compressor, then only low-
pressure (60 psi (~413 kPa) or less) “working” air can be stored on the ROBOT. The “working”
pressure gauge must be installed on-board the ROBOT at all times (Figure 8-16).
Section 8 ROBOT Rules
V0
100 of 133

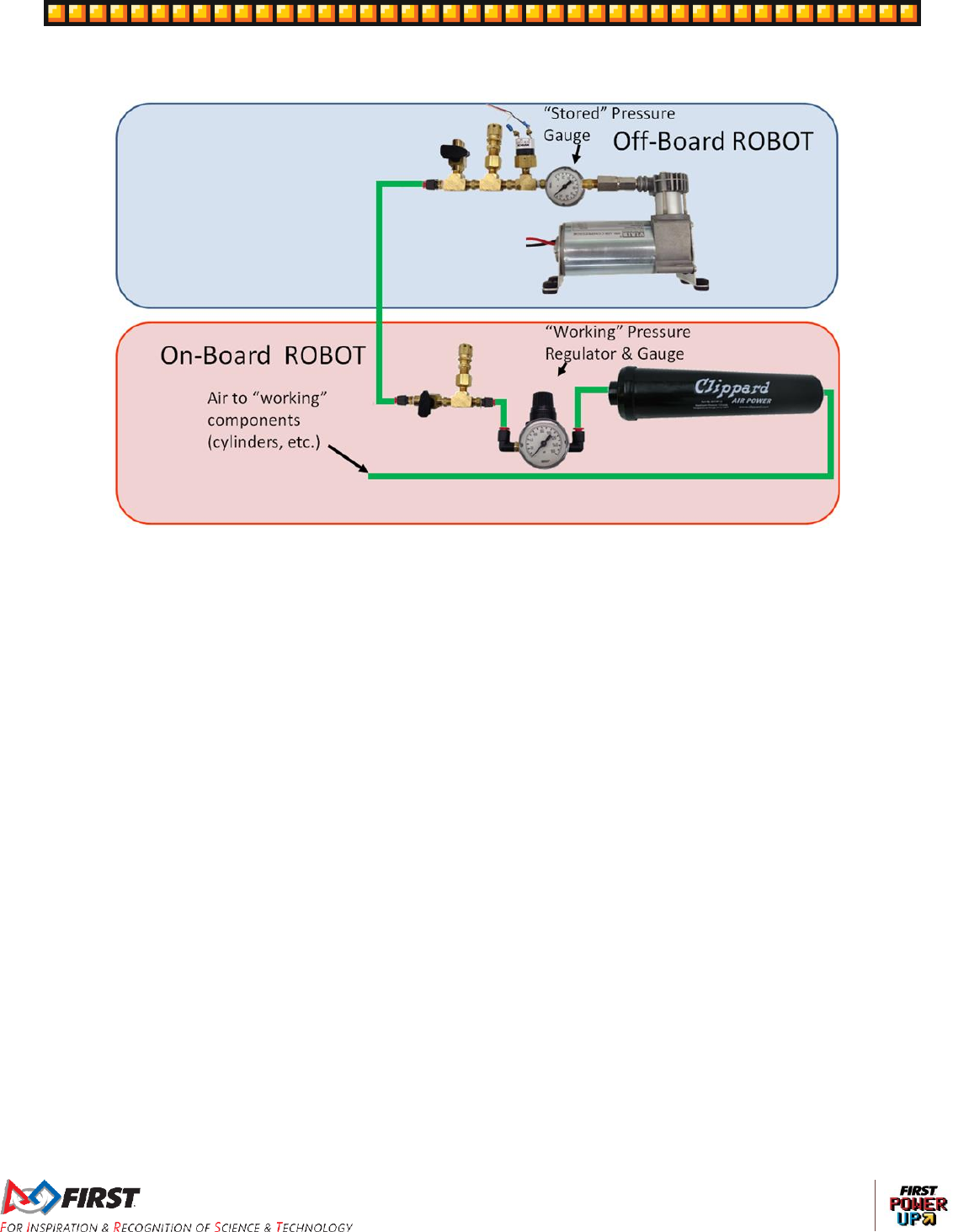

Figure 8-16: Off board compressor with stored pressure gauge and pressure switch off the ROBOT
R93. The relief valve must be attached directly to the compressor or attached by legal hard fittings (e.g.
brass, nylon, etc.) connected to the compressor output port. If using an off-board compressor, an
additional relief valve must be included on the ROBOT.
Teams are required to check and/or adjust the relief valve to release air at 125 psi (~861 kPa).
The valve may or may not have been calibrated prior to being supplied to Teams.
R94. The pressure switch requirements are:
A. It must be Nason P/N: SM-2B-115R/443
B. It must be connected to the high-pressure side of the pneumatic circuit (i.e. prior to
the pressure regulator) to sense the “stored” pressure of the circuit.
C. The two wires from the pressure switch must be connected directly to the pressure
switch input of the PCM controlling the compressor or, if controlled using the roboRIO
and a Spike relay, to the roboRIO.
D. If connected to the roboRIO, the roboRIO must be programmed to sense the state of
the switch and operate the relay module that powers the compressor to prevent over-
pressuring the system.
R95. Any pressure vent plug must be:
A. connected to the pneumatic circuit such that, when manually operated, it will vent to
the atmosphere to relieve all stored pressure in a reasonable amount of time, and
B. placed on the ROBOT so that it is visible and easily accessible.
If the compressor is not used on the ROBOT, then an additional pressure vent plug must be
connected to the high-pressure portion of the pneumatic circuit off-board the ROBOT with the
compressor (see R87).
R96. The outputs from multiple solenoid valves must not be plumbed together.
Section 8 ROBOT Rules
V0
101 of 133
8.10 OPERATOR CONSOLE
R97. The Driver Station software provided on the National Instruments website is the only application
permitted to specify and communicate the operating mode (i.e. Autonomous/Teleoperated) and
operating state (Enable/Disable) to the ROBOT. The Driver Station software must be revision
18.0 or newer.
Teams are permitted to use a portable computing device of their choice
(laptop computer, tablet, etc.) to host the DRIVER Station software while
participating in competition MATCHES.
R98. The OPERATOR CONSOLE, the set of COMPONENTS and MECHANISMS used by the
DRIVERS and/or HUMAN PLAYER to relay commands to the ROBOT, must include a graphic
display to present the Driver Station diagnostic information. It must be positioned within the
OPERATOR CONSOLE so that the screen display can be clearly seen during Inspection and in a
MATCH.
R99. Devices hosting the Driver Station software must only interface with the Field Management
System (FMS) via the Ethernet cable provided at the PLAYER STATION (e.g. not through a
switch). Teams may connect the FMS Ethernet cable to their Driver Station device directly via an
Ethernet pigtail, or with a single-port Ethernet converter (e.g. docking station, USB-Ethernet
converter, Thunderbolt-Ethernet converter, etc.). The Ethernet port on the OPERATOR
CONSOLE must be easily and quickly accessible.
Teams are strongly encouraged to use pigtails on the Ethernet port used
to connect to the FMS. Such pigtails will reduce wear and tear on the
device’s port and, with proper strain relief employed, will protect the port
from accidental damage.
R100. The OPERATOR CONSOLE must not
C. be longer than 60 in. (~152 cm)
D. be deeper than 14 in. (~35 cm) (excluding any items that are held or worn by the
DRIVERS during the MATCH)
E. extend more than 6 ft. 6 in. (~198 cm) above the floor
F. attach to the FIELD (except as permitted by G19)
There is a 54 in. (~137 cm) long by 2 in. (nominal) wide strip of hook-
and-loop tape (“loop” side) along the center of the PLAYER STATION
support shelf that should be used to secure the OPERATOR CONSOLE
to the shelf, per G19. See Section 3.6.1 PLAYER STATION for details.
Please note that while there is no hard weight limit, OPERATOR
CONSOLES that weigh more than 30 lbs. (~13 kg.) will invite extra
scrutiny as they are likely to present unsafe circumstances.
R101. Other than the system provided by the ARCADE, no other form of wireless communications shall
be used to communicate to, from, or within the OPERATOR CONSOLE.
Examples of prohibited wireless systems include, but are not limited to,
active wireless network cards and Bluetooth devices. For the case of the
FIRST Robotics Competition, a motion sensing input device (e.g.
Microsoft Kinect) is not considered wireless communication and is
allowed.
Section 8 ROBOT Rules
V0
102 of 133
R102. OPERATOR CONSOLES shall not be made using hazardous materials, be unsafe, cause an
unsafe condition, or interfere with other DRIVE TEAMS or the operation of other ROBOTS.
Section 9 Inspection & Eligibility
Rules
V0
103 of 133
9 Inspection & Eligibility Rules
This section describes the rules governing MATCH participation. A Team has participated in a MATCH if
any member of their DRIVE TEAM is in the ALLIANCE STATION or PORTAL, with or without the ROBOT
on the FIELD, at the start of the MATCH.
At each event, the Lead Robot Inspector (LRI) has final authority on the legality of any COMPONENT,
MECHANISM, or ROBOT. Inspectors may re-Inspect ROBOTS to ensure compliance with the rules.
ROBOTS are permitted to participate in scheduled Practice MATCHES prior to passing Inspection.
However, the FIRST Technical Advisor (FTA), LRI, or Head REFEREE may determine at any time that
the ROBOT is unsafe, per safety rules, and may prohibit further participation in Practice MATCHES until
the condition is corrected and/or the ROBOT passes Inspection.
Prior to the start of a MATCH, any ROBOT which is unable or ineligible to participate in that MATCH as
determined by the FTA, LRI, or Head REFEREE is declared to be BYPASSED and is DISABLED. A
Team whose ROBOT is BYPASSED remains eligible to receive Qualification Ranking Points or Playoff
MATCH points provided that its ROBOT has passed Inspection, per I02.
I01. The ROBOT must be built by the Team to play FIRST® POWER UPSM. The ROBOT is an
electromechanical assembly built by the FIRST® Robotics Competition Team to perform specific
tasks when competing in FIRST® POWER UPSM. The ROBOT must include all of the basic
systems required to be an active participant in the game power, communications, control,
BUMPERS, and movement. The ROBOT implementation must obviously follow a design
approach intended to play FIRST POWER UP (e.g. a box of unassembled parts placed on the
FIELD, or a ROBOT designed to play a different game, does not satisfy this definition).
I01 requires that the ROBOT a Team uses in competition was built by
that Team, but isn’t intended to prohibit assistance from other Teams
(e.g. fabricating elements, supporting construction, writing software,
developing game strategy, contributing COMPONENTS and/or
MECHANISMS, etc.)
I02. Get inspected before playing a Qualification/Playoff MATCH. A Team is only permitted to
participate in a Qualification or Playoff MATCH and receive Ranking or MATCH Points
respectively if their ROBOT has passed an initial, complete Inspection.
Violation: If prior to the start of the MATCH, the Team is not eligible to participate in the MATCH.
If after the start of the MATCH, the entire ALLIANCE receives a RED CARD for that MATCH.
Please take note of this rule. It is important that FIRST Robotics
Competition Teams ensure their ALLIANCE partners have passed
Inspection. Allowing a partner that has not passed Inspection to play puts
the ALLIANCE at risk of RED CARDS. Teams should check with their
ALLIANCE partners early, and help them pass Inspection before
competing.
I03. Bring it all to Inspection. At the time of Inspection, the ROBOT must be presented with all
MECHANISMS (including all COMPONENTS of each MECHANISM), configurations, and
decorations that will be used on the ROBOT without re-inspection. It is acceptable, however, for a
ROBOT to play MATCHES with a subset of the MECHANISMS that were present during
Inspection. Only MECHANISMS that were present during the Inspection may be added, removed
Section 9 Inspection & Eligibility
Rules
V0
104 of 133
or reconfigured between MATCHES. If MECHANISMS are changed between MATCHES, the
reconfigured ROBOT must still meet all Inspection criteria.
I04. Unless the change is listed below, any change to a ROBOT must get re-inspected. If a
ROBOT is modified after it has passed its most recent Inspection, that ROBOT must be re-
Inspected before the ROBOT is eligible to participate in a MATCH. Exceptions are listed in A
through F (unless they result in a significant change to the ROBOT’S size, weight, legality, or
safety).
A. addition, relocation, or removal of fasteners (e.g. cable ties, tape, and rivets)
B. addition, relocation, or removal of labeling or marking
C. revision of ROBOT code
D. replacement of a COTS COMPONENT with an identical COTS COMPONENT
E. replacement of a MECHANISM with an identical MECHANISM (size, weight,
material)
F. additions, removals, or reconfiguration of ROBOT with a subset of MECHANISMS
already inspected per I02.
When in doubt, the Team should ask to be re-Inspected.
Inspectors prioritize ROBOTS that have not yet completed initial
inspection over ROBOT changes.
While every effort will be made to re-inspect Teams in a timely manner,
Teams need to consider that they may need to play with the previously
inspected configuration if re-inspection cannot be completed before a
MATCH. Teams should work with Inspectors when making changes to
minimize the chance of this occurring.
Example 1: Team A’s ROBOT has passed Inspection, but burns out a
motor controller during a MATCH. Team A replaces it with an identical
motor controller. Team A does not have to get their ROBOT re-
Inspected per exception I04-D.
Example 2: Team B would like to add weight to their ROBOT to lower
their center of gravity. Team B adds a large amount of fasteners to their
ROBOT as ballast. Team B must get their ROBOT re-Inspected because
they have significantly changed their weight per I04.
Example 3: Team D has decided to move their motor controller to a
different location on their ROBOT, and must use a different length wire to
make the proper connections. Team D must get their ROBOT re-
Inspected because rewiring is not an exception in I04.
Example 4: Team E decides to relocate their battery on their ROBOT to
change their center of gravity. Team E must be re-Inspected as the
relocation of COMPONENTS or MECHANISMS is not an exception I04.
Example 5: Team F realizes they can gain necessary functionality by
building a new MECHANISM at an event and adding it to their ROBOT.
Their ROBOT must be re-Inspected.
If an observation is made that another Team’s ROBOT may be in
violation of the ROBOT rules, please approach FIRST officials to review
Section 9 Inspection & Eligibility
Rules
V0
105 of 133
the matter in question. This is an area where Gracious Professionalism®
is very important.
I05. Document your costs. A Cost Accounting Worksheet (CAW), listing all items on the ROBOT
except those listed in R11 and their relevant costs per Section 8.4 Budget Constraints &
Fabrication Schedule, must be presented at the time of Inspection.
Teams are encouraged to use the CAW Template posted on the FIRST
website. Please note that while CAWs must be shown to Inspectors,
Teams are not required to submit their CAWs to the Inspectors.
I06. ROBOTS are off for Inspection, mostly. For the safety of all those involved, Inspections must
take place with the ROBOT powered off, pneumatics unpressurized, and springs or other stored
energy devices in their lowest potential energy states (e.g. battery removed).
Power and air pressure should only be enabled on the ROBOT during those portions of the
Inspection process where it is absolutely required to validate certain system functionality and
compliance with specific rules (firmware check, etc.). Inspectors may allow the ROBOT to be
powered up beyond the parameters above if both criteria below are met.
A. The ROBOT design requires power or a charged stored energy device in order to
confirm that the ROBOT meets volume requirements, and
B. The Team has included safety interlocks that mitigate unexpected release of such
stored energy.
The Team may be asked to demonstrate these interlocks during the
inspection process.
I07. No student, no Inspection. At least one student Team member must accompany the ROBOT
for any Inspection efforts.
Exceptions may be made for major conflicts, e.g. religious holidays,
major testing, transportation issues, etc.
Section 10 Tournaments
V0
107 of 133
10 Tournaments
Each 2018 FIRST Robotics Competition event is played in a tournament format. Each tournament
consists of three sets of MATCHES called Practice MATCHES (not necessarily played at all District
Events), Qualification MATCHES, and Playoff MATCHES.
Practice MATCHES provide each Team with an opportunity to operate its ROBOT on the FIELD prior to
the start of the Qualification MATCHES.
Qualification MATCHES allow each Team to earn a seeding position that may qualify them for
participation in the Playoff MATCHES.
Playoff MATCHES determine the event Champions.
10.1 MATCH Schedules
A MATCH schedule is used to coordinate MATCHES at an Event. Figure 10-1 details information shown

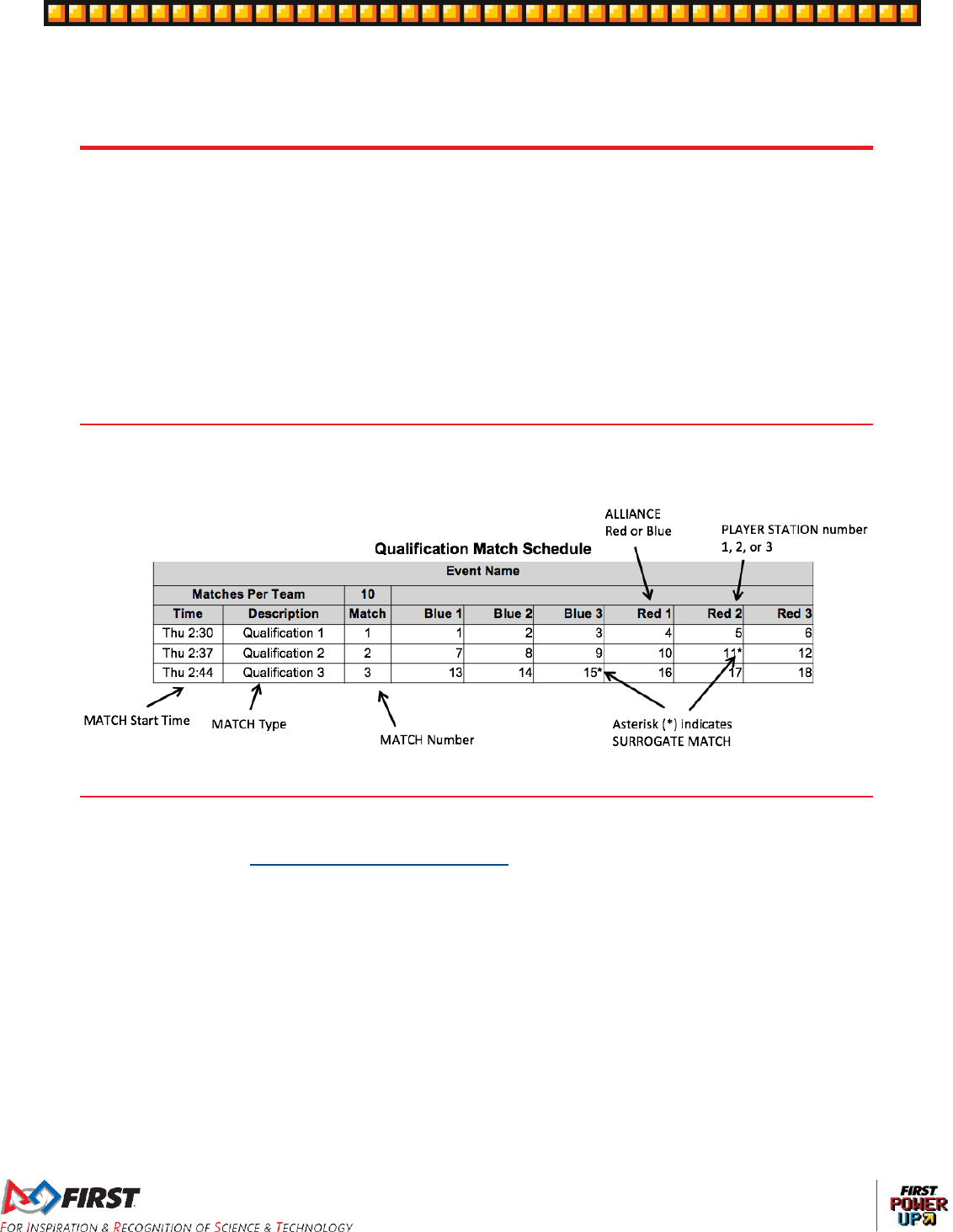

on each Schedule. Figure 10-1: Sample MATCH Schedule
10.2 Practice MATCHES
Practice MATCHES are played on the first day of each event. The Practice MATCH schedule is available
as soon as possible, but no later than the start of Practice MATCHES. It will also be published and
available online at the FIRST Robotics Event Results site, except during exceptional circumstances.
Practice MATCHES are randomly assigned, and teams may not switch scheduled Practice MATCHES.
Each Team is assigned an equal number of Practice MATCHES unless the number of Teams multiplied
by number of Practice MATCHES is not divisible by six. In this case, the FIELD Management System
(FMS) randomly selects some Teams to play an extra Practice MATCH.
Practice MATCHES are not guaranteed at District Events due to event schedule constraints.
10.2.1 Filler Line
A Filler Line is used to fill open slots at events that employ scheduled Practice MATCHES or all slots at
events with an open Practice MATCH schedule. Teams from the Filler Line are used on a first come, first
served basis to fill empty spots in Practice MATCHES left by other Teams that do not report to Queueing.
The number of Teams in the Filler Line is dependent upon space at venues
Section 10 Tournaments
V0
108 of 133
T01. Teams wanting additional Practice MATCHES may not join the Filler Line unless all criteria listed
below are met:
A. ROBOTS in the Filler Line must have passed Inspection (this requirement may be
waived for events with open Practice MATCH schedules);
B. DRIVE TEAMS must join the Filler Line with their ROBOT;
C. Teams may not work on their ROBOT while in the Filler Line;
D. Teams may not occupy more than one spot in the Filler Line; and
E. If a Team is queued for their Practice MATCH, they may not also join the Filler Line.
10.3 Measurement
The ARCADE will be open for at least thirty (30) minutes prior to the start of Qualification MATCHES,
during which time Teams may survey and/or measure the FIELD and bring ROBOTS on the FIELD to
perform sensor calibration. The specific time that the FIELD is open will be communicated to Teams at
the event. Teams may bring specific questions or comments to the FTA.
T02. During the period when the ARCADE is open for measurement, ROBOTS can be enabled, but
cannot move, nor can they interact with (e.g. shoot, push, pickup, etc.) POWER CUBES, the
SWITCHES, or SCALE.
Violation: Discussion with Team, if repeated or egregious YELLOW CARD.
10.4 Qualification MATCHES
10.4.1 Schedule
The Qualification MATCH schedule is made available as soon as possible, but no later than one (1) hour
before Qualification MATCHES are scheduled to begin. Teams receive one (1) hard copy and it is
available online at http://frc-events.firstinspires.org, except during exceptional circumstances. Each
Qualification schedule consists of a series of rounds in which each Team plays one (1) MATCH per
round.
10.4.2 MATCH Assignment
FMS assigns each team two (2) ALLIANCE partners for each Qualification MATCH using a predefined
algorithm, and teams may not switch Qualification MATCH assignments. The algorithm employs the
following criteria, listed in order of priority:
1. maximize time between each MATCH played for all Teams
2. minimize the number of times a Team plays opposite any Team
3. minimize the number of times a Team is allied with any Team
4. minimize the use of SURROGATES (Teams randomly assigned by the FMS to play an
extra Qualification MATCH)
5. provide even distribution of MATCHES played on Blue and Red ALLIANCE
6. provide even distribution of MATCHES played in each PLAYER STATION number.
All Teams are assigned the same number of Qualification MATCHES, equal to the number of rounds,
unless the number of Teams multiplied by number of MATCHES is not divisible by six. In this case, the
FMS randomly selects some Teams to play an extra MATCH. For the purpose of seeding calculations,
those Teams are designated as SURROGATES for the extra MATCH. If a Team plays a MATCH as a
SURROGATE, it is indicated on the MATCH schedule, it is always their third Qualification MATCH, and
Section 10 Tournaments
V0
109 of 133
the outcome of the MATCH has no effect on the Team’s ranking. YELLOW and RED CARDS assigned to
SURROGATES, however, do carry forward to subsequent MATCHES.
10.4.3 Qualification Ranking
Ranking Points (RP) are units credited to a Team based on their ALLIANCES performance in
Qualification MATCHES. Ranking Points are awarded to each eligible Team at the completion of each
Qualification MATCH per Table 4-1.
Exceptions to Ranking Point assignment are as follows:
A. A SURROGATE receives zero (0) Ranking Points.
B. A DISQUALIFIED Team, as determined by the Head REFEREE, receives zero (0)
Ranking Points in a Qualification MATCH or causes their ALLIANCE to receive zero
(0) MATCH points in a Playoff MATCH.
C. A “no-show” Team is either DISQUALIFIED from or issued a RED CARD for that
MATCH (see C06). A Team is declared a no-show if no member of the DRIVE TEAM
is in the ALLIANCE STATION or PORTAL at the start of the MATCH.
The total number of Ranking Points earned by a Team throughout their Qualification MATCHES divided
by the number of MATCHES they’ve been scheduled to play (minus any SURROGATE MATCH), then
truncated to two (2) decimal places, is their Ranking Score (RS).
All Teams participating in Qualification MATCHES are ranked by Ranking Score. If the number of Teams
in attendance is ‘n’, they are ranked ‘1’ through ‘n’, with ‘1’ being the highest ranked Team and ‘n’ being
the lowest ranked Team.
Teams are ranked in order, using the sorting criteria defined in Table 10-1
Table 10-1: Qualification MATCH Ranking Criteria
Order Sort
Criteria
1st
Ranking Score
2nd
Cumulative PARKING and CLIMBING score
3rd
Cumulative sum of AUTO points
4th
Cumulative sum of OWNERSHIP points
5th
Cumulative sum of VAULT points
6th
Random sorting by the FMS
10.5 Playoff MATCHES
In Playoff MATCHES, Teams do not earn Ranking Points; they earn a Win, Loss or Tie. Within each
series of the Playoff MATCH bracket, the first ALLIANCE to win two (2) MATCHES will advance.
In the case where the Quarterfinal or Semifinal MATCH scores for both ALLIANCES are equal, the Win is
awarded to the ALLIANCE per criteria listed in Table 10-2. A DISQUALIFIED Team, as determined by the
Head REFEREE, causes their ALLIANCE to receive zero (0) MATCH points in a Playoff MATCH.
In Finals MATCHES, the Champion ALLIANCE is the first ALLIANCE to win two (2) MATCHES. In the
case where an ALLIANCE hasn’t won two (2) MATCHES after three (3) MATCHES, the Playoffs proceed
with up to three (3) additional Finals MATCHES, called Overtime MATCHES, until an ALLIANCE has won
two (2) Finals MATCHES. In the case where the Overtime MATCH scores for both ALLIANCES are
equal, the win for that Overtime MATCH is awarded based on the criteria listed in Table 10-2.
Section 10 Tournaments
V0
110 of 133
Table 10-2: Quarterfinal, Semifinal, and Overtime Tiebreaker Criteria
Order Sort
Criteria
1st
Fewer FOUL points
2nd
Cumulative PARKING and CLIMBING score
3rd
Cumulative sum of AUTO points
4th
Cumulative sum of OWNERSHIP points
5th
Cumulative sum of VAULT points
6th
MATCH is replayed
10.5.1 ALLIANCE Selection Process
At the end of the Qualification MATCHES, the top eight (8) seeded Teams become the ALLIANCE Leads.
The seeded ALLIANCES are designated, in order, ALLIANCE One, ALLIANCE Two, etc., down to
ALLIANCE Eight. Using the ALLIANCE selection process described in this section, each ALLIANCE Lead
chooses two (2) other Teams to join their ALLIANCE.
If a Team declines the ALLIANCE Lead position or doesn’t send a student representative for ALLIANCE
selection, they are ineligible to participate in the Playoff Tournament. If the declining/absent Team would
have been an ALLIANCE Lead, all lower ranked ALLIANCE Leads are promoted one spot. The next
highest-ranked Team moves up to become the ALLIANCE Eight Lead.
Each Team chooses a student Team representative who proceeds to the ARCADE at the designated
time (typically before the lunch break on the final day of the event) to represent their Team. The
designated student representative from each ALLIANCE in a Playoff MATCH is called the ALLIANCE
CAPTAIN.
The ALLIANCE selection process consists of two (2) rounds during which each ALLIANCE CAPTAIN
invites a Team seeded below them in the standings to join their ALLIANCE. The invited Team must not
already have declined an invitation.
Round 1: In descending order (ALLIANCE One to ALLIANCE Eight), each ALLIANCE CAPTAIN invites a
single Team. The invited Team’s representative steps forward and either accepts or declines the
invitation.
If the Team accepts, it becomes a member of that ALLIANCE. If an invitation from a top eight ALLIANCE
to another ALLIANCE Lead is accepted, all lower ALLIANCE Leads are promoted one spot. The next
highest-seeded, unselected Team moves up to become the ALLIANCE Eight Lead.
If the Team declines, that Team is not eligible to be picked again or to be a BACKUP TEAM (see Section
10.5.2 BACKUP TEAMS), and the ALLIANCE CAPTAIN extends another invitation to a different Team. If
an invitation from a top eight ALLIANCE to another ALLIANCE Lead is declined, the declining Team may
still invite Teams to join their ALLIANCE; however, it cannot accept invitations from other ALLIANCES.
The process continues until ALLIANCE Eight makes a successful invitation.
Round 2: The same method is used for each ALLIANCE CAPTAIN’S second choice except the selection
order is reversed, with ALLIANCE Eight picking first and ALLIANCE One picking last. This process results
in eight (8) ALLIANCES of three (3) Teams each.
Of the remaining eligible Teams, the highest seeded Teams must either accept or decline to be included
in a pool of available Teams until there are up to eight (8) Teams that accept to be added into the pool.
FIELD STAFF will coordinate the assembly of this BACKUP pool immediately after the top ranked
ALLIANCE has made their final pick. If a Team is not available to accept inclusion in the BACKUP pool, it
will be assumed they have declined the invitation.
Section 10 Tournaments
V0
111 of 133
10.5.2 BACKUP TEAMS
In the Playoff MATCHES, it may be necessary for an ALLIANCE to replace one of its members due to a
faulty ROBOT. ROBOT faults include but are not limited to:
1. mechanical damage,
2. electrical issues, or
3. software problems.
In this situation, the ALLIANCE CAPTAIN has the option to bring in only the highest seeded Team from
the pool of available Teams to join its ALLIANCE. The Team whose ROBOT and DRIVE TEAM replaces
another ROBOT and DRIVE TEAM on an ALLIANCE during the Playoff MATCHES is called the BACKUP
TEAM.
The resulting ALLIANCE is then composed of four (4) Teams. The replaced Team remains a member of
the ALLIANCE for awards, but cannot return to play, even if their ROBOT is repaired.
Each ALLIANCE is allotted one (1) BACKUP TEAM Coupon during the Playoff MATCHES. If a second
ROBOT from the ALLIANCE becomes inoperable, then the ALLIANCE must play the following MATCHES
with only two (2) (or even one (1)) ROBOTS.
Example: Three (3) Teams, A, B and C, form an ALLIANCE going into
the Playoff MATCHES. The highest seeded Team not on one of the eight
(8) ALLIANCES is Team D. During one of the Playoff MATCHES, Team
C’s ROBOT suffers damage to its mechanical arm. The ALLIANCE
CAPTAIN decides to bring in Team D to replace Team C. Team C and
their ROBOT are not eligible to play in any subsequent Playoff
MATCHES. The new ALLIANCE of Teams A, B, and D are successful in
advancing to the Finals and win the event. Teams A, B, C, and D are all
recognized as members of the Winning ALLIANCE and receive awards
In the case where a BACKUP TEAM is part of the Winning or Finalist ALLIANCE, there will be a four (4)-
Team Winning or Finalist ALLIANCE.
10.5.3 Playoff MATCH Bracket
The Playoff MATCHES take place following the completion of the Qualification MATCHES and the
ALLIANCE selection process. Playoff MATCHES are played in a bracket format as shown in Figure 10-2.
ALLIANCE Leads are assigned to PLAYER STATION 2, the first picks are assigned to their left in
PLAYER STATION 1, and second picks are assigned to the ALLIANCE Leads right in PLAYER
STATION 3. If a BACKUP TEAM is in play, they will be assigned to the PLAYER STATION that was
assigned to the DRIVE TEAM they’re replacing. Teams cannot change assignments.
For Quarterfinal MATCHES, the higher seeded ALLIANCE is assigned to the Red ALLIANCE. Beyond the
Quarterfinal MATCHES, the ALLIANCE on the top of each MATCH in Figure 10-2 are assigned to the
Red ALLIANCE, regardless of whether they are the higher seeded ALLIANCE in that particular MATCH.
Section 10 Tournaments
V0
112 of 133
Figure 10-2: Playoff MATCH Bracket
Section 10 Tournaments
V0
113 of 133
In order to allow time between MATCHES for all ALLIANCES, the order of play is as follows:
Table 10-3: Playoff Order
Quarterfinal
Round 1
Quarterfinal
Round 2
Quarterfinal
Round 3
Semifinals
Finals
Quarterfinal 1
(1 vs.8)
Quarterfinal 5
(1 vs.8)
Quarterfinal
Tiebreaker 11
Semifinal 1
Final 1
Quarterfinal 2
(4 vs.5)
Quarterfinal 6
(4 vs.5)
Quarterfinal
Tiebreaker 21
Semifinal 2
FIELD
TIMEOUT
Quarterfinal 3
(2 vs.7)
Quarterfinal 7
(2 vs.7)
Quarterfinal
Tiebreaker 31
Semifinal 3
Final 2
Quarterfinal 4
(3 vs.6)
Quarterfinal 8
(3 vs.6)
Quarterfinal
Tiebreaker 41
Semifinal 4
FIELD
TIMEOUT
FIELD
TIMEOUT1
FIELD
TIMEOUT1
Semifinal
Tiebreaker 11
Final
Tiebreakers
(Overtime) 1
Any Replays
due to ties1
Semifinal
Tiebreaker 21
FIELD
TIMEOUT1
Any Replays
due to ties1
Any Replays
due to ties1
1 - if required
10.6 REFEREE Interaction
The Head REFEREE has the ultimate authority in the ARCADE during the event, but may receive input
from additional sources, e.g. Game Designers, FIRST personnel, FTA, and technical staff. The Head
REFEREE rulings are final. No event personnel, including the Head REFEREE, will review video, photos,
artistic renderings, etc. of any MATCH, from any source, under any circumstances.
If a DRIVE TEAM needs clarification on a ruling or score, per C08, one (1) pre-college student from that
DRIVE TEAM should address the Head REFEREE after the ARCADE Reset Signal (e.g. LED lights turn
green). A DRIVE TEAM member signals their desire to speak with the Head REFEREE by standing in the
corresponding Red or Blue Question Box, which are located on the floor near each end of the scoring
table. Depending on timing, the Head REFEREE may postpone any requested discussion until the end of
the subsequent MATCH as necessary.
While FMS tracks quantities of FOULS and TECH FOULS, FIRST instructs REFEREES to not self-track
details about FOULS and TECHNICAL FOULS; as a result, we don’t expect REFEREES to recall details
about what FOULS or TECHNICAL FOULS were made, when they occurred, and against whom.
Section 10 Tournaments
V0
114 of 133
Any reasonable question is fair game in the Question Box, and Head
REFEREES will do good faith efforts to provide helpful feedback (e.g.
how/why certain FOULS are being called, why a particular ROBOT may
be susceptible to certain FOULS based on its design or game play, how
specific rules are being called or interpreted), but please know that they
will likely not be able to supply specific details
10.7 YELLOW and RED CARDS
In addition to rule violations explicitly listed throughout the 2018 Game and Season Manual, YELLOW
CARDS and RED CARDS are used in FIRST® Robotics Competition to address Team and ROBOT
behavior that does not align with the mission of FIRST®.
As noted in Section 4.4 Rule Violations and C01, the Head REFEREE may assign a YELLOW CARD as
a warning, or a RED CARD for DISQUALIFICATION in MATCH for egregious behavior inappropriate at a
FIRST Robotics Competition event.
T03. Egregious or repeated violations of any rule or procedure is prohibited.
Violation: The Head REFEREE may assign a YELLOW CARD as a warning, or a RED CARD for
DISQUALIFICATION in MATCH.
A YELLOW or RED CARD is indicated by the Head REFEREE standing in front of the Team’s PLAYER
STATION and holding a YELLOW and/or RED CARD in the air.
YELLOW CARDS are additive, meaning that a second YELLOW CARD is automatically converted to a
RED CARD. A Team is issued a RED CARD for any subsequent incident in which they receive an
additional YELLOW CARD, including earning a second YELLOW CARD during a single MATCH. A
second YELLOW CARD is indicated by the Head REFEREE standing in front of the Team’s PLAYER
STATION and holding a YELLOW CARD and RED CARD in the air simultaneously after the completion of
the MATCH. A Team that has received either a YELLOW CARD or a RED CARD carries a YELLOW
CARD into subsequent MATCHES, except as noted below. A RED CARD results in DISQUALIFICATION.
Once a Team receives a YELLOW or RED CARD, its Team number will be presented with a yellow
background on the audience screen at the beginning of all subsequent MATCHES, including any replays,
as a reminder to the Team, the REFEREES, and the audience that they carry a YELLOW CARD.
Figure 10-3: Audience Screen Graphic Showing YELLOW and RED CARD Indicators
All YELLOW CARDS are cleared at the conclusion of Qualification MATCHES, providing teams a clean
slate at the beginning of Playoff MATCHES.
During the Playoff MATCHES, if a Team receives a YELLOW or RED CARD, it results in the entire
ALLIANCE receiving the YELLOW or RED CARD for that MATCH. If two different Teams on the same
ALLIANCE are issued YELLOW CARDS, the entire ALLIANCE is issued a RED CARD. A RED CARD
results in zero (0) points for that MATCH, and the ALLIANCE loses the MATCH. If both ALLIANCES
receive RED CARDS, the ALLIANCE which committed the action earning the RED CARD first
chronologically loses the MATCH.
Section 10 Tournaments
V0
115 of 133
YELLOW and RED CARDS are applied based on the following:
Table 10-4: YELLOW and RED CARD application
Time YELLOW or RED CARD earned:
MATCH to which CARD is applied:
prior to the start of Qualification MATCHES
Team’s first Qualification MATCH
during the Qualification MATCHES
Team’s current (or just-completed) MATCH. In the
case where the Team participated as a
SURROGATE in the current (or just completed)
MATCH, the card is applied to the Team’s
previous MATCH (i.e. the Team’s second
Qualification MATCH.)
between the end of Qualification MATCHES
and the start of Playoff MATCHES
ALLIANCE’S first Playoff MATCH
during the Playoff MATCHES
ALLIANCE’S current (or just-completed) MATCH.
10.8 MATCH Replays
Over the course of the Tournament it may be necessary for a MATCH to be replayed. Typical causes for
replays are MATCHES that end in a tie during the Playoffs or if there is an ARCADE FAULT. An ARCADE
FAULT is an error in ARCADE operation that includes, but is not limited to:
A. broken FIELD elements due to
normal, expected game play or
ROBOT abuse of FIELD elements that affects the outcome of the MATCH for
their opponents.
A broken FIELD element caused by ROBOT abuse that affects the
outcome of the MATCH for their ALLIANCE is not an ARCADE FAULT.
B. power failure to a portion of the FIELD (tripping the circuit breaker in the PLAYER
STATION is not considered a power failure)
C. improper activation by the FMS
D. errors by FIELD STAFF
If, in the judgment of the Head REFEREE, an ARCADE FAULT occurs that affects the outcome of the
MATCH and any team on the affected ALLIANCE desires a replay, the MATCH will be replayed.
All reasonable effort is made to create the same conditions when replaying a MATCH. This means, for
example, that a Team which was BYPASSED during the MATCH which is to be replayed, is BYPASSED
for the replay MATCH.
Note that an ARCADE FAULT that does not affect MATCH outcome in
the judgement of the Head REFEREE does not lead to a MATCH replay.
Examples include, but are not limited to:
A. a piece of FIELD plastic falls into the FIELD, far away from any
human or ROBOT activity, and in such a way that it does not affect
MATCH outcome
B. delay in the playing of an ARCADE sound
C. mismatch between the timer on the Audience Screen and the FIELD
Timer
Section 10 Tournaments
V0
116 of 133
D. any adjustment or delay in assignment of a penalty (including those
made after the MATCH)
10.9 TIMEOUTS and BACKUP TEAMS
A TIMEOUT is a period of up to six (6) minutes between MATCHES which is used to pause Playoff
MATCH progression.
During a TIMEOUT, the ARCADE Timer will display the time remaining in the TIMEOUT. Both
ALLIANCES will enjoy the complete six (6) minute window. If an ALLIANCE completes their repairs
before the ARCADE Timer expires, the ALLIANCE CAPTAIN is encouraged to inform the Head
REFEREE that they are ready to play. If both ALLIANCES are ready to play before the TIMEOUT expires,
the next MATCH will start.
There are no TIMEOUTS in the Practice or Qualification MATCHES.
If circumstances require an ALLIANCE to play in back-to-back MATCHES during the Playoff MATCHES,
the Head REFEREE will issue a FIELD TIMEOUT to allow Teams to prepare for the next MATCH. FIELD
TIMEOUTS are the same time duration as TIMEOUTS.
Figure 10-4: TIMEOUT Timeline
T04. An ALLIANCE may not call more than one (1) TIMEOUT during the Playoff MATCHES.
Teams are expected to have their ROBOTS staged on the FIELD by the
end of the TIMEOUT. Teams that cause a significant delay to the start of
a MATCH after a TIMEOUT are subject to G02.
T05. If an ALLIANCE wishes to call a TIMEOUT, the ALLIANCE CAPTAIN must submit their
TIMEOUT coupon to the Head REFEREE within two (2) minutes of the ARCADE reset signal
preceding their MATCH. If there is no preceding MATCH, the TIMEOUT coupon must be
submitted no later than two (2) minutes before the scheduled MATCH time. The TIMEOUT will
begin two (2) minutes after the ARCADE reset signal (i.e. at the end of the TEAM TIMEOUT
Coupon Window depicted in Figure 10-4)
Section 10 Tournaments
V0
117 of 133
T06. There are no cascading TIMEOUTS. If an ALLIANCE calls a TIMEOUT during a FIELD
TIMEOUT, the FIELD TIMEOUT will expire two (2) minutes after the ARCADE reset signal and
the ALLIANCE’S TIMEOUT will begin.
If an ALLIANCE wishes to call a TIMEOUT during a FIELD TIMEOUT, it
must still do so within two (2) minutes of the ARCADE reset signal
preceding their MATCH, per T05.
T07. TIMEOUTS are not transferrable between ALLIANCES.
While TIMEOUTS are not transferrable between ALLIANCES, meaning
an ALLIANCE cannot hand their designated TIMEOUT coupon to
another ALLIANCE to use, an ALLIANCE may use their own coupon for
any purpose they wish.
T08. If during a TIMEOUT an ALLIANCE CAPTAIN determines that they need to call up a BACKUP
TEAM, they must submit their BACKUP TEAM coupon to the Head REFEREE while there are still
at least two (2) minutes remaining on the ARCADE Timer. After that point, they will not be
allowed to utilize the BACKUP TEAM.
Alternatively, an ALLIANCE CAPTAIN may choose to call up a BACKUP TEAM without using
their TIMEOUT by informing the Head REFEREE directly within two (2) minutes of the Head
REFEREE issuing the ARCADE reset signal preceding their MATCH. If there is no preceding
MATCH, the BACKUP TEAM coupon must be submitted no later than two (2) minutes before the
scheduled MATCH time.
In the case where the ALLIANCE CAPTAIN’S ROBOT is replaced by a BACKUP TEAM, the
ALLIANCE CAPTAIN is allowed as a sixteenth ALLIANCE member.
The Head REFEREE will not accept the BACKUP TEAM coupon unless it lists the number of the
Team whose ROBOT is being replaced, and is initialed by the ALLIANCE CAPTAIN. Once a
BACKUP TEAM coupon is submitted and accepted by the Head REFEREE, the BACKUP TEAM
coupon may not be withdrawn by the ALLIANCE.
T09. An ALLIANCE may request neither a TIMEOUT nor a BACKUP TEAM after a Playoff MATCH is
stopped by the Head REFEREE (e.g. due to an ARCADE FAULT or a safety issue). The sole
exception is if the replay is due to an ARCADE FAULT that rendered a ROBOT inoperable.
If a Playoff MATCH is replayed per T09, the Head REFEREE has the
option of calling a FIELD TIMEOUT.
10.10 Pit Crews
During the Playoff MATCHES, extra Team members may be needed to maintain the ROBOT between
MATCHES because of the distance between the FIELD and the pit area. Each Team is permitted to have
three (3) additional pit crew members who can also help with needed ROBOT repairs/maintenance
T10. Pit Crew members may not be in the ALLIANCE STATION or PORTAL during a MATCH.
Violation: MATCH will not start until the situation is corrected. Those not displaying identification
must leave the ARCADE.
10.11
FIRST
Championship Additions and Exceptions
At the 2018 FIRST Championship events, Teams are split into six (6) Subdivisions. Each Subdivision
plays a standard Tournament as described in Section 10 Tournaments to produce the Subdivision
Champions. Those six (6) Subdivision Champions proceed to the Championship Playoffs, on the Einstein
Section 10 Tournaments
V0
118 of 133
FIELDS, to determine the 2018 FIRST® Robotics Competition Championship Winners, per Section
10.11.3..
There is no provision for BACKUP TEAMS at the Championship.
10.11.1 Four ROBOT ALLIANCES
Before each Subdivision Playoff Tournament, ALLIANCES will be selected per the process as described
in Section 10.5.1 ALLIANCE Selection Process, however the process will continue with a 3rd round of
selection as follows.
Round 3: The same method is used for each ALLIANCE CAPTAIN’S third choice except the selection
order is reversed again, with ALLIANCE One picking first and ALLIANCE Eight picking last. This process
results in eight (8) ALLIANCES of four (4) Teams each.
ALLIANCES may start with any three (3) of the four (4) ROBOTS on their ALLIANCE during Subdivision
Playoff MATCHES and during the Championship Playoffs. The list of three (3) Teams participating in the
MATCH and their selected PLAYER STATIONS is called the LINEUP. One representative from the Team
not on the LINEUP is allowed as a sixteenth ALLIANCE member. This additional representative may only
serve in an advisory role, and will be considered a COACH (e.g. can’t be a HUMAN PLAYER).
T11. The ALLIANCE CAPTAIN must report the LINEUP to the Head REFEREE, or their designee, in
writing prior to end of the preceding MATCH (e.g. the LINEUPS for Quarterfinal 2 must be
submitted before the end of Quarterfinal 1). If there is no preceding MATCH, the LINEUP is due
no later than two (2) minutes before the scheduled MATCH time.
Violation: The LINEUP is the same as the ALLIANCES previous MATCH. If any of these three (3)
ROBOTS are unable to play, the ALLIANCE must play the MATCH with only two (2) (or even one
(1)) ROBOTS
If an ALLIANCE fails to submit a LINEUP per the process defined in T11
and the MATCH is their first of the Subdivision Playoffs or the
Championship Playoffs, the LINEUP will be the ALLIANCE Lead, first
ALLIANCE selection, and second ALLIANCE selection. If any of these
three (3) ROBOTS are unable to play, the ALLIANCE must play the
MATCH with only two (2) (or even one (1)) ROBOTS.
The LINEUP will be kept confidential until the FIELD is set for the MATCH, at which point each
ALLIANCE’S LINEUP will appear on the Team Signs.
T12. Once the LINEUP has been declared, it cannot be changed unless there is a TIMEOUT. If there
is a TIMEOUT, the ALLIANCE CAPTAIN may submit a different LINEUP, but must do so while
there are still more than two (2) minutes remaining in the TIMEOUT.
Example: Four (4) Teams, A, B, C and D, form an ALLIANCE going into
the Playoff MATCHES on their Subdivision FIELD. During one of the
Playoff MATCHES, Team C’s ROBOT becomes inoperable. The
ALLIANCE decides to bring in Team D to replace Team C. Team C
repairs their ROBOT and may play in any subsequent Playoff MATCHES
replacing Teams A, B, or D. All four (4) ALLIANCE members are also
eligible to play MATCHES during the Championship Playoffs should the
ALLIANCE win the Subdivision Tournament.
T13. If a MATCH must be replayed due to an ARCADE FAULT, the LINEUP for the replayed MATCH
is the same as the original MATCH. The sole exception is if the ARCADE FAULT rendered a
ROBOT inoperable, in which case the LINEUP can be changed.
Section 10 Tournaments
V0
119 of 133
10.11.2
FIRST
Championship Pit Crews
FIRST will distribute badges to the ALLIANCE CAPTAINS during the ALLIANCE CAPTAIN meeting,
which takes place on the Subdivision FIELDS. These badges will provide the necessary access to the
ARCADE for pit crew members.
T14. Only Team members wearing proper badges are allowed on the ARCADE floor during
Subdivision and Championship Playoff MATCHES
Violation: MATCH will not start until the situation is corrected. Those no t displaying identification
must leave the ARCADE.
Teams should assume they may be chosen for an ALLIANCE and think
about the logistics of badge distribution and set a plan prior to the
ALLIANCE selection process. It is each ALLIANCE CAPTAIN’S
responsibility to get the Team’s badges to the pit crew members.
10.11.3
FIRST
Championship Playoffs
The six (6) Subdivision Champions play a round-robin style tournament to determine the 2018 FIRST
Robotics Competition Champions. In this format, each Subdivision Champion plays one MATCH against
each of the other Subdivision Champions. The order of MATCHES is shown in Table 10-5.
Table 10-5: Championship MATCH order
MATCH
Houston
Detroit
Mass
Energy
Mass
Energy
Round 1
1
Carver v Turing
Archimedes v. Tesla
2
Galileo v Roebling
Carson v. Darwin
3
Hopper v Newton
Curie v. Daly
Round 2
4
Carver v Roebling
Archimedes v. Darwin
5
Turing v Newton
Tesla v Daly
6
Galileo v Hopper
Carson v Curie
Round 3
7
Carver v Newton
Archimedes v. Daly
8
Roebling v Hopper
Darwin v Curie
9
Turing v Galileo
Tesla v. Carson
Round 4
10
Carver v Hopper
Archimedes v. Curie
11
Newton v Galileo
Daly v. Carson
12
Roebling v Turing
Darwin v. Tesla
Round 5
13
Carver v Galileo
Archimedes v Carson
14
Hopper v Turing
Curie v Tesla
15
Newton v Roebling
Daly v. Darwin
Section 10 Tournaments
V0
120 of 133
T15. In the Championship Playoffs, ALLIANCES do not earn Ranking Points; they earn Championship
Points. Championship Points are units credited to an ALLIANCE based on their performance in
each MATCH and are awarded at the completion of each Round Robin tournament MATCH.
A. The winning ALLIANCE receives two (2) Championship Points
B. The losing ALLIANCE receives zero (0) Championship Points
C. In the event of a tied score, each ALLIANCE receives one (1) Championship Point
Exceptions to A-C are as follows:
D. A DISQUALIFIED Team, as determined by the Head REFEREE, causes their
ALLIANCE to receive zero (0) Championship points.
The total number of Championship Points earned by a Team throughout the round robin MATCHES
divided by the number of round robin Matches in which they’ve been scheduled is their Championship
Score (CS).
All Teams participating in round robin Matches are ranked by Championship Score. If the number of
Teams in attendance is ‘n’, they are ranked ‘1’ through ‘n’, with ‘1’ being the highest ranked Team and
‘n’ being the lowest ranked Team.
Table 10-6: Einstein Tournament Ranking Criteria
Order Sort
Criteria
1st
Championship Score
2nd
Cumulative PARKING AND CLIMBING points
3rd
Cumulative sum of AUTO points
4th
Cumulative sum of OWNERSHIP points
5th
Cumulative sum of VAULT points
6th
If tie affects which ALLIANCES advance to Playoffs, a tiebreaker
MATCH is played between the affected ALLIANCES.
If tie is between ALLIANCES advancing to Playoffs, FMS randomly
seeds tied alliances to determine ALLIANCE color.
The two ALLIANCES with the highest Championship Scores at the conclusion of the round robin
tournament advance to the Einstein Finals. In the Einstein Finals, ALLIANCES do not earn points, they
earn a Win, Loss or Tie. The first ALLIANCE to win two (2) MATCHES is declared the 2018 FIRST
Robotics Competition Champions.
T16. During the Einstein Finals, if the MATCH score of each ALLIANCE is equal, the MATCH is
replayed.
If an Einstein Finals MATCH is replayed per T16, the LINEUP can be
changed
10.11.4
FIRST
Championship TIMEOUTS
There are no TIMEOUTS for teams in the Einstein tournament.
Section 10 Tournaments
V0
121 of 133
10.12 Advancement Between Tournaments
Teams advance through the season depending on the events at which they compete: Regional or District.
This section details how teams advance from Regional events to the FIRST Championship, or from
District qualifying events, to their District Championship, to the FIRST Championship.
T17. A team is considered to have already earned a FIRST Championship invitation prior to the
District, Regional, or District Championship if they are:
A. pre-qualified or
A FIRST® Robotics Competition Team listed in the Championship
Eligibility Criteria document is pre-qualified for the FIRST Championship
if the Team meets one of the following criteria:
A. member of the FIRST® Hall of Fame
B. an original and sustaining team since 1992
C. a 2017 FIRST Championship winner
D. a 2017 FIRST Championship Engineering Inspiration Award winner
B. met the criteria outlined in T18 at a prior event.
10.12.1 Regional Events
T18. A Team competing at a Regional Event qualifies for the FIRST Championship by meeting one of
the following criteria:
A. Winning a qualifying award:
Regional Chairman’s Award
Engineering Inspiration Award
Rookie All-Star Award
B. A member of the Winning ALLIANCE
C. Earning a Wild Card
10.12.2 Wild Cards
Wild cards are used to qualify additional teams for the FIRST Championship from Regional events.
T19. All Regional events have a minimum of one (1) Wild Card slot. Additional Wild Cards are
generated as follows:
A. Any team competing at a Regional event that has already qualified for the FIRST
Championship prior to the Regional, per T17, and earns an additional spot, per T18,
generates one (1) Wild Card.
B. Any team earning two (2) qualifying spots at a single Regional per T18 (e.g. by being
on the Winning Alliance and earning the Chairman’s Award) generates one (1) Wild
Card.
C. A team who has already earned a spot at FIRST Championship prior to their current
Regional, per T17, and earns two qualifying spots, per T18, will generate two Wild
Card slots.
Section 10 Tournaments
V0
122 of 133
Wild Card slots are distributed to the Finalist ALLIANCE, in the order of team selection per
Section 10.5.1 ALLIANCE Selection Process, until either all Wild Card slots generated at that
event are distributed or the Finalist ALLIANCE is out of teams, whichever comes first.
T20. If a member of the Finalist ALLIANCE has already qualified for the FIRST Championship, per
T17, they are skipped and the next member of the ALLIANCE is awarded the available Wild Card.
T21. Unused Wild Card slots will not be backfilled or replaced.
A Team may decline a Wild Card, but this does not pass the Wild Card
slot down to the next available Team. The Wild Card goes unused.
T22. Teams selected from the FIRST Championship Waitlist to participate at the FIRST Championship
do not generate Wild Cards.
10.12.3 District Events
District teams are ranked throughout the season based on the points they earn at their first two home
District events they attend, as well as at their District Championship. Points are awarded to teams as
follows:

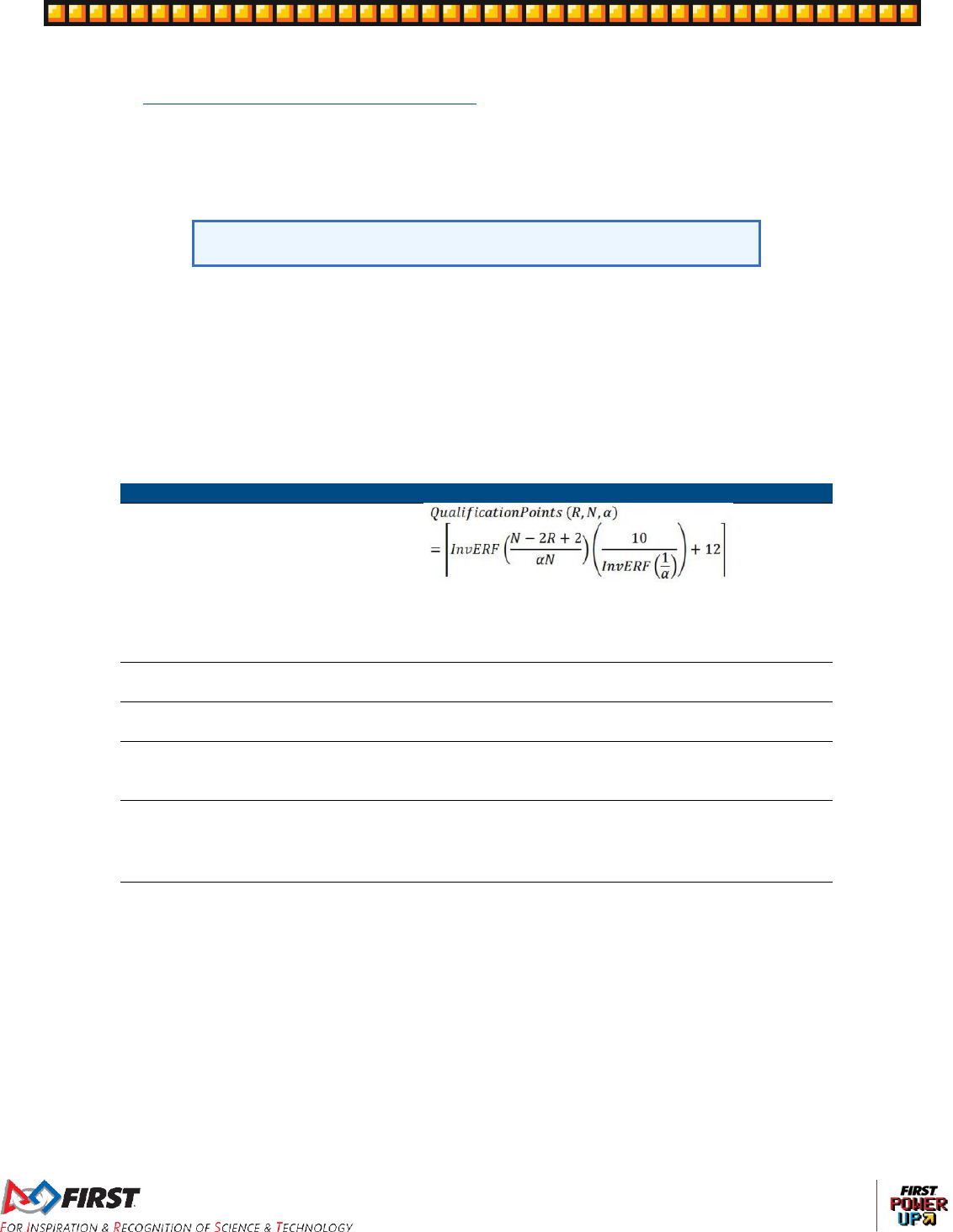

Table 10-7: District point assignment
Category
Points
Qualification Round
Performance
(For a typically sized District event, this will result in a minimum of
four (4) points being awards for Qualification round performance.
For events of all sizes, a maximum of twenty-two (22) points will
be awarded.)
ALLIANCE CAPTAINS
Equal to 17 minus the ALLIANCE CAPTAIN number
(e.g. 14 points for ALLIANCE #3 Captain)
Draft Order Acceptance
Equal to 17 minus the Draft Order Acceptance Number
(e.g. 12 points for the Team that is 5th to accept an invitation)
Playoff Advancement
Points awarded based on team participation in individual playoff
rounds, and whether or not the ALLIANCE advances. See details
below.
Judged Team Awards
10 points for Chairman’s Award
8 points each for Engineering Inspiration and Rookie All Star
Awards
5 points each for all other judged Team awards
Team Age
10 points for Rookie Teams
5 points for second-year Teams
Points earned at District Championships are multiplied by three (3) and then added to points earned at
District events, to determine the final season point total for the Team
Section 10 Tournaments
V0
123 of 133
If there is a tie in the season point total between teams, those items are broken using the following sorting
criteria: Table 10-8: District Team sort criteria
Order Sort
Criteria
1st
Total Playoff Round Performance Points
2nd
Best Playoff Round Finish at a single event
3rd
Total ALLIANCE Selection Results Points
4th
Highest Qualification Round Seed or Draft Order Acceptance
(i.e. Highest ALLIANCE Selection points at a single event)
5th
Total Qualification Round Performance Points
6th
Highest Individual MATCH Score, regardless of whether that
score occurred in a Qualification or Playoff MATCH
7th
Second Highest Individual MATCH Score, regardless of whether
that score occurred in a Qualification or Playoff MATCH
8th
Third Highest Individual MATCH Score, regardless of whether
that score occurred in a Qualification or Playoff MATCH
9th
Random Selection
10.12.3.1 Qualification Round Performance
The calculation of Qualification performance points is done using the equation (an inverse error function)
in the table above. The equation utilizes the following variables:
R the qualification rank of the team at the event at the conclusion of Qualification
MATCHES (as reported by FMS)
N the number of FIRST Robotics Competition teams participating in the Qualification
rounds at the event
Alpha (α) – a static value (1.07) used to standardize the distribution of points at events
This formula generates an approximately normal distribution of Qualification Round Performance points at
an event, based on rank, with most teams getting a moderate number of points, and fewer teams getting
the highest or lowest numbers of points available.
Table 10-9 displays sample Qualification Round Performance points for variously ranked teams at a forty
(40) team event. The system will automatically generate the appropriate points for each team based on
their rank and the number of teams at the event.
Table 10-9 Sample Qualification Round Point assignments
Rank
1
2
3
4
19
20
21
37
38
39
40
Points
22
21
20
19
13
13
12
6
6
5
4
10.12.3.2 ALLIANCE Selection Results
This attribute measures both individual Team qualification round seeding performance and recognition by
peers.
ALLIANCE CAPTAINS are recognized based on their qualification round seeding rank. This rank is a
result of the rules of the game, which typically incorporate several team performance attributes, and are
designed to eliminate ties in rank. Non-ALLIANCE CAPTAINS are rewarded based on peer recognition.
To be invited to join an ALLIANCE, a Team’s peers have decided that the Team has attributes that are
desirable. Giving points for ALLIANCE selection also supports come-from-behind Teams. A Team taking
several MATCHES to optimize their performance may be recognized as a late bloomer by a top seeded
Team, even if that performance isn’t reflected in the rankings because of poor performance in early
MATCHES. These points also have the potential to recognize Teams employing a minority strategy with
Section 10 Tournaments
V0
124 of 133
their ROBOT. Teams with unique or divergent ROBOT capabilities that complement the strengths of other
ALLIANCE members may be selected to fill a strategic niche.
Note also that ALLIANCE CAPTAINS are given the same number of points as the Team drafted in the
same sequence. For example, the third ALLIANCE CAPTAIN gets the same number of points as the third
draft. Numerical analysis supports the idea that ALLIANCE CAPTAINS are about as strong in ROBOT
performance as equivalently drafted Teams. As an additional minor benefit, awarding the same points for
ALLIANCE CAPTAINS and equivalent drafts lubricates the acceptance of draft offers between ALLIANCE
CAPTAINS, which gives Teams out of the top eight the chance to experience being ALLIANCE
CAPTAINS themselves.
10.12.3.3 Playoff Round Performance
This attribute measures Team performance as part of an ALLIANCE.
All Teams on the ALLIANCE winning a particular playoff series, who participate in MATCHES with their
ROBOTS, receive five (5) points per MATCH won. In most cases, Teams receive ten (10) points at each
of the Quarterfinal, Semifinal, and Final levels, unless a BACKUP ROBOT is called in to play.
10.12.3.4 Awards
This attribute measures Team performance with respect to Team awards judged at the event.
The points earned for Team awards in this system are not intended to capture the full value of the award
to the Team winning the award, or to represent the full value of the award to FIRST. In many ways, the
Team’s experience in being selected for awards, especially the Chairman’s Award, the Engineering
Inspiration Award, and the Rookie All Star Award, is beyond measure, and could not be fully captured in
its entirety by any points-based system. Points are being assigned to awards in this system only to help
Teams recognize that FIRST® continues to be “More than Robots®, with the emphasis on our cultural
awards, and to assist in elevating award-winning Teams above non-award winning Teams in the ranking
system.
Teams only get points for Team awards judged at the event. If an award is not judged, e.g. Rookie
Highest Seed, is not for a Team, e.g. the Dean’s List Award, or is not judged at the event, e.g. Safety
Animation Award, sponsored by UL, no points are earned.
10.12.3.5 Team Age
This attribute recognizes the difficulty in being a Rookie or second-year Team.
Points are awarded to Rookie and second year Teams in recognition of the unique challenges Teams
face in those early years, and to increase the chance that they will make it to the District Championship to
compete with their ROBOTS. Like our dedicated Rookie awards, these additional points are intended to
recognize and motivate newer participants in FIRST® Robotics Competition. These points are awarded
once at the beginning of the season. Rookie year is calculated based on the year in which FIRST
recognizes the Team as a Rookie.
10.12.3.6 Regional Participation
District Teams do not earn points for their actions at any Regionals they may attend, nor are eligible for
FIRST Championship qualifying judged awards at those events. However, if a District Team does earn a
slot at the FIRST Championship while attending a Regional event, that slot does count as part of the total
Championship allocation the District is receiving for the season.
10.12.3.7 District Championship Eligibility
T23. A Team competing in a District qualifies for their District Championship by meeting one of the
following criteria:
Section 10 Tournaments
V0
125 of 133
A. District Chairman’s Award winner
B. District Ranking; based on total points earned at their first two home District events
as detailed in Section 10.12.3 District Events.
Teams do not earn points at third or subsequent District events, nor at
any inter-district or Regional events at which they compete during the
2018 season.
If a team declines an invitation to the District Championship, the next
highest uninvited team on the list is invited, and so on, until the event
capacity is filled.
C. District Engineering Inspiration winner (qualifies to compete for the award only)
D. District Rookie All Star winner (qualifies to compete for the award only)
The capacity of each District Championship is shown in Table 10-10. Each District determines the number
of teams which qualify for their District Championship. These limits are based on factors including but not
limited to the total number of teams in the District, available venue capacity, etc.
Table 10-10: 2018 District Championship Capacities
District Championship
2018 Team
Capacity
FIRST Chesapeake District Championship
60
FIRST Israel District Championship
45
FIRST Mid-Atlantic District Championship
60
FIRST North Carolina State Championship
32
FIRST Ontario Provincial Championship
80
Indiana State Championship
32
Michigan State Championship
160
New England District Championship
54
Pacific Northwest District Championship
64
Peachtree District State Championship
45
10.12.3.8
FIRST
Championship Eligibility for District Teams
Districts receive the percentage of 'available slots' at their assigned FIRST Championship location,
rounded up to the nearest whole slot, equal to the percentage of teams they have in their District
compared to the total of all FIRST Robotics Competition teams in the current season who would normally
be assigned to their FIRST Championship location. 'Available slots' are calculated by taking the total
number of slots at each FIRST Championship location, subtracting the number of pre-qualified teams
assigned to that location, and also subtracting a 10% allowance for waitlisted teams, as Districts are still
allowed to send waitlisted teams to the FIRST Championship. Further, this overall calculation uses a
‘snapshot’ of teams that have registered and paid as of a specific day a week or so after season payment
due.
These slots are guaranteed to the Districts and populated with the following teams:
qualifying award winners from the District Championship (Chairman’s Award, Engineering
Award, and Rookie All Star winners),
teams on the Winning Alliance from the District Championship (including any Back-Up teams
participating),
qualifying award winners among district teams who traveled to Regionals,
Section 10 Tournaments
V0
126 of 133
teams on the final District ranking list, as deep in the ranking list as the District needs to go to
fill their allocation.
If a District team earns a slot to the FIRST Championship within the season, but is not able to attend, the
top ranked team who has not yet been offered a slot is given the opportunity, and so on, until all slots are
filled. Slots for pre-qualified teams will not be backfilled.
Table 10-11 outlines the District Championship allocations for 2018. Districts determine the number of
Dean’s List, Chairman’s, Rookie All Star, and Engineering Inspiration Awards to present at their
Championship, within a range established by FIRST. The team counts are based on the team
representation of the respective District at the respective Championship. For the awards, ranges are
developed by using ratios agreed upon by FIRST and District Leadership. These ranges allow each
District to represent their own community as they see fit. For the Chairman’s Award, the ratios range from
one (1) Chairman’s Award Team for every eighteen (18) Championship District Teams to one (1)
Chairman’s Award Team for every nine (9) Championship District Teams. For the Dean’s List Award, the
ratios range from one (1) Dean’s List Finalist for every nine (9) Championship District Teams to one (1)
Dean’s List Finalist for every six (6) Championship District Teams.
Section 10 Tournaments
V0
127 of 133
Table 10-11: District slot allocations for FIRST Championship
Chairman’s
Award
Dean’s List
Award
Engineering
Inspiration
Award
Rookie All
Star Award
FIRST Championship
Slots
FIRST Championship
Normalized Slots
Max Ratio
Min Ratio
District Selection
Max Ratio
Min Ratio
District Selection
Min
Max
District Selection
Min
Max
District Selection
18
9
9
6
FIRST Championship
Detroit
FIRST
Chesapeake
21
1
3
2
2
4
4
1
2
2
1
2
1
FIRST in
Michigan
89
5
10
5
10
15
15
1
2
1
1
2
2
FIRST Mid-
Atlantic
22
1
2
2
2
4
4
1
2
2
1
2
1
Indiana FIRST
9
1
1
1
2
2
2
1
2
1
1
2
1
NE FIRST
37
2
4
4
4
6
5
1
2
2
1
2
2
Ontario
29
2
3
3
3
5
5
1
2
1
1
2
1
FIRST Championship
Houston
FIRST Israel
15
13
1
1
1
2
2
2
1
2
2
1
2
1
FIRST North
Carolina
14
12
1
1
1
2
2
2
1
2
2
1
2
1
Pacific
Northwest
32
28
2
3
3
3
5
5
1
2
2
1
2
2
Peachtree
16
14
1
2
2
2
2
2
1
2
2
1
2
2
All Districts, regardless of Championship Slot allocation, may award one (1) or two (2) Engineering
Inspiration and Rookie All-Star Awards.
Chairman’s Award and Dean’s List Award maximums and minimums are determined by ratios applied to
a given District’s Championship Slot allocations. However, Districts assigned to Houston have relatively
larger Championship slot allocations for a given team count compared to Districts assigned to Detroit, and
we did not want these larger allocations to skew award allocations. So, for the purposes of award
allocations only, Championship slots for Houston Districts were ‘normalized’, as shown in the table,
reducing the slots allocated to what they would have been if both Championship geographies had the
same total number of FIRST Robotics Competition teams. This ‘normalized’ slot allocation was then used
to determine award minimums and maximums. As noted, these normalized slot values are used only for
award allocations. The Houston-assigned Districts still retain the full Championship Slots Allocated (the
larger number) shown in the table.
Section 11 Glossary
V0
129 of 133
11 Glossary
Term
Definition
ALLIANCE
cooperatives of up to four (4) FIRST® Robotics Competition Teams
ALLIANCE
CAPTAIN
The designated student representative from each ALLIANCE in a Playoff
MATCH
ALLIANCE
STATION
a 22 ft. (~671 cm) wide by 10 ft. (~305 cm) deep by 10 ft. (~305 cm) tall volume
formed by, and including three (3) PLAYER STATIONS, an EXCHANGE wall,
and 2 in. ALLIANCE colored gaffers tape
ALLIANCE WALL
the structure that separates ROBOTS from DRIVE TEAMS (except the
TECHNICIAN) and consists of three (3) PLAYER STATIONS, and an
EXCHANGE wall
ARCADE
all elements of the game infrastructure that are required to play FIRST®
POWER UPSM: the FIELD, SWITCHES, the SCALE, VAULTS, carpet, the
POWER CUBES, and all equipment needed for FIELD control, ROBOT control,
and scorekeeping
ARCADE FAULT
an error in ARCADE operation that includes, but is not limited to those listed in
Section 10.8 MATCH Replays.
AUTO
the first fifteen (0:15) seconds of a MATCH in which ROBOTS operate without
any DRIVE TEAM control or input
AUTO LINE
a line of 2 in. (~5 cm), black gaffers tape that is the width of the FIELD and is 10
ft. (~305 cm) from each ALLIANCE WALL to the leading edge of the tape.
AUTO-RUN
The action of a ROBOT that breaks the vertical plane of the AUTO LINE with its
BUMPER at any point in the AUTO stage
AUTO QUEST
An action by which an ALLIANCE completes three (3) AUTO-RUNS and has
OWNERSHIP of their SWITCH at T=0 of the AUTO stage
BACKUP TEAM
The Team whose ROBOT and DRIVE TEAM replaces another ROBOT and
DRIVE TEAM on an ALLIANCE during the Playoff MATCHES
BOOST
a POWER UP which Increases the points for OWNERSHIP of the ALLIANCE’S
SWITCH, SCALE, or both from one (1) point per second to two (2) points per
second
BRICKS
graphics depicting golden squares surrounded by a black outline that extends
12 in. (~30cm) above the surface of the PLATFORM
BUMPER
a required assembly which attaches to the ROBOT frame. BUMPERS are
important because they protect ROBOTS from damaging/being damaged by
other ROBOTS and FIELD elements
BUMPER ZONE
the volume contained between the floor and a virtual horizontal plane 7 in. (~17
cm) above the floor in reference to the ROBOT standing normally on a flat floor
BYPASSED
any ROBOT which is unable or ineligible to participate in that MATCH as
determined by the FTA, LRI, or Head REFEREE resulting in a ROBOT which is
disabled
CLIMBING
A ROBOT fully supported by the SCALE (either directly or transitively) with
BUMPERS fully above the BRICKS at T=0, and not at all in the opponent’s
PLATFORM ZONE
COACH
a precollege student or adult mentor member of the DRIVE TEAM a guide or
advisor
COMPONENT
any part in its most basic configuration, which cannot be disassembled without
damaging or destroying the part or altering its fundamental function
Section 11 Glossary
V0
130 of 133
COTS
a standard (i.e. not custom order) part commonly available from a VENDOR for
all teams for purchase. To be a COTS item, the COMPONENT or
MECHANISM must be in an unaltered, unmodified state (with the exception of
installation or modification of any software)
CUSTOM CIRCUIT
any electrical COMPONENT of the ROBOT other than motors, pneumatic
solenoids, roboRIO, PDP, PCM, VRM, RSL, 120A breaker, motor controllers,
relay modules (per R35-B), wireless bridge, or batteries
DISABLED
a state in which a ROBOT is commanded to deactivate all outputs, rendering
the ROBOT inoperable for the remainder of the MATCH
DISQUALIFIED
the state of a Team in which they receive zero (0) Match points in a
qualification MATCH or causes their ALLIANCE to receive zero (0) Match
points in a Playoff MATCH
DRIVER
a precollege student member of the DRIVE TEAM an operator and controller of
the ROBOT
DRIVE TEAM
a set of up to five (5) people from the same FIRST Robotics Competition Team
responsible for Team performance for a specific a MATCH
ENDGAME
The final thirty (30) seconds of the TELEOP stage
EXCHANGE
a polycarbonate wall 6 ft. 5 ¾ in. (~197 cm) tall by 4 ft. (~122 cm) wide located
between PLAYER STATION 1 and PLAYER STATION 2 and used by
ROBOTS to deliver POWER CUBES to HUMAN PLAYERS
EXCHANGE ZONE
A rectangular area 4 ft. (~122 cm) wide by 3 ft. (~91 cm) deep and infinitely tall
volume bounded by the EXCHANGE wall and 2 in. (~5 cm) ALLIANCE colored
gaffers tape. The EXCHANGE ZONE includes the tape, but excludes the wall
FABRICATED ITEM
any COMPONENT or MECHANISM that has been altered, built, cast,
constructed, concocted, created, cut, heat treated, machined, manufactured,
modified, painted, produced, surface coated, or conjured partially or completely
into the final form in which it will be used on the ROBOT
FACE THE BOSS
An action where All three (3) ALLIANCE ROBOTS have CLIMBED or two (2)
ROBOTS have CLIMBED and the ALLIANCE has played the LEVITATE
POWER UP
FIELD
a 27 ft. (~823 cm) by 54 ft. (~1646 cm) carpeted area, bound by and including
the inward-facing surfaces of the GUARDRAILS, PORTALS, EXCHANGE
WALLS and ALLIANCE WALLS
FIELD STAFF
REFEREES, FTAs, or other staff working around the FIELD
FMS
the electronics core responsible for controlling the FIRST Robotics Competition
playing field. The FMS encompasses all field electronics, including the
computers, REFEREE touchscreens, wireless access point, sensors, stack
lights, E-Stops, etc.
FORCE
A POWER UP which earns OWNERSHIP points from an ALLIANCE’S
SWITCH, SCALE, or both regardless of PLATE position
FOUL
a penalty assessed by a REFEREE upon a rule violation resulting in 5 points
credited towards the opponent’s total score
FRAME
PERIMETER
the polygon contained within the BUMPER ZONE, that is comprised of fixed,
non-articulated structural elements of the ROBOT
FTA
a FIRST Technical Advisor
GUARDRAIL
a system that consists of transparent polycarbonate supported on the top and
bottom by aluminum extrusion. The GUARDRAIL prevents ROBOTS from
inadvertently exiting the FIELD during a MATCH
HUMAN PLAYER
a pre-college student DRIVE TEAM member responsible for managing
a POWER CUBE manager
KOP
Kit of Parts, the collection of items listed on any Kickoff Kit Checklists,
distributed via FIRST® Choice, or paid for completely (except shipping) with a
Product Donation Voucher (PDV)
LEVITATE
A POWER UP which earns an ALLIANCE an additional CLIMBING ROBOT
Section 11 Glossary
V0
131 of 133
LINEUP
The list of three (3) Teams participating in the MATCH and their selected
PLAYER STATIONS
MATCH
a two (2) minute and thirty (30) second period of time in which ALLIANCES play
FIRST POWER UP
MECHANISM
a COTS or custom assembly of COMPONENTS that provide specific
functionality on the ROBOT. A MECHANISM can be disassembled (and then
reassembled) into individual COMPONENTS without damage to the parts
MXP
MyRIO eXpansion Port, the expansion port on the roboRIO
NULL TERRITORY
one of two, 7 ft. 11 ¼ in. (~242 cm) wide by 6 ft. (~183 cm) deep and infinitely
tall volumes formed by 2 in. (~5 cm), white gaffers tape and the GUARDRAILS.
The NULL TERRITORY includes the gaffers tape, but excludes the
GUARDRAILS. The ALLIANCE’S NULL TERRITORY for a MATCH
corresponds to the SCALE PLATE color in that NULL TERRITORY and does
not change when the FORCE POWER UP is played
OPERATOR
CONSOLE
the set of COMPONENTS and MECHANISMS used by the DRIVERS and/or
HUMAN PLAYER to relay commands to the ROBOT
OUTRIGGERS
supports for the TOWER constructed from aluminum shielded by polycarbonate
OWNERSHIP
a state of the SWITCH or SCALE where it is tilted in favor of an ALLIANCE
colored PLATE, such that the outside edge of the ALLIANCE colored PLATE is
at or less than a specified height above the carpet
PARKING
A ROBOT fully supported by the SCALE (either directly or transitively), not at all
in the opponent’s PLATFORM ZONE, and has not CLIMBED
PASSIVE
CONDUCTORS
any device or circuit whose capability is limited to the conduction and/or static
regulation of the electrical energy applied to it (e.g. wire, splices, connectors,
printed wiring board, etc.)
PCM
Pneumatic Control Module
PDP
Power Distribution Panel
PLAYER STATION
one (1) of three (3) assigned positions in an ALLIANCE WALL from where a
DRIVE TEAM operates their ROBOT
PLATE
A 3 ft. (~91 cm) wide and 4 ft. (~122 cm) deep. The outside edges of the two
PLATES are 15 ft. (~457 cm) apart. Each PLATE has four polycarbonate walls
which contain Philips Color Kinetics LED lights. The wall closest to the center of
the FIELD extends 1 ft. 3 in. (~38 cm) above the PLATE surface. The other
walls extend up 3 ½ in (~9 cm) above the PLATE surface surrounded by four
(4) polycarbonate walls which contain Philips Color Kinetics LED lights
PLATFORM
one of two (2) 8 ft. 8 in. (~264 cm) wide by 3 ft. 5 ¼ in. (~105 cm) deep and 3 ½
in. (~9 cm) tall surfaces located at the base of the SCALE and covered with
ALLIANCE colored HDPE
PLATFORM ZONE
a 11 ft. 1 ½ in. (~339 cm) wide by 9 ft. 11 ¾ in. (~304 cm) deep and infinitely
tall volume bounded by 2 in. (~5 cm) ALLIANCE colored gaffers tape, the faces
of the OUTRIGGERS, TOWER, and the SWITCH. The PLATFORM ZONE
includes the gaffers tape, but excludes the SWITCH and the faces of the
OUTRIGGERS AND TOWER
PORTAL
a 4 ft. (~122 cm) wide by 12 ft. 11 in. (~394 cm) deep infinitely tall volume
bounded by, and including, 2 in. (~5 cm). ALLIANCE colored gaffers tape and
the PORTAL wall.
POWER CUBE
The game piece used to affect the position of the SCALE and SWITCH
PLATES, and can be traded in for POWER UPS. A POWER CUBE is a 1 ft. 1
in. (~33 cm) wide by 1 ft. 1 in. (~33 cm) deep by 11 in. (~27 cm) tall HDPE milk
crate covered in a yellow nylon (600 Denier) cover
POWER CUBE PILE
The collection of POWER CUBES in a pyramid formation, with six on the
bottom, three in the middle, and one on top, justified toward the SWITCH
POWER CUBE
ZONE
A rectangular area 3 ft. 9 in. (~114 cm) wide by 3 ft. 6 in. (~107 cm) deep,
bounded by the SWITCH and 2 in. (~5 cm) ALLIANCE colored gaffers tape.
The POWER CUBE ZONE includes the gaffers tape, but excludes the SWITCH
Section 11 Glossary
V0
132 of 133
POWER UP
advantages an ALLIANCE can earn and play throughout the TELEOP stage of
the MATCH
RED CARD
a penalty assessed for egregious ROBOT or Team member behavior, or rule
violations, which results in a Team being DISQUALIFIED for the MATCH
RETURN
a 1ft. 2 in. (~36 cm) square, centered above the lower opening and is located 1
ft. 8 in. (~51 cm) above the carpet
REFEREE
an official who is certified by FIRST to enforce the rules of FIRST POWER UP
ROBOT
an electromechanical assembly built by the FIRST® Robotics Competition
Team to perform specific tasks when competing in FIRST® POWER UPSM. The
ROBOT must include all of the basic systems required to be an active
participant in the game power, communications, control, BUMPERS, and
movement. The ROBOT implementation must obviously follow a design
approach intended to play FIRST POWER UP
RP
Ranking Point, a unit credited to a Team based on their ALLIANCES
performance in Qualification MATCHES
RS
Ranking Score, the total number of Ranking Points earned by a Team
throughout their Qualification MATCHES divided by the number of MATCHES
they’ve been scheduled to play (minus any SURROGATE MATCH), then
truncated to two (2) decimal places
RUNG
One of two (2) 1 ft. 1 ft. 1 in. (~33 cm) long 1 ¼ in. Schedule 40 aluminum pipe
supported by 2 in. (~5 cm) box tubing. Each RUNG extends 8 ¼ in. (~21 cm).
from the vertical face of the SCALE supports and 7 ft. (~213 cm) from the
carpet to the top of the RUNG
STARTING
CONFIGURATION
the physical configuration and orientation of the ROBOT at the beginning of the
MATCH where no part of the ROBOT shall extend outside the vertical
projection of the FRAME PERIMETER, with the exception of its BUMPERS and
minor protrusions such as bolt heads, fastener ends, rivets, cable ties, etc.
STARTING LINE
a line of 2 in. (~5 cm), white gaffers tape that runs the width of the carpet and is
2 ft. 6 in. (~76 cm) behind the ALLIANCE WALL diamond plate
SURROGATE
a Team randomly assigned by the FIELD Management System to play an extra
Qualification MATCH
TECH FOUL
25 points credited towards the opponent’s total score
TECHNICIAN
a precollege student member of the DRIVE TEAM who is a resource for
ROBOT troubleshooting, setup, and removal from the FIELD
TELEOP
the second stage in a MATCH and is two minutes and fifteen seconds (2:15)
long
TIMEOUT
a period of up to six (6) minutes between MATCHES which is used to pause
Playoff MATCH progression
TOWER
the central structure of the SCALE constructed from aluminum shielded by
polycarbonate which supports the RUNGS and SCALE PLATES
VAULT
an aluminum and plastic structure used by HUMAN PLAYERS to turn POWER
CUBES in to POWER UPS
VRM
Voltage Regulator Module
WITHHOLDING
ALLOWANCE
a static set of FABRICATED ITEMS that shall not exceed 30 lbs. (~13 kg.),
brought to an event (or ROBOT Access Period) in addition to the bagged items,
to be used to repair and/or upgrade their ROBOT
YELLOW CARD
a warning issued by the Head REFEREE for egregious ROBOT or Team
member behavior or rule violations. A subsequent YELLOW CARD within the
same tournament phase will lead to a RED CARD.
Section 11 Glossary
V0
133 of 133

Navigation menu
