Q1- 2014 Catalogue

Prepared by: Global Vision Marketing

Wholesale Reps for Designers Edge

Western Canada

Call 604-594-8886 for more info.

Part of Coleman Cable Canada

Replacement Bulbs

65Watt Fluorescent 4U Mogul Bulb

•65 Watt 4U bulb

•Equivalent to 300 watt incandescent bulb

•Energy Saving

•Mogul Socket

•6300K Temperature rating

•3,800 Lumens

•UPC: 090529-617230

•Carton Qty: 10

Model L765

65Watt Fluorescent Bulb

•65 Watt Self Ballasted bulb

•Equivalent to 300 watt incandescent bulb

•Electronic ballast

•Instant on no flicker

•Cold Start minimum -20°

•Medium Base Socket

•6500K Warm white light

•4300 Lumens of light

•UPC: 090529-621800

•Carton Qty: 10

Model L767

65Watt Fluorescent Flat Bulb

•65 Watt PL bulb

•Equivalent to 300 watt incandescent bulb

•Replacement bulb for L-2004 and L-

2005 work lights

•4100K Warm white light

•4800 Lumens

•UPC: 090529-619050

•Carton Qty: 10

Model L766

13Watt Fluorescent PL Bulb

•13 Watt PL tube bulb G23 Base

•2 Pin

•Equivalent to 60 watt incandescent bulb

•Energy Saving

•6000K Temperature rating

•825 Lumens

•UPC: 078693-025020

•Carton Qty: 24

Model 2502

13Watt Fluorescent PL Bulb

• 13 Watt PL “U” tube bulb G23 Base

•2 Pin

•Equivalent to 60 watt incandescent bulb

•Energy Saving

•6500K Temperature rating

•825 Lumens

•UPC: 090529-608511

•Carton Qty: 10

Model L713

13Watt Fluorescent PL Bulb

•13 Watt PL Gx24q-1 Base

•4 Pin

•Equivalent to 60 watt incandescent bulb

•Energy Saving

•3000K Temperature rating

•900 Lumens

•UPC: 090529-620261

•Carton Qty: 10

Model L712

42 Watt Fluorescent PLT Bulb

•42 Watt PLT Gx24q-4 Base

•4 Pin

•Equivalent to 150 watt incandescent bulb

•Energy Saving

•4010K Temperature rating

•3,200 Lumens

•UPC: 090529-620230

•Carton Qty: 10

Model L742

70 Watt Fluorescent PLT Bulb

•70 Watt PLT Gx24q-6 Base

•4 Pin

•Equivalent to 350 watt incandescent

•Energy Saving

•6500K Temperature rating

•5,400 Lumens

•UPC: 090529-620803

•Carton Qty: 10

Model L770

Rough Service Bulb Buddy’s™

•Complete with six heavy duty rough service 4000 hour rated

halogen bulbs with heavy duty filament support

•Heavy duty plastic case that protect bulbs from damage

•Each bulb fits into a foam slot so it is protected from impact,

moisture and other debris until needed

•Patented Product - US D 6,467,619 B1

•Carton Qty: 12

•UPC: 090529-618619 - 250W

UPC: 090529-618626 - 300W

UPC: 090529-619036 - 500W

Models L21 (250W), L22 (300W), L23 (500W)

500W Rough

Service

Bulb

Buddy™

300W Rough

Service

Bulb

Buddy™

250W Rough

Service

Bulb

Buddy™

500W Halogen Bulb Buddy JR.™

•Complete with three 500 watt 2000 hour

rated halogen bulbs with heavy duty filament

support

•Heavy duty plastic case with foam inserts

that protect bulbs from damage

•Patent #6,467,619B1

•UPC: 090529-615625

•Carton Qty: 6 pieces per inner pack

Model L12

500W Halogen Bulb Buddy™

•Complete with six heavy duty 500 watt 2000

hour rated halogen bulbs with heavy duty

filament support

•Heavy duty plastic case with foam inserts

that protect bulbs from damage

•Patent #6,467,619B1

•UPC: 090529-614598

•Carton Qty: 12

Model L15

300 Watt Quartz Halogen Replacement Bulb

•130 Volt

•300 Watts

•T-3 Lamp

•Porcelain ends

•UPC 090529-450042

•Case Pack: 10

Model L32

150 Watt Quartz Halogen Replacement Bulb

•130 Volt

•150 Watts

•T-3 Lamp

•Porcelain ends

•UPC 090529-601413

•Case Pack: 10

Model L95

250 Watt Quartz Halogen Replacement Bulb

•130 Volt

•250 Watts

•T-3 Lamp

•Porcelain ends

•UPC: 090529-601420

•Case Pack : 10

Model L96

200 Watt Quartz Halogen Replacement Bulb

•130 Volt

•200 Watts

•T-3 Lamp

•Porcelain ends

•UPC: 090529-620377

•Case Pack: 10

Model L97

500 Watt Quartz Halogen Replacement Bulb

•130 Volt

•500 Watts

•T-3 Lamp

•Porcelain ends

•UPC 090529-455405

•Case Pack: 10

Model L16

250 Watt Rough Service Halogen Replacement Bulb

•130 Volt

•250 Watts

•T-3 Lamp

•Porcelain ends

•4,000 hour

•UPC: 090529-608474

•Carton Qty: 10

Model L96

1500 Watt Halogen 10” Replacement Bulb

•110 Volt

•1,500 Watts

•T-3 Lamp

•Porcelain ends

•UPC 090529-601437

•Case Pack: 10

Model L16

100 Watt Mercury Vapor Replacement Bulb

•Mercury vapor lights are very efficient, and are

used in commercial landscaping, roadway

overhead lighting, warehouse and factory lighting,

and sports field lighting.

•100 Watt

•Medium Socket

•Replacement Bulb for 100 Watt Security lights

•5700K

•Carton Qty: 10

•UPC: 090529-610163

Model L788

175 Watt Mercury Vapor Replacement Bulb

•Mercury vapor lights are very efficient, and are

used in commercial landscaping, roadway

overhead lighting, warehouse and factory lighting,

and sports field lighting.

•175 Watt

•Mogul Socket

•Replacement Bulb for 175 Watt Security lights

•5700K

•Carton Qty: 10

•UPC: 090529-608122

Model L789

35 Watt High Pressure Sodium Replacement Bulb

•High Pressure Sodium light bulbs are one of the most

commonly used outdoor light sources. Most street lighting

uses a high pressure sodium bulb which gives a

characteristic 'yellowish' color. It is a very efficient light

source which generally last for many hours

•35 Watt

•Medium Socket

•2000K

•Carton Qty: 10

•UPC: 090529-608542

Model L790

50 Watt High Pressure Sodium Replacement Bulb

•High Pressure Sodium light bulbs are one of the most

commonly used outdoor light sources. Most street lighting uses

a high pressure sodium bulb which gives a characteristic

'yellowish' color. It is a very efficient light source which

generally last for many hours

•50 Watt

•Medium Socket

•2000K

•Carton Qty: 10

•UPC: 090529-608559

Model L791

70 Watt High Pressure Sodium Replacement

Bulb

•High Pressure Sodium light bulbs are one of the most

commonly used outdoor light sources. Most street

lighting uses a high pressure sodium bulb which gives

a characteristic 'yellowish' color. It is a very efficient

light source which generally last for many hours

•70 Watt

•Mogul Socket

•Replacement Bulb for 70 Watt Security lights

•2000K Warm white light

•Carton Qty: 10

•UPC: 090529-610903

Model L892

150 Watt High Pressure Sodium

Replacement Bulb

•High Pressure Sodium light bulbs are one of the most

commonly used outdoor light sources. Most street

lighting uses a high pressure sodium bulb which gives

a characteristic 'yellowish' color. It is a very efficient

light source which generally last for many hours

•150 Watt

•Mogul Socket

•Replacement Bulb for 150 Watt Security lights

•2000K Warm white light

•Carton Qty: 10

•UPC: 090529-608580

Model L794

70 Watt High Pressure Sodium

Replacement Bulb

•High Pressure Sodium light bulbs are one of the

most commonly used outdoor light sources. Most

street lighting uses a high pressure sodium bulb

which gives a characteristic 'yellowish' color. It is a

very efficient light source which generally last for

many hours

•70 Watt

•Medium Socket

•2000K

•Carton Qty: 10

•UPC: 090529-608139

Model L792

100 Watt High Pressure Sodium Replacement

Bulb

•High Pressure Sodium light bulbs are one of the most

commonly used outdoor light sources. Most street

lighting uses a high pressure sodium bulb which gives a

characteristic 'yellowish' color. It is a very efficient light

source which generally last for many hours

•100 Watt

•Medium Socket

•2000K

•Carton Qty: 10

•UPC: 090529-608597

Model L793

70 Watt Metal Halide Replacement

Bulb

•Very efficient day light bright light

•70 Watt

•Medium Socket

•Replacement Bulb for 70 Watt Metal

Halide lights

•5,500 Lumens

•UPC: 090529-608726

•Carton Qty: 12

Model L781

100 Watt Metal Halide Replacement

Bulb

•Very efficient day light bright light

•100 Watt

•Medium Socket

•Replacement Bulb for 100 Watt Metal

Halide lights

•8,000 Lumens

•UPC: 090529-608733

•Carton Qty: 12

Model L781

50 Watt MR-16 Halogen Bulb

•50 Watt Bi-Pin GU5.3

•120V

•2700K Temperature rating

•550 Lumens

•UPC: 090529-618381

•Carton Qty: 10

Model L709

35 Watt MR-16 Halogen Bulb

•35 Watt Bi-Pin G8

•130V

•2700K Temperature rating

•550 Lumens

•UPC: 090529-612433

•Carton Qty: 10

Model L6

1200 Watt Infrared 10” Heat Lamp

•1200 watt

•130V

•Replacement lamp for Model H12000, H12011

•UPC: 090529-620735

•Carton Qty: 10

Model H11055

1200 Watt Infrared 10” Heat Lamp with wire

leads

•1200 watt

•130V

•Replacement lamp for Model H12010

•UPC: 090529-620988

•Carton Qty: 10

Model H11056

Retractable Cord Reels

20’ 16/3 Retractable Cord

Reel

•Solid PVC Triple Tap

•Plastic Construction

•cETLus listed

• UPC: 090529-622166

• 4 pieces per master carton

• Master Cube: .69

• Master Weight: 4.0 lbs

Model E315

30’ 16/3 Retractable Cord

Reel with Clear Grounded

Triple Tap

• LED indicator light

• Heavy Duty Metal Construction

• Diamond Plate Design

• cETLus Listed

• UPC: 090529-622159

• 2 pieces per master carton

• Master Cube: .67

• Master Weight: 15.20 lbs

Model E215

30’ 14/3 SJTW Retractable Cord Reel with

Locking Plug

• Red Metal Construction

• Mounts on ceiling, wall, or can sit on flat surface

• Rated for 13A / 125V / 1625W

• UPC: 0 78693 48004 1

• 3 pieces per master carton

• Master Cube: 1.65

• Master Weight 29.94 lbs

Model 48004

30’ 14/3 SJTW Retractable Cord

Reel with 3-Outlet Power Block

• Metal Construction

• Mounts on ceiling, wall, or flat surface

• Rated for 13A / 125V / 1625W

• UPC: 078693-480065

• 3 pieces per master carton

• Master Cube: 1.75

• Master Weight 29.14 lbs

Model 48006

Extra Heavy Duty 45’ 14/3

Retractable Cord Reel

• Wall Mountable

• Includes 45’ 14/3 Cord

• Grounded Triple Tap

• Heavy Duty Plastic Construction

• UPC: 090529-622319

• 2 pieces per Master carton

• Master Cube: 1.72

• Master Weight 24.60 lbs

Model E316

Extra Heavy Duty 50FT 12/3

Retractable Cord Reel

•Steel Mounting Bracket

• Includes 50’ 12/3 Cord

•Triple Tap with Power Indicator light

•Impact resistant Black Thermoplastic

Construction

•UL/CUL Listed

•UPC: 029892-048204

•1 piece per Master carton

•Master Cube: 1.23

•Master Weight 18.40 lbs

Model 04820-88-02

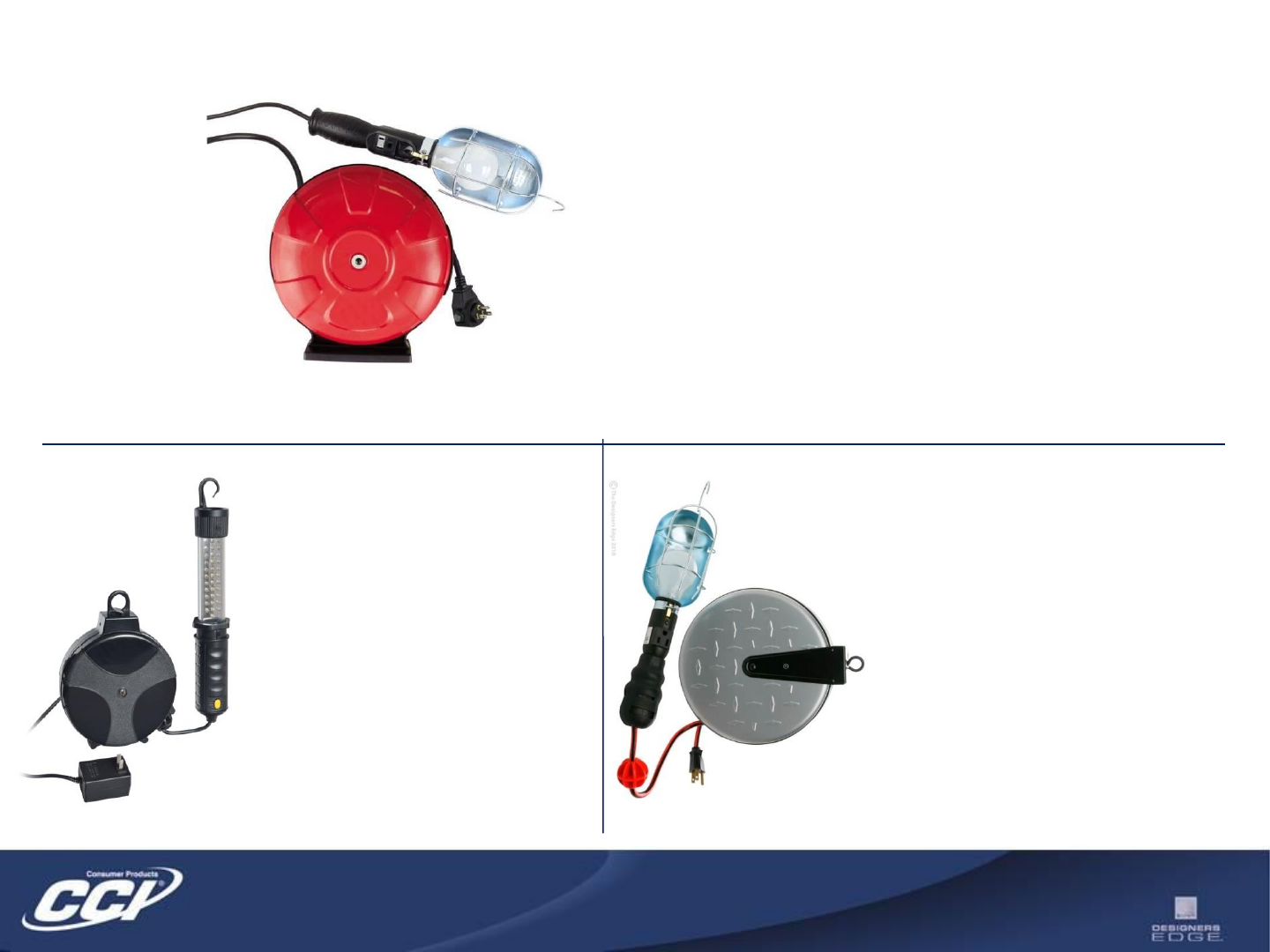

20’ 16/3 Retractable Cord Reel

with Incandescent Work Light

•Plastic Construction

•Grounded Outlet in Handle

•UPC: 090529-622142

•4 pieces per Master Carton

•Master Cube: .63

•Master Weight 13.20 lbs

Model E216

40FT 16/3 SJTW METAL CORD

REEL WITH 75W TROUBLE LIGHT

•Red metal housing made of heavy steel

•Extra outlet in the handle

•Mounting hardware included

•UL rated

•UPC: 078693-480003

•3 piece per Master carton

•Master Cube: 1.71

•Master Weight 31.05 lbs

Model 48000

25FT 14/3 Retractable Cord Reel

with Metal Incandescent Work Light

• 25’ 14/3 High Visibility Striped Power Cord

•Heavy duty diamond plate metal reel

•10 amp ground outlet

•100 watt maximum rated bulb (not included)

•Mounting hardware included

•CETL rated

•UPC: 090529-616882

•3 piece per Master carton

•Master Cube: 1.08

•Master Weight 25.35 lbs

Model E251

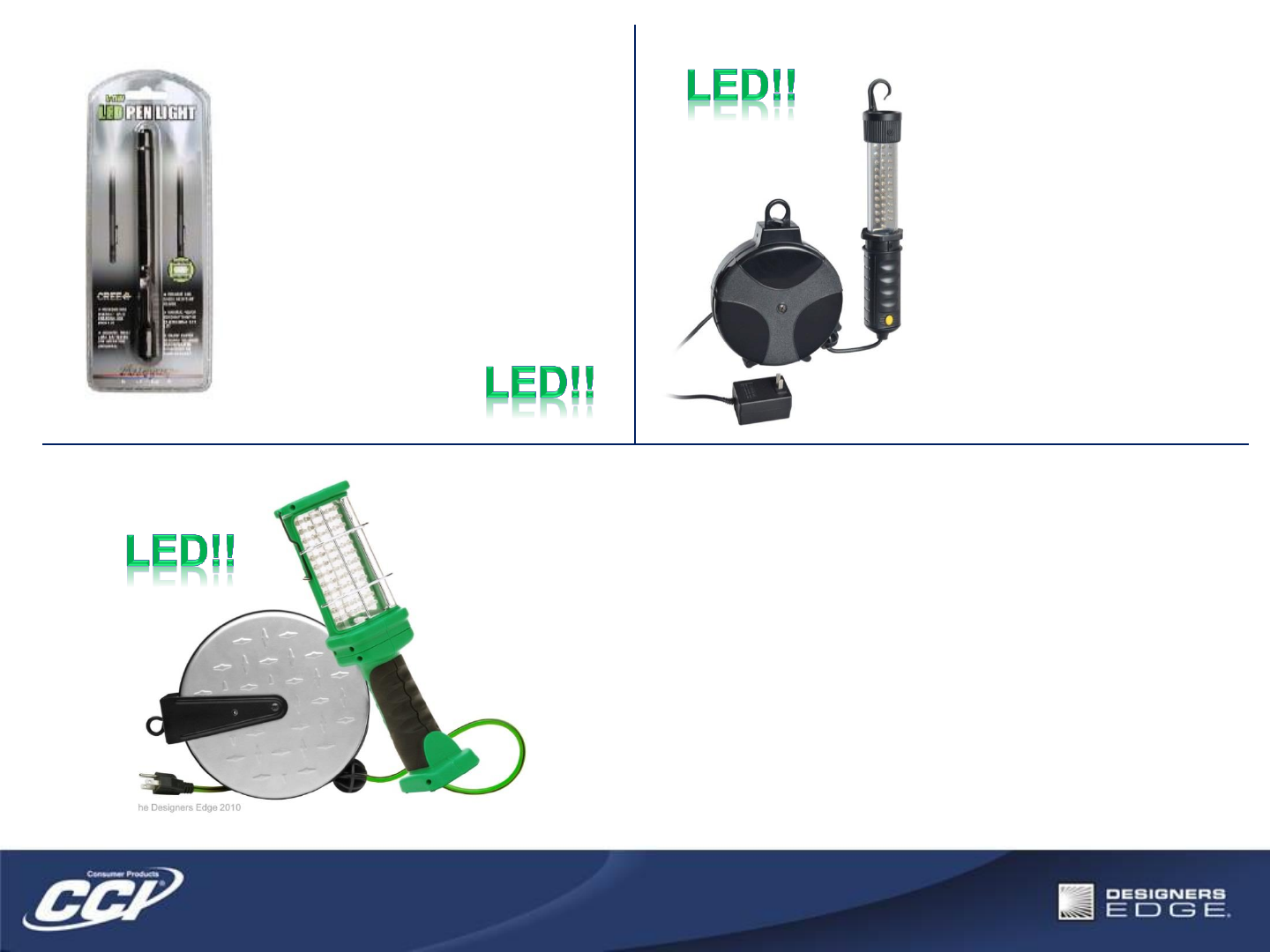

20FT Retractable Cord Reel 33

LEDs Work Light

•33 Long Lasting Super Bright LEDs

•83 Lumens

•On/Off switch

•360° Revolving Hook

•18/2 SJTW 20FT Power Cord

•Retractable cord reel

•Shock resistant with soft body ]

•Mounting hardware included

•CETL rated

•UPC: 078693-480669

•4 piece per Master carton

•Master Cube: 1.34

•Master Weight 13.20 lbs

Model 48066

30’ 16/3 Retractable Cord Reel with 13 Watt

Fluorescent Work Light

• Diamond Plate Design

• High Visibility Orange/Black Power Cord

• Ground Outlet in handle

• Heavy Duty Metal Construction

• CETL Rated

• UPC: 090529-622197

• 2 pieces per master carton

• Master Cube: 1.09

• Master Weight 17.20 lbs

Model E318

30’ 16/3 Retractable Cord Reel with 72 LEDs Work

Light

• Diamond Plate Design

• High Visibility Green/Black Striped Power Cord

• Grounded Outlet in handle

• Heavy Duty Metal Construction

• CETL Rated

• UPC: 090529-622180

• 2 pieces per Master Carton

• Master Cube: 1.09

• Master Weight: 17.20 lbs

Model E319

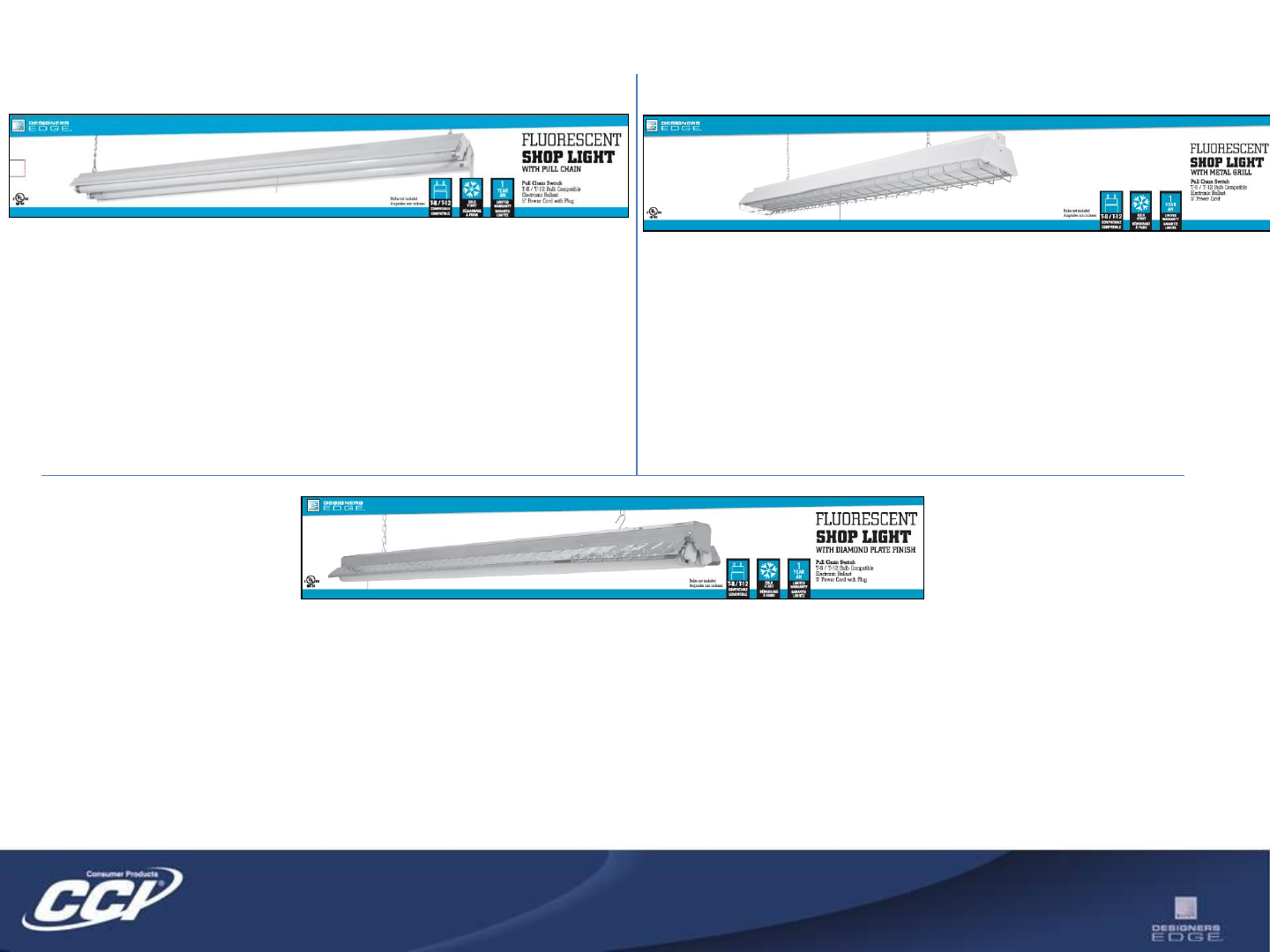

Fluorescent Shop Lights and Strip Lights

48” Fluorescent Shop Light w/Pull Chain Switch

•Electronic Ballast works in lower temperatures (min -20°)

•Uses two 40 watt T-12 or two 32 watt T-8 fluorescent tubes (not included)

•Complete with 5 Ft cord

•Pull chain switch

• cUL Listed

Model L180

48” Fluorescent Shop Light with Grill and 120V Outlet

•Electronic Ballast works in lower temperatures (min -20°)

•Uses two 40 watt T-12 or two 32 watt T-8 fluorescent tubes (not included)

•Complete with 5 Ft cord

•120 Volt Outlet

•Pull chain switch

•cUL Listed

Model L181

48” Diamond Plate Fluorescent Shop Light with Outlet

•Electronic Ballast works in lower temperatures (min -20°)

•Uses two 40 watt T-12 or two 32 watt T-8 fluorescent tubes (not included)

•Complete with 5 Ft cord

•120 Volt Outlet

•High polish reflector

•Pull chain switch

•cUL Listed

Model L88

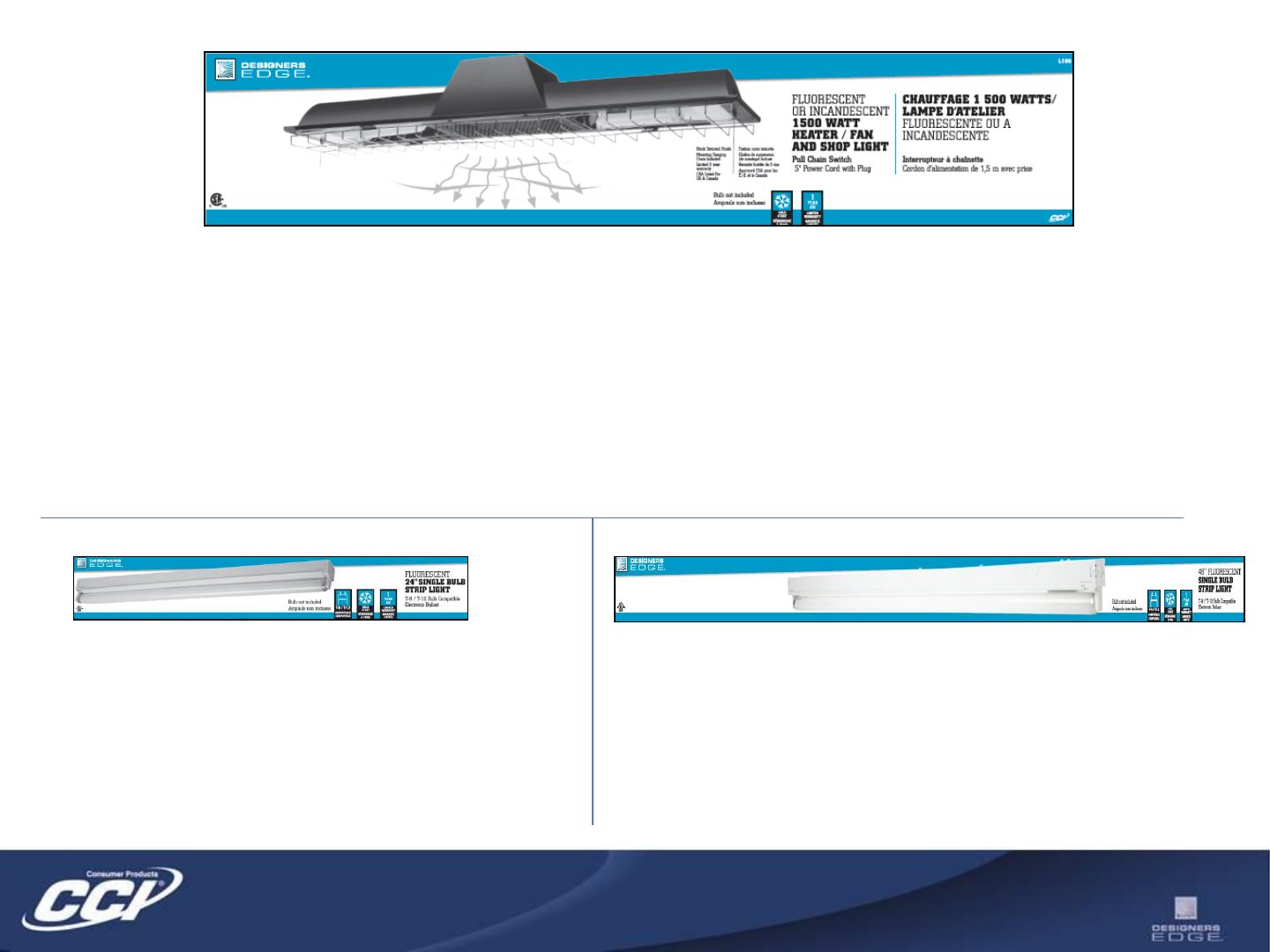

HEAT ZONE™ UNIVERSAL BULB 1500W CERAMIC HEATER / FAN /SHOP LIGHT

•Universal porcelain sockets - Can operate up to 65 watt CFL bulbs or 100 watt incandescent bulbs (bulbs not included)

•Includes a 1500W Ceramic Heater and Fan

•The Heater and Fan can be operated independently from the Lights.

•Black Textured finish, High polished reflector

•2 Pull chain power switches to control lights and Heater/Fan separately

•Wire Safety Grill, Mounting Chain included

•Fully assembled, easy to install

•CSA and CSA/US listed

Model L186

24” Fluorescent Strip Light

•Electronic Ballast works in lower temperatures (min -20°)

•Uses a 20 watt T-12 or a 12 watt or 18 watt T8 fluorescent tube

•Bulb not included

•Direct wire

•cUL Listed

Model L190

48” Fluorescent Strip Light

•Electronic Ballast works in lower temperatures (min -20°)

•Uses a 40 watt T-12 or a 32 watt T8 fluorescent tube

•Bulb not included

•Direct wire

•cUL Listed

Model L191

Security Area and Farm Lights

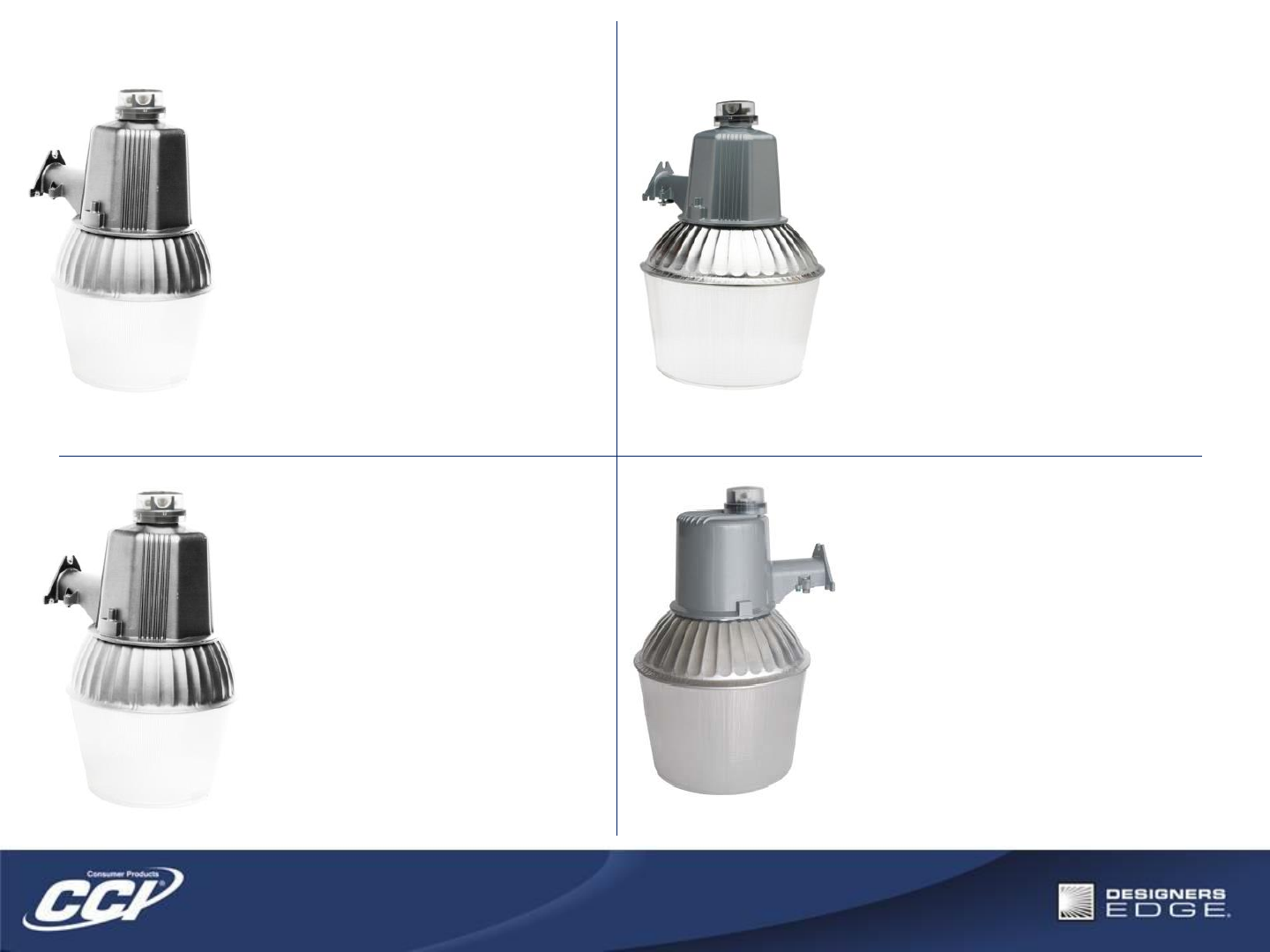

Universal Bulb Security Light

• 10” acrylic reflector

• Dusk to dawn button photocell

•Can operate up to maximum wattage

of 68W CFL bulb or 200W T10

halogen bulb or 200W incandescent

bulb

•Bulb not included

•Durable die-cast aluminum

construction

•UL & CUL Listed

•UPC: 090529-617834

•Carton Qty: 4

Model L1751

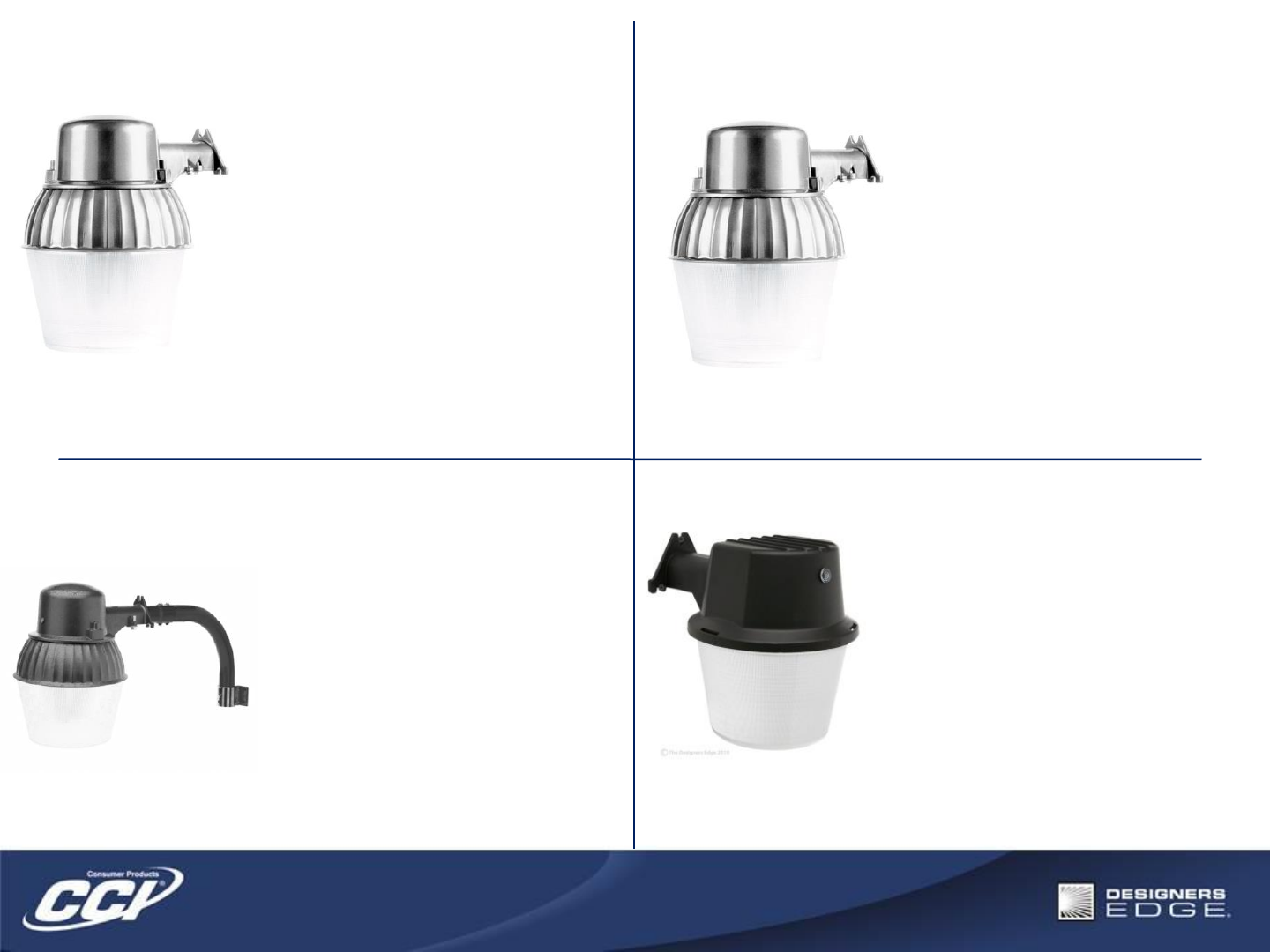

65 Watt Security Yard Light

• 10” acrylic reflector

• 24” Heavy duty 3 pt powder coated

steel mounting arm

•Dusk to dawn button photocell

•Complete with 65 watt mogul base

fluorescent bulb

•Electronic ballast works in lower

temperatures(min-20°)

•4,300 Lumen output

•UL & CUL Listed

•UPC: 090529-620674

•Carton Qty: 4

Model L1756

65 Watt Security Yard Light

• 10” Acrylic Reflector

•Output equivalent to 300 watt bulb

•Dusk to dawn button photocell

•Includes 65 watt mogul base

fluorescent bulb

•Electronic ballast works in

lower temperatures (min -20°)

•Approximate 4,300 Lumen output

•UL & CUL Listed

•UPC: 090529-617834

•Carton Qty: 4

Model L1755

42 Watt Fluorescent Security Light

•Output equivalent to 160 watt incandescent

bulb

•Dusk to dawn button photocell

•Acrylic reflector

•Complete with 42 watt fluorescent bulb

•Electronic ballast works in temperatures

(min -20°)

•Approximate 3,200 Lumen output

•UL & CUL Listed

•UPC: 090529-618398

•Carton Qty: 4

Model L1698

70 Watt High Pressure

Sodium Security Light

• With 10” Acrylic Reflector and Bulb

•Dusk to dawn button photocell

Includes

•70 watt HPS bulb

•Patented finned octagon shaped

•Approximate 6,400 Lumen output

•UL & CUL Listed

•UPC: 090529-608047

•Carton Qty: 4

Model L1730

150 Watt High Pressure Sodium

Security Light

• 12” acrylic reflector

•Heavy duty 3 point mounting arm

•Dusk to dawn button photocell

•Complete with 150 watt bulb

•Approximate 15,000 Lumen output

•UL & CUL Listed

•UPC: 090529-622388

•Carton Qty: 2

Model L1741

100 Watt Metal Halide

Security Light

•10” Acrylic Reflector

•Dusk to dawn photocell

•Complete with 100 watt MH

bulb

•Approximate 10,500 Lumen

output

•UL & CUL Listed

•UPC: 090529-608818

•Carton Qty: 4

Model L1701

150 Watt Metal Halide Pulse

Start Security Light

• 12” acrylic reflector

•10 Volt Pulse Start Ballast

•Complete with150 watt Metal Halide

bulb

•Twist lock photocell

•UL & CUL Listed

•UPC: 090529-608047

•Carton Qty: 2

Model L1743

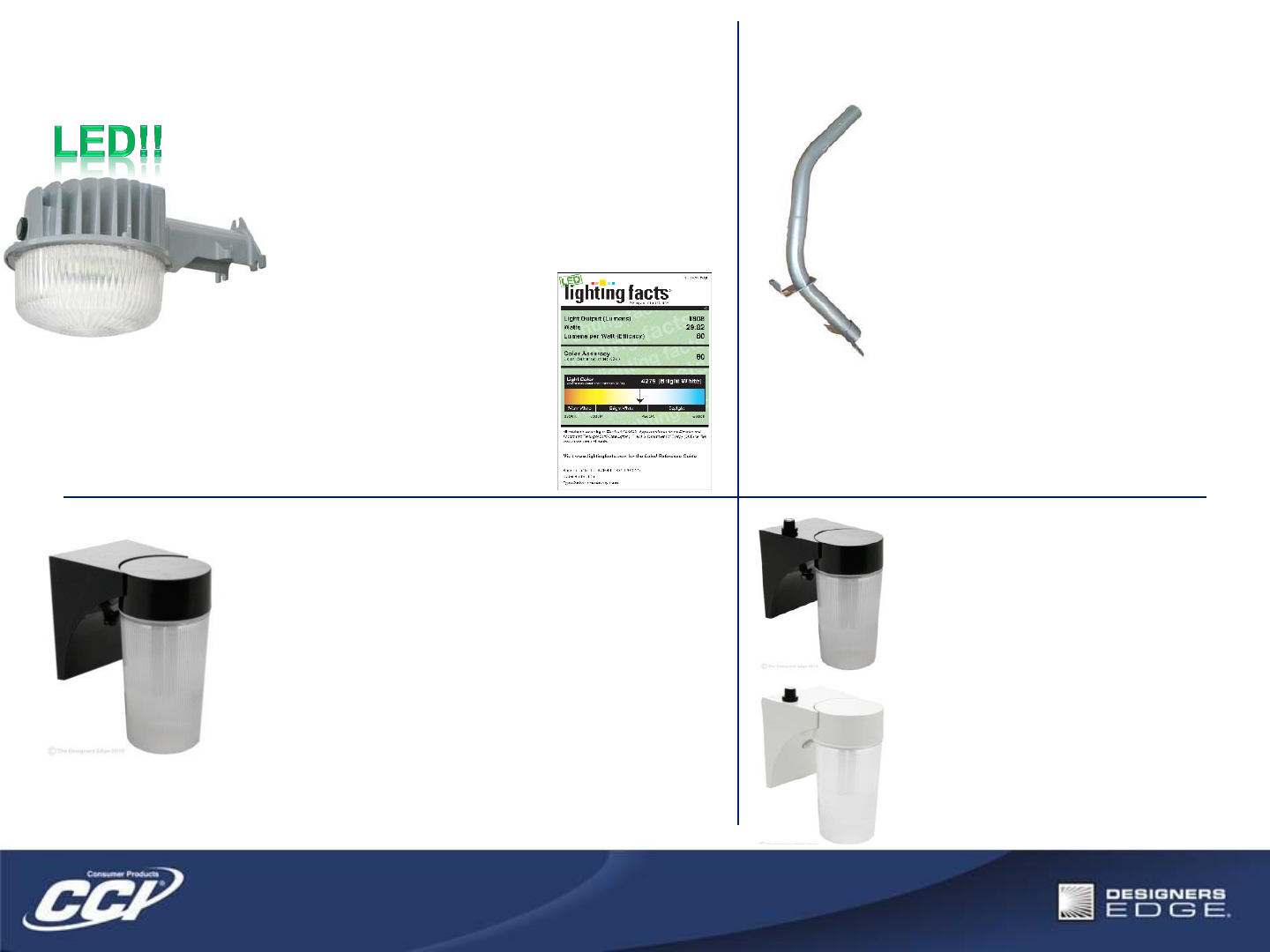

30W 5 X 5 Array LED

Dusk to Dawn Security Light

•30W LED equivalent to 50W HID

• Long Lasting LED’s.

•Die cast housing with polyester

powder coating

•Built in Dusk to Dawn photo cell.

•UV stabilized acrylic prismatic refractor.

•1808 Lumen output

•4100K Color temperature

•UPC: 090529-616776

Model L1677

24” Heavy Duty 3 Point

Mounting Arm For Area Lights

• 24” Long-extends area light from wall

•Fits area lights of various brands

•Powder coated steel

•Aluminum finish

•Complete with three bolts for mounting

•UPC: 090529-608900

•Carton Qty: 6

Model L1804

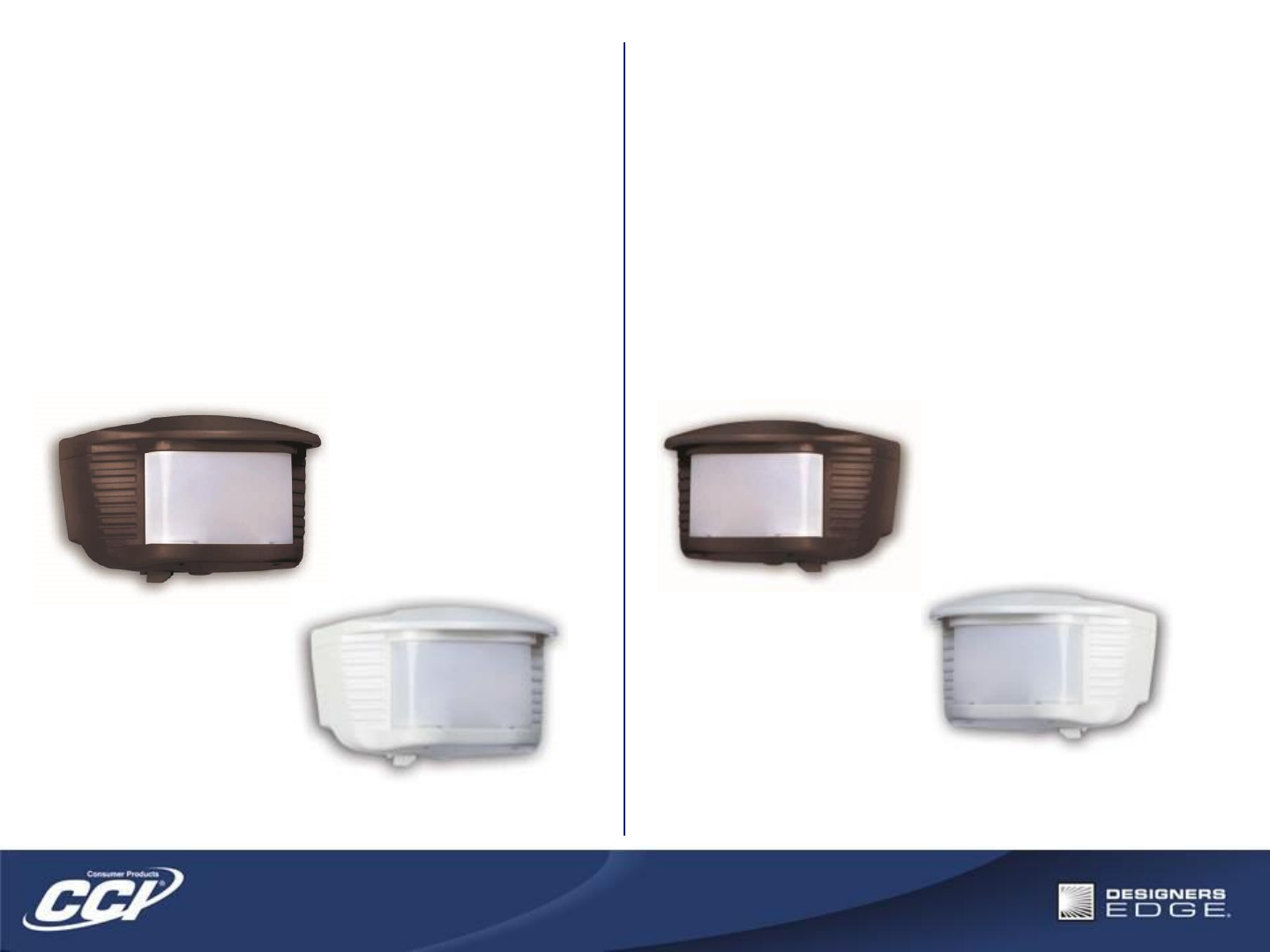

13 Watt Fluorescent Wall Light

•Decorative prismatic Lens

•Energy efficient comes with 13 watt PL bulb

•Equivalent to 60 watts of incandescent light

•Electronic ballast works in lower temperature (min -20°)

•UL/CUL listed

•Bronze color

•UPC: 090529-608184

•Carton Qty: 12

Model L83D

13 Watt Fluorescent Wall Light

•Decorative prismatic Lens

•Dusk to dawn photo cell

•Energy efficient complete w/13 watt PL bulb

•Equivalent to 60 watts of incandescent light

•Electronic ballast works in lower

temperature (min -20°)

•UL/CUL listed

•UPC: 090529-606210 Bronze

090529-606210 White

•Carton Qty: 12

Model L80BR, L80WH

26 WATT FLUORESCENT

WALL LIGHT

•Decorative acrylic prismatic lens

•Slim design works well with modern

architecture

•Dusk to dawn photocell

•Includes two 13 watt PL fluorescent

bulbs

•120 Watt incandescent equivalent

•Available in bronze finish

•Approximate 1,650 Lumen output

•UL & CUL Listed

•UPC: 090529-619876

•Carton Qty: 12

Model L1772

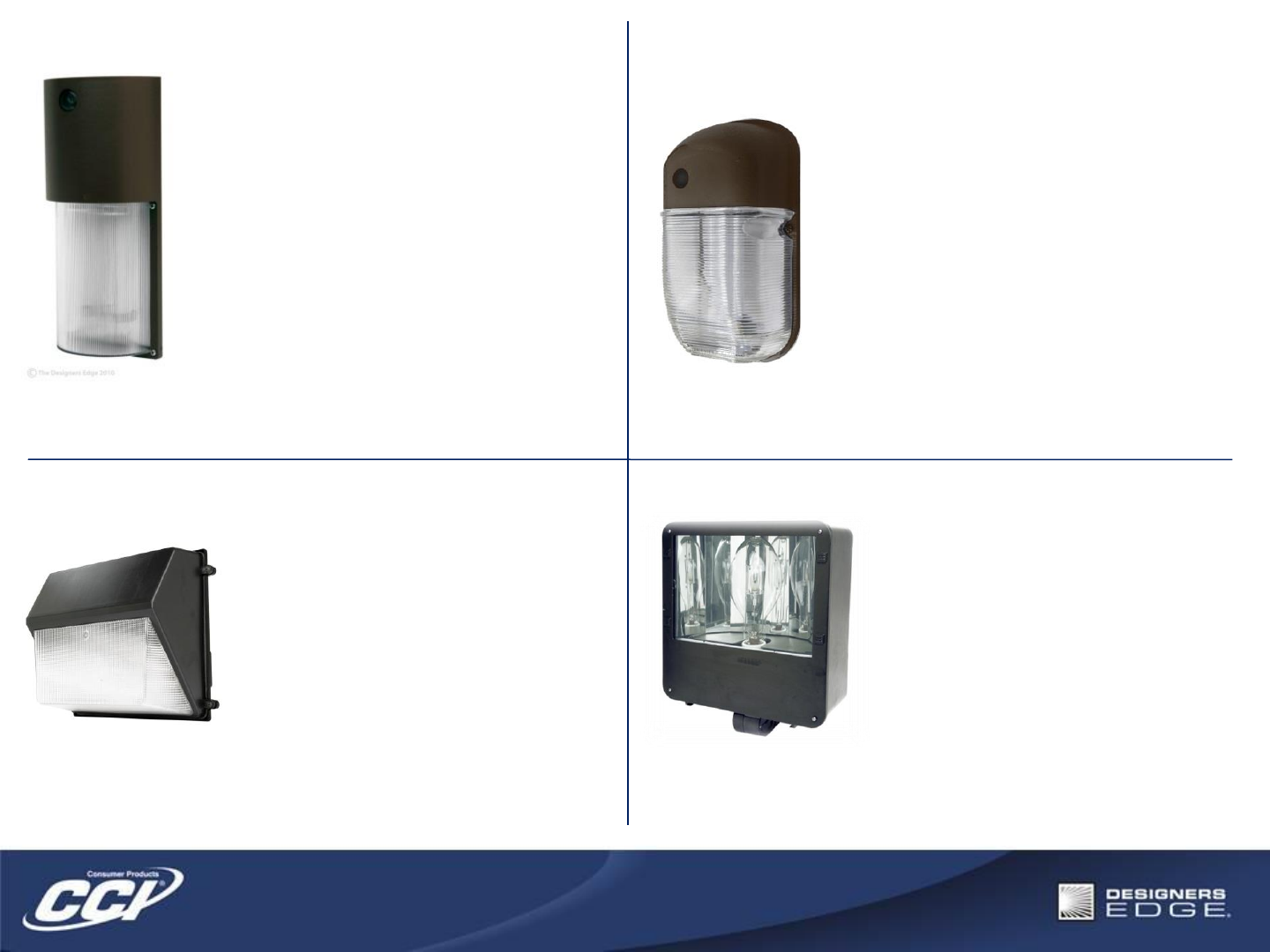

42 Watt Fluorescent Security

Wall Light

•Decorative acrylic prismatic lens

•Dusk to dawn photocell

•Includes one 42 watt PL fluorescent bulb

•240 Watt incandescent equivalent

•Bronze finish

•Approximate 3,200 Lumen output

•UL & CUL Listed

•UPC: 090529-620223

•Carton Qty: 6

Model L1795BZ

126 Watt Fluorescent Wall

Mount Fixture

•Decorative acrylic prismatic lens

•Die cast aluminum mounting plate

•Electronic ballast works in

lower temperatures(min-20°)

•Includes three 42 watt PLT

fluorescent bulbs

•Approximate 6,400 Lumen output

•UL & CUL Listed

•UPC: 090529-620506

•Carton Qty: 6

Model L1788

400 Watt Metal Halide Wall

Light

•Deluxe heavy duty die-cast housing

•Quality Glass Lens

•Quad voltage ballast 120, 208, 240, 277 volt

•Includes one 400 watt Mogul base Metal

Halide Bulb

•Bronze finish

•UL listed for wet locations when ceiling

mounted or damp locations wall mounted.

•Order yoke or slip fitter separately

•UPC: 090529-621237

•Carton Qty: 1

Model L4300

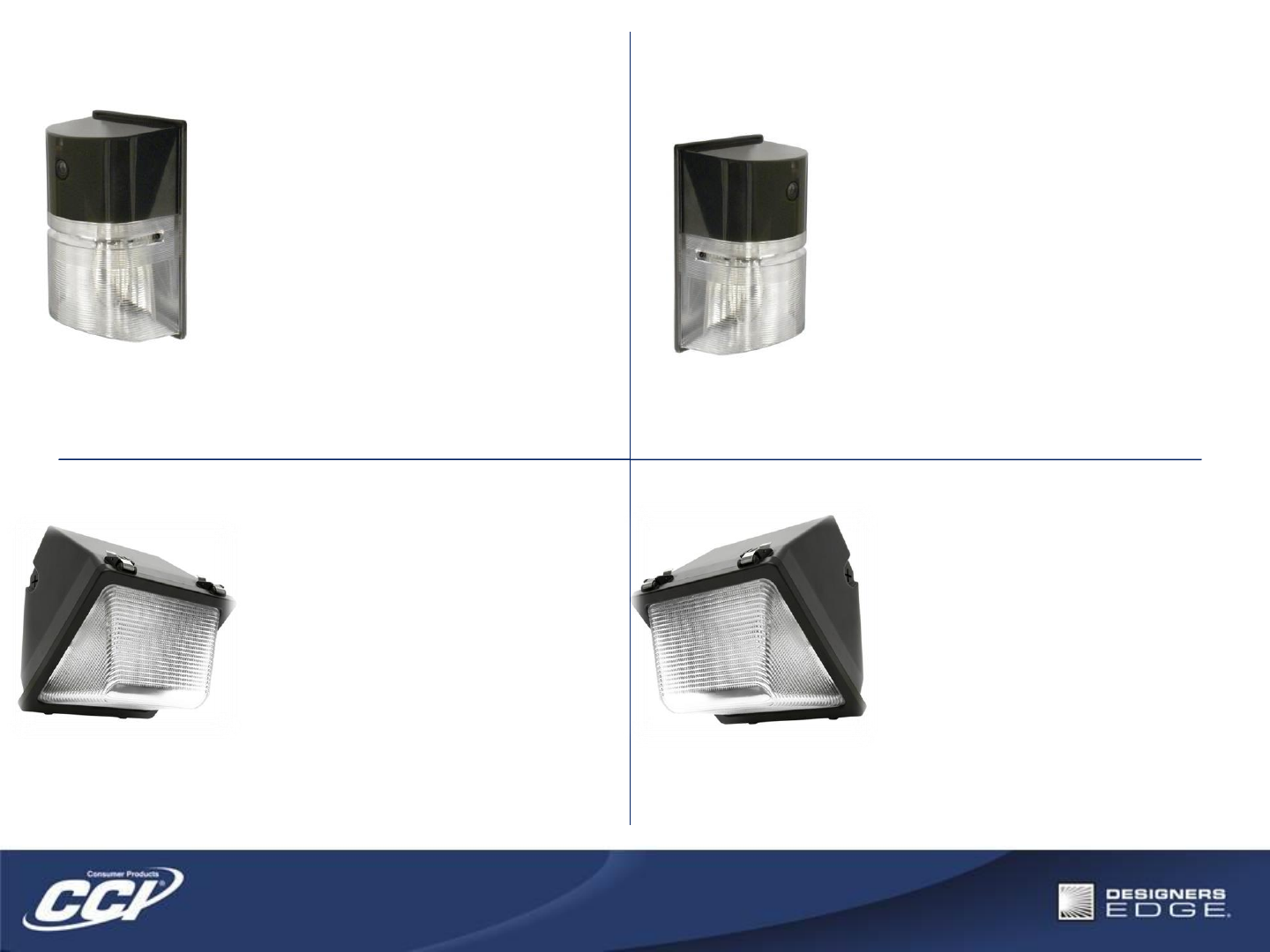

35 Watt High Pressure

Sodium Wall Light

•Constructed of industrial grade

vandal resistant

polycarbonate materials

•Dusk to dawn photocell

•Complete with 35 watt HPS bulb

•UL & CUL Listed

•UPC: 090529-608375

•Carton Qty: 6

Model L177035W

70 Watt High Pressure

Sodium Wall Light

•Constructed of industrial grade

vandal resistant

polycarbonate materials

•Dusk to dawn photocell

•Complete with 70 watt HPS bulb

•UL & CUL Listed

•UPC: 090529-608351

•Carton Qty: 6

Model L177070W

100 Watt High Pressure

Sodium

Security Wall Pack

•Deluxe heavy duty die-cast housing

•Quality glass lens wont discolor

•Hinged face frame for easy bulb

change

•Bronze finish

•100 Watt HPS bulb included

•UL & CUL Listed

•UPC: 090529-608276

•Carton Qty: 4

Model L1762HPS

70 Watt Metal Halide

Security Wall Pack

•Deluxe heavy duty die-cast

housing

•Quality glass lens wont discolor

•Hinged face frame

•Bronze finish

•70 Watt MH bulb included

•UL & CUL Listed

•UPC: 090529-608290

•Carton Qty: 4

Model L1762-70W-MH

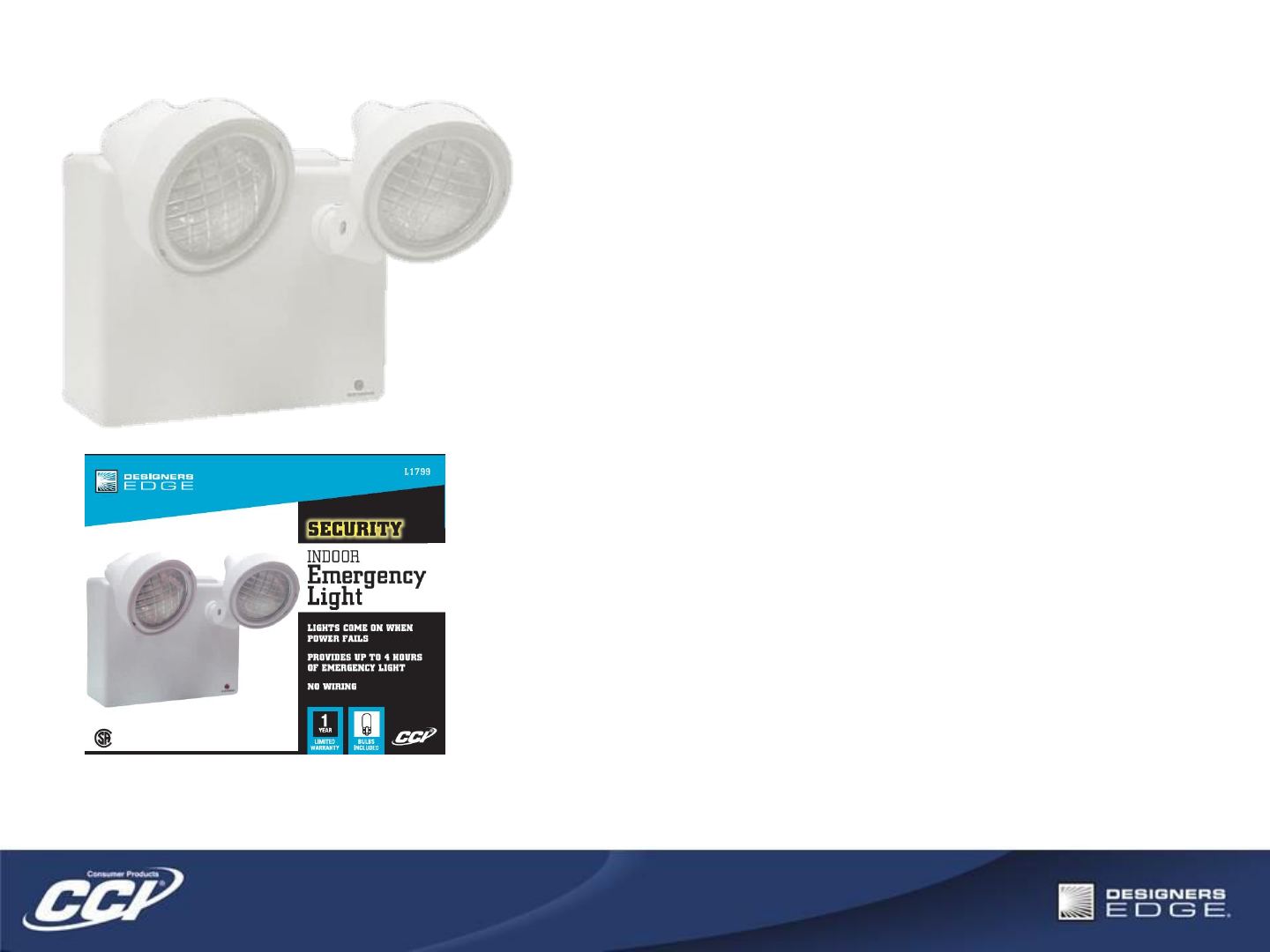

Indoor Emergency Light

•Lights come on automatically when the power fails

•Two adjustable heads to direct the light

•Provides up to 4 Hours of Emergency Lighting

•Single Head provides 4 hours, Dual Head Provides 2 Hours

•No wiring – plug in the 18/3 SJT 6FT Cord

•Illuminates an average size room or hallway

•Includes a test switch/LED charge indicator on the front

•Comes with 2 incandescent 6V 0.8A T5 wedge base bulbs

•Maintenance free 6 volt Rechargeable Battery included

•Carton Qty: 2

•UPC: 090529-61799 5

•CSA listed

Model L1799

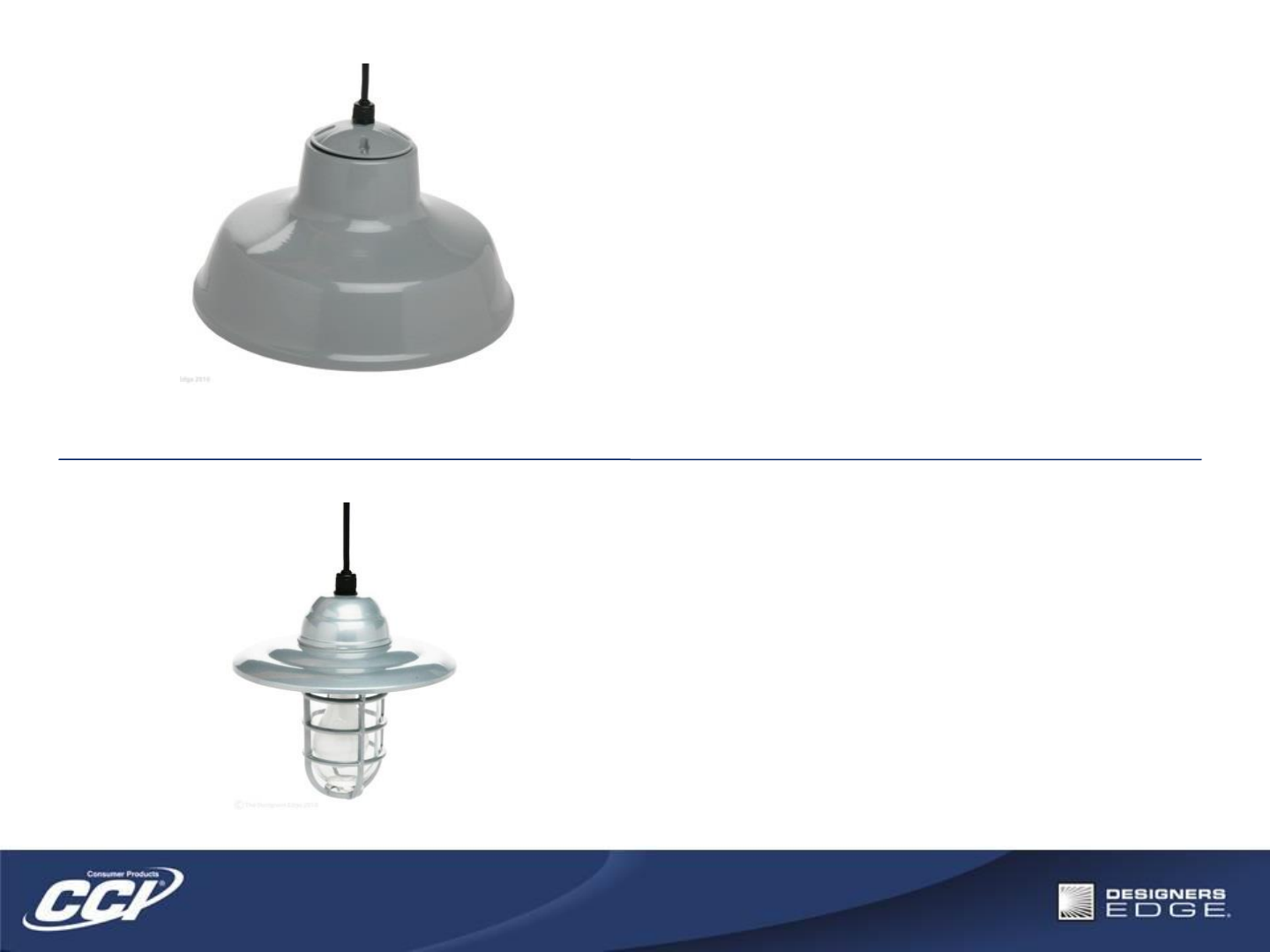

14” Hanging Farm Light

• With 6’ of cord and mounting plate to hang

• 14” metal reflector

•Powder coating finish

•200 Watt max bulb (not included)

•UL & CUL Listed

Model L1712

10” Hanging Farm Light

•6 FT Cord for wiring installation

•Includes mounting plate

•Powder coating finish

•10” metal reflector

•UL & CUL Listed

•UPC: 090529-619739

•Carton Qty: 4

Model L1704

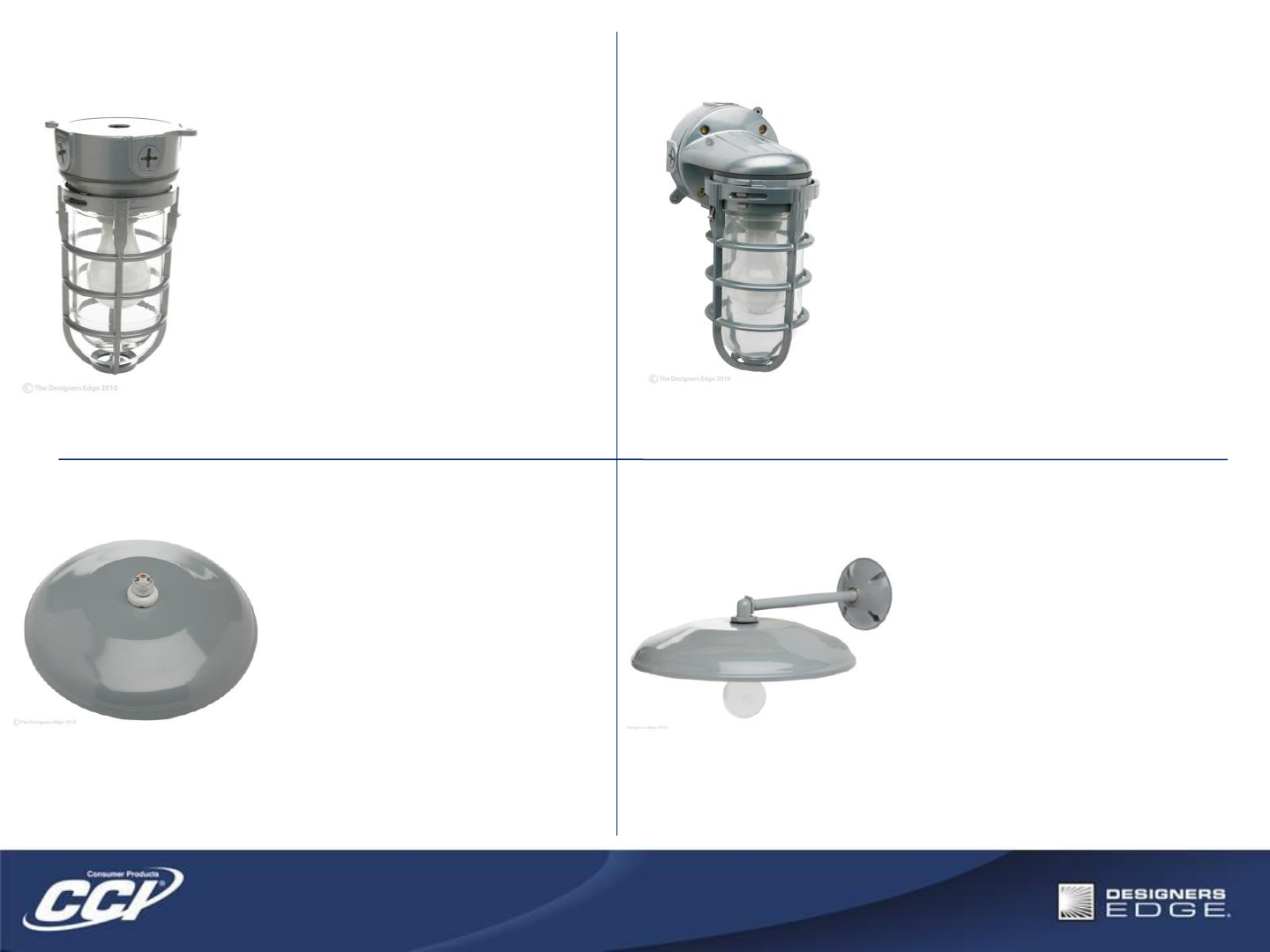

100 Watt Incandescent Weather

Tight Light

•All metal construction

•Tempered glass lens

•Ceiling mount

• ½” IPS thread on top and sides

•100 Watt max bulb (not included)

•UL & CUL Listed

Model L1706

100 Watt Incandescent Weather

Tight Light

•All metal construction

•Tempered glass lens

•Wall mount

•100 Watt max bulb (not included)

•UL & CUL Listed

Model L1707SV

12” Farm Light

•Screws into any porcelain socket

• 12” metal reflector

•Powder coating finish

•200 Watt max bulb (not included)

•UL & CUL Listed

Model L1710

12” Farm Light with arm

•Includes Arm for wall mounting

• 12” metal reflector

•Powder coating finish

•200 Watt max bulb (not

included)

•UL & CUL Listed

Model L1711

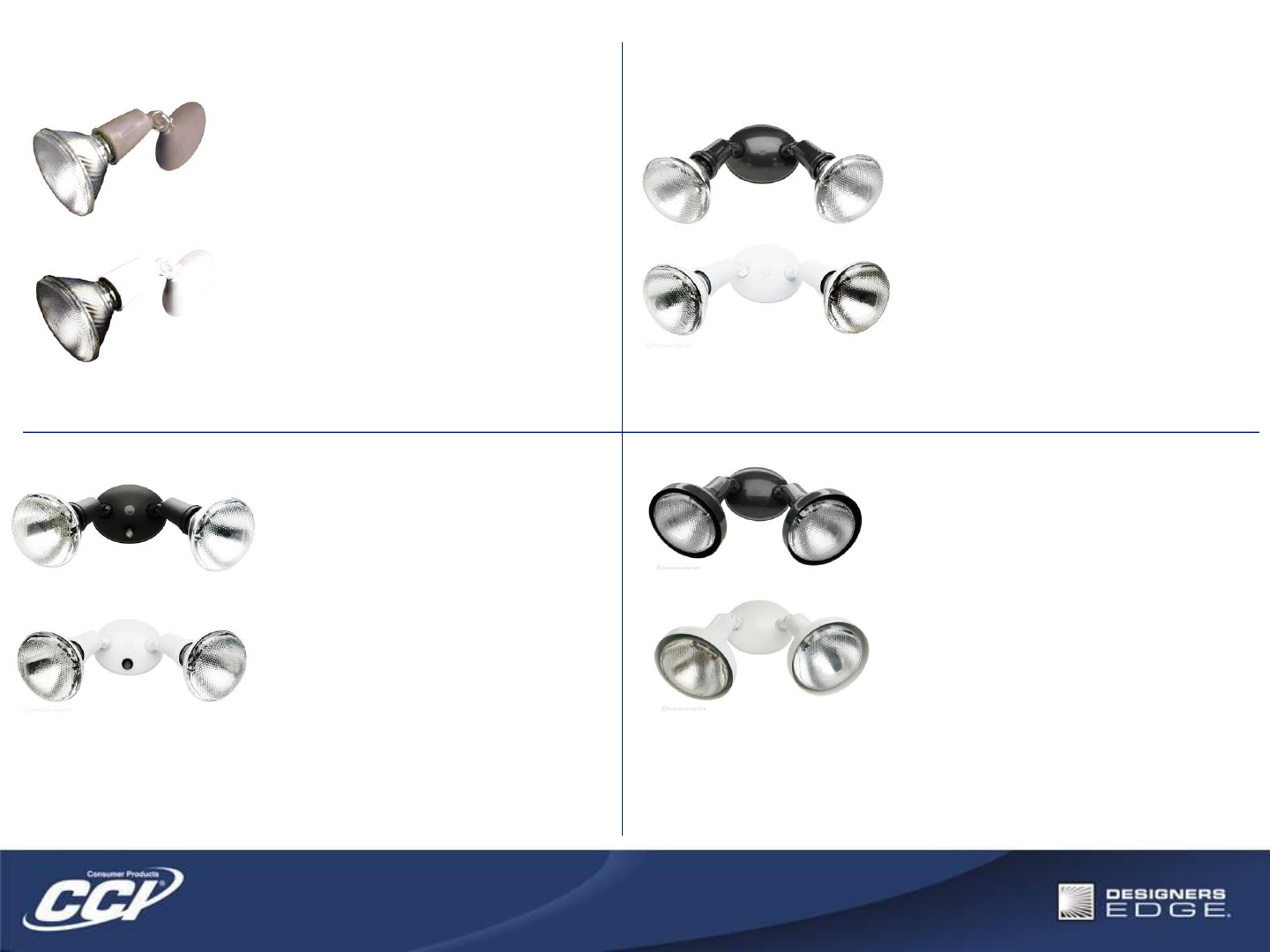

Security Flood Lights

150W Single Metal Flood Light

•Perfect for eave or wall mounting

•Corrosion resistant die-cast metal

•Socket, rated for 150 watt PAR bulb max.

•Mounts easily using existing junction box

•UPC:090529-616486 Bronze

UPC:090529-616484 White

•Carton Qty: 12

Model L1648BZ, L1648WH

Sold less bulb Sold less bulbs

300W Twin Metal Floodlight

•All metal construction

•Uses PAR flood bulbs up to 150 watt (not

included)

•4,400 Lumen output

•UL & CUL listed

•UPC: 090529-619517BR

•UPC: 090529-619524WH

•Carton Qty: 6

Model L1646BR, L1646WH

300W Twin Metal Floodlight

with Photocell

•Die cast aluminum housing

•Dusk to dawn photocell

•Uses PAR flood bulbs up to 150W (not

included)

•4,400 Lumen output

•UL & CUL listed

•UPC: 090529-619531BR

•UPC:090529-619548WH

•Carton Qty: 6

Model L1647BR, L1647WH

300 Watt Twin Floodlight with

Shields

•With protective bulb shields

•All metal construction

•Uses PAR flood bulbs up to 150 watt (not

included)

•4,400 Lumen output

•UL/CUL listed

•UPC: 090529-619395 Bronze

•UPC: 090529-619401 White

•Carton Qty: 6

Model L1640BR, L1640WH

Sold less bulbs Sold less bulbs

300W Twin Floodlight with

Shields & Photocell

•All metal construction

•Protective bulb shields

•Dusk to dawn photocell

•Uses PAR flood bulbs up to 150 watt

(not included)

•UL/CUL listed

•UPC: 090529-619425 Bronze

•UPC: 090529-619432 White

•Carton Qty: 6

Model L1641BR, L1641WH

200W Halogen Twin Floodlight

•All metal construction

•Decorative pebbled glass lens

•Twist on face frame

•Complete with two 100 watt halogen bulbs

•Available in Bronze or White

•3,000 Lumen output

•UL & CUL listed

•UPC: 090529-607033

•UPC: 090529-607026

•Carton Qty: 6

Model L1637BR, L1637WH

300 Watt Halogen Floodlight

•All metal construction

•Base plate included

•Patented eyebrow frame

•Complete with 300 watt halogen bulb

•Approximate 4,800 Lumen output

•UL/CUL listed

•UPC: 090529-601055 Bronze

•UPC: 090529-601062 White

•Carton Qty: 12

Model L30BR, L30WH

500 Watt Halogen Floodlight

•All metal construction

•Base plate included

•Complete with 500 watt halogen bulb

•Approximate 8,000 Lumen output

•UL/CUL listed

•UPC: 090529-607866 Bronze

•UPC: 090529-607873 White

•Carton Qty: 12

Model L50BR, L50WH

500 Watt Halogen Flood Light

•Die cast metal design

•Patented eyebrow frame for more light control

•Includes mounting plate & pebbled glass lens

•Hinged face frame

•Complete with 500 watt halogen bulb

•Approximate 8,000 Lumen output

•UL & CUL listed

•UPC: 090529-601079BR

•UPC: 090529-601086WH

•Carton Qty: 12

Model L31BR, L31WH

150 Watt Mini Halogen Floodlight

•Die cast metal design with eyebrow frame

•Includes mounting plate

•Decorative pebbled glass lens

•Complete with 150 watt halogen bulb

•Approximate 2,400 Lumen output

•UL & CUL listed

•UPC: 090529-605466 Bronze

•UPC: 090529-605473 White

•Carton Qty: 12

Model L56BR, L56WH

150W Halogen Twin Floodlight

•Die cast metal floodlights w/hinged faces

•Eyebrow frames for more light control

•Decorative pebbled glass lens

•Complete with two 150 watt halogen bulbs

•Approximate 4,800 Lumen output

•Includes mounting plate

•UL & CUL listed

•UPC: 090529-605480 BR

•UPC: 090529-605497 WH

•Carton Qty: 12

Model L57BR, L57WH

150 Watt High Pressure Sodium

Flood Light With Base and Bulb

Deluxe heavy duty die-cast housing

Includes mounting plate & glass lens

Approximate 15,000 Lumen output

Bronze finish

150 Watt HPS bulb included

UL & CUL Listed

UPC: 090529-608269

Carton Qty: 6

Master Cube: 1.20

Master weight: 9.0lbs

Model L1760

26W Dusk to Dawn Fluorescent Floodlight

•Decorative prismatic Lens

•Dusk to dawn photo cell

•Energy efficient comes complete with two 13W PL bulbs

•Equivalent to 120 watts of incandescent light

•Electronic ballast works in lower temperature (min -20°)

•UL/CUL listed

•UPC: 090529-608214BR

•Carton Qty: 12

Model L104BR

65 Watt Dusk to Dawn Fluorescent Flood Light

•Die cast metal floodlight w/hinged face

•Electronic Ballast works in low Temp (min 20°)

•Complete with one 65 watt bulb

•Equivalent to 300W incandescent

•Approximate 4300 Lumen Output

•Dusk to Dawn Photocell

•UL/CUL listed

•UPC: 090529-619791

•Carton Qty: 4

Model L90BR

4 High Intensity SM4 LED Dusk to Dawn Twin Flood

•Nonmetallic Back Plate\Lamp holder

•Bulb Type: 4 – SM4 High Power LED’s

• Optically enhanced Len’s

•Dusk to Dawn Photocell

•1,285 lumen output

•5600K color temp

•Available in Bronze or White Finish

•UL/CUL Listed

•UPC: 090529-6116795 BR

090529-6116790 WH

•Carton Qty: 3

Model L1679BR, L1679WH

Solar Security Lights

Motion Activated Halogen Solar Floodlight

•180° motion detector detects motion up to 60 feet

•Multi- crystal solar panel designed for outdoor applications

•Rechargeable battery included

•Complete with 15 watt halogen bulb

•UPC: 090529-620001

•Carton Qty: 4

Model L951

10 LED Solar Shed Light

•Super bright long lasting LEDs for Years of

Service

•Multi - crystal solar panel

•Can be wall or pole mounted up to 16 feet away

•Complete with 3 AA rechargeable batteries

•Two power settings 10 LEDs with 45.6 Lumens

will operate up to 2 hours or use 5 LEDs with

22.8 Lumens for up to 4 hours

•UPC: 090529-619982

•Carton Qty: 6

Model L949

9 LED Motion Activated Solar Floodlight

•180° motion detector detects motion up to 60 feet

•Multi crystal solar panel for outdoor applications

•Super bright long lasting LEDs for Years of Service

•Rechargeable battery included

•Up to 50 - 30 second cycles, on full charge

•45 Lumens

•UPC: 090529-619999

•Carton Qty: 6

Model L950

LED Solar Motion Activated Wall Light

• Long Lasting Super Bright LED’s

•Amorphous Solar Panel for outdoor

applications

•3 x 1.2V - 600mah Ni-CD Rechargeable

Battery

•Up to 90 sixty second on/off cycles

•Security Lock & Key preventing theft

•35 Lumens

•180° motion detector

•UPC: 090529-622593

•Carton Qty: 6

Model L954

45 LED SOLAR SECURITY FLOODLIGHT

•120° motion detector, 45 White Color LED’s

•3600mAh 3.6V SC size NI-MH Rechargeable Battery Pack

•Wall bracket mounting

•Multi - crystal solar panel

•Lights approximately 160sq ft and up to a distance of 33 ft

•270 Lumens , 6500K

•Two settings function: continuous lighting and sensor lighting selected by switch

•Solar panel wall and pillar mountable

•UPC: 090529-622609

•Carton Qty: 6

Model L955

Motion Activated Security Lights

Bulb not included

Bulbs not included

Halogen, Incandescent & LED Motion Sensor Security Lights

180° Motion Activated Single Flood

•Construction (Back Plate\Lamp holder):

Nonmetallic\Nonmetallic

•Bulb Type: 120W PAR

•Photo cell

•70 foot detection range

•Test Mode, LED assist – easy sensor set up

•Adjustable time, Manual override

•Available in Bronze or White

•UPC: 090529-160002 BR

•UPC: 090529-660007 WH

•Carton Qty: 6

Model L6000BR, L6000WH

110° Motion Activated Twin Flood

•Construction (Back Plate\Lamp holder):

Nonmetallic\Nonmetallic

•Bulb Type: 120W PAR

•Photo cell

•60 foot range

•Adjustable time, Manual override

•Available in Bronze or White

•UPC: 090529-659995 BR

•UPC: 090529-159990 WH

•Carton Qty: 6

Model L5999BR, L5999WH

Bulbs not included Bulbs not included

180° Motion Activated Twin

Flood

•Construction (Back Plate\Lamp holder):

Nonmetallic\Nonmetallic

•Bulb Type: 120W PAR

•Photo cell

•70 foot range

•Test Mode, Adjustable time, Manual

override

•Available in Bronze or White

•UPC: 090529-160019 BR

•UPC: 090529-660014 WH

•Carton Qty: 6

Model L6001BR, L6001WH

180° Motion Activated Twin Flood

w/Shields

•Nonmetallic construction

•Bulb Type: 75W PAR

•Photo cell, 70 foot range, Test Mode

•LED assist – easy sensor set up

•Adjustable time, Manual override, LED

indicator

•Adjustable Motion Sensor sensitivity

•Removable Bulb Shields

•Available in Bronze or White

•UPC: 090529-160026 BR

•UPC: 090529-660021WH

•Carton Qty: 6

Model L6002BR, L6002WH

180° Motion Activated Die Cast Twin

Flood

•Die Cast Construction

•Bulb Type: 120W PAR

•Photo cell, 70 foot range

•Test Mode, LED assist – easy sensor set up

•Adjustable time, Manual override, LED

indicator

•Downward Detection, Adjustable sensitivity

•Available in Bronze or White

•UPC: 090529-160033 BR

•UPC: 090529-660038 WH

•Carton Qty: 6

Model L6003BR, L6003WH

270° Motion Activated Twin Flood

w\Shields

•Die Cast Construction

•Bulb Type: 120W PAR

•Photo cell, 70 foot range, Test Mode

•LED assist – easy sensor set up

•Adjustable time, Manual override, LED indicator

•Downward Detection, Adjustable sensitivity

•LED chaser, Dusk to Dawn Mode, Timer

•Removable Bulb Shields

•Available in Bronze or White

•UPC: 090529-160040 BR

•UPC: 090529-660045 WH

•Carton Qty: 6

Model L6004BR, L6004WH

Bulbs not included

270° Motion Activated Twin Flood w/

Shields & LED Night Light

•Die Cast construction, Bulb Type: 120WPAR

•Photo cell, 70 foot range, Test Mode

•LED assist – easy sensor set up

•Adjustable time, Manual override, LED

indicator

•Downward Detection, Adjustable sensitivity

•LED chaser, Dusk to Dawn Model, Timer

•LED Night Light, Removable Bulb Shields

•Available in Bronze or White

•UPC: 090529-160057 BR

•UPC: 090529-660052 WH

•Carton Qty: 6

Model L6005BR, L6005WH

180° Motion Activated 150W Halogen

Flood

•Construction (Back Plate\Lamp holder) :

Nonmetallic\Die cast

•Bulb Type: 150W Halogen - Included

•Eyebrow frame, Photo cell, 70 foot range

•Test Mode, LED assist – easy sensor set up

•Adjustable time, Manual override, LED indicator

•Downward Detection, Adjustable sensitivity

•Available in Bronze or White

•UPC: 090529-160064 BR

•UPC: 090529-660069 WH

•Carton Qty: 6

Model L6006BR, L6006WH

270° Motion Activated Twin 150W

Halogen Flood

•Die Cast construction

•Bulb Type: 2 – 150W Halogen - Included

•Photo cell, Test Mode, LED assist – easy

sensor set up

•Adjustable time, Manual override, LED

indicator

•Downward Detection, Adjustable sensitivity

•LED chaser, Dusk to Dawn Mode, Timer

•Eyebrow Frame

•Available in Bronze or White

•UPC: 090529-160088 BR

•UPC: 090529-660083 WH

•Carton Qty: 6

Model L6008BR, L6008WH

180° Motion Activated 500W Halogen

Flood

•Die Cast construction

•Bulb Type: 500W Halogen - Included

•Photo cell, 70 foot range, Test Mode

•LED assist – easy sensor set up

•Adjustable time, Manual override, LED

indicator

•Downward Detection, Adjustable sensitivity

•Available in Bronze or White

•UPC: 090529-160095 BR

•UPC: 090529-660090 WH

•Carton Qty: 6

Model L6009BR, L6009WH

180° Motion Activated Twin

100W Halogen Flood

•Die Cast construction

•Bulb Type: 2 – 100W Halogen Bi-pin

Included

•Photo cell, 70 foot range, Test Mode

•LED assist – easy sensor set up

•Adjustable time, Manual override, LED

indicator

•Downward Detection, Adjustable sensitivity

•Eyebrow Frame

•Available in Bronze or White

•UPC: 090529-160101 BR

•UPC: 090529-660106 WH

•Carton Qty: 6

Model L6010BR, L6010WH

180° Motion Activated Triple 100W

Halogen Flood

•Die Cast Construction

•Bulb Type: 3 – 100W Halogen Bi-pin Included

•Photo cell, 70 foot range, Test Mode

•LED assist – easy sensor set up

•Adjustable time, Manual override, LED indicator

•Downward Detection, Adjustable sensitivity

•Eyebrow Frame

•Available in Bronze or White

•UPC: 090529-160118 BR

•UPC: 090529-660113 WH

•Carton Qty: 3

Model L6011BR, L6011WH

180° Motion Activated 150W Halogen

Flood with Plug in Cord

•Construction(Back Plate\Lamp

holder)Nonmetallic\Die cast

•Bulb Type: 150W Halogen - Included

•Photo cell, 70 foot range, Test Mode

•LED assist – easy sensor set up

•Adjustable time, Manual override, LED indicator

•Downward Detection, Adjustable sensitivity

•Eyebrow frame, 3 foot cord and plug

•Available in Bronze or White

•UPC: 090529-160132 BR

•UPC: 090529-660137 WH

•Carton Qty: 6

Model L6013BR, L6013WH

150W Photo Cell Halogen Flood

•Construction (Back Plate\Lamp holder) :

• Nonmetallic\Die cast

•Bulb Type: 150W Halogen - Included

•Photo cell

•Dusk to Dawn Mode, Timer

•Eyebrow frame

•Available in Bronze or White

•UPC: 090529-160149 BR

•UPC: 090529-660144 WH

•Carton Qty: 6

Model L6014BR, L6014WH

180° Motion Activated

4 High Intensity SM4 LED Flood

•Nonmetallic construction

•Bulb Type: 4 – SM4 High Power LED’s

•1,285 lumen output

•Photo cell

•70 foot range, Adjustable time, Test Mode

•LED assist – easy sensor set up

•Manual override, LED indicator

•Downward Detection, Adjustable sensitivity

•LED chaser

•Available in Bronze or White

•UPC: 090529-160156 BR

•UPC: 090529-660151 WH

•Carton Qty: 3

Model L6015BR, L6015WH

180° Motion Activated 26W Fluorescent

Flood

•Construction (Back Plate\Lamp holder) :

Nonmetallic\Die cast

•Bulb Type: 2 – 13W PL Fluorescent - Included

•Photo cell

•70 foot range, Test Mode

•LED assist – easy sensor set up

•Adjustable time, Manual override, LED indicator

•Downward Detection, Adjustable sensitivity

•Eyebrow Frame

•Available in Bronze or White

•UPC: 090529-160170 BR

•UPC: 090529-660175 WH

•Carton Qty: 6

Model L6017BR, L6017WH

180° Motion Activated 65W

Fluorescent Flood

•Die Cast construction

•Bulb Type: 65W 4U Flat Fluorescent-

Included

•Photo cell, 70 foot range, Test Mode

•LED assist – easy sensor set up

•Adjustable time, Manual override, LED

indicator

•Downward Detection, Adjustable sensitivity

•Available in Bronze or White

•UPC: 090529-160187 BR

•UPC: 090529-660182 WH

•Carton Qty: 6

Model L6018BR, L6018WH

180° Motion Activated 26W

Fluorescent Flood

•Construction (Back Plate\Lamp

holder)Nonmetallic\Die cast

•Bulb Type: 2 – 13W PL Fluorescent-Included

•Photo cell, 70 foot range, Test Mode

•LED assist – easy sensor set up

•Adjustable time, Manual override, LED

indicator

•Downward Detection, Adjustable sensitivity

•Available in Bronze or White

•UPC: 090529-160194 BR

•UPC: 090529-660199 WH

•Carton Qty: 6

Model L6019BR, L6019WH

180° Motion Sensor Replacement

•Nonmetallic construction

•Bulb Type: Up to 500W

•Photo cell

•70 foot range, Adjustable time, Manual override

•Adjustable sensitivity, Led indicator

•Available in Bronze or White

•UPC: 090529-160200 BR

•UPC: 090529-660205 WH

•Carton Qty: 6

Model L6020BR, L6020WH

270° Motion Sensor Replacement

•Nonmetallic construction

•Bulb Type: Up to 500W

•Photo cell

•70 foot range, Adjustable time, Manual override

•Adjustable sensitivity, Led indicator

•Available in Bronze or White

•UPC: 090529-160217 BR

•UPC: 090529-660212 WH

•Carton Qty: 6

Model L6021BR, L6021WH

Clamp and Brooder Lamps

5 ½” Incandescent Clamp Light

•5 ½” Aluminum Shade

•Non-Slip vinyl grip Clamp

•Heat resistant socket rated 150 watt

•6FT 18/2 Cord

•UL Listed

•UPC: 078693-001604

•Carton Qty: 12 (Bulk)

•Carton Weight: 8.4lbs

Model 0160

5” Open Grill Incandescent Clamp

Light

• 5” Wire Grill

•Non-Slip vinyl grip Clamp

•Heat resistant socket rated 150 watt

•6FT 18/2 Cord

•UL Listed

•UPC: 078693-003240

•Carton Qty: 12 (Bulk)

•Carton Weight: 13.5lbs

Model 0324

8 ½” Incandescent Clamp Light

• 8 ½” Aluminum Shade

•Non-Slip vinyl grip Clamp

•Heat resistant socket rated 150 watt

•6FT 18/2 Cord

•UL Listed

•UPC: 078693-001512

•Carton Qty: 12 (Bulk)

•Carton Weight: 9.6lbs

Model 0151

8 ½” Incandescent Clamp Light

• 8 ½” Aluminum Shade

•Non-Slip vinyl grip Clamp

•Heat resistant socket rated 150 watt

•6FT 18/2 Cord

•UL Listed

•UPC: 078693-001697

•Carton Qty: 4 (individually boxed)

•Carton Weight: 3.4lbs

Model 0169

9 ¾” ” Clamp Light

• 9 3/4” Aluminum Shade

•Non-Slip vinyl grip Clamp

•Heat resistant socket rated 150 watt

•6FT 18/2 Cord

•UL Listed

•UPC: 078693-001628

•Carton Qty: 12 (Bulk)

•Carton Weight: 6.72lbs

Model 0162

10 ½” Brooder Clamp Light

•Ideal for pig and chicken brooders or as temporary heat source

•Heavy Duty Aluminum Reflector

•Insulated Porcelain Socket 250W Max

•Snap on bulb guards

•Hang up Hook Only

•6FT 18/2 Black Cord with polarized plug

•UL Listed

•UPC: 078693-001659

•Carton Qty: 12 (Bulk)

•Carton Weight: 13.84lbs

• Model 0165

10 ½” Brooder Clamp Light

•Ideal for pig and chicken brooders or as temporary heat source

•Heavy Duty Aluminum Reflector

•Snap on bulb guards

•Hang up Hook

•Non-Slip Heavy Duty Clamp with vinyl coated grips

•Insulated Porcelain Socket 250W Max

•8FT 18/2 Black Cord with polarized plug

•UL Listed

•UPC: 078693-001673

•Carton Qty: 6 (Bulk)

•Carton Weight: 11.34lbs

Model 0167

10 ½” Brooder Clamp Light

•Ideal for pig and chicken brooders or as temporary heat source

•Heavy Duty Aluminum Reflector

•Snap on bulb guards

•Hang up Hook

•Non-Slip Heavy Duty Clamp with vinyl coated grips

•Insulated Porcelain Socket 250W Max

•6FT 18/2 Black Cord with polarized plug

•UL Listed

•UPC: 078693-001666

•Carton Qty: 12 (Bulk)

•Carton Weight: 17.25lbs

Model 0166

Porcelain Socket Clamp Light

•Non-Slip vinyl grip Clamp

•Heat resistant socket rated 150 watt

•6FT 18/2 Cord

•UL Listed

•UPC: 078693-003288

•Carton Qty: 12 (Bulk)

•Carton Weight: 8.6lbs

Model 0328

Porcelain Socket Replacement

•Insulated Porcelain Socket 250W Max

•UPC: 078693-001109

•Carton Qty: 20 (Bulk)

•Carton Weight: 5.4lbs

Model 0110

8 ½” Incandescent Clamp Light

• 8 ½” Aluminum Shade

•Heavy Duty Tight Grip Non-Slip vinyl grip Clamp

•Heat resistant socket rated 150 watt

•12 FT 18/2 Cord

•UL Listed

•UPC: 078693-001512

•Carton Qty: 4

•Carton Weight: 6.10lbs

Model 2839

Trouble Lights

Plastic Guard Trouble Light

•Plastic Shield and Bulb Guard

•Hands free hang hook

•On\Off push switch

•18/2 6FT Power Cord

•Uses standard base incandescent

bulb

up to 75W (bulb not included)

•UL/CUL listed

Model E237

Plastic Guard 18/2 25’ SJTW

Trouble Light

•Plastic Shield and Bulb Guard

•Hands free hang hook

•On\Off push switch

•18/2 25FT Power Cord

•Uses standard medium base

incandescent bulb up to 75W (bulb

not included)

•UL/CUL listed

Model 0201

Metal Shield Trouble Light

•Metal reflective shield with protective grill

•Hands free hang hook

•On\Off push switch

•120V Grounded outlet

•16/3 6FT Power Cord

•Uses standard base incandescent bulb up to

75W (bulb not included)

•UL/CUL listed

Model E233

Plastic Guard 18/2 15' SJTW Trouble

Light

•Plastic Shield and Bulb Guard

•Hands free hang hook

•On\Off push switch

•18/2 15FT Power Cord

•Uses standard medium base incandescent

bulb up to 75W (bulb not included)

•UL/CUL listed

Model 0200

18/3 50FT Metal Shield Trouble Light w/

outlet

• Tough PVC construction makes handling

effortless

• Round orange vinyl jacket is flexible

•18/3 SJTW 50FT Power Cord

• Dual hook permits hanging by either guard or

handle

• Standard with power switches and bulb cages

• 75 Watt bulb maximum

• UL Listed

Model 0682

18/3 25FT Metal Shield Trouble Light

w/outlet

•Metal reflective shield with protective grill

•Hands free hang hook

•On\Off push switch

•120V Grounded outlet

•18/3 SJTW 25FT Power Cord

•Uses standard medium base incandescent

bulb up to 75W (bulb not included)

•UL/CUL listed

Model 0681

16/3 25FT Metal Shield Trouble Light

with outlet

•Metal reflective shield with protective grill

•Tough PVC construction makes handling

effortless

• Round orange vinyl jacket is flexible

•16/3 SJTW 25FT Power Cord

• Dual hook permits hanging by either the guard or

handle

•Standard with power switches and bulb cages

•75 Watt bulb maximum

•UL Listed

Model 0691

16/3 50FT Metal Shield Trouble Light

with outlet

•Metal reflective shield with protective grill

•Tough PVC construction makes handling effortless

• Round orange vinyl jacket is flexible

•16/3 SJTW 50FT Power Cord

• Dual hook permits hanging by either the guard or

handle

•Standard with power switches and bulb cages

•75 Watt bulb maximum

•UL Listed

Model 0692

16/3 50FT SJT YELLOW JACKET

TROUBLE LIGHT

•Yellow Jacket® Work Lights

•Flexible wire, high heat-resistant bulb collar

•13 amp grounded receptacle in handle

•Dual hang hooks

•Hex shape grounded metal shield

•Coated wire cage keeps hot reflector from

skin

•75 Watt Bulb Rating (120V)

•UL Listed

Model 2948

16/3 25FT SJEOW Metal Shield

Trouble Light with outlet

•Luma-Site® Polar/Solar® portable hand lamp

•Polar/Solar® cord and coated metal lamp

guard.

•Power switch and receptacle are provided.

•UL/CUL Listed; meets OSHA and NEC

requirements for general use

•Cord type: SJEOW, Cord jacket material: TPE

•Plug configuration: NEMA 5-15P

•Plug material: PVC

•Handle material: Thermoplastic, over-molded

•Handle color: Black with yellow over molded

•Lamp guard material: PVC coated metal

•Lamp switch: Push-through, in handle

•Cord temperature rating: -50 to +90o C

•Operating voltage: 125 VAC

•Maximum lamp wattage: 100 W

Model 05857

16/3 50FT SJEOW Metal Shield

Trouble Light with outlet

•Luma-Site® Polar/Solar® portable hand lamp

•Polar/Solar® cord and coated metal lamp

guard.

•Power switch and receptacle are provided.

•UL/CUL Listed; meets OSHA and NEC

requirements for general use

•Cord type: SJEOW, Cord jacket material: TPE

•Plug configuration: NEMA 5-15P, Material:

PVC

•Handle material: Thermoplastic, over-molded

•Handle color: Black with yellow over molded

•Lamp guard material: PVC coated metal

•Lamp switch: Push-through, in handle

•Cord temperature rating: -50 to +90o C

•Operating voltage: 125 VAC

•Maximum lamp wattage: 100 W

Model 05858

16/3 25FT SJT YELLOW JACKET

TROUBLE LIGHT

•Yellow Jacket® Work Lights

•Flexible wire, high heat-resistant bulb collar

•13 amp grounded receptacle in handle

•Dual hang hooks

•Hex shape grounded metal shield

•Coated wire cage keeps hot reflector from

skin

•75 Watt Bulb Rating (120V)

•UL Listed

Model 2893

14/3 25FT SJEOW Metal Shield Trouble Light with outlet

•Luma-Site® Polar/Solar® portable hand lamp with -50 to +90°C

•Coated metal lamp guard.

•Power switch and receptacle are provided.

•UL/CUL Listed; meets OSHA and NEC requirements for general

use

•Cord type: 14/3 SJEOW

•Cord jacket material: TPE

•Plug configuration: NEMA 5-15P, Material: PVC

•Handle material: Thermoplastic, over-molded

•Handle color: Black with yellow over-molded

•Lamp guard material: PVC coated metal

•Lamp switch: Push-through, in handle

•Operating voltage: 125 VAC

•Maximum lamp wattage: 100 W

Model 05657

14/3 50FT SJEOW Metal Shield Trouble Light with outlet

•Luma-Site® Polar/Solar® portable hand lamp with -50 to +90°C

•Coated metal lamp guard.

•Power switch and receptacle are provided.

•UL/CUL Listed; meets OSHA and NEC requirements for general

use

•Cord type: 14/3 SJEOW

•Cord jacket material: TPE

•Plug configuration: NEMA 5-15P,Material: PVC

•Handle material: Thermoplastic, over-molded

•Handle color: Black with yellow over-molded

•Lamp guard material: PVC coated metal

•Lamp switch: Push-through, in handle

•Operating voltage: 125 VAC

•Maximum lamp wattage: 100 W

Model 05658

Fluorescent Trouble Lights

13 Watt- 60 Watt Equivalent

Fluorescent Trouble Light

•Complete with 13 watt fluorescent bulb

•825 Lumens

•Polycarbonate Lens

•Shock resistant durable construction

•Hang Hook

•On/Off Switch

• 18” 18/2 SJT power cord

•1 year warranty

• UL/CUL listed

Model 48044

13 Watt Fluorescent Task Light

•Complete with 13 watt fluorescent

bulb

•825 Lumens

•Polycarbonate Lens

•Shock resistant durable construction

•Hang Hook

•On/Off Switch

•6FT 18/2 SJT power cord

•1 year warranty

• UL/CUL listed

Model L1797

13 Watt Fluorescent Task Light

•Heavy duty 3mm Chrome Metal Grill

•13 watt Fluorescent bulb

•825 lumen output

•On/Off switch

•Self Standing Base

•Fold Down Hook

•Non-slip Rubbereze™ Grip

•16/3 6FT Power Cord

•120V Grounded Outlet

•1 year warranty

• ETL listed

Model L1920

16/3 SJTW 6FT 13W Fluorescent Light with

outlet

•Complete with Energy Efficient 13 watt fluorescent bulb

•825 Lumens

•Polycarbonate Lens

•Shock resistant durable construction

•Hang Hook

•On/Off Switch

•Grounded 120V Outlet

•6FT 16/3 power cord

•1 year warranty

• UL/CUL listed

Model 48069

26 Watt Fluorescent Task Light

•Heavy duty 3mm Chrome Metal Grill

•2- 13 watt Fluorescent bulbs

•1650 lumen output

•Dual switches for 13W or 26W Light

•Self Standing Base

• Fold Down Hanging Loop

• Non-slip Rubbereze™ Grip

• 16/3 6FT Power Cord

•120V Grounded Outlet

•1 year warranty

• ETL listed

Model L1921

16/3 SJTW 25FT 13W Fluorescent Light with outlet

•Complete with Energy Efficient 13 watt fluorescent bulb

•825 Lumens

•Polycarbonate Lens

•Shock resistant durable construction

•Hang Hook

•On/Off Switch

•Grounded 120V Outlet

•25FT 16/3 power cord

•1 year warranty

• UL/CUL listed

Model 48067

16/3 SJTW Yellow Jacket® 15FT 13W Fluorescent Light with outlet

•Complete with Energy Efficient 13 watt fluorescent bulb

•825 Lumens

•Polycarbonate Lens

•Shock resistant durable construction

•Hang Hook

•On/Off Switch

•Grounded 120V Outlet

•15FT 16/3 Yellow Jacket® power cord

•UL listed

Model 38067

18/2 SJT 25FT 15W Fluorescent Light

•Yellow Jacket® Fluorescent Light

•Fluorescent bulbs are cool-burning and long lasting

•15 watt fluorescent bulb included

•Hang Hook

•On/Off switch

•25FT 18/2 SJT power cord

•Temporary Lighting for workshops, garages

•UL Listed

Model 38069

Hand Held Task Lights

36 LED Work Light with 6FT Cord

• 36 Long lasting Super bright LEDs

• 90 Lumens Light Output

• Polycarbonate Lens

• High output reflector

• Heavy duty Chrome Metal Grill

• Folding Hanging Loop

• Shock resistant durable construction

• Non-slip Rubbereze™ Grip

• Hands Free Self Standing Base

• On/Off switch

• 6FT 16/3 Power Cord

• Grounded 120V Outlet

Model L1922

72 LED Work Light

• 72 Long lasting Super bright LEDs

• 180 Lumens Light Output

• Polycarbonate Lens

• High output reflector

• Folding Hanging Loop

• Shock resistant durable construction

• Non-slip Rubbereze™ Grip

• Hands Free Self Standing Base

• On/Off switch

• 6FT 16/3 Power Cord

• Grounded 120V Outlet

Model L1923

36 LED Rechargeable Work Light

• Lithium Rechargeable Battery

• Heavy duty Chrome Metal Grill

• 6 Hour Run Time on Full Charge

• 90 Lumens Light Output

• Fold Down Hook

• Wall and Car Charger

• Non-slip Rubbereze™ Grip

• Self Standing Base

• Charge Indicator Light

Model L1924

72 LED Rechargeable Work Light

•Lithium Rechargeable Battery

•5 Hour Run Time on Full Charge

•180 Lumen Light Output

•Heavy Duty Chrome Metal Grill

•Fold Down Hook

•Non-Slip Rubbereze™ Grip

•Self Standing Base

•Wall and Car Charger

•Charge Indicator Light

Model L1925

2 X 3 Watt High Intensity LED

Work Light

• 3 Watt High Intensity Long lasting LEDs

• 540 Lumens Light Output

• Polycarbonate Lens

• High output reflector

• Folding Hanging Loop

• Shock resistant durable construction

• Non-slip Rubbereze™ Grip

• Hands Free Self Standing Base

• 6FT 18/2 120V Power Cord

• On\Off switch

Model L1926

13 LED Slimlite Trouble Light

•Hi impact ABS Body with Anti-roll body design.

•Easy find glow in the dark green shield.

•On/Off switch controls area/top spot/or both functions.

• LED’s offer years of maintenance free operation.

•12 LED Task Light & 0.3W Spot Light

•18 Hour Run Time, 20 Lumens (Spot Light)

•15 Hour Run Time, 24 Lumens (Task Light)

•8 Hour Run Time, 44 Lumens (Spot Light & Task Light)

•Non-Slip Rubbereze™ soft touch body, textured grip

•Powerful co-planar, nickel plated neodymium, rare-

earth magnet on back

•4AAA Eveready Batteries included.

•Available in Black

Model 1413

25 LED Slimlite Trouble Light

•Hi impact ABS Body with Anti-roll body design.

•Easy find glow in the dark green shield.

•On/Off switch controls area/top spot/or both functions.

• LED’s offer years of maintenance free operation.

•24 LED Task Light & 0.5W Spot Light

•12 Hour Run Time, 25 Lumens (Spot Light)

•10 Hour Run Time, 48 Lumens (Task Light)

•6 Hour Run Time, 73 Lumens (Spot Light and Task

Light)

•Non-Slip Rubbereze™ soft touch body and textured

grip

•Powerful co-planar, nickel plated neodymium, rare-

earth magnet on back

•4AAA Eveready Batteries included.

Model 1425

37 LED Slimlite Trouble Light

•Hi impact ABS Body with Anti-roll body design.

•Easy find glow in the dark green shield.

•On/Off switch controls area/top spot/or both functions.

• LED’s offer years of maintenance free operation.

•36 LED Task Light & 0.5W Spot Light

•12 Hour Run Time, 25 Lumens (Spot Light)

•7 Hour Run Time, 72 Lumens (Task Light)

•5 Hour Run Time, 97 Lumens (Spot Light and Task Light)

Non-Slip Rubbereze™ soft touch body and textured grip

•Powerful co-planar, nickel plated neodymium, rare-earth

magnet on back

•4AAA Eveready Batteries included.

Model 1437

6 SMD LED + 1 LED Pocket Light

•Long lasting Super Bright 6 SMD LED Pocket Light

•42 Lumens

•1 – 5mm LED top spot light

•6 Lumens

•High Impact ABS body

•Polycarbonate Lens

•Powerful co-planar, nickel plated neodymium,

•rare-earth heavy duty magnet on bottom

•Water and Dust resistant

•High Shock Resistance

•3 AAA Batteries included

•12 Hour Run Time with new batteries

Model 1453

10 X5630 SMD Battery Powered

Trouble Light

•Super Bright White 10 X 5630 SMD LG

LEDs

•300 Lumens

•High Impact ABS

•Rubberized exterior

•360° Swivel fold-out hook

•Polycarbonate Lens

•On\Off push button switch

•Powerful co-planar, nickel plated

neodymium, rare-earth magnet on

back

•Uses 4 AA batteries - Included

•4 hour run time with new batteries

Model 1450

10 X5630 SMD Rechargeable Trouble Light

•Super Bright White 10 X 5630 SMD LG LEDs

•300 Lumens

•Rechargeable 7.4V 200mA Lion Battery pack

•Bicolor LED Charge level indicator, flashes green &

red to know when recharged

•Home and car charger included

•High Impact ABS

•Rubberized exterior

•360° Swivel stainless steel fold-out hook

•Polycarbonate Lens

•On\Off push button switch

•Powerful co-planar, nickel plated neodymium, rare-

earth magnet on back

•Hand Free stand

•3 hour run time with full charge & 3 hour charging time

Model 1451

LED Battery Operated Cyclops Task Light

•1 Super Bright CREE LED

•100 Lumens

•High Impact ABS body

•Polycarbonate hook

•Aluminum directional light head on flexible neck

•Non-slip grip and belt clip

•On\Off push button

•3AAA Batteries included

•Water and Dust resistant

•High Shock Resistance

•Powerful co-planar, nickel plated neodymium, rare-earth

magnet in body

•Estimated 10 hour run time with new batteries

Model 1438

LED Rechargeable Cyclops Task Light

•1 Super Bright CREE LED

•100 Lumens

•High Impact ABS body

•Polycarbonate hook

•Aluminum directional light head on flexible neck

•Non-slip grip and belt clip

•On\Off push button

•3.7V 1500mAh Lithium-Ion Rechargeable battery

•Bicolor LED Charge level indicator, flashes green & red to know

recharged

•Water and Dust resistant

•High Shock Resistance

•Powerful co-planar, nickel plated neodymium, rare-earth magnet in

body

•4 hour run time with full charge

•3 hour charging time

Model 1439

16 LED Trouble/Spot Light with Punch List Laser™

•Aerospace grade aluminum body provides impact resistance.

•Anti-roll body design makes it easy to use on any job.

•On/Off switch controls area/spot/laser lights individually.

• Super bright LED’s offer years of maintenance free operation.

•The 16 LED area function emits 32 lumens of clear bright light.

•The 8 LED spot function emits 16 lumens bright directional light.

•Red Laser pointer function.

•Heavy-Duty base magnet provides hands free convenience.

•3 AAA Eveready batteries are included providing up to 6 hours of

area lighting use and up to 12 hours use as spot directional light.

•Counter 12 pack : 2-Silver, 2-Red, 2-Blue, 6-Black

5-7/8”x 7-15/16”x 9”

Model L1407

Counter 12 pack

5-7/8”x 7-15/16”x 9”

16 LED Task / 8 LED Spot Light with Laser Pointer

•Aerospace grade aluminum body provides impact resistance.

•Anti-roll body design makes it easy to use on any job.

•On/Off switch controls area/spot/laser lights individually.

• Super bright LED’s offer years of maintenance free operation.

•The 16 LED area function emits 32 lumens of clear bright light.

•The 8 LED spot function emits 16 lumens bright directional light.

•Red Laser pointer function.

•Heavy-Duty base magnet provides hands free convenience.

•3 AAA Eveready batteries are included providing up to 6 hours of area

lighting use and up to 12 hours use as spot directional light.

•Clam packaging. Black only.

Model L1411

Batteries Included!

6 High Intensity SMD LED w/4 LED

Top Spot Rechargeable Work Light

•48 Lumens

•Poly Lens

•Folding Hang Hoop

•Shock Resistant

•Self Stand Base

•Non-slip grip

•On/Off switch controls Task and Top

lighting separately

•Lithium Rechargeable Battery

•Home Charger included

Model 48068

24 LED Trouble Light

•24 Long Lasting Super Bright LEDs

•48 Lumens

•3AA Batteries Included

•Estimated 3 Hour Run Time on New Batteries

•Non-slip Rubbereze™ Grip

•Folding Swivel Hook

•Strong Magnet on the back

Model L-1198

Flexi LED Task Light

• .07 watt LED

• 14” Flexible arm

• Durable shock resistant design

• 12 Hour Run Time

• Heavy Duty Magnetic Base

• Push On/Off Switch

• Batteries Included

Model L1196

21 LED HEAD LIGHT

•42 Lumens

•Uses 21 Super Bright Long lasting LEDs

•3 Power Settings & Flash Mode

•Weatherproof switch

•Adjustable Lycra bands

•Uses 3 AAA batteries (included)

Model L1240

LED Pen Light

• Uses one high intensity CREE brand

LED

•Requires 3 AAAA batteries for

operation (included)

•Durable and shock resistant design

•Minimal power consumption for

extended battery life

•On/Off switch designed for single hand

momentary use or constant light

operation

Model L1197

20FT Retractable Cord Reel

33LEDs Work Light

•83 Lumens

•33 Long Lasting Super Bright

LEDs

•On/Off switch

•360° Revolving Hook

•18/2 SJTW 20FT Power Cord R

•Retractable cord reel

•Shock resistant with soft body

Model 48066

30FT 16/3 Retractable Cord Reel with 72

LED Work Light

•Diamond Plate Design on Both Sides of Metal

Reel

•16/3 30FT High Visibility Striped Power Cord

•180 Lumen Light Output

•Heavy Duty Chrome Metal Grill

•Fold Down Hang Hook

•Non-Slip Rubbereze™ Grip

•Self Standing Base

Model E319

Halogen Work Lights

1000W Twin Head Halogen Work Light

•Telescoping tripod stand with ¼ quick turn locking nuts

• Telescopes up to 42” tall

•Complete with two 500 watt halogen bulbs

•All metal construction

•Tempered Glass for safety with UV protection

• Shadow Fighter ™ grill frames

•Two weatherproof On / Off switches

•Easy grip adjustment nuts

• 4’ 18/3 grounded power cord

•Heads rotate 360°

•16,000 lumen output

Model L13

500 Watt Halogen Portable

Work Light

•All metal construction

•Heavy Duty comfort grip handle

•Shadow fighter grill

•Tempered glass

• 1’ 18/3 grounded power cord

•Complete with one 500 watt

halogen bulb

•8,000 lumen output

•UL/CUL listed

Model L20

150 Watt Halogen Clamp Light

•150W halogen bulb included

•Made with die cast aluminum

•Hinged covers with wire grill guards

•Heat resistant tempered glass

•Adjustable tilting head

•Heavy duty clamp

•Hanging hook

• 5‘ power cord

•2,400 lumen output

•UL/CUL listed

Model L835

250 Watt Halogen Clamp Light

•Includes heavy duty clamp

•360° swivel hook

•Shadow Fighter grill

• 5’ 18/3 grounded power cord

•Comes with 250 watt halogen bulb

•4,000 lumen output

• UL/CUL listed

Model L845

250 Watt Halogen Portable Work light

•With Comfort Grip heavy duty handle

•Tempered Glass for safety with UV protection

• Shadow Fighter ™ grill

• 1’ 18/3 grounded striped power cord

•Complete with one 250 watt halogen bulb

•4,000 lumen output

•UL/CUL listed

Model L860

500 Watt Halogen Tripod Work Light

• Telescopes to 51” tall with Easy Grip

locking nuts

•Portable sled base and tripod base

included

•Tempered Glass for safety with UV

protection

•With Comfort Grip heavy duty handle

•Weatherproof on/off switch

• Shadow Fighter ™ grill

•With 4FT 18/3 grounded striped power

cord

•Complete with 500 watt halogen bulb

•8,000 lumen output

•UL/CUL listed

Model L10

500 Watt Halogen Twin Head Tripod Work

Light

• Telescopes to 42” tall with Easy Grip locking nuts

•Portable sled base and tripod base included

•With Comfort Grip heavy duty handle

•Extra bulb storage tube with spare bulb

•Two weatherproof on/off switches for individual

light control

•With Shadow Fighter grill

• With 4’ 18/3 grounded striped power cord

•Complete with two 250 watt halogen bulbs

•8,000 lumen output

•UL/CUL listed

Model L1719

2/7/2014 4

500 Watt Halogen Portable Work light

•With foam grip handle

•Two Easy light adjustment knobs

•Weatherproof on/off switch

•Complete with one 500 watt halogen bulb

•3FT 18/3 grounded power cord

•8,000 lumen output

•UL/CUL listed

Model L33

1,000 Watt Halogen Twin Head Tripod Work light

• Telescopes to 68” tall with Easy Grip locking nuts

•Portable sled base and tripod base included

•Comfort Grip heavy duty handle

•Easy grip ¼ turn locking nuts

•Two weatherproof on/off switches

• 5’ 18/3 grounded power cord

•With extra bulb storage tube

•Complete with two 500 watt halogen bulbs

•16,000 lumen output

• UL/CUL listed

Model L14

250 Watt Halogen 4-N-1 Work

Light

•Includes heavy duty clamp, hanging

hook, portable base and yard stake

•Tempered Glass for safety with UV

protection

• Shadow Fighter ™ grill frame

•Large deeper housing for cooler

operation

•Weatherproof On/Off switch

• 3’ 18/3 grounded cord

•Comes with 250 watt halogen bulb

•4,000 lumen output

•UL/CUL listed

Model L878

500 (2 x 250) Watt Halogen 160° Wide

Angle Wall to Wall Portable Work

Light

•Patented design lights up to 160º per head

•Hinged style face frame

•Separate weatherproof on/off switches for

light control

• 5’ 18/3 grounded power cord

•Complete with three 250 watt halogen bulbs

(one spare)

•Extra bulb and storage tube

•8,000 lumen output

•UL/CUL listed

Model L5200

600 (2 X 300) Watt Halogen

Power Light

•Foam handle and non-skid base

•Large face frame and deep finned housing

for cooler operation and longer bulb life

•Extra bulb storage tube with spare bulb

•Two weatherproof on/off switches for

individual light control

• 5’ 18/3 grounded power cord

•Complete with three 300 watt halogen bulbs

(one spare)

•9,600 lumen output

•UL/CUL listed

Model L38DB

1200 Watt Halogen Twin Head Tripod

Power Light

•Portable sled base and tripod base included

•Hinged style face frame

•Adjustable extension leg for use on uneven

surfaces with easy grip nuts

•Two weatherproof on/off switches for

individual light control

• 5’ 18/3 grounded high visibility striped power

cord

•With extra bulb storage tube and 5 – 300 watt

halogen bulbs (1 spare)

•Wire cord storage brackets

•Cord loop on tripod

•19,200 lumen output

•UL/CUL listed

Model L19

500 Watt Halogen Spring

Mounted Power Light

•Professional grade construction

•Light housing supported by

stainless steel springs, providing

protection against impact,

extending bulb life

•Heavy duty style roll cage give

maximum protection

•Extra bulb storage tube

• 10’ 18/3 grounded power cord

•Complete with two 500W

halogen bulbs (one spare)

•8,000 lumen output

•UL and CUL listed

Model L113

700 Watt Double Bulb Halogen

Portable Power Light

•Heavy duty construction uses one

200 watt and one 500 watt bulb for

700 watts

•Two separate on/off switches for

individual light control total

•Large hinged style face frame and

deep finned housing for cooler

operation and longer bulb life

•Two extra bulb storage tubes and

one 200 watt and one 500 watt

spare bulb

• 5’ 18/3 grounded power cord

•11,200 lumen output

•UL/CUL listed

Model L5500

1000 Watt Wide Angle Double Bulb

Halogen 160° Wall to Wall Work Light

•Patented design lights up to 160º wide

angle

•Heavy Duty metal grill

•U Shaped Carry Foam padded Handle

•Two separate weatherproof on/off switches

for individual light control

•Complete with three 500 watt halogen

bulbs (one spare)

•Extra bulb storage tube

•Steel H-base with non-skid feet

•Cord wrap on base

• 5’ 18/3 grounded power cord

•16,000 lumen output

•UL/CUL listed

Model L5203

500 Watt Halogen Swing

Arm Work Light

•Great for garages or truck

loading bays

•Professional grade construction

•Uses 500W bulb

•Comes with spare bulb storage

tube plus one extra 500W bulb

•Adjustable arm extends from

wall 40”

•Weatherproof on/off switch

•10ft 18/3 grounded striped

power cord

•8,000 lumen output

•UL/CUL listed

Model L41

1400 Watt Double Bulb Halogen 2-in-1 Tripod Power Light

• Telescopes to 72” tall with Easy Grip ¼ turn locking nuts

•Portable sled base and quick connect telescoping tripod base included

•Foam grip handles

•Hinged style face frames

•Shadow Fighter grills

•Easy light adjustment knobs

•Complete with (3) 200 watt halogen bulbs, and (3) 500 watt halogen bulbs

– one spare for each

•Two Storage Tubes for spare bulbs

•Two Sealed weatherproof switches

•7 Light Levels 200W / 400W / 500W / 700W / 1000W / 1200W / 1400W

•Wire cord storage brackets

•Includes wire loop on leg for cord management

•Adjustable extension leg for use on uneven surfaces

•7FT 18/3 grounded power cord 26,400 lumen output

•CSA listed in US and CA

Model L5502

Patented Product

US D477,463 S – 5,845,989

US D438,667 S

US D484,694 S

US 6,416,206 B1

Fluorescent Work Lights

130 Watt 2-in-1 Heavy Duty

Fluorescent Work light

•Cool to the touch

•With 2 – 65 watt 6500K fluorescent bulbs

•Fluorescent bulbs last up to 5 times longer than halogen

bulbs

•Sled base and tripod base included

•Adjustable extension leg for use on uneven surfaces

• Telescopes to 72” with Easy Grip locking nuts

•Wire cord storage bracket on sled base and cord loop

•With non slip handle and feet

•Extra heavy duty telescoping base

• 7’ 18/3 grounded striped power cord

•8,600 lumen output

•UPC: 090529-619630

•Carton Qty: 1

•Master cube: 2.40

•Master weight: 28.25 lbs

Model L2005

Patented Product

US D438,667 S

65 Watt Fluorescent Portable Work light

•Cool to the touch

•Fluorescent lasts up to 5 times longer than halogen

•Bright white light control

•On/off switch

•With non-slip handle and feet

• 5’ 18/3 grounded striped power cord

•Complete with 65 watt fluorescent lamp – 6500K

•4,800 lumen output

•UL/CUL listed

•UPC: 090529-619623

•Carton Qty: 4

•Master cube: 4.71

•Master weight: 41.54lbs

Model L2004

65 Watt Fluorescent 360º Portable Work Light

•Adjustable design allows positioning at various angles

•6500K bright white 65W self ballasted CFL included

•4800 Lumens

• 5’ SJTW polarized power cord

•Grounded outlet on base

•Weatherproof on/off switch

•Includes wall mount bracket

•UPC: 090529621657

•Carton Qty: 4

•Master cube: 2.24

•Master weight: 19.54lbs

Model L2006

300 Watt Equivalent 65 Watt Fluorescent

360º Portable Work light with adjustable

stand.

•Includes 65W 4U CFL Self ballasted bulb with

standard base

•Adjustable Telescoping Tripod stand

•Prismatic Lens Reflects bright Fluorescent light 360°

•Adjustable design allows the light to position at up to

180° angles

•Easy turn light adjustment knob

•6500K Color Temperature

•16/3 SJTW 5FT polarized power cord

•Grounded outlet on light base

•Weatherproof on/off switch

Model L2008

LED Work Lights

108 LED ECO-ZONE™

Portable Work Light

•350 Lumens

•6500k color temperature

•18/2 hi-vis 6ft. green/black striped cord

•120 volt AC direct plug

•Uses 108, 45° super bright LED’s

• Super bright long lasting LED’s

•Cool to the touch

•Weatherproof on/off switch

•Durable polymeric housing

•High output mirror reflector

Model L1306

15W ECO-ZONE™ Portable Work Light

•492Lumens

•4800K Color Temperature

•6FT of 18/2 power cord.

•120 volt AC direct plug.

•5 X 50,000 hours rated high power CREE LEDs.

•Weatherproof on/off switch.

•Durable polymeric housing with steel H-Base.

•Cool to the touch.

Model L1312

108 LED RECHARGEABLE

ECO- ZONE™ Portable Work Light

•350 Lumens

•6500k color temperature

•Rechargeable 12-volt portable design

•7.4V 1300mAh Lithium Ion battery

•2 hours run time

•3 hour charge time

•Dual charge / run feature

•6ft. cord with 12V 500mA transformer

•Uses 108, 45° super bright LED’s

•Weatherproof on/off switch

•Durable polymeric housing with steel H-base

•Cool to the touch

Model L1313

24 High Intensity SMD LED ECO-

ZONE™ Portable Work Light

•24 SMD High Intensity LEDs made

by LG or Samsung

•State of the art Surface Mount Diode

LEDs

•779 Lumens

•5700k color temperature

•Cool to touch

•Die cast housing and Steel H-base

•High output mirror reflector

•3ft. 18/3 power cord with120V plug

•Weatherproof on/off switch

•Foam Handle and Non-skid feet

Model L1323

24 High Intensity SMD LED ECO-ZONE™

RECHARGEABLE Portable Work Light

•24 SMD High Intensity LEDs made by

Samsung

•State of the art Surface Mount Diode LEDs

•779 Lumens

•5700k color temperature

•Rechargeable 12-volt portable design

•7.4V 2200mAh Lithium-ion rechargeable

battery

•3 hour charge time

•1 hour 40 minute runtime on full charge

•Dual charge / Run feature

•Cool to touch

•Die cast housing and steel H-base

•3ft. cord with 12v 500mA transformer

•Weatherproof on/off switch

•Foam Handle and Non-skid feet

Model L1320

63 LED ECO-ZONE™ Portable Work Light

•1,681 Lumens

•6600k color temperature

•Highly polished black reflector

•Durable polymeric housing with steel H-base

•6ft. 18/2 power cord with120V plug

•63 High Intensity Hongli-Tronic brand LED’s

•Weatherproof on/off switch

Model L1315

40 LED ECO-ZONE™ Portable Work Light

•1,244 Lumens

•5900k color temperature

•Cool to touch

•Die cast housing and steel H-base

•High output mirror reflector

•3ft. 18/3 power cord with120V plug

• 40 High Intensity LED’s made by

LG or Samsung

•Weatherproof on/off switch

Model L1324

48 High Intensity SMD LED Twin Head Portable Work Light

•State of the art Surface Mount Diode High Intensity 5630 LEDs

•779 Lumens x 2 = 1,558 Total

•5700k color temperature

•Sled Base with Quick Release and U Shaped Carry Handle

• Adjustable Telescoping (54”) Tripod Stand

•Cool to touch

•Die cast housings

•Easy turn light adjustment knobs

•High output mirror reflectors

•5ft. power cord with120V plug

•Weatherproof on/off switches

•Comfort Grip Foam Handles and Non-skid feet

Model L1322

23W Array LED AC Portable Work Light

•1 High Intensity Bright White LED

•LED is extremely more durable than halogen bulb

•Less electronics equal less product failures

•Shadow Free 120° Wide Angle Light Beam

•5200k color temperature

•1474 Lumens

•Only consumes 23 watts of power

•Cool to touch

•Die cast housing and Steel H-base

•Aim-N-Go tool free head adjustment

•3ft. 18/3 power cord with120V plug

•Weatherproof on/off switch

Model L1681

46W Array LED AC Twin Head Telescoping Tripod

Work Light

•2 High Intensity Bright White Paragon Array LEDs

•LED is extremely more durable than halogen bulb

•AC means less electronics equals less product failures

•Shadow Free 120° Wide Angle Light Beams

•5200k color temperature

•1474 Lumens X 2 = 2, 948 total

•Only consumes 46 watts of power

•Cool to touch

•Die cast housing and Steel H-base

•Aim-N-Go tool free head adjustment

•5ft. 18/3 power cord with120V plug

•Weatherproof on/off switches

•cUL

Model L1682

46W Array LED AC Portable EcoZone Work Light

•1 High Intensity Bright White LED

•LED is extremely more durable than halogen bulb

•Less electronics because of AC equals less product failures

•Shadow Free 120° Wide Angle Light Beam

•5700k color temperature

•3,177 Lumen output Only consumes 46 watts of power

•Cool to touch

•Die cast housing and Steel H-base

•Aim-N-Go tool free head adjustment

•3ft. 18/3 power cord with120V plug

•Weatherproof on/off switch

•UPC: 090529-613256

•Master Carton: 6

Model L1325

92W Array LED AC Twin Head Telescoping Tripod

Work Light

•2 High Intensity Bright White Paragon Array LEDs

•LED is extremely more durable than halogen bulb

•Less electronics because of AC equals less product failures

•Shadow Free 120° Wide Angle Light Beam

•5700k color temperature

•6,354 Lumen output (2 X 3,177 Lumens)

•Only consumes 88 watts of power

•Cool to touch

•Die cast housing and Steel H-base

•Aim-N-Go tool free head adjustment

•5ft. 18/3 power cord with120V plug

•Weatherproof on/off switches

Model L1326

Product Detail Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
