Boxes Ƈ Fittings Ƈ Devices Ƈ Surge Ƈ Weatherproof Ƈ Covers Ƈ Wallplates

TABLE OF CONTENTS

A METAL BOXES, COVERS AND ACCESSORIES

B NON-METALLIC BOXES

C WALL PLATES

D FITTINGS

J SURGE PROTECTION DEVICES

I-III GENERAL INFORMATION

H WEATHERPROOF BOXES, COVERS & LIGHTING

I SPECIALTY SWITCHES

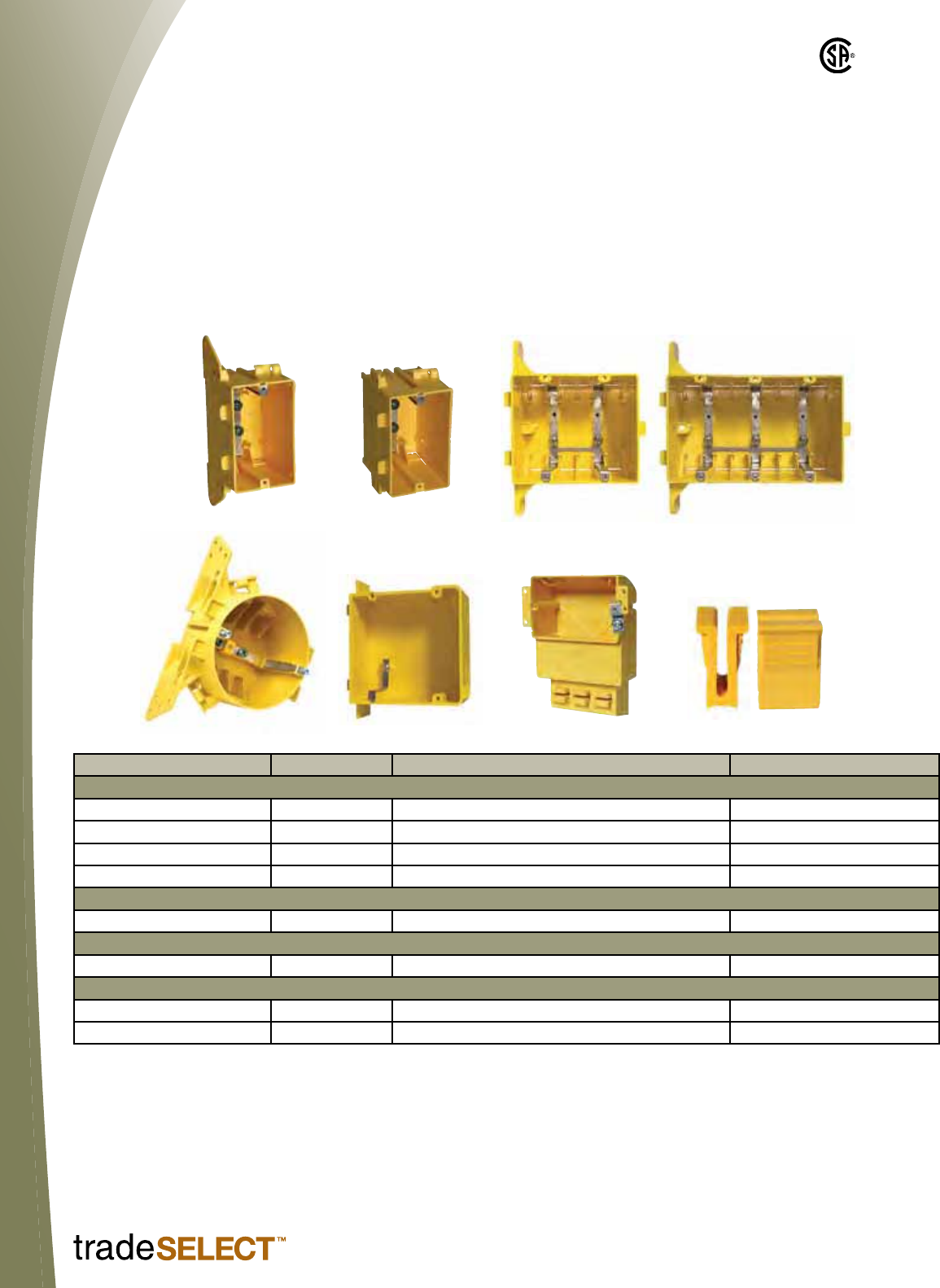

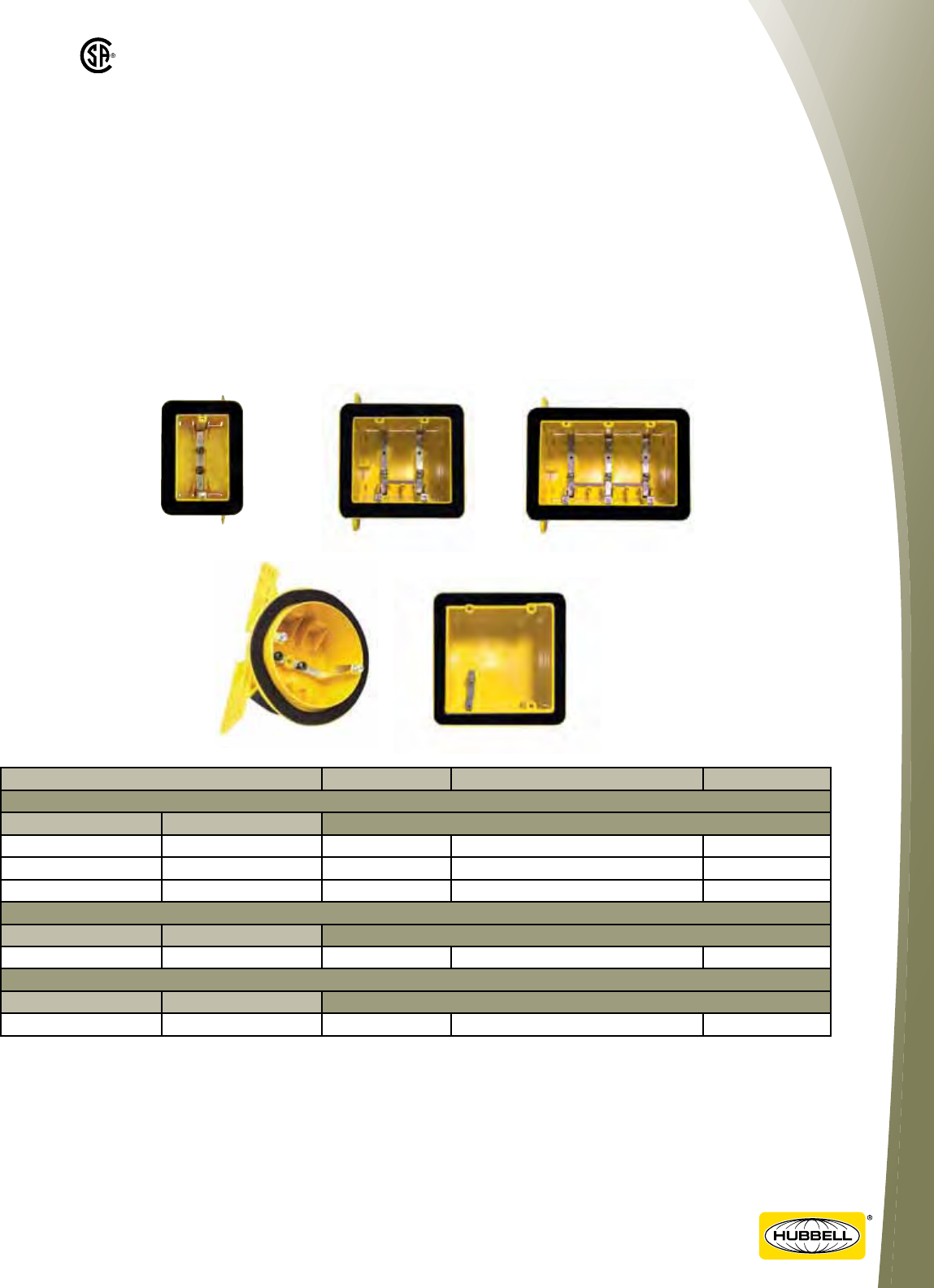

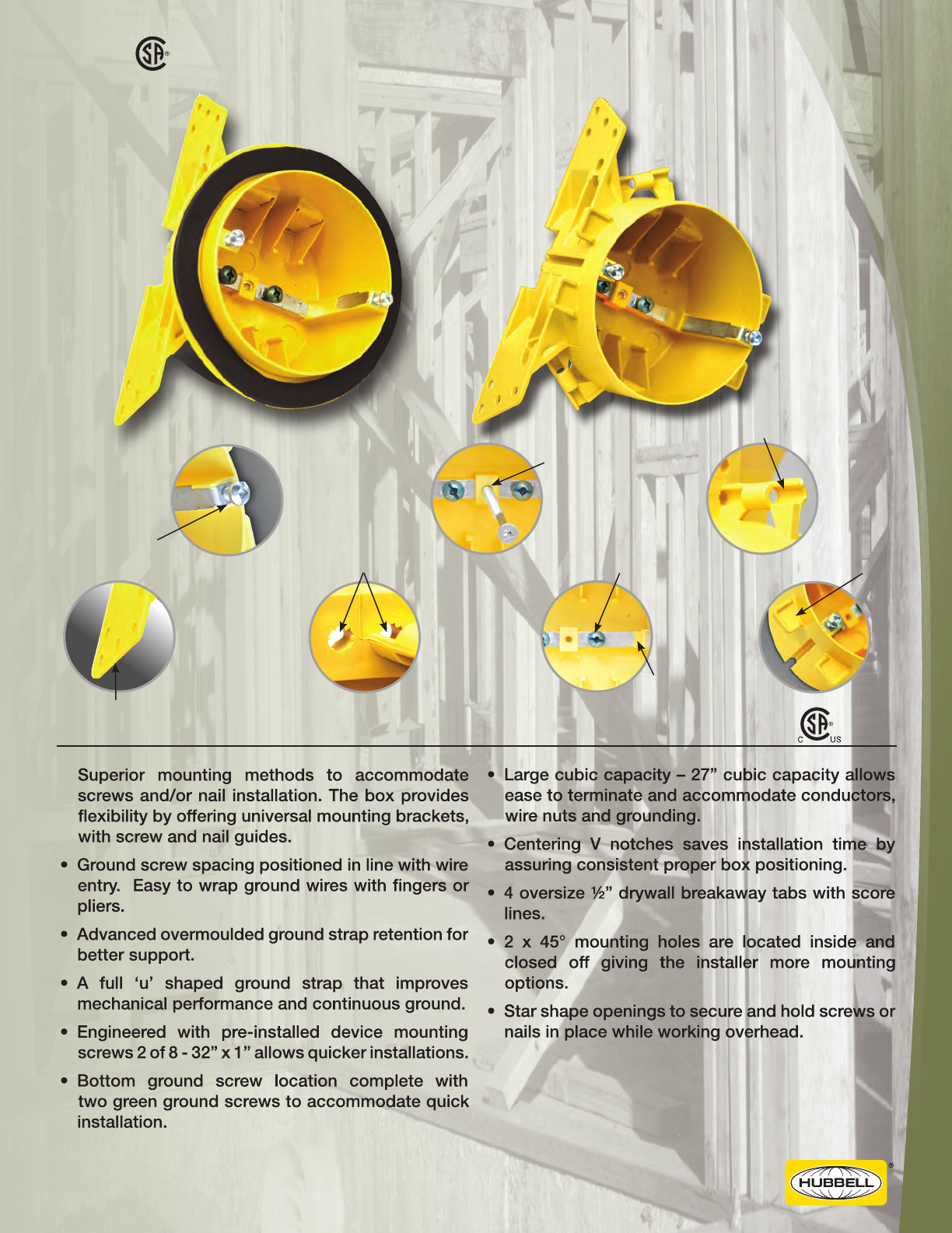

Standard Non-Metallic Boxes ............................................. B1-B2

Vapour/Air Barrier Non-Metallic Boxes ...............................B3-B4

General Information ....................................................................... ii

Electrical Code Requirements ................................................. iii-iv

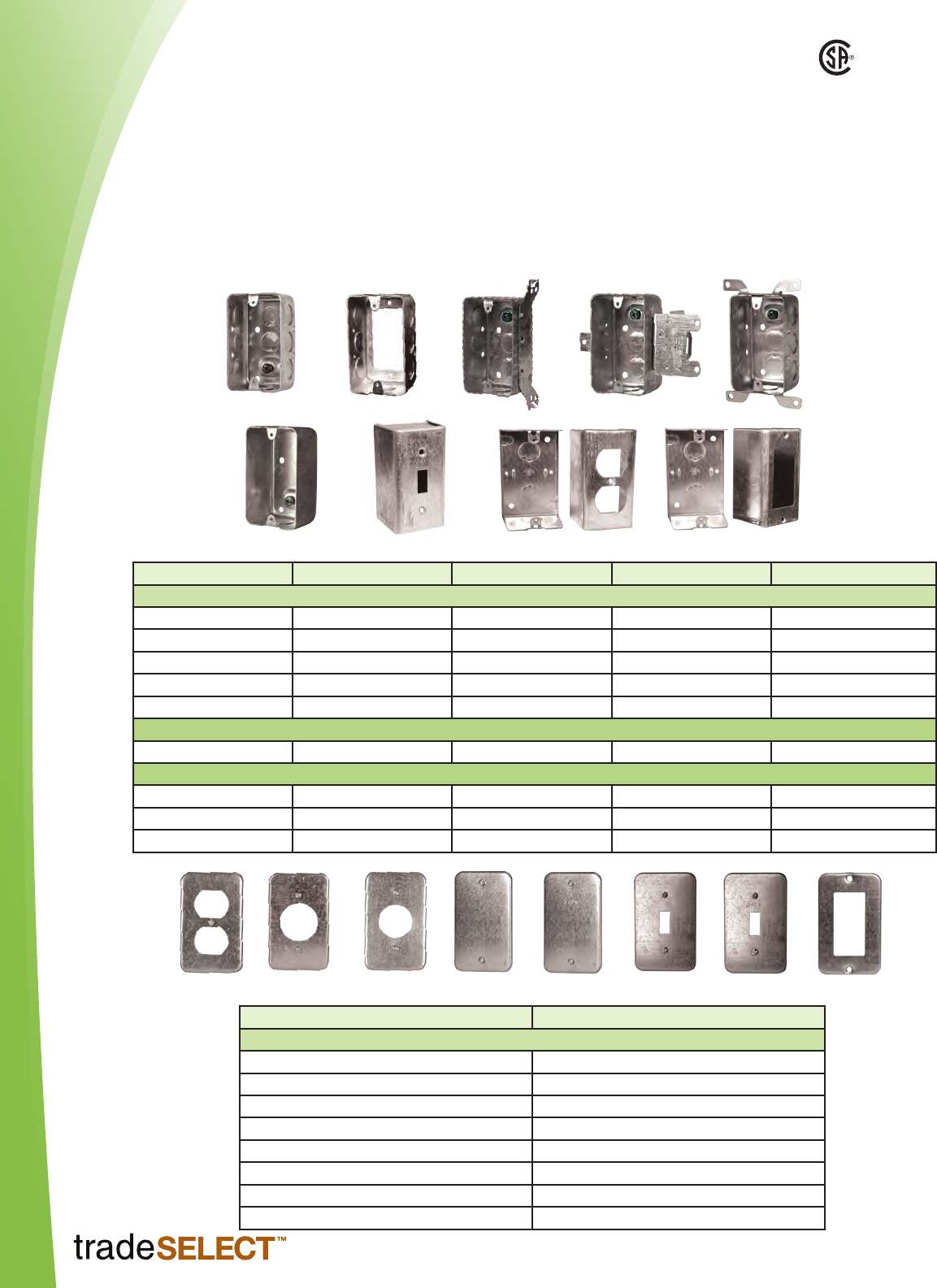

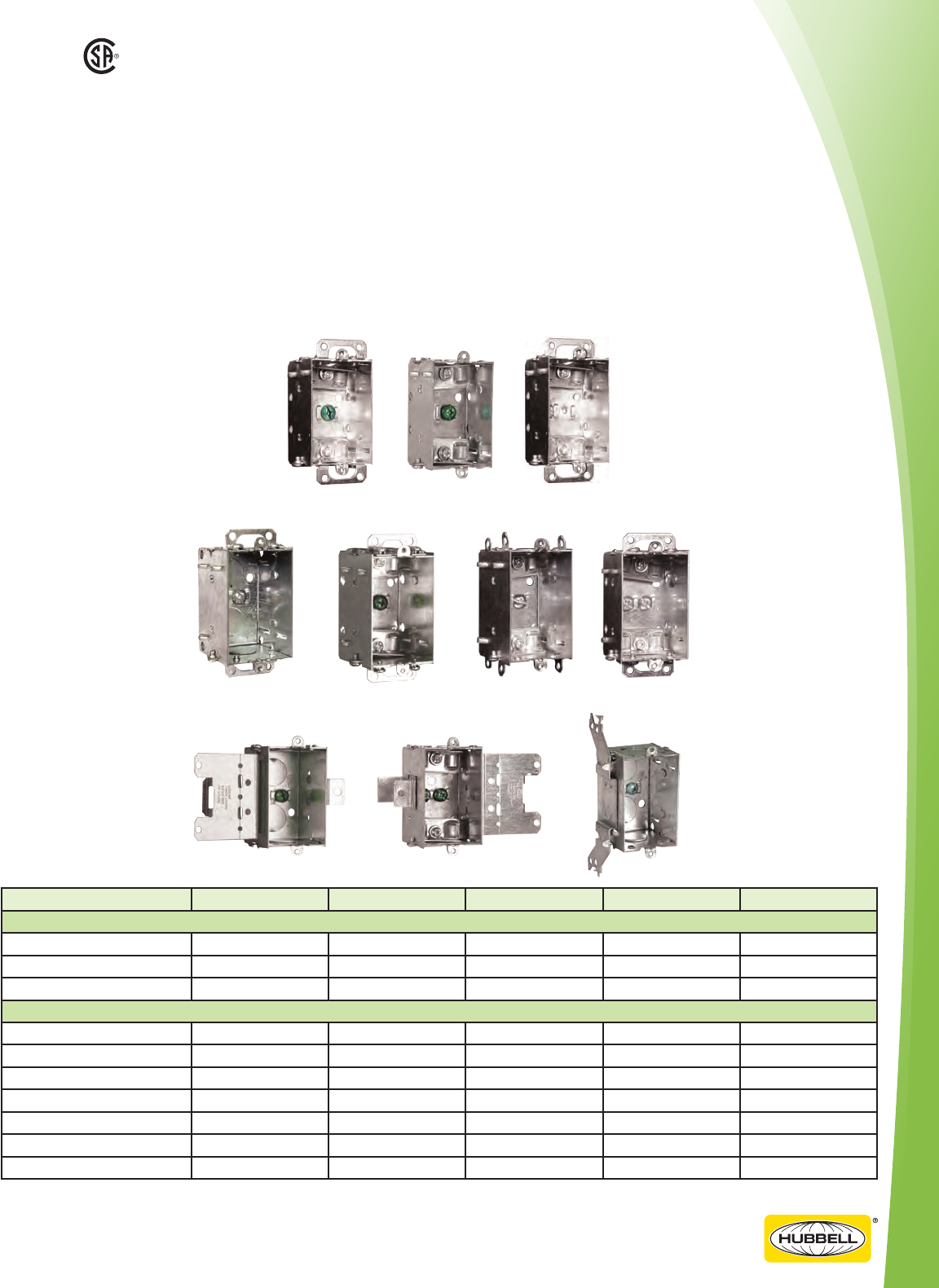

Device Boxes .........................................................................A1-A5

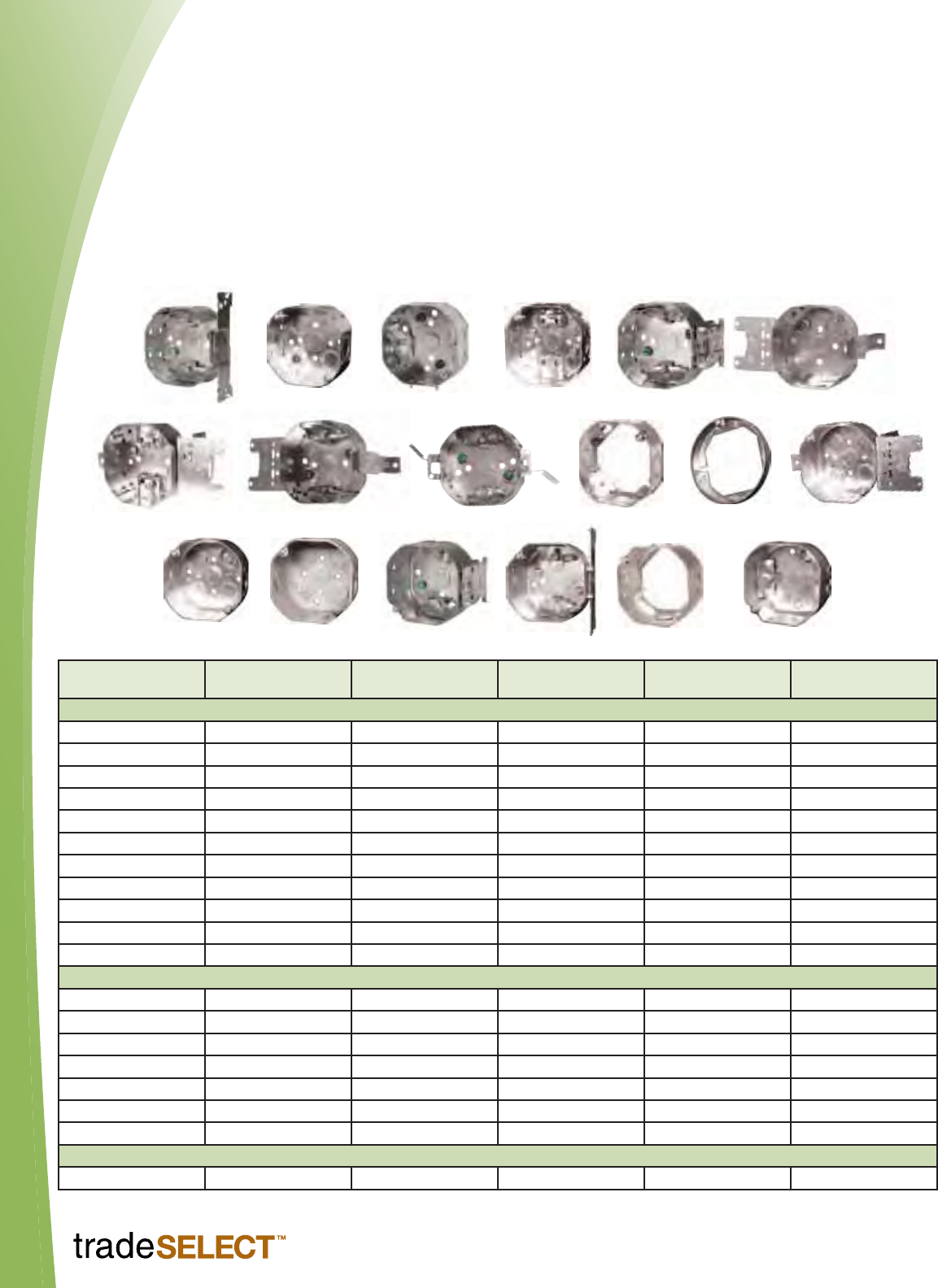

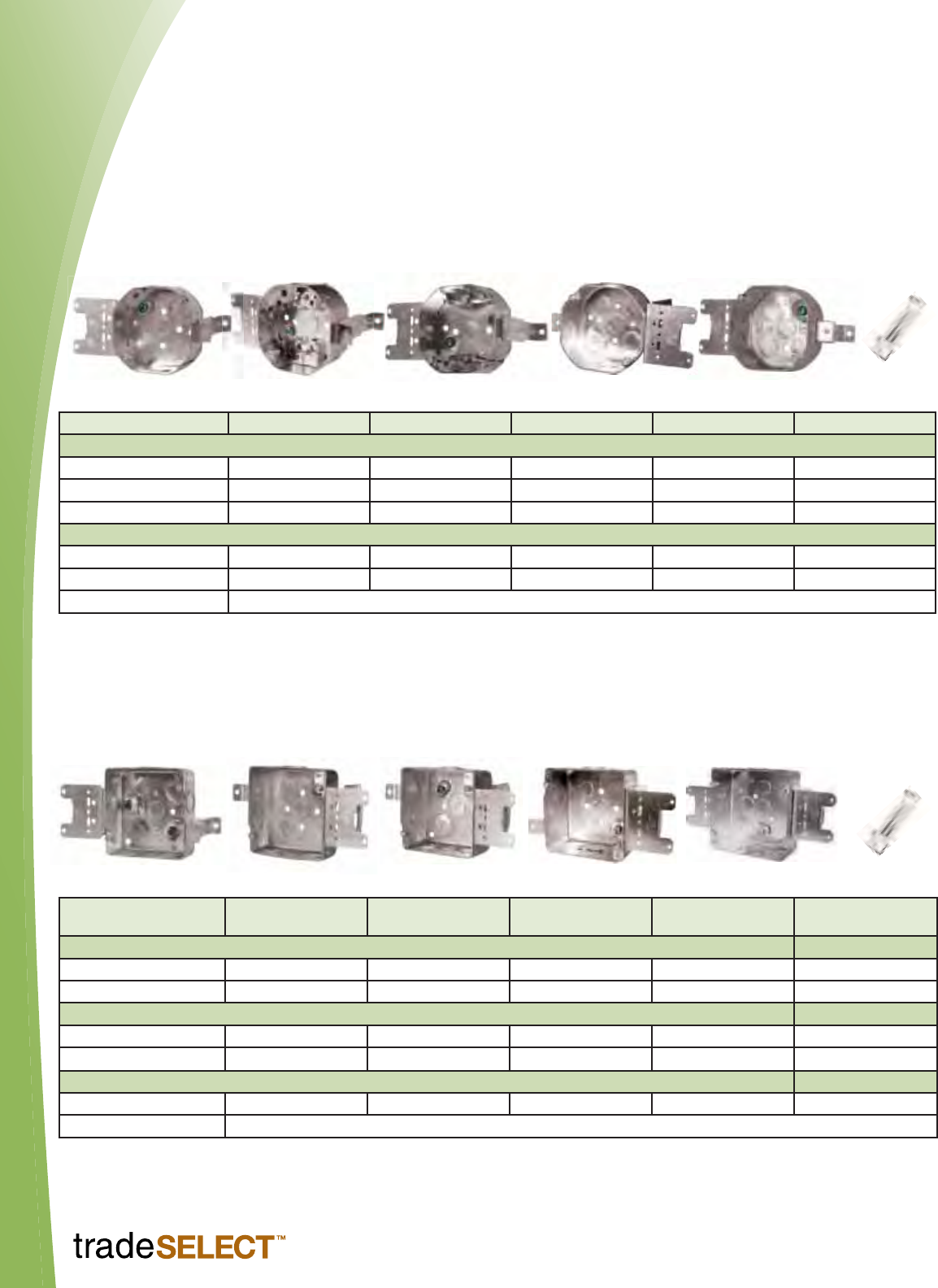

Octagon Boxes ..................................................................... A6-A7

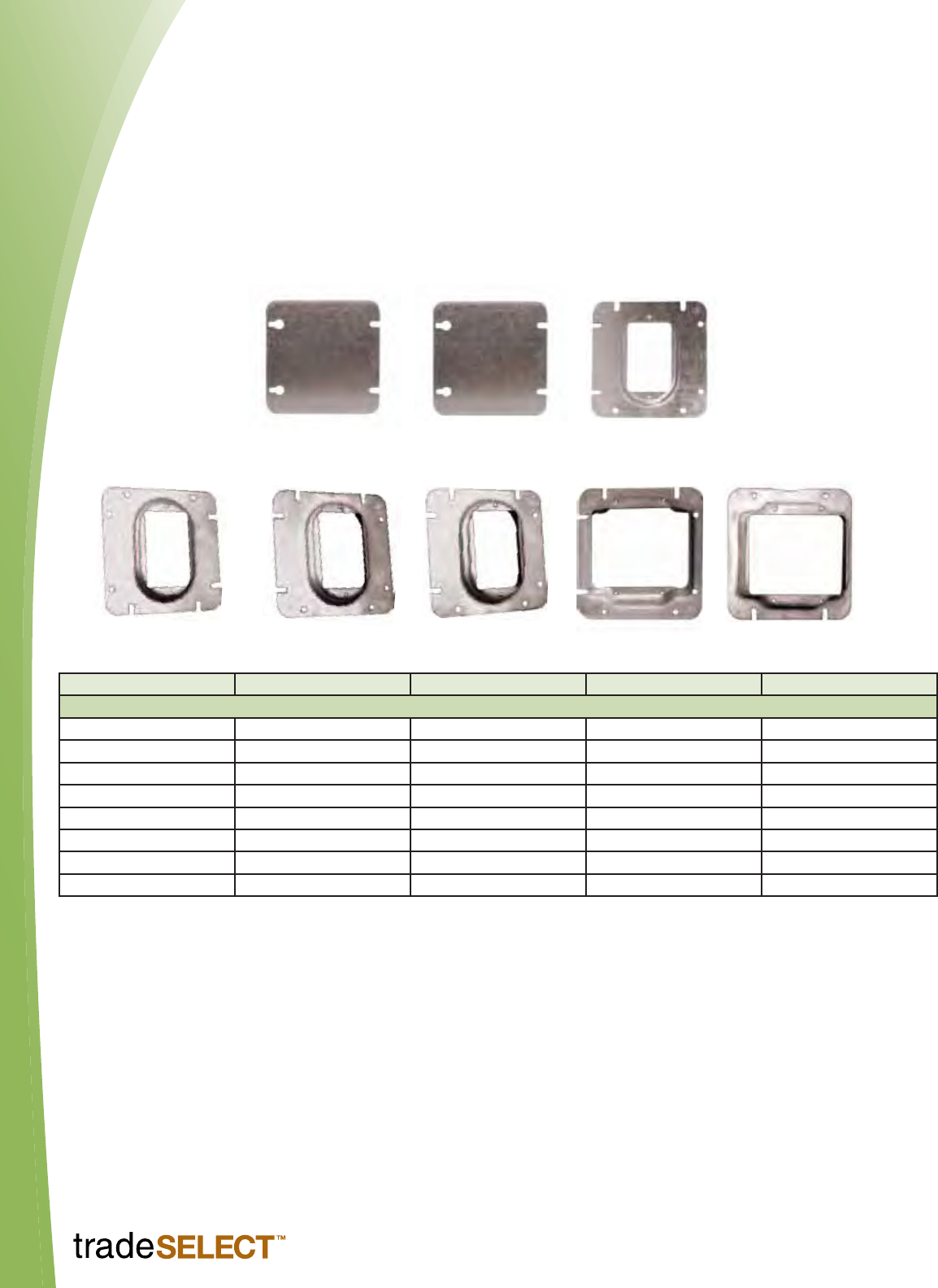

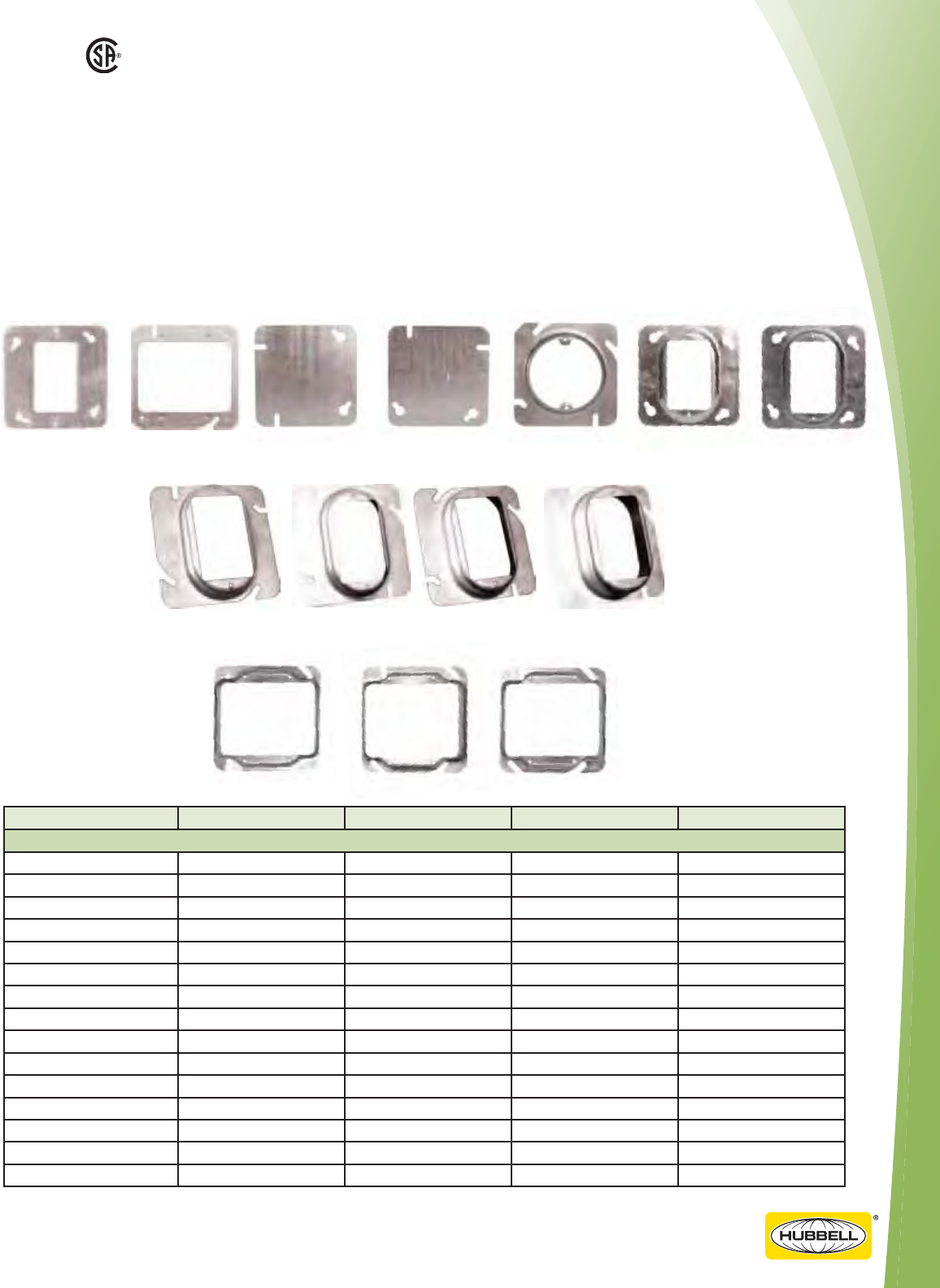

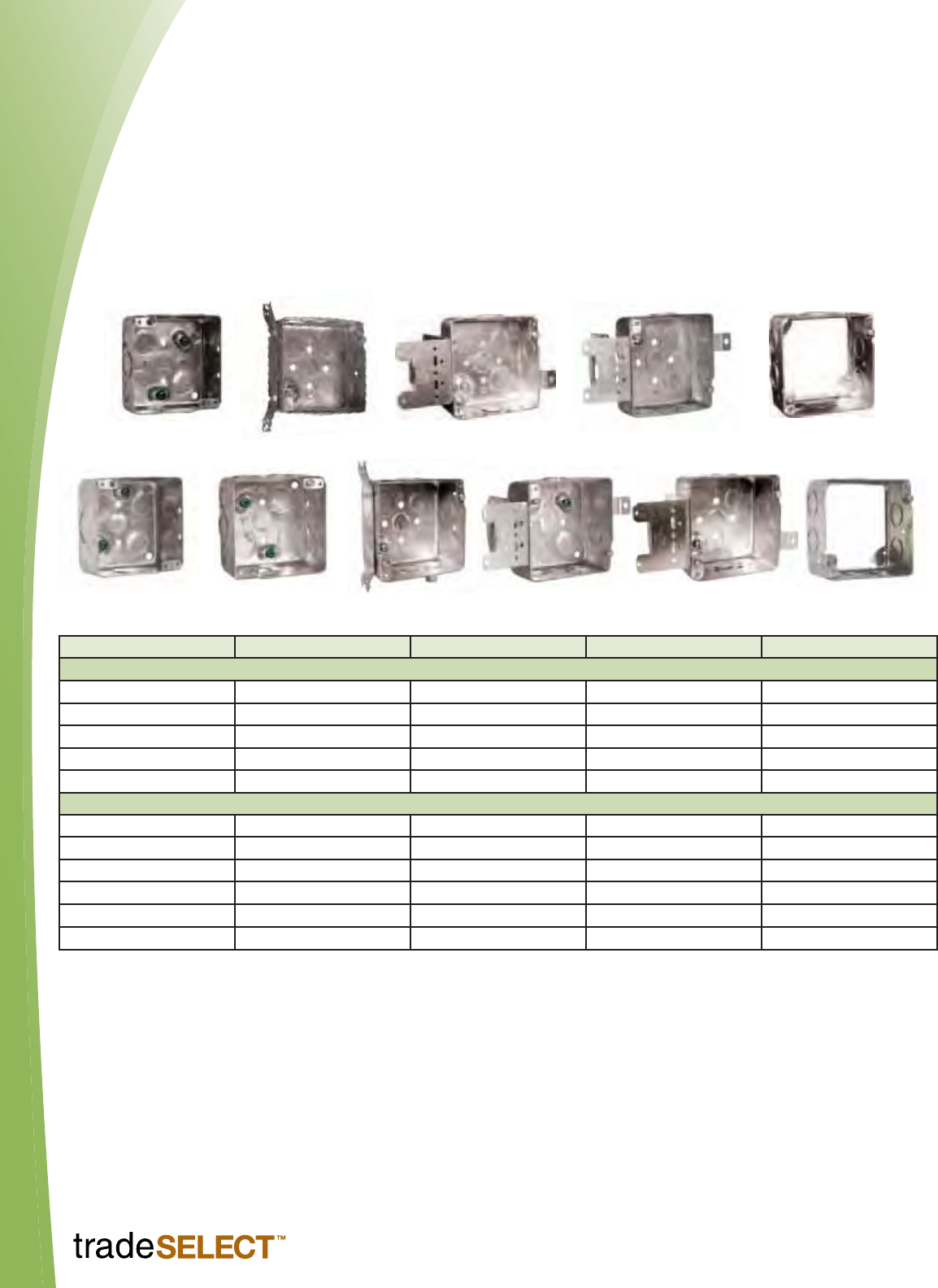

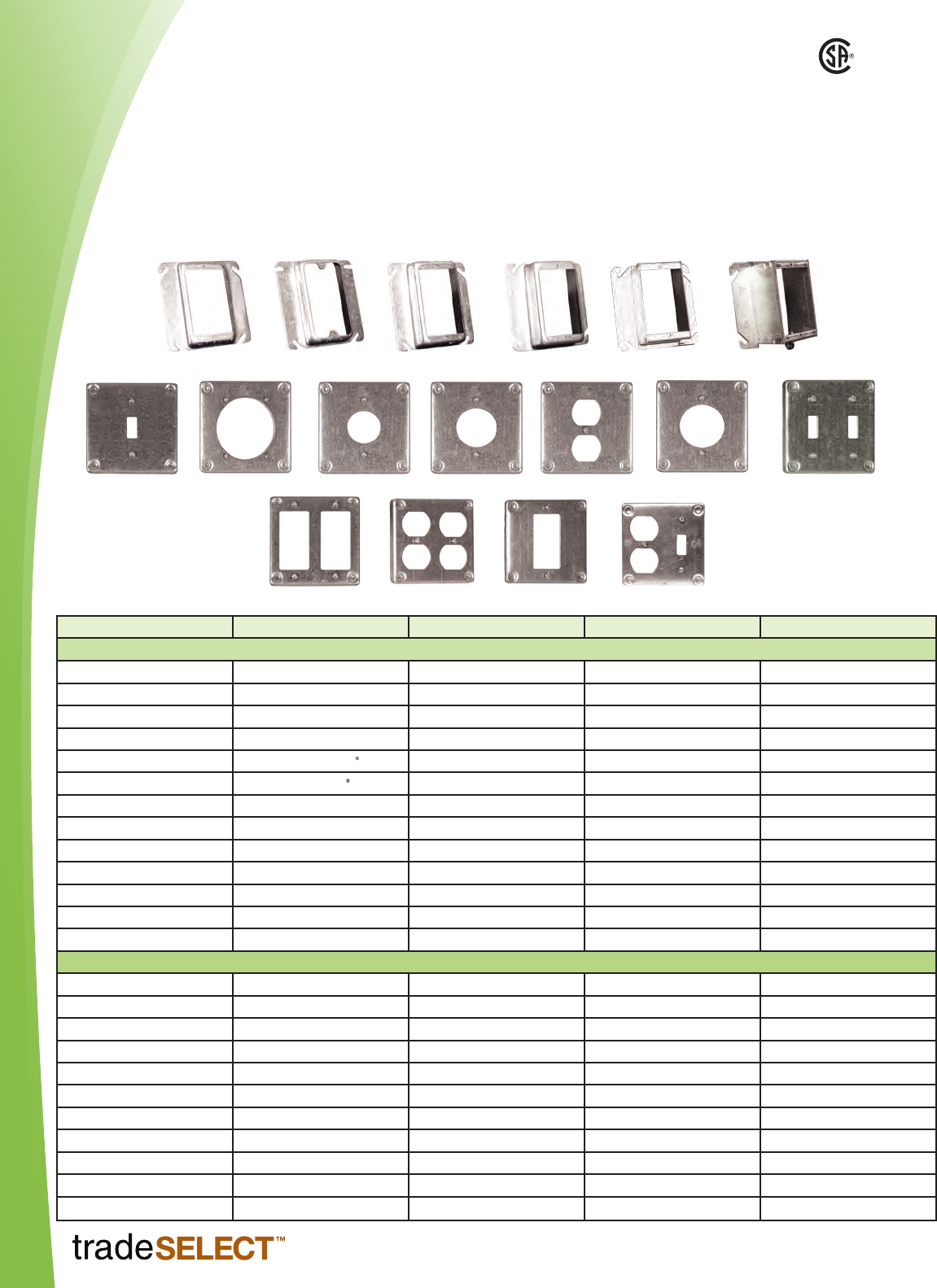

Square Boxes And Covers .................................................A8-A12

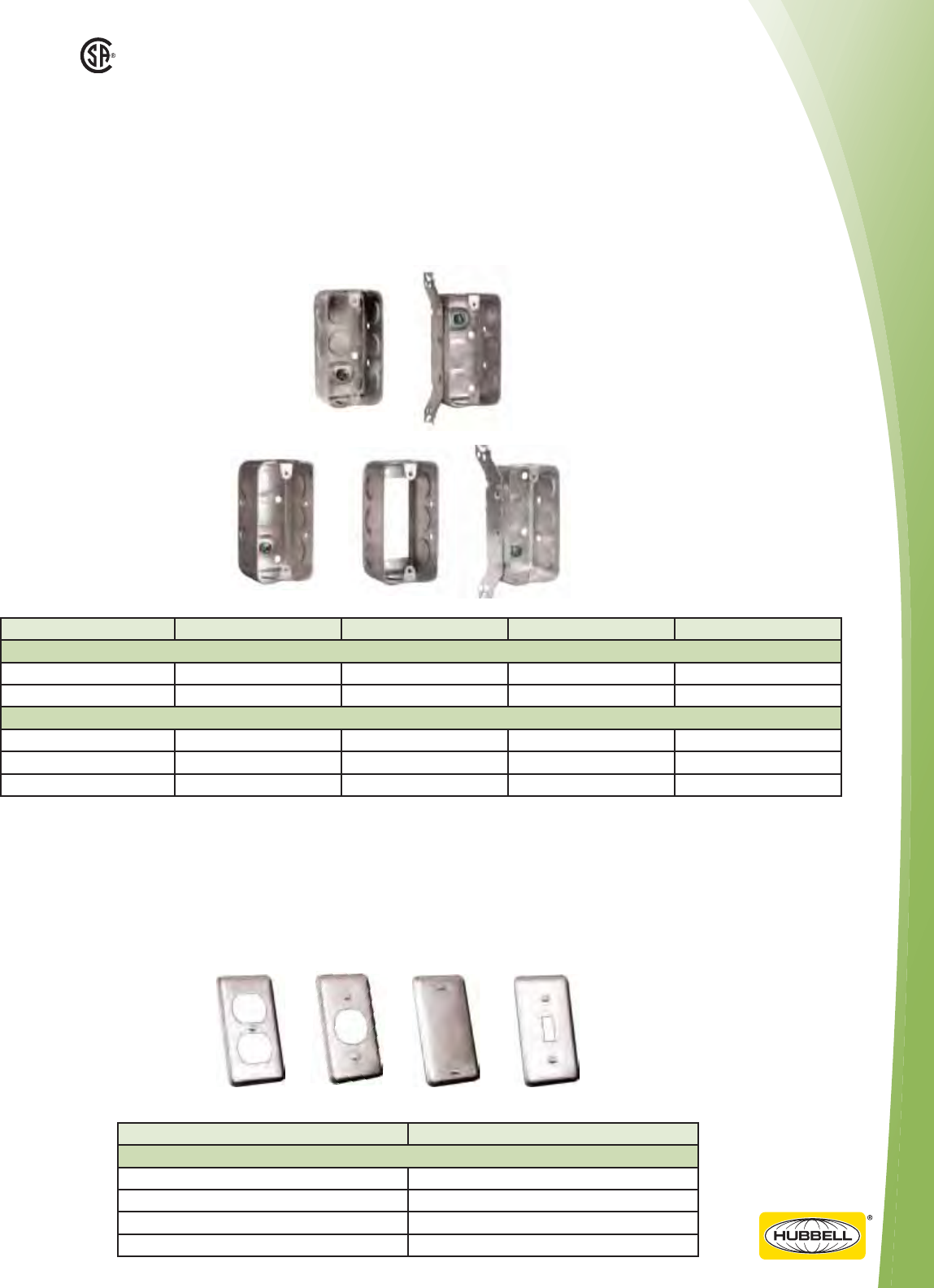

Utility Boxes And Covers .................................................. A13 -A14

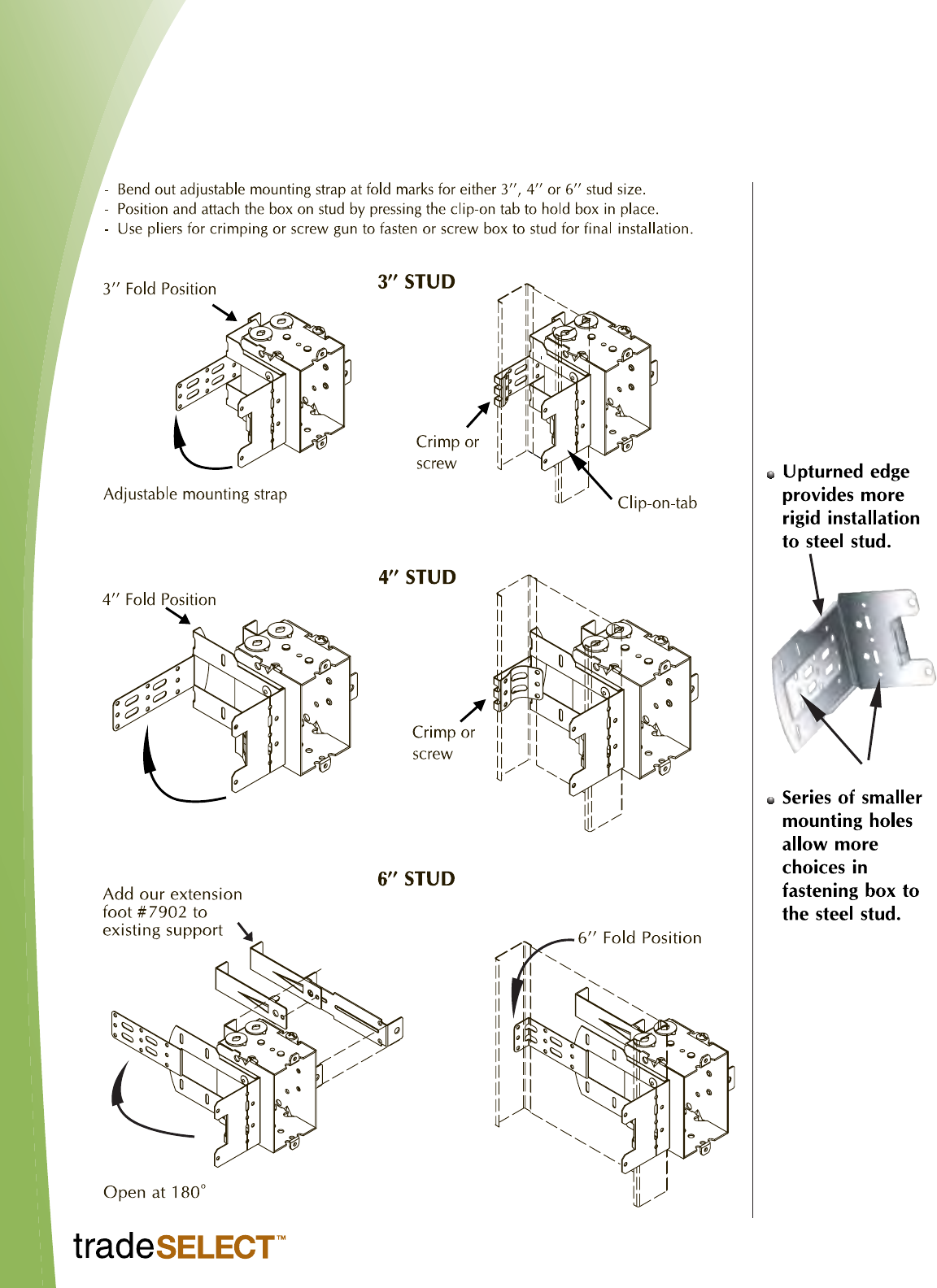

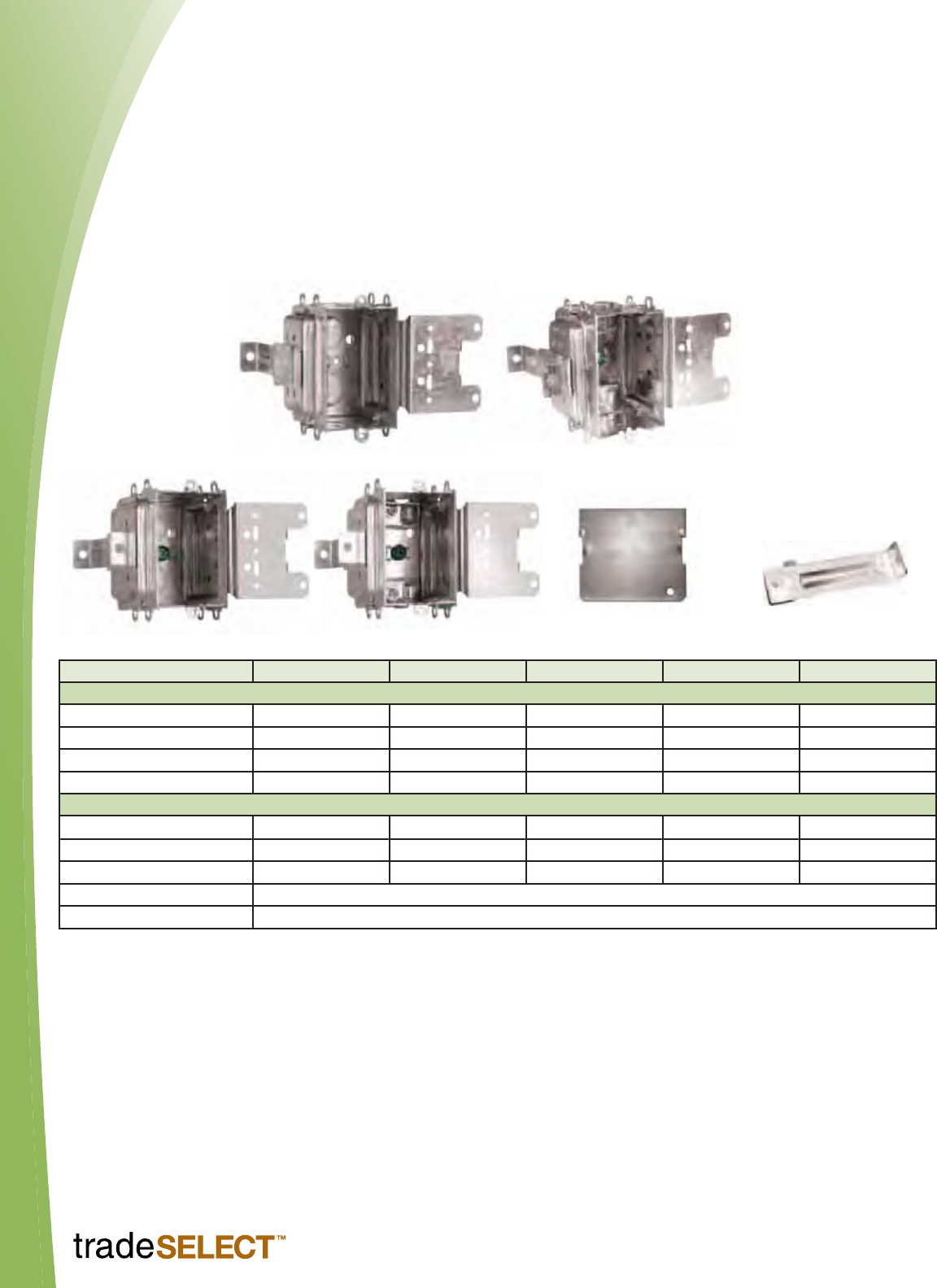

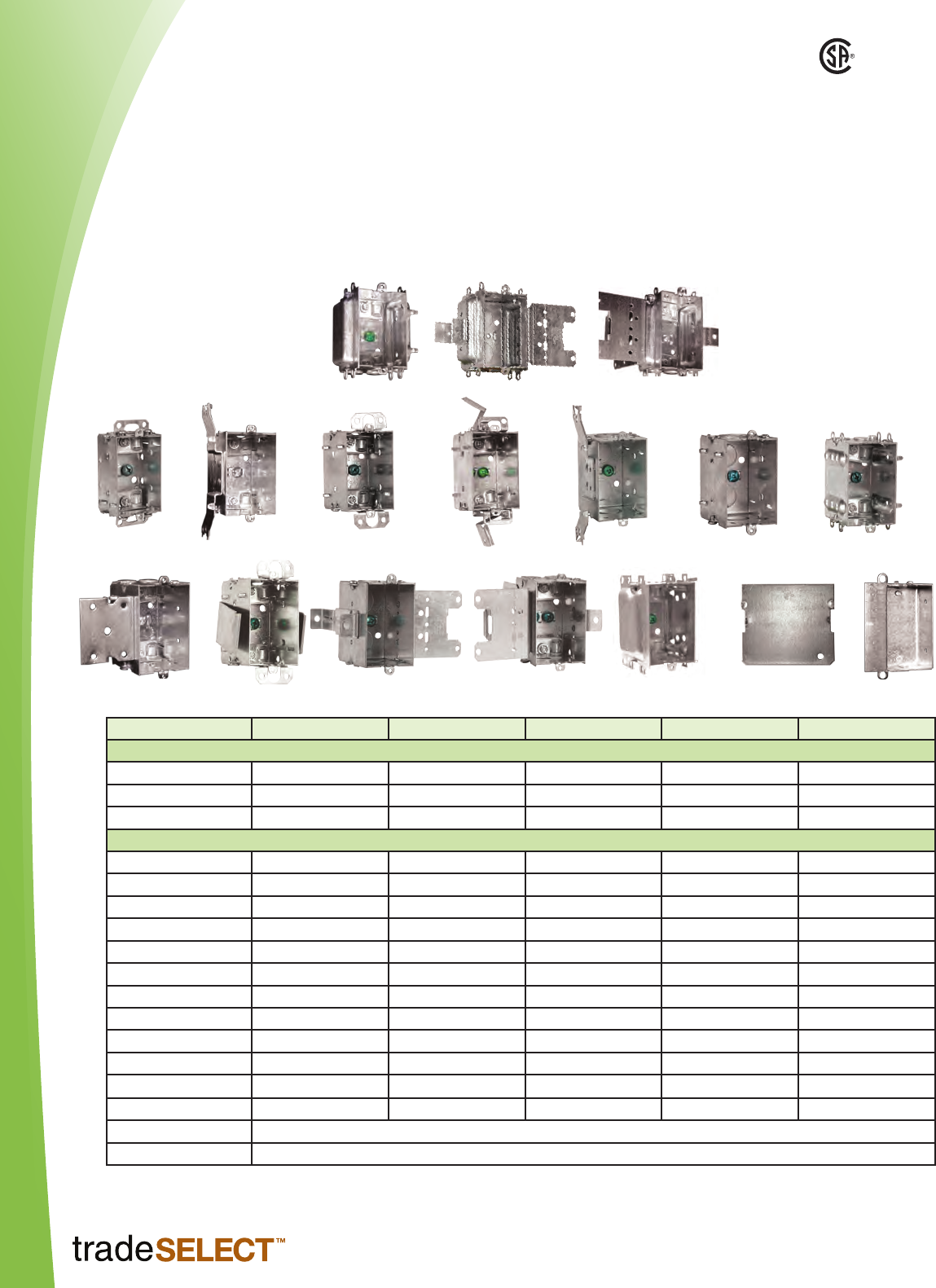

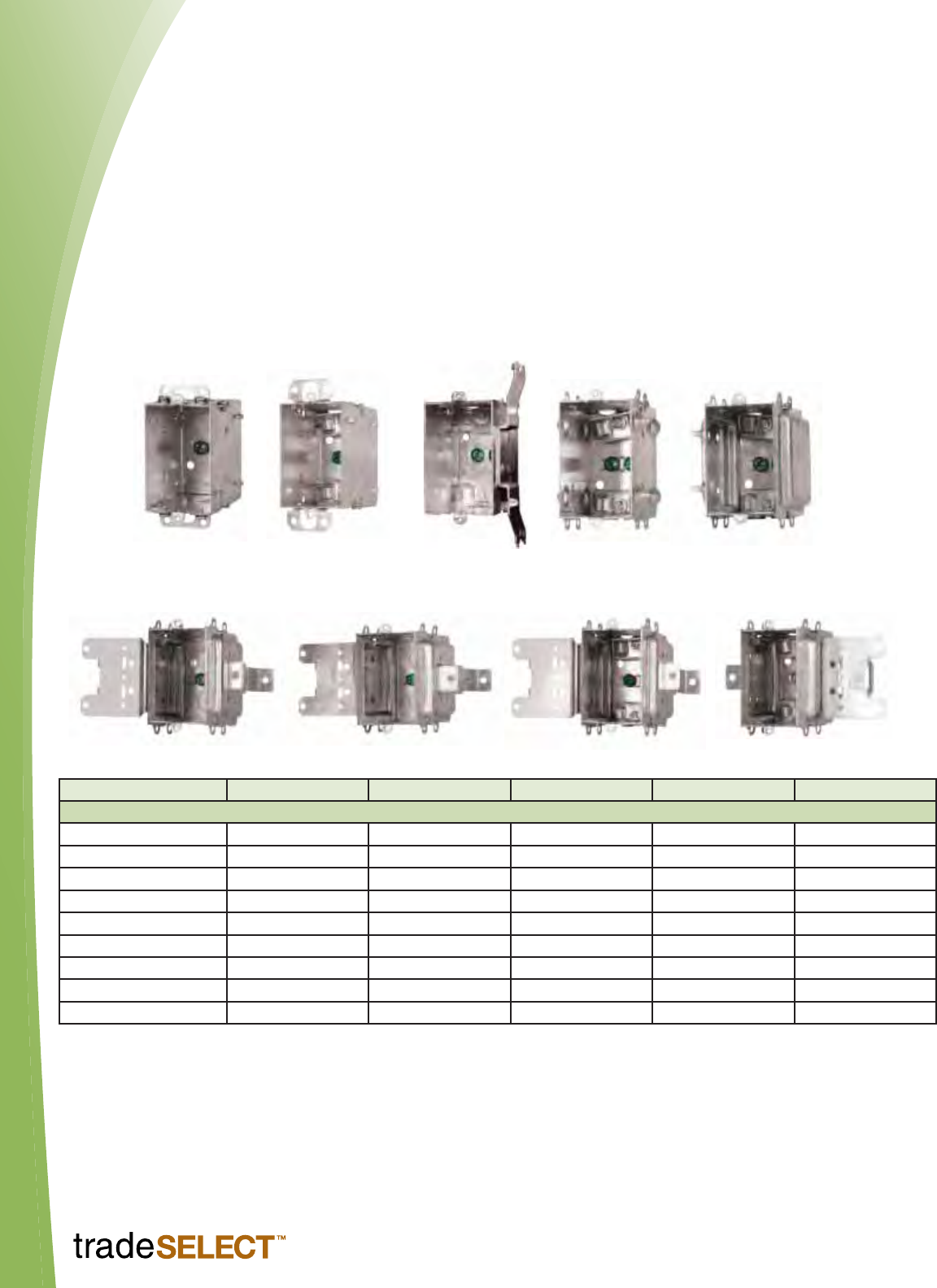

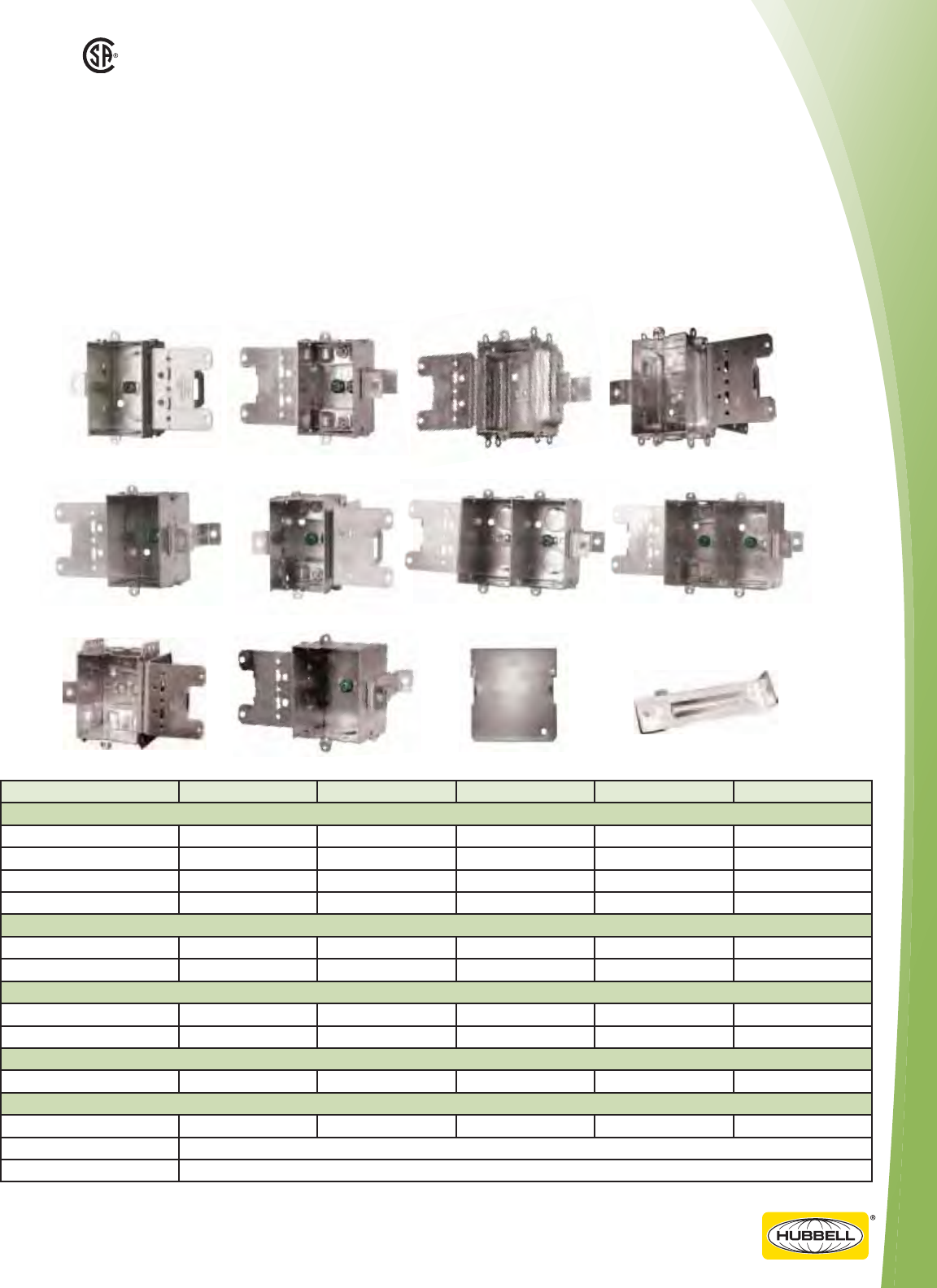

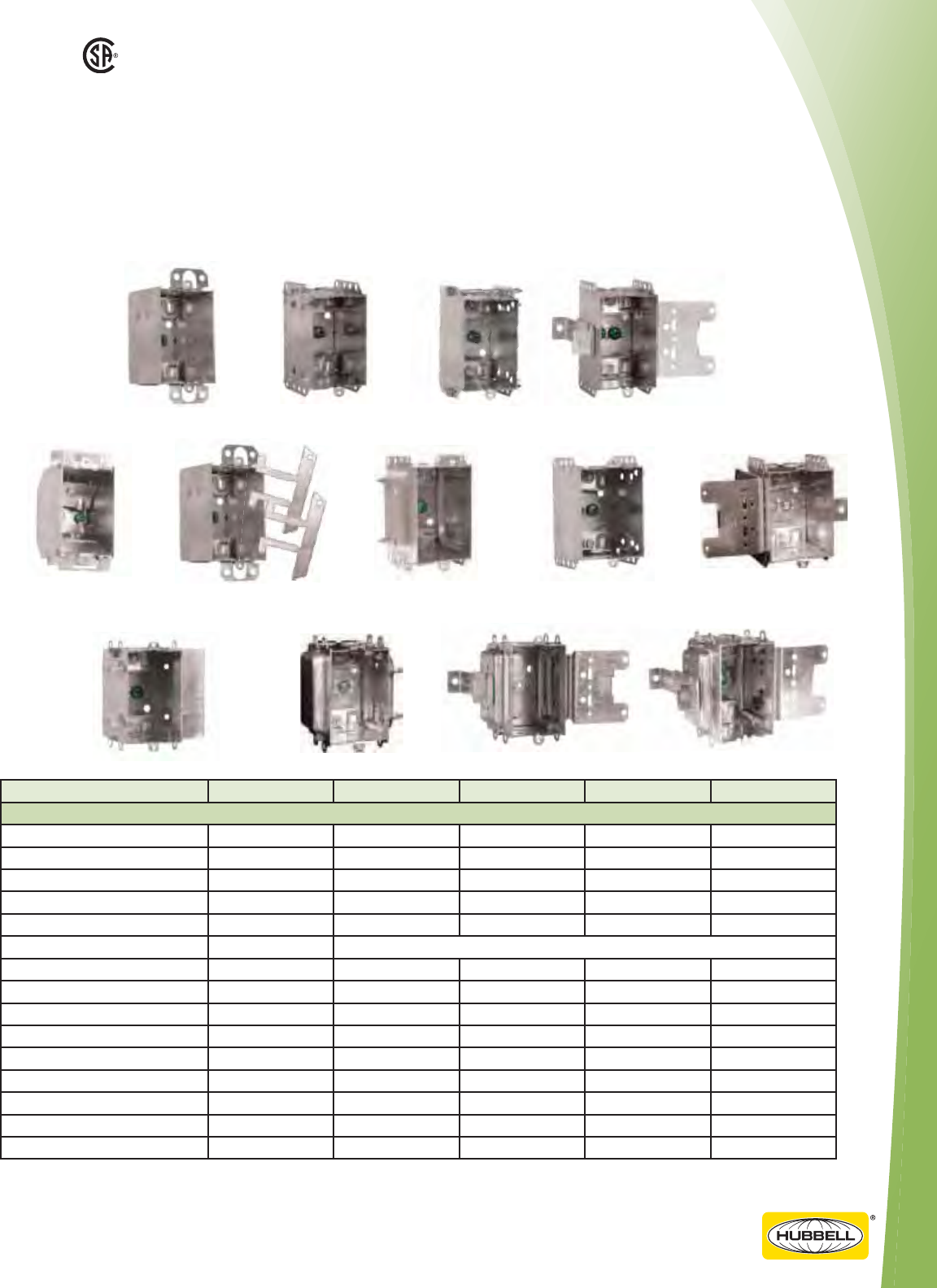

Steel Stud Boxes .............................................................. A15-A 20

347 Volt Boxes And Covers ............................................. A21-A22

Standard Masonry Boxes ........................................................ A23

Concrete Rings ......................................................................... A24

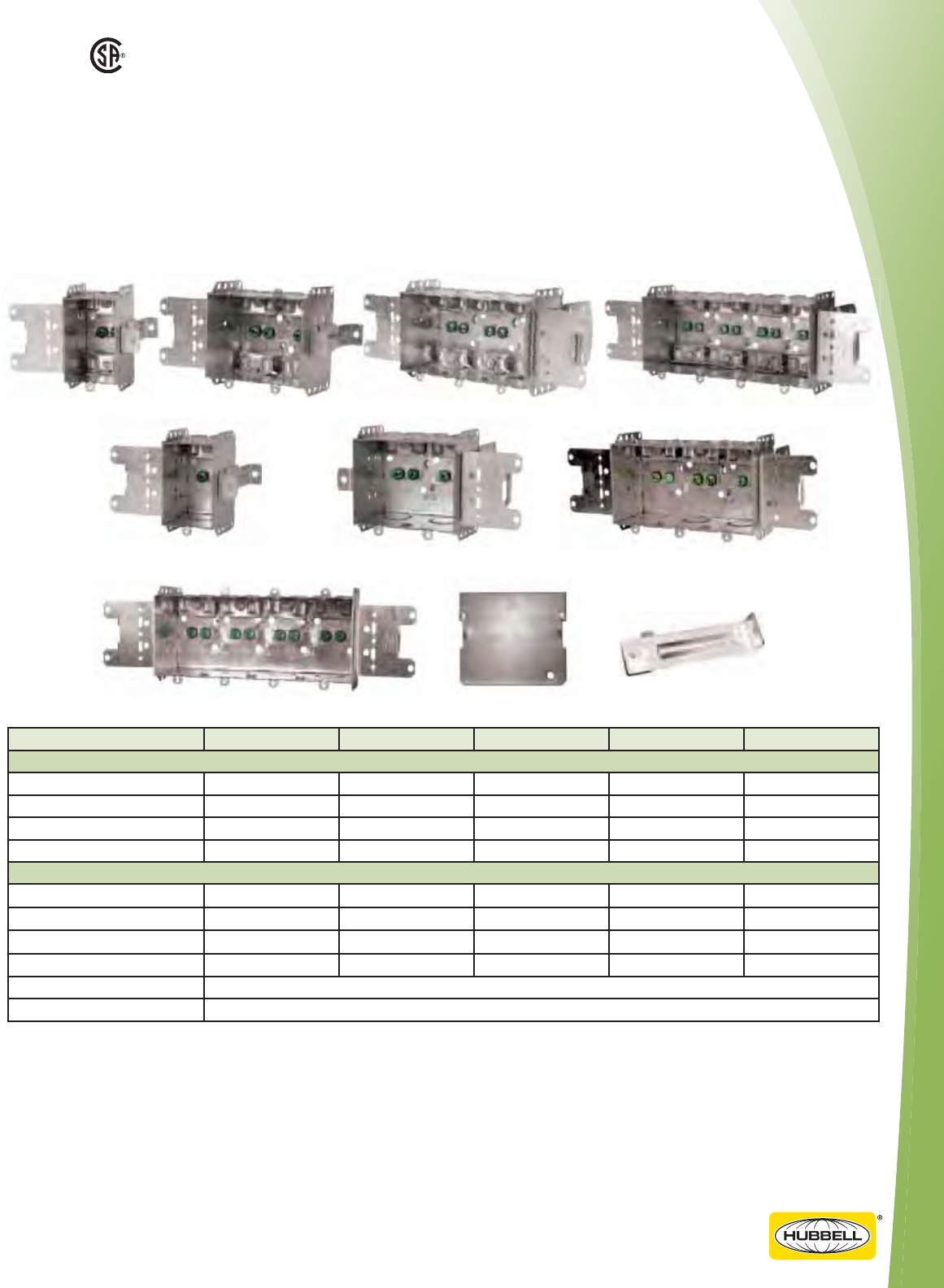

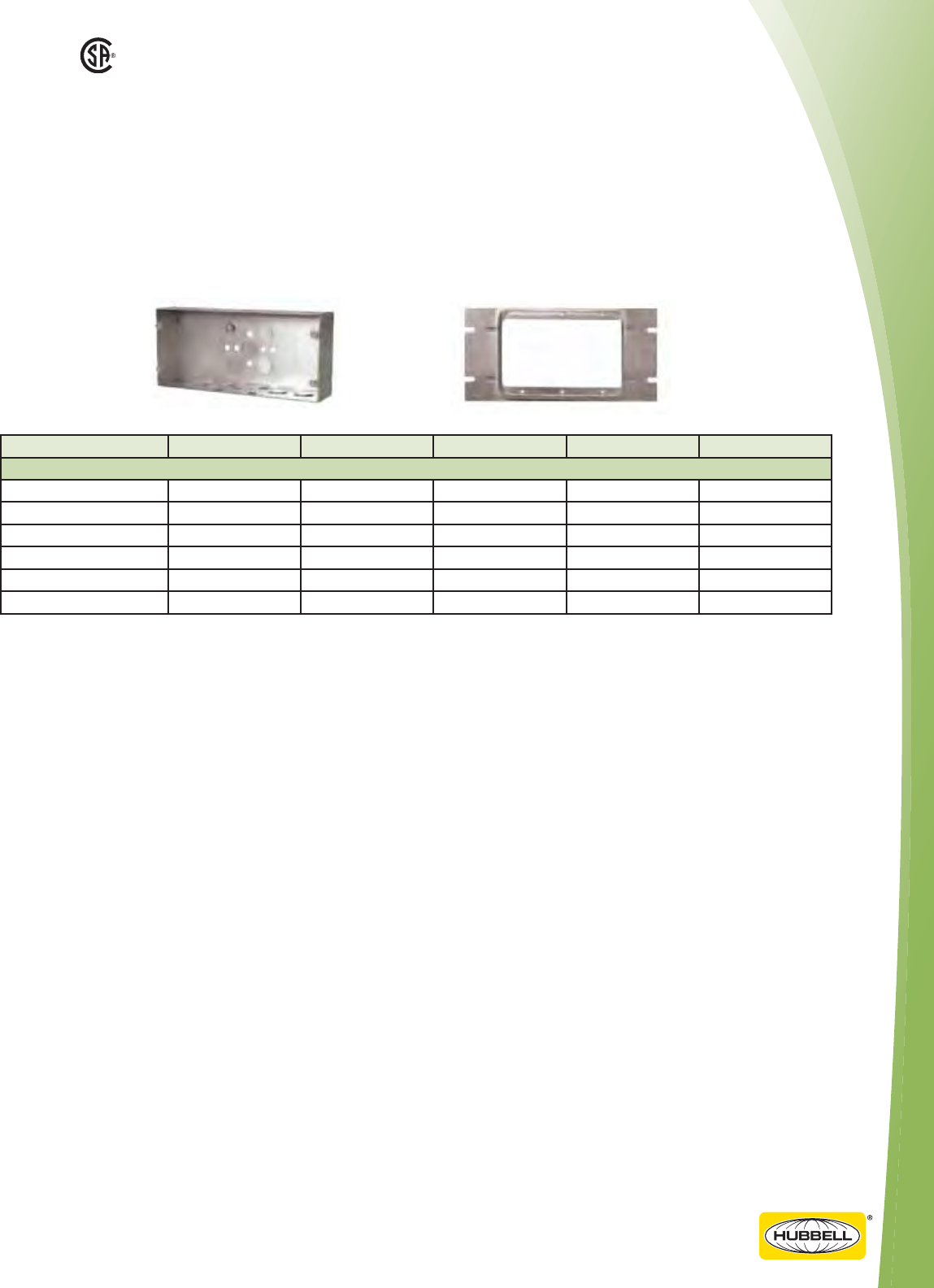

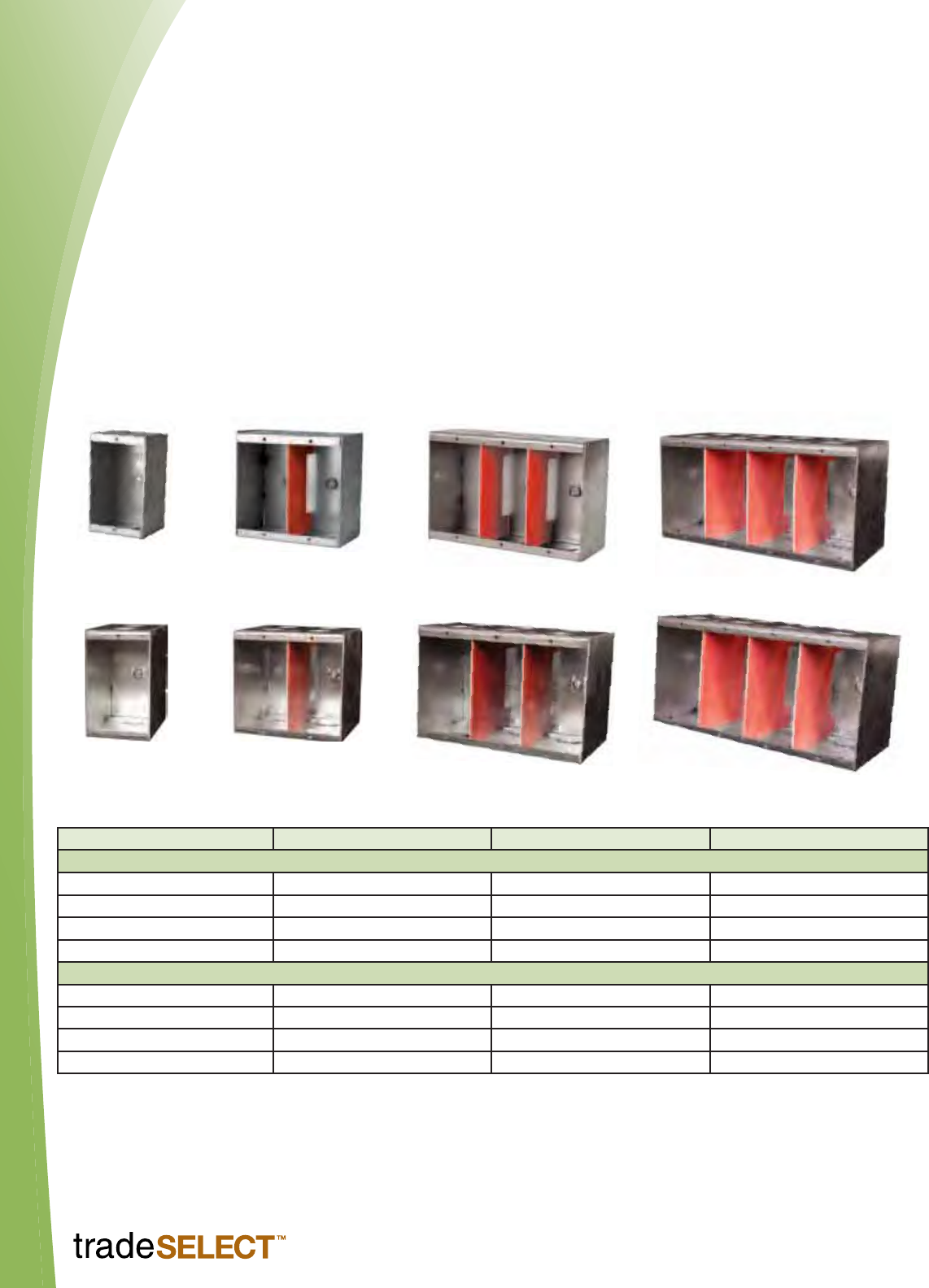

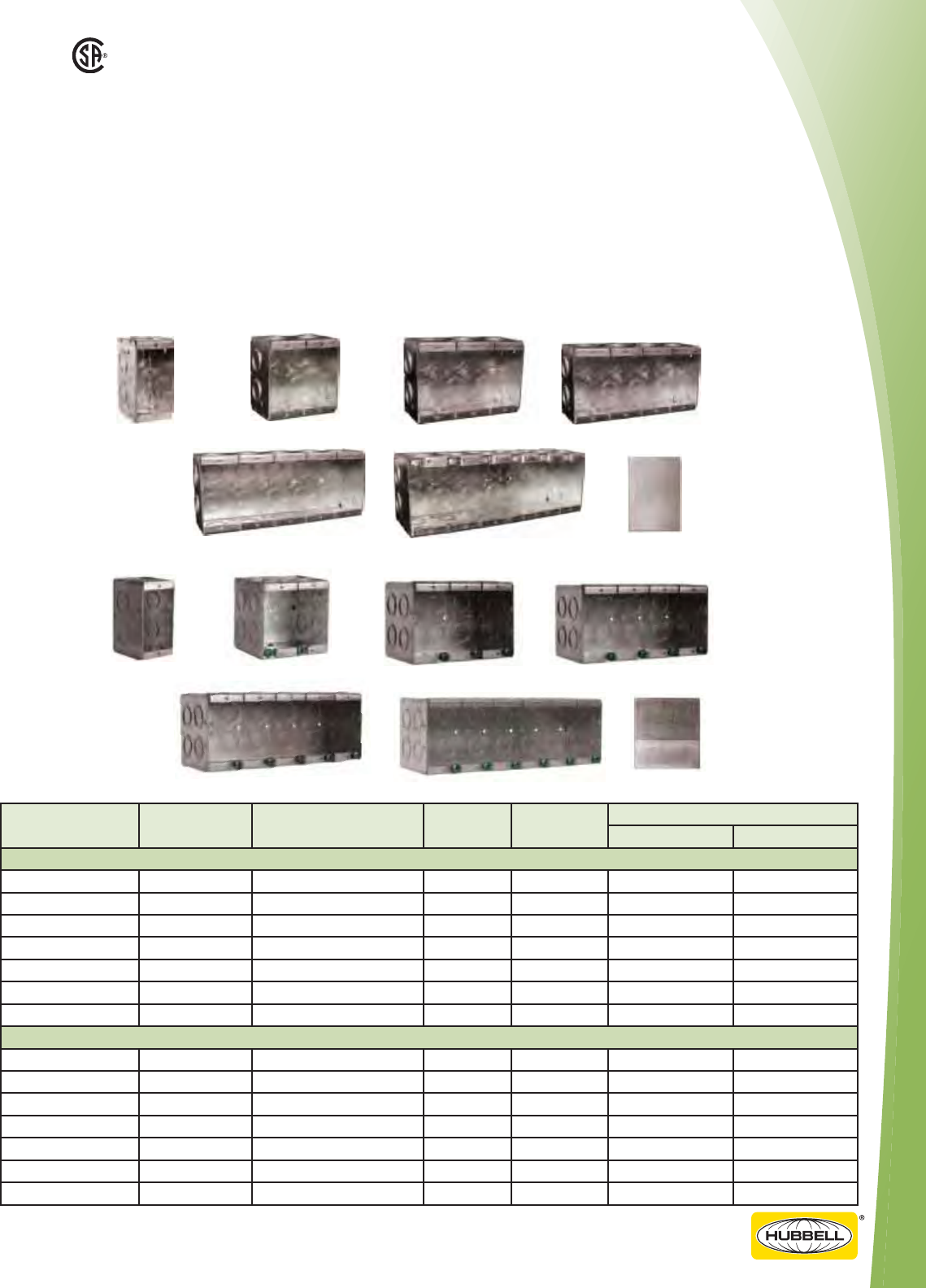

Preganged Boxes And Covers ................................................ A25

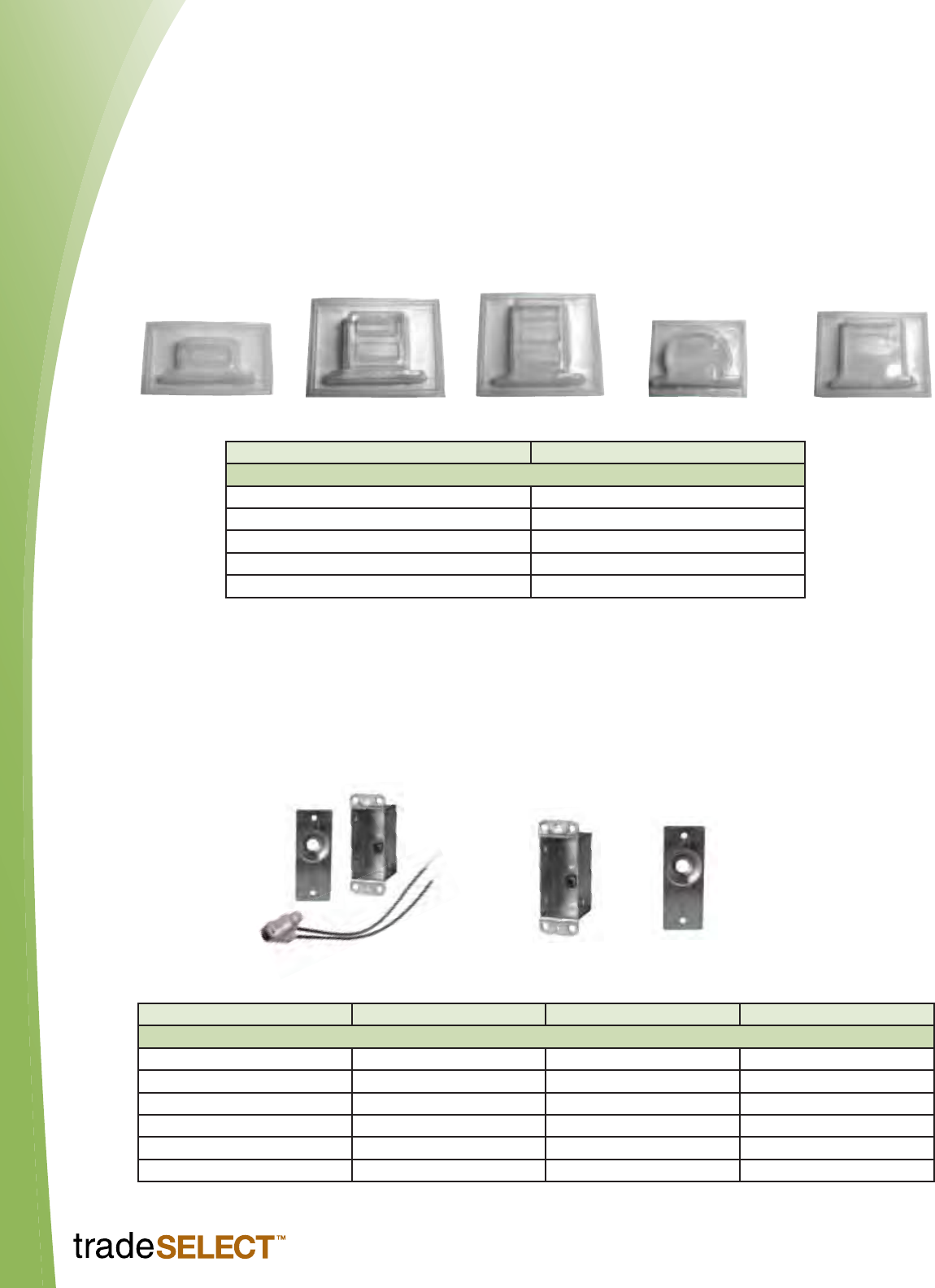

Vapour/Air Barriers ................................................................... A26

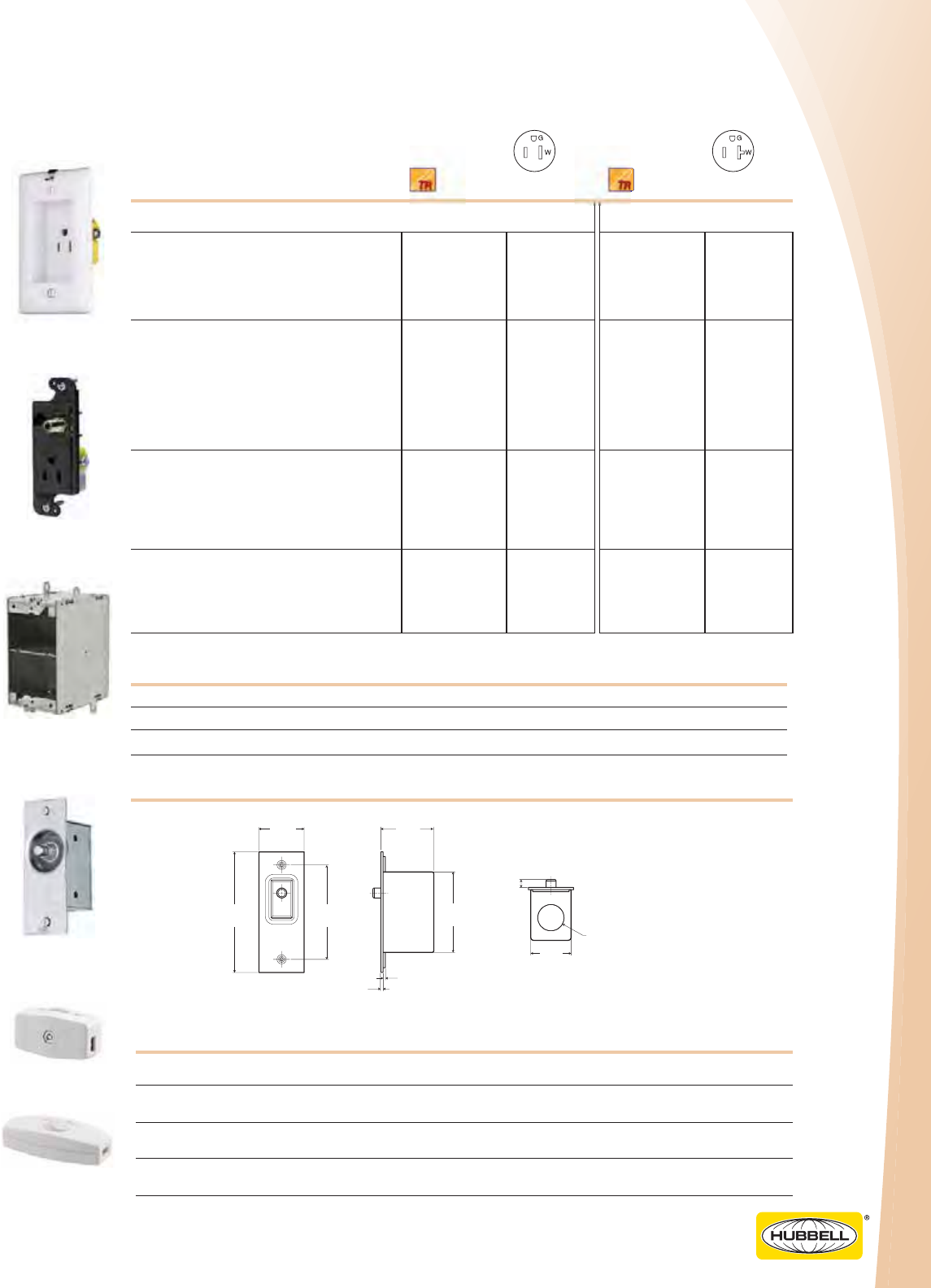

Door Switches And Boxes ....................................................... A26

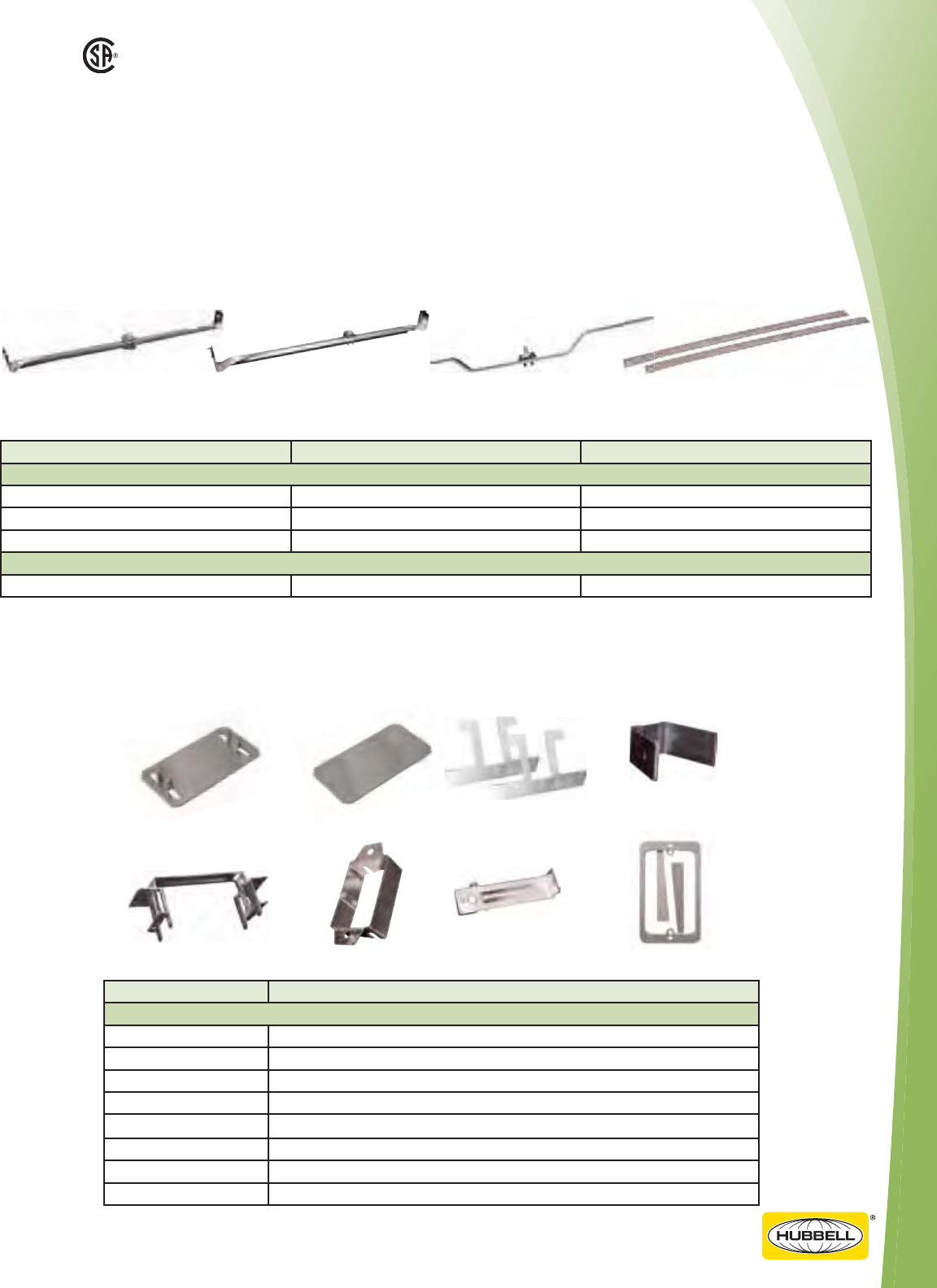

Bar Hangers .............................................................................. A27

Accessories ............................................................................... A27

General Information .................................................................... C1

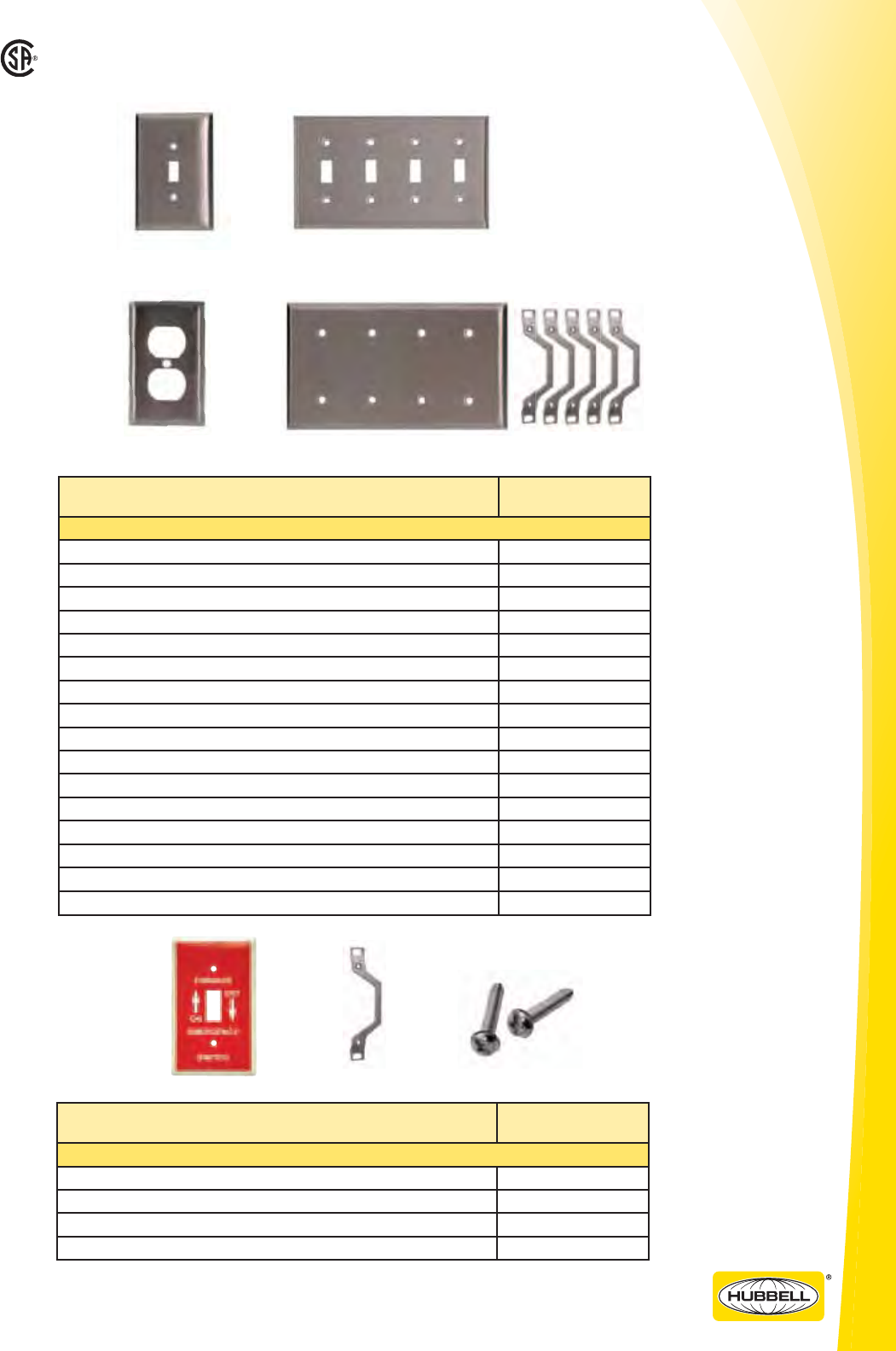

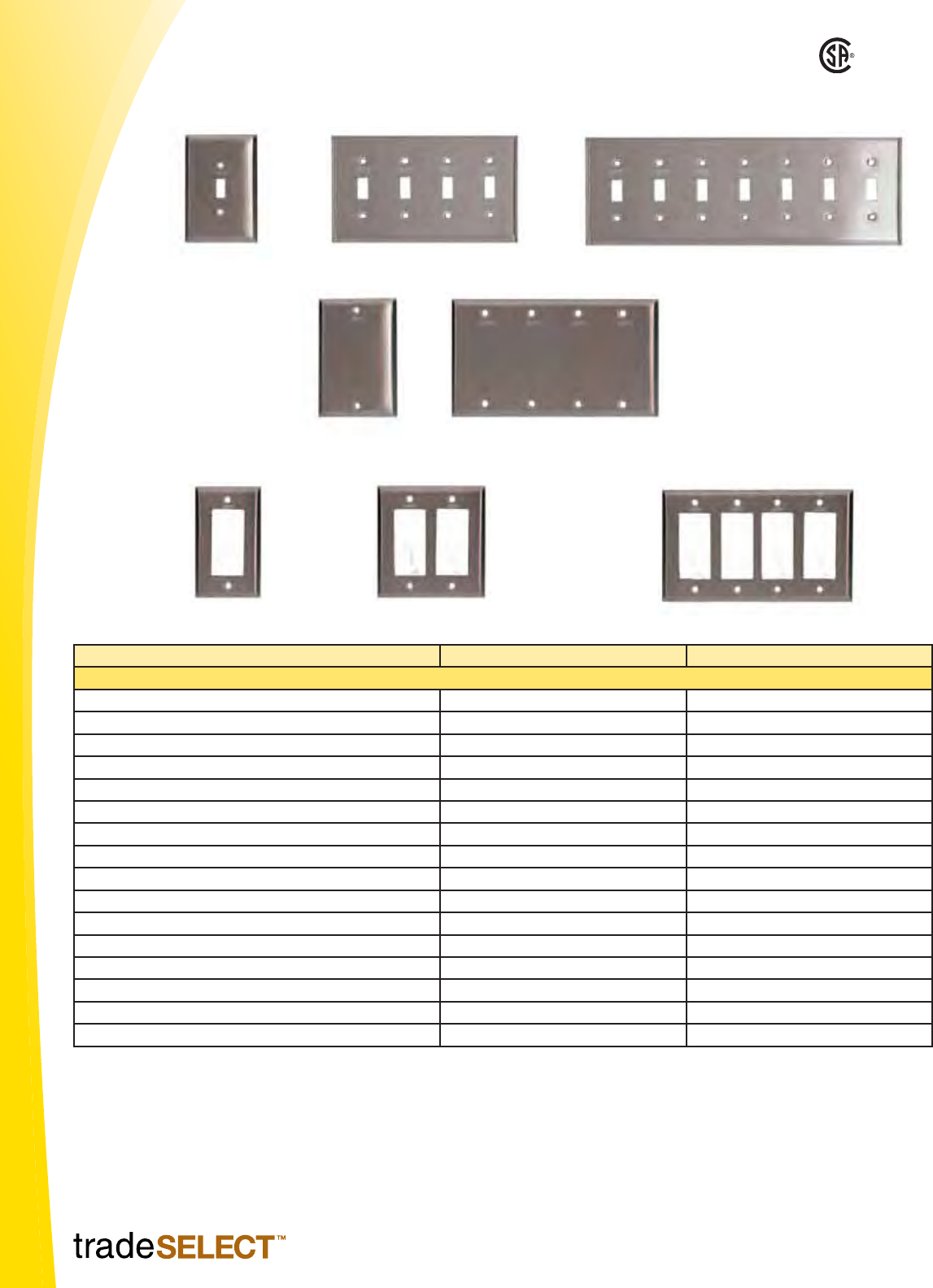

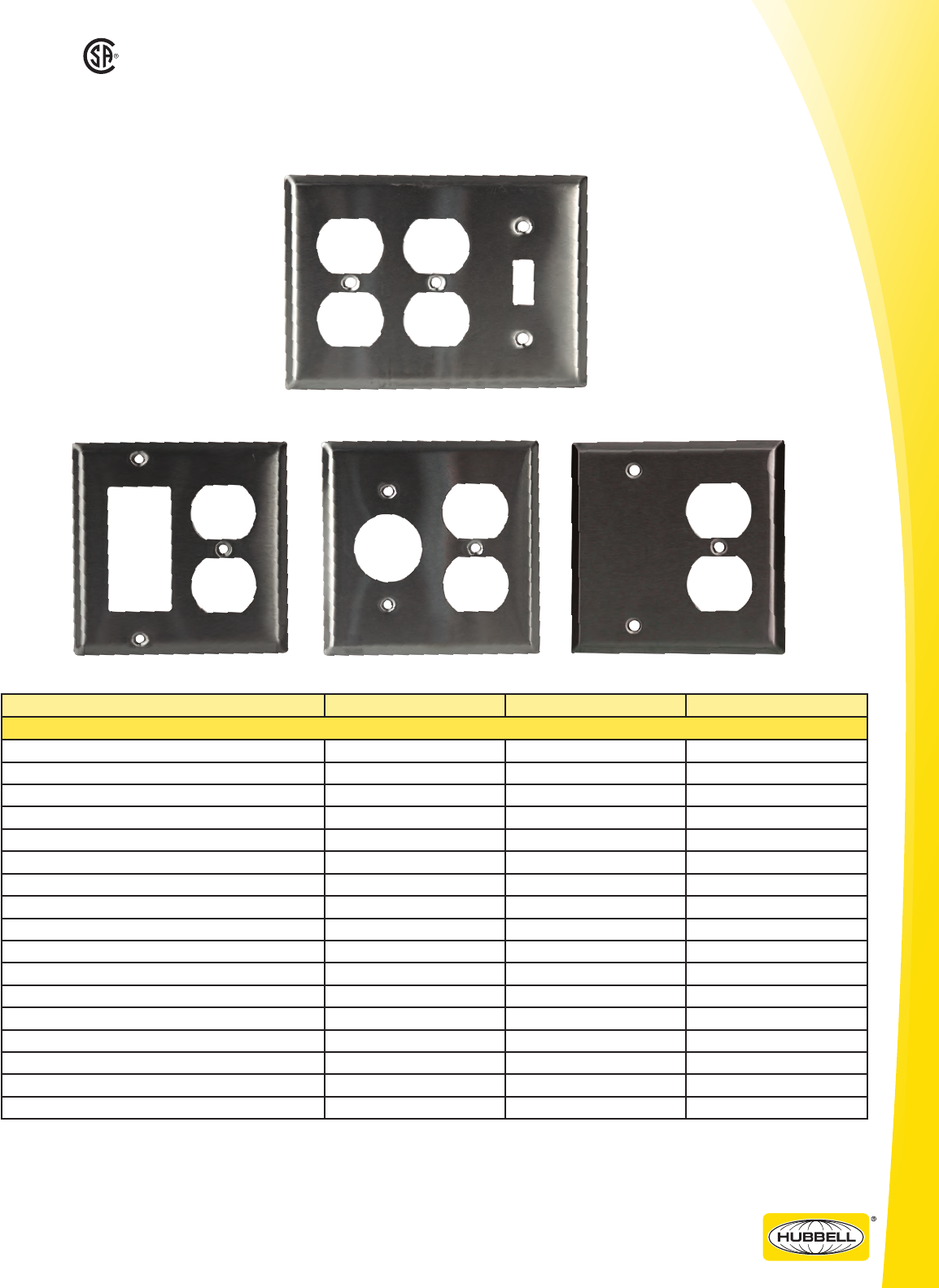

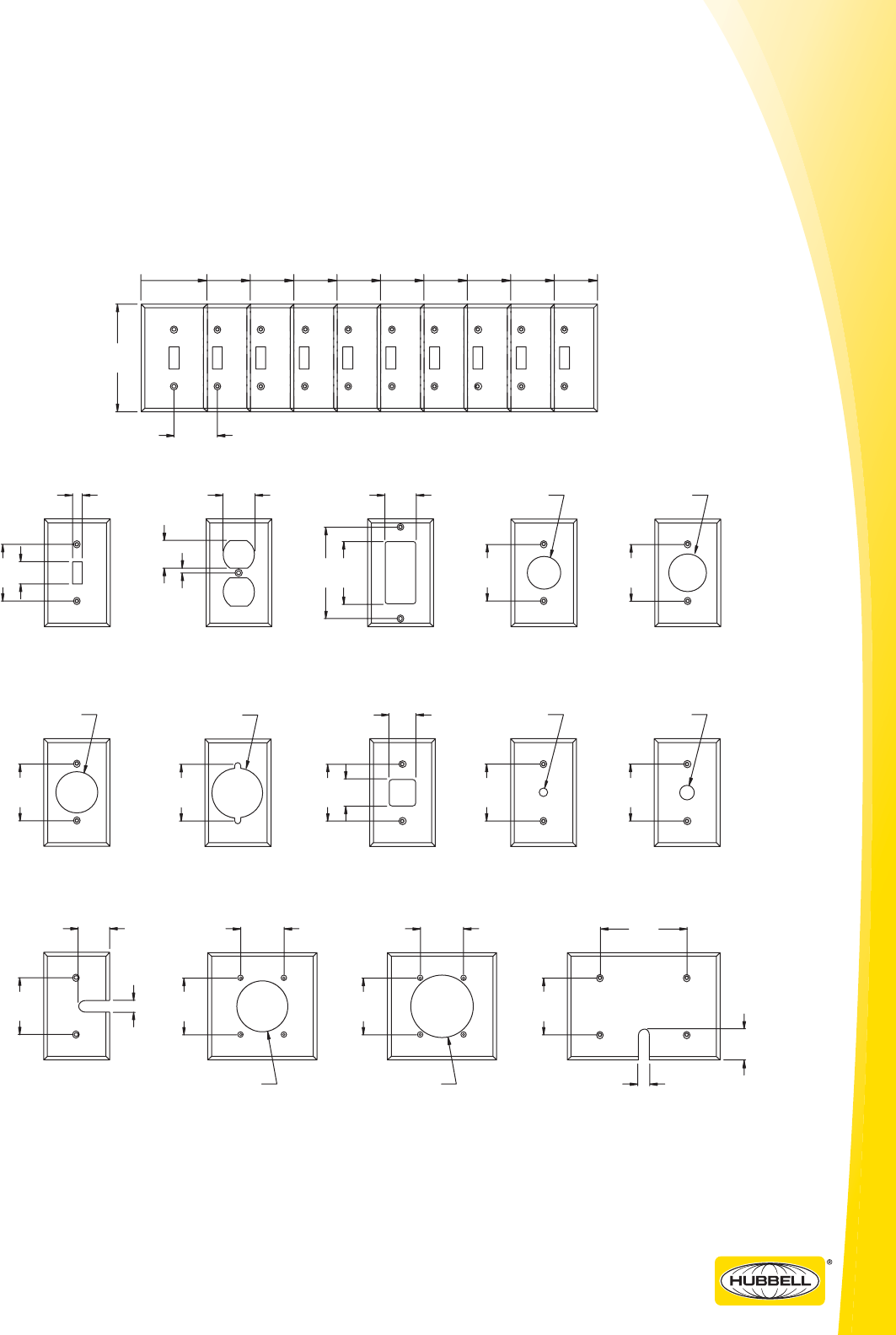

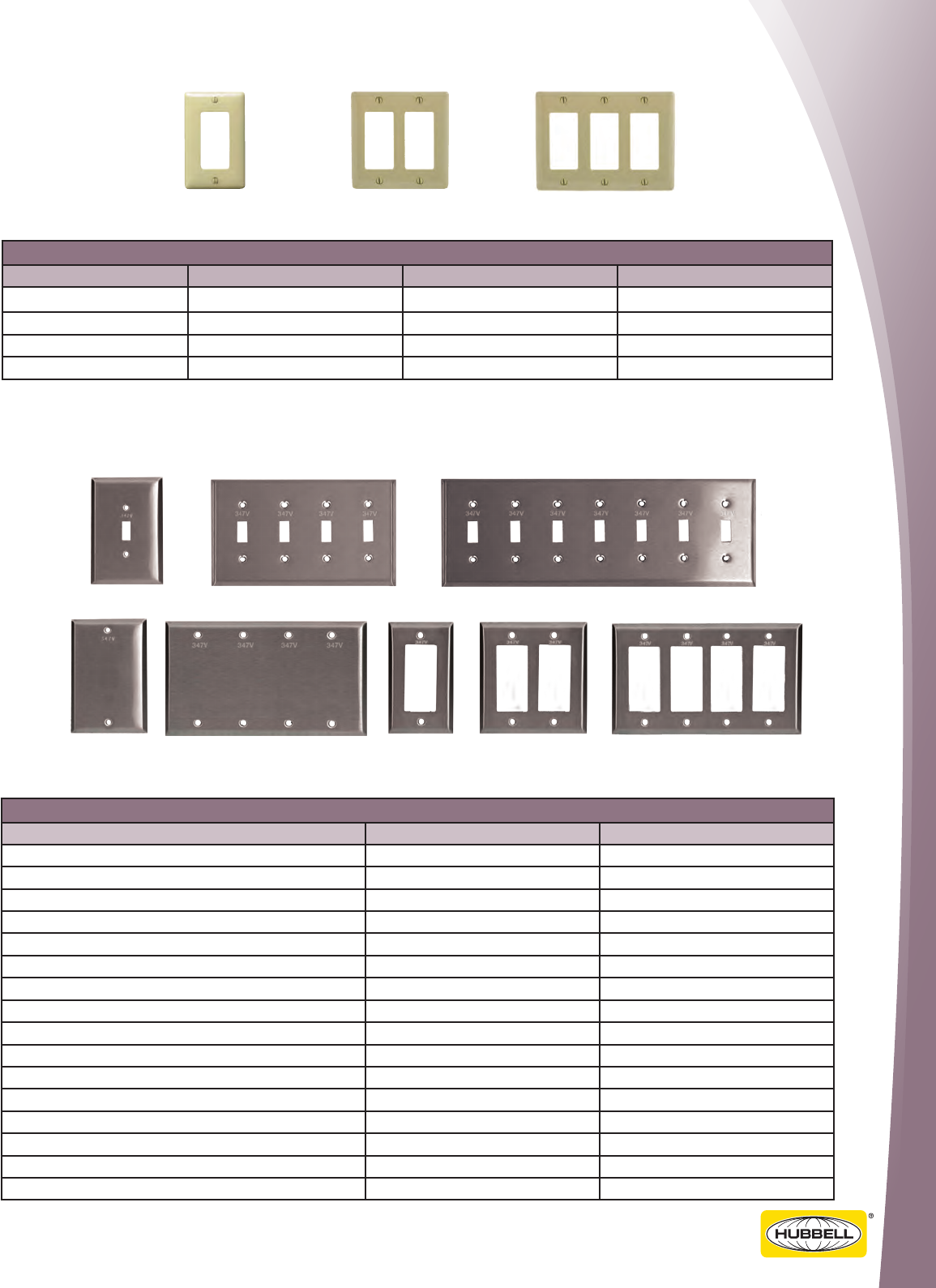

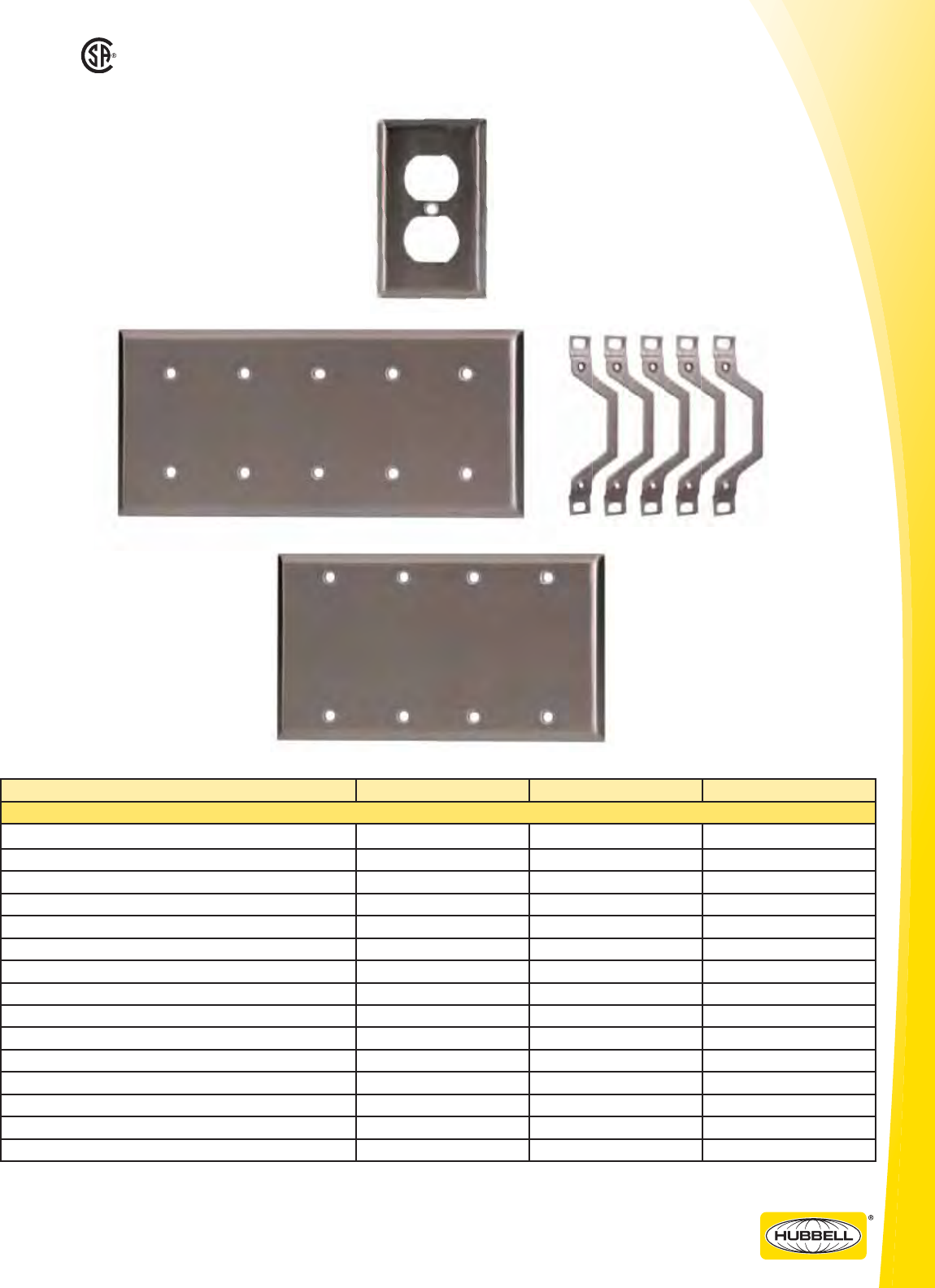

Standard Wall Plates ............................................................C2-C5

347 Volt Wall Plates .................................................................... C6

King Size Wall Plates .................................................................. C7

Wall Plate Accessories ............................................................... C7

Custom Wall Plate Information .................................................. C8

Technical Data ....................................................................C9-C10

Non-Metallic Sheathed Cable ............................................. D1-D2

Armoured Cable ...................................................................D3-D4

Liquidtight Conduit ...............................................................D5-D6

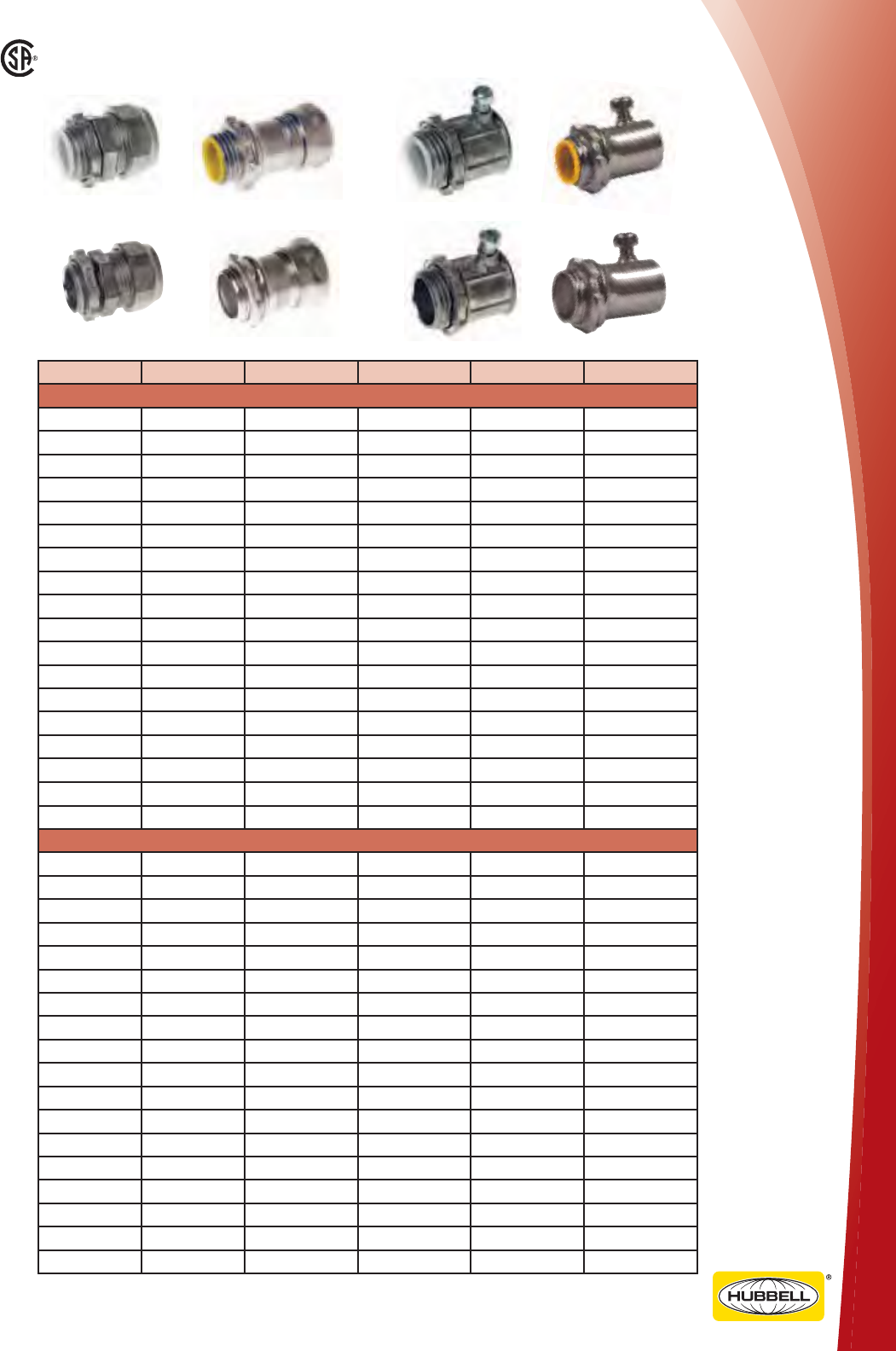

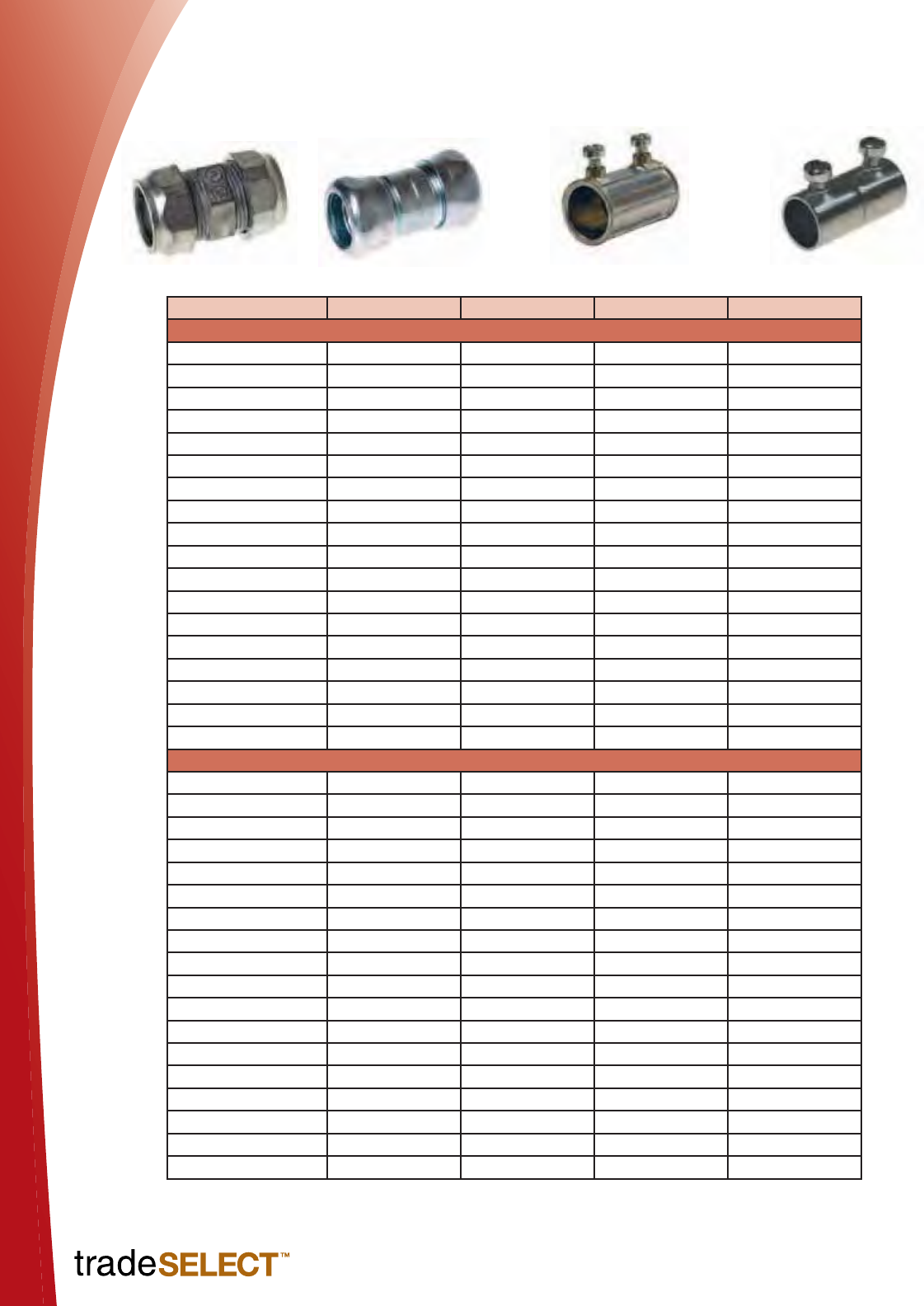

Emt ......................................................................................... D7-D9

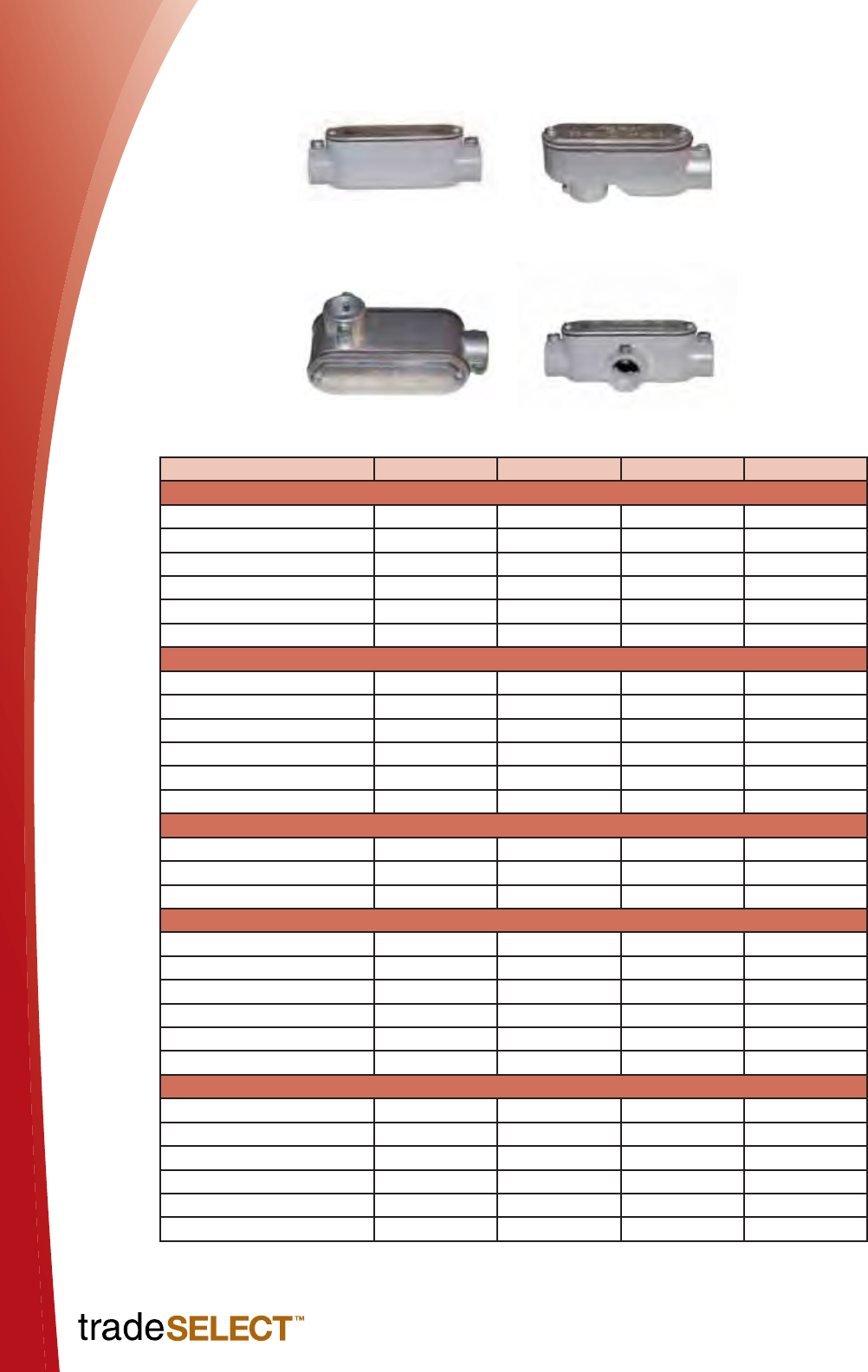

Conduit Bodies ......................................................................... D10

Conduit Nipples ........................................................................ D11

Rigid Straps............................................................................... D12

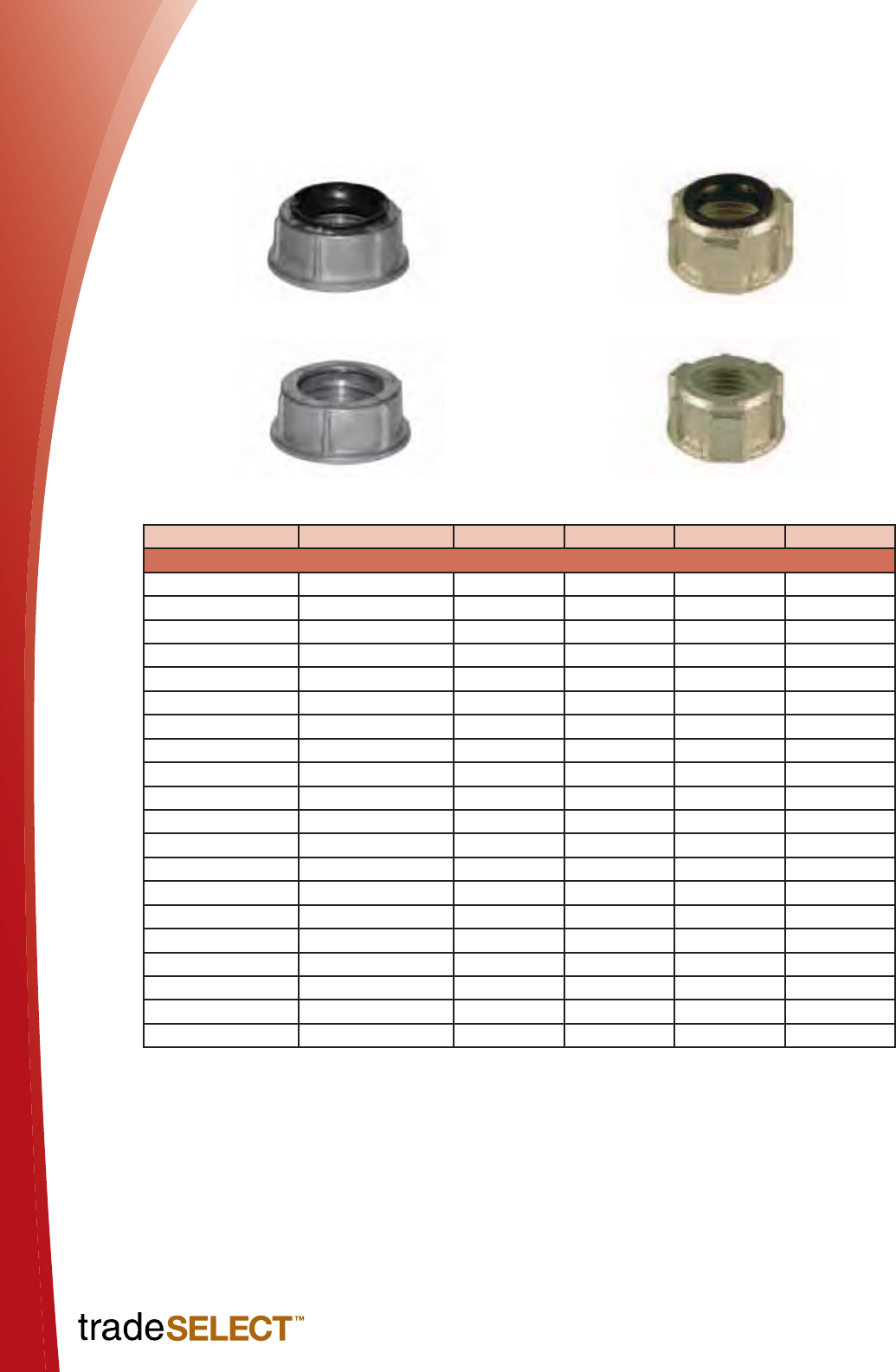

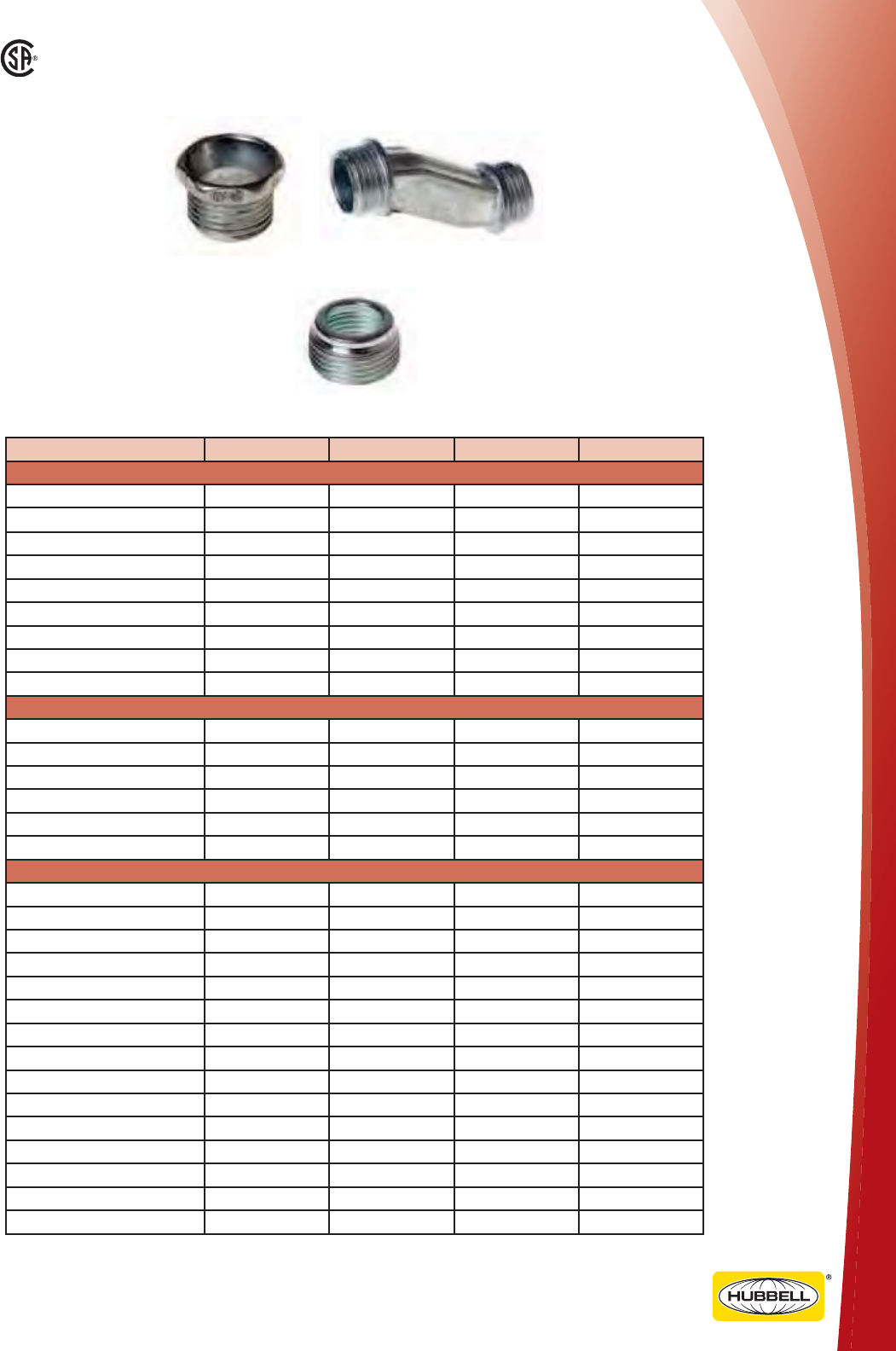

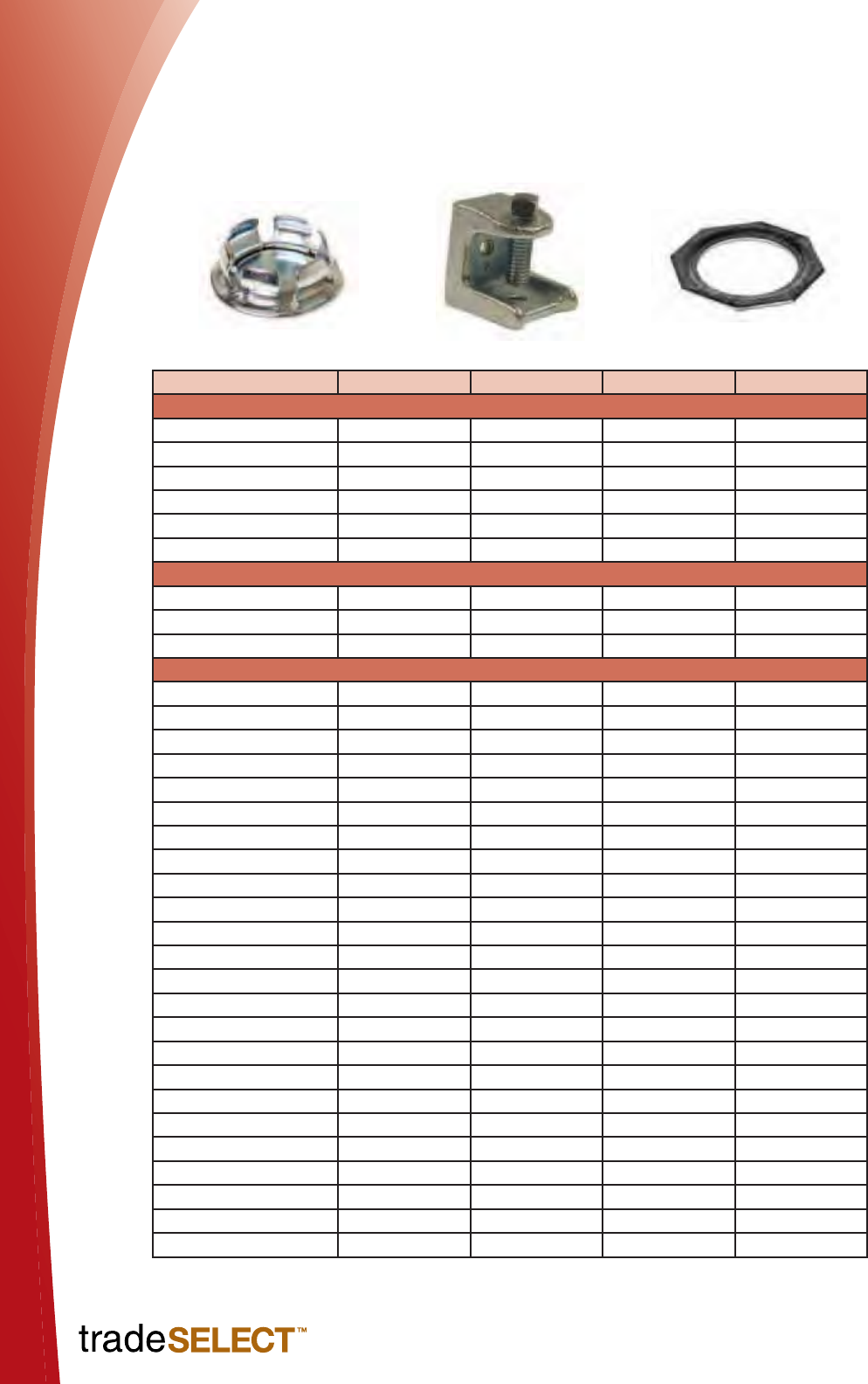

Bushings .................................................................................... D13

Metal Bushings ......................................................................... D14

Threaded Hubs ......................................................................... D15

Knock-Outs ............................................................................... D16

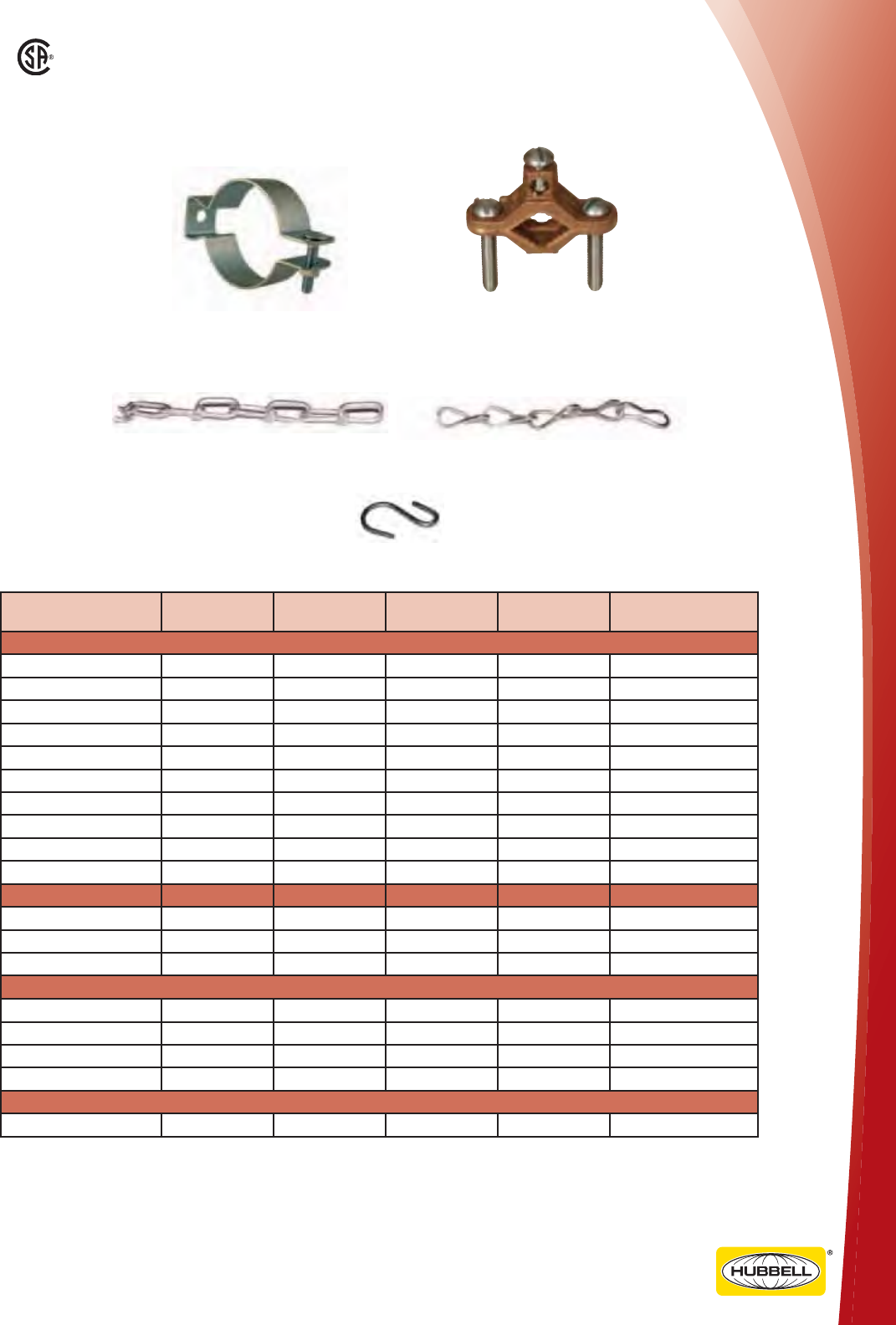

Jack Chain................................................................................. D17

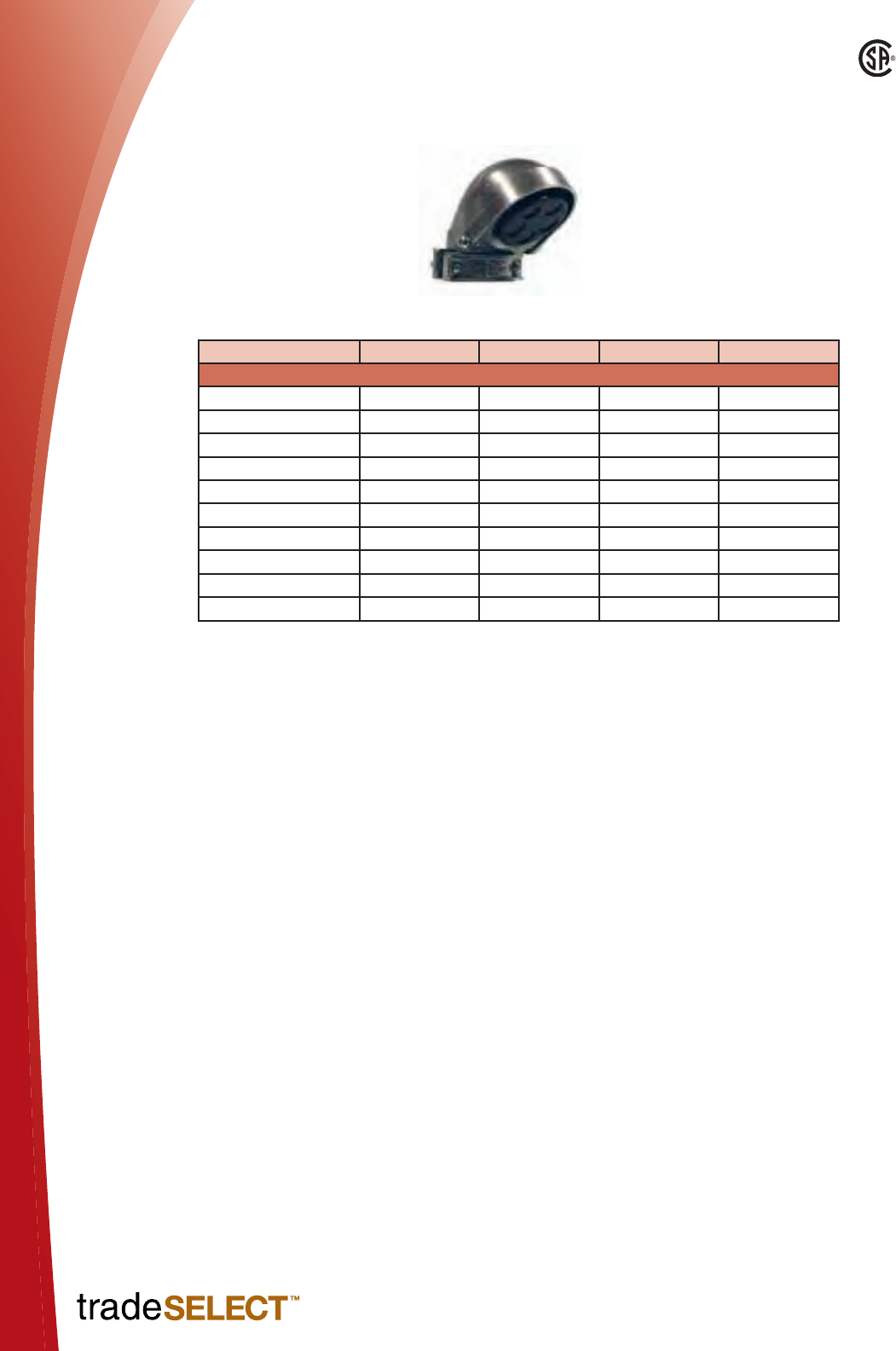

Service Entrance Head ............................................................ D18

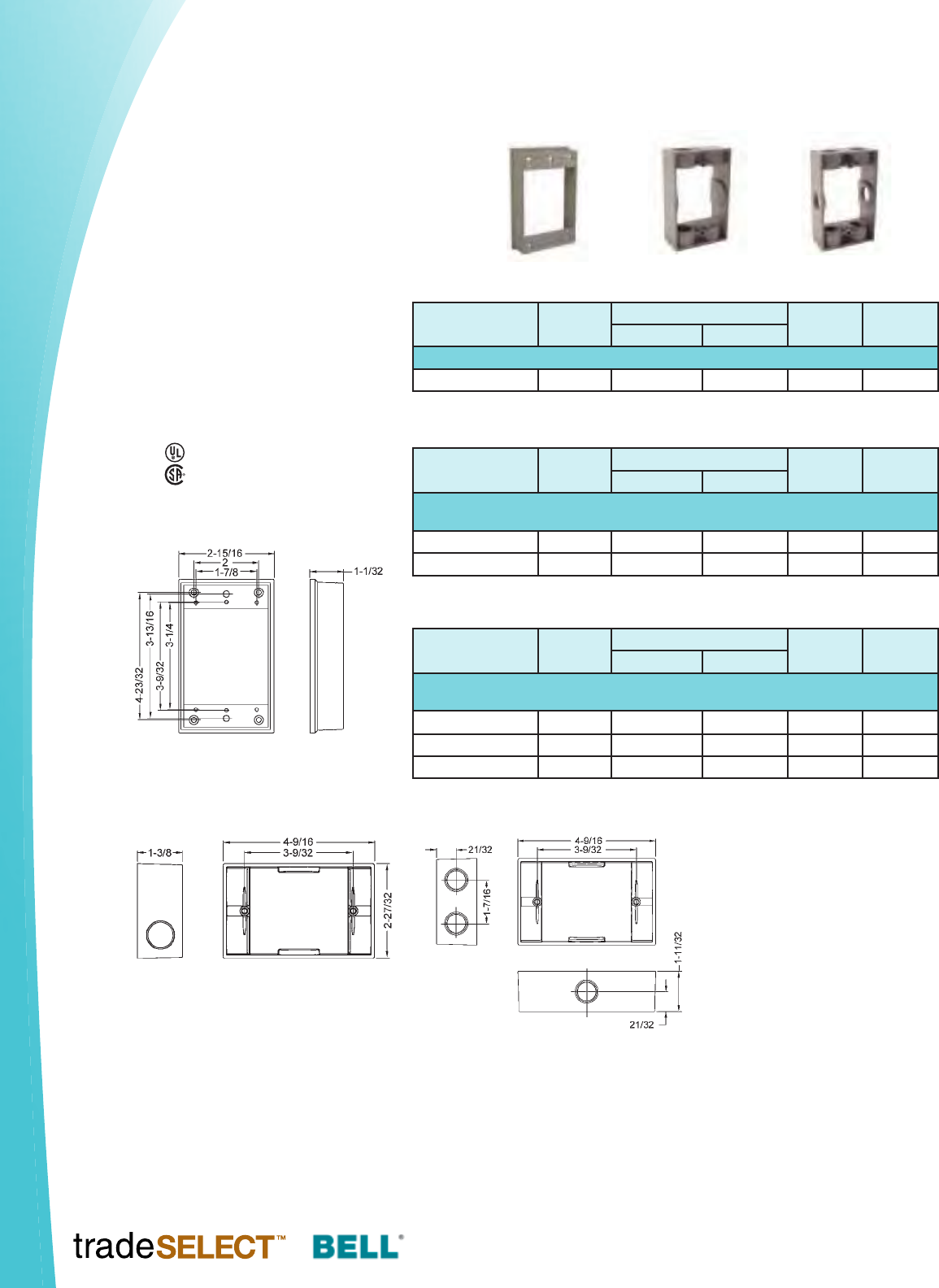

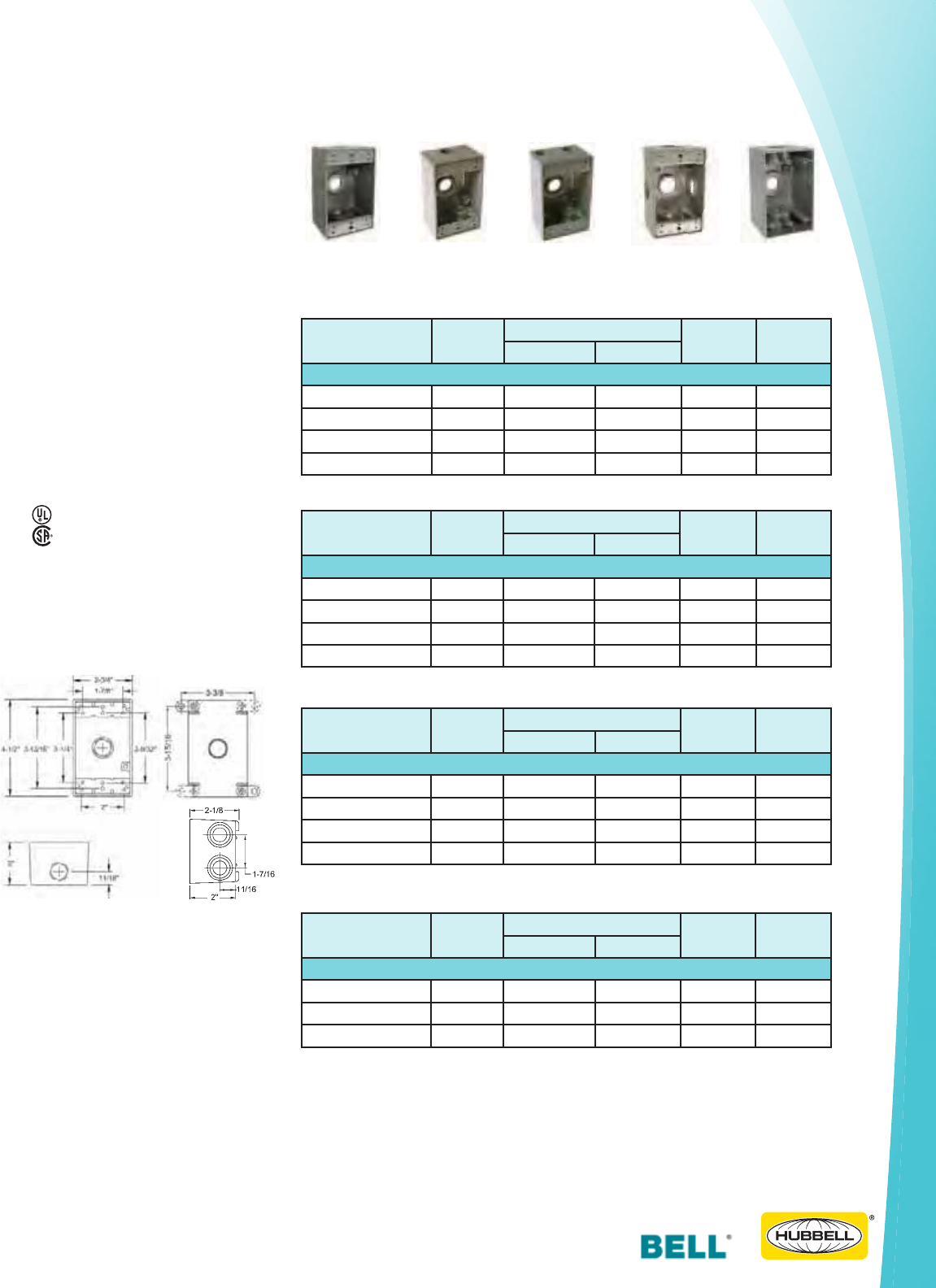

Single-Gang Boxes, Extensions and Adapters .................H1-H3

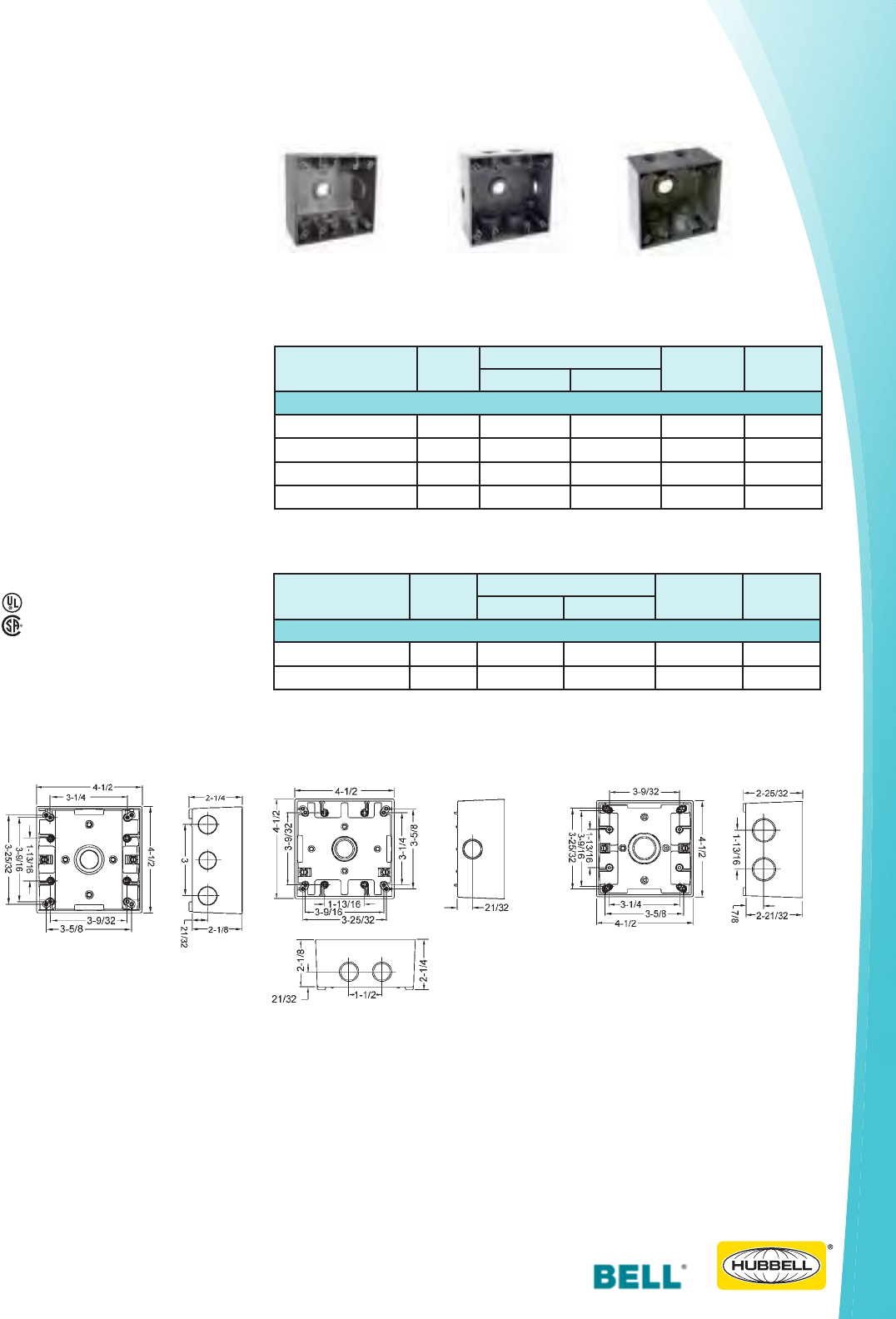

Two-Gang Boxes ..................................................................H4-H5

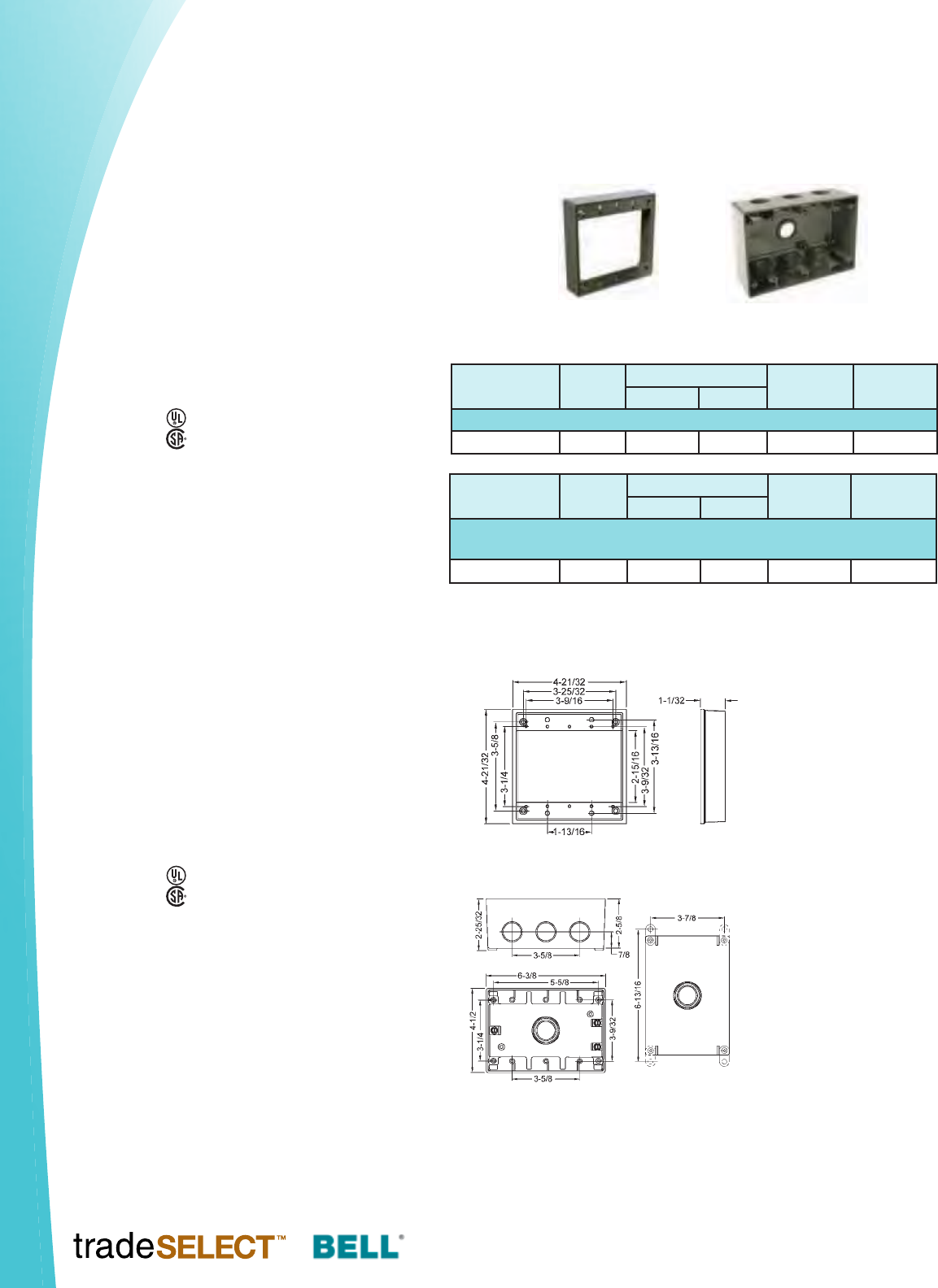

Multi-Gang Boxes and Extensions .......................................... H6

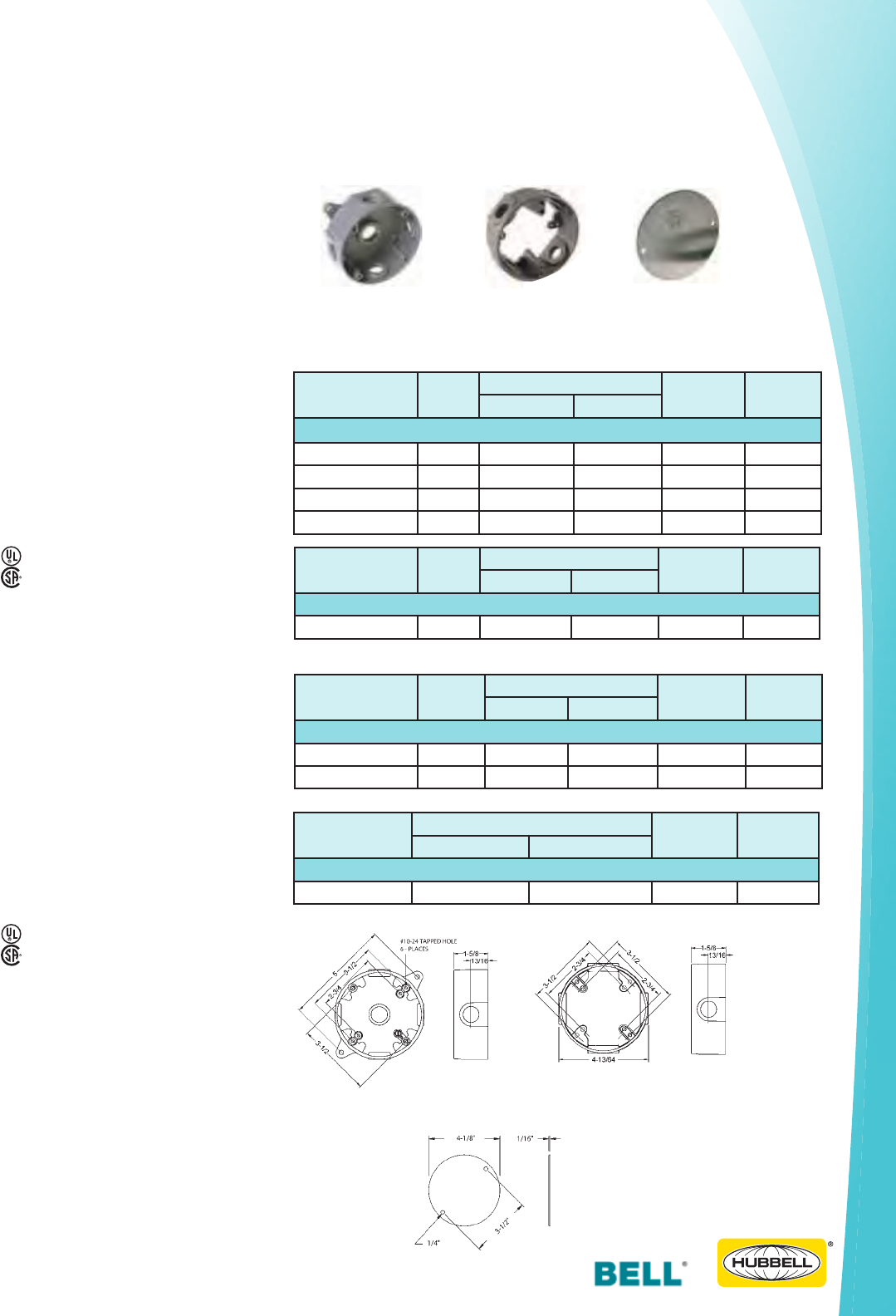

Round Splice Boxes, Extension Adapters and Covers........... H7

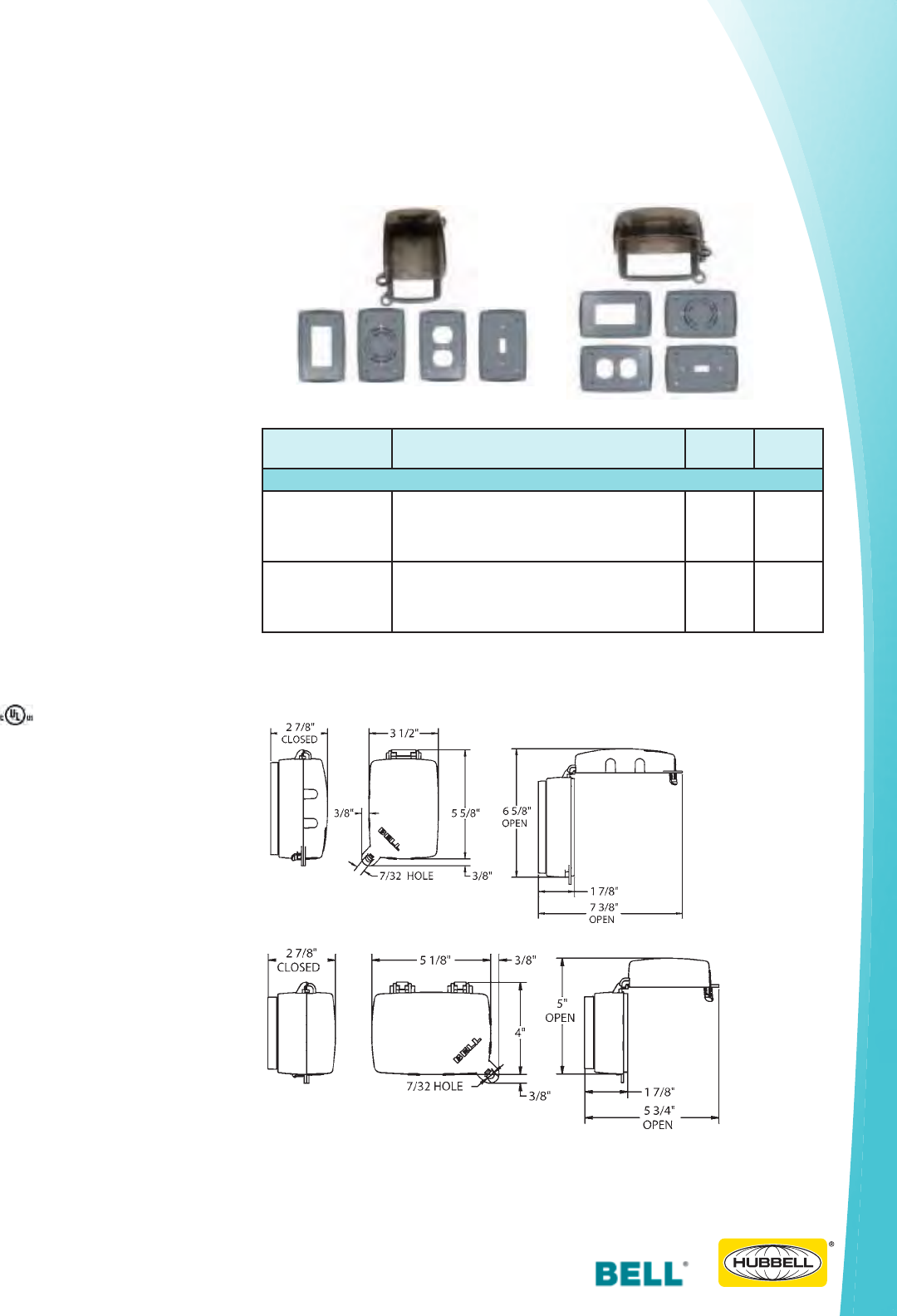

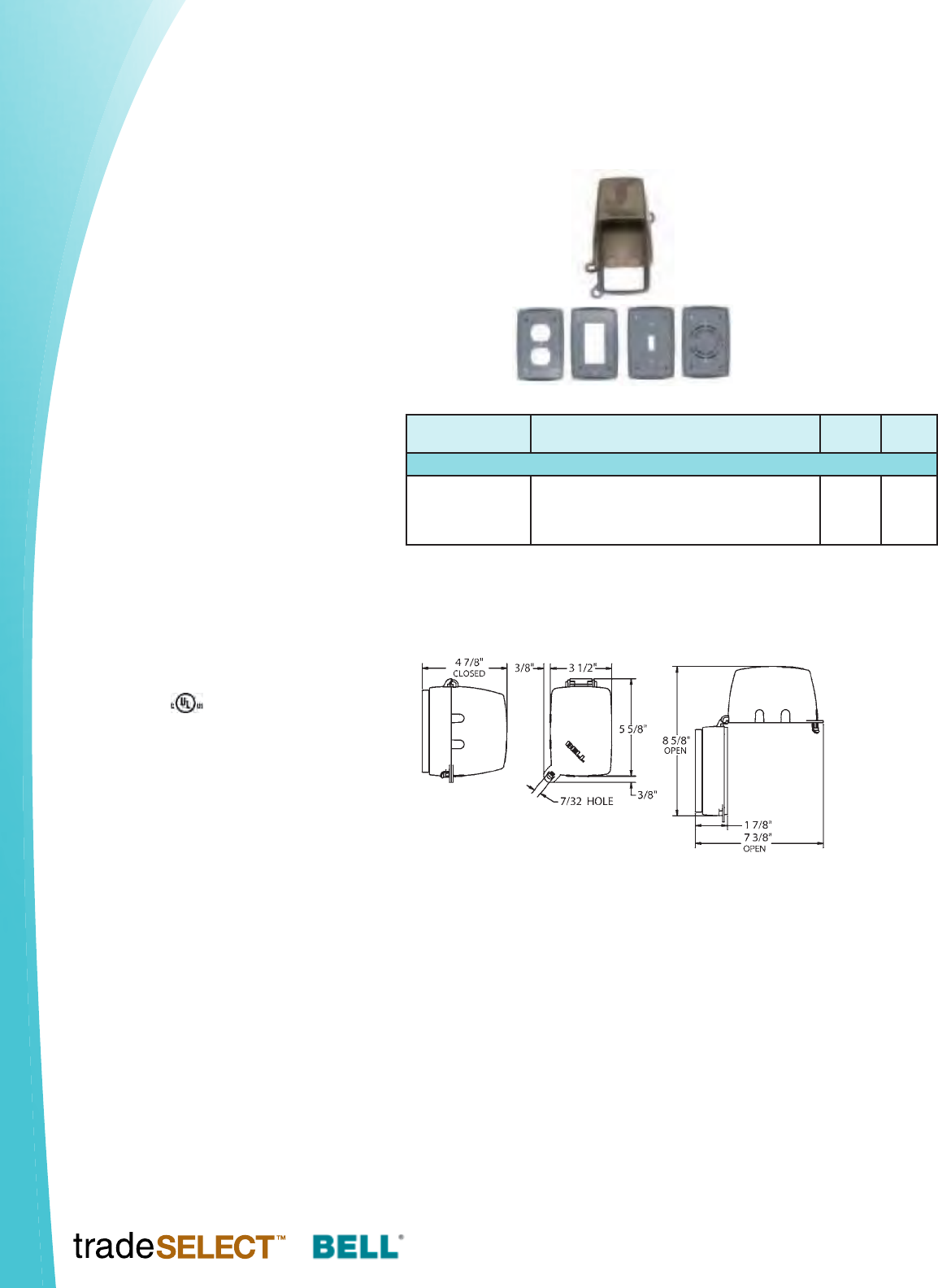

Specialty Covers ......................................................................... H8

Rayntite® Single-Gang Boxes and Covers......................H9-H10

Rayntite® Two-Gang Boxes and Covers ....................... H11-H12

Rayntite® Single-Gang Device Covers .................................. H13

Rayntite® Two-Gang Device Covers ...................................... H14

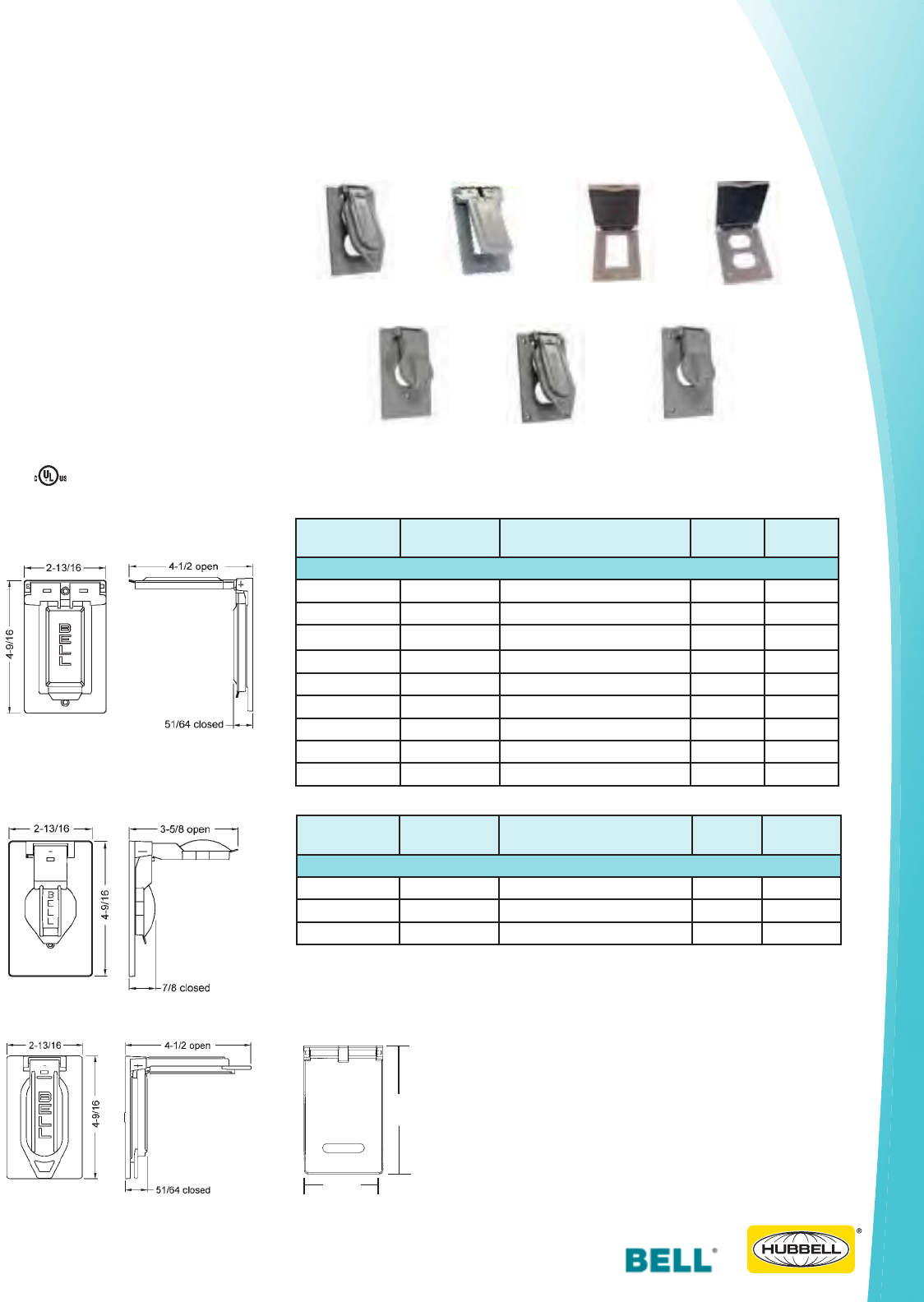

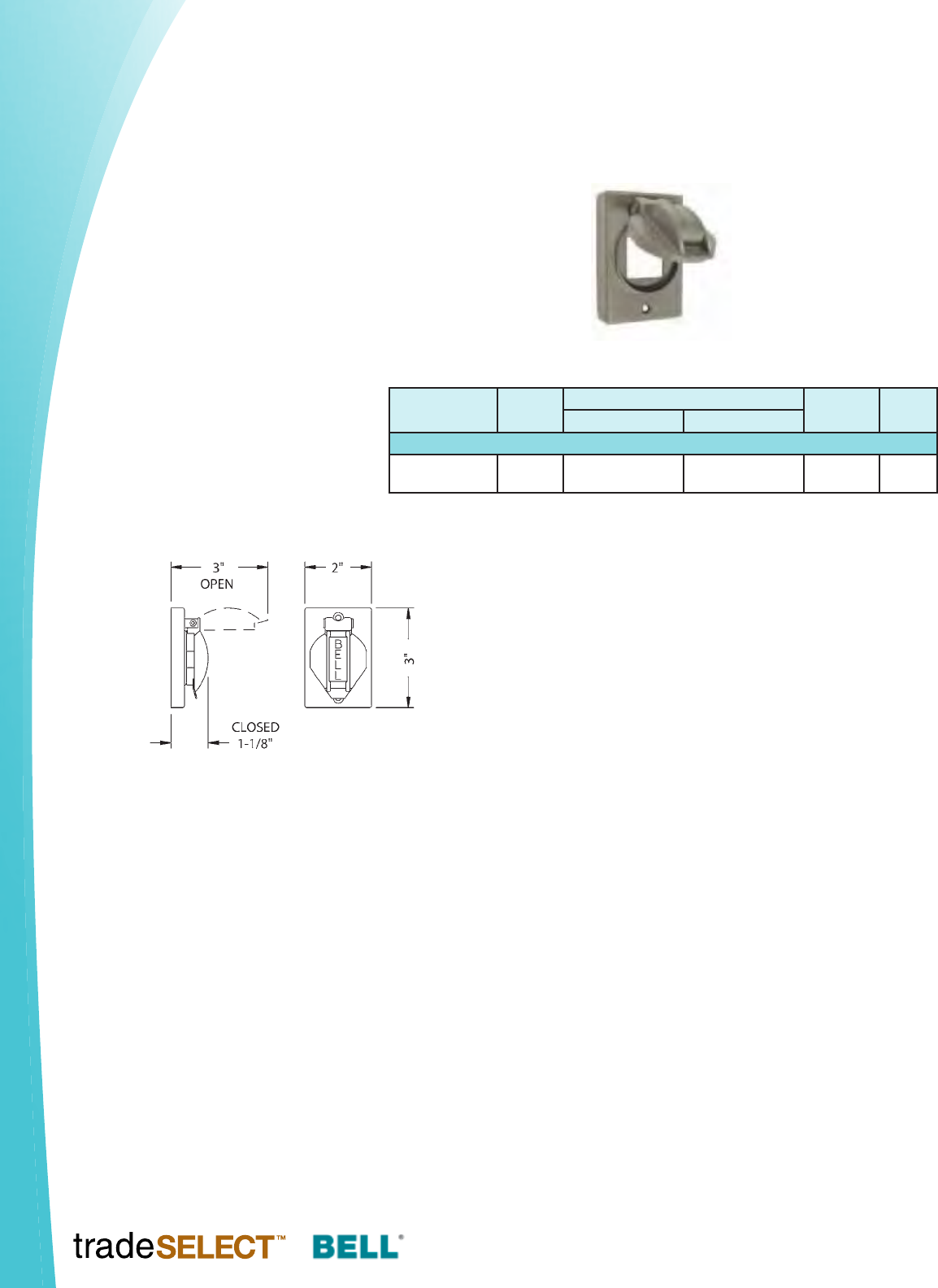

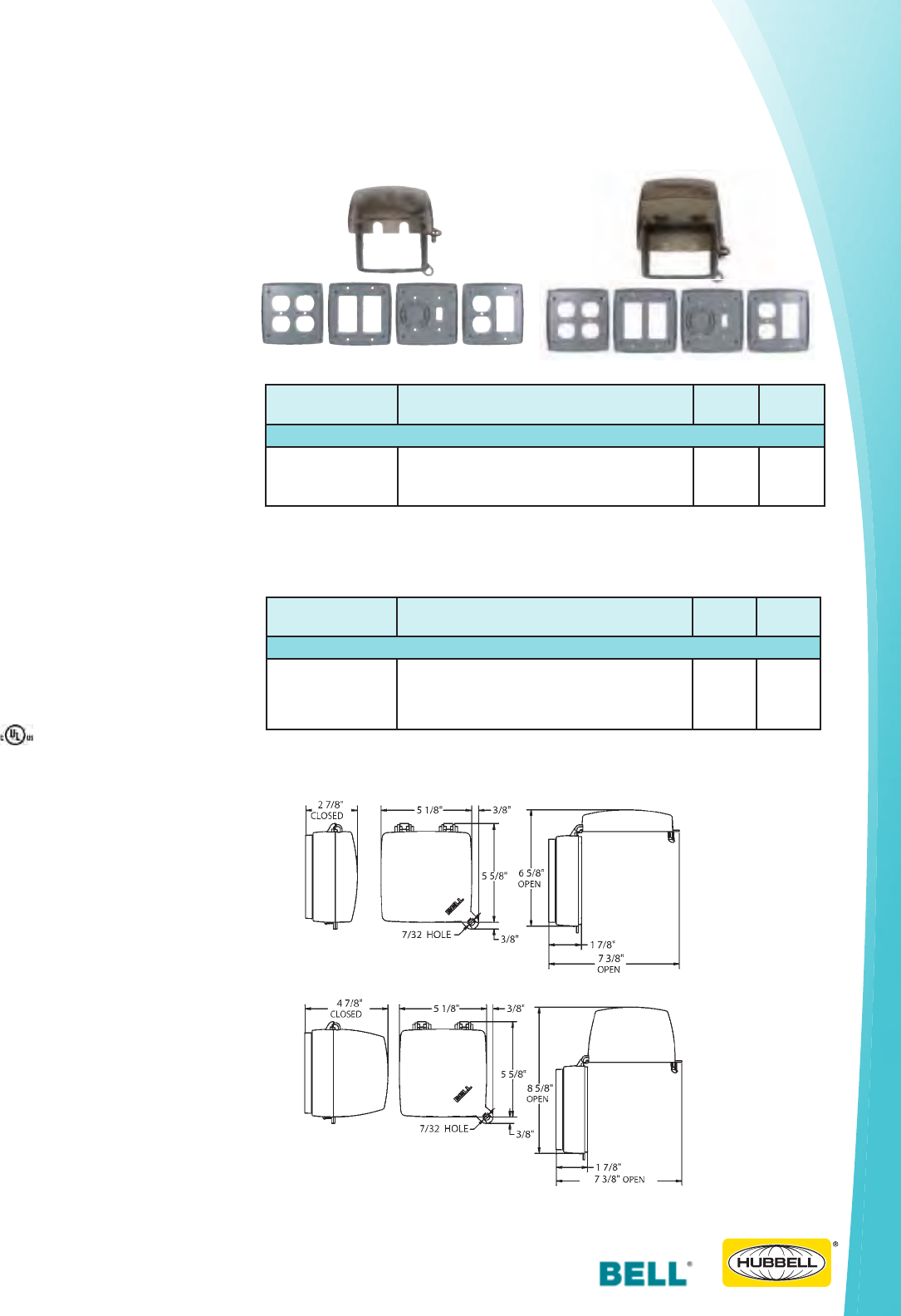

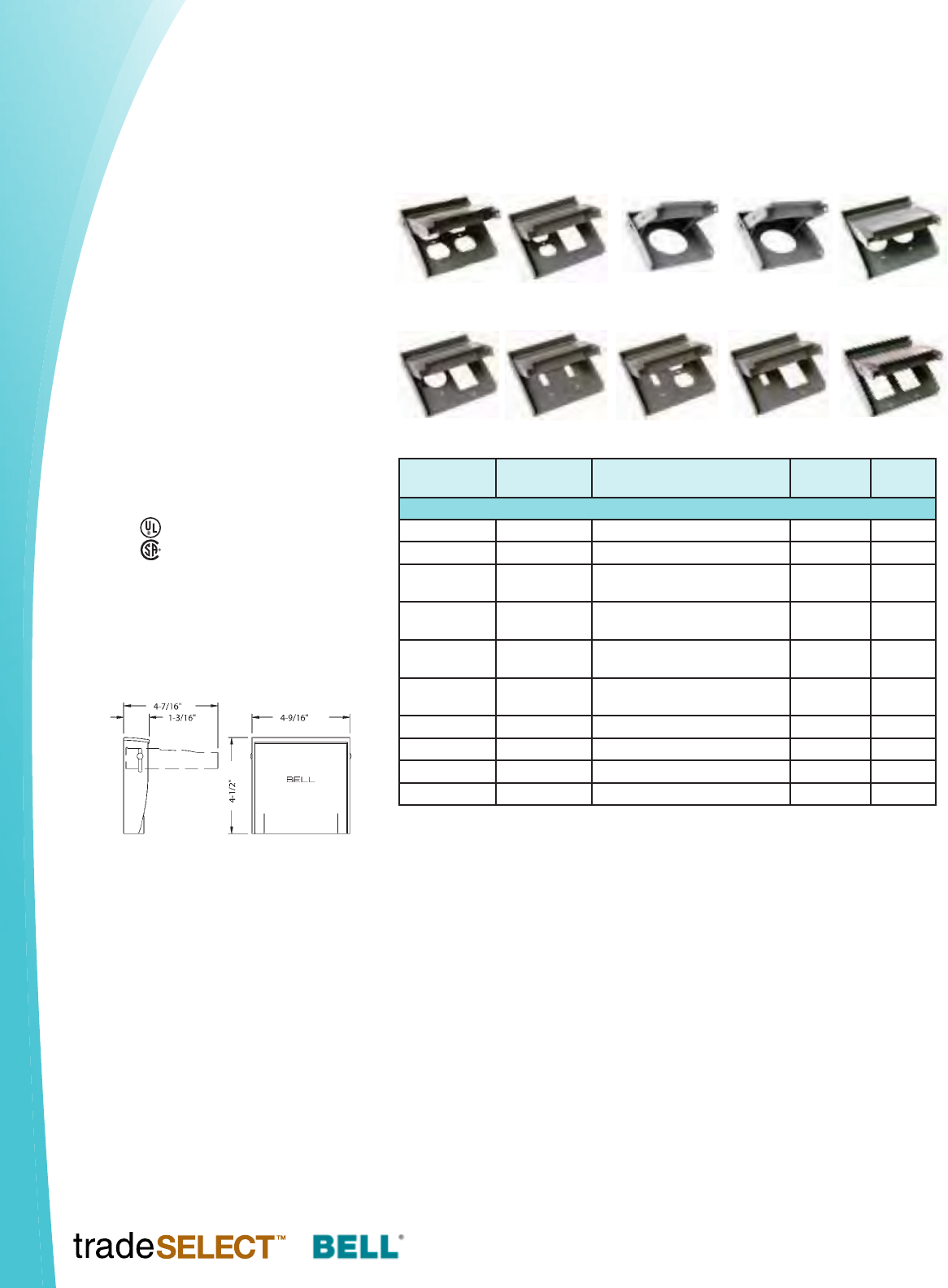

Single-Gang Device Covers .................................................... H15

Generator Kits ........................................................................... H16

Single-Gang Device Covers .................................................... H17

Single-Gang Blank Covers and Mini-Plate ............................ H18

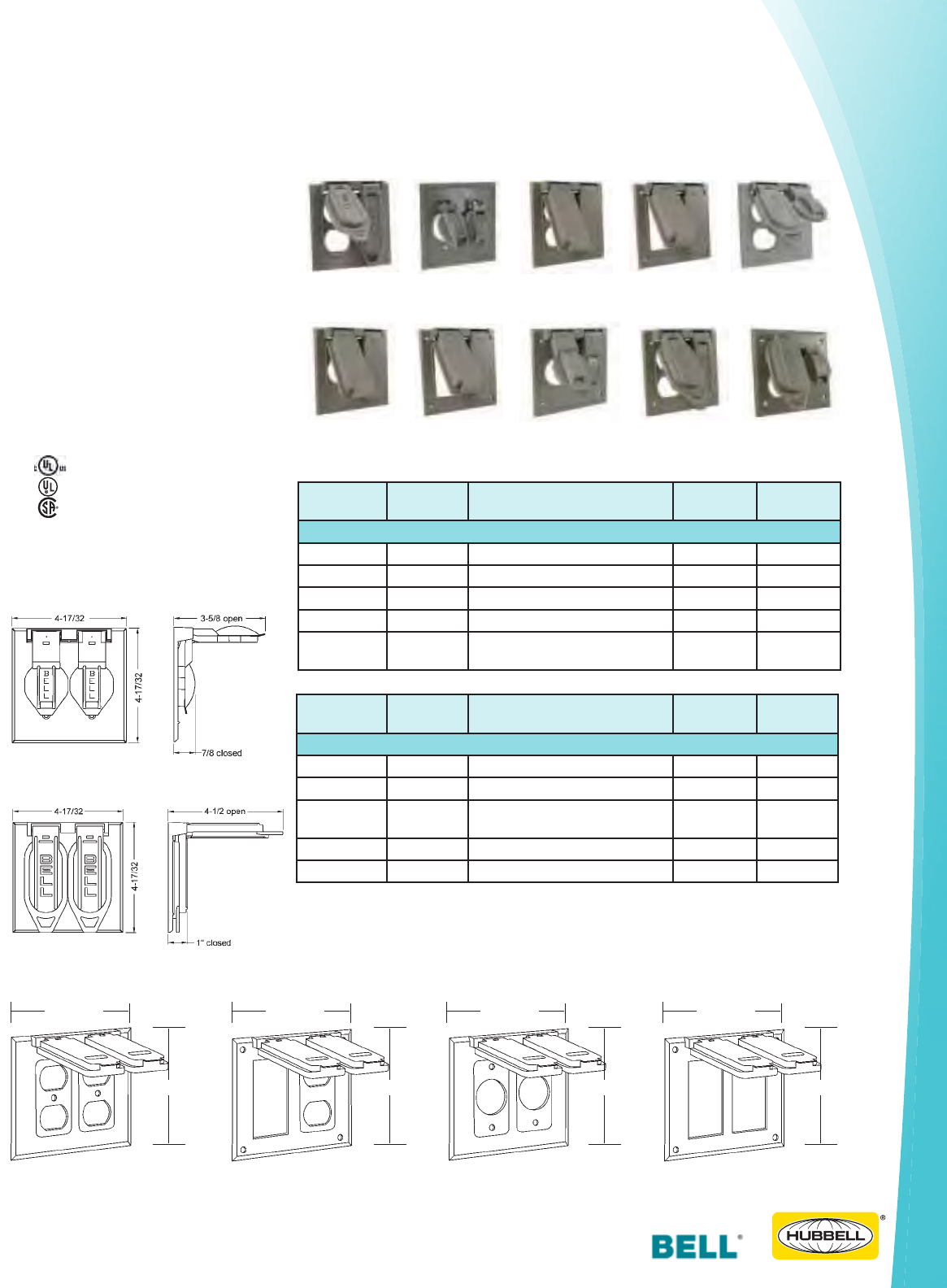

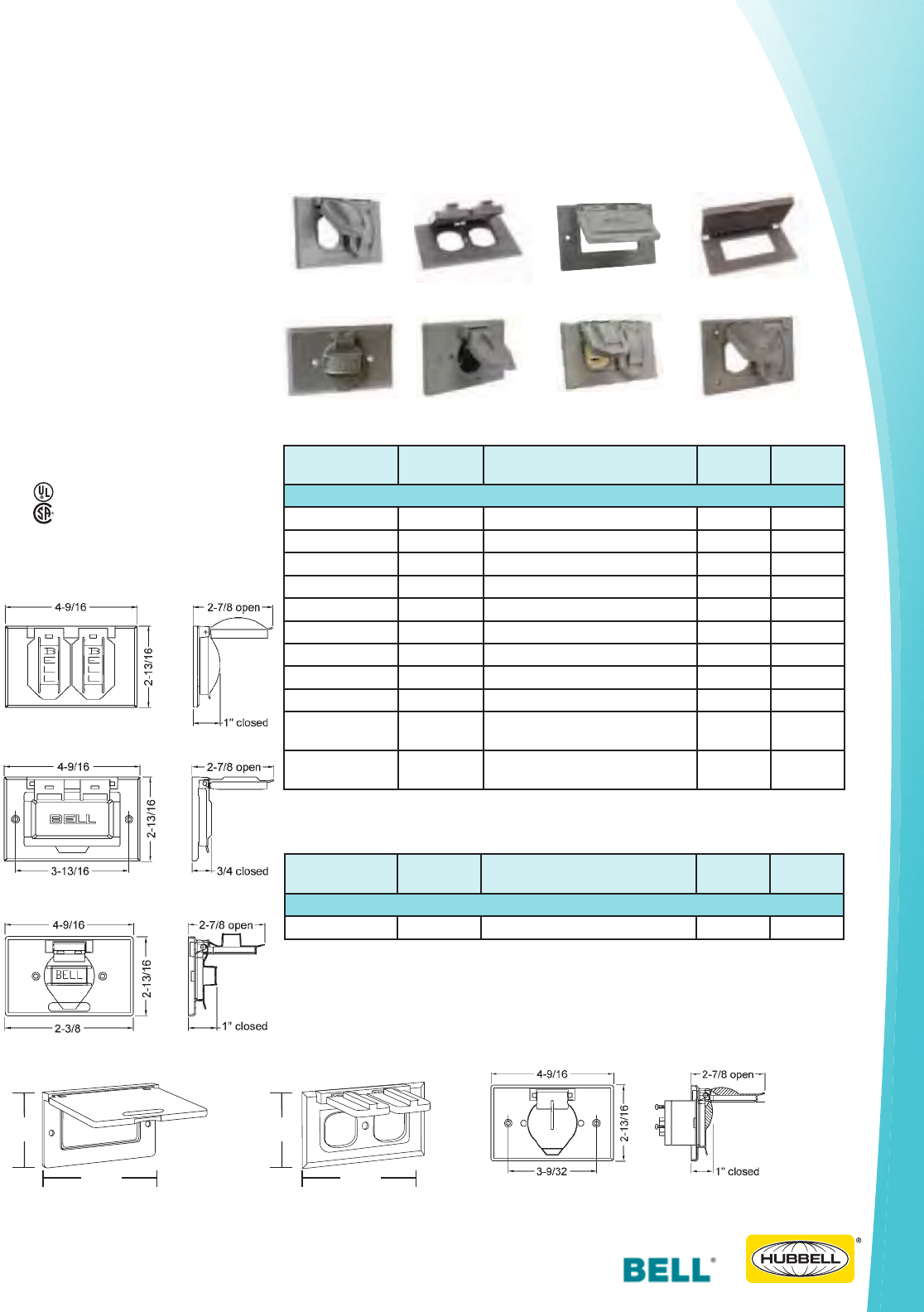

Two-Gang Device Covers ........................................................ H19

Two And Three-Gang Device Covers ..................................... H20

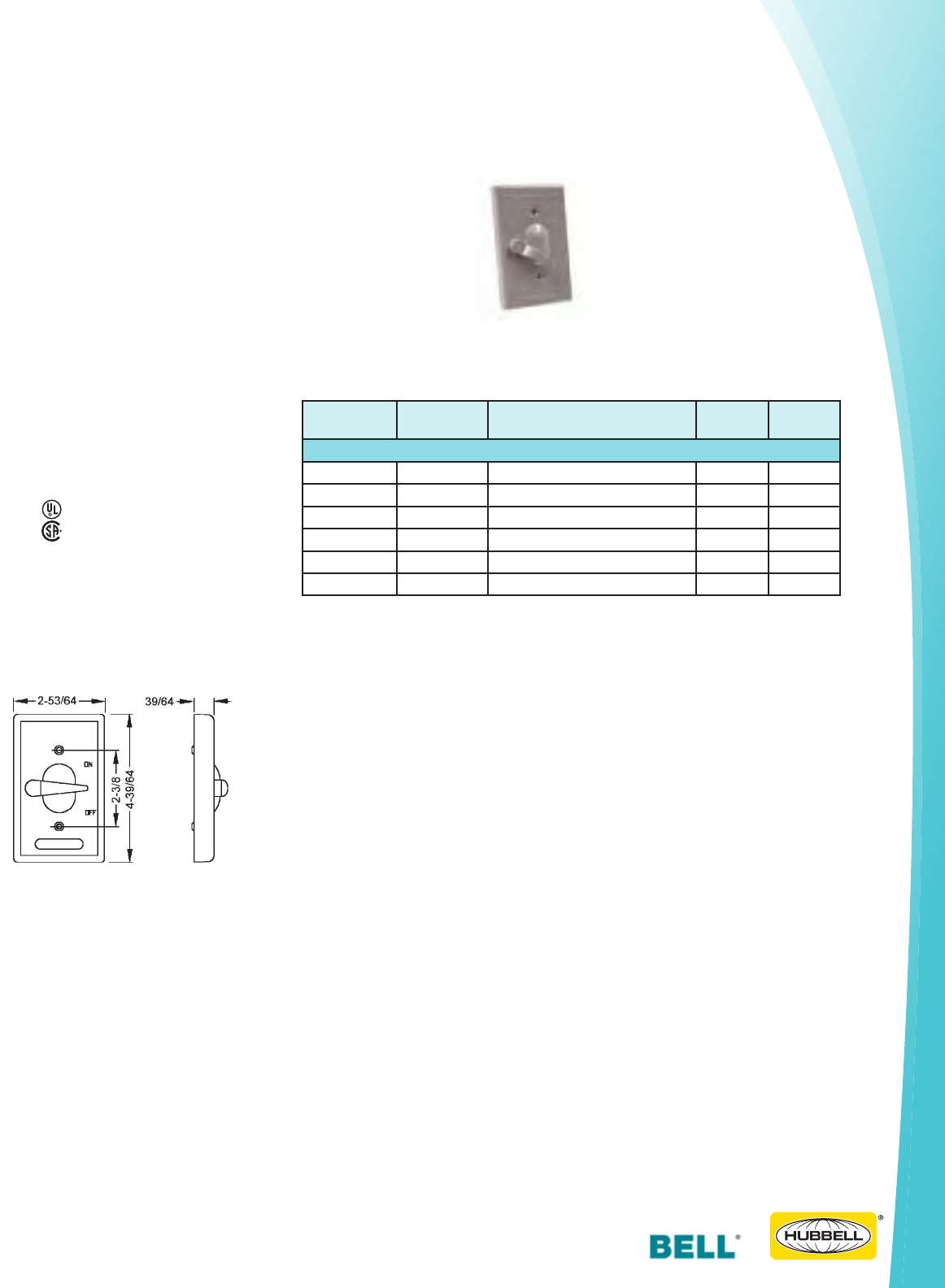

Single-Gang Lever Switch Covers .......................................... H21

Two-Gang Lever Switch Covers..............................................H22

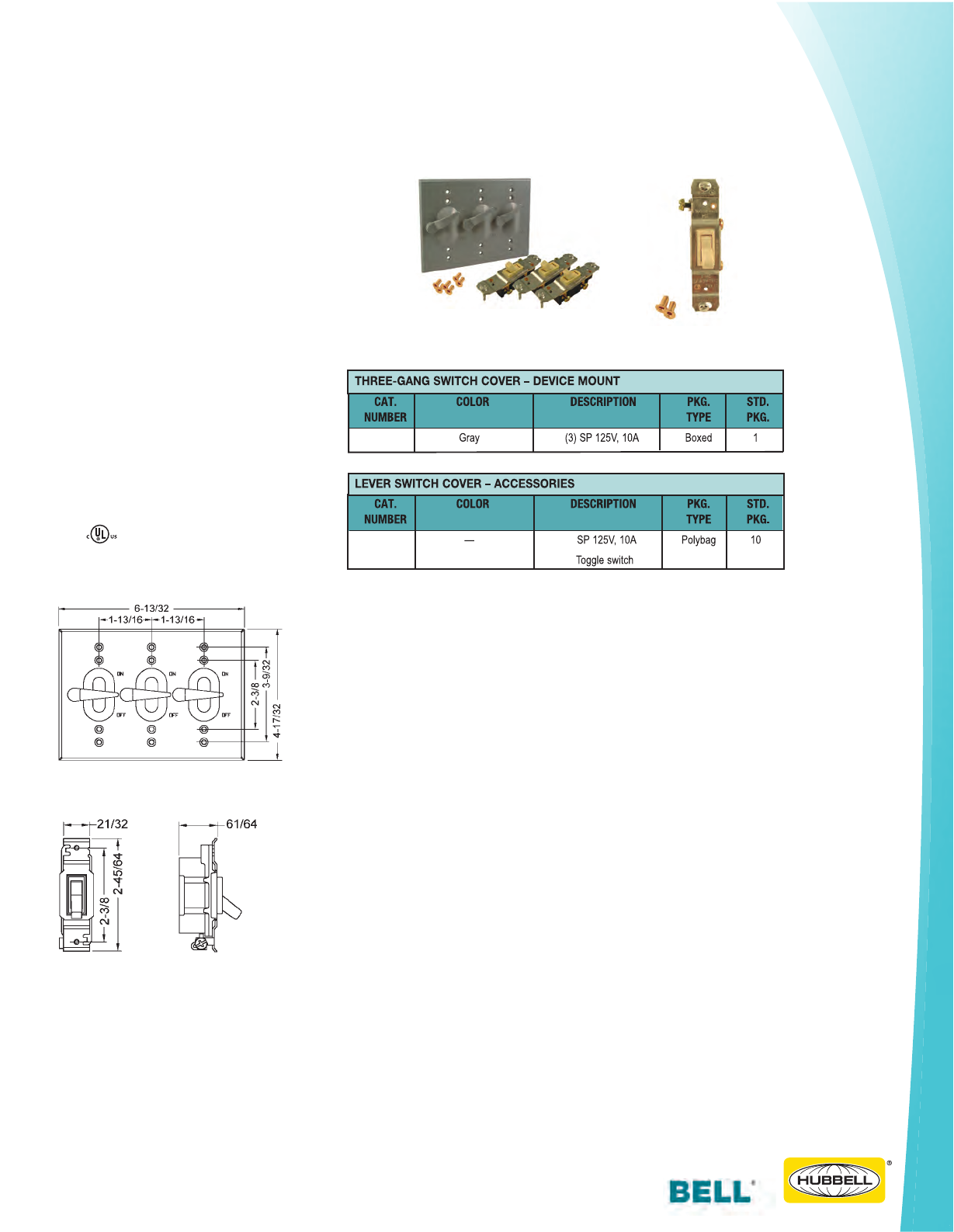

Three-Gang Lever Switch Cover & Replacement Switch ..... H23

Cluster Covers .......................................................................... H24

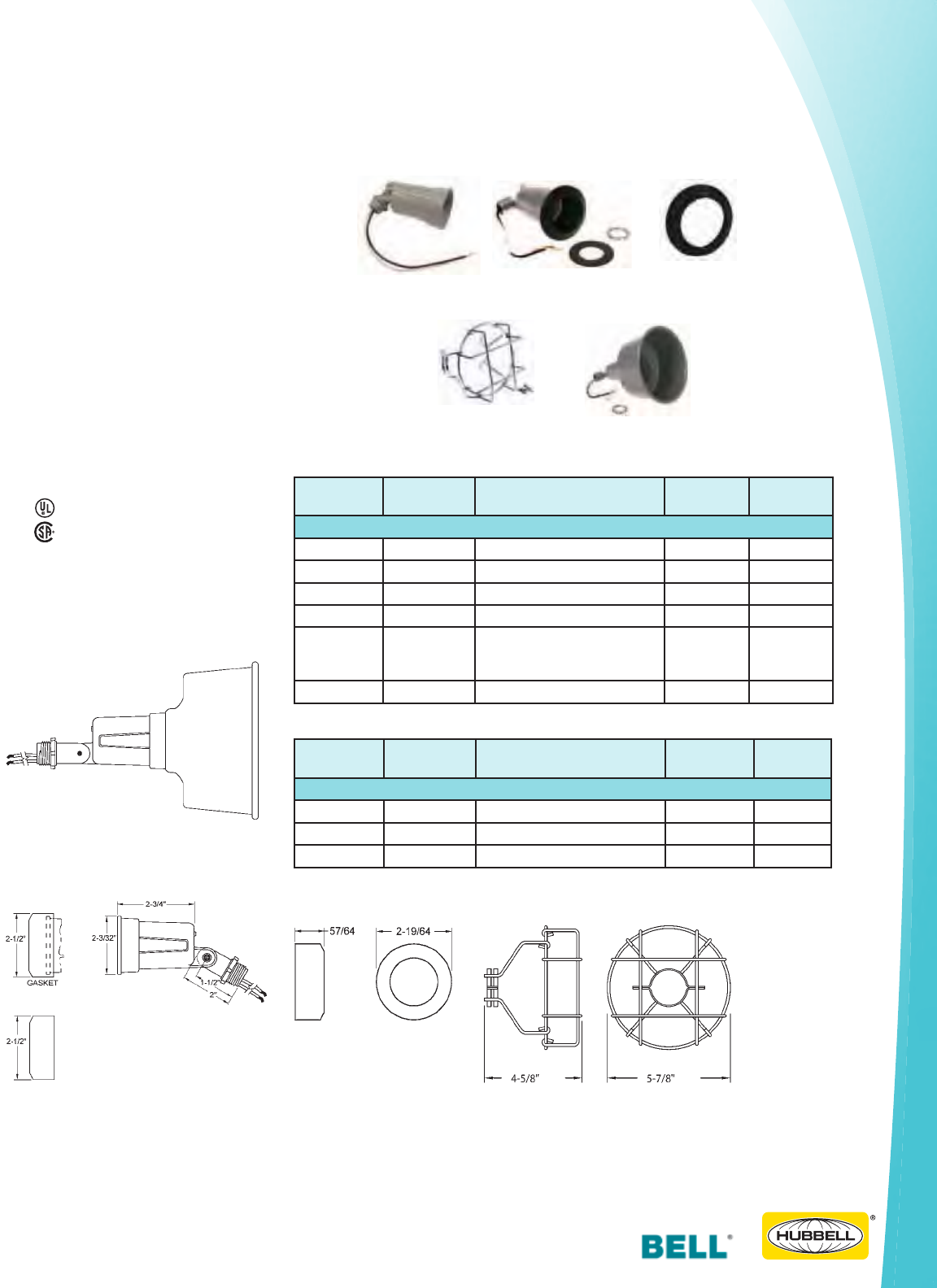

Lampholders & Lampholder Combinations .................. H25-H27

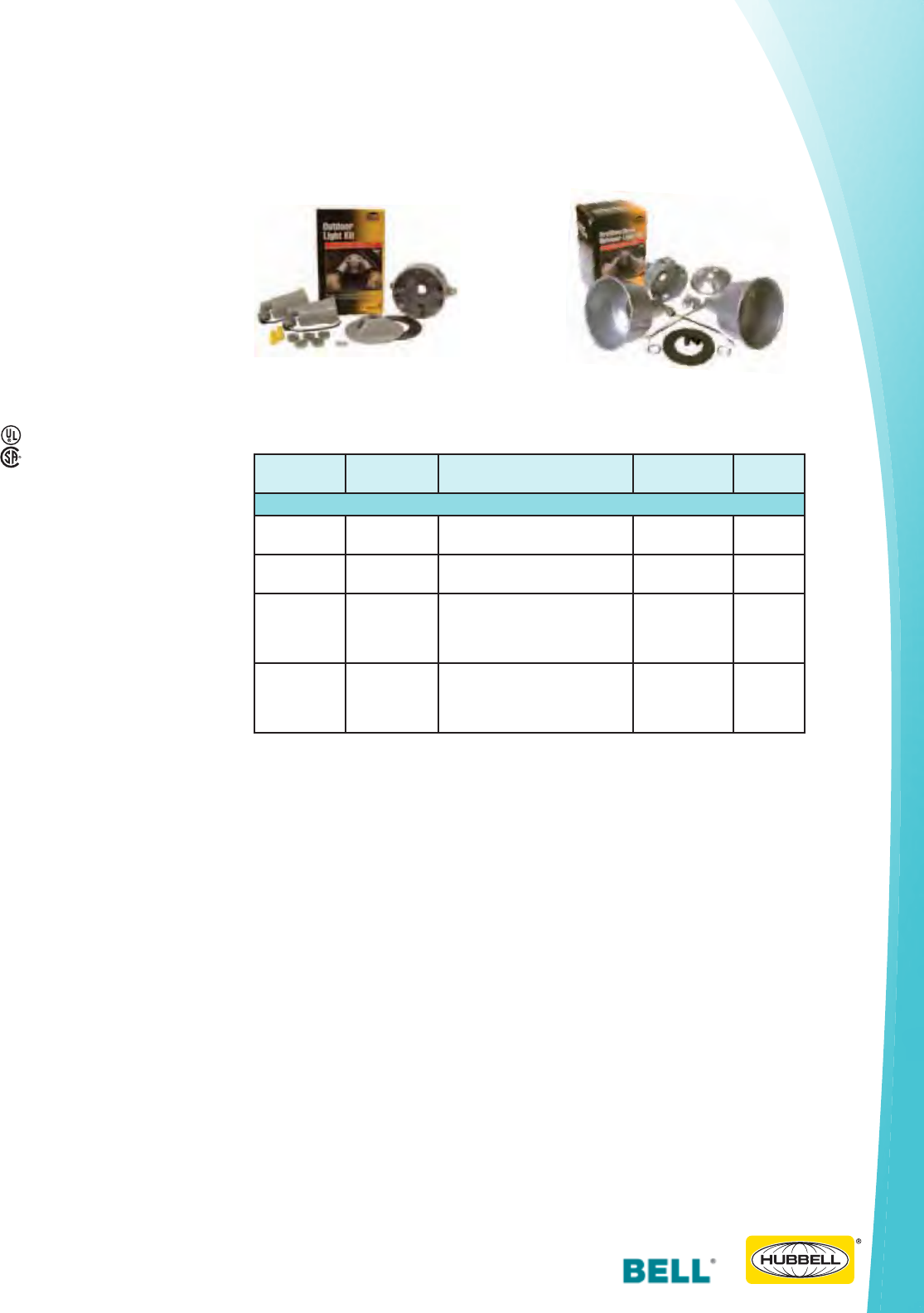

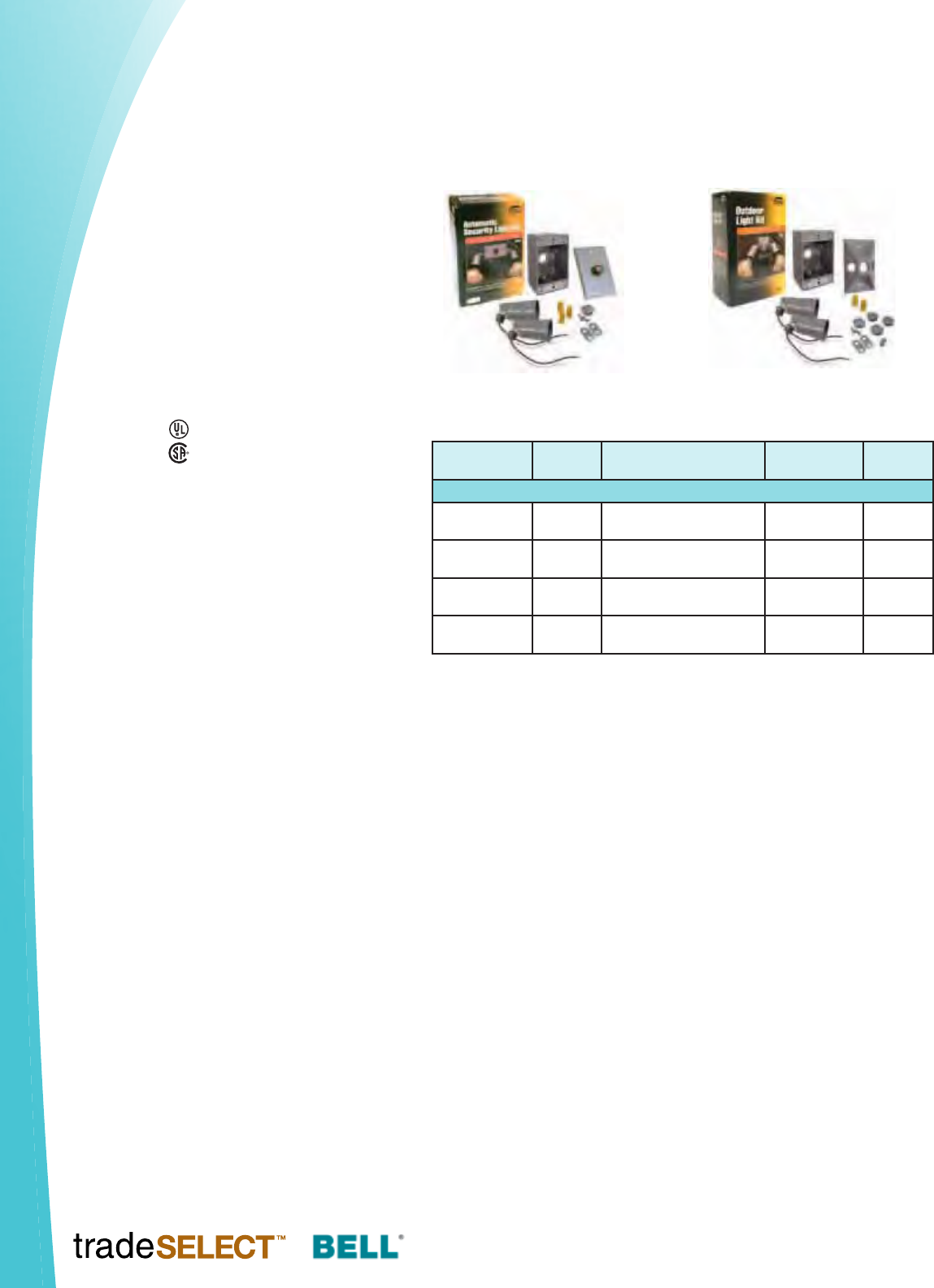

Light Kits........................................................................... H28-H29

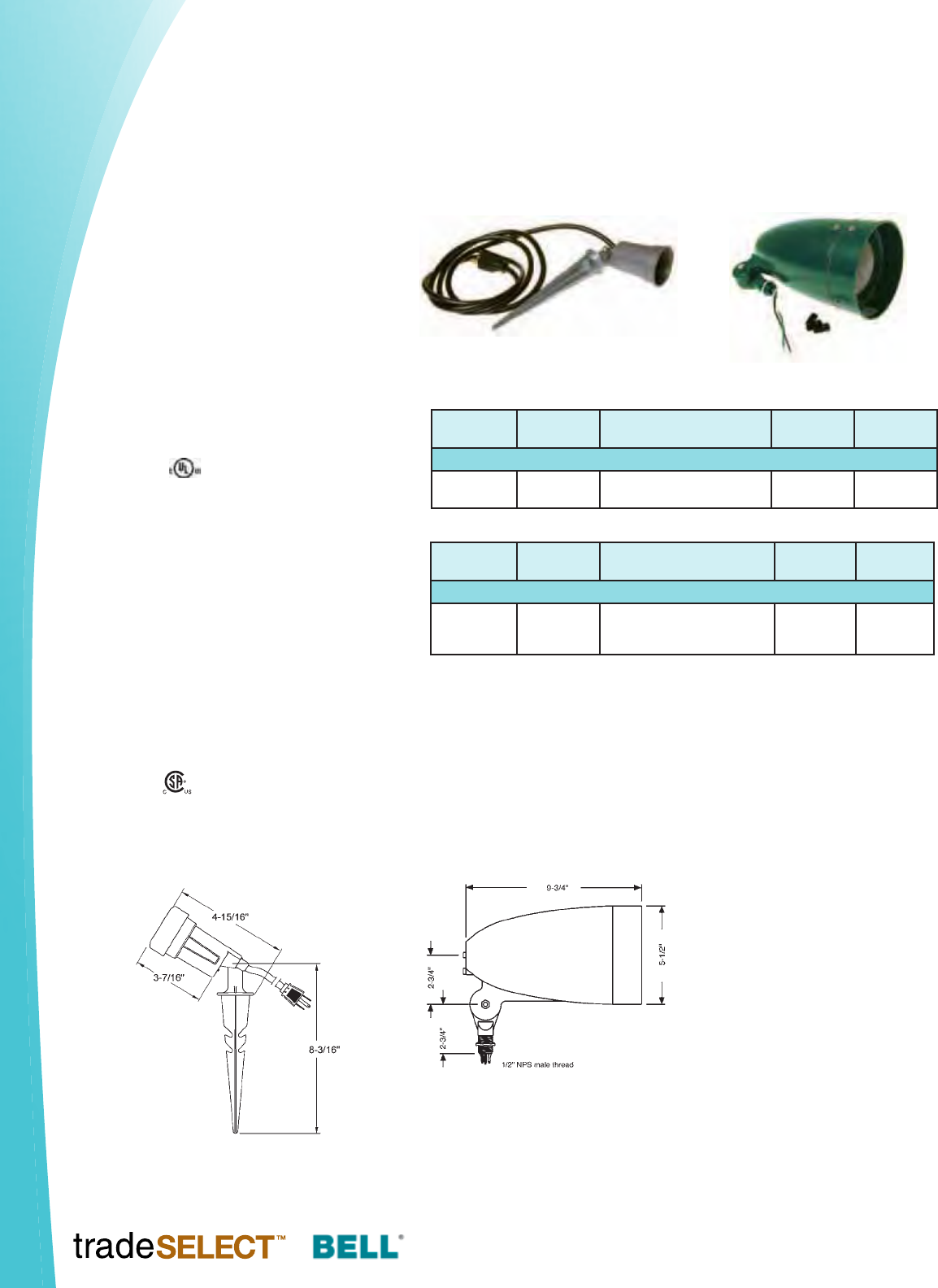

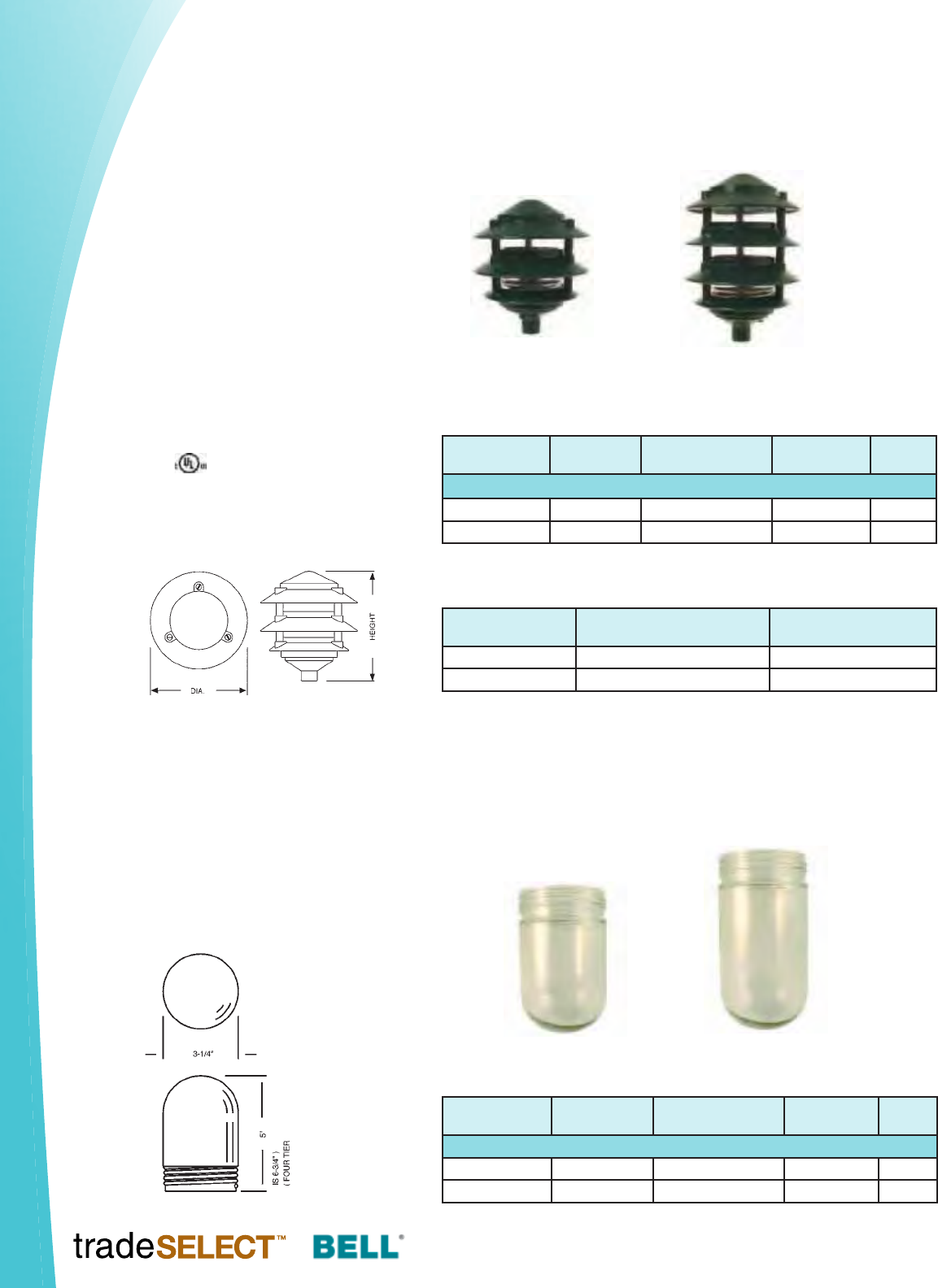

Garden Lights ...........................................................................H30

Replacement Globes................................................................H30

Accessories .......................................................................H31-H32

E WIRE MANAGEMENT

F tradeSELECT™ and netSELECT®

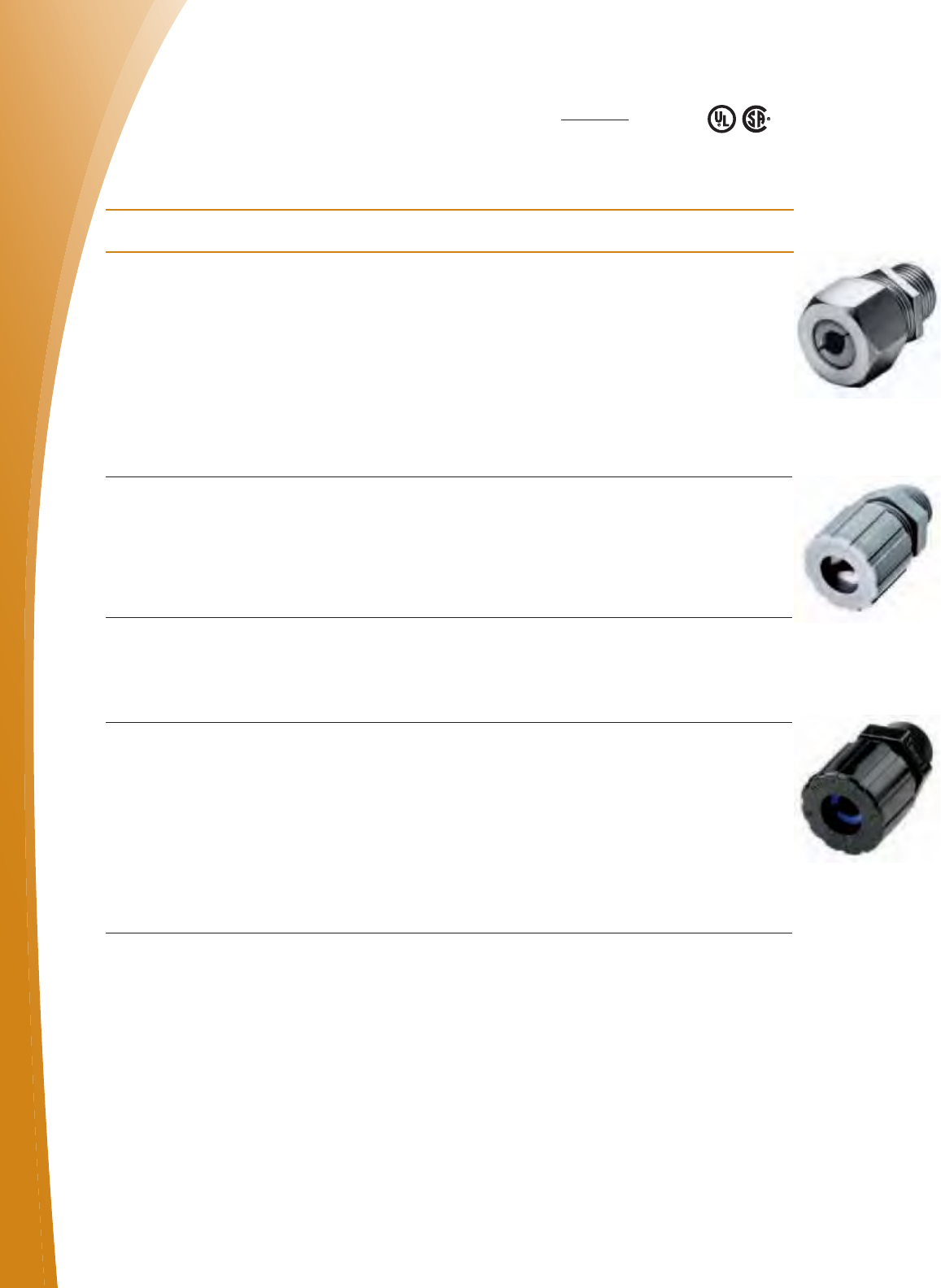

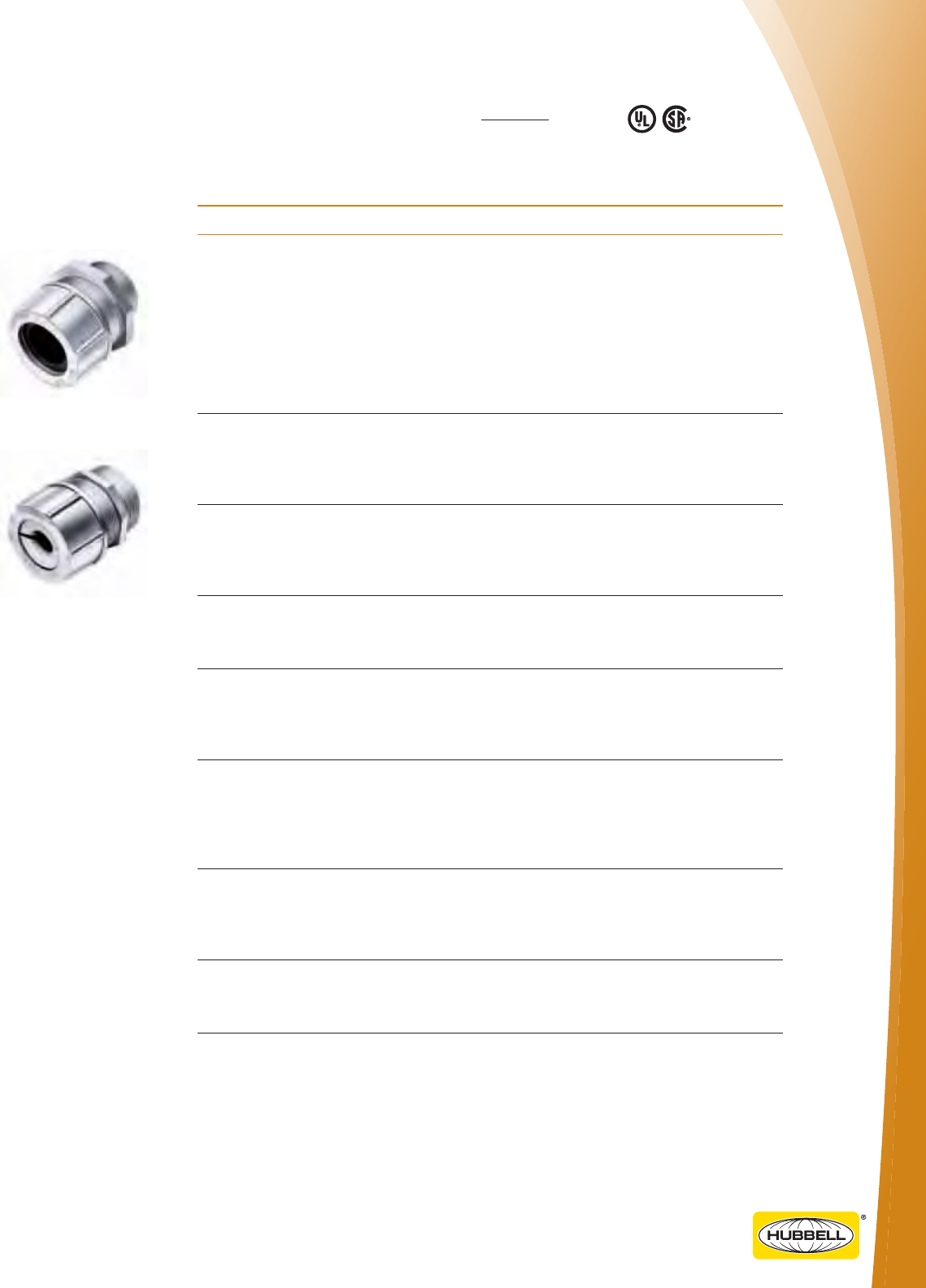

Straight Male Connectors .....................................................E1-E3

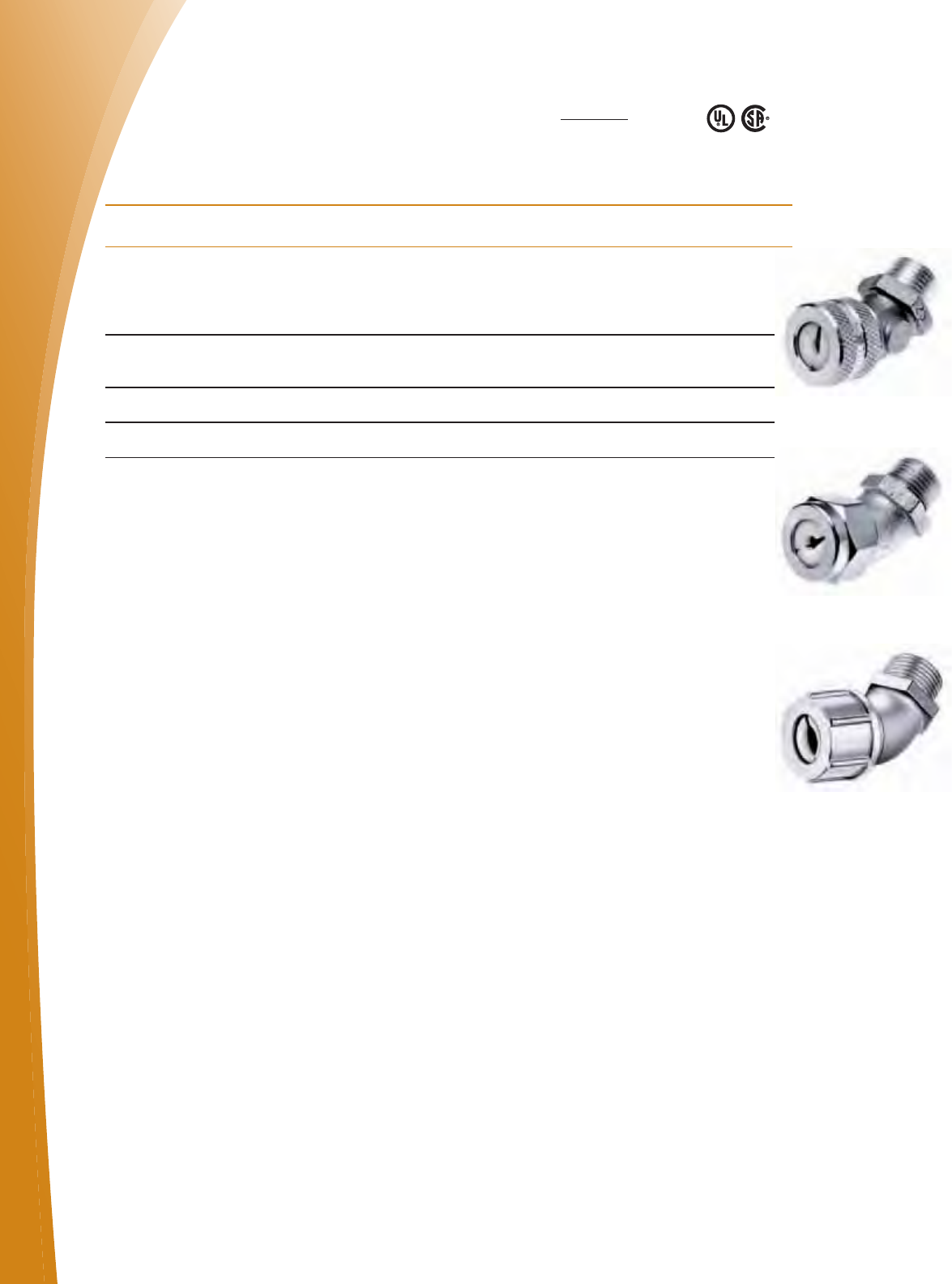

45º Male Cord Connectors .........................................................E4

90º Male Cord Connectors .........................................................E5

Straight Female Connectors .......................................................E6

Low Profile Connectors...............................................................E7

Accessories ..................................................................................E8

Hubbell Junior

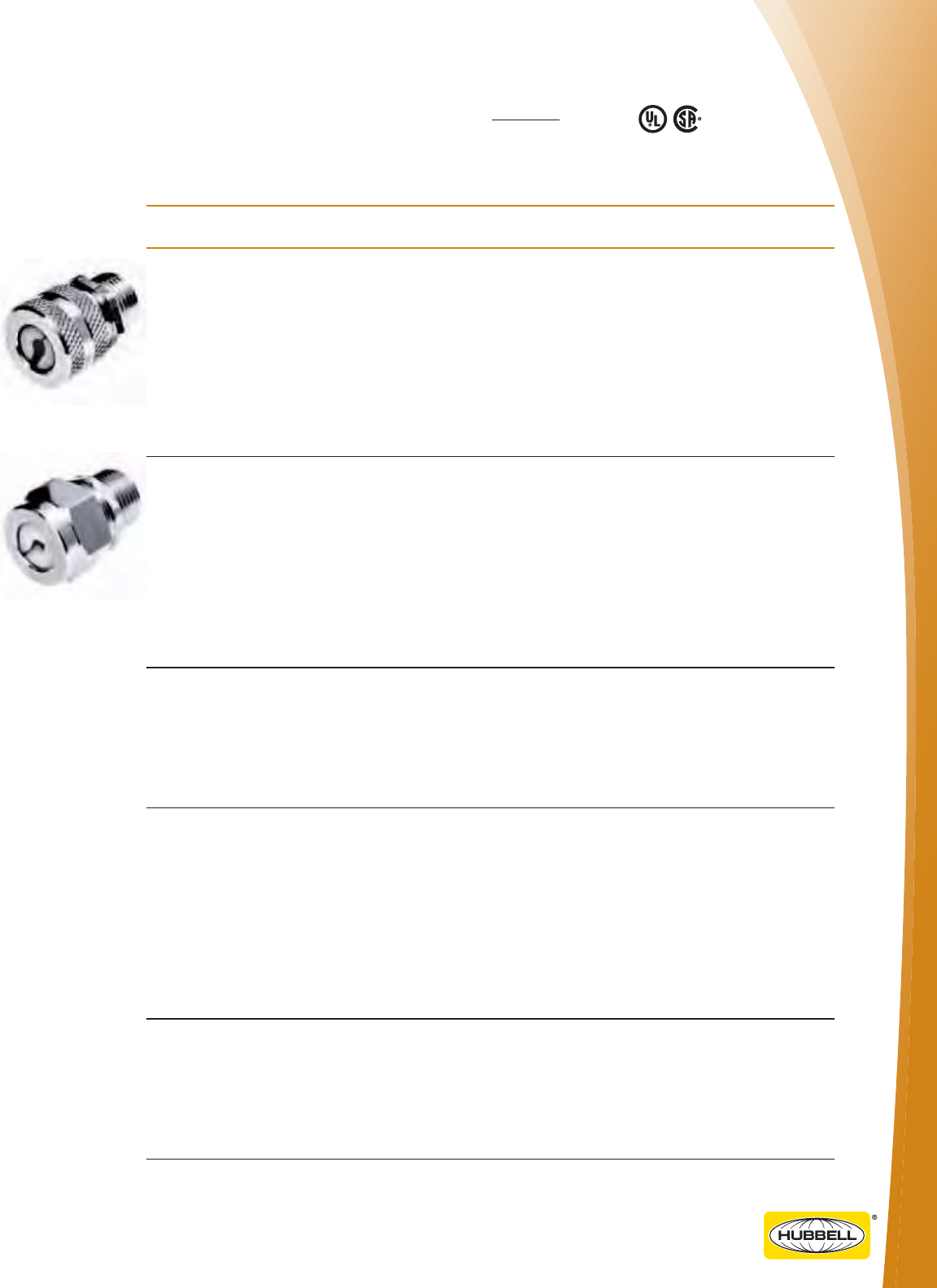

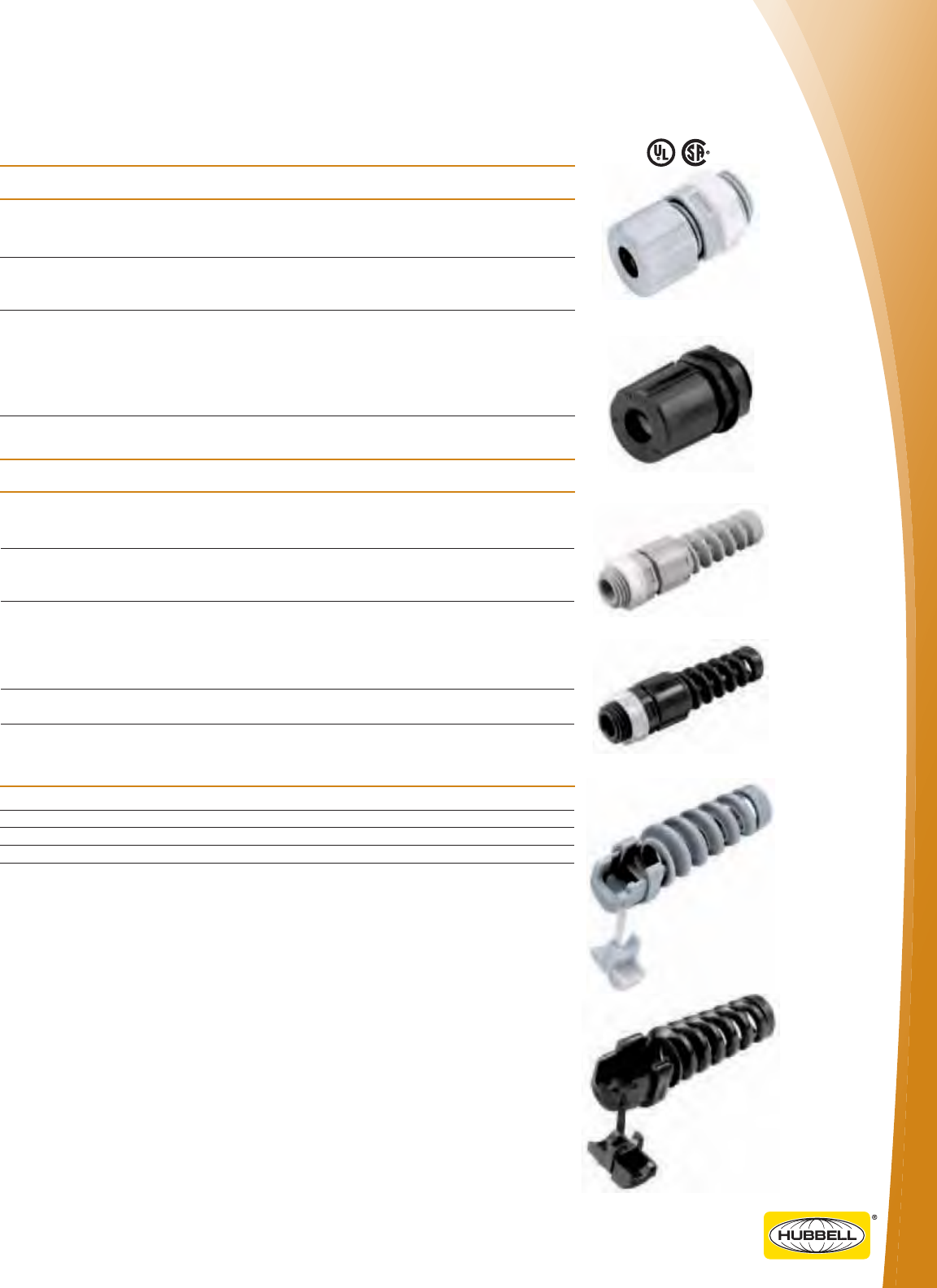

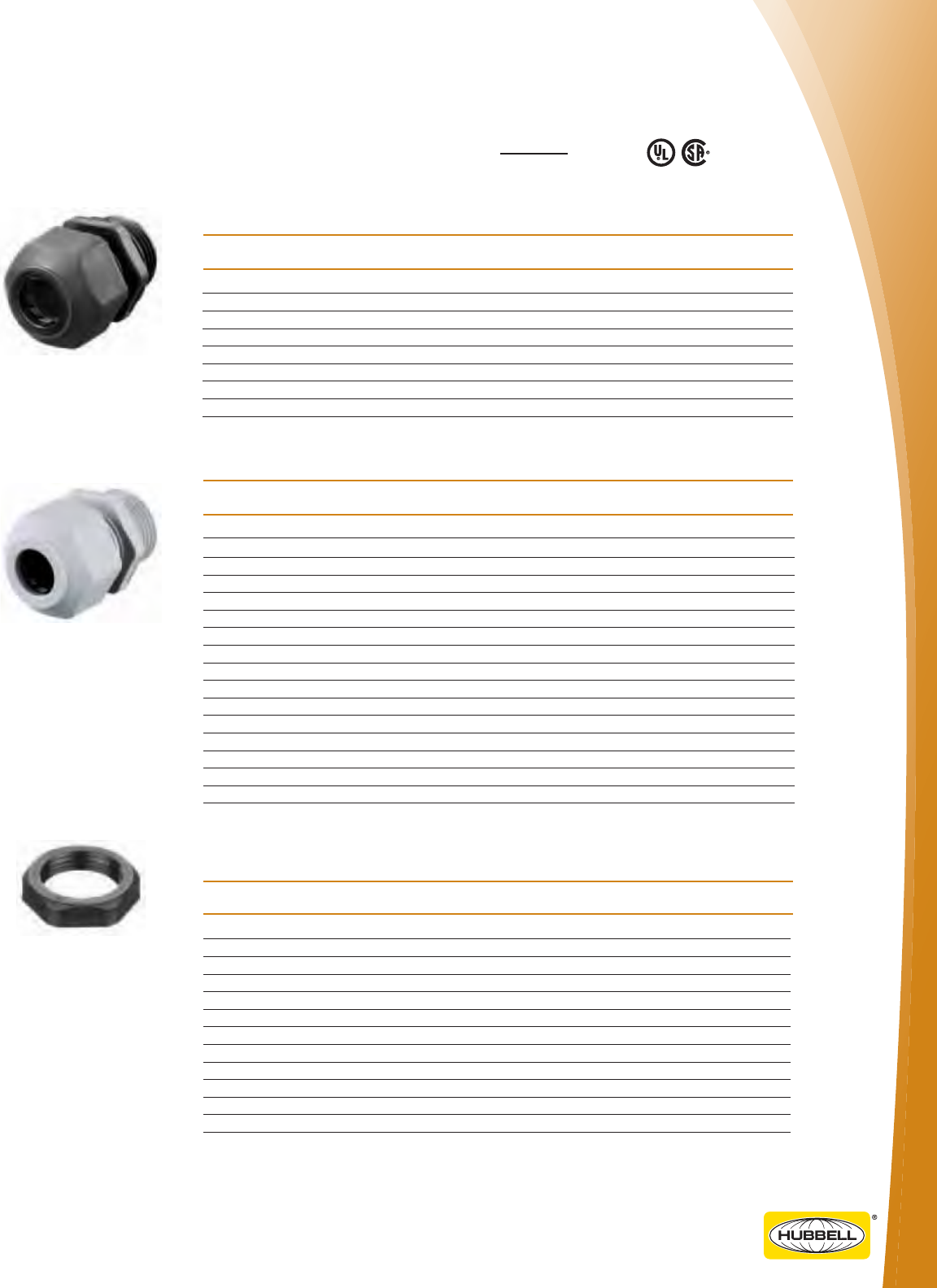

Nylon Cord Connectors...................................E9

Polytuff

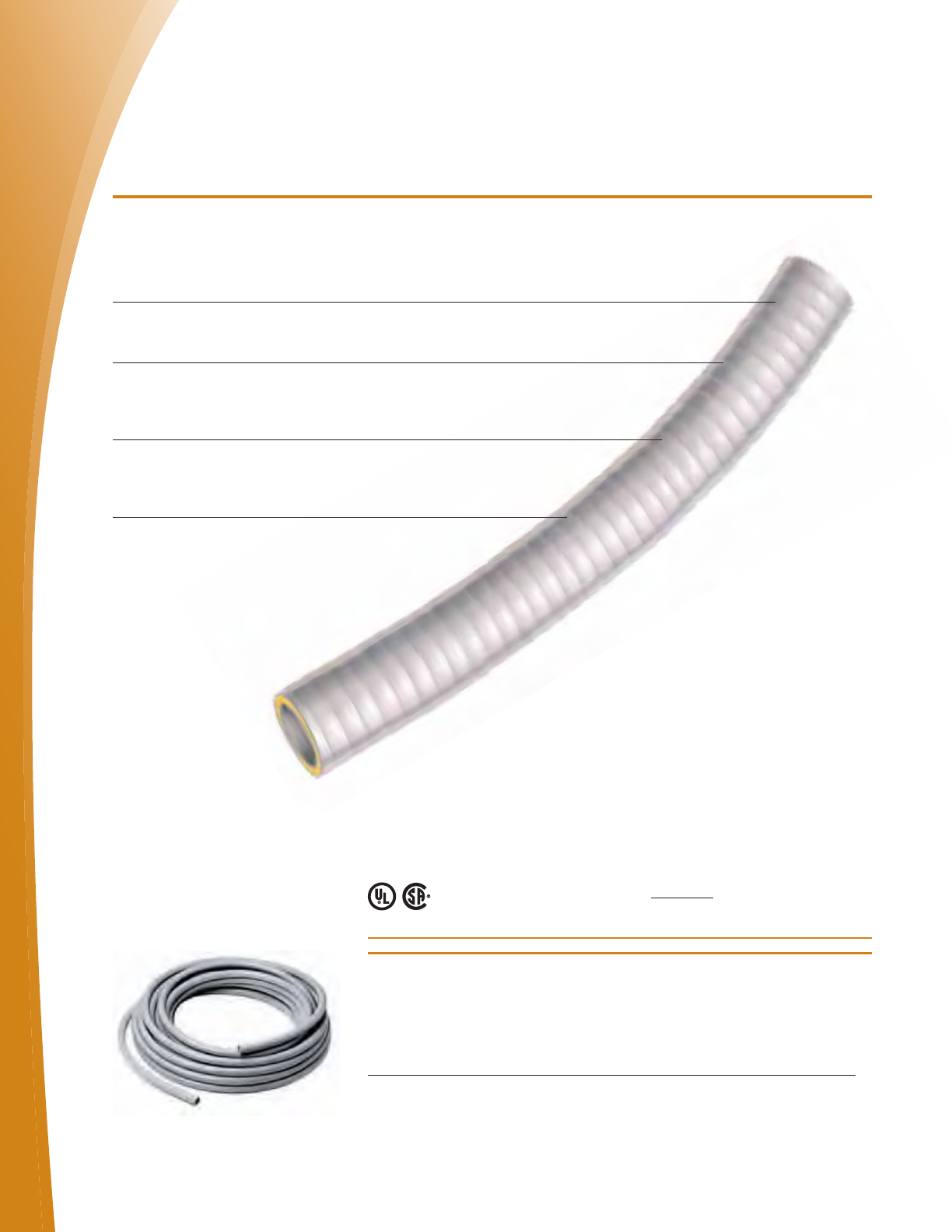

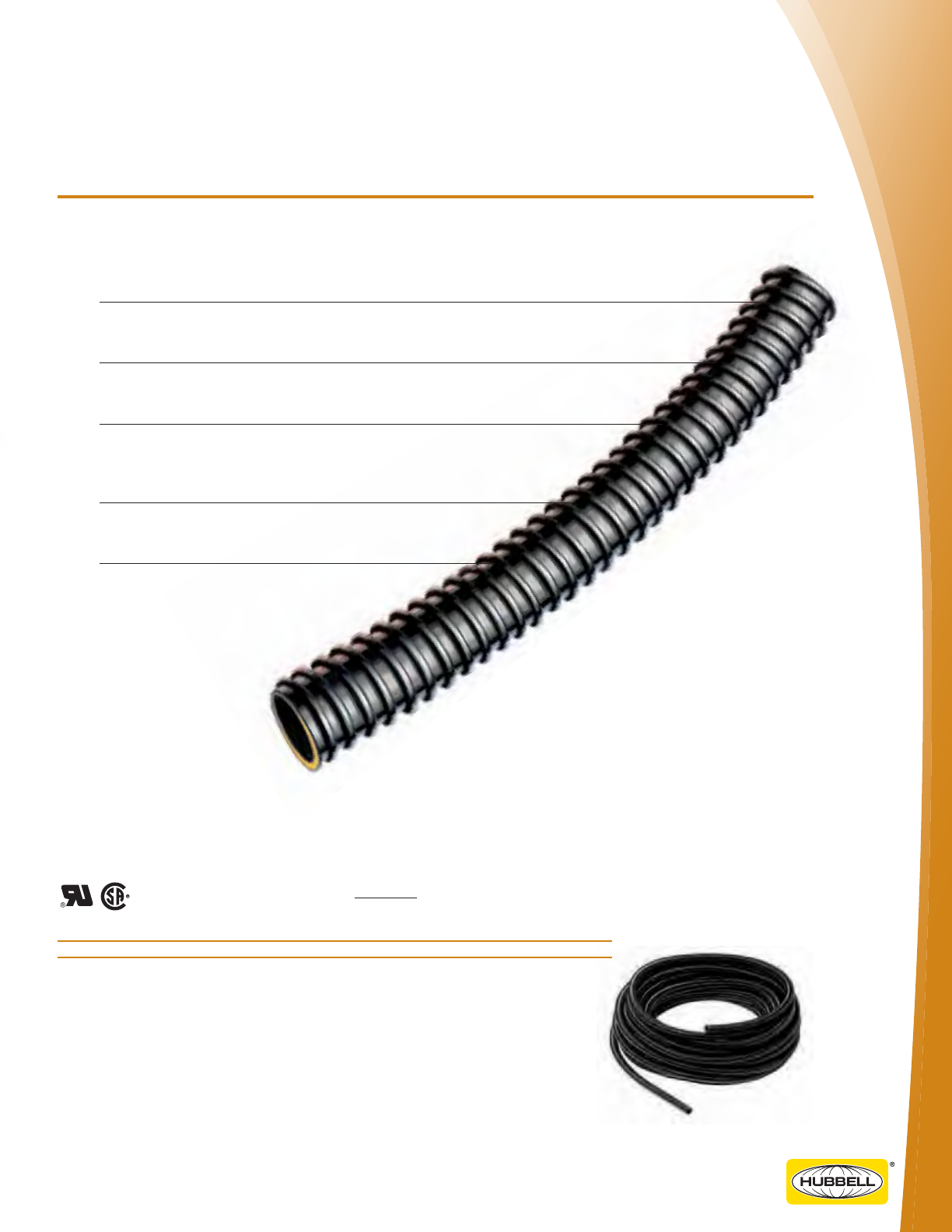

Liquidtight Conduit ....................................................E10

Polytuff

Liquidtight Tubing ......................................................E11

Polytuff

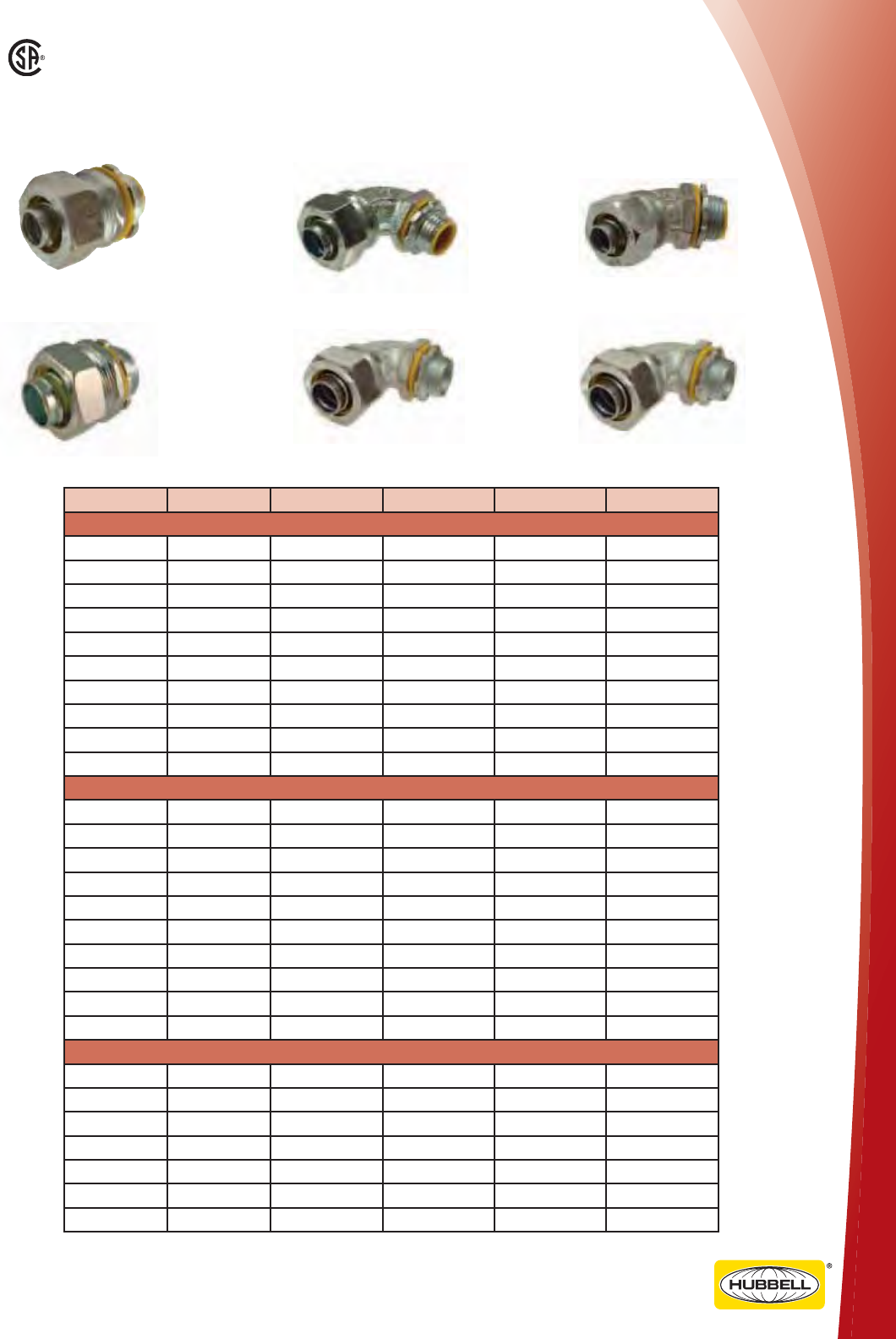

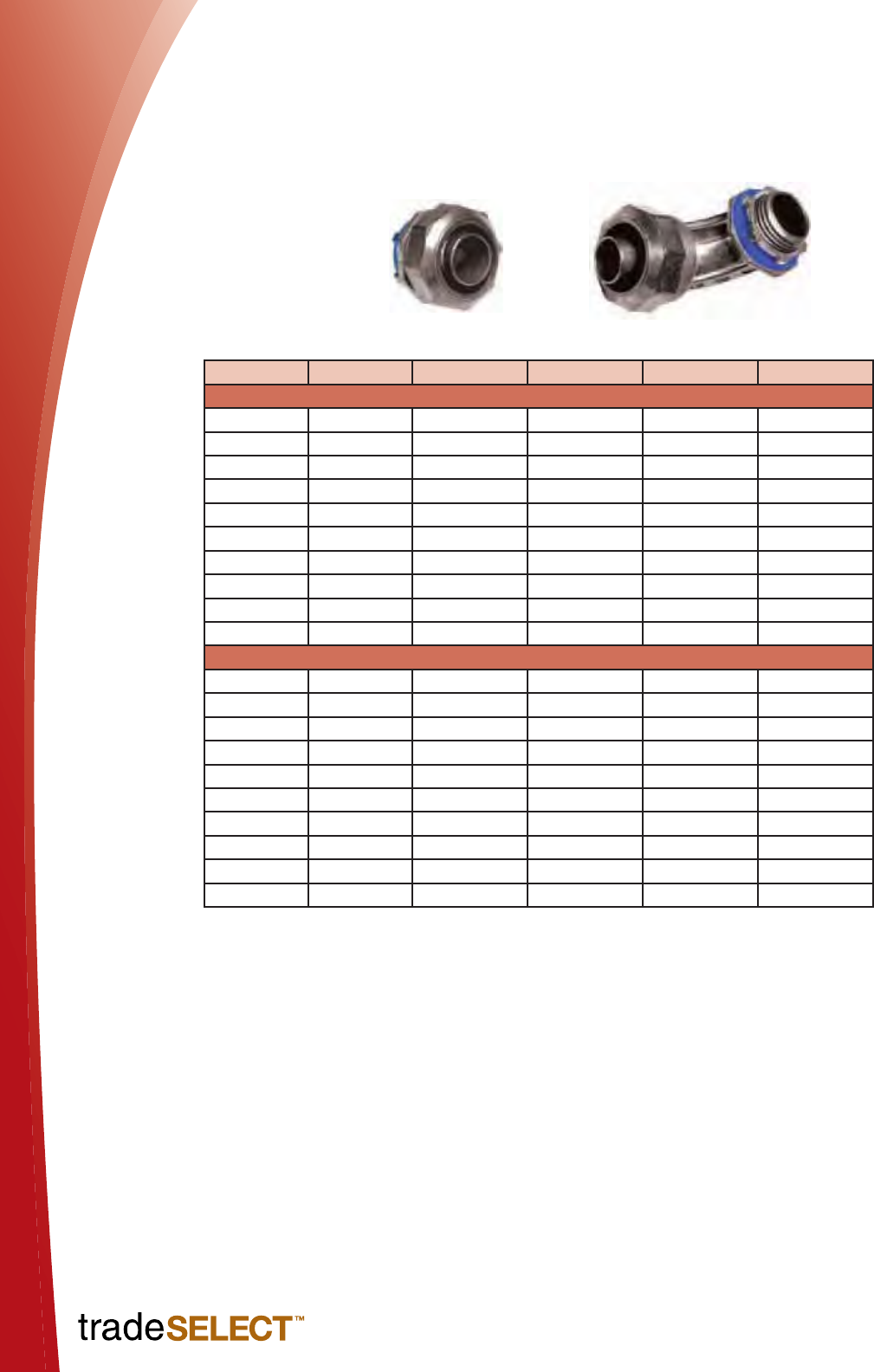

Liquidtight Fittings .....................................................E12

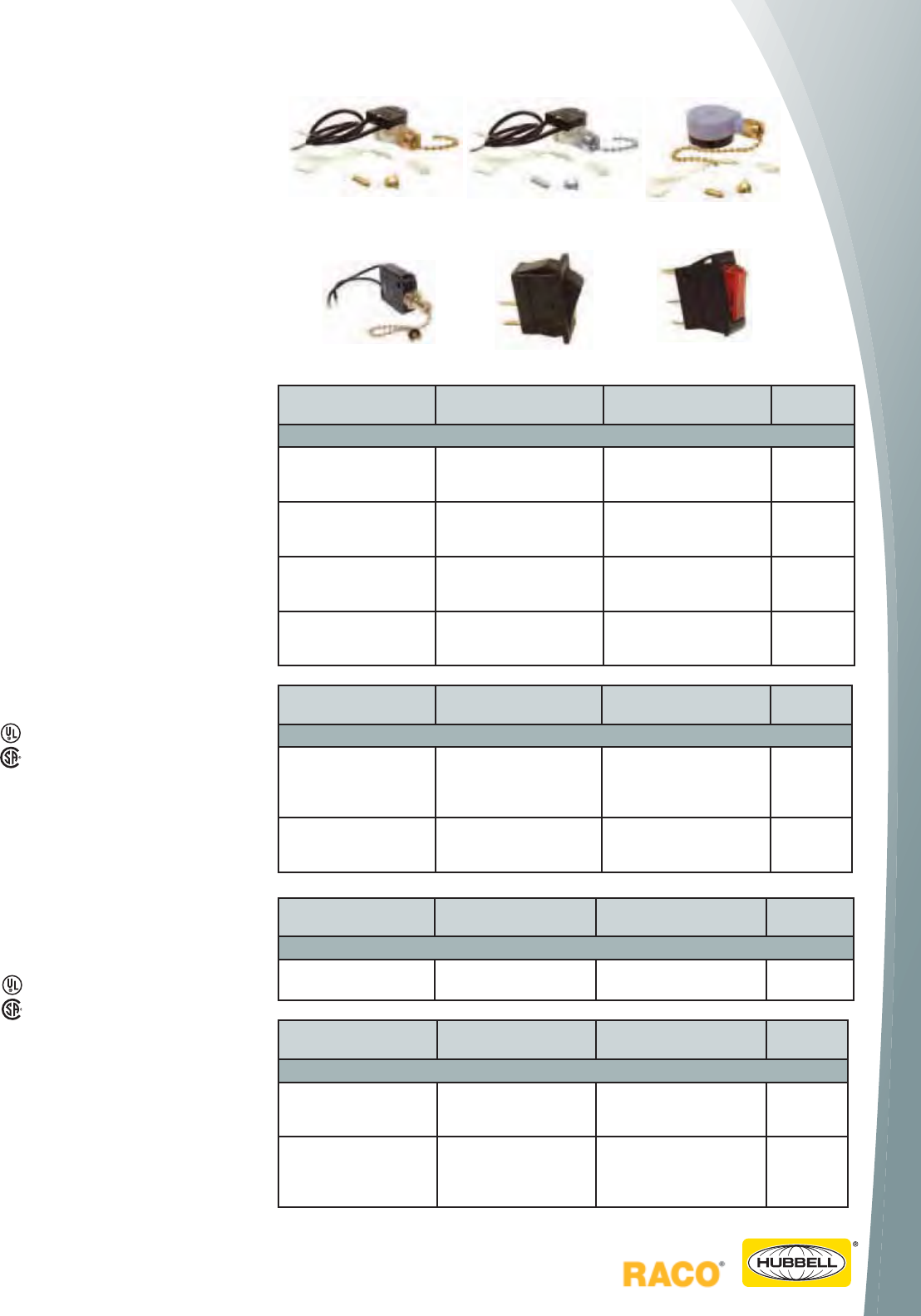

Rocker Switches .................................................................... F1-F3

Weather Resistant, Tamper Resistant &

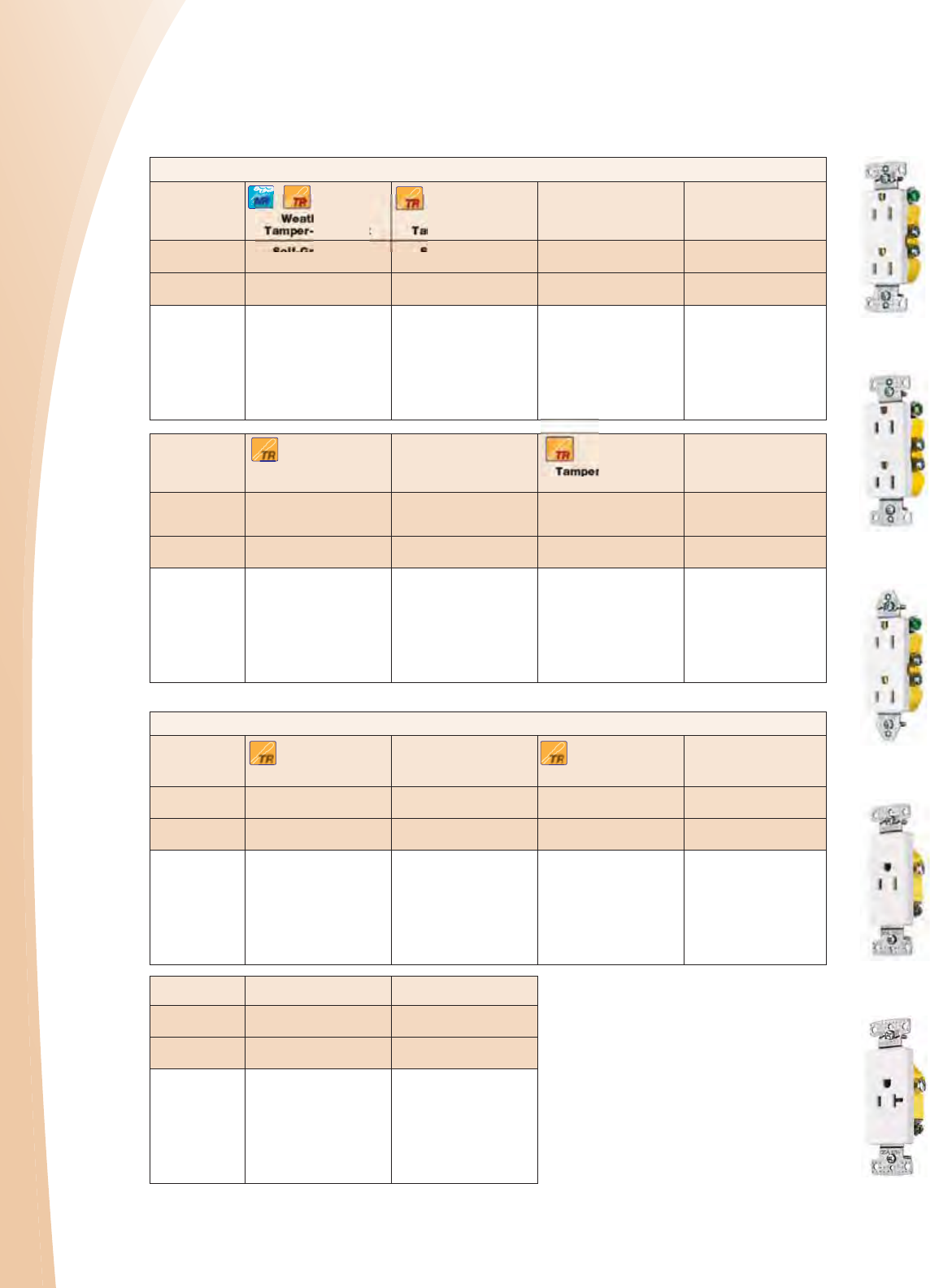

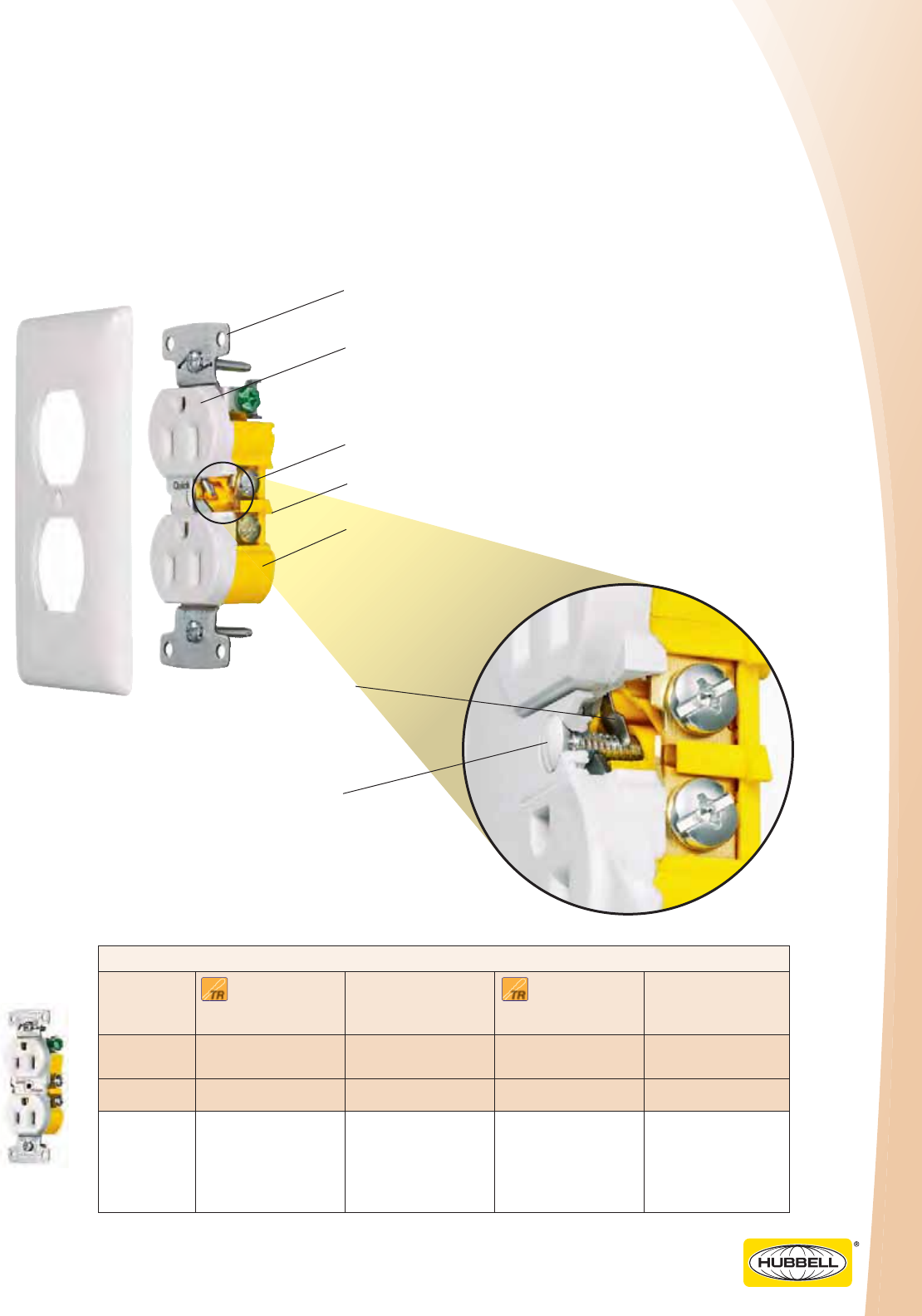

Standard Receptacles ................................................................F4

Wallplates ...............................................................................F5-F6

Decorator Frames ........................................................................F7

Snap Fit Jacks .............................................................................F8

Molded-in Jacks ..........................................................................F9

G 347V SWITCHES

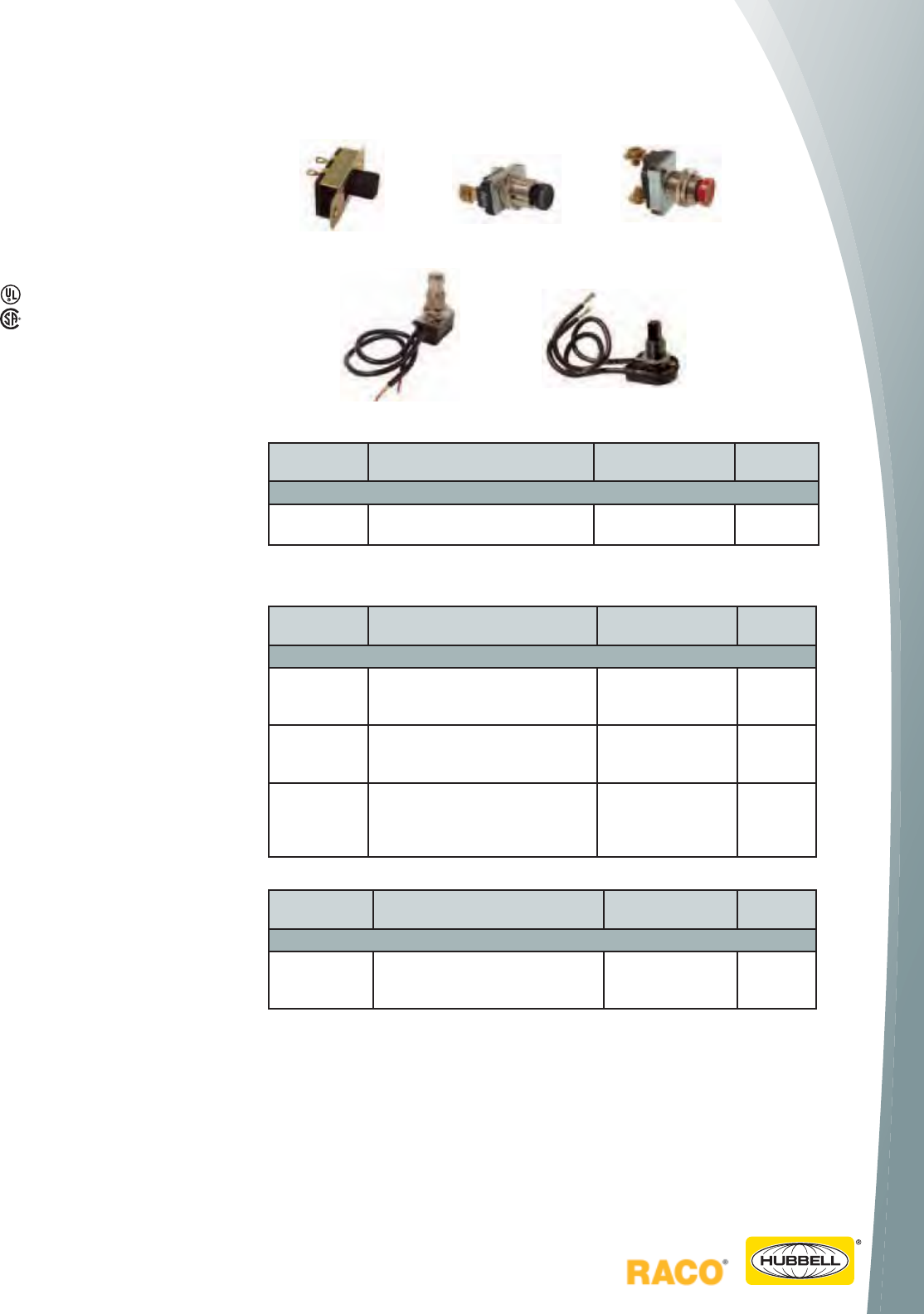

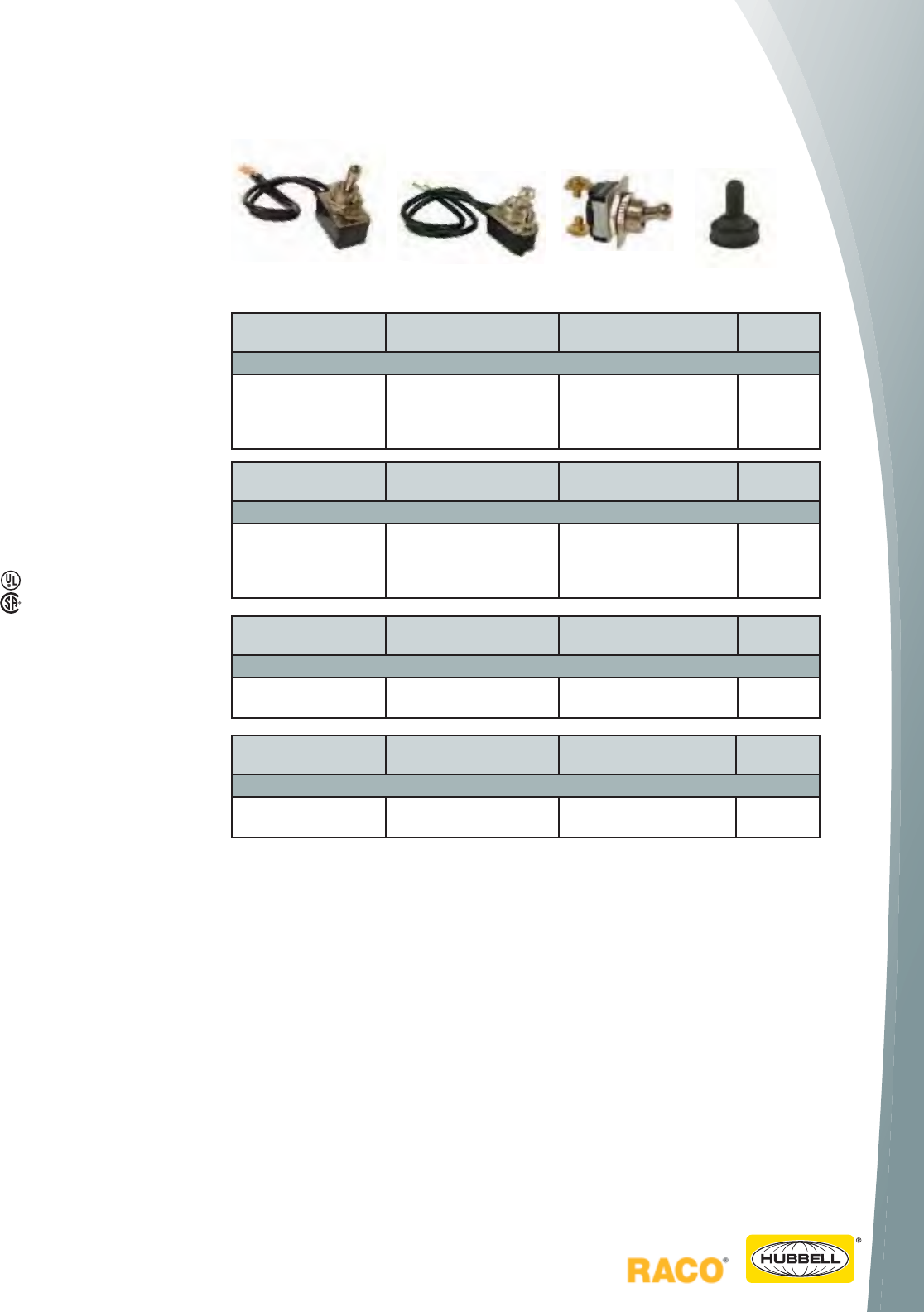

Specialty Type Switches ..........................................................I1-I5

tradeSELECTTM

F tradeSELECT™ and netSELECT® (continued)

netSELECT®

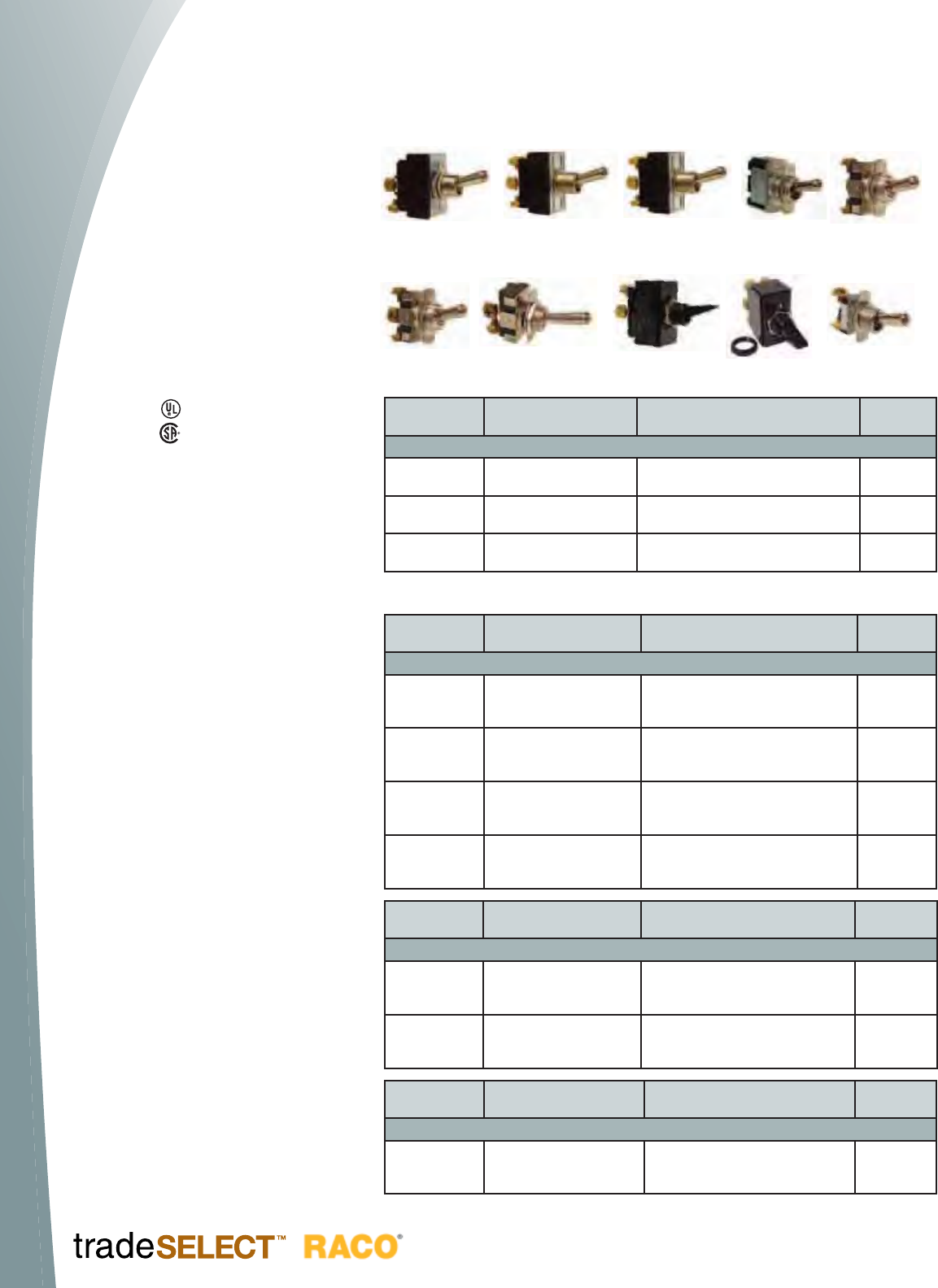

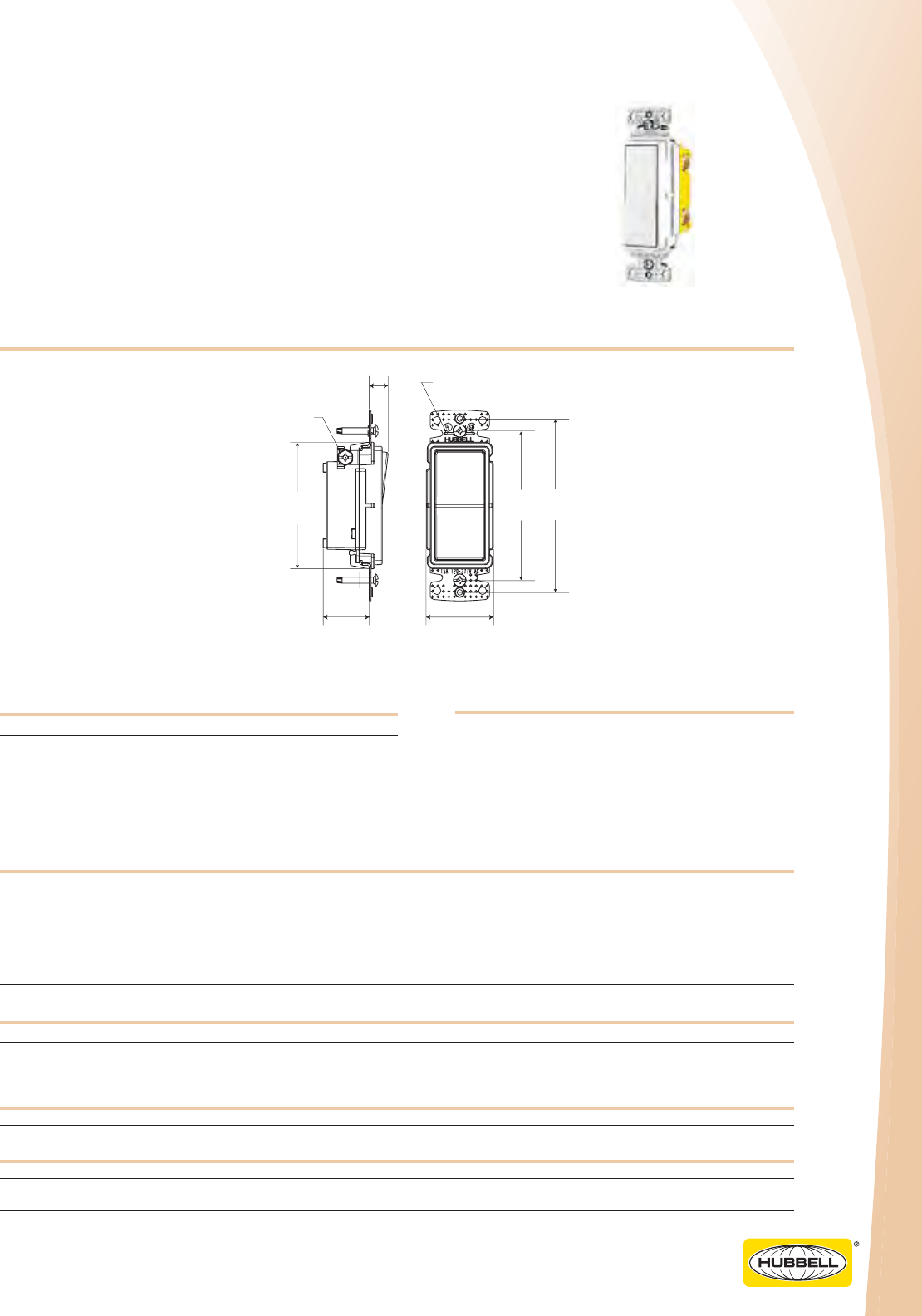

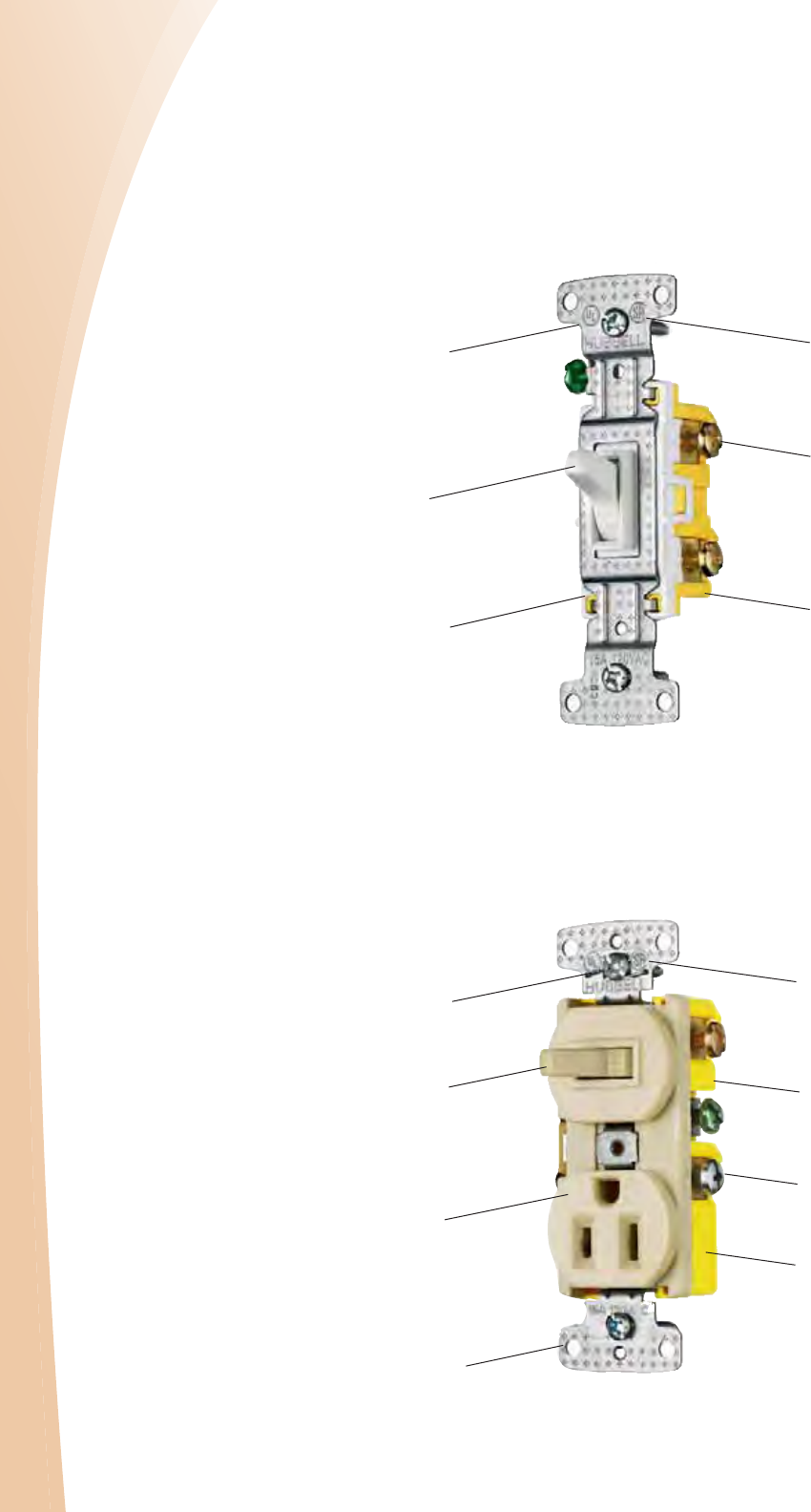

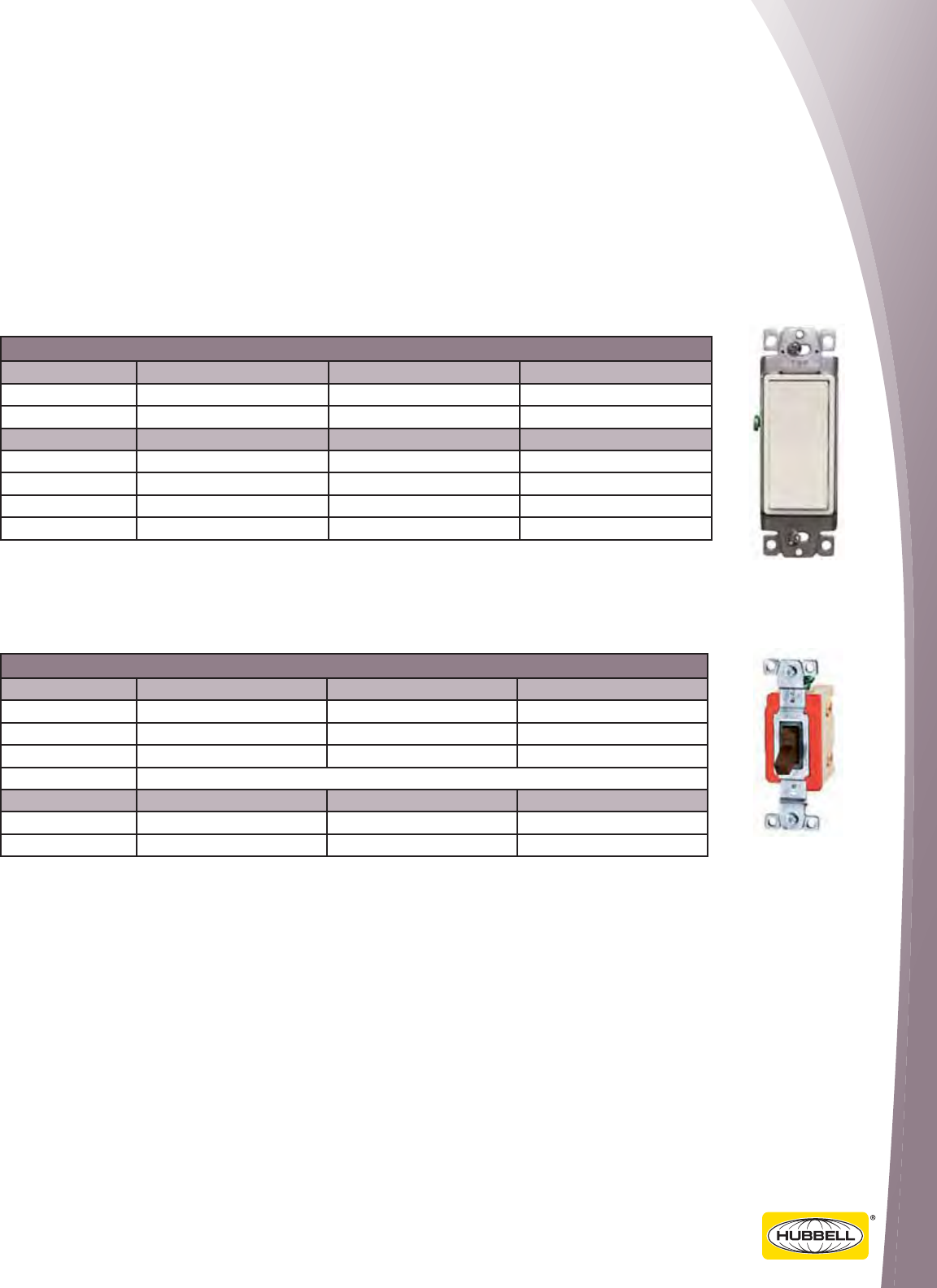

Toggle Switches ................................................................. F10-F11

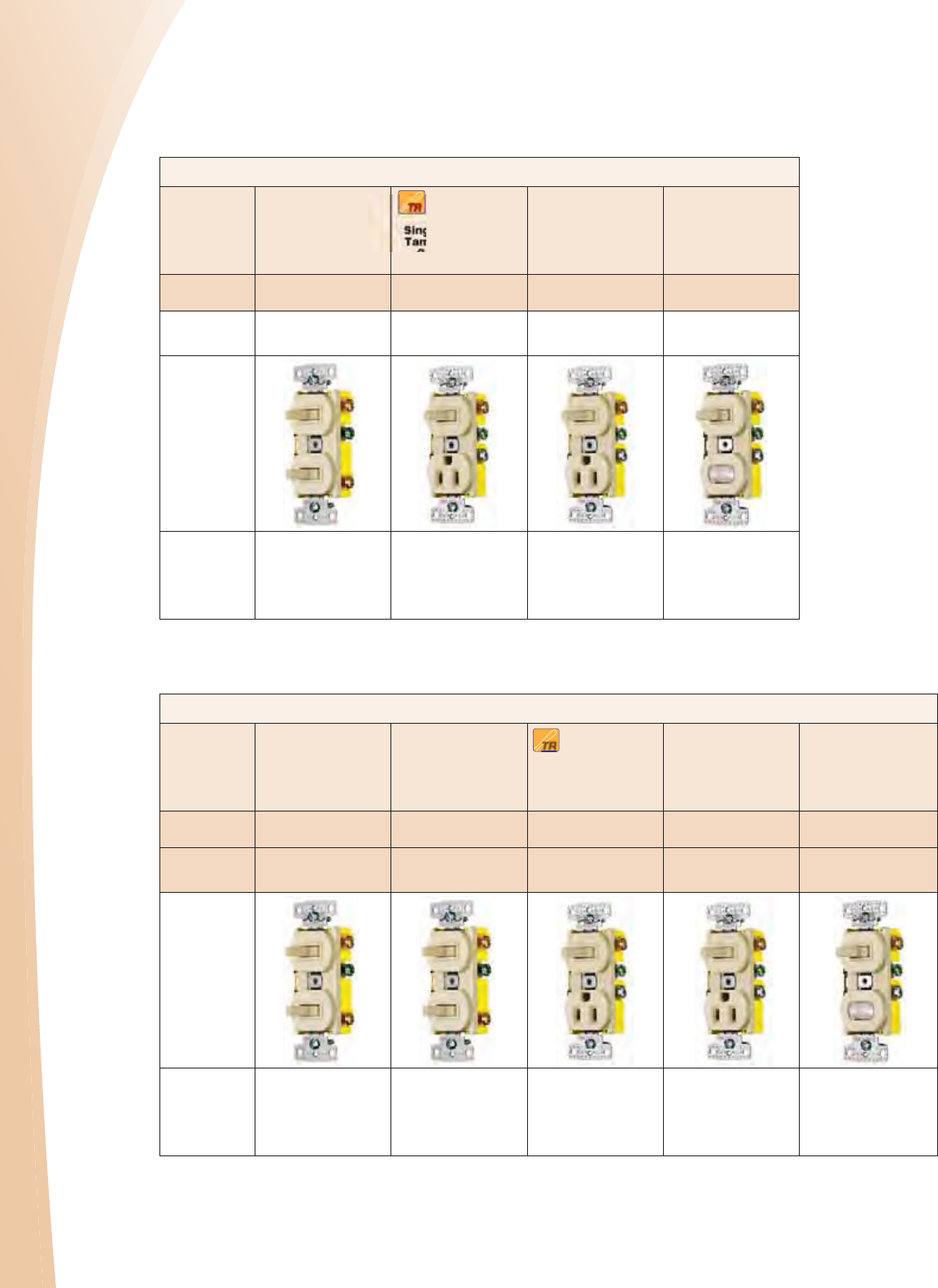

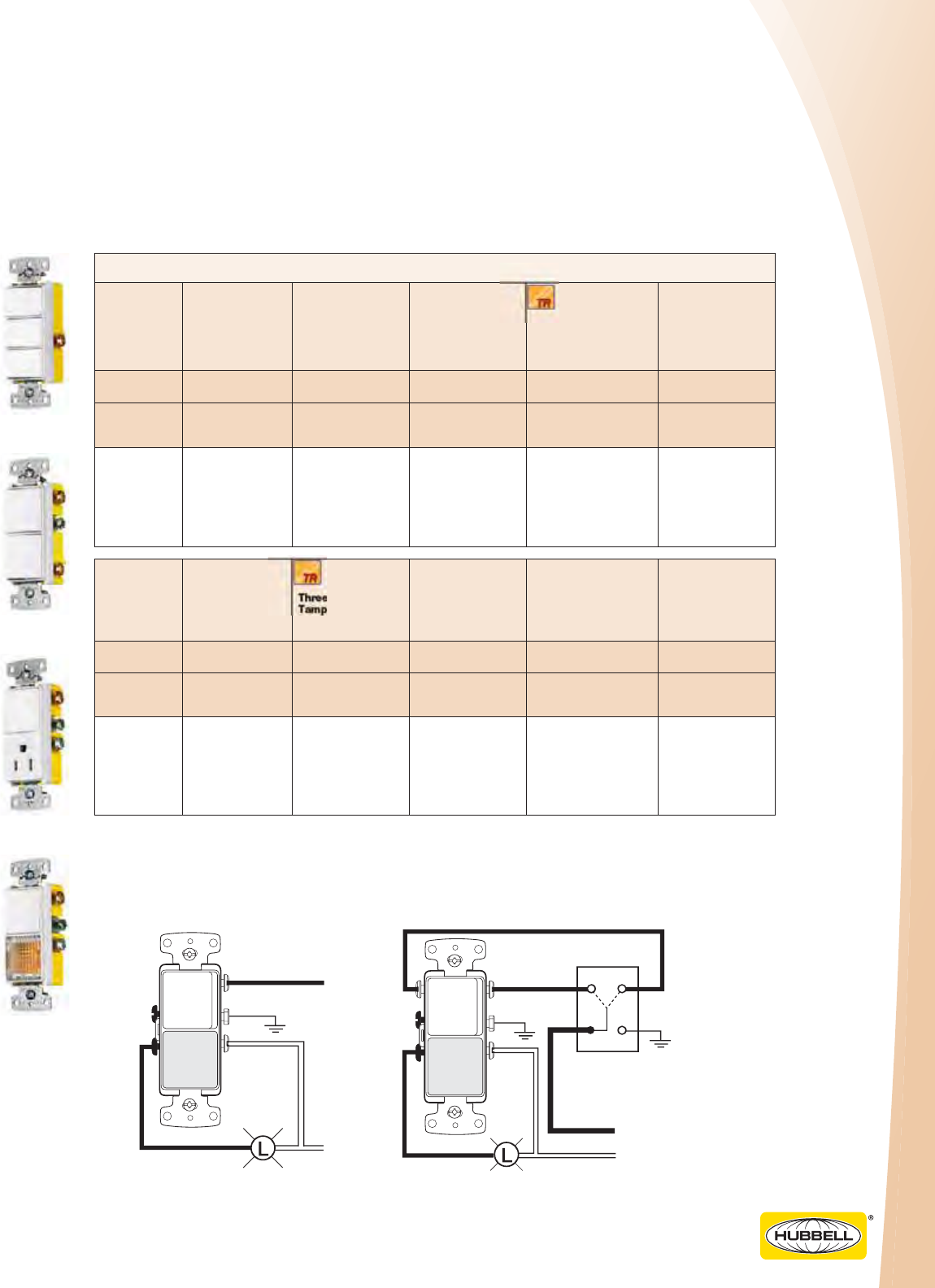

Combination Switches/Devices ...............................................F12

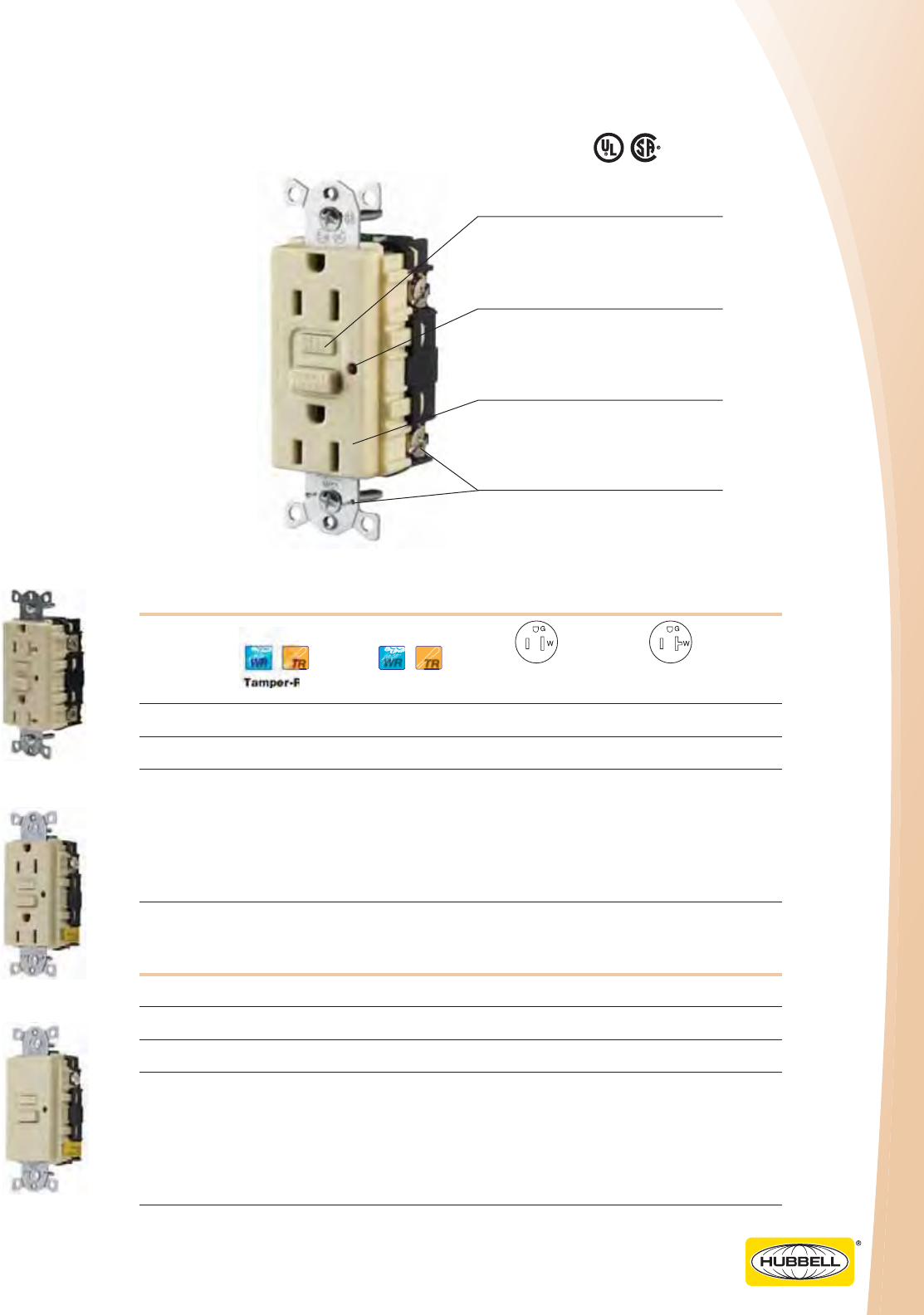

Duplex,Single & GFCI Receptacles ................................. F13-F15

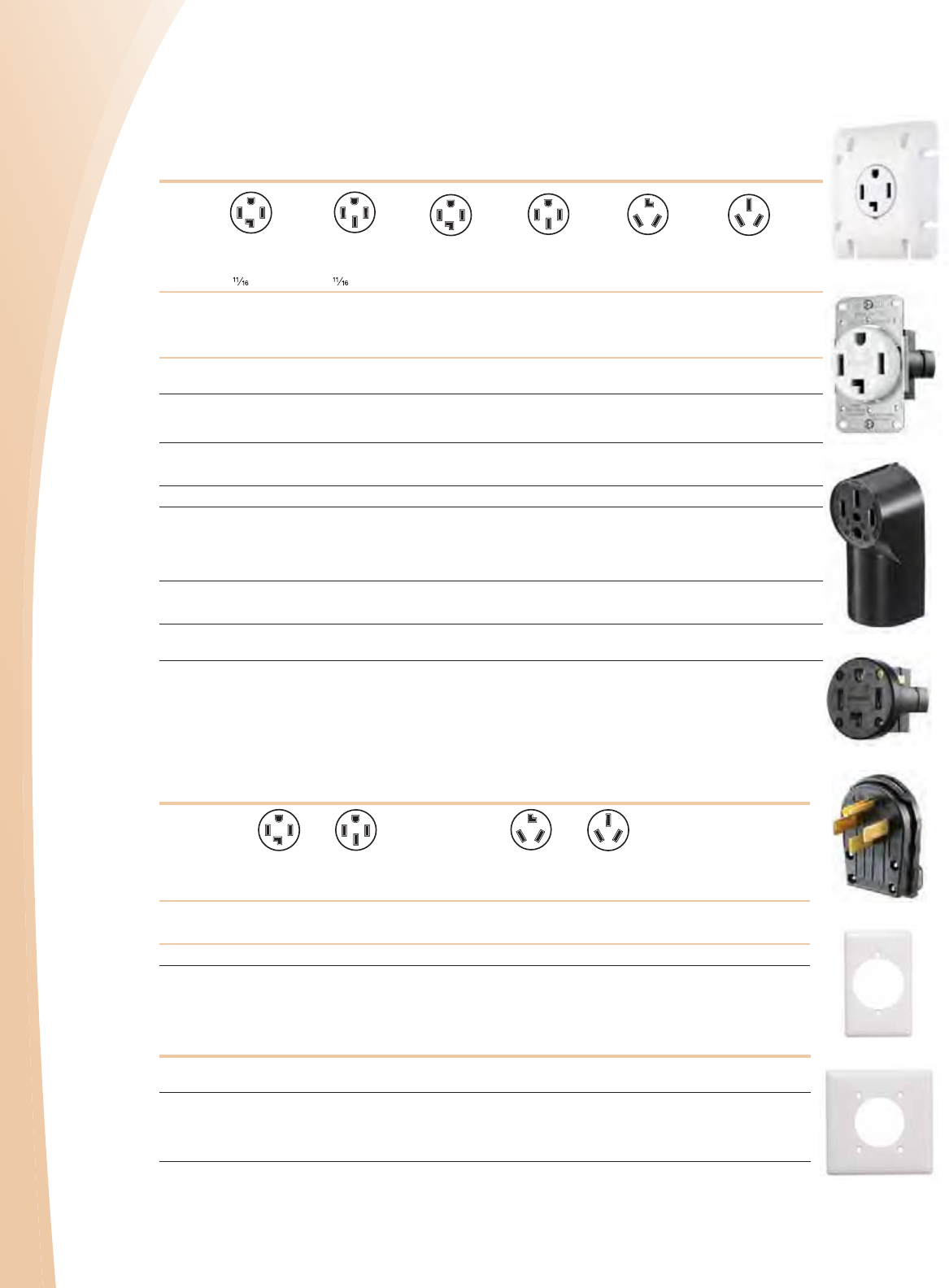

Range & Dryer Receptacles & Plugs .......................................F16

Special Use Products................................................................F17

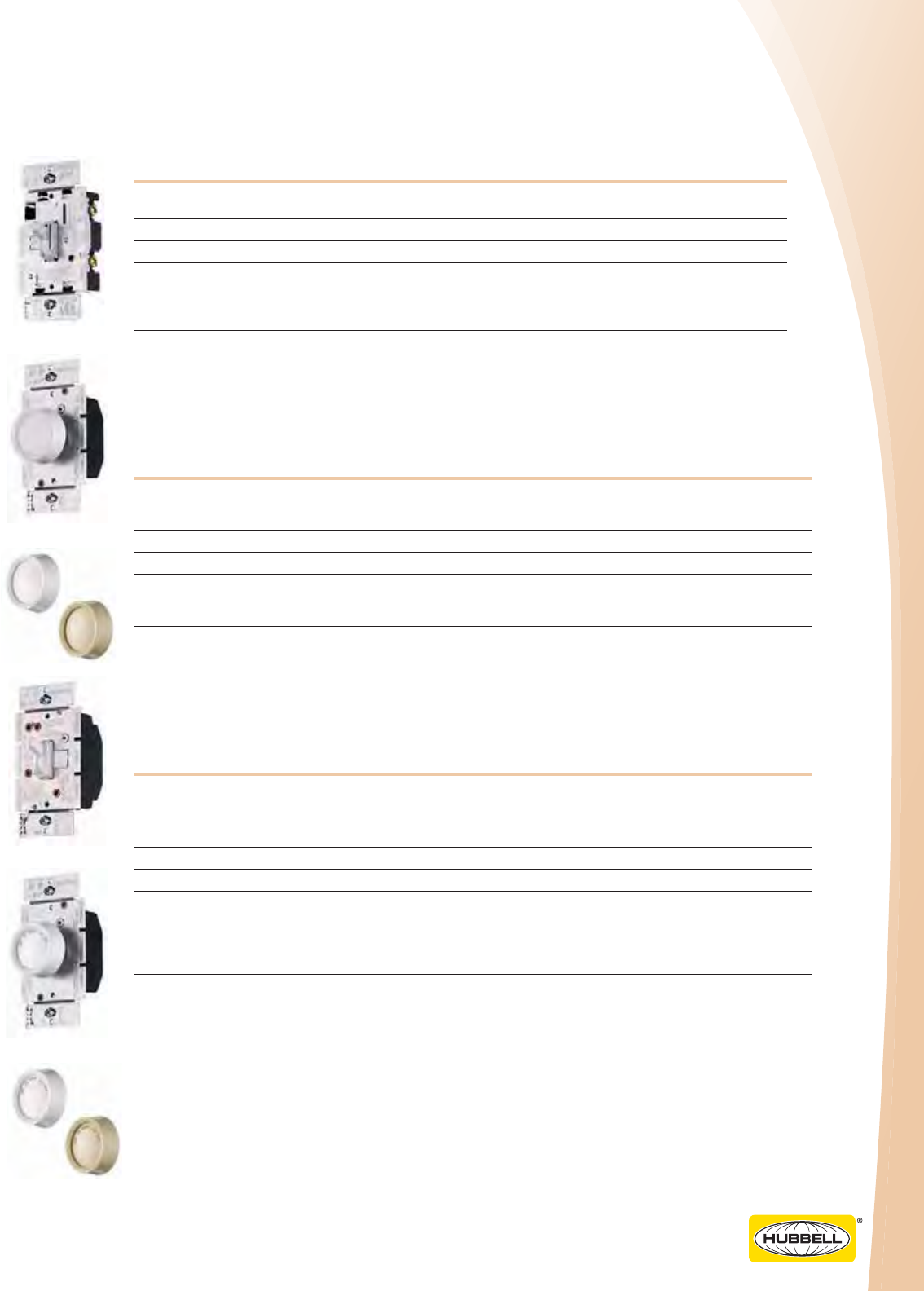

Dimmer & Fan Controls ..................................................... F18-F19

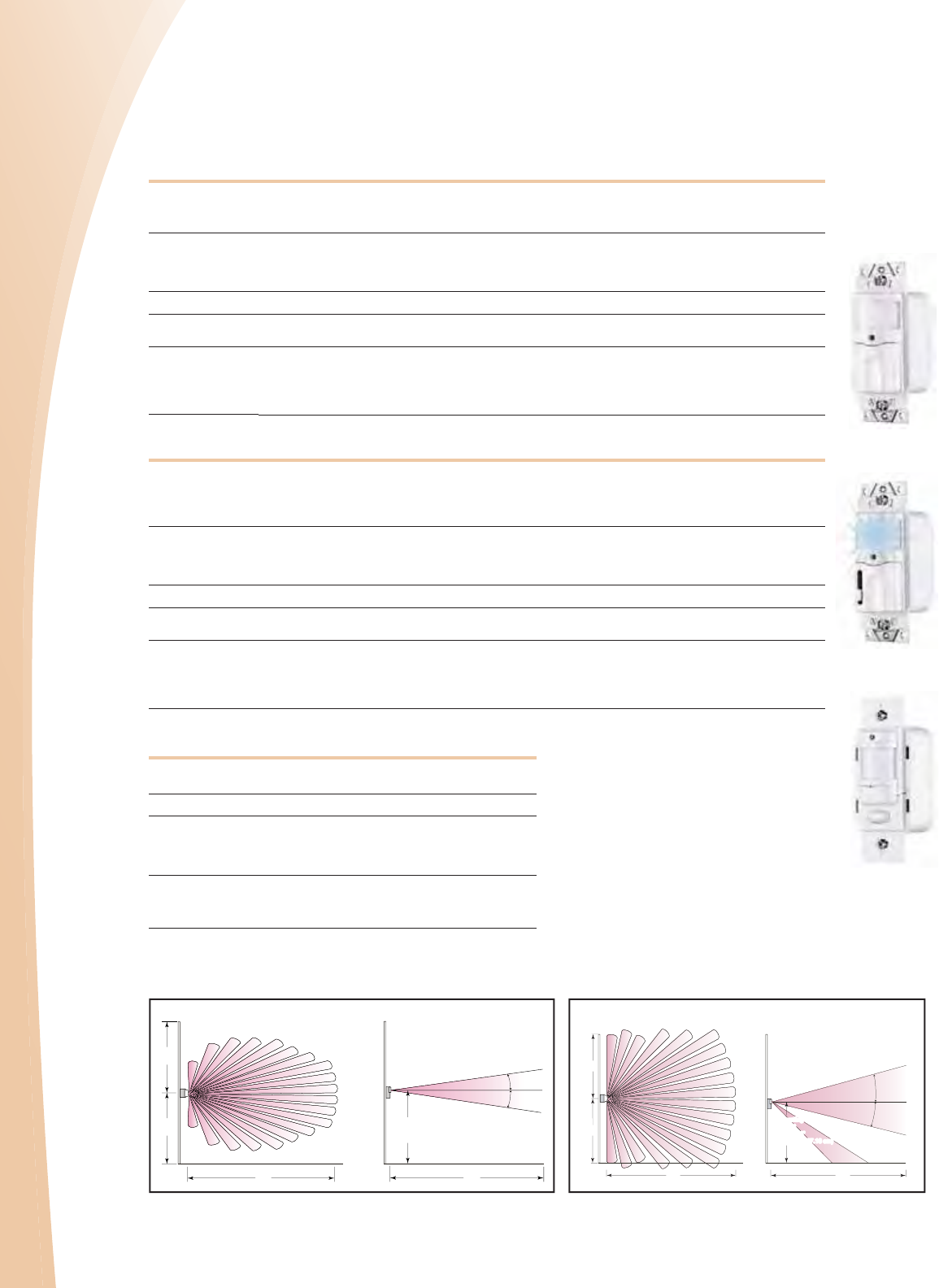

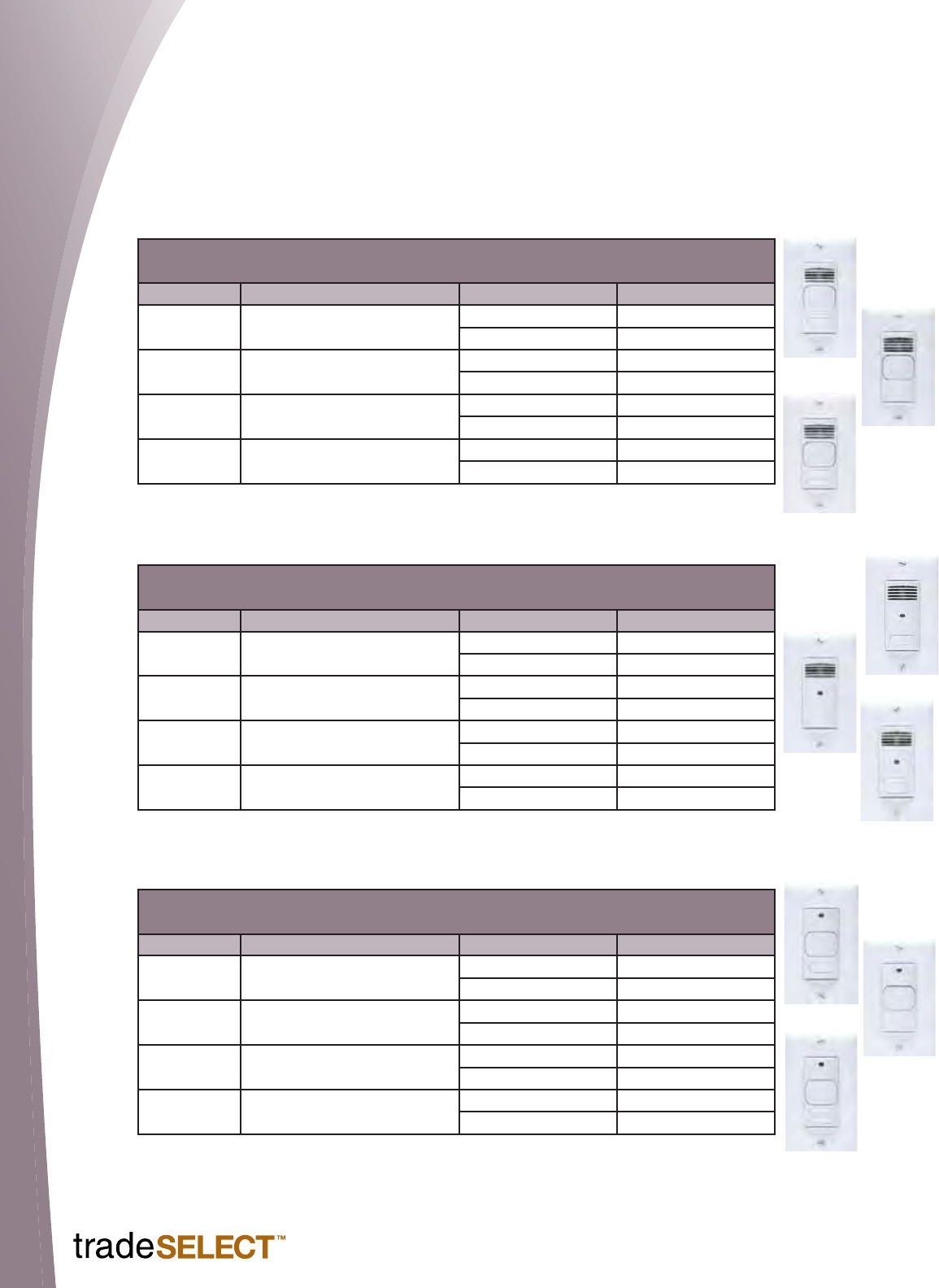

Sensors ......................................................................................F20

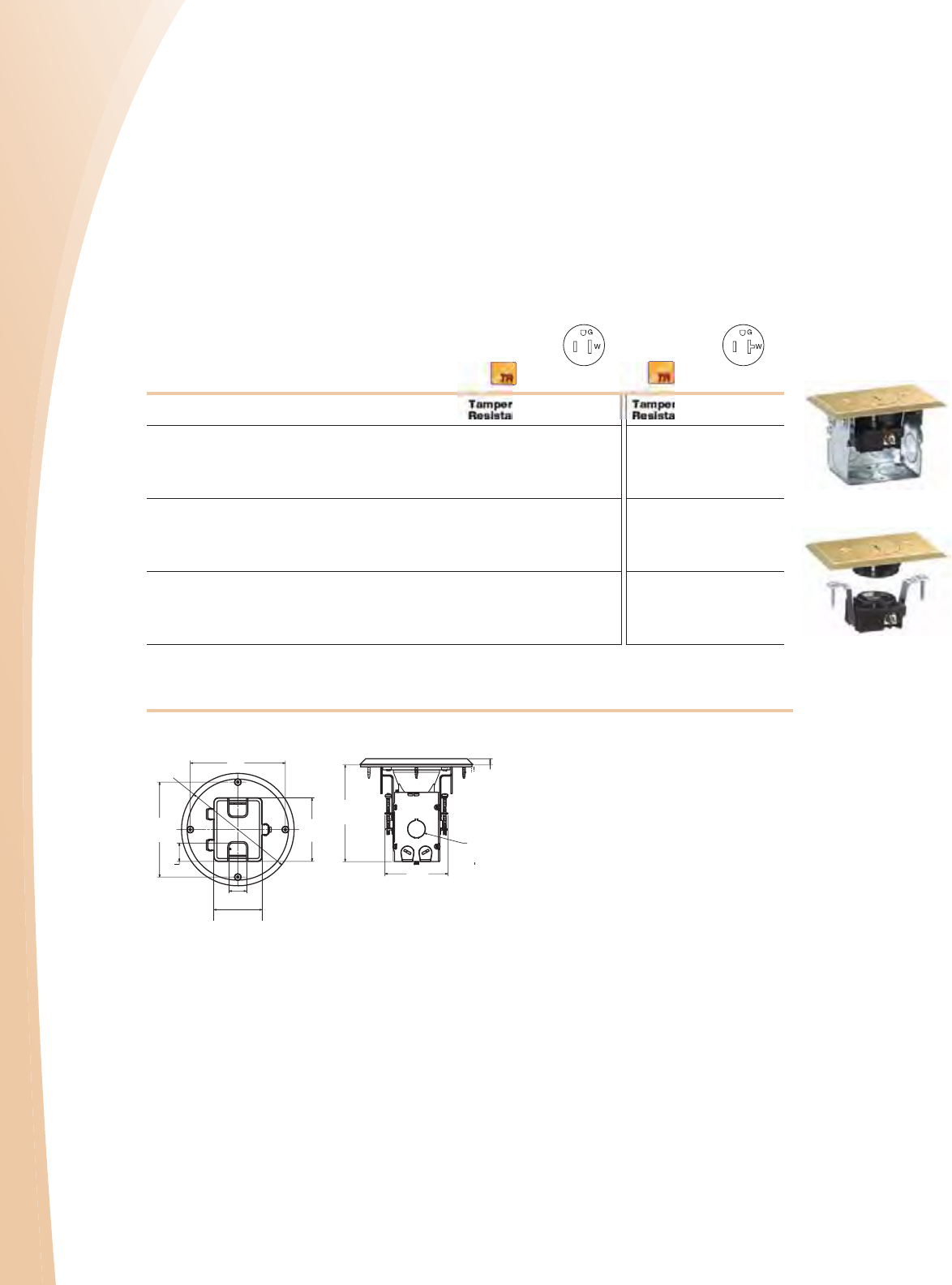

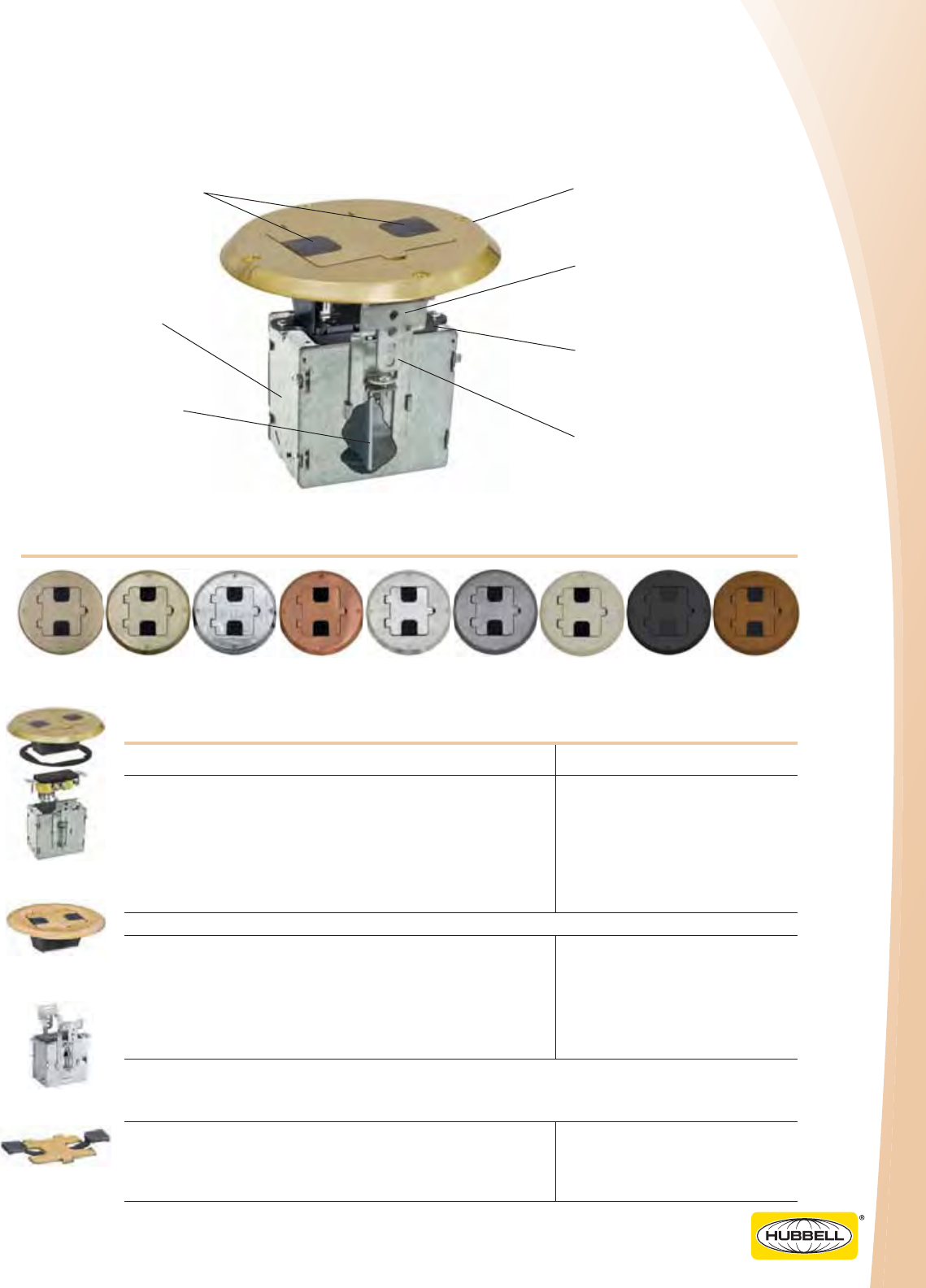

Floor Boxes ........................................................................F21-F22

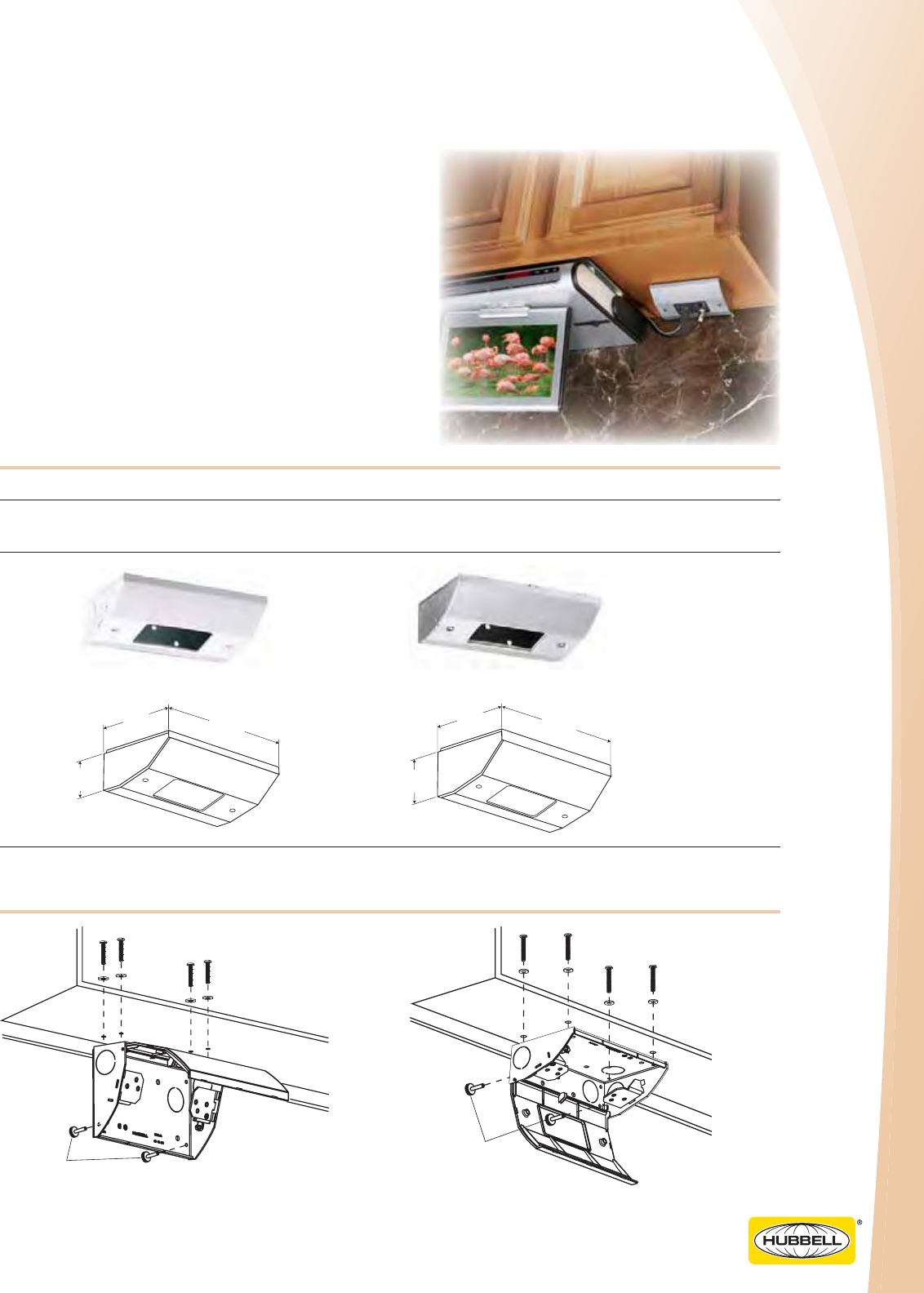

Under Cabinet Power Distribution ...........................................F23

JLoad® Multimedia Outlet........................................................F24

Decorator Switches ...................................................................F25

In-Wall A/V Delivery ...................................................................F26

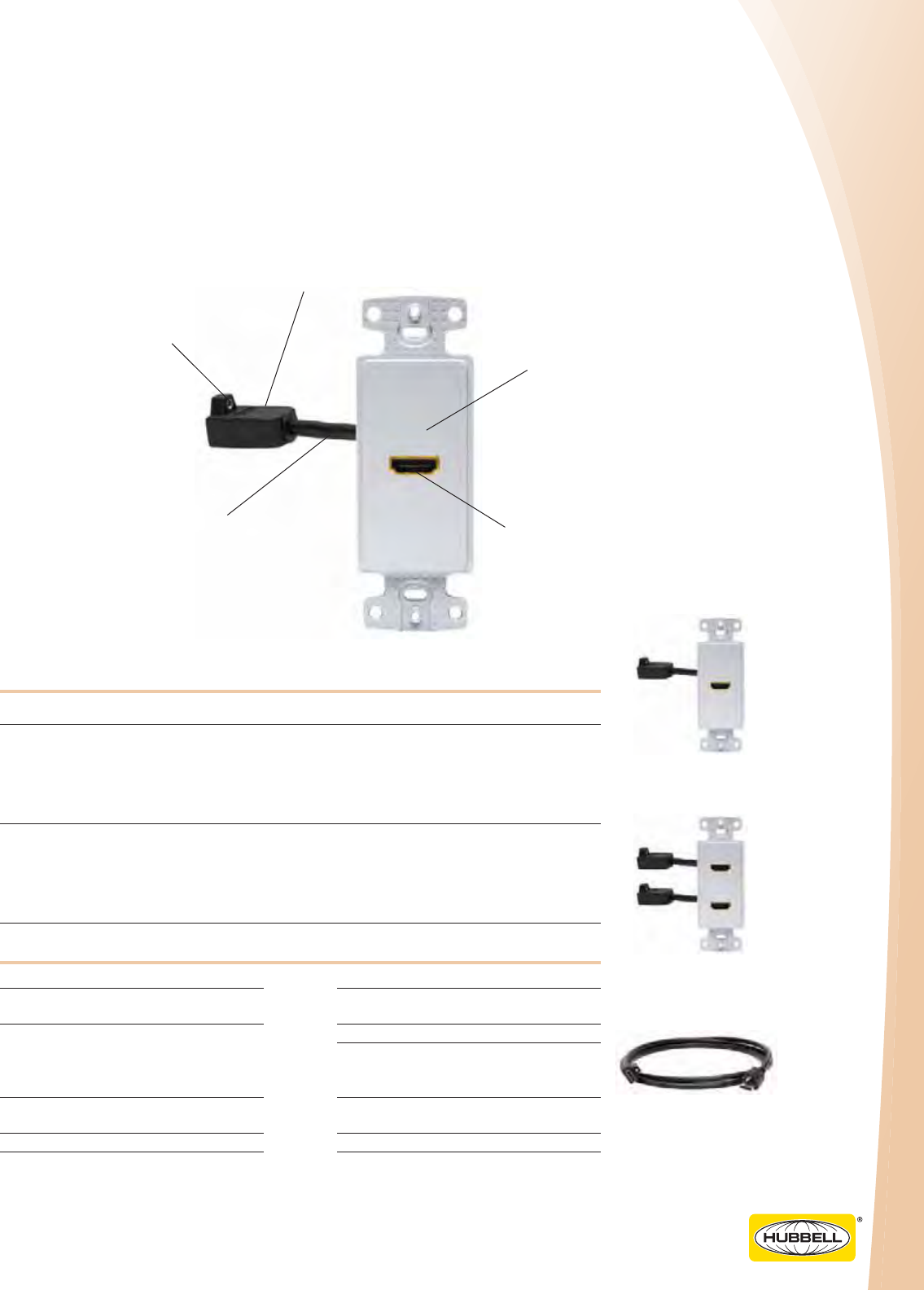

HDMI Products ..........................................................................F27

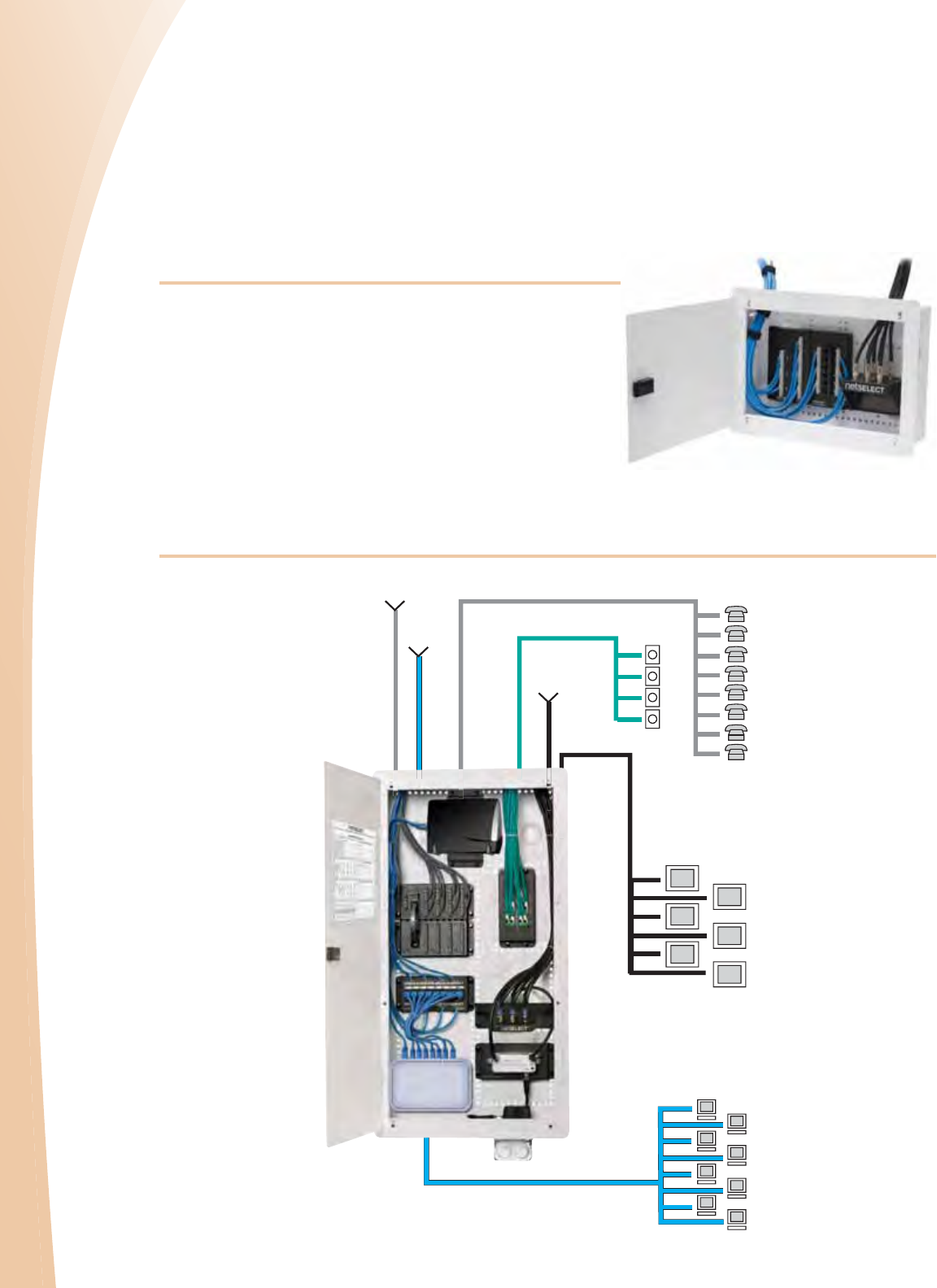

Structured Wiring .....................................................................F28

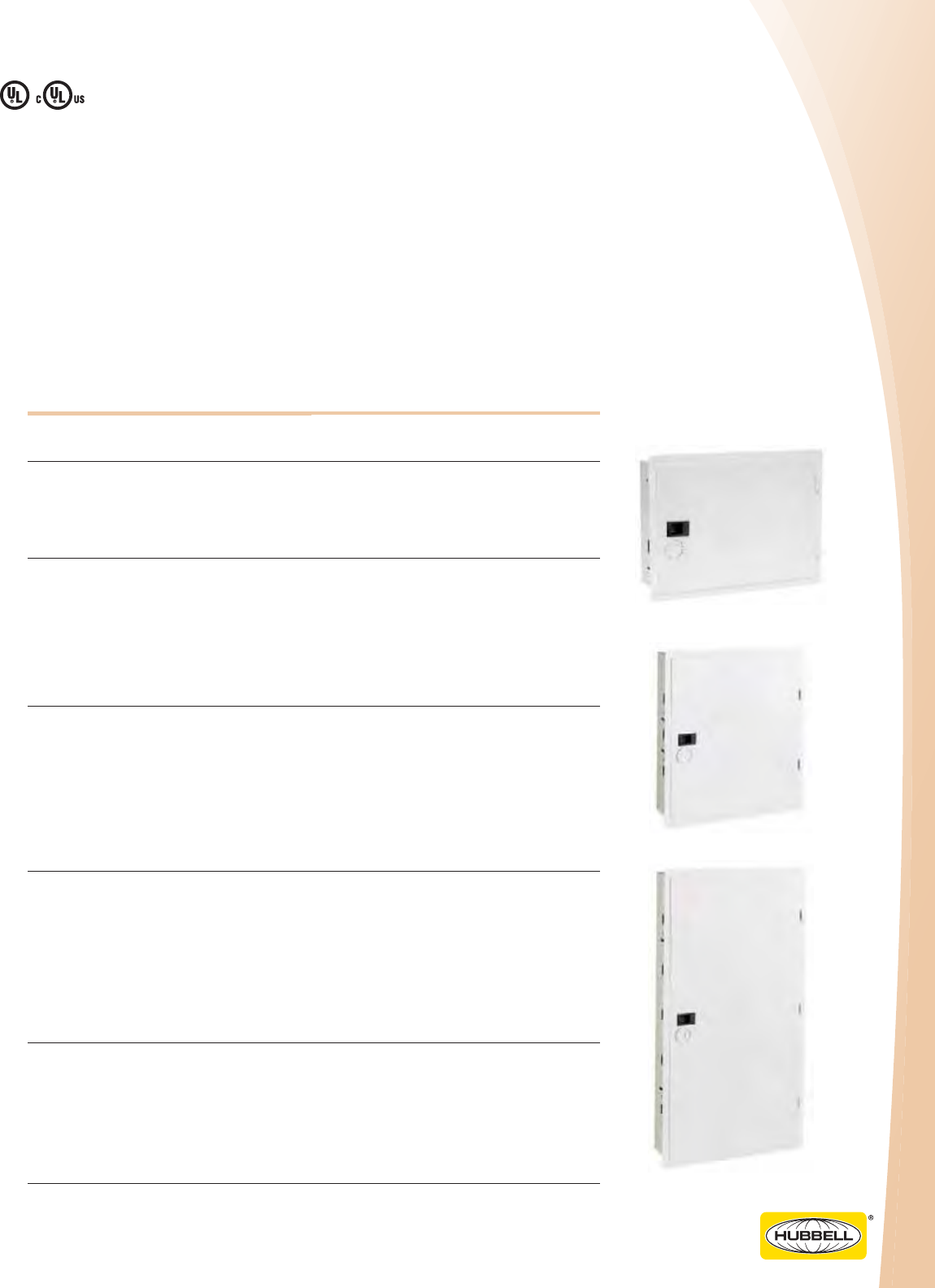

Network Enclosures ..................................................................F29

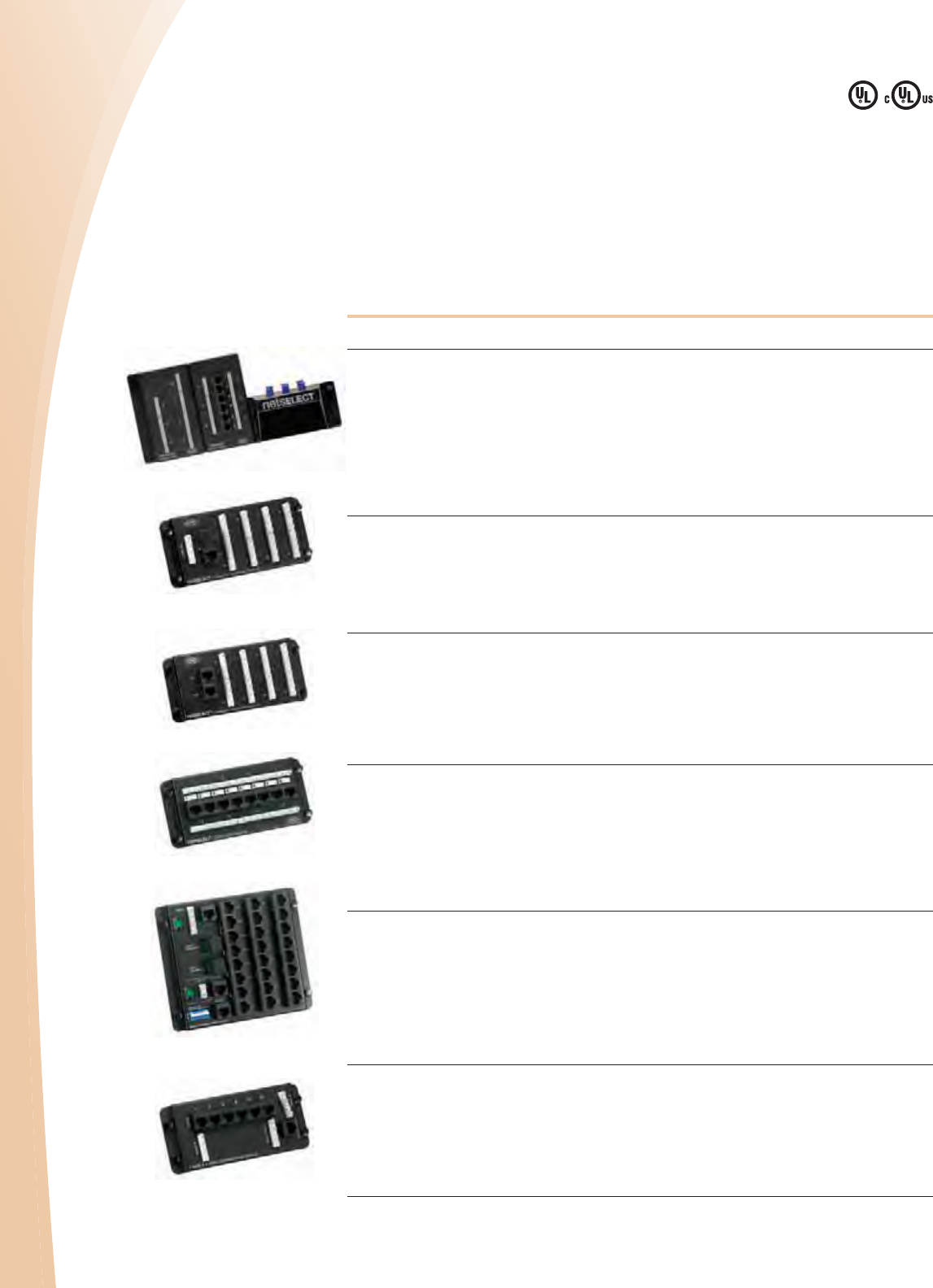

Network Modules ......................................................................F30

Audio/Video Modules ................................................................F31

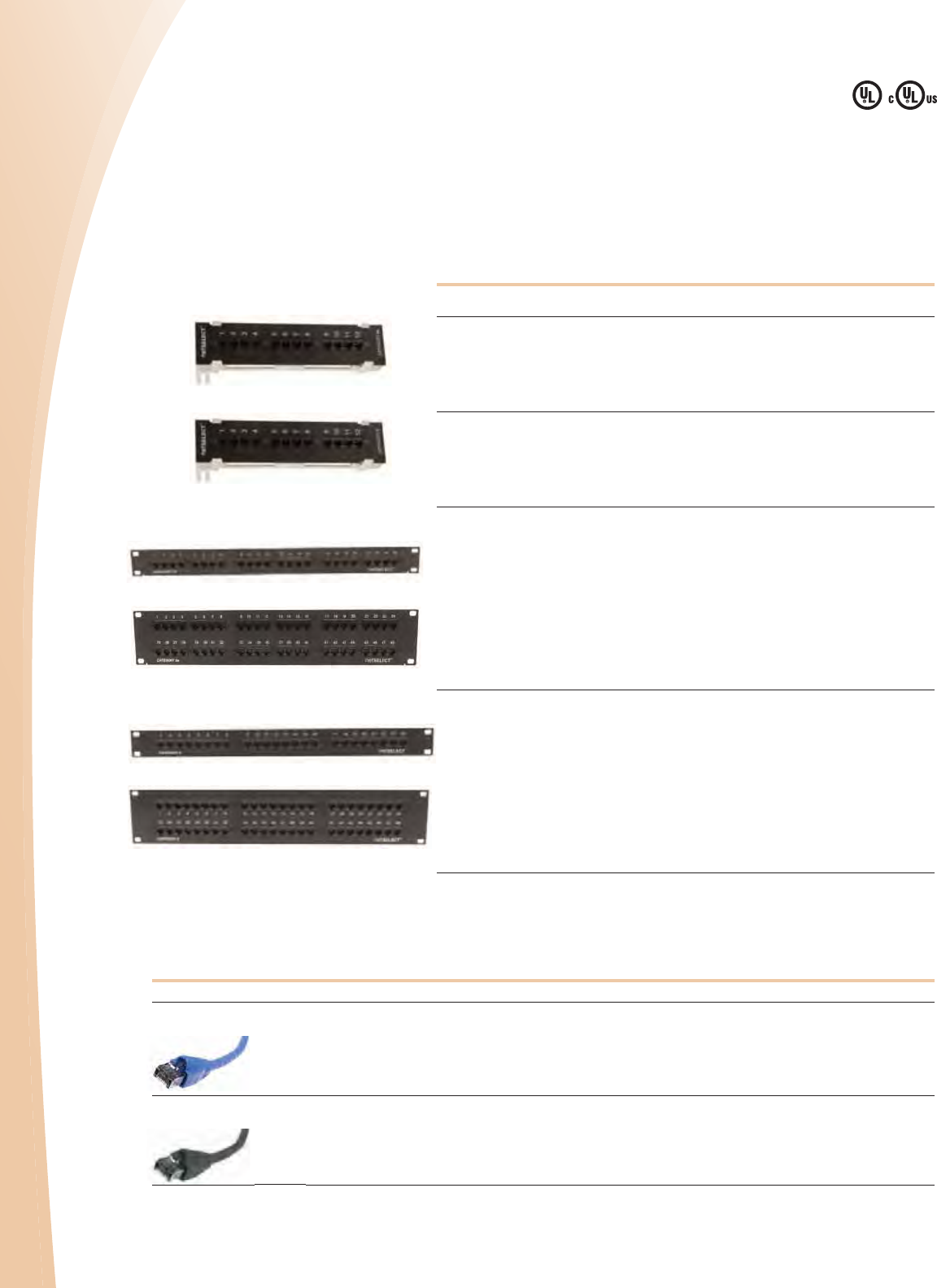

Universal Consolidation Blocks, Patch Panels

and Patch Cords ........................................................................F32

Accessories ................................................................................F33

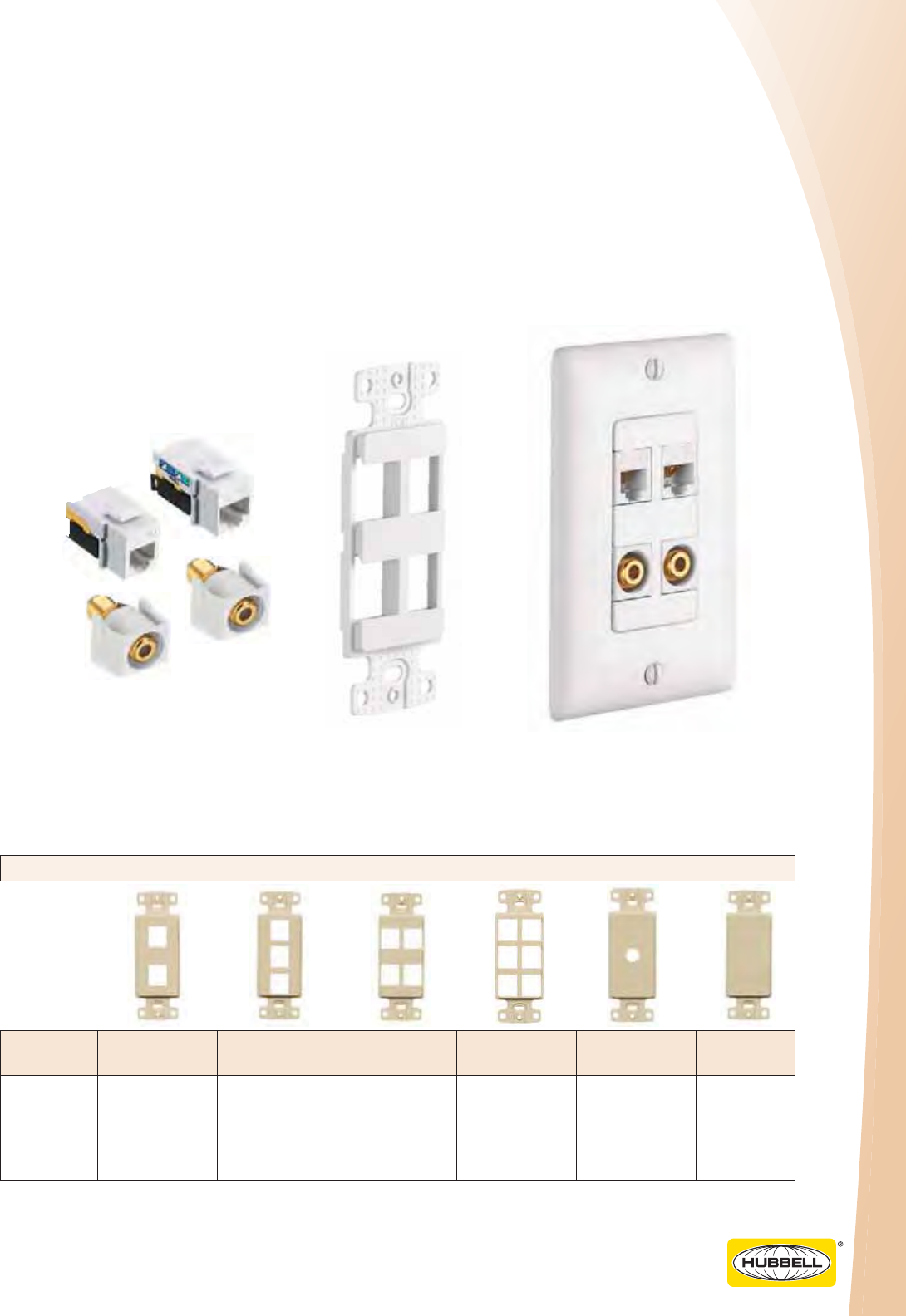

Modular Snap Fit Jacks ............................................................F34

Decorator Frames ......................................................................F35

Molded-In Voice/Data/Video ....................................................F36

Molded-In Plates .......................................................................F37

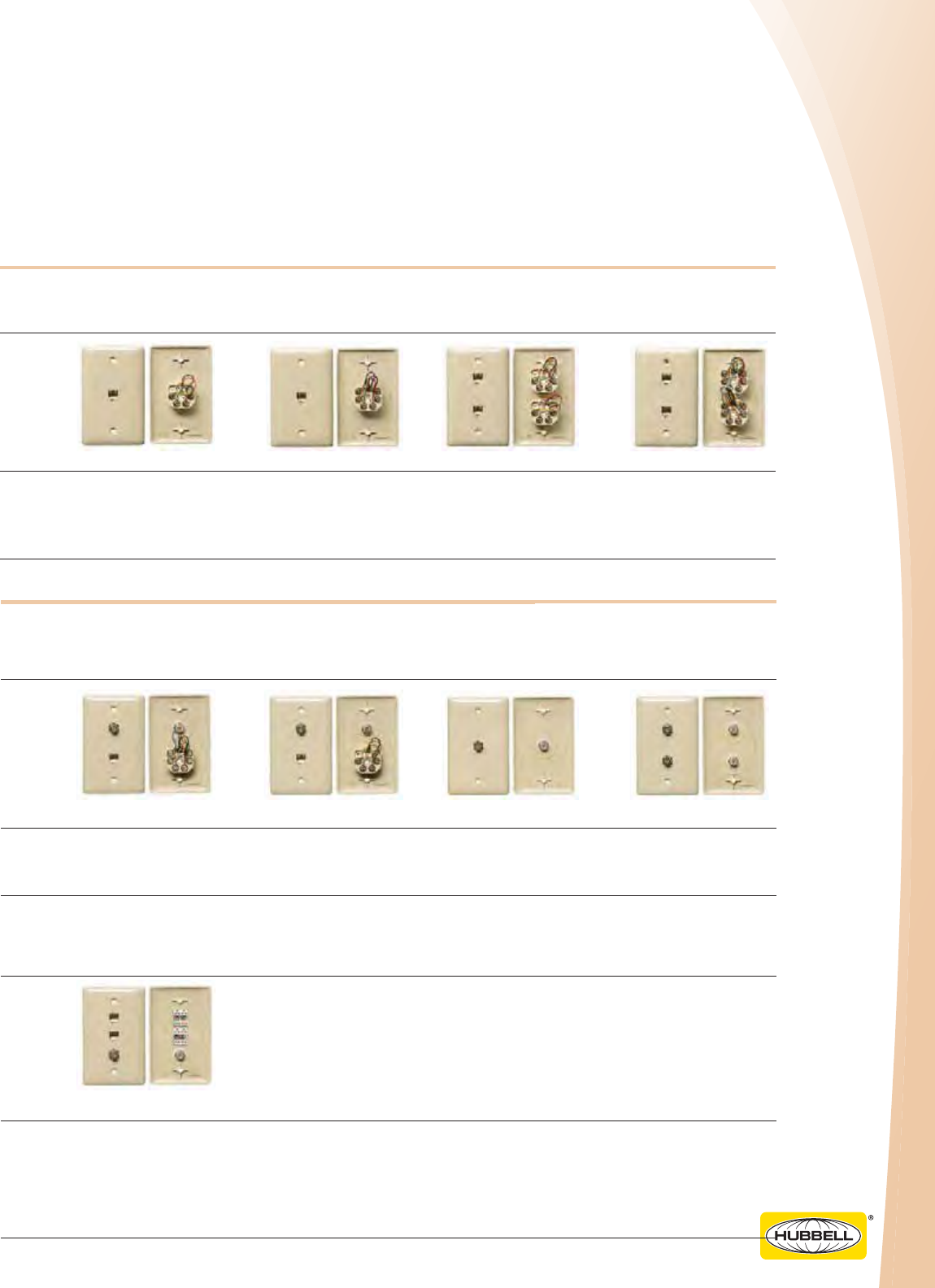

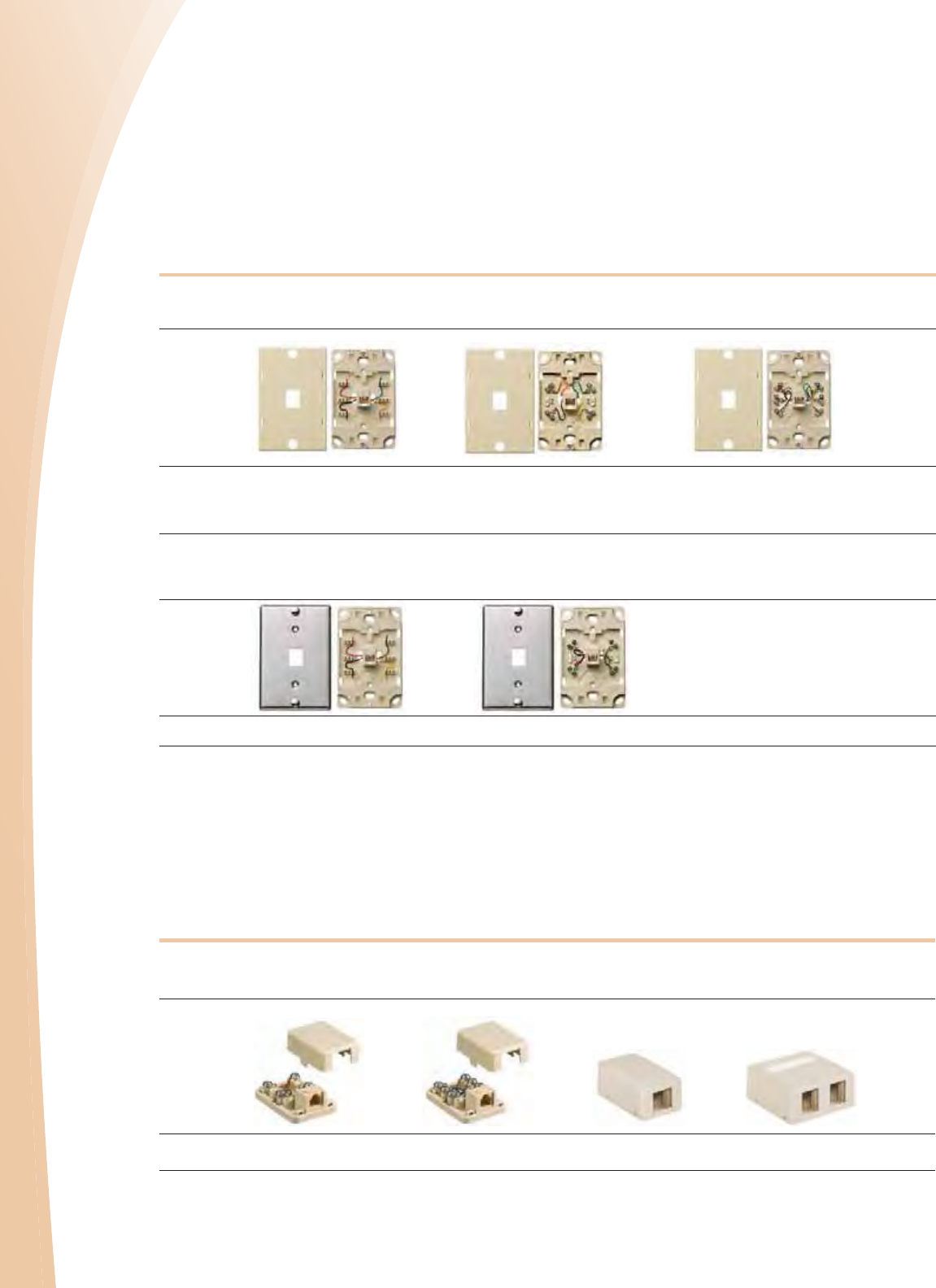

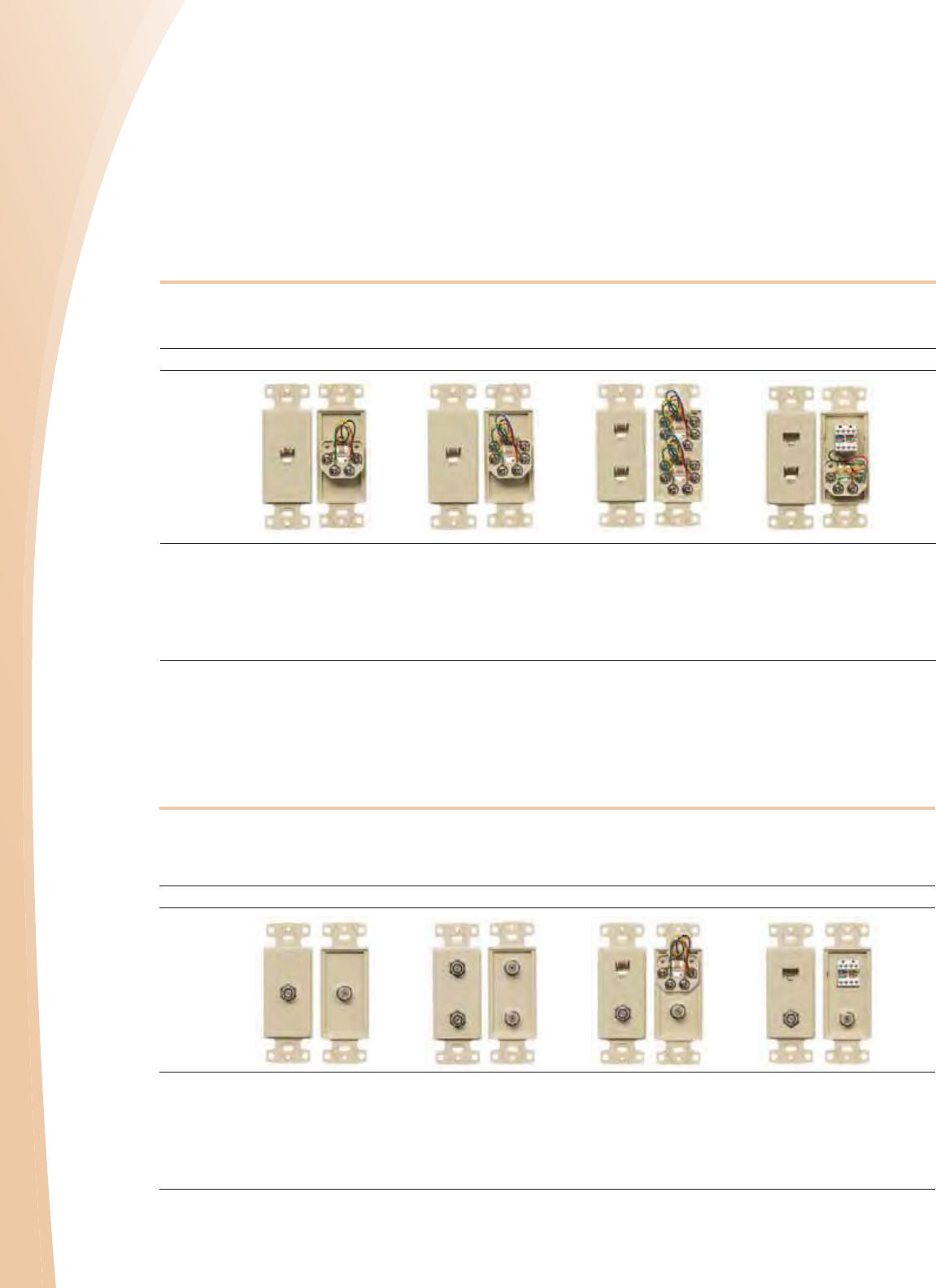

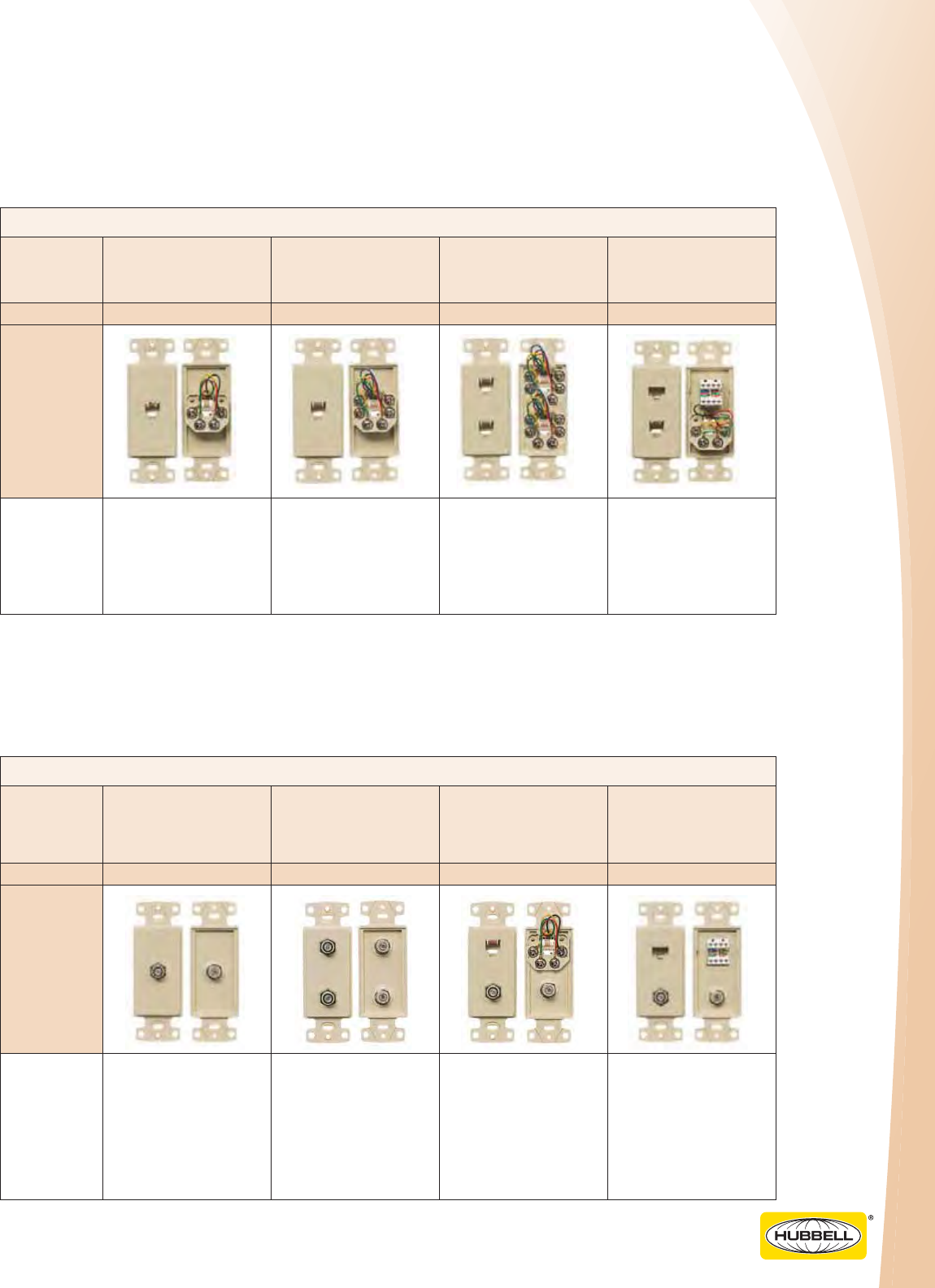

Telephone Wall Jacks ................................................................F38

347V Switches ............................................................................ G1

HMOSS™ 347V Wall Switches ................................................. G2

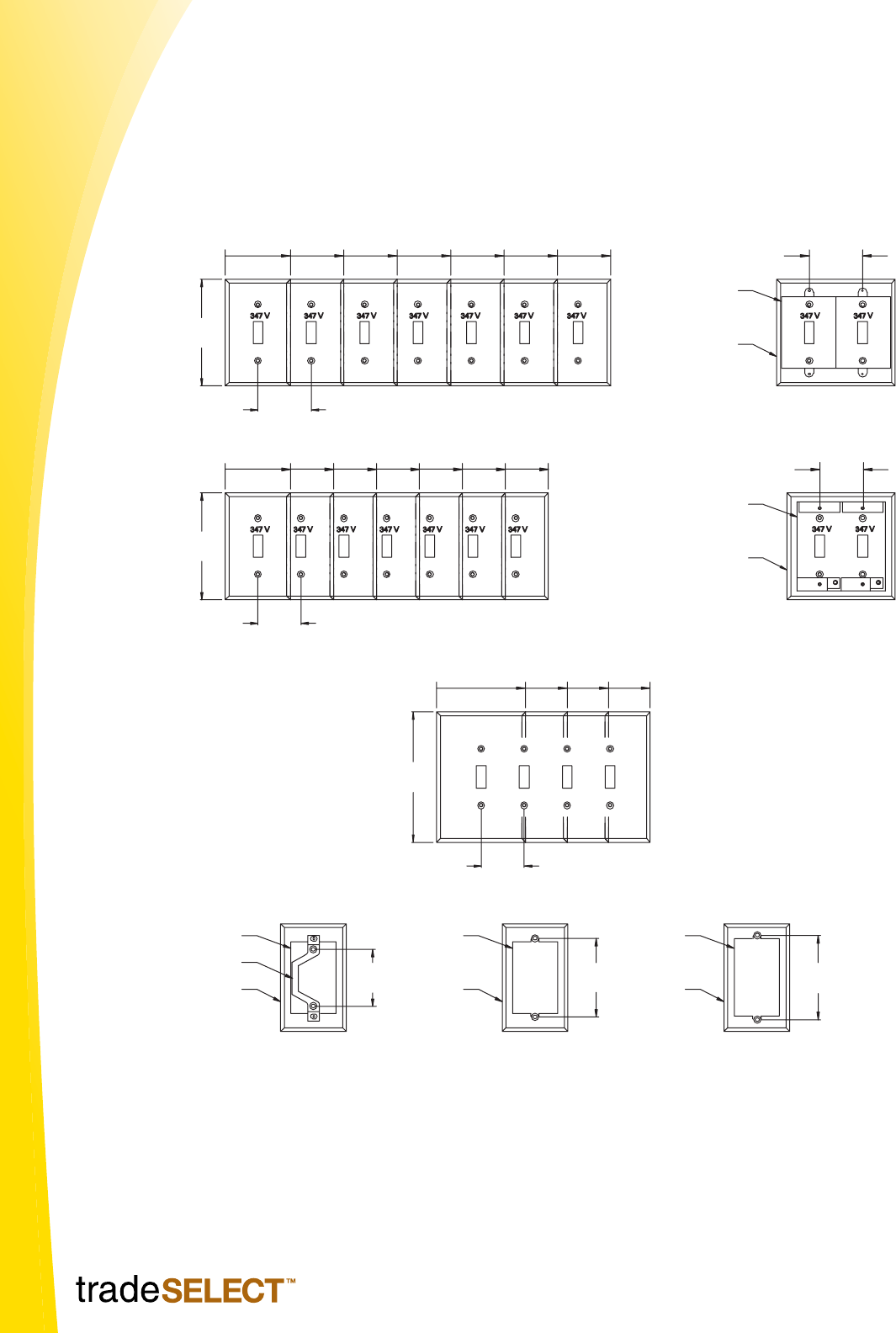

347V Wallplates ..........................................................................G3

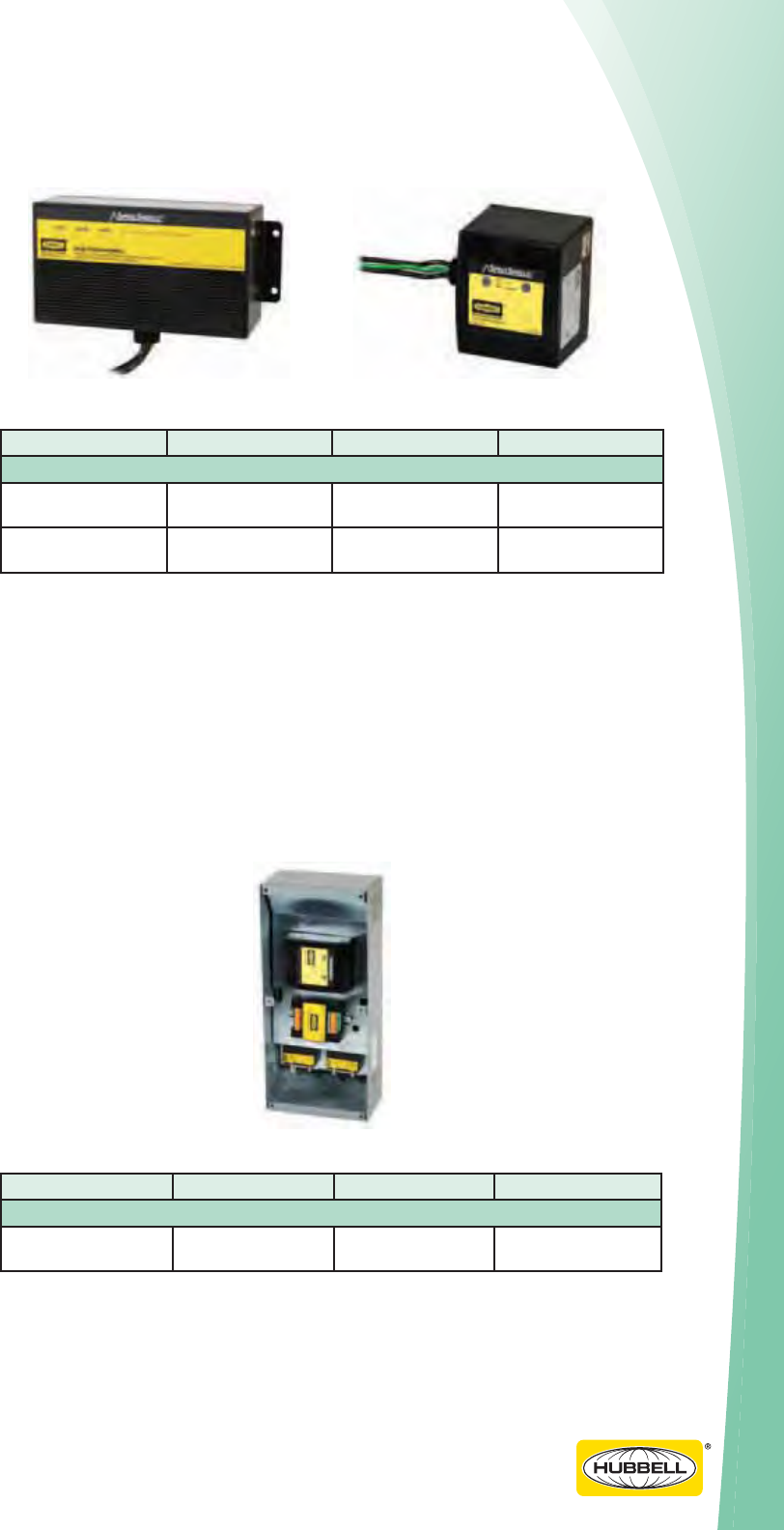

Wired-In Surge Protective Devices ............................................ J1

Whole House Surge Protection .................................................. J1

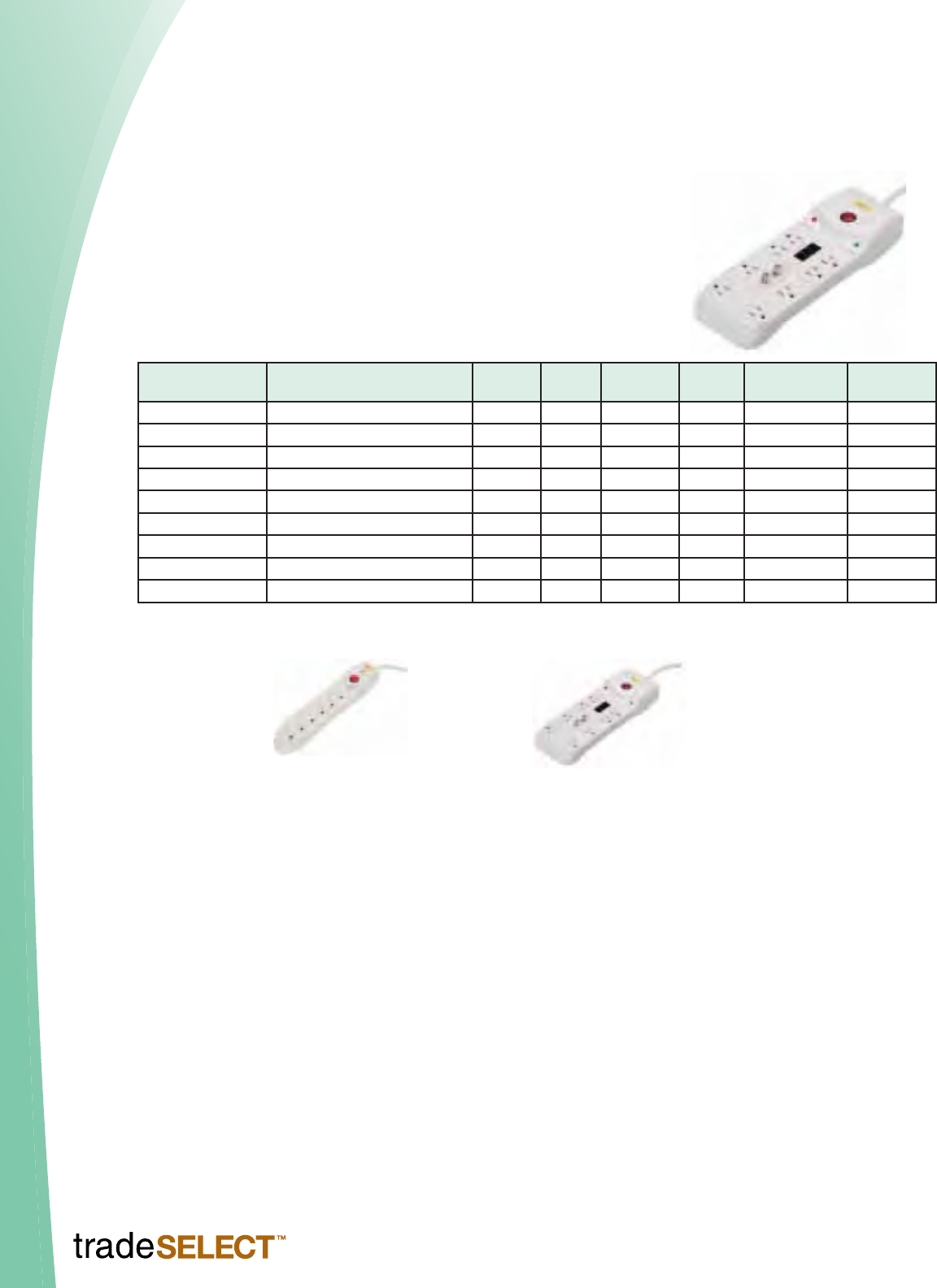

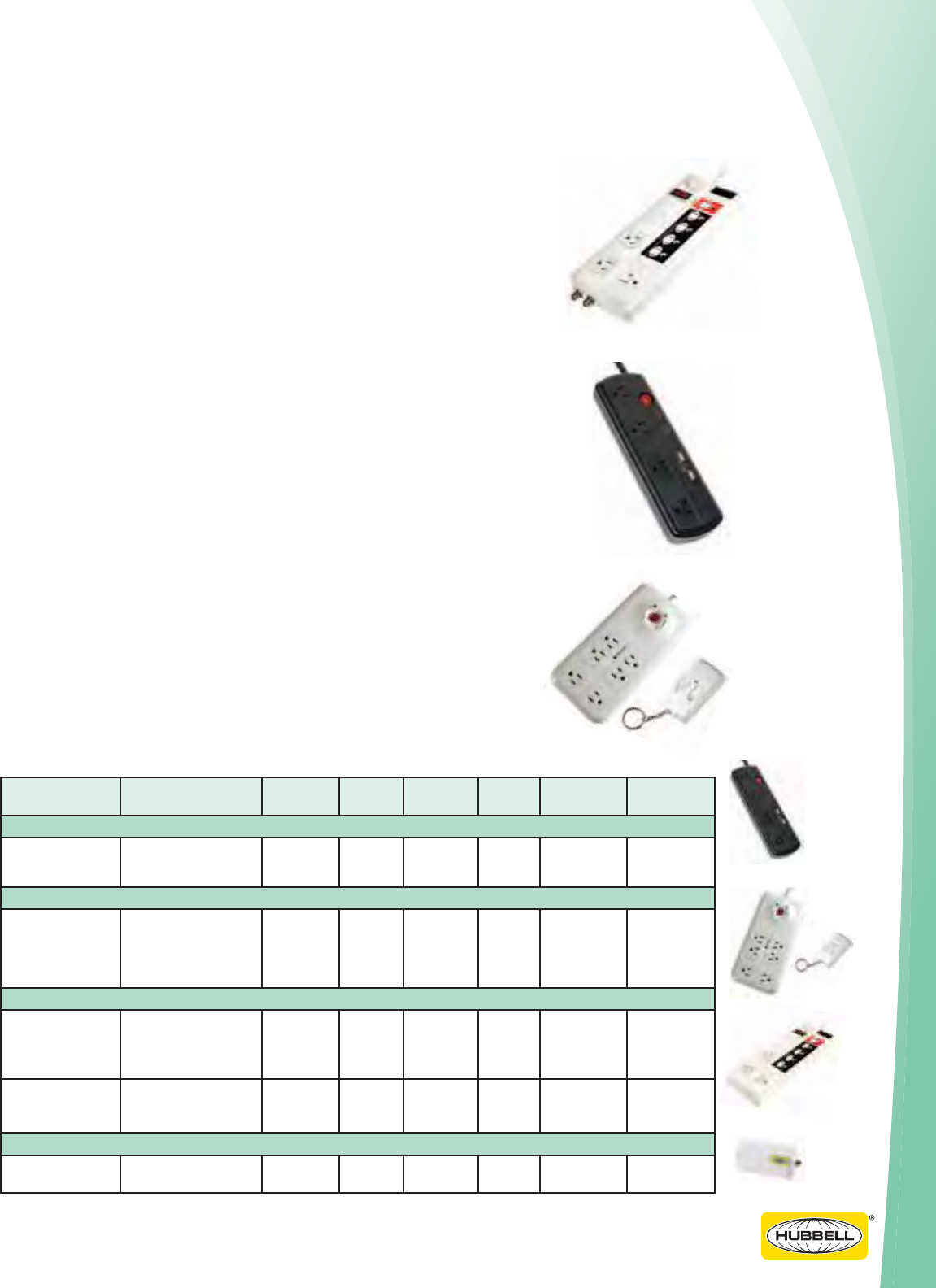

Surge Strips ........................................................................... J2-J3

TOC2.indd 1 06/01/2012 2:21:08 PM

Materials

All tradeSELECT boxes and covers are manufactured from galvanized steel, unless otherwise stated.

CertifiCation

All tradeSELECT products are CSA certified, unless otherwise stated, and meet the requirements of the

Canadian Electrical Code. File NUMBERs are available on request.

General inquiries/CustoMer serviCe

For all General Inquiries or Customer Service Requests, please call us at 1-877-233-8324.

teChniCal Data

CAD drawings are available upon request.

For more information call us at 1-877-233-8324

TABLE HEADING EXPLANATION

ABBREVIATION

Brackets

Ears

Knockouts*

Cable Clamps

FBA

MSB

MSB-1

MSBS

BAR

SBS

Flush

Recessed

1/2 (16)

3/4 (21)

1 (27)

Side bracket, nailing style with picks.

Flanged vapour barrier.

Mounting strap, nailing style with picks.

Conventional steel stud bracket, with required additional support.

Conventional steel stud bracket, 3" to 6" stud set back 1' for double drywall.

Smaller stud bracket facilitates 1-5/8” - 3” stud.

Please note 3102/1102 MSB series utilize the MSBS bracket.

Item is barcoded.

Rework bracket.

Side bracket.

Side bracket shallow. Facilitates wall applications less than 2" thick.

Plaster ears are mounted flush with the face of the box.

Plaster ears are recessed 1/2" from the face of the box.

Concentric knockout, a combination 1/2 and 3/4 trade size knockout.

Actual diameters are 7/8" and 1 3/32"

1/2 trade size knockout. Actual diameter is 7/8".

3/4 trade size knockout. Actual diameter is 1 3/32".

1 trade size knockout. Actual diameter is 1 3/8".

Clamps for non metallic cable (NMD90).

Clamps for armoured cable (AC90).

Universal Cable Clamp.

* The NUMBER in brackets following each type of knockout represents the NUMBER of knockouts of that type featured in the product. For example, 1/2 (16) (4) means that

there are 4 knockouts of the 1/2 (16) trade size featured in the product.

USING THIS CATALOGUE

General inforMation

GENERAL INFORMATION

TOC2.indd 2 06/01/2012 2:21:08 PM

iii

A selection of Canadian Electrical Code requirements are listed below along with Hubbell

product information.

CEC CLAUSE 12-3010, OUTLET BOX SUPPORTS

(4) Where boxes are mounted on metal studs, additional support shall be

provided to prevent the movement of the boxes after the drywall is installed.

All Hubbell steel stud boxes provide this additional support.

(5) Mounting nails or screws shall not pass through the interior of an outlet box.

Hubbell non-metallic ceiling outlet boxes are not manufactured from PVC

material and CEC CLAUSE 30-302 does not apply. Non-metallic boxes are

certified to support fixture/luminaire of a maximum weight of 23 kg. (50 lb.)

Installer should follow instructions supplied by luminaire manufacturer. All

of Hubbell boxes non-metallic and metallic boxes are tested and certified to

support 23 kg. (50 lb.).

CEC CLAUSE 12-3030, CONDUCTORS IN BOXES, CABINETS OR FITTINGS

(1) Conductors which are connected to different power or distribution

transformers or other different sources of voltage shall not be installed in the

same box, cabinet or fitting unless:

(a) A barrier of sheet steel not less than 1.3 mm thick or a flame-retardant

nonmetallic insulating material not less than 1.6 mm in thickness

is used to divide the space into separate compartments for the

conductors of each system;

Hubbell offers a NUMBER of partitions (barriers) which meet this

requirement. The 1104-P can be used with the 1104 and 2104 series

boxes, and is installed in our power/communication boxes (4204 series);

MBD-P and MBS-P are designed for use with our masonry boxes (MBD

and MBS series); LVP is designed for use with our pre-ganged boxes

(GSB series).

eleCtriCal CoDe

ELECTRICAL CODE REQUIREMENTS

TOC2.indd 3 06/01/2012 2:21:08 PM

MaxiMuM nuMBer of ConDuCtors in a Box

The table below, based on clause 12-3034 of the Canadian Electrical Code, lists the maximum NUMBER of conductors

permitted in a box. It is assumed that the box contains no more than 1 wire connector, and no fixture studs, hickeys or

flush devices.

4.5 (73)

5 (90)

8 (131)

10 (163)

11.5 (188)

12 (196)

12.5 (204)

14 (229)

15 (245)

15.7 (257)

16 (262)

16.5 (270)

18 (294)

18.5 (303)

20.25 (331)

21 (334)

22.25 (344)

24 (393)

30 (491)

36 (589)

42 (688)

Maximum NUMBER of Conductors*

Box series

Capacity

per gang

(ml)

56111, OB E X

110 0

1102, 775, EZ101

2018

3102

1104, 2104, 4204

2020, MBS

1004, 1504, 54151, 55151

1204

3104

1110, 1111

1804, 54521, 3004

1151

MBS-HV

52151, 53151, 54171, 55171, MBD

MBD-HV

54531

52171, 53171, 54541, 72151, 73151

54551

54561, 72171, 73171

AWG

* The maximum NUMBER of conductors is reduced in each of the following cases:

- One conductor if the box contains one or more fixture studs or hickeys.

- One conductor for every pair of wire connectors (no deduction for one wire connector, deduct one

connector for 2 or 3 wire connectors, two conductors for 4 or 5 wire connectors, etc.).

- Two conductors if the box contains one or more flush devices mounted on a single strap. If a flush

device is greater than 1" thick, reduce the box capacity by 5 cubic inches X the thickness of the device.

The maximum NUMBER of conductors listed is per gang. Multiply the NUMBER listed by the NUMBER of gangs

(where applicable) to obtain the maximum NUMBER of conductors in the box.

Refer to the Canadian Electrical Code for complete information.

ELECTRICAL CODE REQUIREMENTS

eleCtriCal CoDe

TOC2.indd 4 06/01/2012 2:21:09 PM

DEVICE BoxEs

SINGLE GANG DEvIcE boxES

CATALOGUE NUMBER CAPACITY (CU. IN.) BRACKET EARS KNOCKOUTS CABLE CLAMPS

2" x 3" Device Box - 1-1/2" Deep - Gangable

110 0 -LUBAR 8.0 -Flush - U

1100-LLEUBAR 8.0 - - - U

1100-LREU 8.0 -Recessed - U

2" x 3" Device Box - 2" Deep - Gangable

1102BAR 10.0 -Recessed 1/2" (4) U

1102-LUBAR 10.0 -Flush - U

1102-LHUBAR10.0 - - - U

1102-LREU 10.0 -Recessed - U

1102-MSB 10.0 MSBS -1/2" (4) -

1102-MSBU 10.0 MSBS - - U

1102-SB 10.0 SB -1/2" (4) -

ApplICAtIon

Device boxes are used to house wiring devices such as switches or receptacles.

proDuCt FEAturEs

• Gangabledeviceboxesoffertheoptionofconstructingaboxtoholdtwoormoredevices

• Plasterearsallowboxtobeusedin"rework"applications

• Ruggedmetallicconstruction

1100-LUBAR 1100-LLEUBAR 1100-LREU

1102BAR 1102-LUBAR 1102-LHUBAR 1102-LREU

1102-MSB 1102-MSBU 1102-SB

SectionA_Final2011.indd 1 06/01/2012 10:27:52 AM

DEVICE BoxEs

ApplICAtIon

Device boxes are used to house wiring devices such as switches or receptacles.

proDuCt FEAturEs

• Gangabledeviceboxesoffertheoptionofconstructingaboxtoholdtwoormoredevices

• Plasterearsallowboxtobeusedin"rework"applications

• Ruggedmetallicconstruction

SINGLE GANG DEvIcE boxES

CATALOGUE NUMBER CAPACITY (CU. IN.) BRACKET EARS KNOCKOUTS CABLE CLAMPS

2" x 3" Device Box - 2" Deep - Gangable

3102-LHU 12.0 - - - U

3102-MSB 12.0 MSBS -1/2"(4) -

3102-MSBU 12.0 MSBS - - U

2" x 3" Device Box - 2-1/2" Deep - Gangable

1104-K 12.5 -Recessed K(2),1/2"(2) -

1104-LBUBAR12.5 - - - U

1104-LUBAR 12.5 -Flush - U

1104-LUDBAR12.5 Rework Flush - U

1104-SB 12.5 SB -K(2),1/2"(2) -

1104-LE 12.5 - - K(2),1/2"(2) -

1104-LHU 12.5 - - - U

1104-LMSU 12.5 MS - - U

1104-LRWUBAR 12.5 RW Flush - U

1104-MSB 12.5 MSB -K(2),1/2"(2) -

1104-MSBUBAR 12.5 MSB - - U

1304-LHU 14.5 - - - U

1104-P* Partition-Forusewith1104series&2104,2,3,4-gangmetalboxes

X-CUBE Adds 5.5 Cu.In.Forusewith1104seriesmetalboxes

*Once installed, the box meets Canadian Electrical Code requirements, allowing the installation of devices connected to different power sources

WITHIN THE SAME BOX

3102-LHU 3102-MSB 3102-MSBU

1104-K 1104-LBUBAR 1104-LUBAR 1104-LUDBAR 1104-SB 1104-LE 1104-LHU

1104-LMSU 1104-LRWUBAR 1104-MSB 1104-MSBUBAR 1304-LHU 1104-P* X-CUBE

SectionA_Final2011.indd 2 06/01/2012 10:28:22 AM

DEVICE BOXES

APPLICATION

Device boxes are used to house wiring devices such as switches or receptacles.

PRODUCT FEATURES

q Plaster ears allow box to be used in "rework" applications

q Rugged metallic construction

CATALOGUE NUMBER CAPACITY (CU. IN.) BRACKET EARS KNOCKOUTS CABLE CLAMPS

2" x3" Device Box - 2-1/2" Deep

2104-LU 12.5 - Flush - U

2104-LLEUBAR 12.5 - - - U

2104-LNU 12.5 - - - U

2104-MSBU 12.5 MSB - - U

EZ-101BAR 12.5 - Flush 1/2" (1) U

KIT-201 12.5 Contains: One 2104LU & One pair of 820-D F-brackets

2304-LLEU 14.5 - - - U

1504-LLEUBAR 15.0 - - - U

1504-MSBUBAR 15.0 MSB - - U

1804-LHU 16.0 - - - U

3104-LHU 16.0 - - - U

3104-MSB 16.0 MSB - K(2), 1/2"(2) -

3104-MSB-1* 16.0 MSB - K(2), 1/2"(2) -

3104-MSBU 16.0 MSB - - U

3104-MSBU-1* 16.0 MSB - - U

#SBDLFUTTFUCBDLGPSUXPMBZFSTPGESZXBMM

SINGLE GANG DEVICE BOXES

2104-LU 2104-LLEUBAR 2104-LNU 2104-MSBU

EZ-101BAR KIT-201 2304-LLEU 1504-LLEUBAR 1504-MSBUBAR

1804-LHU 3104-LHU 3104-MSB 3104-MSBU

DEVICE BOXES

APPLICATION

Device boxes are used to house wiring devices such as switches or receptacles.

PRODUCT FEATURES

q Gangable device boxes offer the option of constructing a box to hold two or more devices

q Plaster ears allow box to be used in "rework" applications

q Rugged metallic construction

CATALOGUE NUMBER CAPACITY (CU. IN.) BRACKET EARS KNOCKOUTS CABLE CLAMPS

2" x 3" Device Box - 3" Deep - Gangable

1004-H 15.0 - Recessed 1/2"(4) -

1004-LUBAR 15.0 - Flush - U

1004-LBU 15.0 B - - U

1004-LHU 15.0---U

3004-LHU 18.0---U

3004-MSB 18.0 MSB - 1/2"(4) -

3004-MSB-1* 18.0 MSB - 1/2"(4) -

3004-MSBU 18.0 MSB - - U

3004-MSBU-1* 18.0 MSB - - U

* Brackets set back for two layers of 1/2" drywall

1004-H 1004-LUBAR 1004-LBU 1004-LHU 3004-LHU

3004-MSB 3004-MSB-1* 3004-MSBU 3004-MSBU-1*

100

LBU

SINGLE GANG DEVICE BOXES

DEVICE BOXES

APPLICATION

Device boxes are used to house wiring devices such as switches or receptacles.

PRODUCT FEATURES

q Plaster ears allow box to be used in "rework" applications

q Rugged metallic construction

MULTI-GANG DEVICE BOXES

CATALOGUE NUMBER CAPACITY (CU. IN.) BRACKET EARS KNOCKOUTS CABLE CLAMPS

2" x 3" Device Box - 2-1/2" Deep - 2-gang

2104-LU-2 12.5 - Flush - U

2104-LLEU-2 25.0 - - - U

2104-MSBU-2 25.0 MSB - - U

2304-LLEU-2 29.0 - - - U

2" x 3" Device Box - 2-1/2" Deep - 2-gang (Power/Communication)

4204-MSB 12.5 MSB - K(4), 1/2"(4) -

4204-MSBU 12.5 MSB - K(2), 1/2"(2) U

2" x 3" Device Box - 2-1/2" Deep - 3-gang

2104-LLEU-3BAR 37.5---U

2104-MSBU-3 37.5 MSB - - U

2304-LLEU-3 43.5 - - - U

2" x 3" Device Box - 2-1/2" Deep - 4-gang

2104-LLEU-4BAR 50.0 - - - U

2104-MSBU-4 50.0 MSB - - U

2304-LLEU-4 58.0---U

1104-P* Partition - For use with 1104 series & 2104, 2, 3, 4-gang metal boxes

*Once installed, the box meets Canadian Electrical Code requirements, allowing the installation of devices connected to different power sources within the same

box

2104-LU-2 2104-LLEU-2 2104-MSBU-2 2304-LLEU-2

2104-LLEU-3BAR 2104-MSBU-3 2304-LLEU-3

2104-LLEU-4BAR 2104-MSBU-4 2304-LLEU-4 1104-P*

4204-MSB 4204-MSBU

DEVICE BOXES

APPLICATION

Octagon boxes can be used in the installation of ceiling or wall lighting fixtures. Extension rings provide a

means for adding additional cubic capacity.

PRODUCT FEATURES

q Combination screw heads provide for faster installation

q Self-tapping screws virtually eliminate stripping

q Rugged metallic construction

4" OCTAGON BOXES

CATALOGUE NUMBER CAPACITY (CU. IN.) BRACKET RAISED GROUND

SCREW

KNOCKOUTS CABLE CLAMPS

4" Octagon Box - 1-1/2" Deep

54151-LHB 15.0 SB no 1/2"(2) L

54151-KBAR 15.0 - yes K(6), 1/2"(2) -

54151-LBAR 15.0 - no 1/2"(3) L

54151-LABAR 15.0 - no 1/2"(3) A

54151-LB 15.0 B no 1/2"(2) L

54151-MSB 15.0 MSB yes K(4), 1/2"(2) -

54151-MSBABAR 15.0 MSB no 1/2"(1) A

54151-MSBL 15.0 MSB no 1/2"(1) L

54151-LDBAR 15.0 Rework no - -

55151-KBAR 15.0 Ext. Ring - K(4) -

OBEXBAR 5.0Ext. Ring ---

4" Octagon Box - 2-1/8" Deep

54171-MSB 21.0 MSB yes K(4), 1/2"(4) -

54171-MSB-1* 21.0 MSB yes K(4), 1/2"(4) -

54171-K 21.0 - yes K(4), 1/2"(4) -

54171-L 21.0 - no 1/2"(3) L

54171-LB 21.0 B no 1/2"(2) L

54171-LHB 21.0 SB no 1/2"(2) L

55171-K 21.0 Ext. Ring 21.0 - K(2), 1/2"(2) -

4" Ceiling Fan - 2-1/8" Deep - Max Load Capacity: 35 lb (15.6 kg)

54171-LFBAR** 21.0 - no 1/2”(3) L

#SBDLFUTTFUCBDLGPSUXPMBZFSTPGESZXBMM

TVQQMJFEXJUIUXP/PNBDIJOFTDSFXTBOEXBTIFST

5 4 1 5 1- L H B 5 4 1 5 1- K B A R 5 4 1 5 1- L B A R 5 4 15 1 - L A B A R 5 4 15 1 - L B 5 4 1 5 1- M S B

54151-MSBABAR 54151-MSBL 54151-LDBAR 55151-KBAR OBEXBAR54171-MSB

54171-K 54171-L 54171-LB 54171-LHB 55171-K 54171-LFBAR**

DEVICE BOXES

APPLICATION

Covers are used to close an outlet box. Switches or receptacles may be installed into octagon boxes

by using covers 54-C-62, 54-C-64, 54-C-65 or 54-C-94.

PRODUCT FEATURES

q Rugged metallic construction

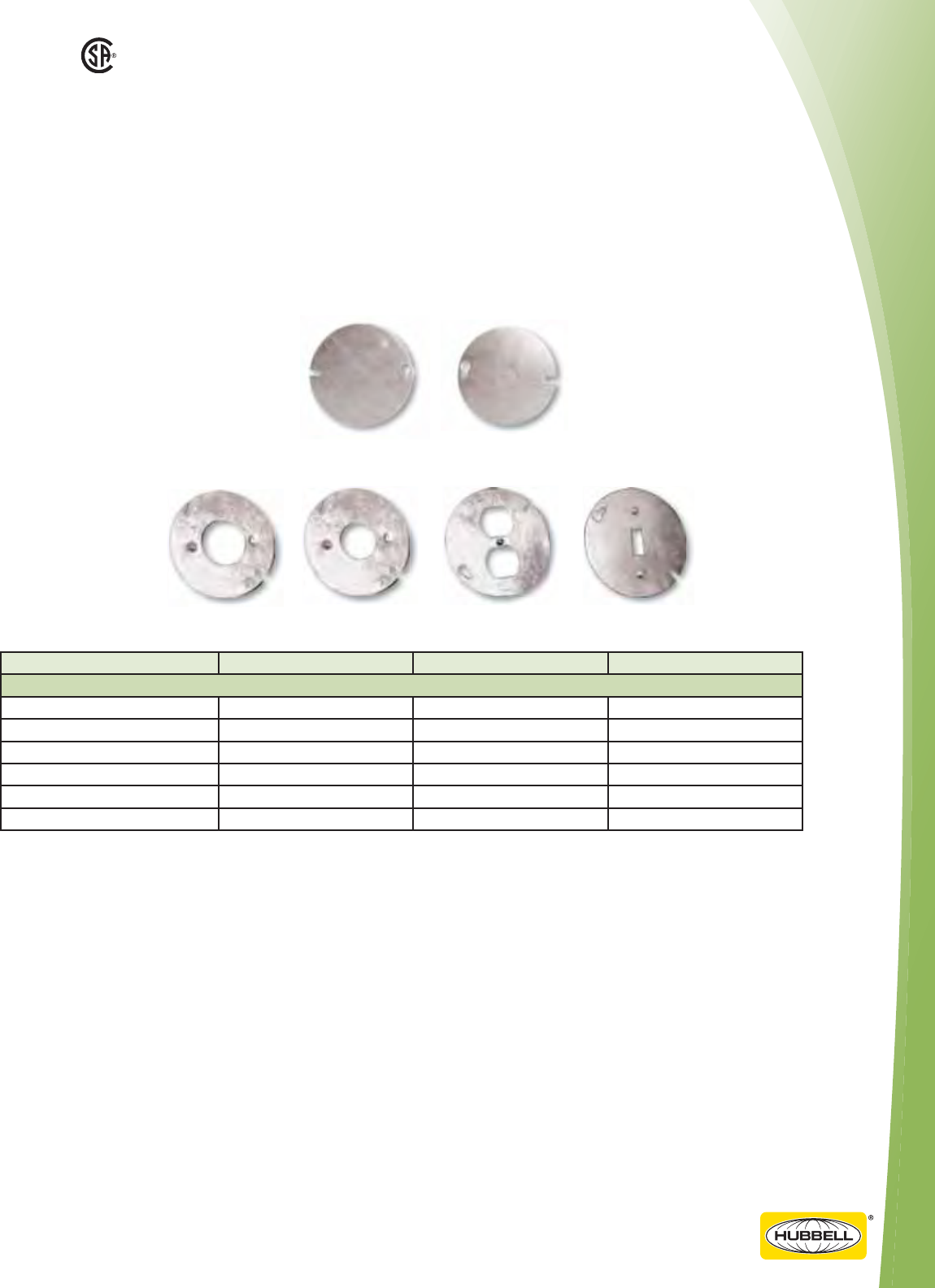

4" OCTAGON BOX COVERS

CATALOGUE NUMBER DESCRIPTION OPENING KNOCKOUTS

4" Round Covers

54-C-1 Flat Cover Blank -

54-C-6 Flat Cover - 1/2"(1)

54-C-62 Flat Cover 1.62" Receptacle -

54-C-64 Flat Cover 1.40" Receptacle -

54C-65BAR Flat Cover Duplex Receptacle -

54-C-94 Flat Cover Toggle Switch -

54-C-1 54-C-6

54-C-62 54-C-64 54C-65BAR 54-C-94

54 C 62

DEVICE BOXES

APPLICATION

Boxes are installed in ceiling or wall junctions. Square boxes are used where multiple conductor runs are

split into two or more directions to bring power to a number of electrical devices.

PRODUCT FEATURES

q Self-tapping screws virtually eliminate stripping

q Rugged metallic construction

4” SQUARE BOXES

CATALOGUE NUMBER CAPACITY (CU. IN) BRACKET RAISED GROUND SCREW KNOCKOUTS

4"x 4" Square Boxes - 1-1/2" Deep

52151-KBAR 21.0 - yes (2) K(6), 1/2"(6), 3/4"(2)

52151-KSB 21.0 SB yes (2) K(4), 1/2"(6), 3/4"(2)

52151-MSB 21.0 MSB yes (2) K(2), 1/2"(6), 3/4"(2)

52151-MSBS 21.0 MSBS yes (2) K(2), 1/2"(6), 3/4"(2)

53151-K 21.0 Ext. Ring yes (2) K(6), 1/2"(4)

4" x 4" Square Boxes - 2-1/8" Deep

52171-1 30.0 - yes (2) 1/2"(2), 3/4"(2), 1"(4)

52171-KBAR 30.0 - yes (2) K(6), 1/2"(6), 3/4"(2)

52171-KSB 30.0 SB yes (2) K(4), 1/2"(6), 3/4"(2)

52171-MSB 30.0 MSB yes (2) K(2), 1/2"(6), 3/4"(2)

521711-MSB 30.0 MSB yes (2) K(3), 1/2"

(2), 1"(2)

53171-K 30.0 Ext. Ring yes (2) K(6), 1/2"(4)

52151-KBAR 52151-KSB 52151-MSB 52151-MSBS 53151-K

52171-1 52171-KBAR 52171-KSB 52171-MSB 521711-MSB 53171-K

DEVICE BOXES

APPLICATION

Covers are used to close an outlet box. Raised device covers are used for mounting switches or receptacles.

PRODUCT FEATURES

q Self-tapping screws virtually eliminate stripping

q Rugged metallic construction

q 52 series boxes are designed for use with 52 series boxes.

4" SQUARE COVERS

CATALOGUE NUMBER DESCRIPTION CAPACITY (CU. IN.) OPENING KNOCKOUTS

4" x 4" Square Covers

52-C-0 flat - one device -

52-C-00BAR flat - two devices -

52-C-1 flat - blank -

52-C-6BAR flat - - 1/2" (1)

52-C-3 raised 1/2" 3.7 one device -

52-C-10 raised 3/16" 1.2 one device -

52-C-13 raised 1/2" 3.5 one device -

52-C-14 raised 3/4" 5.1 one device -

52-C-14-5/8 raised 5/8" 4.3 one device -

52-C-15 raised 7/8" 6.1 one device -

52-C-16 raised 1-1/4" 8.5 one device -

52-C-17 raised 1/2" 6.3 two devices -

52-C-18 raised 3/4" 9.7 two devices -

52-C-18-5/8 raised 5/8" 7.8 two devices -

52-C-6214 raised 5/8" 7.8 one device -

52-C-0 52-C-00BAR 52-C-1 52-C-6BAR 52-C-3 52-C-10 52-C-13

52-C-14 52-C-14-5/8 52-C-15 52-C-16

52-C-17 52-C-18 52-C-18-5/8

A10

DEVICE BoxEs

CATALOGUE NUMBER DESCRIPTION CAPACITY (CU.

IN.)

OPENING KNOCKOUTS

4" x 4" Square Tile Covers

52-C- 49-1/2tile cover 1/2" 3.4 one device -

52-C-49-3/4tile cover 3/4" 5.3 one device -

52-C- 49-1 tile cover 1" 6.8 one device -

52-C- 49-1-1/4 tile cover 1-1/4" 8.6 one device -

52-C-50-1-1/2 tile cover 1-1/2 10.0 one device -

52-C-51-2 tile cover 214.0 one device -

52-C-52-1/2raised cover 1/2" 5.5 two device -

52-C-52-5/8raised cover 5/8" 7.3 two device -

52-C-52-3/4raised cover 3/4" 8.8 two device -

52-C-52-1 raised cover 1" 12.0 two device -

52-C-52-1-1/4 raised cover 1-1/4" 15.0 two device -

52-C-53-1-1/2 raised cover 1-1/2" 15.5 two device -

52-C-54-2 raised cover 2" 20.5 two device -

4" x 4" Square Surface Covers

8361 surface cover 3/8" 4.6 toggle switch -

8362 surface cover 3/8" 4.6 2.625" receptacle -

8363 surface cover 3/8" 4.6 1.40" receptacle -

8364 surface cover 3/8" 4.6 1.625" receptacle -

8365 surface cover 3/8" 4.6 duplex receptacle -

8366 surface cover 3/8" 4.6 2.156" re c eptacle -

8367 surface cover 3/8" 4.6 2 toggle switches -

8368 surface cover 3/8" 4.6 2 GFCI/Styleline -

8371 surface cover 3/8" 4.6 2 duplex receptacles -

8372 surface cover 3/8" 4.6 1 GFCI -

8375 surface cover 3/8" 4.6 1 toggle, 1 duplex -

ApplICAtIon

Covers are used to close an outlet box. Raised device covers are used for mounting switches or receptacles.

proDuCt FEAturEs

• Self-tappingscrewsvirtuallyeliminatestripping

• Ruggedmetallicconstruction

• 52seriesboxesaredesignedforusewith52seriesboxes.

4" SquAre CoverS

52-C-49-1/2 52-C-49-3/4 52-C-49-1 52-C- 49 -1-1/4 52-C-50-1-1/2 52-C-51-2

8361 8362 8363 8364 8365 8366 8367

8368 8371 8372 8375

SectionA_Final2011.indd 10 06/01/2012 10:29:36 AM

A11

DEVICE BoxEs

ApplICAtIon

Boxes are installed in ceiling or wall junctions or stove & dryer receptacles. Square boxes are used where multiple

conductor runs are split into two or more directions to bring power to a number of electrical devices.

proDuCt FEAturEs

• Self-tappingscrewsvirtuallyeliminatestripping

• Ruggedmetallicconstruction

4 11/16" SquAre BoxeS

CATALOGUE NUMBER CAPACITY (CU.

IN)

BRACKET RAISED GROUND SCREW KNOCKOUTS

4-11/16" Square Boxes - 1-1/2" Deep

72151-K 30.0 -yes K(6), 1/2"(6), 3/4"(2)

73151-KBAR 42.0 Ext.Ring -K(6), 1/2"(4)

4-11/16" Square Boxes - 1-1/8" Deep

72171-MSB 42.0 MSB yes 1/2"(6), 3/4"(2), K(2)

72171-KBAR 42.0 -yes K(6), 1/2"(6), 3/4"(2)

72171-KSB 42.0 SB yes K(4), 1/2"(6), 3/4"(2)

72171-1 42.0 -yes 1/2"(2), 3/4"(2), 1"(8)

73171-KBAR 42.0 Ext. Ring -K(6), 1/2"(4)

72151-K 73151-KBAR

72171-MSB 72171-KBAR 72171-KSB 72171-1 73171-KBAR

SectionA_Final2011.indd 11 06/01/2012 10:53:41 AM

A12

DEVICE BOXES

APPLICATION

Covers are used to close an outlet box. Raised device covers are used for mounting switches or receptacles.

PRODUCT FEATURES

q Rugged metallic construction

q 72 series covers are designed for use with 72 series boxes

4-11/16" SQUARE COVERS

CATALOGUE NUMBER DESCRIPTION CAPACITY (CU. IN.) OPENING KNOCKOUTS

4-11/16" Covers

72-C-1 flat - blank -

72-C-6-K flat - concentric knockout K(1)

72-C-10 raised cover 3/16" 1.2 one device -

72-C-13 raised cover 1/2" 3.5 one device -

72-C-14 raised cover 3/4" 5.1 one device -

72-C-15 raised cover 7/8" 6.1 one device -

72-C-17 raised cover 1/2" 6.3 two device -

72-C-18 raised cover 3/4" 9.7 two device -

72-C-1 72-C-6-K 72-C-10

72-C-13 72-C-14 72-C-15 72-C-17 72-C-18

A13

DEVICE BOXES

APPLICATION

Utility boxes are used for convenience outlets, switch boxes or small junction boxes. They are popular for

exposed work applications (surface mounted wiring).

UTILITY BOXES & COVERS

CATALOGUE NUMBER CAPACITY (CU. IN.) BRACKET RAISED GROUND SCREW KNOCKOUTS

2-1/8" x 4" Utility Boxes - 1-1/2" Deep

2018 11.5 - yes 1/2"(10 )

2018-SB 11.5 SB yes 1/2"(7)

2-1/8" x 4" Utility Boxes - 1-7/8" Deep

2020-BAR 14.0 - yes 1/2"(10)

2020-RBAR 14.0 Ext. Ring - 1/2"(8)

2020-SB 14.0 SB yes 1/2"(7)

CATALOGUE NUMBER DESCRIPTION

4" x 2-1/8" Utility Box Covers

20-C-1 duplex receptacle

20-C-3 1.40" receptacle

20-C-4BAR blank

20-C-5 toggle switch

2018 2018-SB

2020-BAR 2020-RBAR 2020-SB

20-C-1 20-C-3 20-C-4BAR 20-C-5

PRODUCT FEATURES

q Raised ground screw provides easier access and

prevents the ground screw from protruding beyond the

bottom of the box when tightened

q Covers are designed to match the contours of the box

q Cover corners are rounded

q All covers have captive screws

q Self-tapping ground screws which virtually

eliminate stripping

q Mounting screws are included with covers

APPLICATION

Utility box covers are used to close a utility box. Covers may also be used as single-gang wall plates.

PRODUCT FEATURES

q Covers are designed to match the contours of the

box.

q All covers have captive screws.

q Self-tapping ground screws which virtually eliminate

stripping.

q Mounting screws are included with covers.

A14

DEVICE BoxEs

ApplICAtIon

Utility boxes are used for convenience outlets, switch boxes or small junction boxes. They are popular for

exposed work applications (surface mounted wiring).

Utility Boxes & Covers

CATALOGUE NUMBER CAPACITY (CU. IN.) BRACKET RAISED GROUND SCREW KNOCKOUTS

2-1/2" x 4" Utility Boxes - 1-7/8" Deep

1110 -BAR 16.5 -yes 1/2"(10)

1110 -RBAR 16.5 Ext. Ring yes 1/2"(8)

1110 -SB 16.5 SB -1/2"(7)

1110 -MSB 16.5 MSB yes 1/2"(4)

1111 16.5 -yes 1/2"(10)

2-1/2" x 4" High Voltage (347V) Utility Boxes - 1-7/8" Deep

1110 -HV 16.0 -yes 1/2"(10)

2-1/2” x 4” Utility Boxes - 2-1/8" Deep

1151BAR 18.5 -no 1/2"(4)

1199H 18.5 -no 1/2"(4)

1198H 18.5 -no 1/2"(4)

CATALOGUE NUMBER DESCRIPTION

4" x 2-1/2" Utility Box Covers

11-C-1 duplex receptacle

11-C-2H 1.625" receptacle

11-C-3BAR 1.40" receptacle

11-C- 4 blank

11-C- 4HV blank (347V)

11-C-5 toggle switch

11-C-5HV toggle switch (347V)

11-C-10 GFCI

11-C-1 11-C-2H 11-C-3BAR 11-C-4 11-C-4HV 11-C-5 11-C-5HV 11-C-10

1110-HV 1151BAR 1199H 1198H

proDuCt FEAturEs

• Raisedgroundscrewprovideseasieraccess

and prevents the ground screw from protruding

beyond the bottom of the box when tightened

• Coversaredesignedtomatchthecontoursof

the box

• Covercornersarerounded

• Allcovershavecaptivescrews

• Self-tappinggroundscrewswhichvirtually

eliminate stripping

• Mountingscrewsareincludedwithcovers

1110-BAR 1110-RBAR 1110-SB 1110-MSB 1111

SectionA_Final2011.indd 14 06/01/2012 12:03:54 PM

DEVICE BOXES

A15

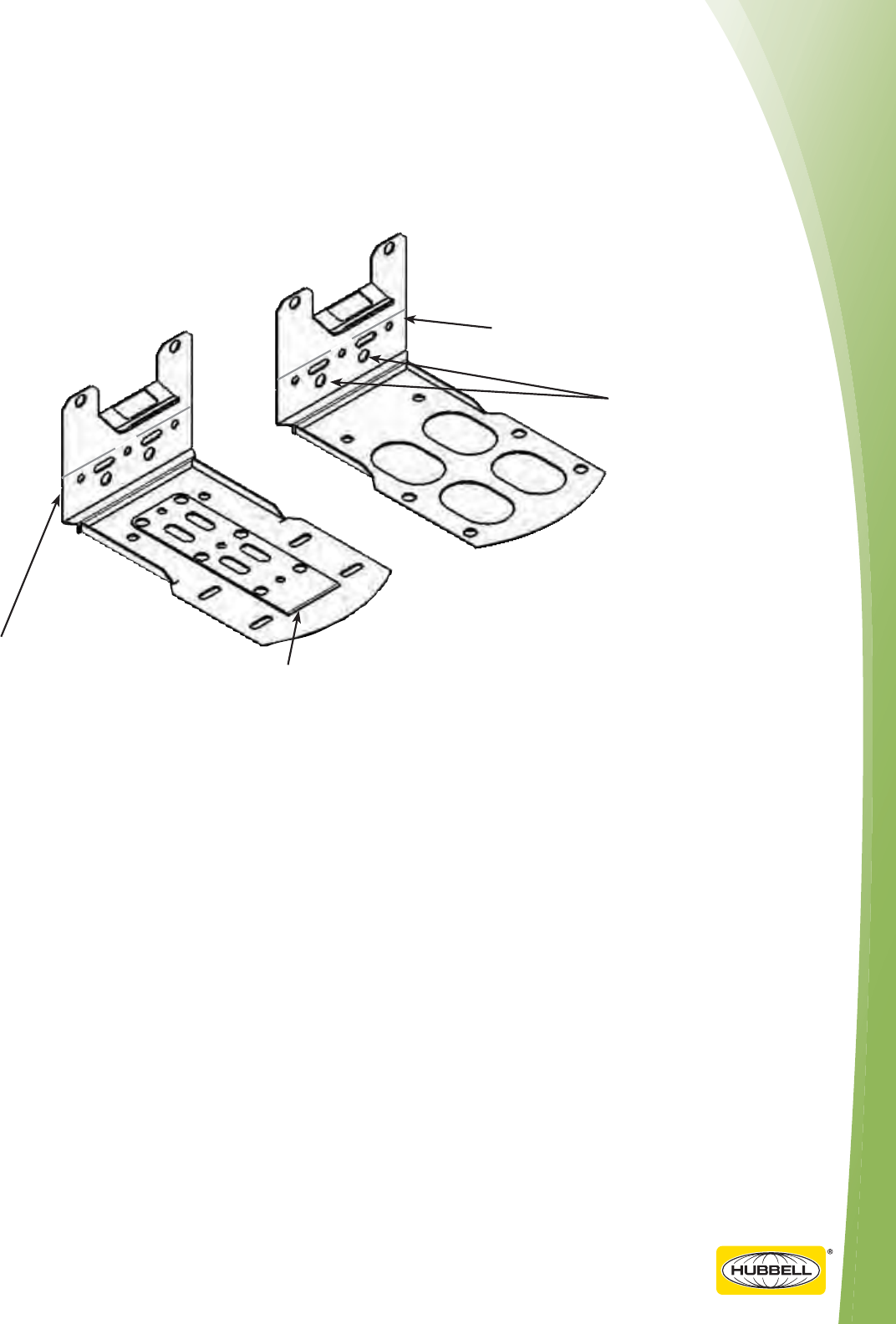

MSBS Series Bracket

(1-5/8” - 2-5/8”)

ADJUSTABLE MOUNTING STRAP

tradeSELECT steel stud boxes feature a unique adjustable mounting strap and

clip-on tab that makes it easier than ever to position and hold boxes in place.

tradeSELECT boxes are simply the fastest and easiest boxes to install on any

size steel stud.

Adjustable Mounting Strap

Second set of mounting

holes for breakaway tab

mounting.

MSB Series Bracket

(3” - 6”)

Breakaway front bracket clip provides

side to side installation on steel stud for

quick install. Eliminates step of manually

cutting bracket.

Breakaway front bracket clip

provides side to side installation

on steel stud for quick install.

Eliminates step of manually cutting

bracket.

STEEL STUD DEVICE BOXES

DEVICE BOXES

A16 STEEL STUD BOX

INSTALLATION

A17

DEVICE BOXES

APPLICATION

Steel stud boxes are used in Commercial, Residential and Industrial construction.

PRODUCT FEATURES

q Unique adjustable mounting strap and patented clip-on tab allow for easy positioning

q Gangable device boxes offer the option of constructing a box to hold two or more devices

q Rugged metallic construction

STEEL STUD DEVICE BOXES

CATALOGUE NUMBER CAPACITY (CU. IN.) BRACKET STUD SIZES KNOCKOUTS CABLE CLAMPS

2" x 3" Device Box - 2" Deep - Gangable

1102-MSB 10.0 MSBS 1-5/8", 2-3/8" 1/2"(4) -

1102-MSBU 10.0 MSBS 1-5/8", 2-3/8" - U

3102-MSB 12.0 MSBS 1-5/8", 2-3/8" 1/2"(4) -

3102-MSBU 12.0 MSBS 1-5/8", 2-3/8" - U

2" x 3" Device Box - 2-1/2" Deep - Gangable

1104-MSB 12.5 MSB 2-3/8", 3-5/8" K(2), 1/2"(2) -

1104-MSBUBAR 12.5 MSB 2-3/8", 3-5/8" - U

2" x 3" Device Box - 2-1/2" Deep Power /Communication Box - Gangable

4204-MSB 12.5 MSB 2-3/8", 3-5/8" K(4), 1/2"(4) -

4204-MSBU 12.5 MSB 2-3/8", 3-5/8" K(2), 1/2"(2) U

2-1/4" x 3" Device Box - 2-1/2" Deep - Gangable

1504-MSBUBAR 15.0 MSB 2-3/8", 3-5/8" - U

2-1/4" x 3" Device Box - 2-1/2" Deep 347V Box - Gangable

1204-MSB-HV 15.7 MSB 2-3/8", 3-5/8" 1/2"(2) -

1104-P* Partition - For use with 1104 series & 2104, 2, 3, 4-gang metal boxes

7902** Foot Extender

*Once installed, the box meets Canadian Electrical Code requirements, allowing the installation of devices connected to different power sources within the same box

** Steel stud foot extender. Use with existing MSB foot to facilitate 6" steel stud installation

1102-MSB 1102-MSBU 3102-MSB 3102-MSBU

1104-MSB 1104-MSBUBAR 4204-MSB 4204-MSBU

1504-MSBUBAR 1204-MSB-HV 1104-P* 7902**

A18

DEVICE BOXES

APPLICATION

Steel stud boxes are used in Commercial, Residential and Industrial construction.

PRODUCT FEATURES

q Raised ground screw provides easier access and prevents the ground screw from protruding beyond the

bottom of the box when tightened.

q Rugged metallic construction

STEEL STUD DEVICE BOXES

CATALOGUE NUMBER CAPACITY (CU. IN.) BRACKET STUD SIZES KNOCKOUTS CABLE CLAMPS

2" x 3" Device Box - 2-1/2" Deep - Gangable

3104-MSB 16.0 MSB 2-3/8", 3-5/8" K(2), 1/2"(2) -

3104-MSB-1* 16.0 MSB 2-3/8", 3-5/8" K(2), 1/2"(2) -

3104-MSBU 16.0 MSB 2-3/8", 3-5/8" - U

3104-MSBU-1* 16.0 MSB 2-3/8", 3-5/8" - U

2" x 3" Device Box - 3" Deep - Gangable

3004-MSB 18.0 MSB 2-3/8", 3-5/8" 1/2"(4) -

3004-MSBU 18.0 MSB 2-3/8", 3-5/8" - U

3004-MSBU-1* 18.0 MSB 2-3/8", 3-5/8" - U

1104-P** Partition - For use with 1104 series & 2104, 2, 3, 4-gang metal boxes

7902*** Foot Extender

* Brackets set back for two layers of 1/2" drywall

** Once installed, the box meets Canadian Electrical Code requirements, allowing the installation of devices connected to different power sources within the same box

*** Steel stud foot extender. Use with existing MSB foot to facilitate 6" steel stud installation

3104-MSB 3104-MSBU

3004-MSB 3004-MSBU 1104-P* 7902***

A19

DEVICE BOXES

APPLICATION

Steel stud boxes are used in Commercial, Residential and Industrial construction.

PRODUCT FEATURES

q Unique adjustable mounting strap and patented clip-on tab allow for easy positioning

q Rugged metallic construction

STEEL STUD DEVICE BOXES

CATALOGUE NUMBER CAPACITY (CU. IN.) BRACKET STUD SIZES KNOCKOUTS CABLE CLAMPS

2" x 3" Device Box - 2-1/2" Deep

2104-MSBU 12.5 MSB 2-3/8", 3-5/8" - U

2104-MSBU-2 25.0 MSB 2-3/8", 3-5/8" - U

2104-MSBU-3 37.5 MSB 2-3/8", 3-5/8" - U

2104-MSBU-4 50.0 MSB 2-3/8", 3-5/8" - U

2" x 3" Device Box - 2-1/2" Deep - Combination Box

2304-MSBKU 14.5 MSB 2-3/8", 3-

5/8"

K(1) U

2304-MSBKU-2 29.0 MSB 2-3/8", 3-

5/8"

K(2) U

2304-MSBKU-3 43.5 MSB 2-3/8", 3-

5/8"

K(3) U

2304-MSBKU-4 58.0 MSB 2-3/8", 3-

5/8"

K(4) U

1104-P* Partition - For use with 1104 series & 2104, 2, 3, 4-gang metal boxes

7902** Foot Extender

* Once installed, the box meets Canadian Electrical Code requirements, allowing the installation of devices connected to different power sources within the same box

** Steel stud foot extender. Use with existing MSB foot to facilitate 6" steel stud installation

2104-MSBU 2104-MSBU-2 2104-MSBU-3 2104-MSBU-4

2304-MSBKU 2304-MSBKU-2 2304-MSBKU-3

2304-MSBKU-4 1104-P* 7902**

A20

DEVICE BOXES

APPLICATION

Steel stud boxes are used in Commercial, Residential and Industrial construction.

PRODUCT FEATURES

q Unique adjustable mounting strap and patented clip-on tab allow for easy positioning

q Rugged metallic construction

STEEL STUD

4" OCTAGON BOXES

CATALOGUE NUMBER CAPACITY (CU.

IN.)

BRACKET STUD SIZES KNOCKOUTS CABLE CLAMPS

4" Octagon Box - 1-1/2" Deep

54151-MSB 15.0 MSB 2-3/8, 3-5/8" K(4), 1/2"(2) -

54151-MSBABAR 15.0 MSB 2-3/8, 3-5/8" 1/2"(1) A

54151-MSBL 15.0 MSB 2-3/8, 3-5/8" 1/2"(1) L

4" Octagon Box - 2-1/8" Deep

54171-MSB 21.0 MSB 2-3/8, 3-5/8" K(4), 1/2"(4) -

54171-MSB-1 21.0 MSB 2-3/8", 3-5/8" K(4), 1/2"(4) -

7902** Foot Extender

SQUARE STEEL STUD BOXES

CATALOGUE NUMBER CAPACITY (CU.

IN)

BRACKET STUD SIZES KNOCKOUTS RAISED GROUND

SCREW

4" x 4" Square Boxes - 1-1/2" Deep

52151-MSB 21.0 MSB 2-3/8, 3-5/8" K(2), 1/2"(6), 3/4(2) yes

52151-MSBS 21.0 MSB 2-3/8, 3-5/8" K(2), 1/2"(6), 3/4(2) yes

4" x 4" Square Boxes - 2-1/8" Deep

52171-MSB 30.0 MSB 2-3/8, 3-5/8" K(2), 1/2"(6), 3/4(2) yes

521711-MSB 30.0 MSB 2-3/8, 3-5

/8"

K(3), 1/2”(2), 1”(2) yes

4-11/16" Square Boxes - 2-1/8" Deep

72171-MSB 42.0 MSB 2-3/8, 3-5/8" K(2), 1/2"(2) yes

7902** Foot Extender

54151-MSB 54151-MSBABAR 54151-MSBL 54171-MSB 54171-MSB-1 7902**

52151-MSB 52151-MSBS 52171-MSB 521711-MSB 72171-MS 7902**

** Steel stud foot extender. Use with existing MSB foot to facilitate 6" steel stud installation.

52151 MSBS

A21

DEVICE BOXES

APPLICATION

347 Volt boxes are used for the installation of 347 Volt switches for commercial and industrial lighting.

PRODUCT FEATURES

q All 347 Volt boxes have tapped holes with vertical spacing of 3.531" to accommodate 347 Volt switches.

q 1204 series boxes feature 2.25" spacing between gangs. Use tradeSELECT wall plates with HV suffixes.

q HV version of MBD and MBS series boxes feature 1.812" spacing between gangs. Use tradeSELECT wall

plates with HVR suffixes.

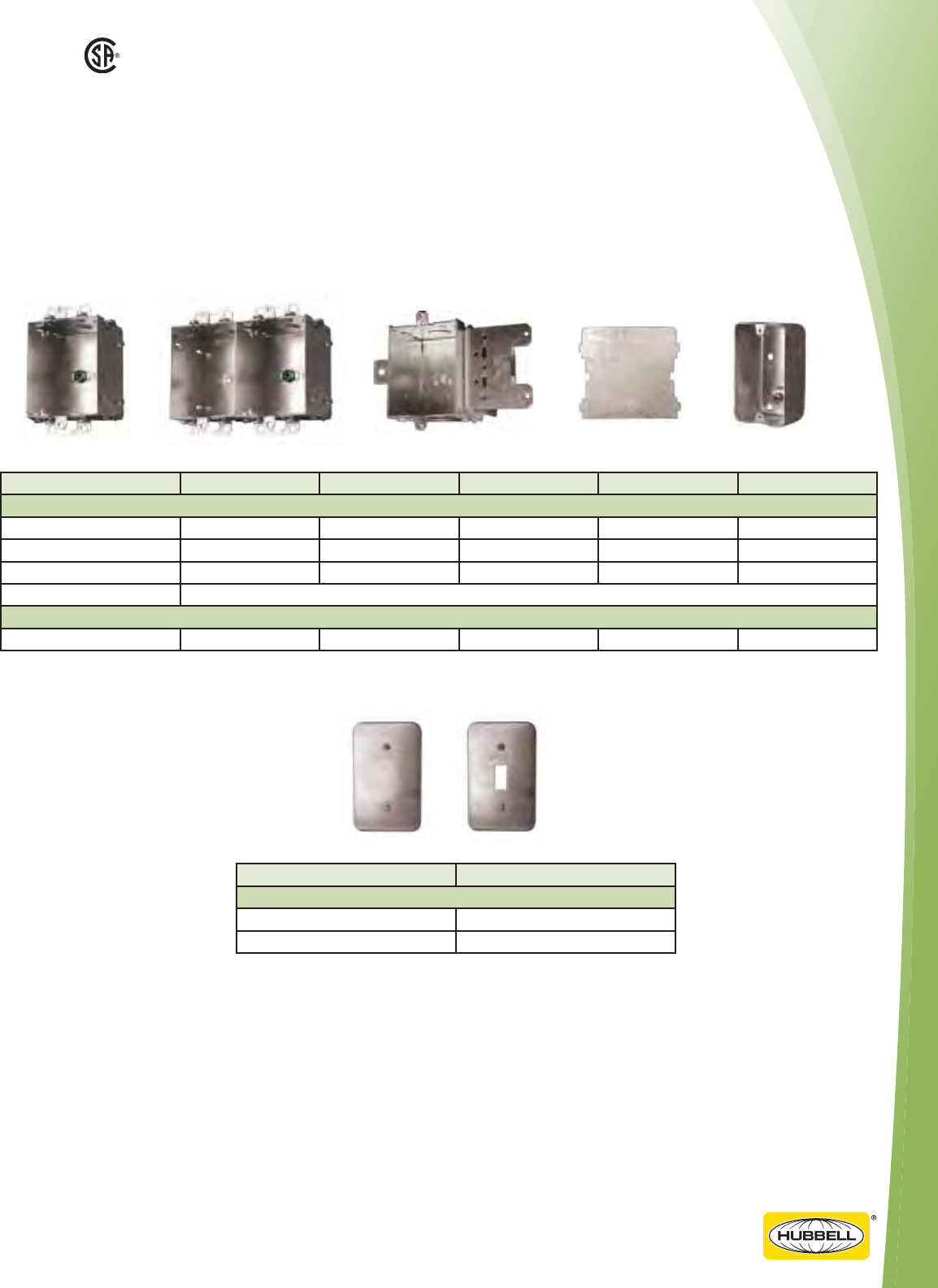

347V BOXES AND COVERS

CATALOGUE NUMBER CAPACITY (CU.

IN.)

BRACKET EARS KNOCKOUTS CABLE CLAMPS

2-1/4" x 3" Device Box - 2-1/2" Deep - Gangable

1204-1-HV 15.7 - Recessed 1/2"(2) -

1204-2-HV 15.7 - Recessed 1/2"(2) -

1204-MSB-HV 15.7 MSB - 1/2"(2) -

1204-HVP High Voltage Partition

2-1/4" x 3" Utility - 1-7/8" Deep

1110 -HV 16.0 - - 1/2"(2) -

CATALOGUE NUMBER DESCRIPTION

2.665" x 4.275" Utility Box Covers

11-C- 4 -HV Blank

11-C-5-HV Toggle Switch

1204-1-HV 1204-2-HV 1204-MSB-HV 1204-HVP 1110-HV

11-C-4-HV 11-C-5-HV

A22

DEVICE BOXES

APPLICATION

347 Volt boxes are used for the installation of 347 Volt switches for commercial and industrial lighting.

PRODUCT FEATURES

q All 347 Volt boxes have tapped holes with vertical spacing of 3.531" to accommodate 347 Volt switches.

q 1204 series boxes feature 2.25" spacing between gangs. Use tradeSELECT wall plates with HV suffixes.

q HV version of MBD and MBS series boxes feature 1.812" spacing between gangs. Use tradeSELECT wall

plates with HVR suffixes.

347 VOLT MASONRY BOXES

CATALOGUE NUMBER CAPACITY (CU. IN.) DESCRIPTION KNOCKOUTS

2-1/4" x 4" Masonry Boxes - 2-3/8" Deep

MBS-1-HV 20.3 1-gang Masonry Box 1/2"(2)

MBS-2-HV 40.5 2-gang Masonry Box 1/2"(4)

MBS-3-HV 60.8 3-gang Masonry Box 1/2"(6)

MBS-4-HV 81.0 4-gang Masonry Box 1/2"(8)

2-1/4" x 4" Masonry Boxes - 3-3/8" Deep

MBD-1-HV 22.5 1-gang Masonry Box 1/2"(4)

MBD-2-HV 45.0 2-gang Masonry Box 1/2"(8)

MBD-3-HV 67.5 3-gang Masonry Box 1/2"(12)

MBD-4-HV 90.0 4-gang Masonry Box 1/2"(16)

MBS-1-HV MBS-2-HV MBS-3-HV MBS-4-HV

MBD-1-HV MBD-2-HV MBD-3-HV MBD-4-HV

A23

DEVICE BOXES

APPLICATION

Masonry boxes are used for the flush installation of devices in masonry construction.

PRODUCT FEATURES

2, 3, and 4-gang masonry boxes allow for the installation of partitions. The following partitions are available:

q Partition MBS-P is designed for use with MBS-2, MBS-3 and MBS-4 boxes.

q Partition MBD-P is designed for use with MBD-2, MBD-3 and MBD-4 boxes.

q Once these partitions are installed, the masonry box meets Canadian Electrical Code requirements specified in

clause 12-3034, allowing the installation of devices connected to different power sources within the same box.

STANDARD MASONRY BOXES

CATALOGUE NUMBER CAPACITY

(CU.

IN.)

DESCRIPTION WIDTH HEIGHT CONCENTRIC

KNOCKOUTS

1/2",

3/4" , 1"

1/2",

3/4"

Masonry Boxes - 2-1/2" Deep

MBS-1-K 14.0 1-gang Masonry Box 2"3-3/4" 1 7

MBS-2-K 28.0 2-gang Masonry Box 3-13/16" 3-3/4" 1 11

MBS-3-K 42.0 3-gang Masonry Box 5-10/16" 3-3/4" 1 15

MBS-4-K 56.0 4-gang Masonry Box 7-7/16" 3-3/4" 1 19

MBS-5-K 70.0 5-gang Masonry Box 9-1/4" 3-3/4" 1 23

MBS-6-K 84.0 6-gang Masonry Box 11-1/16" 3-3/4" 1 27

MBS-P - Partition - 3-3/4" - -

Masonry Boxes - 3-1/2" Deep

MBD-1-K 21.0 1-gang Masonry Box 2" 3-3/4" 1 9

MBD-2-K 42.0 2-gang Masonry Box 3-13/16" 3-3/4" 1 15

MBD-3-K 63.0 3-gang Masonry Box 5-10/16" 3-3/4" 1 21

MBD-4-K 84.0 4-gang Masonry Box 7-7/16" 3-3/4" 1 27

MBD-5-K 105.0 5-gang Masonry Box 9-1/4" 3-3/4" 1 33

MBD-6-K 126.0 6-gang Masonry Box 11-1/16" 3-3/4" 1 39

MBD-P - Partition - 3-3/4" - -

MBS-1-K MBS-2-K MBS-3-K MBS-4-K

MBS-5-K MBS-6-K MBS-P

MBD-1-K MBD-2-K MBD-3-K MBD-4-K

MBD-5-K MBD-6-K MBD-P

A24

DEVICE BOXES

APPLICATION

Concrete rings are used with poured deck (floor) in high-rise construction. These boxes are installed on

wooden or steel concrete forms. After the forms are removed, the box is flush with the concrete.

PRODUCT FEATURES

q Flat sides provide excellent contact for locknuts

q External ears are used to nail the ring to the wood form

q Ears on inside of box are for fixtures.

q Waxed fixture ears prevent concrete from interfering with the threads

q The top-cover is removable for before-pour work.

q Rugged metallic construction

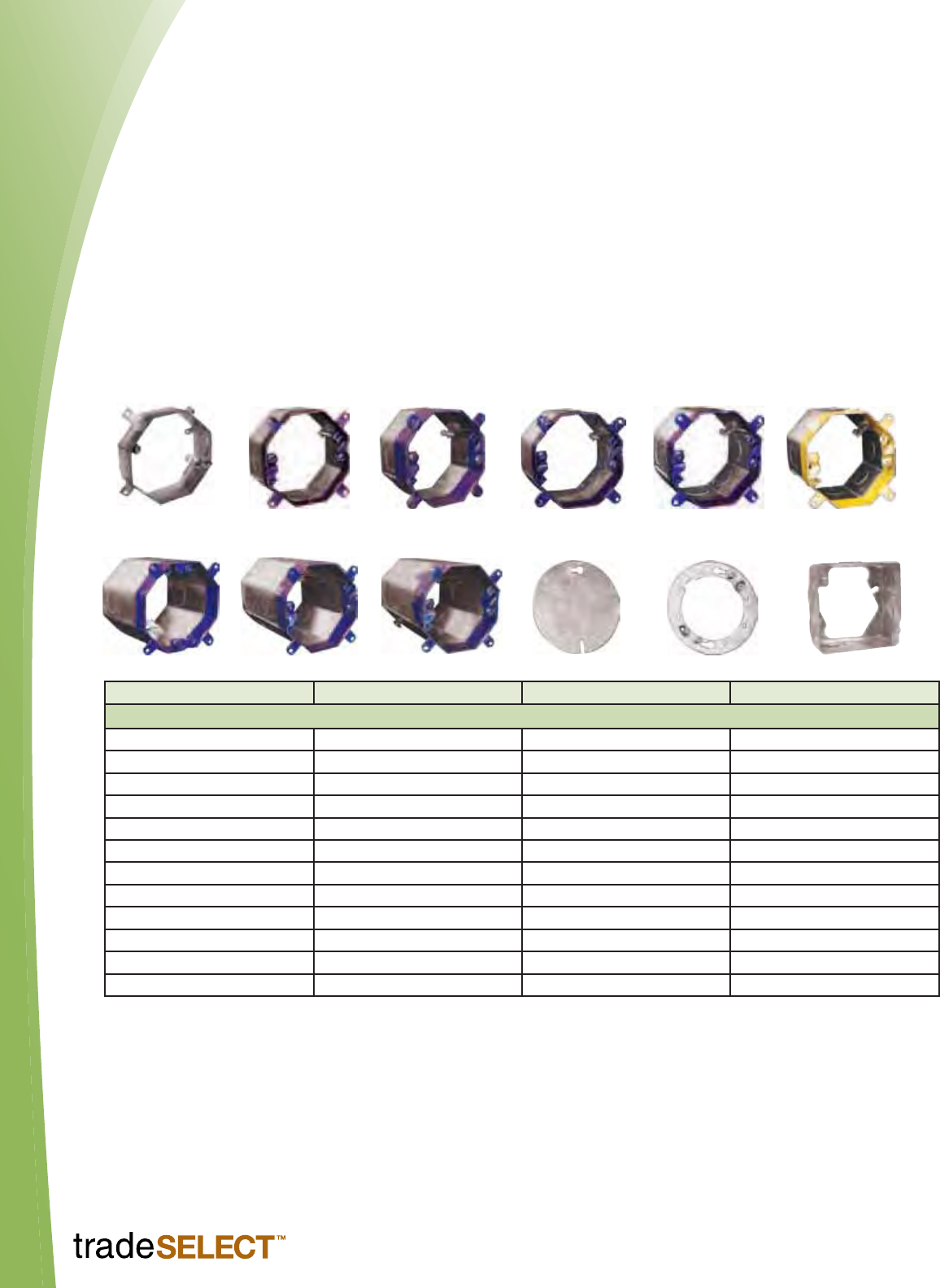

4" CONCRETE RINGS

CATALOGUE NUMBER CAPACITY (

CU. IN.)

DEPTH KNOCKOUTS

4" Concrete Rings

54521 18.0 1-1/2" 1/2"(4), 3/4"(4)

54531 24.0 2" 1/2"(4), 3/4"(4)

54541 30.0 2-1/2" 1/2"(4), 3/4"(4)

54551 36.0 3" 1/2"(4), 3/4"(4)

54561 42.0 3-1/2" 1/2"(4), 3/4"(4)

54561-1/2 42.0 3-1/2" 1/2"(8)

54571 48.0 4" 1/2"(4), 3/4"(2), 1"(2)

54581 60.0 5" 1/2"(4), 3/4"(2), 1"(2)

54591 72.0 6" 1/2"(4), 3/4"(2), 1"(2)

54560 - Concrete Cover -

CBA* -Adaptor-

53171-ER 30.0 Ext. Ring - concrete rings only 1/2”(4), K(6)

54521 54531 54541 54551 54561 54561-1/2

54571 54581 54591 54560 CBA 53171-ER

*CBA Adapter - use for mounting and aligning octagonal extension rings.

A25

DEVICE BOXES

PREGANGED BOXES AND COVERS

CATALOGUE NUMBER CAPACITY (

CU. IN.)

DESCRIPTION WIDTH 1/2" KNOCK

OUTS

USE WITH

Pre-Ganged Boxes - 4" x 2"

GSB-2 52.0 2-gang Box 7" 16 GBC-2 or 3

GSB-3 66.0 3-gang Box 8-13/16" 18 GBC-3 or 4

GSB-4 80.0 4-gang Box 10-5/8" 24 GBC-4 or 5

GSB-5 93.0 5-gang Box 12-7/8" 26 GBC-5 or 6

GSB-6 107.0 6-gang Box 14-1/4" 28 GBC-6

LVP - Partition - - -

GSB-3 GBC-3

APPLICATION

Pre-ganged boxes are used for the installation of multiple devices.

PRODUCT FEATURES

q GSB series boxes feature 1.812" spacing between gangs.

q All GBC covers have tapped holes with vertical spacing of 3.281" to accommodate standard devices.

q Rugged metallic construction

A26

DEVICE BOXES

APPLICATION

Vapour barriers prevent unwanted penetration of exterior air and help maintain the existing interior environment

from elements outside of the structure.

PRODUCT FEATURES

q Made from durable polyethylene material.

q Designed to fit snugly into boxes for easy cable entry and sealing of openings.

VAPOUR BARRIERS

CATALOGUE NUMBER DESCRIPTION

Vapour/Air Barrier - Low Density Polyethelene

HVB1BAR For 2" x 3" device boxes

HVB2BAR For 4" square and 2-gang device boxes

HVB3BAR For 3-gang device boxes

HVBCBAR For 4" octagonal boxes

HVBSDBAR For 4-11/16" boxes

DOOR SWITCHES AND BOXES

CATALOGUE NUMBER DESCRIPTION ELECTRICAL

RATING

KNOCKOUTS

Door Boxes & Switches - 1-11/32" x 3-11/16" x 1-1/2"

DS-30 Box, Switch & Plate 3A, 125V AC N/O 1/2"(3)

DS-55 Box, Switch & Plate 3A, 125V AC N/C 1/2"(3)

DS-BO Box Only - 1/2"(3)

DS-PL Plate Only - -

S-30 Switch Only 3A, 125V AC N/O -

S-55 Switch Only 3A, 125V AC N/C -

DS-30

DS-55

DS-BO DS-PL

HVB1BAR HVB2BAR HVB3BAR HVBCBAR HVBSDBAR

A27

DEVICE BOXES

APPLICATION

Adjustable bar hanger allows box to be placed between ceiling joists.

PRODUCT FEATURES

q Boxes can be located anywhere along length of the bar

BAR HANGERS

CATALOGUE NUMBER DESCRIPTION LOAD CAPAC

ITY

Bar Hangers - For Octagonal & Square Boxes

1041BAR Adjustable 11-1/2" to 18-1/2" 50 lbs.

1042BAR Adjustable 16-1/2" to 26-1/2" 50 lbs up to 22-1/2", 25 lbs. up to 26-1/2"

1050 18" with 1/2 Offset 50 lbs

Bar Hangers - For Device Boxes

1060 16" Bar grooved for box ears -

1041BAR 1042BAR 1050 1060

CATALOGUE NUMBER DESCRIPTION

Accessories

66 Protector plate. Meets requirements of CEC rule 12-616.

66SS Protector plate for steel stud

820D Device box supports

LRW Rework bracket, for use with 2" x 3" device boxes with plaster ears

7901RW Rework bracket, for use with octagonal boxes. Max load 10 lbs.

SBEXBAR 2" x 3" device box extension, adjustable depth up to 7/8"

7902 Steel stud foot extender, adds to MSB foot to facilitate 6” steel stud installation

9008 Low voltage mounting plate

STEEL BOX ACCESSORIES

66 66SS 820D LRW

7901RW SBEXBAR 7902 9008

A28

DEVICE BOXES

NON-METALLIC BOXES

• 



KEY FEATURES

OctagOn ceiling BOx

*PatentPending

Ground screws positioned in-line

Continuous ground

strap moulded in place

Fixture/cover

screws pre-

installed

and backed out

Integrated nail guide

Breakaway

tabs

Fasten box through the strap

when bottom mounting or

locate box centre using a

longer screw

Star shape openings

Offset mounting wings

2027R

2027FBAR

SectionB-C_final.indd 1 06/01/2012 2:22:47 PM

NON-METALLIC BOXES

APPLICATION

Accommodates wiring devices such as switches and receptacles.

PRODUCT FEATURES

q Self-clamping wire entry tabs

STANDARD MATERIAL

q Molded from high-strength plastic resin

NON-METALLIC BOXES

CATALOGUE NUMBER CAPACITY (CU.

IN)

DESCRIPTION CABLE CLAMPS

Device Boxes - For use with non-metallic sheathed cable

2001R 18.0 1-gang with flush bracket, 1/2" setback 4

2021R 18.0 1-gang with compact mounting bracket, 1/2" setback 4

2002R 37.0 2-gang with flush bracket, 1/2" setback 8

2003R 54.0 3-gang with flush bracket, 1/2" setback 12

4" Round Ceiling Box - For use with non-metallic sheathed cable

2027R* 27.0 Round box with flush bracket, 1/2" setback 4

Stove/Dryer Box - For use with non-metallic sheathed cable

2006R 42.0 stove/dryer box, 1/2" setback 1/2"(2), 3/4"(1)

Trailer Box - For use with non-metallic sheathed cable

2016R 17.0 1-gang, Trailer Box 2014R

2014R - Fast Wire Clamp for Trailer Box -

2001R 2021R 2002R 2003R

2027R 2006R 2016R 2014R

0ATENT0ENDING

NON-METALLIC BOXES

APPLICATION

Vapour barrier boxes prevent unwanted penetration of exterior air and help maintain the existing interior

environment from elements outside of the structure. Accommodates wiring devices such as switches and

receptacles.

PRODUCT FEATURES

q Self-clamping wire entry tabs

q Vapour/air barrier flange and integral wire entry seal provides superior energy savings and quick

installation.

STANDARD MATERIAL

q Molded from high-strength plastic resin.

NON-METALLIC BOXES

CATALOGUE NUMBER CAPACITY (CU. IN) DESCRIPTION CABLE CLAMPS

Device Boxes - For use with non-metallic sheathed cable

Flanged w/ Vapour Barrier Flanged Only

2011FBAR 2011F 18.0 1-gang wit

h flush bracket, 1/2" setback

2002FBAR 2002F 37.0 2-gang wit

h flush bracket, 1/2" setback

2003FBAR 2003F 54.0 3-gang wit

h flush bracket, 1/2" setback

4" Round Ceiling Box - For use with non-metallic sheathed cable

Flanged w/ Vapour Barrier Flanged Only

2027FBAR* 2027F* 27.0 Round box with flush bracket, 1/2" setback 4

Stove/Dryer Box - For use with non-metallic sheathed cable

Flanged w/ Vapour Barrier Flanged Only

2006FBAR 2006F 42.0 stove/dryer box, 1/2" setback 1/2"(2), 3/4"(1)

2011FBAR 2002FBAR 2003FBAR

2006FBAR

2027FBAR*

0ATENT0ENDING

NON-METALLIC BOXES

WALLPLATES

MATERIALS

Stainless Steel - Type 430

0.031" nominal thickness. Contains 16% chrome. Corrosion resistant.

Horizontal brush finish (97 series).

For use in industrial, institutional, and commercial environments.

Solid Brass

0.040" nominal thickness. Contains 70% copper, 30% zinc alloy.

Lacquered to prevent corrosion.

Polished finish (PB series).

Painted Steel

0.031" nominal thickness.

Painted white (SW series).

COMPLIANCE

All tradeSELECT wall plates are CSA certified, unless otherwise stated, and meet the requirements of the

Canadian Electrical Code. File numbers are available upon request.

PACKAGING

tradeSELECT wall plates are individually packed with chrome plated mounting screws, except solid brass

wall plates which include brass plated mounting screws.

Wall plates can be bulk packed, with or without mounting screws, upon request.

Stainless Steel and Solid Brass wall plates are supplied with a plastic coating which protects the finish and

should be removed once the plate is installed.

The packaging label includes the quantity, catalogue number, material type, bar code information, and a

drawing of the product.

SUFFIX DESIGNATIONS

HV 347 Volt wall plate, for use with 1204 style device boxes (unless otherwise stated).

HVR 347 Volt wall plate, for use with HV versions of MBD and MBS style device boxes.

KS King-size wall plate, 22% larger than standard wall plates.

KSHV King-size 347 Volt wall plate, for use with 1204 style device boxes (unless otherwise stated).

KSHVR King-size 347 Volt wall plate for use with HV versions of MBD and MBS style device boxes.

STANDARD WALL PLATES

GENERAL INFORMATION

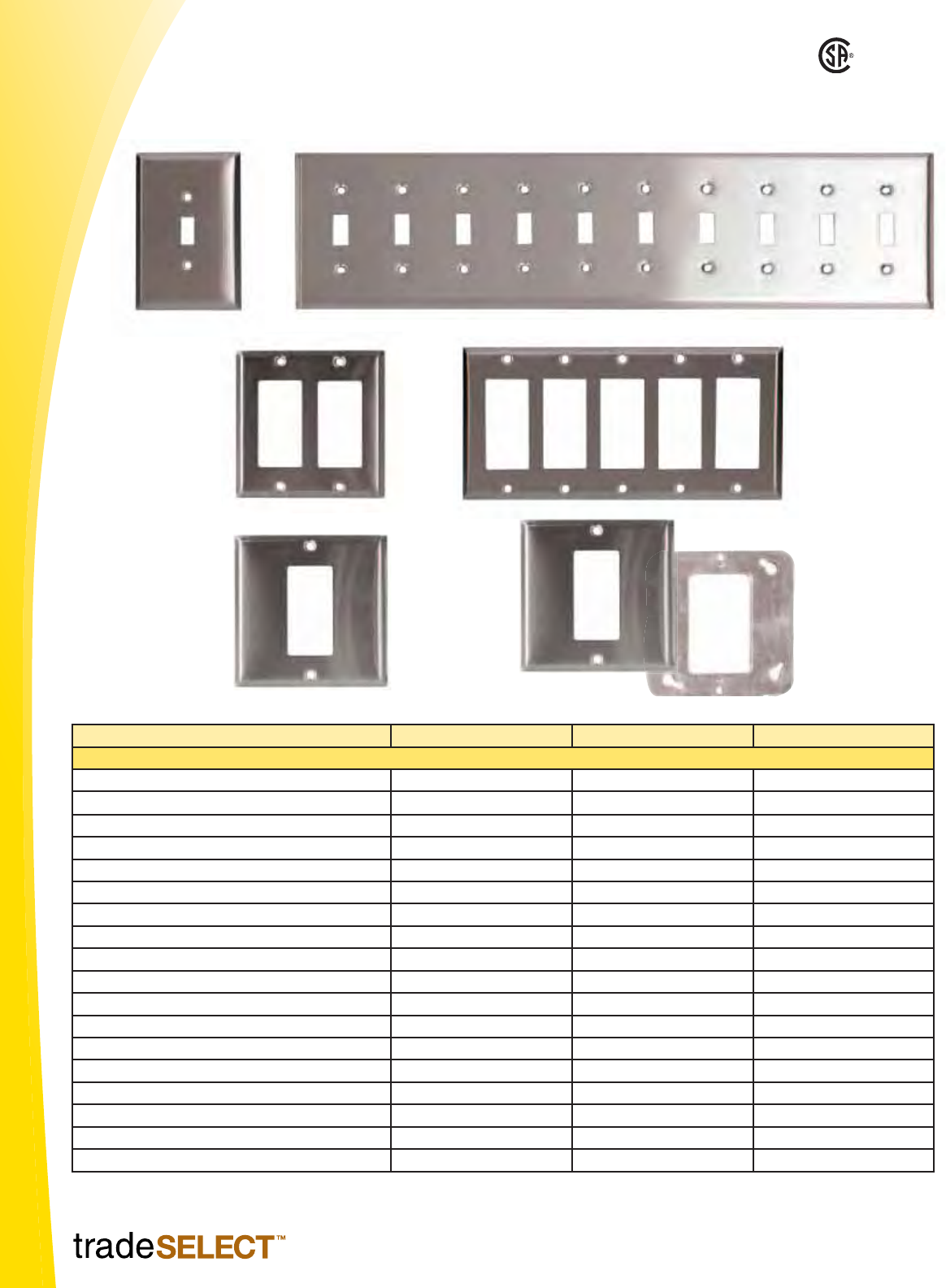

WALLPLATES

STANDARD WALL PLATES

DESCRIPTION STAINLESS STEEL TYPE 430 PAINTED STEEL WHITE SOLID BRASS POLISHED

Standard Wall Plates

1-gang, Toggle Switch 97071SS SW071 PB071

2-gang, Toggle Switch 97072SS SW072 PB072

3-gang, Toggle Switch 97073SS - PB073

4-gang, Toggle Switch 97074SS - PB074

5-gang, Toggle Switch 97075SS - PB075

6-gang, Toggle Switch 97076SS - PB076

7-gang, Toggle Switch 97077SS - PB077

8-gang, Toggle Switch 97078SS - PB078

9-gang, Toggle Switch 97079SS - PB079

10-gang, Toggle Switch 97080SS - PB080

1-gang, Decora or GFCI 97401SS SW401 PB401

2-gang, Decora or GFCI 97402SS SW402 PB402

3-gang, Decora or GFCI 97403SS - PB403

4-gang, Decora or GFCI 97404SS - PB404

5-gang, Decora or GFCI 97405SS - PB404

6-gang, Decora or GFCI 97406SS - PB406

2-gang, Decora or GFCI, centered opening 97001SS SW001 PB001

GFCI conversion kit, 2-gang centered opening 97002SS SW002 PB002

97071SS 97080SS

97402SS 97405SS

97001SS 97002SS

WALLPLATES

STANDARD WALL PLATES

DESCRIPTION STAINLESS STEEL TYPE 430 PAINTED STEEL WHITE SOLID BRASS POLISHED

Standard Wall Plates

1-gang, Duplex Receptacle 97101SS SW101 PB101

2-gang, Duplex Receptacle 97102SS SW102 PB102

3-gang, Duplex Receptacle 97103SS - PB103

4-gang, Duplex Receptacle 97104SS - PB104

5-gang, Duplex Receptacle 97105SS - -

1-gang, Blank, device mount 2.375" 97121SS SW121 PB121

2-gang, Blank, device mount 2.375" 97122SS SW122 PB122

3-gang, Blank, device mount 2.375" 97123SS -- PB123

4-gang, Blank, device mount 2.375" 97124SS - PB124

5-gang, Blank, device mount 2.375" 97125SS - -

1-gang, blank box mount 3.281" 97151SS SW151 PB151

2-gang, blank box mount 3.281" 97152SS SW152 PB152

3-gang, blank box mount 3.281" 97153SS - PB153

4-gang, blank box mount 3.281" 97154SS - PB154

5-gang, blank box mount 3.281" 97155SS - -

97125SS

97154SS

97101SS

WALLPLATES

STANDARD WALL PLATES

DESCRIPTION STAINLESS STEEL TYPE 430 PAINTED STEEL WHITE SOLID BRASS POLISHED

Standard Wall Plates

1-gang, 1 single receptacle 1.40" opening 97091SS SW091 PB091

2-gang, 2 single receptacle 1.40" opening 97092SS SW092 PB092

1-gang, 1 single receptacle 1.625" opening 97111SS SW111 PB111

1-gang, 1 single receptacle 1.750" opening 97211SS SW211 PB211

2-gang, 1 single receptacle 2.156" opening 97411SS SW411 PB411

2-gang, 1 single receptacle 2.156" opening 97421SS SW421 PB411

2-gang, 1 single receptacle 2.625" opening 97521SS SW521 PB521

1-gang, 1/2" bushed slot with 1 mounting bridge 97731SS SW731 PB731

3-gang, 1/2" bushed slot with 2 mounting bridges 97730SS - PB730

1-gang, 3/8" telephone opening device mount 2.375" 97181SS SW181 PB181

2-gang, 3/8" telephone opening device mount 2.375" 97182SS SW182 PB182

1-gang, 5/8" telephone opening device mount 2.375" 97201SS SW201 PB201

2-gang, 5/8" telephone opening device mount 2.375" 97202SS SW202 PB202

1-gang, 1-1/8" square telephone opening device mount 2.375" 97191SS SW191 PB191

1-gang, louvered, vertical device mount - 2.375" 97631SS - PB631

1-gang, louvered, horizontal device mount - 2.375" 97630SS - PB630

97091SS

97411SS

97181SS 97191SS

97630SS

97631SS

97182SS

wallplates

standard wall plates

DESCRIPTION STAINLESS STEEL TYPE 430 PAINTED STEEL WHITE SOLID BRASS POLISHED

Standard Wall Plates

2-gang, 1 toggle switch, 1 duplex receptacle 97532SS SW532 PB532

3-gang, 2 toggle switch, 1 duplex receptacle 97543SS -PB543

4-gang, 3 toggle switch, 1 duplex receptacle 97553SS -PB553

5-gang, 4 toggle switch, 1 duplex receptacle 97563SS -PB563

6-gang, 5 toggle switch, 1 duplex receptacle 97573SS -SU573

3-gang, 2 toggle switch, and 1 blank device mount 2.375"97233SS - -

2-gang, 1 toggle switch, and 1 blank device mount 2.375"97502SS SW502 PB502

3-gang, 1 toggle switch, and 2 blank device mount 2.375"97223SS - -

3-gang, 2 duplex receptacle and 1 toggle switch 97213SS - -

2-gang, 1 duplex receptacle, 1 blank device mount 2.375"97322SS - -

3-gang, 1 duplex receptacle, 2 blank device mount 2.375"97323SS - -

2-gang, 1 duplex receptacle, 1 blank, box mount 3.281"97352SS - -

3-gang, 1 duplex receptacle, 2 blank, box mount 3.281"97353SS - -

2-gang, 1 toggle switch, 1 Decora 97242SS - -

2-gang, 1 duplex receptacle, 1 Decora 97342SS - -

2-gang, 1 toggle switch, and 1 single receptacle 1.40" 97512SS SW512 PB512

2-gang, 1 duplex receptacle, and 1 single receptacle 1.40" 97392SS - -

97213SS

97342SS 97392SS 97322SS

SectionB-C_final.indd 5 06/01/2012 10:26:38 AM

WALLPLATES

347 VOLT WALL PLATES

DESCRIPTION FOR USE WITH 1204 BOXES FOR USE WITH 347V MBD OR MBS

347V Wall Plates

1-gang, Toggle Switch 347V 97071HV 97071HV

2-gang, Toggle Switch 347V 97072HV 97072HVR

3-gang, Toggle Switch 347V 97073HV 97073HVR

4-gang, Toggle Switch 347V 97074HV 97074HVR

5-gang, Toggle Switch 347V 97075HV 97075HVR

6-gang, Toggle Switch 347V 97076HV 97076HVR

7-gang, Toggle Switch 347V 97077HV 97077HVR

1-gang, blank 347V box mount 3.531" 97151HV 97151HV

2-gang, blank 347V box mount 3.531" 97152HV 97152HVR

3-gang, blank 347V box mount 3.531" 97153HV 97153HVR

4-gang, blank 347V box mount 3.531" 97154HV 97154HVR

1-gang, toggle switch 347V king-size plate 97071KSHV 97071KSHV

1-gang, Decora 347V king-size plate 97401KSHV 97401KSHV

2-gang, Decora 347V box mount 3.531" king-size plate 97402KSHV 97402KSHVR

3-gang, Decora 347V box mount 3.531" king-size plate 97403KSHV 97403KSHVR

4-gang, Decora 347V box mount 3.531" king-size plate 97404KSHV 97404KSHVR

97071HV 97074HV 97077HV

97151HV 97154HV

97401KSHV 97402KSHV 97404KSHV

WALLPLATES

KING SIZE WALL PLATES

DESCRIPTION STAINLESS STEEL

TYPE 430

King Size Wall Plates

1-gang, toggle switch king-size plate 97071KS

2-gang, toggle switch king-size plate 97072KS

3-gang, toggle switch king-size plate 97073KS

4-gang, toggle switch king-size plate 97074KS

1-gang, Duplex Receptacle, king-size plate 97101KS

2-gang, Duplex Receptacle, king-size plate 97102KS

3-gang, Duplex Receptacle, king-size plate 97103KS

4-gang, Duplex Receptacle, king-size plate 97104KS

1-gang, Blank, king-size device mount 2.375" 97121KS

2-gang, Blank, king-size device mount 2.375" 97122KS

3-gang, Blank, king-size device mount 2.375" 97123KS

4-gang, Blank, king-size device mount 2.375" 97124KS

1-gang, blank, king-size box mount 3.281" 97151KS

2-gang, blank, king-size box mount 3.281" 97152KS

3-gang, blank,king-size box mount 3.281" 97153KS

4-gang, blank, king-size box mount 3.281" 97154KS

DESCRIPTION STAINLESS STEEL

TYPE 430

Accessories

1-gang, toggle with FURNACE and ON/OFF markings, device mount - 2.375" 6851RF

Mounting bridge converts device mount 2.375" to box mount 3.281" 6300H

Wall plate Screws 6/32 oval head milled slot 1/2" long - Plated Steel Chrome WPS2

Wall plate Screws 6/32 oval head milled slot 1/2" long - Plated Steel Brass WPS3

97071KS 97074KS

97101KS 97124KS

6851RF 6300H WPS2

WALLPLATES

WALL PLATES

CUSTOM

CUSTOM WALL PLATES

(UBBELL#ANADA,0ISTHELEADINGMANUFACTUREROFCUSTOMSTAINLESSSTEELWALLPLATESIN#ANADA

TRADE3%,%#4®CUSTOMWALLPLATESAREMADEFROMTYPESTAINLESSSTEELANDCANBECONFIGURED

INAVARIETYOFCOMBINATIONSTOMEETYOUR6+ING3IZE6AND+ING3IZE(IGH6OLTAGE

REQUIREMENTS

COMPLIANCE

!LLTRADE3%,%#4®CUSTOMWALLPLATESARE#3!CERTIFIEDUNLESSOTHERWISESTATEDANDMEETTHE

REQUIREMENTSOFTHE#ANADIAN%LECTRICAL#ODE&ILENUMBERSAREAVAILABLEUPONREQUEST

ORDERING PROCEDURE

 #ALLWITHADESCRIPTIONORFAXWITHASKETCHOFTHE

DESIREDWALLPLATE0LEASEINCLUDENUMBEROFGANGSTYPEOFOPENINGSANDQUANTITY

REQUIRED



 !TECHNICALDRAWINGANDAQUOTATIONWILLBEFORWARDEDTOYOU  



 4OPLACEYOURORDERSIMPLYAPPROVETHEDRAWINGWITHYOURSIGNATUREANDDATETHEN

RETURNITALONGWITHTHEQUOTATIONNUMBERANDYOURPURCHASEORDER 

WALLPLATES

4.500"

2.750"

4.562"

6.375"

8.188"

10.000"

11.812"

13.625"

15.437"

17.250"

19.062"

STANDARD WALL PLATES

Standard Dimensions

.410"1.343"

1.130"

1.312"

2.375"

1.400" Ø

2.375"

1.625" Ø

.200"

2.156" Ø 2.625" Ø .500"

.500"

97731SS 97421SS 97521SS 97730SS

1.750" Ø 2.156" Ø .375" Ø .625" Ø

97411SS 97191SS 97181SS 97201SS97211SS

2.375"

97111SS97071SS 97101SS 97401SS 97091SS

1.812"

3.812"

2.625"

1.125"

2.375"

1.125"

2.375"

1.312"1.812"1.812"3.625"

2.375"

1.312"

Dimensions are in inches.

TECHNICAL DATA

2.375"

.930"

2.375"

C10

WALLPLATES

347 VOLT WALL PLATES

KINGSIZE WALL PLATES

97072-HV

97072-HVR

Device Box

Device Mount

2.375"

Wall plate

Mounting

Bridge

5.500"

3.750"

5.500"

7.250"

9.000"

1.812"KS Dimensions

Wall plate

1204 style

Device Box

4.500"

2.250"

4.500"

2.750"

4.562"

6.375"

8.188"

10.000"

11.812"

13.625"

1.812"HVR Dimensions

HV Dimensions

Device Box

Wall plate

3.281"

Box Mount

3.531"

High voltage

Device Box

Wall plate

HV Box Mount

2.250"

17.250"

2.750"

6.375

8.188"

10.000"

13.625"

15.437"

MOUNTING HOLE SPACINGS

1.812"

HV version

of MBD or

MBS style

Device Box

TECHNICAL DATA

Dimensions are in inches.

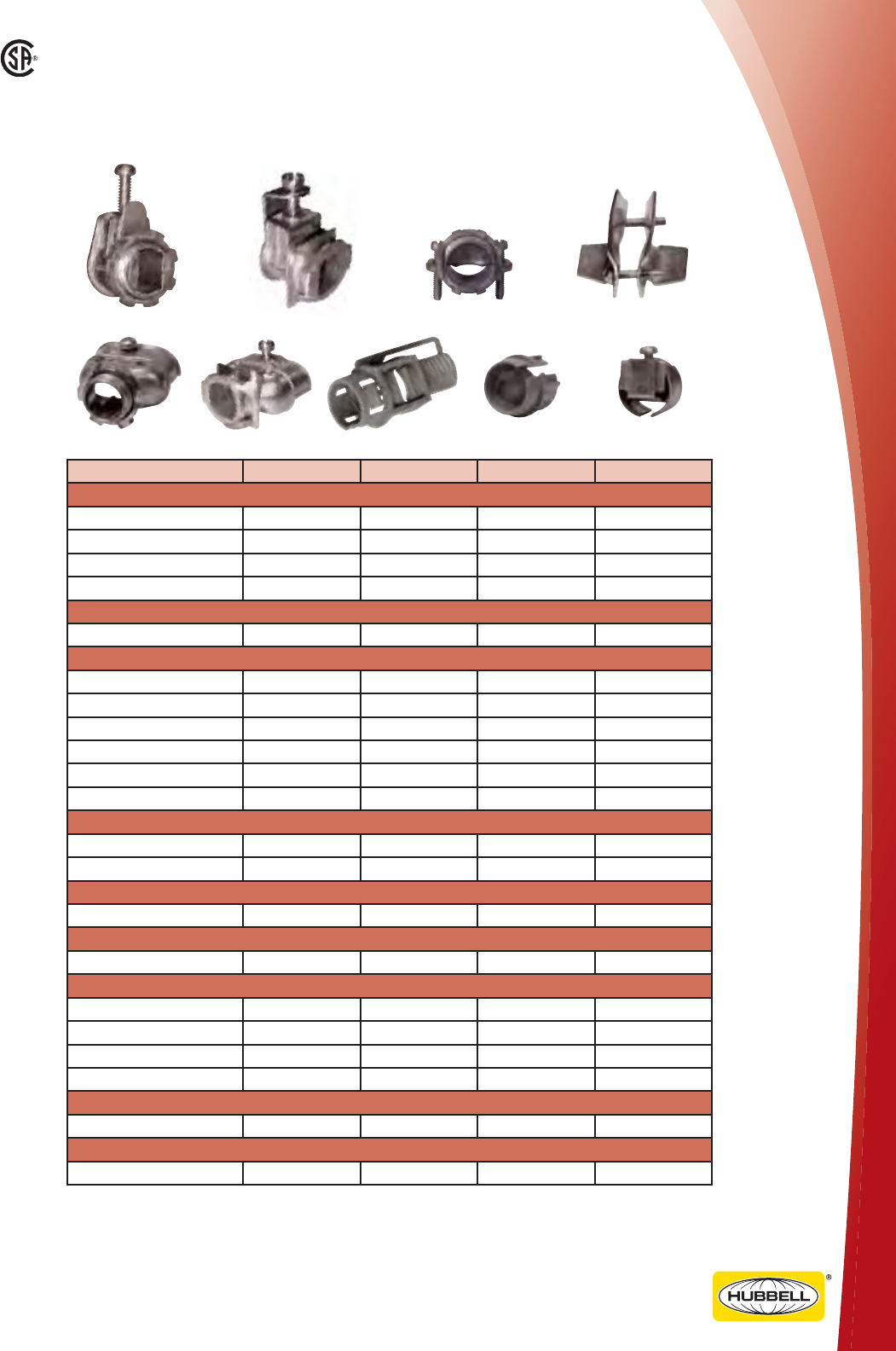

FITTINGS

CATALOGUE NUMBER TRADE SIZE CARTON QTY CASE QTY MATERIAL

One Screw - Saddle Connector

NMS038 3/8"(12) 50 500 Zinc

NMS050 1/2" (16) 25 250 Zinc

NMS075 3/4" (21) 20 200 Zinc

NMS100 1" (27) 10 100 Zinc

One Screw - Saddle Connector (Snap Fit)

NMS038SF 3/8"(12) 50 500 Zinc

Two Screw - Saddle Connector

NMC038 3/8"(12) 100 1000 Zinc

NMC075 3/4" (21) 50 500 Zinc

NMC100 1" (27) 25 250 Zinc

NMC125 1-1/4" (35) 10 100 Zinc

NMC150 1-1/2" (41) 5 50 Zinc

NMC200 2" (53) 10 40 Zinc

Two Piece Clamp Connector

NMB038 3/8"(12) 100 1000 Steel

NMB075 3/4" (21) 50 500 Steel

Duplex Connector

DUP038 3/8"(12) 25 250 Zinc

Duplex Connector (Snap Fit)

DUP038SF 3/8"(12) 25 250 Zinc

Nonmetallic Push-In Connectors

NMPI050 1/2" (16) 100 1000 Plastic

NMPI050B (Bucket) 1/2" (16) - 300 Plastic

NMPI075 3/4" (21) 50 500 Plastic

NMPI075B (Bucket) 3/4" (21) - 150 Plastic

Nonmetallic Snap-In Connector

NMSI050 1/2" (16) 50 500 Plastic

Squeeze-In Connector

NMSQ038 3/8"(12) 100 1000 Steel

CONNECTORS

NON-METALLIC SHEATHED CABLE

NMS038 NMS038SF NMC038 NMB038

NMSI050 NMPI050 NMSQ038

DUP038 DUP038SF

FITTINGS

D2 ACCESSORIES

NON-METALLIC SHEATHED CABLE

CATALOGUE NUMBER TRADE SIZE CARTON QTY CASE QTY MATERIAL

Cable Staples

TES1 14/2 - 12/2 500 5000 Galvanized Steel

TES1B (Bucket) 14/2 - 12/2 - 1500 Galvanized Steel

TES2 14/2-12/2, 14-3-12/3 500 5000 Galvanized Steel

TES2B (Bucket) 14/2-12/2, 14-3-12/3 - 1000 Galvanized Steel

TES3 10/2-8/2, 14/3-10/3 250 2500 Galvanized Steel

TES4 8/3-6/3 250 1000 Galvanized Steel

Nailing Straps

NSP050P 14/2-12/2 500 5000 Polypropylene

NSP050B (Bucket) 14/2-12/2 - 1500 Polypropylene

NSP075P 14/2-8/2 400 4000 Polypropylene

NSP075B (Bucket) 14/2-8/2 - 1000 Polypropylene

Cable Straps

CS1 14/2-10/3 250 5000 Aluminum

CS10 14/2 250 5000 Aluminum

CS11 12/2-10/2 250 5000 Aluminum

CS21 12/2-8/3 200 4000 Aluminum

CS3 10/2-6/3 100 2000 Aluminum

CS4 4/3 100 2000 Aluminum

CS50 3/3 - 2/3 100 1000 Aluminum

CSC10 14/2-10/3 250 5000 Aluminum

TES1 NSP050P CS1 CSC10

FITTINGS

CONNECTORS

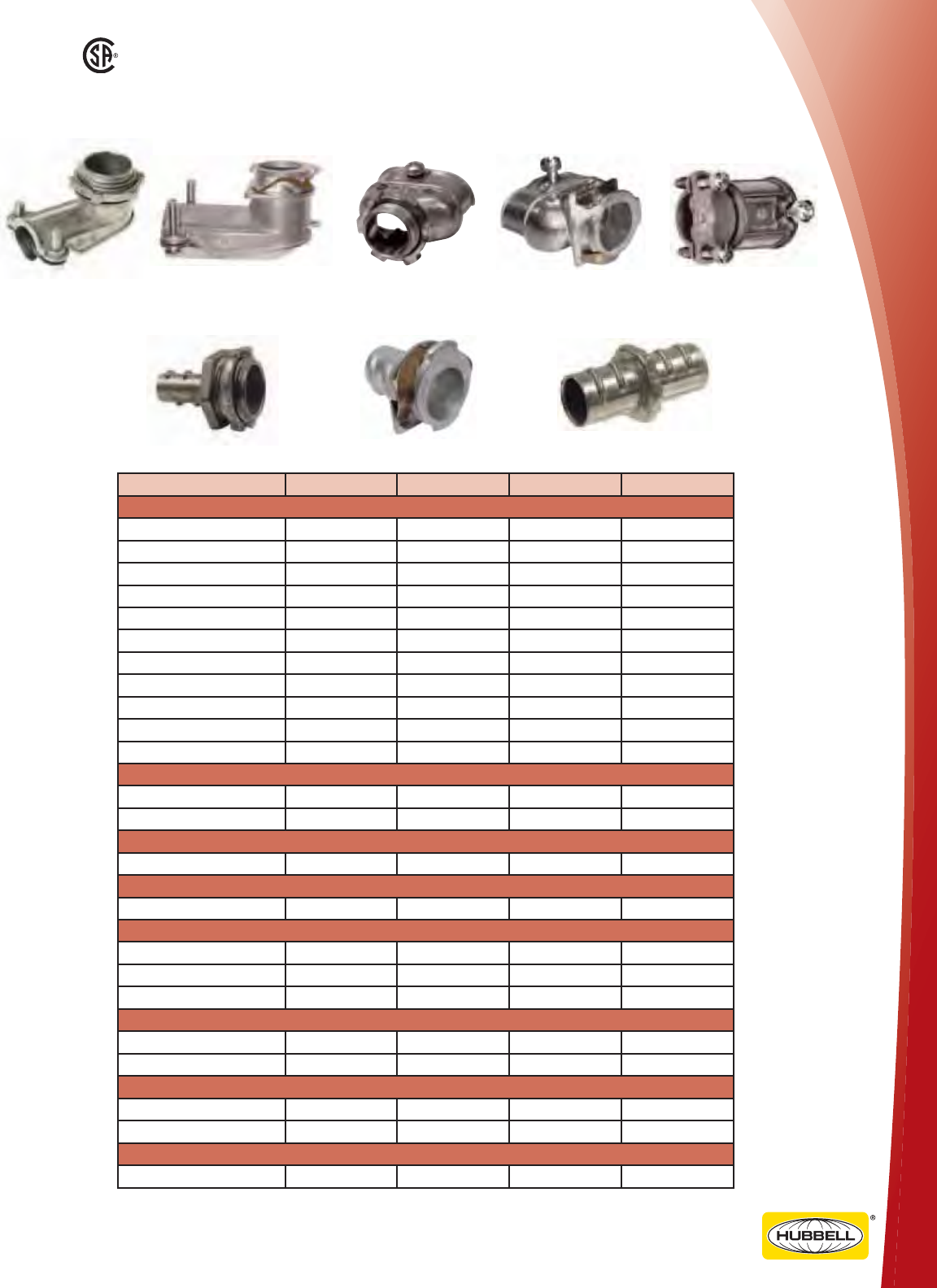

ARMOURED CABLE / FLEX CONDUIT

CATALOGUE NUMBER TRADE SIZE CARTON QTY CASE QTY MATERIAL

90 Degree Connectors

SQ90038 3/8"(12) 25 250 Zinc

SQ90050 1/2" (16) 25 250 Zinc

SQ90075 3/4" (21) 10 100 Zinc

SQ90100 1" (27) 5 50 Zinc

SQ90125 1-1/4" (35) 10 40 Zinc

SQ90150 1-1/2" (41) - 5 Zinc

SQ90200 2" (53) - 5 Zinc

SQ90250 2-1/2" (63) - 1 Zinc

SQ90300 3" (78) - 1 Zinc

SQ90350 3-1/2" (91) - 1 Zinc

SQ90400 4" (103) - 1 Zinc

90 Degree Connectors (Snap Fit)

SQ90038SF 3/8"(12) 25 250 Zinc

SQ90050SF 1/2" (16) 25 250 Zinc

Duplex Connector

DUP038 3/8"(12) 25 250 Zinc

Duplex Connector (Snap Fit)

DUP038SF 3/8"(12) 25 250 Zinc

EMT to Flex Couplings

EFK5038 1/2"-3/8" 50 500 Zinc

EFK5050 1/2"-1/2" 25 250 Zinc

EFK7575 3/4"-3/4" 25 250 Zinc

EMT to Flex Connectors

SF038 3/8"(12) 50 500 Zinc

SF050 1/2" (16) 50 500 Zinc

EMT to Flex Connectors (Snap Fit)

SF038SF 3/8"(12) 50 500 Zinc

SF050SF 1/2" (16) 50 500 Zinc

Flex to Flex Coupling

SFK050 1/2" (16) 50 500 Zinc

SQ90038 SQ90038SF DUP038 DUP038SF EFK038

SF038 SF038SF SFK050

FITTINGS

D4 CONNECTORS

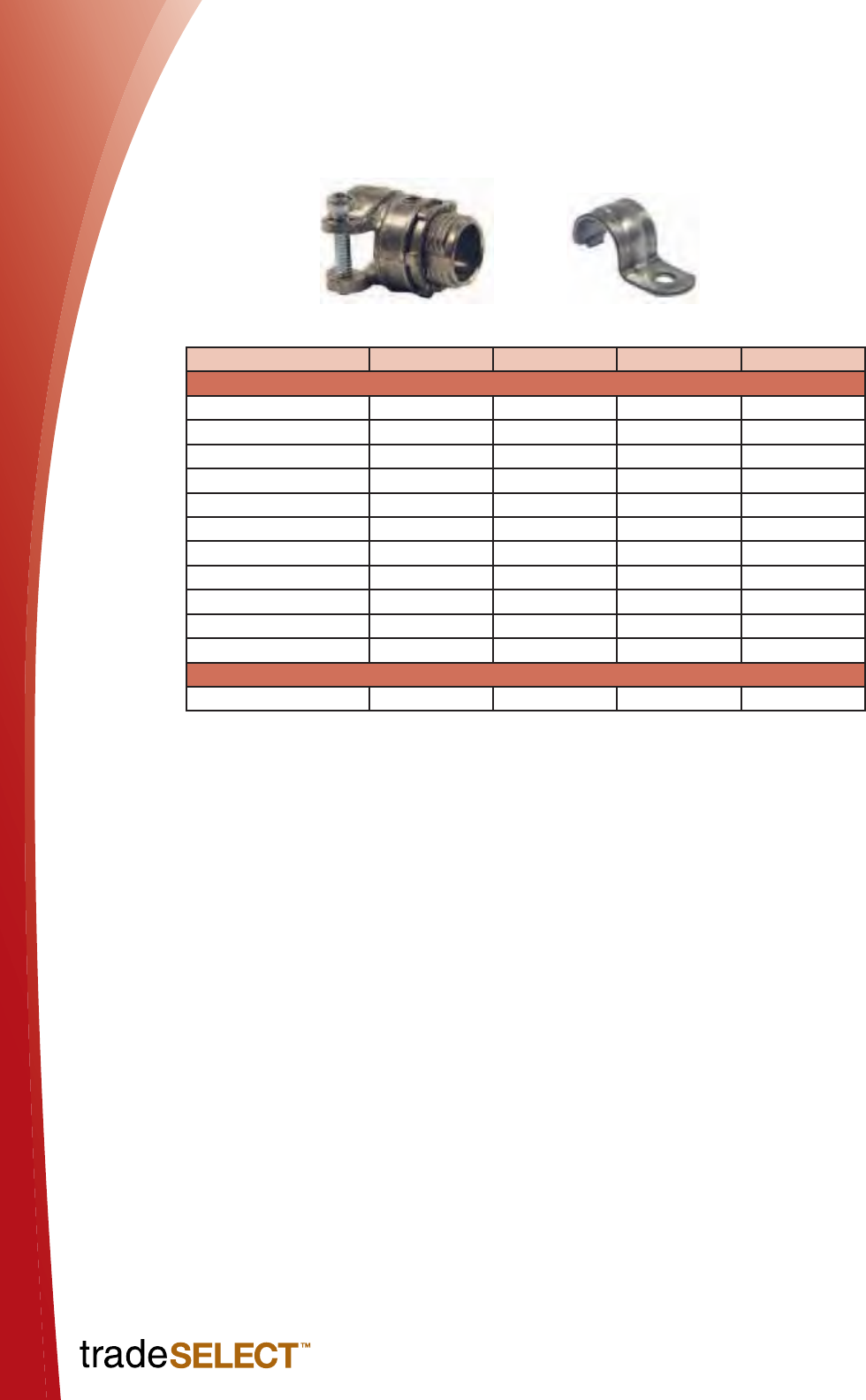

ARMOURED CABLE / FLEX CONDUIT

CATALOGUE NUMBER TRADE SIZE CARTON QTY CASE QTY MATERIAL

Squeeze Connector

SQ038 3/8"(12) 50 500 Zinc

SQ050 1/2" (16) 25 250 Zinc

SQ075 3/4" (21) 25 250 Zinc

SQ100 1" (27) 10 100 Zinc

SQ125 1-1/4" (35) 10 100 Zinc

SQ150 1-1/2" (41) 5 50 Zinc

SQ200 2" (53) 10 40 Zinc

SQ250 2-1/2" (63) - 10 Zinc

SQ300 3" (78) - 5 Zinc

SQ350 3-1/2" (91) - 2 Zinc

SQ400 4" (103) - 1 Zinc

One Hole Strap

S1F038 3/8"(12) 100 1000 Steel

SQ038 S1F038

FITTINGS

CONNECTORS

LIQUID TIGHT CONDUIT

INSULATED UNINSULATED TRADE SIZE CARTON QTY CASE QTY MATERIAL

Straight Liquid Tight Connector

LTMI0 3 8 LTM038 3/8"(12) 50 200 Steel

LTMI0 5 0 LTM050 1/2" (16) 50 200 Steel

LTMI075 LTM075 3/4" (21) 25 100 Steel

LTMI100 LTM100 1" (27) - 10 Steel

LTMI125 LTM125 1-1/4" (35) - 10 Malleable Iron

LTMI150 LTM150 1-1/2" (41) - 5 Malleable Iron

LTMI2 0 0 LTM200 2" (53) - 5 Malleable Iron

LTMI250 LTM250 2-1/2" (63) - 1 Malleable Iron

LTMI3 0 0 LTM300 3" (78) - 1 Malleable Iron

LTMI40 0 LTM4 0 0 4" (103) - 1 Malleable Iron

90 Degree Liquid Tight Connector

LTMI90038 LTM90038 3/8"(12) 25 100 Malleable Iron

LTMI90050 LTM90050 1/2" (16) 25 100 Malleable Iron

LTMI90075 LTM90075 3/4" (21) 25 100 Malleable Iron

LTMI90100 LTM90100 1" (27) - 10 Malleable Iron

LTMI90125 LTM90125 1-1/4" (35) - 10 Malleable Iron

LTMI9 015 0 LTM9015 0 1-1/2" (41) - 5 Malleable Iron

LTMI90200 LTM90200 2" (53) - 5 Malleable Iron

LTMI90250 LTM90250 2-1/2" (63) - 1 Malleable Iron

LTMI90300 LTM90300 3" (78) - 1 Malleable Iron

LTMI90400 LTM90400 4" (103) - 1 Malleable Iron

45 Degree Liquid Tight Connector

LTMI45038 LTM45038 3/8"(12) - 25 Malleable Iron

LTMI45050 LTM45050 1/2" (16) - 25 Malleable Iron

LTMI45075 LTM45075 3/4" (21) - 25 Malleable Iron

LTMI45100 LTM45100 1" (27) - 10 Malleable Iron

LTMI45125 LTM45125 1-1/4" (35) - 10 Malleable Iron

LTMI45150 LTM45150 1-1/2" (41) - 5 Malleable Iron

LTMI45200 LTM45200 2" (53) - 5 Malleable Iron

LTMI038 LTMI90038 LTMI45038

LTM038 LTM90038 LTM45038

FITTINGS

D6 CONNECTORS

LIQUIDTIGHT CONDUIT

INSULATED UNINSULATED TRADE SIZE CARTON QTY CASE QT Y MATERIAL

Straight Liquid Tight Connector

LTZI038 LTZ03 8 3/8"(12) 20 200 Zinc

LTZI050 LTZ05 0 1/2" (16) 20 200 Zinc

LTZI075 LTZ075 3/4" (21) 10 100 Zinc

LTZI100 LTZ100 1" (27) 5 50 Zinc

LTZI125 LTZ125 1-1/4" (35) 5 50 Zinc

LTZI150 LTZ150 1-1/2" (41) 2 20 Zinc

LTZI200 LTZ200 2" (53) 2 20 Zinc

LTZI25 0 LTZ250 2-1/2" (63) - 1 Zinc

LTZI300 LTZ300 3" (78) - 1 Zinc

LTZI400 LTZ400 4" (103) - 1 Zinc

90 Degree Liquid Tight Connector

LTZI90038 LTZ90038 3/8"(12) 10 100 Zinc

LTZI90050 LTZ90050 1/2" (16) 10 100 Zinc

LTZI90075 LTZ90075 3/4" (21) 10 100 Zinc

LTZI90100 LTZ90100 1" (27) 5 50 Zinc

LTZI90125 LTZ90125 1-1/4" (35) 2 20 Zinc

LTZI90150 LTZ90150 1-1/2" (41) 2 20 Zinc

LTZI90200 LTZ90200 2" (53) 1 10 Zinc

LTZI90250 LTZ90250 2-1/2" (63) - 1 Zinc

LTZI90300 LTZ90300 3" (78) - 1 Zinc

LTZI90400 LTZ90400 4" (103) - 1 Zinc

LTZ038 LTZ90038

FITTINGS

EMT CONNECTORS

INSULATED UNINSULATED TRADE SIZE CARTON QTY CASE QTY MATERIAL

EMT COMPRESSION CONNECTOR

CCZI050 CCZ050 1/2" (16) 50 500 Zinc

CCZI075 CCZ075 3/4" (21) 25 250 Zinc

CCZI100 CCZ100 1" (27) 20 200 Zinc

CCZI125 CCZ125 1-1/4" (35) 25 100 Zinc

CCZI150 CCZ150 1-1/2" (41) 15 60 Zinc

CCZI200 CCZ200 2" (53) 10 40 Zinc

CCZI250 CCZ250 2-1/2" (63) - 12 Zinc

CCZI300 CCZ300 3" (78) - 12 Zinc

CCZI400 CCZ400 4" (103) - 6 Zinc

CCSI050 CCS050 1/2" (16) 50 500 Steel

CCSI075 CCS075 3/4" (21) 25 250 Steel

CCSI100 CCS100 1" (27) 25 100 Steel

CCSI125 CCS125 1-1/4" (35) 5 25 Steel

CCSI150 CCS150 1-1/2" (41) - 20 Steel

CCSI200 CCS200 2" (53) - 20 Steel

CCSI250 CCS250 2-1/2" (63) - 5 Steel

CCSI300 CCS300 3" (78) - 1 Steel

CCSI400 CCS400 4" (103) - 1 Steel

EMT SET SCREW CONNECTOR

SCZI050 SCZ050 1/2" (16) 50 500 Zinc

SCZI075 SCZ075 3/4" (21) 25 250 Zinc

SCZI100 SCZ100 1" (27) 50 200 Zinc

SCZI125 SCZ125 1-1/4" (35) 25 100 Zinc

SCZI150 SCZ150 1-1/2" (41) - 25 Zinc

SCZI200 SCZ200 2" (53) - 20 Zinc

SCZI250 SCZ250 2-1/2" (63) - 12 Zinc

SCZI300 SCZ300 3" (78) - 12 Zinc

SCZI400 SCZ400 4" (103) - 6 Zinc

SCSI050 SCS050 1/2" (16) 50 500 Steel

SCSI075 SCS075 3/4" (21) 25 250 Steel

SCSI100 SCS100 1" (27) 20 200 Steel

SCSI125 SCS125 1-1/4" (35) - 100 Steel

SCSI150 SCS150 1-1/2" (41) - 25 Steel

SCSI200 SCS200 2" (53) - 20 Steel

SCSI250 SCS250 2-1/2" (63) - 12 Steel

SCSI300 SCS300 3" (78) - 12 Steel

SCSI400 SCS400 4" (103) - 6 Steel

CCZI050 CCSI050 SCZI050 SCSI050

CCZ050 CCS050 SCZ050 SCS050

FITTINGS

D8 EMT COUPLINGS

CATALOGUE NUMBER TRADE SIZE CARTON QTY CASE QTY MATERIAL

EMT Compression Coupling

CKZ050 1/2" (16) 50 500 Zinc

CKZ075 3/4" (21) 25 250 Zinc

CKZ100 1" (27) 20 200 Zinc

CKZ125 1-1/4" (35) 25 100 Zinc

CKZ150 1-1/2" (41) 15 60 Zinc

CKZ200 2" (53) 10 40 Zinc

CKZ250 2-1/2" (63) - 12 Zinc

CKZ300 3" (78) - 12 Zinc

CKZ400 4" (103) - 6 Zinc

CKS050 1/2" (16) 50 500 Steel

CKS075 3/4" (21) 25 250 Steel

CKS100 1" (27) 25 100 Steel

CKS125 1-1/4" (35) 5 25 Steel

CKS150 1-1/2" (41) - 20 Steel

CKS200 2" (53) - 20 Steel

CKS250 2-1/2" (63) - 5 Steel

CKS300 3" (78) - 1 Steel

CKS400 4" (103) - 1 Steel

EMT Set Screw Coupling

SKZ050 1/2" (16) 50 500 Zinc

SKZ075 3/4" (21) 25 250 Zinc

SKZ100 1" (27) 50 20 0 Zinc

SKZ125 1-1/4" (35) 25 100 Zinc

SKZ150 1-1/2" (41) - 25 Zinc

SKZ200 2" (53) - 20 Zinc

SKZ250 2-1/2" (63) - 12 Zinc

SKZ300 3" (78) - 12 Zinc

SKZ400 4" (103) - 6 Zinc

SKS050 1/2" (16) 50 500 Steel

SKS075 3/4" (21) 25 250 Steel

SKS100 1" (27) 50 200 Steel

SKS125 1-1/4" (35) 25 100 Steel

SKS150 1-1/2" (41) - 25 Steel

SKS200 2" (53) - 20 Steel

SKS250 2-1/2" (63) - 12 Steel

SKS300 3" (78) - 12 Steel

SKS400 4" (103) - 6 Steel

CKZ050 CKS050 SKZ050 SKS050

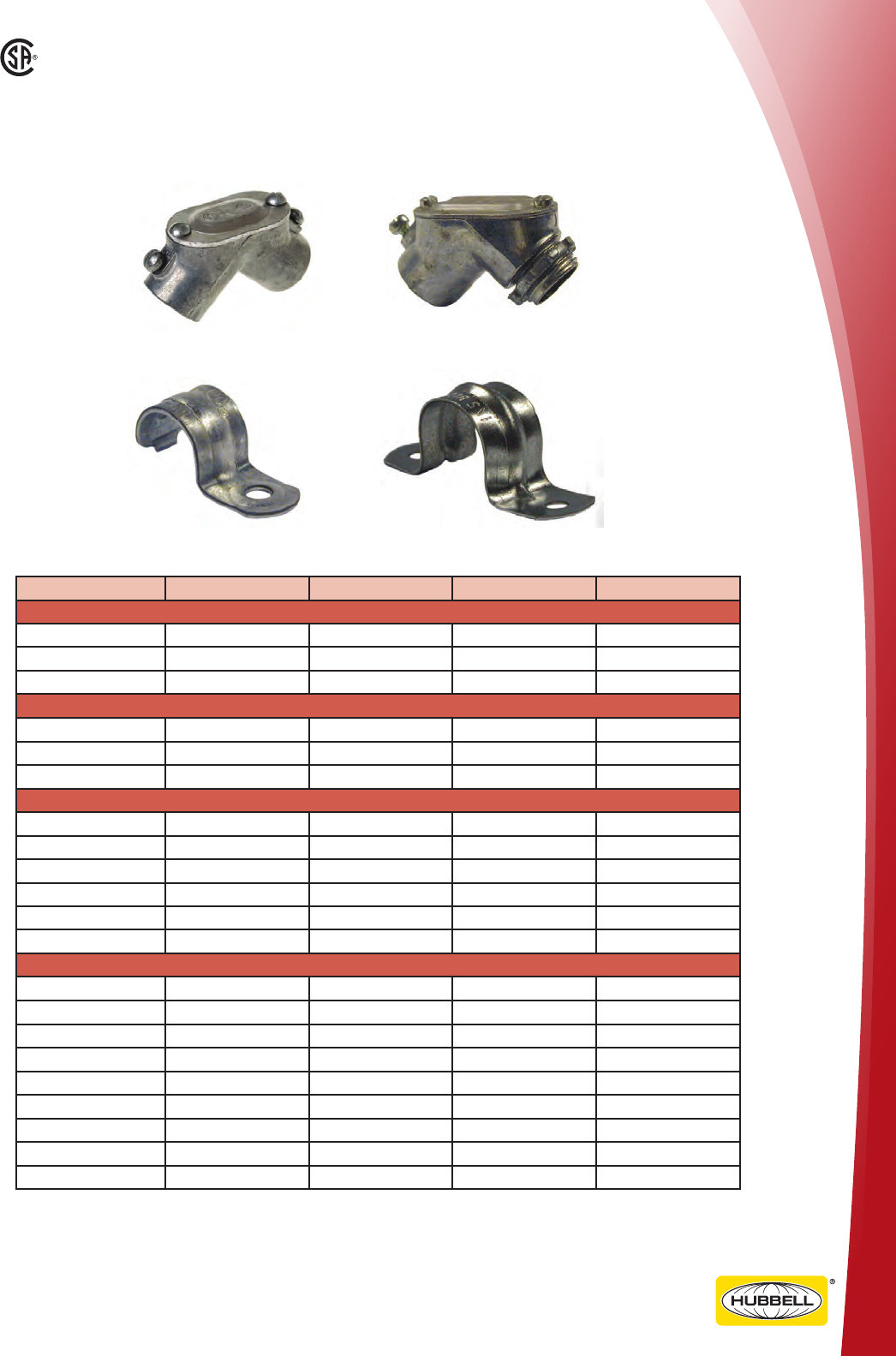

fittings

EMT accEssoriEs

CATALOGUE NUMBER TRADE SIZE CARTON QTY CASE QTY MATERIAL

90 Degree Pull Elbow with Gasket

PEEB050 1/2" EMT to Box 10 100 Zinc

PEEB075 3/4" EMT to Box 550 Zinc

PEEB100 1" EMT to Box -25 Zinc

90 Degree Pull Elbow with Gasket

PEEE050 1/2" EMT to EMT 10 100 Zinc

PEEE075 3/4" EMT to EMT 550 Zinc

PEEE100 1" EMT to EMT -25 Zinc

One Hole Strap

E1S050 1/2" (16) 100 1000 Steel

E1S075 3/4" (21) 100 1000 Steel

E1S100 1" (27) 50 500 Steel

E1S125 1-1/4" (35)25 250 Steel

E1S150 1-1/2" (41)25 250 Steel

E1S200 2" (53) 20 200 Steel

Two Hole Strap

E2S050 1/2" (16) 100 1000 Steel

E2S075 3/4" (21) 100 1000 Steel

E2S100 1" (27) 50 500 Steel

E2S125 1-1/4" (35) - 200 Steel

E2S150 1-1/2" (41) - 200 Steel

E2S200 2" (53) -200 Steel

E2S250 2-1/2" (63) - 200 Steel

E2S300 3" (78) -100 Steel

E2S400 4" (103) -100 Steel

PEEE050 PEEB050

E1S050 E2S050

SectionD-Final.indd 9 06/01/2012 10:24:02 AM

FITTINGS

D10 CONDUIT BODIES

CATALOGUE NUMBER TRADE SIZE CARTON QTY CASE QTY MATERIAL

Type C Conduit Body - Combination Rigid/EMT

CBC50COM 1/2" (16) 10 100 Aluminum

CBC75COM 3/4" (21) 10 50 Aluminum

CBC100COM 1" (27) 5 25 Aluminum

CBC125COM 1-1/4" (35) 2 10 Aluminum

CBC150COM 1-1/2" (41) 2 10 Aluminum

CBC200COM 2" (53) 1 5 Aluminum

Type LB Conduit Body - Combination Rigid/EMT

CBLB50COM 1/2" (16) 10 100 Aluminum

CBLB75COM 3/4" (21) 10 50 Aluminum

CBLB100COM 1" (27) 5 25 Aluminum

CBLB125COM 1-1/4" (35) 5 20 Aluminum

CBLB150COM 1-1/2" (41) 2 20 Aluminum

CBLB200COM 2" (53) 1 5 Aluminum

Type LB Conduit Body - Rigid

CBLB250RIG 2-1/2" (63) - 1 Aluminum

CBLB300RIG 3" (78) - 1 Aluminum

CBLB400RIG 4" (103) - 1 Aluminum

Type LRL Conduit Body - Combination Rigid/EMT

CBLRL50COM 1/2" (16) 10 100 Aluminum

CBLRL75COM 3/4" (21) 10 50 Aluminum

CBLRL100COM 1" (27) 5 25 Aluminum

CBLRL125COM 1-1/4" (35) 2 20 Aluminum

CBLRL150COM 1-1/2" (41) 2 20 Aluminum

CBLRL200COM 2" (53) 1 5 Aluminum

Type T Conduit Body - Combination Rigid/EMT

CBT50COM 1/2" (16) 10 100 Aluminum

CBT75COM 3/4" (21) 10 50 Aluminum

CBT100COM 1" (27) 5 25 Aluminum

CBT125COM 1-1/4" (35) 2 10 Aluminum

CBT150COM 1-1/2" (41) 2 10 Aluminum

CBT200COM 2" (53) 1 5 Aluminum

CBC50COM CBLB50COM

CBLRL50COM CBT50COM

FITTINGS

D11

CONDUIT NIPPLES

CATALOGUE NUMBER TRADE SIZE CARTON QTY CASE QTY MATERIAL

Conduit Nipples

CN050 1/2" (16) 100 1000 Zinc

CN075 3/4" (21) 50 500 Zinc

CN100 1" (27) 25 250 Zinc

CN125 1-1/4" (35) 25 250 Zinc

CN150 1-1/2" (41) 25 100 Zinc

CN200 2" (53) 10 40 Zinc

CN250 2-1/2" (63) 10 40 Zinc

CN300 3" (78) 10 40 Zinc

CN400 4" (103) 5 20 Zinc

Offset Nipples

ON050 1/2" (16) 10 100 Zinc

ON075 3/4" (21) 10 100 Zinc

ON100 1" (27) 10 100 Zinc

ON125 1-1/4" (35) 5 50 Zinc

ON150 1-1/2" (41) 5 50 Zinc

ON200 2" (53) 2 20 Zinc

Reducing Bushings

RB0705 3/4"-1/2" - 100 Steel

RB1005 1"-1/2" - 50 Steel

RB1007 1"-3/4" - 50 Steel

RB1205 1-1/4"-1/2" - 50 Steel

RB1207 1-1/4"-3/4" - 50 Steel

RB1210 1-1/4"-1" - 50 Steel

RB1505 1-1/2"-1/2" - 50 Steel

RB1507 1-1/2"-3/4" - 50 Steel

RB1510 1-1/2"-1" - 50 Steel

RB1512 1-1/2"-1-1/4" - 50 Steel

RB2005 2"-1/2" - 25 Steel

RB2007 2"-3/4" - 25 Steel

RB2010 2"-1" - 25 Steel

RB2012 2"-1-1/4" - 25 Steel

RB2015 2"-1-1/2" - 25 Steel

CN050 ON050

RB0705

FITTINGS

D12 RIGID STRAPS

CATALOGUE NUMBER TRADE SIZE CARTON QTY CASE QTY MATERIAL

One Hole Strap

R1S050 1/2" (16) 50 500 Steel

R1S075 3/4" (21) 50 500 Steel

R1S100 1" (27) - 200 Steel

R1S125 1-1/4" (35) - 200 Steel

R1S150 1-1/2" (41) - 200 Steel

R1S200 2" (53) - 100 Steel

R1S250 2-1/2" (63) - 50 Steel

R1S300 3" (78) - 50 Steel

R1S350 3-1/2" (91) - 25 Steel

R1S400 4" (103) - 25 Steel

Two Hole Strap

R2S050 1/2" (16) 100 1000 Steel

R2S075 3/4" (21) 100 1000 Steel

R2S100 1" (27) 50 500 Steel

R2S125 1-1/4" (35) - 200 Steel

R2S150 1-1/2" (41) - 200 Steel

R2S200 2" (53) - 200 Steel

R2S250 2-1/2" (63) - 200 Steel

R2S300 3" (78) - 100 Steel

R2S350 3-1/2" (91) - 100 Steel

R2S400 4" (103) - 100 Steel

Three Piece Coupling

EK050 1/2" (16) 25 100 Malleable Iron

EK075 3/4" (21) 25 100 Malleable Iron

EK100 1" (27) 5 25 Malleable Iron

EK125 1-1/4" (35) 5 25 Malleable Iron

EK150 1-1/2" (41) - 5 Malleable Iron

EK200 2" (53) - 5 Malleable Iron

EK250 2-1/2" (63) - 4 Malleable Iron

EK300 3" (78) - 4 Malleable Iron

EK350 3-1/2" (91) - 2 Malleable Iron

EK400 4" (103) - 2 Malleable Iron

EK500 5" (129) - 1 Malleable Iron

EK600 6" (155) - 1 Malleable Iron

R1S050 R2S050 EK050

FITTINGS

D13

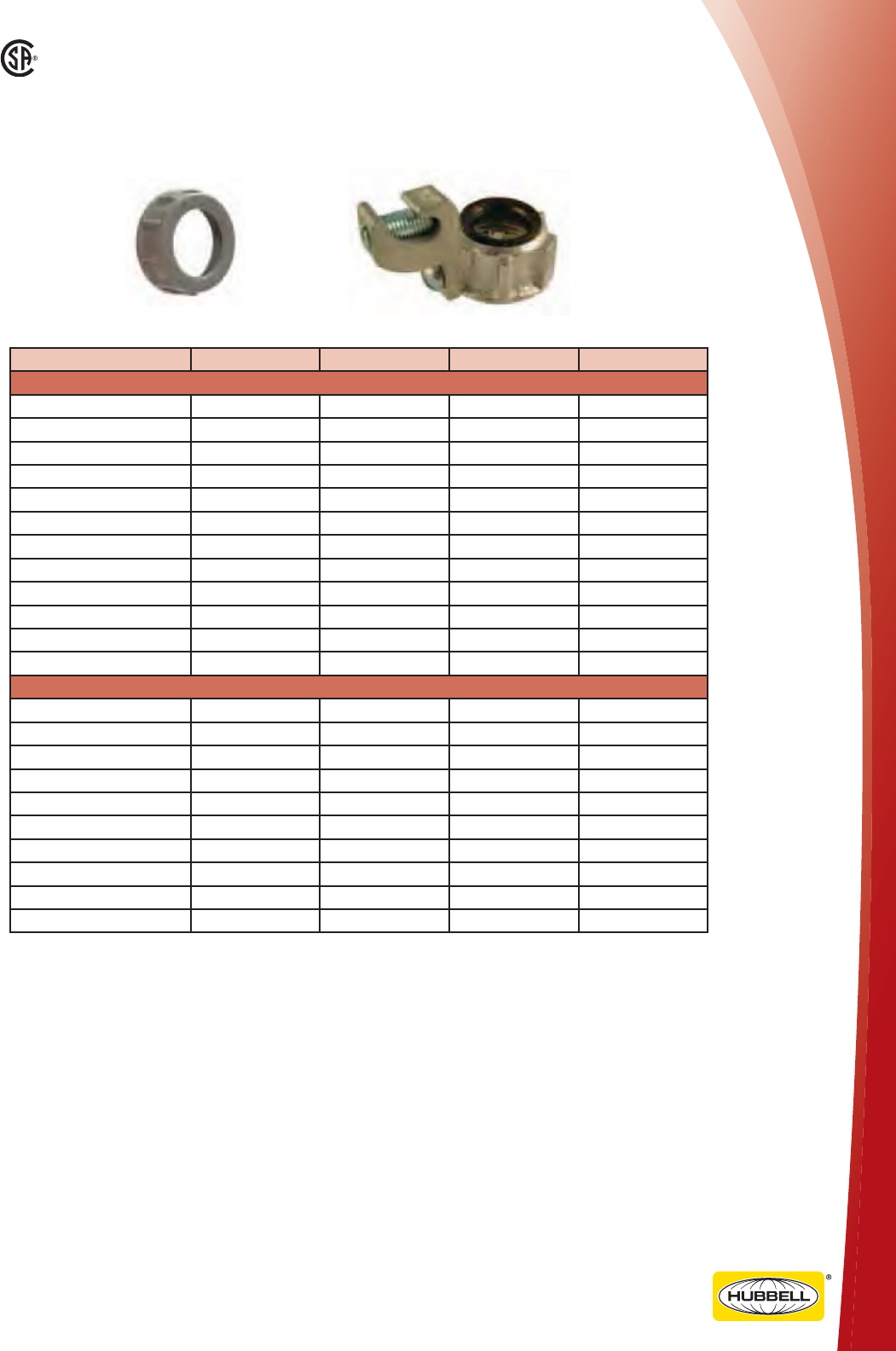

BUSHINGS

CATALOGUE NUMBER TRADE SIZE CARTON QTY CASE QTY MATERIAL

Non Metallic Insulated Bushings

BP050 1/2" (16) 100 2000 Polypropylene

BP075 3/4" (21) 100 2000 Polypropylene

BP100 1" (27) 50 500 Polypropylene

BP125 1-1/4" (35) 50 500 Polypropylene

BP150 1-1/2" (41) - 200 Polypropylene

BP200 2" (53) - 200 Polypropylene

BP250 2-1/2" (63) - 100 Polypropylene

BP300 3" (78) - 100 Polypropylene

BP350 3-1/2" (91) - 100 Polypropylene

BP400 4" (103) - 50 Polypropylene

BP500 5" (129) - 5 Polypropylene

BP600 6" (155) - 5 Polypropylene

Insulated Grounding Bushing

BIG050 1/2" (16) 25 100 Zinc

BIG075 3/4" (21) 25 100 Zinc

BIG100 1" (27) 25 100 Zinc

BIG125 1-1/4" (35) 20 80 Zinc

BIG150 1-1/2" (41) 20 80 Zinc

BIG200 2" (53) 10 40 Zinc

BIG250 2-1/2" (63) 10 40 Zinc

BIG300 3" (78) 10 40 Zinc

BIG350 3-1/2" (91) 5 20 Zinc

BIG400 4" (103) 5 20 Zinc

BP050 BIG050

FITTINGS

D14 METALLIC BUSHINGS

INSULATED UNINSULATED TRADE SIZE CARTON QTY CASE QTY MATERIAL

Metallic Bushings

BZI050 BZ050 1/2" (16) 100 1000 Zinc

BZI075 BZ075 3/4" (21) 50 250 Zinc

BZI100 BZ100 1" (27) 50 250 Zinc

BZI125 BZ125 1-1/4" (35) 25 125 Zinc

BZI150 BZ150 1-1/2" (41) 25 125 Zinc

BZI200 BZ200 2" (53) 10 50 Zinc

BZI250 BZ250 2-1/2" (63) - 10 Zinc

BZI300 BZ300 3" (78) - 10 Zinc

BZI350 BZ350 3.50" - 10 Zinc

BZI400 BZ400 4" (103) - 10 Zinc

BMI050 BM050 1/2" (16) - 100 Malleable Iron

BMI075 BM075 3/4" (21) - 50 Malleable Iron

BMI100 BM100 1" (27) - 25 Malleable Iron

BMI125 BM125 1-1/4" (35) - 25 Malleable Iron

BMI150 BM150 1-1/2" (41) - 25 Malleable Iron

BMI200 BM200 2" (53) - 10 Malleable Iron

BMI250 BM250 2-1/2" (63) - 10 Malleable Iron

BMI300 BM300 3" (78) - 5 Malleable Iron

BMI350 BM350 3-1/2" (91) - 5 Malleable Iron

BMI400 BM400 4" (103) - 5 Malleable Iron

BZ050 BM050

BZl050 BMI050

FITTINGS

D15

THREADED HUBS

CATALOGUE NUMBER TRADE SIZE CARTON QTY CASE QTY MATERIAL

Insulated Threaded Hubs

THI050 1/2" (16) - 25 Zinc

THI075 3/4" (21) - 25 Zinc

THI100 1" (27) - 25 Zinc

THI125 1-1/4" (35) - 10 Zinc

THI150 1-1/2" (41) - 10 Zinc

THI200 2" (53) - 10 Zinc

THI250 2-1/2" (63) - 5 Zinc

THI300 3" (78) - 2 Zinc

THI350 3-1/2" (91) - 2 Zinc

THI400 4" (103) - 2 Zinc

Combination Couplings - Rigid to EMT

REK050 1/2" (16) 25 250 Steel

REK075 3/4" (21) 10 100 Steel

REK100 1" (27) 10 100 Steel

Locknuts

LNS050 1/2" (16) 200 2000 Steel

LNS075 3/4" (21) 100 1000 Steel

LNS100 1" (27) 100 1000 Steel

LNS125 1-1/4" (35) 100 1000 Steel

LNS150 1-1/2" (41) 50 500 Steel

LNS200 2" (53) 50 500 Steel

LNS250 2-1/2" (63) 25 250 Steel

LNS300 3" (78) - 10 Steel

LNS350 3-1/2" (91) - 10 Steel

LNS400 4" (103) - 10 Steel

LNS500 5" (129) - 10 Steel

LNS600 6" (155) - 10 Steel

90 Degree Pull Elbow - Rigid to Rigid

PERR050 1/2

" Rigid to Rigid

-20

Zin

PERR075 3/4

" Rigid to Rigid

10 100 Zin

PERR100 1"

Rigid to Rigid

550

Zin

PERR125 1-1

/4" Rigid to Rigid

-25

Zin

90 Degree Pull Elbow - Rigid to Rigid

PERB050 1/2

" Rigid to Box

10 100 Zin

PERB075 3/4

" Rigid to Box

550

Zin

PERB100 1"

Rigid to Box

-25

Zin

THI050 REK050 LNS050 PERR050 PERB050

FITTINGS

D16 KNOCK-OUTS

CATALOGUE NUMBER TRADE SIZE CARTON QTY CASE QTY MATERIAL

Knockout Closures

KO050 1/2" 100 1000 Steel

KO075 3/4" (21) 100 1000 Steel

KO100 1" (27) 100 400 Steel

KO125 1-1/4" (35

)

50 200 Steel

KO150 1-1/2" (41

)

-50Steel

KO200 2" (53) - 25 Steel

Beam Clamps

BC100 1" (27) - 100 Iron

BC200 2" (53) - 50 Iron

BC250 2-1/2" (63

)

-25Iron

Reducing Washers

RW0705 3/4" x 1/2

250 5000 Steel

RW1005 1" x 1/2" 250 5000 Steel

RW1007 1 x 3/4" 250 5000 Steel

RW1205 1-1/4" x 1

/2"

200 2000 Steel

RW1207 1-1/4" x 3

/4"

200 2000 Steel

RW1210 1-1/4" x 1

200 2000 Steel

RW1505 1-1/2" x 1

/2"

100 1000 Steel

RW1507 1-1/2" x 3

/4"

100 1000 Steel

RW1510 1-1/2" x 1

100 1000 Steel

RW1512 1-1/2" x 1

-1/4"

100 1000 Steel

RW2005 2" x 1/2" 50 500 Steel

RW2007 2" x 3/4" 50 500 Steel

RW2010 2" x 1" 50 500 Steel

RW2012 2" x 1-1/4

50 500 Steel

RW2015 2" x 1-1/2

50 500 Steel

RW2505 2-1/2" x 1

/2"

25 250 Steel

RW2507 2-1/2" x 3

/4"

25 250 Steel

RW2510 2-1/2" x 1

-50Steel

RW2512 2-1/2" x 1

-1/4"

-50Steel

RW2515 2-1/2" x 1

-1/2"

-50Steel

RW2520 2-1/2" x 2

-50Steel

RW3010 3" x 1" - 25 Steel

RW3020 3" x 2" - 25 Steel

RW3025 3" x 2-1/2

-25Steel

KO050 BC100 RW0705

FITTINGS

D17

JACK CHAIN

CATALOGUE NUMBER TRADE SIZE

EMT

TRADE SIZE

RIGID

CARTON QTY CASE QTY MATERIAL

Conduit Hangers

CH050 1/2" (16) 1/2" (16) 100 400 Steel

CH075 3/4" (21) 3/4" (21) 100 400 Steel

CH100 1" (27) 1" (27) 100 400 Steel

CH125 1-1/4" (35) N/S - 100 Steel

CH150 1-1/2" (41) 1-1/4" (35) - 100 Steel

CH150R N/S 1-1/2" (41) - 100 Steel

CH200 2" (53) 2" (53) - 50 Steel

CH250 2-1/2" (63) 2-1/2" (63) - 25 Steel

CH300 3" (78) 3" (78) - 50 Steel

CH400 4" (103) 4" (103) - 10 Steel

Conduit Hangers

GCZ0510 1/2" (16) 1" (27) 25 250 Zinc

GCB0510 1/2" (16) 1" (27) 25 100 Brass

GCB1220 1-1/4" (35) 2" (53) 25 250 Brass

Jack and Lion Chain

JC10 #10 - 100 43 lbs. Zinc Plated Steel

JC10B #10 - 250 43 lbs. Zinc Plated Steel

LC3 #3 - 100 90 lbs. Zinc Plated Steel

LC3B #3 - 300 90 lbs. Zinc Plated Steel

S-Hooks

S105 #105 100 1000 90 lbs. Zinc Plated Steel

CH050 GCB0510

JC10 JC3

S105

FITTINGS

D18

CATALOGUE NUMBER TRADE SIZE CARTON QTY CASE QTY MATERIAL

Service Entrance Heads - Rigid/EMT Combo

2402 1/2" (16) - 10 Aluminum

2403 3/4" (21) - 10 Aluminum

2404 1" (27) - 5 Aluminum

2405 1-1/4" (35

)

- 10 Aluminum

2406 1-1/2" (41

)

- 5 Aluminum

2408 2" (53) - 5 Aluminum

2410 2-1/2" (63

)

- 1 Aluminum

2412 3" (78) - 1 Aluminum

2414 3-1/2" (91

)

- 1 Aluminum

2416 4" (103) - 1 Aluminum

SERVICE ENTRANCE HEADS

Machined

Aluminum

Machined

Zinc-Plated Steel

WIRE MANAGEMENT

Straight Male

N.P.T. Cord Dia. Machined

Hub Inches Form Colour Machined Zinc-Plated Stainless Nylon Nylon

Size (mm) Size Code Aluminum Steel Steel Gray Black

IP66*

SUITABILITY

UL Listed to Type 4, 4X, 12

and Type 13

STRAIGHT MALE CORD CONNECTORS

.06"-.13" Green — — — SHC1001CR —

(1.6-3.2)

.13"-.19" Orange SHC1002 — — SHC1002CR —

(3.2-4.7)

1/4 .19"-.25" F1 Red SHC1003 — SHC1003SS SHC1003CR —

(4.7-6.3)

.25"-.31" Black SHC1004 — SHC1004SS SHC1004CR —

(6.3-7.9)

.31"-.38" White SHC1005** — — SHC1005CR SHC2005CR

(7.9-9.5)

.38"-.44" Blue — — — SHC1006CR —

(9.5-11)

.06"-.13" Green SHC1007 — — — —

(1.6-3.2)

.13"-.19" Orange SHC1008 SHC1008ZP — SHC1008CR SHC2008CR

(3.2-4.7)

3/8 .19"-.25" F1 Red SHC1009 — SHC1009SS SHC1009CR —

(4.7-6.3)

.25"-.31" Black SHC1010 SHC1010ZP — SHC1010CR SHC2010CR

(6.3-7.9)

.31"-.38" White SHC1011 — SHC1011SS SHC1011CR SHC2011CR

(7.9-9.5)

.38"-.44" Blue SHC1012 SHC1012ZP SHC1012SS SHC1012CR SHC2012CR

(9.5-11.0)

.19"-.25" Red SHC1015 — — — —

(4.7-6.3)

1/2 .25"-.31" F1 Black SHC1016 — — — —

(6.3-7.9)

.31"-.38" White SHC1017 — — — —

(7.9-9.5)

.38"-.44" Blue SHC1018 — — — —

(9.5-11.0)

.06"-.13" Green SHC1019 — — SHC1019CR —

(1.6-3.2)

.13"-.19" Orange SHC1020 SHC1020ZP SHC1020SS SHC1020CR —

(3.2-.4.7)

1/2 .19"-.25" F2 Red SHC1021 SHC1021ZP SHC1021SS SHC1021CR SHC2021CR

(4.7-6.3)

.25"-.38" White SHC1022 SHC1022ZP SHC1022SS SHC1022CR SHC2022CR

(6.3-.9.7)

.38"-.50" Blue SHC1023 SHC1023ZP SHC1023SS SHC1023CR SHC2023CR

(9.7-12.7)

.50"-.63" Brown SHC1024 SHC1024ZP SHC1024SS SHC1024CR** SHC2024CR**

(12.7-15.9

)

.38"-.50" Blue SHC1025 — — — —

(9.7-12.7)

.50"-.63" Brown SHC1026 — — — —

(12.7-15.9

)

1/2 .63"-.75" F3 Yellow SHC1027** SHC1027ZP** — — —

(15.9-19.0

)

.75"-.88" Orchid SHC1028** SHC1028ZP** — — —

(19.0-22.2

)

Note:

* IP66 Suitability when used with optional metal clad O-ring.

** Cable jacket may have to be stripped to pass through connector body.

Stainless

Steel

Gray Nylon

Black Nylon

WIRE MANAGEMENT

Straight Male

N.P.T. Cord Dia. Machined

Hub Inches Form Colour Machined Zinc-Plated Stainless Nylon Nylon

Size (mm) Size Code Aluminum Steel Steel Gray Black

UL Listed to Type 4,

4X, 12 and Type 13

STRAIGHT MALE CORD CONNECTORS

IP66*

SUITABILITY

.06"-.13" Green SHC1029 — — — —

(1.6-3.2)

.13"-.19" Orange SHC1030 SHC1030ZP — — —

(3.2-4.7)

3/4 .19"-.25" F2 Red SHC1031 SHC1031ZP — — —

(4.7-6.3)

.25"-.38" White SHC1032 SHC1032ZP — — —

(6.3-9.7)

.38"-.50" Blue SHC1033 SHC1033ZP — — —

(9.7-12.7)

.50"-.63" Brown SHC1034 SHC1034ZP — — —

(12.7-15.9

)

.38"-.50" Blue — SHC1035ZP SHC1035SS SHC1035CR SHC2035CR

(9.5-12.7)

3/4 50"-.63" F3 Brown SHC1036 — SHC1036SS SHC1036CR SHC2036CR

(12.7-15.9

)

.63"-.75" Yellow SHC1037 SHC1037ZP SHC1037SS SHC1037CR SHC2037CR

(15.9-19.0

)

.75"-.88" Orchid SHC1038** SHC1038ZP** SHC1038SS** SHC1038CR** SHC2038CR**

(19.0-22.2

)

1 .50"-.63" F3 Brown — SHC1097ZP — — —

(12.7-15.9

)

.63"-.75" Yellow — SHC1098ZP — — —

(15.9-19.0

)

.75"-.88" Orchid — SHC1099ZP — — —

(19.0-22.2

)

.38"-.50" Blue SHC1039 — — SHC1039CR —

(9.7-12.7)

.50"-.63" Brown SHC1040 — — SHC1040CR SHC2040CR

(12.7-15.9

)

1 .63"-.75" F4 Yellow SHC1041 — SHC1041SS SHC1041CR SHC2041CR

(15.9-19.0

)

.75"-.88" Orchid SHC1042 — SHC1042SS SHC1042CR SHC2042CR

(19.0-22.2

)

.88"-1.00" Gray SHC1043 SHC1043ZP — SHC1043CR SHC2043CR

(22.2-25.4

)

1.00"-1.13

Pink SHC1044** — SHC1044SS** SHC1044CR** SHC2044CR**

(25.4-28.6

)

Note:

* IP66 Suitability when used with optional metal clad O-ring.

** Cable jacket may have to be stripped to pass through connector body.

Form 4 aluminum and plated steel nuts are machined, bodies are cast aluminum.

Cast Aluminum

Malleable Iron

WIRE MANAGEMENT

Straight Male

N.P.T. Cord Diameter Form

Hub Size Inches (mm) Size Cast Aluminum Malleable Iron

UL Listed to Type 4,

4X, 12 and Type 13

STRAIGHT MALE CORD CONNECTORS

IP66*

SUITABILITY

.88"-1.00" (22.2-25.4

)

SHC1046 —

1 1.00"-1.13

(25.4-28.6

)

F5 SHC1047** —

1.13"-1.25

(28.6-31.7

)

SHC1048** —

1.25"-1.38

(31.7-34.9

)

SHC1049** —

.75"-.88" (19.0-22.2

)

SHC1050 —

.88"-1.00" (22.2-25.4

)

SHC1051 —

1-1/4 1.00"-1.13

(25.4-28.6

)

F5 SHC1052 SHC1052ZP

1.13"-1.25

(28.6-31.7

)

SHC1053 SHC1053ZP

1.25"-1.38

(31.7-34.9

)

SHC1054** SHC1054ZP

.75"-.88" (19.0-22.2

)

SHC1055 —

.88"-1.00" (22.2-25.4

)

SHC1056 —

1-1/2 1.00"-1.13

(25.4-28.6

)

F5 SHC1057 SHC1057ZP

1.13"-1.25

(28.6-31.7

)

SHC1058 SHC1058ZP

1.25"-1.38

(31.7-34.9

)

SHC1059 SHC1059ZP

1.38"-1.50

(34.9-38.1

)

SHC1061 —

1-1/2 1.50"-1.63

(38.1-41.3

)

F6 SHC1062** —

1.63"-1.75

(41.3-44.4

)

SHC1063** —

1.75"-1.88

(44.4-47.6

)

SHC1064** —

1.25"-1.38

(31.7-34.9

)

SHC1065 —

1.38"-1.50

(34.9-38.1

)

SHC1066 —

2 1.50"-1.63

(38.1-41.3

)

F6 SHC1067 —

1.63"-1.75

(41.3-44.4

)

SHC1068 —

1.75"-1.88

(44.4-47.6

)

SHC1069 —

1.69"-1.81

(42.9-46.0

)

SHC1070 —

1.81"-1.94

(46.0-49.2

)

SHC1071 —

2 1.94"-2.06

(49.2-52.4

)

F7 SHC1072** —

2.06"-2.19

(52.4-55.6

)

SHC1073** —

2.19"-2.31

(55.6-58.7

)

SHC1074** —

1.69"-1.81

(42.9-46.0

)

SHC1076 —

1.81"-1.94

(46.0-49.2

)

SHC1077 —

2-1/2 1.94"-2.06

(49.2-52.4

)

F7 SHC1078 —

2.06"-2.19

(52.4-55.6

)

SHC1079 —

2.19"-2.31

(55.6-58.7

)

SHC1080 —

2.31"-2.44

(58.7-61.9

)

SHC1081** —

1.69"-1.81

(42.9-46.0

)

SHC1086 —

1.94"-2.06

(49.2-52.4

)

F7 SHC1088 —

3 2.06"-2.19

(52.4-55.6

)

SHC1089 —

2.19"-2.31

(55.6-58.7

)

SHC1090 —

2.31"-2.44

(58.7-61.9

)

SHC1091 —

2.44"-2.63

(61.9-66.7

)

SHC1092 —

2.63"-2.81

(66.7-71.4

)

SHC1093 —

3 2.81"-3.00

(71.4-76.2

)

F8 SHC1094 —

3.00"-3.25

(76.2-82.5

)

SHC1095** —

Note:

* IP66 Suitability when used with optional metal clad O-ring.

** Cable jacket may have to be stripped to pass through connector body.

Form 4 aluminum and plated steel nuts are machined, bodies are cast aluminum.

F5 and larger will not be colour coded.

Machined

Aluminum †

Machined

Zinc-Plated Steel '

Cast Aluminum

WIRE MANAGEMENT

45° Male

N.P.T. Machined

Hub Cord Diameter Form Colour Machined Zinc-Plated Cast

Size Inches (mm) Size Code Aluminum† Steel' Aluminum

45° MALE CORD CONNECTORS

UL Listed to Type 4,

4X, 12 and Type 13

IP66*

SUITABILITY

.19"-.25" (4.7-6.3) Red VHC1021 — —

1/2 .25"-.38" (6.3-9.7) F2 White VHC1022 VHC1022ZP —

.38"-.50" (9.7-12.7) Blue VHC1023 VHC1023ZP —

.50"-.63" (12.7-15.9

)

Brown VHC1024** VHC1024ZP** —

.38"-.50" (9.7-12.7) Blue VHC1035 — —

3/4 .50"-.63" (12.7-15.9

)

F3 Brown VHC1036 — —

.63"-.75" (15.9-19.0

)

Yellow VHC1037** — —

1 .63"-.75" (15.9-19.0

)

F4 Yellow VHC1041 — —

.75"-.88" (19.0-22.2

)

Orchid VHC1042 — —

1-1/4 1.00"-1.13

(25.4-28.6

)

F5 — — VHC1052

1.13"-1.25

(28.6-31.7

)

— — VHC1053**

Note:

* IP66 Suitability when used with optional metal clad O-ring.

** Cable jacket may have to be stripped to pass through connector body.

Form 4 aluminum and plated steel nuts are machined, bodies are cast aluminum.

† Nuts are machined aluminum and bodies are cast aluminum.

' Nuts are machined zinc-plated steel and bodies are malleable iron, cadmium plated.

Machined

Aluminum†

Machined

Zinc-Plated Steel'

Cast AluminumGray Nylon Black Nylon

WIRE MANAGEMENT

90° Male

N.P.T. Machined

Hub Cord Diameter Form Colour Machined Zinc-Plated Nylon Nylon Cast

Size Inches (mm) Size Code Aluminum† Steel' Gray Black Aluminum

90° MALE CORD CONNECTORS

UL Listed to Type 4,

4X, 12 and Type 13

IP66*

SUITABILITY

.25"-.31" (6.3-7.9) Black NHC1010 — — — —

3/8 .31"-.38" (7.9-9.5) F1 White NHC1011 — — — —

.38"-.44" (9.5-11.0) Blue NHC1012 — — — —

.06"-.13" (1.6-3.2) Green — — — — —

.13"-.19" (3.2-4.7) Orange NHC1020 — NHC1020CR — —

1/2 .19"-.25" (4.7-6.3) F2 Red NHC1021 NHC1021ZP NHC1021CR — —

.25"-.38" (6.3-9.7) White NHC1022 NHC1022ZP NHC1022CR NHC2022CR —

.38"-.50" (9.7-12.7) Blue NHC1023 NHC1023ZP NHC1023CR NHC2023CR —

.50"-.63" (12.7-15.9

)

Brown NHC1024** NHC1024ZP** NHC1024CR** NHC2024CR** —

.38"-.50" (9.7-12.7) Blue NHC1035 NHC1035ZP NHC1035CR — —

3/4 .50"-.63" (12.7-15.9

)

F3 Brown NHC1036 NHC1036ZP NHC1036CR — —

.63"-.75" (15.9-19.0

)

Yellow NHC1037 NHC1037ZP NHC1037CR — —

.75"-.88" (19.0-22.2

)

Orchid NHC1038 NHC1038ZP NHC1038CR — —

.50"-.63" (12.7-15.9

)

Brown NHC1040 — — — —

.63"-.75" (15.9-19.0

)

Yellow NHC1041 NHC1041ZP NHC1041CR NHC2041CR —

1 .75"-.88" (19.0-22.2

)

F4 Orchid NHC1042 — NHC1042CR NHC2042CR** —

.88"-1.00" (22.2-25.4

)

Gray NHC1043** — NHC1043CR NHC2043CR** —

1.00"-1.13

(25.4-28.7

)

Pink NHC1044** — — — —

.88"-1.00" (22.2-25.4

)

— — — — — NHC1051

1-1/4 1.00"-1.13

(25.4-28.6

)

F5 — — — — — NHC1052

1.13"-1.25

(28.6-31.7

)

— — — — — NHC1053**

1.25"-1.38

(31.7-34.9

)

— — — — — NHC1054**

1.00"-1.13

(25.4-28.6

)

— — — — — NHC1057

1-1/2 1.13"-1.25

(28.6-31.7

)

F5 — — — — — —

1.25"-1.38

(31.7-34.9

)

— — — — — NHC1059

2 1.38"-1.50

(34.9-38.1

)

F6 — — — — — NHC1066

Note: * IP66 Suitability when used with optional metal clad O-ring.

** Cable jacket may have to be stripped to pass through connector body.

† Nuts are machined aluminum and bodies are cast aluminum.

' Compression nuts are machined zinc-plated steel and bodies are zinc-plated malleable iron.

Machined

Aluminum

Gray Nylon

Machined

Zinc-Plated Steel

Machined

Aluminum

Machined

Aluminum

WIRE MANAGEMENT

Straight Female

N.P.T.

Hub Cord Diameter Form Colour Machined

Size Inches (mm) Size Code Aluminum

Note: * Cable jacket may have to be stripped to pass through connector body.

† Nuts are machined aluminum and bodies are cast aluminum.

Underground Feeder Connectors

N.P.T. UF** Machined

Hub Diameter Wire Machined Zinc-Plated Nylon Nylon

Size Inches (mm) Size Aluminum Steel Gray Black

Metric Aluminum Cord Connectors

Hub Cord Diameter Form

Size Inches (mm) Size Catalog Number

IP66*

SUITABILITY

UL Listed to Type 4,

4X, 12 and Type 13

STRAIGHT FEMALE, UNDERGROUND

FEEDER AND METRIC CONNECTORS

1/2 .25"-.38" (6.3-9.7) F2 White FHC1022

.38"-.50" (9.7-12.7) Blue FHC1023

3/4 .38"-.50" (9.7-12.7) F2 Blue FHC1033

.50"-.63" (12.7-15.9

)

Brown FHC1034

1 .75"-.88" (19.0-22.2

)

F4 Orchid FHC1042†

.88"-1.00" (22.2-25.4

)

Gray FHC1043†

1/2 .2"x.4" mi

(5.1 x 10.

2 # 14,

.25"-.55"

max

(6.3 x 14.

2 # 12, UFC0001 UFC0001ZP UFC0001CR UFC2001CR

2 # 10.

3/4 .2"x.4" mi

(5.1x10.2) 2 # 14,

.25"-.55"

max

(6.3x14.0) 2 # 12, UFC0002 — — —

2 # 10.

3/4 .2"x.6" mi

(5.1x15.2) 3 # 14,

.26"x.78"

max

(6.6x19.8) 3 # 12, UFC0003 — UFC0003CR UFC2003CR

3 # 10.

Note: * IP

66 Suitability when used with optional metal clad O-ring.

** Wire si

zes vary among manufacturers.

M16 .31"-.38" (7.9-9.7) F1 SHCM161011

M20 .31"-.38" (7.9-9.7) F1 SHCM201017

.25"-.38" (6.3-9.7) SHCM201022

M20 .38"-.50" (9.7-12.7) F2 SHCM201023

.50"-.62" (12.7-15.8

)

SHCM201024

M25 .38"-.50" (9.7-12.7) F2 SHCM251033

.50"-.62" (12.7-15.8

)

SHCM251034

M30 .63"-75" (15.9-19.0

)

F3 SHCM301037

Note: † When used with metal clad O-ring.

Non-metallic Locknuts sold separately.

SEC100BA

SECP29GA

LNP29BPK25

WIRE MANAGEMENT

Low Profile N.P.T. Cord Connectors

N.P.T. Cord Diameter Catalog Non-metallic

Hub Size Inches (mm) Colour Number Locknuts

Low Profile PG' Cord Connectors

Cord Diameter Catalog Non-metallic

Hub Size Inches (mm) Colour Number Locknuts

Low Profile Metric Cord Connectors

Cord Diameter Catalog Non-metallic

Hub Size Inches (mm) Colour Number Locknuts

LOW PROFILE N.P.T., PG

AND METRIC THREAD CONNECTORS

IP66*

SUITABILITY

3/8 .18"-.31" (4.6-7.9) Gray SEC38GA* 31622002LPK50

3/8 .18"-.31" (4.6-7.9) Black SEC38BA* 31622002LPK50

1/2 .17"-.45" (4.3-11.4) Gray SEC50GA 31622003LPK50

1/2 .17"-.45" (4.3-11.4) Black SEC50BA 31622003LPK50

3/4 .45"-.71" (11.4-18.0

)

Gray SEC75GA 31622007LPK50

3/4 .45"-.71" (11.4-18.0

)

Black SEC75BA 31622007LPK50

1 .59"-1.00" (15-25.4) Gray SEC100GA 31622008LPK50

1 .59"-1.00" (15-25.4) Black SEC100BA 31622008LPK50

Note: Cata

log numbers with “PK50” suffix are bulk packed 50 pieces.

PG7 .11"-.25" (2.9-6.4) Gray SECP7GA* LNP7BPK100

PG7 .11"-.25" (2.9-6.4) Black SECP7BA* LNP7BPK100

PG9 .18"-.31" (4.6-7.9) Gray SECP9GA* LNP9BPK100

PG9 .18"-.31" (4.6-7.9) Black SECP9BA* LNP9BPK100

PG11 .23"-.40" (5.8-10.0) Gray SECP11GA* LNP11BPK100

PG11 .23"-.40" (5.8-10.0) Black SECP11BA* LNP11BPK100

PG13.5 .17"-.47" (4.3-11.9) Gray SECP13GA LNP13BPK100

PG13.5 .17"-.47" (4.3-11.9) Black SECP13BA LNP13BPK100

PG16 .23"-.53" (5.8-13.5) Gray SECP16GA LNP16BPK100

PG16 .23"-.53" (5.8-13.5) Black SECP16BA LNP16BPK100

PG21 .45"-.71" (11.4-17.9

)

Gray SECP21GA LNP21BPK100

PG21 .45"-.71" (11.4-17.9

)

Black SECP21BA LNP21BPK100

PG29 .59"-.99" (15-25.2) Gray SECP29GA LNP29BPK25

PG29 .59"-.99" (15-25.2) Black SECP29BA LNP29BPK25

PG36 .88"-1.30" (22.2-32.0

)

Gray SECP36GA LNP36BPK25

PG36 .88"-1.30" (22.2-32.0

)

Black SECP36BA LNP36BPK25

M12 .12"-.25" (2.9-6.4) Gray SECM12G LNM12BPK100

M12 .12"-.25" (2.9-6.4) Black SECM12B LNM12BPK100

M16 .11"-.31" (2.7-7.9) Gray SECM16G LNM16BPK100

M16 .11"-.31" (2.7-7.9) Black SECM16B LNM16BPK100

M20 .17"-.45" (4.3-11.4) Gray SECM20G* LNM20BPK100

M20 .17"-.45" (4.3-11.4) Black SECM20B* LNM20BPK100

M25 .49"-.71" (12.3-18.0

)

Gray SECM25G* LNM25BPK100

M25 .49"-.71" (12.3-18.0

)

Black SECM25B* LNM25BPK100

M32 .59"-1.00" (15.0-25.4

)

Gray SECM32G* LNM32BPK100

M32 .59"-1.00" (15.0-25.4

)

Black SECM32B* LNM32BPK100

M40 .87"-1.30" (22.0-32.0

)

Gray SECM40G LNM40BPK100

M40 .87"-1.30" (22.0-32.0

)

Black SECM40B LNM40BPK100

Note: Cata

log numbers above with “PK100” suffix, i.e. LNP7BPK100, are bulk packed 100 per carton.

Catalog nu

mbers above with “PK25” suffix, i.e. LNP29BPK25, are bulk packed 25 per carton.

* Items in

dicated are UL recognized components.

' Panzerge

winde.

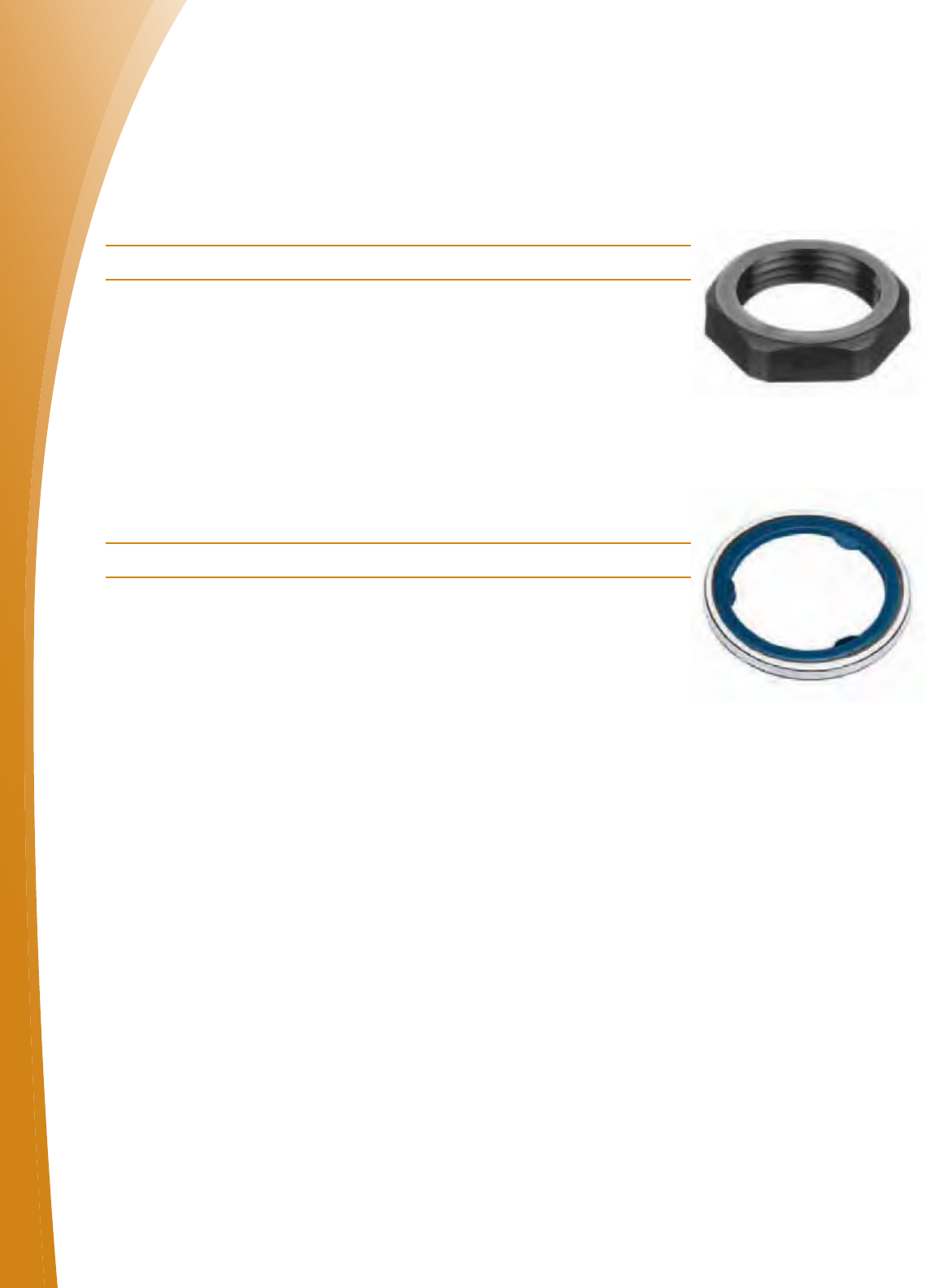

Metal Clad

Sealing O-Rings

Non-Metallic Locknuts

WIRE MANAGEMENT

Locknuts — Non-Metallic

N.P.T.

Hub Size Catalog Number

Metal Clad Sealing O-Rings

N.P.T.

Hub Size Catalog Number

ACCESSORIES

1/4 31622001LPK50

3/8 31622002LPK50

1/2 31622003LPK50

3/4 31622007LPK50

131622008LPK50

1-1/4 —

1-1/2 —

Note: Catalog numbers above with “PK50” suffix are bulk packed 50 per carton.

See page T-101 for additional technical data and dimensional drawings.

1/2 20509001

3/4 20509002

120509003

1-1/4 20509004

1-1/2 20509005

220509006

2-1/2 20509007

320509008

WIRE MANAGEMENT

Gray Cord Connector

Black Cord Connector

Gray Cord Connector with

Spiral

Black Cord Connector with

Spiral

Gray Snap-In

Cord Connector

Black Snap-In

Cord Connector

Miniature Nylon Cord Connector

N.P.T. Cord Diameter Range

Hub Size Inches (mm) Gray Black

Miniature Nylon Cord Connector with Spiral

N.P.T. Cord Diameter Range

Hub Size Inches (mm) Gray Black

Miniature Nylon Snap-In Cord Connector with Spiral

Cord Diameter Range For Chassis

Inches (mm) Thickness Gray Black

HUBBELL JUNIORS® MINIATURE

NYLON CORD CONNECTORS

.08"-.14" (1.9-3.4) HJ1001GPK25 HJ1001BPK25

1/4 .14"-.20" (3.4-5.1) HJ1002GPK25 HJ1002BPK25

.20"-.27" (5.1-6.7) HJ1003GPK25 HJ1003BPK25

.15"-.21" (3.7-5.3) HJ1004GPK25 HJ1004BPK25

3/8 .21"-.28" (5.3-7.0) HJ1005GPK25 HJ1005BPK25

.28"-.34" (7.0-8.6) HJ1006GPK25 HJ1006BPK25

.06"-.13" (1.6-3.2) HJ1055GPK25 HJ1055BPK25

.13"-.19" (3.2-4.7) HJ1056GPK25 HJ1056BPK25

1/2 .19"-.25" (4.7-6.3) HJ1057GPK25 HJ1057BPK25

.25"-.31" (6.3-7.9) HJ1058GPK25 HJ1058BPK25

.31"-.38" (7.9-9.5) HJ1059GPK25 HJ1059BPK25

.38"-.44" (9.5-11.1) HJ1060GPK25 HJ1060BPK25

.08"-.14" (1.9-3.4) HJ1010GPK25 HJ1010BPK25

1/4 .14"-.20" (3.4-5.1) HJ1011GPK25 HJ1011BPK25

.20"-.27" (5.1-6.7) HJ1012GPK25 HJ1012BPK25

.15"-.21" (3.7-5.3) HJ1013GPK25 HJ1013BPK25

3/8 .21"-.28" (5.3-7.0) HJ1014GPK25 HJ1014BPK25

.28"-.34" (7.0-8.6) HJ1015GPK25 HJ1015BPK25

.13"-.19" (3.2-4.7) HJ1038GPK25 HJ1038BPK25

.19"-.25" (4.7-6.3) HJ1039GPK25 HJ1039BPK25

1/2 .25"-.31" (6.3-7.9) HJ1040GPK25 HJ1040BPK25

.31"-.38" (7.9-9.5) HJ1041GPK25 HJ1041BPK25

.38"-.44" (9.5-11.1) HJ1042GPK25 HJ1042BPK25

3/4 .25"-.49" (6.4-12.3) HJ1043GPK25* HJ1043BPK25*

.45"-.71" (11.4-18.0

)

HJ1044GPK25* HJ1044BPK25*

.22"-.27" (5.6-6.9) .10" (2.5)

Max

HS1001GPK25 HS1001BPK25

.28"-.32" (7.1-8.1) .10" (2.5)

Max

HS1002GPK25 HS1002BPK25

.30"-.36" (7.6-9.1) .13" (3.2)

Max

HS1003GPK25 HS1003BPK25

.32"-.43" (8.1-10.9) .13" (3.2)

Max

HS1004GPK25 HS1004BPK25

Note: Cata

log numbers above with “PK25” suffix, i.e. HJ1001GPK25, are bulk packed 25 per carton.

Rigid PVC core bonded to Üexible PVC jacket

All nonmetallic construction ends metal fatigue and

separation problems

UL Listed and CSA CertiÛed

Cuts cleanly with a knife or PVC cutter so there

are no jagged metal edges

WIRE MANAGEMENT

E10

PolyTuff® I Conduit

Trade Size (metric designator) Feet (m) Catalog Number

PolyTuff

I Conduit–Gray

IP66

SUITABILITY

POLYTUFF® I NON-METALLIC

LIQUIDTIGHT CONDUIT

³⁄₈ (12) 100 (30.5)

G1038

½ (16) 100 (30.5)

G1050

¾ (21) 100 (30.5)

G1075

1 (27) 100 (30.5)

G1100

1¼ (35) 100 (30.5)

G1125

1½ (41) 50 (15.2) G1150

2 (53) 50 (15.2) G1200

PVC core with corrugated walls bonded to PVC jacket

Handles twists, turns, bends, switchbacks and straightaways with ease

All nonmetallic construction ends fatigue and

separation problems

Can be cut with a knife or PVC cutters

UL Recognized and CSA CertiÛed

WIRE MANAGEMENT

E11

PolyTuff® II Tubing

Trade Size (metric designator) Feet (m) Catalog Number

PolyTuff

II Tubing–Black

IP66

SUITABILITY

POLYTUFF® II NON-METALLIC

LIQUIDTIGHT TUBING

¼ (10) 100 (30.5)

B2025

³⁄₈ (12) 100 (30.5)

B2038

½ (16) 100 (30.5)

B2050

¾ (21) 100 (30.5)

B2075

1 (27) 100 (30.5)

B2100

1¼ (35) 100 (30.5)

B2125

1½ (41) 50 (15.2) B2150

2 (53) 50 (15.2) B2200

PS05GYKIT

P1259NGY

P125NGY

P075NGYA

PS0509NGY - SwivelLok®

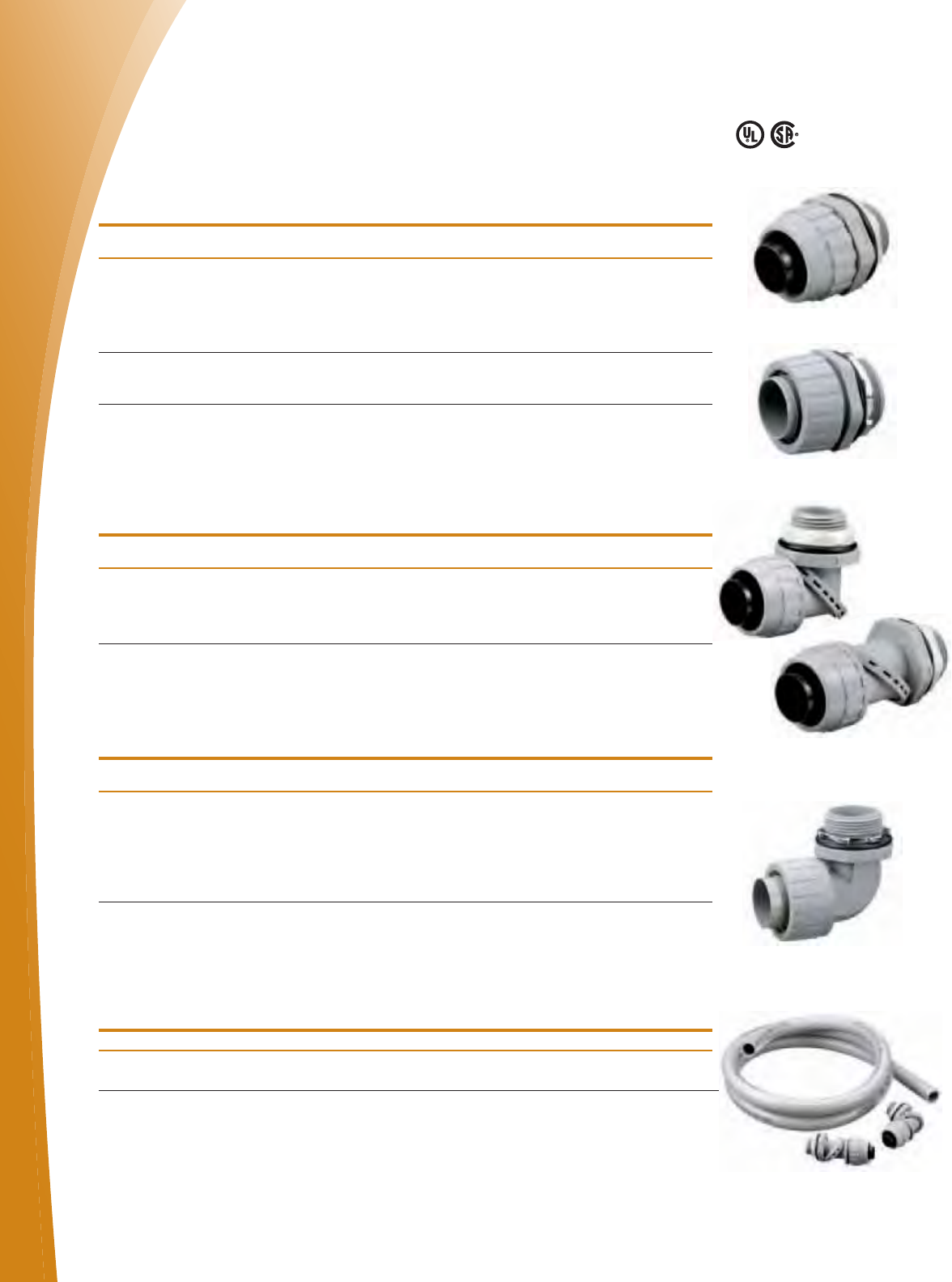

WIRE MANAGEMENT

E12

Straight with Male Non-Metallic Liquidtight Fittings

Trade Black Gray

Size (metric designator) Catalog Number Catalog Number

SwivelLok® Multi-Position with Male Non-Metallic Liquidtight Fittings

Trade Black Gray

Size (metric designator) Catalog Number Catalog Number

Fixed 90° Fittings for Non-Metallic Conduit

Trade Black Gray

Size (metric designator) Catalog Number Catalog Number

SwivelLok® Flexible Conduit Kit

Trade Size (metric designator) Fitting and Conduit Catalog Number

POLYTUFF® II NON-METALLIC

LIQUIDTIGHT FITTINGS

UL Listed to Type 4,

4X, 12 and Type 13

¼ (6) F2025 —

³⁄₈

(9) P038NBKA P038NGYA

½ (13) P050NBKA P050NGYA

¾ (19) P075NBKA P075NGYA

1 (25) P100NBKA P100NGYA

1¼ (32) P125NBK P125NGY

1½ (38) P150NBK P150NGY

2 (51) P200NBK P200NGY

Note: Fitt

ings are to be used with PolyTuff I and PolyTuff II.

³⁄₈ Liq

uidtight conduit fitting have ½ N.P.T. male threads.

³⁄₈ (9) PS0389NBK PS0389NGY

½ (13) PS0509NBK PS0509NGY

¾ (19) PS0759NBK PS0759NGY

1 (25) PS1009NBK PS1009NGY

Note: Fitt

ings are to be used with PolyTuff I and PolyTuff II.

³⁄₈6S[_S

dtight conduit fitting have ½ N.P.T. male threads.

¼ (6) F20259 —

³⁄₈ (9) P0389NBK P0389NGY

½ (13) P0509NBK P0509NGY

¾ (19) P0759NBK P0759NGY

1 (25) P1009NBK P1009NGY

1¼ (32) P1259NBK P1259NGY

Note: Fitt

ings are to be used with PolyTuff I and PolyTuff II.

³⁄₈6S[

uidtight conduit fitting have ½ N.P.T. male threads.

½ (13) 2 PS0509NG

Y, 6' G1050

PS05GYKIT

¾ (19) 2 PS0759NG

Y, 6' G1075

PS07GYKIT

tradeSELECT™

DECORATOR QUIET ROCKER SWITCHES

Smart Style, Good Looks.

Residential Decorator Switches and Receptacles provide more than solid, dependable function alone. Indeed,

they are fashion statements, masterfully complementing the look and feel of any room in any home.

A PERFECT MATCH

Residential decorator devices and wallplates

blend in beautifully with all kinds of wall

coverings.

EASY-ACTIVATE ROCKERS

Ideal for use in assisted-living

environments—or any

living environment.

FLUSH AND CONTEMPORARY

Sleek, smart and appealing, Residential

devices add beautiful, fashionable,

highly-styled devices to any home.

MINI-ROCKER SWITCHES

Take up less space and provide

full function.

SNAP-ON WALLPLATES

Snap-on wallplates offer a

clean, elegant look that

can be installed in seconds.

Almond Black Brown Gray Ivory White

Light Almond

Colour Selection

tradeSELECT™

F2 DECORATOR QUIET ROCKER SWITCHES

Single Pole Decorator Quiet Rocker Switches

Description Single Pole

Single Pole,

Illuminated*

Single Pole,

Pilot Light**

Single Pole

with ON/OFF Marking

Termination

Self-Grounding,

Push, Back and

Side Wire

Self-Grounding,

Push, Back and

Side Wire

Self-Grounding,

Push, Back and

Side Wire

Self-Grounding,

Push, Back and

Side Wire

Rating 15A 120-277V AC 15A 120V AC 15A 120V AC 15A 120-277V AC

Almond

Black

Brown

Gray

Ivory

Light Almond

White

RSD115AL

RSD115BK

RSD115

RSD115GY

RSD115I

RSD115LA

RSD115W

RSD115ILAL

—

RSD115ILI

RSD115ILLA

RSD115ILW

RSD115PLAL

—

RSD115PLI

RSD115PLLA

RSD115PLW

—

RSD115IM

RSD115LAM

RSD115WM

Note: * Light glows through the top portion of the rocker when switch is in the off position. Does not require a neutral wire.

** Light glows through the top portion of the rocker when switch is in the on position. Requires a neutral wire.

q Smooth, quiet rocker

q Self-grounding feature is standard

q Ultrasonically welded cover and base

q Operating temperature: -20C to 60C

q UL Listed E3896, CSA Certified

Double-Pole, Three Way and Four-Way Decorator Quiet Rocker Switches

Description Double-Pole Three Way

Three Way,

Illuminated* Four-Way

Termination

Self-Grounding,

Back and Side Wire

Self-Grounding,

Push, Back and

Side Wire

Self-Grounding,

Push, Back and

Side Wire

Self-Grounding,

Back and Side Wire

Rating 15A 120-277V AC 15A 120-277V AC 15A 120V AC 15A 120-277V AC

Almond

Black

Brown

Gray

Ivory

Light Almo

White

RSD215AL

RSD215BK

RSD215

RSD215GY

RSD215I

RSD215LA

RSD215W

RSD315AL

RSD315BK

RSD315

RSD315GY

RSD315I

RSD315LA

RSD315W

RSD315ILAL

—

RSD315ILI

RSD315ILLA

RSD315ILW

RSD415AL

RSD415BK

RSD415

RSD415GY

RSD415I

RSD415LA

RSD415W

Note: * Light glows through the top portion of the rocker when switch is in the off position. Does not require a neutral wire.

Single-Pole Decorator Switch Three-Way Decorator Switch

1.47" (37.3)

Grounding Screw

3.28"

(83.3)

2.77"

(70.4)

3.81"

(96.8)

Self-Grounding Clip

1.02" (25.9)

0.41" (10.4) Max.

1.47" (37.3)

Grounding Screw

3.28"

(83.3)

2.77"

(70.4)

3.81"

(96.8)

Self-Grounding Clip

1.02" (25.9)

0.41" (10.4) Max.

Product Dimensions

RSD115W

RSD115PLW

RSD115WM

FEATURES

RSD215W

tradeSELECT™

Hot

Neutral

3-Way Switch

Single-Pole

Hot

Neutral

Combination Quiet Rocker Switches/Devices

Description

Three (3)

Single Pole

Switches

Two (2)

Single Pole

Switches

Single Pole and

Three Way Switch

Single Pole Switch,

Tamper- Resistant,

2 Pole, 3 Wire,

Receptacle

Single Pole

Switch,

2 Pole, 3 Wire

Receptacle

Termination

Self-Grounding,

Side Wire

Self-Grounding,

Side Wire

Self-Grounding,

Side Wire

Self-Grounding,

Side Wire

Self-Grounding,

Side Wire

Rating

15A

120-277V AC

15A

120-277V AC

15A

120-277V AC

15A 120V (switch)

15A 125V (recept.)

NEMA 5-15R

15A 120V

15A 125V

NEMA 5-15R

Almond

Black

Gray

Ivory

Light Almo

White

RCD111AL

RCD111BK

—

RCD111I

RCD111LA

RCD111W

RCD101AL

RCD101BK

RCD101GY

RCD101I

RCD101LA

RCD101W

RCD103AL

RCD103BK

RCD103GY

RCD103I

RCD103LA

RCD103W

RCD108ALTR

RCD108BKTR

RCD108GYTR

RCD108ITR

RCD108LATR

RCD108WTR

RCD108AL

RCD108BK

RCD108GY

RCD108I

RCD108LA

RCD108W

q Low profile, less than 1 inch deep

q Self-grounding feature is standard

q Operating temperature: -20C to 60C.

q UL Listed E3896, CSA Certified.

Description

Two (2)

Three Way

Switches

Three Way Switch,

Tamper- Resistant,

2 Pole, 3 Wire,

Receptacle

Three Way

Switch,

2 Pole, 3 Wire

Receptacle

Single Pole Switch,

Pilot Light, Clear

Lens, Amber Neon

Bulb

Three Way

Switch,

Pilot Light, Clear

Lens, Amber

Neon Bulb

Termination

Self-Grounding,

Side Wire

Self-Grounding,

Side Wire

Self-Grounding,

Side Wire

Self-Grounding,

Side Wire

Self-Grounding,

Side Wire

Rating

15A

120-277V AC

15A 120V (switch)

15A 125V (recept.)

NEMA 5-15R

15A 120V (switch)

15A 125V (recept.)

NEMA 5-15R 15A 120V 15A 120V

Almond

Black

Gray

Ivory

Light Almond

White

RCD303AL

RCD303BK

RCD303GY

RCD303I

RCD303LA

RCD303W

RCD308ALTR

RCD308BKTR

RCD308GYTR

RCD308ITR

RCD308LATR

RCD308WTR

RCD308AL

RCD308BK

RCD308GY

RCD308I

RCD308LA

RCD308W

RCD109AL

—

RCD109I

RCD109LA

RCD109W

RCD309AL

—

RCD309I

RCD309LA

RCD309W

RCD111W

RCD108W

RCD101W

RCD109W

FEATURES

Pilot Light Wiring Diagram

COMBINATION QUIET

ROCKER SWITCHES/DEVICES

tradeSELECT™

RRD15SW

RRD15W

RRD15KW

RRD151W

Decorator Duplex Receptacles, 2 Pole, 3 Wire

Description

Weather and

Tamper- Resistant Tamper- Resistant Standard Standard

Termination

Self-Grounding,

Push and Side Wire

Self-Grounding,

Push and Side Wire

Self-Grounding,

Push and Side Wire Push and Side Wire

Rating

15A 125V

NEMA 5-15R

15A 125V

NEMA 5-15R

15A 125V

NEMA 5-15R

15A 125V

NEMA 5-15R

Almond

Black

Brown

Gray

Ivory

Light Almo

White

RRD15SALWRTR

RRD15SBKWRTR

RRD15SWRTR

RRD15SGYWRTR

RRD15SIWRTR

RRD15SLAWRTR

RRD15SWWRTR

RRD15SALTR

RRD15SBKTR

RRD15STR

RRD15SGYTR

RRD15SITR

RRD15SLATR

RRD15SWTR

RRD15SAL

RRD15SBK

RRD15S

RRD15SGY

RRD15SI

RRD15SLA

RRD15SW

RRD15AL

RRD15BK

RRD15

RRD15GY

RRD15I

RRD15LA

RRD15W

Description

Tamper- Resistant Standard

Tamper- Resistant,

Without Ears**

Standard,

Without Ears**

Termination

Self-Grounding,

Eight Push Wire

Holes Only #14 AWG

Self-Grounding,

Eight Push Wire

Holes Only #14 AWG

Self-Grounding,

Push and Side Wire

Self-Grounding,

Push and Side Wire

Rating

15A 125V

NEMA 5-15R

15A 125V

NEMA 5-15R

15A 125V

NEMA 5-15R

15A 125V

NEMA 5-15R

Almond

Black

Brown

Gray

Ivory

Light Almo

White

RRD15EALTR

RRD15EBKTR

RRD15ETR

RRD15EGYTR

RRD15EITR

RRD15ELATR

RRD15EWTR

RRD15EAL

RRD15EBK

RRD15E

RRD15EGY

RRD15EI

RRD15ELA

RRD15EW

RRD15KALTR

RRD15KBKTR

RRD15KTR

RRD15KGYTR

RRD15KITR

RRD15KLATR

RRD15KWTR

RRD15KAL

RRD15KBK

RRD15K

RRD15KGY

RRD15KI

RRD15KLA

RRD15KW

Note: ** 100 per case, bulk packed. Mounting screws inserted into strap.

Decorator Single Receptacles, 2 Pole, 3 Wire

Description Tamper- Resistant Standard Tamper- Resistant Standard

Termination

Self-Grounding,

Side Wire

Self-Grounding,

Side Wire

Self-Grounding,

Side Wire

Self-Grounding,

Side Wire

Rating

15A 125V

NEMA 5-15R

15A 125V

NEMA 5-15R

20A 125V

NEMA 5-20R

20A 125V

NEMA 5-20R

Almond

Black

Brown

Gray

Ivory

Light Almo

White

RRD151ALTR

RRD151BKTR

RRD151TR

RRD151GYTR

RRD151ITR

RRD151LATR

RRD151WTR

RRD151AL

RRD151BK

RRD151

RRD151GY

RRD151I

RRD151LA

RRD151W

RRD201ALTR

RRD201BKTR

RRD201TR

RRD201GYTR

RRD201ITR

RRD201LATR

RRD201WTR

RRD201AL

RRD201BK

RRD201

RRD201GY

RRD201I

RRD201LA

RRD201W

Description Standard Standard

Termination

Self-Grounding,

Side Wire

Self-Grounding,

Side Wire

Rating

15A 250V

NEMA 6-15R

20A 250V

NEMA 6-20R

Almond

Black

Brown

Gray

Ivory

Light Almo

White

RRD155AL

RRD155BK

RRD155

RRD155GY

RRD155I

RRD155LA

RRD155W

RRD205AL

RRD205BK

RRD205

RRD205GY

RRD205I

RRD205LA

RRD205W

RRD201W

WEATHER RESISTANT, TAMPER-RESISTANT

AND STANDARD RECEPTACLES

2.88"

(73.2)

4.63"

(117.6)

2.88"

(73.2)

4.63"

(117.6)

Snap-On Subplate Snap-On Cover Plate

Snaps

0.13"

(3.3)

0.13"

(3.3)

tradeSELECT™

Snap-On, Nylon, Two Piece Construction Wallplates

Colour

1-gang,

1-Decorator

2-gang,

2-Decorator

3-gang,

3-Decorator

4-gang,

4-Decorator

5-gang,

5-Decorator

6-gang,

6-Decorator

Almond

Ivory

Light Almo

White

RCW1AL

RCW1I

RCW1LA

RCW1W

RCW2AL

RCW2I

RCW2LA

RCW2W

RCW3AL

RCW3I

RCW3LA

RCW3W

RCW4AL

RCW4I

RCW4LA

RCW4W

RCW5AL

RCW5I

RCW5LA

RCW5W

RCW6AL

RCW6I

RCW6LA

RCW6W

Decorator, Standard, Nylon Wallplates

Colour

1-gang,

1-Decorator

2-gang,

2-Decorator

3-gang,

3-Decorator

4-gang,

4-Decorator

5-gang,

5-Decorator

6-gang,

6-Decorator

Almond

Black

Brown

Gray

Ivory

Light Almo

White

NP26AL

NP26BK

NP26

NP26GY

NP26I

NP26LA

NP26W

NP262AL

NP262BK

NP262

NP262GY

NP262I

NP262LA

NP262W

NP263AL

NP263BK

NP263

NP263GY

NP263I

NP263LA

NP263W

NP264AL

NP264BK

NP264

NP264GY

NP264I

NP264LA

NP264W

NP265AL

NP265BK

NP265

NP265GY

NP265I

NP265LA

NP265W

NP266AL

NP266BK

NP266

NP266GY

NP266I

NP266LA

NP266W

Decorator, Mid-Size, Nylon Wallplates

Colour

1-gang,

1-Decorator

2-gang,

2-Decorator

3-gang,

3-Decorator

4-gang,

4-Decorator

5-gang,

5-Decorator

6-gang,

6-Decorator

Almond

Black

Brown

Gray

Ivory

Light Almo

White

NPJ26AL

NPJ26BK

NPJ26

NPJ26GY

NPJ26I

NPJ26LA

NPJ26W

NPJ262AL

NPJ262BK

NPJ262

NPJ262GY

NPJ262I

NPJ262LA

NPJ262W

NPJ263AL

NPJ263BK

NPJ263

NPJ263GY

NPJ263I

NPJ263LA

NPJ263W

NPJ264AL

NPJ264BK

NPJ264

NPJ264GY

NPJ264I

NPJ264LA

NPJ264W

—

Decorator, Mid-Size, Metal Wallplates

Material

1-gang,

1-Decorator

2-gang,

2-Decorator

3-gang,

3-Decorator

4-gang,

4-Decorator

5-gang,

5-Decorator

6-gang,

6-Decorator

Brass

Brass Plat

Chrome

S/S 302/30

S/S 430

SB26

SBP26

SCH26

SS26

SS26L

SB262

SBP262

SCH262

SS262

SS262L

—

SBP263

—

SS263

—

SS264

—

SS265

—

SS266

—

A subplate is fastened to the device, then a screwless snap-on cover plate is affixed. Four snaps securely hold the

cover to the subplate.

SNAP-ON, NYLON

AND METAL WALLPLATES

A longer ³/8" screw makes

for an easier installation.

0.25"

(6.4)

Reinforcement ribs

provide extra strength.

2.88"

(73.2)

4.63"

(117.6)

3.13"

(79.5)

0.25"

(6.4)

4.88"

(124.0)

Standard Size Nylon Mid-Size Nylon

Captive

Screws

0.25"

(6.4)

Captive

Screws

Product Dimensions

tradeSELECT™

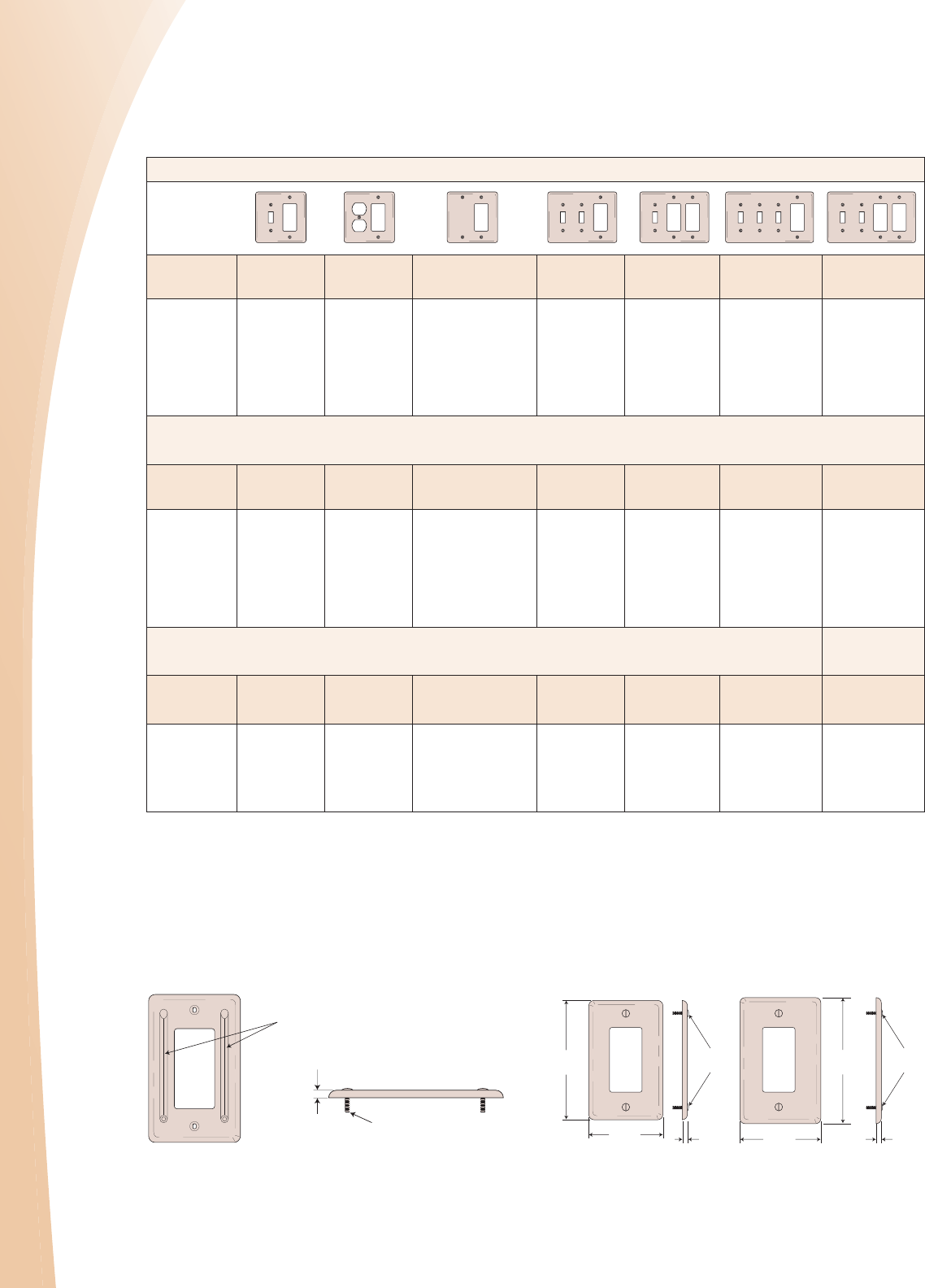

Combination, Nylon, Standard Wallplates

Colour

2-gang,

1-Toggle

1-Decorator

2-gang,

1-Duplex,

1-Decorator

2-gang,

1-Blank Box Mount

1-Decorator

3-gang,

2-Toggle

1-Decorator

3-gang,

1-Toggle

2-Decorator

4-gang,

3-Toggle

1-Decorator

4-gang,

2-Toggle

2-Decorator

Almond

Black

Brown

Gray

Ivory

Light Almond

White

NP126AL

NP126BK

NP126

NP126GY

NP126I

NP126LA

NP126W

NP826AL

NP826BK

NP826

NP826GY

NP826I

NP826LA

NP826W

NP1326AL

NP1326BK

NP1326

NP1326GY

NP1326I

NP1326LA

NP1326W

NP226AL

NP226BK

NP226

NP226GY

NP226I

NP226LA

NP226W

NP1262AL

NP1262BK

NP1262

NP1262GY

NP1262I

NP1262LA

NP1262W

NP326AL

NP326BK

NP326

NP326GY

NP326I

NP326LA

NP326W

NP2262AL

NP2262BK

NP2262

NP2262GY

NP2262I

NP2262LA

NP2262W

Combination, Nylon, Mid-Size Wallplates

Colour

2-gang,

1-Toggle

1-Decorator

2-gang,

1-Duplex,

1-Decorator

2-gang,

1-Blank Box Mount

1-Decorator

3-gang,

2-Toggle

1-Decorator

3-gang,

1-Toggle

2-Decorator

4-gang,

3-Toggle

1-Decorator

4-gang,

2-Toggle

2-Decorator

Almond

Black

Brown

Gray

Ivory

Light Almond

White

NPJ126AL

NPJ126BK

NPJ126

NPJ126GY

NPJ126I

NPJ126LA

NPJ126W

NPJ826AL

NPJ826BK

NPJ826

NPJ826GY

NPJ826I

NPJ826LA

NPJ826W

NPJ1326AL

—

NPJ1326

—

NPJ1326I

NPJ1326LA

NPJ1326W

NPJ226AL

NPJ226BK

NPJ226

NPJ226GY

NPJ226I

NPJ226LA

NPJ226W

—

Combination, Standard, Metal Wallplates

Material

2-gang,

1-Toggle

1-Decorator

2-gang,

1-Duplex,

1-Decorator

2-gang,

1-Blank Strap Mount

1-Decorator

3-gang,

2-Toggle

1-Decorator

3-gang,

1-Toggle

2-Decorator

4-gang,

3-Toggle

1-Decorator

4-gang,

2-Toggle

2-Decorator

Brass

Brass Plat

Chrome

SS 302/304

SS 430

SB126

SBP126

—

SS126

SS126L

SB826

—

SS826

—

SS1426

—

SS226

—

SS326

—

COMBINATION WALLPLATES

tradeSELECT™

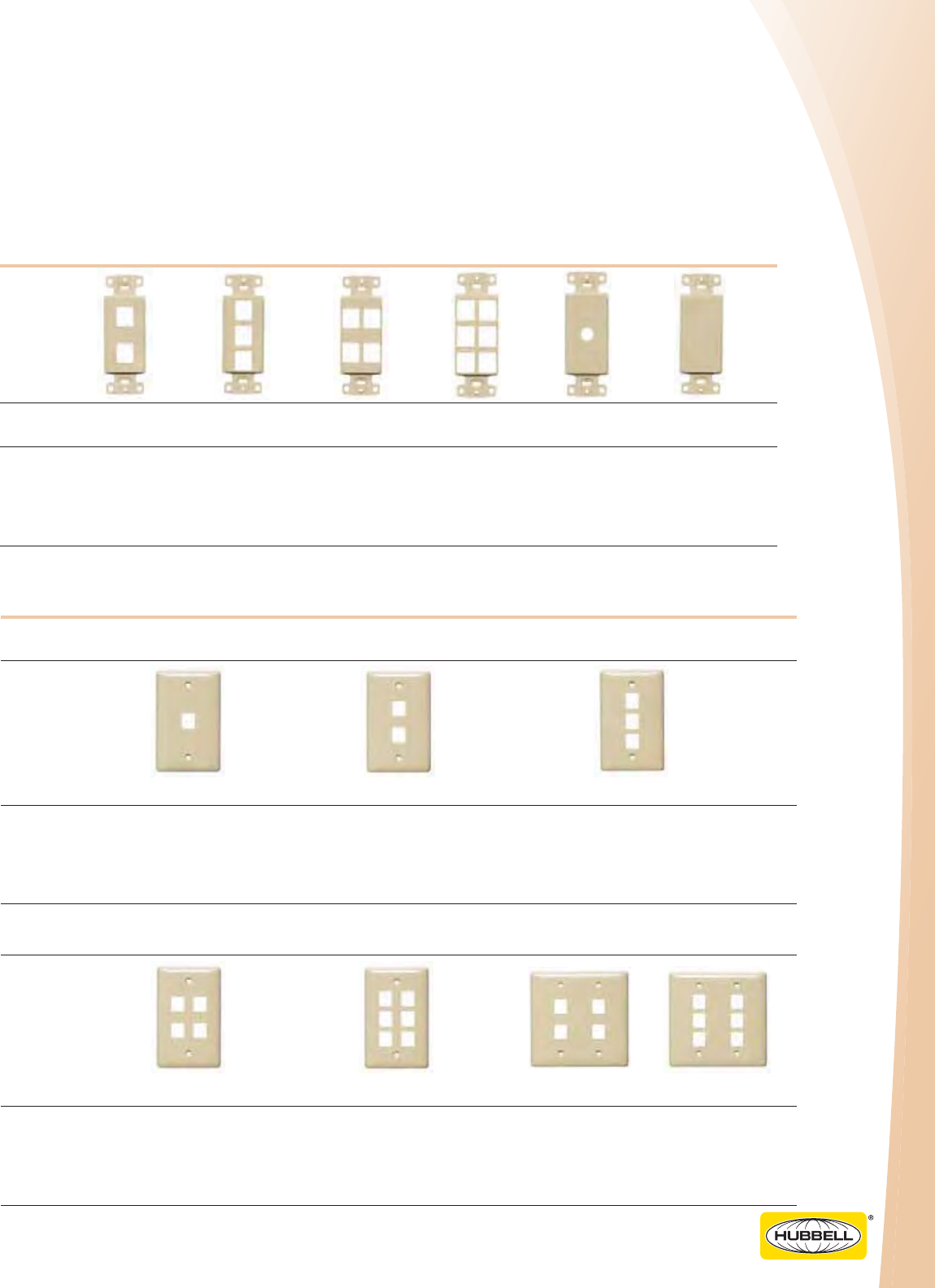

Decorator Frames

Colour

1-gang,

2-Port

1-gang,

3-Port

1-gang,

4-Port

1-gang,

6-Port

1-gang,

Adapter .406”

(10.30) Dia. Hole*

1-gang,

Adapter

Blank**

Almond

Black

Gray

Ivory

Light Almond

White

NS612AL

NS612BK

NS612GY

NS612I

NS612LA

NS612W

NS613AL

NS613BK

NS613GY

NS613I

NS613LA

NS613W

NS614AL

NS614BK

NS614GY

NS614I

NS614LA

NS614W

NS616AL

NS616BK

NS616GY

NS616I

NS616LA

NS616W

NS621AL

—

NS621I

NS621LA

NS621W

NS620AL

—

NS620I

NS620LA

NS620W

Note: * For use with rotary dimmers or to pull through AV or telephone cable.

** To fill an extra decorator opening or to create customized openings.

Decorator frames provide a stylized look for that

finishing touch. This allows all devices to match.

Multimedia jacks insert into frame for custom

configuration.

q Elongated strap for better wall box mounting.

q High impact-resistant thermoplastic frame.

q UL Listed 1863 - Communication Circuit

Accessory and CSA Certified.

Customize the jack

selections and look.

+ =

FEATURES

DECORATOR FRAMES

tradeSELECT™

netSELECT® Voice/Data Jacks and AV Connectors

allow custom creation of multimedia outlets and

workstations while maintaining a decorative look.

q Quick and secure snap-in design.

q Use with multimedia plates and decorator

frames(see pages F-7 and F-35).

q UL Listed and CSA Certified, or cULus Listed

1863 - Communication Circuit Accessory.

Molded-In Voice/Low-Speed Data

Description

Modular Snap Fit

Cat. 6 Jack

Modular Snap Fit

Cat. 5e Jack

Modular Snap Fit

USOC Jack

Colour

Almond

Black

Blue

Gray

Green

Ivory

Light Almo

Orange

Red

White

Yellow

NSJ6AL

NSJ6BK

NSJ6B

NSJ6GY

NSJ6GN

NSJ6I

NSJ6LA

NSJ6OR

NSJ6R

NSJ6W

NSJ6Y

NSJ5EAL

NSJ5EBK

NSJ5EB

NSJ5EGY

NSJ5EGN

NSJ5EI

NSJ5ELA

NSJ5EOR

NSJ5ER

NSJ5EW

NSJ5EY

NSJUAL

NSJUBK

NSJUB

NSJUGY

NSJUGN

NSJUI

NSJULA

NSJUOR

NSJUR

NSJUW

NSJUY

Audio/Video Connectors - Standard Bulkhead

Description

Gold F-Type

Coupler

Bulkhead,

Female to

Female

Nickel F-Type

Coupler

Bulkhead,

Female to

Female

RCA Gold Pass

Through,

Female to

Female,

Red Interior

RCA Gold Pass

Through,

Female to

Female,

White Interior

RCA Gold Pass

Through,

Female to

Female,

Yellow Interior

RCA Gold Pass

Through,

Female to

Female,

Blue Interior

RCA Gold Pass

Through,

Female to

Female,

Green Interior

Colour

Almond

Black

Gray

Ivory

Light Almo

White

SFFGAL

SFFGBK

SFFGGY

SFFGEI

SFFGLA

SFFGW

NSF70AL

NSF70BK

NSF70GY

NSF70I

NSF70LA

NSF70W

SFRCRFFAL

SFRCRFFBK

SFRCRFFGY

SFRCRFFEI

SFRCRFFLA

SFRCRFFW

SFRCWFFAL

SFRCWFFBK

SFRCWFFGY

SFRCWFFEI

SFRCWFFLA

SFRCWFFW

SFRCYFFAL

SFRCYFFBK

SFRCYFFGY

SFRCYFFEI

SFRCYFFLA

SFRCYFFW

SFRCBFFAL

SFRCBFFBK

SFRCBFFGY

SFRCBFFEI

SFRCBFFLA

SFRCBFFW

SFRCGNFFAL

SFRCGNFFBK

SFRCGNFFGY

SFRCGNFFEI

SFRCGNFFLA

SFRCGNFFW

Audio/Video Connectors - Recessed

Description

Gold F-Type

Coupler

Bulkhead,

Female to

Female

RCA Gold Pass

Through,

Female to

Female,

Red Interior

RCA Gold Pass

Through,

Female to

Female,

White Interior

RCA Gold Pass

Through,

Female to

Female,

Yellow Interior

RCA Gold Pass

Through,

Female to

Female,

Blue Interior

RCA Gold Pass

Through,

Female to

Female,

Green Interior

Colour

Almond

Black

Gray

Ivory

Light Almond

White

SFGRFAL

SFGRFBK

SFGRFGY

SFGRFEI

SFGRFLA

SFGRFW

SFRCRRAL

SFRCRRBK

SFRCRRGY

SFRCRREI

SFRCRRLA

SFRCRRW

SFRCWRAL

SFRCWRBK

SFRCWRGY

SFRCWREI

SFRCWRLA

SFRCWRW

SFRCYRAL

SFRCYRBK

SFRCYRGY

SFRCYREI

SFRCYRLA

SFRCYRW

SFRCBRAL

SFRCBRBK

SFRCBRGY

SFRCBREI

SFRCBRLA

SFRCBRW

SFRCGNRAL

SFRCGNRBK

SFRCGNRGY

SFRCGNREI

SFRCGNRLA

SFRCGNRW

FEATURES

MODULAR SNAP FIT JACKS

tradeSELECT™

Molded-In Voice/Low-Speed Data

Description

Decorator Frame,

One RJ11 Jack,

6-Position,

4-Conductor

Decorator Frame,

One RJ11 Jack,

6-Position,

6-Conductor

Decorator Frame,

Duplex RJ11 Jacks,

6-Position,

6-Conductor

Decorator Frame,

One Cat. 5e

110 Punch-Down,

One RJ11 Jack,

6-Position, 4-Conductor

Termination Screw Terminations Screw Terminations Screw Terminations Screw Terminations

Colour

Almond

Black

Brown

Gray

Ivory

Light Almond

White

NS770AL

NS770BK

NS770

NS770GY

NS770I

NS770LA

NS770W

NS771AL

—

NS771

—

NS771I

NS771LA

NS771W

NS772AL

—

NS772I

NS772LA

NS772W

NS784AL

NS784BK

NS784

NS784GY

NS784I

NS784LA

NS784W

Molded-In Voice/Low-Speed Data

Description

Decorator Frame,

Single F-Type

Coupler Bulkhead,

Female to Female

Decorator Frame,

Duplex F-Type

Coupler Bulkhead,

Female to Female

Decorator Frame,

One RJ11 Jack,

6-Position, 4-Conductor,

One F-Type

Coupler Bulkhead,

Female to Female

Decorator Frame,

One Cat. 5e

110 Punch-Down,

One F-Type

Coupler Bulkhead,

Female to Female

Termination Screw Terminations Screw Terminations Screw Terminations Screw Terminations

Colour

Almond

Black

Brown

Gray

Ivory

Light Almond

White

NS780AL

—

NS780I

NS780LA

NS780W

NS782AL

—

NS782I

NS782LA

NS782W

NS783AL

—

NS783I

NS783LA

NS783W

NS785AL

NS785BK

NS785

NS785GY

NS785I

NS785LA

NS785W

Designed to complement decorator styling,

these jacks offer voice and Cat. 5e devices

to fit within a decorator wallplate.

q High impact-resistant thermoplastic frame.

q Meets FCC part 68.

q UL Listed 1863 - Communication

Circuit Accessory and CSA Certified.

Coaxial video and combination jacks complement

multimedia needs in a 1-gang decorator opening.

q High impact-resistant thermoplastic frame.

q Jacks meet FCC part 68.

q UL Listed 1863 - Communication

Circuit Accessory and CSA Certified.

FEATURES

MOLDED-IN VOICE/DATA/VIDEO

tradeSELECT™

F10

UL Listed and CSA Certified

Multiple-drive Slot/Phillips/

Robertson head screws

Hi-visibility yellow base for easy

installation in low light working

conditions

Elongated strap with

continuous plaster ears

to fit device flush to

the wall surface

Quiet snap action

mechanism

Tough thermoplastic

ultrasonically welded

cover and base

Standard toggle switches provide the basic on/off

control for home lighting and appliances.

q Tough thermoplastic with ultrasonically welded

cover and base.

q Elongated strap for easier wall box mounting.

q Hi-visibility yellow base for easy installation.

q Operating temperature: -20C to 60C.

q UL Listed E3896, CSA Certified.

FEATURES

UL Listed and CSA Certified

Low profile, less than 1 inch

allows for maximum wiring

room in the box

Multiple-drive Slot/Phillips/

Robertson head screws

Hi-visibility yellow base for easy

installation in low light working

conditions

Self-grounding tab is standard

Quiet snap action mechanism

Combination devices provide

compact switches in a single-

gang opening

Elongated strap with

continuous plaster ears to fit

device flush to the wall surface

Mini-toggles provide for multiple switches in a

compact single gang. Maximize control while

maintaining function and appearance.

q Low profile, less than 1 inch.

q Self-grounding feature is standard.

q Smooth toggle action.

q Operating temperature: -20C to 60C.

q UL Listed, CSA Certified.

TOGGLE SWITCHES AND

COMBINATION SWITCHES/DEVICES

tradeSELECT™

F11

Single Pole Toggle Switches

Description Single Pole

Single Pole,

Without Ears* Single Pole

Single Pole,

Illuminated**

Termination

Grounding,

Push and

Side Wire

Grounding,

Push and

Side Wire

Self-Grounding,

Push and

Side Wire

Self-Grounding,

Push and

Side Wire

Rating 15A 120V AC 15A 120V AC 15A 120V AC 15A 120V AC

Colour

Clear

Almond

Black

Brown

Ivory

Light Almo

White

—

RS115AL

RS115BK

RS115

RS115I

RS115LA

RS115W

—

RS115KAL

—

RS115KI

RS115KLA

RS115KW

—

RS115SAL

—

RS115S

RS115SI

RS115SLA

RS115SW

RS115ILC

RS115ILAL

—

RS115ILI

RS115ILLA

RS115ILW

Note: * 100 per case, bulk packed. Mounting screws inserted into strap.

** Frame is clear and illuminates, toggle is coloured. Does not require a neutral wire.

Three- and Four-Way Toggle Switches

Description Three Way

Three Way,

Without Ears* Three Way

Three Way,

Illuminated** Four-Way

Termination

Grounding,

Push and

Side Wire

Self-Grounding,

Push and

Side Wire

Self-Grounding,

Push and

Side Wire

Self-Grounding,

Push and

Side Wire

Self-Grounding,

Side Wire

Rating 15A 120V AC 15A 120V AC 15A 120V AC 15A 120V AC 15A 120V AC

Colour

Clear

Almond

Black

Brown

Ivory

Light Almond

White

—

RS315AL

RS315BK

RS315

RS315I

RS315LA

RS315W

—

RS315KAL

—

RS315KI

RS315KLA

RS315KW

—

RS315SAL

—

RS315S

RS315SI

RS315SLA

RS315SW

RS315ILC

RS315ILAL

—

RS315ILI

RS315ILLA

RS315ILW

—

RS415AL

RS415BK

RS415

RS415I

RS415LA

RS415W

Note: * 100 per case, bulk packed. Mounting screws inserted into strap.

** Frame is clear and illuminates, toggle is coloured. Does not require a neutral wire.

TOGGLE SWITCHES

tradeSELECT™

F12

Combination Toggle Switches/Devices

Description

Two (2)

Single Pole Switches

Single Pole Switch,

Tamper- Resistant,

2 Pole, 3 Wire,

Receptacle

Single Pole Switch,

2 Pole, 3 Wire,

Receptacle

Single Pole Switch,

Pilot Light, Clear

Lens,

Amber Neon Bulb**

Termination

Self-Grounding,

Side Wire

Self-Grounding,

Side Wire

Self-Grounding,

Side Wire

Self-Grounding,

Side Wire

Rating 15A 120V AC 15A 120V (switch)

15A 125V (recept.)

NEMA 5-15R

15A 120V (switch)

15A 125V (recept.)

NEMA 5-15R

15A 120V AC

Colour

Almond

Brown

Ivory

Light Almond

White

RC101AL

RC101

RC101I

RC101LA

RC101W

RC108ALTR

RC108TR

RC108ITR

RC108LATR

RC108WTR

RC108AL

RC108

RC108I

RC108LA

RC108W

RC109AL

RC109

RC109I

RC109LA

RC109W

Note:** Neutral required for pilot light.

Combination Toggle Switches/Devices

Description

Single Pole and

Three Way Switch

Two (2) Three Way

Switches

Three Way Switch,

Tamper- Resistant,

2 Pole, 3 Wire,

Receptacle

Three Way Switch,

2 Pole, 3 Wire,

Receptacle

Three Way Switch,

Pilot Light, Clear

Lens,

Amber Neon Bulb**

Termination

Self-Grounding,

Side Wire

Self-Grounding,

Side Wire

Self-Grounding,

Side Wire

Self-Grounding,

Side Wire

Self-Grounding,

Side Wire

Rating 15A 120V AC 15A 120V AC

15A 120V (switch)

15A 125V (recept.)

NEMA 5-15R

15A 120V (switch)

15A 125V (recept.)

NEMA 5-15R 15A 120V AC

Colour

Almond

Brown

Ivory

Light Almond

White

RC103AL

RC103

RC103I

RC103LA

RC103W

RC303AL

RC303

RC303I

RC303LA

RC303W

RC308ALTR

RC308TR

RC308ITR

—

RC308WTR

RC308AL

RC308

RC308I

—

RC308W

RC309AL

RC309

RC309I

—

RC309W

Note: ** Neutral required for pilot light.

COMBINATION SWITCHES/DEVICES

tradeSELECT™

F13

Provides branch circuit convenience power in

duplex and single configurations.

q Smooth indented face appearance.

q Terminal screws accepts up to #12 AWG.

q Duplex ultrasonically welded.

q Push wire designed for #14 AWG solid

copper wire only.

q Operating temperature: -20C to 60C.

q UL Listed E2186, CSA Certified.

Duplex Quick Thread Receptacles, 2-Pole, 3 Wire

Description

Tamper- Resistant,

Quick Thread

Standard,

Quick Thread

Tamper- Resistant,

Quick Thread

Standard,

Quick Thread

Termination

Self-Grounding,

Push and

Side Wire

Self-Grounding,

Push and

Side Wire

Eight Push Wire

Holes Only

#14 AWG

Eight Push Wire

Holes Only

#14 AWG

Rating

15A 125V

NEMA 5-15R

15A 125V

NEMA 5-15R

15A 125V

NEMA 5-15R

15A 125V

NEMA 5-15R

Almond

Black

Brown

Ivory

Light Almo

White

RR15QALTR

RR15QBKTR

RR15QTR

RR15QITR

RR15QLATR

RR15QWTR

RR15QAL

RR15QBK

RR15Q

RR15QI

RR15QLA

RR15QW

RR15EQALTR

RR15EQBKTR

RR15EQTR

RR15EQITR

RR15EQLATR

RR15EQWTR

RR15EQAL

RR15EQBK

RR15EQ

RR15EQI

RR15EQLA

RR15EQW

QUICK AND EASY DOES IT.

Residential exclusive oQuick Thread” makes installation of wallplates and receptacles quicker and easier.

Elongated strap with continuous plaster ears to secure device

New face design provides smooth appearance to complement

interiors and the convenience of finder grooves

Multiple-drive Slot/Phillips/Robertson head screws

Push wire osure hold” termination for extra holding power

Tough thermoplastic ultrasonically welded cover and base

ONE PUSH FOR A SNUG FIT

Just push in the screw and turn.

HOW oQUICK THREAD” WORKS

A stainless steel spring grabs

the threads and locks the screw

in place. oQuick Thread” works

with any wallplate screw

Just push the screw in with

a screwdriver

RR15QW

DUPLEX QUICK THREAD RECEPTACLES

tradeSELECT™

F14

Duplex Receptacles, 2 Pole, 3 Wire

Description Standard

Weather and

Tamper- Resistant Tamper- Resistant Standard

Termination

Grounding,

Push and

Side Wire

Self-Grounding,

Push and

Side Wire

Self-Grounding,

Push and

Side Wire

Self-Grounding,

Push and

Side Wire

Rating

15A 125V

NEMA 5-15R

15A 125V

NEMA 5-15R

15A 125V

NEMA 5-15R

15A 125V

NEMA 5-15R

Almond

Black

Brown

Ivory

Light Almond

White

RR15AL

RR15BK

RR15

RR15I

RR15LA

RR15W

RR15SALWRTR

RR15SBKWRTR

RR15SWRTR

RR15SIWRTR

RR15SLAWRTR

RR15SWWRTR

RR15SALTR

RR15SBKTR

RR15STR

RR15SITR

RR15SLATR

RR15SWTR

RR15SAL

RR15SBK

RR15S

RR15SI

RR15SLA

RR15SW

Description

Tamper- Resistant,

Without Ears

Standard,

Without Ears

Tamper- Resistant,

Without Ears**

Standard,

Without Ears**

Termination

Eight Push Wire

Holes Only

#14 AWG

Eight Push Wire

Holes Only

#14 AWG

Eight Push Wire

Holes Only

#14 AWG

Eight Push Wire

Holes Only

#14 AWG

Rating

15A 125V

NEMA 5-15R

15A 125V

NEMA 5-15R

15A 125V

NEMA 5-15R

15A 125V

NEMA 5-15R

Almond

Black

Brown

Gray

Ivory

Light Almond

White

RR15EALTR

RR15EBKTR

RR15ETR

RR15EGYTR

RR15EITR

RR15ELATR

RR15EWTR

RR15EAL

RR15EBK

RR15E

RR15EGY

RR15EI

RR15ELA

RR15EW

RR15KALTR

—

RR15KTR

—

RR15KITR

RR15KLATR

RR15KWTR

RR15KAL

—

RR15K

—

RR15KI

RR15KLA

RR15KW

Single Receptacles, 2 Pole, 3 Wire

Description

Weather and

Tamper-Resistant Tamper-Resistant Standard Weather Resistant Standard

Termination

Self-Grounding,

Side Wire

Self-Grounding,

Side Wire

Self-Grounding,

Side Wire

Self-Grounding,

Side Wire

Self-Grounding,

Side Wire

Rating

15A 125V

NEMA 5-15R

15A 125V

NEMA 5-15R

15A 125V

NEMA 5-15R

15A 250V

NEMA 6-15R

15A 250V

NEMA 6-15R

Almond

Black

Brown

Gray

Ivory

Light Almond

White

RR151ALWRTR

RR151BKWRTR

RR151WRTR

RR151GYWRTR

RR151IWRTR

RR151LAWRTR

RR151WWRTR

RR151ALTR

RR151BKTR

RR151TR

RR151GYTR

RR151ITR

RR151LATR

RR151WTR

RR151AL

RR151BK

RR151

RR151GY

RR151I

RR151LA

RR151W

RR155ALWR

RR155BKWR

RR155WR

RR155GYWR

RR155IWR

RR155LAWR

RR155WWR

RR155AL

RR155BK

RR155

RR155GY

RR155I

RR155LA

RR155W

Description

Weather and

Tamper-Resistant Tamper-Resistant Standard Weather Resistant Standard

Termination

Self-Grounding,

Side Wire

Self-Grounding,

Side Wire

Self-Grounding,

Side Wire

Self-Grounding,

Side Wire

Self-Grounding,

Side Wire

Rating

20A 125V

NEMA 5-20R

20A 125V

NEMA 5-20R

20A 125V

NEMA 5-20R

20A 250V

NEMA 6-20R

20A 250V

NEMA 6-20R

Almond

Black

Brown

Gray

Ivory

Light Almond

White

RR201ALWRTR

RR201BKWRTR

RR201WRTR

RR201GYWRTR

RR201IWRTR

RR201LAWRTR

RR201WWRTR

RR201ALTR

RR201BKTR

RR201TR

RR201GYTR

RR201ITR

RR201LATR

RR201WTR

RR201AL

RR201BK

RR201

RR201GY

RR201I

RR201LA

RR201W

RR205ALWR

RR205BKWR

RR205WR

RR205GYWR

RR205IWR

RR205LAWR

RR205WWR

RR205AL

RR205BK

RR205

RR205GY

RR205I

RR205LA

RR205W

Note: ** 100 per case, bulk packed. Mounting screws inserted into strap.

RR15W

RR15KW

RR151W

RR201W

DUPLEX AND SINGLE RECEPTACLES

tradeSELECT™

F15

SAFETY AND ECONOMY.

GFCI Duplex Receptacles, Flush Nylon Face, Matching Nylon Wallplate Included

Description

Tamper-Resistant

Weather Resistant

Tamper-Resistant

Weather Resistant Standard Standard

Termination

Self-Grounding,

Back and Side Wire

Self-Grounding,

Back and Side Wire

Self-Grounding,

Back and Side Wire

Self-Grounding,

Back and Side Wire

Rating

15A 125V AC

NEMA 5-15R

20A 125V AC

NEMA 5-20R

15A 125V AC

NEMA 5-15R

20A 125V AC

NEMA 5-20R

Almond

Black

Brown

Gray

Ivory

Light Almond

Red

White

GFTR15AL

GFTR15BK

GFTR15

GFTR15GY

GFTR15I

GFTR15LA

GFTR15R

GFTR15W

GFTR20AL

GFTR20BK

GFTR20

GFTR20GY

GFTR20I

GFTR20LA

GFTR20R

GFTR20W

GF15ALLA

GF15BKLA

GF15LA

GF15GYLA

GF15ILA

GF15LALA

GF15RLA

GF15WLA

GF20ALLA

GF20BKLA

GF20LA

GF20GYLA

GF20ILA

GF20LALA

GF20RLA

GF20WLA

GFCI Duplex Receptacles, Flush Nylon Face, Matching Nylon Wallplate Included

Description

Circuit Guard®

Faceless

Termination

Self-Grounding,

Back and Side Wire

Rating

20A 125V

NEMA 5-20R

Almond

Black

Brown

Gray

Ivory

Light Almond

Red

White

GFBF20ALLA

GFBF20BKLA

GFBF20LA

GFBF20GYLA

GFBF20ILA

GFBF20LALA

GFBF20RLA

GFBF20WLA

GF15ILA

Meets UL Standard 943

Class A GFCI

10kA Short Circuit Current Rating

Comprehensive diagnostics

q When test button is actuated, both the

electronic components and mechanical

trip mechanism are functionally tested

Ground fault indicator

q Flashing RED indicates device has lost

capability to provide protection

No power at face if reverse wired

q Open circuit condition eliminates false

assumption of protection at face

Installation ease

q Internal back wiring

q Automatic grounding feature

q Captive mounting screws

GF15ILA

GFBF20ILA

GFTR20I

15A 125V

NEMA 5-15R

UL/CSA

20A 125V

NEMA 5-20R

UL/CSA

GFCI RECEPTACLES

tradeSELECT™

F16

Range and Dryer Power Receptacles

Description

30A 125/250V

NEMA 14-30R

UL/CSA

Flush Mount for

4 " Sq. Box

Flush Mount for

4 " Sq. Box

30A 125/250

NEMA 14-30R

UL/CSA

Flush Mount

for 1 or 2-gang box

50A 125/250V

NEMA 14-50R

UL/CSA

Flush Mount

for 1 or 2-gang box

30A 125/250V

NEMA 10-30R

UL/CSA

Flush Mount

for 1 or 2-gang box

50A 125/250V

NEMA 10-50R

UL/CSA

Flush Mount

for 1 or 2-gang box

Rating

30A 125/250V

3 Pole, 4 Wire,

with Ground,

Integrated

Wallplate Cover

50A 125/250V

3 Pole, 4 Wire,

with Ground,

Integrated

Wallplate Cover

30A 125/250V

3 Pole, 4 Wire

with Ground

50A 125/250V

3 Pole, 4 Wire

with Ground

30A 125/250V

3 Pole, 3 Wire

without Ground

50A 125/250V

3 Pole, 3 Wire

without Ground

Black

White

RR430WIPCN RR450WIPCN

RR430F

RR430FW

RR450F

RR450FW

RR330F*

—

RR350F*

—

Description Surface Mount Surface Mount Surface Mount Surface Mount

Rating

30A 125/250V

3 Pole, 4 Wire

with Ground

50A 125/250V

3 Pole, 4 Wire

with Ground

30A 125/250V

3 Pole, 3 Wire

without Ground

50A 125/250V

3 Pole, 3 Wire

without Ground

Black

RR430 RR450 RR330* RR350*

Description Panel Mount Panel Mount

Rating

30A 125/250V

3 Pole, 4 Wire

with Ground

50A 125/250V

3 Pole, 4 Wire

with Ground

Black

White

RR430PM

—

RR450PM

—

Note: * For replacement use only.

NP703W

RR435P

RR450

RR430PM

RR430FW

NP724W

Wallplates, Surface Mount, 2.15" Diameter Single Hole

1-gang

Standard 1-gang

Mid size 2-gang

Standard 2-gang

Mid size

Ivory

White

Chrome

Stainless Steel

NP724I

NP724W

SCH723

SS723

NPJ724I

NPJ724W

—

NP703I

NP703W

—

SS703

NPJ703I

NPJ703W

—

Range and Dryer Power Angled Plugs

Description

30A 125/250V

NEMA 14-30R

UL/CSA

50A 125/250V

NEMA 14-50R

UL/CSA

With Interchangeable Blades

for 30 or 50 Amp

30A 125/250V

NEMA 10-30R

UL/CSA

50A 125/250V

NEMA 10-50R

UL/CSA

With Interchangeable Blades

for 30 or 50 Amp

Rating

30/50A 125/250V

3 Pole, 4 Wire

with Ground

30/50A 125/250V

3 Pole, 4 Wire

without Ground

Black

RR435P RR335P

RR430WIPCN

50A 125/250V

NEMA 14-50R

UL/CSA

RANGE AND DRYER POWER

RECEPTACLES AND PLUGS

RDS50

RS100W

RS101W

RJ600

RJ650BK

RR151CHW

tradeSELECT™

F17

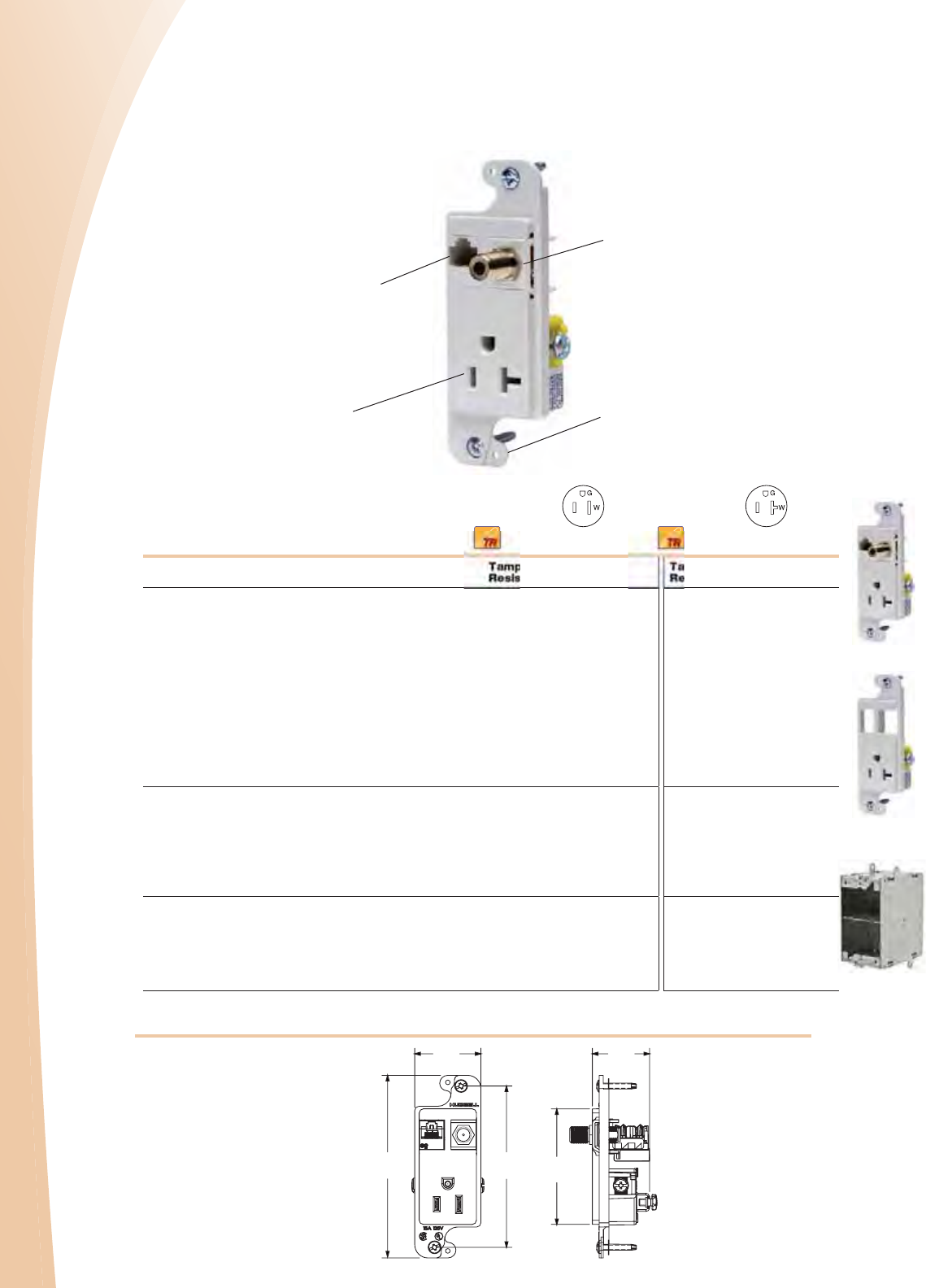

Special Use Products

Description Colour

Tamper

Resistant Standard

Tamper

Resistant Standard

Clock Hanger/Recessed Receptacle,

2 Pole, 3 Wire, Grounding, Side

Wire Terminations

Brass

Stainless

Steel

Ivory (Nylon)

White (Nylon)

RR151CHBSTR

RR151CHSSTR

RR151CHITR

RR151CHWTR

RR151CHBS

RR151CHSS

RR151CHI

RR151CHW

RR201CHBSTR

RR201CHSSTR

RR201CHITR

RR201CHWTR

RR201CHBS

RR201CHSS

RR201CHI

RR201CHW

JLOAD® Multimedia Outlet

Provides power, Cat. 5e and

coaxial in a single gang box.

Requires RJ600 Box. Includes

decorator frame, one Cat. 5e,

one F-connector and one power

receptacle 125V

with voltage divider.

Almond

Black

Gray

Ivory

Light Almond

White

RJ650ALTR

RJ650BKTR

RJ650GYTR

RJ650ITR

RJ650LATR

RJ650WTR

RJ650AL

RJ650BK

RJ650GY

RJ650I

RJ650LA

RJ650W

RJ620ALTR

RJ620BKTR

RJ620GYTR

RJ620ITR

RJ620LATR

RJ620WTR

RJ620AL

RJ620BK

RJ620GY

RJ620I

RJ620LA

RJ620W

JLOAD® Multimedia Outlet

Includes decorator frame with

two open ports for custom

configuration and one power

receptacle 125V with voltage

divider.

Almond

Black

Gray

Ivory

Light Almond

White

RJ65ALTR

RJ65BKTR

RJ65GYTR

RJ65ITR

RJ65LATR

RJ65WTR

RJ65AL

RJ65BK

RJ65GY

RJ65I

RJ65LA

RJ65W

RJ62ALTR

RJ62BKTR

RJ62GYTR

RJ62ITR

RJ62LATR

RJ62WTR

RJ62AL

RJ62BK

RJ62GY

RJ62I

RJ62LA

RJ62W

JLOAD® Multimedia Box

3 inches deep with seven

½-inch knockouts, non-metallic

sheathed cable clamps on each

side. Screw in mounting to stud.

Steel

RJ600 RJ600 RJ600 RJ600

Note: See pages 'UP' for floor and under cabinet box options.

15A 125V

NEMA 5-15R

UL/CSA

20A 125V

NEMA 5-20R

UL/CSA

Door Switch with Cover Plate and Box

Description “ON” when Door is Open “OFF” when Door is Open

Rating 3A 125V AC 3A 125V AC

Zinc Plated Steel

RDS50** RDS30**

Note: ** Not UL Listed.

In-Line Cord Switches

Description

Mini For Use with Flat Lamp

Cord Heavy Duty

Rating 6A 125V AC 6A 125V AC

1ä6 HP

Wire #18 AWG

SPT 1 and SPT 2

#18 to #16 AWG

SPT 1 and SPT 2

Ivory

White

—

RS100W

RS101I

RS101W

1.50"

(3.81)

1.34"

(3.40)

0.35"

(0.89)

4.00"

(10.16)

3.13"

(7.95)

½" K.O.

0.87"

(2.21)

0.08"

(0.20)

1.76"

(4.47)

0.07"

(0.18)

2.67"

(6.78)

Product Dimensions

SPECIAL USE PRODUCTS

tradeSELECT™

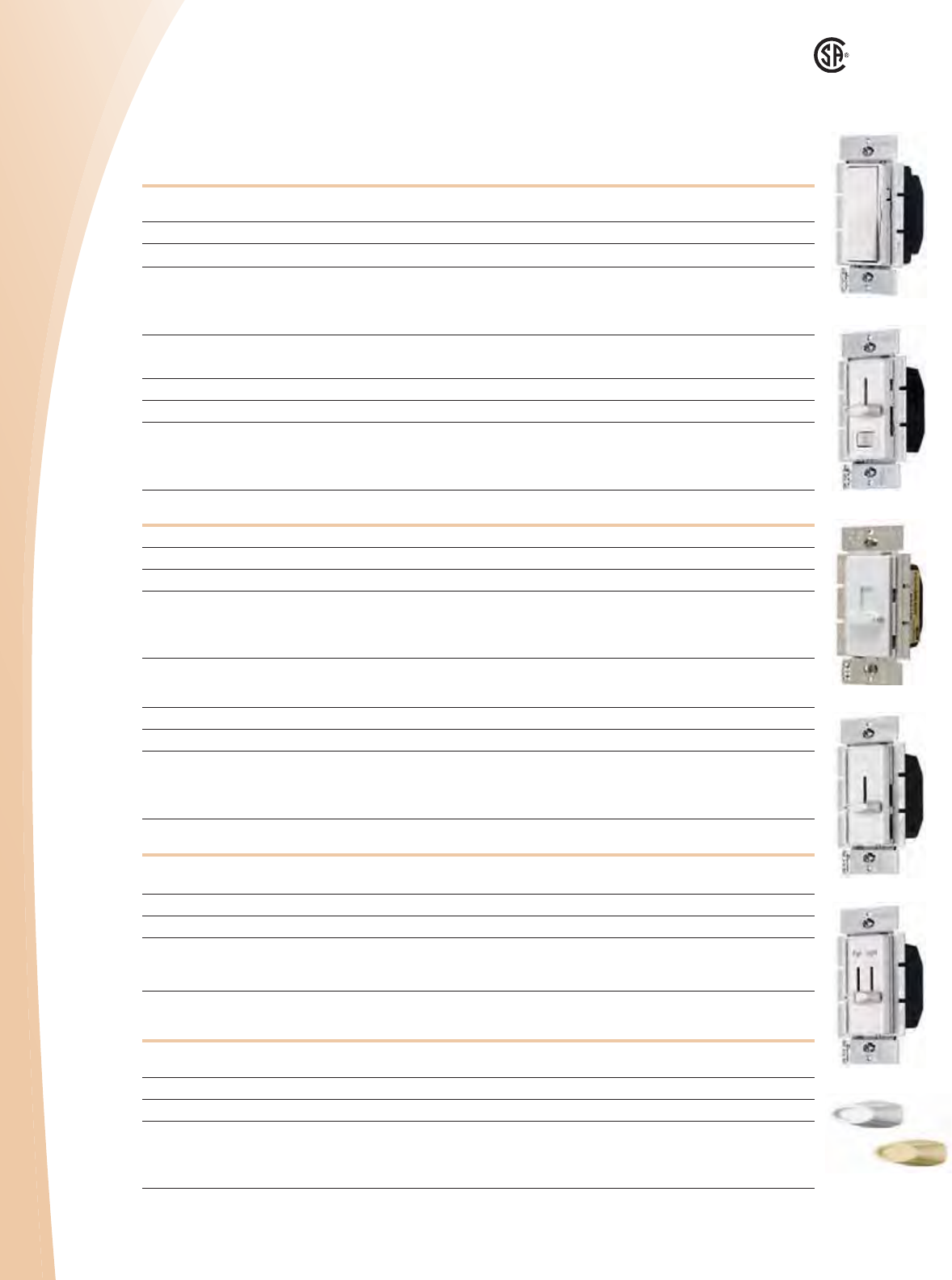

F18 DIMMERS AND FAN SPEED CONTROLS

RDV600PW

Rocker Decorator Dimmers, Preset with Night Light

Description

Side Slide Adjustment,

Incandescent

Side Slide Adjustment,

Incandescent

Side Slide Adjustment,

Incandescent

Side Slide Adjustment,

Incandescent

Termination Single Pole Three Way Single Pole Three Way

Rating 1000W 120V AC 1000W 120V AC 600W 120V AC 600W 120V AC

Almond

Ivory

Light Almond

White

RDV10PAL

RDV10PI

RDV10PLA

RDV10PW

RDV103PAL

RDV103PI

RDV103PLA

RDV103PW

RDV600PAL

RDV600PI

RDV600PLA

RDV600PW

RDV603PAL

RDV603PI

RDV603PLA

RDV603PW

Description Magnetic Low Voltage Magnetic Low Voltage Electronic Low Voltage

Electronic Low Voltage

Requires Neutral

Termination Single Pole Three Way Single Pole Three Way

Rating 600VA (450W) 120V AC 600VA (450W) 120V AC 300W 120V AC 300W 120V AC

Almond

Ivory

Light Almond

White

RDVLV600PAL

RDVLV600PI

RDVLV600PLA

RDVLV600PW

RDVLV603PAL

RDVLV603PI

RDVLV603PLA

RDVLV603PW

RDVELV300PAL

RDVELV300PI

RDVELV300PLA

RDVELV300PW

RDVELV303PAL

RDVELV303PI

RDVELV303PLA

RDVELV303PW

Slide Dimmers, Preset with On/Off Switch

Description Incandescent Incandescent Incandescent Incandescent

Termination Single Pole Three Way Single Pole Three Way

Rating 1000W 120V AC 1000W 120V AC 600W 120V AC 600W 120V AC

Almond

Ivory

Light Almond

White

RS10PAL

RS10PI

RS10PLA

RS10PW

RS103PAL

RS103PI

RS103PLA

RS103PW

RS600PAL

RS600PI

RS600PLA

RS600PW

RS603PAL

RS603PI

RS603PLA

RS603PW

Description Magnetic Low Voltage Magnetic Low Voltage Electronic Low Voltage

Electronic Low Voltage

Requires Neutral

Termination Single Pole Three Way Single Pole Three Way

Rating 600VA (450W) 120V AC 600VA (450W) 120V AC 300W 120V AC 300W 120V AC

Almond

Ivory

Light Almond

White

RSLV600PAL

RSLV600PI

RSLV600PLA

RSLV600PW

RSLV603PAL

RSLV603PI

RSLV603PLA

RSLV603PW

RSELV300PAL

RSELV300PI

RSELV300PLA

RSELV300PW

RSELV303PAL

RSELV303PI

RSELV303PLA

RSELV303PW

Fan Speed Controls, 3 Speed and Replacement Knobs

Description

Rocker

Slide Adjustment

Slide Control

Slide to Off

Combination Slide

Dimmer, Incandescent Replacement Knob

Termination Single Pole/Three Way Single Pole Single Pole —

Rating 1.5A 120V AC 1.5A 120V AC 300W 1.5 A 120V AC —

Almond

Ivory

Light Almond

White

RDVFSQFAL

RDVFSQFI

RDVFSQFLA

RDVFSQFW

RSFSQFAL

RSFSQFI

RSFSQFLA

RSFSQFW

RS2LFSQAL

RS2LFSQI

RS2LFSQLA

RS2LFSQW

RSKAL

RSKI

RSKLA

RSKW

RS600PW

RS600W

RS2LFSQW

RSKI

RSKW

Slide Dimmers, Specialty

Description

Incandescent

Slide to Off

Incandescent

Omni Slide Button

Termination Single Pole Single Pole/Three Way

Rating 600W 120V AC 600W 120V AC

Ivory

Light Almond

White

RS600I

RS600LA

RS600W

RS613PI

RS613PLA

RS613PW

RS613W

RAY600PW

RAY2LFSQW

RD600RW

RFSQ2FDK

RRKDK

R28032406

R28032401

tradeSELECT™

F19

Toggle Incandescent Preset Dimmers

Description

Side Slide Adjustment

with Wire Leads

Side Slide Adjustment

with Wire Leads

Side Slide Adjustment

with Terminal Screws

Side Slide Adjustment

with Terminal Screws

Termination Single Pole Three Way Single Pole Three Way

Rating 1000W 120V AC 1000W 120V AC 600W 120V AC 600W 120V AC

Almond

Ivory

Light Almond

White

RAY10PAL

RAY10PI

RAY10PLA

RAY10PW

RAY103PAL

RAY103PI

RAY103PLA

RAY103PW

RAY600PAL

RAY600PI

RAY600PLA

RAY600PW

RAY603PAL

RAY603PI

RAY603PLA

RAY603PW

Rotary Incandescent Dimmers and Replacement Knobs

Description On/Off Dimmer

Push On/Off Dimmer

Ivory and White Knobs

Provided

Push On/Off Dimmer

Ivory and White Knobs

Provided

Replacement Knobs

2 Piece Kit

Termination Single Pole Single Pole Three Way —

Rating 600W 120V AC 600W 120V AC 600W 120V AC —

Ivory

White

Ivory/White

RD600RI

RD600RW

—

RD600PDK

—

RD603PDK

—

RRKDK

Fan Speed Controls

Description

Toggle

3-Speed

Combination

Toggle

3-Speed/Dimmer

Rotary On/Off

3-Speed

includes Ivory

and

White knobs

Rotary Variable

Speed

Rotary Fan

Control

Replacement

Knobs

Termination Single Pole or Three Way Single Pole Single Pole Single Pole —

Rating 1.5A 120V AC 300W 1.5A 120V AC1.5A 120V AC 5A 120V AC —

Almond

Ivory

Light Almond

White

Ivory/White

RAYFSQFAL

RAYFSQFI

RAYFSQFLA

RAYFSQFW

—

RAY2LFSQAL

RAY2LFSQI

RAY2LFSQLA

RAY2LFSQW

—

RFSQ2FDK

—

RFS5I

RFS5LA

—

RFS5W

—

R28032406

—

R28032401

—

TOGGLE DIMMERS

AND FAN SPEED CONTROLS

RMS101W

RMS100W

RMS121ILW

RMS120ILW

RMS141W

RMS140W

tradeSELECT™

F20

Occupancy Sensors

Auto-on occupancy sensors turn on the load when motion is detected in an area. The device

turns lights off when motion ceases and the time delay has expired.

Description

Occupancy Sensor

Basic On/Off Control

150º View

Standard

Occupancy Sensor

Basic On/Off Control

150º View

With Nightlight

Occupancy Sensor

Dimming Control

150º View

Standard

Occupancy Sensor

Dimming Control

150º View

With Nightlight

Termination Single Pole Switch Single Pole Switch Single Pole Switch Single Pole Switch

Rating

500W 120V AC

Incandescent Only

500W 120V AC

Incandescent Only

500W 120V AC

Incandescent Only

500W 120V AC

Incandescent Only

Almond

Ivory

Light Almond

White

RMS101AL

RMS101I

RMS101LA

RMS101W

RMS101ILAL

RMS101ILI

RMS101ILLA

RMS101ILW

RMS121AL

RMS121I

RMS121LA

RMS121W

RMS121ILAL

RMS121ILI

RMS121ILLA

RMS121ILW

Vacancy Sensors

Vacancy sensor switches are specifically designed for California Title 24 compliance. When a person

enters an area, the manual switch must be pressed to turn on the light. The device turns lights off

when motion ceases and the time delay has expired.

Description

Vacancy Sensor

Basic On/Off Control

150º View

Standard

Vacancy Sensor

Basic On/Off Control

150º View

With Nightlight

Vacancy Sensor

Dimming Control

150º View

Standard

Vacancy Sensor

Dimming Control

150º View

With Nightlight

Termination Single Pole Switch Single Pole Switch Single Pole Switch Single Pole Switch

Rating

500W 120V AC

Incandescent Only

500W 120V AC

Incandescent Only

500W 120V AC

Incandescent Only

500W 120V AC

Incandescent Only

Almond

Ivory

Light Almond

White

RMS100AL

RMS100I

RMS100LA

RMS100W

RMS100ILAL

RMS100ILI

RMS100ILLA

RMS100ILW

RMS120AL

RMS120I

RMS120LA

RMS120W

RMS120ILAL

RMS120ILI

RMS120ILLA

RMS120ILW

Heavy Duty Occupancy and Vacancy Sensors

Description

Occupancy Sensor

180º View

Vacancy Sensor

180º View

Termination Single Pole Single Pole

Rating

800W Inc., 1000W

Fluor., 120V AC

1800W Fluor., 277V AC

16 HP 120V AC

800W Inc., 1000W

Fluor., 120V AC

1800W Fluor., 277V AC

16 HP 120V AC

Almond

Ivory

White

RMS141AL

RMS141I

RMS141W

RMS140AL

RMS140I

RMS140W

16'

(4.9m)

16'

(4.9m)

35'

(10.7m)

Mounting Height

36" to 54"

(91.44 to 137.16 cm)

5°

35'

(10.7m)

Vertical CoverageHorizontal Coverage

16'

35'

16'

15°

35'

Mounting

Height

36" to 54"

(91.44 to 137.16 cm)

Mounting

Height

36" to 54"

(91.44 to 137.16 cm)

Vertical CoverageHorizontal Coverage

Coverage for Heavy Duty Occupancy

and Vacancy SensorsCoverage for Occupancy and Vacancy Sensors

OCCUPANCY AND VACANCY SENSORS

RF507BR

tradeSELECT™

F21

Hubbell Wood Floor Boxes allow for the placement of electrical power or a combination of power and

voice/data devices. Boxes easily mount into the floor and are height adjustable (up to  inch) for optimal

alignment and fit.

Pre-assembled flange

and cover for fast

installation

Top screw fastening

and side joist mounting

provided

Recessed receptacle

minimizes plug

protrusion; allowing

furniture to be located

over the plug

Height accessible

adjustments after the

box is mounted

Removable neoprene

gaskets allow for

independent use of

either side of the

receptacle with the

cover closed

Back and side

knockouts for

proper wiring

access

Low voltage divider

optional provides

for power and

voice/data in a

compact space

Note: Template cutout provided with instructions for proper installation.

The Right Choice For That Perfect Finishing Touch!

Solid Brass Brass Plated Chrome Plated Copper Plated Nickel Plated Stainless Finish Almond Black Chestnut Brown

Note: Not all configurations are available in all colours. See below for details.

Floor Boxes For Structural Wood Floors

Description Material Finish

Cat.

Number

Material Finish

Cat.

Number

Decorator duplex receptacle

floor box kit; includes steel

box, flange and hinged door

cover assembly with 15A

125V tamper-resistant duplex

receptacle; designed for

installation in wood floors;

mounts to sub-floor or joists.

Solid Brass

Aluminum

Clear Lacquer

Stainless Paint

Almond Paint

Black Paint

Chestnut Brown Paint

RF515BR

RF515SS

RF515AL

RF515BK

RF515BN

Aluminum

Brass Plated

Chrome Plated

Copper Plated

Nickel Plated

RF515BP

RF515CH

RF515CU

RF515NI

Flush fit (same as above). Solid Brass Clear Lacquer

RF509BR

Flange and hinged door

cover assembly; includes

tamper-resistant duplex

receptacle; neoprene

gaskets; for use with

steel box RF500.

Solid Brass

Aluminum

Clear Lacquer

Stainless Paint

Almond Paint

Black Paint

Chestnut Brown Paint

RF506BR

RF506SS

RF506AL

RF506BK

RF506BN

Aluminum

Brass Plated

Chrome Plated

Copper Plated

Nickel Plated

RF506BP

RF506CH

RF506CU

RF506NI

Adjustable floor box; 3 inch deep; three (3) ½ inch knockouts: one on

bottom; one on each side; non-metallic sheathed cable clamps on each side.

Steel —

RF500

Hinged Door Cover Only

Replacement door for

RF515, RF509 and

RF506 series.

Solid Brass

Aluminum

Solid Brass

Stainless Finish

Almond

Black

Chestnut Brown

Paint

RF507BR

RF507SS

RF507AL

RF507BK

RF507BN

Aluminum

Brass Plated

Chrome Plated

Copper Plated

Nickel Plated

RF507BP

RF507CH

RF507CU

RF507NI

RF500

RF506BR

RF515BR

FLOOR BOXES FOR WOOD FLOORS

RF151

RF151D

tradeSELECT™

F22

Duplex floor receptacles provide ample connections to service lighting, entertainment

equipment and computers for family rooms and offices. Single receptacle configurations

available for minimum requirements.

q Metal covers feature electrostatic powder coating that resists wear and provides a

distinctive finish.

q Recessed GFCI/Decorator opening.

q Cut out template provided to assure proper sub-flooring preparation.

Floor Boxes For Wood Floors

Description Material

Tamper

Resistant Standard

Tamper

Resistant Standard

Duplex Receptacle Floor Box Rated

Includes steel box, duplex TR

receptacle and cover.

RF6500BR —

— —

Single Receptacle Floor Box Rated

Includes steel box, single receptacle

and cover.

Brass

RF151TR RF151

— —

Single Receptacle Display Rated

Receptacle and cover only,

excludes box.

Brass

— RF151D

— —

15A 125V

NEMA 5-15R

UL/CSA

20A 125V

NEMA 5-20R

UL/CSA

Ø 5.6"

(143)

4.8"

(121)

4.8"

(121)

3.2"

(81)

0.9"(22)

0.9"

(22)

2.4" (61)

4.8"

(121)

3.1"

(80)

½"

Knockout

3 Places

0.3"

(8)

Wood Floor Boxes

Product Dimensions Inches (mm)

FLOOR BOXES FOR WOOD FLOORS

3.40"

(86.4)

5.57"

(141.5)

1.55"

(39.4)

3.40"

(86.4)

5.57"

(141.5)

1.95"

(49.5)

RU200SSRU100W

tradeSELECT™

F23

These boxes comply with the NEC® for kitchen

receptacles, with placement not more than 20 inches

above the counter surface. They can also be placed

under counter islands, not lower than 15 inches from the

surface.

q Available with nylon or metal cover.

q Custom configurable, accepts any decorator

style device.

q Mounting hardware included.

q UL Listed E31999 and CSA Certified under

cabinet boxes.

Vertical Mount Horizontal Mount

Optional

Under Cabinet/Counter Power Distribution

Description

Slim Box

Catalogue Number

GFCI Fit Box

Catalogue Number

Stainless Steel

White Metal

White Nylon

RU100SS

RU100W

RU170W*

RU200SS

RU200W

RU270W*

Note: * Steel box with nylon cover.

NEC® is a registered trademark of the National Fire Protection Association (NFPA).

UNDER CABINET/COUNTER

POWER DISTRIBUTION

1.50"

(38.0)

4.13"

(104.9)

3.65"

(92.6)

1.29"

(32.8)

2.61"

(66.4)

RJ620W

RJ62W

RJ600

tradeSELECT™

F24

MAKE THE MOST OF A PERFECT LOCATION.

Install receptacles and voice/data devices exactly where they are needed, in the smallest space possible.

JLOAD® Multimedia Outlet

Description Colour

Tamper

Resistant Standard

Tamper

Resistant Standard

JLOAD® Multimedia Outlet,

specifically designed to provide

power, Cat. 5e

and coaxial in a single gang box.

Requires JLOAD® Multimedia

Box RJ600. Perfect for HDTV and

computer use where a combination

of power and data are needed.

Includes decorator frame, one Cat.

5e, one F-connector and one power

receptacle 125V with voltage divider.

Almond

Black

Gray

Ivory

Light

Almond

White

RJ650ALTR

RJ650BKTR

RJ650GYTR

RJ650ITR

RJ650LATR

RJ650WTR

RJ650AL

RJ650BK

RJ650GY

RJ650I

RJ650LA

RJ650W

RJ620ALTR

RJ620BKTR

RJ620GYTR

RJ620ITR

RJ620LATR

RJ620WTR

RJ620AL

RJ620BK

RJ620GY

RJ620I

RJ620LA

RJ620W

JLOAD® Multimedia Outlet, includes

decorator frame with two open ports

for custom configuration and one

power receptacle 125V with voltage

divider.

Almond

Black

Gray

Ivory

Light

Almond

White

RJ65ALTR

RJ65BKTR

RJ65GYTR

RJ65ITR

RJ65LATR

RJ65WTR

RJ65AL

RJ65BK

RJ65GY

RJ65I

RJ65LA

RJ65W

RJ62ALTR

RJ62BKTR

RJ62GYTR

RJ62ITR

RJ62LATR

RJ62WTR

RJ62AL

RJ62BK

RJ62GY

RJ62I

RJ62LA

RJ62W

JLOAD® Multimedia Box, 3 inches

deep with seven ½-inch knockouts,

non-metallic sheathed cable clamps

on each side. Screw in mounting to

stud.

Steel

RJ600 RJ600 RJ600 RJ600

Accepts any snap fit jack

configuration

(see page F-38)

Isolates low voltage and

power in the

same box

Custom mounting

Available in

15 or 20 Amp

Provides for

data, telephone

and coaxial

Note: Requires unique box shown below.

15A 125V

NEMA 5-15R

UL/CSA

20A 125V

NEMA 5-20R

UL/CSA

JLOAD® Dimensions Inches (mm)

JLOAD® MULTIMEDIA OUTLET

tradeSELECT™

F25

Specifications

Switches

ypical Specification — Catalogue Number RSD115*

Description — Decorator series rocker switch

Type — Single Pole

Rating — 15A, 120-277V AC

Note: * Designates colour: AL = Almond, BK = Black, Blank = Brown,

GY = Gray, I = Ivory, LA = Light Almond, W = White

Certification

s /isteG to 8/ StanGarG 20

s CSA CertifieG

Components Materials

%ase anG boGy

Rocker

Terminals

Mounting strap

Contacts

Movable contact arm

Terminal screws

PVC

Polycarbonate

Brass

*alvani]eG steel

Silver alloy

Copper alloy

Steel

Performance

Electrical

Dielectric voltage :ithstanGs 1,500V AC minimum for 1 minute

Max. working voltage 120V

2verloaG 1.5 times rating

(nGurance 0,000 cycles minimum

Mechanical

Terminal accommoGation Back anG siGe wire 1 A:* min. - 12 A:* max. soliG anG stranGeG

copper wire only push wire 1 A:* soliG copper wire only

Environmental

)lammability 8/ V0

Operating temperatures Maximum continuous 60°C; minimum -20°C (without impact)

Single-Pole Decorator Switch

1.47" (37.3)

Grounding Screw

3.28"

(83.3)

2.77"

(70.4)

3.81"

(96.8)

Self-Grounding Clip

1.02" (25.9)

0.41" (10.4) Max.

Product Dimensions Inches (mm)

q Smooth, quiet rocker action

q Self-grounding feature standard

q Ultrasonically welded cover and base provides maximum strength

q Push, back and side wiring

q Available colours: Almond, Black, Brown, Gray, Ivory, Light Almond and White

RSD115W

DECORATOR SWITCHES

netSELECT®

F26

Hubbellns netSELECT® Flat Panel Television

(FPTV) connection enclosure delivers high-

density connectivity and power in the wall. This

allows flat panel displays and interactive osmart”

boards to sit flush against walls with no dangling

cords. It quickly installs to studs or drywall

without additional components or hardware

q 18 Gauge white powder coated rugged steel base.

q 2-gang enclosure with 2 additional 3-Unit Hubbell

iSTATION mounting locations

q Stud or sheetrock mounting integrated.

q Supplied ABS trim ring quickly cleans up drywall

rough-in.

q Optional screw on cover reduces tampering

q cULus 1863 Listed.

FPTV Connection Enclosure

Description

Colour

Catalogue Number

2-gang In-Wall Enclosure White

NSAV62M

Steel Cover for NSAV6 series White

NSAV6C

Power Kits

Description

Colour

Catalogue Number

StanGarG Power .it White

NSOKP

Surge ProtecteG Power .it White

NSOKPS

1-G Decorator Plate White

NP26W

1-G Hubbell iSTATION Plate White

IMF1W

1-G -Port .eystone Plate White

NSP14W

A/V Connectors and Plates

Description

Colour

Catalogue Number

1-Port HDMI Frame White

NS801W

2-Port HDMI Frame White

NS802W

HDMI Snap Fit Black

SFHCBK

F-Connector Snap Fit White

NSF70W

8SB A-to-B Snap Fit White

SFUSBABW

Cat 6 Snap Fit Jack White

NSJ6W

NSOKPS

NS801W

NSJ6W

RuggeG 1 Gauge Sheet Metal

Base White PowGer Coat Finish

Cable Management

Tie Downs

Multiple Device

Mounting Options

Mounts to

StuGs or

Sheetrock

High-Impact ABS

Trim Ring

NSAV62M

NSAV6C

IN-WALL A/V DELIVERY

netSELECT®

F27

NS801W

NS802W

HDPC06BK

HDMI Products

Description Colour Catalogue

Number

1-gang, 1-Port HDMI,

Decorator Frame,

Female to Female

Almond

Black

Gray

Ivory

Light Almond

White

NS801AL

NS801BK

NS801GY

NS801I

NS801LA

NS801W

1-gang, 2-Port HDMI,

Decorator Frame,

Female to Female

Almond

Black

Gray

Ivory

Light Almond

White

NS802AL

NS802BK

NS802GY

NS802I

NS802LA

NS802W

netSELECT® HDMI Decorator Frames deliver

uncompromising digital audio and video

wherever you need it. Unleash the full

potential of your high definition display and

audio installations.

q Third party tested for 1080p resolutions.

q UL Listed - Communications Circuit Accessory

and CSA Certified.

High impact

thermoplastic frame.

4 inch flexible extension

reduces bend radius

issues in confined spaces.

Thumbscrew prevents

accidental disconnection only

when used with Hubbellns

HDMI patch cords.

HDMI Cords

HDMI Device Patch CorGs

HDMI

(2 AWG) Catalogue Number

3 ft. HDPC03BK

6 ft. HDPC06BK

Hori]ontal CorGs (Connector to Connector)

HDMI

(2 AWG) Catalogue Number

XX ft. HDHXXBK

/ink CorGs (Connector to Device)

HDMI

(2 AWG) Catalogue Number

XX ft. HDLXXBK

Coupler CorGs (Coupler to Device)

HDMI

(2 AWG) Catalogue Number

XX ft. HDCXXBK

Note: XX = Length in feet. '10' = 10 ft., '15' = 15 ft., '20' = 20 ft., '25' = 25 ft., '30' = 30 ft., Black and Non-Plenum only.

Connector flush

to frame face.

Connector sized to fit

1 inch conduit.

HDMI PRODUCTS

netSELECT®

F28

CATV

Distribution

Telephone Distribution

Provides Internet and

Networking Service to

Systems and Computers

Telephone

Internet

CATV

Audio Controls

q Share single analog, cable or DSL internet

connection.

q Local file access.

q Shared peripherals.

q Multiple telephone distribution.

q Call handling (PBX).

q Video distribution.

q Play games that allow multi-users.

q Control home automation systems.

Connect Your Home to Internet, Voice And Video Services.

netSELECT® is an innovative network solution that's perfect

for any home or small office. Specifically positioned as the

voice/data segment for the Residential brand, the netSELECT®

System satisfies the need for a dependable, flexible system

that can accommodate all of today's fast-changing voice,

data and video requirements. This cost-effective solution

incorporates all the quality you'd expect from Hubbell. Built-

in flexibility makes it easy to upgrade and keep pace with

evolving technologies.

Today’s Communications Entail A Lot More Than Just Talking.

netSELECT® Keeps You Connected—Internet, Voice, Data and Entertainment

STRUCTURED WIRING

AdvantageT and Wiring Layout

netSELECT®

F29

NSOBX10

NSOBOX14

NSOBOX28

Network Enclosures

Description

Number of

Module

Placement Cat. Number

Pre-config

ured Network System

Basic home

network kit includes:

One box

with hinged cover NSOBOX14,

One prim

ary 8-port telephone module NSOPTM8,

One four

-way coaxial splitter module NSOVDM4

—

NSOBNK14

10 Inch Ne

twork Enclosure for MDU

and Modular Applications

Dimensions

14.38 in

. W x 10.0 in. H x 3.96 in. D

Knock-outs

Top: fou

r 1½ in. N.P.T. or completely open combo;

Bottom:

four 1½ in. N.P.T. or completely open combo;

Back: no

with Hinge

d Cover

with Panel

Cover

10”H Box o

nly

Hinged Doo

Panel Cove

NSOBX10

NSOBX10BC

NSOBX10B

NSOBX10D

NSOBX10C

14 Inch Ne

twork Enclosure

Dimensions

14.38 in

. W x 14 in. H x 3.96 in. D

Knock-outs

Top: t wo

1 in. Dia. and three 1½ in. N.P.T. combo;

Bottom:

one 1 in. Dia. and one 1½ in. N.P.T. combo;

Back: tw

o ¾ in. N.P.T.

with Hinge

d Cover

with Panel

Cover

14"H Box o

nly

Hinged Doo

Vertical D

oor

Panel Cove

2"D Extens

ion

Bracket

with venti

lation and

WiFi KOs

NSOBOX14

NSOBOX14BC

NSOBOX14B

NSOBOX14D

NSOBOX14DL

NSOBOX14C

NSOBOX14X2

28 Inch Ne

twork Enclosure

Dimensions

14.38 in

. W x 28 in. H x 3.96 in. D

Knock-outs

Top: fiv

e 1½ in. N.P.T.;

Bottom:

two power kit knockouts;

Back: fo

ur ¾ in. N.P.T.

with Hinge

d Cover

with Panel

Cover

28"H Box o

nly

Hinged Doo

Vertical D

oor*

Panel Cove

2"D Extens

ion

Bracket

with venti

lation and

WiFi KOs

11 NSOBOX28

NSOBOX28BC

NSOBOX28B

NSOBOX28D

NSOBOX28DL

NSOBOX28C

NSOBOX28X2

48 Inch Ne

twork Enclosure

Dimensions

14.38 in

. W x 48 in. H x 3.96 in. D

Knock-outs

Top: fiv

e 1½ in. N.P.T.;

Bottom:

two power kit knockouts;

Back: no

with Hinge

d Cover

21 NSOBOX48

Note: For custom installs, REKHS is also available.

* Door covers rough-in, no trim ring provided.

q Flush or surface mount enclosure

(hardware provided).

q Hinged cover can be mounted to swing

from either side.

q Integral trim ring hides rough-in hole in except

NSOBOX48.

sheet rock providing a finished appearance.

q Horizontal and vertical module mounting

holes for maximum flexibility.

q Unique 89D bracket mounting holes allow

easy mounting of 66 blocks and peripherals.

q Provisions to mount optional duplex power

and lock kit available.

q Integral cable management slots and tie-wraps

provided to help dress cable runs.

q Additional nylon push pins provided to assist

module mounting.

q Material: 20-18 gauge steel.

q Finish: white, powder coat.

q UL and cULus Listed 1863.

NETWORK ENCLOSURES

FEATURES

netSELECT®

F30

NSOTVM6

NSOPTM8

NSOETM8

NSODM8

NSOMTM24

NSO6P1DM

netSELECT® Modular Components enable the

designer to select performance requirements

specifically for the application. Modules snap

horizontally or vertically into the enclosures for

maximum flexibility and optimum space usage.

q Dimensions: 6.47 inch W x 2.95 inch H, except

NSOMTM24 6.47 inch W x 6.00 inch H.

q Meets FCC Part 68 standard.

q Finish: black, powder coat.

q Material: 18 gauge steel or high impact plastic.

q UL and cULus Listed 1863

q All data and phone modules 568A wired.

Network Modules

Description Units

Catalogue

Number

Combo Modu

Complete H

ome Network Combo Module 6-Port Telephone Panel and 6-Port

Coaxial Splitter with Optional 6-Port Cat. 5e Panel Provides voice, video,

and data distribution in a space efficient package. Perfect for use with

NSOBOX10 and NS790xx plates to quickly establish a comprehensive

home network.

6-Port Tel

ephone and Video

6-Port Tel

ephone, Video and Category 5e

6-Port Cat

egory 5e Data Upgrade Kit

NSOTVM6

NSOTVDM6

NSODK6

Primary Te

lephone Module, 8-Port

Supports 8

phone outlets with up to 4 incoming lines for voice, fax or modem

applications in a protected PCB module. Pre-mounted push pins snap the

module quickly into place. RJ31X interface jack included for security system

connection. RJ45 jack interfaces with optional NSOETM8 Telephone

Expansion module for additional extensions.

1NSOPTM8

Expansion

Telephone Module, 8-Port

Adds an ad

ditional 8 phone outlets with up to 4 incoming lines when used

with the primary telephone module. Pre-mounted push pins snap the

module quickly into place. Includes RJ45 jumper cord to connect with

NSOPTM8 Primary Telephone module.

1NSOETM8

Category 5

e Data Module, 8-Port

Supports G

igabit Ethernet for up to 8 Category 5e data lines with front 110

Punch-Down terminations in a protected PCB module. Pre-mounted push

pins snap the module quickly into place.

Category 6

Data Module, 8-Port

Supports e

nhanced transmission speeds beyond gigabit ethernet.

Future proof for tomorrows applications.

1NSODM8

NSODM8C6

Multiport

Patchable Telecom Module

Terminates

lines via modular plug to accommodate flexibility, by changing

plug locations. Reconfigure where phone lines go at the panel level. Allows

data lines to be converted to voice, with the move of a patch cord. Includes

nine RJ45 jumper cords.

2NSOMTM24

Combination Module

6-Port Telephone and 1-Port Data

Provides basic telephone and data delivery in a small package. Allows data

lines to be converted to voice, with the move of a patch cord.

NSO6P1DM

NETWORK MODULES

FEATURES

netSELECT®

F31

NSOBM

NSOAM8

NSOVAMP

NSOVM8

NSOVM6

NSOVM4

Audio/Video Modules

Description Units Catalogue

Number

4-Way Coax

ial Splitter Modules,

One Incomi

ng Line, Four Outgoing

1 Ghz, Bas

ic Unit

2.3 Ghz, E

nhanced Capability

1NSOVM4

NSOVM42G

6-Way Coax

ial Splitter Modules,

One Incomi

ng Line, Six Outgoing

1 Ghz, Bas

ic Unit

2.3 Ghz, E

nhanced Capability

1NSOVM6

NSOVM62G

8-Way Coax

ial Splitter Modules,

One Incomi

ng Line, Eight Outgoing

1 Ghz, Bas

ic Unit

2.3 Ghz, E

nhanced Capability

1NSOVM8

NSOVM82G

Fixed Vide

o Amplifier Module, 10dB

120 volt r

ated.

240 volt r

ated.

Provides v

ideo signal amplification for incoming cable feeds

recommende

d for use when more than four outputs are installed

or when si

gnal level is low. Provides 10dB forward path gain and

supports c

urrent digital cable systems and modems with a passive

return. Pr

e-mounted push pins snap the module quickly into place.

Includes R

G-59 cable jumper to connect amplifier to passive

video splitter.

1NSOVAMP

NSOVAMP240

8 Room Aud

io Module

Distribute

s audio from an amplifier to matching volume controllers.

Supports up to eight rooms of audio. Power handling - 200W RMS!20 C.

Requires i

mpedance matching volume controls.

1NSOAM8

Blank Modu

le Plate

Allows mou

nting of active components (i.e. switches, routers) or other

devices (66 blocks, audio components) onto a modular platform. Can be

custom drilled or used with two self-adhesive VELCRO® strips included to

mount components onto module. Pre-mounted push pins snap the module

quickly into place.

1NSOBM

netSELECT® Video Modules support

bidirectional signal by splitting to 4, 6, or

8 separate work areas. Pre-mounted push

pins snap the module quickly into place.

q Dimensions for VAMP, AM8 and BM:

6.47 in. W x 2.95 in. H.

q Dimensions for video splitters:

6.47 in. W x 2.09 in. H x 3.20 in. D.

q Finish: black, powder coat.

q UL and cULus Listed 1863.

AUDIO/VIDEO MODULES

FEATURES

netSELECT®

F32

NS5E12U

NS612U

NS5E48U

NS648U

NS5E24U

NS624U

Universal Patch Cords, Category 6 and Category 5e

Description Colour 1-Foot 3-Foot 5-Foot 7-Foot 10-Foot 15-Foot 20-Foot 25-Foot

Cat. 5e

Patch Cord

Blue

Gray

Yellow

Red

HC5EB01

HC5EGY01

HC5EY01

HC5ER01

HC5EB03

HC5EGY03

HC5EY03

HC5ER03

HC5EB05

HC5EGY05

HC5EY05

HC5ER05

HC5EB07

HC5EGY07

HC5EY07

HC5ER07

HC5EB10

HC5EGY10

HC5EY10

HC5ER10

HC5EB15

HC5EGY15

HC5EY15

HC5ER15

HC5EB20

HC5EGY20

HC5EY20

HC5ER20

HC5EB25

HC5EGY25

HC5EY25

HC5ER25

Cat. 6

Patch Cord

Blue

Gray

Yellow

Red

HC6B01

HC6GY01

HC6Y01

HC6R01

HC6B03

HC6GY03

HC6Y03

HC6R03

HC6B05

HC6GY05

HC6Y05

HC6R05

HC6B07

HC6GY07

HC6Y07

HC6R07

HC6B10

HC6GY10

HC6Y10

HC6R10

HC6B15

HC6GY15

HC6Y15

HC6R15

HC6B20

HC6GY20

HC6Y20

HC6R20

HC6B25

HC6GY25

HC6Y25

HC6R25

netSELECT® Patch Cords allow for quick change of

voice/data lines with insertion of modular plugs.

q Meets and exceeds ANSI/TIA - Category 6 and

Category 5e standards.

q UL and cUL Listed.

Universal Consolidation Blocks and Patch Panels

Description

Catalogue

Number

Category 5e 12-Port Universal Consolidation Block,

89D Bracket Mount

NS5E12U

Category 6 12-Port Universal Consolidation Block,

89D Bracket Mount

NS612U

Category 5e Universal Patch Panel

24-port, 1.75 inch H, 1 Rack Unit

48-port, 3.50 inch H, 2 Rack Units

NS5E24U

NS5E48U

Category 6 Universal Patch Panel

24-port, 1.75 inch H, 1 Rack Unit

48-port, 3.50 inch H, 2 Rack Units

NS624U

NS648U

netSELECT® Patch Panels are excellent for designing

rack systems for telephone, data and AV systems.

Consolidation Blocks are ideal for small user count

configurations that mount in or on the wall.

q Meets ANSI/TIA - Category 6 and Category 5e

standards.

q cULus Listed.

UNIVERSAL CONSOLIDATION BLOCKS,

PATCH PANELS AND PATCH CORDS

FEATURES

netSELECT®

F33

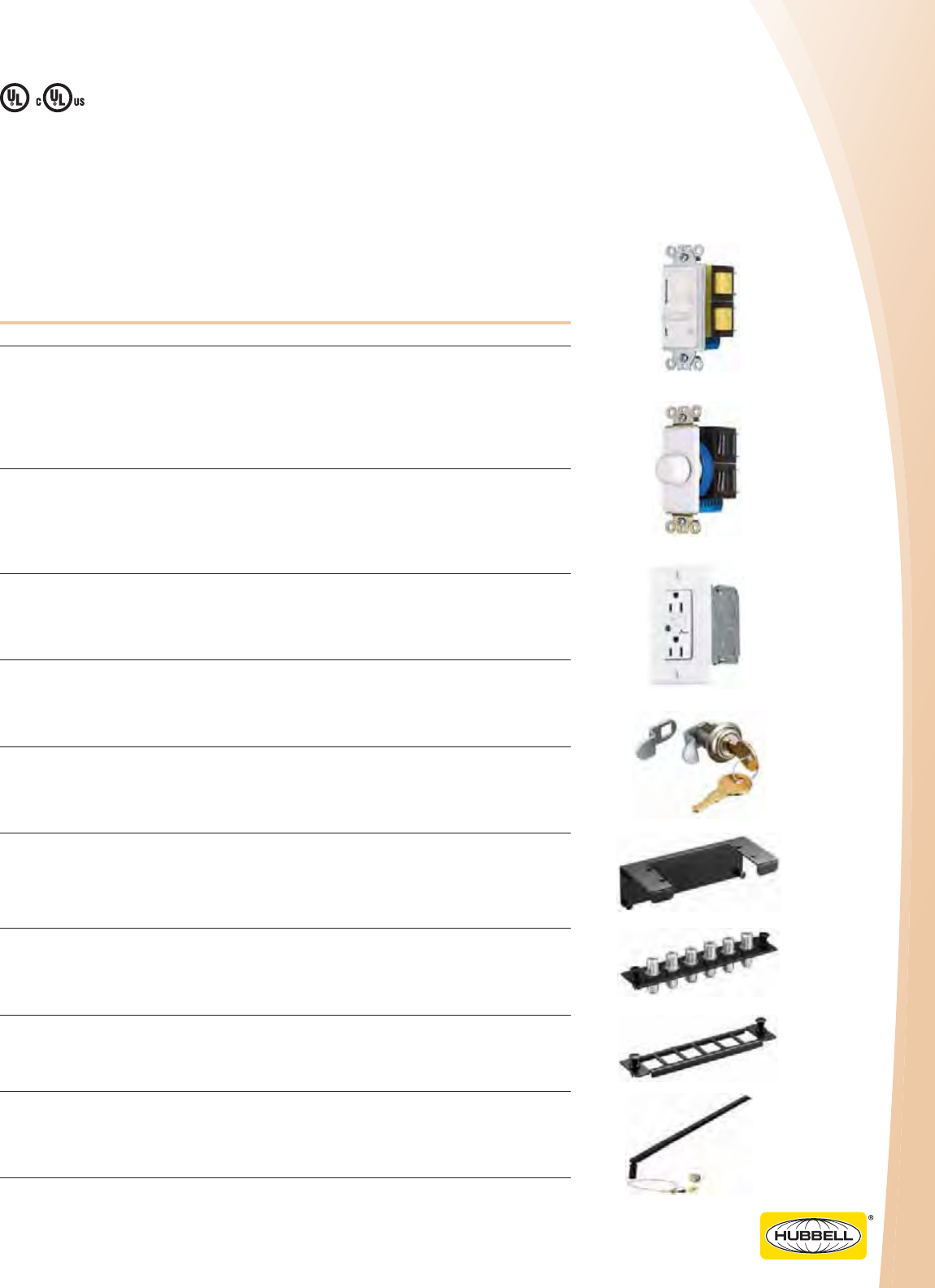

Accessories

Description Colour Catalogue Number

Slide Audio Volume Controller,

Decorator Styling,

Power handling - 70W RMS!20 C.

Impedance matching for up to 8 pairs of speakers.

Includes both ivory and white slides and frames.

Ivory/White

NSOSAVC

Rotary Audio Volume Controller

Power handling - 70W RMS!20 C.

Impedance matching for up to 8 pairs of speakers.

Includes both ivory and white knobs and frames.

Ivory/White

NSORAVC

Standard Power Kit,

Includes duplex receptacle 15A 125V

NEMA 5-15R, electrical steel box and wallplate.

NSOKP

Surge Suppression Power Kit,

Includes surge receptacle 15A 125V

NEMA 5-15R, 240 Joules/15,000A protection

per mode, electrical steel box and wallplate.

NSOKPS

Chromed Steel Lock Kit,

Includes two keys.

Eliminates unwanted tampering.

FLOCK1

Panel Bracket Adapter,

For use with Adapter Panels shown below,

and FSP series modules in section P, page 16.

Snap mounts into structured cabling enclosures.

NSOFSB

F-Connector Adapter Panel,

with Six Populated Coaxial Connectors.

FSPFP6X

Keystone Adapter Panel,

with Six Blank Openings for jacks and snap fits.

FSPHD6X

Antenna Kit.

NSOKA

netSELECT® Accessories enhance system

capabilities. Volume controls expand home audio

applications. Cabinet mounted receptacle kits

provide convenience power to the enclosure.

q Audio controls available in slide or rotary.

q Receptacles available in surge and standard

kits.

FSPHD6X

NSOFSB

FLOCK1

NSOSAVC

NSORAVC

NSOKPS

NSOKA

FSPFP6X

ACCESSORIES

FEATURES

netSELECT®

F34

Customize the

jack selections

and look.

+ =

Audio/Video Connectors - Standard Bulkhead

Description

Gold F-Type

Coupler

Bulkhead,

Female to

Female

Nickel F-Type

Coupler

Bulkhead,

Female to

Female

RCA Gold Pass

Through,

Female to

Female,

Red Interior

RCA Gold Pass

Through,

Female to

Female,

White Interior

RCA Gold Pass

Through,

Female to

Female,

Yellow Interior

RCA Gold Pass

Through,

Female to

Female,

Blue Interior

RCA Gold Pass

Through,

Female to

Female,

Green Interior

Colour

Almond

Black

Gray

Ivory

Light Almond

White

SFFGAL

SFFGBK

SFFGGY

SFFGEI

SFFGLA

SFFGW

NSF70AL

NSF70BK

NSF70GY

NSF70I

NSF70LA

NSF70W

SFRCRFFAL

SFRCRFFBK

SFRCRFFGY

SFRCRFFEI

SFRCRFFLA

SFRCRFFW

SFRCWFFAL

SFRCWFFBK

SFRCWFFGY

SFRCWFFEI

SFRCWFFLA

SFRCWFFW

SFRCYFFAL

SFRCYFFBK

SFRCYFFGY

SFRCYFFEI

SFRCYFFLA

SFRCYFFW

SFRCBFFAL

SFRCBFFBK

SFRCBFFGY

SFRCBFFEI

SFRCBFFLA

SFRCBFFW

SFRCGNFFAL

SFRCGNFFBK

SFRCGNFFGY

SFRCGNFFEI

SFRCGNFFLA

SFRCGNFFW

Audio/Video Connectors - Recessed

Description

Gold F-Type

Coupler

Bulkhead,

Female to

Female

RCA Gold Pass

Through,

Female to

Female,

Red Interior

RCA Gold Pass

Through,

Female to

Female,

White Interior

RCA Gold Pass

Through,

Female to

Female,

Yellow Interior

RCA Gold Pass

Through,

Female to

Female,

Blue Interior

RCA Gold Pass

Through,

Female to

Female,

Green Interior

Colour

Almond

Black

Gray

Ivory

Light Almond

White

SFGRFAL

SFGRFBK

SFGRFGY

SFGRFEI

SFGRFLA

SFGRFW

SFRCRRAL

SFRCRRBK

SFRCRRGY

SFRCRREI

SFRCRRLA

SFRCRRW

SFRCWRAL

SFRCWRBK

SFRCWRGY

SFRCWREI

SFRCWRLA

SFRCWRW

SFRCYRAL

SFRCYRBK

SFRCYRGY

SFRCYREI

SFRCYRLA

SFRCYRW

SFRCBRAL

SFRCBRBK

SFRCBRGY

SFRCBREI

SFRCBRLA

SFRCBRW

SFRCGNRAL

SFRCGNRBK

SFRCGNRGY

SFRCGNREI

SFRCGNRLA

SFRCGNRW

Molded-In Voice/Low-Speed Data

Description

Modular Snap Fit

Cat. 6 Jack

Modular Snap Fit

Cat. 5e Jack

Modular Snap Fit

USOC Jack Blank Insert

Colour

Almond

Black

Blue

Gray

Green

Ivory

Light Almond

Orange

Red

White

Yellow

NSJ6AL

NSJ6BK

NSJ6B

NSJ6GY

NSJ6GN

NSJ6I

NSJ6LA

NSJ6OR

NSJ6R

NSJ6W

NSJ6Y

NSJ5EAL

NSJ5EBK

NSJ5EB

NSJ5EGY

NSJ5EGN

NSJ5EI

NSJ5ELA

NSJ5EOR

NSJ5ER

NSJ5EW

NSJ5EY

NSJUAL

NSJUBK

NSJUB

NSJUGY

NSJUGN

NSJUI

NSJULA

NSJUOR

NSJUR

NSJUW

NSJUY

Almond

Black

Gray

Ivory

Light Almond

White

SFSBAL10*

SFsBBK10*

SFSFSBGY10*

SFSBEI10*

SFSBLA10*

SFSBW10*

Note: *Sold in a package of 10. Order 1 to receive a bag of 10 blanks.

MODULAR SNAP FIT JACKS

netSELECT®

F35

Decorator Frames

Colour

1-gang,

2-Port

1-gang,

3-Port

1-gang,

4-Port

1-gang,

6-Port

1-gang,

Adapter .406”

(10.30) Dia. Hole*

1-gang,

Adapter Blank**

Almond

Black

Gray

Ivory

Light Almond

White

NS612AL

NS612BK

NS612GY

NS612I

NS612LA

NS612W

NS613AL

NS613BK

NS613GY

NS613I

NS613LA

NS613W

NS614AL

NS614BK

NS614GY

NS614I

NS614LA

NS614W

NS616AL

NS616BK

NS616GY

NS616I

NS616LA

NS616W

NS621AL

—

NS621I

NS621LA

NS621W

NS620AL

—

NS620I

NS620LA

NS620W

Note: * For use with rotary dimmers or to pull through AV or telephone cable.

** To fill an extra decorator opening or to create customized openings.

Decorator frames provide a stylized look for that

finishing touch. This allows all devices to match.

Multimedia jacks insert into frame for custom

configuration.

q Elongated strap for better wall box mounting.

q High impact-resistant thermoplastic frame.

q UL Listed 1863 - Communication Circuit

Accessory and CSA Certified.

FEATURES

Multimedia Face Plates

Description

1-gang,

1-Port Plate

1-gang,

2-Port

Plate

1-gang,

3-Port Plate

Colour

Standard

(4.63" x 2.88")

Mid-Size

(4.88" x 3.13")

Standard

(4.63" x 2.88")

Mid-Size

(4.88" x 3.13")

Standard

(4.63" x 2.88")

Mid-Size

(4.88" x 3.13")

Almond

Black

Gray

Ivory

Light Almond

White

NSP11AL

NSP11BK

NSP11GY

NSP11I

NSP11LA

NSP11W

NSP101AL

NSP101BK

NSP101GY

NSP101I

NSP101LA

NSP101W

NSP12AL

NSP12BK

NSP12GY

NSP12I

NSP12LA

NSP12W

NSP102AL

NSP102BK

NSP102GY

NSP102I

NSP102LA

NSP102W

NSP13AL

NSP13BK

NSP13GY

NSP13I

NSP13LA

NSP13W

NSP103AL

NSP103BK

NSP103GY

NSP103I

NSP103LA

NSP103W

Description

1-gang,

4-Port Plate

1-gang,

6-Port

Plate

2-gang,

4-Port Plate

2-gang,

6-Port Plate

Colour

Standard

(4.63" x 2.88")

Mid-Size

(4.88" x 3.13")

Standard

(4.63" x 2.88")

Mid-Size

(4.88" x 3.13")

Standard

(4.63" x 4.69")

Standard

(4.63" x 4.69")

Almond

Black

Gray

Ivory

Light Almond

White

NSP14AL

NSP14BK

NSP14GY

NSP14I

NSP14LA

NSP14W

NSP104AL

NSP104BK

NSP104GY

NSP104I

NSP104LA

NSP104W

NSP16AL

NSP16BK

NSP16GY

NSP16I

NSP16LA

NSP16W

NSP106AL

NSP106BK

NSP106GY

NSP106I

NSP106LA

NSP106W

NSP24AL

NSP24BK

NSP24GY

NSP24I

NSP24LA

NSP24W

NSP26AL

NSP26BK

NSP26GY

NSP26I

NSP26LA

NSP26W

DECORATOR FRAMES

netSELECT®

F36

Molded-In Voice/Low-Speed Data

Description

Decorator Frame,

One RJ11 Jack,

6-Position,

4-Conductor

Decorator Frame,

One RJ11 Jack,

6-Position,

6-Conductor

Decorator Frame,

Duplex RJ11 Jacks,

6-Position,

6-Conductor

Decorator Frame,

One Cat. 5e

110 Punch-Down,

One RJ11 Jack,

6-Position, 4-Conductor

Termination Screw Terminations Screw Terminations Screw Terminations Screw Terminations

Colour

Almond

Black

Brown

Gray

Ivory

Light Almond

White

NS770AL

NS770BK

NS770

NS770GY

NS770I

NS770LA

NS770W

NS771AL

—

NS771

—

NS771I

NS771LA

NS771W

NS772AL

—

NS772I

NS772LA

NS772W

NS784AL

NS784BK

NS784

NS784GY

NS784I

NS784LA

NS784W

Molded-In Voice/Low-Speed Data

Description

Decorator Frame,

Single F-Type

Coupler Bulkhead,

Female to Female

Decorator Frame,

Duplex F-Type

Coupler Bulkhead,

Female to Female

Decorator Frame,

One RJ11 Jack,

6-Position, 4-Conductor,

One F-Type

Coupler Bulkhead,

Female to Female

Decorator Frame,

One Cat. 5e

110 Punch-Down,

One F-Type

Coupler Bulkhead,

Female to Female

Termination Screw Terminations Screw Terminations Screw Terminations Screw Terminations

Colour

Almond

Black

Brown

Gray

Ivory

Light Almond

White

NS780AL

—

NS780I

NS780LA

NS780W

NS782AL

—

NS782I

NS782LA

NS782W

NS783AL

—

NS783I

NS783LA

NS783W

NS785AL

NS785BK

NS785

NS785GY

NS785I

NS785LA

NS785W

Coaxial video and combination jacks complement

multimedia needs in a 1-gang decorator opening.

q High impact-resistant thermoplastic frame.

q Jacks meet FCC part 68.

q UL Listed 1863 - Communication

Circuit Accessory and CSA Certified.

FEATURES

Designed to complement decorator styling,

these jacks offer voice and Cat. 5e devices

to fit within a decorator wallplate.

q High impact-resistant thermoplastic frame.

q Meets FCC part 68.

q UL Listed 1863 - Communication

Circuit Accessory and CSA Certified.

MOLDED-IN VOICE/DATA/VIDEO

netSELECT®

F37

Designed for voice, these devices provide an

economical alternative to wall phone outlet

placement.

q High impact-resistant thermoplastic plate.

q Convenient screw down terminals.

q Meets FCC part 68.

q UL Listed 1863 - Communication Circuit

Accessory and CSA Certified.

FEATURES

MOLDED-IN PLATES

Molded-In Plates for Voice

Description

1-Gang Plate,

One Rj11 Jack,

6-Position, 4-Conductor,

Screw Terminations

1-Gang Plate,

One Rj11 Jack,

6-Position, 6-Conductor,

Screw Terminations

1-Gang Plate,

Duplex Rj11 Jacks,

6-Position, 4-Conductor,

Screw Terminations

1-Gang Plate,

Duplex Rj11

Jacks, 6-Position,

6-Conductor,

Screw Terminations

Colour Standard Mid-Size Standard Standard Mid-Size Standard

Almond

Brown

Ivory

Light Almond

White

NS730AL

NS730

NS730I

NS730LA

NS730W

NS735AL

NS735

NS735I

NS735LA

NS735W

NS732AL

NS732

NS732I

NS732LA

NS732W

NS742AL

—

NS742I

NS742LA

NS742W

—

NS745I

—

NS745W

NS744AL

—

NS744I

—

NS744W

Molded-In Plates for Voice and CATV/Satellite

Description

1-gang Plate,

One F-Type Coupler Bulkhead,

Female to Female,

One RJ11 Jack,

6-Position, 6-Conductor

1-gang Plate,

One F-Type Coupler

Bulkhead, Female to

Female,

One RJ11 Jack,

6-Position, 4-Conductor

1-gang Plate,

One F-Type

Coupler Bulkhead,

Female to Female

1-gang Plate,

Duplex F-Type

Coupler Bulkhead,

Female to Female

Colour Standard Mid-Size Standard Standard Mid-Size Standard

Almond

Ivory

Light Almond

White

NS748AL

NS748I

NS748LA

NS748W

NS755AL

NS755I

NS755LA

NS755W

NS747AL

NS747I

NS747LA

NS747W

NS750AL

NS750I

NS750LA

NS750W

NS751AL

NS751I

NS751LA

NS751W

NS752AL

NS752I

NS752LA

NS752W

Description

1-gang Plate,

One Cat. 5e 110 Punch-Down

One RJ11 Jack,

6-Position, 4-Conductor

One F-Type Coupler Bulkhead,

Female to Female

Colour Standard

Almond

Black

Brown

Gray

Ivory

Light Almond

White

NS790AL

NS790BK

NS790

NS790GY

NS790I

NS790LA

NS790W

netSELECT®

F38

Telephone Wall Jacks

Description

Wall Phone Jack Quick Connect,

6-Position, 4-Conductor,

Punch-Down Termination

Tool Included

Wall Phone Jack,

6-Position, 4-Conductor,

Screw Terminations

Wall Phone Jack,

6-Position, 6-Conductor,

Screw Terminations

Colour

Almond

Ivory

Light Almond

White

NS721AL

NS721I

—

NS721W

NS722AL

NS722I

—

NS722W

NS725AL

NS725I

NS725LA

NS725W

Description

Wall Phone Jack Quick Connect,

6-Position, 4-Conductor,

Punch-Down Termination

Tool Included

Wall Phone Jack,

6-Position, 4-Conductor,

Screw Terminations

Stainless Steel

NS723SS NS726SS

Telephone surface mount jacks are available

in 4- or 6-conductor configurations for voice.

Alternatively, multimedia surface mount boxes

can be custom loaded for computer and media

use.

q High impact-resistant thermoplastic.

q Mounts using screws or double sided tape (both

included).

q Meets FCC part 68.

q UL Listed 1863 - Communication Circuit

Accessory and CSA Certified.

Telephone Wall Jacks

Description

Telephone Surface

Mount Jack,

6-Position, 4-Conductor,

Screw Terminations

Telephone Surface

Mount Jack,

6-Position, 6-Conductor,

Screw Terminations

Multimedia 1-Port

Surface Mount Box,

Jack Not Included

Multimedia 2-Port

Surface Mount Box,

Jacks Not Included

Ivory

White

NS760I

NS760W

NS761I

NS761W

ISM1EI*

ISM1W*

ISM2EI*

ISM2W*

Note: * cULus Listed 1863 - Communication Circuit Accessory.

Use multimedia jacks and AV connectors.

FEATURES

Designed for voice applications, these jacks

provide an economical alternative to basic wall

mount and performance needs.

q Available in high impact-resistant thermoplastic

or stainless steel.

q Meets FCC part 68.

q UL Listed 1863 - Communication Circuit

Accessory and CSA Certified.

TELEPHONE WALL JACKS

347V SWITCHES

PRODUCT FEATURES

q Silver cadmium oxide contacts

q Tri-Erive mounting and termination screws

q One piece rivetless spring arm and terminal plate

q User ready termination with screws backed out

q Back and side wired

q Accepts #14 to #10 AWG

StyleLine® Switches - Specification Grade

15A, 347V Single Pole 3 Way 4 Way

White HBL2101347W HBL2103347W -

Ivory HBL2101347I HBL2103347I -

20A, 347V Single Pole 3 Way 4 Way

White HBL2121347W HBL2123347W HBL2124347W

Ivory HBL2121347I HBL2123347I -

Black* HBL2121347BK HBL2123347BK -

Red* HBL2121347RD HBL2123347RD -

Toggle Switches - Industrial Grade

15A, 347V Single Pole 3 Way 4 Way

Brown HBL18201CN HBL18203CN -

Ivory HBL201ICN HBL18203ICN HBL18204ICN

Locking HBL18201LCN HBL18203LCN -

Key for locking switch HBL1209*

20A, 347V Single Pole 3 Way 4 Way

Brown HBL18221CN HBL18223CN -

Ivory HBL18221ICN HBL18223ICN -

* Minimum order quantities may apply.

347V SWITCHES

HMOSS™ 347V WALL SWITCHES

PRODUCT FEATURES

q Dual 120/277V AC operation 50/60 Hz

q Auto or manual oOn” operating modes

q No minimum load requirements

q Hard lens (dual technology, passive infrared)

q Zero arc point switching

q Built in photocell with manual super saver mode

for daylight harvesting

q Two relays for two level switching or dual load

control (AD, AP AU1277x2, 2N series)

q C-UL US Listed

Adaptive Technology, Dual (Ultrasonic and Passive Infrared)

1000 sq. ft. coverage with photocell, 3470W Fluorescent at 347V AC

Circuit Button Colour 347V

Single 1 Button for manual/auto control Ivory AD347I1

White AD347W1

Single Auto control with no button Ivory AD347I1N

White AD347W1N

Dual 2 Buttons for manual/auto control Ivory AD347I2

White AD347W2

Dual Auto control with no button Ivory AD347I2N

White AD347W2N

Sensors are available in three special order colours. To order special order colours, replace “I” or “W” with the following:

LA (Light Almond), GY (Gray) or BK (Black). Note: Ultrasonic output is 40kHz.

Adaptive Technology, Ultrasonic

400 sq. ft. coverage with photocell, 3470W Fluorescent at 347V AC

Circuit Button Colour 347V

Single 1 Button for manual/auto control Ivory AU347I1

White AU347W1

Single Auto control with no button Ivory AU347I1N

White AU347W1N

Dual 2 Buttons for manual/auto control Ivory AU347I2

White AU347W2

Dual Auto control with no button Ivory AU347I2N

White AU347W2N

Sensors are available in three special order colours. To order special order colours, replace “I” or “W” with the following:

LA (Light Almond), GY (Gray) or BK (Black). Note: Ultrasonic output is 40kHz.

Adaptive Technology, Passive Infrared

1000 sq. ft. coverage with photocell, 3470W Fluorescent at 347V AC

Circuit Button Colour 347V

Single 1 Button for manual/auto control Ivory AP347I1

White AP347W1

Single Auto control with no button Ivory AP347I1N

White AP347W1N

Dual 2 Buttons for manual/auto control Ivory AP347I2

White AP347W2

Dual Auto control with no button Ivory AP347I2N

White AP347W2N

Sensors are available in three special order colours. To order special order colours, replace “I” or “W” with the following:

LA (Light Almond), GY (Gray) or BK (Black).

AD347W1

AU347W1

AD347W2

AU347W2

AU347W1N

AU347W2N

AD347W1N

AD347W2N

AP347W1

AP347W2

AP347W1N

AP347W2N

~ For additional sensors, please refer to our full-line Wiring Device-Kellems Catalogue ~

347V SWITCHES

347V wallplates

1-Gang 2-Gang 3-Gang

Nylon - Style Line®

Colour 1 Gang 2 Gang 3 Gang

White HPS1347W HPS2347W HPS3347W

Ivory HPS1347I HPS2347I HPS3347I

Red* HPS1347R - -

Black* HPS1347BK - -

* Minimum order quantities may apply.

Nylon 347V Wallplates

Stainless Steel Grade 403, 347V Wallplates

~ For additional 347V stainless steel wallplates, see Section C ~

347V Wall Plates

Description For Use With 1204 Boxes For Use With 347V MBD OR MBS

1-gang, Toggle Switch 347V 97071HV 97071HV

2-gang, Toggle Switch 347V 97072HV 97072HVR

3-gang, Toggle Switch 347V 97073HV 97073HVR

4-gang, Toggle Switch 347V 97074HV 97074HVR

5-gang, Toggle Switch 347V 97075HV 97075HVR

6-gang, Toggle Switch 347V 97076HV 97076HVR

7-gang, Toggle Switch 347V 97077HV 97077HVR

1-gang, blank 347V box mount 3.531"97151HV 97151HV

2-gang, blank 347V box mount 3.531"97152HV 97152HVR

3-gang, blank 347V box mount 3.531"97153HV 97153HVR

4-gang, blank 347V box mount 3.531"97154HV 97154HVR

1-gang, toggle switch 347V king-size plate 97071KSHV 97071KSHV

1-gang, Decora 347V king-size plate 97401KSHV 97401KSHV

2-gang, Decora 347V box mount 3.531" king-size plate 97402KSHV 97402KSHVR

3-gang, Decora 347V box mount 3.531" king-size plate 97403KSHV 97403KSHVR

4-gang, Decora 347V box mount 3.531" king-size plate 97404KSHV 97404KSHVR

97071HV

97151HV 97401KSHV

97074HV 97077HV

97154HV 97402KSHV 97404KSHV

SectionG_final.indd 3 06/01/2012 10:21:24 AM

347V SWITCHES

WEATHERPROOF BOXES,

COVERS & LIGHTING

SINGLE-GANG BOXES

SINGLE-GANG BOXES: GENERAL DIMENSIONS

END VIEW

ONE OUTLET

END VIEW

TWO OUTLET

CATALOGUE

NUMBER

CUBIC

IN.

DESCRIPTION PKG.

TYPE

STD.

PKG.

COLOUR OUTLETS

2" Deep, With Lugs – Four Threaded Outlets – 4-1/2" x 2-3/4"

5321-0 18.3 Gray 4-1/2" Shrink 20

5321-1 18.3 White 4-1/2" Shrink 20

5321-2 18.3 Bronze 4-1/2" Shrink 20

5330-0 18.3 Gray 4-3/4" Shrink 20

CATALOGUE

NUMBER

CUBIC

IN.

DESCRIPTION PKG.

TYPE

STD.

PKG.

COLOUR OUTLETS

2" Deep, With Lugs – Five Threaded Outlets – 4-1/2" x 2-3/4"

5322-0 18.3 Gray 5-1/2" Shrink 20

5331-0 18.3 Gray 5-3/4" Shrink 20

5323-0 18.3 Gray 5-1/2" Shrink 20

5332-0 18.3 Gray 5-3/4" Shrink 20

CATALOGUE

NUMBER

CUBIC

IN.

DESCRIPTION PKG.

TYPE

STD.

PKG.

COLOUR OUTLETS

2-5/8" Deep, With Lugs – Three Threaded Outlets – 4-1/2" x 2-3/4"

5385-0 22.5 Gray 3-1/2" Shrink 15

5386-0 22.5 Gray 3-3/4" Shrink 15

5387-0 22.5 Gray 3-1" Shrink 15

5320-0 to

5320-2,

5324-0

5321-0 to

5321-2,

5330-0

5322-0,

5331-0

5385-0 to

5387-0

5323-0,

5332-0

APPLICATIONS

For use in branch circuit wiring in wet,

damp, or dry locations. May be used as a

weatherproof junction box, or as a housing for

receptacles, switches, and GFCI’s.

PRODUCT FEATURES

q Reinforced connector outlets

q State-of-the-art powder coat finish

q Eight box mounting options with

detachable lugs provided

q Two closure plugs included

q Ground screw installed

q Multi-lingual instructions in each package

q Internal threads on hubs comply with

NEMA requirements. Hubs accept all

threaded fittings and threaded conduit

q die cast aluminum construction

COMPLIANCES

q r Standard 514A

q r C22.2 No. 18

q NEMA 3R Rated

CATALOGUE

NUMBER

CUBIC

IN.

DESCRIPTION PKG.

TYPE

STD.

PKG.

COLOUR OUTLETS

2" Deep, With Lugs – Three Threaded Outlets – 4-1/2" x 2-3/4"

5320-0 18.3 Gray 3-1/2" Shrink 20

5320-1 18.3 White 3-1/2" Shrink 20

5320-2 18.3 Bronze 3-1/2" Shrink 20

5324-0 18.3 Gray 3-3/4" Shrink 20

WEATHERPROOF BOXES,

COVERS & LIGHTING

H2 SINGLE-GANG EXTENSIONS

AND ADAPTERS

APPLICATIONS

Used to provide additional capacity needed

for NEC box Ûll requirements.

Adapters allow installer to add otake-offs" to

new boxes/devices.

PRODUCT FEATURES

q Installation hardware, gasket, and ground

screw provided

q Closure plugs provided for two and six

outlet styles

q Internal threads and hubs comply with

NEMA requirements. Hubs accept all

threaded fittings and threaded conduit

q die cast aluminum construction

COMPLIANCES

q r Standard 514A

q r C22.2 No. 18

q NEMA 3R Rated

EXTENSIONS

CAT. NO. 5406-0

CAT. NO’s. 5399-0, 5403-0

5406-0 5399-0, 5403-0 5400-0 to 5400-5

5405-0

CATALOGUE

NUMBER

CUBIC

IN.

DESCRIPTION PKG.

TYPE

STD.

PKG.

COLOUR OUTLETS

Single-Gang – Extension Adapters – 5-1/4" x 3-1/2" x 1-1/2" Deep –

Two Threaded Outlets

5399-0 9.5 Gray 2-1/2" Shrink 20

5403-0 11.0 Gray 2-3/4" Shrink 20

CATALOGUE

NUMBER

CUBIC

IN.

DESCRIPTION PKG.

TYPE

STD.

PKG.

COLOUR OUTLETS

Single-Gang Extension – 4-1/2" x 2-3/4" x 1" Deep

5406-0 9.5 Gray — Shrink 25

CATALOGUE

NUMBER

CUBIC

IN.

DESCRIPTION PKG.

TYPE

STD.

PKG.

COLOUR OUTLETS

Single-Gang – Extension Adapters – 5-1/4" x 3-1/2" x 1-1/2" Deep –

Six Threaded Outlets

5400-0 9.5 Gray 6-1/2" Shrink 20

5400-5 9.5 Gray 6-1/2" Carded 6

5405-0 11.0 Gray 6-3/4" Shrink 20

5400-0 SERIES

o g o d c o id d

cd t co g

cd o co g

WEATHERPROOF BOXES,

COVERS & LIGHTING

SINGLE-GANG EXTENSION ADAPTERS

APPLICATIONS

Used to provide additional capacity

needed for NEC box Ûll requirements.

Allows installer to add otake-offs" to new

boxes/devices.

PRODUCT FEATURES

q Unique swing-arm design speeds

installation by allowing the installer

better visibility when lining up and

threading fasteners

q Rugged die cast construction

q Reinforced connector outlets

q State-of-the-art powder coat finish

q Installation hardware, ground screw

and gasket provided

q Multi-lingual instructions in each

package

q Internal threads and hubs comply

with NEMA requirements. Hubs

accept all threaded fittings and

threaded conduit

q die cast aluminum construction

COMPLIANCES

q r Standard 514A

q r C22.2 No. 18

q NEMA 3R Rated

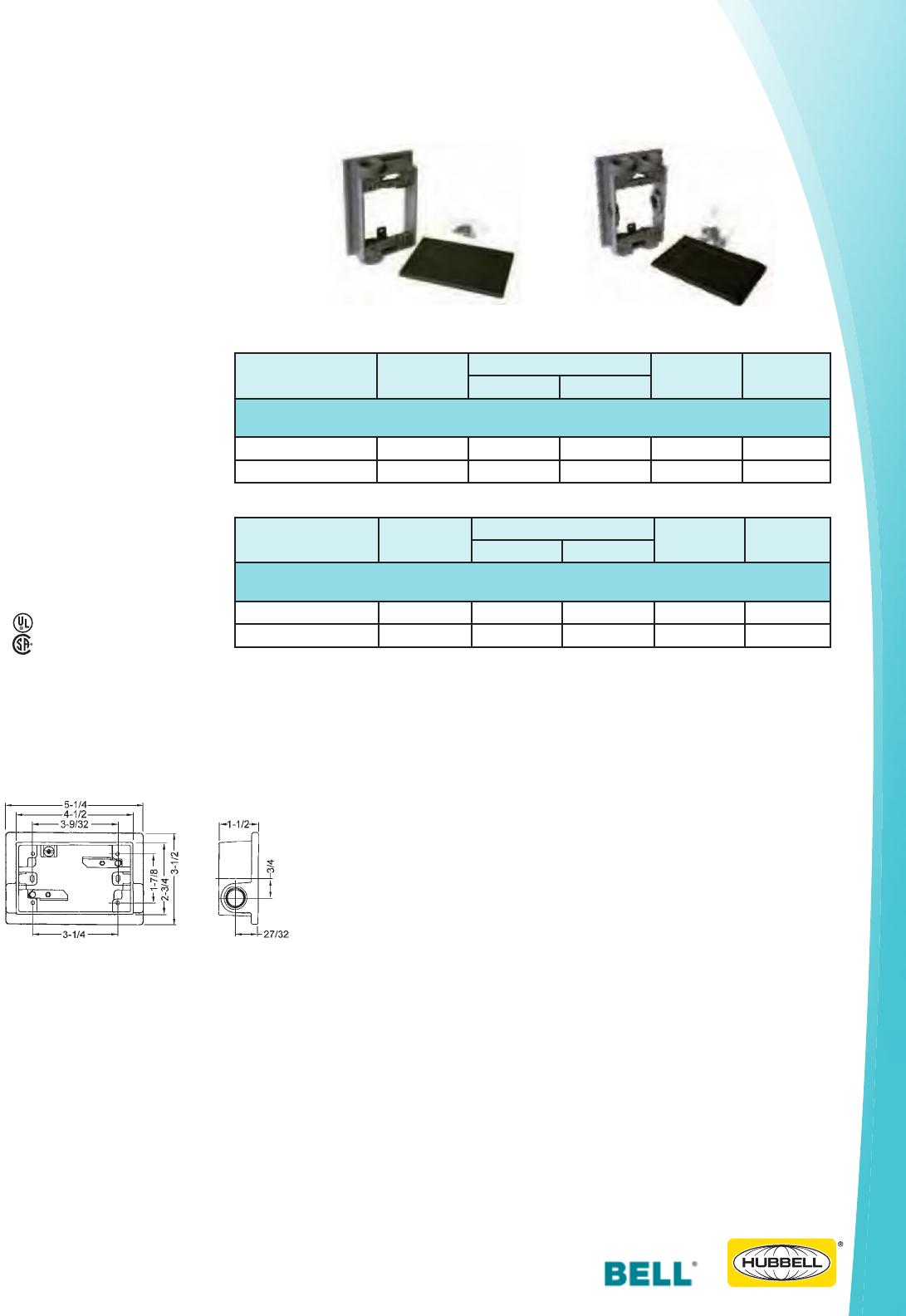

SWING ARM EXTENSION ADAPTERS

CAT. NOs. 5412-0 TO 5415-0

CATALOGUE

NUMBER

CUBIC

IN.

DESCRIPTION PKG.

TYPE

STD.

PKG.

COLOUR OUTLETS

Swing-Arm – Extension Adapters – 5-1/4" x 3-1/2" x 1-1/2" Deep –

Six Threaded Outlets

5414-0 12.8 Gray 6-1/2" Shrink 10

5415-0 12.8 Gray 6-3/4" Shrink 10

cd o co g

cd t co g

5414-0, 5415-0

5412-0, 5413-0

CATALOGUE

NUMBER

CUBIC

IN.

DESCRIPTION PKG.

TYPE

STD.

PKG.

COLOUR OUTLETS

Swing-Arm – Extension Adapters – 5-1/4" x 3-1/2" x 1-1/2" Deep –

Two Threaded Outlets

5412-0 13.8

Gray

2-1/2" Shrink 10

5413-0 13.8 Gray 2-3/4" Shrink 10

WEATHERPROOF BOXES,

COVERS & LIGHTING

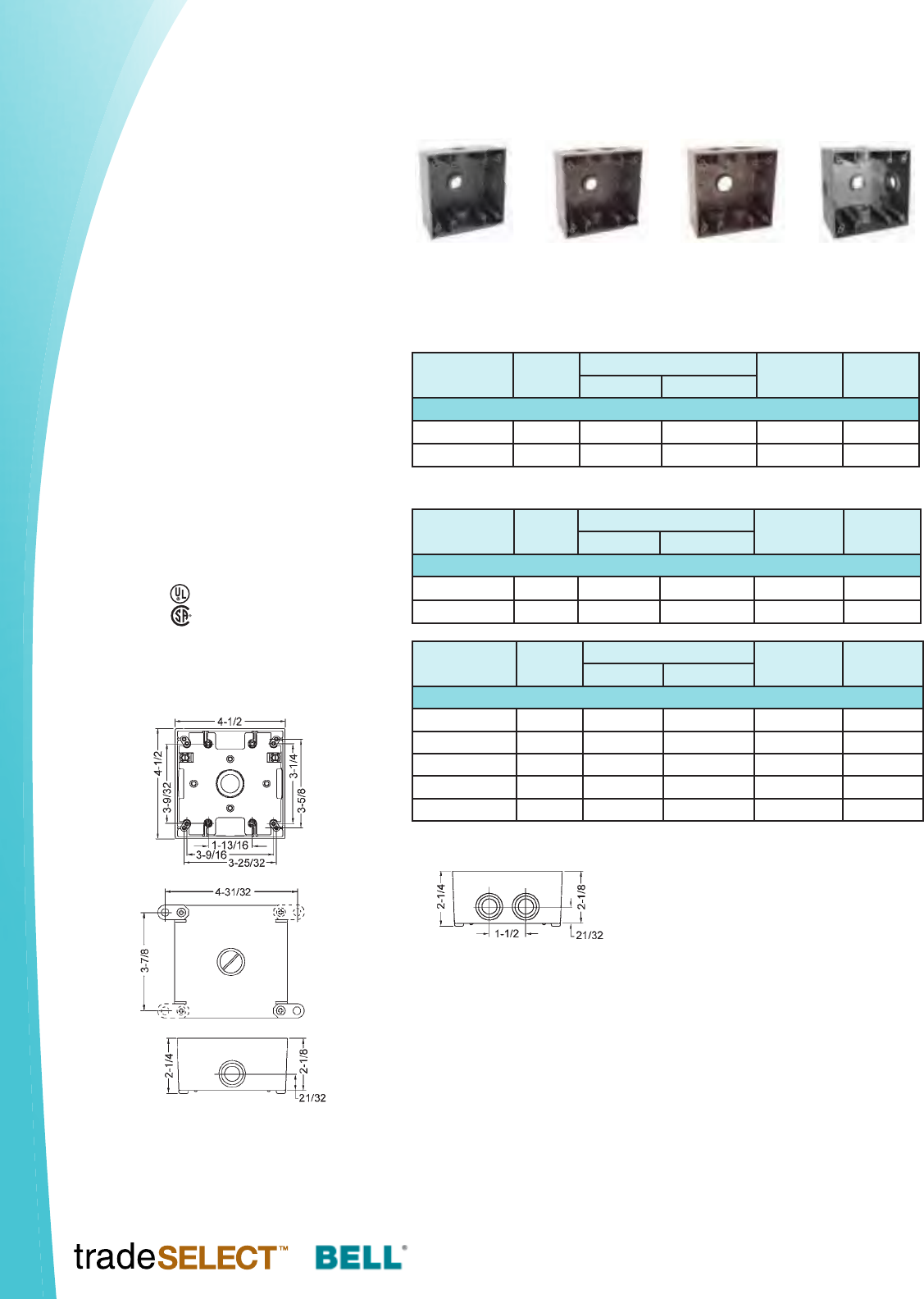

H4 TWO-GANG BOXES

APPLICATIONS

For use in branch circuit wiring in wet,

damp, or dry locations.

Can be used as a weatherproof junction

box, or as a housing for receptacles,

switches, and GFCI’s.

PRODUCT FEATURES

q Seamless die cast aluminum

construction

q Reinforced connector outlets

q State-of-the-art powder coat finish

q Eight box mounting options with

detachable lugs provided

q Two closure plugs included

q Ground screws installed

q Multi-lingual instructions in each

package

q Internal threads on hubs comply with

NEMA requirements. Hubs accept

all threaded fittings and threaded

conduit

COMPLIANCES

q r Standard 514A

q r C22.2 No. 18

q NEMA 3R Rated

TWO-GANG BOXES

GENERAL DIMENSIONS

END VIEW FOR STYLES WITH TWO

OUTLETS ON ONE END

CATALOGUE

NUMBER

CUBIC

IN.

DESCRIPTION PKG.

TYPE

STD.

PKG.

COLOUR OUTLETS

2" Deep, With Lugs – Three Threaded Outlets – 4-1/2" x 4-1/2"

5333-0

/" i

5341-0

/4" i

CATALOGUE

NUMBER

CUBIC

IN.

DESCRIPTION PKG.

TYPE

STD.

PKG.

COLOUR OUTLETS

2" Deep, With Lugs – Four Threaded Outlets – 4-1/2" x 4-1/2"

5335-0

4/" i

5343-0

4 /4" i

CATALOGUE

NUMBER

CUBIC

IN.

DESCRIPTION PKG.

TYPE

STD.

PKG.

COLOUR OUTLETS

2" Deep, With Lugs - Five Threaded Outlets - 4-1/2" x 4-1/2"

5337-0 31.0 Gray 5-1/2" Shrink 12

5337-1 31.0 White 5-1/2" Shrink 12

5345-0 31.0 Gray 5-3/4" Shrink 12

5334-0 32.0 Gray 5-1/2" Shrink 12

5342-0 32.0 Gray 5-3/4" Shrink 12

5333-0, 5341-0 5335-0, 5343-0 5337-0 TO 5337-2,

5345-0

5334-0, 5342-0

WEATHERPROOF BOXES,

COVERS & LIGHTING

TWO-GANG BOXES

TWO-GANG BOXES WITH 7 OUTLETS

CAT. NOs. 5340-0, 5348-0 CAT. NOs. 5338-0, 5346-0

APPLICATIONS

For use in branch circuit wiring in wet,

damp, or dry locations.

Can be used as a weatherproof junction

box, or as a housing for receptacles,

switches, and GFCI’s.

PRODUCT FEATURES

q Seamless die cast aluminum

construction

q Reinforced connector outlets

q State-of-the-art powder coat finish

q Eight box mounting options with

de-tachable plugs provided

q Two closure plugs included

q Ground screws installed

q Multi-lingual instructions in each

package

q Internal threads and hubs comply with

NEMA requirements. Hubs accept all

threaded fittings and threaded conduit

COMPLIANCES

q r Standard 514A

q r C22.2 No. 18

q NEMA 3R Rated

5340-0, 5348-0 5338-0, 5346-0 5388-0, 5389-0

cd to co g

CATALOGUE

NUMBER

CUBIC

IN.

DESCRIPTION PKG.

TYPE

STD.

PKG.

COLOUR OUTLETS

2" Deep, With Lugs – Seven Threaded Outlets – 4-1/2" x 4-1/2"

5340-0

/" i

5348-0

/4" i

5338-0

/" i

5346-0

/4" i

cd to co g

CATALOGUE

NUMBER

CUBIC

IN.

DESCRIPTION PKG.

TYPE

STD.

PKG.

COLOUR OUTLETS

2-5/8" Deep, With Lugs – Five Threaded Outlets – 4-1/2" x 4-1/2"

5388-0

/4" i

5389-0

TWO-GANG BOXES WITH 5 OUTLETS

CAT. NOs. 5388-0, 5389-0

WEATHERPROOF BOXES,

COVERS & LIGHTING

H6 MULTI-GANG BOXES

AND EXTENSIONS

TWO-GANG EXTENSION APPLICATION

Used to provide additional capacity needed for NEC

box Ûll requirements.

TWO-GANG EXTENSION

PRODUCT FEATURES

q Seamless die cast aluminum construction

q State-of-the-art powder coat finish

q Installation hardware and gasket provided

q Multi-lingual instructions in each package

TWO-GANG EXTENSION

COMPLIANCES

q r Standard 514A

q r C22.2 No. 18

q NEMA 3R Rated

THREE-GANG BOX APPLICATIONS

For use in branch circuit wiring in wet, damp, or dry

locations.

Can be used as a weatherproof junction box, or as a

housing for receptacles, switches, and GFCI’s.

THREE-GANG BOX PRODUCT

FEATURES

q Seamless die cast aluminum construction

q Reinforced connector outlets

q State-of-the-art powder coat finish

q Eight box mounting options with detachable lugs

provided

q Four closure plugs included

q Ground screws installed

q Multi-lingual instructions in each package

q Internal threads and hubs comply with NEMA

requirements. Hubs accept all threaded fittings

and threaded conduit

THREE-GANG BOX COMPLIANCES

q r Standard 514A

q r C22.2 No. 18

q NEMA 3R Rated

5390-05407-0

TWO-GANG EXTENSION

THREE-GANG BOX

cd o co g

CATALOGUE

NUMBER

CUBIC

IN.

DESCRIPTION PKG.

TYPE

STD.

PKG.

COLOUR OUTLETS

Two-Gang Extension – 4-21/32" x 4-21/32" x 1-1/32" Deep

5407-0 16.0 Gray — Shrink 10

CATALOGUE

NUMBER

CUBIC

IN.

DESCRIPTION PKG.

TYPE

STD.

PKG.

COLOUR OUTLETS

Three-Gang Box – 2-5/8" Deep, With Lugs – Seven Threaded Outlets –

4-1/2" X 6-3/8"

5390-0 55.0 Gray 7-3/4" Boxed 1

WEATHERPROOF BOXES,

COVERS & LIGHTING

ROUND SPLICE BOXES,

EXTENSION ADAPTERS AND COVERS

4" ROUND SPLICE BOXES

APPLICATIONS

For use in branch circuit wiring in wet, damp, or

dry locations.

Designed for use as a weatherproof junction

box, and may be used with Bell® round cluster

covers and round lampholder combinations.

4" ROUND SPLICE BOXES

PRODUCT FEATURES

q Rugged die cast construction

q Reinforced connector outlets

q State-of-the-art powder coat finish

q Cast-in mounting lugs provide fast, secure

installation

q Includes four closure plugs, installed

ground screw, and multi-lingual instructions

4" ROUND SPLICE BOXES

COMPLIANCES

q r Standard 514A

q r C22.2 No. 18

q NEMA 3R Rated

4" ROUND EXTENSION ADAPTERS

APPLICATIONS

For use with 4" round splice boxes.

Extension adapters are used to in-crease box

capacity and allow the installer to add otake-

offs" to new boxes/devices.

4" ROUND EXTENSION ADAPTERS

PRODUCT FEATURES

q Rugged die cast construction

q Reinforced connector outlets

q State-of-the-art powder coat finish

q Includes installation hardware, closure

plugs, gasket, and multi-lingual instructions

4" ROUND EXTENSION ADAPTERS

COMPLIANCES

q r Standard 514A

q r C22.2 No. 18

q NEMA 3R Rated

5361-0 to 5361-7,

5372-0

4" ROUND SPLICE BOXES 4" ROUND EXTENSION ADAPTERs

CATALOGUE

NUMBER

CUBIC

IN.

DESCRIPTION PKG.

TYPE

STD.

PKG.

COLOUR OUTLETS

4" Round Splice Box – Five Threaded Outlets – 1-1/2" Deep

5361-0 16.0 Gray 5-1/2" Shrink 16

5361-1 16.0 White 5-1/2" Shrink 16

5361-2 16.0 Bronze 5-1/2" Shrink 16

5372-0 16.0 Gray 5-3/4" Shrink 16

CATALOGUE

NUMBER

CUBIC

IN.

DESCRIPTION PKG.

TYPE

STD.

PKG.

COLOUR OUTLETS

4" Round Extension Adapter – Four Threaded Outlets – 1-1/2" Deep

5363-0 16.3 Gray 4-1/2" Shrink 16

5363-0

CATALOGUE

NUMBER

CUBIC

IN.

DESCRIPTION PKG.

TYPE

STD.

PKG.

COLOUR OUTLETS

4" Round Splice Box & Cover – Five Threaded Outlets – 1-1/2" Deep

5365-0 16.0 Gray 5-1/2" Shrink 16

5375-0 16.0 Gray 5-3/4" Shrink 16

CATALOGUE

NUMBER

DESCRIPTION PKG.

TYPE

STD.

PKG.

COLOUR OUTLETS

4" Round Cover

5374-0 Gray Blank Shrink 30

5374-0

4" ROUND COVER

WEATHERPROOF BOXES,

COVERS & LIGHTING

H8 SPECIALTY COVERS

CATALOGUE

NUMBER

CUBIC

IN.

DESCRIPTION PKG

TYPE

STD.

PKG.

COLOUR OUTLETS

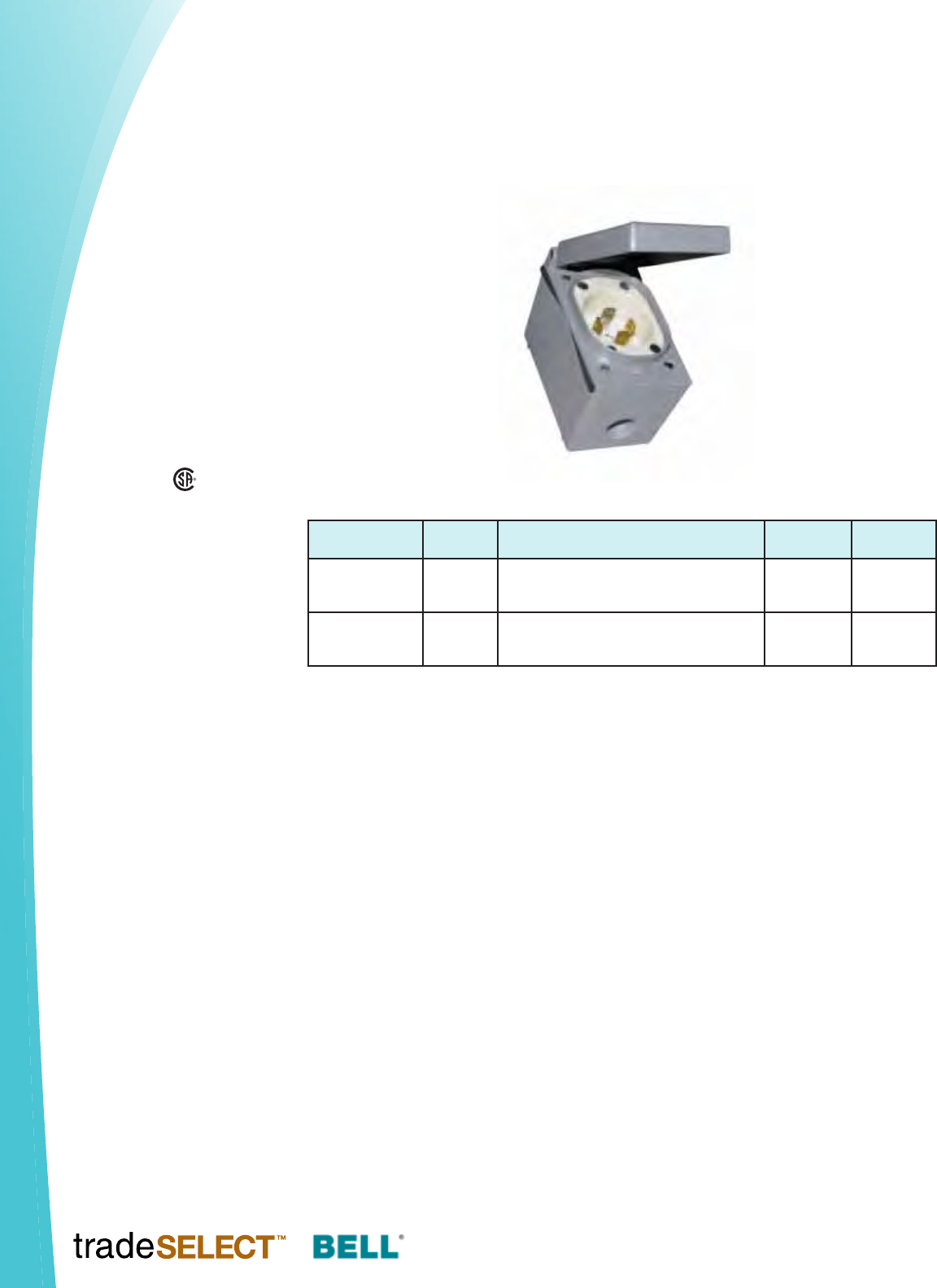

Mini Snap Cover And Receptacle – 3" x 2" x 1-1/8" Deep

5185-0 - Gray Cover & 125V

15A receptacle

Polybag 10

5185-0

MINI SNAP COVER AND

RECEPTACLE APPLICATION

For use when a convenience outlet is

required in a small space.

MINI SNAP COVER AND

RECEPTACLE PRODUCT

FEATURES

q State-of-the-art powder coat finish

provides for maximum weather-ability

and scratch resistance

q Self-closing lid assures weatherproof

protection when the receptacle is not

in use

cover cat. no. 5185-0

WEATHERPROOF BOXES,

COVERS & LIGHTING

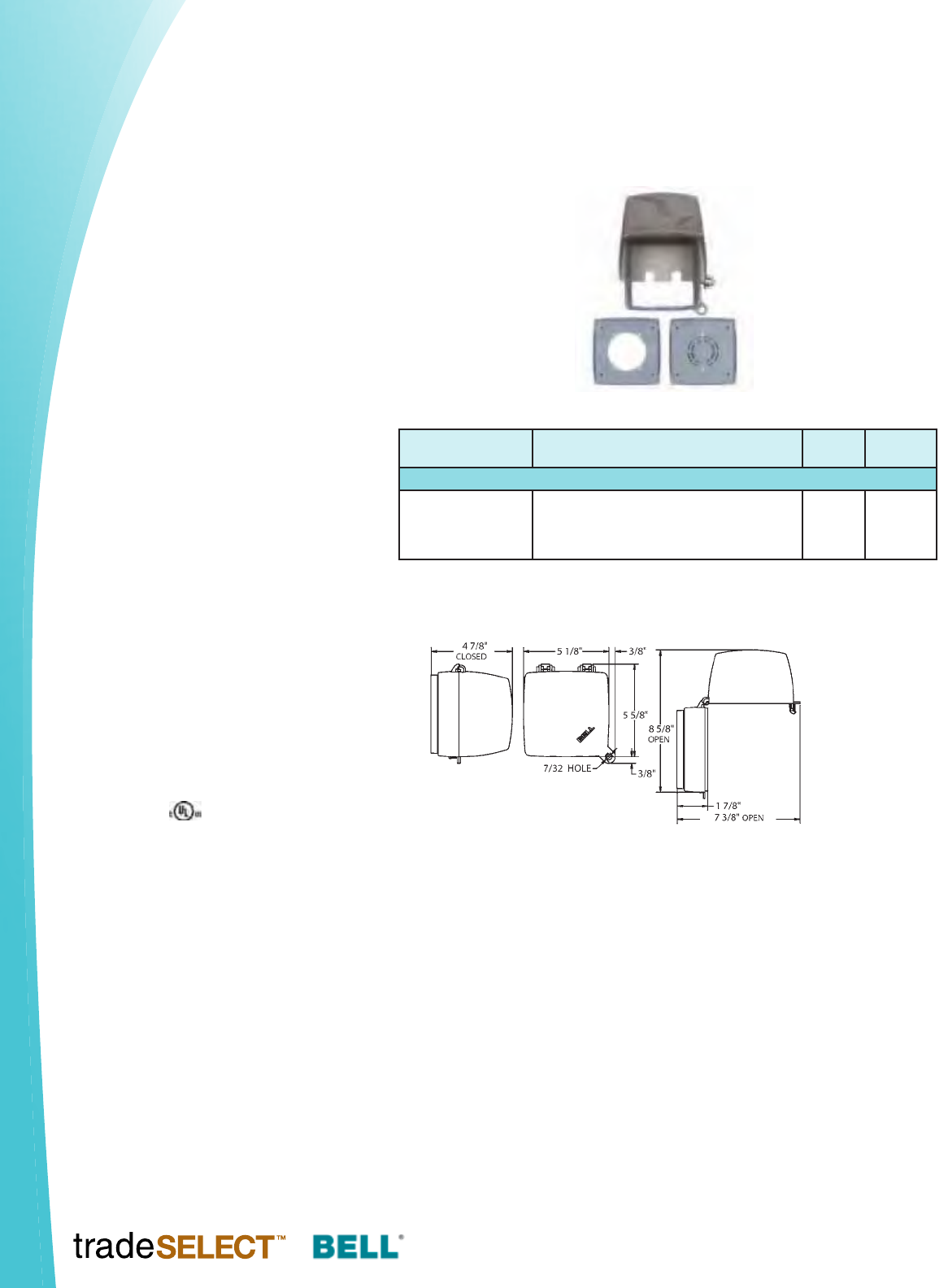

RAYNTITE® SINGLE-GANG

WEATHERPROOF-WHILE-IN-USE COVERS

APPLICATION

Rayntite® covers are designed for use

whenever weatherproof protection is required

while an outlet is in use.

PRODUCT FEATURES

q Modularity: 6 SKU’s cover almost every

application — no need to tie-up money

and shelf space stocking multiple SKU’s

q Unique snap fit design speeds

installation. No more fumbling with open

covers

q High-impact polycarbonate construction:

Virtually indestructible

q No need to worry about rust and

corrosion

q Tinted lid: Hides dust, dirt, and scratches

q Padlockable design: Prevents tampering

and accidental disconnects

q Tri-lingual instructions: One product for all

North American markets

q Covers can be either device or box

mounted — allows for installation

flexibility

q Meets NEC 406.8 (B) requirements — no

need to worry about code compliances

COMPLIANCES

q NEMA 3R Rated

q Meets NEC 406.8 (B) Requirements

REFERENCE DATA

q Canadian Patent 2,092, 516

q United States Patents

5,981, 875

5,533, 637

5,456, 377

5,228, 584

CATALOGUE

NUMBER

RECEPTACLE

TYPE

PKG.

TYPE

STD.

PKG.

Single-Gang – Standard Depth

5730-0 Single gang vertical cover with 4 plates included -for

duplex, GFCI, toggle and single round receptacles

1.344, 1.406, 1.468, 1.593, 1.655, 1.719, 2.032 and

2.156 Dia.

Shrink 10

5740-0 Single gang horizontal cover with 4 plates

included - for duplex, GFCI, toggle and single round

receptacles 1.344, 1.406, 1.468, 1.593, 1.655, 1.719,

2.032 and 2.156 Dia.

Shrink 10

5730-0 5740-0

CAT. NOs. 5730-0, 5740-0

WEATHERPROOF BOXES,

COVERS & LIGHTING

H10 RAYNTITE® SINGLE-GANG

WEATHERPROOF-WHILE-IN-USE COVERS

APPLICATION

Rayntite® covers are designed for use

whenever weatherproof protection is required

while an outlet is in use.

PRODUCT FEATURES

q Modularity: 6 SKU’s cover almost every

application — no need to tie- up money

and shelf space stocking multiple SKU’s

q Unique snap fit design speeds

installation. No more fumbling with open

covers

q High-impact polycarbonate construction:

Virtually indestructible

q No need to worry about rust and

corrosion

q Tinted lid: Hides dust, dirt, and scratches

q Padlockable design: Prevents tampering

and accidental disconnects

q Tri-lingual instructions: One product for

all North American markets

q Covers can be either device or box

mounted — allows for installation

flexibility

q Meets NEC 406.8 (B) requirements — no

need to worry about code compliances

COMPLIANCES

q NEMA 3R Rated

q Meets NEC 406.8 (B) Requirements

REFERENCE DATA

q Canadian Patent 2,092, 516

q United States Patents

5,981, 875

5,533, 637

5,456, 377

5,228, 584

5735-0

CATALOGUE

NUMBER

RECEPTACLE

TYPE

PKG.

TYPE

STD.

PKG.

Single-Gang – Deep

5735-0 Single gang vertical cover- Deep with 4 plates

included - for duplex, GFCI, toggle and single round

receptacles 1.344, 1.406, 1.468, 1.593, 1.655, 1.719,

2.032 and 2.156 Dia.

Shrink 6

CAT. NO. 5735-0

WEATHERPROOF BOXES,

COVERS & LIGHTING

H11

RAYNTITE® TWO-GANG

WEATHERPROOF-WHILE-IN-USE COVERS

APPLICATION

Rayntite

covers are designed for use

whenever weatherproof protection is required

while an outlet is in use.

PRODUCT FEATURES

q Modularity: 6 SKU’s cover almost every

application — no need to tie- up money

and shelf space stocking multiple SKU’s

q Unique snap fit design speeds installation.

No more fumbling with open covers

q Two-gang plates can be mounted

vertically or horizontally

q High-impact polycarbonate construction:

Virtually indestructible

q No need to worry about rust and

corrosion

q Tinted lid: Hides dust, dirt, and scratches

q Padlockable design: Prevents tampering

and accidental disconnects

q Tri-lingual instructions: One product for all

North American markets

q Covers can be either device or box

mounted — allows for installation

flexibility

q Meets NEC 406.8 (B) requirements — no

need to worry about code compliances

COMPLIANCES

q NEMA 3R Rated

q Meets NEC 406.8 (B) Requirements

REFERENCE DATA

q Canadian Patent 2,092, 516

q United States Patents

5,981, 875

5,533, 637

5,456, 377

5,228, 584

CAT. NOs. 5775-0, 5790-0

5790-0

5775-0

CATALOGUE

NUMBER

RECEPTACLE

TYPE

PKG.

TYPE

STD.

PKG.

Two-Gang – Standard Depth

5775-0 Two-gang vertical cover- with 4 plates included - for

duplex, and single round receptacles 1.344, 1.406,

1.468, 1.593, 1.655, 1.719, 2.033 and 2.156 Dia.

Shrink 5

CATALOGUE

NUMBER

RECEPTACLE

TYPE

PKG.

TYPE

STD.

PKG.

Two-Gang – Deep

5790-0 Two-gang vertical cover- Deep with 4 plates

included - for duplex, and single

round receptacles 1.344, 1.406, 1.468, 1.593,

1.655, 1.719, 2.032 and 2.156 Dia.

Shrink 3

WEATHERPROOF BOXES,

COVERS & LIGHTING

H12 RAYNTITE® TWO-GANG

WEATHERPROOF-WHILE-IN-USE COVERS

APPLICATION

Rayntite® covers are designed for use

whenever weatherproof protection is

required while an outlet is in use.

PRODUCT FEATURES

q Modularity: 6 SKU’s cover almost

every application — no need to tie-

up money and shelf space stocking

multiple SKU’s

q Unique snap fit design speeds

installation. No more fumbling with

open covers

q Two-gang plates can be mounted

vertically or horizontally

q High-impact polycarbonate

construction: Virtually indestructible

q No need to worry about rust and

corrosion

q Tinted lid: Hides dust, dirt, and

scratches

q Padlockable design: Prevents

tampering and accidental

disconnects

q Tri-lingual instructions: One product

for all North American markets

q Covers can be either device or box

mounted — allows for installation

flexibility

q Meets NEC 406.8 (B) requirements

— no need to worry about code

compliances

COMPLIANCES

q NEMA 3R Rated

q Meets NEC 406.8 (B) Requirements

REFERENCE DATA

q Canadian Patent 2,092, 516

q United States Patents

5,981, 875

5,533, 637

5,456, 377

5,228, 584

CAT. NOs. 5795-0

5795-0

CATALOGUE

NUMBER

RECEPTACLE

TYPE

PKG.

TYPE

STD.

PKG.

Two-Gang – Deep

5795-0 Two-gang v

ertical cover-

Deep with

2 plates included - for single

round rece

ptacles 1.344, 1.406, 1.468,

1.593, 1.655, 1.719, 2.032 and 2.156 Dia.

Shrink 3

WEATHERPROOF BOXES,

COVERS & LIGHTING

H13

RAYNTITE® SINGLE-GANG

DEVICE COVERS

APPLICATION

For use whenever weatherproof protection is

required for an outdoor receptacle.

PRODUCT FEATURES

q Rugged die cast aluminum construction

q State-of-the-art powder coat finish

provides maximum weatherability and

scratch resistance

q Self-closing lids assure weatherproof

protection when the receptacle is not in

use

q Vertical mount covers are

padlockable

q May be mounted to box or device

q Includes installation hardware, gasket,

and multi-lingual instructions

COMPLIANCES

q r Standard 514A

q r C22.2 No. 18

q NEMA 3R Rated

HORIZONTAL MOUNT COVERS

VERTICAL MOUNT COVERS

5001-0 5026-0

5027-0 5028-0 to 5028-6 5029-0, 5030-0 5031-0

CATALOGUE

NUMBER

COLOUR RECEPTACLE

TYPE

PKG.

TYPE

STD.

PKG.

Horizontal Mount

5001-0 Gray Duplex Shrink 24

5002-0 Gray GFCI Shrink 24

CATALOGUE

NUMBER

COLOUR RECEPTACLE

TYPE

PKG.

TYPE

STD.

PKG.

Vertical Mount – Padlockable

5026-0 Gray Single, 1.

593"

diameter

Shrink 24

5027-0 Gray Duplex Shrink 24

5028-0 Gray GFCI Shrink 24

5028-6 White GFCI Carded 6

5029-0 Gray 20A, 1.710

diameter

Shrink 12

5030-0 Gray 30-50A, 2.

150"

diameter

Shrink 12

5031-0 Gray Single, 1.

406"

diameter

Shrink 12

5002-0

WEATHERPROOF BOXES,

COVERS & LIGHTING

H14 RAYNTITE® TWO-GANG

DEVICE COVERS

CATALOGUE

NUMBER

COLOUR DESCRIPTION PKG.

TYPE

STD.

PKG.

Vertical Mount – Padlockable

5032-0 Gray (2) Duplex Shrink 6

5033-0 Gray (1) Duplex

& (1) GFCI

Shrink 6

5034-0 Gray (1) 30-50A

Receptacle

2.625" d

iameter

Shrink 6

5036-0 Gray (1) 30-50A

Receptacle

2.156" dia

meter

Shrink

5038-0 Gray (2) Recept

acles,

1.406" dia

meter

Shrink 6

5040-0 Gray (1) Single

Receptacle, 1.406"

diameter &

(1) GFCI

Shrink 6

5041-0 Gray (2) Toggle Shrink 6

5042-0 Gray (1) Toggle

& (1) Duplex

Shrink 6

5043-0 Gray (1) Toggle

& (1) GFCI

Shrink 6

5045-0 Gray (2) GFCI Shrink 6

TWO-GANG DEVICE COVERS

5032-0 5033-0 5034-0 5036-0 5038-0

5040-0 5041-0 5042-0 5043-0 5045-0

APPLICATION

For use whenever weatherproof protection

is required for an outdoor receptacle.

PRODUCT FEATURES

q Rugged die cast aluminum

construction

q State-of-the-art powder coat finish

provides maximum weatherability and

scratch resistance

q Self-closing lids assure weatherproof

protection when the receptacle is not

in use

q Covers are padlockable, 1/4" dia. hole

q May be mounted to box or device

q Includes installation hardware, gasket,

and multi-lingual instructions

COMPLIANCES

q r Standard 514A

q r C22.2 No. 18

q NEMA 3R Rated

WEATHERPROOF BOXES,

COVERS & LIGHTING

H15

SINGLE-GANG

DEVICE COVERS

APPLICATION

For use whenever weatherproof

protection is required for an outdoor

receptacle.

PRODUCT FEATURES

q Rugged metallic construction

q State-of-the-art powder coat finish

provides maximum weatherability

and scratch resistance

q Self-closing lids assure weatherproof

protection when the receptacle is not

in use

q Includes installation hardware,

gasket, and multi-lingual instructions

COMPLIANCES

q r Standard 514A

q r C22.2 No. 18

q NEMA 3R Rated

5152-0

5101-0 to 5101-2

5712-5 5094-0

5102-0

5180-0 to 5180-2

CATALOGUE

NUMBER

COLOUR RECEPTACLE

TYPE

PKG.

TYPE

STD.

PKG.

Horizontal – Device Mount

5180-0 Gray Duplex Shrink 24

5180-1 White Duplex Shrink 24

5180-2 Bronze Duplex Shrink 24

5181-0 Gray Duplex Shrink 24

5101-0 Gray GFCI Shrink 24

5101-1 White GFCI Shrink 24

5101-2 Bronze GFCI Shrink 24

5102-0 Gray GFCI Shrink 24

5152-0 Gray Single, 1.

406" diameter

Shrink 24

5153-0

Gray Motor plug

base, 1.600" diameter,

125V, 15A wiring device included

Shrink 12

5712-5 Gray 125V, 15A

Duplex

receptacle

included

Carded 6

/ itd

CATALOGUE

NUMBER

COLOUR RECEPTACLE

TYPE

PKG.

TYPE

STD.

PKG.

Horizontal – Box Mount

5094-0 Gray Duplex Shrink 24

CAT. NOs. 5180-0 SERIES, 5712-5, 5094-0

CAT. NO. 5101-0 SERIES

CAT. NO. 5152-0

CAT. NO. 5153-0

5153-0

5181-0

CAT. NO. 5102-0 CAT. NO. 5181-0

4-1/2"

2-3/4"

4-1/2"

2-3/4"

WEATHERPROOF BOXES,

COVERS & LIGHTING

H16

APPLICATIONS

For temporary power back-ups following

storms, on construction sites, with RV’s or

anywhere temporary power is needed.

PRODUCT FEATURES

q Extra-deep weatherproof box gives

installers the room needed to wire the

box efficiently.

q State-of-the-art powder-coated finish

provides years of protection against the

elements.

q Installation hardware, gasket, and

ground screw is provided. No need to

search for additional components.

COMPLIANCES

q r C22.2 NO. 18

q NEMA 3R RATED

GENERATOR KITS

CATALOGUE

NUMBER

COLOUR DESCRIPTION PKG.

TYPE

STD.

PKG.

58405 Gray Generator

Hook-up Box with 3-pole, 4

wire, 30A, 125/250V NEMA L14-30 male

receptacle

Boxed 4

58355KIT Gray Generator

Hook-up Box with 3 pole, 4

wire, 20A, 125/250V NEMA L14-20 male

receptacle

Boxed 4

WEATHERPROOF BOXES,

COVERS & LIGHTING

H17

SINGLE-GANG

DEVICE COVERS

APPLICATION

For use whenever weatherproof protection

is required for an outdoor receptacle.

PRODUCT FEATURES

q Rugged metallic construction

q State-of-the-art powder coat finish

provides maximum weatherability and

scratch resistance

q Self-closing lids assure weatherproof

protection when the receptacle is not

in use

q Includes installation hardware, gasket,

and multi-lingual instructions

COMPLIANCES

q NEMA 3R Rated

NOTE: DIMENSIONS FOR DEVICE-MOUNT AND

BOX-MOUNT COVERS ARE THE SAME

SINGLE RECEPTACLE STYLE COVERS

GFCI STYLE COVERS

5146-0 to 5146-1

5091-0

5103-0 to 5103-2

5095-0

5147-0

5104-0

CATALOGUE

NUMBER

COLOUR RECEPTACLE

TYPE

PKG.

TYPE

STD.

PKG.

Vertical – Device Mount

5146-0 Gray Duplex Shrink 24

5146-1 White Duplex Shrink 24

5103-0 Gray GFCI Shrink 24

5103-1 White GFCI Shrink 24

5103-2 Bronze GFCI Shrink 24

5104-0 Gray GFCI Shrink 24

5155-0 Gray Single, 1.

406" diameter

Shrink 24

5155-1 White Single, 1.

406" diameter

Shrink 24

5155-2 Bronze Single, 1.

406" diameter

Shrink 24

CATALOGUE

NUMBER

COLOUR RECEPTACLE

TYPE

PKG.

TYPE

STD.

PKG.

Vertical – Box Mount

5095-0 Gray Duplex Shrink 24

5091-0 Gray Single, 1.

406" diameter

Shrink 24

5147-0 Gray Duplex Shrink 24

5155-0 to 5155-2

DUPLEX STYLE COVER CAT. NO. 5104-0, 5147-0

4-1/2"

2-3/4"

WEATHERPROOF BOXES,

COVERS & LIGHTING

H18 SINGLE-GANG BLANK COVERS

AND MINI-PLATE

BLANK COVERS APPLICATION

For use whenever weatherproof protection

is required for a single-gang box.

BLANK COVERS PRODUCT

FEATURES

q Rugged metallic construction

q State-of-the-art powder coat finish

provides maximum weatherability and

scratch resistance

BLANK COVERS

COMPLIANCES

q NEMA 3R Rated

MINI-PLATE APPLICATIONS

For use with light poles. Provides a safe

and convenient means of accessing

power for holiday lighting, power tools,

and the like.

MINI-PLATE PRODUCT

FEATURES

q Rugged metallic construction

q State-of-the-art powder coat finish

provides maximum weatherability and

scratch resistance

q Self-closing lid assures weatherproof

protection when receptacle is not in

use

q Includes installation hardware and

receptacle

BLANK COVERS MINI-PLATE

CATALOGUE

NUMBER

COLOUR DESCRIPTION PKG.

TYPE

STD.

PKG.

Blank Covers – Device Mount

5173-0 Gray Blank Cove

Shrink 50

5173-1 White Blank Cove

Shrink 50

5173-7 Bronze Blank Cove

Carded 12

CATALOGUE

NUMBER

COLOUR DESCRIPTION PKG.

TYPE

STD.

PKG.

Blank Covers – Box Mount

5174-0 Gray Blank Cove

Shrink 50

CATALOGUE

NUMBER

COLOUR DESCRIPTION PKG.

TYPE

STD.

PKG.

Mini-Plate

5183-0 Black

Curved bac

k, 1-1/2" radius -

for 3" dia. pole mounting

Shrink 48

cd i c tc

5173-0 to 5173-7 5174-0 5183-0

WEATHERPROOF BOXES,

COVERS & LIGHTING

H19

TWO-GANG DEVICE COVERS

APPLICATION

For use whenever weatherproof protection

is required for an outdoor receptacle.

PRODUCT FEATURES

q Rugged metallic construction

q State-of-the-art powder coat finish

provides maximum weatherability and

scratch resistance

q Self-closing lids assure weatherproof

protection when the receptacle is not

in use

q Includes installation hardware, gasket,

and multi-lingual instructions

COMPLIANCES

q r Standard 514A (5132 - 5145)

q r C22.2 (5132 - 5145)

q NEMA 3R Rated

5157-0, 5092-0

TWO-GANG DEVICE COVERS

5148-0 SERIES, 5096-0, 5160-0, 5098-0

NOTE: DIMENSIONS ARE THE SAME FOR

DEVICE MOUNT AND BOX MOUNT STYLES SHOWN.

5157-0 SERIES, 5092-0

CATALOGUE

NUMBER

COLOUR RECEPTACLE

TYPE

PKG.

TYPE

STD.

PKG.

Box Mount

5096-0 Gray (2) Duplex Shrink 12

5092-0 Gray (2) Single

, 1.406" dia.

Shrink 12

5098-0 Gray (1) Duplex

(1) Single

, 1.406" dia.

Shrink 12

5133-0 Gray (1) Duplex

, (1) GFCI

Shrink 10

5145-0 Gray (2) GFCI Shrink 10

5092-0

5148-0

5098-05096-0

5157-0

5138-0

5132-0

5145-0

5133-0

CATALOGUE

NUMBER

COLOUR RECEPTACLE

TYPE

PKG.

TYPE

STD.

PKG.

Device Mount

5132-0 Gray (2) Duplex Shrink 10

5138-0 Gray (2) Round,

1.406" Dia.

Shrink 10

5148-0 Gray (2) Duplex Shrink 18

5157-0 Gray (2) Single

, 1.406" dia.

Shrink 18

5160-0 Gray (1) Duplex

(1) Single

, 1.406" dia.

Shrink 12

5160-0

5132-0

4-1/2"

4-9/16"

5133-0

4-1/2"

4-9/16"

5138-0

4-1/2"

4-9/16"

5145-0

4-1/2"

4-9/16"

WEATHERPROOF BOXES,

COVERS & LIGHTING

H20 TWO AND THREE-GANG

DEVICE COVERS

APPLICATIONS

For use whenever weatherproof protection

is required for an outdoor receptacle. Blank

covers for use whenever weatherproof

protection is required for a multi-gang box.

PRODUCT FEATURES

q Rugged metallic construction

q State-of-the-art powder coat finish

provides maximum weatherability and

scratch resistance

q Self-closing lids assure weatherproof

protection when the receptacle is not in

use

q Includes installation hardware, gasket,

and multi-lingual instructions

COMPLIANCES

q NEMA 3R Rated

THREE-GANG DEVICE COVERS

5097-0 AND 5093-0

BLANK COVERS

5177-0, 5175 SERIES

NOTE: DIMENSIONS ARE THE SAME FOR DEVICE

MOUNT AND BOX MOUNT STYLES SHOWN.

5175-0 to 5175-2 5177-0

5093-0

5097-0

CATALOGUE

NUMBER

COLOUR DESCRIPTION PKG.

TYPE

STD.

PKG.

Three-Gang Device Cover – Box Mount

5097-0 Gray (3) Duplex Boxed 1

5093-0 Gray (3) Single

, 1.406" dia.

Boxed 1

CATALOGUE

NUMBER

COLOUR DESCRIPTION PKG.

TYPE

STD.

PKG.

Three-Gang Blank Cover – Box Mount

5177-0 Gray Blank Cove

Boxed 10

CATALOGUE

NUMBER

COLOUR DESCRIPTION PKG.

TYPE

STD.

PKG.

Two-Gang Blank Cover – Device Mount

5175-0 Gray Blank Cove

Shrink 25

5175-1 White Blank Cove

Shrink 25

5175-2 Bronze Blank Cove

Shrink 25

WEATHERPROOF BOXES,

COVERS & LIGHTING

H21

SINGLE-GANG LEVER

SWITCH COVERS

APPLICATION

For use whenever weatherproof protection

is required for an oon-off" type switch.

PRODUCT FEATURES

q Rugged metallic construction

q State-of-the-art powder coat finish

provides maximum weatherability and

scratch resistance

q Includes installation hardware and

multi-lingual instructions

q Single-gang covers are supplied with

a switch — no need to purchase

separate components

q Switch/cover units are supplied with

the switch unassembled to the cover

COMPLIANCES

q r Standard 514A

q r CertiÛed

q NEMA 3R Rated

SINGLE-GANG

5121 SERIES

5141 SERIES

CAT. NOs. 5128-0, 5137-0

CATALOGUE

NUMBER

COLOUR DESCRIPTION PKG.

TYPE

STD.

PKG.

Single-Gang Switch Covers – Vertical – Device Mounted

5121-0 Gray SP 125V, 1

Shrink 24

5121-1 White SP 125V, 1

Shrink 24

5121-2 Bronze SP 125V, 1

Shrink 24

5141-0 Gray 3-Way 125V

, 6A or 250V, 3A

Shrink 8

5128-0 Gray SP 120-277

VAC, 20A

Shrink 20

5137-0 Gray DP 120-277

VAC, 20A

Shrink 20

5121-0 to 5121-2

5141-0, 5128-0, 5137-0

WEATHERPROOF BOXES,

COVERS & LIGHTING

H22 TWO-GANG LEVER

SWITCH COVERS

APPLICATION

For use whenever weatherproof

protection is required for an oon-off" type

switch.

PRODUCT FEATURES

q Rugged metallic construction

q State-of-the-art powder coat finish

provides maximum weatherability

and scratch resistance

q Includes installation hardware and

multi-lingual instructions

q Most units supplied with a switch

— no need to purchase separate

components

q Switch/cover units are supplied with

the switch unassembled to the cover

COMPLIANCES

q r Standard 514A

q r CertiÛed

q NEMA 3R Rated

TWO-GANG

CAT. NO. 5124-0, 5125 SERIES

TWO-GANG 5166 SERIES

CATALOGUE

NUMBER

COLOUR DESCRIPTION PKG.

TYPE

STD.

PKG.

Two-Gang Switch Covers – Device Mounted

5124-0 Gray (2) SP 125

V, 10A

Shrink 8

5125-0 Gray Cover only Shrink 8

5166-0 Gray (1) SP 125

V, 10A &

(1) Duplex

receptacle

Shrink 8

5167-0 Gray 2 Gang, Sw

itch/GFCI

Cover box

mount

Shrink

5124-0 5125-0

5166-0 5167-0

TWO-GANG 5167 SERIES

THREE-GANG LEVER SWITCH COVER

& REPLACEMENT SWITCH

three-gang Lever sWitCh

Cover appLiCation

For use whenever weatherproof protection is

required for an “on-off" type switch.

three-gang Lever sWitCh

Cover produCt features

• Ruggedmetallicconstruction

• State-of-the-artpowdercoatfinish

providesmaximumweatherabilityand

scratch resistance

• Includesinstallationhardwareandmulti-

lingualinstructions

• Three-gangcoverissuppliedwith

switches — no need to purchase

separatecomponents

• Switch/coverunitsaresuppliedwiththe

switchunassembledtothecover

three-gang Lever sWitCh

Cover CompLianCes

• 

• NEMA3RRated(5126-0only)

TOGGLE SWITCH

CAT. NOs. 5201-0

THREE-GANG

CAT. NO. 5126-0

5126-0

5201-0

5126-0 5201-0

SectionH-Final.indd 23 06/01/2012 10:19:03 AM

Weatherproof Boxes,

Covers & Lighting

H23

WEATHERPROOF BOXES,

COVERS & LIGHTING

H24 CLUSTER COVERS

APPLICATIONS

For use with Bell® single-gang

rectangular or round weather-proof

boxes. Cluster covers provide an

easy means of mounting Bell

lampholders and other accessories.

PRODUCT FEATURES

q Rugged die cast construction

q State-of-the-art powder coat

finish provides maximum

weatherability and scratch-

resistance

q Includes installation hardware,

gasket, and multi-lingual

instructions

q Three-hole covers are supplied

with two closure plugs

COMPLIANCES

q r Standard 514A

q r CertiÛed - C22.2 #18

RECTANGULAR CLUSTER COVERS

5186 SERIES, 5189 SERIES

ROUND CLUSTER COVERS

5193 SERIES, 5197 SERIES

5197-0 to 5197-25189-0 to 5189-25186-0 to 5186-2 5193-0 to 5193-2

CATALOGUE

NUMBER

COLOUR DESCRIPTION PKG.

TYPE

STD.

PKG.

Rectangular Cluster – Covers

5186-0 Gray 1-1/2" Out

let

Shrink 20

5186-1 White 1-1/2" Out

let

Shrink 20

5186-2 Bronze 1-1/2" Out

let

Shrink 20

5189-0 Gray 3-1/2" Out

lets

Shrink 20

5189-1 White 3-1/2" Out

lets

Shrink 20

5189-2 Bronze 3-1/2" Out

lets

Shrink 20

CATALOGUE

NUMBER

COLOUR DESCRIPTION PKG.

TYPE

STD.

PKG.

4" Round Cluster – Covers

5193-0 Gray 1-1/2" Out

let

Shrink 20

5193-1 White 1-1/2" Out

let

Shrink 20

5193-2 Bronze 1-1/2" Out

let

Shrink 20

5197-0 Gray 3-1/2" Out

lets

Shrink 20

5197-1 White 3-1/2" Out

lets

Shrink 20

5197-2 Bronze 3-1/2" Out

lets

Shrink 20

WEATHERPROOF BOXES,

COVERS & LIGHTING

H25

LAMPHOLDERS

CATALOGUE

NUMBER

COLOUR DESCRIPTION PKG.

TYPE

STD.

PKG.

Lampholders And Accessories For 75-150 Watt Par 38 Lamps

5606-0 Gray Lampholder Shrink 30

5606-1 White Lampholder Shrink 30

5606-2 Bronze Lampholder Shrink 30

5612-0 Gray Lampholder

w/gasket

Shrink 30

5611-0

— Outer gask

et only,

replacemen

t gasket

for 5612-0

Polybag 30

5615-0 — Wire guard

only

Shrink 5

APPLICATIONS.

For outdoor or indoor lighting use. May be

used with Bell® cluster covers and boxes.

PRODUCT FEATURES

q Rugged metallic construction

q State-of-the-art powder coat finish

provides maximum weatherability and

scratch-resistance

q Locking swivel knuckle assures positive

lamp positioning and provides pin-point

directional aiming

q Extra long wire leads for easy hook-up

q Each lampholder supplied with a

porcelain socket, inside gasket, 1/2"

locknut and multi-lingual instructions

COMPLIANCES

q r Standard 1598

q r Certified C22.2 No. 18

LAMPHOLDERS

5606 SERIES, 5612-0

5615-0 5613-0 to 5613-2

5611-0

5606-0 5612-0

CAT. NO. 5615-0

CAT. NO. 5611-0

CATALOGUE

NUMBER

COLOUR DESCRIPTION PKG.

TYPE

STD.

PKG.

Architectural Lampholders For 75-150 Watt Par 38 Lamps

5613-0 Gray Lampholder Shrink 4

5613-1 White Lampholder Shrink 4

5613-2 Bronze Lampholder Shrink 4

5613 SERIES

WEATHERPROOF BOXES,

COVERS & LIGHTING

H26 LAMPHOLDERS

PORTABLE LAMPHOLDER

APPLICATION

For general outdoor lighting use.

PORTABLE LAMPHOLDER

PRODUCT FEATURES

q Rugged die-cast construction

q State-of-the-art powder coat finish

provides maximum weatherability and

scratch-resistance

q Locking swivel knuckle assures positive

lamp positioning and provides pin-point

directional aiming

PORTABLE LAMPHOLDER

COMPLIANCES

BULLET LAMPHOLDER

APPLICATION

For general outdoor lighting use. May be

used with BELL cluster covers and boxes

BULLET LAMPHOLDER

PRODUCT FEATURES

q Rugged die cast

q Locking swivel knuckle

q Assure positive lamp positioning and

provides pinpoint directional aming

q Includes installation hardware and

multilingual instructions

BULLET LAMPHOLDER

COMPLIANCES

5792-0

CATALOGUE

NUMBER

COLOUR DESCRIPTION PKG.

TYPE

STD.

PKG.

Portable Lampholder Assembly

5792-0 Gray Spike, 6 f

cord & plu

Polybag 12

5820-8

CATALOGUE

NUMBER

COLOUR DESCRIPTION PKG.

TYPE

STD.

PKG.

Bullet Lampholders - For 75-150 Watt Par 38 And R-40 Lamps

5820-8 Green Lampholder Boxed 2

BULLET LAMPHOLDER ASSEMBLY 5820-8PORTABLE LAMPHOLDER ASSEMBLY 5792-0

WEATHERPROOF BOXES,

COVERS & LIGHTING

H27

LAMPHOLDER COMBINATIONS

5624-0 to 5624-25620-0 5625-0 to 5625-25621-0 to 5621-6

CATALOGUE

NUMBER

COLOUR DESCRIPTION PKG.

TYPE

STD.

PKG.

Rectangular Cover – Combinations For 75-150 Watt Par 38 Lamps

5620-0 Gray (1) Lampho

lder

Shrink 8

5621-0 Gray (2) Lampho

lders

Shrink 8

5621-6 White (2) Lampho

lders

Carded 4

CATALOGUE

NUMBER

COLOUR DESCRIPTION PKG.

TYPE

STD.

PKG.

4" Round Cover – Combinations For 75-150 Watt Par 38 Lamps

5624-0 Gray (1) Lampho

lder

Shrink 8

5624-1 White (1) Lampho

lder

Shrink 8

5624-2 Bronze (1) Lampho

lder

Shrink 8

5625-0 Gray (2) Lampho

lders

Shrink 8

5625-1 White (2) Lampho

lders

Shrink 8

5625-2 Bronze (2) Lampho

lders

Shrink 8

APPLICATION

For use with Bell® single-gang

rectangular or round weatherproof boxes.

PRODUCT FEATURES

q Rugged metallic construction

q State-of-the-art powder coat finish

provides maximum weatherability

and scratch-resistance

q Each combination kit is a complete

weatherproof installation — no need

to purchase separate components

q Includes installation hardware,

gasket, and multi-lingual instructions

COMPLIANCES

q r Standard 1598

q r CertiÛed C22.2 No. 18

5620 SERIES

5621 SERIES 5624 SERIES 5625 SERIES

WEATHERPROOF BOXES,

COVERS & LIGHTING

H28 LIGHT KITS

APPLICATION

For general use in wet, damp, or dry

locations.

PRODUCT FEATURES

q Each kit is a complete weatherproof

installation — no need to purchase

separate components

q Each kit includes easy-to-follow

multi-lingual instructions

q All kit components are described in

the preceding pages

COMPLIANCES

q r Standard 1598

q r CertiÛed C22.2 No.18

5883-5 to 5883-6 5818-5 to 5818-6

CATALOGUE

NUMBER

COLOUR DESCRIPTION PKG.

TYPE

STD

PKG.

Rectangular Light Kits For 75-150 Watt Par 38 Lamps

5883-5 Gray Box, cover

, photocell

& (2) lamp

holders

Boxed 4

5883-6 White Box, cover

, photocell

& (2) lamp

holders

Boxed 4

5818-5

Gray Box, cover

(2) lampho

lders

Boxed 4

5818-6 White Box, cover

(2) lampho

lders

Boxed 4

WEATHERPROOF BOXES,

COVERS & LIGHTING

H29

LIGHT KITS

APPLICATION

For general use in wet, damp, or dry

locations.

PRODUCT FEATURES

q Each kit is a complete weatherproof

installation — no need to purchase

separate components

q Each kit includes easy-to-follow

multi-lingual instructions

q All kit components are described in

the preceding pages

COMPLIANCES

q r Standard 1598

q r CertiÛed C22.2 No. 18

5829-5 to 5829-6 5876-5 to 5876-6

CATALOGUE

NUMBER

COLOUR DESCRIPTION PKG.

TYPE

STD.

PKG.

4" Round Light Kits For 75-150 Watt Par 38 Lamps

5829-5 Gray Box, cover

(2) lampho

lders

Boxed 4

5829-6 White Box, cover

(2) lampho

lders

Boxed 4

5876-5

Gray Box, cover

(2) archit

ectural

lampholder

Boxed 4

5876-6

White Box, cover

(2) archit

ectural

lampholder

Boxed 4

WEATHERPROOF BOXES,

COVERS & LIGHTING

H30 GARDEN LIGHTS

REPLACEMENT GLOBES

APPLICATION

For accent lighting along walkways,

driveways, terraces, porches and garden

areas.

PRODUCT FEATURES

q Rugged die cast construction

q State-of-the-art powder coat finish

provides maximum weatherability

and scratch-resistance

q Includes screw-in clear glass globe,

wire connectors, gasket, and multi-

lingual instructions

q Three-tier lights accept 40W

maximum lamps

q Four-tier lights accept 60W maximum

lamps

COMPLIANCES

CATALOGUE

NUMBER

COLOUR DESCRIPTION PKG.

TYPE

STD.

PKG.

Incandescent Type Threaded 1/2" Npt - 18" Leads

5884-8 Green 3-Tier Box 2

5893-8 Green 4-Tier Box 2

CATALOGUE

NUMBER

DIA. HEIGHT

5884-8 6" 7"

5893-8 6" 8-3/4"

5884-8 5893-8

REPLACEMENT GLOBES

APPLICATION

For use with Bell® garden lights.

REPLACEMENT GLOBE

5694-0

CATALOGUE

NUMBER

COLOUR DESCRIPTION PKG.

TYPE

STD.

PKG.

Replacement Globes For Garden Lights

5694-0 Clear For 3-tier Carton 4

5695-0 Clear For 4-tier Carton 4

CAT. NO. 5884-8

5695-0

WEATHERPROOF BOXES,

COVERS & LIGHTING

H31

ACCESSORIES

Closure Plugs

CLOSURE PLUGS APPLICATION

For use with Bell® weatherproof boxes,

extension adapters, cluster covers and

round splice boxes to seal off unused

outlets

CLOSURE PLUGS PRODUCT

FEATURES

q Gray closure plugs are zinc die cast

q White and bronze closure plugs are

nonmetallic

CATALOGUE

NUMBER

COLOUR DESCRIPTION PKG.

TYPE

STD.

PKG.

Closure Plugs

5269-0 Gray 1/2" NPT 75 Polybag

s of 4

75 bags

5269-1 White 1/2" NPT 75 Polybag

s of 4

75 bags

5269-2 Bronze 1/2" NPT 75 Polybag

s of 4

75 bags

5269-5 Gray 1/2" NPT 12 Cards o

f 3

12 cards

5269-6 White 1/2" NPT 12 Cards o

f 3

12 cards

5269-7 Bronze 1/2" NPT 12 Cards o

f 3

12 cards

5269-9 Gray 1/2" NPT Bulk 1000

5270-0 Gray 3/4" NPT 75 Polybag

s of 4

75 bags

5270-5 Gray 3/4" NPT 12 Cards o

f 3

12 cards

5270-9 Gray 3/4" NPT Bulk 1000

5271-0 Gray 1" NPT 75 Polybag

s of 4

75 bags

d i t d d c g g titi o ot i c

d i t d d c g c d titi o ot i c

5269-0 to 5269-9

5270-0 to 5270-9, 5271-0

WEATHERPROOF BOXES,

COVERS & LIGHTING

H32 ACCESSORIES

Replacement Gaskets

APPLICATION

Replacement gaskets for Bell®

weatherproof covers and lampholders.

PRODUCT FEATURES

q Each gasket has cut outs for a toggle

switch, duplex receptacle and 1.406"

dia. round receptacle

q Remove the cut outs for the duplex

and round receptacles for a GFCI

receptacle opening

CAT. NO. 5019-0

CAT. NO. 5020-0 CAT. NO. 5017-0

CATALOGUE

NUMBER

COLOUR DESCRIPTION PKG.

TYPE

STD.

PKG.

Rectangular Box/Cover Gaskets

5019-0 Black 1-Gang 20 Cello b

ags of 2

5020-0 Black 2-Gang 20 Cello b

ags of 2

5017-0 Black 1 Gang cov

er gasket,

4 Lamphold

e r g a s k e t s

& 1 Round

cover gasket

20 Cello b

ags

5020-05019-0 5017-0

SPECIALTY SWITCHES

VARIABLE-SPEED PULL-CHAIN

SWITCH

PRODUCT FEATURES

q Plastic body and nipple

q Brass knurled nut

q Nipple 3/8” r UNS 27 x 3/8” long

ALL-ANGLE PULL-CHAIN

PRODUCT FEATURES

q Plastic body and metal nipple

q Nipple 15/32” r UNS 32

q Steel lockout

PULL-CHAIN AND VARIABLE-

SPEED PULL-CHAIN SWITCHES

AND ALL-ANGLE PULL-CHAIN

SWITCHES COMPLIANCES

SNAP-IN ROCKER SWITCHES

PRODUCT FEATURES

q Nylon body and rocker

q Polycarbonate rocker (#6437)

q Contacts r silver-plated copper-alloy

q .250 quick connect tabs

q Fits cutout 17/32” x 1-1/8”

SNAP IN ROCKER SWITCHES

COMPLIANCES

SPECIALTY TYPE SWITCHES

CATALOGUE

NUMBER

DESCRIPTION ELECTRICAL

RATINGS

STD.

PKG.

All-Angle Pull-Chain – For Ceiling Fixtures

6405 All angle,

on-off

3”leads, S

PST, Carded

6 amp, 125

V AC

3 amp, 250

V AC

6401, 6354

6405

6403, 6404

CATALOGUE

NUMBER

DESCRIPTION ELECTRICAL

RATINGS

STD.

PKG.

Variable-Speed Pull-Chain Switches – For Ceiling Fans

6403 2-speed, o

ff-on-on

Stab conne

ctions,

brass fini

Carded

6 amp, 125

V AC

3 amp, 250

V AC

6 amp, 125

V L

6404 3-speed, o

ff-on-on-on,

Stab connections, brass

finish, Carded

6 amp, 125

V AC

3 amp, 250

V AC

6402, 6355

6437

6436

CATALOGUE

NUMBER

DESCRIPTION ELECTRICAL

RATINGS

STD.

PKG.

Snap-In Rocker Switches – For Range Hood And Appliances

6436 Rocker, SP

ST, on-off

Opening 17

/32” x 1-1/8”

Carded

16 amp, 25

0V AC

1 HP,

250V AC

1/2 HP,

125V AC

6437 Lighted ro

cker

SPST, on-o

Opening 17

/32” x 1-1/8”

Carded

110V L a m p

16 amp, 25

0V AC

15 amp, 1

HP, 250V AC

1/2 HP, 12

5V AC

APPLICATIONS

q Industrial

q Electronic instruments

q Automotive/marine equipment

q Power tools

q Home appliances

q Emergency lighting

q Vending machines

PULL-CHAIN SWITCH

PRODUCT FEATURES

q Plastic body and nipple

q Nipple 3/8” r UNS 27 x 5/16” long

q Aluminum knurled nut, brass or

nickel finish

CATALOGUE

NUMBER

DESCRIPTION ELECTRICAL

RATINGS

STD.

PKG.

Pull-Chain Switches – For Lamps And Ceiling Fixtures

6401 SPST, on-o

6” leads,

brass finish

Carded

6 amp, 125

V AC

3 amp, 250

V AC

6 amp, 125

V L

6354 SPST, on-o

6” leads,

brass finish

Bulk Poly

Bag

6 amp, 125

V AC

3 amp, 250

V AC

6 amp, 125

V L

6402 SPST, on-o

6” leads,

nickel finish

Carded

6 amp, 125

V AC

3 amp, 250

V AC

6 amp, 125

V L

6355 SPST, on-o

6” leads,

nickel finish

Bulk Poly

Bag

6 amp, 125

V AC

3 amp, 250

V AC

6 amp, 125

V L

SPECIALTY SWITCHES

I2 SPECIALTY TYPE SWITCHES

CATALOGUE

NUMBER

DESCRIPTION ELECTRICAL

RATINGS

STD.

PKG.

Maintained Contact Push-Button Canopy Switch – For Lamps And Appliances

6424

o d

6352

o d

B o Bg

6425

o d ic

6353

o d ic

B o Bg

APPLICATIONS

q Industrial

q Electronic instruments

q Automotive/marine

equipment

q Power tools

q Home appliances

q Emergency lighting

q Vending machines

CANOPY SWITCH

COMPLIANCES

6448RAC 6424, 6352

64476446

6445

6425, 6353

CATALOGUE

NUMBER

DESCRIPTION ELECTRICAL

RATINGS

STD.

PKG.

Rotary Canopy Switch - For Lamps And Appliances

6445 Rotary, canopy, SPST,

Off-on-on-on plastic knob

Carded

2 amp, 250V AC

4 amp, 125V AC

1 amp, 125V DC

6446 Rotary, ca

nopy, SPST,

On-off, 6”

leads, plastic knob

Carded

1 amp, 250

V AC

3 amp, 120

V AC

1 amp, 125

V ACL

6356 Rotary, ca

nopy, SPST,

On-off, 6”

leads, plastic knob

Bulk Poly

Bag

1 amp, 250

V AC

3 amp, 120

V AC

1 amp, 125

V ACL

6447 Rotary, ca

nopy, SPST,

On-off, 6”

leads, brass knob

Carded

1 amp, 250

V AC

3 amp, 120

V AC

1 amp, 125

V ACL

6448RAC Rotary, ca

nopy, 2-circuit,

Off-on-on-

on, 6” leads

Brass knob

, Carded

1 amp, 250

V AC

3 amp, 125

V ACL

6357 Rotary, ca

nopy, 2-circuit,

Off-on-on-

on, 6” leads

Brass knob

, Bullk Poly Bag

1 amp, 250

V AC

3 amp, 125

V ACL

6356, 6357

SPECIALTY SWITCHES

SPECIALTY TYPE SWITCHES

6431 6426 6428

PUSH-BUTTON SWITCH

PRODUCT FEATURES

q Plastic case

q Nickel-plated brass nipple,

knurled nut, hex nut

q Nipple 15/32” r 32 x 1/2” long

COMPLIANCES

6427

CATALOGUE

NUMBER

DESCRIPTION ELECTRICAL

RATINGS

STD.

PKG.

Maintained Contact Slide Switch – For Lamps And Appliances

6431

id o o

ig / x / dd

CATALOGUE

NUMBER

DESCRIPTION ELECTRICAL

RATINGS

STD.

PKG.

Momentary Contact Push-Button Switches – For Bells And Buzzers

6426

o t cotct

o o o o

Bc c t i dd

6428

o t cotct

o o o o

Rd c t i dd

6427

tto

oo d

CATALOGUE

NUMBER

DESCRIPTION ELECTRICAL

RATINGS

STD.

PKG.

Push Button Switch - For Lamps And Appliances

6358

o td oo

i d B o Bg

6358

SPECIALTY SWITCHES

I4 SPECIALTY TYPE SWITCHES

PRODUCT FEATURES

q Impact-resistant

thermoplastic body

q Silver cadmium oxide

contacts

q Knurled nut, hex and strap

all nickel-plated

q Keyed brass bushing

q #6-32 screw-type terminals

q Nickel-plated brass toggle

q Suitable for 12V DC use at

rated amperage

COMPLIANCES

6415 6410RAC 6413

6411 6420

6419 6416

CATALOGUE

NUMBER

DESCRIPTION ELECTRICAL

RATINGS

STD.

PKG.

Extra Heavy-Duty Bat Handle Toggle Switch

6415 DPST, on-o

ff, Screw

terminals,

Carded

10 amp, 27

7V AC, 20 amp, 125V AC

1-1/2 HP,

125V/250V AC

6419 DPDT, on-o

n, Screw

terminals,

Carded

10 amp, 27

7V AC, 20 amp, 125V AC

1-1/2 HP,

125V/250V AC

6416 DPDT, on-o

ff-on, Screw

terminals,

Carded

20 amp, 12

5V AC

1-1/2 HP,

125V/250V AC

CATALOGUE

NUMBER

DESCRIPTION ELECTRICAL

RATINGS

STD.

PKG.

Heavy-Duty Bat Handle Toggle Switch

6410RAC SPST, on-o

Screw term

inals

Carded

12 amp, 25

0V AC

20 amp, 12

5V AC

1 HP, 120V

/240V AC

6413 SPDT, on-o

Screw term

inals

Carded

10 amp, 25

0V AC

20 amp, 12

5V AC

3/4 HP, 12

5V/250V AC

6411 SPDT, on-o

ff-on

Screw term

inals

10 amp, 25

0V AC

20 amp, 12

5V AC

3/4 HP, 12

5V AC

6420 SPST, on-o

Screw term

inals

Carded

10 amp, 25

0V AC

20 amp, 12

5V AC

3/4 HP, 12

5V/250V AC

CATALOGUE

NUMBER

DESCRIPTION ELECTRICAL

RATINGS

STD.

PKG.

Extra Heavy-Duty Bat Handle Toggle Switch

6417 SPST, on-o

Screw term

inals

Nonmetalli

c, Carded

20 amp, 1

25V/277V AC

1-1/2 HP,

125V AC

2 HP, 250V

6418 DPDT, on-o

ff-on

Screw term

inals

Nonmetalli

c, Carded

20 amp, 12

5V/277V AC

2 HP, 250

V AC

1-1/2 HP,

125V AC

CATALOGUE

NUMBER

DESCRIPTION ELECTRICAL

RATINGS

STD.

PKG.

Medium-Duty Bat Handle Toggle Switch

6414 SPST, on-o

Screw term

inals

Carded

15 amp, 12

0V AC

10 amp, 24

0V AC

6417 6418 6414

SPECIALTY SWITCHES

SPECIALTY TYPE SWITCHES

CATALOGUE

NUMBER

DESCRIPTION ELECTRICAL

RATINGS

STD.

PKG.

Medium-Duty Bat Handle Toggle Switch With Wire Leads

6412

oo d

dd 4

CATALOGUE

NUMBER

DESCRIPTION ELECTRICAL

RATINGS

STD.

PKG.

Medium-Duty Ball Handle Toggle Switch With Wire Leads

6351

oo B d

ogg o o too

i c o t ic it

i d B o Bg

CATALOGUE

NUMBER

DESCRIPTION ELECTRICAL

RATINGS

STD.

PKG.

Medium-Duty Ball Toggle

6409RAC

c ti dd

CATALOGUE

NUMBER

DESCRIPTION ELECTRICAL

RATINGS

STD.

PKG.

Toggle Boot

6441

R co t o

togg itc d d

PRODUCT FEATURES

q Impact-resistant

thermoplastic body

q Silver cadmium oxide

contacts

q Knurled nut, hex and strap

all nickel-plated

q Keyed brass bushing

q #6-32 screw-type terminals

q Nickel-plated brass toggle

q Suitable for 12V DC use at

rated amperage

TOGGLE BOOT

PRODUCT FEATURES

q Fits standard bat handle

toggle switches

q Made of silicone rubber

q Fits nipples with

15/32” r 32 thread

q Packed two per card

COMPLIANCES

6412 6409RAC 64416351

SPECIALTY SWITCHES

SURGE PROTECTION DEVICES

WIRED-IN SURGE PROTECTIVE DEVICES

APPLICATION

Single phase wired-in surge protective

devices feature a compact design

making them idealy suited for residential

installations where space around the

electrical panel may be limited. They

can be mounted directly to the panel

through a chase nipple connection to

reduce lead length and impedance.

PRODUCT FEATURES

q 50,000 and 100,000 Peak

Amperage Capacity

q up to 200kA Short Circuit

Current Rated

COMPLIANCES

q UL 1449 3rd edition

q NEMA 4X housing

q cUL

CATALOGUE NUMBER CONFIGURATION PEAK AMP CAPACITY MOUNTING METHOD

120/240VAC Single Phase Wired-In Surge Protective Devices (Type 1 / Type 2 SPD)

HBL3W100C 1Phase 3-W

ire +

Ground

100kA Bottom Nip

ple Mount

HBL3W50 1Phase 3-W

ire +

Ground

50kA Side Nippl

e Mount

HBL3W100C HBL3W50

CATALOGUE NUMBER SERVICE VOLTAGE CONFIGURATION PEAK AMP CAPACITY

Whole House Surge Protection (Type 2 Spd – HBLWH80 Only)

HBLWH80 120/240 Si

ngle Phase

1Phase 3-W

ire +

Ground

80Ka

WHOLE HOUSE SURGE PROTECTION

APPLICATION

Hubbell’s Whole Home Surge panel

offers home owners the ability to protect

their entire house with one unit The

HBLWH80 offers power, telephone, and

COAX protection in one location and

can be Üush or surface mounted to suit

the application.

PRODUCT FEATURES

q Power module provides 80kA

Peak Amperage Capacity

q Telephone module protects up

to 4 phone lines

q Two independent COAX

modules

COMPLIANCES

q UL 1449 3rd edition

q NEMA 1 enclosure

HBLWH80

SURGE PROTECTION DEVICES

PRODUCT FEATURES

q Transformer spaced outlet(s)

q 15A resetable push on/off circuit breaker switch

q Power and ground indicating LED’s

q Available with Fax/Modem, Fax/Modem/CATV and

Fax/Modem/CATV/DSS protection

HBL6PS350A HBL8PS2100MA

CATALOGUE

NUMBER

DESCRIPTION # OF

OUTLETS

JOULE

RATING

PEAK AMP

RATING

CORD

LENGTH

COLOUR DOWN LINE

WARRANTY*

HBL6PPS Power Stri

p (No surge protection)

6 N/A N/A 6' Office Whi

N/A

HBL6PS350A SPD 6 350 6.5 kA 6' Office Whi

2,500

HBL6PS35015A SPD 6 350 6.5 kA 15' Office Whi

2,500

HBL6PS1050MA SPD w/Fax/

Modem

6 1,050 19.5 kA 6' Office Whi

2,500

HBL7PS1050A SPD 7 1,050 19.5 kA 6' Office Whi

10,000

HBL7PS1050MA SPD w/Fax/

Modem

7 1,050 19.5 kA 6' Office Whi

10,000

HBL7PS105015A SPD 7 1,050 19.5 kA 15' Office Whi

10,000

HBL8PS2100MA SPD w/Fax/

Modem/CATV

8 2,100 39 kA 6' Office Whi

25,000

HBL8PS2100DA SPD w/Fax/

Modem/CATV/DSS

8 2,100 39 kA 6' Office Whi

25,000

*See warranty information inside product box for details.

NON-METALLIC SURGE STRIPS

SURGE PROTECTION DEVICES

SPECIALTY SURGE STRIPS

SURGE STRIP WITH USB PORTS PRODUCT FEATURES

SURGE STRIP WITH REMOTE PRODUCT FEATURES

ENERGY SAVING SURGE STRIP PRODUCT FEATURES

q Two USB ports for charging cameras, GPS, or MP3 players

q Four transformer spaced outlets

q Black non-metallic housing with six foot cord and lighted power on

switch

q Power and ground indicating LED’s

q 1050 joules/19.5kA rating

q 10,000 down line protection warranty*

q Four outlets controlled by transmitter

q Remote switch operated with keychain transmitter

q Two transformer spaced outlets

q Power and ground indicating LED’s

q 2100 joules/39kA rating

q 25,000 down line protection warranty*

q Shuts down power to peripherals when the item plugged into the

master is turned off

q Three uncontrolled transformer spaced outlets

q Six foot power cord

q 1050 joules / 19.5 kA rating

q 10,000 down line protection warranty*

HBLCATC

CATALOGUE

NUMBER

DESCRIPTION # OF

OUTLETS

JOULE

RATING

PEAK AMP

RATING

CORD

LENGTH

COLOUR DOWN LINE

WARRANTY*

Surge Strip with USB Port

HBL4PS1050USB Non-metall

ic SPD with

two USB ports

4 1,050 19.5 kA 6' Black 10,000

Surge Strip with Remote Switch

HBL6RSPS2100 Non-metall

ic remote

switch SPD

with one keychain

control

6 2,100 39 kA 6' Office Whi

25,000

Energy Saving Surge Strip

HBL8ESPS1050M

Energy Saving SPD

with master/

slave

design with fax/

modem

8 1,050 19.5 kA 6' Office Whi

10,000

HBL8ESPS1050C Energy Sav

ing SPD

master/

slave design

with CATV protection

8 1,050 19.5 kA 6' Office Whi

10,000

Cable TV Protection Cube

HBLCATC Cable TV p

rotection

cube

N/A N/A N/A N/A Office Whi

N/A

*See warranty information inside product box for details.

HBL6RSPS2100

HBL4PS1050USB

HBL8ESPS1050M

SURGE PROTECTION DEVICES

NUMERICAL INDEX

CATALOGUE NO. PAGE CATALOGUE NO. PAGE CATALOGUE NO. PAGE

INDEX K1

66 ..............................A27

1050 ............................A27

1060 ............................A27

1111. . . . . . . . . . . . . . . . . . . . . . . . . . . . . A14

2018 ............................A13

2402 ............................D18

2403 ............................D18

2404 ............................D18

2405 ............................D18

2406 ............................D18

2408 ............................D18

2410 ............................D18

2412 ............................D18

2414 ............................D18

2416 ............................D18

6351 ..............................I5

6352 ..............................I2

6353 ..............................I2

6354 ..............................I1

6355 ..............................I1

6356 ..............................I2

6357 ..............................I2

6358 ..............................I3

6401 ..............................I1

6402 ..............................I1

6403 ..............................I1

6404 ..............................I1

6405 ..............................I1

6411 ..............................I4

6412 ..............................I5

6413 ..............................I4

6414 ..............................I4

6417 ..............................I4

6418 ..............................I4

6420 ..............................I4

6424 ..............................I2

6425 ..............................I2

6426 ..............................I3

6427 ..............................I3

6428 ..............................I3

6431 ..............................I3

6436 ..............................I1

6437 ..............................I1

6441 ..............................I5

6445 ..............................I2

6446 ..............................I2

6447 ..............................I2

7902 ............................A27

8361 ............................A10

8362 ............................A10

8363 ............................A10

8364 ............................A10

8365 ............................A10

8366 ............................A10

8367 ............................A10

8368 ............................A10

8371 ............................A10

8372 ............................A10

8375 ............................A10

9008 ............................A27

54521 ...........................A24

54531 ...........................A24

54541 ...........................A24

54551 ...........................A24

54560 ...........................A24

54561 ...........................A24

54571 ...........................A24

54581 ...........................A24

54591 ...........................A24

58405 ...........................H16

20509001 .........................E8

20509002 .........................E8

20509003 .........................E8

20509004 .........................E8

20509005 .........................E8

20509006 .........................E8

20509007 .........................E8

20509008 .........................E8

LNM12BPK100 ....................E7

LNM16BPK100 ....................E7

LNM20BPK100 ....................E7

LNM25BPK100 ....................E7

LNM32BPK100 ....................E7

LNM40BPK100 ....................E7

LNP11BPK100 .....................E7

LNP13BPK100 .....................E7

LNP16BPK100 .....................E7

LNP21BPK100 .....................E7

LNP29BPK25 .....................E7

LNP36BPK25 .....................E7

LNP7BPK100 ......................E7

LNP9BPK100. . . . . . . . . . . . . . . . . . . . . . E7

1004-H ...........................A4

1004-LBU ........................A4

1004-LHU ........................A4

1004-LUBAR ......................A4

1041BAR ........................A27

1042BAR ........................A27

1100-LLEUBAR ....................A1

1100-LREU .......................A1

1100-LUBAR ......................A1

1102BAR .........................A1

1102-LHUBAR .....................A1

1102- LREU ........................A1

1102-LUBAR ......................A1

1102-MSB ........................A1

1102-MSB .......................A17

1102-MSBU .......................A1

1102-MSBU ......................A17

1102-SB ..........................A1

1104-K ...........................A2

1104-LBUBAR .....................A2

1104-LE ..........................A2

1104-LHU .........................A2

1104-LMSU .......................A2

1104-LRWUBAR ...................A2

1104-LUBAR ......................A2

1104-LUDBAR .....................A2

1104-MSB ........................A2

1104-MSB .......................A17

1104-MSBUBAR ...................A2

1104-MSBUBAR ..................A17

1104-P ...........................A2

1104-P ...........................A5

1104-P ..........................A17

1104-P ..........................A19

1104-P ..........................A18

1104-SB ..........................A2

1110-BAR ........................ A14

1110-HV .........................A14

1110-HV .........................A21

1110-MSB .......................A14

1110-RBAR ......................A14

1110-SB .........................A14

1151BAR .........................A14

1198H ...........................A14

1199H ...........................A14

11-C-4-HV .......................A21

11-C-5-HV .......................A21

1204-1-HV .......................A21

1204-2-HV .......................A21

1204-HVP .......................A21

1204-MSB-HV ....................A17

1204-MSB-HV ....................A21

1304-LHU ........................A2

1504-LLEUBAR ....................A3

1504-MSBUBAR ...................A3

1504-MSBUBAR .................. A17

1804-LHU ........................A3

2001R ............................B2

2002F ............................B3

2002FBAR ........................B3

2002R ............................B2

2003F ............................B3

2003FBAR ........................B3

2003R ............................B2

2006F ............................B3

2006FBAR ........................B3

2006R ............................B2

2011F ............................B3

2011FBAR ........................B3

2014R ............................B2

2016R ............................B2

2018-SB .........................A13

2020-BAR .......................A13

2020-RBAR ......................A13

2020-SB ......................... A13

2021R ............................B2

2027F ............................B3

2027FBAR ........................B3

2027R ............................B2

2104-LLEU-2 ......................A5

2104-LLEU-3BAR ..................A5

2104-LLEU-4BAR ..................A5

2104-LLEUBAR ....................A3

2104-LNU ........................A3

2104-LU ..........................A3

2104-LU-2 ........................A5

2104-MSBU .......................A3

2104-MSBU ...................... A19

2104-MSBU-2 .....................A5

2104-MSBU-2 ....................A19

2104-MSBU-3 .....................A5

2104-MSBU-3 ....................A19

2104-MSBU-4 .....................A5

2104-MSBU-4 ....................A19

2304-LLEU .......................A3

2304-LLEU-2 ......................A5

2304-LLEU-3 ......................A5

2304-LLEU-4 ......................A5

2304-MSBKU ....................A19

2304-MSBKU-2 ..................A19

2304-MSBKU-3 ..................A19

2304-MSBKU-4 ..................A19

3004-LHU ........................A4

3004-MSB ........................A4

3004-MSB .......................A18

3004-MSB-1 ......................A4

3004-MSBU ......................A4

3004-MSBU .....................A18

3004-MSBU-1 .....................A4

3004-MSBU-1 ....................A18

3102-LHU .........................A2

3102-MSB ........................A2

3102-MSB .......................A17

3102-MSBU .......................A2

3102-MSBU ...................... A17

3104-LHU ........................A3

3104-MSB ........................A3

3104-MSB .......................A18

3104-MSB-1 ......................A3

3104-MSB-1 .....................A18

3104-MSBU .......................A3

3104-MSBU ...................... A18

3104-MSBU-1 .....................A3

3104-MSBU-1 ....................A18

31622001LPK50 ...................E8

31622002LPK50 ................ E7,E8

31622003LPK50 ................ E7,E8

Sections_index_Final.indd 1 12/09/2011 3:20:47 PM

NUMERICAL INDEX

CATALOGUE NO. PAGE CATALOGUE NO. PAGE CATALOGUE NO. PAGE

INDEX

31622007LPK50 ................ E7,E8

31622008LPK50 ................ E7,E8

4204-MSB ........................A5

4204-MSB .......................A17

4204-MSBU. . . . . . . . . . . . . . . . . . . . . . . A5

4204-MSBU. . . . . . . . . . . . . . . . . . . . . . A17

5001-0 ..........................H13

5002-0 ..........................H13

5017-0 ..........................H32

5019-0 ..........................H32

5020-0 ..........................H32

5026-0 ..........................H13

5027-0 ..........................H13

5028-0 ..........................H13

5028-6 ..........................H13

5029-0 ..........................H13

5030-0 ..........................H13

5031-0 ..........................H13

5032-0 ..........................H14

5033-0 ..........................H14

5034-0 ..........................H14

5036-0 ..........................H14

5038-0 ..........................H14

5040-0 ..........................H14

5041-0 ..........................H14

5042-0 ..........................H14

5043-0 ..........................H14

5045-0 ..........................H14

5091-0 ..........................H17

5092-0 ..........................H19

5093-0 ..........................H20

5094-0 ..........................H15

5095-0 ..........................H17

5096-0 ..........................H19

5097-0 ..........................H20

5098-0 ..........................H19

5101-0 ..........................H15

5101-1 ...........................H15

5101-2. . . . . . . . . . . . . . . . . . . . . . . . . . . H15

5102-0 ..........................H15

5103-0 ..........................H17

5103-1 ..........................H17

5103-2 ..........................H17

5104-0 ..........................H17

5121-0 ..........................H21

5121-1 ...........................H21

5121-2 ...........................H21

5124-0 ..........................H22

5125-0 ..........................H22

5126-0 ..........................H23

5128-0 ..........................H21

5132-0 ..........................H19

5133-0 ..........................H19

5137-0. . . . . . . . . . . . . . . . . . . . . . . . . . . H21

5138-0 ..........................H19

5141-0 ...........................H21

5145-0 ..........................H19

5146-0 ..........................H17

5146-1 ..........................H17

5147-0 ...........................H17

5148-0 ..........................H19

5152-0 ..........................H15

5153-0 ..........................H15

5155-0 ..........................H17

5155-1 ..........................H17

5155-2 ..........................H17

5157-0 ..........................H19

5160-0 ..........................H19

5166-0 ..........................H22

5167-0 ..........................H22

5173-0 ..........................H18

5173-1 ...........................H18

5173-7. . . . . . . . . . . . . . . . . . . . . . . . . . . H18

5174-0. . . . . . . . . . . . . . . . . . . . . . . . . . . H18

5175-0 ..........................H20

5175-1 ...........................H20

5175-2 ..........................H20

5177-0. . . . . . . . . . . . . . . . . . . . . . . . . . .H20

5180-0 ..........................H15

5180-1 ..........................H15

5180-2 ..........................H15

5181-0 ..........................H15

5183-0 ..........................H18

5185-0 ...........................H8

5186-0 ..........................H24

5186-1 ..........................H24

5186-2 ..........................H24

5189-0 ..........................H24

5189-1 ..........................H24

5189-2 ..........................H24

5193-0 ..........................H24

5193-1 ..........................H24

5193-2 ..........................H24

5197-0 ..........................H24

5197-1 ...........................H24

5197-2 ...........................H24

5201-0 ..........................H23

52151-KBAR ......................A8

52151-KSB ........................A8

52151-MSB .......................A8

52151-MSB ......................A20

52151-MSBS ......................A8

52151-MSBS .....................A20

52171-1 ...........................A8

521711-MSB ......................A8

521711-MSB .....................A20

52171-KBAR ......................A8

52171-KSB ........................A8

52171-MSB .......................A8

52171-MSB ......................A20

5269-0 ..........................H31

5269-1 ..........................H31

5269-2 ..........................H31

5269-5 ..........................H31

5269-6 ..........................H31

5269-7 ..........................H31

5269-9 ..........................H31

5270-0 ..........................H31

5270-5 ..........................H31

5270-9 ..........................H31

5271-0 ..........................H31

52-C-0 ...........................A9

52-C-00BAR ......................A9

52-C-1 ...........................A9

52-C-10 ..........................A9

52-C-13 ..........................A9

52-C-14 ..........................A9

52-C-14-5/8 .......................A9

52-C-15 ..........................A9

52-C-16 ..........................A9

52-C-17 ..........................A9

52-C-18 ..........................A9

52-C-18-5/8 .......................A9

52-C-3 ...........................A9

52-C-49-1 .......................A10

52-C-49-1/2 ......................A10

52-C-49-1-1/4 ....................A10

52-C-49-3/4 ......................A10

52-C-50-1-1/2 ....................A10

52-C-51-2 .......................A10

52-C-52-1 .......................A10

52-C-52-1/2 ......................A10

52-C-52-1-1/4 ....................A10

52-C-52-3/4 ......................A10

52-C-52-5/8 ......................A10

52-C-53-1-1/2 ....................A10

52-C-54-2 .......................A10

52-C-6214 ........................A9

52-C-6BAR .......................A9

53151-K ..........................A8

53171-ER ........................A24

53171-K ..........................A8

5320-0 ...........................H1

5320-1 ...........................H1

5320-2 ...........................H1

5321-0 ...........................H1

5321-1 ...........................H1

5321-2 ...........................H1

5322-0 ...........................H1

5323-0 ...........................H1

5324-0 ...........................H1

5330-0 ...........................H1

5331-0 ...........................H1

5332-0 ...........................H1

5333-0 ...........................H4

5334-0 ...........................H4

5335-0 ...........................H4

5337-0 ...........................H4

5337-1 ...........................H4

5338-0 ...........................H5

5340-0 ...........................H5

5341-0 ...........................H4

5342-0 ...........................H4

5343-0 ...........................H4

5345-0 ...........................H4

5346-0 ...........................H5

5348-0 ...........................H5

5361-0 ...........................H7

5361-1 ...........................H7

5361-2 ...........................H7

5363-0 ...........................H7

5365-0 ...........................H7

5372-0 ...........................H7

5374-0 ...........................H7

5375-0 ...........................H7

5385-0 ...........................H1

5386-0 ...........................H1

5387-0 ...........................H1

5388-0 ...........................H5

5389-0 ...........................H5

5390-0 ...........................H6

5399-0 ...........................H2

5400-0 ...........................H2

5400-5 ...........................H2

5403-0 ...........................H2

5405-0 ...........................H2

5406-0 ...........................H2

5407-0 ...........................H6

5412-0 ...........................H3

5413-0 ...........................H3

5414-0 ...........................H3

5415-0 ...........................H3

54151-KBAR ......................A6

54151-LABAR .....................A6

54151-LB .........................A6

54151-LBAR .......................A6

54151-LDBAR .....................A6

54151-LHB ........................A6

54151-MSB .......................A6

54151-MSB ......................A20

54151-MSBABAR ..................A6

54151-MSBABAR .................A20

54151-MSBL ......................A6

54151-MSBL .....................A20

54171-K ..........................A6

54171-L ..........................A6

54171-LB .........................A6

54171-LFBAR .....................A6

54171-LHB ........................A6

Sections_index_Final.indd 2 12/09/2011 3:20:48 PM

NUMERICAL INDEX

CATALOGUE NO. PAGE CATALOGUE NO. PAGE CATALOGUE NO. PAGE

INDEX K3

54171-MSB .......................A6

54171-MSB ......................A20

54171-MSB-1 .....................A20

54171-MSB-1 ......................A6

54561-1/2 ........................A24

54-C-1 ...........................A7

54-C-6 ...........................A7

54-C-62 ..........................A7

54-C-64 ..........................A7

54C-65BAR .......................A7

54-C-94 ..........................A7

55151-KBAR ......................A6

55171-K ..........................A6

5606-0 ..........................H25

5606-1 ..........................H25

5606-2 ..........................H25

5611-0 ..........................H25

5612-0 ..........................H25

5613-0 ..........................H25

5613-1 ..........................H25

5613-2 ..........................H25

5615-0 ..........................H25

5620-0 ..........................H27

5621-0 ..........................H27

5621-6 ..........................H27

5624-0 ..........................H27

5624-1 ..........................H27

5624-2 ..........................H27

5625-0 ..........................H27

5625-1 ..........................H27

5625-2 ..........................H27

5694-0 ..........................H30

5695-0 ..........................H30

5712-5 ..........................H15

5730-0 ...........................H9

5735-0 ..........................H10

5740-0 ...........................H9

5775-0 ..........................H11

5790-0 ..........................H11

5792-0 ..........................H26

5795-0 ..........................H12

5818-5 ..........................H28

5818-6 ..........................H28

5820-8 ..........................H26

5829-5 ..........................H29

5829-6 ..........................H29

58355KIT ........................H16

5876-5 ..........................H29

5876-6 ..........................H29

5883-5 ..........................H28

5883-6 ..........................H28

5884-8 ..........................H30

5893-8 ..........................H30

6300H ...........................C7

6409RAC ..........................I5

6410RAC ..........................I4

6448RAC ..........................I2

66SS ............................A27

6851RF ...........................C7

72151-K .........................A11

72171-1 ..........................A11

72171-KBAR .....................A11

72171-KSB ....................... A11

72171-MSB ......................A11

72171-MSB ......................A20

72-C-1 ..........................A12

72-C-10 .........................A12

72-C-13 .........................A12

72-C-14 .........................A12

72-C-15 .........................A12

72-C-17 .........................A12

72-C-18 .........................A12

72-C-6-K ........................A12

73151-KBAR .....................A11

73171-KBAR .....................A11

7901RW .........................A27

7902 ............................A17

7902 ............................A19

7902 ............................A20

7902 ............................A18

820D ............................A27

97001SS ..........................C2

97002SS .........................C2

97071HV ..........................C6

97071HV ..........................G3

97071KS ..........................C7

97071KSHV .......................C6

97071KSHV .......................G3

97071SS ..........................C2

97072HV .........................C6

97072HV .........................G3

97072HVR ........................C6

97072HVR ........................G3

97072KS ..........................C7

97072SS ..........................C2

97073HV .........................C6

97073HV .........................G3

97073HVR ........................C6

97073HVR ........................G3

97073KS ..........................C7

97073SS ..........................C2

97074HV ..........................C6

97074HV ..........................G3

97074HVR ........................C6

97074HVR ........................G3

97074KS ..........................C7

97074SS ..........................C2

97075HV. . . . . . . . . . . . . . . . . . . . . . . . . . C6

97075HV. . . . . . . . . . . . . . . . . . . . . . . . . .G3

97075HVR ........................C6

97075HVR ........................G3

97075SS ..........................C2

97076HV .........................C6

97076HV .........................G3

97076HVR ........................C6

97076HVR ........................G3

97076SS ..........................C2

97077HV .........................C6

97077HV .........................G3

97077HVR ........................C6

97077HVR ........................G3

97077SS ..........................C2

97078SS ..........................C2

97079SS ..........................C2

97080SS .........................C2

97091SS ..........................C4

97092SS .........................C4

97101KS ..........................C7

97101SS ..........................C3

97102KS ..........................C7

97102SS ..........................C3

97103KS ..........................C7

97103SS ..........................C3

97104KS ..........................C7

97104SS ..........................C3

97105SS ..........................C3

97111SS ..........................C4

97121KS ..........................C7

97121SS ..........................C3

97122KS ..........................C7

97122SS ..........................C3

97123KS ..........................C7

97123SS ..........................C3

97124KS ..........................C7

97124SS ..........................C3

97125SS ..........................C3

97151HV ..........................C6

97151HV ..........................G3

97151KS ..........................C7

97151SS ..........................C3

97152HV ..........................C6

97152HV ..........................G3

97152HVR ........................C6

97152HVR ........................G3

97152KS ..........................C7

97152SS ..........................C3

97153HV. . . . . . . . . . . . . . . . . . . . . . . . . . C6

97153HV. . . . . . . . . . . . . . . . . . . . . . . . . .G3

97153HVR ........................C6

97153HVR ........................G3

97153KS ..........................C7

97153SS ..........................C3

97154HV ..........................C6

97154HV ..........................G3

97154HVR ........................C6

97154HVR ........................G3

97154KS ..........................C7

97154SS ..........................C3

97155SS ..........................C3

97181SS ..........................C4

97182SS ..........................C4

97191SS ..........................C4

97201SS ..........................C4

97202SS. . . . . . . . . . . . . . . . . . . . . . . . . . C4

97211SS ..........................C4

97213SS ..........................C5

97223SS .........................C5

97233SS .........................C5

97242SS ..........................C5

97322SS. . . . . . . . . . . . . . . . . . . . . . . . . . C5

97323SS .........................C5

97342SS .........................C5

97352SS. . . . . . . . . . . . . . . . . . . . . . . . . . C5

97353SS .........................C5

97392SS .........................C5

97401KSHV .......................C6

97401KSHV .......................G3

97401SS ..........................C2

97402KSHV .......................C6

97402KSHV .......................G3

97402KSHVR ......................C6

97402KSHVR ......................G3

97402SS ..........................C2

97403KSHV .......................C6

97403KSHV .......................G3

97403KSHVR ......................C6

97403KSHVR ......................G3

97403SS ..........................C2

97404KSHV .......................C6

97404KSHV .......................G3

97404KSHVR ......................C6

97404KSHVR ......................G3

97404SS ..........................C2

97405SS ..........................C2

97406SS ..........................C2

97411SS ..........................C4

97421SS ..........................C4

97502SS. . . . . . . . . . . . . . . . . . . . . . . . . . C5

97512SS ..........................C5

97521SS ..........................C4

Sections_index_Final.indd 3 12/09/2011 3:20:48 PM

NUMERICAL INDEX

CATALOGUE NO. PAGE CATALOGUE NO. PAGE CATALOGUE NO. PAGE

INDEX

97532SS. . . . . . . . . . . . . . . . . . . . . . . . . . C5

97543SS .........................C5

97553SS .........................C5

97563SS .........................C5

97573SS ..........................C5

97630SS .........................C4

97631SS ..........................C4

97730SS .........................C4

97731SS ..........................C4

AD347I1 ..........................G2

AD347I1N .........................G2

AD347I2 ..........................G2

AD347I2N .........................G2

AD347W1 .........................G2

AD347W1N .......................G2

AD347W2 .........................G2

AD347W2N .......................G2

AP347I1 ..........................G2

AP347I1N .........................G2

AP347I2 ..........................G2

AP347I2N .........................G2

AP347W1 .........................G2

AP347W1N .......................G2

AP347W2 .........................G2

AP347W2N .......................G2

AU347I1 ..........................G2

AU347I1N .........................G2

AU347I2 ..........................G2

AU347I2N .........................G2

AU347W1 .........................G2

AU347W1N .......................G2

AU347W2 .........................G2

AU347W2N .......................G2

B2025 ........................... E11

B2038 ........................... E11

B2050 ...........................E11

B2075 ........................... E11

B2100 ........................... E11

B2125 ...........................E11

B2150 ...........................E11

B2200 ........................... E11

BIG050 ..........................D13

BIG075 ..........................D13

BIG100 ..........................D13

BIG125 ..........................D13

BIG150 ..........................D13

BIG200 ..........................D13

BIG250 ..........................D13

BIG300 ..........................D13

BIG350 ..........................D13

BIG400 ..........................D13

BMI050. . . . . . . . . . . . . . . . . . . . . . . . . . D14

BMI075 ..........................D14

BMI100 ..........................D14

BMI125 ..........................D14

BMI150 ..........................D14

BMI200. . . . . . . . . . . . . . . . . . . . . . . . . . D14

BMI250 ..........................D14

BMI300 .........................D14

BMI350. . . . . . . . . . . . . . . . . . . . . . . . . . D14

BMI400. . . . . . . . . . . . . . . . . . . . . . . . . . D14

BP050 ..........................D13

BP075 ...........................D13

BP100 ...........................D13

BP125 ...........................D13

BP150 ...........................D13

BP200 ..........................D13

BP250 ..........................D13

BP300 ..........................D13

BP350 ..........................D13

BP400 ..........................D13

BP500 ..........................D13

BP600 ..........................D13

BZI050 ..........................D14

BZI075 ..........................D14

BZI100 ..........................D14

BZI125 ..........................D14

BZI150 ..........................D14

BZI200 ..........................D14

BZI250 ..........................D14

BZI300 ..........................D14

BZI350 ..........................D14

BZI400 ..........................D14

CBA ............................A24

CBC100COM ....................D10

CBC125COM .....................D10

CBC150COM ....................D10

CBC200COM ....................D10

CBC50COM .....................D10

CBC75COM. . . . . . . . . . . . . . . . . . . . . . D10

CBLB100COM ...................D10

CBLB125COM ....................D10

CBLB150COM ...................D10

CBLB200COM ...................D10

CBLB250RIG .....................D10

CBLB300RIG .....................D10

CBLB400RIG .....................D10

CBLB50COM ....................D10

CBLB75COM. . . . . . . . . . . . . . . . . . . . . D10

CBLRL100COM ..................D10

CBLRL125COM ...................D10

CBLRL150COM. . . . . . . . . . . . . . . . . . . D10

CBLRL200COM ..................D10

CBLRL50COM ...................D10

CBLRL75COM ...................D10

CBT100COM .....................D10

CBT125COM .....................D10

CBT150COM .....................D10

CBT200COM .....................D10

CBT50COM ......................D10

CBT75COM ......................D10

CCS050 ..........................D7

CCS075 ..........................D7

CCS100 ..........................D7

CCS125 ..........................D7

CCS150 ..........................D7

CCS200 ..........................D7

CCS250 ..........................D7

CCS300 ..........................D7

CCS400 ..........................D7

CCSI050 .........................D7

CCSI075 ..........................D7

CCSI100 ..........................D7

CCSI125 ..........................D7

CCSI150 ..........................D7

CCSI200 .........................D7

CCSI250. . . . . . . . . . . . . . . . . . . . . . . . . . D7

CCSI300 .........................D7

CCSI400 .........................D7

CCZ050 ..........................D7

CCZ075 ..........................D7

CCZ100 ..........................D7

CCZ125 ..........................D7

CCZ150 ..........................D7

CCZ200 ..........................D7

CCZ250 ..........................D7

CCZ300 ..........................D7

CCZ400 ..........................D7

CCZI050 ..........................D7

CCZI075 ..........................D7

CCZI100 ..........................D7

CCZI125 ..........................D7

CCZI150 ..........................D7

CCZI200 ..........................D7

CCZI250 ..........................D7

CCZI300 ..........................D7

CCZI400 ..........................D7

CH050 ..........................D17

CH075 ..........................D17

CH100 ..........................D17

CH125 ..........................D17

CH150 ..........................D17

CH150R .........................D17

CH200 ..........................D17

CH250 ..........................D17

CH300 ..........................D17

CH400 ..........................D17

CKS050 ..........................D8

CKS075 ..........................D8

CKS100 ..........................D8

CKS125 ..........................D8

CKS150 ..........................D8

CKS200 ..........................D8

CKS250 ..........................D8

CKS300 ..........................D8

CKS400 ..........................D8

CKZ050 ..........................D8

CKZ075 ..........................D8

CKZ100 ..........................D8

CKZ125 ..........................D8

CKZ150 ..........................D8

CKZ200 ..........................D8

CKZ250 ..........................D8

CKZ300 ..........................D8

CKZ400 ..........................D8

CN050 ..........................D11

CN075 ..........................D11

CN100 ..........................D11

CN125 ..........................D11

CN150 ..........................D11

CN200 ..........................D11

CN250 ..........................D11

CN300 ..........................D11

CN400 ..........................D11

CS1 ..............................D2

CS10 .............................D2

CS11 .............................D2

CS21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . D2

CS3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D2

CS4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D2

CS50 ............................D2

CSC10 ...........................D2

DS-30 ...........................A26

DS-55 ...........................A26

DS-BO ..........................A26

DS-PL ...........................A26

DUP038 ..........................D1

DUP038 ..........................D3

DUP038SF ........................D1

DUP038SF ........................D3

E1S050 ...........................D9

E1S075 ...........................D9

E1S100 ...........................D9

E1S125 ...........................D9

E1S150 ...........................D9

E1S200 ...........................D9

E2S050. . . . . . . . . . . . . . . . . . . . . . . . . . . D9

E2S075 ...........................D9

E2S100 ...........................D9

E2S125 ...........................D9

E2S150 ...........................D9

E2S200 ...........................D9

E2S250 ...........................D9

E2S300 ..........................D9

E2S400 ..........................D9

EFK5038 .........................D3

EFK5050 .........................D3

EFK7575 ..........................D3

EK050 ...........................D12

Sections_index_Final.indd 4 12/09/2011 3:20:49 PM

NUMERICAL INDEX

CATALOGUE NO. PAGE CATALOGUE NO. PAGE CATALOGUE NO. PAGE

INDEX K5

EK075 ...........................D12

EK100 ...........................D12

EK125 ...........................D12

EK150 ...........................D12

EK200 ..........................D12

EK250 ...........................D12

EK300 ...........................D12

EK350 ...........................D12

EK400 ...........................D12

EK500 ...........................D12

EK600 ...........................D12

EZ-101BAR. . . . . . . . . . . . . . . . . . . . . . . . A3

F2025 ...........................E12

F20259 ..........................E12

FHC1022 .........................E6

FHC1023 .........................E6

FHC1033 .........................E6

FHC1034 .........................E6

FHC1042 .........................E6

FHC1043 .........................E6

FLOCK1 .........................F33

FSPFP6X ........................F33

FSPHD6X ........................F33

G1038 ........................... E10

G1050 ........................... E10

G1075 ...........................E10

G1100 ...........................E10

G1125 ...........................E10

G1150 ...........................E10

G1200 ........................... E10

GCB0510 ........................D17

GCB1220 ........................D17

GCZ0510 ........................D17

GF15ALLA .......................F15

GF15BKLA ....................... F15

GF15GYLA ....................... F15

GF15ILA .........................F15

GF15LA .........................F15

GF15LALA .......................F15

GF15RLA ........................F15

GF15WLA .......................F15

GF20ALLA .......................F15

GF20BKLA. . . . . . . . . . . . . . . . . . . . . . . F15

GF20GYLA ......................F15

GF20ILA ......................... F15

GF20LA .........................F15

GF20LALA ....................... F15

GF20RLA ........................F15

GF20WLA .......................F15

GFBF20ALLA ....................F15

GFBF20BKLA ....................F15

GFBF20GYLA ....................F15

GFBF20ILA ......................F15

GFBF20LA .......................F15

GFBF20LALA ....................F15

GFBF20RLA .....................F15

GFBF20WLA .....................F15

GFTR15 .........................F15

GFTR15AL .......................F15

GFTR15BK .......................F15

GFTR15GY .......................F15

GFTR15I ......................... F15

GFTR15LA ....................... F15

GFTR15R ........................F15

GFTR15W .......................F15

GFTR20 .........................F15

GFTR20AL ....................... F15

GFTR20BK ......................F15

GFTR20GY ......................F15

GFTR20I. . . . . . . . . . . . . . . . . . . . . . . . . F15

GFTR20LA .......................F15

GFTR20R ........................ F15

GFTR20W .......................F15

GSB-2 ..........................A25

GSB-3 ..........................A25

GSB-4 ..........................A25

GSB-5 ..........................A25

GSB-6 ..........................A25

HBL1209 .........................G1

HBL18201CN ......................G1

HBL18201LCN .....................G1

HBL18203CN ......................G1

HBL18203ICN .....................G1

HBL18203LCN. . . . . . . . . . . . . . . . . . . . . G1

HBL18204ICN .....................G1

HBL18221CN ......................G1

HBL18221ICN .....................G1

HBL18223CN ......................G1

HBL18223ICN .....................G1

HBL201ICN .......................G1

HBL2101347I ......................G1

HBL2101347W ....................G1

HBL2103347I ......................G1

HBL2103347W ....................G1

HBL2121347BK ....................G1

HBL2121347I ......................G1

HBL2121347RD ....................G1

HBL2121347W ....................G1

HBL2123347BK ....................G1

HBL2123347I ......................G1

HBL2123347RD ...................G1

HBL2123347W ....................G1

HBL2124347W ....................G1

HBL3W100C ...................... J1

HBL3W50 ........................J1

HBL4PS1050USB .................. J3

HBL6PPS .........................J2

HBL6PS1050MA ................... J2

HBL6PS35015A ...................J2

HBL6PS350A .....................J2

HBL6RSPS2100 ...................J3

HBL7PS105015A ...................J2

HBL7PS1050A .....................J2

HBL7PS1050MA ...................J2

HBL8ESPS1050C ..................J3

HBL8ESPS1050M ..................J3

HBL8PS2100DA ...................J2

HBL8PS2100MA ................... J2

HBLCATC. . . . . . . . . . . . . . . . . . . . . . . . . J3

HBLWH80 ........................ J1

HC5EB01 ........................F32

HC5EB03 ........................F32

HC5EB05 ........................F32

HC5EB07 ........................F32

HC5EB10 ........................F32

HC5EB15 ........................F32

HC5EB20 ........................F32

HC5EB25 ........................F32

HC5EGY01. . . . . . . . . . . . . . . . . . . . . . . F32

HC5EGY03 ......................F32

HC5EGY05 ......................F32

HC5EGY07. . . . . . . . . . . . . . . . . . . . . . . F32

HC5EGY10 .......................F32

HC5EGY15 .......................F32

HC5EGY20 ......................F32

HC5EGY25. . . . . . . . . . . . . . . . . . . . . . . F32

HC5ER01 ........................F32

HC5ER03 ........................F32

HC5ER05 ........................F32

HC5ER07 ........................F32

HC5ER10 ........................F32

HC5ER15 ........................F32

HC5ER20 ........................F32

HC5ER25 ........................F32

HC5EY01 ........................F32

HC5EY03 ........................F32

HC5EY05 ........................F32

HC5EY07 ........................F32

HC5EY10 ........................F32

HC5EY15 ........................F32

HC5EY20 ........................F32

HC5EY25 ........................F32

HC6B01 .........................F32

HC6B03 .........................F32

HC6B05 .........................F32

HC6B07 .........................F32

HC6B10 .........................F32

HC6B15 .........................F32

HC6B20 .........................F32

HC6B25 .........................F32

HC6GY01 ........................F32

HC6GY03 ........................F32

HC6GY05 ........................F32

HC6GY07 ........................F32

HC6GY10 ........................F32

HC6GY15 ........................F32

HC6GY20 ........................F32

HC6GY25 ........................F32

HC6R01 .........................F32

HC6R03 .........................F32

HC6R05 .........................F32

HC6R07 .........................F32

HC6R10 .........................F32

HC6R15 .........................F32

HC6R20 .........................F32

HC6R25 .........................F32

HC6Y01 .........................F32

HC6Y03 .........................F32

HC6Y05 .........................F32

HC6Y07 .........................F32

HC6Y10 .........................F32

HC6Y15 .........................F32

HC6Y20 .........................F32

HC6Y25 .........................F32

HDPC03BK ......................F27

HDPC06BK ......................F27

HJ1001BPK25 .....................E9

HJ1001GPK25 .....................E9

HJ1002BPK25 .....................E9

HJ1002GPK25 .....................E9

HJ1003BPK25 .....................E9

HJ1003GPK25. . . . . . . . . . . . . . . . . . . . . E9

HJ1004BPK25 .....................E9

HJ1004GPK25 .....................E9

HJ1005BPK25 .....................E9

HJ1005GPK25. . . . . . . . . . . . . . . . . . . . . E9

HJ1006BPK25 .....................E9

HJ1006GPK25 ....................E9

HJ1010BPK25 .....................E9

HJ1010GPK25 .....................E9

HJ1011BPK25 .....................E9

HJ1011GPK25 .....................E9

HJ1012BPK25 .....................E9

HJ1012GPK25 .....................E9

HJ1013BPK25 .....................E9

HJ1013GPK25 .....................E9

HJ1014BPK25 .....................E9

HJ1014GPK25 .....................E9

HJ1015BPK25 .....................E9

HJ1015GPK25 .....................E9

HJ1038BPK25 .....................E9

HJ1038GPK25 .....................E9

HJ1039BPK25 .....................E9

HJ1039GPK25 .....................E9

HJ1040BPK25 .....................E9

HJ1040GPK25 .....................E9

HJ1041BPK25 .....................E9

HJ1041GPK25 .....................E9

HJ1042BPK25 .....................E9

Sections_index_Final.indd 5 12/09/2011 3:20:49 PM

NUMERICAL INDEX

CATALOGUE NO. PAGE CATALOGUE NO. PAGE CATALOGUE NO. PAGE

INDEX

HJ1042GPK25 .....................E9

HJ1043BPK25 .....................E9

HJ1043GPK25 .....................E9

HJ1044BPK25 .....................E9

HJ1044GPK25 .....................E9

HJ1055BPK25 .....................E9

HJ1055GPK25 .....................E9

HJ1056BPK25 .....................E9

HJ1056GPK25 .....................E9

HJ1057BPK25 .....................E9

HJ1057GPK25 .....................E9

HJ1058BPK25 .....................E9

HJ1058GPK25 .....................E9

HJ1059BPK25 .....................E9

HJ1059GPK25 .....................E9

HJ1060BPK25 .....................E9

HJ1060GPK25 ....................E9

HPS1347BK .......................G3

HPS1347I .........................G3

HPS1347R ........................G3

HPS1347W .......................G3

HPS2347I .........................G3

HPS2347W .......................G3

HPS3347I .........................G3

HPS3347W .......................G3

HS1001BPK25 .....................E9

HS1001GPK25 ....................E9

HS1002BPK25 ....................E9

HS1002GPK25 ....................E9

HS1003BPK25 ....................E9

HS1003GPK25 ....................E9

HS1004BPK25 ....................E9

HS1004GPK25 ....................E9

HVB1BAR. . . . . . . . . . . . . . . . . . . . . . . . A26

HVB2BAR .......................A26

HVB3BAR .......................A26

HVBCBAR .......................A26

HVBSDBAR ......................A26

IMF1W ..........................F26

ISM1EI ..........................F38

ISM1W ..........................F38

ISM2EI ..........................F38

ISM2W ..........................F38

JC10 ............................D17

JC10B ..........................D17

KIT-201 ...........................A3

KO050 ..........................D16

KO075 ..........................D16

KO100 ..........................D16

KO125 ...........................D16

KO150 ..........................D16

KO200 ..........................D16

LC3 .............................D17

LC3B ...........................D17

LNS050 .........................D15

LNS075 .........................D15

LNS100 .........................D15

LNS125. . . . . . . . . . . . . . . . . . . . . . . . . . D15

LNS150 .........................D15

LNS200 .........................D15

LNS250 .........................D15

LNS300 .........................D15

LNS350 .........................D15

LNS400 .........................D15

LNS500 .........................D15

LNS600 .........................D15

LRW ............................A27

LTM038 ..........................D5

LTM050 ..........................D5

LTM075 ..........................D5

LTM100 ..........................D5

LTM125. . . . . . . . . . . . . . . . . . . . . . . . . . . D5

LTM150 ..........................D5

LTM200 ..........................D5

LTM250 ..........................D5

LTM300 ..........................D5

LTM400 ..........................D5

LTM45038 ........................D5

LTM45050 ........................D5

LTM45075 ........................D5

LTM45100 ........................D5

LTM45125 ........................D5

LTM45150 ........................D5

LTM45200 ........................D5

LTM90038 ........................D5

LTM90050 ........................D5

LTM90075 ........................D5

LTM90100 ........................D5

LTM90125 ........................D5

LTM90150 ........................D5

LTM90200 ........................D5

LTM90250 ........................D5

LTM90300 ........................D5

LTM90400 ........................D5

LTMI038 ..........................D5

LTMI050 ..........................D5

LTMI075 ..........................D5

LTMI100 ..........................D5

LTMI125 ..........................D5

LTMI150 ..........................D5

LTMI200 ..........................D5

LTMI250 ..........................D5

LTMI300 ..........................D5

LTMI400 ..........................D5

LTMI45038 ........................D5

LTMI45050 ........................D5

LTMI45075 ........................D5

LTMI45100 ........................D5

LTMI45125 ........................D5

LTMI45150 ........................D5

LTMI45200 ........................D5

LTMI90 038 ........................D5

LTMI90050 ........................D5

LTMI90075 ........................D5

LTMI90100 ........................D5

LTMI90125 ........................D5

LTMI90150 ........................D5

LTMI90200 ........................D5

LTMI90250 ........................D5

LTMI9030 0 ........................D5

LTMI90400 ........................D5

LTZ038 ...........................D6

LTZ050 ...........................D6

LTZ075 ...........................D6

LTZ100 ...........................D6

LTZ125 ...........................D6

LTZ150 ...........................D6

LTZ200 ...........................D6

LTZ250 ...........................D6

LTZ300 ...........................D6

LTZ400 ...........................D6

LTZ90038 .........................D6

LTZ90050 .........................D6

LTZ90075 .........................D6

LTZ90100 .........................D6

LTZ90125 .........................D6

LTZ90150 .........................D6

LTZ90200 .........................D6

LTZ90250 .........................D6

LTZ90300 .........................D6

LTZ90400 .........................D6

LTZI038 ..........................D6

LTZI050 ..........................D6

LTZI075 ..........................D6

LTZI100 ..........................D6

LTZI125 ...........................D6

LTZI150. . . . . . . . . . . . . . . . . . . . . . . . . . . D6

LTZI200 ..........................D6

LTZI250 ..........................D6

LTZI300 ..........................D6

LTZI400 ..........................D6

LTZI90038 ........................D6

LTZI90050 ........................D6

LTZI90075 ........................D6

LTZI90100 ........................D6

LTZI90125 ........................D6

LTZI90150 ........................D6

LTZI90200 ........................D6

LTZI90250 ........................D6

LTZI90300 ........................D6

LTZI90400 ........................D6

LVP .............................A25

MBD-1-HV .......................A22

MBD-1-K ........................A23

MBD-2-HV .......................A22

MBD-2-K ........................A23

MBD-3-HV .......................A22

MBD-3-K ........................A23

MBD-4-HV .......................A22

MBD-4-K ........................A23

MBD-5-K ........................A23

MBD-6-K ........................A23

MBD-P ..........................A23

MBS-1-HV .......................A22

MBS-1-K ........................A23

MBS-2-HV .......................A22

MBS-2-K ........................A23

MBS-3-HV .......................A22

MBS-3-K ........................A23

MBS-4-HV .......................A22

MBS-4-K ........................A23

MBS-5-K ........................A23

MBS-6-K ........................A23

MBS-P ..........................A23

NHC1010 .........................E5

NHC1011 .........................E5

NHC1012 .........................E5

NHC1020 .........................E5

NHC1020CR ......................E5

NHC1021 .........................E5

NHC1021CR ......................E5

NHC1021ZP .......................E5

NHC1022 .........................E5

NHC1022CR ......................E5

NHC1022ZP ......................E5

NHC1023 .........................E5

NHC1023CR ......................E5

NHC1023ZP ......................E5

NHC1024 .........................E5

NHC1024CR ......................E5

NHC1024ZP .......................E5

NHC1035 .........................E5

NHC1035CR ......................E5

NHC1035ZP ......................E5

NHC1036 .........................E5

NHC1036CR ......................E5

NHC1036ZP ......................E5

NHC1037 .........................E5

NHC1037CR ......................E5

NHC1037ZP. . . . . . . . . . . . . . . . . . . . . . . E5

NHC1038 .........................E5

NHC1038CR ......................E5

NHC1038ZP ......................E5

NHC1040 .........................E5

NHC1041 .........................E5

NHC1041CR ......................E5

NHC1041ZP .......................E5

NHC1042 .........................E5

NHC1042CR ......................E5

Sections_index_Final.indd 6 12/09/2011 3:20:49 PM

NUMERICAL INDEX

CATALOGUE NO. PAGE CATALOGUE NO. PAGE CATALOGUE NO. PAGE

INDEX K7

NHC1043 .........................E5

NHC1043CR ......................E5

NHC1044 .........................E5

NHC1051 .........................E5

NHC1052 .........................E5

NHC1053 .........................E5

NHC1054 .........................E5

NHC1057 .........................E5

NHC1059 .........................E5

NHC1066 .........................E5

NHC2022CR ......................E5

NHC2023CR ......................E5

NHC2024CR ......................E5

NHC2041CR ......................E5

NHC2042CR ......................E5

NHC2043CR ......................E5

NMB038 ..........................D1

NMB075 ..........................D1

NMC038. . . . . . . . . . . . . . . . . . . . . . . . . . D1

NMC075 ..........................D1

NMC100 ..........................D1

NMC125 ..........................D1

NMC150 ..........................D1

NMC200. . . . . . . . . . . . . . . . . . . . . . . . . . D1

NMPI050 .........................D1

NMPI050B(BUCKET) ...............D1

NMPI075 .........................D1

NMPI075B(BUCKET) ...............D1

NMS038 ..........................D1

NMS038SF .......................D1

NMS050 ..........................D1

NMS075 ..........................D1

NMS100 ..........................D1

NMSI050 .........................D1

NMSQ038 ........................D1

NP126 ............................F6

NP1262 ..........................F6

NP1262AL ........................F6

NP1262BK ........................F6

NP1262GY ........................F6

NP1262I ..........................F6

NP1262LA ........................F6

NP1262W ......................... F6

NP126AL .........................F6

NP126BK .........................F6

NP126GY .........................F6

NP126I ...........................F6

NP126LA .........................F6

NP126W ..........................F6

NP1326 ..........................F6

NP1326AL ........................F6

NP1326BK ........................F6

NP1326GY ........................F6

NP1326I ..........................F6

NP1326LA ........................F6

NP1326W ......................... F6

NP226 ...........................F6

NP2262 ..........................F6

NP2262AL ........................F6

NP2262BK ........................F6

NP2262GY ........................ F6

NP2262I ..........................F6

NP2262LA ........................F6

NP2262W .........................F6

NP226AL .........................F6

NP226BK .........................F6

NP226GY .........................F6

NP226I ...........................F6

NP226LA .........................F6

NP226W ..........................F6

NP26 ............................F5

NP262 ...........................F5

NP262AL .........................F5

NP262BK .........................F5

NP262GY .........................F5

NP262I ...........................F5

NP262LA .........................F5

NP262W .......................... F5

NP263 ...........................F5

NP263AL .........................F5

NP263BK .........................F5

NP263GY .........................F5

NP263I ...........................F5

NP263LA .........................F5

NP263W .......................... F5

NP264 ...........................F5

NP264AL .........................F5

NP264BK .........................F5

NP264GY .........................F5

NP264I ...........................F5

NP264LA .........................F5

NP264W .......................... F5

NP265 ...........................F5

NP265AL .........................F5

NP265BK .........................F5

NP265GY .........................F5

NP265I ...........................F5

NP265LA .........................F5

NP265W .......................... F5

NP266 ...........................F5

NP266AL .........................F5

NP266BK .........................F5

NP266GY .........................F5

NP266I ...........................F5

NP266LA .........................F5

NP266W .......................... F5

NP26AL ..........................F5

NP26BK ..........................F5

NP26GY ..........................F5

NP26I ............................F5

NP26LA ..........................F5

NP26W ........................... F5

NP26W ..........................F26

NP326 ...........................F6

NP326AL .........................F6

NP326BK .........................F6

NP326GY .........................F6

NP326I ...........................F6

NP326LA .........................F6

NP326W ..........................F6

NP703I ..........................F16

NP703W ......................... F16

NP724I ..........................F16

NP724W .........................F16

NP826 ...........................F6

NP826AL .........................F6

NP826BK .........................F6

NP826GY .........................F6

NP826I ...........................F6

NP826LA .........................F6

NP826W .......................... F6

NPJ126 ........................... F6

NPJ126AL ........................F6

NPJ126BK ........................F6

NPJ126GY ........................F6

NPJ126I ..........................F6

NPJ126LA ........................F6

NPJ126W .........................F6

NPJ1326 .......................... F6

NPJ1326AL .......................F6

NPJ1326I .........................F6

NPJ1326LA .......................F6

NPJ1326W ........................F6

NPJ226. . . . . . . . . . . . . . . . . . . . . . . . . . . F6

NPJ226AL ........................F6

NPJ226BK ........................F6

NPJ226GY ........................F6

NPJ226I ..........................F6

NPJ226LA ........................F6

NPJ226W .........................F6

NPJ26 ............................F5

NPJ262. . . . . . . . . . . . . . . . . . . . . . . . . . . F5

NPJ262AL ........................F5

NPJ262BK ........................F5

NPJ262GY ........................F5

NPJ262I ..........................F5

NPJ262LA ........................F5

NPJ262W .........................F5

NPJ263 ..........................F5

NPJ263AL ........................F5

NPJ263BK ........................F5

NPJ263GY ........................F5

NPJ263I ..........................F5

NPJ263LA ........................F5

NPJ263W .........................F5

NPJ264 ..........................F5

NPJ264AL ........................F5

NPJ264BK ........................F5

NPJ264GY ........................F5

NPJ264I ..........................F5

NPJ264LA ........................F5

NPJ264W .........................F5

NPJ26AL .........................F5

NPJ26BK .........................F5

NPJ26GY .........................F5

NPJ26I ...........................F5

NPJ26LA .........................F5

NPJ26W ..........................F5

NPJ703I .........................F16

NPJ703W ........................F16

NPJ724I .........................F16

NPJ724W ........................F16

NPJ826. . . . . . . . . . . . . . . . . . . . . . . . . . . F6

NPJ826AL ........................F6

NPJ826BK ........................F6

NPJ826GY ........................F6

NPJ826I ..........................F6

NPJ826LA ........................F6

NPJ826W .........................F6

NS5E12U ........................F32

NS5E24U ........................F32

NS5E48U ........................F32

NS612AL .........................F7

NS612AL ........................F35

NS612BK .........................F7

NS612BK ........................F35

NS612GY .........................F7

NS612GY ........................F35

NS612I ...........................F7

NS612I ..........................F35

NS612LA .........................F7

NS612LA ........................F35

NS612U .........................F32

NS612W ..........................F7

NS612W .........................F35

NS613AL .........................F7

NS613AL ........................F35

NS613BK .........................F7

NS613BK ........................F35

NS613GY .........................F7

NS613GY ........................F35

NS613I ...........................F7

NS613I ..........................F35

NS613LA .........................F7

NS613LA ........................F35

NS613W ..........................F7

NS613W .........................F35

NS614AL .........................F7

NS614AL ........................F35

Sections_index_Final.indd 7 12/09/2011 3:20:50 PM

NUMERICAL INDEX

CATALOGUE NO. PAGE CATALOGUE NO. PAGE CATALOGUE NO. PAGE

INDEX

NS614BK .........................F7

NS614BK ........................F35

NS614GY .........................F7

NS614GY ........................F35

NS614I ...........................F7

NS614I ..........................F35

NS614LA .........................F7

NS614LA ........................F35

NS614W ..........................F7

NS614W .........................F35

NS616AL .........................F7

NS616AL ........................F35

NS616BK .........................F7

NS616BK ........................F35

NS616GY .........................F7

NS616GY ........................F35

NS616I ...........................F7

NS616I ..........................F35

NS616LA .........................F7

NS616LA ........................F35

NS616W ..........................F7

NS616W .........................F35

NS620AL .........................F7

NS620AL ........................F35

NS620I ...........................F7

NS620I ..........................F35

NS620LA .........................F7

NS620LA ........................F35

NS620W ..........................F7

NS620W .........................F35

NS621AL .........................F7

NS621AL ........................F35

NS621I ...........................F7

NS621I ..........................F35

NS621LA .........................F7

NS621LA ........................F35

NS621W ..........................F7

NS621W .........................F35

NS624U .........................F32

NS648U .........................F32

NS721AL ........................F38

NS721I ..........................F38

NS721W .........................F38

NS722AL ........................F38

NS722I ..........................F38

NS722W .........................F38

NS723SS ........................F38

NS725AL ........................F38

NS725I ..........................F38

NS725LA ........................F38

NS725W .........................F38

NS726SS ........................F38

NS730 ..........................F37

NS730AL ........................F37

NS730I ..........................F37

NS730LA ........................F37

NS730W ......................... F37

NS732 ..........................F37

NS732AL ........................F37

NS732I ..........................F37

NS732LA ........................F37

NS732W .........................F37

NS735 ..........................F37

NS735AL ........................F37

NS735I ..........................F37

NS735LA ........................F37

NS735W ......................... F37

NS742AL ........................F37

NS742I ..........................F37

NS742LA ........................F37

NS742W.........................F37

NS744AL ........................F37

NS744I ..........................F37

NS744W .........................F37

NS745I ..........................F37

NS745W .........................F37

NS747AL ........................F37

NS747I ..........................F37

NS747LA ........................F37

NS747W .........................F37

NS748AL ........................F37

NS748I ..........................F37

NS748LA ........................F37

NS748W .........................F37

NS750AL ........................F37

NS750I ..........................F37

NS750LA ........................F37

NS750W .........................F37

NS751AL ........................F37

NS751I ..........................F37

NS751LA ........................F37

NS751W .........................F37

NS752AL ........................F37

NS752I ..........................F37

NS752LA ........................F37

NS752W .........................F37

NS755AL ........................F37

NS755I ..........................F37

NS755LA ........................F37

NS755W .........................F37

NS760I ..........................F38

NS760W .........................F38

NS761I ..........................F38

NS761W .........................F38

NS770 ...........................F9

NS770 ..........................F36

NS770AL .........................F9

NS770AL ........................F36

NS770BK .........................F9

NS770BK ........................F36

NS770GY .........................F9

NS770GY ........................F36

NS770I ...........................F9

NS770I ..........................F36

NS770LA .........................F9

NS770LA ........................F36

NS770W ..........................F9

NS770W .........................F36

NS771. . . . . . . . . . . . . . . . . . . . . . . . . . . . F9

NS771. . . . . . . . . . . . . . . . . . . . . . . . . . . F36

NS771AL .........................F9

NS771AL ........................F36

NS771I ...........................F9

NS771I ..........................F36

NS771LA .........................F9

NS771LA ........................F36

NS771W ..........................F9

NS771W .........................F36

NS772AL .........................F9

NS772AL ........................F36

NS772I ...........................F9

NS772I ..........................F36

NS772LA .........................F9

NS772LA ........................F36

NS772W ..........................F9

NS772W .........................F36

NS780AL .........................F9

NS780AL ........................F36

NS780I ...........................F9

NS780I ..........................F36

NS780LA .........................F9

NS780LA ........................F36

NS780W .......................... F9

NS780W .........................F36

NS782AL .........................F9

NS782AL ........................F36

NS782I ...........................F9

NS782I ..........................F36

NS782LA .........................F9

NS782LA ........................F36

NS782W ..........................F9

NS782W .........................F36

NS783AL .........................F9

NS783AL ........................F36

NS783I ...........................F9

NS783I ..........................F36

NS783LA .........................F9

NS783LA ........................F36

NS783W ..........................F9

NS783W .........................F36

NS784 ...........................F9

NS784 ..........................F36

NS784AL .........................F9

NS784AL ........................F36

NS784BK .........................F9

NS784BK ........................F36

NS784GY .........................F9

NS784GY ........................F36

NS784I ...........................F9

NS784I ..........................F36

NS784LA .........................F9

NS784LA ........................F36

NS784W ..........................F9

NS784W .........................F36

NS785 ...........................F9

NS785 ..........................F36

NS785AL .........................F9

NS785AL ........................F36

NS785BK .........................F9

NS785BK ........................F36

NS785GY .........................F9

NS785GY ........................F36

NS785I ...........................F9

NS785I ..........................F36

NS785LA .........................F9

NS785LA ........................F36

NS785W .......................... F9

NS785W .........................F36

NS790 ..........................F37

NS790AL ........................F37

NS790BK ........................F37

NS790GY ........................F37

NS790I ..........................F37

NS790LA ........................F37

NS790W .........................F37

NS801AL ........................F27

NS801BK ........................F27

NS801GY ........................F27

NS801I ..........................F27

NS801LA ........................F27

NS801W .........................F26

NS801W .........................F27

NS802AL ........................F27

NS802BK ........................F27

NS802GY ........................F27

NS802I ..........................F27

NS802LA ........................F27

NS802W .........................F26

NS802W .........................F27

NSAV62M .......................F26

NSAV6C .........................F26

NSF70AL .........................F8

NSF70AL ........................F34

NSF70BK .........................F8

NSF70BK ........................F34

NSF70GY .........................F8

NSF70GY ........................F34

NSF70I ...........................F8

NSF70I ..........................F34

Sections_index_Final.indd 8 12/09/2011 3:20:50 PM

NUMERICAL INDEX

CATALOGUE NO. PAGE CATALOGUE NO. PAGE CATALOGUE NO. PAGE

INDEX K9

NSF70LA .........................F8

NSF70LA ........................F34

NSF70W ..........................F8

NSF70W .........................F26

NSF70W .........................F34

NSJ5EAL .........................F8

NSJ5EAL ........................F34

NSJ5EB ..........................F8

NSJ5EB .........................F34

NSJ5EBK .........................F8

NSJ5EBK ........................F34

NSJ5EGN ........................F8

NSJ5EGN .......................F34

NSJ5EGY .........................F8

NSJ5EGY ........................F34

NSJ5EI ...........................F8

NSJ5EI ..........................F34

NSJ5ELA .........................F8

NSJ5ELA ........................F34

NSJ5EOR. . . . . . . . . . . . . . . . . . . . . . . . . F8

NSJ5EOR. . . . . . . . . . . . . . . . . . . . . . . . F34

NSJ5ER ..........................F8

NSJ5ER .........................F34

NSJ5EW .........................F8

NSJ5EW ........................F34

NSJ5EY ..........................F8

NSJ5EY .........................F34

NSJ6AL ..........................F8

NSJ6AL .........................F34

NSJ6B ...........................F8

NSJ6B ..........................F34

NSJ6BK ..........................F8

NSJ6BK .........................F34

NSJ6GN .......................... F8

NSJ6GN .........................F34

NSJ6GY ..........................F8

NSJ6GY .........................F34

NSJ6I ............................F8

NSJ6I ...........................F34

NSJ6LA ..........................F8

NSJ6LA .........................F34

NSJ6OR ..........................F8

NSJ6OR .........................F34

NSJ6R ...........................F8

NSJ6R ..........................F34

NSJ6W ........................... F8

NSJ6W ..........................F26

NSJ6W ..........................F34

NSJ6Y ...........................F8

NSJ6Y ..........................F34

NSJUAL ..........................F8

NSJUAL .........................F34

NSJUB ...........................F8

NSJUB ..........................F34

NSJUBK ..........................F8

NSJUBK .........................F34

NSJUGN .........................F8

NSJUGN ........................F34

NSJUGY. . . . . . . . . . . . . . . . . . . . . . . . . . F8

NSJUGY. . . . . . . . . . . . . . . . . . . . . . . . . F34

NSJUI ............................ F8

NSJUI ...........................F34

NSJULA ..........................F8

NSJULA .........................F34

NSJUOR .........................F8

NSJUOR ........................F34

NSJUR ...........................F8

NSJUR ..........................F34

NSJUW ..........................F8

NSJUW .........................F34

NSJUY ...........................F8

NSJUY ..........................F34

NSO6P1DM ......................F30

NSOAM8 ........................F31

NSOBM .........................F31

NSOBNK14 ......................F29

NSOBOX14 ......................F29

NSOBOX14B .....................F29

NSOBOX14BC ....................F29

NSOBOX14C .....................F29

NSOBOX14D .....................F29

NSOBOX14DL ....................F29

NSOBOX14X2 ....................F29

NSOBOX28 ......................F29

NSOBOX28B .....................F29

NSOBOX28BC ...................F29

NSOBOX28C .....................F29

NSOBOX28D .....................F29

NSOBOX28DL ....................F29

NSOBOX28X2 ....................F29

NSOBOX48 ......................F29

NSOBX10 ........................F29

NSOBX10B ......................F29

NSOBX10BC .....................F29

NSOBX10C ......................F29

NSOBX10D ......................F29

NSODK6 ........................F30

NSODM8 ........................F30

NSODM8C6 .....................F30

NSOETM8 .......................F30

NSOFSB ........................F33

NSOKA .........................F33

NSOKP ..........................F33

NSOKP ..........................F26

NSOKPS ........................F26

NSOKPS ........................F33

NSOMTM24 ......................F30

NSOPTM8 .......................F30

NSORAVC .......................F33

NSOSAVC .......................F33

NSOTVDM6 ......................F30

NSOTVM6 .......................F30

NSOVAMP .......................F31

NSOVAMP240 ....................F31

NSOVM4 ........................F31

NSOVM42G ......................F31

NSOVM6 ........................F31

NSOVM62G ......................F31

NSOVM8 ........................F31

NSOVM82G ...................... F31

NSP050B(BUCKET) ................D2

NSP050P .........................D2

NSP075B(BUCKET) ................D2

NSP075P .........................D2

NSP101AL .......................F35

NSP101BK .......................F35

NSP101GY .......................F35

NSP101I .........................F35

NSP101LA .......................F35

NSP101W ........................F35

NSP102AL .......................F35

NSP102BK .......................F35

NSP102GY .......................F35

NSP102I .........................F35

NSP102LA .......................F35

NSP102W .......................F35

NSP103AL .......................F35

NSP103BK .......................F35

NSP103GY .......................F35

NSP103I .........................F35

NSP103LA .......................F35

NSP103W .......................F35

NSP104AL .......................F35

NSP104BK .......................F35

NSP104GY .......................F35

NSP104I .........................F35

NSP104LA .......................F35

NSP104W .......................F35

NSP106AL .......................F35

NSP106BK .......................F35

NSP106GY .......................F35

NSP106I .........................F35

NSP106LA .......................F35

NSP106W .......................F35

NSP11AL ........................F35

NSP11BK ........................F35

NSP11GY ........................F35

NSP11I ..........................F35

NSP11LA ........................F35

NSP11W .........................F35

NSP12AL ........................F35

NSP12BK ........................F35

NSP12GY ........................F35

NSP12I ..........................F35

NSP12LA ........................F35

NSP12W .........................F35

NSP13AL ........................F35

NSP13BK ........................F35

NSP13GY ........................F35

NSP13I ..........................F35

NSP13LA ........................F35

NSP13W .........................F35

NSP14AL ........................F35

NSP14BK ........................F35

NSP14GY ........................F35

NSP14I ..........................F35

NSP14LA ........................F35

NSP14W .........................F26

NSP14W .........................F35

NSP16AL ........................F35

NSP16BK ........................F35

NSP16GY ........................F35

NSP16I ..........................F35

NSP16LA ........................F35

NSP16W. . . . . . . . . . . . . . . . . . . . . . . . . F35

NSP24AL ........................F35

NSP24BK ........................F35

NSP24GY ........................F35

NSP24I ..........................F35

NSP24LA ........................F35

NSP24W ........................F35

NSP26AL ........................F35

NSP26BK ........................F35

NSP26GY ........................F35

NSP26I ..........................F35

NSP26LA ........................F35

NSP26W ........................F35

OBEXBAR ........................A6

ON050 ..........................D11

ON075 ..........................D11

ON100 ..........................D11

ON125 ..........................D11

ON150 ..........................D11

ON200 ..........................D11

P0389NBK ....................... E12

P0389NGY ....................... E12

P038NBKA ......................E12

P038NGYA ....................... E12

P0509NBK ....................... E12

P0509NGY ....................... E12

P050NBKA ......................E12

P050NGYA .......................E12

P0759NBK .......................E12

P0759NGY .......................E12

P075NBKA. . . . . . . . . . . . . . . . . . . . . . . E12

P075NGYA .......................E12

P1009NBK .......................E12

P1009NGY ....................... E12

P100NBKA ......................E12

Sections_index_Final.indd 9 12/09/2011 3:20:50 PM

NUMERICAL INDEX

CATALOGUE NO. PAGE CATALOGUE NO. PAGE CATALOGUE NO. PAGE

INDEX

K10

P100NGYA ....................... E12

P1259NBK .......................E12

P1259NGY .......................E12

P125NBK ........................E12

P125NGY ........................E12

P150NBK ........................E12

P150NGY ........................E12

P200NBK ........................E12

P200NGY ........................ E12

PB001 ...........................C2

PB002 ...........................C2

PB071 ............................C2

PB072 ............................C2

PB073 ............................C2

PB074 ............................C2

PB075 ............................C2

PB076 ............................C2

PB077. . . . . . . . . . . . . . . . . . . . . . . . . . . . C2

PB078 ............................C2

PB079 ............................C2

PB080 ...........................C2

PB091 ...........................C4

PB092 ...........................C4

PB101 ............................C3

PB102 ............................C3

PB103 ............................C3

PB104 ............................C3

PB111 ............................C4

PB121 ............................C3

PB122 ............................C3

PB123 ............................C3

PB124 ............................C3

PB151 ............................C3

PB152 ............................C3

PB153 ............................C3

PB154 ............................C3

PB181 ............................C4

PB182 ............................C4

PB191 ............................C4

PB201 ............................C4

PB202. . . . . . . . . . . . . . . . . . . . . . . . . . . . C4

PB211 ............................C4

PB401. . . . . . . . . . . . . . . . . . . . . . . . . . . . C2

PB402 ...........................C2

PB403 ...........................C2

PB404 ...........................C2

PB406 ...........................C2

PB411 ............................C4

PB502 ...........................C5

PB512 ............................C5

PB521 ............................C4

PB532 ...........................C5

PB543 ...........................C5

PB553 ...........................C5

PB563 ...........................C5

PB630 ...........................C4

PB631. . . . . . . . . . . . . . . . . . . . . . . . . . . .C4

PB730 ............................C4

PB731 ............................C4

PEEB050 .........................D9

PEEB075 .........................D9

PEEB100 .........................D9

PEEE050 .........................D9

PEEE075 .........................D9

PEEE100 .........................D9

PERB050 ........................D15

PERB075 ........................D15

PERB100 ........................D15

PERR050 ........................D15

PERR075 ........................D15

PERR100 ........................D15

PERR125 ........................D15

PS0389NBK .....................E12

PS0389NGY .....................E12

PS0509NBK .....................E12

PS0509NGY .....................E12

PS05GYKIT ......................E12

PS0759NBK. . . . . . . . . . . . . . . . . . . . . . E12

PS0759NGY .....................E12

PS07GYKIT ......................E12

PS1009NBK. . . . . . . . . . . . . . . . . . . . . . E12

PS1009NGY .....................E12

R1S050. . . . . . . . . . . . . . . . . . . . . . . . . . D12

R1S075 ..........................D12

R1S100 ..........................D12

R1S125 ..........................D12

R1S150 ..........................D12

R1S200 ..........................D12

R1S250 ..........................D12

R1S300 .........................D12

R1S350. . . . . . . . . . . . . . . . . . . . . . . . . . D12

R1S400 .........................D12

R28032401 ......................F19

R28032406 ......................F19

R2S050 .........................D12

R2S075 .........................D12

R2S100. . . . . . . . . . . . . . . . . . . . . . . . . . D12

R2S125 ..........................D12

R2S150 ..........................D12

R2S200 .........................D12

R2S250 .........................D12

R2S300 .........................D12

R2S350 .........................D12

R2S400 .........................D12

RAY103PAL ......................F19

RAY103PI ........................F19

RAY103PLA ......................F19

RAY103PW ......................F19

RAY10PAL .......................F19

RAY10PI .........................F19

RAY10PLA .......................F19

RAY10PW .......................F19

RAY2LFSQAL ....................F19

RAY2LFSQI ......................F19

RAY2LFSQLA ....................F19

RAY2LFSQW .....................F19

RAY600PAL ......................F19

RAY600PI ........................F19

RAY600PLA ...................... F19

RAY600PW ......................F19

RAY603PAL ......................F19

RAY603PI ........................F19

RAY603PLA ...................... F19

RAY603PW ......................F19

RAYFSQFAL .....................F19

RAYFSQFI .......................F19

RAYFSQFLA .....................F19

RAYFSQFW ...................... F19

RB0705 .........................D11

RB1005 .........................D11

RB1007 .........................D11

RB1205 .........................D11

RB1207 ..........................D11

RB1210 ..........................D11

RB1505 .........................D11

RB1507. . . . . . . . . . . . . . . . . . . . . . . . . . D11

RB1510 ..........................D11

RB1512 ..........................D11

RB2005 .........................D11

RB2007 .........................D11

RB2010 .........................D11

RB2012 .........................D11

RB2015 .........................D11

RC101 ..........................F12

RC101AL ........................F12

RC101I ..........................F12

RC101LA ........................F12

RC101W .........................F12

RC103 ..........................F12

RC103AL ........................F12

RC103I ..........................F12

RC103LA ........................F12

RC103W ......................... F12

RC108 ..........................F12

RC108AL ........................F12

RC108ALTR ......................F12

RC108I ..........................F12

RC108ITR .......................F12

RC108LA ........................F12

RC108LATR ...................... F12

RC108TR ........................F12

RC108W .........................F12

RC108WTR ......................F12

RC109 ..........................F12

RC109AL ........................F12

RC109I ..........................F12

RC109LA ........................F12

C109W .........................F12

RC303 ..........................F12

RC303AL ........................F12

RC303I .......................... F12

RC303LA ........................F12

RC303W ........................F12

RC308 ..........................F12

RC308AL ........................F12

RC308ALTR ......................F12

RC308I ..........................F12

RC308ITR .......................F12

RC308TR ........................F12

RC308W ........................F12

RC308WTR ......................F12

RC309 ..........................F12

RC309AL ........................F12

RC309I ..........................F12

RC309W ........................F12

RCD101AL ........................F3

RCD101BK ........................ F3

RCD101GY ........................ F3

RCD101I ..........................F3

RCD101LA ........................F3

RCD101W ........................F3

RCD103AL ........................F3

RCD103BK .......................F3

RCD103GY .......................F3

RCD103I .......................... F3

RCD103LA ........................ F3

RCD103W ........................F3

RCD108AL ........................F3

RCD108ALTR .....................F3

RCD108BK .......................F3

RCD108BKTR .....................F3

RCD108GY .......................F3

RCD108GYTR .....................F3

RCD108I .......................... F3

RCD108ITR .......................F3

RCD108LA ........................ F3

RCD108LATR .....................F3

RCD108W ........................F3

RCD108WTR ......................F3

RCD109AL ........................F3

RCD109I ..........................F3

RCD109LA ........................ F3

RCD109W ........................F3

RCD111AL ........................F3

RCD111BK ........................F3

RCD111I ..........................F3

RCD111LA ........................F3

Sections_index_Final.indd 10 12/09/2011 3:20:51 PM

NUMERICAL INDEX

CATALOGUE NO. PAGE CATALOGUE NO. PAGE CATALOGUE NO. PAGE

INDEX K11

RCD111W ......................... F3

RCD303AL ........................F3

RCD303BK .......................F3

RCD303GY .......................F3

RCD303I .........................F3

RCD303LA. . . . . . . . . . . . . . . . . . . . . . . . F3

RCD303W ........................F3

RCD308AL ........................F3

RCD308ALTR .....................F3

RCD308BK .......................F3

RCD308BKTR .....................F3

RCD308GY .......................F3

RCD308GYTR .....................F3

RCD308I .........................F3

RCD308ITR .......................F3

RCD308LA .......................F3

RCD308LATR .....................F3

RCD308W ........................F3

RCD308WTR ...................... F3

RCD309AL ........................ F3

RCD309I .........................F3

RCD309LA .......................F3

RCD309W ........................F3

RCW1AL .........................F5

RCW1I ...........................F5

RCW1LA .........................F5

RCW1W ..........................F5

RCW2AL .........................F5

RCW2I ...........................F5

RCW2LA .........................F5

RCW2W ..........................F5

RCW3AL .........................F5

RCW3I ...........................F5

RCW3LA .........................F5

RCW3W ..........................F5

RCW4AL .........................F5

RCW4I ...........................F5

RCW4LA .........................F5

RCW4W ..........................F5

RCW5AL .........................F5

RCW5I ...........................F5

RCW5LA .........................F5

RCW5W ..........................F5

RCW6AL .........................F5

RCW6I ...........................F5

RCW6LA .........................F5

RCW6W ..........................F5

RD600PDK ......................F19

RD600RI ........................F19

RD600RW .......................F19

RD603PDK ......................F19

RDS30 ..........................F17

RDS50 ..........................F17

RDV103PAL ......................F18

RDV103PI ........................F18

RDV103PLA ......................F18

RDV103PW ......................F18

RDV10PAL .......................F18

RDV10PI .........................F18

RDV10PLA .......................F18

RDV10PW .......................F18

RDV600PAL ...................... F18

RDV600PI .......................F18

RDV600PLA .....................F18

RDV600PW ......................F18

RDV603PAL ...................... F18

RDV603PI .......................F18

RDV603PLA ......................F18

RDV603PW ......................F18

RDVELV300PAL ..................F18

RDVELV300PI ....................F18

RDVELV300PLA ..................F18

RDVELV300PW ................... F18

RDVELV303PAL ..................F18

RDVELV303PI ....................F18

RDVELV303PLA ..................F18

RDVELV303PW ...................F18

RDVFSQFAL .....................F18

RDVFSQFI .......................F18

RDVFSQFLA .....................F18

RDVFSQFW ......................F18

RDVLV600PAL ...................F18

RDVLV600PI .....................F18

RDVLV600PLA ...................F18

RDVLV600PW ....................F18

RDVLV603PAL ....................F18

RDVLV603PI .....................F18

RDVLV603PLA ...................F18

RDVLV603PW ....................F18

REK050 .........................D15

REK075 .........................D15

REK100 .........................D15

RF151 ...........................F22

RF151D ..........................F22

RF151TR .........................F22

RF500 ...........................F21

RF506AL ........................F21

RF506BK ........................F21

RF506BN ........................F21

RF506BP ........................F21

RF506BR ........................F21

RF506CH ........................F21

RF506CU ........................F21

RF506NI .........................F21

RF506SS ........................F21

RF507AL ........................F21

RF507BK ........................F21

RF507BN ........................F21

RF507BP ........................F21

RF507BR ........................F21

RF507CH ........................F21

RF507CU ........................F21

RF507NI .........................F21

RF507SS ........................F21

RF509BR ........................F21

RF515AL. . . . . . . . . . . . . . . . . . . . . . . . . F21

RF515BK ........................F21

RF515BN ........................F21

RF515BP ........................F21

RF515BR ........................F21

RF515CH ........................F21

RF515CU ........................F21

RF515NI .........................F21

RF515SS ........................F21

RF6500BR .......................F22

RFS5I ...........................F19

RFS5LA .........................F19

RFS5W .......................... F19

RFSQ2FDK ......................F19

RJ600 ........................... F17

RJ600 ........................... F24

RJ620AL ........................F17

RJ620AL ........................F24

RJ620ALTR ...................... F17

RJ620ALTR ......................F24

RJ620BK ........................F17

RJ620BK ........................F24

RJ620BKTR ......................F17

RJ620BKTR ......................F24

RJ620GY ........................F17

RJ620GY ........................F24

RJ620GYTR. . . . . . . . . . . . . . . . . . . . . . F17

RJ620GYTR. . . . . . . . . . . . . . . . . . . . . . F24

RJ620I ..........................F17

RJ620I ..........................F24

RJ620ITR ........................ F17

RJ620ITR ........................F24

RJ620LA ........................ F17

RJ620LA ........................F24

RJ620LATR ......................F17

RJ620LATR ......................F24

RJ620W .........................F17

RJ620W .........................F24

RJ620WTR ......................F17

RJ620WTR ......................F24

RJ62AL .........................F17

RJ62AL .........................F24

RJ62ALTR .......................F17

RJ62ALTR .......................F24

RJ62BK .........................F17

RJ62BK .........................F24

RJ62BKTR ....................... F17

RJ62BKTR .......................F24

RJ62GY ......................... F17

RJ62GY .........................F24

RJ62GYTR .......................F17

RJ62GYTR ....................... F24

RJ62I ........................... F17

RJ62I ...........................F24

RJ62ITR ......................... F17

RJ62ITR .........................F24

RJ62LA ......................... F17

RJ62LA .........................F24

RJ62LATR ....................... F17

RJ62LATR .......................F24

RJ62W .......................... F17

RJ62W ..........................F24

RJ62WTR .......................F17

RJ62WTR .......................F24

RJ650AL ........................ F17

RJ650AL ........................F24

RJ650ALTR ...................... F17

RJ650ALTR ......................F24

RJ650BK ........................F17

RJ650BK ........................F24

RJ650BKTR ......................F17

RJ650BKTR ......................F24

RJ650GY ........................F17

RJ650GY ........................F24

RJ650GYTR .....................F17

RJ650GYTR .....................F24

RJ650I ..........................F17

RJ650I ..........................F24

RJ650ITR ........................ F17

RJ650ITR ........................F24

RJ650LA ........................F17

RJ650LA ........................F24

RJ650LATR ......................F17

RJ650LATR ......................F24

RJ650W ......................... F17

RJ650W .........................F24

RJ650WTR ......................F17

RJ650WTR ......................F24

RJ65AL .........................F17

RJ65AL .........................F24

RJ65ALTR .......................F17

RJ65ALTR .......................F24

RJ65BK .........................F17

RJ65BK .........................F24

RJ65BKTR .......................F17

RJ65BKTR ....................... F24

RJ65GY ......................... F17

RJ65GY .........................F24

Sections_index_Final.indd 11 12/09/2011 3:20:51 PM

NUMERICAL INDEX

CATALOGUE NO. PAGE CATALOGUE NO. PAGE CATALOGUE NO. PAGE

INDEX

K12

RJ65GYTR .......................F17

RJ65GYTR ....................... F24

RJ65I ........................... F17

RJ65I ...........................F24

RJ65ITR .........................F17

RJ65ITR .........................F24

RJ65LA .........................F17

RJ65LA .........................F24

RJ65LATR .......................F17

RJ65LATR .......................F24

RJ65W ..........................F17

RJ65W ..........................F24

RJ65WTR .......................F17

RJ65WTR .......................F24

RMS100AL .......................F20

RMS100I ........................F20

RMS100ILAL .....................F20

RMS100ILI .......................F20

RMS100ILLA .....................F20

RMS100ILW ......................F20

RMS100LA ......................F20

RMS100W .......................F20

RMS101AL .......................F20

RMS101I .........................F20

RMS101ILAL .....................F20

RMS101ILI .......................F20

RMS101ILLA .....................F20

RMS101ILW ......................F20

RMS101LA ....................... F20

RMS101W .......................F20

RMS120AL .......................F20

RMS120I ........................F20

RMS120ILAL .....................F20

RMS120ILI .......................F20

RMS120ILLA .....................F20

RMS120ILW ...................... F20

RMS120LA. . . . . . . . . . . . . . . . . . . . . . . F20

RMS120W .......................F20

RMS121AL .......................F20

RMS121I .........................F20

RMS121ILAL .....................F20

RMS121ILI .......................F20

RMS121ILLA .....................F20

RMS121ILW ......................F20

RMS121LA .......................F20

RMS121W .......................F20

RMS140AL .......................F20

RMS140I ........................F20

RMS140W .......................F20

RMS141AL .......................F20

RMS141I .........................F20

RMS141W .......................F20

RR15 ............................F14

RR151 ........................... F14

RR151AL ........................F14

RR151ALTR ......................F14

RR151ALWRTR ...................F14

RR151BK ........................F14

RR151BKTR ......................F14

RR151BKWRTR ..................F14

RR151CHBS .....................F17

RR151CHBSTR ...................F17

RR151CHI .......................F17

RR151CHITR ..................... F17

RR151CHSS .....................F17

RR151CHSSTR ...................F17

RR151CHW ......................F17

RR151CHWTR ....................F17

RR151GY ........................F14

RR151GYTR ......................F14

RR151GYWRTR ..................F14

RR151I ..........................F14

RR151ITR ........................F14

RR151IWRTR ..................... F14

RR151LA ........................F14

RR151LATR ......................F14

RR151LAWRTR ...................F14

RR151TR ........................F14

RR151W .........................F14

RR151WRTR .....................F14

RR151WTR ......................F14

RR151WWRTR ...................F14

RR155. . . . . . . . . . . . . . . . . . . . . . . . . . . F14

RR155AL ........................F14

RR155ALWR .....................F14

RR155BK ........................F14

RR155BKWR ..................... F14

RR155GY ........................F14

RR155GYWR .....................F14

RR155I ..........................F14

RR155IWR .......................F14

RR155LA ........................F14

RR155LAWR .....................F14

RR155W ......................... F14

RR155WR .......................F14

RR155WWR ......................F14

RR15AL .........................F14

RR15BK .........................F14

RR15E ..........................F14

RR15EAL ........................F14

RR15EALTR ...................... F14

RR15EBK ........................F14

RR15EBKTR .....................F14

RR15EGY ........................ F14

RR15EGYTR .....................F14

RR15EI ..........................F14

RR15EITR. . . . . . . . . . . . . . . . . . . . . . . . F14

RR15ELA ........................F14

RR15ELATR ...................... F14

RR15EQ .........................F13

RR15EQAL ....................... F13

RR15EQALTR ....................F13

RR15EQBK ......................F13

RR15EQBKTR ....................F13

RR15EQI ........................F13

RR15EQITR ......................F13

RR15EQLA .......................F13

RR15EQLATR ....................F13

RR15EQTR .......................F13

RR15EQW .......................F13

RR15EQWTR ..................... F13

RR15ETR ........................F14

RR15EW .........................F14

RR15EWTR ......................F14

RR15I ...........................F14

RR15K ..........................F14

RR15KAL ........................F14

RR15KALTR ......................F14

RR15KI ..........................F14

RR15KITR .......................F14

RR15KLA ........................F14

RR15KLATR ......................F14

RR15KTR ........................F14

RR15KW ........................F14

RR15KWTR ......................F14

RR15LA .........................F14

RR15Q ..........................F13

RR15QAL ........................ F13

RR15QALTR .....................F13

RR15QBK .......................F13

RR15QBKTR .....................F13

RR15QI ..........................F13

RR15QITR .......................F13

RR15QLA ........................ F13

RR15QLATR .....................F13

RR15QTR ........................ F13

RR15QW ........................F13

RR15QWTR ......................F13

RR15S ..........................F14

RR15SAL ........................F14

RR15SALTR ...................... F14

RR15SALWRTR. . . . . . . . . . . . . . . . . . . F14

RR15SBK ........................ F14

RR15SBKTR .....................F14

RR15SBKWRTR ..................F14

RR15SI ..........................F14

RR15SITR .......................F14

RR15SIWRTR ....................F14

RR15SLA ........................F14

RR15SLATR ......................F14

RR15SLAWRTR ..................F14

RR15STR ........................F14

RR15SW .........................F14

RR15SWRTR .....................F14

RR15SWTR ......................F14

RR15SWWRTR ...................F14

RR15W ..........................F14

RR201 ..........................F14

RR201AL ........................F14

RR201ALTR ......................F14

RR201ALWRTR ................... F14

RR201BK ........................F14

RR201BKTR .....................F14

RR201BKWRTR ..................F14

RR201CHBS .....................F17

RR201CHBSTR ................... F17

RR201CHI ....................... F17

RR201CHITR ..................... F17

RR201CHSS .....................F17

RR201CHSSTR ................... F17

RR201CHW ......................F17

RR201CHWTR ...................F17

RR201GY ........................F14

RR201GYTR .....................F14

RR201GYWRTR ..................F14

RR201I ..........................F14

RR201ITR ........................F14

RR201IWRTR ....................F14

RR201LA ........................F14

RR201LATR ......................F14

RR201LAWRTR ...................F14

RR201TR ........................F14

RR201W ......................... F14

RR201WRTR .....................F14

RR201WTR ......................F14

RR201WWRTR ...................F14

RR205 ..........................F14

RR205AL ........................F14

RR205ALWR .....................F14

RR205BK ........................ F14

RR205BKWR .....................F14

RR205GY ........................ F14

RR205GYWR. . . . . . . . . . . . . . . . . . . . . F14

RR205I ..........................F14

RR205IWR ....................... F14

RR205LA ........................F14

RR205LAWR .....................F14

RR205W .........................F14

RR205WR .......................F14

RR205WWR .....................F14

RR330 ..........................F16

RR330F .........................F16

RR335P .........................F16

RR350 ..........................F16

RR350F .........................F16

RR430 ..........................F16

RR430F .........................F16

RR430FW .......................F16

RR430PM .......................F16

Sections_index_Final.indd 12 12/09/2011 3:20:51 PM

NUMERICAL INDEX

CATALOGUE NO. PAGE CATALOGUE NO. PAGE CATALOGUE NO. PAGE

INDEX K13

RR430WIPCN ....................F16

RR435P .........................F16

RR450 ..........................F16

RR450F .........................F16

RR450FW .......................F16

RR450PM .......................F16

RR450WIPCN ....................F16

RRD15 ...........................F4

RRD151 ..........................F4

RRD151AL ........................F4

RRD151ALTR ...................... F4

RRD151BK ........................F4

RRD151BKTR .....................F4

RRD151GY ........................F4

RRD151GYTR .....................F4

RRD151I ..........................F4

RRD151ITR .......................F4

RRD151LA ........................F4

RRD151LATR ...................... F4

RRD151TR ........................F4

RRD151W .........................F4

RRD151WTR ......................F4

RRD155 ..........................F4

RRD155AL ........................F4

RRD155BK ........................F4

RRD155GY .......................F4

RRD155I .......................... F4

RRD155LA ........................F4

RRD155W ........................F4

RRD15AL .........................F4

RRD15BK ......................... F4

RRD15E ..........................F4

RRD15EAL ........................ F4

RRD15EALTR .....................F4

RRD15EBK .......................F4

RRD15EBKTR .....................F4

RRD15EGY .......................F4

RRD15EGYTR .....................F4

RRD15EI ..........................F4

RRD15EITR .......................F4

RRD15ELA ........................ F4

RRD15ELATR .....................F4

RRD15ETR ........................F4

RRD15EW ........................F4

RRD15EWTR ...................... F4

RRD15GY .........................F4

RRD15I ...........................F4

RRD15K ..........................F4

RRD15KAL. . . . . . . . . . . . . . . . . . . . . . . . F4

RRD15KALTR .....................F4

RRD15KBK .......................F4

RRD15KBKTR .....................F4

RRD15KGY .......................F4

RRD15KGYTR .....................F4

RRD15KI .........................F4

RRD15KITR .......................F4

RRD15KLA. . . . . . . . . . . . . . . . . . . . . . . . F4

RRD15KLATR .....................F4

RRD15KTR .......................F4

RRD15KW ........................F4

RRD15KWTR ......................F4

RRD15LA .........................F4

RRD15S ..........................F4

RRD15SAL ........................ F4

RRD15SALTR .....................F4

RRD15SALWRTR ..................F4

RRD15SBK .......................F4

RRD15SBKTR .....................F4

RRD15SBKWRTR .................. F4

RRD15SGY .......................F4

RRD15SGYTR .....................F4

RRD15SGYWRTR .................. F4

RRD15SI .........................F4

RRD15SITR .......................F4

RRD15SIWRTR ....................F4

RRD15SLA ........................F4

RRD15SLATR .....................F4

RRD15SLAWRTR ..................F4

RRD15STR ........................F4

RRD15SW ........................F4

RRD15SWRTR ....................F4

RRD15SWTR ...................... F4

RRD15SWWRTR ...................F4

RRD15W .........................F4

RRD201 ..........................F4

RRD201AL ........................F4

RRD201ALTR. . . . . . . . . . . . . . . . . . . . . . F4

RRD201BK ........................F4

RRD201BKTR .....................F4

RRD201GY. . . . . . . . . . . . . . . . . . . . . . . . F4

RRD201GYTR .....................F4

RRD201I ..........................F4

RRD201ITR .......................F4

RRD201LA ........................F4

RRD201LATR .....................F4

RRD201TR ........................F4

RRD201W ........................F4

RRD201WTR ......................F4

RRD205 ..........................F4

RRD205AL ........................ F4

RRD205BK .......................F4

RRD205GY .......................F4

RRD205I. . . . . . . . . . . . . . . . . . . . . . . . . . F4

RRD205LA ........................ F4

RRD205W ........................F4

RRKDK ..........................F19

RS100W ......................... F17

RS101I ..........................F17

RS101W ......................... F17

RS103PAL .......................F18

RS103PI .........................F18

RS103PLA .......................F18

RS103PW. . . . . . . . . . . . . . . . . . . . . . . . F18

RS10PAL ........................F18

RS10PI ..........................F18

RS10PLA ........................F18

RS10PW ......................... F18

RS115 ...........................F11

RS115AL ........................F11

RS115BK ........................F11

RS115I .......................... F11

RS115ILAL .......................F11

RS115ILC ........................ F11

RS115ILI ......................... F11

RS115ILLA ....................... F11

RS115ILW ........................ F11

RS115KAL .......................F11

RS115KI ......................... F11

RS115KLA ....................... F11

RS115KW ........................ F11

RS115LA ........................ F11

RS115S .......................... F11

RS115SAL .......................F11

RS115SI .........................F11

RS115SLA .......................F11

RS115SW ........................ F11

RS115W .........................F11

RS2LFSQAL .....................F18

RS2LFSQI .......................F18

RS2LFSQLA .....................F18

RS2LFSQW ......................F18

RS315 ........................... F11

RS315AL ........................ F11

RS315BK ........................F11

RS315I .......................... F11

RS315ILAL ....................... F11

RS315ILC ........................ F11

RS315ILI .........................F11

RS315ILLA ....................... F11

RS315ILW ....................... F11

RS315KAL .......................F11

RS315KI .........................F11

RS315KLA ....................... F11

RS315KW .......................F11

RS315LA ........................ F11

RS315S .........................F11

RS315SAL ....................... F11

RS315SI .........................F11

RS315SLA ....................... F11

RS315SW ........................F11

RS315W ......................... F11

RS415 ........................... F11

RS415AL ........................ F11

RS415BK ........................ F11

RS415I .......................... F11

RS415LA ........................F11

RS415W ......................... F11

RS600I ..........................F18

RS600LA ........................F18

RS600PAL .......................F18

RS600PI ......................... F18

RS600PLA ....................... F18

RS600PW .......................F18

RS600W .........................F18

RS603PAL .......................F18

RS603PI ......................... F18

RS603PLA ....................... F18

RS603PW .......................F18

RS613PI .........................F18

RS613PLA .......................F18

RS613PW ........................F18

RSD115 ..........................F2

RSD115AL ........................F2

RSD115BK ........................F2

RSD115GY ........................F2

RSD115I ..........................F2

RSD115ILAL ......................F2

RSD115ILI ........................F2

RSD115ILLA ......................F2

RSD115ILW .......................F2

RSD115IM ........................F2

RSD115LA ........................F2

RSD115LAM ......................F2

RSD115PLAL ......................F2

RSD115PLI ........................ F2

RSD115PLLA ......................F2

RSD115PLW ......................F2

RSD115W .........................F2

RSD115WM .......................F2

RSD215 ..........................F2

RSD215AL ........................F2

RSD215BK ........................ F2

RSD215GY ........................ F2

RSD215I ..........................F2

RSD215LA ........................F2

RSD215W ........................F2

RSD315 ..........................F2

RSD315AL ........................F2

RSD315BK ........................ F2

RSD315GY ........................ F2

RSD315I ..........................F2

RSD315ILAL ......................F2

RSD315ILI ........................F2

RSD315ILLA ......................F2

RSD315ILW .......................F2

RSD315LA ........................F2

RSD315W ........................F2

RSD415 ..........................F2

RSD415AL ........................F2

Sections_index_Final.indd 13 12/09/2011 3:20:52 PM

NUMERICAL INDEX

CATALOGUE NO. PAGE CATALOGUE NO. PAGE CATALOGUE NO. PAGE

INDEX

K14

RSD415BK ........................ F2

RSD415GY ........................F2

RSD415I ..........................F2

RSD415LA ........................F2

RSD415W. . . . . . . . . . . . . . . . . . . . . . . . . F2

RSELV300PAL ....................F18

RSELV300PI .....................F18

RSELV300PLA ...................F18

RSELV300PW ....................F18

RSELV303PAL ....................F18

RSELV303PI .....................F18

RSELV303PLA ...................F18

RSELV303PW ....................F18

RSFSQFAL ......................F18

RSFSQFI ........................F18

RSFSQFLA ......................F18

RSFSQFW .......................F18

RSKAL ..........................F18

RSKI ............................F18

RSKLA ..........................F18

RSKW. . . . . . . . . . . . . . . . . . . . . . . . . . . F18

RSLV600PAL .....................F18

RSLV600PI .......................F18

RSLV600PLA .....................F18

RSLV600PW .....................F18

RSLV603PAL .....................F18

RSLV603PI .......................F18

RSLV603PLA ..................... F18

RSLV603PW .....................F18

RU100SS ........................F23

RU100W ......................... F23

RU170W .........................F23

RU200SS ........................F23

RU200W. . . . . . . . . . . . . . . . . . . . . . . . . F23

RU270W .........................F23

RW0705 .........................D16

RW1005.........................D16

RW1007 .........................D16

RW1205 .........................D16

RW1207 .........................D16

RW1210 .........................D16

RW1505 .........................D16

RW1507 .........................D16

RW1510 .........................D16

RW1512 .........................D16

RW2005 .........................D16

RW2007 .........................D16

RW2010 .........................D16

RW2012 .........................D16

RW2015 .........................D16

RW2505 .........................D16

RW2507 .........................D16

RW2510 .........................D16

RW2512 .........................D16

RW2515 .........................D16

RW2520 .........................D16

RW3010 .........................D16

RW3020 .........................D16

RW3025 .........................D16

S105 ............................D17

S1F038 ...........................D4

S-30 ............................A26

S-55 ............................A26

SB126 ............................ F6

SB26 .............................F5

SB262 ...........................F5

SB826 ...........................F6

SBEXBAR .......................A27

SBP126 ..........................F6

SBP26 ...........................F5

SBP262 ..........................F5

SBP263 ..........................F5

SCH26 ...........................F5

SCH262 ..........................F5

SCH723 .........................F16

SCS050 ..........................D7

SCS075 ..........................D7

SCS100 ..........................D7

SCS125 ..........................D7

SCS150 ..........................D7

SCS200 ..........................D7

SCS250 ..........................D7

SCS300 ..........................D7

SCS400 ..........................D7

SCSI050 ..........................D7

SCSI075 ..........................D7

SCSI100 ..........................D7

SCSI125 ..........................D7

SCSI150 ..........................D7

SCSI200 ..........................D7

SCSI250 ..........................D7

SCSI300 ..........................D7

SCSI400 ..........................D7

SCZ050 ..........................D7

SCZ075 ..........................D7

SCZ100 ..........................D7

SCZ125 ..........................D7

SCZ150 ..........................D7

SCZ200 ..........................D7

SCZ250 ..........................D7

SCZ300 ..........................D7

SCZ400 ..........................D7

SCZI050 ..........................D7

SCZI075 ..........................D7

SCZI100 ..........................D7

SCZI125 ..........................D7

SCZI150 ..........................D7

SCZI200 ..........................D7

SCZI250 ..........................D7

SCZI300 ..........................D7

SCZI400 ..........................D7

SEC100BA ........................E7

SEC100GA ........................E7

SEC38BA .........................E7

SEC38GA. . . . . . . . . . . . . . . . . . . . . . . . . E7

SEC50BA .........................E7

SEC50GA. . . . . . . . . . . . . . . . . . . . . . . . . E7

SEC75BA .........................E7

SEC75GA .........................E7

SECM12B ........................E7

SECM12G ........................E7

SECM16B ........................E7

SECM16G ........................E7

SECM20B ........................E7

SECM20G ........................E7

SECM25B ........................E7

SECM25G ........................E7

SECM32B ........................E7

SECM32G ........................E7

SECM40B ........................E7

SECM40G ........................E7

SECP11BA ........................E7

SECP11GA ........................E7

SECP13BA ........................E7

SECP13GA .......................E7

SECP16BA ........................E7

SECP16GA .......................E7

SECP21BA ........................E7

SECP21GA .......................E7

SECP29BA .......................E7

SECP29GA .......................E7

SECP36BA .......................E7

SECP36GA .......................E7

SECP7BA .........................E7

SECP7GA ........................E7

SECP9BA. . . . . . . . . . . . . . . . . . . . . . . . . E7

SECP9GA ........................E7

SF038 ............................D3

SF038SF .........................D3

SF050 ............................D3

SF050SF .........................D3

SFFGAL ..........................F8

SFFGAL .........................F34

SFFGBK ..........................F8

SFFGBK .........................F34

SFFGEI ...........................F8

SFFGEI ..........................F34

SFFGGY ..........................F8

SFFGGY .........................F34

SFFGLA ..........................F8

SFFGLA .........................F34

SFFGW ...........................F8

SFFGW ..........................F34

SFGRFAL .........................F8

SFGRFAL ........................F34

SFGRFBK ........................F8

SFGRFBK .......................F34

SFGRFEI .........................F8

SFGRFEI ........................F34

SFGRFGY ........................F8

SFGRFGY .......................F34

SFGRFLA ......................... F8

SFGRFLA ........................F34

SFGRFW .........................F8

SFGRFW ........................F34

SFHCBK ........................F26

SFK050 ..........................D3

SFRCBFFAL ......................F8

SFRCBFFAL .....................F34

SFRCBFFBK ......................F8

SFRCBFFBK .....................F34

SFRCBFFEI .......................F8

SFRCBFFEI ......................F34

SFRCBFFGY ......................F8

SFRCBFFGY .....................F34

SFRCBFFLA ......................F8

SFRCBFFLA .....................F34

SFRCBFFW .......................F8

SFRCBFFW ......................F34

SFRCBRAL .......................F8

SFRCBRAL ......................F34

SFRCBRBK .......................F8

SFRCBRBK ......................F34

SFRCBREI ........................F8

SFRCBREI .......................F34

SFRCBRGY .......................F8

SFRCBRGY ......................F34

SFRCBRLA .......................F8

SFRCBRLA ......................F34

SFRCBRW ........................F8

SFRCBRW .......................F34

SFRCGNFFAL .....................F8

SFRCGNFFAL ....................F34

SFRCGNFFBK ....................F8

SFRCGNFFBK ...................F34

SFRCGNFFEI .....................F8

SFRCGNFFEI ....................F34

SFRCGNFFGY ....................F8

SFRCGNFFGY ...................F34

SFRCGNFFLA ..................... F8

SFRCGNFFLA ....................F34

SFRCGNFFW .....................F8

SFRCGNFFW ....................F34

SFRCGNRAL ......................F8

SFRCGNRAL .....................F34

SFRCGNRBK .....................F8

SFRCGNRBK ....................F34

SFRCGNREI ......................F8

SFRCGNREI .....................F34

Sections_index_Final.indd 14 12/09/2011 3:20:52 PM

NUMERICAL INDEX

CATALOGUE NO. PAGE CATALOGUE NO. PAGE CATALOGUE NO. PAGE

INDEX K15

SFRCGNRGY .....................F8

SFRCGNRGY ....................F34

SFRCGNRLA ......................F8

SFRCGNRLA .....................F34

SFRCGNRW ......................F8

SFRCGNRW .....................F34

SFRCRFFAL ......................F8

SFRCRFFAL .....................F34

SFRCRFFBK ......................F8

SFRCRFFBK .....................F34

SFRCRFFEI .......................F8

SFRCRFFEI ......................F34

SFRCRFFGY ......................F8

SFRCRFFGY .....................F34

SFRCRFFLA ......................F8

SFRCRFFLA .....................F34

SFRCRFFW .......................F8

SFRCRFFW ......................F34

SFRCRRAL .......................F8

SFRCRRAL ......................F34

SFRCRRBK .......................F8

SFRCRRBK ......................F34

SFRCRREI ........................F8

SFRCRREI .......................F34

SFRCRRGY .......................F8

SFRCRRGY ......................F34

SFRCRRLA .......................F8

SFRCRRLA ......................F34

SFRCRRW ........................F8

SFRCRRW .......................F34

SFRCWFFAL ......................F8

SFRCWFFAL .....................F34

SFRCWFFBK ......................F8

SFRCWFFBK .....................F34

SFRCWFFEI .......................F8

SFRCWFFEI ......................F34

SFRCWFFGY ......................F8

SFRCWFFGY .....................F34

SFRCWFFLA ......................F8

SFRCWFFLA .....................F34

SFRCWFFW ......................F8

SFRCWFFW .....................F34

SFRCWRAL ....................... F8

SFRCWRAL ......................F34

SFRCWRBK ......................F8

SFRCWRBK .....................F34

SFRCWREI .......................F8

SFRCWREI ......................F34

SFRCWRGY ......................F8

SFRCWRGY .....................F34

SFRCWRLA .......................F8

SFRCWRLA ......................F34

SFRCWRW .......................F8

SFRCWRW ......................F34

SFRCYFFAL. . . . . . . . . . . . . . . . . . . . . . . F8

SFRCYFFAL. . . . . . . . . . . . . . . . . . . . . . F34

SFRCYFFBK ......................F8

SFRCYFFBK .....................F34

SFRCYFFEI .......................F8

SFRCYFFEI ......................F34

SFRCYFFGY ......................F8

SFRCYFFGY .....................F34

SFRCYFFLA ......................F8

SFRCYFFLA .....................F34

SFRCYFFW .......................F8

SFRCYFFW ......................F34

SFRCYRAL .......................F8

SFRCYRAL ......................F34

SFRCYRBK .......................F8

SFRCYRBK ......................F34

SFRCYREI ........................F8

SFRCYREI .......................F34

SFRCYRGY .......................F8

SFRCYRGY ......................F34

SFRCYRLA .......................F8

SFRCYRLA ......................F34

SFRCYRW ........................F8

SFRCYRW .......................F34

SFSBAL10 .......................F34

SFSBBK10 .......................F34

SFSBEI10 ........................F34

SFSBLA10 .......................F34

SFSBW10 ........................F34

SFSFSBGY10 ....................F34

SFUSBABW ......................F26

SHC1001CR ......................E1

SHC1002 .........................E1

SHC1002CR ......................E1

SHC1003 .........................E1

SHC1003CR ......................E1

SHC1003SS ......................E1

SHC1004 .........................E1

SHC1004CR ......................E1

SHC1004SS ......................E1

SHC1005 .........................E1

SHC1005CR ......................E1

SHC1006CR ......................E1

SHC1007 .........................E1

SHC1008 .........................E1

SHC1008CR ......................E1

SHC1008ZP .......................E1

SHC1009 .........................E1

SHC1009CR ......................E1

SHC1009SS ......................E1

SHC1010 .........................E1

SHC1010CR ......................E1

SHC1010ZP .......................E1

SHC1011 .........................E1

SHC1011CR .......................E1

SHC1011SS .......................E1

SHC1012 .........................E1

SHC1012CR ......................E1

SHC1012SS .......................E1

SHC1012ZP .......................E1

SHC1015 .........................E1

SHC1016 .........................E1

SHC1017 .........................E1

SHC1018 .........................E1

SHC1019 .........................E1

SHC1019CR ......................E1

SHC1020 .........................E1

SHC1020CR ......................E1

SHC1020SS. . . . . . . . . . . . . . . . . . . . . . . E1

SHC1020ZP ....................... E1

SHC1021 .........................E1

SHC1021CR ......................E1

SHC1021SS ....................... E1

SHC1021ZP .......................E1

SHC1022 .........................E1

SHC1022CR ......................E1

SHC1022SS .......................E1

SHC1022ZP .......................E1

SHC1023 .........................E1

SHC1023CR ......................E1

SHC1023SS. . . . . . . . . . . . . . . . . . . . . . . E1

SHC1023ZP .......................E1

SHC1024 .........................E1

SHC1024CR ......................E1

SHC1024SS .......................E1

SHC1024ZP .......................E1

SHC1025 .........................E1

SHC1026 .........................E1

SHC1027 .........................E1

SHC1027ZP ....................... E1

SHC1028 .........................E1

SHC1028ZP ....................... E1

SHC1029 .........................E2

SHC1030 .........................E2

SHC1030ZP .......................E2

SHC1031 .........................E2

SHC1031ZP .......................E2

SHC1032 .........................E2

SHC1032ZP .......................E2

SHC1033 .........................E2

SHC1033ZP .......................E2

SHC1034 .........................E2

SHC1034ZP .......................E2

SHC1035CR ......................E2

SHC1035SS ......................E2

SHC1035ZP .......................E2

SHC1036 .........................E2

SHC1036CR ......................E2

SHC1036SS ......................E2

SHC1037 .........................E2

SHC1037CR ......................E2

SHC1037SS .......................E2

SHC1037ZP .......................E2

SHC1038 .........................E2

SHC1038CR ......................E2

SHC1038SS ......................E2

SHC1038ZP .......................E2

SHC1039 .........................E2

SHC1039CR ......................E2

SHC1040 .........................E2

SHC1040CR ......................E2

SHC1041 .........................E2

SHC1041CR .......................E2

SHC1041SS .......................E2

SHC1042 .........................E2

SHC1042CR ......................E2

SHC1042SS .......................E2

SHC1043 .........................E2

SHC1043CR ......................E2

SHC1043ZP .......................E2

SHC1044 .........................E2

SHC1044CR ......................E2

SHC1044SS ......................E2

SHC1046 .........................E3

SHC1047 .........................E3

SHC1048 .........................E3

SHC1049 .........................E3

SHC1050 .........................E3

SHC1051 .........................E3

SHC1052 .........................E3

SHC1052ZP .......................E3

SHC1053 .........................E3

SHC1053ZP .......................E3

SHC1054 .........................E3

SHC1054ZP .......................E3

SHC1055 .........................E3

SHC1056 .........................E3

SHC1057 .........................E3

SHC1057ZP .......................E3

SHC1058 .........................E3

SHC1058ZP .......................E3

SHC1059 .........................E3

SHC1059ZP .......................E3

SHC1061 .........................E3

SHC1062 .........................E3

SHC1063 .........................E3

SHC1064 .........................E3

SHC1065 .........................E3

SHC1066 .........................E3

SHC1067 .........................E3

SHC1068 .........................E3

SHC1069 .........................E3

SHC1070 .........................E3

SHC1071 .........................E3

SHC1072 .........................E3

Sections_index_Final.indd 15 12/09/2011 3:20:52 PM

NUMERICAL INDEX

CATALOGUE NO. PAGE CATALOGUE NO. PAGE CATALOGUE NO. PAGE

INDEX

K16

SHC1073 .........................E3

SHC1074 .........................E3

SHC1076 .........................E3

SHC1077 .........................E3

SHC1078 .........................E3

SHC1079 .........................E3

SHC1080 .........................E3

SHC1081 .........................E3

SHC1086 .........................E3

SHC1088 .........................E3

SHC1089 .........................E3

SHC1090 .........................E3

SHC1091 .........................E3

SHC1092 .........................E3

SHC1093 .........................E3

SHC1094 .........................E3

SHC1095 .........................E3

SHC1097ZP .......................E2

SHC1098ZP .......................E2

SHC1099ZP .......................E2

SHC2005CR ......................E1

SHC2008CR ......................E1

SHC2010CR ......................E1

SHC2011CR .......................E1

SHC2012CR ......................E1

SHC2021CR ......................E1

SHC2022CR ......................E1

SHC2023CR ......................E1

SHC2024CR ......................E1

SHC2035CR ......................E2

SHC2036CR ......................E2

SHC2037CR ......................E2

SHC2038CR ......................E2

SHC2040CR ......................E2

SHC2041CR ......................E2

SHC2042CR ......................E2

SHC2043CR ......................E2

SHC2044CR ......................E2

SHCM161011 ......................E6

SHCM201017 .....................E6

SHCM201022 .....................E6

SHCM201023 .....................E6

SHCM201024 .....................E6

SHCM251033 .....................E6

SHCM251034 .....................E6

SHCM301037 .....................E6

SKS050 ..........................D8

SKS075 ..........................D8

SKS100 ..........................D8

SKS125 ..........................D8

SKS150 ..........................D8

SKS200 ..........................D8

SKS250 ..........................D8

SKS300 ..........................D8

SKS400 ..........................D8

SKZ050 ..........................D8

SKZ075 ..........................D8

SKZ100 ..........................D8

SKZ125 ..........................D8

SKZ150 ..........................D8

SKZ200 ..........................D8

SKZ250 ..........................D8

SKZ300 ..........................D8

SKZ400 ..........................D8

SQ038 ...........................D4

SQ050 ...........................D4

SQ075 ...........................D4

SQ100 ...........................D4

SQ125. . . . . . . . . . . . . . . . . . . . . . . . . . . . D4

SQ150 ...........................D4

SQ200 ...........................D4

SQ250 ...........................D4

SQ300 ...........................D4

SQ350 ...........................D4

SQ400 ...........................D4

SQ90038 .........................D3

SQ90038SF .......................D3

SQ90050 .........................D3

SQ90050SF .......................D3

SQ90075 .........................D3

SQ90100 .........................D3

SQ90125 .........................D3

SQ90150 .........................D3

SQ90200 .........................D3

SQ90250 .........................D3

SQ90300 .........................D3

SQ90350 .........................D3

SQ90400 .........................D3

SS126 ............................ F6

SS126L ........................... F6

SS1426 ........................... F6

SS226 ............................F6

SS26 ............................. F5

SS262 ............................F5

SS262L ..........................F5

SS263. . . . . . . . . . . . . . . . . . . . . . . . . . . . F5

SS264. . . . . . . . . . . . . . . . . . . . . . . . . . . . F5

SS265 ............................F5

SS266. . . . . . . . . . . . . . . . . . . . . . . . . . . . F5

SS26L ............................F5

SS326 ............................F6

SS703 ...........................F16

SS723 ........................... F16

SS826 ............................F6

SU573 ...........................C5

SW001 ...........................C2

SW002 ...........................C2

SW071 ...........................C2

SW072 ...........................C2

SW091 ...........................C4

SW092 ...........................C4

SW101 ...........................C3

SW102 ...........................C3

SW111 ...........................C4

SW121 ...........................C3

SW122 ...........................C3

SW151 ...........................C3

SW152 ...........................C3

SW181 ...........................C4

SW182 ...........................C4

SW191 ...........................C4

SW201 ...........................C4

SW202 ...........................C4

SW211 ...........................C4

SW401 ...........................C2

SW402 ...........................C2

SW411 ...........................C4

SW421 ...........................C4

SW502 ...........................C5

SW512 ...........................C5

SW521 ...........................C4

SW532 ...........................C5

SW731 ...........................C4

TES1 .............................D2

TES1B(BUCKET) ...................D2

TES2 .............................D2

TES2B(BUCKET) ...................D2

TES3 .............................D2

TES4 .............................D2

THI050 ..........................D15

THI075 ..........................D15

THI100 ..........................D15

THI125 ..........................D15

THI150 ..........................D15

THI200 ..........................D15

THI250 ..........................D15

THI300 ..........................D15

THI350 ..........................D15

THI400 ..........................D15

UFC0001 .........................E6

UFC0001CR ......................E6

UFC0001ZP .......................E6

UFC0002 .........................E6

UFC0003 .........................E6

UFC0003CR ......................E6

UFC2001CR ......................E6

UFC2003CR ......................E6

VHC1021 .........................E4

VHC1022 .........................E4

VHC1022ZP. . . . . . . . . . . . . . . . . . . . .E4

VHC1023 .......................E4

VHC1023ZP .....................E4

VHC1024 .......................E4

VHC1024ZP .....................E4

VHC1035 .......................E4

VHC1036 .......................E4

VHC1037 .......................E4

VHC1041 .......................E4

VHC1042 .......................E4

VHC1052 .......................E4

VHC1053 .......................E4

WPS2 ........................ C7

WPS3 ........................ C7

X-CUBE ........................A2

Sections_index_Final.indd 16 12/09/2011 3:20:52 PM

Hubbell Canada LP 870 Brock Road South Pickering, ON L1W 1Z8

Tel: (905) 839-1138 Fax: (905) 839-9108 www.HubbellOnline.com

H2832

09/2011

231257 Catalog 3

113548-Catalog 113548-Catalog 113548-Catalog 883778 Batch5 unilog cesco-content

116781-Catalog 116781-Catalog 116781-Catalog 883778 Batch7 unilog cesco-content

121957-Catalog 121957-Catalog 121957-Catalog 883778 Batch8 unilog cesco-content

Navigation menu

Versions of this User Manual:

Views

Navigation
