Packet Tracer - Troubleshooting Static Routes

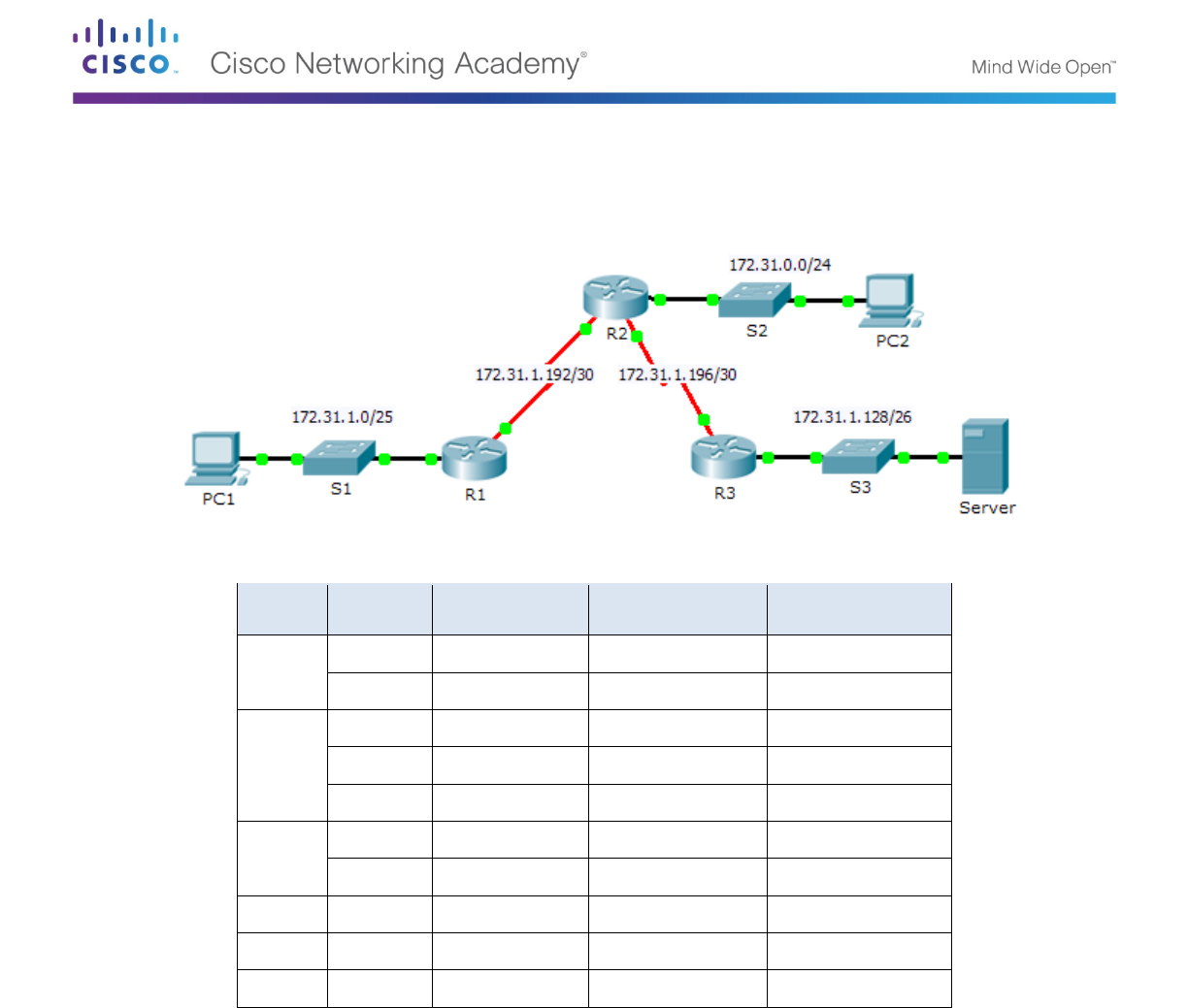

Topology

Addressing Table

Device Interface IPv4 Address Subnet Mask Default Gateway

R1

G0/0 172.31.1.1 255.255.255.128 N/A

S0/0/0 172.31.1.194 255.255.255.252 N/A

R2

G0/0 172.31.0.1 255.255.255.0 N/A

S0/0/0 172.31.1.193 255.255.255.252 N/A

S0/0/1 172.31.1.197 255.255.255.252 N/A

R3

G0/0 172.31.1.129 255.255.255.192 N/A

S0/0/1 172.31.1.198 255.255.255.252 N/A

PC1 NIC 172.31.1.126 255.255.255.128 172.31.1.1

PC2 NIC 172.31.0.254 255.255.255.0 172.31.0.1

Server NIC 172.31.1.190 255.255.255.192 172.31.1.129

Objectives

Part 1: Locate the Problem

Part 2: Determine the Solution

Part 3: Implement the Solution

Part 4: Verify That the Issue Is Resolved

Background

In this activity, PC1 reports that they cannot access resources on the server. Locate the problem, decide on

an appropriate solution and resolve the issue.

Packet Tracer - Troubleshooting Static Routes

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public. Page 2 of 2

Part 1: Locate the Problem

PC1 cannot access files on the server. Locate the problem using the appropriate show commands on all

routers and any troubleshooting commands on the PCs that you have learned from previous chapters.

What are some of the troubleshooting commands on routers and PCs that can be used to identify the source

of the problem?

Part 2: Determine the Solution

After you have located the problem that is preventing PC1 from accessing files on the server, fill in the table

below.

Problem Solution

Part 3: Implement the Solution

a. If there are any misconfigured static routes, you must remove them before the correct ones can be added

to the configuration.

b. Add any missing static routes by configuring directly attached routes.

Part 4: Verify That the Issue Is Resolved

a. Ping from PC1 to the server.

b. Open a web connection to the server. After you correctly identify and implement the correct solution to the

problem, you will receive a message in the web browser when you connect to the server.

Suggested Scoring Rubric

Activity Section Possible

Points Earned

Points

Part 1: Locate the Problem 2

Part 2: Determine the Solution 8

Packet Tracer Score 90

Total Score 100
