www.greenlee.com

FULL LINE PRODUCT CATALOG

NEED MORE INFORMATION?

USA & CANADA: 1.800.435.0786

INTERNATIONAL: +1.815.397.7070

www.greenlee.com

4455 BOEING DRIVE, ROCKFORD, IL 61109-2988 USA

GENERAL OFFICES: (815) 397.7070

CUSTOMER SERVICE AND FIELD SERVICE

TELEPHONE

USA & CANADA 800.435.0786

INTERNATIONAL +1.815.397.7070

FAX (24 HOUR)

USA 800.451.2632 OR 815.397.1865

CANADA 800.524.2853

INTERNATIONAL +1.815.397.9247

An ISO 9001 Company

MA-1024 Rev. 4/08

Printed in USA

Greenlee Textron Inc. is a subsidiary of Textron Inc.

An ISO 9001 Company

MA-1024 Rev. 4/08

Printed in USA

HAND TOOLS

HOLEMAKING

BENDING

FISHING

CABLE PULLING

WIRE & CABLE TERMINATION

VOICE • DATA • VIDEO

TESTING & MEASUREMENT

STORAGE & MATERIAL HANDLING

HYDRAULIC PUMPS & MISCELLANEOUS

PLUMBING

FULL LINE PRODUCT CATALOG

Greenlee Tools… Made for the Trade

Greenlee has been going strong for more than 145 years and continues

to be the preferred brand of tools and equipment for the electrical

contractor. Our focus, as always, has been to deliver customer-focused

innovation in the form of high-quality tools that contractors rely on daily.

The result is our most complete collection of hand tools, punches,

benders, pullers, testing & measuring devices, voice/data/video

equipment, storage & material handling solutions, accessories and more

- designed to perform on the jobsite.

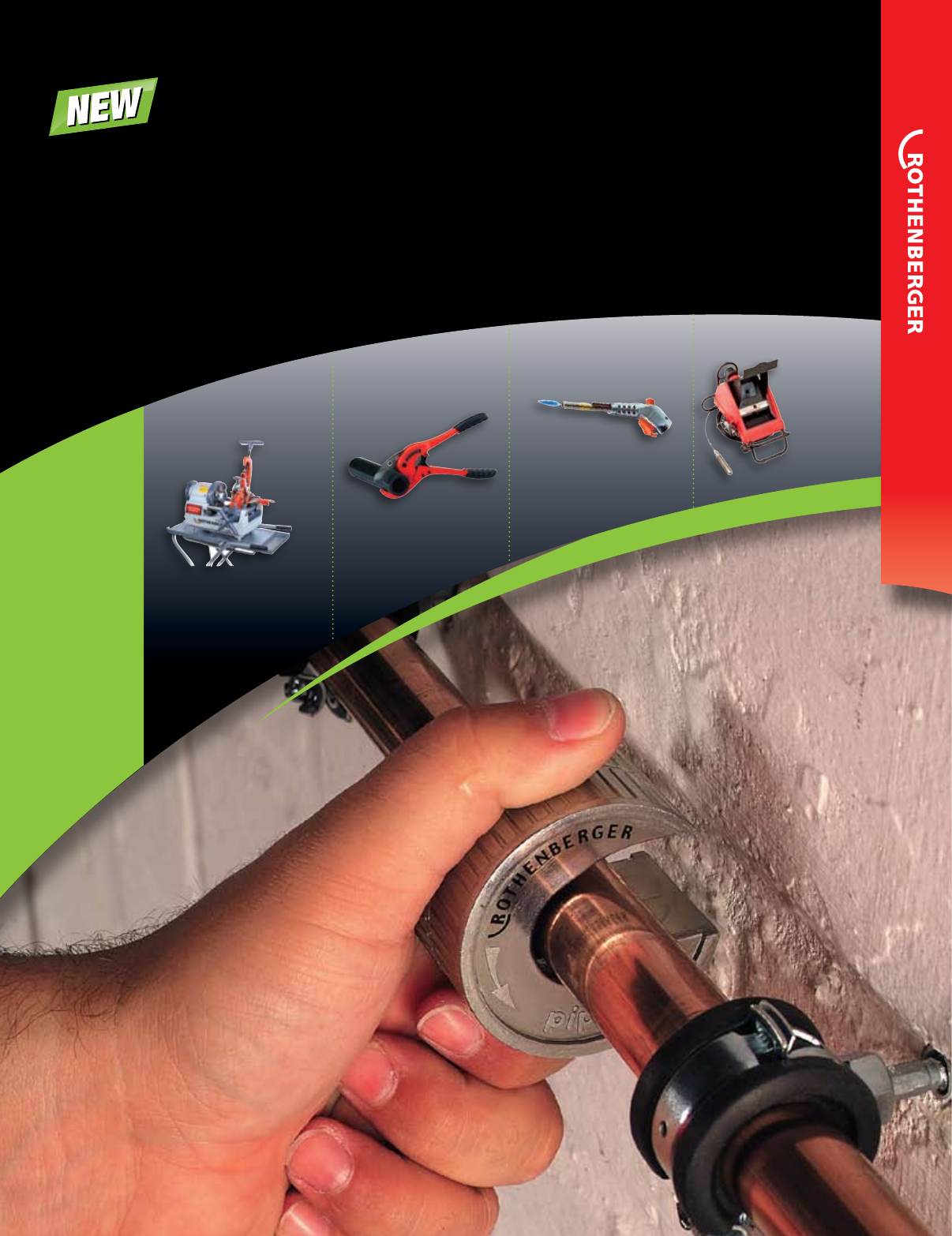

With this catalog, Greenlee proudly includes pipetool technologies

from Rothenberger, a recognized leader in the plumbing industry.

Featuring portable threaders, shears, torches and inspection equipment,

Rothenberger is a natural extension of Greenlee’s existing products,

designed to make your job faster, safer and easier.

Greenlee Textron Inc. warrants to the original

purchaser of these goods for use, that these

products will be free from defects in workmanship

and material for their useful life, excepting normal

wear and abuse. This warranty is subject to the same

terms and conditions contained in Greenlee Textron

Inc.’s standard one-year limited warranty.

*See below for information regarding product returns.

Limited Warranty

Greenlee Textron Inc. extends the following warranty to the original purchaser of these goods for use, subject to the qualiﬁcations indicated. Greenlee Textron Inc.

warrants to the original purchaser for use that the products sold by it will be free from defects in workmanship and material for a period of one year (three years for

Gator® battery-powered and corded tools, not including batteries) from the date of purchase, provided such goods are installed, operated, maintained, and used in

accordance with Greenlee Textron Inc.’s written instructions.

Ordinary wear and tear, and damage from abuse, neglect or alterations are not covered by this warranty. This warranty is null and void if instructions and operating

procedures are not followed.

Greenlee Textron Inc.’s sole liability and Purchaser’s sole remedy for a failure of goods under this limited warranty, and for any and all claims arising out of the

purchase and use of the goods, shall be limited to the repair or replacement of the goods that do not conform to this warranty, and shall be in lieu of any other

liability or remedy, including, without limitation, any causes of action in negligence and strict liability.

To obtain repair or replacement service under this limited warranty, the purchaser must return the product to a Greenlee Authorized Service Center, transportation

prepaid. Do not send any warranty/repair product directly to Greenlee, as it will be returned to the sender. Only Test Instruments will be warranted, repaired, replaced,

or calibrated at Greenlee with prior authorization.

Tools found defective will be replaced or repaired at no charge and returned. There are no express warranties covering these goods other than as set forth above. The

implied warranties of merchantability and ﬁtness for a particular purpose are speciﬁcally excluded. Greenlee Textron Inc. assumes no liability in connection with the

installation or use of this product, except as stated in this limited warranty. Greenlee Textron Inc. will in no event be liable for incidental or consequential damages.

This limited warranty gives you speciﬁc legal rights, and you may also have other rights which vary from state to state. Some states do not allow either limitations on

implied warranties, or exclusions from incidental or consequential damages, so the above limitation and exclusion may not apply to you.

Any questions pertaining to this limited warranty should be addressed to:

Greenlee / A Textron Company

4411 Boeing Drive, Rockford, IL 61109-2988 USA

Greenlee Textron Inc. has elected not to make available the informal dispute settlement mechanism which is speciﬁed in the Magnuson-Moss Warranty Act.

Note: Rental units and demonstrators used for income producing purposes are warranted for 90 days. Rental units and demonstrators which are resold are not

covered under warranty by Greenlee Textron Inc. Any warranty, whether expressed or implied, rests solely with the seller.

Lifetime Limited Warranty on Greenlee Electrical Test Instruments, Hand Benders, and select Hand Tools

Greenlee Textron Inc. warrants to the original purchaser of these goods for use that these products will be free from defects in workmanship and material for their

useful life, excepting normal wear and abuse. This warranty is subject to the same terms and conditions contained in Greenlee Textron Inc.’s standard one year limited

warranty.

Greenlee Electrical Test Instrument Repair and Calibration

For all Greenlee Electrical Test Instrument repairs, contact Customer Service at 1-800-435-0786 and request a Return Authorization. An approved Authorization

including shipping label and instructions will be sent.

For items not covered under warranty (such as items dropped, abused, etc.), a repair cost quote is available upon request.

Note: Prior to returning any test instrument, please check replaceable batteries or make sure the battery is at full charge.

Many end user customers require assurance of product performance. Proof of accuracy and precision of an instrument is often required. This requirement may be a

result of ISO procedures or customer quality audit requirements. Greenlee Textron Inc. can provide calibration service for speciﬁcally marked hand-held electrical test

equipment. Calibration assures the customer that the instrument has been checked and/or calibrated using equipment that is checked and calibrated to standards that

are traceable to the National Institute for Standards and Technology (NIST). Products currently included are all clamp meters, professional series Digital Multimeters

and megohmmeters. A certiﬁcate will be provided.

To obtain this calibration service, call Customer Service at 1-800-435-0786 and request a Return Authorization.

389 Plumbing

149 Cable Pulling

109

133

183

233

307

359

379

Hydraulic Pumps & Miscellaneous

415

Greenlee Authorized Service Centers

420

New Products

Holemaking

Bending

Index

Fishing

Wire & Cable Termination

Voice • Data • Video

Testing & Measurement

Storage & Material Handling

Hand Tools

Table of Contents

Hand Tools

Wire & Cable Termination

Voice/Data/Video

Testing & Measurement

Wire & Cable Termination

Hand Tools

Voice • Data • Video

Testing & Measurement

Gator® Pro CCX Tools ............................... 185

ETS12 Battery-Powered Bolt Cutter .................. 194

12-Ton Manual Hydraulic Crimping Tool .............. 206

Gator® Plus Dieless Crimping Tools .................. 211

Heavy-Duty Crank Action Screwdriver ............... 14

Stubby Square-Recess Tip Driver .................... 17

Bottle Opener ..................................... 19

Dipped Handle Adjustable Wrench ................... 20

9-Piece Folding Hex-Key Set - Metric ................ 21

7-Piece Combination Ratcheting Wrench Set - Metric . . 23

Combination Ratcheting Wrenches - Metric ........... 23

Multi-Cable Cutter ................................. 25

Straight Claw Hammer ............................. 31

Journeyman’s Tool Kit - Metric ...................... 37

Electrician’s Tool Kit - Metric ........................ 38

Irrigation Tool Kit .................................. 38

802K Digital LAN Tracing Kit ........................ 255

NETcat® Pro NC-500 ............................... 257

NETcat® Micro NC-100 ............................. 258

920xc Handheld Singlemode otdr .................... 288

Holemaking

Adjustable Non-Contact Voltage Detector .............

312

Analog Multimeter ..................................

321

True RMS Clamp Meter ..............................

330

Cable Pulling

UG5 Ultra GLIDER™ Cable Pulling Lubrication System ... 151

NEW PRODUCTS

from Greenlee

Plumbing

Power Benders ....................................

390

Hand Threaders ....................................

391

Portable Power Threaders ...........................

391

Accessories for Hand and Power Threaders ............

392

Power Drives .......................................

393

Compact Threading Machines ........................

394

Threading Accessories ..............................

397

Production Cutting Machines ........................

398

Press Tools ........................................

399

Pliers and Pipe Wrenches ............................

402

Tube Cutters .......................................

404

Deburring and Reaming Tools/Basin Wrenches .........

407

Installation Tools ...................................

408

Vices and Stands ...................................

409

Pipe Freezing ......................................

410

Soldering and Brazing Torches .......................

410

Pipe and Drain Inspection Systems ...................

412

Drain Cleaning Equipment ...........................

413

Slug-Splitter SC™ Knockouts and Kits...............

42-44

E-Z Bore® Bits ..................................... 82

Quick Connect Extensions .......................... 86

Bi-Metal Hole Saws with Stops ...................... 93

Hand Tools

The success of Greenlee's professional hand tools continues to grow with an even

larger collection of products. Each Greenlee hand tool is "Made for the Trade" and

each kit and accessory has been carefully assembled to meet the demanding requirements

of today's professional electrical contractor.

Hand Tools

FEATURED Products

NEW

Heavy-Duty Crank

Action Screwdriver

17 NEW

Combination

Ratcheting Wrenches

- Metric

NEW

Straight Claw

Hammer

NEW

Stubby

Square-Recess

Tip Driver

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

www.greenlee.com

= NEW PRODUCT

High Leverage Side-Cutting Pliers

• Highleveragepliersdesignanddiamond-serratedjawsforoptimum

cuttingandgrippingperformance.

• Forgedfromchromevanadiumsteelforgreaterdurabilityandstrength.

• Precision-machinedandinduction-hardenedbladesstrengthencuttersand

provideconsistentperformance.

• Effectivelycutshardenedwire,ACSR,bolts,screwsandnails.

• Through-hardenedsteelforlongerlife.

• ExceedsASME/ANSIspecifications.

• Ruggedrivetedconstructionforsmoothpreciseaction.

• Strippingholeallowsforeasyandconvenientwirestrippingof#12AWG

wire(0151-09SM&0151-09SDonly).

• Thewireloopingholeperfectlyformswireforthreadedconnections

(0151-09SM&0151-09SDonly).

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

Molded Grip Only

• Customgripallowsareaforuseridentification.

• Slip-proof,ergonomicmoldedgripsforincreasedcomfortandreduced

userfatigue.

• Widergripdesignprovideslargerloadbearingarea.

• Locationofhandleridgeallowsforuserto“chokeup”forgreatercontrol.

Dipped Grip Only

• Doublelayeredvinylhandlesforcomfortandslipresistance.

• Handlesallowforeasystorageoftoolsinpouchesandtoolbags.

CAT. NO. UPC NO. DESCRIPTION

0151-09SD

0151-08D

0151-09D

89262

89263

89250

HighLeverageSide-cuttingPliersW/StrippingHole

9"dippedgrip

HighLeverageSide-cuttingPliers8"dippedgrip

HighLeverageSide-cuttingPliers9"dippedgrip

DIPPED GRIP

0151-09M

0151-09SM

0151-09D

0151-09SD

Pliers

SPECIFICATIONS 8"9"

Overall Length 8-1/2"(21.6cm) 9-3/8"(23.8cm)

Weight .87lbs.(.04kg) 1.13lbs.(.51kg)



MOLDED GR

CAT. NO. UPC NO. DESCRIPTION

0151-09SM

0151-08M

89264

54701

HighLeverageSide-cuttingPliersW/StrippingHole

9"moldedgrip

HighLeverageSide-cuttingPliers8"moldedgrip

0151-09M

0151-09M-CP

54702

95925

HighLeverageSide-cuttingPliers9"moldedgrip

HighLeverageSide-cuttingPliers9"CounterPack(Qty5)

SPECIFICATIONS 8"9"

Overall Length 8-1/2"(21.6cm) 9-3/8"(23.8cm)

Weight .87lbs.(.04kg) 1.13lbs.(.51kg)



www.greenlee.com

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

= NEW PRODUCT

Diagonal Cutting Pliers

• Forgedfromchromevanadiumsteelforgreaterdurabilityandstrength

• Precision-machinedandinduction-hardenedbladesstrengthencuttersand

provideconsistentperformance.

• Effectivelycutsmosthardenedwire,ACSR,bolts,screwsandnails.

• Through-hardenedsteelforlongerlife.

• Dualcuttingedgesforoptimumcuttingperformance

• ExceedsASME/ANSIspecifications.

• Ruggedrivetedconstructionforsmoothpreciseaction.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

Molded Grip Only

• Customgripallowsareaforuseridentification.

• Flaredhandlesforaddedcomfortandleverage.

• Widergripdesignprovideslargerloadbearingareaforusercomfort.

Dipped Grip Only

• Doublelayeredvinylhandlesforcomfortandslipresistance.

• Handlesallowforeasystorageoftoolsinpouchesandtoolbags.

DIPPED GRIP

MOLDED GRIP

SPECIFICATIONS 5" 6" 7" 8"

Overall Length 5-1/2"(14.0cm) 6-1/8"(15.5cm) 7"(17.8cm) 8-3/4"(22.2cm)

Weight .28lbs.(.13kg) .35lbs.(.16kg) .57lbs.(.26kg) .85lbs.(.39kg)

0251-08M

0251-08D

CAT. NO. UPC NO. DESCRIPTION

0251-05D 89257 DiagonalCuttingPliers5"Minidippedgrip

0251-06D 89256 DiagonalCuttingPliers6"dippedgrip

0251-07D 89255 HighLeverageDiagonalCuttingPliers7"dippedgrip

0251-08D 89254 HighLeverageDiagonalCuttingPliers8"dippedgrip

0251-08AD 89258 HighLeverageDiagonalCuttingPliers8"angleddippedgrip

0251-08AD

CAT. NO. UPC NO. DESCRIPTION

0251-05M 54736 DiagonalCuttingPliers5"Minimoldedgrip

0251-06M 54737 DiagonalCuttingPliers6"moldedgrip

0251-07M 54738 HighLeverageDiagonalCuttingPliers7"moldedgrip

0251-08M 54739 HighLeverageDiagonalCuttingPliers8"moldedgrip

0251-08M-CP

0251-08AM

95926

54740

HighLeverageDiagonalCuttingPliers8"moldedgrip

CounterPack(Qty5)

HighLeverageDiagonalCuttingPliers8"angledmoldedgrip

SPECIFICATIONS 5" 6" 7" 8"

Overall Length 5-1/2"(14.0cm) 6-1/8"(15.5cm) 7"(17.8cm) 8-3/4"(22.2cm)

Weight .28lbs.(.13kg) .35lbs.(.16kg) .57lbs.(.26kg) .85lbs.(.39kg)

0251-08AM

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

www.greenlee.com

= NEW PRODUCT

• Forgedfromchromevanadiumsteelforgreaterdurabilityandstrength.

• Effectivelycutsbothsolid&strandedcopperwire.

• Serratedjawsandhardenedcuttingedgesforoptimumcuttingand

grippingperformance.

• Through-hardenedsteelforlongerlife.

• ExceedsASME/ANSIspecifications.

• Ruggedrivetedconstructionforsmoothpreciseaction.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

Molded Grip Only

• Customgripallowsareaforuseridentification.

• Flaredhandlesforaddedcomfortandleverage.

• Widergripdesignprovideslargerloadbearingareaforusercomfort.

Dipped Grip Only

• Doublelayeredvinylhandlesforcomfortandslipresistance.

• Handlesallowforeasystorageoftoolsinpouchesandtoolbags.

Long Nose Pliers/Side Cutting

0351-08M

0351-08D

CAT. NO. UPC NO. DESCRIPTION

0351-06M 54717 LongNosePliers/SideCutting6"moldedgrip

0351-07M 54718 LongNosePliers/SideCutting7"moldedgrip

0351-08M 54719 LongNosePliers/SideCutting8"moldedgrip

SPECIFICATIONS 6" 7" 8"

Overall Length 6-5/8"(16.8cm) 7-1/8"(18.1cm) 8-9/16"(21.7cm)

Weight .27lbs.(.12kg) .30lbs.(.14kg) .64lbs.(.29kg)

MOLDED GRIP

CAT. NO. UPC NO. DESCRIPTION

0351-06D 89253 LongNosePliers/SideCutting6"dippedgrip

0351-07D 89252 LongNosePliers/SideCutting7"dippedgrip

0351-08D 89251 LongNosePliers/SideCutting8"dippedgrip

DIPPED GRIP

SPECIFICATIONS 6" 7" 8"

Overall Length 6-5/8"(16.8cm) 7-1/8"(18.1cm) 8-9/16"(21.7cm)

Weight .27lbs.(.12kg) .30lbs.(.14kg) .64lbs.(.29kg)

www.greenlee.com

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

= NEW PRODUCT

Pump Pliers

• Precision-machinedandthrough-hardenedforconsistent

performanceandlongerlife.

• Right-angledteethforgrippinginbothdirections.

• Rivetingprocessensuresjointintegrity.

• ExceedsASME/ANSIspecifications.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

Molded Grip Only

• Customgripallowsareaforuseridentification.

• Slip-proof,ergonomicmoldedgripforincreasedcomfortand

reduceduserfatigue.

• Widergripdesignprovideslargerloadbearingarea.

Dipped Grip Only

• Doublelayeredvinylhandlesforcomfortandslipresistance.

• Handlesallowforeasystorageoftoolsinpouchesandtoolbags.

0451-10M

0451-16D

CAT. NO. UPC NO. DESCRIPTION

0451-10M

0451-10M-CP

54709

95927

PumpPliers10"moldedgrip

PumpPliers10"moldedgripCounterPack(Qty5)

0451-12M 54744 PumpPliers12"moldedgrip

SPECIFICATIONS 10"12"

Overall Length 10"(25.4cm) 12"(30.5cm)

Weight .83lbs.(.38kg) 1.29lbs.(.59kg)

Adjustment Grooves 7 7

Jaw Capacity 2"(5.1cm) 2-1/4"(5.7cm)

MOLDED GRIP

CAT. NO. UPC NO. DESCRIPTION

0451-10D

0451-12D

0451-16D

89259

89260

54707

PumpPliers10"dippedgrip

PumpPliers12"dippedgrip

PumpPliers16"dippedgrip

SPECIFICATIONS 10"12"16"

Overall Length 10"(25.4cm) 12"(30.5cm) 16"(40.6cm)

Weight .83lbs.(.38kg) 1.29lbs.(.59kg) 3lbs.(1.4kg)

Adjustment Grooves 778

Jaw Capacity 2"(5.1cm) 2-1/4"(5.7cm) 4-1/4"(10.8cm)

DIPPED GRIP

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

www.greenlee.com

= NEW PRODUCT

CUTTiNG, sTriPPiNG AND CriMPiNG TOOls

Pro Wire Strippers

• Stripstheouterjacketoffbothsolidandstrandedwire.

• Machinedstrippingstationswithapositivestopprovideprecise

strippingdiameters.

• Ergonomicallydesigned,extra-longcushionedhandlesaddsuperiorcomfort

andreducehandfatigue.

• Longcurvedcutterbladesreduceforcerequiredby25%

andcancutNMinasinglecut.

• Locktabprotectscuttingedgesduringstorage.

• Pliersnoseforworkingwithsmallnutsandpullingwire.

• Holeinjawsforloopingwires.

• Openingstoppreventsspringfromdisengaging.

• Cutsscrews.

• Note:Thesearenotinsulatedtools.

CAT. N O. UPC NO. DESCRIPTION

1950 06852 ProStripper10-18AWG

1951 06853 ProWireStripper22-32AWG

1955 06857 ProPlusWireStripper,10-18AWG

1956 10300 ProPlusStripper8-16AWG

SPECIFICATIONS

Strips 1950&1955–10-18AWGsolid,12-20AWGstranded;

1951–22-32AWGsolid,20-30AWGstranded;

1956–6-14AWGsolid,8-16AWGstranded

Cuts #6-32and#8-32screws

Overall Length 1950&1951–7-1/4"(18.4cm)

1955&1956–7-3/8"(18.7cm)

1950

1951

1955

1956

Wire Stripper/Cutters

• Precisiongroundbladesensureconsistentstrippingandcutting.

• Heat-treatedforlonglife.

• Cushioned-gripvinylhandleforcomfortableuse.

• Serratednosegripforwirepullingandstraightening.

• Stampedfromhigh-carbontoolsteel.

• Pivotjointshavehardenedsteelbushings.

• Rust-resistantblackoxidefinish.

• Note:Thisisnotaninsulatedtool.

V-Notch Wire Stripper/Cutter

• Stampedfromhigh-carbontoolsteelwithblackoxidefinish.

• Pivotjointshavehardened-steelbushings.

• Vinylcushionedgrip.

• Precision-groundbladesforconsistentstrippingandcutting.

• Adjustablesettingsforvariouswiresize.

• Heattreatedforlonglife.

• Note:Thisisnotaninsulatedtool.

CAT. N O. UPC NO. DESCRIPTION

1913 31894 TheTerminatorsV-NotchWireStripper/Cutter

1914 31893 TheTerminatorsV-NotchWireStripper/CutterwithSpringand

Lockfunction

SPECIFICATIONS

Capacity 30-10AWG(.25-6mm²)withPVCorTHHNinsulation

Weight .16lb.(.07kg)

SPECIFICATIONS

Capacity PVCorTHHNinsulation

1916-20-10AWG(0.5-6mm²)

1917-26-16AWG(0.25-1.5mm²)

1918-30-22AWG(0.25-.34mm²)

Weight .2lb.(.10kg)AllModels

CAT. NO. UPC NO. DESCRIPTION

1916 31891 20-10AWG(0.8to2.6mmdia.)SolidWire

1917 31890 26-16AWG(0.4to1.3mmdia.)SolidWire

1918 31889 30-22AWG(0.25to0.64mmdia.)SolidWire

1916

1913

www.greenlee.com

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

= NEW PRODUCT

Automatic Wire Stripper

• Productiongradewirestripperstripsinsulationfrommost

smallergaugewire.

• Stripsupto7/8"(22.2mm)length.

• StripsPVCandTHHNinsulation.

• Forusewithsolidandstrandedwire.

• Note:Thisisnotaninsulatedtool.

SPECIFICATIONS

Capacity 20-10AWG(.5mm²-6mm²)withPVCorTHHNinsulation

Weight .7lb.(.30kg)

CAT. NO. UPC NO. DESCRIPTION

1935 37600 AutomaticWireStripper

Kwik Stripper® Wire Stripper

•34-10AWG(.08-6mm²)strippingcapacity.

•12AWG(4mm²)solid,10AWG(6mm²)strandedcapacity.

•Stripsandcutsflatandroundcable.

•Self-adjuststodifferentwiregauges.

•Laminatedsteelbladesminimizetheriskofnickingconductors.

•Frontentryjawshaveanadjustablestriplengthguide.

•Lightweightreinforcednylonischemicalandcorrosionresistant.

• Note:Thisisnotaninsulatedtool.

CAT. NO. UPC NO. DESCRIPTION

45000

20243

45000

20243

KwikStripperWireStripper

BladeCassette

Pro Wire Stripper for NM Cable

• Pliers'noseforworkingwithsmallnutsandpullingwire.

• Machinedstrippingstationswithapositivestopprovideprecise

strippingdiameters.

• Longcurvedcutterbladesreduceforcerequiredby25%andcancut

NMinsinglecut.

• Holeinjawsforloopingwires.

• Extra-longcushionedhandlesaddcomfortandreducehandfatigue.

• Openingstoppreventsspringfromdisengaging.

• Locktabprotectscuttingedgesduringstorage.

• Cuts#6-32&#8-32screws.

• Note:Thisisnotaninsulatedtool.

CAT. NO. UPC NO. DESCRIPTION

1960 06854 ProStripper12/2&14/2

SPECIFICATIONS

Removes NM-Bouterjacket

Strips #12and#14AWGsolid

Cuts #6-32and#8-32screws

Overall Length 7-3/4"(19.7cm)

NM Cable Ripper

CAT. NO. UPC NO. DESCRIPTION

0252-11 56300 NMCableRipper

• SlitsouterjacketofRomex®10/2,12/2,14/2andothernon-metallic(NM)

sheathedcable.

• Wiregaugeonhandleforidentifying#6to#14AWG.

• Corrosion-resistantzincplating.

• Side-entrydesignforendormid-runslittingofjacket.

• Note:Thisisnotaninsulatedtool.

0252-11

SPECIFICATIONS

Overall Length 3-5/8"(9.2cm)

Weight .06lbs.(.03kg)

1935

45000

1960

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

www.greenlee.com

= NEW PRODUCT

Stripping/Crimping Combination Tool

Crimping/Stripping Combination Tool

• Pliers'noseavoidshavingtoswitchtoolsforgrippingtasks.

• Extra-narrownoseforgettingintotightboxes.

• Machinedstrippingstationswithapositivestopprovideprecise

strippingdiameters.

• Wireloopingholesinjaw.

• Long,curvedcutterbladesreduceforcerequiredby25%andcancut

NMinsinglecut.

• Screwcuttingstationsarecollapsedaroundthepivot–20%lessforce

isrequired.

• Smooth,roundedpivotboltwon’tcatchintoolpouchoronothertools.

• Comfortable,cushionedgrips.

• Note:Thisisnotaninsulatedtool.

• Up-frontcutterforsnippinghard-to-reachwires.

• Narrownoseforgettingintotightboxes.

• Wireloopingholesinjaw.

• Screwcuttingstationsarecollapsedaroundthepivot–20%lessforce

isrequired.

• Machinedstrippingstationswithapositivestopprovideprecise

strippingdiameters.

• Long,curvedcutterbladesreduceforcerequiredby25%andcancut

NMinsinglecut.

• Smooth,roundedpivotboltwon’tcatchintoolpouchoronothertools.

• Comfortable,cushionedgrips.

• Note:Thisisnotaninsulatedtool.

CAT. NO. UPC NO. DESCRIPTION

1927 06851 Stripping/CrimpingCombinationTool

Combination Tool

• Crimp,stripandcutwirewithasingletool,alsocutand

re-threadscrews.

• Hardenedalloysteelwithblackoxidefinish.

• Pivotjointshavehardened-steelbushings.

• New,softergrips.

• Precision-groundbladesforfast,easyandconsistentwire

strippingandcutting.

• Note:Thisisnotaninsulatedtool.

CAT. N O. UPC NO. DESCRIPTION

1921 31888 TheTerminatorsCombinationTool

SPECIFICATIONS

Capacity PVCorTHHNinsulation

Cut–22-10AWG(.34mm²-6mm²)

Strip–22-10AWG(.34mm²-6mm²)

Crimp–insulatedandnoninsulated,22-10AWG(.34mm²-6mm²)

TerminalsandSplices;7and8mmIgnitionTerminals

Screws–Cut&Re-thread,10-24,10-32,8-32,6-32and4-40

Length 8-5/8"(22.0cm)

Weight .5lb.(.23kg)

SPECIFICATIONS

Strips 10-22AWGsolidandstranded

Crimps 10-22AWGinsulatedandnon-insulatedterminals

Cuts #4-40,#5-40,#6-32,#8-32,#10-24and#10-32screws

Overall Length 8-1/8"(20.6cm)

SPECIFICATIONS

Strips 8-18AWGsolid,10-22AWGstranded

Crimps 10-22AWGinsulatedandnon-insulatedterminals

Cuts #4-40,#6-32,#8-32,#10-24and#10-32screws

Overall Length 8-1/2"(21.6cm)

CAT. NO. UPC NO. DESCRIPTION

1923 06850 Crimping/StrippingCombinationTool

1927

1923

1921

www.greenlee.com

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

= NEW PRODUCT

5-Piece Screwdriver Set

• Heavy-dutyconstructionforlongerlife.

• Handlemarkedforeasyidentificationofscrewdriversize,typeandlength.

• Precision-machinedtipsforaccuratefastenercontact.

• Strong,durableblackphosphatetipspreventchippingofplating.

• High-grade,rustresistant,chrome-platedfinish.

• Soft,cushionedgripforextracomfortandtorque.

• ExceedsASME/ANSIspecifications.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

CAT. NO. UPC NO. DESCRIPTION

0153-01C

0153-01C-CP

56303

95930

5-PieceScrewdriverSet

5-PieceScrewdriverSetCounterPack(Qty5)

SPECIFICATIONS

Contains 3/16"x6"Cabinet,1/4"x4"Keystone,1/4"x6"Cabinet,5/16"x6"

Keystone&#2x4"Phillips

Weight 1.38lbs.(.63kg)

0153-01C

sCrew & NUT Drivers

7-Piece Screwdriver Set

• Heavy-dutyconstructionforlongerlife.

• Handlemarkedforeasyidentificationofscrewdriversize,typeandlength.

• Precision-machinedtipsforaccuratefastenercontact.

• Strong,durableblackphosphatetipspreventchippingofplating.

• High-grade,rustresistant,chrome-platedfinish.

• Soft,cushionedgripforextracomfortandtorque.

• ExceedsASME/ANSIspecifications.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

CAT. NO. UPC NO. DESCRIPTION

0153-02C 54661 7-PieceScrewdriverSet

SPECIFICATIONS

Contains 3/16"x4"Cabinet,3/16"x6"Cabinet,1/4"x4"Keystone,1/4"x4"

Cabinet,5/16"x6"Keystone,#1x3"Phillips&#2x4"Phillips

Weight 1.63lbs.(.74-kg)

0153-02C

Crimping/Stripping Combination Tool

•TwodiepositionspermittheKP1022tocrimpbothinsulatedand

uninsulatedterminalsandsplices

•Forgedsteelandhardeneddesignprovideslonglife

•Smoothpivotactionallowstooltoeasilybeusedwithonehand

•Double-cushionedhandlegripsareeasyonthehands

•Precisionmachinedandhardenedcutterbladesmakewirecuttingeasy

SPECIFICATIONS

Overall Length 9-1/2"(241mm)

Weight 1.05lbs.(.48kg)

Insulated Terminals & Splices 10-22AWG

Uninsulated Terminals & Splices 10-22AWG

CAT. NO. UPC NO. DESCRIPTION

KP1022 02155 TerminalCrimpingTool

KP1022

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

www.greenlee.com

= NEW PRODUCT

Heavy-Duty Cabinet Tip Screwdriver

• Narrowcabinettipforlimitedaccessapplications.

• Handlemarkedforeasyidentificationofscrewdriversize,typeandlength.

• Precision-machinedtipsforaccuratefastenercontact.

• Strong,durableblackphosphatetipspreventchippingofplating.

• Soft,cushionedgripforextracomfortandtorque.

• ExceedsASME/ANSIspecifications.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

CAT. NO. UPC NO. DESCRIPTION: HEAVY DUTY CABINET TIP-

0153-21C 54652 RoundShank3/16"x4"FlatBladeScrewdriver

0153-22C 54653 RoundShank3/16"x6"FlatBladeScrewdriver

0153-23C 54654 RoundShank3/16"x8"FlatBladeScrewdriver

0153-24C 54655 RoundShank3/16"x10"FlatBladeScrewdriver

0153-25C 54649 RoundShank1/4"x4"FlatBladeScrewdriver

0153-26C 54650 RoundShank1/4"x6"FlatBladeScrewdriver

0153-27C 54651 RoundShank1/4"x8"FlatBladeScrewdriver

SPECIFICATIONS 3/16" x 4" 3/16" x 6" 3/16" x 8" 3/16" x 10"

Overall Length 7-3/4"(19.7cm) 9-3/4"(24.8cm) 11-3/4"(29.8cm) 13-3/4"(34.9cm)

Weight 0.15lbs.(.07kg) 0.18lbs.(.08kg) 0.20lbs.(.09kg) 0.22lbs.(.10kg)

SPECIFICATIONS 1/4" x 4" 1/4" x 6" 1/4" x 8"

Overall Length 8-11/32"(21.2cm) 10-11/32"(26.3cm) 12-11/32"(31.4cm)

Weight 0.25lbs.(.11kg) 0.30lbs.(.14kg) 0.35lbs.(.16kg)

0153-21C

Heavy-Duty Keystone Tip Screwdriver

• Squareshankallowsuseofwrenchorpliersforaddedtorque.

• Handlemarkedforeasyidentificationofscrewdriversize,typeandlength.

• Ruggedkeystonetipforadditionalstrength.

• Precision-machinedtipsforaccuratefastenercontact.

• Strong,durableblackphosphatetipspreventchippingofplating.

• Soft,cushionedgripforextracomfortandtorque.

• ExceedsASME/ANSIspecifications.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

CAT. NO. UPC NO. DESCRIPTION: HEAVY DUTY KEYSTONE TIP-

0153-11C 54644 SquareShank1/4"x4"FlatBladeScrewdriver

0153-12C 54645 SquareShank1/4"x6"FlatBladeScrewdriver

0153-13C

0153-13C-CP

54646

95929

SquareShank1/4"x8"FlatBladeScrewdriver

SquareShank1/4"x8"FlatBladeScrewdriver

CounterPack(Qty10)

0153-14C 54647 SquareShank1/4"x10"FlatBladeScrewdriver

0153-15C 56304 SquareShank5/16"x6"FlatBladeScrewdriver

0153-16C 56305 SquareShank3/8"x8"FlatBladeScrewdriver

0153-14C

SPECIFICATIONS 1/4" x 4"1/4" x 6"1/4" x 8"

Overall Length 8-11/32"(21.2cm) 10-11/32"(26.3cm) 12-11/32"(31.4cm)

Weight 0.25lbs.(.11kg) 0.30lbs.(.14kg) 0.35lbs.(.16kg)

SPECIFICATIONS 1/4" x 10" 5/16" x 6" 3/8" x 8"

Overall Length 14-11/32"(36.4cm) 10-15/16"(27.8cm) 13-7/16"(34.1cm)

Weight 0.40lbs.(.18kg) 0.40lbs.(.18kg) 0.55lbs.(.25kg)

www.greenlee.com

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

= NEW PRODUCT

CAT. NO. UPC NO. DESCRIPTION:

0153-28C 54648 RoundShank1/4"x1-1/2"FlatBladeScrewdriver

0153-32C 54657 HeavyDutyPhillipsTip#2x1-1/2"Screwdriver

SPECIFICATIONS 1/4" x 1-1/2" #2 x 1-1/2"

Overall Length 3"(7.6cm) 3"(7.6cm)

Weight 0.10lbs.(.05kg) 0.10lbs.(.05kg)

Stubby Screwdriver

• Precision-machinedtipsforexactfit.

• Handlemarkedforeasyidentificationofscrewdriversize,typeandlength.

• Strong,durableblackphosphatetipspreventchippingofplating.

• Soft,cushionedgripforextracomfortandtorque.

• ExceedsASME/ANSIspecifications.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

0153-32C

0153-28C

Heavy-Duty Phillips Tip Screwdriver

• Precision-machinedtipsforexactfit.

• Handlemarkedforeasyidentificationofscrewdriversize,typeandlength.

• Strong,durableblackphosphatetipspreventchippingofplating.

• Soft,cushionedgripforextracomfortandtorque.

• ExceedsASME/ANSIspecifications.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

0153-33C

SPECIFICATIONS #1 x 3" #2 x 4" #2 x 6"

Overall Length 6-3/4"(17.2cm) 8-5/16"(21.1cm) 10-5/16"(26.2cm)

Weight 0.15lbs.(.07kg) 0.25lbs.(.11kg) 0.30lbs.(.14kg)

SPECIFICATIONS #3 x 6" #2 x 10"

Overall Length 11"(27.9cm) 14-5/16"(36.4cm) 

Weight 0.35lbs.(.16kg) 0.40lbs.(.18kg) 

CAT. NO. UPC NO. DESCRIPTION

0153-31C 54656 HeavyDutyPhillipsTip#1x3"Screwdriver

0153-33C 54658 HeavyDutyPhillipsTip#2x4"Screwdriver

0153-34C 54659 HeavyDutyPhillipsTip#2x6"Screwdriver

0153-35C

0153-36C

54660

89213

HeavyDutyPhillipsTip#3x6"Screwdriver

HeavyDutyPhillipsTip#2x10"Screwdriver

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

www.greenlee.com

= NEW PRODUCT

6-In-1 Multi-Tool

• Versatilemulti-bitscrewdriver,6toolsinone.

• Precisionmachined,hardenedsteelbits.

• High-grade,rustresistant,chrome-platedfinish.

• Soft,cushionedgripforextracomfortandtorque.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

0153-42C

SPECIFICATIONS

Length 7-1/8"(20.6cm)

Weight .42lbs.(.19kg)

Bit Sizes #1&#2SquareRecess,6mmFlat-tip,#2Phillipsand5/16"&1/4"Hex

Heavy-Duty Crank Action Screwdriver

• Rotaryactionallowsforfast&convenientinsertionoffasteners.

• Precision-machinedtipsforexactfit.

• Handlemarkedforeasyidentificationofscrewdriversizetypeandlength.

• Strong,durableblackphosphatetipspreventchippingofplating.

• Soft,cushionedgripforextracomfortandtorque.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

0153-51C

SPECIFICATIONS 3/16" x 6" 1/4" x 6" #1 x 6"

Overall Length 9-3/4"(24.8cm) 10-1/8"(25.7cm) 9-11/16"(24.6cm)

Weight 0.16lbs.(.07kg) 0.25lbs.(.11kg) 0.17lbs.(.08kg)

SPECIFICATIONS #2 x 6" #1 x 6" #2 x 6"

Overall Length 10-1/4"(26.0cm) 10-1/8"(25.7cm) 10-1/8"(25.7cm)

Weight 0.25lbs.(.11kg) 0.25lbs.(.11kg) 0.25lbs.(.11kg)

CAT. NO. UPC NO. DESCRIPTION

0153-51C 89211 CabinetTip3/16"x6"FlatBladeScrewdriver

0153-52C 89212 CabinetTip1/4"x6"FlatBladeScrewdriver

0153-53C 89209 PhillipsTip#1x6"Screwdriver

0153-54C

0353-52C

0353-53C

89210

89220

89221

PhillipsTip#2x6"Screwdriver

Square-RecessTipDriver-#1x6"

Square-RecessTipDriver-#2x6"

CAT. NO. UPC NO. DESCRIPTION

0353-41C

0153-42C

0153-42-CP

89218

56308

95933

6-In-1Multi-tool,Contains:#1&#2SquareRecess,

6mmFlat-Tip&#2Phillipsand1/4"&5/16"Hex.

6-In-1Multi-tool,Contains:3/16"&1/4"Flat-Tip,

#1&#2Phillipsand5/16&1/4"Hex.

6-In-1Multi-toolCounterPack(Qty5)

9953-13

9953-14

56310

89219

Replacementbits–3/16"&1/4"Flat-tipand

#1&#2Phillips

Replacementbits–#1&#2SquareRecessand6mm

FlatTip&#2Phillips

www.greenlee.com

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

= NEW PRODUCT

7-Piece Nut Driver Set

• Ruggedhollowshaftforscrewclearance.

• Heavy-dutyconstructionforlongerlife.

• Handleandshaftmarkedforeasyidentificationofnutdriversize.

• Precisionsocketsforaccuratefastenerfit.

• High-grade,rustresistant,chrome-platedfinish.

• Soft,cushionedgripforextracomfortandtorque.

• ExceedsASME/ANSIspecifications.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

0253-01C

CAT. NO. UPC NO. DESCRIPTION

0253-01C 54671 7-PieceNutDriverSet(3"Shank):Sizes3/16",1/4",

5/16",11/32",3/8",7/16"&1/2"

SPECIFICATIONS

Weight 1.65lbs.(.75kg)

STANDARD

CAT. NO. UPC NO. DESCRIPTION

0253-02C 89225 7-PieceNutDriverSet(75mmShank):Sizes5mm,

5.5mm,6mm,7mm,8mm,9mm&10mm

SPECIFICATIONS

Weight 1.65lbs.(.75kg)

METRIC

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

www.greenlee.com

= NEW PRODUCT

Heavy-Duty Nut Drivers

• Ruggedhollowshaftforboltclearance.

• Heavy-dutyconstructionforlongerlife.

• Handlecolormarkedforeasyidentificationofnutdriversize.

• Precisionsocketsforaccuratefastenerfit.

• High-grade,rustresistant,chrome-platedfinish.

• Soft,cushionedgripforextracomfortandtorque.

• ExceedsASME/ANSIspecifications.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

0253-16C

CAT. NO. UPC NO. DESCRIPTION

0253-11C 54664 Heavy-DutyNutDriver3/16"x3"

0253-12C 54665 Heavy-DutyNutDriver1/4"x3"

0253-13C 54666 Heavy-DutyNutDriver5/16"x3"

0253-14C 54667 Heavy-DutyNutDriver11/32"x3"

0253-15C 54668 Heavy-DutyNutDriver3/8"x3"

0253-16C 54669 Heavy-DutyNutDriver7/16"x3"

0253-17C 54670 Heavy-DutyNutDriver1/2"x3-5/8"

SPECIFICATIONS 3/16" x 3" 1/4" x 3" 5/16" x 3"

Overall Length 7-5/16"(18.6cm) 7-5/16"(18.6cm) 7-5/16"(18.6cm)

Weight 0.20lbs.(.09kg) 0.20lbs.(.09kg) 0.20lbs.(.09kg)

SPECIFICATIONS 11/32" x 3" 3/8" x 3" 7/16" x 3" 1/2" x 3-5/8"

Overall Length 7-5/16"(18.6cm) 7-5/16"(18.6cm) 7-5/16"(18.6cm) 7-7/8"(20.0cm)

Weight 0.20lbs.(.09kg) 0.20lbs.(.09kg) 0.25lbs.(.11kg) 0.33lbs.(.14kg)

STANDARD

SPECIFICATIONS 8.0mm x 75mm 9.0mm x 75mm 10.0mm x 75mm

Overall Length 7-5/16"(18.6cm) 7-5/16"(18.6cm) 7-5/16"(18.6cm)

Weight 0.20lbs.(.09kg) 0.20lbs.(.09kg) 0.20lbs.(.09kg)

SPECIFICATIONS 5mm x 75mm 5.5mm x 75mm 6.0mm x 75mm 7.0mm x 75mm

Overall Length 7-5/16"(18.6cm) 7-5/16"(18.6cm) 7-5/16"(18.6cm) 7-5/16"(18.6cm)

Weight 0.20lbs.(.09kg) 0.20lbs.(.09kg) 0.20lbs.(.09kg) 0.20lbs.(.09kg)

CAT. NO. UPC NO. DESCRIPTION

0253-33C 89228 Heavy-DutyNutDriver5mmx75mm

0253-34C 89229 Heavy-DutyNutDriver5.5mmx75mm

0253-35C 89230 Heavy-DutyNutDriver6.0mmx75mm

0253-36C 89231 Heavy-DutyNutDriver7.0mmx75mm

0253-37C 89232 Heavy-DutyNutDriver8.0mmx75mm

0253-38C 89233 Heavy-DutyNutDriver9.0mmx75mm

0253-39C

0253-41C

0253-42C

0253-43C

89234

89235

89236

89237

Heavy-DutyNutDriver10.0mmx75mm

Heavy-DutyNutDriver11.0mmx75mm

Heavy-DutyNutDriver12.0mmx75mm

Heavy-DutyNutDriver13.0mmx75mm

METRIC

SPECIFICATIONS 11.0mm x 75mm 12.0mm x 75mm 13.0mm x 75mm

Overall Length 7-5/16"(18.6cm) 7-7/8"(20.0cm) 7-7/8"(20.0cm)

Weight 0.20lbs.(.09kg) 0.33lbs.(.14kg) 0.33lbs.(.14kg)

www.greenlee.com

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

= NEW PRODUCT

4-Piece Square-Recess Tip Driver Set

• Precisiontipforaccuratefastenerfit.

• Handlemarkedforeasyidentificationofscrewdriversizeandtype.

• Heavy-dutyconstructionforlongerlife.

• High-grade,rustresistant,chrome-platedfinish.

• Soft,cushionedgripforextracomfortandtorque.

• ExceedsASME/ANSIspecifications.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

CAT. NO. UPC NO. DESCRIPTION

0353-01C 54695 4-PieceSquare-RecessTipDriverSet,

Contains-#0x4",#1x4",#2x4",&#3x4"

0353-01C

SPECIFICATIONS

Weight 1.0lbs.(.45kg)

• Precisiontipforaccuratefastenerfit.

• Handlemarkedforeasyidentificationofscrewdriversizeandtype.

• Heavy-dutyconstructionforlongerlife.

• High-grade,rustresistant,chrome-platedfinish.

• Soft,cushionedgripforextracomfortandtorque.

• ExceedsASME/ANSIspecifications.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

SPECIFICATIONS #0 x 4" #1 x 4" #2 x 4" #3 x 4"

Overall Length 7-3/4"(19.7cm) 7-3/4"(19.7cm) 8-1/4"(21.0cm) 8-1/4"(21.0cm)

Weight 0.20lbs.(.09kg) 0.20lbs.(.09kg) 0.30lbs.(.14kg) 0.30lbs.(.14kg)

Square-Recess Tip Drivers

SPECIFICATIONS #0 x 8" #1 x 8" #2 x 8" #3 x 8"

Overall Length 11-3/4"(29.8cm) 11-3/4"(29.8cm) 11-3/4"(29.8cm) 11-3/4"(29.8cm)

Weight 0.4lbs.(.18kg) 0.4lbs.(.18kg) 0.4lbs.(.18kg) 0.4lbs.(.18kg)

Stubby Square-Recess Tip Driver

• Precisiontipforaccuratefastenerfit.

• Handlemarkedforeasyidentificationofscrewdriversizeandtype.

• Heavy-dutyconstructionforlongerlife.

• High-grade,rustresistant,chrome-platedfinish.

• Soft,cushiongripforextracomfortandtorque.

• ExceedsASME/ANSIspecifications.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

0353-32C

SPECIFICATIONS 2-Piece Set #1 x 1 - 1/2" #2 x 1 - 1/2"

Overall Length 3"(7.6cm) 3"(7.6cm)

Weight 0.22lbs.(.1kg) 0.11lbs.(.05kg) 0.11lbs.(.05kg)

CAT. NO. UPC NO. DESCRIPTION

0353-02C 89222 2-PieceSquare-RecessTipStubbyDriverSet,

Contains-#1&#2

0353-32C 89223 Square-RecessTipDriver-#1x1-1/2"

0353-33C 89224 Square-RecessTipDriver-#2x1-1/2"

0353-13C

CAT. NO. UPC NO. DESCRIPTION

0353-11C 54688 Square-RecessTipDriver-#0x4"

0353-12C 54689 Square-RecessTipDriver-#1x4"

0353-13C 54691 Square-RecessTipDriver-#2x4"

0353-14C

0353-21C

0353-22C

0353-23C

0353-24C

54693

89214

89215

89216

89217

Square-RecessTipDriver-#3x4"

Square-RecessTipDriver-#0x8"

Square-RecessTipDriver-#1x8"

Square-RecessTipDriver-#2x8"

Square-RecessTipDriver-#3x8"

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

www.greenlee.com

= NEW PRODUCT

Conduit Reaming Screwdriver

• DebursIDandODof1/2",3/4"and1"thinwallconduit.

• Handlemarkedforeasyidentification.

• Hardenedbladeforlongerlife.

• Hooded,flattipdriverusedtofastenEMTfittings.

• Soft,cushionedgripforextracomfortandtorque.

• Replaceableblade.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

CAT. NO. UPC NO. DESCRIPTION

9753-11C 54696 ConduitReamingScrewdriver

9953-11 56319 Replacementblade,ConduitReamingScrewdriver

SPECIFICATIONS

Capacity 1/2",3/4"and1"

Weight .49lbs.(.22kg)

Overall Length 7-7/16"(18.9cm)

9753-11C

9953-11

Screw-Holding Screwdriver

• Theindustry’sfinestscrew-holdingdevice,availableforeitherslotted

orPhillipsscrews.

• Easilyholdsscrewinplacewheninstallinginhard-to-reachlocations.

• Precisiontipforaccuratefastenerfit.

• Heavy-dutyconstructionforlongerlife.

• Soft,cushionedgripforextracomfortandtorque.

• Handlemarkedforeasyidentificationofscrewdriversizeandtype.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

CAT. NO. UPC NO. DESCRIPTION:

0453-11C 56311 Screw-holdingScrewdriver3/32"x5"

0453-12C 56312 Screw-holdingScrewdriver1/8"x5"

0453-13C 56313 Screw-holdingScrewdriver5/32"x5"

0453-14C 56314 Screw-holdingScrewdriver3/16"x6"

0453-15C 56315 Screw-holdingScrewdriver1/4"x7"

0453-16C 56316 Screw-holdingScrewdriverPhillipsTip#0x4"

0453-17C 56317 Screw-holdingScrewdriverPhillipsTip#1x5"

0453-18C 56318 Screw-holdingScrewdriverPhillipsTip#2x7"

SPECIFICATIONS 3/32"1/8"5/32"3/16"

Overall Length 6-5/8"(16.8cm) 8-5/8"(21.9cm) 8-5/8"(21.9cm) 8-5/8"(21.9cm)

Weight .10lbs.(.05kg) .16lbs.(.07kg) .16lbs.(.07kg) .16lbs.(.07kg)

SPECIFICATIONS 1/4"#0 #1 #2

Overall Length 11-1/8"(28.3cm) 6-5/8"(16.8cm) 8-5/8"(22.0cm) 11-1/8"(28.3cm)

Weight .30lbs.(.14kg) .10lbs.(.05kg) .16lbs.(.07kg) .30lbs.(.14kg)

0453-15C

www.greenlee.com

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

= NEW PRODUCT

Scratch Awl

• Integratedsteelendcapfordurabilityandlonglife.

• Heavy-dutyconstructionforpiercingandscribing.

• High-grade,rustresistant,chrome-platedfinish.

• Soft,cushionedgripforextracomfort.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

CAT. NO. UPC NO. DESCRIPTION

9753-12C 54697 ScratchAwl3"

9753-12C

SPECIFICATIONS

Overall Length 7-7/8"(20.0cm)

Weight .22lbs.(.10kg)

Bottle Opener

• Heavy-dutyconstructiontohandleanysizejob.

• High-grade,stainlesssteelforrepeateduse.

• Softcushiongripforextracomfortduringextendeduse.

• Handlemarkedforeasyidentification.

9753-13C

SPECIFICATIONS

Overall Length 6-7/8"(17.5cm)  

Weight 0.22lbs.(.1kg)  

CAT. NO. UPC NO. DESCRIPTION

9753-13C 89249 BottleOpener

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

www.greenlee.com

= NEW PRODUCT

Adjustable Wrench

• Heavy-dutyconstructiontohandleanysizejob.

• Precision-machinedtotighttolerancesforprofessionalfeel

andsmoothoperation.

• Widecapacityjawdesignprovidesextraversatility.

• Measuringscaleonheadforeasysizing.

• Corrosion-resistantfinish.

• ExceedsASME/ANSIspecifications.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

0154-10

CAT. NO. UPC NO. DESCRIPTION

0154-06

0154-08

89276

55483

AdjustableWrench6"

AdjustableWrench8"

0154-10 55484 AdjustableWrench10"

0154-12 55485 AdjustableWrench12"

Composite Handle Adjustable Wrench

• Patentedlightweightergonomicdesignreducesuserfatigue.

• Precision-machinedtotighttolerancesforprofessionalfeel

andsmoothoperation.

• Widecapacityjawdesignprovidesextraversatility.

• Measuringscaleonheadforeasysizing.

• Corrosion-resistantfinish.

• ExceedsASME/ANSIspecifications.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

0154-10C

CAT. NO. UPC NO. DESCRIPTION

0154-08C 56320 AdjustableWrenchCompositeHandle8"

0154-10C 56321 AdjustableWrenchCompositeHandle10"

0154-12C 56322 AdjustableWrenchCompositeHandle12"

SPECIFICATIONS 8" 10"12"

Overall Length 7-7/8"(20.0cm) 9-13/16"(24.6cm) 11-13/16"(30.0cm)

Weight 0.66lbs.(.24kg) 1.03lbs.(.48kg) 1.36lbs.(.62kg)

ADjUsTAble & rATCheTiNG wreNChes

Dipped Handle Adjustable Wrench

• Heavy-dutyconstructiontohandleanysizejob.

• Double-dippedvinylhandleforusercomfortandslipresistance.

• Precision-machinedtotighttolerancesforprofessionalfeeland

smoothoperation.

• Widecapacityjawdesignprovidesextraversatility.

• Measuringscaleonheadforeasysizing.

• Corrosion–resistantfinish.

• ExceedsASME/ANSIspecifications.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

0154-10D

SPECIFICATIONS 6" 8" 10"12"

Overall Length 6-7/16"(16.4cm) 8-7/16"(21.4cm) 10-3/8"(26.4cm) 12-3/8"(31.4cm)

Weight 0.35lbs.(.16kg) 0.8lbs.(.36kg) 1.17lbs.(.53kg) 1.9lbs.(.86kg)

CAT. NO. UPC NO. DESCRIPTION

0154-06D

0154-08D

0154-10D

0154-12D

89275

89291

89292

89293

AdjustableWrenchDippedHandle6"

AdjustableWrenchDippedHandle8"

AdjustableWrenchDippedHandle10"

AdjustableWrenchDippedHandle12"

SPECIFICATIONS 6" 8" 10"12"

Overall Length 6-7/16"(16.4cm) 8-7/16"(21.4cm) 10-3/8"(26.4cm) 12-3/8"(31.4cm)

Weight 0.35lbs.(.16kg) 0.8lbs.(.36kg) 1.17lbs.(.53kg) 1.9lbs.(.86kg)

www.greenlee.com

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

= NEW PRODUCT

9-Piece Folding Hex-Key Set - Standard

• 9piecesetforconvenienceandversatility(includingsizes5/64",3/32",

7/64",1/8",9/64",5/32",3/16",7/32",1/4").

• One-piece,powder-coatedhandle/caseforcorrosionresistance.

• Laser-etchedsizesoncaseforeasyidentification.

• Heat-treatedandtemperedforextrastrengthanddurability.

• ExceedsASME/ANSIspecifications.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

0254-11

CAT. NO. UPC NO. DESCRIPTION

0254-11 56323 9-PieceFoldingHex-keySet:Sizes-5/64",3/32",7/64",

1/8",9/64",5/32",3/16",7/32"&1/4"

SPECIFICATIONS

Overall Length 4-3/8"(11.1cm)

Weight 0.48lbs.(.22kg)

9-Piece Folding Ball-End Hex-Key Set - Standard

• 9piecesetforconvenienceandversatility(includingsizes5/64",3/32",

7/64",1/8",9/64",5/32",3/16",7/32",1/4").

• Ball-enddesignallowsforangleduseupto30degrees.

• One-piece,powder-coatedhandle/caseforcorrosionresistance.

• Laser-etchedsizesoncaseforeasyidentification.

• Heat-treatedandtemperedforextrastrengthanddurability.

• ExceedsASME/ANSIspecifications.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

0254-12

CAT. NO. UPC NO. DESCRIPTION

0254-12 55482 9-PieceFoldingBall-endHex-keySet:Sizes-5/64",

3/32",7/64",1/8",9/64",5/32",3/16",7/32"&1/4"

SPECIFICATIONS

Overall Length 4-3/8"(11.1cm)

Weight 0.48lbs.(.22kg)

9-Piece Folding Hex-Key Set - Metric

• 9piecesetforconvenienceandversatility(includingsizes1.5,2,2.5,3,4,5,

6,8and10mm).

• One-piece,powder-coatedhandle/caseforcorrosionresistance.

• Laser-etchedsizesoncaseforeasyidentification.

• Heat-treatedandtemperedforextrastrengthanddurability.

• ExceedsASME/ANSIspecifications.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

0254-31

SPECIFICATIONS

Overall Length 4-3/8"(11.1cm)

Weight 0.51lbs.(.23kg)

CAT. NO. UPC NO. DESCRIPTION

0254-31 89267 9-PieceFoldingHex-keySet:Sizes-1.5,2,2.5,3,4,5,6,

8,and10mm.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

www.greenlee.com

= NEW PRODUCT

7-Piece Combination Ratcheting Wrench Set - Standard

• Compactreversibleswitchallowsa15°offsetoftheboxendfor

clearanceofobstacles.

• “Five-degree”ratchetingdesignforversatilityandeaseofusein

tightspaces.

• Polishedchromefinishforsuperiorcorrosionresistance.

• Precisionheadsforaccuratefastenerfit.

• Hardenedfordurabilityandlongerlife.

• ExceedsASME/ANSIspecifications.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

0354-01

CAT. NO. UPC NO. DESCRIPTION

0354-01 55501 7-PieceCombinationRatchetingWrenchSet:Contains-

Sizes1/4",5/16",3/8",7/16",1/2",9/16"&5/8"

SPECIFICATIONS

Weight 1.25lbs.(.57kg)

Combination Ratcheting Wrenches - Standard

• Compactreversibleswitchallowsa15°offsetoftheboxendfor

clearanceofobstacles.

• “Five-degree”ratchetingdesignforversatilityandeaseofusein

tightspaces.

• Polishedchromefinishforsuperiorcorrosionresistance.

• Precisionheadsforaccuratefastenerfit.

• Hardenedfordurabilityandlongerlife.

• ExceedsASME/ANSIspecifications.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

0354-15

SPECIFICATIONS 1/4"5/16"3/8"7/16"

Overall Length 5-5/16"(13.5cm) 5-5/16"(13.5cm) 6-1/8"(15.9cm) 6-1/2"(16.8cm)

Weight .09lbs.(.04kg) .08lbs.(.08kg) .12lbs.(.05kg) .16lbs.(.07kg)

SPECIFICATIONS 1/2"9/16"5/8"

Overall Length 7"(18cm) 7-3/8"(19cm) 8-3/8"(21.6cm)

Weight .22lbs.(.10kg) .26lbs.(.12kg) .37lbs.(.17kg)

SPECIFICATIONS 11/16"3/4"13/16"

Overall Length 9-1/16"(23cm) 9-3/4"(24.8cm) 11-1/8"(28.3cm)

Weight .45lbs.(.2kg) .53lbs.(.24kg) .79lbs.(.36kg)

SPECIFICATIONS 7/8"15/16" 1"

Overall Length 11-1/8"(28.3cm) 12-11/16"(32.2cm) 12-11/16"(32.2cm)

Weight .79lbs.(.36kg) 1.1lbs.(.5kg) 1.1lbs.(.5kg)

CAT. NO. UPC NO. DESCRIPTION

0354-11 55494 CombinationRatchetingWrench1/4"

0354-12 55495 CombinationRatchetingWrench5/16"

0354-13 55496 CombinationRatchetingWrench3/8"

0354-14 55497 CombinationRatchetingWrench7/16"

0354-15 55498 CombinationRatchetingWrench1/2"

0354-16 55499 CombinationRatchetingWrench9/16"

0354-17

0354-18

0354-19

0354-20

0354-21

0354-22

0354-23

55500

89268

89269

89270

89271

89272

89273

CombinationRatchetingWrench5/8"

CombinationRatchetingWrench11/16"

CombinationRatchetingWrench3/4"

CombinationRatchetingWrench13/16"

CombinationRatchetingWrench7/8"

CombinationRatchetingWrench15/16"

CombinationRatchetingWrench1"

www.greenlee.com

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

= NEW PRODUCT

7-Piece Combination Ratcheting Wrench Set - Metric

• Compactreversibleswitchallowsa15°offsetoftheboxendfor

clearanceofobstacles.

• “Five-degree”ratchetingdesignforversatilityandeaseofusein

tightspaces.

• Polishedchromefinishforsuperiorcorrosionresistance.

• Precisionheadsforaccuratefastenerfit.

• Hardenedfordurabilityandlongerlife.

• ExceedsASME/ANSIspecifications.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

SPECIFICATIONS

Weight 1.3lbs.(.60kg)

0354-02

Combination Ratcheting Wrenches - Metric

• Compactreversibleswitchallowsa15°offsetoftheboxendfor

clearanceofobstacles.

• “Five-degree”ratchetingdesignforversatilityandeaseofuseintightspaces.

• Polishedchromefinishforsuperiorcorrosionresistance.

• Precisionheadsforaccuratefastenerfit.

• Hardenedfordurabilityandlongerlife.

• ExceedsASME/ANSIspecifications.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

0354-55

SPECIFICATIONS 6mm 7mm 8mm

Overall Length 5-5/16"(13.5cm) 5-5/16”(13.5cm) 5-5/16”(13.5cm)

Weight 0.08lbs.(.04kg) 0.09lbs.(.04kg) 0.08lbs.(.04kg)

SPECIFICATIONS 9mm 10mm 11mm

Overall Length 5-9/16”(14.1cm) 6-3/16"(15.7cm) 6-9/16"(16.7cm)

Weight 0.10lbs.(.05kg) 0.14lbs.(.06kg) 0.16lbs.(.07kg)

SPECIFICATIONS 15mm 16mm 17mm

Overall Length 7-13/16"(19.8cm) 8-7/16"(21.4cm) 9-1/6"(23cm)

Weight 0.31lbs.(.14kg) 0.35lbs.(.16kg) .44lbs.(.2kg)

SPECIFICATIONS 18mm 19mm

Overall Length 9-3/8"(23.8cm) 9-11/16"(24.6cm)

Weight 0.47lbs.(.21kg) 0.57lbs.(.26kg)

SPECIFICATIONS 12mm 13mm 14mm

Overall Length 6-13/16"(17.3cm) 7-1/16"(17.9cm) 7-7/16"(18.9cm)

Weight 0.18lbs.(.08kg) 0.22lbs.(.1kg) 0.27lbs.(.12kg)

CAT. NO. UPC NO. DESCRIPTION

0354-02 89274 7-PieceCombinationRatchetingWrenchSet:Contains-

Sizes7,9,10,11,13,14,and15mm

CAT. NO. UPC NO. DESCRIPTION

0354-51 89277 CombinationRatchetingWrench6mm

0354-52 89278 CombinationRatchetingWrench7mm

0354-53 89279 CombinationRatchetingWrench8mm

0354-54 89280 CombinationRatchetingWrench9mm

0354-55 89281 CombinationRatchetingWrench10mm

0354-56 89282 CombinationRatchetingWrench11mm

0354-57

0354-58

0354-59

0354-60

0354-61

0354-62

0354-63

0354-64

89283

89284

89285

89286

89287

89288

89289

89290

CombinationRatchetingWrench12mm

CombinationRatchetingWrench13mm

CombinationRatchetingWrench14mm

CombinationRatchetingWrench15mm

CombinationRatchetingWrench16mm

CombinationRatchetingWrench17mm

CombinationRatchetingWrench18mm

CombinationRatchetingWrench19mm

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

www.greenlee.com

= NEW PRODUCT

6-Piece Insulated Screwdriver Set

• Ratedto1000VAC/DC.

• MeetstheIEC60900andASTMF1505standards.

• Heavy-dutyconstructionforlongerlife.

• Precision-machinedtipsforaccuratefastenercontact.

• Strong,durableblackphosphateplatingpreventschipping

 andreducesslipping.

• Ergonomicallydesignedhandleforaddedcomfortandtorque.

• Lifetimelimitedwarranty.

0157-01

CAT. NO. UPC NO. DESCRIPTION

0157-01i56325 6-PieceInsulatedScrewdriverSetContains-3/32"x3",

5/32"x4",7/32"x5",1/4"x6",#1x3-1/8"&#2x4"

SPECIFICATIONS

Weight 0.77lbs.(.35kg)

Insulated Screwdrivers

• Ratedto1000VAC/DC.

• MeetstheIEC60900andASTMF1505standards.

• Heavy-dutyconstructionforlongerlife.

• Precision-machinedtipsforaccuratefastenercontact.

• Strong,durableblackphosphateplatingpreventschipping

 andreducesslipping.

• Ergonomicallydesignedhandleforaddedcomfortandtorque.

• Lifetimelimitedwarranty.

0157-11

CAT. NO. UPC NO. DESCRIPTION

0157-11i56326 InsulatedScrewdriver3/32"x3"

0157-12i56327 InsulatedScrewdriver5/32"x4"

0157-13i56328 InsulatedScrewdriver7/32"x5"

0157-14i56329 InsulatedScrewdriver1/4"x6"

0157-17i56332 InsulatedScrewdriver#1x3-1/8"

0157-18i56333 InsulatedScrewdriver#2x4"

SPECIFICATIONS 3/32"5/32"7/32"

Overall Length 5-3/4"(14.6cm) 7-7/8"(20cm) 8-7/8"(22.6cm)

Weight .04lbs.(.02kg) .05lbs.(.13kg) .16lbs.(.07kg)

SPECIFICATIONS 1/4"#1 #2

Overall Length 10-1/4"(26cm) 7-1/8"(18.1cm) 8-1/4"(20.6cm)

Weight .25lbs.(.09kg) .13lbs.(.06kg) .19lbs.(.09kg)

iNsUlATeD Drivers

www.greenlee.com

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

= NEW PRODUCT

CAT. NO. UPC NO. DESCRIPTION

1969 23948 Multi-CableCutter

Insulated Nut Drivers

• Ratedto1000VAC/DC.

• MeetstheIEC60900andASTMF1505standards.

• Heavy-dutyconstructionforlongerlife.

• Ruggeddeepwellsocketsforscrewclearance.

• Precisionheadsforaccuratefastenerfit.

• Ergonomicallydesignedhandleforaddedcomfortandtorque.

• Lifetimelimitedwarranty.

0257-11

CAT. NO. UPC NO. DESCRIPTION

0257-11i54672 InsulatedNutDriver3/16"x5"

0257-12i54673 InsulatedNutDriver1/4"x5"

0257-13i54674 InsulatedNutDriver5/16"x5"

0257-14i54675 InsulatedNutDriver11/32"x5"

0257-15i54676 InsulatedNutDriver3/8"x5"

0257-16i54677 InsulatedNutDriver7/16"x5"

0257-17i54678 InsulatedNutDriver1/2"x5"

SPECIFICATIONS 3/16" 1/4"5/16"11/32"

Overall Length 9-1/4"(23.5cm) 9-1/4"(23.5cm) 9-1/4"(23.5cm) 9-1/4"(23.5cm)

Weight 0.20lbs.(.09kg) 0.20lbs.(.09kg) 0.20lbs.(.09kg) 0.20lbs.(.09kg)

SPECIFICATIONS 3/8"7/16"1/2"

Overall Length 9-1/4"(23.5cm) 9-1/4"(23.5cm) 9-1/4"(23.5cm)

Weight 0.20lbs.(.09kg) 0.20lbs.(.09kg) 0.20lbs.(.09kg)

7-Piece Insulated Nut Driver Set

• Ratedto1000VAC/DC.

• MeetstheIEC60900andASTMF1505standards.

• Heavy-dutyconstructionforlongerlife.

• Ruggeddeepwellsocketsforscrewclearance.

• Precisionheadsforaccuratefastenerfit.

• Ergonomicallydesignedhandleforaddedcomfortandtorque.

• Lifetimelimitedwarranty.

0257-01

CAT. NO. UPC NO. DESCRIPTION

0257-01i54679 7-PieceInsulatedNutDriverSet:Contains-Sizes3/16",

1/4",5/16",11/32",3/8",7/16"&1/2"

SPECIFICATIONS

Weight 1.40lbs.(.64kg)

Multi-Cable Cutter

CUTTiNG TOOls

• Cutssolid/strandedwire,coaxialcableandmulti-conductorcable.

• Curvedcuttingbladereducesforcerequiredandprovidesacleancut.

• Anvilcutterforsolid/strandedcopperwireupto8AWG.

• Heavy-dutycuttingbladesforlongerlifewhencuttingcoaxialcable.

• Ergonomicallydesignedcushionedhandlesaddsuperiorcomfortand

reduceshandfatigue.

• Openingstoppreventsspringfromdisengaging.

• Locktabprotectscuttingedgesduringstorage.

• Note:Thisisnotaninsulatedtool.

1969

SPECIFICATIONS UPC NO.

Cuts: Solid/strandedcopperwireupto8AWG

CoaxialcableuptoRG6Quadshield

Multi-conductorcableupto1/2"(13mm)diameter

Holesforshearing#6-32and#8-32screws

OverallLength 7"(17.8cm)

Weight .375lbs.(.17kg)

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

www.greenlee.com

= NEW PRODUCT

CAT. N O. UPC NO. DESCRIPTION

0652-11

0652-11-CP

54729

95928

UtilityKnifewithblades

UtilityKnifewithbladesCounterPack(Qty10)

9952-11

9952-12

56301

89208

Bladesfor0652-11UtilityKnife,5pack

Replacementbladesfor0652-11UtilityKnife,100pack

Cable Cutter

• Easilycutsheaviercopperandaluminumcablesupto2/0(70mm²).

• Precision-ground,shear-action,curvedcuttingblades.

• 727hasPVC-covered,high-leveragehandlesforeasiercuts.

• 727Mhascushiongrip,high-leveragehandlesforaddedcomfort.

• Heat-treatedforlonglife.

• Madeofheavy-dutyforgedsteel.

• Rust-resistantblackoxidefinish.

• Note:Thisisnotaninsulatedtool.

CAT. NO. UPC NO. DESCRIPTION

727 31291 CableCutter

727M 12629 CableCutterwithMoldedGrip

SPECIFICATIONS Copper Aluminum Comm. Cable

Max Capacity 2/0(70mm2)

Frequent Use Capacity #1AWG(35mm2) 2/0(70mm2) 100pair

Overall Length 9-1/4"(235mm)

Weight 1lb.(.45kg)

Keyhole Saw

• Integratedbladeandhandledesignprovidesmaximumstrength.

• Ergonomichandlewithnon-slipgrip.

• Hardenedsteelbladewithclog-freeteeth.

• Pointedtipeasilypunchesthroughdrywall.

• Bladecutsonbothpushandpullstrokes.

•Holeinhandlemaybeusedforlanyardorconvenientstorage.

• Note:Thisisnotaninsulatedtool.

301A

CAT. N O. UPC NO. DESCRIPTION

301A 23641 6"KeyholeSaw

SPECIFICATIONS

Overall Length 11-5/8"(29.5mm)

Weight .27lb.(.12kg)

727

727M

Utility Knife

• Over-moldedforsecure,comfortablegrip.

• Retractablethree-positionbladeforsafetyandconvenience.

• Easyfront-loadingdesignprovidesforquickbladechange.

• Bladestorageinpop-upholder.

• Packagedwiththreeheavy-dutypatentedserratedblades(Cat#9952-11).

• Note:Thisisnotaninsulatedtool.

SPECIFICATIONS

Overall Length (closed) 6-3/16"(15.7cm)

Weight .44lb.(.20kg)

9952-11

0652-11

www.greenlee.com

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

= NEW PRODUCT

12" Heavy Duty Hack Saw

CAT. NO. UPC NO. DESCRIPTION

333A 23635 12"HeavyDutyHacksaw

333-1218 10037 12"(30.5cm)Bi-metalBlades,18teethperinch,5pack

333-1224 10038 12"(30.5cm)Bi-metalBlades,24teethperinch,5pack

333-1232 10039 12"(30.5cm)Bi-metalBlades,32teethperinch,5pack

• Over-moldedruggeddesignforheavy-dutyuseandcomfort.

• Fully-adjustablebladetensionupto30,000psiforlongerbladelifeand

faster,accuratecuts.

• Alternative45°blademountingallowsforflushcutting.

• Mountingformostreciprocatingsawbladesforextraversatility.

• Handybladestorageintubularframe.

• Convenientfrontgripfeaturefortwo-handedsawing.

• Completewithbi-metalblade(12"/24TPI).

• Lifetimelimitedwarranty.

333A

SPECIFICATIONS

Overall Length 15-3/4"(40.0cm)

Weight 2.15lbs.(.98kg)

Blade Tension 30KSI

Retractable Saw Set

•6"bladeretractsintothehandleforconvenienceandsafety.

•Quicklychangebladeforaddedversatility.

•Acceptsmost6"(orshorter)standardreciprocatingsawblades.

•Ergonomicallydesignedhandleallowsforcetobeappliedbothonthepush

andpullstroke.

•Built-inbladestorageareacanhold2additionalblades.

•Adjustablebladecanbeusedatanylengthorthe3hardstopscanbeused

foraggressivesawing.

•Jabbladeandabi-metalbladeincluded.

•U.S.Patent#D527,602.

• Note:Thisisnotaninsulatedtool.

CAT. NO. UPC NO. DESCRIPTION

311 13110 RetractableSawSet

311-JAB 71945 JabBlades

SPECIFICATIONS

Overall Length: 8-3/8" 21.3cm(33.0cmbladeextended)

Height: 1-3/4" 4.3cm

Width: 1-1/8" 2.8cm

Weight: .35lbs. 1.6kg

CAPACITY

Jab Blade Drywall,CeilingTile,Wood

Bimetal Blade Conduit,Metal,PVC,Plastics

CAT. NO. UPC NO. BLADE LENGTH DESCRIPTION

 322-013 00113 13"(33.0cm) PVCSaw

 322-018 00114 18"(45.7cm) PVCSaw

 322-113 00115 13"(33.0cm) Bladefor00113

 322-118 00116 18"(45.7cm) Bladefor00114

• “V”toothdesignenablesstraightcutsonbothpushandpullsawstrokes.

• Bladecanbesharpenedforextendeduse.

• Pointedbladenosemakesdrywallsurfacepenetrationeasy.

• ErgonomichandleisinterchangeablewithmostpopularPVCsawbrands.

PVC Saws

SPECIFICATIONS 13"18"

Overall Length 18.75"(47.6cm) 23-3/4"(60.3cm)

Weight .69lbs.(.31kg) .82lbs.(.37kg)

322-013

322-018

311

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

www.greenlee.com

= NEW PRODUCT

PVC Cutter for up to 1-1/4"

PVC Cutter for up to 2"

CAT. N O. UPC NO. DESCRIPTION

864 04253 PVCCutterforupto1-1/4"

00355 00355 BladeKit

SPECIFICATIONS

Capacity Upthru1-1/4"PVC

Weight 0.8lbs.(0.4kg)

SPECIFICATIONS

Capacity Upthru2"PVC

Weight 2.5lbs.(1.1kg)

CAT. N O. UPC NO. DESCRIPTION

865 09865 PVCCutterforupto2"

07978 07978 Blade

• Ratchetactionforfast,easycutting.

• Heat-treated,replaceablesteelbladeforlongcuttinglife.

• Ruggedmetalalloyframefordurability.

• High-leveragecompoundratchetactionandlonghandlesreduceeffort.

• Heavy-dutymetalframeforcuttinglargediameters.

• Replaceablesteelblademaybesharpened.

864

865

PVC Cutters

CAT. NO. UPC NO. DESCRIPTION

861 09861 PVCCutterforupto1"

862 89806 PlasticPipeCutter

07995 07995 Bladefor861

861

• CutsPVCconduit,plasticpipeandrubberhoseupto1".

• Lightweight,easytoputintoolpouch.

• Replaceablestainlesssteelbladeandtoughnylonhandles.

862

• Cuts3/4”schedule40PVC

• Cuts1/8”-1-3/8”(3-35mm)O.D.flexibleplasticpipe

• Diecastaluminumalloybodyforaddedstrengthandbladeguide

forsquarecuts.

• Reversiblebladefortwicethelife.

• Handlelatchforsafety.

861

862

SPECIFICATIONS 861 862

Capacity Upthrough1"PVC Upthrough1-3/8"O.D.Flexible

PlasticPipe

Weight 0.24lbs.(0.11kg) 0.36lbs.(0.16kg)

www.greenlee.com

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

= NEW PRODUCT

Flex Splitter® MC Flexible Cable/Conduit Cutter

• Cutsteeloraluminummetalcladcableorconduitinsecondswithafew

turnsofthecrank.

• Thumbscrewallowsforeasyadjustmentforcablesizesfrom14-2

thru10-5.

• Springloadedcableguideallowsforquickrepeatcuts.

• EasilyadjustforthenewMCaptightwoundcable.

• Note:Thisisnotaninsulatedtool.

CAT. NO. UPC NO. DESCRIPTION

1940 34953 FlexSplitter®FlexibleMetalConduitCenter

1941-1 00288 SingleBladeReplacementBladefor1940

1941-5 33735 5PackReplacementBladesfor1940

SPECIFICATIONS

Capacity 14/2to10/4BX3/8"flexiblemetalconduit

Weight 1940-4lbs.(1.8kg)

EMT Conduit Cutter

• Patentedcuttingwheelcutscleanandeliminatestheneedtodeburthe

insideoftheconduit.

• Simpletouse-justtightenthescrew,turnthetoolaroundtheconduit,

andsnaptheconduitintwo!

• Heavydutycastbodyforlonglife.

• Largesmoothspindleknobiseasytogripanddoesn’thurtyourhand.

• Replaceablecutterwheel.

CAT. NO. UPC NO. DESCRIPTION

8600 11915 ConduitCutter

11917 11917 CutterWheelfor8600

SPECIFICATIONS

Overall Length FULLYOPEN-8-1/4"(21.0cm)•FULLYCLOSED-7"(17.8cm)

Weight 1.2lb.(.55kg)

Cutting Capacity Cuts1/2"and3/4"diameterEMTelectricalconduit

1940

8600

Power-Return Tape Measures

• Compacthousingfitseasliyinthehandorpouch.

• EasytouseClickLockholdstapesecurely.

• ToughABScasewithrubberovermold.

• Rigid1"widenyloncoatedbladeisdouble-sided.

• Multi-riveteddoubletangfootforstrength.

• 16"and19.2"studmarkings.

• 0155-7MAhasMetricandEnglishmarkings.

• Note:Thisisnotaninsulatedtool.

SPECIFICATIONS 25'7.5M 16'

Tape Width 1"(2.5cm) 1"(2.5cm) 1"(2.5cm)

Weight 0.89lbs.(.40kg) 0.89lbs.(.40kg) .64lbs.(.29kg)

Standout 6' 6' 6'

tape measures, levels, Hammers & flasHligHts

0155-25

0155-16

0155-7M

CAT. NO. UPC NO. DESCRIPTION

0155-25A 12479 PowerReturnTapeMeasure,doubletang/sided,25'

0155-16A 12478 PowerReturnTapeMeasure,doubletang/sided,16'

0155-7MA 12477 PowerReturnTapeMeasure,doubletang/sided,7.5meter

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

www.greenlee.com

= NEW PRODUCT

• Professionalgradelevel.

• Fouropenvialportsforeasyviewingfromallsides.

• Perfectforpipeandconduitwork.

• Fourrareearthmagnetsallowforhands-freeuseonmetalsurfaces.

• Fourvialdesign–0°,30°,45°and90°.

• Machinedfromaluminumalloyandanodizedtoaircraftstandards.

• Cutoutsontopoflevelforeasyviewofvials.

• Offsetsandcalculationspermanentlylaserengravedontolevel.

Electrician’s Torpedo Level

SPECIFICATIONS

Overall Length 8-1/2"(21.6cm)

Width 3/4"(1.9cm)

Height 1-1/4"(3.2cm)

Weight .34lbs.(.16kg)

CAT. NO. UPC NO. DESCRIPTION

L107 03583 Level,Torpedo

L107

• Professionalgradelevelwithbendingoffsetaid.

• Minitorpedodesignwithhandy“no-dog”attachmentforbending.

• Threerareearthmagnetsprovidesuperiorholdingstrength.

• Fourvialdesign-0°,90°,45°,and30°.

• Machinedfromaluminumalloyandanodizedtoaircraftstandards.

• Compactsizefitseasilyintoolpouch.

• Cutoutsontopoflevelforeasyviewofvials.

Mini Magnetic Bubble Level

SPECIFICATIONS

Overall Length 5-1/2"(140mm)

Width 3/4"(19mm)

Height 1-1/2"(38mm)

Weight .22lbs.(.10kg)

CAT. NO. UPC NO. DESCRIPTION

L77 11617 MiniMagneticBubbleLevel

• Professionalgradelaserlevel.

• Minitorpedodesignwithhandy“nodog”attachmentforbending.

• Threerareearthmagnetsprovidesuperiorholdingstrength.

• Compactsizewith80-plusyardrange.

• Laseriscapableofworkingonallplanes.

• Fourvialdesign–0°,90°,45°and30°.

• Cutoutsontopoflevelforeasyviewofvials.

• Offsetsandcalculationspermanentlylaserengravedontolevel.

• V-grooveonbottomformountingoncurvedsurface.

Mini-Magnet Laser Level

SPECIFICATIONS

Overall Length 5-5/8"(14.3cm)

Width 3/4"(1.9cm)

Height 1-3/4"(4.6cm)

Weight .46lbs.(.21kg)

CAT. NO. UPC NO. DESCRIPTION

L97 03582 LaserLevel

L77

L97

www.greenlee.com

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

= NEW PRODUCT

CAT. NO. UPC NO. DESCRIPTION

46500 46500 Pocket-LightFlashlight

46533 46533 LampModule

46534 46534 O-Ring

Pocket-Light Flashlight With LEDs

• MadeoftoughABSpolycarbonate.

• Luminoustipsoflashlightcanbelocatedinthedark.

• Batteriesincluded.

• Lifetimelimitedwarranty.

• Submersibleto500'.

CAT. NO. UPC NO. DESCRIPTION

46503 46503 MiniPocket-LightFlashlight

46533 46533 LampModule

46534 46534 O-Ring

Mini Pocket-Light Flashlight

• Includeskeyringandhandyhat/clothingclip.

• Submersibleto500'.

• Batteriesincluded.

• MadeoftoughABSpolycarbonate.

• Compactpocketandkeychainlight.

46500

46503

Electrician’s Hammer

• Elongatedneckandnarrowstrikingfaceforuseinboxes

andotherconfinedareas.

• Longstraightclawsdesignedforelectricalfixtureremoval.

• Lightweight,durablefiberglasshandleforshockresistance.

• Cushionedgripandflaredhandleendforusercomfort

andtoreduceslipping.

• ExceedsASME/ANSIspecifications.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

0156-11

CAT. NO. UPC NO. DESCRIPTION

0156-11 54698 18oz.Electrician’sHammer

SPECIFICATIONS

Overall Length 12-1/2"(31.8cm)

Weight 1.70lbs.(.77kg)

Straight Claw Hammer

• Universaldesignperfectforavarietyofapplications.

• Lightweight,durablefiberglasshandleforshockresistance.

• Cushionedgripandflaredhandleendforusercomfortandto

reduceslipping.

• ExceedsASME/ANSIspecifications.

• Lifetimelimitedwarranty.

• Note:Thisisnotaninsulatedtool.

CAT. NO. UPC NO. DESCRIPTION

0156-12 89266 16oz.StraightClawHammer

SPECIFICATIONS

Overall Length 12-3/4"(32.4cm)

Weight 1.57lbs.(.71kg)

0156-12

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

www.greenlee.com

= NEW PRODUCT

TOOl bAGs, POUChes, belTs & wOrk GlOves

20" Electrician’s Bag

• Constructedofheavy-dutycanvasfordurability.

• Sixteencanvas,interior&exteriorpocketsforadditionalversatility.

• Full-grainleatherbottom,sidesandrivetedbucklestraps.

• Washerrivetsforextrastrength.

• Wraparoundhandleswithreinforcedstitchingfullysupportbag

bottomforheavyloadcapacity.

• Reinforcedbottomhelpsretainbagshape,whileprotectingand

supportingtools.

• Large-openingsteel-framedmouthwithhingeforruggeduse

andeasyaccesstocontents.

0158-11

CAT. NO. UPC NO. DESCRIPTION

0158-11 56334 20"Electrician’sCanvasBag

SPECIFICATIONS

Dimensions L-20"(50.8cm),W-12"(30.5cm),H-10"(25.4cm)

Weight 4.25lbs.(1.93kg)

18" Heavy-Duty Multi-Pocket Bag

• Constructedofheavy-dutynylonforlongerlife.

• Thirty-onemulti-usereinforcedpockets,insideandouthelporganizetools

andaccessories.

• Large-openingsteel-framedmouthwithhingeandzipperforruggeduse

andeasyaccesstocontents.

• Paddedhandlesandadjustableshoulderstrapforcomfortandversatility.

• Largeinteriortoeasilycarrypowertools,fishtapesandotherlargetools.

• Wraparoundhandleswithreinforcedstitchingfullysupportbagbottom

forheavyloadcapacity.

• Elasticstrapsonoutsideofbagforlevels,hammersandcrowbars.

CAT. NO. UPC NO. DESCRIPTION

0158-12 56335 18"Heavy-DutyMulti-pocketBag

SPECIFICATIONS

Dimensions L-18"(45.7cm),W-11"(27.9cm),H-10"(25.4cm)

Weight 3.55lbs.(1.61kg)

11" Cordura® Open Tool Carrier

• Constructedofadouble-layerofrugged,lightweightCordura®fabric.*

• Versatilethirty-sevenpocketandloopdesignkeepstoolsorganized.

• Largesquareopeningwithsnaphandleallowsforeasyaccesstospacious

interiorandpockets.

• Box-shapeddesignandsturdyreinforcedbottomwithrubberfeetprevent

tipping.

• Heavy-dutyboxstitchingwithwasherrivetingatallstresspointsforextra

strengthandlongerlife.

• Paddedhandle,adjustableshoulderstrapandadditionalbuilt-instrapsfor

extraversatility.

• Heavy-dutytapemeasureholderacceptsandholdsanysizetapesecurely.

0158-13

CAT. NO. UPC NO. DESCRIPTION

0158-13 56336 11"CorduraOpenToolCarrier

SPECIFICATIONS

Dimensions L-11"(27.9cm),W-9"(22.9cm),H-10"(25.4cm)

Weight 4.55lbs.(2.07kg)

*Cordura® is a registered trademark for durable fabric.

0158-12

www.greenlee.com

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

= NEW PRODUCT

20-Pocket Tool Caddy

• Constructedofadouble-layerofrugged,lightweightCordura®fabric.*

• Versatiletwenty-pocketdesigneasilyaccommodatesawidevarietyof

professionalhandtools.

• Largecapacitypocketsallowforeasyaccesstocontents.

• Paddedhandleandshoulderstrapdesignforeasystorageandthebestway

tocarryaloadedtoolpouch.

• Heavy-dutytoolsnapandelectricaltapestrap.

• Steelhammerholderloop.

• Extraversatiledesignmaybecarriedusingshoulderstraporhandle,

orwornonatoolbelt.

• Heavy-Dutytapemeasureholderacceptsandholdsanysizetapesecurely.

0158-15

CAT. NO. UPC NO. DESCRIPTION

0158-15 56337 20-PocketToolCaddy

SPECIFICATIONS

Dimensions L-10"(25.4cm),W-7"(17.8cm),H-13"(33.0cm)

Weight 1.45lbs.(.66kg)

Heavy-Duty 8-Pocket Leather Pouch

• Large,dividedmainpocketareadesignedforeasystorageandtoolaccess.

• Foursmallercompartmentsforadditionaltoolorganization.

• Washerrivetsforextrastrength.

• Extralargemetaltoolclip.

• Taperedcompartmentsfortoolstability.

• Tapechainincluded.

• Fitsbeltsupto3"wide.

• Topgrainleather–won’tfadeorstain.

• Heavy-Dutytapemeasureholderacceptsandholdsanysizetapesecurely.

0258-11

CAT. NO. UPC NO. DESCRIPTION

0258-11 56339 Heavy-Duty8-PocketLeatherPouch

SPECIFICATIONS

Dimensions L-7"(17.8cm),W-6"(15.2cm),H-10-1/2"(26.7cm)

Weight 1.8lbs.(.82kg)

Heavy-Duty 5-Pocket Leather Pouch

• Largemainpocketareadesignedforeasystorageandtoolaccess.

• Foursmallercompartmentsforadditionaltoolorganization.

• Washerrivetsforextrastrength.

• Extralargemetaltoolclip.

• Taperedcompartmentsfortoolstability.

• Tapechainincluded.

• Fitsbeltsupto3"wide.

• Topgrainleather–won’tfadeorstain.

• Heavy-Dutytapemeasureholderacceptsandholdsanysizetapesecurely.

0258-13

CAT. NO. UPC NO. DESCRIPTION

0258-13 56340 Heavy-Duty5-PocketLeatherPouch

SPECIFICATIONS

Dimensions L-6"(15.2cm),W-3-1/2"(8.9cm),H-11"(27.9cm)

Weight 1.2lbs.(.55kg)

*Cordura® is a registered trademark for durable fabric.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

www.greenlee.com

= NEW PRODUCT

Heavy-Duty 4-Pocket Leather Pouch

• Fourcompactpocketareasdesignedforeasystorageandtoolaccess.

• Washerrivetsforextrastrength.

• Metaltoolclip.

• Taperedcompartmentsfortoolstability.

• Tapechainincluded.

• Fitsbeltsupto3"wide.

• Topgrainleather–won’tfadeorstain.

0258-14

CAT. NO. UPC NO. DESCRIPTION

0258-14 56341 Heavy-Duty4-PocketLeatherPouch

SPECIFICATIONS

Dimensions L-5"(12.7cm),W-2-3/4"(7.1cm),H-9"(22.9cm)

Weight .43lbs.(.82kg)

Heavy-Duty Leather Tool Belt

• 2"wideleatherbelt

• Steelrollerdouble-prongedbuckle

• Canbecuttofit29"to52"waist

SPECIFICATIONS

Dimensions L-57"(121cm),H-2"(5.1cm)

Weight .68lbs.(.31kg)

CAT. NO. UPC NO. DESCRIPTION

9858-11 56347 HeavyDutyLeatherToolBelt

9858-11

Padded Tool Belt

• 5"widepaddedtoolbelt.

• Sturdyconstructionforsupportofheavytoolpouches.

• Foamcorepaddingforextracomfort.

• Doublelayerofrugged,lightweightfabricwillnotrot,crack,

hardenormildew.

• Steelrollerdouble-prongedbuckle.

• Madetofit30"to46"waist.

9858-12

CAT. NO. UPC NO. DESCRIPTION

9858-12 56348 5"PaddedToolBelt

SPECIFICATIONS

Dimensions L-50"(12.7cm),H-5"(12.7cm)

Weight .93lbs.(.42kg)

www.greenlee.com

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

= NEW PRODUCT

12" Canvas Zipper Bag

• Constructedofheavy-dutycanvasfordurability.

• Strongzipperforsecureclosing.

• Storesmultiplesmallitemsortools.

0158-14

CAT. NO. UPC NO. DESCRIPTION

0158-14 56338 12"CanvasZipperBag

SPECIFICATIONS

Dimensions L-12"(30.5cm),H-7"(17.8cm)

Weight .17lbs.(.08kg)

2-Pocket Canvas Work Apron

• 2largepocketstoholdavarietyoftoolsandmiscellaneoussmallitems.

• Canvaswaistties.

• Double-stitchedandreinforcedatstresspointsforextrastrength.

• Fits20"-48"waist.

0258-16

CAT. NO. UPC NO. DESCRIPTION

0258-16 56342 2-PocketCanvasStringApron

SPECIFICATIONS

Dimensions L-19"(48.3cm),H-8-1/2"(21.6cm)

Weight .18lbs.(.08kg)

High Dexterity Gloves

• Tough,softandcomfortabletowear–resistsshrinking,stretching

andhardening.

• Wingclosingwriststrapforperfectadjustments,keepingdebris

outandeasy-on/easy-off.

• Stretchfabricforflexibilityandfitwithpaddedknuckles.

• Texturedpalmpadsforbettergrip,extrawearandaddeddurability.

• ThumbdesignforbetterflexibilityandLycrasidepanels

forimproveddexterity.

• Terrycloththumbtoremovesweatordebrisfromface.

SPECIFICATIONS

Weight .20lbs.(.09kg)

CAT. NO. UPC NO. DESCRIPTION

0358-11XL 56343 Gloves,MechanicsXL

0358-11L

0358-11M

0358-11L-CP

56344

89204

95932

Gloves,MechanicsL

Gloves,MechanicsM

Gloves,MechanicsLCounterPack(Qty5)

0358-11L

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

www.greenlee.com

= NEW PRODUCT

TOOl kiTs

Master Electrician’s Tool Kit

• All-inclusivetoolkitdesignedwiththemasterelectricianinmind.

• KitIncludes:18"Heavy-DutyMulti-pocketBag,Heavy-Duty

8-PocketLeatherPouch,2"LeatherToolBelt,9"Side-Cutting

Pliers,8"DiagonalCuttingPliers,8"LongNosePliers,

10"PumpPliers,ProPlusWireStripper10-18AWG,NMCable

Ripper,Stripping/CrimpingCombinationTool,CableCutter,Utility

Knife,12"Hacksaw,KeystoneTipSquareShank

1/4"x4"FlatBladeScrewdriver,KeystoneTipSquareShank

5/16"x6"FlatBladeScrewdriver,CabinetTipRoundShank

3/16"x6"FlatBladeScrewdriver,CabinetTipRoundShank

1/4"x6"FlatBladeScrewdriver,PhillipsTip#1-3/16"x3"

Screwdriver,PhillipsTip#2-1/4"x4"Screwdriver,Screw-

holdingscrewdriver3/16"x6",3"ScratchAwl,10"Adjustable

Wrench,9-PieceFoldingHex-KeySet,25'TapeMeasure,

TorpedoLevel,18oz.Electrician’sHammer,Highdexterity

gloves(L)andGT-11Voltagetester.

•Seeindividualproductinformationforspecifications.

0159-11

CAT. NO. UPC NO. DESCRIPTION

0159-11 56349 MasterElectrician’sToolKit,28pc

SPECIFICATIONS

Weight 19.7lbs.(8.96kg)

Journeyman’s Tool Kit - Standard

• Perfectkitforthejourneymanelectrician.

• KitIncludes:20-PocketToolCaddy,GT-11Voltagetester,

TorpedoLevel,18oz.Electrician’sHammer,25'TapeMeasure,

KeystoneTipSquareShank1/4"x4"FlatBladeScrewdriver,

CabinetTipRoundShank3/16"x6"FlatBladeScrewdriver,

PhillipsTip#1-3/16"x3"Screwdriver,PhillipsTip#2-1/4"

x4"Screwdriver,9"Side-CuttingPliers,8"DiagonalCutting

Pliers,8"LongNosePliers,10"PumpPliers,ProPlusWire

Stripper10-18AWG,NMCableRipper,Stripping/Crimping

CombinationToolandCableCutter.

•Seeindividualproductinformationforspecifications.

0159-12

CAT. NO. UPC NO. DESCRIPTION

0159-12 56350 Journeyman’sToolKit,17pc

SPECIFICATIONS

Weight 9.7lbs.(4.41kg)

www.greenlee.com

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

= NEW PRODUCT

CAT. NO. UPC NO. DESCRIPTION

0159-23 89238 Journeyman’sToolKit,Metric21pc

SPECIFICATIONS

Weight 13.7lbs.(6.21kg)

Journeyman’s Tool Kit - Metric

• Perfectkitforthejourneymanelectrician.

• KitIncludes:HighLeverageSide-cuttingpliers9"moldedgrip,HighLeverage

DiagonalCuttingPliers8"moldedgrip,HighLeverageLongNosePliers/Side

Cutting8"moldedgrip,PumpPliers10"moldedgrip,DualNMCableRipper,

HeavyDutyKeystoneTip,SquareShank1/4"x4"FlatBladeScrewdriver,

HeavyDutyCabinetTip,RoundShank3/16"x6"FlatBladeScrewdriver,

HeavyDutyPhillipsTip#1-3/16"x3"Screwdriver,HeavyDutyPhillipsTip

#2-1/4"x4"Screwdriver,7.5m/25'Tapemeasure,18oz.Electrician’s

Hammer,20PocketToolCaddy,Voltagetester(forkitsonly),ProPlusWire

Stripper10-18AWG,Stripping/CrimpingCombinationTool,CableCutter,

TorpedoLevel,4pcSquaredrive(Robertson)Set,SquareTipDriver#0X4",

SquareTipDriver#1X4",SquareTipDriver#2X4",SquareTipDriver#3X4"

•Seeindividualproductinformationforspecifications.

0159-23

Electrician’s Tool Kit - Standard

• Perfectkitfortheprofessionalorapprenticeelectrician.

• KitIncludes:2"LeatherToolBelt,8-PocketLeatherPouch,25'Tape

Measure,PhillipsTip#1-3/16"x3"Screwdriver,PhillipsTip#2-

1/4"x4"Screwdriver,CabinetTipRoundShank3/16"x6"FlatBlade

Screwdriver,KeystoneTipSquareShank1/4"x4"FlatBladeScrewdriver,

ProPlusWireStripper10-18AWG,8"LongNosePliers,10"PumpPliers,

8"DiagonalCuttingPliersand9"Side-CuttingPliers.

•Seeindividualproductinformationforspecifications.

SPECIFICATIONS

Weight 7.75lbs.(3.52kg)

CAT. NO. UPC NO. DESCRIPTION

0159-13 56351 Electrician’sToolKit-Standard,12pc

0159-13

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hand Tools

www.greenlee.com

= NEW PRODUCT

Starter Electrician’s Tool Kit

• Perfectkitforthebeginnerelectrician.

• Four-pocket,heavy-duty,leathertoolpouchholdsanassortmentoffour

professionalgradehandtools.

• KitIncludes:HeavyDuty4PocketLeatherPouch,PhillipsTip#2-1/4"x4"

Screwdriver,CabinetTipRoundShank3/16"x6"FlatBladeScrewdriver,

ProPlusWireStripper10-18AWGand9”Side-Cuttingpliers.

•Seeindividualproductinformationforspecifications.

SPECIFICATIONS

Weight 2.25lbs.(1.02kg)

CAT. NO. UPC NO. DESCRIPTION

0159-14 56352 StarterElectrician’sToolKit,5pc

0159-14

Electrician’s Tool Kit - Metric

• Perfectkitfortheprofessionalorapprenticeelectrician.

• KitIncludes:HighLeverageSide-cuttingpliers9"moldedgrip,High

LeverageDiagonalCuttingPliers8"moldedgrip,HighLeverageLongNose

Pliers/SideCutting8"moldedgrip,PumpPliers10"moldedgrip,HeavyDuty

KeystoneTip,SquareShank1/4"x4"FlatBladeScrewdriver,HeavyDuty

CabinetTip,RoundShank3/16"x6"FlatBladeScrewdriver,HeavyDuty

PhillipsTip#1-3/16"x3"Screwdriver,HeavyDutyPhillipsTip#2-

1/4"x4"Screwdriver,7.5m/25'Tapemeasure,HeavyDuty8PocketLeather

Pouch,HeavyDutyLeatherToolBelt,ProPlusWireStripper10-18AWG,

4pcSquaredrive(Robertson)Set,SquareTipDriver#0X4",SquareTipDriver

#1X4",SquareTipDriver#2X4",SquareTipDriver#3X4"

•Seeindividualproductinformationforspecifications.

SPECIFICATIONS

Weight 16.5lbs.(7.5kg)

CAT. NO. UPC NO. DESCRIPTION

0159-24 89239 Electrician’sToolKit-Metric,16pc

0159-24

Irrigation Tool Kit

• Perfectkitfortheirrigationprofessional.

• KitIncludes:HighLeverageSide-cuttingpliers8"moldedgrip,6-in-1Multi-

toolScrewdriver,25'Tapemeasure,18"Heavy-DutyBag,16"DippedPump

Pliers,HDUtilityKnife,ShatterproofHackSawBlades,Heavy-Duty12"Hack

Saw,AutoSelectDigitalMultimeter,Rocut50TCPVCShears1-1/2,ProPlus

Strippers8-16AWG

•Seeindividualproductinformationforspecifications.

SPECIFICATIONS

Weight 15.6lbs.(7.1kg)

CAT. NO. UPC NO. DESCRIPTION

0259-11 89246 IrrigationToolKit-11pc

0259-11

Holemaking

Year after year, Greenlee delivers holemaking products that are second-to-none in

the industry. And today, we offer the most complete line of holemaking solutions

for getting through steel, stainless steel, wood, aluminum, ﬁberglass, plastic,

drywall, cement board and more. For holemaking...get through it with Greenlee.

Holemaking

FEATURED Products

NEW

Bi-Metal

Hole Saws

with Stops

NEW

Slug-Splitter SC™

(Self-Centering)

Knockout Punches

82 93

NEW

E-Z Bore® Bits

NEW

Quick Connect

Extensions

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Holemaking Selection Guide

MATERIAL NUMBER

MATERIAL TYPE THICKNESS OF HOLES PRODUCTS APPLICATION CONSIDERATIONS PAGES

Steel 10GA Highest Slug-Splitter SC™ Punches Maximum durability and universal 42-44

material usage

Maximum hole size 2-1/2 inches

10GA High Slug-Buster® Punches Maximum hole size 2-1/2 inches 45-51

10GA High Standard Punches Maximum hole size 5-5/8 inches 52-53

10GA Medium-High Ultra Cutters Maximum hole size 2-1/2 inches 90

8GA High Carbide-Tipped Hole Cutters Maximum hole size 2-1/2 inches 89

10GA Medium-High Step Bits Maximum hole size 1-3/8 inches 79

10GA Medium Hole Saws Maximum hole size 6 inches 91-97

Stainless Steel 10GA Highest Slug-Splitter SC™ Punches Maximum durability and universal

material usage 42-44

Maximum hole size 2-1/2 inches

9GA Medium-High Quick Change Maximum hole size 3 inches, quick change 88

Carbide-Tipped Cutters cutting heads

8GA Medium-High Carbide-Tipped Hole Cutters Maximum hole size 2-1/2 inches 89

Wood 18" High Nail Eater II® Bits Cuts through nails, good chip removal, 80

max hole size 1-1/4 inches

2–2 x 4’s High E-Z Bore® Bits Self feed screw for hard or soft woods, 82

max hole size 4-5/8 inches

2 x 4 High Step Bits Maximum hole size 1-3/8 inches, low chip removal 79

16" Medium Spade Bits Maximum hole size 1-1/2 inches 83

1-5/8" or 2 x 4 High Hole Saws Maximum hole size 6 inches 91-97

Aluminum 10GA Highest Slug-Splitter SC™ Punches Maximum durability and universal material usage 42-44

Maximum hole size 2-1/2 inches

10GA High Slug-Buster® Punches Maximum hole size 2-1/2 inches 45-51

10GA High Standard Punches Maximum hole size 5-5/8 inches 52-53

10GA High Ultra Cutters Maximum hole size 2-1/2 inches 90

10GA High Step Bits Maximum hole size 1-3/8 inches 79

10GA Medium Hole Saws Maximum hole size 6 inches 91-97

Fiberglass/Plastic approx. 1/8" Highest Slug-Splitter SC™ Punches Maximum durability and universal material usage 42-43

Maximum hole size 2-1/2 inches

approx. 1/8" High Slug-Buster® Punches Maximum hole size 2-1/2 inches 43-51

approx. 1/8" High Standard Punches Maximum hole size 5-5/8 inches 52-53

High Ultra Cutters Maximum hole size 2-1/2 inches 90

Medium-High Step Bits Maximum hole size 1-3/8 inches 79

1-5/8" Medium Hole Saws Maximum hole size 6 inches 91-97

Drywall/Ceiling Tile 7/8" High Recessed Light Hole Saws Replaceable blades 96

7/8" Medium-Low Quick Cutter Adjustable or fixed, sprinkler heads or lighting 96

7/8" Medium Keyhole Saw Non-round holes 100

Quazite®* Enclosures High Slug-Buster® Punches 45-51

approx. 1/8" High Carbide-Grit Hole Saws 93

Hardyboard Siding High Carbide-Grit Hole Saws 93

Cement Board High Carbide-Grit Hole Saws 93

Existing Wall D’versibits® Remodeling, phone, cable, alarm installation 84-85

Non-Round Hole High Non-Round Punches Square, rectangular, electronic connector holes 70-71

Medium Reciprocating Blades 98

Medium Jigsaw Blades 99

Non-Conduit Sizes 16-10GA High Standard Punches 52-56

Metal Studs 20GA Stud Punches 76-77

*Quazite is a registered trademark of Strongwell Corporation

SELECTION GUIDES

STEEL

WOOD

ALUMINUM

PLASTIC

STAINLESS STEEL

FIBERGLASS

NON-ROUND HOLE

DRYWALL

CEILING TILES

STEEL

WOOD

ALUMINUM

PLASTIC

STAINLESS STEEL

FIBERGLASS

NON-ROUND HOLE

DRYWALL

CEILING TILES

STEEL

WOOD

ALUMINUM

PLASTIC

STAINLESS STEEL

FIBERGLASS

NON-ROUND HOLE

DRYWALL

CEILING TILES

STEEL

WOOD

ALUMINUM

PLASTIC

STAINLESS STEEL

FIBERGLASS

NON-ROUND HOLE

DRYWALL

CEILING TILES

STEEL

WOOD

ALUMINUM

PLASTIC

STAINLESS STEEL

FIBERGLASS

NON-ROUND HOLE

DRYWALL

CEILING TILES

STEEL

WOOD

ALUMINUM

PLASTIC

STAINLESS STEEL

FIBERGLASS

NON-ROUND HOLE

DRYWALL

CEILING TILES

STEEL

WOOD

ALUMINUM

PLASTIC

STAINLESS STEEL

FIBERGLASS

NON-ROUND HOLE

DRYWALL

CEILING TILES

STEEL

WOOD

ALUMINUM

PLASTIC

STAINLESS STEEL

FIBERGLASS

NON-ROUND HOLE

DRYWALL

CEILING TILES

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Knockout Punch and Driver Selection Guide

PUNCH TYPE DRIVE METHOD CAPACITY SIZE RANGE AVAILABLE PAGES

Slug-Splitter SC™ Ratchet, Hydraulic or Battery Up thru 10 gauge (3.5 mm) .598" through 2.526" dia. 42-44

stainless steel or mild steel (15.2 mm through 64 mm)

Slug-Buster® Manual, Ratchet, Up thru 10 gauge .492" through 2.52" dia. 45-51

Hydraulic or Battery (3.5 mm) mild steel (12.5 mm through 64.0 mm)

Standard Round Manual, Ratchet, Up thru 10 gauge (3.5 mm) 1/2" through 5-5/8" dia. 52-56

Hydraulic or Battery mild steel and aluminum (12.7 through 143.7 mm)

DRIVER TYPE DESCRIPTION KITS PAGES

 Battery-Powered •Develops6.7tonsofhydraulicforce. Availableinkitswithdriveronlyorwith 57-59

 orCorded •Availablewithachoiceofthreebatterychargers– driverandSlug-Buster® knockout

Hydraulic Driver 115, 230 or 12 volt. punches.

  •Punchesupthrough10gauge(3.5mm)mildsteel

with Greenlee standard and Slug-Buster® knockout

punches and 12 gauge (2.5 mm) stainless steel with

Greenlee Slug-Splitter SC™ knockout punches.

 HandPump •Powerfulhydraulicramdevelops11tonsof Availableinkitswithdriveronly 65

Hydraulic Driver hydraulic force. or with driver and either standard,

 withRam •Punchesupthru10gauge(3.5mm)mildsteelwith Slug-Buster® or Slug-Splitter SC™

Greenlee standard and Slug-Buster® knockout knockout punches.

punches and 10 gauge (3.5 mm) stainless steel with

Greenlee Slug-Splitter SC™ knockout punches.

 FootPump •Footoperationfreesbothhandstooperatepunch. Availableinkitswithdriveronlyorwith 62

 HydraulicDriver •Powerfulhydraulicramdevelops11tonsof driverandeitherstandard,Slug-Buster®

with Ram hydraulic force. or Slug-Splitter SC™ knockout punches.

  •Punchesupthrough10gauge(3.5mm)mildsteel

with Greenlee Standard and Slug-Buster® knockout

punches and 10 gauge (3.5 mm) stainless steel with

Greenlee Slug-Splitter SC™ knockout punches.

Quick Draw®Flex •Allowsunlimiteddriverorientationtosimplifyaccess  60

Hydraulic Driver to work area.

  •Develops8tonsofhydraulicforceforeasypunching.

  •Punchesupthrough10gauge(3.5mm)mildsteel

with Greenlee Standard and Slug-Buster® knockout

punches and 10 gauge (3.5 mm) stainless steel with

Greenlee Slug-Splitter SC™ knockout punches.

Quick Draw 90® •Rightangledriverheadrotatesover180degreesfor Availableinkitswithdriveronlyorwith 60

Hydraulic Driver maximum flexibility in tight working areas. driver and Slug-Buster® knockout

  •Develops8tonsofhydraulicforceforeasypunching. punches.

  •Punchesupthrough10gauge(3.5mm)mildsteel

with Greenlee Standard and Slug-Buster® knockout

punches and 10 gauge (3.5 mm) stainless steel with

Greenlee Slug-Splitter SC™ knockout punches.

Quick Draw® •Perfectforfast,straight-onfrontpanelpunching. Availableinkitswithdriveronlyorwith 60

 HydraulicDriver •Develops8tonsofhydraulicforceforeasypunching. driverandSlug-Buster® knockout

  •Punchesupthrough10gauge(3.5mm)mildsteel punches.

with Greenlee Standard and Slug-Buster® knockout

punches and 10 gauge (3.5 mm) stainless steel with

Greenlee Slug-Splitter SC™ knockout punches.

 HighLeverage •Timesavingballbearingheadpunchesfasterthan Availableinkitswithdriveronlyorwith 48

Ratchet Driver wrench method. driver and Slug-Buster® knockout

  •Punchesupthrough10gauge(3.5mm)mildsteel punches.

with Greenlee Standard Slug-Buster® knockout

punches and 16 gauge (1.5 mm) stainless steel with

Greenlee Slug-Splitter SC™ knockout punches.

Knockout

Punch

Knockout

Punch Driver

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Slug is split in half as

punching operation is

completed.

Split slugs fall free

from the die and stud.

Unique Slug-Splitter

™

punch design

creases slug as the

punch is drawn into

the die.

HOLE SIZE CAPACITY DRAW STUDS

PUNCH DIE CONDUIT ACTUAL STAINLESS STEEL HYDRAULIC DRIVERS RATCHET DRIVER*

CAT./UPC NO. CAT./UPC NO. & PIPE Ø (INCH) Ø (mm) PG ISO GA. (mm) 7804/7904 7646/7625 1904

28154 28155 1/2" 7/8 0.885 22.5 16 - 10 3.5 29451 29451 30227

28156 28157 3/4" - 1.115 28.3 21 - 10 3.5 31872 29452 12099

36490 36489 - 1-7/32 1.210 30.5 - - 10 3.5 31872 29452 12099

28158 28159 1" 1-11/32 1.352 34.6 - - 10 3.5 31872 29452 12099

28160 28161 1-1/4" 1-11/16 1.701 43.2 - - 10 3.5 31872 29452 12099

28162 28163 1-1/2" 1-15/16 1.951 49.6 - - 10 3.5 - 29452 12099

28165 28166 2" 2-3/8 2.416 61.5 - - 10 3.5 - 29452 12099

31117 31126 - - 0.598 15.2 9 - 12 2.5 29451 29451 30227

04599 04598 - - 0.638 16.2 - 16 12 2.5 29451 29451 30227

31119 31128 - - 0.732 18.6 11 - 12 2.5 29451 29451 30227

31120 31129 - - 0.803 20.4 13 20 12 2.5 29451 29451 30227

04602 04601 - - 1.000 25.4 - 25 10 3.5 31872 29452 30227

04605 04603 - - 1.280 32.5 - 32 10 3.5 31872 29452 12099

31122 31135 - - 1.457 37.0 29 - 10 3.5 31872 29452 12099

04608 04607 - - 1.595 40.5 - 40 10 3.5 31872 29452 12099

31123 31131 - - 1.850 47.0 36 - 10 3.5 - 29452 12099

04611 04609 - - 2.000 50.8 - 50 10 3.5 - 29452 12099

31124 31132 - - 2.125 54.0 42 - 10 3.5 - 29452 12099

31125 31133 - - 2.362 60.0 48 - 10 3.5 - 29452 12099

04614 04613 - - 2.520 64.0 - 63 10 3.5 - 29452 12099

* 16 ga. stainless steel capacity with ratchet driver.

STANDARD SLUG-SPLITTER KNOCKOUT PUNCHES

SLUG-SPLITTER SC™ (SELF CENTERING) KNOCKOUT PUNCHES

SLUG-SPLITTER SC™ KNOCKOUTS

Slug-Splitter SC™ (Self-Centering) Knockout Punches 0.598" to 2.520"

• Slug-SplitterSC™ heavy-duty punches are designed to punch up through 10

gauge (3.5 mm) stainless steel.

• Uniqueslug-splittingdesignandtoolsteelconstructioneasilypunch10

gauge (3.5 mm) mild steel and stainless steel.

• Self-centeringpunchalignsitselfonpilothole.(Slug-SplitterSC™)

• Noneedtodrawcrosshairsorlineupdiealignmentmarks.

(Slug-Splitter SC™)

• Uniquepunchprofilealsosplitsslugsforeasierslugremoval.

• Heavy-dutydiesandstainlesssteeldrawstudsforlongerlife.

• Excellentabrasionresistanceforpunchingfiberglassandplastic.

• Slug-SplitterSC™punch units consist of: punch, die and draw stud.

Check individual punch for specific capacity.

• U.S.PatentNo.4,543,722forstandardSlug-Splitter;PatentPendingfor

Self-centering Slug-Splitter SC™.

SPECIFICATIONS

Capacity Stainless steel up through 10 gauge (3.5 mm)

Application 10-gauge stainless steel, mild steel, fiberglass and plastic enclosures.

Hole Sizes Conduit Sizes - Hole size is outside diameter of US conduit sizes.

Example: 1/2" conduit size actually makes a 7/8" hole.

Pg Sizes - European standard pipe sizes.

ISO Sizes - International Standards Organization pipe sizes.

Operation Operate with battery, hydraulic or high leverage ratchet driver only.

Designed for

stainless steel

applications

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

PUNCH UNIT - INCLUDES

PUNCH, DIE & DRAW HOLE SIZE CAPACITY

STAINLESS STEEL WEIGHT DRIVER

DRAW

STUD

Catalog No. UPC No Conduit and

Pipe Size ø inch ø mm GA mm LBS. kg 1904 7804/7904 LS60*/

CLC60 7646/7625

745R-1/2 30384 1/2" 7/8 22.5 16 1.5 .6 .27 x 30227

745H-1/2 29560 1/2" 7/8 22.5 10 3.5 .7 .32 x x x 29451

740H-1-7/32

Oil Tight

29563 - 1-7/32 30.5 10 3.5 1.2 .54 x x x 29452

745H-3/4 12318 3/4" 1-3/32 28.3 10 3.5 1.26 .57 x 29452

745H-1 12319 1" 1-11/32 34.6 10 3.5 1.51 .68 x 29452

745H-1-1/4 12320 1-1/4" 1-11/16 43.2 10 3.5 1.96 .89 x 29452

745H-1-1/2 12321 1-1/2" 1-15/16 49.6 10 3.5 2.49 1.13 x 29452

745H-2 12322 2" 2-3/8 61.5 10 3.5 3.69 1.67 x 29452

745M-15.2 12323 - 0.598 15.2 12 2.5 .98 .44 x 29451

745M-16.2 12324 - 0.638 16.2 12 2.5 .97 .44 x 29451

745M-18.6 12325 - 0.732 18.6 12 2.5 .98 .45 x 29451

745M-20.4 12326 - 0.803 20.4 12 2.5 .96 .44 x 29451

745M-25.4 12317 - 1.000 25.4 10 3.5 1.05 .48 x 29451

745M-32.5 12327 - 1.280 32.5 10 3.5 1.53 .69 x 29452

745M-37 12328 - 1.457 37 10 3.5 1.68 .76 x 29452

745M-40.5 12329 - 1.595 40.5 10 3.5 1.83 .83 x 29452

745M-47 12330 - 1.850 47 10 3.5 2.3 1.04 x 29452

745M-50.8 12331 - 2.000 50.8 10 3.5 2.91 1.32 x 29452

745M-54 12332 - 2.125 54 10 3.5 2.90 1.31 x 29452

745M-60 12333 - 2.362 60 10 3.5 3.63 1.65 x 29452

745M-64 12334 - 2.520 64 10 3.5 3.87 1.75 x 29452

PUNCH UNIT

* Battery-Powered or Corded Knockout Punch Driver

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Slug-Splitter SC™ Ram and Hand Pump Hydraulic Driver Punch Kits

SLUG-SPLITTER SC™ KNOCKOUT KITS

HOLE SIZE CAPACITY KIT CAT./UPC NO.

CONDUIT & ACTUAL STAINLESS STEEL 744/ 7307/ 7506/

CAT. NO. UPC NO. DESCRIPTION PIPE SIZE Ø INCH Ø mm GA mm 29619 29528 30385

28154 28154 1/2" Conduit Size Punch 1/2" 7/8 .885 22.5 10 3.5

✓

28155 28155 1/2" Conduit Size Die 1/2" 7/8 .885 22.5 10 3.5

✓

28156 28156 3/4" Conduit Size Punch 3/4" — 1.115 28.3 10 3.5

✓

28157 28157 3/4" Conduit Size Die 3/4" — 1.115 28.3 10 3.5

✓

36490 36490 1-7/32" Punch Oiltight — 1-7/32 1.210 30.5 10 3.5

✓

36489 36489 1-7/32" Die Oiltight — 1-7/32 1.210 30.5 10 3.5

✓

28158 28158 1" Conduit Size Punch 1" 1-11/32 1.362 34.6 10 3.5

✓

28159 28159 1" Conduit Size Die 1" 1-11/32 1.362 34.6 10 3.5

✓

28160 28160 1-1/4" Conduit Size Punch 1-1/4" 1-11/16 1.701 43.2 10 3.5

✓

28161 28161 1-1/4" Conduit Size Die 1-1/4" 1-11/16 1.701 43.2 10 3.5

✓

28162 28162 1-1/2" Conduit Size Punch 1-1/2" 1-15/16 1.951 49.6 10 3.5

✓

28163 28163 1-1/2" Conduit Size Die 1-1/2" 1-15/16 1.951 49.6 10 3.5

✓

28165 28165 2" Conduit Size Punch 2" 2-3/8 2.416 61.5 10 3.5

✓

28166 28166 2" Conduit Size Die 2" 2-3/8 2.416 61.5 10 3.5

✓

29451 29451 7/16" x 4-1/4" Draw Stud

✓

29452 29452 3/4" x 5-1/2" Draw Stud

✓

29529 29529 Metal Case

✓

19193 19193 Metal Case

✓

31068 31068 Metal Case

✓

746SS 30387 Ram (includes 1 each of the following 3 items)

✓

54167 54167 1/4" Female Coupler

✓

54168 54168 Dust Plug 

15908 15908 Spacer Group (includes 1 each of the following 3 items)

✓

1924AA 03248 Spacer-Short 

1925AA 03249 Spacer-Medium

✓

1926AA 06904 Spacer-Long 

767 13284 Hydraulic Hand Pump

✓

38316 38316 High Pressure Hose Unit–1/4" x 3' (includes 1 each of the following 3 items) 

54169 54169 1/4" Male Coupler

✓

54170 54170 Dust Cap 

06302 06302 High Pressure Hose–1/4" x 3'

✓

Punches and Dies

Draw Studs and Misc.

7506 Punch Kit

744 Punch Kit

(driver not included)

7307 Punch Kit

(driver not included)

WEIGHT

CAT. NO. UPC NO. DESCRIPTION LBS. kg.

744 29619 1/2" through 1-1/4" Conduit Size Slug-Splitter SC

Knockout Punch Kit 5 2.3

7307 29528 1/2" through 2" Conduit Size Slug-Splitter SC™

Knockout Punch Kit 10.4 4.7

7506 30385 1/2" through 2" Conduit Size Slug-Splitter SC™

Knockout Punch Kit with Hydraulic Ram

and Hand Pump 32 14.5

NOTE: See Slug-Splitter SC™ knockout punch units on page 42 for list of individual punches, dies and draw studs.

SPECIFICATIONS

Operation 7307/29528 - Quick Draw®, Quick Draw 90® and Quick Draw® Flex

Hydraulic Drivers, Battery-Powered Drivers, 7646 and 7625 Ram-Type

Drivers.

744/29619 - Quick Draw®, Quick Draw 90® and Quick Draw® Flex Hydraulic

Drivers, Battery-Powered Drivers, 7646 and 7625 Ram-Type Drivers.

7506/30385 - Hydraulic Ram and Hand Pump included.

All Kits Feature:

• Slug-SplitterSC™ (Self Centering) knockout punches with capacities up through 10

gauge (3.5 mm) stainless steel. Refer to individual punch capacity ratings.

• Self-centeringpunchalignsitselfonpilothole.(Slug-SplitterSC™)

• Noneedtodrawcrosshairsorlineupdiealignmentmarks.(Slug-SplitterSC™)

7506 Kit Features

• Fast,easyandsimpletooperate.

• Compactdesignmakesthisaperfectchoiceforuseonconstructionsitesand

maintenance jobs.

• Willalsodrive751CableCutterhead.

• Powerful11-tonhydraulicram.

• 3-foothose.

Designed for

stainless steel

applications

™

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

CONDUIT & WEIGHT OF

PUNCH UNIT PIPE SIZE HOLE SIZES PUNCH UNIT PUNCH ONLY DIE ONLY STUD ONLY

CAT NO. UPC INCH MM LBS. G CAT NO. UPC CAT NO. UPC CAT NO. UPC

77U-1/2* 10801 1/2" .885 22.2 0.3 137 77P-1/2 11361 14722 14722 00042 00042

77P-1/2P* 11261 14722P* 01992 00042 00042

77U-3/4* 10802 3/4" 1.115 28.3 0.8 363 77P-3/4 11362 124AV 06972 294AVBB 04040

77-3/4P* 11262 124AVP* 01993 294AVBBP* 01987

10807* 10807 - 1.21 30.5 0.9 408 11357 11357 36278 36278 294AVBB 04040

77U-1* 10803 1" 1.362 34.6 1 454 77P-1 11363 126AV 04011 394AVBB 04040

77P-1P* 11263 126AVP* 01994 294AVBBP 01987

77U-1-1/4* 10804 1-1/4* 1.701 43.2 1.3 590 77P-1-1/4 11364 128AV 04013 294AVBB 04040

77P-1-1/4P* 11264 128AVP* 01995 294AVBBP* 01987

77U-1-1/2* 10805 1-1/2" 1.951 49.6 2.1 953 77P-1-1/2 11365 440AV 04061 304AVBB 04042

77P-1-1/2P* 11265 440AVP* 01996 304AVBBP* 01988

77U-2* 10806 2" 2.416 61.4 2.3 1043 77P-2 11366 442AV 04063 304AVBB 04042

77P-2P* 11266 442AVP* 01997 304AVBBP* 01988

10800 10800 1/2"-2" Kit - - - - - - - - - -

SLUG-BUSTER® KNOCKOUTS

Slug-Buster SC® (Self-Centering)

• Savetimeandensureaccuracy!Self-centeringpunchalignsitselfonpilothole.

• Noneedtodrawcrosshairsorlineupdiealignmentmarks.

• Uniquepunchalsosplitsslugsforeasierslugremoval.

• USPatentNo.6,973,729

CAT NO. UPC NO. DESCRIPTION CONDUIT SIZE HOLE SIZES

77P-1/2 11361 1/2" Punch Buster, SC 1/2" .885

14722 14722 1/2" Die Rd. 1/2" .885

77P-3/4 11362 3/4" Punch Buster, SC 3/4" 1.115

124AV 06972 3/4" Die Rd. 3/4" 1.115

77P-1 11363 1" Punch Buster, SC 1" 1.362

126AV 04011 1" Die Rd. 1" 1.362

77P-1-1/4 11364 1-1/4" Punch Buster, SC 1-1/4" 1.701

128AV 04013 1-1/4" Die Rd. 1-1/4" 1.701

77P-1-1/2 11365 1-1/2" Punch Buster, SC 1-1/2" 1.951

440AV 04061 1-1/2" Die Rd. 1-1/2" 1.951

77P-2 11366 2" Punch Buster, SC 2" 2.416

442AV 04063 2" Die Rd. 2" 2.416

10800 Slug-Buster SC® Knockout Kit Includes

*POP Packaged

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

= NEW PRODUCT

PUNCH UNIT REPLACEMENT PARTS

PUNCH UNIT INCLUDES HOLE SIZE CAPACITY REPLACEMENT

PUNCH, DIE AND DRAW STUD CONDUIT & ACTUAL MILD STEEL WEIGHT REPLACEMENT PUNCH REPLACEMENT DIE MANUAL DRAW STUD

CAT. NO. UPC NO. PIPE SIZE Ø INCH Ø mm PG ISO GA. mm LBS. g CAT. NO. UPC NO. CAT. NO. UPC NO. CAT. NO. UPC NO.

06727 06727 — — 0.492 12.5 7 12 16 1.5 0.3 137 06728 06728 06729 06729 1675AV 04218

12356 12356 — 1/2 — 12.7 7 — 16 1.5 0.15 69 12360 12360 12358 12358 1675AV 04218

12357 12357 — 9/16 — 14.3 — — 16 1.5 0.16 73.5 12357 12357 12361 12361 1675AV 04218

7211EBB-15.2 31989 — — 0.598 15.2 9 — 14 2.0 0.3 137 31969 31969 32002 32002 00042 00042

35177 35177 — — 0.638 16.2 — 16 14 2.0 0.3 137 35163 35163 35162 35162 00042 00042

12335 12335 — 11/16 — 17.5 — — 14 2.0 0.3 177 12337 12337 12336 12336 00042 00042

7211EBB-18.6 31990 — — 0.732 18.6 11 — 14 2.0 0.3 137 31970 31970 32003 32003 00042 00042

12307 12307 — 3/4 — 19.1 — — 14 2.0 0.4 183 12306 12306 12305 12305 00042 00042

7211EBB-20.4 31991 — — 0.803 20.4 13 20 14 2.0 0.3 137 31971 31971 32004 32004 00042 00042

7211BB-1/2 31962 1/2" 7/8 0.885 22.5 16 — 10 3.5 0.3 137 721-1/2 31756 14722 14722 00042 00042

12338 12338 — 15/16 — 23.8 — — 14 2.0 0.5 253 12340 12340 12339 12339 00042 00042

1/2" 7/8 0.885 22.5 16 — 10 3.5 — — 721-1/2P

01980 14722P

01992 00042P 06678

35178 35178 — 1 1.000 25.4 — 25 14 2.0 0.5 227 35165 35165 35164 35164 00042P 06678

12341 12341 — 1-1/16 — 27 — — 14 2.0 0.6 261 12343 12343 12342 12342 00042 00042

7211BB-3/4 31963 3/4" — 1.115 28.3 — — 10 3.5 0.8 363 721-3/4 31757 124AV 06972 249AVBB 04040

3/4" — 1.115 28.3 — — 10 3.5 — — 721-3/4P

01981 124AVP

01993 249AVBBP

01987

7211EBB-28.3 31993 — — 1.115 28.3 21 — 14 2.0 0.5 227 31973 31973 32006 32006 00042 00042

60246 60246 — 1-7/32 1.210 30.5 — — 10 3.5 0.6 273 60237 60237 36278 36278 249AVBB 04040

36508 36508 — 1-7/32 1.210 30.5 — — 14 2.0 0.6 273 36284 36284 36279 36279 00042 00042

12308 12308 — 1-1/4 — 31.8 — — 16 1.5 0.7 326.5 12309 12309 12310 12310 00042 00042

35179 35179 — — 1.280 32.5 — 32 10 3.5 0.8 363 35169 35169 35168 35168 249AVBB 04040

12344 12344 — 1-5/16 — 33.4 — — 16 1.5 0.7 345 12346 12346 12345 12345 00042 00042

7211BB-1 31964 1" — 1.362 34.6 — — 10 3.5 1 454 721-1 31758 126AV 04011 249AVBB 04040

12304 12304 — 1-3/8 — 34.9 — — 10 3.0 1.1 507.5 12303 12303 12302 12302 04040 04040

1" — 1.362 34.6 10 — 10 3.5 — — 721-1P

01982 126AVP

01994 249AVBBP

01987

7211EBB-37 31995 — — 1.457 37.0 29 — 10 3.5 1.2 545 31975 31975 32008 32008 249AVBB 04040

12313 12313 — 1-1/2 — 38.1 — — 10 3.0 1.2 559 12312 12312 12311 12311 04040 04040

35180 35180 — — 1.595 40.5 — 40 10 3.5 1.2 545 35158 35158 35159 35159 249AVBB 04040

12347 12347 — 1-5/8 — 41.3 — — 10 3.0 1.3 610.25 12349 12349 12348 12348 04040 04040

7211BB-1-1/4 31965 1-1/4" — 1.701 43.2 — — 10 3.5 1.3 590 721-1-1/4 31759 128AV 04013 249AVBB 04040

12316 12316 — 1-3/4 — 44.5 — — 10 3.0 1.4 661.5 12315 12315 12314 12314 04040 04040

1-1/4" — 1.701 43.2 — — 10 3.5 — — 721-1-1/4P

01983 128AVP

01995 249AVBBP

01987

7211EBB-47 31996 — — 1.850 47.0 36 — 10 3.5 1.9 862 31976 31976 32009 32009 304AVBB 04042

12350 12350 — 1-7/8 — 47.6 — — 10 3.0 1.8 853.5 12354 12354 12352 12352 04042 04042

7211BB-1-1/2 31966 1-1/2" — 1.951 49.6 — — 10 3.5 2.1 953 721-1-1/2 31760 440AV 04061 304AVBB 04042

1-1/2" — 1.951 49.6 — — 10 3.5 — — 721-1-1/2P

01984 440AVP

01996 304AVBBP

01988

35181 35181 — 2 2.000 50.8 — 50 10 3.5 2.3 1043 35160 35160 35161 35161 304AVBB 04042

36171 36171 — 2-1/8 2.125 54.0 42 — 10 3.5 2.5 1134 36172 36172 36173 36173 304AVBB 04042

12351 12351 — 2-1/4 — 57.2 — — 10 3.0 2.9 1336 12355 12355 12353 12353 04042 04042

7211EBB-60 31998 — — 2.362 60.0 48 — 10 3.5 2.8 1270 31978 31978 32011 32011 304AVBB 04042

7211BB-2 31967 2" 2-3/8 2.416 61.5 — — 10 3.5 3.2 1452 721-2 31761 442AV 04063 304AVBB 04042

2" 2-3/8 2.416 61.5 — — 10 3.5 — — 721-2P

01985 442AVP

01997 304AVBBP

01988

35182 35182 — — 2.520 64.0 — 63 10 3.5 3.4 1542 35167 35167 35166 35166 304AVBB 04042

Individually Packaged in Point of Purchase clamshell for display opportunities

Slug-Buster® Knockout Punches 0.492" to 2.520"

• Thecontractor’schoice–worldwide.

• Uniquepunchprofilealsosplitsslugsforeasierslugremoval.

• Usewithbattery-powered,hydraulic,ratchetormanualdrivers.

• UsesstandardGreenleediesanddrawstuds.

• SlugBuster® punches available in sizes up thru 2.52" (64.0 mm).

• U.S.Patent#4,543,722forSlug-Buster®.

SPECIFICATIONS

Capacity Mild steel up through 10 gauge (3.5 mm).

Application Punch mild steel, aluminum, fiberglass and plastic.

Hole Sizes Conduit Sizes- Hole size is outside diameter of US conduit sizes. i.e 1/2"

conduit actually 7/8".

Pg Sizes-European standard pipe sizes.

ISO Sizes- International Standards Organization pipe sizes.

Operation Battery,hydraulic,ratchetormanualdrivers.Whenusedwithratchet,

hydraulicorbatterydrivers,buythepunchanddieonly;thedrawstudis

part of the driver kit.

Unique Slug-Buster

punch design creases

slug as the punch is

drawn into the die.

Slug is split in half as

punching operation is

completed.

Split slugs fall free from

the die and stud.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Slug-Buster® Manual Knockout Kits

• AssortmentofcommonlyusedSlug-Buster® knockout

punches, packaged to meet the contractor’s needs.

• High-impact,ruggedplasticcarryingcase.

SLUG-BUSTER® KNOCKOUT KITS

7237BB

CAPACITY

MILD STEEL WEIGHT

CAT. NO. UPC NO. DESCRIPTION GA mm LBS. kg.

7235BB 32013 1/2" - 1-1/4" Conduit Size Manual 10 3.5 2.7 1.2

Slug-Buster® Knockout Punch Kit

7237BB 32014 1-1/2" and 2" Conduit Size Manual 10 3.5 5.2 2.4

Slug-Buster® Knockout Punch Kit

7235BB/32013 SLUG-BUSTER® KNOCKOUT PUNCH KIT INCLUDES

HOLE SIZE ACTUAL

CAT. NO. UPC NO. DESCRIPTION Ø INCH Ø mm PG

721-1/2 31756 1/2" Conduit Size Punch 7/8 .885 22.5 16

14722 14722 1/2" Conduit Size Die 7/8 .885 22.5 16

00042 00042 Draw Stud–3/8" x 1-5/8"

721-3/4 31757 3/4" Conduit Size Punch — 1.115 28.3 —

124AV 06972 3/4" Conduit Size Die — 1.115 28.3 —

721-1 31758 1" Conduit Size Punch — 1.362 34.6 —

126AV 04011 1" Conduit Size Die — 1.362 34.6 —

721–1-1/4 31759 1-1/4" Conduit Size Punch — 1.701 43.2 —

128AV 04013 1-1/4" Conduit Size Die — 1.701 43.2 —

249AVBB 04040 Draw Stud–3/4" x 2-1/8"

31880 31880 Plastic Case

7237BB/32014 SLUG-BUSTER® KNOCKOUT PUNCH KIT INCLUDES

HOLE SIZE ACTUAL

CAT. NO. UPC NO. DESCRIPTION Ø INCH Ø mm PG

721-1-1/2 31760 1-1/2" Conduit Size Punch — 1.951 49.6 —

440AV 04061 1-1/2" Conduit Size Die — 1.951 49.6 —

721-2 31761 2" Conduit Size Punch 2-3/8 2.416 61.5 —

442AV 04063 2" Conduit Size Die 2-3/8 2.416 61.5 —

304AVBB 04042 Draw Stud–3/4" x 2-15/16"

32012 32012 Plastic Case

7235BB

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

HOLE SIZE KIT CAT./UPC NO.

CONDUIT CAPACITY

& PIPE ACTUAL MILD STEEL 1904/ 1906SB/

CAT. NO. UPC NO. DESCRIPTION SIZE Ø INCH Ø mm GA mm 30216 34357

721-1/2 31756 1/2" Conduit Size Slug-Buster® Punch 1/2" 7/8 0.885 22.5 10 3.5 ✓

14722 14722 1/2" Conduit Size Die 1/2" 7/8 0.885 22.5 10 3.5 ✓

721-3/4 31757 3/4" Conduit Size Slug-Buster® Punch 3/4" — 1.115 28.3 10 3.5 ✓

124AV 06972 3/4" Conduit Size Die 3/4" — 1.115 28.3 10 3.5 ✓

721-1 31758 1" Conduit Size Slug-Buster® Punch 1" — 1.362 34.6 10 3.5 ✓

126AV 04011 1" Conduit Size Die 1" — 1.362 34.6 10 3.5 ✓

721-1-1/4 31759 1-1/4" Conduit Size Slug-Buster® Punch 1-1/4" 1-11/16 1.701 43.2 10 3.5 ✓

128AV 04013 1-1/4" Conduit Size Die 1-1/4" 1-11/16 1.701 43.2 10 3.5 ✓

721-1-1/2 31760 1-1/2" Conduit Size Slug-Buster® Punch 1-1/2" 1-15/16 1.951 49.6 10 * 3.5 ✓

440AV 04061 1-1/2" Conduit Size Die 1-1/2" 1-15/16 1.951 49.6 10 * 3.5 ✓

721-2 31761 2" Conduit Size Slug-Buster® Punch 2" 2-3/8 2.416 61.5 10 * 3.5 ✓

442AV 04063 2" Conduit Size Die 2" 2-3/8 2.416 61.5 10 * 3.5 ✓

12097 12097 Draw Stud – 3/8" x 2-15/16" ✓ ✓

12099 12099 Draw Stud – 3/4" x 4-3/4" ✓ ✓

30227 30227 Draw Stud – 7/16" x 3-5/8" ✓

30228 30228 Steel Case ✓ ✓

20495 20495 Ratchet wrench only ✓ ✓

30225 30225 Handle ✓ ✓

Punches and Dies

Draw Studs

and Misc.

WEIGHT

CAT. NO. UPC NO. DESCRIPTION LBS. kg.

1904 30216 Basic High Leverage Ratchet Driver with Three

Draw Studs and Case 14 6.4

1906SB 34357 High Leverage Ratchet Driver with 1/2"

through 2" Slug-Buster® Conduit Size Punches,

Dies, Draw Studs and Case 20 9.1

Slug-Buster® Ratchet Punch Driver Kits

• Time-savingballbearingheadpunchesfasterthanwrenchmethod.

• Requireslessthanhalftheforceofconventionalratchetdrivers.

• Punchesupthrough10gauge(3.5mm)mildsteelwithGreenleeStandard

and Slug-Buster®punches;and16gauge(1.5mm)stainlesssteelwith

Greenlee Slug-Splitter SC™ punches.

• Ratchetactionallowsforuseinconfinedareas.

• Uniquedesigneliminatesstudrotationduringpunching–lowersthe

strain on studs.

• Steelcarryingcase.

1904

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Slug-Buster® Knockout Kit with Ratchet Wrench

• 1"HexRatchetWrenchallowsusewithboth3/8"(9.5mm)

and 3/4" (19.1 mm) draw studs.

• High-impact,ruggedplasticcarryingcase.

CAPACITY

MILD STEEL WEIGHT

CAT. NO. UPC NO. DESCRIPTION GA mm LBS. kg.

7238SB 34757 1/2" – 2" Conduit Size

Slug-Buster® Knockout Punch Kit 10 3.5 10 4.54

7238SB/34757 SLUG-BUSTER® KNOCKOUT PUNCH KIT INCLUDES

HOLE SIZE ACTUAL

CAT. NO. UPC NO. DESCRIPTION Ø INCH Ø mm PG

34941 34941 Ratchet wrench – 1" Hex

721-1/2 31756 1/2" Conduit Size Punch 7/8 .885 22.5 16

14722 14722 1/2" Conduit Size Die 7/8 .885 22.5 16

721-3/4 31757 3/4" Conduit Size Punch — 1.115 28.3 —

124AV 06972 3/4" Conduit Size Die — 1.115 28.3 —

721-1 31758 1" Conduit Size Punch — 1.362 34.6 —

126AV 04011 1" Conduit Size Die — 1.362 34.6 —

721-1-1/4 31759 1-1/4" Conduit Size Punch — 1.701 43.2 —

128AV 04013 1-1/4" Conduit Size Die — 1.701 43.2 —

721-1-1/2 31760 1-1/2" Conduit Size Punch — 1.951 49.6 —

440AV 04061 1-1/2" Conduit Size Die — 1.951 49.6 —

721-2 31761 2" Conduit Size Punch 2-3/8 2.416 61.5 —

442AV 04063 2" Conduit Size Die 2-3/8 2.416 61.5 —

00042 00042 Ball Bearing Draw Stud

with 1" Hex Head–3/8" x 1-5/8"

304AVBB 04042 Ball Bearing Draw Stud–3/4" x 2-15/16"

34758 34758 Plastic Case

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Slug-Buster® Knockout Kit with Ratchet Wrench - Metric

• 1"(25.4mm)hexratchetwrenchallowsusewithboth3/8"(9.5mm)and

3/4" (19.1 mm) draw studs.

• 3/8"(9.7mm)KwikStepper® step bit included.

• High-impact,ruggedplasticcarryingcase.

HOLE SIZE CAPACITY KIT CAT./UPC NO.

ACTUAL MILD STEEL

CAT. NO. UPC NO. DESCRIPTION Ø INCH Ø mm PG ISO GA mm 36690 36691 36692 36693

31969 31969 Slug-Buster® Punch — 0.598 15.2 9 — 14 2.0 ✓ ✓

32002 32002 Die — 0.598 15.2 9 — 14 2.0 ✓ ✓

31970 31970 Slug-Buster® Punch — 0.732 18.6 11 — 14 2.0 ✓ ✓

32003 32003 Die — 0.732 18.6 11 — 14 2.0 ✓ ✓

31971 31971 Slug-Buster® Punch — 0.803 20.4 13 20 14 2.0 ✓ ✓ ✓ ✓

32004 32004 Die — 0.803 20.4 13 20 14 2.0 ✓ ✓ ✓ ✓

721-1/2 31756 Slug-Buster® Punch 7/8 0.885 22.5 16 — 10 3.5 ✓ ✓

14722 14722 Die 7/8 0.885 22.5 16 — 10 3.5 ✓ ✓

31973 31973 Slug-Buster® Punch — 1.115 28.3 21 — 14 2.0 ✓ ✓

32006 32006 Die — 1.115 28.3 21 — 14 2.0 ✓ ✓

36284 36284 30.5 mm Slug-Buster® Punch 1-7/32 1.210 30.5 — — 14 2.0 ✓ ✓

36279 36279 30.5 mm Die 1-7/32 1.210 30.5 — — 14 2.0 ✓ ✓

31975 31975 Slug-Buster® Punch — 1.457 37.0 29 — 10 3.5 ✓

32008 32008 Die — 1.457 37.0 29 — 10 3.5 ✓

31976 31976 Slug-Buster® Punch — 1.850 47.0 36 — 10 3.5 ✓

32009 32009 Die — 1.850 47.0 36 — 10 3.5 ✓

31978 31978 Slug-Buster® Punch — 2.362 60.0 48 — 10 3.5 ✓

32011 32011 Die — 2.362 60.0 48 — 10 3.5 ✓

35163 35163 ISO-16 Slug-Buster® Punch — 0.638 16.2 — 16 14 2.0 ✓ ✓

35162 35162 ISO-16 Die — 0.638 16.2 — 16 14 2.0 ✓ ✓

35165 35165 ISO-25 Slug-Buster® Punch 1 1.000 25.4 — 25 14 2.0 ✓ ✓

35164 35164 ISO-25 Die 1 1.000 25.4 — 25 14 2.0 ✓ ✓

35169 35169 ISO-32 Slug-Buster® Punch — 1.280 32.5 — 32 10 3.5 ✓ ✓

35168 35168 ISO-32 Die — 1.280 32.5 — 32 10 3.5 ✓ ✓

35158 35158 ISO-40 Slug-Buster® Punch — 1.595 40.5 — 40 10 3.5 ✓ ✓

35159 35159 ISO-40 Die — 1.595 40.5 — 40 10 3.5 ✓ ✓

35160 35160 ISO-50 Slug-Buster® Punch 2 2.000 50.8 — 50 10 3.5 ✓

35161 35161 ISO-50 Die 2 2.000 50.8 — 50 10 3.5 ✓

35167 35167 ISO-63 Slug-Buster® Punch 2-1/2 2.500 63.5 — 63 10 3.5 ✓

35166 35166 ISO-63 Die 2-1/2 2.500 63.5 — 63 10 3.5 ✓

249AVBB 04040 Draw Stud – 3/4" x 2-1/8" ✓

304AVBB 04042 Draw Stud – 3/4" x 2-15/16" ✓ ✓

36018 36018 Kwik Stepper® Step Bit 9.7 mm ✓ ✓ ✓ ✓

34941 34941 RatchetWrench–1"Hex        ✓ ✓ ✓ ✓

00042 00042 Ball Bearing Drive Nut with 1" Hex Head, 3/8" x 3" ✓ ✓ ✓ ✓

36685 36685 Plastic Case ✓ ✓ ✓ ✓

Draw Studs

and Misc. Punches and Dies

36690

WEIGHT

CAT. NO. UPC NO. DESCRIPTION LBS. kg.

36690 36690 Pg-9 through 30.5 mm Manual Slug-Buster®

Metric Knockout Punch Kit 4.7 2.1

36691 36691 Pg-9 through Pg-48 and 30.5 mm

Manual Slug-Buster® Metric Knockout Punch Kit 9 4.1

36692 36692 ISO-16 through ISO-40 Manual Slug-Buster®

Metric Knockout Punch Kit 5.6 2.5

36693 36693 ISO-16 through ISO-63 Manual Slug-Buster®

Metric Knockout Punch Kit 9 4.1

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Slug-Buster® Knockout Punch Kits for Ratchet/Hydraulic Drivers

• Packagedincartonforeasyinsertionintoyourexistingcase.

• Replacementpunchkitsforbattery-powered,hydraulicandratchetdrivers.

HOLE SIZE CAPACITY- KIT CAT./UPC NO.

CONDUIT & ACTUAL MILD STEEL 7216/ 7214E/ 7215E/

CAT. NO. UPC NO. DESCRIPTION PIPE SIZE Ø INCH Ø mm PG ISO GA mm 32017 32398 32803 35617 06892

721-1/2 31756 1/2" Conduit Size Punch 1/2" 7/8 .885 22.5 16 — 10 3.5 ✓ ✓ ✓

14722 14722 1/2" Conduit Size Die 1/2" 7/8 .885 22.5 16 — 10 3.5 ✓ ✓ ✓

721-3/4 31757 3/4" Conduit Size Punch 3/4" — 1.115 28.3 — — 10 3.5 ✓

124AV 06972 3/4" Conduit Size Die 3/4" — 1.115 28.3 — — 10 3.5 ✓

721-1 31758 1" Conduit Size Punch 1" — 1.362 34.6 — — 10 3.5 ✓

126AV 04011 1" Conduit Size Die 1" — 1.362 34.6 — — 10 3.5 ✓

721-1-1/4 31759 1-1/4" Conduit Size Punch 1-1/4" — 1.701 43.2 — — 10 3.5 ✓

128AV 04013 1-1/4" Conduit Size Die 1-1/4" — 1.701 43.2 — — 10 3.5 ✓

721-1-1/2 31760 1-1/2" Conduit Size Punch 1-1/2" — 1.951 49.6 — — 10 3.5 ✓

440AV 04061 1-1/2" Conduit Size Die 1-1/2" — 1.951 49.6 — — 10 3.5 ✓

721-2 31761 2" Conduit Size Punch 2" 2-3/8 2.416 61.5 — — 10 3.5 ✓

442AV 04063 2" Conduit Size Die 2" 2-3/8 2.416 61.5 — — 10 3.5 ✓

31969 31969 Punch — — .598 15.2 9 — 14 2.0 ✓ ✓

32002 32002 Die — — .598 15.2 9 — 14 2.0 ✓ ✓

31970 31970 Punch — — .732 18.6 11 — 14 2.0 ✓ ✓

32003 32003 Die — — .732 18.6 11 — 14 2.0 ✓ ✓

31971 31971 Punch — — .803 20.4 13 20 14 2.0 ✓ ✓ ✓ ✓

32004 32004 Die — — .803 20.4 13 20 14 2.0 ✓ ✓ ✓ ✓

31973 31973 Punch — — 1.115 28.3 21 — 14 2.0 ✓ ✓

32006 32006 Die — — 1.115 28.3 21 — 14 2.0 ✓ ✓

36284 36284 30.5 mm Punch — 1-7/32 1.210 30.5 — — 14 3.5 ✓ ✓

36279 36279 30.5 mm Die — 1-7/32 1.210 30.5 — — 14 3.5 ✓ ✓

31975 31975 Punch — — 1.457 37.0 29 — 10 3.5 ✓

32008 32008 Die — — 1.457 37.0 29 — 10 3.5 ✓

31976 31976 Punch — — 1.850 47.0 36 — 10 3.5 ✓

32009 32009 Die — — 1.850 47.0 36 — 10 3.5 ✓

31978 31978 Punch — — 2.362 60.0 48 — 10 3.5 ✓

32011 32011 Die — — 2.362 60.0 48 — 10 3.5 ✓

35163 35163 ISO-16 Punch — — 0.638 16.2 — 16 14 2.0 ✓ ✓

35162 35162 ISO-16 Die — — 0.638 16.2 — 16 14 2.0 ✓ ✓

35165 35165 ISO-25 Punch — 1 1.000 25.4 — 25 14 2.0 ✓ ✓

35164 35164 ISO-25 Die — 1 1.000 25.4 — 25 14 2.0 ✓ ✓

35169 35169 ISO-32 Punch — — 1.280 32.5 — 32 10 3.5 ✓ ✓

35168 35168 ISO-32 Die — — 1.280 32.5 — 32 10 3.5 ✓ ✓

35158 35158 ISO-40 Punch — — 1.595 40.5 — 40 10 3.5 ✓ ✓

35159 35159 ISO-40 Die — — 1.595 40.5 — 40 10 3.5 ✓ ✓

35160 35160 ISO-50 Punch — 2 2.000 50.8 — 50 10 3.5 ✓

35161 35161 ISO-50 Die — 2 2.000 50.8 — 50 10 3.5 ✓

35167 35167 ISO-63 Punch — — 2.520 64.0 — 63 10 3.5 ✓

35166 35166 ISO-63 Die — — 2.520 64.0 — 63 10 3.5 ✓

WEIGHT

CAT. NO. UPC NO. DESCRIPTION LBS. kg.

7216 32017 1/2" - 2" Conduit Size Knockout Punch and Die Kit 5.5 2.5

7214E 32398 Pg-9 through 30.5 mm Slug-Buster® Pg Punch Kit 1.3 .6

7215E 32803 Pg-9 through Pg-48 and 30.5 mm Slug-Buster® 5.1 2.3

Pg Punch Kit

35617 35617 ISO-16 through ISO-40 Slug-Buster® ISO Punch Kit 1.6 .7

06892 06892 ISO-16 through ISO-63 Slug-Buster ® ISO Punch Kit 5.5 2.5

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Standard Round Knockout Punches 0.5" to 5.675"

• Roundstandardmetalpunchunitsarecompleteunitsconsisting

of punch, die and draw stud.

• Usewithbattery-powered,hydraulic,ratchetormanualdrivers.

• Properlyassembledthroughpilotholes,theywillmakeclean,fast

and accurate holes.

Punch

Die

Draw Stud

Bushing

Ball Bearing

Nut

Every cut quick and clean ...Just tip it out.Slug falls free in die.

SPECIFICATIONS

Capacity Mild steel up through 10 gauge (3.5 mm).

Application Punch mild steel, aluminum, fiberglass and plastic.

Hole Sizes Conduit Sizes - Hole size is outside diameter of US conduit sizes.

Example: 1/2" conduit size punch actually makes a 7/8" hole.

Pg Sizes - European standard pipe sizes.

ISO Sizes - International Standards Organization pipe sizes.

Operation Operate with battery-powered, hydraulic, ratchet or manual drivers.

Whenusedwithbattery-powered,hydraulic,orratchetdriversbuythe

punchanddieonly;thedrawstudispartofthedriverkit.

STANDARD KNOCKOUT PUNCHES

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

PUNCH UNIT REPLACEMENT PARTS

PUNCH KIT-INCLUDES HOLE SIZE CAPACITY REPLACEMENT REPLACEMENT

PUNCH, DIE & DRAW STUD CONDUIT & ACTUAL MILD STEEL WEIGHT REPLACEMENT PUNCH REPLACEMENT DIE DRAW STUD BALL BEARING NUT

CAT. NO. UPC NO. PIPE SIZE Ø INCH Ø mm PG ISO GA. mm LBS. g CAT. NO. UPC NO. CAT. NO. UPC NO. CAT. NO. UPC NO. CAT. NO. UPC NO.

730-1/2 024 08 — 1/2 0.500 12.7 7 — 16 1.5 .1 46 1760AV 06996 1759AV 04235 1675AV 04218 — —

730-9/16 02433 — 9/16 0.563 14.3 — — 16 1.5 .1 46 1754AV 04230 1753AV 04229 1675AV 04218 — —

21115 21115 — — 0.598 15.2 9 — 14 2.0 .3 137 21316 21316 32002 32002 00042 00042 — —

730-5/8 02409 — 5/8 0.625 15.9 — — 16 1.5 .2 91 1742AV 04223 1743AV 04224 1675AV 04218 — —

35192 35192 — — 0.638 16.2 — 16 14 2.0 .3 137 35193 35193 35162 35162 00042 00042 — —

730BB-11/16 25340 — 11/16 0.688 17.5 — — 14 2.0 .3 137 1752AV 04228 1751AV 04227 00042 00042 — —

730EBB-18.6 18886 — — 0.732 18.6 11 — 14 2.0 .3 137 17700 17700 32003 32003 00042 00042 — —

730BB-3/4 20667 — 3/4 0.750 19.1 — — 14 2.0 .3 137 113AV 03998 114AV 03999 00042 00042 — —

730EBB - 20.4 18887 — — 0.803 20.4 13 20 14 2.0 .3 137 17697 17697 32004 32004 00042 00042 — —

730BB-13/16 20668 — 13/16 0.812 20.6 — — 14 2.0 .3 137 1745AV 04226 1744AV 04225 00042 00042 — —

71BB 22563 1/2" 7/8 0.885 22.5 16 — 10 3.5 .4 182 121AV 04006 14722 14722 00042 00042 — —

730BB-15/16 25341 — 15/16 0.937 23.8 — — 14 2.0 .5 227 1762AV 04238 1761AV 04237 00042 00042 — —

730BB-1 20670 — 1 1.000 25.4 — 25 14 2.0 .5 227 87AV 03986 35164 35164 00042 00042 — —

730BB-1-1/16 25342 — 1-1/16 1.063 27.0 — — 14 2.0 .5 227 1763AV 04240 1764AV 04242 00042 00042 — —

72BB 22564 3/4" — 1.115 28.3 21 — 10 3.5 .9 409 123AV 04008 124AV 06972 249AVBB 04040 — —

36910 36910 3/4" — 1.115 28.3 21 — 14 2.0 .6 273 36882 36882 32006 32006 00042 00042 — —

730BB-1-1/8 20671 — 1-1/8 1.125 28.6 — — 14 2.0 .6 273 91AV 03990 92AV 03991 00042 00042 — —

36506 36506 — 1-7/32 1.210 30.5 — — 16 1.5 .6 273 36282 36282 36279 36279 00042 00042 — —

730BB-1-1/4 20673 — 1-1/4 1.250 31.8 — — 16 1.5 .7 318 117AV 04002 118AV 04003 00042 00042 — —

24476 24476 — — 1.280 32.5 — 32 10 3.5 1 454 24459 24459 35168 35168 249AVBB 04040 — —

730BB-1-5/16 25344 — 1-5/16 1.313 33.4 — — 16 1.5 .7 318 1747AV 06587 1746AV 06586 00042 00042 — —

73BB 22565 1" — 1.362 34.6 — — 10 3.5 1.1 499 125AV 04010 126AV 04011 249AVBB 04040 — —

730BB-1-3/8 25427 — 1-3/8 1.375 34.9 — — 10 3.5 1.1 499 3205AV 04734 3206AV 04735 249AVBB 04040 — —

730EBB-37 18890 — — 1.457 37.0 29 — 10 3.5 1 454 18331 18331 32008 32008 249AVBB 04040 — —

730BB-1-1/2 25428 — 1-1/2 1.500 38.1 — — 10 3.5 1.2 545 3207AV 04736 3208AV 07044 249AVBB 04040 — —

24477 24477 — — 1.595 40.5 — 40 10 3.5 1.3 590 24462 24462 35159 35159 249AVBB 04040 — —

730BB-1-5/8 25349 — 1-5/8 1.625 41.3 — — 10 3.5 1.4 636 1794AV 04251 1793AV 04250 249AVBB 04040 — —

74BB 22566 1-1/4" 1-11/16 1.701 43.2 — — 10 3.5 1.4 636 127AV 06974 128AV 04013 249AVBB 04040 — —

730BB-1-3/4 25350 — 1-3/4 1.750 44.5 — — 10 3.5 1.5 681 1816AV 04257 1815AV 04256 249AVBB 04040 — —

730EBB-47 18891 — — 1.850 47.0 — — 10 3.5 1.7 772 17687 17687 32009 32009 304AVBB 04042 — —

730BB-1-7/8 25351 — 1-7/8 1.875 47.6 — — 10 3.5 1.9 862 1791AV 04248 1792AV 04249 304AVBB 04042 — —

75BB 22567 1-1/2" 1-15/16 1.951 49.6 — — 10 3.5 2 908 439AV 06978 440AV 04061 304AVBB 04042 — —

730BB-2 20676 — 2 2.000 50.8 — 50 10 3.5 1.9 862 1756AV 04232 35161 35161 304AVBB 04042 — —

730BB-2-1/8 20678 — 2-1/8 2.125 54.0 42 — 10 3.5 2.2 998 1783AV 04245 36173 36173 304AVBB 04042 — —

730BB-2-1/4 25360 — 2-1/4 2.250 57.2 — — 10 3.5 2.6 1180 437AV 04058 438AV 04059 304AVBB 04042 — —

730EBB-60 18892 — — 2.362 60.0 48 — 10 3.5 2.6 1180 17690 17690 32011 32011 304AVBB 04042 — —

76BB 22568 2" 2-3/8 2.416 61.5 — — 10 3.5 3 1361 441AV 04062 442AV 04063 304AVBB 04042 — —

730BB-2-1/2 20679 — 2-1/2 2.500 63.5 — 63 10 3.5 3 1361 1758AV 04234 1757AV 04233 304AVBB 04042 — —

730PBB-2-5/8 21214 — 2-5/8 2.625 66.7 — — 10 3.5 5.1 2314 1795AV 04252 1796AV 06997 1434AV 04188 1433AVBB 04187

730BB-2-3/4 25361 — 2-3/4 2.750 69.9 — — 10 3.5 4.8 2178 1790AV 04247 1789AV 04246 1434AV 04188 1433AVBB 04187

730MBB 25383 — — 2.781 70.6 — — 10 3.5 3.8 1724 730101A 02445 730100A 02443 304AVBB 04042 — —

738BB 19975 2-1/2" 2-7/8 2.914 74.0 — — 10 3.5 5 2268 1429AV 04175 1430AV 04177 1434AV 04188 1433AVBB 04187

730BB-3 25372 — 3 3.000 76.2 — — 10 3.5 6.1 2767 1821AV 04259 1820AV 04258 1434AV 04188 1433AVBB 04187

730TBB 25403 — 3-1/8 3.125 79.4 — — 10 3.5 6 2722 1798AV 06363 1797AV 06362 1434AV 04188 1433AVBB 04187

730EBB-82 18635 — — 3.228 82.0 — — 10 3.5 6.3 2858 18905 18905 18906 18906 1434AV 04188 1433AVBB 04187

739BB 19976 3" 3-1/2 3.539 89.9 — — 10 3.5 5.9 2677 1431AV 04180 1432AV 04183 1434AV 04188 1433AVBB 04187

730PBB-3-3/4 21216 — 3-3/4 3.750 95.3 — — 10 3.5 7.7 3493 4640AV 05265 4641AV 05266 1434AV 04188 1433AVBB 04187

741BB* 19977 3-1/2" 4 4.044 102.7 — — 10 3.5 10 4536 2982AV 04653 2981AV 04652 3026AV 04679 3036AVBB 04685

742BB* 19978 4" 4-1/2 4.544 115.4 — — 10 3.5 11.4 5172 2984AV 04655 2983AV 04654 3026AV 04679 3036AVBB 04685

730EBB-120* 21519 — — 4.724 120.0 — — 10 3.5 13 5897 21489 21489 21491 21491 3026AV 04679 3036AVBB 04685

743BB* 19980 5" 5-5/8 5.675 144.1 — — 10 3.5 19 8619 5135AV 05447 5136AV 05448 3026AV 04679 3036AVBB 04685

*CAT. NO. UPC NO. DESCRIPTION

3037AV O4686 Bushing for 3-1/2" (conduit hole size) and larger punches with manual operation

Standard Round Knockout Punches

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Standard Round Manual Knockout Punch Kits

735BB

737BB

• Assortmentofcommonlyusedroundstandardknockout

punches, packaged to meet the contractor’s needs.

• High-impact,ruggedplasticcarryingcase.

7304 For 11 Ton

Hydraulic Drivers

CAPACITY

MILD STEEL WEIGHT

CAT. NO. UPC NO. DESCRIPTION GA mm LBS. kg.

735BB 19973 1/2" - 1-1/4" Conduit Size Knockout 10 3.5 2.5 1.1

Punch Kit (Manual Round Standard)

737BB 19974 1-1/2" - 2" Conduit Size Knockout 10 3.5 4.4 2.0

Punch Kit (Manual Round Standard)

7304 02815 Standard Punches and Dies (no draw 10 3.5 21 9.5

studs) for 2-1/2" through 4" Conduit,

in Plastic Case

735BB/19973 KNOCKOUT PUNCH KIT INCLUDES

HOLE SIZE

ACTUAL

CAT. NO. UPC NO. DESCRIPTION Ø INCH Ø mm

721-1/2 31756 1/2" Conduit Size Slug-Buster® Punch 7/8 0.885 22.5

14722 14722 1/2" Conduit Size Die 7/8 0.885 22.5

00042 00042 3/8" x 1-9/16" Draw Stud

123AV 04008 3/4" Conduit Size Punch — 1.115 28.3

124AV 06972 3/4" Conduit Size Die — 1.115 28.3

125AV 04010 1" Conduit Size Punch — 1.362 34.6

126AV 04011 1" Conduit Size Die — 1.362 34.6

127AV 06974 1-1/4" Conduit Size Punch 1-11/16 1.701 43.2

128AV 04013 1-1/4" Conduit Size Die 1-11/16 1.701 43.2

249AVBB 04040 3/4" x 2-1/8" Draw Stud

31880 31880 Plastic Case

737BB/19974 KNOCKOUT PUNCH KIT INCLUDES

HOLE SIZE

ACTUAL

CAT. NO. UPC NO. DESCRIPTION Ø INCH Ø mm

439AV 06978 1-1/2" Conduit Size Punch 1-15/16 1.951 49.6

440AV 04061 1-1/2" Conduit Size Die 1-15/16 1.951 49.6

441AV 04062 2" Conduit Size Punch 2-3/8 2.416 61.5

442AV 04063 2" Conduit Size Die 2-3/8 2.416 61.5

304AVBB 04042 3/4" x 2-15/16" Draw Stud

32012 32012 Plastic Case

7304/02815 KNOCKOUT PUNCH KIT INCLUDES

HOLE SIZE

ACTUAL

CAT. NO. UPC NO. DESCRIPTION Ø INCH Ø mm

1429AV 04175 2-1/2" Conduit Size Punch 2-7/8 2.914 74.0

1430AV 04177 2-1/2" Conduit Size Die 2-7/8 2.914 74.0

1431AV 04180 3" Conduit Size Punch 3-1/2 3.539 89.9

1432AV 04183 3" Conduit Size Die 3-1/2 3.539 89.9

2982AV 04978 3-1/2" Conduit Size Punch 4 4.044 102.7

2981AV 04652 3-1/2" Conduit Size Die 4 4.044 102.7

2984AV 04655 4" Conduit Size Punch 4-1/2 4.544 115.4

2983AV 04654 4" Conduit Size Die 4-1/2 4.544 115.4

30236 30236 Plastic Case

NOTE: See Standard Round Knockout Punches on pages 52 and 53 for listing of individual punch units, punches, dies and draw studs.

STANDARD KNOCKOUT PUNCH KITS

Wrenches Sold Separately

for kits 737BB, 735BB and 7304BB

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

39860 MANUAL INDUSTRIAL KNOCKOUT PUNCH KIT INCLUDES

HOLE SIZE

ACTUAL

CAT. NO. UPC NO. DESCRIPTION Ø INCH Ø mm

113AV 03998 3/4" Punch 3/4 0.750 19.1

114AV 03999 3/4" Die 3/4 0.750 19.1

121AV 04006 7/8" Punch 7/8 0.885 22.5

14722 14722 7/8" Die 7/8 0.885 22.5

87AV 03986 1" Punch 1 1.000 25.4

35164 35164 1" Die 1 1.000 25.4

91AV 03990 1-1/8" Punch 1-1/8 1.125 28.6

92AV 03991 1-1/8" Die 1-1/8 1.125 28.6

117AV 04002 1-1/4" Punch 1-1/4 1.250 31.8

118AV 04003 1-1/4" Die 1-1/4 1.250 31.8

3207AV 04736 1-1/2" Punch 1-1/2 1.500 38.1

3208AV 07044 1-1/2" Die 1-1/2 1.500 38.1

00042 00042 3/8" BB Draw Stud

249AVBB 04040 3/4" BB Draw Stud

19193 19193 Steel Storage Box

Wrench Sold Separately

Standard Round Manual Industrial Punch Kit

• Includesmostpopularsizesforindustrialapplications.

• Time-savingtoolformaintenance,repairandoperationapplications.

• Convenientsteelcarryingcase.

• Ballbearingdrivescrewforeasymanualoperationoruse

with ratchet and hydraulic drivers.

CAT. NO. UPC NO. DESCRIPTION

39860 39860 3/4" - 1-1/2" Hole Size Manual Industrial Punch Kit

SPECIFICATIONS

Capacity 1-1/4" Punch - 16 gauge (1.5 mm) mild steel.

3/4", 1", and 1-1/8" Punches - 14 gauge (2.0 mm) mild

steel.

7/8" and 1-1/2" Punches 10 gauge (3.5 mm) mild steel.

Operation Manual-Wrenchnotincluded.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

HOLE SIZE CAPACITY KIT CAT./UPC NO.

ACTUAL MILD STEEL 7309E

CAT. NO. UPC NO. DESCRIPTION Ø INCH Ø mm PG ISO GA mm 36687 36688 32804

21316 21316 Pg-9 Punch — 0.598 15.2 9 — 14 2.0 ✓

31969 31969 Pg-9 Slug-Buster® Punch — 0.598 15.2 9 — 14 2.0 ✓

32002 32002 Pg-9 Die — 0.598 15.2 9 — 14 2.0 ✓ ✓

17700 17700 Pg-11 Punch — 0.732 18.6 11 — 14 2.0 ✓ ✓

32003 32003 Pg-11 Die — 0.732 18.6 11 — 14 2.0 ✓ ✓

17697 17697 Pg-13 Punch — 0.803 20.4 13 20 14 2.0 ✓ ✓ ✓

32004 32004 Pg-13 Die — 0.803 20.4 13 20 14 2.0 ✓ ✓ ✓

121AV 04006 Pg-16 Punch 7/8 0.885 22.5 16 — 10 3.5 ✓ ✓

14722 14722 Pg-16 Die 7/8 0.885 22.5 16 — 10 3.5 ✓ ✓

36882 36882 Pg-21 Punch — 1.115 28.3 21 — 10 3.5 ✓ ✓

32006 32006 Pg-21 Die — 1.115 28.3 21 — 10 3.5 ✓ ✓

36282 36282 30.5 mm Punch 1-7/32 1.210 30.5 — — 16 1.5 ✓ ✓

36279 36279 30.5 mm Die 1-7/32 1.210 30.5 — — 16 1.5 ✓ ✓

18331 18331 Pg-29 Punch — 1.457 37.0 29 — 10 3.5 ✓ ✓

32008 32008 Pg-29 Die — 1.457 37.0 29 — 10 3.5 ✓ ✓

17687 17687 Pg-36 Punch — 1.850 47.0 36 — 10 3.5 ✓ ✓

32009 32009 Pg-36 Die — 1.850 47.0 36 — 10 3.5 ✓ ✓

17690 17690 Pg-48 Punch — 2.362 60.0 48 — 10 3.5 ✓ ✓

32011 32011 Pg-48 Die — 2.362 60.0 48 — 10 3.5 ✓ ✓

35193 35193 ISO-16 Punch — 0.638 16.2 — 16 14 2.0 ✓

35162 35162 ISO-16 Die — 0.638 16.2 — 16 14 2.0 ✓

87AV 03986 ISO-25 Punch 1 1.000 25.4 — 25 14 2.0 ✓

35164 35164 ISO-25 Die 1 1.000 25.4 — 25 14 2.0 ✓

24459 24459 ISO-32 Punch — 1.280 32.5 — 32 10 3.5 ✓

35168 35168 ISO-32 Die — 1.280 32.5 — 32 10 3.5 ✓

24462 24462 ISO-40 Punch — 1.595 40.5 — 40 10 3.5 ✓

35159 35159 ISO-40 Die — 1.595 40.5 — 40 10 3.5 ✓

1756AV 04232 ISO-50 Punch 2 2.000 50.8 — 50 10 3.5

35161 35161 ISO-50 Die 2 2.000 50.8 — 50 10 3.5

1758AV 04234 ISO-63 Punch 2-1/2 2.500 63.5 — 63 10 3.5

1757AV 04233 ISO-63 Die 2-1/2 2.500 63.5 — 63 10 3.5

249AVBB 04040 Draw Stud – 3/4" x 2-1/8" ✓

304AVBB 04042 Draw Stud – 3/4" x 2-15/16" ✓

34941 34941 RatchetWrench–1"Hex        ✓ ✓

34410 34410 Kwik Stepper® Step Bit 1/2" (12.7 mm) ✓ ✓

00042 00042 Ball Bearing Draw Stud with 1" Hex Head, 3/8" x 1-5/8" ✓ ✓

36685 36685 Plastic Case ✓ ✓

Punches and Dies

Draw Studs

and Misc.

Standard Round Manual Knockout Punch Kits - Metric

WEIGHT

CAT. NO. UPC NO. DESCRIPTION LBS. kg.

36687 36687 Pg-9 through Pg-48 Manual Round 8.8 4

Standard Knockout Punch Kit

36688 36688 ISO-16 through ISO-40 Manual 5.2 2.3

Round Standard Knockout Punch Kit

7309E 32804 Pg-9 through Pg-48 Standard 8.8 4

Knockout Pg. Punch Kit. Replacement

   KitPackagedinCartonWithout

Plastic Case.

SPECIFICATIONS

Operation Manual - Ratchet wrench included

• 1" (25.4 mm) Hex ratchet wrench allows use with both 3/8" (9.5 mm)

and 3/4" (19.1 mm) draw studs.

• 12.7mmKwikStepper® step bit included.

• Plasticcarryingcaseincluded.

36687

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Gator® Plus Battery-Powered Knockout Punch Driver Kits

ELECTRIC & BATTERY-POWERED KNOCKOUT KITS

Electronic Connector Punches

RS-232, 229, 231, 234, 238

STEEL CAPACITIES FOR CONDUIT SIZES

STANDARD PUNCHES AND SLUG-BUSTER® SLUG-SPLITTER SC™

STUD AND 1/2" 3/4" 1-7/32" 1" 1-1/4" 1-1/2" 2" 1/2" 3/4" 1-7/32" 1" 1-1/4" 1-1/2" 2"

ACCESSORIES CON. CON. CON. CON. CON. CON. CON. CON. CON. CON. CON. CON.

Ø 0.885" Ø 1.115" Ø 1.210" Ø 1.362" Ø 1.701" Ø 1.951" Ø 2.415" Ø 0.885" Ø 1.115" Ø 1.210" Ø 1.362" Ø 1.701" Ø 1.951" Ø 2.416"

22.5mm 28.3mm 30.5mm 34.6mm 43.2mm 49.6mm 61.5mm 22.5mm 28.3mm 30.5mm 34.6mm 43.2mm 49.6mm 61.5mm

1614SS Draw Stud

1924AA Spacer

33967 Adapter

1924AA Spacer

29451 7/16" Draw Stud

1924AA Spacer

31872 3/4" Draw Stud

33967 Adapter

29451 sold separately. See page 73 for ordering information.

10 GA. (0.1345" [3.5 mm]) MILD STEEL 10 GA. (0.1345" [3.5 mm]) STAINLESS STEEL

16 GA. (0.0598" [1.5 mm]) MILD STEEL AND 1/8" ALUMINUM12 GA. (0.1046" [2.5 mm]) STAINLESS STEEL

WEIGHT

CAT. NO. UPC NO. DESCRIPTION LBS. kg.

LS6011A 03557 Battery-powered driver with 120 volt charger, 23 10.4

2 batteries, 2 draw studs, 1 adapter,

1 spacer and case

LS6012A 03558 Battery-powered driver with 12 volt charger, 23 10.4

2 batteries, 2 draw studs, 1 adapter,

1 spacer and case

LS6022A 03559 Battery-powered driver with 220 volt charger, 23 10.4

2 batteries, 2 draw studs, 1 adapter,

1 spacer and case

LS6011B 04311 Battery-powered driver with 120 volt charger, 27 12.2

2 batteries, 1/2" through 2" Slug-Buster®

conduit size punches, 2 draw studs, 1 adapter,

1 spacer and case

LS6012B 04661 Battery-powered driver with 12 volt charger, 27 12.2

2 batteries, 1/2" through 2" Slug-Buster®

conduit size punches, 2 draw studs, 1 adapter,

1 spacer and case

LS6022B 04312 Battery-powered driver with 220 volt charger, 27 12.2

2 batteries, 1/2" through 2" Slug-Buster®

conduit size punches, 2 draw studs, 1 adapter,

1 spacer and case

07063 07063 12V NIMH Battery

MKLS60 05956 Carrying Case

See page 59 for complete parts list for all kits.

• Punchesaholefor2"conduit(61.5mm)inonly12seconds.

• Angledpistolgripallowseasyone-handedcontrolandpositioning.

• Toolsenseswhentheholeiscompletelypunchedandautomatically

shuts off to prevent damage to the punch and die.

• Develops6.7tonsofhydraulicforce,capableofpunchingupto2"conduit

(61.5 mm) size holes in 10-gauge (3.5 mm) mild steel and 12-gauge

(2.5 mm) stainless steel.

• Threechoicesofbatterychargers–120volt,220volt,or12volt.

Punches approximately (80) 1/2" conduit size holes or (40) 2" conduit

size holes in 10-gauge mild steel per battery charge.

• U.S.Patents#6,065,326,and#6,206,663.

SPECIFICATIONS

Weight (driver with battery

only)

8.25 lbs. (3.7 kg)

Overall Length (ram

retracted)

10.3 in. (262 mm)

Height 11.5 in. (292 mm)

Maximum Punch Force 6.7 tons (60 kN)

Maximum Round Punch Size

(in 10 gauge mild steel)

2.42 in. dia. (61.5 mm dia)

Maximum Square Punch Size

(in 10 gauge mild steel)

2-11/16 in. x 2-11/16 in. (68.0 x 68.0 mm)

Maximum Rectangular

Punch Size (in 10 gauge mild

steel)

1.378 x 2.559 in. (35.0 x 65.0 mm)

Maximum Ram Travel 0.87 in (22 mm)

Charging Time Approximately 1 hour

Battery Voltage 12 V, 2.6Ah, NIMH

LS6011A

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

STEEL CAPACITIES FOR CONDUIT SIZES

STANDARD PUNCHES AND SLUG-BUSTER® SLUG-SPLITTER SC™

STUD AND 1/2" 3/4" 1-7/32" 1" 1-1/4" 1-1/2" 2" 1/2" 3/4" 1-7/32" 1" 1-1/4" 1-1/2" 2"

ACCESSORIES CON. CON. CON. CON. CON. CON. CON. CON. CON. CON. CON. CON.

Ø 0.885" Ø 1.115" Ø 1.210" Ø 1.362" Ø 1.701" Ø 1.951" Ø 2.415" Ø 0.885" Ø 1.115" Ø 1.210" Ø 1.362" Ø 1.701" Ø 1.951" Ø 2.416"

22.5mm 28.3mm 30.5mm 34.6mm 43.2mm 49.6mm 61.5mm 22.5mm 28.3mm 30.5mm 34.6mm 43.2mm 49.6mm 61.5mm

1614SS Draw Stud

1924AA Spacer

33967 Adapter

1924AA Spacer

29451 7/16" Draw Stud

1924AA Spacer

31872 3/4" Draw Stud

33967 Adapter

Electronic Connector Punches

RS-232, 229, 231, 234, 238

29451 sold separately. See page 73 for ordering information.

10 GA. (0.1345" [3.5 mm]) MILD STEEL 10 GA. (0.1345" [3.5 mm]) STAINLESS STEEL

16 GA. (0.0598" [1.5 mm]) MILD STEEL AND 1/8" ALUMINUM12 GA. (0.1046" [2.5 mm]) STAINLESS STEEL

Gator® Plus Corded Knockout Punch Driver Kits

• Punchesaholefor2"conduit(61.5mm)inonly12seconds.

• Angledpistolgripallowseasyone-handedcontrolandpositioning.

• Toolsenseswhentheholeiscompletelypunchedandautomatically

shuts off to prevent damage to the punch and die.

• Develops6.7tonsofhydraulicforce,capableofpunchingupto

2" conduit (61.5 mm) size holes in 10-gauge (3.5 mm) mild steel

and 12-gauge (2.5 mm) stainless steel.

• Operatesdirectlyfrom120V/60Hzor230V/50Hzelectricaloutlets.

No need to charge batteries or worry about running out of power.

• Equippedwith15-foot(5m)cord.Canbeusedwithextensioncords.

• U.S.Patents#6,065,326and#6,206,663.

WEIGHT

CAT. NO. UPC NO. DESCRIPTION LBS. kg

CLS6011A 01496 Corded Driver, 120 Volts/ 60Hz, with 2 Draw 23 10.4

Studs, 1 Adapter, 1 Spacer and Case.

CLS6022A 01497 Corded Driver, 230 Volts/ 50Hz, with 2 Draw 23 10.4

Studs, 1 Adapter, 1 Spacer and Case.

CLS6011B 01498 Corded Driver, 120 Volts/ 60Hz, with 23 10.4

1/2" through 2" Slug-Buster® Conduit Size

Punches, 2 Draw Studs, 1 Adapter,

1 Spacer and Case.

CLS6022B 01499 Corded Driver, 230 Volts/ 50Hz, with 27 12.2

1/2" through 2" Slug-Buster® Conduit Size

Punches, 2 Draw Studs, 1 Adapter,

1 Spacer and Case.

MKNLS60 01686 Carrying Case

See page 59 for complete parts list for all kits.

SPECIFICATIONS

Weight (driver with battery only) 8.25 lbs. (3.7 kg)

Overall Length (ram retracted) 10.3 in. (262 mm)

Height 11.5 in. (292 mm)

Maximum Punch Force 6.7 tons (60 kN)

Maximum Round Punch Size

(in 10 gauge mild steel)

2.42 in. dia. (61.5 mm dia)

Maximum Square Punch Size

(in 10 gauge mild steel)

2-11/16 in. x 2-11/16 in. (68.0 x 68.0 mm)

Maximum Rectangular Punch

Size (in 10 gauge mild steel)

1.378 x 2.559 in. (35.0 x 65.0 mm)

Maximum Ram Travel 0.87 in (22 mm)

Operating Voltage 120V,60Hz;230V,50Hz

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

HOLE SIZE KIT CAT./UPC NO.

CONDUIT LS6011A/03557 LS6011B/04311

& PIPE ACTUAL LS6012A/03558 LS6012B/04661 CLS6011A CLS6011B

CAT. NO. UPC NO. DESCRIPTION SIZE Ø INCH Ø mm PG LS6022A/03559 LS6022B/04312 CLS6022A CLS6022B

721-1/2 31756 1/2" Conduit Size

Slug-Buster® Punch 1/2" 7/8 0.885 22.5 16

✓

14722 14722 1/2" Conduit Size Die 1/2" 7/8 0.885 22.5 16

✓

721-3/4 31757 3/4" Conduit Size

Slug-Buster® Punch 3/4" — 1.115 28.3 21

✓

124AV 06972 3/4" Conduit Size Die 3/4" — 1.115 28.3 21

✓

721-1 31758 1" Conduit Size

Slug-Buster® Punch 1" — 1.362 34.6 —

✓

126AV 04011 1" Conduit Size Die 1" — 1.362 34.6 —

✓

721-1-1/4 31759 1-1/4" Conduit Size

Slug-Buster® Punch 1-1/4" 1-11/16 1.701 43.2 —

✓

128AV 04013 1-1/4" Conduit Size Die 1-1/4" 1-11/16 1.701 43.2 —

✓

721-1-1/2 31760 1-1/2" Conduit Size

Slug-Buster® Punch 1-1/2" 1-15/16 1.951 49.6 —

✓

440AV 04061 1-1/2" Conduit Size Die 1-1/2" 1-15/16 1.951 49.6 —

✓

721-2 31761 2" Conduit Size

Slug-Buster® Punch 2" 2-3/8 2.416 61.5 —

✓

442AV 04063 2" Conduit Size Die 2" 2-3/8 2.416 61.5 —

✓

1614SS 30043 Draw Stud–3/8" x 2-13/16"

✓

31872 31872 Draw Stud–3/4" x 4-1/8"

✓

1924AA 03248 Spacer-Short

✓

33967 33967 Stud Adapter–3/8"

✓

01686 01686 Metal Case

✓

MKLS60 05956 Case for LS60

Optional Accessories for LS6011B, LS6012B, and LS6022B (not included in kits)

29451 29451 Draw Stud–7/16" x 4-1/2" for Slug Splitter SC™ Stainless Steel Punches

Draw Studs

and Misc.

Punches and Dies

Battery-Powered Knockout Punch Driver Kits Parts List

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

HYDRAULIC KNOCKOUT KITS

STEEL CAPACITIES FOR CONDUIT SIZES

STANDARD PUNCHES AND SLUG-BUSTER® SLUG-SPLITTER SC™

REQUIRED

DRAW STUD AND 1/2" 3/4" 1-7/32" 1" 1-1/4" 1-1/2" 2" 1/2" 3/4" 1-7/32" 1-1/4"

ACCESSORIES OILTIGHT OILTIGHT

3/8" Draw Stud

Spacer & 7/16" Draw Stud

Spacer & 3/4" Draw Stud

3/4" Draw Stud

10 GA. MILD STEEL 10 GA. STAINLESS STEEL

WEIGHT

CAT. NO. UPC NO. DESCRIPTION LBS. kg.

7704SB 10475 Quick Draw® Flex Driver, 2 Draw Studs, 12.1 5.5

1 Adapter, 1 Spacer and Case

7706SB 10476 Standard – Quick Draw® Flex Driver, 1/2" through 17.3 7.9

2" Slug-Buster® Conduit Size Punches and Dies,

2 Draw Studs, 1 Adapter, 1 Spacer and Case

7804SB 34292 Quick Draw® Driver, 2 Draw Studs, 1 Adapter, 10 4.5

1 Spacer and Case

7806SB 34293 Standard – Quick Draw® Driver, 1/2" through 2" 14 6.4

Slug-Buster® Conduit Size Punches and Dies

2 Draw Studs, 1 Adapter, 1 Spacer and Case

7804E 34291 Metric – Quick Draw® Driver, 2 Draw Studs, 9.4 4.3

1 Adapter, 1 Spacer and Case

7804ESB 35611 Metric – Quick Draw® Driver, Slug-Buster® Pg 10.3 4.7

Punches and Dies 15.2 mm through 30.5 mm,

2 Draw Studs, 1 Adapter, 1 Spacer and Case

7804ISO 35614 Metric – Quick Draw® Driver, Slug-Buster® 11.4 5.2

ISO Punches and Dies 16.2 mm through 40.5 mm,

2 Draw Studs, 1 Adapter, 1 Spacer and Case

7904SB 33794 Quick Draw 90® Driver, 2 Draw Studs, 10 4.5

1 Adapter, 1 Spacer and Case

7906SB 34300 Quick Draw 90® Driver, 1/2" through 2" 14 6.4

Slug-Buster® Conduit Size Punches and Dies,

Draw Studs, 1 Adapter, 1 Spacer and Case

7904E 34299 Metric – Quick Draw 90® Driver, 2 Draw Studs, 11 5.0

1 Adapter, 1 Spacer and Case

7904ESB 35615 Metric – Quick Draw 90® Driver, Slug-Buster® 11 5.0

Pg Punches and Dies 15.2 mm through 30.5 mm,

2 Draw Studs, 1 Adapter, 1 Spacer and Case

7904ISO 35616 Metric – Quick Draw 90® Driver, Slug-Buster® 12.2 5.5

ISO Punches and Dies 16.2 mm through 40.5 mm,

2 Draw Studs, 1 Adapter, 1 Spacer and Case

34983 34983 Plastic Case

See page 61 for complete parts list for all kits.

Quick Draw® Hydraulic Punch Driver and Kits

The Quick Draw®, Quick Draw 90®, and Quick Draw® Flex feature:

• Compact,lightweightdesignforportabilityandfast,easy

one-person operation.

• Develops8tonsofhydraulicforceforeasypunching,evenin

10-gauge stainless steel, depending on individual punch capacities.

• QuickDraw® is perfect for fast, straight-on front panel punching.

• QuickDraw90®’s right angle driver head rotates over 180 degrees

for maximum flexibility in tight working areas.

• QuickDraw® Flex allows unlimited driver orientation to simplify

access to work area.

• Canbeusedwithnon-roundpuncheswithinthecapacityofthetool

(adapter may be required).

• U.S.Patent#6,772,521.

7806SB

Quick Draw

Kit

7906SB

Quick Draw 90

Kit

7706SB

Flex Driver Kit

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

HOLE SIZE KIT CAT./UPC NO.

CONDUIT

& PIPE ACTUAL 7704SB/ 7706SB/ 7804E/ 7804ESB/ 7804ISO/ 7804SB/ 7806SB/ 7904E/ 7904ESB/ 7904ISO/ 7904SB/ 7906SB/

CAT. NO. UPC NO. DESCRIPTION SIZE Ø INCH Ø mm PG ISO 10475 10476 34291 35611 35614 34292 34293 34299 35615 35616 33794 34300

721-1/2 31756 1/2" Conduit Size

Slug-Buster® Punch 1/2" 7/8 0.885 22.5 16 — ✓ ✓ ✓ ✓  ✓

14722 14722 1/2" Conduit Size Die 1/2" 7/8 0.885 22.5 16 — ✓ ✓ ✓ ✓  ✓

721-3/4 31757 3/4" Conduit Size

Slug-Buster® Punch 3/4" — 1.115 28.3 21 — ✓ ✓  ✓

124AV 06972 3/4" Conduit Size Die 3/4" — 1.115 28.3 21 — ✓ ✓  ✓

721-1 31758 1" Conduit Size

Slug-Buster® Punch 1" — 1.362 34.6 — — ✓ ✓  ✓

126AV 04011 1" Conduit Size Die 1" — 1.362 34.6 — — ✓ ✓  ✓

721-1-1/4 31759 1-1/4" Conduit Size

Slug-Buster® Punch 1-1/4" 1-11/16 1.701 43.2 — — ✓ ✓  ✓

128AV 04013 1-1/4" Conduit Size Die 1-1/4" 1-11/16 1.701 43.2 — — ✓ ✓  ✓

721-1-1/2 31760 1-1/2" Conduit Size

Slug-Buster® Punch 1-1/2" 1-15/16 1.951 49.6 — — ✓ ✓  ✓

440AV 04061 1-1/2" Conduit Size Die 1-1/2" 1-15/16 1.951 49.6 — — ✓ ✓  ✓

721-2 31761 2" Conduit Size

Slug-Buster® Punch 2" 2-3/8 2.416 61.5 — — ✓ ✓  ✓

442AV 04063 2" Conduit Size Die 2" 2-3/8 2.416 61.5 — — ✓ ✓  ✓

31969 31969 Slug-Buster® Punch — — 0.598 15.2 9 — ✓



✓

 

32002 32002 Die — — 0.598 15.2 9 — ✓



✓

 

31970 31970 Slug-Buster® Punch — — 0.732 18.6 11 — ✓  ✓ 

32003 32003 Die — — 0.732 18.6 11 — ✓  ✓ 

31971 31971 Slug-Buster® Punch — — 0.803 20.4 13 20 ✓ ✓  ✓ ✓ 

32004 32004 Die — — 0.803 20.4 13 20 ✓ ✓  ✓ ✓ 

31973 31973 Slug-Buster® Punch 3/4" — 1.115 28.3 21 — ✓  ✓ 

32006 32006 Die 3/4" — 1.115 28.3 21 — ✓  ✓

36284 36284 30.5 mm

Slug-Buster® Punch — 1-7/32 1.210 30.5 — — ✓  ✓ 

36279 36279 30.5 mm Die — 1-7/32 1.210 30.5 — — ✓  ✓ 

35163 35163 ISO-16

Slug-Buster® Punch — — 0.638 16.2 — 16 ✓

35162 35162 ISO-16 Die — — 0.638 16.2 — 16 ✓  ✓

35165 35165 ISO-25

Slug-Buster® Punch — 1 1.000 25.4 — 25 ✓

35164 35164 ISO-25 Die — 1 1.000 25.4 — 25 ✓  ✓

35169 35169 ISO-32

Slug-Buster® Punch — — 1.280 32.5 — 32 ✓

35168 35168 ISO-32 Die — — 1.280 32.5 — 32 ✓  ✓

35158 35158 ISO-40

Slug-Buster® Punch — — 1.595 40.5 — 40 ✓

35159 35159 ISO-40 Die — — 1.595 40.5 — 40 ✓



✓



34288 34288 Quick Draw® Hydraulic

Punch Driver ✓ ✓ ✓



✓



✓



33786 33786 Quick Draw 90®

Hydraulic Punch Driver ✓ ✓ ✓ ✓ ✓

10383 10383 Quick Draw® Flex Driver ✓ ✓

1614SS 30043 Draw Stud–3/8" x 2-13/16"

✓

✓

✓



✓

31872 31872 Draw Stud–3/4" x 4-1/8" ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

1924AA 03248 Spacer-Short

✓

✓

✓



✓

33967 33967 Stud Adapter–3/8"

✓

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

35202 35202 Plastic Case ✓ ✓ ✓ ✓ ✓ ✓

34983 34983 Plastic Case ✓ ✓



✓



✓

10391 10391 Plastic Case ✓ ✓

Optional Accessories for 7806SB, 7804E, 7804ESB, 7804ISO, 7906SB, 7904E, 7904ESB and 7904ISO Kits (not included in kits)

29451 29451 7/16" (11.1 mm) Stainless Steel Draw Stud

Punches and Dies

Parts List for Quick Draw®, Quick Draw 90® and Quick Draw® Flex Kits

Draw Studs and Misc.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

7625

10 GA. MILD STEEL 10 GA. STAINLESS STEEL

STEEL CAPACITIES FOR CONDUIT SIZES

REQUIRED DRAW STUD STANDARD & SLUG-BUSTER® PUNCHES STANDARD SLUG-SPLITTER SC™

AND ACCESSORIES 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"

3/4" Stud (03294), 3/8" Stud (30043) & Spacers

3/4" Stud (03294), Long Spacer

3/4" Stud (03294), Short Spacer

3/4" Stud (03294)

3/4" Stud (03294), & Sleeve (03170)

7/16" Stud (29451)

3/4" Stud (29452)

WEIGHT

CAT. NO. UPC NO. DESCRIPTION LBS. kg.

7625 25097 Driver, Foot Pump, Steel Case 37 17

7606SB 07173 Driver, Foot Pump, Slug-Buster® Punches, Dies and 42 19

Draw Studs for 1/2" through 2" Conduit, Steel Case

7610SB 07174 Driver, Foot Pump, Slug-Buster® Punches, Dies & Draw 60 27

Studs for 1/2" through 2" Conduit, Slug-Buster® Punches

and 2 1/2" through 4" Conduit Standard Round Punches

Slug-Buster® Ram and Foot Pump Hydraulic Driver Kits

• Footoperationfreesbothhandstopositionpunch.

• Punches10timesfasterthanwrenchmethod.

• Willalsodrive751CableCutterhead.

• Powerful11-tonhydraulicram.

• Canbeusedwithmoststandardround,Slug-Buster®

and Slug-Splitter SC™ punch sizes. (Not 1/2", 9/16" 5/8")

• Canbeusedwithnon-roundpunches(adaptermayberequired).

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Ram and Foot Pump Kits Parts List

HOLE SIZE KIT CAT./UPC NO.

CONDUIT

& PIPE ACTUAL 7625/ 7606SB/ 7610SB/

CAT. NO. UPC NO. DESCRIPTION SIZE Ø INCH Ø mm PG 25097 07173 07174

721-1/2 31756 1/2" Conduit Size Slug-Buster® Punch 1/2" 7/8 0.885 22.5 16 1 1

14722 14722 1/2" Conduit Size Die 1/2" 7/8 0.885 22.5 16 1 1

721-3/4 31757 3/4" Conduit Size Slug-Buster® Punch 3/4" — 1.115 28.3 21 — 1 1

124AV 06972 3/4" Conduit Size Die 3/4" — 1.115 28.3 21 1 1

721-1 31758 1" Conduit Size Slug-Buster® Punch 1" — 1.362 34.6 — 1 1

126AV 04011 1" Conduit Size Die 1" — 1.362 34.6 — 1 1

721-1-1/4 31759 1-1/4" Conduit Size Slug-Buster® Punch 1-1/4" 1-11/16 1.701 43.2 — 1 1

128AV 04013 1-1/4" Conduit Size Die 1-1/4" 1-11/16 1.701 43.2 — 1 1

721-1-1/2 31760 1-1/2" Conduit Size Slug-Buster® Punch 1-1/2" 1-15/16 1.951 49.6 — 1 1

440AV 04061 1-1/2" Conduit Size Die 1-1/2" 1-15/16 1.951 49.6 — 1 1

721-2 31761 2" Conduit Size Slug-Buster® Punch 2" 2-3/8 2.416 61.5 — 1 1

442AV 04063 2" Conduit Size Die 2" 2-3/8 2.416 61.5 — 1 1

1429AV 04175 2-1/2" Conduit Size Punch 2-1/2" 2-7/8 2.914 74.0 — 1

1430AV 04177 2-1/2" Conduit Size Die 2-1/2" 2-7/8 2.914 74.0 — 1

1431AV 04180 3" Conduit Size Punch 3" 3-1/2 3.539 89.9 — 1

1432AV 04183 3" Conduit Size Die 3" 3-1/2 3.539 89.9 — 1

2982AV 04653 3-1/2" Conduit Size Punch 3-1/2" 4 4.044 102.7 — 1

2981AV 04652 3-1/2" Conduit Size Die 3-1/2" 4 4.044 102.7 — 1

2984AV 04655 4" Conduit Size Punch 4" 4-1/2 4.544 115.4 — 1

2983AV 04654 4" Conduit Size Die 4" 4-1/2 4.544 115.4 — 1

746 17091 (A) Ram (includes 1 ea. of items B, C, and D) 1 1 1

2113AA 03294 (B) Draw Stud–3/4" x 5-3/8" 1 1 1

54167 54167 (C) Female Coupler–1/4" 1 1 1

54168 54168 (D) Dust Plug 1 1 1

1557AA 03170 (F) Punch Sleeve 1 1 1

1614SS 30043 (G) Draw stud–3/8"x 2-13/16" 2 2 2

15908 15908 (H) Spacer Group (includes 1 ea. of items I, J, and K) 1 1 1

1924AA 03248 (I) Spacer-Short 1 1 1

1925AA 03249 (J) Spacer-Medium 1 1 1

1926AA 06904 (K) Spacer-Long 1 1 1

34410 34410 (L) Kwik Stepper® Step Bit 1/2" 1 1 1

1725 31353 (S) Hydraulic Foot Pump (includes 1 ea. – 54167 female coupler and 54168 dust plug) 1 1 1

37729 37729 (T)HighPressureHoseUnit–1/4"x10';filledwithhydraulicoil;    1 1 1

(includes the following 2 items)

54169 54169 Couplers 2 2 2

54170 54170 Dust Caps 2 2 2

23955 23955 (U) Steel case 1 1 1

25094 25094 Tray 1 1 1

Draw Studs

and Misc. Punches and Dies

RAM AND FOOT PUMP HYDRAULIC DRIVER PARTS IDENTIFICATION

(Match letters above to drawing.)

HGL

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

HOLE SIZE KIT CAT./UPC NO.

CONDUIT

& PIPE ACTUAL 7646/ 7306SB/ 7310SB/ 7646PGSB/

CAT. NO. UPC NO. DESCRIPTION SIZE Ø INCH Ø mm PG ISO 15906 34360 34361 32799 38520

721-1/2 31756 1/2" Conduit Size Slug-Buster® Punch 1/2" 7/8 0.885 22.5 16 — 1 1 1 1

14722 14722 1/2" Conduit Size Die 1/2" 7/8 0.885 22.5 16 — 1 1 1 1

721-3/4 31757 3/4" Conduit Size Slug-Buster® Punch 3/4" — 1.115 28.3 21 — 1 1 1

124AV 06972 3/4" Conduit Size Die 3/4" — 1.115 28.3 21 — 1 1 1

721-1 31758 1" Conduit Size Slug-Buster® Punch 1" — 1.362 34.6 — — 1 1 1

126AV 04011 1" Conduit Size Die 1" — 1.362 34.6 — — 1 1 1

721-1-1/4 31759 1-1/4" Conduit Size Slug-Buster® Punch 1-1/4" 1-11/16 1.701 43.2 — — 1 1 1

128AV 04013 1-1/4" Conduit Size Die 1-1/4" 1-11/16 1.701 43.2 — — 1 1 1

721-1-1/2 31760 1-1/2" Conduit Size Slug-Buster® Punch 1-1/2" 1-15/16 1.951 49.6 — — 1 1 1

440AV 04061 1-1/2" Conduit Size Die 1-1/2" 1-15/16 1.951 49.6 — — 1 1 1

721-2 31761 2" Conduit Size Slug-Buster® Punch 2" 2-3/8 2.416 61.5 — — 1 1 1

442AV 04063 2" Conduit Size Die 2" 2-3/8 2.416 61.5 — — 1 1 1

1429AV 04175 2-1/2" Conduit Size Punch 2-1/2" 2-7/8 2.914 74.0 — — 1 1

1430AV 04177 2-1/2" Conduit Size Die 2-1/2" 2-7/8 2.914 74.0 — — 1 1

1431AV 04180 3" Conduit Size Punch 3" 3-1/2 3.539 89.9 — — 1 1

1432AV 04183 3" Conduit Size Die 3" 3-1/2 3.539 89.9 — — 1 1

2982AV 04653 3-1/2" Conduit Size Punch 3-1/2" 4 4.044 102.7 — — 1

2981AV 04652 3-1/2" Conduit Size Die 3-1/2" 4 4.044 102.7 — — 1

2984AV 04655 4" Conduit Size Punch 4" 4-1/2 4.544 115.4 — — 1 1

2983AV 04654 4" Conduit Size Die 4" 4-1/2 4.544 115.4 — — 1 1

31969 31969 Slug-Buster® Punch — — 0.598 15.2 9 — 1

32002 32002 Die — — 0.598 15.2 9 — 1

31970 31970 Slug-Buster® Punch — — 0.732 18.6 11 — 1

32003 32003 Die — — 0.732 18.6 11 — 1

31971 31971 Slug-Buster® Punch — — 0.803 20.4 13 20 1

32004 32004 Die — — 0.803 20.4 13 20 1

31973 31973 Slug-Buster® Punch 3/4" — 1.115 28.3 21 — 1

32006 32006 Die 3/4" — 1.115 28.3 21 — 1

36284 36284 30.5 mm Slug-Buster® Punch — 1-7/32 1.210 30.5 — — 1

36279 36279 30.5 mm Die — 1-7/32 1.210 30.5 — — 1

31975 31975 Slug-Buster® Punch — — 1.457 37.0 29 — 1

32008 32008 Die — — 1.457 37.0 29 — 1

31976 31976 Slug-Buster® Punch — — 1.850 47.0 36 — 1

32009 32009 Die — — 1.850 47.0 36 — 1

31978 31978 Slug-Buster® Punch — — 2.362 60.0 48 — 1

32011 32011 Die — — 2.362 60.0 48 — 1

746 17091 Ram (includes following item) 1 1 1 1 1

2113AA 03294 Draw Stud–3/4" x 5-3/8" 1 1 1 1 1

1557AA 03170 Punch Sleeve 1 1 1 1 1

1614SS 30043 Draw Stud–3/8"x 2-13/16" 2 2 2 2 2

15908 15908 Spacer Group (includes 1 ea. of the following 3 items) 1 1 1 1 1

1924AA 03248 Spacer-Short 1 1 1 1 1

1925AA 03249 Spacer-Medium 1 1 1 1 1

1926AA 06904 Spacer-Long 1 1 1 1 1

34410 34410 Kwik Stepper® Step Bit 1/2" 1 1 1 1 1

767 13284 Hydraulic Hand Pump 1 1 1 1 1

06302 06302 High Pressure Hose–1/4" x 3' 1 1 1 1

30206 30206 Plastic Case 1 1 1

18402 18402 Steel Case 1 1

25094 25094 Punch Tray 1

Punches and Dies

Draw Studs

and Misc.

Ram and Hand Pump Kits Parts List

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

STEEL CAPACITIES FOR CONDUIT SIZES

STANDARD & SLUG-BUSTER® PUNCHES STANDARD SLUG-SPLITTER SC™

REQUIRED DRAW STUD AND ACCESSORIES 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"

3/4" Stud (03294),

3/8" Stud (30043) & Spacers

3/4" Stud (03294),

Long Spacer

3/4" Stud (03294),

Short Spacer

3/4" Stud (03294)

3/4" Stud (03294),

& Sleeve (03170)

7/16" Stud (29451)

3/4" Stud (29452)

10 GA. MILD STEEL 10 GA. STAINLESS STEEL

FGH

K J I

RAM AND HAND PUMP HYDRAULIC DRIVER PARTS IDENTIFICATION

KEY CAT./UPC NO. DESCRIPTION

A 746 / 17091 Ram (includes Item B)

B 2113AA / 03294 Draw Stud–3/4" x 5-3/8"

F 1557AA / 03170 Punch Sleeve

G 1614SS / 30043 Draw Stud–3/8" x 2-13/16"

H 15908 Spacer Group (includes Items I, J and K)

I 1924AA / 03248 Spacer-Short

J 1925AA / 03249 Spacer-Medium

K 1926AA / 06904 Spacer-Long

L 34410 Kwik Stepper® Step Bit 1/2"

M 767 / 13284 Hydraulic Hand Pump

N 06302 / 06302 High Pressure Hose–1/4" x 3'

R 30206 Plastic Case

Ram and Hand Pump Hydraulic Driver Kits (Inch and Metric)

• Fast,easyandsimpletooperate.

• Compactdesignforfielduseonconstructionsites

and maintenance jobs.

• Punches10timesfasterthanwrenchmethod.

• Willalsodrive751CableCutterhead.

• CanbeusedwithmoststandardroundSlug-Buster®

and Slug-Splitter SC™ punches (not 1/2", 9/16", 5/8").

• Canbeusedwithnon-roundpunches(adaptermayberequired).

• 3-foothose

• Powerful11-tonhydraulicram.

WEIGHT

CAT. NO. UPC NO. DESCRIPTION LBS. kg.

7646 15906 Driver with Hand Pump, Draw Studs, 20 9.1

Spacer and Plastic Case

7306 15909 Driver, Hand Pump, Standard Punches, 24 10.9

Dies and Draw Studs for 1/2" through

2" Conduit, Plastic Case

7306SB 34360 Driver, Hand Pump, Slug-Buster® Punches, 24 10.9

Dies and Draw Studs for 1/2" through 2"

Conduit, Adapter, Spacers, Kwik Stepper®

Step Bit and Plastic Case

7310 15910 Driver, Hand Pump, Standard Punches, 54 24.5

Dies and Draw Studs and Spacers for

1/2" through 4" Conduit, Steel Case

7310SB 34361 Driver, Hand Pump, Slug-Buster® Punches, 54 24.5

Dies and Draw Studs for 1/2" through 2"

and 2-1/2" through 4" Standard Conduit

Size Punches, Dies and Draw Studs,

Adapter, Spacers, Kwik Stepper® Step Bit

and Steel Case

7646Pg 27433 Metric – Driver, Hand Pump, Standard 24 10.9

Pg Punches, Dies and Draw Studs and

Spacers for 15.2 mm through 60.0 mm,

Plastic Case

7646PgSB 32799 Metric – Driver, Slug-Buster® Pg Punches, 24 10.9

Dies and Draw Studs for 15.2 mm through

60.0 mm, Adapter, Spacers, Kwik Stepper®

Step Bit and Plastic Case

7304 02815 Standard Punch and Die Kit (no draw studs) 21 9.5

for 2-1/2" through 4" Conduit, Plastic Case

38456 38456 Driver, Hand Pump, Standard Punches, Dies 48.4 22

and Draw Studs and Spacers for 1/2"

through 3" and 4" Conduit, Steel Case

38520 38520 Driver, Hand Pump, Slug-Buster® Punches 48 21.8

and Draw Studs for 1/2" through 3" and 4"

Conduit, Adapter, Spacers, Kwik Stepper®

Step Bit and Steel Case

7310SB

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

HOLE SIZE KIT CAT./UPC NO.

CONDUIT

& PIPE ACTUAL 7646/ 7306/ 7310/ 7646PG/

CAT. NO. UPC NO. DESCRIPTION SIZE Ø INCH Ø mm PG 15906 15909 15910 27433 38456

721-1/2 31756 1/2" Conduit Size Slug-Buster® Punch 1/2" 7/8 0.885 22.5 16 1 1 1

121AV 04006 1/2" Conduit Size Punch 1/2" 7/8 0.885 22.5 16 1

14722 14722 1/2" Conduit Size Die 1/2" 7/8 0.885 22.5 16 1 1 1 1

123AV 04008 3/4" Conduit Size Punch 3/4" — 1.115 28.3 21 1 1 1

124AV 06972 3/4" Conduit Size Die 3/4" — 1.115 28.3 21 1 1 1

125AV 04010 1" Conduit Size Punch 1" — 1.362 34.6 — 1 1 1

126AV 04011 1" Conduit Size Die 1" — 1.362 34.6 — 1 1 1

127AV 06974 1-1/4" Conduit Size Punch 1-1/4" 1-11/16 1.701 43.2 — 1 1 1

128AV 04013 1-1/4" Conduit Size Die 1-1/4" 1-11/16 1.701 43.2 — 1 1 1

439AV 06978 1-1/2" Conduit Size Punch 1-1/2" 1-15/16 1.951 49.6 — 1 1 1

440AV 04061 1-1/2" Conduit Size Die 1-1/2" 1-15/16 1.951 49.6 — 1 1 1

441AV 04062 2" Conduit Size Punch 2" 2-3/8 2.416 61.5 — 1 1 1

442AV 04063 2" Conduit Size Die 2" 2-3/8 2.416 61.5 — 1 1 1

1429AV 04175 2-1/2" Conduit Size Punch 2-1/2" 2-7/8 2.914 74.0 — 1 1

1430AV 04177 2-1/2" Conduit Size Die 2-1/2" 2-7/8 2.914 74.0 — 1 1

1431AV 04180 3" Conduit Size Punch 3" 3-1/2 3.539 89.9 — 1 1

1432AV 04183 3" Conduit Size Die 3" 3-1/2 3.539 89.9 — 1 1

2982AV 04653 3-1/2" Conduit Size Punch 3-1/2" 4 4.044 102.7 — 1

2981AV 04652 3-1/2" Conduit Size Die 3-1/2" 4 4.044 102.7 — 1

2984AV 04655 4" Conduit Size Punch 4" 4-1/2 4.544 115.4 — 1 1

2983AV 04654 4" Conduit Size Die 4" 4-1/2 4.544 115.4 — 1 1

21316 21316 Punch — — 0.598 15.2 9 1

32002 32002 Die — — 0.598 15.2 9 1

17700 17700 Punch — — 0.732 18.6 11 1

32003 32003 Die — — 0.732 18.6 11 1

17697 17697 Punch — — 0.803 20.4 13 1

32004 32004 Die — — 0.803 20.4 13 1

36882 36882 Punch 3/4" — 1.115 28.3 21 1

32006 32006 Die 3/4" — 1.115 28.3 21 1

36282 36282 30.5 mm Punch — 1-7/32 1.210 30.5 — 1

36279 36279 30.5 mm Die — 1-7/32 1.210 30.5 — 1

18331 18331 Punch — — 1.457 37.0 29 1

32008 32008 Die — — 1.457 37.0 29 1

17687 17687 Punch — — 1.850 47.0 36 1

32009 32009 Die — — 1.850 47.0 36 1

17690 17690 Punch — — 2.362 60.0 48 1

32011 32011 Die — — 2.362 60.0 48 1

746 17091 Ram (includes following item) 1 1 1 1 1

2113AA 03294 Draw Stud–3/4" x 5-3/8" 1 1 1 1 1

1557AA 03170 Punch Sleeve 1 1 1 1 1

1614SS 30043 Draw Stud–3/8" x 2-13/16" 2 2 2 2 2

15908 15908 Spacer Group (includes 1 ea. of the following 3 items)

1924AA 03248 Spacer-Short 1 1 1 1 1

1925AA 03249 Spacer-Medium 1 1 1 1 1

1926AA 06904 Spacer-Long 1 1 1 1 1

34410 34410 Kwik Stepper® Step Bit 1/2" 1 1 1 1 1

767 13284 Hydraulic Hand Pump 1 1 1 1 1

06302 06302 High Pressure Hose–1/4" x 3' 1 1 1 1 1

30206 30206 Plastic Case 1 1 1

18402 18402 Steel Case 1 1

See Slug-Buster Knockout Punches on pages 45 and 46.

Punches & Dies

Draw Studs

and Misc.

Ram and Hand Pump Kits Parts List

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

7360SB

7361SB

7361SB/34359 PARTS CABINET INCLUDES

CAT. NO. UPC NO. DESCRIPTION QTY.

721-1/2 31756 Slug-Buster® 1/2" Conduit Punch 18

14722 14722 1/2" Conduit Die 12

721-3/4 31757 Slug-Buster® 3/4" Conduit Punch 6

124AV 06972 3/4" Conduit Die 6

721-1 31758 Slug-Buster® 1" Conduit Punch 6

126AV 04011 1" Conduit Die 6

721-1-1/4 31759 Slug-Buster® 1-1/4" Conduit Punch 6

128AV 04013 1-1/4" Conduit Die 6

721-1-1/2 31760 Slug-Buster® 1-1/2" Conduit Punch 3

440AV 04061 1-1/2" Conduit Die 3

721-2 31761 Slug-Buster® 2" Conduit Punch 3

442AV 04063 2" Conduit Die 2

1429AV 04175 2-1/2" Conduit Punch 1

1430AV 04177 2-1/2" Conduit Die 1

1431AV 04180 3" Conduit Punch 1

1432AV 04183 3" Conduit Die 1

00042 00042 3/8" Draw Stud 12

249AVBB 04040 3/4" Drive Screw 8

304AVBB 04042 3/4" Drive Screw 6

1434AV 04188 5-1/2" x 3/4" Drive Screw 1

1433AVBB 04187 1" Ball Bearing Nut 1

12097 12097 3/8" Adapter Screw 6

30227 30227 7/16" Adapter Screw 2

12098 12098 3/4" Adapter Screw 2

12099 12099 3/4" Ball Bearing Adapter Screw 1

1614SS 30043 3/8" Stainless Steel Adapter 20

2113AA 03294 3/4" Piston Shaft 6

1557AA 03170 1-1/8" Thread Sleeve 1

3037AV 04686 3-1/2", 4" & 5" Conduit Bushing 1

1924AA 03248 Short Spacer 3

1925AA 03249 Medium Spacer 3

1926AA 06904 Long Spacer 3

15908 15908 Spacer Unit 1

28154 28154 Punch 1/2" HD Slug-Splitter SC™ 1

28155 28155 Die 1/2" HD Slug-Splitter SC™ 1

29451 29451 Draw Stud, 7/16" Stainless Steel 1

31834 31834 Cabinet A only (top) 1

31849 31849 Cabinet B only (bottom) 1

7360SB/34358 PARTS CABINET INCLUDES

CAT. NO. UPC NO. DESCRIPTION QTY.

721-1/2 31756 Slug-Buster® 1/2" Conduit Punch 18

14722 14722 1/2" Conduit Die 12

721-3/4 31757 Slug-Buster® 3/4" Conduit Punch 6

124AV 06972 3/4" Conduit Die 6

721-1 31758 Slug-Buster® 1" Conduit Punch 3

126AV 04011 1" Conduit Die 3

721-1-1/4 31759 Slug-Buster® 1-1/4" Conduit Punch 3

128AV 04013 1-1/4" Conduit Die 3

721-1-1/2 31760 Slug-Buster® 1-1/2" Conduit Punch 2

440AV 04061 1-1/2" Conduit Die 2

721-2 31761 Slug-Buster® 2" Conduit Punch 2

442AV 04063 2" Conduit Die 1

00042 00042 3/8" Draw Stud 12

249AVBB 04040 3/4" Drive Screw 4

304AVBB 04042 3/4" Drive Screw 4

12097 12097 3/8" Adapter Screw 4

12098 12098 3/4" Adapter Screw 2

1614SS 30043 3/8" Stainless Steel Adapter 20

2113AA 03294 3/4" Piston Shaft 4

31832 31832 Cabinet only 1

Knockout Punch Parts Assortment Cabinets

• Includesbalancedstockofreplacementpartsinsturdysteelcabinets.

CAT. NO. UPC NO. DESCRIPTION

7360SB 34358 Knockout Punch Parts Assortment 1/2" - 2". Includes Metal

Cabinet14"High,13"Wideand14-3/4"Deep,with4Drawers.

7361SB 34359 Knockout Punch Parts Assortment 1/2" - 3". Includes Metal

Cabinet19-1/2"High,27"Wideand15"Deepwith4Drawers.

KNOCKOUT PARTS CABINETS

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

WEIGHT

CAT. NO. UPC NO. DESCRIPTION LBS. kg.

1731 15911 Driver with Ram, 1/2" Through

1" Conduit (22.5 mm through 34.6 mm)

Punches and Dies 32 15

1732 27361 Driver with Ram, 3/8", 3/4"

and 1-1/8" Punch and Die Adapters 59 27

1731H767 20486 Same as 1731 with 767

Hydraulic Hand Pump 36 17

1731F1725 25169 Same as 1731 with 1725

Hydraulic Foot Pump 43 20

21316 21316 Pg-9 (15.2 mm) Punch (optional)

18557 18557 Pg-9 (15.2 mm) Die (optional)

17700 17700 Pg-11 (18.6 mm) Punch (optional)

18558 18558 Pg-11 (18.6 mm) Die (optional)

17697 17697 Pg-13 (20.4 mm) Punch (optional)

18559 18559 Pg-13 (20.4 mm) Die (optional)

36282 36282 1-7/32" (30.5 mm) Oil Tight Punch (optional)

37103 37103 1-7/32" (30.5 mm) Oil Tight Die (optional)

1731 & 1732 Portable C-Frame Punch Drivers

1731

• Greatforpunchingjunctionboxesandsmallenclosures.

• Punchcanbeusedwithraminsideoroutsideofthejunctionbox.

• Forusewith1/2"–1"(22.5mm–34.6mm)conduitsizeandaccessorysizesonly.

• Fast,one-shotpunching,nopredrillingofpilotholes.

• Throatmeasures8"(203mm)deep.

SPECIFICATIONS

Capacity 1731: Up through 10 gauge (3.0 mm) mild steel with Greenlee

specialC-Framediesandstandardpunches;1/2"through1"

conduit and 15.2 mm through 30.5 mm

1732: Up through 10 gauge (3.0 mm) mild steel with Greenlee

Standardpunchesanddies;1/2"through4"conduitand15.2mm

through 115.4 mm.

C-FRAME PUNCHES

1731

HOLE SIZE KIT CAT/UPC.NO.

1731/ 1731H767/ 1731F1725/ 1732/ 1732H755/

CAT. NO. UPC NO. DESCRIPTION SIZE PG Ø mm 15911 20486 25169 27361 27362

C-Frame with Ram

✓ ✓ ✓ ✓ ✓

13266 13266 Punch Adapter - 3/8" Ø x 1/2" (9.5 mm)

✓ ✓

13267 13267 Punch Adapter - 3/4" Ø x 1" (19.0 mm)

✓ ✓

13276 13276 Punch Adapter - 3/8" ø x 1/2" (9.5 mm)

✓

13277 13277 Punch Adapter - 3/4" Ø x 1" (19.0 mm)

✓ ✓ ✓

13268 13268 Punch Adapter - 1-1/8" Ø (28.6 mm)

✓ ✓

121AV 04006 1/2" Conduit Size Punch 1/2" 16 22.5

✓ ✓ ✓ 

123AV 04008 3/4" Conduit Size Punch 3/4" 21 28.3

✓ ✓ ✓

125AV 04010 1" Conduit Size Punch 1" - 34.6

✓ ✓ ✓

12087 12087 C-Frame 1/2" Conduit Size Die 1/2" 16 22.5

✓ ✓ ✓ 

12086 12086 C-Frame 3/4" Conduit Size Die 3/4" 21 28.3

✓ ✓ ✓ 

12085 12085 C-Frame 1" Conduit Size Die 1" - 34.6

✓ ✓ ✓ 

1725 25144 1725 Hydraulic Foot Pump

✓

16634 16634 Steel Case

✓ ✓ ✓

38316 38316 High Pressure Hose Unit - 1/4" x 3'

✓

(includes 1 each of the following 3 items:)

54169 54169 - 1/4" Male Coupler

54170 54170 - Dust Cap

06302 06302 - High Pressure Hose, 1/4" x 3'

11791 11791 Die Adapter - 3/8" Ø (9.5 mm)

✓ ✓

11790 11790 Die Adapter - 3/4" Ø (19.0 mm)

✓ ✓

11789 11789 Die Adapter - 1-1/8" Ø (28.6 mm)

✓ ✓

767 13284 Hydraulic Hand Pump

✓

755 15677 Hydraulic Hand Pump

✓

37729 37729 Hydraulic Hose - 1/4" x 10' (3 m)

✓

11289 11289 Hydraulic Hose - 3/8" x 6' (9.5 mm x 1.8)

✓

27335 27335 Metal Case

✓ ✓

50642 50642 Nut - 3/4" - 10 (19.0 mm)

✓ ✓

12079 12079 Frame

15631 15631 Ram

37614 37614 Quick Disconnect

11903 11903 C-Frame

13814 13814 Packing Kit

1731 & 1732 Portable C-Frame Punch Drivers

1732

• Usewith1/2"through4"conduitsizeandotherroundsizesonly.

• UsewithGreenleestandardroundpunchesanddies(optional).

1732

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

SPECIAL APPLICATION PUNCHES

MAXIMUM CAT./UPC NO. OPTIONAL

HOLE SIZE CAPACITY PUNCH UNIT BB MINIMUM ADAPTER FOR

INCH mm MILD STEEL OPERATION (INCLUDES PUNCH, DIE DRAW DRIVE COUNTER PILOT HOLE WEIGHT HYDRAULIC

A B C A B C GA mm TYPE DRAW STUD AND NUTS) PUNCH DIE STUD NUT NUT INCH mm LBS. kg. DRIVERS

.875 .125 1.000 22.5 3.2 25.4 14 2.0 Hand/Hydr. 60238 60239 60250 60117 60165 60258 .625 15.9 2.1 .95 60167

1.210 .190 1.380 30.5 4.8 36.0 10 3.5 Hand/Hydr. 60242 60243 60249 60117 60165 60258 .625 15.9 2.7 1.2 60167

For maximum draw stud life, Greenlee recommends the use of battery or hydraulic drivers.

Counter

Nut

Punch Die Draw Stud Ball Bearing

Drive Nut

Other oiltight sizes without notches available in standard, Slug-Buster® and Slug-Splitter® designs.

Oiltight Punches with Notches

Counter

Nut

Punch

Die

Ball Bearing

Drive Nut

Draw Stud

CAT./UPC NO.

MAXIMUM PUNCH UNIT OPTIONAL

HOLE SIZE CAPACITY (INCLUDES BB MINIMUM ADAPTER FOR

INCH mm MILD STEEL OPERATION PUNCH, DIE, DRAW DRAW DRIVE COUNTER PILOT HOLE WEIGHT HYDRAULIC

A B C A B C GA mm TYPE STUD AND NUTS) PUNCH DIE STUD NUT NUT INCH mm LBS. kg. DRIVERS

0.481 0.055 .030 12.2 1.4 .8 16 1.5 Hand/Hydr. 60101 60102 60103 60115 60120 05244 .375 9.5 .88 .4 60114

1.171 0.123 .097 29.7 3.1 2.5 14 2.0 Hand/Hydr. 60104 60105 60106 60166 60165 60258 .875 23.8 2.3 1.0 60167

1.265 0.156 .097 32.1 4.0 2.5 14 2.0 Hand/Hydr. 60107 60108 60109 60166 60165 60258 .875 23.8 2.4 1.1 60167

1.328 0.102 .097 33.7 2.6 2.5 14 2.0 Hand/Hydr. 60110 60111 60112 60166 60165 60258 .875 23.8 2.4 1.1 60167



For use with any Greenlee Hydraulic Driver or Battery-Powered Driver. For maximum draw stud life, Greenlee recommends the use of battery or hydraulic drivers

Key Punches

WEIGHT

CAT. NO. UPC NO. DESCRIPTION LBS. kg.

720 26534 Keyway Punch 2.8 1.27

26534 26536 Punch

26538 26538 Die

720 Keyway Punch

• Eliminatestime-consuminghandsawingandfilingwhenmakingkeyways

for push-button switches.

• Useasanibblertomakewiderordeeperkeyways.

• Punches1/8"(3.2mm)or3/16"(4.8mm)keywaysfor7/8"(22.5mm)or

1-7/32" (30.5 mm) push-button holes.

• U.S.PatentNo.4,375,128;CanadianPatentNo.1,172,435.

SPECIFICATIONS

Operation Manual

Capacity 10 gauge (3.5 mm) mild steel

2. Place cutting notch inside edge of hole and

cut keyway.

3. Withdraw the punch.

1/8" Deep

Die

Cutting Notch

1/8" Key

Cutting Notch

3/16" Key

Punch

3/32" Deep

4. Use as a nibbler to make wider or

deeper keyways.

1. Locate proper cutting notch on the

cutting head.

3/16"

1/8"

NOTE: Not for Stainless Steel

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

“D” Punches

Draw Stud

CAT./UPC NO.

MAXIMUM PUNCH UNIT OPTIONAL

HOLE SIZE CAPACITY (INCLUDES BB MINIMUM ADAPTER FOR

INCH mm MILD STEEL OPERATION PUNCH, DIE, DRAW DRAW DRIVE COUNTER PILOT HOLE WEIGHT HYDRAULIC

A B A B GA mm TYPE STUD AND NUTS) STUD NUT NUT INCH mm LBS. kg. DRIVERS

0.769 0.642 19.5 16.3 14 2.0 Hand/Hydr. 61086** 34421 34733 04638 .500 12.7 1.1 .50 33967

0.795 0.697 20.2 17.6 14 2.0 Hand/Hydr. 61089** 34421 34733 04638 .500 12.7 1.1 .50 33967

0.913 0.756 23.2 19.2 14 2.0 Hand/Hydr. 61092** 34421 34733 04638 .500 12.7 1.2 .54 33967

0.913 0.795 23.2 20.2 14 2.0 Hand/Hydr. 61095** 34421 34733 04638 .500 12.7 2 .9 33967

1.375 1.125 34.9 28.6 14 2.0 Hand/Hydr. 60098** 60166 60165 60258 .875 23.8 2.5 1.1 60167

For use with any Greenlee Hydraulic Driver or Battery-Powered Driver For maximum draw stud life, Greenlee recommends the use of battery or hydraulic drivers

** Sold as Unit only

Counter

Nut

Punch Die Ball Bearing

Drive Nut

Square

Special Square Counter

Nut

Punch Die Draw Stud Ball Bearing

Drive Nut

CAT./UPC NO.

MAXIMUM PUNCH UNIT OPTIONAL

CAPACITY (INCLUDES BB MINIMUM ADAPTER FOR

HOLE SIZE MILD STEEL OPERATION PUNCH, DIE, DRAW DRAW DRIVE COUNTER PILOT HOLE WEIGHT HYDRAULIC

INCH mm GA mm TYPE STUD AND NUTS) PUNCH DIE STUD NUT NUT INCH mm LBS. kg DRIVERS

1/2" 0.500 x 0.500 12.7 x 12.7 16 1.5

Hand/Hydr. 60001 60002 60003 60115 60120 05244 .375 9.5 1.1 .50 60114

5/8" 0.625 x 0.625 15.9 x 15.9 14 2.0

Hand/Hydr. 61004 60005 60006 34421 34733 04638 .500 12.7 1.5 .68 33967

3/4" 0.750 x 0.750 19.1 x 19.1 14 2.0

Hand/Hydr. 61007 34421 34733 04638 .500 12.7 1.5 .68 33967

7/8" 0.882 x 0.882 22.4 x 22.4 14 2.0

Hand/Hydr. 61010 34421 34733 04638 .500 12.7 1.8 .82 33967

0.945 x 0.945 24.0 x 24.0 14 2.0

Hand/Hydr. 61013 34421 34733 04638 .500 12.7 2.3 1.0 33967

1" 1.000 x 1.000 25.4 x 25.4 14 2.0

Hand/Hydr. 60016 60017 60018 60117 60165 60258 .625 15.9 2.4 1.1 60167

1.772 x 1.772 45.0 x 45.0 10 3.5

Hydr. Only 60287 60288 60289 60118 — 60235 1.188 30.2 6.0 2.7

1-13/16" 1.811 x 1.811 46.0 x 46.0 10 3.5

Hydr. Only 60019 60020 60021 60118 — 60235 1.188 30.2 6.2 2.8

2" 2.000 x 2.000 50.8 x 50.8 10 3.5

Hydr. Only 60168 60169 60170 60118 — 60235 1.188 30.2 6.9 3.1

2-11/16" 2.677 x 2.677 68.0 x 68.0 10 3.5

Hydr. Only 60171 60172 60173 60118 — 60235 1.188 30.2 10.1 4.6

3-5/8" 3.622 x 3.622 92.0 x 92.0 10 3.5 *Hydr. Only 60174 60175 60176 60118 — 60235 1.188 30.2 14.8 6.7 *

4-1/8" 4.125 x 4.125 104.8 x 104.8 10 3.5 *Hydr. Only 60177 60178 60179 60118 — 60235 1.188 30.2 18.8 8.5 *

5.433 x 5.433 138.0 x 138.0 14 2.0 *Hydr. Only 60234 60023 60024 60118 — 60235 1.188 30.2 20 9.1 *

SPECIAL SQUARE

0.886(A) 0.791(B) 22.5 Ø(A) 20.1(B) 14 2.0 Hand/Hydr. 61125** 34421 34733 04638 .500 12.7 .7 .3 33967

*For use with with Hand and Foot Pump Hydraulic Drivers with Ram For maximum draw stud life, Greenlee recommends the use of battery or hydraulic drivers

For use with any Greenlee Hydraulic Driver or Battery-Powered Driver ** Sold as Unit only

Counter

Nut

Punch Die

CAT./UPC NO.

MAXIMUM PUNCH UNIT OPTIONAL

HOLE SIZE CAPACITY (INCLUDES BB MINIMUM ADAPTER FOR

INCH mm MILD STEEL OPERATION PUNCH, DIE, DRAW DRAW DRIVE COUNTER PILOT HOLE WEIGHT HYDRAULIC

A B A B GA mm TYPE STUD AND NUTS) PUNCH DIE STUD NUT NUT INCH mm LBS. kg. DRIVERS

0.500 0.469 12.7 11.9 16 2.0 Hand/Hydr. 60077 60078 60079 60115 60120 05244 .375 9.5 .9 .41 60114

0.625 0.594 15.9 15.1 14 2.0 Hand/Hydr. 61080** 34421 34733 04638 .500 12.7 1.1 .50 33967

0.750 0.703 19.1 17.9 14 2.0 Hand/Hydr. 61083** 34421 34733 04638 .500 12.7 1.2 .50 33967

For use with any Greenlee Hydraulic Driver or Battery-Powered Driver For maximum draw stud life, Greenlee recommends the use of battery or hydraulic drivers

** Sold as Unit only

Draw Stud Ball Bearing

Drive Nut

Double “D” Punches

Square and Special Square Punches

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Counter

Nut

Punch Die

CAT./UPC NO.

MAXIMUM PUNCH UNIT OPTIONAL

HOLE SIZE CAPACITY (INCLUDES BB MINIMUM ADAPTER FOR

MILD STEEL OPERATION PUNCH, DIE, DRAW DRAW DRIVE COUNTER PILOT HOLE Ø WEIGHT HYDRAULIC

INCH mm GA mm TYPE STUDS AND NUTS) PUNCH DIE STUD NUT NUT INCH mm LBS. kg DRIVERS

0.437 x 0.875 11.1 x 22.2 16 1.5

Hand/Hydr. 60025 60026 60027 60115 60120 05244 .375 9.5 1.2 .5 60114

0.670 x 0.749 17.0 x 19.0 14 2.0

Hand/Hydr. 61028 60029 60030 34421 34733 04638 .500 12.7 1.5 .68 33967

0.750 x 1.140 19.1 x 29.0 14 2.0

Hand/Hydr. 60031 60032 60033 60117 60165 60258 .625 15.9 2.3 1.0 60167

0.750 x 1.310 19.1 x 33.3 14 2.0

Hand/Hydr. 60034 60035 60036 60117 60165 60258 .625 15.9 2.3 1.0 60167

0.861 x 1.018 21.9 x 25.9 14 2.0

Hand/Hydr. 60037 60038 60039 60117 60165 60258 .625 15.9 2.3 1.0 60167

0.866 x 1.181 22.0 x 30.0 14 2.0

Hand/Hydr. 60040 60041 60042 60117 60165 60258 .625 15.9 2.4 1.1 60167

0.866 x 1.654 22.0 x 42.0 14 2.0

Hand/Hydr. 60043 60045 60046 60117 60165 60258 .625 15.9 2.9 1.3 60167

0.990 x 1.140 25.1 x 29.0 14 2.0

Hand/Hydr. 60047 60048 60049 60117 60165 60258 .625 15.9 2.6 1.2 60167

1.250 x 1.380 31.8 x 35.1 14 2.0

Hand/Hydr. 60050 60051 60052 60117 60165 60258 .625 15.9 3.1 1.4 60167

1.312 x 2.625 33.3 x 67.9 10 3.5

Hydr. Only 60053 60054 60055 60118 — 60235 1.188 30.2 5.1 2.3

1.378 x 2.047 35.0 x 52.0 10 3.5

Hydr. Only 60056 60057 60058 60118 — 60235 1.188 30.2 6.1 2.8

1.378 x 2.559 35.0 x 65.0 10 3.5

Hydr. Only 60059 60060 60061 60118 — 60235 1.188 30.2 6.8 3.1

1.378 x 3.228 35.0 x 82.0 14 2.0 *Hydr. Only 60062 60063 60064 60118 — 60235 1.188 30.2 7.7 3.5 *

1.378 x 4.409 35.0 x 112.0 14 2.0 *Hydr. Only 60065 60066 60067 60118 — 60235 1.188 30.2 9.2 4.2 *

1.811 x 3.622 46.0 x 92.0 10 3.5 *Hydr. Only 60068 60069 60070 60118 — 60235 1.188 30.2 8.9 4.0 *

2.250 x 3.500 57.2 x 88.9 10 3.5 *Hydr. Only 60071 60072 60073 60118 — 60235 1.188 30.2 10.1 4.6 *

2.677 x 5.433 68.0 x 138.0 14 2.0 *Hydr. Only 60074 60075 60076 60118 — 60235 1.188 30.2 16.1 7.3 *

*For use with with Hand and Foot Pump Hydraulic Drivers with Ram For maximum draw stud life, Greenlee recommends the use of battery or hydraulic drivers

For use with any Greenlee Hydraulic Driver or Battery-Powered Driver

Draw Stud Ball Bearing

Drive Nut

PUNCH UNIT DIMENSIONS REPLACEMENT CAT./UPC NO. WEIGHT

NO. OF SQUARE

CAT. NO. UPC NO. PINS A B C PUNCH DIE UNIT DRAW STUD COUNTER NUT DRIVE NUT LBS. kg.

229 34436 9 .787" .982" .469" 34441 35196 34421 04638 34733 1.4 .64

(20.0 mm) (24.9 mm) (11.9 mm)

231 34437 15 1.127" 1.309" .469" 34442 35197 34421 04638 34733 1.5 .68

(28.6 mm) (33.3 mm) (11.9 mm)

RS232 34420 25 1.655" 1.853" .469" 34418 35198 34421 04638 34733 2.0 .91

(42.0 mm) (47.1 mm) (11.9 mm)

234 34429 37 2.296" 2.497" .469" 34427 35199 34421 04638 34733 2.0 .91

(58.3 mm) (63.4 mm) (11.9 mm)

238 34444 50 2.201" 2.402" .579" 34443 35200 34421 04638 34733 2.0 .91

(55.9 mm) (61.0 mm) (14.7 mm)

For maximum draw stud life, Greenlee recommends the use of battery or hydraulic drivers

Electronic Connector Panel Punches

• Cut-outandmountingslotsarepunchedinoneoperation.

• Drillonlyone7/16"(11.1mm)pilothole.(Seepage70forKwikStepper®

step bits.)

• Fast,accuratepanelpunchingwithnosawingorfilingrequired.

• UniversalsizepunchesforfrontorbackmountofTRWCinchandITT

Cannon-type or equivalent connectors in 9, 15, 25, 37 or 50-pin

configurations.

• U.S.PatentNo.4,899,447

SPECIFICATIONS

Capacity 16gauge(1.5mm)mildsteel;10 gauge (3.5 mm) aluminum

Operation Manualwithawrench;QuickDraw® and Quick Draw 90® hydraulic

drivers, Battery Driver, Ram and Pump hydraulic drivers aluminum

Rectangular Punches

Rectangle

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Replacement Draw Studs for Manual Drivers

304AVBB – 3/4" (19.0 mm) x 2-15/16" (75 mm)

00042 – 3/8" (9.5 mm) x 1-5/8" (41 mm)

249AVBB – 3/4" (19.0 mm) x 2-1/8" (54 mm)

3026AV –

1-1/8" (28.6 mm) x 7-1/2" (190 mm)

1434AV

3/4" (19.0 mm) x

5-1/2" (140 mm)

1675AV Draw Stud – 1/4" (6.4 mm) x 1-3/8" (35 mm)

Replacement Draw Stud Selection Guide

Refer to the ACTUAL SIZE PICTURES and information below when ordering a

replacement draw stud. Sizes given are diameter X length.

DRAW STUDS FOR KNOCKOUTS

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Replacement Draw Studs for Hydraulic Drivers

29452 – 3/4" (19.0 mm) x 5-1/2" (140 mm)

1557AA– 1-1/8" (28.6 mm) x 3" (76 mm)

2113AA – 3/4" (19.0 mm) x 5-3/8" (137 mm)

29451 – 7/16" (11.1 mm) x 4-1/4" (108 mm)

1614SS– 3/8" (9.5 mm) x 2-13/16" (71 mm)

33967 (Adapter) – 3/4" (19 mm) x 3/8" (9.5 mm) internal

Replacement Draw Stud Selection Guide

Refer to the ACTUAL SIZE PICTURES and information below when ordering a replacement draw stud.

Sizes given are diameter X length.

60114 (Adapter) – 3/4" (19 mm) x 1/4" (6.35 mm) internal

31872 – 3/4" (19 mm) x 4-1/2" (114.3 mm)

60167 (Adapter) – 3/4" (19 mm) x 1/2" (12.7 mm) internal

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Replacement Draw Studs for Ratchet Drivers

12099 – 3/4" (19.0 mm) x 4-3/4" (121 mm)

12097 – 3/8" (9.5 mm) x 3-1/2" (89 mm)

30227 – 7/16" (11.1 mm) x 3-5/8" (92 mm)

Replacement Draw Stud Selection Guide

Refer to the ACTUAL SIZE PICTURES and information below when ordering a replacement draw stud.

Sizes given are diameter X length.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Replacement Draw Studs for Special Shape Punches

60166 – 1/2" (12.7 mm) x 4-5/8" (117.5 mm)

60117 – 1/2" (12.7 mm) x 4-5/8" (117.5 mm)

34421 – 3/8" (9.5 mm) x 3-1/2" (88.9 mm)

60115 – 1/4" (6.3 mm) x 3-7/16" (87.3 mm)

60118 – 3/4" (19 mm)

x 6-3/4" (171.5 mm)

Replacement Draw Stud Selection Guide

Refer to the ACTUAL SIZE PICTURES and information below when ordering

a replacement draw stud. Sizes given are diameter X length.

For maximum draw stud life, Greenlee recommends the use of battery or hydraulic drivers.

60116 – 1/2" (12.7 mm) x 4-5/8" (117.5 mm)

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

PLUMBER STUD PUNCH

ACTUAL HOLE SIZE WEIGHT LENGTH HEIGHT CAPACITY

CAT. NO. UPC NO. IN. mm LBS. kg IN. mm IN. mm GA mm

713 06430 2-5/8 66.7 10.6 4.8 23-1/2 596 9-3/4 247 24-20 0.9

STUD PUNCHES

Structural Stud Punch

• Punch16and18gaugestructuralstudsin5 seconds.

• Punch200 holes per battery charge, 2 batteries & charger included,

eliminating downtime.

• Punchesa1.34(34.1mm)diameterholein16(1.5mm)gaugesteel.

For use with Greenlee 712A bushings.

• Swivelheadrotates360°foruseintightcorners.

• Pistolgriphandlegivesbetterleverageandreducesfatigue.

• Replacementpunchanddie.

• Lightweight9.2lb.toolprovidesheavy-dutyperformance.

Plumber Stud Punch

• Punches2-5/8"(66.7mm)diameterholeinmetalstudsfor

professional-looking installation of 2" water, vent, waste pipes.

• Two-speedleveractionforfast,easypunchingof24to20gaugethick

metal studs.

• 2-1/8"(54mm)throatwidthfitsovermoststudsandchannels.

• Highstrengthalloyaluminumc-frameandhandleprovideslightweight

tool for easy handling–10.6 lb. (4.8 kg).

• Leveractionpunchretractionstripspunchoutofmetalstudfastandeasy.

Patent#6,647,630

BATTERY-POWERED STUD PUNCH

ACTUAL HOLE SIZE WEIGHT LENGTH HEIGHT CAPACITY

CAT. NO. UPC NO. IN. mm LBS. kg IN. mm IN. mm GA mm BATTERY CHARGER

ESP710-11 10307 1-11/32 34.1 9.2 4.2 15 381 11-3/4 298 16 1.5 12V2.0 Ah NiCd 120 Volt

ESP710-12 10308 1-11/32 34.1 9.2 4.2 15 381 11-3/4 298 16 1.5 12V2.0 Ah NiCd 12 Volt

ESP710-22 10309 1-11/32 34.1 9.2 4.2 15 381 11-3/4 298 16 1.5 12V2.0 Ah NiCd 230 Volt

CAT. NO. UPC NO. DESCRIPTION

12274 12274 Carrying Strap

07063 07063 12V NIMH battery

MKESP710GL 10303 Carrying Case

03046 03046 120V Charger

CAT. NO. UPC NO. DESCRIPTION

03048 03048 12V Charger

03047 03047 230V Charger

HE.9055 10344 Replacement Punch

21297 21297 Replacement Die

CAT. NO. UPC NO. DESCRIPTION

08377 08377 Punch for 713

08379 08379 Die for 713

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

WEIGHT

CAT. NO. UPC NO. DESCRIPTION LBS. kg

709 22280 7/8" (22.2 mm) Diameter Stud Punch 7 3.2

710 21285 1-11/32" (34.1 mm) Diameter Stud Punch 7.5 3.5

30968 30968 Conversion Kit – Upgrades Early Model 709

or 710 from 24 to 20 Gauge Maximum Capacity

121AV 04006 Punch for 709

22286 22286 Die for 709

24823 24823 Punch for 710

21297 21297 Die for 710

06015 06015 Repair Kit

36617 36617 Link

Metal Stud Punches

• Punchupthrough20gauge(0.9mm)steelstudsinonestroke.

• Aluminumheadprovidesstrengthwithminimumweight,

reducing operator fatigue.

• Contouredhandledesigngivesbetteroperatorleverageandmakes

it possible to punch in tight places.

• Self-strippingdesigneliminatespunchhang-ups.

• Automaticallycentersholesonstandardstuds.

• Conversionkitavailabletoupgradeearlymodelsfrom24gaugeto20

gauge maximum capacity.

SPECIFICATIONS

Capacity 709 - 1-5/8" (41.3 mm) and wider studs.

20 gauge (0.9 mm) steel studs.

710 - 2-1/2" (63.4 mm) and wider studs.

20 gauge (0.9 mm) steel studs.

WEIGHT

CAT. NO. UPC NO. DESCRIPTION LBS. kg

711C 22288 100 Bushings for Hole Punched by 709 for .5 .23

7/8" (22.2 mm) Diameter Hole

711M 22289 1,000 Bushings for Hole Punched by 709 for 3.7 1.7

7/8" (22.2 mm) Diameter Hole

712A100 05927 100 Bushings for Pre-Punched Hole or 1-11/32" 1.4 .64

(34.1 mm) Diameter Hole Punched by 710

712A1000 05928 1,000 Bushings for Pre-Punched Hole or 15.5 7.0

1-11/32" (34.1 mm) Diameter Hole Punched by 710

Bushings for Metal Stud Punches

• Triplelockdesignholdsbushingsecurely.

• Lockssecurelyintometalstudsfrom24gaugeto12gauge(0.6mm

to 2.5 mm).

• Helpsprotectwireinsulationfromsharpedgesofmetalstuds.

• Makespullingsmoothandeasybypreventinghang-upsofcable

on raw metal edges.

MANUAL STUD PUNCH

ACTUAL HOLE SIZE WEIGHT LENGTH HEIGHT CAPACITY

CAT. NO. UPC NO. IN. mm LBS. kg IN. mm IN. mm GA mm

724 10415 1-1/4 31.7 4.0 1.8 16-3/4 426 4-1/2 114 24-20 0.9

Manual Stud Punch

• Punchupthrough20gauge(0.9mm)steelstudsinonestroke.

• Uniquepatentedpunchrollstheedgeoverforsmoothinstallationof

armoredcable;cablewon’thangup.

• Contouredhandledesigngivesbetteroperatorleverageandmakesit

possible to punch in tight places.

• Automaticallycentersholesonstandardstuds.

CAT. NO. UPC NO. DESCRIPTION

10419 10419 Punch for 724

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Combination Drill/Tap Bits

DRILL/TAPS

• Completeholedrilling,tappinganddeburring/countersinkinginone

operation with power drill saves labor and time.

• Backtaperedbeyondtaptopreventthreaddamagefromover-drilling.

• Deburr/countersinkalsoprovidedonbitbeyondbacktaper.

• Madefromhardenedhigh-speedsteelvs.carbonsteelforlongerlife.

• Highqualityhexshanktoensurestrongconnectiontodrillchuck.

• Designedtotapupto10-gaugemetal.

• Quickchangeadaptorincludedinbothmetricandstandardkits.

SPECIFICATIONS

Material thickness Up to 10 gauge

Material type Mild steel, copper, brass, aluminum

Shank 1/4" quick change hex

Drill Material High-speed steel

Drill point Split point with web thinning

NOTE: TO EXTEND THE LIFE OF YOUR TOOL, SEE CUTTING/THREADING OIL ON PAGE 388.

CAT. NO. UPC NO. DESCRIPTION DTAPKIT DTAPKITM

DTAPKITM 12151 M3-M10 6 Piece Drill/Tap Set

DTAPKIT 17620 6-32 to 1/4-20 6-piece Drill

Tap Set

DTAP6-32 17611 6-32NC Drill/Tap Bit X

DTAP8-32 17612 8-32NC Drill/Tap Bit X

DTAP10-24 17613 10-24NC Drill/Tap Bit X

DTAP10-32 17614 10-32NF Drill/Tap Bit X

DTAP12-24 17615 12-24NC Drill/Tap Bit X

DTAP1/4-20 17616 1/4-20NC Drill/Tap Bit X

DTAP5/16-18 11627 5/16-18NC Drill/Tap Bit

DTAP3/8-16 11628 3/8-16NC Drill/Tap Bit

DTAPM3C 12160 M3 X .50 Drill/Tap Bit X

DTAPM4C 12161 M4 X .70 Drill/Tap Bit X

DTAPM5C 12162 M5 X .80 Drill/Tap Bit X

DTAPM6C 12163 M6 X 1.00 Drill/Tap Bit X

DTAPM8C 12164 M8 X 1.25 Drill/Tap Bit X

DTAPM10C 12165 M10 X 1.50 Drill/Tap Bit X

DTAPKITM

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

CAT. NO. UPC NO. DESCRIPTION 03607 35884

34401 34401 1/2"Multi-HoleStepBit • •

34403 34403 7/8"Multi-HoleStepBit • •

30008 30008 1-1/8"Multi-HoleStepBit  •

35936 35936 PlasticCase • •

03607

35884

SIZE CAT./UPC NO.

INCHES mm 34410 34401 36402 30005 34411 34403 30008 36414 36018 36020 36022

1/8 3.2

✓

5/32" 4.0

✓

3/16" 4.8

✓

7/32" 5.6

✓

1/4" 6.4

✓

9/32" 7.1

✓

5/16" 7.9

✓

11/32" 8.7

✓

3/8" 9.5

✓

0.382" 9.7



✓

13/32" 10.3

✓

7/16" 11.1

✓

15/32" 11.9

✓

0.492" 12.5

✓

Pg-7

1/2" 12.7

✓

✓ ✓

9/16" 14.3

✓

0.598" 15.2

✓

Pg-9

5/8" 15.9

✓

0.638" 16.2

✓

ISO-16

11/16" 17.5

✓

0.732" 18.6

✓

Pg-11

3/4" 19.1

✓

0.803" 20.4

✓

Pg-13

✓

ISO-20

13/16" 20.6

✓

7/8" 22.2

✓

✓ ✓

0.886" 22.5

✓

Pg-16

1.00" 25.4

✓

ISO-25

1.114" 28.3

✓

Pg-21

1-1/8" 28.6

✓ ✓

1.201" 30.5

✓

1-7/32" 31.0

✓

1-1/4" 31.8

✓

1.280" 32.5

✓

ISO-32

1-3/8" 34.9

✓

Overall Length 1-7/8" 3-3/8" 3-7/16" 3-7/16" 2-7/16" 3-9/16" 2-15/16" 3-1/8" 1-7/8" 3-3/4" 3-3/8"

(47.6 mm) (85.7 mm) (87.3 mm) (87.3 mm) (61.9 mm) (90.5 mm) (74.6 mm) (79.4 mm) (47.6 mm) (95.3 mm) (85.7 mm)

Minimum 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8"

Chuck Size (9.5 mm) (9.5 mm) 9.5 mm) (9.5 mm) (9.5 mm) (9.5 mm) (9.5 mm) (9.5 mm) (9.5 mm) (9.5 mm) (9.5 mm)

Maximum Material 10 gauge 10 gauge 3/8" 10 gauge 10 gauge 10 gauge 10 gauge 10 gauge 10 gauge 1/4" 1/4"

Thickness (3.5 mm) (3.5 mm) (9.5 mm) (3.5 mm) (3.5 mm) (3.5 mm) (3.5 mm) (3.5 mm) (3.5 mm) (6.4 mm) (6.4 mm)

Bit Extension 901 901 901 901 — — — — 901 — —

METRIC

1/2" 1/2" 1/2" 13/16" 7/8" 7/8" 1-1/8" 1-3/8" 9.7 mm 30.5 mm 32.5 mm

(12.7 mm) (12.7 mm) (12.7 mm) (20.6 mm) (22.2 mm) (22.2 mm) Electrician’s (34.9 mm) (.382") (1.201") (1.280")

Single-Hole Multi-Hole Multi-Hole Multi-Hole Single-Hole Multi-Hole Step Bit Multi-Hole Multi-Hole Multi-Hole

Step Bit Step Bit Step Bit Step Bit Step Bit Step Bit Step Bit Step Bit Step Bit

Single-hole bits are

designed to drill one

indicated hole size

through a series of steps

from bit tip to full size.

Multi-hole bits allow you

to drill a hole in any of

the stated diameters.

STEP BITS

Kwik Stepper® Step Bits

• Uniquesplit-tipdesignpenetratesthroughsteelfaster.

• Resistswalkingorskidding,evenonroundsurfaces.

• Balanced,double-fluteconstructionrequireslesspressure,doestheworkforyou.

• DesignedandmanufacturedinUSA.

SPECIFICATIONS

Hole Sizes From 1/8" through 1-3/8" (3.2 - 34.9 mm)

Capacity Cut up through 3/8" (9.5 mm) mild steel, copper, brass,

aluminum, wood, plastic and laminates

CAT. NO. UPC NO. DESCRIPTION

35884 35884 Kwik Stepper® Step Bit Kit

03607 03607 Kwik Stepper® Step Bit Kit

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

61PTS SHORTY, 62PTS AND 61/62 PTS BIG SHANK SHORTY NAIL EATER II® BITS

POP BULK HOLE DIA. HEX SHANK WEIGHT

CAT. NO. UPC NO. UPC NO. INCH mm INCH mm LBS. g

61PTS–5/8 30419 — 5/8 15.9 5/16 7.9 .3 137

61PTS–3/4 30423 — 3/4 19.1 5/16 7.9 .4 182

61PTS–7/8 30427 — 7/8 22.2 5/16 7.9 .5 227

61PTS–1 30429 — 1 25.4 5/16 7.9 .8 363

62PTS–5/8 31788 — 5/8 15.9 7/16 11.1 .3 137

62PTS–11/16 31790 — 11/16 17.5 7/16 11.1 .4 182

62PTS–3/4 31792 36640 3/4 19.1 7/16 11.1 .5 227

62PTS–13/16 31794 — 13/16 20.6 7/16 11.1 .5 227

62PTS–7/8 31796 36642 7/8 22.2 7/16 11.1 .6 273

62PTS–1 31798 36643 1 25.4 7/16 11.1 .7 318

61/62PTS–1-1/8 30431 — 1-1/8 28.6 7/16 11.1 .9 409

61/62PTS–1-1/4 30433 — 1-1/4 31.8 7/16 11.1 1.1 499

66PT NAIL EATER II® BITS

POP BULK HOLE DIA. HEX SHANK WEIGHT

CAT. NO. UPC NO. UPC NO. INCH mm INCH mm LBS. g

66PT–1/2 30915 — 1/2 12.7 5/16 7.9 .7 318

66PT–5/8 30919 — 5/8 15.9 7/16 11.1 .8 363

66PT–11/16 30921 — 11/16 17.5 7/16 11.1 1 454

66PT–3/4 30923 36659 3/4 19.1 7/16 11.1 1.2 545

66PT–13/16 30925 — 13/16 20.6 7/16 11.1 1.2 545

66PT–7/8 30927 36662 7/8 22.2 7/16 11.1 1.5 681

66PT–15/16 30929 — 15/16 23.8 7/16 11.1 1.6 726

66PT–1 30931 36664 1 25.4 7/16 11.1 1.8 817

66PT–1-1/8 30935 — 1-1/8 28.6 7/16 11.1 2.3 1044

66PT–1-1/4 30937 — 1-1/4 31.8 7/16 11.1 2.8 1270

HARDWARE HOLE OVERALL HEX

DIA. DIA. LENGTH SHANK WEIGHT

CAT. NO. UPC NO. INCH mm INCH mm INCH mm INCH mm LBS. g

37868 37868 9/16 14.3 5/8 15.9 18 457.2 7/16 11.1 0.9 409

37869 37869 11/16 17.5 3/4 19.1 18 457.2 7/16 11.1 1.1 499

37870 37870 13/16 20.6 7/8 22.2 18 457.2 7/16 11.1 1.4 636

37871 37871 15/16 23.8 1 25.4 18 457.2 7/16 11.1 1.5 681

• Improvedcuttingedgeprovides30%longerlifespan.

• Patentednewdesignforimprovedcuttingandcleanerholes.

• Self-feedingscrewpointdrawsbitthroughwood.

• Uniquepatenteddesigncuttingangle-smootherstarts,

reduced cutting loads.

• Madeofsupertough,heat-treatedsteel;cutsthroughnails

and provides longer life.

• “Shorty”bits-forworkingintightplaces,yetstillcango

through three abutting 2 x 4s.

• See“BitExtensions”ifmorelengthisrequired(seepage81).

• P.O.Ppackaged

SPECIFICATIONS

61 PTS SHORTY NAIL EATER II®, 62 PTS AND

61/62 BIG SHANK SHORTY NAIL EATER II BITS

Overall Length 7-5/8" (193.7 mm)

Twist Length 5" (127 mm)

Electric drill required 61 PTS – 5/8 through 61 PTS - 1, minimum

3/8"drill;AllBigShank,1/2"drill.

66 PT NAIL EATER II® BITS

Overall Length 18" (457.2 mm)

Twist Length 15" (381 mm)

Nail Eater II® Wood Boring Bits

Nail Eater II® Impact Bits

• Quicklyborethroughcreosotedandsalt-treatedutilitypoles.

• Resistswear,eatsthroughnailsandstaples.

• Self-feedingscrewpointdrawsthebitthroughthewood.

• 7/16"hexshanktofitimpactdrivers.

• Availablein18"overalllength.

AUGER BITS

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

LENGTH HEX SHANK HOLE DIA. HEAD DIA. WEIGHT

CAT. NO. UPC NO. INCH mm INCH mm INCH mm INCH mm LBS. g

901-12 02706 12 304.8 1/4 6.4 1/4 6.4 9/16 14.3 1.4 636

902-18 02707 18 457.2 5/16 7.9 23/64 9.1 21/32 16.7 2.5 1134

902-24 02708 24 609.6 5/16 7.9 23/64 9.1 21/32 16.7 3.4 1543

904-5-1/2 34996 5-1/2 139.7 7/16 11.1 1/2 12.7 1 25.4 2.1 953

904H-12 34980 12 304.8 7/16 11.1 ** 23/32 18.3 2.9 1316

904H-18 35356 18 457.2 7/16 11.1 ** 23/32 18.3 4.3 1951

904H-24 35358 24 609.6 7/16 11.1 ** 23/32 18.3 5 2268

**For 7/16" Hex or 1/2" Round with 3 Flats, 1/4" Wide

CAT. NO. UPC NO. DESCRIPTION

3713GB 50962 Set Screw for 901-12/02706

3678GB 50753 Set Screw for 902-18/02707 and 902-24/02708

3693GB 50765 Set Screw for 904-5-1/2/34996

53892 53892 Set Screw for 904H-12/34980, 904H-18/35356

and 904H-24/35358

51376 51376 AllenWrenchforusewithSetScrewsfor901-12/02706,

902-18/02707 and 902-24/02708

52144 52144 AllenWrenchforusewithSetScrewsfor904-5-1/2/34996

Bit Extensions

• Extendbitlengths-Holesawarbors,spadebits,NailEaterII®

bits, Electrician's bits and Step bits.

• Useforboringdeeperinwood.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

UPC HOLE DIA. OVERALL LENGTH PIPE & WEIGHT

CAT. NO. NO. INCH mm INCH mm CONDUIT SIZE LBS. g

149H–1 12630 1 25.4 5 127.0 1/2" .4 18

149H–1-1/8 12631 1-1/8 28.6 5 127.0 1/2" & 3/4" .3 137

149H–1-1/4 12632 1-1/4 31.8 5 127.0 3/4" .3 137

149H–1-3/8 12633 1-3/8 34.9 5 127.0 — .4 182

149H–1-1/2 12634 1-1/2 38.1 5 127.0 1" .4 182

149H–1-3/4 12635 1-3/4 44.4 5 127.0 1-1/4" .5 227

149H–2 12636 2 50.8 5 127.0 — .6 273

149H–2-1/8 12637 2-1/8 54.0 5 127.0 1-1/2" .7 318

149H–2-1/4 12638 2-1/4 57.2 5 127.0 — .7 318

149H–2-9/16 12639 2-9/16 65.1 5 127.0 2" .8 363

149H–3 12640 3 76.2 5 127.0 2-1/2" 1.1 499

149H–3-5/8 12641 3-5/8 92.1 6-1/4 158.8 3" 2.1 953

149H–4-5/8 12642 4-5/8 117.5 6-1/4 158.8 4" 2.6 1179

149H

Contractor’s Bit Kit

WEIGHT

CAT. NO. UPC NO. DESCRIPTION LBS. kg

149H 34995 Contractor’s Bit Kit 6 2.72

KIT CAT./UPC NO.

CAT. NO. UPC NO. DESCRIPTION 1441/34995

149H–1 12630 1" (25.4 mm) E-Z Bore Bit

✓

149H–1-1/8 12631 1-1/8" (28.6 mm) E-Z Bore Bit

✓

149H–1-1/4 12632 1-1/4" (31.8 mm) E-Z Bore Bit

✓

149H–1-1/2 12634 1-1/2" (38.1 mm) E-Z Bore Bit

✓

149H–1-3/4 12635 1-3/4" (44.4 mm) E-Z Bore Bit

✓

149H–2-1/8 12637 2-1/8" (54.0 mm) E-Z Bore Bit

✓

149H–2-9/16 12639 2-9/16" (65.0 mm) E-Z Bore Bit

✓

4236AV 05133 Double End Screw Point

✓

51376 51376 1/8"AllenWrench

✓

52144 52144 5/32"AllenWrench

✓

904–5-1/2 34996 5-1/2" Bit Extension

✓

34997 34997 Plastic Case

✓

E-Z Bore® Bits

Conduit and Pipe Bit Sets

• Double-endreplaceablescrewpoint.Choosetherightfeedforthe

material you are drilling. Fine thread for hardwoods, coarse thread for fast,

effortless drilling even in soft, gummy woods.

• Taperedbacksideforeasierremoval.

• Opendesignwon’tclogwithwoodchips.

• Threemilledflatsforuseinportableelectricorpneumaticdrillsand

stationary boring machines.

CAT. NO. UPC NO. DESCRIPTION

4236AV 05133 Screw Point for 149G - 1, 149G - 1-1/8, 149G - 1-1/4, 149G - 1-3/8,

149G - 1-1/2, 149G - 1-3/4, 149G - 2, 149G - 2-1/8, 149G - 2-1/4, 149G

- 2-9/16 and 149G - 3

18358 18358 Screw Point for 149G-3-5/8 and 4-5/8

• CompleteassortmentofthemostcommonlyusedE-ZBore® bits.

• High-impact,ruggedplasticcarryingcase.

• Fullcomplementofaccessoriesconvenientlystored.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

33A SPADE BITS – LENGTH 6-1/4" (158.8 mm)

KIT CAT./UPC NO.

HOLE DIA. HEX SHANK WEIGHT 33AR-6/

CAT. NO. UPC NO. INCH mm INCH mm LBS. g 20364

33A–1/4 20344 1/4 6.4 1/4 6.4 .05 23.0

33A–3/8 20346 3/8 9.5 1/4 6.4 .09 40.8 1

33A–1/2 20348 1/2 12.7 1/4 6.4 .1 45.3 1

33A–5/8 20350 5/8 15.9 1/4 6.4 .1 45.3 1

33A–3/4 20352 3/4 19.1 1/4 6.4 .1 45.3 1

33A–7/8 20354 7/8 22.2 1/4 6.4 .12 54.4 1

33A–1 20357 1 25.4 1/4 6.4 .12 54.4 1

33A–1-1/8 20358 1-1/8 28.6 1/4 6.4 .15 68.0

33A–1-1/4 20359 1-1/4 31.8 1/4 6.4 .15 68.0

33A–1-3/8 20360 1-3/8 34.9 1/4 6.4 .16 72.6

33A–1-1/2 20361 1-1/2 38.1 1/4 6.4 .16 72.6

33L SPADE BITS – LENGTH 16" (406.4 mm)

HOLE DIA. HEX SHANK WEIGHT

CAT. NO. UPC NO. INCH mm INCH mm LBS. g

33L–1/4 31535 1/4 6.4 1/4 6.4 .22 99

33L–3/8 31536 3/8 9.5 1/4 6.4 .32 145

33L–1/2 31537 1/2 12.7 1/4 6.4 .33 150

33L–5/8 31539 5/8 15.9 1/4 6.4 .4 181

33L–3/4 31540 3/4 19.1 1/4 6.4 .4 181

33L–7/8 31541 7/8 22.2 1/4 6.4 .55 250

33L–1 31542 1 25.4 1/4 6.4 .33 150

33L–1-1/8 31543 1-1/8 28.6 1/4 6.4 .58 263

33L–1-1/4 31544 1-1/4 31.8 1/4 6.4 .56 254

33L–1-1/2 31545 1-1/2 38.1 1/4 6.4 .6 272

SPADE BIT KITS

WEIGHT

CAT. NO. UPC NO. DESCRIPTION LB. g

33AR-6 20364 Spade Bit Kit (see chart) 0.6 272

Self-Feeding Spade Bits

SPECIFICATIONS

Length 33A Spade Bit - 6-1/4" (158.8 mm)

33L Spade Bit - 16" (406.4 mm)

Bore hardwood, softwood, plywood and drywall.

• Forgedandheattreatedforlonglife.

• Forusein1/4"(6.4mm)orlargerpowerdrills.

• Holeintopcenterofbitforwirepulling.

• See“BitExtensions”(page81)ifmorelengthrequired.

• P.O.P.Packaged.

34A SPADE BITS – LENGTH 6-1/4" (158.8 mm)

KIT CAT./UPC NO.

HOLE DIA. HEX SHANK WEIGHT 34AR-6/

CAT. NO. UPC NO. INCH mm INCH mm LBS. g 03710

34A–3/8 03711 3/8 9.5 1/4 6.4 .09 40.8 1

34A–1/2 03712 1/2 12.7 1/4 6.4 .1 45.3 1

34A–5/8 03713 5/8 15.9 1/4 6.4 .1 45.3 1

34A–3/4 03714 3/4 19.1 1/4 6.4 .1 45.3 1

34A–7/8 03715 7/8 22.2 1/4 6.4 .12 54.4 1

34A–1 03716 1 25.4 1/4 6.4 .12 54.4 1

SPADE BIT KIT

WEIGHT

CAT. NO. UPC NO. DESCRIPTION LB. g

34AR-6 03710 Self-Feeding Spade Bit Kit (6PC) .83 376.48

Spade Bits

Bore hardwood, softwood, plywood and drywall.

• Innovativeself-feedingdesignrequireslesseffortand

reduces vibration.

•Uniquetapereddesignallowsexistingholeenlargement.

• 1/4"Quickchangehexshank.

• Forgedandheattreatedforlonglife.

• Forusein1/4"(6.4mm)orlargerpowerdrills.

• Holeintopcenterofbitforwirepulling.

• See“BitExtensions”(page81)ifmorelengthrequired.

• P.O.P.Packaged.

34AR6

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

• Designedforaggressivecuttinginall

types of wood.

• Madefromhigh-speedsteeltoensure

long life.

• ReplacesBellhangerbitson12",18"

and 24" lengths.

• Fordrillinginmasonrywallsand

through plaster.

• RecommendedforusewithAbrasion

Shield to reduce friction and abrasion

as the shaft turns against masonry.

BIT DIAMETER SHAFT SHAFT TYPE M TYPE HS

INCH (mm) LENGTH DIA. MASONRY HIGH SPEED STEEL

COLOR CODE INCH mm INCH mm CAT. NO. UPC NO. CAT. NO. UPC NO.

1/4" 12 304.8 3/16 4.8 — — 1412D 39913

(6.4 mm) 18 457.2 3/16 4.8 — — 1418D 38744

Blue 24 609.6 3/16 4.8 — — 1424D 38745

36 914.4 3/16 4.8 — — 1436D 38746

3/8" 12 304.8 3/16 4.8 — — 3812D 39914

(9.5 mm) 24 609.6 3/16 4.8 — — 3824D 38750

Black 36 914.4 3/16 4.8 — — 3836D 38751

54 1371.6 3/16 4.8 06-03-54M 38668 3858D 38752

72 1828.8 3/16 4.8 — — 3872D 38753

1/2" 36 914.4 3/16 4.8 — — 1236D 38756

(12.7 mm) 54 1371.6 3/16 4.8 — — 1258D 38757

Green 72 1828.8 3/16 4.8 — — 1272D 38758

54 1371.6 1/4 6.4 08-04-54M 38678

Type M, Masonry Type HS, Wood

D’VersiBIT® System

CAT. NO. UPC NO. DESCRIPTION

99104 99104 54" x 1" Shipping Tube B with End (Sold only in

minimum quantity of 6 in same length.)

99105 99105 72" x 1" Shipping Tube B with End (Sold only in

minimum quantity of 6 in same length.)

D’VERSIBITS & ACCESSORIES

A new twist to an old problem.

These flexible steel drill bits are the right tools for installing wire or cable inside

existing walls.

It bends to meet your needs!

Fishing wire or cable through existing walls used to be frustrating and

time- consuming, but the D’VersiBIT has made it as simple as bowing the spring

steel shaft in the direction you want to drill and turning on the power. Proven in the

field to deliver accurate and professional results in

many applications. Bits range from 3/16" to 1" (4.8

to 25.4 mm) in diameter and in shaft length from

12" to 72" (304.8 to 1828.8 mm).

The D’VersiBIT® System makes it possible to

easily accomplish even complex installations.

This patented system attaches a quality

drill bit to a long flexible spring steel shaft.

WhenusedwiththePlacementTool,this

flexibility makes it possible to easily

manipulate the bit within walls. After

drilling, attach a D’VersiGRIP to the hole

in the drill and pull wire or cable back

through the wall.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

BIT DIA. SHAFT SHAFT TYPE A TYPE B TYPE C

INCH (mm) LENGTH DIA. AUGER COMBINATION WITH SCREW POINT COMBINATION

COLOR CODE INCH mm INCH mm CAT. NO. UPC NO. CAT. NO. UPC NO. CAT. NO. UPC NO.

1/4" 36 914.4 5/32 4.0 — — — — 04-03-36C 38112

(6.4 mm) 54 1371.6 5/32 4.0 — — — — 04-03-54C 38113

Blue 72 1828.8 5/32 4.0 — — — — 04-03-72C 38114

3/8" 36 914.4 3/16 4.8 06-03-36A 38067 06-03-36B 38092 06-03-36C 38117

(9.5 mm) 54 1371.6 3/16 4.8 06-03-54A 38068 06-03-54B 38093 06-03-54C 38118

Black 72 1828.8 3/16 4.8 06-03-72A 38069 06-03-72B 38094 06-03-72C 38119

1/2" 36 914.4 3/16 4.8 08-03-36A 38072 08-03-36B 38097 08-03-36C 38122

(12.7 mm) 54 1371.6 3/16 4.8 08-03-54A 38073 08-03-54B 38098 08-03-54C 38123

Green 72 1828.8 3/16 4.8 08-03-72A 38074 08-03-72B 38099 08-03-72C 38124

9/16" 36 914.4 3/16 4.8 09-03-36A 38077 09-03-36B 38102 — —

(14.3 mm) 54 1371.6 3/16 4.8 09-03-54A 38078 09-03-54B 38103 09-03-54C 38128

Orange 72 1828.8 3/16 4.8 09-03-72A 38079 09-03-72B 38104 09-03-72C 38129

3/4" 36 914.4 1/4 6.4 12-04-36A 38082 — — — —

(19.1 mm) 54 1371.6 1/4 6.4 12-04-54A 38083 — — 12-04-54C 38133

Red 72 1828.8 1/4 6.4 12-04-72A 38084 — — 12-04-72C 38134

1" 36 914.4 1/4 6.4 16-04-36A 38087 — — — —

(25.4 mm) 54 1371.6 1/4 6.4 16-04-54A 38088 — — — —

 White 72 1828.8 1/4 6.4 16-04-72A 38089 — — — —

Type A, Auger Type B,

Combination with

Screw Point

Type C,

Combination

D'VersiBIT® System

CAT. NO. UPC NO. DESCRIPTION

99104 99104 54" x 1" Shipping Tube B with

End (Sold only in minimum

quantity of 6 in same length.)

99105 99105 72" x 1" Shipping Tube B with

End (Sold only in minimum

quantity of 6 in same length.)

D'VersiBIT® Starter Kit

• Allthetoolstocompleteatypicalwiringjob.

• Includes09-03-54Bbit,712Pplacementtooland150pullinggrip.

CAT. NO. UPC NO. DESCRIPTION

DBITKIT 01630 D'VersiBIT® Kit with 9/16" Bit, Placement Tool and Grip for

Pulling1/2"ODWire

•Wood-typeaugerbitwith

screw point.

•Pullsitselfthroughwood,

avoids walking or skidding.

•Excellentfordrillingin

soft woods or through thin

sections.

•Slowback-taperallowsfor

easy retrieval.

•Foraggressivechipremoval

in many types of woods.

•Screwpointforeasystarting

and pulling through wood.

•Withscrewpointremoved,

this bit can be ground to

function like a standard

combination bit.

•Fordrillingintoughwoods

and thick obstacles.

•Drillingspeedrelativeto

pressure applied.

•Chipscanbebrought

easily out of the hole.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

• Flexibleshaftallowseasyaccesstodifficultandtightareas

• Convenient1/4"quickconnectreceiveracceptsmoststandardquick

change accessories.

• Multipleextensionscanbeeasilyjoinedtocreatetheperfectlengthfor

any job.

• Capacity:Any1/4"quickchangeaccessory3/4"diameterandunder.

CAT. NO. UPC NO. DESCRIPTION

921-12 12412 Extension, Quick Change 3/16x12

921-18 12413 Extension, Quick Change 3/16x18

921-24 12414 Extension, Quick Change 3/16x24

921-36 12415 Extension, Quick Change 3/16x36

125Q 12791 Grip, Quick Change 3/8x1/4

150Q 12792 Grip, Quick Change 1/2x1/4

168Q 12793 Grip, Quick Change 3/4x1/4

60A-3/4 12417 Bit, Auger, Quick Change 3/4A

921 12411 Quick Change Extension System Kit

SPECIFICATIONS

Quick Connect Extensions

EXTENSION SHAFT LENGTH SHAFT DIA. WEIGHT KIT CAT/UPC NO.

INCH MM INCH MM LBS. G 921/12411

921-12 12 304.8 3/16 4.8 0.2 90.72

921-18 18 457.2 3/16 4.8 0.25 113.4 1

921-24 24 609.6 3/16 4.8 0.3 136.08

921-36 36 914.4 3/16 4.8 0.4 181.44 1

WEIGHT KIT CAT/UPC NO.

GRIP CAPACITY MM LBS. G 921/12411

125Q 100LBS – 0.04 18.144

150Q 100LBS – 0.05 22.68 1

168Q 100LBS – 0.06 27.216

HOLE DIA. HEX SHANK WEIGHT KIT CAT/UPC NO.

AUGER BIT INCH MM INCH MM LBS. G 921/12411

60A-3/4 3/4 19.1 1/4 6.4 0.6 272.16 1

60A-3/4

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

USE WITH

CAT. NO. UPC NO. SHAFT DIA. LENGTH

3XT 36 38685 3/16" (4.8 mm) 36" (914.4 mm)

3XT 54 38686 3/16" (4.8 mm) 54" (1371.6 mm)

3XT 72 38687 3/16" (4.8 mm) 72" (1828.8 mm)

4XT 36 38688 1/4" (6.4 mm) 36" (914.4 mm)

4XT 54 38689 1/4" (6.4 mm) 54" (1371.6 mm)

4XT 72 38690 1/4" (6.4 mm) 72" (1828.8 mm)

Extensions

• Sizesfor3/16"(4.8mm)and1/4"(6.4mm)diametershafts.

• ConnecttochuckendofD’VersiBIT® shaft to increase the length of the bit.

SPECIFICATIONS

Size 3XT 36, 3XT 54, 3XT 72 - connecting end diameter 7/16" (11.1 mm)

4XT 36, 4XT 54, 4XT 72 - connecting end diameter 5/8" (15.9 mm)

Placement Tool

Wire and Cable Pulling Grips

Abrasion Shield

• Allowsplacementofthedrillbitatanypointwithinthewall.

• Helpfulinjudgingwherethebitwillbeduringdrillingtoavoid

accidentally drilling through the wall.

• Usefulforverticalandhorizontalplacements.

• Tubefitsbothshaftsizes.

• Preventsinsulationfromwrappingaroundbitshaft.

• Protectsshaftofmasonrybitsastheyturnagainstmasonrywalls.

• Protectshandholdingshaftduringdrilling.

SPECIFICATIONS

Function Protects shaft and hand while drilling with any size

or type D'VersiBIT®.

Length 48" (1219.2 mm)

CAT. NO. UPC NO. DESCRIPTION

606AS 38696 Abrasion Shield

CAT. NO. UPC NO. DESCRIPTION

712P 38350 D'VersiBIT® Placement Tool

SPECIFICATIONS

Function Use to position all bit and shaft sizes.

• GripcanattachtostandardD’Versibit® or to any standard 1/4” Quick

Connect adapter.

• Swiveldesignreducestwisting.

• Meshdesignholdswireorcableduringpull.

• Capacity:100lbs.pullingforce.

CAT. NO. UPC NO. DESCRIPTION

125Q 12791 QuickChangeGripforPullingSingleWirewith3/8"to1/2"

(9.5 mm to 12.7 mm).

150Q 12792 QuickChangeGripforPulling1/2"(12.7mm)ODWirewith

1/2" to 9/16" (12.7 to 14.3 mm).

168Q 12793 QuickChangeGripforPulling3/4"(19.1mm)ODWirewith

3/4" to 1" (19.1 to 25.4 mm).

SPECIFICATIONS

Function For pulling wire, cable or fish tape through walls.

Pulling Strength 100 lbs.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

STEEL HOLE CUTTERS

• Cutsstainlesssteelquicklyandeasily.

• QuickChangearborallowsyouto

change cutter heads with a simple

push and a turn. Use the same

arbor for different size cutting

heads.

• Removablecutterheads

available in sizes from 5/8" through 3".

• Flangestoppreventsover-drilling.

• Ejectorspringonallsizesabove3/4"

makes removal of slug easier.

• Replaceable,cobalt-steelpilotdrillwith

split-point tip to prevent walking.

• Precisioncarbideteethforoptimumperformance

and durability.

• Minimumchucksizeof3/8"

KITS

INDIVIDUAL CARBIDE-TIPPED HOLE CUTTERS

KIT CAT. KIT CAT.

MIN. NO. 660/ NO. 655/

SIZE CONDUIT CHUCK SIZE UPC NO. UPC NO.

CAT. NO. UPC NO. INCH mm SIZE PG ISO INCH mm 05766 05820

645 –5/8 05691 5/8 15.8 3/8 9.5

645–11/16 05692 11/16 17.5 3/8 9.5

645–3/4 05693 3/4 19.0 11 3/8 9.5

645–13/16 05694 13/16 20.6 13 20 3/8 9.5

645–7/8 05695 7/8 22.2 1/2" 3/8 9.5 ✓ ✓

645–1 05696 1 25.4 25 3/8 9.5

645– 1-1/16 05957 1-1/16 27.0 3/8 9.5

645–1-1/8 05697 1-1/8 28.6 3/4" 21 3/8 9.5 ✓ ✓

645–1-7/32 05698 1-7/32 31.0 3/8 9.5

645–1-1/4 05699 1-1/4 31.8 3/8 9.5

645–1-5/16 05958 1-5/16 33.3 32 3/8 9.5

645–1-3/8 05700 1-3/8 34.9 1" 3/8 9.5 ✓ ✓

645–1-7/16 05959 1-7/16 36.5 27 3/8 9.5

645–1-1/2 05701 1-1/2 38.1 3/8 9.5

645–1-3/4 05702 1-3/4 44.4 1-1/4" 3/8 9.5 ✓

645–2 05703 2 50.8 1-1/2" 50 3/8 9.5 ✓

645–2-1/8 05960 2-1/8 54.0 42 3/8 9.5

645–2-1/4 05704 2-1/4 57.2 48 3/8 9.5

645–2-3/8 05961 2-3/8 60.3 3/8 9.5

645–2-1/2 05705 2-1/2 63.5 2" 63 3/8 9.5

645–2-5/8 05706 2-5/8 66.7 3/8 9.5

645–3 05707 3 76.2 3/8 9.5

ARBORS AND PILOT DRILLS

KIT CAT. KIT CAT.

NO. 660/ NO. 655/

UPC NO. UPC NO.

CAT. NO. UPC NO. DESCRIPTION 05766 05820

645–011 05752 Quick Change Arbor for sizes

5/8" through 2-1/4", 3/8" shank ✓ ✓

645–022 05753 Quick Change Arbor for sizes

2-3/8" through 3", 1/2" shank

645–001 05761 Pilot Drill for sizes 5/8"

through 2-1/4" ✓ ✓

645–002 05762 Pilot Drill for sizes 2-3/8"

through 3"

55225 55225 Ejector Spring

660

CAT. NO. UPC NO. DESCRIPTION

660 05766 7/8", 1-1/8", 1-3/8", 1-3/4", 2" Cutter

Heads;Arbor,HexKeyandCase

655 05820 7/8",1-1/8",1-3/8"CutterHeads;Arbor,Hex

Key and Case

03581 03581 3 mm Hex Key

54274 54274 Set Screw

55225 55225 1/2" Ejector Spring

Quick Change Stainless Steel Hole Cutters

NOTE: TO EXTEND THE LIFE OF YOUR TOOL, SEE CUTTING/THREADING OIL ON PAGE 388.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

KIT

REPLACEMENT PILOT DRILLS

CUTTER SIZE RANGE PILOT DRILL HEX SET SCREW WT.

INCH mm CAT. NO. UPC NO. SIZE CAT./UPC NO. LBS. g

3/4-2 19.0-50.8 625–001 39872◊ 3 mm 54274 .19 86

2-1/2 63.5 625–002 38390 4 mm 54295 .28 127

◊ Point of Purchase Package

CARBIDE-TIPPED HOLE CUTTERS

KIT CAT.

MIN. NO. 635/

SIZE CONDUIT CHUCK SIZE WEIGHT UPC NO.

CAT. NO. UPC NO. INCH mm SIZE PG ISO INCH mm LBS. g 03599

625–3/4 38324 3/4 19.0 11 1/4 6.4 .02 9

625–13/16 38325 13/16 20.6 13 20 1/4 6.4 .02 9

625–7/8 38326 7/8 22.2 1/2" 16 1/4 6.4 .33 150

✓

625–1 38327 1 25.4 25 3/8 9.5 .02 9

625–1-1/8 38328 1-1/8 28.6 3/4" 21 3/8 9.5 .43 195

✓

625–1-7/32 38329 1-7/32 30.5 3/8 9.5 .44 200

625 –1-1/4 38330 1-1/4 31.7 3/8 9.5 .33 150

625–1-3/8 38331 1-3/8 35.0 1" 3/8 9.5 .47 213

✓

625–1-1/2 38332 1-1/2 38.1 3/8 9.5 .37 168

625–1-3/4 38333 1-3/4 44.4 1-1/4" 3/8 9.5 .40 182

625–2 38334 2 50.8 1-1/2" 50 3/8 9.5 .50 227

625–2-1/2 38336 2-1/2 63.5 2" 1/2 12.7 .67 304

All hole cutters are packaged in Point of Purchase blister pack.

Carbide-Tipped Hole Cutters

• Multipletungstencarbidetipsforlonglifeandsmoothcutting.

• Cutfast,accurate,highqualityholesinstainlesssteel,copper,

aluminum, steel.

• Flangestoppreventsover-drilling.

• Replaceablecobaltsteelpilotdrill,withsplit-pointtipdesign,toimprove

performanceandresistwalking;eliminatesneedfor“centerpunch.”

CAT. NO. UPC NO. DESCRIPTION

635 03599 7/8",1-1/8",1-3/8"Cutterheads;PilotDrill,HexKeyand

CaseWeight1.2lbs.(.54kg)

SPECIFICATIONS

Maximum Cutting Depth 8 ga. (4 mm)

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Ultra Cutters

RECOMMENDED CUTTING SPEEDS

CUTTER SIZE RPM

7/8" (22.5 mm) 350

1-1/8" (28.6 mm) 270

1-3/8" (35.0 mm) 220

1-3/4" (44.4 mm) 175

2" (50.8 mm) 150

2-1/2 (63.5 mm) 120

AVERAGE* AVERAGE* AVERAGE*

CUTTING TIME NUMBER COST/HOLE

HOLE SAW TYPE (SEC/HOLE) OF HOLES ($)

Bi-Metal 25 50 0.10

Ultra Cutter 10 500 0.10

Carbide-Tipped Cutter 10 500 0.20

*For 7/8" Hole in 14ga Mild Steel

• Lasts10timeslongerthanstandardholesaws.

• Precision-groundteethcutsmooth,burr-freeholeswithease.

• 1/4"(6.35mm)capacity.

• Durabilityandspeedprovidelowcostperhole.

• Split-pointpilotdrillprevents“walking”–makesaccuratehole

placement easy.

• Spring-loadedslugejectorsavestime.

• Notoolrequiredtochangecuttersizes.

• Lesschanceofbrokenteethbecausethesawbodyismachined

out of solid, high-speed steel.

ULTRA CUTTERS

ACTUAL HOLE SIZE HOLE DIAMETER

CAT. NO. UPC NO. IN. mm CONDUIT PG ISO COPPER PIPE

925-7/8 10157 7/8 22.5 1/2" Pg-16 5/8"

925-1-1/8 10158 1-1/8 28.6 3/4" Pg-21

925-1-7/32 01643 1-7/32 30.5

925-1-5/16 04823 1-5/16 33.3

925-1-3/8 10159 1-3/8 35.0 1"

925-1-3/4 10160 1-3/4 44.4 1-1/4" 1-1/2"

925-2 10161 2 50.8 1-1/2" ISO-50

925-2-1/2 10162 2-1/2 63.5 ISO-63 2"

ARBORS AND PILOT DRILLS

CAT. NO. UPC NO. DESCRIPTION

925-011 10163 Small Arbor with Pilot Drill for 7/8" to 1-7/32" Size Cutter

925-022 10185 Large Arbor with Pilot Drill for 1-3/8" to 2-1/2" Size Cutter

925-001 10186 Small Pilot Drill

925-002 10211 Large Pilot Drill

NOTE: TO EXTEND THE LIFE OF YOUR TOOL, SEE CUTTING/THREADING OIL ON PAGE 388.

KIT

CAT. NO. UPC NO. DESCRIPTION

930 10214 Ultra Cutter Kit: Includes 7/8" to 2-1/2" Cutters, two Small Arbors for

  extendedassemblyto7/8"and1-1/8"Cutters,LargeArbor,HexWrench

and Case. For conduit sizes 1/2" through 2".

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Quick Change Hole Saw Kit

CAT. NO. UPC NO. DESCRIPTION

830QS 10915 Quick Change Hole Saw Kit for 1/2" through 2" Conduit

Sizes

02800 02800 5/16" Arbor, Minimum Chuck Size 3/8"

02801 02801 7/16" Arbor, Minimum Chuck Size 1/2"

02802 02802 Retrofit Kit - upgrade 3 Hole Saws up to 1-9/16" to Quick

Change

02803 02803 Small Adapters for 9/16" to 1-9/16" Saws Qty. 10

02804 02804 Large Adapters for 1-5/8" to 6" Saws Qty. 3

02805

826S

02805

12787

Bushings for 1-1/4" to 1-9/16" Saws Qty. 5

Hole saw stops

SPECIFICATIONS

Shank Available for 3/8" and heavy duty 1/2" chuck sizes

Arbor length 5-1/2" with pilot drill

Arbor weight 0.5 lbs (227 g)

Arbor operation Pushcollartolockonsaw;pulltoreleasesaw

Arbor pilot drill 37623, 4-1/8" x 1/4" (104.8 mm x 6.4 mm)

Quick Change Arbor Features:

• Newarborallowsforrapidmountingorremovalofholesaws.

• Faster,easierslugremoval.

• Drillpilotholewithoutsaw:

1. Eliminatesthe“bite”whensawcrashesintothesteel.

2. Provides better ergonomics - reduces stress on wrist, arm and hand.

3. Eliminates obstructed view from hole saw.

• Onlyonearborrequiredfrom7/8"to6"(7/16"shankrecommended

for hole saws above 2-1/2").

• Workswithrecessedlightandcarbidegritholesawproductsaswell.

• Adaptersre-usabletominimizecosts.

• Universal-workswithanybrandholesaw.

Kit contains Bi-metal hole saws for 1/2" through 2" conduit sizes.

See page 82 for details.

02802

Deburring Tool

• Cleansburrsfrombothsidesoftheholeinseconds,

saving time and labor.

• Workswithanyholesizeorshape3/4"orlarger.

• Usewithexistingdrills,batteryorelectric-powered.

• Ensuressafety,lesschanceofpersonnelorequipment

being cut on sharp edges.

• Patentpending.

SPECIFICATIONS

Material thickness Deburrs up to 10 gauge

Material type Mild and stainless steel, copper, brass, aluminum

Shank Minimum chuck size 3/8"

Cutter size 13/16" diameter

Operation Run tool clockwise to deburr, counterclockwise to clear chips

CAT. NO. UPC NO. DESCRIPTION

11170 11170 Deburring Tool

11180 11180 Cutter 3-pack

NOTE: TO EXTEND THE LIFE OF YOUR TOOL, SEE CUTTING/THREADING OIL ON PAGE 388.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Bi-Metal Hole Saws

HOLE SAWS

• Cutthroughsteel,tin,aluminum,fiberglass,woodandplastic.

• Deep1-5/8"(41.3mm)cuttingdepthallowsforcuttingthrough

2" x 4" wood studs.

• Extra-toughM42alloyblade–weusethehighestgradeoftoolsteelto

outlast competitor's blades. That beats premature saw replacement

and saves you money.

• Steamoxidefinish–nopainttogumupandslowcutting.Thesawruns

cooler for longer life and better performance.

• Extra-thickbackplateminimizesvibrationforsmoother,easier,lesstiringcutting.

• MadeinUSA

*See page 91 for Quick Change adapter information.

USE WITH USE WITH WEIGHT

ACTUAL HOLE SIZE HOLE DIA. QUICK CHANGE STD.

CAT. NO. UPC NO. INCH mm CONDUIT PG ISO COPPER PIPE SIZE ARBOR NO. ARBOR NO. LBS. g

825–9/16 19131 9/16 14.3 1/8" .1 46

825–5/8 19132 5/8 15.9 Pg-9 1/4" .1 46

825–11/16 19133 11/16 17.5 ISO-16 3/8" .1 46

825–3/4 19134 3/4 19.0 Pg-11 1/2" .1 46

825–13/16 19135 13/16 20.6 Pg-13 ISO-20 1/2" .1 46

825–7/8 19136 7/8 22.2 1/2" Pg-16 5/8" .1 46

825–15/16 19137 15/16 23.8 .1 46

825–1 19138 1 25.4 ISO-25 3/4" .1 46

825–1-1/16 19140 1-1/16 27.0 .1 46

825–1-1/8 19141 1-1/8 28.6 3/4" Pg-21 3/4" .1 46

825–1-3/16 19143 1-3/16 30.2 .2 91

825–1-1/4 19144 1-1/4 31.7 1" .2 91

825–1-5/16 19145 1-5/16 33.3 ISO-32 .2 91

825–1-3/8 19146 1-3/8 35.0 1" .1 46

825–1-7/16 19147 1-7/16 36.5 Pg-29 .2 91

825–1-1/2 19148 1-1/2 38.1 1-1/4" .2 91

825–1-9/16 19149 1-9/16 39.7 .2 91

825–1-5/8 19150 1-5/8 41.3 ISO-40 .2 91

825–1-11/16 19151 1-11/16 42.9 .3 137

825–1-3/4 19152 1-3/4 44.4 1-1/4" 1-1/2" .2 91

825–1-13/16 19153 1-13/16 46.0 .2 91

825–1-7/8 19154 1-7/8 47.6 Pg-36 .3 137

825–2 19155 2 50.8 1-1/2" ISO-50 .2 91

825–2-1/16 19157 2-1/16 52.4 .3 137

825–2-1/8 19158 2-1/8 54.0 Pg-42 .3 137

825–2-1/4 19159 2-1/4 57.2 2" .3 137

825–2-5/16 19160 2-5/16 58.7 .5 227

825–2-3/8 19161 2-3/8 60.3 Pg-48 2" .3 137

825–2-1/2 19162 2-1/2 63.5 2" ISO-63 2" .3 137

825–2-9/16 19163 2-9/16 65.0 .4 182

825-2-5/8 19164 2-5/8 66.7 .4 182

825–2-3/4 19165 2-3/4 69.8 .4 182

825–2-7/8 19166 2-7/8 73.0 .4 182

825–3 19167 3 76.2 2-1/2" 2-1/2" .5 227

825–3-1/8 19168 3-1/8 79.4 .5 227

825–3-1/4 19169 3-1/4 82.5 .6 273

825–3-3/8 19170 3-3/8 85.7 .6 273

825–3-1/2 19171 3-1/2 88.9 .6 273

825–3-5/8 19172 3-5/8 92.1 3" .6 273

825–3-3/4 19174 3-3/4 95.2 .7 318

825–3-7/8 19175 3-7/8 98.4 3-1/2" .7 318

825–4 19176 4 101.6 .7 318

825–4-1/8 19177 4-1/8 104.8 3-1/2" 3-1/2" .8 363

825–4-1/4 19178 4-1/4 108.0 4" .8 363

825–4-3/8 19179 4-3/8 111.1 .8 363

825–4-1/2 19180 4-1/2 114.3 4" .9 409

825–4-3/4 19181 4-3/4 120.6 1.1 499

825–5 19182 5 127.0 1.2 545

825–5-1/2 19183 5-1/2 139.7 5" 1.2 545

825–6 19184 6 152.4 1.4 636

37157,

37155,

or 38522

37156 or

37154

37156

02800*

02801*

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Bi-Metal Hole Saws with Stops

• Helpscontrolholesawdrillingdepthtomaxof1/8

• Easilyremoveablestopfortransferbetweenholesaws.

• Helpsprotecthardware,wireanddrillduringcutting

• Canuseonetofourstops(dependingondiameterofholesaw)basedon

personal preference.

• Offeredwithmostpopularsizesandkitsatnoadditionalcost.

CAT. NO. UPC NO. DESCRIPTION

826S 12787 Hole saw stop (Qty. 3)

830S 10912 Holesawsetwith3stopsfor1/2”-2”conduit

PILOT DRILL

CARBIDE GRIT HOLE SAWS

ACTUAL HOLE SIZE HOLE DIAMETER

CAT. NO. UPC NO. INCH mm CONDUIT PG ISO

725–7/8 10072 7/8 22.2 1/2" 16

725–1-1/8 10073 1-1/8 28.6 3/4" 21

725–1-3/8 10075 1-3/8 35.0 1"

725–1-1/2 10076 1-1/2 38.1

725–1-3/4 10077 1-3/4 44.4 1-1/4"

725–2 10078 2 50.8 1-1/2" 50

725–2-1/8 10079 2-1/8 54.0

725–2-1/2 10080 2-1/2 63.5 2" 63

725–3-5/8 10081 3-5/8 92.1 3"

725–4-1/8 10687 4-1/8 104.8 3-1/2"

725–4-1/2 01879 4-1/2 114.3 4"

Carbide-Grit Hole Saws

CAT. NO. UPC NO. DESCRIPTION

725-001 10082 1/4" Carbide Tipped Pilot Drill

• Long-lastingtungstencarbide-gritdeliversextremelyclean,

smooth cuts through tile, cement board, and other abrasive materials.

Perfect for cutting holes in Quazite® enclosure or hardy board siding

for 3-0 box installation.

• Ruggedconstructionforenduringperformance.

• UsewithArborslistedonpage94.

USE WITH USE WITH WEIGHT

ACTUAL HOLE SIZE HOLE DIA. QUICK CHANGE STD.

CAT. NO. UPC NO. INCH mm CONDUIT PG ISO COPPER PIPE SIZE ARBOR NO. ARBOR NO. LBS. g

826S–7/8 10905 7/8 22.2 1/2” Pg-16  5/8”   .1 46

826S–1-1/8 10906 1-1/8 28.6 3/4” Pg-21  3/4”   .1 46

826S–1-3/8 10904 1-3/8 35.0 1”      .1 46

826S–1-3/4 10908 1-3/4 44.4 1-1/4”   1-1/2”   .2 91

826S–2 10910 2 50.8 1-1/2”  ISO-50    .2 91

826S–2-1/2 10911 2-1/2 63.5 2”  ISO-63 2”   .3 137

02800*

02801*

37157,

37155,

or 38522

37156 or

37154

37156

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

ARBORS

Cat./UPC No.

Standard Pack N/A 37157 38522 37155 N/A 37154 37156

Point of

Purchase Pack 02800 38507 38524 38505 02801 38504 38506

Bulk Pack N/A 37157B/37630 38522B/38529 37155B/37628 N/A 37154B/37903 37156B/37626

Shank Hex Round with 3 flats Hex Hex Hex Hex Hex

Shank Size 5/16" (7.9 mm) 1/4" (6.4 mm) 5/16" (7.9 mm) 7/16" (11.1 mm) 7/16" (11.1 mm) 5/16" (7.9 mm) 7/16" (11.1 mm)

Min. Chuck Size 3/8" (9.5 mm) 1/4" (6.4 mm) 3/8" (9.5 mm) 1/2" (12.7 mm) 1/2" (12.7 mm) 3/8" (9.5 mm) 1/2" (12.7 mm)

Use With 9/16" - 2" 9/16" - 1-3/16" 9/16" - 1-3/16" 9/16" - 1-3/16" 9/16"-6" 1-1/4" - 2" 1-1/4" - 6"

(14.3 - 50.8 mm) (14.3 - 30.2 mm) (14.3 - 30.2 mm) (14.3 - 30.2 mm) (14.3 - 152.4mm) (31.8 - 50.8 mm) (31.8 - 152.4 mm)

Hole Saws Hole Saws Hole Saws Hole Saws Hole Saws

and all Greenlee

Recessed Light

Hole Saws

Weight 0.5 lbs (227 g) .2 lbs (91 g) .2 lbs (91 g) .2 lbs (91 g) 0.5 lbs. (227 g) .5 lbs (227 g) .5 lbs. (227 g)

HIGH-SPEED

STEEL PILOT

DRILLS

Cat./UPC No.

Standard Pack 37623 38526

Point of

Purchase Pack 39873 39893

Bulk Pack

Qty: 50 per pack 37624 38991

Length 4-1/8" 3-1/4"

(104.8 mm) (82.5 mm)

Diameter 1/4" 1/4"

(6.4 mm) (6.4 mm)

Use With 37154, 37155, 37154, 37155,

Greenlee 37156 & 37156 &

Arbor #’s 37157 38522

Weight .2 lbs (91 g) .2 lbs (91 g)

* Quazite is a registered trademark of Strongwell Corporation.

Arbors with Replacement High-Speed Steel Pilot Drill Bits

• Thebestarborintheindustryensuresasolidconnectionwithoutanygapsorwobbling.

• Arborsincludereplaceable,high-speedsteelpilotdrill.

• Pilotdrillshaveuniquesplit-pointtipdesign.

• UsewithGreenleebimetalholesaws,recessedlightholesawsandcarbide-gritholesaws(carbide-tippedpilotdrillsoldseparately).

• CanbeusedwithGreenlee#901or#904bitextensions.

See page 86 for Quick Change adapter information.

CARBIDE-TIPPED

PILOT

DRILLS

Cat./UPC No.

Standard Pack 10082

Length 4-1/8"

(104.8 mm)

Diameter 1/4"

(6.4 mm)

Use With 37157, 37155,

Greenlee 37156 &

Arbor #’s 37154

Weight .2 lbs (91 g)

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

830 / 19192

834 / 19913

890 / 03479 891 / 03480

889 / 03478

WEIGHT

CAT. NO. UPC NO. DESCRIPTION LBS. kg

830 19192 Hole Saw Kit for 1/2" through 2" Conduit Sizes 2.7 1.2

834 19913 Hole Saw Kit for 2-1/2" through 4" Conduit Sizes 6.2 2.8

835 27538 Hole Saw Kit for 1/2" through 4" Conduit Sizes 7.7 3.5

830Pg 29209 Hole Saw Kit for Pg-9 through Pg-48 2.7 1.2

889 03478 Plumber’s Hole Saw Kit – 3/4" through 2-1/4"

Conduit Sizes 2.3 1.0

890 03479 Industrial Maintenance Hole Saw Kit – 3/4"

through 4-3/4" Conduit Sizes 9.7 4.4

891 03480 Electrician’s/Plumber’s Hole Saw Kit - 3/4"

through 2-1/2" Conduit Sizes 3.5 1.6

KIT CAT./UPC NO.

830/ 834/ 835/ 830PG/ 889/ 890/ 891/

CAT. NO. UPC NO. DESCRIPTION 19192 19913 27538 29209 03478 03479 03480

825–3/4 19134 3/4" Hole Saw

✓

825–7/8 19136 7/8" Hole Saw

✓

825–1 19138 1" Hole Saw

✓

825–1-1/8 19141 1-1/8" Hole Saw

✓

825–1-3/8 19146 1-3/8" Hole Saw

✓

825–1-1/2 19148 1-1/2" Hole Saw

✓

825–1-3/4 19152 1-3/4" Hole Saw

✓

825–2 19155 2" Hole Saw

✓

825–2-1/4 19159 2-1/4" Hole Saw

✓

825–2-1/2 19162 2-1/2" Hole Saw

✓

825–3 19167 3" Hole Saw

✓

825–3-1/4 19169 3-1/4" Hole Saw

✓

825–3-5/8 19172 3-5/8" Hole Saw

✓

825–3-3/4 19174 3-3/4" Hole Saw

✓

825–4-1/8 19177 4-1/8" Hole Saw

✓

825–4-1/2 19180 4-1/2" Hole Saw

✓

825–4-3/4 19181 4-3/4" Hole Saw

✓

825–5/8 19132 Pg-9 (15.9 mm) Hole Saw

✓

825–3/4 19134 Pg-11 (19.0 mm) Hole Saw

✓

825–13/16 19135 Pg-13 (20.6 mm) Hole Saw

✓

825–1-3/16 19143 30.2 mm Hole Saw

✓

825–1-1/2 19148 Pg-29 (38.1 mm) Hole Saw

✓

825–1-7/8 19154 Pg-36 (47.6 mm) Hole Saw

✓

825–2-3/8 19161 Pg-48 (60.3 mm) Hole Saw

✓

38522 38522 Arbor w/Pilot Drill (2)

37157 37157 Arbor w/Pilot Drill

✓

37155 37155 Arbor w/Pilot Drill

✓

37156 37156 Arbor w/Pilot Drill

✓

38526 38526 Pilot Drill

✓

Bi-Metal Hole Saw Kits

• Severalelectrician’skitsavailableprovidinganassortmentofthe

most commonly used Greenlee variable pitch hole saw sizes and arbors.

• High-impact,ruggedplasticcarryingcase.

835 / 27538

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

CAT./ HOLE WEIGHT

UPC NO. DESCRIPTION DIAMETER LBS. kg USE FOR

35712 Steel Toothed 4-3/8" (111 mm) .76 .34 Mini Juno, Capri,

35716 Carbide Grit 4-3/8" (111 mm) .74 .34 Marco and Halo

35713 Steel Toothed 6-3/8" (162 mm) 1.2 .54 Halo and Capri

35717 Carbide Grit 6-3/8" (162 mm) 1.1 .50 Halo and Capri

35714 Steel Toothed 6-5/8" (168 mm) 1.3 .59 Juno and Progress

35718 Carbide Grit 6-5/8" (168 mm) 1.3 .59 Juno and Progress

35715 Steel Toothed 6-7/8" (175 mm) 1.3 .59 Lithonia, Marco,

35719 Carbide Grit 6-7/8" (175 mm) 1.4 .64 Lightolier, Progress,

Capri and Precolite

Recessed Light Hole Saws

• Industry’sonlyinterchangeablereplacementblades.

• Strongdurablebackplate.

• Availableintwostyles–steeltoothandcarbidegrit.

• MadeanddesignedinUSAbyGreenlee.

• Usewithapowerdrilltocutlargediameterholesforrecessed

lighting fixtures.

• SawsuseGreenleearbor37156,purchasedseparately.

SPECIFICATIONS

Capacity Steel Toothed Blade - up to 7/8" (22.2 mm) plywood, wood,

acoustical tile and ceiling tile.

Carbide Grit Blade - up to 7/8" (22.2 mm) drywall, plywood,

wood, acoustical tile, ceiling tile, plaster and stucco.

RECESSED LIGHT HOLE SAWS

Quick Cutter™ Hole Saws

• Quickest,mostaffordablewaytocutperfectholesinceilingtile.

• Cutsclean,preciseholesthatensurenolightleakageorpoor-fitting

installations.

• Self-sharpening,carbide-sprayedcuttingtipscancutdozensofholes

in very abrasive materials and still stay sharp.

• Stabilizerspringbalancescuttingforcesandoffersmorecontrolofthe

tool when drilling drywall.

• Dedicatedarborandpilotdrilleliminateschangeovertime.

• Fitsa3/8"drillchuckandcanbeusedwithacordlessdrill.

• Includeddustshieldhelpseliminateflyingdustanddebris.

CAT. NO. UPC NO. DESCRIPTION

06923 06923 Quick Cutter Recessed Hole Saw, Adjustable in 1/2"

Increments for Cuts of 2-1/2" to 7"

CAT. NO. UPC NO. DESCRIPTION

35720 35720 Blade for 35712

35721 35721 Blade for 35713

35722 35722 Blade for 35714

35723 35723 Blade for 35715

35724 35724 Blade for 35716

35725 35725 Blade for 35717

35726 35726 Blade for 35718

35727 35727 Blade for 35719

35708 35708 Set of 5 Blade Screws

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Recommended Hole Saw Cutting Speeds

RPM

HOLE SAW SIZE

INCH mm MILD STEEL CAST IRON BRASS ALUMINUM

9/16 14.3 580 400 790 900

5/8 15.9 550 365 730 825

11/16 17.5 500 330 665 750

3/4 19.0 460 300 600 690

13/16 20.6 425 280 560 635

7/8 22.2 390 260 520 585

15/16 23.8 370 245 495 555

1 25.4 350 235 470 525

1-1/16 27.0 325 215 435 480

1-1/8 28.6 300 200 400 450

1-3/16 30.2 285 190 380 425

1-1/4 31.7 275 180 360 410

1-5/16 33.3 260 175 345 390

1-3/8 35.0 250 165 330 375

1-7/16 36.5 240 160 315 360

1-1/2 38.1 230 150 300 345

1-9/16 39.7 220 145 290 330

1-5/8 41.3 210 140 280 315

1-11/16 42.9 205 135 270 305

1-3/4 44.4 195 130 260 295

1-13/16 46.0 190 125 250 285

1-7/8 47.6 180 120 240 270

2 50.8 170 115 230 255

2-1/16 52.4 165 110 220 245

2-1/8 54.0 160 105 210 240

2-1/4 57.2 150 100 200 225

RPM

HOLE SAW SIZE

INCH mm MILD STEEL CAST IRON BRASS ALUMINUM

2-5/16 58.7 150 100 195 225

2-3/8 60.3 140 95 190 200

2-1/2 63.5 135 90 180 205

2-9/16 65.0 130 85 175 200

2-5/8 66.7 130 85 170 195

2.677 68.0 125 80 160 185

2-3/4 69.8 125 80 160 185

2-7/8 73.0 120 80 160 180

2.913 74.0 115 75 150 170

3 76.2 115 75 150 170

3-1/8 79.4 110 70 140 165

3-1/4 82.5 105 70 140 155

3-3/8 85.7 100 65 130 150

3-1/2 88.9 95 65 130 145

3-5/8 92.1 95 60 120 140

3-3/4 95.2 90 60 120 135

3-7/8 98.4 90 60 120 135

4 101.6 85 55 110 130

4-1/8 104.8 80 55 110 120

4-1/4 108.0 80 55 110 120

4-3/8 111.1 80 50 100 120

4-1/2 114.3 75 50 100 105

4-3/4 120.6 75 50 95 95

5 127.0 65 45 90 90

5-1/2 139.7 60 35 85 85

6 152.4 55 35 75 75

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

• Progressive-pitchreciprocatingsawbladescutawiderangeofstandardconstructionmaterialsquicklyandcleanly–regardlessofthickness.

• Bi-metalconstructionprovidesmaximumflexibilityandbreakresistance–pluslastingsharpness.

• Exclusiveplungetipmakesstartingcutsfasterandeasier.

• Bladescolorcodedbyapplication.

Reciprocating Blades

SAW BLADES

RECIPROCATING SAW BLADES

LENGTH x WIDTH x THICKNESS TEETH QTY.

CAT. NO. UPC NO. INCHES mm PER INCH TYPE APPLICATION PER PK.

353-123 09963 6 x 3/4 x .035 152 x 19.05 x .889 Progressive Bimetal, Metal 5

Straight

353-318 09961 4 x 5/16 x .035 101 x 7.938 x .889 18 Bimetal, Metal 5

Scroll

353-418 09962 4 x 3/4 x .035 101 x 19.05 x .889 18 Bimetal, Metal 5

Straight

353-614 09964 6 x 3/4 x .035 152 x 19.05 x .889 14 Bimetal, Metal 5

Straight

353-618 09965 6 x 3/4 x .035 152 x 19.05 x .889 18 Bimetal, Metal 5

Straight

353-624 09966 6 x 3/4 x .035 152 x 19.05 x .889 24 Bimetal, Metal 5

Straight

353-804 09977 8 x 3/4 x .050 203 x 19.05 x 1.27 10/14 Bimetal, Metal 2

Straight

353-814 09975 8 x 3/4 x .050 203 x 19.05 x 1.27 14 Bimetal, Metal 2

Straight

353-818 09976 8 x 3/4 x .050 203 x 19.05 x 1.27 18 Bimetal, Metal 2

Straight

353-234 09991 8 x 3/4 x .050 203 x 19.05 x 1.27 Progressive HCS, WoodOnly 5

Taper

353-656 09967 6x3/4x.050 152x19.05x1.27 6 Bimetal, WoodwithNails 5

Taper

353-646 09968 6x3.4x.050 152x19.05x1.27 6 Bimetal, WoodwithNails 5

Straight

353-956 09969 9x3/4x.050 228x19.05x1.27 6 Bimetal, WoodwithNails 5

Straight

353-156 09970 12x3/4x.050 304x19.05x1.2 6 Bimetal, WoodwithNails 5

Straight

353-966 09979 9 x 7/8 x .062 228 x 22.23 x 1.56 6 Bimetal,  WoodDemolition 2

Taper

353-969 09990 9 x 7/8 x .062 228 x 22.23 x 1.56 8/10 Bimetal, Metal Demolition 2

Taper

353-345 09972 8 x 3/4 x .050 203 x 19.05 x 1.27 Progressive Bimetal, General 5

Taper

16-gauge metal stud strutEMT conduit thick wall pipe rod/rebar

Metal

Wood

Demolition

Specialty

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Jig Saw Blades

JIG SAW BLADES

CAT. NO. UPC NO. DESCRIPTION TEETH TYPE APPLICATION TEETH PER INCH QTY. PER PK.

373-U123 09994 3-5/8" Univeral Jig Saw Blade Progressive High-speed Steel Metal 18 5

373-U234 09993 4-1/4"UniversalJigSawBlade Progressive High-carbonSteel Wood  6  3

373-U345 09995 5" Universal Jig Saw Blade Progressive Bimetal General 18 5

373-U300 09996 2-3/4" Universal Jig Saw Blade Grit Carbide Grit Abrasive Materials 18 2

373-UVAR 09997 UniversalJigSawBlade– Progressive 373-U123 Metal,Wood  6  1ea.

Variety Pack 373-U234 and General

373-U345

373-T123 10004 4" T-Shank Jig Saw Blade Progressive High-speed Steel Metal 18 3

373-T234 10003 4-1/2"T-ShankJigSawBlade Progressive High-carbonSteel Wood  6  5

373-T345 10005 5-1/4" T-Shank Jig Saw Blade Progressive Bimetal General 18 5

373-TVAR 10006 T-ShankJigSawBlade– Progressive 373-T123 Metal,Wood  6  1ea.

Variety Pack 373-T234 and General

373-T345

• Progressive-toothdesigndeliversfastercuttingthroughabroadrangeofmaterialtypesandthicknesses.

• Shatterproofbi-metalconstructionwithhighspeedcobaltmatrixcuttingedge.

• Forroughandfinishcuttinginfullrangeofapplicationsincludingwood(evenwithnails),metal,plaster,drywallandfiberglass.

• TungstenCarbideGritEdgebladestyle.

- No teeth to snag, cuts efficiently on both up and down strokes for extra smooth finishes.

- Additional cutting application for cast iron, tile, pipe, ceramic.

• Centerfronttoothmakesplungecutsquickandeasy.

FLEXIBLE CONDUIT CUTTERS

Flex Splitter® MC and Flexible Conduit Cutter

• Cutflexiblemetalconduitinsecondswithafewturnsofthecrankandan

easy twist of the conduit.

• Ampleclearancebetweenhandleandbodyforcomfortableoperation.

• Setconduitsizeformultiplecutsofthesamesizeconduit.Noneedtoreset.

• Compactandlightweight.Fitseasilyinbackpocketortoolpouch.

• Setbladeadjustmentwithonlyascrewdriver.

• Convenientin-handlebladestorage–holdsuptofivespareblades.

• Point-of-purchasepackaged.Bladespoint-of-purchasepackaged1and5

blades per package.

CAT. NO. UPC NO. DESCRIPTION

1940 34953 Flex Splitter® Flexible Metal Conduit Cutter

1941-1 00288 Single Blade for 1940

1941-5 33735 5 Pack Blades for 1940

SPECIFICATIONS

Capacity 14/2 to 10/4 BX 3/8" flexible metal conduit

Weight 1940 - 4 lbs. (1.8 kg)

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

100

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

HAND SAWS

Tubular back provides

handy blade storage

inside.

Large, 4-1/2" throat

enables deeper cuts,

makes handling easy.

Convenient adjustment

lever makes blade

tensioning a snap.

Heavy-duty die-cast

aluminum handle is

virtually break-proof.

12" Hack Saw

REPLACEMENT HACK SAW BLADES

CAT. NO. UPC NO. DESCRIPTION QTY. PER PK.

333-1218 10037 12" (305 mm) Bi-metal Blade, 18 Teeth Per Inch 5

333-1224 10038 12" (305 mm) Bi-metal Blade, 24 Teeth Per Inch 5

333-1232 10039 12" (305 mm) Bi-metal Blade, 32 Teeth Per Inch 5

CAT. NO. UPC NO. DESCRIPTION

333A 23635 12" (305 mm) Heavy-Duty Hack Saw

SPECIFICATIONS

Capacity 12" (304.8 mm) Blade

Weight 1.4 lbs. (0.7 kg)

Keyhole Saw

• Ergonomic-stylehandlewithnon-slipgripcreatesasure

and comfortable feel.

• Hardenedsteelblademakescuttingdrywall,cementboard,plastic

and wood quick and easy.

• Bladegoesthroughthehandleformaximumsupportofthecuttingblade.

CAT. NO. UPC NO. BLADE LENGTH DESCRIPTION

322-013 00113 13" (330 mm) PVC Saw

322-018 00114 18" (457 mm) PVC Saw

322-113 00115 13" (330 mm) Blade for 00113

322-118 00116 18" (457 mm) Blade for 00114

• “V”toothdesignenablesstraightcutsonbothpushandpullsawstrokes.

• Resharpenableblade.

• Pointedbladenosemakesdrywallsurfacepenetrationeasy.

• ErgonomichandleisinterchangeablewithmostpopularPVCsawbrands.

CAT. NO. UPC NO. DESCRIPTION

301A 23641 Keyhole Saw with 6" Blade (152 mm)

PVC Saws

322-013

322-018

301A

Bimetal blade design

for long cutting life

and flexibility.

101

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

BAND SAWS

MOBILE BAND SAW BLADES

CAT. NO. UPC NO. DESCRIPTION TYPE APPLICATION TEETH PER INCH

399-14A 32336 1/2" x .025" x 93" Mobile Band Saw Blade1 Bi-metal Metal 10.14

399-18A 32337 1/2" x .025" x 93" Mobile Band Saw Blade1 Bi-metal Metal 18

399-24A 32338 1/2" x .025" x 93" Mobile Band Saw Blade1 Bi-metal Metal 24

389-1014 10044 1/2" x .020" x 44-7/8" Portable Band Saw Blade2 Bi-metal Metal 10/14

389-1418 10045 1/2" x .020" x 44-7/8" Portable Band Saw Blade2 Bi-metal Metal 14/18

389-24 10043 1/2" x .020" x 44-7/8" Portable Band Saw Blade2 Bi-metal Metal 24

Use with 1399 (31961)

Use with 530 (30276)

Heavy-Duty Band Saw

• Cutsupto8"pipeand9-1/2"x11"(241x280mm)trayorduct.

• Convertibletowetcuttingsystemswithoptionalaccessories.

• Threesawingspeeds76,141,and268feetperminute

(23, 43, and 82 meters per minute).

• Convertstoverticalinseconds.

• Automaticshut-offaftercutiscomplete.

• Sturdywheelsformobilityandstability.

• Heavy-duty,adjustablehydraulicfeed.

• Heavy-duty,steelbedwithweldedsteellegs.

SPECIFICATIONS

Capacity Rectangular 9-1/2" x 11" (241.3 x 279.4 mm)

Round 9-1/2" Dia. or 8" Pipe (241.3 mm)

45°Angle5-1/2"(139.7x139.7mm)

VerticalWorkTable7-5/8"x10"(193.7x254.0mm)

Throat Height 9-1/2" (241.3 mm)

Throat Depth 6-1/4" (158.8 mm)

Dimensions 52"H.x47"L.x27"W.(13208H.x11938L.x685.8W.mm)

Power Source 1399-120 VAC 1/2 Horsepower. 1399-22 - 220 VAC

Weight 346 lbs. (157 kg)

Blade Size 1/2" x .025" x 93" (12.7 mm x 0.64 mm x 2362 mm)

CAT. NO. UPC NO. DESCRIPTION

1399 31961 9-1/2" x 11: Capacity Mobile Band Saw

(241.3 x 279.4 mm)

1399-22 32364 9-1/2" x 11" Capacity Mobile Band Saw

(241.3 x 279.4 mm) 220 VAC

32322 32322 WetCuttingSystemfor120VAC1399

32237 32237 VerticalWorkTable

Band Saw Blades

Perfect for your mobile or portable band saw, these top-quality, bi-metal

blades feature high-speed steel teeth that can handle even tough metals

like stainless steel with ease. Virtually unbreakable, too.

• Bi-metalbladesfeaturehigh-speedtoolsteel,bondedtoan

extra-tough alloy back for maximum hardness and heat resistance.

• Fitsmostpopularmodelsofportablebandsaws.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

102

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

ANCHORS AND FASTENERS

Anchor and Fastener Selection Guide

ANCHOR/FASTENER TYPE USE IN USE WITH MADE OF SIZE RANGE GENERAL INFORMATION

Concrete, brick, Machine Zinc alloy 1/4"- 20 to Single unit caulking anchor, can be set shallow (flush) or deep

stone, block screw and lead 3/8"-16 in hole. Setting tool required (1 provided free in each box of

or bolts anchors). For setting in hollow block or to set anchors all at

the same depth, use Greenlee Screw anchor expander.

Concrete, brick, Machine Steel 1/4"-20 to Heavy-duty use in solid masonry where codes require all steel

stone screw 3/8"-16 bolt anchors. Pre-assembled, internal expander plug. Can be

or bolts installed flush with masonry surface or sub-set. Setting tool

required (1 provided free in each box of anchors).

Concrete, block, No other Steel 1/4" x 1" to A safe, secure fastener that actually taps concrete and

brick fastener 1/4" x 2-1/2" eliminates the need for concrete inserts with their alignment

needed problems. Use with Greenlee masonry drill set tool.

Block, wallboard, No other Steel L3/16" x 3" to Available in round head and mushroom head. Fully-threaded

plaster, tile fastener 3/8" x 4" machine screw with spring wing toggle head.

needed

Concrete, block, No other Zinc and 1/4" x 1" to Fast, medium-duty. No hole spotting, removable. Use in

brick fastener Steel 1/4" x 1-1/2" hollow or solid base applications.

needed

Concrete, Sheet metal, Corrosion- #6-8 x 1" to Light-duty, multi-size anchor. Has collar for hollow

block, tile, wood, lag resistant #10-12 x 1" materials.

brick screws plastic

Caulking

Drop

Masonry Screw

Toggle Bolts

Zinc Mushroom

Head

Screw Anchor Expanders for Caulking Anchors

1. Drill hole of required size

and put anchor screw on

expander. Insert screw

anchor into drilled hole.

2. Strike head of expander

with hammer or mallet until

anchor is held securely in

wall. Unscrew expander.

EXPANSIVE USE WITH QTY. WEIGHT

CAT. NO. UPC NO. BELT SIZE ANCHOR NO. PER BOX LB. kg

866 02667 #10 – 24 84299 1 .3 .1

868 02669 1/4" – 20 84299 1 .4 .2

870 02671 3/8" – 16 84305 1 .6 .3

• Quicklyandsecurelysetexpansivescrewanchorsinmasonry,

regardless of thickness.

• Hardenedalloysteel.

• Patented.

CAT. NO. UPC NO. DESCRIPTION

4451AV 05191 Anchor Screw for 866

4457AV 05197 Anchor Screw for 868

4717AV 05300 Anchor Screw for 870

1125GB 50423 Roll Pin 1/4" x 1-1/8"

Plastic Conical

103

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Caulking Anchors

Drop Anchors

• Zincalloyandleadcaulkinganchorcanbesetflushorsubset.

Greenlee setting tool required.

• Rustproof,useinteriororexterior.

• Forsettinginhollowblock.Tosetanchorsallsamedepth,

use Greenlee screw anchor expander.

• Heavy-dutysteelanchorforusewherecodesrequireallsteelboltanchors.

• Pre-assembled,internalexpanderplugforfasterinstallation.

• Four-wayslotdesignassuresfirmhold.

4. Insert screw

or bolt and

tighten.

3. Using setting tool,

caulk lead outer

sleeve with sharp

blows. Position

fixture.

2. Insert anchor,

conical end first,

until flush

with surface.

1. Drill hole in

masonry.

TO SET ANCHOR FLUSH WITH SURFACES

1. Drill hole the same

diameter as anchor

being used.

2. Drive anchor flush

with concrete.

3. Expand anchor with setting tool

provided. Anchor is properly

expanded when shoulder of

setting tool is flush with top

of anchor.

LEAD CAULKING ANCHORS AND SETTING TOOLS

CAT./ THREAD REQ. HOLE SET QTY. WEIGHT WORKING LOAD PULLOUT

UPC NO. SIZE DIA. MIN. DEPTH TOOL* PER BOX LBS. kg LBS. kg

84299 1/4"–20 1/2" 7/8" 84329 100 3.8 1.7 125 56.6

84305 3/8"–16 3/4" 1-1/4" 84335 50 7.1 3.2 312.5 141.6

*One Setting Tool included with each box of anchors.

Approvals: Conforms to the description in Federal Specification FFS-325, Group I, Type 1, Class 1.

NOTE: Working load is one fourth the ultimate/maximum capacity. For critical or unusual applications, site testing is recommended.

TO SET ANCHOR BELOW SURFACES

1. Drill hole deeper than anchor length. Thread bolt into anchor. Hammer anchor into hole

until bolt head is at desired height. Remove bolt and set anchor with setting tool.

NOTE: The use of a 24 to 40 ounce hammer is recommended for expanding the anchor.

DROP ANCHORS AND SETTING TOOLS

CAT./ ANCHOR & BOLT MIN. THREAD SETTING QTY. WEIGHT

UPC NO. HOLE DIA. THREAD SIZE DEPTH DEPTH TOOL* PER BOX LB. kg

84253 3/8" 1/4"–20 1-1/8" 1/2" 84273 100 3 1.4

84256 1/2" 3/8"–16 1-5/8" 5/8" 84276 50 7 3.2

*One Setting Tool included with each box of anchors.

SPECIFICATIONS

WORKING LOAD PULLOUT WORKING LOAD SHEAR

CAT./UPC NO. LBS. kg LBS. kg

84253 1037 469.8 842.5 381.7

84256 1712.5 775.8 1518.7 688.9

Approvals: Conforms to the description in Federal Specification FFS-325, Group VIII,

Type 1, for concrete expansion shield anchors.

NOTE: Working load is one fourth the ultimate/maximum capacity.

For critical or unusual applications, site testing is recommended.

1. Drill required diameter

hole in material, to a

minimum depth equal

the overall anchor

minus the thickness

of the object to be

fastened. Clean hole.

2. Insert anchor body

through object to be

fastened, and into the

hole in base material.

3. Tap the nail until it is

flush with the zinc

anchor head.

CAT./ REQUIRED QTY WEIGHT

UPC NO. SIZE HOLE SIZE PER BOX LBS. kg

84110 1/4" x 1" 1/4" 100 2 .9

84111 1/4" x 1-1/4" 1/4" 100 2.4 1.1

84112 1/4" x 1-1/2" 1/4" 100 2.6 1.2

NOTE: For critical or unusual applications, site testing is recommended.

Zinc Mushroom Head Drive Anchors

• Fast,medium-dutyanchorforuseinconcrete,blockandbrick.

• Noholespotting.

• Useinholloworsolidmaterial.

• Madeofzincandsteel.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

104

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

1. Use set Tool with bit in drilling

position to drill hole in surface.

2. Retract bit, insert masonry screw

into socket head of tool and drive

screw into hole.

MASONRY SCREW DRILL SET KIT

MATERIAL CONCRETE

3000 PSI QTY.

CAT./ MIN. PULLOUT PER WT.

UPC NO. DESCRIPTION EMBEDMENT LBS. BOX LBS. kg

84463 Masonry Screw Drill Set Kit Includes: 3/4" 1180 1 1.6 .7

84469 50 – 1/4" x 1" Masonry Screws

84472 50 – 1/4" x 1-1/4" Masonry Screws

84466 1– Masonry Screw Drill Set Tool with 84484 Bit

Small Jobs – Use special Greenlee masonry screw drill bit for holes. Screw can be installed with 5/16" wrench, nut driver or socket

with ratchet.

Large Jobs – Use the special Greenlee Masonry Screw Drill Set Tool in kit with 3/8" or larger electric drill for drilling holes and screw

installation.

MASONRY SCREW ANCHORS – EACH BOX OF 100 INCLUDES 1 BIT

CAT./ MATERIAL CONCRETE 3000 PSI QTY. WT.

UPC NO. SIZE MIN. EMBEDMENT PULLOUT LBS. PER BOX LBS. kg

84469 1/4" x 1" 3/4" 1180 100 1.2 .5

84472 1/4" x 1-1/4" 3/4" 1180 100 1.4 .6

84475 1/4" x 1-1/2" 1-1/4" 1800 100 1.6 .7

84478 1/4" x 2" 1-1/4" 1800 100 1.8 .8

84481 1/4" x 2-1/2" 1-1/4" 1800 100 2.1 1.0

INSTALLATION TOOLS

QTY.

CAT./ PER WT.

UPC NO. DESCRIPTION BOX LBS. kg

84466 Masonry Screw Drill Set Tool with 84484 Bit 1 .4 .2

84484 3-1/2" Masonry Screw Drill Bit – for use 1

with 1" to 1-1/2" long screws

NOTE: For use in lightweight, hollow core concrete block, minimum embedment 1-3/8", pullout 715 lbs. Due to

the variance in make-up of cement block, values will vary. It is suggested that the anchor be tested in specific

material being used before installing fixtures.

Masonry Screw Anchors must be used with Greenlee masonry screw drill bits, numbers

84484 and 84487, which are a special size to insure secure thread engagement. Standard

masonry bit size holes will not provide proper contact with screw threads and may cause

masonry anchor screws to pull out.

Masonry Screw Anchors

• Asafe,secure,steelfastenerthattapsconcreteandeliminatestheneed

for concrete inserts with their alignment problems.

• UsewithGreenleemasonrydrillsettool.

• Useinconcrete,blockandbrick.

• Quickandeasytwo-stepinstallation,savestime.

• MadeinUSA.

1. Drill hole full length of

anchor or 1/8” deeper.

2. Tap anchor into hole

flush with surface.

3. Insert screw through

fixture into plastic plug

and tighten.

ANCHORS ONLY

CAT./ USE WITH REQUIRED QTY. WEIGHT

UPC NO. SCREW SIZES HOLE SIZE PER BOX LBS. kg

84003 #6-#8 3/16" 100 .2 .1

84006 #10,#12 1/4" 100 .2 .1

ANCHOR KITS

CAT./ ANCHOR SCREW BIT WEIGHT

UPC NO. SIZE SIZE TYPE SIZE LBS. kg

84009 #6,#8 #8x1" C 3/16" .8 .4

84012 #10,#12 #10x1" C 1/4" 1 .5

84015 #10,#12 #12x1" C 1/4" 1.4 .6

84019 #10,#12 #10x1" B 1/4" 1.1 .5

Plastic Conical Anchors

• Light-duty,multi-sizeanchorforuseinconcrete,block,tileandbrick.

• Usewithsheetmetal,woodandlagscrews.

• Hascollarforhollowmaterials.

• Moistureandchemicalresistant,forindoor/outdooruse.

• Anchorkitsinclude100anchors,100screwsandonemasonrybit.

105

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Round Head

Mushroom Head

1. Drill hole completely through wall. 2. Insert bolt through items to be fastened.

Fold wings completely back, then push

through hole until wings spring open.

3. Pull back to hold wings against inside wall while tightening with screw driver.

TOGGLE BOLTS AND SPRING WINGS

CAT./ TOGGLE BOLT REQUIRED QTY. WEIGHT

UPC NO. SIZE HEAD HOLE SIZE PER BOX LBS. kg

84405 1/4" x 4" Round 11/16" 50 3.7 1.7

84409 3/8" x 4" Round 1" 25 4.3 1.9

84424 3/16" x 3" Mushroom 1/2" 50 1.9 .9

84425 3/16" x 4" Mushroom 1/2" 50 2.2 1.0

84428 1/4" x 3" Mushroom 11/16" 50 3.3 1.5

84429 1/4" x 4" Mushroom 11/16" 50 3.8 1.7

Toggle Bolts and Spring Wings

• Forlighttomediumfasteninginblock,wallboard,plasterandhollowtile.

• Fullythreadedmachinescrewwithspringwingtogglehead.

• Generoussizeoftoggleheadactstospreadtheloadoveramaximumarea.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

106

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

TAPCON® MASONRY FASTENERS – EACH BOX OF 100 INCLUDES 1 BIT

MAXIMUM

FASTENER EMBEDMENT ATTACHMENT QTY.

CAT. NO. UPC NO. SIZE TYPE MIN. MAX. THICKNESS PER BOX

LE 405 07405 1/4" x 1-1/4" A 1" 1-3/4" 1/4" 100

LE 415 07415 1/4" x 1-3/4" A 1" 1-3/4" 3/4" 100

LE 425 07425 1/4" x 2-1/4" A 1" 1-3/4" 1-1/4" 100

LE 435 07435 1/4" x 2-3/4" A 1" 1-3/4" 1-3/4" 100

LE 445 07445 1/4" x 3-1/4" A 1" 1-3/4" 2-1/4" 100

LE 455 07455 1/4" x 3-3/4" A 1" 1-3/4" 2-3/4" 100

LE 300 07300 3/16" x 1-1/4" A 1" 1-3/4" 1/4" 100

LE 310 07310 3/16" x 1-3/4" A 1" 1-3/4" 3/4" 100

LE 320 07320 3/16" x 2-1/4" A 1" 1-3/4" 1-1/4" 100

Slotted Hex

Washer Head

TAPCON® Masonry Fasteners and Drill Bits

• Corrosion-resistant−AllTapcon® fasteners are protected against

rust and corrosion by the exclusive Stalgard® finish.

• Fast−installtwoorthreeTapcon® fasteners per minute. Simple two-step

operation−drill,thendrive−eliminatestheneedtosetanchors.

• Strong−Tapcon® fasteners and the masonry material are mechanically

linked for exceptionally strong pullout strength.

• Removable−Tapcon® fasteners can be removed and reinserted

in the same hole. Great for repairs or adjustments.

• Availableintwodiameters−1/4"and3/16".

• MadeinUSA.

PERCUSSION BITS

CAT./ HOLE DIA. SHANK WEIGHT

UPC NO. INCH mm INCH mm LBS. g

84576 3/16 4.8 3/16 4.8 .03 14

84582 1/4 6.4 1/4 6.4 .05 23

84588 5/16 7.9 1/4 6.4 .06 27

84594 3/8 9.5 1/4 6.4 .08 36

84600 1/2 12.7 1/4 6.4 .12 54

FAST SPIRAL BITS

CAT./ HOLE DIA. SHANK WEIGHT

UPC NO. INCH mm INCH mm LBS. g

84526 3/16 4.8 3/16 4.8 .03 14

84532 1/4 6.4 1/4 6.4 .05 23

84538 5/16 7.9 1/4 6.4 .06 27

84544 3/8 9.5 1/4 6.4 .08 36

84550 1/2 12.7 1/4 6.4 .12 54

Percussion

Fast Spiral

Masonry Bits

SPECIFICATIONS

Twist Length 2-1/2" (63 mm)

Overall Length 4" (101 mm)

• Steelbitwithcarbidetip.

• Useinconcrete,block,brick,stone,wallboardandplaster.

• Availableintwostyles:percussionforuseinelectrichammer

and fast spiral for use in conventional power drills.

• Availableinsizesrangingfrom3/16"-1/2"(4.8-12.7mm)

MASONRY BITS

107

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Multi-Purpose Installation Tool

High-Speed Installation Tool

CAT. NO. UPC NO. DESCRIPTION

LP 100 07100 Condrive 1000 kit consists of: Drill Adapter, Drill Sleeve

Assembly, 5/16" Hex Driver-Magnetic, 1/4" Hex Socket for

3/16"Anchor,PhillipsBit,#2PhillipsBit,#3PhillipsBit,

1/8" Hex Key, Set Screw 1/4-28, Drive Sleeve Assembly for

5" & 6" Anchors

CAT. NO. UPC NO. DESCRIPTION

LP 200 07200 Condrive 2000 kit consists of: Tool Body/Drive Assembly,

5/16" Hex Socket for 1/4" Anchors, 1/4" Hex Socket for

3/16" Anchors, 1/8" Hex Key, 1/4" Hex Key, 5/16" Hex Key,

Set Screw

• Convenientone-steptooldesignedforhighspeedinstallation

of Tapcon fasteners.

• Bestforrapid,repetitivedrillingandfastenerinstallation.

• SpecificallydesignedforhexheadTapcon® fasteners in lengths up to 2-3/4".

• Multi-purposetooldesignedtobeusedwithallsizesandstyles

of Tapcon® masonry fasteners.

• Tapcon® anchors are easy to install... a simple, two-step operation

−drillthehole,thendrivethefastenerwiththeCondrivetool.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

108

Holemaking

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

NOTES

Bending

From rugged hand benders to the full-featured Smart Quad Bender™ which calculates

complete layout measurements, Greenlee benders are the industry standard for bending

EMT, IMC, PVC and rigid conduit. Refer to our easy-to-use selection guide for choosing

a Greenlee bender or accessory that will get the job done right the ﬁrst time.

FEATURED Products

841 Site-Rite®

Hand Bender

114

111

Bending

114 126

L97 Mini-Magnet

Laser Level

855 Smart Quad

Conduit Bender

854 Quad

Conduit Bender

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

110

Bending

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

CAT. NO. – DESCRIPTION PAGE NO. 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 5"

1818 Mechanical Bender (EMT) 113 ✓ ✓ ✓ ✓ ✓

1818 Mechanical Bender (IMC) 113 ✓ ✓ ✓ ✓

1818 Mechanical Bender (Rigid) 113 ✓ ✓ ✓ ✓ ✓

855 Smart Quad Bender™ 114 ✓ ✓ ✓ ✓ ✓ ✓

854 Quad Bender™ 114 ✓ ✓ ✓ ✓ ✓ ✓

555® Electric Bender Rigid & EMT* 116, 117 ✓ ✓ ✓ ✓ ✓ ✓

555® Electric Bender IMC* 116, 117 ✓ ✓ ✓ ✓ ✓ ✓

853 Quad Bender™ 115 ✓ ✓ ✓ ✓

882 & 882CB Hydraulic Bender 118 ✓ ✓ ✓

881 & 881CT Hydraulic Bender 120 ✓ ✓ ✓ ✓

CAT. NO. – DESCRIPTION PAGE NO. 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 5"

Hand Benders‑–‑SITE‑RITE® Aluminum 111 841 842 843

Hand Benders‑–‑SITE‑RITE II® Malleable Iron 111 8841 8842 8843

Hand Benders‑–‑Hickeys 111 508 512 516

1800 Mechanical Bender 112 ✓ ✓ ✓

1801 Mechanical Bender 112 ✓ ✓

1818 & 1818R Mechanical Bender 113 ✓ ✓ ✓ ✓ ✓

855 Smart Quad Bender™ 114 ✓ ✓ ✓ ✓ ✓ ✓

854 Quad Bender™ 114 ✓ ✓ ✓ ✓ ✓ ✓

853 Quad Bender™ 115 ✓ ✓ ✓ ✓

555R Electric Bender 116 ✓ ✓ ✓ ✓ ✓ ✓

882CB Hydraulic Bender 118 ✓ ✓ ✓

881 & 881CT Hydraulic Bender 120 ✓ ✓ ✓ ✓

880 Hydraulic Bender 122 Optional ✓ ✓ ✓ ✓

777 Hydraulic Bender 123 ✓ ✓ ✓ S S S S

884 Hydraulic Bender 124 ✓ ✓ ✓ ✓ ✓ ✓ ✓

885 Hydraulic Bender 124 ✓ ✓ ✓ ✓ ✓ ✓ ✓ S

CAT. NO. – DESCRIPTION PAGE NO. 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 5"

Hand Benders‑–‑SITE‑RITE® Aluminum 111 840 841 842 843

Hand Benders‑–‑SITE‑RITE II® Malleable Iron 111 8840 8841 8842 8843

1818 & 1818T Mechanical Bender 113 ✓ ✓ ✓ ✓ ✓

855 Smart Quad Bender™ 114 ✓ ✓ ✓ ✓ ✓ ✓

854 Quad Bender™ 114 ✓ ✓ ✓ ✓ ✓ ✓

853 Quad Bender™ 115 ✓ ✓ ✓ ✓

555E Electric Bender 116 ✓ ✓ ✓ ✓ ✓ ✓

882 & 882CB Hydraulic Bender 118 ✓ ✓ ✓

881 & 881CT Hydraulic Bender 120 ✓ ✓ ✓ ✓

CAT. NO. – DESCRIPTION PAGE NO. 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 5"

Hand Benders‑–‑SITE‑RITE® Aluminum 111 841 842 843

Hand Benders‑–‑SITE‑RITE II® Malleable Iron 111 8841 8842 8843

1800 Mechanical Bender 112 ✓ ✓ ✓

1801 Mechanical Bender 112 ✓ ✓

1818 & 1818R Mechanical Bender 113 ✓ ✓ ✓ ✓

855 Smart Quad Bender™ 114 ✓ ✓ ✓ ✓ ✓ ✓

854 Quad Bender™ 114 ✓ ✓ ✓ ✓ ✓ ✓

853 Quad Bender™ 115 ✓ ✓ ✓ ✓

555I Electric Bender 116 ✓ ✓

882CB Hydraulic Bender 118 ✓ ✓ ✓

881 & 881CT Hydraulic Bender 120 ✓ ✓ ✓ ✓

CAT. NO. – DESCRIPTION PAGE NO. 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 5"

855 Smart Quad Bender™

with 01700 PVC Shoe Group 114 ✓ ✓ ✓ ✓ ✓ ✓

854 Quad Bender™

with 01700 PVC Shoe Group 114 ✓ ✓ ✓ ✓ ✓ ✓

853 Quad Bender™

with 37279 PVC Shoe Group 115 ✓ ✓ ✓ ✓ ✓ ✓

555® Electric Bender with 37279 Shoe Group 116 ✓ ✓ ✓ ✓ ✓ ✓

884 PVC Hydraulic Bender 124 Optional Shoes Required ✓ ✓ ✓ Optional ✓ ✓ ✓

Bending Selection Guide

Combination

Bending

Rigid EMT

IMC Conduit

*Correct shoe group required

Rigid

Conduit

Bending

EMT

Conduit

Bending

IMC

Conduit

Bending

PVC Coated

Rigid

Conduit

Bending

✓ = One Shot Capability.

S = Segment Bend Only.

See pages 124 and 130 for

PVC Blankets and Heaters for

bending PVC.

111

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Bending

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

SITE-RITE® Heat-Treated Aluminum and SITE-RITE II® Malleable Iron Hand Benders

Both Benders feature:

• Handlestraightupanddownfor30°bends.

• Patentedsightindicatoronbenderisakeyfeatureforbending

anglesfastandeasy.

• Non-slip,contouredpedalforaddedleverage.

• Strong,stablesquarehookdesign.

• Cast-inmarkingsforstub-ups,saddlebends,back-to-backbends,

andhead-upordownbending.

• LifetimeLimitedWarranty.

SITE-RITE Aluminum Benders feature:

• Specialdesignandheat-treatedaluminumconstructionmake

 thispatentedhandbendersignificantlystronger.

• Cast-inoffsetmultipliers.

8843 SITE-RITE II Malleable Iron Bender features:

• PowerFoottoprovidemoreleverage,reducebendingeffort.

HICKEYS with Welded Handles

• Heavy-dutycaststeelhead.

• Weldedsteelhandle.

• Bendtightradiusstub-ups.

Site-Rite

Site-Rite II

with Power Foot

CENTERLINE BENDING RADII

EMT RIGID CENTERLINE HEAT-TREATED MALLEABLE

IMC RADII ALUMINUM IRON

1/2"  4-3/16"(106.5mm) 840,840H 8840,8840H

3/4" 1/2" 5-1/8"(130.2mm) 841,841H 8841,8841H

1" 3/4" 6-1/2"(165.1mm) 842,842H 8842,8842H

1-1/4" 1" 11"(279.4mm) 843 —

1-1/4" 1" 9-5/8"(244.5mm) — 8843

CAT. NO. UPC NO. DESCRIPTION

840 23533 SITE‑RITE Hand Bender for 1/2" EMT

841 23392 SITE‑RITE Hand Bender for 3/4" EMT, 1/2" Rigid, IMC

842 23564 SITE‑RITE Hand Bender for 1" EMT, 3/4" Rigid, IMC

843 23667 SITE‑RITE Hand Bender for 1‑1/4" EMT, 1" Rigid, IMC

840H 32917 SITE‑RITE Hand Bender with handle for 1/2" EMT

841H 32918 SITE‑RITE Hand Bender with handle for 3/4" EMT, 1/2" Rigid

842H 32919 SITE‑RITE Hand Bender with handle for 1" EMT, 3/4" Rigid

8840 35094 SITE‑RITE II Hand Bender for 1/2" EMT

8841 35095 SITE‑RITE II Hand Bender for 3/4" EMT, 1/2" Rigid, IMC

8842 35096 SITE‑RITE II Hand Bender for 1" EMT, 3/4" Rigid, IMC

8843 06491 SITE-RITEIIPowerFootBenderfor1-1/4"EMT,1"Rigid,IMC

8840H 35482 SITE‑RITE II Hand Bender with handle for 1/2" EMT

8841H 35483 SITE‑RITE II Hand Bender with handle for 3/4" EMT, 1/2" Rigid

8842H 35484 SITE‑RITE II Hand Bender with handle for 1" EMT, 3/4" Rigid

845 25567 Handle for 1/2" and 3/4" Hand Benders

846 25568 Handle for 1" Hand Benders

846‑1‑1/4 06490 Handle for 1‑1/4" Benders

SPECIFICATIONS

Capacity 1/2" ‑ 1‑1/4" EMT, 1/2" ‑ 1" Rigid

Weight 840−1.4lbs.(0.7kg)

841−2.1lbs.(0.9kg)

842−3.5lbs.(1.6kg)

843−8.3lbs.(3.8kg)

840H−5.5lbs.(2.5kg)

841H−6.4lbs.(2.9kg)

842H−11lbs.(5kg)

8840−3.1lbs.(1.4kg)

8841−4.3lbs.(2.0kg)

8842−7.2lbs.(3.3kg)

8843−16.2lbs.(7.3kg)

8840H−7lbs.(3.2kg)

8841H−9lbs.(4.1kg)

8842H−15lbs.(6.8kg)

SPECIFICATIONS

Capacity 1/2" ‑ 1" Rigid

Weight 508-6.9lbs.(3.1kg).512-8lbs.(3.6kg).516-13lbs.(5.9kg)

CAT. NO. UPC NO. DESCRIPTION

508 18102 Hickey for 1/2" Rigid

512 18103 Hickey for 3/4" Rigid

516 18104 Hickey for 1" Rigid

60 45 30 22-1/2 10

LINE OF

SIGHT

FLOOR LINE

FOOT PRESSURE

MECHANICAL

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

112

Bending

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Little Kicker® Offset Bender

Mechanical Benders for IMC and Rigid Conduit

CENTERLINE BENDING RADII

1800,1800G1 1/2"Rigidconduit 2-5/8" (66.7mm)

  3/4"Rigidconduit 4-5/8" (117.5mm)

  1"Rigidconduit 5-7/8" (149.2mm)

1801,1801G1 1-1/4"Rigidconduit 8-1/16" (204.8mm)

  1-1/2"Rigidconduit 9-11/16" (246.1mm)

Use a 5' (1.5 m) length of 1" Rigid conduit for the handle.

• Bendsoffsetsinoneeasyoperation.Insertconduit,depresshandle,

 releaseandremoveconduit.

• Makesidenticaloffsetseverytimeforwallmountedboxes

 withexposedconduit.

• Createsoffsetthatmatchestheknockoutinbox.

• Maximumoffsetof.56"(9/16).

CAT. NO. UPC NO. DESCRIPTION

1810 13815 Offset Bender for 1/2" EMT

1811 14159 Offset Bender for 3/4" EMT

SPECIFICATIONS

Capacity 1810 − 1/2" EMT

1811 − 3/4" EMT

Weight 1810−8.75lbs.(4kg)

1811−8.50lbs.(3.9kg)

SPECIFICATIONS

Capacity 1800,1800G1−1/2",3/4"and1"IMCandRigid.

1801, 1801G1 − 1‑1/4" and 1‑1/2" IMC and Rigid

Weight 1800−81lbs.(36.7kg)

1800G1−48lbs.(21.8kg)

1801−104lbs.(47.2kg)

1801G1−75lbs.(34kg)

CAT. NO. UPC NO. DESCRIPTION

1800 24400 Mechanical Bender for 1/2", 3/4", 1" IMC and Rigid conduit

1800G1 24401 Mechanical Bender without undercarriage, for bench or truck bed

mounting.Bends1/2",3/4",1"IMCandRigidconduit

1801 24753 Mechanical Bender for 1‑1/4", 1‑1/2" IMC and Rigid conduit

08429 08429 Undercarriage Unit for 1800 and 1801

19988 19988 Wheel,Non-flat

• Ratchetactionforincreasedleverage.

• Bypasstheratchetforfast,directbendingonsmallersizes.

• Heavy-dutyweldedconstructionforlong,reliableservice.

• Built-inbendingdegreeindicatorandeasytousebendingchartsfor

accurate,consistentbends.

• Doesnotincludehandle.

113

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Bending

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

• Bendsawidevarietyoftypesandsizesofconduit.

• Durableratchetmechanismforeasybending.

• Bypasstheratchetforfast,directbendingonsmallersizes.

• Bendingdegreeindicatorandchartsforfast,easy,accuratebending.

• Allshoeandbendingaccessoriescanbemountedtotheframeunit

andsecuredwithachainandlock.

• Heavy-dutyundercarriagewithwheels.

• Doesnotincludehandle.

Mechanical Benders for EMT, IMC, Rigid and Aluminum Conduit

BENDERS SHOE GROUPS*

KEY CAT NO. UPC NO. DESCRIPTION 1818 1818R 1818T 1818G1 36905 36906 36907

 A 1818G1 22220 FrameandUndercarriageUnit 1 1 1 1

B 36697 36697 Roller Pin Unit 1 1 1 1 1 1

C 18681 18681 Cushioned Roller Unit 1 1 1 1 1 1

 D 18827 18827 1/2, 3/4 & 1" Rigid/IMC Shoe Unit 1 1 1 1

E 18828 18828 1‑1/4" Rigid/IMC; 1‑1/2" Rigid Shoe Unit 1 1 1 1

G 18830 18830 3/4 & 1" EMT Shoe Unit 1 1 1 1

H 18831 18831 1‑1/4 & 1‑1/2" EMT Shoe Unit 1 1 1 1

I 18642 18642 1-1/4&1-1/2"EMTFollowBar 1  1  1  1

J 18832 18832 2" EMT Shoe Unit 1 1 1 1

K 18636 18636 2"EMTFollowBar 1  1  1  1

 L 36296 36296 RollerFollowBarGuide 1  1  1  1

 N 18772 18772 Retainer Clip 1 1 1 1 1 1

O 19988 19988 Wheel,Non-flat 2 2 2

 F 18829 18829 2" Rigid Aluminum Shoe Unit OPTIONAL

1723 23818 SteelStorageBoxForShoeUnits

* SHOE GROUPS Reference chart for ordering bending accessories.

CENTERLINE BENDING RADII

SHOE SIZE INCHES mm

1/2"Rigid/IMC 2-21/32" 67.5

3/4"Rigid/IMC 4-5/8" 117.5

3/4"EMT 5-3/32" 129.4

1"Rigid/IMC 5-7/8" 149.2

1"EMT 6-13/32" 162.7

1-1/4"Rigid/IMC 7-3/8" 187.3

1-1/4"EMT 8-9/32" 210.3

1-1/2"Rigid 9" 228.6

1-1/2"EMT 8-9/32" 210.3

2"EMT 9-3/16" 233.4

2"Aluminum 10-15/32" 265.9

CAT. NO. UPC NO. DESCRIPTION

1818 22192 Mechanical Bender for 3/4" through 2" EMT conduit,

1/2" through 1‑1/4" IMC conduit and 1/2" through

1‑1/2" Rigid and aluminum conduit

1818R 20231 Mechanical Bender for 1/2" through 1‑1/4" IMC

conduit and 1/2" through 1‑1/2" Rigid and aluminum

conduit

1818T 20232 Mechanical Bender for 3/4" through 2" EMT conduit

08429 08429 Under Carriage Assembly

1818G1 22220 Frameandundercarriageunitonly

19988 19988 Wheel,Non-flat

SPECIFICATIONS

Capacity EMT: 3/4" ‑ 2"

RIGID:1/2"-1-1/2"

IMC: 1/2" ‑ 1‑1/4"

ALUMINUM:1/2"-1-1/2"

Weight 1818−250lbs.(114kg)

1818T−217lbs.(99kg)

1818R−185lbs.(84kg)

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

114

Bending

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

• Bendsavarietyoftypesandsizesofconduit.

• Intelligentpendantcontrols:Standard(included),digitalreadoutand

programmablebendanglesforaccuraterepeatbends.Deluxe(optional),

interactivecontrol–calculatescompletelayoutmeasurementsforvarious

typesofbends.

• Bends1/2"to2"EMT,IMC,RigidandRigidaluminumconduitwithout

anyshoechanges.Noloosepartstogetlost.

• Twooperatingpositions;tabletopandupright.

• OptionalshoesavailabletobendPVC-coatedsteelconduit.

• Excellentportability.Convenientliftingeyesandforktubes.

• Weather-resistantconstruction.

• SqueezeadjustmenttocompensateforvariationsinEMTconduit.

Smart Quad Bender™ Electric Conduit Bender for 1/2" to 2" EMT, IMC, Rigid and

Rigid Aluminum

Quad Bender™ Electric Conduit Bender for 1/2" to 2" EMT, IMC, and Rigid Aluminum

CENTERLINE BENDING RADII

SHOE SIZE INCHES mm

1/2"EMT 4-5/16" 109.5

1/2"IMC/Rigid 4-1/4" 108.0

3/4"EMT 5-1/2" 139.7

3/4"IMC/Rigid 5-7/16" 138.1

SHOE SIZE INCHES mm

1"EMT 7" 177.8

1"IMC/Rigid 6-15/16" 176.2

1-1/4"EMT 8-13/16" 223.8

1-1/4"IMC/Rigid 8-3/4" 222.3

SHOE SIZE INCHES mm

1-1/2"EMT 8-3/8" 212.7

1-1/2"IMC/Rigid 8-1/4" 209.6

2"EMT 9-1/4" 235.0

2"IMC/Rigid 9" 228.6

ELECTRICAL

CAT. NO. UPC NO. DESCRIPTION

855 08550 Smart Bender for 1/2" ‑ 2" EMT, IMC and Rigid conduit (Includes

Standard Pendant)

38650 38650 DeluxePendantforolderbenderwithserialcodeZW

01711 01711 DeluxePendantforcurrentbenderwithserialcodeABL&ADY

38863 38863 StandardPendantforolderbenderwithserialcodeZW

01648 01648 StandardPendantforcurrentbenderwithserialcodeABL&ADY

38780 38780 Shoe Unit, 1/2" ‑ 1‑1/4"

38148 38148 Shoe Unit, 1‑1/2" ‑ 2"

01700 01700 40MILPVCCoatedRigidShoeGroup,1/2"-2"(Exc.ZW)

38962 38962 VinylRainCover

SPECIFICATIONS

Capacity 1/2"‑ 2" EMT, IMC, Rigid and Rigid Aluminum conduit

Power Source 120 VAC; 20 Amp

Weight 510lbs.(231.3kg)

• Bends1/2"to2"EMT,IMC,RigidandRigidAluminumconduitwithout

anyshoechanges.Noloosepartstogetlost.

• Twooperatingpositions;tabletopandupright.

• Remotependantswitchandbendingdatachartsforeasy,accuratebends.

• Simplesetupandeasyoperation.

• SqueezeadjustmenttocompensateforvariationsinEMTconduit.

• Excellentportability.Convenientliftingeyesandforktubes.

• OptionalshoesavailabletobendPVCcoatedsteelconduit.

SPECIFICATIONS

Capacity 1/2"‑ 2" EMT, IMC, Rigid and Rigid Aluminum conduit

Power Source 120 VAC; 20 Amp

Weight 510lbs.(231.3kg)

CAT. NO. UPC NO. DESCRIPTION

854 03106 Quad Bender for 1/2" ‑ 2" EMT, IMC, Rigid and Rigid Aluminum,

conduit

38780 38780 Shoe Unit, 1/2" ‑ 1‑1/4"

38148 38148 Shoe Unit, 1‑1/2" ‑ 2"

01700 01700 40MILPVCCoatedRigidShoeGroup,1/2"-2"

95R7

01711 - Deluxe Pendant

115

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Bending

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

• Four-in-one-shoehandles1",1-1/4",1-1/2,2"EMT,IMCandRigidsteel

andaluminumconduit.

• Noflattireswithsteelrimsandprecisionballbearingsfortoughjobsite

conditions.

• Quicklyremovetheshoeandbridgetoreduceweightforeasyhandling.

• Easytoloadandunload.

• Squeezeadjustmenttocompensateforconduitvariations.

Smoothwrinkle-freebends.

Electric Conduit Bender for 1" to 2" EMT, IMC, Rigid Steel and Aluminum

CAT. NO. UPC NO. DESCRIPTION

853 07272 Quad Bender for 1" ‑ 2" EMT, IMC, and Rigid conduit

37279 37279 40MILPVCCoatedRigidShoeGroup,1"-2"

SPECIFICATIONS

Capacity 1" ‑ 2" EMT, IMC, and Rigid conduit

Power Source 120 VAC; 20 Amp

Weight 445lbs.(202kg);275lbs.(125kg)withoutshoeandbridge

Height 44" (1118 mm)

Width 30.5"(775mm)

Depth 35" (889 mm)

95R7

CENTERLINE BENDING RADII-853

SHOE SIZE INCHES mm

1"EMT 7" 177.8

1"IMC/Rigid 6-15/16" 176.2

1-1/4"EMT 8-13/16" 223.8

1-1/4"IMC/Rigid 8-3/4" 222.3

1-1/2"EMT 8-3/8" 212.7

1-1/2"IMC/Rigid 8-1/4" 209.6

2"EMT 9-1/4" 235.0

2"IMC/Rigid 9" 228.6

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

116

Bending

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

• 555DeluxeSeriesfeaturesuniqueelectricalcontrolsthatreduce

thein-rushcurrenttotherelaystominimizecontactarcingfor

longerlife,heavy-dutynoflatpneumatictiresandUL/ULCapproved.

• AvailableinfourmodelsforRigid,EMTorIMCconduit,orbender

onlywithoutshoes.

• TheoptionalPVC-coatedRigidconduitshoegroupcanbeused

onall555seriesbenders.

555® Deluxe Electric Conduit Bender for 1/2" through 2" Conduit and Pipe

555R

No Flat Tires

SPECIFICATIONS

Capacity 555R: 1/2" ‑ 2" Rigid and 1/2" ‑ 1‑1/4" IMC conduit

555E: 1/2" ‑ 2" EMT conduit

555l: 1‑1/2" and 2" IMC conduit

Power Source 555DeluxeSeries:120VAC;20AmpGFCI-protectedreceptacle

555-22:220VAC50/60Cycle;20AmpGFCI-protected

receptacle

Operating Temperature -5°Fto120°F(-20°Cto49°C)

Relative Humidity 0‑98%

Weight 555:260lbs.(118kg)

555R:393lbs.(179kg)

555E:476lbs.(216kg)

555l:456lbs.(207kg)

Height 555DeluxeSeries:44"(1118mm)

Width 555DeluxeSeries:29-5/8"(753mm)

Depth 555DeluxeSeries:28-1/2"(724mm)

CAT. NO. UPC NO. DESCRIPTION

555 39780 DeluxeElectricBenderpowerunitwithoutbendingaccessories

555R 23446 DeluxeElectricBenderwithShoeGroupfor1/2"through2"Rigid

and 1/2" through 1‑1/4" IMC conduit and pipe includes 28007 −

1/2" ‑ 2" Rigid Shoe Group

555E 27989 DeluxeElectricBenderwithShoeGroupfor1/2"through2"EMT

conduit includes 23802 − 1/2" ‑ 2" EMT Shoe Group

555I 27990 DeluxeElectricBenderwithShoeGroupfor1-1/2"through2"

IMC conduit includes 26330 − 1‑1/2" ‑ 2" IMC Shoe Group

555‑22 39971 220 VAC 50/60 Cycle Electric Bender power unit without bending

accessories

37279 37279 40MILPVCCoatedRigid1/2"-2"ShoeGroup(soldseparately)

to use with the 555 series benders

53389 53389 PIN-HITCH.437x8.10–Weight.39

95R7

117

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Bending

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

• The555CClassicSeriesfeaturessimplerelaycontrolsforeasyfield

repairs,andcompacthandledesigntopreventinterferencewithconduit

whenbending.

• AvailableinfourmodelsforRigid,EMTorIMCconduit,orbenderonly

withoutshoes.

• TheoptionalPVC-coatedRigidconduitshoegroupcanbeusedonall

555seriesbenders.

555® Classic Electric Conduit Bender for 1/2" through 2" Conduit and Pipe

555RC Classic

CAT. NO. UPC NO. DESCRIPTION

555C 06900 Classic Electric Bender power unit without bending accessories

555RC 06901 Classic Electric Bender with Shoe Group for 1/2" through 2" Rigid

and 1/2" through 1‑1/4" IMC conduit and pipe; includes 28007 −

1/2" ‑ 2" Rigid Shoe Group

555EC 06902 Classic Electric Bender with Shoe Group for 1/2" through 2" EMT

conduit includes 23802 − 1/2" ‑2" EMT Shoe Group

555IC 06903 Classic Electric Bender with Shoe Group for 1‑1/2" through 2"

IMC conduit includes 26330 − 1‑1/2" ‑ 2" IMC Shoe Group

37279 37279 40MILPVCCoatedRigid1/2"-2"ShoeGroup(soldseparately)

to use with the 555 series benders

53389 53389 PIN-HITCH.437x8.10–Weight.39

SPECIFICATIONS

Capacity 555RC: 1/2" ‑ 2" Rigid and 1/2" ‑ 1‑1/4" IMC conduit

555EC: 1/2" ‑ 2" EMT conduit

555IC: 1‑1/2" and 2" IMC conduit

Power Source 555CClassicSeries:120VAC;20ampGFCI-protectedreceptacle

Weight 555C:260lbs.(118kg)

Width 555C Classic Series: 28‑1/2" (724 mm)

Height 555C Classic Series: 44" (1118 mm)

Depth 555C Classic Series: 28‑1/2" (724 mm)

Operating

Temperature

-5°Fto120°F(-20°Cto49°C)

Relative Humidity 0‑98%

95R7

555 CENTERLINE BENDING RADII

SHOE SIZE EMT RIGID IMC

1/2"  4-1/4" (10.80cm) 4-1/4" (108mm)  4-1/4" (108mm)

3/4" 5-3/8" (13.65cm) 5-7/16"(138mm)  5-7/16" (138mm)

1" 6-3/4" (17.15cm) 6-5/16" (176mm)  6-5/16" (176mm)

 1-1/4" 8-3/4" (22.22cm) 8-3/4" (222mm)  8-3/4" (222mm)

 1-1/2" 8-9/32" (21.03cm) 8-1/4" (209mm)  8-9/32" (210mm)

 2" 9-3/16" (23.33cm) 9-1/2" (241mm)  9-3/16" (233mm)

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

118

Bending

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

555® Accessory Shoe Groups

23802 1/2" - 2" EMT SHOE GROUP CONSISTS OF ONE EACH:

KEY CAT. NO. UPC NO. DESCRIPTION

1 17944 17944 1/2" through 1‑1/4" EMT Bending Shoe

2 17986 17986 1/2" through 1‑1/4" Support Roller

3 23499 23499 1‑1/2" EMT Bending Shoe

4 23505 23505 2" EMT Bending Shoe

5 23541 23541 1‑1/2" through 2" Roller Support Unit

1723 23818 MetalStorageBox(notshown)

23816 1-1/2" AND 2" EMT SHOE GROUP CONSISTS OF ONE EACH:

KEY CAT. NO. UPC NO. DESCRIPTION

3 23499 23499 1‑1/2" EMT Bending Shoe

4 23505 23505 2" EMT Bending Shoe

5 23541 23541 1‑1/2" through 2" Roller Support Unit

26330 1-1/2" AND 2" IMC SHOE GROUP CONSISTS OF ONE EACH:

KEY CAT. NO. UPC NO. DESCRIPTION

6 25263 25263 1‑1/2" IMC Bending Shoe

7 25268 25268 2" IMC Bending Shoe

8 25273 25273 1‑1/2" through 2" Roller Support Unit

1723 23818 MetalStorageBox(notshown)

28007 1/2" - 2" RIGID SHOE GROUP CONSISTS OF ONE EACH:

KEY CAT. NO. UPC NO. DESCRIPTION

9 00571 00571 1/2" through 1‑1/4" Rigid/IMC Bending Shoe

10 00936 00936 1/2" through 1‑1/4" Support Roller

11 17937 17937 1‑1/2" through 2" Rigid Bending Shoe

12 17984 17984 1‑1/2" through 2" Support Roller

37279 40 MIL PVC COATED RIGID 1/2" - 2" SHOE GROUP CONSISTS OF ONE EACH:

KEY CAT. NO. UPC NO. DESCRIPTION

13 00946 00946 1/2" through 1‑1/4" Roller Support

14 00573 00573 1/2" through 1‑1/4" Shoe

15 37281 37281 1‑1/2" and 2" Shoe

16 37282 37282 1‑1/2" through 2" Roller Support

1723 23818 MetalStorageBox(notshown)

To use the PVC Shoe Group with 555 SB and 555 SBR benders Adapter Set 32391 is required.

Flip-Top® Benders for 1-1/4" - 2" EMT, IMC and Rigid

SPECIFICATIONS

Capacity Weight

882‑1‑1/4", 1‑1/2" and 2" EMT 882‑141 lbs (64 kg)

882CB‑1‑1/4", 1‑1/2" and 2" EMT, IMC and Rigid 882‑H755‑ 161 lbs (73 kg)

Power Source 882CB‑H755‑ 217 lbs (99 kg)

755‑ Hydraulic Hand Pump 882CB‑E975‑ 264 lbs (120 kg)

975‑ 120 VAC Electric Hydraulic Pump 882‑E975‑ 195 lbs (89 kg)

976‑22PS‑ 220 VAC 50/60 Cycle Electric Hydraulic Pump 882CB‑ 205 lbs (93 kg)

910 11 12

14 15

FLIP-TOP® BENDER CENTERLINE BENDING RADII

882, 882CB 882CB

SIZE EMT RIGID IMC

1-1/4" 7-7/32"(183.4mm) 7-1/4"(184.2mm) 7-1/4"(184.2mm)

1-1/2" 8-1/16"(204.8mm) 8-1/4"(209.5mm) 8-1/4"(209.5mm)

2" 9-5/16"(236.5mm) 8-7/8"(225.4mm) 8-7/8"(225.4mm)

HYDRAULIC

• Choose882forEMTor882CBmodelsforEMT,IMC

andRigidConduit.

• Simple,accurateandeasytouse.

• Flip-Tophingedframetopplateopensforeasy,

fastloadingandunloading.

• Ramtravelscaleandchartsforaccuratebends,

offsetsandsaddles.

CAT. NO. UPC NO. DESCRIPTION

882 15128 Flip-TopBenderfor1-1/4",1-1/2"and2"EMTConduitwithout

Hydaulic Pump

882CB 29536 Flip-TopBenderwithshoesfor1-1/4",1-1/2"and2"EMT,IMC

and Rigid Conduit without Hydraulic Pump

882CBH755 29537 Flip-TopBenderwithshoesfor1-1/4",1-1/2"and2"EMT,IMC

and Rigid Conduit with 755 Hand Hydraulic Pump

882CBE975 34202 Flip-TopBenderwithshoesfor1-1/4",1-1/2"and2"EMT,IMC

and Rigid Conduit with 975 Electric Hydraulic Pump

882H755 16460 Flip-TopBenderfor1-1/4",1-1/2"and2"EMTConduitwith

755 Hand Hydraulic Pump

882E975 34201 Flip-TopBenderfor1-1/4",1-1/2"and2"EMTConduitwith

975 Electric Hydraulic Pump

882RIG1 29948 ConversionAttachmentSet-Converts882to882CBbyadding

the shoes, follow bars and saddles for 1‑1/4", 1‑1/2" and 2"

IMC and Rigid Conduit

119

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Bending

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

BENDERS SHOE GROUP

KEY CAT NO. UPC NO. DESCRIPTION 882 882CB 882RI-G1

A 1738 15129 12‑Ton Hydraulic Ram with 4018GB female quick Coupler 1 1

B 11289 11289 3/8"x6'(9.5x1829mm)HydraulicHosewithtwo4033GBmalequickcouplers 1 1

C 15145 15145 Yoke 1 1

 D 04086 04086 YokePin 1 1

E 16563 16563 FrameUnit(includesFthruK) 1 1

 F 15136 15136 Upper Connecting Plate Unit 1 1

G 15135 15135 LowerConnectingPlateUnit 1 1

H 15150 15150 Hinge Pin 1 1

I 50283 50283 Retaining Ring 2 2

J 38778 38778 RollerUnitwithpin(L) 1 1

K 15147 15147 Anchor Stud 2 2

 L 54303 54303 HitchPin,3/8x1-1/2 1 1

 N 29937 29937 Saddle Pin 1 1 1

O 50848 50848 ScaleJamNut 

O 52867 52867 Scale O‑Ring

O 21954 21954 Scale Piston 1 1

1531 23274 SteelStorageBox(notshown) 1 1

P 11146 11146 1‑1/4" EMT Shoe 1 1

Q 11126 11126 1-1/4"EMTFollowBar 1 1

R 11075 11075 1‑1/4" EMT Saddle 1 1

P 14287 14287 1‑1/2" EMT Shoe 1 1

Q 11107 11107 1-1/2"EMTFollowBar 1 1

R 11072 11072 1‑1/2" EMT Saddle 1 1

P 11132 11132 2" EMT Shoe 1 1

Q 11089 11089 2"EMTFollowBar 1 1

R 14279 14279 2" EMT Saddle 1 1

P 29474 29474 1‑1/4" IMC and Rigid Shoe 1 1

Q 29477 29477 1-1/4"IMCandRigidFollowBar  1 1

R 29465 29465 1‑1/4" IMC and Rigid Saddle 1 1

P 29470 29470 1‑1/2" IMC and Rigid Shoe 1 1

Q 29472 29472 1-1/2"IMCandRigidFollowBar  1 1

R 29464 29464 1‑1/2" IMC and Rigid Saddle 1 1

P 29466 29466 2" IMC and Rigid Shoe 1 1

Q 29468 29468 2"IMCandRigidFollowBar  1 1

R 29463 29463 2" IMC and Rigid Saddle 1 1

Flip-Top® Benders and Shoe Groups

P Q

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

120

Bending

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Cam Track® Conduit Benders for 2-1/2" to 4" EMT, IMC and Rigid

CAM TRACK

BENDER CENTERLINE BENDING RADII

FOR EMT, IMC AND RIGID CONDUIT

881 881 CT, 881 CTD, 881 BASIC

CENTERLINE CENTERLINE SHOE DEGREE

SIZE RADIUS RADIUS GROUP OF BEND

2-1/2" 13-1/2"(342.9mm) 13-1/2"(342.9mm) 27554 90

3" 16"(406.4mm) 16"(406.4mm) 27555 90

3-1/2" 18-5/8"(473.1mm) 18-5/8"(473.1mm) 31281 90

4" 21"(533.4mm) 20-7/8"(530.2mm) 31274 90

3-1/2"  18-5/8"(473.1mm)# 27556 45

4"  21"(533.4mm)# 27557 45

  #881BasicOnly

• OnebendertobendEMT,IMCandRigidConduit.

• Fastandeasysetuponthejobsite.

• TrueOne-Shot90°bendswithCTmodelsforquick

accuratebends.

• Steelreinforcedfollowbarsforlonglife.

• Benda90°elbowin4"Rigidconduitin95seconds.

• Optional1813BendingTableandaccessoriesfor

easieroperation.

CAT. NO. UPC NO. DESCRIPTION

881CT 31287 CamTrackConduitBenderforOne-Shot90°Bends

in 2‑1/2", 3", 3‑1/2" and 4" EMT, IMC and Rigid

conduit, without hydraulic pump

881CTE980 34208 CamTrackConduitBenderforOne-Shot90°Bends

in 2‑1/2", 3", 3‑1/2" and 4" EMT, IMC and Rigid

conduit, with 980 Electric Hydraulic Pump

881CTD 38466 CamTrackConduitBenderforOne-Shot90°Bends

in 2‑1/2", 3" and 4" EMT, IMC and Rigid conduit,

without hydraulic pump

881CTDE980 38467 CamTrackConduitBenderforOne-Shot90°Bends

in 2‑1/2", 3" and 4" EMT, IMC and Rigid conduit,

with 980 Electric Hydraulic Pump

881 27778 ConduitBenderforOne-Shot90°Bendsin2-1/2"

and3",Two-Shot90°Bendsin3-1/2"and4"EMT,

IMC and Rigid conduit, without hydraulic pump

881E980 34205 HydraulicConduitBenderforOne-Shot90°Bends

in2-1/2"and3",Two-Shot90°Bendsin3-1/2"

and 4" EMT, IMC and Rigid conduit, with 980

Electric Hydraulic Pump

881BASIC 35711 Conduit Bender without shoe groups or hydraulic

pump

27554 27554 2-1/2"-One-Shot90°EMT,IMC,RigidShoeGroup

27555 27555 3"-One-Shot90°EMT,IMC,RigidShoeGroup

31281 31281 3-1/2"-One-Shot90°EMT,IMC,RigidShoeGroup

27556 27556 3-1/2"-45°EMT,IMC,RigidShoeGroup(requires

2bendstomakea90°)

31274 31274 4"-One-Shot90°EMT,IMC,RigidShoeGroup

27557 27557 4"-45°EMT,IMC,RigidShoeGroup(requires2

bendstomake90°)

1813 28901 Bending Table for 881 Bender

SPECIFICATIONS

Capacity 2‑1/2" ‑ 4" EMT, IMC and Rigid

Power Source 980: 120 VAC Electric Powered Hydraulic Pump

980‑22PS: 220 VAC 50/60 Cycle Electric Powered

Hydraulic Pump

Weight 881CT-E980:999lbs.(454kg)

881-E980:930lbs.(422kg)

881:856lbs.(388kg)

881BASIC:358lbs.(163kg)

27555:137lbs.(62kg)

27556:130lbs.(59kg)

27557:134lbs.(61kg)

31274:183lbs.(83kg)

SEE PAGE 126

Shown with OPTIONAL 1813

Bending Table & optional 980 pump

121

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Bending

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Cam Track® Benders and Shoe Groups

BENDERS SHOE GROUPS

881CT &

KEY CAT. NO. UPC NO. DESCRIPTION 881 881BASIC 881CTD 27554 27555 31281 27556 31274 27557

A 27416 27416 40‑Ton Hydraulic Ram with 4018GB

   femalequickcoupler.Theramincludes

   KeysB,G,andtwoclipsfromKeyF. 1 1 1

B 27417 27417 Cylinder Block 1 1 1

C 30309 30309 Yoke 1 1 1

D 26309 26309 Connecting Bar Unit 2 2 2

E 27364 27364 Roller Unit‑The roller unit includes

   twoclipsfromKeyF 1 1 1

F 50302 50302 Hitch Pin Clips 6 6 6

G 27381 27381 Cylinder Block Pin Unit 2 2 2

H 26306 26306 YokePin 1 1 1

J 26349 26349 SpringClip(securesYokeUnittoRam) 1 1 1

11289 11289 3/8"x6'(9.5x1829mm)

Hydraulic Hose with two

4033GB male quick couplers 1 1 1

M 26624 26624 Saddle Pin Unit ‑ includes 1 clip

   fromKeyF 1 1 1

N 26297 26297 2-1/2"Shoe90° 1  1 1

P 26366 26366 2-1/2"FollowBar90° 1  1 1

O 26580 26580 2‑1/2" Saddle 1 1 1

N 26300 26300 3"Shoe90° 1  1  1

P 35400 35400 3"FollowBar90° 1  1  1

O 26584 26584 3" Saddle 1 1 1 1

N 26302 26302 3-1/2"Shoe45° 1      1

P 26389 26389 3-1/2"FollowBar45° 1      1

O 26588 26588 3‑1/2" Saddle 1 1* 1 1

T 31882 31882 3-1/2"Shoe90°   1*   1

U 31881 31881 3-1/2"FollowBar90°   1*   1

N 26305 26305 4"Shoe45° 1        1

P 31292 31292 4"FollowBar45° 1        1

O 26594 26594 4" Saddle 1 1 1 1

T 31884 31884 4"Shoe90°   1     1

U 31883 31883 4"FollowBar90°   1     1

2460 23363 SteelStorageBox(notshown) 1 1 1

695 30239 Caster Set (not shown) 1 1 1

*Not included in 881 CTD.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

122

Bending

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Rigid Conduit Bender for 1/2", 3/4", 1", 1-1/4", 1-1/2" and 2"

KEY CAT. NO. UPC NO. DESCRIPTION 880 880PVC

A 747 16249 15‑Ton Hydraulic Ram with

4018GB female quick coupler,

includesKeysF,GandoneH 1 1

B 03396 03396 FrameUnit 1 1

C 03400 03400 Conduit Support 2

D 13679 13679 Conduit Support Pin 2 2

E 11289 11289 3/8"x6'(9.5x1829mm)

Hydraulic Hose with two

4033GB male quick couplers 1 1

F 15829 15829 Cylinder Head Pin Unit with

Spring Clips 2725AA (Key G) 2 2

G 50302 50302 Spring Clips 2 2

H 10826 10826 Ram Pin, Shoe Pin 2 2

I 10939 10939 Shoe Support 1 1

K 10919 10919 1" Shoe – Rigid 1

K 10920 10920 1‑1/4" Shoe – Rigid 1

K 10921 10921 1‑1/2" Shoe – Rigid 1

K 10922 10922 2" Shoe – Rigid 1

14909 14909 SteelStorageBox(notshown) 1 1

CENTERLINE BENDING RADII FOR 880 & 880 PVC BENDERS

Rigid Shoe Size 1/2" 3/4" 1" 1‑1/4" 1‑1/2" 2"

Bending Radius-Inches 4" 4‑1/2" 5‑3/4" 7‑1/4" 8‑1/4" 9‑1/2"

Bending Radius-cm 10.16 11.43 14.60 18.41 20.95 24.13

• Strong,portablepin-assembledaluminumcomponents.

• Easy-to-useramtravelscaleandbendingcharts.

• Conduitsupportsindextosuitallsizes.

CAT. NO. UPC NO. DESCRIPTION

880 16480 1", 1‑1/4", 1‑1/2" and 2" Rigid Conduit Bender

without hydraulic pump

880H755 16464 1", 1‑1/4", 1‑1/2" and 2" Rigid Conduit Bender

with 755 Hand Hydraulic Pump

880E975 34200 1", 1‑1/4", 1‑1/2" and 2" Rigid Conduit Bender

with 975 Electric Hydraulic Pump

1802 21257 Bending Table (Optional)

21357 21357 Conduit Support Pin for use with 1802 Bending

Table ‑ (2) Required

10917 10917 1/2" Shoe (Optional)

10918 10918 3/4" Shoe (Optional)

SPECIFICATIONS

Capacity 880: 1" ‑ 2" Rigid Conduit

Power Source 755: Hydraulic Hand Pump

975: 120 VAC Electric Hydraulic Pump

980: 120 VAC Electric Hydraulic Pump

Weight 880:113lbs.(52kg)

880H755:135lbs.(61kg)

880E975:172lbs.(78kg)

880PVC:116lbs.(53kg)

123

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Bending

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Rigid Conduit Bender for 1-1/4" - 2" One-Shot 90°s and 2-1/2" - 4" Segment Bending

• Strong,portablepin-assembledaluminumcomponents.

• Easy-to-useramtravelscaleandbendingcharts.

• Conduitsupportsindextosuitallsizes.

CAT. NO. UPC NO. DESCRIPTION

777 16491 1‑1/4" through 2" One‑Shot and 2‑1/2" through 4" Segment,

Rigid Conduit Bender without hydraulic pump

777HC755 16470 1‑1/4" through 2" One‑Shot and 2‑1/2" through 4" Segment,

Rigid Conduit Bender with 755 Hand Hydraulic Pump

777E975 34198 1‑1/4" through 2" One‑Shot and 2‑1/2" through 4" Segment,

Rigid Conduit Bender with 975 Electric Hydraulic Pump

1802 21257 Bending Table (Optional)

21359 21359 Conduit Support Pin for use with 1802 Bending Table ‑ (2)

Required

SPECIFICATIONS

Capacity 1‑1/4" ‑ 4" Rigid Conduit

Power Source 755: Hydraulic Hand Pump

975: 120 VAC Electric Hydraulic Pump

980: 120 VAC Electric Hydraulic Pump

Weight 777:164lbs.(75kg)

777HC755:173lbs.(79kg)

777E975:508lbs.(231kg)

KEY CAT. NO. UPC NO. DESCRIPTION 777

A 1736 13251 27‑Ton Hydraulic Ram with 4018GB female

quick coupler, includes Keys C thru E 1

B 11289 11289 3/8"x6'(9.5x1829mm)Hosewith

two 4033GB male quick couplers 1

C 13252 13252 Cylinder Head Pin Unit with Spring Clip

   2725AA(KeyD) 2

D 50302 50302 Spring Clip 2

E 10826 10826 Ram Pin 1

F 13232 13232 FrameUnit 1

G 13193 13193 Conduit Support 2

H 14496 14496 Conduit Support Pin 2

I 10939 10939 Small Shoe Support 1/2" thru 2" 1

J 10826 10826 Shoe Pin 1

K   90°AluminumBendingShoes

10920 10920 1‑1/4" Shoe 1

10921 10921 1‑1/2" Shoe 1

10922 10922 2" Shoe 1

L   AluminumSegmentBendingShoes

13208 13208 2‑1/2" Shoe 1

13209 13209 3" Shoe 1

13210 13210 3‑1/2" Shoe 1

13211 13211 4" Shoe 1

M 13382 13382 SteelStorageBox(notshown) 1

CENTERLINE BENDING RADII FOR 777 BENDERS

SEGMENT BEND ONLY

Rigid Shoe Size 1‑1/4" 1‑1/2" 2" 2‑1/2" 3" 3‑1/2" 4"

Bending Radius-Inches 7‑1/4" 8‑1/4" 9‑1/2" 11‑7/16" 13‑3/4" 16" 18‑1/4"

Bending Radius-mm 184.1 209.5 241.3 290.5 349.3 406.4 463.6

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

124

Bending

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Rigid Conduit Benders for One-Shot 90°s in 1-1/4" - 4" (5" with Segment Bending Shoe)

• Strong,yetlightweight,portable,pin-assembledaluminumcomponents.

• Easy-to-useramtravelscaleandchartsforaccuratebends.

• Makeelbows,offsetsandsaddles.

• Both884and885bendOne-Shot90°sin1-1/4"-4"Rigidconduit.

• OptionalshoesavailabletobendPVC-coatedRigidconduit.

• Optional1802BendingTableavailableforeasieroperation.

CAT. NO. UPC NO. DESCRIPTION

884 16477 1‑1/4" through 4" Rigid Conduit Bender, without hydraulic

pump

884E980 34209 1‑1/4" through 4" Rigid Conduit Bender, with 980 Electric

Hydraulic Pump

884PVC 33614 1‑1/4", 1‑1/2", 2", 3" and 4" PVC Coated Rigid Conduit

Bender without hydraulic pump

885 16751 1‑1/4" through 4" One‑Shot and 5" Segment Rigid Conduit

Bender, without hydraulic pump

885E980 34210 1‑1/4" through 4" One‑Shot and 5" Segment Rigid Conduit

Bender, with 980 Electric Hydraulic Pump

1802 21257 Bending Table (0ptional)

SPECIFICATIONS

Capacity 884:1-1/4"-4"Rigidconduit.

884PVC: 1‑1/4" ‑ 4" 40 mil PVC Coated Rigid Conduit

885: 1‑1/4" ‑ 5" Rigid Conduit

Power Source 980: 120 VAC Electric Powered Hydraulic Pump

980‑22PS: 220 VAC 50/60 Cycle Electric Powered

Hydraulic Pump

Weight 884:421lbs.(191kg)

884E980:494lbs.(225kg)

884PVC:388lbs.(176kg)

885:449lbs.(204kg)

885E980:527lbs.(239kg)

Rigid Conduit Benders for One-Shot 90°s in 1-1/4" - 4" (5" with Segment Bending Shoe)

884 & 885 CENTERLINE BENDING RADII

SIZE RIGID SIZE PVC RIGID

 1-1/4" 7-1/4"(184.1mm) 1-1/4" 7-1/4"(184.1mm)

 1-1/2" 8-1/4"(209.5mm) 1-1/2" 8-1/4"(209.5mm)

 2" 9-1/2"(241.3mm) 2" 9-1/2"(241.3mm)

 2-1/2" 12-1/2"(317.5mm) 2-1/2" 11-7/16"(290.5mm)

 3" 15"(381mm) 3" 13-3/4"(349.3mm)

 3-1/2" 17-1/2"(444.5mm) 3-1/2" 16"(406.4mm)

 4" 20"(508mm) 4" 18-1/4"(463.5mm)

5" 25" (635 mm) (885 only)

KEY CAT. NO. UPC NO. DESCRIPTION 884 884PVC 885

A 1737 16752 27‑Ton Hydraulic Ram with 4018GB

    femalequickcoupler,includesKeysFthruI. 1 1 1

B 16754 16754 Frameunit 1 1 1

C 11289 11289 3/8"x6'(9.5x1829mm)HydraulicHose

with two 4033GB male quick couplers 1 1 1

 D 15671 15671 Conduit Support 2 2

33454 33454 Conduit Support (not shown) 2

E 16747 16747 Conduit Support pin 2 2 2

 F 16753 16753 Cylinder Head Pin Unit with Spring

Clip 2725AA 2 2 2

G 50302 50302 Spring Clip 2 2 2

H 25184 25184 Ram Pin 1 1 1

I 10946 10946 LargeRamPin 2 2 2

J 10939 10939 Small Shoe Support (1/2" through 2") 1 1 1

K 16741 16741 LargeShoeSupport(2-1/2"through4") 1 1 1

 L 10963 10963 LargeShoePin 1 1 1

M 10826 10826 Small Shoe Pin 1 1 1

2050 19811 SteelStorageBox(notshown) 1 1 1

 N 10920 10920 1‑1/4" Shoe – Rigid 1 1

 N 10921 10921 1‑1/2" Shoe – Rigid 1 1

 N 10922 10922 2" Shoe – Rigid 1 1

 N 10923 10923 2‑1/2" Shoe – Rigid 1 1

 N 10924 10924 3" Shoe – Rigid 1 1

 N 10925 10925 3‑1/2" Shoe – Rigid 1 1

 N 14265 14265 4" Shoe – 20" centerline radius – Rigid 1 1

O 15669 15669 5" Shoe – Rigid 1

 N 33459 33459 1‑1/4" Shoe – PVC 1

 N 33463 33463 1‑1/2" Shoe – PVC 1

 N 33462 33462 2" Shoe – PVC 1

 N 34340 34340 3" Shoe – PVC 1

 N 34344 34344 4" Shoe – PVC 1

34329 34329 7/8"Wrench(notshown)  1

Shoes for 40 mil PVC Coated Rigid Conduit on page 125

125

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Bending

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

• Makebendingeasier,fasterandmoreaccurate.

• Insertconduittobebentinchainvise,tighten.Turnhandletomovethe

chainviseandpositionconduitforbending.

• UsetheBendingDegreeProtractorandthemovablechainvisetoadvance

conduitwhilemakingsegmentandothermulti-shotlargesweepbends.

• Includes1805BendingDegreeProtractorandmetalstoragebox.

• Specialsizeshoesandsupportsforbending40milPVC-Coated

Rigidconduit.

• Twoconduitsupportstofityourbenderarerequired.Shoesfor

1-1/2"orlargerhaveacamdevicetoforcetheconduitoutofthe

shoeafterbending.Thisrequiresawrenchtoturnthecam.

Accessories for Bending 40 Mil PVC-Coated Rigid Conduit for 880 and 884 Benders

Bending Table (only) for 777, 880, 884 and 885 Rigid Conduit Benders

BENDERS / PARTS

Typical setup with

bender (see note)

SHOE UNITS

40 MIL PVC

COATED RIGID CAT. UPC

CONDUIT SIZE NO. NO. DESCRIPTION

1/2" 33456 33456 ShoeUnit4"(101.6mm)CenterlineRadius

3/4" 33457 33457 ShoeUnit4-1/2"(114.3mm)CenterlineRadius

1" 33458 33458 ShoeUnit5-3/4"(146.1mm)CenterlineRadius

1‑1/4" 33459 33459 ShoeUnit7-1/4"(184.2mm)CenterlineRadius

1‑1/2" 33463 33463 ShoeUnit8-1/4"(209.6mm)CenterlineRadius

2" 33462 33462 ShoeUnit9-1/2"(241.3mm)CenterlineRadius

2‑1/2" 34321 34321 ShoeUnit11-7/16"(290.5mm)CenterlineRadius

3" 34340 34340 ShoeUnit13-3/4"(349.3mm)CenterlineRadius

3‑1/2" 34342 34342 ShoeUnit16"(406.4mm)CenterlineRadius

4" 34344 34344 ShoeUnit18-1/4"(463.6mm)CenterlineRadius

—  33455 33455 880 Conduit Support – 2 Required

—  33454 33454 884 Conduit Support – 2 Required

—  34329 34329 7/8"Wrench.Usewith1-1/2"andlargershoes

PARTS

1802/

KEY CAT. NO. UPC NO. DESCRIPTION 21257

A 21541 21541 LegSupportUnit 2

B 21545 21545 Bender Bracket Unit 1

C 1805 21318 BendingDegreeProtractor 1

 D 21542 21542 Chain Idler Unit 1

E 21543 21543 Crank Bracket Unit 1

 F 21544 21544 Pipe Vise Unit 1

G 21360 21360 Pipe Support Pin –

1‑1/2" for 884 and 885 Bender 2

H 21413 21413 ChainExtensionKit 1

I 21346 21346 Legs 4

1531 23274 SteelStorageBox(notshown) 1

NOTE: To complete setup as shown two 10-foot (3.04 m) lengths of 2" Rigid conduit and Bender are required (purchased separately).

CAT. NO. UPC NO. DESCRIPTION

884PVC 33614 An 884 Bender with shoes, supports and wrench

for bending 1‑1/4", 1‑1/2", 2", 3" and 4" 40 mil

PVCCoatedRigidconduit.Inasteelstoragebox.

(See 884 Conduit Bender for details)

CAT. NO. UPC NO. DESCRIPTION

1802 21257 Bending Table ‑ includes pipe support pins for 884 or 885 Benders

21359 21359 Pipe support Pin for use with 777, 883 and 883‑4 Benders, two (2)

are required (Optional)

21357 21357 Pipe Support Pin for use with 880 Bender, two (2) are required

(Optional)

ACCESSORIES

SPECIFICATIONS

Capacity 777, 880, 883, 884 and 885 Benders

Weight 180lbs.(82kg)

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

126

Bending

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Bending Table (only) for 881 & 881CT Benders

• Convertsthe881Benderintoacomfortable,bench-highmachine...

reducesoperatorfatigue...makesloadingfaster,easier.

• Offsetandone-shotbendsinallthreetypesofconduitaremadequickly

andeasilywithconsistentaccuracy.

• Pipeviseholdsconduitsecurelyforaccuratebends.Preventsconduit

fromtwistingorturningduringbend.

• Includes1805BendingDegreeProtractorandmetalstoragebox.

PARTS

1813/

KEY CAT. NO. UPC NO. DESCRIPTION 28901

A 21541 21541 LegSupportUnit 2

B 28900 28900 CarriageUnitw/vise 1

C 28885 28885 Bender Mounting Unit 1

 D 29004 29004 Pump Table Support 2

E 29022 29022 Ram Positioner 1

 F 1805 21318 BendingDegreeProtractor 1

G 53824 53824 Pump Bracket 4

H 51185 51185 Pump Mounting Screw 4

I 29014 29014 90°CouplingUnit 1

J 53014 53014 Steel Conduit Clamp 4

 L 21346 21346 Legs 4

1531 23274 SteelStorageBox(notshown) 1

51593 51593 HexNut 4

50975 50975 Cap Screw 4

51674 51674 Washer 4

CAT. NO. UPC NO. DESCRIPTION

1813 28901 Bending Table for 881 & 881CT Bender

SPECIFICATIONS

Capacity 881 Benders

Weight 186 lbs (85 kg)

• Professionalgradelaserlevel.

• Mini-torpedodesignwithhandy“no-dog”attachmentforbending.

• Threerare-earthmagnetsprovidesuperiorholdingstrength.

• Compactsizewith80-plusyardrange.

• Laseriscapableofworkingonallplanes.

• Fourvialdesign-0°,90°,45°,and30°.

• V-grooveonbottomformountingoncurvedsurface.

• Offsetsandcalculationspermanentlylaser-engravedontolevel.

L97 Mini-Magnet Laser Level

CAT. NO. UPC NO. DESCRIPTION

L97 03582 Laser,Level

• Professionalgradelevel.

• Fouropenvialportsforeasyviewingfromallsides.

• Perfectforpipeandconduitwork.

• Fourrare-earthmagnetsallowforhands-freeuseonmetalsurfaces.

• Fourvialdesign-0°,30°,45°,and90°.

• Machinedfromaluminumalloyandanodizedtoaircraftstandards.

• V-grooveonbottomformountingoncurvedsurface.

• Offsetsandcalculationspermanentlylaser-engravedontolevel.

L107 Electrician’s Torpedo Level

CAT. NO. UPC NO. DESCRIPTION

L107 03583 Level,Torpedo

SPECIFICATIONS

Length 5‑1/16" (143 mm) Weight 7.3ozwithbatteries

Width 3/4" (19 mm) Height 1‑13/16" (46 mm)

SPECIFICATIONS

Length 8-1/2"(215.9mm) Weight 5.5oz

Width 3/4" (19 mm) Height 1-1/4"(31.8mm)

127

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Bending

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Protractor with Magnetic Base

CAT. NO. UPC NO. DESCRIPTION

1895 35905 Angle Protractor with Magnetic Base

SPECIFICATIONS

Weight 0.4lbs.(0.2kg)

Bending Degree Protractor for use with 1802 and 1813 Bending Tables

SPECIFICATIONS

Capacity Protractor face is graduated in quadrants of 18, 20, 21 and 30 shots

Weight 2lbs.(.91kg)

CAT. N O. UPC NO. DESCRIPTION

1805 21318 BendingDegreeProtractor

• Usetomakeconcentricoffsetorlarge-radiusbends.

• Bendermustbemountedonabendingtable...

andpipebentinaverticalposition.

• Quick-adjusting,chain-typeclampforeasymountingto

allconduitandpipesizes.

• Faceofprotractorrotatestocompensateforanysurfacethatisnotlevel.

• Professionalgradelevelwithbendingoffsetaid.

• Minitorpedodesignwithhandy“no-dog”attachmentforbending.

• Threerare-earthmagnetsprovidesuperiorholdingstrength.

• Fourvialdesign-0°,90°,45°,and30°.

• Machinedfromaluminumalloyandanodizedtoaircraftstandards.

• Compactsizefitseasilyintoolpouch.

• V-grooveonbottomformountingoncurvedsurface.

L77 Mini Magnetic Bubble Level

SPECIFICATIONS

Length 5‑1/2" (140 mm)

Width 3/4" (19 mm)

Height 1‑1/2" (38 mm)

CAT. NO. UPC NO. DESCRIPTION

L77 11617 MiniMagneticBubbleLevel

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

128

Bending

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Bending Degree Indicator

Bending Handbook and Slide Rule Bending Calculators

• Accuratewaytomeasuredegreeofbendon1/2"through4"conduit.

• Canbeusedwithallhorizontal-typebenders.

• Large,easy-to-read0°to90°scale.

• Quick-adjustingclampsforeasymountingon1/2"through4"conduit.

SPECIFICATIONS

Capacity 1/2" ‑ 4" Conduit

Weight 15lbs.(6.8kg)

CAT. NO. UPC NO. DESCRIPTION

1807 12743 BendingDegreeIndicator

CAT. N O. UPC NO. DESCRIPTION

38405 38405 Bending Book, English

38409 38409 BendingBook,French

38406 38406 Slide Rule Calculator for 777, 880, 883, 884

and 885 Benders

38407 38407 Slide Rule Calculator for segment bends

38408 38408 Slide Rule Calculator for 881 and 882 Benders

• Bendinginformationonstub-ups,offsets,saddlesandconcentricbends.

• Pocketsize3-1/2"x6-3/4".

• BendingchartsforGreenleeBenders.

• Easytouseforfast,accuratebendingcalculations.

Shown with 884 Rigid

Conduit Bender.

Conduit Size Chart

EMT IMC RIGID CONDUIT

ELECTRICAL INTERMEDIATE STEEL OR

METALLIC TUBING CONDUIT ALUMINUM

OUTSIDE DIA. INSIDE DIA. WALL THICKNESS OUTSIDE DIA. INSIDE DIA. WALL THICKNESS OUTSIDE DIA. INSIDE DIA. WALL THICKNESS

SIZE INCHES mm INCHES mm INCHES mm INCHES mm INCHES mm INCHES mm INCHES mm INCHES mm INCHES mm

 1/2" .706 17.9 .622 15.8 .042 1.1 .815 20.7 .675 17.1 .070 1.8 .840 21.3 .622 15.8 .109 2.8

 3/4" .922 23.4 .824 20.9 .049 1.3 1.029 26.1 .879 22.3 .075 1.9 1.050 26.7 .824 20.9 .113 2.9

 1" 1.163 29.5 1.049 26.6 .057 1.5 1.290 32.8 1.120 28.4 .085 2.2 1.315 33.4 1.049 26.6 .133 3.4

 1-1/4" 1.510 38.4 1.380 35.1 .065 1.7 1.638 41.6 1.468 37.3 .085 2.2 1.660 42.2 1.380 35.0 .140 3.6

 1-1/2" 1.740 44.2 1.610 40.9 .065 1.7 1.883 47.8 1.703 43.3 .090 2.3 1.900 48.3 1.610 40.9 .145 3.7

 2" 2.197 55.8 2.067 52.5 .065 1.7 2.360 59.9 2.170 55.1 .095 2.4 2.375 60.3 2.067 52.5 .154 3.9

 2-1/2" 2.875 73.0 2.731 69.4 .072 1.8 2.857 72.6 2.597 66.0 .130 3.3 2.875 73.0 2.469 62.7 .203 5.2

 3" 3.500 88.9 3.356 85.2 .072 1.9 3.476 88.3 3.216 81.7 .130 3.3 3.500 88.9 3.068 77.9 .216 5.5

 3-1/2" 4.000 101.6 3.834 97.4 .083 2.1 3.971 100.9 3.711 94.3 .130 3.3 4.000 101.6 3.548 90.1 .226 5.7

 4" 4.500 114.3 4.334 110.1 .083 2.1 4.466 113.4 4.206 106.8 .130 3.3 4.500 114.3 4.026 102.3 .237 6.0

 5" — — — — — — — — — — — — 5.563 141.3 5.047 128.2 .258 6.5

 6" — — — — — — — — — — — — 6.625 168.3 6.065 154.0 .280 7.1

129

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Bending

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

• Makebends,offsetsorsaddlesinPVCfastandeasy.

• Easytouse:wrapblanketaroundPVC,securewithhookandloopstrap.

Built-instiffenershelpkeeptheblankettighttothePVCsurface.

Removeblanketandformbendbyhand.

• Controlled,evenheatingforuniformbending.

• Heavy-dutycordandthermostatforlonglife.

• Temperatureover300°F(149°C).

PVC Heater Selection Guide

847/ 848

PVC Heater with optional Roller Support

and PVC Plug

849 PVC Heater

851 PVC Heater

PVC HEATING

CAT. NO. – DESCRIPTION PAGE NO. 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 5" 6"

860‑1‑1/2 PVC Heating Blanket 119 ✓ ✓ ✓ ✓ ✓

860‑3 PVC Heating Blanket 119      ✓ ✓ ✓

860‑4 PVC Heating Blanket 119         ✓ ✓

849 PVC Heater 120 ✓ ✓ ✓ ✓ ✓ ✓

851 PVC Heater 120 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

847 / 848 PVC Heater 120 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

SPECIFICATIONS

860-1-1/2 860-3 860-4

Capacity Up to 1‑1/2" PVC 2" ‑ 3" PVC 3‑1/2" ‑ 4" PVC

All Schedules All Schedules All Schedules

Power Source 120 VAC 120 VAC 120 VAC

Size 13"x8-1/4" 30"x13-1/4" 38"x16-1/4"

 (330.2x209.6mm) (762.0x336.6mm) (965.2x412.8mm)

Weight 1.7lbs.(.8kg) 3.3lbs.(1.5kg) 4.9lbs.(2.2kg)

Wattage 200 800 1300

PVC

PVC Heating Blankets for up to 4", All Schedules

CAT. NO. UPC NO. DESCRIPTION

860‑1‑1/2 31486 PVC Heating Blanket for up to 1‑1/2"

860‑3 31487 PVC Heating Blanket for 2"‑3"

860‑4 31488 PVC Heating Blanket for 3‑1/2" and 4"

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

130

Bending

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Electric PVC Heater for 1/2" - 2", All Schedules

Electric PVC Heater for 1/2" - 4", All Schedules

Electric PVC Heater for 1/2" - 6", All Schedules

120 VAC

20 AMP

120 VAC

20 AMP

230 VAC

30 AMP

CAT. NO. UPC NO. DESCRIPTION

849 27395 Electric PVC Heater for 1/2" ‑ 2"

27811 27811 Calrod Heating Element

CAT. NO. UPC NO. DESCRIPTION

851 35577 Electric PVC Heater for 1/2" ‑ 4"

35592 35592 Calrod Heating Element

CAT. N O. UPC NO. DESCRIPTION

847 30866 Electric PVC Heater for 1/2"‑6" All Schedules

848 30867 ElectricPVCHeaterwithMotorizedPVCRotationfor1/2"-6"All

Schedules

31092 31092 MotorizedPVCrotationkitfor847

857 31093 PVC Roller Support (Optional)

30908 30908 Calrod Heating Element

SPECIFICATIONS

Capacity 1/2" ‑ 2" PVC All Schedules

Power Source 120VAC20Ampor3000WattGenerator

Weight 15lbs.(6.8kg)

SPECIFICATIONS

Capacity 1/2" ‑4" PVC All Schedules

Power Source 120VAC20Ampor3600WattGenerator

Length 52" (1321 mm)

Weight 53lbs.(24kg)

Wattage 2300

SPECIFICATIONS

Capacity 1/2" ‑ 6" PVC All Schedules

Power Source 230VAC30AMPor7000WattGenerator

Length 71" (1803 mm)

Weight 847−78lbs.(36kg)848−80lbs.(37kg)

Wattage 6600

• Easytouse:preheatfor10minutes,insertPVC,rotateuntilpliable,

removeandformbend.

• Sturdydoublewallmetalwithfiberglassinsulationandreflective

interiorforfast,evenheat.

• FulllengthdoorforeasyPVCloadingandremoval.

• Otherfeaturesincludeon/offswitch,pilotlightandcarryinghandle.

• Heats24"Longsectionofpipe.

• Easytouse:preheatfor10minutes,openlidandpositionPVC,closelid,

rotateuntilpliable,openlid,removePVCandformbend.

• Heavy-duty,insulatedmetalwallsandcoverwithreflectiveinterior

forefficient,evenheat.

• Full-lengthdoorforeasyloadingandunloading.

• On/offswitchwithindicatorlight.

• Sturdywheelsforeasymobility.

• Usetwounitsintandemtoheatlargesweepbends.

• Heats50"Longsectionofpipe.

• Easytouse:preheatfor10minutes,openlidandpositionPVC,closelid,

rotateuntilpliable,openlid,removePVCandformbend.848modelhas

motorizedrotation.

• Heavy-dutymetalconstructionwithreflectiveinteriorforfast,

efficientheating.

• Hasheatingchart,timer,andon/offswitchwithindicatorlightfor

addedconvenience.

• Doubledoorswithpianohingesallowheatingshorterlengthswith

onedooropen.

• Sturdywheelsforeasymobility.

• Heats65"Longsectionofpipe.

See below for 2" - 4" PVC plugs or 859-4 Plug Set.

131

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Bending

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

PVC Plugs and Plug Set

PVC Cutter for up to 1"

PVC Cutter for up to 1-1/4"

PVC Cutter for up to 2"

PVC ACCESSORIES

CAT. NO. UPC NO. DESCRIPTION

861 09861 PVC Cutter for up to 1"

07995 07995 Blade

CAT. N O. UPC NO. DESCRIPTION

864 04253 PVC Cutter for up to 1‑1/4"

00355 00355 Blade Kit

SPECIFICATIONS

Capacity 2" ‑ 6" PVC Schedules 40 and 80

Weight 859-4−8lbs.(3.6kg)

30976−.3lbs.(0.2kg)

30977−.4lbs.(0.2kg)

30978−.4lbs.(0.2kg)

30979−.6lbs.(3.6kg)

30980−1lbs.(0.5kg)

30981−1.3lbs.(0.6kg)

SPECIFICATIONS

Capacity Up through 1" PVC

Weight 0.24lbs.(0.1kg)

SPECIFICATIONS

Capacity Up thru 1‑1/4" PVC

Weight 0.8lbs.(0.4kg)

SPECIFICATIONS

Capacity Up thru 2" PVC

Weight 2.5lbs.(1.1kg)

CAT. N O. UPC NO. DESCRIPTION

865 09865 PVC Cutter for up to 2"

07978 07978 Blade

CAT. NO. UPC NO. DESCRIPTION

859‑4 35740 PVCPlugSetfor2"-4".Includes2eachof2",2-1/2",3"

and4"plugsandcarryingcase.Casehasaplaceforoptional

5"and6"sizes.

30976 30976 2" PVC Plug

30977 30977 2‑1/2" PVC Plug

30978 30978 3" and 3‑1/2" PVC Plug

30979 30979 4" PVC Plug

30980 30980 5" PVC Plug

30981 30981 6" PVC Plug

31228 31228 Plastic Carrying Case

• UsewithPVCHeatingBlanketsorElectricHeaterstoplugtheends

ofthePVCbeingheated.ThetrappedairwillhelpkeepthePVCfrom

collapsingwhileformingthebend.

• UseonSchedule40and80PVC.

• Availablein2"-4"setorindividualsizes2"-6".Ordertwo,

oneforeachendofthePVC.

• CutsawiderangeofPVCconduit,plasticpipeandrubberhose.

• Lightweight,easytoputintoolpouch.

• Toughnylonhandles.

• Replaceablestainlesssteelblade.

• Ratchetactionforfast,easycutting.

• Heat-treated,replaceablesteelbladeforlongcuttinglife.

• Ruggedmetalalloyframefordurability.

• High-leveragecompoundratchetactionandlonghandlesreduceeffort.

• Heavy-dutymetalframeforcuttinglargediameters.

• Sharpenableandreplaceabletoolsteelblade.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

132

Bending

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

NOTES

Fishing

Greenlee has the most innovative ﬁshing systems designed to perform on the jobsite.

Whether you're going a few short feet or through many walls and bends, having Greenlee's

ﬁshing products on the jobsite will make the job easier for any commercial, industrial

or utility application.

Fishing

FEATURED Products

134

FP3

3' Wire Reacher

Glo Stix®

140

139

® Registered: The color green for manual and power-operated cable pullers is a registered trademark of Greenlee Textron Inc.

147

Measuring

Tapes

Steel Fish

Tapes

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

134

Fishing

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

SPECIFICATIONS

Capacity 1/8" (3.2 mm) tape width- 400 lbs. (1.7 kN) maximum design strength

1/4" (6.4 mm) tape width – 400 lbs. (1.7 kN)

maximum design strength.

438-5H - 1/8" (3.2 mm) tape width- 400lbs. (1.7 kN)

maximum design strength.

Weight R438-5 - 1.8 lbs. (0.8 kg) 438-5H – 2.75 lbs. (1.3 kg

R438-10 - 3.3 lbs. (1.5 kg) 438-5 - 2.75 lbs. (1.2 kg)

R438-20 - 6.2 lbs. (2.8 kg) 438-10 - 5 lbs. (2.3 kg)

R538-10 – 6 lbs. (2.7 kg) 438-20 - 7lbs. (3.2 kg)

R538-20 – 11 lbs. (5 kg) 538-10 – 8 lbs. (3.6 kg)

FISHING

Steel Fish Tapes

• Oil-temperedspringsteelforexcellentfishingperformance.

• Dirt-freetapefinishkeepshandscleanerduringuse.

• High-impactnylon,one-piecehandleformaximumdurability,longlife,

andeasy,comfortableuse.

• Largehandlegripforgreaterusercontrol.

• Self-tensioningcaseforeasytapewinding.

• Wide,impact-resistantrewindercasewithviewportstoensuretapefit

andretainingstraponinsidetoholdtapesecure.

CAT. NO. UPC NO. DESCRIPTION

438-5H 07500 50'×1/8"×0.045"(15.2m×3.2mm×1.1mm)SteelFish

TapeinWinderCase

438-5 29045 65'×1/8"×0.060"(19.8m×3.2mm×1.5mm)SteelFish

Tapein81/2"WinderCase

438-5BP 00170 65'×1/8"×0.060"(19.8m×3.2mm×1.5mm)SteelFish

Tapein81/2"WinderCase,5-pack

438-10 28256 125'×1/8"×0.060"(38.1m×3.2mm×1.5mm)SteelFish

Tapein12"WinderCase

438-10BP 00171 125'×1/8"×0.060"(38.1m×3.2mm×1.5mm)SteelFish

Tapein12"WinderCase,5-pack

438-20 29046 240'×1/8"×0.060"(73.2m×3.2mm×1.5mm)SteelFish

Tapein12"WinderCase

438-20BP 00172 240'×1/8"×0.060"(73.2m×3.2mm×1.5mm)SteelFish

Tapein12"WinderCase,5-pack

538-10 30394 100'×1/4"×0.060"(30.5m×6.4mm×1.5mm)SteelFish

Tapein12"WinderCase

R438-5 29047 65'×1/8"×0.060"(19.8m×3.2mm×1.5mm)SteelFish

TapewithoutWinderCase

R438-10 28257 125'×1/8"×0.060"(38.1m×3.2mm×1.5mm)SteelFish

TapewithoutWinderCase

R438-20 29048 240'×1/8"×0.060"(73.2m×3.2mm×1.5mm)SteelFish

TapewithoutWinderCase

R538-10 30395 100'×1/4"×0.060"(30.5m×6.4mm×1.5mm)SteelFish

TapewithoutWinderCase

R538-20 30396 200'×1/4"×0.060"(61m×6.4mm×1.5mm)SteelFish

TapewithoutWinderCase,mustbeusedwithoutwindercase

R438B 29367 SwivelBallHeadforuseon1/8"steelfishtapes

R438-BM 05853 BallTipMaleHalf

439-1 30859 12"(305mm)FlexibleFishTapeLeader

11081 11081 81/2"Case/HandleKit

11082 11082 12"Case/HandleKit

438-10,

438-20,

538-10

(12" case)

438-5H

438-5

(8 1/2" case)

135

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Fishing

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Flat-Steel Fish Tape- 1/4" Wide

• Flatsteeltapereacheseasilyaboveceilings,undercarpets,

andthroughwallstoinstallwire.

• 25'(7.6m)long,extendingyourreach.

• Windercasewithcrankhandleforeasy,compactstorage.

CAT. NO. UPC NO. DESCRIPTION

438-2X 01696 25'x1/4"x0.030"(7.6mx6.4mmx0.8mm)SteelFishTape

SPECIFICATIONS

Weight 1.25 lb (0.6 kg)

Silver Streak® Stainless Steel Fish Tapes - 1/8" Wide

• SILVERSTREAK®comeswitheither100'(30.5m)or200'(61m)of

stainlesssteelfishtape.It’srustandcorrosion-resistant,soitlasts

longerandrewindseasierthanordinarytape.Itwon’tleaveanasty

residue,either.

• EquippedwithSPEEDFLEX™leadersilver-solderedontothefishtape.

Streamlinedfishtape/leaderconnectionandlightweight,flexibleleader

designcombinetoenableusertofishfarther,faster.

• High-impactnylon,one-piecehandleformaximumdurability,longlife,

andeasy,comfortableuse.

• Largehandlegripforgreaterusercontrol.

• Self-tensioningcaseforeasytapewinding.

CAT. NO. UPC NO. DESCRIPTION

438-10SS 06408 100' × 1/8" × 0.060" (30.5 m × 3.2 mm × 1.5 mm)

StainlessSteelFishTapein12"WinderCase

438-20SS 06410 200' × 1/8" × 0.060" (61 m × 3.2 mm × 1.5 mm)

StainlessSteelFishTapein12"WinderCase

R438-10SS 06786 100' × 1/8" × 0.060" (30.5 m × 3.2 mm × 1.5 mm)

StainlessSteelFishTapewithoutWinderCaseandleader

R438-20SS 06787 200' × 1/8" × 0.060" (61 m × 3.2 mm × 1.5 mm)

StainlessSteelFishTapewithoutWinderCaseandleader

439-2 14392 12"(305mm)SPEEDFLEXLeader(solderjoints)

11082 11082 12"Case/HandleKit

SPECIFICATIONS

Capacity 1/8" (3.2 mm) tape width-400 lbs. (1.7 kN)

maximum design strength

Weight 438-10SS-5lbs.(2.3kg);

438-20SS-7lbs.(3.2kg)

* No leader on replacement tape

539-50,

539-100

(12" Case)

Flex-O-Twist® Flexible Steel Fish Tapes

• Madeofwound,multi-strand3/16"(4.8mm)diametersteelcable

forstrengthandflexibility.

• Flexible…slipsthroughlateralandverticalbendsinthesamerun.

• High-impact,one-piecenylonhandleformaximumdurability,longlife,

andeasy,comfortableuse.

• Heavy-dutywindercase.

CAT. NO. UPC NO. DESCRIPTION

539-50 30162 50'×3/16"(15.2m×4.8mm)diameterFlexibleSteelFishTape

in 12" WinderCase

539-100 34002 100'×3/16"(30.5m×4.8mm)diameterFlexibleSteelFish

Tape in 12" WinderCase

439-100 29518 100'×3/16"(30.5m×4.8mm)diameterFlexibleSteelFish

TapewithoutWinderCase

11082 11082 12"Case/HandleKit

SPECIFICATIONS

Capacity 3/16" (4.8 mm) tape width – 500 lbs. (2.2 kN) maximum design

strength.

Weight 539-50 – 6 lbs. (2.7 kg)

539-100 – 10 lbs. (4.5 kg)

439-100 – 9 lbs. (4.1 kg)

438-10SS,

438-20SS

(12" case)

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

136

Fishing

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

540-50,

540-100

(12" Case)

Fiberglass Fish Tapes

• 12"(305mm)casehashigh-impactnylon,one-piecehandlefor

maximumdurability,longlife,andeasy,comfortableuse.

• Non-conductivefiberglasstapewithlowfrictioncoating.

• Hasuniquenon-coilingpropertiesthatenableittofishinlarge

andsmallconduitequallywell,evenwithwireorcableinplace.

• Exclusive,unique,lightweightreelforeasypositivefeedoutandrewind.

• Excellentforinstallationoftelecommunicationsanddatacommunication

cablesinoverheadplenums,abovesuspendedceilingsandunderfloors.

• Fiberglassfishtapeisthefastestmanualfishtapeavailable.Itisintended

forfishingonly.Ropeorlineisrecommendedforpulling.

CAT. NO. UPC NO. DESCRIPTION

540-50 35742 50'×0.175"(15.2m×4.4mm)FiberglassFishTape

in 12" WinderCase

540-100 35743 100'×0.175"(30.5m×4.4mm)FiberglassFishTape

in 12" WinderCase

542-150 35745 150'×3/16"(45.7m×4.8mm)FiberglassFishTape

inReelStand

542-200 35746 200'×3/16"(61m×4.8mm)FiberglassFishTapes

inReelStand

542-250 35747 250'×3/16"(76.2m×4.8mm)FiberglassFishTape

inReelStand

R540-100 35744 100'×.175"(30.5m×4.4mm)FiberglassFishTape

withoutCase

05156 05156 150''×3/16"(45.7m×4.8mm)FiberglassFishTape

withoutCase

05157 05157 200''×3/16"(61m×4.8mm)FiberglassFishTape

withoutCase

05158 05158 250''×3/16"(76.2m×4.8mm)FiberglassFishTape

withoutCase

10565 10565 .175"(4.4mm)pullingeyerepairkit,includes(1)pulling

eyeandadhesive

35750 35750 AccessoryKitfor3/16"(4.78mm)fishtapes.Includes

flexiblepullingleader,flexiblepushingleader,pullingeye,

spliceferruleandthreadedferrule

35908 35908 1/8"(3mm)RepairKit-includesthreadedend

ferrule,spliceferruleandpullingeye

35909 35909 3/16"(4.7mm)RepairKit

35919 35919 1/8"(3mm)PullingEye

35930 35930 3/16"(4.7mm)PullingEye

11082 11082 12"Case/HandleKit

SPECIFICATIONS

Capacity 540Series-0.175"(4.4mm)dia.-300lbs.(1.3kN)

maximum design strength

542Series-3/16"(4.7mm)dia.-400lbs.(1.7kN)

maximum design strength

Weight 540-50 - 1.8 lbs. (0.8 kg) 540-100- 2.1 lbs. (1 kg)

R540-100 -1.2 lbs. (0.6 kg) 542-150 -15 lbs. (6.8 kg)

542-200- 16 lbs. (7.2 kg) 542-250- 17 lbs. (7.7 kg)

542-150,

542-200,

542-250

Reel Stand

137

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Fishing

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Nylon Fish Tapes

• Co-extrudedcurl-resistantnylonfishtapefishesequallywellinlarge

andsmallconduit.

• High-impactnylon,one-piecehandleformaximumdurability,longlife,

andeasy,comfortableuse.

• Heavy-dutywindercase.

• Nylonfishtapeisintendedforfishingonly.Ropeorlineisrecommended

forpulling.

CAT. NO. UPC NO. DESCRIPTION

436-5 27396 50'×3/16"(15.2m×4.8mm)diameterNylonFishTape

in 12" WinderCase

436-10 27397 100'×3/16"(30.5m×4.8mm)diameterNylonFishTape

in 12" WinderCase

R436-5 36850 50'×3/16"(15.2m×4.8mm)diameterNylonFishTapewithout

WinderCase

R436-10 36849 100'×3/16"(30.5m×4.8mm)diameterNylonFishTape

withoutWinderCase

01664 01664 Tip(RequiresGreenleeK05orK09seriescrimper

or#6hexcrimptoinstall.)

11082 11082 12"Case/HandleKit

SPECIFICATIONS

Capacity 3/16" (4.8 mm) diameter – 250 lbs. (1.1 kN) maximum design strength

Weight 436-5 – 2 lbs. (0.9 kg) R436-5 – 1 lb. (0.5 kg)

436-10 – 3 lbs. (1.4 kg) R436-10 – 2 lbs. (0.9 kg)

Flex-O-Twist® Flexible Fish Tape Leader

• Helpsguide1/8"steeltapesthroughsharpbends.

• Threadontheendofthefishtapeinplaceoftheswivelballhead.

CAT. N O. UPC NO. DESCRIPTION

439-1 30859 12"(305mm)FlexibleFishTapeLeader

SPECIFICATIONS

Weight 1.3 lbs. (0.6 kg)

436-5,

436-10

(12" Case)

SpeedFlex® Flexible Fish Tape Leader

• Silver-solderjointattachestoany1/8"(3.2mm)x.060"

(1.5mm)steelfishtapetoprovideaslimprofilethat

fishesfarther,faster.

• High-strengthstainlesssteelcableisusedforreliability

andlonglife.

• Bevelededgesontheleaderreducethepossibility

ofhangupswhenpullingwire.

• Upto(6)#10wirescanbeattachedtothelargepullingeye.

CAT. NO. UPC NO. DESCRIPTION

439-2 14392 12"(305mm)SPEEDFLEX Leader(solderjoint)

SPECIFICATIONS

Weight 1.3 lbs. (0.6 kg)

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

138

Fishing

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Fish Stix®

• Highlyvisiblegreencolorrodscanbeeasilythreadedtogetherandseenwhen

workingaboveceilings,downwalls,orunderraisedfloors.

• 1/4"(6.4mm)diameterfiberglassaddsrigiditywhenconnectingmultiplesections.

• 200lbs.(0.9kN)maximumpullingstrength.

• Twodifferentthreadedtipsaccommodatevariousbundlesofwireorcable.

• 540-24includesone3'(0.9mm)GloStix™sectionforimprovedtipvisibility.

• OptionalWhiskNoseTipisavailableforfishingoverobstacles,andcanbeused

toguideextendedGloStixsidewaysaboveceilingsbyrotating.Canalsobeused

tofishlongerlengthsbyprovidingatipthatcanbesnaggedfromtheopposite

directionwithanotherextendedFishorGloStixwithahooknosetip.

CAT. NO. UPC NO. DESCRIPTION

540-12 10504 FishStix12'(3.6m)kitwithbulletnoseand“J”hook

threadedtips,packagedinclearplastictube

540-24 10506 FishStix24'(7.3m)kitwithbulletnoseand“J”hook

threadedtips,packagedinclearplastictube

11426 11426 WhiskNoseTip

10497 10497 HookNoseTip

10498 10498 BulletNoseTip

11583 11583 4'FishStixSection

11584 11584 6'FishStixSection

SPECIFICATIONS

540-12 540-24

Length 12' (3.6 m) - (3) 4' (1.2 m)

FishStixsections

24' (7.3 m) - (3) 6' (1.8 m)

FishStixsections,(1)3'(0.9m)

FishStixsection,and(1)3'

GloStixsection

Diameter 1/4" (6.4 mm) 1/4" (6.4 mm)

Weight 1.04 lbs. (0.5 kg) 1.94 lbs. (0.9 kg)

Material fiberglassrod fiberglassrod

Minimum

Bend Radius

6 1/2" (165 mm) 6 1/2" (165 mm)

540-12

& 540-24

139

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Fishing

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Glo Stix®

CAT. NO. UPC NO. DESCRIPTION

540-15 11422 3/16"GloStix15'(4.7mmx4.6m)Kitwithbulletnoseand“J”hook

threadedtips,packagedinclearplastictube

540-6 86795 5/32"GloStix6'(4.0mmx1.8m)Kitwithfixedbulletnose

onbothends

540-18 86796 5/32"GloStix18'(4.0mmx5.5m)Kitwithbulletnose,

packagedinclearplastictube

11426 11426 WhiskNoseTip

10497 10497 HookNoseTip

10498 10498 BulletNoseTip

11427 11427 GloStixSection3/16"x5'(4.7mmx1.5m)

11585 11585 GloStixSection3/16"x3'(4.7mmx1.1m)

89803 89803 GloStixSection5/32"x6'(4.0mmx1.8m)

SPECIFICATIONS

540-15 540-6 540-18

Length 15' (4.6 m) –

(3)5'(1.5m)sections

6' (1.8 m) 18' (5.5 m) –

(3)6'(1.8m)sections

Diameter 3/16" (4.7 mm) 5/32" (4.0 mm) 5/32" (4.0 mm)

Weight 1 lbs. (0.5 kg) .4 lbs. (0.2 kg) .8 lbs. (0.4 kg)

Material Luminescent

fiberglassrod

Luminescent

fiberglassrod

Luminescent

fiberglassrod

Minimum Bend

Radius

4 1/4" (103 mm) 3 1/2" (88.90 mm) 3 1/2" (88.90 mm)

• Luminescentfiberglassrodsglowinthedarktomakefishingvoice,dataandvideo

wireseasierindarkspaces,suchasaboveceilings,inwalls,andbelowsub-floors.

• Moreflexibleforfishinginwallsthroughoutletboxholes.

• Sturdy,steel-threadedconnectorsareinterchangeablewithGreenlee

1/4"(6.4mm)FishStix.

• Clear,non-metalicstoragetubekeepsGloStixchargedandreadytouse.

• 200lbs.(0.9kN)maximumpullingstrength.

• OptionalWhiskNoseTipisavailableforfishingoverobstacles,andcanbeused

toguideextendedGloStixsidewaysaboveceilingsbyrotating.Canalsobeused

tofishlongerlengthsbyprovidingatipthatcanbesnaggedfromtheopposite

directionwithanotherextendedFishorGloStixwithahooknosetip.

540-6

540-18

540-15

Bull Nose

“J” Hook

Whisk

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

140

Fishing

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Fish Poles

SPECIFICATIONS

FP12 FISH POLE FP18 FISH POLE FP24 FISH POLE

Extended length: 12' (3.7 m) 18' (5.48 m) 24' (7.31 m)

Collapsed length: 26" (660 mm) 27" (686 mm) 50" (1270 mm)

Diameter: 1 1/4" (32 mm) 2" (50 mm) 2 1/4" (57 mm)

Weight: 1.3 lb. (0.6 kg) 2 1/2 lb. (1.1 kg) 4 1/4 lb. (1.9 kg)

Designedspecificallyforpushingandpullingwiresoverlongdistances.

• Pushorpullwiresoversuspendedceilings,undersub-floorsorcrawl

spacesandinattics.

• Non-conductive,high-impactconstruction.

• Velcrostrapsecurespolewhenincollapsedposition.

• Self-contained,nolooseparts.

• Lightweightdesigntominimizefatigue.

• FP12-FishPole12'collapsesto26"x11/4"andusesfriction-locking

system.

• FP18-FishPole18'collapsesto27"x2"andusesfriction-locking

system.

• FP24-FishPole24'collapsesto50"x21/4"andusessnap-lockbuttons

tomaintainextendedreachcapabilities.

• Installsuspensionwiresfordropceilings.

• U.S.Patents#6,729,358&#6,908,250

CAT. NO. UPC NO. DESCRIPTION

FP12 02268 FishPole12ft.

FP18 10442 FishPole18ft.

FP24 10443 FishPole24ft.

10453 10453 ReplacementHook

3' Wire Reacher

•Extendsyourreachaboveceilingsandwalls.

•Stainless-steelconstructionforlonglife.

•Hookcanbeusedtoinstallcablesandwiresupto3⁄4" (19 mm) diameter.

•Clipincludedforeasystorageinshirtpocket.

•Self-contained,nolooseparts.

CAT. NO. UPC NO. DESCRIPTION

FP3 23902 3'WireReacher

SPECIFICATIONS

Extended length: 38" (965 mm)

Collapsed length: 6-3/8" (162 mm)

Diameter: 3/8" (9.5 mm)

Weight: 1.6oz(46g)

141

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Fishing

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

CableCaster®

Significantlyspeedsuptheinstallationoflightweightcommunicationscable

throughhard-to-reachspacessuchassuspendedceilings,rafters

andsub-floors.

• 50'(15m)rangeallowsforfasterinstallationswithfewerpulls.

• BrightyellowbodyreduceschancesofleavingtheCableCasterbehind.

• Glow-in-the-darkdartsminimizereplacementcostsbecausethey

areeasytolocate.

• Aerodynamicdartsprovidehighaccuracyandfastinstallation.

• Optionalflashlightimprovesvisibility.

CAT. NO. UPC NO. DESCRIPTION

06186 06186 CableCaster Wire Pulling Tool with Three Darts

06259 06259 CableCaster Replacement Darts (Pack of Four)

46500 46500 Pocket-Light Flashlight

Pocket-Light Flashlight

• HighintensityXenonfiredlamp. • Dustandrustproof.

• Luminoustipsoflashlightcanbe • Batteriesincluded.

locatedinthedark.

• Lifetimelimitedwarranty.

• Submersibleto500feet.

CAT. NO. UPC NO. DESCRIPTION

46500 46500 Pocket-Light Flashlight

46533 46533 Lamp Module

46534 46534 O-Ring

Mini Pocket-Light Flashlight

• HighintensityXenonfiredlamp. • Includeskeyringandhandyhat/

• Submersibleto500feet.  clothingclip.

• Batteriesincluded. • Dustandrustproof.

• Compactpocketandkeychainlight.

CAT. NO. UPC NO. DESCRIPTION

46503 46503 MiniPocket-LightFlashlight

46533 46533 Lamp Module

46534 46534 O-Ring

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

142

Fishing

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

690 Vacuum/Blower Power Fishing System

• Rugged,self-containedunitincludeseverythingyouneedtoblowor

vacuumfishline,polylineormeasuringtape.

• Durabletankandaccessorystorageboxarecorrosion,chemicaland

impact-resistantpolyethylene.

• Designedforthejobsite,10'(3.05m)longhose,largeheavy-dutywheels

andremovableaccessorybox.

• Large11gallon(41.6l)tankmakesthe690excellentforvacuuming

water and debris.

CAT. NO. UPC NO. DESCRIPTION

690 31339 Vacuum/BlowerPowerFishingSystem-120VAC

618 16517 Pistonfor5"Conduit

619 16951 Pistonfor6"Conduit

16646 16646 Accessory-Adapterfor5"-6"conduit

KEY

CAT. NO.

UPC NO.

DESCRIPTION

690/

31339

A595 32433 FishLine–85lbs.(378N)pulling

strength;2,150'(655m)long

B * Pistonsetfor1/2"-4"conduit(EMT&

Rigid)seepage145forreplacements

C25644 25644 AdapterCone1-1/4"-2-1/2"Conduit 1

D25646 25646 AdapterCone1/2"-1"Conduit 1

E25645 25645 AdapterCone3"-4"Conduit 1

F34027 34027 StorageBox 1

G23360 23360 AdapterNozzlefortapeandline 1

H32116 32116 BlowerandVacuumUnit 1

I34392 34392 Tankwithcasters 1

J38624 38624 FlexibleHose1-1/2"x10'

(38.1mm x 3.05 m)

31315 31315 OuterFilterBag 1

31314 31314 InnerFilterBag 1

K37917-10 06274 1/2"Conduitx150'(46m)LinePkg. 10

K37918-5 06275 3/4"Conduitx200'(61m)LinePkg. 5

K37920-5 06277 3/4"Conduitx450'(137m)Line

Pkg.

K37921-5 06278 1"Conduitx200'(61m)LinePkg. 5

K37923-5 06280 1"Conduitx450'(137m)LinePkg. 5

SPECIFICATIONS

Capacity 1/2"-4"Conduit(5"and6"withoptionalfoampistons)

see page 145

Power Source 120VAC

Weight 50 lbs. (22.7 kg)

Air Flow 120cfm

Pressure Willlift110"(2794mm)ofwater

NRTL/C

537918 3/4" 200 17 lbs.

GREENLEE

LINE PACKAGES

COMBINATION PISTON ANDSTRING

143

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Fishing

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

392 / 39051 ACCESSORY KIT INCLUDES:

Vacuuming a

piston through

conduit using 390

Li’l Fisher™ Power

Fishing System.

Can be used with

fish line, poly line or

measuring tape.

Blowing a

piston through

conduit using

390 Li’l Fisher™

Power Fishing

System. Can be

used with fish

line, poly line or

measuring tape.

Blowing a piston

through conduit

using 390 Li’l

Fisher™ Power

Fishing System

using 691 Blow Gun

with 595 Mighty

Mouser® Fish Line.

Li'l Fisher® 390 Power Fishing System

SPECIFICATIONS

Capacity 1/2"-2"conduitwithoptionalAccessoryKit(2-1/2"-4"withoptional

foampistons)LiquidCapacity-1.75gal.(6.5l)Use690Power

FishingSystemforgreaterliquidcapacityrequirements

Power Source 120VAC,1/2H.P.

Weight 390-19 lbs. (8.6 kg)

Air Flow 101.2cfm(2.83cMm)

Vacuum Lift 137.1"(3482mm)ofWater

CAT. NO. UPC. NO. DESCRIPTION

390 38594 Li'lFisherVacuum/BlowerPowerFishingSystem-Includesonly

unitand38624hose

392 39051 PowerFishingSystemAccessoryKit-Includesallitemsbelow

GREENLEE

LIN

PACKA

D, E, F, G, H

390

392

KEY CAT. NO. UPC NO. DESCRIPTION QTY.

A 595 32433 FishLine–85lbs.(378N)pulling 1

strength;2,150'(655m)long

B *  Pistonfor1/2"Conduit 1

B *  Pistonfor3/4"Conduit 1

B *  Pistonfor1"Conduit 1

B *  Pistonfor1-1/4"Conduit 1

B *  Pistonfor1-1/2"Conduit 1

B 613 16511 Pistonfor2"Conduit 1

C 23360 23360 AdapterNozzleforMeasuringTape 1

D 37917-10 06274 1/2"Conduitx150'(46m)LinePkg. 10

E 37918-5 06275 3/4"Conduitx200"(91m)LinePkg. 5

F37920-5 062773/4"Conduitx450'(137m)LinePkg.5

G 37921-5 06278 1"Conduitx200'(61m)LinePkg. 5

H 37923-5 06280 1"Conduitx450'(137m)LinePkg. 5

J 39063 39063 AccessoryContainerLid 1

K 54284 54284 AccessoryContainer 1

L 25646 25646 1/2"-1"Coneadapter 1

M 25644 25644 1-1/4"-2-1/2"Coneadapter 1

*See page 145 for replacement conduit pistons.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

144

Fishing

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Portable Blower Power Fishing System

• Powerful,willblowlineormeasuringtapeinupto6"conduit.

• Portable,lightweightblowerhasshoulderstraptomakeiteasytocarry

andallowtheoperatortohavebothhandsfree.

• Efficient,includestheMightyMouser®blowgunforfast,easyline

blowing.

CAT. NO. UPC NO. DESCRIPTION

591 32432 PortableBlowerPowerFishingSystem

618 16517 Pistonfor5"Conduit

619 16951 Pistonfor6"Conduit

16646 16646 Adapterfor5"-6"conduit

SPECIFICATIONS

Capacity 1/2"-4"Conduit(5"and6"withoptionalfoampistons)

Power Source 120VAC20Amp

Weight 34 lbs. (15.2 kg)

Mighty Mouser® Blow Gun Kit

• Thiscompact,self-containedLexan®thermoplasticblowgunholds

 a2,150'(655m)packageof85lb.(378N)breakingstrengthfishline.

• Compactself-containedunitleavesonehandfreefor

moreefficientoperation.

• MightyMouser®BlowGunandAccessoriesallfitintoacompact

sturdymetalcase.

CAT. NO. UPC NO. DESCRIPTION

592 32565 MightyMouser®BlowGunKitfor1/2"-4"Conduit

inmetalbox

691 32095 MightyMouserBlowGun(only)

595 32433 FishLine-85lbs.(378N)pullingstrength;2,150'

(655m)long

618 16517 Pistonfor5"Conduit

619 16951 Pistonfor6"Conduit

16646 16646 Adapterfor5"-6"conduit

SPECIFICATIONS

Capacity 1/2"-4"conduit,through6"withadditionaloptionalaccessories

Power Source Usewithblowerpowerfishingsystems

Weight 592-20 lbs. (9 kg) 691-1.7 lbs.(0.8 kg)

*See next page for parts list.

145

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Fishing

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

GREENLEE

LINE PACKAGES

DG, H

591 Portable Blower Power Fishing System

592 Mighty Mouser

Blow Gun Kit

G, H

GREENLEE

LINE PACKAGES

Parts List for Models 591 and 592

KEY CAT. NO. UPC NO. DESCRIPTION 592 591

A691 32095 MightyMouser®BlowGun 1 1

B 595 32433 FishLine–85lbs.(378N)pulling

strength;2,150'(655m)long

1 1

C*Pistonsetfor1/2"-4"conduit

(EMT&Rigid)

D25644 25644 AdapterCone1-1/4"-2-1/2"Conduit 1 1

E25646 25646 AdapterCone1/2"-1"Conduit 1 1

F25645 25645 AdapterCone3"-4"Conduit 1

G32104 32104 FlexibleHose1-1/2"dia.x1'

(38.1 mm x 305 mm)

1 1

H 33451 33451 HoseClamp 1 1

J 32662 32662 StorageBox 1 1

K23360 23360 AdapterNozzleforTapeandLine 1

L590 32422 PortableBlower 1

M 32431 32431 FlexibleHose1-1/2"x4'

(38.1 mm x 1.2 m)

N 37917-10 06274 1/2"Conduitx150'(46m)

LinePkg.

10 10

N 37918-5 06275 3/4"Conduitx200'(61m)

LinePkg.

5 5

N 37920-5 06277 3/4"Conduitx450'(137m)

LinePkg.

5 5

N 37921-5 06278 1"Conduitx200'(61m)LinePkg. 5 5

N 37923-5 06280 1"Conduitx450'(137m)LinePkg. 5 5

INDIVIDUAL PISTONS

CAT. UPC CONDUIT CONDUIT

NO. NO. PACKAGE SIZE TYPE COLOR

608-5 08263 POP 1/2" All Green

608 11038 Bulk 1/2" All Green

609-5 08264 POP 3/4" All Green

609 11039 Bulk 3/4" All Green

610-5 08265 POP 1" All Green

610 11040 Bulk 1" All Green

611-3 08266 POP 1-1/4" All Green

611 11041 Bulk 1-1/4" All Green

612-2 08267 POP 1-1/2" All Green

612 11042 Bulk 1-1/2" All Green

613 16511  2" All Green

614 16512  2-1/2" IMC,Rigid Green

621 19107  2-1/2" EMT Yellow

615 16513  3" IMC,Rigid Green

622 19109  3" EMT Yellow

616 16514  3-1/2" IMC,Rigid Green

646 24326  3-1/2" EMT Yellow

617 16515  4" IMC,Rigid Green

623 19110  4" EMT Yellow

618 16517  5" All Green

619 16951  6" All Green

PISTON SETS

CAT. UPC

NO. NO. CONDUIT SIZES AND TYPE

 S2613 26777 1/2",3/4",1",1-1/4",1-1/2"and2"EMT,

IMCandRigid

 34317 34317 2-1/2",3",3-1/2"and4"EMT

Conduit Pistons

• Usewithblowerorvacuumpowerfishingsystemtopioneer

thelinethroughtheconduitrun.

• Flexiblefoambodyforanair-tightseal.

• Color-codedenddiskwithembossedsizemarkingsforfast,

easyselection.

• Strongsteelcenterrodwithloopsonbothends.

• Pistonsavailableforalltypesandsizesofconduit1/2"through6".

*See below

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

146

Fishing

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

CAT. UPC STRENGTH LENGTH

NO. NO. LBS. N FT m

595 32433 85 378 2150 655

604 23368 85 378 2200 670

605 16504 45 200 2750 838

606 16505 72 320 1700 517

607 16506 90 400 1350 411

BOXED BAGGED

QTY. QTY.

CONDUIT LENGTH CAT. UPC PER CAT. UPC PER

SIZE FT. m COLOR NO. NO. BOX NO. NO. BAG

1/2" 150 46 Red 37907-50 06263 50 37917-10 06274 10

 3/4" 200 61 Yellow 37908-50 06264 50 37918-5 06275 5

 3/4" 300 91 Yellow 37909-25 06265 25 37919-5 06276 5

 3/4" 450 137 Yellow 37910-25 06266 25 37920-5 06277 5

 1" 200 61 White 37911-50 06267 50 37921-5 06278 5

 1" 300 91 White 37912-25 06268 25 37922-5 06279 5

 1" 450 137 White 37913-25 06269 25 37923-5 06280 5

Fish Line

• Strong,lightweightnylon.

• 595–Centerfeedforfastpayoutwithouttangling.

UsewithMightyMouser®blowgun.

• 604,605,606and607–Speciallywoundtopayoutfastfrom

outsidewithouttangles.

• Mildew-resistant,canbepulledintotherunwiththewire

toprovideameanstoaddwireslater.

Line Packages

• Combinationpistonandstringallinone.

• Bloworvacuumthrough,leavingalightweightline

strongenoughtopullarope.

• 17lb.breakingstrength.

Poly Line

• Ready-to-use,pre-punchedholeinlidwithresealablecap.

• Usewithpowerfishingsystemsdirectlyfromthecontainer.

• Resiststanglingwhendispensing.

• Rotandmildewresistant.

• Handyreusableplasticdispenserpailwithhandlekeepsthelinedry.

• Usetopullropethroughconduit.

CAT. NO. UPC NO. DESCRIPTION

430 21481 PolyLine6500'(1981m),GreenTracer

430-500 12598 PolyLine500'(152m),GreenTracer

431 21482 PolyLine5200'(1585m),YellowTracer

37959 37959 PolyLine2200'(670m),RedTracer

430R 37835 PolyLineRefill6500"(1981m)

SPECIFICATIONS

Capacity 430and430-500-210lbs.(934N)averagebreakingstrength

431-240lbs.(1kN)averagebreakingstrength

37959-500lbs.(2.2kN)averagebreakingstrength

Weight 430 - 11 lbs. (5 kg)

430-500 - 1 lb. (0.5 kg)

431 - 12 lbs. (5.4 kg)

37959 - 12 lbs. (5.4 kg)

430-500 Poly Line

430

147

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Fishing

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

High-Strength Kevlar® Measuring/Pulling Tapes

• Pullsmallcablesorinstallpullropeforlargecablepullingjobs.

• MadeofKevlar,willnotrotordeteriorate.Canbeleftinductsindefinitely

forfutureuse.

• Lowstretchpropertiesmakemeasurementsaccurate.

• Printedmeasurementseveryfootfromzeroto3000'(914m).

• Use406Dispenser(seepage170).

CAT. NO. UPC NO. DESCRIPTION

39243 39243 ConduitMeasuringTape1/4"×3000'(6.4mm×914m)

39244 39244 ConduitMeasuringTape3/8"×3000'(9.5mm×914m)

39245 39245 ConduitMeasuringTape1/2"×3000'(12.7mm×914m)

SPECIFICATIONS

Cat. No. Average Breaking Strength Length Weight

39243 1250 lbs. (5.56 kN) 3000' (914 m) 10.5 lbs. (4.8 kg)

39244 1800 lbs. (8.01 kN) 3000' (914 m) 14.5 lbs. (6.6 kg)

39245 2500 lbs. (11.12 kN) 3000' (914 m) 18 lbs. (8.2 kg)

SPECIFICATIONS

Cat. No. Average Breaking Strength Length Weight

4435 1250 lbs. (5.56 kN) 3000' (914 m) 23.6 lbs. (10.7 kg)

4436 1800 lbs. (8.01 kN) 3000' (914 m) 31.2 lbs. (14.2 kg)

4437 2500 lbs. (11.12 kN) 3000' (914 m) 39.4 lbs. (17.9 kg)

Kevlar is a

registered

trademark of

E. I. DuPont, Inc.

MEASURING TAPES

High-Strength Polyester Measuring/Pulling Tapes

• Durableandstretch-resistanttapeforeasilypullingandinstallingwire

andfiberopticcableswithinPVCandHDPEducts.

• Factory-lubricatedtoreduceburn-throughininnerduct.

• Easy-to-readfootagemarkingsforquickandaccuratemeasurements.

• Availableinvarioustensilestrengthsforuseinanyapplication.

CAT. NO. UPC NO. DESCRIPTION

4435 10445 PolyesterMeasure/PullingTape1/2"x3,000'(12.7mmx914m)

4436 10446 PolyesterMeasure/PullingTape5/8"x3,000'(15.9mmx914m)

4437 10447 PolyesterMeasure/PullingTape3/4"x3,000'(19.1mmx914m)

Polyester Measuring Tape and Dispenser

• Fishandmeasureconduitrunsinoneoperation.

• Permanentlyprintedmeasurementseveryfootfromzeroto3000'(914m).

• Madeofstrong,waterproofpolyester.

• Pay-outdispenserhasanti-skidpads,handleandbuilt-incutter.

CAT. N O. UPC NO. DESCRIPTION

435 21562 ConduitMeasuringTape3/16"×3000'(4.8mm×914m)

434 21875 Pay-OutDispenserfor435ConduitMeasuringTape

SPECIFICATIONS

Size 3000' (914 m)

Capacity 170lbs.(756kN)averagebreakingstrength

Weight 435:18.4lbs.(8.3kg),434:3.5lbs.(1.6kg)

435 Measuring Tape shown on

434 Dispenser – sold separately.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

148

Fishing

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

NOTES

Cable Pulling

Greenlee offers high-quality and durable cable pulling equipment designed to get the

job done. For simple, straight shots to pulls with multiple bends and offsets, having

Greenlee's cable pullers on the jobsite is a sure way to make your job faster, safer

and easier in any application.

Cable Pulling

FEATURED Products

151

Tugger® 640

Cable Puller

Ultra Tugger® 8

Cable Puller

159

156

® Registered: The color green for manual and power-operated cable pullers is a registered trademark of Greenlee Textron Inc.

169

Tray -Type Sheaves

NEW

UG5 Ultra Glider™

Cable Lubricating

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

150

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

ULTRA FEEDER

Ultra Cable Feeder™

 



 



 

 



 



 

 

CAT. NO. UPC NO. DESCRIPTION

6810  

  

  

  

SPECIFICATIONS

Power Supply 

Speed 

  

Maximum Tractive Force 

  

Cable Capacity Quantity Size

        2

       2

        2

Reel Weight Capacity 

Size  

  

Weight       

151

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

UG5 Ultra GLIDER™ Cable Pulling Lubrication System

 







 

™



 



 



 



 



™

™



CAT. NO. UPC NO. DESCRIPTION

  

  

  



  

  

  



  

  

  



  



  

  

  

  

  

  

  

  

  

  

 10286 

  

  

 10280 

 10281 

 10282 

  

  '

SPECIFICATIONS

Dimensions 





Weight 

Wheel Diameter 

Hose Length 

Battery (12V unit only) 







Motor (120V unit only) 



USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

152

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

CABLE PULLERS

Cable Puller Selection Guide

CAT. NO. DESCRIPTION

PAGE

NO.

PULLING FORCE WEIGHT SPEED SPEED POWER REQUIRED ROPE

CONTINUOUS MAXIMUM PULLER NO LOAD

800

LBS

2000

LBS 4000 LBS

5000

LBS

6000

LBS

8000

LBS

6800           

 

         

 

6001 ®         

 

 ®      

   







 ® 160    

   







  161   †

† – 766 comes with 200 ft. of aircraft-type steel swaged cable.

6001

65016800

640

UT2

766

153

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Cable Puller Set-Up

The Versi-Boom™ Plus System can reach into a

man-hole, yet allow the operator to run the puller

from above.

The equipment used is included in 6805A, 6805A-22,

6505, 6505-22, 6005 and 645 packages.

Operator is making an upward pull from the box

using the puller and Versi-Boom System attached

to the “T” stand.

The equipment used is included in packages 6805A

and 6802. Rope is not included.

Operator is making a downward pull from the box

using the puller with the floor mount anchored to

the floor.

The equipment used is included in packages

6805A, 6805A-22, 6802, 6802-22, 6800, 6800-22,

6505, 6505-22, 6005, 6004, 645, 643 and 642.

Rope is not included.

Operator is making an upward pull from the box

using the puller and Versi-Boom System attached to

the mobile carriage.

The equipment used is included in packages 6805A,

6805A-22, 6505, 6505-22, 6503, 6005, 6004, 645

and 643. Rope is not included.

Operator is making a downward pull from the box

using the puller with the chain mount (or vise

chain unit) mounted onto the conduit.

The equipment used is included in packages

6801, 6501, 6501-22, 6005, 6004, 6001, 6001-22,

645, 643, 642, 640 and 640-22.

Rope is not included.

Operator is making an upward pull from the box

using the puller and Versi-Boom Plus System

attached to the mobile carriage.

The equipment used is included in packages

6805A, 6805A-22, 6505, 6505-22, 6005 and 645.

Rope is not included.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

154

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Ultra Tugger 8 - 8,000 lb Ultra Tugger 5 - 5,000 lb

110 VAC 220 VAC 110 VAC 220 VAC

Cat. No. UPC No. Description 6800 6801 6803 6805A 6800-22 6805A-22 6500 6501 6503 6505 6500-22 6505-22

08000 08000 

 ✓ ✓ ✓ ✓

  

 ✓ ✓

  

 ✓ ✓ ✓ ✓

  

 ✓ ✓

   ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

   ✓ ✓

   ✓ ✓ ✓ ✓ ✓ ✓

   ✓ ✓ ✓ ✓ ✓ ✓

   ✓ ✓ ✓ ✓ ✓ ✓

   ✓ ✓ ✓ ✓

   ✓ ✓ ✓ ✓

   ✓ ✓ ✓ ✓ ✓ ✓

   ✓ ✓ ✓ ✓ ✓ ✓

   ✓ ✓ ✓ ✓ ✓ ✓

   ✓ ✓ ✓ ✓ ✓ ✓

   ✓ ✓ ✓ ✓ ✓ ✓

   ✓ ✓ ✓ ✓ ✓ ✓

00811 00811  ✓ ✓ ✓ ✓ ✓ ✓

00820 00820  ✓ ✓ ✓ ✓ ✓ ✓

   ✓ ✓ ✓ ✓ ✓ ✓

Package Components

08000 15000 02846

640

29631

00865

6037

00870 & 11230

6001

155

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Package Components

Super Tugger - 6,500 lb Tugger - 4,000 lb

110 VAC 220 VAC 110 VAC 220 VAC

Cat. No. UPC No. Description 6001 6004 6005 6001-22 640 643 645 640-22

6001  

 ✓ ✓ ✓

  

 ✓

   ✓ ✓ ✓

   ✓

   ✓ ✓ ✓ ✓

   ✓ ✓ ✓ ✓ ✓ ✓

   ✓ ✓ ✓ ✓

   ✓ ✓ ✓ ✓

   ✓ ✓ ✓ ✓

   ✓ ✓ ✓ ✓

   ✓ ✓

   ✓ ✓

  2 ✓ ✓

   ✓ ✓

   ✓ ✓ ✓ ✓

   ✓ ✓

   ✓ ✓ ✓ ✓

   ✓ ✓ ✓ ✓

   ✓ ✓ ✓ ✓

00811 00811  ✓ ✓ ✓ ✓

   ✓ ✓

00820 00820  ✓ ✓ ✓ ✓

   ✓ ✓ ✓ ✓

   ✓

651

00871

11152 00799

00815

00820

00804

00811

11145

00791

00835

00864

00863 00782

00783

00784

03661

00781

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

156

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Ultra Tugger® 8 (UT8) Cable Puller: 8000 lb. (35.8kN) rated

 

 



 ™



 



 

 

 

CAT. NO. UPC NO. DESCRIPTION

6800  



  

6801  



  

™









 







  

  

  

  

  

  

  

  

  

  

  

  

*See page 154 for UT8 component list

6800

6801

NOTE: Rope is a very critical link in the cable pulling system. See page 171 for proper pulling rope selection.

6805

NRTL/C

6803

SPECIFICATIONS

Pulling Force 



Dimensions 





Weight 

Pulling Speed – Feet (Meters) Per Minute





 



Drive Motor 

Power Requirements 



Recommended Rope 



157

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

*See page 154 for UT5 component list

NOTE: Rope is a very critical link in the cable pulling system. See page 171 for proper pulling rope selection.

SPECIFICATIONS

Pulling Force 



Dimensions 





Weight 

Pulling Speed – Feet (Meters) Per Minute







Drive Motor 

Power Requirements 



Required Rope 



6505

6503

Ultra Tugger® 5 (UT5) Cable Puller: 5,000 lb. (22.2kN) Rated

 



 



 ™



 



 





 

CAT. NO. UPC NO. DESCRIPTION

  ®



 11221 ®



  

 11222 ®







  ®





  

  

  

  

  

  

  

  

  

  



  

  

6501

NRTL/C

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

158

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

NOTE: Rope is a very critical link in the cable pulling system. See page 171 for proper pulling rope selection.

 

 

 

 

 

 

 



 



 

CAT. NO. UPC NO. DESCRIPTION

6001  



  

  







  







  

  

  

  

  

NRTL/C

Super Tugger® Cable Puller: 6500 lb. (28.9 kN) rated

6005

6001

6004

SPECIFICATIONS

Pulling Force 



Dimensions 





Weight 







Pulling Speed – Feet (Meters) Per Minute





 



Drive Motor 

Power Requirements 



Required Rope 



159

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Tugger® 640 Cable Puller: 4000 lbs. rated

 

 

 

 

 



 

 

CAT. NO. UPC NO. DESCRIPTION

  

  

  







  







  



  

  

  

  

  

  

NOTE: Rope is a very critical link in the cable pulling system. See page 171 for proper pulling rope selection.

NRTL/C

Optional Force Gauge

SPECIFICATIONS

Pulling Force 



Dimensions 





Weight 







Pulling Speed – Feet (Meters) Per Minute





 

Drive Motor 

Power Requirements 



Required Rope 



USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

160

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Ultra Tugger® 2 Cable Puller: 2000 lb. (8.8 kN) Rated

 

 

 

 

 

 

 

 

CAT. NO. UPC NO. DESCRIPTION

 02010 

  

  

  

  

  

UP PULL DOWN PULL SIDE PULL

UT2

NOTE: Rope is a very critical link in the cable pulling system. See page 171 for proper pulling rope selection.

SPECIFICATIONS

Pulling Force 



Drive Motor 

Weight 

Pulling Speeds High Speed Capstan







Low Speed Capstan







Pulling Rope* 







Conduit Size 

Pulling Capabilities 





= NEW PRODUCT

161

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

11147 Ultra Tugger® 640/6001 Adapter Package

CAT. NO. UPC NO. DESCRIPTION

  







  

  

  

  

  

  

  

 



 



 



 



 

SPECIFICATIONS

Weight 

Length 

Width 

Height 

Use With 

Load Rating 

Hand Crank Wire Puller

 



 

 

 

CAT. NO. UPC NO. DESCRIPTION

 18202 

  

  

28280 28280 

SPECIFICATIONS

Pulling Force 

Size 

Weight 

Power 

Dimensions 





00863

11147

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

162

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Speed Booster (for UT8 and UT5)

SPECIFICATIONS

Capacity 

Dimensions 



Weight 

Pulling Speed,

Ultra Tugger 5





Pulling Speed,

Ultra Tugger 8





Power 

CAT. NO. UPC NO. DES CRIPTION

  

  

 



 



 



 



 

TUGGER ACCESSORIES

SPECIFICATIONS

Deluxe Force Gauge 

 

Including : 6805A, 6805A-22, 6803, 6505, 6505-22, 6503, 6005, 6004, 645 and

643

Deluxe Force Gauge

 

 



 



 

 

®

CAT. NO. UPC NO. DESCRIPTION

  

  

  

  

163

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Screw-on Couplings

 ™



 



 



CAT. NO. UPC NO. SIZE WEIGHT

00868 00868  

   

   

   

   

   

CAT. NO. UPC NO. DESCRIPTION WEIGHT

   

   

2" 2-1/2"

Screw Assembly

3" 3-1/2" 4" Adapter

CAT. NO. UPC NO. SIZE WEIGHT

   

00811 00811  

   

00820 00820  

   

3-1/2"

Optional

2-1/2"

Slip-in Couplings

 ™

 

 

Foot Switch for Cable Pullers

 

 

CAT. NO. UPC NO. DESCRIPTION

  

SPECIFICATIONS

Power Source 

Weight 

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

164

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

NOTE: Rope is a very critical link in the cable pulling system. See page 171 for proper pulling rope selection.

SHEAVE 650 651 652 653

DIAMETER 6" (152.4 mm) 12" (304.8 mm) 18" (457.2 mm) 24" (609.6 mm)

DESCRIPTION CAT. NO. UPC NO. CAT. NO. UPC NO. CAT. NO. UPC NO. CAT. NO. UPC NO.

        

        

        

        

        

Hook-Type Sheaves - 4,000lb Capacity

 

 

 

 



CAT. NO. UPC NO. DESCRIPTION

  



  



  



  



SPECIFICATIONS

Maximum Rated Capacity 

Weight 







SHEAVE 639

DESCRIPTION CAT. NO. UPC NO. QUANTITY

   

   

   

   

   

Right-Angle Twin Yoke Sheave - 4,000lb Capacity

 

 

 

 

 

 



CAT. NO. UPC NO. DESCRIPTION

  



SPECIFICATIONS

Maximum Rated Capacity 

Weight 

SPECIFICATIONS

CAT. NO. UPC NO. OUTSIDE DIAMETER INSIDE RADIUS WIDTH WEIGHT MAXIMUM RATED CAPACITY

      

      

      

12"

24"

18"

SHEAVE 8012 8018 8024

DIAMETER 12" (304.8 mm) 18" (457.2 mm) 24" (609.6 mm)

DESCRIPTION CAT. NO. UPC NO. CAT. NO. UPC NO. CAT. NO. UPC NO.

      

      

      

      

      

Hook Sheaves - 8,000lb Capacity

 

 

 

 

165

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

SHEAVE 636 637 638 631

RADIUS 16" (406.4 mm) 24" (609.6 mm) 36" (914.4 mm) 48" (1219 mm)

DESCRIPTION CAT. NO. UPC NO. QTY. CAT. NO. UPC NO. QTY. CAT. NO. UPC NO. QTY. CAT. NO. UPC NO. QTY.

            

            

            

            

            

            

Radius Cable Sheaves - 4,000lb Capacity

 

 

 



CAT. NO. UPC NO. DESCRIPTION

  

  

  

  

SPECIFICATIONS

Maximum Rated Capacity 

Weight 







SHEAVE 6036

DESCRIPTION CAT. NO. UPC NO. QUANTITY

   

   

   

   

   

   

   

Triple Sheave Cable Guide - 6,500lb Capacity

 

 

 

 

 



 



CAT. N O. UPC NO. DESCRIPTION

  

SPECIFICATIONS

Maximum Rated Capacity 

Weight 

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

166

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

CAPACITY TABLE

ANGLE

OF PULL 441-2 441-2-1/2 441-3 441-3-1/2 441-4 441-5

      

      

      

      

      

      

      

      

      

      

      

      

SHEAVE 441-2 441-2-1/2 441-3 441-3-1/2 441-4 441-5

CONDUIT SIZE 2" CONDUIT 2-1/2" CONDUIT 3" CONDUIT 3-1/2" CONDUIT 4" CONDUIT 5" CONDUIT

DESCRIPTION CAT. NO. UPC NO. CAT. NO. UPC NO. CAT. NO. UPC NO. CAT. NO. UPC NO. CAT. NO. UPC NO. CAT. NO. UPC NO.

            

            

            

            

Feeding Sheaves

 



 

 

CAT. NO. UPC NO. DESCRIPTION

  

  

  

  

  

  

  

UNOCCUPIED MANHOLE UNOCCUPIED MANHOLE

UNOCCUPIED MANHOLEABOVE GROUND

SPECIFICATIONS

Rated Capacity

 WeightWidth of Shaft Opening

     

 

  

    

    

    

    

NOTE: Rope is a very critical link in the cable pulling system. See page 171 for proper pulling rope selection.

Manhole Sheaves for UT2®, Tugger® and Super Tugger®

 

 



 



 

 

 



CAT. N O. UPC NO. DESCRIPTION

  

  

SPECIFICATIONS

Maximum Rated Capacity 



Weight 



167

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Cable Puller Floor Mount for 640 Tugger® and 6001 Super Tugger®

 

 



 



CAT. NO. UPC NO. DESCRIPTION

  

  

SPECIFICATIONS

Maximum Rated

Capacity



Weight 

NOTE: Rope is a very critical link in the cable pulling system. See page 171 for proper pulling rope selection.

Cable Guide

 

CAT. N O. UPC NO. DESCRIPTION

  

SPECIFICATIONS

Weight 

Size 

Nylon Cable Protector

 



 

CAT. NO. UPC NO. DESCRIPTION

  

  

SPECIFICATIONS

Weight 



USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

168

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

NOTE: Rope is a very critical link in the cable pulling system. See page 171 for proper pulling rope selection.

Light Base Sheave

 

 

 

 

 

 

CAT. NO. UPC NO. DESCRIPTION

  

SPECIFICATIONS

Overall Height 

Weight 

Bolt Circle Capability 

Maximum Mounting Bolt Dia. 



Pulling Capacity 

CR25







 



 



 





 



CAT. NO. UPC NO. DESCRIPTION

 12211 

SPECIFICATIONS

Roller opening size 

Weight:  

169

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

CABLE TRAY ACCESSORIES

Cable Tray Rollers

CAT. NO. UPC NO. DIMENSION A

  

  

  

  

SPECIFICATIONS

Weight  

  

  

  

  

Inside

3-3/8"

Straight Cable Rollers

Radius Cable Rollers

5-5/8"

3-3/8"

Inside

5-5/8"

3-3/8"

Right Angle Rollers

 



 



 

 

 

Tray-Type Sheaves

 

 

 

 

CAT. N O. UPC NO. DESCRIPTION

  

  

SPECIFICATIONS

Size  

Weight  

658

659

CAT. NO. UPC NO. DESCRIPTION

  

CAT. NO. UPC NO. DESCRIPTION

STRAIGHT CABLE ROLLERS

  

  

  

  

RADIUS CABLE ROLLERS

  

  

  

  

RIGHT ANGLE CABLE ROLLERS

  

  

2024S 2018R

20249R

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

170

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Rope Stands

 

 

405

654

ROPE DIAMETER

ROPE STAND UPC 3/16" 1/4" 3/8" 1/2" 9/16" 5/8" 3/4" 7/8"

ROPE LENGTH NO.

4.8 mm 6.4 mm 9.5 mm 12.7 mm 14.3 mm 15.9 mm 19.1 mm 22.2 mm

405 Rope Stand 21546

  ✓ ✓     

  ✓      

406 Rope Stand 21550

    ✓ ✓   

   ✓    

  ✓✓    

      

   ✓ ✓ ✓   

 











  

644 Rope Stand 15316

      ✓ ✓ ✓

    ✓ ✓ ✓ ✓ 

    ✓    

  ✓      

654 Rope Stand 34362

        ✓

        ✓ ✓

(Rope not included)

CAT. NO. UPC NO. DESCRIPTION SIZE

   

  

   

   



   

  



   

  



   

   

   

Haines Cable Tray Rollers

 



 

 



 



 ™



SPECIFICATIONS

ROPE STAND MODEL WEIGHT SPINDLE DIAMETER MAXIMUM REEL DIAMETER MAXIMUM REEL WIDTH

  



 10



  



  



  



 



16



  



 







171

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

MAXIMUM RATED AVERAGE WEIGHT ROPE

ROPE DIAMETER ROPE LENGTH CAT. NO. UPC NO. CAPACITY BREAKING STRENGTH LBS. kg STAND



           

           

          



           

           



           

           

           





           

           

           



           

           

           

† This rope does not fit on a rope stand. Use reel jacks and a spindle to dispense. See pages 376-377

Double-Braided Composite Rope for High Force Cable Pullers

 Custom-made to Greenlee specifications to provide 4:1 Safety Factor

required for cable pulling.

 



 

 

 

 



3/8"

(9.5 mm)

9/16"

(14.3 mm)

3/4"

(19.1 mm)

7/8"

(22.2 mm)

1/2"

(12.7 mm)

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

172

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

CONDUIT DIAMETER

PULL LENGTH 1" 2" 3" 4"

200'    

    

    

600'    

800'    

1000'    

CABLE PULLING LUBRICANTS

Cable Pulling Lubricant Selection Guide

Winter-Gel

™

Fiber-Gel

™

Cable-Cream

APPLICATION

     

     

     

     

     

     

COMPATIBILITY (Cable Type)

 ✓✓ ✓ ✓ ✓

 ✓✓ ✓ ✓ ✓

 ✓✓ ✓ ✓ ✓

 ✓✓ ✓ ✓ ✓

 ✓✓ ✓ ✓ ✓

 ✓✓ ✓ ✓ ✓

 ✓✓ ✓ ✓ ✓

 ✓✓ ✓ ✓ ✓

*(IEEE 375-2 test procedure) kinetic coefficient of friction tested at 300 lb/ft sidewall bearing pressure

Cable-Gel

Clear Lube

™







































°

















Cable Lubricant Quantity Chart



 

 

 

 

 





Q = 0.0015 X L x D









173

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Cable-Cream® Cable Pulling Lubricant

Cable-Gel® Cable Pulling Lubricant

 

 

 

 

 

 



 

 

 

 

 

 

 

 

 

 

CAT. NO. UPC NO. DESCRIPTION

  

  

  

CAT. NO. UPC NO. DESCRIPTION

  

  

  

SPECIFICATIONS

Weight 





Viscosity 

PH Range 

Average COF 

SPECIFICATIONS

Weight 





Viscosity 

PH Range 

Average COF 

SPECIFICATIONS

Weight 







Viscosity 

PH Range 

Average COF 

LISTED

Clear Lube™

 

 

 

 

 



CAT. NO. UPC NO. DESCRIPTION

  

  

  

LISTED

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

174

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Lube Spreader Swab

 

 

 

 

MAXIMUM

MAXIMUM RATED

DUCT SIZE DISK SIZE CAPACITY WEIGHT

CAT. NO. UPC NO. INCH mm INCH mm LBS. kN LBS. kg

         

         

         

         

         

         

         

SWABS, BRUSHES, MANDRELS & SWIVELS

Fiber-Gel™ Cable Pulling Lubricant

 



 

 

 

 

 

 

CAT. NO. UPC NO. DESCRIPTION

  

  

  

SPECIFICATIONS

Weight 





Viscosity 

PH Range 

Average COF 

Winter-Gel™ Cable Pulling Lubricant

 

 

 

 

 

 

 

CAT. NO. UPC NO. DESCRIPTION

  

  

  

SPECIFICATIONS

Weight 





Viscosity 

PH Range 

Average COF 

175

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Wire Duct Brush

 



 



 



MAXIMUM

MINIMUM RATED

DUCT SIZE DIAMETER CAPACITY WEIGHT

CAT. NO. UPC NO. INCH mm INCH mm LBS. kN LBS. kg

         

         

         

         

         

         

         

Flexible Mandrel

 



 

 

 

MAXIMUM

MAXIMUM RATED

DUCT SIZE DISK SIZE CAPACITY WEIGHT

CAT. NO. UPC NO. INCH mm INCH mm LBS. kN LBS. kg

         

         

         

         

         

         

         

Rope-to-Swivel Connectors

 



 

 

 



MAX. RATED. MAX. RATED

CAPACITY CAPACITY

IN CONDUIT OVERHEAD DIAMETER LENGTH “E” “F” USE ON

CAT. NO. UPC NO. LBS. kN LBS. kN IN. mm IN. mm IN. mm IN. mm SWIVEL

              

              

              

              

"F"

"E"

“E”

“F”

CAT. NO. UPC NO. DESCRIPTION

  

  

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

176

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Breakaway Swivels

Rope Clevis

 

 

 



 

CAT. N O. UPC NO. DESCRIPTION

  

  

  



 

 



BREAKAWAY PIN KITS

BREAKING BREAKING COLOR USE

CAT. NO. UPC NO. POINT LBS. POINT kN CODE WITH

    

     

     

    

    

     

     

    

    

BREAKAWAY SWIVEL BODY ONLY

A B C D E F

CAT. NO. UPC NO. INCH mm INCH mm INCH mm INCH mm INCH mm INCH mm

              

             

• Pins sold in bags of 10 only. • Breakaway values are ±15%.

 





 



SPECIFICATIONS

 Maximum Rated Capacity Weight Length Width Inside Diameter

578    

579    

678    

Swivels

 

 

 

 



 



 



MAXIMUM

RATED A B C D E F G WEIGHT REPLACEMENT*

CAPACITY DIAMETER DIAMETER PIN KIT

CAT. NO. UPC NO. LBS. kN INCH mm INCH mm INCH mm INCH mm INCH mm INCH mm INCH mm LBS. kg UPC NO.

                     

                     

                     

                    

                    

                    

* Replacement Pin Kits contain two (2) Replacement Pins

177

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

GRIPS

Set Screw Clamp Pulling Grips

 

 

 

 





 



 

CAT. NO. UPC NO. DESCRIPTION

  

  



  

  

  

  

  











Cable Preparation Instructions for Set Screw Clamp-Type Pulling Grips



NOTE: 



















CAUTION: 





SPECIFICATIONS

Capacity 

Weight 

Size 

SPECIFICATIONS

Maximum Rated Capacity Weight

 

 

 

 

 



USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

178

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

CABLES WITH THE SAME DIAMETER IN ONE GRIP*

2 CABLES 3 CABLES 4 CABLES 5 CABLES 6 & 7 CABLES 8 CABLES 9 CABLES REQUIRED

DIA. EACH DIA. EACH DIA. EACH DIA. EACH DIA. EACH DIA. EACH DIA. EACH GRIP DIAMETER

IN./(mm) IN./(mm) IN./(mm) IN./(mm) IN./(mm) IN./(mm) IN./(mm) IN./(mm)

        

        

        

        

        

        

       

       

       

       

       

       

       

* Split grips require the next larger size.

1. SELECT THE TYPE OF GRIP NEEDED.

SIZE RANGE MAX. RATED

TYPE DIA. INCHES CAPACITY – LBS.

GRIP TYPE DESCRIPTION OF EYE (mm) (kN) USE TO PULL

     

    

     

     

     

     

     

     

     

     

     

     

2. SELECT THE SIZE OF GRIP NEEDED.















Pulling Grip Selection Guide

How to select correct pulling grip:

  

  

  

MEASURE THE CIRCUMFERENCE OF THE WIRE BUNDLE

CIRCUMFERENCE RANGE REQUIRED GRIP DIAMETER

INCH mm INCH mm

            

            

            

          

         

        

        

        

        

       

     

    

    

NOTE: Rope is a very critical link in the cable pulling system. See page 387 for proper pulling rope selection.

179

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

30758

CABLE DIAMETER MAXIMUM EYE MESH

RANGE RATED CAPACITY LENGTH LENGTH

CAT. NO. UPC NO. INCH mm LBS. kN INCH mm INCH mm

                 

                 

               

            

           

            

         

Basket-Type Pulling Grip Sets

Junior Basket-Type Pulling Grips

 

 

 

 

 

 

 

CAT. NO. UPC NO. DESCRIPTION

  





  



  



  



SPECIFICATIONS

Capacity 







Weight 







USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

180

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Light-Duty Basket-Type Pulling Grips

T-Basket-Type Pulling Grips

 

 

 

 



 

 



CABLE DIAMETER MAXIMUM EYE MESH

RANGE RATED CAPACITY LENGTH LENGTH

CAT. NO. UPC NO. INCH mm LBS. kN INCH mm INCH mm

SHORT

               

              

              

            

          

          

          

          

          

STANDARD

              

            

          

          

          

          

         

CABLE DIAMETER MAXIMUM EYE MESH

RANGE RATED CAPACITY LENGTH LENGTH

CAT. NO. UPC NO. INCH mm LBS. kN INCH mm INCH mm

STANDARD

               

               

               

            

            

            

            

            

          

         

NOTE: Rope is a very critical link in the cable pulling system. See page 387 for proper pulling rope selection.

181

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

K Basket-Type Pulling Grips

Multiple Strength Basket-Type Pulling Grips with Rotating Forged Eye

 



 

 



 



 

 

 



CABLE DIAMETER MAXIMUM EYE MESH ROTATING

RANGE RATED CAPACITY LENGTH LENGTH EYE DIA.

CAT. NO. UPC NO. INCH mm LBS. kN INCH mm INCH mm INCH mm

STANDARD

                  

                  

                  

               

               

               

              

              

            

           

           

            

CABLE DIAMETER MAXIMUM COLOR EYE MESH ROTATING

RANGE RATED CAPACITY CODE LENGTH LENGTH EYE DIAMETER

CAT. NO. UPC NO. INCH mm LBS. kN INCH mm INCH mm INCH mm

                  

                  

                

              

              

              

             

             

             

             

            

NOTE: Rope is a very critical link in the cable pulling system. See page 387 for proper pulling rope selection.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

182

Cable Pulling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Split Mesh Rod Closing Basket-Type Slack Pulling Grips

 

 

 

 



CABLE DIAMETER MAXIMUM EYE MESH

RANGE RATED CAPACITY LENGTH LENGTH

CAT. NO. UPC NO. INCH mm LBS. kN INCH mm INCH mm

                

                

                

             

             

            

           

           

           

          

         

NOTE: Rope is a very critical link in the cable pulling system. See page 387 for proper pulling rope selection.

Wire & Cable Termination

If you need to cut, crimp or strip, Greenlee has the tool – from ratchet-style to

battery-powered. Use our cable cutter selection guide and cross-reference charts to

choose the right high-quality, hand-held tool that makes your job faster and easier

time after time, cut after cut, crimp after crimp.

FEATURED Products

NEW-EK12ID

Dieless Crimping Tools

NEW-E12CCX

Battery-Powered

Cable Crimper

NEW-HKL1232 12-Ton

Manual Hydraulic

Crimping Tool

Wire & Cable Termination

185 194 211

206

NEW-ETS12

Battery-Powered

Bolt Cutter

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

184

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

What Is CCX?

The Greenlee CCX three-step, 10-second function changeover.

The easy, quick-release design makes changeovers this simple:

CCX

ECCX, CCCX Tool Capacities

CRIMPING CUTTING PUNCHING

Copper Color-Coded Lugs and Splices: 600 kcmil (MCM) Copper and Aluminum Cable: 1-1/2" (40 mm) Round: 2" conduit (2.42") (61.5 mm) in

Aluminum Color-Coded Lugs and Splices: 350 kcmil (MCM) ACSR: 954 kcmil (MCM) (Cardinal) 10 ga. mild steel

5/8" Service Entrance Connectors: 10-1/0 AWG Standard Guy Strand: 5/8" (20 mm)

.840 Service Entrance Connectors: 1/0-4/0 AWG EHS Guy Strand: 1/2" (13 mm)

Aluminum Overhead “H” taps: 6-4/0 AWG Ground Rod: 1/2" (13 mm)

One Piece ACSR Tension Splices: 4-1/0 AWG Rebar (schedule 60): 1/2" (13 mm)

Two Piece ACSR Tension Splices: 2-4/0 AWG Threaded Rod: 1/4", 3/8", 1/2", 4 mm, 5 mm,

6 mm, 8 mm, 10 mm

DIN Rail: 35 x 7.5, 32 x 15 x 9, 35 x 15

Just push the release buttons, and the blades slide right

out of the easy- opening CCX head.

Alternate die adapters, cutter blades, or knockout punch

adapters slide right in!

You’re working again, with no lost time!

CCX–Exclusive Multipurpose Tools from Greenlee

Get more for your money and carry fewer tools – with CCX. This advanced

line of multipurpose tools is designed to work with a wide variety of

cutting blades and crimping die adapters, and a knockout punch adapter. Buy

just one tool for countless electrical construction and maintenance jobs.

Cut

• Copper,aluminum,copperweld,andACSRcable

• Guystrand,includingEHS

• Threadedrod

• DINrail

Crimp – 6-Ton Option

• GreenleeK22&KA22 • Thomas&Betts6Ton

• BurndyW • BlackburnOD

• KearneyO • PanduitCD2001

• Forcopperlugsandsplices,useGreenleediesupto600kcmil(MCM).

 Foraluminumlugs&splices,useGreenleediesupto350kcmil(MCM).*

Crimp – 12-Ton Option

• GreenleeKC12&KA12 • Thomas&Betts15500Series

• BurndyU • BlackburnB&H

• Penn-UnionT • PanduitCD-920

• ILSCOILD • HuskieHT41

Punch – use the knockout punch adapter with

• StandardSlug-BusterandSlug-Splitterpunches

• Non-roundpunches

*UL and cUL classified to 600 kcmil (MCM) with Anderson, Blackburn®, Burndy, ILSCO,

Panduit, Thomas & Betts, and Penn-Union copper color-coded connectors. UL & CUL

classified to 350 kcmil (MCM) with Anderson, Blackburn®, Burndy, ILSCO, Panduit,

Thomas & Betts, and Penn-Union aluminum color-coded connectors.

E12CCX & C12CCX Tool Capacities

CRIMPING CUTTING PUNCHING

Copper Color-Coded Lugs and Splices: 750 kcmil Copper and Aluminum Cable: 1-1/2" (40 mm) Round: 5-5/8" (144.1 mm) in 10 ga. mild steel

Aluminum Color-Coded Lugs and Splices: 750 kcmil ACSR: 954 kcmil (Cardinal) Rectangular: 2.677" x 5.433" (68.0 mm x 138.0) mm

5/8" Service Entrance Connectors: 10-1/0 AWG Standard Guy Strand: 5/8" (20 mm) Square: 5.4333" x 5.433" (138.0 mm x 138.0) mm

.840 Service Entrance Connectors: 1/0-4/0 AWG EHS Guy Strand: 1/2" (13 mm) Accessories required to punch 4-1/2" through 5-5/8"

Aluminum Overhead “H” taps: 6 AWG-500 kcmil Ground Rod: 1/2" (13 mm) 12185 Spacer, 04686 Bushing and 03170 Sleeve

One Piece ACSR Tension Splices: 4 AWG-556.5 kcmil Rebar (schedule 60): 1/2" (13 mm)

Two Piece ACSR Tension Splices: 2 AWG-556.5 kcmil Threaded Rod: 1/4", 3/8", 1/2", 4 mm, 5 mm,

6 mm, 8 mm, 10 mm

DIN Rail: 35 x 7.5, 32 x 15 x 9, 35 x 15

185

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Gator® Pro CCX Tools

ECCX11

CCCX11

Battery-Powered and Corded Tool Features

• 350ºrotatingheadadjuststoyourworkposition.

• Lightweight,plusergonomicangledhandleforcomfortable,low-stressuse.

• Cyclesinsecondswithtwo-speed,hydraulicpump,maximizingproductivity.

• Automaticretractionwhencrimpingandcuttingcyclesarecomplete.

• UseoptionalCCXbladesandadapters(seepage186).

• U.S.Patent#6,206,663,#6,532,790.

Battery-Powered Tool Features

• Nickel-metalhydridebattery(NIMH)deliversupto120cyclespercharge

with the ECCX and 40 cycles per charge with the E12CCX.

• Includestwobatteries,achoiceofeithera120V,12V,or230Vone-hour

charger and a high-impact molded carrying case.

Corded Tool Features

• Operatedirectlyfrom120V60Hzor230V50Hzelectricaloutlets.

• Noneedtochargebatteriesorworryaboutrunningoutofpower.

• Equippedwith15foot(5m)cord.Canbeusedwithextensioncords.

• Includesahigh-impactmoldedcarryingcase.

CAT. NO. UPC NO. DESCRIPTION

E12CCX11 11668 12-TonBattery-Powered12CCXtool,w/120Vcharger

E12CCX12 11669 12-Ton Battery-Powered12CCXtool,w/12Vcharger

E12CCX22 11670 12-Ton Battery-Powered12CCXtool,w/230Vcharger

C12CCX11 11666 12-Ton Corded12CCXTool,120V,60Hz

C12CCX22 11667 12-Ton Corded12CCXTool,230V,50Hz

ECCX11 07028 6-Ton Battery-PoweredCCXtool,w/120Vcharger

ECCX12 07029 6-Ton Battery-PoweredCCXtool,w/12Vcharger

ECCX22 07030 6-Ton Battery-PoweredCCXtool,w/230Vcharger

CCCX11 01394 6-Ton CordedCCXTool,120V

CCCX22 01395 6-Ton CordedCCXTool,230V

12274 12274 Carrying Strap

07063 07063 12VNIMHBattery

07146 07146 Carrying Case for E12CCX

01562 01562 Carrying Case for C12CCX

03046 03046 120VCharger

03048 03048 12VCharger

03047 03047 230VCharger

SPECIFICATIONS E12CCX ECCX

Crimping Force 24,000 lb. (107 kN)

12-Ton

12,000 lb (53 kN) 6-Ton

Height 16-1/8" (371 mm) 14-3/4" (375 mm)

Length 13" (330 mm) 12-1/8" (308 mm)

Weight 14 lbs. (6.5 kg) 10.5 lbs. (4.8 kg)

Battery 12V,2.6Ah,NIMH 12V,2.6Ah,NIMH

Battery Charge

Time

1 hour 1 hour

E12CCX

SPECIFICATIONS C12CCX CCCX

Crimping Force 24,000 lb. (107 kN)

12-Ton

12,000 lb (53 kN) 6-Ton

Height 16-1/8" (371 mm) 14-3/4" (375 mm)

Length 13" (330 mm) 12-1/8" (308 mm)

Weight 14 lbs. (6.5 kg) 10.5 lbs. (4.8 kg)

Operating

Voltage

C12CCX11 (120V,60

cycle AC) C12CCX22

(230V,50cycleAC)

CCCX11 (120V,60cycle

AC) CCCX22 (230V,50

cycle AC)

See page 186 for crimping die adapters, cutting blades and knockout punch adapter

6-Ton tools

WhenusedwithGreenleeKC22andKA22diesincombinationwith

Anderson®, Blackburn®,FCIBurndy®, ILSCO®, Panduit®,Penn-Union® and

Thomas&Betts® color-coded connectors, connections up to 600 kcmil

(copper)and350kcmil(aluminum)areULandcULclassified.Thesetools

also accept Greenlee, Burndy®,Kearney®, Blackburn®, Panduit® and Thomas

&Betts® dies used for 6-ton tools. They can drive knockout punches up

through 2" diameter.

12-Ton tools

• WhenusedwithGreenleeKC12andKA12diesincombinationwith

Anderson®, Blackburn®,FCIBurndy®, ILSCO®, Panduit®,Penn-Union®

andThomas&Betts® color-coded connectors, crimps on connections

upto750kcmilareULandcULclassified.Thetoolsalso accept all

industry“U”typedies.Thesetoolsdriveknockoutpunchesthrough

5-5/8" diameter.

•Retractionstopfeaturepermitstheoperatortostoptheram

retraction at any point by pulling the trigger. The subsequent crimp cycle

starts from this partially retracted position saving time and battery life.

Crimping dies on page 214-215.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

186

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

CCX Tool Accessories (optional, all in pairs except punch driver)

UA22

UAK

UC40

UCUNC38

UCD3215

UA12P

CAT. NO. UPC NO. DESCRIPTION ECCX E12CCX

UA22 07062 AdapterforGreenleeK22dies

✓

UAK 07033 AdapterforKearney“0”,T&B“6Ton”,

and Blackburn “OD” dies

✓

UAW 07035 Adapter for Burndy “W” and Panduit

“CD-2001” dies (equivalent to “D3” die)

✓

UA12T 20158 Adapterfor“U”dies(included with tool)

✓

CAT. NO. UPC NO. DESCRIPTION ECCX E12CCX

UC26 06714 CutterBladesAL&CU1"capacity

✓

UC40 07036 CutterBladesAL&CU1-1/2"capacity

✓ ✓

UCACSR 07037 CutterbladesforACSR&guystrand

✓ ✓

CAT. NO. UPC NO. DESCRIPTION ECCX E12CCX

UCUNC14 07038 Cutter blades for 1/4" threaded rod

✓

UCUNC38 07039 Cutter blades for 3/8" threaded rod

✓

UCUNC12 07274 Cutter blades for 1/2" threaded rod

✓

UCM5 07053 Cutter blades for M5 threaded rod

✓

UCM6 07050 Cutter blades for M6 threaded rod

✓

UCM8 07051 Cutter blades for M8 threaded rod

✓

UCM10 07052 Cutter blades for M10 threaded rod

✓

CAT. NO. UPC NO. DESCRIPTION ECCX E12CCX

UCD3575 07041 DIN rail cutter blades – 35 x 7.5

✓

UCD3215 07042 DIN rail cutter blades – 32 x 15 x 9

✓

UCD3515 07043 DIN rail cutter blades – 35 x 15

✓

UPD6 01620 DIN Rail Punch (punches 15 mm x 6.2 mm

hole in 35 x 7.5 and 35 x 15 DIN rail)

✓

CAT. NO. UPC NO. DESCRIPTION ECCX E12CCX

UA12P 11890 PunchDriverAdapter*

(accepts 3/4" draw stud)

✓

*U.S.Patent#6,065,326

CAT. NO. UPC NO. DESCRIPTION ECCX E12CCX

UCF 12433 Bus Bar Cutting Blades for laminated

Bus Bar up to 1-1/2" (37.5 mm) wide

✓

DIE ADAPTERS

CABLE CUTTING BLADES

THREADED ROD CUTTING BLADES

DIN RAIL CUTTING BLADES

KNOCKOUT PUNCH ADAPTER

BUS BAR CUTTER

UCF

187

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Selection Guide for Copper & Aluminum Cable Cutters

CABLE SIZE

250 300 350 400 500 600 750 1000 1500 2000

AWG #8 #6 #4 #2 #1 1/0 2/0 3/0 4/0

kcmil kcmil kcmil kcmil kcmil kcmil kcmil kcmil kcmil kcmil Page

mm2 6 10 16 25 35 40 50 70 95 120 150 150 185 240 300 400 500 800 1000 No.

BATTERY-POWERED & CORDED

E12CCX Al • • • • • • • • • • • • • • • • •  

ECCX, CCCX Cu • • • • • • • • • • • • • • • • •   185

C12CCX ACSR • • • • • • • • • • • • • • • • • 

ES32 Al • • • • • • • • • • • • • •

188

Cu • • • • • • • • • • • • • •

ES750 Al • • • • • • • • • • • • • • • • •   188

Cu • • • • • • • • • • • • • • • •   

ESG50GL, Al • • • • • • • • • • • • • • • • • • • 189

CSG50GL Cu • • • • • • • • • • • • • • • • • • •

ESC85 Al • • • • • • • • • • • • • • • • • • • 199

Cu • • • • • • • • • • • • • • • • • • •

HYDRAULIC

750 Al • • • • • • • • • • • • • • • • •   190

Cu • • • • • • • • • • • • • • • • •  

RATCHET

759 Al • • • • • • • • • • • • • • • o 191

Cu • • • • • • • • • • • • • o

760, 761 Al • • • • • • • • • • • • • • • • •  191/192

Cu • • • • • • • • • • • • • o o • o

45206 Al • • • • • • • • • • • • • • o 192

Cu • • • • • • • • • • • • • • o

45207 Al • • • • • • • • • • • • • • • • o 192

Cu • • • • • • • • • • • • • • • o

773 Al • • • • • • • • • • • • • • • •    191

Cu • • • • • • • • • • • • o o

774 Al • • • • • • • • • • • • • • • •    191

Cu • • • • • • • • • • • • • • o o

756 Al • • • • • • • • • • • • • • • • • o 190

Cu • • • • • • • • • • • • • • • • • o

MANUAL

727,727M Al • • • • • • •             193

Cu • • • • • o o

718, 718F Al • • • • • • • • • • • •        

Cu • • • • • • • • • o o o 193

704 Al • • • • • • • • • • • • o o 193

Cu • • • • • • • • • • o o

705 Al • • • • • • • • • • • • • • • • o 193

Cu • • • • • • • • • • • • o o

706 Al • • • • • • • • • • • • • • • • o 193

Cu • • • • • • • • • • • • • • o o

COPPER AND ALUMINUM CUTTING

Note: • = Frequent use capacity o = maximum capacity

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

188

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Gator® ES32 Battery-Powered Cable Cutter

• Small,lightweight,ergonomicshape.

• SmallsizemakestheES32anexcellenttoolforuseinsidepanelboxes.

• Cuttingbladesautomaticallyopenwhenthecutiscomplete.

• Cuttingheadrotates350°foraccesstotightspaces.

• Toolcompletesapproximately80cuttingcyclesperbatterycharge.

(Note: Cutting 500 kcmil cable requires two cycles per cut.)

• Hardenedbladesprovidelonglife.

• Toolisequippedwithtwobatteries,carryingcaseandeithera120volt,

12 volt or 230 volt battery charger.

CAT. NO. UPC NO. DESCRIPTION

ES32-11 12114 ES32 Battery-Powered Cable Cutter w/120 volt Charger

ES32-12 12115 ES32 Battery-Powered Cable Cutter w/12 volt Charger

ES32-22 12116 ES32 Battery-Powered Cable Cutter w/230 volt Charger

12092 12092 Movable Blade

12093 12093 FixedBlade

89188 89188 9.6v NiCd Battery

02019 02019 Carrying Case

12722 12722 120VCharger

23076 23076 12VCharger

12723 12733 230VCharger

SPECIFICATIONS

Capacity 500 kcmil (240 mm2) Cu or Al cable

Battery Voltage 9.6 volts NiCd

Length 15-3/4" (400 mm)

Weight 4 lbs. (1.8 kg)

Battery Charge Time Approximately 50 minutes

Gator® ES750 Battery-Powered Cable Cutter

CAT. NO. UPC NO. DESCRIPTION

ES750-11 45380 Battery-PoweredCableCutter,120VCharger

ES750-22 45381 Battery-PoweredCableCutter,230VCharger

45378 45378 Extra12VoltNiCdBattery

45334 45334 Movable Blade

45333 45333 FixedBlade

45383 45383 Carrying Case

45379 45379 120VCharger

45382 45382 230VCharger

SPECIFICATIONS

Cutting Capacity 750 kcmil (MCM) (400 mm²) copper cable

1000 kcmil (MCM) (500 mm²) aluminum cable

Length 14-1/4" (362 mm)

Weight 5.8 lbs. (2.6 kg)

Battery 12VoltsNiCd

• Cuts500kcmil(MCM)coppercableinunder8seconds.

• Compactdesignpermitsuseintightlocations.

• Extra-heavybladesforcleancutsandlonglife.

• Makesapproximately20cutsin750kcmil(MCM)perbatterycharge.

• Easytoswitchbetweenforwardandreversedirection.

• 12voltbatteryrechargesinonehour.

• Includesbatterycharger,onebatteryandmoldedcarryingcase.

• Notforuseon500kcmilorlargercompactcable.

• Choiceofa120voltor230voltbatterycharger.

189

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Gator® Plus Battery-Powered and Corded Cable Cutters

Battery-Powered and Corded Tool Features

• Ramautomaticallyretractsafterthecutiscomplete.Noneedtopush

a retract lever. Tool is automatically ready to perform the next cut.

• Two-speedpumpadvancestheramquicklytostartthecut.

• Cuttingbladesarespeciallyhardenedandprecisiongroundtoholdtheir

sharpness.

• Lightweightandeasytouse.

• Cuttingheadrotates360°formakingcutsintightlocations,andflips

open to make mid-span cuts easy.

• U.S.Patents#6,206,663and#6,065,326.

Battery-Powered Tool Features

• Includesone-hourbatterycharger,carryingcaseandtwobatteries.

• Choiceofa120volt,230voltor12voltbatterycharger.

Corded Tool Features

• Operatesdirectlyfrom120volt60Hzor230volt50Hzelectricaloutlets.

No need to charge batteries or worry about running out of power.

• Equippedwith15foot(5m)cord.Canbeusedwithextensioncords.

• Includescarryingcase.

CAT. NO. UPC NO. DESCRIPTION

ESG50GL11 03554 Battery-PoweredCableCutter,120Vcharger

ESG50GL12 03555 Battery-PoweredCableCutter,12Vcharger

ESG50GL22 03556 Battery-PoweredCableCutter,230Vcharger

CSG50GL11 01384 CordedCableCutter,120V

CSG50GL22 01385 CordedCableCutter,230V

04181 04181 Movable Blade

04184 04184 FixedBlade

07063 07063 12VNIMHBattery

05955 05955 Carrying Case for ESG50GL

01598 01598 Carrying Case for CSG50GL

12274 12274 Carrying Strap

03046 03046 120VCharger

03048 03048 12VCharger

03047 03047 230VCharger

SPECIFICATIONS BATTERY POWERED CORDED

Cutting Capacity 2" (50 mm) diameter Al or

Cu cable)

2" (50 mm) diameter Al or

Cu cable)

Length 15-3/4" (400 mm) 15-3/4" (400 mm)

Weight 10 lbs. (4.5 kg) 10 lbs. (4.5 kg)

Height 14-1/4" (362 mm) 14-1/4" (362 mm)

Battery 12V,2.6Ah,NIMH N/A

Battery Charge Time 1 hour N/A

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

190

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Hydraulic Cable Cutters

750H767 model with

767 Hand Pump

Heavy-Duty Ratchet Cable Cutters

SPECIFICATIONS

Copper Aluminum

Maximum Capacity 1500 kcmil (MCM) (800 mm2) 1500 kcmil (MCM) (800 mm2)

Frequent Use Capacity 1000 kcmil (MCM) (500 mm2) 1000 kcmil (MCM) (500 mm2)

Length 27-1/2" (698 mm) long

Jaw opening 2" (51 mm)

Weight 11.41 lbs. (5.17 kg)

SPECIFICATIONS

Capacity 1000 kcmil (MCM) (500 mm²) copper or aluminum cable

Jaw opening 1-15/16" (49 mm)

Weight 750 – 25 lbs. (11.3 kg)

750H767 - 29 lbs. (13.2 kg)

750E975 - 84 lbs. (38.1 kg)

CAT. NO. UPC NO. DESCRIPTION

750 29149 HydraulicCableCutter&RaminStorageBox*

750H767 17450 Hydraulic Cable Cutter with 767 Hand Pump, Ram,

Hydraulic Hose in Storage Box

750E975 34203 Hydraulic Cable Cutter with 975 Electric Pump, Ram,

Hydraulic Hose in Storage Box

751 22279 Hydraulic Cable Cutter Head for use with Greenlee 746

Hydraulic Ram. Also order 51385 Elbow

746C 17451 RamUnit

23955 23955 Steel Storage Box

17459 17459 Cutter Blade

• Cutsin7seconds.Jawsslideopenquicklytosavetimebetweencuts.

• 11-ton(97kN)rampowerscuttingjaws.Jawsarespeciallyhardened

and precision-ground to hold sharpness.

• Lightweightandeasytouse.

• Extrathickblades,groundflattoreducepotentialforbreakage.

• Ratchetactionforheavy-dutycutting.

• Twocuttingactions–fastscissorcuttingforsmallcableandinsulation;

converts automatically to ratchet mode.

• Anti-slipmechanismforpositiveratchetaction.

• Rubberbootprotectsratchetmechanism.

CAT. NO. UPC NO. DESCRIPTION

756 34081 Heavy-Duty Ratchet Cable Cutter with rubber boot.

756U 38793 Heavy-Duty Ratchet Cable Cutter without rubber boot

34188 34188 CutterHeadUnit(Includes2Blades)

* 1/4" Male hydraulic coupler (54169) is needed to connect a 767 pump with hose to the 750 cutter

191

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

• Two-speedmechanismsavescuttingtimebyclosingthebladesrapidly

and shifting to normal speed to perform the cut.

• Nomorepushingonstubbornreleasebuttons–thebladesopen

automatically when the cut is complete.

• Completelynewratchetmechanismimprovesdurability.

• Narrowprofilepermitsuseindeepboxes,againstwallsoronfloors.

• Durable,lightweightfiberglasshandles.

• U.S.Patent#6,766,581

Two-Hand Ratchet Cable Cutter

•Two-handedoperationprovidesmoreleverageandmakescuttinglarge

cables easier.

•Shortfiberglasshandlesmakeiteasytouseintightplacesandtostore

in tool boxes.

•Single-speedratchetmechanism.

•Bladereleaseallowsbladestobeopenedinmid-cut.

•Heavy-dutyforgedsteelbladesprovidelonglife.

CAT. NO. UPC NO. DESCRIPTION

761 11761 Two-Hand Ratchet Cable Cutter

11768 11768 Movable Blade (761)

High Performance Ratchet Cable Cutters

CAT. NO. UPC NO. DESCRIPTION

773 01876 High Performance Ratchet Cable Cutter, 15-1/2"

774 01878 High Performance Ratchet Cable Cutter 19-1/8"

11256 11256 Movable&FixedBlades(773&774)

SPECIFICATIONS

Copper Aluminum Communications Cable

Cutting Capacity* 1000 kcmil (MCM) (500 mm2) 1000 kcmil (MCM) (500 mm2) 1-1/8" dia. (28 mm2)

Length 10-3/4" (273 mm)

Weight 3.6 lbs. (1.6 kg)

761

SPECIFICATIONS

Copper Aluminum Communications Cable

773

Maximum Capacity

500 kcmil (MCM) (240 mm2) 795 kcmil (MCM) (400 mm2) 1-3/16" dia.

Frequent Use Capacity

350 kcmil (MCM) (150 mm2) 750 kcmil (MCM) (400 mm2)

Length 15-1/2"(394mm);   

Weight 5.3 lbs. (2.4 kg)

774

Maximum Capacity

750 kcmil (MCM) (400 mm2) 795 kcmil (MCM) (400 mm2) 1-3/16" dia.

Frequent Use Capacity

500 kcmil (MCM) (240 mm2) 750 kcmil (MCM) (400 mm2)

Length 19-1/8" (486 mm)

Weight 5.8 lbs. (2.6 kg)

773

774

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

192

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

•Simple,one-handoperation.

•Compact–convenientforworkingintightplacesandstoreseasily

in tool pouches.

•Single-speedratchetmechanism.

•Bladereleaseallowsbladestobeopenedinmid-cut.

•Heavy-dutybladesprovidelonglife.

Performance Ratchet Cable Cutters

Both models feature:

• Simple,one-handoperation.

• Two-speedratchetmechanismadjustsforlight/heavycutting.

• Well-suitedfortightworkspaces.

• Speciallydesignedbladeimprovescuttingcapacity.

Compact Ratchet Cable Cutters

CAT. NO. UPC NO. DESCRIPTION

759 45277 Compact Ratchet Cable Cutter

760 17600 Compact Ratchet Cable Cutter

45282 45282 Movable Blade (759)

45281 45281 FixedBlade(759)

09908 09908 Movable Blade (760)

09907 09907 FixedBlade(760)

SPECIFICATIONS

Copper Aluminum Communications Cable

45206

Maximum Capacity* 600 kcmil (MCM) (300 mm2) 600 kcmil (MCM) (300 mm2) 1-3/8" (35 mm) dia.

Frequent Use Capacity* 500 kcmil (MCM) (240 mm2) 500 kcmil (MCM) (240 mm2)

Length 10" (254 mm)

Jaw opening 1-7/16" (36.5 mm)

45207

Maximum Capacity* 750 kcmil (MCM) (400 mm2) 1000 kcmil (MCM) (500 mm2) 2" (51 mm) dia.

Frequent Use Capacity* 600 kcmil (MCM) (300 mm2) 750 kcmil (MCM) (400 mm2)

Length 11" (279 mm)

Jaw opening 2" (51 mm)

45206

45207

SPECIFICATIONS

Copper Aluminum Communications Cable

759

Maximum Capacity* 500 kcmil (MCM) (240 mm2) 750 kcmil (MCM) (400 mm2) 1-1/8" dia. (28 mm2)

Frequent Use Capacity* 400 kcmil (MCM) (185 mm2) 600 kcmil (MCM) (300 mm2)

Length 10-1/2" (262 mm)

Weight 1.4 lbs. (0.6 kg)

760

Maximum Capacity* 1000 kcmil (MCM) (500 mm2) 1000 kcmil (MCM) (500 mm2) 1-3/4" dia. (42 mm2)

Frequent Use Capacity* 750 kcmil (MCM) (400 mm2) 1000 kcmil (MCM) (500 mm2)

Length 11-3/4" (298 mm)

Weight 1.75 lbs. (0.8 kg)

*Capacity may be less for compact and compressed cables

759

760

WEIGHT

CAT. NO. UPC NO. DESCRIPTION LBS. kg

45206 45206 Performance Ratchet Cable Cutter 1.5 .7

45207 45207 Performance Ratchet Cable Cutter 2.4 1.1

45218 45218 Movable Blade (45206)

45212 45212 FixedBlade(45206)

45211 45211 Movable Blade (45207)

45228 45228 FixedBlade(45207)

193

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

= NEW PRODUCT

Heavy-Duty Cable Cutters

718F, 704, 705 and 706

•Strong,lightweightfiberglasshandles.

•Adjustablepivotboltprovidesforbladeadjustment.

704, 705 and 706

•Replaceable,forged,heat-treated,andprecisiongroundblades.

•MadeinUSA.

CAT. NO. UPC NO. DESCRIPTION

718F 10507 Heavy-Duty Cable Cutter, 17-1/2"

704 24564 Heavy-Duty Cable Cutter, 21"

705 05923 Heavy-Duty Cable Cutter, 25-1/2"

706 22291 Heavy-Duty Cable Cutter, 31-1/2"

24565 24565 704CutterUnit(Includes2Blades)

24567 24567 704HandleUnit(IncludesHandle,Sleeve,Grip)

05930 05930 705HandleUnit(IncludesHandle,Sleeve,Grip)

06555 06555 705&706CutterUnit(Includes2Blades)

22296 22296 706HandleUnit(IncludesHandle,Sleeve,Grip)

SPECIFICATIONS

CAPACITIES* 718F 704 705 706

Copper

Maximum Use 350 kcmil (MCM) (150 mm2) 350 kcmil (MCM) (150 mm2) 500 kcmil (MCM) (240 mm2) 750 kcmil (MCM) (400 mm2)

Frequent Use 4/0 AWG (95) 250 kcmil (MCM) (120 mm2) 350 kcmil (MCM) (150 mm2) 500 kcmil (MCM) (240 mm2)

Aluminum

Maximum Use 500 kcmil (MCM) (240 mm2) 1000 kcmil (MCM) (500 mm2) 1000 kcmil (MCM) (500 mm2)

Frequent Use 350 kcmil (MCM) (150 mm2) 350 kcmil (MCM) (150 mm2) 750 kcmil (MCM) (400 mm2) 750 kcmil (MCM) (400 mm2)

Communications Cable

Maximum Use 1" (25 mm) dia. 1-1/4" (32 mm) dia. 1-3/4" (44 mm) dia. 1-1/2" (38 mm) dia.

Frequent Use

Length 17-1/2" (444 mm) 21" (533 mm) 25-1/2" (648 mm) 31-1/2" (800 mm)

Weight 2.8 lbs. (1.3 kg) 3.01 lbs. (1.37 kg) 5.5 lbs. (2.5 kg) 6.2 lbs. (2.8 kg)

*Capacity may be less for compact and compressed cables

706

704

705

718F

Cable Cutter

• Easilycutsheaviercopperandaluminumcablesupto2/0(70mm²).

• Precision-ground,shear-action,curvedcuttingblades.

• 727hasPVC-covered,high-leveragehandlesforeasiercuts.

• 727Mhascushiongrip,high-leveragehandlesforaddedcomfort.

• Heat-treatedforlonglife.

• Madeofheavy-dutyforgedsteel.

• Rust-resistantblackoxidefinish.

CAT. NO. UPC NO. DESCRIPTION

727 31291 Cable Cutter

727M 12629 Cable Cutter with Molded Grip

SPECIFICATIONS FOR 727 AND 727M

Capacity Copper Aluminum Communications Cable

Maximum Capacity 2/0 (70 mm2)

Frequent Use Capacity #1AWG(35mm2) 2/0 (70 mm2) 100 pair

Length 9-1/4" (235 mm)

Weight 1 lb. (.45 kg)

718 Cable Cutter

CAT. NO. UPC NO. DESCRIPTION

718 30208 Cable Cutter

• Economical,lightweight,fitseasilyintotoolboxes.

• Heat-treated,precisionground,shearactionblades.

• Steelhandleswithrubbergripsforleverage.

• MadeinUSA.

SPECIFICATIONS

Capacity Copper Aluminum

Maximum Capacity* 350 kcmil (MCM) (150mm2)

Frequent Use Capacity* 4/0 (95 mm2) 350 kcmil (MCM) (150 mm2)

Length 18" (457 mm)

Weight 2.78 lbs. (1.3 kg)

*Capacity may be less for compact and compressed cables

727

727M

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

194

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Gator® ETS8 Cable Tray Cutter

• Cutscabletraywiresin2seconds.

• Cuttingheadissmallandrotates330˚toeasilygetintotherightcuttingposition.

• Toolautomaticallyretractswhenacutiscomplete,butitcanberetracted

in mid-stroke if necessary.

• Makesflushcutswithoutburrs.

• Comescompletewith2batteries,batterycharger,andcarryingcase.

• Availablewith120volt,12volt,or230voltbatterycharger.

CAT. NO. UPC NO. DESCRIPTION

ETS811 19984 BatteryCableTrayCutterw/120Vcharger

ETS812 19985 BatteryCableTrayCutterw/12Vcharger

ETS822 19986 BatteryCableTrayCutterw/230Vcharger

89188 89188 9.6VNiCdbattery

02019 02019 Carrying Case

19987 19987 Blade Set

12722 12722 120VCharger

23076 23076 12VCharger

12723 12723 230VCharger

SPECIFICATIONS

Weight 3LBS.(1.3KG)

Length 12-3/4" (325mm)

Battery 9.6VNiCd

Battery Charge Time 45 Minutes

CUTTING CAPACITIES

MATERIAL Diameter

1/16" 1/8" 3/16" 1/4" 5/16"

Cable Tray (Mild steel, Zinc Plated) ✓ ✓ ✓ ✓ ✓

Cable Tray (Stainless Steel) ✓ ✓ ✓ ✓

Threaded Rods ✓ ✓ ✓ ✓ ✓

Threaded Rods, Stainless Steel ✓ ✓ ✓ ✓ ✓

Steel Bolts (Grade 2) ✓ ✓ ✓ ✓ ✓

Steel Bolts (Grade 8) ✓ ✓ ✓

ETS

Battery-Powered Bolt Cutter

• Designedtocutone-timedisposablelocks,shippingcontainerseals

and small diameter bolts

• Lightweightin-linestyletooliseasytomaneuver.

• Cutterheadrotates350˚foruseintightlocations.

• Ramretractsautomaticallywhenacutiscomplete.

• Ramcanberetractedatanypointinthecuttingcycle.

• Includestool,twobatteries,batterychargerandmoldedcarryingcase.

• Choiceof120V,12V,or230Vonehourbatterycharger.

CAT. NO. UPC NO. DESCRIPTION

ETS1211 56292 BatteryBoltCutter-120VoltCharger

ETS1212 56293 BatteryBoltCutter-12VoltCharger

ETS1222 56294 BatteryBoltCutter-220Voltcharger

02019 02019 Carrying Case

89188 89188 9.6VBattery

56288 56288 CutterBladeKit

12722 12722 120VCharger

23076 23076 12VCharger

12723 12723 230VCharger

SPECIFICATIONS

Overall Length 14-3/8" (365 mm)

Weight 4.0 lbs. (1.8 kg)

Battery 9.6VNiCd

Battery Charge Time 1 hour

Cutting Capacity

Common Bolt 1/2" diameter

Grade 5 Bolt 7/16" diameter

Grade 8 Bolt 5/16" diameter

Threaded Rod 1/2" diameter

One-Time

Disposable Lock

4 AWG Alumoweld

Boa Lock BL-9

Grade 40 Rebar 3/8" diameter

Steel Rod 3/8" diameter (1/2" diameter using two cycles)

Ground Rod 3/8" diameter (1/2" diameter using two cycles)

Copper and

Aluminum Cable

2/0 AWG

ACSR 3/0 AWG Pigeon (4/0 AWG Pigeon using two cycles)

Guy Strand 5/16" diameter (3/8" diameter using two cycles)

EHS Guy Strand 5/16" diameter

Aircraft Cable 1/4" diameter

195

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

• CutsACSRtypecablesthrough636kcmil(exceptEgret).

• One-handoperationpermitsoperatortocontrolthecablewithafreehand.

• Capableofmakingapproximately50cutsofGrosbeakor120cuts

of Merlin per battery charge.

• Bladesarespeciallycontouredandhardenedtocutbothaluminum

and steel strands.

• Operatorcanswitchbetweenreverseandforwarddirection

with one finger.

• Powerful14.4voltbatterychargesinlessthanonehour.

• Includestwobatteries,batterycharger,andmoldedcarryingcase.

• Choiceof120voltor230voltbatterycharger.

CAT. NO. UPC NO. DESCRIPTION

ES2511 35369 BatteryACSRCutter,120VCharger

ES2522 22132 BatteryACSRCutter,230VCharger

76807 76807 BladeKit

11851 11851 14.4VNiCdBattery

11845 11845 Carrying Case

11841 11841 120VCharger

11856 11856 230VCharger

ACSR

Std. Guy Strand

EHS Guy Strand

Ground Rod

Rebar

(schedule 60)

Page #

BATTERY-POWERED & CORDED

ESG45GL 1590.0 kcmil 5/8" (16 mm) dia. 1/2" 5/8" (16 mm) dia. 1/2" (13 mm) dia. 186

CSG45GL 186

ES25 636 kcmil (except Egret) 186

HYDRAULIC-TYPE

HK520 336.4 kcmil 1/2" (13 mm) dia. 1/2"(13 mm) dia. 7/16" (11 mm) 186

RATCHET-TYPE

776 636.0 kcmil

187

757 954.0 kcmil 1/2" (13 mm) dia. 187

758 1/2" (13 mm) dia. 1/2" (13 mm) dia. 1/2" (13 mm) dia. 187

MANUAL

749 2/0 AWG 188

CUTTER DIES

00949 477.0 kcmil 5/8" (16 mm) dia. 5/8" (16 mm) dia. 5/8" (16 mm) dia 5/8" (16 mm) dia 188

KD6-27 4/0 AWG 188

SPECIFICATIONS

Capacity ACSR 636 kcmil (except Egret)

Aluminum 1500 kcmil

Length 14-3/4" (375mm)

Weight 7.7 lb. (3.5 kg)

Battery 14.4Volt,NiCd

Battery Charge Time 1 Hour

ES25 Battery-Powered ACSR Cutter

Selection Guide for ACSR, Guy Strand & Steel Cutters

ACSR, GUY STRAND & STEEL CUTTING

* For core diameters less than 0.32"

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

196

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Gator® Plus Battery-Powered and Corded ACSR & Guy Wire Cutters

Battery-Powered and Corded Tool Features

• Thesecuttersaredesignedspecificallytocutsteelcablesandrods.

• Theramautomaticallyretractsafterthecutiscompletetoreadythetool

for the next cut.

• Thetwo-speedpumpadvancestheramrapidlytostartthecut,

reducing cycle time.

• Cuttingheadrotates360°formakingcutsintightlocations,andflipsopen

to make mid-span cuts easy.

• U.S.Patents#6,206,663and#6,065,326.

Battery-Powered Tool Features

• Includesone-hourbatterycharger,carryingcaseandtwobatteries.

• Choiceofa120volt,230voltor12voltbatterycharger.

Corded Tool Features

• Operatesdirectlyfrom120volt60Hzor230volt50Hzelectricaloutlets.

No need to charge batteries or worry about running out of power.

• Equippedwith15foot(5m)cord.Canbeusedwithextensioncords.

• Includescarryingcase.

CAT. NO. UPC NO. DESCRIPTION

ESG45GL11 10412 Battery-Powered ACSR Cable Cutter,

120Vcharger

ESG45GL12 10413 Battery-Powered ACSR Cable Cutter,

12Vcharger

ESG45GL22 10414 Battery-Powered ACSR Cable Cutter,

230Vcharger

CSG45GL11 01382 CordedACSRCableCutter,120V

CSG45GL22 01383 CordedACSRCableCutter,230V

ESG45ESI 10398 Movable Blade

ESG45ES 10397 FixedBlade

07063 07063 12VNIMHBattery

10411 10411 Carrying Case for ESG45GL

01598 01598 Carrying Case for CSG45GL

12274 12274 Carrying Strap

03046 03046 120VCharger

03048 03048 12VCharger

03047 03047 230VCharger

ESG45GL11

CSG45GL11

Hydraulic ACSR Cable Cutter

• Hydrauliccuttertakestheeffortoutofcuttingtoughcables.

• Flip-openheadprovidesstrengthwhilemakingiteasytocutlonglengths.

• Headrotates180°.

• Thumbreleaseleverforquickbladeretraction.

CAT. NO. UPC NO. DESCRIPTION

HK520 08031 Hydraulic ACSR Cable Cutter

00336 00336 Cutter Blade

00301 00301 FixedCutterHead

SPECIFICATIONS

Capacity ACSR: 336.4 kcmil (MCM)

Standard Guy Wire, Ground Rod: 1/2" (13 mm)

Soft Steel Bolts: 11/16" (17 mm)

Wire Rope: 3/4" (19 mm)

Rebar: 7/16" dia. (Schedule 60)

Length 14.5" (368 mm)

Weight 5.7 lbs. (2.6 kg)

SPECIFICATIONS

Capacity

ACSR: 1590kcmil(MCM),(Falcon54/19)

Standard Guy Strand: 5/8" diameter (16 mm diameter)

EHS Guy Strand: 1/2" diameter (13 mm diameter)

Ground Rod: 5/8" diameter (16 mm diameter)

Rebar (schedule 60): 1/2" diameter (13 mm diameter)

Wire Rope: 5/8" diameter (16 mm diameter)

Copper and Aluminum

Cable:

1500 kcmil (MCM) (800 mm2)

Soft Steel Bolts: 5/8" diameter (16 mm diameter)

Length 15-1/2" (394 mm)

Height 12-1/2" (318 mm)

Weight 12.8 lbs. (5.8 kg)

Battery 12V,2.6Ah,NIMH

Battery Charge Time – 1 hour

197

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

EHS Guy Wire Cutter

• Cuts1/2"ExtraHighStrength(EHS)andstandardguywire.

• Cuts1/2"(12.7mm)mildsteelrodsandbolts.

• Hastwocuttingactions–single-motioncuttingforsmallcable,

ratchet action for heavy-duty cutting.

• Anti-slipmechanismforpositiveratchetaction.

CAT. NO. UPC NO. DESCRIPTION

758 01274 Heavy-Duty Ratchet Guy Wire Cutter

03548 03548 CutterHeadUnit(IncludesBlades,Blade

Holder, Insert and Hardware)

SPECIFICATIONS

Capacity 1/2" EHS and standard Guy Wire, 1/2" Mild Steel Rods and Bolts

Length 27-3/4" (704 mm)

Weight 10lbs.12oz.(4.8kg)

• Extra-thickblades,groundflattoreducepotentialforbreakage.

• Ratchetactionforincreasedcuttingpower.

• Twocuttingactions–fastscissorcuttingforsmallcable;converts

automatically to ratchet mode.

• Anti-slipmechanismforpositiveratchetaction.

• Rubberbootprotectsratchetmechanism.

High Performance Ratchet ACSR Cable Cutter

• Two-speedmechanismsavescuttingtimebyclosingtheblades

rapidly and shifting to normal speed to perform the cut.

• Patentedmechanismopensthebladesautomaticallywhenthecut

iscomplete.(U.S.Patent#6,766,581)

• Completelynewratchetmechanismprovidesexcellentdurability.

• Shortlengthfitseasilyintotruckbins.

• Durable,lightweightfiberglasshandles.

CAT. NO. UPC NO. DESCRIPTION

776 02826 High Performance ACSR Cable Cutter

11397 11397 Movable&FixedBladeSet

SPECIFICATIONS

Capacity Cuts ACSR through 636 kcmil with steel core

diameters less than 0.32"

All 336.4 and Smaller ACSR

397.5 - Brant, Chickadee, Ibis

477.0-Pelican,Flicker,Hawk

556.5 - Osprey, Parakeet

605.0 - Peacock

636.0-Kingbird,Swift,Rook

Length 20" (508 mm)

Weight 6.2 lb. (2.8 kg)

Ratchet ACSR/Cable Cutter

Specifically cuts:

CAT. NO. UPC NO. DESCRIPTION

757 34084 Ratchet ACSR/Cable Cutter

757U 38794 Ratchet ACSR/Cable Cutter without rubber boot

34187 34187 CutterHeadUnit(Includes2Blades)

SPECIFICATIONS

Capacity 954 kcmil (MCM) ACSR, 1/2" (12.7 mm) soft steel rod

Length 29-1/4" (743 mm)

Jaw opening 1.18" (30 mm)

Weight 12.22 lbs. (5.54 kg)

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

198

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Guy Wire Cutter Dies

•Workswithanycrimpingtoolthataccepts12-ton“U”typedies.

•Lesscostlythandedicatedcuttingtools.

•Simpletoinstallincrimpingtools.

•Requiresnoadjustmentsforcuttingdifferentmaterials.

•Willcleanlycutguywire(includingEHS),grade60rebar,groundrod,

soft steel bolts up to 5/8" (16 mm) and up to 477 kcmil (MCM)

(240 mm2) ACSR.

•U.S.PatentNumber5,775,158.

CAT. NO. UPC NO. DESCRIPTION

00949 00949 Cutting dies for 12-ton “U” die type

crimping tools

SPECIFICATIONS

Capacity Guy Wire: 5/8" (16 mm) dia.

Ground Rod: 5/8" (16 mm) dia.

EHS Guy Wire: 5/8" (16 mm) dia.

Soft Steel Bolts: 5/8" (16 mm) dia.

Rebar (grade 60): 5/8" (16 mm) dia.

ACSR: 477 kcmil (MCM) (240 mm²)

KD6-27 Cutter Dies

• “W”stylediesforcuttingACSR

• Now,withimprovedsteelandheattreatmentforbetterdurability

• Canbeusedwithanycrimpingtoolthataccepts“W”dies.Including:

GreenleeK425O,K425BG,EK22GL,CK22GL,CCCX(withUAWadapters),

ECCX(withUAWadapters),EK628(withCJD3jaws).

• SimilartoBurndyW-28K.

SPECIFICATIONS

Capacity 4/0 ACSR

CAT. NO. UPC NO. DESCRIPTION

KD6-27 10182 “W” Style Cutting Dies for ACSR

ACSR Cable Cutter

•Precision-machined,forgedsteelblades.

•CutsACSRserviceentrancecable.

•Steelhandleswithrubberhandgrips.

CAT. NO. UPC NO. DESCRIPTION

749 32913 ACSR Cable Cutter

04663 04663 Bolt&NutSet

SPECIFICATIONS

Capacity ACSR Cable: 2/0, 7/16" (11.1 mm)

Piano Wire: 1/8" (3.2 mm)

Copper/Aluminum Cable: 350 kcmil (mcm) (150 mm²)

Length 28" (711 mm)

Weight 5.66 lbs. (2.6 kg)

SPECIFICATIONS

Capacity Soft Wire Rope: 1/4" (6 mm) dia.

Aircraft Cable: 3/16" (5 mm) dia.

Hard Steel Wire: 3/16" (5 mm) dia.

Copper/Aluminum Cable: 15/64" (6 mm) dia.

Length 7 7/8" (200 mm)

Weight .75 lbs. (.34 kg)

Steel Cable & Wire Rope Cutter

• Cutssmalldiameterwirerope&wire

• Heavy-dutyforgedsteelbladesandhandles

• Heattreated,precisionground,shearactioncuttingblades

• Cushionedhandlegrips

CAT. NO. UPC NO. DESCRIPTION

722 19990 WireRope&CableCutter

199

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

COMMUNICATIONS AND UNDERGROUND POWER CABLE CUTTING

Gator® ESC85 Battery-Powered Cable Cutter

•Two-speedpumpadvancestheramquicklytostartthecut.

•Bladesopenautomaticallywhenacutiscomplete.

•Scissor-stylebladesareeasytofitaroundcables.

•Cuttingheadrotates360˚formakingcutsintightlocations.

•Sidehandleenhancesoperatorcontrol.

•One-hourbatterycharger,carryingcase,andtwobatteriesincluded.

•Choiceof120V,12V,or230Vbatterycharger.

CAT. NO. UPC NO. DESCRIPTION

ESC8511 02741 CableCutterw/120VCharger

ESC8512 02742 CableCutterw/12VCharger

ESC8522 02743 CableCutterw/230VCharger

07063 07063 12VNIMHBattery

23483 23483 Cutting Blade (2/tool)

20946 20946 Carrying Case

12274 12274 Carrying Strap

03046 03046 120VCharger

03048 03048 12VCharger

03047 03047 230VCharger

SPECIFICATIONS

Capacity 3-3/8" dia. (85 mm)1Communications,Cu&Al

power cables

Length 14-1/4" (362 mm)

Height 14 lbs. (6.3 kg)

Battery 12V,2.6Ah,NIMH

Battery Charge Time 1 hour

1 Lead sheathed communications cable: 2-1/2" (64 mm)

Hydraulic Communications and Underground Power Cable Cutter Head

• Easilycutslargediametercommunicationcableandunderground

distribution cable.

• Swivelinghandleallowsforquickpositioningforcuts.

• 3/8"malescrew-typecoupler.

• Seepage385forhydraulichoseandpumpselection.

CAT. NO. UPC NO. DESCRIPTION

SDK202GL 03137 Hydraulic Communications Cable Cutter

Head

SPECIFICATIONS

Capacity 3-1/2" (90 mm) diameter Al or Cu

communications cable

Weight 27.5 lb. (12.5 kg).

Length 18-7/8" (480 mm)

Maximum Operating Pressure 10,000 psi (700 bar)

Gator® ES85 Battery-Powered Communications Cable Cutter

• Cuts3"(76mm)diametercommunicationscableinunder8seconds.

• Compactdesignpermitsuseintightlocationssuchastrenchesandpedestals.

• Extra-sharphardenedbladescutthecablewithoutpullingindividualstrandsand

with minimal distortion.

• Capableofmakingapproximately90cutsof1800pair

24 AWG cable per battery charge.

• Operatorcanswitchbetweenreverseandforwarddirectionwithonefinger.

• Powerful14.4voltbatterychargesinlessthanonehour.

• Includestwobatteries,batterychargerandmoldedcarryingcase.

• Choiceof120voltor230voltbatterycharger.

SPECIFICATIONS

Capacity 3-1/4" (82 mm) diameter communications cable

Do not use to cut lead sheathed cable

Length 15-3/4" (400 mm)

Weight 6.8 lb. (3.1 kg)

CAT. NO. UPC NO. DESCRIPTION

ES85-11 11839 BatteryComm.CableCutter,120VCharger

ES85-22 11854 BatteryComm.CableCutter,230VCharger

11987 11987 BladeKit

11851 11851 14.4VNiCdBattery

11845 11845 Carrying Case

11976 11976 Blade

11841 11841 120VCharger

11856 11856 230VCharger

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

200

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

High Performance Communications Cable Cutter

• Two-speedmechanismsavescuttingtimebyclosingthebladesrapidly

and shifting to normal speed to perform the cut.

• Nomorepushingonstubbornreleasebuttons-thebladesopen

automatically when the cut is complete.

• Bladescanbeopenedeasilyinmid-cutifrepositioningisnecessary.

• Theshortlengthandhigh-ratioratchetmechanismareespeciallyuseful

in tight locations.

• Completenewratchetmechanismimprovesdurability.

• Wideopening,scissor-stylebladesmakeiteasytogetaroundlarge

cables.

• Durable,lightweight,fiberglasshandles.

• U.S.Patent#6,766,581.

CAT. NO. UPC NO. DESCRIPTION

778 02745 High Performance Communications Cable Cutter

10810 10810 Movable Blade

02744 02744 FixedBlade

SPECIFICATIONS

Capacity 3-3/8" (86 mm) dia. communications cable (1800 pair x 24 AWG.)

Not for use with electrical power cable or cables with steel strands.

Length 18.3" (465 mm)

Weight 6.3 lb. (2.9 kg)

Heavy-Duty Manual Communications Cable Cutter

• Forgedandheat-treatedbladesspeciallydesigned

for communications cable.

• Easilycutscablesupto2-1/4"(57mm)indiameter.

• Makescleancutswithminimaldistortiononlead,rubber,

PVCandpolyethelyne-sheathedcables.

• Bladesandhandlesarereplaceableincaseofdamage.

• Precision-ground,shear-typeblades.

• Fiberglasshandleswithnon-sliprubbergrips.

CAT. NO. UPC NO. DESCRIPTION

765 06011 Heavy-Duty Communications Cutter

05935 05935 Cutter Blade (765) (2 required)

SPECIFICATIONS

Cutting Capacity 2-1/4" (57 mm) Communications Cable (900 pair, 24 AWG)

Length 37" (940 mm)

Weight 7.2 lbs. (3.3 kg)

Ratchet Communications Cutter

This versatile cutter has a specially designed moving blade to handle

the larger diameter telephone cable and soft drawn copper and

aluminum.

• Cutsupto2,700pair3"telephonecable.

• Bladereleaseforsafetyandfastbackout.

• Ratchetlock.

• Bladesaremanufacturedfromhighcarbontoolsteelandheat-treated

for long life.

• Rust-resistant,blackoxidefinish.

SPECIFICATIONS

Length 11-1/2" (287 mm)

Weight 2.8 lbs. (1.3 kg)

CAT. NO. UPC NO. DESCRIPTION

45240 45240 Telco Ratchet Cutter

45241 45241 Movable Blade

45242 45242 FixedBlade

Not for use on ACSR

or steel jacketed cable

201

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Greenlee Crimping Tool Capacities

TOOL TYPE 4 TON 4.5 TON 6 TON 12 TON 15 TON ROTATING QUAD-POINT DIELESS DIELESS

(4) (5) DIE (1)

EK410 K425O EK628 (6) RK1230 RK1240 RK1550 K111 K05-1SPGL K09-2.5SPGL K09-3GL RK06AT RK06FT 1981 1989 1990 EK12ID

K425BG EK22GL HK1230 HK1240 HK06AT HK06FT CK12ID

CK22GL EK1230 EK1240 EKO6AT EK06FT

ECCX CK1230 CK1240 CK06AT CK06FT

CCCX HKL1230 E12CCX

C12CCX

CONNECTOR TYPE

INDUSTRIAL

Copper Lugs 8-300 8-500 8-600 (2) 8-750 8-750 8-1500 8-1 8-1/0 8-4/0 3/0-400 6-500 6-750 8-250 4-500 4-1000 4-1000

Copper Splices 8-300 8-500 8-600 (2) 8-400 8-750 8-1500 8-1 8-1/0 8-4/0 3/0-400 6-500 6-750 8-250 4-500 4-1000 4-1000

Aluminum Lugs 8-2/0 8-4/0 8-300 (3) 8-750 8-750 8-1000 6-400 6-750 8-4/0 6-500 6-1000 6-1000

Aluminum Splices 8-2/0 8-4/0 8-300 (3) 8-400 8-750 8-1000 6-400 6-750 8-4/0 6-500 6-1000 6-1000

Copper “C” Taps 10-2 12-2 (4) 12-400 12-400 8-1000

Aluminum “H” Taps 6-500 6-500 6-1000

Aluminum Pin

Adapters 6-1/0 6-1/0 (3) 6-500 6-750 6-750 6-500 6-750

GROUNDING

Ground Grid

Connectors 6-3 (4) 6-500 6-500 6-500

Copper “E” Taps 6-500 6-500 6-500

OVERHEAD

5/8" Service

Ent. Connectors 10-1/0 10-1/0 10-1/0 (4) 10-1/0 10-1/0 10-1/0 8-1/0 8-1/0

.840 Service Ent.

Connectors 1/0-4/0 1/0-4/0 1/0-4/0 (4) 1/0-4/0 1/0-4/0 1/0-4/0 4-350 4-350

Aluminum “H” Taps 6-4/0 6-4/0 (4) 6-500 6-500 6-900

Copper “H” Taps 10-2 12-2 (4) 12-4/0 12-4/0 12-4/0

Copper Tension

Splice 6-2/0 6-2/0 (4) 6-500 6-500 6-500 6-4/0 6-4/0

All Aluminum

Tension Splice 6-4/0 6-4/0 (4) 6-587.5 6-587.5 6-587.5

One Piece ACSR

Tension Splice 4-1/0 4-1/0 (4) 4-556.5 4-556.5 4-556.5 4-477 4-477

Two Piece ACSR

Tension Splice 2-477 2-4/0 (4) 2-556.5 2-556.5 2-900

Aluminum Jumper

Splice 4-266.8 4-266.8 (4) 4-556.5 4-556.5 4-795

Stirrups 2-4/0 6-4/0 (4) 6-500 6-500 6-500

Aluminum Lugs 2-1/0 4-4/0 (4) 4-556.5 4-556.5 4-795

Copper Lugs 6-1/0 1/0-2/0 (4) 1/0-500 1/0-500 1/0-500

NOTES: (1) Die wheels are rotated to match the cable size. Dies are color coded and marked with the cable size.

(2) Capacity using Greenlee KC22 dies.

(3) Capacity using Greenlee KA22 dies.

(4) Capacity using “W” dies.

(5) Capacity using “U” dies.

(6) Not for use with Burndy 400, 500, and 600 kcmil splices and Penn-Union 600 kcmil splices. The EK628 can be used with all sizes of Burndy & Penn-Union lugs from 8AWG to 600 kcmil.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

202

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

DIE-TYPE CRIMPING

Gator® Plus Battery-Powered 4-Ton Crimping Tool

CAT. NO. UPC NO. DESCRIPTION

EK41011 02033 4-Ton Battery-Powered Crimping Tool,

120VCharger

EK41012 02034 4-Ton Battery-Powered Crimping Tool,

12VCharger

EK41022 02035 4-Ton Battery-Powered Crimping Tool,

230VCharger

89188 89188 9.6VNiCdBattery

02019 02019 Carrying Case

12722 12722 120VCharger

23076 23076 12VCharger

12723 12723 230VCharger

SPECIFICATIONS

Capacity 8 AWG to 300 kcmil (MCM) copper color-coded connectors

8 AWG to 2/0 AWG aluminum color-coded connectors

5/8" service entrance connectors

840 service entrance connectors

Crimping Force 7,900 lb. (35 kN)

Length 14" (356 mm)

Width 3-1/8" (79 mm)

Weight 3.6 lbs. (1.6 kg)

Crimp Cycle Time ~4 seconds

Battery 9.6 volt NiCd

Battery Charge Time 1 Hour

• Newbreakthroughhydraulicpumpdesignresultsinanextremely

compact battery-powered crimping tool with capacity to 300 kcmil

(MCM) copper color-coded connectors. Also crimps 5/8 and 840

service entrance connectors.

• Specialcompact9.6voltNiCdbatteryreducesweightandsize.

• Slimprofileandlightweightprovideforone-handoperation.

• Cancompleteapproximately85crimpsperbatterychargewith4/0

copper connectors.

• Ramautomaticallyretractstosignalthatcrimpiscomplete.

• Ramcanberetractedinmid-cycletoadjustconnector.

• Flip-opencrimpingheadrotates360°.

• Includestwobatteries,batterychargerandmoldedcarryingcase.

• Choiceof120volt,230voltor12voltbatterycharger.

EK410

Crimping dies on page 213

EK628 Battery-Powered 6-Ton Crimping Tool

CAT. NO. UPC NO. DESCRIPTION

EK62811 23593 EK628crimpingtoolw/120Vbatterycharger

EK628-D12 23594 EK628crimpingtoolw/12Vbatterycharger

EK628-D22 23595 EK628crimpingtoolw/230Vbatterycharger

K22S1GL 03078 DieKitfor8AWG-600kcmilCopperConnectors

(Includes all copper die sets listed below and carrying case)

KD06AL 01631 DieKitfor8AWG-350kcmilAluminumConnectors

(Includes all aluminum die sets listed below and carrying case)

CJD3 03242 Crimping jaw unit- “W” dies

CJK 04829 Crimpingjawunit-Thomas&Betts“6-Ton”dies

56356 56356 Carrying Case

89188 89188 Battery-9.6VNiCd

12722 12722 120VCharger

23076 23076 12VCharger

12723 12723 230VCharger

SPECIFICATIONS

Capacity*8AWG to 600 kcmil copper color-coded connectors

8AWG to 350 kcmil aluminum color-coded connectors

Crimping Force 6 tons (53 kN)

Length 18-1/4" (465 mm)

Width (jaws open) 4-1/4" (108 mm)

Weight 5.4 lbs. (2.47 kg)

Battery 9.6Volt,NiCd

Crimp Cycle Time ~6 seconds

Battery Charge Time 1 hour

• Slimprofileandlightweightpermitone-handoperation.

•Crimpingjawsautomaticallyopentosignalthatcrimpiscomplete.

•Crimpingjawscanbeopenedinmid-cycletoadjustconnector.

•Interchangeablecrimpingjawsrotate350degrees.

•Twobatteries,batterycharger,andmoldedcarryingcaseincluded.

•Choiceof120volt,12volt,or230voltbatterycharger.

•EquippedwithCJ22crimpingjawsthatacceptGreenleeK22seriescrimpingdies.

•WhenequippedwithCJD3crimpingjaws,canbeusedwithallindustry“W”style

crimping dies.

•WhenequippedwithCJKcrimpingjaws,canbeusedwithThomas&Betts

“6-Ton” crimping dies.

Crimping dies on page 214

*UL and cUL classified with Anderson®, Blackburn®, Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas & Betts® copper and aluminum color-coded connectors.

The products listed above are registered trademarks of Anderson®, Blackburn®, FCI Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas & Betts®.

*UL and cUL classified from 8 AWG to 600 kcmil with Anderson®, Blackburn®, Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas & Betts® copper code

color-coded connectors when used with Greenlee KC22 crimping dies. Not for use with Burndy 400, 500 or 600 kcmil splices and Penn-Union 600 kcmil splices.

UL & cUL classified from 8 AWG to 350 kcmil (MCM) with Anderson, Blackburn®, Burndy, ILSCO, Panduit, Thomas & Betts, and Penn-Union aluminum code

color-coded connectors when used with Greenlee KA22 crimping dies.

203

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Crimping dies on page 214

Gator® Plus Battery-Powered and Corded 6-Ton Crimping Tools

EK22GL11

Battery-Powered and Corded Tool Features

• Ramautomaticallyretractsafterthecutiscomplete.Noneedtopusharetractlever.

Tool is automatically ready to perform the next cut.

• Flip-topstyleopenseasilywithasimplepullonthesidepieceandrotates360°.

• Equippedwithdieadaptersfor“W”typedies.Theadaptersareequivalentto“D3” dies.

• U.S.Patents#6,206,663and#6,065,326.

Battery-Powered Tool Features

• Atwo-speedpumpadvancestheramquicklytostartthecrimp.

Crimp times range from about 5 to 7 seconds depending on the connector.

• Powerful12volt2.6Ahbatteryprovidesupto120crimpspercharge.

• Includesone-hourbatterycharger,carryingcaseandtwobatteries.

• Choiceofa120volt,230voltor12voltbatterycharger.

Corded Tool Features

• Operatesdirectlyfrom120volt60Hzor230volt50Hzelectricaloutlets.

No need to charge batteries or worry about running out of power.

• Equippedwith15foot(5m)cord.Canbeusedwithextensioncords.

• Atwo-speedpumpadvancestheramquicklytostartthecrimp.Crimpcompletiontimeisreduced

by over 25%. Crimp times range from about 5 to 7 seconds depending on the connector.

• Includescarryingcase.

SPECIFICATIONS BATTERY POWERED CORDED

Capacity Color-coded copper lugs and splices, 600 kcmil (MCM). Color-coded

aluminumlugsandsplices,350kcmil(MCM).Forcapacitywithothertypes

of connectors, see chart on page 201.

Crimping Force 12,000 lb (53 kN) 12,000 lb (53 kN)

Length 12-3/8" (314 mm) 12-3/8" (314 mm)

Height 11-3/4" (298 mm) 11-3/4" (298 mm)

Weight 9.7 lbs. (4.4 kg) 9.7 lbs. (4.4 kg

Battery 12V,2.6Ah,NIMH N/A

Battery charge

time

1 hour N/A

CK22GL11

CAT. NO. UPC NO. DESCRIPTION

EK22GL11 03551 6-TonBattery-PoweredCrimpingTool120Vcharger

EK22GL12 03552 6-TonBattery-PoweredCrimpingTool12Vcharger

EK22GL22 03553 6-TonBattery-PoweredCrimpingTool230Vcharger

CK22GL11 01368 6-TonCordedCrimpingTool,120V

CK22GL22 01369 6-TonCordedCrimpingTool,230V

07063 07063 12VNIMHBattery

05954 05954 EK22GLCarryingCase

01618 01618 CK22GLCarryingCase

12274 12274 Carrying Strap

04292 04292 Die Adapter for “W” Type Dies

03046 03046 120VCharger

03048 03048 12VCharger

03047 03047 230VCharger

*UL and cUL classified with Anderson®, Blackburn®, Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas & Betts® copper lugs and splices to 600 kcmil (MCM)

and with aluminum lugs & splices to 350 kcmil (MCM). The products listed above are registered trademarks of Anderson®, Blackburn®, FCI Burndy®, ILSCO®,

Panduit®, Penn-Union® and Thomas & Betts®.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

204

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Gator® Plus 12-Ton Battery-Powered Crimping Tools

CAT. NO. UPC NO. DESCRIPTION

EK123011 06429 12-Ton Battery-Powered Crimping Tool, 1.2" (30 mm)

opening,120VCharger

EK123012 06431 12-Ton Battery-Powered Crimping Tool, 1.2" (30 mm)

opening,12VCharger

EK123022 06432 12-Ton Battery-Powered Crimping Tool, 1.2" (30 mm)

opening,230VCharger

EK1230C11 07190 12-Ton Battery-Powered Crimping Tool, 1.2" (30 mm)

opening,PVCcovered,120VCharger

EK1230C12 07191 12-Ton Battery-Powered Crimping Tool, 1.2" (30 mm)

opening,PVCcovered,12VCharger

EK1230C22 07192 12-Ton Battery-Powered Crimping Tool, 1.2" (30 mm)

opening,PVCcovered,230VCharger

EK124011 06436 12-Ton Battery-Powered Crimping Tool, 1.65" (42 mm)

opening,120VCharger

EK124012 06437 12-Ton Battery-Powered Crimping Tool, 1.65" (42 mm)

opening,12VCharger

EK124022 06439 12-Ton Battery-Powered Crimping Tool, 1.65" (42 mm)

opening,230VCharger

EK1240C11 07193 12-Ton Battery-Powered Crimping Tool, 1.65" (42 mm)

opening,PVCcovered,120VCharger

EK1240C12 07194 12-Ton Battery-Powered Crimping Tool, 1.65" (42 mm)

opening,PVCcovered,12VCharger

EK1240C22 07195 12-Ton Battery-Powered Crimping Tool, 1.65" (42 mm)

opening,PVCcovered,230VCharger

EK1240K11 06443 12-TonBattery-PoweredCrimpingTool,Kearneyhead,

120VCharger

EK1240K12 06444 12-TonBattery-PoweredCrimpingTool,Kearneyhead,

12VCharger

EK1240K22 06445 12-TonBattery-PoweredCrimpingTool,Kearneyhead,

230VCharger

EK1240KC11 07196 12-TonBattery-PoweredCrimpingTool,Kearneyhead,

PVCcovered,120VCharger

EK1240KC12 07197 12-TonBattery-PoweredCrimpingTool,Kearneyhead,

PVCcovered,12VCharger

EK1240KC22 07198 12-TonBattery-PoweredCrimpingTool,Kearneyhead,

PVCCovered,230VCharger

07063 07063 12VNIMHbattery

06712 06712 EK1230&EK1240CarryingCase

12274 12274 Carrying Strap

03046 03046 120VCharger

03048 03048 12VCharger

03047 03047 230VCharger

SPECIFICATIONS

Capacity*EK1230&EK1240–8AWGto750kcmil

copper color-coded lugs and splices

See crimping tool capacity chart on page 201,

for additional capacities

EK1240K–ACSRterminals1033kcmil(MCM),

ACSR tension fittings 477 kcmil (MCM)

Crimping Force 24,000 lb (106 kN)

Length EK1230–14-5/8"(371mm);

EK1240–15-1/4"(387mm);

EK1240K–15-3/4"(398mm)

Weight EK1230–14.1lbs(6.4kg)

EK1240&EK1240K–14.9lbs.(6.8kg)

• Threecrimpingheadchoices:EK1230forindustry“U”typedieswith

1.20"(30mm)opening,EK1240forindustry“U”typedieswith1.65"

(42mm)openingandEK1240KforKearneyPH2typedies.

• Newheaddesignsresultinlowerweightandimproveddurability–

tested to 50,000 crimp cycles.

• Two-speedpumptoreducecycletime.

• Ramautomaticallyretractswhencrimpcycleiscomplete–aGreenleeexclusive.

• Retractionstopfeaturepermitstheoperatortostoptheramretractionatany

point by pulling the trigger. The subsequent crimp cycle starts from this partially

retracted position saving time and battery life.

• Crimpingheadsrotate360°.

• CoveredheadmodelshavetwolayersofPVCthattotalapproximately3/16"

(4.8 mm) thick. The outer layer is black and the inner layer is red.

• Powerful12volt2.6Ahbatteryprovidesupto35crimpspercharge.

• Includesone-hourbatterycharger,carryingcase,andtwobatteries.

• U.S.Patents#6,206,663and#6,065,326.

EK1230

EK1240

EK1240K

EK1240C

* EK1230 and EK1240 are UL and cUL classified with Anderson®, Blackburn®, Burndy®, ILSCO®,

Panduit®, Penn-Union® and Thomas & Betts® copper and aluminum color-coded lugs and splices when

used with Greenlee KC12 and KA12 crimping dies. The products listed above are registered trade-

marks of Anderson®, Blackburn®, FCI Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas & Betts®.

Crimping dies on page 215

205

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

SPECIFICATIONS

Capacity*HK1230&HK1240–8AWGto750kcmilcopper

color-coded lugs and splices.

Seecrimpingtoolcapacitychartonpg.201;

Crimping Force 24,000 lbs (106 kN)

Length HK1230–20-3/8"(518mm);

HK1240–21-1/2"(546mm);

Weight HK1230–12.2lbs(5.5kg);

HK1240–13.2lbs(6.0kg)

Gator® Plus 12-Ton Corded Crimping Tools

CAT. NO. UPC NO. DESCRIPTION

CK123011 01370 Corded 12-Ton Crimping Tool, 1.2"

(30mm)opening,120V

CK123022 01372 Corded 12-Ton Crimping Tool, 1.2"

(30mm)opening,230V

CK124011 01373 Corded 12-Ton Crimping Tool, 1.65"

(42mm)opening,120V

CK124022 01374 Corded 12-Ton Crimping Tool, 1.65"

(42mm)opening,230V

01523 01523 Carrying Case

12274 12274 Carrying Strap

SPECIFICATIONS

Capacity*CK1230&CK1240–8AWGto750kcmilcopper

color-coded lugs and splices.

See Crimping Tool Capacity chart on page 201

for additional capabilities

Crimping Force 24,000 lb (106 kN)

Length CK1230:14-5/8"(371mm);CK1240:15-1/4"(387mm)

Weight CK1230:14.1lbs(6.4kg);CK1240:14.9lbs(6.8kg)

12-Ton Manual Hydraulic Crimping Tools

CAT. NO. UPC NO. DESCRIPTION

HK1230 06426 12-Ton Hydraulic Crimping Tool, 1.2" (30 mm) opening

HK1230C 07199 12-Ton Hydraulic Crimping Tool, 1.2" (30 mm) opening,

PVCcovered

HK1240 06427 12-Ton Hydraulic Crimping Tool, 1.65" (42 mm) opening

HK1240C 07202 12-Ton Hydraulic Crimping Tool, 1.65" (42 mm) opening,

PVCcovered

• Operatesdirectlyfrom120volt60Hzor230volt50Hzelectricaloutlets.

No need to charge batteries or worry about running out of power.

• Equippedwith15foot(5m)cord.Canbeusedwithextensioncords.

• Twocrimpingheadchoices:CK1230forindustry“U”typedieswith

1.20"(30mm)opening,andCK1240forindustry“U”typedieswith

1.65" (42 mm) opening.

• Newheaddesignsresultinlowerweightandimproveddurability–

tested to 50,000 crimp cycles.

• Two-speedpumptoreducecycletime.

• Ramautomaticallyretractswhencrimpcycleiscomplete–aGreenlee

exclusive.

• Retractionstopfeaturepermitstheoperatortostoptheramretractionat

any point by pulling the trigger. The subsequent crimp cycle starts from

this partially retracted position saving time and battery life.

• Crimpingheadsrotate360°.

• Includescarryingcase.

• U.S.Patents#6,206,663and#6,065,326.

• Twocrimpingheadchoices:HK1230forIndustry“U”typedieswith1.20"

(30mm)opening,andHK1240forindustry“U”typedieswith1.65"

(42 mm) opening.

• Newheaddesignsresultinlowerweightandimproveddurability–

tested to 50,000 crimp cycles.

• Two-speedpumptoreducecycletime.

• Ramautomaticallyretractswhencrimpcycleiscomplete

– a Greenlee exclusive.

• Crimpingheadsrotate360°.

• Smallerandlighterthancompetitivetools.

• CoveredheadmodelshavetwolayersofPVCthattotalapproximately

3/16" (4.8 mm) thick. The outer layer is black and the inner layer is red.

• Includescarryingcase.

• U.S.Patent#6,206,663.

HK1230

HK1240C

HK1240

Crimping dies on page 215

Crimping dies on page 219

*CK1230 and CK1240 are UL and cUL classified with Anderson, Blackburn, FCI Burndy, ILSCO, Panduit, Penn-Union and Thomas & Betts copper and aluminum

color-coded lugs and splices when used with Greenlee KC12 and KA12 crimping dies. The products listed above are registered trademarks of Anderson®,

Blackburn®, FCI Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas & Betts®.

*HK1230 and HK1240 are UL and cUL classified with Anderson, Blackburn, FCI Burndy, ILSCO, Panduit, Penn-Union and Thomas & Betts copper and aluminum

color-coded lugs and splices when used with Greenlee KC12 and KA12 crimping dies. The products listed above are registered trademarks of Anderson®,

Blackburn®, FCI Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas & Betts®.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

206

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

12-Ton Manual Hydraulic Crimping Tool

CAT. NO. UPC NO. DESCRIPTION

HKL1232 23521 12-Ton Hydraulic Crimping Tool, 1.4" (32 mm)

opening

SPECIFICATIONS

Capacity*8 AWG to 750 kcmil copper color-coded lugs

and splices.

See crimping tool capacity chart on page 201

for additional capacities.

Crimping Force 24,000 lbs (106 kN)

Length 24-1/4" (616 mm)

• Two-speedramadvancesfastandshiftstolowerspeedtocompletethecrimp.

• Strong,lightweightfiberglasshandles.

• Pushbuttonpermitsdiestobeinsertedandremovedeasily.

• The“C”styleheadhasa1.4" (32 mm) opening for easy placement

on connectors.

• Toolissuppliedinadurable,moldedplasticcarryingcase.

• AcceptsGreenleeandIndustry“U”stylediesfor12-tontools.

Crimping dies on page 215

12-Ton Remote-Powered Crimping Heads

SPECIFICATIONS

Capacity*RK1230&RK1240–8AWGto750kcmilcopper

color-coded lugs and splices.

See crimping tool capacity chart on pg. 201 for

additional capabilities

Crimping Force 24,000 lbs (106 kN)

Length RK1230–10-3/4"(273mm);RK1240–11-7/8"

(302 mm)

Weight RK1230–8.7lbs(3.9kg);

RK1240–9.7lbs.(4.4kg)

Max. Operating

Pressure

10,000 psi (700 bar)

CAT. NO. UPC NO. DES CRIPTION

RK1230 05350 12-Ton Remote-Powered Crimping

Head, 1.2" (30 mm) opening

RK1240 05351 12-Ton Remote-Powered Crimping

Head, 1.65" (42 mm) opening

RK1240C 07205 12-Ton Remote-Powered Crimping

Head, 1.65" (42 mm) opening,

PVCcovered

• Twocrimpingheadchoices:RK1230forIndustry“U”typedieswith1.20"

(30mm)opening,andRK1240forIndustry“U”typedieswith1.65" (42 mm)

opening.

• Newheaddesignsresultinlowerweightandimproveddurability

– tested to 50,000 crimp cycles.

• Bossincludedoneachcrimpingheadforusewithhotsticks.

• Easytogetintotightlocations,lightweightmakesthemexcellentchoices

for hotstick use.

• Single-actingtoolsrequireanexternalhydraulicpumpcapableof

10,000 psi (700 bar).

• Equippedwitha3/8" male screw-type coupler.

• Capableofcrimpingawiderangeoflugs,C-taps,H-tapsandoverhead

tension sleeves.

• CoveredheadmodelshavetwolayersofPVCthattotalapproximately3/16"

(4.8 mm) thick. The outer layer is black and the inner layer is red.

• Includescarryingcase.

• Seepage383-385forhydraulichoseandpumpselection.

RK1230

RK1240

RK1240C

Crimping dies on page 215

*UL and cUL is classified with Anderson, Blackburn, FCI Burndy, ILSCO, Panduit, Penn-Union and Thomas & Betts copper and aluminum color-coded lugs and

splices when used with Greenlee KC12 and KA12 crimping dies. The products listed above are registered trademarks of Anderson®, Blackburn®, FCI Burndy®,

ILSCO®, Panduit®, Penn-Union® and Thomas & Betts®.

*RK1230 and RK1240 are UL and cUL classified with Anderson, Blackburn, FCI Burndy, ILSCO, Panduit, Penn-Union and Thomas & Betts copper and

aluminum color coded lugs and splices when used with Greenlee KC12 and KA12 crimping dies. The products listed above are registered trademarks of Anderson®,

Blackburn®, FCI Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas & Betts®.

207

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

15-Ton Crimping Tool

CAT. NO. UPC NO. DESCRIPTION

RK1550 05353 15-Ton Single-Acting Remote-Powered Crimping Tool

48820 48820 Die Adapters – Burndy P dies (Y46), llsco ILD-P dies

48788 48788 DieAdapters–T&B15600dies,Blackburn15600dies

48802 48802 DieAdapters–GreenleeUdies,BurndyUdies,

llscoILDdies,T&B15500dies,Blackburn15500dies

48824 48824 DieAdapters–KearneyPH2/WH2dies

SPECIFICATIONS

Capacity*Color-Codedcopperlugsandsplices:#8

to 1500 kcmil (MCM) Color-Coded

aluminumlugsandsplices:#8to1000

kcmil(MCM)Forotherconnectortypes,

see the capacity chart on page 201

Crimping Force at 10,000

psi (700 bar)

30,000 lbs (133 kN)

Length 15"(380mm);

Width 3" (76 mm)

Height 5-3/8" (135 mm)

Weight 14.1 lbs. (6.4 kg)

Operating Pressure 10,000 psi (700 bar)

Crimping Tool 8-1 AWG

SPECIFICATIONS

Capacity*8 AWG – 1 AWG copper color-coded connectors

Length 10" (273 mm)

Weight 1.4 lbs. (0.6 kg)

CAT. NO. UPC NO. DESCRIPTION

K111 10763 Crimping Tool

• Interchangeableadapterspermittheuseofawidevarietyofdietypes

for all common crimping applications.

• AcceptsKearneyPH4/PH14dieswithoutadapters.

• Zinc-platedheadresistscorrosionbetterthanotherfinishes.

• Hotstickattachmentpointisstandard.

• Operateswithmost10,000psi(700bar)hydraulicsources.

• Equippedwith3/8" male screw-type 10,000 psi (700 bar) coupler.

• Includescarryingcase.

• Seepages383-385forhoseandpumpselection.

• Smallsizeandlightweightmakethisanidealtoolforcrimpingsmall

lugs and splices.

• Easilyfitsintoolpouches.

• Full-cyclemechanismassuresthatcrimpsarecomplete.

• Jawscanbeopenedinmid-cycleifnecessarytoadjustconnector.

• Widegripsmakecrimpingeasyonthehands.

*UL and cUL classified with Anderson, Blackburn, FCI Burndy, ILSCO, Panduit, Penn-Union and Thomas & Betts copper and aluminum color-coded lugs and splices

up to 750kcmil using 48802 die adapters when used with Greenlee KC12 and KA12 crimping dies. The products listed above are registered trademarks

of Anderson®, Blackburn®, FCI Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas & Betts®.

*UL and cUL classified with Anderson, Blackburn, Burndy, ILSCO, Panduit, Penn-Union and Thomas & Betts copper color-coded connectors.

The products listed above are registered trademarks of Anderson®, Blackburn®, FCI Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas & Betts®.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

208

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

K-Series Crimping Tool 8-1/0 AWG

CAT. NO. UPC NO. DESCRIPTION

K05-1GL 02624 Crimping Tool

K05-1SPGL 02625 Crimping Tool, full cycle mechanism

02694 02694 Die Set

SPECIFICATIONS

Capacity*8 AWG – 1/0 AWG Copper

Length 15.4" (390 mm)

Weight 2.4 lbs. (1.1 kg)

K-Series Crimping Tool 8-4/0 AWG

SPECIFICATIONS

Capacity*8 AWG – 4/0 AWG Copper

Length 25.5" (650 mm)

Weight 6.4 lbs. (2.9 kg)

CAT. NO. UPC NO. DESCRIPTION

K09-2GL 02628 Crimping Tool

K09-2SPGL 02629 Crimping Tool, full cycle mechanism

02912 02912 Die Set

•Crimpssmallercopperconnectors.

•Small,lightweight,easytohandle.

•Easytogetintightlocations.

•Color-coded,hexagonalrotatingdies.

•Fullcyclemechanismreleasesonlyafterfullcrimpcycleiscompleted.

K-Series Crimping Tool 3/0-400

•Crimpsthelargercopperconnectorsizesallthewayto400kcmil(MCM).

•Color-coded,hexagonalrotatingdies.

CAT. NO. UPC NO. DESCRIPTION

K09-3GL 02630 Crimping Tool

02913 02913 Die Set

SPECIFICATIONS

Capacity*3/0 AWG – 400 kcmil (MCM) Copper

Length 25.5" (650 mm)

Weight 6.4 lbs. (2.6 kg)

Manual Crimping Tool

• Designedforcrimpingawiderangeofoverheadserviceentranceconnections,

overhead splices, and overhead taps.

• Easy-to-useMD-6type“pop”tool.

• K425-EquippedwithD³ die groove and either a “BG” or “O” die groove.

• K425KtoolsareequippedwithadiegrooveforKearney® “O” dies and either

a 5/8" or “O” die groove

• TheD³ die groove serves as a die seat for all Greenlee and industry

“W” type dies. Page 214.

• Bentfiberglasshandlesprovideasolidgrip,goodleverageandbetter

durability than wood.

• Teflon-impregnatedbushingsatpivotjointsprovidesmoothoperation

and long life.

• Completecrimpsareassuredwithanover-centercammechanism.

• Toolcaneasilybecheckedvisuallyforproperadjustmentandcanbe

adjusted with Allen wrenches.

CAT. NO. UPC NO. DESCRIPTION

K425O 02064 Crimping Tool with D³ and O die grooves

K425BG 02065 Crimping Tool with D³ and BG die grooves

K425K58 08160 CrimpingToolwithKearney® O and

5/8 die grooves

K425KO 08161 CrimpingToolwithKearney® D and

O die grooves

SPECIFICATIONS

Capacity*See capacity chart on page 201

Crimping Force 9,000 lb. (40 kN)

Length 25-3/8" (645 mm)

Weight 7.1 lbs. (3.2 kg)

•Crimpsallthepopularsmalltomid-rangecopperconnectorsizes.

•Longlengthresultsinlowhandleefforts.

•Color-coded,hexagonalrotatingdies.

•Fullcyclemechanismreleasesonlyafterfullcrimpcycleiscompleted.

K425BG

*UL and cUL classified with Anderson, Blackburn, Burndy, ILSCO, Panduit, Thomas & Betts and Penn-Union copper connectors.

The products listed above are registered trademarks of Anderson®, Blackburn®, FCI Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas & Betts®.

*UL and cUL classified with Anderson, Blackburn, Burndy, ILSCO, Panduit, Thomas & Betts and Penn-Union copper connectors.

The products listed above are registered trademarks of Anderson®, Blackburn®, FCI Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas & Betts®.

*UL classified and CSA certified with Anderson, Blackburn, Burndy, ILSCO, Panduit, Thomas & Betts and Penn-Union copper connectors.

The products listed above are registered trademarks of Anderson®, Blackburn®, FCI Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas & Betts®.

209

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Gator® Plus Battery-Powered and Corded Quad-Point Dieless Crimping Tools

DIELESS CRIMPING

EK06AT

EK06FT

CK06AT

CK06FT

Battery-Powered and Corded Tool Features

• Two-speedpumpadvancestheramquicklytostartthecrimp,reducingcrimpcompletiontime.Theram

automatically retracts after the crimp is complete.

• Lightweight,featuringanangledpistolgripanda360°rotatinghead.

• Flip-topstyleusesapullpintoopenheadforeasyremovalfromtheconnector.

• U.S.Patents#6,206,663and#6,065,326.

Battery-Powered Tool Features

• Utilizesfourindentorstomakethecrimp.

• Includestwobatteries,batterycharger,carryingcase,testgaugeandtestslugs.

• Choiceofa120volt,230volt,or12voltone-hourbatterycharger.

Corded Tool Features

• Operatesdirectlyfrom120volt60Hzor230volt50Hzelectricaloutlets.Noneedtochargebatteriesorworry

about running out of power.

• Equippedwith15foot(5m)cord.Canbeusedwithextensioncords.

• 6.2-toncapacity.Utilizesfourindentorstomakethecrimp.

• Includescarryingcase,testgaugeandtestslugs.

SPECIFICATIONS BATTERY POWERED CORDED

Capacity*See crimping tool capacity chart on page 201 See crimping tool capacity chart on page 201

Crimping Force 6.2 tons (55 kN) 6.2 tons (55 kN)

Length EK06AT–14"(355mm),EK06FT–14-7/8"(378mm) CK06AT–14"(355mm),CK06FT–14-7/8"

(378 mm))

Weight EK06AT–11.1lbs.(5.0kg),EK06FT–10.8lbs.(4.9kg) CK06AT–11.1lbs.(5.0kg),CK06FT–10.8lbs.(4.9kg

Battery 12V,2.6Ah,NIMH N/A

Battery Charge Time 1 hour N/A

Operating Voltage N/A 120volts:CK06AT11,CK06ATC11,CK06FT11

230volts:CK06AT22,CK06ATC22,CK06FT22

CAT. NO. UPC NO. DESCRIPTION

EK06AT11 06069 Quad-PointBattery-PoweredCrimpingTool,OpenHeadDieless,120VCharger(12VNiCdBattery)

EK06AT12 06070 Quad-PointBattery-PoweredCrimpingTool,OpenHeadDieless,12Vcharger(12VNiCdBattery)

EK06AT22 06071 Quad-PointBattery-PoweredCrimpingTool,OpenHeadDieless,230Vcharger(12VNiCdBattery)

EK06ATC11 06203 Quad-Point Battery-Powered Crimping Tool, Open Rubber Covered Head Dieless,

120VCharger(12VNiCdBattery)

EK06ATC12 06204 Quad-Point Battery-Powered Crimping Tool, Open Rubber Covered Head Dieless,

12VCharger(12VNiCdBattery)

EK06ATC22 06206 Quad-Point Battery-Powered Crimping Tool, Open Rubber Covered Head Dieless,

230VCharger(12VNiCdBattery)

EK06FT11 06072 Quad-PointBattery-PoweredCrimpingTool,Flip-TopHeadDieless,120VCharger(12VNiCdBattery)

EK06FT12 06073 Quad-PointBattery-PoweredCrimpingTool,Flip-TopHeadDieless,12VCharger(12VNiCdBattery)

EK06FT22 06074 Quad-PointBattery-PoweredCrimpingTool,Flip-TopHeadDieless,230VCharger(12VNiCdBattery)

CK06AT11 01377 CordedQuad-PointCrimpingTool,OpenHead,120V

CK06AT22 01378 CordedQuad-PointCrimpingTool,OpenHead,230V

CK06FT11 01380 CordedQuad-PointCrimpingTool,Flip-TopHead,120V

CK06FT22 01381 CordedQuad-PointCrimpingTool,Flip-TopHead,230V

07063 07063 12VNIMHBattery

06333 06333 CarryingCaseforEK06AT&EK06FT

01598 01598 CarryingCaseforCK06AT&CK06FT

12274 12274 Carrying Strap

03046 03046 120VCharger

03048 03048 12VCharger

03047 03047 230VCharger

*FT tools are UL and cUL classified with #4AWG – 750 kcmil (MCM) copper color-coded connectors and #6AWG – 750 kcmil (MCM) aluminum color-coded

connectors of the following brands: Anderson, Blackburn, FCI Burndy, Ilsco, Panduit, Penn-Union, and Thomas & Betts.

AT tools are UL and cUL classified with #4 – 500 kcmil (MCM) copper color-coded connectors of the following brands: Anderson, Blackburn, FCI Burndy, ILSCO,

Panduit, Penn-Union, & Thomas & Betts.

The products listed above are registered trademarks of Anderson®, Blackburn®, FCI Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas & Betts®.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

210

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Manual Hydraulic Quad-Point Dieless Crimping Tools

CAT. NO. UPC NO. DESCRIPTION

HK06AT 06065 Hydraulic Quad-Point Crimping Tool,

Open Head Dieless

HK06FT 06196 Hydraulic Quad-Point Crimping Tool,

Flip-TopDieless

SPECIFICATIONS

Capacity*See crimping tool capacity chart on page 201.

Length HK06AT–20-3/4"(525mm)

HK06FT–21-1/16"(535mm)

Weight 9.0 lbs. (4.1 kg)

• Utilizesfourindentorstomakethecrimp.

• Two-speedpumpadvancestheramquicklytostartthecrimp,reducing

crimp completion time. The ram automatically retracts after the crimp is

complete.

• Flip-topstyleusesapullpintoopenheadforeasyremovalfromthe

connector.

• Compact,featuringa360°rotatinghead.

• Includescarryingcase,testgaugeandtestslugs.

• U.S.Patents#6,206,663and#6,065,326.

HK06AT

HK06FT

Quad-Point Dieless Remote-Powered Crimping Heads

SPECIFICATIONS

Capacity*See crimping tool capacity chart on page 201.

Crimping Force 6.2 tons (55 kN)

Length RK06AT–10"(254mm);RK06FT–10-1/2"(267mm)

Weight 6.2 lbs. (2.8 kg)

CAT. NO. UPC NO. DESCRIPTION

RK06AT 06066 Remote Powered Quad-Point Crimping

Tool, Open Head Dieless

RK06FT 06197 Remote Powered Quad-Point Crimping

Tool,Flip-TopHeadDieless

• Utilizefourindentorstomakethecrimp.

• Operatesfrom10,000psi(700bar)hydraulicpumpingsources.

• Smallandlightweightfordifficult-to-reachlocations.

• Equippedwith3/8in.malescrew-typecouplers.

• Flip-topstyleusesapullpintoopenheadforeasyremovalfrom

the connector.

• Includescarryingcase,testgaugeandtestslugs.

• Seepages383-385forhoseandpumpselection.

RK06FT

RK06AT

*FT tools are UL and cUL classified with #4AWG – 750 kcmil (MCM) copper color-coded connectors and #6AWG – 750 kcmil (MCM) aluminum color-coded

connectors of the following brands: Anderson, Blackburn, FCI Burndy, Ilsco, Panduit, Penn-Union, and Thomas & Betts.

AT tools are UL and cUL classified with #4 – 500 kcmil (MCM) copper color-coded connectors of the following brands: Anderson, Blackburn, FCI Burndy, ILSCO,

Panduit, Penn-Union, & Thomas & Betts.

The products listed above are registered trademarks of Anderson®, Blackburn®, FCI Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas & Betts®.

*FT tools are UL and cUL classified with #4AWG – 750 kcmil (MCM) copper color-coded connectors and #6AWG – 750 kcmil (MCM) aluminum color-coded

connectors of the following brands: Anderson, Blackburn, FCI Burndy, Ilsco, Panduit, Penn-Union, and Thomas & Betts.

AT tools are UL and cUL classified with #4 – 500 kcmil (MCM) copper color-coded connectors of the following brands: Anderson, Blackburn, FCI Burndy, ILSCO,

Panduit, Penn-Union, & Thomas & Betts.

The products listed above are registered trademarks of Anderson®, Blackburn®, FCI Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas & Betts®.

211

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Dieless Crimping Tool to 500 kcmil (MCM)

• Dielesscrimpinghead,nodiestoloseorreplace.

• Patentedpressuresystemautomaticallychangescrimpingforce

foreachconnectorsizeandtype.Eliminateserrors.

• Sevenindentprofilerequiresfewercrimpsperconnector.

• Automatictwo-speedpumpforrapidadvance.Minimizescrimpingtime

and number of strokes.

• 8-1/2ton(75.6kN)maximumcrimpingforce.

• Swivelheadrotates180°formaximumflexibility.

• IncludesPressureTestKitandcarryingcase

• Notforusewith“C”and“H”taps.

CAT. NO. UPC NO. DESCRIPTION

1989 35955 Dieless Crimping Tool to 500 kcmil (MCM)

36202 36202 PressureTestKitincludes30TestSlugsandGauge

SPECIFICATIONS

Capacity*Copper – 4 AWG - 500 kcmil (MCM)

Aluminum – 6 AWG - 500 kcmil (MCM) (see chart on page 201)

Length 22-1/2" (572 mm)

Weight 14.75 lbs. (6.7 kg)

EK12ID

Gator® Plus Dieless Crimping Tools

CAT. NO. UPC NO. DESCRIPTION

EK12ID11 20503 Battery-PoweredDielessCrimpingTool,115VBatteryCharger

EK12ID12 20504 Battery-PoweredDielessCrimpingTool,12VBatteryCharger

EK12ID22 20505 Battery-PoweredDielessCrimpingTool,230VBatteryCharger

CK12ID11 20506 CordedDielessCrimpingTool,120V

CK12ID22 20507 CordedDielessCrimpingTool,230V

03046 03046 120VCharger

03048 03048 12VCharger

03047 03047 230VCharger

07063 07063 12VNIMHBattery

MK20939 20939 EK12ID&CK12IDCarryingCase

Battery-Powered and Corded Tool Features

• Two-speedpumpadvancestheramquicklytostartthecrimp,reducing

crimp completion time. The ram automatically retracts after the crimp

is complete.

• Retractionstopfeaturepermitstheoperatortostoptheramretractionat

any point by pulling the trigger. The subsequent crimp cycle starts from

this partially retracted position saving time and battery life.

• Lightweight,featuringanangledpistolgripanda350°rotatinghead.

• Flipopencrimpingheadwillallowcrimpingof4AWG–1000kcmil

copper or 6 AWG – 1000 kcmil aluminum with no dies to change.

• Dielessindentstylecrimpingheaddoesnotrequireinterchangeable

crimping dies.

Battery-Powered Tool Features

• Includestwobatteries,batterycharger,carryingcase,testgauge

and test slugs.

• Choiceofa120volt,230volt,or12voltone-hourbatterycharger.

Corded Tool Features

• Operatesdirectlyfrom120volt60Hzor230volt50Hzelectricaloutlets.

No need to charge batteries or worry about running out of power.

• Equippedwith15foot(5m)cord.Canbeusedwithextensioncords.

• Includescarryingcase.

CK12ID

*UL and cUL classified with Anderson®, Blackburn®, Burndy®, ILSCO®, Panduit®, Thomas & Betts®, Penn-Union® and Tyco® color-coded connectors.

The products listed above are registered trademarks of Anderson®, Blackburn®, FCI Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas & Betts® and Tyco®.

SPECIFICATIONS

EK12ID CK12ID

Length 16 7/8" (429 mm) Length 16 7/8" (429 mm)

Height 14 3⁄4" (375 mm) Height 14 3⁄4" (375 mm)

Weight 14 1⁄2 lb. (6.6 kg) Weight 14 1⁄2 lb. (6.6 kg)

Battery 12V,2.6Ah,NIMH

Battery Charge Time: 1 hour

Capacity*

• CopperColorCodedLugsandSplices:4AWGto1000kcmil*

• AluminumColorCodedLugsandSplices: 6 AWG to

1000kcmil*

*UL and cUL classified for use with Anderson, Blackburn, FCI Burndy, ILSCO, Penn-Union and Thomas & Betts copper color-coded connectors 4 AWG-500 kcmil

(MCM) and aluminum color-coded connectors 6 AWG-500 kcmil (MCM).

The products listed above are registered trademarks of Anderson®, Blackburn®, FCI Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas & Betts®.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

212

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Utility Dieless Crimping Tool

CAT. NO. UPC NO. DESCRIPTION

44999 44999 UtilityDielessCrimpingTool

32891 32891 PressureTestKitincludes30testslugsandgauge

SPECIFICATIONS

Capacity*Copper – 1/0 - 1000 kcmil (MCM)

Aluminum – 1/0 - 1000 kcmil (MCM)

Forusewithconnectorsuptoamaximumof1.895"(48mm)diameter

Weight 16.5 lbs. (7.5 kg)

Indentor Crimping Tool

• Self-containedhydrauliccrimper/pressdesignedtocrimpcompression

sleeves and lugs in underground applications.

• Dielesscrimpinghead;nodiestoloseorreplace.

• Automaticpressuresetting,easytouse.

• Two-speedpumpforrapidramadvance,15ton(133.4kN)maximum

crimping force.

• Hingedheadopensforeasyloadingandunloading.

• Headrotates180°.

• IncludesPressureTestKitandcarryingcase.

• Simplescrewadjustmentforconnectorsize.

• Forgedbodyandhandlefordurability.

CAT. NO. UPC NO. DESCRIPTION

1981 06894 Indentor Crimping Tool

SPECIFICATIONS

Capacity*Copper color-coded connectors: 8 AWG-250 kcmil (MCM)

Aluminum color-coded connectors: 8 AWG-4/0 kcmil (MCM)

Length 22-3/8" (568 mm)

Weight 6.8 lbs. (3.1 kg)

Dieless Crimping Tool to 1000 kcmil (MCM)

• Dielesscrimpinghead;nodiestoloseorreplace.

• Patentedpressuresystemautomaticallychangescrimpingforce

foreachconnectorsize/type.Eliminateserrors.

• Sevenindentprofilerequiresfewercrimpsperconnector.

• Automatictwo-speedpumpforrapidadvance.

• 15ton(133.4kN)maximumcrimpingforce.

• Swivelheadrotates180°formaximumflexibility.

• Hingedheadforeasyconnectorloadingandunloading.

• IncludesPressureTestKitandcarryingcase.

• Notforusewith“C”and“H”taps.

CAT. NO. UPC NO. DESCRIPTION

1990 32489 Dieless Crimping Tool to 1000 kcmil (MCM)

32891 32891 PressureTestKitincludes30testslugsandgauge

SPECIFICATIONS

Capacity*Copper–#4AWG-1000kcmil(MCM)

Aluminum–#6AWG-1000kcmil(MCM)

Forusewithconnectorsuptoamaximumof1.815"(46.10mm)

diameter

Length 26.5" (673 mm)

Weight 16.5 lbs. (7.5 kg)

*UL and cUL classified for use with Anderson, Blackburn, FCI Burndy, ILSCO, Panduit, Penn-Union and Thomas & Betts copper color-coded connectors 4 AWG-1000

kcmil (MCM) and aluminum color-coded connectors 6 AWG-1000 kcmil (MCM).

The products listed above are registered trademarks of Anderson®, Blackburn®, FCI Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas & Betts®.

*UL and cUL classified for use with Anderson, Blackburn, FCI Burndy, ILSCO, Panduit, Penn-Union, and Thomas & Betts copper and aluminum color-coded lugs and splices.

The products listed above are registered trademarks of Anderson®, Blackburn®, FCI Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas & Betts®.

213

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Crimping Dies for 4-Ton EK410 Tools

4-TON CRIMPING DIE KIT*

CAT. NO. UPC NO. DESCRIPTION

KC4CU 02037 CompleteDieSetforcopperconnectors.Includesdiesfor#8to300

kcmil (MCM) copper connectors. (Dies can be stored in tool

carrying case.)

KA4AL 12237 Complete die set for aluminum connectors. Includes dies for 8 AWG

through 2/0 AWG. (Dies can be stored in tool carrying case.)

KC4 DIES FOR SERVICE ENTRANCE CONNECTORS

CAT. NO. UPC NO. DESCRIPTION

KD4-10 02021 Crimping Dies for 5/8" Service Entrance Connectors

KD4-840 02022 Crimping Dies for 840 Service Entrance Connectors

24163 24163 Blank Crimping Dies

CRIMPING DIES

*Note: Connections are UL and cUL classified for copper and aluminum when used with Anderson, Blackburn, FCI Burndy, ILSCO, Panduit, Thomas & Betts and Penn-Union color-coded lugs and splices.

DIES FOR CRIMPING COLOR-CODED COPPER & ALUMINUM LUGS & SPLICES*

ALUMINUM COPPER

CABLE SIZE CAT. NO. UPC NO. COLOR CAT. NO. UPC NO. COLOR

8 AWG KA4-8 12222 Blue KC4-8 02075 Red

6 AWG KA4-6 12223 Gray KC4-6 02076 Blue

4 AWG KA4-4 12225 Green KC4-4 02077 Gray

2 AWG KA4-2 12226 Pink KC4-2 02078 Brown

1 AWG KA4-1 12227 Gold KC4-1 02079 Green

1/0 AWG KA4-1/0 12228 Tan KC4-1/0 02080 Pink

2/0 AWG KA4-2/0 12229 Olive KC4-2/0 02081 Black

3/0AWG — — — KC4-3/0 02082 Orange

4/0AWG — — — KC4-4/0 02083 Purple

250kcmil(MCM) — — — KC4-250 02084 Yellow

300kcmil(MCM) — — — KC4-300 10988 White

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

214

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Crimping Dies for 6-Ton Tools

AlldiesonthispageforusewithEK628,ECCX,EK22GL,CK22GL,CCCX,

HCCX, and RCCX tools.

6-TON CRIMPING KITS*

CAT. NO. UPC NO. DESCRIPTION

K22S1GL 03078 DieKitfor#8-600CopperConnectors–Includesall

copper die sets listed below and carrying case

KD06AL 01631 DieKitfor#8-350AluminumConnectors–Includesall

aluminum die sets listed below and carrying case

DIES FOR CRIMPING COLOR-CODED COPPER & ALUMINUM LUGS & SPLICES*

(Require UA22 adapter when used with ECCX, CCCX, HCCX, & RCCX tools)

22 SERIES CRIMPING DIES

ALUMINUM COPPER

CABLE SIZE CAT. NO. UPC NO. COLOR CAT. NO. UPC NO. COLOR

8 AWG KA22-8 06744 Blue KC22-8 03079 Red

6 AWG KA22-6 06745 Gray KC22-6 03080 Blue

4 AWG KA22-4 06746 Green KC22-4 03081 Gray

2 AWG KA22-2 06747 Pink KC22-2 03082 Brown

1 AWG KA22-1 06749 Gold KC22-1 03083 Green

1/0 AWG KA22-1/0 06750 Tan KC22-1/0 03084 Pink

2/0 AWG KA22-2/0 06751 Olive KC22-2/0 03085 Black

3/0 AWG KA22-3/0 06752 Ruby KC22-3/0 03086 Orange

4/0 AWG KA22-4/0 06753 White KC22-4/0 03087 Purple

250 kcmil (MCM) KA22-250 06754 Red KC22-250 03088 Yellow

300 kcmil (MCM) KA22-300 06755 Blue KC22-300 03089 White

350 kcmil (MCM) KA22-350 06756 Brown KC22-350 03090 Red

400 kcmil (MCM) — — — KC22-400 03091 Blue

500 kcmil (MCM) — — — KC22-500 03092 Brown

600 kcmil (MCM) — — — KC22-600B 03094 Green

*Note: Connections are UL and cUL classified for copper and aluminum, when used with Greenlee tools on Anderson®, Blackburn®, FCI Burndy®,

ILSCO®, Panduit®, Thomas & Betts® and Penn-Union® color-coded lugs and splices.

DIES FOR USE WITH SERVICE ENTRANCE CONNECTORS, C-TAPS, H-TAPS, OVERHEAD AND

UNDERGROUND CONNECTORS (Require UAW adapter when used with ECCX and CCCX tools,

Requires CJD3, CJD3BG, or CJD30 jaws when used with EK628 tools)

“W”-STYLE DIES

CAT. NO. UPC NO. BURNDY NO. CAT. NO. UPC NO. BURNDY NO.

KD6-10 10165 W-BG KD6-18 10173 W-166

KD6-11 10166 W-O KD6-19 10174 W-243

KD6-12 10167 W-C KD6-20 10175 W-247

KD6-13 10168 W-K840 KD6-21 10176 W-249

KD6-14 10169 W-161 KD6-22 10177 W-164

KD6-15 10170 W-162 KD6-24 10179 W-237

KD6-16 10171 W-163 KD6-25 10180 W-239

KD6-17 10172 W-165 KD6-27 10182 W-28K

215

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Crimping Dies for 12-Ton Tools

AlldiesonthispageforusewithEK1230,EK1240,HK1230,HK1240,

RK1230,RK1240,HKL1230,E12CCXtoolsandRK1550equippedwith48802

die adapter.

12-TON CRIMPING KITS

“U” STYLE DIE KITS

CAT. NO. UPC NO. DESCRIPTION

KD12CU 10260 DieKitfor#6-750CopperConnectors–Includesall

copperdiesetsbelowexceptKC12-8

KD12AL 10261 DieKitfor#6-750AluminumConnectors–Includesall

aluminum die sets below except 35776.

DIES FOR CRIMPING COLOR-CODED COPPER & ALUMINUM LUGS & SPLICES

“U” STYLE DIES

ALUMINUM** COPPER*

CABLE SIZE CAT NO. UPC NO. COLOR CAT NO. UPC NO. COLOR

8 AWG KA12-8 22084 Blue KC12-8 10996 Gray

6 AWG KA12-6 22085 Gray KC12-6 10997 Blue

4 AWG KA12-4 22086 Green KC12-4 10998 Gray

2 AWG KA12-2 22087 Pink KC12-2 10999 Brown

1 AWG KA12-1 22088 Gold KC12-1 11003 Green

1/0 AWG KA12-1/0 22089 Tan KC12-1/0 11004 Pink

2/0 AWG KA12-2/0 22090 Olive KC12-2/0 11007 Black

3/0 AWG KA12-3/0 22121 Ruby KC12-3/0 11010 Orange

4/0 AWG KA12-4/0 22122 White KC12-4/0 11011 Purple

250 kcmil (MCM) KA12-250 22123 Red KC12-250 11012 Yellow

300 kcmil (MCM) KA12-300 22124 Blue KC12-300 11013 White

350 kcmil (MCM) KA12-350 22125 Brown KC12-350 11014 Red

400 kcmil (MCM) KA12-400 22126 Green KC12-400 11015 Blue

500 kcmil (MCM) KA12-500 22127 Pink KC12-500 11016 Brown

600 kcmil (MCM) KA12-600 22128 Black KC12-600 11018 Green

750 kcmil (MCM) KA12-750 22129 Yellow KC12-750 11020 Black

DIES FOR USE WITH SERVICE ENTRANCE CONNECTORS, C-TAPS, H-TAPS, OVERHEAD AND

UNDERGROUND CONNECTORS

ADDITIONAL “U”-STYLE DIES

CAT. NO. UPC NO. BURNDY NO. CAT. NO. UPC NO. BURNDY NO.

KD12-10 10188 U-BG KD12-30 10200 U-D3

KD12-11 10189 U-O KD12-31 10201 U-E

KD12-12 10190 U-C KD12-32 10202 U-F

KD12-14 10192 U-161 KD12-33 10203 U-997

KD12-15 10193 U-162 KD12-35 10205 U-238

KD12-16 10194 U-163 KD12-36 10206 U-654

KD12-17 10195 U-165 KD12-37 10207 U-655

KD12-18 10196 U-166 KD12-38 10208 U-658

KD12-19 10197 U-243 KD12-39 10209 U-659

KD12-20 10198 U-247 KD12-40 10210 U-998

KD12-21 10199 U-249  

*Connections are UL and cUL classified for copper connectors when used with Greenlee tools on Anderson®, Blackburn®, FCI Burndy®,

ILSCO®, Panduit®, Thomas & Betts® and Penn-Union® color-coded lugs and splices.

**Connections are UL and cUL classified for aluminum connectors when used with Greenlee tools on Anderson®, Blackburn®, FCI Burndy®,

ILSCO®, Panduit®, Thomas & Betts® and Penn-Union® color-coded lugs and splices.

KA12-500

KC12-250

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

216

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

EKST Battery Tool Stand

CAT. NO. UPC NO. DESCRIPTION

EKST 08082 Battery Tool Stand

Crimping Die Carrying Case

CAT. NO. UPC NO. DESCRIPTION

01082 01082 Crimping Die Carrying Case (dies not included)

• Holdsbatterytoolsinagoodpositionforworkbenchoperation.

• Toolisheldfirmly,butiseasilyremovedforhand-helduse.

• Holesinbottomallowtheteststandtobepermanentlyattached

to a workbench.

• ForusewithallGreenleepistolgripbattery-poweredtools

(exceptEK12ID).

• Holds15KC22,KA22,KC12,KA12or“U”stylecrimpingdiesets.

Crimping Tool Load Cell

• TestgaugemeasurestheforceoutputofGreenlee1230and1240

crimping tools.

• Includestestgaugeandblankdieset.

CAT. NO. UPC NO. DESCRIPTION

35887 35887 Crimping Tool Load Cell – 12 Ton

ACCESSORIES

217

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

SPECIFICATIONS

EAC120 EAC230

Input 120 V AC 60 Hz 150W 230 V AC 50 Hz 150W

Output 12 V DC 6.5A 12 V DC 6.5A

Weight 1.6 lb (0.7 kg) 1.6 lb (0.7 kg)

ADAPTER AND SENSING UNIT CHART

CRIMPING TOOL ADAPTER SENSOR

EK410 MA4 TF70

EK22GL, CK22GL, MA22 TF70

All CCX Tools, EK628

All 1230 and 1240 Tools MA120 TF130

EK12ID, CK12ID MA12ID TF130

Crimping Tool Test Meter

• Electronicallymeasurestheforceoutputofcrimpingtools.

• Datacanbetransferredtocomputerfilestodeveloptoolhistories.

• Totakemeasurements,oneTC1KIT,onetooladapterandone

sensorarerequired.

• TC1isbatterypoweredandcanbeusedinremotelocations.

• IncludesTC1measuringunit,batterychargerandcarryingcase.

CAT. NO. UPC NO. DESCRIPTION

TC1S KIT 01340 TC1Unit

MA4 02086 AdapterforEK410

MA22 06576 AdapterforEK22GL,CK22GL,CCX,EK628

MA50 11798 AdapterforEK210

MA120 06577 Adapterfor1230,1240,E12CCX,C12CCX

MA12ID 24054 AdapterforEK12ID,CK12ID

TF70 06574 SensorforEK210,EK410,EK22GL,CCX,EK628

TF130 06575 Sensorfor1230,1240,E12CCX,EK12ID,C12CCX,CK12ID

AC Adapters for Battery-Powered Tools

• OperatesallGreenleebattery-poweredtoolsexcept

theES750,ES85,EK210andEK410.

• EasilyconvertsGreenleebattery-poweredtools

tocordedtools.

• SamephysicalsizeandshapeasGreenleebatteries,

providingunlimitedrun-timewithoutadditionalweight

orbulk.

• Long16.5footcordallowsmobility.Canalsobeused

withanextensioncord.

• Providesthesamepowerasabatteryforconsistent

operatingperformance.

CAT. NO. UPC. NO. DESCRIPTION

EAC120 01675 ACAdapter,120V

EAC230 01680 ACAdapter,230V

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

218

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

TOOL TYPE GREENLEE BURNDY T & B ILSCO HUSKIE PANDUIT BLACKBURN KEARNEY PENN-UNION

EK410 KC4, KA4 — — — — — — — —

EK628 KC22, KA22 W, X8 6 TON9 ND8 HT588 CD-20018 BY9 O9 —

EK22GL, KC22,KA22,KD6 W,X — ND HT58 CD-2001 —  —

CK22GL

CCX KC221, KA221, KD62 W2, X2 6 TON3 ND2 HT3, HT582 CD-20012 BY3 O3 —

1230 KC12,“U”STYLE,KD12 U 15500SERIES ILD HT41 CD-920 B,H — T

1240, 12CCX KC12,“U”STYLE,KD12 U 15500SERIES ILD HT41 CD-920 B,H — T

1240K — — — — HTK — — PH2 —

1550 — P4, U5 15600 SERIES6, ILD-P4, HT614, CD-9404, 15600 SERIES6, PH27 —

15500 SERIES5 ILD5 HT415 CD-9205 B5, H5

K425BG, K06 W,X — ND HT58 CD-2001 — — —

K425O

Notes: BOLD indicates that use of the proper die adapter is needed.

Use UA22 die adapters

UAW die adapters

Use UAK die adapters

Use 48820 die adapters

Use 48802 die adapters

Use 48788 die adapters

Use 48824 die adapters

Use CJD30 or CJD3BG Jaws

Use CJK Jaws

CCX, EK22GL, CK22GL, EK628

CABLE SIZE COLOR CODE GREENLEE1 BURNDY2 T & B3 ILSCO2 HUSKIE2 PANDUIT2 BLACKBURN3

8 AWG Red KC22-8 W8CVT 6TON21   CD-2001-8 BY15C

W8CRT

X8CRT

6 AWG Blue KC22-6 W5CVT 6TON24   CD-2001-6 BY17C

W5CRT

X5CRT

X8CART

5AWG Blue NA W5CVT

W5CRT

X5CRT

4 AWG Gray KC22-4 W4CVT 6TON29   CD-2001-4 BY19C

W4CRT

X4CRT

3 AWG White NA W3CRT

2 AWG Brown KC22-2 W2CVT 6TON33   CD-2001-2 BY21C

W2CRT

X2CRT

1 AWG Green KC22-1 W1CVT 6TON37   CD-2001-1 BY53C

X1CRT-1

W1CRT-1

1/O AWG Pink KC22-1/0 W25VT 6TON42   CD-2001-1/0 BY23C

W25RT

X25RT

2/O AWG Black KC22-2/0 W26VT 6TON45   CD-2001-2/0 BY28C

W26RT

X26RT

3/O AWG Orange KC22-3/0 W27VT 6TON50   CD-2001-3/0 BY25C

W27RT

X27RT

4/O AWG Purple KC22-4/0 W28VT 6TON54   CD-2001-4/0 BY31C

W28RT

X28RT

250 kcmil (MCM) Yellow KC22-250 W29VT 6TON62   CD-2001-250 BY27C

W29RT

X29RT

300 kcmil (MCM) White KC22-300 W30VT 6TON66   CD-2001-300 BY35C

W30RT

350 kcmil (MCM) Red KC22-350 W31VT 6TON71   CD-2001-350 BY37C

W31RT

400 kcmil (MCM) Blue KC22-400 W32VT 6TON76   CD-2001-400

W32RT

500 kcmil (MCM) Brown KC22-500 W34VT 6TON87   CD-2001-500

W34RT

600 kcmil (MCM) Green KC22-600

Crimping Die Cross Reference – Copper Color-Coded Lugs and Splices for 6-Ton Crimping Tools

Competitive Die Compatibility

All Dies Listed may be used with the appropriate Greenlee Tools

REFERENCE

Notes for 6-ton dies:

Can be used with 22 Series, CCX and EK628 tools. Use UA22 die adapters with CCX. Use without adapters with 22 Series and EK628.

Can be used with 22 Series, CCX and EK628 tools. Use UAW die adapters with CCX. Use W die adapters with 22 Series. Use with CJ03 jaws with EK628.

Can be used with CCX and EK628 tools only. Cannot be used with 22 Series tools. Use UAK die adapters with CCX. Use with CJK jaws with EK628.

219

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

ALL 1230, 1240 & C12CCX TOOLS*

CABLE SIZE COLOR CODE GREENLEE BURNDY T & B ILSCO HUSKIE PANDUIT BLACKBURN PENN-UNION

8 AWG Red KC12-8 U8CRT 15520 ILD-1  CD-920-8 B71CH

6 AWG Blue KC12-6 U5CRT 15522 ILD-2 HT41AT CD-920-6 B73CH T-7/374

   U8CABT

5AWG Blue  U5CRT

4 AWG Gray KC12-4 U4CRT 15527 ILD-3 HT41AU CD-920-4 B74CH T-8/346

   U6CABT

3AWG White NA U3CRT

2 AWG Brown KC12-2 U2CRT 15528 ILD-4 HT41AW CD-920-2 B75CH T-9

1 AWG Green KC12-1 U1CRT 15513 ILD-4 HT41AX CD-920-1 B05CH T-10

   4UCABT

1/O AWG Pink KC12-1/0 U25RT 15508 ILD-5 HT41AY CD-920-1/0 B06CHI T-11/375

   U2CABT

2/O AWG Black KC12-2/0 U26RT 15526 ILD-6 HT41AZ CD-920-2/0 B72CH T-12/348

3/O AWG Orange KC12-3/0 U27RT 15530 ILD-9 HT41BA CD-920-3/0 B08CH T-13

4/O AWG Purple KC12-4/0 U28RT 15511 ILD-10 HT41BC CD-920-4/0 B09CH T-14

250 kcmil (MCM) Yellow KC12-250 U29RT 15510 ILD-11 HT41BE CD-920-250 B26CH T-15

300 kcmil (MCM) White KC12-300 U30RT 15534 ILD-12 HT41BF CD-920-300 B10CH T-16

   U28ART

350 kcmil (MCM) Red KC12-350 U31RT 15512 ILD-13 HT41BJ CD-920-350 B11CH T-17

   U29ART

400 kcmil (MCM) Blue KC12-400 U32RT 15512 ILD-14 HT41BK CD-920-400 B11CH T-18/324

   U30ART

500 kcmil (MCM) Brown KC12-500 U34RT 15506 ILD-15 HT41BL CD-920-500 B12CH T-19/470

   U31ART

600 kcmil (MCM) Green KC12-600 U36RT  ILD-16 HT41BM CD920-600 B36CH T-20/299

   U32ART

700kcmil(MCM) Pink NA U38RT 15505 ILD-16    T-20/299

750 kcmil (MCM) Black KC12-750 U39RT 15515 ILD-17 HT41BP CD-920-750 B29CH T-22/472

Notes for all 12-ton dies: * All 12-ton dies shown can be used with all 1230, 1240 and 12CCX Greenlee tools up to the capacity limits of the tool.

Crimping Die Cross Reference – Copper Color-Coded Lugs and Splices for 12-Ton Crimping Tools

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

220

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

CCX, EK22GL, CK22GL & EK628

CABLE SIZE COLOR CODE GREENLEE1 BURNDY2 T & B3 ILSCO2 HUSKIE2 PANDUIT2 BLACKBURN3

8 AWG Blue KA22-8 X8CART 6TON24    BY17C

6 AWG Gray KA22-6 X6CART 6TON29   CD-2001-4 BY19C

4 AWG Green KA22-4 X4CART 6TON37   CD-2001-1 BY53C

2 AWG Pink KA22-2 X2CART 6TON42   CD-2001-1/0 BY23C

1 AWG Gold KA22-1 X1CART 6TON45   CD-2001-2/0 BY24C

1/O AWG Tan KA22-1/0 X25ART 6TON50   CD-2001-3/0 BY25C

2/O AWG Olive KA22-2/0 X26ART 6TON54   CD-2001-4/0 BY31C

3/O AWG Ruby KA22-3/0 X27ART 6TON60   CD-2001-250 BY32C

4/O AWG White KA22-4/0 X28ART 6TON66   CD-2001-300 BY35C

250 kcmil (MCM) Red KA22-250  6TON71   CD-2001-350 BY37C

300 kcmil (MCM) Blue KA22-300  6TON76   CD-2001-400 BY35C

350 kcmil (MCM) Brown KA22-350  6TON87    BY37C

Notes for 6-ton dies:

Can be used with 22 Series, CCX and EK628 tools. Use UA22 die adapters with CCX. Use without adapters with 22 Series and EK628.

Can be used with 22 Series, CCX and EK628 tools. Use UAW die adapters with CCX. Use with W die adapters with 22 Series. Use CJ03 jaws with EK628.

Can be used with CCX and EK628 tools. Cannot be used with 22 Series tools. Use UAK die adapters with CCX. Use CJK jaws with EK628.

ALL 1230, 1240 & 12CCX TOOLS*

CABLE SIZE COLOR CODE GREENLEE BURNDY T & B ILSCO HUSKIE PANDUIT BLACKBURN PENN-UNION

8 AWG Blue KA12-8 U8CABT 15522 ILD-2 HT41GL  B73CH T-7/374

6 AWG Gray KA12-6 U6CABT 15527 ILD-3 HT41GE CD-920-4 B74CH T-8/346

4 AWG Green KA12-4 U4CABTQ 15513 ILD-4 HT41GM CD-920-1 B05CH T-11/375

2 AWG Pink KA12-2 U2CABT 15508 ILD-7 HT41GF CD-920-1/0 B06CHI T-12/348

1 AWG Gold KA12-2 U1CART 15526 ILD-7  CD-920-2/0 B06CHI T-471

1/O AWG Tan KA12-1/0 U25ART 15530 ILD-8 HT41EX CD-920-3/0 B06CH T-296

2/O AWG Olive KA12-2/0 U26ART 15511 ILD-10 HT41EY CD-920-4/0 B09CH T-297

3/O AWG Ruby KA12-3/0 U27ART 15532 ILD-10 HT41GW CD-920-250 B26CH T-467

4/O AWG White KA12-4/0 U28ART 15534 ILD-12 HT41EZ CD-920-300 B10CHI T-298

250 kcmil (MCM) Red KA12-250 U29ART 15514 ILD-13 HT41FW CD-920-350 B11CH T-18/324

300 kcmil (MCM) Blue KA12-300 U30ART 15512 ILD-14 HT41GZ CD-920-400 B11CH T-19/470

350 kcmil (MCM) Brown KA12-350 U31ART 15506 ILD-14 HT41FA CD-920-500 B12CHI T-20/299

400 kcmil (MCM) Green KA12-400 U32ART 15536 ILD-16 HT41HH CD-920-600 B36CH T-22/472

500 kcmil (MCM) Pink KA12-500 U34ART 15505 ILD-16A HT41FB CD-920-500A B76CH T-300

600 kcmil (MCM) Black KA12-600 U36ART 15515 ILD-17 HT41HG CD920-750  T-24/473

700kcmil(MCM) Yellow  U39ART  ILD-17 HT41IJ

750 kcmil (MCM) Yellow KA12-750 U39ART 15504 ILD-18 HT41IJ

Notes for all 12-ton dies: * All 12-ton dies shown can be used with all 1230, 1240 and 12CCX Greenlee tools up to the capacity limits of the tool.

Crimping Die Cross Reference – Aluminum Color-Coded Lugs and Splices for 12-Ton Tools

Crimping Die Cross Reference – Aluminum Color-Coded Lugs and Splices for 6-Ton Tools

221

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

CCX, EK22GL, CK22GL, EK628

RUN TAP GREENLEE1 BURNDY2 T & B3 ILSCO2 HUSKIE2 PANDUIT2 BLACKBURN3

10 AWG 10AWG W238 HT58DG

8 AWG 8 AWG KD6-15 W162   HT58BZ  BY21

4-6 AWG 8 AWG KD6-10 WBG  ND-BG HT58G CD-2001-BG BY31

4-6 AWG 6 AWG KD6-10 WBG  ND-BG HT58G CD-2001-BG BY31

4-6 AWG 4 AWG KD6-10 WBG  ND-BG HT58G CD-2001-BG BY31

2-3 AWG 4-8 AWG KD6-12 WC  ND-C HT58J CD-2001-C BY33

2-3 AWG 2-3 AWG KD6-12 WC  ND-C HT58J CD-2001-C BY33

1/O-2/O AWG 8-2 AWG KD6-11 WO   HT58AK  OJB

1/O-2/O AWG 1/0-2/0 AWG KD6-11 WO   HT58AK  OJB

3/O-4/O AWG 6-2 AWG D3

4 DBL

3/O-4/O AWG 1/0-2/0 AWG D3

3/O-4/O AWG 3/0-4/0 AWG D3

Notes for 6-ton dies:

Can be used with 22 Series, CCX and EK628 tools. Use UAW die adapters with CCX. Use D3 adapters with 22 Series. Use CJD3 jaws with EK628.

Can be used with 22 Series, CCX and EK628 tools. Use UAW die adapters with CCX. Use D3 die adapters with 22 Series. Use CJD3 jaws with EK628.

Can be used with CCX and EK628 tools. Cannot be used with 22 Series tools. Use UAK die adapters with CCX. Use CJK jaws with EK628.

Die adapters included with EK22GL have D3 profile. UAW adapters for CCX tools have D3 profile. CJD3 jaws for EK628 have D3 profile.

Crimping Die Cross Reference – Copper C-Taps for Copper Cables

ALL 1230,1240 & 12CCX TOOLS*

RUN TAP GREENLEE BURNDY T & B ILSCO HUSKIE PANDUIT BLACKBURN PENN-UNION

10 AWG 10 AWG KD12-35 U238   HT41DG

8 AWG 8 AWG KD12-15 U162   HT41BZ  B71AH

4-6 AWG 8 AWG KD12-10 UBG   HT41G CD-920-BG B58CS T-BG

4-6 AWG 6 AWG KD12-10 UBG   HT41G CD-920-BG B58CS T-BG

4-6 AWG 4 AWG KD12-10 UBG   HT41G CD-920-BG B58CS T-BG

2-3 AWG 4-8 AWG KD12-12 UC  ILD-C HT41J CD-920-C HKBC

2-3 AWG 2-3 AWG KD12-12 UC  ILD-C HT41J CD-920-C HKBC

1/0-2/0 AWG 8-2 AWG KD12-11 UO  ILD-O HT41AK  HO T-O

1/0-2/0 AWG 1/0-2/0 AWG KD12-11 UO  ILD-O HT41AK  HO T-O

3/0-4/0 AWG 6-2 AWG KD12-30 UD3  ILD-D3 HT41X CD-920-D3 HD T-D3

3/0-4/0 AWG 1/0-2/0 AWG KD12-30 UD3  ILD-D3 HT41X CD-920-D3 HD T-D3

3/0-4/0 AWG 3/0-4/0 AWG KD12-30 UD3  ILD-D3 HT41X CD-920-D3 HD T-D3

Notes for all 12-ton dies: * All 12-ton dies shown can be used with all 1230, 1240 and 12CCX Greenlee tools up to the capacity limits of the tool.

Crimping Die Cross Reference – Copper C-Taps for Copper Cables

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

222

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Ratchet Cable Bender

SPECIFICATIONS

Capacity Upthrough500kcmil(MCM)(240mm²),600volt,copper

or aluminum cable

Weight 8.2 lbs. (3.7 kg)

Hydraulic Cable Bender

SPECIFICATIONS

Capacity 350 - 1000 kcmil (MCM) (185-500 mm²), 600 volt

350 - 750 kcmil (MCM) compact cable

Weight 800 – 7 lbs. (3.2 kg), 802 – 26 lbs. (11.8 kg)

800F1725–36lbs.(16.4kg)

• Simplifiesandspeedscableinstallation.

• 10"(254mm)ratchetextensionisfurnishedtosimplify

bending in deep enclosures.

• Includesratchetwrench,L-wrench,ratchetextension,

bending shoe assembly and storage box.

• One-shotbendsupto90°;automaticallyunloadscable.

• Compactdesignbendsintightplaces.

• Unitwithfootpumpkeepsbothhandsfreetoholdcable.

CABLE BENDING TOOLS

CAT. NO. UPC NO. DESCRIPTION

796 22590 Ratchet Cable Bender

22578 22578 Ratchet Wrench with Grip

22579 22579 L-Wrench with Grip

22682 22682 10" (254 mm) Ratchet Extension

22934 22934 Bending Shoe

30236 30236 Storage Box

CAT. NO. UPC NO. DESCRIPTION

800 23892 Hydraulic Cable Bender only

802 24395 HydraulicCableBenderwithHighPressureHoseUnit

and Storage Box

800F1725 23893 HydraulicCableBenderwith1725FootPump,High

PressureHoseUnitandStorageBox

37729 37729 High Pressure Hydraulic Hose 1/4" x 10' (6.4 mm x 3 m)

1725 31353 HydraulicFootPump

23955 23955 Metal Storage Box

800F1725

223

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Adjustable Cable Stripper

SPECIFICATIONS

Capacity 1/0-1000kcmil(MCM)(50-500mm²diameter);

insulationrated600VACNominal

Weight .9 lb. (408 g)

Pocket Cable Stripper

• Formid-spanandendtermination.StripsTW,THW,THWN,THHN

and similar single-layer insulation.

• Fast-closejaws.Quicksizeandinsulationadjustments.

• Snapactionforsamecuttingdepthtimeaftertime.

• Specificallydesignedforstrippingpowerandtelecommunicationscables

from 3/16" to 1-1/8" in diameter (4.5 mm to 29 mm).

• Easybladedepthadjustment.

• 90°bladerotationallowslongitudinal,circularandspiralslittingofinsulation.

WIRE AND CABLE STRIPPING TOOLS

CAT. NO. UPC NO. DESCRIPTION

1905 21533 Adjustable Cable Stripper

21978 21978 Blade

Pocket Cable Stripper

• Specificallydesignedforstrippingpowerandtelecommunications

cables from 3/4" to 1-1/2" in diameter (4.5 mm to 29 mm).

• Easybladedepthadjustment.

• 90°bladerotationallowslongitudinal,circularandspiralslitting

of insulation.

CAT. NO. UPC NO. DESCRIPTION

1901 45823 Pocket Cable Stripper

07915 07915 Cutting Blade

Kwik Stripper® Heavy-Duty Wire Stripper

• 18-6AWG(1.0-4.1mmdia.)strippingcapacity.

• Frontentryjawsforeasyaccesstoboxes,panelsandtightspaces.

• Quickandeasyadjustments.

• Toughmetalalloyconstruction.

CAT. NO. UPC NO. DESCRIPTION

45019 45019 KwikStripperHeavy-DutyWireStripper

45020 45020 Heavy-Duty Jaws

CAT. NO. UPC NO. DESCRIPTION

1900 45824 Stripping Tool

07915 07915 Cutting Blade

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

224

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Kwik Stripper® Wire Stripper

Automatic Wire Stripper

•34-10AWG(.08-6mm²)strippingcapacity.

•12AWG(4mm²)solid,10AWG(6mm²)strandedcuttingcapacity.

•Stripsandcutsflatandroundcable.

•Self-adjuststodifferentwiregauges.

•Contouredandcushionedhandles.

•Frontentryjawshaveanadjustablestriplengthguide.

•Lightweightreinforcednylonischemicalandcorrosionresistant.

• Productiongradewirestripperstripsinsulationfrom

most smaller gauge wire.

• Stripsupto7/8"(22.2mm)length.

• StripsPVCandTHHNinsulation.

• Forusewithsolidandstrandedwire.

CAT. NO. UPC NO. DESCRIPTION

45000 45000 KwikStripperWireStripper

20243 20243 Blade Cassette

SPECIFICATIONS

Capacity 20-10AWG(.5mm²-6mm²)withPVCorTHHNinsulation

Weight .7 lb. (300 g)

CAT. NO. UPC NO. DESCRIPTION

1935 37600 Automatic Wire Stripper

225

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Kwik Cycle® Crimping Tool

Kwik Cycle® 9

• Fornon-insulatedterminals.

• Includesratchetmechanismwhichreleasesonlyafterfullcrimpcycle

is completed.

• Framesaremanufacturedfromheat-treated,hardenedtoolsteelfor

superior life and function.

• Toolsfeatureaprecision,full-cycleratchetforaccurate,repeatable

crimps every cycle.

• Crimpingdiesaremanufacturedfromhardened,heat-treatedtool

steel for superior life.

• Tensionadjustmentpresetatthefactoryforoptimumperformance.

• Higherleverageforceandergonomicallydesignedhandlefor

improved comfort.

• Idealforfieldinstallationofconnectorsaswellasshopuse.

• Diesetsareeasilyinterchangeableusingascrewdriver.

• UsesallKwikCycle9crimpingdies(seepage226).

CAT. NO. UPC NO. DESCRIPTION

K2-1BGL 02632 KwikCycleCrimpingTool

Gator® Plus Terminal Crimping Tool

• Totallynewhydraulicpumpdesignresultsinanextremelycompact,

battery-poweredcrimpingtoolforcrimpingterminalsandDSVconnectors.

• Linearcrimpingactionresultsinacompletelysymmetriccrimp.

• Specialcompact9.6voltNiCdbatteryreducesweightandsize.

• Slimprofileandlightweightprovideforone-handoperation.

• Cancompleteapproximately150crimpsperbatterycharge.

• Ramcanberetractedinmid-cycletoadjustconnector.

• Crimpingheadrotates360º.

• UsesallKwikCycle9crimpingdies(seepage226).

• Twobatteries,batterycharger,andcarryingcaseincluded.

• Choiceof120volt,230volt,or12voltbatterycharger.

SPECIFICATIONS

Capacity UsesKwikCycle9DieSets

Length 13-1/4" (337 mm)

Weight 2-3/4 lb. (1.3 kg)

Battery 9.6 volt NiCd battery

Crimping Force 2,900 lb. (13kN)

Width 3-1/8" (79 mm)

Crimp Cycle Time ~2 seconds

Battery Charge Time 1 hour

SPECIFICATIONS

Capacity 22 AWG - 6 AWG

Length 12.8" (325 mm)

Weight .3 lbs. (136 g)

SPECIFICATIONS

Capacity UsesKwikCycle 9 Die Sets

Weight 1.1 lb. (500 g)

WIRE CRIMPING TOOLS

CAT. NO. UPC NO. DESCRIPTION

45504 45504 KwikCycle9"CrimpFrame

CAT. NO. UPC NO. DESCRIPTION

EK21011 02024 1.5-Ton Battery-Powered Crimping Tool w/120

volt charger

EK21012 02025 1.5-Ton Battery-Powered Crimping Tool w/12

volt charger

EK21022 02026 1.5-Ton Battery-Powered Crimping Tool w/230

volt charger

89188 89188 9.6VNiCdBattery

02019 02019 Carrying Case

12722 12722 120VCharger

23076 23076 12VCharger

12723 12723 230VCharger

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

226

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Kwik Cycle® 9

INTERCHANGEABLE DIE SETS FOR INSULATED AND NON-INSULATED TERMINALS

CAT./UPC NO. CONNECTION DESCRIPTION

22-10 AWG

Color coded nests for easy identification

Standard insulated terminals, ring tongue, spade lug, slide on and butt splices

22-10 AWG

Color coded nests for easy identification

   Forfullyinsulatedslideonstyleconnectors

   AMPUltrafast™ style

26-16 AWG

   Forminiinsulatedterminalswithsmallerwirebarrels

Ring tongue, spade, slide on and butt splices

22-10 AWG

   Fornon-insulatedterminalsandsplices

26-10 AWG

   Fornon-insulatedandinsulatedwireferrules

8-4 AWG

   Fornon-insulatedandinsulatedwireferrules

- KWIK CYCLE 9

TOOL W/ DIE 45500

- DIE ONLY 45509

- KWIK CYCLE 9

TOOL W/ DIE 45501

- DIE ONLY 45570

- KWIK CYCLE 9

TOOL W/ DIE 45505

- DIE ONLY 45507

- DIE ONLY 45565

- DIE ONLY 03284

- DIE ONLY 03283

Note: Other dies see page 215.

227

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Non-Insulated Wire Ferrules

• Forterminatingstrandedwireintoterminalblocks.

• Electrolyticcopperandtinplatingprovidemaximumconductivity

and low contact resistance.

• MeetsDIN46228,part1,0.5-50mm2.

SPECIFICATIONS

Material Copper Surface Tin plated

CONDUCTOR SIZE CATALOG UPC DIMENSION L RECOMMENDED

AWG (mm2) NUMBER CODE INCHES (mm) CRIMPING TOOLS

 24-23 69/5VZ* 04989 .197(5) K1GL,K32GL,

 (0.25) 69/7VZ* 04990 .276 (7) K30GL,

Die 03283

 22 70/5VZ* 04991 .197(5) K1GL,K32GL,

 (0.34) 70/7VZ* 04992 .276 (7) K30GL,

Die 03283

 20 71S/6VZ 04993 .236(6) K1GL,K32GL,

 (0.5) 71S/8VZ* 04994 .315(8) K36GL,K30GL,

  71S/10VZ 04995 .394 (10) Die 03283

 18 71/6VZ 04996 .236(6) K1GL,K32GL,

 (0.75) 71/8VZ* 04997 .315(8) K36GL,K30GL,

  71/10VZ 04998 .394 (10) Die 03283

  71/15VZ* 04999 .591 (15)

 18-17 72S/6VZ 05000 .236(6) K1GL,K32GL,

 (1) 72S/8VZ* 05001 .315(8) K36GL,K30GL,

  72S/10VZ 05002 .394 (10) Die 03283

  72S/12VZ* 05003 .471 (12)

  72S/15VZ* 05004 .591(15)

 16 72/7VZ 05005 .276(7) K1GL,K32GL,

 (1.5) 72/10VZ 05006 .394(10) K36GL,K30GL,

  72/12VZ 05007 .471 (12) Die 03283

  72/15VZ* 05008 .591 (15)

  72/18VZ 05009 .709 (18)

  72/20VZ* 05010 .787 (20)

 14 73/7VZ 05011 .276 (7) K1GL,K32GL,

 (2.5) 73/10VZ 05012 .394(10) K36GL,K30GL,

  73/12VZ 05013 .471 (12) Die 03283

  73/15VZ* 05014 .591 (15)

  73/18VZ 05015 .709 (18)

 12 74/9VZ 05016 .354(9) K32GL,K36GL,

 (4) 74/12VZ 05017 .471(12) K30GL,

  74/15VZ 05018 .591 (15) Die 03283

  74/18VZ 05019 .709 (18)

  74/20VZ* 05020 .787 (20)

 10 75/10VZ 05021 .394 (10) K32GL,K34GL,

 (6) 75/12VZ 05022 .471 (12) K36GL,K30GL,

  75/15VZ 05023 .591 (15) Die 03283

  75/18VZ 05024 .709 (18)

  75/20VZ* 05025 .787 (20)

  75/25VZ* 05026 .984 (25)

 8 76/12VZ 05027 .471 (12) K28GL,K34GL,

 (10) 76/15VZ 05028 .591 (15) Die 03284

  76/18VZ 05029 .709 (18)

  76/20VZ* 05030 .787 (20)

  76/25VZ* 05031 .984 (25)

CONDUCTOR SIZE CATALOG UPC DIMENSION L RECOMMENDED

AWG (mm2) NUMBER CODE INCHES (mm) CRIMPING TOOLS

 6 77/12VZ 05032 .471(12) K28GL,K34GL,

 (16) 77/15VZ 05033 .591 (15) Die 03283

  77/18VZ 05034 .709 (18)

  77/20VZ* 05035 .787 (20)

  77/25VZ 05036 .984 (25)

  77/32VZ 05037 1.260 (32)

 4 78/12VZ* 05038 .471(12) K28GL,

 (25) 78/15VZ 05039 .591 (15) Die 03284

  78/20VZ* 05041 .787 (20)

  78/25VZ 05042 .984 (25)

  78/28VZ* 05043 1.102 (28)

 2 79/15VZ* 05044 .591(15) K28GL

 (35) 79/18VZ 05045 .709 (18)

  79/22VZ* 05046 .866 (22)

  79/25VZ 05047 .984 (25)

  79/30VZ* 05048 1.181 (30)

 1/0 80/18VZ 05049 .709 (18) K28GL,K29GL

 (50) 80/22VZ* 05050 .866 (22)

  80/25VZ 05051 .984 (25)

  80/30VZ* 05052 1.181 (30)

 2/0 81/22VZ 05053 .866(22) K29GL

 (70) 81/25VZ 05054 .984 (25)

  81/30VZ 05055 1.181 (30)

 3/0 82/25VZ 05056 .984 (25) K29GL

 (95) 82/30VZ 05057 1.181 (30)

  82/32VZ 05058 1.260 (32)

  82/34VZ 05059 1.339 (34)

 4/0 83/30VZ 05060 1.181 (30) 22 Series Tool

 (120) 83/32VZ 05061 1.260 (32) with AE 22/120

  83/34VZ 05062 1.339 (34) dies

  83/38VZ 05063 1.496 (38)

  83/40VZ 05064 1.575 (40)

 300KCMIL 84/32VZ 05065 1.260 (32) 22 Series Tool

 (150) 84/34VZ 05066 1.339 (34) with AE 22/150

  84/38VZ 05067 1.496 (38) dies

  84/40VZ 05068 1.575 (40)

 350KCMIL 85/32VZ 05069 1.260 (32) 22 Series Tool

 (185) 85/40VZ 05070 1.575 (40) with AE 22/185

dies

*No applicable standard.

See pages 230-231 for recommended ferrule crimping tools.

WIRE FERRULES

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

228

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

COLOR CODE: OLD DIN STANDARD

CONDUCTOR DIMENSIONS

SIZE CATALOG UPC INCHES (mm) RECOMMENDED

AWG (mm2) NUMBER NUMBER COLOR L1 L2 CRIMPING TOOLS

166 / GR 04835 Gray .409 (10.4) .236 (6) K1GL,K32GL,

(0.14) 166 / GRL 04836 .488 (12.4) .315 (8) Die 03283

24 167 / H 04837 Light .409(10.4) .236(6) K1GL,K32GL,

(0.25) 167 / HL 04838 Blue .488 (12.4) .315 (8) K30GL,

Die 03283

22 168 / T 04839 Turquoise .409(10.4) .236(6) K1GL,K32GL,

(0.34) 168 / TL 04840 .488 (12.4) .315 (8) K30GL,

Die 03283

 20 169/OK 04841 Orange .471(12) .236(6) K1GL,K32GL,

(0.5) 169 / O 04842 .551 (14) .315 (8) K36GL,K30GL,

169 / OH 04843 .630 (16) .394 (10) Die 03283

 18 170/WK 04844 White .488(12.4) .236(6) K1GL,K32GL,

(0.75) 170 / W 04845  .574(14.6) .315(8) K36GL,K30GL,

170 / WH 04846 .645 (16.4) .394 (10) Die 03283

170 / WL 04847 .724 (18.4) .471 (12)

 18-17 171/GK 04848 Yellow .488(12.4) .236(6) K1GL,K32GL,

(1) 171 / G 04849  .574(14.6) .315(8) K36GL,K30GL,

171 / GH 04850 .645 (16.4) .394 (10) Die 03283

171 / GL 04851 .724 (18.4) .471 (12)

16 172 / RO 04852 Red .574(14.6) .315(8) K1GL,K32GL,

(1.5) 172 / RH 04853  .645(16.4) .394(10) K36GL,K30GL,

172 / RL 04854 .960 (24.4) .709 (18) Die 03283

14 173 / B 04855 Blue .598(15.2) .315(8) K1GL,K32GL,

(2.5) 173 / BH 04856  .748(19) .471(12) K36GL,K30GL,

173 / BL 04857 .984 (25) .709 (18) Die 03283

12 174 / GR 04858 Gray .649(16.5) .394(10) K32GL,K36GL,

(4) 174 / GRH 04859  .767(19.5) .471(12) K30GL,

174 / GRL 04860 1.003 (25.5) .709 (18) Die 03283

10 175 / S 04861 Black .787(20) .471(12) K32GL,K34GL,

(6) 175 / SL 04862 1.024 (26) .709 (18) K36GL,K30GL,

Die 03283

8 176 / E 04863 Ivory .846 (21.5) .471 (12) K28GL,K34GL

(10) 176 / EL 04864 1.082 (27.5) .709 (18)

6 177 / GR 04865 Green .870(22.2) .471(12) K28GL,K34GL

(16) 177 / GRL 04866 1.110 (28.2) .709 (18)

4 178 / BR 04867 Brown 1.181(30) .630(16) K28GL

(25) 178 / BRL 04868 1.377 (35) .866 (22)

2 179 / B 04869 Beige 1.181(30) .630(16) K28GL

(35) 179 / BL 04870 1.535 (39) .984 (25)

1/0 180 / O 04871 Olive 1.433(36.4) .787(20) K28GL,K29GL

(50)

COLOR CODE: DIN 46228, PART 4

CONDUCTOR DIMENSIONS

SIZE CATALOG UPC INCHES (mm) RECOMMENDED

AWG (mm2) NUMBER NUMBER COLOR L1 L2 CRIMPING TOOLS

20 469 / 6 04548 White .471 (12) .236 (6) K1GL,K32GL,

(0,5) 469 / 8 04549 .551 (14) .315 (8) K36GL,K30GL,

469 / 10 04550 .630 (16) .394 (10) Die 03283

18 470 / 6 04551 Gray .471(12) .236(6) K1GL,K32GL,

(0,75) 470 / 8 04552  .551(14) .315(8) K36GL,K30GL,

470 / 10 04553 .630 (16) .394 (10) Die 03283

470 / 12 04554 .709 (18) .471 (12)

18 - 17 471 / 6 04555 Red .471(12) .236(6) K1GL,K32GL,

(1) 471 / 8 04556  .551(14) .315(8) K36GL,K30GL,

471 / 10 04557 .630 (16) .394 (10) Die 03283

471 / 12 04558 .709 (18) .471 (12)

16 472 / 8 04559 Black .551 (14) .315 (8) K1GL,K32GL,

(1,5) 472 / 10 04560  .630(16) .394(10) K36GL,K30GL,

472 / 12 04561 .709 (18) .471 (12) Die 03283

472 / 18 04562 .945 (24) .709 (18)

14 473 / 8 04563 Blue .551(14) .315(8) K1GL,K32GL,

(2,5) 473 / 12 04564  .709(18) .471(12) K36GL,K30GL,

473 / 18 04565 .945 (24) .709 (18) Die 03283

12 474 / 10 04566 Gray .699(17) .394(10) K32GL,K36GL,

(4) 474 / 12 04567  .787(20) .471(12) K30GL,

474 / 18 04568 1.024 (26) .709 (18) Die 03283

10 475 / 12 04569 Yellow .787(20) .471(12) K32GL,K34GL,

(6) 475 / 18 04570 1.024 (26) .709 (18) K36GL,K30GL,

Die 03283

8 476 / 12 04571 Red .866(22) .471(12) K28GL,K34GL,

(10) 476 / 18 04572 1.102 (28) .709 (18) Die 03284

6 477 / 12 04573 Blue .945(24) .471(12) K28GL,K34GL,

(16) 477 / 18 04574 1.102 (28) .709 (18) Die 03284

4 478 / 16 04575 Yellow 1.181(30) .630(16) K28GL,

(25) 478 / 18 04576 1.181 (30) .709 (18) Die 03284

478 / 22 04577 1.417 (36) .866 (22)

2 479 / 16 04578 Red 1.181(30) .630(16) K28GL

(35) 479 / 18 04579 1.181 (30) .709 (18)

479 / 25 04580 1.535 (39) .984 (25)

1/0 480 / 20 04581 Blue 1.417(36) .787(20) K28GL,K29GL

(50) 480 / 25 04582 1.575 (40) .984 (25)

See pages 230-231 for recommended ferrule crimping tools.

• Terminatestrandedwireintoterminalblocks.

• Electrolyticcopperandtinplatingprovidemaximumconductivity

and low contact resistance.

Insulated Wire Ferrules

SPECIFICATIONS

Material Copper

Surface Tin-plated

Insulated Polypropylene Plastic

229

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Insulated Twin Wire Ferrules

• Usetocompresstwoseparateconductorstogetherinoneferrule

to make chain bridges easy to install.

• Electrolyticcopperandtinplatingprovidemaximumconductivity

and low contact resistance.

SPECIFICATIONS

Material Copper

Surface Tin plated

Insulation Polypropylene plastic

CONDUCTOR DIMENSIONS

SIZE CATALOG UPC INCHES (mm) RECOMMENDED

AWG (mm2) NUMBER NUMBER COLOR L1 L2 CRIMPING TOOLS

2 x 20 869 / 8 02954 White .591(15) .315(8) K32GL,K36GL,

 (2x0.5)      K30GL

2 x 18 870 / 8 02955 Gray .591(15) .315(8) K32GL,K36GL,

(2 x 0.75) 870 / 10 02956  .669(17) .394(10) K30GL

2 x 17 871 / 8 02957 Red .591(15) .315(8) K32GL,K36GL,

(2 x 1) 871 / 10 02958  .669(17) .394(10) K30GL

2 x 15 872 / 8 02959 Black .630(16) .315(8) K32GL,K36GL,

(2 x 1.5) 872 / 12 02960  .787(20) .471(12) K30GL

2 x 13 873 / 10 02961 Blue .728(18.5) .394(10) K32GL,K36GL,

(2 x 2.5) 873 / 13 02962  .846(21.5).512(13) K30GL

2 x 11 874 / 12 02963 Gray .906(23) .471(12) K28GL,K34GL,

 (2x4)      K36GL

2 x 10 875 / 14 02964 Yellow 1.024(26) .551(14) K28GL,K34GL,

(2 x 6)

2 x 8 876 / 14 02965 Red 1.024(26) .551(14) K28GL

(2 x 10)

2 x 5 877 / 14 02966 Blue 1.181(30) .551(14) K28GL

(2 x 16)

See pages 230-231 for recommended ferrule crimping tools.

Insulated Wire Ferrules

• Terminatestrandedwireintoterminalblocks.

• Electrolyticcopperandtinplatingprovidemaximumconductivity

and low contact resistance.

SPECIFICATIONS

Material Copper

Surface Tin plated

Insulation Polypropylene plastic

COLOR CODE: FRENCH STANDARD.

CONDUCTOR DIMENSIONS

SIZE CATALOG UPC INCHES (mm) RECOMMENDED

AWG (mm2) NUMBER NUMBER COLOR L1 L2 CRIMPING TOOLS

26 166 / 6 02971 Brown .409(10,4) .236(6) K1GL,K32GL,

(0.14) 166 / 8 02972 .488 (12,4) .315 (8) Die 03283

24 167 / 6 02973 Light .433(11) .236(6) K1GL,K32GL,

(0.25) 167 / 8 02974 Yellow .511 (13) .315 (8) K30GL,

Die 03283

22 168 / 6 02975 Light .433(11) .236(6) K1GL,K32GL,

(0.34) 168 / 8 02976 Green .511 (13) .315 (8) K30GL,

Die 03283

20 169 / 6 02977 White .433(11) .236(6) K1GL,K32GL,

(0.5) 169 / 8 02978 .511 (13) .315 (8) K30GL,

Die 03283

18 170 / 6 02979 Blue .452 (11.5) .236 (6) K1GL,K32GL,

(0.75) 170 / 8 02980 .531 (13.5) .315 (8) K36GL,K30GL,

Die 03283

18 - 17 171 / 6 02981 Red .452(11.5) .236(6) K1GL,K32GL,

(1) 171 / 8 02982 .531 (13.5) .315 (8) K36GL,

Die 03283

16 172 / 6 02983 Black .452(11.5) .236(6) K1GL,K32GL,

(1.5) 172 / 8 02984  .531(13.5) .315(8) K36GL,K30GL,

172 / 18 02985 .897 (22.8) .688 (17,5) Die 03283

14 173 / 8 02986 Gray .570(14.5) .315(8) K1GL,K32GL,

(2.5) 173 / 18 02987 .945 (24) .688 (17.5) K36GL,K30GL,

Die 03283

12 174 / 12 02988 Orange .681(17.3) .452(11.5) K32GL,K36GL,

(4) 174 / 18 02989 1.003 (25.5) .688 (17.5) K30GL,

Die 03283

10 175 / 12 02990 Green .787(20) .452(11.5) K32GL,K34GL,

(6) 175 / 18 02991 1.024 (26) .688 (17.5) K36GL,K30GL,

Die 03283

8 176 / 12 02992 Brown .843 (21.5) .471 (12) K28GL,K34GL,

(10) 176 / 18 02993 1.062 (27) .688 (17.5) Die 03284

6 177 / 12 02994 Ivory .925(23.5) .471(12) K28GL,K34GL,

(16) 177 / 18 02995 1.141 (29) .688 (17.5) Die 03284

4 178 / 18 02996 Black 1.181(30) .688(17.5) K28GL,

(25) Die 03284

See pages 230-231 for recommended ferrule crimping tools.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

230

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Wire Ferrule Crimping Tool 26 - 13 AWG

SPECIFICATIONS

Range 26 - 13 AWG (.14 - 2.5 mm²)

Length 6.9" (175 mm)

Weight .4 lbs. (0.2 kg)

Wire Ferrule Crimping Tool 20 - 13 AWG

• Makestrapezoidalcrimps.

• Includescutterandreplaceablestripperbladeset.

• Crimpssingleandtwincablewireferrules.

• End-loadingtypetoolthatmakestrapezoidalcrimps.

WIRE FERRULE CRIMPING TOOLS

CAT. NO. UPC NO. DESCRIPTION

K1GL 02633 WireFerruleCrimper

Wire Ferrule Crimping Tool 26 - 10 AWG

• Makestrapezoidalcrimpswithfull-cycleratchetmechanismtoassure

complete crimps.

• Crimpssingleandtwincablewireferrules.

• Adjustsautomaticallytocorrectcrimpsize.

CAT. NO. UPC NO. DESCRIPTION

K32GL 02637 WireFerruleCrimper

Wire Ferrule Crimping Tool 10 - 6 AWG

• Makestrapezoidalcrimpwithfull-cycleratchetmechanismtoassure

complete crimps.

• Crimpssingleandtwincablewireferrules.

• Adjustsautomaticallytocorrectcrimpsize.

CAT. NO. UPC NO. DESCRIPTION

K34GL 02638 WireFerruleCrimper

SPECIFICATIONS

Range Single cable wire ferrules: 20 - 13 AWG ( .5 - 2.5 mm²)

Twin wire ferrules: 2 x 20 - 2 x 15 AWG ( 2 x .5 - 2 x 1.5 mm²)

Length 7.90" (200 mm)

Weight .5 lbs. (0.2 kg)

SPECIFICATIONS

Range Single cable wire ferrules: 26 - 10 AWG (.14 - 6 mm²)

Twin wire ferrules: 2 x 20 - 2 x 13 AWG (2 x .5 - 2 x 2.5 mm²)

Length 8.4" (213 mm)

Weight 1.1 lbs. (.4 kg)

SPECIFICATIONS

Range Single cable wire ferrules: 10 - 6 AWG (6 - 16 mm²)

Twin wire ferrules: 2 x 11 - 2 x 10 AWG (2 x 4 - 2 x 6 mm²)

Length 8.9" (225 mm)

Weight 1.1 lbs. (0.4 kg)

CAT. NO. UPC NO. DESCRIPTION

K36GL 02639 WireFerruleCrimper

231

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Wire Ferrule Crimping Tool 25 - 10 AWG

SPECIFICATIONS

Range 25 - 10 AWG (0.14 - 6 mm²)

Length 6.9" (175 mm)

Weight 1.1 lbs. (0.4 kg)

Wire Ferrule Crimping Tool 7 - 1/0 AWG

• Makessquare-shapedcrimps.

• Full-cycleratchetmechanismassurescompletecrimps.

• Adjustsautomaticallytocorrectcrimpsize.

• Makestrapezoidalcrimpswithfull-cycleratchetmechanismtoassure

complete crimps.

• Crimpssingleandtwincablewireferrules.

CAT. NO. UPC NO. DESCRIPTION

K30GL 02636 WireFerruleCrimper

Wire Ferrule Crimping Tool 1/0 - 3/0 AWG

• Makestrapezoidalcrimpswithfull-cycleratchetmechanismtoassure

complete crimps.

CAT. NO. UPC NO. DESCRIPTION

K29GL 02635 WIreFerruleCrimper

SPECIFICATIONS

Range Single cable wire ferrules: 7 - 1/0 AWG (10 - 50 mm²)

Twin wire ferrules: 2 x 11 - 2 x 5 AWG (2 x 4 - 2 x 16 mm²)

Length 13.2" (335 mm)

Weight 1.8 lbs. (0.8 kg)

SPECIFICATIONS

Range 1/0 - 3/0 AWG (50 - 90 mm²)

Length 13.2" (335 mm)

Weight 1.8 lbs. (0.8 kg)

CAT. NO. UPC NO. DESCRIPTION

K28GL 02634 WireFerruleCrimper

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

232

Wire & Cable Termination

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

NOTES

Voice • Data • Video

For industry-leading tools for datacom, telecom and ﬁber optic applications, Greenlee

has the complete product line. Choose from a large line-up of premium installation tools,

tone generators and tele-communication test sets, network certiﬁcation instruments

and ﬁber optic test equipment – produced and ﬁeld-tested to perform from start to ﬁnish.

Voice • Data • Video

FEATURED Products

® Registered: The color green for electrical test instruments is a registered trademark of Greenlee Textron Inc.

255

NEW

802K Digital LAN

Tracing Kit

288

271

257

NEW

920XC Handheld

Singlemode OTDR

NEW

NETcat® Pro

NC-500

Sidekick® Plus

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

234

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Center Conductor Cutter

Cable Cutter, 8 AWG

Cable Cutter

45471 Professional Installation Kit

This complete kit includes our 8 AWG

Cable Cutter plus all the tools, connectors

and tests for installing and maintaining

most types of communications cabling.

See page 263 for details on

our Professional Installation Kit.

CAT. NO. UPC NO. DESCRIPTION

45481 45481 Center Conductor Cutter

CAT. NO. UPC NO. DESCRIPTION

45482 45482 Cable Cutter

CAT. N O. UPC NO. DESCRIPTION

727 31291 Cable Cutter

SPECIFICATIONS

Stamped from high-carbon tool steel

Rust-resistant black oxide finish

• Preciselytrimsthecenterconductorofcoaxialcabletoastandard

length of 3/16" (5 mm).

• Cushioned-griphandleforcomfortableuse.

• Heat-treatedforlonglife.

• Designedtocutsolid,strandedwireupto8AWG(10mm²)

and multi- conductor cable up to 1/2" (12.7 mm) in diameter.

• Curvedcuttingbladesensureaneasycut.

• Economicallypriced.

• Cushioned-griphandleforcomfortableuse.

• Heat-treatedforlonglife.

• Stampedandprecisiongroundfromhigh-carbontoolsteel.

• Returnspring.

• Lockinglatch.

• Rust-resistantblackoxidefinish.

• Easilycutsheaviercopperandaluminumcablesupto2/0(70mm²).

• Plasticcoated,high-leveragehandlesforeasiercuts.

• Heat-treatedforlonglife.

• Madeofheavy-dutyforgedsteel.

• Precision-ground,shear-action,curvedcuttingblades.

• Rust-resistantblackoxidefinish.

• MadeintheUSA.

COPPER TERMINATION

235

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Cable Splicer’s Knife and Splicer's Snips

Wire Strippers/Cutter

Pro Wire Strippers

• Stripstheouterjacketoffbothsolidandstrandedwire.

• Machinedstrippingstationswithapositivestopprovide

precise stripping diameters.

• Ergonomicallydesigned,extra-longcushionedhandles

add superior comfort and reduce hand fatigue.

• Longcurvedcutterbladesreduceforcerequiredby25%

 andcancutNMinasinglecut.

• Locktabprotectscuttingedgesduringstorage.

• Pliersnoseforworkingwithsmallnutsandpullingwire.

• Holeinjawsforloopingwires.

• Openingstoppreventsspringfromdisengaging.

• Easy-to-readgraphics.

• Cutsscrews.

CAT. NO. UPC NO. DESCRIPTION

PT-K01 08704 ScissorsandKnifeKitwithTwo-PocketPouch

PT-T01 08707 Cable Splicer’s Knife

PT-T02 08708 Electrician’sSnips

PT-C01 08702 Two-PocketLeatherPouch

CAT. NO. UPC NO. DESCRIPTION

1916 31891 20-10AWG(0.8to2.6mmdia.)SolidWIre

1917 31890 26-16AWG(0.4to1.3mmdia.)SolidWire

1918 31889 30-22AWG(0.25to0.64mmdia.)SolidWire

CAT. N O. UPC NO. DESCRIPTION

1950 06852 ProWireStripper10-18AWG

1951 06853 Pro Wire Stripper 22-32 AWG

1955 06857 ProPlusWireStripper,10-18AWG

1956 10300 Pro Plus Stripper 8-16 AWG

• Cutscable,telephonewireandstripsinsulation.

• Tough,temperedsteelknifebladeholdsitsedgelonger.

• Full-sizedknifehandleprovidesgreatercomfort.

• Knifehasashort,coping-typeblademadeofthefinestcutlerysteel.

• Scissorshaveanupperbladewithtwostrippingnotchestostrip

most insulations from 19-24 AWG.

PT-K01

PT-T01

PT-T02

1916

1950

1955

• Precision-groundbladesensureconsistentstrippingandcutting.

• Heat-treatedforlonglife.

• Cushioned-gripvinylhandleforcomfortableuse.

• Serratednosegripforwirepullingandstraightening.

• Stampedfromhigh-carbontoolsteel.

• Pivotjointshavehardenedsteelbushings.

• Rust-resistantblackoxidefinish.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

236

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Kwik Stripper Flat Telephone Cable Cutter/Stripper

Kwik Stripper Coax Stripper — 2 level and 3 level

CAT. NO. UPC NO. DESCRIPTION

45480 45480 KwikStripperFlatTelephoneCableCutter/Stripper

CAT. NO. UPC NO. DESCRIPTION

45576 45576 KwikStripperCoaxStripper-2Level

45577 45577 KwikStripperCoaxStripper-3Level

45040 45040 Cartridge-2Level

45039 45039 Cartridge-3Level

45576 2 Level

TypicallyusedforF-typeconnectors(Seepages245).

Frameacceptsonly2levelcartridges.

45577 3 Level

Typically used for BNC-type connectors

(See page 246).

Frameacceptsboth2and3levelcartridges.

.25

(6.4)

.25

(6.4)

.25

(6.4)

.25

(6.4)

85-003

.23

(5.9)

.23

(5.9)

85-003

85-046

.187

(5)

85-056

Center Conductor

45480

Typically used

forModularPlug

Connectors

(See page 244)

• Designedtocutandstripflatmodulartelephonecables(SilverSatin).

• Built-incablestop/guideforconsistentstriplength.

• Heat-treatedforlonglife.

• Cushioned-gripvinylhandleforcomfortableuse.

• 2-to10-conductorcapacity.

• Stampedfromhigh-carbontoolsteel.

• Rust-resistantblackoxidefinish.

• Designedtoprovideprecise,repeatablestripsconsistently.

• PreparesRG58,RG59,RG62,RG6andmanyothertypesofcoaxcable.

• Stripsbraidanddielectricto1/4"(6.4mm).

• Bladesareeasilyreplacedinthefield.

• Bladeadjustmentforcuttingdepth.

• Replaceableandinterchangeablebladecassettes.

430-500 Poly Line

The430-500polylineisthesame210

lb. (934 N) breaking strength line used in

the larger buckets, and it comes in a tube

withaprepunchedholefordispensing

thelinewithouttangling.Thelinecanbe

blownintoconduitandthenusedtopull

in a larger pulling rope, or it can be used

directlytopullinsmallerwires.

237

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Kwik Stripper Twisted Pair Stripper

Kwik Stripper CATV Cable Stripper

Kwik Stripper CATV/UTP Stripper

CAT. NO. UPC NO. DESCRIPTION

45579 45579 KwikStripperTwistedPairStripper

CAT. NO. UPC NO. DESCRIPTION

45578 45578 KwikStripperCATVCableStripper

45580 45580 Cartridge RG6/RG59

45581 45581 Cartridge RG11/RG7

CAT. N O. UPC NO. DESCRIPTION

45677 45677 KwikStripperCATV/UTPStripperwithBothCartridges

45667 45667 CartridgeUTP

45580 45580 Cartridge RG6/RG59

45581 45581 Cartridge RG11/RG7

45677

TypicallyusedforF-typeconnectors(Seepage245)

andModularPlugconnectors(Seepage244).

Themostversatilestripperintheindustry.

45579

TypicallyusedforModularPlugConnectors(Seepage244)

45578

TypicallyusedforF-typeConnectors(Seepage245)

• Notoolisbetterfortrimmingthejacketfromtwistedpaircable

withoutdamagingtheindividualconductors.

• Bladedepthadjustmentensuresprecisecuttingdepth.

• Bladepenetrationcontrolledbytensionloop.

• Striplengthgauge.

• MadeintheUSA.

• DesignedfortheprofessionalCATVcableinstaller,thisstripperisperfect

forhighvolumeandusesreplaceablestrippingcartridgesforRG6,RG59,

RG11andRG7CATVcables.

• Pre-measuredstopseliminatetime-consumingmeasuringandtrimming.

• Noadjustmentsneeded.

• Sparecartridgeholderisconvenientlybuiltintothetool.

• Includedwiththetool,theRG6/RG59cartridgestrips

 cablejacketanddielectricto1/4"(6.4mm).

• Includedwiththetool,theRG11/RG7cartridgestrips

 cablejacketanddielectricto1/4"(6.4mm).

• Extra-largefingerhole.

• MadeintheUSA.

• Usedforbothunshieldedtwistedpair(UTP)andcoaxialcabling,

thistoolreducesthenumberoftoolsneededwithoutanyadjustments.

• SwitchingfromfourpairUTPtoRG6orRG59issimple–

 justchangecartridges.

• Cartridgesarecolor-codedforquickidentification;blueforUTP

and black for coax.

• Pre-measuredstopseliminatetime-consumingmeasuringandtrimming.

• UTPcartridgestripsfour-pairUTPwithoutscoringthe

individualconductors.

• Sparecartridgeholderisconvenientlybuiltintothetool.

• Includedwiththetool,theRG6/RG59cartridgestrips

thecablejacketanddielectricto1/4"(6.4mm).

• Extra-largefingerhole.

• MadeintheUSA.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

238

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Pocket Cable Stripper

Coax Connector Insertion Tool

CAT. N O. UPC NO. DESCRIPTION

45516 45516 CoaxConnectorInsertionToolwithF-styleConnectorBit

45517 45517 Bit,F-styleConnector

45518 45518 Bit, BNC-style Connector

CAT. NO. UPC NO. DESCRIPTION

1901 45823 Pocket Cable Stripper

07915 07915 Cutting Blade

45516

UsewithF-styleandBNC-styleConnectors

(See pages 245 - 249).

• Specificallydesignedforstrippingpowerandtelecommunications

cablesfrom3/4"to1-1/2"indiameter(19mmto40mm).

• Stripssolidconductor,strandedconductorandmultiple

conductor cables.

• Easybladedepthadjustment.

• Bladerotatesforcircular,longitudinalandspiralcuts.

• UsedinCATVapplications,theInsertionToolholdsF-andBNC-style

connectorssecurelyinplaceallowingtheinstallertoseattheconnector

properly on the cable.

• Preventsdamagetocenterconductor.

• Screwdriverbitcanberemovedtoallowtheratchetingscrewdriver

tobeusedwithstandardbits.

• Screwdriverbitcanbepurchasedseparatelyforuseinstandard

ratchetingscrewdrivers.

• BNCscrewdriverbitsoldseparatelyforusewithBNCconnectors.

• Specificallydesignedforstrippingpowerandtelecommunications

cables from 3/16" to 1-1/8" in diameter (4.5 mm to 29 mm).

• Easybladedepthadjustment.

• Bladerotatesforcircular,longitudinalandspiralcuts.

CAT. NO. UPC NO. DESCRIPTION

1900 45824 Pocket Cable Stripper

07915 07915 Cutting Blade

239

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Punchdown Tool

Replacement Blades for the Punchdown Tool

CAT. NO. UPC NO. DESCRIPTION

46020 46020 PunchdownToolOnly

46021 46021 PunchdownToolw/66Blade

46023 46023 PunchdownToolw/110Blade

CAT. NO. UPC NO. DESCRIPTION

46022 46022 66 Style Blade

46024 46024 110StyleBlade

46022

46010 Clip-On Twisted Pair Kit

OurClip-OnTwistedPairKitcomeswithall

thetoolsnecessaryforterminatingvoice

anddatacableincludingaPunchdownTool

with110blade.

Seepage260fordetails.

• Insertswireforacorrosion-resistantterminationandtrimsoff

excesswire.

• Terminates66,110,BIXandKronecross-connectandwalljacks.

• Spring-loadedforfast,low-effortwireseatingandtermination.

• Internalimpactmechanismeliminatesjammingforlonger,

trouble-freeservicelife.

• Adjustablelow-andhigh-impactforcesettings.

• Bayonet-stylebladelockingmechanism.

• Neoprenepadforshockabsorption.

• Sparebladestorageinthehandle.

• Color-codedyellowonthecutsideoftool.

• Cutsidelabeledtoeliminatecostlypunchingerrors.

• Madeofhigh-carbontoolsteel,heat-treatedandprecision-ground

for long life.

• Reversiblebladesforseating/cutorseatingonlyforjumperwires.

• Rust-resistantfinish.

46023

46024

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

240

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Telephone Ratchet Crimper

CAT. NO. UPC NO. DESCRIPTION

45553 45553 Telephone Ratchet Crimper

45575 45575 Telephone Ratchet Crimper

45553

TypicallyusedforModularPlugConnectors

(See page 244).

45575

TypicallyusedforModularPlugConnectors

(Seepage244).OurTelephoneRatchet

Crimperwasdesignedwithacompactheadto

fit into tight spaces and ergonomic handles for

operator comfort.

45469 Voice and Category 5 Data Termination Kit

This kit includes our Telephone Ratchet Crimper plus other tools

andconnectorsnecessaryforinstallingavoiceanddatanet-

work.Everythingisconvenientlyorganizedinadurablezipper

case.Seepage262fordetailsonourVoiceandCategory5Data

Termination Kit.

• Combinationtoolterminates8-position,6-positionand4-position

(45575 only) modular style plugs.

•Noneedtochangecrimpingdies.

•Full-cycleratchetmechanismprovidesconsistent,

qualityterminationseverycycle.

•Straightactionensuresuniformcrimp.

•Small,compactdesign.

•Built-inwirecutterandstripperforflatcable.

•All-steelframehasrust-resistant,blackoxidefinish.

Compression Crimping Tool

CAT. NO. UPC NO. DESCRIPTION

60807 60807 Compression Crimping Tool

•Requireslessforcethanatraditionalhex-stylecrimp.

•ErgonomicSanoprenegripsreducehandfatigue.

•Terminatesmostcompression-styleconnectors.

•Fullyadjustableforcrimpingdifferentcoaxconnectortypes.

241

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

45504

See our comprehensive line of connectors on pages 244-246.

Gator® Plus Terminal Crimping Tool

Kwik Cycle® 9" Crimp Frame

• Totallynewhydraulicpumpdesignresultsinanextremelycompact,

battery-poweredcrimpingtoolforcrimpingterminalsandVDVconnectors.

• Linearcrimpingactionresultsinacompletelysymmetriccrimp.

• Specialcompact9.6voltNiCdbatteryreducesweightandsize.

• Slimprofileandlightweightprovideforone-handoperation.

• Cancompleteapproximately150crimpsperbatterycharge.

• Ramcanberetractedinmid-cycletoadjustconnector.

• Crimpingheadrotates360º.

• UsesallKwikCycle®9CrimpingDies(seechartsonpages242and243).

• Twobatteries,batterycharger,andcarryingcaseincluded.

• Choiceof120volt,230volt,or12voltbatterycharger.

• Usedtomanuallycrimpawidevarietyofconnectors

and terminals to factory specifications.

• Framefeaturesaprecisionfull-cycleratchetforaccurate,

 repeatablecrimpseverycycle.

• Crimpreleaseleverimprovesthroughputbyeliminatingrejected

terminations due to improper connector positioning.

• Framefeaturesatensionadjustmentpresetatthefactory

for optimum performance.

• High-leverageforceandergonomically-designedhandleprovides

comfortable use.

• Frameanddiesaremanufacturedfromheat-treated,hardenedtoolsteel

for superior function and long life.

• Alldiesetsareeasilyinterchangeablewithasimplescrewdriver.

CAT. NO. UPC NO. DESCRIPTION

EK21011 02024 1.5-TonBattery-PoweredCrimpingToolw/120voltcharger

EK21012 02025 1.5-TonBattery-PoweredCrimpingToolw/12voltcharger

EK21022 02026 1.5-TonBattery-PoweredCrimpingToolw/230voltcharger

RAM1 01975 9.6VNiCdBattery

KK35SGL

02178

23076

02180

02019

02178

23076

02180

Carrying Case

120VCharger

12VCharger

230VCharger

SPECIFICATIONS

Capacity UsesKwikCycle9DieSets

Length 13-1/4" (337 mm)

Weight 2-3/4 lb. (1.3 kg)

Battery 9.6volt1.3AhNiCdbattery

Crimping Force 2,900lb.(13kN)

Width 3-1/8" (79 mm)

Crimp Cycle Time ~2 seconds

Battery Charge

Time

1 hour

CAT. NO. UPC NO. DESCRIPTION

45504 45504 KwikCycle9"CrimpFrame

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

242

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Kwik Cycle® 9" Interchangeable Die Sets for Coaxial Connectors

CRIMP PROFILE CAT. UPC CAT UPC

DESCRIPTION & DIMENSIONS NO. NO. NO. NO.

CENTER TOOL

CABLE TYPE CONNECTION BRAID CRIMP CONTACT WITH DIE DIE ONLY

45562 45562

RG58/RG59/ BNC/TNC Cambridge/

 RG59TFE/RG6 AIM,2-piece

   0.320 0.210 0.185

45563 45563

Belden 1694A BNC/TNC

   0.315    0.068

45574 45574

 RG22B/UTwinax&others Twinax

   0.429    0.075 0.075

46826 46826

 RG58/RG174/8218 BNC/TNC50and

  75OHM

    0.213 0.178  0.068 0.042

  BNC/TNC&F,50and       45545 45545 46830 46830

 RG6/RG59&8281 75OHM.Also1695,

  1505,9259and9231

   0.324 0.255   0.068 0.042

46800 46800 46824 46824

 RG58/RG59/62AU BNC/TNC

   0.256 0.213   0.068

46801 46801 46808 46808

 RG59,RG6 CATVF

   0.360 0.324 0.255

45556 45556

RG58, RG59 Plenum BNC/TNC50/75OHM

&Non-PlenumThinwire

    0.213 0.190  0.068 0.042

45582 45582 45557 45557

 RG6,RG174,8281, BNC/TNC/F

 AT&T728

   0.324 0.178    0.068

45558 45558

 RG58/141/142/58Teflon/ BNC/TNC/F

58 Thinney/RG59 0.100

    0.255 0.213  0.068 0.052

45559 45559

RG58/59/62 Teflon BNC/TNC from

  Cambridge/AIM

   0.325 0.215   0.065

243

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

DESCRIPTION CAT. NO. UPC NO. CAT. NO. UPC NO.

CONNECTION FEATURES TOOL WITH DIE DIE ONLY

22-10 AWG Open barrel, non-insulated terminals, 45508 45508

(0.3 TO 6 MM2) ring tongue, spade and slide-on style

Kwik Cycle® 9" Interchangeable Die Sets for Open Barrel Contacts System

Kwik Cycle® 9" Interchangeable Die Sets for Modular Plugs

Kwik Cycle® 9" Interchangeable Die Sets for Insulated and Non-Insulated Terminals

DESCRIPTION CAT. NO. UPC NO. CAT. NO. UPC NO.

CONNECTION FEATURES TOOL WITH DIE DIE ONLY

22-10 AWG Color coded nests for easy identification 45500 45500 45509 45509

Standard insulated terminals, ring tongue,

spade lug, slide on and butt splices

22-10 AWG Color coded nests for easy identification 45501 45501 45570 45570

For fully insulated slide-on syle connectors

AMP Ultrafast™ style

26-16 AWG For mini insulated terminals with smaller wire 45565 45565

barrels. Ring tongue, spade, slide on and

butt splices

22-8 AWG For non-insulated terminals and splices 45505 45505 45507 45507

DESCRIPTION CAT. NO. UPC NO. CAT. NO. UPC NO.

CONNECTION FEATURES TOOL WITH DIE DIE ONLY

RJ11 Western Electric and Stewart style connectors 46116 46116

2-, 4- and 6-position

RJ45 AMP modular plug connectors 45540 45540 46117 46117

8-position

RJ11 AMP modular plug connectors 45541 45541 46118 46118

4- and 6-position

RJ45 Modular plug connectors 45571 45571

10-position

Hand set plug 45566 45566

4-position

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

244

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

F-STYLE CONNECTORS

DESCRIPTION RECOMMENDED TOOL

STRIPPER CRIMPER COMBO

CONNECTOR TYPE CABLE TYPE QUANTITY CAT. NO. UPC NO. CAT. NO. UPC NO. CAT. NO. UPC NO.

Handset 4 Contact

RJ11 6 Contact

DEC MMJ 6 Contact

RJ45 8 Contact

Handset 4 Contact

RJ11 6 Contact

DEC MMJ 6 Contact

RJ45 8 Contact

RJ45 Cat 5 8 Contact

Modular Plugs

We offer modular plugs for a wide variety of installations – from simple

tasks like connecting a telephone handset cord to the most demanding

requirements of Category 5 wiring.

• Gold-plated contacts provide long life and reliable performance

• Manufactured to comply with FCC 68 guidelines

Flat Cable

Stranded Wire

Flat Cable

Stranded Wire

Flat Cable

Stranded Wire

Flat Cable

Stranded Wire

Round Cable

Solid Wire

Round Cable

Solid Wire

Round Cable

Solid Wire

Round Cable

Solid Wire

Round Cable

Solid Wire

45504 w/die

45566

45541

45504 w/die

45566

45541

45504 w/die

45566

45541

45504 w/die

45566

45541

45575

45553

45575

45553

45575

45553

45575

45553

45575

45553

45575

45553

45575

45553

45575

45553

45575

45553

45575

45553

45575

45553

45575

45553

45575

45737

45750

45770

45738

45751

45771

45739

45740

45753

45773

45742

45755

45775

45743

45756

45776

45744

45745

45758

45778

45747

45760

45780

45737

45750

45770

45738

45751

45771

45739

45740

45753

45773

45742

45755

45775

45743

45756

45776

45744

45745

45758

45778

45747

45760

45780

45480

45579

45480

45579

25/Pack

50/Pack

100/Pack

25/Pack

50/Pack

100/Pack

25/Pack

50/Pack

100/Pack

25/Pack

50/Pack

100/Pack

25/Pack

50/Pack

100/Pack

25/Pack

50/Pack

100/Pack

25/Pack

50/Pack

100/Pack

CAT. NO. UPC NO.

(2 Piece)

For the best tools to use with our modular plugs, see pages 277 to 278 for stripping, and pages 278 to 279 for crimping.

245

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

F-Style Coaxial Connectors System

F-STYLE CONNECTORS

DESCRIPTION RECOMMENDED TOOL

STRIPPER CRIMPER

CONNECTOR TYPE CABLE TYPE QUANTITY CAT. NO. UPC NO. CAT. NO. UPC NO. CAT. NO. UPC NO.

‘F’ Connector Twist-on RG59

‘F’ Connector Crimp RG59 46801 46801

‘F’ Connector Twist-on RG6

‘F’ Connector Crimp RG6 46801 46801

‘F’ Connector Crimp RG59 Quad-shield 46801 46801

‘F’ Connector Crimp RG6 Quad-shield 46801 46801

• Nickelplatedforcorrosionresistance

ForthebesttoolstousewithourF-styleconnectors,

see pages 277 to 278 for stripping and pages 278 to

279 for crimping.

10/Pack

50/Pack

10/Pack

50/Pack

10/Pack

50/Pack

10/Pack

50/Pack

10/Pack

50/Pack

10/Pack

50/Pack

45735

45749

45734

45748

45327

45328

45315

45316

45321

45322

45323

45324

45735

45749

45734

45748

45327

45328

45315

45316

45321

45322

45323

45324

45576

45578

45677

45576

45578

45677

45576

45578

45677

45576

45578

45677

45576

45578

45677

45576

45578

45677

45576

45578

45677

45576

45578

45677

45576

45578

45677

45576

45578

45677

45576

45578

45677

45576

45578

45677

F-STYLE ADAPTERS

DESCRIPTION

ADAPTER/TERMINATOR TYPE QUANTITY CAT. NO. UPC NO.

‘F’ Female Adapter 5/Pack 45325 45325

‘F’ Terminator 5/Pack 45326 45326

XFC Series Weatherproof Compression F-Style Connectors

CAT. N O. UPC NO. DESCRIPTION

XFC-6-10 12578 RG6-10Pack

XFC-6-50 12586 RG6-50Pack

XFC-6-100 12587 RG6-100Pack

XFC-6Q-10 12589 RG6Quad-10Pack

XFC-6Q-50 12590 RG6Quad-50Pack

XFC-6Q-100 12591 RG6Quad-100Pack

XFC-59-10 12593 RG59-10Pack

XFC-59-50 12594 RG59-50Pack

XFC-59-100 12595 RG59-100Pack

•Dual-protectionwithexternalsleeveandinternalo-ring.

•360-degreesleevecrimppreventsmoisturemigration.

•O-ringprovidesinternalsealwhenthe7/16"nutistightened.

•Useforbothindoorandoutdoorapplications.

•Color-codedsleevesforeasyidentificationofcablecompatibility.

•70lbspull-outstrengthexceedsSCTEcableretentionstandardIPS-SP-405.

•Terminateseasilyusinganycompressiontool.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

246

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

BNC Coaxial Connectors

• Gold-plated,captivecentercontactprovideslonglife

and reliable performance

• Precisionmanufacturedfrommachinedbrassandnickelplated

for corrosion resistance

BNC CONNECTORS

DESCRIPTION RECOMMENDED TOOL

STRIPPER CRIMPER

CONNECTOR TYPE CABLE TYPE QUANTITY CAT. NO. UPC NO. CAT. NO. UPC NO. CAT. NO. UPC NO.

BNC Crimp Plug RG58 Thinnet PVC 5/Pack 45730 45730 45577 45577 46800 46800

BNC Crimp Plug RG58 Thinnet Plenum 5/Pack 45731 45731 45577 45577 46800 46800

BNC Crimp Plug RG59/62 PVC 5/Pack 45732 45732 45577 45577 46800 46800

BNC Crimp Plug RG59/62 Plenum 5/Pack 45733 45733 45577 45577 46800 46800

BNC ADAPTERS

DESCRIPTION

ADAPTER TYPE QUANTITY CAT. NO. UPC NO.

BNC Tee-style Plug to Jack/Jack 1/Pack 45727 45727

BNC Straight Jack to Jack 1/Pack 45728 45728

BNC TERMINATORS

DESCRIPTION

ADAPTER TYPE QUANTITY CAT. NO. UPC NO.

BNC Terminator 93 OHM 1/Pack 45726 45726

ForthebesttoolstousewithourBNCconnectors,seepages277

to 278 for stripping and pages 278 to 279 for crimping.

247

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

VS1 Series Splitters

CAT. NO. UPC NO. DESCRIPTION

VS1-2 46241 2-Way1GHzSplitter(1)

VS1-3 46242 3-Way1GHzSplitter(1)

VS1-4 46243 4-Way1GHzSplitter(1)

45326 45326 F-Terminator,75ohm(10)

ELECTRICAL Frequency - Range (MHz) VS1-2, 2-Way VS1-3, 3-Way VS1-4, 4-Way

I SPECIFICATIONS 5-47 3.6 4.0-7.2 7.5

Insertion Loss 47-470 4.0 4.1-7.8 8.0

In-Out 470-750 4.3 4.3/8.2 8.5

(max dB) 750-1000 4.5 4.5/8.5 8.5

5-47 15.0 15.0 15.0

Return 47-470 16.0 17.0 17.0

Loss In 470-750 15.0 15.0 15.0

(min dB) 750-1000 15.0 15.0 15.0

5-47 15.0 15.0 15.0

Return 47-470 16.0 17.0 17.0

Loss Out 470-750 15.0 15.0 15.0

(min dB) 750-1000 15.0 15.0 15.0

5-47 20.0 20.0 20.0

Isolation 47-470 21.0 21.0 21.0

Out-Out 470-750 20.0 20.0 20.0

(min dB) 750-1000 20.0 20.0 20.0

LENGTH: 2.3" (58mm) 3.0" (76mm) 3.0" (76mm)

WIDTH: 1.9" (48mm) 1.9" (48mm) 1.9" (48mm)

HEIGHT: 0.6" (15mm) 0.6" (15mm) 0.6" (15mm)

HOUSING: Nickel Plated Zinc Die Cast

RF CONNECTOR F-Type Female 75OHM

SPECIFICATIONS

Designedfordigitalbroadcasttelevision,digitalcabletelevision,

off-airantennasandRFdistribution

•Bandwidth-5MHzto1GHz.

•PowerPassivePort-designedtopassRFandDCpowerfromoneinputto

one output.

•Nickel-plated,zincdie-casthousingforexcellentanti-corrosiveprotection.

•100%solder-sealedtinbackplateprovidesEMI/RFIshielding>-120dB.

•Lowinsertionloss.

•PrintedcircuitboardconstructionensuresconsistentRFperformance

and excellent port-to-port isolation.

•Precisionmachinethreaded“F”portsforperfectconnectorfit.

•F-Portsspacedat1"oncentertoallowapplicationofsecuritysleeves

andwindowfilters.

•F-PortscomplywithSCTEoutdoorstandards.

• Mountingscrewsincluded.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

248

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Classic 77 Series Tone Generators

Replacement Piercing Clips

Classic 77 Series Tone Generators

CAT. NO. UPC NO. DESCRIPTION

RPC 08710 Piercing Clips

77HP/6AC

FEATURES / SPECIFICATIONS 77HP 77HP / 6A 77HP / 6AC

Selectable Warble Tone ✔ ✔ ✔

Continuity Testing ✔ ✔ ✔

Polarity Testing ✔ ✔ ✔

Talk Battery Supply ✔ ✔ ✔

Two-line Modular Test Lead (RJ-11) ✔ ✔ ✔

Three-color LED (identifies AC ring voltage) ✔ ✔ ✔

Weather-Resistant Design ✔ ✔ ✔

Bent Nose Clips with Bed-of-Nails Penetrator ✔ ✔

Cloth Test Leads ✔

Battery Operated (9V not included) ✔ ✔ ✔

Permitstechnicianstoidentifytheconductorwithinabundle,ata

cross-connectpointorattheremoteend.Canbeusedontwistedpairwiring

(telecom,datacom,etc.),singleconductors,coaxialcables,de-energized

ACwiringandmostotherwiring.

• Thesetraditionaltelco-styleclipscanbeusedwithalmostany

style cordsets.

• Clipsfeaturebentnosedesignforuseon66stylepunchdown

blocksandbed-of-nailspenetratorforuseoninsulatedwires.

• Packageoftwoclipswithredandblackboots.

77HP/6A77HP

77HP

77CS

CAT. NO. UPC NO. DESCRIPTION

77HP 08687 77HPToneGenerator

77HP/6A 08688 77HP/6AToneGenerator

77HP/6AC 60480 77HP/6ACToneGenerator

CAT. NO. UPC NO. DESCRIPTION

77CS 08686 LeatherBeltHolsterforClassic77Series

Tone Generators

Note: Not for use on energized AC wiring

WIRE & CABLE IDENTIFICATION

249

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Professional GX Series Tone Generators

CAT. NO. UPC NO. DESCRIPTION

77GX 60556 77GXToneGenerator

77GX2 60560 77GX2ToneGenerator

AdapToner Modular Breakout Tone Generator

• Microprocessorcontrolledcircuitryforincreasedreliability.

• Two-linepolarityindicationforfastoutletidentification.

• Automaticshutofftopreventbatterydrain.

• Snag-proofbootpreventsbrokenplugtabs.

• Convenientwrist/hanginglanyard.

• Threedistinct,selectabletonesignaloutputsformultiple

line identification.

• Twoselectabletonepoweroutputsforuseonopenandshortedpairs.

• Independentcontinuitytestfunction.

• Independenttalkbatterysupplywithhigheroutputvoltage.

• Fixedalligatorclipsandremovablemodularplugformultiple

connection options.

• 77GX2includespremiumtelco-stylebentnoseclipswithpiercingpinand

bed-of-nails connectors.

• TheAT8ToneGeneratormakesitsimpletotestcontinuity,polarity,

sendtoneandevensupplytalkbatterytoanyconfigurationof

pairsin8-positionmodularjacksandplugs.

• Combinesthefeaturesofourtonegeneratorsandamodular

breakout adapter.

• In-linetestingismadesimplewithbothamodularplugandjack

on each unit.

• 8-position“snag-proof”modularplug.

• 8-positionjackwithprotectivecover.

• Quickreferenceguidewithcommonwiringconfigurations.

• Selectablesolid/warbletonesignal.

• Tone,continuityandtalkbatterysupplyusingalligatorclips.

• Weather-resistantdesign.

• Batteryoperated(9Vnotincluded).

77GX

CAT. NO. UPC NO. DESCRIPTION

AT8 08693 AdapTonerModularBreakoutToneGenerator

Note: Not for use on energized AC wiring

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

250

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

LAN Toner with HUB Blink and Detect

Tone Test Set

• TheLANTonerisdesignedforthenetworkinstallationandmaintenance

professionalandcanbeusedonanywiringsystemincludingdatacom,

telecom,security/alarm,audioandCATV.

• BlinksHUB,SwitchPort,andPCactivitylightsforfastidentification.

• DetectLANhubs&switches.

• Providestonesignaling,continuitytestingandtelephonelinepolarity

indicationcombinedwithamodularbreakoutadapter.

• Selectabletoneoutputsforidentifyingmultiplecableruns.

• Includesmultipleconnectionoptions.

• Ourmostcomprehensivetonetestset.

• Traditionalalternatingtonesignalforwireidentification.

• Audiblelineconditiontesting(level)indicatesdead,

workingandoff-hooklines.

• Line1and2polaritytestingusing4-conductormodularplug.

• Improvedtalkbatterysupplyforcommunicationoverinactivepairs.

• Toneandtestfunctionsusingeithermodularplugor24"alligator

clip leads.

• Audibleresistancelevelmeasurement.

• Audiblecapacitancelevelmeasurement.

• Batteryoperated(9Vnotincluded).

600CS

CAT. NO. UPC NO. DESCRIPTION

AT8L 60583 LANToner

CAT. NO. UPC NO. DESCRIPTION

600LS 08680 Tone Test Set

600CS 08679 LeatherBeltHolsterfor600LSTestSet

Note: Not for use on energized AC wiring

251

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Alarm Loop Verifier/Tone Generator

• Designedspecificallyforthesecurityandalarmindustry,thePE620can

beconnectedtoaNormallyOpenorNormallyClosedlooppair

andprovidesadistinctaudibletonewhenthealarmconditionoccurs.

• Latchingfeatureprovidesasimplemethodforidentifyingintermittent

failures(“swingers”)andconfirmingoperationofswitchesat

remote locations.

• Inthelatchingmode,theunitwillcatchthealarmcondition

and continue sounding until the tester is reset.

• Asatonegenerator,theunitprovidesatraditionalvariabletonethat

canbeappliedusingthe24"redandblacktestleadsoraconvenient

6-position modular plug.

• ConvenientmagneticbackplateallowsthePE620tobemounted

directly to the control panel cabinet or door.

• Batteryoperated(9Vnotincluded).

CAT. NO. UPC NO. DESCRIPTION

PE620 08665 AlarmLoopVerifier/ToneGenerator

Data Mate® Precision Tracing Tone Generator

Tracewireorcablewithoutinterferingwithdigitaltwo-waycable

orADSLservices.

Themodel7780DataMatePrecisionToneGeneratorisintendedto

providetonefortracingandtroubleshootingcommunicationcircuitswithout

disruptingdigitaltrafficonthelineoradjacentlines.

Thehighpurityofthetracingtonescombinedwithinternalisolatingfilters

allowssafetracingoncircuitsthatcarrydigitalservicesabovethebaseband

(two-waycableandADSL).

Thehigh-powerdifferentialoutputofthe7780makestoneseasytofind,

evenoverlongdistances.Alsousefulforcontinuitytestingandpolaritytesting,

the7780providesthestandardwarbletoneandtalkbatterysupply.

• HighPowerToneOutput.

• LineVoltageandPolarity

Indication.

• HighPurityToneSignal.

• LowCrosstalk.

• LowBatteryIndicator.

• Filter-isolatedCircuitry.

• Two-wayBroadbandCompatible.

• ModularandTelcoProAlligator

Leads.

• ADSLServiceCompatible.

• LongRange.

• Popular,StandardWarbleTone

FrequenciesContinuityTesting

• Compatiblewithexistingtone.

CAT. NO. UPC NO. DESCRIPTION

PE7780 60777 DataMate Tone Generator

SPECIFICATIONS

Electrical

Output Power +9dBm

Output Signal Frequency 877/982 Hz alternating

Output Impedence 3,500 ohms minimum, 25kHz to 1.1 MHz

Mechanical

Length 5.5" (140 mm) Depth 1.0" (25 mm)

Width 2.25" (57 mm) Weight 0.38 lbs. (0.17 kg)

Note: Not for use on energized AC wiring

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

252

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

MODEL NO. 200EP 200GX 200FP 200XP

Powerful 2" Speaker ✔ ✔

Powerful, Rear-fire Speaker ✔ ✔

One-button Operation ✔ ✔ ✔ ✔

Adjustable Volume Control ✔ ✔ ✔ ✔

LED for Visual Signal Strength Indication ✔ ✔ ✔ ✔

Recessed Tabs for Telephone Test or Headset Connection ✔ ✔ ✔ ✔

Speaker Bypass When Using Telephone Test Sets ✔

Noise Filtration ✔ ✔

Improved Tip Design for Better Reception and

✔ ✔ ✔

Lower Risk of Shorting Terminals

Continuous-On Feature ✔ ✔

Five-Minute Auto Shutoff ✔ ✔

Low-battery Indicator ✔ ✔

Battery Operated (9V not included) ✔ ✔✔ ✔

Patented ✔ ✔

200EP 200GX 200FP

200GX

200 Series Inductive Amplifiers

Inductive Amplifiers

• Usedinconjunctionwithanytonegenerator,InductiveAmplifierspermit

wireandcableidentificationwithouthavingtomakedirectmetallic

contactwiththeconductor.

• Allmodelsfeatureapowerfulspeakerfornoisyenvironments,

recessedon/offbuttoncontrolandhighgainforaccuratewire

identificationincongestedcablebundlesandequipmentrooms.

• The200EPalsoincludesadjustablevolumecontrolforprecise

identification,anLEDforvisualsignalstrengthindicationandrecessed

telephone test set connectors.

• The200GXincludesallthefeaturesofthe200EPinanewrugged,

ergonomically-designed housing.

CAT. NO. UPC NO. DESCRIPTION

200EP 08671 InductiveAmplifier

200GX 60557 InductiveAmplifier

200C 08670 LeatherBeltHolsterfor200SeriesInductiveAmplifiers

200C

200XP

253

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

RPT-1

RPT-2

Filter Probe

Replacement Plastic Tips for 200 Series Probes

Replacement Metal Tips for 200B and 200EP Probes

• Byselectivelyfilteringout60Hzanditsharmonics,the200FP

canbeusedwithanytonegeneratorforfaster,moreaccurate,

cableandwireidentification.

• Slim,comfortabledesignforuseinlimited-spaceareas.

• Recessedon/offpush-buttoncontroltoconservebatterylife.

• Adjustablesensitivity/volumecontroltoincreaseaccuracy.

• Blendedcarbon/plastictiptoreducetheriskofshortingterminals.

• Patented.

• Plastictipsperformmuchthesameastraditionalmetaltipswhile

reducing the risk of shorting terminals.

• Speciallyformulatedwithacarbonpowderandcarbonfiber

blended plastic.

• Tipsfit200B,200EP,200GX,200FPand200XPprobes.

• RPT-1comeswithtwopencil-styletipsandtwospade-styletips.

• Metaltipsprovidemaximumperformancewhenprobing

insulatedwiresormakingdirectmetalliccontact.

• Madeofnickel-platedbrass.

• Tipsfit200Band200EPprobes.

• Packagecontainstwopencil-styletips.

Multi-Filter Tone Probe

• Singlebuttonselectstwokindsofpowerfulnoisefilters.

• Filteringmeansfaster,moreaccuratepairtracing.

• Digitalsignalprocessorforaccuracyandsensitivity.

• Durable,lightweight.

• Audibleandvisiblesignaldetection.

• Continuous,wide-rangevolumecontrol.

• Buttsetterminals.

• Fieldreplaceabletip,sparetipincluded.

• Usesasingle9Vbattery.

• Oneprobeformanyapplications.

• Workswithanytonegenerator.

• Especiallywellsuitedfor577HzTelcotonesourcesandaversion

isavailablefor1kHzsystems(983Hz).

CAT. NO. UPC NO. DESCRIPTION

200FP 08672 FilterProbe

CAT. NO. UPC NO. DESCRIPTION

RPT-1 08711 PlasticTipsfor200B,200EP,200FPand200XP

RPT-2 60561 PlasticTipsfor200GX

CAT. N O. UPC NO. DESCRIPTION

RMT-1 08709 MetalTipsfor200Band200EPProbes

CAT. NO. UPC NO. DESCRIPTION

200XP 60887 Multi-FilterToneProbe

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

254

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Classic Tone and Probe Kit

Professional Tone and Probe Kit

Premium Tone and Probe Kit

• Usedtoidentifysingleconductorsorcableswithinabundle,

at a cross- connect point or at remote ends.

• Kitincludesthe77HPHighPowerToneGeneratorandthe200EPInductive

Amplifierinarugged,wovennyloncarryingcase.(700C)

CAT. NO. UPC NO. DESCRIPTION

701K 08684 Classic Tone and Probe Kit

CAT. NO. UPC NO. DESCRIPTION

711K 60558 Professional Tone and Probe Kit

• Designedforthetelecomprofessional,thiskitisforuseonsingle

conductors,twistedpairs,coaxcablesandde-energizedelectricalwiring.

• Housingsaredrop-testedtoensuredurability.

• Kitincludesthe77GXToneGeneratorand200GXInductiveAmplifier

in a rugged carrying case. (711CS)

• Designedformoreaccuratewireidentification,the801Kvirtually

eliminatespower-relatednoisefromthetoneandprobeoperation.

• Kitincludesthe77HP/6AHighPowerToneGeneratorand200FPFilter

ProbeinaconvenientCordura®case.(700C)

CAT. N O. UPC NO. DESCRIPTION

801K 08690 Premium Tone and Probe Kit

AdapToner Kit

• Designedforfast,accuratewireidentificationbycombiningthefeatures

of our tone generators and modular breakout adapter.

•KitincludestheAT8ModularBreakoutToneGeneratorand200EP

InductiveAmplifierinaconvenientcarryingcase.(700C)

CAT. N O. UPC NO. DESCRIPTION

AT8K 08694 AdapToner Kit

255

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

LAN Toner Kit

CATV Cable Tone Test Kit

• Designedforthenetworkinstallationandmaintenanceprofessional,

theLANTonersendstoneandblinksHUB,SwitchPort,andPCactivity

lightsforfastidentification.Thiskitcanbeusedonanywiringsystem

includingDatacom,Telecom,security/alarm,audioandCATV.

• KitincludestheAT8LLANTonerandthe200GXInductiveAmplifier

inarugged,wovennyloncarryingcase.(700C)

CAT. NO. UPC NO. DESCRIPTION

AT8LK 60584 LANTonerKit

CAT. NO. UPC NO. DESCRIPTION

402K 08677 CATVCableToneTestSet

402T 60376 Transmitter

402R 60377 Receiver

CS9 60374 MaletomaleF-connectoradaptercable

CS19 60378 F-connectortoalligatorclip

• DesignedspecificallyfortheCATVindustry,thiskitallowsyoutotonethrough

splitters, directional couplers and traps.

• Simpletouse,the402Kprovidesaccurateresultsandwilleliminatelong

delays trying to figure out non-tagged or mis-tagged cable drops.

• Kitincludesonetransmitter,onereceiver,onemaleF-to-Fconnectoradapter

cable,onemaleF-to-alligatorclipadaptercableandacarryingcase.(700C)

• TransmitterandreceiverareequippedwithfemaleF-connectors.

• Threemethodsofsignalreception:electrostaticpickupfornon-terminated

cables, electromagnetic pickup for terminated or shorted cables and direct

connectionwhenidentifyinginthepresenceofpassivedevices.

• Incontinuitymode,providesbothaudibletoneandLEDdisplay.

• IdentifiesthepresenceofACorDCvoltageonthecableundertest.

• Fourselectabletoneoutputsformultiplelineidentification.

802K Digital LAN Tracing Kit

• The802KDigitalLANTracingKitisapowerful,uniquetroubleshooting

andtracingsolutionforLANsandothertypesofVDVwiring.Theindustry

standard200FPfilterprobeisdesignedtoeliminatehumfromfluorescent

lightsandACpowerwiringthatcanobscuretracingtones.

• TheAT8LLANTonernotonlygeneratesmultipletracingtones

andprovidesbasicwiringtests,butindicatesthepresenceof

10/100Base-Tnetworkservice.

CAT. NO. UPC NO. DESCRIPTION

802K 36000 DigitalLANTracingKit

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

256

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Cabling Pouch

Tone and Probe Carrying Case

• Designedtoholdacompletesetofwiringtoolsincluding:any(one)

77SeriesToneGenerator,any(one)200SeriesInductiveAmplifier,

apunchdowntool,acablingknifeandscissors.

• Convenientlooptoholdmosttelephonetestsets.

• Removable“partspouch”allowsyoutokeepsmallcomponents

inreach.

• Madeofadurablewovennylon.

• Fitsbeltsupto5"wide.

• Allowsyoutobuildyourownkitusinganytonegenerator

and200Seriesprobe.

•Durablewovennylon.

•Fitsbeltsupto3"wide.

Cat. No. UPC No. DesCriPtioN

700C 08683 ToneandProbeCarryingCase

711CS 60559 ToneandProbeCarryingCasewithbelthook

Cat. No. UPC No. DesCriPtioN

750C 08685 CablingPouch

700C

711CS

Security and Alarm Kit

• Designedspecificallyforthesecurityandalarmindustry,the620K

providesasimplemethodforidentifyingintermittentfailures(swingers)

andconfirmingoperationofswitchesatremotelocations.

• Tobettersatisfyindustryrequirements,we’vecombinedtheModelPE620

ToneGeneratorwiththepopularModel200EPInductiveAmplifier

 inadurablewovennylonpouch.(700C)

Cat. N o. UPC No. DesCriPtioN

620K 08682 SecurityandAlarmKit

257

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

NETcat® Pro NC-500

• Touchscreendisplaywithcontrastadjustmentandbacklight.

• Testsshieldedtwistedpair(STP)unshieldedtwistedpair(UTP)andcoaxialcables.

• 0-2000footcablelengthviaTDR.

• Generatefourdistinct,precisiontonesfortracinglow-losscableslikeCat5.

• Identifiesactivenetworkdevices(PCorHub)on10/100Base-Tnetworks.

• Displaysnetworkdevicecapabilities.

• Patchcableandremotejackwire-map.

• Detectsshorts,opens,reversed,crossedandsplitpairs.

• OfficeidentificationusingremoteIDunits.

• Troubleshootsandverifiesawiderangeofnetworks.

• Graphicaltouch-screendisplay.

• RemotejackIDandverification.

• Operatesonasingle9Vbattery,withlowbatteryindicator.

• Pulsedtimedomainreflectometer(TDR)showslengthofallpairs.

• CompatiblewithGreenleeprecisiondigitalprobes.

STRUCTURED WIRING TESTERS

CAT. NO. UPC NO. DESCRIPTION

NC-500 23639 NETcatProDigitalVDVWiringTroubleshooter

NC-510 23640 NETcatProAccessoryKitw/carrycase

SPECIFICATIONS

Dimensions 3.3" x 1.4" x 6.7" (8.5 cm x 3.5 cm x 17 cm)

Weight 0.45lb.(200g)

Power

Requirements

9VAlkalinebattery(PP3)

User Interface

Display LCD

Viewing Area

Backlight

Buttons

DotPixels:128x128dots

60.0x58.4

WhiteLED

LCDtouch-screen,Single

momentary contact push button

Environmental

Operating

Temperature

Storage

Temperature

0°Cto50°C

-20°Cto70°C

Interface

Connections

RJ45shieldedjacks

F-typethreadedfemalecoaxialconnectors

TDR

Calibration

Userselectablebasedonaknowncablelength.

Range:50to2000ft.-40%to100%instepof1%

Length 2000ftMaximum

Resolution 1 ft.

Accuracy to

Open/Short

+4%or2ft.whicheverisgreater

Remote

Identiﬁer

2000ft.(609.6meters)maximumdistance

Wiremap 358ft(100meters)maximumdistance

NC-500

NC-510

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

258

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

PairMapper® Wiremap Kit

• Usetoidentifyvariouswiringfaultsfoundin10BASE-Tandother

four-pair,twistedpaircablesperTIA/EIA568Aand568B.

• TestsandidentifiesuptofourcableswithuniqueRemoteTerminators.

• Easytouse,compact.

• Checkstwistedpaircableforshorts,opens,crossedpairs,reversedpairs

and split pairs.

• Batteryoperated(4xAAAnotincluded).

PM-400K

CAT. NO. UPC NO. DESCRIPTION

PM-400K 11877 PairMapperWiremapKit

NETcat® Micro NC-100

• Testsshieldedtwistedpair(STP),unshieldedtwistedpair(UTP)andcoaxialcables.

• TIA/EIAstandardwiringpairverification.

• Detectsshorts,opens,reversedpolarity,crossedandsplitpairs.

• Generatesthreedistinct,selectabledigitaltonepatternsforcabletracing

and troubleshooting.

• TracingmodescanbeadjustedforhighperformanceLANcables.

• Completesetofconnectortypesstandard(telephone,LANandcoax).

• Nestedremoteallowsend-to-endtestingofallwiringtypes.

• SimpletestingofLANwiringandphonelines.

• Detectionofcommonwiringandconnectorerrors.

• Warningofhazardousvoltages.

• Checksforreversedtelephonewires.

CAT. NO. UPC NO. DESCRIPTION

NC-100 23636 NETcat®MicroDigitalVoiceDataandVideoWiringTester

SPECIFICATIONS

Dimensions 150x70x33mm

Weight 220gincludingremoteunitandbattery

Power Source 9VAlkalinebattery(PP3)

User Interface

Display LCD

Backlight

Buttons

Iconandsevensegmenttype

GreenLED

Fourmomentarycontactpushbutton

Environmental

Operating

Temperature

Storage

Temperature

Humidity

0°Cto50°C

-10°Cto60°C

upto95%non-condensing

Interface

Connections

RJ45 shielded socket

RJ126-waysocket

F-typethreadedfemalecoaxialconnectors

Network Split

Pair Detection

Minimum

cable length

2to3meters(5to10ft.)dependingoncabletype

Pair Tracing

Tones

Alternatingfrequenciesof577Hzand983Hzareproducedatthree

userselectablerates.Designedforstandardtoneprobes,but

compatiblewithprecisiondigitalGreenleetoneprobes.

259

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Sure Signal®

• Designedforcableinstallersandcommunicationstechniciansfortesting

four-pairdata/voicecablelinksterminatedwithstandard,modular

eight-positionRJ45-stylejacks.

• Simplesttesteravailableforidentifyingcommonwiringfaultssuchasshorts,

opensandmiswires.

• Diagnosiscanbecompletedatoneend.

• Sequentially-lightingLEDscorrespondtoeachwireallowingeasierdiagnosis

ofmiswiresthantestersthatcheckpairs.

• Cantestmorewiringconfigurationsthanothertestersduetosequentialwiremaptesting.

• Shieldedtestportsallowextraversatilitytotestshieldedandscreenedtwistedpair.

• OptionalpatchcordsallowtheSureSignaltobeusedasacoaxtester,eliminating

the need for a second tester.

• Optionalremoteunitcanbeusedtocheckpatchcordsforwiringerrors.

• OptionalAccessoryKitincludestwoRJ45patchcords,twoRJ45toBNCadapter

cords,twoRJ45toRJ11snap-inadaptersandoneBNCplugtoBNCplugadapter.

• Batteryoperated(9Vnotincluded).

• Lifetimelimitedwarranty.

46060

CAT. NO. UPC NO. DESCRIPTION

46060 46060 SureSignalLineVerifierandPatchCordTester

46070 46070 Sure Signal Remote

45276 45276 Carrying Case

46065 46065 Sure Signal Accessory Kit

CSI0 60381 ModularAdaptercable

Coaxial Cable Tester

• Providesquickverificationofopensorshortsineithertheconductor

or the shield of coax cable.

• Simpleone-buttonoperationprovidespass/failindication.

• Remoteterminatorallowstestingofcablesbeforeorafterinstallation.

• Clearred/greenLEDindicationofshortoropenconditions.

• StandardBNC-andF-typefemaleconnectors.

• Batteryoperated(9Vincluded).

• Lifetimelimitedwarranty.

45055

CAT. NO. UPC NO. DESCRIPTION

45055 45055 Coaxial Cable Tester

468

Wiremap Tester

• Quicklyidentifiesopens,shorts,reversalsandtransposedpairs.

• Economicaltesterincludesallthebasicfunctions.

• Connectingthereceiverunitautomaticallyactivatesthetestprocess.

• SequencingredandgreenLEDsprovidefast,accurate

and simple-to- understand results.

• Alertsthetechnicianifconnectedtoanactivecircuitwithoutharmingtheunit.

• Connectanyeight-positionmodularplugtotheappropriatejackonthe

transmitterandasweepingtonesignalisappliedtoallpairs.

• Atthefarendofthecable,useanyTempoinductiveamplifier(probe)

tolocatethecorrespondingplugorjack.

• Batteryoperated(9Vnotincluded).

CAT. NO. UPC NO. DESCRIPTION

468 08661 Wiremap Tester

468C 60382 Carrying Case for the Wiremap Tester

468T 60379 Transmitter

468R 60380 Receiver

CSI0 60381 ModularAdapterCable

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

260

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Clip-On Twisted Pair Kit

• Providesthemostessentialtoolsforterminatingvoiceanddatacabling

right at the installer’s side.

• RuggedCordura®pouchisbuilttolast,loweringreplacementcosts.

• Heavy-dutymetalclipsnapsovertheinstaller’sbeltsothatthekitcan

beremovedwithoutremovingthebelt.

• Sideholstersallowtheinstallertocarryaflashlightandafavorite

screwdriver.

Cable TV Coax Termination Kit

• Containsthetoolsandconnectorsnecessaryforinstallinga

CableTVsystem.

• DurableCorduraPluszippercaseprotectsandorganizestoolsand

includes a see-through pouch for storing connectors.

• Outsidepocketsprovideconvenientstorageofinstructionmanualsor

worksitedocuments.

CAT. NO. UPC NO. DESCRIPTION

46010 46010 Clip-OnTwistedPairKit

Kit contents may be purchased separately:

46023 46023 PunchdownToolwith110Blade

PT-T02 08708 Electrician’sScissors

45579 45579 TwistedPairStripper

46500 46500 Pocket-LightFlashlight

45272 45272 Pouch

Replacement Tools and Blades are also available:

46020 46020 PunchdownTool

46021 46021 PunchdownToolwith66Blade

46022 46022 66StylePunchdownBlade

46024 46024 110StylePunchdownBlade

CAT. NO. UPC NO. DESCRIPTION

45466 45466 CableTVCoaxTerminationKit

Kit contents may be purchased separately:

45482 45482 Cable Cutter

45578 45578 KwikStripper®CATVStripper,2LevelStripperforRG6,

RG59, RG7, RG11

46801 46801 KwikCycle®9"CrimpFramewithDieSetforF-style

Connectors on RG6 and RG59 Cable

45516 45516 FConnectorInsertionTool

45324 45324 F-styleCrimp-onConnectorsforQuad-shieldRG6(Qty.50)

45476 45476 Zipper Case

TERMINATION & TESTING

261

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Cable TV Coax Termination and Test Kit

Coax/Twisted Pair LAN Termination and Test Kit

• Containsthetools,connectorsandtesterforinstallingandtestingaCable

TVsystem.

• CableTVtonetestsetusesbothelectromagneticandelectrostaticpickup

to tone through splitters, directional couplers and taps.

• DurableCordura®Pluszippercaseprotectsandorganizestools

and includes a see-through pouch for storing connectors.

• Outsidepocketsprovideconvenientstorageofinstructionmanuals

orworksitedocuments.

• Providestheessentialtools,connectorsandtestersnecessaryfor

maintainingaLocalAreaNetwork(LAN),twistedpaircablingandcoax

Ethernet(Thinnet)cabling.

• DurableCorduraPluscarryingcaseprotectsandorganizestools

and includes a see-through pouch for storing connectors.

• Outsidepocketsprovideconvenientstorageofinstructionmanuals

orworksitedocuments.

CAT. NO. UPC NO. DESCRIPTION

45467 45467 CableTVCoaxTerminationandTestKit

Kit contents may be purchased separately:

45482 45482 Cable Cutter

45578 45578 KwikStripper®CATVStripper,2levelstripperforRG6,

RG59, RG7, RG11

46801 46801 KwikCycle®9"CrimpFramewithDieSetforF-style

Connectors on RG6 and RG59 Cable

45516 45516 FConnectorInsertionTool

45323 45323 F-styleCrimp-onConnectorsforQuad-shieldRG6(Qty.25)

402T 60376 CableTVToneGenerator

402R 60377 CableTVToneReceiver

45477 45477 Zipper Case

CAT. NO. UPC NO. DESCRIPTION

45468 45468 Coax/TwistedPairLANTerminationandTestKit

Kit contents may be purchased separately:

45482 45482 Cable Cutter

45579 45579 KwikStripper®TwistedPairStripper

46023 46023 PunchdownToolwith110Blade

46022 46022 66StylePunchdownBlade

45575 45575 Telephone Ratchet Crimper for 4-, 6- and

   8-positionModularPlugs

45577 45577 KwikStripperCoaxStripper,3Level

46800 46800 KwikCycle9"CrimpFramewithDieSetfor

BNC-style Connectors on Thinnet RG8 Cable

45481 45481 Center Conductor Cutter for Coax Cable

AT8 08693 AdapTonerModularBreakoutToneGenerator

200EP 08671 InductiveAmplifierProbe

45760 45760 Category5ConnectorsRJ45,8-Position(Qty.50)

45478 45478 Carrying Case

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

262

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Voice and Category 5 Data Termination Kit

Category 5 Data Termination and Test Kit

• Includesthetoolsandconnectorsnecessaryforinstallingavoice

anddatanetwork.

• DurableCordura®Pluszippercaseprotectsandorganizestools

and includes a see-through pouch for storing connectors.

• Outsidepocketsprovideconvenientstorageofinstructionmanuals

orworksitedocuments.

• Includesthetools,connectorsandtestersnecessaryforinstalling

aCat5datanetwork.

• DurableCordura®Pluszippercaseprotectsandorganizestools

and includes a see-through pouch for storing connectors.

• Outsidepocketsprovideconvenientstorageofinstructionmanuals

orworksitedocuments.

CAT. NO. UPC NO. DESCRIPTION

45469 45469 VoiceandCategory5DataTerminationKit

Kit contents may be purchased separately:

45482 45482 Cable Cutter

45579 45579 KwikStripper®TwistedPairStripper

46023 46023 PunchdownToolwith110Blade

46022 46022 66StylePunchdownBlade

45575 45575 Telephone Ratchet Crimper for 4-, 6- and 8-Position

ModularPlugs

45760 45760 Category5ConnectorsRJ45,8-Position(Qty.50)

45751 45751 FlatCableConnectorsRJ12,6-Position,6-Conductor(Qty.50)

45479 45479 Zipper Case

CAT. NO. UPC NO. DESCRIPTION

45470 45470 Category5DataTerminationandTestKit

Kit contents may be purchased separately:

45482 45482 Cable Cutter

45579 45579 KwikStripper®TwistedPairStripper

46023 46023 PunchdownToolwith110Blade

45575 45575 Telephone Ratchet Crimper for 4-, 6- and 8-Position

ModularPlugs

45760 45760 Category5ConnectorsRJ45,8-Position(Qty.50)

468T 60379 ModularCableTesterTransmitterwithToneGenerator

468R 60380 ModularCableTesterReceiver

45485 45485 Zipper Case

263

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Professional Installation Kit

Telecom Technician Kit

• Includesallthetools,connectorsandtestersforinstallingandmaintaining

mosttypesofcommunicationscablingincludingvoice,data,cableTVand

coaxEthernetnetworks.

• DurableCordura®Pluscarryingcaseprotectsandorganizestoolsand

includes see-through pouches for storing connectors.

• Outsidepocketsprovideconvenientstorageofinstructionmanualsor

worksitedocuments.

• Containsalltheessentialtoolsandtesterstoinstallandmaintain

thevoicenetwork.

• Durablewovennylonpouchfitsanybeltupto5"wideandkeeps

allthetoolsconvenientlyaccessible.

CAT. NO. UPC NO. DESCRIPTION

45471 45471 Professional Installation Kit

Kit contents may be purchased separately:

45482 45482 Cable Cutter

45579 45579 KwikStripper®TwistedPairStripper

46023 46023 PunchdownToolwith110Blade

46022 46022 66StylePunchdownBlade

45575 45575 Telephone Ratchet Crimper for 4-, 6- and 8-position

ModularPlugs

AT8 08693 AdapTonerModularBreakoutToneGenerator

200EP 08671 InductiveAmplifierProbe

PM-400K 11877 PairMapper®withRemotes1-4

45577 45577 KwikStripperCoaxStripper,3Level

45040 45040 KwikStripper2-LevelCoaxCartridge

46801 46801 KwikCycle®9"CrimpFramewithDieSetfor

   F-styleConnectorsonRG6andRG59Cable

46824 46824 KwikCycleDieSetforBNC-styleCoaxConnectorson

Thinnet RG58 Cable

45481 45481 Center Conductor Cutter for Coax Cable

45516 45516 FConnectorInsertionTool

45324 45324 F-styleCrimp-onConnectorsforQuad-shieldRG6

(Qty.50)

45760 45760 Category5ConnectorsRJ45,8-Position(Qty.50)

45751 45751 FlatCableConnectorsRJ12,6-Position,6-Conductor

(Qty.50)

45486 45486 Carrying Case

CAT. NO. UPC NO. DESCRIPTION

45472 45472 Telecom Technician Kit

Kit contents may be purchased separately:

46023 46023 PunchdownToolwith110Blade

46022 46022 66StylePunchdownBlade

PT-T02 08708 Electrician’sScissors

PT-T01 08707 CableSplicer’sKnife

77HP 08687 ToneGenerator

200EP 08671 InductiveAmplifierProbe

PE930 60487 TelephoneTestSet

750C 08685 CablingPouch

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

264

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

CAT. NO. UPC NO. DESCRIPTION

45473 45473 TelecomFieldTechnicianKit

Kit contents may be purchased separately:

45482 45482 Cable Cutter

46023 46023 PunchdownToolwith110Blade

46022 46022 66StylePunchdownBlade

PT-T02 08708 Electrician’sScissors

PT-T01 08707 CableSplicer’sKnife

77HP 08687 ToneGenerator

200EP 08671 InductiveAmplifierProbe

PE930 60487 TelephoneTestSet

46040 46040 TurTEL6ModularAdapterandPolarityTester

DM-800 07549 DigitalMultimeter

46500 46500 Pocket-LightFlashlight

1955 06857 WireStrippers/Cutter,10-18AWGSolid,12-20AWGStranded

47439 47439 Screwdrivers,6-pieceSet.

45487 45487 Carrying Case

Telecom Field Technician Kit

• Containsalltheessentialtoolsandtesterstomaintaina

telecommunicationsnetwork.

• Topqualitydigitalmultimeterandtelephonetestsetmake

troubleshootingavoicenetworkeasy.

• DMMfeaturesanindustry-leadinglifetimewarranty.

• Insulatedscrewdriversprotectthetechnicianupto10,000V.

• DurableCordura®Pluscarryingcaseprotectsandorganizes

tools and includes see-through pouches for storing connectors.

• Outsidepocketsprovideconvenientstorageofinstruction

manualsorworksitedocuments.

265

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Tracker II

Buried Line Locator

CAT. NO. UPC NO. DESCRIPTION

BLL-200 07796 BuriedLineLocator

• LEDandLCDsignalstrengthindicatorsmakeitquickandeasytofindexactlinelocation.

• Lightweightandergonomicallybalanced.

• Automaticsignalboostmakesiteasytotracelines,eventhosewithveryweaksignals.

• Receivermaybeusedinactiveorpassivemode.

• Receiverlocatesmultiplepassivefrequencieswithasinglesetting.

• Receiverautomaticallylocksoutpassiverangewhenitdetectsatransmittersignal,

reducingthechanceoftracingotherlinescarryingweakersignals.

• Microprocessor-basedcircuitrydeliversincreasedaccuracyandfeaturesauto-gain

 controlinallenvironments.

• Traces20'(6m)undergroundandprovidesdepthreadingsupto15'(4.57m).

• Transmittercanbeconnectedtolivelinesupto600V.

• Lifetimelimitedwarranty.

• Moldedcarryingcaseincluded.

HS-1 (08695)

Optional headset is available

for use in high-traffic areas or

other noisy environments.

SPECIFICATIONS

Transmitter

Operating Voltage 0-600VAC,

    0-300VDC

Current 13mA (open line)

150mA (live or shorted line)

Frequency 33.3kHz

Operating Temperature 0°F to 120°F

(-17°C to 50°C)

Size 7.5" x 4" x 2.1"

(190.5 mm x 101.6 mm x 53 mm)

Power 6 VDC (4 AA batteries)

Weight 15 oz. (425 g)

(with batteries and clamp)

Receiver

Depth Range Measures: 0-15 ft.

Traces: 0-20 ft.

±(10% reading + 0.2 ft.)

Depth Resolution - 0.1 ft. increments

Passive Trace Frequency - 12Hz-24kHz

Operating Temperature - 0°F to 120°F

(-17°C to 50°C)

Size 4.1" x 8.5" x 38" (104.1 mm x

215.9 mm x 965.2 mm)

Power 6 VDC (4 AA batteries)

Weight 1 lb. 12 oz. (794 g)

SPECIFICATIONS

Power Requirements Transmitter–(8)AAbatteries;Receiver–(1)9Vbattery

Battery Life Transmitter–30hoursnominal;Receiver–10hoursnominal

Transmitter Frequency 447.5kHz

Transmitter Power 40Vp-p(140mW)maximum

Voltage Protection 240VAC/500VDC

Automatic Shut Off 90Min.TransmitterandReceiver

Construction Transmitter/Receiver–powdercoatedaluminum

Case–vacuumformedpolyethylene

Dimensions Transmitter–4.25"x3"x3.25"(108x76.2x82.6mm)

Receiver–32"x2.75"x4"(812.8x69.9x101.6mm)

Case–33.5"x8.25"x3.75"(850.9x209.6x95.3mm)

Weight 6.7lbs.completekit(3.04kg)

BURIED FACILITY LOCATING

• Tracesthepathanddeterminesthedepthofwiresandmetallicpipesonactive

ordeadsystemswithouthavingtodeactivatethesystem.

• Lightweightreceiverprovidesaudibleandvisualindicationsofsignalstrength.

• Transmitteroutputandreceiversensitivityarefullyadjustableformaximumaccuracy.

• Transmitteroffersthreemethodsofconnection:direct,inductivecouplerand

inductiveantenna.

• Includestransmitterassembly,receiverassembly,inductivecoupler(clamp),

built-ininductiveantenna,two8'(2.4m)testleadswithheavy-dutyalligatorclips

and durable polyethylene case.

• Highfrequencytransmitterprovidesrangeupto4,000'(1,219m)anddepthsupto

7'(2m).

• Receiveris32"long(813mm).

• Batteryoperated(eightAAandone9Vbatteryisincluded).

• Moldedcarryingcaseincluded.

• 1-yearlimitedwarranty.

CAT. NO. UPC NO. DESCRIPTION

501 08662 Tracker II

501T 60353 Transmitter

501R 60352 Receiver

IC1 60354 InductiveClamp

CS16 60355 Transmitter Cord Set

500CA 60351 CasewithAntenna

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

266

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Pulser Fault Locator

Wire Finder/Mini Locator

• Identifiestheexactlocationofeventhesmallestbreaksininsulation

by“pulsing”ahigh-voltagesignalthatradiatesintotheearthatthelocation

ofthefaults.WiththeA-framemountedreceiver,avisualanalogmeter

pointsthewaytothesourceofthevoltage.

• Multiplefaultsonasinglewirecanbeidentifiedindicatingtheneed

to replace instead of repair.

• Extra-longtestleadsfeatureheavy-dutyalligatorclipsforuseonmultiple

cable types.

• Includesarechargeabletransmitter,receiver,A-frame,groundstake,

120Vchargeranda12VDC(cigarettelighter)adapter.

• Batteryoperated(one12Vandone9Vbatteryareincluded).

• Moldedcarryingcaseincluded.

• 1-yearlimitedwarranty.

• Tracesenergizedordegeneratedwiresinwallsanddropceilings.

• Providesreliableresultsonburiedcablestodepthsof3'(1m)

andlengthsupto1000'(308m).

• Determinestheapproximatedepthofthewirebeforedigging.

• Compactdesignandeasy-to-understandoperations.

• Fullyadjustabletransmitterandreceiverforaccuratelocating.

• Quickchangetestleadsforuseinanyindustry,eveninternationalpoweroutlets.

• VoltageprotectiontoallowuseonliveACcircuits.

• Automaticshut-offtopreventaccidentalbatterydischarge.

• Housedinadurable,moldedcarryingcasewithaquickreferenceoperation

guide on the inside of the lid.

• Battery-operated:(2)9Vbatteriesincluded.

• 1-yearlimitedwarranty.

SPECIFICATIONS

Power Requirements Transmitter:(1)12Vrechargeablebattery

Receiver:(1)9Vbattery

Battery Life Transmitter:23hourspercharge;Receiver:200hours

Transmitter Power 2400VDCpeak

Voltage Protection 240VAC/400VDC

Construction Transmitter–aluminumhousinginpolyethylenecase

Receiver–powdercoatedaluminum

Dimensions Transmitter–17"x8.5"x6.5"(421mmx215mmx

160mm)incase

Receiver–33.5"x21.75"x3.25"(840mmx550mmx

8mm)onA-Frame

Weight 12.5 lbs. (5.7 kg) complete

SPECIFICATIONS

Power Requirements (1)9Veach(transmitterandreceiver,included)

Battery Life Transmitter35hoursnominal;Receiver20hoursnominal

Transmitter Frequency 447.5kHz

Transmitter Power 9Vp-p(11mW)

Voltage Protection 240VAC/500VDC

Construction Transmitter/Receiver–high-impactABSplastic,

Case–vacuum-formedpolyethylene

Dimensions Transmitter–4"x2.3"x1"(101.6x58.4x25.4mm),

Receiver–6"x2.35"x1"(152.4x59.7x25.4mm),

Case–9.5"x8"x3"(241.3x203.2x76.2mm)

Weight 2.6 lbs. (1.2 kg)

PE2003

Great complement to any

buried line cable locator.

CAT. NO. UPC NO. DESCRIPTION

PE2003 08666 Pulser

2000H 60357 Transmitter (IncludesCH1&CH2)

2000R 60358 Receiver

AF2 60482 A-Frame

CH1 60360 AC Charger

CH2 60361 DCCharger

CAT. NO. UPC. NO DESCRIPTION

508S 08678 WireFinder/MiniLocator

508ST 60363 Transmitter

508SR 60364 Receiver

CS14 60366 Alligator Clip Cord set

CS15 60367 ACOutletCordset

267

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Marker-Mate®

• Designedtolocateburiedelectronicmarkers,includingOmniMarker®,

andUniMarker™

• Five+footdepthrange

• Detectsuptosevendifferentmarkertypes

• Scanmodeprovidessimultaneousdetectionofallmarkertypes

• User-adjustableDetectionThreshold

• Digitalsignalprocessoraccuracy

• Large-characterdisplayiseasytoread

• Bargraph,numeric&audiblesignalstrengthindicators

• Speakervolumeadjust

• Headphonejack

• Batterylevelindicator

• Lowbatterywarning

• Adjustabletimeoutfeatureprolongsbatterylife(andcanbeturnedoff)

• Weatherresistant

• Ruggedconstruction

• Patentpending

CAT. NO. UPC NO. DESCRIPTION

EML100 60798 Marker-Mate ElectronicMarkerLocator

SPECIFICATIONS

Electrical: TwelveAAbatteries

BatteryLife:20hourstypical

Environment:

Operating Temperature: -4°Fto122°F(-20°Cto50°C)

Storage Temperature: -40°Fto158°F(-40°Cto70°C)

Weather Resistant

Physical:

Length: 30.7in.(780mm)

Width 7.8 in. (198 mm)

Height: 12.8 in. (325 mm)

Weight: 4.5lbs.withbatteries(2kg)

Wire and Valve Locator

• Adjustabletransmitpowerallowsyoutoselectthebestsignalformaximum

performance.

• Transmitter’shighpoweroutputoffersextendedrangeanduseonhigher

resistancewirepathsthatotherlocatorscan’ttouch.

• Receiverprovidesbothaudibleandvisualindicationsofsignalstrength.

• Lightweightreceiverwandmakesiteasyforyoutomovealongquickly

tolocateeventhelongestwirepath.

• Ruggedheadphonesblockambientnoiseandimprove“feel”forthesignal.

• Includestransmitter,receiver,headset,groundstake,andcompleteinstructions.

• Battery-operated:(8)“D”Cellsand(1)9V.

• 1-yearlimitedwarranty.

SPECIFICATIONS

Power Requirements Transmitter:(8)“D”Cell;

Receiver:(1)9Vbattery

Battery Life Transmitter:50hoursnominal

Receiver:100hoursnominal

Transmitter Frequency 1748Hz

Transmitter Power 750Vp-p285Vrms

Voltage Protection 120VAC/250VDC

Construction Powder-coatedaluminumhousinginpolyethylenecase

Case Dimensions 33.5" x 8.25" x 3.75"

Weight 12 lbs. complete

CAT. NO. UPC NO. DESCRIPTION

521A 86788 WireandValveLocator

521T 60368 Transmitter

521R 60352 Receiver

HS1 08695 Headset

GS1 60362 Ground Stake

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

268

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Uni Marker™

• Electronicallymarksburiedfacilitiesforlaterrelocation.

• Ruggedpolyethylenecaseensuresyearsofusefullife.

• Smallsizeandflatdesignattacheasilytonon-metallicutilityboxlids,

hand holes and other buried enclosures.

• Locationissimplewithanymodernmarkerlocator.

• Rangeis25%morethanothersimilar-stylemarkers.

• Signalpeakensureslocationwithininchesofthemarker.

• Colorcodedbyutilityapplication.

• Lifetimelimitedwarranty.

APPLICATION COLOR FREQUENCY CAT NO. UPC NO.

Power Red 169.8kHz 0170-0001-1 60771

Water Blue 145.7kHz 0171-0001-1 60772

Sanitary Green 121.6kHz 0172-0001-1 60773

Telephone Orange 101.4kHz 0173-0001-1 60774

Gas Yellow 83.0kHz 0174-0001-1 60775

Cable TV Orange/Black 77.0kHz 0175-0001-1 60776

Non-Potable/Gen I Purple 66.35kHz 0178-0001-1 11059

Kwik Cycle® Cable Tie Guns

TheStandardCableTieGunisforusewith5/64" to 3/16"widecableties

(2.2 mm to 4.8 mm), and the gun is made of molded nylon.

TheHeavy-dutyCableTieGunisforusewithcabletiesupto1/4"wide

(6.35 mm), and the gun is made of durable metal.

•Tensionadjustmentallowstheusertoadaptthetooltothesizeofthetie.

•Automaticcut-offeliminatessharpedgesonties.

CAT. NO. UPC NO. DESCRIPTION

45306 45306 Standard Cable Tie Gun

45300 45300 Heavy-DutyCableTieGun

Omni Marker®

• Electronicallymarksandrelocatesburiedfacilities.

• Uniquedesignproducesauniform,sphericalRFfieldineverydirection.

• Easilylocatedupto5'awaywithanymodernmarkerlocator.

• Widerfieldwithasignalpeakdirectlyabovethemarkerprovides

precise location.

• Requiresnoparticularorientationwhenburied.

• Greaterrangethanstandard4"ballmarkers.

• High-reliabilitydesignlastsaslongasyourburiedplant.

• Colorcodedbyutilityapplication.

• Lifetimelimitedwarranty.

• Patented.

APPLICATION COLOR FREQUENCY CAT NO. UPC NO.

Power Red 169.8kHz 0160-0001-1 60765

Water Blue 145.7kHz 0161-0001-1 60766

Sanitary Green 121.6kHz 0162-0001-1 60767

Telephone Orange 101.4kHz 0163-0001-1 60768

Gas Yellow 83.0kHz 0164-0001-1 60769

Cable TV Orange/Black 77.0kHz 0165-0001-1 60770

Non-Potable Water Purple 66.35 kHz 0168-0001-1 11050

269

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

PE 900 Series Telephone Test Sets

• WaterprooftestedtoanIECIP67rating,thesetestsetsaresoimpervious

towatertheycanactuallywithstandsubmersion.

• ThePE961featuresourDigAlert™over-voltagealarmandlock-out

function to eliminate the danger of damaging or knocking out digital

servicelines.

• ThenewPE961providesfullADSLcompatibility.

• Ten-numberspeeddialmemory(32digitseach).

• Lastnumberredial.

• Precisehookflash.

• Microphonemute.

• Audibleandvisualmodeindicators.

• Polaritytestinanymode.

• Uniquequick-releasebeltclip.

• Premiumcordsetwithbed-of-nailsandpiercingpinclips.

• Threeyearwarranty.

FEATURE PE930 PE945 PE961

Data Safe Monitor ✔ ✔ ✔

Adjustable Ringer ✔ ✔ ✔

Waterproof Design ✔ ✔ ✔

Loud Speaker Listening ✔ ✔

Two-Way Hands Free ✔ ✔

DigAlert™ Data Lock-out ✔

ADSL Compatible ✔

RPC

Replacement Piercing Clips (see page 248)

Tele-Mate® Communication Test Set

• Designedforcommunicationswiringinstallationandrepairtoquickly

verifythequalityofanewinstallation.

• Affordable

• Headsetforhands-freeoperation.

• Ruggeddesignfordemandinguse.

• Compactdesignanddurablebeltclipmakeiteasytocarry.

• Adjustablevolume.

• Built-inringer.

• Tone/Pulsedialing.

• Lastnumberredial.

• Linepolarityindication.

• Microphonemute.

• Datasafemonitormode.

• Replaceablepremiumcordsetwithtelco-styleclips.

CAT. NO. UPC NO. DESCRIPTION

PE810 60298 Tele-Mate® Communication Test Set

PE909 60785 Belt Clip

PE810

PE961

CAT. NO. UPC NO. DESCRIPTION

PE930 60487 Telephone Test Set

PE945 60489 TestSetwithTwo-WayHandsFree

PE961 60511 TestSetwithTwo-WayHandsFreeandDigAlert

PE901 60492 Ground Start Cord Set

PE902 60493 Cord Set

CABLE & SERVICE TESTING

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

270

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Tele-Mate® Pro Telephone Test Set

TurTEL Modular Adapters/Polarity Tester

• TheTele-MateProTelephoneTestSetwillhelpyoudealwith

the increasing complexity of telecom installation and maintenance.

• Completetelephonesetwithringer

• Phone-to-phoneintercom

• Modularoralligatorclipconnection

• LCDDisplayinEnglish,SpanishorFrench

• CallerIDwithnamedisplay

• CallwaitingCallerID

• Missedcallindication

• Linevoltageandcurrentdisplay

• Highvoltagedetectandlockout

• Highcurrentdetectandlockout

• Amplifiedloudspeakerlinemonitor

• Headsetorhandsetoperation

• Toneandpulsedialing

• Large10-locationspeeddialingmemory

• Multi-memoryredial

CAT. NO. UPC NO. DESCRIPTION

PE830 60299 Tele-Mate Pro Telephone Test Set

PE909 60785 Belt Clip

• Usewithtonegenerators,testsetsandothertestdevicestotroubleshoot

andisolateproblemswithtelephonecircuits.

• Twojacksallowin-linetestingwithoutserviceinterruption.

• TheTurTEL6hastwosix-position,six-wirejacks.

• TheTurTEL8hastwoeight-position,eight-wirejacks.

• Simple,pushbuttonoperationtocheckpolarityandpower.

• Reducedchanceofshortingadjacentalligatorclipsduetouniqueshape.

• Testcontactsareperforatedtoprovidesuregripforalligatorclipsoruse

of probes.

• TheTurTEL6hasaninternalcircuittoallowtestingofpolarityforeither

oftwolines(pairs4to5or3to6)–circuitallowsverificationofpower

and phone number assignments.

• Patchcordincluded.

• Heavy-dutystainlesssteelbeltclip.

• Lifetimelimitedwarranty.

CAT. N O. UPC NO. DESCRIPTION

46040 46040 TurTEL6ModularAdapter/PolarityTester

46050 46050 TurTEL8ModularAdapter

46040

46050

PE830

271

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Sidekick® T&N

• Fivetransmissionandnoisetests.

• Determinesthestressednoisesusceptibilityofdryandworkingpairs.

• Measuresresistance,AC/DCvolts,andcapacitivekick.

• Providestonefortwistedpairorcrossedconductoridentification.

• SinglesetupfortestingTip-Ring,Tip-Ground,andRing-Ground.

• Minimaldryingeffectinallranges.

• Fieldreplaceableleads.

• Softcasewithadjustablestrandhook.

• LowBatteryindicatorlight.

CAT. NO. UPC NO. DESCRIPTION

1137-5002 60526 SidekickT&N

1134-1002 60752 Case

1137-5002

SPECIFICATIONS

Dimensions 10.75"x4.25"x2.5"

Weight 2 lbs.

Resistance Rx1:Reads0to2000Ω

Rx1K:Reads0to2MΩ

Leakage Rx10K:Reads0to20MΩ

DC Voltage 0to300voltsDC

AC Voltage 0to300Vrms

Stress Test 0to82dBrnC

Loop Current 0to100mA

Circuit Noise 0to75dBrnC

Circuit Loss -15 to +1 dB

Power Influence 50to100dBrnC

Operating Temp. -4°Fto+140°F

Power FourAAbatteries

1155-5000

Sidekick® Plus Advanced Cable Maintenance Test Set

• Completemeteringofvoltage,currentandresistanceoncoppercables

•Patentedstressbalancetest

•Measurementofdistancetoopens

•Linequalitytestsfornoise,lossandpowerinfluence

•Multimodewiretracingtone

•Resistancefaultlocator(RFL)andcalculator

•PowerfulTimeDomainReflectometer(TDR)

•Built-inloudspeakerdialingwithphonebookmemory

•Auto-testmodewithPass/Fail

•USBdownloadoftestresultsanduploadofsoftware

•Analogmeterordigitaldisplayselectable

•Big,easy-to-readdisplaywithbacklight

•Rechargeable(included)orreplaceablebatteries

•Advancedcablediagnosisandtroubleshootinginasingletestset

•Quicktestingandfastrepairs

•Testdatacaptureforsharingandrecords

•Easytolearn,especiallyforSidekickfamilyusers

•Fieldupgradeablesoftware

CAT. NO. UPC NO. DESCRIPTION

1155-5000 60886 Sidekick Plus Test Set

SPECIFICATIONS

Dimensions 11 x 4.75 x 3 inches

Weight 3 lbs.

Resistance 100megohmmax

Leakage 100megohmmax

DC Voltage 0to300VoltsDC

AC Voltage 0to250Vrms

Stress Balance 0to82dBrnC

RFL 20megohm,distanceto2megohm

TDR Range 33 kilofeet

Operating Temp. 14°Fto+120°F

Power Rechargeable Battery Pack or Six AA batteries

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

272

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Sidekick® 7B

Sidekick® T&ND

• Determinesthestressednoisesusceptibilityofdryandworkingpairs.

• Measuresresistance,AC/DCvolts,andcapacitivekick.

• Providestonefortwistedpairorcrossedconductoridentification.

• SinglesetupfortestingTip-Ring,Tip-Ground,andRing-Ground.

• Minimaldryingeffectinallranges.

• Fieldreplaceableleads.

• Softcasewithadjustablestrandhook.

• LowBatteryindicatorlight.

• Easy-to-readdigitalLCDdisplay.

• InternalDialerformakingTransmissionTestconnections.

• Autotest–performs22individualtestsatthetouchofabutton.

• Determinesthestressednoisesusceptibilityofdryandworkingpairs.

• MeasuresAC/DCVolts,Leakage,resistance,andloopcurrent.

• Performscircuitloss,circuitnoise(metallicnoise),andpowerinfluencetests.

• Built-inopenmeter.

• Locatesupto4loadcoils.

• SinglesetupforTip-Ring,Tip-Ground,andRing-Groundtests.

• Fieldreplaceabletestleads.

• On-screendisplayof“LOWBATTERY”whenbatteriesarenearfailure.

CAT. NO. UPC NO. DESCRIPTION

1134-5029 60525 Sidekick 7B

1134-1002 60752 Case

CAT. N O. UPC NO. DESCRIPTION

1144-5000 60853 SidekickT&ND Test Set

1134-1002 60752 Case

1134-5029

1144-5000

Opens 0to60kft.

Loop Current 0to100mA

Load Coil up to 4

Circuit Loss +1 to -15 dB

Power Influence 40to100dBrnC

Circuit Noise 0to75dBrnC

Power FourAABatteries

Weight 2 lbs.

Dimensions 10.75"X4.25"X2.5"

AC Volts 300Vrmsmax.

DC Volts ±300Voltsmax.

Resistance 1Megohmmax.

Leakage 100Megohmmax.

Stress 0to82dBrnC

SPECIFICATIONS

1143-5000

Sidekick® V.O.C.

• Identifiesdefectiveinsidewireandjacks.

• Measuresresistance,AC/DCvolts,quasisquarewave,andpairbalance.

• Identifiesshorts,opens,crossesandgrounds.

• Replacestheneedforothermeters.

• Providestonefortwistedpairorcrossedconductoridentification.

• Singleset-upfortestingTip-Ring,Tip-Ground,andRing-Groundwith

ground connection.

• Fieldreplaceableleads.

• Softcasewithadjustablehook.

• LowBatteryindicatorlight.

CAT. NO. UPC NO. DESCRIPTION

1143-5000 60527 SidekickV.O.C.

1134-1002 60752 Case

SPECIFICATIONS

Dimensions 10.75x4.25x2.5inches

Weight 2 lbs.

Resistance Rx1:Reads0to2000Ω

Rx1K:Reads0to2Megohms

Leakage Rx10K:Reads0to20Megohms

DC Voltage 0to100VoltsDC

AC Voltage 0to200Vrms

Stress Test 0to82dBrnC

Operating Temp. -4°Fto+140°F

Power FourAAbatteries

SPECIFICATIONS

Dimensions 10.75"x4.25"x2.5"

Weight 2 lbs.

Resistance Rx1:Reads0to2000Ω;Rx1K:Reads0to2MΩ

Leakage Rx10K:Reads0to20MΩ

DC Voltage 0to100VoltsDC

AC Voltage 0to200Vrms

Stress Test 0to82dBrnC

273

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Precision Tone Generator

• Usedinthetelecommunicationsindustryforpairidentificationandfaultlocating.

• Suppliesaprecise577.5Hzcrystalcontrolledsignalfrequency.

• Variableoutputallowstechnicianstoadjustsignalstrengthtosuitfield

conditionsandimproveaccuracy.

• Designedtoworkwithanycommonamplifierandexploringcoilfor

aerial fault locating.

• Forcommunicationsoverinactivepairs,theunitsuppliestalkbatterytopower

twotelephonetestsets(buttsets).

• Eachofthethreetestleadsisequippedwithtraditionalbentnosepiercing

clipswith“bed-of-nails”insulationpiercingpins.

• Thetonegeneratorandtestleadsfitneatlyinadurable,protectivewoven

polyestercarryingcasewithshoulderstrap.

• 1-yearwarranty.

• Battery-operated(1–6Vlanternincluded).

CAT. NO. UPC NO. DESCRIPTION

177 08657 Precision Tone Generator

SPECIFICATIONS

Power Requirements One6Vlanternbattery

Battery Life 40hoursnominal

Transmitter

Frequency

577.5Hzpulsedat1Hz,crystalcontrolled

Output Voltage 0.1to80Vp-p

Output Signal Level 0to+30dBm

Construction HighimpactABSplasticinwovenpolyestercase

Dimensions 7.25" x 5.5" x 4.5" in case

Weight 3lbs.withbattery

Load Coil Detector

• Designedforthetelecommunicationsmarket,the88LoadCoilDetectorwillidentify

thepresenceandcountthenumberofloadcoilsonanactiveorinactivecircuit.

• Nocomplicatedscreensortestinstructionstodecipher.

• Designedtowithstandtherigorsofdailyuse,thetesterspeedstroubleshooting

dedicateddatacircuits.Simplyconnectthetestleadsandturntheswitch.

• Whilegraduallyturningthecontrol,thedisplaywill“kick”tosignifyeachcoil

detected on the pair.

• Accuratelyidentifiesandcountsuptofourloadcoilsonthecircuitundertest.

• 1-yearwarranty.

CAT. NO. UPC NO. DESCRIPTION

88 08656 LoadCoilDetector

SPECIFICATIONS

Power Requirements One9Vbattery

Battery Life 100hoursnominal

Construction HighimpactABSplastic

Dimensions 4 x 2.25 x 1.5"

Weight 5.8oz.withbattery

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

274

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

TelScout® TS100

• TwistedPairandCoaxTestinginaSingleUnit(optional).

• One-StepSetup.

• AutomaticandManualInstrumentControlMode.

• 45kilofeetFaultLocationCapability.

• Rugged–Survives6foot(2m)Drop.

• PoweredfromACMainsorRechargeableInternalBattery.

• Single-ButtonZoomFunction.

• ShortPulseWidthOption(IncludesCoaxTestingCapability).

• PairComparisonMode.

• Splits/CrosstalkMode.

• IntermittentFaultLocation.

• MeasuresDistancetoFaultinFeet,Meters,orTime.

• ConfigurableforAnyCableTypeandVp(0.300to1.000).

• InternalMemoryWaveformStorageandTraceUploadtoPCSoftware

(MCTAP-Option).

• SerialPrinterOutputforStoredorDisplayedWaveforms.

• Accurate(±3ft.at10,000ft.)

• On-lineTutorials.

• LargeBacklitDisplay.

CAT. NO. UPC NO. DESCRIPTION

TS100-01 60520 TelScout TS100-01MetallicTDR

650391700 60754 Leads

SPECIFICATIONS

Environmental

Temperature–

Operating:17°Fto92°F(-15°Cto+60°C).

Non-operating:12°Fto97°F(-20°Cto+65°C).

Humidity–95%RH,non-condensing.

Shock(testspecification)–Survivesdropof2mto

concrete in standard soft case.

Safety–EN61010-1andEN61010-031.

EMC–EN61326.

Power

MainsOperation–

VoltageRanges:110V,220V,240VwithappropriateAC

toDCadapter.

BatteryOperation–

OperatingTime:6hrs.continuous.

BatterySaver:Selectablefor5to30minutesordisabled.

Physical

Dimensions in. mm

Height 12 30

Width 10 25

Depth 3.5 9

Weight lb. kg

Net 6.4 3

T-Bug® Digital Signal Identifier

• Usedtodetectdigitalsignalsontwistedpaircables,identifyandisolatedigital

pairsforspecialhandlingandhelptechniciansavoidaccidentallyputtingpairs

outofservice.

• Operationisnon-invasiveanddoesnotinvolvemetalliccontactsothere’s

noriskofserviceinterruption.

• Simpletouse–justplacetheprobebetweenthepairsinquestion.

• Differentialamplifiersavestimebyallowingthetechniciantodetermine

whetherthesignalistrulypresentorisaninducedsignalfromadjacentpairs.

• Falsereadingsduetonoisearevirtuallyeliminated.

• Continuousselftestensuresthattheunitisfunctioningproperly.

•Emitsbothvisibleandaudibleindicationwhendigitalsignalsarepresent.

• Patented.

CAT. NO. UPC NO. DESCRIPTION

0134-0500 60764 T-BugDigitalSignalIdentifier

275

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

SPECIFICATIONS

TelScout® TS90

CableScout™ TV90

• TwoPairTestCapability

• One-StepSetup

• AutomaticInstrumentControlMode

• 45,000'(15km)FaultLocationCapability

• SplashandDripProof

• Single-ButtonZoomFunction

• PairComparisonMode

• Splits/CrosstalkMode

• IntermittentFaultLocation

• MeasuresDistancetoFaultinFeet,Meters,orTime

• ConfigurableforAnyCableTypeandVp(0.300to1.000)

• Accurate(±3ft.at10,000ft.)

• On-lineTutorials

• LargeBacklitDisplay

CAT. NO. UPC NO. DESCRIPTION

TS90 60522 TelScout TS90

012154500 60740 Leads

THM5BAT 60756 Rechargeable Battery Pack

• Highperformanceeasytouse,TimeDomainReflectometerforCoaxial

testing applications.

• Employsoptimizedpulsingandsampling,coupledwithadvanced

filteringandsignal-processingtechniquestoensurecleanwaveform

and easy identification.

• Context-sensitivehelpscreensforallfunctions

• Small,portableandlightweight2.2lbs.(1kg)

• Includesrechargeablebatterypack

• Includestwistedpairadapterandtestprobe

Environmental

Temperature–

Operating:32°Fto77°F(0°Cto+45°C).

Non-operating:12°Fto92°F(-20°Cto+60°C).

Humidity–95%RH,non-condensing.

EMIEmissions–

EN55011classA.

EN60555-2.

Power

BatteryOperation–

BatteryType:SixAAAlkaline.

OperatingTime:>4.5hrs.withbacklightoff.

BatterySaver:

Selectablefor5to30minutesordisabled.

Physical

Dimensions in. mm

Height 5.6 141

Width 8.3 211

Depth 1.8 43

Weight lb. kg

Net 2.2 1

SPECIFICATIONS

• Easytooperate(helpscreensavailableforallfunctions)

• Fastfaultfindingwithautomaticgainandverticalwaveformpositioning

• One-buttonExpand/FullViewFunctionandzoomcontrol.

• Precisionaccuracy0-200ft+-2ft.1%beyond.

• Rangeupto4000ft.

• High-resolutionwithoptimizingpulseandsamplingandadvancedfiltering

• InputProtection:200VDC+PeakAC.

• Rugged-designedforharshenvironments

• Large7.2-in.high-resolutionbacklitdisplay.

• Internationalpowersupplyoptions

Environmental

Temperature:

Operating: 32°Fto77°F(0°Cto+45°C).

Non-Operating: 12°Fto92°F(-20°Cto+60°C).

Durability: SurvivesDroptestof6foot(2m)toconcreteinsoftcase

Power: 110V,220V,240Vwithappropriatepoweradapter

Batterytype: 6AAAlkalineandNiCadrechargeablepack.4.5hours

continuousoperationwithadjustablebatterysavermodes

Standards

Compliant: UL,FCCEMI,CAN/CSA,EN,andCE

CAT. NO. UPC NO. DESCRIPTION

TV90 12600 TV90CableScout TDR

THM5BAT 60756 Rechargeable Battery Pack

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

276

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

CableScout™ TV220TDR

MCTAP Waveform Analysis Software for TS100/TV220

• CableScoutTV220:HighPerformanceTimeDomainReflectometer

for Coaxial Applications.

• TheTV220isdesignedtoquicklylocatefaultsthateffectdigitalservices

intheCableTVNetwork.

• HighFrequencyacquisitionsystemexposesfaultsinvisibletootherTDR’s.

• Highsignal-to-noiseration(SNR)allowsforprecisionmultiplefault

location accuracy.

• MetallicCableTraceAnalysisPackage(MCTAP)isaWindowsbasedprogram

forviewingandanalyzingwaveformsacquiredbytheTempoTV220and

TS100TDR.MCTAPmaybeinstalledoncomputersrunningWindows

95/98,WindowsNT,WindowsME,2000,XP.

CAT. NO. UPC NO. DESCRIPTION

MCTAP 60755 MCTAPSoftware

SPECIFICATIONS

Easy to operate with on-board Tutorials

Automatic or manual test features

One-button zoom control.

Trace comparison mode

Intermittent Fault location

Automatic event return loss

Input protection to 400 VDC + Peak AC

Internal memory waveform storage and trace upload to PC

Software (MCTAP- Option).

Serial output connector - print directly from unit

Precision accuracy to +- 4 ft. at 12,000'

High-resolution 1 (ns) short pulse width.

Rugged - designed for harsh environments

Large 7.2-in. high-resolution backlit display.

International language and power supply options

Environmental

Temperature:

Operating: 22°Fto72°F(-10°Cto+40°C).

Non-Operating: 12°Fto92°F(-20°Cto+60°C).

Durability: Survives Drop test of 6 foot (2m) to concrete

in soft case

Power: 110 V, 220 V, 240 V with appropriate power adapter

Battery type: Internal Lead Acid rechargeable. 8 hours continuous

operation with adjustable battery saver modes

Standards Compliant: UL, FCC EMI, CAN/CSA, EN and CE

• TDRwaveformsthataresavedinthefieldcanbeuploadedtoacomputerfordata

management and analysis

• WaveformdatacanbeexportedasBMP,JPEG,andTIFfileformatsforeasy

communication of data

• Waveformdatacanbeexportedastextorspreadsheetcompatiblefilesforuseinword

processors or spreadsheet programs

SPECIFICATIONS

CAT. NO. UPC NO. DESCRIPTION

TV220 12599 CableScout TV220TDR

277

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Fiber Optic Kevlar® Shears

Ceramic Kevlar® Cutter

Fiber Optic Carbide-Tipped Scribe

• EasilycutsthroughDuPontKevlarorotheraramidyarn.

• Serratedbladepreventsslipping.

• High-leveragehandlesfacilitatecutting.

• Cushioned-griphandleforcomfortableuse.

• Manufacturedfromhot-forged,high-carbonsteelforlonglife.

CAT. NO. UPC NO. DESCRIPTION

45586 45586 FiberOpticKevlarShears

• QuicklyandpreciselytrimstheKevlarstrengthmemberinfiberopticcable.

• Ceramicbladesneverneedsharpeningandhavealonglife.

• Handleistoughanddurable.

CAT. NO. UPC NO. DESCRIPTION

45483 45483 CeramicKevlarCutter

• Providesconsistentlygoodcleaves.

• 30°wedgetipismadeofcarbidetoensurelonglife.

• MadeintheUSA.

Kevlar is a registered trademark of E.I. Dupont, Inc.

CAT. N O. UPC NO. DESCRIPTION

45593 45593 FiberOpticCarbide-TippedScribe

Pocket Cable Stripper

• Specificallydesignedforstrippingpowerandtelecommunicationscables

from 3/16" to 1-1/8" in diameter (4.5 mm to 29 mm).

• Easybladedepthadjustment.

• 90ºbladerotationallowslongitudinal,circularandspiralslittingofinsulation.

CAT. NO. UPC NO. DESCRIPTION

1900 45824 Pocket Cable Stripper

07915 07915 Cutting Blade

FIBER TERMINATION & TESTING

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

278

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Pocket Cable Stripper

Fiber Optic Buffer Stripper

• Specificallydesignedforstrippingpowerandtelecommunicationscables

from3/4"to1-1/2"indiameter(19mmto40mm).

• Stripssolidconductor,strandedconductorandmultipleconductorcables.

• Easybladedepthadjustment.

• Bladerotatesforcircular,longitudinalandspiralcuts.

CAT. NO. UPC NO. DESCRIPTION

1901 45823 Pocket Cable Stripper

07915 07915 Cutting Blade

• Easilyremovesthebufferfromboth250and900microncables.

• Presetatthefactory–noadjustmentsrequired.

• Cushioned-gripergonomichandlesforcomfortableuse.

• Willnotscratchornickglassorfiber.

• 1.0mmdiameterstrippingholestripsmostfiberjackets.

• MadeintheUSA.

CAT. N O. UPC NO. DESCRIPTION

45589 45589 FiberOpticBufferStripper

Pro-Plus Wire Stripper

• Stripstheouterjacketofffiberopticcable.

• Extra-long,curvedandcushionedhandlesaddcomfortandreduce

hand fatigue.

• Locktabprotectscuttingedgesduringstorage.

• MadeintheUSA.

CAT. N O. UPC NO. DESCRIPTION

1955 06857 Pro-PlusWireStripper,10-18AWG

DESCRIPTION CAT. NO. UPC NO.

CONNECTION FEATURES TOOL WITH DIE

0.151" (3.84 mm) hex cavity 45637 45637

0.178" (4.52 mm) hex cavity

0.213" (5.41 mm) hex cavity universal fiber optic die

Kwik Cycle® 8" Crimp Tool for Fiber Optic Connectors

• Featuresasmallerhandlespreadwithacomfortable,

ergonomically designed handle.

• Idealforthehardtohandlesmallerconnectors,suchasfiberoptic

connectors and open barrel contacts.

• Diesetsareeasilyinterchangeablewithascrewdriver.

• Includesdieset.

CAT. NO. UPC NO. DESCRIPTION

45637 45637 8"FiberOpticConnectorCrimpTool

279

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

DESCRIPTION CAT. NO. UPC NO.

CONNECTION FEATURES DIE ONLY

O-style crimp cavities with dimensions of 0.131" x 0.162" x 0.196" 45572 45572

(3.33 mm x 4.11 mm x 4.98 mm)

For AMP Optimate SMA-style fiber optic connectors

45658 Fiber Optic Termination Kit

This complete kit contains our Kwik

Cycle® 9” Crimp Frame and all

of the tools and consumables

necessary for epoxy and polish

connector terminations. See page

281 for more details about our

Fiber Optic Termination Kit.

Kwik Cycle® 9" Crimp Tool for Fiber Optic Connectors

• Usedtomanuallycrimpawidevarietyofconnectorsandterminals

to factory specifications.

• Framefeaturesaprecisionfull-cycleratchetforaccurate,repeatablecrimps

everycycle.

• Crimpreleaseleverimprovesthroughputbyeliminatingrejected

terminations due to improper connector positioning.

• Framefeaturesatensionadjustmentpresetatthefactoryfor

optimum performance.

• High-leverageforceandergonomically-designedhandleprovides

comfortable use.

• Frameanddiesaremanufacturedfromheat-treated,hardenedtoolsteel

for superior function and long life.

• Alldiesetsareeasilyinterchangeablewithasimplescrewdriver.

CAT. NO. UPC NO. DESCRIPTION

45504 45504 KwikCycle9"CrimpFrame

45572 45572 FiberOpticDieSet

Fiber Optic Co-Polymer Polishing Puck

• UsedforstandardST,SCandFCconnectorswith2.5mmferrules.

CAT. NO. UPC NO. DESCRIPTION

45598 45598 FiberOpticCo-PolymerPolishingPuck

Fiber Optic Stainless Steel Polishing Puck

• UsedforstandardST,SCandFCconnectorswith2.5mmferrules.

• Madeofstainlesssteeltolastforyearsoftermination.

• Precisionholepreventseventheslightestmisalignment.

• Groovesinthepuck’ssurfaceeliminate“sticking”duringwetpolishes.

CAT. NO. UPC NO. DESCRIPTION

45599 45599 FiberOpticStainlessSteelPolishingPuck

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

280

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Fiber Optic Polishing Pad

• ResilientpadisperfectforPC(physicalcontact)pre-radiusedferrules.

• 3"x8"(7.6x203.2mm)

• 70durometer.

CAT. N O. UPC NO. DESCRIPTION

45612 45612 FiberOpticPolishingPad

Fiber Optic Inspection Microscope

Connector Cleaning Systems

Adapter Cleaning Wands

• High-poweredmicroscopeisusedtocheckaconnector’sendfacefor

excess epoxy, core or cladding chips or other irregularities that degrade

optical performance of the connector.

• Lasersafetyfilterprotectseyesight.

• Rubbereyecupforcomfortableuse.

• Ruggedaluminumhousing.

• 200Xmagnification.

• UniversaladapterworkswithST,SCorFCconnectors.

• Includespaddednyloncarryingcase.

• Speciallint-freefabric-on-a-reelquicklycleansferruleendfacesofdust,

oil and other contaminants.

• Cleaningsystemiscompletelyself-contained.

• Noneedforalcohol.

• Asinglecleaningreelcanbeusedforover400ferrulecleanings.

• ReelCleaner™canbeusedonallconnectortypesincludingMTPandMT-RJ.

• Specially-created,lint-freematerialscleanhard-to-reachfiberoptic

interfaces,bulkheadadaptersandferrulealignmentsleeves.

CAT. NO. UPC NO. DESCRIPTION

45651 45651 FiberOpticInspectionMicroscope

CAT. NO. UPC NO. DESCRIPTION

948 60692 ReelCleaner Connector Cleaning System

948/2 10792 Reel Set, 2/Package

945/ESD/1 24053 Reel Set, 1/Package

CAT. N O. UPC NO. DESCRIPTION

946 60571 2.5mmCleaningWands,10/Package

946K 60689 2.5mmCleaningWands,200/Box

947 60690 1.25mmCleaningWands,10/Package

947K 60691 1.25mmCleaningWands,200/Box

Fiber Optic Consumables Kit

• Containsthemostcommonlyusedconsumablesforepoxyandpolish

fiber optic terminations.

CAT. N O. UPC NO. DESCRIPTION

45656 45656 FiberOpticConsumablesKit

281

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Fiber Optic Hand Tools Kit

• Containsthemostcommonlyusedfiberopticterminationtools

in a durable Cordura®Pluszippercase.

CAT. NO. UPC NO. DESCRIPTION

45655 45655 Fiber Optic Hand Tools Kit

Kit contents may be purchased separately:

45586 45586 FiberOpticKevlar® Shears

1955 06857 Pro-PlusWireStripper,10-18AWG

45589 45589 FiberOpticBufferStripper

45593 45593 Carbide-tipped Scribe

45637 45637 KwikCycle®8"CrimpFramewith0.151",0.178",0.213"

HexCavities

45651 45651 FiberOpticInspectionMicroscope

45599 45599 Stainless Steel Polishing Puck

45612 45612 ResilientPolishingPad,3"x8"(7.6x203.2mm)

45644 45644 Zipper Case

Fiber Optic Termination Kit

• Containsallofthetoolsandconsumablematerialsnecessaryforepoxy

and polish connector terminations.

• DurableCordura®Pluscarryingcaseprotectsandorganizestools

and includes see-through pouches for storing connectors.

• Outsidepocketsprovideconvenientstorageofinstructionmanuals

orworksitedocuments.

CAT. NO. UPC NO. DESCRIPTION

45658 45658 FiberOpticTerminationKit

Kit contents may be purchased separately:

45586 45586 FiberOpticKevlar® Shears

1955 06857 Pro-PlusWireStripper,10-18AWG

45589 45589 FiberOpticBufferStripper

45593 45593 Carbide-Tipped Scribe

45637 45637 KwikCycle®8"CrimpFramewith0.151",0.178",0.213"

HexCavities

45651 45651 FiberOpticInspectionMicroscope

45599 45599 Stainless Steel Polishing Puck

45612 45612 ResilientPolishingPad,3"x8"(7.6x203.2mm)

45639 45639 Carrying Case

Kit includes the following consumable items which are not sold separately:

50SheetsPolishingPaper,0.3micron 100Lint-freeWipes

 50SheetsPolishingPaper,1micron 10AlcoholWipes

 50SheetsPolishingPaper,5micron 1AlcoholBottle

 10ml(0.34oz.)OpticureAdhesive 1WaterBottle

 26ml(0.9oz.)OpticurePrimer 1FiberDebrisDisposalContainer

 1PairSafetyGlasses 10Syringes

 1PlasticUtilityBox 10NeedleTips

 1Felt-tippedMarker

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

282

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Fiber Optic Cut and Strip Kit

• Includesthreebasictoolsforcuttingandstrippingopticalfibercables

in a durable Cordura®Pluszippercase.

CAT. NO. UPC NO. DESCRIPTION

45657 45657 FiberOpticCutandStripKit

Kit contents may be purchased separately:

45586 45586 FiberOpticKevlar® Shears

1955 06857 Pro-PlusWireStripper,10-18AWG

45589 45589 FiberOpticBufferStripper

525-90 PON Optical Loss Test Set

•1310/1490/1550nm.

•AutomatedInsertion/ReturnLossmeasurements.

•OnebuttonAUTOTEST.

•Stores1000measurementresults.

•Cableacceptancesoftwareforreportgenerationand

fiber optic cable management.

•Opticalpowermeter.

•Opticalreturnlossmeter.

•Rechargeablebatteries.

•Ruggedpackageforoutsideplantenvironment.

CAT. NO. UPC NO. DESCRIPTION

525-90 20945 PONOpticalLossTestSet(1310/1490/1550nm)

SPECIFICATIONS

AUTOTEST INSERTION LOSS

Test Port 40dB

Measurement Range

Calibrated Wavelengths 1310,1490,1550nm

RETURN LOSS

Measurement Range 10to45dB

Accuracy .5dB

GENERAL SPECIFICATIONS

Display Type GraphicsLiquidCrystalwithBacklight

Fiber Type Singlemode 9/125 um

Standard Connector Type FC,SC,STotherconnectoroptionsavailable

Laser Classification Class1CFR1040

Operating Temperature 0°Cto+50°C

Storage Temperature -20°Cto+60°C

Relative Humidity 0to95%RHnon-condensing

Size 7.6x4.3x2.3in.(19.3x10.9x5.8cm)

Weight 2.2lbs.(1.0kg)

Power InternalrechargeableNiMH

Battery Life >8hours

SPECIFICATIONS

POWER METER

Detector Type InGaAs

Display Range +10dBmto-70dBm

Calibrated Wavelengths 850,980,1300,1310,1490,1550,1625

Absolute Accuracy <±0.25dB

Resolution 0.01dB

Measurement Units dBm, dB

SOURCE

Center Wavelength 1310nm±30nm 1490nm±30nm 1550nm±30nm

Spectral Width <5 <5 <5

Output Power >-10dBm >-10dBm >-10dBm

Output Stability <±0.15dB/8hrs <±0.15dB/8hrs <±0.15dB/8hrs

Connector Type UCI-APCpolishadapter9-125SMSOC Adapter

283

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

525-60 Smart Optical Loss Test Set

• Automatedbi-directionaltesting.

• Opticalreturnlossmeasurements.

• Dualwavelengthinsertionlossmeasurements.

• Multi-modeandSingle-modemodelsfeatureusersettable

PASS/FAILthresholds.

• Communicationsbetweenunitsviamessaging.

• Widedynamicrangeopticalpowermeter.

• Testrecordstorageanddatamanagementsoftware.

• Ruggedoutsideplantinstrumentpackage.

• Universalconnectorinterface.

CAT. NO. UPC NO. DESCRIPTION

525-60-PCX 20942 1310/1550nmSmartOpticalLossTestSet-PCConnectors

525-60-APC 20943 1310/1550nmSmartOpticalLossTestSet-APCConnectors

525-60RL-APC 20944 1310/1550nmSmartOpticalLossTestSet-APCConnectors

SPECIFICATIONS

525-60-PCX 525-60-APC 525-60RL-APC

  InstrumentType SinglemodeSmartLoss SinglemodeSmartLoss SinglemodeSmartLoss

Test Set Test Set Test Set

Interface Connector PC Connector Interface APC Connector Interface APC Connector Interface

   AUTOTESTperforms AUTOTESTperforms AUTOTESTperforms

  AUTOTEST InsertionLossTest InsertionLossTest InsertionandReturn

  measurements andManualReturnLoss andManualReturnLoss LossinoneTest

POWER METER SPECIFICATIONS

 DetectorType InGaAs InGaAs InGaAs

 DisplayRange +10dBmto-70dBm +10dBmto-70dBm +10dBmto-70dBm

 CalibratedWavelengths 850,980,1300,1310, 850,980,1300,1310, 850,980,1300,1310,

  1550,1480,1625 1550,1480,1625 1550,1480,1625

 AbsoluteAccuracy ±0.25dB ±0.25dB ±0.25dB

 Resolution 0.01dB 0.01dB 0.01dB

 MeasurementUnits dBm,dB,W dBm,dB,W dBm,dB,W

 ConnectorType UCI-UPCflatpolish UCI-APCpolish UCI-APCpolish

  adapter9/125SM adapter9/125SM adapter9/125SM

AUTOTEST INSERTION LOSS SPECIFICATIONS

 TestPortMeasurementRange 40dB 40dB 40dB

 CalibratedWavelengths 1310,1550nm 1310,1550nm 1310,1550nm

RETURN LOSS SPECIFICATIONS

 MeasurementRange 10to45dB 10to65dB 10to65dB

Accuracy .5dB .5dB .5dB

GENERAL DESCRIPTIONS

 DisplayType GraphicsLiquidCrystal GraphicsLiquidCrystal GraphicsLiquidCrystal

  withBacklight withBacklight withBacklight

 FiberType Singlemode9/125um Singlemode9/125um Singlemode9/125um

 StandardConnectorType FC,SC,STotherconnector FC,SC,STotherconnector FC,SC,STotherconnector

  optionsavailable optionsavailable optionsavailable

 LaserClassification Class1CFR1040 Class1CFR1040 Class1CFR1040

 OperatingTemperature 0°Cto+50°C 0°Cto+50°C 0°Cto+50°C

 StorageTemperature -20°Cto+60°C -20°Cto+60°C -20°Cto+60°C

 RelativeHumidity 0to95%RHnon-condensing 0to95%RHnon-condensing 0to95%RHnon-condensing

 Size 19.3x10.9x5.8cm 19.3x10.9x5.8cm 19.3x10.9x5.8cm

(7.6 x 4.3 x 2.3 in) (7.6 x 4.3 x 2.3 in) (7.6 x 4.3 x 2.3 in)

 Weight 1.0kg(2.2lbs) 1.0kg(2.2lbs) 1.0kg(2.2lbs)

 Power InternalrechargeableNiMH InternalrechargeableNiMH InternalrechargeableNiMH

 BatteryLife >8hours >8hours >8hours

SOURCE SPECIFICATIONS

 CenterWavelength 1310nm±30nm 1550nm±30nm 1310nm±30nm 1550nm±30nm 1310nm±30nm 1550nm±30nm

Spectral Width <5 <5 <5 <5 <5 <5

 OutputPower >-10dBm >-10dBm >-10dBm >-10dBm >-10dBm >-10dBm

 OutputStability ±0.15dB/ ±0.15dB ±0.15dB/ ±0.15dB ±0.15dB/ ±0.15dB

8 hours 8 hours 8 hours 8 hours 8 hours 8 hours

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

284

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Fiber Optic Power Meter

• Easytouse-threebuttonscontrolallfunctions.

• Lossmeasurementsin(dB);powermeasurementsin(dBm).

• 0.01dBmeasurementresolution.

• Multi-wavelengthstorage-storeandrecallreferencepowerlevels

for faster, more efficient measurements.

• Snap-OnconnectorinterfaceadaptstoFC,SCandSTconnectors.

• Longbatterylife.

• Userselectableautoshut-off.

• Ruggedandsplash-proof.

• Economicallypriced.

CAT. NO. UPC NO. DESCRIPTION

560XL 84485 FiberOpticPowerMeter

SPECIFICATIONS

OPTICAL

Calibration Wavelengths 850nm,1300nm,

   1310nmand1550nm

Power Range +3dBmto-60dBm

Accuracy ±0.25dB

Linearity

+3dBm to -3dBm ±0.5dB

-3dBm to -50dBm ±0.05dB

-50dBm to -60dBm ±0.5dB

Resolution 0.01dB

Power Requirements TwoAAsize1.5Vbatteries

   (approx.100hourscontinuousoperation)

Connector interface FC,SCorSTSOC Adapter

SPECIFICATIONS

ENVIRONMENTAL

Operating temperature -15°Cto+55°C

Storage temperature -35°Cto+70°C

Humidity 0to95%non-condensing

Dimensions 7.2 x 14.2 x 3.5 cm (2.8 x 5.6 x 1.4 in.)

Weight 241g(8.5oz.)

CE EN61010;EN50081-1:1992;EN55011, 

   Group1,ClassAEN50082-1:

   1992IEC801-2,-3,-4

525-30 Smart Optical Loss Test Set

CAT. NO. UPC NO. DESCRIPTION

525-30-PCX 49981 850/1300nmSmartOpticalLossTestSet-PCConnectors

AUTOTEST INSERTION LOSS

Test Port

Measurement Range 25dB

Calibrated Wavelengths 850,1300nm

GENERAL SPECIFICATIONS

Display Type GraphicsLiquidCrystalwithBacklight

Fiber Type Multimode62.5/125um

Standard Connector Type FC,SC,STorotherconnectoroptionsavailable

Operating Temperature 0°Cto+50°C

Storage Temperature -20°Cto+60°C

Relative Humidity 0to95%RHnon-condensing

Size 7.6x4.3x2.3in.(19.3x10.9x5.8cm)

Weight 2.2lbs.(1.0kg)

Power InternalrechargeableNiMH

Battery Life >8hours

SPECIFICATIONS

POWER METER

Dector Type InGaAs

Display Range +10dBmto-70dBm

Calibrated Wavelengths 850,980,1300,1310,1550,1480,1625

Absolute Accuracy <±0.25dB

Resolution 0.01dB

Measurement Units dBm, dB, W

SOURCE

Center Wavelength 850nm±30nm 1300nm±30nm

Spectral Width <170 <170

Output Power >-21dBm >-21dBm

Output Stability <±0.10dB/8hrs <±0.10dB/8hrs

HOMP  0.03dBto0.80dB

Connector Type UCI-APCflatpolishadapter62.5/125SM

• Automatedbi-directionaltesting.

• Opticalreturnlossmeasurements.

• Dualwavelengthinsertionlossmeasurements.

• Multi-modeandSingle-modemodelsfeatureusersettable

PASS/FAILthresholds.

• Communicationsbetweenunitsviamessaging.

• Widedynamicrangeopticalpowermeter.

• Testrecordstorageanddatamanagementsoftware.

• Ruggedoutsideplantinstrumentpackage.

• Universalconnectorinterface.

285

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

850/1300nm LED Source

• 850/1300nmwavelengths.

• Stablecalibratedoutput.

•Easytouse.

•Continuouswaveandmodulatedoutput.

•FixedconnectorinterfaceFC,SCorST.

•Longbatterylife-approx.80hours.

•Userselectableautoshut-off.

•Ruggedandsplash-proof.

•Economicallypriced.

CAT. NO. UPC NO. DESCRIPTION

570XL-FC 84486 850/1300nmLEDsourcew/FCinterface

570XL-SC 84487 850/1300nmLEDsourcew/SCinterface

570XL-ST 84488 850/1300nmLEDsourcew/STinterface

SPECIFICATIONS

OPTICAL

Center Wavelengths 850nm 1300nm

Range (typical) 840nmto880nm 1270nmto1345nm

Max. spectral width 55nm 150nm

Stability (1 hour) ±0.05dB ±0.05dB

Typical power output

100/140um -13dBm -20dBm

62.5/125um -13dBm -20dBm

50/125um -14dBm -21dBm

Modulation frequency 270kHz,1kHzand2kHz 270kHz,1kHzand2kHz

Power Requirements TwoAAsize1.5Vbatteries TwoAAsize1.5Vbatteries

(approx. 80 hours continuous operation)

Connector interface FC,SCorST FC,SCorST

SPECIFICATIONS

ENVIRONMENTAL

Operating temp. -15°Cto+55°C

Storage temp. -35°Cto+70°C

Humidity 0to95%non-condensing

Dimensions 7.2 x 14.2 x 3.5 cm (2.8 x 5.6 x 1.4 in.)

Weight 241g(8.5oz.)

CE EN61010;EN50081-1:1992;EN55011,

   Group1,ClassAEN50082-1:

   1992IEC801-2,-3,-4

1310/1550nm Laser Source

• 1310/1550nmwavelengths.

•Stablecalibratedoutput.

•Easytouse.

•Continuouswaveandmodulatedoutput.

•FixedconnectinterfaceFC,SCorST.

•Longbatterylife-approx.80hours.

•Userselectableautoshut-off.

•Ruggedandsplash-proof.

•Economicallypriced.

CAT. NO. UPC NO. DESCRIPTION

580XL-FC 84489 1310/1550nmLasersourcew/FCinterface

580XL-SC 84490 1310/1550nmLasersourcew/SCinterface

580XL-ST 84491 1310/1550nmLasersourcew/STinterface

SPECIFICATIONS

ENVIRONMENTAL

Operating temp. -15°Cto+55°C

Storage temp. -35°Cto+70°C

Humidity 0to95%non-condensing

Dimensions 7.2 x 14.2 x 3.5 cm (2.8 x 5.6 x 1.4 in.)

Weight 241g(8.5oz.)

CE EN61010;EN50081-1:1992;EN55011,

   Group1,ClassAEN50082-1:

   1992IEC801-2,-3,-4

CDRH Laser Class Class 1

OPTICAL

Center Wavelengths 1310nm 1550nm

Range (typical) 1280nmto1340nm 1520nmto1580nm

Max. spectral width <5nm <5nm

Stability (1 hour) ±0.05dB ±0.05dB

Typical power output (9/125)

Minimum -8dBm -8dBm

Typical -7dBm -7dBm

Modulation frequency 270kHz,1kHzand2kHz 270kHz,1kHzand2kHz

Power Requirements TwoAAsize1.5Vbatteries TwoAAsize1.5Vbatteries

(approx. 80 hours continuous operation)

Connector interface FC,SCorST FC,SCorST

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

286

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Multimode Fiber Optic Test Set

•Insertionlosstestsetformultimodefiber.

•850/1300nmlossmeasurements.

•ConnectorforFC,SCorST.

•Ruggedpackagedesign.

•Easytouseportablepackage.

•Economicallypriced.

CAT. NO. UPC NO. DESCRIPTION

5670-FC 84492 MultimodeFiberOpticTestSetw/FCinterface

5670-SC 84493 MultimodeFiberOpticTestSetw/SCinterface

5670-ST 84494 MultimodeFiberOpticTestSetw/STinterface

KIT SPECIFICATIONS

5670-FC INCLUDES:

560XLOpticalPowerMeter

570XL-FC850/1300nmLEDSourcew/FC Connector

T1020FC/PC SOCAdapter

914B Carrying Case

5670-SC INCLUDES:

560XLOpticalPowerMeter

570XL-SC850/1300nmLEDSourcew/SC Connector

1062SC/PC SOC Adapter

914B Carrying Case

5670-ST INCLUDES:

 560XLOpticalPowerMeter

 570XL-ST850/1300nmLEDSourcew/ST Connector

 T1030ST/PCSOCAdapter

914B Carrying Case

Visual Fault Finder

• Continuouswaveoutputmodeforsteadyfaultlocation.

•Findbreaksto3km.

•Blinkingoutputmodeincreasesviewingcontrast.

•Easytousequickinterfacefitsall2.5mmconnectorinterfaces(FC,SC,ST).

•1.0mWoutputpower.

•Ergonomicrotaryswitchpermitseasyone-handedoperation.

•Rugged,compactandsplash-proofaluminumdesign.

•TwoAAbatteriesprovide48hourscontinuousoperation.

•Nylonbeltholsterincluded.

CAT. NO. UPC NO. DESCRIPTION

170XL 84501 VisualFaultFinder

SPECIFICATIONS

ENVIRONMENTAL

Operating temp. -10°Cto+50°C

Storage temp. -40°Cto+60°C

Humidity 0to95%non-condensing

Dimensions Length:22cm(9.0in.);

   Diameter:2.54cm(1in.)

Weight 200g(7oz.)

CDRH Laser Class: Class IIIa

CE IEC60-1-2portionoftheEN50082-1ESD

   immunityrequirementEN50082-1:

   1992IEC801-2,-3,-4

OPTICAL

Light source type 635nm red laser diode

Center wavelength

Nominal 635nm

Range (typical) 630nmto640nm

Spectral width (FWHM) <2nm

Typical output power

Max. into SMF-28 fiber 1.0mW(0dBm)

Min. CW output mode 316uW (-5 dBm)

Blink frequency in

MOD mode <3hzapproximate)

Power Requirements TwoAAsize1.5Vbatteries

(Battery life Approx. 48 hours continuous operation)

Connector interface Standard“QuickConnect”universal

2.5 mm receptacle

287

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Singlemode Fiber Optic Test Set

•Insertionlosstestsetforsinglemodefiber.

•1310/1550nmlossmeasurements.

•ConnectorforFC,SCorST.

•Ruggedpackagedesign.

•Easytouseportablepackage.

•Economicallypriced.

CAT. NO. UPC NO. DESCRIPTION

5680-FC 84495 SinglemodeFiberOpticTestSetw/FCinterface

5680-SC 84496 SinglemodeFiberOpticTestSetw/SCinterface

5680-ST 84497 SinglemodeFiberOpticTestSetw/STinterface

KIT SPECIFICATIONS

5680-FC INCLUDES:

 560XLOpticalPowerMeter

 580XL-FC1310/1550nmLaserSourcew/FCConnector

 T1020FC/PCSOCAdapter

914B Carrying Case

5680-SC INCLUDES:

 560XLOpticalPowerMeter

 580XL-SC1310/1550nmLaserSourcew/SCConnector

 1062SC/PCSOCAdapter

914B Carrying Case

5680-ST INCLUDES:

 560XLOpticalPowerMeter

 580XL-ST1310/1550nmLaserSourcew/STConnector

 T1030ST/PCSOCAdapter

914B Carrying Case

Multimode and Singlemode Fiber Optic Test Set

•Insertionlosstestsetformultimodeandsinglemodefiber.

•850/1300nmLossmeasurements.

•1310/1550nmLossmeasurements.

•ConnectorforFC,SCorST.

•Ruggedpackagedesign.

•Easytouseportablepackage.

•Economicallypriced.

CAT. NO. UPC NO. DESCRIPTION

5890-FC 84498 MultimodeandSinglemodeFiberOpticTestSetw/FCinterface

5890-SC 84499 MultimodeandSinglemodeFiberOpticTestSetw/SCinterface

5890-ST 84500 MultimodeandSinglemodeFiberOpticTestSetw/STinterface

KIT SPECIFICATIONS

5890-FC INCLUDES:

560XLOpticalPowerMeter

 570XL-FC850/1300nmLEDSourcew/FCConnector

 580XL-FC1310/1550nmLaserSourcew/FCConnector

 T1020FC/PCSOCAdapter

915B Carrying Case

5890-SC INCLUDES:

 560XLOpticalPowerMeter

 570XL-SC850/1300nmLEDSourcew/SCConnector

 580XL-SC1310/1550nmLaserSourcew/SCConnector

 1062SC/PCSOCAdapter

915B Carrying Case

5890-ST INCLUDES:

 560XLOpticalPowerMeter

 570XL-ST850/1300nmLEDSourcew/STConnector

 580XL-ST1310/1550nmLaserSourcew/STConnector

 T1030ST/PCSOCAdapter

915B Carrying Case

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

288

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

920XC Handheld Singlemode OTDR

CAT. NO. UPC NO. DESCRIPTION

MODEL POLISH POWER

SUPPLY

CONN

TYPE

920XC-13A UPC NA FC 89822 Singlemode1310nm

920XC-13A UPC EU FC 89823 Singlemode1310nm

920XC-13A UPC JA FC 89824 Singlemode1310nm

920XC-13A UPC UK FC 89825 Singlemode1310nm

920XC-13A UPC AU FC 89826 Singlemode1310nm

920XC-13A UPC NA ST 89827 Singlemode1310nm

920XC-13A UPC EU ST 89828 Singlemode1310nm

920XC-13A UPC JA ST 89829 Singlemode1310nm

920XC-13A UPC UK ST 89830 Singlemode1310nm

920XC-13A UPC AU ST 89831 Singlemode1310nm

920XC-13A UPC NA SC 89832 Singlemode1310nm

920XC-13A UPC EU SC 89833 Singlemode1310nm

920XC-13A UPC JA SC 89834 Singlemode1310nm

920XC-13A UPC UK SC 89835 Singlemode1310nm

920XC-13A UPC AU SC 89836 Singlemode1310nm

920XC-13A APC NA FC 89837 Singlemode1310nm

920XC-13A APC EU FC 89838 Singlemode1310nm

920XC-13A APC JA FC 89839 Singlemode1310nm

920XC-13A APC UK FC 89840 Singlemode1310nm

920XC-13A APC AU FC 89841 Singlemode1310nm

920XC-13A APC NA SC 89842 Singlemode1310nm

920XC-13A APC EU SC 89843 Singlemode1310nm

920XC-13A APC JA SC 89844 Singlemode1310nm

920XC-13A APC UK SC 89845 Singlemode1310nm

920XC-13A APC AU SC 89846 Singlemode1310nm

920XC-15A UPC NA FC 89847 Singlemode1550nm

920XC-15A UPC EU FC 89848 Singlemode1550nm

920XC-15A UPC JA FC 89849 Singlemode1550nm

920XC-15A UPC UK FC 89850 Singlemode1550nm

920XC-15A UPC AU FC 89851 Singlemode1550nm

920XC-15A UPC NA ST 89852 Singlemode1550nm

920XC-15A UPC EU ST 89853 Singlemode1550nm

920XC-15A UPC JA ST 89854 Singlemode1550nm

920XC-15A UPC UK ST 89855 Singlemode1550nm

920XC-15A UPC AU ST 89856 Singlemode1550nm

920XC-15A UPC NA SC 89857 Singlemode1550nm

920XC-15A UPC EU SC 89858 Singlemode1550nm

920XC-15A UPC JA SC 89859 Singlemode1550nm

920XC-15A UPC UK SC 89860 Singlemode1550nm

920XC-15A UPC AU SC 89861 Singlemode1550nm

920XC-15A APC NA FC 89862 Singlemode1550nm

920XC-15A APC EU FC 89863 Singlemode1550nm

920XC-15A APC JA FC 89864 Singlemode1550nm

920XC-15A APC UK FC 89865 Singlemode1550nm

920XC-15A APC AU FC 89866 Singlemode1550nm

920XC-15A APC NA SC 89867 Singlemode1550nm

920XC-15A APC EU SC 89868 Singlemode1550nm

920XC-15A APC JA SC 89869 Singlemode1550nm

920XC-15A APC UK SC 89870 Singlemode1550nm

920XC-15A APC AU SC 89871 Singlemode1550nm

CAT. NO. UPC NO. DESCRIPTION

MODEL POLISH POWER

SUPPLY

CONN

TYPE

920XC-20C UPC NA FC 89872 Singlemode13101550nm

920XC-20C UPC EU FC 89873 Singlemode13101550nm

920XC-20C UPC JA FC 89874 Singlemode13101550nm

920XC-20C UPC UK FC 89875 Singlemode13101550nm

920XC-20C UPC AU FC 89876 Singlemode13101550nm

920XC-20C UPC NA FC 89877 Singlemode13101550nm

920XC-20C UPC EU ST 89878 Singlemode13101550nm

920XC-20C UPC JA ST 89879 Singlemode13101550nm

920XC-20C UPC UK ST 89880 Singlemode13101550nm

920XC-20C UPC AU ST 89881 Singlemode13101550nm

920XC-20C UPC NA SC 89882 Singlemode13101550nm

920XC-20C UPC EU SC 89883 Singlemode13101550nm

920XC-20C UPC JA SC 89884 Singlemode13101550nm

920XC-20C UPC UK SC 89885 Singlemode13101550nm

920XC-20C UPC AU SC 89886 Singlemode13101550nm

920XC-20C APC NA FC 89887 Singlemode13101550nm

920XC-20C APC EU FC 89888 Singlemode13101550nm

920XC-20C APC JA FC 89889 Singlemode13101550nm

920XC-20C APC UK FC 89890 Singlemode13101550nm

920XC-20C APC AU FC 89891 Singlemode13101550nm

920XC-20C APC NA SC 89892 Singlemode13101550nm

920XC-20C APC EU SC 89893 Singlemode13101550nm

920XC-20C APC JA SC 89894 Singlemode13101550nm

920XC-20C APC UK SC 89895 Singlemode13101550nm

920XC-20C APC AU SC 89896 Singlemode13101550nm

• Economical

• Compacthandhelddesign

• Easytouse

• Fastautomatedtesting

• Upto35dbdynamicrange

• LargebacklightLCDdisplay

• Measurelengthanddefectsofcoiledber

• Fiberanalysissoftwarefordatamanagementandreportgeneration

• RS-232/USBinterface

• NiMHbatteriesfor5hourscontinuoususe

When ordering, combine Model - Polish - Power Supply - Connector Type (ie. 920xc-13A-UPC-NAFC)

NA - North American EU - Europe JA- Japanese UK - United Kingdom AU - Austrailia

289

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

SPECIFICATIONS

OPTICAL

920XC-13A 920XC-15A 920XC-20C

FiberType 9/125SM 9/125SM 9/125SM

Wavelength(±20nm) 1310 1550 1310 1550

DynamicRange(dB) 27 27 35 35

Eventdeadzone(m) 3.5 3.5 2.5 2.5

AttenuationDeadzone(m) 20 20 14 144

EmitterType Laser

Pulsewidth(ns) 12ns,25ns,100ns,275ns,1us,2.5us 5ns,10ns,30ns,100ns,300ns,1us,2.5us,10us,20us

Selectable Ranges (km) 1.3,2.5,5,10,20,40,80,120 0.3,1.3,2.5,5,10,20,40,80,120,160,240

AverageTime 15s/30s/1min/2min/3min

Distancemeasurementaccuracy ±(1m+5X105 x distance + sampling space)

Linearity <0.03dB/dB

Connector Type PCorAPC(interchangeableFC,SC,ST)

VISUAL FAULT LOCATOR

(920XC-20C ONLY)

Wavelength n/a 650nm

Peakpoweroutput n/a 3mw

Connector interface n/a (interchangeableFC,SC,ST)

FIBER ANALYSIS SOFTWARE

Reﬂection detect accuracy ±4 dB

Attenuation detect accuracy ±0.05dB/dB

Measurementdatastorage 300testcurves

Datatransmission RS-232/USBport

GENERAL

PowerSupply NiMHchargeablebattery/ACadapter

BatteryLife Supportover5hoursoperatingononechargeorover20hoursstandby

OperatingTemperature -10°to50°C

Storage Temperature -20°to60°C

RelativeHumidity 0to95%(non-condensing)

Weight 1.9lbs.(0.87kg)

Dimensions 7.7"Hx3.9"Wx2.4"L(196mmx100mmx64mm)

920XC Handheld Singlemode OTDR (cont.)

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

290

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Optical Loss Test Sets

Advanced Single-Mode Optical Loss Test Set

• Incorporatesastabledual1310nm/1550nmlasersourceandoptical

powermeterinaconvenientself-containedpackagetoperforminsertion

loss and link loss testing.

• Large,backlitLCDmakesiteasytoviewpowerlevelsand

 calibrationwavelengths.

• Operationissimpleduetotheuser-friendlykeypadandintuitivecontrols.

• Remoteoperationpermitstheautomationoftediousor

 repetitivemeasurements.

• Rubberbootprotectsagainstdropping.

• Ruggedandsplashproof.

• Indium-gallium-arsenide(InGaAs)photodetector.

• 1310/1550nmduallasersource.

• +3dBmto-75dBmmeasurementrange.

• PASS/FAILtestingwithaudiblesignal.

• Manualortimer-drivendataloggingforperiodsfrom

one second to one hour.

• Datastoragefor1,000measurements.

• RS232interfaceforinstrumentconfigurationanddatatransfer

 toaPC-compatibleworkstationorserialprinter.

• Poweredbyarechargeablenickel-metalhydride(NiMH)batterypack,

four alkaline batteries or AC adapter.

• Built-inNiMHbatterychargerwithexternalpowersupply.

523B-13/15 105202K 6052B2K 60556MT

MODEL NO. 523B-13/15 105202K 6052B2K 60556MT 253B+557B

PACKAGE Handheld Palm-sized Palm-sized Palm-sized Palm-sized

SOURCE TYPE Laser Laser LED LED LED

CALIBRATION WAVELENGTHS (nm) 1310/1550 1310/1550 850/1300 850/1300 650

MEASUREMENT RANGE +3 to -75dBm +3 to -60dBm +3 to -60dBm +3 to -60dBm +3 to -60dBm

MEASUREMENT UNITS dB, dBm, W dB, dBm dB, dBm dB, dBm dB, dBm

Storage Capability ✔

Single-mode ✔ ✔

Multimode (glass) ✔ ✔

Multimode (POF) ✔

Talk Function

253B + 557B

CAT. NO. UPC NO. DESCRIPTION

523B-13/15 60550 AdvancedSingle-ModeOpticalLossTestSet

Requires one SOC and one UCI connector adapter (See pages 306 and 308). Source output is directly compatible with PC

connectors. For APC use hybrid cable approach (See page 310).

291

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

fiberTOOLS® Single-Mode Optical Loss Test Sets

• Theseconvenientlypackagedtestsetsareusedtotest,troubleshoot

andmaintainTelco,CATV,LANandothersingle-modenetwork

applications.TheBasicSetcanbeusedtomeasureoutputpower

and certify end-to-end attenuation on deployed fiber spans.

• Easytouse,all-in-oneprepackagedkit.

• Dualwavelength1310/1550nmsourcecoversallrequirements.

• Sourcehasstable,calibratedoutput.

• Rugged,splashproofinstruments.

• Water-andair-tighthardcarryingcase.

• MeetsthelinkcertificationrequirementsofTIA-568BandISO/IEC-11801.

• 0.01dBmeasurementresolution.

• TwoAAbatteriesprovidepowerforover100hoursintheopticalpower

meters,over50hoursintheLEDsourcesandover48hoursinthevisual

fault finder.

Basic Sets Include:

• 555BOpticalPowerMeterplusadapter.

• 262ADualWavelength1310/1550nmLaserSourceplusadapters.

• Hardcarryingcase(900B).

Deluxe Sets Include:

• BasicSetcontents.

• VisualfaultfinderT160.

• Connectorcleaner.

• Cleaningwands.

CAT. NO. UPC NO. DESCRIPTION

Basic Single-Mode Test Sets

10520E2 60611 BasicSMTestSetE2000-PC

105202K 60608 BasicSMTestSet,FC-PC

105203K 60609 BasicSMTestSet,ST-PC

105206K 60610 BasicSMTestSet,SC-PC

1052011 60607 BasicSMTestSet,DIN

Deluxe Single-Mode Test Sets

11520E2 60618 DeluxeSMTestSetE2000-PC

115202K 60615 DeluxeSMTestSet,FC-PC

115203K 60616 DeluxeSMTestSet,ST-PC

115206K 60617 DeluxeSMTestSet,SC-PC

115201U 60614 DeluxeSMTestSet,DIN

90ACK 60686 AC/MainPowerConverter120V

(onerequiredperhandheldunit)

To accommodate other connector types, see

our SOC/UCI adapters on pages 301 and 303

and reference cables on page 306.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

292

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

CAT. NO. UPC NO. DESCRIPTION CAT. NO. UPC NO. DESCRIPTION

MM 50/125 BASIC MULTIMODE TEST SETS MM 50/125 DELUXE MULTIMODE TEST SETS

5052BE2 60627 Basic MM Test Set, E2000-PC 5152BE2 60635 Deluxe MM Test Set E2000-PC

5052B2K 60624 Basic MM Test Set, FC-PC 5152B2K 60632 Deluxe MM Test Set, FC-PC

5052B3K 60625 Basic MM Test Set, ST-PC 5152B3K 60633 Deluxe MM Test Set, ST-PC

5052B6K 60626 Basic MM Test Set, SC-PC 5152B6K 60634 Deluxe MM Test Set, SC-PC

5052BIU 60623 Basic MM Test Set, DIN 5152BIU 60631 Deluxe MM Test Set DIN

90ACK 60686 AC/Main Power Converter 120V 90ACK 60686 AC/Main Power Converter 120V

(one required per handheld unit) (one required per handheld unit)

fiberTOOLS® Multimode Optical Loss Test Sets

• Theseconvenientlypackagedtestsetsareusedtotest,

troubleshootandmaintainLANandothernetworkapplications.

• Easytouse,all-in-oneprepackagedkit.

• Dualwavelength850/1300nmLEDsource(s)coversallrequirements.

• Rugged,splashproofinstruments.

• Water-andair-tighthardcarryingcase.

• MeetthelinkcertificationrequirementsofTIA-568BandISO/IEC-11801.

• 0.01dBmeasurementresolution.

• TwoAAbatteriesprovidepowerforover100hoursintheopticalpower

meters,over24hoursintheLEDsourcesandover48hoursinthevisual

fault finder.

Basic Sets Include:

• 555BOpticalPowerMeterplusadapter.

• 252BDualWavelength850/1300nmLEDSourceplus2xadapters.

• Hardcarryingcase(900B).

Deluxe Sets Include:

• BasicSetcontents.

• VisualfaultfinderT160L.

• Connectorcleaner.

• Cleaningwands.

fiberTOOLS® MT-RJ Optical Loss Test Sets

• OurMT-RJTestSetsprovidealltheequipmentrequiredtotest,

troubleshoot and certify multimode optical links.

• Easytouse,all-in-oneprepackagedkit.

• Both850and1300nmLEDsourcesavailable.

• Rugged,splashproofinstruments.

• Convenientlypackagedinawater-andair-tighthardcase.

• MeetsthelinkcertificationrequirementsofTIA-568BandISO/IEC-11801.

• 0.01dBmeasurementresolution.

• TwoAAbatteriesprovidepowerforover100hoursintheopticalpower

meters,over24hoursintheLEDsourcesandover48hoursinthevisual

fault finder.

Basic Single Wavelength Test Sets Include:

• 556MTOpticalPowerMeterplusMT-RJadapter.

• 255MT(1300nm)or257MT(850nm)LEDSource.

• Hardcarryingcase(900B).

Dual Wavelength Deluxe Test Sets Include:

• 556MTOpticalPowerMeterplusMT-RJadapter.

• 255MT1300nmMT-RJLEDSource.

• 257MT850nmMT-RJLEDSource.

• MTRJconnectorcleaner.

• Hardcarryingcase(901B).

• 263MTMT-RJvisualfaultfinder.

• Cleaningwands.

CAT. NO. UPC NO. DESCRIPTION

Single Wavelength MT-RJ Test Sets

60556MT 60555 BasicMMTestSet,1300nm

60576MT 60727 BasicMMTestSet,850nm

Dual Wavelength 850/1300nm MT-RJ Test Sets

90ACK 60686 AC/MainPowerConverter120V

(onerequiredperhandheldunit)

293

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Optical Power Meters

Advanced Optical Power Meters

CAT. NO. UPC NO. DESCRIPTION

522B 60548 AdvancedOpticalPowerMeter,MediumPowerto+3dBm

522B-HP 60549 AdvancedOpticalPowerMeter,HighPowerto+27dBm

• Designedforinsertionlossandlinklossmeasurementsusinganexternal

light source.

• Large,backlitLCDmakesiteasytoviewpowerlevels

andcalibrationwavelengths.

• Operationissimpleduetotheuser-friendlykeypadandintuitivecontrols.

• Remoteoperationpermitstheautomationoftedious

 orrepetitivemeasurements.

• Rubberbootprotectsagainstdropping.

• Ruggedandsplashproof.

• 850nm,980nm,1310nm,1480nm,1550nmand1625nm

 calibrationwavelengths.

• InGaAsphotodetector.

• +3dBmto-75dBmmeasurementrange.

• PASS/FAILtestingwithaudiblesignal.

• Manualortimer-drivendataloggingforperiodsfromonesecondtoonehour.

• Datastoragefor1,000measurements.

• RS232interfaceforinstrumentconfigurationanddatatransfer

 toaPC-compatibleworkstationorserialprinter.

• Poweredbyarechargeablenickel-metalhydride(NiMH)batterypack,

four alkaline batteries or AC adapter.

• Built-inNiMHbatterychargerwithexternalpowersupply.

MODEL NO. 522B 522B-HP 555B 556MT 557B 558B

PACKAGE Handheld Handheld Palm-sized Palm-sized Palm-sized Palm-sized

DETECTOR TYPE 1 mm InGaAs Filtered 2 mm InGaAs 1 mm InGaAs 3 mm Ge 3 x 3.5 mm Silicon Filtered 2 mm InGaAs

CALIBRATION 850/980/1310/ 850/980/1310/ 850/1300/1310/1550 850/1300/1550 635/780/850 980/1310/1550

WAVELENGTHS (nm) 1480/1550/1625 1480/1550/1625

MEASUREMENT RANGE +3 to -75dBm +25 to -53dBm +3 to -60dBm +3 to -40dBm +3 to -60dBm +25 to -30dBm

MEASUREMENT UNITS dB, dBm, mW dB, dBm, mW dB, dBm dB, dBm dB, dBm dB, dBm

OPTICAL POWER METER SOC Adapter SOC Adapter SOC Adapter SOC Adapter SOC Adapter SOC Adapter

INTERFACE TYPE

User-Selectable Auto Shutoff ✔ ✔ ✔ ✔ ✔ ✔

Storage Capability ✔ ✔

522B 522B-HP 555B 556MT 557B 558B

522B

Requires one Snap-On Connector (SOC) interface (See pages 302 and 303). Compatible with both PC and APC connectors.

To accommodate other connector types, see

our SOC/UCI adapters on pages 302 and 303

and reference cables on page 306.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

294

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

InGaAs Optical Power Meter

Ge MT-RJ Optical Power Meter

• SuitableforpowermeasurementsonbothlaserandLEDbased

single-mode and multimode fiber optic systems.

• Easytouse;threebuttonscontrolallessentialfunctions.

• Multi-wavelengthreferencestoresandrecallsreferencepowerlevels

for faster, more efficient measurement.

• Rubberbootprotectsagainstdropping.

• Ruggedandsplashproof.

• 850nm,1300nm,1310nmand1550nmcalibrationwavelengths.

• InGaAsdetector.

• +3to-60dBmmeasurementrange.

• 0.01dBmeasurementresolution.

• RelativelogarithmicdBandabsolutelogarithmicdBmunits.

• User-selectableautoshutoff.

• TwoAAbatteriesprovidepowerforover100hours.

• OptionalACpowerconverter/adapterisavailableforprolonged

or benchtop use.

• PairwithanLEDsourcetotestinsertionlossofmultimodeMT-RJfiber

optic cables and connectors or use independently to perform link loss

testing of installed cable plants.

• Easytouse;threebuttonscontrolallessentialfunctions.

• Multi-wavelengthreferencestoragecapabilitypermitsconvenient

 insertionandlinklosstestingatdifferenttransmissionwindows.

• Wideareadetectorallowsfortestingofeachchannelindividually,

simultaneouslyoralternatingbetweenthetwochannels.

• Rubberbootprotectsagainstdropping.

• Ruggedandsplashproof.

• 850nm,1300nmand1550nmNISTtraceablecalibrationwavelengths.

• Specialextra-largeareagermaniumdetector.

• +3to-40dBmmeasurementrange.

• -0.01dBmeasurementresolution.

• RelativelogarithmicdBandabsolutelogarithmicdBmunits.

• User-selectableautoshutoff.

• TwoAAbatteriesprovidepowerforover100hours.

• OptionalACpowerconverter/adapterisavailableforprolongedor

benchtop use.

CAT. NO. UPC NO. DESCRIPTION

555B 60567 InGaAsOpticalPowerMeter

90ACK 60686 AC/MainPowerConverter120V(onerequiredperhandheldunit)

CAT. NO. UPC NO. DESCRIPTION

556MT 60552 GeMT-RJOpticalPowerMeter

90ACK 60686 AC/MainPowerConverter120V(onerequiredperhandheldunit)

Requires one Snap-On Connector (SOC) adapter (See pages 302 and 303). Compatible with both PC and APC connectors.

Requires one T13A2 for MT-RJ Snap-On Connector (SOC) adapter (See page 303).

Compatible with both PC and APC connectors.

295

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Silicon Optical Power Meter

High Intensity InGaAs Optical Power Meter

• Optimizedforpowermeasurementsonfiberopticsystemsbased

on single-mode, multimode, plastic or large core glass optical fibers

andusingnear-infraredorvisiblelightsources.

• Easytouse;threebuttonscontrolallessentialfunctions.

• Multi-wavelengthreferencestoresandrecallsreferencepower

levelsforfaster,moreefficientmeasurement.

• Rubberbootprotectsagainstdropping.

• Ruggedandsplashproof.

• 635nm,780nmand850nmcalibrationwavelengths.

• 3x3.5mmSilicondetector.

• +3to-60dBmmeasurementrange.

• 0.01dBmeasurementresolution.

• RelativelogarithmicdBandabsolutelogarithmicdBmunits.

• User-selectableautoshutoff.

• TwoAAbatteriesprovidepowerforover100hours.

• OptionalACpowerconverter/adapterisavailableforprolonged

or benchtop use.

• Suitableforpowermeasurementsonhighpowersingle-modeandDWDM

fiber optic systems.

• Easytouse;threebuttonscontrolallessentialfunctions.

• Multi-wavelengthreferencestoresandrecallsreferencepowerlevels

for faster, more efficient measurement.

• Rubberbootprotectsagainstdropping.

• Ruggedandsplashproof.

• 980nm,1310nmand1550nmcalibrationwavelengths.

• +25to-30dBmmeasurementrangeat1310/1550nm.

• 0.01dBmeasurementresolution.

• RelativelogarithmicdBandabsolutelogarithmicdBmunits.

• User-selectableautoshutoff.

• TwoAAbatteriesprovidepowerforover100hours.

• OptionalACpowerconverter/adapterisavailableforprolonged

or benchtop use.

CAT. NO. UPC NO. DESCRIPTION

558B 60568 HighIntensityInGaAsOpticalPowerMeter

90ACK 60686 AC/MainPowerConverter120V(onerequiredperhandheldunit)

To accommodate other connector types, see

our SOC/UCI adapters on pages 302 and 303

and reference cables on page 306.

CAT. NO. UPC NO. DESCRIPTION

557B 60553 SiliconOpticalPowerMeter

90ACK 60686 AC/MainPowerConverter120V

(onerequiredperhandheldunit)

Requires one Snap-On Connector (SOC) adapter (See pages 302 and 303). Compatible with both PC and APC connectors.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

296

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Fault Locators and Light Detectors

FC-PC and MT-RJ Visual Fault Finders

• Usedtoquicklylocatebendinglossandbreaksinopticalfibers,

and to identify bad connectors.

• 635nmredlasermakesfiberbreaksandbendinglosseseasilyvisible.

• Stable,calibratedoutput.

• Continuouswaveoutputmodeforsteadyfaultillumination.

• Blinkingoutputmodeincreasesviewingcontrast.

• OptionalACpowerconverter/adapterisavailableforprolonged

or benchtop use.

• Proven,reliableandcompactdesign.

• Economicallypriced.

• Ruggedandsplashproof.

• 263LXmodelincludesfixedFC-PCinterface,forusewithoptional

FoPro® Adapter Cable (See page 289) or user-supplied hybrid cable

(Seepage306).

• 263MTmodelisdesignedforMT-RJduplexconnectorstotestboth

fibers simultaneously.

• LXmodelhasarangeupto3km.MTmodelhasarangeupto1km.

• Morethan40hoursofcontinuousoperation.

CAT. NO. UPC NO. DESCRIPTION

263LX 60538 VisualFaultFinder

263MT 60539 MT-RJVisualFaultFinder

90ACK 60686 AC/MainPowerConverter120V(onerequiredperhandheldunit)

MODEL 170XL 263LX 263MT 510 LS SENSOLITE® T160L

TYPE Visible Laser Visible Laser Visible Laser Light Detector (Ge) Visible Laser

WAVELENGTH (NM) 635nm (red) 635nm (red) 635nm (red) 630 to 1600nm 635nm (red)

DISTANCE Up to 3 km (very bright) Up to 3 km (very bright) Up to 1 km (bright) Up to 3 km (very bright)

LIFE / BATTERY TYPE 48 hours (2 AA) 40 hours (2 AA) 24 hours (2 AA) 1 year (2 AA) 48 hours (2 AA)

OPTICAL INTERFACE 2.5 MM Fixed FC-PC Interface Fixed MT-RJ Interface Universal Interface 2.5 MM

TYPE Universal Interface Universal Interface

Single-mode ✔ ✔ ✔

Multimode ✔ ✔ ✔ ✔

263LX 263MT T160L

510LS170XL

297

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

SensoLITE® Visible/Invisible Light Detector

• Identifieslivemultimodeandsingle-modefibers.

• Helpspreventaccidentaleyeexposuretohazardouslaserradiation.

• Simpleone-buttontest.

• Patentedlightbaffleacceptsallstandardfiberopticconnectortypes,

barefiberandevenfiberloop.

• Includesbothaudibleandvisibleindicators.

• Uniquedesignpermitstestinginbrightlightconditions.

• Widesensitivityfrom+25dBmto-55dBm.

• Detectsvisibleandinvisiblelightwavelengthsfrom630nmto1600nm.

• OperatesforapproximatelyoneyearontwoAAbatteries.

• Automaticbatterycheck.

CAT. NO. UPC NO. DESCRIPTION

510LS 60566 SensoLITEVisible/InvisibleLightDetector

Visual Fault Finder

Bare Fiber Adapter

• Pinpointscablebreaksandbadconnectionsinbothsingle-mode

and multimode fiber.

• QuickconnectinterfaceadaptstoallstandardPCandAPCpolished2.5

mmferruledconnectorswithoutadapters.

• Bothcontinuousandpulsedoperationaidinfaultdetectioneveninhigh

ambient lighted areas.

• Pocket-sized.

• Rugged,waterproofdesign.

• Ultra-bright635nmvisiblelaserdetectsfiberbreaksupto3kmaway.

• Operatesforover48hoursontwoAAbatteries.

• Includesintegraldustcapandnylon,belt-mountedcarryingpouch.

• Optionalsnap-onadapterspermitattachmenttoST,SCandFCconnectors.

• Allowstemporaryconnectionof125micronmultimodeorsingle-modefiber

tomeasuringequipmentsuchasSources,OpticalPowerMetersandFault

LocatorswithanFC-styleconnector.Connectiontoothercommonfiber

opticconnectorstylescanbeaccomplishedwithahybridtestjumper.

• Short5mmminimumstriplengthprovideseasyinsertionintothecapillary

andavoidsfiberbreakage.

• Reusable.

• Includesadurable2.5mmtungstencarbideferruleandaferrulecleaningtool.

CAT. NO. UPC NO. DESCRIPTION

T160L 60562 VisualFaultFinder

1630 60580 STSOCAdapter

1662 60581 SCSOCAdapter

1620 60582 FCSOCAdapter

CAT. NO. UPC NO. DESCRIPTION

55456 55456 BareFiberAdapter(125µm,FC-styleconnector)

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

298

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

LED Sources

Dual Wavelength LED Source

MODEL 252B 253B 255MT 257MT

SOURCE TYPE LED LED LED LED

WAVELENGTHS (NM) 850/1300 650 1300 850

OPTICAL INTERFACE TYPE SOC Universal SOC Universal Fixed MT-RJ Fixed MT-RJ

Continuous and Modulated ✔ ✔ ✔ ✔

Output Modes

User-selectable Auto Shutoff ✔ ✔ ✔ ✔

Single-mode ✔ ✔

Multimode (glass) ✔ ✔ ✔

Multimode (plastic) ✔

252B 253B 255MT 257MT

• Performmultimodeinsertionlossandlinklossmeasurements

onLocalAreaNetworks(LAN),premisesnetworksandFiber

DistributedDataInterface(FDDI)installations.

• Stable,calibratedoutput.

• Proven,reliableandcompactdesign.

• Easytouse;threebuttonscontrolallessentialfunctions.

• Rubberbootprotectsagainstdropping.

• Ruggedandsplashproof.

• Singleunitcombines850nmand1300nmcalibratedwavelengths.

• Nominaloutputfor62.5/125is-13dBmfor850nmand-20dBm

for1300nm.

• Continuousandmodulatedoutputmodes.

• User-selectableautoshutoff.

• TIA-568Bcompliant.

• TwoAAbatteriesprovidepowerforover24hours.

• OptionalACpowerconverter/adapterisavailableforprolonged

or benchtop use.

CAT. NO. UPC NO. DESCRIPTION

252B 60530 Dual850/1300nmLEDSource

90ACK 60686 AC/MainPowerConverter120V(onerequiredperhandheldunit)

Requires two Snap-On Connector (SOC) adapters (See pages 302 and 303).

299

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Single Wavelength 650nm LED Source

MT-RJ Dual Channel LED Sources

• TestinsertionlossofmultimodeMT-RJfiberopticcablesand

connectors,orpairwithanopticalpowermeterforlinklosstesting

of installed cable plants.

• Stable,calibratedoutput.

• Proven,reliableandcompactdesign.

• Easytouse;twobuttonscontrolallessentialfunctions.

• Rubberbootprotectsagainstdropping.

• Ruggedandsplashproof.

• 255MTmodelhasa1300nmwavelength.

• 257MTmodelhasan850nmwavelength.

• Nominaloutputfor62.5/125is-20dBmforboth850nmand1300nm.

• Continuousandalternatingoutputmodes.

• FixedMT-RJinterface.

• User-selectableautoshutoff.

• TwoAAbatteriesprovidepowerforover24hours.

• OptionalACpowerconverter/adapterisavailableforprolonged

or benchtop use.

CAT. NO. UPC NO. DESCRIPTION

255MT 60533 MT-RJDualChannelLEDSource1300nm

257MT 60536 MT-RJDualChannelLEDSource850nm

90ACK 60686 AC/MainPowerConverter120V(onerequiredperhandheldunit)

255MT

To accommodate other connector types, see

our SOC/UCI adapters on pages 302 and 303

and reference cables on page 306.

• Performsmultimodeinsertionlossandlinklossmeasurementswhen

pairedwithanopticalpowermeterforPOFtesting.

• Stable,calibratedoutput.

• Proven,reliableandcompactdesign.

• Easytouse;twobuttonscontrolallessentialfunctions.

• Rubberbootprotectsagainstdropping.

• Ruggedandsplashproof.

• Nominaloutputinto200/230is-15dBm.

• Continuousandmodulatedoutputmodes.

• User-selectableautoshutoff.

• TwoAAbatteriesprovidepowerforover24hours.

• OptionalACpowerconverter/adapterisavailableforprolonged

or benchtop use.

CAT. NO. UPC NO. DESCRIPTION

253B 60531 650nmLEDSource

90ACK 60686 AC/MainPowerConverter120V(onerequiredperhandheldunit)

Requires one Snap-On Connector (SOC) adapter (See pages 302 and 303).

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

300

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Laser Sources

1310/1550 Dual Wavelength Laser Source

• Performssingle-modeinsertionlossandlinklossmeasurementswhen

pairedwithanopticalpowermeter.

• Singleoutputinterfacesimplifiesdualwavelengthmeasurements.

• Stable,calibratedoutput.

• Proven,reliableandcompactdesign.

• Easytouse;threebuttonscontrolallessentialfunctions.

• Rubberbootprotectsagainstdropping.

• Ruggedandsplashproof.

• Singleunittogglesbetween1310nmand1550nmwavelengths.

• Fabry-Perotlaserdiodes.

• Calibratedoutputpowerisnominal-7.0dBm.

• Continuousandmodulatedoutputmodes.

• User-selectableautoshutoff.

• TwoAAbatteriesprovidepowerforover50hours.

• OptionalACpowerconverter/adapterisavailableforprolonged

or benchtop use.

CAT. NO. UPC NO. DESCRIPTION

262A 60564 DualLaserSource

90ACK 60686 AC/MainPowerConverter120V(onerequiredperhandheldunit)

MODEL 262A 265A

SOURCE TYPE Fabry-Perot Laser Fabry-Perot Laser

WAVELENGTHS (NM) 1310/1550 1310

OPTICAL INTERFACE TYPE UCI Universal UCI Universal

Continuous and Modulated ✔ ✔

Output Modes

User-selectable Auto Shutoff ✔ ✔

Single-mode ✔ ✔

262A 265A

To accommodate other connector types, see

our SOC/UCI adapters on pages 302 and 303

and reference cables on page 306.

Requires one UCI adapter (See pages 301 and 303). For PC polished connectors only.

For APC connectors, use hybrid reference cables (See page 306).

301

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Single Wavelength Laser Sources

fiberTOOLS® Carrying Cases

DesignedtoholdTempohandheldinstrumentsandafullrange

of test accessories.

900B and 901B Hard Carrying Cases

• Toptrayholdsupto3(900B)or4(901B)handheldinstruments

andaT160LVisualFaultFinder.

• Bottomcompartmentofbothmodelsstoresadditionalinstruments

and test accessories.

• Compact,waterproofandlockable.

• Moldedfromblackstructuralfoamresin.

CAT. NO. UPC NO. DESCRIPTION

900B 60684 HardCarryingCase,Holds3Handhelds

901B 60579 HardCarryingCase,Holds4Handhelds

265A

To accommodate other connector types,

see our SOC/UCI adapters on pages 302 and 303

and reference cables on page 306.

• Performssingle-modeinsertionlossandlinklossmeasurements

whenpairedwithanopticalpowermeter.

• Stable,calibratedoutput.

• Proven,reliableandcompactdesign.

• Easytouse;twobuttonscontrolallessentialfunctions.

• Rubberbootprotectsagainstdropping.

• Ruggedandsplashproof.

• 265Ahasa1310nmwavelengthand-7dBmoutputforsingle-modetesting.

• Continuousandmodulatedoutputmodes.

• User-selectableautoshutoff.

• The265Amodeloperatesforover36hoursontwoAAbatteries.

• ACpowerconverter/adapterisavailableforprolongedorbenchtopuse.

CAT. NO. UPC NO. DESCRIPTION

265A 60565 1310nmLaserSource,SM

90ACK 60686 AC/MainPowerConverter120V

(onerequiredperhandheldunit)

Requires one UCI adapter (See pages 302 and 303). For PC polished connectors only.

For APC connectors, use hybrid reference cables (See page 306).

900B

Instruments and accessories

not included

Carry Case only

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

302

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Fiber Optic Instrument Adapters – SOC and UCI

CONNECTOR TYPE SOC ADAPTER UCI ADAPTER

DESCRIPTION CAT. NO. UPC NO. CAT. NO. UPC NO.

1.25 mm Quick-Connect Universal Adapter T1026 60588 Use hybrid cable only *

(LC, MU, etc.)

2.5 mm SOC Quick-Connect Adapter T1025 60587 AU-250 60703

(E2000, FC, SC, ST, etc.)

Blank Adapter (for custom applications) T1001 60585 N/A

D4 T1089 60597 Use hybrid cable only *

DIN 47256 T1010 60586 AD-108 60697

E-2000 T10E2 60599 AE2-10 60698

EC-Radiall T10E0 60598 Use hybrid cable only *

FC T1020 60576 APC-108 60572

HMS-0 T1050 60592 AMS-00 60700

HMS-10/A (SMA-2.5 mm) T1086 60595 AMT-10 60701

HMS-10/HP T1040 60590 AHP-10 60699

LC T10LC 60600 Use hybrid cable * or FoPro®-

• OurSOCandUCIadaptersprovidedirectconnectivityfor

TempofiberTOOLS®toawiderangeofindustry-standardfiber

optic connectors.

• Adapterdesignensuresmaximumaccuracyandrepeatability

whenperformingcriticalmeasurementsonfiberopticsystems.

• Easytocleananduse.

• Single-modeandmultimodecompatible.

• SOCadaptersarecompatiblewithbothPCandAngledAPC

physical contact interfaces.

• UCIadaptersfeaturedurablephosphorbronzealignmentsleeve.

• SOC(Snap-OnConnector)adapterisusedonallpowermeters

and250“B”seriesLEDSources.

• UCI(UniversalConnectorInterface)adapterisusedonall250/260

“A”SeriesSourcesand330SeriesVariableOpticalAttenuators.

FoPro ferrule options include 2.5 mm, 1.57 mm (MIL-style 16AWG optical contacts) and 1.25 mm.

* When using a Hybrid Adapter Cable, the instrument UCI adapter and one end of the Hybrid Adapter

Cable should be a commonly available connector type. (i.e. FC, SC or ST)

303

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Fiber Optic Instrument Adapters – SOC and UCI

CONNECTOR TYPE SOC ADAPTER UPI-PC ADAPTER

DESCRIPTION CAT. NO. UPC NO. CAT. NO. UPC NO.

MIL-T-29504/4 & /5 Termini T1038 60589 Use hybrid cable * or FoPro®

Mini-BNC T1047 60591 Use hybrid cable only *

MT-RJ

T13A2 60605

Use hybrid cable only *

MT-RJ Ferrule Only

T13AF 60606

Use hybrid cable only *

MU T10MU 60601 Use hybrid cable * or FoPro®

SC 1062 60575 ASC-108 60574

SMA 905/906 T1087 60596 ASM-90 60702

ST T1030 60577 ATS-108 60573

STRATOS 430/ HOLTEK 38000 T1057 60593 Use hybrid cable only *

TOSLINK – Simplex T10TB 60602 Use hybrid cable only *

TOSLINK – Duplex (Set of 2) T10TD 60603 Use hybrid cable only *

Versatile Link – V/Z PIN T10ZP 60604 Use hybrid cable only *

VFO – Radiall T1081 60594 Use hybrid cable only *

FoPro ferrule options include 2.5 mm, 1.57 mm

(MIL-style 16AWG optical contacts) and 1.25 mm.

* When using a Hybrid Adapter Cable, the instrument

UCI adapter and one end of the Hybrid Adapter Cable

should be a commonly available connector type.

(i.e. FC, SC or ST)

SOC adapter for use only with the 556MT Optical

Power Meter on page 298.

90SOC (60687)

SOC adapter tool for easy installation

and removal of SOC adapters from

instrument interfaces.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

304

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

fiberSAFE™ USA/Canada Telecom Adapter Kit — SOC and UCI

fiberSAFE™ Worldwide Telecom Adapter Kit — SOC and UCI

fiberSAFE™ LAN Adapter Kit — SOC and UCI

• ConvenientlycombinesthemostpopularSOC,UCIandbulkhead

mating adapters used in the North American telecommunications market.

EnablesdirectconnectivityforTempofiberTOOLS® to industry-standard

fiber optic connectors.

USA/Canada Telecom Adapter Kit includes:

• FC-PC/APC(widekey)bulkhead/matingadapter.

• ST-PC/APCbulkhead/matingadapter.

• SC-PC/APCbulkhead/matingadapter.

• E2000-PC/APCbulkhead/matingadapter.

• FC/SChybridbulkheadadapter.

• FC/SThybridbulkheadadapter.

• FC/E2000hybridbulkheadadapter.

• Universal2.5mmQuickConnectSOCadapter.

• ConvenientlycombinesthemostpopularSOC,UCIandbulkheadmating

adaptersusedoutsidetheUSAandCanada.Enablesdirectconnectivity

forTempofiberTOOLStoindustry-standardfiberopticconnectors.

Worldwide Telecom Adapter Kit includes:

• DIN47256-PC/APCbulkhead/matingadapter.

• FC-PC/APC(widekey)bulkhead/matingadapter.

• SC-PC/APCbulkhead/matingadapter.

• E2000-PC/APCbulkhead/matingadapter.

• FC/DINhybridbulkheadadapter.

• FC/SChybridbulkheadadapter.

• FC/E2000hybridbulkheadadapter.

• Universal2.5mmQuickConnectSOCadapter.

• ConvenientlycombinesthemostpopularSOC,UCIandbulkheadmating

adaptersusedforLocalAreaNetworks(LAN).Enablesdirectconnectivity

forTempofiberTOOLStoindustry-standardfiberopticconnectors.

LAN Adapter Kit includes:

• FC-PC/APC(widekey)bulkhead/matingadapter.

• ST-PC/APCbulkhead/matingadapter.

• SC-PC/APCbulkhead/matingadapter.

• SMA905/906bulkhead/matingadapter.

• FC/SThybridbulkheadadapter.

• ST/SChybridbulkheadadapter.

• Universal2.5mmQuickConnectSOCAdapter.

CAT. NO. UPC NO. DESCRIPTION

956US 60695 USA/CanadaAdapterKit

CAT. NO. UPC NO. DESCRIPTION

956WW 60696 WorldwideAdapterKit

CAT. N O. UPC NO. DESCRIPTION

956LN 60694 LANAdapterKit

305

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Quick Reference Charts for Fiber Testing Applications

FIBER OPTICS MEASUREMENTS MATRIX

APPLICATION SINGLE-MODE PAGE NO. MULTIMODE (GLASS FIBER) PAGE NO.

Visual Fault Location T160L 297 T160L 297

263LX 296 263LX 296

170XL 285 170XL 285

Visual Continuity T160L 297 T160L 297

263LX 296 263LX 296

170XL 285 170XL 285

Measure Optical Power (to +3dBm) 522B / 555B 293, 294 522B / 555B / 557B 293, 294

(to +27dBm) 522B-HP / 558B 293, 295 293

560XL 284 560XL 284

Measure Insertion Loss / Attenuation 262A + 555B 300, 295 252B + 555B 298

(Dual Wavelength) 523B-13/15 290

560XL +580XL 284-285 560XL +570XL 284

Data Storage Capability 522B / 522B-HP 293 522B / 522B-HP 293

523B-13/15 290

SPECIAL TEST EQUIPMENT FOR MT-RJ INTERCONNECTIONS

APPLICATION SINGLE-MODE PAGE NO. MULTIMODE (GLASS FIBER) PAGE NO.

Visual Fault Location 263MT 297 263MT 296

Visual Continuity 263MT 296 263MT 296

Measure Optical Power 556MT 294 556MT 294

Measure Insertion Loss 262A + 556MT 294, 300 255MT / 257MT + 556MT 299

60576MT / 60556MT 292

SPECIAL TEST EQUIPMENT FOR PLASTIC OPTICAL FIBER (POF)

APPLICATION MULTIMODE (1 MM POF) PAGE NO.

Visual Fault Location 253B 299

Visual Continuity 253B 299

Measure Optical Power 557B 295

Measure Insertion Loss 253B + 557B 295, 299

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

306

Voice • Data • Video

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

TIA-568B and FOTP-171A Certified Reference Cables

• Ensuresaccuratemeasurementsforrepeatableandreproducibletesting

to the latest industry standards.

Meets and/or exceeds the latest industry standards including:

• TIA/EIA-455-171(FOTP-171A),issuedJune,2001.

• TIA-568B,TIA-562-7(OFSTP-7)andTIA-526-14(OFSTP-14)foroptical

link testing.

• TIA-455-171(FOTP-171,Attenuation)andTIA-455-8(FOTP-8,

ReturnLoss)forcableassemblytesting.

• CorrespondingIECmeasurementstandards.

SPECIFICATIONS

Ferrule OD 2.4990±0.0005mm

Fiber to Ferrule

Eccentricity

<0.25µm(SM)and<3µm(MM)

Insertion Loss <0.15dB(SM,1310/1550nm)and<0.25dB(MM,850/1300nm)

Return Loss >55dB(SM,1310/1550nm)and>40dB(MM,850/1300nm)

Beam Exit Angle <0.25°(SM)and<0.5°(MM)

Standard Length 3 m

572J

STANDARD REFERENCE CABLES (TYPE A TO TYPE B)

DESCRIPTION CAT NO. UPC NO. DESCRIPTION CAT NO. UPC NO. CAT NO. UPC NO.

Single-mode Reference Cables: Multimode Reference Cables: 50/125 62.5/125

FC-PC to FC-PC 562K-101 60658 FC-PC to FC-PC 562K-105 60659 562K-106 60660

ST-PC to ST-PC 563K-101 60661 ST-PC to ST-PC 563K-105 60662 563K-106 60663

SC-PC to SC-PC 566K-101 60664 SC-PC to SC-PC 566K-105 60665 566K-106 60666

E2000-PC to E2000-PC 56E2-101 60667 E2000-PC to E2000-PC 56E2-105 60668 56E2-106 60669

LC-PC to LC-PC 56LC-LSM 60670 LC-PC to LC-PC 56LC-LM5 60671 56LC-LM6 60672

MU-PC to MU-PC 56MU-LFM 60676 MU-PC to MU-PC 56MU-LM5 60674 56MU-LM6 60675

HYBRID REFERENCE CABLES (FC-PC TO TYPE A)

DESCRIPTION CAT NO. UPC NO. DESCRIPTION CAT NO. UPC NO. CAT NO. UPC NO.

Single-mode Reference Cables: Multimode Reference Cables: 50/125 62.5/125

FC-PC to FC-APC 572J-101 60680

FC-PC to SC-APC 576J-101 60681

FC-PC to E2000-APC 57E8-101 60682

FC-PC to LC-PC 57LC-LSM 60733 FC-PC to LC-PC 57LC-LM5 60734 57LC-LM6 60735

FC-PC to MU-PC 57MU-LFM 60736 FC-PC to MU-PC 57MU-LM5 60737 57MU-LM6 60738

262A

To measure attenuation of SM links with APC polished connectors,

use our 262A Dual Wavelength Laser Source (see page 300) with the

APC-108 FC UCI Adapter (see page 302) and a Hybrid Reference Cable.

Use same hybrid reference cable approach for LC-PC and MO-PC

connectors.

Testing & Measurement

Greenlee is the leader in electrical testing and measurment – and has been for more

than ﬁfteen years. Our innovative products are designed to withstand the rigorous tasks

and harsh elements known to be found on the jobsite. This means with Greenlee, you have

tough and reliable tools that make your job faster, safer and easier.

Testing & Measurement

FEATURED Products

312

NEW

GT-16 Non-Contact

Low Voltage Detector

321

NEW

AM-6 Analog

Multimeter

337

330

® Registered: The color green for electrical test instruments is a registered trademark of Greenlee Textron Inc.

NEW-CM450

True RMS

Clamp Meter

SF-780

Metal Locator

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

308

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Meeting today’s stringent safety standards is essential.

Greenlee’s certification of selected instruments to both the most recent IEC and UL requirements brings you assurance of the

highest level of protection currently available.

What you should know about Measurement Category ratings.

IEC Category standards specify protection levels that are far above a system’s rated capacity. Without this additional protection,

transient overvoltages, which are becoming increasingly common, can lead to serious injury or death.

Measurement Category I is the signal level for telecommunications and electronic equipment.

Measurement Category II is the local level for fixed or nonfixed powered devices – everything from lighting to appliances to

office equipment such as copiers. May also be used in Category I areas.

Measurement Category III is the distribution level – fixed primary feeders or branch circuits. These circuits are usually

separated from Category IV (whether utility service or other high-voltage source) by a minimum of one level of transformer

isolation. May also be used in Category II and Category I areas.

Measurement Category IV is the primary supply level. Greenlee is leading the way in offering protection certified to conform

with the highest level of protection as specified by UL & IEC standards. May be used in all Category environments.

Greenlee Instruments – Independently tested

and certified to meet the standards.

Throughout this catalog, you’ll see Category

designations for many Greenlee instruments

indicating that they comply with UL & IEC

Category II, III, IV. All of these designations

reflect third-party testing by independent

testing organi zations such as UL and TUV –

added assurance for you. While there is no

requirement for independent verification, we

believe you deserve it.

Get the right protection for the job.

Wherever you need overvoltage protection,

choose at least the rating appropriate to the

type of work you expect to be doing. If you

have any questions on using Greenlee test

instruments to help ensure user safety, please

contact Greenlee.

309

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Electrical Testers Comparison Guide

FEATURE GT-95 GT-65 GT-540 GT-220 CSJ-100 CMT-90 CMT-80 2010 GT-16 GT-11 GT-15

VDC (V max) 1000 1000 1000 1000 1000 1000 600

VAC (V max) 1000 1000 1000 1000 1000 1000 600 1000 1000 1000 90

AAC (A max) 200 600 400

Continuity and beeper • • • • • • •

Resistance • • • • •

Data hold • • • • •

GFCI test •

Non-contact voltage detection • • • • • • • •

Adjustable sensitivity • •

Display type Digital LED Digital Digital Digital Digital Digital LED LED LED LED

Measurement Category IV, 600V IV, 600V IV, 1000V IV, 1000V IV, 600V IV, 600V III, 600V III, 1000V IV, 1000V IV, 1000V III, 300V

III, 1000V III, 1000V III, 1000V III, 1000V

UL/cUL • • • • • • • • • • •

CE • • • • • • • • • • •

GT-95 Voltage Tester

GT-65 Voltage Tester

ELECTRICAL TESTERS

SPECIFICATIONS

Voltage Detection 19 to 1000V AC, 5 to 1000V DC

Continuity Verification 0 to 50 kΩ

Frequency DC, 45-65 Hz

GFCI 7.5 mA nominal at 120V AC

Measurement Category CAT IV, 600V; CAT III, 1000V

CAT. NO. UPC NO. DESCRIPTION

GT-95

TSG-3

TC-5

09027

12034

07588

Voltage Tester, LCD & GFCI

Sure-Grip Test Leads

Carrying Case

• AC/DC voltage and polarity measurement.

• LCD and dual color LEDs for convenience.

• Selectable SHAKER feature when measuring AC voltage.

• Overvoltage warning gives user visual notification that voltage levels have

exceeded 1000V AC/ 380V DC.

• Auto-hold automatically activates when tester is removed from voltage reading.

• Continuity test and single probe detection of live conductors for added flexibility.

• Safe, non-contact voltage detection.

• GFCI test capability eliminates the need for additional testers.

• Visual and audible continuity.

• Accessories included: (2) 1.5V AAA batteries, test leads and carrying case

• Lifetime Limited Warranty.

LISTED

SPECIFICATIONS

Voltage Detection 19 to 1000V AC, 5 to 1000V DC

Continuity Verification 0 to 50 kΩ

Frequency DC, 45-65 Hz

Measurement Category CAT IV, 600V; CAT III, 1000V

CAT. NO. UPC NO. DESCRIPTION

GT-65 09025 Voltage Tester

TSG-3 12034 Sure-Grip Test Leads

• AC/DC voltage and polarity measurement.

• Continuity test and single probe detection of live conductors for added flexibility.

• Overvoltage warning gives user visual notification that voltage levels have

exceeded 1000V AC/ 380V DC.

• Safe, non-contact voltage detection.

• Auto-hold automatically activates when tester is removed from voltage reading.

• Visual and audible continuity.

• Accessories included: (2) 1.5V AAA batteries and test leads

• Lifetime Limited Warranty.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

310

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Electrical Tester

AC Open Jaw Clamp Meter

SPECIFICATIONS

Voltage Measurement 6.000, 60.00, 600.0, 1000V

Resistance Measurement 6.0, 60.00, 600.0kΩ; 6.000 MΩ

Capacitance 100.0, 1000.0 nF; 10.00, 100.0, 2000 µF

Display 6000-count LCD

Measurement Category CAT IV, 1000V

CAT. NO. UPC NO. DESCRIPTION

GT-540 07749 Multifunction Electrical Tester

GT-220 07748 Electrical Tester

TSG-3 12034 Sure-Grip Test Leads

LISTED

GT-220 features:

• Hassle-free, automatic measurement of voltage and resistance.

• Low impedance eliminates stray or “ghost” voltage readings.

• AC/DC voltage measurements.

• Autoranging for quick, convenient measurements.

• Non-contact voltage detection for identifying live lines without contacting

conductors.

• Auto off for longer battery life.

• Low battery indicator.

• Resistance measurement.

• Audible continuity test.

• Data hold to capture measurements.

• U.S. Patent D491,084.

• Accessories included: (1) 9V battery, test leads and carrying case.

• Lifetime Limited Warranty.

GT-540 also features:

• High impedance AC/DC voltage measurement capability for load-sensitive circuits.

• Capacitance measurement.

• Diode test.

• Low resistance range with fast continuity test.

• Enhanced accuracy.

• Auto and manual range selection.

GT-540

GT-220

LISTED

• AC amperage, AC/DC voltage measurement.

• Open jaw design eases AC current measurement.

• Slim profile with build-in probe storage on back.

• Measures resistance up to 20MΩ.

• Audible continuity and diode test.

• Bright LED and audible alarm for non-contact voltage detection.

• Auto power off for longer battery life.

• Data hold to capture measurements.

• 2000 count LCD.

• Accessories included: (2) 1.5V AAA batteries, test leads and carrying case.

• Lifetime Limited Warranty

SPECIFICATIONS

Amperage Measurement 200.0 AC

Voltage Measurement Range 200.0, 1000V

Resistance Measurement 200.0Ω; 2.000, 20.00, 200.0 KΩ; 2.000, 20.00 MΩ

Display 2000-count LCD

Jaw Opening 0.63" (16mm)

Measurement Category CAT IV 600V, CAT III 1000V

CAT. NO. UPC NO. DESCRIPTION

CSJ-100 87136 Clamp, Open Jaw

11372 11372 Test Leads

Note: See page 358 for replacement case

311

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Automatic Electrical Tester

• Hassle-free, automatic measurement of amperage, voltage, and resistance.

• Compact design for measuring in tight spaces.

• 400A AC, 600V AC/DC measurement.

• Data hold to capture important readings.

• Auto off for longer battery life.

• Accessories included: (1) 9 V battery, test leads, carrying case.

• Lifetime Limited Warranty.

SPECIFICATIONS

Amperage Measurement 0 .6 - 400.0A AC

Voltage Measurement AC V: 1.3-600.0V; DC V: 1.8-600.0; -0.6 to -600.0V

Resistance 2000Ω with continuity beeper

Display 6000-count LCD

Jaw Opening 1.06" (27 mm)

Measurement Category CAT III, 600V

CAT. NO. UPC NO. DESCRIPTION

CMT-80 07735 Electrical Tester

11372 11372 Test Leads

TC-5 07588 Carrying case

LISTED

Automatic Electrical Tester

• Hassle-free, automatic measurement of amperage, voltage and resistance.

• True RMS for the most accurate measurement when harmonics are present.

• High resolution, auto-illuminating LCD backlit display.

• Auto off for longer battery life.

• Resistance measurement.

• Audible continuity test.

• Data hold to capture measurements.

• Accessories included: (1) 9 V battery, test leads and carrying case.

• Lifetime Limited Warranty.

SPECIFICATIONS

Amperage Measurement AC A 0.6 to 600.0

Voltage Measurement AC V: 1.3 to 999.9; DC V; 1.8 to 999.9; -0.6 to -999.9

Resistance 2000Ω

Display 10,000-count LCD

Jaw Opening 1.34" (34 mm)

Measurement Category CAT IV, 600 V; CAT III, 1000 V

CAT. NO. UPC NO. DESCRIPTION

CMT-90 12123 Electrical Tester, 1000V, 600A

TSG-3 12034 Test Leads

TLK-1 12035 Test Lead Kit

TC-10 07534 Carrying case

LISTED

Touchless AC Voltage Indicator

• Bright LED and audible alarm if voltage is present.

• Fast, easy, non-contact voltage detection.

• Adjustable sensitivity.

• Identifies hot and neutral conductors.

• Checks individual breakers for power.

• Accessories included: (1) 9V battery.

• Lifetime Limited Warranty.

SPECIFICATIONS

Voltage Measurement AC V 24-1000

Frequency 50-500Hz

Measurement Category CAT III, 1000V

CAT. NO. UPC NO. DESCRIPTION

2010 34470 Touchless AC Voltage Indicator

TC-10 07534 Carrying Case

LISTED

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

312

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Non-Contact Voltage Detector

• Fast, easy, non-contact voltage detection.

• Bright LED and audible alarm if voltage is present.

• ON/OFF switch for longer battery life.

• Use to detect the presence of voltage at outlets, lighting fixtures, circuit

breakers, wires and cables or to find a break in a wire.

• Comfort grip to ease fatigue.

• Convenient pen size fits into pocket or tool pouch.

• Replace batteries quickly by pressing the release lever and twisting the

top of the tester.

• Accessories included: (2) 1.5V AAA batteries.

• U.S. Patent D500,799.

• Canada Patent 105567.

• Lifetime Limited Warranty.

SPECIFICATIONS

Voltage Detection: AC V 50-1000

Frequency: 50-500Hz

Measurement Category: CAT IV, 1000V

CAT. NO. UPC NO. DESCRIPTION

GT-11 09022 Non-Contact Voltage Detector

LISTED

Non-Contact Low Voltage Detector

• Use to detect voltage in low voltage applications ranging from 12-90 volts AC.

• Safe, non-contact voltage detection.

• Bright LED and audible alarm if voltage is present.

• ON/OFF switch for longer battery life.

• Convenient pen-size device easily fits into pockets or tool pouches.

• Accessories included: (2) 1.5 V AAA batteries.

• Lifetime Limited Warranty.

SPECIFICATIONS

Voltage Detection: 12-90VAC

Frequency: 50-500Hz

Measurement Category: CAT III, 300V

CAT. NO. UPC NO. DESCRIPTION

GT-15 09023 Non-Contact Low Voltage Detector

LISTED

Adjustable Non-Contact Voltage Detector

• Adjustable to safely detect power and low voltage.

• Safely detects AC voltage without touching the bare conductor.

• Adjustable for use on power wiring plus lighting, thermostats and other low

voltage circuits.

• Use to detect voltage in outlets, lighting fixtures, wires and cables.

• Finds breaks in wires.

• Identifies hot and neutral conductors.

• Low battery indication.

• Accessories included: (1) 1.5V AAA battery.

• Lifetime Limited Warranty.

SPECIFICATIONS

Voltage Detection: AC V 5-1000

Frequency: 50-500Hz

Measurement Category: CAT IV, 1000V

CAT. NO. UPC NO. DESCRIPTION

GT-16 12727 Adjustable Non-Contact Voltage Detector

LISTED

313

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

DMM Comparison Guide

FEATURE DML-430 DML-54 DM-860 DM-820 DM-810 DM-800 DM-510 DM-500

True RMS • • • • • •

DCA (A max) 10 10 10 10 10 10 10 10

Maximum resolution (µA) 0.1 0.1 0.01 0.1 0.1 0.1 0.01 0.01

Best accuracy (%) 0.2 0.2 0.1 0.2 0.2 0.2 0.2 0.2

ACA (A max) 10 10 10 10 10 10 10 10

Maximum resolution (µA) 0.10 0.1 0.01 0.1 0.1 0.1 0.1 0.1

Best accuracy (%) 0.6 0.6 0.5 0.6 0.6 0.6 1.0 1.2

DCV (V max) 1000 1000 1000 1000 1000 1000 1000 1000

Maximum resolution (µV) 10 10 1 10 10 10 100 100

Best accuracy (%) 0.06 0.06 0.02 0.06 0.06 0.06 0.2 0.2

ACV (V max) 1000 1000 1000 1000 1000 1000 750 750

Maximum resolution (µV) 10 10 10 10 10 10 100 100

Best accuracy (%) 0.5 0.5 0.3 0.5 0.5 0.5 1.1 1.3

Resistance (MΩ) 50 50 50 50 50 50 40 40

Maximum resolution (mΩ) 10 10 10 10 10 10 100 100

Best accuracy (%) 0.1 0.1 0.07 0.1 0.1 0.1 0.5 0.5

Continuity and beeper • • • • • • • •

Diode test • • • • • • • •

Capacitance • • • • • • • •

Frequency • • • • • • • •

Frequency response (Hz) 40-500 40-500 20-100K 40-500 40-500 40-500 50-500 50-500

Temperature (T1) • • • • • •

Temperature •

• •

(dual channel, T1, T2)

Display type Digital Digital Digital Digital Digital Digital Digital Digital

Display update X/sec 5 5 5 5 5 5 4 4

Count 5000 5000

50,000/500,000

5000 5000 5000 9999 9999

Backlit • • • • • •

Analog bar graph 52 52 42 52 52 52 42 42

segments segments segments segments segments segments segments segments

Analog update X/sec 60 60 60 60 60 60 20 20

Zoom •

RS-232 optical interface • • • • • •

Auto and manual ranging • • • • • • • •

Auto power off • • • • • • • •

Non-contact voltage detection

Peak hold • •

Data hold • • • • • • • •

Min, max, avg max, min only max, min only • •

Relative offset mode • • • •

Harmonics (HAR) •

Process loop measurement • • •

Data logging (point stored) 43000 5400

Test lead calibration • • • • •

Duty cycle •

Measurement Category IV, 600V IV, 600V IV, 600V IV, 600V IV, 600V IV, 600V III, 600V III, 600V

III,1000V III, 1000V III, 1000V III, 1000V III, 1000V III, 1000V II, 1000V II, 1000V

UL • • • • • • • •

cUL or CSA • • • • • • • •

CE • • • • • • • •

MULTIMETERS

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

314

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

DMM Comparison Guide

FEATURE DM-350 DM-330 DM-310 DM-300 DM-210 DM-200 DM-60 DM-40 DM-20 PDMM-20 AM-6

True RMS • • •

DCA (A max) 10 10 10 10 10 10 200mA 200mA 500mA

Maximum resolution (µA) 0.1 1000 1000 0.1 0.1 0.1 10 1

Best accuracy (%) 0.9 0.9 0.9 0.8 0.8 1.0 1.5 2.5

ACA (A max) 10 10 10 10 10 10

Maximum resolution (µA) 0.1 1000 1000 .10 0.1 0.1

Best accuracy (%) 1.2 1.2 1.2 1.0 1.0 1.0

DCV (V max) 1000 1000 1000 1000 1000 1000 600 600 300 450 300

Maximum resolution (µV) 100 100 100 100 100 100 100 100 100 1000

Best accuracy (%) 0.5 0.5 0.5 0.5 0.3 0.3 0.5 0.8 1.2 0.5

ACV (V max) 1000 1000 1000 1000 750 750 600 600 300 450 300

Maximum resolution (µV) 100 100 100 100 100 100 100 0.1V 0.1V 1000

Best accuracy (%) 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.2 1.5 1.5

Resistance (MΩ) 60 60 60 60 25 25 20 20 2 6 1

Maximum resolution (mΩ) 100 100 100 100 100 100 100 100 100 1000

Best accuracy (%) 0.7 0.7 0.7 0.7 0.4 0.4 0.8 0.8 1.5 1.0

Continuity and beeper • • • • • • • • • •

Diode test • • • • • • • • •

Capacitance • • • • •

Frequency • • • • • • •

Frequency response (Hz) 50-500 50-500 50-500 50-500 50-500 50-500 40-400 40-400 45-400 50-60

Temperature (T1) • •

Temperature

(dual channel, T1, T2)

Display type Digital Digital Digital Digital Digital Digital Digital Digital Digital Digital Anolog

Display update X/sec 5 5 5 5 3 3 2.5 2.5 2.5 5

Count 6000 6000 6000 6000 2500 2500 2000 2000 2000 6000

Backlit • •

Analog bar graph

Analog update X/sec

Zoom

RS-232 optical interface • •

Auto and manual ranging • • • • • •

Auto power off • • • • • • •

Non-contact voltage detection • • • • • • •

Peak hold

Data hold • • • • • • • •

Min, max, avg min, min, min, min, max only

max only max only max only max only

Relative offset mode •

Harmonics (HAR)

Process loop measurement

Data logging (point stored)

Test lead calibration

Duty cycle •

Measurement Category IV, 600V IV, 600V IV, 600V IV, 600V III, 600V III, 600V III, 300V III, 300V II, 300V III, 300V II, 300V

III, 1000V III, 1000V III, 1000V III, 1000V II, 1000V II, 1000V II, 600V II, 600V II, 450V

UL • • • • • • • • • • •

cUL or CSA • • • • • • • • • •

CE • • • • • • • • • •

315

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Digital Logging Meters

Industrial 500,000-Count Digital Multimeter

• True RMS, autoranging, 3-5/6-digit, 5000-count display for greater accuracy.

• Selectable sampling intervals between 0.05 seconds – 480 seconds, 8-month max

(DML-430) logging period.

• 0.05 second memory rate to capture fast transients.

• Backlit display for easy viewing.

• Frequency, temperature and capacitance measurements and diode and continuity

tests standard.

• RS-232 capable, may be connected to a PC for extended measurement capability with

optional interface DMSC-8L or DMSC-9.

• Accessories included: (1) 9V battery, bead temperature probe (400°F/ 204°C max.), test

leads, protective boot, carrying case.

• Lifetime Limited Warranty.

SPECIFICATIONS

Voltage Measurement 50.00, 500.0mV; 5.000, 50.00, 500.0, 1000V

Amperage Measurement 500.0, 5000µA; 50.00, 500.0mA; 5.000, 10.00A

Resistance 50.00, 500.0Ω; 5.000, 50.00, 500.0kΩ; 5.000, 50.00MΩ

Capacitance 50.00, 500.0nF; 5.000, 50.00, 500.0, 9999µF

Frequency 10Hz-125kHz

Temperature K type, -58°F to 1832°F (-50°C to 1000°C)

Measurement Category CAT IV, 600V; CAT III, 1000V

DM-860 features:

• True RMS, 5-5/6-digit, 500,000-count display for greater accuracy.

• Audible input alert helps avoid damage to meter.

• Record max, min, and max-min and data hold.

• Crest capture (peak hold) max, min and max-min readings.

• Relative offset display mode makes monitoring relative measurement

changes simple.

• Performs frequency, temperature and capacitance measurements,

plus diode and continuity tests.

• Measures temperatures up to 1832°F.

• Autoranging for convenient operation – and to save you time.

• 42-segment analog bar graph display capability makes it easy to view quick changes.

• Bright, backlit display is easy to read under any light condition.

• RS-232 capable, may be connected to a PC for extended measurement

capability with optional interface DMSC-9.

• Accessories included: (1) 9V battery, bead temperature probe

(400°F/ 204°C max.), test leads, protective boot, carrying case.

• Lifetime Limited Warranty.

SPECIFICATIONS

Voltage Measurement 500.00mV; 5.0000, 50.000, 500.00, 1000.0V

Amperage Measurement 500.00, 5000.0µA; 50.000, 500.00mA; 5.0000, 10.000A

Resistance 500.00Ω; 5.0000, 50.000, 500.00kΩ; 5.0000, 50.000MΩ

Capacitance 50.00; 500.0nF; 5.000, 50.00, 500.0, 9999µF

Frequency 5Hz-200kHz sine wave; 5Hz-2MHz logic level square wave

Temperature K type, -58°F to 1832°F (-50°C to 1000°C)

Measurement Category CAT IV, 600V; CAT III, 1000V

CAT. NO. UPC NO. DESCRIPTION

DM-860 07797 Industrial 500,000-Count Digital Mulitmeter

DM-860-C 07658 Industrial 500,000-Count Digital Multimeter

TC-20 07535 Carrying Case (included)

TSG-3 12034 Sure-Grip Test Leads

* Includes Certificate of Calibration

LISTED

CAT. NO. UPC NO. DESCRIPTION

DML-430 07553 Digital Logging Meter (43,000 data points)

DML-430-C* 07620* Digital Logging Meter (43,000 data points)

DML-54 07552 Digital Logging Meter (5,400 data points)

DML-54-C* 07619* Digital Logging Meter (5,400 data points)

TC-20 07535 Carrying Case (included)

TSG-3 12034 Sure-Grip Test Leads

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

316

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Digital Multimeters

DM-800 features:

• Autoranging, 3-5/6-digit, 5000-count display for greater accuracy.

• Frequency and capacitance measurements plus diode and continuity

tests standard.

• Data hold to capture measurements.

• RS-232 capable, may be connected to a PC for extended measurement

capability with optional optically isolated interface DMSC-8L or

DMSC-9, purchased separately.

• Low ohm range calibration, subtracts test lead resistance.

• Backlit display for easy viewing.

DM-810 also features:

• True RMS for no-compromise accuracy.

DM-820 also features:

• Record max, min and max-min readings.

• Crest capture (5ms peak hold) max, min and max-min readings.

• Relative offset display mode to see relative changes in measurements.

• Temperature measurement standard.

Accessories included: (1) 9V battery, protective boot, carrying case

(DM-820, DM-810), bead temperature probe (DM-820 only,

400ºF/204ºC max), test leads.

• Lifetime Limited Warranty.

CAT. NO. UPC NO. DESCRIPTION

DM-820 07551 Digital Multimeter

DM-820-C* 07618* Digital Multimeter

DM-810 07550 Digital Multimeter

DM-810-C* 07617* Digital Multimeter

DM-800 07549 Digital Multimeter

DM-800-C* 07616* Digital Multimeter

TC-20 07535 Carrying Case (included with DM-810, DM-820)

TSG-3 12034 Sure-Grip Test Leads

SPECIFICATIONS

Voltage Measurement 50.00, 500.0mV; 5.000, 50.00, 500.0, 1000V

Amperage Measurement 500.0, 5000µA; 50.00, 500.0mA; 5.000, 10.00A

Resistance 50.00, 500.0Ω; 5.000, 50.00, 500.0kΩ; 5.000, 50.00MΩ

Capacitance 50.00, 500.0nF; 5.000, 50.00, 500.0, 9999µF

Frequency 10Hz-125kHz

Temperature K type, -58°F to 1832°F (-50°C to 1000°C)

Measurement Category CAT IV, 600V; CAT III 1000V

* Includes Certificate of Calibration

LISTED

317

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Professional Plant Digital Multimeters

DM-500 features:

• Autoranging for convenient operation and to save you time.

• Record max, min, max-min and average readings and data hold.

• Relative offset display mode to see relative changes in measurements.

• Frequency, temperature, and capacitance measurements plus diode

and continuity tests standard.

• Auto power off and low battery indicator.

DM-510 also features:

• HAR feature to measure harmonic content.

• True RMS for no-compromise accuracy.

Accessories included: (1) 9V battery, test leads, bead temperature probe.

• Lifetime Limited Warranty.

SPECIFICATIONS

Voltage Measurement ACV – 999.9mV; 9.999, 99.99, 750.0V

DCV – 999.9mV; 9.999, 99.99, 999.9V

Amperage Measurement ACA – 400.0µA; 40.00mA; 10.0A

DCA – 40.00, 400.0µA; 4.000, 40.00mA; 4.000, 10.00A

Resistance 999.9Ω; 9.999, 99.99, 999.9kΩ; 4.000, 40.00MΩ

Capacitance 1.000, 10.00, 100.0µF; 1.000, 10.00mF

Frequency 9.999, 99.99, 999.9Hz; 9.999, 50.00kHz

Temperature K type, -4°F to 932°F (-20°C to 500°C)

Measurement Category CAT III, 600V; CAT II, 750V AC/1000V DC

Digital Multimeters

DM-200 features:

• Autoranging for convenient operation, non-contact voltage detection

and to save you time.

• Data hold to capture measurements.

• Auto power off and low battery indicator.

• RS-232 capable, may be connected to a PC for extended measurement

capability with optional optically isolated interface DMSC-2.

DM-210 also features:

• Relative offset display mode to see relative changes in measurements.

• Frequency, temperature, and capacitance measurements.

• AC duty cycle.

Accessories included: (2) 1.5V AAA batteries, test leads, bead temperature probe

(DM-210 only, 400ºF/204ºC max).

• Lifetime Limited Warranty.

SPECIFICATIONS

Voltage Measurement ACV – 250.0mV; 2.500, 25.00, 250.0, 750V

DCV – 250.0mV; 2.500, 25.00, 250.0, 1000V

Amperage Measurement 250.0, 2500µA; 25.00, 250.0mA; 2.500, 10.00A

Resistance 250.0Ω; 2.500, 25.00, 250.0kΩ; 2.500, 25.00MΩ

AC Detective Voltage

Detection Range

30V-500V+

Capacitance 2.500, 25.00, 250.0nF; 2.500, 25.00µF

Frequency 30Hz-200kHz

Temperature K type, -4°F to 572°F (-20°C to 300°C)

Measurement Category CAT III, 600V; CAT II, 750V AC/1000V DC

* Includes Certificate of Calibration

CAT. NO. UPC NO. DESCRIPTION

DM-510 07548 Professional Plant Digital Multimeter

DM-510-C* 07615* Professional Plant Digital Mulitmeter

DM-500 07547 Professional Plant Digital Multimeter

DM-500-C* 07614* Professional Plant Digital Multimeter

TC-20 07535 Deluxe Carrying Case

TSG-3 12034 Sure-Grip Test Leads

CAT. NO. UPC NO. DESCRIPTION

DM-210 07546 Digital Multimeter

DM-210-C* 07613* Digital Multimeter

DM-200 07545 Digital Multimeter

DM-200-C* 07612* Digital Multimeter

TC-20 07535 Deluxe Carrying Case

TSG-3 12034 Sure-Grip Test Leads

LISTED

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

318

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

TRMS Digital Multimeter

• True RMS for no-compromise accuracy when harmonics are present.

• Large LCD for easy viewing.

• AC/DC voltage, AC/DC amperage measurement.

• Non-contact voltage detection for identifying live lines

without contacting conductors.

• Easy viewing, backlit display.

• Auto shut-off for longer battery life.

• Low battery indicator.

• Resistance measurement.

• Audible continuity and diode tests.

• Frequency measurement.

• Capacitance measurement.

• Data hold to capture measurement.

• 6000-count LCD for high resolution.

• Min/Max feature for added versatility.

• Audible input alert warns user if leads are in incorrect position.

• Lifetime Limited Warranty.

SPECIFICATIONS

Amperage Measurement 600.0, 2000 µA; 6.000, 10.00 A

Voltage Measurement 600.0 mV; 6.000, 60.00, 600.0, 1000V

Resistance Measurement 600.0 Ω; 6.000, 60.00, 600.0 kΩ; 6.000, 60.00 MΩ

Frequency Measurement 40 Hz minimum, 100 Hz to 60 kHz maximum,

depending on function and range

Capacitance 600.0 nF; 6.000, 60.00, 600.0, 2000 µF

Display 6000-count LCD

Measurement Category CAT IV, 600V; CAT III, 1000V

CAT. NO. UPC NO. DESCRIPTION

DM-350 11871 DMM, 1000V 10A RMS BL

DM-350-C* 22897* DMM, 1000V 10A RMS BL

TSG-3 12034 Sure-Grip Test Leads

TRMS Digital Multimeter

• True RMS for no-compromise accuracy when harmonics are present.

• Large LCD for easy viewing.

• AC/DC voltage, AC/DC amperage measurement.

• Non-contact voltage detection for identifying live lines

without contacting conductors.

• Auto shut-off for longer battery life.

• Low battery indicator.

• Resistance measurement.

• Audible continuity and diode tests.

• Frequency measurement.

• Capacitance measurement.

• Data hold to capture measurement.

• 6000-count LCD for high resolution.

• Min/Max feature for added versatility.

• Audible input alert warns user if leads are in incorrect position.

• Lifetime Limited Warranty.

SPECIFICATIONS

Amperage Measurement 6.000, 10.00 A

Voltage Measurement 600.0 mV; 6.000, 60.00, 600.0, 1000V

Resistance Measurement 600.0 Ω; 6.000, 60.00, 600.0 kΩ; 6.000, 60.00 MΩ

Frequency Measurement 40 Hz minimum, 100 Hz to 60 kHz maximum,

depending on function and range

Capacitance 600.0 nF; 6.000, 60.00, 600.0, 2000 µF

Display 6000-count LCD

Measurement Category CAT IV, 600V; CAT III, 1000V

CAT. NO. UPC NO. DESCRIPTION

DM-330 11870 DMM, 1000V 10A RMS

DM-330-C* 22895* DMM, 1000V 10A RMS

TSG-3 12034 Sure-Grip Test Leads

LISTED

* Includes Certificate of Calibration

Note: See page 358 for replacement case

319

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Averaging Digital Multimeter

• Use to measure voltage, resistance, current and continuity.

• Excellent for measuring AC voltage of electrical circuits.

• AC/DC voltage, AC/DC amperage measurement.

• Non-contact voltage detection for identifying live

lines without contacting conductors.

• Auto shut-off for longer battery life.

• Low battery indicator.

• Resistance measurement.

• Audible continuity and diode tests.

• Frequency measurement.

• Capacitance measurement.

• Data hold to capture measurement.

• 6000-count LCD for high resolution.

• Min/Max feature for added versatility.

• Audible input alert warns user if leads are in incorrect position.

• Lifetime Limited Warranty.

SPECIFICATIONS

Amperage Measurement 6.000, 10.00 A

Voltage Measurement 600.0 mV; 6.000, 60.00, 600.0, 1000V

Resistance Measurement 600.0 Ω; 6.000, 60.00, 600.0 kΩ; 6.000, 60.00 MΩ

Frequency Measurement 40 Hz minimum, 100 Hz to 60 kHz maximum,

depending on function and range

Capacitance 600.0 nF; 6.000, 60.00, 600.0, 2000 µF

Display 6000-count LCD

Measurement Category CAT IV, 600V; CAT III, 1000V

CAT. NO. UPC NO. DESCRIPTION

DM-310 11869 DMM, 1000V 10A AVG

DM-310-C* 22894* DMM, 1000V 10A AVG

TSG-3 12034 Sure-Grip Test Leads

TRMS Digital Multimeter

• Use to measure voltage, resistance, and continuity.

• Excellent for measuring AC voltage of electrical circuits.

• AC/DC voltage measurement.

• Non-contact voltage detection for identifying

live lines without contacting conductors.

• True RMS for the most accurate measurement when harmonics are present.

• Auto shut-off for longer battery life.

• Low battery indicator.

• Resistance measurement.

• Audible continuity and diode tests.

• Data hold to capture measurement.

• 6000-count LCD for high resolution.

• Min/Max feature for added versatility.

• Lifetime Limited Warranty.

SPECIFICATIONS

Voltage Measurement 600.0 mV; 6.000, 60.00, 600.0, 1000V

Resistance Measurement 600.0 Ω; 6.000, 60.00, 600.0 kΩ; 6.000, 60.00 MΩ

Frequency Measurement 40 Hz minimum, 100 Hz to 60 kHz maximum,

depending on function and range

Display 6000-count LCD

Measurement Category CAT IV, 600V; CAT III, 1000V

CAT. NO. UPC NO. DESCRIPTION

DM-300 11868 DMM, 1000V RMS

DM-300-C* 22893* DMM, 1000V RMS

TSG-3 12034 Sure-Grip Test Leads

LISTED

* Includes Certificate of Calibration

Note: See page 358 for replacement case

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

320

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Manual Ranging Multimeter

• Use to measure voltage and check batteries.

• Great for measuring current of small electronic circuits.

• Includes elastomer boot to protect meter from damage.

• AC/DC voltage, DC amperage measurement.

• Resistance measurement.

• Audible continuity and diode tests.

• Tests 1.5V and 9V batteries.

• Lifetime Limited Warranty.

SPECIFICATIONS

Amperage Measurement DC A: 2000 µA; 20.00, 200.0 mA

Voltage Measurement AC V: 200.0, 300 V; DC V: 200.0, 2000 mV; 20.00, 200.0, 300 V

Resistance Measurement 200.0, 2000 Ω; 20.00, 200.0, 2000 kΩ

Measurement Category CAT II, 300V

Manual Ranging Multimeter

• A perfect choice for residential and light commercial use.

• Includes elastomer boot to protect meter from damage.

• AC/DC voltage, AC/DC amperage measurement.

• Resistance measurement.

• Audible continuity and diode tests.

• Frequency measurement in voltage mode.

• Data hold to capture measurement.

• Max feature for added versatility.

• Lifetime Limited Warranty.

SPECIFICATIONS

Amperage Measurement 200.0 µA; 2.000, 20.00, 200.0 mA; 10.00 A

Voltage Measurement 200.0 mV; 2.000, 20.00, 200.0, 600V

Resistance Measurement 200.0 Ω; 2.000, 20.00, 200.0 kΩ; 2.000, 20.00 MΩ

Frequency Measurement 2 k to 10 MHz

Measurement Category CAT III, 300V; CAT II, 600V

CAT. NO. UPC NO. DESCRIPTION

DM-60 12040 DMM, 600V AC/DC

TSG-3 12034 Sure-Grip Test Leads

Manual Ranging Multimeter

• Multi-purpose meter for most electrical needs.

• Includes elastomer boot to protect meter from damage.

• AC/DC voltage, DC amperage measurement.

• Temperature measurement using type K thermocouple.

• Audible continuity and diode tests.

• Tests 1.5V and 9V batteries.

• Lifetime Limited Warranty.

SPECIFICATIONS

Amperage Measurement DC A: 20.00, 200.0 mA

Voltage Measurement AC V: 200.0, 600 V; DC V: 200.0, 2000 mV; 20.00, 200.0, 600 V

Resistance Measurement 200.0, 2000 Ω,, 20.00, 200.0 kΩ,; 20.00 MΩ

Temperature Measurement -40 to 1832˚ F (-40 to 1000˚ C)

Measurement Category CAT III, 300V; CAT II, 600V

CAT. NO. UPC NO. DESCRIPTION

DM-40 12039 DMM, 600V AC/DC w/ temp

TSG-3 12034 Sure-Grip Test Leads

CAT. NO. UPC NO. DESCRIPTION

DM-20 12037 DMM, 300V AC/DC

LISTED

321

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

PDMM-20 Pocket Multimeter

• Auto-select mode for hassle-free use.

• Low impedance eliminates stray or “ghost” voltage readings.

• AC/DC voltage measurement.

• Hassle-free, automatic measurement of voltage and resistance.

• Autoranging for quick, convenient measurements.

• Non-contact voltage detection for identifying live lines without

contacting conductors.

• Intelligent Auto-Off for longer battery life.

• Low battery indicator.

• Resistance measurement.

• Audible continuity test.

• Frequency measurement in voltage mode.

• Capacitance measurement.

• 6000-count LCD for high resolution.

• Accessories included: (1) 3 V battery (CR2032), carrying case.

• Lifetime Limited Warranty.

SPECIFICATIONS

Voltage Measurement 6.000, 60.00, 450.0 V

Resistance Measurement 600.0Ω; 6.000, 60.00, 600.0 kΩ; 6.000 MΩ

Capacitance 100.0, 1000 nF; 10.00, 100.0 µF

Display 6000-count LCD

Measurement Category CAT II, 450 V; CAT III, 300 V CAT. N O. UPC NO. DESCRIPTION

PDMM-20 11689 Pocket Multimeter

RS-232 Interface Kits

• Connects to a PC serial port for data storage and retrieval

from Greenlee digital multimeters.

• Allows retrieval of stored data and real-time data logging

and graphing.

• Retrieve stored data log from DML-series.

• Export data to disk for analysis with any spreadsheet.

• Lifetime Limited Warranty.

CAT. NO. UPC NO. DESCRIPTION

DMSC-2 07555 For 200-Series Digital Multimeters

DMSC-9 07755 For DM-800 Series and DML-Series Digital

Multimeters

SPECIFICATIONS

Software Requirements Windows ME/98/95 or Windows XP/2000/NT4

Hardware Requirements CPU and memory – minimum Windows requirement.

Monitor – at least 640 x 480, 800 x 600 recommended.

Hard disk – at least 20 megabytes free space.

Connection – free serial COM port with 9-pin connector.

MULTIMETER ACCESSORIES

DMSC-9

DMSC-8L

See both digital and analog meter readouts on-

screen, plus a large, easy-to-read graph of logged

values – in this case, a thermocouple monitoring

air temperature in a forced-air furnace duct.

LISTED

DMSC-2

• Easy to read, multi-function display.

• AC/DC voltage, DC amperage measurement.

• Built-in test leads, no loose parts to lose.

• Resistance measurement.

• Tests 1.5 V and 9 V batteries.

• Accessories included: (1) 1.5 V AA battery.

• Lifetime Limited Warranty.

Analog Multimeter

CAT. NO. UPC NO. DESCRIPTION

AM-6 12725 Analog Multimeter

SPECIFICATIONS

Amperage Measurement DC A: 30, 500 mA

Voltage Measurement AC V: 15, 50, 150, 300 V; DC V: 5, 15, 50, 150, 300 V

Resistance Measurement 10, 100K Ω, 1 MΩ

Measurement Category CAT II, 300V per UL; 61010B-1

LISTED

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

322

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

CLAMP-ON METERS

Clamp-on Meter Comparison Guide

FEATURE CMGRT-100 CMP-200 CMI-200 CMI-100 CM-1550 CM-1500 CM-1350 CM-1300

True RMS • • • • •

DCA (A max) 2000 2500 1000 1000 1000

Maximum resolution (A) 0.1 0.1 0.1 0.1 0.1

Best accuracy (%) 1.5 1.5 2.0 1.2 1.2

ACA (A max) 30 2000 2100 1000 1000 1000 1000 1000

Maximum resolution (A) 1mA 0.1 0.1 0.1 0.1 0.1 0.1 0.1

Best accuracy (%) 2.5 1.5 1.5 2.0 1.9 1.9 1.9 1.9

DCV (V max) 600 600 600 1000 1000 1000 1000

Maximum resolution (V) 0.1 0.1mV 0.1mV 0.1 0.1 0.1 0.1

Best accuracy (%) 1.5 1.5 0.75 0.7 0.7 0.7 0.7

ACV (V max) 600 600 600 750 750 750 750

Maximum resolution (V) 0.1 0.1mV 0.1mV 0.1 0.1 0.1 0.1

Best accuracy (%) 1.5 1.5 1.2 1.0 1.0 1.0 1.0

Resistance (Ω) 1200 40M 40M 400 400 400 400

Maximum resolution (Ω) 0.01 0.1 0.1 0.1 0.1 0.1 0.1

Best accuracy (%) 1.5 1.5 1.0 1.0 1.0 1.0 1.0

Continuity and beeper • • • • • •

Diode test • •

Capacitance

Frequency • • • • • • •

Frequency response (Hz) 47-800 40-400 40-1k 40-450 50-500 50-500 50-500 50-500

Temperature (T1)

Jaw opening 1.25" 2.17" 2.17" 1.81" 2.0" 2.0" 1.85" 1.85"

(32 mm) (55 mm) (55 mm) (46 mm) (51 mm) (51 mm) (47 mm) (47 mm)

Display type Digital Dual Digital Digital Digital Digital Digital Digital Digital

Display update X/sec 2 2 2 2.5 2.5 2.5 2.5

Count 3000 4000 4000 4000 4000 4000 4000 4000

Analog bar graph 40 40 42 42 42 42

segments segments segments segments segments segments

Analog update X/sec 20 20 13 13 13 13

Zoom analog bar graph

Low battery indicator • • • • • • •

Autoranging • • • • • • • •

Auto power off • • • • • • •

Peak hold • • • • •

Data hold • • • • • • • •

Min, max • • • • • •

Data logging

Power factor •

True power (kW) 1200

Apparent Power (kVA) 1200

Measurement Category III, 150V III, 600V III, 600V III, 600V IV, 600V IV, 600V IV, 600V IV, 600V

III, 1000V III, 1000V III, 1000V III, 1000V

UL • • • • • • • •

cUL or CSA • • • • • • •

CE • • • • • • • •

323

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Clamp-on Meter Comparison Guide

FEATURE CM-950 CM-900 CM-850 CM-800 CM-600 CMT-90 CMT-80 CM-450 CM-410 CM-330

True RMS • • • •

DCA (A max) 600 600

Maximum resolution (A) 0.1 0.1

Best accuracy (%) 1.2 1.2

ACA (A max) 600 600 600 600 600 600 400 600 400 400

Maximum resolution (A) 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.01 0.1 0.01

Best accuracy (%) 1.9 1.9 1.9 1.9 1.9 1.9 1.8 1.5 1.9 2.0

DCV (V max) 600 600 600 600 600 1000 600 600 600

Maximum resolution (V) 0.1 0.1 0.1 0.1 1 0.1 0.1 0.1mV 0.1

Best accuracy (%) 0.7 0.7 0.7 0.7 0.8 1.0 1.0 0.3 1.0

ACV (V max) 600 600 600 600 600 1000 600 600 600

Maximum resolution (V) 0.1 0.1 0.1 0.1 1 0.1 0.1 1mV 0.1

Best accuracy (%) 1.0 1.0 1.0 1.0 1.2 1.5 1.5 1.5 1.5

Resistance (Ω) 400 400 400 400 2000 2000 2000 40M 20M

Maximum resolution (Ω) 0.1 0.1 0.1 0.1 1 0.1 1 0.1 0.1

Best accuracy (%) 1.0 1.0 1.0 1.0 1.5 2.0 2.0 0.6 0.7

Continuity and beeper • • • • • • • • •

Diode test •

Capacitance

Frequency • • • • •

Frequency response (Hz) 50-500 50-500 50-400 50-400 40-500 50-500 50-60 50-60 50-500 50-60

Temperature (T1)

Jaw opening 1.38" 1.38" 1.34" 1.34" 1.38" 1.34" 1.06" 1.02" 1.06" 1.18"

(35 mm) (35 mm) (34 mm) (34 mm) (35 mm) (34 mm) (27 mm) (26 mm) (27 mm) (30 mm)

Display type Digital Digital Digital Digital Digital Digital Digital Digital Digital Digital

Display update X/sec 2.5 2.5 2.5 2.5 4 1 to 4 3 1.5 25

Count 4000 4000 4000 4000 2000 10,000 6000 4000 2000 2000

Analog bar graph 42 42 42 42

segments segments segments segments

Analog update X/sec 13 13 13 13

Zoom analog bar graph

Low battery indicator • • • • • • • • • •

Autoranging • • • • • •

Auto power off • • • • • • • • •

Peak hold • • • •

Data hold • • • • • • • • • •

Min, max • • • • max only

Data logging

Power factor

True power (kW)

Apparent Power (kVA)

Measurement Category III, 600V III, 600V III, 600V III, 600V III, 600V IV, 600V III, 600V III, 600V III, 600V III, 600V

III, 1000V

UL • • • • • • • • • •

cUL or CSA • • • • • • • • • •

CE • • • • • • • • • •

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

324

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Ground Resistance Tester

SPECIFICATIONS

Ground Resistance Measurement 0.10 to 1200Ω

Ground/Leakage Current Measurement 299mA; 2.999A, 29.99A

Display 3-3/4-digit LCD, 2999-count

Jaw Opening 1.25" (32 mm)

Measurement Category CAT III, 150V

• True RMS for accurate measurement when harmonics are present.

• Extra high capacity 2000A measurement.

• Measures True Power, Apparent Power, Reactive Power, Power Factor,

voltage, current and frequency.

• Calculates total power and power factor on 3-phase, 3-wire, and 3-phase,

4-wire, and 1-phase, 3-wire circuits using stored measurement.

• Stores up to 4 sets of measurements for calculation on multi-phase

and multi-wire circuits.

• Large, easy-to-read, dual 4-digit, 4000-count LCD display for high

resolution.

• Instantly recall the calculated Power Factor.

• Accessories included: (1) 9V battery, test leads, carrying case.

• Lifetime Limited Warranty.

SPECIFICATIONS

True Power 99.99, 999.9, 1200kW

Reactive Power 99.99, 999.9, 1200kVAR

Amperage Measurement 499.9, 2000A

Voltage Measurement 499.9, 600V

Frequency 10Hz-1000Hz

Jaw Opening 2.17" (55 mm)

Measurement Category CAT III, 600V

2000A Power Clamp

* Includes Certificate of Calibration

CAT. NO. UPC NO. DESCRIPTION

CMGRT-100 07653 Ground Resistance Tester

CMGRT-100-C* 07730* Ground Resistance Tester

CAT. NO. UPC NO. DESCRIPTION

CMP-200 07568 2000A Power Clamp

CMP-200-C* 07635* 2000A Power Clamp

TLK-1 12035 Test Leads

• Reads ground resistance down to 0.10Ω.

• Fully autoranging with data hold to capture readings.

• Convenient alarm and 99-point memory functions.

• Measures up to 30A RMS ground or leakage current.

• Measures currents down to 1mA.

• Accessories included: (1) 9V battery, molded carrying case, test resistance loop.

• Lifetime Limited Warranty.

LISTED

Note: See page 358 for replacement case

325

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

2500A Industrial Clamp Meter

• True RMS for accurate measurement when harmonics are present.

• High capacity 2500A DC, 2100A AC amperage measurement.

• 600V AC/DC voltage, frequency, and resistance measurements for

maximum versatility.

• Peak hold, min-max, relative offset and analog bar graph to help monitor

power changes.

• Produces 1mV per amp output to allow use as a remote transducer, linked

to a multimeter or oscilloscope.

• Auto power off for longer battery life.

• Accessories included: (1) 9V battery, test leads, carrying case.

• Lifetime Limited Warranty.

SPECIFICATIONS

Amperage Measurement AC – 400.0, 2100A; DC – 400.0, 2500A

Voltage Measurement AC – 4.000, 40.00, 400.0, 600V

DC – 400.0mV; 4.000, 40.00, 400.0, 600V

Display 3-3/4-digit, 4000-count (9999 for frequency)

Frequency 99.99, 999.9Hz; 9.999, 99.99, 999.9kHz

Resistance 400.0Ω; 4.000, 40.00, 400.0kΩ; 4.000, 40.00MΩ

Jaw Opening 2.17" (55 mm)

Voltage Output 1mV output per 1 amp input

Measurement Category CAT III, 600V

• High capacity 1000A AC/DC amperage measurement.

• 600V AC/DC voltage, frequency, and resistance measurements

for maximum versatility.

• Continuity and diode tests with audible and visual indicators.

• Accessories included: (1) 9V battery, test leads, carrying case.

• Lifetime Limited Warranty.

SPECIFICATIONS

Amperage Measurement 400.0, 1000A

Voltage Measurement AC - 4.000, 40.00, 400.0, 600V

DC - 400.0mV; 4.000, 40.00, 400.0, 600V

Display 3-3/4-digit, 4000-count (9999 for frequency)

Frequency Voltage Mode - 99.99, 999.9Hz; 9.999, 99.99, 800.0kHz

Current Mode - 99.99, 999.9Hz

Resistance 400.0Ω; 4.000, 40.00, 400.0kΩ; 4.000, 40.00MΩ

Jaw Opening 1.81" (46 mm)

Measurement Category CAT III, 600V

Industrial Clamp Meter

* Includes Certificate of Calibration

CAT. NO. UPC NO. DESCRIPTION

CMI-200 07567 2500A Industrial Clamp Meter

CMI-200-C* 07634* 2500A Industrial Clamp Meter

TLK-1 12035 Test Leads

CAT. NO. UPC NO. DESCRIPTION

CMI-100 07564 Industrial Clamp Meter

CMI-100-C* 07631* Industrial Clamp Meter

TLK-1 12035 Test Leads

LISTED

Note: See page 358 for replacement case

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

326

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

1000A AC/DC True RMS Clamp Meter

• True RMS for the most accurate measurement when harmonics are present.

• AC/DC amperage, AC/DC voltage, frequency and resistance measuring capability.

• Dual Hall sensor for the most accurate measurements.

• Easy-to-read backlit display for use in low light conditions.

• Peak and data hold to capture measurement.

• MIN/MAX feature for added versatility.

• Analog bar graph to view quick changes.

• Audible continuity test.

• Selectable Auto Off for longer battery life.

• Accessories included: (1) 9V battery, test leads, carrying case.

• Lifetime Limited Warranty.

SPECIFICATIONS

Amperage Measurement 400.0, 1000A

Voltage Measurement AC V: 400.0, 750V; DC V: 400.0, 1000V

Resistance 400.0Ω

Frequency 0.400kHz

Display 4000-count LCD display

Jaw Opening 2.0" (51 mm)

Measurement Category CAT IV, 600V

CAT III, 750V AC/1000V DC

• AC/DC amperage, AC/DC voltage, frequency and resistance

measuring capability.

• Dual Hall sensor for the most accurate measurements.

• Easy-to-read backlit display for use in low light conditions.

• Peak and data hold to capture measurement.

• MIN/MAX feature for added versatility.

• Analog bar graph to view quick changes.

• Audible continuity test.

• Selectable Auto Off for longer battery life.

• Accessories included: (1) 9V battery, test leads, carrying case.

• Lifetime Limited Warranty.

SPECIFICATIONS

Amperage Measurement 400.0, 1000A

Voltage Measurement AC V: 400.0, 750V; DC V: 400.0, 1000V

Resistance 400.0Ω

Frequency 0.400kHz

Display 4000-count LCD display

Jaw Opening 2.0" (51 mm)

Measurement Category CAT IV, 600V per IEC 61010-1

CAT III, 750V AC/1000V DC

1000A AC/DC Clamp Meter

* Includes Certificate of Calibration

CAT. NO. UPC NO. DESCRIPTION

CM-1550 07799 True RMS Clamp Meter

CM-1550-C* 10863* True RMS Clamp Meter

TLK-1 12035 Test Leads

CAT. NO. UPC NO. DESCRIPTION

CM-1500 07798 Clamp Meter

CM-1500-C* 10862* Clamp Meter

TLK-1 12035 Test Leads

* Includes Certificate of Calibration

LISTED

Note: See page 358 for replacement case

327

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

1000A AC True RMS Clamp Meter

• True RMS for the most accurate measurement when harmonics are present.

• AC amperage, AC/DC voltage, frequency and resistance measuring capability.

• Easy-to-read backlit display for use in low light conditions.

• Peak and data hold to capture measurement.

• MIN/MAX feature for added versatility.

• Analog bar graph to view quick changes.

• Audible continuity test.

• Selectable Auto Off for longer battery life.

• Accessories included: (1) 9V battery, test leads, carrying case.

• Lifetime Limited Warranty.

SPECIFICATIONS

Amperage Measurement 0 - 400.0, 1000A

Voltage Measurement AC V: 400.0, 750V

DC V: 400.0, 1000V

Resistance 0-400.0Ω

Frequency 0.400kHz

Display 4000-count LCD display

Jaw Opening 1.85" (47 mm)

Measurement Category CAT IV, 600V

CAT III, 750V AC/1000V DC

• AC amperage, AC/DC voltage, frequency and resistance measuring capability.

• Easy-to-read backlit display for use in low light conditions.

• Peak and data hold to capture measurement.

• MIN/MAX feature for added versatility.

• Analog bar graph to view quick changes.

• Audible continuity test.

• Selectable Auto Off for longer battery life.

• Accessories included: (2) 1.5 V AA batteries, test leads, carrying case.

• Lifetime Limited Warranty.

SPECIFICATIONS

Amperage Measurement 0 - 400.0, 1000A

Voltage Measurement AC V: 400.0, 750 V

DC V: 400.0, 1000V

Resistance 0-400.0Ω

Frequency 0.400kHz

Display 4000-count LCD display

Jaw Opening 1.85" (47 mm)

Measurement Category CAT IV, 600V

CAT III, 750V AC/1000V DC

1000A AC Clamp Meter

* Includes Certificate of Calibration

CAT. NO. UPC NO. DESCRIPTION

CM-1350 07733 True RMS Clamp Meter

CM-1350-C* 10861* True RMS Clamp Meter

TLK-1 12035 Test Leads

CAT. NO. UPC NO. DESCRIPTION

CM-1300 07732 Clamp Meter

CM-1300-C* 10860* Clamp Meter

TLK-1 12035 Test Leads

LISTED

Note: See page 358 for replacement case

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

328

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

600A AC/DC True RMS Clamp Meter

• True RMS for the most accurate measurement when harmonics are present

• AC/DC amperage, AC/DC voltage, frequency and resistance measuring capability.

• Dual Hall sensor for DC amperage accuracy.

• Easy-to-read backlit display for use in low light conditions.

• Peak and data hold to capture measurement.

• MIN/MAX feature for added versatility.

• Analog bar graph to view quick changes.

• Auto zero for DCA measurement.

• Selectable Auto Off for longer battery life.

• Accessories included: (1) 9V battery, test leads, carrying case.

• Lifetime Limited Warranty.

CAT. NO. UPC NO. DESCRIPTION

CM-950 07700 AC/DC True RMS Clamp Meter

CM-950-C* 10859* AC/DC True RMS Clamp Meter

TLK-1 12035 Test Leads

SPECIFICATIONS

Amperage Measurement 400.0, 600A

Voltage Measurement 400.0, 600V

Resistance 400.0Ω

Frequency 0.400kHz

Display 4000-count LCD

Jaw Opening 1.38" (35 mm)

Measurement Category CAT III, 600V

• AC/DC amperage, AC/DC voltage, frequency and resistance measuring capability.

• Dual Hall sensor for DC amperage accuracy.

• Easy-to-read backlit display for use in low light conditions.

• Peak and data hold to capture measurement.

• MIN/MAX feature for added versatility.

• Analog bar graph to view quick changes.

• Auto zero for DCA measurement.

• Selectable Auto Off for longer battery life.

• Accessories included: (1) 9V battery, test leads, carrying case.

• Lifetime Limited Warranty.

CAT. NO. UPC NO. DESCRIPTION

CM-900 07699 AC/DC Clamp Meter

CM-900-C* 10858* AC/DC Clamp Meter

TLK-1 12035 Test Leads

SPECIFICATIONS

Amperage Measurement 400.0, 600A

Voltage Measurement 400.0, 600V

Resistance 400.0Ω

Frequency 0.400kHz

Display 4000-count LCD display

Jaw Opening 1.38" (35 mm)

Measurement Category CAT III, 600V

600A AC/DC Clamp Meter

* Includes Certificate of Calibration

LISTED

Note: See page 358 for replacement case

329

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

600A AC True RMS Clamp Meter

• True RMS for the most accurate measurement when harmonics are present.

• AC amperage, AC/DC voltage, frequency and resistance measuring capability.

• Easy-to-read backlit display for use in low light conditions.

• Peak and data hold to capture measurement.

• MIN/MAX feature for added versatility.

• Analog bar graph to view quick changes.

• Selectable Auto Off for longer battery life.

• Accessories included: (1) 9V battery, test leads, carrying case.

• Lifetime Limited Warranty.

SPECIFICATIONS

Amperage Measurement AC - 400.0, 600A

Voltage Measurement 400.0, 600V

Resistance 400.0Ω

Frequency 0.400kHz

Display 4000-count LCD

Jaw Opening 1.34" (34mm)

Measurement Category CAT III, 600V

• AC amperage, AC/DC voltage, frequency and resistance measuring capability.

• Easy-to-read backlit display for use in low light conditions.

• Peak and data hold to capture measurement.

• MIN/MAX feature for added versatility.

• Analog bar graph to view quick changes.

• Selectable Auto Off for longer battery life.

• Accessories included: (2) 1.5 V AA batteries, test leads, carrying case.

• Lifetime Limited Warranty.

SPECIFICATIONS

Amperage Measurement AC - 400.0, 600A

Voltage Measurement 400.0, 600V

Resistance 400.0Ω

Frequency 0.400kHz

Display 4000-count LCD display

Jaw Opening 1.34" (34mm)

Measurement Category CAT III, 600V

600A AC Clamp Meter

* Includes Certificate of Calibration

CAT. NO. UPC NO. DESCRIPTION

CM-850 07666 True RMS Clamp Meter

CM-850-C* 10857* True RMS Clamp Meter

TLK-1 12035 Test Leads

CAT. NO. UPC NO. DESCRIPTION

CM-800 07664 Clamp Meter

CM-800-C* 10856* Clamp Meter

TLK-1 12035 Test Leads

LISTED

Note: See page 358 for replacement case

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

330

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

AC Clamp-on Meter

SPECIFICATIONS

Amperage Measurement 600A AC

Voltage Measurement 600V

Display 3-1/2-digit LCD, 2000-count

Resistance 2000Ω

Jaw Opening 1.38" (35 mm)

Measurement Category CAT III, 600V

* Includes Certificate of Calibration

CAT. NO. UPC NO. DESCRIPTION

CM-600 07593 AC Clamp-on Meter

CM-600-C* 07625* AC Clamp-on Meter

TLK-1 12035 Test Leads

CM-600 features:

• Both AC amperage and AC/DC voltage measurement.

• Resistance measurement up to 2000Ω.

• Auto power off for longer battery life.

• Accessories included: (1) 9V battery, test leads, carrying case.

• Lifetime Limited Warranty.

LISTED

Note: See page 358 for replacement case

• AC amperage, AC/DC voltage measurement.

• True RMS for the most accurate measurement where harmonics are present.

• Quick, easy operation.

• Auto power off for longer battery life.

• Resistance measurement.

• Audible continuity and diode tests.

• Frequency measurement.

• Data hold to capture measurement.

• 4000 count LCD.

• Accessories included: 3V Standard button battery

(IEC-CR 2032; ANSI-NEDA 54004LC)

• Lifetime Limited Warranty.

SPECIFICATIONS

Amperage Measurement 40.00, 400.0, 600 A AC

Jaw Opening 1.02" (26 mm)

Display LCD, 4000-count

Voltage 4.000, 40.00, 400.0, 600 V AC

400.0 mV, 4.000, 40.00, 400.0, 600V DC

Resistance 400.0Ω; 4.000, 40.00, 400.0kΩ; 4.000, 40.00MΩ

Measurement Category CAT III, 600V per UL 61010-1

True RMS Clamp Meter

CAT. NO. UPC NO. DESCRIPTION

CM-450 12726 AC Clamp-on Meter, True RMS

LISTED

331

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Clamp-on Meter

LISTED

CAT. NO. UPC NO. DESCRIPTION

CM-330 11865 Clampmeter, 400A AC

SPECIFICATIONS

Amperage Measurement 20.00, 200.0, 400 A AC

Display 2000-count LCD

Jaw Opening 1.18" (30 mm)

Measurement Category CAT III, 600 V per UL 61010B-1

• AC current measuring capability up to 400 amps.

• Compact size, fits easily into tool pouch.

• Data hold and Max hold to capture important readings.

• 2000-Count LCD.

• Lifetime Limited Warranty.

• Accessories included: (1) 9V battery, carrying case.

• Lifetime Limited Warranty.

Note: See page 358 for replacement case

• Measures to 600 volts AC and DC, and 400 amps AC.

• Data hold to capture important readings.

• Audible continuity test.

• Auto power off for longer battery life.

• Accessories included: (1) 1.5V AAA battery, test leads, carrying case.

• Lifetime Limited Warranty.

SPECIFICATIONS

Amperage Measurement 200.0, 400A AC

Jaw Opening 1.06" (27 mm)

Display 3-1/2-digit LCD, 2000-count

Voltage 200.0, 600V

Resistance 200.0Ω; 2.000, 20.00, 200.0kΩ; 2.000, 20.00MΩ

Measurement Category CAT III, 600V

AC Clamp-on Meter

CAT. NO. UPC NO. DESCRIPTION

CM-410 73420 AC Clamp-on Meter, 400A

TLK-1 12035 Test Leads

LISTED

Note: See page 358 for replacement case

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

332

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

3000A Clamp-on Adapter

CAT. NO. UPC NO. DESCRIPTION

CMAF-3000 07533 3000A Clamp-on Adapter

CMAF-3000-C* 07608* 3000A Clamp-on Adapter

SPECIFICATIONS

Amperage Measurement 300, 3000A

Voltage Output 300A – 10mV output per 1 amp input

3000A – 1mV output per 1 amp input

Clamp Length 24" (610 mm)

Measurement Category CAT III, 1000V

• AC/DC current measuring accessory.

• Measure up to 600 amps.

• Perfect for any multimeter that reads AC and DC millivolts.

• Accessories included: (1) 9V battery.

• Lifetime Limited Warranty.

CAT. NO. UPC. NO. DESCRIPTION

CMA-60 07531 AC/DC Clamp-on Current Adapter

SPECIFICATIONS

Amperage Measurement 0-600A

Voltage Output 100 amp range – 10mV output per 1 amp input

600 amp range – 1mV output per 1 amp input

Jaw Opening 1.38" (35 mm)

Measurement Category CAT III, 300V; CAT II, 600V

AC/DC Clamp-on Current Adapter

CLAMP-ON ACCESSORIES

Clamp-on Current Adapter

• AC current measuring accessory.

• Measures up to 400A AC.

• Perfect for any multimeter that reads AC millivolts.

• Lifetime Limited Warranty.

CAT. N O. UPC. NO. DESCRIPTION

CMA-40 07530 Clamp-on Current Adapter

SPECIFICATIONS

Amperage Measurement 0.1-400A

Voltage Output 1mV per 1 amp input

Jaw Opening 1.18" (30 mm)

Measurement Category CAT III, 300V; CAT II, 600V

93-30 Line Splitter (NEMA 5-15)

• For use with all models of clamp-on meters.

• Splits lines for independent testing with clamp-on meter.

• Lifetime Limited Warranty.

CAT. N O. UPC. NO. DESCRIPTION

93-30 34452 93-30 Line Splitter (NEMA 5-15)

SPECIFICATIONS

Size 4-5/8" x 1-3/4" (118 mm x 45 mm)

Weight 0.1 lb. (45g)

* Includes Certificate of Calibration

• Flexible clamp for easy “fishing” around a conductor.

• 3000A AC current measuring accessory.

• 24" long.

• Perfect for any multimeter that reads AC millivolts.

• Accessories included: (1) 9V battery.

• Lifetime Limited Warranty.

LISTED

333

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

CIRCUIT TRACING

Circuit Tracer Application Guide

CIRCUIT OPEN CLOSED BREAKER BREAKER

SEEKER CIRCUIT CIRCUIT FINDER FINDER

FINDER

2011 2008 2007 2072 2072K

Locate and identify breakers • •1 • • •

Locate and identify fuses • •1 • • •

Locate and identify blown fuses • •

Trace concealed wiring in walls and floors • • •

Locate junction box relays and transformers • • •

Locate switch gear • • •

Find shorts to ground • • •

Trace wires in PVC (nonmetallic conduit) • • •

Find opens in a circuit • •

Localize power and lighting panels • • •

Operate on energized circuits • •1 • • •

Operate on low voltage circuits • • •

Operate on high voltage circuits (600VAC) •

Operate on unenergized circuits • • •3

Trace shielded cable •2 •

Trace metal conduit •4 •

Sort wires and trace coax cable • •

Auto gain circuitry for improved accuracy •

AC voltage range 0-600V 0-480V 9-300V 110-120V 80-277V

DC voltage range 0-600V 0-480V 9-300V

Distance – receiver from transmitter 300 ft.-4 mi.5 3000-4000 ft. 3-4 miles 300 ft. 300 ft.

(915 m-6.5 km) (915 m-1220 m) (4.9 km-6.5 km) (91.4 m) (91.4 m)

Transmitter battery 9V 9V — — —

Receiver battery 9V 9V 9V 9V 9V

1. Will operate on energized circuits in limited applications. Will not locate and identify a particular breaker or fuse, but will identify breakers or fuses that share a common bus.

2. Good earth ground required. Attach one prong of transmitter to shield of the cable and the other prong to a good earth ground (such as water pipe, metal building frame, etc.).

3. For circuits without power, hook-up a 9V battery in series with the circuit and transmitter to power the line.

4. Closed circuit applications only.

5. Depends on application – shorter distances for open circuit tracing, longer distances for closed circuit tracing applications.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

334

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Power Finder® Circuit Seeker Microprocessor-Based Circuit Tracer

Features:

• Traces concealed wiring, locates junction boxes, and finds breakers for live

or dead circuits—no need for power interruption.

• Finds breaks in wires and shorts to ground.

• Incorporates auto gain circuitry for enhanced accuracy.

• Locates and identifies blown fuses.

• Supports transmitter-to-receiver distances up to 4 miles (6.5 km)

for closed circuit tracing.

• Accessories included: adapter lead, (2) 9V batteries, AC blades,

instruction video, extension leads, carrying case.

• Lifetime Limited Warranty.

SPECIFICATIONS

Capacity 0 to 600V AC/DC

Auto Off Transmitter, 30 min.; Receiver, selectable

Case Size 14" x 12" x 4" (355 mm x 305 mm x 102 mm)

Weight 3.56 lbs. (1618 g)

Distance 3000 ft. to 4 mi. (varies with application)

SPECIFICATIONS

Capacity 0 to 480V AC/DC

Case Size 12" x 8-3/4" x 2" (305 mm x 222 mm x 51 mm)

Weight 2.4 lbs. (1089 g)

Distance 3000 ft. - 4000 ft. (915 m-1220 m)

Power Finder® Open Circuit Tracer

CAT. NO. UPC NO. DESCRIPTION

2011 00521 Power Finder Circuit Seeker Circuit Tracer

00523 00523 Transmitter

00524 00524 Receiver

00520 00520 Carrying Case

36928 36928 Adapter, 120V Female Receptacle with Clip

36929 36929 Receptacle Blades (2), AC

00522 00522 Test Lead Extension

Features:

• Fast, simple, unenergized circuit tracing.

• Traces concealed wiring.

• Supports transmitter-to-receiver distances up to 4000 feet (1220 m).

• Accessories included: transmitter plug, (2) receptacle blades, extension

leads, (2) 9V batteries, carrying case.

• Lifetime Limited Warranty.

LISTED

CAT. NO. UPC NO. DESCRIPTION

2008 38786 Power Finder Open Circuit Tracer

38787 38787 Receiver

38788 38788 Transmitter

36928 36928 Transmitter Plug

36929 36929 Receptacle Blades (2), AC

38789 38789 Plastic Case

36930 36930 Test Lead

335

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Power Finder® Closed Circuit Tracer

• Fast, simple energized circuit tracing.

• Traces circuits in nonmetallic conduit.

• Finds shorts to ground.

• Supports transmitter-to-receiver distances up to 4 miles (6.5 km).

• Accessories included: transmitter plug, (2) receptacle blades, test leads, (1)

9V battery, carrying case.

• Lifetime Limited Warranty.

SPECIFICATIONS

Capacity 9 to 300V AC/DC

Case Size 12" x 8-3/4" x 2" (305 mm x 222 mm x 51 mm)

Weight 2.4 lbs. (1089 g)

Distance 3000 ft. - 4000 ft. (915m - 1220m)

CS-2072K features:

• Convenient kit for residential circuit finding applications.

• Use with 50-60 Hz service from 80-277 Volts.

• Accessories for connecting transmitter to different outlet types.

• Compact receiver accurately locates AC breakers.

• Receiver belt clip for easy transport.

• Accessories included: (1) 120 VAC adapter plug, (1) light socket

adapter, (2) blades, (2) clips, (1) 9V battery, (1) carrying case.

• Lifetime Limited Warranty.

CS-2072 features:

• Transmitter and receiver snap together for convenient storage.

• Compact receiver accurately locates AC breakers.

• Receiver belt clip for easy transport.

• Accessories included: (1) 9V battery.

• Lifetime Limited Warranty.

SPECIFICATIONS

Transmitter

Voltage Range (CS-2072) 110-120V AC, 60 Hz

Voltage Range (CS-2072K) 80-277V AC, 50-60 Hz

Measurement Category: CAT II (transmitter only)

Receiver

Audible/Visual circuit indicator ✓

Power indicating LED ✓

On/Off switch ✓

Belt clip ✓

Breaker Finder

* 2007/36924 includes these items

CAT. NO. UPC NO. DESCRIPTION

2007 36924 Power Finder Closed Circuit Tracer

38583 38583 High Voltage Adapter

36925 36925 Receiver*

36926 36926 Transmitter*

36928 36928 Transmitter Plug*

36929 36929 Receptacle Blades (2), AC*

36930 36930 Test Lead*

36927 36927 Plastic Case*

CAT. NO. UPC NO. DESCRIPTION

CS-2072 12135 Breaker Finder

CS-2072K 12136 Kit, Breaker Finder

LISTED

CS-2072

CS-2072K

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

336

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

SENSORS & SCANNERS

SF-420AC Stud Sensor with AC Detection

• Reliable way to detect the presence of AC voltage and to find wood

or metal studs.

• Finds the edges of wood or metal studs up to 3/4" (19 mm) deep,

through typical drywall construction.

• DeepScan® mode finds the edges of wood or metal studs up to 1-1/2" (38 mm)

deep for thick construction such as plywood, paneling, or tile over drywall.

• Non-contact detection of AC voltage.

• Senses the changes in subsurface densities to pinpoint studs and joists,

while detecting unshielded AC voltage.

• Dual scanning for more flexibility.

• Accessories included: (1) 9V battery.

• 1 Year Limited Warranty

SPECIFICATIONS

Battery Type 9 V alkaline (included)

Position Accuracy Stud Scan Mode: Typically within 1/8" (3 mm) using the dual

scan and mark procedure.

DeepScan Mode: Typically within 3/16" (5 mm) using the dual

scan and mark procedure.

Detection Depth Stud Scan Mode: Typically up to 3/4" (19 mm)

DeepScan Mode: Up to 1-1/2" (38 mm)

AC Position Accuracy Typically 90 V to 250 V at 50 Hz to 60 Hz within 6" (150 mm) of

a hot unshielded wire

AC Sensing Depth In typical drywall with Romex® wiring, wires can be detected up

to 3" (76 mm) deep.

CAT. NO. UPC NO. DESCRIPTION

SF-420AC 12137 Stud Finder

SF-530 Multiscanner

• Reliable way to detect the presence of AC voltage, find wood or metal studs,

metal pipes and rebar.

• Finds both wood and metal studs.

• AC scanning to trace hot wires.

• Metal scanning for finding pipes.

• Backlit display for easy viewing.

• Accessories included: (1) 9V battery.

• 1 Year Limited Warranty

SPECIFICATIONS

Battery Type 9 V alkaline (included)

Position Accuracy Stud Scan Mode: Typically within 1/8" (3 mm) using the dual

scan and mark procedure.

DeepScan Mode: Typically within 3/16" (5 mm) using the dual

scan and mark procedure.

Metal Scan Mode: Typically within 1/2" (13 mm)

Detection Depth Stud Scan Mode: Typically up to 3/4" (19 mm)

DeepScan Mode: Up to 1-1/2" (38 mm)

Metal Scan Mode: Up to 1-1/2" (38 mm) for copper; up to 3" (76 mm)

for rebar.

AC Position Accuracy Typically 90 V to 250 V at 50 Hz to 60 Hz within 6" (150 mm) of

a hot unshielded wire

AC Sensing Depth Typically 2" (50 mm)

CAT. NO. UPC NO. DESCRIPTION

SF-530 12138 Multiscanner

337

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

SF-780 Metal Locator

• Save time by eliminating rework, needless holes and broken bits

and sawblades.

• Finds both ferrous and non-ferrous metal and indicates depth up

to 6" (152 mm) deep.

• Easy to read LCD identifies target location and depth.

• Scans through concrete and most metallic materials.

• Indicates depth to nearest 1/2" (13 mm).

• Automatically indicates whether target is steel rebar or copper pipe

(or any magnetic vs. non-magnetic material).

• Easy to use - simple two button operation.

• Accessories included: (1) 9V battery, carrying case.

• 1 Year Limited Warranty

SPECIFICATIONS

Battery Type 9 V alkaline (included)

Position Accuracy Center of 1/2" (#4) rebar or 1/2" (13 mm) copper pipe

at a minimum grid spacing of 6" (152 mm), typically within

1/2" (13 mm).

Detection Depth Up to 6" ± 1" (152 mm ± 25 mm)

CAT. NO. UPC NO. DESCRIPTION

SF-780 12139 Locator, Metal

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

338

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Locators Application Guide

BLL-200 501 PE2003 508S 521A

Trace concealed wiring in walls and floors • •

Locate junction box relays and transformers •

Locate switch gear •

Find shorts to ground •2 •

Trace wires in PVC (nonmetallic conduit) • • •

Find opens in a circuit •2

•

Localize power and lighting panels • • •

Operate on energized circuits • • •

Operate on low voltage circuits • • • •

Operate on high voltage circuits (600VAC) •

Operate on unenergized circuits • • • • •

Trace shielded cable • •3 •

3 •3

Trace buried metal conduit

Trace coax cable • •5 •

5 •

Auto gain circuitry for improved accuracy •

AC voltage range 0-600V 0-240V 0-240V 0-240V 0-120V

DC voltage range 0-300V 0-500V 0-400V 0-500V 0-250V

Distance–receiver from transmitter 5,000 ft. •7 5000 ft. 1000 ft. •6

Transmitter battery (4) AA (8) AA 12V (1) 9V (8) D

rechargeable

Receiver battery (4) AA (1) 9V (1) 9V (1) 9V (1) 9V

1. 10,000 ohms and less–both ends isolated from grounds.

2. Does not locate the path–has to be predetermined and only in direct burial applications. 5,000,000 and less.

3. Transmitter connected to metallic shield.

4. Will trace coax providing the bOnd is in place at the remote end–will disrupt service.

5. No sorting (high RF bleeds) can trace coax if transmitter connected to braid.

6. Low frequency locators need a “path to earth” (dirt), 5000 ft. on an open conductor and 2500 ft. on a metallic pipe at 3

ft. deep.

7. Direct Connection 4,000 ft at 7 ft deep

Inductive Coupler 1,000 ft at 3 ft deep

Inductive Antenna 700 ft at 3 ft deep

LOCATORS

339

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Buried Line Locator

• Traces the path and determines the depth of wires and metallic pipes on active

or dead systems without having to deactivate the system.

• Lightweight receiver provides audible and visual indications of signal strength.

• Transmitter output and receiver sensitivity are fully adjustable for maximum

accuracy.

• Transmitter offers three methods of connection: direct, inductive coupler and

inductive antenna.

• Includes transmitter assembly, receiver assembly, inductive coupler (clamp),

built-in inductive antenna, two 8' (2.4 m) test leads with heavy-duty alligator clips

and durable polyethylene case.

• High frequency transmitter provides range up to 4,000' (1,219 m) and depths

up to 7' (2 m).

• Receiver is 32" long (813 mm).

• Battery operated (eight AA and one 9V battery is included).

• Molded carrying case included.

• 1-year limited warranty.

CAT. NO. UPC NO. DESCRIPTION

501 08662 Tracker II

501T 60353 Transmitter

501R 60352 Receiver

IC1 60354 Inductive Clamp

CS16 60355 Transmitter Cord Set

500CA 60351 Case with Antenna

SPECIFICATIONS

Power Requirements Transmitter – (8) AA batteries; Receiver – (1) 9V battery

Battery Life Transmitter – 30 hours nominal; Receiver – 10 hours nominal

Transmitter Frequency 447.5kHz

Transmitter Power 40Vp-p (140mW) maximum

Voltage Protection 240VAC/500VDC

Automatic Shut Off 90 Min. Transmitter and Receiver

Construction Transmitter/Receiver – powder-coated aluminum

Case – vacuum formed polyethylene

Dimensions Transmitter – 4.25" x 3" x 3.25"; Receiver – 32" x 2.75" x 4"

Case – 33.5" x 8.25" x 3.75"

Weight 6.7 lbs. (complete kit)

Tracker II

Headset (accessory)

CAT. No. HS-1

UPC No. 08695

CAT. NO. UPC NO. DESCRIPTION

BLL-200 07796 Buried Line Locator

• LED and LCD signal strength indicators make it quick and easy to find exact line location.

• Lightweight and ergonomically balanced.

• Automatic signal boost makes it easy to trace lines, even those with very weak signals.

• Receiver may be used in active or passive mode.

• Receiver locates multiple passive frequencies with a single setting.

• Receiver automatically locks out passive range when it detects a transmitter signal,

reducing the chance of tracing other lines carrying weaker signals.

• Microprocessor-based circuitry delivers increased accuracy and features auto-gain

control in all environments.

• Traces 20' (6 m) underground and provides depth readings up to 15' (4.57 m).

• Transmitter can be connected to live lines up to 600V.

• Lifetime limited warranty.

• Molded carrying case included.

SPECIFICATIONS

Transmitter

Operating Voltage 0-600VAC,

0-300 VDC

Current 13mA (open line)

150mA (live or shorted line)

Frequency 33.3kHz

Operating Temperature 0°F to 120°F

(-17°C to 50°C)

Size 7.5" x 4" x 2.1"

(190.5 mm x 101.6 mm x 53 mm)

Power 6 VDC (4 AA batteries)

Weight 15 oz. (425 g)

(with batteries and clamp)

Receiver

Depth Range Measures: 0-15 ft.

Traces: 0-20 ft.

±(10% reading + 0.2 ft.)

Depth Resolution 0.1 ft. increments

Passive Trace Frequency 12Hz-24kHz

Operating Temperature 0°F to 120°F

(-17°C to 50°C)

Size 4.1" x 8.5" x 38" (104.1 mm x

215.9 mm x 965.2 mm)

Power 6 VDC (4 AA batteries)

Weight 1 lb. 12 oz. (794 g)

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

340

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Pulser Fault Locator

CAT. NO. UPC NO. DESCRIPTION

PE2003 08666 Pulser

2000H 60357 Transmitter (Includes CH1 & CH2)

2000R 60358 Receiver

AF2 60482 A-Frame

CH1 60360 AC Charger

CH2 60361 DC Charger

SPECIFICATIONS

Power Requirements Transmitter: (1) 12V rechargeable battery;

Receiver: (1) 9V battery

Battery Life Transmitter: 23 hours per charge; Receiver: 200 hours

Transmitter Power 2400VDC peak

Voltage Protection 240VAC/400VDC

Construction Transmitter – aluminum housing in polyethylene case;

Receiver – powder-coated aluminum

Dimensions Transmitter – 17" x 8.5" x 6.5"

(421 mm x 215 mm x 160 mm)

in case Receiver – 33.5 x 21.75" x 3.25"

(840 mm x 550 x 8 mm) on A-Frame

Weight 12.5 lbs. complete

• Traces energized or de-energized wires in walls and drop ceilings.

• Provides reliable results on buried cables to depths of 3' (1 m)

and lengths up to 1000' (308 m).

• Determines the approximate depth of the wire before digging.

• Compact design.

• Easy-to-understand operations.

• Fully adjustable transmitter and receiver for accurate locating.

• Quick change test leads for use in any industry, even international

power outlets.

• Voltage protection to allow use on live AC circuits.

• Automatic shut-off to prevent accidental battery discharge.

• Housed in a durable, molded carrying case with a quick reference

operation guide on the inside of the lid.

• Battery-operated: (2) 9V batteries included.

• 1-year limited warranty.

CAT. NO. UPC. NO DESCRIPTION

508S 08678 Wire Finder/Mini Locator

508ST 60363 Transmitter

508SR 60364 Receiver

CS14 60366 Alligator Clip Cord set

CS15 60367 AC Outlet Cord set

SPECIFICATIONS

Power Requirements (1) 9V each (transmitter and receiver, included)

Battery Life Transmitter 35 hours nominal; Receiver 20

hours nominal

Transmitter Frequency 447.5kHz

Transmitter Power 9Vp-p (11mW)

Voltage Protection 240VAC/500VDC

Construction Transmitter/Receiver – high-impact ABS plastic,

Case – vacuum-formed polyethylene

Dimensions Transmitter – 4" x 2.3" x 1"

Receiver – 6" x 2.35" x 1"

Case – 9.5" x 8" x 3"

Weight 2.6 lbs.

Wire Finder/Mini Locator

• Identifies the exact location of even the smallest breaks in insulation by

“pulsing” a high-voltage signal that radiates into the earth at the location

of the faults. With the A-frame mounted receiver, a visual analog meter

points the way to the source of the voltage.

• Multiple faults on a single wire can be identified, indicating the need

to replace instead of repair.

• Extra-long test leads feature heavy-duty alligator clips for use on multiple

cable types.

• Includes a rechargeable transmitter, receiver, A-frame, ground stake,

120V charger and a 12V DC (cigarette lighter) adapter.

• Battery-operated: (1) 12V and (1) 9V battery included.

• Molded carrying case included.

• 1-year limited warranty.

341

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Wire and Valve Locator

• Adjustable transmit power allows you to select the best signal for maximum

performance.

• Transmitter’s high power output offers extended range and use on higher

resistance wire paths that other locators can’t touch.

• Receiver provides both audible and visual indications of signal strength.

• Lightweight receiver wand makes it easy for you to move along quickly

to locate even the longest wire path.

• Rugged headphones block ambient noise and improve “feel” for the signal.

• Includes transmitter, receiver, headset, ground stake, and complete instructions.

• Battery-operated: (8) “D” Cells and (1) 9V.

• 1-year limited warranty.

SPECIFICATIONS

Power Requirements Transmitter: (8) “D” Cell;

Receiver: (1) 9V battery

Battery Life Transmitter: 50 hours nominal

Receiver: 100 hours nominal

Transmitter Frequency 1748Hz

Transmitter Power 750Vp-p 285Vrms

Voltage Protection 120VAC/250VDC

Construction Powder-coated aluminum housing in polyethylene case

Case Dimensions 33.5" x 8.25" x 3.75"

Weight 12 lbs. complete

• Troubleshoot irrigation systems.

• Activate and cycle solenoids.

• Test solenoids for continuity.

• Send tone to identify wires.

• Measure clock voltage.

• Low battery indication.

• Easy-to-understand LEDs.

• Test leads with “Bed-of-Nails” and piercing Pin Clips.

• 1-year limited warranty.

SPECIFICATIONS

Minimum Voltage for Clock

LED

15 VAC (LED intensity increases as voltage increases)

Minimum Battery while

Testing

10.5 VDC

Maximum Input Voltage

between Test Leads

28 VAC

Solenoid Circuit Recharge

Time

2.5 seconds

Maximum Distance Range to

Activate one Solenoid

12 AWG Loop 3000-13000 feet

14 AWG Loop 2000-8500 feet

18 AWG Loop 500-3000 feet

Power Source 9V alkaline batteries

Battery Life 3 hours continuous

Operating/Storage Temp. 32°F - 122°F (0° - 50°C)

Station Master™ Pro

CAT. NO. UPC NO. DESCRIPTION

521A 86788 Wire and Valve Locator

521T 60368 Transmitter

521R 60352 Receiver

HS1 08695 Headset

GS1 60362 Ground Stake

CAT. NO. UPC NO. DESCRIPTION

24B 86786 Station Master Pro

24BK 86787 Station Master Pro Kit

24B

24BK

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

342

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

CIRCUIT VERIFYING

GT-10

• Use to troubleshoot 120 V AC grounded outlets.

• Light sequence indicates correct/incorrect wiring.

• Lifetime Limited Warranty

GT-10GFI

• Use to troubleshoot 120 V AC grounded outlets and test GFCI receptacles.

• Light sequence indicates correct/incorrect wiring.

• Lifetime Limited Warranty

Polarity Cubes

CAT. NO. UPC NO. DESCRIPTION

GT-10 12124 Cube, Polarity

GT-10GFI 12125 Tester, Circuit GFI

GT-10

GT-15

GT-10GFI

DM-20

LISTED

BASIC ELECTRICAL KITS

Basic Electrical Kit

DM-20

• Use to measure voltage and check 1.5 V and 9 V batteries.

• AC/DC voltage, DC amperage measurement.

• Built-in test leads, no loose parts to lose.

• Resistance measurement.

• Audible continuity and diode tests.

• Lifetime Limited Warranty.

GT-11

• Use to detect voltage in outlets, lighting fixtures, circuit breakers, wires and cables

or to find a break in a wire.

GT-15

• Use to detect voltage in low voltage applications ranging from 12-90 volts AC.

GT-11 AND GT-15

• Safe, non-contact voltage detection.

• Bright LED and audible alarm sound if voltage is present.

• On/Off switch for longer battery life.

• Convenient pen-size device easily fits into pockets or tool pouches.

• Lifetime Limited Warranty

GT-10 AND GT-10GFI

• Use to troubleshoot 120V AC grounded outlets.

• Light sequence indicates correct / incorrect wiring.

• GT-10GFI also tests GFCI receptacles.

• Lifetime Limited Warranty.

CAT. NO. UPC NO. DESCRIPTION

TK-30 12127 Electrical Kit, Basic

TK-30IR 89799 Electrical Kit, Low Voltage

SPECIFICATIONS

DM-20 See Page 320

GT-11 See Page 312

GT-10 See Below

GT-10GFI See Below

GT-15 See Page 312

GT-10GFI

GT-11

TK-30

TK-30IR

343

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Inspector GFCI and Circuit Tester

• Allows instant testing of GFCI receptacles or GFCI circuit breaker protected circuits.

• Indicates whether a GFCI will trip at 3, 5, 7 or 10mA.

• Checks 120VAC grounded outlets for correct/incorrect wiring.

• LED indicators signal correct wiring, open ground, open neutral, open hot,

hot/ground reversed and hot/neutral reversed.

• Lifetime Limited Warranty

• Allows instant testing of GFCI receptacles or GFCI circuit breaker

protected circuits.

• Checks 120VAC grounded outlets for correct/incorrect wiring.

• LED indicators signal correct wiring, open ground, open neutral,

open hot, hot/ground reversed and hot/neutral reversed.

• Lifetime Limited Warranty

SPECIFICATIONS

Capacity 120VAC, 3-wire systems

Time 4-second interval between mA test impulses; 200 ms pulse duration

Size 5-3/8" x 2-5/8" x 1-3/4" (137 mm x 67 mm x 44 mm)

Cord length 16" (406 mm)

Weight 0.5 lb. (227g)

Accuracy Current: 10% at nominal voltage; Time: approx. 12%

Measurement Category CAT II, 150V

GFCI and Circuit Tester

* Includes Certificate of Calibration

CAT. NO. UPC NO. DESCRIPTION

5708i 34524 Inspector GFCI and Ciruit Tester

5708i-C* 07641* Inspector GFCI and Circuit Tester

CAT. NO. UPC NO. DESCRIPTION

5708 34523 GFCI and Circuit Tester

5708-C* 07640* GFCI and Circuit Tester

SPECIFICATIONS

Capacity 120VAC, 3-wire systems

Test Duration Current (mA) Time Duration (Sec.)

3 15

5 5

6 4

7 3

10 2

Size 5-3/8" x 2-5/8" x 1-3/4" (137 mm x 67 mm x 44 mm)

Cord Length 16" (406 mm)

Weight 0.5 lb. (227 g)

Accuracy Current: 10% at nominal voltage; time: 1.5%

Measurement Category CAT II, 150V

LISTED

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

344

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Insulation Testing Comparison Chart

5990 5882 5880 5778

Test voltage 250V • •

500V • • • •

1000V • • • •

2500V •

5000V •

Range 250V 50k-2000MΩ 0-25MΩ

500V 500k-500GΩ 100k-2000MΩ 100k-2000MΩ 0-50MΩ

1000V 700k-500GΩ 200k-2000MΩ 200k-2000MΩ 0-100MΩ

2500V 5M-500GΩ

5000V 20M-500GΩ

Continuity 0-20Ω 0-20Ω

Resistance 0-400kΩ 0-400kΩ

Display type Analog Digital Digital Analog

Backlit • •

Count 4000 4000

Analog bar graph • •

Measurement Category III, 600V II, 300V II, 300V

UL • •

CE • • •

5kV Megohmmeter

SPECIFICATIONS

Insulation Tests

Test Voltage 500, 1000, 2500, 5000V

Range 500k to 500GΩ

Voltage Test Range 600V AC/DC

Measurement Category CAT III, 600V

INSULATION TESTING

CAT. NO. UPC NO. DESCRIPTION

5990 07665 5kV Megohmmeter

87121 87121 Probes

86999 86999 Leads

• Four test voltages: 500V, 1000V, 2500V, and 5000V.

• Resistance measurement range up to 500GΩ.

• Extra-large analog display for easy viewing.

• Accessories included: (4) 1.5V D batteries, integrated carrying case, test leads,

probes, snap-on test lead pouch.

• Lifetime Limited Warranty

345

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Digital/Analog Megohmmeter

CAT. NO. UPC NO. DESCRIPTION

5882 07573 Digital/Analog Multimeter

5882-C* 07639* Digital/Analog Multimeter

5880 07572 Digital/Analog Multimeter

5880-C* 07638* Digital/Analog Multimeter

5883 07591 Remote Probe

87073 87073 Test Lead Kit

SPECIFICATIONS

Insulation Tests

Test Voltage 5882: 250, 500, 1000V

5880: 500, 1000V

Range 250V: 50k – 2000MΩ

500V: 100k – 2000MΩ

1000V: 200k – 2000MΩ

Automatic Discharge

Continuity Range 0-20Ω

Resistance Range 0-400kΩ

Voltage Test Range 0-600V AC/DC

Display 4000-count, backlit 34-segment analog bar graph

Measurement Category CAT II, 300V

• Compact, field-ready – does not require batteries or AC power.

• Hand-crank meter designed for non-destructive insulation tests of electrical

installations, machines, equipment, transformers and electric motors.

• Features (3) test voltages and (3) measuring ranges.

• Leather case and leads included.

• Lifetime Limited Warranty

SPECIFICATIONS

Capacity Megohm Ranges: 25, 50, 100

DC Voltage Ranges: 250, 500, 1000V

Manual-Crank Megohmmeter

MOTOR ROTATION & PHASE SEQUENCE

Non-contact Phase Sequence Indicator

• Non-contact detection of phase sequence.

• Self-adjusting to correct phase if line frequency varies.

• Auto shutoff for maximum battery life.

• Proximity sensor means safe, non-contact sequence.

• Accessories included: (1) 9V battery, case.

• Lifetime Limited Warranty

SPECIFICATIONS

Frequency Required 50/60Hz

Phase Lock Holds phase for 12 seconds from last indications.

* Includes Certificate of Calibration

CAT. NO. UPC NO. DESCRIPTION

5778 34555 Manual-Crank Megohmmeter

5778-C* 07636* Manual-Crank Megohmmeter

5778TL 34727 6' (1.83 m) Ext. Leads with Alligator Clamps

CAT. NO. UPC NO. DESCRIPTION

5712 07575 Non-contact Phase Sequence Indicator

5880 features:

• Auto-ranging AC/DC default voltmeter with test inhibitor and warnings

for enhanced user safety.

• Extra-large digital display with backlight and analog bar graph.

• Weather resistant against dust and water to IP44.

• Multiple test voltage ranges.

• Measure up to 2000MΩ resistance.

5882 adds:

• Tests three voltage ranges: 250, 500, and 1000V.

• Timer function for dielectric absorption and polarization index measurements.

• Accessories included: (6) 1.5V AA batteries, test leads, case.

• Lifetime Limited Warranty

5883

LISTED

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

346

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Motor Rotation and Phase Sequence Indicator Kit

• Assists in correct motor installation by identifying the phases of a three-phase

circuit and the rotation of an unenergized motor to prevent damage to motor

or electrical system.

• Identifies L1, L2, L3 phases and motor leads and indicates rotation of the motor

before installation.

• Easy clockwise and counterclockwise indication.

• Accessories included: (1) 9V battery, carrying case.

• Lifetime Limited Warranty

• Identifies L1, L2, L3 phases and indicates phase rotation

before installation.

• Clockwise and counterclockwise indication via neon lamps.

• Lifetime Limited Warranty

SPECIFICATIONS

Live Phase Indicators Three neon lamps

Motor Rotation

Indicators

Two neon lamps

Measurement Category CAT III, 600V

Phase Sequence Indicator

Motor Rotation Indicator

• Tests unenergized 3-phase motor to determine sequence for desired

motor rotation.

• Lifetime Limited Warranty

SPECIFICATIONS

Indicators Two LEDs

Do not use Motor Rotation Indicator on live circuits.

CAT. NO. UPC NO. DESCRIPTION

5702 07574 Phase Sequence Indicator

CAT. NO. UPC NO. DESCRIPTION

5123 34514 Motor Rotation Indicator

CAT. NO. UPC NO. DESCRIPTION

5779 07576 Motor Rotation and Phase Sequence Indicator Kit

TC-20 07535 Carrying Case

SPECIFICATIONS

Phase Sequence Indicator (CAT. No. 5702)

Overvoltage Protection CAT III, 600V

Motor Rotation Indicator (CAT. No. 5123)

Two LEDs indicate motor rotation

LISTED

Do not use Motor Rotation Indicator on live circuits.

5702

5123

347

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Adjustable Time-Delay Restart Motor Protectors

• Monitor 3-phase power and help prevent damage to motors caused by

undervoltage, phase imbalance, phase loss and phase reversal conditions.

• Adjustable voltage range.

• Microprocessor controlled.

• Adjustable time delay reset: manual and from 2 to 300 seconds.

• Lifetime Limited Warranty

SPECIFICATIONS

Capacity Adjustable voltage range – 190 to 480VAC

DPDT Relay Pilot duty – 480VA at 240V AC

General purpose – 10A at 240V AC

Size 2.2" x 4" x 2.8" (56 mm x 102 mm x 71 mm)

Weight 14 oz. (397g)

• Monitor 3-phase power and help prevent damage to motors caused by

undervoltage, phase imbalance, phase loss and phase reversal conditions.

• Adjustable voltage range.

• Microprocessor controlled.

• Lifetime Limited Warranty

SPECIFICATIONS

Capacity Adjustable voltage range – 190-480 VAC

SPDT Relay Pilot duty – 480VA at 240V AC

General purpose – 10A at 240V AC

Size 2.2" x 4" x 2.8" (56 mm x 102 mm x 71 mm)

Weight 9 oz. (397 g)

Three-Phase Motor Protector

Plug-in Motor Protector

• Three-phase protector helps prevent damage to motors caused by undervoltage,

phase loss, phase imbalance and phase reversal conditions.

• Adjustable voltage range.

• Microprocessor controlled.

• Includes socket (5201SK).

• Lifetime Limited Warranty

SPECIFICATIONS

Capacity Adjustable voltage range – 190 to 480 VAC

SPDT Relay 480VA at 120/240V AC

Size 3.5" x 2.4" x 1.8" (89 mm x 61 mm x 46 mm)

Weight 9 oz. (255 g)

CAT. NO. UPC NO. DESCRIPTION

5250 34960 Three-Phase Motor Protector with adjustable time delay restart

CAT. NO. UPC NO. DESCRIPTION

5102 34958 Three-Phase Motor Protector

CAT. NO. UPC NO. DESCRIPTION

5201 34959 Plug-in Motor Protector

LISTED

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

348

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

TG-600 Infrared Thermometer

• Safe, non-contact temperature measurement.

• Laser indicates approximate center of the target area.

• Displays temperatures in either Fahrenheit or Celsius.

• Auto power off for longer battery life.

• Easy-to-read backlit display for use in low light conditions.

• Accessories included: (1) 9V battery and carrying case.

• Lifetime Limited Warranty

CAT. NO. UPC NO. DESCRIPTION

TG-600 09031 Infrared Thermometer

SPECIFICATIONS

Optical Resolution 12:1 at focus point

Target Temperature Range: -4°F to 932°F (-20°C to 500°C)

Accuracy: ±2% or 4°F (±2°C)

Repeatability: Within ±1% of reading or ±2°F (1°C)

Response Time: 500 ms, 95% response

Emissivity: Preset at 0.98

• Safe, non-contact temperature measurement of terminals, lugs, motors and

circuit breakers.

• Accurate, easy laser targeting makes it quick and easy to aim precisely.

• Convenient display hold.

• Reads in either Celsius or Fahrenheit.

• Accessories included: (2) 1.5V AAA batteries and carrying case.

• Lifetime Limited Warranty

SPECIFICATIONS

Target Temperature Range: 0°F-600°F (-18°C to 315°C)

Accuracy: ±2.5% of reading or ±5°F (±2.5°C ), whichever is greater

Repeatability: ±1% of reading or ±2°F (±1°C ), whichever is greater.

Response Time: 500ms, 95% response

Spectral Response: 7-14

Emissivity: Fixed at 0.95

Optics: 6:1

THH-100 Infrared Thermometer

TEMPERATURE

CAT. NO. UPC NO. DESCRIPTION

THH-100 09030 Handheld Infrared Thermometer

349

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Immersion Temperature Probe

• Suitable for liquids and gels.

• Measurement range: -40°F to 1472°F (-40°C to 800°C).

• Probe length: 4.72" ±0.2" (120 mm ±5 mm).

• Accuracy: ±2.2°C (4°F) or 0.75%, whichever is greater.

• Type K thermocouple.

• Lifetime Limited Warranty

• For surface and air/gas temperature measurement.

• Not suitable for liquids.

• Measurement range: -40°F to 399°F (-40°C to 204°C).

• Probe length: 39.4" ±0.2" (1 m ±5 mm).

• Type K thermocouple.

• Lifetime Limited Warranty

Bead Temperature Probe

Surface Temperature Probe

• For flat or slightly convex surfaces, perfect for measurement of hot rollers

and plates.

• Measurement range: -40°F to 932°F (-40°C to 500°C).

• Probe length: 4.72" ±0.2" (120 mm ±5 mm).

• Accuracy: ±2.2°C (4°F) or 0.75%, whichever is greater.

• Type K thermocouple.

• Lifetime Limited Warranty

Sound Level Meter

• Noise measurement adapted to dB(A) weighting.

• Compact and light, easy to take to any site.

• Accessories included: (1) 9V battery.

• Lifetime Limited Warranty

SPECIFICATIONS

Capacity Low – 35 to 80dB; High – 75 to 120dB

Audible Range “A” Scale

Frequency 20-20,000Hz

Weight 8 oz. (227g)

Size 6-3/8" x 2-1/2" x 1-1/2" (162 mm x 64 mm x 38 mm)

SPECIALTY TESTERS

CAT. NO. UPC NO. DESCRIPTION

TPI-1 06569 Immersion Temperature Probe

CAT. NO. UPC NO. DESCRIPTION

TPB 07592 Bead Temperature Probe

CAT. NO. UPC NO. DESCRIPTION

TPSFC 06570 Surface Temperature Probe

CAT. NO. UPC NO. DESCRIPTION

93-20 34451 Sound Level Meter

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

350

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Digital Light Meter

• Measures incandescent, fluorescent, metal halide, high-pressure sodium

and halogen lamp output.

• Color and cosine-corrected for enhanced accuracy.

• Measures up to 50,000 lux.

• Peak and data hold means no lost measurements.

• Accessories included: (1) 9V battery and carrying case.

• Lifetime Limited Warranty

• Test most fluorescent lamps, low pressure sodium vapor, high pressure

sodium discharge lamps, neon tubes, mercury vapor and metal halide

lamps.

• Checks starters, resistors, ignitors, capacitors and photo cells.

• Indicates AC/DC voltage and continuity.

• Includes detachable antenna, batteries, leads, probes, clamps and holster.

• Lifetime Limited Warranty

Gas Lamp Tester

Lamp Tester

SPECIFICATIONS

Ranges

Foot Candles 0.01-5,000Fc (20/200/2,000/5,000)

Lux 0.1-50,000 lux (200/2,000/20,000/50,000)

Accuracy

Incandescent Light Source ± 4%

Other Light Sources ± 7%

Temperature Range 0° to 40° C (32° to 104° F)

Sampling Rate 2.5 times per second

SPECIFICATIONS

Capacity Voltage – up to 500 VAC & VDC;

Continuity – to 300 kΩ

Size 6" x 2-3/4" x 1-3/4" (152 x 70 x 45 mm);

Antenna – 27" (686 mm)

Weight 2.4 lbs. (1.1 kg)

Batteries 2–9V, included

* includes Certificate of Calibration

CAT. NO. UPC NO. DESCRIPTION

93-172 06060 Digital Light Meter

93-172-C* 07084* Digital Light Meter

06200 06200 Carrying Case

06061 06061 Sensor

06083 06083 Sensor Case

• Tests HID and fluorescent lamps.

• Live conductor sensing.

• Compact, rugged housing with carrying case (included).

• Accessories included: (1) 9V Battery

• Lifetime Limited Warranty

CAT. NO. UPC NO. DESCRIPTION

LT-100 07541 Lamp Tester

TC-10 07534 Deluxe Carrying Case

SPECIFICATIONS

Live Conductor Indication 60-250VAC, 40-60Hz

Continuity Verification 0-5MΩ (test current: <7µA)

Lamp Tester Voltage 3kV/160kHz (test current:<200µA)

Measurement Category CAT II, 250V

LISTED

CAT. NO. UPC NO. DESCRIPTION

5715 34529 Gas Lamp Tester

5713 34528 Holster

35450 35450 Battery Door

5710 34525 Antenna

5786 34574 Small Alligator Clamps (2)

5783 34556 Push-on Probes (2)

351

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Deluxe Electrical Test Lead Kit

• Kit contains: (2) modular test probes with sharp stainless steel tip, (2) 48"

(1.2 m) flexible test leads with straight and right angle meter plugs, two each

of Grabber clips with alligator tips (TGA-2), pincer tips (TGP-2), hook tips

(TGH-2),large alligator clips, and a nylon carrying case.

• Measurement Category: CAT III, 1000V per IEC 61010.

• Maximum current 10 amps.

• Lifetime Limited Warranty

CAT. NO. UPC NO. DESCRIPTION

TDTLK 07524 Deluxe Electrical Test Kit

• Kit contains: (2) modular test probes with sharp stainless steel tip, (2) 48"

flexible test leads with straight and right angle meter plugs, Grabber clips

with alligator tips (TGA-2), and a nylon carrying case.

• Measurement Category: CAT III, 1000V per IEC 61010.

• Maximum current 10 amps.

• Lifetime Limited Warranty

CAT. NO. UPC NO. DESCRIPTION

TITLK 07523 Industrial Test Lead Kit

Industrial Test Lead Kit

Test Lead Kit

• Kit contains: (1) 48" (1.2 m) long insulated test leads (TTL-3),

(2) modular test probes.

• Measurement Category: CAT III, 1000V; CAT IV, 600V per UL 61010.

• Maximum current 10 amps.

• Lifetime Limited Warranty

CAT. N O. UPC NO. DESCRIPTION

TLK-1 12035 Test Lead Kit

ACCESSORIES

LISTED

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

352

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Medium Alligator Clips

• Insulated clip with sheathed receptacle.

• For use with test leads and test lead kits, CAT. Nos. TTL-3, TLK-1, TITLK,

and TDTLK.

• Set of 2 clips, one black, one red.

• Jaw opens to 0.71" (18 mm).

• Measurement Category III, 600V per UL-61010

• Maximum current 10 amps.

• Lifetime Limited Warranty

CAT. NO. UPC NO. DESCRIPTION

TMA-3 12031 Medium Alligator Clips

• Insulated clip with sheathed receptacle.

• For use with test leads and test lead kits, CAT. Nos. TTL-3, TLK-1,

TITLK, and TDTLK.

• Set of 2 clips, one black, one red.

• Jaw opens to 1" (25.4 mm).

• Measurement Category IV, 600V; Category III, 1000V per UL-61010.

• Maximum current 10 amps.

• Lifetime Limited Warranty

CAT. NO. UPC NO. DESCRIPTION

TLA-3 12032 Extra-Large Alligator Clips

Extra-Large Alligator Clips

Grabber with Alligator Tip

• Sheathed receptacle for protection.

• For use with test lead and test kits, CAT. Nos. TTL-3, TLK-1, TITLK,

and TDTLK.

• Set of 2 clips, one black, one red.

• Overall length 6.2" (158 mm).

• Attaches to terminals up to 0.375" (9.5 mm) in diameter.

• Measurement Category III, 1000V per IEC 61010.

• Maximum current 10 amps.

• Lifetime Limited Warranty

CAT. N O. UPC NO. DESCRIPTION

TGA-2 07516 Grabber with Alligator Tip

Grabber with Hook Tip

• Sheathed receptacle for protection.

• For use with test lead and test kits, CAT. Nos. TTL-3, TLK-1, TITLK, and TDTLK.

• Set of 2 clips, one black, one red.

• Overall length 5.98" (152 mm).

• Hooks onto terminals up to 0.08" (2.2 mm) in diameter.

• Measurement Category III, 1000V per IEC 61010.

• Maximum current 10 amps.

• Lifetime Limited Warranty

CAT. N O. UPC NO. DESCRIPTION

TGH-2 07519 Grabber with Hook Tip

LISTED

353

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Insulated Test Leads

• 48" (1.2 m) long flexible silicon insulated wire.

• Straight and right-angle meter plugs.

• Set of 2 leads, one black, one red.

• For use with T-series Greenlee Test Instrument accessories.

• Measurement Category III, 1000V; CAT IV, 600V per UL-61010.

• Maximum current 10 amps.

• Lifetime Limited Warranty

• 39" (1 m) long flexible silicon insulated wire.

• Right-angle meter plugs.

• Comfort-grip overmolded probes.

• Gold plated tips for low contact resistance.

• Set of 2 leads, one black, one red.

• Measurement Category IV, 1000V per UL-61010

• Maximum current 10 amps.

• Lifetime Limited Warranty

Sure-Grip Test Leads

Thermocouple Adapter

• Allows temperature probes with miniconnectors to be used with DMMs

or clamp meters that are designed with a temperature measurement function

via a banana jack input.

• Lifetime Limited Warranty

CAT. NO. UPC NO. DESCRIPTION

TTL-2 07520 Insulated Test Leads

CAT. NO. UPC NO. DESCRIPTION

TSG-3 12034 Sure-Grip Test Leads

CAT. NO. UPC NO. DESCRIPTION

TA 07525 Thermocouple Adapter

LISTED

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

354

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

DMM Boot

• For 200-series and 500-series Greenlee PRO Multimeters.

• Durable rubber construction protects your meter from damage.

• Lifetime Limited Warranty

• For 800-series and DML-series Greenlee PRO Multimeters.

• Durable rubber construction protects your meter from damage.

• Lifetime Limited Warranty

DMM Boot

Deluxe Carrying Case

• Durable nylon carrying case.

• Inside pocket for test leads.

• With carry strap and double-stitched belt loop.

• Lifetime Limited Warranty

Deluxe Carrying Case

• Durable nylon carrying case.

• Inside pocket for test leads.

• With carry strap and double-stitched belt loop.

• Lifetime Limited Warranty

SPECIFICATIONS

Size 7-3/4" x 3" x 1-1/2" (196.9 mm x 76.2 mm x 38.1 mm)

SPECIFICATIONS

Size 9-3/8" x 3-1/8" x 1-3/4" (240 mm x 80 mm x 45 mm)

CAT. NO. UPC NO. DESCRIPTION

TPBS 07579 DMM Boot (dark green)

CAT. NO. UPC NO. DESCRIPTION

TPBL 07580 DMM Boot (dark green)

CAT. NO. UPC NO. DESCRIPTION

TC-5 07588 Deluxe Carrying Case

CAT. NO. UPC NO. DESCRIPTION

TC-10 07534 Deluxe Carrying Case

355

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Deluxe Carrying Case

• Durable nylon carrying case.

• Inside pocket for test leads.

• With carry strap and double-stitched belt loop.

• Lifetime Limited Warranty

• Durable nylon carrying case.

• Inside pocket for test leads.

• With carry strap.

• Lifetime Limited Warranty

Deluxe Carrying Case

• Durable nylon carrying case.

• Inside pocket for test leads.

• Elastic straps inside to hold multiple instruments.

• With carry strap.

• Lifetime Limited Warranty

SPECIFICATIONS

Size 7-3/4" x 6-1/4" x 2" (196.9 mm x 158.8 x 50.8 mm)

SPECIFICATIONS

Size 11-1/4" x 3" x 2" (285.8 mm x 76.2 mm x 50.8 mm)

SPECIFICATIONS

Size 11-1/4" x 4-1/2" x 2 1/8" (285 mm x 115 mm x 55 mm)

CAT. NO. UPC NO. DESCRIPTION

TC-15 07595 Deluxe Carrying Case

CAT. NO. UPC NO. DESCRIPTION

TC-30 07536 Deluxe Carrying Case

CAT. NO. UPC NO. DESCRIPTION

TC-20 07535 Deluxe Carrying Case

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

356

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Deluxe Carrying Case

• Durable nylon carrying case.

• Inside pocket for test leads.

• Elastic straps inside to hold multiple instruments.

• With carry strap.

• Lifetime Limited Warranty

• Durable nylon carrying case.

• Velcro open/close flap for easy access.

• Inside pocket for test leads.

• With carry strap and double-stitched belt loop.

• Lifetime Limited Warranty

Deluxe Carrying Case

• Durable nylon carrying case.

• Velcro open/close flap for easy access.

• Inside pocket for test leads.

• With carry strap and double-stitched belt loop.

• Lifetime Limited Warranty

SPECIFICATIONS

Size 11-1/2" x 6" x 2" (292.1 mm x 152.4 mm x 51 mm)

SPECIFICATIONS

Size 9" x 6-1/4" x 2" (228.6 mm x 158.8 mm x 50.8 mm)

SPECIFICATIONS

Size 8-1/4" x 6" x 2" (210 mm x 152 mm x 51 mm)

CAT. NO. UPC NO. DESCRIPTION

TC-28 07715 Deluxe Carrying Case

CAT. NO. UPC NO. DESCRIPTION

TC-50 07746 Deluxe Carrying Case

CAT. NO. UPC NO. DESCRIPTION

TC-55 07747 Deluxe Carrying Case

357

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

FUSE CROSS REFERENCE

Catalog Number Bussman Littelfuse Ferraz Amperage Voltage Interrupting Rating (Amps)

DMF-100 GDA-160mA 216.160 160 mA 250 V 1500

DMF-150 GDA-500mA 216.500 500 mA 250 V 1500

DMF-200 GDA-200mA 216.200 200 mA 250 V 1500

DMF-250 500V FA 0,63A 6,3X32 0.63 Amp 500 V 200,000

DMF-300 500V FA 12,5A 6,3X32 12.5 Amp 500 V 20,000

DMF-350 KTK 15 KLK 15 15 Amp 600V 100,000

DMF-400 DMM-B-44/100A FLU.44 0.44 Amp 1000V 10,000

DMF-450 DMM-B-11A FLU011 11 Amp 1000V 10,000

DMF-500 AGC-10 10 Amp 250V 200

DMF-550 500V FA 16A 6,3X32 16A 500V 10,000

DMF-600 GMA-63mA 217.063 63 mA 250V 35

DMF-650 AGC-1/2 500mA 250V 1500

DMF-700 660V FA 0,63A 6,3X32 0.63A 660V 30,000

DMF-750 R451.125 125 mA 125V 50

TEST LEAD KIT COMPATIBILITY

Catalog numbers TTL-3, TSG-3, TLK-1, TITLK, and TDTLK are compatible with all Greenlee instruments

with IEC-compliant shrouded banana jacks. Note: Need to make sure Replacement leads match

Category ratings.

11372

CSJ-100 ✓

CMT-80 ✓

SOFTWARE COMPATIBILITY

DMSC-2 DMSC-9

DM-200 ✓

DM-210 ✓

DM-800 ✓

DM-810 ✓

DM-820 ✓

DM-860 ✓

DML-54 ✓

DML-430 ✓

DMF-100 DMF-150 DMF-200 DMF-250 DMF-300 DMF-350 DMF-400 DMF-450 DMF-500 DMF-550 DMF-600 DMF-650 DMF-700 DMF-750 DMF-800

AM-600

✓

AM-600T

✓

AM-1000

✓

DM-20

✓

DM-40

✓

DM-50

✓

DM-55

✓

DM-60

✓ ✓

DM-100

✓

DM-110

✓

DM-200

✓ ✓

DM-210

✓ ✓

DM-310

✓

DM-330

✓

DM-350

✓

DM-500

✓ ✓

DM-510

✓ ✓

DM-800

✓ ✓

DM-810

✓ ✓

DM-820

✓ ✓

DM-860

✓ ✓

DML-430

✓ ✓

DML-54

✓ ✓

IPM-300

✓

IPM-400

✓

PDMM-10

✓

5878

✓

5880

✓

5882

✓

93-502

✓

93-606

✓ ✓

FUSE RATINGS

AMPERAGE 160 mA 500 mA 200 mA 0.63 A 12.5 A 15 A 0.44 A 11 A 10 A 16 A 63 mA 500 mA 0.63 A 125 mA 315 mA

VOLTAGE 250 V 250 V 250 V 500 V 500 V 600 V 1000 V 1000 V 250 V 500 V 250 V 250 V 660 V 125 V 250 V

INTERRUPTING

RATING (AMPS) 1,500 1,500 1,500 200,000 20,000 100,000 10,000 10,000 200 10,000 35 1,500 30,000 50 1,500

SUITABLE

FUSES

Bussman

GDA-160mA

Littelfuse

216.160

Bussman

GDA-500mA

Littelfuse

216.500

Bussman

GDA-200mA

Littelfuse

216.200

Ferraz

500V FA 0,63A

6,3X32

Ferraz

500V FA 12,5A

6,3X32

Bussman

KTK 15

Littelfuse

KLK 15

Bussman

DMM-B-44/100A

Littelfuse

FLU 44/100

Bussman

DMM-B-11A

Littelfuse

FLU 011

Bussman

AGC-10

Ferraz

500V FA 16A

6,3X32

Bussman

GMA-63mA

Littelfuse

217.063

Bussman

AGC-1/2

Ferraz

660V FA 0,63A

6,3X32

Littelfuse

R451.125

Bussman

GDA-315mA

Littelfuse

216.315

FUSE SELECTION GUIDE

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

358

Testing & Measurement

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

INSTRUMENT CASE COMPATIBILITY

TC-5 TC-10 TC-15 TC-20 TC-28 TC-30 TC-50 TC-55

AM-600 Series ✓

AM-1000 ✓

CM-300 Series ✓

CM-410 ✓

CM-450 ✓

CM-600 Series ✓

CM-700 Series ✓

CM-800 Series ✓

CM-900 Series ✓

CM-1000 Series ✓

CM-1100 ✓

CM-1200 ✓

CM-1300 Series ✓

CM-1500 Series ✓

CMA-40 ✓

CMA-60 ✓

CMAF Series ✓ ✓

CMI-100 ✓

CMI-200 ✓

CMP-200 ✓ ✓

CMT-80 ✓

CMT-60 ✓

CSJ-100 ✓

DM-200 Series ✓ ✓

DM-300 Series ✓ ✓

DM-500 Series ✓ ✓

DM-800 Series ✓ ✓

DML Series ✓ ✓

LT-100 ✓

2010 ✓

2012 ✓ ✓

5702 ✓

5708 ✓

5708i ✓

5723 ✓

5779 ✓

6701 ✓

93-606 ✓ ✓

AFI100 ✓

BOOT/HOLSTER COMPATIBILITY

TPBS TPBL

DM-200 ✓

DM-210 ✓

DM-500 ✓

DM-510 ✓

DM-800 ✓

DM-810 ✓

DM-820 ✓

DM-860 ✓

DML-54 ✓

DML-430 ✓

Storage & Material Handling

Greenlee storage systems protect the tools you’ve invested in and use day in and day out.

From our smallest chests to our large ﬁeld ofﬁce, our storage boxes are as tough as the trade.

With our patented, dual-recessed lock enclosures, you’ll prevent theft. And newly-designed

ergonomic features make Greenlee’s storage and handling systems easy to use and

easy to move around the jobsite.

FEATURED Products

Armored Coiled Cable

Dispenser/Transporter

Chests

Slant-Top

Boxes

Flat-Top

Boxes

Storage & Material Handling

® Registered: The color green for job boxes is a registered trademark of Greenlee Textron Inc.

360 361 375

362

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

360

Storage & Material Handling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

• Recessedandconcealedlockprotectorsformaximumsecurityagainstdrilling

andcuttinglock.(Model1332onelockprotectoronly.)

• Enhancedlidbolsterforaddedsupportanddurability.

• Finger-groovelidhandleforeasyopening.

• Convenientstoragetrayonbackwallforsmallitems(exceptModels1332,

1636and2142).

• Steelsupportarm(s)toholdlidinopenposition.

• Heavy-dutypianohingeswithnon-removablepin.

• Patented,ergonomicallydesignedfold-downrecessedhandles.

• Newangled3-1/2"highsupportskidsfeaturethreadedholesfor

easycasterinstallation.

• Recommend#1and#5Masterlockpadlocksorequivalent.

Chests

3048 2448

CAPACITY DIMENSIONS WEIGHT

CAT. NO. UPC NO. FT3 A B C D E F G H LBS. kg

 1332 38717 4.9 14" 32" 19" — 29.5" — — 14.5" 83 37.6

 1636 38718 6.7 17" 36" 19" — 33.5" — — 14.5" 99 44.9

 2142 31651 9.7 20" 42" 20" — 39.5" — — 15.5" 113 51

 2448 23273 16 24" 48" 24" 4" 45.5" 4" 17.5" 15.5" 156 66

 2460 23363 20 24" 60" 24" 4" 57.5" 4" 17.5" 15.5" 182 83

 3048 23362 25 30" 48" 30" 4" 45.5" 4" 23.5" 21.5" 183 83

 2472 07483 24 24" 72" 24" 4" 69.5" 4" 17.5" 15.5" 185 84

Optional casters available for

increased mobility.

See page 368 for options

STORAGE

2460

361

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Storage & Material Handling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

• Largecapacitystoragewithtraditionalslant-topdesign.

• Recessedandconcealedlockprotectorsprovidemaximumsecurityagainst

drillingandcuttinglocks.

• Channelreinforcementsonlid,locksidepanelsintolidforaddedsecurity

whenclosed.

• Hingedlowershelfenablesstorageoflargeritems.

• Hemmed(reinforced)high-strengthshelves.

• Continuous,non-removablehingepinshelppreventtheft.

• Strategicallylocated,easilyaccessible,durablegas-shocksprovideforeasein

openinglid(exceptModel2260).

• Newangled3-1/2”highsupportskidsfeaturethreadedholesfor

easycasterinstallation.

• Angledhandlerecesspreventspinchpoints.

• Featurestworeinforcedsteelshelveswithlargeliptopreventitemsfrom

rollingoff(Model2260,oneshelfonly).

• Double-hingedcoveronModels3648and3660foldsupandoutoftheway.

• Model2260comeswithlidsupporttoformwaist-high,flatworkarea.

• Patented,ergonomicallydesignedfold-downrecessedhandles.

• Recommend#1and#5Masterlockpadlocksorequivalent.

Slant-Top Boxes

Optional casters available for

increased mobility.

See page 368 for options

2260

3648

CAPACITY DIMENSIONS WEIGHT

CAT. NO. UPC NO. FT3 A B C D E F G H LBS. kg

 2260 23270 32 22" 60" 32" 36" 12" 12" 21" — 228 103

 3648 23276 34 36" 48" 30" 48" 5" 12" 27" 11" 273 124

 3660 23196 44 36" 60" 30" 48" 5" 12" 27" 11" 282 128

Hinged Lower Shelf

3660

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

362

Storage & Material Handling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

• Flat-topdesignprovidesmorestoragecapacityfortall,bulkyitems,

plusalargeworksurfaceforjobsiteplans.

• Recessedandconcealedlockprotectorinhibitsforcedentry

andcorrosiontolock.

• Channelreinforcementsonlid,locksidepanelsintolidforadded

securitywhenclosed.

• Hingedlowershelfallowsforeasystorageoflargerobjects

(exceptModel3360).

• Angledhandlerecesspreventspinchpoints.

• Hemmed(reinforced)high-strengthshelves.

• Continuous,non-removablehingepinshelppreventtheft.

• Side-wallstorage(exceptModel3360).

• Strategicallylocated,easilyaccessible,durablegasspringsprovide

foreaseinopeninglid.

• Doublehingecoverfoldsupandoutoftheway.

• Newangled3-1/2”highsupportskidsfeaturethreadedholesfor

easycasterinstallation.

• Loadrampforstorageoflarger,heavieritems(Model4872Ronly).

• Patented,ergonomicallydesignedfold-downrecessedhandles.

• Recommend#1and#5Masterlockpadlocksorequivalent.

Flat-Top Boxes

3360

Optional casters

available for in-

creased mobility.

See page 368 for

options

CAPACITY DIMENSIONS WEIGHT

CAT. NO. UPC NO. FT3 A B C D E F G H I J K L LBS. kg

 3360 38719 34.5 33" 60" 30" — 12.5" 12" 20" — — — — —  256 116

 4848 35043 40 48" 48" 30" 11" 7" 12" 27" 2" 3" 17" — —  292 132

 4860 35057 50 48" 60" 30" 11" 7" 12" 27" 2" 3" 17" — —  305 138

 4872 07487 60 48" 72" 30" 11" 7" 12" 27" 2" 3" 17" — —  360 163

 4872R 07488 60 48" 72" 30" 11" 7" 12" 27" 2" 3" 17" 18" 45"  375 170

4872

4860

4872R

4848

Hinged Lower Shelf

363

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Storage & Material Handling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

• Recessedandconcealedlockprotectorinhibitsforcedentry

andcorrosiontolock.

• Flush-mounteddoors.

• Finger-groovedoorhandles.

• Front-doorstorage.(Rear-doorstoragealsoavailableon

Model5760only.)

• Hemmed(reinforced)high-strengthshelves.

• Large,lowerstorageareasforbiggeritems.

• Continuous,non-removablehingepinstopreventtheft.

• Newangled3-1/2”highsupportskidsfeaturethreadedholesfor

easycasterinstallation.

• Three3-1/2"highsupportskids.

• Weather-resistantdesign.

• Openstorageforshovels,picks,broomsandotherlong-handled

tools.(Model5660LHonly.)

• Patented,ergonomicallydesignedfold-downrecessedhandles.

• Recommend#1and#5Masterlockpadlocksorequivalent.

Utility Cabinets

2-DOOR UTILITY CABINET

5660L

Optional casters available

for increased mobility.

See page 368 for options

CAPACITY DIMENSIONS WEIGHT

CAT. NO. UPC NO. FT3 A B C D E F G H I J K L M N O LBS. kg

 5660L 38659 46 56" 60" 24" 15" 10.5" 11.5" 10" 10" 2" 14" 3" 23.5" 20.5" 50.5” 24" 401 182

 5660LH 07486 46 56" 60" 24" 15" 10.5" 11.5" 10" 10" 2" 14" 3" 23.5" 20.5" 50.5" 24" 408 185

 5760 38722 58.3 56" 60" 30" 15" 10.5" 11.5" 10" 10" 2" 14" 3" 23.5" 23.5" 50.5” 24" 437 198

 5760TD 07969 59.3 56" 60" 30" 15" 10.5" 11.5" 10" 10" 2" 14" 3" 23.5" 26.5" 50.5” 24" 467 212

HALF-STORAGE/HALF CABINET BOX

4-DOOR UTILITY CABINET 2-DOOR, 30" DEPTH STORAGE CABINET

5760 5760TD

5660LH

5660L

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

364

Storage & Material Handling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Parts/Fittings Cabinet

Mesh Cabinet

• Recessedandconcealedlockprotectorinhibitsforcedentry

 andcorrosiontolock.

• Flush-mounteddoors.

• Finger-groovedoorhandles.

• Front-doorstorage.

• Hemmed(reinforced)high-strengthshelves.

• Continuous,non-removablehingepinstopreventtheft.

• Angledhandlerecesstopreventpinchpoints.

• Three3-1/2"highsupportskids.

• Eighteen(18)individualseparatepartsstoragecompartments.

• Weather-resistantdesign.

• Recommend#1and#5Masterlockpadlocksorequivalent.

• High-visibilitymeshscreenonthree(3)sides.

• Forty-eight(48)smaller,individualcompartments,enablingstorage

ofsmallertoolsandaccessories.

• Platformforshovels,picks,broomsandotherlong-handletools.

• Sturdyhandleformobility.

• Suppliedwithtwo(2)swivelcastersandtwo(2)rigid

4"(102mm)castersforeasymobility(Model696).

• Recommend#1and#5Masterlockpadlocksorequivalent.

CAPACITY DIMENSIONS WEIGHT

CAT. NO. UPC NO. FT3 A B C D E F G H I J K L M N O P R S T U V W X Y Z LBS. kg

5060MESH 04460 37.3 52" 48" 28" 22" 10.5" 10" 2" 4"5" 35" 5.5" 23" 11.5" 4" 3" 5.5" 6" 23" 5.5" 1.5" 3.5" 5" 3" 9" 2" 401 182

5060MESH

LEFT DOOR RIGHT DOOR

NNNNOO

NNO

CAPACITY DIMENSIONS WEIGHT

CAT. NO. UPC NO. FT3 A B C D E F G H I J K L M N O P LBS. kg

 2072 07484 40 48" 72" 20" 8.5" 9" 9" 8" 7.5" 2" 12" 3" 10" 10" 9.5" 16.5" 29 406 184

2072

Included

365

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Storage & Material Handling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

• Maximumstoragecapacitywithminimumfloorspacerequirements.

• Four(4)individual15"d.x14-1/2"h.x60"w.(381x368x1524mm)storage

compartmentsoneachside.

• Reinforcedsteelshelvesweldedinplaceforaddedstrengthanddurability.

• Allshelvesfeaturelargefrontliptokeepsmallitemsfromrollingoff.

• Eachbi-foldsectionismountedonfourcastersforeasyopeningandclosing.

• Six(6)swivelandtwo(2)rigid6"(152mm)castersincludedforeasymobility

(Models503and603).

• Recommend#1and#5Masterlockpadlocksorequivalent.

5860

3448

Bi-Fold Cabinet

• Recessedandconcealedlockprotectorinhibitsforcedentryandcorrosiontolock.

• Flush-mounteddoorswithfinger-groovedoorhandles.

• Newangled3-1/2”highsupportskidsfeaturethrreadedholesfor

easycasterinstallation.

• Front-doorstorage.

• Hemmed(reinforced)high-strengthshelves.

• Large,lowerstorageareasforbiggeritems.

• Continuous,non-removablehingepinstopreventtheft.

• Angledhandlerecesstopreventpinchpoints.

• Patented,ergonomicallydesignedfold-downrecessedhandles.

• Weather-resistantdesign.

• Recommend#1and#5Masterlockpadlocksorequivalent.

Cabinet/Workbench

CAPACITY DIMENSIONS WEIGHT

CAT. NO. UPC NO. FT3 A B C D E F G H I LBS. kg

 5860 35068 60.4 58" 60" 30" 13" 13" 12" 1" 57" 14.5"  548  249

Optional casters available for

increased mobility.

See page 368 for options

CAPACITY DIMENSIONS WEIGHT

CAT. NO. UPC NO. FT3 A B C D E F G H I J K L LBS. kg

 3448 38720 22.5 34" 48" 24" 13.5" 20.5"17.5" 15" 12.5" 2" 14" 3" 17"201 91.2

Included

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

366

Storage & Material Handling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Field Office

8060 DLX

Door grooves provide

a gripping surface for

convenient opening.

Top door opens with a gas

spring and is supported by

a locking arm.

Tamper-proof lock

protectors (for upper

and lower doors).

Slanted work surface with

lockable, concealed

storage area.

CAPACITY DIMENSIONS WEIGHT

CAT. NO. UPC NO. FT3 A B C D E F G H I J K LBS. kg

 8060DLX 04719 116.5 80" 41.6" 55.6" 20.6" 26.8" 19.2" 60" 14" 15.5"24"42" 632 286

Optional casters available for

increased mobility.

See page 368 for options

• Slantedworksurfacewithlockable,concealedstoragearea.

• Concealedlockprotectorsprotectlocksfromdrillingandcutting.

• Weatherstrippingondoorstohelpprotectdocumentsandtools

fromtheelements.

• Lidwithheavy-dutygasspringandalockingarmforease

ofopeningandsafety.

• Shelvingthroughout,fororganizingandstoringjobsitetools

andsupplies.

• Groovedfrontdoorsforeaseofopeningandstoragecompartment

access.

• Patented,ergonomicallydesignedfold-downrecessedhandles.

• Continuous,non-removablepinhinges.

• Overlappingcorners,rollededges,andstrategicallyplaced

reinforcementsforaddedstrength.

• Recommend#1and#5Masterlockpadlocksorequivalent.

• Welded16-gaugesteelconstructionfordurability.

• Transportablewithforklift.

• Optionalcastersavailableforincreasedmobility.

(Tools sold seperately)

367

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Storage & Material Handling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

• Toughcompositionboardworksurfaceontopwithbuilt-inchainviseandtelescoping

wrenchstop.

• Removableself-storedshelfenablesstorageoflargeritems.

• Suppliedwithtwo(2)lockingswivelcastersandtwo(2)rigid

6"(152mm)castersforeasymobility(Model703).

• Recessedandconcealedlockprotectorinhibitsforcedentryandcorrosiontolock.

• Flush-mounteddoors.

• Finger-groovedoorhandles.

• Frontdoorstorage.

• Hemmed(reinforced)high-strengthshelves.

• Largelowerstorageareasforbiggeritems.

• Continuous,non-removablehingepinstopreventtheft.

• Angledhandlerecesstopreventpinchpoints.

• Patented,ergonomicallydesignedfold-downrecessedhandles.

• Recommend#1and#5Masterlockpadlocksorequivalent.

• Protectssmalltoolsandsupplies.

Singlelockhaspforusewithpadlock.

• Compactsidehandlesforeasyportability.

• Heavy-dutyhinges,pluschainconnector

toholdlidinopenposition.

• Recommend#1and#5Masterlockpadlocksorequivalent.

CAPACITY DIMENSIONS WEIGHT

CAT. NO. UPC NO. FT3 A B C D E F G H I J K L M LBS. kg

 3548 31229 23 30" 48" 24" 11" 20.5" 17.5" 15" 9.5" 2" 13" 3" 17" 27" 257 118

DIMENSIONS

CAPACITY HEIGHT WIDTH DEPTH WEIGHT

CAT. NO. UPC NO. FT3 LBS. kg

1230 31510 3.3 12" 30" 16" 48 21.8

1531 23274 4.5  15" 31" 18" 51 23.1

3548

1230

1531

Welder’s Boxes

Mobile Workbench

Included

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

368

Storage & Material Handling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

• Casterboltpattern2-7/8"x3-1/4".

• Polyolefin-injectedmoldedhardcasters:stain-resistant,

chemical-resistant,andnon-marking.

503/603

7-1/2"

696/697

5-5/8"

WHEEL

DIA. TREAD SHIP

CAT. UPC IN. IN. CAPACITY WEIGHT

NO. NO. DESCRIPTION (mm) (mm) LBS. kg LBS. kg

503* 28044 4Swivel 6 2 2000 907 22 10

   (152) (51)

603* 23405 2Rigid, 6 2

  2Swivel (152) (51) 2000 907 20 9

703† 08420 2Rigid, 6 2 2000 907 20 9

  2LockingSwivel (152) (51)

803† 08414 4LockingSwivel 6 2 2000 907 22 10

   (152) (51)

696* 15341 2Rigid, 4 2 1600 726 13 6

  2Swivel (102) (51)

697* 89189 4Swivel 4 2 1600 726 15 7

   (102) (51)



* Each caster set includes (16) 3/8-16 x 1" self-threading mounting screws.

† Each caster set includes (16) 3/8-16 x 1" carriage bolts; (16) 3/8-16 hex nuts; (16) 3/8 lockwashers.

CASTER SELECTION CHART

STORAGE CASTER

BOX CAT NO.

CAT. NO. 503 603 703 803 696 697

1332

✓ ✓   ✓ ✓

1636

✓ ✓   ✓ ✓

2142

✓ ✓   ✓ ✓

2448

✓ ✓   ✓ ✓

2460

✓ ✓   ✓ ✓

3048

✓ ✓   ✓ ✓

2472

✓ ✓   ✓ ✓

1230

1531

5060MESH

✓ ✓  

Included

 ✓

3360

✓ ✓   ✓ ✓

4848

✓ ✓   ✓ ✓

4860

✓ ✓   ✓ ✓

4872

✓ ✓   ✓ ✓

4872R

✓ ✓   ✓ ✓

2260

✓ ✓   ✓ ✓

3648

✓ ✓   ✓ ✓

3660

✓ ✓   ✓ ✓

3448

✓ ✓   ✓ ✓

2072

5660L

✓ ✓   ✓ ✓

5660LH

✓ ✓   ✓ ✓

5760

✓ ✓   ✓ ✓

5760TD

✓ ✓   ✓ ✓

5860 Included Included

3548

✓



✓

 Included

✓

8060DLX

✓



✓



 ✓ ✓

REPLACEMENT PARTS

CAT. NO. UPC NO. DESCRIPTION

06291 06291 BoxCasterBoltSet(16-BoltKit)

08426 08426 BoxCasterBoltSet16-BoltKit(3548,5860only)

27472 50017144 LidSupport–(L)Side

27471 50017187 LidSupport–(R)Side

08428 08428 10mmGasSpringBallStudReplacementKit

(allSlant/Flat-Tops)

53950 53950 GasSpringsfor2260

53904 53904 GasSpringsfor3360,4848and4860StorageBoxes

53951 53951 GasSpringsfor3648and3660

04339 04339 LatchRepairKit(5860)

54997 54997 Latch(5860)

54998 54998 Strike(5860)

55124 55124 LatchThreadedRod(5860)

08427 08427 13mmGasSpringBallStudReplacementKit(8060DLX)

55294 55294 ReplacementGasSpringKit–Shockand(2)Clips(8060DLX)

01886 01886 ReplacementGasSpringKitfor4872

Casters

Replacement Parts

Greenlee Green Spray Touch-up Paint

• CloselymatchesGreenleepaintedproducts.

WEIGHT

CAT. NO. UPC NO. DESCRIPTION LBS. kg

22618 22618 13oz.(384ml)AerosolCanofGreenlee 1.2 .5

  GreenSprayPaint

10378 10378 13oz.(384ml)AerosolCanofGreenlee 1.2 .5

  FlatGreenSprayPaint* 

NOTE: The color green is a registered trademark for Test Instruments, Job Boxes, Benders and Pulling Equipment.

*For Storage Boxes

369

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Storage & Material Handling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

WIRE AND CABLE HANDLING

Hand Caddy

• Holdsfour500'(152.4m)spoolsof#10AWG(7"dia.by6"–10"wide)

• Holdsuptoeight500'(152.4m)spoolsof#12AWG(7"dia.x5"wide)

• 3/8"(9.5mm)diametersolidsteelspoolsupportspindles.

• Spoolretainingwashersonspindles.

• Pinlessdesigneliminateslooseparts.

CAT. NO. UPC NO. DESCRIPTION

9502 08187 HandCaddy

SPECIFICATIONS

Size 10-1/2"(267mm)Hx13-1/2"(343mm)W

x21"(533mm)L

Capacity Eight500'(152.4m)spoolsof#12AWG;Four

500'(152.4m)spoolsof#10AWG

MaximumSpoolDiameter:9"(229mm)

MaximumSpoolWidth:10.5"(266mm)

Weight 4lbs.(1.8kg)

Data Cable Caddy

• Widthisidealforlargediameterspoolsofcoax,

dataandcommunicationscable.

• Especiallyhandyfor6"(152mm)wideandupto

19"(483mm)diameterspools.

• Foldsdownforeasystorage.

• Pinlessdesigneliminateslooseparts.

CAT. N O. UPC NO. DESCRIPTION

9520 01228 DataCableCaddy

SPECIFICATIONS

Size 21"(533mm)Lx28-1/2"(724mm)Wx11-1/2"(292mm)H

Capacity MaximumTotalSpoolWeight:100lbs.(45.4kg)

MaximumSpoolDiameter:19"(483mm)

MaximumSpoolWidth:24.88"(632mm)

Weight 11lbs.(5kg)

Folding Hand Caddy

• Holdsupto6spoolsof#10wire.

• Foldsdownto2-1/2"(63.5mm)foreasystorage.

• Pinlessdesigneliminateslooseparts.

CAT. NO. UPC NO. DESCRIPTION

9501 01202 FoldingHandCaddy

SPECIFICATIONS

Size 10"(254mm)Hx18-1/2"(470mm)W

Capacity Six500'(152.4m)spoolsof#10AWG

MaximumSpoolDiameter:7.5"(190mm)

MaximumSpoolDiameter(topspindle,withemptybottomspindle);

12.5"(317mm)

MaximumSpoolWidth:8.5"(215mm)

Weight 6lbs.(2.7kg)

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

370

Storage & Material Handling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Wire Reel Support Frame

•914consistsofoneframewith2wheelsonly;2ormore914’sanda

 spindlemadeof1"rigidconduitarerequiredtomakeareelsupportsetup.

•Easytosetup.Insertspindleinone914supportframe,tightenlocking

 screw,slidereelsonspindle,insertspindleinsecond914supportframe,

 tightenthumbscrewandyou’rereadytogo.

•Castersswivelandlockforeaseofuse.

CAT. N O. UPC NO. DESCRIPTION

914 26438 WireReelSupportFrame

SPECIFICATIONS

Size 17-1/2"(444mm)Wx14"(355mm)H

Capacity 1"RigidConduitforspindle;hold500'(152.4m)to2500'(762m)

spoolsupto18"(457mm)indiameter

Weight 8.4lbs.(3.8kg)

Deluxe Wire Caddy

• Allweldedsteelframe.

• 6wirespoolaxleswithspringcliplocks.

• Collapsiblewireguide.

• Swivelcastersetwithtwo(2)lockingcastersforeasyuse.

CAT. NO. UPC NO. DESCRIPTION

906 33026 WireCaddywithCastersandWireGuide

33405 33405 CasterSet(2swivel,2swivellock)

50303 50303 HitchClip

SPECIFICATIONS

Size 16"(406mm)Lx26"(660mm)Wx17-1/2"(444mm)H

Capacity Six500'(152.4m)spoolsupto8"(203mm)indiameterof#6

thru#10AWG

MaximumSpoolWidth:2x8.5"(215mm),4x12.13"(308mm)

Weight 10lbs.(4.5kg)

6-Spindle Wire Caddy

• Allsteelweldedframewith6reelspindlesandfeedingeye.

• Angledspindleskeepreelsinplacewithoutlocksandhelpbrake

thereelwhilepayingout.

• Mobile,two(2)fixedwheelsandone(1)thatswivelsandlocks,

alloweasymovementandcontrol.

• Fitsthrougha30"(762mm)doorway.

CAT. NO. UPC NO. DESCRIPTION

909 22875 WireDispenser

52284 52284 SwivelCaster(1)

52285 52285 Wheel(2)

SPECIFICATIONS

Size 39"(990mm)Lx30"(762mm)Wx31"(787mm)H.

Capacity Six2,500'(762m)spoolsupto18"(457mm)indiameter.

MaximumSpoolWidth:13"(330mm)

Weight 93lbs.(42.2kg)

(2 Shown)

371

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Storage & Material Handling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

6-Reel Caddy

• Spindlesleevestofacilitateeasierpay-outofwire.

• Holdsuptosix(6)2,500'(762m)spoolsof#14,#12,or#10AWGwire.

• Foldsforeasystorage.

• Two(2)fixedandtwo(2)lockingswivelcastersforeasyportability.

• Pinlessdesigneliminateslooseparts.



CAT. NO. UPC NO. DESCRIPTION

9517

01221

01220

01225

01221

01220

6-ReelCaddy

ReplacementCaster

ReplacementWheel

SPECIFICATIONS

Size 40-1/2"(1030mm)Hx33"(838mm)W

Capacity Six(6)2500'(762m)spoolsof#10AWGwire

MaximumTotalSpoolWeight:450lbs.(204kg)

MaximumSpoolDiameter:15"(380mm)

MaximumSpoolWidth:14.75"(375mm)

Weight 60lbs.(27.2kg)

10-Reel Caddy

• Spindlesleevestofacilitateeasierpay-outofwire.

• Holdsuptoten(10)2,500'(762m)spoolsof#10AWGwire.

• Foldsdownforeasystorage.

• Two(2)fixedandtwo(2)lockingswivelcastersforeasyportability.

• Pinlessdesigneliminateslooseparts.

CAT. NO. UPC NO. DESCRIPTION

9516

01221

01220

01222

01221

01220

10-ReelCaddy

ReplacementCaster

ReplacementWheel

SPECIFICATIONS

Size 51-1/2"(1308mm)Hx34-1/2"(876mm)W

Capacity MaximumTotalSpoolQuanity-Ten(10)2500'(762m)

spoolsof#10AWGwire

MaximumTotalSpoolWeight:750lbs.(340kg)

MaximumSpoolDiameter:15"(380mm)

MaximumSpoolWidth:14.63"(370mm)

Weight 98lbs.(44.5kg)

500' Wire Cart

• Holdsuptosixty(60)500'(152.4m)spoolsof#12AWGwire.

• Foldsforeasystorage.

• Two(2)largewheelsandtwo(2)swivelcastersforeasyportability.

• Pinlessdesigneliminateslooseparts.

CAT. N O. UPC NO. DESCRIPTION

9515

01221

01220

01218

01221

01220

Large500'SpoolCaddy

ReplacementCaster

ReplacementWheel

SPECIFICATIONS

Size 45-1/2"(1156mm)Hx34-1/2"(880mm)W

Capacity Sixty(60)500'(152.4m)spoolsof#12AWGwire

MaximumTotalSpoolWeight:600lbs.(272.2kg)

MaximumSpoolDiameter:7.5"(190mm)

MaximumSpoolWidth:14.75"(375mm)

Weight 92lbs.(42kg)

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

372

Storage & Material Handling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Deluxe A-Frame Wire Cart

• Holdsuptotwentyfor(24)spoolsof#12AWGwire

orsixteen(16)spoolsof#10AWGwire.

• Foldsforeasystorage.

• 10"(254mm)diameterpneumatictiresforjobsiteportability.

• Pinlessdesigneliminateslooseparts.

• Eight(8)solidsteel1/2"(12.7mm)spindlesincluded.

• OptionalBasketCaddyavailabletodispensemetal-cladcable

(seepage363).

CAT. NO. UPC NO. DESCRIPTION

9510 01214 DeluxeA-FrameMobileCaddy

9527 01264 CaddyBracketandBasket

01207 01207 Spindle(9505/9510)

SPECIFICATIONS

Size 47-7/8"(1216mm)Hx28-1/4"(718mm)W

Capacity MaximumTotalSpoolWeight:400lbs.(181kg)

MaximumSpoolDiameter:7.5"(190mm)

MaximumSpoolWidth:18"(457mm)

Weight 47lbs.(21.5kg)

Wire Dispenser

• Allweldedsteelconstruction.

• Includestwo(2)fixedandtwo(2)swivellockingheavy-dutycasters.

• Thespoolrackconsistsoften(10)spindlesandanadjustableguideloop,

andcanbeturned360°independentofthebase.

• Spindlesareangledtocontainreelsandactasabrakewhilepayingoutwire.

• Fitsthrougha36"(915mm)opening.

CAT. N O. UPC NO. DESCRIPTION

910 21982 WireDispenser

51488 51488 Caster(Rigid)

53259 53259 Caster(Swivel)

SPECIFICATIONS

Size 36-1/4"(921mm)Lx31-1/2"(800mm)Wx

59"(1499mm)H.

Capacity Ten(10)2500'(762m)spoolsupto

18"(457mm)indiameter.

MaximumSpoolWidth:14.18"(360mm)

Weight 213lbs.(96.6kg)

Hand Truck / Wire Cart

• Holdsuptotwelve(12)spoolsof#12AWGwireoreight(8)spools

of#10AWGwire.

• 10"(254mm)diameterpneumatictiresforjobsiteportability.

• Pinlessdesigneliminateslooseparts.

• Four(4)solidsteel1/2"(13mm)spindlesincluded.

• Laycartflatwhendispensingwire.Uprightforuseashandtruck.

CAT. NO. UPC NO. DESCRIPTION

9505 01205 HandTruckCaddy

01207 01207 Spindle(9505/9510)

SPECIFICATIONS

Size 46-5/8"(1180mm)Lx28-1/4"(71.8mm)W

Capacity MaximumTotalSpoolWeight:200lbs(90.7kg)

4000'(1219.2m)#10AWGwire

MaximumSpoolDiameter:7.5"(190mm)

DollyLift(Maximum):250lbs.(113.4kg)

MaximumSpoolWidth:18"(457mm)

Weight 32lbs.(14.5kg)

373

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Storage & Material Handling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Hand Truck / Wire Cart

• Heavy-dutywheelsfordurabilityandeasytransporting.

• Dualheavy-dutywireguidesfordispensingmultiplewiresinalldirections.

• Only23"(584mm)widetofitthroughnarrowdoorways.

• Comeswithfive5/8"(16mm)diameterreelspindlesforstoringand

dispensinguptofifteenspoolsof#14THHNwire.

• Storagespaceforthree(3)spindlesandclipseliminateslooseparts

whentheyarenotinuse.

• Expanderkitavailabletoincreasecapacityby60%.

CAT. NO. UPC NO. DESCRIPTION

38733 38733 HandTruckWireCart

10462 10462 ExpanderKit

50303 50303 HitchClip

38774 38774 Spindle(38733)

SPECIFICATIONS

Size 3873346"(1168mm)Hx23"(584mm)W×22-1/2"(571mm)D

1046241"(1041mm)Hx12-5/8"(321mm)W

Weight 3873358lbs.(26.3kg)

1046215.7lbs.(7.1kg)

38733

10462

WIRE CAPACITY CHART

NUMBER OF SPOOLS

38733 WITH MAXIMUM MAXIMUM TYPICAL

WIRE 10462 SPOOL SPOOL WIRE

CART EXPANDER DIAMETER WIDTH LENGTH

 15 24 7"(178mm) 5-3/8"(137mm) 500ft.(152m)

 10 16 7"(178mm) 8"   (203mm) 500ft.(152m)

 3 5 12"(305mm) 16-3/8"(416mm) 2,500ft.(762m)

 3 3 14"(356mm) 16-3/8"(416mm) 2,500ft.(762m)

 2 2 22"(559mm) 16-3/8"(416mm) 1,000ft.(305m)

Wire Cart

• Largecapacity,excellentforstoring,transportingorfeedingwire.

• Savespace,useandstoreverticallyorhorizontally.

• Five(5)strongreelaxleswithspringclipretainersplus

two(2)positionsforaxle

storageallowsyoutoconfigureforlargereelswithnolooseparts.

• Strong,yetlightweight,tubularsteelweldedconstructionwithrugged

8"(203mm)wheels.

• Built-inwireguideforhorizontaldispensing.

• Willpassthrougha28"(711mm)opening.

CAT. NO. UPC NO. DESCRIPTION

911 31518 WireCart

31523 31523 ReelShaftfor911WireCart

50303 50303 HitchClip

SPECIFICATIONS

Size 54-1/2"(1384mm)Lx27"(685mm)Wx26-1/2"(673mm)H

whenhorizontal

Capacity Six(6)2,500'(762m)spoolsupto16"(406mm)indiameter

Fifteen(15)500'(152.4m)spoolsupto8"(203mm)indiameter

Max.SpoolWeight:550lbs.

MaximumSpoolWidth:24"(610mm)

Weight 62lbs.(28.1kg)

38733

With 10462 Expander Kit

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

374

Storage & Material Handling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Cable Reel Transporter

• Allsteelweldedframewithheavy-dutywheels.

• Uniquedesignprovideseasysetupforcablepayout.

• Handlefoldstosavespacewhenusingasadispenser.

CAT. NO. UPC NO. DESCRIPTION

916 32935 CableReelTransporter

33035 33035 Spindlefor916Transporter

52466 52466 WheelKit(2)

SPECIFICATIONS

Size 63"(1600mm)Lx29-7/8"(759mm)Wx26-3/4"(679mm)H

whenhorizontal

Capacity ReelsofcableorBXupto20"(508mm)Wand40"(1016mm)

indiametermaximumtotalreelweight300lbs.(136kg)

Weight 110lbs.(49.9kg)

Conduit and Pipe Storage Rack

Pipe Cart

• 7individualbinsallowyoutosortbysizeandtype.

• Foldsdownforstorage.

• No.603Castersincluded.

CAT. NO. UPC NO. DESCRIPTION

668 15343 MobileConduitandPipeRackwith603casters

503 28044 6"(152.4mm)DiameterCasterSet,4Swivel

603 23405 6"(154.4mm)DiameterCasterSet,2Swiveland2Rigid

SPECIFICATIONS

Capacity 1000lbs.(454kg)

Dimensions 58-1/2"(1486mm)long×34"(864mm)wide×63-1/2"(1613mm)

high

Folded Down 58-1/2"(1486mm)long×34"(864mm)wide×19"(483mm)high

Weight 113lbs.(51.3kg)

• Easy,one-personoperationsavestimeandmoney.

• Movestandard20ft.(6.1m)lengthsofpipe.

• Large4.80"x8"(122mmx203mm)wheelswith4-plypneumatictires.

• Heavy-dutysteelconstructionforlongservicelife.

SPECIFICATIONS

Capacity 20"(508mm)Diameter−1000lbs.(454kg)

CAT. NO. UPC NO. DESCRIPTION

36745 36745 PipeCart

02182 02182 WheelReplacementKit(1)

916

375

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Storage & Material Handling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

BX-Armored Coiled Cable Dispenser

• Dispensearmoredcable,flexibleconduit,Greenfield®orNM-Bcable

fastandeasywithouttwistsortangles.

• Basewithadjustabletensioncontrolrotatestodispensethecable

withoutoverpulling.

• Largepullingeyerotatesfreelyandcanbeusedasacarryinghandle

whenthedispenserisempty.

CAT. N O. UPC NO. DESCRIPTION

37218 37218 ArmoredCableDispenser

SPECIFICATIONS

Size 13-1/2"(342.9mm)Hx26"(660.4mm)diameter

Capacity One250'(76.2m)coilof14/2,14/3,12/2,or12/3armored

cableorromex.

Weight 31lbs.(14.1kg)

Armored Coiled Cable Dispenser/Transporter

• Dispenseone(1)coilofarmoredcable,flexibleconduit,

Greenfield®orNM-Bcablefastandeasywithouttwistsortangles.

• Basewithadjustabletensioncontrolrotatestodispensethecable

withoutoverpulling.

• Largepullingeyerotatesfreely.

• Transportuptothreecoils.

CAT. NO. UPC NO. DESCRIPTION

37202 37202 ArmoredCableDispenser/Transporter

SPECIFICATIONS

Size 45"(1143mm)Hx28-1/2"(724mm)Wx29"(736mm)D

Capacity Dispense-One250'(76.2m)coilof14/2,14/3,12/2,or12/3

armoredcableorromex.

Transport-Three(3)Coils,maximumcapacity250lbs.(113kg).

Weight 45lbs.(20.4kg)

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

376

Storage & Material Handling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

SPECIFICATIONS

9525F 9527 9528

 Maximum Capacity 100lbs.(45.4kg)  Maximum Capacity 50lbs.(22.7kg)  Maximum Capacity 50lbs.(22.7kg)

 Weight 10.5lbs.(4.8kg)  Weight 10.5lbs.(4.8kg)  Weight 10.5lbs.(4.8kg)

 Size 29-1/2"(749mm)Hx20-3/4"  Size 15"(381mm)Hx18"(457mm)W  Size15.5(394mm)Hx19"(483mm)W

(527mm)W

9532 9533 9529/9529F

 Weight 5lbs.(2.3kg))  Weight 5lbs.(2.3kg)  Weight 5.5lbs.(2.5kg)

 Size 5-1/2"(394mm)Hx17-3/4"  Size 15-1/2"(394mm)Hx19"  Size 12-3/4"(324mm)Hx20-3/4"

 (451mm)W  (483mm)W      (527mm)W

Optional

9529F

9510

Wire Cart

sold separately

(see page 360)

9527

9525F

Fold for

easy storage

STUD MOUNT CADDY (9525F)

• Fitsboth2x4and2x6studs.

• DispensecoilsofNM-Borarmoredcable.

• Swiveleyeleteliminatestangles.

• Add9529Fbaskettodoublecapacity.

• Foldsforeasystorage.

MOBILE MOUNT CADDY (9527)

• Optionalcaddyfor9510DeluxeA-frameMobileCaddy.

• DispenseonecoilofNM-Borarmoredcable.

• Swiveleyeleteliminatestangles.

FLOOR MOUNT CADDY (9528)

• DispensecoilsofNM-Borarmoredcable.

• Swiveleyeleteliminatestangles.

• Widebaseforstableperformance.

Caddy Basket Cable Dispenser

CAT. NO. UPC NO. DESCRIPTION

 9525F 02070 FoldingStudMountCaddy

Consists of:

 9529F 02071 OptionalCaddyBasket

CAT. NO. UPC NO. DESCRIPTION

 9527 01264 CaddyBracketandBasket

Consists of:

 9532 01253 MobileMountBracket

 9529 01232 CaddyBasket

CAT. NO. UPC NO. DESCRIPTION

 9528 01265 FloorMountCaddyandBasket

Consists of:

 9533 01259 FloorMountBracket

 9529 01232 CaddyBasket

377

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Storage & Material Handling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

683

Screw-Type Reel Stands

• Wide,weldedsteelbaseforaddedstabilitywith5/8"holes.

• Rollerbearingsfitinthespindlegroovetokeepthespindleinplace

andturningfreely.

• Twostandsandaspindlearerequiredforacompletesetup.

CAT. NO. UPC NO. DESCRIPTION

683 15372 ReelStand22"-54"(558.8-1372mm)

687 17076 ReelStand13"-28"(330.2-711.2mm)

684 15375 Spindlefor683ReelStand

647 15321 Spindlefor687ReelStand

25591 25591 StopPin(683-2;687-1)

SPECIFICATIONS

Size 683-24"×21"(610×533mm)base;

54"(1372mm)maximumheight

687-15"×15"(381×381mm)base;

28"(711mm)maximumheight

Capacity 683-2,500lbs.(1134kg)each,

46"-96"(1168×2438mm)reeldiameter

687-2,500lbs.(1134kg)each,

28"-56"(711×1422mm)reeldiameter

Weight 683-42lbs.(19.0kg)

687-22lbs.(9.9kg)

Ratchet-Type Reel Stand

• Ratchetmechanismtoeasilyraiseorlowertheheight.

• Rollerbearingsfitinthespindlegroovetokeepthespindleinplace

andturningfreely.

• Twostandsandaspindlearerequiredforacompletesetup.

CAT. NO. UPC NO. DESCRIPTION

656 21979 RatchetReelStand28"-46-5/8"(711mm-1184mm)

657 21980 Spindlefor656ReelStand

30291 30291 HandlewithGrip

SPECIFICATIONS

Size 24-1/2"×23"(622mm×584mm)base;

46-5/8"(711mm-1184mm)maximumheight

Capacity 3,750lbs.(1701kg)each

58"-90"(1473mm-2286mm)reeldiameter

Weight 87lbs.(39.3kg)

Reel Stand Spindles

• Steelspindleswithgroovestofitreelstandrollers.

CAT. NO. UPC NO. DESCRIPTION

647 15321 Spindlefor687ReelStand

657 21980 Spindlefor656ReelStand(only)

684 15375 Spindlefor683ReelStand

SPECIFICATIONS

Size 647-2-3/8"diameterx62"(60.3x1575mm)

657-3-1/2"diameterx100"(89x2540mm)

684-2-3/8"diameterx76"(60.3x1930mm)

Capacity 647-5,000lbs.(2268kg)59"(1500mm)betweengrooves

657-7,500lbs.(2388kg)94"(2540mm)betweengrooves

684-5,000lbs.(2268kg)73"(1854mm)betweengrooves

Weight 647-42lbs.(19.06kg)

657-124lbs.(56.25kg)

684-50lbs.(22.68kg)

687

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

378

Storage & Material Handling

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Reel Rollers

• Heavy-dutyweldedsteelconstruction.

• Built-inloadingramps.

• Adjustabletovariousreelwidthsanddiameters.(21"dia.min.)

• Rollerlocksforunloading.

• Sideballrollersforcentering.

• Fast,convenientground-levelsetupforpayingoutlargecablereels.

CAT. NO. UPC NO. DESCRIPTION

39660 39660 ReelRoller,singleplatformroller

39661 39661 ReelRoller,single(tworequired)

39664 39664 SpreaderKit,two48"spreaderbars

39666 39666 ReelRollerKit,(includestwo39661rollersand

one39664spreaderkit)

SPECIFICATIONS

Size 39660-32"(813mm)L×34"(864mm)W,87lbs.(39kg)

39661-32"(813mm)L×11"(279mm)W,45lbs.(20kg)

39664-48"(1067mm)L,9lbs.(4kg)

39666-32"(813mm)L×48"(1219mm)W,99lbs.(45kg)

Capacity 39660-2,500lbs.(1134kg)30"(762mm)maxreelwidth

39661-2,000lbs.(902kg)perpair,42"(1067mm)maxreelwidth

39666-2,000lbs.(902.2kg)42"(1067mm)maxreelwidth

39660

39666

Hydraulic Pumps & Miscellaneous

The professional contractor looks to Greenlee for exceptional bolt cutters, hydraulic pumps,

accessories and a variety of rope. Each product is designed to make your job faster, safer

and easier – get the job done right with Greenlee. To choose the right tool for your job,

contact customer service or see your local Greenlee distributor.

Hydraulic Pumps & Miscellaneous

FEATURED Products

381 Hydraulic

Hose Units

Bolt Cutters

382

767 Hydraulic

Hand Pump

980 Electric

Hydraulic Pump

385

384

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

380

Hydraulic Pumps & Miscellaneous

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Heavy-Duty Bolt Cutters with Fiberglass Handles

• Uniquecamboltbladeadjustmentforeasycutteralignment.

• Forgedsteelbladesforlonglife.

• Clevis-mountedbladesforgreaterstrength.

• Customrubbergripsformaximumpower.

• Fiberglasshandlesaretoughandlightweight.

Cat. No. UPC No. DesCriPtioN

HDFBC18 11277 Heavy-DutyBoltCutterwithFiberglassHandles

18in.(457mm)Long

HDFBC24 11278 Heavy-DutyBoltCutterwithFiberglassHandles

24in.(610mm)Long

HDFBC30 11279 Heavy-DutyBoltCutterwithFiberglassHandles

30in.(762mm)Long

HDFBC36 11280 Heavy-DutyBoltCutterwithFiberglassHandles

36in.(914mm)Long

11367 11367 BladeUnitforHDFBC18

11342 11342 BladeUnitforHDFBC24

11344 11344 BladeUnitforHDFBC30

11346 11346 BladeUnitforHDFBC36

Heavy-Duty Bolt Cutters

• Uniquecamboltbladeadjustmentforeasycutteralignment.

• Forgedsteelbladesforlonglife.

• Clevis-mountedbladesforgreaterstrength.

• Customrubbergripsformaximumpower.

Cat. No. UPC No. DesCriPtioN

HDBC24 11273 Heavy-DutyBoltCutter-24in.(610mm)Long

HDBC30 11274 Heavy-DutyBoltCutter-30in.(762mm)Long

HDBC36 11275 Heavy-DutyBoltCutter-36in.(914mm)Long

HDBC42 11276 Heavy-DutyBoltCutter-42in.(1067mm)Long

11342 11342 BladeUnitforHDBC24

11344 11344 BladeUnitforHDBC30

11346 11346 BladeUnitforHDBC36

11348 11348 BladeUnitforHDBC42

sPeCiFiCatioNs

CaPaCity rb85* rC40*

HDFBC18 5/16"(7.9mm) 7/32"(5.6mm)

HDFBC24 3/8"(9.5mm) 9/32"(7.1mm)

HDFBC30 1/2"(12.7mm) 5/16"(7.9mm)

HDFBC36 5/8"(15.9mm) 11/32"(8.7mm)

*Indicates bolt hardness in Rockwell units

Weight

HDFBC18–3.4lbs.(1.5kg); HDFBC24–10.3lbs.(4.7kg)

HDFBC30–4.9lbs.(2kg); HDFBC36–7.6lbs.(3.4kg)

sPeCiFiCatioNs

CaPaCity rb85* rC40*

 HDBC24 3/8"(9.5mm) 9/32"(7.1mm)

 HDBC30 1/2"(12.7mm) 5/16"(7.9mm)

 HDBC36 5/8"(15.9mm) 11/32"(8.7mm)

 HDBC42 3/4"(19.1mm) 3/8"(9.5mm)

*Indicates bolt hardness in Rockwell units

Weight

HDBC24–5.8lbs.(2.6kg); HDBC30–8.9lbs.(4kg);

HDBC36–13.3lbs.(6kg);  HDBC42–19.8lbs.(9kg)

BOLT CUTTERS

381

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hydraulic Pumps & Miscellaneous

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Threaded Rod Cutter

• Onestrokecutsthroughthreadedrod.

• Cutsclean,eliminatingtheneedtogrindorfilebeforethreading

anutontocutend.

• Widebaseforstablecutting.Includesmountingholeforfastandeasy

permanentmountingtoworksurface.

• Strongforgedsteelcuttingheadwithtoolsteelcuttingdieforlonglife.

• Includes:ThreadedRodCutter,1/4"-20CuttingDieSet,

3/8"-16CuttingDieSet.

CAT. NO. UPC NO. DESCRIPTION

36587 36587 ThreadedRodCutter

37186 37186 1/4"-20CuttingDieSet

37187 37187 3/8"-16CuttingDieSet

SPECIFICATIONS

Capacity 1/4"-20softsteelrod(6.4mm);

3/8"-16softsteelrod(9.5mm)

Weight 14.1lbs.(6.4kg)

Bolt Cutters

• Uniquecamboltbladeadjustmentforeasycutteralignment.

• Forgedsteelbladesforlonglife.

• Clevis-mountedbladesforgreaterstrength.

• Customrubbergripsformaximumpower.

CAT. N O. UPC NO. DESCRIPTION

BC14 11267 StandardBoltCutter-14in.(356mm)Long

BC18 11268 StandardBoltCutter-18in.(457mm)Long

BC24 11269 StandardBoltCutter-24in.(610mm)Long

BC30 11270 StandardBoltCutter-30in.(762mm)Long

BC36 11271 StandardBoltCutter-36in.(914mm)Long

11281 11281 BladeUnitforBC14

11301 11301 BladeUnitforBC18

11306 11306 BladeUnitforBC24

11316 11316 BladeUnitforBC30

11321 11321 BladeUnitforBC36

SPECIFICATIONS

CAPACITY RB85* RC40*

 BC14 1/4"(6.4mm) 3/16"(4.8mm)

 BC18 5/16"(7.9mm) 1/4"(6.4mm)

 BC24 3/8"(9.5mm) 5/16"(7.9mm)

 BC30 1/2"(12.7mm) 11/32"(8.7mm)

 BC36 5/8"(15.9mm) 3/8"(9.5mm)



*Indicates bolt hardness in Rockwell units

WEIGHT

 BC14–2.4lbs.(1.1kg); BC18–3.4lbs.(1.5kg);

 BC24–5.8lbs.(2.6kg); BC30–8.9lbs.(4kg);

 BC36–13.3lbs.(6kg)

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

382

Hydraulic Pumps & Miscellaneous

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

High-Pressure Hydraulic Hand Pump

• Portableandpowerful,forusewithGreenleeBenders.

• Versatile,operatesinanyposition.

• Steelpumpbodyandhandlewithrubbergrip.

• Widebaseforstability.

• Mountingholesforpermanentpositioning.

• Includes3/8"(9.5mm)femalehydraulicconnectoranddustcap.

Hydraulic Hand Pump

• Lightweightandportable,forusewithGreenleePunchDrivers.

• Versatile,operatesinanyposition.

• Singlespeed.

• Ruggedsteelpumpbody/reservoirwithcastaluminumhandle.

• Hasmountingholesforeasy,permanentmounting.

SPECIFICATIONS

Operation Manual–Hand

Capacity 10,000psi(700bar),.161in³(26mm³)perstroke

Length 25-1/2"(648mm)

Width 7"(178mm)

Height 6"(152mm)

SPECIFICATIONS

Operation Manual–Hand

Capacity 6,500psi(448bar),.0823in³(13mm³)perstroke

Length 13"(330mm)

Width 4"(102mm)

Height 4"(102mm)

WEIGHT

CAT. NO. UPC NO. DESCRIPTION LBS. kg

 755 15677 High-PressureHydraulicHandPump 18 8.2

18272 18272 SealKit-Repair

WEIGHT

CAT. NO. UPC NO. DESCRIPTION LBS. kg

767 13284 HydraulicHandPump 6 2.7

04343 04343 SealKitRepairforSerialCodeABM

13800 13800 *SealKitRepairforSerialCode55D&Up

13801 13801 *SealKitRepairforSerialCode61BGthru67BG

30242 30242 *SealKitRepairforSerialCode68BGTOBG33181628

30242 30242 SealKitRepairforSerialCodeBG331816&Up

HYDRAULIC PUMPS

*NOTE: Must also purchase 30241 Follower

NOTE: See page 385 to select the proper hydraulic hose for this pump.

383

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hydraulic Pumps & Miscellaneous

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Hydraulic Foot Pump

• Freebothhandstopositionandholdtheworkingtool.

• Footactivatedreleaselever.

• Hold-downpinkeepspedaldownforstorageandtransport.

• Angledbasebarkeepsthepumpuprightandstable.

• Includes1/4"(6.4mm)femalecouplerwithdustcap.

Hand-Operated Hydraulic Pump

• Two-speedhydraulicpump.Idealforusewithremotecuttingand

crimpingtools.

• Compactandlightweight–easytomovearoundjobsites.

• Solidbasewithwidelegsprovidesforgoodstabilityduringoperation.

• Built-incarryinghandle.

• Large,easy-to-grasp,retractionwheel.

• Equippedwith3/8"femalescrew-typehydrauliccoupler.

Electric Hydraulic Pump

• Useableoilvolume:3quarts(2.8liters).

• ForusewithGreenlee2"capacitybenders.

• Automaticormanualram-returnselectorvalveprovidesmorecontrolfrom

thependantswitch.

• Moldedenclosureprotectspump,motorandcircuitryintoughworking

environments.

• Usewithsingle-hosehydraulicsystemswithspring-returnrams.

SPECIFICATIONS

Max output pressure 10,000psi(700bar)

Useable oil capacity 0.75quart(0.74liter)

1st stage oil volume (200 psi) 0.82cuin/stroke

2nd stage oil volume (10,000 psi) 0.16cuin/stroke

Length (including coupler) 25"(635mm)

Width 5-5/8"(143mm)

Height 5-1/2"(140mm)

SPECIFICATIONS

Operation 120VAC1/2HP(.375kW)

Capacity 10,000psi(700bar);250inch³(4L)perminuterapidadvance;

18inch³(.32L)perminuteatfullpressure

Length 12"(305mm)

Width 10"(254mm)

Height 15-1/2"(394mm)

SPECIFICATIONS

Operation Manual–Foot

Capacity 6,500psi(448bar),.117in³(19mm³)perstroke

Length 16"(406mm)

Height Pedaldown6"(152mm),Pedalup12"(305mm)

Width 8"(203mm)

WEIGHT

CAT. NO. UPC NO. DESCRIPTION LBS. kg

 1725 31353 HydraulicFootPump 11 5

24496 24496 SealKitw/RDSerialCode

25214 25214 SealKitw/RUSerialCode

33336 33336 SealKitw/VKSerialCode

WEIGHT

CAT. NO. UPC NO. DESCRIPTION LBS. kg

 7475H 07475 Hand-OperatedHydraulicPump 18 8.2

 07829 07829 SealKit

 WEIGHT

CAT. NO. UPC NO. DESCRIPTION LBS. kg

 975 33516 ElectricHydraulicPump 51 23

 34369 34369 SealKit

NOTE: See page 385 to select the proper hydraulic hose for this pump.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

384

Hydraulic Pumps & Miscellaneous

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Electric Hydraulic Pump

• Useableoilvolume:6-1/4quarts(5.9liters)

• ForusewithallGreenleebenders.

• Solidstatecontrolsforaddedreliability.

• Lowpressureforfastramadvance,automaticallychangestolowvolume

highpressure.

• Pendantcontrolforadvance,valveonpumpforrelease.

• Usewithsingle-hosehydraulicsystemswithspring-returnrams.

• Equippedwithfourswivelcasters.

• Castaluminumreservoirforlonglife.

Electric Hydraulic Pump

• Useableoilvolume:6quarts(5.7liters).

• ForusewithallGreenleebenders.

• Handypendantadvancecontrolon980and980-22PS.

The980-22FShasafoot-controlswitch.

• Lowvoltagependantcoupledtosolidstatemotorcontrolseliminates

contactarcingforgreaterreliabilityandlongerlife.

• Automaticormanualramreturnselectorvalveprovides

morecontrolfromthependantswitch.

• Moldedenclosureprotectspump,motorandcircuitry

intoughworkingenvironments.

• Usewithsingle-hosehydraulicsystemswithspring-returnrams.

SPECIFICATIONS

Operation 980–120VAC1-1/2Hp(1.12kW)

980-22PS–220VAC50Hz1-1/2Hp(1.12kW)

Capacity 10,000psi(700bar);250inch³(4L)perminuterapid

advance;54inch³(.9L)perminuteatfullpressure

Length 12"(305mm)

Width 12"(305mm)

Height 17-1/2"(445mm)

SPECIFICATIONS

Operation 120VAC1-1/2HP(1.12kW)

Capacity 10,000psi(700bar);300inch³(4.8L)perminuterapidadvance;

54inch³(.9L)perminuteatfullpressure

Length 12"(305mm)

Width 10-3/4"(223mm)

Height 22-5/16"(567mm)

WEIGHT

CAT. NO. UPC NO. DESCRIPTION LBS. kg

980 33515 ElectricHydraulicPumpwithPendant 71 32

980-22 36314 ElectricHydraulicPump 71 32

980-22PS 36313 ElectricHydraulicPumpwithPendantSwitch 71 32

980-22FS 36315 ElectricHydraulicPumpwithFootSwitch 71 32

34369 34369  SealKit

WEIGHT

CAT. NO. UPC NO. DESCRIPTION LBS. kg

 960SAPS 18297 ElectricHydraulicPump 92 42

 18416 18416 SealKit

Note: 980-22 is 220V pump only, no control switch

NOTE: See page 385 to select the proper hydraulic hose for this pump.

385

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hydraulic Pumps & Miscellaneous

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Hydraulic Hose Units

• HighpressurehydraulichoseunitsforusewithGreenleehydraulic

pumps.

• Equippedwithcouplersanddustcaps.

Hydraulic Hose Selection Guide

TOOL CAT. NO./DESCRIPTION TOOL COUPLER PUMP CAT. NO. HOSE CAT./UPC NO.

750CableCutter 1/4"FemaleCoupler 767 38316

750CableCutter 1/4"FemaleCoupler 1725 37729

750CableCutter 1/4"FemaleCoupler 975 17707

777Bender 3/8"FemaleCoupler 755,975,980or960SAPS 11289

782Bender 3/8"FemaleCoupler 755or975 11289

800CableBender 1/4"FemaleCoupler 1725 37729

880Bender 3/8"FemaleCoupler 755or975 11289

881Bender 3/8"FemaleCoupler 980or960SAPS 11289

882Bender 3/8"FemaleCoupler 755or975 11289

884Bender 3/8"FemaleCoupler 980or960SAPS 11289

885Bender 3/8"FemaleCoupler 980or960SAPS 11289

1731C-FramePunchDriver 1/4"FemaleCoupler 767 38316

1731C-FramePunchDriver 1/4"FemaleCoupler 1725 37729

1731C-FramePunchDriver 1/4"FemaleCoupler 755or975 11289

SDK202GLCableCutter 3/8"MaleCoupler 7475H,975or980 05850,05851,05852

RK06AT,RK06FT 3/8"MaleCoupler 7475H,975or980 05850,05851,05852

RK1230,RK1240,RK1240K 3/8"MaleCoupler 7475H,975or980 05850,05851,05852

RCCX 3/8"MaleCoupler 7475H,975or980 05850,05851,05852

RK1550 3/8"MaleCoupler 7475H,975or980 05850,05851,05852

COUPLER SET

HOSE UNIT CAT./UPC NO. CAT./UPC NO.

3548GB/

CAT. NO. UPC NO. DESCRIPTION 05850 05851 05852 11289 17707 37728 37729 38316 37614 20573

50386 50386 3'x1/4"(.9mx6.4mm)HydraulicHose        1

3687GB 50760 6'x3/8"(1.8mx9.5mm)HydraulicHose    1

51688 51688 6'x1/4"(1.8mx6.4mm)HydraulicHose      1

52515 52515 10'x1/4"(3mx6.4mm)HydraulicHose 1    1  1

48844 48844 10'x1/4"(3mx6.4mm)HydraulicHose  1

48845 48845 25'x1/4"(6.5mx6.4mm)HydraulicHose   1

54167 54167 1/4"(6.4mm)FemaleCouplerwithoutDustCap         1

54168 54168 1/4"(6.4mm)DustCapforFemaleCoupler         1

54169 54169 1/4"(6.4mm)MaleCouplerwithoutDustCap     1 1 2 1 1

54170 54170 1/4"(6.4mm)DustCapforMaleCoupler     1 1 2 1 1

4018GB 50807 3/8"(9.6mm)FemaleCouplerwithDustCap          1

4033GB 50823 3/8"(9.6mm)MaleCouplerwithDustCap    2 1     1

41877 41877 3/8"(9.6mm)FemaleCouplerwithoutDustCap 1 1 1

41941 41941 3/8"(9.6mm)MaleCouplerwithoutDustCap 1 1 1

41834 41834 3/8"(9.6mm)DustCapfor41941/41877Couplers 2 2 2

CAT. NO. UPC NO. DESCRIPTION

05850* 05850 10'X1/4"HoseWith(1)3/8"MaleCouplerand(1)3/8"FemaleCoupler

05851* 05851 10'X1/4"Non-ConductiveHosewith(1)3/8"MaleCouplerand

(1)3/8"FemaleCoupler

05852* 05852 25'X1/4"Non-ConductiveHosewith(1)3/8"MaleCouplerand

(1)3/8"FemaleCoupler

11289* 11289 6'X3/8"Hosewith(2)3/8"MaleCouplers

17707* 17707 10'X1/4"Hosewith(1)3/8"MaleCouplerand

(1)1/4"MaleCoupler

37728 37728 6'X1/4"Hosewith(1)1/4"MaleCouplerand

(1)1/4"NPTThread

37729* 37729 10'X1/4"Hosewith(2)1/4"MaleCouplers

38316 38316 3'X1/4"Hosewith(1)1/4"MaleCouplerand

(1)1/4"NPTSwivelThreadedFitting

06302 06302 3'X1/4"Hosewith(1)1/4"NPTMaleThreadedFitting

and(1)1/4"NPTSwivelThreadedFitting

* Filled with hydraulic oil.

ACCESSORIES

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

386

Hydraulic Pumps & Miscellaneous

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Greenlee Green Spray Touch-up Paint

• CloselymatchesGreenleepaintedproducts.

• Greenlee-approvedhydraulicoil.

• SpeciallycompoundedforusewithGreenleehydraulicequipment.

• Refinery-filteredtogiveyouthefinestoilavailable.

WEIGHT

CAT. NO. UPC NO. DESCRIPTION LBS. kg

22618 22618 13oz.(384ml)AerosolCanofGreenlee

  GreenSprayPaint 1.2 .5

10378 10378 13oz.(384ml)AerosolCanofGreenlee

  FlatGreenSprayPaint* 1.2 .5

WEIGHT

CAT. NO. UPC NO. DESCRIPTION LBS. kg

4016GB 51059 HydraulicOil–1Gallon(3.8l) 8.5 3.9

4017GB 50806 HydraulicOil–1Quart(.9l) 2.25 1.02

NOTE: For best operation of your Greenlee hydraulic-powered equipment, use Greenlee hydraulic oil only. (Do not use hydraulic brake

fluid, shock absorber fluid, alcohol, glycerine, caster oil or other non-specified fluid–as they reduce performance and can cause damage

to pumps and equipment.) Use of improper fluids waives the guarantee on Greenlee hydraulic equipment.

Hydraulic Oil

NOTE: The color green is a registered trademark for Test Instruments, Job Boxes, Benders and Pulling Equipment.

*Storage Box

387

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Hydraulic Pumps & Miscellaneous

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Polypro General Purpose Rope

• Not for cable pulling.Seetheropeslistedwithcablepullers

forrecommendedcablepullingropes.

• Highly-visible,brightyellowwithgreentracer,excellentforroping

offareasonconstructionsites.

• Rotandmildewresistant.

• Weatherresistant.

• Economicalgeneralpurposerope.

AVERAGE WEIGHT

ROPE LENGTH CAT. NO. UPC NO. BREAKING STRENGTH LBS. kg.

 250' 76m 408 21467 720lbs. 3.2kN 3 1.4

 600' 182m 409 21468 720lbs. 3.2kN 6 2.7

 250' 76m 412 21471 1130lbs. 5.0kN 4 1.8

 600' 182m 413 21472 1130lbs. 5.0kN 9 4.1

 1,000' 304m 414 21474 1130lbs. 5.0kN 13 5.9

 250' 76m 417 21477 2430lbs. 10.8kN 9 4.1

 600' 182m 418 21520 2430lbs. 10.8kN 19 8.6

 250' 76m 421 21480 3780lbs. 16.8kN 15 6.8

 600' 182m 422 21521 3780lbs. 16.8kN 35 15.9

 600' 182m 424 21524 5580lbs. 24.8kN 55 24.9



3/16"

(4.8 mm)

1/4"

(6.4 mm)

3/8"

(9.5 mm)

1/2"

(12.7 mm)

5/8"

(15.9 mm)

405 Rope Stand

sold separately.

See page 170.

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

388

Hydraulic Pumps & Miscellaneous

= REPLACEMENT PART = ACCESSORY

www.greenlee.com

Chain-Type Pipe Vise

• Usewithawiderangeofsizesofpipeorconduit.

• Built-inpiperest.

• Topreventmarringofplasticorplasticcoatedpipe,visejawscanbe

rotatedwithsmoothsideup.Useserratedsideforhardermaterials.

• Chaindesignholdspipesecurelytopreventitfromtwistingorturning

duringthreading.

CAT. NO. UPC NO. DESCRIPTION

467 27318 Chain-TypePipeVise

SPECIFICATIONS

Capacity 1/8"-5"(3.2mmx127mm)pipe

Weight 17lbs.(7.7kg)

SPECIFICATIONS

CAT. NO. SIZE WEIGHT

462-Q,463-Q 1Qt.(.9l) 2.3lbs.(1kg)

462-1,463-1 1Gal.(3.8l) 8.7lbs.(4kg)

Cutting/Threading Oil

• Premiumquality,highlubricityforeasiercuttingandlongtoollife.

• Choiceoflightordark.

CAT. NO. UPC NO. DESCRIPTION

462B 11412 DarkCutting/ThreadingOil-1Pt.

462-Q 28237 DarkCutting/ThreadingOil-1Qt.

462-1 26096 DarkCutting/ThreadingOil-1Gal

463-Q 28238 LightCutting/ThreadingOil-1Qt

463-1 28239 LightCutting/ThreadingOil-1Gal

Plumbing

Greenlee offers a full mix of plumbing and pipe-ﬁtting tools through their joint venture with Rothenberger,

a recognized global leader of tools and equipment to the plumbing industry. From sharp hand-held

PVC cutters like the ROCUT to powerful pipe threaders like the SUPERTRONIC 2000, Rothenberger

and Greenlee have teamed up to offer the best selection of tools for the job.

FEATURED Products

394

SUPERTRONIC 2SE/50R

Threading Machine

407

ROCUT 50TC

Professional PVC Shear

SUPER FIRE 3

Torch

412

410

Plumbing

ROCAM Drain

Inspection Camera

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

390

Plumbing

www.greenlee.com

CAT. NO. DESCRIPTION BENDING RADIUS LB

25001 ROBEND® 3000 Set 1/2", 5/8", 3/4",

7/8", 1 1/8"

30.0

25652R Bending Formers: 1/2" O.D. Copper 1.77” 5.0

25616 Bending Formers: 5/8" O.D. Copper 2.20” 5.0

25619 Bending Formers: 3/4" O.D. Copper 3.15” 5.0

25622 Bending Formers: 7/8" O.D. Copper 3.46” 6.0

25625 Bending Formers: 1" O.D. Copper 4.41” 5.0

25626 Bending Formers: 1 1/8" O.D. Copper 4.41” 6.0

25120 Bending spray 5.3oz (150 ml) 0.5

58182 Tripod 16.5

ROBEND® 3000

POWER BENDERS

Cold bending up to 180°, manually or automatically, of tubes made of:

– Soft, semi-hard, hard copper, DIN EN 1057, dia. 1/2” – 1-1/8”

(12 mm – 28 mm)

– Coated copper, precision steel, dia. 1/2” – 1-1/8” (12 mm – 28 mm)

– Soft, half-hard, hard precision steel, DIN 2391/2393/2394,

dia. 1/2” – 1-1/8” (12 mm – 28 mm)

– Threaded steel, DIN 2440/2441, dia. 1/2” – 1-1/8” (12 mm – 28 mm)

– Seamless stainless steel GW 541, wall thickness 0.04” – 0.05”

(1.0mm – 1.2mm), dia. 1/2” – 1-1/8” (12 mm – 28 mm)

– Coated steel tubes MPS-H heating type, DIN EN 2394, dia. 1/2” – 1-1/8”

(14 mm – 30 mm)

 

 

and wrinkles

 

 

fast batch production



refrigeration, climate control, and industrial systems. Eliminates purchase

and storage of fittings.

Set includes basic ROBEND® unit, guide shoe axle (25743), bending formers

and guide shoes for corresponding tube diameters, adapter for tri-pod base,

plastic case.

391

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Plumbing

www.greenlee.com

70905X

70614

• Convenient,lockableratchetdirectionreversal

• Secureholdwithlockingretainer-simpleinsertionand

removalofdieheads

• Slim,compactshapewithexcellentoverallsizefordifficultto

reachpositions

• Offsetleverprovideshighleverage

• FitsallROTHENBERGERhandandelectricthreaders

• PrecisionthreadcuttingtoapprovedstandardsofNPTdia.1/4”-2”

Cat. No. DesCriptioN lb

70903X SUPERCUTSet,1/2",3/4",1"NPT 9.3

70901X SUPERCUTSet,1/2",3/4",1",11/4"NPT 15.0

70905X SUPERCUTSet,1/2",3/4",1",11/4",

11/2",2"NPT 20.0

P70905C SUPERCUTSet,1/2",3/4",1",11/4",

11/2",2"NPTforplastic-coatedpipe 20.0

70840X RatchethandleNo.1 1/4"-11/4" 4.0

71272 RatchethandleNo.2 11/2"-2" 4.0

71273 DieHeadAdapterfordieheadsupto11/4" 2.0

65018 RONOL®CuttingFluid,6.7oz(200ml) 0.8

Sets include ratchet handle, die heads, plastic case

SUPER CUT Ratchet Threader

HAND THREADERS

SUPER CUT Deluxe Threading Kit

SetincludesSUPERCUTRatchetHandle(70840X),QuickChangedie

headsNPT(1/2"70912X,3/4"70913X,1"70914X),SUPER1-1/4"

Steelpipecutter(70040),WaterPumppliers10"(70522),14"Heavy

DutyPipeWrench(70153),Teflontape,plasticcase

Cat. No. DesCriptioN lb

70614 SUPERCUTDeluxeThreadingKit 21.0

SUPERTRONIC 1000 Portable Compact Threader

• FastandsteadyproductionthreadingofNPTdia.1/2”,3/4”,1”

• Electronicpush-buttonforward/reversecontrol

• Compactdimensionsandsmallheadforuseinhardtoreachareas

• Lightweight,easytohandle

• Durablefiberglass-reinforcedaluminummotorhousing

• Motor:34rpm,5axle

Cat. No. DesCriptioN lb

71351 SUPERTRONIC1000,1/2",3/4",1"NPT 9.4

65018 RONOL®CuttingFluid,6.7oz(200ml) 0.8

71279 ForgedPipeClamp,max.11/4" 3.5

PORTABLE POWER THREADERS

Cat. No. DesCriptioN beNDiNg raDius lb

25001 ROBEND®3000Set1/2",5/8",3/4",

7/8",11/8"

30.0

25652R BendingFormers:1/2"O.D.Copper 1.77” 5.0

25616 BendingFormers:5/8"O.D.Copper 2.20” 5.0

25619 BendingFormers:3/4"O.D.Copper 3.15” 5.0

25622 BendingFormers:7/8"O.D.Copper 3.46” 6.0

25625 BendingFormers:1"O.D.Copper 4.41” 5.0

25626 BendingFormers:11/8"O.D.Copper 4.41” 6.0

25120 Bendingspray5.3oz(150ml) 0.5

58182 Tripod 16.5

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

392

Plumbing

www.greenlee.com

CAT. NO. DESCRIPTION LB

71280 Clamp up to max. 2" 3.8

71279 Clamp up to max. 1 1/4" 3.5

71273 Monoblock adapter 2.0

71271  2.3

SUPERTRONIC 2000 Set 1/2" - 2"

 



Inserting the die heads Fits into tight spaces Gearing 

71021

SUPERTRONIC 2000 Economy Set 1/2" - 1-1/4"

 

Precision Die Heads, plastic case

 



 

 

low maintenance

 

shafts, each ball bearing mounted - High, consistent power



 

energy consumption

  

 

  

SUPERTRONIC 2000/ SUPERTRONIC 2000 Economy Power Threader

CAT. NO. DESCRIPTION LB

71021 

1 1/4" NPT 32.0

 

1 1/4", 1 1/2", 2" NPT 42.1

P71259C 

1/2", 3/4", 1", 1 1/4", 1 1/2", 2" NPT 42.1

56514  8.5

71259L

ACCESSORIES FOR HAND AND POWER THREADERS

Precision Die Heads And Dies

For SUPERTRONIC 1000, 2000, 2000 Ecomony and SUPER CUT

models.

threading, strengthened locking plate and precise die seating.

NPT FOR PLASTIC COATED PIPE, NPT SIZE LB

CAT. NO. CAT. NO.

70907X – 1/4" 1.3

70908X – 3/8" 1.3

70912X P70912C 1/2" 1.5

70913X P70913C 3/4" 1.5

70914X 970914C 1" 2.0

70915X P70915C 1 1/4" 2.3

70849X P70849C 1 1/2" 5.5

70850X P70850C 2" 6.0

NOTE: Die Head and Dies for sizes 1/4” - 1 1/4” are compatible

with the RIDGID® 111-R Die Head.

393

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Plumbing

www.greenlee.com

Precision Threading Dies

Gentle first cut, extreme long life, 4 pieces/pack.



ROTHENBERGER threading fluid!

CAT. NO. DESCRIPTION LB

70916X 1/4" NPT 0.3

70917X 3/8" NPT 0.3

70918X 1/2" NPT 0.3

70919X 3/4" NPT 0.3

70920X 1" NPT 0.3

70921X 1 1/4" NPT 0.3

70945X 1 1/2" NPT 0.3

70946X 2" NPT 0.4

POWER DRIVES

00077

13158 00117

MINI-COLLINS® PNEUMATIC MINI-COLLINS®

Threading Range:

  

  



geared threader 2-1/2" to 6" 2-1/2" to 6"

  

  

  

  

50-60 Hz (at 60-80 CFM) input

pressure

Switches:

  

(shuts off when released)

  

Dimensions:

  

  

MINI-COLLINS®/Pneumatic MINI COLLINS® Power Drive

MINI-COLLINS®

Puts power back into power threading — thread up to 2" pipe or

conduit, 1" bolt or rod, in seconds!

PNEUMATIC MINI-COLLINS®





00074

 





 

 



 

of safe, dependable operation

00078

 

petroleum and chemical plants, mines or tunnels

 



 

point of stall

CAT. NO. DESCRIPTION LB

00074 ® 27.0

00078 ® 29.0

13950 ® 27.0

00119 Steel carrying case 5.0

00077  5.0

13158  3.0

00110  3.5

00111  3.0

— 

00116R  3.0

00117 

(for geared threader) 4.5

00118  3.0

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

394

Plumbing

www.greenlee.com

COMPACT THREADING MACHINES

ROTHENBERGER’s portable 2” threading machines offer fast and steady,





effortless production of accurate, standard pipe and bolt threads. The optional

foldable, wheeled workbench makes transport easy, whether on site or in

the workshop.

SUPERTRONIC 2SE



that makes aligning replacement dies in the die head fast and easy. The



machine.

ROPOWER 50R





may be used in the 50R die head (56265), only ROTHENBERGER’s dies snap

into position.





lengths and fine thread depths

without recentering.

SUPERTRONIC 2SE/ROPOWER 50R

 

 

 

 -

stant oil flow

 

 



 

 

 

 

CAT. NO. DESCRIPTION LB

63004  2SE with automatic die head 1/2" - 2" NPT,

1/2” - 3/4” NPT dies (89101), 1” - 2” NPT dies (89102)

97.0

63005 

1/2"-2", 1/2” - 3/4” NPT dies (89101), 1” - 2” NPT dies (89102)

97.0

56051 Wheeled folding stand 70.0

56511 Mounting kit for  4.0

04510R Cutter Wheel 0.5

2SE DIE HEAD & DIE SELECTION CHART

DIE HEAD TYPE DIE HEAD SIZE NO. NPT DIE SIZE ALLOY NO.

     

1" - 2" 89102

Manual 1/4" - 3/8" 00121 1/4" - 3/8" 89100

1/2" - 2" 20162 1/2" - 3/4" 89101

1" - 2" 89102

50R DIE HEAD & RIDGID® COMPATIBLE DIE SELECTION CHART

DIE HEAD TYPE DIE HEAD SIZE NO. NPT DIE SIZE ALLOY NO. HIGH SPEED STEEL NO. STAINLESS STEEL

       

1" - 2" 89163 00126 00219

Manual 1/4" - 3/8" 00121 1/4" - 3/8" 56383

RIDGID is a registered trademark of Ridge Tool Co.

395

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Plumbing

www.greenlee.com



cutting and de-burring up to 4 inches. The powerful, 2-speed, 1-1/2 HP.



consistent production of accurate pipe threads either on site or in the shop.

The machine includes 2 automatic die heads, 3 sets of dies, safety foot

switch, and set of 4 legs.

SUPERTRONIC 1SE 1/2” to 1” Threading Machine

For threading up to 1", the 1SE machine is the perfect solution for cutting,

threading and deburring. With automatic die head and through-the-head

.

 

 

 

 

 

 

CAT. NO. DESCRIPTION LB

63002  1SE with automatic die head 1/2” - 1” NPT 42.0

04510R Cutter Wheel 0.10

1SE DIE HEAD & DIE SELECTION CHART

DIE HEAD TYPE DIE HEAD SIZE NO. NPT DIE SIZE ALLY NO.

     

1" 89121

Manual 1/4" - 3/8" 89109 1/4" - 3/8" 89119

SUPERTRONIC 4SE 1/2” to 4” Threading Machine

 

 



 

 

 



 

 

 

 

CAT. NO. DESCRIPTION LB

63006  4SE 1/2" - 4" NPT 232.0

52500  18.0

64350  18.0

89101  2.0

89102  2.0

59912 

2 1/2"-4" NPT

3.0

01922R  Thread Cutting Oil 1 gallon 8.0

10640  Pipe Stand for 1/2" - 8" pipe 25.0

56512  9.0

04510R Cutter wheel 0.5

E-239 Enclosed, wheeled cabinet 165.0

 Open wheeled stand (with tool tray) 56.0

E-239

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

396

Plumbing

www.greenlee.com



electrical contractors.

 

 

 

 



 

 

 

 

 

to 4", Bolt or rod 5/8" to 2 1/4"

 



RHINO® 1/2" to 4" Heavy Duty Threading Machine

CAT. NO. DESCRIPTION LB

00550 RHINO® Threading Machine with

2 1/2" - 4" automatic die heads

340.0

P00551C RHINO® Threading Machine with 2 1/2" - 4" automatic die



340.0

00561 RHINO® optional 1/2" - 2" package with 1/2" - 2" automatic

die heads and dies with 1/2" - 2" conical reamer

27.0

00097 Reamer 1/8" to 2" conical, 5-blade

reamer assembly 5.5

01894 1/8" to 2" reamer cone only 5.5

00107 2 1/2" - 4" twin-edged blade 5.0

00551 2 1/2" - 4" reamer assembly 5.0

00106 Cutter assembly 40.0

00104 Spare cutter wheel, 1 pack 1.0

00105 Spare cutter wheel, 3 pack 1.0

 Open wheel stand (with tool tray) 56.0

E-239 Threader storage cabinet with wheels 165.0

45004 Mounting kit for  14.0





 

 

powerful no-slip grip

 

 

6" maximum, Bolt 3/8" to 2"

 

 

05410

PANTHER® 300 1/8" to 4" Threading Machine

CAT. NO. DESCRIPTION LB

05470 ® 300 with Snap-O-Matic® Die Head and



248.0

05450 ®® Die Head and hand oiler

on Tri-Stand

198.0

05400 ®®

on Tri-Stand

215.0

05410 ® 300 with Snap-O-Matic® Die Head and



222.0

05100 ®

oiling, oil tray, stand, die head or dies) 105.0

05405 ® 105.0

05610  75.0

05600 RIDGID®

uses RIDGID® compatible dies 10.0

22140 Brackets for RIDGID® 4.0

45004 Mounting kit for  4.0

00028R Dies, 1" - 2" NPT 2.0

00031R Dies, 1/2" - 3/4" NPT 2.0

397

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Plumbing

www.greenlee.com

Nipple Chucks



threaded nipples. For 1/2" - 2" pipe, up to shedule 40. Faster and more

economical to use than nipple chuck adapter systems.

CAT. NO. DESCRIPTION LB

00088 



16.0

00089 For use with RHINO® 20.0

THREADING ACCESSORIES

RONOL® High-performance cutting oil

Special blend of sulfo-chlorinated mineral oil assures long die life



through-the-die-head oil flow makes it impossible to cut a dry thread.

6501365008

RONOL® and RONOL SYN®

 

Mineral-based threading oils may not be permissible in drinking water

installations – Please check the pertinent standards in your area.

RONOL® SYN High-performance cutting fluid

 

water and plumbing installations.

CAT. NO. DESCRIPTION LB

65018 ® Spray 6.8 oz (200 ml) 0.6

65008 ® Spray Can 20.3 oz (600 ml) 1.7

65013 ® SYN Spray Can 20.3 oz (600 ml) 1.7

ROCOOL® Cutting Oil

CAT. NO. DESCRIPTION LB

01922R ® Cutting Oil (1 gallon) 8.0

00001 ® Cutting Oil (six 1 gallon containers) 48.0

00002 ® Cutting Oil (5 gallons) 40.0

00003 ® Cutting Oil (55 gallons) 480.0

CAT. NO. DESCRIPTION LB

00550 RHINO® Threading Machine with

2 1/2" - 4" automatic die heads

340.0

P00551C RHINO® Threading Machine with 2 1/2" - 4" automatic die



340.0

00561 RHINO® optional 1/2" - 2" package with 1/2" - 2" automatic

die heads and dies with 1/2" - 2" conical reamer

27.0

00097 Reamer 1/8" to 2" conical, 5-blade

reamer assembly 5.5

01894 1/8" to 2" reamer cone only 5.5

00107 2 1/2" - 4" twin-edged blade 5.0

00551 2 1/2" - 4" reamer assembly 5.0

00106 Cutter assembly 40.0

00104 Spare cutter wheel, 1 pack 1.0

00105 Spare cutter wheel, 3 pack 1.0

 Open wheel stand (with tool tray) 56.0

E-239 Threader storage cabinet with wheels 165.0

45004 Mounting kit for  14.0

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

398

Plumbing

www.greenlee.com

 

 

 

 

external burr — so clean that no further finishing is needed before

applying fittings

 



 

 

 

FOR BENCH MOUNTING:

 

workbench surface

 



FOR FLOOR MOUNTING:

 

 

also using the Roller Bearing Support on support pipe

 

complicated system of support pipe and fittings.

  

  

 

Ball Transfer Head

10641

SUPERJACK Pipe Stands

CAT. NO. DESCRIPTION LB

10640  25.0

00101  29.0

10641  26.0

10642  30.0

Supports full lengths of pipe, 1/2"-8", when using pipe

threading machines

10640

PRODUCTION CUTTING MACHINES



1/4"- 4" pipe and 5/8"- 4 1/2" tubing. The lightweight

®

All models include a heavy-duty footswitch and one pipe cutter wheel.

C versions include two heavy-duty rollers and two stationary supports.

COLLINS E-Z CUTTER®

CAT. NO. DESCRIPTION LB

00032  121.0

00533  121.0

00033  125.0

00534  125.0

00034R 

stainless steel

1.0

00035R Copper tube cutter wheel 1.0

00535 Soil pipe cutter wheel 1.0

00536 Plastic pipe cutter wheel 1.0

00036R Stationary support 3.0

00037  40.0

00069 Roller bearing support 3.0

00071 Pipe support fitting 1.0

00079  8.0

02350  8.0

399

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Plumbing

www.greenlee.com

PRESS TOOLS

ROMAX® PRESSLINER

 

unintentionally opened

 



signals successful crimp.

 



 

interrupted any time ensuring maximum user safety

 

 

 



 

such as along baseboards and between pipes

 

 

 

 

 

 

 

 

 

 





perfectly suited for use on the construction site. For use with copper and



PEX tubing up to 1-1/4” in diameter.

15424

Press jaw fixture rotates 270°.

CAT. NO. DESCRIPTION LB

15424 

1 3/4", 2", 2 batteries, charger, carry case

58.5

15423 

charger, carry case

33.3

15940 

charger, carry case

33.3

15422  19.0

15410 Battery 1.5

15416 Battery Charger 1.2

61370  3.0

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

400

Plumbing

www.greenlee.com

ROMAX® AC ECO

unintentionally opened

 







interrupted any time ensuring maximum user safety

 

 



such as along baseboards and between pipes

 

 

 

 

 

 

 

 

 

 





construction site. For use with copper and brass press fittings up to 4”



diameter.

Press jaw fixture rotates 270°.

CAT. NO. DESCRIPTION LB

15721R 

1 1/4", 1 1/2", 2", carry case

55.9

15720  31.4

15945  31.4

15706  18.6

15720

401

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Plumbing

www.greenlee.com

Press Jaws

ROMAX® Compact

ROTHENBERGER press clamps are suitable for all press tools with a



32 to 34 kN.

NOTE: Press jaws are subject to wear like all tools and should be examined

periodically for damage. In order to ensure proper functionality of the

jaws, we recommend regular maintenance at the time of annual press tool

inspection, or every 10,000 crimps. If damage is evident, the press jaw

should not be used until it can be sent to your nearest authorized press tool

service center for inspection and any necessary repairs.

CAT. NO. DESCRIPTION LB

15222X  4.4

15223X  4.4

15224X  4.4

15225X  5.8

15226X  7.4

15227X  10.0

15251X  4.4

15252X  4.4

15253X  4.4

15254X  4.4

15255X  4.4

15256X  5.8

  4.4

 

 

 

 

 

 

 

completed, if needed.

 

 

crimp cycle

 

 

® Compact lightweight, battery-powered press tool weighs only

5.4 lbs. and connects 1/2”, 3/4” and 1” copper tubing or 3/8” - 1 1/4” PEX



tool while the other hand is free to hold and position the fitting. Its straight

design is like an extension of your arm that easily reaches into tight spaces.



tool is ready for the next press.

CAT. NO. DESCRIPTION LB

 ®

charger, carry case

16.0

15910 ®

batteries, charger, carry case

16.0

 ® Compact Press Tool, 2 batteries, charger, carry case 10.0

  4.4

  4.4

  4.4

15930  4.4

15931  4.4

15932  4.4

15933  4.4

15934  4.4

15935  5.4

 Battery, Compact 1.5

 Battery Charger, Compact 2.0

 Carry Case, Compact 4.0

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

402

Plumbing

www.greenlee.com



®







Grips hexagonal shapes Grips pipes Grips sheets Grips fittings

PLIERS & PIPE WRENCHES

ROGRIP® Self-Adjusting Multi-Purpose Pliers

ROLOCK®

CAT. NO. DESCRIPTION LB

70532 ® 9" 0.8

70533 ® 12" 1.0

CAT. NO. DESCRIPTION LB

70558 ROGRIP® 10" 1.0

70558D ROGRIP® Counter Display (6 pieces) 6.5

19236 ROGRIP® Clamshell Package 1.2

Water Pump Pliers

CAT. NO. DESCRIPTION LB

70521 7" (Max. O.D. 1") 0.5

70522 10" (Max. O.D. 1 1/4") 0.8

70523 12" (Max. O.D. 1 1/2") 1.1

70522D 10" Counter Display (12 pieces) 10.0





Heavy Duty Pipe Wrench



hook, fine-polished teeth set against turning direction, induction hardened,





 

 

CAT. NO. DESCRIPTION LB

70150 8" (Max. O.D. 1") 1.0

70151 10" (Max. O.D. 1 1/2") 2.0

70152 12" (Max. O.D. 2") 3.5

70153 14" (Max. O.D. 2") 4.5

70154 18" (Max. O.D. 2 1/2") 6.5

70155 24" (Max. O.D. 3") 10.5

70156 36" (Max. O.D. 5") 20.0

70157 48" (Max. O.D. 6") 37.0

403

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Plumbing

www.greenlee.com

Aluminum Pipe Wrench





 



 



CAT. NO. DESCRIPTION LB

70159 10" (Max. O.D. 1 1/2") 2.0

70160 14" (Max. O.D. 2") 3.0

70161 18" (Max. O.D. 2 1/2") 4.0

70162 24" (Max. O.D. 3") 6.0

70163 36" (Max. O.D. 5") 11.5

70164 48" (Max. O.D. 6") 20.0

P70159C 

(Max. O.D. 1 1/2")

2.0

P70160C 

(Max. O.D. 2")

3.0

P70161C 

(Max. O.D. 2 1/2")

4.0

P70162C 

(Max. O.D. 3")

6.0

Heavy Duty End Pipe Wrench





 

CAT. NO. DESCRIPTION LB

70166 10" (Max. O.D. 1 1/2") 1.7

70167 14" (Max. O.D. 2") 3.2

Aluminum Offset Pipe Wrench



 



CAT. NO. DESCRIPTION LB

70115 14" (Max. O.D. 2") 3.0

70116 18" (Max. O.D. 2 1/2") 4.0

Chain Pipe Wrench 4"

CAT. NO. DESCRIPTION LB

70235 12" (Max. O.D. 4") 2.0



and powerful chain made of tempered special steel.

 

Works in both directions without re-inserting

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

404

Plumbing

www.greenlee.com

Heavy Duty Chain Pipe Wrench

CAT. NO. DESCRIPTION LB

70243 27" (Max. O.D. 2 1/2") 6.0

70244 37" (Max. O.D. 4") 12.0

70245 44" (Max. O.D. 6") 25.0

70246 50" (Max. O.D. 8") 33.0

70247 63" (Max. O.D. 12") 62.0





 

 

left-handed motion

Cuts tubes made of:

 

 

 

TUBE CUTTERS

PRO 35 / PRO 42 Tube Cutter

CAT. NO. DESCRIPTION LB

70027 PRO 35 (O.D. 1/4" - 1 3/8") 1.0

70029 PRO 42 (O.D. 1/4" - 1 5/8") 1.2

70017D Cutter Wheel, 5 pack 0.3

21652B Deburring Blades, 10 pack 0.3

70027D PRO 35 Counter Display (10 pieces) 11.0

70029D PRO 42 Counter Display (10 pieces) 13.0

Tube cutter for copper tubes. Ergonomic design of body and knob

with seating surface for the hand during turning.

MINICUT 2000

MINI MAX

 

 

 

to reach places

CAT. NO. DESCRIPTION LB

70105  0.4

70017D Cutter Wheel, 5 pack 0.6

70105D  4.5

Tube cutter for copper tubes. Ergonomic design of body and knob

with seating surface for the hand during turning.

 

 

to reach places

CAT. NO. DESCRIPTION LB

70015  0.8

70017D Cutter Wheel, 5 pack 0.6

70015D  8.5

405

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Plumbing

www.greenlee.com

71019

Tube Cutter 30 / Tube Cutter 50

CAT. NO. DESCRIPTION LB

71019 Tube Cutter 30 (O.D. 1/8" - 1 1/8") 0.7

70065 Tube Cutter 50 (O.D. 1/2" - 2") 0.8

70017D Cutter Wheel, 5 pack 0.6

70056D Stainless Steel Cutter Wheel, 5 pack 0.6

Tube cutter for copper tubes.

 

within reach

 

Automatic Tube Cutter

CAT. NO. DESCRIPTION LB

70030  2.0

70017D Size 1 Cutter Wheel, 5 pack 0.3

70142  3.5

70143  4.0

70057D Spare cutter wheel sizes 2/3, 2 pack 0.1

21652B Spare deburring blade sizes 1/2/3, 10 pack 0.3

70030D  9.0

Ratchet telescopic cutter for copper, brass, aluminum, thin-walled steel, and

plastic coated tubes.

 



 



PIPESLICE

CAT. NO. DESCRIPTION LB

88807  0.6

88810  0.6

88808  0.6

88802  0.6

88814  1.0

88806 Spare cutter wheel for 1/2/3 0.1

88803 Spare cutter wheel for 4/5 0.1



the tube and turn.

 

 

 

 

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

406

Plumbing

www.greenlee.com

ROTRAC Tube Cutters

High precision tube cutter for copper tubes.

 



 

 

 

 

CAT. NO. DESCRIPTION LB

70010  1.0

70011  1.0

70007X Cutter Wheel, 10 pack 0.1

70020  1.0

70021  1.0

70012  1.0

70013  1.0

70018  1.0

90007 Cutter Wheel, stainless steel 0.1

 

 

 

 

Ideal for working in confined spaces such as parallel-running tubes

 

Steel Pipe Cutters

CAT. NO. DESCRIPTION LB

70040 1 1/4" Pipe Cutter (O.D. 1/8" - 1 1/4") 2.5

70046D Cutter Wheel, 1 1/4", 3 pack 0.5

70045 2" Pipe Cutter (O.D. 1/8" - 2") 5.5

70051D Cutter Wheel, 2", 3 pack 0.5

70054 Cutter Wheel for cast iron, 2" 0.3

P70045C 2" Pipe Cutter for Plastic Coated Pipe (O.D. 1/8" - 2") 5.5

70060 4" Pipe Cutter (O.D. 2" - 4") 17.0

70061D Cutter Wheel, 4", 2 pack 0.5

70066 Cutter Wheel for cast iron, 4" 0.1

P70060C 4" Pipe Cutter for Plastic Coated Pipe 17.0

Chain Tube Cutter



CAT. NO. DESCRIPTION LB

70285  1.3

70286 Cutter Wheel Chain 0.4

ROCUT® 26TC PEX Cutter

New direct cut action shear with a stainless steel blade for fast and accurate

cuts on PEX, PE, PP, and PB plastic pipe.

CAT. NO. DESCRIPTION LB

52005  0.8

52005D 26TC Counter Display (10 pieces) 9.0

70040

70020

70060

70010

407

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Plumbing

www.greenlee.com

ROCUT® 32TC PEX Cutter

New light and sturdy cutter for PEX, PE, PP, PB, and multi-layer pipe. Blade is



CAT. NO. DESCRIPTION LB

52040  1.6

52041 Replacement Blade 0.3

ROCUT® Professional PVC Shears



 

guided cutter feed

 

 

a button

 

 

 

CAT. NO. DESCRIPTION LB

52000 ® 1.0

52042 Replacement Blade, 42TC 0.3

52000D 42TC Counter Display (10 pieces) 10.5

52010R ® 1.4

52011 Replacement blade, 50TC 0.4

52015 ® 3.6

52016 Replacement blade, 75TC 0.5

11006X

11006R

52000

52010R

52015

70075

DEBURRING & REAMING TOOLS

Universal Internal/External Deburring Tools



cutting bit made of hardened special steel, smooth-running.

CAT. NO. DESCRIPTION LB

70075 For copper and stainless steel (O.D. 1/8" - 2") 0.4

11006X  0.3

11006R For copper and plastic (O.D. 1/8" - 1 3/8") 0.3

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

408

Plumbing

www.greenlee.com

21660

21655

21652

*HSS = High Speed Steel

Ratchet Pipe Reamer 1/4" - 2"



cutting bit made of tempered steel.

CAT. NO. DESCRIPTION LB

70289 Ratchet internal reamer (O.D. 1/4" - 2") 5.9

70296 Reamer blade 0.5

Deburring Tools



CAT. NO. DESCRIPTION LB

21660 Deburring tool with HSS deburing blade

(blade not replaceable)

0.1

21655 Deburring tool with deburing blade no. 1 0.2

21652B  0.2

INSTALLATION TOOLS

Strap and Fitting Wrench

 

Made of special aluminum alloy, with replaceable nylon strap.

CAT. NO. DESCRIPTION LB

70240 12" Strap Wrench (Max O.D. 3") 1.0

70241 12" Strap Wrench (Max O.D. 8") 1.3

EASYGRIP

 

 

of tube

 



CAT. NO. DESCRIPTION LB

55075  (3/4" - 6" O.D.) 2.2

409

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Plumbing

www.greenlee.com

VISES AND STANDS

Tri-Stand with 6" Chain Vise

 

 

 

 



 

difficult work

CAT. NO. DESCRIPTION LB

00076  68.0

Top Screw Cam Lock Vise









CAT. NO. DESCRIPTION LB

70713  8.4

70714  13.7

70715  20.5





Bench Yoke Vise

Foldable, with automatic closing hook, milled and hardened upper and lower



CAT. NO. DESCRIPTION LB

70710  10.0

70711  25.0

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

410

Plumbing

www.greenlee.com

Kit includes 1 can Quick Freeze spray (64001), 2 foam pipe jackets, 4 plastic ties

Quick Freeze is

sprayed into center

of foam wraps until

frost appears on

outside, indicating

pipe section is

frozen.

Repair is made

between 2 frozen

pipe sections.

 

 

 

 

 

FREEZE-PAK Instant Pipe Freezing Kit





plug in plumbing and heating systems that will last up to 30 minutes.

CAT. NO. DESCRIPTION LB

64004  1.7

64002  0.3

64001  1.4

PIPE FREEZING

SOLDERING AND BRAZING TORCHES

 

 

 

 

 

 

 

SUPER FIRE 3











CAT. NO. DESCRIPTION LB

35430R 





1.9

35431 

Swirl-flame burner

1.5

35455 Pin-point burner 0.2

35456 Standard burner 0.2

35457 Swirl-flame burner 0.2

35458 Hot-air burner 0.5

35459 Soft-flame burner 0.8

Burner Tips 35455 35456 35457 35458 35459

Flame type Pin-point Standard Swirl-flame Hot-air Soft

Tip diameter, in. (mm) 0.59" (15mm) 0.63" (16mm) 0.63" (16mm) 1.50" (38mm) 0.95" (24mm)

Soft soldering (750°F/400°C) max. pipe dia. 3/8" (10mm) 3/4" (18mm) 1 1/2" (40mm) — 7/8" (22mm)

Brazing (1320°F/720°C) max. pipe dia. — — 3/4" (18mm) — —

     

Foam sleeves

wrap pipe and

are fastened with

plastic ties.

411

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Plumbing

www.greenlee.com

 

Swirl-flame burner tip

Reliable Piezo ignition

  

 

Cuts 1/4" - 1-3/8" O.D. copper

Bearing designed for smooth action

Spare cutter wheel in handle

Retractable reamer

 

Cuts 1/4" - 1-1/8" O.D. copper

Compact design

Smooth actuation

Small working radius for confined spaces

 

 

 

 

 

SWEATBOX™ II



CAT. NO. DESCRIPTION LB

P20023  2.8

Torch Reflector

CAT. NO. DESCRIPTION LB

31043R Torch Reflector (Mounting Dia. 5/8" - 7/8") 0.2

Protects surrounding materials or walls when soldering pipes.





shaped Piezo switches are easy to ignite.

35016 35012 35014

ROTORCH 8

 

 

30090

ROTORCH 90

 

 

ROFIRE Swivel Torches

CAT. NO. DESCRIPTION LB

35016  1.0

35014  1.0

35012  1.0

ROTORCH Brass and Steel Torches

CAT. NO. DESCRIPTION LB

30090 ROTORCH 90 1.0

30008 ROTORCH 8 1.0

30008

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

412

Plumbing

www.greenlee.com

For soft and hard soldering.

 

 

 

 

POWER FIRE Brazing Torch

CAT. NO. DESCRIPTION LB

30811 POWER FIRE Torch 2.0

PIPE AND DRAIN INSPECTION SYSTEMS

ROCAM® Mobile Cordless Drain Inspection Camera

 

 

 

 

 

 

 

 

 

CAT. NO. DESCRIPTION LB

69420NT ® Mobile B/W 26.1

69435NT ® Mobile B/W with Transmitter and distance counter 36.0

69620NT ® Mobile color 27.6

69635NTF ® Mobile color with Transmitter and distance counter 36.0

69550 ® Battery 2.0

H88953 Power Supply, replacement 2.0

ROCAM® Cordless models listed below include 2 guide skids, electrical adapter, cable.

 

always charged

 

 

 

 

 

Easy to carry

 

COLOR:

 

BLACK & WHITE:

 

Reinforced push cable

Union nut with edge

protection

Optional distance counter

Scratch-resistant

sapphire lens

Optional distance counter

12.0 ft 7.6 ft

413

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Plumbing

www.greenlee.com

For pipes 3/4" - 6" diameter, the R600 is ideal for installation and

maintenance work in hospitals and municipal buildings.

 



 

Extremely light and sturdy

 

 

 

when working on toilets and inspection holes

 

 

 

165 ft. (50 m) with 5/8" cables

 

 

DRAIN CLEANING EQUIPMENT

R600 Drain Cleaning Machine

58182

CAT. NO. DESCRIPTION LB

  46.0

72676 R600 with accessories

Includes: 5 x cables 7/8" dia. (72441), cable basket (72112),



(72101), straight auger (72221), bulb auger (72263), spade

head cutter (72261), funnel auger (72222), serrated forked

cutter (72250)

105.0

72541 Guide Hose, 13 ft. 6.0

72638  2.0

58182 Tri-pod Stand, collapsible 16.5

72949 Cable Set, 7/8"

Includes: 6 x cables 7/8" dia. (72441), cable basket (72112)

5.0

72955 Cable and Tools Set for R600

Includes: 5 x cables 7/8" dia. (72441), cable basket (72112),



(72102), straight auger (72221), bulb auger (72263), funnel

auger (72222), spade head cutter (72261),



(72142), metal carry case.

53.0

72100  0.1

72101  0.1

Drive lever locked in stop position — serves

as carrying handle

Manual feed is done by means of a

working loop bend

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

414

Plumbing

www.greenlee.com

NOTES

415

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Authorized Service Centers

www.greenlee.com

ALABAMA

BIRMINGHAM

Alabama Jack Co.

1140 5th Ave. N 35203-1502

Telephone: 205-251-8156

DeWALT Factory Service

2412 Greensprings Hwy. 35209

Telephone: 205-942-0537

MOBILE

Bay City Tool & Repair Co.

4405 Halls Mill Rd., Ste. F4 36693

Telephone: 251-666-8406

ALASKA

FAIRBANKS

Aero Services, Inc.

1915 ADA St. 99706

Telephone: 907-479-6666

ARIZONA

PHOENIX

Arizona Armature Service

4641 S. 33rd St. 85040-2850

Telephone: 602-276-4434

Glendale Industrial Supply

2224 N. 23rd Ave. 85009

Telephone: 602-254-4666

Glenn’s Tool Service

2149 East Indian School Rd. 85016

Telephone: 602-264-6203

TUCSON

Glendale Industrial Supply

3232 E. 36th St. 85713

Telephone: 520-620-1000

Western Tool

702 South Campbell St. 85719-6515

Telephone: 520-884-0504

ARKANSAS

LITTLE ROCK

Clark Hydraulic Service

2901 Confederate Blvd. 72206-3300

Telephone: 501-375-1252

CALIFORNIA

ANAHEIM

Jack-X-Change

1609 N. Orangethorpe Way 92801

Telephone: 714-871-4966

Westside Building Material Corp.

1111 E. Howell Ave. 92805-6407

Telephone: 714-385-1644

BAKERSFIELD

Bakersﬁeld Tool Repair

210 Sumner St., Suite B 93305

Telephone: 661-327-2820

BUENA PARK

Titan Equipment Repair

7425 Orangethorpe Ave. #F 90621

Telephone: 714-739-2810

CORONA

We-Do Equipment Repair

299 E. Harrison 92879

Telephone: 951-808-9167

FALLBROOK

Mack’s Tool Repair

341 Industrial Way #A 92028

Telephone: 760-451-1078

GARDENA

B & G Industrial Rentals

1627 W. 130th St. 90249

Telephone: 310-327-0804

HAYWARD

California Service Tool

26250 F Corporate Ave. 94545-3900

Telephone: 510-782-1000

NATIONAL CITY

A-1 Hydraulic Service

2100 Roosevelt Ave. 91950-6538

Telephone: 619-474-8491

SAN DIEGO

Tool Depot

3799 Gaines St. 92110

Telephone: 619-220-7111

S. SAN FRANCISCO

C.H. Bull Co.

233 Utah Ave. 94080

Telephone: 650-871-8440

COLORADO

BRIGHTON

Quest

812 Baseline Pl. #4 80603

Telephone: 720-685-9091

DENVER

Aviation Industrial Supply

3900 Ulster St. 80207-1729

Telephone: 303-355-2391

Hydraulic Energy Products

6800 Stapleton Dr. South 80216

Telephone: 303-333-7442

CONNECTICUT

EAST HARTFORD

Jossam Tool

411 Burnham St. 06108

Telephone: 860-289-4064

NEW HAVEN

Colony Hardware Supply

15 Stiles St. 06512-1710

Telephone: 203-466-5252

FLORIDA

FT. LAUDERDALE

Broward Hydraulic Jack Service

3907 S.W. 12th Ct. 33312-3483

Telephone: 954-583-2504

JACKSONVILLE

B C Industrial Supply

10592 Balmoral Cr. E. 32218

Telephone: 904-355-1935

LAKE WORTH

Mike’s GIT-R-DONE Tool Repair

2202 7th Ave. N., Bay A 33461

Telephone: 561-588-7099

ORLANDO

Central Florida Hydraulics

333 S. Norton Ave. 32805-2422

Telephone: 407-422-4826

RIVIERA BEACH

Action Bolt and Tool Co.

2051 Blue Heron Blvd. West 33404

Telephone: 561-845-8800

TAMPA

Gator Repair

5128 Nebraska Ave. 33603-2364

Telephone: 813-234-8831

GEORGIA

ATLANTA

Power Tool Service Co.

1939 Hills Ave. NW 30318-2814

Telephone: 404-605-0101

HAWAII

HONOLULU

Air & Hydraulic Service

842 Ilaniwai St. 96813-5223

Telephone: 808-597-8051

IDAHO

BOISE

Twilann Hydraulics

95 W. 33rd St. 83714

Telephone: 208-344-4534

ILLINOIS

BERWYN

Jack’s Inc.

6642 W. 26th St. 60402-2698

Telephone: 708-788-4300

BROADVIEW

Chicago Jack Service

2000 S. 25th Ave. 60155

Telephone: 708-681-1800

DECATUR

S & K Air Power Tool and Supply

2202 N. 40th St. 62526-5519

Telephone: 217-424-8500

ELK GROVE VILLAGE

Brock Tool Co.

1475 Louis Ave. 60007-2393

Telephone: 800-332-7625

LOVES PARK

Moline Service Center

7308 Forest Hills Rd. 61111-3984

Telephone: 815-877-1777

USA Authorized Service Centers*

* List is accurate as of 4/08

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

416

Authorized Service Centers

www.greenlee.com

MATTOON

HD Supply

45-55 South Rte. 45 61938

Telephone: 217-235-0546

MC COOK

Recco Tool & Supply

8805 Joliet Rd. 60525-3218

Telephone: 708-442-7850

PEORIA

Midwest Hydra-Line

817 N.E. Adams 61603-3901

Telephone: 309-682-1380

SCHAUMBURG

All Power Tool

2130 Palmer Dr. 60173

Telephone: 847-301-4000

INDIANA

EVANSVILLE

Bailey Tools & Supply Co.

5716 E. Morgan Ave. 47715

Telephone: 812-475-1618

FORT WAYNE

Mill Supplies

5105 Industrial Rd. Door #1 46825

Telephone: 219-484-8566

INDIANAPOLIS

Anderson Brothers Tool Repair

3531 Southeastern Ave. 46203-1528

Telephone: 317-356-6381

Eskew Enterprises

1447 N. Harding St. 46202

Telephone: 317-264-9028

IOWA

DAVENPORT

The Tool Hospital

724 W. 2nd St. 52802

Telephone: 563-386-1533

DES MOINES

3E Service Center

1808 Delaware Ave. 50317-6341

Telephone: 515-266-8890

The Tool Hospital

1631 2nd Ave. 50314-3406

Telephone: 515-282-3323

IOWA CITY

The Tool Hospital

2003 S. Gilbert St. 52240-4373

Telephone: 319-339-0641

KENTUCKY

LEXINGTON

Bluegrass Tool Warehouse

1175 Brock McVey Dr. 40509-4116

Telephone: 859-252-1849

LOUISVILLE

Bailey Tools & Supply Co.

1338 S. Shelby St. 40217-1107

Telephone: 502-635-6348

LOUISIANA

BATON ROUGE

Unlimited Supply

17820 Sotile Dr. 70809

Telephone: 225-752-3660

The Tool Shed

7835 Tom Dr., Ste. A 70809

Telephone: 225-926-6500

NEW ORLEANS

Beerman Precision, Inc.

4206 Howard Ave. 70125-1327

Telephone: 504-207-6000

MARYLAND

ANNAPOLIS JUNCTION

Tools & Accessories

8975 Henkels Ln., Ste. 710 20701

Telephone: 410-735-8800

BALTIMORE

Brock Tool & Supply

1200 66th St. 21237-2541

Telephone: 410-483-4300

UPPER MARLBORO

Diamond Tool Co.

8051 Penn Randall Place 19146

Telephone: 301-967-2844

MASSACHUSETTS

MEDWAY

Marathon Tool Industrial Supply

106 D Main St. 02053

Telephone: 800-821-4927

NEWTON

NEFCO

281 Newtonville Ave. 02460

Telephone: 617-464-4100

WESTFIELD

Toomey Associates

1100 Russell Rd. 01086-0577

Telephone: 413-562-5192

WOBURN

New England Hydraulic Service

21-B 6th Rd. 01801-1757

Telephone: 781-932-8880

MICHIGAN

ANN ARBOR

McCally Tool & Supply

2445 S. Industrial Hwy. #1 48104

Telephone: 734-747-8332

JENISON

Grand Valley Hydraulics

6697 18th Ave. 49428

Telephone: 616-662-1992

KINGSFORD

IDG

1021 Pyle Dr. 49802

Telephone: 906-774-3991

LIVONIA

Brock Tool

31090 Industrial Rd. 48150-2033

Telephone: 734-261-9333

MIDLAND

Mid-Michigan Repair Service

680 Poseyville Rd. 48640

Telephone: 989-835-6014

WARREN

H & P Technologies

21251 Ryan Rd. 48091-4666

Telephone: 586-758-0100

MINNESOTA

MINNEAPOLIS

Hydraulic Jack & Equipment Service

2601 Aldrich Ave. S 55408-1308

Telephone: 612-872-7177

ST. PAUL

Total Tool Supply

315 N. Pierce St. 55104-5229

Telephone: 800-444-4899

MISSISSIPPI

JACKSON

Stuart C. Irby

815 S. State 39201-5806

Telephone: 601-969-1811

MISSOURI

CUBA

Hoyt’s Hydraulic

1019 Basham Hills Dr. 65453

Telephone: 573-885-3379

KANSAS CITY

Heath Sales & Service

518-20 E. 16th St. 64108-1543

Telephone: 816-421-3330

Shaw Supply Co.

1066 E. 16th St. 64108-1553

Telephone: 816-221-0060

ST. CHARLES

Tool Service Center

2431 Raymond Dr. 63301

Telephone: 636-940-2525

ST. LOUIS

Authorized Equipment Service

3200 Chouteau Ave. 63103-2993

Telephone: 314-772-8024

NEBRASKA

LINCOLN

The Tool House / Henkle & Joyce

800 Q St. 68508-1388

Telephone: 402-476-6673

The Tool Hospital

1720 Adams St. 68521-1823

Telephone: 402-435-2996

417

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Authorized Service Centers

www.greenlee.com

OMAHA

The Tool Hospital

9950 S 134th St. 68138-6199

Telephone: 402-592-5220

NEVADA

LAS VEGAS

Tool Service

3239 Industrial Rd. 89109-1140

Telephone: 702-734-9161

RENO

Titan Construction Supply

250 Edison Way 89502

Telephone: 775-351-2201

NEW JERSEY

EAST ORANGE

Von Rohr Equipment

2 New Main St. 07018-4238

Telephone: 973-673-6700

KEYPORT

Semcor Equipment & Mfg. Corp.

18 Madison St. 07735-1194

Telephone: 732-264-6080

NEWARK

Metro Hydraulic Jack

1271 McCarter Hwy. 07104-3711

Telephone: 973-350-0111

NEW MEXICO

ALBUQUERQUE

Power Tool & Saw

7136 Jefferson NE 87107-2006

Telephone: 505-856-2158

NEW YORK

AMHERST

Philipps Bros. Supply

2525 Kensington Ave. 14226-4999

Telephone: 716-839-4800

BROOKLYN

J & A Repair Shop

6206 20th Ave. 11204-3023

Telephone: 718-232-5746

BUFFALO

Buffalo Hydraulic Jack Service

488 Walden Ave. 14211-2498

Telephone: 716-893-6510

CHADWICKS

Mohawk Ltd.

1 Newell Lane 13319

Telephone: 315-737-7328

GARDEN CITY PARK

Eastern Industrial Equipment

2231 Jericho Tpke. 11040-4797

Telephone: 516-741-3198

HUNTINGTON STATION

A & T Power Tools

515 E Jericho Tpke. 11746-7311

Telephone: 631-271-2141

NEW YORK

T. P. Rental Service

417 W. 50th St. 10019-6527

Telephone: 212-713-1999

RENSSELAER

Albany Hydraulic & Lube Service

98 A Columbia Tpke. 12144-3412

Telephone: 518-462-5425

ROCHESTER

Hanes Supply Co.

10 Cairn St. 14611-2416

Telephone: 585-235-0160

SYRACUSE

Ace Hydraulic & Pneumatic

6720 V.I.P. Pkwy. 13211-7326

Telephone: 315-454-8989

Charles Haller Enterprises

4079 New Court Ave. 13206-1640

Telephone: 315-433-0011

WANTAGH

Ace Tool Repair

2201 Wantagh Ave. 11793-3917

Telephone: 516-783-8899

WOODSIDE

Bryant Tool & Supply

61-10 34th Ave. 11377-2228

Telephone: 718-672-1300

NORTH CAROLINA

BELMONT

IDG

2100 The Oakes Pkwy 28012

Telephone: 704-398-5600

OHIO

CINCINNATI

Contractors Choice

2070 Schappelle Lane 45240-2713

Telephone: 513-851-9070

CLEVELAND

A & A Hydraulic Repair

5301 W. 161st St. 44142

Telephone: 216-362-4000

Ohio Hydraulic Jack Service

1408 E. 25th St. 44114-2123

Telephone: 216-298-6900

COLUMBUS

J. J. Hammond Service

1037 McKinley Ave. 43222-1136

Telephone: 614-228-8448

ELIDA

Aircraft Dynamics

418 E. Kiracope Ave. 45807

Telephone: 419-331-0371

HARRISON

Brenco Inc.

7780 Willey Rd. 45030-9764

Telephone: 513-738-1808

F & M Mafco

9149 Dry Fork Rd. 45030-1901

Telephone: 513-367-2151

NORTHWOOD

A & C Tool & Equipment Repair

6949 Wales Rd., Suite #5 43619

Telephone: 419-662-6560

YOUNGSTOWN

Pennsylvania Tool Sales & Service

625 Bev Rd. 44512-6421

Telephone: 330-758-0845

OKLAHOMA

OKLAHOMA CITY

Whitton Supply

1419 W. Reno 73106

Telephone: 405-236-5561

TULSA

Mac’s Hydraulic Jack Service

10312 E. 52nd St. 74146-5809

Telephone: 918-627-5505

OREGON

BEAVERTON

Karn Repair Service, Inc.

1800 N.W. 169th Place, Suite D300 97006

Telephone: 503-690-9500

EUGENE

Les’s Hydraulic

2550 W. 5th Ave. 97402-2628

Telephone: 541-343-4041

PENNSYLVANIA

BETHLEHEM

Albarell Electric

1523 Easton Ave. 18017-5934

Telephone: 610-691-7030

MECHANICSBURG

Drivekore

101 Wesley Dr. 17055

Telephone: 717-697-8233

PHILADELPHIA

Auto Wheel and Rim

2731 E. Castor Ave. 19134-5593

Telephone: 215-288-9222

PITTSBURGH

CTS, Inc.

3500 Liberty Ave. 15201-1325

Telephone: 412-681-6673

RHODE ISLAND

WARWICK

Tri-Power Sales & Service

64 Minnesota Ave. 02888-6011

Telephone: 401-732-3390

SOUTH CAROLINA

CHARLESTON

Baldwin Brothers, Inc.

2132 Spruill Ave. 29405

Telephone: 843-744-6323

* List is accurate as of 4/08

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

418

Authorized Service Centers

www.greenlee.com

TENNESSEE

KNOXVILLE

Lubrication Equipment Service

2501 Mitchell St. 37917-6139

Telephone: 865-525-8401

MEMPHIS

Authorized Equipment Service

812 Polk Ave. 38126-4198

Telephone: 901-774-0850

NASHVILLE

DeWALT Factory Service

746 Fesslers Ln. 37210

Telephone: 615-242-1633

Reeves Power Tool Repair

108 Lafayette St. 37210-3435

Telephone: 615-256-8817

TEXAS

AUSTIN

Austin Tool

210 Industrial 78745

Telephone: 512-447-4905

CARROLLTON

FWB Rentals

1419 Hutton Dr. 75006

Telephone: 972-245-6017

DALLAS

Big D Tool Center

2535 Irving Blvd. 75207-5911

Telephone: 214-631-3731

Southwestern Jack Corp.

149 Yorktown St. 75208-2135

Telephone: 214-748-2844

FT. WORTH

FWB Rentals

920 Foch St. 76107

Telephone: 817-335-2895

HOUSTON

Hydraulic Equipment Service

1011 Rothwell St. 77002-1162

Telephone: 713-228-4073

J & T Tool Supply

5317 Inker 77007

Telephone: 713-880-8013

Tool Mart

2412 Texas Ave. 77003-3196

Telephone: 713-222-8665

LUBBOCK

Hydraulic Equipment Service

328 Buddy Holly Ave. 79401-1434

Telephone: 806-763-7621

SAN ANTONIO

Mueller Hydraulic & Tool Repair

515 N. Hackberry St. 78202-2222

Telephone: 210-224-5271

Tool Mart

10568 Sentinel 78217

Telephone: 210-655-6116

UTAH

MURRAY

Johnson Hydraulics

4370 S. 500 West 84123

Telephone: 801-972-0909

SALT LAKE CITY

Gustin Hydraulics

151 W. Commonwealth Ave. 84115

Telephone: 801-487-0624

VERMONT

ESSEX JUNCTION

Burlington Tool Repair

3 Kellogg Rd. 05452-2801

Telephone: 802-872-0051

VIRGINIA

ALEXANDRIA

D & S Repair Service

20 S. Dove St. 22314-4699

Telephone: 703-683-0009

RICHMOND

Staley Co.

1000 W. Roberts St. 23220

Telephone: 804-321-6595

SALEM

Capital Equipment Sales

1451 Lakeside Circle 24153-4144

Telephone: 540-387-0473

WASHINGTON

SEATTLE

Universal Repair Shop

1611 Boylston Ave. 98122-2217

Telephone: 206-322-2726

SPOKANE

Edge Construction Supply

1503 E. Riverside 99202

Telephone: 509-535-9841

WISCONSIN

CAMBRIDGE

C & M Hydraulic Tool Supply

203 Commerce Ave. 53523-9133

Telephone: 608-423-3507

GREEN BAY

Bay Verte Machinery Co.

975 Parkview Rd. 54304-5556

Telephone: 920-336-7440

NEENAH

Alferi Industrial Sales

346 Smith St. 54956-2435

Telephone: 920-722-6483

PEWAUKEE

Jensen Equipment Co.

N27 W23015 Roundy Dr. 53072

Telephone: 262-547-5548

PUERTO RICO

RIO PIEDRAS

Isla Supply Corp.

Carretera 181, KM. 1.8 00929

Telephone: 787-761-7355

SAN JUAN

Ferreteria Abraham

Calle 16 So. 1534 Caparra Terr. 00922

Telephone: 787-782-6033

419

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Authorized Service Centers

www.greenlee.com

Canada Authorized Service Centers*

ALBERTA

CALGARY

General Body & Equipment

3773 19th St. N.E. T2E 6S8

Telephone: 403-250-2115

EDMONTON

Celtic Industrial Supply

OK Power Tool

5736 103A St. T6H 2J5

Telephone: 780-431-0970

BRITISH COLUMBIA

VANCOUVER

Hymach Industries Ltd.

90 E 3rd Ave. V5T 1C3

Telephone: 604-879-5418

MANITOBA

WINNIPEG

Athena Small Equipment Repair

1125 Empress St. R3E 3H1

Telephone: 204-786-1900

ONTARIO

HAMILTON

Hydraulic Equipment Sales

495 Rennie L8H 3P6

Telephone: 905-545-8211

KITCHENER

The Tool Doctor Ltd.

30 Manitou Dr. N2C 1L3

Telephone: 519-748-4780

LONDON

AC Jenkins Electric Repair Ltd.

1188 Frances St. N5W 2M1

Telephone: 519-451-4020

MISSISSAUGA

All Trade Equipment

1145 Westport Cres. L5T 1E8

Telephone: 416-798-6600

SCARBOROUGH

The Tool Doctor Ltd.

70 Milner Ave. Unit 2 M1S 3P8

Telephone: 416-292-2290

THUNDER BAY

Equipment World Inc.

988 Alloy Dr. P7B 6A5

Telephone: 807-623-9561

QUEBEC

MONTREAL

Inolec, Inc.

100 Port-Royal St. East H3L 1H7

Telephone: 514-384-9021

QUEBEC

Service D’Outillage, Inc.

2410 Boul Central G1P 3N8

Telephone: 418-682-0560

SASKATCHEWAN

SASKATOON

Ted’s Power Tool Repair Ltd.

426 44th St. East S7K 0W1

Telephone: 306-934-6155

Test Instruments Only

ONTARIO

WOODBRIDGE

Cal - Lab Instrumentation Co.

4120 Steeles Ave. West, Unit 5 L4L 4V2

Telephone: 905-850-8826

QUEBEC

STE-ANNE-DE-BELLEVUE

ITM Instruments, Inc.

20800 Industriel Boulevard H9X 0A1

Telephone: 514-457-7280

* List is accurate as of 4/08

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

420

Index

www.greenlee.com

Alphabetical Product Index

Abrasion Shield.......................................... 87

AC Adapters for Battery-Powered Tools ..... 217

AC Clamp-on Meter ................................. 330

AC Open Jaw Clamp Meter ...................... 310

AC/DC Clamp-on Current Adapter ............ 332

Accessories For Hand And

Power Threaders ................................. 392

Accessories, Bending ............................... 125

Accessories, Cable Tray ............................ 169

Accessories, Clamp-On ............................ 332

Accessories, Crimping .............................. 216

Accessories, Hydraulic .............................. 385

Accessories, Multimeter ........................... 321

Accessories, PVC Bending ....................... 131

Accessories, Testing & Measurement ....... 351

Accessories, Threading ............................ 397

Accessories, Tugger .................................. 162

ACSR Cable Cutter .................................... 198

ACSR, Guy Strand & Steel Cutting ............. 195

AD-108 .................................................... 302

Adapter Cleaning Wands .......................... 280

AdapToner Kit .......................................... 254

AdapToner Modular Breakout

Tone Generator .................................... 249

Adjustable Cable Stripper ......................... 223

Adjustable Non-Contact Voltage Detector . 312

Adjustable Time-Delay Restart

Motor Protectors ................................. 347

Adjustable Wrench with Composite Handle 20

Adjustable Wrenches ................................. 20

Advanced Optical Power Meters .............. 293

Advanced Single-Mode Optical Loss

Test Set ............................................... 290

AE 22/120 ................................................ 227

AE 22/150 ................................................ 227

AE 22/185 ................................................ 227

AE2-10 .................................................... 302

AF2 .......................................................... 266

AF2 .......................................................... 340

AFI100 ..................................................... 358

AHP-10 .................................................... 302

Alarm Loop Verifier/Tone Generator.......... 251

Aluminum Offset Pipe Wrench ................. 403

Aluminum Pipe Wrench ............................ 403

AM-1000 .......................................... 357-358

AM-6 ................................................ 307, 321

AM-600 Series ........................................ 358

AM-600 ................................................... 357

AM-600T ................................................. 357

AMS-00 ................................................... 302

AMT-10 ................................................... 302

Analog Multimeter ................................... 321

Anchors And Fasteners ............................ 102

APC-108 .................................................. 302

Arbors with Replacement High-Speed

Steel Pilot Drill Bits................................ 94

Armored Coiled Cable Dispenser/

Transporter ................................... 359, 375

ASC-108 .................................................. 303

ASM-90 ................................................... 303

AT8 .......................................... 249, 261, 263

AT8K ........................................................ 254

AT8L ........................................................ 250

AT8LK ...................................................... 255

ATS-108 .................................................. 303

AU-250 .................................................... 302

Auger Bits .................................................. 80

Automatic Electrical Tester ....................... 311

Automatic Tube Cutter ............................. 405

Automatic Wire Stripper ....................... 9, 224

Averaging Digital Multimeter .................... 319

Bag, 18” Heavy-Duty Multi-Pocket ............. 32

Bag, 20” Electrician’s Canvas .................... 32

Ball-end Set............................................... 21

Band Saw Blades .................................... 101

Band Saws .............................................. 101

Bare Fiber Adapter ................................... 297

Basic Electrical Kit ................................... 342

Basket-Type Pulling Grip Sets ................... 179

Battery-Powered Knockout Punch

Driver Kits Parts List .............................. 59

BC14 ........................................................ 381

BC18 ........................................................ 381

BC24 ........................................................ 381

BC30 ........................................................ 381

BC36 ........................................................ 381

Bead Temperature Probe ......................... 349

Bench Yoke Vise....................................... 409

Bending ................................................... 109

Bending Degree Indicator ........................ 128

Bending Degree Protractor ....................... 127

Bending Handbook and Slide Rule

Bending Calculators ............................ 128

Bending Selection Guide .......................... 110

Bending Table ................................... 125-126

Bi-Fold Cabinet ......................................... 365

Bi-Metal Hole Saw Kits .............................. 95

Bi-Metal Hole Saws .............................. 92-93

Bi-Metal..................................................... 39

Bit Extensions ............................................ 81

BLL-200 ................................... 265, 338-339

BNC Coaxial Connectors .......................... 246

Bolt Cutters ...................................... 379, 381

Bottle Opener ............................................ 19

Breakaway Swivels ................................... 176

Breaker Finder ......................................... 335

Bubble Level .............................................. 30

Buried Line Locator ......................... 265, 339

Bushings for Metal Stud Punches .............. 77

BX-Armored Coiled Cable Dispenser ......... 375

C-Frame Punch Drivers, Portable ............... 68

C12CCX ............................................ 187, 219

C12CCX11 ................................................ 185

C12CCX22 ........................................ 185, 201

Cabinet Tip Screwdriver ............................. 12

Cabinet/Workbench .................................. 365

Cable Bending Tools ................................. 222

Cable Cutter ......................... 25-26, 193, 234

Cable Guide .............................................. 167

Cable Lubricant Quantity Chart ................. 172

Cable Preparation Instructions for

Set Screw Clamp-Type Pulling Grips .... 177

Cable Puller Floor Mount........................... 167

Cable Puller Set-Up .................................. 153

Cable Pulling ............................................ 149

Cable Pulling Lubricant Selection Guide .... 172

Cable Pulling Lubricants ........................... 172

Cable Reel Transporter .............................. 374

Cable Ripper ................................................ 9

Cable Splicer’s Knife ................................ 235

Cable Tray Rollers ..................................... 169

Cable TV Coax Termination and Test Kit ... 261

Cable TV Coax Termination Kit ................. 260

CableCaster® ............................................ 141

Cable-Cream® Cable Pulling Lubricant ...... 173

Cable-Gel® Cable Pulling Lubricant ........... 173

CableScout™ TV220TDR ......................... 276

CableScout™ TV90 ................................. 275

Cabling Pouch.......................................... 256

Caddy Basket Cable Dispenser ................. 376

Cam Track® Benders and

Shoe Groups ....................................... 121

Cam Track® Conduit Benders for

EMT, IMC and Rigid ............................. 120

Canvas Bag ............................................... 32

Canvas Work Apron, 2 Pocket .................... 35

Canvas Zipper Bag .................................... 35

Carbide-Grit Hole Saws.............................. 93

Carbide-Tipped Hole Cutters ...................... 89

Casters ..................................................... 368

Category 5 Data Termination and Test Kit 262

CATV Cable Stripper ................................. 237

CATV Cable Tone Test Kit ......................... 255

CATV/UTP Stripper ................................... 237

Caulking Anchors ..................................... 103

CCCX ........................................ 184, 187, 201

CCCX11 .................................................... 185

CCCX22 .................................................... 185

CCX Tool Accessories ................................ 186

CCX ................................... 184, 218, 220-221

Center Conductor Cutter .......................... 234

Ceramic Kevlar® Cutter ............................ 277

Certified Reference Cables....................... 306

C-FRAME Punches ..................................... 68

CH1 .................................................. 266, 340

CH2 ................................................. 266, 340

Chain Pipe Wrench 4” .............................. 403

Chain Tube Cutter .................................... 406

Chain-Type Pipe Vise ................................ 388

Chests ...............................................359-360

Circuit Tracing.......................................... 333

Circuit Verifying ....................................... 342

CJD3 ........................................................ 202

CJK........................................................... 202

CK06AT..................................................... 201

CK06AT11................................................. 209

CK06AT22................................................. 209

CK06FT..................................................... 201

CK06FT11................................................. 209

CK06FT22................................................. 209

CK123011 ................................................ 205

CK123012 ................................................ 201

CK123022 ................................................ 205

CK124011 ................................................ 205

CK124022 ................................................ 205

CK12ID ............................................. 201, 217

CK12ID11 ................................................. 211

CK12ID22 ................................................. 211

CK22GL ......................201, 217-218, 220-221

CK22GL11 ................................................ 203

CK22GL22 ................................................ 203

Clamp Meter, 600A AC ............................. 329

Clamp Meter, 600A AC True RMS ............. 329

Clamp Meter, 600A AC/DC ....................... 328

Clamp Meter, 600A AC/DC True RMS ....... 328

Clamp Meter, 1000A AC ........................... 327

Clamp Meter, 1000A AC True RMS ........... 327

Clamp Meter, 1000A AC/DC ..................... 326

Clamp Meter, 1000A AC/DC True RMS ...... 326

Clamp Meter, 2500A Industrial ................. 325

Clamp-On Adapter, 3000A ....................... 332

Clamp-On Current Adapter ..................... 332

Clamp-On Meter ...................................... 331

Clamp-On Meters .................................... 322

Classic 77 Series Tone Generators ........... 248

Classic Tone and Probe Kit ....................... 254

Clear Lube™ ........................................... 173

Clip-On Twisted Pair Kit ................... 239, 260

CLR-1 ....................................................... 173

CLR-5 ....................................................... 173

CLR-Q ....................................................... 173

CLS6011A ............................................ 58-59

CLS6011B ............................................ 58-59

CLS6022A ............................................ 58-59

CLS6022B ............................................ 58-59

CM-1000 Series ...................................... 358

CM-1100 ................................................. 358

CM-1200 ................................................. 358

CM-1300 ................................. 322, 327, 358

CM-1300-C ............................................. 327

CM-1350 ......................................... 322, 327

CM-1350-C ............................................. 327

CM-1500 ................................. 322, 326, 358

CM-1500-C ............................................. 326

CM-1550 ......................................... 322, 326

CM-1550-C ............................................. 326

CM-300 Series ........................................ 358

CM-330 ........................................... 323, 331

CM-400 ........................... 323, 331, 357, 358

CM-450 ................................................... 330

CM-600 Series ........................................ 358

CM-600 ........................................... 323, 330

CM-600-C ............................................... 330

CM-700 Series ........................................ 358

CM-800 Series ........................................ 358

CM-800 ........................................... 323, 329

CM-800-C ............................................... 329

CM-850 ........................................... 323, 329

CM-850-C ............................................... 329

CM-900 Series ........................................ 358

CM-900 ........................................... 323, 328

CM-900-C ............................................... 328

CM-950 ........................................... 323, 328

CM-950-C ............................................... 328

CMA-40 ........................................... 332, 358

CMA-60 ........................................... 332, 358

CMAF....................................................... 358

CMAF-3000 ............................................. 332

CMAF-3000-C ......................................... 332

CMGRT-100 ..................................... 322, 324

CMGRT-100-C ......................................... 324

CMI-100 .................................. 322, 325, 358

CMI-100-C............................................... 325

CMI-200 .................................. 322, 325, 358

CMI-200-C............................................... 325

CMP-200 ................................. 322, 324, 358

CMP-200-C ............................................. 324

CMT-60 ................................................... 358

CMT-80 ................... 309, 311, 323, 357, 358

CMT-90 ................................... 309, 311, 323

Coax Connector Insertion Tool .................. 238

Coax Stripper ........................................... 236

Coax/Twisted Pair LAN Termination

and Test Kit ........................................... 26

Coaxial Cable Tester ................................ 259

COLLINS E-Z Cutter® ............................... 398

Combination Drill/Tap Bits.......................... 78

Combination Ratcheting Wrenches ....... 22-23

Combination Tool ....................................... 10

Combination ................................................ 3

Communications And Underground

Power Cable Cutting ............................. 199

Compact Ratchet Cable Cutters ................ 192

Compact Threading Machines .................. 394

Composite Handle Adjustable Wrench ........ 20

Compression Crimping Tool ..................... 240

Conduit and Pipe Bit Sets .......................... 82

Conduit and Pipe Storage Rack................. 374

Conduit Pistons ......................................... 145

Conduit Reaming Screwdriver .................... 18

Connector Cleaning Systems ................... 280

Copper And Aluminum Cutting .................. 187

Copper Termination .................................. 234

CR25 ........................................................ 168

Crank Action Screwdriver .......................... 14

Crimping Die Carrying Case ...................... 216

Crimping Dies for 12-Ton Tools ................. 215

Crimping Dies for 4-Ton EK410 Tools ........ 213

Crimping Dies for 6-Ton Tools ................... 214

Crimping Dies ........................................... 213

421

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Index

www.greenlee.com

Crimping Tool, 15-Ton ............................... 207

Crimping Tool 8-1 AWG ............................. 207

Crimping Tool Capacities........................... 201

Crimping Tool Load Cell ............................ 216

Crimping Tool Test Meter .......................... 217

Crimping/Stripping Combination Tools .. 10-11

CRM-1 ...................................................... 173

CRM-5 ...................................................... 173

CRM-Q...................................................... 173

CS14 ............................................... 266, 340

CS15 ............................................... 266, 340

CS16 ............................................... 265, 339

CS19 ....................................................... 255

CS-2072 .................................................. 335

CS-2072K ................................................ 335

CS9 ......................................................... 255

CSG45GL .................................................. 195

CSG45GL11 .............................................. 196

CSG45GL22 .............................................. 196

CSG50GL .................................................. 187

CSG50GL11 .............................................. 189

CSG50GL22 .............................................. 189

CSI0 ........................................................ 259

CSJ-100 .......................................... 310, 358

Cutting/Threading Oil ................................ 388

“D” Punches .............................................. 70

D’VersiBIT® Starter Kit ............................... 85

D’VersiBIT® System ..............................84-85

D’versibits & Accessories ........................... 84

Data Cable Caddy ..................................... 369

Data Mate® Precision Tracing

Tone Generator .................................... 251

DBITKIT ..................................................... 85

Deburring & Reaming Tools ..................... 407

Deburring Tools.................................. 91, 408

Deluxe A-Frame Wire Cart......................... 372

Deluxe Carrying Case ....................... 354-356

Deluxe Electrical Test Lead Kit ................. 351

Deluxe Force Gauge .................................. 163

Deluxe Wire Caddy ................................... 370

Diagonal Cutting Pliers ................................ 5

Die Sets for Coaxial Connectors ............... 242

Die Sets for Insulated and

Non-Insulated Terminals ...................... 243

Die Sets for Modular Plugs ...................... 243

Die Sets for Open Barrel Contacts System 243

Dieless Crimping Tool to

1000 kcmil (MCM)................................ 212

Dieless Crimping Tool to

500 kcmil (MCM).................................. 211

Dieless Crimping ...................................... 209

Die-Type Crimping .................................... 202

Digital LAN Tracing Kit ............................. 255

Digital Light Meter ................................... 350

Digital Logging Meters ............................. 315

Digital Multimeters ........................... 316-317

Digital/Analog Megohmmeter ................... 345

Dipped Handle Adjustable Wrench ............. 20

DM-100 ................................................... 357

DM-110 ................................................... 357

DM-20 ............................. 314, 320, 342, 357

DM-200 Series ........................................ 358

DM-200 ........................... 314, 317, 357, 358

DM-200-C ............................................... 317

DM-210 ........................... 314, 317, 357, 358

DM-210-C ............................................... 317

DM-300 ........................................... 314, 319

DM-300-C ............................................... 319

DM-310 ................................... 314, 319, 357

DM-310-C ............................................... 319

DM-330 ................................... 314, 318, 357

DM-330-C ............................................... 318

DM-350 ................................... 314, 318, 357

DM-350-C ............................................... 318

DM-40 ..................................... 314, 320, 357

DM-50 ..................................................... 357

DM-500 ............................ 313, 317, 357-358

DM-500-C ............................................... 317

DM-510 ............................ 313, 317, 357-358

DM-510-C ............................................... 317

DM-55 ..................................................... 357

DM-60 ..................................... 314, 320, 357

DM-800 .................... 264, 313, 316, 357-358

DM-800-C ............................................... 316

DM-810 ............................ 313, 316, 357-358

DM-810-C ............................................... 316

DM-820 ............................ 313, 316, 357-358

DM-820-C ............................................... 316

DM-860 ............................ 313, 315, 357-358

DM-860-C ............................................... 315

DMF-100 ................................................. 357

DMF-150 ................................................. 357

DMF-200 ................................................. 357

DMF-250 ................................................. 357

DMF-300 ................................................. 357

DMF-350 ................................................. 357

DMF-400 ................................................. 357

DMF-450 ................................................. 357

DMF-500 ................................................. 357

DMF-550 ................................................. 357

DMF-600 ................................................. 357

DMF-650 ................................................. 357

DMF-700 ................................................. 357

DMF-750 ................................................. 357

DML ........................................................ 358

DML-430 .......................... 313, 315, 357-358

DML-430-C ............................................. 315

DML-54 ............................ 313, 315, 357-358

DML-54-C ............................................... 315

DMM Boot ............................................... 354

DMSC-2 ................................................... 321

DMSC-9 ................................................... 321

Double “D” Punches .................................. 70

Double-Braided Composite Rope for

High Force Cable Pullers ...................... 171

Drain Cleaning Equipment ....................... 413

Draw Studs For Knockouts......................... 72

Drill/Taps ................................................... 78

Drop Anchors ........................................... 103

DTAP1/4-20 ............................................... 78

DTAP3/8-16 ............................................... 78

DTAP5/16-18 ............................................. 78

DTAP10-24 ................................................ 78

DTAP10-32 ................................................ 78

DTAP12-24 ................................................ 78

DTAP6-32 .................................................. 78

DTAP8-32 .................................................. 78

DTAPKIT ..................................................... 78

DTAPKITM .................................................. 78

DTAPM10C ................................................ 78

DTAPM3C .................................................. 78

DTAPM4C .................................................. 78

DTAPM5C .................................................. 78

DTAPM6C .................................................. 78

DTAPM8C .................................................. 78

Dual NM Cable Ripper ................................. 9

Dual Wavelength Laser Source ................ 300

Dual Wavelength LED Source ................... 298

E12CCX & C12CCCX Tool Capacities ......... 184

E12CCX Battery-Powered

Cable Crimper ...................................... 183

E12CCX .................................................... 187

E12CCX11 ................................................ 185

E12CCX12 ........................................ 185, 201

E12CCX22 ................................................ 185

E-239 ............................................... 395-396

EAC120 .................................................... 217

EAC230 .................................................... 217

Easygrip .................................................. 408

ECCX ........................................ 184, 187, 201

ECCX11 .................................................... 185

ECCX12 .................................................... 185

ECCX22 .................................................... 185

EHS Guy Wire Cutter ................................. 197

EK06AT ..................................................... 201

EK06AT11 ................................................. 209

EK06AT12 ................................................. 209

EK06AT22 ................................................. 209

EK06ATC11 ............................................... 209

EK06ATC12 ............................................... 209

EK06ATC22 ............................................... 209

EK06FT ..................................................... 201

EK06FT11 ................................................. 209

EK06FT12 ................................................. 209

EK06FT22 ................................................. 209

EK121D Dieless Crimping Tools ................ 183

EK123011................................................. 204

EK123012......................................... 201, 204

EK123022......................................... 201, 204

EK1230C11 ...................................... 201, 204

EK1230C12 ...................................... 201, 204

EK1230C22 .............................................. 204

EK124011................................................. 204

EK124012......................................... 201, 204

EK124022................................................. 204

EK1240C11 .............................................. 204

EK1240C12 .............................................. 204

EK1240C22 .............................................. 204

EK1240K11 .............................................. 204

EK1240K12 .............................................. 204

EK1240K22 .............................................. 204

EK1240KC11 ............................................ 204

EK1240KC12 ............................................ 204

EK1240KC22 ............................................ 204

EK12ID ............................................. 201, 217

EK12ID11 ................................................. 211

EK12ID12 ................................................. 211

EK12ID22 ................................................. 211

EK21011.................................................. 241

EK21011................................................... 225

EK21012.................................................. 241

EK21012................................................... 225

EK21022.................................................. 241

EK21022................................................... 225

EK22GL ......................201, 217-218, 220-221

EK22GL11 ........................................ 201, 203

EK22GL12 ........................................ 201, 203

EK22GL22 ................................................ 203

EK410........................................201, 217-218

EK41011................................................... 202

EK41012................................................... 202

EK41022................................................... 202

EK628 Battery Powered

6-Ton Crimping Tool .............183, 201, 202,

.................................... 217- 218, 220-221

EK62811................................................... 202

EK628-D12 ............................................... 202

EK628-D22 ............................................... 202

EKST Battery Tool Stand ........................... 216

Electric & Battery-Powered

Knockout Kits ............................................ 57

Electric Conduit Bender for EMT,

IMC, Rigid Steel and Aluminum ........... 115

Electric Hydraulic Pump .............379, 383-384

Electric PVC Heater .................................. 130

Electrical Bending .................................... 114

Electrical Testers............................... 309-310

Electrician’s Bag, 20”................................. 32

Electrician’s Hammer ................................. 31

Electrician’s Scissors ............................... 235

Electrician’s Tool Kit ..............................37-38

Electrician’s Torpedo Level ......................... 30

Electronic Connector Panel Punches .......... 71

EML100 ................................................... 267

EMT Conduit Cutter.................................... 29

ES25 Battery-Powered ACSR Cutter .......... 195

ES25......................................................... 195

ES2511..................................................... 195

ES2522..................................................... 195

ES32......................................................... 187

ES32-11 ................................................... 188

ES32-12 ................................................... 188

ES32-22 ................................................... 188

ES750....................................................... 187

ES750-11 ................................................. 188

ES750-22 ................................................. 188

ES85-11 ................................................... 199

ES85-22 ................................................... 199

ESC85 ...................................................... 187

ESC8511 .................................................. 199

ESC8512 .................................................. 199

ESC8522 .................................................. 199

ESG45ES .................................................. 196

ESG45ESI ................................................. 196

ESG45GL .................................................. 195

ESG45GL11 .............................................. 196

ESG45GL12 .............................................. 196

ESG45GL22 .............................................. 196

ESG50GL .................................................. 187

ESG50GL11 .............................................. 189

ESG50GL12 .............................................. 189

ESG50GL22 .............................................. 189

ESP710-11 ................................................ 76

ESP710-12 ................................................ 76

ESP710-22 ................................................ 76

ETS12 Battery-Powered Bolt Cutter .......... 194

ETS12 ....................................................... 183

ETS1211 ................................................... 194

ETS1212 ................................................... 194

ETS1222 ................................................... 194

ETS811 ..................................................... 194

ETS812 ..................................................... 194

ETS822 ..................................................... 194

Extensions ................................................. 87

Extra-Large Alligator Clips ....................... 352

E-Z Bore® Bits ........................................... 82

555® Accessory Shoe Groups .................. 118

555® Classic Electric Conduit

Bender for Conduit and Pipe ............... 117

555® Deluxe Electric Conduit

Bender Conduit and Pipe ..................... 116

Fault Locators and Light Detectors .......... 296

FC-PC and MT-RJ Visual Fault Finders ..... 296

Feeding Sheaves ...................................... 166

Fiber Optic Buffer Stripper ....................... 278

Fiber Optic Carbide-Tipped Scribe ........... 277

Fiber Optic Consumables Kit .................... 280

Fiber Optic Co-Polymer Polishing Puck .... 279

Fiber Optic Cut and Strip Kit .................... 282

Fiber Optic Hand Tools Kit ........................ 281

Fiber Optic Inspection Microscope ........... 280

Fiber Optic Instrument Adapters........ 302-303

Fiber Optic Kevlar® Shears....................... 277

Fiber Optic Polishing Pad ......................... 280

Fiber Optic Power Meter .......................... 284

Fiber Optic Stainless Steel

Polishing Puck ..................................... 279

Fiber Optic Termination Kit ....................... 281

Fiber Testing Applications ........................ 305

Fiber-Gel™ Cable Pulling Lubricant ......... 174

Fiberglass Fish Tapes ................................ 136

fiberSAFE™ LAN Adapter Kit ................... 304

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

422

Index

www.greenlee.com

fiberSAFE™ USA/Canada

Telecom Adapter Kit ............................ 304

fiberSAFE™ Worldwide

Telecom Adapter Kit ............................ 304

fiberTOOLS™ Carrying Cases ................. 301

fiberTOOLS™ MT-RJ Optical Loss

Test Sets ............................................. 292

fiberTOOLS™ Multimode Optical Loss

Test Sets ............................................. 292

fiberTOOLS™ Single-Mode Optical Loss

Test Sets ............................................. 291

FIBR-1 ...................................................... 174

FIBR-5 ...................................................... 174

FIBR-Q ...................................................... 174

Field Office ............................................... 366

Filter Probe .............................................. 253

Fish Line ................................................... 146

Fish Poles ................................................. 140

Fish Stix® .................................................. 138

Fishing ...................................................... 133

Flat Telephone Cable Cutter/Stripper ........ 236

Flat-Steel Fish Tape .................................. 135

Flat-Top Boxes .................................. 359, 362

Flex Splitter® BX and Flexible

Conduit Cutter ................................. 29, 99

Flexible Conduit Cutters ............................. 99

Flexible Mandrel ....................................... 175

Flex-O-Twist® Flexible Steel Fish Tapes .... 135

Flex-O-Twist® Flexible Fish Tape Leader ... 137

Flip-Top® Benders and Shoe Groups ........ 119

Flip-Top® Benders for EMT,

IMC and Rigid...................................... 118

Folding Ball-end Hex Key Set, 9 Piece ....... 21

Folding Hand Caddy .................................. 369

Folding Hex Key Set, 9 Piece ..................... 21

Foot Switch for Cable Pullers .................... 163

FOTP-171A .............................................. 306

FP12 ......................................................... 140

FP18 ......................................................... 140

FP24 ......................................................... 140

FP3 ........................................................... 140

Freeze-Pak Instant Pipe Freezing Kit ........ 410

F-Style Coaxial Connectors System.......... 245

F-Style Connectors .................................. 245

Gas Lamp Tester ...................................... 350

Gator® ES32 Battery-Powered

Cable Cutter ......................................... 188

Gator® ES750 Battery-Powered

Cable Cutter ......................................... 188

Gator® ES85 Battery-Powered

Communications Cable Cutter .............. 199

Gator® ESC85 Battery-Powered

Cable Cutter ......................................... 199

Gator® ETS8 Cable Tray Cutter .................. 194

Gator® Plus 12-Ton Battery-Powered

Crimping Tools ..................................... 204

Gator® Plus 12-Ton Corded

Crimping Tools ..................................... 205

Gator® Plus 4-Ton Battery-Powered

Crimping Tool ....................................... 202

Gator® Plus 6-Ton Battery-Powered

and Corded Crimping Tools................... 203

Gator® Plus Battery-Powered

and Corded ACSR & Guy Wire Cutters .. 196

Gator® Plus Battery-Powered

and Corded Cable Cutters .................... 189

Gator® Plus Battery-Powered and

Corded Quad-Point Dieless

Crimping Tools ............................. 209, 211

Gator® Plus Battery-Powered

Knockout Punch Driver Kits ................... 57

Gator® Plus Corded

Knockout Punch Driver Kits ................... 58

Gator® Plus Terminal Crimping Tool... 225, 241

Gator® Pro ECCX Battery-Powered Tools ... 185

Ge MT-RJ Optical Power Meter ................ 294

GEL-1 ....................................................... 173

GEL-5 ....................................................... 173

GEL-Q ....................................................... 173

GFCI and Circuit Tester ............................ 343

Glo Stix® ................................................... 139

Gloves ....................................................... 35

Grabber with Alligator Tip......................... 352

Grabber with Hook Tip ............................. 352

Greenlee Authorized Service Centers ....... 415

Greenlee Crimping Tool Capacities ........... 201

Greenlee Green Spray Touch-up Paint ....... 386

Grips ......................................................... 177

Ground Resistance Tester ........................ 324

GS1 ................................................. 267, 341

GT-10 ...................................................... 342

GT-10GFI ................................................. 342

GT-11 ...................................... 309, 312, 342

GT-15 ............................................... 309,312

GT-16 Non-Contact

Low Voltage Detector .......... 307, 309, 312

GT-220 .................................................... 309

GT-540 ............................................. 309-310

GT-65 Voltage Tester ................................ 309

GT-95 Voltage Tester ................................ 309

Guy Wire Cutter Dies ................................. 198

H88953 ................................................... 412

Hack Saw, 12” Heavy Duty ................ 27, 100

Haines Cable Tray Rollers ......................... 170

Handheld Singlemode OTDR ............. 288-289

Hand Benders .......................................... 111

Hand Caddy .............................................. 369

Hand Crank Wire Puller ............................. 161

Hand Saws .............................................. 100

Hand Threaders ....................................... 391

Hand Tools .................................................... 3

Hand Truck / Wire Cart .......................372-373

Hand-Operated Hydraulic Pump ................ 383

HDBC24 .................................................... 380

HDBC30 .................................................... 380

HDBC36 .................................................... 380

HDBC42 .................................................... 380

HDFBC18 .................................................. 380

HDFBC24 .................................................. 380

HDFBC30 .................................................. 380

HDFBC36 .................................................. 380

HE.9055 .................................................... 76

Heavy Duty Chain Pipe Wrench ................ 404

Heavy Duty End Pipe Wrench ................... 403

Heavy Duty Pipe Wrench .......................... 402

Heavy-Duty 4 Pocket Leather Pouch .......... 34

Heavy-Duty 5 Pocket Leather Pouch .......... 33

Heavy-Duty 8 Pocket Leather Pouch .......... 33

Heavy-Duty Band Saw ............................. 101

Heavy-Duty Bolt Cutters with

Fiberglass Handles ............................... 380

Heavy-Duty Bolt Cutters............................ 380

Heavy-Duty Cabinet Tip Screwdriver .......... 12

Heavy-Duty Cable Cutters ......................... 193

Heavy-Duty Crank Action Screwdriver.......... 3

Heavy-Duty Hack Saw, 12” ........................ 27

Heavy-Duty Keystone Tip Screwdriver ....... 12

Heavy-Duty Leather Tool Belt ..................... 34

Heavy-Duty Manual Communications

Cable Cutter ......................................... 200

Heavy-Duty Nut Drivers ............................. 16

Heavy-Duty Phillips Tip Screwdriver...... 13-14

Heavy-Duty Ratchet Cable Cutters ............ 190

Hex Key Set ............................................... 21

Hickeys with Welded Handles ........... 110-111

High Dexterity Gloves ................................. 35

High Intensity InGaAs Optical

Power Meter ....................................... 295

High Leverage Side-Cutting Pliers................ 4

High Performance Communications

Cable Cutter ......................................... 200

High Performance Ratchet ACSR

Cable Cutter ......................................... 197

High Performance Ratchet Cable Cutters .. 191

High-Strength Kevlar®

Measuring/Pulling Tapes ........................ 147

High-Strength Polyester

Measuring/Pulling Tapes ...................... 147

High-Pressure Hydraulic Hand Pump ........ 382

High-Speed Installation Tool ..................... 107

HK06AT ............................................ 201, 210

HK06FT ............................................ 201, 210

HK1230 ............................................ 201, 205

HK1230C .................................................. 205

HK1240 ............................................ 201, 205

HK1240C .................................................. 205

HK520 ...............................................195-196

HKL1230 .................................................. 201

HKL1232 .................................................. 206

Hole Saws ................................................. 92

Holemaking ............................................... 39

Holemaking Selection Guide ...................... 40

Hook Sheaves ........................................... 164

Hook-Type Sheaves .................................. 164

HS1 ................................................. 267, 341

Hydraulic ACSR Cable Cutter ..................... 196

Hydraulic Bending.................................... 118

Hydraulic Cable Bender ............................ 222

Hydraulic Cable Cutters ............................ 190

Hydraulic Communications and

Underground Power Cable

Cutter Head .......................................... 199

Hydraulic Foot Pump ................................. 383

Hydraulic Hand Pump ....................... 379, 382

Hydraulic Hose Selection Guide ................ 385

Hydraulic Hose Units ......................... 379, 385

Hydraulic Knockout Kits ............................. 60

Hydraulic Oil ............................................. 386

Hydraulic Pumps....................................... 382

Hydraulic Pumps & Miscellaneous ........... 379

IC1................................................... 265, 339

Immersion Temperature Probe ................. 349

Indentor Crimping Tool .............................. 212

Inductive Amplifiers ................................. 252

Industrial 500 .......................................... 315

Industrial Clamp Meter ............................ 325

Industrial Test Lead Kit ............................ 351

InGaAs Optical Power Meter .................... 294

Inspector GFCI and Circuit Tester ............. 343

Installation Tools ...................................... 408

Insulated Nut Driver Set, 7 Piece ............... 25

Insulated Nut Driver ................................... 25

Insulated Screwdriver Set, 6 Piece............. 24

Insulated Screwdrivers .............................. 24

Insulated Test Leads ................................ 353

Insulated Twin Wire Ferrules ..................... 229

Insulated Wire Ferrules ......................228-229

Insulation Testing ..................................... 344

IPM-300 .................................................. 357

IPM-400 .................................................. 357

Irrigation Tool Kit ........................................ 38

Jig Saw Blades .......................................... 99

Journeyman’s Tool Kit ...........................36-37

Junior Basket-Type Pulling Grips .............. 179

K Basket-Type Pulling Grips ...................... 181

K05-1GL ................................................... 208

K05-1SPGL ....................................... 201, 208

K09-2GL ................................................... 208

K09-2SPGL ....................................... 201, 208

K09-3GL ........................................... 201, 208

K111 ................................................ 201, 207

K1GL .................................................227-230

K2-1BGL ................................................... 225

K22S1GL .......................................... 202, 214

K28GL .......................................227-229, 231

K29GL .......................................227-228, 231

K30GL .......................................227-229, 231

K32GL .......................................227-229, 230

K34GL .......................................227-228, 230

K36GL ...............................................227-230

K425BG .................................... 201, 208, 218

K425K58 .................................................. 208

K425KO .................................................... 208

K425O ...................................... 201, 208, 218

KA12-1 ..................................................... 215

KA12-1/0 .......................................... 215, 220

KA12-2 ............................................. 215, 220

KA12-2/0 .......................................... 215, 220

KA12-250 ......................................... 215, 220

KA12-3/0 .......................................... 215, 220

KA12-300 ......................................... 215, 220

KA12-350 ......................................... 215, 220

KA12-4 ............................................. 215, 220

KA12-4/0 .......................................... 215, 220

KA12-400 ......................................... 215, 220

KA12-500 ......................................... 215, 220

KA12-6 ............................................. 215, 220

KA12-600 ......................................... 215, 220

KA12-750 ......................................... 215, 220

KA12-8 ............................................. 215, 220

KA22 ........................................................ 218

KA22-1 ............................................. 214, 220

KA22-1/0 .......................................... 214, 220

KA22-2 ............................................. 214, 220

KA22-2/0 .......................................... 214, 220

KA22-250 ......................................... 214, 220

KA22-3/0 .......................................... 214, 220

KA22-300 ......................................... 214, 220

KA22-350 ......................................... 214, 220

KA22-4 ............................................. 214, 220

KA22-4/0 .......................................... 214, 220

KA22-6 ............................................. 214, 220

KA22-8 ............................................. 214, 220

KA4 .......................................................... 218

KA4-1 ....................................................... 213

KA4-1/0 .................................................... 213

KA4-2 ....................................................... 213

KA4-2/0 .................................................... 213

KA4-4 ....................................................... 213

KA4-6 ....................................................... 213

KA4-8 ....................................................... 213

KA4AL ...................................................... 213

KC12 ........................................................ 218

KC12-1 ............................................. 215, 219

KC12-1/0 .......................................... 215, 219

KC12-2 ............................................. 215, 219

KC12-2/0 .......................................... 215, 219

KC12-250 ......................................... 215, 219

KC12-3/0 .......................................... 215, 219

KC12-300 ................................................. 219

KC12-350 ......................................... 215, 219

KC12-4 ............................................. 215, 219

KC12-4/0 .......................................... 215, 219

KC12-400 ......................................... 215, 219

KC12-500 ......................................... 215, 219

KC12-6 ............................................. 215, 219

KC12-600 ......................................... 215, 219

KC12-750 ......................................... 215, 219

KC12-8 ............................................. 215, 219

423

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Index

www.greenlee.com

KC22 ........................................................ 218

KC22-1 ............................................. 214, 218

KC22-1/0 .......................................... 214, 218

KC22-2 ............................................. 214, 218

KC22-2/0 .......................................... 214, 218

KC22-250 ......................................... 214, 218

KC22-3/0 .......................................... 214, 218

KC22-300 ......................................... 214, 218

KC22-350 ......................................... 214, 218

KC22-4 ............................................. 214, 218

KC22-4/0 .......................................... 214, 218

KC22-400 ......................................... 214, 218

KC22-500 ......................................... 214, 218

KC22-6 ............................................. 214, 218

KC22-600 ................................................. 218

KC22-600B ............................................... 214

KC22-8 ............................................. 214, 218

KC4 .......................................................... 218

KC4CU ...................................................... 213

KD06AL .................................................... 202

KD06AL .................................................... 214

KD12 ........................................................ 218

KD12-10 ........................................... 215, 221

KD12-11 ........................................... 215, 221

KD12-12 ........................................... 215, 221

KD12-14 ................................................... 215

KD12-15 ........................................... 215, 221

KD12-16 ................................................... 215

KD12-17 ................................................... 215

KD12-18 ................................................... 215

KD12-19 ................................................... 215

KD12-20 ................................................... 215

KD12-21 ................................................... 215

KD12-30 ........................................... 215, 221

KD12-31 ................................................... 215

KD12-32 ................................................... 215

KD12-33 ................................................... 215

KD12-35 ........................................... 215, 221

KD12-36 ................................................... 215

KD12-37 ................................................... 215

KD12-38 ................................................... 215

KD12-39 ................................................... 215

KD12-40 ................................................... 215

KD12AL .................................................... 215

KD12CU .................................................... 215

KD4-10 ..................................................... 213

KD4-840 ................................................... 213

KD6 .......................................................... 218

KD6-10 ............................................. 214, 221

KD6-11 ............................................. 214, 221

KD6-12 ............................................. 214, 221

KD6-13 ..................................................... 214

KD6-14 ..................................................... 214

KD6-15 ............................................. 214, 221

KD6-16 ..................................................... 214

KD6-17 ..................................................... 214

KD6-18 ..................................................... 214

KD6-19 ..................................................... 214

KD6-20 ..................................................... 214

KD6-21 ..................................................... 214

KD6-22 ..................................................... 214

KD6-24 ..................................................... 214

KD6-25 ..................................................... 214

KD6-27 ..................................... 195, 198, 214

Key Punches .............................................. 69

Keyhole Saw ...................................... 26, 100

Keystone Tip Screwdriver .......................... 12

KK35SGL ................................................. 241

Knockout Parts Cabinets ............................ 67

Knockout Punch and Driver

Selection Guide ..................................... 41

Knockout Punch Parts Assortment

Cabinets ................................................ 67

KP1022 ...................................................... 11

K-Series Crimping Tool 3/0-400 ................ 208

K-Series Crimping Tool 8-1/0 AWG ........... 208

K-Series Crimping Tool 8-4/0 AWG ........... 208

Kwik Cycle® ............................................. 278

Kwik Cycle® 8” Crimp Tool for

Fiber Optic Connectors ........................ 278

Kwik Cycle® 9 ....................................225-226

Kwik Cycle® 9” Crimp Frame ................... 241

Kwik Cycle® 9” Crimp Tool for

Fiber Optic Connectors ........................ 279

Kwik Cycle® 9” Interchangeable

Die Sets ....................................... 242-243

Kwik Cycle® Cable Tie Guns ..................... 268

Kwik Cycle® Crimping Tool ........................ 225

Kwik Stepper® Step Bits ............................ 79

Kwik Stripper® .................................. 236-237

Kwik Stripper® Heavy-Duty

Wire Stripper ........................................ 223

Kwik Stripper® Wire Stripper ................ 9, 224

L107 Electrician’s Torpedo Level ........ 30, 126

L77 Mini Magnetic Bubble Level ........ 30, 127

L97 Mini-Magnet Laser Level .... 30, 109, 126

Lamp Tester ............................................. 350

LAN Toner Kit ........................................... 255

LAN Toner ................................................ 250

Laser Level ................................................ 30

Laser Sources .................................. 285, 300

LE 300 ..................................................... 106

LE 310 ..................................................... 106

LE 320 ..................................................... 106

LE 405 ..................................................... 106

LE 415 ..................................................... 106

LE 425 ..................................................... 106

LE 435 ..................................................... 106

LE 445 ..................................................... 106

LE 455 ..................................................... 106

Leather Pouch ...................................... 33-34

Leather Tool Belt ........................................ 34

LED Sources .................................... 285, 298

LED Source, 850/1300nm ........................ 285

Light Base Sheave .................................... 168

Light-Duty Basket-Type Pulling Grips ........ 180

Li’l Fisher® 390 Power Fishing System ..... 143

Line Packages .......................................... 146

Line Splitter, 93-30 .................................. 332

Little Kicker® Offset Bender ..................... 112

Load Coil Detector ................................... 273

Locators .................................................. 338

Long Nose Pliers/Side Cutting ...................... 6

LP 100 ..................................................... 107

LP 200 ..................................................... 107

LS6011A.............................................. 57, 59

LS6011B ............................................. 57, 59

LS6012A.............................................. 57, 59

LS6012B ............................................. 57, 59

LS6022A.............................................. 57, 59

LS6022B ............................................. 57, 59

LT-100 ............................................. 350, 358

Lube Spreader Swab ................................ 174

MA120...................................................... 217

MA12ID .................................................... 217

MA22........................................................ 217

MA4.......................................................... 217

MA50........................................................ 217

Manhole Sheaves for UT2® ....................... 166

Manual Crimping Tool ............................... 208

Manual Hydraulic Crimping Tool,

12-Ton ..........................................205-206

Manual Hydraulic Quad-Point

Dieless Crimping Tools ..................210-211

Manual Ranging Multimeter ..................... 320

Manual Stud Punch ................................... 77

Manual-Crank Megohmmeter .................. 345

Marker-Mate® .......................................... 267

Masonry Bits ........................................... 106

Masonry Screw Anchors .......................... 104

Master Electrician’s Tool Kit ....................... 36

MCTAP Waveform Analysis Software

for TV220 ............................................ 276

MCTAP ..................................................... 276

Measuring Tapes ...................................... 147

Mechanical Benders for EMT, IMC,

Rigid and Aluminum Conduit ............... 113

Mechanical Benders for IMC and

Rigid Conduit....................................... 112

Mechanical Bending ................................ 111

Medium Alligator Clips ............................. 352

Megohmmeter, 5kV .................................. 344

Mesh Cabinet ........................................... 364

Metal Stud Punches ................................... 77

Meter, 600A AC True RMS Clamp ............. 329

Mighty Mouser® Blow Gun Kit ................... 144

Mini Magnetic Bubble Level ....................... 30

MINI MAX ................................................ 404

Mini Pocket-Light Flashlight................ 31, 141

MINI-COLLINS®/Pneumatic

MINI-COLLINS® Power Drive................ 393

MINICUT 2000 ......................................... 404

Mini-Magnet Laser Level ........................... 30

MK20939.................................................. 211

MKESP710GL ............................................ 76

MKLS60 ............................................... 57, 59

MKNLS60 .................................................. 58

MM 50/125 ............................................. 292

Mobile Workbench .................................... 367

Models ..................................................... 145

Modular Plugs ......................................... 244

Motor Rotation & Phase Sequence ........... 345

Motor Rotation and Phase Sequence

Indicator Kit ......................................... 346

Motor Rotation Indicator .......................... 346

MT-RJ Dual Channel LED Sources ........... 299

Multi-Cable Cutter ..................................... 25

Multi-Filter Tone Probe ............................. 253

Multimeters ............................................. 313

Multimeter, 000-Count Digital ................. 315

Multimode and Singlemode Fiber Optic

Test Set ............................................... 287

Multimode Fiber Optic Test Set ................ 286

Multiple Strength Basket-Type Pulling

Grips with Rotating Forged Eye ............ 181

Multi-Pocket Bag ....................................... 32

Multi-Purpose Installation Tool ................. 107

Multi-Tool, 6 In 1 ....................................... 14

Nail Eater II® Impact Bits ........................... 80

Nail Eater II® Wood Boring Bits ............ 39, 80

NC-100 .................................................... 258

NC-500 .................................................... 257

NC-510 .................................................... 257

NETcat® Micro NC-100 .................... 233, 258

NETcat® Pro NC-500 ....................... 233, 257

Nipple Chucks ......................................... 397

NM Cable Ripper.......................................... 9

Non-Contact Low Voltage Detector .......... 312

Non-Contact Phase Sequence Indicator ... 345

Non-Contact Voltage Detector .................. 312

Non-Insulated Wire Ferrules ...................... 227

Nut Driver Set, 7 Piece .............................. 15

Nut Drivers ..................................... 15-16, 25

Nylon Cable Protector ............................... 167

Nylon Fish Tapes ....................................... 137

Oiltight Punches with Notches ................... 69

Omni Marker™ ....................................... 268

Optical Loss Test Set ................ 283-284, 290

Optical Power Meters .............................. 293

P00551C ................................................. 396

P20023.................................................... 411

P70045C ................................................. 406

P70060C ................................................. 406

P70159C ................................................. 403

P70160C ................................................. 403

P70161C ................................................. 403

P70162C ................................................. 403

P70849C .................................................. 392

P70850C .................................................. 392

P70905C ................................................. 391

P70912C .................................................. 392

P70913C .................................................. 392

P70914C .................................................. 392

P70915C .................................................. 392

P71259C ................................................. 392

Padded Tool Belt ........................................ 34

PairMapper® Wiremap Kit ........................ 258

PANTHER® 300 1/8” to 4”

Threading Machine ............................. 396

Parts/Fittings Cabinet ................................ 364

PDMM-10 ................................................ 357

PDMM-20 ........................................ 314, 321

PE 900 Series Telephone Test Sets .......... 269

PE2003 .................................... 266, 338, 340

PE620 ...................................................... 251

PE7780 .................................................... 251

PE810 ...................................................... 269

PE830 ...................................................... 270

PE901 ...................................................... 269

PE902 ...................................................... 269

PE909 ............................................... 269-270

PE930 ....................................... 263-264, 269

PE945 ...................................................... 269

PE961 ...................................................... 269

Performance Ratchet Cable Cutters .......... 192

Phase Sequence Indicator ....................... 346

Phillips Tip Screwdriver ........................ 13-14

Pipe And Drain Inspection Systems .......... 412

Pipe Cart................................................... 374

Pipe Freezing ........................................... 410

Pipeslice .................................................. 405

Placement Tool .......................................... 87

Plastic Conical Anchors ............................ 104

Pliers & Pipe Wrenches ............................ 402

Pliers ........................................................... 4

Plug-in Motor Protector............................ 347

Plumber Stud Punch .................................. 76

PM-400K ......................................... 258, 263

Pocket Cable Stripper ....... 223, 238, 277-278

POCKET-LIGHT Flashlight ................... 31, 141

Polarity Cubes.......................................... 342

Poly Line ........................................... 146, 236

Polyester Measuring Tape

and Dispenser ...................................... 147

Polypro General Purpose Rope .................. 387

PON Optical Loss Test Set ........................ 282

Portable Blower Power Fishing System ..... 144

Portable Power Threaders ........................ 391

Pouches and Belts ..................................... 32

Power Benders ........................................ 390

Power Clamp, 2000A ............................... 324

Power Drives ........................................... 393

Power Finder® Circuit Seeker

Microprocessor-Based Circuit Tracer ... 334

Power Finder® Closed Circuit Tracer ........ 335

Power Finder® Open Circuit Tracer ........... 334

POWER Fire Brazing Torch ....................... 412

Power-Return Tape Measures .................... 29

Precision Die Heads And Dies .................. 392

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

424

Index

www.greenlee.com

Precision Threading Dies ......................... 393

Precision Tone Generator ......................... 273

Premium Tone and Probe Kit .................... 254

Press Jaws .............................................. 401

PRESS TOOLS .......................................... 399

PRO 35 / PRO 42 Tube Cutter .................. 404

Pro Wire Stripper for NM Cable .................... 9

Pro Wire Strippers ................................ 8, 235

Production Cutting Machines ................... 398

Professional GX Series Tone Generators ... 249

Professional Installation Kit ...................... 263

Professional Plant Digital Multimeters ...... 317

Professional Tone and Probe Kit ............... 254

Pro-Plus Wire Stripper ............................. 278

Protractor with Magnetic Base ................. 127

PT-C01 .................................................... 235

PT-K01 .................................................... 235

PT-T01 ..................................... 235, 263-264

PT-T02 ............................. 235, 260, 263-264

Pulser Fault Locator ......................... 266, 340

Pump Pliers - 10” and 12” .......................... 7

Punchdown Tool ...................................... 239

PVC Cutter for up to 1” ...................... 28, 131

PVC Cutter for up to 1-1/4”................ 28, 131

PVC Cutter for up to 2” ...................... 28, 131

PVC Heating Blankets .............................. 129

PVC Plugs and Plug Set ........................... 131

PVC Saws .......................................... 27, 100

PVC, Bending ........................................... 129

PVC Bending Accesory, 880/884 Bender

40 Mil ................................................. 125

Quad Bender™ Electric Conduit Bender

EMT, IMC, and Rigid Aluminum ............ 114

Quad-Point Dieless Remote-Powered

Crimping Heads.................................... 210

Quick Change Hole Saw Kit ....................... 91

Quick Change Stainless Steel Hole Cutters 88

Quick Cutter™ Hole Saws ......................... 96

Quick Draw® ......................................... 60-61

Quick Draw 90®.................................... 60-61

Quick Draw® Flex ................................. 60-61

Quick Draw® Hydraulic Punch Driver

and Kits................................................. 60

R436-10 ................................................... 137

R436-5 ..................................................... 137

R438-10 ................................................... 134

R438-10SS ............................................... 135

R438-20 ................................................... 134

R438-20SS ............................................... 135

R438-5 ..................................................... 134

R438B ...................................................... 134

R438-BM .................................................. 134

R538-10 ................................................... 134

R538-20 ................................................... 134

R540-100 ................................................. 136

R600 Drain Cleaning Machine ................. 413

Radius Cable Sheaves .............................. 165

Ram and Foot Pump Kits ........................... 63

Ram and Hand Pump Hydraulic

Driver Kits (Inch and Metric) ............ 39, 65

Ram and Hand Pump Kits .................... 64, 66

RAM1 ...................................................... 241

Ratchet ACSR/Cable Cutter ....................... 197

Ratchet Cable Bender ............................... 222

Ratchet Communications Cutter ............... 200

Ratchet Pipe Reamer 1/4” - 2” ................ 408

Ratcheting Wrench Set ......................... 22-23

Ratcheting Wrenches ............................ 22-23

Ratchet-Type Reel Stand .......................... 377

RCCX ........................................................ 385

Recessed Light Hole Saws ......................... 96

Reciprocating Blades ................................. 98

Rectangular Punches ................................. 71

Reel Rollers .............................................. 378

Reel Stand Spindles .................................. 377

Remote-Powered Crimping Heads,

12-Ton ................................................. 206

Replacement Blades for

Punchdown Tool .................................. 239

Replacement Draw Studs for

Hydraulic Drivers ................................... 73

Replacement Draw Studs for

Manual Drivers ...................................... 72

Replacement Draw Studs for

Ratchet Drivers ..................................... 74

Replacement Draw Studs for

Special Shape Punches ......................... 75

Replacement Metal Tips .......................... 253

Replacement Parts.................................... 368

Replacement Piercing Clips ..................... 248

Replacement Plastic Tips ......................... 253

Retractable Saw ........................................ 27

RHINO® 1/2” to 4” Heavy Duty

Threading Machine ............................. 396

Right-Angle Twin Yoke Sheave .................. 164

Rigid Conduit Bender for 1/2”, 3/4”,

1”, 1-1/4”, 1-1/2” and 2” ................... 122

Rigid Conduit Bender for 1-1/4” - 2”

One-Shot 90°s and 2-1/2” -

4” Segment Bending ........................... 123

Rigid Conduit Benders for

One-Shot 90°s in 1-1/4” - 4” .............. 124

RK06AT..................................... 201, 210, 385

RK06FT..................................... 201, 210, 385

RK1230 .................................... 201, 206, 385

RK1240 .................................... 201, 206, 385

RK1240C .................................................. 206

RK1240K .................................................. 385

RK1550 .................................... 201, 207, 385

RMT-1 ..................................................... 253

ROBEND® 3000 ....................................... 390

ROCAM® Mobile Cordless

Drain Inspection Camera ..................... 412

ROCOOL® Cutting Oil ............................... 397

ROCUT® 26TC PEX Cutter ........................ 406

ROCUT® 32TC PEX Cutter ........................ 407

ROCUT® Professional PVC Shears ............ 407

ROFIRE Swivel Torches ............................ 411

ROGRIP® Self-Adjusting

Multi-Purpose Pliers ............................ 402

ROLOCK® ................................................. 402

ROMAX® AC ECO ..................................... 400

ROMAX® Compact ................................... 401

ROMAX® PRESSLINER .............................. 399

RONOL® and RONOL SYN® ...................... 397

Rope Clevis ............................................... 176

Rope Stands ............................................. 170

Rope-to-Swivel Connectors ...................... 175

Rothenberger Plumbing ........................... 389

ROTORCH Brass and Steel Torches .......... 411

ROTRAC Tube Cutters .............................. 406

RPC ......................................................... 248

RPT-1 ...................................................... 253

RPT-2 ...................................................... 253

RS-232 Interface Kits .............................. 321

RS232 ....................................................... 71

Saw Blades ............................................... 98

Scratch Awl ............................................... 19

Screw Anchor Expanders for

Caulking Anchors ................................ 102

Screw And Nut Drivers ............................... 11

Screwdriver Set, 5 Piece ............................ 11

Screwdriver Set, 7 Piece ............................ 11

Screw-Holding Screwdrivers ...................... 18

Screw-Type Reel Stands ........................... 377

SDK202GL ........................................ 199, 385

Security and Alarm Kit ............................. 256

Selection Guide, PVC Heaters ................... 129

Selection Guide, Anchor and Fasterner..... 102

Selection Guide, Bending ......................... 110

Selection Guide, Cable Cutters

for ACSR, Guy Strand & Steel ............... 195

Selection Guide, Cable Puller .................... 152

Selection Guide, Copper & Aluminum

Cable Cutters ....................................... 187

Selection Guide, Fuse .............................. 357

Selection Guide, Holemaking ..................... 40

Selection Guide, Knockout Punch

and Driver ............................................. 41

Selection Guide, Pulling Grip ..................... 178

Self-Feeding Spade Bits............................. 83

SensoLITE® Visible/Invisible

Light Detector ..................................... 297

Sensors & Scanners ................................ 336

Service Centers, Canada Authorized ......... 419

Service Centers, USA Authorized ............... 415

Set Screw Clamp Pulling Grips ................. 177

SF-420AC Stud Sensor with

AC Detection ....................................... 336

SF-530 Multiscanner ............................... 336

SF-780 Metal Locator ...................... 307, 337

Side-Cutting Pliers ....................................... 4

Sidekick® 7B ........................................... 272

Sidekick® Plus ......................................... 271

Sidekick® T&N ......................................... 271

Sidekick® T&ND ....................................... 272

Sidekick® V.O.C. ....................................... 272

Silicon Optical Power Meter ..................... 295

Silver Streak® Stainless Steel

Fish Tapes ............................................ 135

Single Wavelength 650nm LED Source .... 299

Single Wavelength Laser Sources ............ 301

Singlemode Fiber Optic Test Set .............. 287

Singlemode OTDR, Handheld ............ 288-289

SITE-RITE II® Malleable Iron

Hand Benders .............................. 110-111

SITE-RITE® Hand Bender ......................... 109

SITE-RITE® Heat-Treated

Aluminum Hand Benders ............. 110-111

Slant-Top Boxes................................ 359, 361

Slip-in Couplings ...................................... 163

Slug-Buster® Manual Knockout Kits ........... 47

Slug-Buster® Ratchet Punch Driver Kits ..... 48

Slug-Buster SC® ........................................ 45

Slug-Buster® Knockout Kit with

Ratchet Wrench - Metric ....................... 50

Slug-Buster® Knockout Kit with

Ratchet Wrench ..................................... 49

Slug-Buster® Knockout Kits ....................... 47

Slug-Buster® Knockout Punches ........... 45-46

Slug-Buster® Ram and Foot Pump

Hydraulic Driver Kits .............................. 62

Slug-Splitter SC™ Ram and Hand Pump

Hydraulic Driver Punch Kits ................... 44

Slug-Splitter SC™ Knockout

Punches .......................................... 39, 42

Smart Optical Loss Test Set .............. 283-284

Smart Quad Bender™ Electric

Conduit Bender for EMT, IMC,

Rigid and Rigid Aluminum ................... 114

SOC .................................................. 302-304

Soldering And Brazing Torches ................. 410

Sound Level Meter ................................... 349

Spade Bits ................................................. 83

Special Application Punches ...................... 69

Specialty Testers ...................................... 349

Speed Booster .......................................... 162

Speed Drive Screwdriver ........................... 14

SpeedFlex® Flexible Fish Tape Leader ....... 137

Split Mesh Rod Closing Basket-Type

Slack Pulling Grips ............................... 182

Square and Special Square Punches ......... 70

Square-Recess Tip Drivers ......................... 17

Square-Recess Tip Driver Set, 4 Piece ....... 17

Standard Knockout Punch Kits ................... 54

Standard Round Knockout Punches ...... 52-53

Standard Round Manual Industrial

Punch Kit .............................................. 55

Standard Round Manual Knockout

Punch Kits - Metric ............................... 56

Standard Round Manual Knockout

Punch Kits ............................................. 54

Starter Electrician’s Tool Kit ....................... 38

Station Master™ Pro ....................... 307, 341

Steel Cable and Wire Rope Cutter ............. 198

Steel Fish Tapes ........................................ 134

Steel Hole Cutters ...................................... 88

Steel Pipe Cutters .................................... 406

Step Bits .................................................... 79

Storage And Material Handling.................. 359

Straight Claw Hammer........................... 3, 31

Strap and Fitting Wrench .......................... 408

Stripping/Crimping Combination Tools .. 10-11

Structural Stud Punch ................................ 76

Structured Wiring Testers .......................... 257

Stubby Square-Recess Tip Driver ........... 3, 17

Stubbys ..................................................... 13

Stud Punches ............................................ 76

SUPER CUT Deluxe Threading Kit ............. 391

SUPER CUT Rachet Threader ................... 391

SUPER FIRE 3 .......................................... 410

Super Tugger® Cable Puller ............... 158, 167

SUPERJACK Pipe Stands .......................... 398

SUPERTRONIC 1000 Portable

Compact Threader ............................... 391

SUPERTRONIC 1SE Threading Machine .... 395

SUPERTRONIC 2000 Economy

Power Threader ................................... 392

SUPERTRONIC 2SE/ROPOWER 50R .......... 394

SUPERTRONIC 4SE Threading Machine .... 395

Sure Signal® ............................................ 259

Sure-Grip Test Leads ............................... 353

Surface Temperature Probe ..................... 349

Swabs, Brushes, Mandrels & Swivels ....... 174

SWEATBOX™ II ....................................... 411

Swivels ..................................................... 176

T1001 ...................................................... 302

T1010 ...................................................... 302

T1020 ...................................................... 302

T1025 ...................................................... 302

T1026 ...................................................... 302

T1030 ...................................................... 303

T1038 ...................................................... 303

T1040 ...................................................... 302

T1047 ...................................................... 303

T1050 ...................................................... 302

T1057 ...................................................... 303

T1081 ...................................................... 303

T1086 ...................................................... 302

T1087 ...................................................... 303

T1089 ...................................................... 302

T10E0 ...................................................... 302

T10E2 ...................................................... 302

T10LC ...................................................... 302

T10MU..................................................... 303

T10TB...................................................... 303

T10TD ..................................................... 303

T10ZP ...................................................... 303

T13A2...................................................... 303

T13AF ...................................................... 303

T160L ....................................... 296-297, 305

425

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Index

www.greenlee.com

TA ........................................................... 353

TAPCON® Masonry Fasteners

and Drill Bits ....................................... 106

Tape Measures .......................................... 29

T-Basket-Type Pulling Grips ...................... 180

T-Bug® Digital Signal Identifier ................ 274

TC 311

TC-10 ...................................... 311, 350, 354

TC-15 ...................................................... 355

TC1S KIT .................................................. 217

TC-20 ............................... 315-317, 346, 355

TC-28 ...................................................... 356

TC-30 ...................................................... 355

TC-5 ........................................ 309, 311, 354

TC-50 ...................................................... 356

TC-55 ...................................................... 356

TDTLK ..................................................... 351

Telecom Field Technician Kit .................... 264

Telecom Technician Kit ............................ 263

Tele-Mate® Communication Test Set ........ 269

Tele-Mate® Pro Telephone Test Set .......... 270

Telephone Ratchet Crimper ...................... 240

TelScout® TS100 ...................................... 274

TelScout® TS90 ........................................ 275

Temperature ............................................ 348

Terminal Crimping Tool ............................ 241

Test Lead Kit ............................................ 351

Testing & Measurement ........................... 307

TF130 ....................................................... 217

TF70 ......................................................... 217

TG-600 Infrared Thermometer ................. 348

TGA-2 ...................................................... 352

TGH-2 ...................................................... 352

Thermocouple Adapter ............................. 353

THH-100 Infrared Thermometer ............... 348

THM5BAT................................................. 275

Threaded Rod Cutter ................................. 381

Three-Phase Motor Protector ................... 347

TIA-568B ................................................. 306

TITLK ....................................................... 351

TK-30 ...................................................... 342

TK-30IR ................................................... 342

TL-400 .................................................... 331

TLA-3 ...................................................... 352

TLK-1 ............................... 311, 324-330, 351

TMA-3 ..................................................... 352

Toggle Bolts and Spring Wings ................. 105

Tone and Probe Carrying Case ................. 256

Tone Generators ............................... 248-249

Tone Test Set ........................................... 250

Tool bags ................................................... 32

Tool Belt .................................................... 34

Tool Caddy ................................................. 33

Tool Carrier ................................................ 32

Tool Carrier, 11” Open Cordura® ................ 32

Tool Kits ..................................................... 36

Top Screw Cam Lock Vise ........................ 409

Torch Reflector ........................................ 411

Torpedo Level ............................................ 30

Touchless AC Voltage Indicator ................ 311

TPB ......................................................... 349

TPBL ........................................................ 354

TPBS ....................................................... 354

TPI-1 ....................................................... 349

TPSFC...................................................... 349

Tracker II ......................................... 265, 339

Tray-Type Sheaves ........................... 149, 169

Triple Sheave Cable Guide ........................ 165

Tri-Stand with 6” Chain Vise .................... 409

TRMS Digital Multimeter ................... 318-319

True RMS Clamp Meter ............................ 330

True RMS ................................................. 307

TS100-01 ................................................ 274

TS90........................................................ 275

TSG-3 ....................... 309-311, 315-320, 353

TTL-3 ...................................................... 353

Tube Cutter 30 ......................................... 405

Tube Cutter 50 .......................................... 405

Tube Cutters ............................................ 404

Tugger® 640 ..................................... 149, 167

Tugger® and Super Tugger® ...................... 166

Tugger® Cable Puller ................................. 159

TurTEL Modular Adapters/Polarity Tester .. 270

TV220 ...................................................... 276

TV90 ........................................................ 275

Twisted Pair Stripper ................................ 237

Two-Hand Ratchet Cable Cutter ................ 191

UA12P ...................................................... 186

UA12T ...................................................... 186

UA22 ........................................................ 186

UAK .......................................................... 186

UAW ......................................................... 186

UC26 ........................................................ 186

UC40 ........................................................ 186

UCACSR .................................................... 186

UCD3215 .................................................. 186

UCD3515 .................................................. 186

UCD3575 .................................................. 186

UCF .......................................................... 186

UCI ................................................... 302-304

UCM10 ..................................................... 186

UCM5 ....................................................... 186

UCM6 ....................................................... 186

UCM8 ....................................................... 186

UCUNC12 .................................................. 186

UCUNC14 .................................................. 186

UCUNC38 .................................................. 186

UG5 Ultra Glider™ Cable Pulling

Lubricating System ...................... 149, 151

UG511 ...................................................... 151

UG511S .................................................... 151

UG511ST .................................................. 151

UG511T .................................................... 151

UG512 ...................................................... 151

UG512S .................................................... 151

UG512ST .................................................. 151

UG512T .................................................... 151

UGSA150 .................................................. 151

UGSA200 .................................................. 151

UGSA250 .................................................. 151

UGSA300 .................................................. 151

UGSA350 .................................................. 151

UGSA400 .................................................. 151

UGSA500 .................................................. 151

UGSA600 .................................................. 151

UGSAK ...................................................... 151

UGTA075 .................................................. 151

UGTA100 .................................................. 151

UGTA125 .................................................. 151

UGTA150 .................................................. 151

UGTA200 .................................................. 151

UGTA250 .................................................. 151

UGTA300 .................................................. 151

UGTA350 .................................................. 151

UGTA400 .................................................. 151

UGTAK ...................................................... 151

Ultra Cable Feeder™ ............................... 150

Ultra Cutters .............................................. 90

Ultra Feeder .............................................. 150

Ultra Tugger® 2 Cable Puller ..................... 160

Ultra Tugger® 5 Cable Puller ..................... 157

Ultra Tugger® 8 Cable Puller ............. 149, 156

Ultra Tugger® Screw-On Couplings ........... 162

Ultra Tugger® Speed Booster .................... 162

Ultra Tuggers ............................................ 152

Ultra Tugger® 640/6001

Adapter Package .................................. 161

Uni Marker™ .......................................... 268

Universal Internal/External

Deburring Tools ................................... 407

UPD6 ........................................................ 186

UT2 .................................................. 152, 160

UT5-22 ..................................................... 154

UT8-22 ..................................................... 154

Utility Cabinets.......................................... 363

Utility Dieless Crimping Tool ...................... 212

Utility Knife ................................................ 26

Vacuum/Blower Power Fishing System ..... 142

Vises and Stands ..................................... 409

Visual Fault Finder ........................... 286, 297

V-Notch Wire Stripper/Cutter ........................ 8

Voice • Data • Video ............................... 233

Voice and Category 5 Data

Termination Kit ............................ 240, 262

VS1 Series Splitters ................................. 247

VS1-2 ...................................................... 247

VS1-3 ...................................................... 247

VS1-4 ...................................................... 247

Water Pump Pliers ................................... 402

Welder’s Boxes ........................................ 367

WGEL-1 .................................................... 174

WGEL-5 .................................................... 174

WGEL-Q .................................................... 174

Winter-Gel™ Cable Pulling Lubricant ...... 174

Wire And Cable Handling .......................... 369

Wire And Cable Identification .................... 248

Wire And Cable Pulling Grips...................... 87

Wire And Cable Stripping Tools ................. 223

Wire And Cable Termination ..................... 183

Wire And Valve Locator .................... 267, 341

Wire And Valve ......................................... 233

Wire Caddy, 6-Reel ................................... 371

Wire Caddy, 6-Spindle .............................. 370

Wire Caddy, 10-Reel ................................. 371

Wire Cart .................................................. 373

Wire Cart, 500’ ......................................... 371

Wire Crimping Tools .................................. 225

Wire Dispenser ......................................... 372

Wire Duct Brush ....................................... 175

Wire Ferrule Crimping Tool

1/0 - 3/0 AWG ...................................... 231

Wire Ferrule Crimping Tool

10 - 6 AWG .......................................... 230

Wire Ferrule Crimping Tool

20 - 13 AWG ........................................ 230

Wire Ferrule Crimping Tool

25 - 10 AWG ........................................ 231

Wire Ferrule Crimping Tool

26 - 10 AWG ........................................ 230

Wire Ferrule Crimping Tool

26 - 13 AWG ........................................ 230

Wire Ferrule Crimping Tool

7 - 1/0 AWG ......................................... 231

Wire Ferrule Crimping Tools ...................... 230

Wire Ferrules ............................................ 227

Wire Finder/Mini Locator .................. 266, 340

Wire Reacher, 3’ ....................................... 140

Wire Reel Support Frame .......................... 370

Wire Strippers ........................................... 8-9

Wire Stripper/Cutters ........................... 8, 235

Wiremap Tester........................................ 259

Wrenches .................................................. 20

Wrench Set, 7 Piece Combination

Ratcheting ....................................... 22-23

XFC Series Weatherproof

Compression F-Style Connectors ......... 245

XFC-59-10 ............................................... 245

XFC-59-100 ............................................. 245

XFC-59-50 ............................................... 245

XFC-6-10 ................................................. 245

XFC-6-100 ............................................... 245

XFC-6-50 ................................................. 245

XFC-6Q-10 .............................................. 245

XFC-6Q-100 ............................................ 245

XFC-6Q-50 .............................................. 245

Zinc Mushroom Head Drive Anchors ........ 103

Zipper Bag, 12” Canvas ............................. 35

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

426

Index

www.greenlee.com

00001................................ 397

00002................................ 397

00003................................ 397

00028R ............................. 396

00031R ............................. 396

00032................................ 398

00033................................ 398

00034R ............................. 398

00035R ............................. 398

00036R ............................. 398

00037................................ 398

00042................. 45-47, 49-50,

........................ 53-56, 67, 72

00042P................................ 46

00069................................ 398

00071................................ 398

00074................................ 393

00076................................ 409

00077................................ 393

00078................................ 393

00079................................ 398

00088................................ 397

00089................................ 397

00097................................ 396

00101................................ 398

00104................................ 396

00105................................ 396

00106................................ 396

00107................................ 396

00110................................ 393

00111................................ 393

00113........................... 27, 100

00114........................... 27, 100

00115........................... 27, 100

00116........................... 27, 100

00116R ............................. 393

00117................................ 393

00118................................ 393

00119................................ 393

00170..................................134

00171..................................134

00172..................................134

00288............................. 29, 99

00301..................................196

00336..................................196

00355........................... 28, 131

00520................................ 334

00521................................ 334

00522................................ 334

00523................................ 334

00524................................ 334

00533................................ 398

00534................................ 398

00535................................ 398

00536................................ 398

00548A ...................... 395-396

00550................................ 396

00551................................ 396

00561................................ 396

00571................................ 118

00573................................ 118

00781.......... 154-155, 161, 163

00782.................. 154-155, 163

00783.......... 155-157, 161, 163

00784.................. 154-155, 163

00791.......................... 154-155

00799.................. 154-155, 162

00804.................. 154-155, 163

00811.................. 154-155, 163

00815.......... 154-157, 161, 163

00820.................. 154-155, 163

00827..........................161, 163

00835.................. 154-155, 161

00838..................................164

00843..................................164

00844..................................164

00845..................................164

00846..................................164

00850..................................164

00854..................................164

00855..................................164

00856..................................164

00863.................. 154-155, 161

00864.......................... 154-155

00865..................................154

00867.......................... 156-157

00868..................................163

00870..................................154

00871..................................154

00872..................................164

00873..................................164

00874..................................164

00877..................................162

00936................................ 118

00946................................ 118

00949..........................195, 198

00967.................. 156-157, 162

00985..................................156

00986..................................156

00987..................................156

00993..................................156

01082..................................216

01202..................................369

01205..................................372

01207..................................372

01214..................................372

012154500........................ 275

01218..................................371

01220..................................371

01221..................................371

01222..................................371

01225..................................371

01228..................................369

01232..................................376

01253..................................376

01259..................................376

01264..........................372, 376

01265..................................376

01274..................................197

01340..................................217

0134-0500 ........................ 274

01368..................................203

01369..................................203

01370..................................205

01372..................................205

01373..................................205

01374..................................205

01377..................................209

01378..................................209

01380..................................209

01381..................................209

01382..................................196

01383..................................196

01384..................................189

01385..................................189

01394..................................185

01395..................................185

01496.................................. 58

01497.................................. 58

01498.................................. 58

01499.................................. 58

0151-08D .............................. 4

0151-08M ............................. 4

0151-09D .............................. 4

0151-09M ............................. 4

0151-09M-CP........................ 4

0151-09SD ............................ 4

0151-09SM ........................... 4

01523..................................205

0153-01C ............................ 11

0153-02C ............................ 11

0153-11C ............................ 12

0153-12C ............................ 12

0153-13C ............................ 12

0153-13C-CP ...................... 12

0153-14C ............................ 12

0153-15C ............................ 12

0153-16C ............................ 12

0153-21C ............................ 12

0153-22C ............................ 12

0153-23C ............................ 12

0153-24C ............................ 12

0153-25C ............................ 12

0153-26C ............................ 12

0153-27C ............................ 12

0153-28C ............................ 13

0153-31C ................. 13-14, 17

0153-32C ............................ 13

0153-33C ................. 13-14, 17

0153-34C ................. 13-14, 17

0153-35C ....................... 13-14

0153-36C ............................ 13

0153-42C ............................ 14

0153-42-CP ........................ 14

0153-51C ............................ 14

0153-52C ............................ 14

0153-53C ............................ 14

0153-54C ............................ 14

0154-06 .............................. 20

0154-06D ............................ 20

0154-08 .............................. 20

0154-08C ............................ 20

0154-08D ............................ 20

0154-10 .............................. 20

0154-10C ............................ 20

0154-10D ............................ 20

0154-12 .............................. 20

0154-12C ............................ 20

0154-12D ............................ 20

0155-16A ............................ 29

0155-25A ............................ 29

0155-7MA ........................... 29

0156-11 .............................. 31

0156-12 .............................. 31

01562..................................185

0157-01I ............................. 24

0157-11I ............................. 24

0157-12I ............................. 24

0157-13I ............................. 24

0157-14I ............................. 24

0157-17I ............................. 24

0157-18I ............................. 24

0158-11 .............................. 32

0158-12 .............................. 32

0158-13 .............................. 32

0158-14 .............................. 35

0158-15 .............................. 33

0159-11 .............................. 36

0159-12 ......................... 36-37

0159-13 ......................... 37-38

0159-14 .............................. 38

0159-23 .............................. 37

0159-24 .............................. 38

01598..................189, 196, 209

0160-0001-1 ..................... 268

0161-0001-1 ..................... 268

01618..................................203

01620..................................186

0162-0001-1 ..................... 268

01630.................................. 85

0163-0001-1 ..................... 268

01631..........................202, 214

0164-0001-1 ..................... 268

01643.................................. 90

01648................................ 114

0165-0001-1 ..................... 268

01664..................................137

01675..................................217

01680..................................217

0168-0001-1 ..................... 268

01686............................. 58-59

01696..................................135

01700......................... 110, 114

0170-0001-1 ..................... 268

0171-0001-1 ..................... 268

01711................................ 114

0172-0001-1 ..................... 268

0173-0001-1 ..................... 268

0174-0001-1 ..................... 268

0175-0001-1 ..................... 268

0178-0001-1 ..................... 268

01876..................................191

01878..................................191

01879.................................. 93

01886..................................368

01894................................ 396

01922R ...................... 395, 397

01975................................ 241

01980.................................. 46

01981.................................. 46

01982.................................. 46

01983.................................. 46

01984.................................. 46

01985.................................. 46

01987............................. 45-46

01988............................. 45-46

01992............................. 45-46

01993............................. 45-46

01994............................. 45-46

01995............................. 45-46

01996............................. 45-46

01997............................. 45-46

02010..................................160

02010..................................186

02019................................ 241

02019..........188, 194, 202, 225

02021..................................213

02022..................................213

02024......................... 225, 241

02025......................... 225, 241

02026......................... 225, 241

02033..................................202

02034..................................202

02035..................................202

02037..................................213

02040..................................174

02041..................................174

02045..................................174

02064..................................208

02065..................................208

02070..................................376

02071..................................376

02086..................................217

02155.................................. 11

02178................................ 241

02180................................ 241

02182..................................374

02268..................................140

02350................................ 398

02408.................................. 53

02409.................................. 53

02433.................................. 53

02443.................................. 53

02445.................................. 53

0251-05D .............................. 5

0251-05M ............................. 5

0251-06D .............................. 5

0251-06M ............................. 5

0251-07D .............................. 5

0251-07M ............................. 5

0251-08AD ............................ 5

0251-08AM ........................... 5

0251-08D .............................. 5

0251-08M ............................. 5

0251-08M-CP........................ 5

0252-11 ................................ 9

0253-01C ............................ 15

0253-02C ............................ 15

0253-11C ............................ 16

0253-12C ............................ 16

0253-13C ............................ 16

0253-14C ............................ 16

0253-15C ............................ 16

0253-16C ............................ 16

0253-17C ............................ 16

0253-33C ............................ 16

0253-34C ............................ 16

0253-35C ............................ 16

0253-36C ............................ 16

0253-37C ............................ 16

0253-38 .............................. 16

0253-39 .............................. 16

0253-41C ............................ 16

0253-42C ............................ 16

0253-43C ............................ 16

0254-11 .............................. 21

0254-12 .............................. 21

0254-31 .............................. 21

0257-01I ............................. 25

0257-11I ............................. 25

0257-12I ............................. 25

0257-13I ............................. 25

0257-14I ............................. 25

0257-15I ............................. 25

0257-16I ............................. 25

0257-17I ............................. 25

0258-11 .............................. 33

0258-13 .............................. 33

0258-14 .............................. 34

0258-16 .............................. 35

0259-11 .............................. 38

02624..................................208

02625..................................208

02628..................................208

02629..................................208

02630..................................208

02632..................................225

02633..................................230

02634..................................231

02635..................................231

02636..................................231

02637..................................230

02638..................................230

02639..................................230

02667................................ 102

02669................................ 102

02670..................................368

02671................................ 102

02694..................................208

02706.................................. 81

02707.................................. 81

02708.................................. 81

02741..................................199

02742..................................199

02743..................................199

Numerical Index by Catalog/UPC Number

427

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Index

www.greenlee.com

02744..................................200

02745..................................200

02800............................. 91-94

02801............................. 91-94

02802.................................. 91

02803.................................. 91

02804.................................. 91

02805.................................. 91

02815............................. 54, 65

02826..................................197

02846..................................154

02912..................................208

02913..................................208

02954..................................229

02955..................................229

02956..................................229

02957..................................229

02958..................................229

02959..................................229

02960..................................229

02961..................................229

02962..................................229

02963..................................229

02964..................................229

02965..................................229

02966..................................229

02971..................................229

02972..................................229

02973..................................229

02974..................................229

02975..................................229

02976..................................229

02977..................................229

02978..................................229

02979..................................229

02980..................................229

02981..................................229

02982..................................229

02983..................................229

02984..................................229

02985..................................229

02986..................................229

02987..................................229

02988..................................229

02989..................................229

02990..................................229

02991..................................229

02992..................................229

02993..................................229

02994..................................229

02995..................................229

02996..................................229

02999.. 189, 196, 199, 203-204

03046.................................. 76

03046.................185, 189, 196,

........ 199, 203-204, 209, 211

03047.................................. 76

03047.................185, 189, 196,

........ 199, 203-204, 209, 211

03048.................................. 76

03048.................185, 189, 196,

........ 199, 202-204, 209, 211

03078..........................202, 214

03079..................................214

03080..................................214

03081..................................214

03082..................................214

03083..................................214

03084..................................214

03085..................................214

03086..................................214

03087..................................214

03088..................................214

03089..................................214

03090..................................214

03091..................................214

03092..................................214

03094..................................214

03106................................ 114

03137..................................199

03170............................. 62-67

03196..................................156

03198..................................156

03242..................................202

03248........... 44, 59, 61, 63-67

03249....................... 44, 63-67

03283.......................... 227-229

03284..................................227

03294............................. 62-67

03396................................ 122

03400................................ 122

03478.................................. 95

03479.................................. 95

03480.................................. 95

0351-06D .............................. 6

0351-06M ............................. 6

0351-07D .............................. 6

0351-07M ............................. 6

0351-08D .............................. 6

0351-08M ............................. 6

0353-01C ............................ 17

0353-02C ............................ 17

0353-11C ............................ 17

0353-12C ............................ 17

0353-13C ............................ 17

0353-14C ............................ 17

0353-21C ............................ 17

0353-22C ............................ 17

0353-23C ............................ 17

0353-24C ............................ 17

0353-32C ............................ 17

0353-33C ............................ 17

0353-41C ............................ 14

0353-52C ............................ 14

0353-53C ............................ 14

0354-01 ......................... 22-23

0354-02 .............................. 23

0354-11 ......................... 22-23

0354-12 ......................... 22-23

0354-13 ......................... 22-23

0354-14 ......................... 22-23

0354-15 ......................... 22-23

0354-16 ......................... 22-23

0354-17 ......................... 22-23

0354-18 .............................. 22

0354-19 .............................. 22

0354-20 .............................. 22

0354-21 .............................. 22

0354-22 .............................. 22

0354-23 .............................. 22

0354-51 .............................. 23

0354-52 .............................. 23

0354-53 .............................. 23

0354-54 .............................. 23

0354-55 .............................. 23

0354-56 .............................. 23

0354-57 .............................. 23

0354-58 .............................. 23

0354-59 .............................. 23

0354-60 .............................. 23

0354-61 .............................. 23

0354-62 .............................. 23

0354-63 .............................. 23

0354-64 .............................. 23

03548..................................197

03551..................................203

03552..................................203

03553..................................203

03554..................................189

03555..................................189

03556..................................189

03557............................. 57, 59

03558............................. 57, 59

03559............................. 57, 59

03561..................................162

03581.................................. 88

0358-11L ............................ 35

0358-11L-CP ....................... 35

0358-11M ........................... 35

0358-11XL .......................... 35

03582............................30, 126

03583........................... 30, 126

03599.................................. 89

03607.................................. 79

03661..........................155, 163

03710.................................. 83

03711.................................. 83

03712.................................. 83

03713.................................. 83

03714.................................. 83

03715.................................. 83

03716.................................. 83

03986....................... 53, 55-56

03990............................. 53, 55

03991............................. 53, 55

03998............................. 53, 55

03999............................. 53, 55

04002............................. 53, 55

04003............................. 53, 55

04006..... 53, 55-56, 66, 68, 77

04008................. 53-54, 66, 68

04010................. 53-54, 66, 68

04011........... 45-49, 51, 53-54,

.............59, 61, 63-64, 66-67

04013........... 45-49, 51, 53-54,

.............59, 61, 63-64, 66-67

04-03-36C .......................... 85

04-03-54C .......................... 85

04-03-72C .......................... 85

04040...... 45-47, 50, 53-56, 67

04042................ 45-47, 49, 50,

.............................. 53-56, 67

04058.................................. 53

04059.................................. 53

04061........... 45-49, 51, 53-54,

.............59, 61, 63-64, 66-67

04062....................... 53-54, 66

04063........... 45-49, 51, 53-54,

.............59, 61, 63-64, 66-67

04086................................ 119

04175............ 53-54, 63-64, 67

04177...... 53-54, 63-64, 66-67

04180...... 53-54, 63-64, 66-67

04181..................................189

04183...... 53-54, 63-64, 66-67

04184..................................189

04187............................. 53, 67

04188............................. 53, 67

04218............................. 46, 53

04223.................................. 53

04224.................................. 53

04225.................................. 53

04226.................................. 53

04227.................................. 53

04228.................................. 53

04229.................................. 53

04230.................................. 53

04232............................. 53, 56

04233............................. 53, 56

04234............................. 53, 56

04235.................................. 53

04237.................................. 53

04238.................................. 53

04240.................................. 53

04242.................................. 53

04245.................................. 53

04246.................................. 53

04247.................................. 53

04248.................................. 53

04249.................................. 53

04250.................................. 53

04251.................................. 53

04252.................................. 53

04253........................... 28, 131

04256.................................. 53

04257.................................. 53

04258.................................. 53

04259.................................. 53

04292..................................203

04311............................. 57, 59

04312............................. 57, 59

04339..................................368

04343..................................382

04460..................................364

04510R ...................... 394-395

0451-10D .............................. 7

0451-10M ............................. 7

0451-10M-CP........................ 7

0451-12D .............................. 7

0451-12M ............................. 7

0451-16D .............................. 7

0453-11C ............................ 18

0453-12C ............................ 18

0453-13C ............................ 18

0453-14C ............................ 18

0453-15C ............................ 18

0453-16C ............................ 18

0453-17C ............................ 18

0453-18C ............................ 18

04548..................................228

04549..................................228

04550..................................228

04551..................................228

04552..................................228

04553..................................228

04554..................................228

04555..................................228

04556..................................228

04557..................................228

04558..................................228

04559..................................228

04560..................................228

04561..................................228

04562..................................228

04563..................................228

04564..................................228

04565..................................228

04566..................................228

04567..................................228

04568..................................228

04569..................................228

04570..................................228

04571..................................228

04572..................................228

04573..................................228

04574..................................228

04575..................................228

04576..................................228

04577..................................228

04578..................................228

04579..................................228

04580..................................228

04581..................................228

04582..................................228

04598.................................. 42

04599.................................. 42

04601.................................. 42

04602.................................. 42

04603.................................. 42

04605.................................. 42

04607.................................. 42

04608.................................. 42

04609.................................. 42

04611.................................. 42

04613.................................. 42

04614.................................. 42

04638............................. 70, 71

04652............ 53-54, 63-64, 66

04653................. 53, 63-64, 66

04654............ 53-54, 63-64, 66

04655............ 53-54, 63-64, 66

04661............................. 57, 59

04663..................................198

04679.................................. 53

04685.................................. 53

04686.................................. 67

04719..................................366

04734.................................. 53

04735.................................. 53

04736............................. 53, 55

04823.................................. 90

04829..................................202

04835..................................228

04836..................................228

04837..................................228

04838..................................228

04839..................................228

04840..................................228

04841..................................228

04842..................................228

04843..................................228

04844..................................228

04845..................................228

04846..................................228

04847..................................228

04848..................................228

04849..................................228

04850..................................228

04851..................................228

04852..................................228

04853..................................228

04854..................................228

04855..................................228

04856..................................228

04857..................................228

04858..................................228

04859..................................228

04860..................................228

04861..................................228

04862..................................228

04863..................................228

04864..................................228

04865..................................228

04866..................................228

04867..................................228

04868..................................228

04869..................................228

04870..................................228

04871..................................228

04884..................................162

04978.................................. 54

04989..................................227

04990..................................227

04991..................................227

04992..................................227

04993..................................227

04994..................................227

04995..................................227

04996..................................227

04997..................................227

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

428

Index

www.greenlee.com

04998..................................227

04999..................................227

05000..................................227

05001..................................227

05002..................................227

05003..................................227

05004..................................227

05005..................................227

05006..................................227

05007..................................227

05008..................................227

05009..................................227

05010..................................227

05011..................................227

05012..................................227

05013..................................227

05014..................................227

05015..................................227

05016..................................227

05017..................................227

05018..................................227

05019..................................227

05020..................................227

05021..................................227

05022..................................227

05023..................................227

05024..................................227

05025..................................227

05026..................................227

05027..................................227

05028..................................227

05029..................................227

05030..................................227

05031..................................227

05032..................................227

05033..................................227

05034..................................227

05035..................................227

05036..................................227

05037..................................227

05038..................................227

05039..................................227

05041..................................227

05042..................................227

05043..................................227

05044..................................227

05045..................................227

05046..................................227

05047..................................227

05048..................................227

05049..................................227

05050..................................227

05051..................................227

05052..................................227

05053..................................227

05054..................................227

05055..................................227

05056..................................227

05057..................................227

05058..................................227

05059..................................227

05060..................................227

05061..................................227

05062..................................227

05063..................................227

05064..................................227

05065..................................227

05066..................................227

05067..................................227

05068..................................227

05069..................................227

05070..................................227

05100................................ 396

05133.................................. 82

05156..................................136

05157..................................136

05158..................................136

05191................................ 102

05197................................ 102

05244............................. 69-71

05265.................................. 53

05266.................................. 53

05300................................ 102

05350..................................206

05351..................................206

05353..................................207

05400................................ 396

05405................................ 396

05410................................ 396

05447.................................. 53

05448.................................. 53

05450................................ 396

05470................................ 396

05564..................................150

05600................................ 396

05610................................ 396

05645..................................150

05691.................................. 88

05692.................................. 88

05693.................................. 88

05694.................................. 88

05695.................................. 88

05696.................................. 88

05697.................................. 88

05698.................................. 88

05699.................................. 88

05700.................................. 88

05701.................................. 88

05702.................................. 88

05703.................................. 88

05704.................................. 88

05705.................................. 88

05706.................................. 88

05707.................................. 88

05726..................................159

05752.................................. 88

05753.................................. 88

05761.................................. 88

05762.................................. 88

05766.................................. 88

05820.................................. 88

05850..................................385

05851..................................385

05852..................................385

05853..................................134

05923..................................193

05927.................................. 77

05928.................................. 77

05930..................................193

05935..................................200

05954..................................203

05955..................................189

05956............................. 57, 59

05957.................................. 88

05958.................................. 88

05959.................................. 88

05960.................................. 88

05961.................................. 88

06011..................................200

06015.................................. 77

06-03-36A........................... 85

06-03-36B .......................... 85

06-03-36C .......................... 85

06-03-54A........................... 85

06-03-54B .......................... 85

06-03-54C .......................... 85

06-03-54M .......................... 84

06-03-72A........................... 85

06-03-72B .......................... 85

06-03-72C .......................... 85

06060................................ 350

06061................................ 350

06065..................................210

06066..................................210

06069..................................209

06070..................................209

06071..................................209

06072..................................209

06073..................................209

06074..................................209

06083................................ 350

06186..................................141

06196..................................210

06197..................................210

06200................................ 350

06203..................................209

06204..................................209

06206..................................209

06259..................................141

06263..................................146

06264..................................146

06265..................................146

06266..................................146

06267..................................146

06268..................................146

06269..................................146

06274...........142-143, 145-146

06275...........142-143, 145-146

06276..................................146

06277...........142-143, 145-146

06278...........142-143, 145-146

06279..................................146

06280...........142-143, 145-146

06291..................................368

06302......... 44, 64-66, 68, 385

06333..................................209

06362.................................. 53

06363.................................. 53

06408..................................135

06410..................................135

06426..................................205

06427..................................205

06429..................................204

06430.................................. 76

06431..................................204

06432..................................204

06436..................................204

06437..................................204

06439..................................204

06443..................................204

06444..................................204

06445..................................204

06490................................ 111

06491..................................111

0652-11 .............................. 26

0652-11-CP ........................ 26

06555..................................193

06569................................ 349

06570................................ 349

06574..................................217

06575..................................217

06576..................................217

06577..................................217

06586.................................. 53

06587.................................. 53

06678.................................. 46

06712..................................204

06714..................................186

06727.................................. 46

06728.................................. 46

06729.................................. 46

06744..................................214

06745..................................214

06746..................................214

06747..................................214

06749..................................214

06750..................................214

06751..................................214

06752..................................214

06753..................................214

06754..................................214

06755..................................214

06756..................................214

06786..................................135

06787..................................135

06850.................................. 10

06851.................................. 10

06852............................. 8, 235

06853............................. 8, 235

06854.................................... 9

06857............ 8, 235, 264, 278,

................................281-282

06892.................................. 51

06894..................................212

06900................................ 117

06901................................ 117

06902................................ 117

06903................................ 117

06904....................... 44, 63-67

06923.................................. 96

06972........... 45-49, 51, 53-54,

.............59, 61, 63-64, 66-67

06974....................... 53-54, 66

06978....................... 53-54, 66

06996.................................. 53

06997.................................. 53

07028..................................185

07029..................................185

07030..................................185

07033..................................186

07035..................................186

07036..................................186

07037..................................186

07038..................................186

07039..................................186

07041..................................186

07042..................................186

07043..................................186

07044............................. 53, 55

07050..................................186

07051..................................186

07052..................................186

07053..................................186

07062..................................186

07063.................... 57, 76, 185,

........................199, 209, 211

07084................................ 350

07100................................ 107

07146..................................185

07173............................. 62-63

07174............................. 62-63

07190..................................204

07191..................................204

07192..................................204

07193..................................204

07194..................................204

07195..................................204

07196..................................204

07197..................................204

07198..................................204

07199..................................205

07200................................ 107

07202..................................205

07205..................................206

07272................................ 115

07274..................................186

07300................................ 106

07310................................ 106

07320................................ 106

07405................................ 106

07415................................ 106

07425................................ 106

07435................................ 106

07445................................ 106

07455................................ 106

07475..................................383

07483..................................360

07484..................................364

07486..................................363

07487..................................362

07488..................................362

07500..................................134

07516................................ 352

07519................................ 352

07520................................ 353

07523................................ 351

07524................................ 351

07525................................ 353

07530................................ 332

07531................................ 332

07533................................ 332

07534................. 311, 350, 354

07535......... 315-317, 346, 355

07536................................ 355

07541................................ 350

07545................................ 317

07546................................ 317

07547................................ 317

07548................................ 317

07549......................... 264, 316

07550................................ 316

07551................................ 316

07552................................ 315

07553................................ 315

07555................................ 321

07559................................ 331

07564................................ 325

07567................................ 325

07568................................ 324

07572................................ 345

07573................................ 345

07574................................ 346

07575................................ 345

07576................................ 346

07579................................ 354

07580................................ 354

07588................. 309, 311, 354

07591................................ 345

07592................................ 349

07593................................ 330

07595................................ 355

07608................................ 332

07612................................ 317

07613................................ 317

07614................................ 317

07615................................ 317

07616................................ 316

07617................................ 316

07618................................ 316

07619................................ 315

07620................................ 315

07625................................ 330

07631................................ 325

07634................................ 325

07635................................ 324

07636................................ 345

07638................................ 345

07639................................ 345

07640................................ 343

07641................................ 343

429

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Index

www.greenlee.com

07653................................ 324

07658................................ 315

07664................................ 329

07665................................ 344

07666................................ 329

07699................................ 328

07700................................ 328

07715................................ 356

07730................................ 324

07732................................ 327

07733................................ 327

07735................................ 311

07746................................ 356

07747................................ 356

07749................................ 310

07755................................ 321

07780................................ 331

07796................................ 265

07796................................ 339

07797................................ 315

07798................................ 326

07799................................ 326

07829..................................383

07915................. 238, 277-278

07915..................................223

07924..................................154

07969..................................363

07978........................... 28, 131

07995........................... 28, 131

08000..................................154

08031..................................196

08-03-36A........................... 85

08-03-36B .......................... 85

08-03-36C .......................... 85

08-03-54A........................... 85

08-03-54B .......................... 85

08-03-54C .......................... 85

08-03-72A........................... 85

08-03-72B .......................... 85

08-03-72C .......................... 85

08-04-54M .......................... 84

08082..................................216

08160..................................208

08161..................................208

08187..................................369

08263..................................145

08264..................................145

08265..................................145

08266..................................145

08267..................................145

08377.................................. 76

08379.................................. 76

08414..................................368

08420..................................368

08426..................................368

08427..................................368

08428..................................368

08429......................... 112-113

08550................................ 114

08656................................ 273

08657................................ 273

08661................................ 259

08662......................... 265, 339

08665................................ 251

08666......................... 266, 340

08670................................ 252

08671......... 252, 261, 263-264

08672................................ 253

08677................................ 255

08678......................... 266, 340

08679................................ 250

08680................................ 250

08682................................ 256

08683................................ 256

08684................................ 254

08685......................... 256, 263

08686................................ 248

08687................. 248, 263-264

08688................................ 248

08690................................ 254

08693................. 249, 261, 263

08694................................ 254

08695................................ 267

08702................................ 235

08704................................ 235

08707................. 235, 263-264

08708......... 235, 260, 263-264

08709................................ 253

08710................................ 248

08711................................ 253

09022................................ 312

09023................................ 312

09025................................ 309

09027................................ 309

09030................................ 348

09031................................ 348

09-03-36A........................... 85

09-03-36B .......................... 85

09-03-54A........................... 85

09-03-54B .......................... 85

09-03-54C .......................... 85

09-03-72A........................... 85

09-03-72B .......................... 85

09-03-72C .......................... 85

09861........................... 28, 131

09865........................... 28, 131

09907..................................192

09908..................................192

09961.................................. 98

09962.................................. 98

09963.................................. 98

09964.................................. 98

09965.................................. 98

09966.................................. 98

09967.................................. 98

09968.................................. 98

09969.................................. 98

09970.................................. 98

09972.................................. 98

09975.................................. 98

09976.................................. 98

09977.................................. 98

09979.................................. 98

09990.................................. 98

09991.................................. 98

09993.................................. 99

09994.................................. 99

09995.................................. 99

09996.................................. 99

09997.................................. 99

10003.................................. 99

10004.................................. 99

10005.................................. 99

10006.................................. 99

10037........................... 27, 100

10038........................... 27, 100

10039........................... 27, 100

10043................................ 101

10044................................ 101

10045................................ 101

10072.................................. 93

10073.................................. 93

10075.................................. 93

10076.................................. 93

10077.................................. 93

10078.................................. 93

10079.................................. 93

10080.................................. 93

10081.................................. 93

10082.................................. 93

10157.................................. 90

10158.................................. 90

10159.................................. 90

10160.................................. 90

10161.................................. 90

10162.................................. 90

10163.................................. 90

10165..................................214

10166..................................214

10167..................................214

10168..................................214

10169..................................214

10170..................................214

10171..................................214

10172..................................214

10173..................................214

10174..................................214

10175..................................214

10176..................................214

10177..................................214

10179..................................214

10180..................................214

10182..........................198, 214

10185.................................. 90

10186.................................. 90

10188..................................215

10189..................................215

10190..................................215

10192..................................215

10193..................................215

10194..................................215

10195..................................215

10196..................................215

10197..................................215

10198..................................215

10199..................................215

10200..................................215

10201..................................215

10202..................................215

10203..................................215

10205..................................215

10206..................................215

10207..................................215

10208..................................215

10209..................................215

10210..................................215

10211.................................. 90

10214.................................. 90

10252..................................151

10253..................................151

10260..................................215

10261..................................215

10278..................................151

10279..................................151

10280..................................151

10281..................................151

10282..................................151

10283..................................151

10284..................................151

10285..................................151

10286..................................151

10287..................................151

10289..................................151

10291..................................151

10293..................................151

10295..................................151

10297..................................151

10300............................. 8, 235

10303.................................. 76

10304..................................151

10307.................................. 76

10308.................................. 76

10309.................................. 76

10311..................................151

10344.................................. 76

10353..................................151

10354..................................151

10355..................................151

10356..................................151

10357..................................151

10358..................................151

10359..................................151

10360..................................151

10378..........................368, 386

10383.................................. 61

10391.................................. 61

10397..................................196

10398..................................196

10411..................................196

10412..................................196

10413..................................196

10414..................................196

10415.................................. 77

10419.................................. 77

10437..................................173

10438..................................173

10439..................................173

10442..................................140

10443..................................140

10445..................................147

10446..................................147

10447..................................147

10453..................................140

10462..................................373

10475............................. 60, 61

10476............................. 60, 61

10497.......................... 138-139

10498.......................... 138-139

10504..................................138

10506..................................138

10507..................................193

1052011............................ 291

105202K .................... 290-291

105203K ........................... 291

105206K ........................... 291

10520E2 ............................ 291

10565..................................136

1062.................................. 303

10640......................... 395, 398

10641................................ 398

10642................................ 398

10687.................................. 93

10763..................................207

10792................................ 280

10800.................................. 45

10801.................................. 45

10802.................................. 45

10803.................................. 45

10804.................................. 45

10805.................................. 45

10806.................................. 45

10807.................................. 45

10810..................................200

10826......................... 122-124

10856................................ 329

10857................................ 329

10858................................ 328

10859................................ 328

10860................................ 327

10861................................ 327

10862................................ 326

10863................................ 326

10904.................................. 93

10905.................................. 93

10906.................................. 93

10908.................................. 93

10910.................................. 93

10911.................................. 93

10915.................................. 91

10917................................ 122

10918................................ 122

10919................................ 122

10920......................... 122-124

10921......................... 122-124

10922......................... 122-124

10923................................ 124

10924................................ 124

10925................................ 124

10939......................... 122-124

10946................................ 124

10950..................................157

10963................................ 124

10996..................................215

10997..................................215

10998..................................215

10999..................................215

11003..................................215

11004..................................215

11006R ............................. 407

11006X.............................. 407

11007..................................215

11010..................................215

11011..................................215

11012..................................215

11013..................................215

11014..................................215

11015..................................215

11016..................................215

11018..................................215

11020..................................215

11038..................................145

11039..................................145

11040..................................145

11041..................................145

11042..................................145

11050................................ 268

11059................................ 268

11072................................ 119

11075................................ 119

11081..................................134

11082.......................... 134-137

11089................................ 119

11107................................ 119

11126................................ 119

11132................................ 119

11145.......................... 154-155

11146................................ 119

11147..................................161

11152.......................... 154-155

11170.................................. 91

11180.................................. 91

11221..................................157

11222..................................157

11223..................................157

11230..................................155

11256..................................191

1125GB ............................. 102

11261.................................. 45

11262.................................. 45

11263.................................. 45

11264.................................. 45

11265.................................. 45

11266.................................. 45

11267..................................381

11268..................................381

11269..................................381

11270..................................381

11271..................................381

11273..................................380

11274..................................380

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

430

Index

www.greenlee.com

11275..................................380

11276..................................380

11277..................................380

11278..................................380

11279..................................380

11280..................................380

11281..................................381

11289................. 119, 121-124

11289.................................. 68

11289..................................385

11301..................................381

11306..................................381

11316..................................381

11321..................................381

1134-1002 ................. 271-272

11342..................................380

11344..................................380

1134-5029 ........................ 272

11346..................................380

11348..................................380

11357.................................. 45

11361.................................. 45

11362.................................. 45

11363.................................. 45

11364.................................. 45

11365.................................. 45

11366.................................. 45

11367..................................380

11372................................ 311

1137-5002 ........................ 271

11397..................................197

113AV ............................. 53, 55

11412..................................388

11422..................................139

11426.......................... 138-139

11427..................................139

1143-5000 ........................ 272

1144-5000 ........................ 272

114AV ............................. 53, 55

115201U ........................... 291

115202K ........................... 291

115203K ........................... 291

115206K ........................... 291

11520E2 ............................ 291

1155-5000 ........................ 271

11583..................................138

11584..................................138

11585..................................139

11617........................... 30, 127

11627.................................. 78

11628.................................. 78

11666..................................185

11667..................................185

11668..................................185

11669..................................185

11670..................................185

11689................................ 321

11761..................................191

11768..................................191

11789.................................. 68

11790.................................. 68

11791.................................. 68

11798..................................217

117AV ............................. 53, 55

11839..................................199

11841..........................195, 199

11845..........................195, 199

11851..........................195, 199

11854..................................199

11856..........................195, 199

11865................................ 331

11868................................ 319

11869................................ 319

11870................................ 318

11871................................ 318

11877......................... 258, 263

11890..................................186

118AV ............................. 53, 55

11903.................................. 68

11915.................................. 29

11917.................................. 29

11976..................................199

11987..................................199

12031................................ 352

12032................................ 352

12034.. 309-311, 315-320, 353

12035......... 311, 324-330, 351

12037................................ 320

12039................................ 320

12040................................ 320

12-04-36A........................... 85

12-04-54A........................... 85

12-04-54C .......................... 85

12-04-72A........................... 85

12-04-72C .......................... 85

12079.................................. 68

12085.................................. 68

12086.................................. 68

12087.................................. 68

12092..................................188

12093..................................188

12097....................... 48, 67, 74

12098.................................. 67

12099................. 42, 48, 67, 74

12114..................................188

12115..................................188

12116..................................188

12123................................ 311

12124................................ 342

12125................................ 342

12127................................ 342

12135................................ 335

12136................................ 335

12137................................ 336

12138................................ 336

12139................................ 337

12151.................................. 78

12160.................................. 78

12161.................................. 78

12162.................................. 78

12163.................................. 78

12164.................................. 78

12165.................................. 78

121AV ..... 53, 55-56, 66, 68, 77

12211..................................168

12222..................................213

12223..................................213

12225..................................213

12226..................................213

12227..................................213

12228..................................213

12229..................................213

12237..................................213

12274...........76, 185, 189, 196,

................ 199, 203-205, 209

1230............ 217-221, 367-368

12302.................................. 46

12303.................................. 46

12304.................................. 46

12305.................................. 46

12306.................................. 46

12307.................................. 46

12308.................................. 46

12309.................................. 46

12310.................................. 46

12311.................................. 46

12312.................................. 46

12313.................................. 46

12314.................................. 46

12315.................................. 46

12316.................................. 46

12317.................................. 43

12318.................................. 43

12319.................................. 43

12320.................................. 43

12321.................................. 43

12322.................................. 43

12323.................................. 43

12324.................................. 43

12325.................................. 43

12326.................................. 43

12327.................................. 43

12328.................................. 43

12329.................................. 43

12330.................................. 43

12331.................................. 43

12332.................................. 43

12333.................................. 43

12334.................................. 43

12335.................................. 46

12336.................................. 46

12337.................................. 46

12338.................................. 46

12339.................................. 46

12340.................................. 46

12341.................................. 46

12342.................................. 46

12343.................................. 46

12344.................................. 46

12345.................................. 46

12346.................................. 46

12347.................................. 46

12348.................................. 46

12349.................................. 46

12350.................................. 46

12351.................................. 46

12352.................................. 46

12353.................................. 46

12354.................................. 46

12355.................................. 46

12356.................................. 46

12357.................................. 46

12358.................................. 46

12360.................................. 46

12361.................................. 46

1236D ................................. 84

123AV ................. 53-54, 66, 68

1240............................ 217-221

1240K .................................218

12411.................................. 86

12412.................................. 86

12413.................................. 86

12414.................................. 86

12415.................................. 86

12417.................................. 86

12433..................................186

12477.................................. 29

12478.................................. 29

12479.................................. 29

124AV ........... 45-49, 51, 53-54,

.............59, 61, 63-64, 66-67

124AVP ........................... 45-46

125...................................... 87

12578................................ 245

12586................................ 245

12587................................ 245

12589................................ 245

1258D ................................. 84

12590................................ 245

12591................................ 245

12593................................ 245

12594................................ 245

12595................................ 245

12598..................................146

12599................................ 276

125AV ................. 53-54, 66, 68

125Q ................................... 86

12600................................ 275

12629.................................. 26

12630.................................. 82

12631.................................. 82

12632.................................. 82

12633.................................. 82

12634.................................. 82

12635.................................. 82

12636.................................. 82

12637.................................. 82

12638.................................. 82

12639.................................. 82

12640.................................. 82

12641.................................. 82

12642.................................. 82

12629..................................193

12656..................................151

126AV ........... 45-49, 51, 53-54,

.............59, 61, 63-64, 66-67

126AVP ........................... 45-46

12722..........188, 194, 202, 225

12723..........188, 194, 202, 225

12725................................ 321

12726................................ 330

12727................................ 312

1272D ................................. 84

12733..................................188

12743..................................128

12787............................. 91, 93

12791.................................. 86

12792.................................. 86

12793.................................. 86

127AV ....................... 53-54, 66

128AV ........... 45-49, 51, 53-54,

.............59, 61, 63-64, 66-67

128AVP ........................... 45-46

12CCX ................. 218, 220-221

1310........................... 285, 300

13110.................................. 27

13158................................ 393

13193................................ 123

13208................................ 123

13209................................ 123

13210................................ 123

13211................................ 123

13232................................ 123

13251................................ 123

13252................................ 123

13266.................................. 68

13267.................................. 68

13268.................................. 68

13276.................................. 68

13277.................................. 68

13284......... 44, 64-66, 68, 382

1332............................360, 368

13382................................ 123

13460..................................166

13679................................ 122

13800..................................382

13801..................................382

13814.................................. 68

13815................................ 112

13950................................ 393

13955..................................161

1399.................................. 101

1399-22 ............................ 101

1412D ................................. 84

14159................................ 112

1418D ................................. 84

1424D ................................. 84

14265................................ 124

14279................................ 119

14287................................ 119

1429AV .... 53-54, 63-64, 66-67

1430AV .... 53-54, 63-64, 66-67

1431AV .... 53-54, 63-64, 66-67

1432AV .... 53-54, 63-64, 66-67

1433AVBB ...................... 53, 67

1434AV ..................... 53, 67, 72

1436D ................................. 84

14392..........................135, 137

14496................................ 123

14568..................................161

14722............45-51, 53-56, 59,

...................61, 63-64, 66-67

14722P........................... 45-46

14909................................ 122

149H ................................... 82

149H–1 ................................82

149H–1-1/2 ..........................82

149H–1-1/4 ......................... 82

149H–1-1/8 ..........................82

149H–1-3/4 ..........................82

149H–1-3/8 ..........................82

149H–2 ............................... 82

149H–2-1/4 ..........................82

149H–2-1/8 ..........................82

149H–2-9/16 ........................82

149H–3 ................................82

149H–3-5/8 ..........................82

149H–4-5/8 ..........................82

150...................................... 87

15000..........................154, 157

15001V .............................. 401

15002V .............................. 401

15005V .............................. 401

15010V .............................. 401

15013V .............................. 401

15031V .............................. 401

15032V .............................. 401

15033V .............................. 401

150Q ................................... 86

15128................................ 118

15129................................ 119

15135................................ 119

15136................................ 119

15145................................ 119

15147................................ 119

15150................................ 119

15222X.............................. 401

15223X.............................. 401

15224X.............................. 401

15225X.............................. 401

15226X.............................. 401

15227X.............................. 401

15251X.............................. 401

15252X.............................. 401

15253X.............................. 401

15254X.............................. 401

15255X.............................. 401

15256X.............................. 401

1531.... 119, 125-126, 367-368

15316..................................170

15321..................................377

15324..................................164

15325..........................155, 164

15326..................................164

15327..................................164

15332..................................169

15341..................................368

15343..................................374

15345..................................166

15358..................................164

431

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Index

www.greenlee.com

15362.......................... 164-166

15363..................................164

15364..................................164

15372..................................377

15375..................................377

15410................................ 399

15416................................ 399

15422................................ 399

15423................................ 399

15424................................ 399

1550........................... 218, 300

1550nm ............................. 285

1557AA .................... 63-67, 73

15631.................................. 68

15669................................ 124

15671................................ 124

15677........................... 68, 382

15706................................ 400

15720................................ 400

15721R ............................. 400

15829................................ 122

15906............................. 64-66

15908....................... 44, 63-67

15909............................. 65-66

15910..................... 65-66, 401

15911.................................. 68

15930................................ 401

15931................................ 401

15932................................ 401

15933................................ 401

15934................................ 401

15935................................ 401

15940................................ 399

15945................................ 400

16-04-36A........................... 85

16-04-54A........................... 85

16-04-72A........................... 85

1614SS ... 57-59, 61, 63-67, 73

1620.................................. 297

16249................................ 122

1630.................................. 297

1636............................360, 368

16460................................ 118

16464................................ 122

16470................................ 123

16477................................ 124

16480................................ 122

16491................................ 123

16504..................................146

16505..................................146

16506..................................146

16511..........................143, 145

16512..................................145

16513..................................145

16514..................................145

16515..................................145

16517.................. 142, 144-145

16563................................ 119

166 / GR ............................ 228

166 / GRL .......................... 228

166 / 6 .............................. 229

166 / 8 .............................. 229

1662.................................. 297

16634.................................. 68

16646..........................142, 144

167 / H .............................. 228

167 / HL ............................ 228

167 / 6 .............................. 229

167 / 8 .............................. 229

16741................................ 124

16747................................ 124

16751................................ 124

16752................................ 124

16753................................ 124

16754................................ 124

1675AV ..................... 46, 53, 72

16797..................................164

16798.......................... 164-165

16799..................................164

168...................................... 87

168 / T .............................. 228

168 / TL ............................. 228

168 / 6 .............................. 229

168 / 8 .............................. 229

16800..................................164

16801..................................164

16802..................................164

16854..................................174

16856..................................174

16857..................................174

16858..................................174

16859..................................174

168Q ................................... 86

169 / O .............................. 228

169 / 0H ............................ 228

169 / OK ............................ 228

169 / 6 .............................. 229

169 / 8 .............................. 229

16951.................. 142, 144-145

170 / W ............................. 228

170 / WH ........................... 228

170 / WK ........................... 228

170 / WL ........................... 228

170 / 6 .............................. 229

170 / 8 .............................. 229

17076..................................377

17091............................. 63-66

170XL ................. 286, 296, 305

171 / G .............................. 228

171 / GH ............................ 228

171 / GK ............................ 228

171 / GL ............................ 228

171 / 6 .............................. 229

171 / 8 .............................. 229

172 / RH ............................ 228

172 / RL ............................ 228

172 / RO ............................ 228

172 / 6 .............................. 229

172 / 8 .............................. 229

172 / 18 ............................ 229

1723........................... 113, 118

1725....... 63, 68, 222, 383, 385

17255..................................165

17256..................................165

17257..................................165

17258..................................165

17260..................................165

17261..................................165

17263..................................165

17264..................................165

17265..................................164

17266..................................164

17299..................................164

173 / B .............................. 228

173 / BH ............................ 228

173 / BL ............................ 228

173 / 8 .............................. 229

173 / 18 ............................ 229

1731............................. 68, 385

1731F1725 .......................... 68

1731H767 ........................... 68

1732.................................... 68

1732H755 ........................... 68

1736.................................. 123

1737.................................. 124

17370..................................174

1738.................................. 119

174 / GR ............................ 228

174 / GRH .......................... 228

174 / GRL .......................... 228

174 / 12 ............................ 229

174 / 18 ............................ 229

1742AV ................................ 53

1743AV ................................ 53

1744AV ................................ 53

17450..................................190

17451..................................190

17459..................................190

1745AV ................................ 53

1746AV ................................ 53

1747AV ................................ 53

175 / S .............................. 228

175 / SL ............................ 228

175 / 12 ............................ 229

175 / 18 ............................ 229

1751AV ................................ 53

1752AV ................................ 53

1753AV ................................ 53

1754AV ................................ 53

1756AV ........................... 53, 56

17571..................................174

1757AV ........................... 53, 56

1758AV ........................... 53, 56

1759AV ................................ 53

176 / E .............................. 228

176 / EL ............................ 228

176 / 12 ............................ 229

176 / 18 ............................ 229

17600..................................192

1760AV ................................ 53

17611.................................. 78

17612.................................. 78

17613.................................. 78

17614.................................. 78

17615.................................. 78

17616.................................. 78

1761AV ................................ 53

17620.................................. 78

1762AV ................................ 53

1763AV ................................ 53

1764AV ................................ 53

17687....................... 53, 56, 66

17690....................... 53, 56, 66

17697................. 53, 56, 66, 68

177.................................... 273

177 / GR ............................ 228

177 / GRL .......................... 228

177 / 12 ............................ 229

177 / 18 ............................ 229

17700................. 53, 56, 66, 68

17707..................................385

178 / BR ............................ 228

178 / BRL .......................... 228

178 / 18 ............................ 229

1783AV ................................ 53

1789AV ................................ 53

179 / B .............................. 228

179 / BL ............................ 228

1790AV ................................ 53

1791AV ................................ 53

1792AV ................................ 53

17937................................ 118

1793AV ................................ 53

17944................................ 118

1794AV ................................ 53

1795AV ................................ 53

1796AV ................................ 53

1797AV ................................ 53

17984................................ 118

17986................................ 118

1798AV ................................ 53

180 / 0 .............................. 228

1800........................... 110, 112

1800G1 ............................. 112

1801........................... 110, 112

1802........................... 122-125

1805........................... 125-127

1807.................................. 128

1810.................................. 112

18102................................ 111

18103................................ 111

18104................................ 111

1811.................................. 112

1813........................... 120, 126

1815AV ................................ 53

1816AV ................................ 53

1818........................... 110, 113

1818G1 ............................. 113

1818R ........................ 110, 113

1818T ......................... 110, 113

18202..................................161

1820AV ................................ 53

1821AV ................................ 53

18272..................................382

18297..................................384

18331....................... 53, 56, 66

18358.................................. 82

18402............................. 64, 66

18416..................................384

18557.................................. 68

18558.................................. 68

18559.................................. 68

18635.................................. 53

18636................................ 113

18642................................ 113

18681................................ 113

18772................................ 113

18827................................ 113

18828................................ 113

18829................................ 113

18830................................ 113

18831................................ 113

18832................................ 113

18886.................................. 53

18887.................................. 53

18890.................................. 53

18891.................................. 53

18892.................................. 53

18905.................................. 53

18906.................................. 53

1895.................................. 127

1900................... 223, 238, 277

1901................... 223, 238, 278

1904............................... 42, 48

1905....................................223

1906SB ............................... 48

19094..................................169

19107..................................145

19109..................................145

19110..................................145

1913...................................... 8

19131.................................. 92

19132............................. 92, 95

19133.................................. 92

19134............................. 92, 95

19135............................. 92, 95

19136............................. 92, 95

19137.................................. 92

19138............................. 92, 95

1914...................................... 8

19140.................................. 92

19141............................. 92, 95

19143............................. 92, 95

19144.................................. 92

19145.................................. 92

19146............................. 92, 95

19147.................................. 92

19148............................. 92, 95

19149.................................. 92

19150.................................. 92

19151.................................. 92

19152............................. 92, 95

19153.................................. 92

19154............................. 92, 95

19155............................. 92, 95

19157.................................. 92

19158.................................. 92

19159............................. 92, 95

1916............................... 8, 235

19160.................................. 92

19161............................. 92, 95

19162............................. 92, 95

19163.................................. 92

19164.................................. 92

19165.................................. 92

19166.................................. 92

19167............................. 92, 95

19168.................................. 92

19169............................. 92, 95

1917............................... 8, 235

19170.................................. 92

19171.................................. 92

19172............................. 92, 95

19174............................. 92, 95

19175.................................. 92

19176.................................. 92

19177............................. 92, 95

19178.................................. 92

19179.................................. 92

1918............................... 8, 235

19180............................. 92, 95

19181............................. 92, 95

19182.................................. 92

19183.................................. 92

19184.................................. 92

19192.................................. 95

19193............................. 44, 55

1921.................................... 10

1923.................................... 10

19236................................ 402

1924AA ... 44, 57-59, 61, 63-67

1925AA .................... 44, 63-67

1926AA .................... 44, 63-67

1927.................................... 10

1935............................... 9, 224

1940............................... 29, 99

1941-1 ........................... 29, 99

1941-5 ........................... 29, 99

1950............................... 8, 235

1951............................... 8, 235

19524..................................176

1955.............. 8, 235, 264, 278,

................................281-282

1956............................... 8, 235

1960...................................... 9

1969.................................... 25

1981............................201, 212

19811................................ 124

1989............................201, 211

1990............................201, 212

19913.................................. 95

19973.................................. 54

19974.................................. 54

19975.................................. 53

19976.................................. 53

19977.................................. 53

19978.................................. 53

19980.................................. 53

19984..................................194

19985..................................194

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

432

Index

www.greenlee.com

19986..................................194

19987..................................194

19988......................... 112-113

19990..................................198

2000H ........................ 266, 340

2000R ........................ 266, 340

2007........................... 333, 335

2008........................... 333-334

200C ................................. 252

200EP ......... 252, 261, 263-264

200FP ......................... 252-253

200GX ............................... 252

200XP......................... 252-253

2010................... 309, 311, 358

2011........................... 333-334

2012.................................. 358

20158..................................186

2018R .................................169

2018S .................................169

20231................................ 113

20232................................ 113

20243..................................224

20249R ...............................169

2024R .................................169

2024S .................................169

2030R .................................169

2030S .................................169

20344.................................. 83

20346.................................. 83

20348.................................. 83

20350.................................. 83

20352.................................. 83

20354.................................. 83

20357.................................. 83

20358.................................. 83

20359.................................. 83

20360.................................. 83

20361.................................. 83

20364.................................. 83

20369R ...............................169

2036R .................................169

2036S .................................169

20486.................................. 68

20495.................................. 48

2050.................................. 124

20503..................................211

20504..................................211

20505..................................211

20506..................................211

20507..................................211

20573..................................385

20667.................................. 53

20668.................................. 53

20670.................................. 53

20671.................................. 53

20673.................................. 53

20676.................................. 53

20678.................................. 53

20679.................................. 53

2072................... 333, 364, 368

2072K ............................... 333

20939..................................211

20942................................ 283

20943................................ 283

20944................................ 283

20945................................ 282

20946..................................199

21115.................................. 53

2113AA .................... 63-67, 73

21214.................................. 53

21216.................................. 53

21257......................... 122-125

21285.................................. 77

21297............................. 76-77

21316................. 53, 56, 66, 68

21318................. 125-126, 127

21346......................... 125-126

21357......................... 122, 125

21359......................... 123, 125

21360................................ 125

21413................................ 125

2142............................360, 368

21467..................................387

21468..................................387

21471..................................387

21472..................................387

21474..................................387

21477..................................387

21480..................................387

21481..................................146

21482..................................146

21489.................................. 53

21491.................................. 53

21519.................................. 53

21520..................................387

21521..................................387

21524..................................387

21533..................................223

21541......................... 125-126

21542................................ 125

21543................................ 125

21544................................ 125

21545................................ 125

21546..................................170

21550..................................170

21562..................................147

21572..................................165

21573..................................165

21652B .............. 404-405, 408

21655................................ 408

21660................................ 408

21875..................................147

21954................................ 119

21978..................................223

21979..................................377

21980..................................377

21982..................................372

22084..................................215

22085..................................215

22086..................................215

22087..................................215

22088..................................215

22089..................................215

22090..................................215

22121..................................215

22122..................................215

22123..................................215

22124..................................215

22125..................................215

22126..................................215

22127..................................215

22128..................................215

22129..................................215

22132..................................195

22140................................ 396

22192................................ 113

22220................................ 113

22279..................................190

22280.................................. 77

22286.................................. 77

22288.................................. 77

22289.................................. 77

22291..................................193

22296..................................193

22410..................................162

22451..................................162

22563.................................. 53

22564.................................. 53

22565.................................. 53

22566.................................. 53

22567.................................. 53

22568.................................. 53

22578..................................222

22579..................................222

22590..................................222

2260............................361, 368

22618..........................368, 386

22682..................................222

22875..................................370

22893................................ 319

22894................................ 319

22895................................ 318

22897................................ 318

229...................................... 71

22934..................................222

23076..188, 194, 202, 225, 241

231...................................... 71

23196..................................361

23270..................................361

23273......................... 160, 360

23274......... 119, 125-126, 367

23276..................................361

23360.................. 142-143, 145

23362.......... 156-158, 161, 360

23363......................... 121, 360

23368..................................146

23392................................ 111

234...................................... 71

23405.......... 156-157, 368, 374

23446................................ 116

23483..................................199

23499................................ 118

23505................................ 118

23521..................................206

23533................................ 111

23541................................ 118

23564................................ 111

23593..................................202

23594..................................202

23595..................................202

23635........................... 27, 100

23636................................ 258

23639................................ 257

23640................................ 257

23641........................... 26, 100

23665..................................177

23667................................ 111

23773..................................171

23774..........................160, 171

23775..................................171

23776..................................171

23777..........................160, 171

238...................................... 71

23818......................... 113, 118

23892..................................222

23893..................................222

23902..................................140

23948.................................. 25

23955................... 63, 190, 222

24053................................ 280

24054..................................217

24163..................................213

24326..................................145

24395..................................222

24400................................ 112

24401................................ 112

24459............................. 53, 56

24462............................. 53, 56

24476.................................. 53

24477.................................. 53

2448................... 160, 360, 368

24496................................ 383

24564................................ 193

24565................................ 193

24567................................ 193

2460................... 121, 360, 368

2472........................... 360, 368

24753................................ 112

24821.......... 150, 156-160, 163

24823.................................. 77

249AVBB ................. 46-47, 50,

........................ 53-56, 67, 72

249AVBBP ........................... 46

24B ................................... 341

24BK ................................. 341

2500A ............................... 325

25001................................ 390

25094............................. 63-64

25097............................. 62-63

25120................................ 390

25144.................................. 68

25160..................................166

25169.................................. 68

25184................................ 124

25214..................................383

25263................................ 118

25268................................ 118

25273................................ 118

252B .......................... 298, 305

25340.................................. 53

25341.................................. 53

25342.................................. 53

25344.................................. 53

25349.................................. 53

25350.................................. 53

25351.................................. 53

25360.................................. 53

25361.................................. 53

25372.................................. 53

25383.................................. 53

253B .......... 290, 298-299, 305

25403.................................. 53

25427.................................. 53

25428.................................. 53

25567................................ 111

25568................................ 111

25591..................................377

255MT ................ 298-299, 305

25616................................ 390

25619................................ 390

25622................................ 390

25625................................ 390

25626................................ 390

25644.................. 142-143, 145

25645..........................142, 145

25646.................. 142-143, 145

25652R ............................. 390

257MT ................ 298-299, 305

26096..................................388

26100..................................388

26297................................ 121

262A .................. 300, 305-306

26300................................ 121

26302................................ 121

26305................................ 121

26306................................ 121

26309................................ 121

26349................................ 121

26366................................ 121

26389................................ 121

263LX ......................... 296, 305

263MT ........................ 296, 305

26438..................................370

26534.................................. 69

26536.................................. 69

26538.................................. 69

26580................................ 121

26584................................ 121

26588................................ 121

26594................................ 121

265A .......................... 300-301

26624................................ 121

27318..................................388

27335.................................. 68

27361.................................. 68

27362.................................. 68

27364................................ 121

27381................................ 121

27383..................................169

27384..................................169

27386..................................169

27387..................................169

27388..................................169

27389..................................169

27390..................................169

27391..................................169

27392..................................169

27393..................................169

27395................................ 130

27396..................................137

27397..................................137

27416................................ 121

27417................................ 121

27433............................. 65-66

27471..................................368

27472..................................368

27538.................................. 95

27554................................ 120

27555................................ 120

27556................................ 120

27557................................ 120

27778................................ 120

27811................................ 130

27989................................ 116

27990................................ 116

28044..........................368, 374

28154....................... 42, 44, 67

28155....................... 42, 44, 67

28156............................. 42, 44

28157............................. 42, 44

28158............................. 42, 44

28159............................. 42, 44

28160............................. 42, 44

28161............................. 42, 44

28162............................. 42, 44

28163............................. 42, 44

28165............................. 42, 44

28166............................. 42, 44

28170..................................169

28237..................................388

28238..................................388

28239..................................388

28256..................................134

28257..................................134

28280..................................161

28885................................ 126

28900................................ 126

28901......................... 120, 126

29004................................ 126

29014................................ 126

29022................................ 126

29045..................................134

29046..................................134

29047..................................134

29048..................................134

29149..................................190

29209.................................. 95

29367..................................134

29451................ 42, 44, 57-59,

.................. 61-62, 65, 67, 73

433

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Index

www.greenlee.com

29452........... 42, 44, 62, 65, 73

29463................................ 119

29464................................ 119

29465................................ 119

29466................................ 119

29468................................ 119

29470................................ 119

29472................................ 119

29474................................ 119

29477................................ 119

294AVBB ............................. 45

294AVBBP ........................... 45

29518..................................135

29528.................................. 44

29529.................................. 44

29536................................ 118

29537................................ 118

29560.................................. 43

29563.................................. 43

29600..................................165

29619.................................. 44

29627..........................155, 158

29631..................................155

2981AV .......... 53-54, 63-64, 66

2982AV .......... 53-54, 63-64, 66

2983AV .......... 53-54, 63-64, 66

2984AV .......... 53-54, 63-64, 66

29937................................ 119

29948................................ 118

30005.................................. 79

30008................................ 411

30008.................................. 79

30043....................... 59, 61-67

30090................................ 411

30162..................................135

30183..................................166

30184..................................166

30188..................................166

30189..................................166

30193..................................166

30194..................................166

301A ............................ 26,100

30206............................. 64-66

30208..................................193

30216.................................. 48

30225.................................. 48

30227................. 42, 48, 67, 74

30228.................................. 48

30236........................... 54, 222

30239................................ 121

30242..................................382

3026AV ........................... 53, 72

30291..................................377

30309................................ 121

30346..................................166

30347..................................166

30358..................................166

30359..................................166

30363..................................166

30364..................................166

3036AVBB ........................... 53

3037AV ................................ 67

30384.................................. 43

30385.................................. 44

30387.................................. 44

30394..................................134

30395..................................134

30396..................................134

30419.................................. 80

30423.................................. 80

30427.................................. 80

30429.................................. 80

30431.................................. 80

30433.................................. 80

30442..................................181

30460..................................181

30462..................................181

30464..................................181

30466..................................181

30468..................................181

30470..................................181

30474..................................181

30476..................................181

30478..................................181

3048.... 156-157, 161, 360, 368

30480..................................181

30482..................................181

30484..................................181

30486..................................181

304AVBB ............ 45-47, 49-50,

.................. 53-54, 56, 67, 72

304AVBBP ...................... 45-46

30502..................................181

30504..................................181

30506..................................181

30508..................................181

30536..................................180

30538..................................180

30540..................................180

30542..................................180

30544..................................180

30546..................................180

30548..................................180

30550..................................180

30552..................................180

30554..................................180

30558..................................180

30560..................................180

30562..................................180

30564..................................180

30566..................................180

30568..................................180

30570..................................180

30572..................................180

30574..................................180

30576..................................180

30578..................................180

30580..................................180

30582..................................180

30584..................................179

30586..................................179

30588..................................179

30590..................................179

30592..................................179

30594..................................179

30596..................................179

30658..................................182

30660..................................182

30662..................................182

30664..................................182

30666..................................182

30668..................................182

30758..................................179

30811................................ 412

30859..........................134, 137

30866................................ 130

30867................................ 130

30908................................ 130

30915.................................. 80

30919.................................. 80

30921.................................. 80

30923.................................. 80

30925.................................. 80

30927.................................. 80

30929.................................. 80

30931.................................. 80

30935.................................. 80

30937.................................. 80

30968.................................. 77

30976................................ 131

30977................................ 131

30978................................ 131

30979................................ 131

30980................................ 131

30981................................ 131

30998..................................181

31000..................................181

31002..................................181

31004..................................181

31006..................................181

31010..................................180

31012..................................180

31014..................................180

31024..................................182

31026..................................182

31028..................................182

31030..................................182

31032..................................182

31043R ............................. 411

31068.................................. 44

31092................................ 130

31093................................ 130

311...................................... 27

31117.................................. 42

31119.................................. 42

31120.................................. 42

31122.................................. 42

31123.................................. 42

31124.................................. 42

31125.................................. 42

31126.................................. 42

31128.................................. 42

31129.................................. 42

31131.................................. 42

31132.................................. 42

31133.................................. 42

31135.................................. 42

311-JAB .............................. 27

31228................................ 131

31229..................................367

31274................................ 120

31281................................ 120

31287................................ 120

31291............. 25-26, 193, 234

31292................................ 121

31314..................................142

31315..................................142

31339..................................142

31353................... 63, 222, 383

31395..................................166

31466..........................155, 158

31482..................................179

31483..................................179

31484..................................179

31486................................ 129

31487................................ 129

31488................................ 129

31510..................................367

31518..................................373

31523..................................373

31535.................................. 83

31536.................................. 83

31537.................................. 83

31539.................................. 83

31540.................................. 83

31541.................................. 83

31542.................................. 83

31543.................................. 83

31544.................................. 83

31545.................................. 83

31569..................................165

31573..................................165

31651..................................360

31756................ 46-51, 54, 59,

...................61, 63-64, 66-67

31757................ 46-49, 51, 59,

........................ 61, 63-64, 67

31758................ 46-49, 51, 59,

........................ 61, 63-64, 67

31759................ 46-49, 51, 59,

........................ 61, 63-64, 67

31760................ 46-49, 51, 59,

........................ 61, 63-64, 67

31761................ 46-49, 51, 59,

........................ 61, 63-64, 67

31788.................................. 80

31790.................................. 80

31792.................................. 80

31794.................................. 80

31796.................................. 80

31798.................................. 80

31832.................................. 67

31834.................................. 67

31849.................................. 67

31855..................................177

31866..................................177

31867..................................177

31872........... 42, 57-59, 61, 73

31880............................. 47, 54

31881................................ 121

31882................................ 121

31883................................ 121

31884................................ 121

31888.................................. 10

31889............................. 8, 235

31890............................. 8, 235

31891............................. 8, 235

31893............................... 8, 26

31894.................................... 8

31905..................................176

31908..................................177

31910..................................176

31925..................................170

31926..................................170

31927..................................170

31929..................................170

31930..................................170

31931..................................170

31961................................ 101

31962.................................. 46

31963.................................. 46

31964.................................. 46

31965.................................. 46

31966.................................. 46

31967.................................. 46

31969..... 46, 50-51, 56, 61, 64

31970........... 46, 50-51, 61, 64

31971........... 46, 50-51, 61, 64

31973........... 46, 50-51, 61, 64

31975................. 46, 50-51, 64

31976................. 46, 50-51, 64

31978................. 46, 50-51, 64

31989.................................. 46

31990.................................. 46

31991.................................. 46

31993.................................. 46

31995.................................. 46

31996.................................. 46

31998.................................. 46

32002.......... 46, 50-51, 53, 56,

..............................61, 64, 66

32003.......... 46, 50-51, 53, 56,

..............................61, 64, 66

32004.......... 46, 50-51, 53, 56,

..............................61, 64, 66

32006.......... 46, 50-51, 53, 56,

..............................61, 64, 66

32008.......... 46, 50-51, 53, 56,

....................................64, 66

32009.......... 46, 50-51, 53, 56,

....................................64, 66

32011.......... 46, 50-51, 53, 56,

....................................64, 66

32012............................. 47, 54

32013.................................. 47

32014.................................. 47

32017.................................. 51

3205AV ................................ 53

3206AV ................................ 53

3207AV ........................... 53, 55

3208AV ........................... 53, 55

32095.......................... 144-145

32104..................................145

32116..................................142

322-013 ....................... 27, 100

322-018 ....................... 27, 100

322-113 ....................... 27, 100

322-118 ....................... 27, 100

32237................................ 101

32322................................ 101

32336................................ 101

32337................................ 101

32338................................ 101

32364................................ 101

32398.................................. 51

32422..................................145

32431..................................145

32432..................................144

32433.......................... 142-146

32489..................................212

32565..................................144

32662..................................145

32743..................................157

32799............................. 64-65

32803.................................. 51

32804.................................. 56

32891..................................212

32913..................................198

32917................................ 111

32918................................ 111

32919................................ 111

32928..................................167

32929..................................167

32930..................................167

32935..................................374

33026..................................370

33035..................................374

333-1218 ..................... 27, 100

333-1224 ..................... 27, 100

333-1232 ..................... 27, 100

33336..................................383

333A ............................ 27, 100

33405..................................370

33451..................................145

33454......................... 124-125

33455................................ 125

33456................................ 125

33457................................ 125

33458................................ 125

33459......................... 124-125

33462......................... 124-125

33463......................... 124-125

33515..................................384

33516..................................383

3360............................362, 368

33614......................... 124-125

33735.................................. 29

33735.................................. 99

33786.................................. 61

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

434

Index

www.greenlee.com

33794............................. 60-61

33901..................................162

33967...... 57-59, 61, 70-71, 73

33A–1 ..................................83

33A–1/2 ...............................83

33A–1/4 ...............................83

33A–1-1/2 ............................83

33A–1-1/4 ............................83

33A–1-1/8 ............................83

33A–1-3/8 ............................83

33A–3/4 ...............................83

33A–3/8 ...............................83

33A–5/8 ...............................83

33A–7/8 ...............................83

33AR-6 ................................ 83

33L–1 ...................................83

33L–1/2 ...............................83

33L–1/4 ...............................83

33L–1-1/2 ............................83

33L–1-1/4 ............................83

33L–1-1/8 ............................83

33L–3/4 ...............................83

33L–3/8 ...............................83

33L–5/8 ...............................83

33L–7/8 ...............................83

34002..................................135

34027..................................142

34081..................................190

34084..................................197

34136..................156, 158, 171

34137..................156, 158, 171

34138..................156, 158, 171

34187..................................197

34188..................................190

34198................................ 123

34200................................ 122

34201................................ 118

34202................................ 118

34203..................................190

34205................................ 120

34208................................ 120

34209................................ 124

34210................................ 124

34288.................................. 61

34291............................. 60-61

34292............................. 60-61

34293............................. 60-61

34299............................. 60-61

34300............................. 60-61

34321................................ 125

34329......................... 124-125

34340......................... 124-125

34342................................ 125

34344......................... 124-125

34357.................................. 48

34358.................................. 67

34359.................................. 67

34360............................. 64-65

34361............................. 64-65

34362.................. 156-157, 170

34369.......................... 383-384

34392..................................142

34401.................................. 79

34403.................................. 79

34410................. 56, 63-66, 79

34411.................................. 79

34418.................................. 71

34420.................................. 71

34421....................... 70-71, 75

34427.................................. 71

34429.................................. 71

34436.................................. 71

34437.................................. 71

34441.................................. 71

34442.................................. 71

34443.................................. 71

34444.................................. 71

34451................................ 349

34452................................ 332

34470................................ 311

3448............................365, 368

34514................................ 346

34523................................ 343

34524................................ 343

34525................................ 350

34528................................ 350

34529................................ 350

34555................................ 345

34556................................ 350

34574................................ 350

34727................................ 345

34733............................. 70-71

34757.................................. 49

34758.................................. 49

34941....................... 49-50, 56

34953............................. 29, 99

34958................................ 347

34959................................ 347

34960................................ 347

34980.................................. 81

34983............................. 60-61

34995.................................. 82

34996............................. 81, 82

34997.................................. 82

34A–1 ..................................83

34A–1/2 ...............................83

34A–3/4 ...............................83

34A–3/8 ...............................83

34A–5/8 ...............................83

34A–7/8 ...............................83

34AR-6 ................................ 83

35012................................ 411

35014................................ 411

35016................................ 411

35043..................................362

35057..................................362

35068..................................365

35094................................ 111

35095................................ 111

35096................................ 111

35097................................ 111

35098.................. 157-158, 171

35100.................. 157-158, 171

35101.................. 157-158, 171

35158................. 46, 50-51, 61

35159..... 46, 50-51, 53, 56, 61

35160....................... 46, 50-51

35161........... 46, 50-51, 53, 56

35162..... 46, 50-51, 53, 56, 61

35163................. 46, 50-51, 61

35164................ 46, 50-51, 53,

.............................. 55-56, 61

35165................. 46, 50-51, 61

35166....................... 46, 50-51

35167....................... 46, 50-51

35168..... 46, 50-51, 53, 56, 61

35169................. 46, 50-51, 61

35177.................................. 46

35178.................................. 46

35179.................................. 46

35180.................................. 46

35181.................................. 46

35182.................................. 46

35192.................................. 53

35193............................. 53, 56

35196.................................. 71

35197.................................. 71

35198.................................. 71

35199.................................. 71

35200.................................. 71

35202.................................. 61

35207..................................173

35208..................................173

35209..................................173

35211..................................173

35212..................................173

35213..................................173

35215..................................174

35216..................................174

35217..................................174

35283..........................159, 171

35284..........................159, 171

35285..........................159, 171

35300..........................155, 159

353-123 .............................. 98

353-156 .............................. 98

353-234 .............................. 98

353-318 .............................. 98

353-345 .............................. 98

35336..................................159

353-418 .............................. 98

35356.................................. 81

35358.................................. 81

353-614 .............................. 98

353-618 .............................. 98

353-624 .............................. 98

353-646 .............................. 98

353-656 .............................. 98

35369..................................195

353-804 .............................. 98

353-814 .............................. 98

353-818 .............................. 98

353-956 .............................. 98

353-966 .............................. 98

353-969 .............................. 98

35400................................ 121

35430R ............................. 410

35431................................ 410

35450................................ 350

35455................................ 410

35456................................ 410

35457................................ 410

35458................................ 410

35459................................ 410

3548............................ 367-368

35482................................ 111

35483................................ 111

35484................................ 111

3548GB ...............................385

35577................................ 130

35592................................ 130

35605..........................155, 167

35607..................................167

35611............................. 60-61

35614............................. 60-61

35615............................. 60-61

35616............................. 60-61

35617.................................. 51

35708.................................. 96

35711................................ 120

35712.................................. 96

35713.................................. 96

35714.................................. 96

35715.................................. 96

35716.................................. 96

35717.................................. 96

35718.................................. 96

35719.................................. 96

35720.................................. 96

35721.................................. 96

35722.................................. 96

35723.................................. 96

35724.................................. 96

35725.................................. 96

35726.................................. 96

35727.................................. 96

35740................................ 131

35742..................................136

35743..................................136

35744..................................136

35745..................................136

35746..................................136

35747..................................136

35750..................................136

35763..................................159

35766..................................159

35884.................................. 79

35887..................................216

35905................................ 127

35908..................................136

35909..................................136

35919..................................136

35930..................................136

35936.................................. 79

35955..................................211

36000................................ 255

36018............................. 50, 79

36020.................................. 79

36022.................................. 79

36171.................................. 46

36172.................................. 46

36173............................. 46, 53

36202..................................211

36278............................. 45-46

36279.......... 46, 50-51, 53, 56,

..............................61, 64, 66

36282................. 53, 56, 66, 68

36284........... 46, 50-51, 61, 64

36296................................ 113

36313..................................384

36314..................................384

36315..................................384

36402.................................. 79

36414.................................. 79

3648............................361, 368

36489............................. 42, 44

36490............................. 42, 44

36506.................................. 53

36508.................................. 46

36587..................................381

3660............................361, 368

36617.................................. 77

36659.................................. 80

36662.................................. 80

36664.................................. 80

36685............................. 50, 56

36687.................................. 56

36688.................................. 56

36689.................................. 56

36690.................................. 50

36691.................................. 50

36692.................................. 50

36693.................................. 50

36697................................ 113

36745..................................374

3678GB ............................... 81

36849..................................137

36850..................................137

3687GB ...............................385

36882....................... 53, 56, 66

36910.................................. 53

36924................................ 335

36925................................ 335

36926................................ 335

36927................................ 335

36928......................... 334-335

36929......................... 334-335

36930......................... 334-335

3693GB ............................... 81

37103.................................. 68

3713GB ............................... 81

37154............................. 92-94

37154B ............................... 94

37155............................. 92-95

37155B ............................... 94

37156............................. 92-95

37156B ............................... 94

37157............................. 92-95

37157B ............................... 94

37171..................................159

37179..................................154

37186..................................381

37187..................................381

37202..................................375

37218..................................375

37279................. 110, 115-117

37281................................ 118

37282................................ 118

373-T123 ............................ 99

373-T234 ............................ 99

373-T345 ............................ 99

373-TVAR ............................ 99

373-U123 ............................ 99

373-U234 ............................ 99

373-U300 ............................ 99

373-U345 ............................ 99

373-UVAR ............................ 99

37600............................. 9, 224

37614........................... 68, 385

37623.................................. 94

37624.................................. 94

37626.................................. 94

37628.................................. 94

37630.................................. 94

37663..................................155

37728..................................385

37729............. 63, 68, 222, 385

37835..................................146

37868.................................. 80

37869.................................. 80

37870.................................. 80

37871.................................. 80

37903.................................. 94

37907-50 ............................146

37908-50 ............................146

37909-25 ............................146

37910-25 ............................146

37911-50 ............................146

37912-25 ............................146

37913-25 ............................146

37917-1 ..............................146

37917-10 .....142-143, 145-146

37918-5 .......142-143, 145-146

37919-5 ..............................146

37920-5 .......142-143, 145-146

37921-5 .......142-143, 145-146

37922-5 ..............................146

37923-5 .......142-143, 145-146

37959..................................146

38067.................................. 85

38068.................................. 85

38069.................................. 85

38072.................................. 85

38073.................................. 85

38074.................................. 85

38077.................................. 85

38078.................................. 85

38079.................................. 85

38082.................................. 85

38083.................................. 85

435

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Index

www.greenlee.com

38084.................................. 85

38087.................................. 85

38088.................................. 85

38089.................................. 85

38092.................................. 85

38093.................................. 85

38094.................................. 85

38097.................................. 85

38098.................................. 85

38099.................................. 85

38102.................................. 85

38103.................................. 85

38104.................................. 85

38112.................................. 85

38113.................................. 85

38114.................................. 85

38117.................................. 85

38118.................................. 85

38119.................................. 85

38122.................................. 85

38123.................................. 85

38124.................................. 85

38128.................................. 85

38129.................................. 85

3812D ................................. 84

38133.................................. 85

38134.................................. 85

38148................................ 114

3824D ................................. 84

38316..................... 44, 68, 385

38324.................................. 89

38325.................................. 89

38326.................................. 89

38327.................................. 89

38328.................................. 89

38329.................................. 89

38330.................................. 89

38331.................................. 89

38332.................................. 89

38333.................................. 89

38334.................................. 89

38336.................................. 89

38350.................................. 87

3836D ................................. 84

38390.................................. 89

38405................................ 128

38406................................ 128

38407................................ 128

38408................................ 128

38409................................ 128

38456............................. 65-66

38466................................ 120

38467................................ 120

38504.................................. 94

38505.................................. 94

38506.................................. 94

38507.................................. 94

38520............................. 64-65

38522............................. 92-95

38522B ............................... 94

38524.................................. 94

38526............................. 94-95

38529.................................. 94

38583................................ 335

3858D ................................. 84

38594..................................143

38624..................................142

38650................................ 114

38659..................................363

38668.................................. 84

38678.................................. 84

38685.................................. 87

38686.................................. 87

38687.................................. 87

38688.................................. 87

38689.................................. 87

38690.................................. 87

38691.................................. 87

38696.................................. 87

38717..................................360

38718..................................360

38719..................................362

38720..................................365

38722..................................363

3872D ................................. 84

38733..................................373

38744.................................. 84

38745.................................. 84

38746.................................. 84

38750.................................. 84

38751.................................. 84

38752.................................. 84

38753.................................. 84

38756.................................. 84

38757.................................. 84

38758.................................. 84

38774..................................373

38778................................ 119

38780................................ 114

38786................................ 334

38787................................ 334

38788................................ 334

38789................................ 334

38793..................................190

38794..................................197

38863................................ 114

389-1014 .......................... 101

389-1418 .......................... 101

389-24 .............................. 101

38962................................ 114

38991.................................. 94

390......................................143

39051..................................143

39063..................................143

39106..................................176

39107..................................176

39108..................................176

39109..................................176

39110..................................176

39111..................................176

39112..................................176

39113..................................176

39114..................................176

39115..................................176

39116..................................176

39117..................................176

392......................................143

39243..................................147

39244..................................147

39245..................................147

39255..................................175

39257..................................175

39259..................................175

39261..................................175

39263..................................175

39265..................................175

39274..................................175

39276..................................175

39278..................................175

39280..................................175

39282..................................175

39284..................................175

39286..................................175

39288..................................175

39290..................................176

39294..................................176

39295..................................176

39296..................................176

39297..................................176

39298..................................176

39302..................................176

39303..................................176

39304..................................176

39306..................................176

39308..................................176

394AVBB ............................. 45

39660..................................378

39661..................................378

39664..................................378

39666..................................378

39780................................ 116

39790..................................136

39791..................................134

39849..................................175

39850..................................175

39860.................................. 55

39872.................................. 89

39873.................................. 94

39893.................................. 94

39902..................................175

39903..................................175

39904..................................175

39905..................................175

39913.................................. 84

39914.................................. 84

399-14A ............................ 101

399-18A ............................ 101

399-24A ............................ 101

39971................................ 116

3XT 36................................. 87

3XT 54................................. 87

3XT 72................................. 87

4016 GB ..............................386

4017 GB ..............................386

4018GB ...............................385

402K ................................. 255

402R .......................... 255, 261

402T ........................... 255, 261

4033GB ...............................385

405......................................170

406......................................170

408......................................387

409......................................387

412......................................387

413......................................387

414......................................387

417......................................387

418......................................387

41834..................................385

41877..................................385

41941..................................385

421......................................387

422......................................387

4236AV ................................ 82

424......................................387

430......................................146

430-500 ..............................146

430R ...................................146

431......................................146

434......................................147

435......................................147

436-10 ................................137

436-5 ..................................137

437AV .................................. 53

438-10 ................................134

438-10BP ............................134

438-10SS ............................135

438-20 ................................134

438-20BP ............................134

438-20SS ............................135

438-2X ................................135

438-5 ..................................134

438-5BP ..............................134

438-5H ................................134

438AV .................................. 53

439-1 ..........................134, 137

439-100 ..............................135

439-2 ..........................135, 137

439AV ....................... 53-54, 66

440AV ........... 45-49, 51, 53-54,

.............59, 61, 63-64, 66-67

440AVP ........................... 45-46

441-2 ..................................166

441-2-1/2 ...........................166

441-3 ..................................166

441-3-1/2 ...........................166

441-4 ..................................166

441-5 ..................................166

441-6 ..................................166

441AV ....................... 53-54, 66

442AV ........... 45-49, 51, 53-54,

.............59, 61, 63-64, 66-67

442AVP ........................... 45-46

4435....................................147

4436....................................147

4437....................................147

445..................... 150, 156-157,

........................ 158-160, 163

4451AV .............................. 102

4457AV .............................. 102

44999..................................212

45000............................. 9, 224

45004................................ 396

45019..................................223

45020..................................223

45039................................ 236

45040......................... 236, 263

45055................................ 259

45206..........................187, 192

45207..........................187, 192

45211..................................192

45212..................................192

45218..................................192

45228..................................192

45240..................................200

45241..................................200

45242..................................200

45272................................ 260

45276................................ 259

45277..................................192

45281..................................192

45282..................................192

45300................................ 268

45306................................ 268

45315................................ 245

45316................................ 245

45321................................ 245

45322................................ 245

45323......................... 245, 261

45324................. 245, 260, 263

45325................................ 245

45326......................... 245, 247

45327................................ 245

45328................................ 245

45333..................................188

45334..................................188

45378..................................188

45379..................................188

45380..................................188

45381..................................188

45382..................................188

45383..................................188

45466................................ 260

45467................................ 261

45468................................ 261

45469......................... 240, 262

45470................................ 262

45471................................ 263

45472................................ 263

45473................................ 264

45476................................ 260

45477................................ 261

45478................................ 261

45479................................ 262

45480......................... 236, 244

45481................. 234, 261, 263

45482.. 234, 260-261, 262-264

45483................................ 277

45485................................ 262

45486................................ 263

45487................................ 264

455......................................160

45500................................ 243

45501................................ 243

45504......... 225, 241, 244, 279

45505................................ 243

45507................................ 243

45508................................ 243

45509................................ 243

45516......... 238, 260-261, 263

45517................................ 238

45518................................ 238

45540................................ 243

45541......................... 243-244

45545................................ 242

45553......................... 240, 244

45556................................ 242

45557................................ 242

45558................................ 242

45559................................ 242

45562................................ 242

45563................................ 242

45565................................ 243

45566......................... 243-244

45570................................ 243

45571................................ 243

45572................................ 279

45574................................ 242

45575......... 240, 244, 261-263

45576......................... 236, 245

45577......... 236, 246, 261, 263

45578......... 237, 245, 260-261

45579......... 237, 244, 260-263

45580................................ 237

45581................................ 237

45582................................ 242

45586................. 277, 281-282

45589................. 278, 281-282

45593......................... 277, 281

45598................................ 279

45599......................... 279, 281

456......................................160

45612......................... 280-281

45637......................... 278, 281

45639................................ 281

45644................................ 281

45651......................... 280-281

45655................................ 281

45656................................ 280

45657................................ 282

45658................................ 281

45667................................ 237

45677......................... 237, 245

45726................................ 246

45727................................ 246

45728................................ 246

45730................................ 246

45731................................ 246

45732................................ 246

45733................................ 246

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

436

Index

www.greenlee.com

45734................................ 245

45735................................ 245

45737................................ 244

45738................................ 244

45739................................ 244

45740................................ 244

45742................................ 244

45743................................ 244

45744................................ 244

45745................................ 244

45747................................ 244

45748................................ 245

45749................................ 245

45750................................ 244

45751................. 244, 262-263

45753................................ 244

45755................................ 244

45756................................ 244

45758................................ 244

45760................. 244, 261-263

45770................................ 244

45771................................ 244

45773................................ 244

45775................................ 244

45776................................ 244

45778................................ 244

45780................................ 244

45823................. 223, 238, 278

45824................. 223, 238, 277

459......................................168

46010......................... 239, 260

46020......................... 239, 260

46021......................... 239, 260

46022................. 239, 260-264

46023................. 239, 260-264

46024......................... 239, 260

46040......................... 264, 270

46050................................ 270

46060................................ 259

46065................................ 259

46070................................ 259

46116................................ 243

46117................................ 243

46118................................ 243

462-1 ..................................388

462B ...................................388

462-Q ..................................388

46241................................ 247

46242................................ 247

46243................................ 247

463-1 ..................................388

463-Q ..................................388

4640AV ................................ 53

4641AV ................................ 53

46500........... 31, 141, 260, 264

46503..................................141

46533........................... 31, 141

46534........................... 31, 141

467......................................388

468.................................... 259

46800................. 242, 246, 261

46801........ 242, 245, 260-261,

........................................263

46808................................ 242

46824......................... 242, 263

46826................................ 242

46830................................ 242

468C ................................. 259

468R .......................... 259, 262

468T ........................... 259, 262

469 / 6 .............................. 228

469 / 8 .............................. 228

469 / 10 ............................ 228

470 / 6 .............................. 228

470 / 8 .............................. 228

470 / 10 ............................ 228

470 / 12 ............................ 228

471 / 6 .............................. 228

471 / 8 .............................. 228

471 / 10 ............................ 228

471 / 12 ............................ 228

4717AV .............................. 102

472 / 8 .............................. 228

472 / 10 ............................ 228

472 / 12 ............................ 228

472 / 18 ............................ 228

473 / 8 .............................. 228

473 / 12 ............................ 228

473 / 18 ............................ 228

474 / 10 ............................ 228

474 / 12 ............................ 228

474 / 18 ............................ 228

47439................................ 264

475 / 12 ............................ 228

475 / 18 ............................ 228

476 / 12 ............................ 228

476 / 18 ............................ 228

477 / 12 ............................ 228

477 / 18 ............................ 228

478 / 16 ............................ 228

478 / 18 ............................ 228

478 / 22 ............................ 228

479 / 16 ............................ 228

479 / 18 ............................ 228

479 / 25 ............................ 228

480 / 20 ............................ 228

480 / 25 ............................ 228

4848............................362, 368

4860............................362, 368

4872............................362, 368

4872R .........................362, 368

48788..................................207

48802..................................207

488-2 ..................................167

48820..................................207

48824..................................207

488-3 ..................................167

48844..................................385

48845..................................385

489......................................167

49981..................................284

4XT 36................................. 87

4XT 54................................. 87

4XT 72................................. 87

50017144............................368

50017187............................368

500CA ........................ 265, 339

501..................... 265, 338, 339

501R .......................... 265, 339

501T ........................... 265, 339

50283................................ 119

503..............................368, 374

50302...121-124, 150, 164-166

50303..........................370, 373

50386..................................385

504......................................177

50423................................ 102

5052B2K ........................... 292

5052B3K ........................... 292

5052B6K ........................... 292

5052BE2 ........................... 292

5052BIU ............................ 292

5060....................................368

5060MESH ..........................364

50642.................................. 68

50700..................................164

50753.................................. 81

50760..................................385

50765.................................. 81

508............................. 110-111

50806..................................386

50807..................................385

50823..................................385

50848................................ 119

508S .................. 266, 338, 340

508SR ........................ 266, 340

508ST......................... 266, 340

50954..................................161

50962.................................. 81

50975................................ 126

5102.................................. 347

51059..................................386

510LS ......................... 296-297

51185................................ 126

512............................. 110-111

51208..................................177

5123.................................. 346

5135AV ................................ 53

5136AV ................................ 53

51376............................. 81-82

51434..................................165

51488..................................372

5152B2K ........................... 292

5152B3K ........................... 292

5152B6K ........................... 292

5152BE2 ........................... 292

5152BIU ............................ 292

51593................................ 126

516............................. 110-111

51674................................ 126

51688..................................385

52000................................ 407

52000D ............................. 407

52005................................ 406

52005D ............................. 406

5201.................................. 347

52010R ............................. 407

52011................................ 407

52015................................ 407

52016................................ 407

52040................................ 407

52041................................ 407

52042................................ 407

52091................................ 395

521.................................... 338

52144............................. 81, 82

521A .................. 267, 338, 341

521R .......................... 267, 341

521T ........................... 267, 341

52284..................................370

52285..................................370

522B .......................... 293, 305

522B-HP ..................... 293, 305

52352..................................177

523B-13/15 ................ 290, 305

52466..................................374

5250.................................. 347

52500......................... 394-395

52515................................ 385

525-30 .............................. 284

525-30-PCX ...................... 284

525-60 .............................. 283

525-60-APC ...................... 283

525-60-PCX ...................... 283

525-60RL-APC .................. 283

525-90 .............................. 282

52867................................ 119

53014................................ 126

53091..................................165

53259..................................372

53389......................... 116-117

538-10 ................................134

53824................................ 126

53892.................................. 81

53904..................................368

539-100 ..............................135

539-50 ................................135

53950..................................368

53951..................................368

540-100 ..............................136

540-12 ................................138

540-15 ................................139

540-18 ................................139

540-24 ................................138

540-50 ................................136

540-6 ..................................139

54167..................... 44, 63, 385

54168..................... 44, 63, 385

54169............... 44, 63, 68, 385

54170............... 44, 63, 68, 385

542-150 ..............................136

542-200 ..............................136

542-250 ..............................136

54274............................. 88-89

54284..................................143

54295.................................. 89

54303................................ 119

54644.................................. 12

54645.................................. 12

54646.................................. 12

54647.................................. 12

54648.................................. 13

54649.................................. 12

54650.................................. 12

54651.................................. 12

54652.................................. 12

54653.................................. 12

54654.................................. 12

54655.................................. 12

54656.................................. 13

54657.................................. 13

54658.................................. 13

54659.................................. 13

54660.................................. 13

54661.................................. 11

54664.................................. 16

54665.................................. 16

54666.................................. 16

54667.................................. 16

54668.................................. 16

54669.................................. 16

54670.................................. 16

54671.................................. 15

54672.................................. 25

54673.................................. 25

54674.................................. 25

54675.................................. 25

54676.................................. 25

54677.................................. 25

54678.................................. 25

54679.................................. 25

54688.................................. 17

54689.................................. 17

54691.................................. 17

54693.................................. 17

54695.................................. 17

54696.................................. 18

54697.................................. 19

54698.................................. 31

54701.................................... 4

54702.................................... 4

54707.................................... 7

54709.................................... 7

54717.................................... 6

54718.................................... 6

54719.................................... 6

54729.................................. 26

54736.................................... 5

54737.................................... 5

54738.................................... 5

54739.................................... 5

54740.................................... 5

54744.................................... 7

54997..................................368

54998..................................368

55075................................ 408

55124..................................368

55225.................................. 88

55294..................................368

55456................................ 297

55482.................................. 21

55483.................................. 20

55484.................................. 20

55485.................................. 20

55494.................................. 22

55495.................................. 22

55496.................................. 22

55497.................................. 22

55498.................................. 22

55499.................................. 22

555® ........................... 116-118

555............................. 110, 116

55500.................................. 22

55501.................................. 22

555-22 .............................. 116

555B .................. 293-294, 305

555C ................................. 117

555E ........................... 110, 116

555EC ............................... 117

555I ............................ 110, 116

555IC................................. 117

555R .......................... 110, 116

555RC ............................... 117

556MT ................ 293-294, 305

557B .......... 290, 293, 295, 305

558B .................. 293, 295, 305

5600.................................. 396

56051................................ 394

560XL ......................... 284, 305

56288..................................194

56292..................................194

56293..................................194

56294..................................194

562K-101 .......................... 306

562K-105 .......................... 306

562K-106 .......................... 306

56300.................................... 9

56301.................................. 26

56303.................................. 11

56304.................................. 12

56305.................................. 12

56308.................................. 14

56310.................................. 14

56311.................................. 18

56312.................................. 18

56313.................................. 18

56314.................................. 18

56315.................................. 18

56316.................................. 18

56317.................................. 18

56318.................................. 18

56319.................................. 18

56320.................................. 20

56321.................................. 20

56322.................................. 20

56323.................................. 21

56325.................................. 24

56326.................................. 24

56327.................................. 24

56328.................................. 24

437

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Index

www.greenlee.com

56329.................................. 24

56332.................................. 24

56333.................................. 24

56334.................................. 32

56335.................................. 32

56336.................................. 32

56337.................................. 33

56338.................................. 35

56339.................................. 33

56340.................................. 33

56341.................................. 34

56342.................................. 35

56343.................................. 35

56344.................................. 35

56347.................................. 34

56348.................................. 34

56349.................................. 36

56350.................................. 36

56351.................................. 37

56352.................................. 38

56356..................................202

56358..................................158

56359..................................158

56360..................................159

56361..................................159

56362..................................160

56363..................................159

563K-101 .......................... 306

563K-105 .......................... 306

563K-106 .......................... 306

56511................................ 394

56512................................ 395

56514................................ 392

5660L ..........................363, 368

5660LH .......................363, 368

566K-101 .......................... 306

566K-105 .......................... 306

566K-106 .......................... 306

5670-FC ............................ 286

5670-SC ............................ 286

5670-ST ............................ 286

5680-FC ............................ 287

5680-SC ............................ 287

5680-ST ............................ 287

5690-FC ............................ 287

5690-SC ............................ 287

5690-ST ............................ 287

56E2-101 .......................... 306

56E2-105 .......................... 306

56E2-106 .......................... 306

56LC-LFM ......................... 306

56LC-LM5 ......................... 306

56LC-LM6 ......................... 306

56MU-LFM ........................ 306

56MU-LM5 ........................ 306

56MU-LM6 ........................ 306

5702........................... 346, 358

5708........................... 343, 358

5708-C .............................. 343

5708i .......................... 343, 358

5708i-C ............................. 343

570XL ................................ 305

570XL-FC .......................... 285

570XL-SC .......................... 285

570XL-ST .......................... 285

5710.................................. 350

5712.................................. 345

5713.................................. 350

5715.................................. 350

5723.................................. 358

572J-101 .......................... 306

5760............................363, 368

5760TD .......................363, 368

576J-101 .......................... 306

5778........................... 344-345

5778-C .............................. 345

5778TL .............................. 345

5779........................... 346, 358

578......................................176

5783.................................. 350

5786.................................. 350

579......................................176

57E8-101 .......................... 306

57LC-LFM ......................... 306

57LC-LM5 ......................... 306

57LC-LM6 ......................... 306

57MU-LFM ........................ 306

57MU-LM5 ........................ 306

57MU-LM6 ........................ 306

580XL ................................ 305

580XL-FC .......................... 285

580XL-SC .......................... 285

580XL-ST .......................... 285

58182......................... 390, 413

5860............................365, 368

5878.................................. 357

5880................... 344-345, 357

5880-C .............................. 345

5882................... 344-345, 357

5882-C .............................. 345

5883.................................. 345

5890-FC ............................ 287

5890-SC ............................ 287

5890-ST ............................ 287

590......................................145

591.............................. 144-145

592.............................. 144-145

595.............................. 142-146

597......................................179

598......................................179

599......................................179

5990.................................. 344

59912................................ 395

60001.................................. 70

60002.................................. 70

60003.................................. 70

60005.................................. 70

60006.................................. 70

600CS ............................... 250

600LS ................................ 250

6001....................152, 155, 158

6001-22 ......................155, 158

60016.................................. 70

60017.................................. 70

60018.................................. 70

60019.................................. 70

60020.................................. 70

60021.................................. 70

60023.................................. 70

60024.................................. 70

60025.................................. 71

60026.................................. 71

60027.................................. 71

60029.................................. 71

60030.................................. 71

60031.................................. 71

60032.................................. 71

60033.................................. 71

60034.................................. 71

60035.................................. 71

60036.................................. 71

60037.................................. 71

60038.................................. 71

60039.................................. 71

6004....................................158

60040.................................. 71

60041.................................. 71

60042.................................. 71

60043.................................. 71

60045.................................. 71

60047.................................. 71

60048.................................. 71

60049.................................. 71

6005....................................158

60050.................................. 71

60051.................................. 71

60052.................................. 71

60053.................................. 71

60054.................................. 71

60055.................................. 71

60056.................................. 71

60057.................................. 71

60058.................................. 71

60059.................................. 71

60060.................................. 71

60061.................................. 71

60062.................................. 71

60063.................................. 71

60064.................................. 71

60065.................................. 71

60066.................................. 71

60067.................................. 71

60068.................................. 71

60069.................................. 71

60070.................................. 71

60071.................................. 71

60072.................................. 71

60073.................................. 71

60074.................................. 71

60075.................................. 71

60076.................................. 71

60077.................................. 70

60078.................................. 70

60079.................................. 70

60098.................................. 70

60101.................................. 69

60102.................................. 69

60103.................................. 69

60104.................................. 69

60105.................................. 69

60106.................................. 69

60107.................................. 69

60108.................................. 69

60109.................................. 69

60110.................................. 69

60111.................................. 69

60112.................................. 69

60114....................... 69-71, 73

60115....................... 69-71, 75

60116.................................. 75

60117....................... 69-71, 75

60118....................... 70-71, 75

60120............................. 69-71

60165............................. 69-71

60166....................... 69-70, 75

60167....................... 69-70, 71

60168.................................. 70

60169.................................. 70

60170.................................. 70

60171.................................. 70

60172.................................. 70

60173.................................. 70

60174.................................. 70

60175.................................. 70

60176.................................. 70

60177.................................. 70

60178.................................. 70

60179.................................. 70

60234.................................. 70

60235............................. 70-71

60237.................................. 46

60238.................................. 69

60239.................................. 69

60242.................................. 69

60243.................................. 69

60246.................................. 46

60249.................................. 69

60250.................................. 69

60258............................. 69-71

60287.................................. 70

60288.................................. 70

60289.................................. 70

60298................................ 269

60299................................ 270

603.............. 156-157, 368, 374

60351......................... 265, 339

60352................. 265, 267, 339

60353......................... 265, 339

60354......................... 265, 339

60355......................... 265, 339

60357......................... 266, 340

60358......................... 266, 340

6036....................................165

60360......................... 266, 340

60361......................... 266, 340

60362................................ 267

60363......................... 266, 340

60364......................... 266, 340

60366......................... 266, 340

60367......................... 266, 340

60368................................ 267

6037............................155, 167

60374................................ 255

60376......................... 255, 261

60377......................... 255, 261

60378................................ 255

60379......................... 259, 262

60380......................... 259, 262

60381................................ 259

60382................................ 259

604......................................146

60480................................ 248

60482......................... 266, 340

60487................. 263-264, 269

60489................................ 269

60492................................ 269

60493................................ 269

605......................................146

60511................................ 269

60520................................ 274

60522................................ 275

60525................................ 272

60526................................ 271

60527................................ 272

6052B2K ........................... 290

60530................................ 298

60531................................ 299

60533................................ 299

60536................................ 299

60538................................ 296

60539................................ 296

60548................................ 293

60549................................ 293

60550................................ 290

60552................................ 294

60553................................ 295

60555................................ 292

60556................................ 249

60556MT ............ 290, 292, 305

60557................................ 252

60558................................ 254

60559................................ 256

60560................................ 249

60561................................ 253

60562................................ 297

60564................................ 300

60565................................ 301

60566................................ 297

60567................................ 294

60568................................ 295

60570................................ 280

60571................................ 280

60572................................ 302

60573................................ 303

60574................................ 303

60575................................ 303

60576................................ 302

60576MT .................... 292, 305

60577................................ 303

60579................................ 301

60580................................ 297

60581................................ 297

60582................................ 297

60583................................ 250

60584................................ 255

60585................................ 302

60586................................ 302

60587................................ 302

60588................................ 302

60589................................ 303

60590................................ 302

60591................................ 303

60592................................ 302

60593................................ 303

60594................................ 303

60595................................ 302

60596................................ 303

60597................................ 302

60598................................ 302

60599................................ 302

606......................................146

60600................................ 302

60601................................ 303

60602................................ 303

60603................................ 303

60604................................ 303

60605................................ 303

60606................................ 303

60607................................ 291

60608................................ 291

60609................................ 291

60610................................ 291

60611................................ 291

60614................................ 291

60615................................ 291

60616................................ 291

60617................................ 291

60618................................ 291

60623................................ 292

60624................................ 292

60625................................ 292

60626................................ 292

60627................................ 292

60631................................ 292

60632................................ 292

60633................................ 292

60634................................ 292

60635................................ 292

60658................................ 306

60659................................ 306

60660................................ 306

60661................................ 306

60662................................ 306

60663................................ 306

60664................................ 306

60665................................ 306

60666................................ 306

60667................................ 306

60668................................ 306

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

438

Index

www.greenlee.com

60669................................ 306

60670................................ 306

60671................................ 306

60672................................ 306

60673................................ 306

60674................................ 306

60675................................ 306

60680................................ 306

60681................................ 306

60682................................ 306

60684................................ 301

60686......... 291-292, 294-296,

................................298-301

60687................................ 303

60689................................ 280

60690................................ 280

60691................................ 280

60692................................ 280

60694................................ 304

60695................................ 304

60696................................ 304

60697................................ 302

60698................................ 302

60699................................ 302

606AS ................................. 87

607......................................146

60700................................ 302

60701................................ 302

60702................................ 303

60703................................ 302

6072....................................166

60727................................ 292

60733................................ 306

60734................................ 306

60735................................ 306

60736................................ 306

60737................................ 306

60738................................ 306

60740................................ 275

60752......................... 271-272

60754................................ 274

60755................................ 276

60756................................ 275

60764................................ 274

60765................................ 268

60766................................ 268

60767................................ 268

60768................................ 268

60769................................ 268

60770................................ 268

60771................................ 268

60772................................ 268

60773................................ 268

60774................................ 268

60775................................ 268

60776................................ 268

60777................................ 251

60785......................... 269-270

60798................................ 267

608......................................145

60807................................ 240

608-5 ..................................145

60853................................ 272

60886................................ 271

60887................................ 253

609......................................145

609-5 ..................................145

60A-3/4 ............................... 86

61/62PTS–1-1/4 ...................80

61/62PTS–1-1/8 ...................80

610......................................145

61004.................................. 70

61007.................................. 70

61010.................................. 70

61013.................................. 70

61028.................................. 71

610-5 ..................................145

61080.................................. 70

61083.................................. 70

61086.................................. 70

61089.................................. 70

61092.................................. 70

61095.................................. 70

611......................................145

61125.................................. 70

612......................................145

612-2 ..................................145

613..............................143, 145

61370................................ 399

614......................................145

615......................................145

616......................................145

617......................................145

618...................... 142, 144-145

619...................... 142, 144-145

61PTS–1 ..............................80

61PTS–3/4 ...........................80

61PTS–5/8 ...........................80

61PTS–7/8 ...........................80

620K ................................. 256

621......................................145

622......................................145

623......................................145

624......................................177

624L ....................................177

624S ...................................177

625–001 ..............................89

625–002 ..............................89

625–1 ..................................89

625–1-1/2 ............................89

625–1-1/4 ............................89

625–1-1/8 ............................89

625–13/16 ...........................89

625–1-3/4 ............................89

625–1-3/8 ............................89

625–1-7/32 ..........................89

625–2 ..................................89

625–2-1/2 ............................89

625–3/4 ...............................89

625–7/8 ...............................89

629......................................177

62PTS–1 ..............................80

62PTS–11/16 .......................80

62PTS–13/16 .......................80

62PTS–3/4 ...........................80

62PTS–5/8 ...........................80

62PTS–7/8 ...........................80

63002................................ 395

63004................................ 394

63005................................ 394

63006................................ 395

631......................................165

635...................................... 89

636......................................165

637......................................165

638......................................165

639......................................164

640..............152, 155, 159, 167

64001................................ 410

64002................................ 410

64004................................ 410

640-22 ........................155, 159

643......................................159

64350................................ 395

644......................................170

645......................................159

645–001 ..............................88

645–002 ..............................88

645–011 ..............................88

645–022 ..............................88

645–1 ..................................88

645–11/16 ...........................88

645–1-1/16 ..........................88

645–1-1/2 ............................88

645–1-1/4 ............................88

645–1-1/8 ............................88

645–13/16 ...........................88

645–1-3/4 ............................88

645–1-3/8 ............................88

645–1-5/16 ..........................88

645–1-7/16 ..........................88

645–1-7/32 ..........................88

645–2 ..................................88

645–2-1/2 ............................88

645–2-1/4 ............................88

645–2-1/8 ............................88

645–2-3/8 ............................88

645–2-5/8 ............................88

645–3 ..................................88

645–3/4 ...............................88

645–5/8 ...............................88

645–7/8 ...............................88

646......................................145

647......................................377

650......................................164

65008................................ 397

6501............................152, 157

6501-22 ..............................157

65013................................ 397

65018......................... 391, 397

6503....................................157

650391700........................ 274

6505....................................157

6505-22 ..............................157

651..............................155, 164

652......................................164

653......................................164

654...................... 156-157, 170

655...................................... 88

656......................................377

657......................................377

658......................................169

659......................................169

660...................................... 88

668......................................374

66PT–1 ................................80

66PT–1/2 .............................80

66PT–11/16 .........................80

66PT–1-1/4 ..........................80

66PT–1-1/8 ..........................80

66PT–13/16 .........................80

66PT–15/16 .........................80

66PT–3/4 .............................80

66PT–5/8 .............................80

66PT–7/8 .............................80

6701.................................. 358

671......................................166

678......................................176

6800............................152, 156

6800-22 ..............................156

6801....................................156

6802....................................156

6805....................................156

6805-22 ..............................156

6810....................................150

683......................................377

684......................................377

687......................................377

690......................................142

691.............................. 144-145

69420NT ........................... 412

69435NT ........................... 412

695.................................... 121

69550................................ 412

696......................................368

69620NT ........................... 412

69635NTF ......................... 412

697......................................368

70007X.............................. 406

70010................................ 406

70011................................ 406

70012................................ 406

70013................................ 406

70015................................ 404

70015D ............................. 404

70017D ...................... 404-405

70018................................ 406

70020................................ 406

70021................................ 406

70027................................ 404

70027D ............................. 404

70029................................ 404

70029D ............................. 404

70030................................ 405

70030D ............................. 405

70040................................ 406

70045................................ 406

70046D ............................. 406

70051D ............................. 406

70054................................ 406

70056D ............................. 405

70057D ............................. 405

70060................................ 406

70061D ............................. 406

70065................................ 405

70066................................ 406

70075................................ 407

700C ................................. 256

70105................................ 404

70105D ............................. 404

70115................................ 403

70116................................ 403

70142................................ 405

70143................................ 405

70150................................ 402

70151................................ 402

70152................................ 402

70153................................ 402

70154................................ 402

70155................................ 402

70156................................ 402

70157................................ 402

70159................................ 403

70160................................ 403

70161................................ 403

70162................................ 403

70163................................ 403

70164................................ 403

70166................................ 403

70167................................ 403

701K ................................. 254

70235................................ 403

70240................................ 408

70241................................ 408

70243................................ 404

70244................................ 404

70245................................ 404

70246................................ 404

70247................................ 404

70285................................ 406

70286................................ 406

70289................................ 408

70296................................ 408

703......................................368

704..............................187, 193

705..............................187, 193

70521................................ 402

70522................................ 402

70522D ............................. 402

70523................................ 402

70532................................ 402

70533................................ 402

70558................................ 402

70558D ............................. 402

706..............................187, 193

70614................................ 391

70710................................ 409

70711................................ 409

70713................................ 409

70714................................ 409

70715................................ 409

70840X.............................. 391

70849X.............................. 392

70850X.............................. 392

709...................................... 77

70901X.............................. 391

70903X.............................. 391

70905X.............................. 391

70907X.............................. 392

70908X.............................. 392

70912X.............................. 392

70913X.............................. 392

70914X.............................. 392

70915X.............................. 392

70916X.............................. 393

70917X.............................. 393

70918X.............................. 393

70919X.............................. 393

70920X.............................. 393

70921X.............................. 393

70945X.............................. 393

70946X.............................. 393

710...................................... 77

71019................................ 405

71021................................ 392

711C ................................... 77

711CS ............................... 256

711K ................................. 254

711M ................................... 77

71259L .............................. 392

71271................................ 392

71272................................ 391

71273......................... 391-392

71279......................... 391-392

71280................................ 392

712A100 ............................. 77

712A1000 ........................... 77

712P.................................... 87

713...................................... 76

71351................................ 391

718..............................187, 193

718F ............................187, 193

71945.................................. 27

71BB ................................... 53

720...................................... 69

72100................................ 413

72101................................ 413

721-1 ................ 46-49, 51, 59,

........................ 61, 63-64, 67

721-1/2 ....... 46-51, 54, 59, 61,

.........................63-64, 66-67

721-1/2P ............................. 46

721-1-1/2 ......... 46-49, 51, 59,

.......................61, 63- 64, 67

721-1-1/2P ......................... 46

721-1-1/4 ......... 46, 48-49, 51,

.................. 59, 61, 63-64, 67

721–1-1/4 ............................47

721-1-1/4P ......................... 46

7211BB-1 ............................ 46

439

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

Index

www.greenlee.com

7211BB-1/2 ......................... 46

7211BB-1-1/2 ..................... 46

7211BB-1-1/4 ..................... 46

7211BB-2 ............................ 46

7211BB-3/4 ......................... 46

7211EBB-15.2 ..................... 46

7211EBB-18.6 ..................... 46

7211EBB-20.4 ..................... 46

7211EBB-28.3 ..................... 46

7211EBB-37 ........................ 46

7211EBB-47 ........................ 46

7211EBB-60 ........................ 46

721-1P ................................ 46

721-2 ................ 46-49, 51, 59,

........................ 61, 63-64, 67

721-2P ................................ 46

721-3/4 ............. 46-49, 51, 59,

........................ 61, 63-64, 67

721-3/4P ............................. 46

7214E .................................. 51

7215E .................................. 51

7216.................................... 51

722......................................198

7235BB ............................... 47

7237BB ............................... 47

7238SB ............................... 49

724...................................... 77

725-001 .............................. 93

725–1-1/2 ............................93

725–1-1/8 ............................93

725–1-3/4 ............................93

725–1-3/8 ............................93

725–2 ..................................93

725–2-1/2 ............................93

725–2-1/8 ............................93

725–3-5/8 ............................93

72541................................ 413

725–4-1/2 ............................93

725–4-1/8 ............................93

725–7/8 ...............................93

72638................................ 413

72676................................ 413

727................26, 187, 193, 234

727M .....................26, 187, 193

72869V .............................. 413

72949................................ 413

72955................................ 413

72BB ................................... 53

730-1/2 ............................... 53

730100A ............................. 53

730101A ............................. 53

7304............................... 54, 65

730-5/8 ............................... 53

7306.................................... 66

7306SB .......................... 64-65

7307.................................... 44

730-9/16 ............................. 53

7309E .................................. 56

730BB-1 .............................. 53

730BB-11/16 ....................... 53

730BB-1-1/16 ..................... 53

730BB-1-1/2 ....................... 53

730BB-1-1/4 ....................... 53

730BB-1-1/8 ....................... 53

730BB-13/16 ....................... 53

730BB-1-3/4 ....................... 53

730BB-1-3/8 ....................... 53

730BB-15/16 ....................... 53

730BB-1-5/16 ..................... 53

730BB-1-5/8 ....................... 53

730BB-1-7/8 ....................... 53

730BB-2 .............................. 53

730BB-2-1/2 ....................... 53

730BB-2-1/4 ....................... 53

730BB-2-1/8 ....................... 53

730BB-2-3/4 ....................... 53

730BB-3 .............................. 53

730BB-3/4 ........................... 53

730EBB - 20.4 ..................... 53

730EBB-120 ........................ 53

730EBB-18.6 ....................... 53

730EBB-37 .......................... 53

730EBB-47 .......................... 53

730EBB-60 .......................... 53

730EBB-82 .......................... 53

730MBB .............................. 53

730PBB-2-5/8 ..................... 53

730PBB-3-3/4 ..................... 53

730TBB ............................... 53

7310............................... 65, 66

7310SB .......................... 64-65

735BB ................................. 54

7360SB ............................... 67

7361SB ............................... 67

737BB ................................. 54

738BB ................................. 53

739BB ................................. 53

73BB ................................... 53

740H-1-7/32 ....................... 43

741BB ................................. 53

742BB ................................. 53

743BB ................................. 53

744...................................... 44

745H-1 ................................ 43

745H-1/2 ............................. 43

745H-1-1/2 ......................... 43

745H-1-1/4 ......................... 43

745H-2 ................................ 43

745H-3/4 ............................. 43

745M-15.2 .......................... 43

745M-16.2 .......................... 43

745M-18.6 .......................... 43

745M-20.4 .......................... 43

745M-25.4 .......................... 43

745M-32.5 .......................... 43

745M-37 ............................. 43

745M-40.5 .......................... 43

745M-47 ............................. 43

745M-50.8 .......................... 43

745M-54 ............................. 43

745M-60 ............................. 43

745M-64 ............................. 43

745R-1/2 ............................. 43

746................................. 63-66

746C ...................................190

746SS ................................. 44

747.................................... 122

7475H .........................383, 385

749..............................195, 198

74BB ................................... 53

750......................187, 190, 385

7506.................................... 44

750C .......................... 256, 263

750E975 ..............................190

750H767 .............................190

751......................................190

755........ 68, 122-123, 382, 385

756..............................187, 190

756U ...................................190

757..............................195, 197

757U ...................................197

758..............................195, 197

759..............................187, 192

75BB ................................... 53

760..............................187, 192

7606SB .......................... 62, 63

761..............................187, 191

7610SB .......................... 62-63

7625......................... 42, 62-63

7646......................... 42, 64-66

7646Pg ........................... 65-66

7646PgSB ...................... 64-65

765......................................200

766..............................152, 161

767..................... 44, 64-66, 68

........................382, 385, 379

76807..................................195

76BB ................................... 53

7704SB .......................... 60-61

7706SB .......................... 60-61

773..............................187, 191

77-3/4P ............................... 45

774..............................187, 191

776..............................195, 197

777..................... 110, 123, 385

777E975 ............................ 123

777HC755 ......................... 123

778......................................200

77CS ................................. 248

77GX ................................. 249

77GX2 ............................... 249

77HP .................. 248, 263-264

77HP/6A ............................ 248

77HP/6AC .......................... 248

77P-1 .................................. 45

77P-1/2 ............................... 45

77P-1/2P ............................. 45

77P-1-1/2 ........................... 45

77P-1-1/2P ......................... 45

77P-1-1/4 ........................... 45

77P-1-1/4P ......................... 45

77P-1P ................................ 45

77P-2 .................................. 45

77P-2P ................................ 45

77P-3/4 ............................... 45

77U-1 .................................. 45

77U-1/2 ............................... 45

77U-1-1/2 ........................... 45

77U-1-1/4 ........................... 45

77U-2 .................................. 45

77U-3/4 ............................... 45

7804.................................... 42

7804E ............................. 60-61

7804ESB ........................ 60-61

7804ISO ......................... 60-61

7804SB .......................... 60-61

7806SB .......................... 60-61

782......................................385

7904.................................... 42

7904E ............................. 60-61

7904ESB ........................ 60-61

7904ISO ......................... 60-61

7904SB .......................... 60-61

7906SB .......................... 60-61

796......................................222

8 AWG ............................... 234

800..............................222, 385

800F1725 ............................222

8012....................................164

8018....................................164

801K ................................. 254

802......................................222

8024....................................164

802K ................................. 255

803......................................368

8060 DLX ....................366, 368

825–1 ............................92, 95

825–11/16 ...........................92

825–1-1/16 ..........................92

825–1-1/2 ......................92, 95

825–1-1/4 ............................92

825–1-1/8 ......................92, 95

825–1-11/16 ........................92

825–1-13/16 ........................92

825–13/16 .....................92, 95

825–1-3/16 ....................92, 95

825–1-3/4 ......................92, 95

825–1-3/8 ......................92, 95

825–15/16 ...........................92

825–1-5/16 ..........................92

825–1-5/8 ............................92

825–1-7/16 ..........................92

825–1-7/8 ......................92, 95

825–1-9/16 ..........................92

825–2 ............................92, 95

825–2-1/16 ..........................92

825–2-1/2 ......................92, 95

825–2-1/4 ......................92, 95

825–2-1/8 ............................92

825–2-3/4 ............................92

825–2-3/8 ......................92, 95

825–2-5/16 ......................... 92

825-2-5/8 ........................... 92

825–2-7/8 ............................92

825–2-9/16 ..........................92

825–3 ............................92, 95

825–3/4 .........................92, 95

825–3-1/2 .............................92

825–3-1/4 ......................92, 95

825–3-1/8 ............................92

825–3-3/4 ......................92, 95

825–3-3/8 ............................92

825–3-5/8 ......................92, 95

825–3-7/8 ............................92

825–4 ..................................92

825–4-1/2 ......................92, 95

825–4-1/4 ............................92

825–4-1/8 ......................92, 95

825–4-3/4 ......................92, 95

825–4-3/8 .......................... 92

825–5 ................................ 92

825–5/8 ........................ 92, 95

825–5-1/2 .......................... 92

825–6 ................................ 92

825–7/8 ........................ 92, 95

825–9/16 ........................... 92

826S–1-1/8 ........................ 93

826S–1-3/4 ........................ 93

826S–1-3/8 ........................ 93

826S–2 .............................. 93

826S–2-1/2 ........................ 93

826S–7/8 ........................... 93

826S .............................. 91, 93

830...................................... 95

830P.................................... 95

830Pg .................................. 95

830QS ................................. 91

830S ................................... 93

834...................................... 95

835...................................... 95

840............................. 110-111

84003................................ 104

84006................................ 104

84009................................ 104

84012................................ 104

84015................................ 104

84019................................ 104

840H ................................. 111

841............................. 109-111

84110................................ 103

84111................................ 103

84112................................ 103

841H ................................. 111

842............................. 110-111

84253................................ 103

84256................................ 103

84273................................ 103

84276................................ 103

84299................................ 103

842H ................................. 111

843............................. 110-111

84305................................ 103

84329................................ 103

84335................................ 103

84405................................ 105

84409................................ 105

84424................................ 105

84425................................ 105

84428................................ 105

84429................................ 105

84463................................ 104

84466................................ 104

84469................................ 104

84472................................ 104

84475................................ 104

84478................................ 104

84481................................ 104

84484................................ 104

84485................................ 284

84486................................ 285

84487................................ 285

84488................................ 285

84489................................ 285

84490................................ 285

84491................................ 285

84492................................ 286

84493................................ 286

84494................................ 286

84495................................ 287

84496................................ 287

84497................................ 287

84498................................ 287

84499................................ 287

845.................................... 111

84500................................ 287

84501................................ 286

84526................................ 106

84532................................ 106

84538................................ 106

84544................................ 106

84550................................ 106

84576................................ 106

84582................................ 106

84588................................ 106

84594................................ 106

846.................................... 111

84600................................ 106

846-1-1/4 ......................... 111

847.................................... 130

848.................................... 130

849.................................... 130

851.................................... 130

853............................. 110, 115

854............................. 110, 114

855............................. 110, 114

857.................................... 130

859-4 ................................ 131

8600.................................... 29

860-1-1/2 ......................... 129

860-3 ................................ 129

860-4 ................................ 129

861............................... 28, 131

862...................................... 28

864................................28, 131

865................................28, 131

866.................................... 102

86786................................ 341

86787................................ 341

86788......................... 267, 341

86795..................................139

USA Tel: 800.435.0786

Fax: 800.451.2632

Canada Tel: 800.435.0786

Fax: 800.524.2853

International Tel: +1.815.397.7070

Fax: +1.815.397.9247

440

Index

www.greenlee.com

86796..................................139

868.................................... 102

869 / 8 .............................. 229

86999................................ 344

870.................................... 102

870 / 8 .............................. 229

870 / 10 ............................ 229

87073................................ 345

871 / 8 .............................. 229

871 / 10 ............................ 229

87121................................ 344

87136................................ 310

872 / 8 .............................. 229

872 / 12 ............................ 229

873 / 10 ............................ 229

873 / 13 ............................ 229

874 / 12 ............................ 229

875 / 14 ............................ 229

876 / 14 ............................ 229

877 / 14 ............................ 229

87AV ......................... 53, 55-56

88............................... 273, 397

880..................... 110, 122, 385

880E975 ............................ 122

880H755 ........................... 122

880PVC ............................. 122

881..................... 110, 120, 385

881BASIC .......................... 120

881CT ........................ 110, 120

881CTD ............................. 120

881CTDE980 ..................... 120

881CTE980........................ 120

881E980 ............................ 120

882..................... 110, 118, 385

882CB ........................ 110, 118

882CB-E975 ...................... 118

882CB-H755...................... 118

882-E975 .......................... 118

882-H755 .......................... 118

882RI-G1 ........................... 118

884..................... 110, 124, 385

8840........................... 110-111

8840H ............................... 111

8841........................... 110-111

8841H ............................... 111

8842........................... 110-111

8842H ............................... 111

8843........................... 110-111

884E980 ............................ 124

884PVC ...................... 124-125

885..................... 110, 124, 385

885E980 ............................ 124

88802................................ 405

88803................................ 405

88806................................ 405

88807................................ 405

88808................................ 405

88810................................ 405

88814................................ 405

889...................................... 95

890...................................... 95

891...................................... 95

89101................................ 395

89102..................................395

89109................................ 395

89188..........188, 194, 202, 225

89204.................................. 35

89208.................................. 26

89209.................................. 14

89210.................................. 14

89211.................................. 14

89212.................................. 14

89213.................................. 13

89214.................................. 17

89215.................................. 17

89216.................................. 17

89217.................................. 17

89218.................................. 14

89219.................................. 14

89220.................................. 14

89221.................................. 14

89222.................................. 17

89223.................................. 17

89224.................................. 17

89225.................................. 15

89228.................................. 16

89229.................................. 16

89230.................................. 16

89231.................................. 16

89232.................................. 16

89233.................................. 16

89234.................................. 16

89235.................................. 16

89236.................................. 16

89237.................................. 16

89238.................................. 37

89239.................................. 38

89246.................................. 38

89249.................................. 19

89250.................................... 4

89251.................................... 6

89252.................................... 6

89253.................................... 6

89254.................................... 5

89255.................................... 5

89256.................................... 5

89257.................................... 5

89258.................................... 5

89259.................................... 7

89260.................................... 7

89262.................................... 4

89263.................................... 4

89264.................................... 4

89266.................................. 31

89267.................................. 21

89268.................................. 22

89269.................................. 22

89270.................................. 22

89271.................................. 22

89272.................................. 22

89273.................................. 22

89274.................................. 23

89275.................................. 20

89276.................................. 20

89277.................................. 23

89278.................................. 23

89279.................................. 23

89280.................................. 23

89281.................................. 23

89282.................................. 23

89283.................................. 23

89284.................................. 23

89285.................................. 23

89286.................................. 23

89287.................................. 23

89288.................................. 23

89289.................................. 23

89290.................................. 23

89291.................................. 20

89292.................................. 20

89293.................................. 20

89799................................ 342

89800..................................168

89803..................................139

89806.................................. 28

89822..................................288

89823..................................288

89824..................................288

89825..................................288

89826..................................288

89827..................................288

89828..................................288

89829..................................288

89830..................................288

89831..................................288

89832..................................288

89833..................................288

89834..................................288

89835..................................288

89836..................................288

89837..................................288

89838..................................288

89839..................................288

89840..................................288

89841..................................288

89842..................................288

89843..................................288

89844..................................288

89845..................................288

89846..................................288

89847..................................288

89848..................................288

89849..................................288

89850..................................288

89851..................................288

89852..................................288

89853..................................288

89854..................................288

89855..................................288

89856..................................288

89857..................................288

89858..................................288

89859..................................288

89860..................................288

89861..................................288

89862..................................288

89863..................................288

89864..................................288

89865..................................288

89866..................................288

89867..................................288

89868..................................288

89869..................................288

89870..................................288

89871..................................288

89872..................................288

89873..................................288

89874..................................288

89875..................................288

89876..................................288

89877..................................288

89878..................................288

89879..................................288

89880..................................288

89881..................................288

89882..................................288

89883..................................288

89884..................................288

89885..................................288

89886..................................288

89887..................................288

89888..................................288

89889..................................288

89890..................................288

89891..................................288

89892..................................288

89893..................................288

89894..................................288

89895..................................288

89896..................................288

90007................................ 406

900B ................................. 301

901-12 ................................ 81

901B ................................. 301

902-18 ................................ 81

902-24 ................................ 81

904-5-1/2 ........................... 81

904–5-1/2 ............................82

904H-12 .............................. 81

904H-18 .............................. 81

904H-24 .............................. 81

906......................................370

909......................................370

90ACK ........ 291-292, 294-296,

................................298-301

90SOC ............................... 303

910......................................372

911......................................373

914......................................370

914B ................................. 287

915B ................................. 287

916......................................374

91AV ............................... 53, 55

920XC-13A ..................288-289

920XC-15A ..................288-289

920XC-20C .................. 288-289

921...................................... 86

921-12 ................................ 86

921-18 ................................ 86

921-24 ................................ 86

921-36 ................................ 86

92335.................................. 16

925-001 .............................. 90

925-002 .............................. 90

925-011 .............................. 90

925-022 .............................. 90

925-1-1/8 ........................... 90

925-1-3/4 ........................... 90

925-1-3/8 ........................... 90

925-1-5/16 ......................... 90

925-1-7/32 ......................... 90

925-2 .................................. 90

925-2-1/2 ........................... 90

925-7/8 ............................... 90

92AV ............................... 53, 55

930...................................... 90

93-172 .............................. 350

93-172-C .......................... 350

93-20 ................................ 349

93-30 ................................ 332

934-125 ............................ 297

93-502 ....................... 314, 357

93-606 ....................... 357-358

945/1 ................................ 280

945/ESD/1 ......................... 280

946.................................... 280

946K ................................. 280

947.................................... 280

947K ................................. 280

948.................................... 280

948/2 ................................ 280

9501....................................369

9502....................................369

9505....................................372

9510....................................372

9515....................................371

9516....................................371

9517....................................371

9520....................................369

9525F ..................................376

9527............................372, 376

9528....................................376

9529....................................376

9529F ..................................376

9532....................................376

9533....................................376

956LN ............................... 304

956US ............................... 304

956WW.............................. 304

95925.................................... 4

95926.................................... 5

95927.................................... 7

95928.................................. 26

95929.................................. 12

95930.................................. 11

95932.................................. 35

95933.................................. 14

960 SAPS .................... 384-385

970914C .............................392

975.............. 122-123, 383, 385

9753-11C ............................ 18

9753-12C ............................ 19

9753-13C ............................ 19

976......................................385

980.......122-123, 379, 384-385

980-22 ................................384

980-22FS ............................384

980-22PS ............................384

9858-11 .............................. 34

9858-12 .............................. 34

99104............................. 84-85

99105............................. 84-85

9952-11 .............................. 26

9952-12 .............................. 26

9953-11 .............................. 18

9953-13 .............................. 14

9953-14 .............................. 14

Greenlee Tools… Made for the Trade

Greenlee has been going strong for more than 145 years and continues

to be the preferred brand of tools and equipment for the electrical

contractor. Our focus, as always, has been to deliver customer-focused

innovation in the form of high-quality tools that contractors rely on daily.

The result is our most complete collection of hand tools, punches,

benders, pullers, testing & measuring devices, voice/data/video

equipment, storage & material handling solutions, accessories and more

- designed to perform on the jobsite.

With this catalog, Greenlee proudly includes pipetool technologies

from Rothenberger, a recognized leader in the plumbing industry.

Featuring portable threaders, shears, torches and inspection equipment,

Rothenberger is a natural extension of Greenlee’s existing products,

designed to make your job faster, safer and easier.

Greenlee Textron Inc. warrants to the original

purchaser of these goods for use, that these

products will be free from defects in workmanship

and material for their useful life, excepting normal

wear and abuse. This warranty is subject to the same

terms and conditions contained in Greenlee Textron

Inc.’s standard one-year limited warranty.

*See below for information regarding product returns.

Limited Warranty

Greenlee Textron Inc. extends the following warranty to the original purchaser of these goods for use, subject to the qualiﬁcations indicated. Greenlee Textron Inc.

warrants to the original purchaser for use that the products sold by it will be free from defects in workmanship and material for a period of one year (three years for

Gator® battery-powered and corded tools, not including batteries) from the date of purchase, provided such goods are installed, operated, maintained, and used in

accordance with Greenlee Textron Inc.’s written instructions.

Ordinary wear and tear, and damage from abuse, neglect or alterations are not covered by this warranty. This warranty is null and void if instructions and operating

procedures are not followed.

Greenlee Textron Inc.’s sole liability and Purchaser’s sole remedy for a failure of goods under this limited warranty, and for any and all claims arising out of the

purchase and use of the goods, shall be limited to the repair or replacement of the goods that do not conform to this warranty, and shall be in lieu of any other

liability or remedy, including, without limitation, any causes of action in negligence and strict liability.

To obtain repair or replacement service under this limited warranty, the purchaser must return the product to a Greenlee Authorized Service Center, transportation

prepaid. Do not send any warranty/repair product directly to Greenlee, as it will be returned to the sender. Only Test Instruments will be warranted, repaired, replaced,

or calibrated at Greenlee with prior authorization.

Tools found defective will be replaced or repaired at no charge and returned. There are no express warranties covering these goods other than as set forth above. The

implied warranties of merchantability and ﬁtness for a particular purpose are speciﬁcally excluded. Greenlee Textron Inc. assumes no liability in connection with the

installation or use of this product, except as stated in this limited warranty. Greenlee Textron Inc. will in no event be liable for incidental or consequential damages.

This limited warranty gives you speciﬁc legal rights, and you may also have other rights which vary from state to state. Some states do not allow either limitations on

implied warranties, or exclusions from incidental or consequential damages, so the above limitation and exclusion may not apply to you.

Any questions pertaining to this limited warranty should be addressed to:

Greenlee / A Textron Company

4411 Boeing Drive, Rockford, IL 61109-2988 USA

Greenlee Textron Inc. has elected not to make available the informal dispute settlement mechanism which is speciﬁed in the Magnuson-Moss Warranty Act.

Note: Rental units and demonstrators used for income producing purposes are warranted for 90 days. Rental units and demonstrators which are resold are not

covered under warranty by Greenlee Textron Inc. Any warranty, whether expressed or implied, rests solely with the seller.

Lifetime Limited Warranty on Greenlee Electrical Test Instruments, Hand Benders, and select Hand Tools

Greenlee Textron Inc. warrants to the original purchaser of these goods for use that these products will be free from defects in workmanship and material for their

useful life, excepting normal wear and abuse. This warranty is subject to the same terms and conditions contained in Greenlee Textron Inc.’s standard one year limited

warranty.

Greenlee Electrical Test Instrument Repair and Calibration

For all Greenlee Electrical Test Instrument repairs, contact Customer Service at 1-800-435-0786 and request a Return Authorization. An approved Authorization

including shipping label and instructions will be sent.

For items not covered under warranty (such as items dropped, abused, etc.), a repair cost quote is available upon request.

Note: Prior to returning any test instrument, please check replaceable batteries or make sure the battery is at full charge.

Many end user customers require assurance of product performance. Proof of accuracy and precision of an instrument is often required. This requirement may be a

result of ISO procedures or customer quality audit requirements. Greenlee Textron Inc. can provide calibration service for speciﬁcally marked hand-held electrical test

equipment. Calibration assures the customer that the instrument has been checked and/or calibrated using equipment that is checked and calibrated to standards that

are traceable to the National Institute for Standards and Technology (NIST). Products currently included are all clamp meters, professional series Digital Multimeters

and megohmmeters. A certiﬁcate will be provided.

To obtain this calibration service, call Customer Service at 1-800-435-0786 and request a Return Authorization.

www.greenlee.com

FULL LINE PRODUCT CATALOG

NEED MORE INFORMATION?

USA & CANADA: 1.800.435.0786

INTERNATIONAL: +1.815.397.7070

www.greenlee.com

4455 BOEING DRIVE, ROCKFORD, IL 61109-2988 USA

GENERAL OFFICES: (815) 397.7070

CUSTOMER SERVICE AND FIELD SERVICE

TELEPHONE

USA & CANADA 800.435.0786

INTERNATIONAL +1.815.397.7070

FAX (24 HOUR)

USA 800.451.2632 OR 815.397.1865

CANADA 800.524.2853

INTERNATIONAL +1.815.397.9247

An ISO 9001 Company

MA-1024 Rev. 4/08

Printed in USA

Greenlee Textron Inc. is a subsidiary of Textron Inc.

An ISO 9001 Company

MA-1024 Rev. 4/08

Printed in USA

HAND TOOLS

HOLEMAKING

BENDING

FISHING

CABLE PULLING

WIRE & CABLE TERMINATION

VOICE • DATA • VIDEO

TESTING & MEASUREMENT

STORAGE & MATERIAL HANDLING

HYDRAULIC PUMPS & MISCELLANEOUS

PLUMBING

FULL LINE PRODUCT CATALOG

236389 Catalog

125731-Catalog 125731-Catalog 125731-Catalog Batch9 unilog cesco-content

Navigation menu

Versions of this User Manual:

Views

Navigation
