Industry Leader In TRUE 360º
Compression Connectors and Tools
2008 Product Catalog
2
About ICM Corp.
ICM Corporation serves the security, cable, home entertainment, commercial,
and broadcast industries. ICM Corp.’s four divisions include Cable Pro, Cable
Ready, F-Conn Industries and PowerTronics. Since 1985, we’ve been
recognized worldwide for our innovative products, including 360-degree
compression connectors, tools and accessories. Call us toll free at
1.800.222.2142, or visit our web site at www.icmcorp.net for complete
information on our products and distributors.
Please contact us for more information about how we can help you with
your next wiring project.
International Communications
Manufacturing Corporation
6260 Downing Street
Denver, CO 80216
0908
Easy Order info
Web: www.icmcorp.net
Tel: 1.800.222.2142 or 303.288.8107
Fax: 303.288.4769
3
Table of Contents
ICM Corp. Showroom Packaging ...................4
F-Conn Products..............................................6
Primary System Tools ................................................................................. 6
Audio/Visual Connectors............................................................................. 8
Standalone Splices ................................................................................... 10
Right Angle Series .................................................................................... 11
One-Piece Connectors.............................................................................. 12
Speaker Series.......................................................................................... 14
DB Connector Series ................................................................................ 16

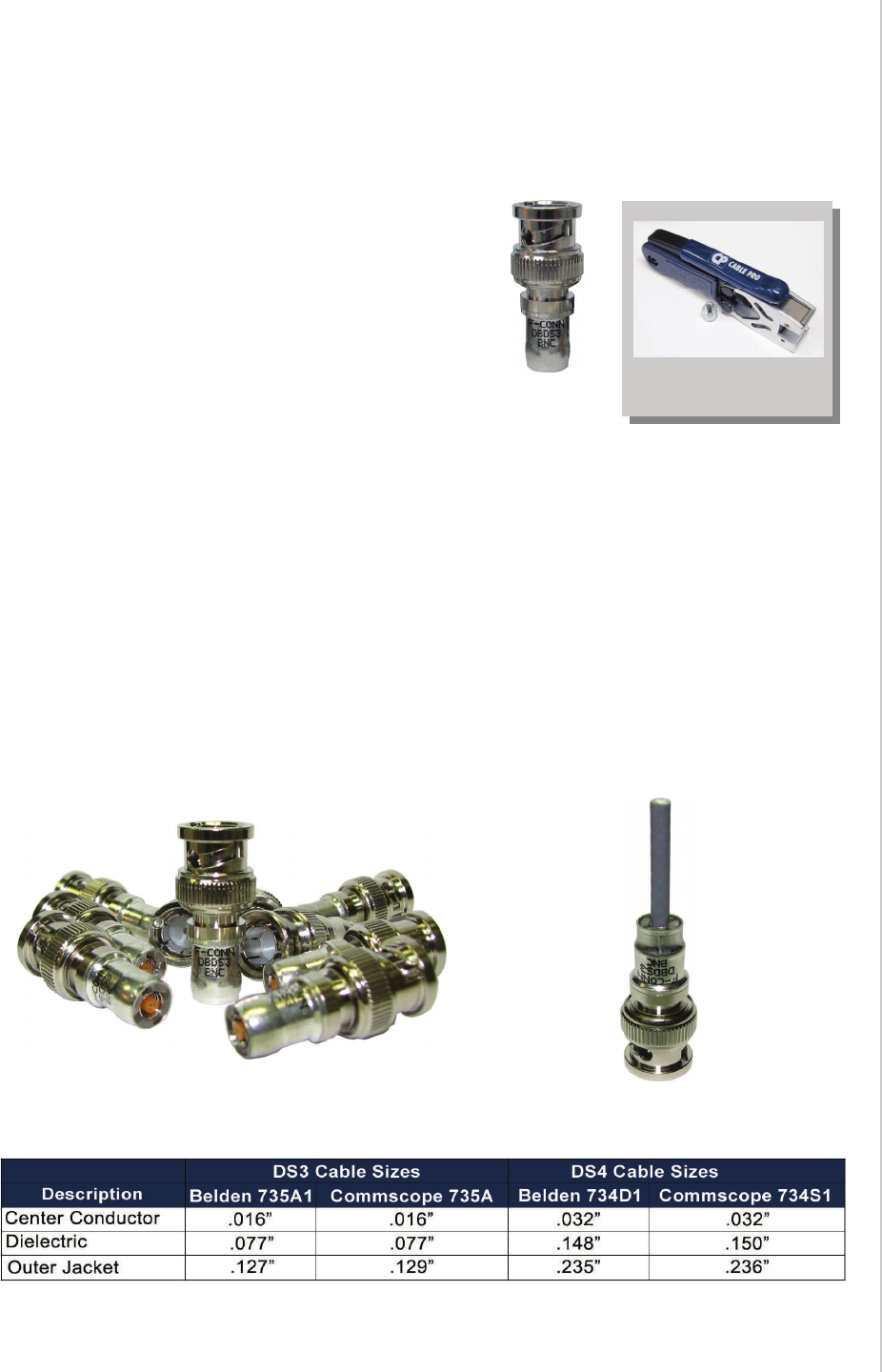

DS3/DS4 Connector Series ...................................................................... 17

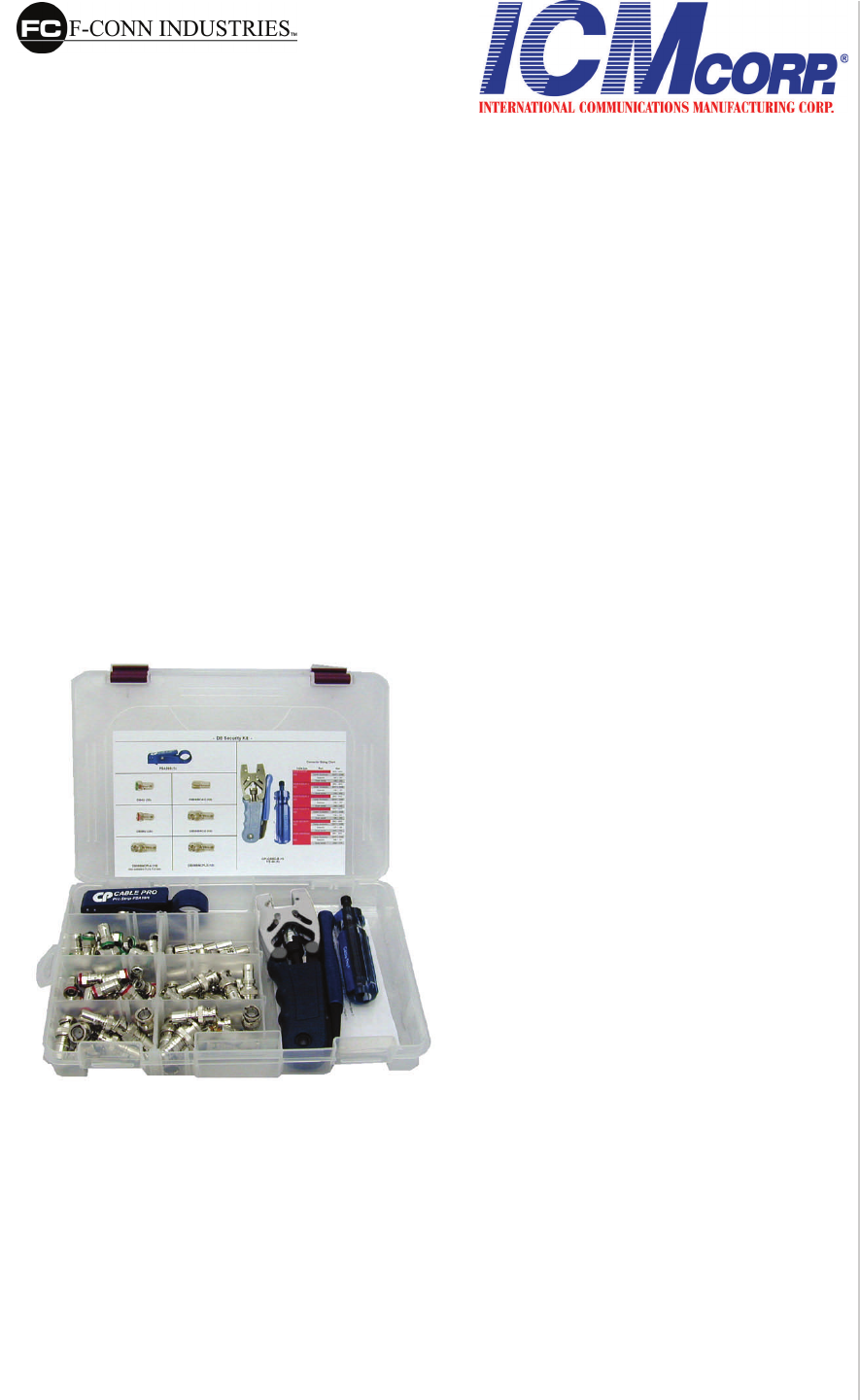

Starter Kits................................................................................................. 18
Basic Series .............................................................................................. 20

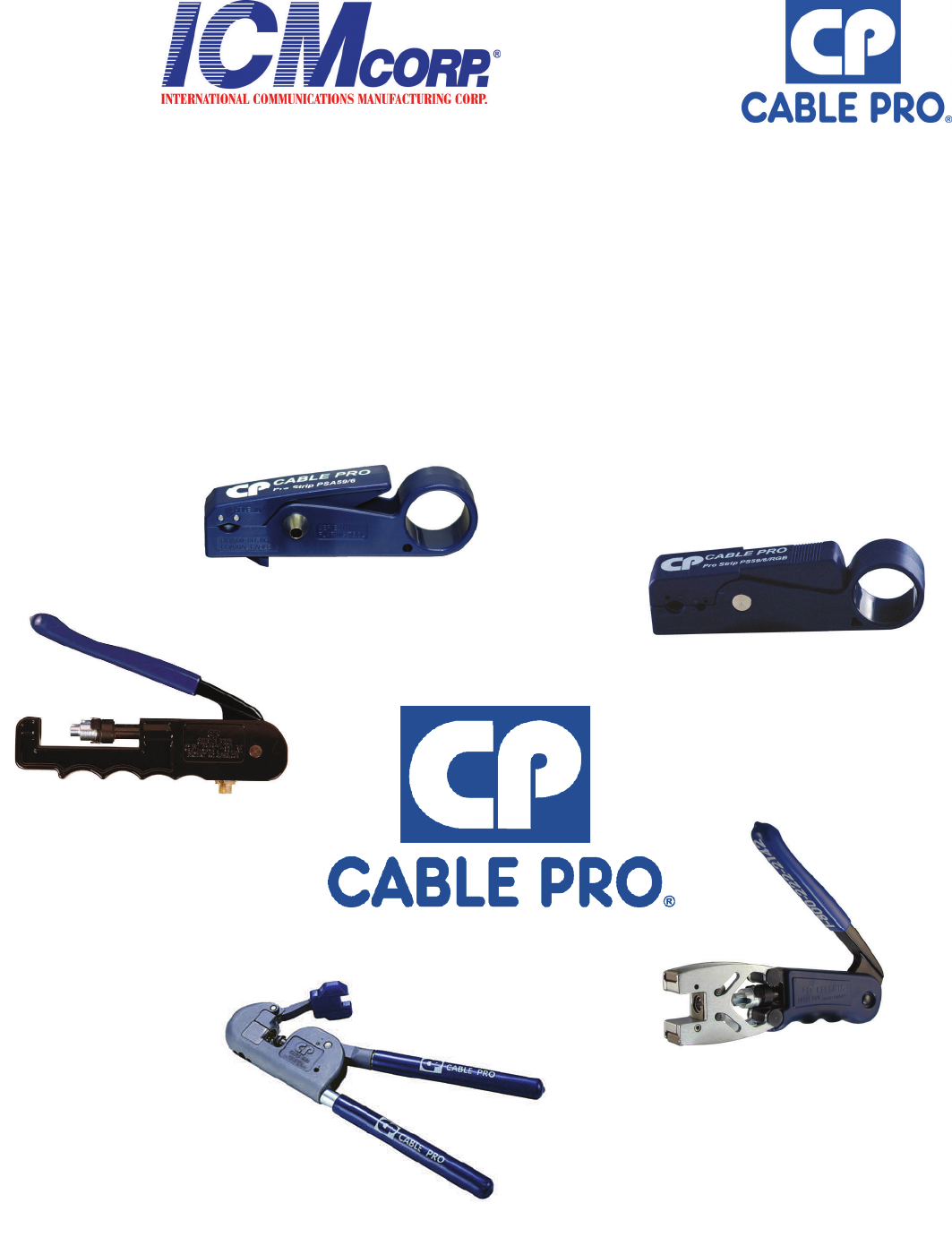

Cable Pro Products .......................................22

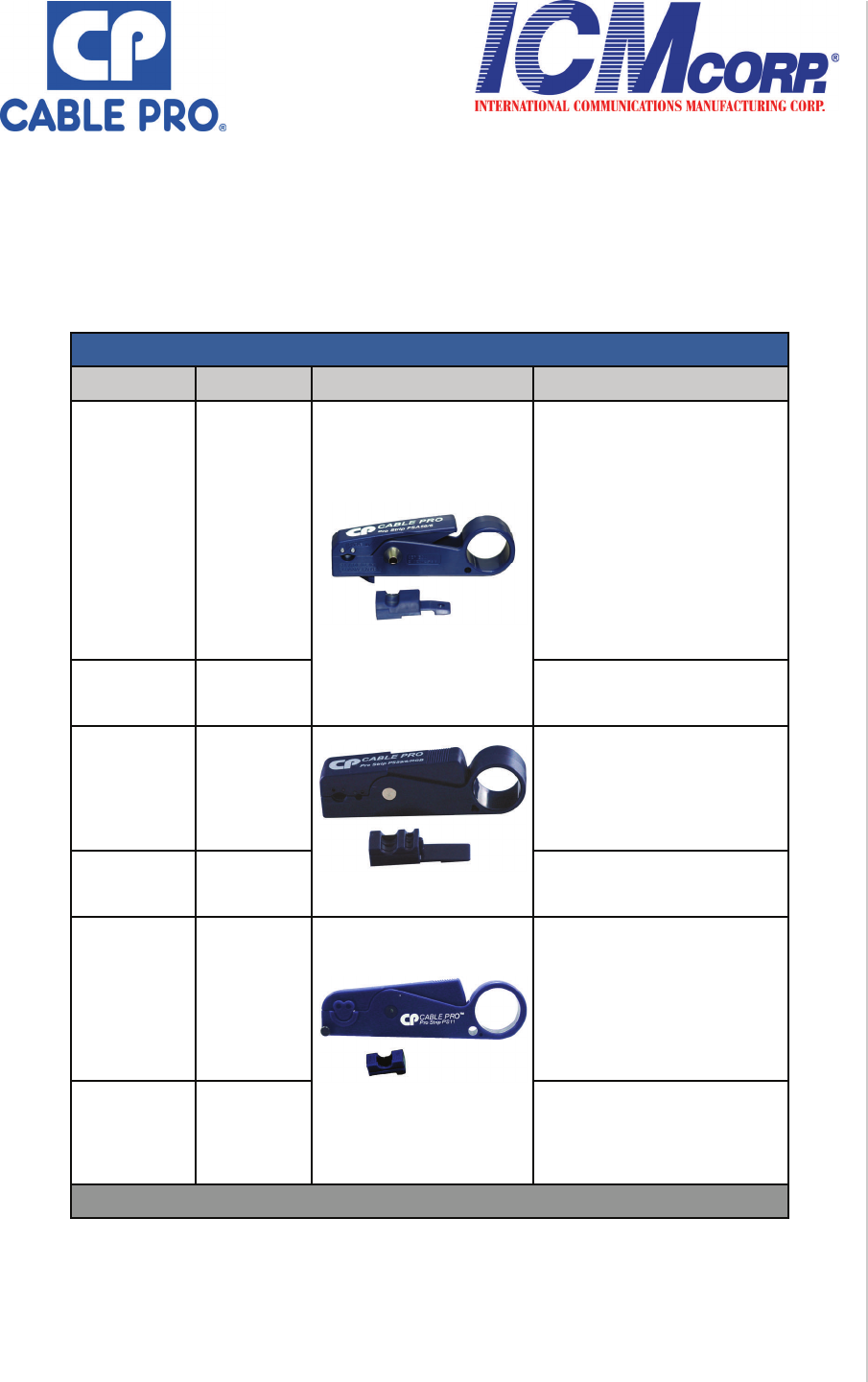

Cable Strippers ......................................................................................... 23
Compression Tools ................................................................................... 24

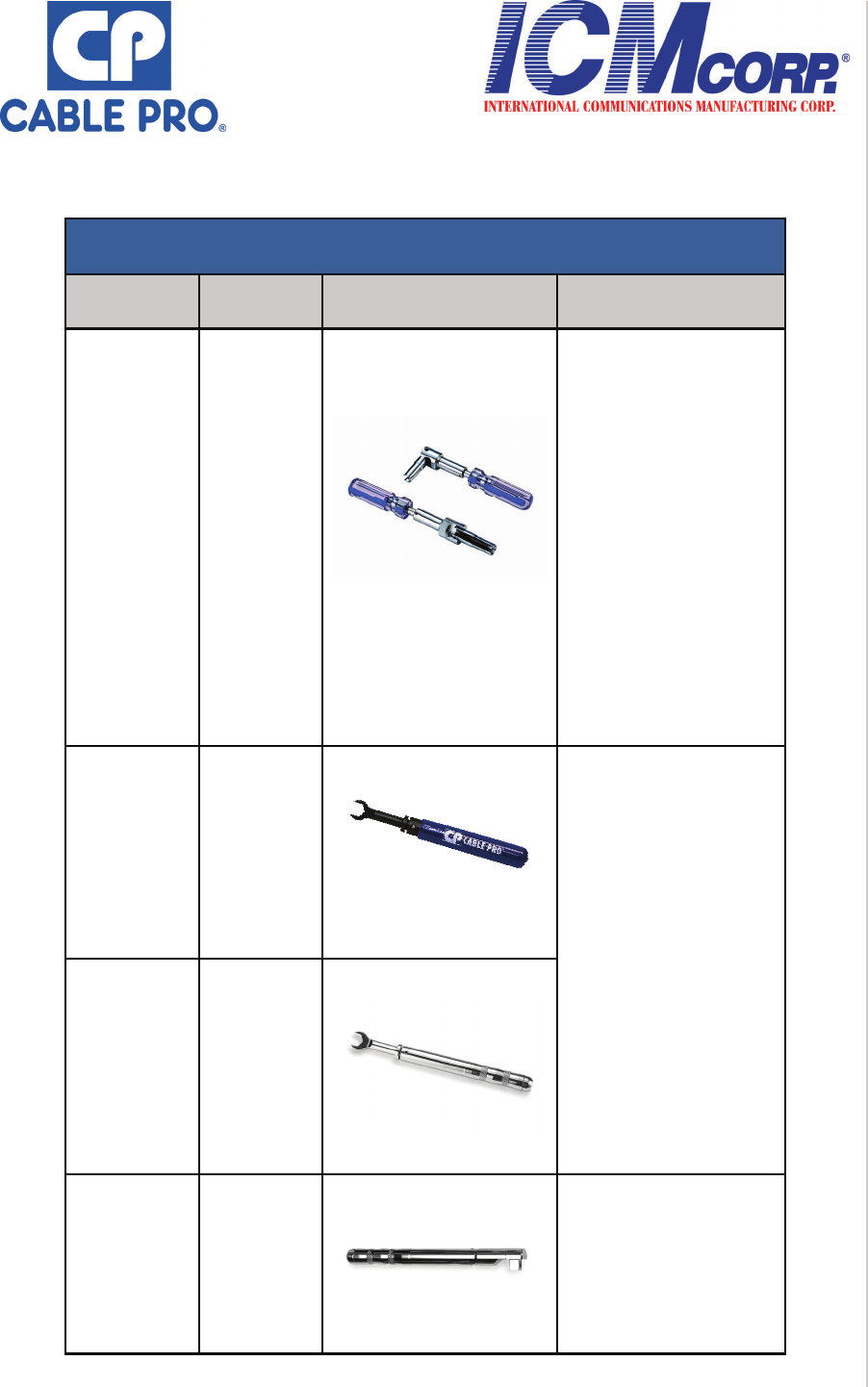

Wrenches .................................................................................................. 26
Installation Tools ....................................................................................... 30
Telephone Tools ....................................................................................... 33
Cable Caddies........................................................................................... 34

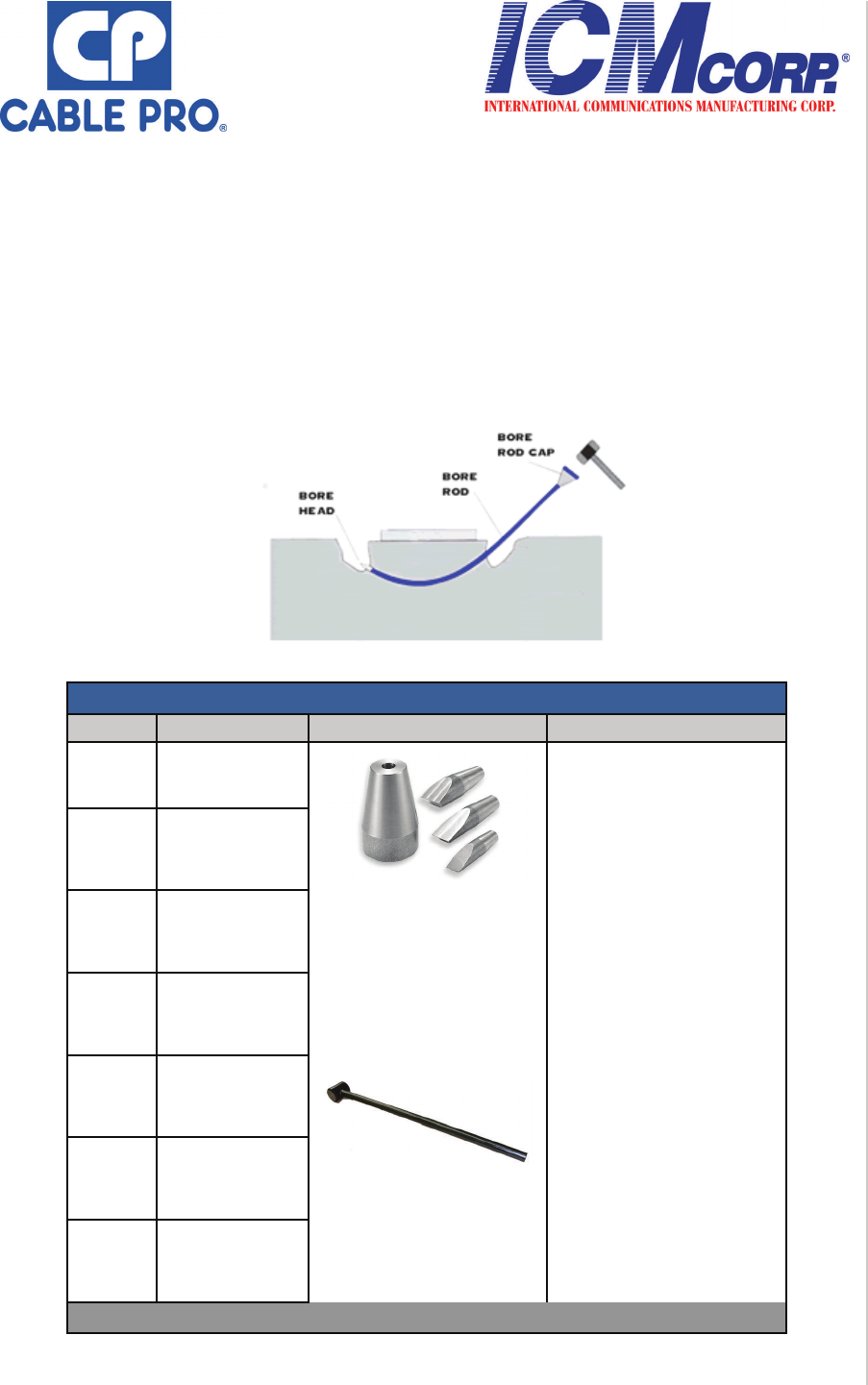

Underground Tool ..................................................................................... 35
Home Installation Products (HIP) .................36

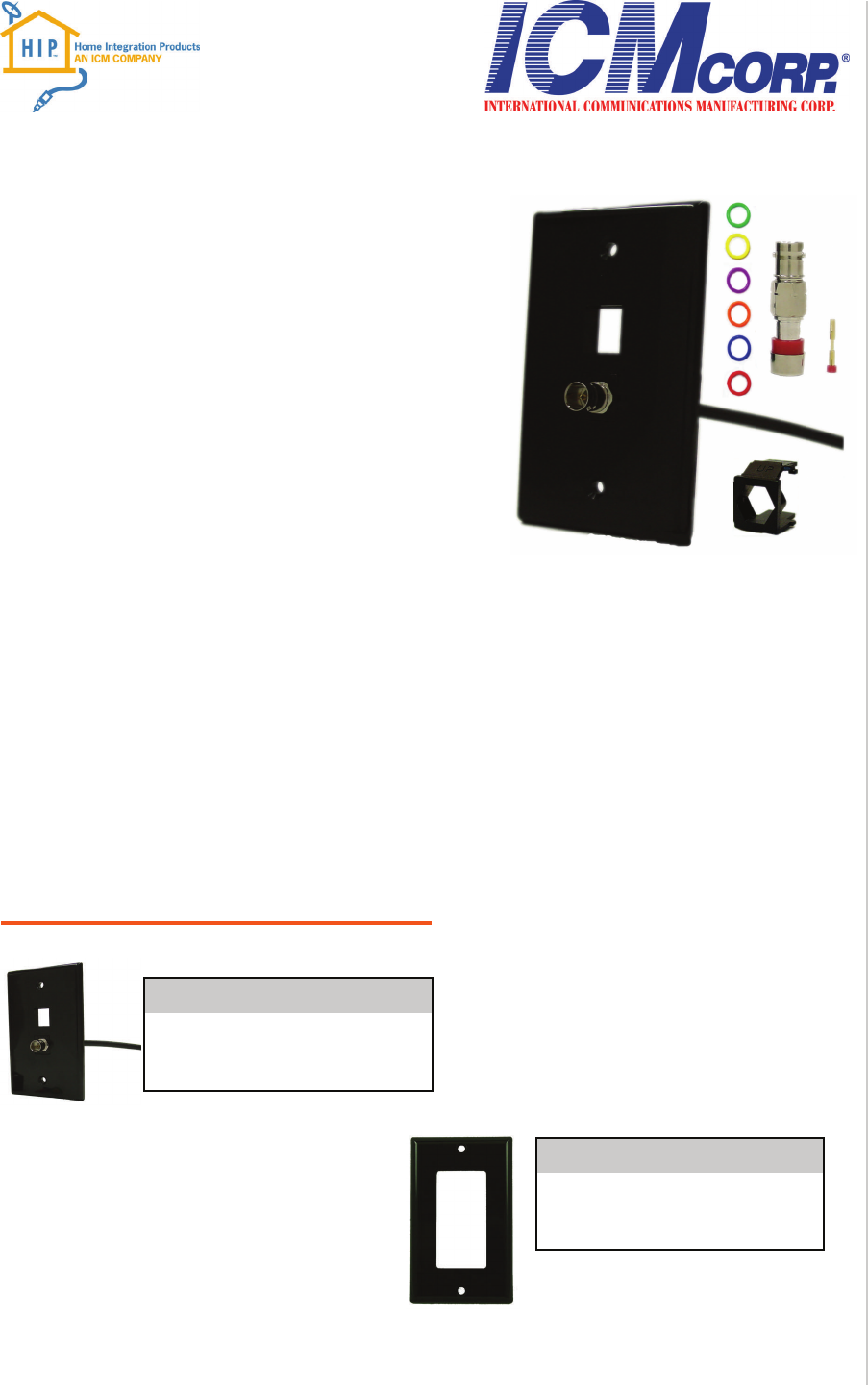

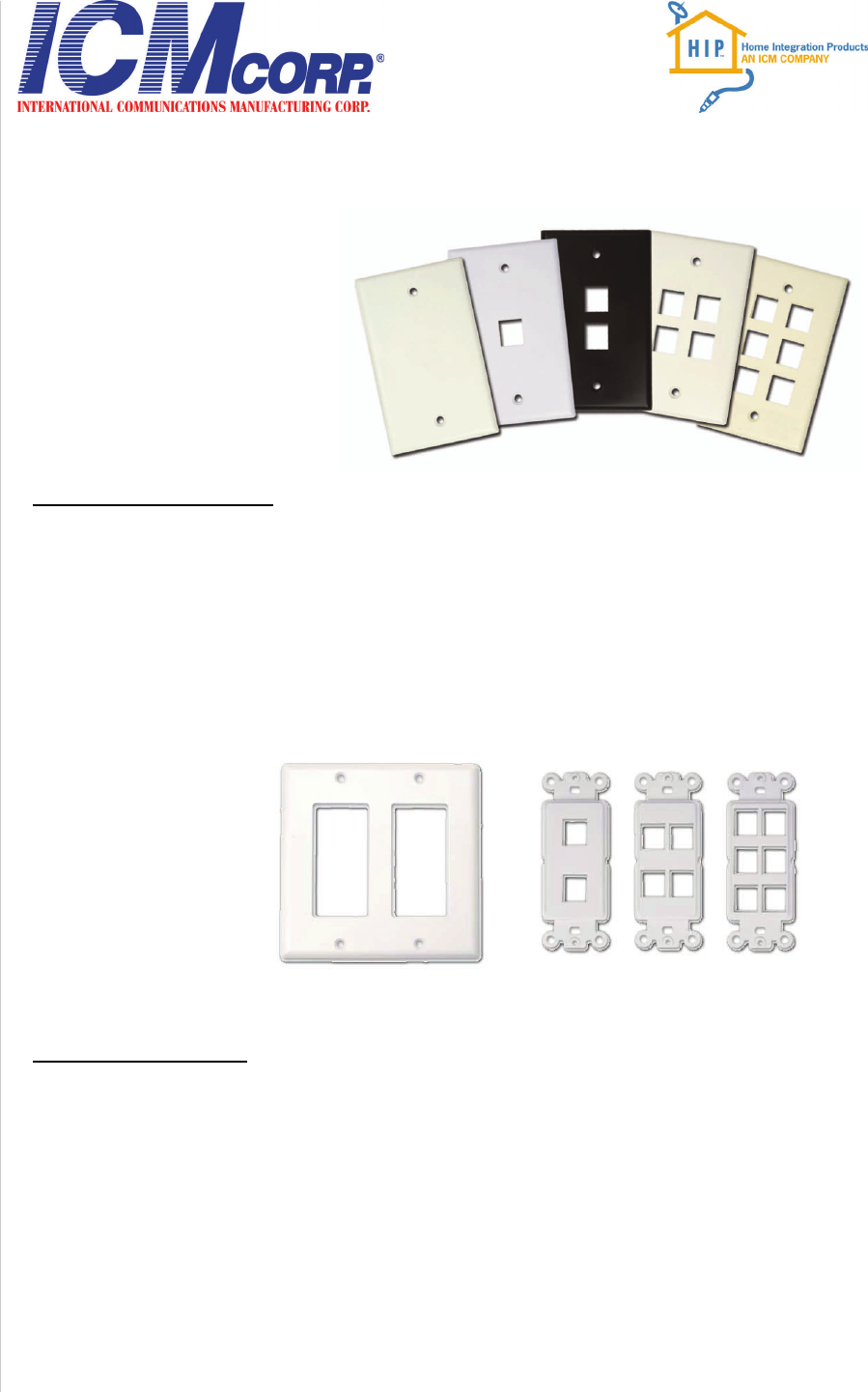

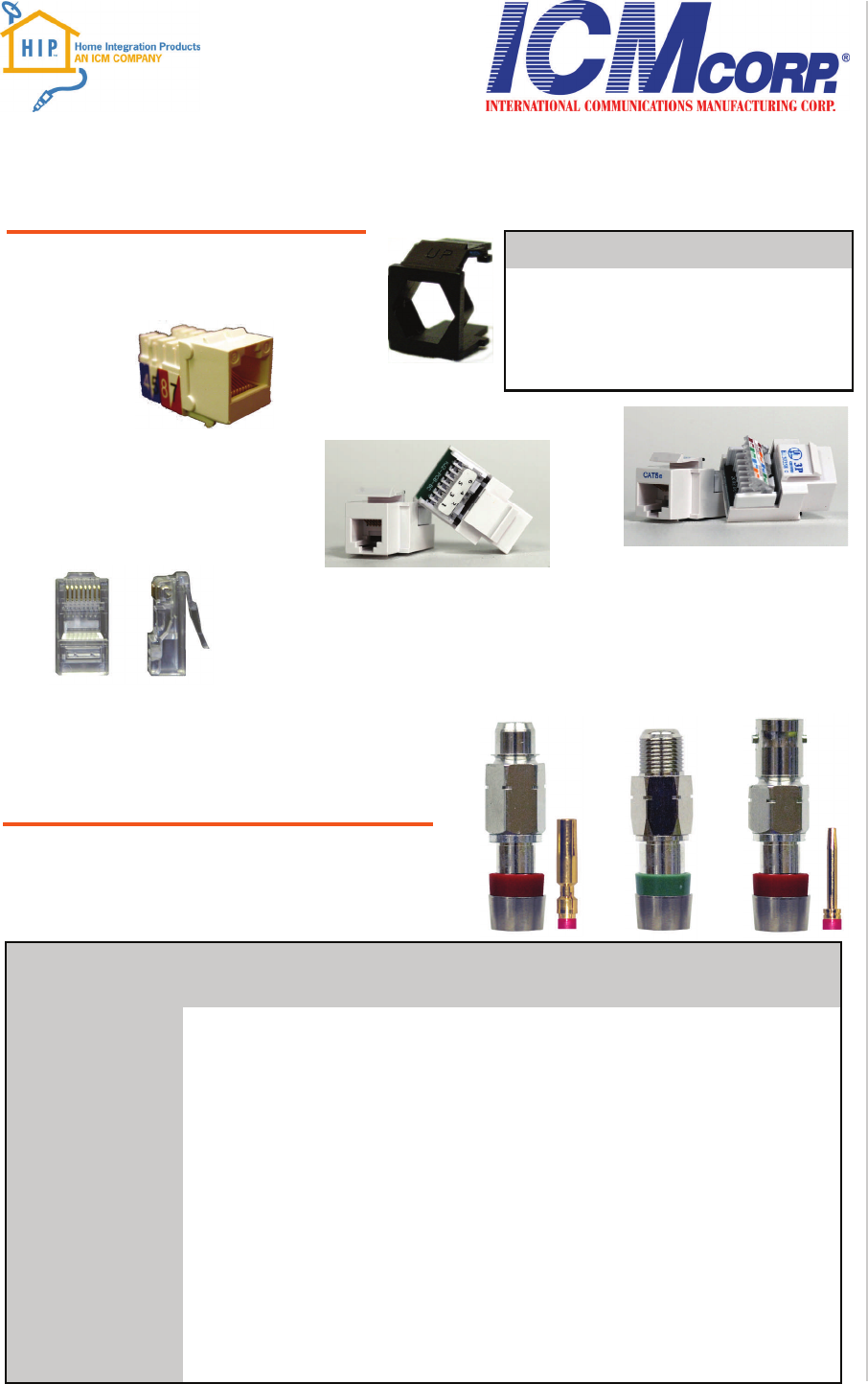

Wall Plate System ..................................................................................... 37

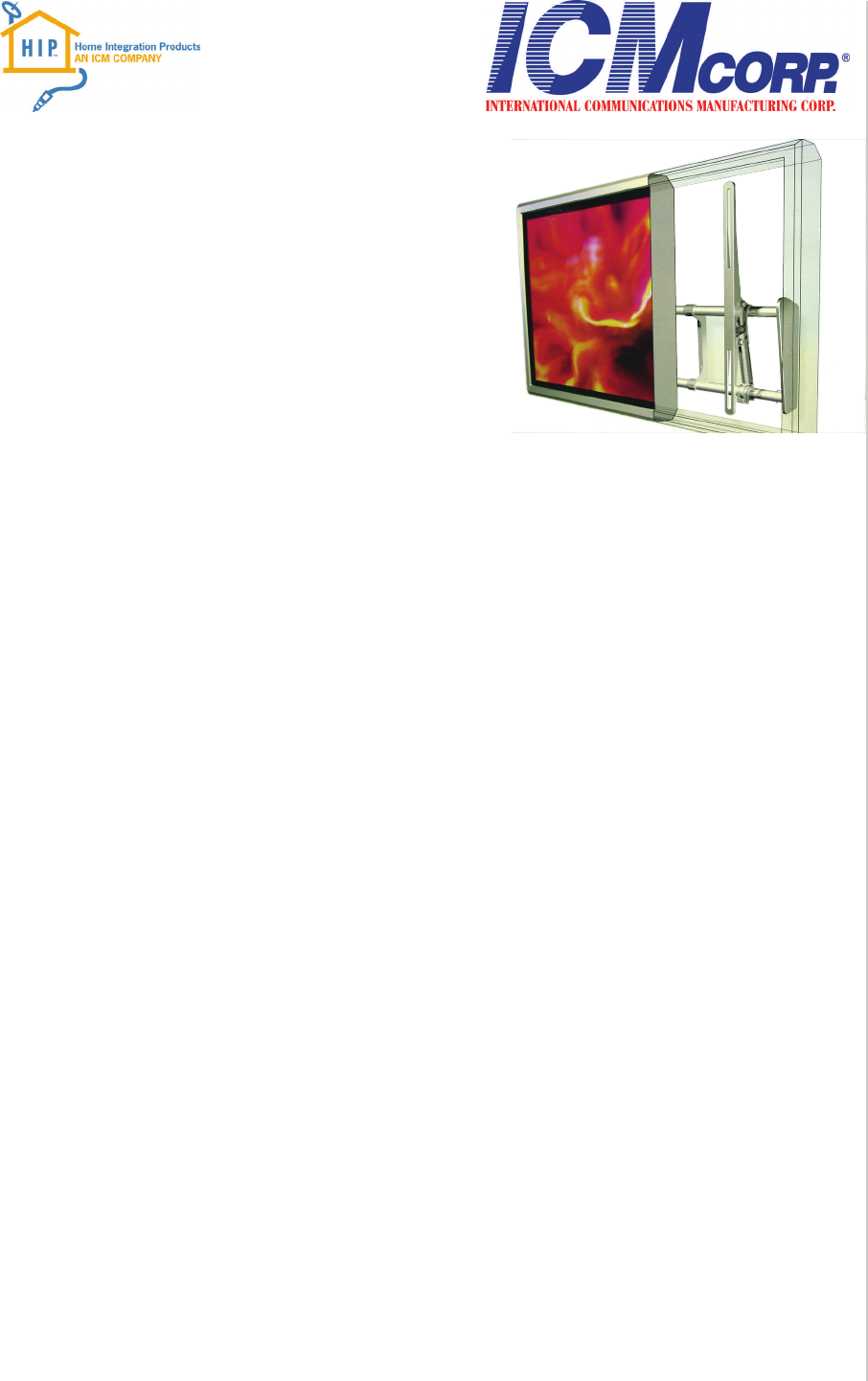

Flat Panel Wall Mount ............................................................................... 41
Splitters ..................................................................................................... 42
Splitter Wall Plates .................................................................................... 43

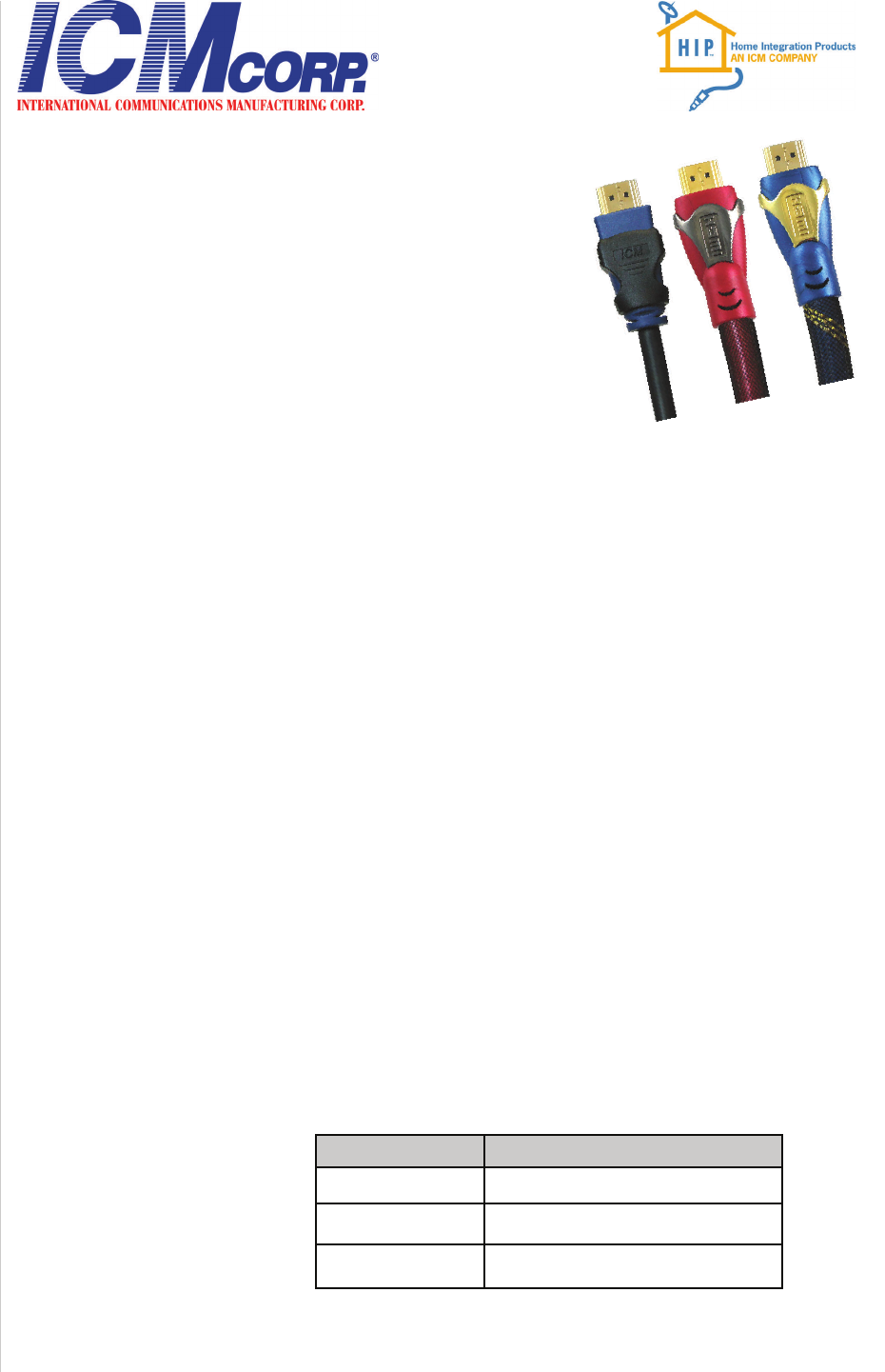

HDMI Cables............................................................................................. 44

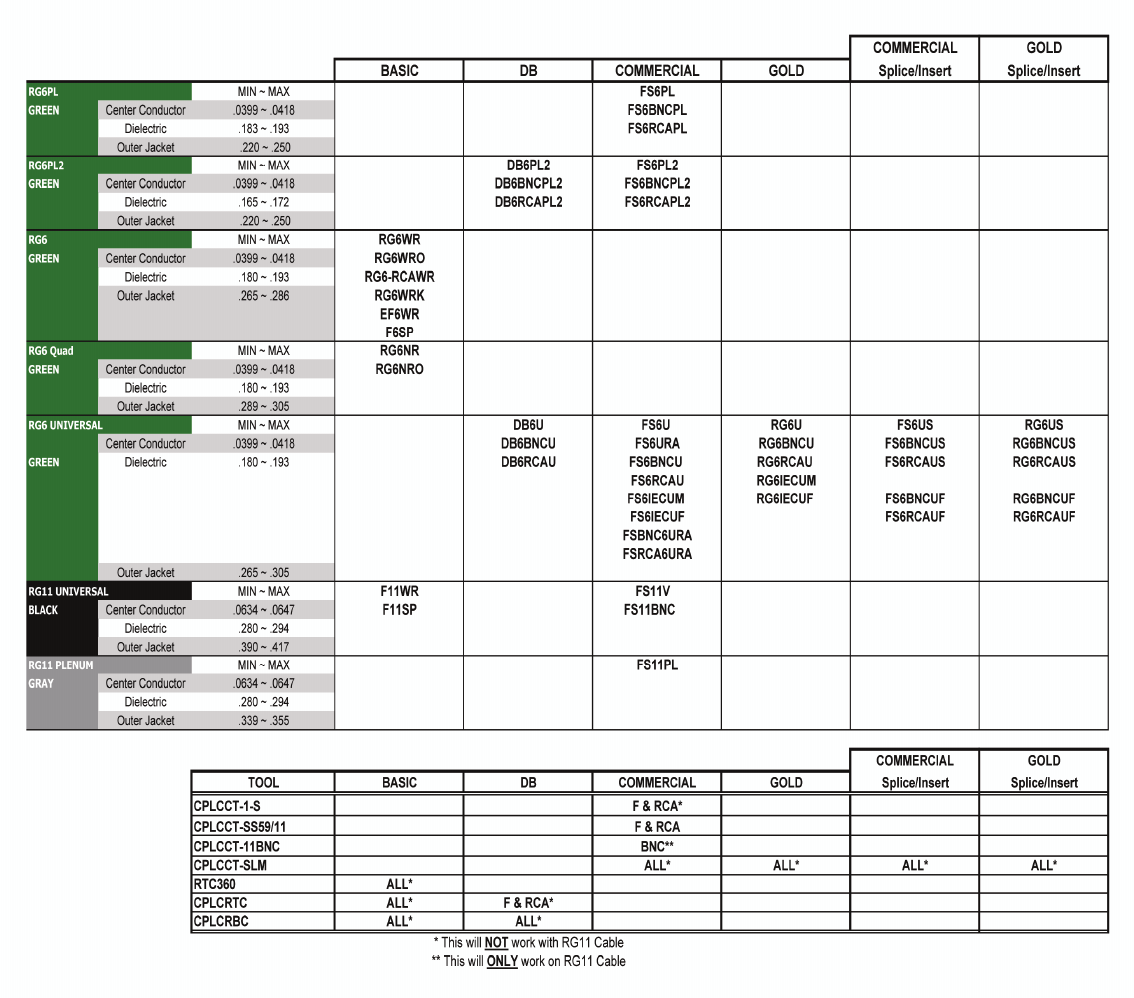

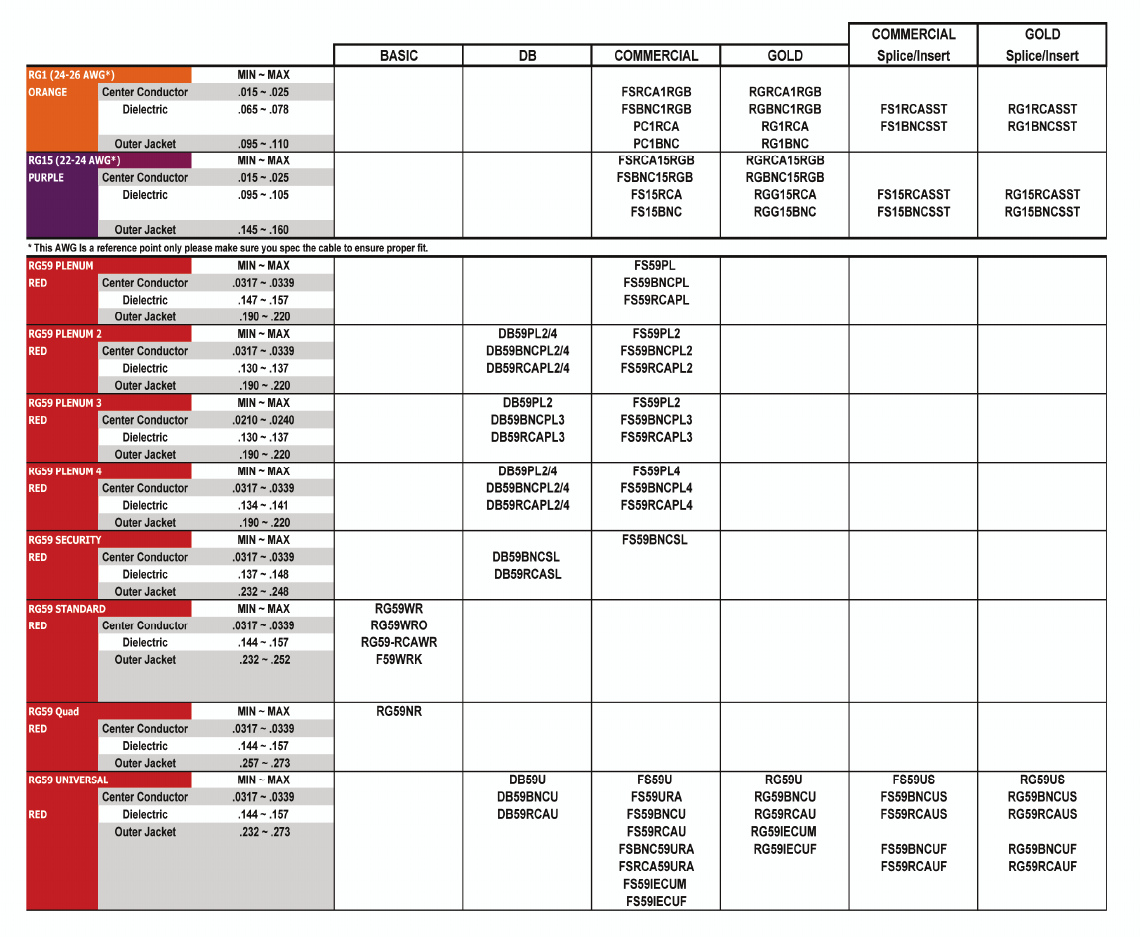

Connector Sizing Chart (inches) ............................................................... 46
Connector Sizing Chart (millimeters) ........................................................ 48
Basic Series specs.................................................................................... 50
Commercial Series specs ......................................................................... 51
Gold Series specs ..................................................................................... 52

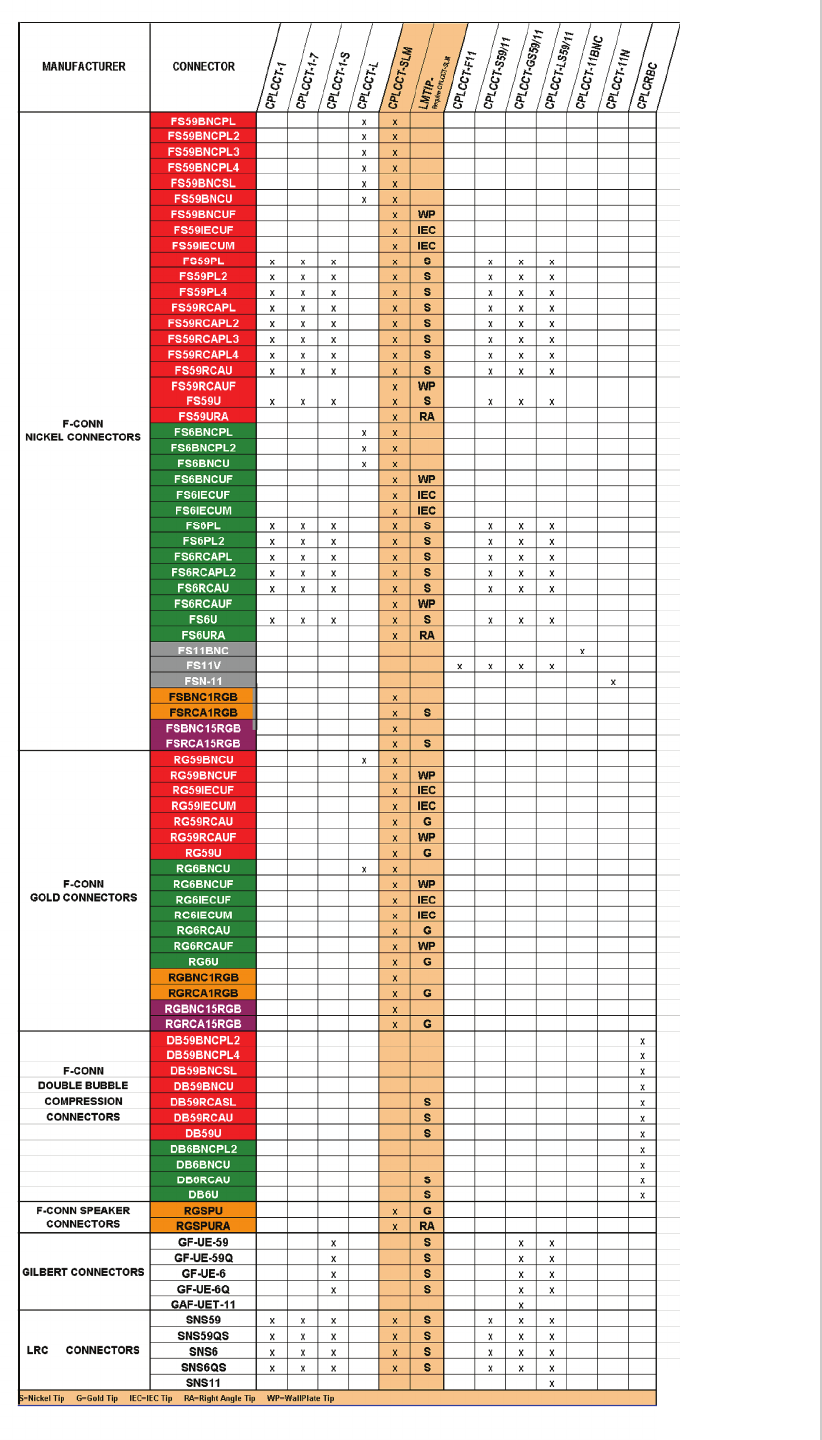

Tool Matrix Chart....................................................................................... 53
Credits....................................................................................................... 54
4
SHOWROOM PACKAGING
ICM Corp’s New
Showroom Packaging
To meet the needs of our customers,
ICM Corp. is launching all new showroom
packaging to make it easier for distributors
to identify, track and display Cable Pro
compression tools, cable strip tools, and a
large selection of F-Conn compression
connectors.
ICM’s New Showroom Display
F-Conn Showroom Packaging:
ICM Corp.’s new innovative packaging for F-Conn compression
connectors features the bold colors of ICM Corp. and emphasizes
the qualities that enable F-Conn compression connectors to
out-perform the competition.
The unique design of the F-Conn compression connector
packaging tube makes it easy to display, transport and use
ICM Corp. compression connectors. A hook cap at one end allows
distributors to easily display the connectors. On the opposite end
an opening allows connectors to be dispensed into the hand of the
installer.
5
SHOWROOM PACKAGING

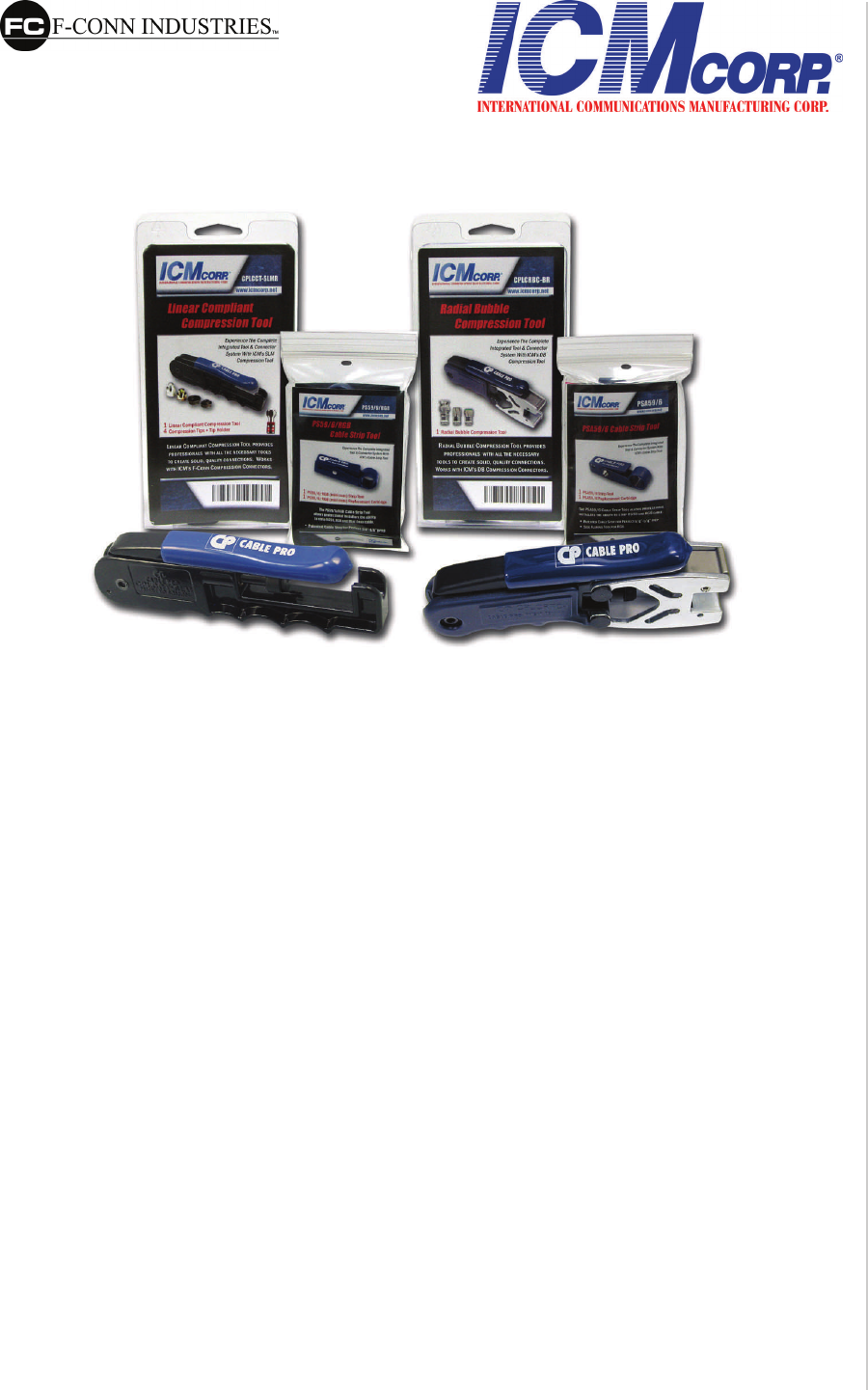

Cable Pro Showroom Packaging:
Cable Pro compression tools and cable stripping tools are
presented in clear packaging so consumers are able to view the
tool they are buying. The clear, clamshell packaging for Cable Pro
compression tools, and clear bag for Cable Pro cable strip tools
features bold ICM Corp. colors and highlights the qualities that
make ICM Corp. products so great.
The new packaging also emphasizes the part number and bar
code to make locating the products a breeze.
A punch-out hole at the top of the packaging allows for the product
to be easily displayed on peg board.
6
ICM Corp. uses the highest quality
materials and metals on the market to
produce quality tools and connectors that
create superior solutions for professional
security installers.
The patented Cable Pro Radial Bubble
Compression (RBC) Tool works with F-Conn’s
DB line of compression connectors in F, RCA
and BNC to fit RG59, RG6, and a complete line
of plenum size connectors for installations
requiring plenum wiring.
The DB compression connection creates two
360-degree compression connections (one interior
and one exterior) providing permanent, “double
bubble” connection.
The system is ideal for security cameras and other
exposed wiring installations. The unique double bubble connection provides superior
protection against moisture migration limiting poor signal quality due to the elements.
PRIMARY SYSTEM TOOLS

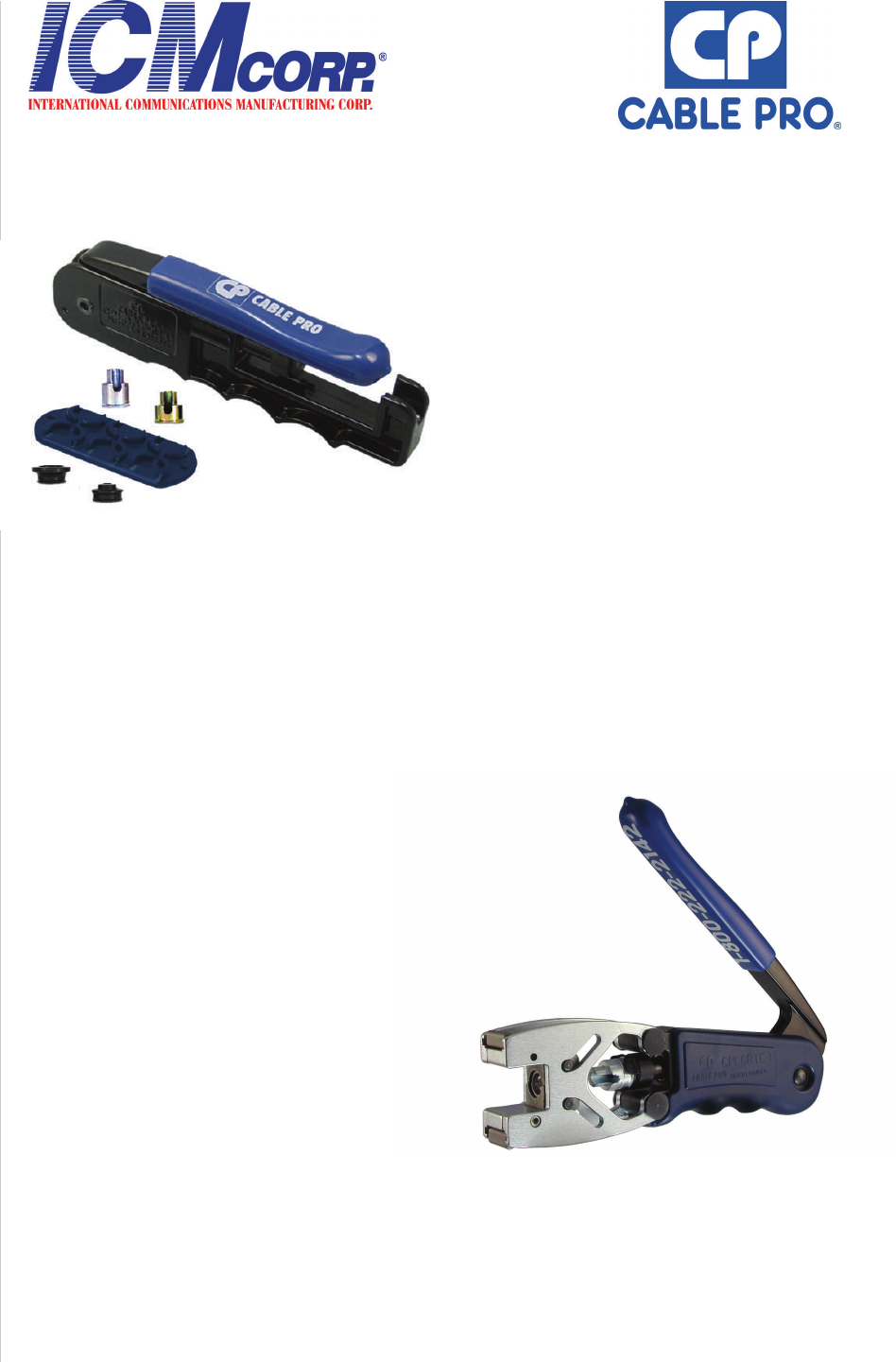

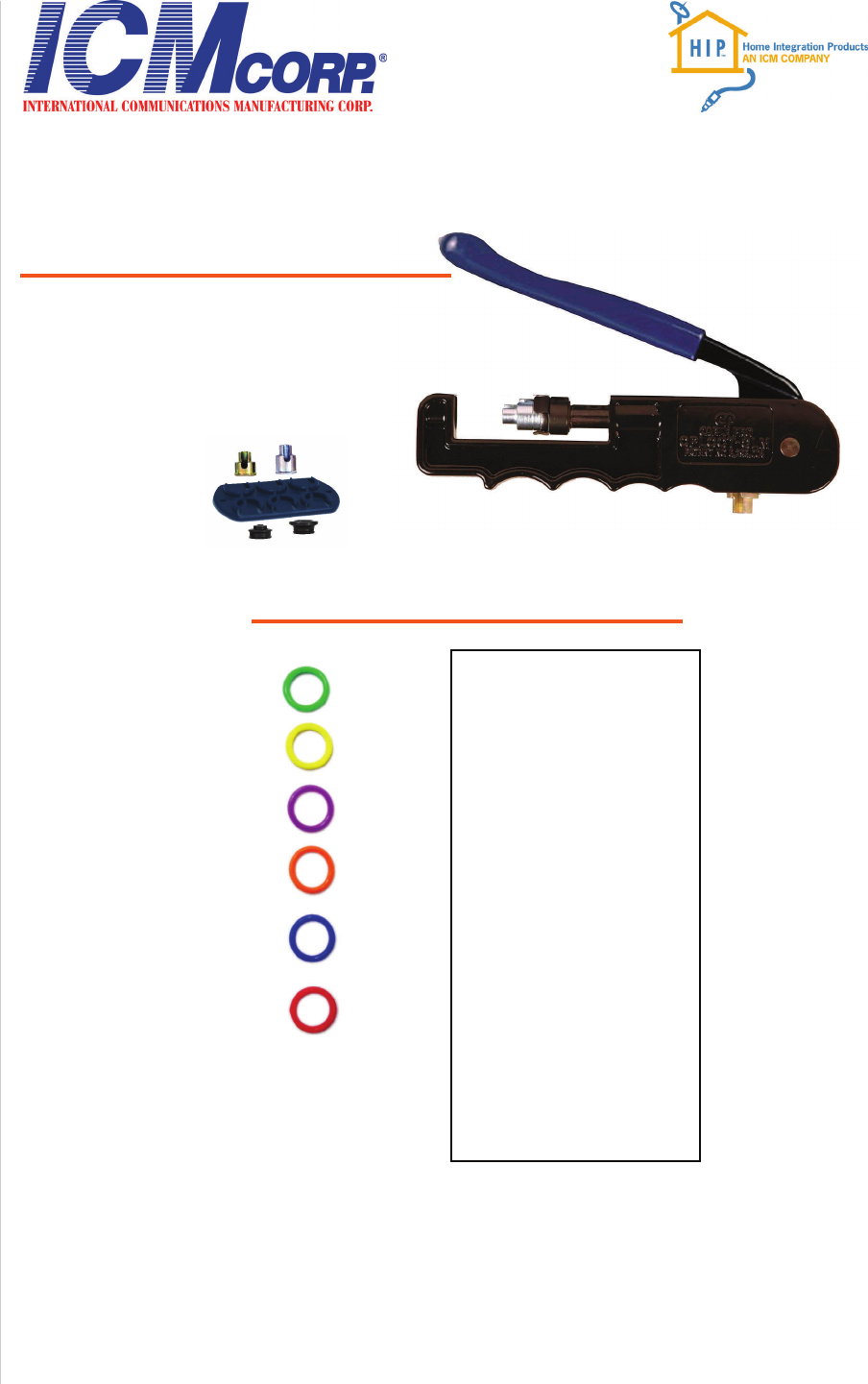

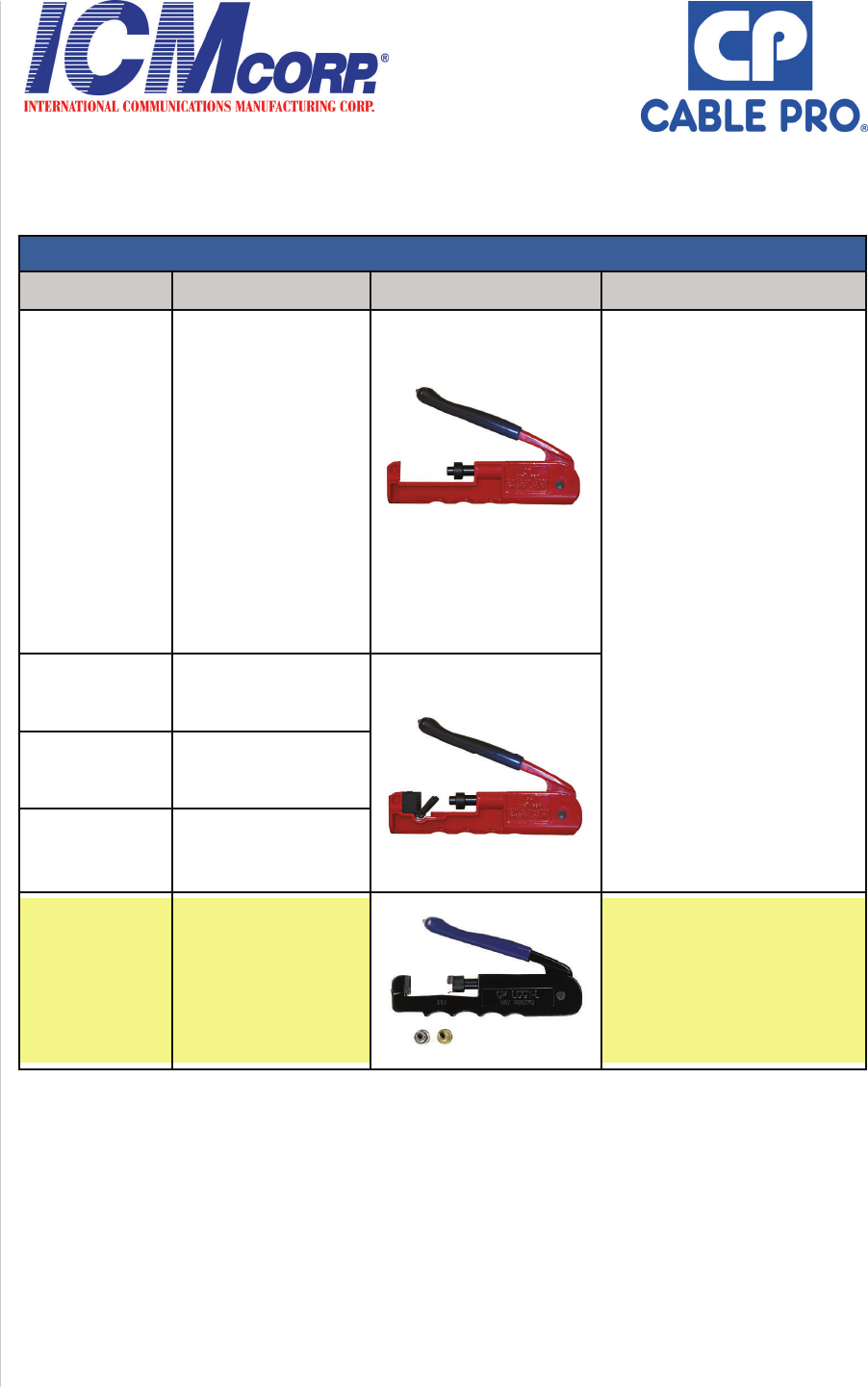

Cable Pro’s SLM Compression Tool...
CPLCRBC Radial Bubble
Compression Tool
Cable Pro’s Double Bubble
360 Compression Tool...
ICM Corp. manufactures high-quality Cable
Pro installation and specialty tools
designed specifically with the AV
professional installer in mind. The Linear
Compliant Compression (SLM) Tool is
unique in its self-adjusting, light-weight,
one-step functionality creating a TRUE 360º
compression.

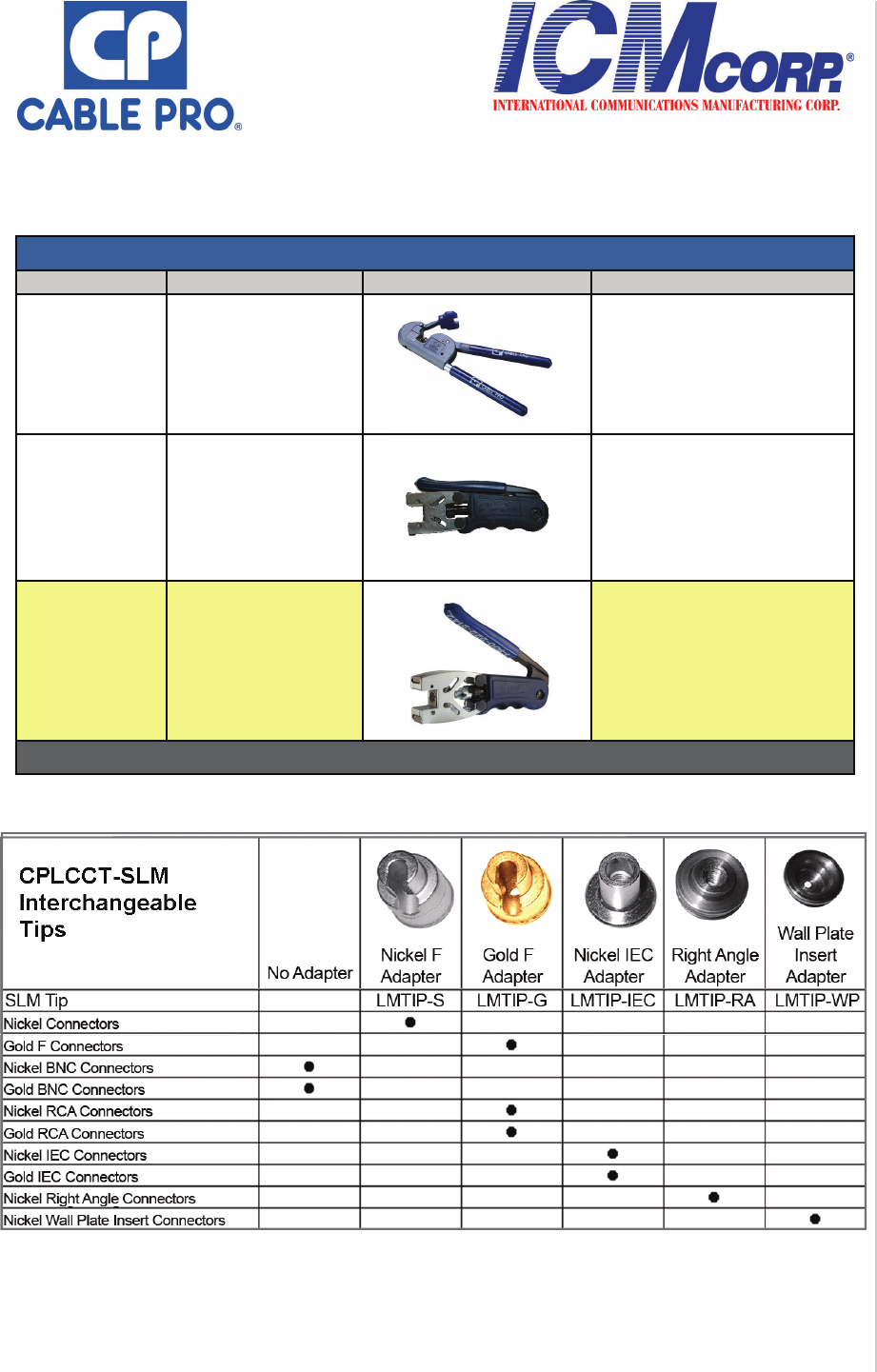

The SLM tool has four interchangeable tips
allowing installers to compress a variety of
connector types that include F, RCA, BNC in
nickel or gold.
The SLM can also compress ICM Corp.’s
Right Angle Connectors, Speaker Connectors,
and Standalone Splices. The splice
connectors work with our patented Wall Plate
System.
F-Conn compression connectors are available in sizes RG59, RG6, mini coax, and a variety of
plenum sizes. The SLM compression tool greatly reduces the number of tools that installers need
for custom installations.
CPLCCT-SLM Linear Compliant
Compression Tool
7

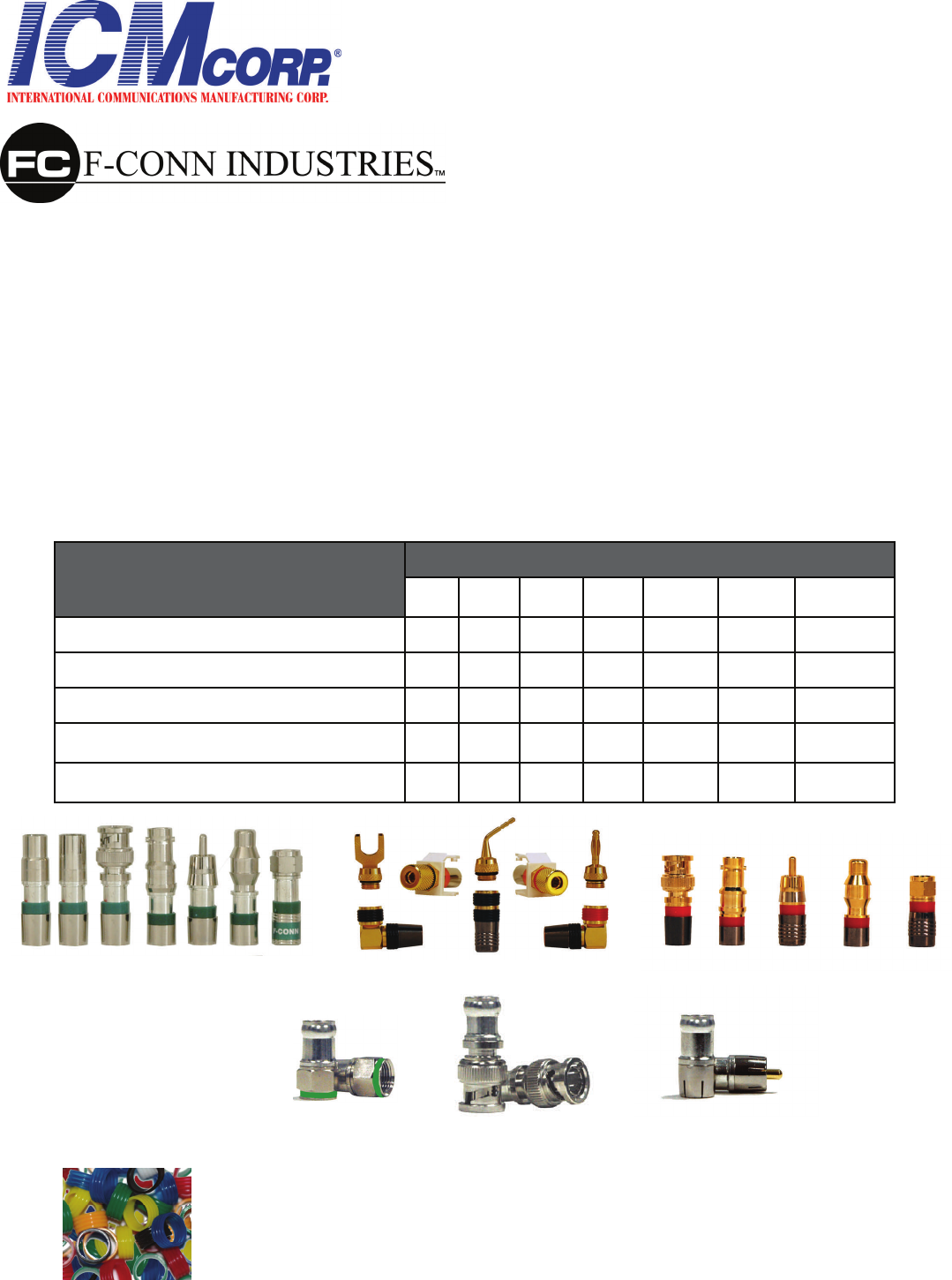

Seventy percent of all television trouble calls are connector-related, including complaints of herringbone patterns,
vertical roll, ghosts, snowy images and no picture. F-Conn's compression connectors reduce service calls by supplying
secure, lasting connections from the beginning.
• F-Conn connectors provide full 360° electrical continuity even under punishing conditions.
• Crafted to help overcome forward reflection, their pullout strength can also withstand more than 80 pounds
of force.
• The radial design reduces the possibility of an impedance problem and can defeat ingress/egress at the
connector.
• Internal "O" sealing rings prevent moisture migration, while the large ferrule surface insures proper RF and
digital interface.
• F-Conn compression connectors don't require soldering.
• Meet SCTE-IPC and Bellcore requirements.
Connector Type
Cable Size
RGB RG59 RG59Q RG6 RG6Q RG7 RG11
F-Conn Basic Series x x x x x x
F-Conn Commercial x x x x x x
F-Conn Gold x x x x x
Wall Plate Splices, Clips and Connectors x x x x x
F-Conn Double Bubble x x x x

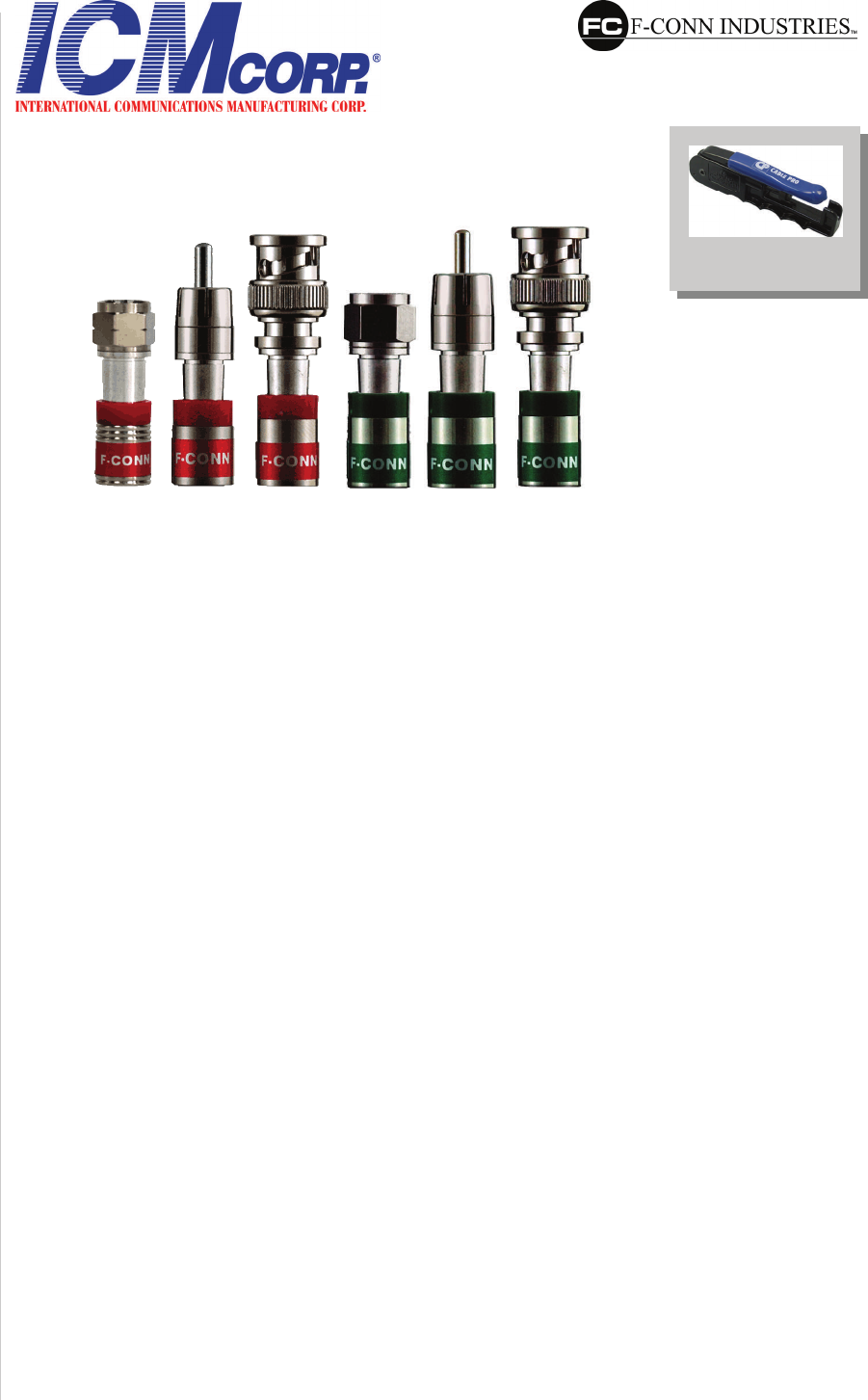

Gold Connector Series
Commercial Connector Series Speaker Connector Series
Double Bubble Connector Series
Patented color rings for nickel and gold connectors are available in 14 different colors
to designate signal types and location. Easily identify cables and wires for quick
installations. Part number FSCR-* ( *= specify color)
Color Rings
8

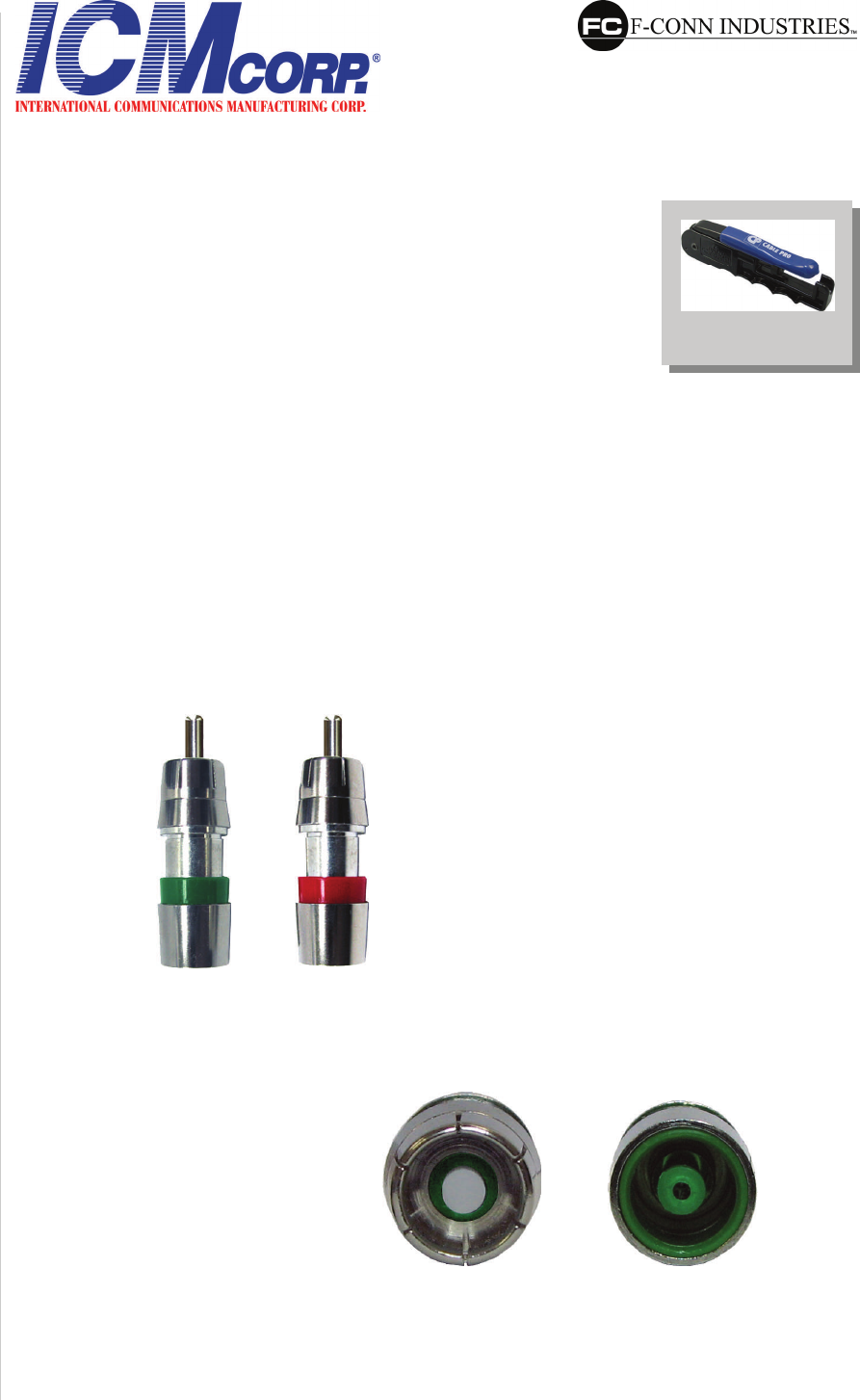

F-CONN CONNECTORS
RCA Connectors
Cable Size Description ICM Part Number
25-26AWG RCA Nickel Multi-Piece FSRCA1RGB
25-26AWG RCA Gold Multi-Piece RGRCA1RGB
22-24AWG RCA Nickel Multi-Piece FSRCA15RGB
22-24AWG RCA Gold Multi-Piece RGRCA15RGB
RG6/6 Quad Universal RCA Nickel FS6RCAU
RG6/6 Quad Universal RCA Gold RG6RCAU
RG6/6 Quad Universal RCA Female Nickel FS6RCAUF
RG59/59 Quad Universal RCA Nickel FS59RCAU
RG59/59 Quad Universal RCA Gold RG59RCAU
Plenum RG59 RCA Nickel FS59RCAPL
Security RG59 RCA Nickel FS59RCASL
RG59/59 Quad Universal RCA Female Nickel FS59RCAUF
25-26AWG RCA
Nickel One-Piece FS1RCA
25-26AWG RCA Gold One-Piece RG1RCA
22-24AWG RCA
Nickel One-Piece FS15RCA
22-24AWG RCA Gold One-Piece RG15RCA

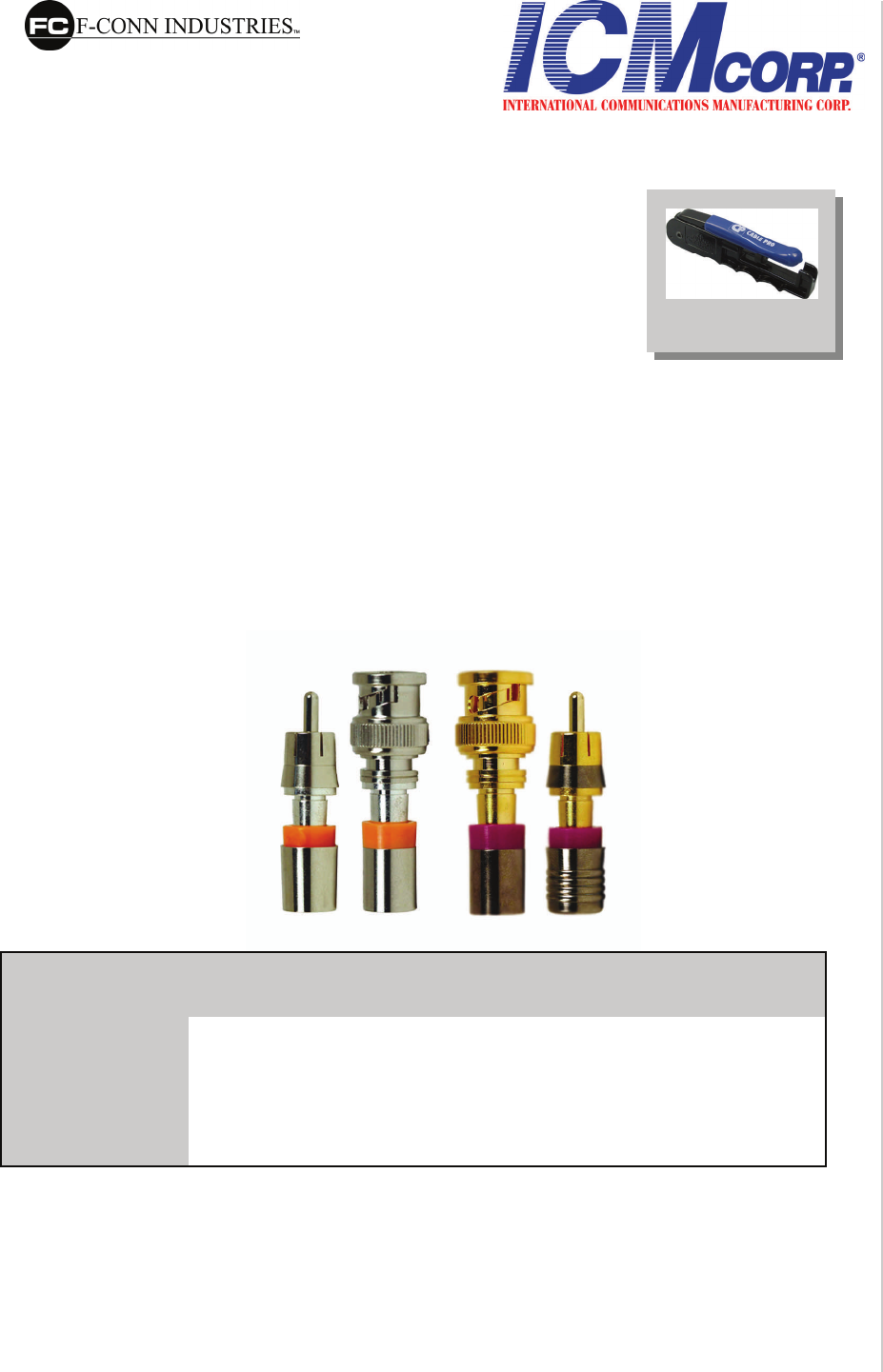

F-Conn’s compression connector line is designed
for custom installations when appearance matters.
Connectors come in nickel or gold for a professional finished look.
F Connectors
Cable Size Description ICM Part Number
RG6/6 Quad Universal F Nickel FS6U
RG6/6 Quad Universal F Gold RG6U
RG6/6 Quad Plenum F Size 1 FS6PL
RG6/6 Quad Plenum F Size 2 FS6PL2
RG59/59 Quad Universal F Nickel FS59U
RG59/59 Quad Universal F Gold RG59U
RG59/59 Quad Plenum F Size 1 FS59PL
RG59/59 Quad Plenum F Size 2 & 3 FS59PL2
RG59/59 Quad Plenum F Size 4 FS59PL4
RG11* F Nickel FS11V
F-Conn Connectors
CPLCCT-SLM
Utilize this tool.
• * = RG11, F connectors work with CPLCCT-SS59/11 tool
• ** = RG11, BNC connectors work with CPLCCT-11BNC tool.
9
F-Conn Connectors
IEC Connectors
Cable Size Description ICM Part Number
RG6 Universal IEC Female Nickel FS6IECUF
RG6 Universal IEC Male Nickel FS6IECUM
RG6 Universal IEC Female Gold RG6IECUF
RG6 Universal IEC Male Gold RG6IECUM
RG59 Universal IEC Female Nickel FS59IECUF
RG59 Universal IEC Male Nickel FS59IECUM
RG59 Universal IEC Female Gold RG59IECUF
RG59 Universal IEC Male Gold RG59IECUM
F-CONN CONNECTORS

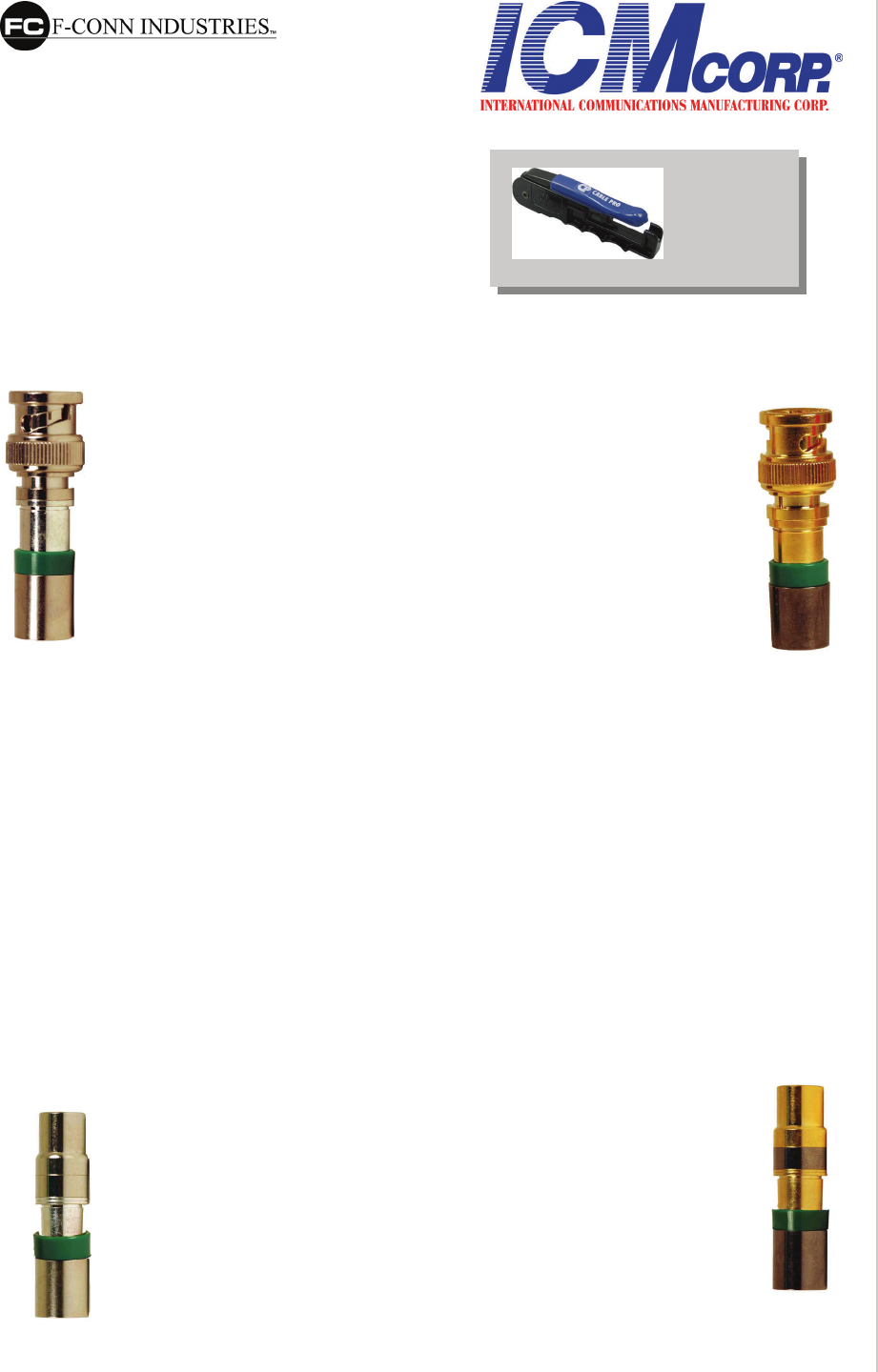

BNC Connectors
Cable Size Description ICM Part Number
25-26AWG BNC Nickel Multi-Piece FSBNC1RGB
25-26AWG BNC Gold Multi-Piece RGBNC1RGB
22-24AWG BNC Nickel Multi-Piece FSBNC15RGB
22-24AWG BNC Gold RGBNC15RGB
RG6/6 Quad Universal BNC Nickel FS6BNCU
RG6/6 Quad Universal BNC Gold RG6BNCU
RG6/6 Quad Universal BNC Female Nickel FS6BNCUF
RG59/59 Quad Universal BNC Nickel FS59BNCU
RG59 & RG59 Quad Universal BNC Gold RG59BNCU
Plenum RG59 BNC Nickel FS59BNCPL
Security RG59 BNC Nickel FS59BNCSL
RG59 Universal BNC Female Nickel FS59BNCUF
RG11** BNC Nickel FS11BNC
25-26AWG BNC Nickel One-Piece FS1BNC
25-26AWG BNC Gold One-Piece RG1BNC
22-24AWG BNC Gold One-Piece RG15BNC
22-24AWG BNC Nickel One-Piece FS15BNC
CPLCCT-SLM
Utilize this tool.
• * = RG11, F connectors work with SS59/11 tool
• ** = RG11, BNC connectors work with CPLCCT-11BNC tool.
10

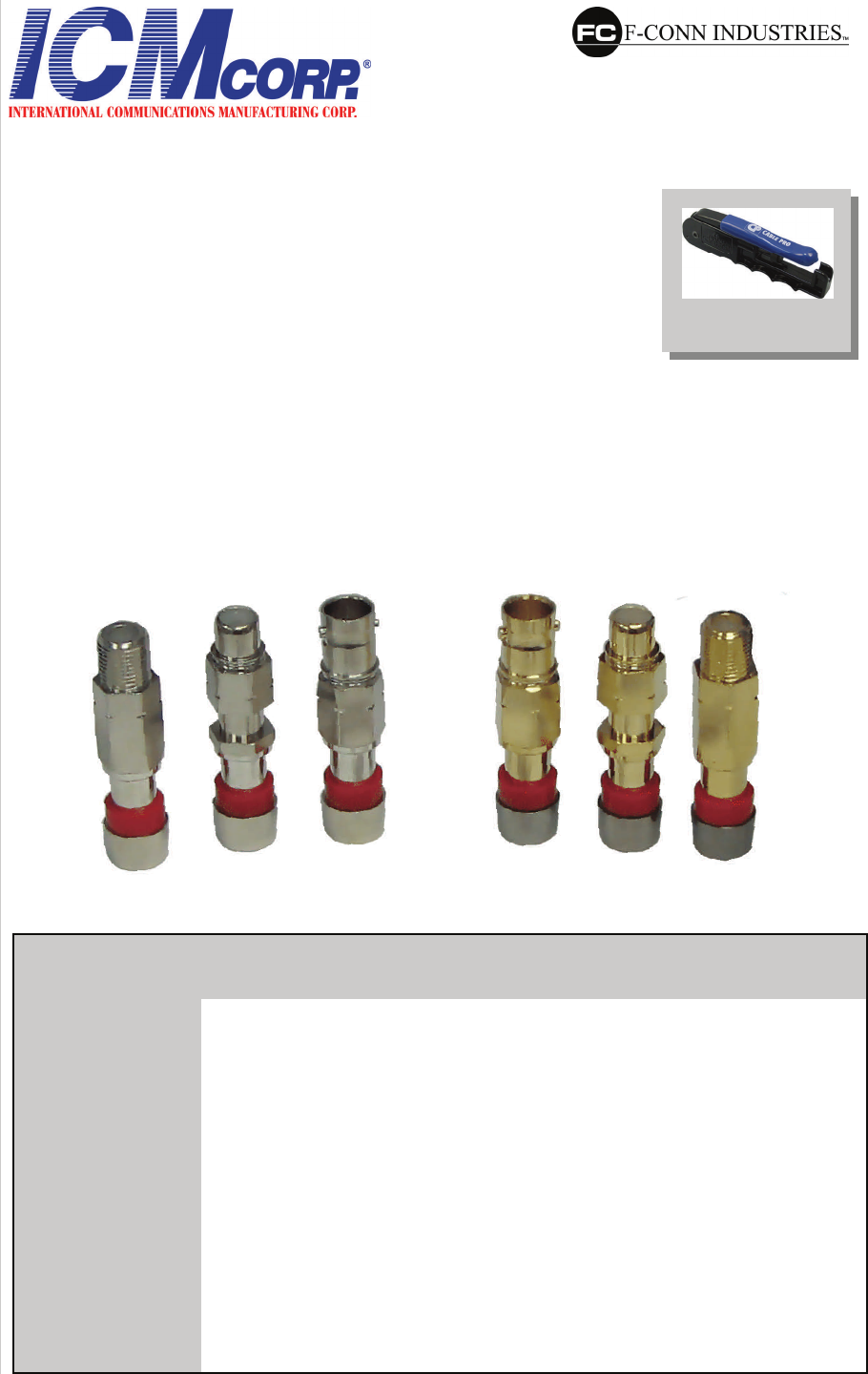

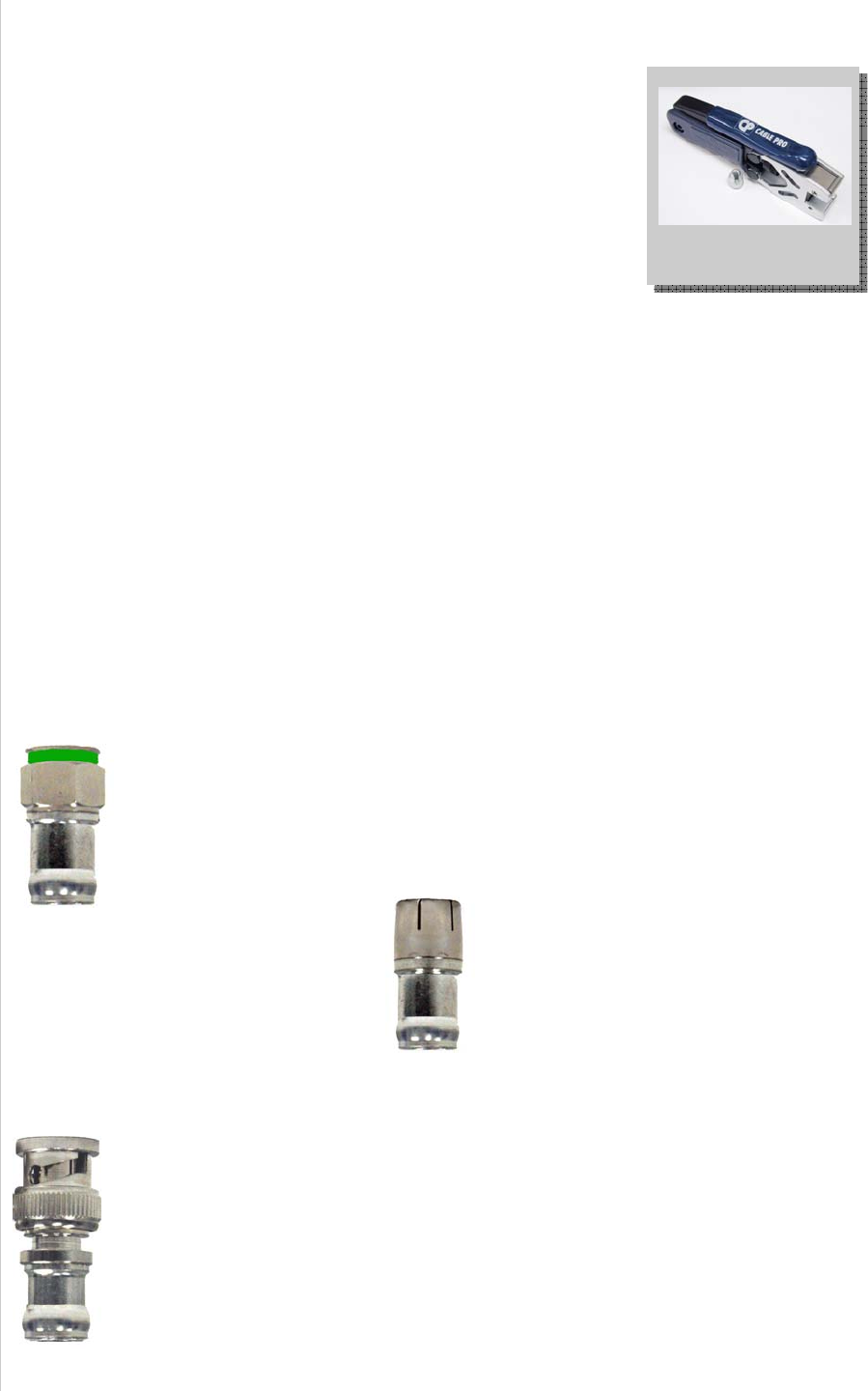

F-Conn Standalone Splices
Cable Size Description ICM Part Number
Nickel Finish
ICM Part Number
Gold Finish
RG6/6 Quad F FS6US RG6US
RG6/6 Quad BNC FS6BNCUS RG6BNCUS
RG6/6 Quad RCA FS6RCAUS RG6RCAUS
RG59/59 Quad F FS59US RG59US
RG59/59 Quad BNC FS59BNCUS RG59BNCUS
RG59/59 Quad RCA FS59RCAUS RG59RCAUS
Mini 25-26AWG BNC Stranded or Solid FS1BNCSST RG1BNCSST
Mini 25-26AWG RCA Stranded or Solid FS1RCASST RG1RCASST
Mini 22-24AWG BNC Stranded or Solid FS15BNCSST RG15BNCSST
Mini 22-24AWG RCA Stranded or Solid FS15RCASST RG15RCASST
STANDALONE SPLICES
CPLCCT-SLM
Utilize this tool.
Standalone Splices for ICM Corp.’s
Patented Wall Plate System
Read more about our new Wall Plate System on page 38.
• Our Standalone Splices have replaced the ready made HIP inserts with plastic
clips.
• Standalone splices can now be inserted into clips as needed to match wall
plate colors, allowing installers to customize installations on the spot.
• Available in F, RCA, BNC, for RG6, RG59, RGB 22-24AWG mini coax and
RGB 25-26AWG mini coax, in gold or nickel finish.
11
RIGHT ANGLE SERIES

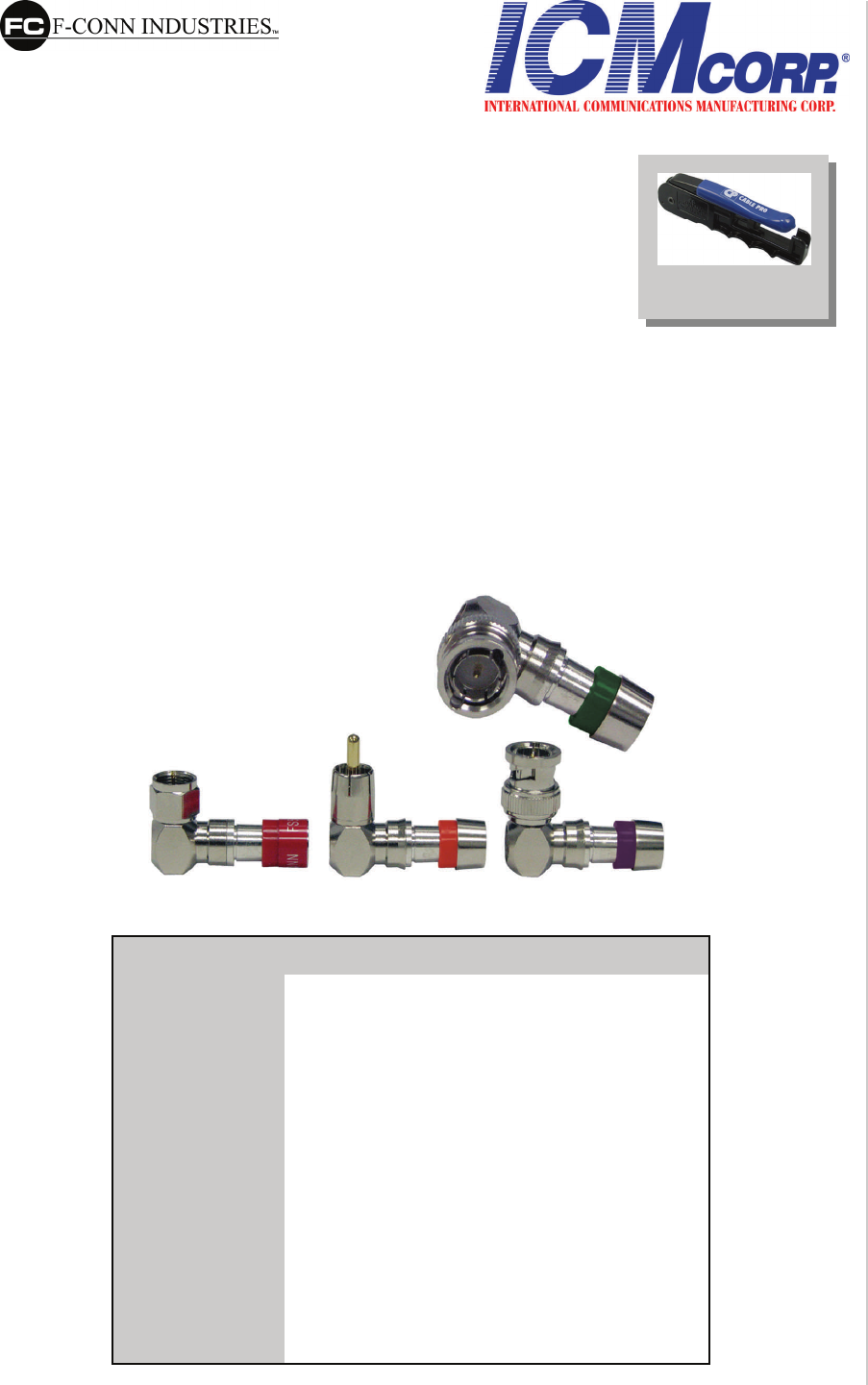

F-Conn Right Angle Series
Cable Size Description ICM Part Number
25-26AWG BNC right angle FSBNC1RA
25-26AWG RCA right angle FSRCA1RA
22-24AWG BNC right angle FSBNC15RA
22-24AWG RCA right angle FSRCA15RA
RG6/6 Quad F right angle FS6URA
RG6/6 Quad BNC right angle FSBNC6URA
RG6/6 Quad RCA right angle FSRCA6URA
RG59/59 Quad F right angle FS59URA
RG59/59 Quad BNC right angle FSBNC59URA
RG59/59 Quad RCA right angle FSRCA59URA
New!
Patented Right Angle Connectors
ICM Corp. now offers Right Angle Compression Connectors
for mini cable.
Right angle compression connectors are the perfect solution for tight spaces. Use
with rack mounts, plasma TVs, or any place where extra space is needed.
• F, RCA and BNC connectors are available to fit RG59 and RG6 cable
• RCA and BNC connectors are available to fit 22-24AWG mini coax and
25-26AWG mini coax.
• All right angle connectors are offered in nickel.
CPLCCT-SLM
Utilize this tool.
12

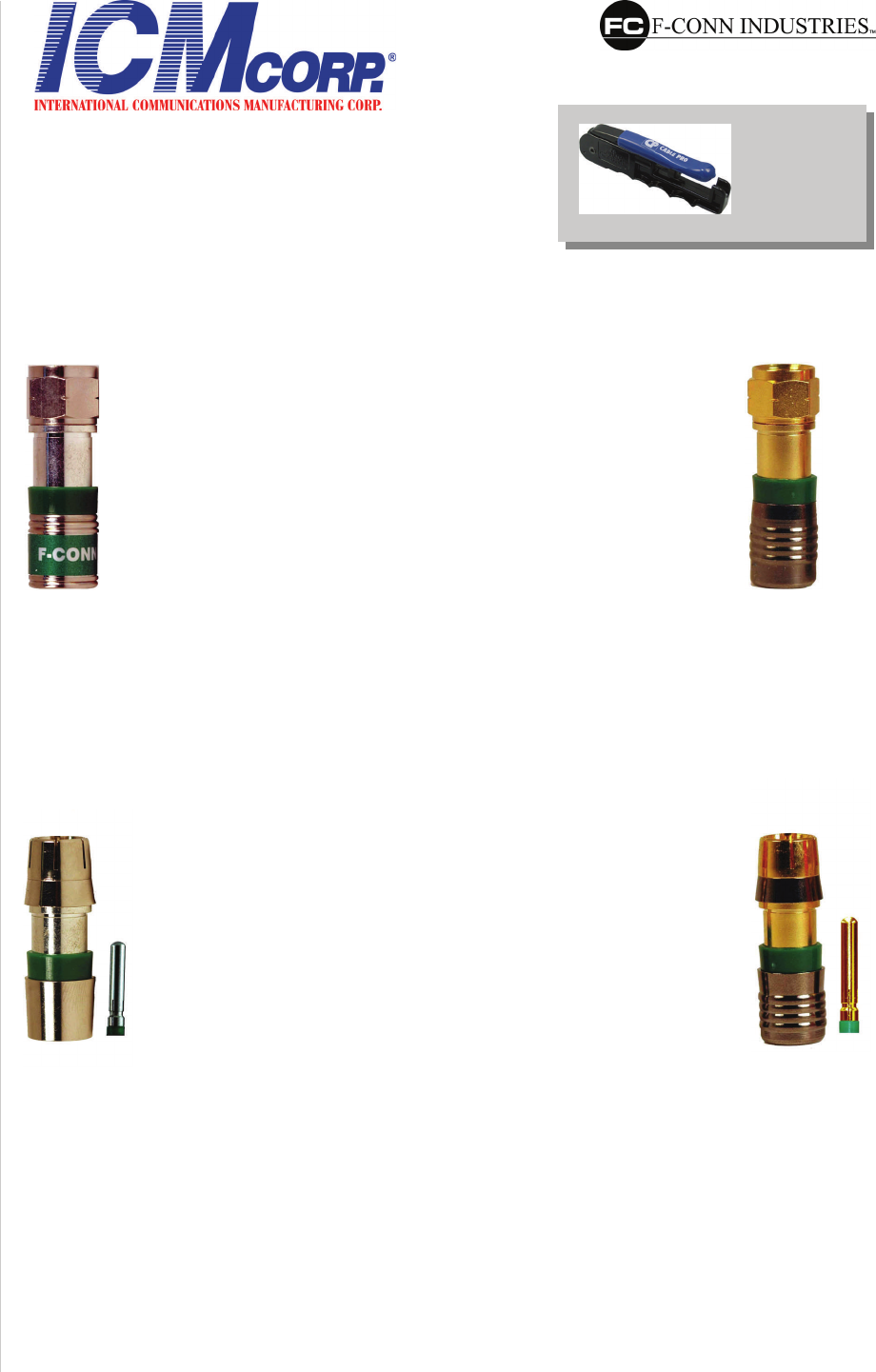

ONE-PIECE CONNECTORS
F-Conn One-Piece RCA Connectors
To ensure the same great performance and quality that our
customers have come to depend on, the NEW One-Piece
RCA compression connectors feature ICM Corp.’s signature
360º compression technology. In addition to creating a
permanent, rock-solid connection, to simplify the installation
there are no longer any hassles with loose pins.
The one-piece RCA connectors feature our patented non-blind entry allowing
professional installers to easily insert the wire into the connector pin. As the
center pin slides forward the removable plastic guide will be exposed. Remove
the plastic guide and the center pin will fit snug in to the connector. One-piece
RCA’s provide quality and ease to any custom installation.
The new one-piece RCA compression connectors are available to fit RG59 and
RG6 cable sizes in nickel or gold. To make ordering easier the part number is
staying the same!
CPLCCT-SLM
Utilize this tool.
FS6RCAU FS59RCAU
New!
Non-Blind
Center Pin
Removable
Plastic Pin
13
ONE-PIECE CONNECTORS
F-Conn One-Piece
Mini Coax Connectors
Patented One Piece Compression
Connectors for Solid Center Mini Coax
ICM Corp. provides One-Piece BNC and RCA compression
connectors for Solid Center Mini Coax, high-end audio/video wiring installations.
• One-piece mini coax compression connectors allow for quick and easy
installations with fewer parts and pieces. Saves time and money in training, and
reduces installer error.
• Installers get consistent, repeatable installations time after time.
• Available in RCA, BNC to fit RGB 22-24AWG mini coax and RGB 25-26AWG
mini coax, in gold or nickel.
Cable Size ICM Part Number
Nickel Finish
ICM Part Number
Gold Finish
Mini 25-26AWG FS1BNC RG1BNC
Mini 25-26AWG FS1RCA RG1RCA
Mini 22-24AWG FS15BNC RG15BNC
Mini 22-24AWG FS15RCA RG15RCA
Description
BNC One-Piece
RCA One-Piece
BNC One-Piece
RCA One-Piece
CPLCCT-SLM
Utilize this tool.
14
PLENUM SERIES
CPLCCT-SLM
Utilize this tool.
F-Conn Plenum Series
Today professional installers must be conscious of laws that require specialized
plenum cabling for installations running throughout spaces that are used for air
circulation.
There are many sizes of plenum cable available on the market. ICM Corp. has cre-
ated a full line of plenum compression connectors to work with a large variety of those
plenum cable sizes.
ICM Corp.’s line of plenum connectors utilize our signature 360º compression
technology allowing professional installers to create a reliable, rock-solid connection
each and every time. The F-Conn plenum compression connectors are offered for
both the SLM and DB 360 Compression Connection Systems depending on the tool
you prefer to work with.
*For a complete listing of plenum sizes please refer to the F-Conn Connector Sizing Chart on page 46
15

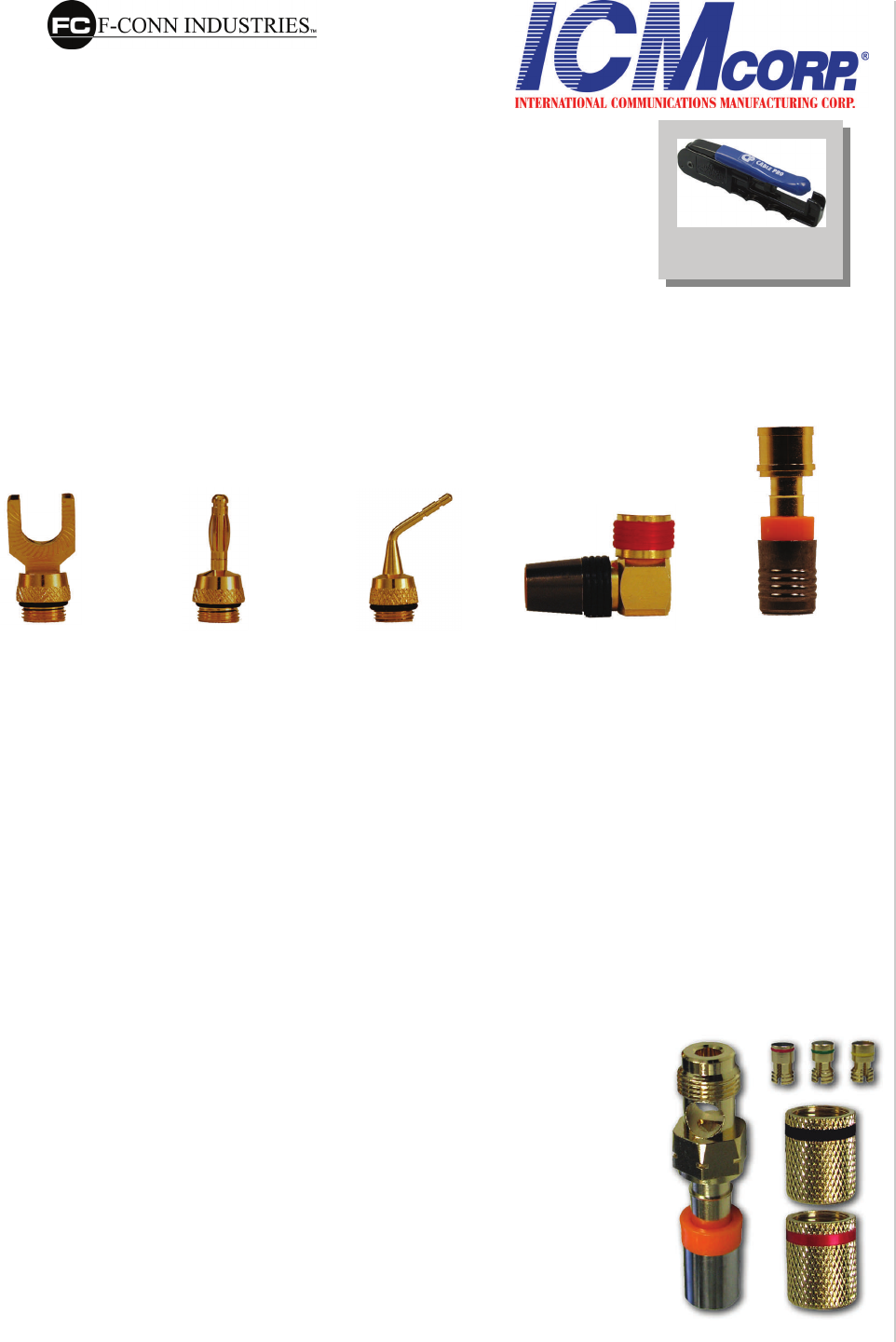

F-Conn Speaker Series
ICM Corp.’s Speaker Compression Connector series utilizes
our patented 360º compression for a solid, permanent
connection. The speaker connectors work with ICM Corp.‘s
Wall Plate System and corresponding modular clips to make
custom installations much faster and more efficient. The speaker series includes a
standard speaker connector and a right angle connector so installers will be
prepared for any custom installation. Available screw-on tips include banana,
pin and spade. Connectors fit 12AWG, 14AWG, and 16AWG wire, for
convenience and simplicity in any custom AV installation.
RGSPU
Speaker
Connector
RGSPURA
Right Angle
Speaker
Connector
RGSPL
Spade Tip
RGSPB
Banana Tip
RGSPP
Pin Tip
F-Conn Speaker Binding Post
The NEW Speaker Binding Post allows professional
installers to compress the speaker binding post directly to the wire creating a strong,
secure connection. By creating the speaker binding post as an individual component,
professional installers have fewer pieces to hassle with and match up, thus reducing
cost and inventory. Additionally, fewer pieces allow for more
space for installers to work in, and creates a clean wire connec-
tion.
The speaker binding post includes custom sleeves for 12AWG,
14AWG and 16AWG to ensure a perfect fit. Also included with the
set of speaker binding posts are two screw tips (1 red/ 1 black) for
identification of positive and negative
connections. The speaker binding posts are designed to work
with ICM Corp.’s speaker connector series. ICM Corp.’s com-
pression connectors, tools, and wall plate components are de-
signed as one integrated system to complete any custom installa-
tion from start to finish.
New!
RGSBPOST
CPLCCT-SLM
Utilize this tool.
SPEAKER SERIES
16
DB SERIES
F-Conn DB
Connector Series
Patented DB 360 Compression
Connectors Work As A Complete System
With The RBC Compression Tool
Double Bubble F Connectors
Cable Size Description ICM Part Number
RG59/59 Quad F DB59U
RG6/6 Quad F DB6U
RG6 F Plenum DB6PL2
RG59 F DB59PL2/4
Double Bubble BNC Connectors
RG59 / 59 Quad DB59BNCU
RG59 DB59BNCPL2/4
DB59BNCPL3
RG6 / 6 Quad DB6BNCU
RG6 DB6BNCPL2
BNC
BNC Plenum 2-4
BNC
BNC Plenum
Cable Size Description ICM Part Number
RG59 Security / CCTV DB59BNCSL
Double Bubble RCA Connectors
Cable Size Description ICM Part Number
RG59/ 59 Quad RCA DB59RCAU
RG59 Security
Plenum Sizes 2-4
DB59RCASL
DB59RCAPL2/4
RG6/6 Quad RCA DB6RCAU
RG6 RCA Plenum DB6RCAPL2
CPLCRBC
Utilize this tool.
The Radial Bubble Compression Tool and DB 360 compression connectors work
as a complete system to provide a secure, reliable solution to all your custom
security installations. The DB line of connectors is available in F, RCA and BNC
in RG59 and RG6, as well as a full line of plenum sizes.
• The DB 360 Compression Connection System creates two 360 º compression
connections (one interior and one exterior) providing a permanent, “double bub-
ble” connection.
• Ideal for security cameras and other exposed wiring installations. The unique
double bubble connection provides superior protection against moisture
migration limiting poor signal quality due to the elements.
17
DS3/DS4 CONNECTORS
F-Conn DBDS3 / DBDS4 Connectors
New!
Patented One Piece
Compression Connectors for
735A / 734D Coax
Introducing ICM Corp.’s One Piece BNC DBDS3 / DBDS4
compression connectors for DS3 / DS4 wiring installation and applications.
CPLCRBC
Utilize this tool.
Non-Blind Entry
360-degree
radial
compression
Superior
pull-out
strength
To ensure the same great performance and quality that our customers have come
to depend on, the NEW DBDS3 and DBDS4 BNC compression connectors
feature ICM Corp.’s signature 360º compression technology to create a
permanent, rock-solid connection each and every time. The one piece connector
simplifies the installation.
The DS3 / DS4 BNC compression connectors feature our patented non-blind
entry allowing professional installers to easily insert the wire into the connector
pin. The new DS3 / DS4 compression connectors are available to fit Belden and
Commscope 735A / 73501 and 734D1 / 734S1 cable sizes.
18
F-Conn Starter Kit
ICM Corp.’s Starter Kit contains all the necessary Cable Pro compression tools as
well as a large selection of F-Conn compression connectors that an AV
professional installer needs to create a quality connection each and every time.
The lightweight, CPLCCT-SLM compression tool in the starter kit includes four
interchangeable tips allowing installers to compress a variety of F-Conn connector
types that include F, RCA and BNC, speaker connectors, right angles and
standalone splices in nickel or gold. F-Conn compression connectors are available
in RG59, RG6, mini coax, and a variety of plenum sizes.
.
Starter Kit
Tools included in Starter Kit:
• CPLCCT-SLM Compression Tool
• PSA59/6/RGB Strip Tool
Commercial Series Connectors
included in Starter Kit:
• FS59U (10)
• FS6URA (5)
• FS59BNCSL (5)
• FSBNC6URA (5)
• FS6U (10)
• FSRCA6URA (5)
• FS6BNCU (5)
• FS1RCA (5)
• FS6RCAU (5)
• FSBNC1RGB (5)
• FS6US (5)
• FS15BNC (5)
• FSRCAUS (5)
STARTER KITS
19
Tools included in Starter Kit:
• CPLCRBC Compression Tool
• PSA59/6 Strip Tool
• FIT-59 Fit Tool
DB connectors included in Starter Kit:
• DB6U (25)
• DB59U (25)
• DB59RCAU (10)
• DB6BNCU (10)
• DB59BNCU (10)
• DB59BNCSL (10)
• Also available in a variety of
Plenum sizes.
DB Starter Kit
F-Conn DB Starter Kit
STARTER KITS
ICM Corp.’s DB Starter Kit includes the right tools to create a secure, structured
wiring installation. The patented Cable Pro CPLCRBC radial bubble compression
tool and new line of bubble connectors are designed to work together as a
complete solution for each step of the installation process. The CPLCRBC (RBC)
tool also works with F-Conn standard F, RCA and BNC connectors so installers
can reduce the number of tools they carry. ICM’s DB Starter Kit contains a Cable
Pro CPLCRBC compression tool, a PSA59/6 strip tool, a FIT-59 tool, and a broad
selection of F-Conn universal F, RCA, and BNC compression connectors in
RG59 and RG6. The DB series also features a full line of connectors for plenum
and security cables.
20
BASIC SERIES

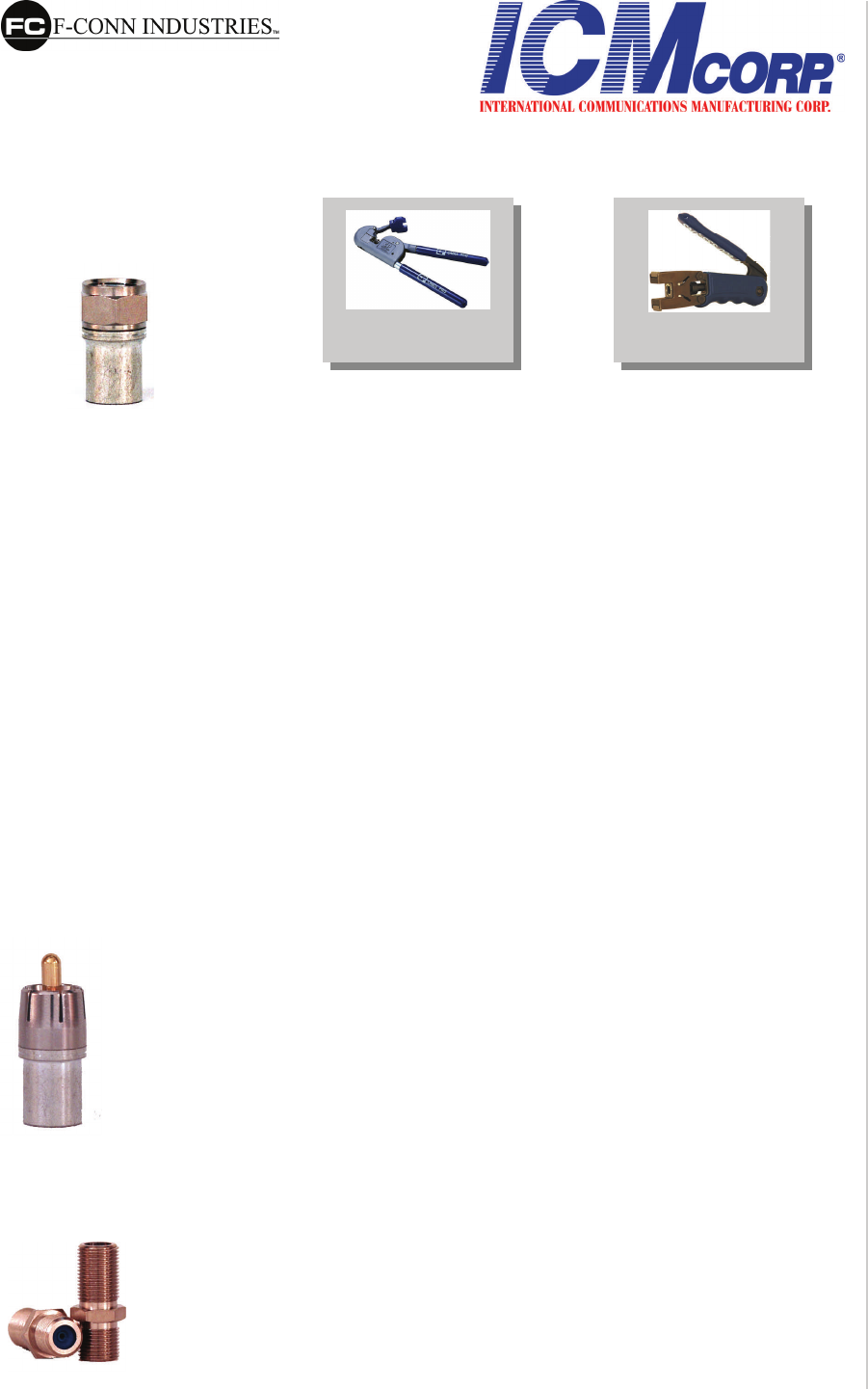

F-Conn Basic Series Connectors
Basic Series F 11 Connectors

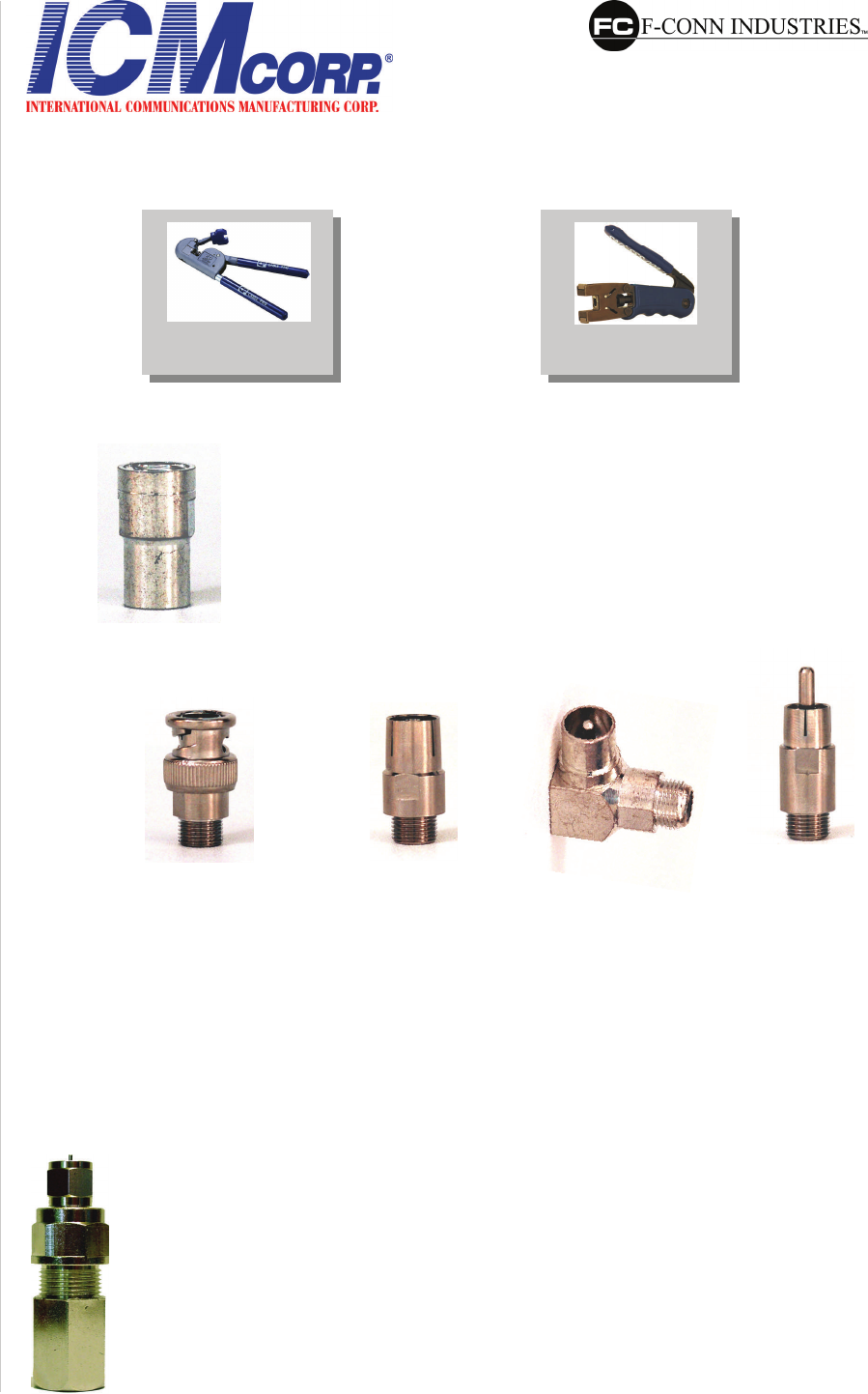

Basic Series End Fixture Connectors
Basic Series Head Fixture Connectors
Cable Size Description ICM Part Number
RG11 60% to Quad No Tool F11WR
RG11 With Fixed Pin F-11ALM
RG11 Splice F11SP
Cable Size Description ICM Part Number
RG58 End Fixture, Internal Ring EF58WR
RG59 End Fixture, Internal Ring EF59WR
RG6 Quad End Fixture, STD Smooth EF6NR
RG6 End Fixture, Internal Ring EF6WR
Description ICM Part Number
Head Fixture, BNC HFBNC
Head Fixture, IEC Female HFIEC/F
Head Fixture, IEC Male HFIEC/M
Head Fixture, Right Angle HFRA
Head Fixture, RCA Male HFRCA/M-RS
CPLCRTC
Utilize this tool.
RTC 360
Utilize this tool.
21
F-Conn Basic Series Connectors
Cable Size Description ICM Part Number
Mini F Connector F59MINI
RG59 F Connector with Internal Sealing Rings RG59WR
RG59 F Connector with Internal Sealing & External O-Ring RG59WRO
RG59 Quad Quad F Connector with Internal Sealing RG59NR
RG6 F Connector with Internal Sealing RG6WR
RG6 F Connector with Internal Sealing and External O-Ring RG6WRO
RG6 Quad Quad F Connector RG6NR
RG6 Quad Quad F Connector With External O-Ring RG6NRO
RG7 F Connector with Internal Sealing and External O-Ring RG7WRO
RG7 F Connector with Internal Sealing RG7WR
Basic Series F Connectors
Basic Series RCA Connectors
Cable Size Description ICM Part Number
RG59 One Piece RCA Connector with Internal Sealing Rings RG59-RCAWR
RG6 One Piece RCA Connector with Internal Sealing Rings RG6-RCAWR
BASIC SERIES
CPLCRTC
Utilize this tool.
RTC 360
Utilize this tool.
Basic Series F81 Connectors
Cable Size Description ICM Part Number
N/A F-female to F-female w/ Round Seizure, Nut, Washer F81 RS/NW
N/A F-female to F-female Round Seizure F81-RS
22
Connecting with the best has never been easier.
Cable Pro manufacturers high-quality installation and
specialty tools designed specifically for the cable industry:
PSA59/6 Stripper Tool
PS59/6/RGB Stripper Tool
CPLCCT-SLM
Linear Compliant
Compression Tool
CPLCRBC Radial
Bubble Compression Tool
RTC 360 Radial Taper
Compression Tool
23
Cable Pro Cable Strippers
• Prepping drop wire and cable is a cinch with these professional Cable Strippers.
• Built with patented cable stop for correct 1/4" x 1/4" prep every time.
Cable Strippers
Item # Description Image Features
PSA59/6 Cable Pro
Stripper
• Preps RG59 and RG6 60% quad
shield drop wire.
• Stripper cartridges come preset
from the factory at the standard
1/4" x 1/4" prep.
• Blades may be adjusted to differ-
ent prep lengths on the PSA59/6
cartridge.
• Spare cartridge is included.
• RG6 Flaring Tool on side.
PSCA59/6 Replacement
Cartridges
• Replacement Cartridges for the
PSA59/6 Cable Pro Stripper.
PS59/6/RGB Cable Pro
Stripper
• Preps RG59 , RG6 and RGB
drop wire.
• Stripper cartridges come preset
from the factory at the standard
1/4" x 1/4" prep.
• Spare cartridge is included.
PSC59/6/RGB Replacement
Cartridges
• Replacement Cartridges for the
PS59/6/RGB Cable Pro Stripper.
PS11 Cable Pro
Stripper
• Preps RG7 and RG11 cable.
• Stripper cartridges come preset
from the factory at the standard
1/4" x 1/4" prep.
• Spare cartridge is included.
PSC11 Replacement
Cartridges
• Replacement Cartridges for the
PS11 Cable Pro Stripper.
CABLE STRIPPERS
24
COMPRESSION TOOLS
Cable Pro Compression Tools
Linear Compliant Compression Tools
Part # Description Image Features
CPLCCT-1-S
Linear Compliant
Compression Tool
RG59/6 F/RCA
Steel cast
• Effortless
• One step operation
• Fits in the palm of your hand
• No adjustments required
• Strong, lightweight construction
• 1-year manufacturers warranty
• Self-adjusting design
CPLCCT-SS59/11
Linear Compliant
Compression Tool
RG59/6/7/11
F-Conn—Digicon
• This universal tool is pre-
calibrated to handle various
connectors from RG59 to RG11
without adjustments, tip changes,
or recalibration.
• Use with the Digicon S, Gilbert
Ultra Seal, LRC Snap and Seal,
and PPC EXXL connectors.
• These are Steel cast bodies
CPLCCT-GS59/11
Linear Compliant
Compression Tool
RG59/6/7/11
Gilbert connectors
CPLCCT-LS59/11
Linear Compliant
Compression Tool
RG59/6/7/11
LRC Connectors
CPLCCT-SLM
Linear Compliant
Compression Tool
RG59/6/RGB
F/RCA/BNC
• Use with BNC, RCA, IEC, Right
Angle, Speaker, Splices,
Commercial, and Gold F-Type
connectors
25
Cable Pro Compression Tools
Radial Taper Compression Tool
Part # Description Image Application
RTC 360 Radial Taper Compression
Tool
• Made of high-quality stainless
steel, the patented RTC 360
produces a watertight, weather-
resistant seal that also reduces
radiation leakage.
• This compression tool works with
F-Conn line of F connectors.
CPLCRTC-B
CPLCRTC-R
CPLCRTC-Y
CPLCRTC-G
Radial Taper Compression
Tool
• This compression tool works with
the F-Conn basic series line of F
and RCA connectors.
• Four colors available—Blue (B),
Red (R), Yellow (Y), Green (G)
CPLCRBC-B
CPLCRBC-R
CPLCRBC-G
CPLCRBC-Y
Radial Bubble
Compression Tool
• Specially designed tool for use
with ICM Corp.’s DB 360
Compression Connection System.
• This compression tool also works
with the F-Conn basic series line
of F, RCA and BNC Connectors.
• Colors available—Blue (B), Red
(R), Green (G), & Yellow (Y)
COMPRESSION TOOLS
26
WRENCHES

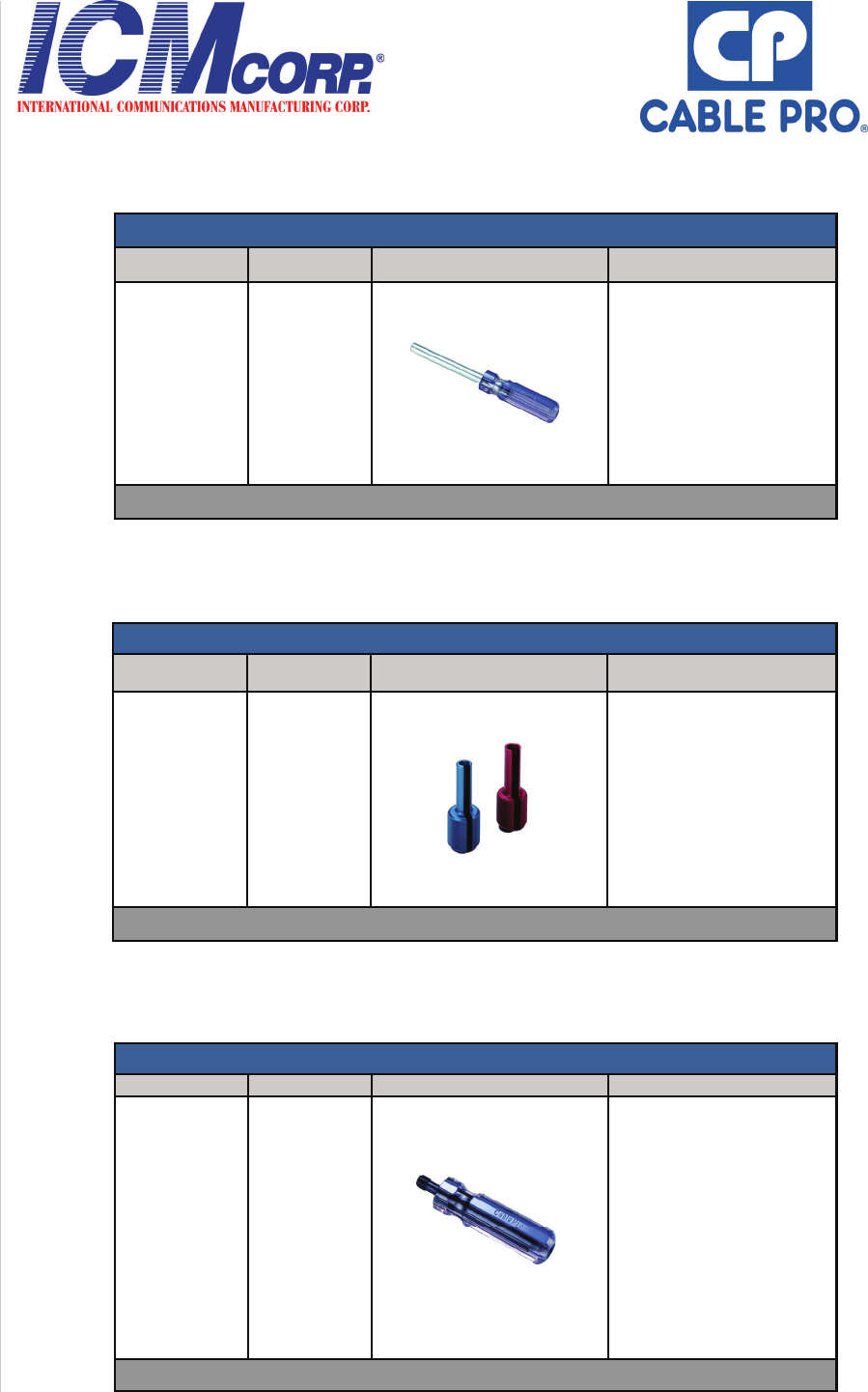

Cable Pro Wrenches
Trap Wrenches
• All Trap Wrenches are made from 6061 Aluminum.
• The wrenches are hard anodized for protection and easy identification.
• All wrenches have two high strength steel pins, press fitted into the aluminum
tube, to remove traps.
Item # Description Image Features
TW716 Trap Wrench
• Fits all standard traps.
• Fits all 7/16" hex F-fittings.
• Recommended for normal
use.
• Knurled hand grips assure
controlled handling.
• Lightweight aluminum
construction.
• Anodized red for easy
identification.
TWS716 Super
Trap Wrench
• Has the same great features
as the standard tool, except
the 7/16" hex head is made
of hardened steel for longer
life.
• Recommended for heavy
use.
• Anodized black for easy
identification.
TWC716
and
TWC716-EX
Combo
Trap Wrench
• The Combo Wrench
combines a TW716 Trap
Wrench with a security
sleeve tool.
• Fits all standard traps.
• Fits all sizes of security
sleeves.
• Security socket is made of
hardened steel for longer life.
• Anodized blue for easy
identification.
• TWC716
(for metal security sleeves)
• TWC716-EX
(for plastic security sleeves)
27
Cable Pro Wrenches
Torque Wrenches
Item # Description Image Features
TRS716- *
TRS716*SS-EX
TRS716SS- * Torque Wrench
• Use to torque 7/16" F-fittings.
• This tool was designed to
work easy with multipart
taps.
• We preset your TRS716
Torque Wrench in our factory
to your desired torque.
• * Indicates the torque setting
you specify. Typical settings
range from 10-40 inch
pounds.
• Use part numbers TRS716
and TRS716SS-EX for
plastic security sleeves.
• Use part number TRS716SS
for metal security sleeves.
• We also offer Torque
Wrenches with an extra deep
broach to accommodate
Raychem's EZF fittings.
• Customize any socket.
TROE716E-* True Torque
Open End
Wrench Version
TR-OE 716/*
TR-OE 916/*
True Torque
Open End
Wrench
TRFE38-* Fixed 3/8"
Socket Drive
Torque Wrench
• Has a 3/8" drive and fixed
head.
• This is the same great tool as
the TROE716 plus the ability
to use different size sockets.
• * Indicates the torque setting
you specify. Typical settings
range from 10-40 inch
pounds.
• TROE716E-* set to torque
7/16" F-fittings.
• * Indicates the torque setting
you specify. Typical settings
range from 10-60 inch
pounds.
• The TROE716E-* can be
customized in our factory to
your desired torque (in inch
pounds).
• TR-OE 716/* set to torque
7/16” or 9/16” F-fittings.
• * Indicates the torque setting
you specify. The 7/16”
settings range from 10-60
inch pounds. The 9/16”
settings range from 10-40
inch pounds.
• The TR-OE 716/* and
TR-OE 916/* can be
customized in our factory to
your desired torque (in inch
pounds).
WRENCHES
28
WRENCHES
Cable Pro Wrenches

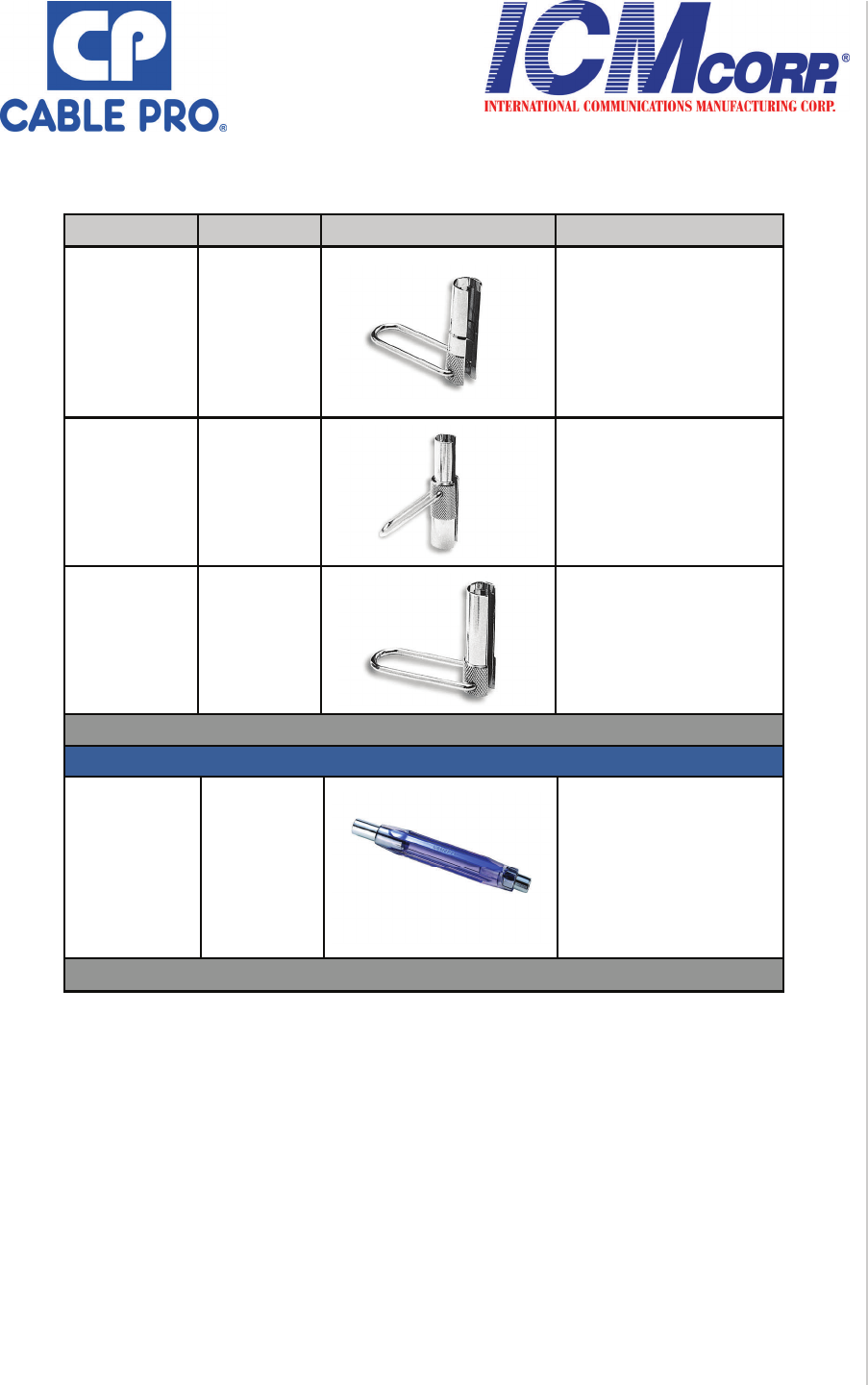

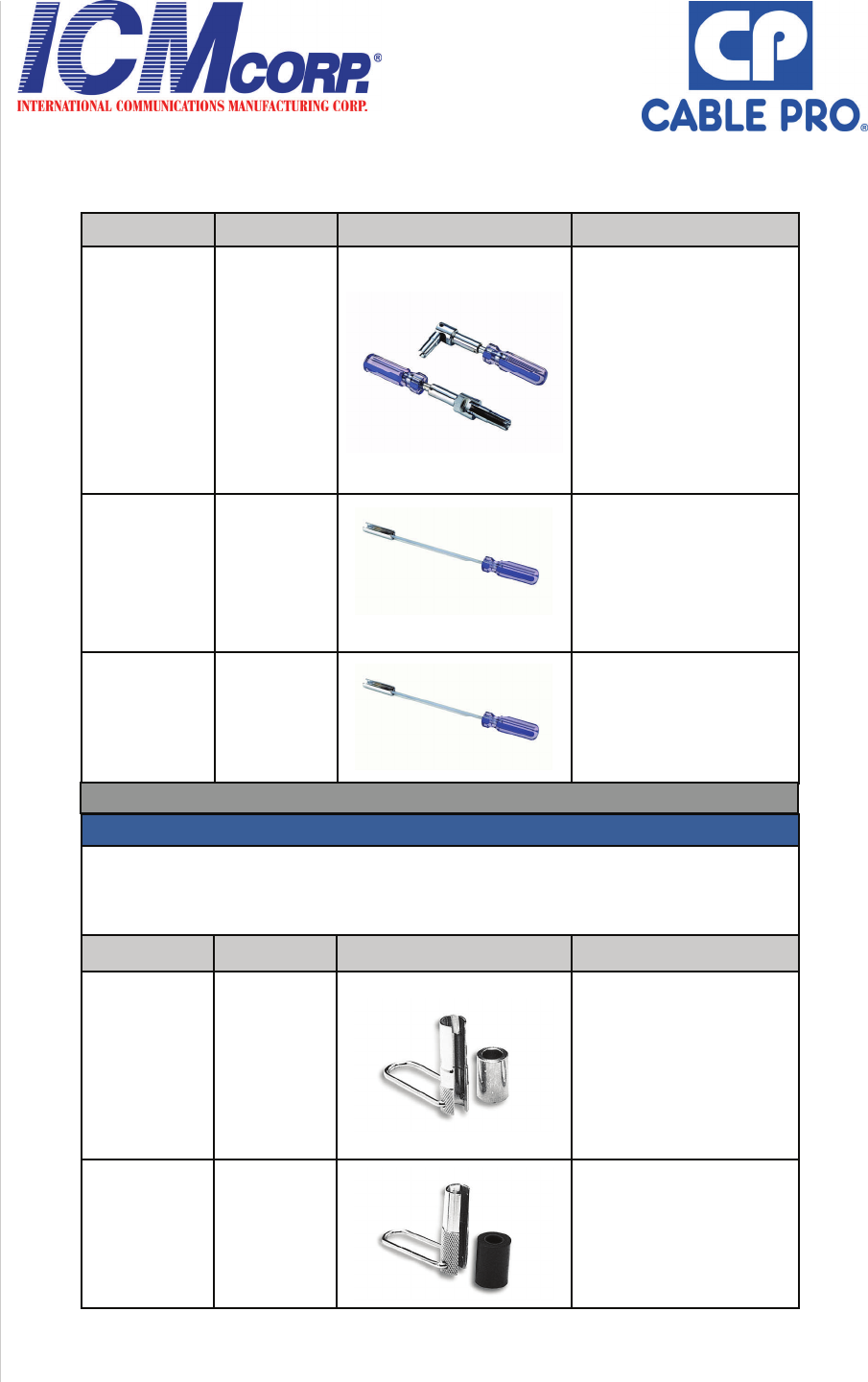

Security Wrenches
• All Security Wrenches are made of chrome plated, hardened 4130 steel.
• All tools have a spring steel handle for additional leverage.
Item # Description Image Features
SWU716 Universal
Security Wrench
• Fits all sizes of security
sleeves.
• Tightens to 40 inch pounds.
• Can be used with all "F" and
"CF" type terminators.
• Available with an extra deep
broach to accommodate
Raychem's EZF fittings.
• One year warranty.
SWU716-EX Thick Wall
Security Wrench
• This is a thick wall version of
the SWU716 for plastic
sleeves, and includes all the
features of the SWU716 (see
above).
• One year warranty.
HT716 Head End
Extended
Socket
• Use in Head end or behind
rack.
• Use to torque 7/16" F-fittings
where access space is at a
premium (in tight places and
in headends).
• Socket extends 8" from the
handle.
HTBNC Head End
Extended
Socket
• Use in Head end or behind
rack.
• Head is formed for BNC
connectors.
• Socket extends 8" from the
handle.
Item # Description Image Features
TRS3/8-* Swivel 3/8"
Socket Drive
Torque Wrench
• Has a 3/8" drive and swivel
head.
• This is the same great tool as
the TRS716 plus the ability to
use different size sockets.
• * Indicates the torque setting
you specify. Typical settings
range from 10-40 inch
pounds.
• We preset your True Torque
Open End Wrench in our
factory to your desired torque
(in inch pounds).
29
Cable Pro Wrenches
WRENCHES
Can Wrench
CNW6
and
CNW8 Can Wrench
• Used to open pedestals and
tighten ground straps and
taps.
• CNW6 combines 3/8" and
7/16" sockets.
• CNW8 combines 7/16" and
1/2" sockets.
• Different socket sizes can be
special ordered.
SW-SACHS
Sach Sleeve
Security Wrench
• No features available
MSW716
Mini
Security Wrench
• 1 13/16” in length
• No features available
Item # Description Image Features
DSW716 Dual
Security Wrench
• Two tools in one.
• Combines a 7/16" security
socket and a 1/2" socket.
• 7/16" socket fits standard "F"
fittings.
• 1/2" socket fits LRC seal nut
fittings and Gilbert TAC
• fittings.
30
INSTALLATION TOOLS

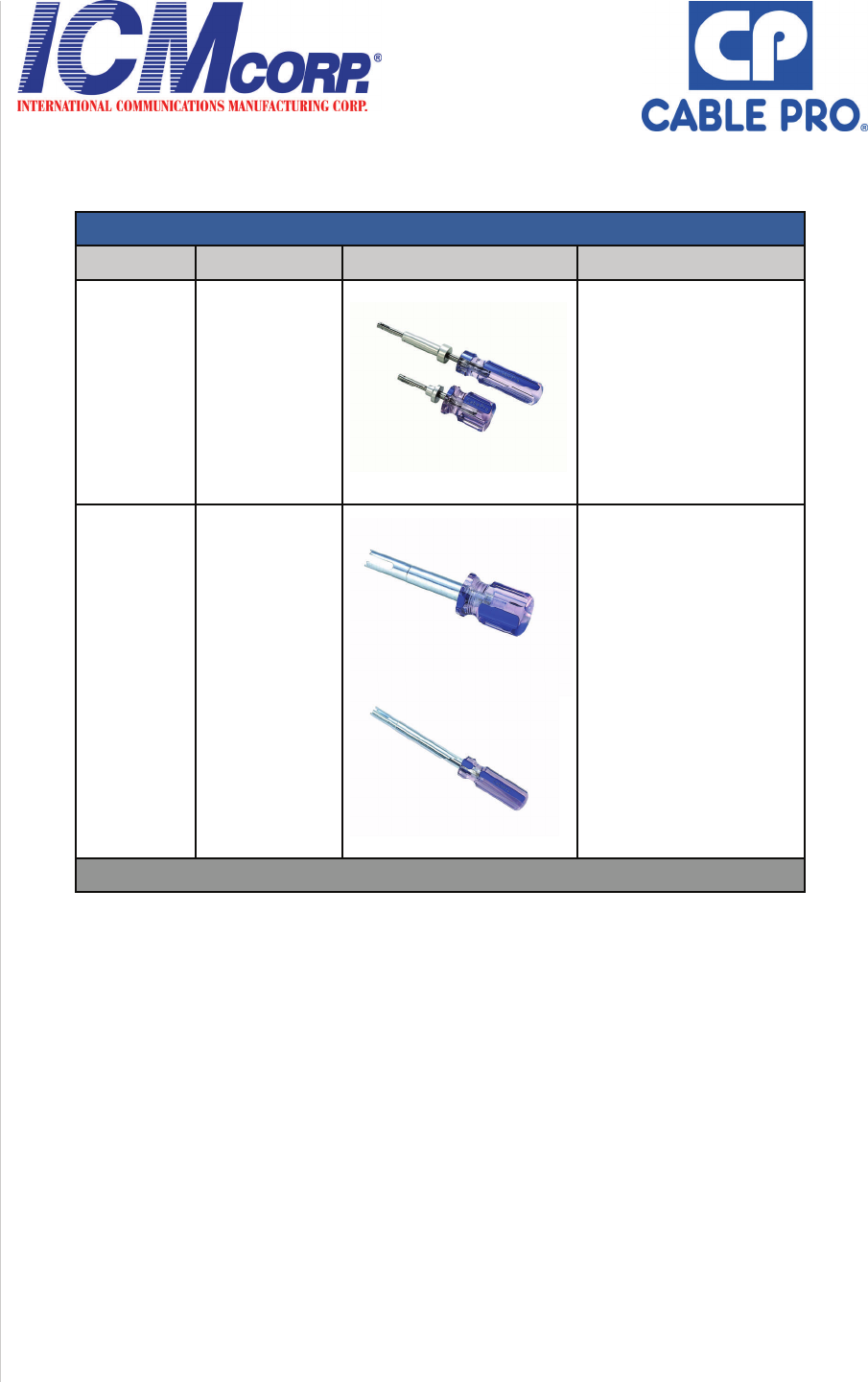

Cable Pro Terminating Tools
Terminating Tools
Item # Description Image Features
GTT-4
and
GTT-7
Gilbert Terminating
Tools
• Use with all Gilbert Locking
Terminators.
• Features solid spring steel
ears.
• Available in two lengths:
4" and 7".
• Both tools are durable, long
lasting, and easy to use.
VTT-4
and
VTT-7
Viewsonics
Terminating Tools
• Use with all Viewsonics
Locking Terminators.
• Available in two lengths:
4" and 7".
• This tool is made of zinc
plated tool steel.
31

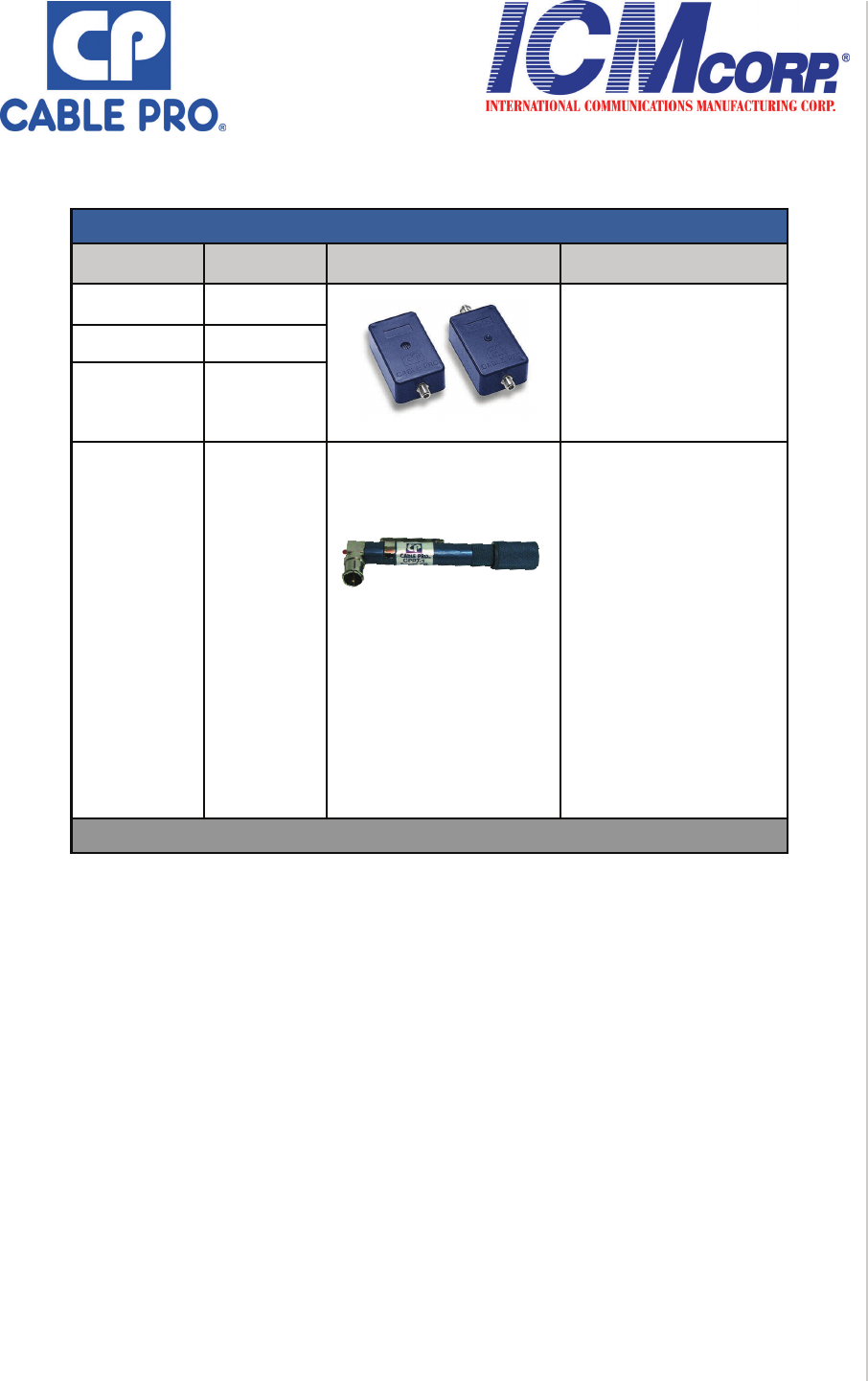

Cable Pro Continuity Testers
Continuity Testers
Item # Description Image Features
TS-18
Toner Unit
• This tool features a large
buzzer for clear, audible
signal.
• LED display detects splitters
and shorts in drops.
• Two 9-volt batteries (18
volts) allow you to test longer
drops.
BB-18 Buzz Box Unit
TB-18 Toner Unit with
Battery
CPPT-1
Pen Toner Pen
Toner
• This tool clips to shirt pocket
for easy access.
• The right angle male push-on
connector makes it easy to
work in tight spaces.
• The female push-on
connector allows for faster
toning.
• Loud audio tone identifies
line carrying signal.
• Battery included.
• RCA & BNC easy to test as
well with a small jumper
made by using our F-conn
connectors.
* Replacement battery—
Eveready® A23BP-2,
Duracell® MN21-B
INSTALLATION TOOLS
32
INSTALLATION TOOLS
Cable Pro Siamese Strippers
Cable Pro Flaring & Insertion Tool
Siamese Strippers
Item # Description Image Features
SS596
Siamese
Strippers
• Use Siamese Strippers to
separate twisted pair and
coaxial siamese cable.
• You can also use these
Strippers to separate the
messenger coaxial cable.
• The SS596 was designed to
work with Series 59 and
Series 6 coaxial cable.
•
Flaring & Insertion Tool
Item # Description Image Features
FIT−59,
FIT−6,
and
FIT−11
Flaring
& Insertion
Tool
• Heat treated steel with black
oxide finish.
• Insertion side threads are
machined and buffed.
• Flaring side has precision
ground flaring edge.
• Extruded handle is comfort-
able and long lasting.
• Ideal for plenum cable.
• This tool eases the insertion
of Series 59, 6 and 11 con-
nectors in cold weather and
on plenum cable.
Cable Pro Installation Tools
Installation Tools
Item # Description Image Features
IT716
and
IT916
Installation Tools
• These Installation Tools
speed the installation and the
removal of drop cable.
• Available in 7/16" and 9/16"
sizes.
• Both tools feature knurled
surfaces, a cable slot, and a
hard anodized finish to
protect your hands.
• Made from 6061 Aluminum.
33

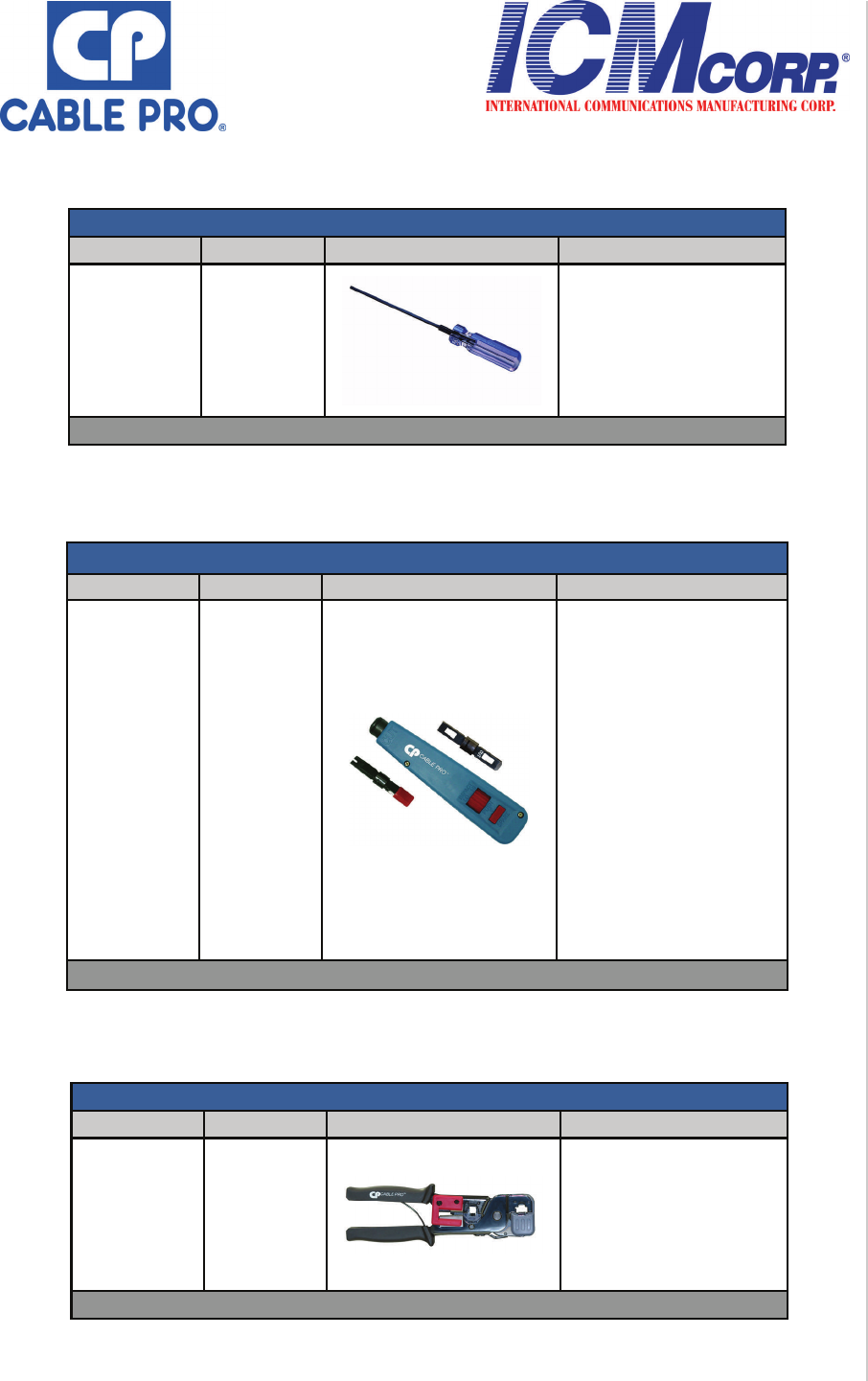

Cable Pro Telephone Tool
Telephone Tool
Item # Description Image Features
532HEX
Telephone Tool
• This tool has a 5/32" hex end
to open telephone pedestals
and boxes.
• Made of long lasting, high
carbon steel.
TELEPHONE TOOLS
Telephone Tool
Item # Description Image Features
CPCAT5-PDT
Punch down
tool kit
• Insert and cut cable
terminations effortlessly with
the Cable Pro Punch Down
Tool. Impact absorbing
cushioned grip reduces
operator stress for high-
volume installers. Adjustable
high/low actuation setting
accommodates termination
requirements or operator
preference.
• Compatible with HIP punch
down modular jack.
• Storage compartment with
unique locking device pro-
vides convenient storage for
spare blades.
Cable Pro Punch Down Tool
Telephone Tool
Item # Description Image Features
CPRJ11-45
RJ11 & RJ45
Strip/Crimp
Tool
• Easy crimp of RJ11 & RJ45
plugs
• Blade wire stripper included.
• Use with HIP modular plugs.
Cable Pro Strip/Crimp Tool
34

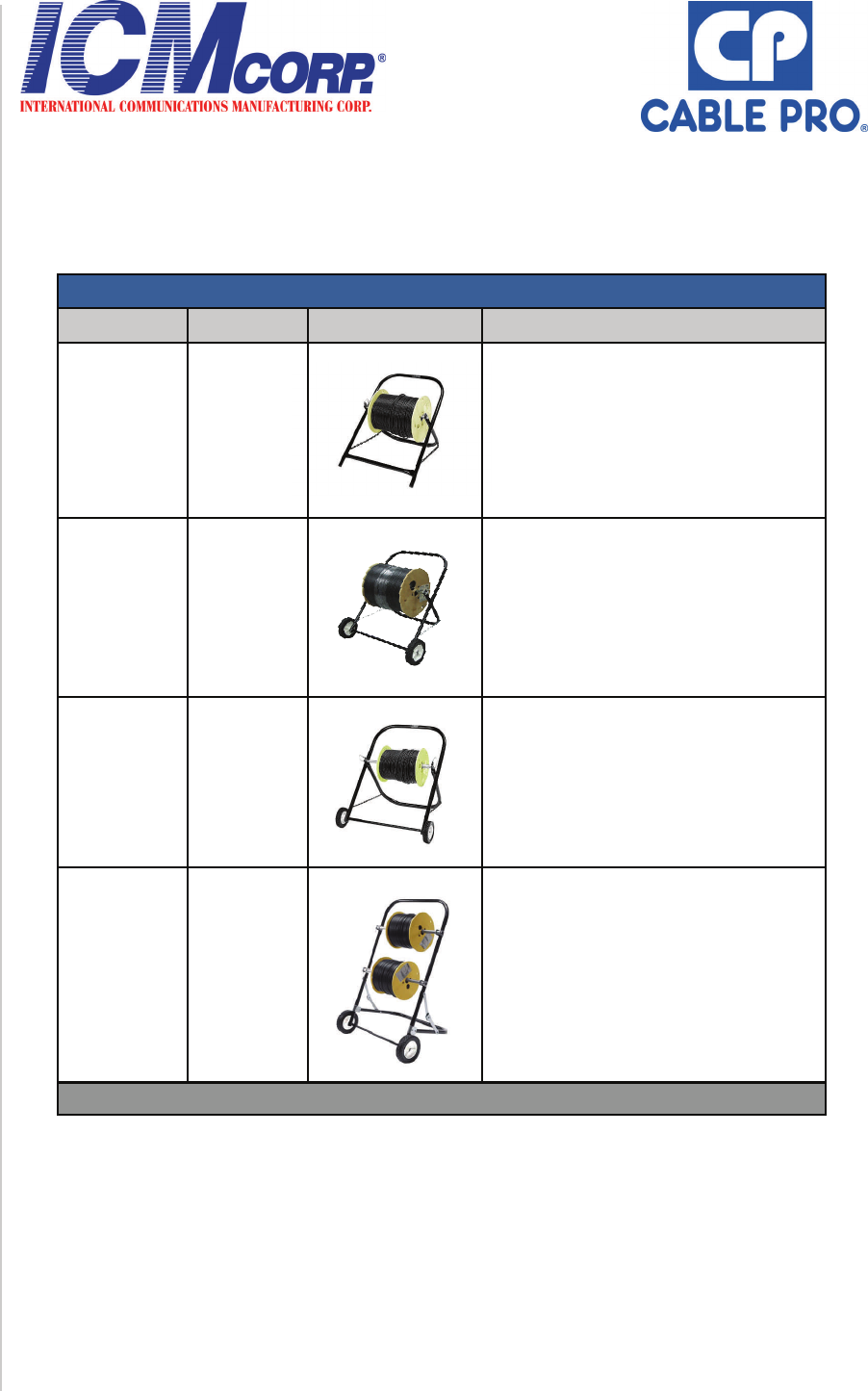

CABLE CADDIES
Cable Pro Cable Caddies
• All Cable Caddies feature a tough, durable powder coat paint finish.
Cable Caddies
Item # Description Image Features
CC2016B
Cable Caddy
• Holds one 20" x 16" reel.
• Compact unit
• Folds up for easy storage.
• Made of sturdy 3/4" tubing.
• Individually boxed and shipped flat
CC2016BW
Cable Caddy
• Holds one 20" x 16" reel.
• Compact unit
• Folds up for easy storage.
• Made of sturdy 3/4" tubing.
• Individually boxed and shipped flat
• Features 6” wheels
CC2036 Dual Cable
Caddy
• The CC2036 features two 6" wheels for easy
movement.
• Holds various combinations of reels
• Adjustable bar heights
• Can be loaded two different ways
• Folds for easy storage.
• Made of sturdy 1" tubing.
• Individually boxed and shipped flat
CC2024
Cable Caddy
• The CC2024 features two 6" wheels for easy
movement.
• Holds one 20" x 24" reel.
• Folds for easy storage.
• Made of sturdy 1" tubing.
• Individually boxed and shipped flat
35
Cable Pro Underground Tools
• Prepping drop wire and cable is a cinch with these professional Cable Strippers.
• Built with patented cable stop for correct 1/4" x 1/4" prep every time.
Use our Bore Rod System to easily lay cable or conduit underneath a sidewalk or driveway with
3 easy steps:
1. Dig a 12" hole on each side of the sidewalk/driveway.
2. Attach Bore Rod Cap and Bore Head to the Bore Rod.
3. Hammer Bore Rod Cap until Bore Head appears on the other side.
Underground Tools
Item # Description Image Application
BRD60 60" Bore Rod
• These tools were designed
to bore holes for cable drops
under sidewalks without
damaging concrete.
• To increase length for use
under sidewalks and
driveways, use couplings to
connect bore rods together.
BRD60-2T 60" Double Threaded
Bore Rod
BRC3 Bore Rod
Cap
BHD075 3/4"
Bore Head
BHD125 1 1/4"
Bore Head
GRD13 Ground Rod Driver
BHD100 1"
Bore Head
UNDERGROUND TOOLS
36
As your single source for all home-based installation needs, Home
Integration Products brings you an entire suite of high-quality products that
work together effortlessly.
You’ll find durable connectors, splitters and wall plates designed to mix and
match. And you’ll use tools specifically tailored to the home integration
market, making the installation process fast, easy and error-free.
37

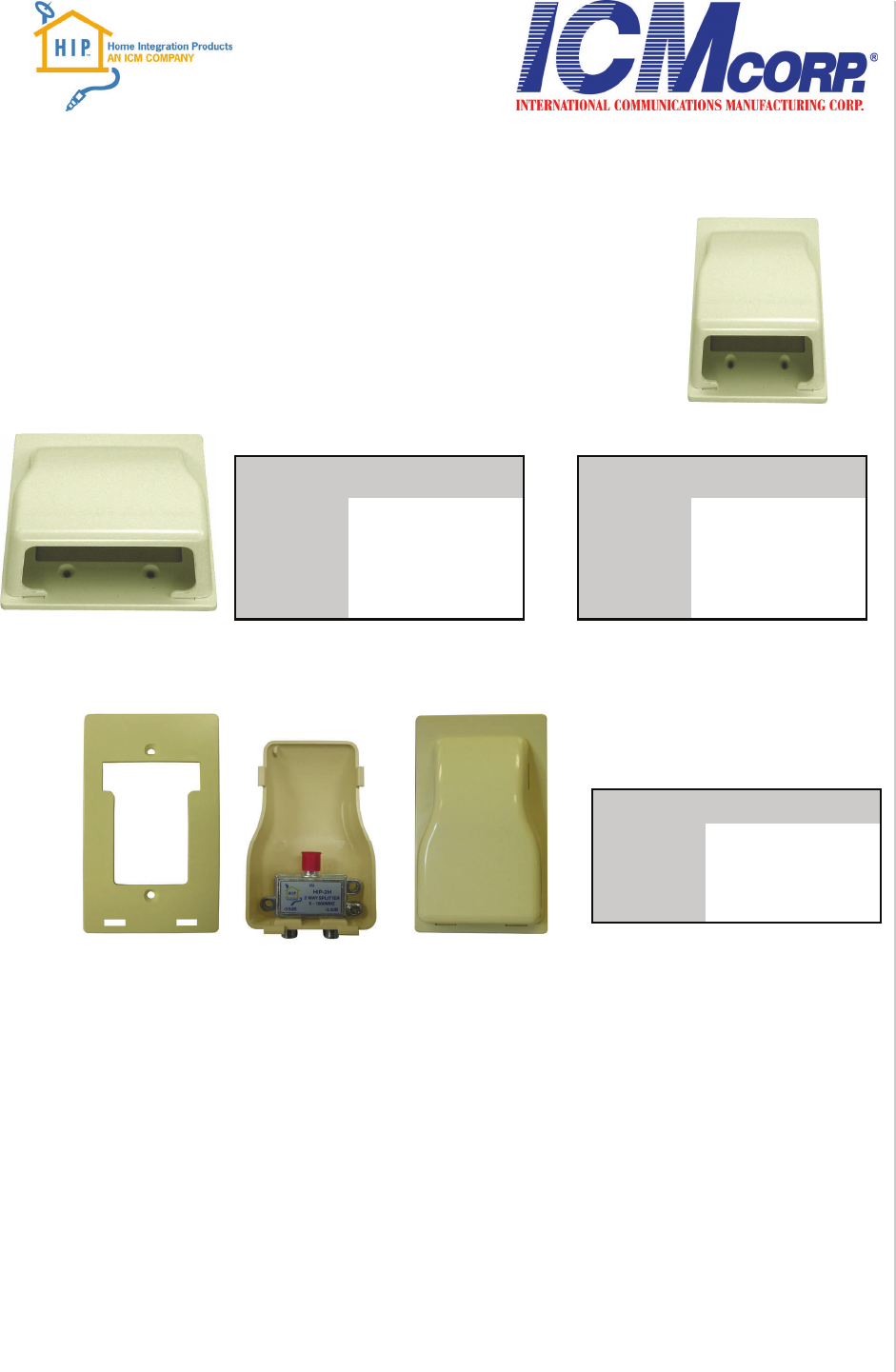

Wall Plate Covers
Keystone Wall Plates:
Ports Colors
Single, Double,
Triple, Quad,
Six
Light Almond,
Almond, Black,
Ivory, White
Decora Wall Plates:
Insert Colors
Single, Double,
Triple, Quad,
Six
Light Almond,
Almond, Black,
Ivory, White
HIP Wall Plate System Components
New!
Patented Wall Plate
System For Custom
AV Installations
New Wall Plate System gives maximum
flexibility in custom home theater wiring and
installation.
• Our Home Integration Products patented
Wall Plate System allows installers to
customize installations using multiple
versions of connector splices, a variety of colored “O” rings, four color selections
of wall plates and matching insert clips. The entire installation process is
streamlined for field customizable installations.
• Distributors stock only the items you need with convenient independent parts.
• Our wall plate covers come in 5 popular colors with matching insert clips. Gives
a clean, professional finish that customers demand.
• Get all the Cable Pro tools and F-Conn parts you need in one complete system!
WALL PLATE SYSTEM
38
WALL PLATE SYSTEM
HIP Wall Plate System Components
Keystone Wall Plates:
The Keystone wall plate series features a simple, one-piece design that can
accommodate any ICM Corp. audio, video, or network connector module. Each
port features an easy-to-use clip mount system that allows modules and
compression standalone splices to be quickly inserted. Available in white, ivory,
almond, or black. The Keystone comes preconfigured with one to six ports.
Decora Wall Plates:
The Decora series offers greater wall plate options and customization through
its configured inserts and larger gang widths. Each insert ported to
accommodate one to six modules, allowing professional installers to customize
the exact amount of inputs or outputs. Each port is designed to hold an ICM
Corp. audio, video, or network module.
39
WALL PLATE SYSTEM
HIP Wall Plate System Components
Standalone Splice Connectors
Standalone splice connectors are available in F,
RCA and BNC through ICM Corp.’s F-Conn line of
products. (See page 10 of our catalog for complete
splice connector details and part numbers.)
Cable Size Description ICM Part Number
Nickel Series
ICM Part Number
Gold Series
RG6/Quad F FS6US RG6US
RG6/Quad BNC FS6BNCUS RG6BNCUS
RG6/Quad RCA FS6RCAUS RG6RCAUS
RG59/Quad F FS59US RG59US
RG59/Quad BNC FS59BNCUS RG59BNCUS
RG59/Quad RCA FS59RCAUS RG59RCAUS
Mini 25-26AWG BNC Stranded or Solid FS1BNCSST RG1BNCSST
Mini 25-26AWG RCA Stranded or Solid FS1RCASST RG1RCASST
Mini 22-24AWG BNC Stranded or Solid FS15BNCSST RG15BNCSST
Mini 22-24AWG RCA Stranded or Solid FS15RCASST RG15RCASST
Inserts Keystone & Decora Modular Clips:
Ports Part# - Colors
Universal HIPULAM - Light Almond
HIPUAM - Almond
HIPUKM - Black
HIPUIM - Ivory
HIPUWM - White
Modular inserts available in RJ11,
RJ45, CAT5e and CAT6 Punch
Down Jack.
HIPRJ45-6*, 6 micron, or
HIPRJ45-50*, 50 micron,
Tool less available in AL
(Almond), W (White), BK
(Black), O (Orange) or
B (Blue)
HIPRJ11-6*, 6 micron, or
HIPRJ11-50*, 50 micron,
Tool less available AL
(Almond), W (White) or
BK (Black)
HIPPDC5e CAT5e
(available in O (Orange),
W (White), B (Blue)) &
HIPDC6O Punch Down
Jack (only in Orange),
HIPMPRJ11 and
HIPMP-RJ45
*=color
40
HIP Wall Plate System Components
Compression Tool
The ICM Corp. Wall Plate System is specially
designed for use with the Cable Pro
CPLCCT-SLM compression tool and tips.
(See page 24-25 of our catalog for complete tool
details.)
Color “O” Rings
HIPOG (green)
HIPOY (yellow)
HIPOP (purple)
HIPOO (orange)
HIPOB (blue)
HIPOR (red)
HIPOK (black)
HIPOW (white)
Color “O” rings slip easily into groove on
standalone splices. Rings come in 8 different
colors for quick identification of wires.
WALL PLATE SYSTEM
CPLCCT-SLM
41
FLAT PANEL WALL MOUNT
Technical Specifications:
• ICM Corp. Part # TVM-001
• Accommodates 32 to 60 inch plasma or LCD television monitors.
• Supports up to 165 pounds
• Fits most mounting hole patterns and VESA compliant displays.
An Innovative Home Theater Wall Mount System...
• Designed for plasma and LCD flat panel displays from 32 inches to 60
inches accommodating a wide range of TV sizes.
• Wall mount has solid construction to support up to 165 pounds. The dual
rails and die cast components give greater stability to protect expensive
equipment.
• Finger tilt action from 1 to 12 degrees creates the perfect viewing angle.
• The wall mount system prevents theft with strong padlocks to keep TV
monitors in place.
• Available in sleek black design with solid chrome rails for an updated,
modern appearance in any home theater.
Makes Home Theater Installation Easy….
• Our wall mount system offers the quickest and easiest installation. Simply
slide monitor brackets over mounting bars for a secure, single-action
installation.
• Easily adjust the wall mounting for stud or brick walls giving maximum
flexibility in wall selection.
• End caps hide wiring behind display panel to give a clean, professional look
after installation.
New!
Flat Panel Tilt Wall
Mount System
Simplifies Home
Theater Installations
High-quality wall mount system makes large screen
plasma or LCD monitors quick and easy to install.
42

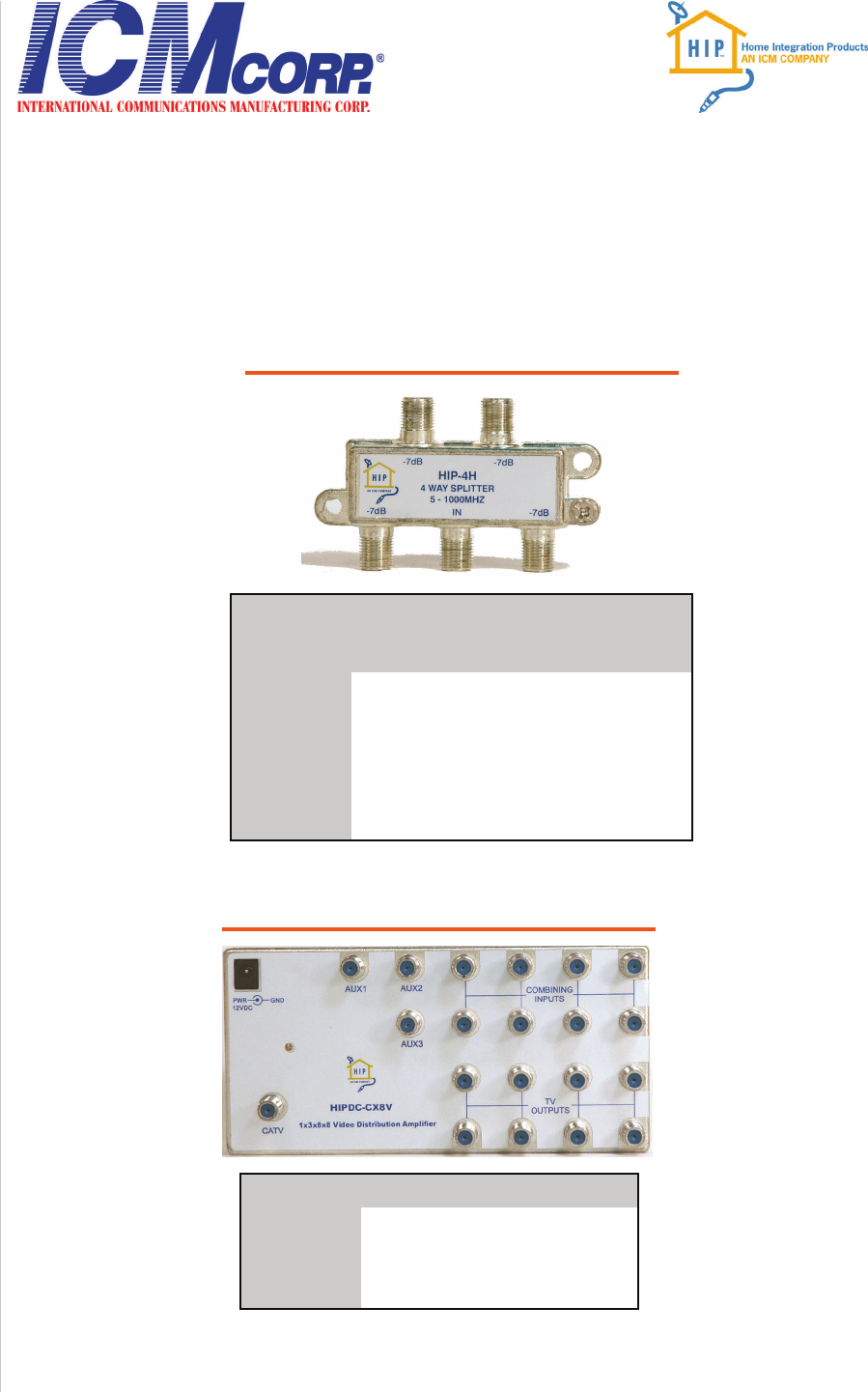

HIP Passive and Active Splitters
SPLITTERS
Actives V Series DC-CXV Series
4 way HIP1004V
8 way HIPDC-CX8V
16 way HIPDC-CX16V
Actives
Passives HV Series Satellite
Series
Horizontal
Satellite
Series
Vertical
2 way HIP 2H HIP-S2 H HIP-S2 V
3 way HIP 3H HIP-S3 H HIP-S3 V
4 way HIP 4H HIP-S4 H HIP-S4 V
6 way HIP 6V HIP-S6 V
8 way HIP 8V HIP-S8 V
Passives
To meet the stringent demands of return path, high-frequency data and highly corrosive
environments, these splitters feature enhanced mechanical and electrical properties. The series
incorporates input hum reduction circuitry, lacquered rear covers and hex/phillips/slot ground
screws, plus high-quality solder-sealed covers for advance shielding.
43
• Our Home Integration Products now feature ICM Corp.’s Splitter and High
Density Wall Plate that allows for quick and easy installations.
• Our Splitter Wall Plates are designed with two easy punch-out holes located
on the bottom of the snap-on cover to accept and conceal a two-way splitter,
or two F-81 connectors.
• The screw in wall plate and effortless snap-on cover provides strong
protection for wires that need guard against being bumped or struck by
furniture. Allowing furniture to be pushed up close to the wall without
exceeding cable bend radius or the braking of F-81 connectors.
• ICM Corp. provides color matching to ensure Leviton color spec
requirements are met.
SPLITTER WALL PLATES
HIP Splitter Wall Plate
HIP High Density Wall Plate
New Splitter and High Density Wall Plates are
designed for quick and easy installations, with a
protective cover for wires while providing customers
with the clean aesthetic look that they desire.
Color Item #
White HIPWPDPWH81
Ivory HIPWPDPIV81
Wall Plate Snap-on Cover
with two-way
splitter
Together
as One Unit
Color Item #
White
Ivory
Almond
Lt. Almond
Black
HIPHDDWP-WH
HIPHDDWP-IV
HIPHDDWP-AL
HIPHDDWP-LA
HIPHDDWP-BK
Color Item #
White
Ivory
Almond
Lt. Almond
Black
HIPHDWP-WH
HIPHDWP-IV
HIPHDWP-AL
HIPHDWP-LA
HIPHDWP-BK
44
HDMI CABLES
A True Digital Signal Among All Home Theater Components...
• HDMI cables deliver crystal-clear, all-digital video and audio in a single cable,
offering a superior, uncompressed digital signal for the highest-quality home
theater experience.
• With HDMI cables, the signal remains digital from start to finish, and is never
translated into analog, so video and audio stay clear.
• HDMI cables can use "Automatic Format Intelligence," which allows your HDTV,
DVR, Blu-Ray, HD-DVD, Play Station 3, and other devices to make automatic
adjustments to the picture to ensure you have a quality signal on all your digital
components.
New!
Home Theater
Installations Go Totally
Digital With HDMI
Cable from ICM Corp.
ICM Corp. now offers HDMI cables and adapters to make
every home theater installation a digital masterpiece.
In a Streamlined Connection….
• HDMI cables can carry multiple signals simultaneously, carrying up to 8 audio
signals and up to 5 video signals. This technology dramatically simplifies
cabling and wiring for home theater installations.
• HDMI offers a simple, user-friendly connector that replaces the maze of
cabling behind the entertainment center.
• HDMI cables are fully backward compatible with DVI (digital visual interface)
so existing home theater components will work seamlessly with HDMI
enhanced products.
ICM Part # Description
H/M-D/F ADP HDMI/M to DVI/F Adapter
H/F-D/M ADP HDMI/F to DVI/M Adapter
H/F-H/F ADP HDMI/F to HDMI/F Adapter
Available Adapters
45
Basic Series
Part #
Home Series
Part #
Pro Series
Part #
Description
H-H 1M HDMI-HOME-1M HDMI-PRO-1M 1 Meter
H-H 2M HDMI-HOME-2M HDMI-PRO-2M 2 Meter
H-H 4M HDMI-HOME-4M HDMI-PRO-4M 4 Meter
H-H 6M HDMI-HOME-6M HDMI-PRO-6M 6 Meter
HDMI CABLES
ICM Corp.’s HDMI cables are designed so that all devices including TV and A/V
receivers are able to make adjustments to the picture to ensure that you are
receiving the fullest signal all the time. Our HDMI cables are fully backward
compatible with previous HDMI versions, so existing home theater components will
work seamlessly with HDMI enhanced products. By using superior cable, outer
jacket materials and 15 micron gold plating.
ICM Corp. HDMI cables provide superior, long-lasting connectivity and greater
signal strength for a better home theater experience.
ICM Corp. provides three distinct styles of HDMI cables. The PRO Series is
complete for those seeking the ultimate home theater experience and creating an
esthetic finish to your system. The HOME Series is a total solution to most home -
entertainment systems, while the Basic Series is a great way to become familiar with
ICM Corp.’s line of HDMI cables.
Advanced design and construction exceeds HDMI standards of CE market enabling
convergence and transferring digital A/V signals with optimal power, accuracy and
clarity.
46
F-Conn Connector Sizing Chart (inches)
47
F-Conn Connector Sizing Chart (inches)
48
F-Conn Connector Sizing Chart (millimeters)
COMMERCIAL GOLD
BASIC DB COMMERCIAL GOLD Splice/Insert Splice/Insert
RG1 (24-26 AWG*)
MIN ~ MAX
ORANGE
Center Conductor .38 ~ .64
FSRCA1RGB RGRCA1RGB
Dielectric 1.65 ~ 1.98
FSBNC1RGB RGBNC1RGB FS1RCASST RG1RCASST
FS1RC
A
RG1RC
A
FS1BNCSST RG1BNCSST
Outer Jacket 2.41 ~ 2.79
FS1BNC RG1BNC
RG15 (22-24 AWG*)
MIN ~ MAX
FSRCA15RGB RGRCA15RGB
PURPLE
Center Conductor .38 ~ .64
FSBNC15RGB RGBNC15RGB
Dielectric 2.41 ~ 2.67
FS15RC
A
RG15RC
A
FS15RCASST RG15RCASST
FS15BNC RG15BNC FS15BNCSST RG15BNCSST
Outer Jacket 3.68 ~ 4.06
* This AWG Is a reference point only please make sure you spec the cable to ensure proper fit.
RG59 PLENUM
MIN ~ MAX
FS59PL
RED
Center Conductor .81 ~ .86
FS59BNCPL
Dielectric 3.73 ~ 3.99
FS59RCAPL
Outer Jacket 4.83 ~ 5.59
RG59 PLENUM 2
MIN ~ MAX
DB59PL2/4 FS59PL2
RED
Center Conductor .81 ~ .86
DB59BNCPL2/4 FS59BNCPL2
Dielectric 3.30 ~ 3.48
DB59RCAPL2/4 FS59RCAPL2
Outer Jacket 4.83 ~ 5.59
RG59 PLENUM 3
MIN ~ MAX
DB59PL2 FS59PL2
RED
Center Conductor .53 ~ .61
DB59BNCPL3 FS59BNCPL3
Dielectric 3.30 ~ 3.48
DB59RCAPL3 FS59RCAPL3
Outer Jacket 4.83 ~ 5.59
RG59 PLENUM 4
MIN ~ MAX
DB59PL2/4 FS59PL4
RED
Center Conductor .81 ~ .86
DB59BNCPL2/4 FS59BNCPL4
Dielectric 3.40 ~ 3.58
DB59RCAPL2/4 FS59RCAPL4
Outer Jacket 4.83 ~ 5.59
RG59 SECURITY
MIN ~ MAX
FS59BNCSL
RED
Center Conductor .81 ~ .86
DB59BNCSL
Dielectric 3.48 ~ 3.76
DB59RCASL
Outer Jacket 5.89 ~ 6.30
RG59 STANDARD
MIN ~ MAX
RG59WR
RED
Center Conductor .81 ~ .86
RG59WRO
Dielectric 3.66 ~ 3.99
RG59-RCAWR
Outer Jacket 5.89 ~ 6.40
F59WRK
RG59 Quad
MIN ~ MAX
RG59NR
RED
Center Conductor .81 ~ .86
Dielectric 3.66 ~ 3.99
Outer Jacket 6.53 ~ 6.93
RG59 UNIVERSAL
MIN ~ MAX
DB59U FS59U RG59U FS59US RG59US
Center Conductor .81 ~ .86
DB59BNCU FS59UR
A
RG59BNCU FS59BNCUS RG59BNCUS
RED
Dielectric 3.66 ~ 3.99
FS59BNCU RG59RCAU FS59RCAUS RG59RCAUS
Outer Jacket 5.89 ~ 6.93
FS59RCAU RG59IECUM
FSBNC59UR
A
RG59IECUF FS59BNCUF RG59BNCUF
FSRCA59UR
A
FS59RCAUF RG59RCAUF
FS59IECUM
FS59IECUF
49
F-Conn Connector Sizing Chart (millimeters)
COMMERCIAL GOLD
BASIC DB COMMERCIAL GOLD Splice/Insert Splice/Insert
RG6PL
MIN ~ MAX
FS6PL
GREEN
Center Conductor 1.01 ~ 1.06
FS6BNCPL
Dielectric 4.65 ~ 4.90
FS6RCAPL
Outer Jacket 5.59 ~ 6.35
RG6PL2
MIN ~ MAX
DB6PL2 FS6PL2
GREEN
Center Conductor 1.01 ~ 1.06
DB6BNCPL2 FS6BNCPL2
Dielectric 4.19 ~ 4.37
DB6RCAPL2 FS6RCAPL2
Outer Jacket 5.59 ~ 6.35
RG6
MIN ~ MAX
RG6WR
GREEN
Center Conductor 1.01 ~ 1.06
RG6WRO
Dielectric 4.57 ~ 4.90
RG6-RCAWR
Outer Jacket 6.73 ~ 7.26
RG6WRK
EF6WR
F6SP
RG6 Quad
MIN ~ MAX
RG6NR
GREEN
Center Conductor 1.01 ~ 1.06
RG6NRO
Dielectric 4.57 ~ 4.90
Outer Jacket 7.34 ~ 7.75
RG6 UNIVERSAL
MIN ~ MAX
DB6U FS6U RG6U FS6US RG6US
Center Conductor 1.01 ~ 1.06
DB6BNCU FS6UR
A
RG6BNCU FS6BNCUS RG6BNCUS
GREEN
Dielectric 4.57 ~ 4.90
FS6BNCU RG6RCAU FS6RCAUS RG6RCAUS
FS6RCAU RG6IECUM
FS6IECUM RG6IECUF FS6BNCUF RG6BNCUF
FS6IECUF FS6RCAUF RG6RCAUF
FSBNC6UR
A
FSRCA6UR
A
Outer Jacket 6.73 ~ 7.75
RG11 UNIVERSAL
MIN ~ MAX
F11WR FS11V
BLACK
Center Conductor 1.61 ~ 1.64
F11SP FS11BNC
Dielectric 7.11 ~ 7.47
Outer Jacket 9.91 ~ 10.59
RG11 PLENUM
MIN ~ MAX
FS11PL
GRAY
Center Conductor 1.61 ~ 1.64
Dielectric 7.11 ~ 7.47
Outer Jacket 8.61 ~ 9.02
COMMERCIAL GOLD
TOOL BASIC DB COMMERCIAL GOLD Splice/Insert Splice/Insert
CPLCCT-1 F & RCA*
CPLCCT-S59/11 F & RCA
CPLCCT-F11 F**
CPLCCT-11BNC BNC**
CPLCCT-SLM
A
LL*
A
LL* ALL*
A
LL*
RTC360 ALL*
CPLCRTC ALL* F & RCA*
CPLCRBC ALL*
A
LL*
* This will NOT work with RG11 Cable
** This will ONLY work on RG11 Cable
50
*Samples will not exhibit crackling, swelling or brittleness.
F-Conn Series connectors were tested to meet SCTE-IPS and Bellcore specifications.
Where both organizations have specifications for the same requirements,
F-Conn Series connectors were tested to the more rigorous specifications.
Specifications subject to change without notice.
Mechanical
Requirements Test Results
Corrosion Resistant BLCR GR-1503 3.2.1 Conforming materials Exceeds
Cable Application BLCR GR-1503 3.2.2 <20 lbs max insertion Exceeds
Cable Interface BLCR GR-1503 3.2.3 >40 lbs pull force Exceeds
Equipment Interface BLCR GR-1503 3.2.4 >10 matings without damage Exceeds
Equipment Interface BLCR GR-1503 3.2.4 >60 in-lbs without damage Exceeds
Temperature Cycling with Humidity BLCR GR-1503 4.1 +70° F to +140° F to -40° F
must pass 3.2.3 after 3 days Exceeds
Loosening Torque BLCR GR-1503 4.2 >30 in-lbs after 3 days of 4.1 Exceeds
Moisture Migration SCTE IPS-TP-013 No dye penetration Exceeds
Salt Fog BLCR ASTM B 117 Return loss >30 dB @ 1 GHz Exceeds
Environmental Pollutants BLCR GR-1503 4.5 Return loss >30 dB @ 1 GHz Exceeds
Vibration BLCR GR-1503 4.6 Loosening torque >32 in-lbs Exceeds
Chemical Resistance Outdoor BLCR GR-1503 4.7 7 days exposure* Exceeds
UV Degradation BLCR GR-1503 4.8 7 days exposure* Exceeds
Ozone Degradation BLCR GR-1503 4.10 70 hours exposure* Exceeds
Electrical
Requirements Test Results
Insulation Resistance BLCR GR-1503 3.5.1 >5000 M Y @ 100 Vdc Exceeds
Dielectric Strength BLCR GR-1503 3.5.2 <1 KVac for 1 minute Exceeds
Insertion Loss BLCR GR-1503 3.5.3 <0.1 dB to 350 MHz
<0.2 dB to 700 MHz
<0.3 dB to 1 GHz Exceeds
Return Loss BLCR GR-1503 3.5.4 >30 dB to 1 GHz Exceeds
Shielding Effectiveness BLCR GR-1503 3.5.5 >95 dB to 300 MHz
>70 dB to 1 GHz Exceeds
Electrical
Requirements Specifications Limits Test Results
Insulation Resistance BLCR GR-1503 3.5.1 >5000 M Y @ 100 Vdc Exceeds
Dielectric Strength BLCR GR-1503 3.5.2 <1 KVac for 1 minute Exceeds
Insertion Loss BLCR GR-1503 3.5.3 <0.1 dB to 350 MHz
<0.2 dB to 700 MHz
<0.3 dB to 1 GHz Exceeds
Return Loss BLCR GR-1503 3.5.4 >30 dB to 1 GHz Exceeds
Shielding Effectiveness BLCR GR-1503 3.5.5 >95 dB to 300 MHz
>70 dB to 1 GHz Exceeds
Mechanical
Requirements Specifications Limits Test Results
Corrosion Resistant BLCR GR-1503 3.2.1 Conforming materials Exceeds
Cable Application BLCR GR-1503 3.2.2 <20 lbs max insertion Exceeds
Cable Interface BLCR GR-1503 3.2.3 >40 lbs pull force Exceeds
Equipment Interface BLCR GR-1503 3.2.4 >10 matings without damage Exceeds
Equipment Interface BLCR GR-1503 3.2.4 >60 in-lbs without damage Exceeds
Temperature Cycling with Humidity BLCR GR-1503 4.1 +70° F to +140° F to -40° F
must pass 3.2.3 after 3 days Exceeds
Loosening Torque BLCR GR-1503 4.2 >30 in-lbs after 3 days of 4.1 Exceeds
Moisture Migration SCTE IPS-TP-013 No dye penetration Exceeds
Salt Fog BLCR ASTM B 117 Return loss >30 dB @ 1 GHz Exceeds
Environmental Pollutants BLCR GR-1503 4.5 Return loss >30 dB @ 1 GHz Exceeds
Vibration BLCR GR-1503 4.6 Loosening torque >32 in-lbs Exceeds
Chemical Resistance Outdoor BLCR GR-1503 4.7 7 days exposure* Exceeds
UV Degradation BLCR GR-1503 4.8 7 days exposure* Exceeds
Ozone Degradation BLCR GR-1503 4.10 70 hours exposure* Exceeds
Cable Types Series RG59, RG59Q, RG6, RG6Q, RG11
Braid Coverage Range 60% through quad shield – 60% tri, quad shield
Jacket Types PVC, PE and Plenum
BASIC SPECS
F-Conn Basic Series Specifications
51
COMMERCIAL SPECS
F-Conn Commercial Specifications
*Samples will not exhibit crackling, swelling or brittleness.
F-Conn Series connectors were tested to meet SCTE-IPS and Bellcore specifications.
Where both organizations have specifications for the same requirements,
F-Conn Series connectors were tested to the more rigorous specifications.
Specifications subject to change without notice.
Series RG59, RG59Q, RG6, RG6Q, RG11
Braid Coverage Range 60% through quad shield – 60% tri, quad shield
Mechanical
Requirements
Test
Results
Corrosion Resistant BLCR GR-1503 3.2.1 Conforming materials Exceeds
Cable Application BLCR GR-1503 3.2.2 <20 lbs max insertion Exceeds
Cable Interface BLCR GR-1503 3.2.3 >40 lbs pull force Exceeds
Equipment Interface BLCR GR-1503 3.2.4 >10 matings without damage Exceeds
Equipment Interface BLCR GR-1503 3.2.4 >60 in-lbs without damage Exceeds
Temperature Cycling with
Humidity BLCR GR-1503 4.1 +70° F to +140° F to -40° F
must pass 3.2.3 after 3 days Exceeds
Loosening Torque BLCR GR-1503 4.2 >30 in-lbs after 3 days of 4.1 Exceeds
Moisture Migration SCTE IPS-TP-013 No dye penetration Exceeds
Salt Fog BLCR ASTM B 117 Return loss >30 dB @ 1 GHz Exceeds
Environmental Pollutants BLCR GR-1503 4.5 Return loss >30 dB @ 1 GHz Exceeds
Vibration BLCR GR-1503 4.6 Loosening torque >32 in-lbs Exceeds
Chemical Resistance Outdoor BLCR GR-1503 4.7 7 days exposure* Exceeds
UV Degradation BLCR GR-1503 4.8 7 days exposure* Exceeds
Ozone Degradation BLCR GR-1503 4.10 70 hours exposure* Exceeds
Electrical
Requirements
Test
Results
Insulation Resistance BLCR GR-1503 3.5.1 >5000 M Y @ 100 Vdc Exceeds
Dielectric Strength BLCR GR-1503 3.5.2 <1 KVac for 1 minute Exceeds
Insertion Loss BLCR GR-1503 3.5.3 <0.1 dB to 350 MHz
<0.2 dB to 700 MHz
<0.3 dB to 1 GHz Exceeds
Return Loss BLCR GR-1503 3.5.4 >30 dB to 1 GHz Exceeds
Shielding Effectiveness BLCR GR-1503 3.5.5 >95 dB to 300 MHz
>70 dB to 1 GHz Exceeds
Electrical
Requirements Specifications Limits Test
Results
Insulation Resistance BLCR GR-1503 3.5.1 >5000 M Y @ 100 Vdc Exceeds
Dielectric Strength BLCR GR-1503 3.5.2 <1 KVac for 1 minute Exceeds
Insertion Loss BLCR GR-1503 3.5.3 <0.1 dB to 350 MHz
<0.2 dB to 700 MHz
<0.3 dB to 1 GHz Exceeds
Return Loss BLCR GR-1503 3.5.4 >30 dB to 1 GHz Exceeds
Shielding Effectiveness BLCR GR-1503 3.5.5 >95 dB to 300 MHz
>70 dB to 1 GHz Exceeds
Mechanical
Requirements Specifications Limits Test
Results
Corrosion Resistant BLCR GR-1503 3.2.1 Conforming materials Exceeds
Cable Application BLCR GR-1503 3.2.2 <20 lbs max insertion Exceeds
Cable Interface BLCR GR-1503 3.2.3 >40 lbs pull force Exceeds
Equipment Interface BLCR GR-1503 3.2.4 >10 matings without damage Exceeds
Equipment Interface BLCR GR-1503 3.2.4 >60 in-lbs without damage Exceeds
Temperature Cycling with
Humidity BLCR GR-1503 4.1 +70° F to +140° F to -40° F
must pass 3.2.3 after 3 days Exceeds
Loosening Torque BLCR GR-1503 4.2 >30 in-lbs after 3 days of 4.1 Exceeds
Moisture Migration SCTE IPS-TP-013 No dye penetration Exceeds
Salt Fog BLCR ASTM B 117 Return loss >30 dB @ 1 GHz Exceeds
Environmental Pollutants BLCR GR-1503 4.5 Return loss >30 dB @ 1 GHz Exceeds
Vibration BLCR GR-1503 4.6 Loosening torque >32 in-lbs Exceeds
Chemical Resistance Outdoor BLCR GR-1503 4.7 7 days exposure* Exceeds
UV Degradation BLCR GR-1503 4.8 7 days exposure* Exceeds
Ozone Degradation BLCR GR-1503 4.10 70 hours exposure* Exceeds
Cable Types Series RG59, RG59Q, RG6, RG6Q, RG11
Braid Coverage Range 60% through quad shield – 60% tri, quad shield
Jacket Types PVC, PE and Plenum
52
GOLD SPECS
F-Conn Gold Specifications
*Samples will not exhibit crackling, swelling or brittleness.
F-Conn Series connectors were tested to meet SCTE-IPS and Bellcore specifications.
Where both organizations have specifications for the same requirements,
F-Conn Series connectors were tested to the more rigorous specifications.
Specifications subject to change without notice.
Cable Types Series RG59, RG59Q, RG6, RG6Q, RG11
Braid Coverage
Range 60% through quad shield – 60% tri, quad shield
Jacket Types PVC, PE and Plenum
Mechanical Requirements Specifications Limits Test Results
Corrosion Resistant BLCR GR-1503 3.2.1 Conforming materials Exceeds
Cable Application BLCR GR-1503 3.2.2 <20 lbs max insertion Exceeds
Cable Interface BLCR GR-1503 3.2.3 >40 lbs pull force Exceeds
Equipment Interface BLCR GR-1503 3.2.4 >10 matings without damage Exceeds
Equipment Interface BLCR GR-1503 3.2.4 >60 in-lbs without damage Exceeds
Temperature Cycling with Humidity BLCR GR-1503 4.1 +70° F to +140° F to -40° F
must pass 3.2.3 after 3 days Exceeds
Loosening Torque BLCR GR-1503 4.2 >30 in-lbs after 3 days of 4.1 Exceeds
Moisture Migration SCTE IPS-TP-013 No dye penetration Exceeds
Salt Fog BLCR ASTM B 117 Return loss >30 dB @ 1 GHz Exceeds
Environmental Pollutants BLCR GR-1503 4.5 Return loss >30 dB @ 1 GHz Exceeds
Vibration BLCR GR-1503 4.6 Loosening torque >32 in-lbs Exceeds
Chemical Resistance Outdoor BLCR GR-1503 4.77 7 days exposure* Exceeds
UV Degradation BLCR GR-1503 4.87 7 days exposure* Exceeds
Ozone Degradation BLCR GR-1503 4.1070 70 hours exposure* Exceeds
Electrical Requirements Specifications Limits Test Results
Insulation Resistance BLCR GR-1503 3.5.1 >5000 M Y @ 100 Vdc Exceeds
Dielectric Strength BLCR GR-1503 3.5.2 <1 KVac for 1 minute Exceeds
Insertion Loss BLCR GR-1503 3.5.3
<0.1 dB to 350 MHz
<0.2 dB to 700 MHz
<0.3 dB to 1 GHz
Exceeds
Return Loss BLCR GR-1503 3.5.4 >30 dB to 1 GHz Exceeds
Shielding Effectiveness BLCR GR-1503 3.5.5 >95 dB to 300 MHz
>70 dB to 1 GHz Exceeds
53
TOOL MATRIX CHART
International Communications
Manufacturing Corporation
6260 Downing Street
Denver, CO 80216
Easy Order info
Web: www.icmcorp.net
Tel: 1.800.222.2142 or 303.288.8107
Fax: 303.288.4769

Navigation menu
