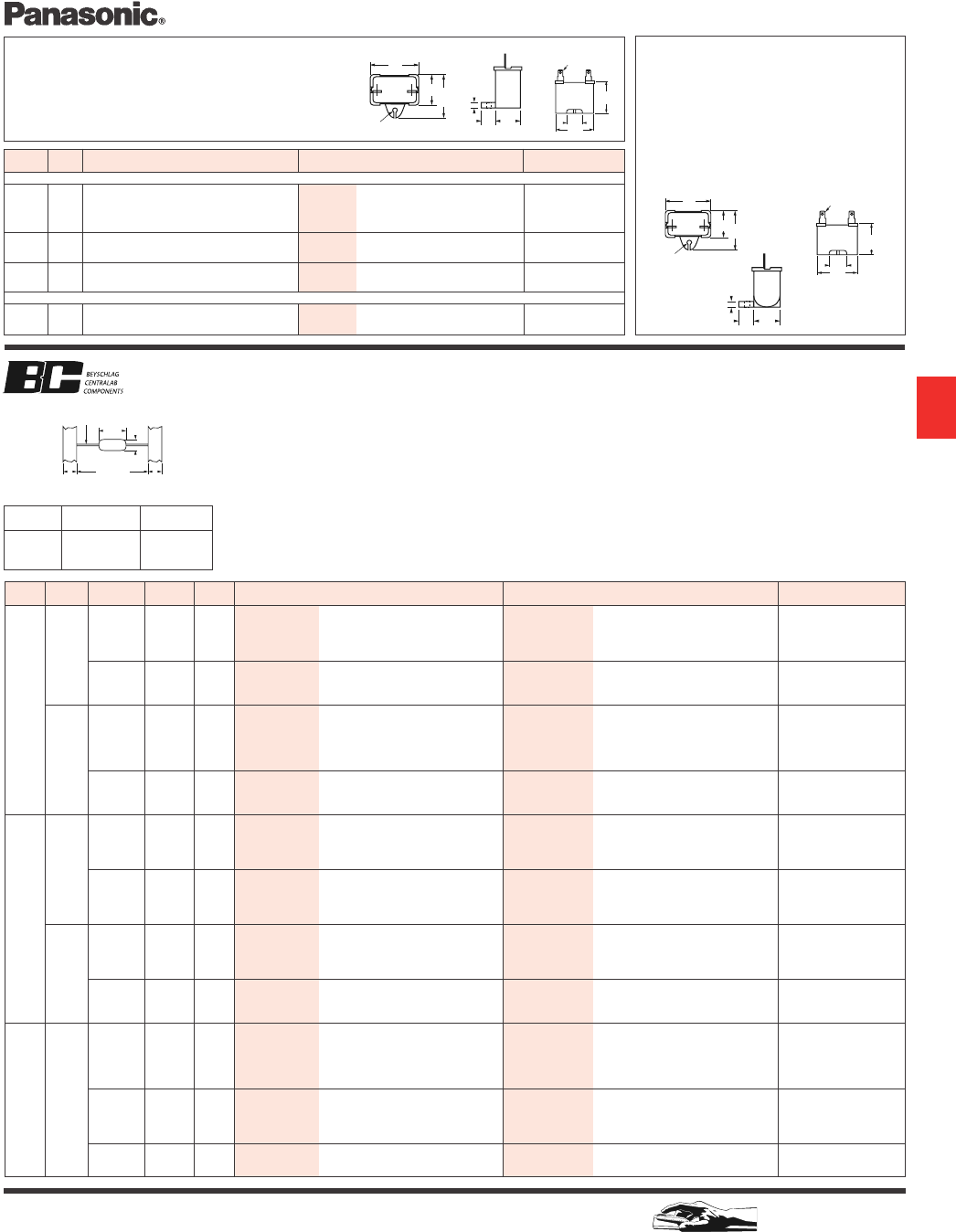

(Q004) 381

000 (Q000)

More Product Available Online: www.digikey.com

Toll-Free: 1-800-344-4539 • Phone: 218-681-6674 • Fax: 218-681-3380

MECHANICAL PARAMETERS:

Terminal Strength: 2.2 Kg (5 lbs) Minimum

pull to destruction, per Method B5 of RS-198-

CII, Test Condition A.

Lead Materials: #24 AWG (.020” ±0.001”)

Tinned, Copper Clad Steel. 30% Conductivity.

Temper: Soft; Tensile Strength: 65000 PSI

Max.

Body: Conformally coated Epoxy.

ELECTRICAL PARAMETERS:

Capacitance: Measured @ 1Mhz @ 1.0 ±0.2

VRMS @ 25°C for C0G types with C ≤1000pF.

Measured @ Khz @ 1.0 ±0.2 VRMS @ 25°C

for C0G types with C >1000pF. Measured @

1Khz @ 1.0 VRMS ±.2 VRMS @ 25°C for X7R

types. Measure @ 1Khz @ .0.5 VRMS ±.1

VRMS @ 25°C for Z5U types.

Dissipation Factor: .1% Maximum for C0G

types, 2.5% Maximum for X7R types and 4.0%

for Z5U types; measurement conditions are

the same as for capacitance measurement.

Dielectric Strength: Parts are subjected for

up to 5 seconds @ 25°C to 250% of Rated

Voltage and will exhibit no evidence of break-

down.

Insulation Resistance: When measured @

25°C and Rated Voltage, the following

Minimum Values will be met: 100K MegΩor

1000ΩF (whichever is less) for C0G and X7R

types, 10K MegΩor 1000ΩF (whichever is

less) for Z5U types.

Body Insulation: 500VDC Minimum, in

accordance with RS-198-CII.

Operating Temperature Range: -55°C to

+125°C for C0G, -55°C to +125°C for X7R,

-55°C to +85°C for Z5U

Packaging: Mono-Axial parts are supplied in

tape and reel and form per EIA RS-296.

Axial Ceramic Capacitors

Cap. Size Digi-Key Cut Tape Pricing Digi-Key Tape & Reel Pricing BC Components

Type Volt. Cap. Tol.(%)

Code

Part No. 10 100 1,000 Part No. 5,000 10,000 Part No.

10pf ±5 15 1011PHCT-ND 1.91 13.81 95.63 1011PHTR-ND 63.75/M 59.50/M A100J15C0GHVVWA

15pf ±5 15 1012PHCT-ND 1.91 13.81 95.63 1012PHTR-ND 63.75/M 59.50/M A150J15C0GHVVWA

18pf ±5 15 1013PHCT-ND 1.91 13.81 95.63 1013PHTR-ND 63.75/M 59.50/M A180J15C0GHVVWA

22pf ±5 15 1014PHCT-ND 1.91 13.81 95.63 1014PHTR-ND 63.75/M 59.50/M A220J15C0GHVVWA

100V 27pf ±5 15 1015PHCT-ND 1.91 13.81 95.63 1015PHTR-ND 63.75/M 59.50/M A270J15C0GHVVWA

33pf ±5 15 1016PHCT-ND 1.91 13.81 95.63 1016PHTR-ND 63.75/M 59.50/M A330J15C0GHVVWA

47pf ±5 15 1017PHCT-ND 1.95 14.11 97.65 1017PHTR-ND 65.10/M 60.76/M A470J15C0GHVVWA

68pf ±5 15 1018PHCT-ND 1.99 14.37 99.45 1018PHTR-ND 66.30/M 61.88/M A680J15C0GHVVWA

82pf ±5 15 1019PHCT-ND 2.03 14.63 101.25 1019PHTR-ND 67.50/M 63.00/M A820J15C0GHVVWA

COG 100pf ±5 15 1001PHCT-ND 2.03 14.63 101.25 1001PHTR-ND 67.50/M 63.00/M A101J15C0GFVVWA

150pf ±5 15 1002PHCT-ND 2.14 15.47 107.10 1002PHTR-ND 71.40/M 66.64/M A151J15C0GFVVWA

180pf ±5 15 1003PHCT-ND 2.14 15.47 107.10 1003PHTR-ND 71.40/M 66.64/M A181J15C0GFVVWA

220pf ±5 15 1004PHCT-ND 2.14 15.47 107.10 1004PHTR-ND 71.40/M 66.64/M A221J15C0GFVVWA

330pf ±5 15 1005PHCT-ND 2.14 15.47 107.10 1005PHTR-ND 71.40/M 66.64/M A331J15C0GFVVWA

50V 390pf ±5 15 1006PHCT-ND 2.14 15.47 107.10 1006PHTR-ND 71.40/M 66.64/M A391J15C0GFVVWA

470pf ±5 15 1007PHCT-ND 2.14 15.47 107.10 1007PHTR-ND 71.40/M 66.64/M A471J15C0GFVVWA

560pf ±5 15 1008PHCT-ND 2.14 15.47 107.10 1008PHTR-ND 71.40/M 66.64/M A561J15C0GFVVWA

680pf ±5 15 1009PHCT-ND 2.14 15.47 107.10 1009PHTR-ND 71.40/M 66.64/M A681J15C0GFVVWA

1000pf ±5 15 1010PHCT-ND 2.37 17.13 118.58 1010PHTR-ND 79.05/M 73.78/M A102J15C0GFVVWA

220pf ±10 15 1110PHCT-ND 1.84 13.26 91.80 1110PHTR-ND 61.20/M 57.12/M A221K15X7RHVVWA

270pf ±10 15 1111PHCT-ND 1.84 13.26 91.80 1111PHTR-ND 61.20/M 57.12/M A271K15X7RHVVWA

330pf ±10 15 1112PHCT-ND 1.84 13.26 91.80 1112PHTR-ND 61.20/M 57.12/M A331K15X7RHVVWA

470pf ±10 15 1113PHCT-ND 1.84 13.26 91.80 1113PHTR-ND 61.20/M 57.12/M A471K15X7RHVVWA

100V 680pf ±10 15 1114PHCT-ND 1.84 13.26 91.80 1114PHTR-ND 61.20/M 57.12/M A681K15X7RHVVWA

820pf ±10 15 1115PHCT-ND 1.84 13.26 91.80 1115PHTR-ND 61.20/M 57.12/M A821K15X7RHVVWA

.001µf ±10 15 1116PHCT-ND 1.84 13.26 91.80 1116PHTR-ND 61.20/M 57.12/M A102K15X7RHVVWA

.0012µf ±10 15 1117PHCT-ND 1.84 13.26 91.80 1117PHTR-ND 61.20/M 57.12/M A122K15X7RHVVWA

.0015µf ±10 15 1118PHCT-ND 1.84 13.26 91.80 1118PHTR-ND 61.20/M 57.12/M A152K15X7RHVVWA

X7R .0022µf ±10 15 1119PHCT-ND 1.84 13.26 91.80 1119PHTR-ND 61.20/M 57.12/M A222K15X7RHVVWA

.0033µf ±10 15 1101PHCT-ND 1.87 13.52 93.60 1101PHTR-ND 62.40/M 58.24/M A332K15X7RFVVWA

.0047µf ±10 15 1102PHCT-ND 1.87 13.52 93.60 1102PHTR-ND 62.40/M 58.24/M A472K15X7RFVVWA

.01µf ±10 15 1103PHCT-ND 1.19 8.58 59.40 1103PHTR-ND 39.60/M 36.96/M A103K15X7RFVVWA

.015µf ±10 15 1104PHCT-ND 2.14 15.47 107.10 1104PHTR-ND 71.40/M 66.64/M A153K15X7RFVVWC

50V .022µf ±10 15 1105PHCT-ND 2.37 17.13 118.58 1105PHTR-ND 79.05/M 73.78/M A223K15X7RFVVWE

.033µf ±10 15 1106PHCT-ND 2.57 18.53 128.25 1106PHTR-ND 85.50/M 79.80/M A333K15X7RFVVWG

.047µf ±10 20 1107PHCT-ND 2.64 19.08 132.08 1107PHTR-ND 88.05/M 82.18/M A473K20X7RFVVWJ

.056µf ±10 20 1108PHCT-ND 2.87 20.74 143.55 1108PHTR-ND 95.70/M 89.32/M A563K20X7RFVVWK

.1µf ±10 29 1109PHCT-ND 3.44 24.86 172.13 1109PHTR-ND 114.75/M 107.10/M A104K20X7RFVVWN

.01µf ±20 15 1206PHCT-ND 1.15 8.29 57.38 1206PHTR-ND 38.25/M 35.70/M A103M15Z5UFVVWA

.01µf +80, -20 15 1201PHCT-ND 1.15 8.29 57.38 1201PHTR-ND 38.25/M 35.70/M A103Z15Z5UFVVWA

.022µf ±20 15 1207PHCT-ND 1.38 9.95 68.85 1207PHTR-ND 45.90/M 42.84/M A223M15Z5UFVVWE

.033µf ±20 15 1208PHCT-ND 1.38 9.95 68.85 1208PHTR-ND 45.90/M 42.84/M A333M15Z5UFVVWG

.047µf ±20 15 1209PHCT-ND 1.45 10.50 72.68 1209PHTR-ND 48.45/M 45.22/M A473M15Z5UFVVWJ

.047µf +80, -20 15 1202PHCT-ND 1.38 9.95 68.85 1202PHTR-ND 45.90/M 42.84/M A473Z15Z5UFVVWJ

.1µf ±20 15 1210PHCT-ND 1.15 8.29 57.38 1210PHTR-ND 38.25/M 35.70/M A104M15Z5UFVVWN

Z5U 50V .1µf +80, -20 15 1203PHCT-ND 1.15 8.29 57.38 1203PHTR-ND 38.25/M 35.70/M A104Z15Z5UFVVWN

.22µf ±20 20 1211PHCT-ND 3.02 21.84 151.20 1211PHTR-ND 100.80/M 94.08/M A224M20Z5UFVVWT

.22µf +80, -20 20 1204PHCT-ND 2.95 21.29 147.38 1204PHTR-ND 98.25/M 91.70/M A224Z20Z5UFVVWT

.27µf +80, -20 29 1212PHCT-ND 2.95 21.29 147.38 1212PHTR-ND 98.25/M 91.70/M A274Z20Z5UFVVWV

.33µf ±20 29 1213PHCT-ND 3.06 22.10 153.00 1213PHTR-ND 102.00/M 95.20/M A334M20Z5UFVVWW

.33µf +80, -20 29 1205PHCT-ND 2.98 21.55 149.18 1205PHTR-ND 99.45/M 92.82/M A334Z20Z5UFVVWW

.47µf +80, -20 29 1214PHCT-ND 5.70 41.18 285.08 1214PHTR-ND 190.05/M 177.38/M A474Z20Z5UFVVWY

AB

6.35 6.35

52.37

#24 AWG Lead (2X)

Taped and Reeled per EIA RS-296E

Size

Code A B

15 3.81mm Max 2.54mm Max

20 5.08mm Max 3.05mm Max

29 7.37mm Max 3.81mm Max

Stack Type

Panasonic’s “stack type” construction offers significant reduction in case size

(compared to oil-filled can type) with a built-in mounting foot. Features: • Compact

size compared to oil-filled type capacitors. • 0.187 inch (4.75mm) terminals standard

(0.250 inch [6.35mm] available). • 180, 200, 230 are standard voltages. • U.L. 810

(File # E76560) and C.S.A listed. (CSA-C22.2 No. 0-M91 File # LR99617) • JIS

standard is available. (JIS C 4908). • Primary applications: refrigeration, motor

run, lighting, etc. • Flame retardant plastic

case is rated 94 V-0.

Wound Type

Panasonic’s “wound type” construction brings dry film

technology to higher voltage and microfarad applications,

not available from our “stack type” construction.

Features: • Replacement for typical oil-filled aluminum or

plastic can capacitor. • Compact size —ideal where

space is a premium. • Built-in mounting bracket

eliminates need for mounting strap. • Meets U.L. 810 (File #

E76560). • Primary applications: motor run, lighting, etc.

• Terminals: 0.187 inch (4.75mm).

A

CE

Ø4.3

.187 (4.8) Quick

Connect Terminal

F

16

B

A

CE

Ø4.3

.187 (4.8) Quick

Connect Terminal

F

16

B

HD

4

HD

4

Dry Film AC Capacitors

Voltage Cap. Dimensions Digi-Key Pricing Panasonic

VAC µF A B C D E F H Part No 1 10 100 500 Part No.

Stack Type - SQ Case

180 7.5 39.5 38.0 17.5 16.0 28.0 30.5 11.0 P9400-ND 3.38 27.00 229.50 1012.50 JSU18X755AQF

180 10 39.5 38.0 22.0 20.5 32.5 30.5 11.0 P9401-ND 4.03 32.20 273.70 1207.50 JSU18X106AQJ

180 12 39.5 38.0 22.0 20.5 34.2 32.0 13.0 P9402-ND 4.50 36.00 306.00 1350.00 JSU18X126AQH

180 15 39.5 38.0 26.7 25.2 37.0 32.0 11.0 P9403-ND 5.03 40.20 341.70 1507.50 JSU18X156AQP

180 20 39.5 38.0 26.7 25.2 37.0 41.0 11.0 P9404-ND 6.43 51.40 436.90 1927.50 JSU18X206AQD

210 10 39.5 38.0 22.0 20.5 34.2 32.0 13.0 P9405-ND 4.15 33.20 282.20 1245.00 JSU21X106AQB

210 12 39.5 38.0 26.7 25.2 37.0 32.0 11.0 P9406-ND 4.65 37.20 316.20 1395.00 JSU21X126AQE

210 15 39.5 38.0 26.7 25.2 37.0 32.0 11.0 P9407-ND 5.58 44.60 379.10 1672.50 JSU21X156AQH

230 10 39.5 38.0 22.0 20.5 34.2 32.0 13.0 P9408-ND 4.88 39.00 331.50 1462.50 JSU23X106AQC

230 12 39.5 38.0 26.7 25.2 37.0 32.0 11.0 P9409-ND 5.38 43.00 365.50 1612.50 JSU23X126AQE

230 15 39.5 38.0 26.7 25.2 37.0 41.0 11.0 P9410-ND 6.95 55.60 472.60 2085.00 JSU23X156AQE

Wound Type - Q Case

250 10 49.7 48.3 24.0 22.5 34.5 34.5 11.5 P9411-ND 6.68 53.40 453.90 2002.50 SPU25X106AQSD

250 12 50.0 48.5 26.7 25.3 37.5 38.0 11.5 P9412-ND 7.60 60.80 516.80 2280.00 SPU25X126AQSA

250 15 50.0 48.5 30.5 28.8 41.0 36.0 11.5 P9413-ND 8.98 71.80 610.30 2692.50 SPU25X156AQSA

E
