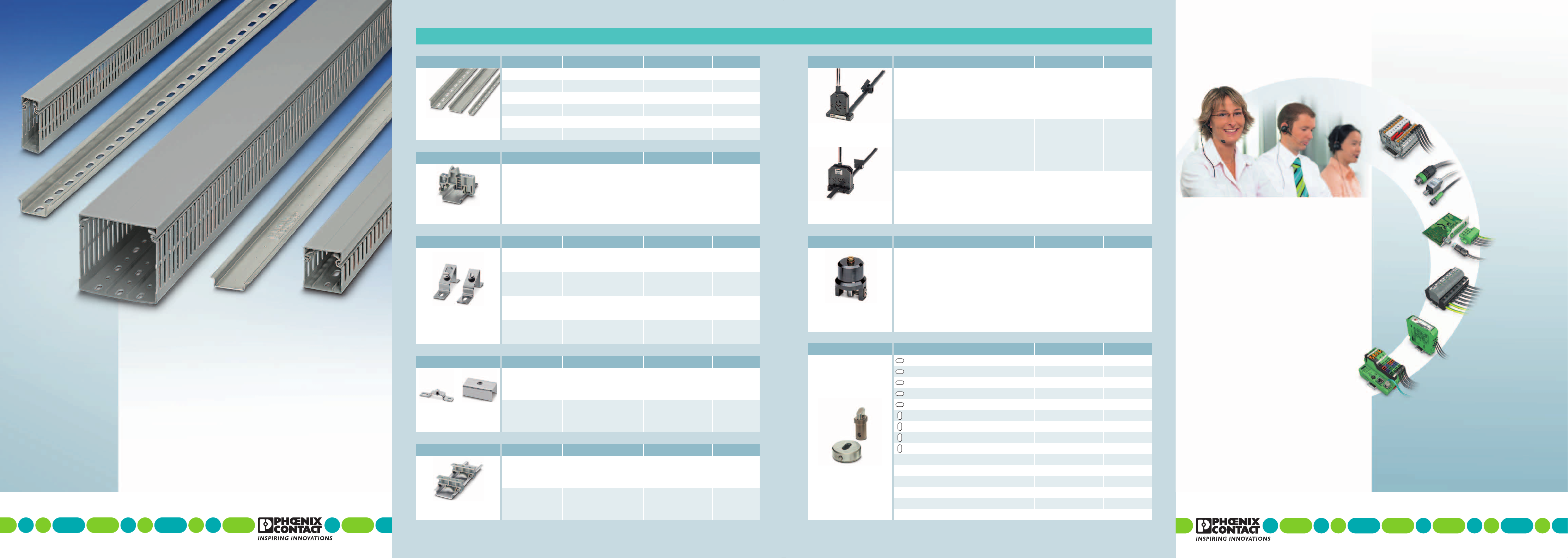

DE_INT_Brosch_Montagematerial_Leporello_01.fm Seite 1 Freitag, 26. Februar 2010 10:42 10
PHOENIX CONTACT
PHOENIX CONTACT
DIN rails and accessories
Standard DIN rails NS… Dimensions W x H x L
[mm] Description Type Order No.
Material: Steel
Coating: zinc-plated and
thick layer passivated
15 x 5.5 x 2000 Unperforated NS 15 UNPERF 2000MM 1401695
15 x 5.5 x 2000 Perforated NS 15 PERF 2000MM 1401682
35 x 7.5 x 2000 Unperforated NS 35/7,5 UNPERF 2000MM 0801681
35 x 7.5 x 2000 Perforated NS 35/7,5 PERF 2000MM 0801733
35 x 15 x 2000 Unperforated NS 35/15 UNPERF 2000MM 1201714
35 x 15 x 2000 Perforated NS 35/15 PERF 2000MM 1201730
End bracket Description Type Order No.
Material: PA
Inflammability
as per UL 94: V2
End bracket, for screwing on NS 35 and NS 32,
can be labeled with ZB, KLM, KLM-A and UBE
E/UK 1201442
Angled brackets Dimensions W x H x L
[mm] Description Type Order No.
Material: Steel
Coating: zinc-plated and
thick layer passivated
119.7 x 35.4 x 87 Angled bracket, for fixing DIN rails at an
angle of 30°, with M6 screw
BG/S 1201086
219.7 x 35.4 x 87 Angled bracket, with a stop for DIN rails,
for fixing DIN rails at an angle of 30°, with
M6 screw
BG/SA 1201604
120 x 46 x 84 Angled bracket, for fixing DIN rails at an
angle of 30°, with M6 screw
BG/SH 1201099
220 x 46 x 84 Angled bracket, with a stop for DIN rails,
for fixing DIN rails at an angle of 30°, with
M6 screw
BG/SHA 1201594
2
1
Flat brackets Dimensions W x H x L
[mm] Description Type Order No.
Material: Steel
Coating: zinc-plated and
thick layer passivated
120 x 12 x 84 Flat bracket, for fixing DIN rails 12 mm
above the mounting surface, with M6
screw
BG/F 1201060
220 x 15 x 37 Flat bracket, is screwed 15 mm above
the mounting surface with DIN rail,
mounting hole: 6.5 mm Ø
BG/F 1 1201112
21
Universal rail adapter Dimensions W x H x L
[mm] Description Type Order No.
Material: PA
Inflammability
as per UL 94: V2
43 x 19 x 10 Universal rail adapter, for NS 35… and
NS 32… DIN rails, for accommodating
switching devices, 10 mm wide, for M3
screws
USA 10 1201578
43 x 19 x 10 Universal rail adapter, for NS 35… and
NS 32… DIN rails, for accommodating
switching devices, 10 mm wide, for M5
screws
USA 10/4,6 1202713
Profile cutter PPS Description Type Order No.
Weight: 8.3 kg
Length
- Measuring bar: 1000 mm
- Hand lever: 590 mm
Profile cutter, for cutting standard DIN rails NS 15, NS 35/7,5, NS 35/15,
and neutral busbars NLS-CU 3/10,
with measuring bar inch/metric
PPS Basic I/M 1207585
Profile cutter, for cutting and punching standard DIN rails
NS 15, NS 32, NS 35/7,5, NS 35/15 and neutral busbars NLS-CU 3/10, for
accommodating 2 punch sets, without punching tool, with metric measuring
bar
PPS STANDARD M 1206175
Weight: 19 kg
Length
- Measuring bar: 1000 mm
- Hand lever: 1000 mm
Workbench, with plywood panel 700 x 1200 x 50 mm,
without mounting screws and bore holes
PPS TABLE 1206285
Punch inserts for PPS standard Description Type Order No.
For horizontally elongated hole 3.5 x 12 mm PPS-ST (3,5x12)L 1203563
For horizontally elongated hole 4.5 x 12 mm PPS-ST (4,5x12)L 1203534
For horizontally elongated hole 5.5 x 12 mm PPS-ST (5,5x12)L 1202603
For horizontally elongated hole 6.35 x 15 mm PPS-ST (6,35x15)L 1204876
For horizontally elongated hole 6.5 x 15 mm PPS-ST (6,5x15)L 1202593
For vertically elongated hole 3.5 x 12 mm PPS-ST (3,5x12)Q 1203550
For vertically elongated hole 4.5 x 12 mm PPS-ST (4,5x12)Q 1203547
For vertically elongated hole 5.5 x 12 mm PPS-ST (5,5x12)Q 1203411
For vertically elongated hole 6.35 x 15 mm PPS-ST (6,5x15)Q 1203408
For bore hole 3.8 mm Ø PPS-ST (3,8) 1204892
For bore hole 4.3 mm Ø PPS-ST (4,3) 1202616
For bore hole 5.3 mm Ø PPS-ST (5,3) 1202629
For bore hole 6.4 mm Ø PPS-ST (6,4) 1202632
For bore hole 7 mm Ø PPS-ST (7,0) 1204889
For bore hole 8.4 mm Ø PPS-ST (8,4) 1202726
MNR 52005122/01.03.2010-01 Printed in Germany © PHOENIX CONTACT 2010
PHOENIX CONTACT GmbH & Co. KG
32823 Blomberg, Germany
Phone:+49/5235/3-00
Fax: +49/5235/3-4 12 00
www.phoenixcontact.com
Further information on the products presented
here and on the world of solutions from
Phoenix Contact can be found at
www.phoenixcontact.net/catalog
Or contact us directly.
Industrial Connection Technology,
Marking Systems and Mounting Material
CLIPLINE
Connection Technology for
Field Devices and Field Cabling
PLUSCON
Device Connection Technology
and Electronic Housings
COMBICON
Surge Protection
TRABTECH
Signal Converters, Switching Devices,
Power Supplies
INTERFACE
Components and Systems
AUTOMATION
CABINET add-on
Cable ducts and DIN rails
Hydraulic cylinder for PPS Standard Description Type Order No.
Height: 110 mm
Diameter: 95 mm
Weight: 3 kg
Piston Ø: 50 mm
Hydraulic cylinder for connecting to an existing hydraulic system,
operating pressure 160 to 200 Bar, piston force 4 t
PPS HYDRAULIC CYL 1208924
EN_DE_Brosch_Montagematerial_01.fm Seite 1 Dienstag, 2. März 2010 3:29 15
Textfarbe Schmuck 45,0° 120,0 LPI

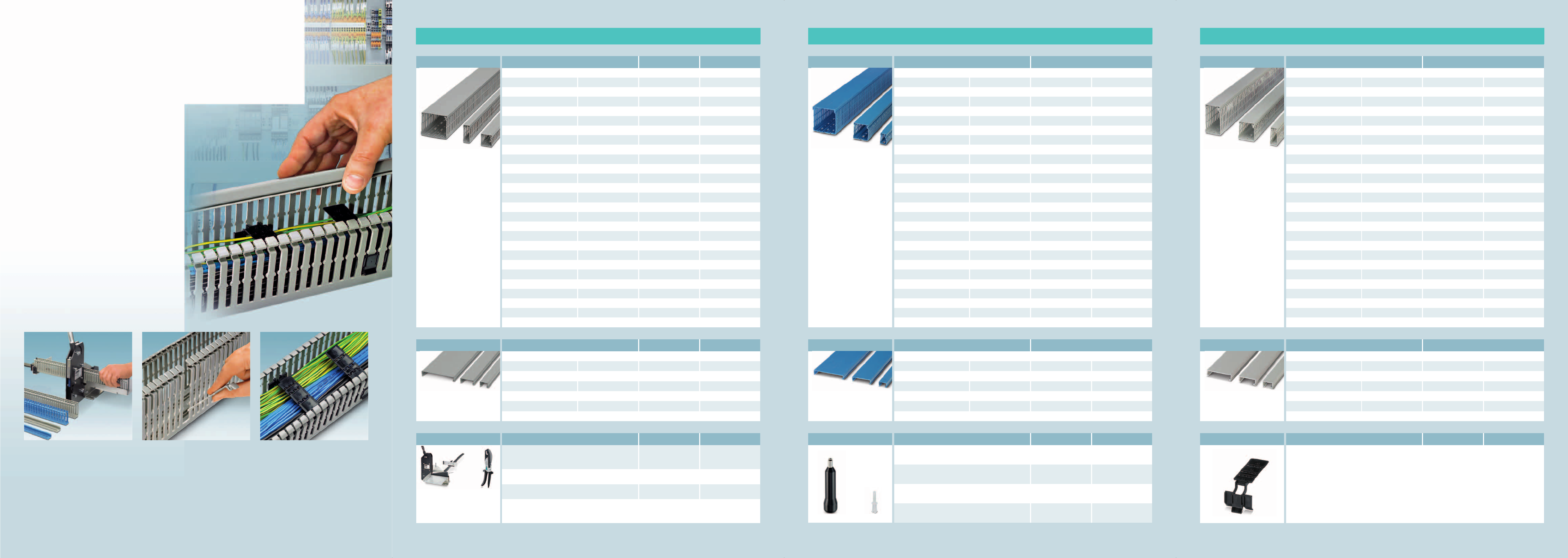

DE_INT_Brosch_Montagematerial_Leporello_01.fm Seite 2 Freitag, 26. Februar 2010 10:42 10
PHOENIX CONTACT PHOENIX CONTACT
Cable duct, consisting of upper
and lower part
Dimensions W x H x L
[mm] [inch] Type Order No.
25 x 25 x 2000 0.98 x 0.98 x 78.72 CD-HF 25x25 3240340
25 x 40 x 2000 0.98 x 1.57 x 78.72 CD-HF 25x40 3240341
25 x 60 x 2000 0.98 x 2.36 x 78.72 CD-HF 25x60 3240342
25 x 80 x 2000 0.98 x 3.15 x 78.72 CD-HF 25x80 3240343
30 x 40 x 2000 1.18 x 1.57 x 78.72 CD-HF 30x40 3240344
30 x 60 x 2000 1.18 x 2.36 x 78.72 CD-HF 30x60 3240345
30 x 80 x 2000 1.18 x 3.15 x 78.72 CD-HF 30x80 3240346
30 x 100 x 2000
1.18 x 3.94 x 78.72 CD-HF 30x100 3240347
40 x 40 x 2000 1.57 x 1.57 x 78.72 CD-HF 40x40 3240348
40 x 60 x 2000 1.57 x 2.36 x 78.72 CD-HF 40x60 3240349
40 x 80 x 2000 1.57 x 3.15 x 78.72 CD-HF 40x80 3240350
40 x 100 x 2000
1.57 x 3.94 x 78.72 CD-HF 40x100 3240351
60 x 40 x 2000 2.36 x 1.57 x 78.72 CD-HF 60x40 3240352
60 x 60 x 2000 2.36 x 2.36 x 78.72 CD-HF 60x60 3240353
60 x 80 x 2000 2.36 x 3.15 x 78.72 CD-HF 60x80 3240354
60 x 100 x 2000
2.36 x 3.94 x 78.72 CD-HF 60x100 3240355
80 x 25 x 2000 3.15 x 0.98 x 78.72 CD-HF 80x25 3240356
80 x 40 x 2000
3.15 x 1.57 x 78.72 CD-HF 80x40 3240357
80 x 60 x 2000 3.15 x 2.36 x 78.72 CD-HF 80x60 3240358
80 x 80 x 2000 3.15 x 3.15 x 78.72 CD-HF 80x80 3240359
80 x 100 x 2000
3.15 x 3.94 x 78.72 CD-HF 80x100 3240360
100 x 40 x 2000
3.94 x 1.57 x 78.72 CD-HF 100x40 3240361
Approvals: A C
Material: PC/ABS
Inflammability
as per UL 94: V0
Slot distance: 6.5 mm
Slot width: 6 mm
Temperature-
resistant: - 25 up to + 90 °C
100 x 60 x 2000
3.94 x 2.36 x 78.72 CD-HF 100x60 3240362
100 x 80 x 2000
3.94 x 3.15 x 78.72 CD-HF 100x80 3240363
100 x 100 x 2000
3.94 x 3.94 x 78.72 CD-HF 100x100 3240364
120 x 60 x 2000
4.72 x 2.36 x 78.72 CD-HF 120x60 3240365
120 x 80 x 2000
4.72 x 3.15 x 78.72 CD-HF 120x80 3240366
Profiles for halogen-free
cable ducts
Dimensions W x H x L
[mm] [inch] Type Order No.
25 x 2000 0.98 x 78.72 CD-HF COVER 25 3240369
40 x 2000 1.18 x 78.72 CD-HF COVER 30 3240370
40 x 2000 1.18 x 78.72 CD-HF COVER 40 3240371
60 x 2000 1.57 x 78.72 CD-HF COVER 60 3240372
Material: PC/ABS
Inflammability
as per UL 94: V0
Temperature-
resistant: - 25 up to + 90 °C
80 x 2000 2.36 x 78.72 CD-HF COVER 80 3240373
100 x 2000 3.94 x 78.72
CD-HF COVER 100
3240367
120 x 2000 4.72 x 78.72
CD-HF COVER 120
3240368
Accessories Description Type Order No.
Universal wire retaining clip, pre-perforated for cable duct
40, 60, 80 and 100
CD WR 3240284
Halogen-free cable ducts
The wide range of DIN rails and cable
ducts enables flexible and optimum use of
the available space in your control cabinet.
The cutting devices can be used to
assemble DIN rails and cable ducts
individually and cost-effectively.
The wide, angled heads of the cable duct
webs ensure easy assembly and a secure
hold of the cover.
Mounting material for
control cabinets
Neat wiring
Attaching special clips to the lateral webs
of the cable duct ensures a secure hold of
the installed conductors.
Clear and fast wiring is thus possible in the
control cabinet, even at a later date.
Toolless assembly
The lateral webs in the cable duct can be
snapped out easily by hand, burr-free and
flush with the bottom.
T-connections and cross-connections can
thus be made fast and without transitions.
Fast and reliable cutting
The cable duct cutter can be used to cut
channels and covers with a width of up to
125 mm and a wall thickness of up to
2.5 mm in seconds, burr-free and non-
cutting.
The spring-loaded knife protection
provides the necessary safety.
Cable duct, consisting of upper
and lower part
Dimensions W x H x L
[mm] [inch] Type Order No.
25 x 25 x 2000 0.98 x 0.98 x 78.72 CD 25x25 3240187
25 x 40 x 2000 0.98 x 1.57 x 78.72 CD 25x40 3240188
25 x 60 x 2000 0.98 x 2.36 x 78.72 CD 25x60 3240191
25 x 80 x 2000 0.98 x 3.15 x 78.72 CD 25x80 3240197
30 x 40 x 2000 1.18 x 1.57 x 78.72 CD 30x40 3240278
30 x 60 x 2000 1.18 x 2.36 x 78.72 CD 30x60 3240280
30 x 80 x 2000 1.18 x 3.15 x 78.72 CD 30x80 3240282
30 x 100 x 2000
1.18 x 3.94 x 78.72 CD 30x100 3240283
40 x 40 x 2000 1.57 x 1.57 x 78.72 CD 40x40 3240189
40 x 60 x 2000 1.57 x 2.36 x 78.72 CD 40x60 3240192
40 x 80 x 2000 1.57 x 3.15 x 78.72 CD 40x80 3240198
40 x 100 x 2000
1.57 x 3.94 x 78.72 CD 40x100 3240294
60 x 40 x 2000 2.36 x 1.57 x 78.72 CD 60x40 3240190
60 x 60 x 2000 2.36 x 2.36 x 78.72 CD 60x60 3240193
60 x 80 x 2000 2.36 x 3.15 x 78.72 CD 60x80 3240199
60 x 100 x 2000
2.36 x 3.94 x 78.72 CD 60x100 3240263
80 x 25 x 2000 3.15 x 0.98 x 78.72 CD 80x25 3240281
80 x 40 x 2000
3.15 x 1.57 x 78.72 CD 80x40 3240335
80 x 60 x 2000 3.15 x 2.36 x 78.72 CD 80x60 3240194
80 x 80 x 2000 3.15 x 3.15 x 78.72 CD 80x80 3240200
80 x 100 x 2000
3.15 x 3.94 x 78.72 CD 80x100 3240264
100 x 40 x 2000
3.94 x 1.57 x 78.72 CD 100x40 3240279
Approvals: A C
Material: PVC
Inflammability
as per UL 94: V0
Slot distance: 6.5 mm
Slot width: 6 mm
Temperature-
resistant: - 5 up to + 60 °C
100 x 60 x 2000
3.94 x 2.36 x 78.72 CD 100x60 3240195
100 x 80 x 2000
3.94 x 3.15 x 78.72 CD 100x80 3240201
100 x 100 x 2000
3.94 x 3.94 x 78.72 CD 100x100 3240205
120 x 60 x 2000
4.72 x 2.36 x 78.72 CD 120x60 3240196
120 x 80 x 2000
4.72 x 3.15 x 78.72 CD 120x80 3240202
Profiles for gray cable ducts Dimensions W x H x L
[mm] [inch] Type Order No.
25 x 2000 0.98 x 78.72 CD COVER 25 3240285
40 x 2000 1.18 x 78.72 CD COVER 30 3240295
40 x 2000 1.18 x 78.72 CD COVER 40 3240286
60 x 2000 1.57 x 78.72 CD COVER 60 3240287
Material: PVC
Inflammability
as per UL 94: V0
Temperature-
resistant: - 5 up to + 60 °C
80 x 2000 2.36 x 78.72 CD COVER 80 3240288
100 x 2000 3.94 x 78.72 CD COVER 100 3240289
120 x 2000 4.72 x 78.72 CD COVER 120 3240290
Accessories Description Type Order No.
Profile cutter, for cutting cable ducts
and their covers, as well as other plastic profiles,
with metric measuring bar
PPS CD M 1207569
Spare knife, for PPS CD M PPS CD BLADE 1207572
Weight: 19 kg
Length
- Measuring bar: 1000 mm
- Hand lever: 500 mm
Wall thickness: up to 3 mm
Cutting width: 125 mm
Spare counter support (grip protection), for PPS CD M PPS CD M COHO 1208995
Cable duct scissors, for cutting of cable ducts and their covers and
profiles made of plastic, 45° limit stop also for miter cuts, cutting width
75 mm
CUTFOX-CD 1212474
Gray cable ducts
1
3
2
1
4
Cable duct, consisting of upper
and lower part
Dimensions W x H x L
[mm] [inch] Type Order No.
25 x 25 x 2000 0.98 x 0.98 x 78.72 CD 25x25 BU 3240301
25 x 40 x 2000 0.98 x 1.57 x 78.72 CD 25x40 BU 3240302
25 x 60 x 2000 0.98 x 2.36 x 78.72 CD 25x60 BU 3240303
25 x 80 x 2000 0.98 x 3.15 x 78.72 CD 25x80 BU 3240304
30 x 40 x 2000 1.18 x 1.57 x 78.72 CD 30x40 BU 3240305
30 x 60 x 2000 1.18 x 2.36 x 78.72 CD 30x60 BU 3240306
30 x 80 x 2000 1.18 x 3.15 x 78.72 CD 30x80 BU 3240307
30 x 100 x 2000
1.18 x 3.94 x 78.72 CD 30x100 BU 3240308
40 x 40 x 2000 1.57 x 1.57 x 78.72 CD 40x40 BU 3240309
40 x 60 x 2000 1.57 x 2.36 x 78.72 CD 40x60 BU 3240310
40 x 80 x 2000 1.57 x 3.15 x 78.72 CD 40x80 BU 3240311
40 x 100 x 2000
1.57 x 3.94 x 78.72 CD 40x100 BU 3240312
60 x 40 x 2000 2.36 x 1.57 x 78.72 CD 60x40 BU 3240313
60 x 60 x 2000 2.36 x 2.36 x 78.72 CD 60x60 BU 3240314
60 x 80 x 2000 2.36 x 3.15 x 78.72 CD 60x80 BU 3240315
60 x 100 x 2000
2.36 x 3.94 x 78.72 CD 60x100 BU 3240316
80 x 25 x 2000 3.15 x 0.98 x 78.72 CD 80x25 BU 3240317
80 x 40 x 2000
3.15 x 1.57 x 78.72 CD 80x40 BU 3240318
80 x 60 x 2000 3.15 x 2.36 x 78.72 CD 80x60 BU 3240319
80 x 80 x 2000 3.15 x 3.15 x 78.72 CD 80x80 BU 3240320
80 x 100 x 2000
3.15 x 3.94 x 78.72 CD 80x100 BU 3240321
100 x 40 x 2000
3.94 x 1.57 x 78.72 CD 100x40 BU 3240322
Material: PVC
Inflammability
as per UL 94: V0
Slot distance: 6.5 mm
Slot width: 6 mm
Temperature-
resistant: - 5 up to + 60 °C
100 x 60 x 2000
3.94 x 2.36 x 78.72 CD 100x60 BU 3240323
100 x 80 x 2000
3.94 x 3.15 x 78.72 CD 100x80 BU 3240324
100 x 100 x 2000
3.94 x 3.94 x 78.72 CD 100x100 BU 3240325
120 x 60 x 2000
4.72 x 2.36 x 78.72 CD 120x60 BU 3240326
120 x 80 x 2000
4.72 x 3.15 x 78.72 CD 120x80 BU 3240327
Profiles for blue cable ducts Dimensions W x H x L
[mm] [inch] Type Order No.
25 x 2000 0.98 x 78.72 CD COVER 25 BU 3240330
40 x 2000 1.18 x 78.72 CD COVER 30 BU 3240331
40 x 2000 1.18 x 78.72 CD COVER 40 BU 3240332
60 x 2000 1.57 x 78.72 CD COVER 60 BU 3240333
Material: PVC
Inflammability
as per UL 94: V0
Temperature-
resistant: - 5 up to + 60 °C
80 x 2000 2.36 x 78.72 CD COVER 80 BU 3240334
100 x 2000 3.94 x 78.72
CD COVER 100 BU
3240328
120 x 2000 4.72 x 78.72
CD COVER 120 BU
3240329
Accessories Description Type Order No.
1Rivet setting tool, for processing plastic shield rivets
with 4 mm diameter
UNIFOX-RVT PA 4 1212478
1Rivet setting tool, for processing plastic shield rivets
with 6 mm diameter
UNIFOX-RVT PA 6 1212509
2Plastic shield rivet, 4 mm diameter, for 1.5 - 6 mm material
thickness, material PA
RVT-PA 4 3240498
2Plastic shield rivet, 6 mm diameter, for 2 - 8 mm material
thickness, material PA
RVT-PA 6 3240499
Blue cable ducts
3
2
4
2
1
EN_DE_Brosch_Montagematerial_01.fm Seite 2 Freitag, 26. Februar 2010 11:10 11
Textfarbe Schmuck 45,0° 120,0 LPI

Navigation menu
