CEP7 Overloads
CEP7 Solid State
Overload Relays
Advanced solid state
motor protection
e introduction of the second genera-
tion of CEP7 solid state overload relays
advances Sprecher + Schuh’s leading edge
technology with several improved fea-
tures. is second generation of CEP7
overload relay includes features like:
• Selectable trip class and eld
installable modules
• A wider (5:1) set current
adjustment range
• A more robust mechanical and
electrical mounting
• Self-sealed latching mechanism
e basic concept of utilizing Ap-
plication Specic Integrated Circuits
(ASICs) resulting in an aordable
solid state overload relays remains
unchanged. is kind of versatility and
accuracy was simply not possible with
traditional bimetallic or eutectic alloy
electromechanical overload relays.
Fewer units means greater
application flexibility
e CEP7 Soild State Overload is
available in three basic models:
• CEP7-ED1 is a Class 10, manual re-
set model available up to 45 amperes
which covers the most common
horsepower motors and your every
day application. is model is eco-
nomically priced to be competitive
with adjustable bimetallic overload
relays.
• CEP7-EE is full featured select-
able trip class (10, 15, 20 & 30)
3-phase application overload relay
with provision for eld mountable
modules to handle remote reset,
jam protection, and other modules
previously available only in higher
®
priced electronic overload relays.
Manual reset or automatic reset can
be selected with dip switches on the
CEP7-EE models.
• CEP7S-EE is a 1-phase application
overload relay packing all features of
the 3-phase CEP7-EE model.
Wide current
adjustment range
ermal or bimetallic overload relays
typically have a small current adjust-
ment range of 1.5:1 meaning that
the maximum setting is generally 1.5
times the lower setting. e rst gen-
eration of CEP7 caused the industry
to take note of the exibility when it
introduced a 3.2:1 adjustment ratio. A
wider adjustment range is the primary
reason the industry has been turn-
ing to more specications calling for
electronic overload relay protection
over thermal overload relays. Sprecher
+ Schuh building on eld experience
now introduces a CEP7 overload
capable of adjustment to a maximum
of ve times the minimum set current
which dramatically reduces the num-
ber of units required on-hand to cover
the full range of current settings up to
90 amperes.
45A 90A 800A30A
5 : 1 Current Range
45A
B3
visit www.sprecherschuh.com/ecatalog for the most up to date informationSSNA2014
B
CEP7 Overloads
Selectable tripping class
Because of today’s lighter T-frame mo-
tors, Class 10 overload relays (relays
that trip within 10 seconds of a locked
rotor condition) have become the
industry standard. If your application
requires a longer motor run-up time.
e CEP7-EE Selectable Trip Class
has DIP-switches providing Trip Class
selection of 10, 15, 20 or 30 seconds.
is ability allows you to closely match
the Trip Class with the run-up time of
the motor.
Choice of reset options
Most industrial applications usually
calls for an overload relay that must be
manually reset in the event of a trip.
is allows the cause of the overload
to be identied before
the motor is restarted. In
specialized cases, how-
ever, such as rooftop AC
units or where restarting
the motor will not harm
people or equipment,
automatic reset may
be desired. CEP7-ED1
overload relays are avail-
able with Manual Reset
exclusively which keeps
the cost down. CEP7-EE
models have a selectable dip switch in
Manual and Automatic Reset modes.
More robust design
e CEP7 has been re-designed to
physically extend to the back-pan
therefore aligning the mounting of
the overload with the corresponding
contactor. Further, the mechanical at-
tachment and direct electrical connec-
tion to the contactor has been “beefed-
up.” is provides for a more robust
mounting which means less damage
from shipping or during eld wire
installation. e bipolar latching relay
which controls the normally closed
trip contacts and normally open alarm
circuit contacts have been self-enclosed
therefore insolating the electromagnet
and shielding against airborne metal
particles and other potential environ-
mental debris. e CEP7 has been
tested to operate in -20° C. or up to
60° C (140 °F.) and withstand 3G of
vibration or 30G of shock on a moun-
tain up to an altitude of 2000m or in
a jungle at 95% humidity. Reliability
under every conceivable environmental
condition is a quality built into the de-
sign of this second generation of CEP7
electronic overload relay.
Self-powered design
means convenience
By developing the power it requires
from the applied voltage, the CEP7 is
“self-powered,” eliminating the need
for a separate control power source.
is is not the case with some other
competitive electronic overload relays.
Since the CEP7 is self-powered and a
traditional auxiliary contact is used to
interface with the contactor, the user
can apply the CEP7 the same way as
an electromechanical overload. No
special connections or control sche-
matic diagram provisions are required
in 3-phase applications.
Superior phase
failure protection
e CEP7’s on-board electronics are
constantly monitoring all three phases.
If the ASIC board senses that one
phase is missing during a steady state
running condition on a fully loaded
motor, it will trigger in 3 seconds. If a
single phase condition is present dur-
ing starting, the CEP7 will trip within
8 seconds (for a motor >80% loaded).
ese times are much faster than any
thermal bimetallic overload relay. In
addition, CEP7 overload relays detect
a 50% phase imbalance in the same
way as a phase loss.
CEP7 overload relays are available with
Class 10, 15, 20 or 30 tripping characteristics

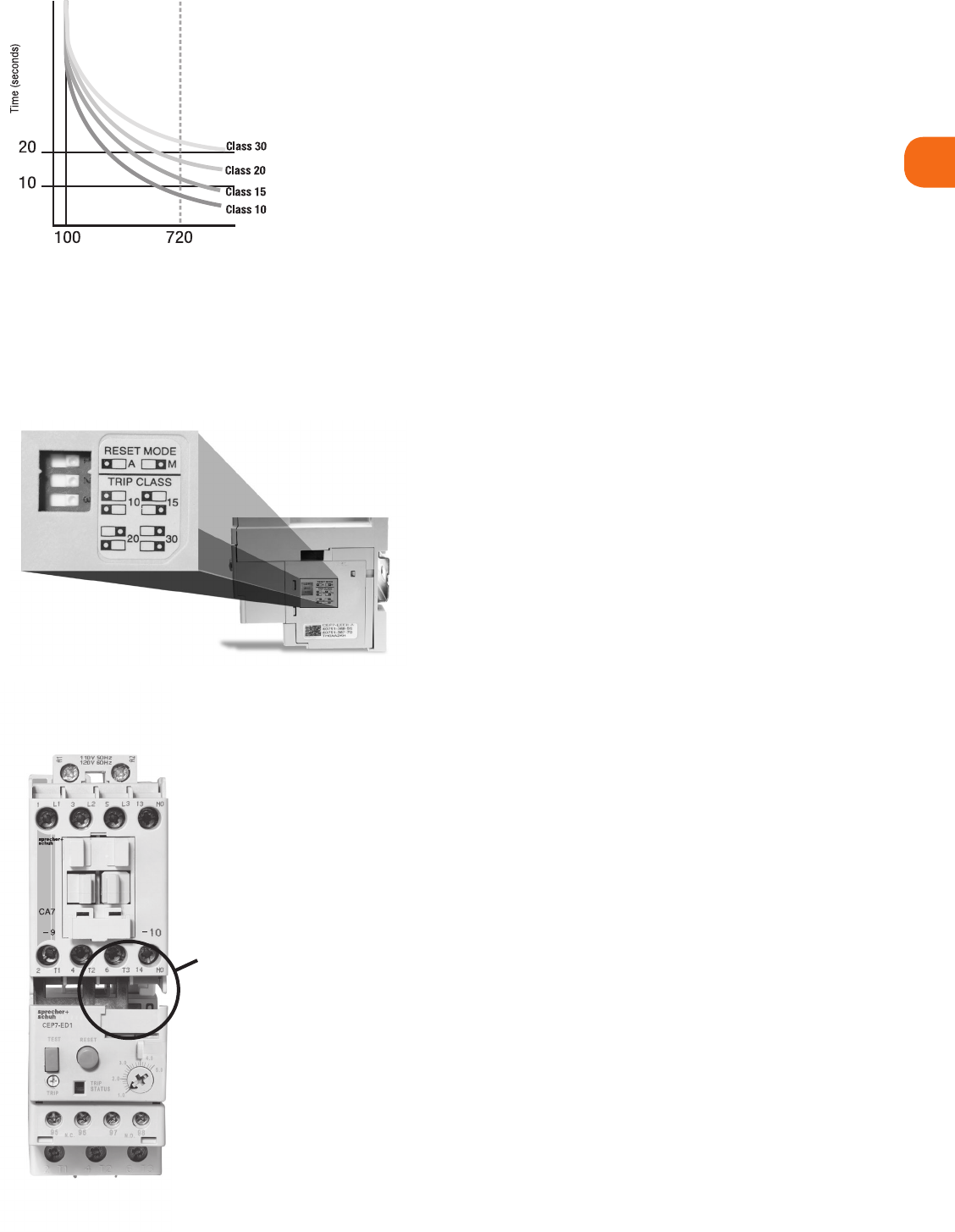

Selectable DIP switch for:
• Manual versus automatic mode
• Trip class (10, 15, 20 or 30)
Mechanical
attachment
B4
visit www.sprecherschuh.com/ecatalog for the most up to date information SSNA2014
B
CEP7 Overloads
Additional Protection with
Side Mount Modules
e CEP7 oers a variety of eld
installable accessories for side mount
on the left side. Side mount modules
provide additional motor protection
functionality traditionally found only
on more expensive models. Modules
include the following additional
features.
• Remote Reset provision for reset
after trip from a remote pilot device
• Jam Protection/Remote Reset
provides adjustable Jam set points
and trip delay plus remote reset
• Ground Fault Protection/Remote
Reset combined with ground
fault current transformers provide
adjustable set points for ground
fault trip protection of equipment
plus remote reset
• Ground Fault/Jam Protection/
Remote Reset combines all three
features as described above
• PTC ermistor Relay/Remote
Reset manages thermistor sensor
signals from the motor
• Network Communication
Modules provide motor diagnostic
information via Probus or
Ethernet communication
- Two discreet Inputs and one
discreet Output
- Dierentiate between various
motor protection algorithms
- Overload and underload warning
- Jam protection
- Proactively alert maintenance
personnel just before or when a
fault occurs
- Plus remote reset

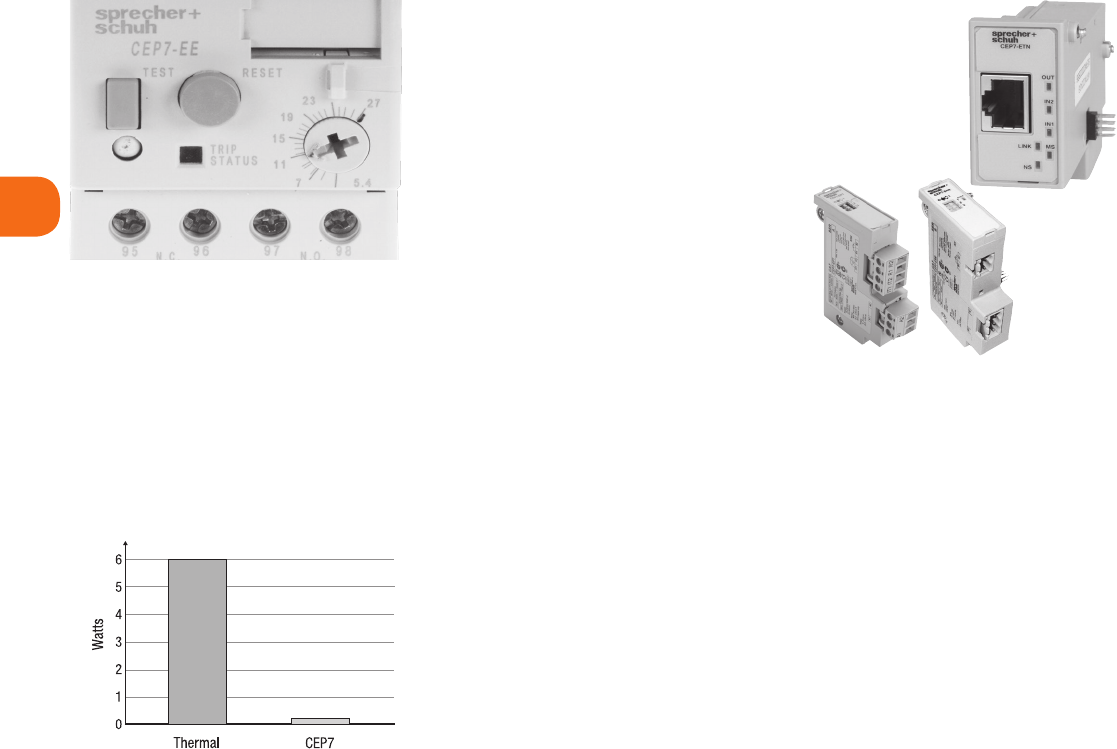

Conventional overload relays dissipate as much
as six watts of energy compared with as little as
150 milliwatts for the CEP7
Increased accuracy and
improved motor protection
Microelectronics provides exible and
accurate motor overload protection.
Unlike traditional overload relays
that simulate heat build-up in the
motor by passing current through
a heater element, CEP7 solid state
overload relays measure motor current
directly through integrated current
transformers. e transformers, in
turn, create a magnetic eld that
induces DC voltage onto the ASIC
board. e electronics identify
excessive current or loss of phase more
accurately, and react to the condition
with greater speed and reliability, than
traditional overload relays. In addition,
CEP7 solid state relays oer setting
accuracies from 2.5 – 5% and repeat
accuracy of 1%.
Dramatically lowered
energy requirement saves
money, reduces panel space
Because traditional overload relays
work on the principle of “modeling”
the heat generated in the motor
(recreating the heat in the bimetal
elements or heaters), a signicant
amount of energy is wasted. In
traditional bimetallic overload relays,
as many as six watts of heat are
dissipated to perform the protective
function. Because the CEP7 uses
sampling techniques to actually
measure the current owing in the
circuit, very little heat is dissipated in
the device…as little as 150 milliwatts.
is not only reduces the total amount
of electrical energy consumed in an
application, but it can also have a
dramatic impact on the design and
layout of control panels. e density
of motor starters can be much greater
because less heat is generated by each
of the individual components. Higher
density results in smaller control
panels. In addition, special ventilation
or air conditioning that might have
been required to protect sensitive
electronic equipment such as PLC’s
can now be reduced or eliminated.
CEP7 overload relays dramatically
reduced energy requirement saves
money and reduces panel space.
B5
visit www.sprecherschuh.com/ecatalog for the most up to date informationSSNA2014
B
CEP7 Overloads
Discount Schedule B1
Overload Relay
Directly Mounts
to Contactor… ➋
Adjustment
Range (A)
Adjustable Trip Class
10, 15, 20 & 30
Catalog Number Price
Automatic or Manual Reset for 3Ø Applications ➊
CA7-9…CA7-23
CAN7-12, CAN7-16
0.1…0.5 CEP7-EEAB 88
0.2…1.0 CEP7-EEBB 88
1.0…5.0 CEP7-EECB 88
3.2… 16 CEP7-EEDB 88
5.4…27 CEP7-EEEB 88
CA7-30…CA7-55
CAN7-37, CAN7-43
1.0…5.0 CEP7-EECD 138
3.2…16 CEP7-EEDD 138
5.4…27 CEP7-EEED 138
9…45 CEP7-EEFD 138
CA7-60…CA7-97
CAN7-85
5.4…27 CEP7-EEEE 158
9…45 CEP7-EEFE 158
18…90 CEP7-EEGE 164
60…120 CEP7-EEVE 164
Automatic or Manual Reset for 1Ø Applications ➊
CA7-9…CA7-23
CAN7-12, CAN7-16
1.0…5.0 CEP7S-EEPB 88
3.2…16 CEP7S-EERB 88
5.2…27 CEP7S-EESB 88
CA7-30…CA7-43
CAN7-37, CAN7-43 9…45 CEP7S-EETD 138
CA7-60…CA7-85
CAN7-85 18…90 CEP7S-EEUE 164
Solid State Overload Relays
CEP7
Directly Mounted CEP7 Solid State Overload Relays, Manual Reset ➊➋➍
Overload Relay
Directly Mounts
to Contactor… ➋
Adjustment
Range (A)
Trip Class 10
Catalog Number Price
Manual Reset for 3Ø Applications ➊
CA7-9…CA7-23
CAN7-12, CAN7-16
0.1…0.5 CEP7-ED1AB 77
0.2…1.0 CEP7-ED1BB 77
1.0…5.0 CEP7-ED1CB 77
3.2…16 CEP7-ED1DB 77
5.4…27 CEP7-ED1EB 77
CA7-30…CA7-55
CAN7-37, CAN7-43
1.0…5.0 CEP7-ED1CD 123
3.2…16 CEP7-ED1DD 123
5.4…27 CEP7-ED1ED 123
9…45 CEP7-ED1FD 123
Directly Mounted CEP7 Solid State Overload Relays, Automatic/Manual Reset ➊➋➌➍
➊ 3-phase CEP7 units are only designed for 3Ø applications. Single phase CEP7S
units are only designed for single phase applications.
➋ This reference is not intended to be a guide for selecting contactors. Size overload
relays using the full load current of the motor.
➌ The reset time of a CEP7 set in the automatic mode is approximately 120 seconds.
➍ CEP7 overload relays do not work with Variable Frequency Drives, DC Applications or
Softstarters with braking options.
Most industrial applications usually call for an
overload relay that must be manually reset in the
event of a trip. is allows the cause of the over-
load to be identied before the motor is restarted.
An overload relay that resets automatically is gen-
erally for specialized, or remote applications, such
as rooftop AC units where restarting the motor
will not harm people or equipment.
TIP!
B6
visit www.sprecherschuh.com/ecatalog for the most up to date information SSNA2014
B
CEP7 Overloads
Discount Schedule B1
Overload Relay
Separate Mount
for use with… ➋
Adjustment
Range (A)
Trip Class 10
Catalog Number Price
Manual Reset for 3Ø Applications ➊➍
Fig. 1
CA8-09…12
CA7-9…CA7-23
CAN7-12…CAN7-37
1.0…5.0 CEP7-ED1CP
77
3.2… 16 CEP7-ED1DP
5.4…27 CEP7-ED1EP
Overload Relay
Separate Mount
for use with… ➋
Adjustment
Range (A)
Adjustable Trip Class
10, 15, 20 & 30
Catalog Number Price
Automatic or Manual Reset for 3Ø Applications ➊➌➍
Fig. 1
CA8-09…12
CA7-9…CA7-23
CAN7-12…CAN7-37
1.0…5.0 CEP7-EECP
88
3.2… 16 CEP7-EEDP
5.4…27 CEP7-EEEP
Automatic or Manual Reset for 1Ø Applications ➊➌➍
Fig. 1
CA8-09…12
CA7-9…CA7-23
CAN7-12…CAN7-37
1.0…5.0 CEP7S-EEPP
88
3.2…16 CEP7S-EERP
5.2…27 CEP7S-EESP
Solid State Overload Relays
CEP7
Pass-Thru CEP7 Solid State Overload Relays ➎
➊ 3-phase CEP7 units are only designed for 3Ø applications. Single phase CEP7S units are only
designed for single phase applications.
➋ This reference is not intended to be a guide for selecting contactors. Size overload relays using
the full load current of the motor.
➌ The reset time of a CEP7 set in the automatic mode is approximately 180 seconds.
➍ CEP7 overload relays do not work with Variable Frequency Drives, DC Applications or Softstarters
with braking options.
➎ Pass-Thru windows will accept one power wire up to #10 AWG wire (6mm2).
Description
Fig. 1 - e Pass-ru version of the CEP7
permits separate mounting of the overload
relay.
Fig. 2 - Motor load side cables simply pass-
thru a window in the overload relay body.
e internal current transformers monitor
the current ow.
Benefits
• No need for a panel mount adapter as
required with direct-connect versions
• Eliminates 3 to 6 wire terminations
• Designed for use with CA8 or CA7
Contactors
• Easily replaces outdated overload relays
in existing starter assemblies
• Provides state-of-the-art accuracy and
motor protection
Pass-thru window
Fig. 2
Fig. 1
B7
visit www.sprecherschuh.com/ecatalog for the most up to date informationSSNA2014
B
CEP7 Overloads
Discount Schedule B1
Solid State Overload Relays & Accessories
CEP7
Overload Relay
Directly Mounts to
Contactor… ➋CT Ratio
Adjustment
Range (A)
Selectable Trip Class
(10,15,20 & 30)
Catalog Number Price
Automatic or Manual Reset for 3Ø Applications ➊➌
CEP7-EEHF
CA6-115…CA6-180
CA6-115-EI…CA6-180-EI
CAN6-180(EI)
150:5 30…150 CEP7-EEHF 508
200:5 40...200 CEP7-EEJF 508
CA6-210-EI…CA6-420-EI
CAN6-300-EI
200:5 40...200 CEP7-EEJG 888
300:5 60...300 CEP7-EEKG 888
500:5 100...500 CEP7-EELG 888
CA6-630-EI…CA6-860-EI
600:5 120...600 CEP7-EEMH 1397
800:5 160...800 CEP7-EENH 1397
Large Amp CEP7 Solid State Overload Relays, Automatic and Manual Reset ➊➋➌➍➏
➊ 3-phase CEP7 units are only designed for 3∅ applications.
➋ This reference is not intended to be a guide for selecting contactors. Size overload
relays using the full load current of the motor.
➌ The reset time of a CEP7 set in the automatic mode is approximately 180 seconds.
➍ CEP7 Overload relays do not work with Variable Frequency Drives or any
Sprecher + Schuh Softstarter with braking options.
➎ Terminal covers not necessary when using CA6-HB-_ insulated lugs.
➏ CEP7-EEHF…CEP7-EENH include current transformers used to monitor high
amperage.
Load Side Lugs & Accessories
Lug or Accessory Description For Use With... Catalog Number Price
CA6-HB
Main Terminal Set, ➎
Dual Conductor, Touch Safe
• Accommodation for dual connections to each pole
• Accepts flat or round conductors
• Touch safe to IP20 according to IEC 60529
• Eliminates need for Terminal Shields
(price as complete set, containing 2 blocks, 6 lugs)
CEP7-EEHF
CEP7-EEJF CA6-HB2
See page
A99
CEP7-EEJG
CEP7-EEKG
CEP7-EELG
CA6-HB3
CA6-L180 CA6-L420
Screw Type Lugs -
• Accepts round conductors only
• Copper construction
(set of 3 lugs)
CEP7-EEHF
CEP7-EEJF CA6-L180
CEP7-EEJG
CEP7-EEKG
CEP7-EELG
CA6-L420
CA6-L630
Screw Type Lugs -
• Accommodation for dual connections to each pole
• Copper construction accepts round conductors only
(set of 3 lugs)
CEP7-EEMH
CEP7-EENH CA6-L630
CA6-L860
Screw Type Lugs -
• Accommodation for dual connections to each pole
• Copper construction accepts round conductors only
(set of 3 lugs)
CEP7-EEMH
CEP7-EENH CA6-L860
Main Terminal Cover - ➎
• CA6 touch protection
• Line or load (price each)
• IP20; IEC60529 & DIN 40 050
protection
CA6-115(-EI) to 180(-EI)
CA6-210-EI to 420-EI
CA6-630-EI to 860-EI
CA6-TC180
CA6-TC420
CA6-TC860
See page
A101
B8
visit www.sprecherschuh.com/ecatalog for the most up to date information SSNA2014
B
CEP7 Overloads
Discount Schedule B1
Accessories – Field Installable
CEP7 Solid State Overload Relays
Accessories - CEP7 Side Mount Modules ➊➋
Accessory Description For use with… Catalog Number Price
CEP7-ERR
Remote Reset Module (Series B)
• Dip switch adjustable reset mode & type
- Automatic or Manual reset mode
- 1- or 3-Phase relay type operation
• Provision for reset after trip from remote pilot device
Side-mount
to any
CEP7-EE_
CEP7S-EE_
CEP7-ERR 100
CEP7-EJM
Jam Protection and Remote Reset Module ➌
• Dip switch adjustable Jam Protection
- Jam set points -150%, 200%, 300%, or 400% FLA
- Trip delay- 0.5, 1, 2, or 4 sec.
• Provision for reset after trip from remote pilot device
CEP7-EJM 110
CEP7-EPT
PTC Thermistor Relay and Remote Reset Module
• PTC Protection and LED Status indication
Type of Control Unit Mark A
Number of Sensors 6
Maximum Cold Resistance of Sensor Chain 1500 Ω
Trip Resistance 3400 Ω ± 150 Ω
Reset Resistance 1600 Ω ± 50 Ω
Short Circuit Trip Resistance 25 Ω ± 10 Ω
Open Circuit Trip Resistance > 20,000 Ω
Maximum Voltage at 1T1 / 1T2 (Rptc=4kΩ) < 7.5 Vdc
Maximum Voltage at 1T1 / 1T2 (Rptc=open) < 30 Vdc
PTC Response Time 500ms…800ms
• Provision for reset after trip from remote pilot device
Side-mount
to any
CEP7-EE_
CEP7S-EE_
CEP7-EPT 125
PROFIBUS
CEP7-EPRB
Network Communication Modules
• Delivers direct access to motor performance and diagnostic
data on a field bus based network in addition to seamless
control
• Includes integrated I/O
2 inputs
1 output
• Operational and diagnostic data
Average motor current
Percentage of thermal capacity usage
Device status
Trip and warning identification
Trip history (last five trips)
• Protective functions
Overload warning
- 1…100% TCU
Jam protection;
- Trip setting 150…600% FLA
- Trip delay 0.5…25 seconds
- Warning setting 100…600% FLA
Underload warning
- 20…100% FLA
Side-mount
to any
CEP7-EE_
CEP7S-EE_
CEP7-EPRB 415
ETHERNET/IP
CEP7-ETN
CEP7-ETN 422
➊ Side mount modules must have 24 - 240V, 47 - 63HZ or DC applied to
terminals A1 and A2 for control power. CEP7-EPRB and CEP7-ETN require
20.4 - 26.4 VDC only. See B18 for more information.
➋ See Technical Data, Wiring, and DIP Switch set up starting on.page B16
➌ Dynamic inhibit: Protective function is enabled after the motor current goes
above 150% and then falls below 125%.
B9
visit www.sprecherschuh.com/ecatalog for the most up to date informationSSNA2014
B
CEP7 Overloads
Discount Schedule B1
CEP7 Ground Fault Sensor Selection ➌
Ground fault current is sensed by passing all lines carrying current to and from a motor through
the window of a special current transformer called a ground fault sensor. If all the current to the
motor returns through the lines in the sensor window, no significant current will be induced in the
sensor secondary. If, however, ground fault current returns via a path external to the sensor, such
as via the conduit walls, a current will be induced in the sensor secondary. This current will be
sensed and amplified by solid state circuits. If the ground fault current is larger than the selected
ground fault trip level of the overload relay, the overload relay will trip.
Sensor
Type
Maximum
Current Frequency
Turns
Ratio
Sensor Window I.D.
Maximum Recommended
Cable Size
For use with
CEP7-EGF and
CEP7-EGJ and
contactor…
Catalog
Number Price
45A 50/60 Hz 1000:1 19.1mm (0.75 in.) 8 AWG @ 600V ➍CA7-9...CA7-37 CEP7-CBCT1 50
90A 50/60 Hz 1000:1 39.6mm (1.56 in.) 2 AWG @ 600V ➍CA7-9...CA7-85 CEP7-CBCT2 175
180A 50/60 Hz 1000:1 63.5 mm (2.50 in.) 250MCM (120mm2) @ 600V ➍CA7-9…CA6-180 CEP7-CBCT3 226
420A 50/60 Hz 1000:1 82.3 mm (3.25 in.) 350MCM (185mm2) @ 600V ➎CA7-9…CA6-420 CEP7-CBCT4 287
Accessory Description For use with… Catalog Number Price
CEP7-EGF
Ground Fault Protection and Remote Reset Module
➋
➏•
Dip switch adjustable Ground Fault Protection
> GF Current range set points
- 20…100ma
- 100…500mA
- 0.2…1.0A
- 1.0…5.0A
> GF Trip level 20%-100%
• LED status indication
• Provision for reset after trip from remote pilot device
Side-mount
to any
CEP7-EE_
CEP7S-EE_
Must use with
CEP7-CBCT_
Current Sensor
CEP7-EGF 110
CEP7-EGJ
Ground Fault/Jam Protection and Remote Reset Module
➋➏
• Dip switch adjustable Ground Fault Protection same as
CEP7-EGF shown above.
• Jam trip when the motor current exceeds 400% FLA
setting when enabled.
• LED status indication
• Provision for reset after trip from remote pilot device
CEP7-EGJ 145
Adjustment Cover for External Modules All modules with
DIP Switches
CEP7-EMC 13
Accessories – Field Installable
CEP7 Solid State Overload Relays
Accessories - CEP7 Side Mount Modules ➊➌
➊ Side mount modules must have 24 - 240V, 47 - 63HZ or DC applied to terminals A1
and A2 for control power. See B18 for more information.
➋ ATTENTION: The CEP7 Overload relay is not a ground fault circuit interrupter for
personnel protection as defined in Article 100 of the NEC.
➌ See Application Details on page B16-B18
➍ For a three phase system with one cable per phase.
➎ For a three phase system with two cables per phase.
➏ Dynamic inhibit: Protective function is enabled after the motor current goes above
150% and then falls below 125%.
Ground Fault Sensor Control Wiring
Motor
L2 L3L1
Ground
Fault
Sensor
CEP7
Overload Relay
with Side Mount Module
S1 S2
CEP7 Ground Fault Sensor Installation
B10
visit www.sprecherschuh.com/ecatalog for the most up to date information SSNA2014
B
CEP7 Overloads
Discount Schedule B1
Accessories – Field Installable
CEP7 Solid State Overload Relays
➊
At the time of this printing CEP7-ERA does not fit CEP7-EE(HF...HH) without removing the
CEP7 cover.
➋ Solenoid Reset Modules only mount on CEP7 Series C or later.
➌ See page B21 for additional details on installation and LED functions.
➍ Coil consumption of AC coils is 8VA.
➎ Coil consumption of DC coils is 12 watts.
Accessories
Accessory Description For use with… Catalog Number Price
Remote Indication Display “Intellibutton” ➌
Connects, communicates, and receives power from CEP7 Side
Mount Modules to remotely view status of CEP7-EE Overload
Relays CEP7-EJM
CEP7-EGF
CEP7-EGJ
CEP7-EPT
CEP7-ERR
CEP7-ERID 100
FAULT CODE
Starter:
1- GROUND FAULT
2- JAM
3- PTC
Replacement Parts Kit for CEP7-ERID
Includes (1) each Mounting Ring (Plastic), Terminal Block Plug,
and L.E.D. Fault Code Label
CEP7-ERID CEP7-NCRID 27
DIN-rail / Panel Adaptor
For separate mounting of overload relay to back pan or top
hat DIN-rail
CEP7-ED1…B
CEP7(S)-EE…B CEP7-EPB 29
CEP7-ED1..D
CEP7(S)-EE…D CEP7-EPD 29
CEP7(S)-EE…E CEP7-EPE 35
Current Adjustment Shield
Prevents inadvertent adjustment of the current setting
all
CEP7-ED1
CEP7-EE
CEP7-BC8 13
Solenoid Remote Reset ➋ -
For remote resetting of the solid state overload relay. Replace
✱ in Catalog Number with Coil Code.
CEP7 all CEP7-EMR✱81
External Reset Button
Used for manually resetting overloads mounted in enclosures
all
CEP7
Use D7 Reset -
See Section H. ~
External Reset Button Adaptor
Provides a larger "target area" for resetting the overload relay
when using an External Reset Button
CEP7-ED1(all),
CEP7-EE_B, CEP7-EE_D, CEP7-
EE_E, CEP7-EE_P
➊
CEP7-ERA 14
Solenoid Remote Reset Coil Codes
(Replace ✱ with coil code below)
A.C.
Coil Code
Voltage Range
50 / 60 Hz ➍
D.C.
Coil Code Voltage ➎
J 24V Z24 24VDC
D 120V Z48 48VDC
A240V Z01 115VDC
B11
visit www.sprecherschuh.com/ecatalog for the most up to date informationSSNA2014
B
CEP7 Overloads
Discount Schedule B1
Accessory Description Kit includes... Catalog Number Price
Remote Reset Only CEP7-ERID
CEP7-ERR CEP7-IB1 200
Jam and Remote Reset CEP7-ERID
CEP7-EJM (B) CEP7-IB2 210
Thermistor Relay and Remote Reset CEP7-ERID
CEP7-EPT CEP7-IB3 225
Ground Fault and Remote Reset
CEP7-ERID
CEP7-EGF
CEP7-CBCT1 (45A)
CEP7-IB4 260
CEP7-ERID
CEP7-EGF
CEP7-CBCT2 (90A)
CEP7-IB5 385
CEP7-ERID
CEP7-EGF
CEP7-CBCT3 (180A)
CEP7-IB6 436
CEP7-ERID
CEP7-EGF
CEP7-CBCT4 (420A)
CEP7-IB7 497
Ground Fault and
Jam and Remote
Reset Module
CEP7-ERID
CEP7-EGJ
CEP7-CBCT1 (45A)
CEP7-IB8 295
CEP7-ERID
CEP7-EGJ
CEP7-CBCT2 (90A)
CEP7-IB9 420
CEP7-ERID
CEP7-EGJ
CEP7-CBCT3 (180A)
CEP7-IB10 471
CEP7-ERID
CEP7-EGJ
CEP7-CBCT4 (420A)
CEP7-IB11 532
Accessories – Field Installable
CEP7 Solid State Overload Relays
CEP7 Intelli-button Reset Kit with Side Mount Module (For use on CEP7(S)-EE_)
B12
visit www.sprecherschuh.com/ecatalog for the most up to date information SSNA2014
B
CEP7 Overloads
Discount Schedule B1
CEP7-ED1…B
CEP7(S)-EE…B
CEP7-ED1…D
CEP7(S)-EE…D CEP7(S)-EE…E
Rated Insulation Voltage - UI [V] 690 AC
Rated Insulation Strength- Uimp [kV] 6 AC
Rated Operation Voltage - Ue [V] 690 AC (IEC) / 600 AC (UL/CSA)
Rated Operating Frequency [Hz] 50/60
Terminal Cross Sections
Terminal Type
Terminal Screw M5 M5 M8
Flexible with
wire end ferrule
One conductor [mm2] 1 x (2.5...16) 1 x (2.5...16) 1 x (4...50)
Torque [Nm] 2.5 2.5 24
Two conductors [mm2] 2 x (2.5...10) ➊2 x (2.5...10) ➊2 x (4...25)
Torque [Nm] 3.4 3.4 4
Course stranded
/ solid
One conductor [mm2] 1 x (2.5...25) 1 x (2.5...25) 1 x (4...50)
Torque [Nm] 2.5 2.5 4
Two conductors [mm2] 2 x (6...16) ➊2 x (6...16) ➊2 x (4...35)
Torque [Nm] 3.4 3.4 4
Stranded / Solid
One conductor [AWG] 1 x (14...6) 1 x (14...6) 1 x (12...1/0)
Torque [lb-in] 22 22 35
Two conductors [AWG] 2 x (14...6) ➊2 x (14...6) ➊2 x (8...2)
Torque [lb-in] 30 30 35
Pozidrive Screwdriver Size 2 2 ----
Slotted screwdriver [mm] 1 x 6 1 x 6 ---
Hexagon Socket Size [mm] --- --- 4
CEP7-EE_F CEP7-EE_G CEP7-EE_H
Rated Insulation Voltage - UI [V] 1000 AC
Rated Insulation Strength- Uimp [kV] 6 AC
Rated Operation Voltage - Ue [V] 1000 AC (IEC) / 600 AC (UL/CSA)
Rated Operating Frequency [Hz] 50/60
Terminal Power
Type Hexagonal Bolt Hexagonal Bolt Hexagonal Bolt
Direct Connection M8 x 25 M10 x 30 M12 x 40
Recommended Torque [Nm] 11 43 68
[lb-in] 100 380 600
With Main Terminal Set (CA6...HB...) With CA6-HB2 With CA6-HB3
CA6-HB
sm. opening [mm2] 16...50 25...240 ~
lg. opening [mm2] 16...120 25...240 ~
sm. opening [mm2] 16...50 25...240 ~
lg. opening [mm2] 16...120 25...240 ~
b max. [mm] 20 25 ~
s. sm. opening [mm] 3...9 6...20 ~
lg. opening [mm] 3...14 6...20 ~
Recommended Torque [Nm] 10...12 20...25 ~
Wire size per UL/CSA sm. opening [AWG] #6...1 / 0 #4....600MCM ~
lg. opening [AWG] #6...250MCM #4....600MCM ~
Recommended Torque [lb-in] 90...110 180...220 ~
With Screw-type Lugs - Copper Clad (CA6-L...) W/CEP7-EEMH W/CEP7-EEHH
CA6-L180 [AWG] #6...250 MCM ~ ~
~
~
~
Recommended Torque [lb-in] 90...110 ~
CA6-L420 [AWG] ~ #2...350 MCM ~
~
~
~
Recommended Torque [lb-in] ~ 375
CA6-L630 [AWG] ~ ~ 2/0...500 MCM
400
~
~
Recommended Torque [lb-in] ~ ~
CA6-L860 [AWG] ~ ~ ~
~
2/0...500 MCM
400
Recommended Torque [lb-in] ~ ~
Technical Information
➊ For multiple conductor applications the same style and size of wire must be used.
Technical Information
CEP7 Solid State Overload Relays
B13
visit www.sprecherschuh.com/ecatalog for the most up to date informationSSNA2014
B
CEP7 Overloads
Discount Schedule B1
Control Circuit
Rated Insulation Voltage - UI [V] 690 AC
Rated Insulation Strength- Uimp [kV] 6 AC
Rated Operation Voltage - Ue [V] 690 AC (IEC) / 690 AC (UL/CSA)
Rated Designation B600
Rated Operating Current IeNO NC
AC-15
12...120V [A] 3 2
220...240V [A] 1.5 1.5
380...480V [A] 0.75 0.75
500...600V [A] 0.6 0.6
DC-13
at L/R 15ms
24V [A] 1.1 1.1
110V [A] 0.4 0.4
220V [A] 0.2 0.2
440V [A] 0.08 0.08
Thermal Current - Ithe [A] 5
Contact Reliability [kV] 17V, 5mA
Screw Terminal Cross Sections
Terminal Screw M3
Flexible with wire
end ferrule
One conductor [mm2] 1 x (0.5...2.5)
Torque [Nm] 0.55
Two Conductors [mm2] 2 x (0.25...1.5)
Torque [Nm] 0.55
Course stranded
/ solid
One conductor [mm2] 1 x (0.5...4)
Torque [Nm] 0.55
Two conductors [mm2] 2 x (0.22...2.5)
Torque [Nm] 0.55
Stranded / Solid
One conductor [AWG] 1 x (24...10)
Torque [lb-in] 5
Two conductors [AWG] 2 x (24...12)
Torque [lb-in] 5
Pozidrive Screwdriver Size #1
Slotted Screwdriver Size [mm] 0.6 x 3.5
Technical Information
CEP7 Solid State Overload Relays
Technical Information
Current Setting
CT Ratio
150:5
Equivalent FLA
CT Ratio
200:5
Equivalent FLA
CT Ratio
300:5
Equivalent FLA
CT Ratio
500:5
Equivalent FLA
CT Ratio
600:5
Equivalent FLA
CT Ratio
800:5
Equivalent FLA
CT Ratio
1000:5
Equivalent FLA
CT Ratio
1500:5
Equivalent FLA
1.00
1.25
1.50
1.75
2.00
2.25
2.50
2.75
3.00
3.25
3.50
3.75
4.00
30
38
45
53
60
68
75
83
90
98
105
113
120
40
50
60
70
80
90
100
110
120
130
140
150
160
60
75
90
105
120
135
150
165
180
195
210
225
240
100
125
150
175
200
225
250
275
300
325
350
375
400
120
150
180
210
240
270
300
330
360
390
420
450
480
160
200
240
280
320
360
400
440
480
520
560
600
640
200
250
300
350
400
450
500
550
600
650
700
750
800
300
375
450
525
600
675
750
825
900
975
1050
1125
1200
Table for using Current Transformers with CEP7-EECB (range 1.0…5.0 amps) overload relay
B14
visit www.sprecherschuh.com/ecatalog for the most up to date information SSNA2014
B
CEP7 Overloads
Discount Schedule B1
Technical Information
CEP7 Solid State Overload Relays
Technical Information
Environmental Ratings
Ambient Temperature Storage [˚C] -40...+85 (-40...+185 ˚F)
Operating [˚C] -20...+60 (-4...+140 ˚F)
Humidity Operating [%] 5…95, non-condensing
Damp Heat per IEC 68-2-3 and IEC 68-2-30
Vibration (per IEC 68-2-6) [G] 3
Shock (per IEC 68-2-27) [G] 30
Maximum Altitude [m] 2000
Pollution Environment Pollution Degree 3
Degree of Protection IP20
Type of Relay Ambient compensated, time delay, phase loss sensitive
Nature of Relay Solid-state
Trip Rating 120% FLA
Trip Class Type ED 10
Type EE 10, 15, 20, 30
Reset Mode Type ED Manual
Type EE Manual or Automatic
Electromagnetic Compatibility
Electrostatic Discharge Immunity Test Level [kV] 8kV air discharge
6kV contact discharge
Performance Level 1 ➊➋
RF Immunity Test Level [V/m] 10 V/m
Performance Level 1 ➊➋
Electrical Fast Transient Burst Immunity Test Level [kV] 4 kV
Performance Level 1 ➊➋
Surge Immunity Test Level [V/m] 2 kV (L-E)
1 kV (L-L)
Performance Level 1 ➊➋
General
Standards UL 508, CSA C22.2 No. 14, NEMA (ICS 2-1993 Part 4, EN 60947-4-1, EN 60947-5-1
Approvals CE, cULus, C-Tick, CCC
CEP7-ED1…B
CEP7(S)-EE…B
CEP7-ED1...D
CEP7(S)-EE…D CEP7(S)-EE…E
Weights (unpackaged) [Kg] 0.25 0.25 0.52
[Lb] 0.55 0.55 1.06
Wiring Diagrams ➍
Typical Wiring
for Single Phase Applications
CEP7 Single Phase Overload Relay
Must be connected as shown in Fig. 1 or 2 only.
Fig. 1
Recommended connections
for CEP7S (i.e. 240V motors)
Fig. 2
Optional connections
for CEP7S (i.e. ≤120V motors)
Fig. 3
➌ DO NOT USE
➊ Performance Criteria 1 requires the DUT to experience
no degradation or loss of performance.
➋ Environment 2.
➌ If the CEP7S is connected as shown in Fig. 3 the
overload will not trip! The CEP7S contains an electronic
circuit board that is self powered. If connected as
shown in Fig. 3, the CEP7S circuit board will not power
up and the CEP7S would not trip.
➍ Connecting a CEP7S in this manner powers the elec-
tronic circuit board. Connecting a 3-phase CEP7 in this
manner to handle 1-phase will NOT work.
B15
visit www.sprecherschuh.com/ecatalog for the most up to date informationSSNA2014
B
CEP7 Overloads
Discount Schedule B1
Technical Information
CEP7 Solid State Overload Relays
Technical Information
Trip Curve Legend
Cold Trip
Hot Trip

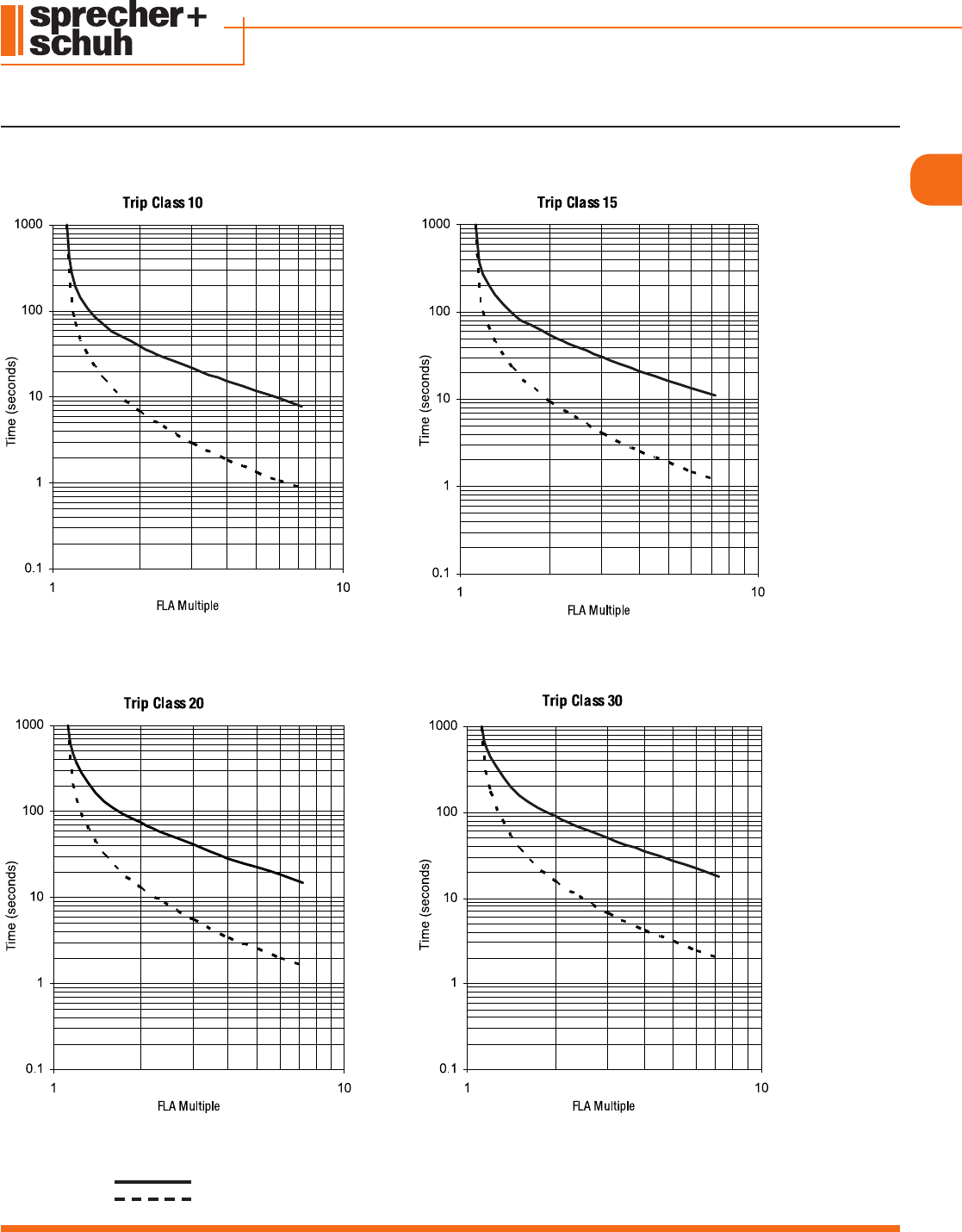

Trip Curves ➊
➊ Typical reset time for CEP7 Second Generation devices set to "automatic reset" mode is 120 seconds.
B16
visit www.sprecherschuh.com/ecatalog for the most up to date information SSNA2014
B
CEP7 Overloads
Discount Schedule B1
Technical Information
CEP7 Solid State Overload Relays
CEP7-ERR & CEP7-EJM Wiring Diagrams CEP7-ERR Operational LED CEP7-ERR Dip Switch
2R1R
2A1A
A1
A2
R2
R1
• Apply 24 - 240V, 47 - 63HZ or DC to terminals A1 and A2 for control power.
• Connect remote reset pilot device to Terminals R1 and R2.
Status LED:
Steady Green- Module is powered up.
Series B
Adjustment Settings
Overload Relay Remote Reset
SW1 Manual: 1 Automatic: 0
Overload Relay Type
SW2 3 Phase: 1 1 Phase: 0
SW3 Not Used
CEP7-EJM Operational LED CEP7-EJM Dip Switch
Status LED:
Green flash- module powered
Green solid- module powered plus motor current
present
Red flash- warning: Fault detected and CEP7 prepar-
ing to trip.
Red solid- hardware fault: Internal hardware fault
detected and CEP7 trip attempted. Recover
fault by cycling supply voltage.
Adjustment Settings
SW8 3 Phase: I
1 Phase: 0
SW1Manual: I
SW 3SW 2
SW 5 SW 6 SW 7
SW 4
Overload Relay Reset Mode
Jam Trip Delay
Jam Trip Level
Automatic: 0
Disable / OFF
100% FLA
125% FLA
150% FLA
200% FLA
300% FLA
400% FLA
600% FLA
0
1
0
1
0
1
0
1
0.1 sec
0.5 sec
1 sec
2 sec
3 sec
4 sec
5 sec
10 sec
0
0
0
0
1
1
1
1
0
0
1
1
0
0
1
1
0
1
0
1
0
1
0
1
0
0
0
0
1
1
1
1
0
0
1
1
0
0
1
1
➊
CEP7-EPT Wiring Diagrams CEP7-EPT Operational LED CEP7-EPT Dip Switch
2R1R
2TI1TI
2A1A
A1
A2
R1
R2
IT
2
IT
1
• Apply 24 - 240V, 47 - 63HZ or DC to terminals A1 and A2 for control power.
• Connect remote reset pilot device to Terminals R1 and R2
• Connect Terminal IT1 and IT2 to PTC Chain
Status LED:
Steady Green - Module is powered up
Flashing LED - The number of flashes followed by
a pause identifies the specific trip code as
follows:
(1) Flash - overload trip
(2) Flash - phase loss trip
(3) Flash - PTC trip
(4) Flash - PTC open circuit
(5) Flash - PTC short circuit
Fast Flash - Impending trip. PTC Thermistor fault
detected and CEP7 not yet capable of
tripping.
Steady Red - Hardware fault. Internal hardware fault
detected and CEP7 trip attempted.
SW1 Manual: I
SW2 Enable: I
Overload Relay and PTC Reset Mode
PTC Protection
Disable: 0
Automatic: 0
SW33 Phase: I
Overload Relay Type
1 Phase: 0
➋
➊ Dynamic inhibit: Protective function is enabled after the motor current goes above 150% and then falls below 125%.
➋The delay between the occurrence of a PTC out-of-range fault and a trip of the CEP7 varies, but is generally described by one of the following: a) 500 ms ± 250 ms, typi-
cal; or b) < 6 seconds, for a PTC out-of-range fault present at power-up of the side mount module. Under no conditions should a PTC trip take longer than 6 seconds.
B17
visit www.sprecherschuh.com/ecatalog for the most up to date informationSSNA2014
B
CEP7 Overloads
Discount Schedule B1
Technical Information
CEP7 Solid State Overload Relays
CEP7-EGF & CEP7-EGJ Wiring Diagrams ➊CEP7-EGF Operational LED CEP7-EGF Dip Switch
2A1A
A1
A2
R1
R2
S1
S2
2R1R2S1S
• Apply 24 - 240V, 47 - 63HZ or DC to terminals A1 and A2 for control power.
• Connect remote reset pilot device to Terminals R1 and R2
• Connect current sensor to Terminal S1 and S2
Status LED:
Steady Green - Module is powered up.
Flashing LED - The number of flashes followed by
a pause identifies the specific trip code as
follows:
(1) Flash - overload trip
(2) Flash - phase loss trip
(3) Flash - ground fault trip
Fast Flash - Impending trip Ground fault detected
and CEP7 not yet capable of tripping.
Steady Red - Hardware fault. Internal hardware fault
detected and CEP7 trip attempted.
Adjustment Settings
SW1 Manual: I
SW 2SW3
00
0I
I0
II
SW 4 SW 6SW 5
00
0
0
0I
0
0
I
I
I
I
0
0
I
II
I
I
I
I
0
0
0
20...100mA
100...500mA
0.2...1.0A
1.0...5.0A
Overload Relay Reset Mode
Ground Fault Current Range
Ground Fault Trip Level
Automatic: 0
SW73 Phase: I
Overload Relay Type
1Phase: 0
SW8Not Used
Disable/Off
20% Max GF Current
35% Max GF Current
50% Max GF Current
65% Max GF Current
80% Max GF Current
90% Max GF Current
100% Max GF Current
CEP7-EGF & CEP7-EGJ Installation ➊CEP7-EGJ Operational LED CEP7-EGJ Dip Switch
Ground Fault Sensor Control Wiring
Motor
L2 L3L1
Ground
Fault
Sensor
CEP7
Overload Relay
with Side Mount Module
S1 S2
Status LED:
Steady Green - Module is powered up.
Flashing LED - The number of flashes followed by
a pause identifies the specific trip code as
follows:
(1) Flash - overload trip
(2) Flash - phase loss trip
(3) Flash - ground fault trip
(4) Flash – jam trip
Fast Flash - Impending trip Ground fault detected
and CEP7 not yet capable of tripping.
Steady Red - Hardware fault. Internal hardware fault
detected and CEP7 trip attempted.
SW8Enable: I
Jam Protection
Disable: 0
Adjustment Settings
SW1 Manual: I
SW 2SW3
00
0I
I0
II
SW 4SW 6SW 5
00
0
0
0I
0
0
I
I
I
I
0
0
I
II
I
I
I
I
0
0
0
20...100mA
100...500mA
0.2...1.0A
1.0...5.0A
Overload Relay Reset Mode
Ground Fault Current Range
Ground Fault Trip Level
Automatic: 0
SW73 Phase: I
Overload Relay Type
1Phase: 0
Disable/Off
20% Max GF Current
35% Max GF Current
50% Max GF Current
65% Max GF Current
80% Max GF Current
90% Max GF Current
100% Max GF Current
➊ Dynamic inhibit: Protective function is enabled after the motor current
goes above 150% and then falls below 125%.
B18
visit www.sprecherschuh.com/ecatalog for the most up to date information SSNA2014
B
CEP7 Overloads
Discount Schedule B1
Technical Information
CEP7 Network Communicating Module
Electrical Data
Power Supply Ratings:
Rated Supply Voltage Us 24V DC
Rated Operating Range Ue 20.4 - 26.4
Rated Supply Current Ie 0.1 A
Maximum Surge Current at Power-Up 2.5 A
Maximum Power Consumption 2.5…2.7 W
Output Relay Ratings:
Terminals
OUT A: 13/14
Type of Contacts Form A SPST - NO
Rated Thermal Current Ithe 5 A
Rated Insulation Voltage Ui 300V AC
Rated Operating Voltage Ue 240V AC
Rated Operating Current Ie 3 A (at 120V AC), 1.5 A (at 240V AC)
0.25 A (at 110V DC), 0.1 A (at 220V DC)
Minimum Operating Current 10 mA at 5V DC
Rating Designation B300
Utilization Category AC-15
Resistive Load Rating
(p.f.=1.0)
5 A, 250V DC
5 A, 30V DC
Inductive Load Rating
(p.f.=0.4), (L/R=7 ms)
2 A, 250V AC
2 A, 30V DC
Short Circuit Current Rating 1,000 A
Recommended Control Circuit Fuse KTK-R-6
(6 A, 600V)
Input Ratings:
Terminals
IN1:
IN2:
SSV (Sensor Supply Voltage)
1
2
3
Supply Voltage (Provided my module) 20.4 - 26.4V DC
Type of Inputs Current Sinking
Jam Protection:
Trip Level 150…600% FLA
Trip Delay 0.1…25.0 sec.
Inhibit 0…250 sec.
Standards: UL 508
CSA 22.2, No. 14
EN 60947-
Mechanical Data
Ambient Temperature Tamb
Storage
Operating
(Open)
(Enclosed)
-40…+85°C (-40…+185°F)
-20…+60°C (-4…+140°F)
-20…+40°C (-4…+104°F)
Humidity
Operating
Damp Heat - Steady State
Damp Heat - Cyclic
5…95% non-condensing
per IEC 68-2-3
per IEC 68-2-30
Maximum Altitude 2000 m
Degree of Protection IP20
PROFIBUS Communication
Baud Rate 9.6 k, 19.2 k, 45.45 k, 93.75 k,
187.5 k, 500 k, 1.5 M, 3 M,
6 M,12 M
Auto-Baud Rate identification Yes
DP-V0 (Cyclic data exchange) Yes
DP-V1 (Acyclic services) Yes
DP-V2 (Acyclic services) No
Set Slave Address (SSA)
support
Yes
CEP7-EPRB Wiring Diagram
OUTA
(B300)
13 14 123
SSV
IN2
IN1
A1 (+)
A2 (
-
)(20.4 - 26.4 VDC)
96
15 1.
2.
3.
4.
5.
6.
7.
8.
9.
Housing
NC
NC
B-Line
RTS
GND BUS
+5V BUS OUT
NC
A-Line
NC
SHIELD
ETHERNET Communication
TCP Connection
CIP Connection
150
40
CIP Unconnected Messages 128
I/O Packet Rates
Explicit Packet Rates
500/s
500/s
Speed Duplex (Half/Full) 10/100
Duplicate IP Detection Yes
CEP7-ETN Wiring Diagram
OUTA
(B300)
13 14 12 3
SSV
IN2
IN1
A1 (+)
A2 (
-
)(20.4 - 26.4 VDC)
A1 A2
B19
visit www.sprecherschuh.com/ecatalog for the most up to date informationSSNA2014
B
CEP7 Overloads
Discount Schedule B1
Technical Information/Dimensions
CEP7 Solid State Overload Relays
CEP7-CBCT Installation
6X
6X
ØX
6X
Ø X
Single Cable
per Phase
A
BC
CEP7-CBCT Dimensions
CEP7-CBCT1
11.8
(.47)
3.2
(.13)
45.3
(1.78)
23.1
(.91)
Ø 19.1
(Ø .75)
Ø 44.5
(Ø 1.75)
Ø
D
63.5
(2.50)
50.8
(2.00)
3.2
(.12) 4
(.16)
5.3
(.21)
12.7
(.50)
E
F B
A
C
96
(3.78)
CAT
CEP7-CBCT2
A
89.6
(3.53)
B
48.3
(1.90)
C
Dimensions
39.6
(1.56)
ø D
54.6
(2.15)
E
69.9
(2.75)
122.4
(4.82)
CEP7-CBCT3
115.9
(4.56)
59.7
(2.35)
63.5
(2.50)
54.1
(2.13)
96
(3.78)
F
44.5
(1.75)
56.2
(2.21)
74.4
(2.93)
123.2
(4.85) 96.7
(3.81)
CEP7-CBCT2
CEP7-CBCT3
CEP7-CBCT4
CEP7-CBCT1
11.8
(.47) 146.8
(5.78)
143.5
(5.65)
5.5
(.22)
74.9
(2.95) 3.2
(.13)
82.6
(3.25)
CEP7-CBCT4
11.8
(.47)
3.2
(.13)
45.3
(1.78)
23.1
(.91)
Ø 19.1
(Ø .75)
Ø 44.5
(Ø 1.75)
Ø
D
63.5
(2.50)
50.8
(2.00)
3.2
(.12) 4
(.16)
5.3
(.21)
12.7
(.50)
E
F B
A
C
96
(3.78)
CAT
CEP7-CBCT2
A
89.6
(3.53)
B
48.3
(1.90)
C
Dimensions
39.6
(1.56)
ø D
54.6
(2.15)
E
69.9
(2.75)
122.4
(4.82)
CEP7-CBCT3
115.9
(4.56)
59.7
(2.35)
63.5
(2.50)
54.1
(2.13)
96
(3.78)
F
44.5
(1.75)
56.2
(2.21)
74.4
(2.93)
123.2
(4.85) 96.7
(3.81)
CEP7-CBCT2
CEP7-CBCT3
CEP7-CBCT4
CEP7-CBCT1
11.8
(.47) 146.8
(5.78)
143.5
(5.65)
5.5
(.22)
74.9
(2.95) 3.2
(.13)
82.6
(3.25)
CEP7-CBCT2 & 3
11.8
(.47)
3.2
(.13)
45.3
(1.78)
23.1
(.91)
Ø 19.1
(Ø .75)
Ø 44.5
(Ø 1.75)
Ø D
63.5
(2.50)
50.8
(2.00)
3.2
(.12) 4
(.16)
5.3
(.21)
12.7
(.50)
E
F B
A
C
96
(3.78)
CAT
CEP7-CBCT2
A
89.6
(3.53)
B
48.3
(1.90)
C
Dimensions
39.6
(1.56)
ø D
54.6
(2.15)
E
69.9
(2.75)
122.4
(4.82)
CEP7-CBCT3
115.9
(4.56)
59.7
(2.35)
63.5
(2.50)
54.1
(2.13)
96
(3.78)
F
44.5
(1.75)
56.2
(2.21)
74.4
(2.93)
123.2
(4.85) 96.7
(3.81)
CEP7-CBCT2
CEP7-CBCT3
CEP7-CBCT4
CEP7-CBCT1
11.8
(.47) 146.8
(5.78)
143.5
(5.65)
5.5
(.22)
74.9
(2.95) 3.2
(.13)
82.6
(3.25)
Catalog Number A B C øD E F
CEP7-CBCT2 96
(3.78)
89
(3.53)
48.3
(1.90)
39.6
(1.56)
54.6
(2.15)
69.9
(2.75)
CEP7-CBCT3 122.4
(4.82)
115.9
(4.56)
59.7
(2.35)
63.5
(2.50)
54.1
(2.13)
96
(3.78)
CEP7-CBCT Ground Fault Trip Data
ATTENTION: The CEP7 Overload relay is not a ground fault circuit interrupter for personnel protection as defined in Article 100 of the NEC.
Ground fault trip delay: The delay between the occurrence of a ground fault and a trip of the CEP7 varies, but is generally described by one of the following:
50 ms ± 20 ms, typical
< 6 seconds, for a ground fault present at power-up of the side mount module
< 30 seconds, if the protection inhibit has not been cleared.
Under no conditions should a ground fault trip take longer than 31 seconds.
Dynamic inhibit: Protective function is enabled after the motor current goes above 150% and then falls below 125%.
Dimensions are in millimeters (inches). Dimensions not intended for manufacturing purposes.
B20
visit www.sprecherschuh.com/ecatalog for the most up to date information SSNA2014
B
CEP7 Overloads
Discount Schedule B1
CEP7 Mounted to CA7 Contactor
Overload Mounted to
Contactor
A
Width
B
Height
C
Depth D E1 E2 F H1 H2
CEP7-ED1…B
CEP7-EE…B
CEP7S-EE…B
CA7-9…23 mm
(in)
45
(1-25/32)
146.6
(5-25/32)
85.2
(3-23/64)
4.5
(3/16)
13.9
(35/64)
24.5
(31/32)
86.5
(3-13/32)
60
(2-23/64)
35
(1-3/8)
CEP7-ED1…D
CEP7-EE…D
CEP7S-EE…D
CA7-30…37 mm
(in)
45
(1-25/32)
146.6
(5-25/32)
101.2
(3-63/64)
4.5
(3/16)
13.9
(35/64)
24.5
(31/32)
104
(4-3/32)
60
(2-23/64)
35
(1-3/8)
CEP7-ED1…D
CEP7-EE…D
CEP7S-EE…D
CA7-43…55 mm
(in)
54
(2-1/8)
146.6
(5-25/32)
101.2
(3-63/64)
4.5
(3/16)
18.9
(3/4)
24.5
(31/32)
107
(4-3/32)
60
(2-23/64)
45
(1-25/32)
CEP7-EE…E
CEP7S-EE…E CA7-60…97 mm
(in)
72
(2-53/64)
192.3
(7-37/64)
120.4
(4-3/4)
5.4
(7/32)
23.8
(15/16)
29
(1-9/64)
125.5
(4-15/16)
100
(3-15/16)
55
(2-11/64)
Dimensions
CEP7 Solid State Overload Relays
Dimensions are in millimeters (inches). Dimensions not intended for manufacturing purposes.
B21
visit www.sprecherschuh.com/ecatalog for the most up to date informationSSNA2014
B
CEP7 Overloads
Discount Schedule B1
Dimensions/Technical
CEP7 Solid State Overload Relays
CEP7 Pass-thru Overload
44.8
35
13.9
(.18 ø)
ø 4.5
3.589
(2.31)
58.6
(1.97)
50
(1.44)
36.7
(1.76)
(1.38)
(.55)
(.14)(3.50)
CEP7-ERID Remote Indicator
R1 R2
R1 R2
A1 A2
A1
A2
CEP7-ERID is to be
used with Series B or later:
CEP7-EJM
CEP7-ERR
CEP7-EPT
CEP7-EGF
CEP7-EGJ
0.56 - 0.79 N.m
(5 - 7 lb-in)
7mm
(.28 in)
0.6mm X 3.5mm Blade
(.02 in X .14 in Blade)
Function edoC hsalFsutatS ro tluaF.D.E.L
Module Power Green (Flash)
Overload Trip Red (Solid)
Overload Warning (> 110%) Yellow (Flash)
Phase Loss Trip Red (Solid)
Module Power + Motor Current Green (Solid)
Hardware Fault Red (Solid)
Ground Fault Trip 1 Red
Jam Trip 2 Red
PTC Trip 3 Red
Fault Detected Red (Rapid)
1
1
2
Reset
4
3
Module Power / Status
2 Overload
3 Phase Loss
4 Fault Status
FAULT CODE
Starter:
1- GROUND FAULT
2- JAM
3- PTC
(1.81)
46
(.69)
17.5
(.57)
14.5
(1.50)
38
200 ft max.
22mm hole
LED Indicators
Operating Temperatures -20ºC … 60ºC (-4ºF … +140ºF)
Storage Temperatures -40ºC … 85ºC (-4ºF … +185ºF)
Dimensions are in millimeters (inches). Dimensions not intended for manufacturing purposes.
B22
visit www.sprecherschuh.com/ecatalog for the most up to date information SSNA2014
B
CEP7 Overloads
Discount Schedule B1
Dimensions
CEP7 Solid State Overload Relays
CEP7 Mounted to CA7 Contactor (with side mounted module)
A
F
G
B
D
E
K
L
H
C
J
Contactor
Cat. No.
Overload
Cat. No. A ➊B C D E F G H J K L ➊
CA7-9, CA7-12,
CA7-16, CA7-23 CEP7*-EE_B mm
(in)
63
(2.48)
148
(5.83)
85.2
(3.35)
24.5
(.96)
13.9
(.55)
35
(1.38)
60
(2.38)
86.5
(3.40)
2
(0.8)
4.5
(.17)
18
(.71)
CA7-30, CA7-37
CEP7*-EE_D
mm
(in)
63
(2.48)
148
(5.83)
101.2
(3.98)
24.5
(.96)
13.9
(.55)
35
(1.38)
60
(2.38)
104
(4.09)
2
(0.8)
4.5
(.17)
18
(.71)
CA7-43…55 mm
(in)
67.5
(2.66)
148
(5.83)
101.2
(3.98)
24.5
(.96)
18.4
(.74)
45
(1.77)
60
(2.38)
107
(4.09)
2
(0.8)
4.5
(.17)
18
(.71)
CA7-60, CA7-72,
CA7-85, CA7-97 CEP7*-EE_E mm
(in)
90
(3.54)
191.6
(7.54)
120.4
(4.74)
29
(1.14)
23.8
(.94)
55
(2.16)
100
(3.94)
126
(4.94)
2
(0.8)
5.4
(.21)
18
(.71)
* No letter indicates 3-phase; "S" indicates 1-phase
➊ Dimension shown covers all side mount modules EXCEPT CEP7-EPRB and CEP7-ETN, where “L” equals 22mm (0.86 in). Add 4mm (0.16 in) to dimension “A”.
CEP7-ERR/EJM/EGE/EGJ/EPT Module Technical Information
Wire Size and Torque Specifications
1X
2X
24.....12 AWG
24.....16 AWG
5 lb-in
1X
2X
0.2......2.5 mm2
0.25.......1 mm2
0.55 N.m
1X
2X
0.2.....2.5 mm2
0.2........1 mm2
0.55 N.m
• Connect remote reset pilot device to Terminals R1 and R2.
• Do not apply external voltage to R1 and R2. Equipment damage will occur.
• Recommend use of twisted pair for remote reset, #24 AWG minimum.
• Apply 24 - 240V, 47 - 63HZ or DC to terminals A1 and A2 for control power.
• Rated Insulation Voltage (Ui) 300V
• Rated Operating Voltage (Ue) 24 - 240 VAC, 50/60 Hz
24 - 240 VDC
• Power at Rated Operating Voltage 24 VAC 0.8 W
(Typical) 120 VAC 0.8 W
240 VAC 1.0 W
• Rated Impulse Withstand Voltage (U imp) 2.5 kV
• Dynamic inhibit on start. A unique circuit within the CEP7 Protection Modules monitors for motor
starting inrush current. The circuit inhibits the protection feature during the motor start period
and arms the protection function after the inrush current falls to motor rated current. This allows
the motor to start and run, avoiding nuisance tripping during the inrush period.
Dimensions are in millimeters (inches). Dimensions not intended for manufacturing purposes.
B23
visit www.sprecherschuh.com/ecatalog for the most up to date informationSSNA2014
B
CEP7 Overloads
Discount Schedule B1
CEP7 with CEP7-EP… Panel Mount Adaptor
Dimensions
CEP7 Solid State Overload Relays
Dimensions are in millimeters (inches). Dimensions not intended for manufacturing purposes.
Panel Mount
Adaptor Overload Relay A
Width
B
Height
C
Depth D E1 E2 F H1 H2 H3 J
CEP7-EPB
CEP7-ED1_B
CEP7-ED_B
CEP7(S)-EE_B
45
(1-25/32)
116.5
(4-9/16)
92.7
(3-21/32)
4.4
(11/64)
11.4
(29/64)
57.9
(2-9/32)
62.5
(2-15/32)
95
(3-3/4)
30
(1-3/16)
75
(2-31/32)
52.1
(2-3/64)
CEP7-EPD CEP7-ED1_D
CEP7(S)-EE_D
45
(1-25/32)
112.4
(4-7/16)
108.7
(4-9/32)
4.4
(11/64)
11.4
(29/64)
57.9
(2-9/32)
62.5
(2-15/32)
95
(3-3/4)
30
(1-3/16)
75
(2-31/32)
52.1
(2-3/64)
CEP7-EPE CEP7(S)-EE_E 72
(2-53/64)
107.4
(4-15/64)
127
(5-1/64)
5.5
(5/32)
26.4
(3/4)
54.5
(2-9/64)
48.3
(1-29/32)
90
(3-23/64)
60
(2-23/64) ~43.3
(1-45/64)
DIN-rail / Panel Adapter
Terminal Cross Sections CEP7-EPB ➊CEP7-EPD ➊CEP7-EPE
Flexible stranded with
ferrule
Single conductor 1.0…4.0mm22.5…16mm24.0…35mm2
Torque 1.8 Nm 2.3 Nm 4.0 Nm
Two conductor 1.0…4.0mm22.5…10mm24.0…25mm2
Torque 1.8 Nm 2.3 Nm 4.0 Nm
Course stranded /
solid
Single conductor 1.5…6.0mm22.5…25mm24.0…50mm2
Torque 1.8 Nm 2.3 Nm 4.0 Nm
Two conductor 1.5…6.0mm22.5…16mm24.0…35mm2
Torque 1.8 Nm 2.3 Nm 4.0 Nm
Stranded / solid
Single conductor 14…8 AWG 16…6 AWG 12…1 AWG
Torque 16 lb-in 20 lb-in 35 lb-in
Two conductor 14…10 AWG 16…6 AWG 12…2 AWG
Torque 16 lb-in 20 lb-in 35 lb-in
➊ For multiple conductor applications, the same size
and style of wire must be used.
Dimensions are in millimeters (inches). Dimensions not intended for manufacturing purposes.
B24
visit www.sprecherschuh.com/ecatalog for the most up to date information SSNA2014
B
CEP7 Overloads
Discount Schedule B1
Dimensions
CEP7 Solid State Overload Relays
CEP7 Current Transformer Models mounted to CA6 Contactor
Overload
Relay Cat. Contactor Cat. A
Width
B
Height B1 C
Depth D E1 E2 F G H J K M
Without
Terminal
Covers
With
Terminal
Covers
Reset
CEP7-EEHF
CEP7-EEJF
CA6-115 (EI)
CA6-140 (EI)
CA6-180 (EI)
120
(4.72)
339.8
(13.38)
418
(16.46)
317.8
(12.51)
152.7
(6.01)
156
(6.14)
36
(.14)
226.3
(8.91)
16
(.63)
100
(3.94)
145
(5.71)
135
(5.31)
22.3
(.88)
8 – 5.6
(8 – .22)
CEP7-EE_G
CA6-210 EI
CA6-300-EI
CA6-420 EI
155
(6.10)
385.8
(15.19)
487.4
(19.19)
360.8
(14.2)
176.5
(6.95)
180
(7.09)
36
(.14)
265.5
(10.44)
21
(.83)
130
(5.12)
180
(7.09)
140
(5.51)
23.5
(.93)
8 – 6.5
(8 – .26)
CEP7-EE_H CA6-630 EI
CA6-860 EI
255
(10.04)
552
(21.73)
915
(36.02)
508
(20)
269.3
(10.6)
270.7
(10.66)
36
(.14)
384.1
(15.12)
52.5
(2.07)
226
(8.90)
230
(9.06)
108
(4.25)
109
(4.29)
8 – 13
(8 – .51)
Assembly Instructions
CEP7-EE_F: (M5)
3.4 N∑m (30 lb-in)
CEP7-EE_G: (M6)
5.1 N∑m (45 lb-in)
CEP7-EE_H: (M12 Provided)
17 N∑m (150 lb-in)
95 96 97 98
1
1
2
Dimensions are in millimeters (inches). Dimensions not intended for manufacturing purposes.

Navigation menu
