www.hubbell-premise.com

I1

Hubbell’s premium quality fiber enclosures support a

wide range of interconnect facility applications, from

data centers to building backbone, horizontal, and

entrance facilities. This section features Hubbell's next

generation FCR Series enclosures, designed from

global customer input to maximize utility and ease

of installation. The new high density FCRHD1 Series

data center enclosures are also introduced, along

with a new series of enclosures for U.S. government

trade-agreement compliance.

EnclosurEs

FibEr

www.hubbell-premise.com

Fiber enclosures

I2

Product PagE

FCR HD RaCk Mount EnClosuREs ......................I3

FCR RaCk Mount EnClosuREs .........................I5

FPR RaCk Mount EnClosuREs. . . . . . . . . . . . . . . . . . . . . . . . . . I7

FEuR RaCk Mount EnClosuREs ........................I8

RaCk Mount sPlICE EnClosuREs anD HaRDwaRE .............I9

wall Mount EnClosuREs .............................I10

EnclosurEs

www.hubbell-premise.com

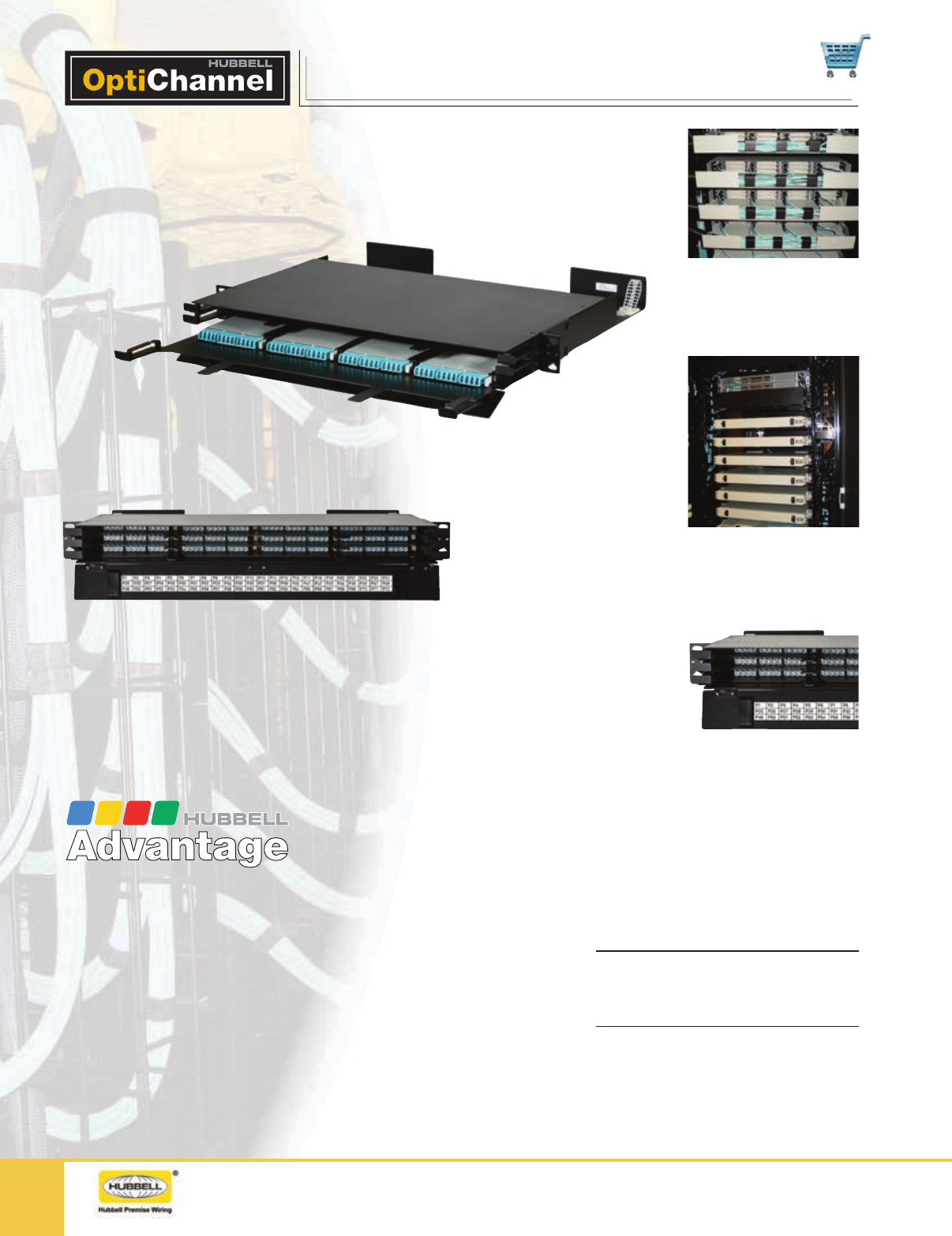

I3

Fcr Hd rack Mount EnclosurEs

 Modular Plug-n-Play High Density

144 LC Ports in a 1U Rack Space

 Scalable Capacity for Future Expansion

Using Compact LC to MTP Cassette Modules

 CSI Specifications, Drawings, and

Application Tips Available

 Low Profile to Enhance Cooling Efficiency

Specifications

• Capacity:(12)OCLCHDSeriescassettes

• Material:16gacoldrolledsteel

• Finish:powdercoatedblackorgray

Standards/Listings/Verifications

• EIA-310-E

• TIA-568-C.3

• TelcordiaGR-326-CORE

• TIA-604-FOCIS

FCRHD1UBK loaded with

OCLCHD50G3

Efficiency

Advanced3-drawerultra

compactdesign.

Cable Management

UtilizesMTPcustommade

trunkassemblies.

High Density

Fits144LCportsina1U

rackspace.

www.hubbell-premise.com

Fiber e nclosures

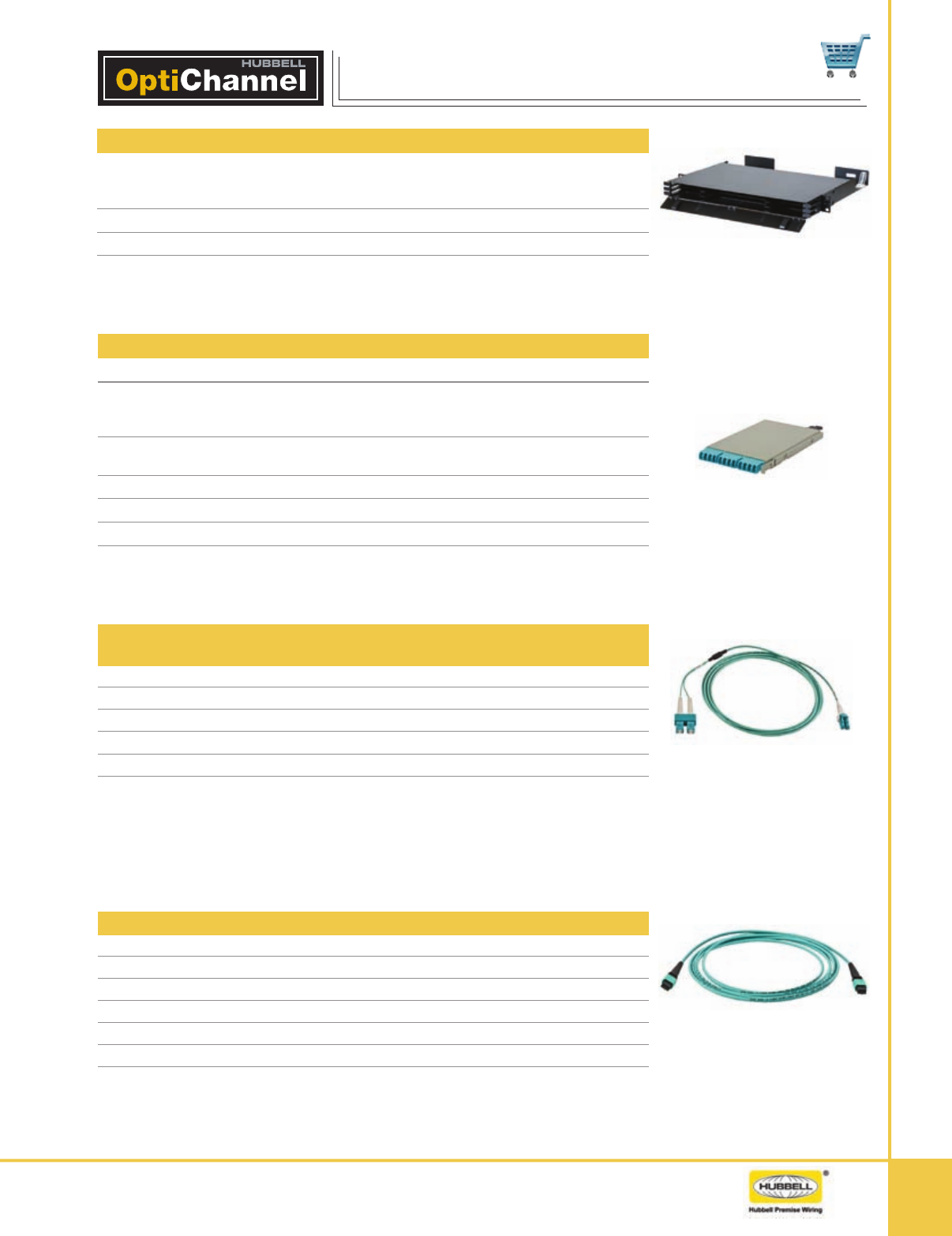

I4

Fcr Hd rack Mount EnclosurEs

Hubbell OptiChannel High Density 144 Port 1U Enclosures

Rack

Units Color

Height

Inches(mm)

Width

Inches(mm)

Depth

Inches(mm)

MaxLC

Port

Capacity CatalogNo.

1Black 1.75"(44) 19"(483) 17"(432) 144 FCRHD1UBK

1Gray 1.75"(44) 19"(483) 17"(432) 144 FCRHD1UGY FCRHD1UBK

Hubbell OptiChannel High Density Uni-Boot LC Patch Cords,

OFNR Riser

ConnectorType FiberType Color CatalogNo.

LCtoLC 50mm,OM3 Aqua HDPCLC50G3Myy

LCtoSC 50mm,OM3 Aqua HDPCLCSC50G3Myy

LCtoLC 50mm,OM4 Aqua HDPCLC50G4Myy

LCtoSC 50mm,OM4 Aqua HDPCLCSC50G4Myy

yy = 1, 2, 3, 4, 5, 6, 8, 10 meters.

Note: See page J4 for 12-fiber MTP to MTP cords.

See page J3 for custom configured MTP trunks.

HDPCLCSC50G3My

Hubbell OptiChannel

Ultra Compact LC to MTP Cassettes

Specifications

Port

Count FiberType

Height

Inches(mm)

Width

Inches(mm)

Depth

Inches(mm) CatalogNo.

12 50mm,OM3 0.5"(13) 3.5"(89) 5.2"(132) OCLCHD50G3

12 50mm,OM4 0.5"(13) 3.5"(89) 5.2"(132) OCLCHD50G4

12 SM,OS2 0.5"(13) 3.5"(89) 5.2"(132) OCLCHDSM

OCLCHD50G3

•MMtotalinsertionloss:<1.5dBmax

•SMtotalinsertionloss:<1.1dBmax

•SMreturnloss:>50dB

•Material:5052aluminum

•Polarity:TIA-568-C.3,Type“A”

MTP to MTP 12-Fiber Round Cords, OFNP Rated Plenum

FiberType RoundCords

50µm,OM3 FPCPMTP50G3Mxf

50µm,OM4 FPCPMTP50G4Mxf

50µm,OM2 FPCPMTP50Mxf

62.5µm,OM1 FPCPMTP62Mxf

SM,OS2 FPCPMTPSxf

x=Lengthinmetersorfeet(nozerosprecedingvalue)

f=Feet(leaveblankformeters)

Round MTP Cords

www.hubbell-premise.com

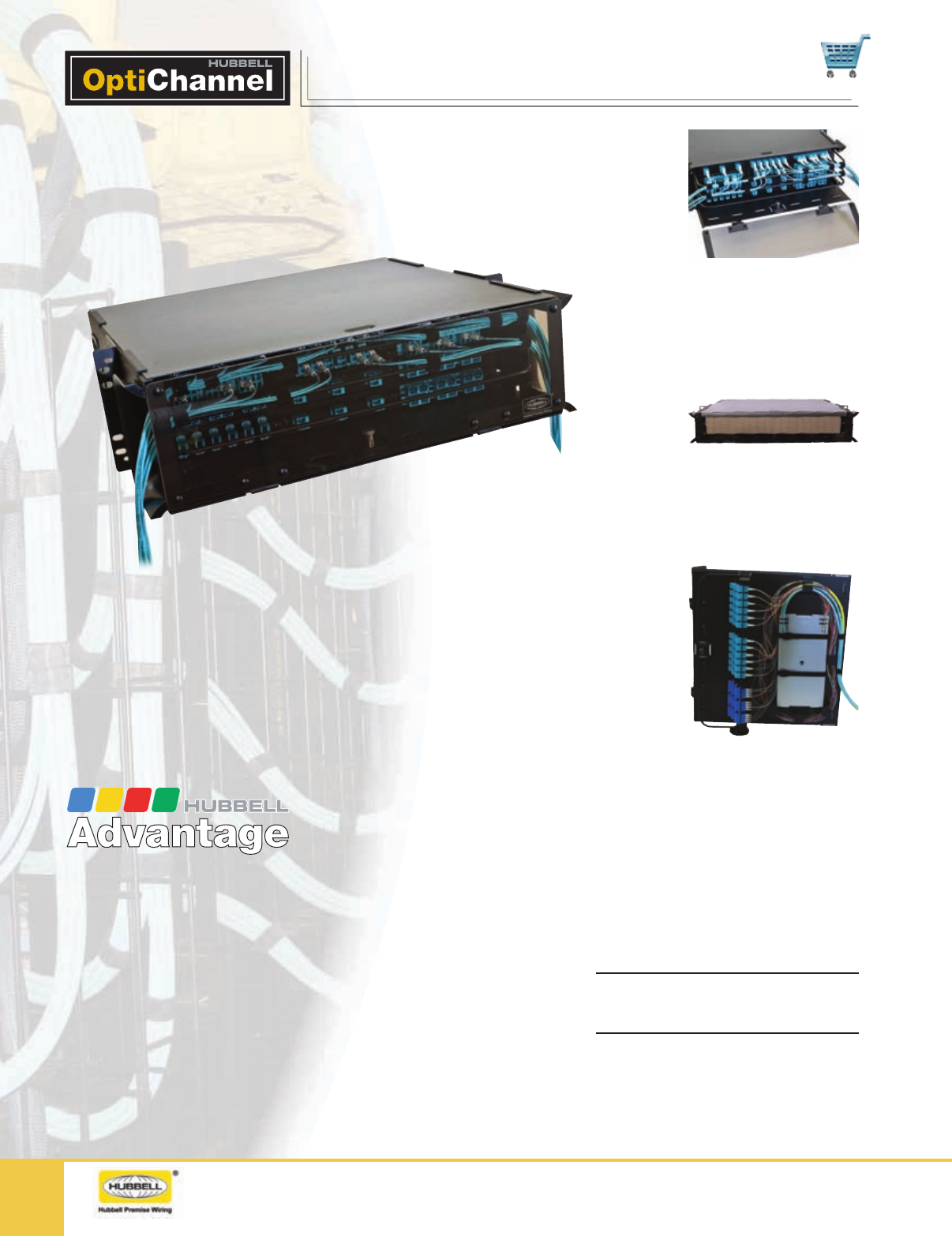

I5

Fcr rack Mount EnclosurEs

 Enhanced Cable Management Labeling and

Bend Radius Control Features

 One-Piece Removable Cover and Magnetic Door

for Ease of Use

 CSI Specifications and Drawings Available

 Wide Range of Panel and Cassette Options for

Maximum Utility

Specifications

• Material:16gacoldrolledsteel

• Finish:durableblackpowdercoat

Standards/Listings/Verifications

• EIA-310-E

• TIA-569-C

FCR3U12SP loaded with various

FSP Series panels.

Flexibility

Enhancedinnertrayfor

maximumflexibility.

Cable Management

Enhancedfrontbendradiusand

cablemanagementfeatures.

Administration

Newclip-onlabelingsystem.

www.hubbell-premise.com

Fiber e nclosures

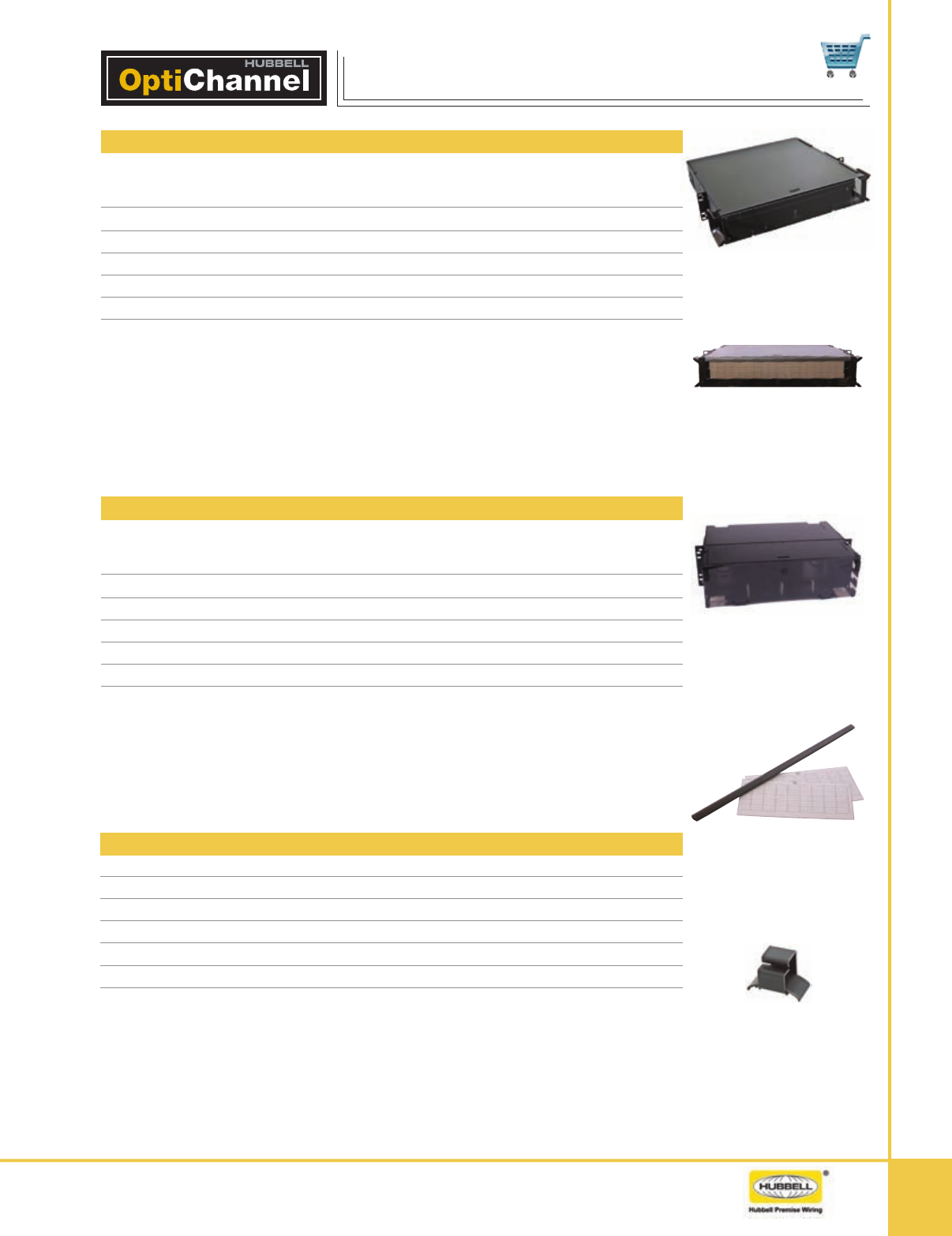

I6

Fcr rack Mount EnclosurEs

FCR2U6SP

FCR3U12SPNA

LBLKTFCR2U12

FBRMGTCLPK4

Accessories

Description CatalogNo.

Labelkit,1U,withmountingclip(packof12) LBLKTFCR1U12

Labelkit,2U,withmountingclip(packof12) LBLKTFCR2U12

Labelkit,3U/4U,withmountingclip(packof12) LBLKTFCR34U12

Cablemanagementkit,bendradiusclip(packof4) FBRMGTCLPK4

Labelmountingclip(packof12) LBLCLPFCR12

Hubbell OptiChannel Enhanced Rack Mounted Enclosures

Rack

Units

Height

Inches(mm)

Width

Inches(mm)

Depth

Inches(mm)

FSP

Panel

Capacity

Splice

Tray

Capacity

Max

LCPort

Capacity CatalogNo.

11.75"(44) 17"(432) 17"(432) 3272 FCR1U3SP

23.5"(89) 17"(432) 17"(432) 66144 FCR2U6SP

23.5"(89) 17"(432) 17"(432) 96216 FCR2U9SP

35.25"(133) 17"(432) 17"(432) 12 12 288 FCR3U12SP

47.00"(178) 17"(432) 17"(432) 15 16 360 FCR4U15SP

*Add "L" to the catalog number for locking version.

Note: FCR2U9SP does not accept Plug-n-Play OC Series cassettes.

Hubbell OptiChannel NAFTA Series Rack Mounted Enclosures

Rack

Units

Height

Inches(mm)

Width

Inches(mm)

Depth

Inches(mm)

FSP

Panel

Capacity

Splice

Tray

Capacity

Max

LCPort

Capacity CatalogNo.*

11.75"(44) 17"(432) 17"(432) 3272 FCR1U3SPNA

23.5"(89) 17"(432) 17"(432) 66144 FCR2U6SPNA

23.5"(89) 17"(432) 17"(432) 96216 FCR2U9SPNA

35.25"(133) 17"(432) 17"(432) 12 12 288 FCR3U12SPNA

47.00"(178) 17"(432) 17"(432) 15 16 360 FCR4U15SPNA

*All NAFTA versions supplied with lock.

Note: FCR2U9SPNA does not accept Plug-n-Play OC Series cassettes.

Front View, Labels

www.hubbell-premise.com

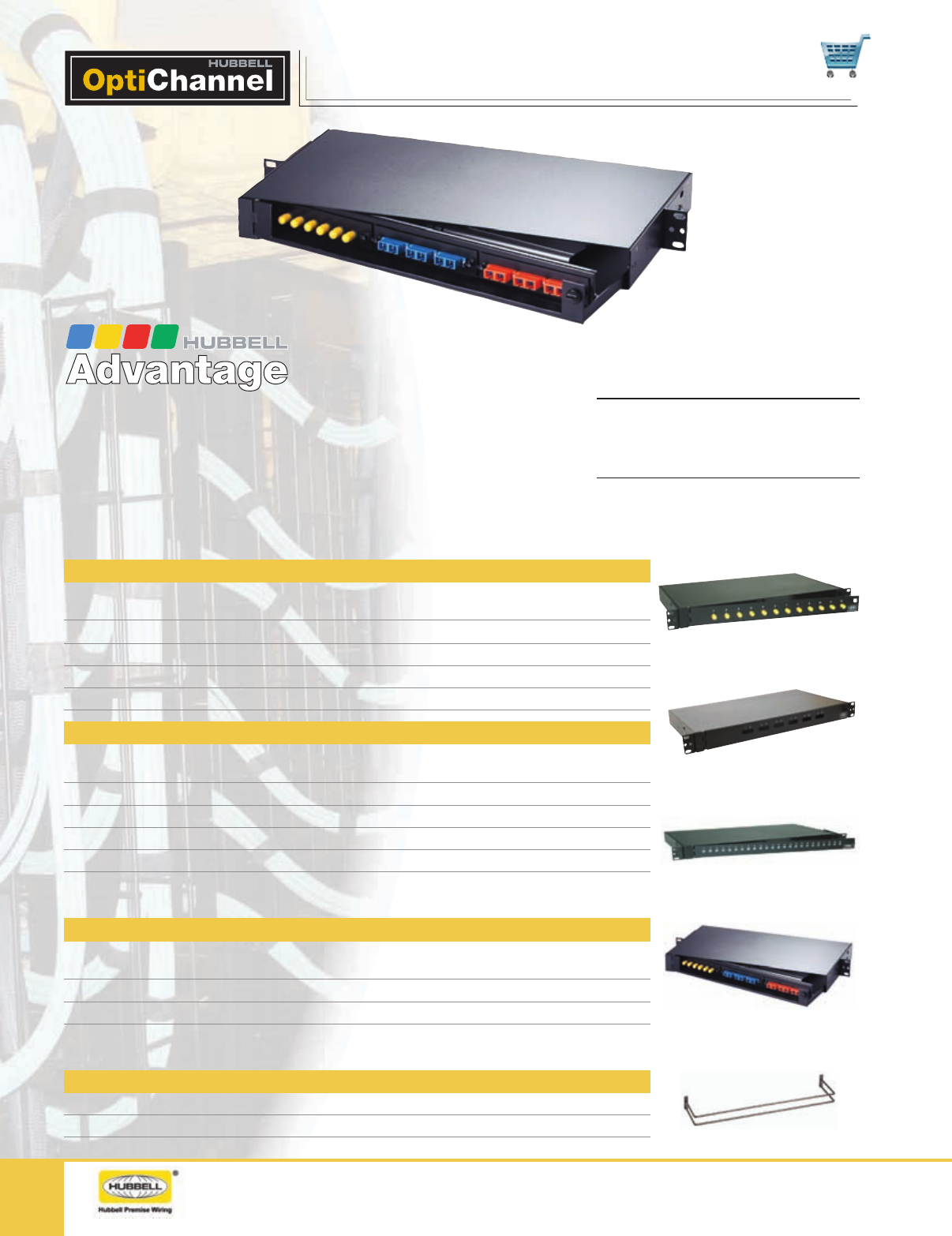

I7

FPR3SP loaded with FSPST6, FSPSCD3

and FSPSCD03 adapter panels.

FPr rack Mount EnclosurEs

 Cost Effective 1U Design in Pre-Punched

or FSP Panel Mounting Configurations

 Hinged Swing-Out Drawer for Easy

Installation and Access

 CSI Specifications and Drawings Available

 Low Density 1U Space-Saving Design

Specifications

• Material:16gacoldrolledsteel

• Finish:durableblackpowdercoat

• Splicetraycapacity:maximum2

Standards/Listings/Verifications

• EIA-310-E

• TIA-569-C

• TIA-604-FOCIS

Cable Management Bracket (Fits all FPR series panels)

Description CatalogNo.

Protectivebracket/cablemanagementbar FPRBRKT1

FPR012STM

FPR024STX

FPR3SP loaded with

FSP Series panels

FPRBRKT1

FPR012SCX

FPR – Pre-Punched Enclosures (Loaded)

Rack

Units

Height

Inches(mm)

Width

Inches(mm)

Depth

Inches(mm)

Connector

Type

Port

Capacity

No.of

Adapters

CatalogNo.*

11.75"(44) 17"(432) 11"(279) ST-style 12 12FPR012STM

11.75"(44) 17"(432) 11"(279) ST-style 24 24 FPR024STM

11.75"(44) 17"(432) 11"(279) SCduplex 12 6FPR012SCM

11.75"(44) 17"(432) 11"(279) SCduplex 24 12 FPR024SCM

FPR – Pre-Punched Enclosures (Unloaded)

Rack

Units

Height

Inches(mm)

Width

Inches(mm)

Depth

Inches(mm)

Connector

Type

Port

Capacity

No.of

Adapters

CatalogNo.*

11.75"(44) 17"(432) 11"(279) ST-style 12 12 FPR012STX

11.75"(44) 17"(432) 11"(279) ST-style 24 24FPR024STX

11.75"(44) 17"(432) 11"(279) SCduplex 12 6FPR012SCX

11.75"(44) 17"(432) 11"(279) SCduplex 24 12 FPR024SCX

Note: Contact Hubbell Premise Wiring for other configurations, custom made to order.

See page G8 for screw-mount SC duplex and LC quad adapters.

FPR – Pre-Punched Enclosures, FSP Panel Style (Unloaded)

Rack

Units

Height

Inches(mm)

Width

Inches(mm)

Depth

Inches(mm)

Panel

Capacity

MaximumLC

PortCapacity* CatalogNo.*

11.75"(44) 17"(432) 11"(279) 372 FPR3SP

11.75"(44) 17"(432) 11"(279) 372 FPR3SPNA*

*NAFTA version.

Note: See page G11 for FSP adapter panels.

www.hubbell-premise.com

Fiber enclosures

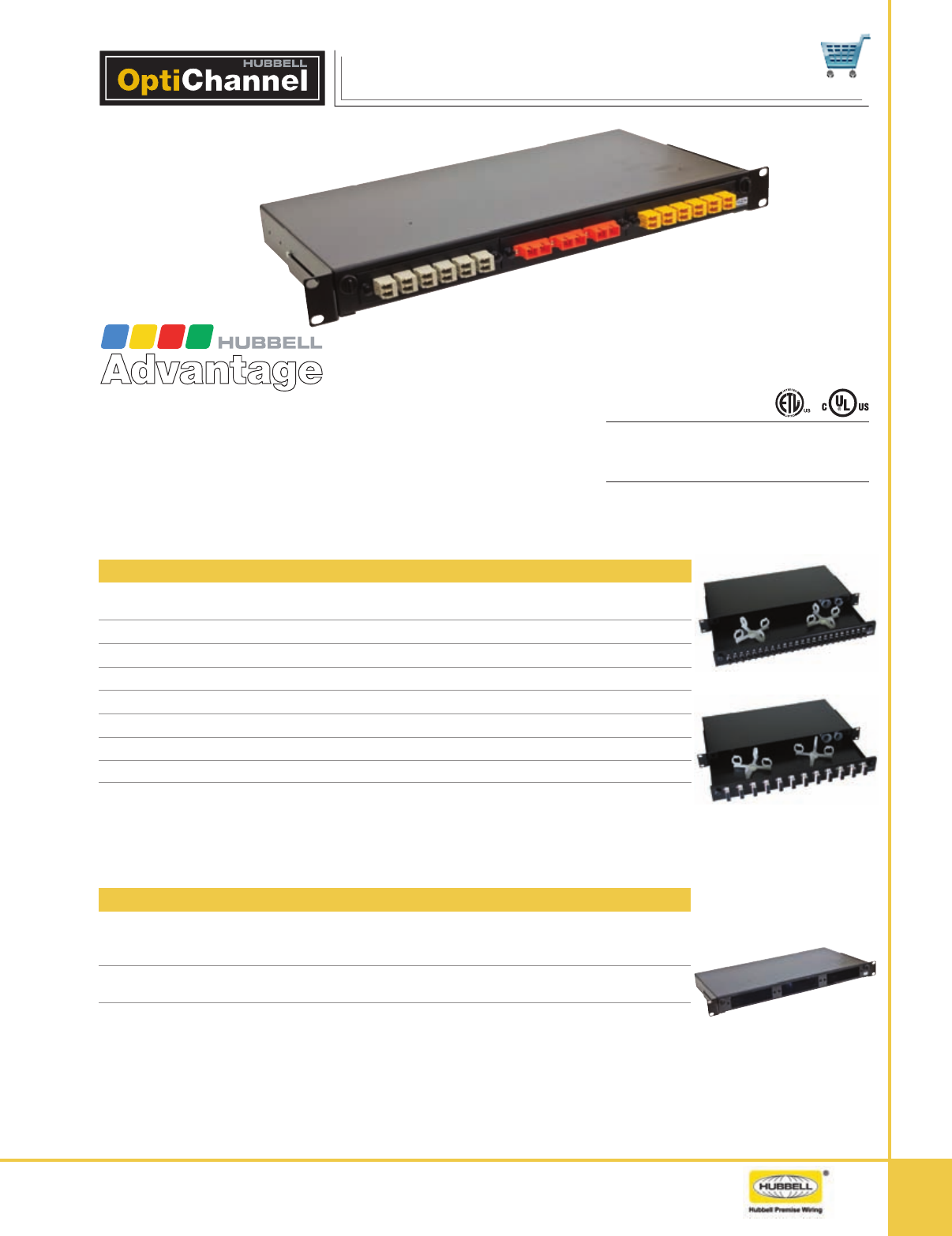

I8

FEUR24STM

FEur rack Mount EnclosurEs

 Universal Economy 1U Rack Mount Design in

Pre-Loaded Configurations

 Pull-Out Drawer for Convenient Access

 CSI Specifications and Drawings Available

 Low Density 1U Space-Saving Design

Specifications

• Material:16gacoldrolledsteel

• Finish:durableblackpowdercoat

Standards/Listings/Verifications

• EIA-310-E

• TIA-569-C

FEURFSP loaded with FSP Series panels

FEUR12SCM

FEUR Loaded Fiber Interconnection Shelf

AdapterType

Height

Inches(mm)

Width

Inches(mm)

Depth

Inches(mm)

Port

Capacity

No.of

Adapters

CatalogNo.

LCquad;MM 1.75"(44) 17"(432) 8.6"(218) 12 3FEUR12LCM

LCquad;MM 1.75"(44) 17"(432) 8.6"(218) 24 6FEUR24LCM

LCquad;MM 1.75"(44) 17"(432) 8.6"(218) 48 12 FEUR48LCM

ST-style;MM 1.75"(44) 17"(432) 8.6"(218) 12 12 FEUR12STM

ST-style;MM 1.75"(44) 17"(432) 8.6"(218) 24 24 FEUR24STM

SCduplex;MM 1.75"(44) 17"(432) 8.6"(218) 12 6FEUR12SCM

SCduplex;MM 1.75"(44) 17"(432) 11"(279) 24 12 FEUR24SCM

Note: Contact Hubbell Premise Wiring for other available configurations.

See page G8 for screw-mount SC duplex and LC quad adapters sold separately.

FEUR Unloaded Fiber Interconnection Shelf

AdapterType

Height

Inches(mm)

Width

Inches(mm)

Depth

Inches(mm)

Maximum

LCPort

Capacity

Rack

Units CatalogNo.

FSPadapter

panels

1.75"(44) 17"(432) 8.6"(218) 72 1FEURFSP

Note: See page G8 for screw mount SC duplex and LC quad adapters sold separately.

See page G11 for FSP adapter panels.

FEURFSP

www.hubbell-premise.com

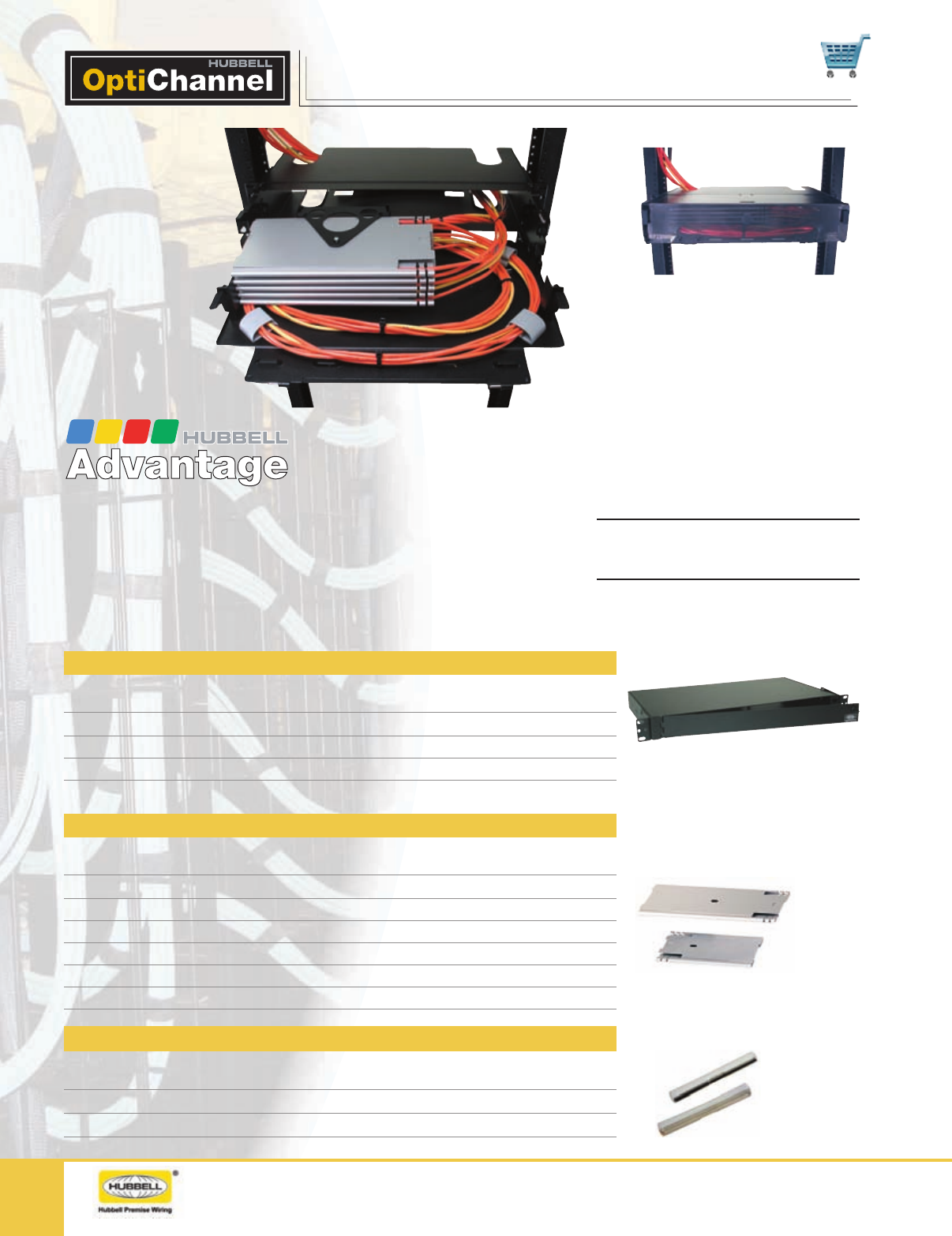

I9

FCR350SE splice enclosure shown with

splice trays and cables installed (front cover

removed and tray extended). Splice trays

sold separately.

FSS01S

FCR350SE

rack Mount sPlicE EnclosurEs

 Patented Gasketless Routing Knockouts

 Contractor-Friendly Installation, Labeling,

Cable Management, and Splice Storage

 CSI Specifications and Drawings Available

 Wide Density Range to Consolidate Space

Specifications

• Material:16gacoldrolledsteel

• Finish:durableblackpowdercoat

Standards/Listings/Verifications

• EIA-310-E

• TIA-569-C

Splice Protection Sleeves

FiberType

Sleeve

Length

Cleave

Length

SleeveDiameter

AfterShrink CatalogNo.

Single,upto900µmcoating40mm 10mm 3.1mm FSHST401025

12-fiberribbon 40mm 10mm 4.5mm FRSHST401025

FRSHST401025

FSHST401025

Splice Enclosure and Hinged Rack Mount Splice Shelf

Rack

Units

Height

Inches(mm)

Width

Inches(mm)

Depth

Inches(mm) SpliceTrayCapacity CatalogNo.*

11.75"(44) 17"(432) 11"(279) 2FSS01S

23.5"(89) 17"(432) 11"(279) 6FCR350SE

23.5"(89) 17"(432) 11"(279) 6FSS02S

Note: Splice trays not included.

Splice Trays

No.of

Fibers

Height

Inches(mm)

Width

Inches(mm)

Length

Inches(mm) Type CatalogNo.*

12 .4"(10) 5"(127) 7"(178) Fusion STRAY12F

12 .4"(10) 5"(127) 7"(178) Mechanical STRAY12M

24.4"(10) 5"(127) 10"(254) Fusion STRAY24F

24.4"(10) 5"(127) 10"(254) Mechanical STRAY24M

144 .4"(10) 5"(127) 10"(254) (12X12Ribbon) STRAY12RFS

144 .4"(10) 5"(127) 10"(254) (12X12Ribbon,Deep) STRAY12RFSDP

STRAY24F

STRAY12F

www.hubbell-premise.com

Fiber e nclosures

I10

Accessories, Optional Lock Kit

Description CatalogNo.

LockkitforcabinetskeyedthesameastheFCWtechnicianside FLOCK1

LockkitforcabinetskeyeddifferentlythantheFCWtechnicianside FLOCK2

FCW12SP

FTU4SP

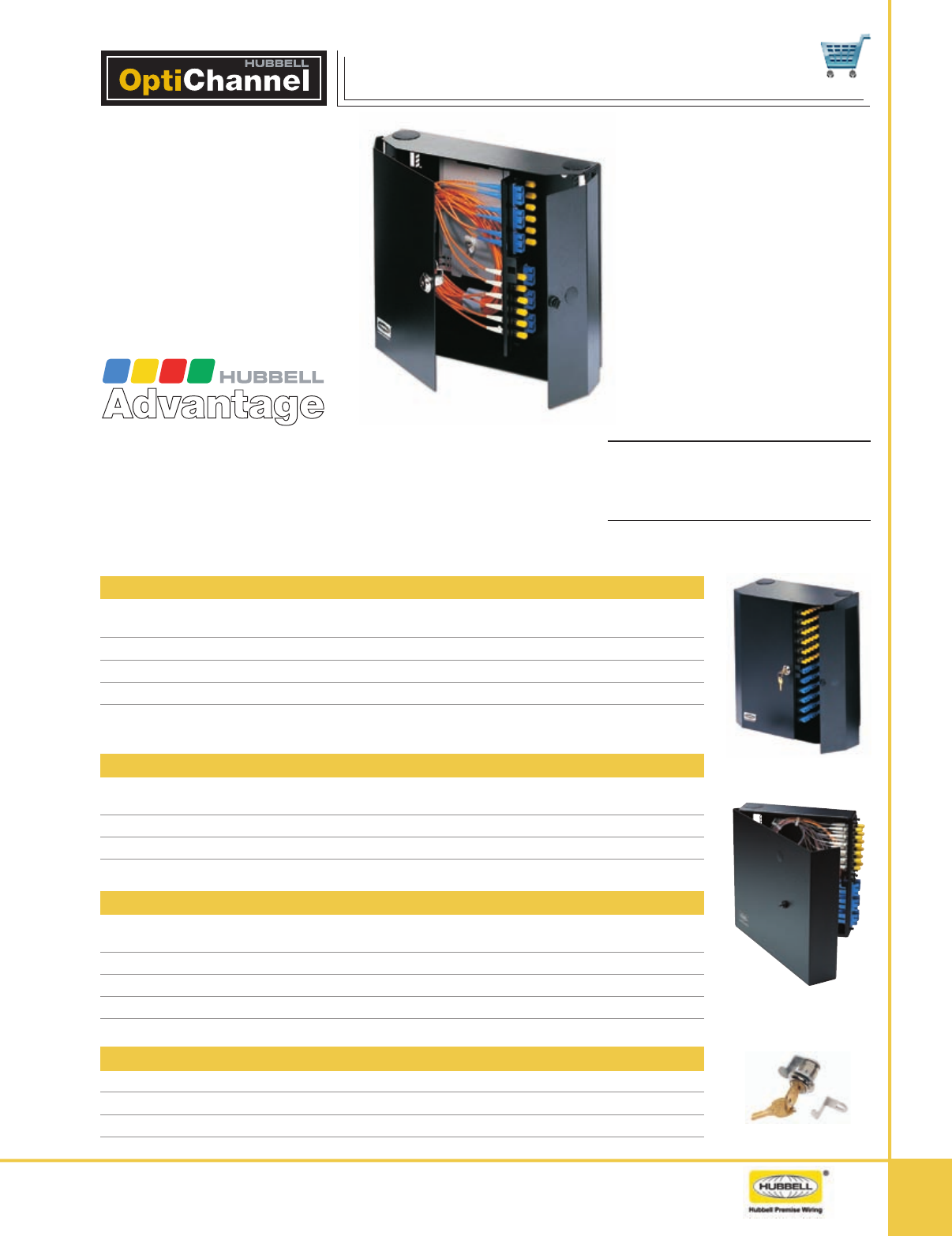

Wall Mount EnclosurEs

 Versatile Design for Remote Locations

 Double Door Partitioned Access with

Top or Bottom Cable Entry

 CSI Specifications and Drawings Available

 Wide Range of FSP Series Panel Options

Specifications

• Material:16gacoldrolledsteel

• Finish:durableblackpowdercoat

• AcceptsFSPSeriespanels

Standards/Listings/Verifications

• EIA-310-E

• TIA-569-C

FCW4SP loaded with

FSP Series panels

FCW Wall Mount Cabinets, Double-Door, NAFTA Version

FSPAdapter

PanelCapacity

Height

Inches(mm)

Width

Inches(mm)

Depth

Inches(mm)

Enclosure

Color

SpliceTray

Capacity CatalogNo.

412"(305) 14"(356) 3.25"(83) Black (2)7"(178) FCW4SPNA*

412"(305) 14"(356) 3.25"(83) Red (2)7"(178) FCW4SPRDNA*

12 16"(406) 14"(356) 6.50"(165) Black (4)10"(254) FCW12SPNA*

*NAFTA version.

Note: For user's side, order separately either lock kit Catalog Numbers FLOCK1 or FLOCK2.

FCW Wall Mount Cabinets, Double-Door

FSPAdapter

PanelCapacity

Height

Inches(mm)

Width

Inches(mm)

Depth

Inches(mm)

SpliceTray

Capacity CatalogNo.

412"(305) 14"(356) 3.25"(83) (2)7"(178) FCW4SP

12 16"(406) 14"(356) 6.50"(165) (4)10"(254) FCW12SP

Note: For user's side, order separately either lock kit Catalog Numbers FLOCK1 or FLOCK2.

FTU Wall Mount Cabinets, Single-Door

FSPAdapter

PanelCapacity

Height

Inches(mm)

Width

Inches(mm)

Depth

Inches(mm)

SpliceTray

Capacity CatalogNo.

15.75"(146) 9.2"(234) 16.4"(417) 0FTU1SP

28.5"(216) 10.6"(269) 2.5"(64) 0FTU2SP

411"(279) 13.6"(345) 2.5"(64) (2)7"(178) FTU4SP

Note: Use either lock kit; Catalog Numbers FLOCK1 or FLOCK2; order separately.
