The miniaturization of
these systems provides
unique versatility with an
adaptable, trac-based
system
TRAC 12
®
®
Linear Lighting 4
Xenon Wedge Base 4
Xenon Rigid Loop 4
Halogen Flood 4
Spotlights 5
MR11 Mini-Spot 5
TrapeziaTM 7
GyrusTM7
Geometrics 8
Universal 8
Studio II 10
Slant Cylinder 10
Delta 200 Series®10
Notch Back 11
Flyback 11
Gimbal Ring 11
Decorative Pendants 12

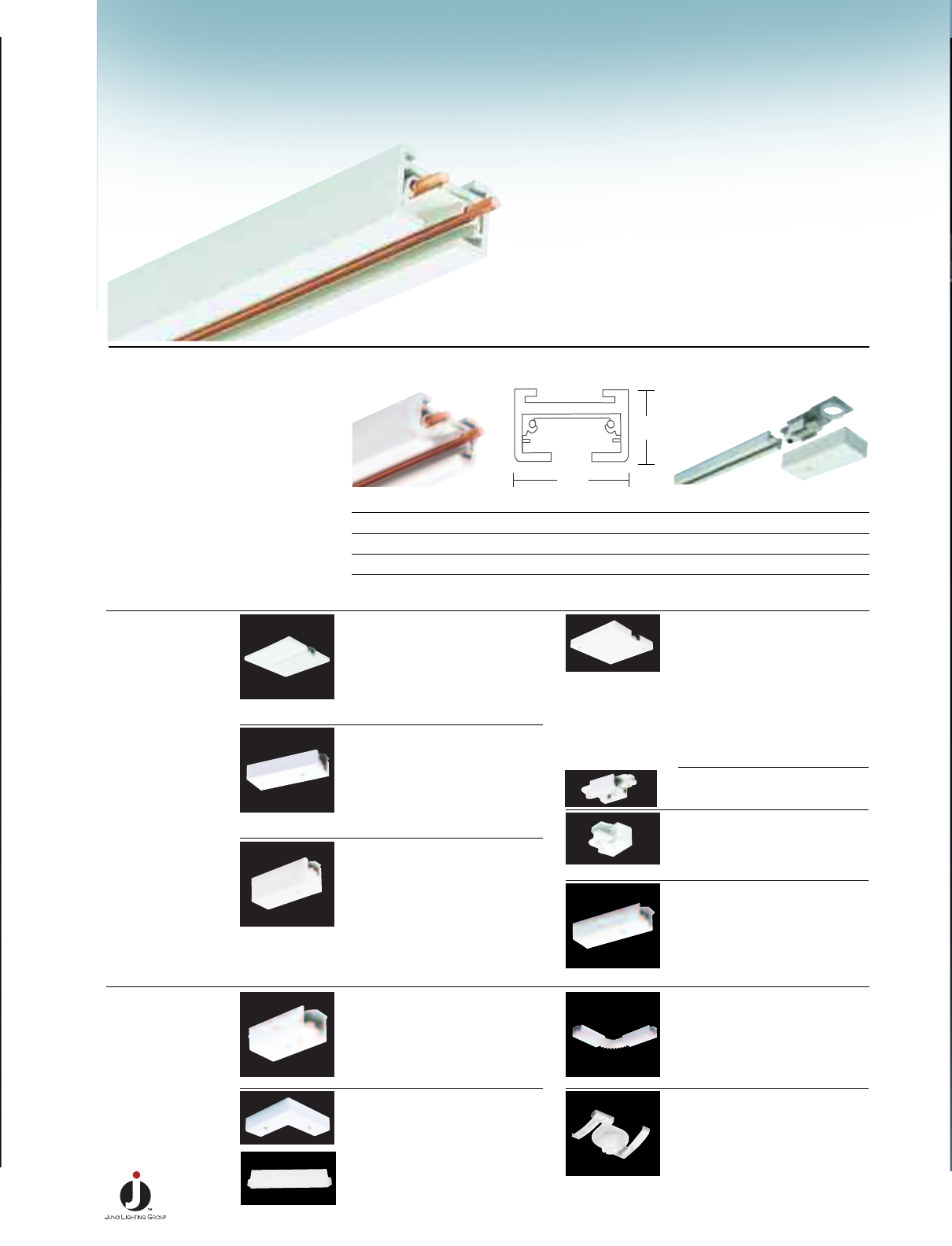

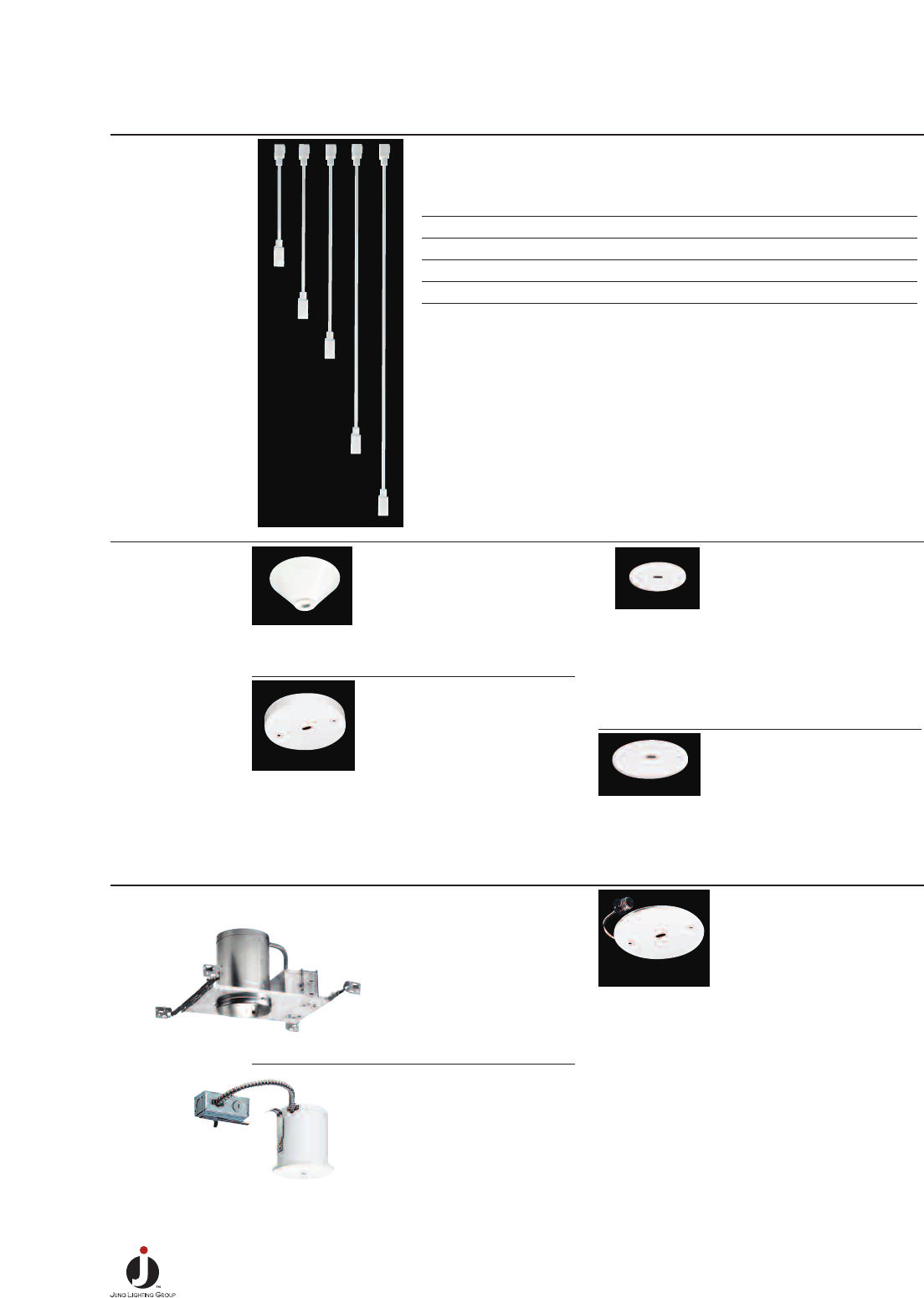

System Components & Transformers 18

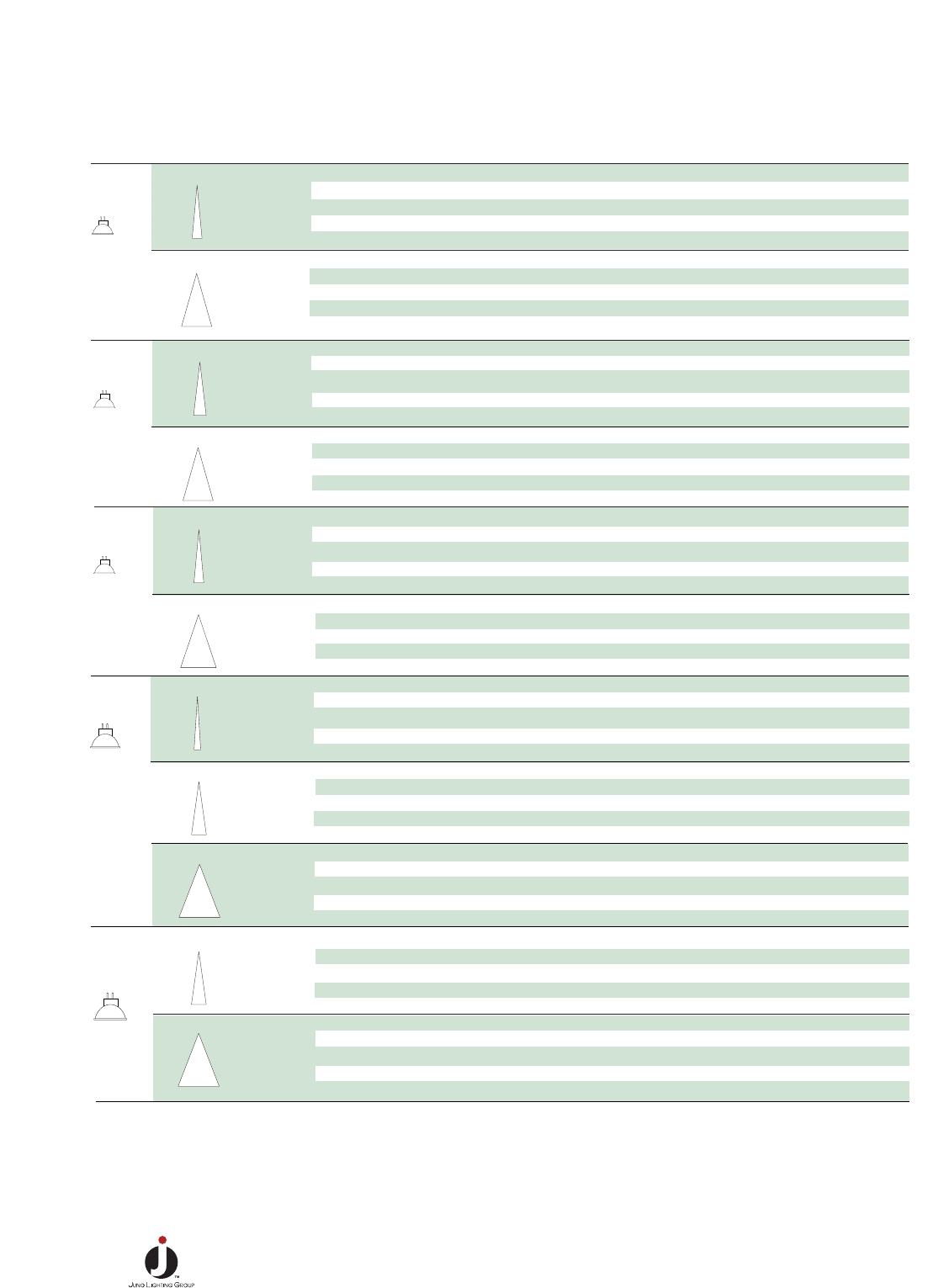

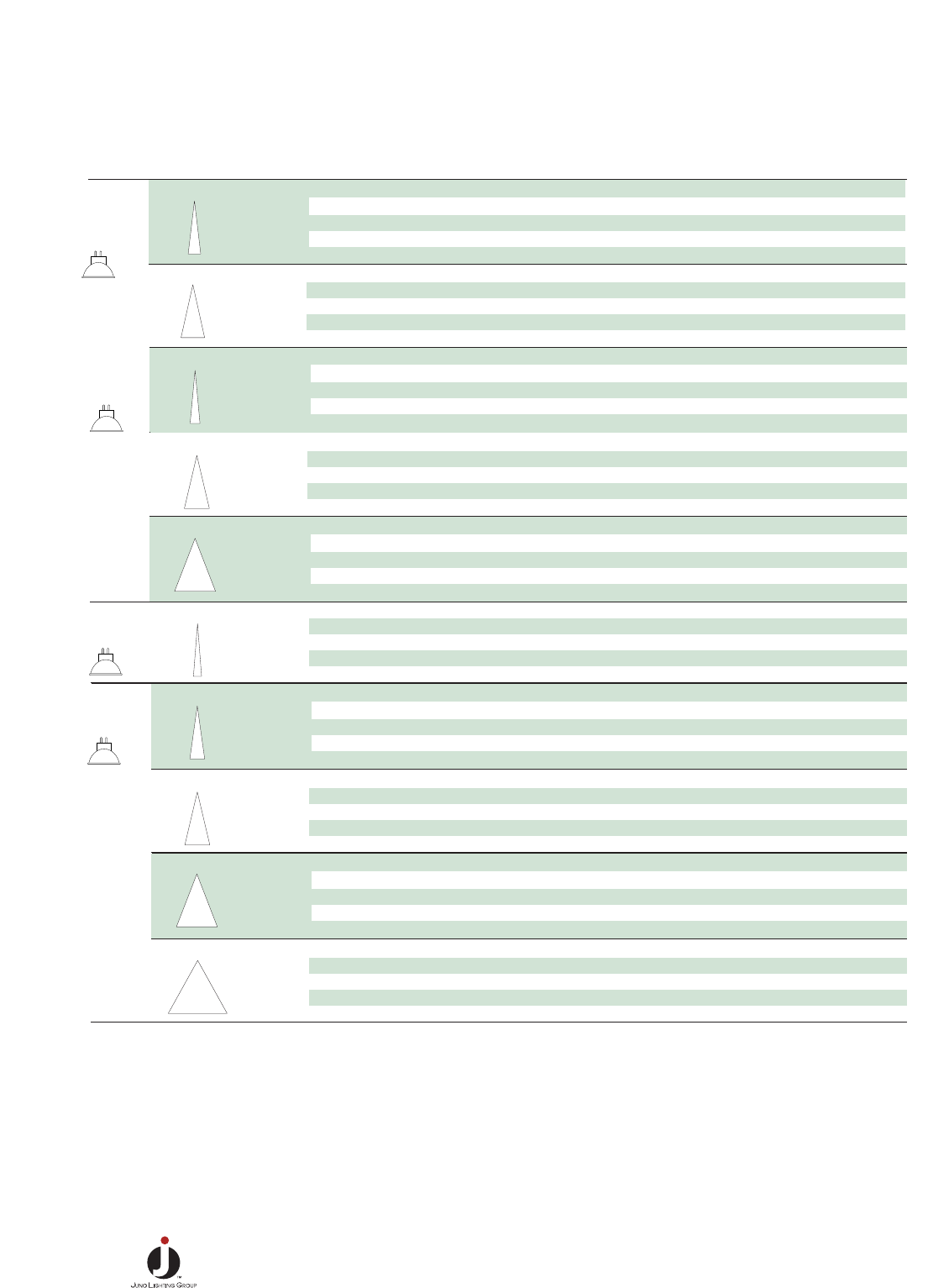

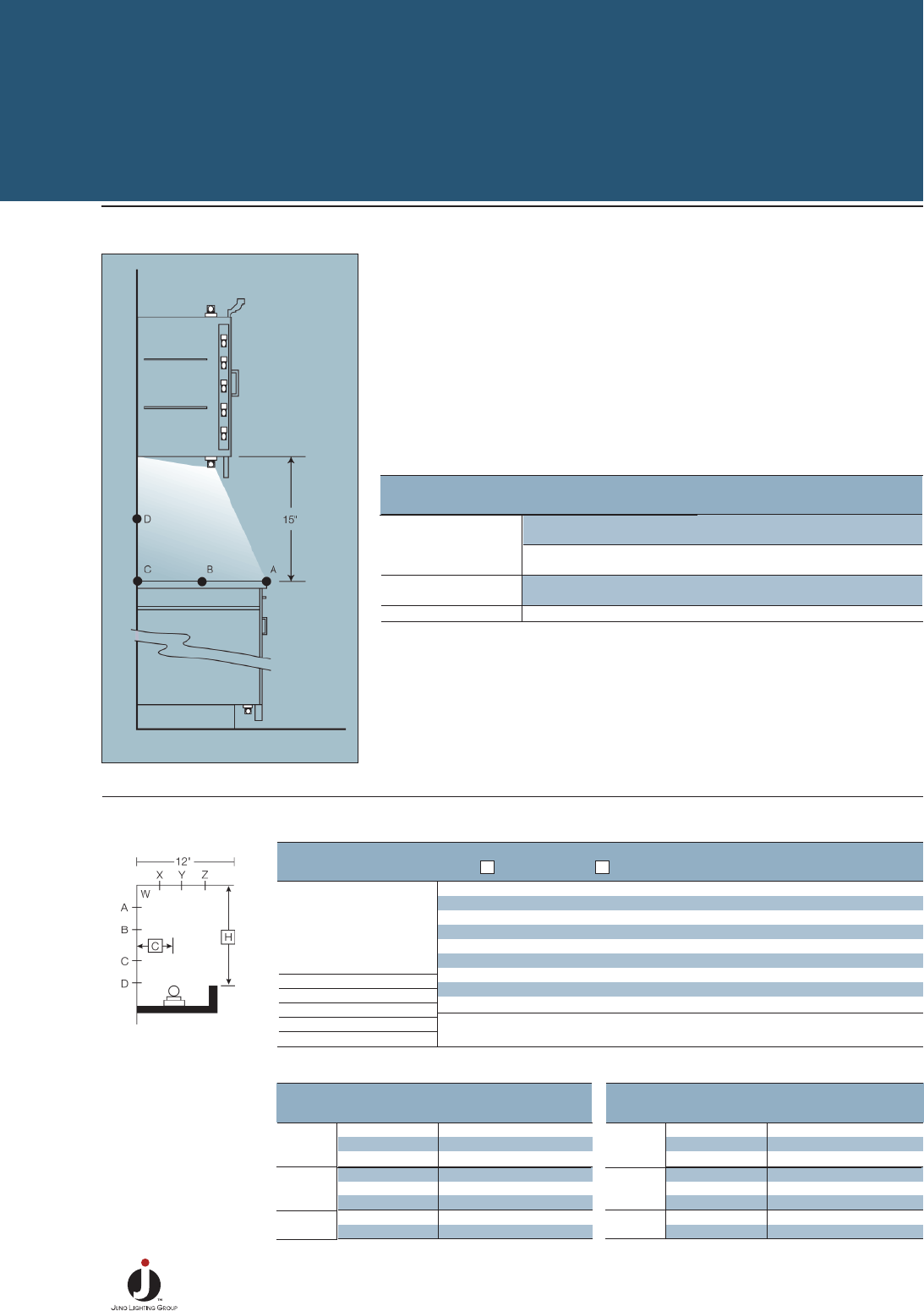

Linear Lighting Application Data 24
Catalog Number Index
T94 . . . . . . . . . . . . . . .19
TF308 . . . . . . . . . . . . . .8
TF309 . . . . . . . . . . . . . .8
TF5150BL . . . . . . . . . .19
TF5300BL . . . . . . . . . .19
TF5600BL . . . . . . . . . .19
TF5600BL-24V . . . . . . .19
TF51200BL-24V . . . . . .19
TF6150E-SL . . . . . . . . .19
TF6300SL . . . . . . . . . . .19
TL2 . . . . . . . . . . . . . . .20
TL4 . . . . . . . . . . . . . . .20
TL6 . . . . . . . . . . . . . . .20
TL8 . . . . . . . . . . . . . . .20
TL20 . . . . . . . . . . . . . .20
TL21 . . . . . . . . . . . . . .20
TL24 . . . . . . . . . . . . . .20
TL34 . . . . . . . . . . . . . .20
TL38 . . . . . . . . . . . . . .20
TL40 . . . . . . . . . . . . . .22
TL43 . . . . . . . . . . . . . .22
TL103 . . . . . . . . . . . . . .4
TL109 . . . . . . . . . . . . .10
TL110 . . . . . . . . . . . . . .5
TL112 . . . . . . . . . . . . . .5
TL116 . . . . . . . . . . . . .10
TL117 . . . . . . . . . . . . .11
TL130-9 . . . . . . . . . . . . .7
TL130-16 . . . . . . . . . . . .7
TL140 . . . . . . . . . . . . . .7
TL143 . . . . . . . . . . . . .11
TL160 . . . . . . . . . . . . . .8
TL161 . . . . . . . . . . . . . .8
TL165 . . . . . . . . . . . . . .8
TL191 . . . . . . . . . . . . .10
TL196 . . . . . . . . . . . . .11
TL201 . . . . . . . . . . . . . .4
TL202 . . . . . . . . . . . . . .4
TL211 . . . . . . . . . . . . . .4
TL296 . . . . . . . . . . . . .11
TL301 . . . . . . . . . . . . . .8
TL539 . . . . . . . . . . . . .22
TL540 . . . . . . . . . . . . .22
TL541 . . . . . . . . . . . . .22
TL542 . . . . . . . . . . . . .22
TL543 . . . . . . . . . . . . .22
TL544N . . . . . . . . . . . .21
TL546 . . . . . . . . . . . . .21
TL547 . . . . . . . . . . . . .21
TL548 . . . . . . . . . . . . .21
TL549BL . . . . . . . . . . .21
TL550BL . . . . . . . . . . .21
TL551BL-24V . . . . . . . .21
TL552BL-24V . . . . . . . .21
TL553BL-24V . . . . . . . .21
TL554BL . . . . . . . . . . .21
TL900 . . . . . . . . . . . . . .4
TL901 . . . . . . . . . . . . . .4
TL903 . . . . . . . . . . . . . .4
TL905-24V . . . . . . . . . . .4
TL910-24V . . . . . . . . . . .4
TL950CL . . . . . . . . . . . .4
TL950FR . . . . . . . . . . . .4
TL951CL . . . . . . . . . . . .4
TL951FR . . . . . . . . . . . .4
TL952CL-24V . . . . . . . . .4
TL952FR-24V . . . . . . . . .4
TL953CL-24V . . . . . . . . .4
TL953FR-24V . . . . . . . . .4
TL4000 . . . . . . . . . . . .20
TLP78 . . . . . . . . . . . . .17
TLP116 . . . . . . . . . . . .10
TLP310 . . . . . . . . . . . .14
TLP311 . . . . . . . . . . . .14
TLP312 . . . . . . . . . . . .15
TLP314 . . . . . . . . . . . .14
TLP315 . . . . . . . . . . . .14
TLP316 . . . . . . . . . . . .16
TLP318 . . . . . . . . . . . .15
TLP320 . . . . . . . . . . . .16
TLP322 . . . . . . . . . . . .15
TLP324 . . . . . . . . . . . .15
TLP326 . . . . . . . . . . . .16
TLP327 . . . . . . . . . . . .16
TLP328 . . . . . . . . . . . .17
TLR2 . . . . . . . . . . . . . .18
TLR4 . . . . . . . . . . . . . .18
TLR6 . . . . . . . . . . . . . .18
TLR8 . . . . . . . . . . . . . .18
TLR20 . . . . . . . . . . . . .18
TLR21 . . . . . . . . . . . . .18
TLR23 . . . . . . . . . . . . .18
TLR24 . . . . . . . . . . . . .18
TLR28 . . . . . . . . . . . . .18
TLR34 . . . . . . . . . . . . .18
TLR36 . . . . . . . . . . . . .18
TLR36TB . . . . . . . . . . .18
TLR37 . . . . . . . . . .18, 20
TLR38 . . . . . . . . . . . . .18
TLR50 . . . . . . . . . . . . .18
TLR90 . . . . . . . . . . . . .19
TLR91 . . . . . . . . . . . . .19
TLR92 . . . . . . . . . . . . .19
TLR93 . . . . . . . . . . . . .19
TLR95 . . . . . . . . . . . . .19
TLR96 . . . . . . . . . . . . .19
TLRW-12 . . . . . . . . . . .22
TLRW-18 . . . . . . . . . . .22
TLRW-24 . . . . . . . . . . .22
TLRW-36 . . . . . . . . . . .22
TLRW-48 . . . . . . . . . . .22

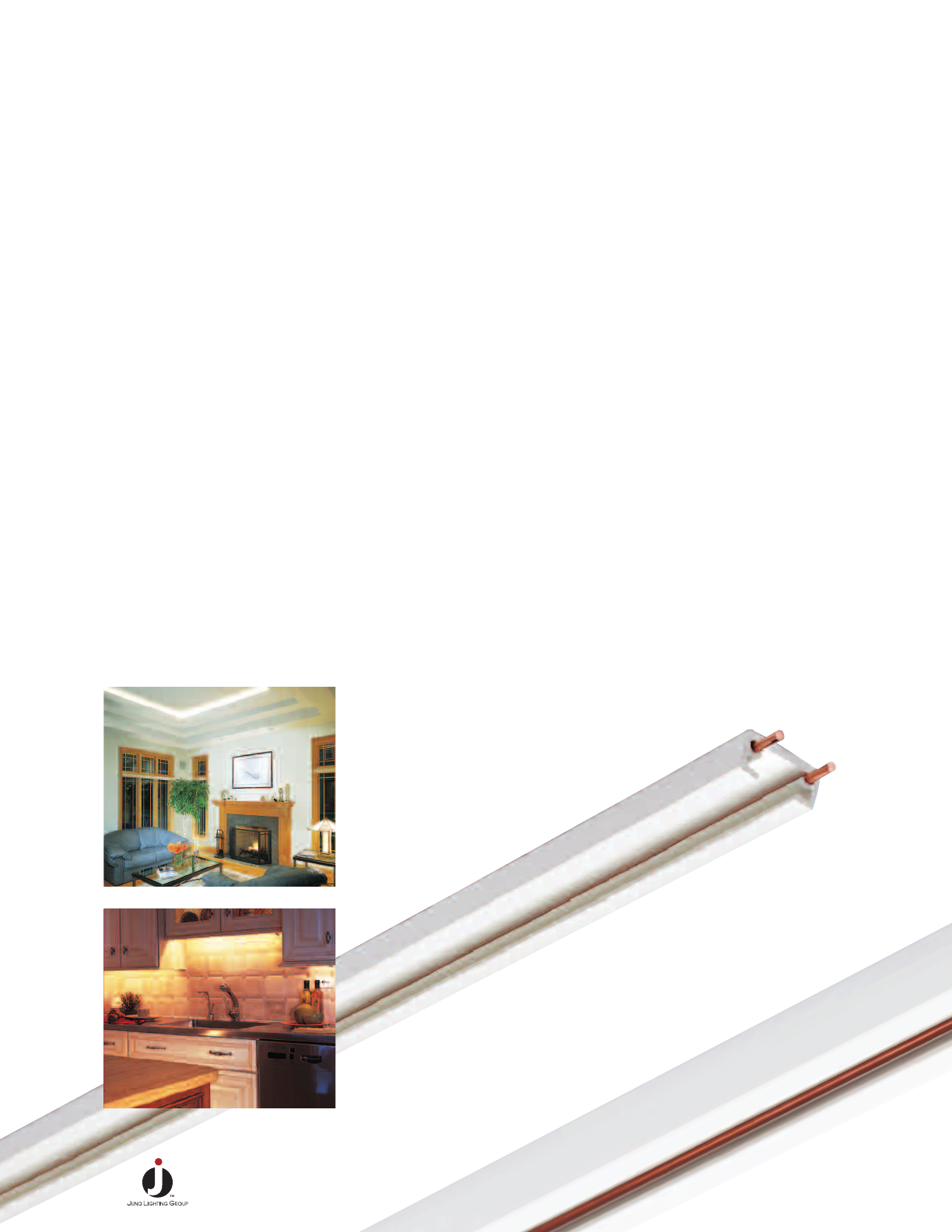

Linear Lighting
Trac 12®can be easily
integrated into coves
or cabinetry to produce
uniform linear lighting.
Variable lampholder
spacing allows on-
the-job fine-tuning to
create even illumination
at the desired level.

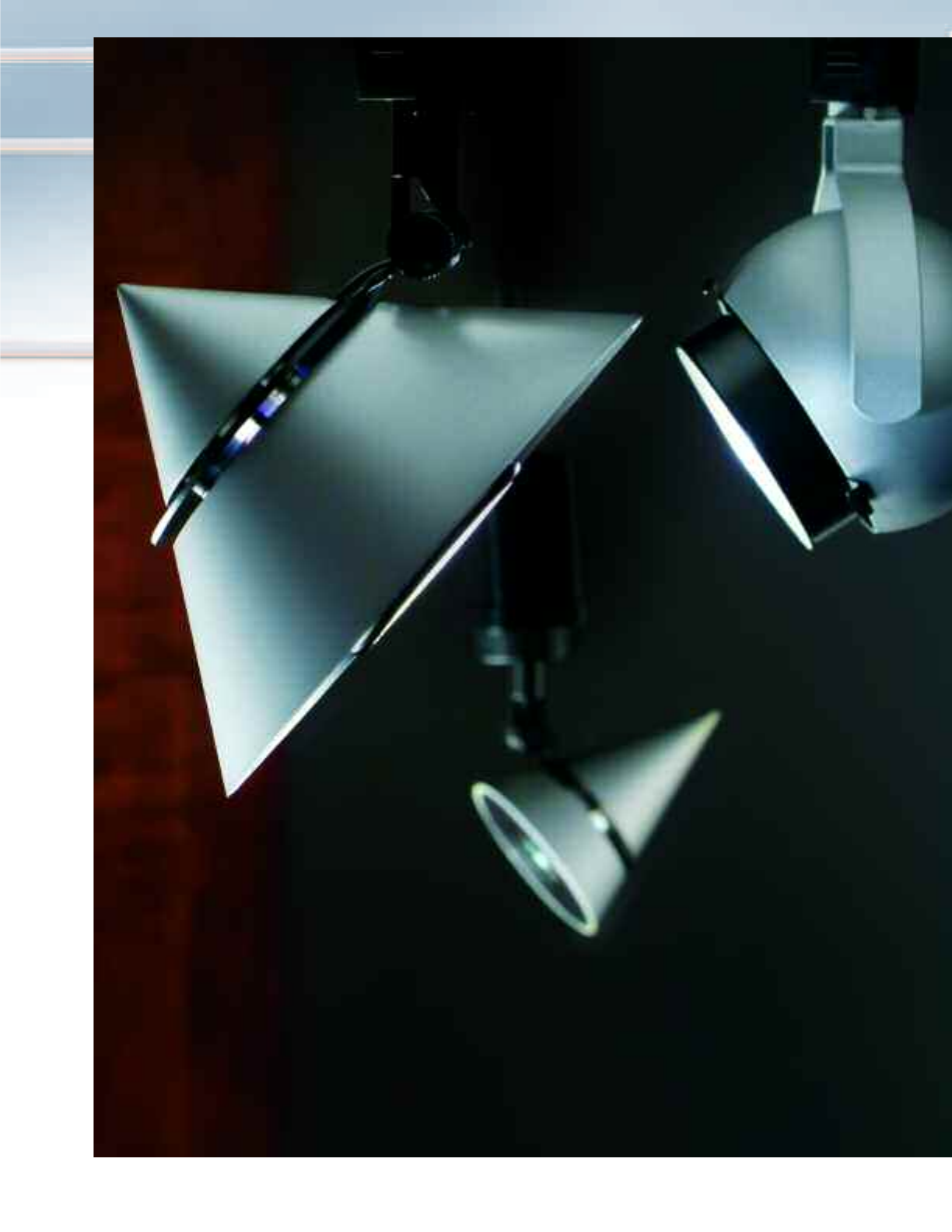

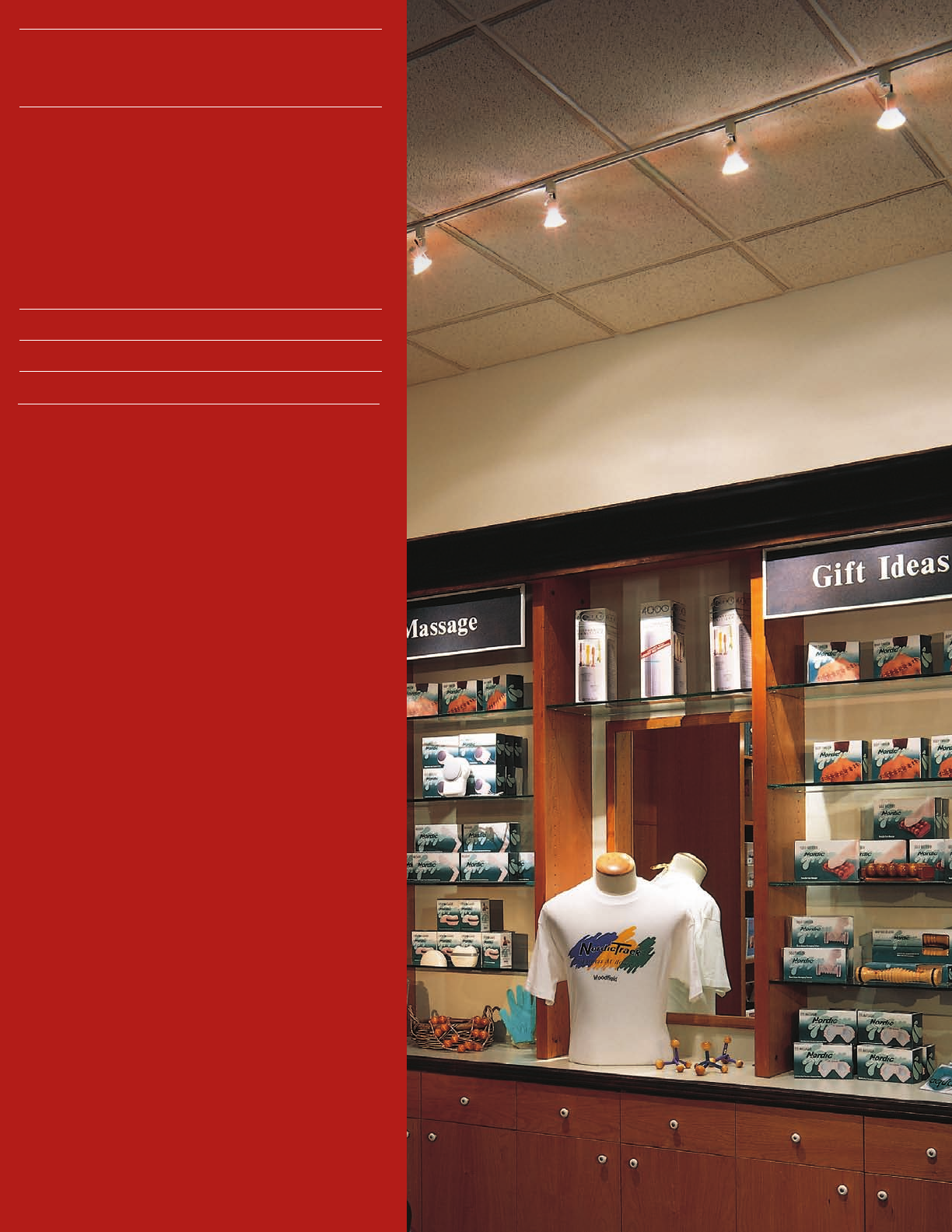

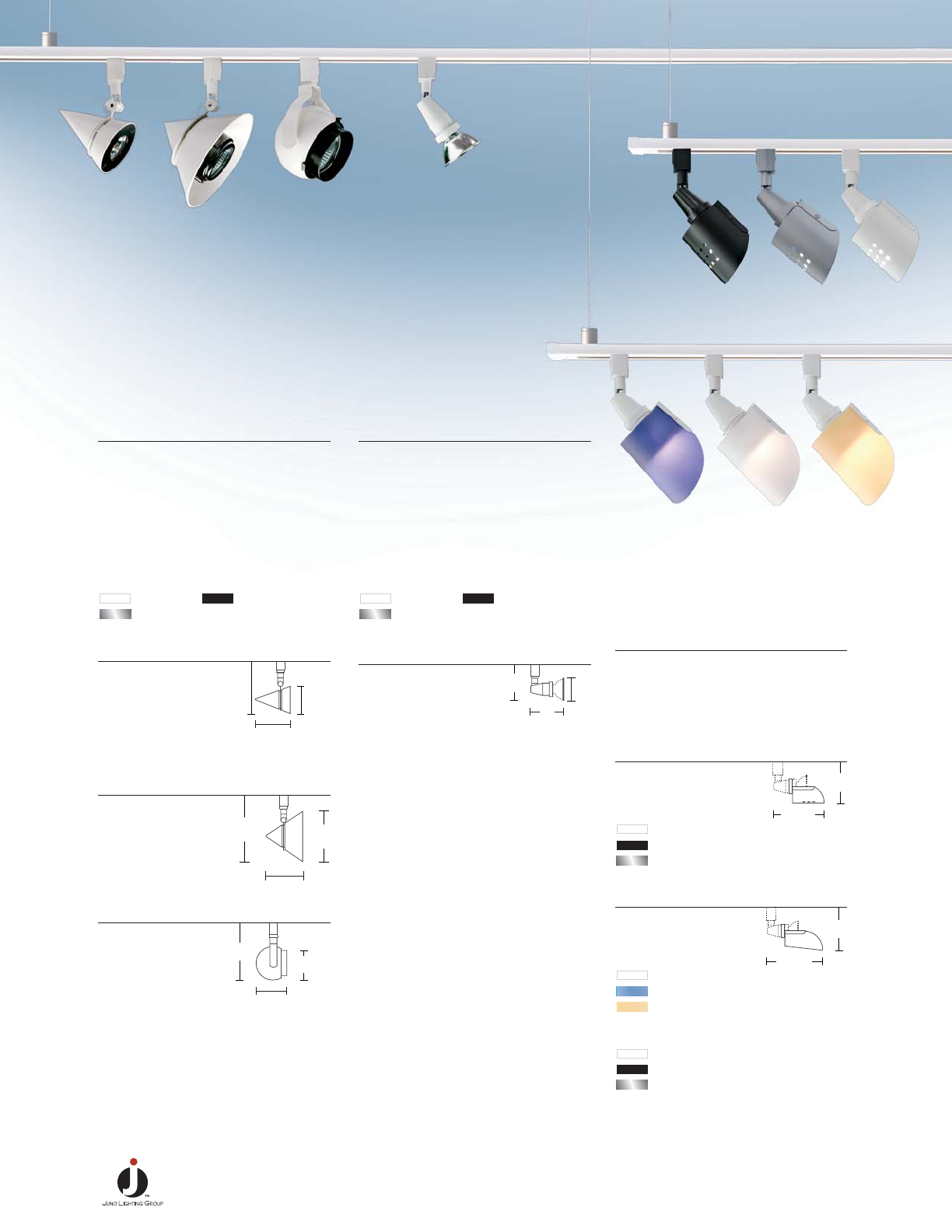

Spotlights
Trac 12®is easily inte-
grated into displays,
low soffits, ceilings or
pendant suspended for
dramatic accent lighting.
Owing to its miniature
scale and remote
transformer format that
eliminates the need for
transformers at each
fixture, Trac 12/Trac12/25
infuses the flexibility of
trac lighting in smaller
scale settings typically
not considered practical
to illuminate with larger
line voltage trac systems.

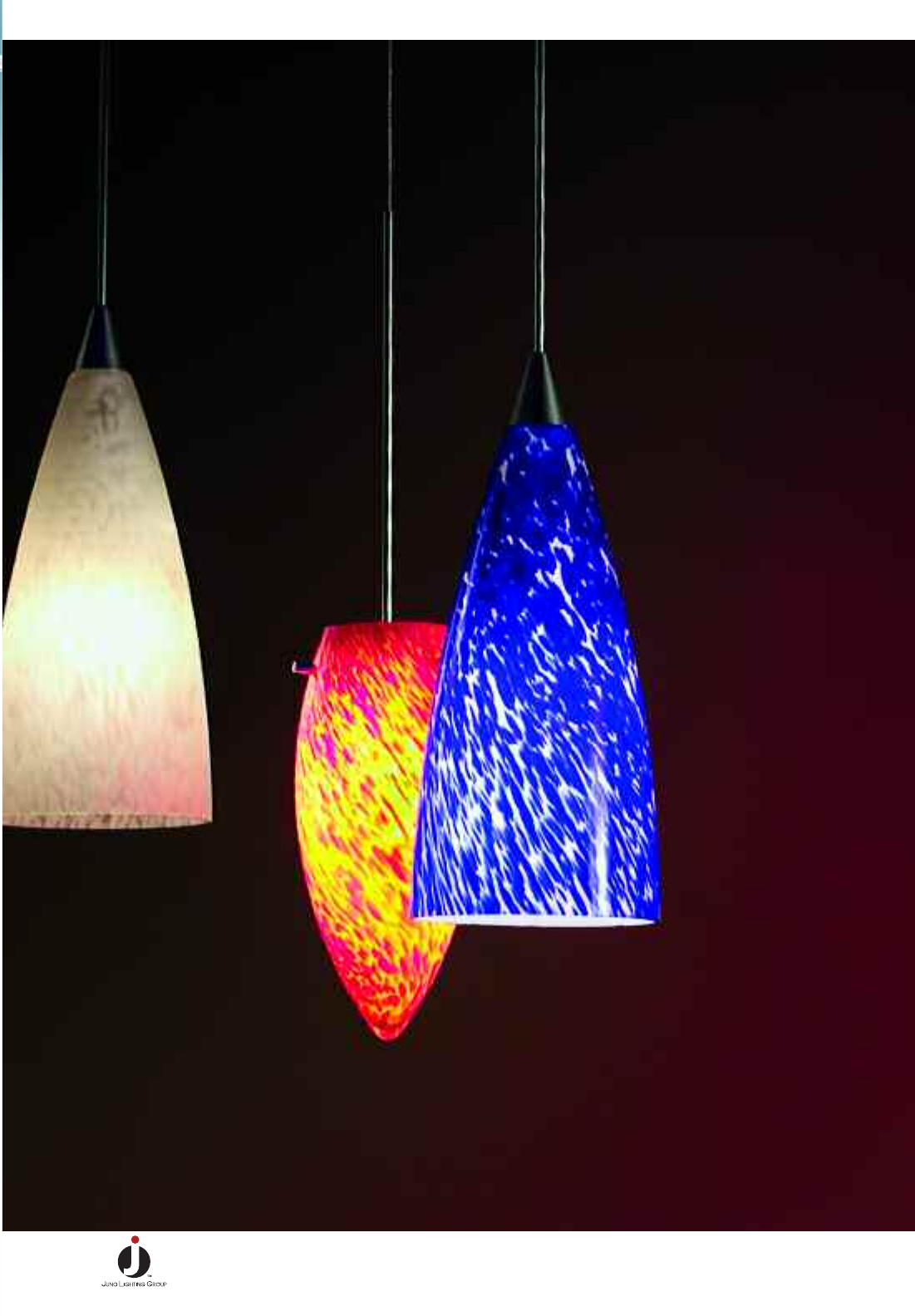

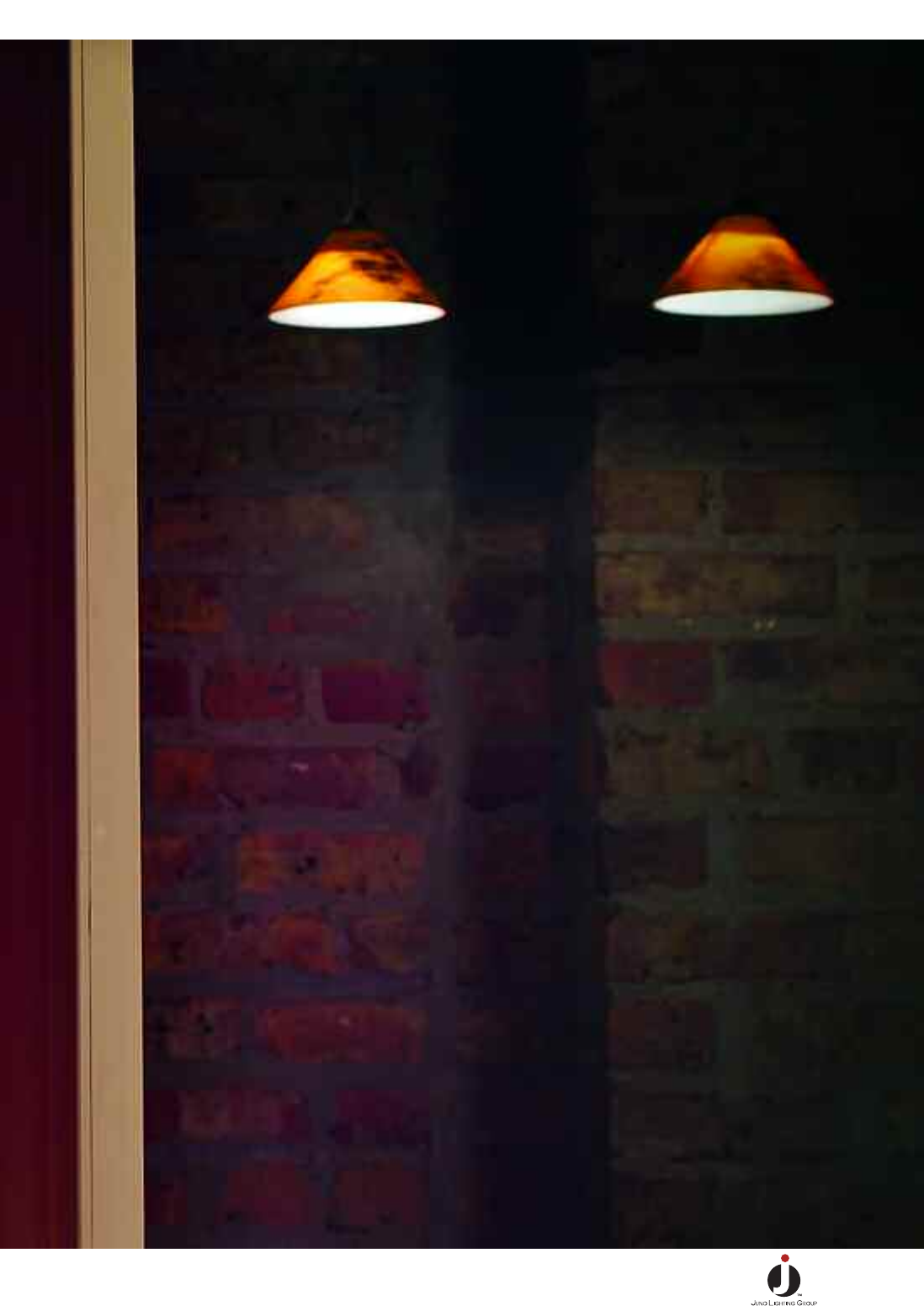

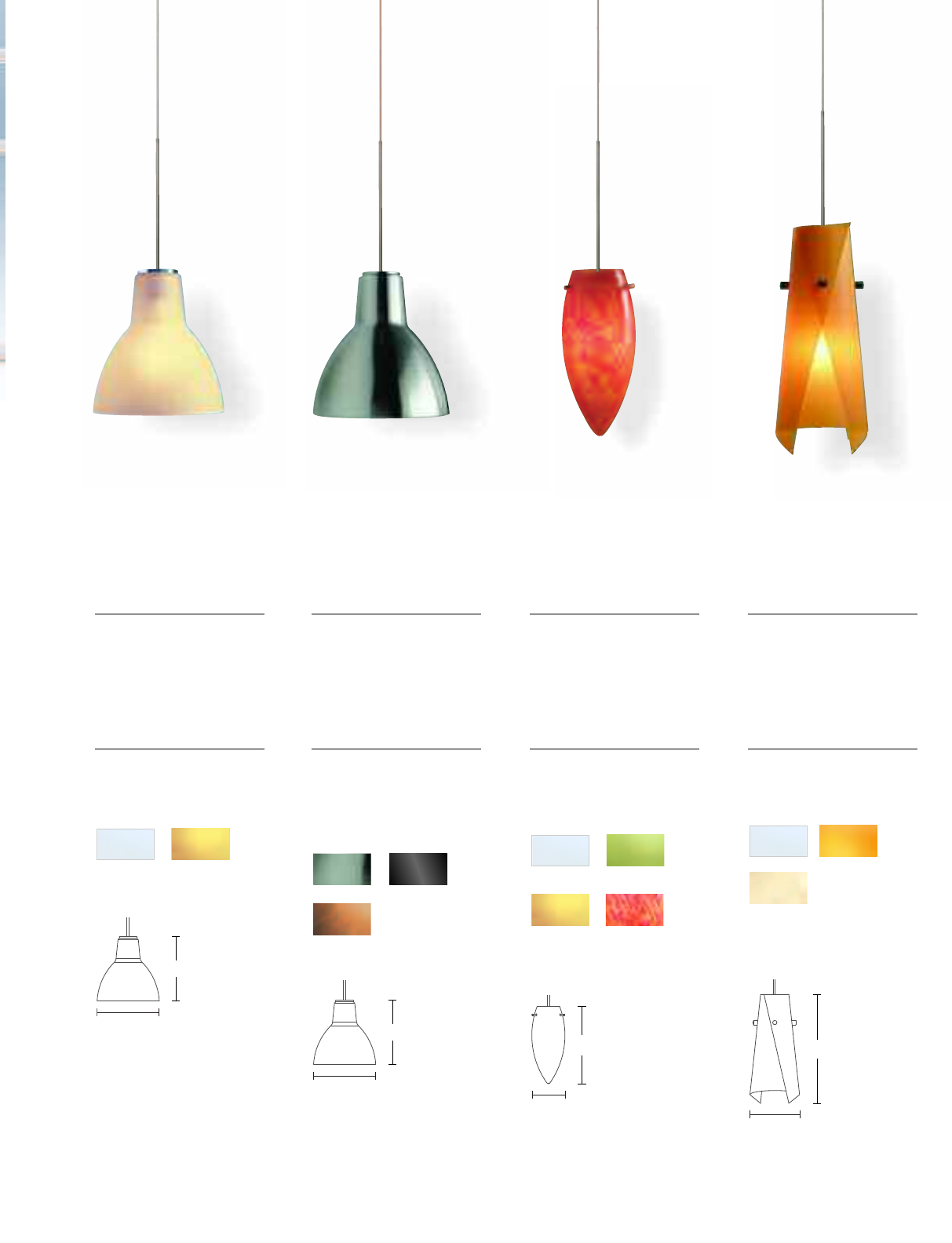

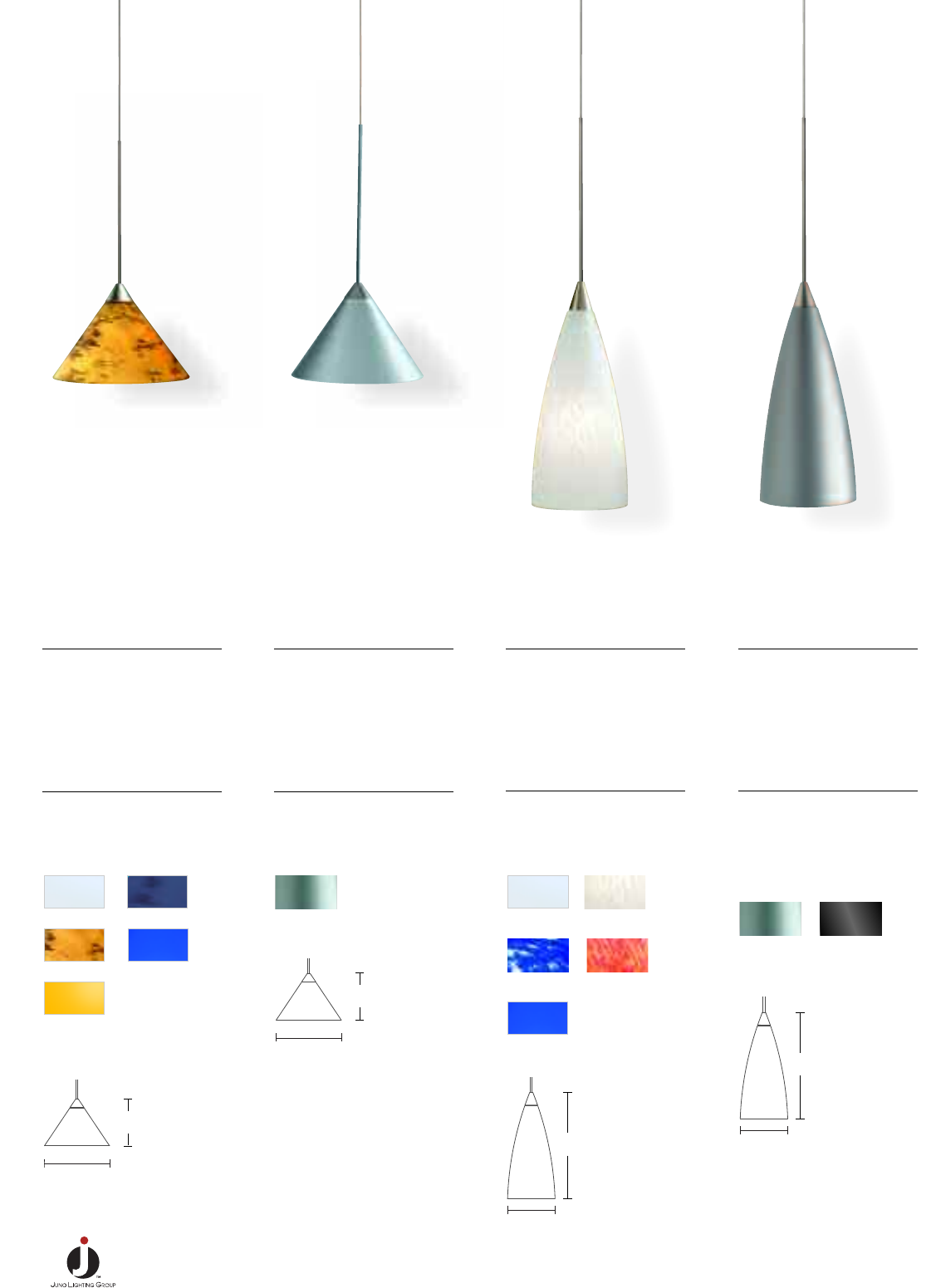

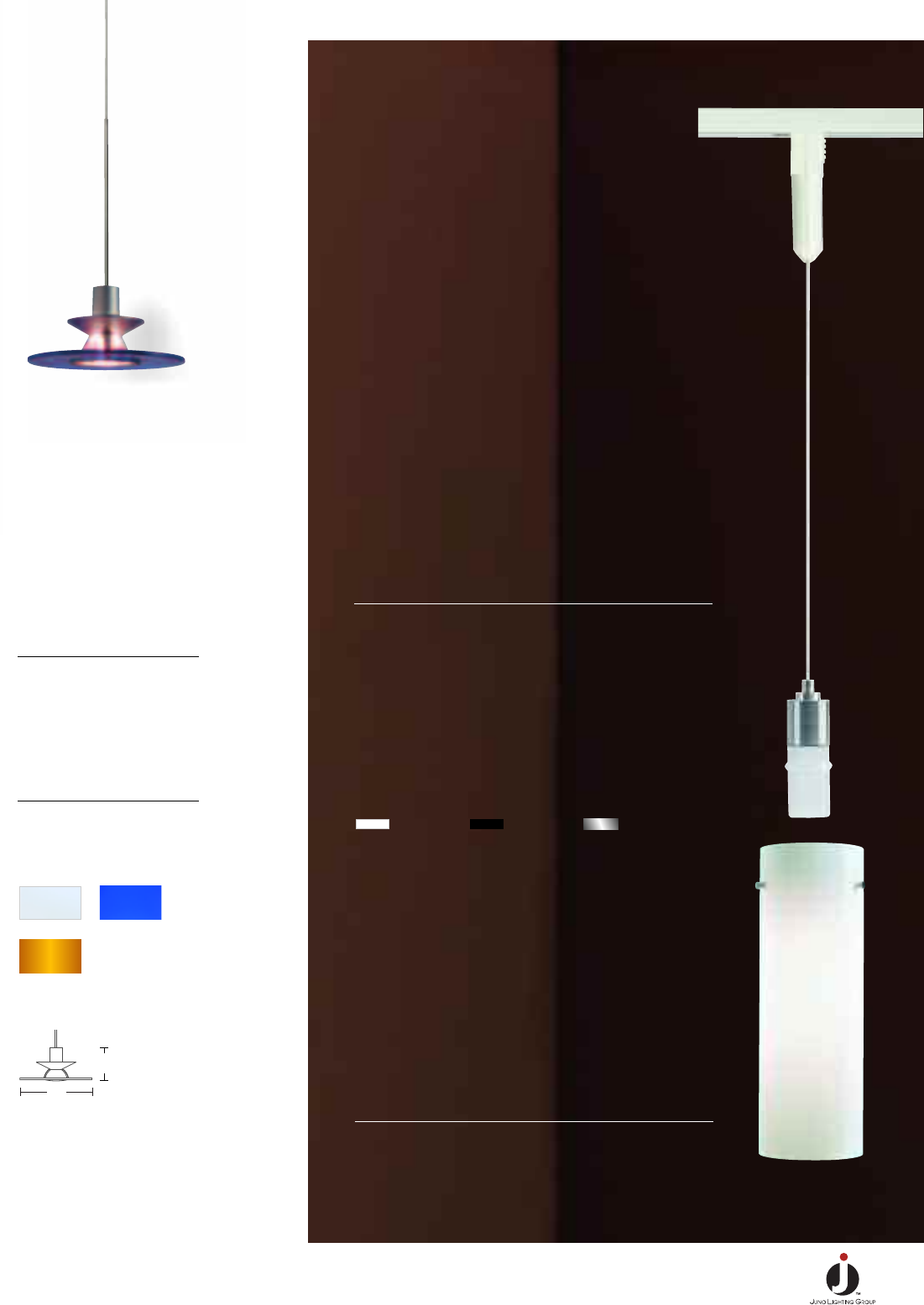

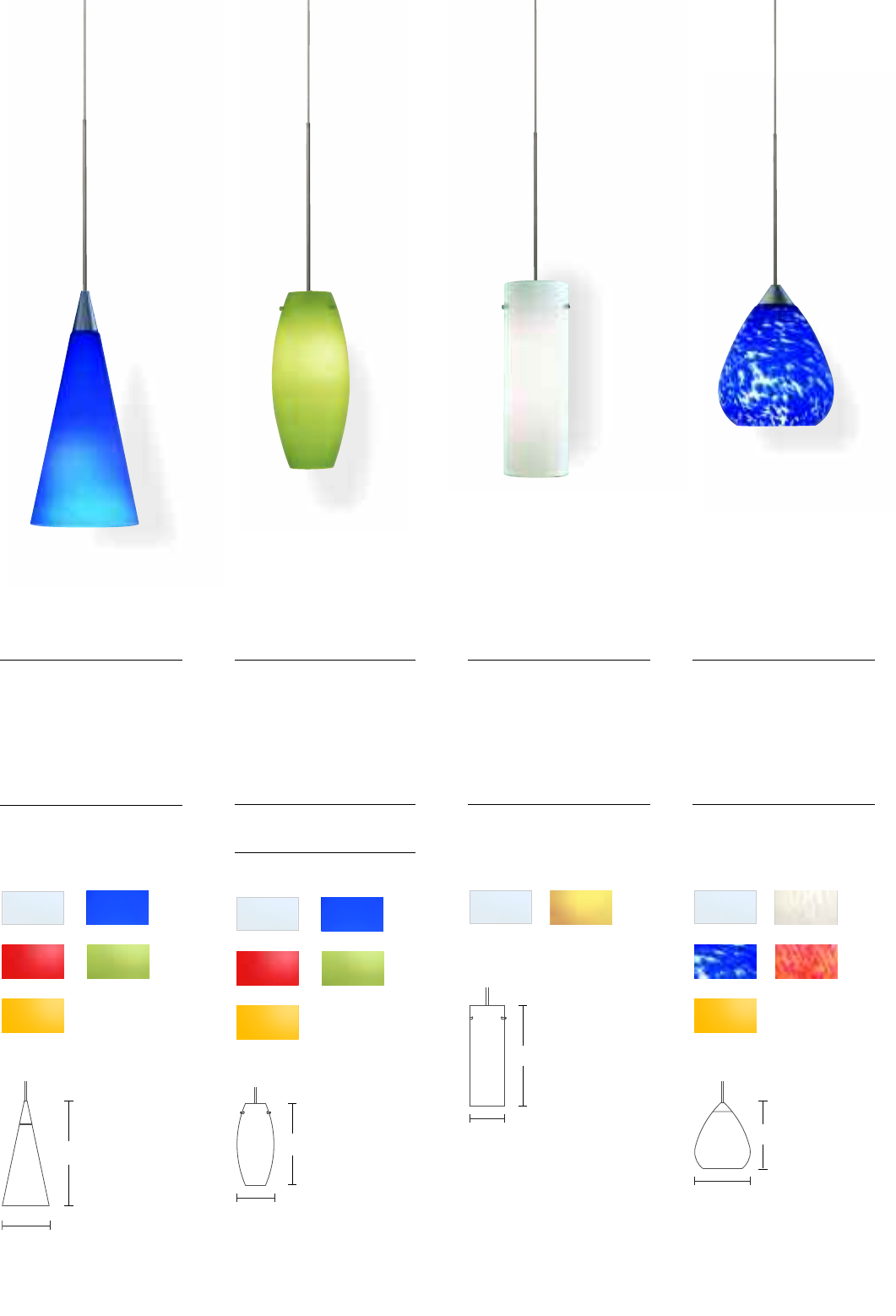

Decorative Pendants
Awide selection of
stylish decorative
pendants for trac or
monopoint mounting.
JunoTrac 12
The miniaturization of these systems provides unique
versatility with an adaptable, trac-based system.
4
PAGE
5
PAGE
12
PAGE
1
®

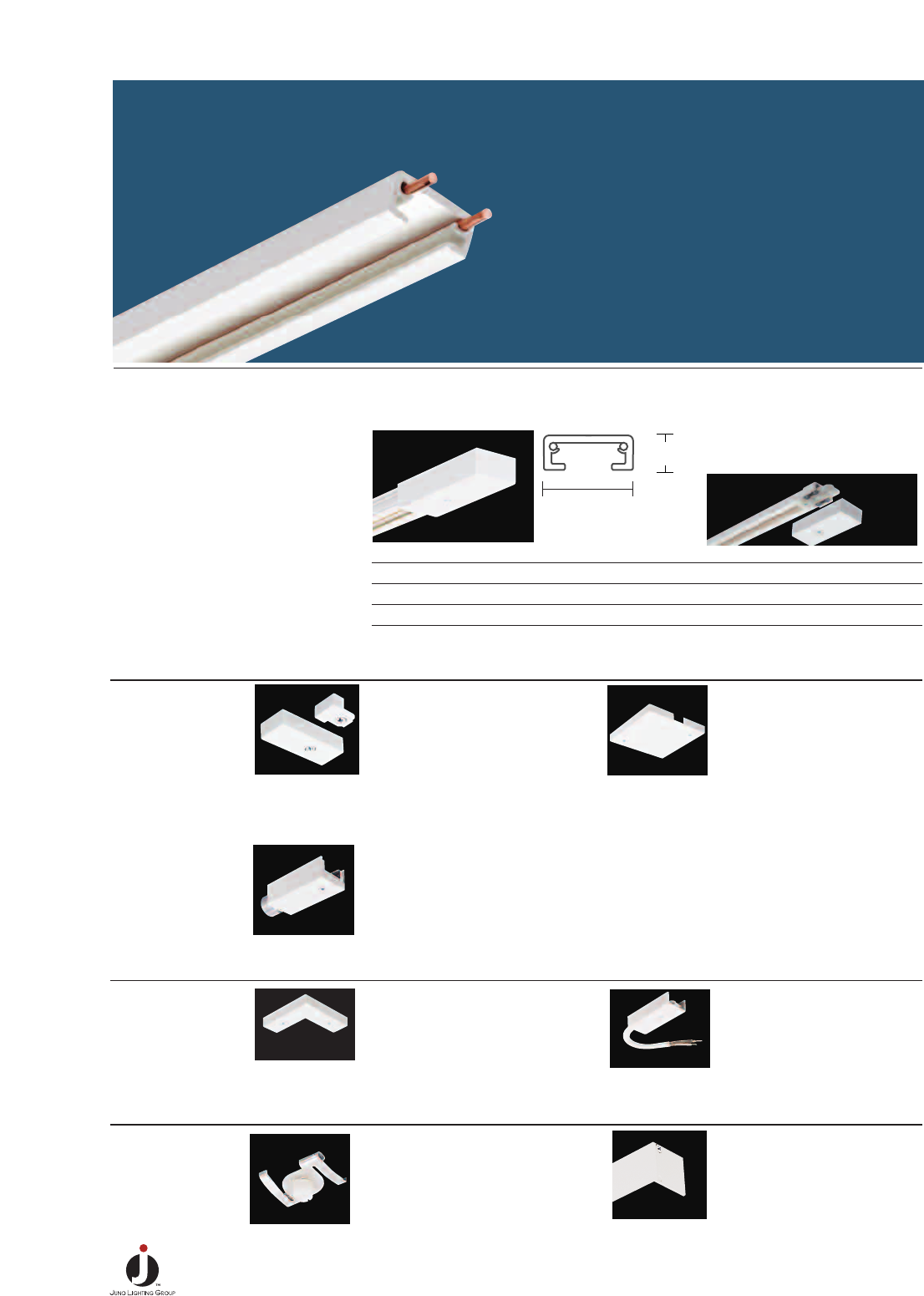

Trac 12
2
Trac 12®is the original extruded ther-
moplastic 20-amp system that Juno
introduced when it first pioneered the
concept of miniature low voltage trac.
It is optimized for cabinetry, special
displays, exhibits and other tight spaces
where absolute minimum size is required,
either because the trac is being con-
cealed from view or is being mounted
closer to eye level.
Key Features
• 20-amps maximum per circuit:
240 watts at 12 volts or
480 watts at 24 volts
• Ultra-miniature 3
/
8"H x 3
/
4"W
thermoplastic profile
• Surface mounting only
• White or black finish
Best Applications
• Linear lighting in cabinetry
and casework
• Shorter cove lighting runs
up to 480 watts
• Displays, exhibits and kiosks
where short trac runs are
mounted closer to eye level
• Other space restricted locations
Trac 12®and Trac12/25
System Comparisons
The original Trac12®and the new rigid profile, higher
amperage Trac12/25 each offer unique features and
advantages best suited for particular applications.
Both systems accept the full complement of Trac12
linear, spotlight and decorative pendant fixtures.
Trac 12®
Trac 12®
shown actual size
3
Trac 12/25 offers a rigid aluminum profile
and an increased 25-amp capacity that
makes it more optimal for general trac
display lighting and longer cove lighting
runs. The rigid profile requires less instal-
lation mounting points, holds straight and
true over long runs and can be surface
or pendant mounted. The increased 25-
amp capacity allows more fixtures per run
of trac to be installed, which can reduce
the installed system costs.
Key Features
• 25 amps per circuit:
300 watts at 12 volts
or 600 watts at 24 volts
• Miniature 5
/
8"H x 15
/
16"W
rigid aluminum profile
• For surface or pendant mounting
• White, black or silver finish
Best Applications
• Ceiling or pendant mounted
trac display lighting
• Longer linear lighting cove or
casework runs up to 600 watts
Trac 12/25
Trac 12/25
shown actual size
5/8"
2 3/8"
Trac 12
4
3/4"
2 1/8"
3 7/8"
1 1/4"
TL201 TL202 TL211 TL103
5/8"
1 3/8"
T3–1/4 Wedge Base Lamps
CLEAR/
CATALOG #WATTS VOLTS FROSTED LUMENS
TL900 3 12 Clear 15
TL901 5 12 Clear 33
TL903 10 12 Clear 83
TL905-24V 5 24 Frosted 29
TL910-24V 10 24 Frosted 91
Rigid Loop Lamps
CLEAR/
CATALOG #WATTS VOLTS FROSTED LUMENS
TL950CL 5 12 Clear 45
TL950FR 5 12 Frosted 45
TL951CL 10 12 Clear 100
TL951FR 10 12 Frosted 100
TL952CL-24V 5 24 Clear 40
TL952FR-24V 5 24 Frosted 40
TL953CL-24V 10 24 Clear 90
TL953FR-24V 10 24 Frosted 90

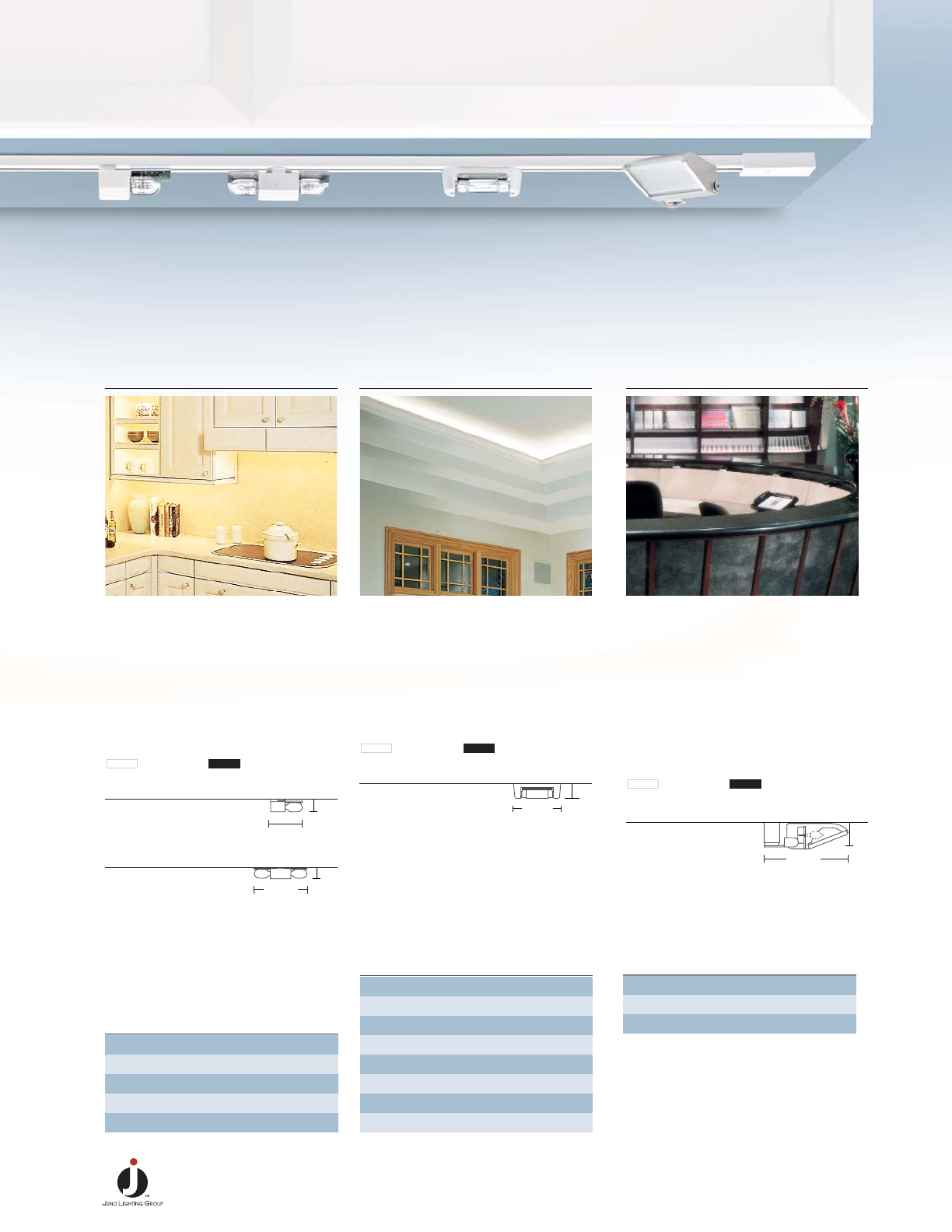

Xenon Wedge Base
Xenon lampholders are ideally suited
for linear lighting applications. They have
a minimum profile and produce a white
light that approximates the color of halo-
gen, but have up to a 20,000-hour lamp
life and do not require fixture lenses or
special handling.
FINISHES:
WHITE(WH) BLACK(BL)
CATALOG #LAMP DIMENSIONS
TL201 12V OR 24V
ONE 3W-10W
T3-1/4 XENON
WEDGE BASE LAMP
TL202 12V OR 24V
TWO 3W-10W
T3-1/4
XENON WEDGE
BASE LAMP
FINISHES: WH, BL
Xenon Rigid Loop
The rigid loop lamp carries all of the
advantages of the wedge base lamps,
but offer a more perfectly symmetrical
light distribution and slightly higher
output that is more optimized for cove
lighting applications.
FINISHES:
WHITE(WH) BLACK(BL)
CATALOG #LAMP DIMENSIONS
TL211 12V OR 24V
5W-10W
XENON T3
RIGID LOOP
LAMP
FINISHES: WH, BL
Halogen Flood
The unique aiming-adjustable low-profile
halogen flood produces high light-levels
and widespread illumination from a minia-
ture luminaire. It is ideal for task and
accent lighting in a variety of confined
space situations. A slide-in frosted glass
safety lens is provided. The halogen lamp
is rated at 2000-hours and is available in
either 12-volt or 24-volt versions.
FINISHES:
WHITE(WH) BLACK(BL)
CATALOG #LAMP DIMENSIONS
TL103 12V OR 24V
10W-20W T3
HALOGEN BI-PIN
FINISHES: WH, BL
T3 Halogen Bi-Pin Lamps
CLEAR/
CATALOG #WATTS VOLTS FROSTED LUMENS
TL922 10 12 Clear 134
TL923 20 12 Clear 307
TL924-24V 20 24 Clear 288
5
2 1/4"
2 1/4"
1 5/8"
TL110
TL112
Shown Actual Size

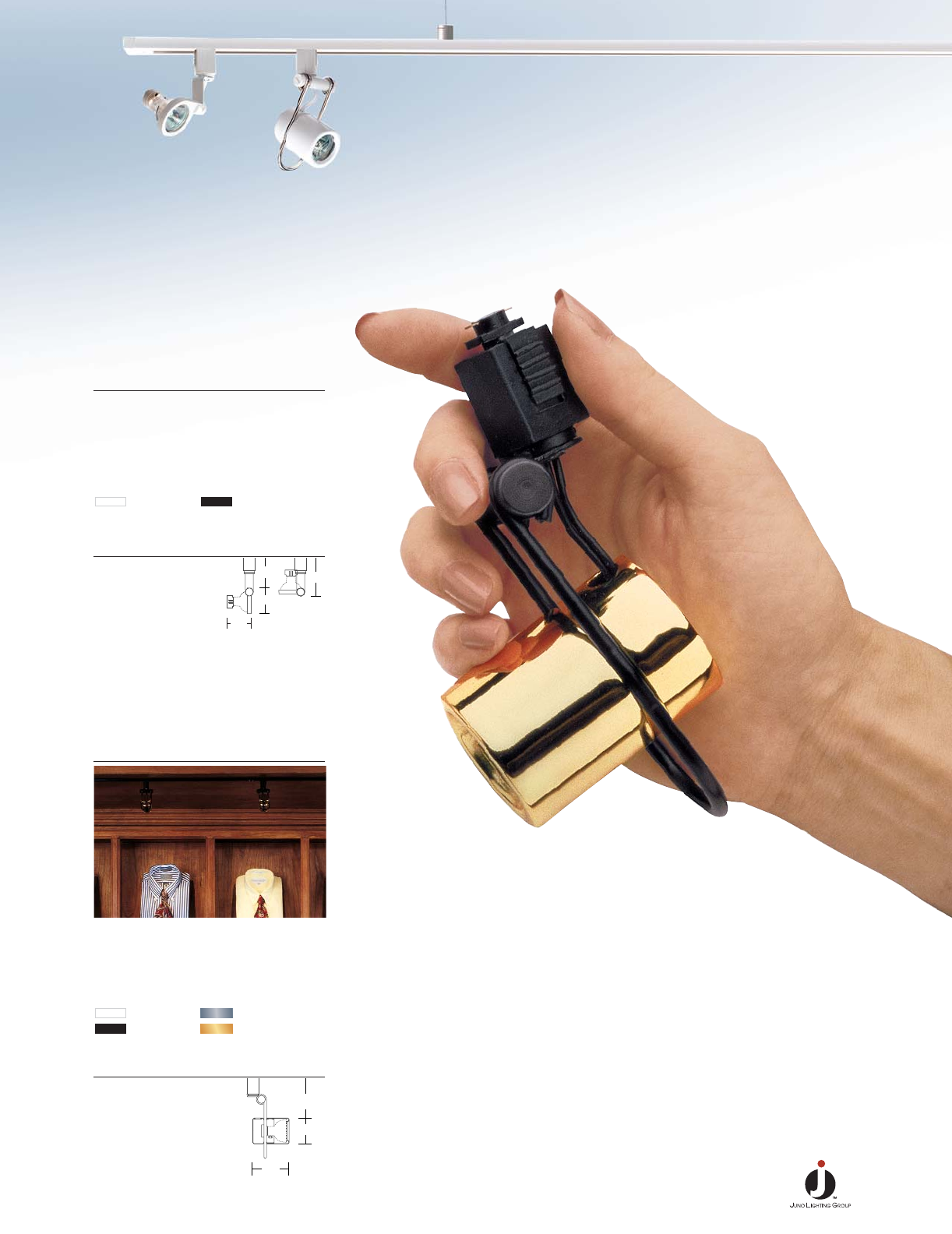

MR11 Mini-Spot
With a minimal 2 1
/
2" displacement from
the trac, the MR11 Mini-Spot is the clear
choice for spotlighting in confined spaces
such as cabinetry, casework or displays.
FINISHES:
WHITE(WH) BLACK(BL)
CATALOG #LAMP DIMENSIONS
TL110 12V OR 24V
20W MR11
FINISHES: WH, BL
MR11 Suspended
Cylinder
Suspended Cylinder provides an
enclosed lamp option for miniature dis-
play lighting.
FINISHES:
WHITE(WH) SATIN CHROME(SC)
BLACK(BL) POLISHED BRASS(PB)
CATALOG #LAMP DIMENSIONS
TL112 12V OR 24V
20W MR11
FINISHES: WH, BL, SC, PB
2 1/4"
1 5/8"
1 5/8"
2 1/2"
Trac 12
6

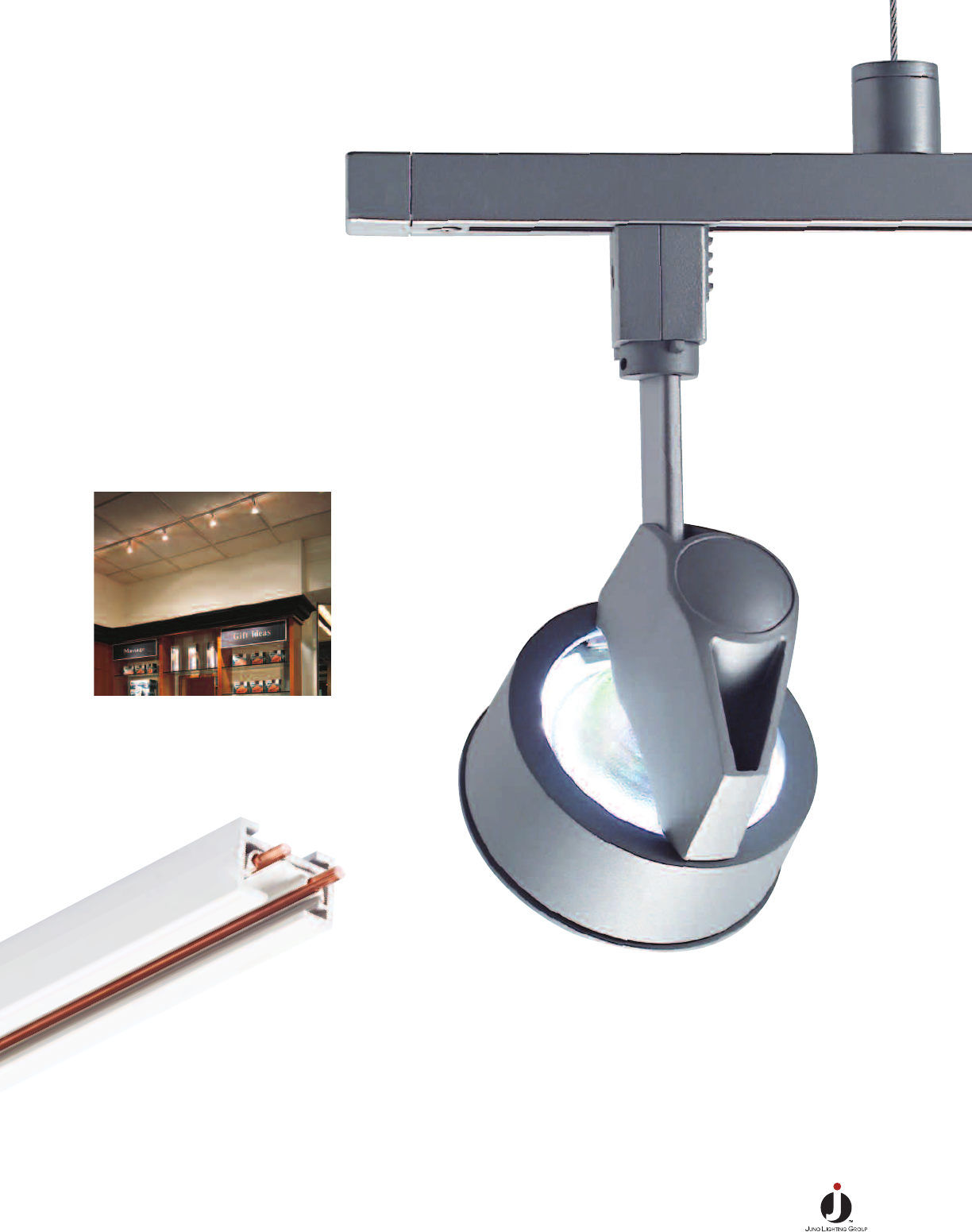

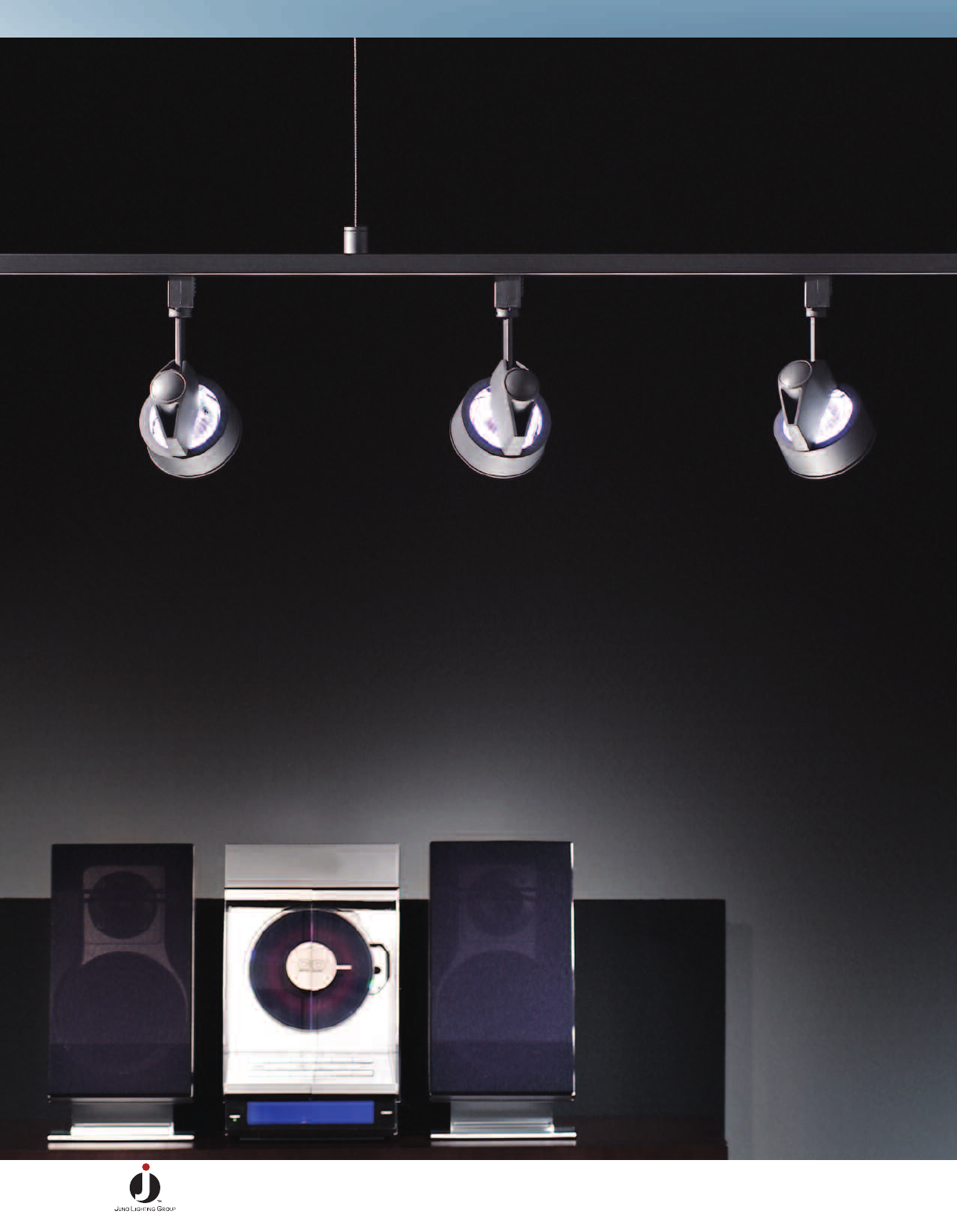

Spotlighting from
Suspended Trac 12/25
The rigid aluminum miniature profile of Trac 12/25 is
perfect for suspending from cable or stems to bring
the fixtures closer to the objects being illuminated.
That can look great and save energy. By positioning
the trac closer to the objects being illuminated, lower
wattage lamps can often be used. And by using lower
wattage lamps, the economy of the system increases,
as more fixtures can be placed on a circuit of trac
using the same size transformer.
3"
2 1/2"
3 3/8"
16 3/4"
9 1/2"

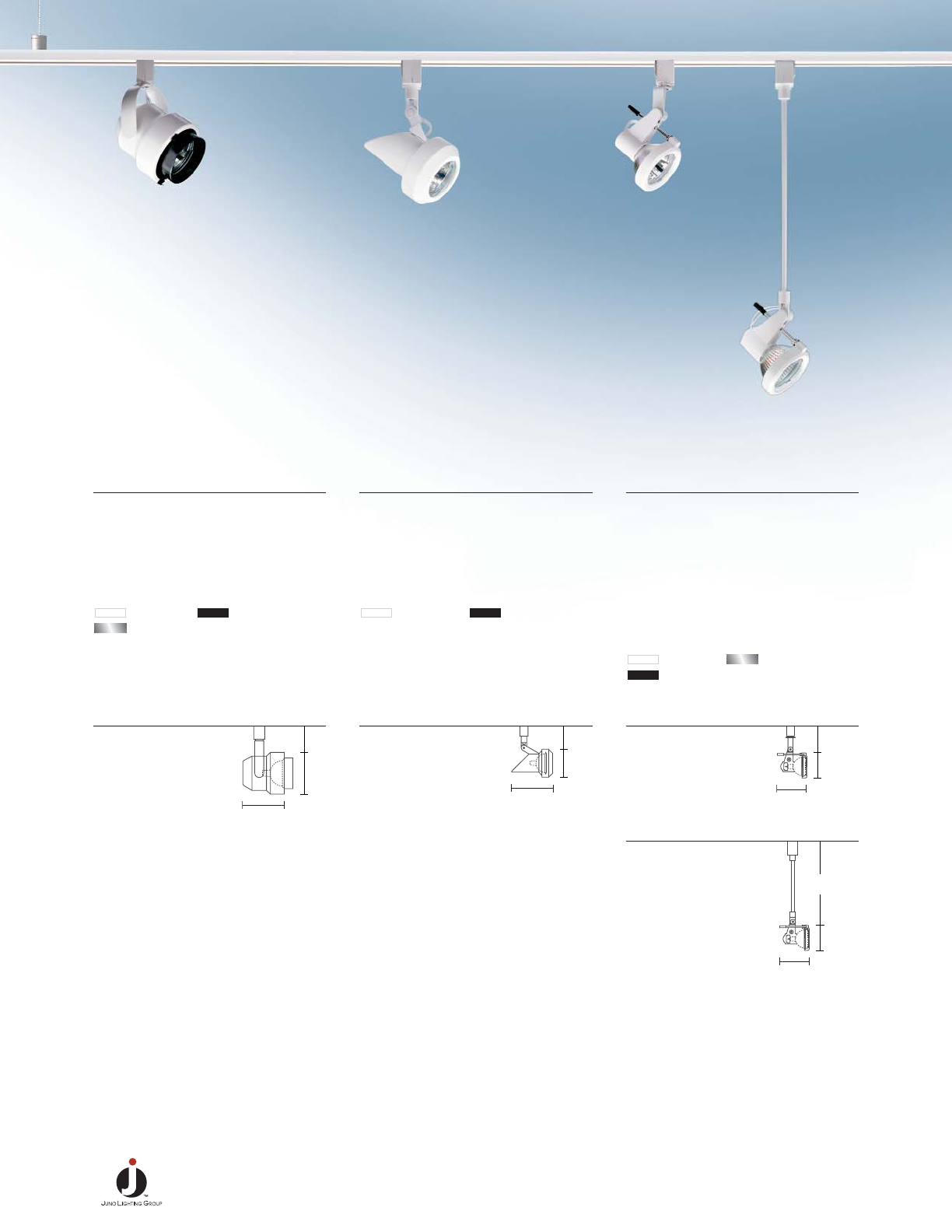

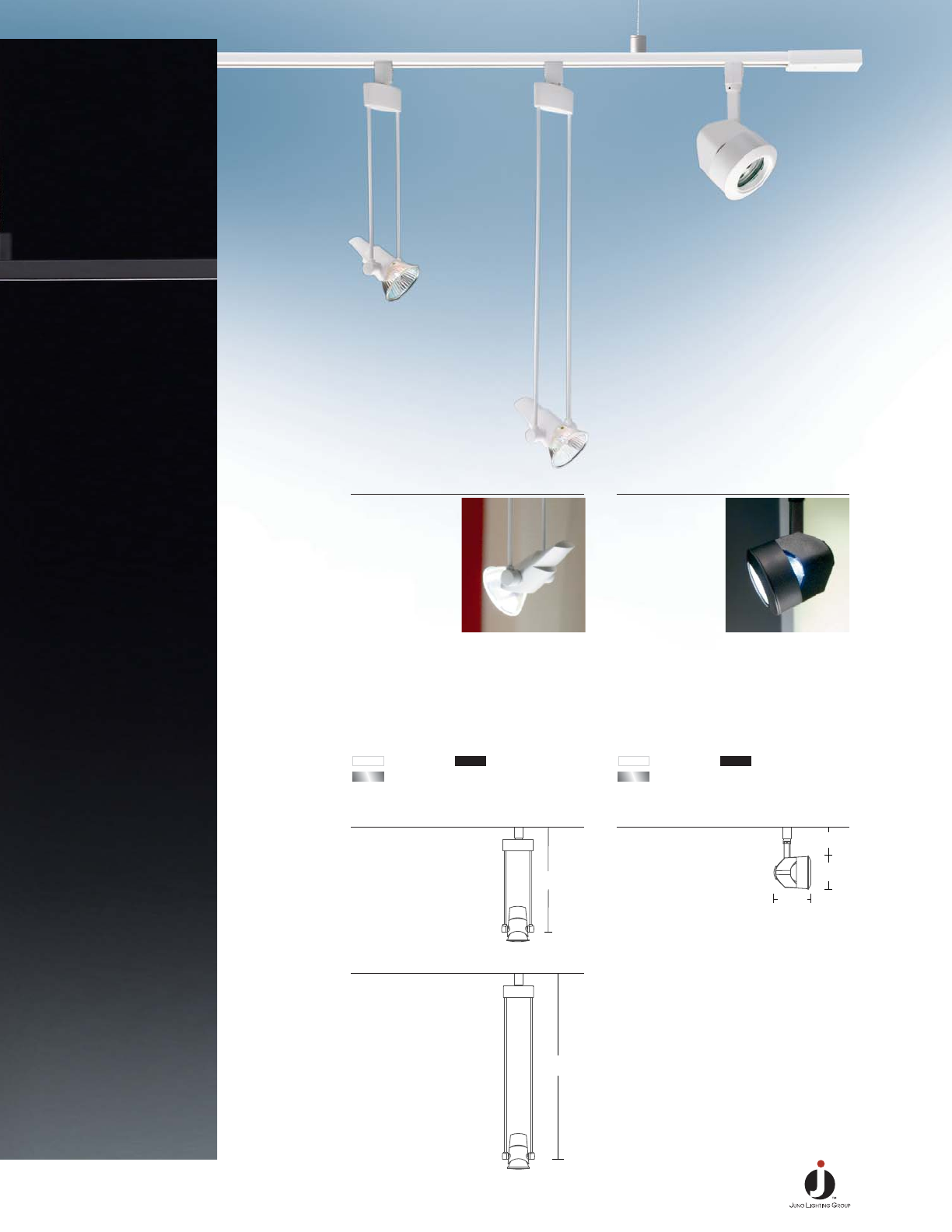

Trapezia™
TrapeziaTM sus-
pends the MR16
lamp down from
the trac with the
grace of a trapeze
artist. Slender
9-inch or 16-inch
long tubes conceal
supply wires feed-
ing into an elegantly sculpted die-cast
lamp housing. The light airy appearance
is great for display, exhibition and gallery
lighting and the downward reach can make
pendant mounting of trac unnecessary.
FINISHES:
WHITE(WH) BLACK(BL)
SILVER(SL)
CATALOG #LAMP DIMENSIONS
TL130-9 12V OR 24V
20-50W
MR16CG
COVER GLASS
FINISHES: WH, BL, SL
TL130-16 12V OR 24V
20-50W
MR16CG
COVER GLASS
FINISHES: WH, BL, SL
7
*TL130-9 and TL130-16 require accessory holder
for filters, lenses, louvers and barn doors.
**Barn doors for TL130-9 and TL130-16 only. See page 23 for complete
accessory descriptions.
TL130-9
TL130-16
TL140
Gyrus™
A new spin on
an old idea, the
GyrusTM combines
dramatic aerody-
namic styling
with an integral
accessory holder
that accepts up
to two standard
2" diameter lenses and louvers. The
snap-on design makes this an easy to
accessorize fixture for more demanding
display lighting applications.
FINISHES:
WHITE(WH) BLACK(BL)
SILVER(SL)
CATALOG #LAMP DIMENSIONS
TL140 12V OR 24V
20-50W
MR16
FINISHES: WH, BL, SL

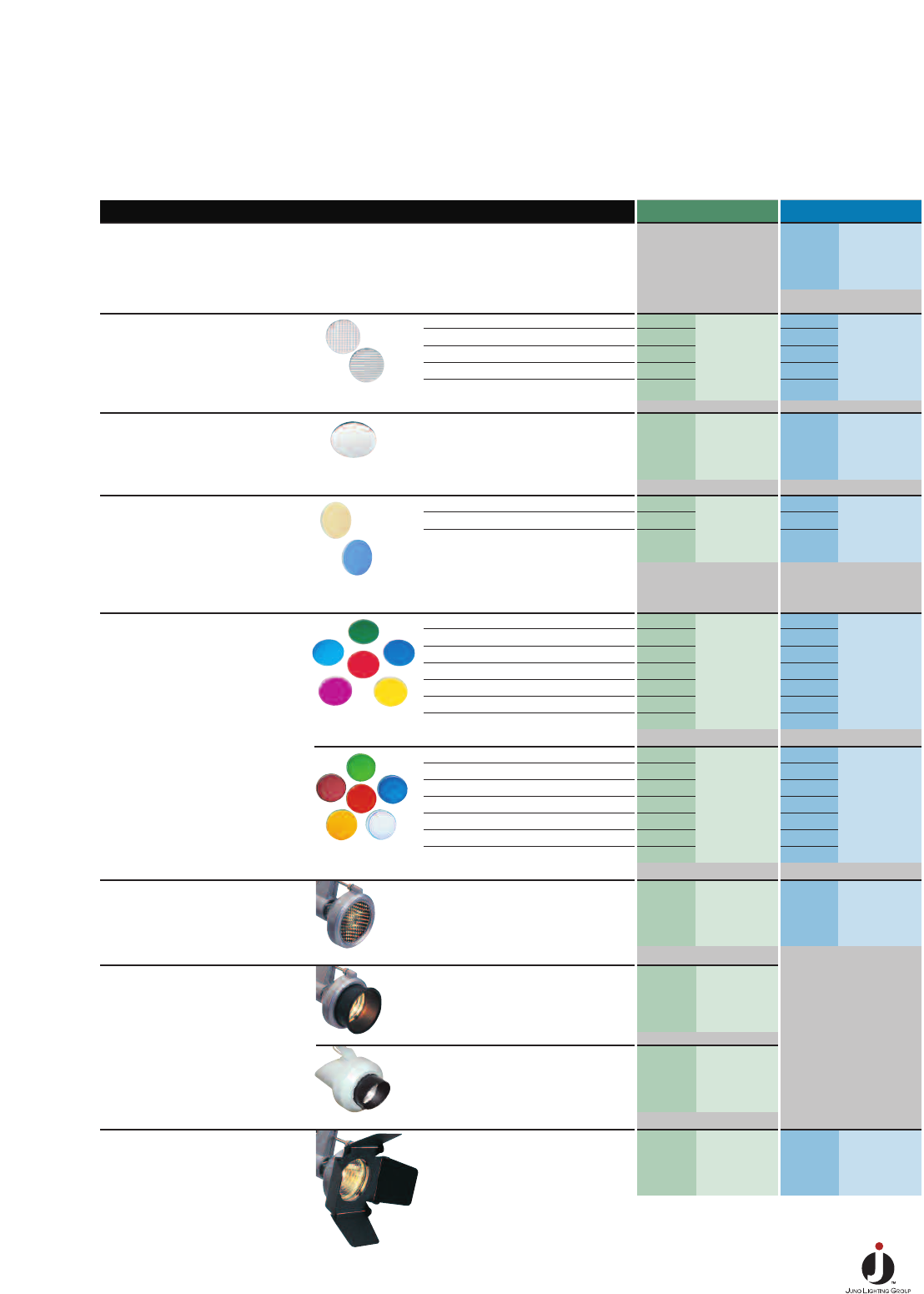

ACCESSORIES FOR TL130-9, TL160-16 AND TL140:
Accessory Holder* T7400BL, SA
Barn Doors** T7470BL
Color Filters T741-6
UV Filters T7422
Dichroic Lenses T7401-18
Prismatic Spread Lens T7477
Linear Spread Lens T7478
Diffuse Spread Lens T7420
Uniformity Lens T7421
Hexcell Louver T7459BL
Gyrus US Patent No. D508,792
Trapezia US Patent No. D504,974
8
3"
2"
3 1/4"
3 3/8"
2 1/2"
5"
4 3/4"
3 1/4"
6 1/2"
2 7/8"
3"
5"
4 1/2"
3 1/2"
5 1/4"
3 7/8"
TL301
TL160
TL161
TL165
TL301
WITH TF308
TL301
WITH TF309
*Filters, lenses, louvers and barn doors
require accessory holder for installation.
See page 23 for complete
accessory descriptions.
Geometrics
The timeless simplicity of cones and
spheres. Choose the petite MR11
dart for a playful accent, the MR16
Cone for a more sophisticated design
statement or the Orb for balanced,
consistent appearance regardless
of aiming angle.
FINISHES:
WHITE(WH) BLACK(BL)
SILVER(SL)
Dart
CATALOG #LAMP DIMENSIONS
TL161 12V OR 24V
20-35W
MR11
FINISHES: WH, BL, SL
Cone
CATALOG #LAMP DIMENSIONS
TL160 12V OR 24V
20-50W
MR16
FINISHES: WH, BL, SL
Orb
CATALOG #LAMP DIMENSIONS
TL165 12V OR 24V
20-50W
MR16
FINISHES: WH, BL, SL
ACCESSORIES FOR TL160 AND TL165:
Color Filters T551-5
UV Filter T5522
Dichroic Lenses T5501-18
Diffuse Spread Lens T5520
Linear Spread Lens T559
Prismatic Spread Lens T557
Uniformity Lens T5521
Hexcell Louver T5559BL
Universal
Use the minimalist universal by itself
for a do everything basic lampholder,
or in combination with one of the scoop
accessories for a playful metallic or
colorful accent. (Designed for use
with integral cover glass MR16 lamps.)
FINISHES:
WHITE(WH) BLACK(BL)
SILVER(SL)
CATALOG #LAMP DIMENSIONS
TL301 12V OR 24V
20-50W
MR16CG
COVER GLASS
FINISHES: WH, BL, SL
ACCESSORIES*:
Accessory Holder T7400BL, SA
Barn Doors T7470BL
Color Filters T741-6
UV Filters T7422
Dichroic Lenses T7401-18
Prismatic Spread Lens T7477
Linear Spread Lens T7478
Diffuse Spread Lens T7420
Uniformity Lens T7421
Hexcell Louver T7459BL
Accessory Scoops
Universal halogen spotlights take on
a whole new appearance when you
dress them up in one of these metal
or luminous scoops.
CATALOG #DESCRIPTION DIMENSIONS
TF308 PERFORATED
METAL SCOOP
FINISHES:
WHITE(WH)
BLACK(BL)
SILVER(SL)
CATALOG #DESCRIPTION DIMENSIONS
TF309 LUMINOUS
SCOOP
SCOOP FINISHES:
WHITE(W)
BLUE FROST(BU)
YELLOW FROST(YL)
RETAINING COLLAR FINISHES:
WHITE(WH)
BLACK(BL)
SILVER(SL)
ORDERING EXAMPLE:
TF309BU-SL
Short Cone-
GLASS
Hand blown cased glass
with opal interior and satin
nickel plated finial.
CATALOG #LAMP
TLP310* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE OR
MR16CG COVER GLASS
DIMENSIONS
5 1/2"
4"
SUNSET GOLD
COBALTAMBER DRIFT
NIGHT BLUEOPAL
Short Cone-
METAL
High-reflectance white inte-
rior finish and satin nickel
plated finial.
CATALOG #LAMP
TLP311* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE OR
MR16CG COVER GLASS
DIMENSIONS
5 1/2"
4"
SILVER
Tall Cone
Hand blown cased glass
with opal interior and satin
nickel plated finial.
CATALOG #LAMP
TLP312* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE OR
MR16CG COVER GLASS
DIMENSIONS
4"
9"
SUNSET GOLD
PISTACHIOROUGE
COBALTOPAL
Flute-GLASS
Hand blown cased glass
with opal interior and satin
nickel plated finial.
CATALOG #LAMP
TLP314* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE OR
MR16CG COVER GLASS
DIMENSIONS
INFERNOICE
GLACIEROPAL
Flute-METAL
High-reflectance white
interior finish and satin
nickel plated finial.
CATALOG #LAMP
TLP315* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE OR
MR16CG COVER GLASS
(EXCEPT 35W MAX
FOR MIDNIGHT FINISH)
DIMENSIONS
4"
9"
MIDNIGHTSILVER
TLP310AMBERDRIFT TLP311SILVER
TLP312COBALT
TLP314GLACIER TLP315SILVER
Ellipse
Hand blown cased glass
with opal interior and satin
nickel plated support spider.
CATALOG #LAMP
TLP322* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE
DIMENSIONS
7"
3 1/8"
SUNSET GOLD
PISTACHIO
ROUGE
COBALT
OPAL
TLP322PISTACHIO
Cylinder
Hand blown cased glass
with opal interior and satin
nickel plated support spider.
CATALOG #LAMP
TLP324* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE OR
MR16CG COVER GLASS
DIMENSIONS
8"
2 3/4"
MAIZEOPAL
TLP324OPAL
Teardrop
Hand blown cased glass
with opal interior and satin
nickel plated finial.
CATALOG #LAMP
TLP318* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE OR
MR16CG COVER GLASS
DIMENSIONS
4 5/8"
5 1/2"
SUNSET GOLD
INFERNOICE
GLACIEROPAL
TLP318ICE

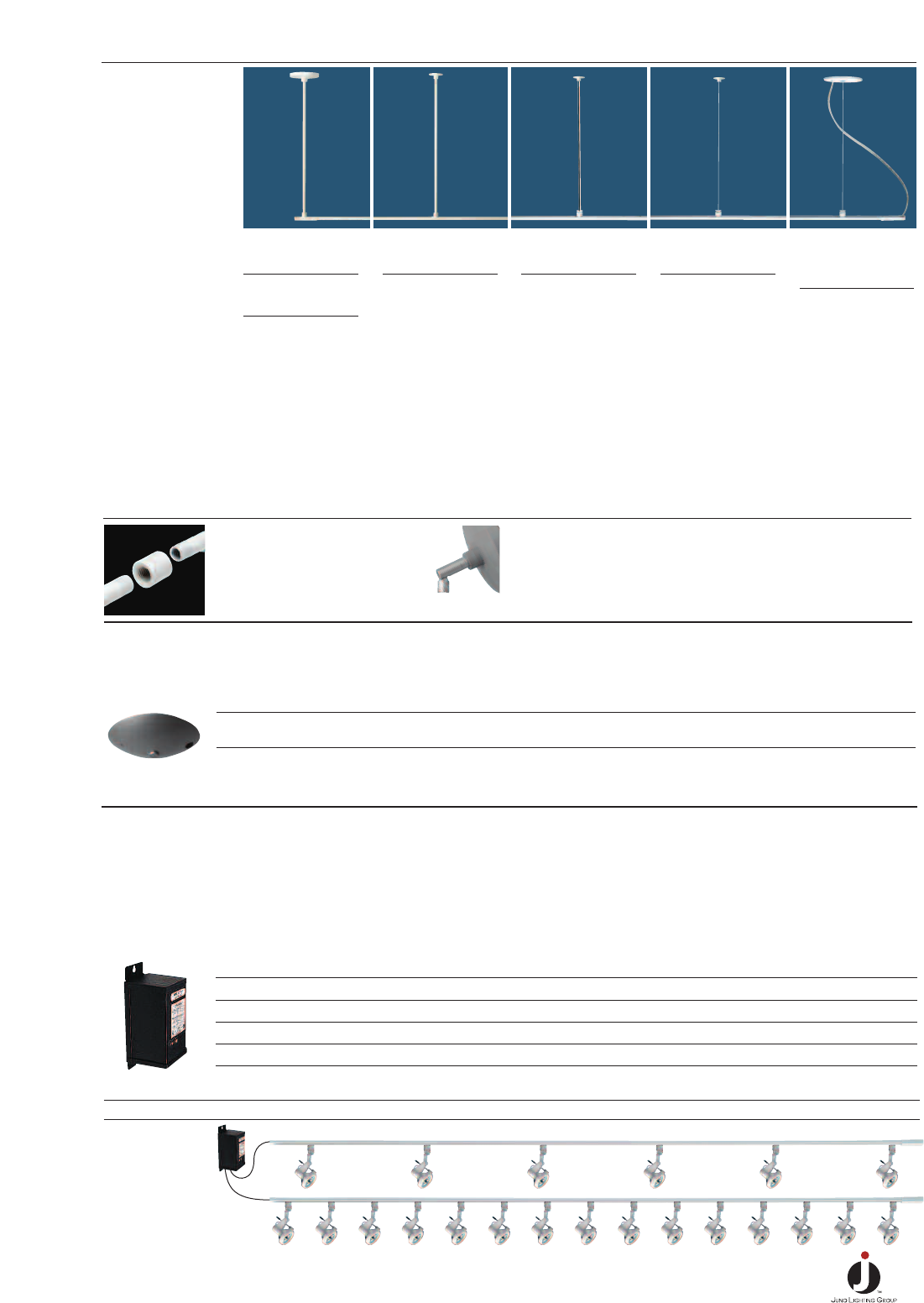

PLEASE NOTE: All pendant shades require a TLP78 or TLP144 pendant cordset. Cordset must
be ordered separately. See complete description at far right.
*When ordering add finish name after catalog number. EXAMPLE: TLP310NIGHTBLUE. 9
Geometrics
The Geometric series integrates the timeless
simplicity of cones and spheres with technical
details that bring them into the new millennium.
COBALT GLOSS
4"
9"
PLEASE NOTE: All pendant shades require a TLP78 or TLP144 pendant cordset. Cordset must
be ordered separately. See complete description at far right.
*When ordering add finish name after catalog number. EXAMPLE: TLP310NIGHTBLUE.
Short Cone-
GLASS
Hand blown cased glass
with opal interior and satin
nickel plated finial.
CATALOG #LAMP
TLP310* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE OR
MR16CG COVER GLASS
DIMENSIONS
5 1/2"
4"
SUNSET GOLD
COBALTAMBER DRIFT
NIGHT BLUEOPAL
Short Cone-
METAL
High-reflectance white inte-
rior finish and satin nickel
plated finial.
CATALOG #LAMP
TLP311* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE OR
MR16CG COVER GLASS
DIMENSIONS
5 1/2"
4"
SILVER
Tall Cone
Hand blown cased glass
with opal interior and satin
nickel plated finial.
CATALOG #LAMP
TLP312* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE OR
MR16CG COVER GLASS
DIMENSIONS
4"
9"
SUNSET GOLD
PISTACHIOROUGE
COBALTOPAL
Flute-GLASS
Hand blown cased glass
with opal interior and satin
nickel plated finial.
CATALOG #LAMP
TLP314* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE OR
MR16CG COVER GLASS
DIMENSIONS
INFERNOICE
GLACIEROPAL
Flute-METAL
High-reflectance white
interior finish and satin
nickel plated finial.
CATALOG #LAMP
TLP315* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE OR
MR16CG COVER GLASS
(EXCEPT 35W MAX
FOR MIDNIGHT FINISH)
DIMENSIONS
4"
9"
MIDNIGHTSILVER
TLP310AMBERDRIFT TLP311SILVER
TLP312COBALT
TLP314GLACIER TLP315SILVER
Ellipse
Hand blown cased glass
with opal interior and satin
nickel plated support spider.
CATALOG #LAMP
TLP322* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE
DIMENSIONS
7"
3 1/8"
SUNSET GOLD
PISTACHIO
ROUGE
COBALT
OPAL
TLP322PISTACHIO
Cylinder
Hand blown cased glass
with opal interior and satin
nickel plated support spider.
CATALOG #LAMP
TLP324* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE OR
MR16CG COVER GLASS
DIMENSIONS
8"
2 3/4"
MAIZEOPAL
TLP324OPAL
Teardrop
Hand blown cased glass
with opal interior and satin
nickel plated finial.
CATALOG #LAMP
TLP318* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE OR
MR16CG COVER GLASS
DIMENSIONS
4 5/8"
5 1/2"
SUNSET GOLD
INFERNOICE
GLACIEROPAL
TLP318ICE
PLEASE NOTE: All pendant shades require a TLP78 or TLP144 pendant cordset. Cordset must
be ordered separately. See complete description at far right.
*When ordering add finish name after catalog number. EXAMPLE: TLP310NIGHTBLUE. 9
Geometrics
The Geometric series integrates the timeless
simplicity of cones and spheres with technical
details that bring them into the new millennium.
COBALT GLOSS
4"
9"
PLEASE NOTE: All pendant shades require a TLP78 or TLP144 pendant cordset. Cordset must
be ordered separately. See complete description at far right.
*When ordering add finish name after catalog number. EXAMPLE: TLP310NIGHTBLUE.
8
3"
2"
3 1/4"
3 3/8"
2 1/2"
5"
4 3/4"
3 1/4"
6 1/2"
2 7/8"
3"
5"
4 1/2"
3 1/2"
5 1/4"
3 7/8"
TL301
TL160
TL161 TL165
TL301
WITH TF308
TL301
WITH TF309
*Filters, lenses, louvers and barn doors
require accessory holder for installation.
See page 23 for complete
accessory descriptions.
Geometrics
The timeless simplicity of cones and
spheres. Choose the petite MR11
dart for a playful accent, the MR16
Cone for a more sophisticated design
statement or the Orb for balanced,
consistent appearance regardless
of aiming angle.
FINISHES:
WHITE(WH) BLACK(BL)
SILVER(SL)
Dart
CATALOG #LAMP DIMENSIONS
TL161 12V OR 24V
20-35W
MR11
FINISHES:WH, BL, SL
Cone
CATALOG #LAMP DIMENSIONS
TL160 12V OR 24V
20-50W
MR16
FINISHES: WH, BL, SL
Orb
CATALOG #LAMP DIMENSIONS
TL165 12V OR 24V
20-50W
MR16
FINISHES:WH, BL, SL
ACCESSORIES FOR TL160 AND TL165:
Color Filters T551-5
UV Filter T5522
Dichroic Lenses T5501-18
Diffuse Spread Lens T5520
Linear Spread Lens T559
Prismatic Spread Lens T557
Uniformity Lens T5521
Hexcell Louver T5559BL
Universal
Use the minimalist universal by itself
for a do everything basic lampholder,
or in combination with one of the scoop
accessories for a playful metallic or
colorful accent. (Designed for use
with integral cover glass MR16 lamps.)
FINISHES:
WHITE(WH) BLACK(BL)
SILVER(SL)
CATALOG #LAMP DIMENSIONS
TL301 12V OR 24V
20-50W
MR16CG
COVER GLASS
FINISHES: WH, BL, SL
ACCESSORIES*:
Accessory Holder T7400BL, SA
Barn Doors T7470BL
Color Filters T741-6
UV Filters T7422
Dichroic Lenses T7401-18
Prismatic Spread Lens T7477
Linear Spread Lens T7478
Diffuse Spread Lens T7420
Uniformity Lens T7421
Hexcell Louver T7459BL
Accessory Scoops
Universal halogen spotlights take on
a whole new appearance when you
dress them up in one of these metal
or luminous scoops.
CATALOG #DESCRIPTION DIMENSIONS
TF308 PERFORATED
METAL SCOOP
FINISHES:
WHITE(WH)
BLACK(BL)
SILVER(SL)
CATALOG #DESCRIPTION DIMENSIONS
TF309 LUMINOUS
SCOOP
SCOOP FINISHES:
WHITE(W)
BLUE FROST(BU)
YELLOW FROST(YL)
RETAINING COLLAR FINISHES:
WHITE(WH)
BLACK(BL)
SILVER(SL)
ORDERING EXAMPLE:
TF309BU-SL
RLM-GLASS
Hand blown cased glass
with opal interior and
chrome plated top cap.
CATALOG #LAMP
TLP326* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE OR
MR16CG COVER GLASS
DIMENSIONS
5 1/2"
5 3/4"
MAIZEOPAL
RLM-METAL
High-reflectance white
interior finish. Top cap
finished to match body.
CATALOG #LAMP
TLP327* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE OR
MR16CG COVER GLASS
(EXCEPT 35W MAX
FOR MIDNIGHT FINISH)
DIMENSIONS
5 1/2"
5 3/4"
COPPER PATINA
MIDNIGHTNATURAL
TLP326MAIZE TLP327NATURAL
Wrap
Precision cut, interleaved
layers of suede polycarbon-
ate or parchment sheet
captured by nickel plated
support spider and cap nuts.
CATALOG #LAMP
TLP316* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE OR
MR16CG COVER GLASS
DIMENSIONS
9 5/8"
4 3/8"
PARCHMENT
ORANGE PEELFROST
TLP316ORANGEPEEL
Flame
Hand blown cased glass
with opal interior and satin
nickel plated support spider.
CATALOG #LAMP
TLP320* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE
DIMENSIONS
3"
7"
INFERNOMAIZE
PISTACHIOOPAL
TLP320INFERNO
Pendent cordsets include trac system
adapter, splice compartment with terminal
block for field-shortening cable, 78" coxial
cable, 7" cord straightening sleeve, socket
assembly and frosted glass diffuser capsule.
T537 and T538 transformer required
for TP78. Must be ordered separately.
Pendant Cordsets
Disc
Precision aluminum casting
with integrated aperture ring
securely supports tempered
glass disc. Use of dichroic
lamps washes inverted cone
with a decorative aura.
CATALOG #LAMP
TLP328* 12V 50W
MR16CG COVER GLASS
DIMENSIONS
3"
6"
AMBER
COBALT
FROST
TLP328COBALT
Disc is patent pending.
Halogen Bi-Pin Lamp Data
T4 Bi-Pin Base Lamps
CLEAR/
CATALOG #WATTS VOLTS LAMP TYPE FROSTED LUMENS*LIFE*
TL925 35 12 Halogen Clear 600 4,000
TL926 50 12 Halogen Clear 930 4,000
TL927 37 12 Halogen Clear 900 4,000
TL928-24V 50 24 Halogen Clear 850 2,000
* Rated lumens and lamp life provided by lamp manufacturer.
Pendant cordset for use with Trac 12®, Trac 12/25 trac
systems and monopoints. Includes adapter, splice
compartment with terminal block for field-
shortening cable,
78" or 144" of plated coaxial cable, 7" cord straightening
sleeve, socket assembly and frosted glass diffuser
capsule.
CATALOG #LAMP
TLP78* 78" CORDSET
FOR ALL SHADES EXCEPT TLP328:
12V OR 24V,50W MAX T4HALOGEN GY6.35
BI-PIN CAPSULE OR MR16CG COVER GLASS
TLP144* 144" CORDSET
FOR ALL SHADES EXCEPT TLP328:
12V OR 24V,50W MAX T4HALOGEN GY6.35
BI-PIN CAPSULE OR MR16CG COVER GLASS
FOR TLP328 DISC:
12V 50WMR16CG COVER GLASS
(DISCARD GLASS DIFFUSER CAPSULE)
FINISHES:
WHITE(WH) BLACK(BL) SILVER(SL)
PLEASE NOTE: All pendant shades require a TLP78 or TLP144 pendant cordset. Cordset must
be ordered separately. See complete description at far right.
*When ordering add finish name after catalog number.EXAMPLE: TLP310NIGHTBLUE.
8
3"
2"
3 1/4"
3 3/8"
2 1/2"
5"
4 3/4"
3 1/4"
6 1/2"
2 7/8"
3"
5"
4 1/2"
3 1/2"
5 1/4"
3 7/8"
TL301
TL160
TL161 TL165
TL301
WITH TF308
TL301
WITH TF309
*Filters, lenses, louvers and barn doors
require accessory holder for installation.
See page 23 for complete
accessory descriptions.
Geometrics
The timeless simplicity of cones and
spheres. Choose the petite MR11
dart for a playful accent, the MR16
Cone for a more sophisticated design
statement or the Orb for balanced,
consistent appearance regardless
of aiming angle.
FINISHES:
WHITE(WH) BLACK(BL)
SILVER(SL)
Dart
CATALOG #LAMP DIMENSIONS
TL161 12V OR 24V
20-35W
MR11
FINISHES:WH, BL, SL
Cone
CATALOG #LAMP DIMENSIONS
TL160 12V OR 24V
20-50W
MR16
FINISHES: WH, BL, SL
Orb
CATALOG #LAMP DIMENSIONS
TL165 12V OR 24V
20-50W
MR16
FINISHES:WH, BL, SL
ACCESSORIES FOR TL160 AND TL165:
Color Filters T551-5
UV Filter T5522
Dichroic Lenses T5501-18
Diffuse Spread Lens T5520
Linear Spread Lens T559
Prismatic Spread Lens T557
Uniformity Lens T5521
Hexcell Louver T5559BL
Universal
Use the minimalist universal by itself
for a do everything basic lampholder,
or in combination with one of the scoop
accessories for a playful metallic or
colorful accent. (Designed for use
with integral cover glass MR16 lamps.)
FINISHES:
WHITE(WH) BLACK(BL)
SILVER(SL)
CATALOG #LAMP DIMENSIONS
TL301 12V OR 24V
20-50W
MR16CG
COVER GLASS
FINISHES: WH, BL, SL
ACCESSORIES*:
Accessory Holder T7400BL, SA
Barn Doors T7470BL
Color Filters T741-6
UV Filters T7422
Dichroic Lenses T7401-18
Prismatic Spread Lens T7477
Linear Spread Lens T7478
Diffuse Spread Lens T7420
Uniformity Lens T7421
Hexcell Louver T7459BL
Accessory Scoops
Universal halogen spotlights take on
a whole new appearance when you
dress them up in one of these metal
or luminous scoops.
CATALOG #DESCRIPTION DIMENSIONS
TF308 PERFORATED
METAL SCOOP
FINISHES:
WHITE(WH)
BLACK(BL)
SILVER(SL)
CATALOG #DESCRIPTION DIMENSIONS
TF309 LUMINOUS
SCOOP
SCOOP FINISHES:
WHITE(W)
BLUE FROST(BU)
YELLOW FROST(YL)
RETAINING COLLAR FINISHES:
WHITE(WH)
BLACK(BL)
SILVER(SL)
ORDERING EXAMPLE:
TF309BU-SL
RLM-GLASS
Hand blown cased glass
with opal interior and
chrome plated top cap.
CATALOG #LAMP
TLP326* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE OR
MR16CG COVER GLASS
DIMENSIONS
5 1/2"
5 3/4"
MAIZEOPAL
RLM-METAL
High-reflectance white
interior finish. Top cap
finished to match body.
CATALOG #LAMP
TLP327* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE OR
MR16CG COVER GLASS
(EXCEPT 35W MAX
FOR MIDNIGHT FINISH)
DIMENSIONS
5 1/2"
5 3/4"
COPPER PATINA
MIDNIGHTNATURAL
TLP326MAIZE TLP327NATURAL
Wrap
Precision cut, interleaved
layers of suede polycarbon-
ate or parchment sheet
captured by nickel plated
support spider and cap nuts.
CATALOG #LAMP
TLP316* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE OR
MR16CG COVER GLASS
DIMENSIONS
9 5/8"
4 3/8"
PARCHMENT
ORANGE PEELFROST
TLP316ORANGEPEEL
Flame
Hand blown cased glass
with opal interior and satin
nickel plated support spider.
CATALOG #LAMP
TLP320* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE
DIMENSIONS
3"
7"
INFERNOMAIZE
PISTACHIOOPAL
TLP320INFERNO
Pendent cordsets include trac system
adapter, splice compartment with terminal
block for field-shortening cable, 78" coxial
cable, 7" cord straightening sleeve, socket
assembly and frosted glass diffuser capsule.
T537 and T538 transformer required
for TP78. Must be ordered separately.
Pendant Cordsets
Disc
Precision aluminum casting
with integrated aperture ring
securely supports tempered
glass disc. Use of dichroic
lamps washes inverted cone
with a decorative aura.
CATALOG #LAMP
TLP328* 12V 50W
MR16CG COVER GLASS
DIMENSIONS
3"
6"
AMBER
COBALT
FROST
TLP328COBALT
Disc is patent pending.
Halogen Bi-Pin Lamp Data
T4 Bi-Pin Base Lamps
CLEAR/
CATALOG #WATTS VOLTS LAMP TYPE FROSTED LUMENS*LIFE*
TL925 35 12 Halogen Clear 600 4,000
TL926 50 12 Halogen Clear 930 4,000
TL927 37 12 Halogen Clear 900 4,000
TL928-24V 50 24 Halogen Clear 850 2,000
* Rated lumens and lamp life provided by lamp manufacturer.
Pendant cordset for use with Trac 12®, Trac 12/25 trac
systems and monopoints. Includes adapter, splice
compartment with terminal block for field-
shortening cable,
78" or 144" of plated coaxial cable, 7" cord straightening
sleeve, socket assembly and frosted glass diffuser
capsule.
CATALOG #LAMP
TLP78* 78" CORDSET
FOR ALL SHADES EXCEPT TLP328:
12V OR 24V,50W MAX T4HALOGEN GY6.35
BI-PIN CAPSULE OR MR16CG COVER GLASS
TLP144* 144" CORDSET
FOR ALL SHADES EXCEPT TLP328:
12V OR 24V,50W MAX T4HALOGEN GY6.35
BI-PIN CAPSULE OR MR16CG COVER GLASS
FOR TLP328 DISC:
12V 50WMR16CG COVER GLASS
(DISCARD GLASS DIFFUSER CAPSULE)
FINISHES:
WHITE(WH) BLACK(BL) SILVER(SL)
PLEASE NOTE: All pendant shades require a TLP78 or TLP144 pendant cordset. Cordset must
be ordered separately. See complete description at far right.
*When ordering add finish name after catalog number.EXAMPLE: TLP310NIGHTBLUE.
Short Cone-
GLASS
Hand blown cased glass
with opal interior and satin
nickel plated finial.
CATALOG #LAMP
TLP310* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE OR
MR16CG COVER GLASS
DIMENSIONS
5 1/2"
4"
SUNSET GOLD
COBALTAMBER DRIFT
NIGHT BLUEOPAL
Short Cone-
METAL
High-reflectance white inte-
rior finish and satin nickel
plated finial.
CATALOG #LAMP
TLP311* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE OR
MR16CG COVER GLASS
DIMENSIONS
5 1/2"
4"
SILVER
Tall Cone
Hand blown cased glass
with opal interior and satin
nickel plated finial.
CATALOG #LAMP
TLP312* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE OR
MR16CG COVER GLASS
DIMENSIONS
4"
9"
SUNSET GOLD
PISTACHIOROUGE
COBALTOPAL
Flute-GLASS
Hand blown cased glass
with opal interior and satin
nickel plated finial.
CATALOG #LAMP
TLP314* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE OR
MR16CG COVER GLASS
DIMENSIONS
INFERNOICE
GLACIEROPAL
Flute-METAL
High-reflectance white
interior finish and satin
nickel plated finial.
CATALOG #LAMP
TLP315* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE OR
MR16CG COVER GLASS
(EXCEPT 35W MAX
FOR MIDNIGHT FINISH)
DIMENSIONS
4"
9"
MIDNIGHTSILVER
TLP310AMBERDRIFT TLP311SILVER
TLP312COBALT
TLP314GLACIER TLP315SILVER
Ellipse
Hand blown cased glass
with opal interior and satin
nickel plated support spider.
CATALOG #LAMP
TLP322* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE
DIMENSIONS
7"
3 1/8"
SUNSET GOLD
PISTACHIO
ROUGE
COBALT
OPAL
TLP322PISTACHIO
Cylinder
Hand blown cased glass
with opal interior and satin
nickel plated support spider.
CATALOG #LAMP
TLP324* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE OR
MR16CG COVER GLASS
DIMENSIONS
8"
2 3/4"
MAIZEOPAL
TLP324OPAL
Teardrop
Hand blown cased glass
with opal interior and satin
nickel plated finial.
CATALOG #LAMP
TLP318* 12V OR 24V, 50W MAX
T4HALOGEN GY6.35
BI-PIN CAPSULE OR
MR16CG COVER GLASS
DIMENSIONS
4 5/8"
5 1/2"
SUNSET GOLD
INFERNOICE
GLACIEROPAL
TLP318ICE
PLEASE NOTE: All pendant shades require a TLP78 or TLP144 pendant cordset. Cordset must
be ordered separately. See complete description at far right.
*When ordering add finish name after catalog number. EXAMPLE: TLP310NIGHTBLUE. 9
Geometrics
The Geometric series integrates the timeless
simplicity of cones and spheres with technical
details that bring them into the new millennium.
COBALT GLOSS
4"
9"
PLEASE NOTE: All pendant shades require a TLP78 or TLP144 pendant cordset. Cordset must
be ordered separately. See complete description at far right.
*When ordering add finish name after catalog number. EXAMPLE: TLP310NIGHTBLUE.
2 1/4"
10 3/4"
2 5/8"
10
2 1/4"
2 5/8"
3 3/4"
TL109
TL116
TLP116
TL191
2 1/4"
2 7/8"
2 5/8"
Studio II
Studio II adds a contemporary mini-
aturized stage and studio flavor into
an environment.
FINISHES:
WHITE(WH) BLACK(BL)
SILVER(SL)
CATALOG #LAMP DIMENSIONS
TL191 12V OR 24V
20-50W MR16
FINISHES: WH, BL, SL
ACCESSORIES:
Color Filters T551-5
UV Filter T5522
Diffuse Spread Lens T5520
Dichroic Lenses T5501-18
Linear Spread Lens T559
Prismatic Spread Lens T557
Uniformity Lens T5521
Hexcell Louver T5559BL
Delta 200 Series®
An angular, die-cast fixture body and
rod-supported lamp bezel create a
semi-exposed, technical appearance.
For special effects, an optional louver
or color filter can be substituted for
the clear glass lens that is smartly con-
tained in the rod-supported front bezel.
FINISHES:
WHITE(WH) SILVER(SL)
BLACK(BL)
CATALOG #LAMP DIMENSIONS
TL116 12V OR 24V
20-50W MR16
FINISHES: WH, BL, SL
TLP116 12V OR 24V
20-50W MR16
FINISHES: WH, BL, SL
ACCESSORIES FOR TL116 AND TLP116:
Black Barn Doors T74BL
Black Snoot T558BL
Color Filters T551-5
UV Filter T5522
Diffuse Spread Lens T5520
Dichroic Lenses T5501-18
Linear Spread Lens T559
Prismatic Spread Lens T557
Uniformity Lens T5521
Hexcell Louver T5559BL
Trac 12
Slant Cylinder
A simple, solid form, this unique
stepped cylinder adds a subtle hint
of design into applications that call
for a fully enclosed lamp.
FINISHES:
WHITE(WH) BLACK(BL)
CATALOG #LAMP DIMENSIONS
TL109 12V OR 24V
20-50W MR16
FINISHES: WH, BL
ACCESSORIES:
Black Barn Doors T74BL
Black Eyebrow T556BL
Black Snoot T558BL
Color Filters T551-5
UV Filter T5522
Dichroic Lenses T5501-18
Diffuse Spread Lens T5520
Linear Spread Lens T559
Prismatic Spread Lens T557
Uniformity Lens T5521
Hexcell Louver T5559BL
1 3/4"
3"
3 5/8"
2 1/2"
2 1/4"
2 5/8"
11
2 1/2"
2 1/4"
2"
2 1/4 "
2 1/4"
2 3/4"
1 1/8"
3 3/4"
3"
TL143
TL117
TL196 TL296

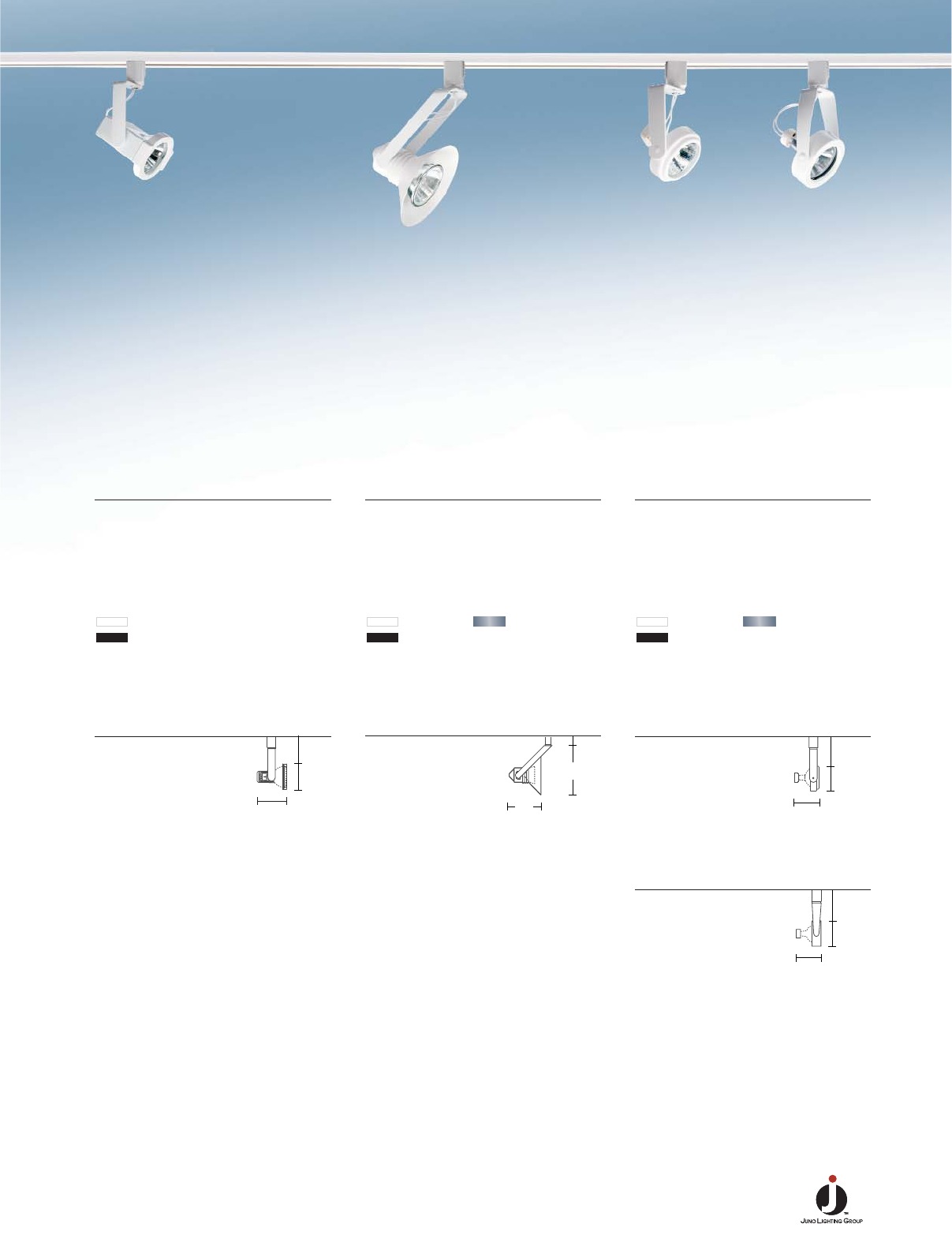

Gimbal Ring
Choose the basic single yoke or the
more elegant sculpted dual yoke design.
FINISHES:
WHITE(WH) SATIN CHROME(SC)
BLACK(BL)
Gimbal Rings
CATALOG #LAMP DIMENSIONS
TL196 12V OR 24V
20-50W MR16
FINISHES: WH, BL
CATALOG #LAMP DIMENSIONS
TL296 12V OR 24V
20-50W MR16
FINISHES: WH, BL, SC
ACCESSORIES FOR TL196 AND TL296:
Color Filters T551-5
UV Filter T5522
Dichroic Lenses T5501-18
Diffuse Spread Lens T5520
Linear Spread Lens T559
Prismatic Spread Lens T557
Uniformity Lens T5521
Hexcell Louver T5559BL
Flyback
Uniquely angled back from the trac at
45 degrees, Flybacks add visual energy
into a space.
FINISHES:
WHITE(WH) SATIN CHROME(SC)
BLACK(BL)
CATALOG #LAMP DIMENSIONS
TL117 12V OR 24V
20-50W
MR16CG
COVER GLASS
FINISHES: WH, BL, SC
ACCESSORIES*:
Accessory Holder T7400BL, SA
Color Filters T741-6
UV Filters T7422
Dichroic Lenses T7401-18
Prismatic Spread Lens T7477
Linear Spread Lens T7478
Diffuse Spread Lens T7420
Uniformity Lens T7421
Hexcell Louver T7459BL
Notch Back
The rectangular back of this contempo-
rary design offers visual lines that parallel
the trac itself.
FINISHES:
WHITE(WH)
BLACK(BL)
CATALOG #LAMP DIMENSIONS
TL143 12V OR 24V
20-50W MR16
FINISHES: WH, BL
ACCESSORIES:
Color Filters T551-5
UV Filter T5522
Dichroic Lenses T5501-18
Diffuse Spread Lens T5520
Linear Spread Lens T559
Prismatic Spread Lens T557
Uniformity Lens T5521
Hexcell Louver T5559BL
*Filters, lenses, louvers and barn doors
require accessory holder for installation.
See pages 23 for complete
accessory descriptions.
2 1/4"
10 3/4"
2 5/8"
10
2 1/2"
2 1/4"
2 5/8"
11
2 1/2"
2 1/4"
2"
2 1/4 "
2 1/4"
2 3/4"
2 1/4"
2 5/8"
3 3/4"
1 1/8"
3 3/4"
3"
TL109
TL143
TL116
TLP116
TL117
TL196 TL296
TL191
2 1/4"
2 7/8"
2 5/8"
Studio II
Studio II adds a contemporary mini-
aturized stage and studio flavor into
an environment.
FINISHES:
WHITE(WH) BLACK(BL)
SILVER(SL)
CATALOG #LAMP DIMENSIONS
TL191 12V OR 24V
20-50W MR16
FINISHES: WH, BL, SL
ACCESSORIES:
Color Filters T551-5
UV Filter T5522
Diffuse Spread Lens T5520
Dichroic Lenses T5501-18
Linear Spread Lens T559
Prismatic Spread Lens T557
Uniformity Lens T5521
Hexcell Louver T5559BL
Delta 200 Series®
An angular, die-cast fixture body and
rod-supported lamp bezel create a
semi-exposed, technical appearance.
For special effects, an optional louver
or color filter can be substituted for
the clear glass lens that is smartly con-
tained in the rod-supported front bezel.
FINISHES:
WHITE(WH) SILVER(SL)
BLACK(BL)
CATALOG #LAMP DIMENSIONS
TL116 12V OR 24V
20-50W MR16
FINISHES: WH, BL, SL
TLP116 12V OR 24V
20-50W MR16
FINISHES:WH, BL, SL
ACCESSORIES FOR TL116 AND TLP116:
Black Barn Doors T74BL
Black Snoot T558BL
Color Filters T551-5
UV Filter T5522
Diffuse Spread Lens T5520
Dichroic Lenses T5501-18
Linear Spread Lens T559
Prismatic Spread Lens T557
Uniformity Lens T5521
Hexcell Louver T5559BL
Gimbal Ring
Choose the basic single yoke or the
more elegant sculpted dual yoke design.
FINISHES:
WHITE(WH) SATIN CHROME(SC)
BLACK(BL)
Gimbal Rings
CATALOG #LAMP DIMENSIONS
TL196 12V OR 24V
20-50W MR16
FINISHES: WH, BL
CATALOG #LAMP DIMENSIONS
TL296 12V OR 24V
20-50W MR16
FINISHES:WH, BL, SC
ACCESSORIES FOR TL196 AND TL296:
Color Filters T551-5
UV Filter T5522
Dichroic Lenses T5501-18
Diffuse Spread Lens T5520
Linear Spread Lens T559
Prismatic Spread Lens T557
Uniformity Lens T5521
Hexcell Louver T5559BL
Flyback
Uniquely angled back from the trac at
45 degrees, Flybacks add visual energy
into a space.
FINISHES:
WHITE(WH) SATIN CHROME(SC)
BLACK(BL)
CATALOG #LAMP DIMENSIONS
TL117 12V OR 24V
20-50W
MR16CG
COVER GLASS
FINISHES: WH, BL, SC
ACCESSORIES*:
Accessory Holder T7400BL, SA
Color Filters T741-6
UV Filters T7422
Dichroic Lenses T7401-18
Prismatic Spread Lens T7477
Linear Spread Lens T7478
Diffuse Spread Lens T7420
Uniformity Lens T7421
Hexcell Louver T7459BL
Notch Back
The rectangular back of this contempo-
rary design offers visual lines that parallel
the trac itself.
FINISHES:
WHITE(WH)
BLACK(BL)
CATALOG #LAMP DIMENSIONS
TL143 12V OR 24V
20-50W MR16
FINISHES:WH, BL
ACCESSORIES:
Color Filters T551-5
UV Filter T5522
Dichroic Lenses T5501-18
Diffuse Spread Lens T5520
Linear Spread Lens T559
Prismatic Spread Lens T557
Uniformity Lens T5521
Hexcell Louver T5559BL
Trac 12 *Filters, lenses, louvers and barn doors
require accessory holder for installation.
See pages 23 for complete
accessory descriptions.
Slant Cylinder
A simple, solid form, this unique
stepped cylinder adds a subtle hint
of design into applications that call
for a fully enclosed lamp.
FINISHES:
WHITE(WH) BLACK(BL)
CATALOG #LAMP DIMENSIONS
TL109 12V OR 24V
20-50W MR16
FINISHES: WH, BL
ACCESSORIES:
Black Barn Doors T74BL
Black Eyebrow T556BL
Black Snoot T558BL
Color Filters T551-5
UV Filter T5522
Dichroic Lenses T5501-18
Diffuse Spread Lens T5520
Linear Spread Lens T559
Prismatic Spread Lens T557
Uniformity Lens T5521
Hexcell Louver T5559BL
12
1 3/4"
3"
3 5/8"
Electrical Feeds
and Dead End
Joiners and T-Bar
Attachment Clip
3"
2 1/2"
3 3/8"
16 3/4"
91/2"
Trapezia™
TrapeziaTM sus-
pends the MR16
lamp down from
the trac with the
grace of a trapeze
artist. Slender
9-inch or 16-inch
long tubes conceal
supply wires feed-
ing into an elegantly sculpted die-cast
lamp housing. The light airy appearance
is great for display, exhibition and gallery
lighting and the downwardreach can make
pendant mounting of trac unnecessary.
FINISHES:
WHITE(WH) BLACK(BL)
SILVER(SL)
CATALOG #LAMP DIMENSIONS
TL130-9 12V OR 24V
20-50W
MR16CG
COVER GLASS
FINISHES: WH, BL, SL
TL130-16 12V OR 24V
20-50W
MR16CG
COVER GLASS
FINISHES:WH, BL, SL
7
*TL130-9 and TL130-16 requireaccessory holder
for filters, lenses, louvers and barn doors.
**Barndoors for TL130-9 and TL130-16 only.See page 23 for complete
accessory descriptions.
TL130-9
TL130-16
TL140
Gyrus™
Anew spin on
an old idea, the
GyrusTM combines
dramatic aerody-
namic styling
with an integral
accessory holder
that accepts up
to two standard
2" diameter lenses and louvers. The
snap-on design makes this an easy to
accessorize fixture for more demanding
display lighting applications.
FINISHES:
WHITE(WH) BLACK(BL)
SILVER(SL)
CATALOG #LAMP DIMENSIONS
TL140 12V OR 24V
20-50W
MR16
FINISHES:WH, BL, SL
ACCESSORIES FOR TL130-9, TL160-16 AND TL140:
Accessory Holder* T7400BL, SA
BarnDoors** T7470BL
Color Filters T741-6
UV Filters T7422
Dichroic Lenses T7401-18
Prismatic Spread Lens T7477
Linear Spread Lens T7478
Diffuse Spread Lens T7420
Uniformity Lens T7421
Hexcell Louver T7459BL
Trac
18
TLR21 End Feed Connector
and Outlet Box Cover
Allows trac to be fed via remote
transformer from an outlet box.
Includes terminal block, cover
and mounting plate.
FINISHES:WHITE(WH), BLACK(BL), SILVER(SL)
TLR38 End Feed Connector
Allows trac to be fed via remote
transformer from top using
standard electrical connectors.
Includes terminal block connector
and cover.
FINISHES:WHITE(WH), BLACK(BL), SILVER(SL)
TLR34 End Feed Connector
and Conduit Feed
Allows trac to be fed via remote
transformer with conduit through
the end or top using standard 1⁄2"
electrical connectors. Includes
terminal block feed connector,
mounting plate and cover.
FINISHES:WHITE(WH), BLACK(BL), SILVER(SL)
TLR36 Outlet Box/T-Bar
Ceiling Canopy
Mounts over outlet boxes or on T-bar
ceiling to feed up to four tracs via
a remote transformer. Includes one
TLR36TB, mounting plate and cover.
To feed more than one trac, order
additional TLR36TB connectors.
Requires TLR37 for T-bar installation.
FINISHES:WHITE(WH), BLACK(BL), SILVER(SL)
TLR36TB Terminal Block Connector
FINISHES:WHITE(WH), BLACK(BL)
TLR28 Dead End
Dead end to use on extra
field-cut trac sections.
FINISHES:WHITE(WH), BLACK(BL), SILVER(SL)
TLR50 Pendant Feed End Connector
For use in conjunction with
TLR90/91 Pendant Stem assem-
blies to feed power into end of trac.
Includes terminal block connector,
support plate and cover.
FINISHES:WHITE(WH), BLACK(BL), SILVER(SL)
TLR23 Miniature Straight Connector
Joins two trac sections end-to-
end. Includes terminal block
joiner and cover.
FINISHES:WHITE(WH), BLACK(BL), SILVER(SL)
TLR24 Adjustable Connector
Joins two trac sections to form a
90-degree corner or straight cou-
pling. Includes two terminal block
connectors, joiner wires and both
90-degree and straight covers.
FINISHES:WHITE(WH), BLACK(BL), SILVER(SL)
TLR20 Accordion Adjustable Joiner
Joins two trac sections at variable
angles to left, right, up or down.
Includes two terminal block con-
nectors, joiner wires and covers.
FINISHES:WHITE(WH), BLACK(BL), SILVER(SL)
TLR37 T-Bar Attachment Clip
To attach trac to inverted
15
/
16"T-bar ceiling runner.
Compatible with either flush
tile or drop tile installations.
Trac 12/25 Low Voltage Trac System
Trac 12/25 Trac Sections Includes dead-end and mounting hardware.
CATALOG #FINISHES
TLR2 2' Trac (actual length 205⁄8") White(WH), Black(BL), Silver(SL)
TLR4 4' Trac (actual length 445⁄8") White(WH), Black(BL), Silver(SL)
TLR6 6' Trac (actual length 685⁄8") White(WH), Black(BL), Silver(SL)
TLR8 8' Trac (actual length 925⁄8") White(WH), Black(BL), Silver(SL)
Trac 12/25 combines the 25-amp capacity
of10 gauge conductors with a miniature
rigid profile that can be surface mounted
or pendant suspended. The system oper-
ates off of remotely located 12-volt or
24-volt transformers. A maximum of 300
watts (12 volts) or 600 watts (24 volts)
can be placed per circuit of trac.
Key Features:
•10 gauge solid copper conductors with
25-amp capacity
•Rigid aluminum miniature 5⁄8"H x 15⁄16"W profile
•Accepts all standard Trac12®lampholders
•Can be surface or pendant mounted
•White, black or silver finish
5/8"
15/16"
13
Express your true colors through the radiant mystique of luminous,
artisan-crafted glass or cast alluring pools of glare-free light using timeless
shapes of lustrous metal. Juno’s enticing array of eye-catching forms, colors and
patterns provide effective and attractive illumination over tables, counters or
feature displays. Complement virtually any personal taste and interior décor with
designs that include Inferno Flames, Glacier Teardrops, Silver Flutes and more.
Decorative Pendants
Electrical feeds for
Trac 12/25 are
ordered separately
Gyrus US Patent No. D508,792
Trapezia US Patent No. D504,974
Electrical Feeds
and Dead End
Joiners and T-Bar
Attachment Clip
3"
2 1/2"
3 3/8"
16 3/4"
91/2"
Trapezia™
TrapeziaTM sus-
pends the MR16
lamp down from
the trac with the
grace of a trapeze
artist. Slender
9-inch or 16-inch
long tubes conceal
supply wires feed-
ing into an elegantly sculpted die-cast
lamp housing. The light airy appearance
is great for display, exhibition and gallery
lighting and the downwardreach can make
pendant mounting of trac unnecessary.
FINISHES:
WHITE(WH) BLACK(BL)
SILVER(SL)
CATALOG #LAMP DIMENSIONS
TL130-9 12V OR 24V
20-50W
MR16CG
COVER GLASS
FINISHES: WH, BL, SL
TL130-16 12V OR 24V
20-50W
MR16CG
COVER GLASS
FINISHES:WH, BL, SL
7
*TL130-9 and TL130-16 requireaccessory holder
for filters, lenses, louvers and barn doors.
**Barndoors for TL130-9 and TL130-16 only.See page 23 for complete
accessory descriptions.
TL130-9
TL130-16
TL140
Gyrus™
Anew spin on
an old idea, the
GyrusTM combines
dramatic aerody-
namic styling
with an integral
accessory holder
that accepts up
to two standard
2" diameter lenses and louvers. The
snap-on design makes this an easy to
accessorize fixture for more demanding
display lighting applications.
FINISHES:
WHITE(WH) BLACK(BL)
SILVER(SL)
CATALOG #LAMP DIMENSIONS
TL140 12V OR 24V
20-50W
MR16
FINISHES:WH, BL, SL
ACCESSORIES FOR TL130-9, TL160-16 AND TL140:
Accessory Holder* T7400BL, SA
BarnDoors** T7470BL
Color Filters T741-6
UV Filters T7422
Dichroic Lenses T7401-18
Prismatic Spread Lens T7477
Linear Spread Lens T7478
Diffuse Spread Lens T7420
Uniformity Lens T7421
Hexcell Louver T7459BL
Trac
18
TLR21 End Feed Connector
and Outlet Box Cover
Allows trac to be fed via remote
transformer from an outlet box.
Includes terminal block, cover
and mounting plate.
FINISHES:WHITE(WH), BLACK(BL), SILVER(SL)
TLR38 End Feed Connector
Allows trac to be fed via remote
transformer from top using
standard electrical connectors.
Includes terminal block connector
and cover.
FINISHES:WHITE(WH), BLACK(BL), SILVER(SL)
TLR34 End Feed Connector
and Conduit Feed
Allows trac to be fed via remote
transformer with conduit through
the end or top using standard 1⁄2"
electrical connectors. Includes
terminal block feed connector,
mounting plate and cover.
FINISHES:WHITE(WH), BLACK(BL), SILVER(SL)
TLR36 Outlet Box/T-Bar
Ceiling Canopy
Mounts over outlet boxes or on T-bar
ceiling to feed up to four tracs via
a remote transformer. Includes one
TLR36TB, mounting plate and cover.
To feed more than one trac, order
additional TLR36TB connectors.
Requires TLR37 for T-bar installation.
FINISHES:WHITE(WH), BLACK(BL), SILVER(SL)
TLR36TB Terminal Block Connector
FINISHES:WHITE(WH), BLACK(BL)
TLR28 Dead End
Dead end to use on extra
field-cut trac sections.
FINISHES:WHITE(WH), BLACK(BL), SILVER(SL)
TLR50 Pendant Feed End Connector
For use in conjunction with
TLR90/91 Pendant Stem assem-
blies to feed power into end of trac.
Includes terminal block connector,
support plate and cover.
FINISHES:WHITE(WH), BLACK(BL), SILVER(SL)
TLR23 Miniature Straight Connector
Joins two trac sections end-to-
end. Includes terminal block
joiner and cover.
FINISHES:WHITE(WH), BLACK(BL), SILVER(SL)
TLR24 Adjustable Connector
Joins two trac sections to form a
90-degree corner or straight cou-
pling. Includes two terminal block
connectors, joiner wires and both
90-degree and straight covers.
FINISHES:WHITE(WH), BLACK(BL), SILVER(SL)
TLR20 Accordion Adjustable Joiner
Joins two trac sections at variable
angles to left, right, up or down.
Includes two terminal block con-
nectors, joiner wires and covers.
FINISHES:WHITE(WH), BLACK(BL), SILVER(SL)
TLR37 T-Bar Attachment Clip
To attach trac to inverted
15
/
16"T-bar ceiling runner.
Compatible with either flush
tile or drop tile installations.
Trac 12/25 Low Voltage Trac System
Trac 12/25 Trac Sections Includes dead-end and mounting hardware.
CATALOG #FINISHES
TLR2 2' Trac (actual length 205⁄8") White(WH), Black(BL), Silver(SL)
TLR4 4' Trac (actual length 445⁄8") White(WH), Black(BL), Silver(SL)
TLR6 6' Trac (actual length 685⁄8") White(WH), Black(BL), Silver(SL)
TLR8 8' Trac (actual length 925⁄8") White(WH), Black(BL), Silver(SL)
Trac 12/25 combines the 25-amp capacity
of10 gauge conductors with a miniature
rigid profile that can be surface mounted
or pendant suspended. The system oper-
ates off of remotely located 12-volt or
24-volt transformers. A maximum of 300
watts (12 volts) or 600 watts (24 volts)
can be placed per circuit of trac.
Key Features:
•10 gauge solid copper conductors with
25-amp capacity
•Rigid aluminum miniature 5⁄8"H x 15⁄16"W profile
•Accepts all standard Trac12®lampholders
•Can be surface or pendant mounted
•White, black or silver finish
5/8"
15/16"
13
Express your true colors through the radiant mystique of luminous,
artisan-crafted glass or cast alluring pools of glare-free light using timeless
shapes of lustrous metal. Juno’s enticing array of eye-catching forms, colors and
patterns provide effective and attractive illumination over tables, counters or
feature displays. Complement virtually any personal taste and interior décor with
designs that include Inferno Flames, Glacier Teardrops, Silver Flutes and more.
Decorative Pendants
Electrical feeds for
Trac 12/25 are
ordered separately
Gyrus US Patent No. D508,792
Trapezia US Patent No. D504,974
19
**277-volt transformers also available, consult factory.
Pendant Mounting
Accessories
Pendant Stem Feed &
Mechanical Support
TLR90
T-Bar Ceilings
TLR91
Rigid Ceilings
STEM LENGTHS:
-12 12"
-18 18"
-24 24"
-36 36"
-48 48"
FINISHES:WHITE(WH),
BLACK(BL), SILVER(SL)
ORDERING EXAMPLE:
TLR90-12-WH*
Pendant Stem
Mechanical Support
TLR92
STEM LENGTHS:
-12 12"
-18 18"
-24 24"
-36 36"
-48 48"
FINISHES:WHITE(WH),
BLACK(BL), SILVER(SL)
ORDERING EXAMPLE:
TLR92-18-BL
10-24 Threaded Rod
Mechanical Support
TLR93
Includes ceiling canopy
and trac mounting hard-
ware only; threaded rod
by others.
FINISHES:WHITE(WH),
BLACK(BL), SILVER(SL)
ORDERING EXAMPLE:
TLR93BL
Stainless Steel Cable
Mechanical Support
TLR95
CABLE LENGTHS:
-48 48"
-144 144"
FINISHES:WHITE(WH),
BLACK(BL), SILVER(SL)
ORDERING EXAMPLE:
TLR95-144-WH
Stainless Steel
Cable Feed &
Mechanical Support
TLR96
CABLE LENGTHS:
-48 48"
-144 144"
FINISHES:WHITE(WH),
BLACK(BL), SILVER(SL)
ORDERING EXAMPLE:
TLR96-48-SL*
CATALOG #OUTPUT TOTAL NUMBER OF CIRCUITS/RECOMMENDED WATTAGE DIMENSIONS
VOLTAGE WATTAGE WATTAGE PER CIRCUIT RANGE PER CIRCUIT
TF5150BL 12V 150 watts 1 / 150 watts 50–150 watts 101
/
2"H x 35
/
8"W x 37
/
8"D
TF5300BL 12V 300 watts 1 / 300 watts 150–300 watts 103
/
4"H x 43
/
8"W x 41
/
8"D
TF5600BL 12V 600 watts 2 / 300 watts 150–300 watts 113
/
8"H x 53
/
8"W x 51
/
8"D
TF5600BL-24V 24V 600 watts 1 / 600 watts 300–600 watts 111
/
2"H x 53
/
8"W x 51
/
8"D
TF51200BL-24V 24V 1200 watts 2 / 600 watts 300–600 watts 121
/
2"H x 61
/
8"W x 57
/
8"D
Trac 12/25 remote mount magnetic transformers are designed to be
installed in remote locations such as basements, attics, plenums and
electrical closets. The location must be accessible and well ventilated
with ambient temperatures below 140-degrees Fahrenheit. 12-volt trans-
formers are typically used for spotlighting applications due to the ready
availability of 12-volt MR11 and MR16 lamps. 24-volt transformers
double the wattage capacity vs. a 12-volt system and are more common-
ly selected for linear lighting due to their capacity for longer runs per
circuit. All magnetic transformers listed below are designed for 120-volt
input** have premium resettable magnetic circuit breakers, dual-tap stan-
dard/boost tap primary input leads to adjust for voltage drop and may be
dimmed using dimmers specifically designed for use with magnetic
transformers. Primary and secondary circuits are physically and electri-
cally isolated and grounded. Trac 12/25 may also be used with other
transformers listed under the standard Trac 12 system on page 21
(except TL546).
*Order TLR50 pendant end-feed connector separately.
Use 2 supports for each 2', 4' or 6' section of trac, 3 supports for each 8' section of trac. Stainless steel cable recommended only for trac patterns, not straight runs.
TF5600BL
Transformer with
two 300 watt
12-volt circuits
1st run using 50W MR16 lamps, 6 fixtures maximum and 2nd run using 20W MR16 lamps, 15 fixtures maximum
Permits pendant stems to be hung vertically from sloped
ceilings. Used in conjunction with TLR90, TLR91 or TLR92 Ceiling
Canopies (not included). Allows feeding of wires to trac at up to a 60
degree angle. Accommodates a maximum of two 12 gauge solid THHN
copper wires. 20-amp capacity. FINISHES:WHITE(WH), BLACK(BL), SILVER(SL)
Universal Surface Mount Transformers
*Dimmable-for best results use dimmer designed for use with electronic transformers. **Dimmable-for best results use dimmer specifically designed for use with magnetic transformers.
CATALOG #OUTPUT TOTAL NUMBER OF CIRCUITS/RECOMMENDED WATTAGE DIMENSIONS
VOLTAGE WATTAGE WATTAGE PER CIRCUIT RANGE PER CIRCUIT
TF6150E-SL*12V 150 watts 1 / 150 watts 50-150 watts 3"H x 12"Dia.
Electronic surface mount transformer with automatic resetting overload and short-circuit protection. Should be mounted within 5’ of trac. 120VAC input.
TF6300SL** 12V 300 watts 1 / 300 watts 150-300 watts 3"H x 12"Dia.
Magnetic torroidal surface mount transformer with resettable circuit breaker. 120VAC input.
Designed to mount over standard 4" ceiling outlet boxes, this versa-
tile design can be used with a single pendant stem to support/feed
one end of a trac run or with two pendant stems to support/feed up
to a 4' trac section. May also be used with a Flexible Feed Kit
(TF950) to create a non-rigid floating feed, independent of mechani-
cal support of the trac.
Trac 12/25 Transformer/Fixture Loading Examples
Trac 12/25 Remote Mount Magnetic Transformers**
T94 Sloped Ceiling Adapter
T96 Pendant Stem Coupling
Joins pendant stems for use in
higher ceiling applications.
FINISHES:WHITE(WH), BLACK(BL), SILVER (SL)
Trac 12
20
Electrical Feeds
Joiner Connectors
Mounting Accessories
TL34 End Feed Connector
for Conduit
Allows trac to be fed via remote
transformer with conduit through
the end or top using standard
electrical connectors. Includes,
mounting plate, surface conduit
adapter and cover.
FINISHES:WHITE(WH), BLACK(BL)
TL24 Right Angle Joiner
Joins two trac sections to form
a 90-degree corner. Includes one
terminal block connector with cover
and joiner wires.
FINISHES:WHITE(WH), BLACK(BL)
TLR37 T-Bar Attachment Clip
To attach trac to inverted
15
/
16" T-bar ceiling runner.
Compatible with either flush
tile or drop tile installations.
TL4000 Extruded Aluminum Fascia
Conceals trac and Xenon linear
lampholders. 6' length may be
field cut to size. 13
/
8" x 13
/
8" profile.
FINISHES:WHITE(WH), BLACK(BL)
Trac 12®Low Voltage Trac System
Trac 12®Trac Sections Includes end-feed connector, dead end and mounting hardware.
End-feed connector converts to a straight connector when joining multiple trac sections.
NOTE:When joining trac sections, overall length is 17⁄16" shorter than individual trac section lengths.
CATALOG #FINISHES
TL2 2' Trac (actual length 205⁄8") White(WH), Black(BL)
TL4 4' Trac (actual length 445⁄8") White(WH), Black(BL)
TL6 6' Trac (actual length 685⁄8") White(WH), Black(BL)
TL8 8' Trac (actual length 925⁄8") White(WH), Black(BL)
Trac12®is the original miniature low volt-
age system that combines the 20-amp
capacity with an extremely miniature
engineered plastic profile. The system
operates using remotely located or in-line
12-volt or 24-volt transformers. A maxi-
mum of 240 watts (12 volts) or 480 watts
(24 volts) can be placed per circuit
of trac.
Key Features:
• 12 gauge solid copper conductors with
20-amp capacity
• Engineered thermoplastic ultra-miniature
3⁄8"H x 3⁄4"W profile
• Accepts all standard Trac 12 lampholders
• White or black finish
3/4"
3/8"
Electrical feeds with terminal block connector
supplied with Trac 12. Converts to straight
connector when joining multiple tracs.
TL38 End Feed Connector/Straight
Joiner with Dead End
For use with field cut-offtrac sec-
tions. Includes terminal block con-
nector with cover and dead end.
Terminal block connector also
serves as a straight joiner to join
two trac sections.
FINISHES:WHITE(WH), BLACK(BL)
TL20 Adjustable Joiner
Joins two trac sections at variable
angles to left, right, up or down.
Includes one terminal block
connector with cover and 4"
flexible joiner cable.
FINISHES:WHITE(WH), BLACK(BL)
TL21 Outlet Box/T-Bar
Ceiling Canopy
May be mounted over outlet
boxes or on T-bar ceiling runners
to feed up to four trac sections via
a remote transformer. Includes
mounting plate and cover with
four breakouts. Requires TLR37
for T-bar ceiling installation.
FINISHES:WHITE(WH), BLACK(BL)
21

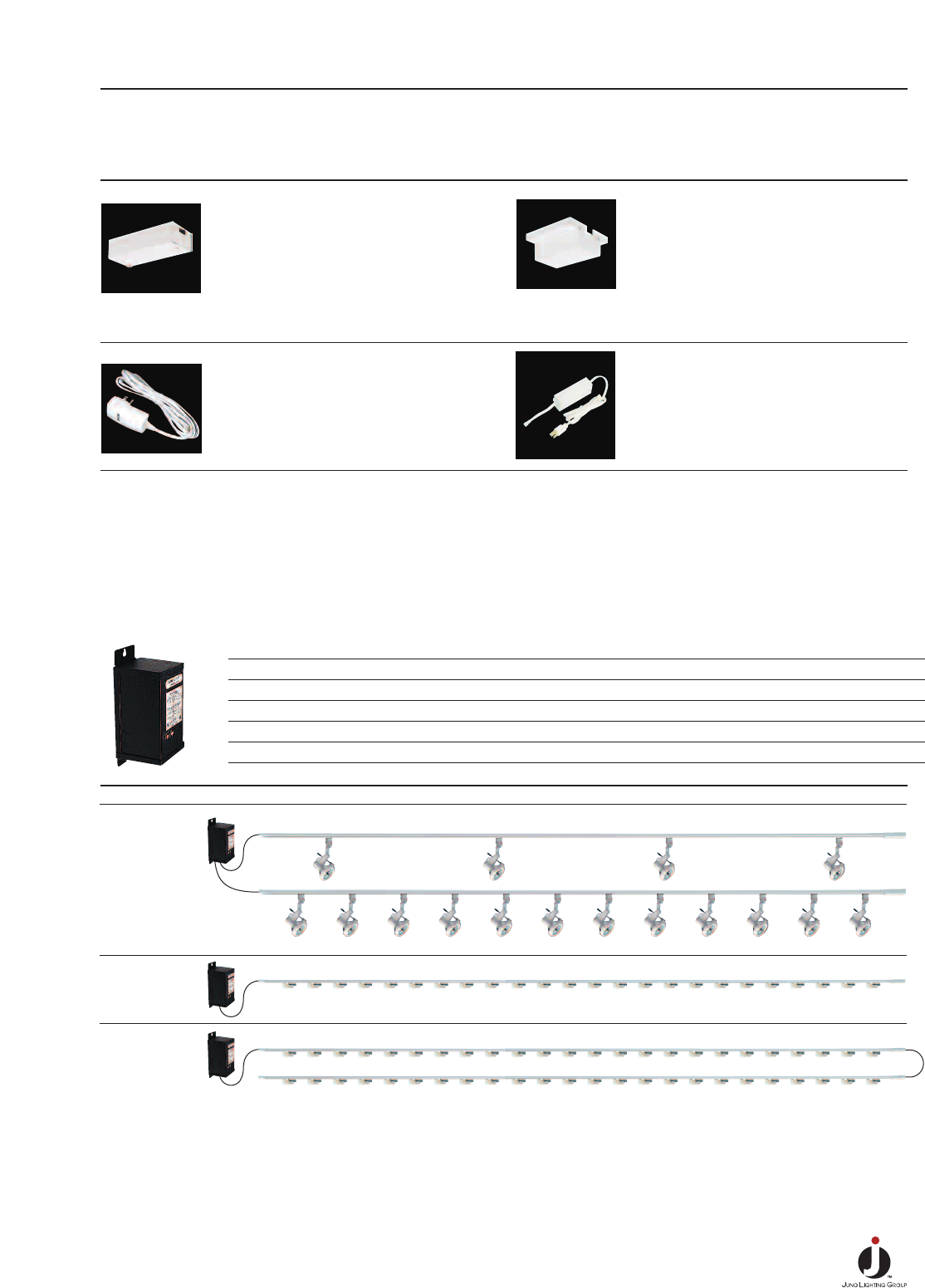

Trac 12®Electronic Transformers
Direct Wire Electronic Transformers
Portable Electronic Transformers
Trac 12®Remote Mount Magnetic Transformers
Trac 12®Transformer/Fixture Loading Examples
TL547 150-Watt Surface Transformer
Low profile electronic 12-volt transformer for loads
between 50-150 watts. May be installed in-line with
trac (Trac12®only) or remotely mounted up to 5'
away (Trac12® or Trac12/25) . 120-volt supply can be
fed into end or top using standard 1
/
2" electrical con-
nectors. Includes On/off push button switch.
DIMENSIONS:1
5
/
8"HX21
/
2"WX7"L
FINISHES:WHITE(WH), BLACK(BL)
TL544N 60-Watt Surface Mount Transformer
Surface mount electronic 12-volt transformer
for loads up to 60 watts. Includes 6', 3-wire
cord and plug, 41
/
2" leads with mating connector
for TL43 Monopoint and on/off switch.
DIMENSIONS:13
/
8"HX2"WX47
/
8"L
FINISHES:WHITE(WH), BLACK(BL)
Run using 10W Xenon lamps in TL201 or TL211 fixtures, 24 fixtures maximum
Run using 10W Xenon lamps in TL201 or TL211 fixtures, 48 fixtures maximum
CATALOG #OUTPUT TOTAL NUMBER OF CIRCUITS/RECOMMENDED WATTAGE DIMENSIONS
VOLTAGE WATTAGE WATTAGE PER CIRCUIT RANGE PER CIRCUIT
TL554BL 12V 150 watts 1 / 150 watts 50-150 watts 8"H x 35
/
8"W x 31
/
2"D
TL549BL 12V 240 watts 1 / 240 watts 120-240 watts 77
/
8"H x 43
/
8"W x 4"D
TL550BL 12V 480 watts 2 / 240 watts 120-240 watts 113
/
8"H x 5"W x 5"D
TL553BL-24V 24V 240 watts 1 / 240 watts 120-240 watts 8"H x 41
/
4"W x 4"D
TL551BL-24V 24V 480 watts 1 / 480 watts 240-480 watts 113
/
8"H x 5"W x 47
/
8"D
TL552BL-24V 24V 960 watts 2 / 480 watts 240-480 watts 121
/
2"H x 61
/
8"W x 57
/
8"D
TL550BL
Transformer with
two 240 watt
12-volt circuits
TL549BL
Transformer with
one 240 watt
12-volt circuit
TL551BL
Transformer with
one 480 watt
24-volt circuit
Electronic transformers are compact and lightweight and thus ideal
for mounting in close proximity to the trac. They may be dimmed
using better quality incandescent dimmers, but for optimal/
consistent performance dimmers specifically designed for use with
low voltage electronic transformers are recommended. All electronic
transformers include automatically resetting overload, short circuit
and thermal protection. They are recommended for trac run lengths
not exceeding 20 feet.
Trac 12®remote mount magnetic transformers are designed to be
installed in remote locations such as basements, attics, plenums and
electrical closets. The location must be accessible and well ventilated
with ambient temperatures below 140-degrees Fahrenheit. 12-volt
transformers are typically used for spotlighting applications due to the
ready availability of 12-volt MR11 and MR16 lamps. 24-volt transform-
ers double the wattage capacity vs. a 12-volt system and are more
commonly selected for linear lighting due to their capacity for longer
runs per circuit. All magnetic transformers listed below are designed
for 120-volt input, have resettable thermal sensing circuit breakers,
dual-tap standard/boost tap primary input leads to adjust for voltage
drop and may be dimmed using dimmers specifically designed for use
with magnetic transformers. Suitable for use with Trac 12 or Trac 12/25.
Transformers
1st run using 50W MR16 lamps, 4 fixtures maximum and 2nd run using 20W MR16 lamps, 12 fixtures maximum
TL546 150-Watt Canopy Transformer
Canopy mount electronic 12-volt transformer for
loads between 50-150 watts. Mounts over standard
120-volt ceiling outlet boxes and can end-feed
one trac section or center feed two trac sections.
NOTE:This is not a floating feed and is not suitable for
use with Trac 12/25.
DIMENSIONS:21
/
8"HX43
/
4"WX5"L
FINISHES:WHITE(WH), BLACK(BL)
TL548 60-Watt Plug-In Transformer
Integral plug-in 12-volt transformer for loads
up to 60 watts. Supplied with 10' of two-wire
cord and on/off line cord switch.
DIMENSIONS:31
/
8"HX11
/
2"WX13
/
8"D
FINISHES:WHITE(WH), BLACK(BL)
Extension Wands
Surface
Monopoints
Monopoint Adapters
for Recessed Housings
Trac 12
22
TL541 Conical Surface Monopoint
w/ Integral Transformer
Mounts over standard ceiling outlet
boxes. Includes 50VA electronic
transformer. Accepts Juno Trac12®
spotlights and decorative pendants.
DIMENSIONS:5
3
/
8"DIA. X 23
/
8"H
FINISHES:WHITE(WH), BLACK(BL), SILVER(SL)
TL540 Cylindrical Surface
Monopoint w/ Integral
Transformer
Mounts over standard ceiling outlet
boxes. Includes 50VA electronic
transformer. Accepts Juno Trac 12®
halogen spotlights and decorative
pendants.
DIMENSIONS:6
1
/
2"DIA. X 13
/
8"H
FINISHES:WHITE(WH), BLACK(BL), SILVER(SL)
TL43 Mini-Monopoint
for Remote Transformer
Mounts directly into ceiling, wall
or cabinet surfaces with no visible
mounting screws. Includes mount-
ing retaining spring and 50" of wire
with mating connector to TL544N
transformer (ordered separately).
Accepts all Juno Trac 12®spotlights
and decorative pendants.
DIMENSIONS:2
1
/
2"DIA. X 1
/
8"H
FINISHES:WHITE(WH), BLACK(BL), SILVER(SL)
TL40 Monopoint for
Remote Transformer
Mounts over standard ceiling outlet
boxes supplied with 12 or 24 volts
from a remote transformer. Accepts
Juno Trac 12®spotlights and deco-
rative pendants.
DIMENSIONS:5"DIA. X 1
/
4"H
FINISHES:WHITE(WH), BLACK(BL), SILVER(SL)
TL543 IC Recessed Monopoint,
New Construction
Includes 50VA 12-volt electronic
transformer, pre-wired IC rated
recessed housing with adjustable
real-nail bar hangers and canopy.
Accepts Juno Trac 12®spotlights
and decorative pendants.
HOUSING DEPTH:6"
CANOPY DIMENSIONS:5"DIA. X 1
/
4"H
FINISHES:WHITE(WH)
TL542 IC Recessed Monopoint,
Remodel Construction
Includes 50VA 12-volt electronic
transformer, pre-wired IC rated
recessed housing for remodel con-
struction. Accepts Juno Trac12®
spotlights and decorative pendants.
HOUSING DEPTH:6"
CANOPY DIMENSIONS:5"DIA. X 1
/
4"H
FINISHES:WHITE(WH)
TL539 6" Recessed Housing
Monopoint Adapter Trim
Includes 50VA 12-volt electronic
transformer and screw in socket
adapter. Mounts directly to all
Juno 6" universal recessed incan-
descent housings. Accepts Juno
Trac 12®spotlights and decorative
pendants.
DIMENSIONS:7
5
/
8"DIA. X 3
/
16"H
FINISHES:WHITE(WH)
Extension wands allow any Trac12®fixture to be suspended without having to lower the
trac section itself. For use with either rigid aluminum Trac 12/25 or Trac 12 Trac or
Monopoints.
CATALOG #OVERALL LENGTH FINISHES
TLRW12 14" White(WH), Black(BL), Silver(SL)
TLRW18 20" White(WH), Black(BL), Silver(SL)
TLRW24 26" White(WH), Black(BL), Silver(SL)
TLRW36 38" White(WH), Black(BL), Silver(SL)
TLRW48 50" White(WH), Black(BL), Silver(SL)
Trac 12®Mounting Accessories
23
Light Control Accessories
Juno offers a complete range of light control
accessories to custom tailor effects:
TL117, TL130,
TL301
13
/
4 " COMPATIBLE WITH 2" COMPATIBLE WITH
T7400BL
T7400SA
Accessory Holders
Required for listed fixtures.
Accepts one filter, lens, and
louver except where noted.
Accepts up to
2 accessories
Lens/Louver Diameter
Light Control Lenses
Uniformity Lens T5521 T7421
Diffusion Lens T5520 T7420
Prismatic Spread Lens T557 T7477
Linear Spread Lens T559 T7478
UV Filter T5522 T7422
Color Correction Filters
Halogen-to-Incandescent, 2700K T5518 T7418
Halogen-to-Daylight, 4250K T5516 T7416
Colored Glass Filters
Medium Pink T551 T741
Warm Red T742
Daylight Blue T743
Medium Blue T553 T744
Medium Amber T555 T745
Medium Green T746
Dichroic Glass Filters
Red T5501 T7401
Medium Green T5503 T7403
Medium Blue T5504 T7404
Yellow T5505 T7405
Magenta T5506 T7406
Blue-Green (Cyan) T5511 T7411
Hexcell Louvers T5559BL T7459BL
Snoot T558BL
Eyebrow T556BL
Barn Doors T74BL T7470BL
Does not require separate accessory
holder except where noted.
TL109, TL116,
TLP116, TL143,
TL160, TL165,
TL191, TL196,
TL296
TL109, TL116,
TLP116, TL143,
TL160, TL165,
TL191, TL196,
TL296
TL109, TL116,
TLP116, TL143,
TL160, TL165,
TL191, TL196,
TL296
TL109, TL116,
TLP116, TL143,
TL160, TL165,
TL191, TL196,
TL296
TL109, TL116,
TLP116, TL143,
TL160, TL165,
TL191, TL196,
TL296
TL109,TL116,
TLP116, TL143,
TL160, TL165,
TL191, TL196,
TL296
TL109, TL116,
TLP116
TL109
TL109, TL116,
TLP116
TL117, TL130,
TL301
TL140* and
fixtures with
T7400 Accessory
Holder
TL140* and
fixtures with
T7400 Accessory
Holder
TL140* and
fixtures with
T7400 Accessory
Holder
TL140* and
fixtures with
T7400 Accessory
Holder
TL140* and
fixtures with
T7400 Accessory
Holder
TL140* and
fixtures with
T7400 Accessory
Holder
Also requires
T7400
Accessory
Holder
Light Control Lenses
These alter the light distribution
of a given lamp, enlarging or
elongating it, softening the beam
edge or removing striations.
UV Filters These museum quality
lenses filter out ultraviolet radiation
above 400 nanometers to protect
fade sensitive art and objects.
Color Correction Filters
These correct the light, either
to warm it up to approximate
incandescent, or cool it down
to approximate daylight.
Color Filters These change
white light into colored light
and are available in colored
glass and more efficient/
saturated dichroic filters.
Louvers Hexcell louvers reduce
perceived fixture brightness.
Snoots and Eyebrows These
extend lamp shielding and can
reduce spill light in the edge of
a beam pattern.
Barn Doors These create
a theatrical look and allow
control of the spill light coming
off of a lamp.
*Simultaneously accepts any combination
of up to two filters, lenses or louver.
10 Watt
Xenon
Lamps
3 Watt Xenon
Lamps
5 Watt
Xenon
Lamps
24
Footcandles on Horizontal and Vertical Planes
Maximum Run Length per 20-Amp Circuit Maximum Run Length per 25-Amp Circuit
Over Cabinets Trac 12®
, using 10-watt lamps
spaced 6" on center, generally provides
excellent indirect lighting. For lower-level
mood lighting, use 3-watt or 5-watt lamps
with slightly closer spacing. Placing the
fixture at the front edge of the cabinet top
will project light into the space and illuminate
any displayed objects. Locate top of lamp
even with top edge of cove molding to
prevent a harsh shadow line.
Inside Cabinets Running Trac 12®vertical on
the front inside of cabinets avoids the need
to put trac on each shelf. 3-watt Xenon
lamps 3" on center will generally provide
adequate lighting inside a cabinet.
Under Cabinets Placing Juno Trac 12®at the
front lip of the cabinet conceals the fixture
from view, minimizes veiling reflections, and
provides maximum light on the working area
of the countertop.
Conversion factors for other lamps
LAMP MULTIPLIER
12V, 10W Rigid Loop 1.11
12V, 10W Wedge Base 0.91
12V, 5W Rigid Loop 0.44
12V, 5W Wedge Base 0.32
12V, 5W Rigid Loop 0.50
12V, 5W Wedge Base 0.37
Lamp Spacing O. C. La mp Cove Footcandles on Vert. Plane (Wall) Footcandles on Horiz. Plane (Ceiling)
from Wall CSpacing Height HAB CD WXYZ
3" 3" 6" 111 155 162 31 176 164 93 44
3" 3" 9" 62 89 155 21 118 121 93 54
3" 3" 12" 42 56 120 15 83 87 78 56
4" 4" 6" 88 111 105 23 124 123 85 38
4" 4" 9" 53 74 99 16 88 89 76 46
4" 4" 12" 36 49 96 11 63 66 61 46
5" 5" 6" 68 71 67 19 85 96 81 35
5" 5" 9" 44 57 61 13 66 69 63 43
5" 5" 12" 31 42 58 8 48 51 48 40
Lamp Type
24V, 10W Rigid Loop or
Wedge Base Xenon Lamp.
(Test conducted with 70%
reflectances at 23.5 volts)
10 Watt
Xenon
Lamps
3 Watt Xenon
Lamps
Lamp SpacingLamp Type Lamp SpacingLamp Type
2" 3" 4" 5" 6"
Lumens/Foot (24V Lamp) - 340 255 204 170
Maximum Run Length-24V 10' 15' 20' 25' 30'
Maximum Run Length-12V 5' 7.5' 10' 12.5' 15'
Lumens/Foot (24V Lamp) 162 108 81 65 54
Maximum Run Length-24V 20' 30' 40' 50' 60'
Maximum Run Length-12V 10' 15' 20' 25' 30'
Lumens/Foot 93 62 42 37 31
Maximum Run Length-12V 17' 25' 34' 42' 50'
Cabinetry Lighting Guidelines
Cove Lighting
Linear Lighting Application Data
2" 3" 4" 5" 6"
Lumens/Foot (24V Lamp) - 340 255 204 170
Maximum Run Length-24V - 12' 16' 20' 24'
Maximum Run Length-12V - 6' 8' 10' 12'
Lumens/Foot (24V Lamp) 162 108 81 65 54
Maximum Run Length-24V 16' 24' 32' 40' 48'
Maximum Run Length-12V 8' 12' 16' 20' 24'
Lumens/Foot 93 62 42 37 31
Maximum Run Length-12V 13' 20' 27' 33' 40'
5 Watt
Xenon
Lamps
NOTE:Frosted lamps provide slightly less lumen output, but more uniformity with wider spacings.
NOTE:Shiny flooring or countertops may cause lamp image reflections.
Lamp Type Catalog Number Volts/ On-Center Footcandles
Number of Lamps Watts Spacing
A B C D
Xenon Wedge Base TL201 1 12V/5W 3" 10 31 20 22
112V/10W 6"12 36 23 25
TL202 2 12V/5W 6" 10 29 18 20
212V/10W 12" 12 36 23 25
Xenon Rigid Loop TL211 1 12V/5W 3" 14 42 27 30
112V/10W 6" 14 43 28 30
Halogen Bi-Pin TL103 1 12V/20W 12" 16 66 56 60
Footcandles on Horizontal Work Surface
Kick Spaces 3-watt Xenon lamps spaced
on 4" centers provide adequate kick space
lighting. Wider spacings can be used when
the distance from trac to floor is greater than
4" or when even illumination is not required.

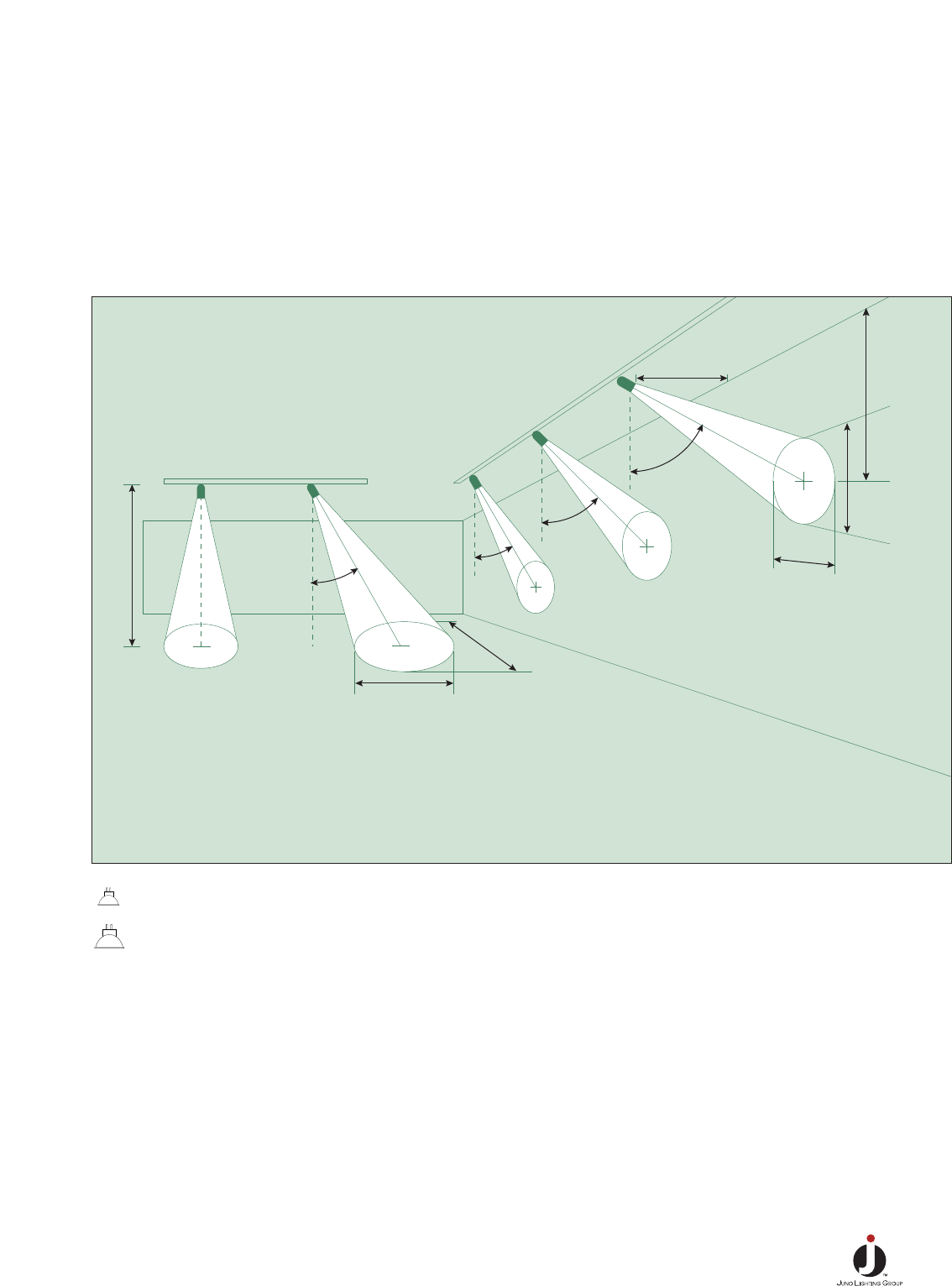

0˚
MH
L
W
D
X
W
L
Aim point
A
A
A
A
30˚
30˚
45˚
60˚
12-Volt and 24-Volt MR11/MR16 (Mirrored Reflector)
These Mirrored Reflector (MR) lamps have smaller “point-source” filaments that are precisely aligned in a minia-
ture multi-faceted reflector to produce exacting beam distributions of white, halogen light. For spot distri-
butions they produce more usable light per watt of energy than comparable wattage halogen PAR lamps.
Available in a wide range of beam spreads and wattages, the miniature 2" MR16 lamps allow for very compact
fixture designs and, in combination with light control lenses, a high degree of specificity in lighting design.
They are the best accent source for highlighting artwork, sculpture, or creating dramatic effects. Smaller,
lower wattage 1-3/8" diameter MR11 lamps are also available for special situations where ultra-miniature
fixture size is required. Like halogen PAR lamps, many MR16 lamps are now available in “IR” models where-
by the infrared heat produced by the lamp is reflected back onto the filament, enabling it to burn hotter and
brighter, improving energy efficiency up to 30%. Life ranges from 2000 to 6000 hours. MR lamps require a
step-down transformer to supply their required 12 or 24 volts.
The photometric charts on the following pages provide illumi-
nation levels (FC) and beam size (in feet) for lamps of various
wattages and beam patterns. Data is given for lamps aimed at
both horizontal and vertical surfaces.
Maximum candlepower and rated life is also indicated for each
lamp. Lamp performance is based on bare lamp photometrics
provided by lamp manufacturers. Additional information may
be obtained from Juno.
*The beam spread in degrees and the beam “L” and “W” in
the following tables are computed at 50% of centerbeam
candlepower and represent areas of “effective illumination.”
**In vertical aiming applications, aim point (x) is determined
by dividing distance from the wall (D) by the tangent of the
desired aim angle (A) (0.577 for 30˚, 1.0 for 45˚, 1.732 for 60˚)
Photometric Data
AAiming angle of fixture/lamp, measured from 0°
CBCP Centerbeam candlepower
DDistance from fixture/lamp to wall
FC Footcandles at beam center (aim point)
LLength of beam*
MH Vertical distance from the fixture/lamp to the horizontal surface
WWidth of beam*
XVertical distance to the center of the beam measured from ceiling**
25
20W MR11
SP 10° 4000 5500 2 1375 0.3 0.3 893 0.5 0.4 1 688 1.7 0.7 0.3 1945 1.0 0.4 0.2 2 893 1.2 0.5 0.4
Halogen
4 344 0.7 0.7 223 0.9 0.8 2 172 3.5 1.4 0.7 486 2.0 0.7 0.5 3 397 1.7 0.7 0.6
6153 1.0 1.0 99 1.4 1.2 3 76 5.2 2.1 1.0 216 3.0 1.1 0.7 4 223 2.3 0.9 0.8
886 1.4 1.4 56 1.9 1.6 4 43 6.9 2.9 1.4 122 4.0 1.4 1.0 5 143 2.9 1.2 1.0
10 55 1.7 1.7 36 2.3 2.0 5 28 8.7 3.6 1.7 78 5.0 1.8 1.2 6 99 3.5 1.4 1.2
NFL 30° 3500 600 1 600 0.5 0.5 390 0.7 0.6 1 75 1.7 2.7 1.1 212 1.0 1.2 0.8 2 97 1.2 1.5 1.2
2150 1.1 1.1 97 1.5 1.2 2 19 3.5 5.5 2.1 53 2.0 2.3 1.5 3 43 1.7 2.2 1.9
367 1.6 1.6 43 2.2 1.9 3 8 5.2 8.2 3.2 24 3.0 3.5 2.3 4 24 2.3 2.9 2.5
438 2.1 2.1 24 2.9 2.5 4 5 6.9 10.9 4.3 13 4.0 4.6 3.0 5 16 2.9 3.7 3.1
524 2.7 2.7 16 3.7 3.1 5 3 8.7 13.7 5.4 8 5.0 5.8 3.8 6 11 3.5 4.4 3.7
Low Voltage HALOGEN
Horizontal Aiming Angles Vertical Aiming Angles
BEAM BEAM RATED 0 DEGREES 30 DEGREES 30 DEGREES 45 DEGREES 60 DEGREES
LAMP TYPE SPREAD LIFE CBCP MH FC L W FC L W D FC X L W FC X L W D FC X L W
26
12 Volt
TL935
TL937
FL 40° 5000 525 3 58 2.2 2.2 38 3.0 2.5 1 66 1.7 4.8 1.5 186 1.0 1.7 1.0 2 85 1.2 2.0 1.7
T522 521 3.6 3.6 14 5.1 4.2 2 16 3.5 9.7 2.9 46 2.0 3.4 2.1 3 38 1.7 3.0 2.5
711 5.1 5.1 7 7.1 5.9 3 7 5.2 14.5 4.4 21 3.0 5.0 3.1 4 21 2.3 4.1 3.4
9 6 6.6 6.6 4 9.1 7.6 4 4 6.9 19.3 5.8 12 4.0 6.7 4.1 5 14 2.9 5.1 4.2
11 4 8.0 8.0 3 11.2 9.2 5 3 8.7 24.2 7.3 7 5.0 8.4 5.1 6 9 3.5 6.1 5.0
20W MR16
VNSP 7° 3000 7400 6 206 0.7 0.7 134 1.0 0.8 3 103 5.2 1.5 0.7 291 3.0 0.7 0.5 6 134 3.5 1.0 0.8
Halogen
991 1.1 1.1 59 1.5 1.3 4 58 6.9 2.0 1.0 164 4.0 1.0 0.7 7 98 4.0 1.1 1.0
12 Volt
12 51 1.5 1.5 33 2.0 1.7 537 8.7 2.5 1.2 105 5.0 1.2 0.9 8 75 4.6 1.3 1.1
15 33 1.8 1.8 21 2.4 2.1 6 26 10.4 3.0 1.5 73 6.0 1.5 1.0 9 59 5.2 1.5 1.3
18 23 2.2 2.2 15 2.9 2.5 7 19 12.1 3.5 1.7 53 7.0 1.7 1.2 10 48 5.8 1.6 1.4
NSP 15°5000 3750 4234 1.1 1.1 152 1.4 1.2 2 117 3.5 2.2 1.1 331 2.0 1.1 0.7 4 152 2.3 1.4 1.2
T521 6 104 1.6 1.6 68 2.1 1.8 3 52 5.2 3.3 1.6 147 3.0 1.6 1.1 5 97 2.9 1.8 1.5
859 2.1 2.1 38 2.8 2.4 4 29 6.9 4.4 2.1 83 4.0 2.1 1.5 6 68 3.5 2.1 1.8
10 38 2.6 2.6 24 3.5 3.0 5 19 8.7 5.6 2.6 53 5.0 2.7 1.9 7 50 4.0 2.5 2.1
12 26 3.2 3.2 17 4.2 3.6 6 13 10.4 6.7 3.2 37 6.0 3.2 2.2 8 38 4.6 2.8 2.4
35W MR11
SP 10° 4000 8500 4 531 0.7 0.7 345 0.9 0.8 2 266 3.5 1.4 0.7 751 2.0 0.7 0.5 4 345 2.3 0.9 0.8
Halogen
6 236 1.0 1.0 153 1.4 1.2 3 118 5.2 2.1 1.0 334 3.0 1.1 0.7 5 221 2.9 1.2 1.0
12 Volt
8 133 1.4 1.4 86 1.9 1.6 4 66 6.9 2.9 1.4 188 4.0 1.4 1.0 6 153 3.5 1.4 1.2
10 85 1.7 1.7 55 2.3 2.0 5 43 8.7 3.6 1.7 120 5.0 1.8 1.2 7 113 4.0 1.6 1.4
12 59 2.1 2.1 38 2.8 2.4 630 10.4 4.3 2.1 83 6.0 2.1 1.5 8 86 4.6 1.9 1.6
NFL 35° 3500 1500 1 1500 0.6 0.6 974 0.9 0.7 1 188 1.7 3.6 1.3 530 1.0 1.4 0.9 2 244 1.2 1.7 1.5
2375 1.3 1.3 244 1.7 1.5 2 47 3.5 7.2 2.5 133 2.0 2.8 1.8 3 108 1.7 2.6 2.2
3167 1.9 1.9 108 2.6 2.2 3 21 5.2 10.8 3.8 59 3.0 4.2 2.7 4 61 2.3 3.5 2.9
4 94 2.5 2.5 61 3.5 2.9 4 12 6.9 14.4 5.0 33 4.0 5.6 3.6 5 39 2.9 4.3 3.6
560 3.2 3.2 39 4.3 3.6 58 8.7 18.0 6.3 21 5.0 7.0 4.5 6 27 3.5 5.2 4.4
20W MR11
SP 12° 2000 2200 2 550 0.4 0.4 357 0.6 0.5 1 275 1.7 0.9 0.4 778 1.0 0.4 0.3 2 357 1.2 0.6 0.5
Halogen
TL938- 4138 0.8 0.8 89 1.1 1.0 2 69 3.5 1.7 0.8 194 2.0 0.9 0.6 3 159 1.7 0.8 0.7
24 Volt
24V 661 1.3 1.3 40 1.7 1.5 3 31 5.2 2.6 1.3 86 3.0 1.3 0.9 4 89 2.3 1.1 1.0
834 1.7 1.7 22 2.3 1.9 4 17 6.9 3.5 1.7 49 4.0 1.7 1.2 5 57 2.9 1.4 1.2
10 22 2.1 2.1 14 2.8 2.4 5 11 8.7 4.3 2.1 31 5.0 2.1 1.5 6 40 3.5 1.7 1.5
NFL 30° 2000 500 1 500 0.5 0.5 325 0.7 0.6 1 63 1.7 2.7 1.1 177 1.0 1.2 0.8 2 81 1.2 1.5 1.2
TL939- 2125 1.1 1.1 81 1.5 1.2 2 16 3.5 5.5 2.1 44 2.0 2.3 1.5 3 36 1.7 2.2 1.9
24V 356 1.6 1.6 36 2.2 1.9 3 7 5.2 8.2 3.2 20 3.0 3.5 2.3 4 20 2.3 2.9 2.5
431 2.1 2.1 20 2.9 2.5 4 4 6.9 10.9 4.3 11 4.0 4.6 3.0 5 13 2.9 3.7 3.1
5 20 2.7 2.7 13 3.7 3.1 5 3 8.7 13.7 5.4 7 5.0 5.8 3.8 6 9 3.5 4.4 3.7
NSP 15° 5000 3150 4 197 1.1 1.1 128 1.4 1.2 2 98 3.5 2.2 1.1 278 2.0 1.1 0.7 4 128 2.3 1.4 1.2
T5224 6 88 1.6 1.6 57 2.1 1.8 3 44 5.2 3.3 1.6 124 3.0 1.6 1.1 5 82 2.9 1.8 1.5
8 49 2.1 2.1 32 2.8 2.4 4 25 6.9 4.4 2.1 70 4.0 2.1 1.5 6 57 3.5 2.1 1.8
10 32 2.6 2.6 20 3.5 3.0 5 16 8.7 5.6 2.6 45 5.0 2.7 1.9 7 42 4.0 2.5 2.1
12 22 3.2 3.2 14 4.2 3.6 6 11 10.4 6.7 3.2 31 6.0 3.2 2.2 8 32 4.6 2.8 2.4
FL 40° 5000 475 3 53 2.2 2.2 34 3.0 2.5 1 59 1.7 4.8 1.5 168 1.0 1.7 1.0 2 77 1.2 2.0 1.7
T5222 519 3.6 3.6 12 5.1 4.2 2 15 3.5 9.7 2.9 42 2.0 3.4 2.1 3 34 1.7 3.0 2.5
7 10 5.1 5.1 6 7.1 5.9 3 7 5.2 14.5 4.4 19 3.0 5.0 3.1 4 19 2.3 4.1 3.4
9 6 6.6 6.6 4 9.1 7.6 4 4 6.9 19.3 5.8 10 4.0 6.7 4.1 5 12 2.9 5.1 4.2
11 48.0 8.0 311.2 9.2 5 2 8.7 24.2 7.3 7 5.0 8.4 5.1 6 9 3.5 6.1 5.0
20W MR16
Halogen
12 Volt
Lensed
35W MR16
NSP 10° 4000 8300 6 231 1.0 1.0 150 1.4 1.2 3 115 5.2 2.1 1.0 326 3.0 1.1 0.7 5 216 2.9 1.2 1.0
Halogen
T523 8 130 1.4 1.4 84 1.9 1.6 4 65 6.9 2.9 1.4 183 4.0 1.4 1.0 6 150 3.5 1.4 1.2
10 83 1.7 1.7 54 2.3 2.0 5 42 8.7 3.6 1.7 117 5.0 1.8 1.2 7 110 4.0 1.6 1.4
12 58 2.1 2.1 37 2.8 2.4 6 29 10.4 4.3 2.1 82 6.0 2.1 1.5 8 84 4.6 1.9 1.6
14 42 2.4 2.4 28 3.3 2.8 7 21 12.1 5.0 2.4 60 7.0 2.5 1.7 9 67 5.2 2.1 1.8
SP 20° 5000 3900 4 244 1.4 1.4 158 1.9 1.6 2 122 3.5 3.1 1.4 345 2.0 1.5 1.0 4 158 2.3 1.9 1.6
T523 6 108 2.1 2.1 70 2.9 2.4 3 54 5.2 4.7 2.1 153 3.0 2.2 1.5 5 101 2.9 2.4 2.0
861 2.8 2.8 40 3.8 3.3 4 30 6.9 6.2 2.8 86 4.0 2.9 2.0 6 70 3.5 2.9 2.4
10 39 3.5 3.5 25 4.8 4.1 5 20 8.7 7.8 3.5 55 5.0 3.6 2.5 7 52 4.0 3.3 2.9
12 27 4.2 4.2 18 5.7 4.9 6 14 10.4 9.3 4.2 38 6.0 4.4 3.0 8 40 4.6 3.8 3.3
NFL 25°4000 3100 4 194 1.8 1.8 126 2.4 2.0 2 97 3.5 4.2 1.8 274 2.0 1.9 1.3 4 126 2.3 2.4 2.0
686 2.7 2.7 56 3.6 3.1 3 43 5.2 6.2 2.7 122 3.0 2.8 1.9 5 81 2.9 3.0 2.6
848 3.5 3.5 31 4.8 4.1 4 24 6.9 8.3 3.5 69 4.0 3.7 2.5 6 56 3.5 3.6 3.1
10 31 4.4 4.4 20 6.0 5.1 5 16 8.7 10.4 4.4 44 5.0 4.7 3.1 7 41 4.0 4.2 3.6
12 22 5.3 5.3 14 7.2 6.1 6 11 10.4 12.5 5.3 30 6.0 5.6 3.8 8 31 4.6 4.8 4.1
FL 40°4000 700 2 175 1.5 1.5 114 2.0 1.7 1 88 1.7 4.8 1.5 247 1.0 1.7 1.0 2 114 1.2 2.0 1.7
444 2.9 2.9 28 4.1 3.4 2 22 3.5 9.7 2.9 62 2.0 3.4 2.1 3 51 1.7 3.0 2.5
6 19 4.4 4.4 13 6.1 5.0 3 10 5.2 14.5 4.4 27 3.0 5.0 3.1 4 28 2.3 4.1 3.4
8 11 5.8 5.8 7 8.1 6.7 4 5 6.9 19.3 5.8 15 4.0 6.7 4.1 5 18 2.9 5.1 4.5
10 77.3 7.3 510.2 8.4 5 4 8.7 24.2 7.3 10 5.0 8.4 5.1 6 13 3.5 6.1 5.0
WFL 60° 4000 650 1 650 1.2 1.2 422 1.7 1.3 1 81 1.7 ** 2.3 230 1.0 3.5 1.6 2 106 1.2 3.5 2.7
2 163 2.3 2.3 106 3.5 2.7 2 20 3.5 ** 4.6 57 2.0 6.9 3.3 3 47 1.7 5.2 4.0
3 72 3.5 3.5 47 5.2 4.0 3 9 5.2 ** 6.9 26 3.0 10.4 4.9 4 26 2.3 6.9 5.3
4 41 4.6 4.6 26 6.9 5.3 4 5 6.9 ** 9.2 14 4.0 13.9 6.5 5 17 2.9 8.7 6.7
526 5.8 5.8 17 8.7 6.7 5 3 8.7 ** 11.5 9 5.0 17.3 8.2 6 12 3.5 10.4 8.
Low Voltage HALOGEN
Horizontal Surface Vertical Surface
BEAM BEAM RATED 0 DEGREES 30 DEGREES 30 DEGREES 45 DEGREES 60 DEGREES
LAMP TYPE SPREAD LIFE CBCP MH FC L W FC L W D FC X L W FC X L W D FC X L W
27
**Due to steep aiming angle, length of beam
extends beyond 25'. Each angle listed is
measured from 0˚ vertical.
20W MR16
NSP 8° 5000 6500 4 406 0.6 0.6 264 0.7 0.6 2 203 3.5 1.1 0.6 575 2.0 0.6 0.4 4 264 2.3 0.7 0.6
Halogen IR
6181 0.8 0.8 117 1.1 1.0 3 90 5.2 1.7 0.8 255 3.0 0.8 0.6 5 169 2.9 0.9 0.8
12 Volt
8102 1.1 1.1 66 1.5 1.3 4 51 6.9 2.3 1.1 144 4.0 1.1 0.8 6 117 3.5 1.1 1.0
10 65 1.4 1.4 42 1.9 1.6 5 33 8.7 2.8 1.4 92 5.0 1.4 1.0 7 86 4.0 1.3 1.1
12 45 1.7 1.7 29 2.2 1.9 6 23 10.4 3.4 1.7 64 6.0 1.7 1.2 8 66 4.6 1.5 1.3
FL 36° 5000 1000 3 111 1.9 1.9 72 2.7 2.3 1 125 1.7 3.8 1.3 354 1.0 1.5 0.9 2 162 1.2 1.8 1.5
5 40 3.2 3.2 26 4.5 3.8 2 31 3.5 7.6 2.6 88 2.0 2.9 1.8 3 72 1.7 2.7 2.3
7 20 4.5 4.5 13 6.3 5.3 3 14 5.2 11.4 3.9 39 3.0 4.4 2.8 4 41 2.3 3.6 3.0
9 12 5.8 5.8 8 8.1 6.8 4 8 6.9 15.2 5.2 22 4.0 5.8 3.7 5 26 2.9 4.5 3.8
11 8 7.1 7.1 5 9.9 8.3 5 5 8.7 19.0 6.5 14 5.0 7.3 4.6 6 18 3.5 5.4 4.5
Lensed
12 Volt
35W MR16
SP 20° 5000 3200 4 200 1.4 1.4 130 1.9 1.6 2 100 3.5 3.1 1.4 283 2.0 1.5 1.0 4 130 2.3 1.9 1.6
Halogen
6 89 2.1 2.1 58 2.9 2.4 3 44 5.2 4.7 2.1 126 3.0 2.2 1.5 5 83 2.9 2.4 2.0
12 VoltLensed
850 2.8 2.8 32 3.8 3.3 4 25 6.9 6.2 2.8 71 4.0 2.9 2.0 6 58 3.5 2.9 2.4
10 32 3.5 3.5 21 4.8 4.1 5 16 8.7 7.8 3.5 45 5.0 3.6 2.5 7 42 4.0 3.3 2.9
12 22 4.2 4.2 14 5.7 4.9 6 11 10.4 9.3 4.2 31 6.0 4.4 3.0 8 32 4.6 3.8 3.3
FL 40° 5000 900 2 225 1.5 1.5 146 2.0 1.7 1 113 1.7 4.8 1.5 318 1.0 1.7 1.0 2 146 1.2 2.0 1.7
456 2.9 2.9 37 4.1 3.4 228 3.5 9.7 2.9 80 2.0 3.4 2.1 3 65 1.7 3.0 2.5
6 25 4.4 4.4 16 6.1 5.0 3 13 5.2 14.5 4.4 35 3.0 5.0 3.1 4 37 2.3 4.1 3.4
8 14 5.8 5.8 9 8.1 6.7 4 7 6.9 19.3 5.8 20 4.0 6.7 4.1 5 23 2.9 5.1 4.2
10 97.3 7.3 6 10.2 8.4 5 5 8.7 24.2 7.3 13 5.0 8.4 5.1 6 16 3.5 6.1 5.0
Lensed
T5234
T5232
37W MR16
SP 10° 4000 12500 6 347 1.0 1.0 226 1.4 1.2 3 174 5.2 2.1 1.0 491 3.0 1.1 0.7 7 166 4.0 1.6 1.4
Halogen IR
9 154 1.6 1.6 100 2.1 1.8 4 98 6.9 2.9 1.4 276 4.0 1.4 1.0 8 127 4.6 1.9 1.6
12 87 2.1 2.1 56 2.8 2.4 5 63 8.7 3.6 1.7 177 5.0 1.8 1.2 9 100 5.2 2.1 1.8
15 56 2.6 2.6 36 3.5 3.0 6 43 10.4 4.3 2.1 123 6.0 2.1 1.5 10 81 5.8 2.3 2.0
18 39 3.1 3.1 25 4.2 3.6 7 32 12.1 5.0 2.4 90 7.0 2.5 1.7 11 67 6.4 2.6 2.2
NFL 25° 4000 4400 4 275 1.8 1.8 179 2.4 2.0 2 138 3.5 4.2 1.8 389 2.0 1.9 1.3 4 179 2.3 2.4 2.0
6122 2.7 2.7 79 3.6 3.1 3 61 5.2 6.2 2.7 173 3.0 2.8 1.9 5 114 2.9 3.0 2.6
869 3.5 3.5 45 4.8 4.1 4 34 6.9 8.3 3.5 97 4.0 3.7 2.5 6 79 3.5 3.6 3.1
10 44 4.4 4.4 29 6.0 5.1 5 22 8.7 10.4 4.4 62 5.0 4.7 3.1 7 58 4.0 4.2 3.6
12 31 5.3 5.3 20 7.2 6.1 6 15 10.4 12.5 5.3 43 6.0 5.6 3.8 8 45 4.6 4.8 4.1
FL 40°4000 2200 3 244 2.2 2.2 159 3.0 2.5 1 275 1.7 4.8 1.5 778 1.0 1.7 1.0 2 357 1.2 2.0 1.7
588 3.6 3.6 57 5.1 4.2 269 3.5 9.7 2.9 194 2.0 3.4 2.1 3 159 1.7 3.0 2.5
7 45 5.1 5.1 29 7.1 5.9 3 31 5.2 14.5 4.4 86 3.0 5.0 3.1 4 89 2.3 4.1 3.4
9 27 6.6 6.6 18 9.1 7.6 4 17 6.9 19.3 5.8 49 4.0 6.7 4.1 5 57 2.9 5.1 4.2
11 18 8.0 8.0 12 11.2 9.2 5 11 8.7 24.2 7.3 31 5.0 8.4 5.1 6 40 3.5 6.1 5.0
28
**Due to steep aiming angle, length of beam
extends beyond 25'. Each angle listed is
measured from 0˚ vertical.
TL942-
24V
12 Volt
12 Volt
12 Volt
T526
T527
T528
35W MR16
SP 12° 4000 4950 6 138 1.3 1.3 89 1.7 1.5 3 69 5.2 2.6 1.3 194 3.0 1.3 0.9 5 129 2.9 1.4 1.2
Halogen
8 77 1.7 1.7 50 2.3 1.9 4 39 6.9 3.5 1.7 109 4.0 1.7 1.2 6 89 3.5 1.7 1.5
24 Volt
10 50 2.1 2.1 32 2.8 2.4 5 25 8.7 4.3 2.1 70 5.0 2.1 1.5 7 66 4.0 2.0 1.7
Lensed
12 34 2.5 2.5 22 3.4 2.9 6 17 10.4 5.2 2.5 49 6.0 2.6 1.8 8 50 4.6 2.3 1.9
14 25 2.9 2.9 16 3.9 3.4 7 13 12.1 6.1 2.9 36 7.0 3.0 2.1 9 40 5.2 2.5 2.2
FL 24° 3500 1200 2 300 0.9 0.9 195 1.2 1.0 1 150 1.7 2.0 0.9 424 1.0 0.9 0.6 2 195 1.2 1.2 1.0
475 1.7 1.7 49 2.3 2.0 2 38 3.5 3.9 1.7 106 2.0 1.8 1.2 3 87 1.7 1.7 1.5
633 2.6 2.6 22 3.5 2.9 3 17 5.2 5.9 2.6 47 3.0 2.7 1.8 4 49 2.3 2.3 2.0
819 3.4 3.4 12 4.6 3.9 4 9 6.9 7.9 3.4 27 4.0 3.6 2.4 5 31 2.9 2.9 2.5
10 12 4.3 4.3 8 5.8 4.9 5 6 8.7 9.8 4.3 17 5.0 4.5 3.0 6 22 3.5 3.5 2.9
TL940-
24V
Low Voltage HALOGEN
Horizontal Surface Vertical Surface
BEAM BEAM RATED 0 DEGREES 30 DEGREES 30 DEGREES 45 DEGREES 60 DEGREES
LAMP TYPE SPREAD LIFE CBCP MH FC L W FC L W D FC X L W FC X L W D FC X L W
42W MR16
VNSP 9° 3500 12300 8 192 1.3 1.3 125 1.7 1.5 4 96 6.9 2.6 1.3 272 4.0 1.3 0.9 7 163 4.0 1.5 1.3
Halogen
10 123 1.6 1.6 80 2.1 1.8 5 62 8.7 3.2 1.6 174 5.0 1.6 1.1 8 125 4.6 1.7 1.5
12 85 1.9 1.9 55 2.5 2.2 643 10.4 3.8 1.9 121 6.0 1.9 1.3 9 99 5.2 1.9 1.6
14 63 2.2 2.2 41 2.9 2.5 7 31 12.1 4.5 2.2 89 7.0 2.2 1.6 10 80 5.8 2.1 1.8
16 48 2.5 2.5 31 3.4 2.9 8 24 13.9 5.1 2.5 68 8.0 2.5 1.8 11 66 6.4 2.3 2.0
50W MR16
NSP 15° 6000 9100 8 142 2.1 2.1 92 2.8 2.4 3 126 5.2 3.3 1.6 357 3.0 1.6 1.1 6 164 3.5 2.1 1.8
Halogen
10 91 2.6 2.6 59 3.5 3.0 4 71 6.9 4.4 2.1 201 4.0 2.1 1.5 7 121 4.0 2.5 2.1
12 63 3.2 3.2 41 4.2 3.6 5 46 8.7 5.6 2.6 129 5.0 2.7 1.9 8 92 4.6 2.8 2.4
14 46 3.7 3.7 30 4.9 4.3 6 32 10.4 6.7 3.2 89 6.0 3.2 2.2 9 73 5.2 3.2 2.7
16 36 4.2 4.2 23 5.6 4.9 7 23 12.1 7.8 3.7 66 7.0 3.8 2.6 10 59 5.8 3.5 3.0
NFL 25° 6000 3200 6 89 2.7 2.7 58 3.6 3.1 2 100 3.5 4.2 1.8 283 2.0 1.9 1.3 4 130 2.3 2.4 2.0
850 3.5 3.5 32 4.8 4.1 3 44 5.2 6.2 2.7 126 3.0 2.8 1.9 5 83 2.9 3.0 2.6
10 32 4.4 4.4 21 6.0 5.1 4 25 6.9 8.3 3.5 71 4.0 3.7 2.5 6 58 3.5 3.6 3.1
12 22 5.3 5.3 14 7.2 6.1 5 16 8.7 10.4 4.4 45 5.0 4.7 3.1 7 42 4.0 4.2 3.6
14 16 6.2 6.2 11 8.4 7.2 6 11 10.4 12.5 5.3 31 6.0 5.6 3.8 8 32 4.6 4.8 4.1
FL 40° 6000 1700 3 189 2.2 2.2 123 3.0 2.5 1 213 1.7 4.8 1.5 601 1.0 1.7 1.0 2 276 1.2 2.0 1.7
5 68 3.6 3.6 44 5.1 4.2 2 53 3.5 9.7 2.9 150 2.0 3.4 2.1 3 123 1.7 3.0 2.5
7 35 5.1 5.1 23 7.1 5.9 3 24 5.2 14.5 4.4 67 3.0 5.0 3.1 4 69 2.3 4.1 3.4
9 21 6.6 6.6 14 9.1 7.6 4 13 6.9 19.3 5.8 38 4.0 6.7 4.1 5 44 2.9 5.1 4.2
11 26 4.9 4.9 17 6.6 5.6 5 16 8.7 10.4 4.4 45 5.0 4.7 3.1 6 58 3.5 3.6 3.1
WFL 55° 6000 900 3 100 3.1 3.1 65 4.6 3.6 1 113 1.7 22.3 2.1 318 1.0 2.9 1.5 2 146 1.2 3.1 2.4
536 5.2 5.2 23 7.6 6.0 2 28 3.5 ** 4.2 80 2.0 5.7 2.9 3 65 1.7 4.6 3.6
7 18 7.3 7.3 12 10.7 8.4 3 13 5.2 ** 6.2 35 3.0 8.6 4.4 4 37 2.3 6.1 4.8
9 11 9.4 9.4 7 13.7 10.8 4 7 6.9 ** 8.3 20 4.0 11.4 5.9 5 23 2.9 7.6 6.0
11 711.5 11.5 5 16.8 13.2 5 5 8.7 ** 10.4 13 5.0 14.3 7.4 6 16 3.5 9.2 7.2
T526
T528
Low Voltage HALOGEN
Horizontal Surface Vertical Surface
BEAM BEAM RATED 0DEGREES 30DEGREES 30DEGREES 45DEGREES 60DEGREES
LAMP TYPE SPREAD LIFE CBCP MH FC L W FC L W D FC X L W FC X L W D FC X L W
50W MR16
SP 10° 4000 15000 8 234 1.4 1.4 152 1.9 1.6 4 117 6.9 2.9 1.4 331 4.0 1.4 1.0 7 199 4.0 1.6 1.4
Halogen IR
12 104 2.1 2.1 68 2.8 2.4 5 75 8.7 3.6 1.7 212 5.0 1.8 1.2 8 152 4.6 1.9 1.6
12 Volt
16 59 2.8 2.8 38 3.7 3.2 6 52 10.4 4.3 2.1 147 6.0 2.1 1.5 9 120 5.2 2.1 1.8
20 38 3.5 3.5 24 4.7 4.0 7 38 12.1 5.0 2.4 108 7.0 2.5 1.7 10 97 5.8 2.3 2.0
24 26 4.2 4.2 17 5.6 4.8 8 29 13.9 5.7 2.8 83 8.0 2.8 2.0 11 81 6.4 2.6 2.2
NFL 25° 4000 5700 4 356 1.8 1.8 231 2.4 2.0 2 178 3.5 4.2 1.8 504 2.0 1.9 1.3 5 148 2.9 3.0 2.6
8 89 3.5 3.5 56 4.8 4.1 3 79 5.2 6.2 2.7 224 3.0 2.8 1.9 6 103 3.5 3.6 3.1
12 40 5.3 5.3 26 7.2 6.1 4 45 6.9 8.3 3.5 126 4.0 3.7 2.5 7 76 4.0 4.2 3.6
16 22 7.1 7.1 14 9.6 8.2 5 29 8.7 10.4 4.4 81 5.0 4.7 3.1 8 58 4.6 4.8 4.1
20 14 8.9 8.9 9 12.0 10.2 6 20 10.4 12.5 5.3 56 6.0 5.6 3.8 9 46 5.2 5.4 4.6
FL 40° 4000 2850 4 178 2.9 2.9 116 4.1 3.4 1 356 1.7 4.8 1.5 1008 1.0 1.7 1.0 4 116 2.3 4.1 3.4
6 79 4.4 4.4 51 6.1 5.0 2 89 3.5 9.7 2.9 252 2.0 3.4 2.1 5 74 2.9 5.1 4.2
8 45 5.8 5.8 29 8.1 6.7 3 40 5.2 14.5 4.4 112 3.0 5.0 3.1 6 51 3.5 6.1 5.0
10 29 7.3 7.3 19 10.2 8.4 4 22 6.9 19.3 5.8 63 4.0 6.7 4.1 7 38 4.0 7.1 5.9
12 20 8.7 8.7 13 12.2 10.1 5 14 8.7 24.2 7.3 40 5.0 8.4 5.1 8 29 4.6 8.1 6.7
29
TL947-
24V
50W MR16
Halogen
24Volt
Lensed
NSP 15° 4000 8400 8 131 2.1 2.1 85 2.8 2.4 3 117 5.2 3.3 1.6 330 3.0 1.6 1.1 6 152 3.5 2.1 1.8
10 84 2.6 2.6 55 3.5 3.0 4 66 6.9 4.4 2.1 186 4.0 2.1 1.5 7 111 4.0 2.5 2.1
12 58 3.2 3.2 38 4.2 3.6 5 42 8.7 5.6 2.6 119 5.0 2.7 1.9 8 85 4.6 2.8 2.4
14 43 3.7 3.7 28 4.9 4.3 6 29 10.4 6.7 3.2 82 6.0 3.2 2.2 9 67 5.2 3.2 2.7
16 33 4.2 4.2 21 5.6 4.9 7 21 12.1 7.8 3.7 61 7.0 3.8 2.6 10 55 5.8 3.5 3.0
FL 40° 4000 1570 3 174 2.2 2.2 113 3.0 2.5 1 196 1.7 4.8 1.5 555 1.0 1.7 1.0 2 255 1.2 2.0 17
563 3.6 3.6 41 5.1 4.2 249 3.5 9.7 2.9 139 2.0 3.4 2,1 3 113 1.7 3.0 2.5
732 5.1 5.1 21 7.1 5.9 3 22 5.2 14.5 4.4 62 3.0 5.0 3.1 4 64 2.3 4.1 3.4
9 19 6.6 6.6 13 9.1 7.6 4 12 6.9 19.3 5.8 35 4.0 6.7 4.1 5 41 2.9 5.1 4.2
11 13 8.0 8.0 8 11.2 9.2 5 8 8.7 24.2 7.3 22 5.0 8.4 5.1 6 28 3.5 6.1 5.0
TL945-
24V
Juno and Trac 12 are registered trademarks of Juno Lighting, Inc.
Products shown in this brochure are covered by U.S. and
international patents and patents pending.
Specifications subject to change without notice.
©2006 JUNO LIGHTING INC.
1300 South Wolf Road • P.O. Box 5065 • Des Plaines, Illinois 60017-5065
PHONE (847) 827-9880 • FAX (847) 827-2925 • junolightinggroup.com
Regional Offices & Warehouses:
Atlanta, Dallas, Los Angeles, Philadelphia, Toronto
Printed in the U.S.A. LIT-JUNO-TRAC12 2/06
