Electromechanical
and solid-state
Zelio® Relays
Catalog
2010
3
Reduce the size of your
enclosures and, at the
same time, increase
machine reliability...
Make the most of your energySM
Contents
Introduction
Save Space with Zelio Relay RSL .................................................................................................... 4-5
Choose long life and silent operation with Zelio Relay SSR ................................................. 6-7
Electromechanical and solid-state relays panorama .................................................................... 8-9
Technical characteristics
Zelio Relay RSL ................................................................................................................................. 12-17
Zelio Relay RSB, RXM, RUM, RPM ............................................................................................ 18-49
Zelio Relay ABR, ABS .................................................................................................................... 54-73
Zelio Relay SSR .............................................................................................................................. 74 -81
with these new Zelio® Relays
Electromechanical relays RSL
Only 6 mm wide, thus saving considerable space
in your enclosures
Solid-state relays SSR
Enhanced service life provided by electronic technology
6 mm wide
Enhanced service life
4
Save space
with Zelio® Relay RSL
Only 6 mm wide
reduces the size of your enclosure
> A solution for
any application
A versatile offer
> An offer with maximum exibility, comprising:
• complete products: a single reference for a relay
mounted on a socket,
> Wide choice of sockets available covering a range
of voltages from 12 to 230 V.
• select the relay and associated socket
according to your application.
An offer that meets the most
demanding standards
• Conformity with the European RoHS
(Restriction of Hazardous Substances) directive.
• Conformity to international standards
IEC/EN 61810-1, UL508, CSA C22.2 N°14, GOST.
100% RoHS
Schneider Electric commits itself to
reducing the environmental impact
of its products
5
> Increased reliability
in operation

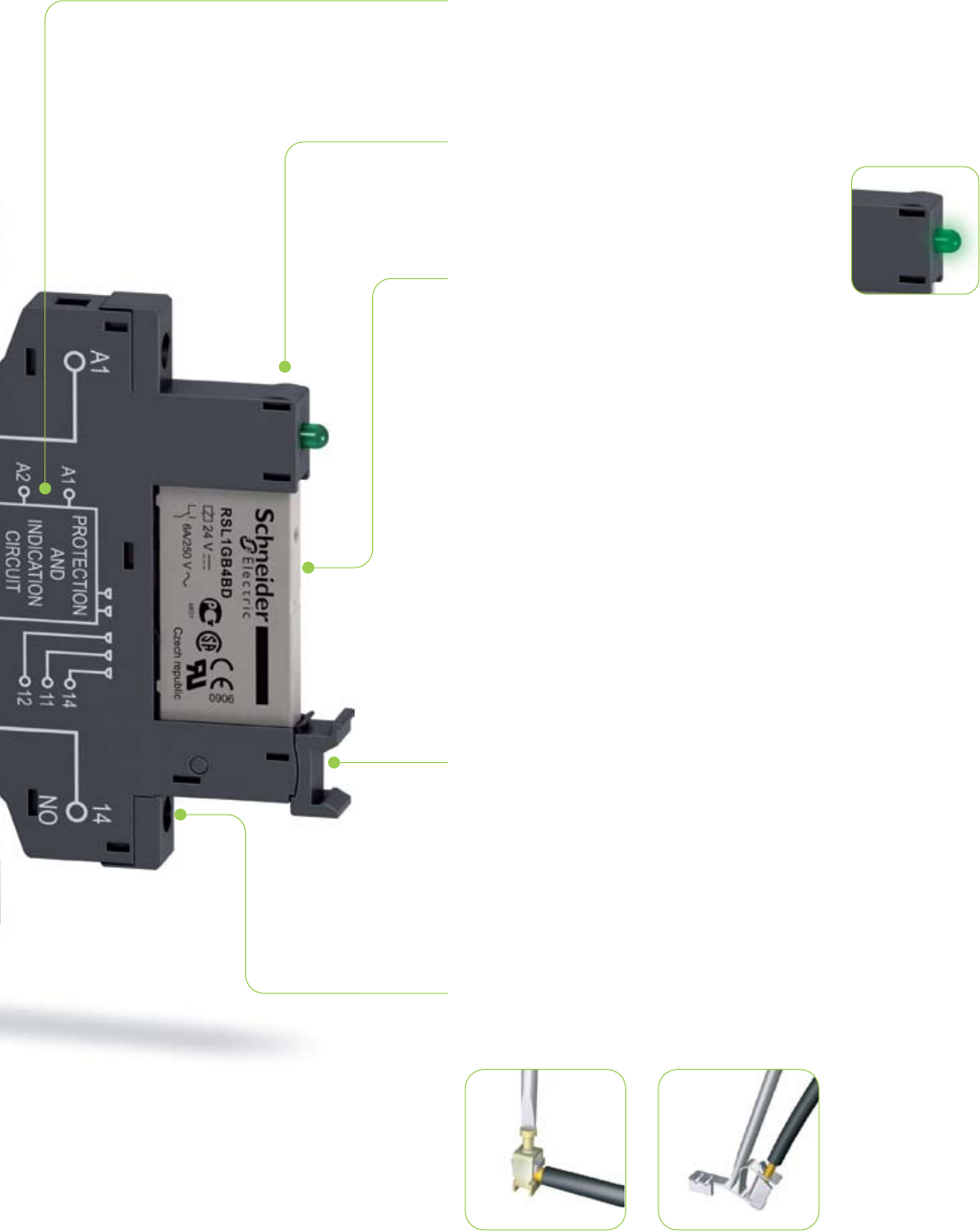

Added protection in the socket
Built-in protection from transients
and reverse polarity voltages.
LED indicator
Power on and relay status indication.
Standard 1 C/O relays
For general purpose load requirements.
> Simple installation
and maintenance
Simple maintenance of relay in socket
Using locking/unlocking lever.
Simple wiring
Bus jumpers available as accessories.
Simple mounting on DIN rail
2 connection choices
Suitable for the majority of your applications.
Up to 6A
switching
Spring terminalScrew connector
4
6
Choose long life and
silent operation with
Zelio® SSR Relays
> Optimized heat exchange
The new solid-state relays SSR with SCR (Semiconductor
Controlled Rectier) outputs offer you two alternatives:
SSRD range
Integrated heat sink to provide factory tested heat exchange,
that easily mounts by clipping directly onto DIN rail. Can also
be panel mounted.

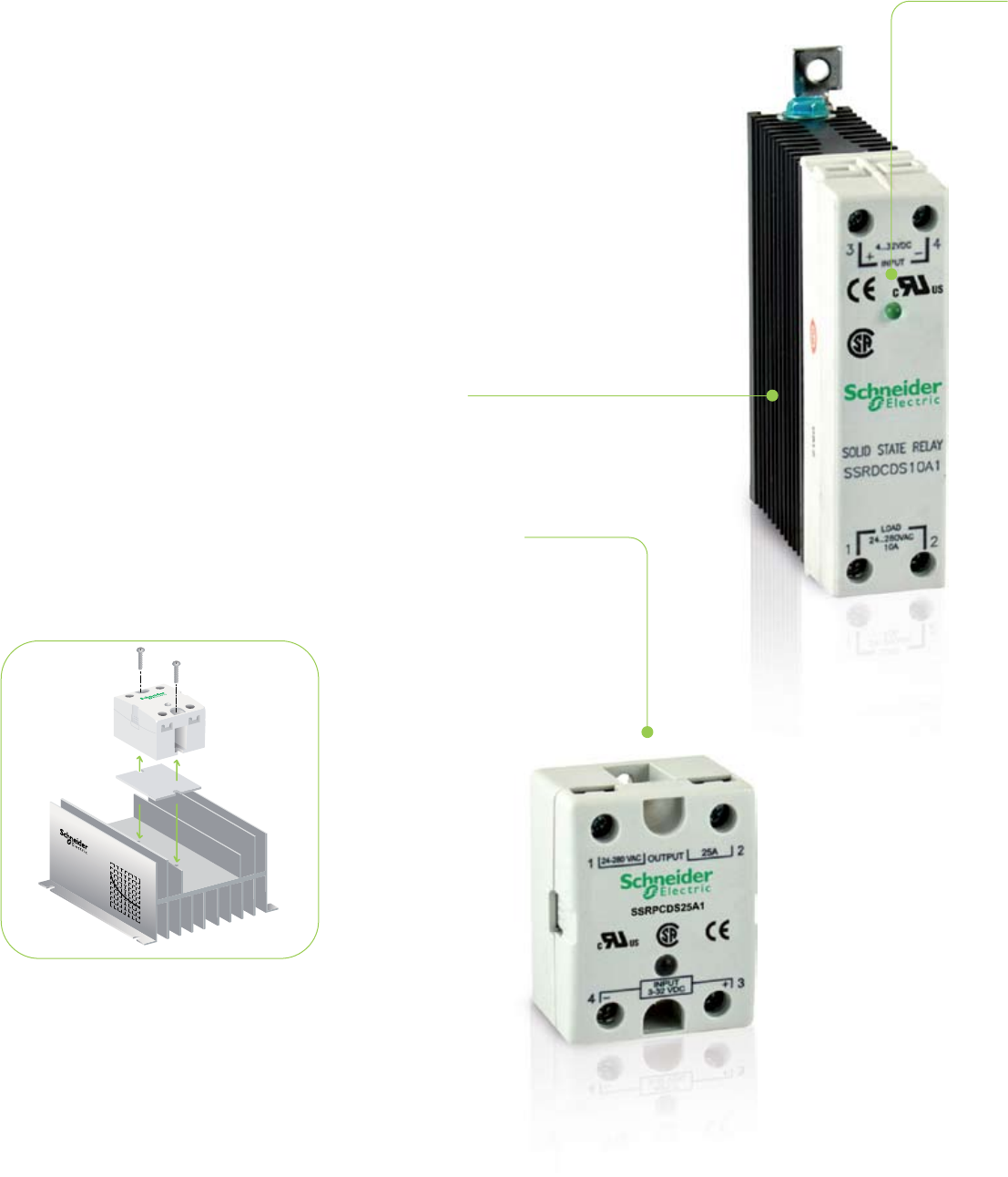

SSRP range
Panel mounted, either by itself or combined with
a heat sink for applications requiring considerable heat exchange.
SSRP relay mounted on heat sink with
thermal transfer pad
SSRAH1
ASSEMBLEDINMEXICO
0812
7
> Distinctive indication

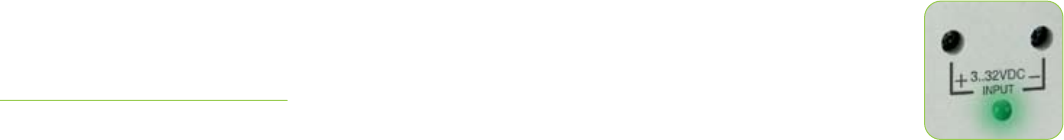

A green LED on the front face of the products provides instant
indication of the presence of input voltage.
> High performance
High breaking capacities
• From 10 to 125 A for relays SSRP
• From 10 to 45 A for relays SSRD
Wide supply voltage range
• From 3 to 32 VDC and 90 to 280 VAC
Outputs suited to applications
• From 24 to 280 VAC and 48 to 530/660 VAC
Space Saving SSRD series
• Only 22.5 mm and up to 45.5 mm wide
Enhanced service life
• Reduced preventive maintenance. SSR relays have
little to no maintenance required once applied correctly.
Silence of electronic technology
• Complete silence when switching
Vibration resistant
• Even in the event of excessive vibration, the relay
will not change state
> Conformity to
international standards
100%
RoHS
Schneider Electric commits
itself to reducing the environmental
impact of its products
Enhanced
service life
due to electronic relay
technology
Complete
silence when
switching
providing suitability for
building and hospital
applications
High switching
frequency
particularly on packaging
and textile machines

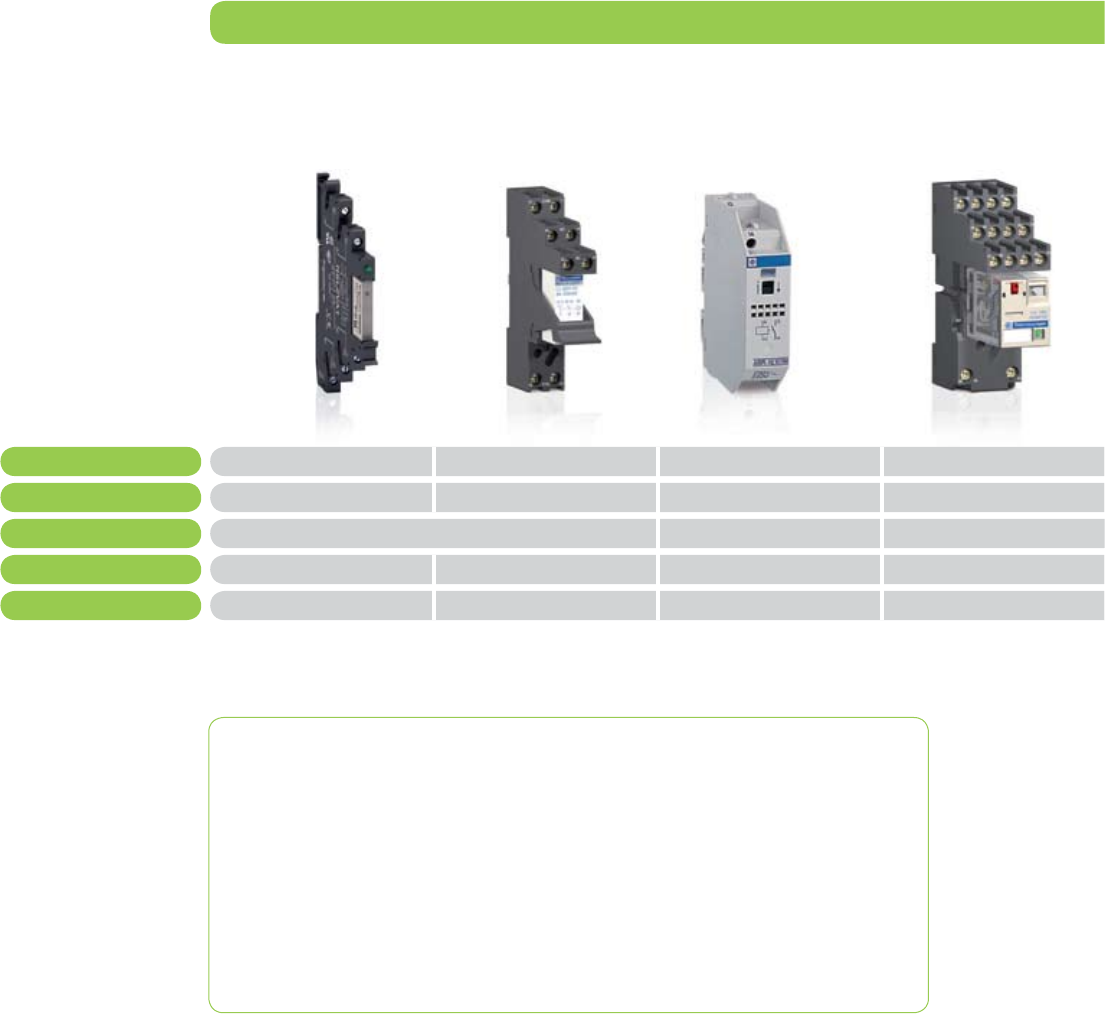

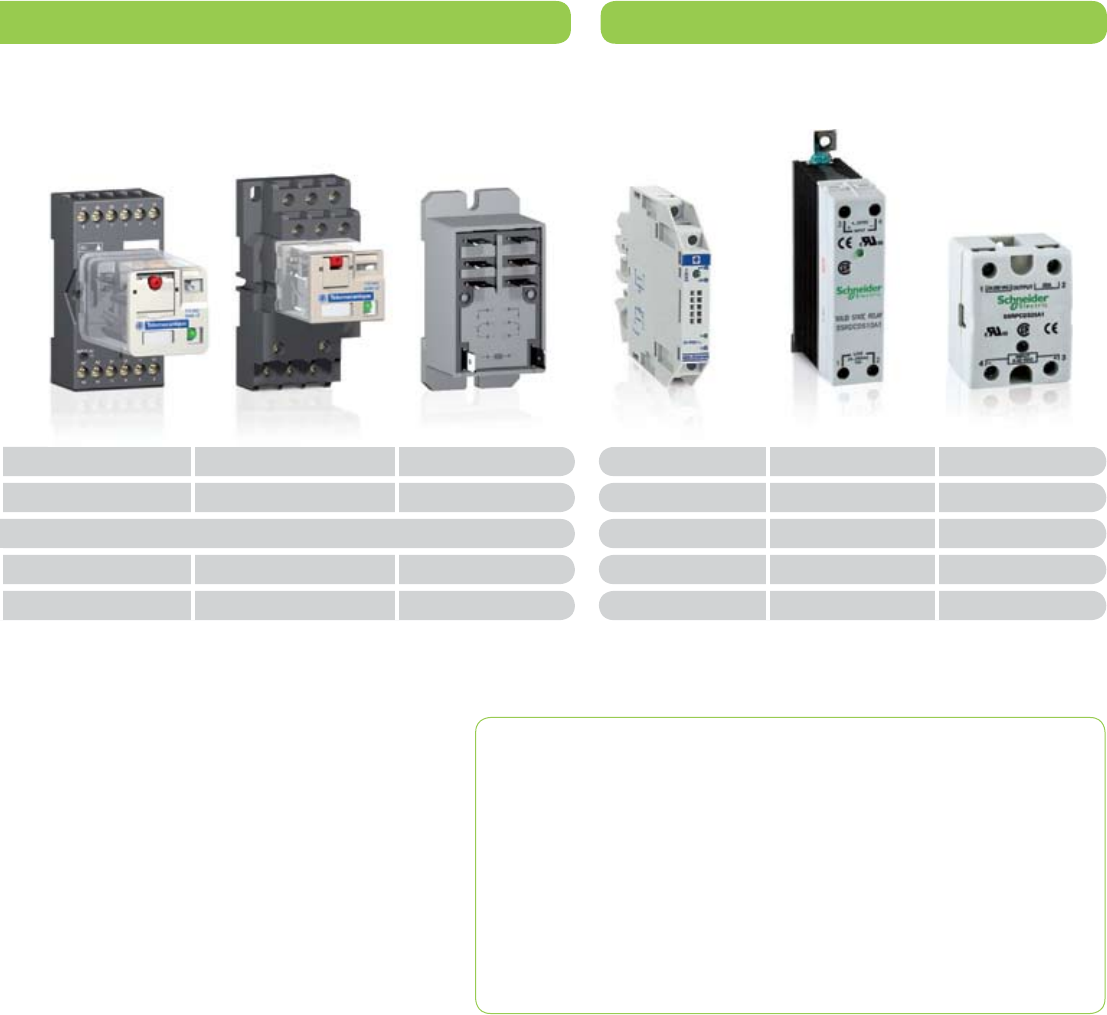

Panorama Zelio® Relays
Contact configuration
Current
Catalog numbers
1 C/O 1 or 2 C/O 1 or 2 C/O 2, 3 or 4 C/O 1, 2, 3 or 4 C/O
6 A 8-12-16 A5-12 A 6-10-12 A 10 A 15 A
RSLRSBABR RXMRUM RPM
12 to 17 20 to 23 54 to 73 24 to 31 32 to 41 42 to 49
2 C/O or 2 N/O
30 A
RPF
50 to 53
Pages
Electromechanical relays Electromechanical relays
DIN rail DIN rail DIN rail or panel DIN rail or panel
Mounting
1 N/O
3 A
ABS
54 to 73 74 to 81 74 to 81
Solid-state relays
2, 3 or 4 C/O
DIN rail DIN rail or panel
1 N/O
10 ...45 A 10 ...125 A
1 N/O
Panel
SSRD SSRP
Electromechanical relay advantages
• Wide number of contacts (up to 4)
• Easy installation and maintenance
• Socket compatible plug in relays
• Flag indicator to show contact status
• Lockable test button for checking circuit during build
• Magnetically isolated
• Coil voltage LED indicator
8
Contact configuration
Current
Catalog numbers
1 C/O 1 or 2 C/O 1 or 2 C/O 2, 3 or 4 C/O 1, 2, 3 or 4 C/O
6 A 8-12-16 A5-12 A 6-10-12 A 10 A 15 A
RSLRSBABR RXMRUM RPM
12 to 17 20 to 23 54 to 73 24 to 31 32 to 41 42 to 49
2 C/O or 2 N/O
30 A
RPF
50 to 53
Pages
Electromechanical relays Electromechanical relays
DIN rail DIN rail DIN rail or panel DIN rail or panel
Mounting
1 N/O
3 A
ABS
54 to 73 74 to 81 74 to 81
Solid-state relays
2, 3 or 4 C/O
DIN rail DIN rail or panel
1 N/O
10 ...45 A 10 ...125 A
1 N/O
Panel
SSRD SSRP
Solid-state relay (SSR) advantages
• Enhanced service life
• Wide supply voltage range and high breaking current
(up to 125 A), suited to packaging and textile machines
• Input power indicator
• Completely silent switching, suitable for building and
hospital applications
• Vibration resistant
9
10
Zelio® Plug-In Relays
Relays
Contact types
Circuit symbol Contact
conguration
EU
nomenclature
USA
nomenclature
Make contact
(Normally Open)
N/O SPST-NO
DPST-NO
nPST-NO (1)
Break contact
(Normally Closed)
N/C SPST-NC
DPST-NC
nPST-NC (1)
Changeover Contact C/O SPDT
DPDT
nPDT (1)

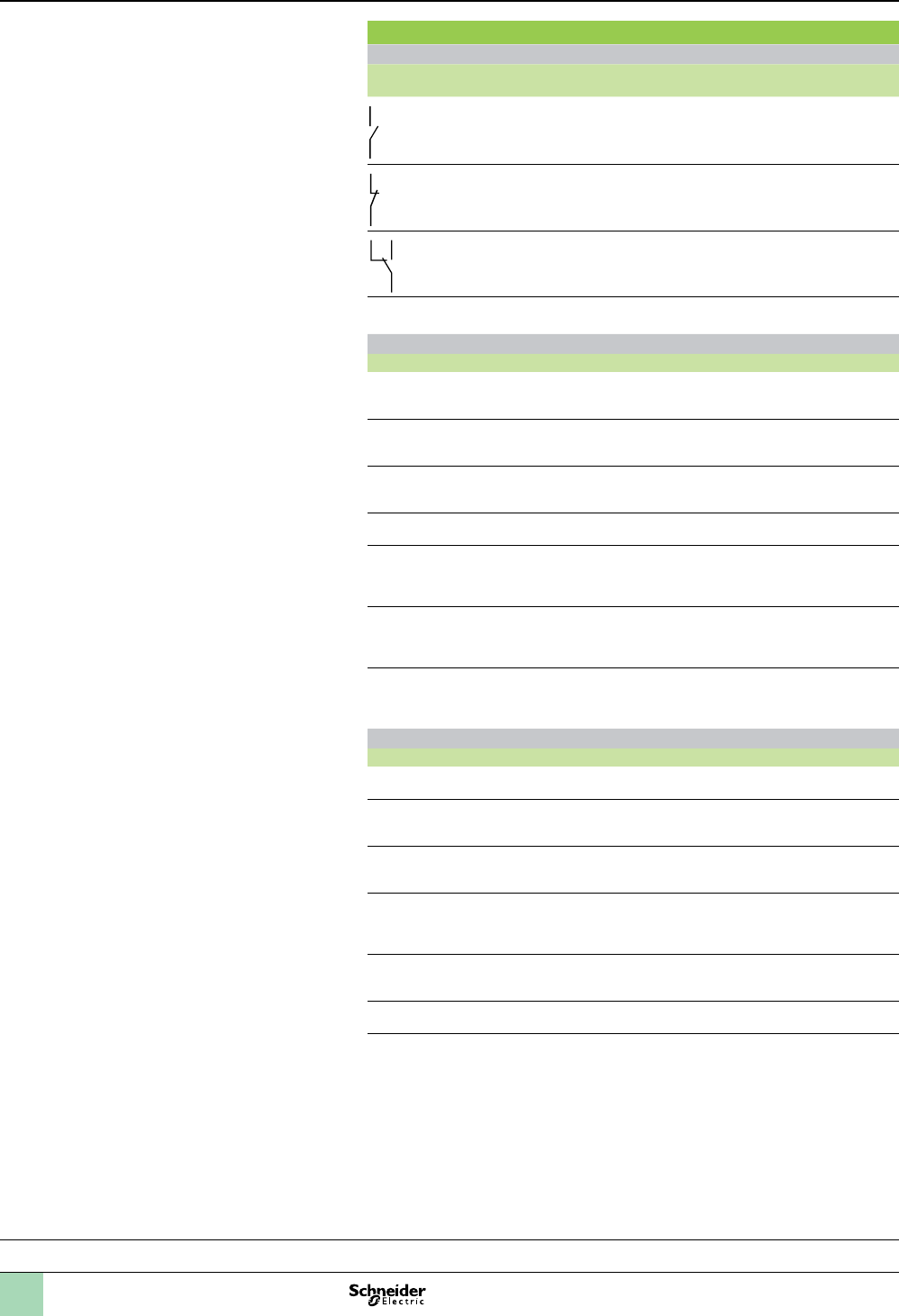

Utilization categories
Category Type of current Applications
AC-1 a single-phase
a 3-phase
Resistive or slightly inductive loads.
AC-3 a 3-phase Starting and braking of squirrel cage motors; reversing
direction of rotation only after stopping of motor.
AC-4 a 3-phase Starting of squirrel cage motors, inching. Plugging,
reversing direction of rotation.
DC-1 cResistive or slightly inductive loads (2).
AC-14 a single-phase Control of electromagnetic loads (< 72 VA), auxiliary
control relays, power contactors, electromagnetic
solenoid valves and electromagnets.
AC-15 a single-phase Control of electromagnetic loads (> 72 VA), auxiliary
control relays, power contactors, electromagnetic
solenoid valves and electromagnets.
DC-13 cControl of electromagnetic loads, auxiliary control relays,
power contactors, magnetic solenoid valves and
electromagnets.
Protection categories
Category Explanation Condition
RT 0 Unenclosed relay Relay not provided with a protective case.
RT I Dust protected
relay
Relay provided with a case which protects its mechanism
from dust.
RT II Flux-proof relay Relay capable of being automatically soldered without
allowing the migration of solder uxes beyond the
intended areas.
RT III Wash-tight relay Relay capable of being automatically soldered and then
washed to remove ux residues without risk of ingress of
ux or washing solvents.
RT IV Sealed relay Relay provided with a case which has no venting to the
outside atmosphere.
RT V Hermetically
sealed relay
Sealed relay having an enhanced level of sealing.
(1) n = number of contacts.
(2) The switchable voltage can be doubled, for an equal current, by connecting two contacts in
series.
Technical information
1
2
3
4
5
6
7
8
9
10
11
Zelio® Plug-In Relays
Protection modules

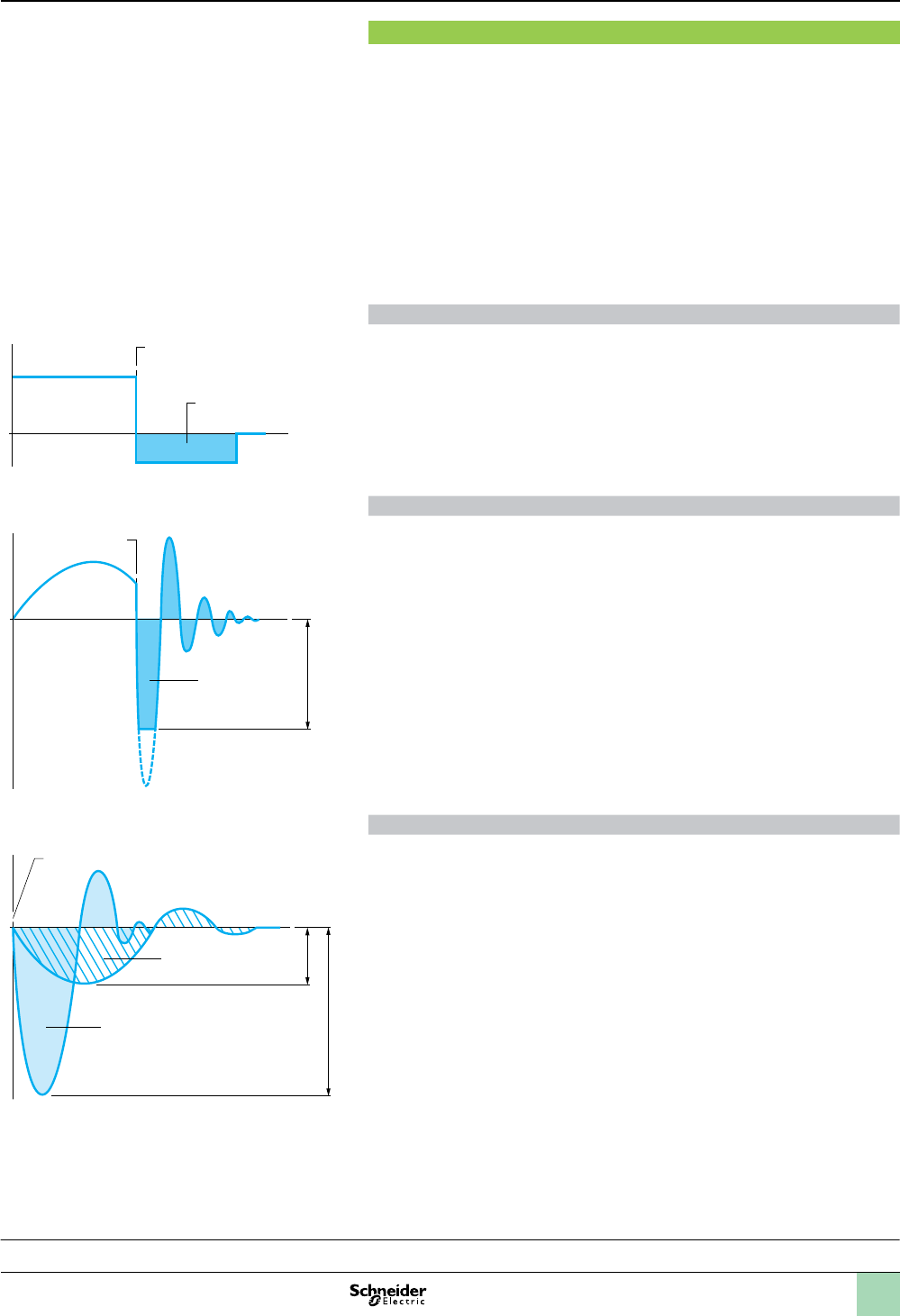

Whenever an inductive load is de-energized (coil of a relay or of a contactor), an
overvoltage appears at its terminals. This voltage peak can reach several thousand
volts and a frequency of several MHz.
It is likely to disturb the operation of automation systems which contain electronic
devices.
Protection modules are used to reduce the voltage peak on de-energization and
they therefore limit the energy of interference signals to a level that will not disturb
surrounding coils and electronic devices.
These modules are used to avoid:
electromagnetic compatibility problems v
the deterioration of contact materialsv
the destruction of insulation due to overvoltagev
the destruction of electronic componentsv
Diode protection module (with or without LED)
Coil voltage with diode protection module (c only)
Advantagesb
accumulation of energy allowing current ow in the same directionv
absence of any voltage peaks at the coil terminalsv
low costv
Considerationsb
increase in relay drop-out time (up to 3 to 4 times the usual time)v
no polarity protectionv
de-energization of the relayv
Protection module with varistor
Coil voltage with varistor protection module (a and c)
Advantagesb
can be used with v a and c supply
voltage peak limited to about 2 Unv
little effect on relay drop-out timev
Considerationsb
no modication of coil’s own oscillating frequencyv
limitation of switching frequencyv
Protection module with RC circuit
Coil voltage with RC circuit protection module (a only)
S1 = S2 = Energy released
Advantagesb
coil oscillating frequency reduced to about 150 Hzv
voltage peak limited to 3 Unv
little effect on relay drop-out timev
Considerationsb
no protection for low voltagesv
U
t
Supply voltage
Energy released
Break
U
t
Energy
released
Break
Limitation of voltage
peaks
S1
U1
U2
U
t
Break
S2 (with RC)
Technical information
(continued)
1
2
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
9
10
1212
Introduction Zelio® Plug-In Relays

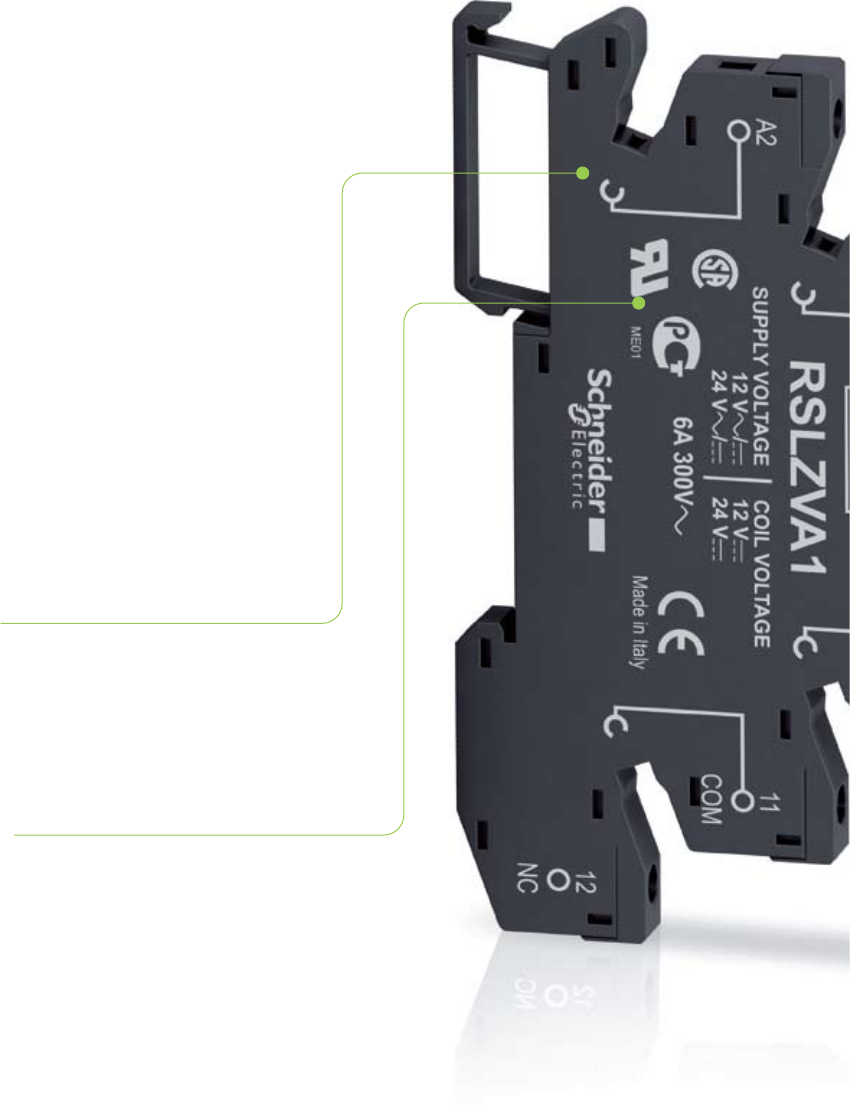

RSL slim interface relays
Introduction
RSL slim interface relays offers compact size in a modular design: their slim width (6
mm) saves valuable space when mounting on a DIN rail at the back of an enclosure.
RSL relays are available in two versions:
Pre-assembled range b: a single catalog number for a standard relay mounted on
a socket.
The socket includes a built-in protection circuit (against transients and reverse v
polarity voltages) and an LED indicator as standard.
Wire connection options: screw connectors and spring terminals. v
This pre-assembled solution covers a wide range of operating voltages from 12 to v
230 V.
Individual relays and sockets: b
The relay and the socket can be provided separately according to the v
requirements of the application.
Simple maintenance: an vRSL slim relay can be replaced without any need to
disconnect the socket wiring.
Description

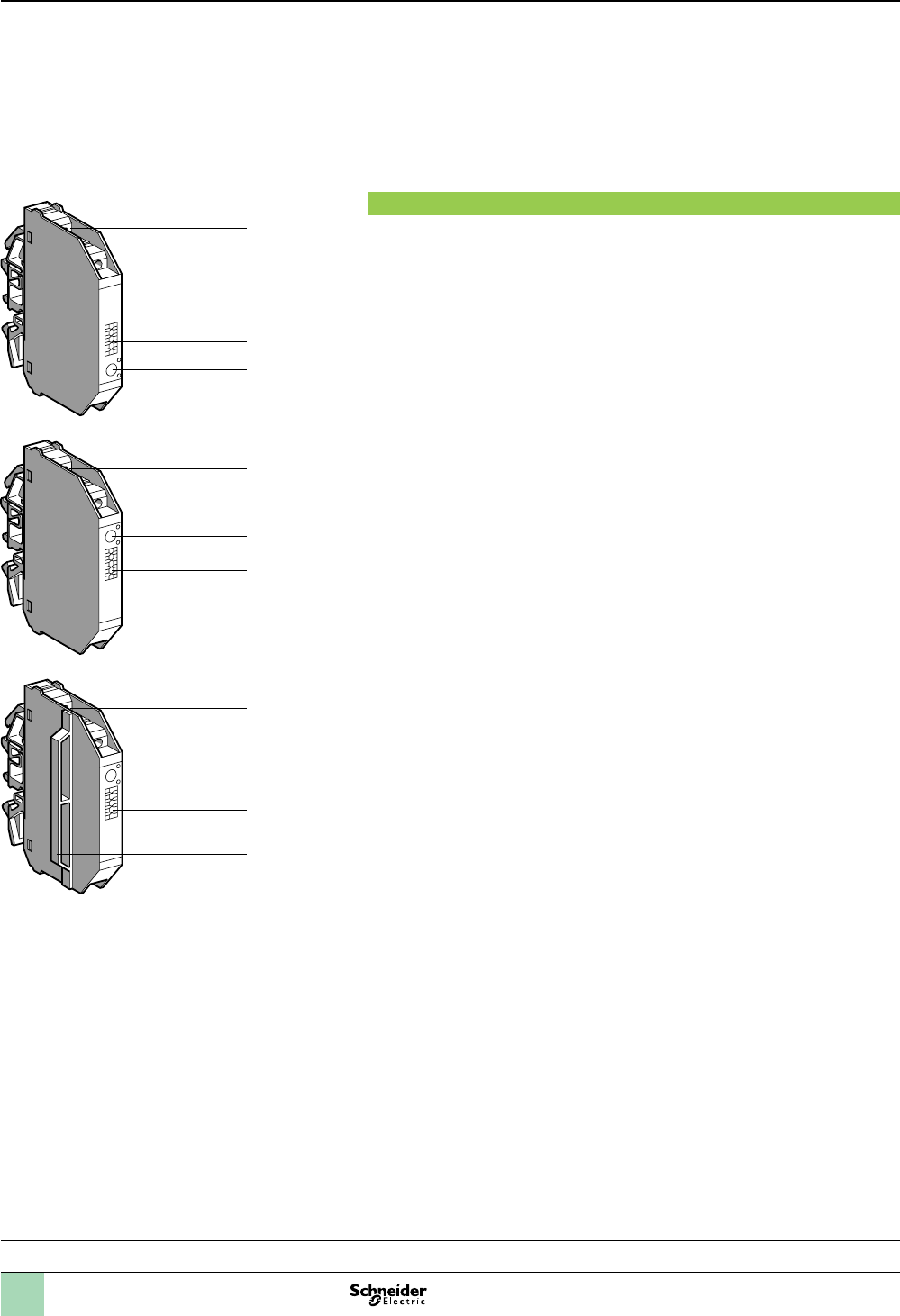

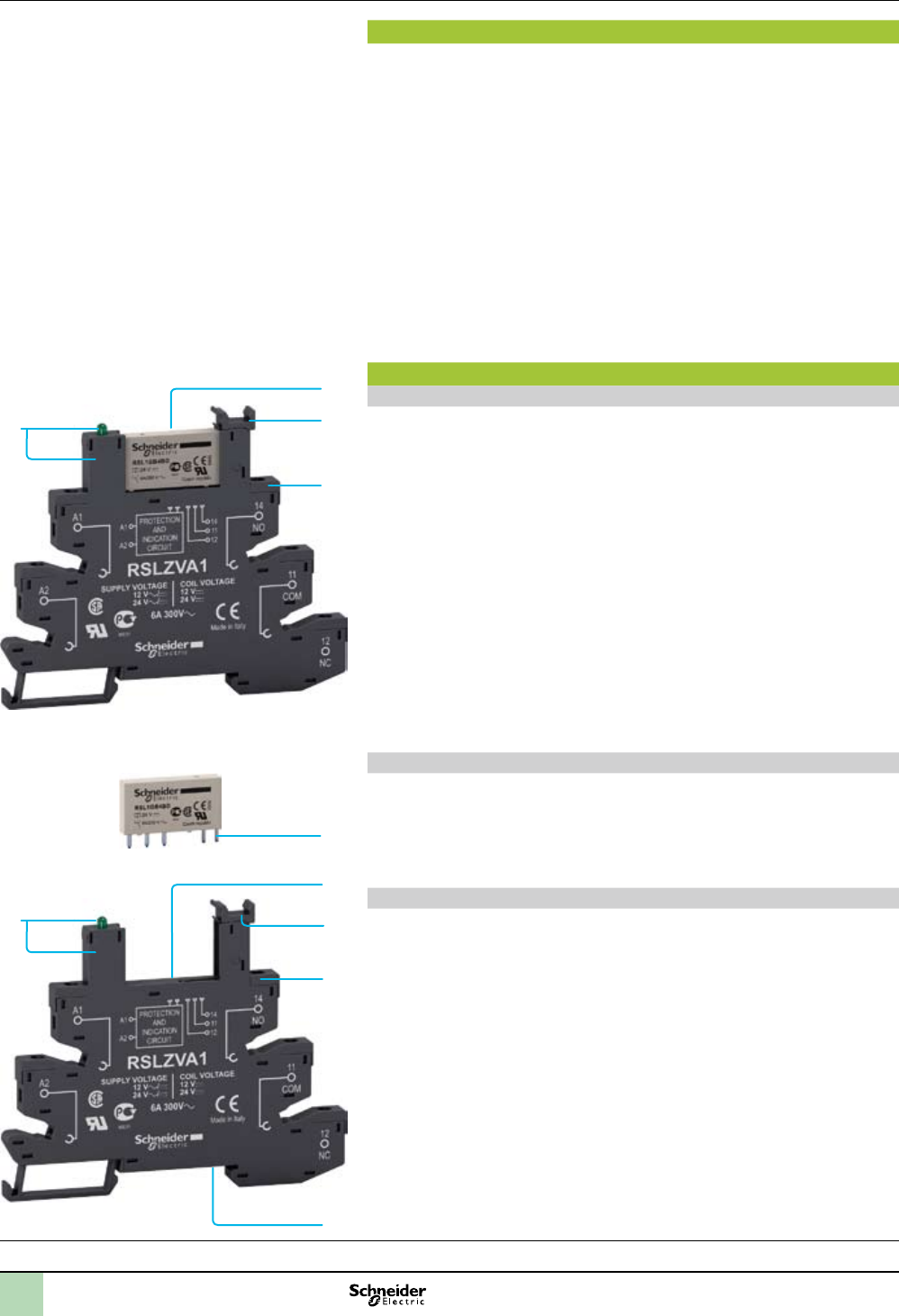

RSL slim interface relays, pre-assembled

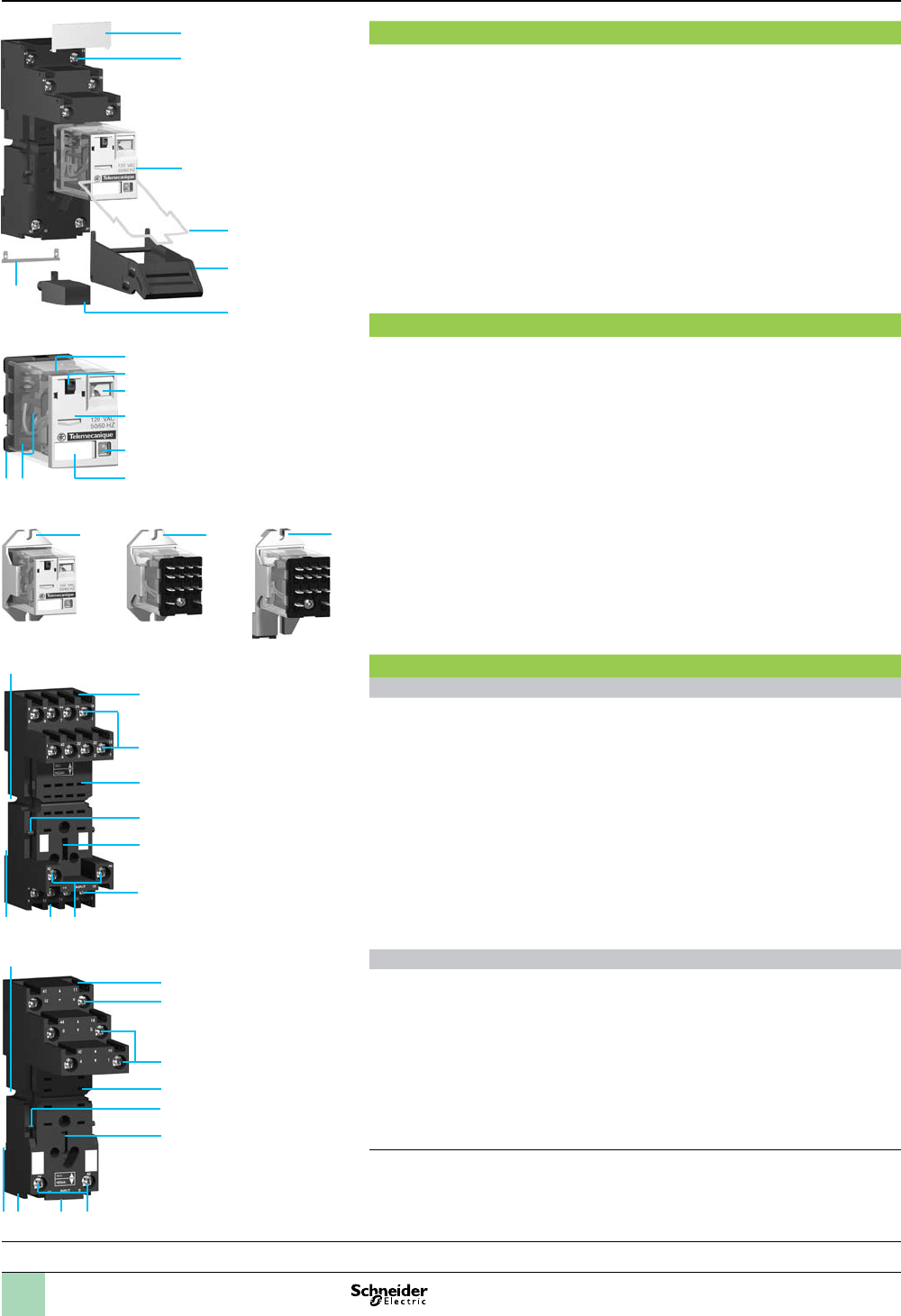

6 A standard relay with 1 C/O contact.1
Retention lever for easy removal of the relay from its socket.2
Sockets: wire connection by screw connector or spring terminals.3
All sockets have a built-in protection circuit and an LED indicator.4
RSL slim interface relay
Five at, reinforced PCB pins.1
Sockets for RSL slim interface relays
Five female contacts for the relay pins.1
Retention lever which accepts optional ID tags.2
Wire connection by screw connector or spring terminals.3
Built-in protection circuit and LED indicator.4
Locating slot for mounting on DIN5 rail.
Introduction:
page 12
Characteristics:
page 13
Product selector:
page 16
Dimensions, Wiring diagrams:
page 17
1
2
3
4
1
1
2
4
5
3
2
1
3
4
5
6
7
8
9
10
1313
Characteristics Zelio® Plug-In Relays
RSL slim interface relays
General characteristics
Conforming to standards
IEC 61810-1, UL 508, CSA C22-2 No. 14
Product certications
UL E173076, UL E172326, CSA 240278, CSA 247510, GOST
Ambient air temperature
around the device
Storage
°C - 40… + 85
Operation
°C - 40… + 55
Vibration resistance
conforming to
IEC/EN 60068-2-6
In operation
10 gn
Not operating
5 gn
Degree of protection Conforming to IEC/EN 60529
IP 40 (Relays)
IP 20 (Sockets)
Shock resistance
conforming to
IEC/EN 60068-2-27
Opening
10 gn
Closing
5 gn
Protection category
RT III
Mounting position
Any
Insulation characteristics
Rated insulation voltage (Ui)
V250 (IEC)
Rated impulse withstand voltage (Uimp)
kV 6
Dielectric strength
(rms voltage)
Between coil and contact
a V4000
Between contacts
a V1000
2
1
3
4
5
6
7
8
9
10
1414
Characteristics (continued) Zelio® Plug-In Relays
RSL slim interface relays

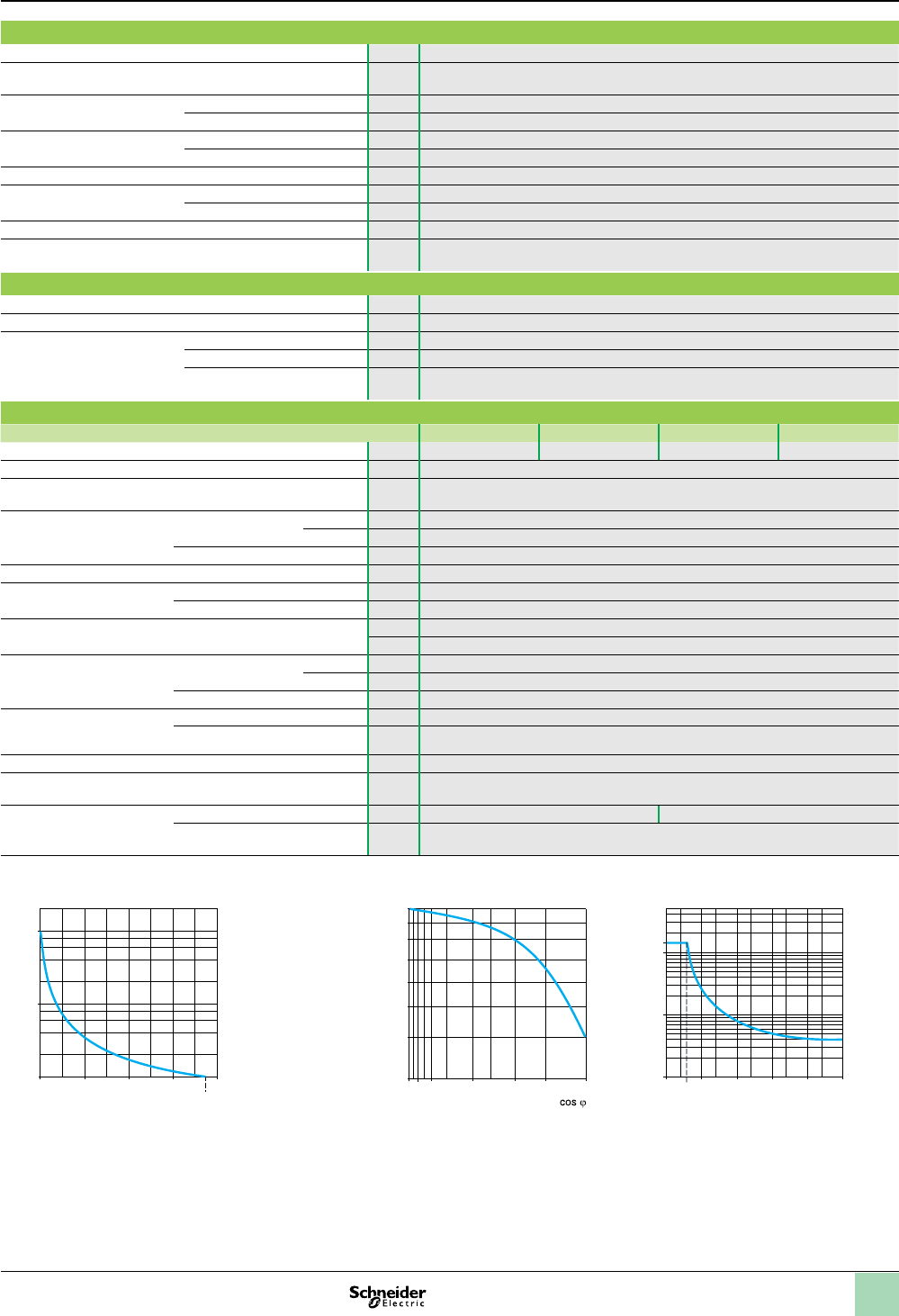

Contact characteristics
Relay type RSL1ABppp
Number and type of contacts 1 C/O standard
Contact materials AgSnO2
Conventional thermal
current (Ith)
For ambient
temperature y 55 °C
A6
Rated operational current
in utilization categories
AC-1 and DC-1
Conforming to IEC N/C A6
N/O A6
Conforming to UL A6
Switching current Minimum mA 100
Switching voltage Rated a V250
Maximum Va 400, c 300
Minimum V12
Nominal load (resistive) A / a V6 / 250 V (at 50mW)
Switching capacity Maximum aVA 1500
cW18…150 (depending on the voltage)
Minimum mW 120
Maximum operating rate
In operating cycles / hour
No-load 72 000
Under load 360
Mechanical durability In millions of operating cycles u 10
Electrical durability
In millions of operating cycles

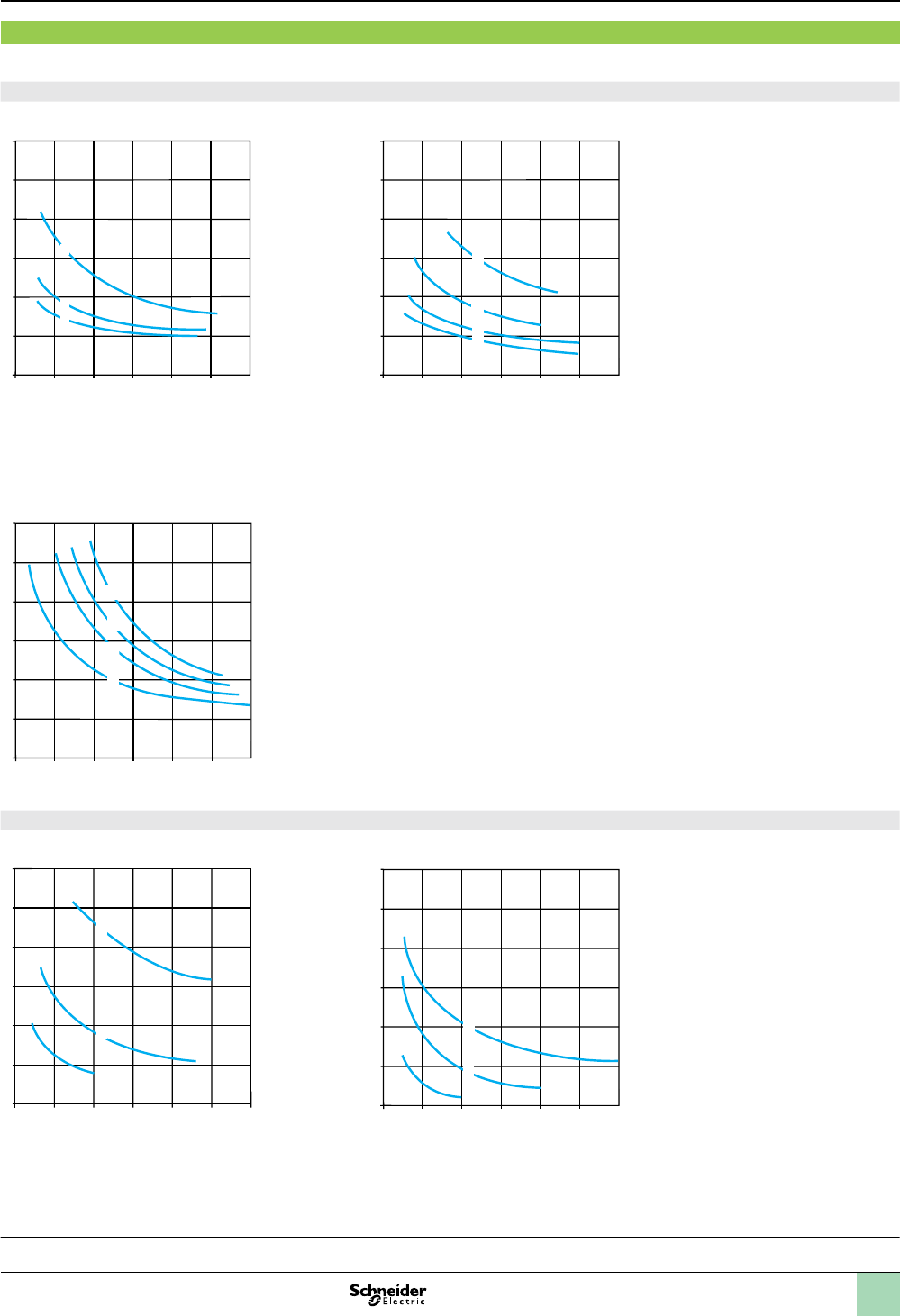

Resistive load See curves below
Inductive load 0.05 (N/O contact: a250 V, 3 A, AC-15)
Maximum switching capacity on c load
Current c
Voltage c
0,1 0,2 0,5 1102025
10
20
30
50
40
100
200
300
Resistive load
Coil characteristics
Average consumption cW0.17
Drop-out voltage threshold cu 0.05 Uc
Operating time
(response time)
Between coil energization and
making of the NO contact
cms 12 max
Between coil de-energization and
making of the NC contact
cms 5 max
Control circuit voltage Uc V 12 24 48 60
Relay control voltage codes JD BD ED ND
DC supply Average resistance at 23 °C ± 10% Ω848 3390 10 600 20 500
Operating voltage limits Min. V8.4 16.8 33.6 42
Max. V16.8 33.6 67.2 84
Introduction:
page 12
Characteristics:
page 13
Product selector:
page 16
Dimensions, Wiring diagrams:
page 17
2
1
3
4
5
6
7
8
9
10
1515
Socket characteristics
Socket type RSLZVpp RSLZRpp
Relay types used RSL1pppp RSL1pppp
Conforming to standards IEC 61984, UL 508, CSA C22-2 No. 14
Product certications UL, CSA, GOST
Contact terminal arrangement Separate Separate
Wire connection method Screw connector Spring terminals
Width mm 6.2 6.2
Electrical characteristics
Conventional thermal current (Ith) A6
Maximum operating voltage a V300
Insulation characteristics
Between adjacent output contacts Vrms 2500
Between input and output contacts Vrms 2500
Between contacts and DIN rail Vrms 2500
General characteristics
Ambient air temperature
around the device
Operation °C - 40…+ 70 (-40 to +55 for U > 80 V)
Storage °C - 40…+ 85
Degree of protection Conforming to IEC/EN 60529 IP 20
Connection Solid wire without
cable end
1 conductor mm² 0.2…2.5 0.2…1.5
AWG 24…14 24…16
Flexible wire
with cable end
1 conductor mm² 0.2…2.5 0.2…1.5
AWG 24… 14 24…16
Screw size mm M 2.5
Maximum tightening torque Nm 0.5 10 N…40 N (0.2 …1.5 mm²)
Mounting On 35 mm DIN rail
Mounting on DIN rail By plastic compression spring
Terminal reference IEC
LED indicator Yes (built-in)
Added protection in circuit Yes (built-in)
Wire connection method Screw connector Spring terminal
Sockets operating voltage
Operating voltage Tolerance Control circuit voltage (relay)
V V
Socket type RSLZVA1, RSLZRA1 c/a 12 + 20% / - 5% c 12
c/a 24 + 20% / - 10% c 24
RSLZVA2, RSLZRA2 c/a 48 + 20% / - 10% c 48
c/a 60 + 20% / - 10% c 60
RSLZVA3, RSLZRA3 c/a 110 + 15% / - 20% c 60
RSLZVA4, RSLZRA4 c/a 230 + 15% / - 20% c 60
Characteristics (continued) Zelio® Plug-In Relays
RSL slim interface relays
2
1
3
4
5
6
7
8
9
10
1616

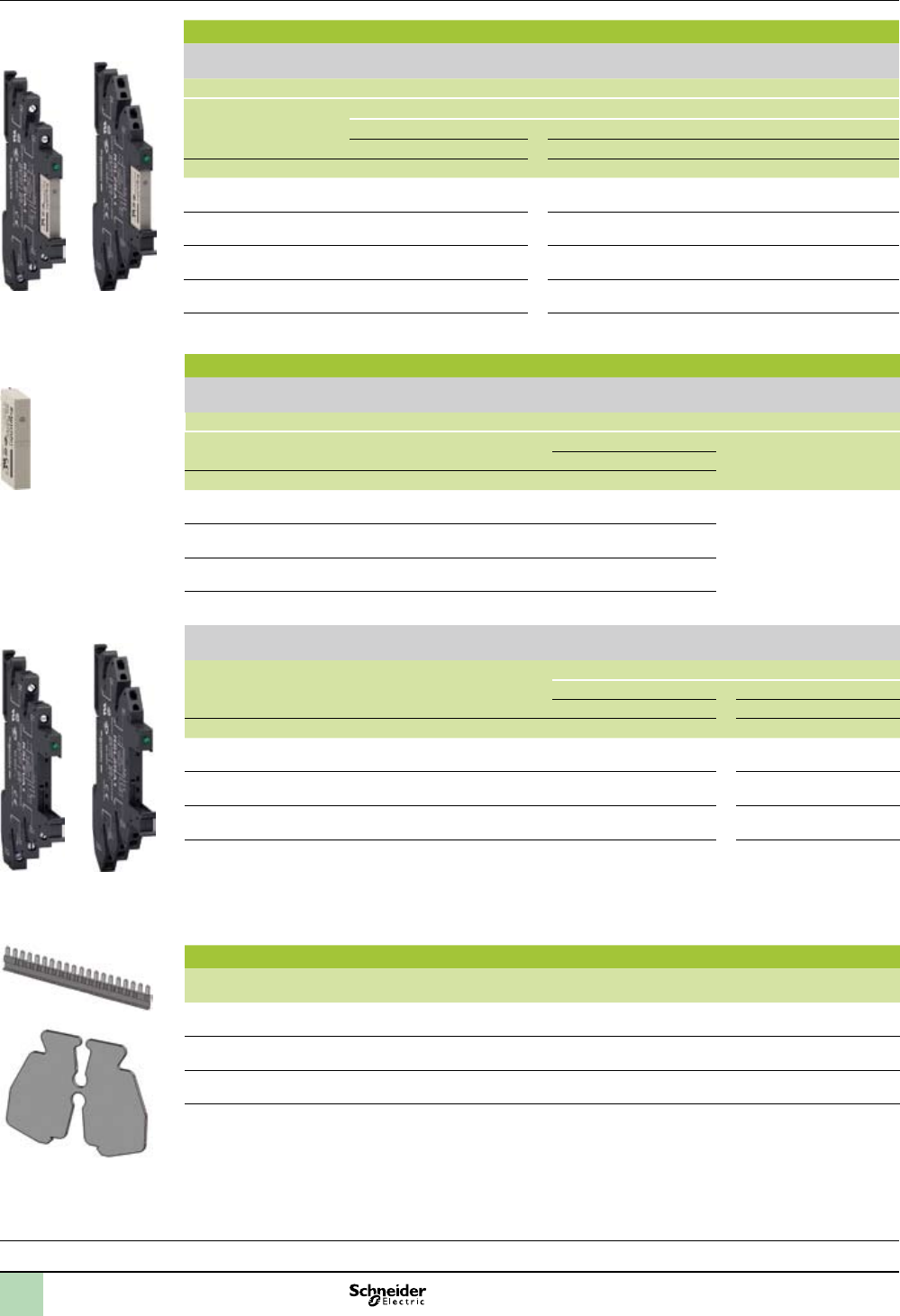

Product selector Zelio® Plug-In Relays
RSL slim interface relays
Slim interface relays, pre-assembled
Standard relays mounted on socket equipped with LED and protection circuit
Sold in lots of 10
1 C/O contact - Thermal current (Ith) 6A
Operating voltage
(input voltage)
Socket type Replacement Relay
Screw connector Spring terminal
Catalog Number Weight Catalog Number Weight Catalog Number
V kg kg
c/a 12 RSL1PVJU 0.031 RSL1PRJU 0.029 RSL1AB4JD
c/a 24 RSL1PVBU 0.031 RSL1PRBU 0.029 RSL1AB4BD
c/a 48 RSL1PVEU 0.031 RSL1PREU 0.029 RSL1AB4ED
c/a 110 RSL1PVFU 0.031 RSL1PRFU 0.029 RSL1AB4ND
c/a 230 RSL1PVPU 0.031 RSL1PRPU 0.029 RSL1AB4ND
Slim interface relays for customer assembly: relay + socket
Relays with at, reinforced pins (PCB type)
Sold in lots of 10
1 C/O contact - Thermal current (Ith) 6A
Standard
Control circuit voltage (relay coil voltage) Catalog Number Weight
V kg
c 12 RSL1AB4JD 0.006
c 24 RSL1AB4BD 0.006
c 48 RSL1AB4ED 0.006
c 60 RSL1AB4ND 0.006
Sockets equipped with LED and protection circuit
Sold in lots of 10
Socket type
Operating voltage
(input voltage)
Screw connector Spring terminal
For use with relays Catalog Number Weight Catalog Number Weight
V kg kg
c/a 12 and c/a 24 RSL1AB4JD
RSL1AB4BD
RSLZVA1 0.025 RSLZRA1 0.023
c/a 48 and c/a 60 RSL1AB4ED
RSL1AB4ND
RSLZVA2 0.025 RSLZRA2 0.023
c/a 110 RSL1AB4ND RSLZVA3 0.025 RSLZRA3 0.023
c/a 230
RSL1AB4ND RSLZVA4 0.025 RSLZRA4 0.023
Accessories for sockets
Description Compatibility Catalog
Number
Weight
kg
Clip-in ID tags
(2 sheets of 64 ID tags)
With all sockets RSLZ5 0.001
Bus jumper
(10 x 20-pole jumper)
With all sockets RSLZ2 0.003
Buttery isolator
(10 isolators)
With all sockets RSLZ3 0.001
Introduction:
page 12
Characteristics:
page 13
Product selector:
page 16
Dimensions, Wiring diagrams:
page 17
RSL 1pppp
RSL ZVAp
RSL 1PVpp
RSL ZRAp
RSL 1PRpp
RSL Z2
RSL Z3
2
1
3
4
5
6
7
8
9
10
1717

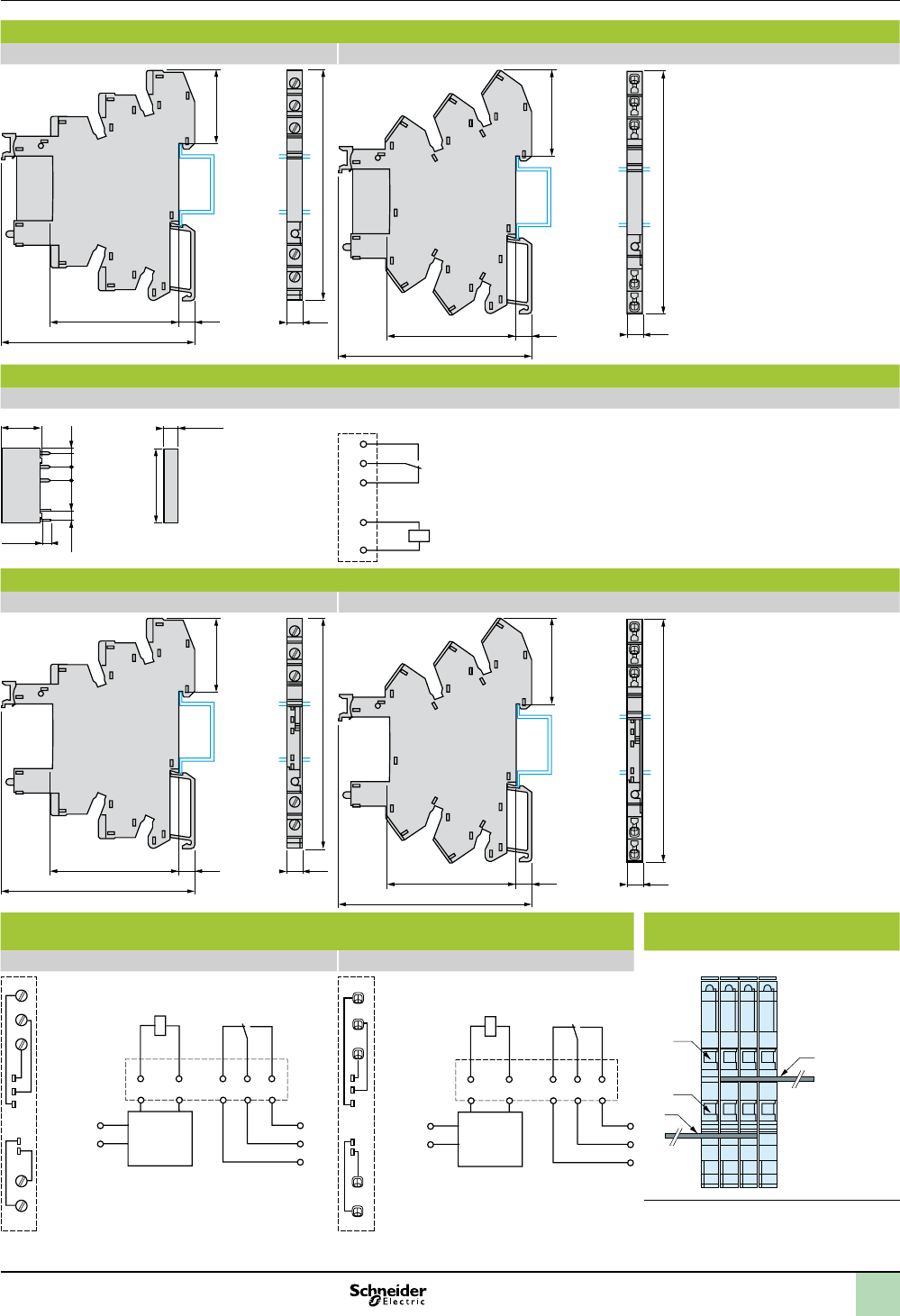

Dimensions,
Wiring diagrams
Zelio® Plug-In Relays
RSL slim interface relays
Slim interface relays, pre-assembled
RSL1PVpp (screw connector) RSL1PRpp (spring terminals)
95
30,1
51,5 6,2 6,2
78,6
101
35,3
6,251,5 6,2
78,6
Relays
RSL1pppp with at, reinforced PCB pins
(1): 5.04 mm
1,9
(1)(1)
3,5
±0,5
11,34
3,78
15 max 5 max
28 max
1 C/O contact
A1
A2
12
11
14
Sockets
RSLZVpp (screw connector) RSLZRpp (spring terminals)
95
30,1
51,5 6,2 6,2
78,6
101
35,3
6,251,5 6,2
78,6
Socket connections Example of RSL Z2 bus jumper
mounting on sockets
RSLZVpp (screw connector) RSLZRpp (spring terminals) Side view
Protection
circuit
14
11
A1
A2
12
12
11
14
A1
A2
Protection
circuit
12
11
14
A1
A2
14
11
A1
A2
12
(4)
(2)
(1)
(3)
(1) A1
(2) A2
(3) Bus jumper polarity A1
(4) Bus jumper polarity A2
18

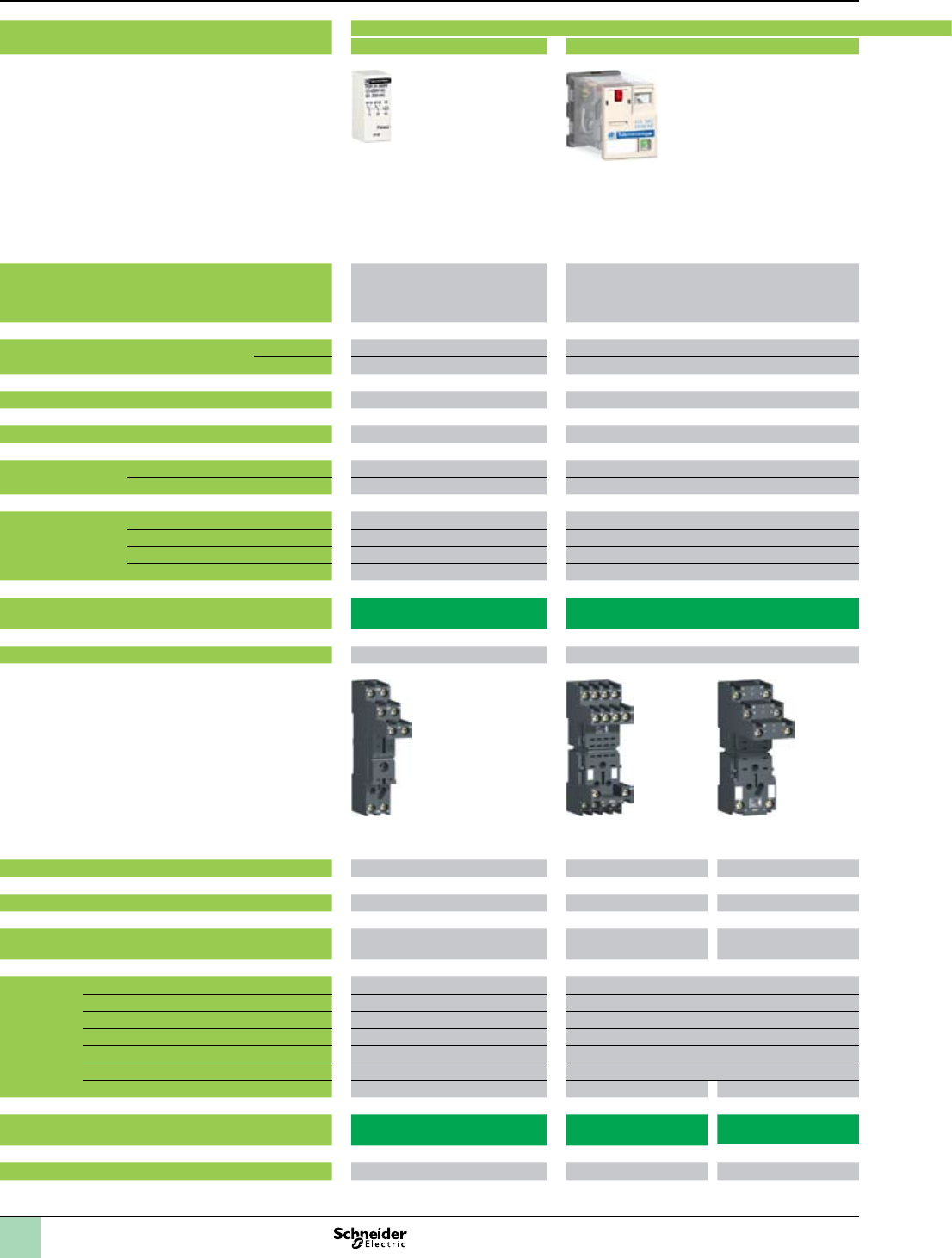

Zelio® Plug-In Relays

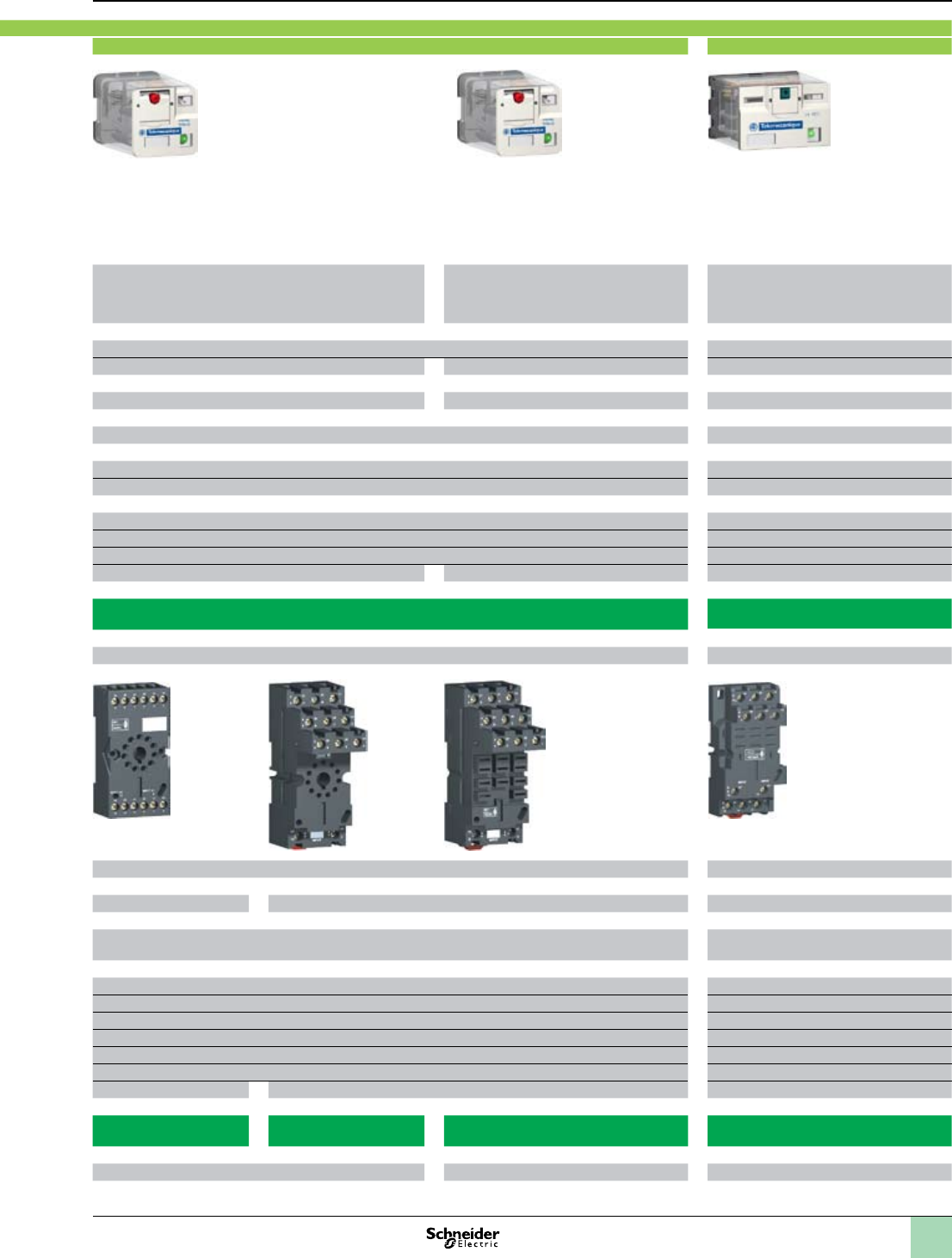

Selection guide
Universal relays Power relays
2 C/O / 10 A
3 C/O / 10 A
3 C/O / 3 A (low level)
2 C/O / 10 A
3 C/O / 10 A
1 C/O / 15 A
2 C/O / 15 A
3 C/O / 15 A
4 C/O / 15 A
24…230 V 24…230 V
12…220 V 12…110 V 12…110 V
Cylindrical Quick-connect Quick-connect
Up to 250 V Up to 250 V
100 000 100 000 (3)
5 000 000 10 000 000
Yes (depending on version) Yes (depending on version)
Yes Yes
Yes Yes
Yes (depending on version) – –
RUM RPM
32 42
12 A 16 A
Mixed Separate Mixed
Box lug connectors Screw clamp terminals
Yes Yes
Yes Yes (for 3 and 4-pole)
Yes Yes (on socket RPZ F1)
Yes Yes
– Yes
– Yes
– Yes –
RUZCpM RUZSCpM RUZSF3M RPZFp
32 32 42
(3) 100 000 for RPM1 and RPM2; 60 000 for RPM3 and RPM4.
Application Plug-in relays
Interface relays Miniature relays
Number and type of contacts / conventional thermal
current (Ith on N/O contact)
1 C/O / 16 A
1 C/O / 12 A
2 C/O / 8 A
2 C/O / 12 A
3 C/O / 10 A
4 C/O / 6 A
4 C/O / 3 A (low level)
Control circuit voltage a24…240 V 24…240 V
c6…110 V 12…220 V
Type of pins Flat, PCB type Quick-connect
Operational voltage Up to a 400 V / c 300 V Up to 250 V
Durability
(operating cycles)
Electrical, resistive load 100 000 100 000
Mechanical, no-load 30 000 000 10 000 000
Functions LED Yes (with protection modules) Yes (depending on version)
Mechanical indicator – Yes
Lockable test button – Yes
Low level contacts – Yes (depending on version)
Type reference RSB RXM
Pages 20 24
Conventional thermal current (Ith) 12 A (1) 10 A 12 A (2)
Contact terminal arrangements Separate Mixed Separate
Connection Box lug connectors Screw clamp terminals or
box lug connectors
Box lug connectors
Accessories Protection modules Yes Yes
Timer module – –
Retention clip Yes Yes
Socket ID tag Yes Yes (except RXZ E2M114)
Mounting adapters for 5 rail – Yes
Mounting adapters with xing lugs – Yes
Bus jumper, 2-pole (Ith = 5 A) – – Yes
Associated socket types RSZE1SppM RXZE2Mppp RXZE2Sppp
Pages 20 24 24
(1) When using relay RSB 1A160pp with socket RSZ E1S48M, terminals must be linked.
(2) Except for sockets RXZ E2S11pM: 10 A.
1
2
3
4
5
6
7
8
9
10
19
Universal relays Power relays
2 C/O / 10 A
3 C/O / 10 A
3 C/O / 3 A (low level)
2 C/O / 10 A
3 C/O / 10 A
1 C/O / 15 A
2 C/O / 15 A
3 C/O / 15 A
4 C/O / 15 A
24…230 V 24…230 V
12…220 V 12…110 V 12…110 V
Cylindrical Quick-connect Quick-connect
Up to 250 V Up to 250 V
100 000 100 000 (3)
5 000 000 10 000 000
Yes (depending on version) Yes (depending on version)
Yes Yes
Yes Yes
Yes (depending on version) – –
RUM RPM
32 42
12 A 16 A
Mixed Separate Mixed
Box lug connectors Screw clamp terminals
Yes Yes
Yes Yes (for 3 and 4-pole)
Yes Yes (on socket RPZ F1)
Yes Yes
– Yes
– Yes
– Yes –
RUZCpM RUZSCpM RUZSF3M RPZFp
32 32 42
(3) 100 000 for RPM1 and RPM2; 60 000 for RPM3 and RPM4.
Application Plug-in relays
Interface relays Miniature relays
Number and type of contacts / conventional thermal
current (Ith on N/O contact)
1 C/O / 16 A
1 C/O / 12 A
2 C/O / 8 A
2 C/O / 12 A
3 C/O / 10 A
4 C/O / 6 A
4 C/O / 3 A (low level)
Control circuit voltage a24…240 V 24…240 V
c6…110 V 12…220 V
Type of pins Flat, PCB type Quick-connect
Operational voltage Up to a 400 V / c 300 V Up to 250 V
Durability
(operating cycles)
Electrical, resistive load 100 000 100 000
Mechanical, no-load 30 000 000 10 000 000
Functions LED Yes (with protection modules) Yes (depending on version)
Mechanical indicator – Yes
Lockable test button – Yes
Low level contacts – Yes (depending on version)
Type reference RSB RXM
Pages 20 24
Conventional thermal current (Ith) 12 A (1) 10 A 12 A (2)
Contact terminal arrangements Separate Mixed Separate
Connection Box lug connectors Screw clamp terminals or
box lug connectors
Box lug connectors
Accessories Protection modules Yes Yes
Timer module – –
Retention clip Yes Yes
Socket ID tag Yes Yes (except RXZ E2M114)
Mounting adapters for 5 rail – Yes
Mounting adapters with xing lugs – Yes
Bus jumper, 2-pole (Ith = 5 A) – – Yes
Associated socket types RSZE1SppM RXZE2Mppp RXZE2Sppp
Pages 20 24 24
(1) When using relay RSB 1A160pp with socket RSZ E1S48M, terminals must be linked.
(2) Except for sockets RXZ E2S11pM: 10 A.
1
2
3
4
5
6
7
8
9
10
20
Introduction of the product range
The RSB interface relay range includes:
1 12 A relays with 1 C/O contact , 16 A relays with 1 C/O contact and 8 A relays with
2 C/O contacts.
2 Sockets with separate contact terminals.
3 Protection modules (diode, diode + LED, RC circuit or varistor + LED).
4 Plastic hold-down ejector clip for all sockets.
5 Clip-in ID tags for all sockets.

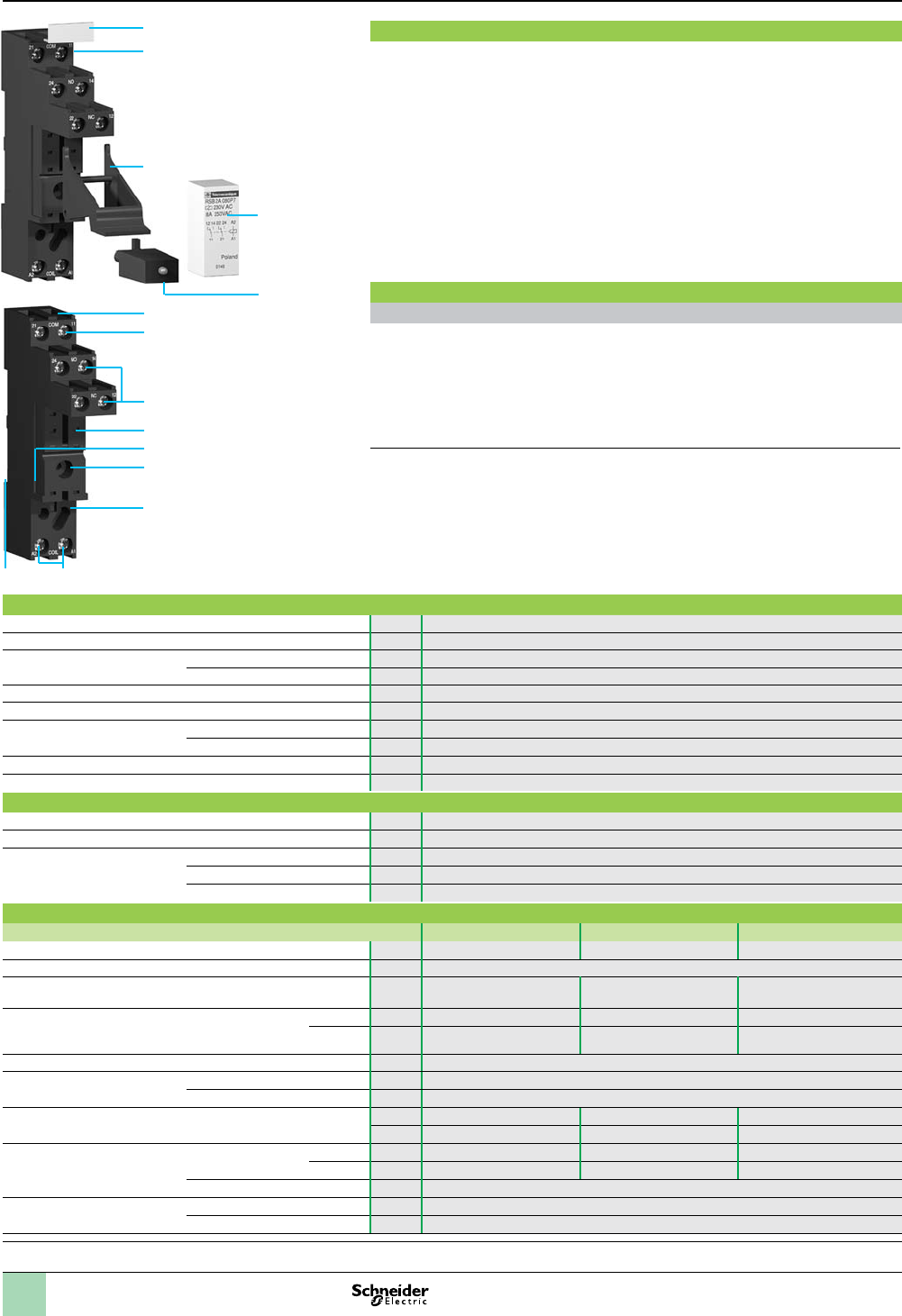

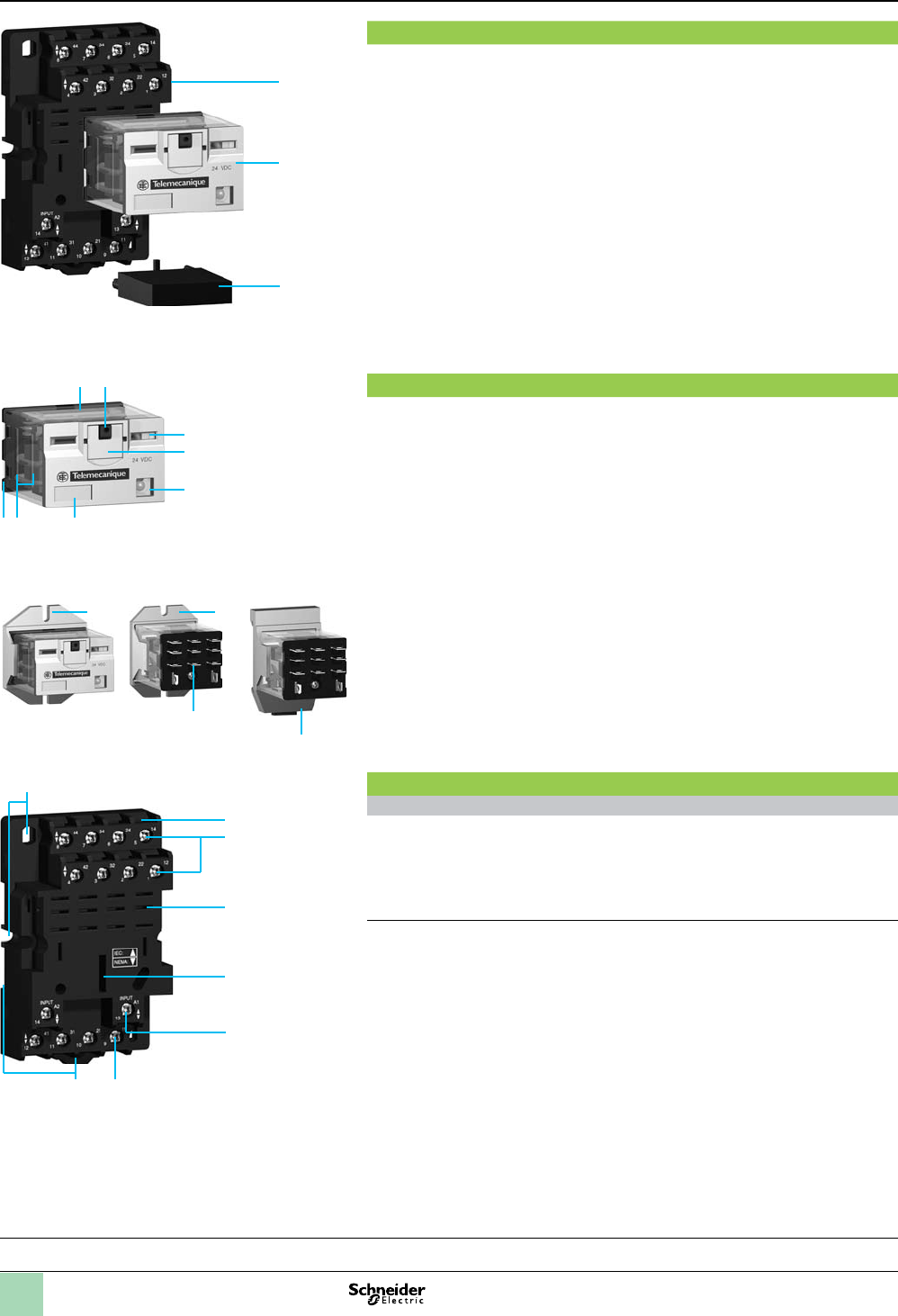

Socket description
Sockets with separate contact terminals (1)
1 Box lug connectors.
2 Five or eight female contacts for the relay pins.
3 Mounting hole for panel mounting.
4 Location for protection modules.
5 Locking components for plastic hold-down ejector clip.
6 Locating slot for mounting on DIN rail.
(1) The inputs and outputs are separated from the relay supply.
General characteristics
Conforming to standards IEC/EN 61810-1, UL 508, CSA C22-2 n° 14
Product certications cURus File E173076 CNN NRNT2,; CSA File 215736 Class 321107; CE; RoHS compliant
Ambient air temperature
around the device
Storage °C (F) - 40…+ 85 (-40 ... +185)
Operation °C (F) c - 40…+ 85 (-40 ... +185), a - 40...+ 70 (-40 ... +158)
Vibration resistance Conforming to IEC/EN 60068-2-6 > 10 gn (10..150 Hz)
Degree of protection Conforming to IEC/EN 60529 IP 40
Shock resistance
conforming to IEC/EN 60068-2-27
Opening 5 gn
Closing 10 gn
Protection category RT I
Mounting position Any
Insulation characteristics
Rated insulation voltage (Ui) Conforming to IEC/EN 60947 V400
Rated impulse withstand voltage (Uimp) kV 3.6 (1.2/50 µs)
Dielectric strength
(rms voltage)
Between coil and contact a V5000
Between poles a V2500
Between contacts a V1000
Contact characteristics
Relay type RSB1A120pp RSB1A160pp RSB2A080pp
Number and type of contacts 1 C/O 1 C/O 2 C/O
Contact materials AgNi
Conventional thermal
current (Ith)
For ambient
temperature y 40°C
A12 16 8
Rated operational current
in utilization categories
AC-1 and DC-1
Conforming to IEC N.O. A12 16 8
N.C. A684
Switching current Minimum mA 5
Switching voltage Maximum Va 400, c 300
Minimum V5
Nominal load (resistive) A 12 / 250 a V 16 / 250 a V 8 / 250 a V
A12 / 28 c V 16 / 28 c V 8 / 28 c V
Switching capacity Maximum aVA 3000 4000 2000
cW336 448 224
Minimum mW 300
Maximum operating rate
In operating cycles/hour
No-load 72 000
Under load 600
Zelio® Plug-In Relays
RSB interface relays
Introduction,
characteristics
1
2
3
5
6
4
Inputs
Outputs
Relay supply
5
4
1
2
3
Introduction:
page 20
Characteristics:
page 20
Product selector:
page 22
Dimensions, Wiring diagrams:
page 23
1
2
3
4
5
6
7
8
9
10
21

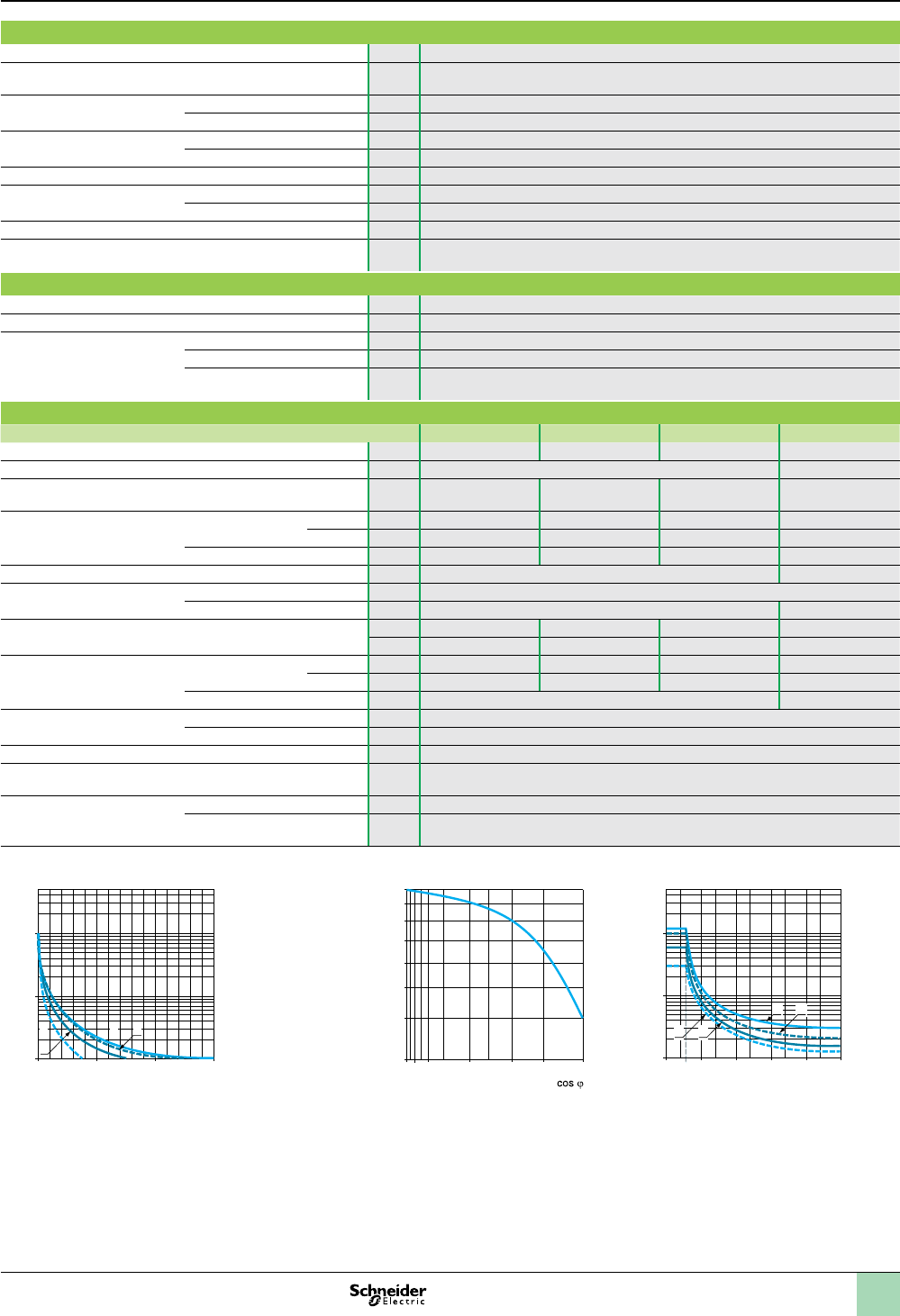

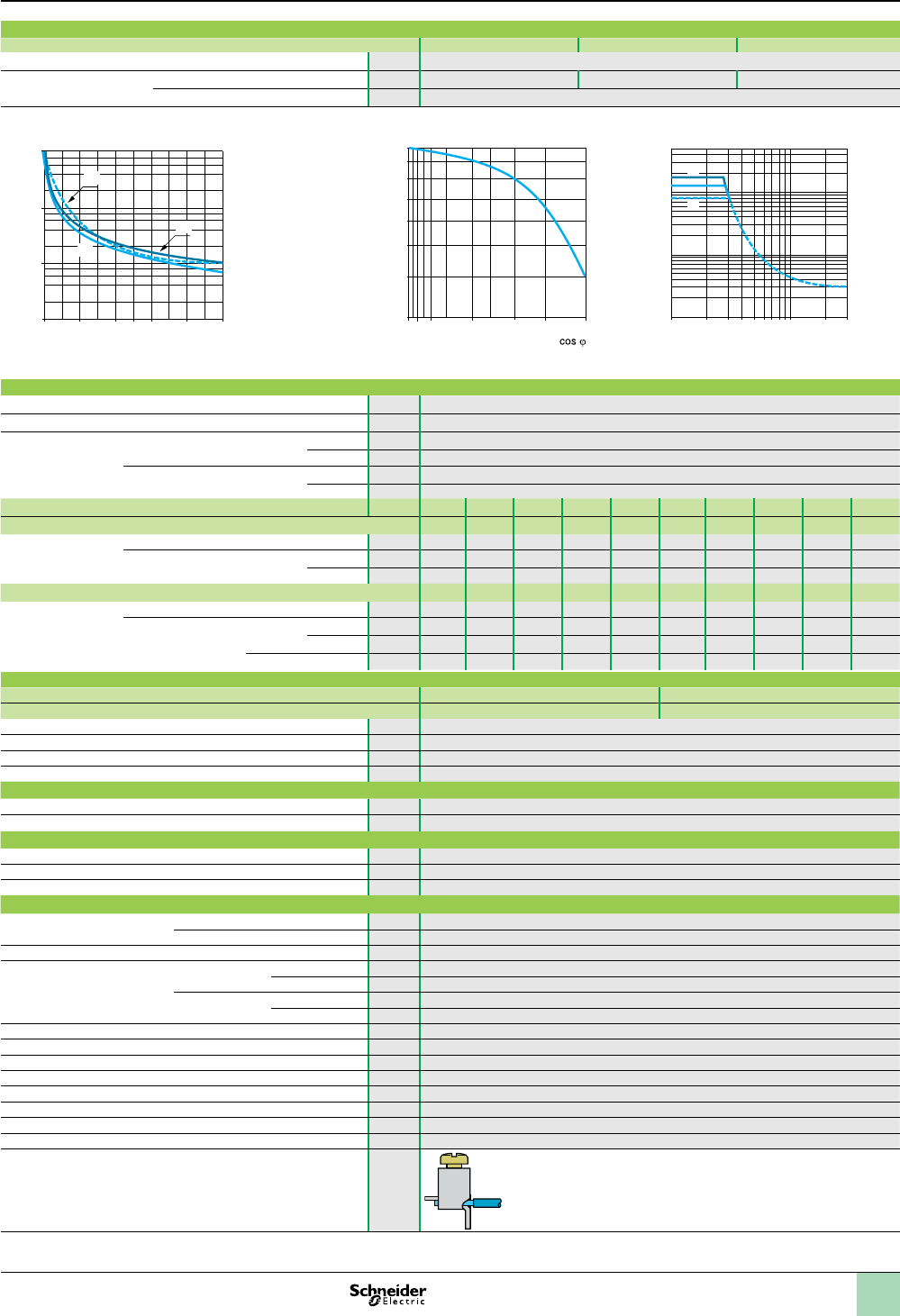

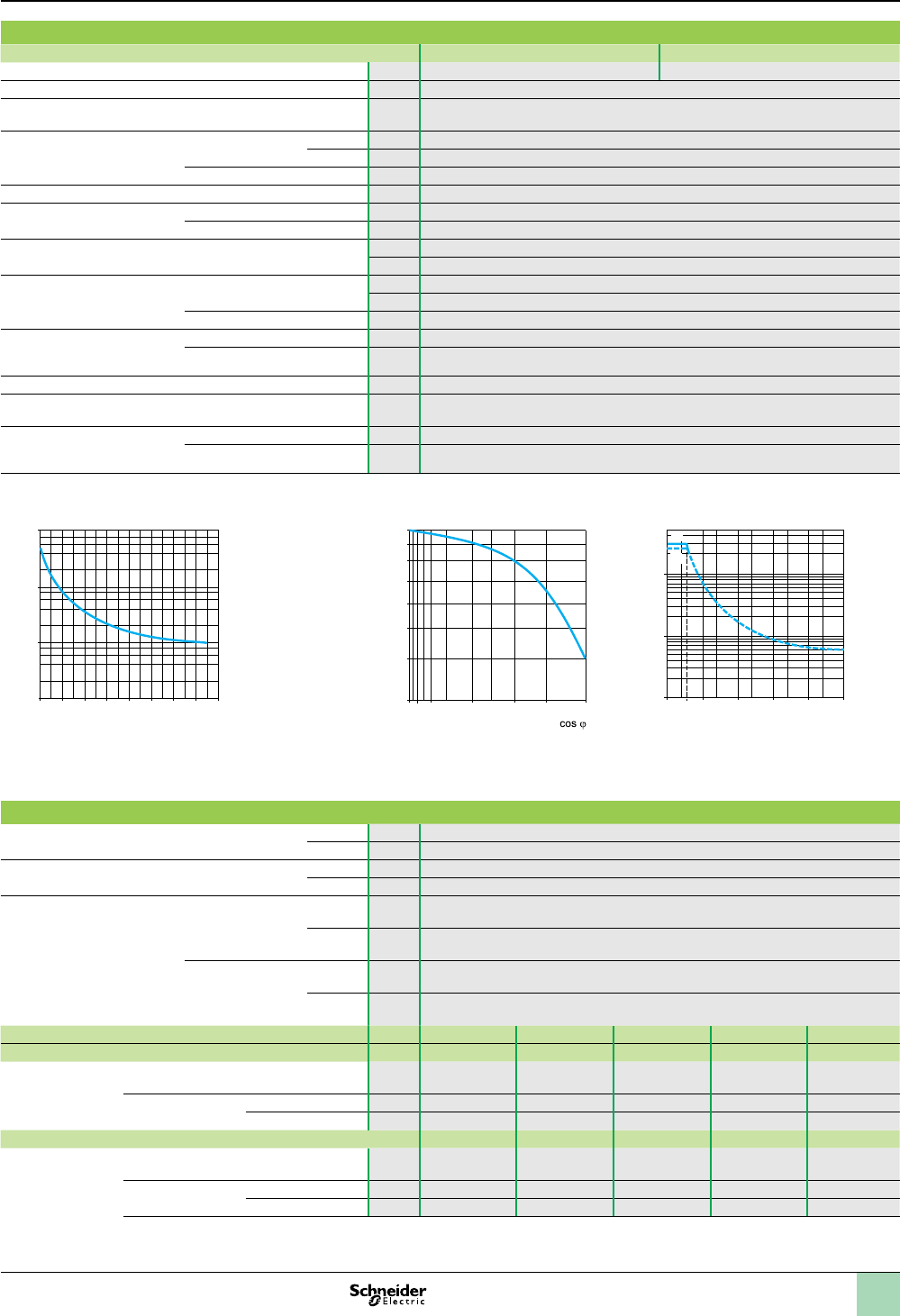

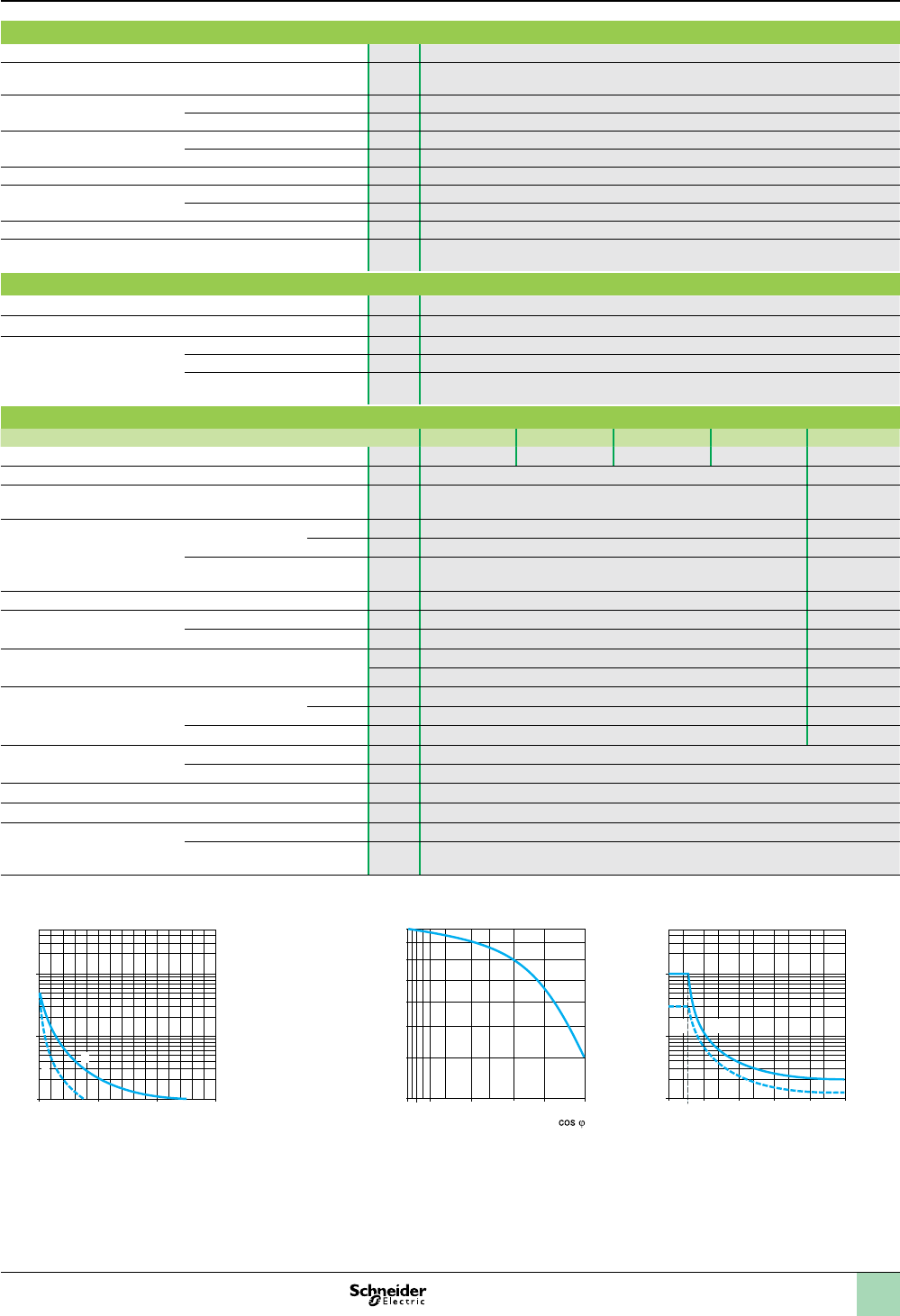

Contact characteristics (continued)
Relay type RSB 1A120pp RSB 1A160pp RSB 2A080pp
Mechanical durability In millions of operating cycles u 30
Electrical durability
In millions of op. cycles
Resistive load (p.f.) 12 A, 250 Va (u 0.1) 16 A, 250 Va (u 0.07) 8 A, 250 Va (u 0.1)
Inductive load See curves below

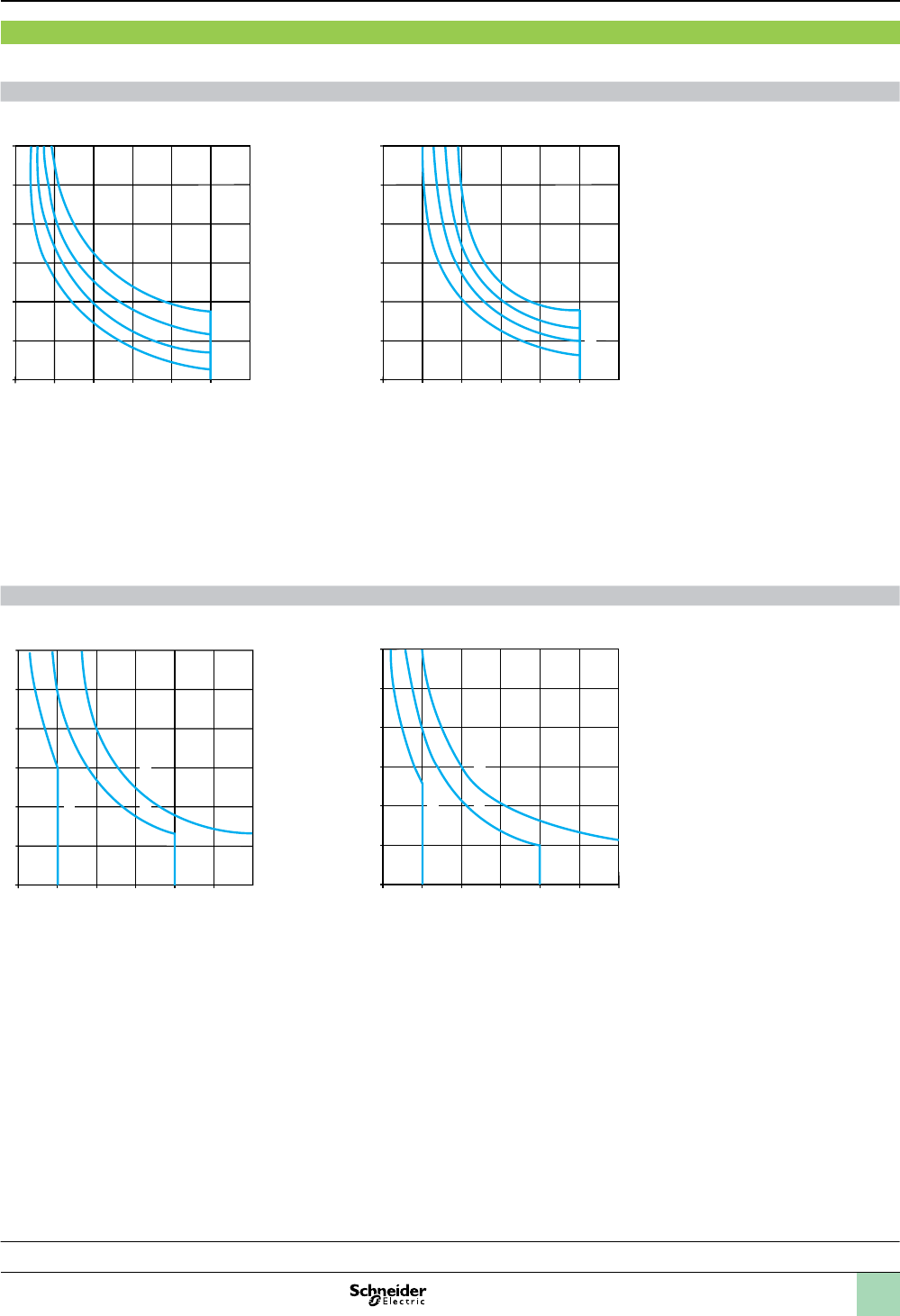

Electrical durability of contacts
Resistive load a
Reduction coefcient for inductive load a
(depending on power factor cos j)
Maximum switching capacity on resistive load
c
A RSB 2A080pp B RSB 1A160pp C RSB 1A120pp. Inductive load durability = resistive load durability x reduction coefcient.
Coil characteristics
Average consumption c 0.45 W, a 0.75 VA
Drop-out voltage threshold ≥ c 0.1 Uc (10% of rated voltage), ≥ a 0.15 Uc (15% of rated voltage)
Operating time
(response time)
Between coil energization and
making of the NO contact
ams 12
cms 9
Between coil de-energization and
making of the NC contact
ams 10
cms 4
Control circuit voltage Uc V 6 12 24 48 60 110 120 220 230 240
Relay control voltage codes RD JD BD ED ND FD – – – –
d.c. supply Average resistance at 20 °C ± 10% W90 360 1440 5700 7500 25 200 – – – –
Operating
voltage limits
Min. V4.8 9.6 19.2 38.4 48 88 – – – –
Max. V6.6 13.2 26.4 52.8 66 121 – – – –
Relay control voltage codes – – B7 E7 – – F7 M7 P7 U7
a.c. supply
60 Hz
Average resistance at 20 °C ± 15% W– – 400 1550 – – 10 200 35 500 38 500 42 500
Operating
voltage limits
Min. 50 Hz V– – 19.2 38.4 – – 96 176 184 192
60 Hz – – 20.4 40.8 – – 102 187 195.5 204
Max. 50/60 Hz V– – 26.4 57.6 – – 144 264 276 288
Socket characteristics
Socket type RSZE1S35M RSZE1S48M
Relay types used RSB1A120pp RSB2A080pp, RSB1A160pp (1)
Contact terminal arrangement Separate
Wire connection method Connector
Product certications e
Product certications cURus File E172326 CCN SWIV2; CSA File 212916 Class 3211 07; CE; RoHS compliant
Electrical characteristics
Conventional thermal current (Ith) A12
Maximum operating voltage V a300
Insulation characteristics
Between adjacent output contacts Vrms 2500
Between input and output contacts Vrms 2500
Between contacts and DIN rail Vrms 2500
General characteristics
Ambient air temperature
around the device
Operation °C (F) - 25…+ 85 (-13... +185)
Storage °C (F) - 40…+ 85 (-40... + 185)
Degree of protection Conforming to IEC/EN 60529 IP 20
Connection
box lug connector
Solid wire without
cable end
1 conductor 0.5…2.5 mm2 - AWG 20…AWG 14
2 conductors 0.5…1.5 mm2 - AWG 20…AWG 16
Flexible wire with
cable end
1 conductor 0.25…2.5 mm2 - AWG 22…AWG 14
2 conductors 0.25…1 mm2 - AWG 22…AWG 17
Maximum tightening torque / Screw size Nm 0.8 / M3 screw
Mounting 35 mm DIN rail / panel mount
Mounting on DIN rail By plastic compression spring
Terminal referencing IEC
Compatibility with the metal hold-down clip Yes, plastic
Timer module No
Protection module All RZM ppp
Clip-in ID tags Available
Wire connection method Box lug connector
(1) When using the relay with socket RSZE1S48M, terminals must be linked. See wiring diagrams on page 23.
104
0,80 0,4 1,21 1,6 2
107
105
106
C
A
B
Durability (Number of operating cycles)
Switching capacity (kVA)
0,3
0,5
0,61 0,4 0,2
0,4
0,6
0,8
1
Reduction coefcient (A)
0,1
1
2
16
100 200 300
10 20 30 50
5
8
12
0,5
50
C
B
A
Current c
Voltage c
Zelio® Plug-In Relays
RSB interface relays
Characteristics (continued)
1
2
3
4
5
6
7
8
9
10
22

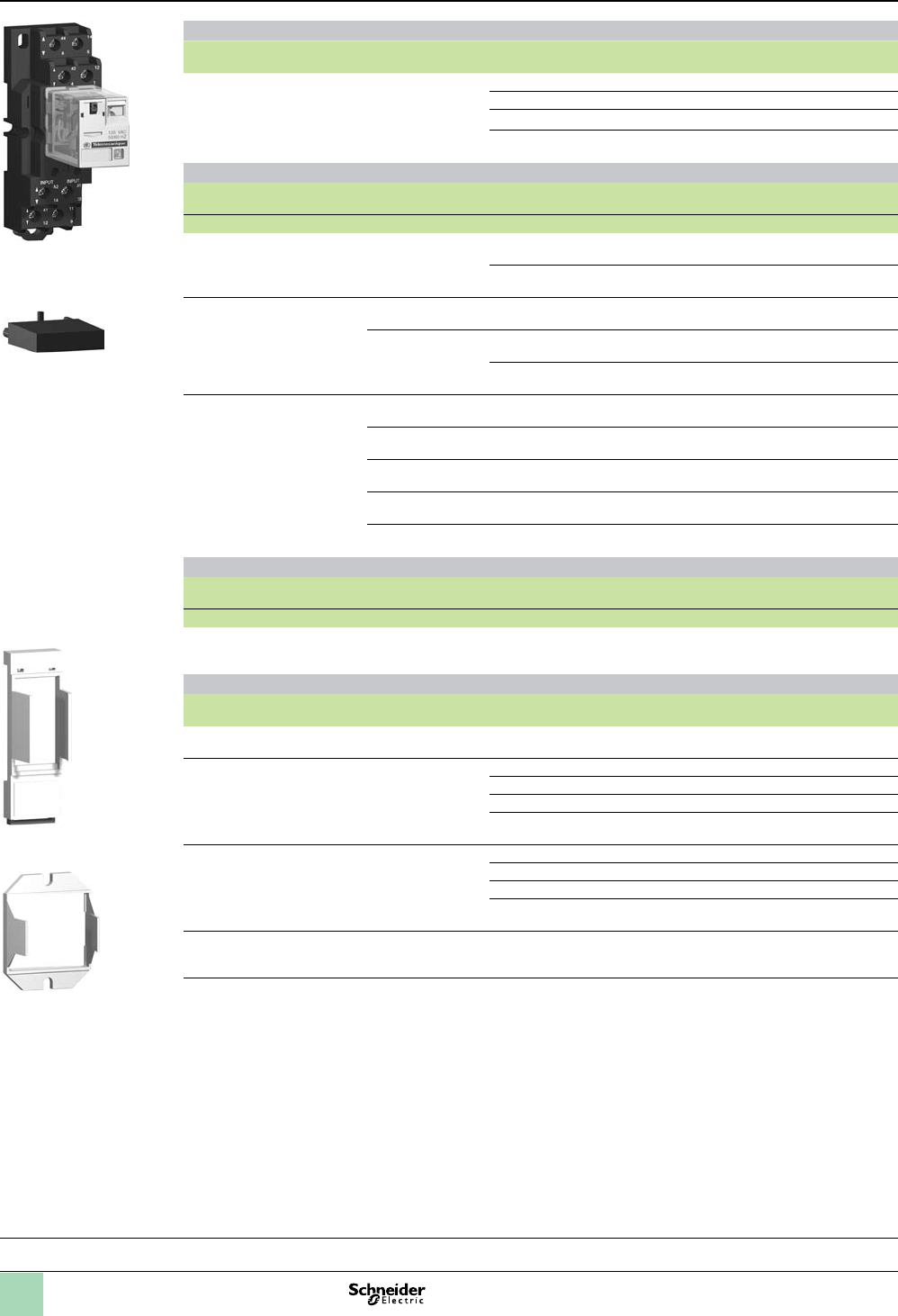

Relays for standard applications
Control
circuit
voltage
Sold in
lots of
Number and type of contacts - Thermal current (Ith)
1 C/O - 12 A 1 C/O - 16 A 2 C/O - 8 A
Catalog number (1) Catalog number (1) Catalog number (1) Weight
V kg
c 610 RSB1A120RD RSB1A160RD RSB2A080RD 0.014
c 12 10 RSB1A120JD RSB1A160JD RSB2A080JD 0.014
c 24 10 RSB1A120BD RSB1A160BD RSB2A080BD 0.014
c 48 10 RSB1A120ED RSB1A160ED RSB2A080ED 0.014
c 60 10 RSB1A120ND RSB1A160ND RSB2A080ND 0.014
c 110 10 RSB1A120FD RSB1A160FD RSB2A080FD 0.014
a 24 10 RSB1A120B7 RSB1A160B7 RSB2A080B7 0.014
a 48 10 RSB1A120E7 RSB1A160E7 RSB2A080E7 0.014
a 120 10 RSB1A120F7 RSB1A160F7 RSB2A080F7 0.014
a 220 10 RSB1A120M7 RSB1A160M7 RSB2A080M7 0.014
a 230 10 RSB1A120P7 RSB1A160P7 RSB2A080P7 0.014
a 240 10 RSB1A120U7 RSB1A160U7 RSB2A080U7 0.014
Sockets 12 A, a 300 V
Contact terminal
arrangement
Connection Relay type Sold in
lots of
Catalog number Weight
kg
Separate Box lug
connectors
RSB1A120pp 10 RSZE1S35M 0.060
RSB1A160pp (2)
RSB2A080pp 10 RSZE1S48M 0.050
Protection modules
Description For
use with
Voltage Sold in
lots of
Catalog number Weight
V kg
Diode All sockets c 6…230 10 RZM040W 0.003
RC circuit All sockets a 24…60 10 RZM041BN7 0.010
a 110…240 10 RZM041FU7 0.010
Diode + green LED All sockets c 6…24 10 RZM031RB 0.004
c 24…60 10 RZM031BN 0.004
c 110…230 10 RZM031FPD 0.004
Varistor + green LED All sockets c or a 6…24 10 RZM021RB 0.005
c or a 24…60 10 RZM021BN 0.005
c or a 110…230 10 RZM021FP 0.005
Accessories
Description For
use with
Sold in
lots of
Catalog number Weight
kg
Plastic hold-down ejector clip All sockets 10 RSZR215 0.002
ID tag All sockets 10 RSZL300 0.001
(1) To order a relay complete with socket (sold in lots of 20): add sufx S to one of the following voltage codes JD, BD, B7, P7 or F7.
Example: RSB2A080BD + RSZE1S48M becomes RSB2A080RBS.
(2) When using the relay with socket RSZE1S48M, terminals must be linked. See wiring diagrams on page 23.
RSB 1A120JD + RZM 031FPD
+ RSZ E1S35M
RSB 1A160BD + RSZ E1S48M
RSB 2A080BD + RSZ E1S48M
RSZ R215
Zelio® Plug-In Relays
RSB interface relays
Product selector
Introduction:
page 20
Characteristics:
page 20
Product selector:
page 22
Dimensions, Wiring diagrams:
page 23
1
2
3
4
5
6
7
8
9
10
23

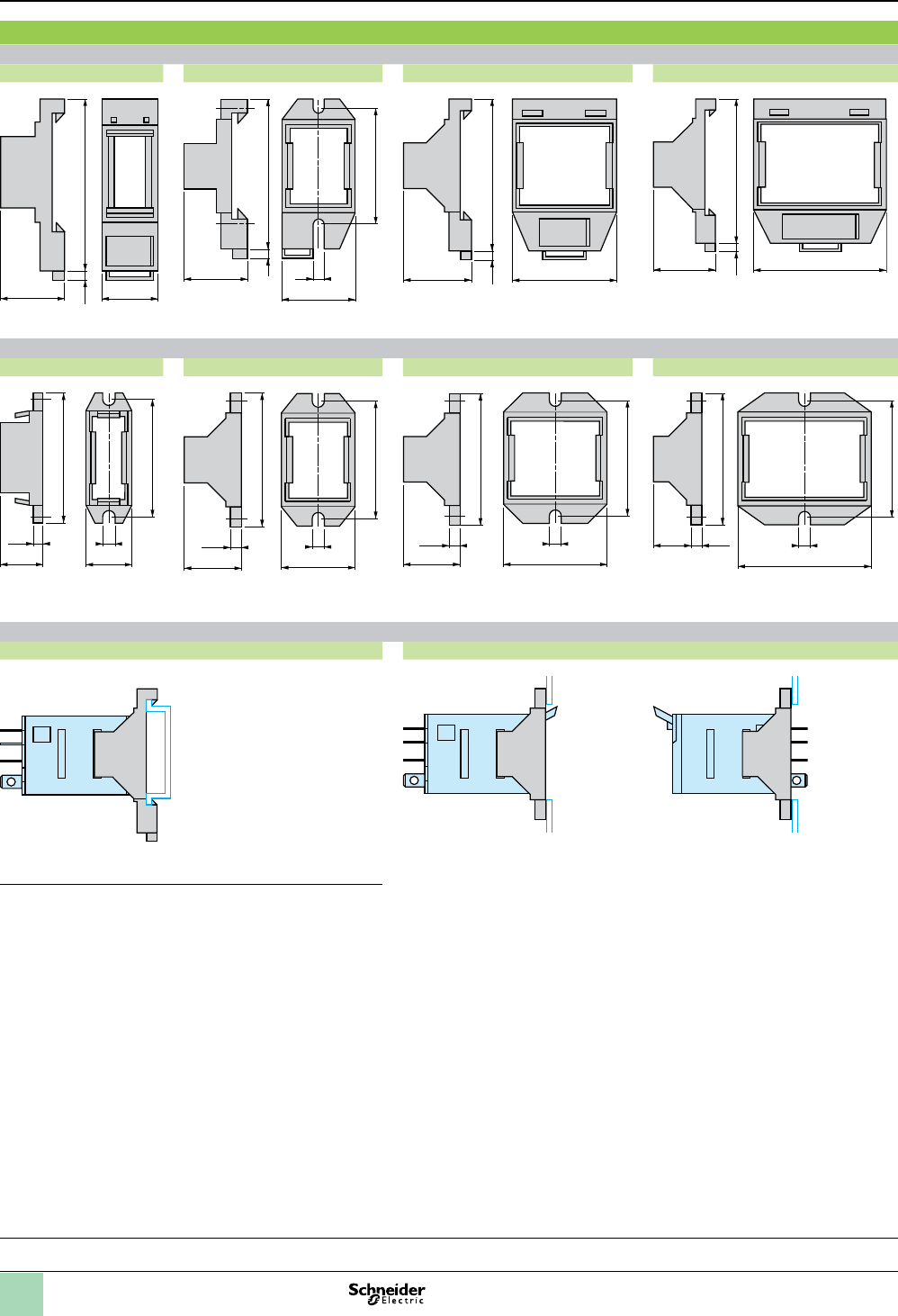

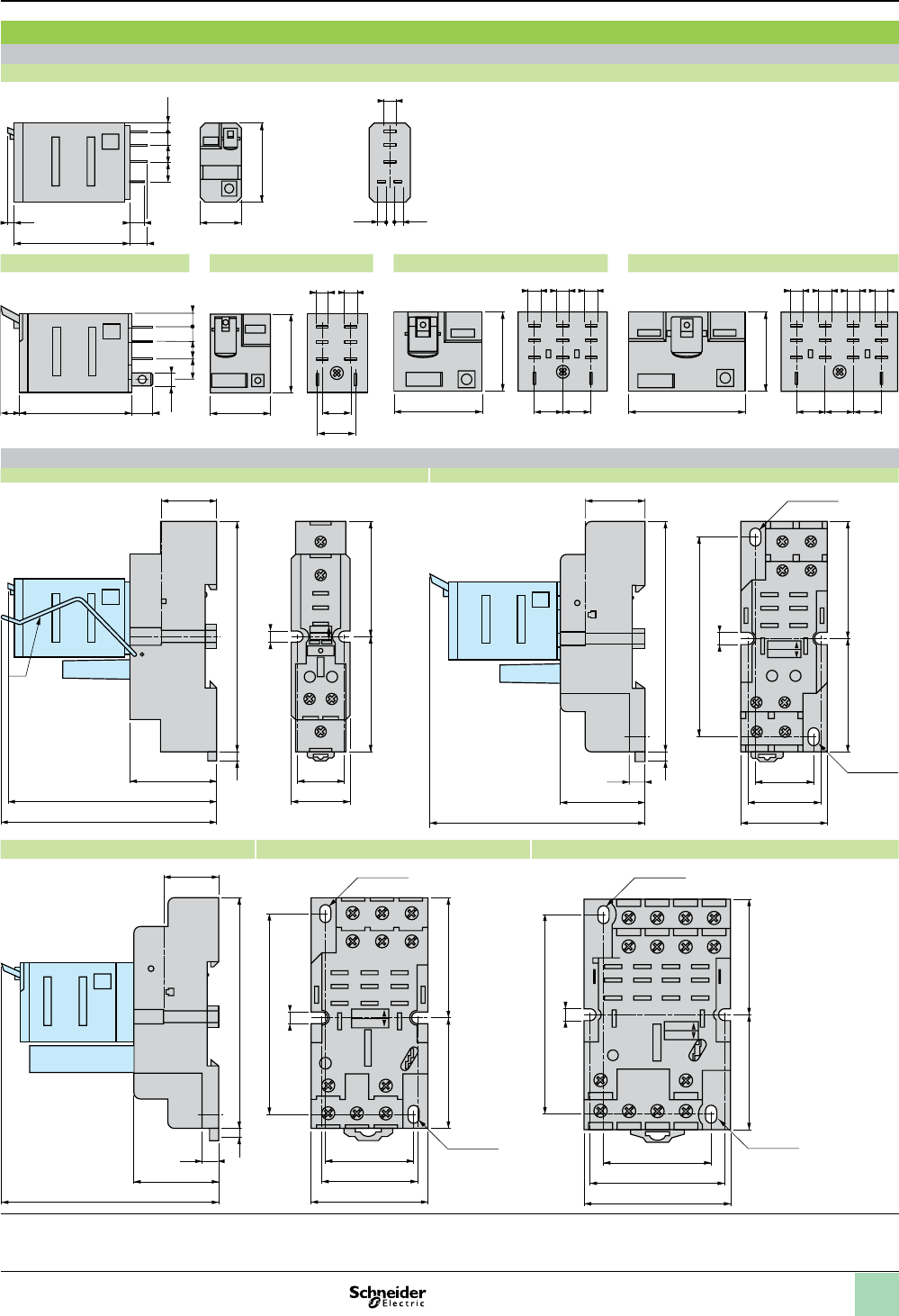

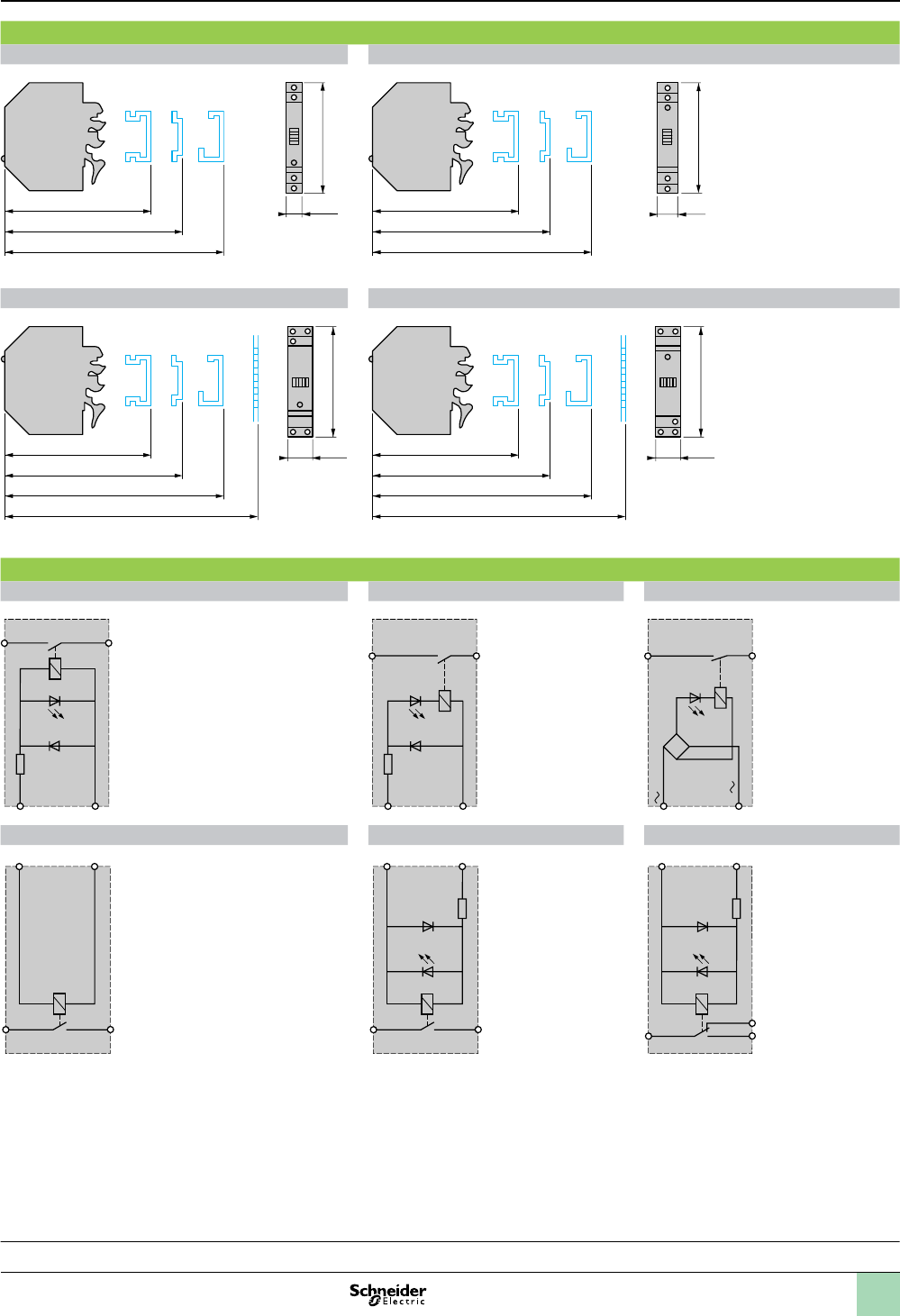

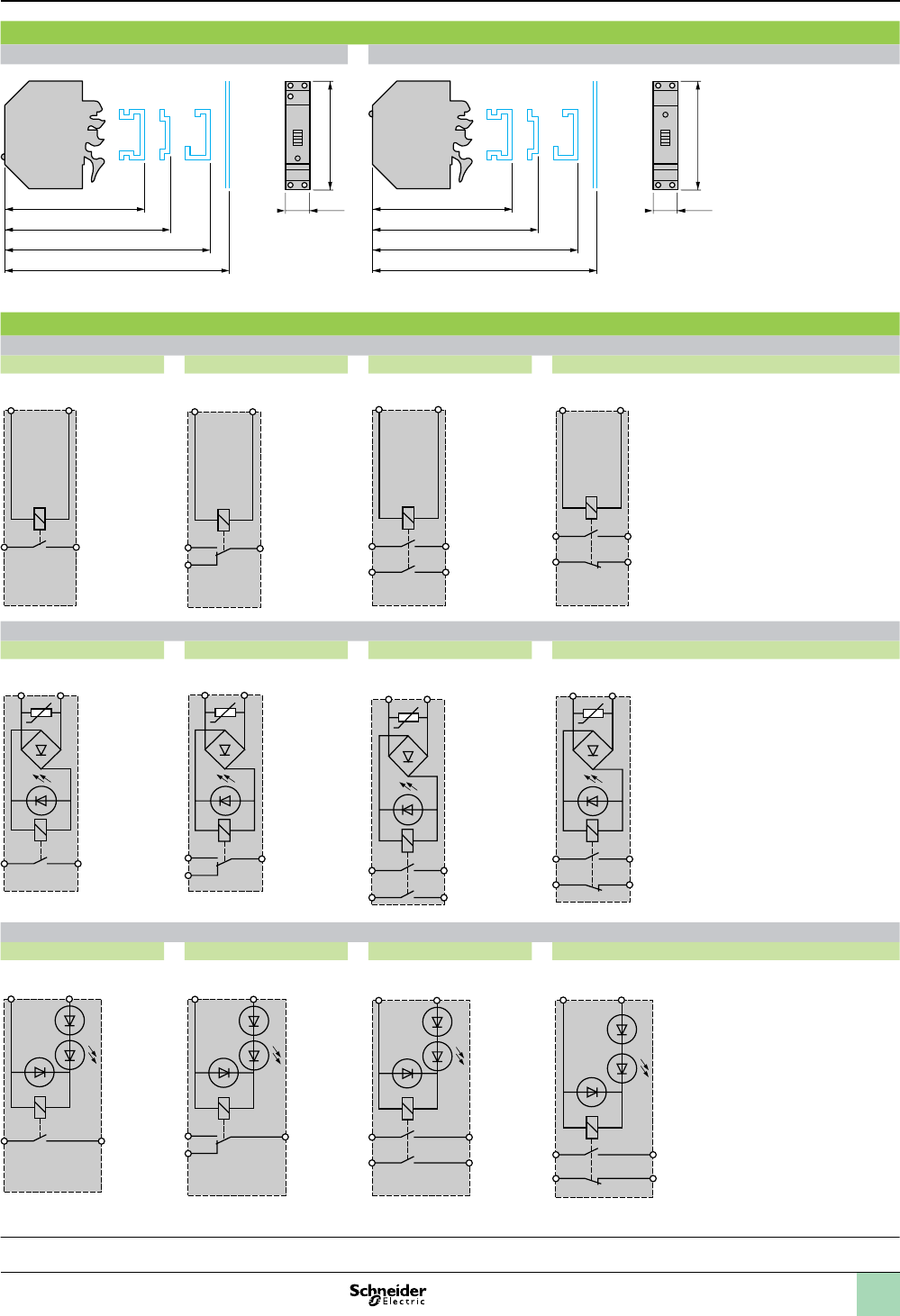

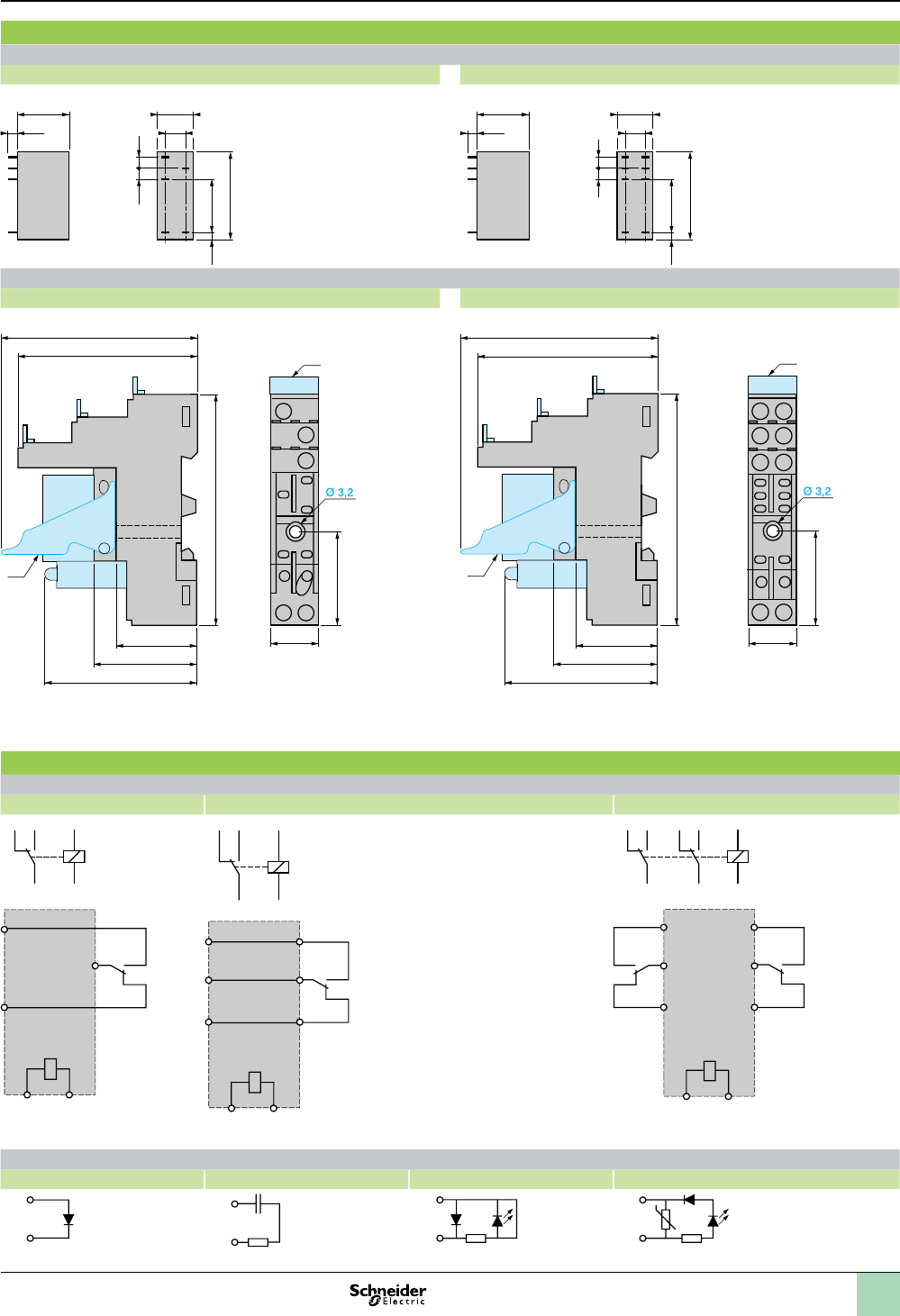

Dimensions (mm):
Interface relays
RSB1A120pp RSB2A080pp, RSB1A160pp
Sockets
RSZE1S35M RSZE1S48M
(1) Relays
(2) Protection module
(3) Retention clip
(4) ID tag

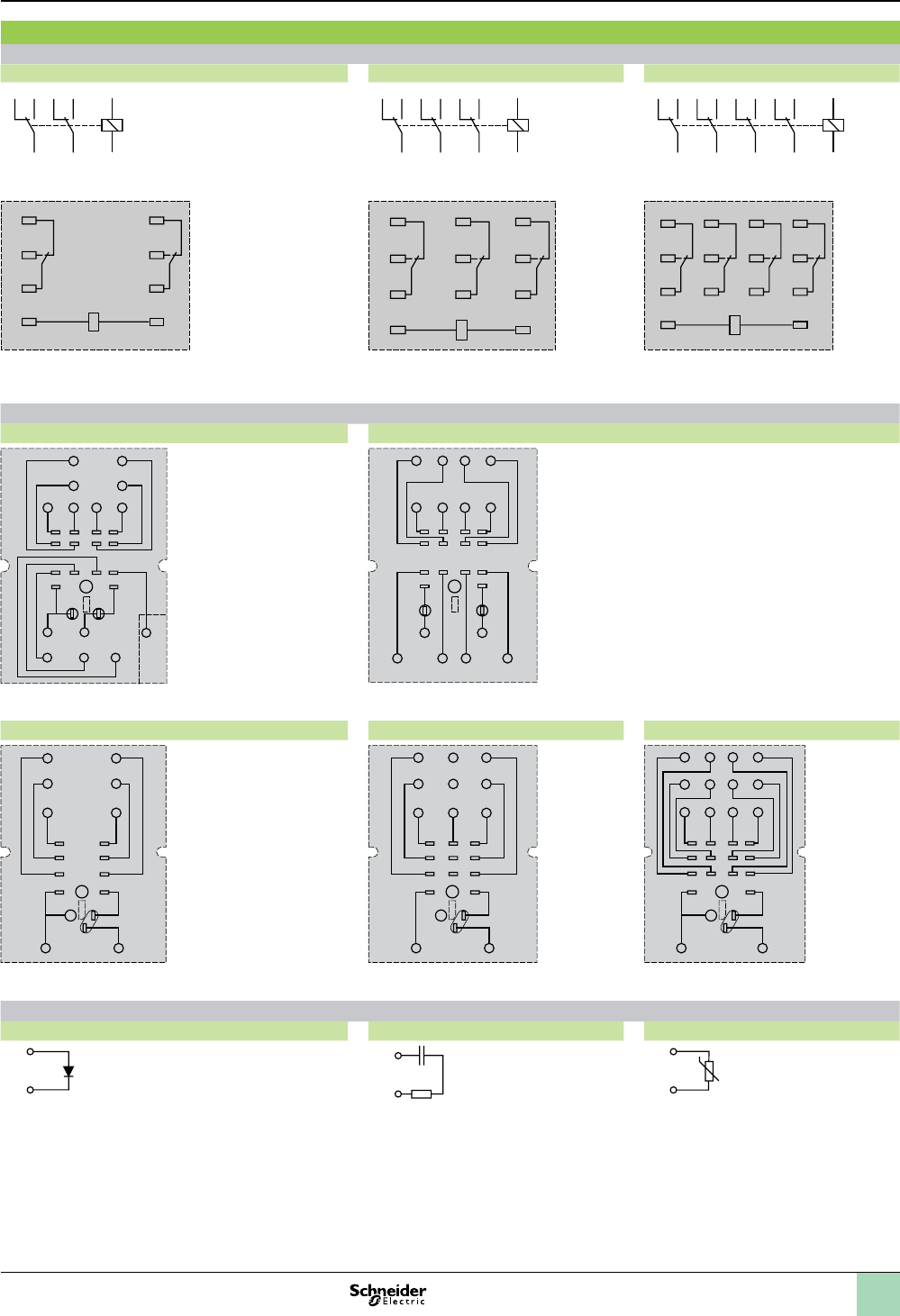

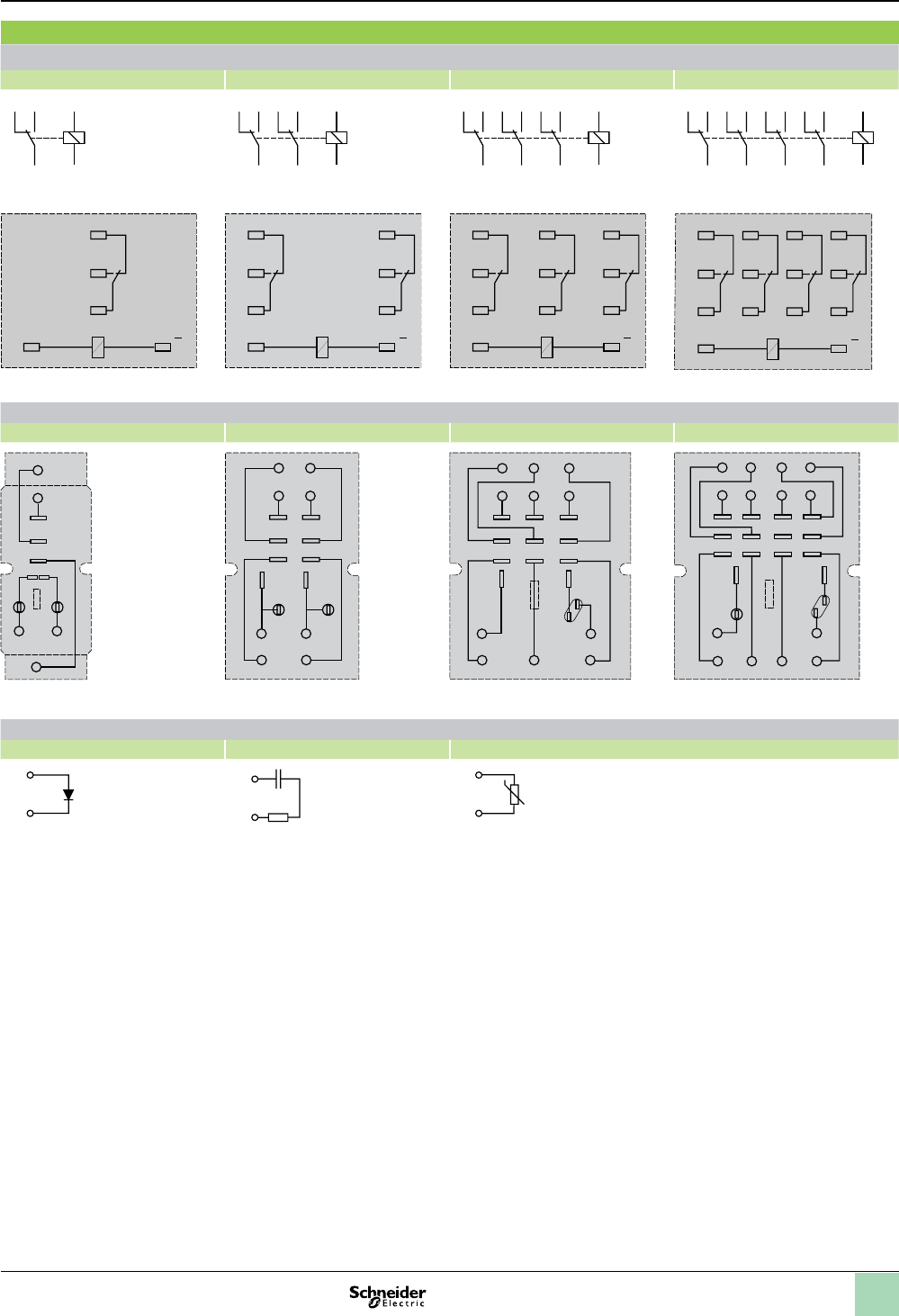

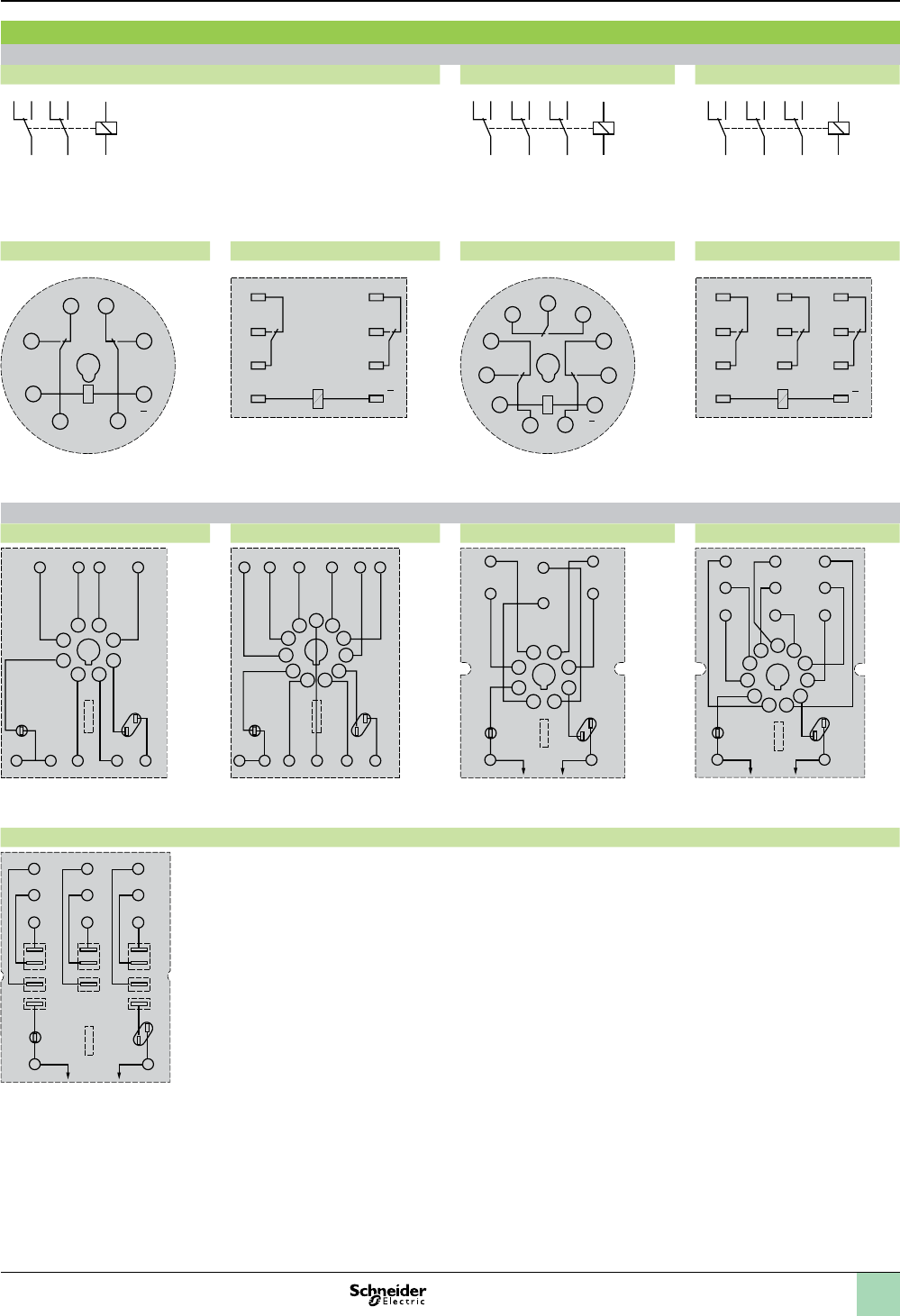

Wiring diagrams
Interface relays
RSB1A120pp RSB1A160pp RSB2A080pp
When using relay RSB 1A160pp with socket RSZ E1S48M
terminals 11 and 21, 14 and 24, 12 and 22 must be linked

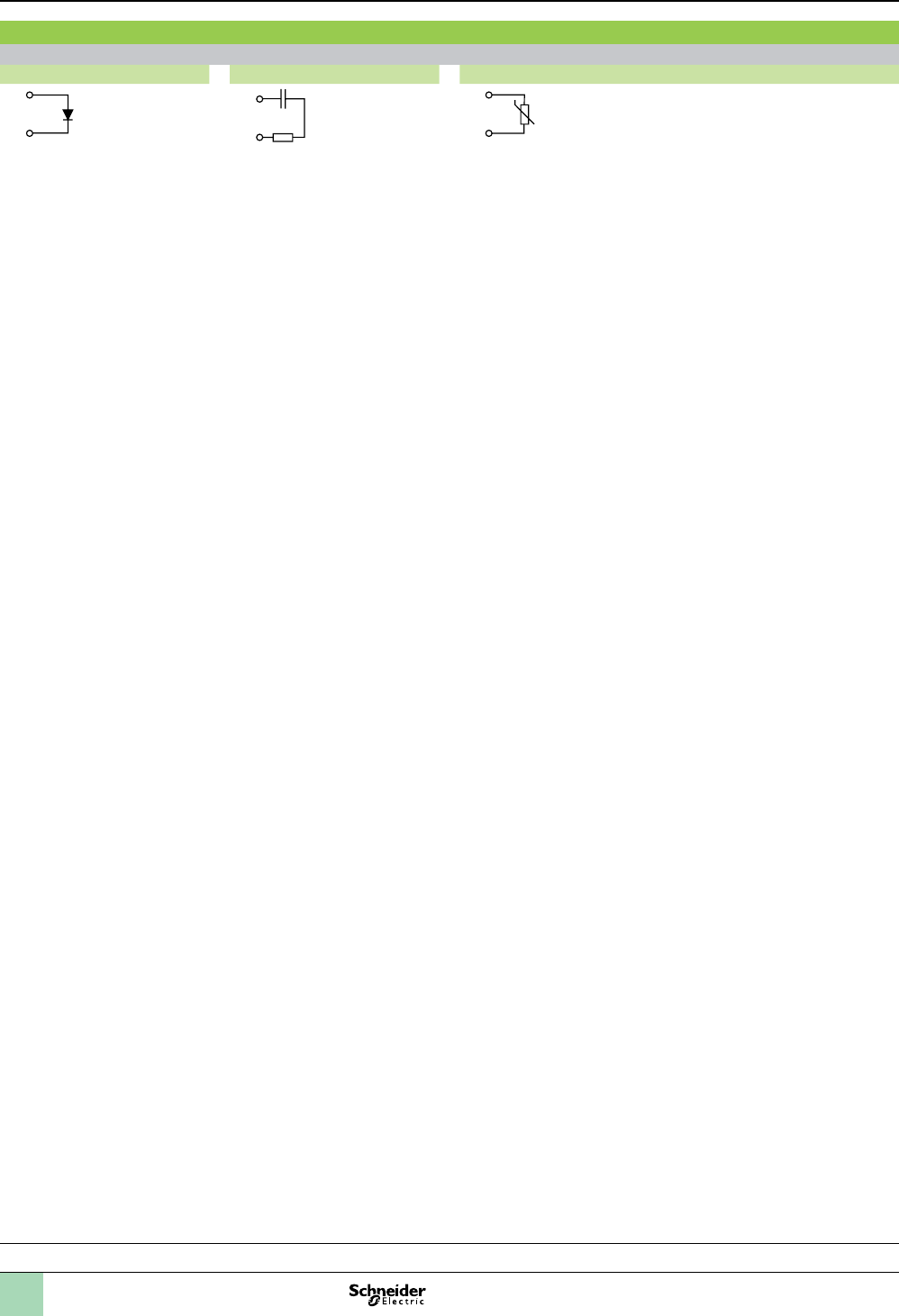

Protection modules
RZM040W RZM041ppp RZM031ppp RZM021ppp
– A2
+ A1
– A2
+ A1
– A2
+ A1
– A2
+ A1
15,7
7,5
3,5
12,5
3,9
29
16,52,5
3,5
15,7
7,5
5
12,5
3,9
5
29
152,5
61
67
78,5
(4)
15,5
29,4
34,5
50
27,5
(3)
(1)
(2)
11
14
12
A2 A1
(4)
21 11
24 14
22 12
A2 A1
61
67
78,5
15,5
29,4
34,5
50
27,5
(3)
(1)
(2)
A2A1
11 14
12
A2
A1
11
14
12
A2
A1
21 11
22 12
24 14
A2A1
11/21 14/24
12/22
A2
A1
21 11
22 12
24 14
A2A1
21 24
22
11 14
12
Dimensions,
Wiring diagrams
Zelio® Plug-In Relays
RSB interface relays
1
2
3
4
5
6
7
8
9
10
24

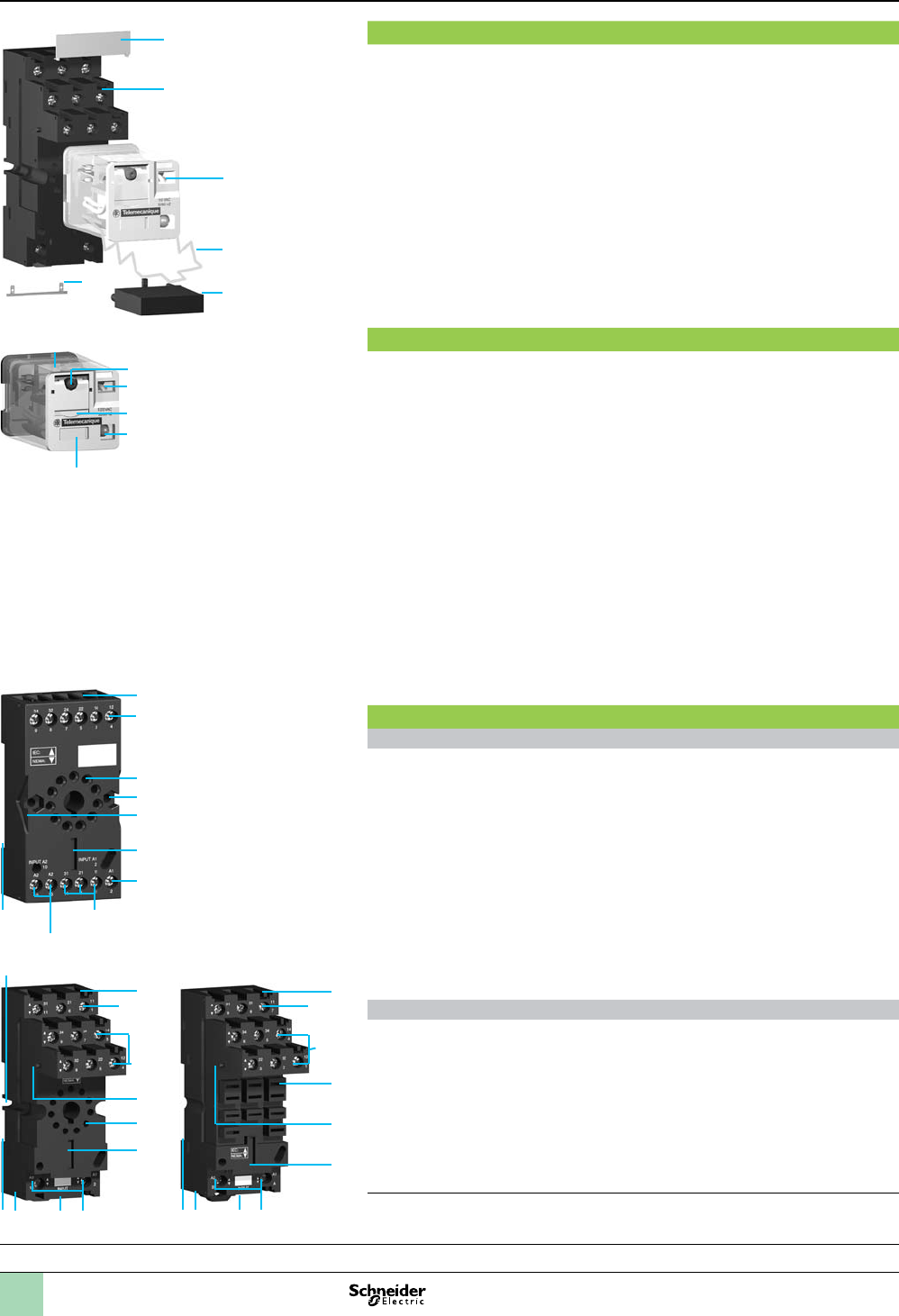

Introduction of the product range
The RXM miniature relay range includes:
1 12 A relays with 2 C/O contacts, 10 A relays with 3 C/O contacts, 6 A relays with
4 C/O contacts and 3 A “low level” relays with 4 C/O contacts. All these relays
have the same dimensions.
2 Sockets with mixed or separate contact terminals.
3 Protection modules (diode, RC circuit or varistor).
4 Metal hold-down clip for all sockets.
5 Plastic hold-down ejector clip for all sockets.
6 2-pole bus jumper that can be used on sockets with separate contact terminals
in order to simplify wiring when creating creating a jumper between the coil
terminals.
7 Clip-in ID tags for all the sockets except RXZE2M114.
Relay description
1 Spring return push-to-test button for checking contact operation (green: c,
red: a).
2 Mechanical “relay status” indicator.
3 Optional removable lock-down door enables continuous engagement of the
contacts for test or maintenance purposes. During operation, this lock-down door
must always be in the closed position.
4 Bipolar LED (depending on version) indicating the relay status.
5 Removable ID tag for relay identication.
6 Four notches for DIN rail mounting adapter or panel mounting adapter with xing
lugs.
7 Eight, eleven or fourteen quick-connect pins.
8 Area by which the product can be easily gripped.
9 Mounting adapter enabling direct mounting of the relay on a panel.
10 Mounting adapter enabling direct mounting of the relay on a DIN rail.
Socket description
Sockets with mixed contact terminals (1)
1 Connection by screw clamp terminals or box lug connector.
2 Fourteen female contacts for the relay pins.
3 Location for protection modules.
4 Locking components for plastic and metal hold-down clips.
5 Locating slot for mounting on DIN rail.
6 Two or four mounting holes for panel mounting.
Sockets with separate contact terminals (2)
1 Connection by screw connector.
2 Eight, eleven or fourteen female contacts for the relay pins.
3 Location for protection modules.
4 Locking components for plastic and metal hold-down clips.
5 Locating slot for mounting on DIN rail.
6 Two mounting holes for panel mounting.

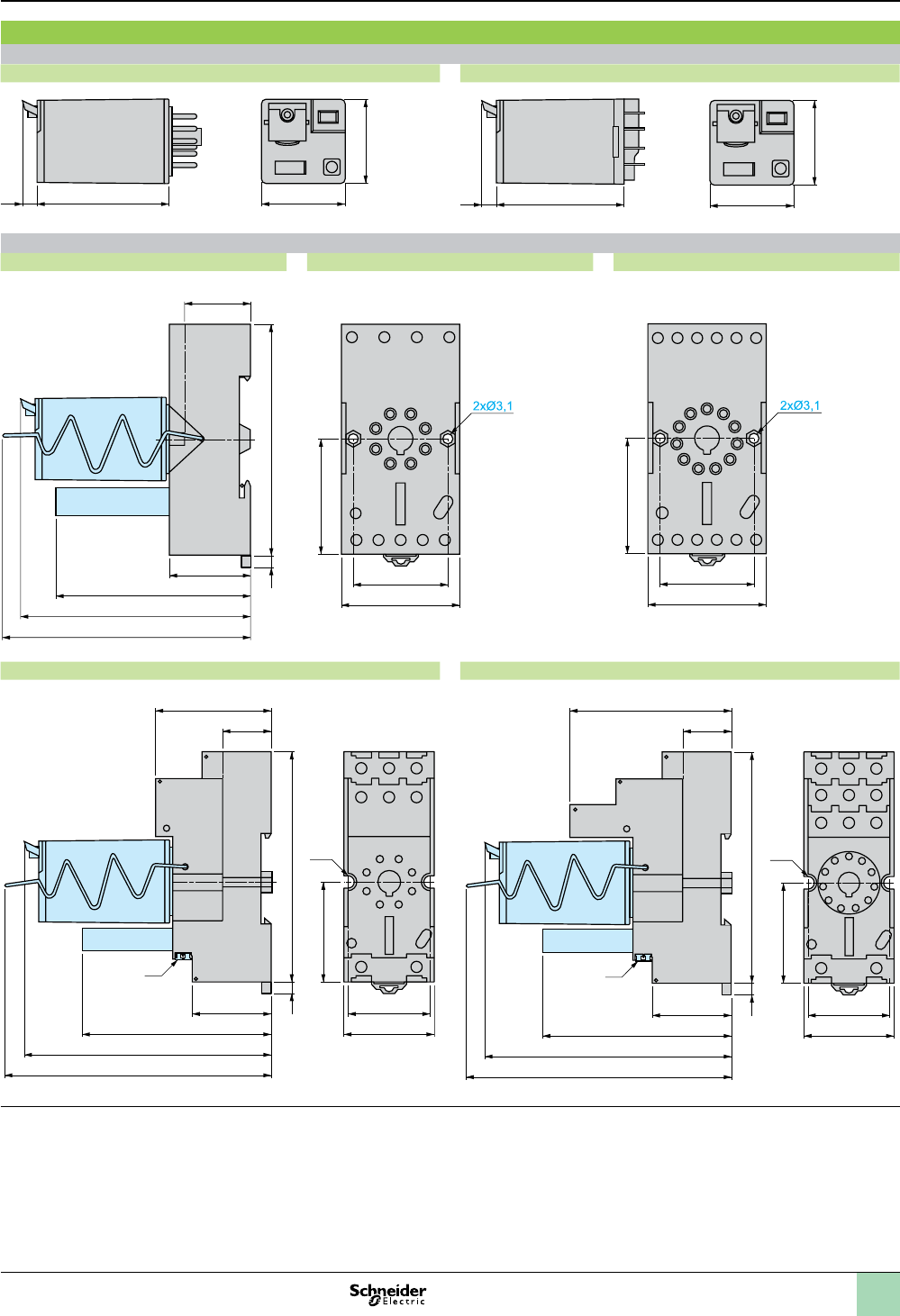

7 Location for bus jumpers (see mounting on sockets on page 30).
(1) The inputs are mixed with the relay coil terminals, with the outputs being located on the
opposite side of the socket.
(2) The inputs and outputs are separated from the relay coil terminals.
7
6
2
1
5
3
4
or
1
2
7
3
4
5
6
8
9
9
10
1
2
3
4
5
Outputs
Inputs
Relay coil
terminals
5
6
1
6
2
3
4
5 7
Outputs
Inputs
Relay coil terminals
5
Zelio® Plug-In Relays
RXM miniature relays
Introduction
Introduction:
page 24
Characteristics :
pages 25 and 26
Product selector:
pages 27 and 28
Dimensions:
pages 29 and 30
Wiring diagrams:
page 31
1
2
3
4
5
6
7
8
9
10
25
General characteristics
Conforming to standards IEC/EN 61810-1 (iss. 2), UL 508, CSA C22-2 n° 14
Product certications cULus File E164862 CCN NLDX, NLDX7; cURus File E164862 CCN NLDX2, NLDX8;
CSA; CE; RoHS compliant
Ambient air temperature
around the device
Storage °C (F) - 40… + 85 (-40... +185)
Operation °C (F) - 40… + 55 (-40... +131)
Vibration resistance
conforming to IEC/EN 60068-2-6
In operation 3 gn (10...150 Hz/± 1 mm / 5g/5 cycles)
Not operating 5 gn (10...150 Hz/± 1 mm / 5g/5 cycles)
Degree of protection Conforming to IEC/EN 60529 IP 40
Shock resistance
conforming to IEC/EN 60068-2-27
Opening 15 gn
Closing 15 gn
Protection category RT I
Mounting position Any
Insulation characteristics
Rated insulation voltage (Ui) V250 (IEC), 300 (UL, CSA)
Rated impulse withstand voltage (Uimp) kV 4 (1.2/50 ms)
Dielectric strength
(rms voltage)
Between coil and contact a V1550
Between poles a V1550
Between contacts a V1500
Contact characteristics
Relay type RXM2ABppp RXM3ABppp RXM4ABppp RXM4GBppp
Number and type of contacts 2 C/O 3 C/O 4 C/O 4 C/O low level
Contact materials AgNi AgAu - bifurcated
Conventional thermal
current (Ith)
For ambient
temperature y 55 °C
A12 10 6 3
Rated operational current
in utilization categories
AC-1 and DC-1
Conforming to IEC NO 12 10 6 2
NC 6 5 3 1
Conforming to UL 12 10 6 3
Switching current Minimum mA 10 3
Switching voltage Maximum Va/c 250 (IEC)
Minimum V17 5
Nominal load (resistive) A 12 / 250 a V 10 / 250 a V 6 / 250 a V 3 / 250 a V
A12 / 28 c V 10 / 28 c V 6 / 28 c V 3 / 28 c V
Switching capacity Maximum aVA 3000 2500 1500 750
cW336 280 168 84
Minimum mW 170 15
Maximum operating rate
In operating cycles
No-load 18 000
Under load 1200
Utilization coefcient 20 %
Mechanical durability In millions of operating cycles 10
Electrical durability
In millions of operating cycles
Resistive load 0.1
Inductive load See curves below
Electrical durability of contacts
Resistive load a
Reduction coefcient for inductive load a
(depending on power factor cos j)
Maximum switching capacity on resistive load
c
A RXM2ABppp B RXM3ABppp C RXM4ABppp D RXM4GBppp
Inductive load durability = resistive load durability x reduction coefcient.
10
5
10
6
10
7
2301
A BD
C
Durability (Number of operating cycles)
Switching capacity (kVA)
0,3
0,5
0,61 0,4 0,2
0,4
0,6
0,8
1
Reduction coefcient (A)
0,1
1
200 25005028 100 150
10
3
6
CD
BA
Current c
Voltage c
Zelio® Plug-In Relays
RXM miniature relays
Characteristics
1
2
3
4
5
6
7
8
9
10
26
Coil characteristics
Average consumption aVA 1.2
cW0.9
Drop-out voltage threshold au 0.15 Uc
cu 0.1 Uc
Operating time
(response time)
Between coil energization
and making of the
NO contact
ams 20
cms 20
Between coil de-energization
and making of the
NC contact
ams 20
cms 20
Control circuit voltage Uc V 12 24 48 110 120 125 220 230 240
Relay coil voltage codes JD BD ED FD –GD MD – –
d.c. supply Average resistance at 20 °C ± 10% W160 650 2600 11 000 – 11 000 14 000 – –
Operating voltage limits Min. V9.6 19.2 38.4 88 – 100 176 – –
Max. V13.2 26.4 52.8 121 – 138 242 – –
Relay coil voltage codes – B7 E7 F7 – – P7 U7
a.c. supply Average resistance at 20 °C ± 15% W– 180 770 – 4430 – – 15 000 15 500
Operating voltage limits Min. V– 19.2 38.4 – 96 – – 184 192
Max. V– 26.4 52.8 – 132 – – 253 264
Socket characteristics
Socket type RXZE2S108M RXZE2S111M RXZE2S114M RXZE2M114M RXZE2M114
Relay types used RXM2ppppp RXM3ppppp RXM4ppppp RXM2ppppp (1)
RXM4ppppp RXM2ppppp (1)
RXM4ppppp
Contact terminal arrangement Separate Mixed
Wire connection method Box lug connectors Screw clamp
terminals
Product certications cURus File E172326 CCN SWIV2, SWIV8; CSA; CE; RoHS compliant
Conforming to standards IEC 61984, e
Electrical characteristics
Conventional thermal current (Ith) A12 10
Maximum operating voltage V 250 (IEC)
Insulation characteristics
Between adjacent output contacts Vrms 2500
Between input and output contacts Vrms 2500
Between contacts and DIN rail Vrms 2500
General characteristics
Ambient air temperature
around the device
Operation °C (F) - 40…+ 55 (-40... +131)
Storage °C (F) - 40…+ 85 (-40... +185)
Degree of protection Conforming to IEC/EN 60529 IP 20
Connection Solid wire
without
cable end
1 conductor 0.5…2.5 mm2 - AWG 20…AWG 14 0.5… 1.5 mm2
AWG 20…AWG 16
2 conductors 0.5…1.5 mm2 - AWG 20…AWG 16
Flexible wire
with cable end
1 conductor 0.25…2.5 mm2 - AWG 22…AWG 14 0.25…1 mm2
AWG 22…AWG 17
2 conductors 0.25…1 mm2 - AWG 22…AWG 17
Maximum tightening torque / Screw size Nm 1 / M3 screw
Mounting 35 mm DIN rail / panel mount
Mounting on DIN rail By red plastic clip By metal
compression
spring
By red plastic clip
Terminal referencing IEC, NEMA
Bus jumper (Ith: 5 A) Yes No
Compatibility with the plastic hold-down ejector clip Yes
Compatibility with the metal hold-down clip Yes
Protection module All RXM040W, RXM041pp, RXM021pp
Clip-in ID tags Yes No
Wire connection method Box lug connector Screw clamp
terminals
(1) When mounting relay RXM2ppppp on socket RXZE2Mpppp, the thermal current must not exceed 10 A.
Zelio® Plug-In Relays
RXM miniature relays
Characteristics (continued)
Introduction:
page 24
Characteristics :
pages 25 and 26
Product selector:
pages 27 and 28
Dimensions:
pages 29 and 30
Wiring diagrams:
page 31
1
2
3
4
5
6
7
8
9
10
27

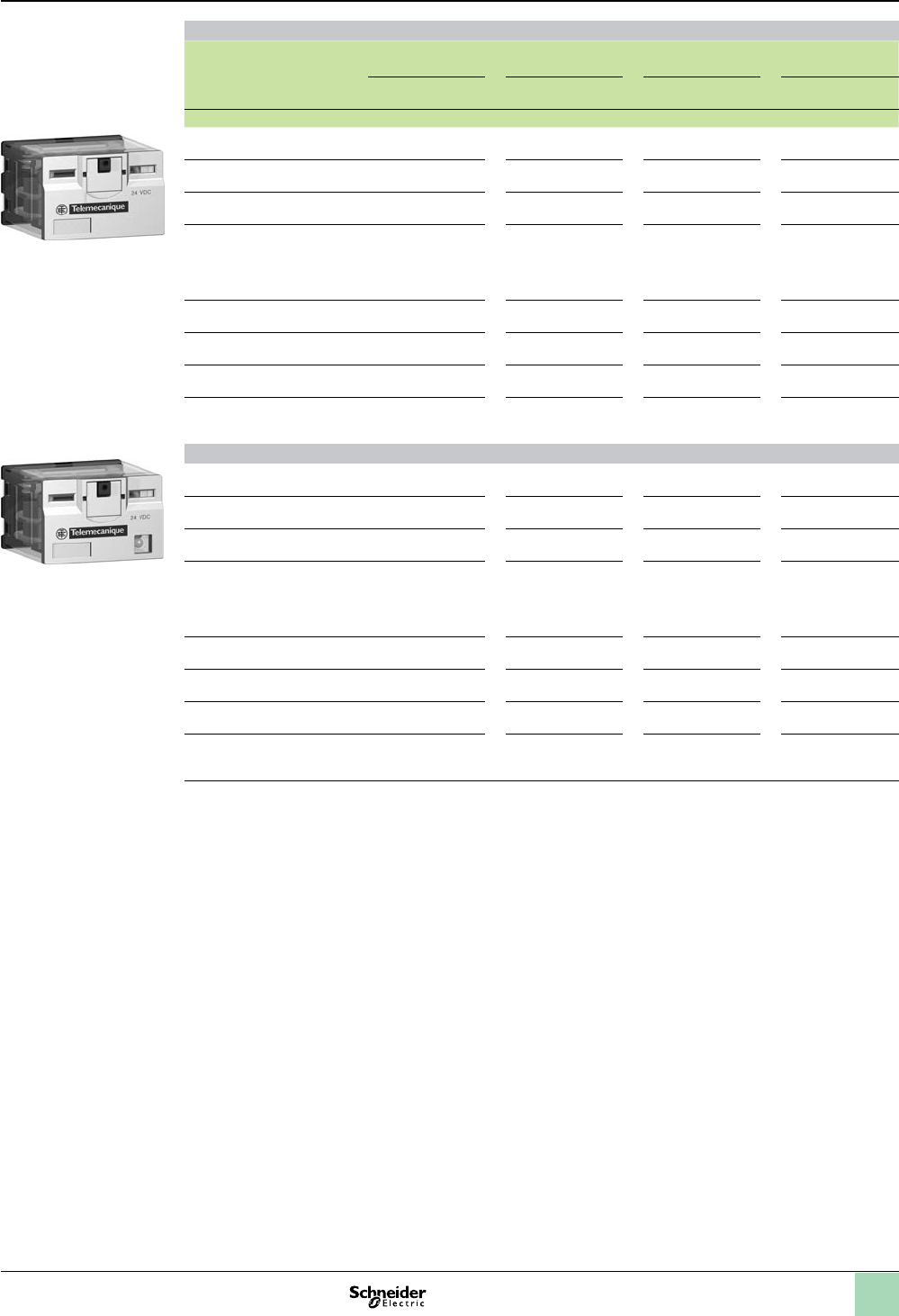

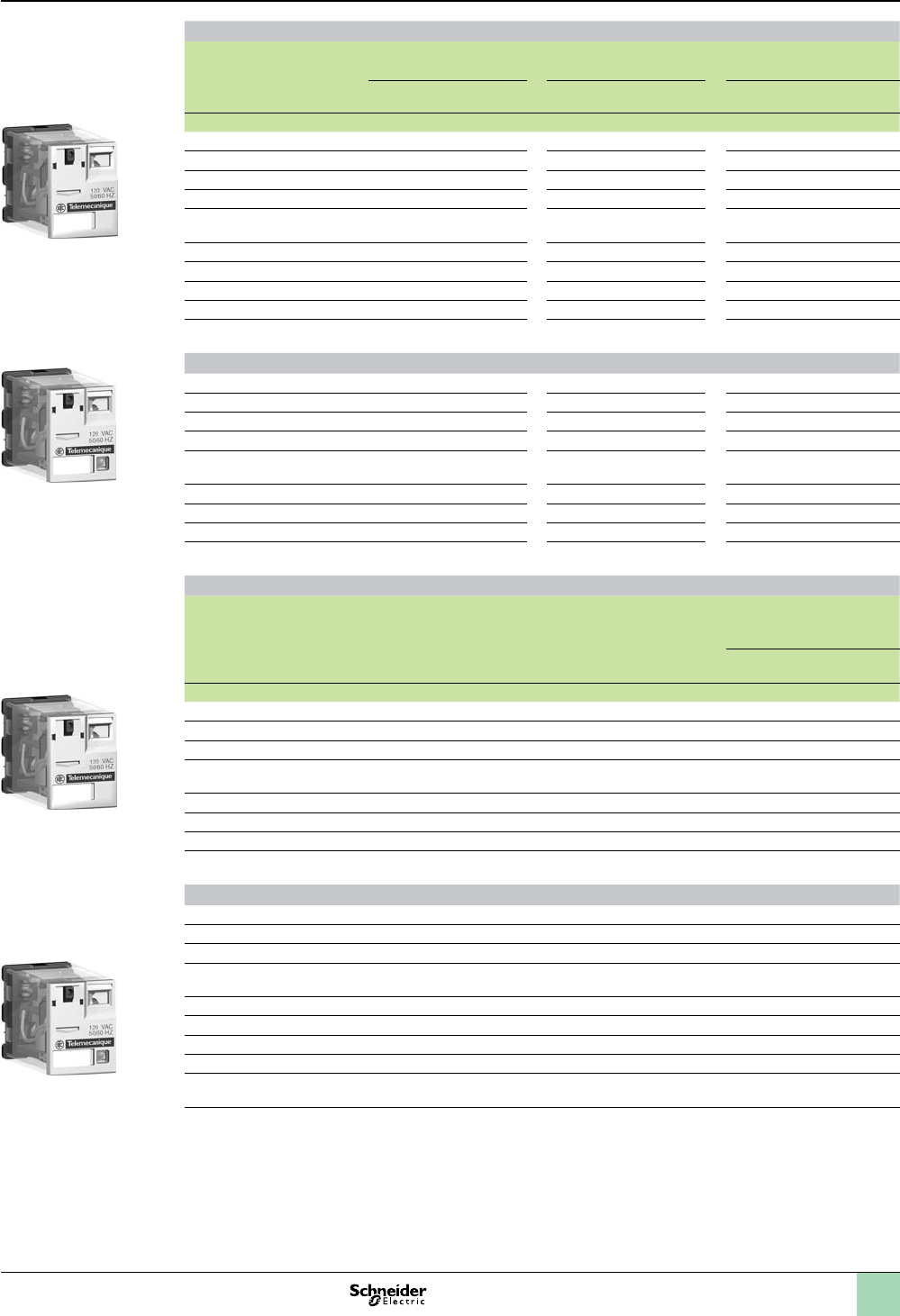

Miniature relays without LED (sold in lots of 10)
Control
circuit
voltage
Number and type of contacts - Thermal current (Ith)
2 C/O - 12 A 3 C/O - 10 A 4 C/O - 6 A
Catalog number Weight Catalog number Weight Catalog number Weight
V kg kg kg
c 12 RXM2AB1JD 0.037 RXM3AB1JD 0.037 RXM4AB1JD 0.037
c 24 RXM2AB1BD 0.037 RXM3AB1BD 0.037 RXM4AB1BD 0.037
c 48 RXM2AB1ED 0.037 RXM3AB1ED 0.037 RXM4AB1ED 0.037
c 110 RXM2AB1FD 0.037 RXM3AB1FD 0.037 RXM4AB1FD 0.037
c 220 – – – – RXM4AB1MD 0.037
a 24 RXM2AB1B7 0.037 RXM3AB1B7 0.037 RXM4AB1B7 0.037
a 48 RXM2AB1E7 0.037 RXM3AB1E7 0.037 RXM4AB1E7 0.037
a 120 RXM2AB1F7 0.037 RXM3AB1F7 0.037 RXM4AB1F7 0.037
a 230 RXM2AB1P7 0.037 RXM3AB1P7 0.037 RXM4AB1P7 0.037
a 240 – – – – RXM4AB1U7 0.037
Miniature relays with LED (sold in lots of 10)
c 12 RXM2AB2JD 0.037 RXM3AB2JD 0.037 RXM4AB2JD 0.037
c 24 RXM2AB2BD 0.037 RXM3AB2BD 0.037 RXM4AB2BD 0.037
c 48 RXM2AB2ED 0.037 RXM3AB2ED 0.037 RXM4AB2ED 0.037
c 110 RXM2AB2FD 0.037 RXM3AB2FD 0.037 RXM4AB2FD 0.037
c 125 – – – – RXM4AB2GD 0.037
a 24 RXM2AB2B7 0.037 RXM3AB2B7 0.037 RXM4AB2B7 0.037
a 48 RXM2AB2E7 0.037 RXM3AB2E7 0.037 RXM4AB2E7 0.037
a 120 RXM2AB2F7 0.037 RXM3AB2F7 0.037 RXM4AB2F7 0.037
a 230 RXM2AB2P7 0.037 RXM3AB2P7 0.037 RXM4AB2P7 0.037
Miniature relays with low level contacts, without LED (sold in lots of 10)
Control
circuit
voltage
Number and type of contacts
Thermal current (Ith)
4 C/O - 3 A
Catalog number Weight
V kg
c 12 RXM4GB1JD 0.037
c 24 RXM4GB1BD 0.037
c 48 RXM4GB1ED 0.037
c 110 RXM4GB1FD 0.037
a 24 RXM4GB1B7 0.037
a 48 RXM4GB1E7 0.037
a 120 RXM4GB1F7 0.037
a 230 RXM4GB1P7 0.037
Miniature relays with low level contacts, with LED (sold in lots of 10)
c 12 RXM4GB2JD 0.037
c 24 RXM4GB2BD 0.037
c 48 RXM4GB2ED 0.037
c 110 RXM4GB2FD 0.037
a 24 RXM4GB2B7 0.037
a 48 RXM4GB2E7 0.037
a 120 RXM4GB2F7 0.037
a 230 RXM4GB2P7 0.037
a 240 RXM4GB2U7 0.037
RXMpAB1F7
RXMpAB2F7
RXM4GB1F7
RXM4GB2F7
Zelio® Plug-In Relays
RXM miniature relays
Product selector
1
2
3
4
5
6
7
8
9
10
28

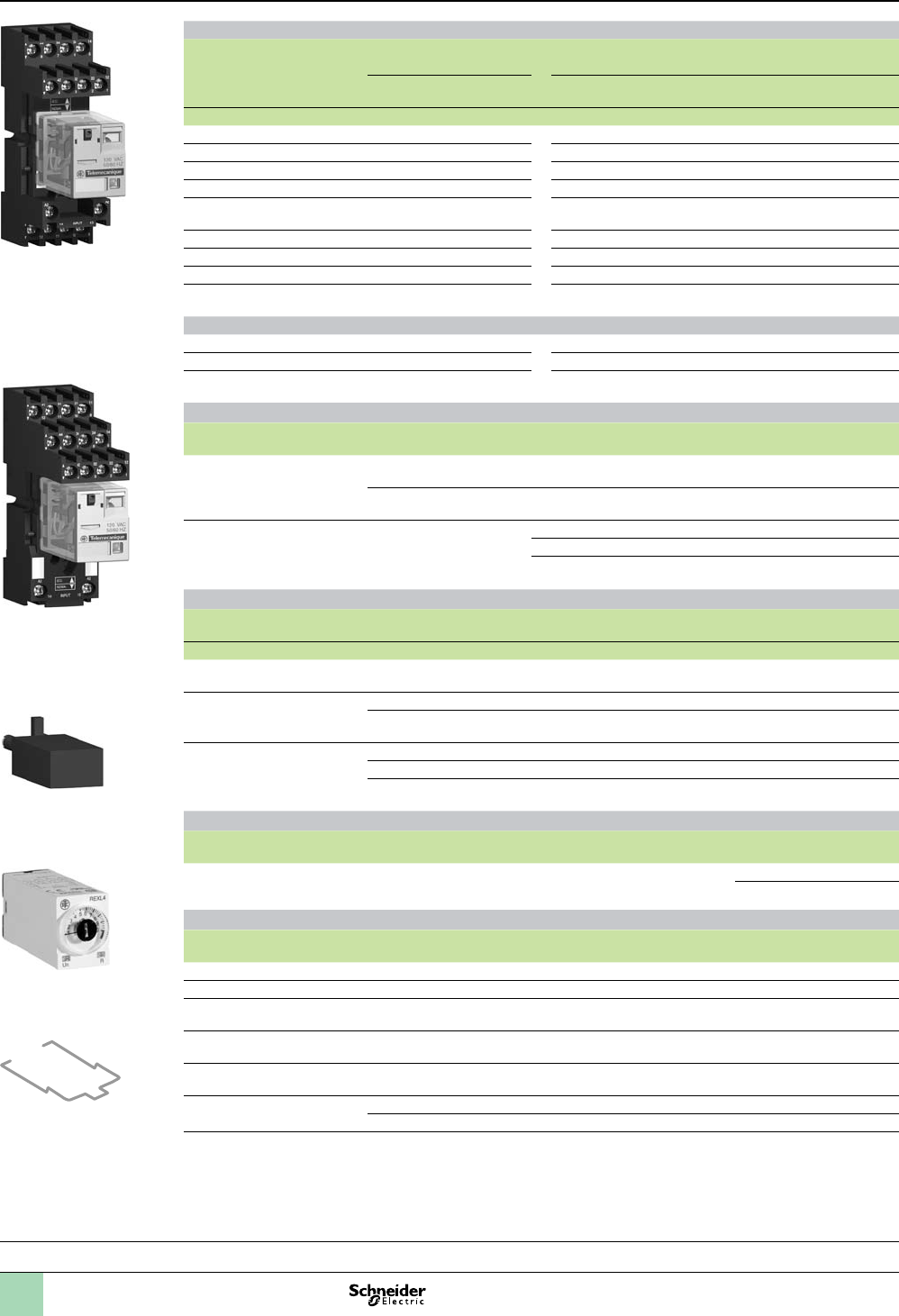

Miniature relays without LED (sold in lots of 100)
Control
circuit
voltage
Number and type of contacts - Thermal current (Ith)
2 C/O - 12 A 4 C/O - 6 A
Catalog number Weight Catalog number Weight
V kg kg
c 12 – – RXM4AB1JDTQ 0.036
c 24 RXM2AB1BDTQ 0.037 RXM4AB1BDTQ 0.036
c 48 – – RXM4AB1EDTQ 0.036
c 110 – – RXM4AB1FDTQ 0.036
c 220 – – RXM4AB1MDTQ 0.036
a 24 RXM2AB1B7TQ 0.037 RXM4AB1B7TQ 0.036
a 48 – – RXM4AB1E7TQ 0.036
a 120 RXM2AB1F7TQ 0.037 RXM4AB1F7TQ 0.036
a 230 RXM2AB1P7TQ 0.037 RXM4AB1P7TQ 0.036
Miniature relays with LED (sold in lots of 100)
c 24 – – RXM4AB2BDTQ 0.036
a 24 RXM2AB2B7TQ 0.037 RXM4AB2B7TQ 0.036
a 230 RXM2AB2P7TQ 0.037 RXM4AB2P7TQ 0.036
Sockets
Contact terminal
arrangement
Connection Relay type Sold in
lots of
Catalog number Weight
kg
Mixed Screw clamp terminals RXM2pppp (3)
RXM4pppp 10 RXZE2M114 (1) 0.048
Box lug connector RXM2pppp (3)
RXM4pppp 10 RXZE2M114M (1) 0.056
Separate Box lug connector RXM2pppp 10 RXZE2S108M (2) 0.058
RXM3pppp 10 RXZE2S111M (1) 0.066
RXM4pppp 10 RXZE2S114M (1) 0.070
Protection modules
Description Voltage For
use with
Sold in
lots of
Catalog number Weight
V kg
Diode c 6...250 All sockets 20 RXM040W 0.003
RC circuit a 24...60 All sockets 20 RXM041BN7 0.010
a 110...240 All sockets 20 RXM041FU7 0.010
Varistor a/c 6...24 All sockets 20 RXM021RB 0.030
a/c 24...60 All sockets 20 RXM021BN 0.030
a/c 110...240 All sockets 20 RXM021FP 0.030
Timing relays
Description For
use with
Catalog number Weight
kg
2 or 4 timed C/O contacts
(function A)
Sockets RXZEppppp REXL2pp (4) –
REXL4pp (4) –
Accessories
Description For
use with
Sold in
lots of
Catalog number Weight
kg
Metal hold-down clip All sockets 10 RXZ400 0.001
Plastic hold-down ejector clip All sockets 10 RXZR335 0.005
Bus jumper 2-pole (Ith: 5 A) All sockets with separate contacts 10 RXZS2 0.005
Mounting adapter
for DIN rails (5)
All relays 10 RXZE2DA 0.004
Mounting adapter
with xing lugs for panel
All relays 10 RXZE2FA 0.002
Clip-in ID tags All relays (sheet of 108 ID tags) 10 RXZL520 0.080
All sockets except RXZ E2M114 10 RXZL420 0.001
(1) Thermal current Ith: 10 A
(2) Thermal current Ith: 12 A
(3) When mounting relay RXM2ppppp on socket RXZE2Mpppp, the thermal current must not exceed 10 A.
(4) Please consult the "Zelio Time - timing relays" catalog.
(5) Test button becomes inaccessible.
RXZE2M114M
+
Relais RXM4AB2F7
RXZE2S114M
+
Relais RXM4AB2F7
RXM041pp7
REXL4pp
RXZ400
Introduction:
page 24
Characteristics :
pages 25 and 26
Product selector:
pages 27 and 28
Dimensions:
pages 29 and 30
Wiring diagrams:
page 31
Zelio® Plug-In Relays
RXM miniature relays
Product selector (continued)
1
2
3
4
5
6
7
8
9
10
29

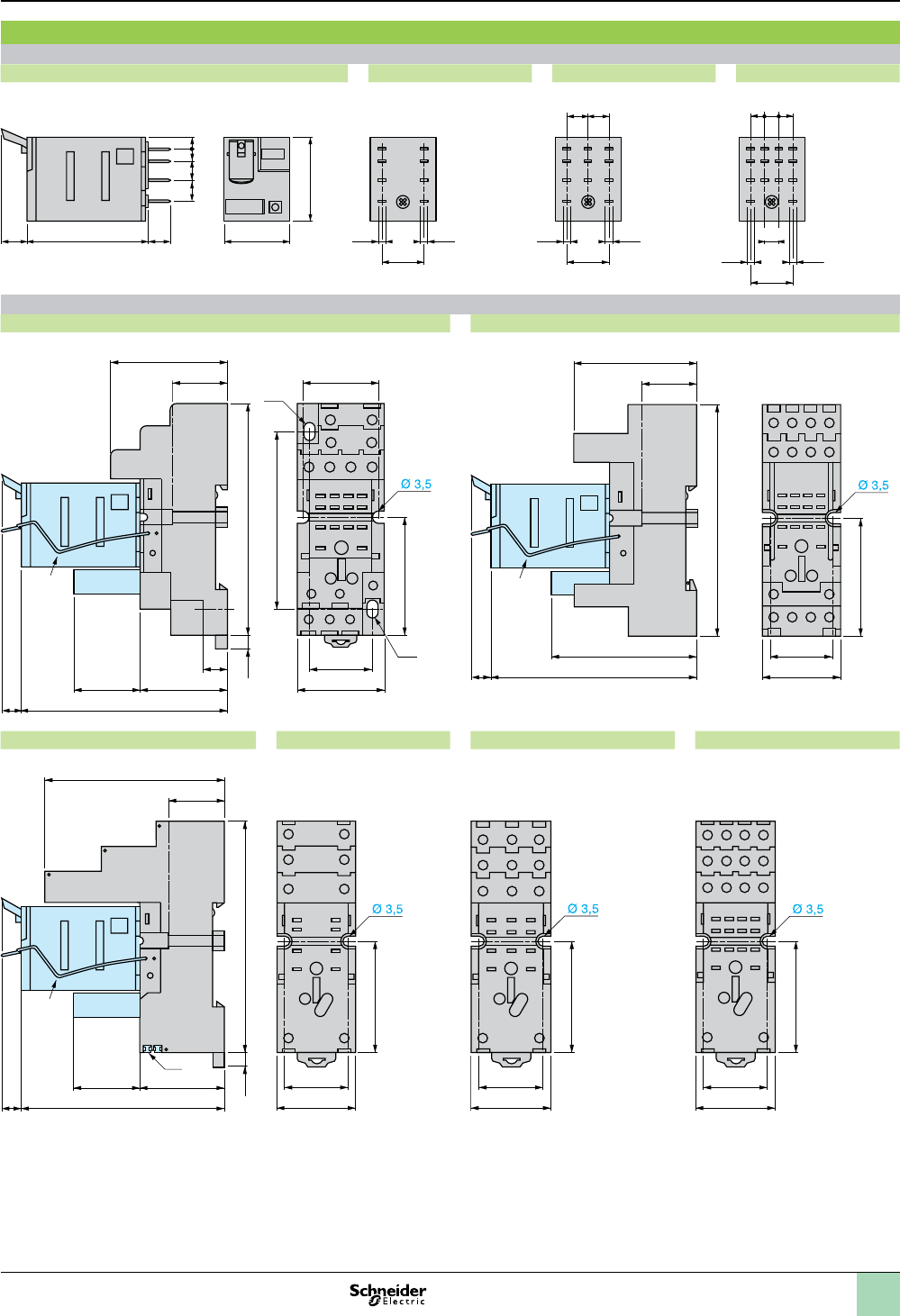

Dimensions (mm):
Miniature relays
RXMpppppp RXM2 RXM3 RXM4
Common view Pin side view
Sockets
RXZE2M114 RXZE2M114M
Common side view RXZE2S108M RXZE2S111M RXZE2S114M
(1) Relay
(2) Protection module
(3) Metal hold-down clip
(4) 2 elongated holes Ø 3.5 x 6.5
(5) 2 bus jumpers
(1)
(2)
(3)
25,5
34
7
A2
14
A1
13
24
6
44
8
14
5
12
1
11
9
21
10
31
11
41
12
22
2
32
3
42
4
(4)
19
40
30
9
23
21
30
697
39,5
61
3,5 79
(4)
17
43
23,550
27677
40
80
44
8
34
7
24
6
14
5
42
4
32
3
22
2
12
1
A1
13
A2
14
41
12
31
11
21
10
11
9
(3)
(1)
(2)
19
61
2923
707
3,5 79
(3) (2)
(1)
(5)
23,5
27
38
41
12
11
9
44
8
14
5
A1
13
A2
14
42
4
12
1
23,5
27
38
31
9
34
6
A1
13
A2
14
32
3
21
8
24
5
22
2
11
7
14
4
12
1
23,5
27
38
41
12
31
11
21
10
11
9
44
8
34
7
24
6
14
5
42
4
32
3
22
2
12
1
A1
13
A2
14
Zelio® Plug-In Relays
RXM miniature relays
Dimensions
40 21
27
96 2,5 2,5
21
6,3 6,3 4,2 4,2
13,2
2,5 2,5 4,4
21
13,2
6,6 6,6
2,5 2,5
13,2
4,44,44,4
1
2
3
4
5
6
7
8
9
10
30
Dimensions (mm):
Plastic hold-down clip and clip-in ID tags
RXZR335 RXZL420 Mounting on all sockets (1)
(1) Clip-in ID tags for all sockets except
RXZE2M114
Bus jumper Metal hold-down clip
RXZS2 Mounting on sockets with separate contacts
(view from below)
RXZ400
Example of bus jumper mounting on sockets
(1) 2 bus jumpers (polarity A2)
(2) 2 bus jumpers (polarity A1)
Mounting adapter for DIN rails (1) Mounting adapter for panel
RXZE2DA RXZE2FA
(1) Test button becomes inaccessible
57
27
12
14,2
26,5
81
94,5
(1)
2,2
7,3
25
22
2,3
(1)(1)
(2)(2)
22
42
0,8
38
64
24
3 48
23
51
48 49
3,5
43
38
4
24
3,5
Introduction:
page 24
Characteristics :
pages 25 and 26
Product selector:
pages 27 and 28
Dimensions:
pages 29 and 30
Wiring diagrams:
page 31
Zelio® Plug-In Relays
RXM miniature relays
Dimensions (continued)
1
2
3
4
5
6
7
8
9
10
31
Internal connections
Miniature relays
RXM2ppppp RXM3ppppp RXM4ppppp
Symbols shown in blue correspond to Nema marking.
Sockets
RXZE2M114 RXZE2M114M
34
7
14
A2 A1
13
24
6
8
44 14
5
1
11
9
21
10
31
11
41
12
23
12223242
4
44
8
34
7
24
6
14
5
123
12223242
4
14
A2 A1
13
14 13
10
21
9
9
5
1
11
11
31
12
41
Symbols shown in blue correspond to Nema marking.
RXZE2S108M RXZE2S111M RXZE2S114M
12
41 11
9
8
44 14
5
A1
13
A2
A1
A2
14
42
4
12
1
INPUT
A1
13
A2
A1
A2
14
31
9
34
6
3
21
8
24
5
2
11
7
14
4
32 22 12
1
INPUT
A1
13
A2
A1
A2
14
41
12
31
11
21
10
11
9
44
8
34
7
24
6
14
5
42
4
32
3
22
2
12
1
INPUT
Symbols shown in blue correspond to Nema marking.
Protection modules
RXM040W RXM041ppp RXM021ppp
– A2
+ A1
– A2
+ A1
– A2
+ A1
A2A1
41 44
42
11 14
12
1
12
5
14
9
11
4
42
8
44
12
41
13
A1
14
A2
A2A1
31 34
32
21 24
22
11 14
12
1
12
4
14
7
11
2
22
5
24
8
21
3
32
6
34
9
31
13
A1
14
A2
A2A1
41 44
42
21 24
22
31 34
32
11 14
12
1
12
5
14
9
11
4
42
8
44
12
41
2
22
6
24
10
21
3
32
7
34
11
31
13
A1
14
A2
Zelio® Plug-In Relays
RXM miniature relays
Wiring diagrams
1
2
3
4
5
6
7
8
9
10
32
Introduction of the product range
The RUM universal relay range includes:
1 10 A relays with 2 and 3 C/O contacts, with cylindrical or quick-connect terminals,
and 3 A low level relays with 3 C/O contacts, with cylindrical pins. All RUM relays
have the same dimensions.
2 Sockets with mixed or separate contact terminals.
3 Protection modules (diode, RC circuit or varistor) or 1 timer module.
4 Metal hold-down clip for all sockets.
5 2-pole bus jumper that can be used on sockets with separate contact terminals
in order to simplify wiring when creating a jumper between the coil terminals.
6 Clip-in ID tags for the sockets.
Relay description
1 Spring return push-to-test button for checking contact operation (green: c,
red: a).
2 Mechanical “relay status” indicator.
3 Optional removable lock-down door enables continuous engagement of the
contacts for test or maintenance purposes. During operation, this lock-down door
must always be in the closed position.
4 Bipolar LED (depending on version) indicating the relay status.
5 Removable ID tag for relay identication.
6 Area by which the product can be easily gripped.
7 Eight or eleven cylindrical pins.
8 Eight or eleven quick-connect pins
Socket description
Sockets with mixed contact terminals (1)
1 Box lug connectors.
2 Eight or eleven female contacts for the relay cylindrical pins.
3 Location for protection modules or the timer module.
4 Locking component for metal hold-down clip.
5 Locating slot for mounting on DIN rail.
6 Two mounting holes for panel mounting.
Sockets with separate contact terminals (2)
1 Box lug connectors.
2 a Eight or eleven female contacts for the relay cylindrical pins.
b Eleven female contacts for the relay at pins.
3 Location for protection modules or the timer module.
4 Locking component for metal hold-down clip.
5 Locating slot for mounting on DIN rail.
6 Two mounting holes for panel mounting.
7 Location for bus jumpers (see mounting on sockets on page 38).
(1) The inputs are mixed with the relay coil terminals, with the outputs being located on the
opposite side of the socket.
(2) The inputs and outputs are separated from the relay coil terminals.
6
5
2
1
3
4
1
2
3
4
5
6
1
2
3
4
5
6
Outputs
Relay supply
Inputs
Relay suppy
1
6
2a
3
4
5 7
Inputs
Outputs
Relay supply
5
1
2b
3
4
5 7
Inputs
Outputs
Relay supply
5
Zelio® Plug-In Relays
RUM universal relays
Introduction
Introduction:
page 32
Characteristics:
pages 33 and 34
Product selector:
pages 35 and 36
Dimensions:
pages 37 and 38
Wiring diagrams:
pages 39 and 40
Functions:
page 41
1
2
3
4
5
6
7
8
9
10
33
General characteristics
Conforming to standards IEC/EN 61810-1 (iss. 2), UL 508, CSA C22-2 n° 14
Product certications cULus File E164862 CCN NLDX, NLDX7; cURus File E164862 CCN NLDX2, NLDX8;
CSA; CE; RoHS compliant
Ambient air temperature
around the device
Storage °C (F) - 40… + 85 (-40... +185)
Operation °C (F) - 40… + 55 (-40... +131)
Vibration resistance
conforming to IEC/EN 60068-2-6
In operation 3 gn (10...150 Hz/± 1 mm / 5g/5 cycles)
Not operating 4 gn (10...150 Hz/± 1 mm / 5g/5 cycles)
Degree of protection Conforming to IEC/EN 60529 IP 40
Shock resistance
conforming to IEC/EN 60068-2-27
Opening 10 gn
Closing 10 gn
Protection category RT I
Mounting position Any
Insulation characteristics
Rated insulation voltage (Ui) Conforming to IEC/EN 60947 V250 (IEC), 300 (UL, CSA)
Rated impulse withstand voltage (Uimp) kV 4 (1.2/50 ms)
Dielectric strength
(rms voltage)
Between coil and contact a V1550
Between poles a V1550
Between contacts a V1500
Contact characteristics
Relay type RUMF2ppp RUMF3ppp RUMC2ppp RUMC3App RUMC3Gpp
Number and type of contacts 2 C/O 3 C/O 2 C/O 3 C/O 3 C/O low level
Contact materials . AgNi AgAu
Conventional thermal
current (Ith)
For ambient
temperature y 55°C
A10 3
Rated operational current
in utilization categories
AC-1 and DC-1
Conforming to IEC NO A10 2
NC A5 1
Conforming to UL A16 / a 277 V
12 / c 28 V
3
Switching current Minimum mA 10 3
Switching voltage Maximum Va/c 250 (IEC)
Minimum V17 5
Nominal load (resistive) A 10 / 250 a V 3 / 250 a V
A10 / 28 c V 3 / 28 c V
Switching capacity Maximum aVA 2500 750
cW280 84
Minimum mW 170 15
Maximum operating rate
In operating cycles/hour
No-load 18 000
Under load 1200
Utilization coefcient 20 %
Mechanical durability In millions of operating cycles 5
Electrical durability
In millions of operating cycles
Resistive load 0.1
Inductive load See curves below
Electrical durability of contacts
Resistive load a
Reduction coefcient for inductive load a
(depending on power factor cos j)
Maximum switching capacity on resistive load
c
A RUMFppppp, RUMC2ppp, RUMC3Appp B RUMC3Gppp
Inductive load durability = resistive load durability x reduction coefcient.
10
5
10
6
10
7
2301
A
B
Durability (Number of operating cycles)
Switching capacity (kVA)
0,3
0,5
0,61 0,4 0,2
0,4
0,6
0,8
1
Reduction coefcient (A)
0,1
1
200 250050 100 150
10
3
BA
28
Current c
Voltage c
Zelio® Plug-In Relays
RUM universal relays
Characteristics
1
2
3
4
5
6
7
8
9
10
34
Coil characteristics
Average consumption aVA 2...3
cW1.4
Drop-out voltage threshold au 0.15 Uc
cu 0.1 Uc
Operating time
(response time)
Between coil energization
and making of the
NO contact
ams 20
cms 20
Between coil de-energization
and making of the
NC contact
ams 20
cms 20
Control circuit voltage Uc V 12 24 48 60 110 120 125 220 230
Relay coil voltage codes JD BD ED ND FD – GD MD –
d.c. supply Average resistance at 20 °C ± 10% W120 470 1800 2790 10 000 – 10 000 3700 –
Operating
voltage limits
Min. V9.6 19.2 38.4 48 88 – 100 176 –
Max. V13.2 26.4 52.8 66 121 – 137.5 242 –
Relay control voltage codes – B7 E7 – – F7 – – P7
a.c. supply Average resistance at 20 °C ± 15% W– 72 290 – – 1700 – – 7200
Operating
voltage limits
Min. V– 19.2 38.4 – – 96 – – 184
Max. V– 26.4 52.8 – – 132 – – 253
Socket characteristics
Socket type RUZC2M RUZC3M RUZSC2M RUZSC3M RUZSF3M
Relay types used RUMC2ppppp RUMC3ppppp RUMC2ppppp RUMC3ppppp RUMFppppp
Contact terminal arrangement Mixed Separate
Wire connection method Connector
Product certications cURus File E172326 CCN SWIV2, SWIV8; CSA; CE; RoHS compliant
Conforming to standards IEC 61984, e
Electrical characteristics
Conventional thermal current (Ith) A10 12
Maximum operating voltage V 250 (IEC)
Insulation characteristics
Between adjacent output contacts Vrms 2500
Between input and output contacts Vrms 2500
Between contacts and DIN rail Vrms 2500
General characteristics
Ambient air temperature
around the device
Operation °C (F) - 40…+ 55 (-40... +131)
Storage °C (F) - 40…+ 85 (-40.... +185)
Degree of protection Conforming to IEC/EN 60529 IP 20
Connection Solid wire
without
cable end
1 conductor 0.5…2.5 mm2 - AWG 20…AWG 14
2 conductors 0.5…1.5 mm2 - AWG 20…AWG 16
Flexible wire
with cable end
1 conductor 0.25…2.5 mm2 - AWG 22…AWG 14
2 conductors 0.25…1 mm2 - AWG 22…AWG 17
Maximum tightening torque / Screw size Nm 1 / M3.3 screw
Mounting 35 mm DIN rail / panel
Mounting on DIN rail By red plastic clip
Terminal referencing IEC, NEMA
Bus jumper (Ith: 5 A) No Yes
Compatibility with the metal hold-down clip Yes
Timer module Yes
Protection module All RUW24ppp
Clip-in ID tags No Yes
Wire connection method Box lug connector
Zelio® Plug-In Relays
RUM universal relays
Characteristics (continued)
Introduction:
page 32
Characteristics:
pages 33 and 34
Product selector:
pages 35 and 36
Dimensions:
pages 37 and 38
Wiring diagrams:
pages 39 and 40
Functions:
page 41
1
2
3
4
5
6
7
8
9
10
35

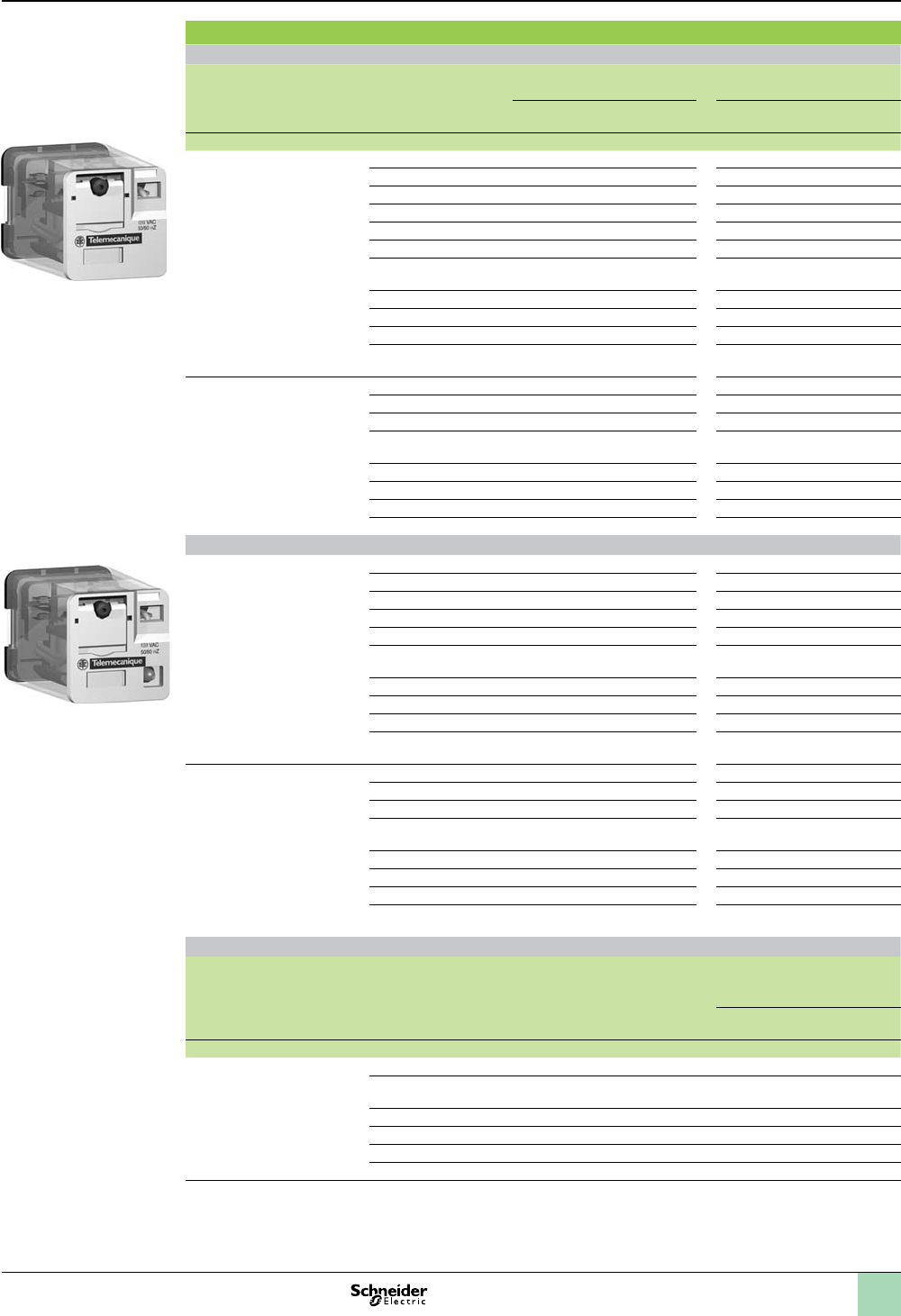

Product selection
Relays for standard applications, without LED (sold in lots of 10)
Pins Control
circuit voltage
Number and type of contacts - Thermal current (Ith)
2 C/O - 10 A 3 C/O - 10 A
Catalog number Weight Catalog number Weight
V kg kg
Cylindrical c 12 RUMC2AB1JD 0.085 RUMC3AB1JD 0.088
c 24 RUMC2AB1BD 0.085 RUMC3AB1BD 0.088
c 48 RUMC2AB1ED 0.085 RUMC3AB1ED 0.088
c 60 – – RUMC3AB1ND 0.088
c 110 RUMC2AB1FD 0.085 RUMC3AB1FD 0.088
c 125 – – RUMC3AB1GD 0.088
c 220 – – RUMC3AB1MD 0.088
a 24 RUMC2AB1B7 0.085 RUMC3AB1B7 0.088
a 48 RUMC2AB1E7 0.085 RUMC3AB1E7 0.088
a 120 RUMC2AB1F7 0.085 RUMC3AB1F7 0.088
a 230 RUMC2AB1P7 0.085 RUMC3AB1P7 0.088
Flat (quick-connect) c 12 RUMF2AB1JD 0.080 RUMF3AB1JD 0.082
c 24 RUMF2AB1BD 0.080 RUMF3AB1BD 0.082
c 48 RUMF2AB1ED 0.080 RUMF3AB1ED 0.082
c 110 RUMF2AB1FD 0.080 RUMF3AB1FD 0.082
a 24 RUMF2AB1B7 0.080 RUMF3AB1B7 0.082
a 48 RUMF2AB1E7 0.080 RUMF3AB1E7 0.082
a 120 RUMF2AB1F7 0.080 RUMF3AB1F7 0.082
a 230 RUMF2AB1P7 0.080 RUMF3AB1P7 0.082
Relays for standard applications, with LED (sold in lots of 10)
Cylindrical c 12 RUMC2AB2JD 0.085 RUMC3AB2JD 0.088
c 24 RUMC2AB2BD 0.085 RUMC3AB2BD 0.088
c 48 RUMC2AB2ED 0.085 RUMC3AB2ED 0.088
c 60 – – RUMC3AB2ND 0.088
c 110 RUMC2AB2FD 0.085 RUMC3AB2FD 0.088
c 125 – – RUMC3AB2GD 0.088
a 24 RUMC2AB2B7 0.085 RUMC3AB2B7 0.088
a 48 RUMC2AB2E7 0.085 RUMC3AB2E7 0.088
a 120 RUMC2AB2F7 0.085 RUMC3AB2F7 0.088
a 230 RUMC2AB2P7 0.085 RUMC3AB2P7 0.088
Flat (quick-connect) c 12 RUMF2AB2JD 0.084 RUMF3AB2JD 0.082
c 24 RUMF2AB2BD 0.084 RUMF3AB2BD 0.082
c 48 RUMF2AB2ED 0.084 RUMF3AB2ED 0.082
c 110 RUMF2AB2FD 0.084 RUMF3AB2FD 0.082
a 24 RUMF2AB2B7 0.084 RUMF3AB2B7 0.082
a 48 RUMF2AB2E7 0.084 RUMF3AB2E7 0.082
a 120 RUMF2AB2F7 0.084 RUMF3AB2F7 0.082
a 230 RUMF2AB2P7 0.084 RUMF3AB2P7 0.082
Relays with low level contacts, with LED (sold in lots of 10)
Pins Control
circuit voltage
Number and type of contacts
Thermal current (Ith)
3 C/O - 3 A
Catalog number Weight
V kg
Cylindrical c 24 RUMC3GB2BD 0.086
c 48 RUMC3GB2ED 0.086
a 24 RUMC3GB2B7 0.086
a 48 RUMC3GB2E7 0.086
a 120 RUMC3GB2F7 0.086
a 230 RUMC3GB2P7 0.086
Zelio® Plug-In Relays
RUM universal relays
Product selector
RUMppAB1F7
RUMppAB2F7
1
2
3
4
5
6
7
8
9
10
36

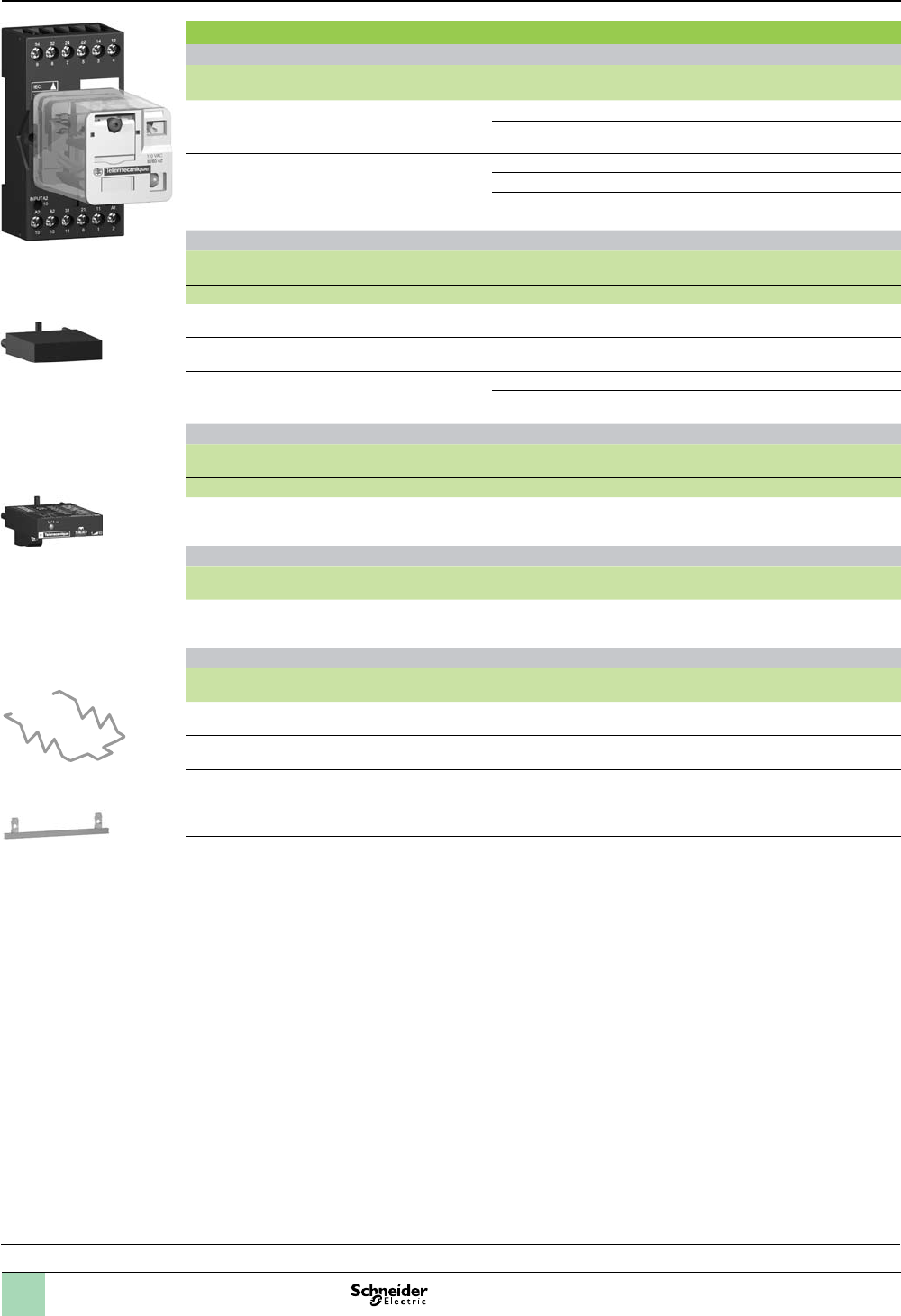

Product selection (continued)
Sockets
Contact terminal
arrangement
Connection Relay type Sold in
lots of
Catalog number Weight
kg
Mixed Box lug connector RUMC2ppppp 10 RUZC2M 0.054
RUMC3ppppp 10 RUZC3M 0.054
Separate Box lug connector RUMC2ppppp 10 RUZSC2M 0.095
RUMC3ppppp 10 RUZSC3M 0.100
RUMF2pppp 10 RUZSF3M 0.095
RUMF3pppp
Protection modules
Description For
use with
Voltage Sold in
lots of
Catalog number Weight
V kg
Diode All sockets c 6…250 10 RUW240BD 0.004
RC circuit All sockets a 110…240 10 RUW241P7 0.004
Varistor All sockets a/c 24 10 RUW242B7 0.004
a/c 240 10 RUW242P7 0.004
Timer module
Description For
use with
Voltage Catalog number Weight
V kg
Multifunction All sockets a/c 24… 240 RUW101MW 0.020
Timing relays
Description For
use with
Catalog number Weight
kg
2 timed C/O contacts
(single-function or multifunction)
On sockets RUZ CpMRE48A pp
(1)
–
Accessories
Description For
use with
Sold in
lots of
Catalog number Weight
kg
Metal hold-down clip All sockets 10 RUZC200 0.001
Bus jumper 2-pole (Ith : 5 A) All sockets with separate contacts 10 RUZS2 0.005
Clip-in ID tags All relays
(sheet of 108 ID tags)
10 RXZL520 0.080
All sockets with separate contacts 10 RUZL420 0.001
(1) Please consult the "Zelio Time timing relays" catalog.
Zelio® Plug-In Relays
RUM universal relays
Product selector (continued)
RUZC200
RUW101MW
RUW241P7
RUZC3M + relais RUMC3ppppp
RUZS2
Introduction:
page 32
Characteristics:
pages 33 and 34
Product selector:
pages 35 and 36
Dimensions:
pages 37 and 38
Wiring diagrams:
pages 39 and 40
Functions:
page 41
1
2
3
4
5
6
7
8
9
10
37
Dimensions (mm):
Universal relays
RUMCpp RUMFpp
Sockets
Common side view RUZC2M RUZC3M
38
37
30
24
6
2
7
A2
7
A1
2
11
1
21
8
A2
7
INPUT A2 INPUT A1
22
5
12
4
1
4
2
3
8
5
7
6
14
3
38
37
30
A2
10
A2
10
31
11
21
6
11
1
A1
2
34
9
32
8
24
7
22
5
14
3
12
4
2
10
1
6
2
5
3
4
11
10
7
9
8
INPUT A2
INPUT A1
RUZSC2M RUZSC3M
(1) Relays
(2) Protection module
(3) Retention clip
(4) 2 bus jumpers
55 35
35
9
35
35
539
74
27
22
63
89
93
(1)
(3)
(2)
4
36
75
102
105
29
924
40
30
19
45
22
5
11
1
12
4
24
6
1
4
2
3
8
5
7
6
A2
7
A1
2
21
8
14
3
Ø 4
(4)
(1)
(3)
(2)
36
75
102
105
29
924
40
32
63
31
11
21
6
11
1
32
8
22
5
12
4
34
9
2
1
5
3
4
11
76
10
9
8
A2
10
A1
2
24
7
14
3
Ø 4
(1)
(3)
(2)
19
(4)
Zelio® Plug-In Relays
RUM universal relays
Dimensions
1
2
3
4
5
6
7
8
9
10
38

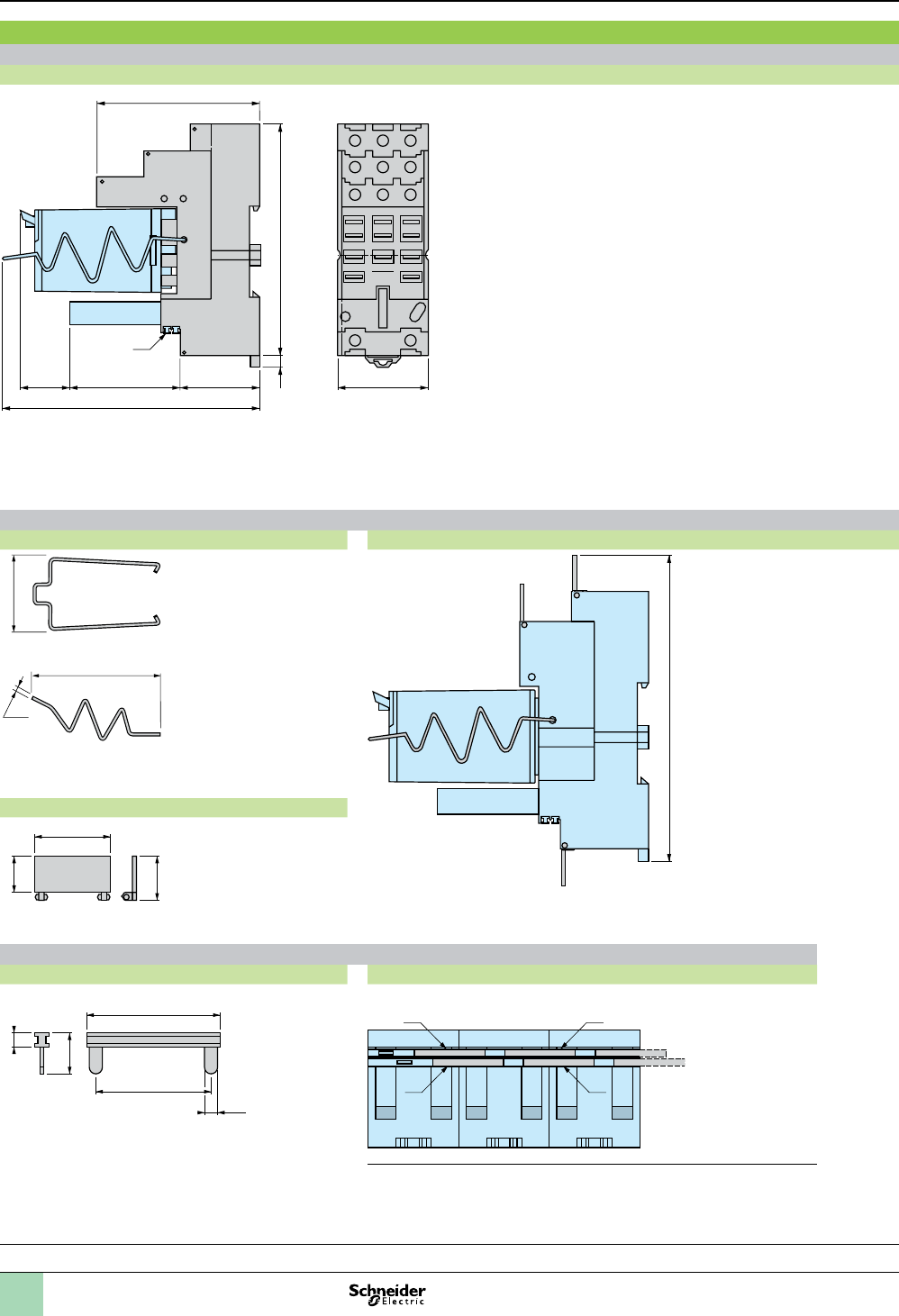

Dimensions (mm):
Sockets (continued)
RUZSF3M
36
104
294627
924
63
21
9
31
8
11
7
22
3
32
2
12
1
24
6
A2
B
A1
A
34
5
14
4
(1)
(3)
(2)
(4)
(1) Relays
(2) Protection module
(3) Retention clip
(4) 2 bus jumpers
Metal hold-down clip and plastic ID tags
RUZC200 Mounting
0,8
59,6
35
108
RUZL420
12
14,2
32
Bus jumper
RUZS2 Mounting on sockets with separate contacts (view from below)
Example of bus jumper mounting on sockets
(2)(2)
(1)(1)
(1) 2 bus jumpers (polarity A2)
(2) 2 bus jumpers (polarity A1)
3,3
8,5
35,4
32
2,3
Dimensions (continued) Zelio® Plug-In Relays
RUM universal relays
Introduction:
page 32
Characteristics:
pages 33 and 34
Product selector:
pages 35 and 36
Dimensions:
pages 37 and 38
Wiring diagrams:
pages 39 and 40
Functions:
page 41
1
2
3
4
5
6
7
8
9
10
39
Wiring diagrams Zelio® Plug-In Relays
RUM universal relays
Wiring diagrams
Universal relays
RUMp2ABppp RUMC3ppppp RUMF3ABppp
RUMC2ABppp RUMF2ABppp RUMC3ppppp RUMF3ABppp
Symbols shown in blue correspond to Nema marking.
Sockets
RUZC2M RUZC3M RUZSC2M RUZSC3M
24
6
A2
7
A1
2
11
1
21
8
A2
7
22
5
12
4
1
4
2
3
8
5
7
6
14
3
32
8
34
9
A2
10
A1
2
11
1
31
11
21
6
A2
10
24
7
22
5
14
3
12
4
1
6
2
5
3
4
11
10
7
9
8
22
5
11
112
4
6
24 8
21
3
14
A2
7
A1
2
1
4
2
3
8
5
7
6
31
11
21
6
11
1
32
8
22
5
12
4
34
9
24
7
14
3
1
6
2
5
3
4
11
10
7
9
8
A2
10
A1
2
Symbols shown in blue correspond to Nema marking.
RUZSF3M
21
9
31
8
11
7
22
3
32
2
12
1
24
6
34
5
14
4
A2
B
A1
A
Symbols shown in blue correspond to Nema marking.
12
11 14
22
21 24
A2A1
12
11 14
22
21 24
32
31 34
A2A1
12
11 14
22
21 24
32
31 34
A2A1
3
7
18
6
2
45
A1 A2
2111
14 24
22
12
+
1
12
4
14
7
11
3
22
6
24
9
21
A
A1
B
A2
(+) ( )
4
39
2
111
10
8
5
6
7
A1 A2
14 34
3111
12 32
22 24
21
+
(+)
1
12
4
14
7
11
2
32
5
34
8
31
3
22
6
24
9
21
A
A1
B
A2
( )
1
2
3
4
5
6
7
8
9
10
40
Wiring diagrams (continued)
Protection modules
RUW240BD RUW241P7 RUW242pp
– A2
+ A1
– A2
+ A1
– A2
+ A1
Zelio® Plug-In Relays
RUM universal relays
Wiring diagrams (continued)
Introduction:
page 32
Characteristics:
pages 33 and 34
Product selector:
pages 35 and 36
Dimensions:
pages 37 and 38
Wiring diagrams:
pages 39 and 40
Functions:
page 41
1
2
3
4
5
6
7
8
9
10
41

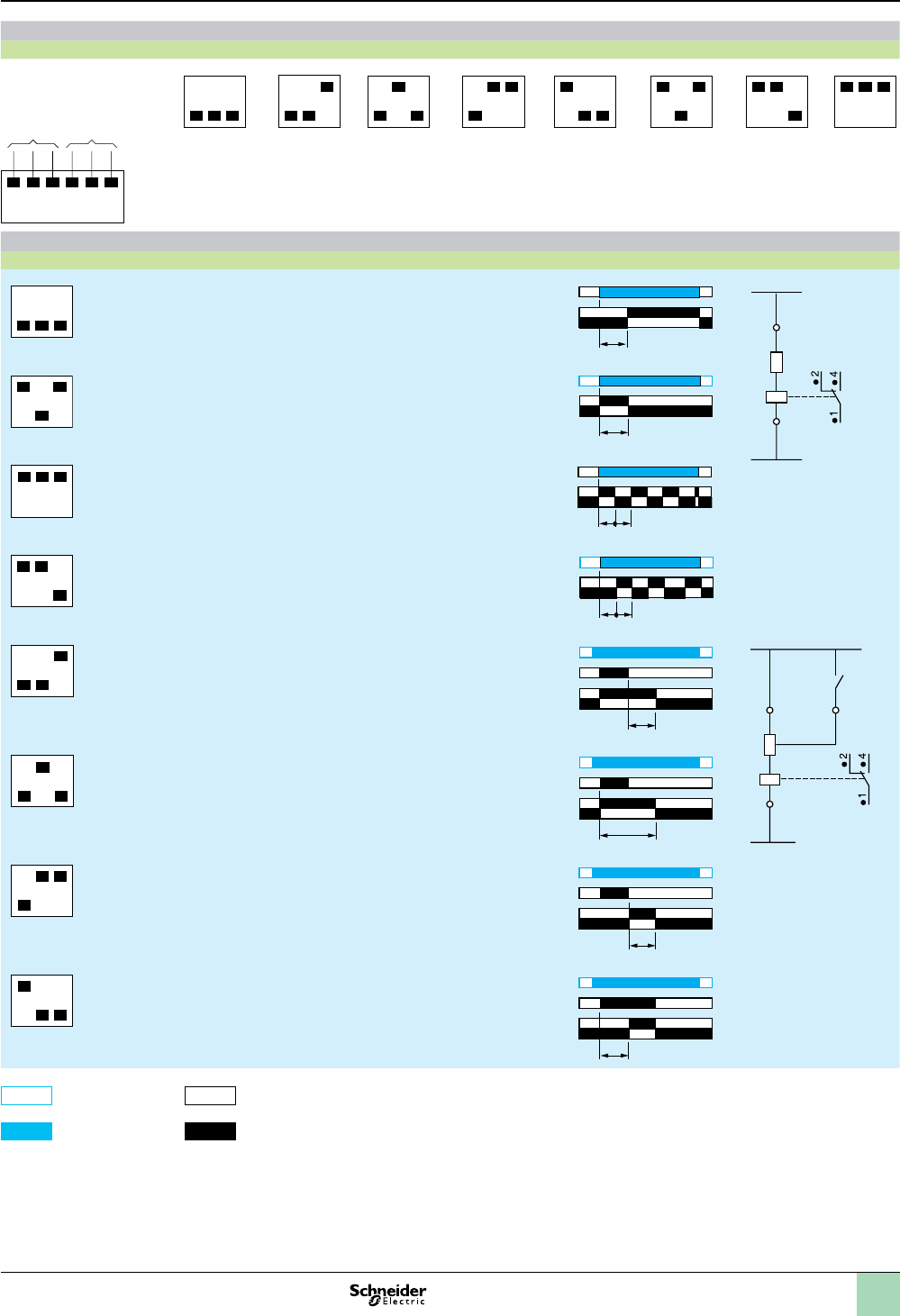

Multifunction timer module RUW101MW
Programming Timing range selection
Function selection
Selection Function Control Function diagram Control scheme
On-delay Timer
E
Series control
Monostable with
maintained control
Wu
Series control
Flashing relay,
starting On-delay phase
Bi
Series control
Flashing relay,
starting Off-delay phase
Bp
Series control
Off-delay timer
R
Control by external contact
(S)
Monostable
with pulse control
Ws
Control by external contact
(S)
Monostable, starting
on de-energization
Wa
Control by external contact
(S)
On-delay Timer
Es
Control by external contact
(S)
Power off Contact open U : voltage S : external control
Power on Contact closed R : relay RUM ppp t : adjustable time delay
Function
selection
Timing range
selection
0.1…1 s 0.1…10 s 0.1…1 min 1…10 min 0.1…1 h 1…10 h 0.1…1 day 1…10 days
t
U
.1/.4
.1/.2
A1
A2
U
R
U
.1/.4
.1/.2
t
U
.1/.4
.1/.2
t t
U
.1/.4
.1/.2
t t
S
U
.1/.4
.1/.2
t
B1
A1
A2
U
R
S
S
U
.1/.4
.1/.2
t
S
U
.1/.4
.1/.2
t
S
U
.1/.4
.1/.2
t
Zelio® Plug-In Relays
RUM universal relays
Functions
1
2
3
4
5
6
7
8
9
10
42
Introduction of the product range
The RPM power relay range includes:
1 15 A relays with 1, 2, 3 and 4 C/O (SPDT, DPDT, 3PDT and 4PDT) contacts.
2 Sockets with mixed contact terminals.
3 Protection modules (diode, RC circuit or varistor) or 1 timer module. Please note
that the timer module can only be used with 3-pole or 4-pole sockets.
4 Metal hold-down clip for single-contact relays (not shown).
Relay description
1 Spring return push-to-test button for checking contact operation (green: c,
red: a).
2 Mechanical “relay status” indicator.
3 Removable lock-down door enables continuous engagement of the contacts for
testing or maintenance purposes. During operation, this lock-down door must
always be in the closed position.
4 Bipolar LED (depending on version) indicating the relay status.
5 Removable ID tag for relay identication.
6 Four notches for DIN rail mounting adapter or panel mounting adapter with xing
lugs.
7 Five, eight, eleven or fourteen quick-connect pins.
8 Area by which the product can be easily gripped.
9 Mounting adapter enabling direct mounting of the relay on a panel.
10 Mounting adapter enabling direct mounting of the relay on a DIN rail.
Socket description
Sockets with mixed contact terminals (1)
1 Connection by screw clamp terminals.
2 Five, eight, eleven or fourteen female contacts for the relay pins.
3 Location for protection modules or the timer module.
4 Locating slot for mounting on DIN rail with mounting clip.
5 Two or four mounting holes for panel mounting.
(1) The inputs are mixed with the relay coil terminals,, with the outputs being located on the
opposite side of the socket.
9
7
Zelio® Plug-In Relays
RPM power relays
2
1
3
2
7
3
5
6
8
4
1
9
10
1
5
2
3
Outputs
4Inputs
Relay supply
Introduction:
pages 42
Characteristics:
pages 43 and 44
Product selector:
pages 45 and 46
Dimensions:
pages 47 and 48
Wiring diagrams:
page 49
Introduction
1
2
3
4
5
6
7
8
9
10
43
General characteristics
Conforming to standards IEC/EN 61810-1 (iss. 2), UL 508, CSA C22-2 n° 14
Product certications cULus File E164862 CCN NLDX, NLDX7; cURus File E164862 CCN NLDX2, NLDX8;
CSA; CE; RoHS compliant
Ambient air temperature
around the device
Storage °C (F) - 40… + 85 (-40... +185)
Operation °C (F) - 40… + 55 (-40... +131)
Vibration resistance
conforming to IEC/EN 60068-2-6
In operation 3 gn (10...150 Hz/± 1 mm / 5g/5 cycles)
Not operating 5 gn (10...150 Hz/± 1 mm / 5g/5 cycles)
Degree of protection Conforming to IEC/EN 60529 IP 40
Shock resistance
conforming to IEC/EN 60068-2-27
Opening 15 gn
Closing 15 gn
Protection category RT I
Mounting position Any
Insulation characteristics
Rated insulation voltage (Ui) Conforming to IEC/EN 60947 V250 (IEC), 300 (UL, CSA)
Rated impulse withstand voltage (Uimp) kV 4 (1.2/50 ms)
Dielectric strength
(rms voltage)
Between coil and contact a V1550
Between poles a V1550
Between contacts a V1500
Contact characteristics
Relay type RPM1ppp RPM2ppp RPM3ppp RPM4ppp
Number and type of contacts 1 C/O 2 C/O 3 C/O 4 C/O
Contact materials AgNi
Conventional thermal
current (Ith)
For ambient
temperature y 55 °C
A15
Rated operational current
in utilization categories
AC-1 and DC-1
Conforming to IEC NO A15
NC A7.5
Conforming to UL A15
Switching current Minimum mA 10
Switching voltage Maximum Va/c 250 (IEC)
Minimum V17
Nominal load (resistive) A 15 / 250 a V
A15 / 28 c V
Switching capacity Maximum aVA 3750
cW420
Minimum mW 170
Maximum operating rate
In operating cycles/hour
No-load 18 000
Under load 1200
Utilization coefcient 20 %
Mechanical durability In millions of
operating cycles
10
Electrical durability
In millions of
operating cycles
Resistive load 0.1 0.06
Inductive load See curves below
Electrical durability of contacts
Resistive load a
Reduction coefcient for inductive load a
(depending on power factor cos j)
Maximum switching capacity on resistive load
c
Inductive load durability = resistive load durability x reduction coefcient.
105
201 43
3,75
106
107
Durability (Number of operating cycles)
Switching capacity (kVA)
0,3
0,5
0,61 0,4 0,2
0,4
0,6
0,8
1
Reduction coefcient (A)
0,1
1
200 250050 100 150
10
15
28
Current c
Voltage c
Characteristics Zelio® Plug-In Relays
RPM power relays
1
2
3
4
5
6
7
8
9
10
44
Coil characteristics
Relay type RPM1ppp RPM2ppp RPM3ppp RPM4ppp
Average consumption aVA 0.9 1.2 1.5 1.5
cW0.7 0.9 1.7 2
Drop-out voltage threshold au 0.15 Uc
cu 0.1 Uc
Operating time
(response time)
Between coil
energization
and making of the
NO contact
ams 20 25 25 20
cms 20 25 25 20
Between coil
de-energization
and making of the
NC contact
ams 20
cms 20
Control circuit voltage Uc V 12 24 48 110 120 230
Relay control voltage codes JD BD ED FD – –
d.c. supply Average resistance
at 20 °C ± 10%
RPM1ppp W180 750 2600 13 100 – –
RPM2ppp W160 650 2600 11 000 – –
RPM3ppp W100 400 2600 8600 – –
RPM4ppp W96 388 1550 7340 – –
Operating
voltage limits
Min. V9.6 19.2 38.4 88 – –
Max. V13.2 26.4 52.8 121 – –
Relay control voltage codes – B7 E7 – F7 P7
a.c. supply Average resistance
at 20 °C ± 15%
RPM1ppp W– 160 720 – 4430 15 720
RPM2ppp W– 180 770 – 4430 15 000
RPM3ppp W– 103 770 – 2770 12 000
RPM4ppp W– 84.3 338 – 2220 9120
Operating
voltage limits
Min. V– 19.2 38.4 – 96 184
Max. V– 26.4 52.8 – 132 253
Socket characteristics
Socket type RPZF1 RPZF2 RPZF3 RPZF4
Relay types used RPM1ppp RPM2ppp RPM3ppp RPM4ppp
Protection module types used RXM02ppp
RXM04ppp RXM02ppp
RXM04ppp RUW24ppp RUW24ppp
Contact terminal arrangement Mixed
Wire connection method Screw clamp terminals
Product certications cURus File E172326 CCN SWIV2, SWIV8; CSA; CE; RoHS compliant
Conforming to standards IEC 61984, e
Electrical characteristics
Conventional thermal current (Ith) A16
Maximum operating voltage V 250 (IEC)
Insulation characteristics
Between adjacent output contacts Vrms 2500
Between input and output contacts Vrms 2500
Between contacts and DIN rail Vrms 2500
General characteristics
Ambient air temperature
around the device
Operation °C - 40…+ 55
Storage °C - 40…+ 85
Degree of protection Conforming to IEC/EN 60529 IP 20
Connection Solid wire
without
cable end
1 conductor 0.5…1.5 mm2 - AWG 20…AWG 16 0.5…2.5 mm2 - AWG 20…AWG 14
2 conductors 0.5…1.5 mm2 - AWG 20…AWG 16 0.5…2.5 mm2 - AWG 20…AWG 14
Flexible wire
with cable end
1 conductor 0.25…1 mm2 - AWG 22…AWG 17 0.25…1.5 mm2 - AWG 22…AWG 16
2 conductors 0.25…1 mm2 - AWG 22…AWG 17 0.25…1.5 mm2 - AWG 22…AWG 16
Maximum tightening torque / Screw size Nm 1 / M3 screw 1 / M3.5 screw
Mounting 35 mm DIN rail / panel mount
Mounting on DIN rail By red plastic clip
Terminal referencing IEC, NEMA
Compatibility with the metal hold-down clip Yes No
Timer module compatibility No Yes
Protection module RXM040W, RXM041pp, RXM021pp RUW24pp
Clip-in ID tags No
Wire connection method Screw clamp terminals
Characteristics (continued) Zelio® Plug-In Relays
RPM power relays
Introduction:
pages 42
Characteristics:
pages 43 and 44
Product selector:
pages 45 and 46
Dimensions:
pages 47 and 48
Wiring diagrams:
page 49
1
2
3
4
5
6
7
8
9
10
45
Power relays without LED (sold in lots of 10)
Control
circuit
voltge
Number and type of contacts - Thermal current (Ith)
1 C/O - 15 A 2 C/O - 15 A 3 C/O - 15 A 4 C/O - 15 A
Catalog
number
Weight Catalog
number
Weight Catalog
number
Weight Catalog
number
Weight
V kg kg kg kg
c 12 RPM11JD 0.026 RPM21JD 0.036 RPM31JD 0.054 RPM41JD 0.071
c 24 RPM11BD 0.026 RPM21BD 0.036 RPM31BD 0.054 RPM41BD 0.071
c 48 RPM11ED 0.026 RPM21ED 0.036 RPM31ED 0.054 RPM41ED 0.071
c 110 RPM11FD 0.026 RPM21FD 0.036 RPM31FD 0.054 RPM41FD 0.071
a 24 RPM11B7 0.026 RPM21B7 0.036 RPM31B7 0.054 RPM41B7 0.071
a 48 RPM11E7 0.026 RPM21E7 0.036 RPM31E7 0.054 RPM41E7 0.071
a 120 RPM11F7 0.026 RPM21F7 0.036 RPM31F7 0.054 RPM41F7 0.071
a 230 RPM11P7 0.026 RPM21P7 0.036 RPM31P7 0.054 RPM41P7 0.071
Power relays with LED (sold in lots of 10)
c 12 RPM12JD 0.026 RPM22JD 0.036 RPM32JD 0.054 RPM42JD 0.071
c 24 RPM12BD 0.026 RPM22BD 0.036 RPM32BD 0.054 RPM42BD 0.071
c 48 RPM12ED 0.026 RPM22ED 0.036 RPM32ED 0.054 RPM42ED 0.071
c 110 RPM12FD 0.026 RPM22FD 0.036 RPM32FD 0.054 RPM42FD 0.071
a 24 RPM12B7 0.026 RPM22B7 0.036 RPM32B7 0.054 RPM42B7 0.071
a 48 RPM12E7 0.026 RPM22E7 0.036 RPM32E7 0.054 RPM42E7 0.071
a 120 RPM12F7 0.026 RPM22F7 0.036 RPM32F7 0.054 RPM42F7 0.071
a 230 RPM12P7 0.026 RPM22P7 0.036 RPM32P7 0.054 RPM42P7 0.071
Product selector Zelio® Plug-In Relays
RPM power relays
RPM41BD
RPM42BD
1
2
3
4
5
6
7
8
9
10
46
Sockets
Contact terminal
arrangement
Connection Relay type Sold in
lots of
Catalog number Weight
kg
Mixed Screw clamp
terminals
RPM1ppp 10 RPZF1 0.042
RPM2ppp 10 RPZF2 0.054
RPM3ppp 10 RPZF3 0.072
RPM4ppp 10 RPZF4 0.094
Protection modules
Description Voltage Socket type Sold in
lots of
Catalog number Weight
V kg
Diode c 6...250 RPZF1RPZ F2 20 RXM040W 0.003
RPZF3
RPZF4
10 RUW240BD 0.004
RC circuit a 24...60 RPZF1RPZ F2 20 RXM041BN7 0.010
a 110...240 RPZF1RPZ F2 20 RXM041FU7 0.010
RPZF3
RPZF4
10 RUW241P7 0.004
Varistor a/c 6...24 RPZF1RPZ F2 20 RXM021RB 0.030
a/c 24...60 RPZF1RPZ F2 20 RXM021BN 0.030
a/c 110...240 RPZF1RPZ F2 20 RXM021FP 0.030
a/c 24 RPZF3
RPZF4
10 RUW242B7 0.004
a/c 240 RPZF3
RPZF4
10 RUW242P7 0.004
Timer module (1)
Description Voltage Socket type Catalog number Weight
V kg
Multifunction a/c 24… 240 RPZF3
RPZF4
RUW101MW 0.020
Accessories
Description For
use with
Sold in
lots of
Catalog number Weight
kg
Metal hold-down clip
(for single-pole relays)
RPZF1 20 RPZR235 0.001
Mounting adapters for DIN rail (2) RPM1ppp 20 RPZ1DA 0.004
RPM2ppp 20 RXZE2DA 0.004
RPM3ppp 20 RPZ3DA 0.004
RPM4ppp 20 RPZ4DA 0.006
Mounting adapters with xing lugs for panel RPM1ppp 20 RPZ1FA 0.002
RPM2ppp 20 RXZE2FA 0.002
RPM3ppp 20 RPZ3FA 0.003
RPM4ppp 20 RPZ4FA 0.004
Clip-in ID tags
(sheet of 108 ID tags)
All relays 10 RXZL520 0.080
(1) See timer module description (selection of functions and time delays) on page 41
(2) Test button becomes inaccessible.
Product selector (continued) Zelio® Plug-In Relays
RPM power relays
Introduction:
pages 42
Characteristics:
pages 43 and 44
Product selector:
pages 45 and 46
Dimensions:
pages 47 and 48
Wiring diagrams:
page 49
RPZF2 + relay RPM22F7
RUW24ppp
RPZ1DA
RPZ3FA
1
2
3
4
5
6
7
8
9
10
47
Dimensions (mm):
Power relays
RPM 1
Common side view RPM2 RPM 3 RPM 4
Sockets
RPZF1 RPZF2
14
5
12
1
A2
14
A1
13
11
9
31
19
17
21
4
71
(1)
(3) (2)
80
40
804
40
44
8
14
5
42
4
12
1
A2
14
A1
13
41
12
11
9
30 26
19
30
4040
4
19
8
76
80
68
4
Ø4,5 x 6
Ø4,5 x 6
(1)
(2)
Common side view RPZF3 RPZF4
30
76
804
19
8
(1)
(2)
28
40
37
4040
68
4
44
8
24
6
14
5
42
4
A2
14
A1
13
41
12
21
10
11
9
22
2
12
1
Ø4,5 x 6
Ø4,5 x 6
36
46
50
4040
68
4
14
5
24
6
34
7
44
8
A2
14
A1
13
41
12
31
11
21
10
11
9
12
1
22
2
32
3
42
4
Ø4,5 x 6
Ø4,5 x 6
(1) Relays
(2) Protection module
(3) Retention clip
8 39 7
7,1 6
4,6
4
4,6
31
27
1010
4,6 4,6 4,6
41 1010 10
27
4,6 4,6 4,6 4,6
Dimensions Zelio® Plug-In Relays
RPM power relays
7
6314
40
27
4,7
6,5 6 5 3,5
2,6
2,6
27
21 10
14,2
4,6 4,6
1
2
3
4
5
6
7
8
9
10
48
Dimensions (mm):
Mounting adapters for DIN rail
RPZ1DA RXZE2DA RPZ3DA RPZ4DA
Mounting adapters with xing lugs for panel
RPZ1FA RXZE2FA RPZ3FA RPZ4FA
Mounting
Mounting adapters for DIN rail (1) Mounting adapters with xing lugs for panel
(1) Test button becomes inaccessible
23 24
49,52,5
38
4
24
23
483
34
23
502,5
44
20
502,5
38
43
3,5 5
16,5
16
38
3,5 4
19
43
24
38
19
3,5 4
43
34
16 3,5 4
38
43
44
Dimensions (continued) Zelio® Plug-In Relays
RPM power relays
Introduction:
pages 42
Characteristics:
pages 43 and 44
Product selector:
pages 45 and 46
Dimensions:
pages 47 and 48
Wiring diagrams:
page 49
1
2
3
4
5
6
7
8
9
10
49
Wiring diagrams
Power relays
RPM1ppp RPM2ppp RPM3ppp RPM4ppp
Symbols shown in blue correspond to Nema marking.
Sockets
RPZF1 RPZF2 RPZF3 RPZF4
14
5
12
1
11
9
A2
14
A1
13
INPUT
44
8
14
5
42
4
12
1
41
12
A2
14
11
9
A1
13
41
12
21
10
11
9
A2
14
A1
13
44
8
24
6
14
5
42
4
22
2
12
1
A2
14
A1
13
41
12
31
11
21
10
11
9
44
8
34
7
24
6
14
5
42
4
32
3
22
2
12
1
Symbols shown in blue correspond to Nema marking.
Protection modules
RXM040W, RUW240BD RXM041ppp, RUW241P7 RXM021ppp, RUW242pp
– A2
+ A1
– A2
+ A1
– A2
+ A1
1
12
5
14
9
11
13
A1
14
A2
(
+
)( )
A2A1
11 14
12
1
12
5
14
9
11
4
42
8
44
12
41
13
A1
14
A2
(
+
)( )
A2A1
21 24
22
11 14
12
1
12
5
14
9
11
2
22
6
24
10
21
4
42
8
44
12
41
13
A1
14
A2
(
+
)( )
A2A1
21 24
22
41 44
42
11 14
12
(+)
1
12
5
14
9
11
2
22
6
24
10
21
3
32
7
34
11
31
4
42
8
44
12
41
13
A1
14
A2
( )
A2A1
21 24
22
31 34
32
41 44
42
11 14
12
Wiring diagrams Zelio® Plug-In Relays
RPM power relays
1
2
3
4
5
6
7
8
9
10
50
Introduction of the product range
1 30 A relays with 2 C/O or 2 N/O contacts
2 Four or six quick-connect terminals
3 Two relay coil terminals
4 A locating slot for DIN rail mounting
5 Two holes for panel mounting
General characteristics
Conforming to standards IEC/EN 61810-1 (issue 2), UL 508, CSA C22-2 n°14
Product certications UL, CSA
Ambient air temperature
around the device
Storage °C (°F) - 40...+ 85 (-40... +185)
Operation °C (°F) - 40...+ 55 (-40... + 131)
Vibration resistance
conforming to EC/EN 60068-2-6
In operation 3 gn (10...150 Hz / ± 1 mm/5 g/5 cycles)
Not operating 10 gn (10...150 Hz / ± 1 mm/5 g/5 cycles)
Degree of protection Conforming to IEC/EN 60529 IP 40
Shock resistance
conforming to
IEC/EN 60068-2-27
Opening 10 gn
Closing 10 gn
Protection category RT IV
Mounting position Any
Insulation characteristics
Rated insulation voltage (Ui) Conforming to IEC/EN 60947 V250
Rated impulse withstand voltage (Uimp) kV 4 (1,2/50 ms)
Dielectric strength
(rms voltage)
Between coil and contact a V 1550
Between poles a V 1550
Between contacts a V 1500
5
2
43
Presentation,
characteristics
Zelio® Plug-In Relays
RPF power relays
Characteristics:
page 50
Product selector:
page 52
Dimensions, wiring diagrams:
page 53
1
1
2
3
4
5
6
7
8
9
10
51
Contact characteristics
Relay type RPF 2App RPF 2Bpp
Number and type of contacts 2 N/O 2 C/O
Contact materials AgSnO2
Conventional thermal current
(Ith)
For ambient
temperature y 40°C
A30 (when mounted with 13 mm gap between two relays)
25 (when mounted side by side without a gap)
Rated operational current
in utilisation category AC-1
Conforming to IEC "C" A30
“O” A3
Conforming to UL A30
Switching current Minimum mA 10
Switching voltage Maximum Va/c 250 (IEC)
Minimum Vc 17
Nominal load (resistive) 30 A / 250 a V - 30 A /28 c V (when mounted with 13 mm gap between two relays)
25 A / 250 a V - 25 A /28 c V (when mounted side by side without a gap)
Switching capacity Maximum 7500 a VA / 840 W (when mounted with 13 mm gap between two relays)
6250 a VA / 700 W (when mounted side by side without a gap)
Minimum mW 170
Maximum operating rate
In operating cycles/hour
No load 18 000
Under load 1200
Utilization coefcient 10 %
Mechanical durability In millions of operating cycles 5
Electrical durability
In millions of operating cycles
Resistive load 0.05 (N/O contact only)
Inductive load See curves below
Electrical durability of contacts
Resistive load a
Reduction coefcient for inductive load a
(depending on power factor cos j)
Maximum switching capacity on resistive load
c
Durability (inductive load) = durability (resistive load) x reduction coefcient. A RPF 2ppp: 30 A
B RPF 2ppp: 25 A
Coil characteristics
Average consumption aVA 4
cW1.7
Drop-out voltage threshold au 0.15 Uc
cu 0.1 Uc
Operating time
(response time)
Between coil
energization
and making of the
On-delay contact
ams 20
cms 20
Between coil
de-energization
and making of the
Off-delay contact
ams 20
cms 20
Control circuit voltage Uc V 12 24 110 120 230
Relay control voltage codes JD BD FD – –
DC supply Average resistance
at 20 °C ± 10%
W86 350 7255 – –
Operating
voltage limits
Min. V9.6 19.2 88 – –
Max. V13.2 26.4 121 – –
Relay control voltage codes – B7 – F7 P7
AC supply Average resistance
at 20 °C ± 15%
W– 250 – 3200 13 000
Operating
voltage limits
Min. V– 19.2 – 96 184
Max. V– 26.4 – 132 253
104
201 435678
107
105
106
Durability (Number of operating cycles)
Switching capacity(kVA)
0,3
0,5
0,61 0,4 0,2
0,4
0,6
0,8
1
Reduction coefcient (A)
0,1
1
200 25005028 100 150
10
B
A
Current c
Voltage c
Characteristics (continued) Zelio® Plug-In Relays
RPF power relays
1
2
3
4
5
6
7
8
9
10
52

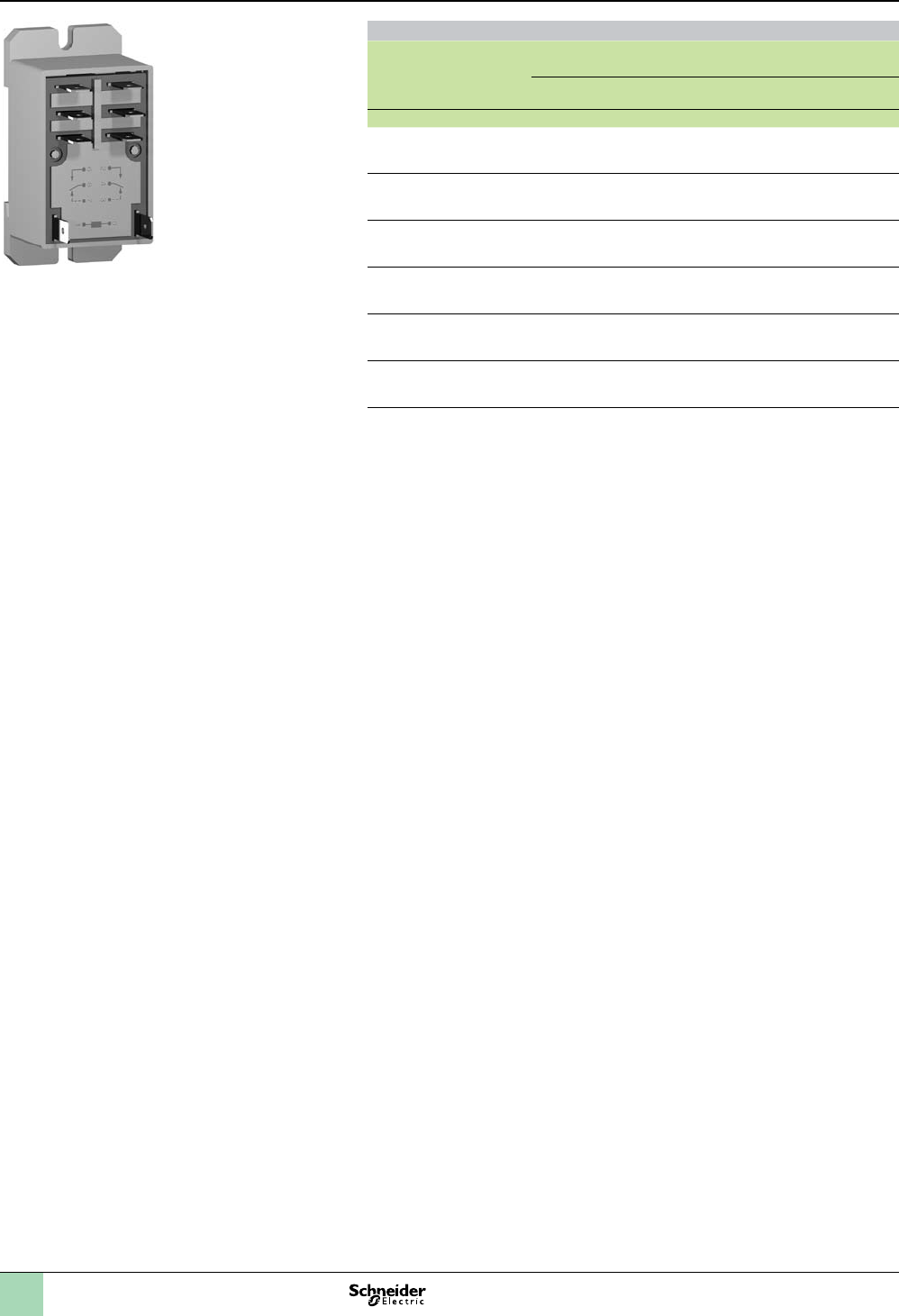

Power relays(sold in lots of 10)
Control
circuit voltage
Number and type of contacts - Thermal current (Ith)
2 N/O - 30 A (1) 2 C/O - 30 A (1)
Catalog number Catalog number Weight
V kg
c 12 RPF2AJD RPF2BJD 0.082
c 24 RPF2ABD RPF2BBD 0.082
c 110 RPF2AFD RPF2BFD 0.082
a 24 RPF2AB7 RPF2BB7 0.082
a 120 RPF2AF7 RPF2BF7 0.082
a 230 RPF2AP7 RPF2BP7 0.082
(1) 30 A when mounted with 13 mm gap between two relays and 25 A when mounted side by side
without a gap.
RPF 2Bpp
Product selector Zelio® Plug-In Relays
RPF power relays
1
2
3
4
5
6
7
8
9
10
53

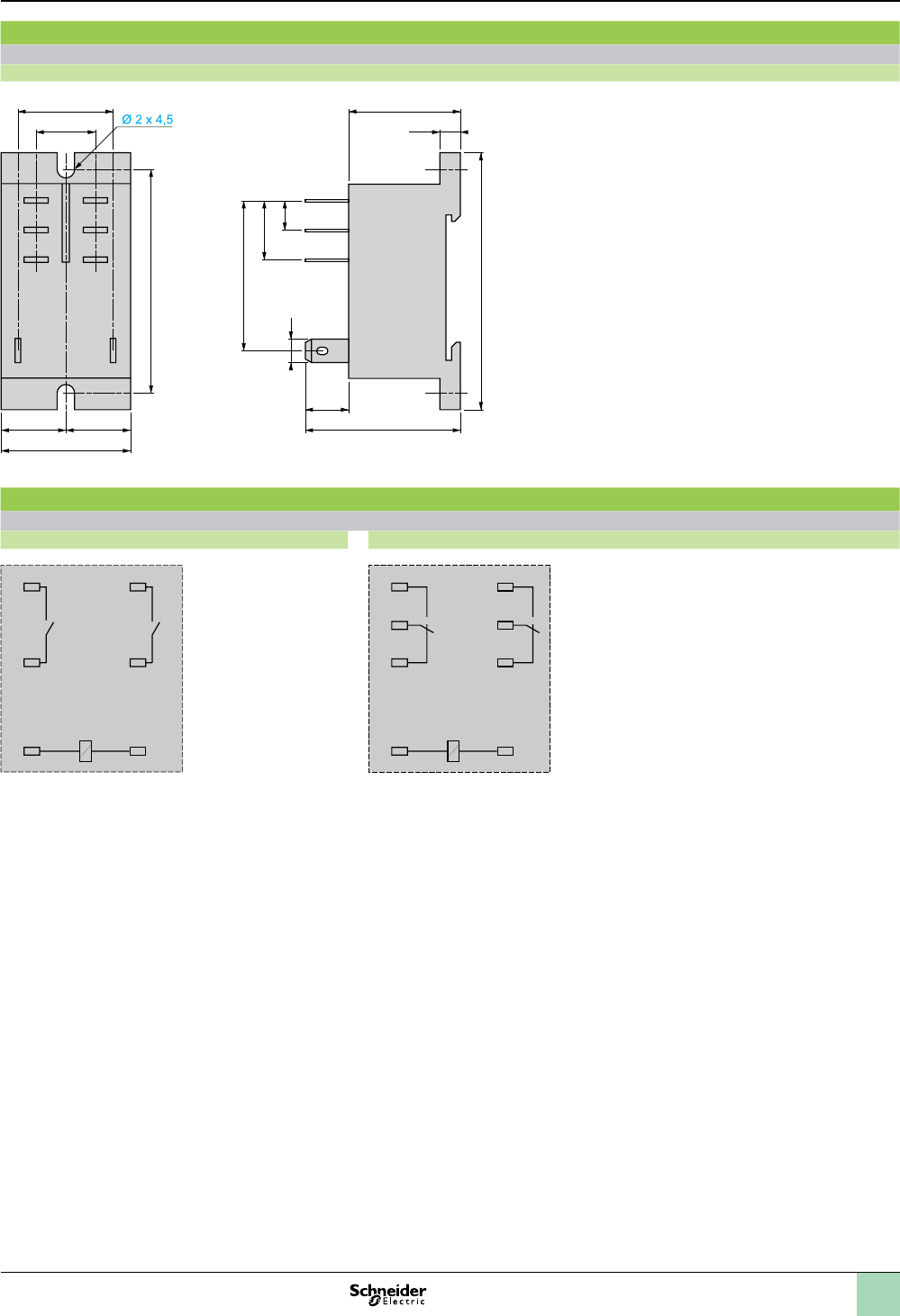

Dimensions
Power relays
RPF 2App, RPF 2Bpp
Schemes
Power relays
RPF 2App RPF 2Bpp
Symbols shown in blue correspond to Nema marking.
41
15
8
6
30
69
8
38
34
==
26
16 4,7
60
6
14
8
11
2
24
4
21
1
A1
0
A2
6
14
8
11
7
12
2
24
4
21
3
22
1
A1
0
A2
Dimensions,
wiring diagrams
Zelio® Plug-In Relays
RPF power relays
1
2
3
4
5
6
7
8
9
10
54

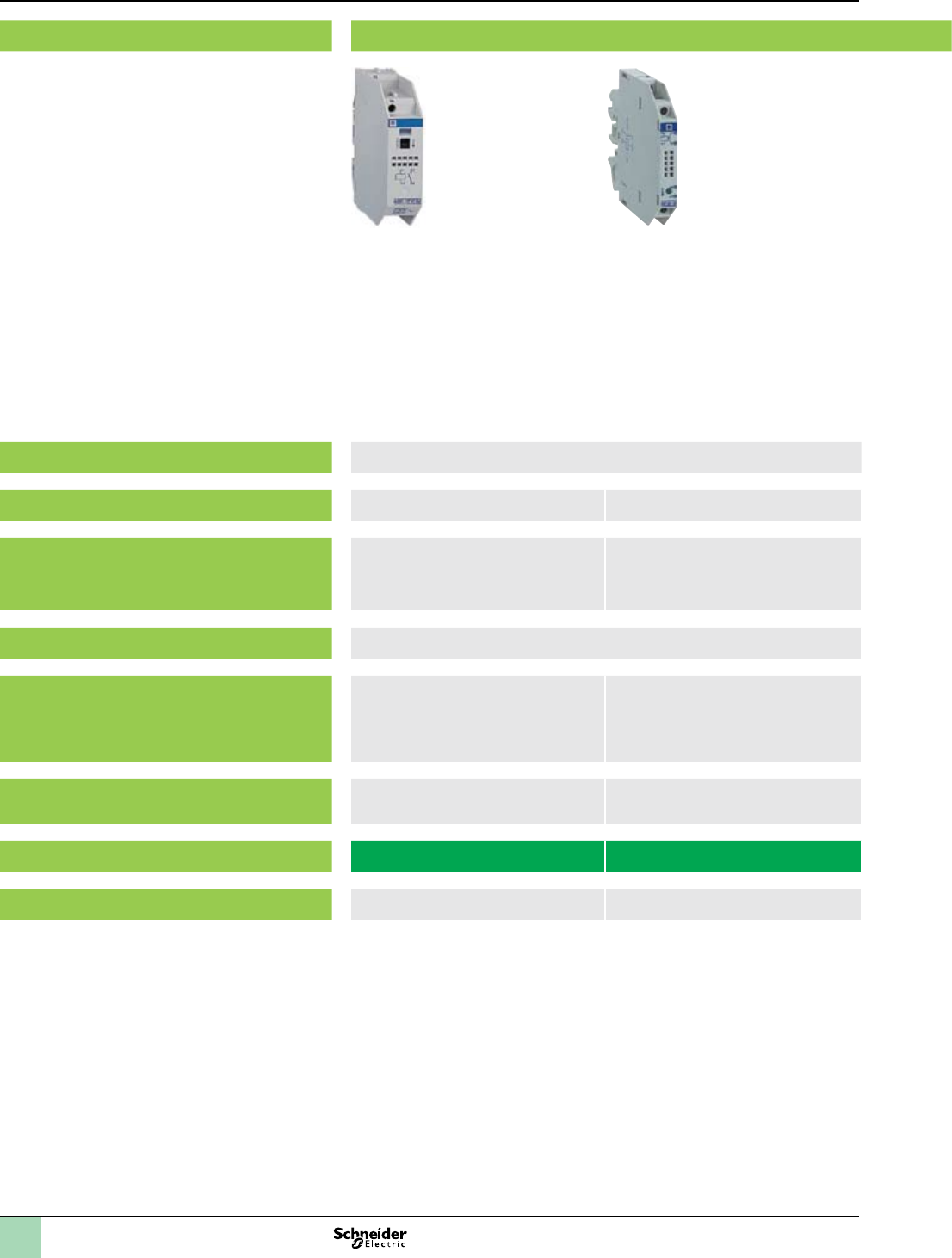

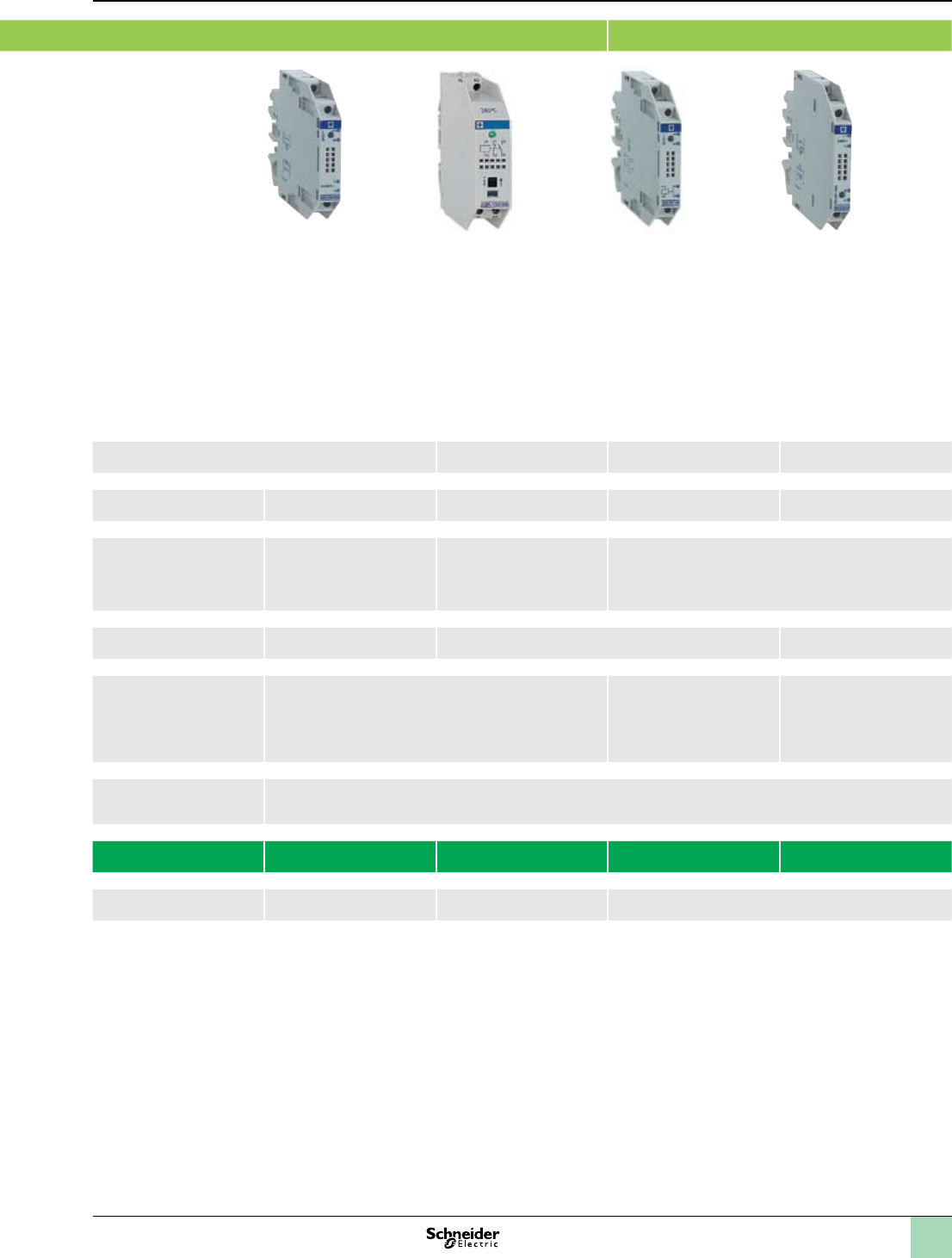

Solid state interface modules
Output Input and output
Very low level switching
Input Output
17.5 12 17.5 9.5 9.5/17.5
1 N/O
2 N/O
1 C/O
1 N/C + 1 N/O
1 N/O 1 C/O –
12 A 5 A –5 A
c 24 V
z 24 V, 48 V
a 115…127 V
a 110 V
c 24 V c 5, 24, 48 V
a 115…127/50 Hz
a 120…127/60 Hz
a 230…240/50 Hz
a 230…240/60 Hz
c 24 V
Mechanical for contacts
and/or LED for control
LED for control
ABR1S ABR2S ABR2pB312B ABS2E ABS2S
56 62 62 68
Applications Electromechanical interface modules
Functions Input
Width (mm) 17.5 9.5
Contact arrangement 1 N/O
2 N/O
1 C/O
1 N/O
Thermal current –
Control voltages c 110…127 V
z 24 V, 48 V
a 115…127 V
a 230/240 V
c 24 V, 48 V
a 115…127/50 Hz
a 115…127/60 Hz
a 230…240/50-60 Hz
Indication Mechanical for contacts
and/or LED for control
LED for control
Product numbers ABR1E ABR2E
Pages 56 62
Selection guide Interfaces
Interfaces for discrete signals
1
2
3
4
5
6
7
8
9
10
55
Solid state interface modules
Output Input and output
Very low level switching
Input Output
17.5 12 17.5 9.5 9.5/17.5
1 N/O
2 N/O
1 C/O
1 N/C + 1 N/O
1 N/O 1 C/O –
12 A 5 A –5 A
c 24 V
z 24 V, 48 V
a 115…127 V
a 110 V
c 24 V c 5, 24, 48 V
a 115…127/50 Hz
a 120…127/60 Hz
a 230…240/50 Hz
a 230…240/60 Hz
c 24 V
Mechanical for contacts
and/or LED for control
LED for control
ABR1S ABR2S ABR2pB312B ABS2E ABS2S
56 62 62 68
Applications Electromechanical interface modules
Functions Input
Width (mm) 17.5 9.5
Contact arrangement 1 N/O
2 N/O
1 C/O
1 N/O
Thermal current –
Control voltages c 110…127 V
z 24 V, 48 V
a 115…127 V
a 230/240 V
c 24 V, 48 V
a 115…127/50 Hz
a 115…127/60 Hz
a 230…240/50-60 Hz
Indication Mechanical for contacts
and/or LED for control
LED for control
Product numbers ABR1E ABR2E
Pages 56 62
1
2
3
4
5
6
7
8
9
10
56
Interfaces 6
For discrete signals
Electromechanical interface modules
ABR-1 electromechanical interface modules are supplied in the form of compact
modules, 17.5 mm wide.
They are designed for interfacing discrete digital control signals exchanged within an
automated system between the processing unit (PLC, numerical controller, etc) and
the other components (contactors, solenoid valves, indicator lamps, proximity
sensors, etc).
These products are based on advanced contactor technology and are easily adapted
to industrial environments. They conform to the most recent IEC 947-5-1 standards.
Composition
The ABR-1 range includes 2 families:
Input interfaces
Input interfaces are designed for switching input signals to the processor and are
characterized by their advanced contact reliability: less than 1 interruption per 100
million operating cycles at c 17 V, 5 mA.
The switching level is sufciently high to help ensure that the interfaces can directly
control most contactors and indicator lamps.
Output interfaces
Output interfaces are designed for the control of preactuators (contactors, solenoid
valves, etc) for signalling devices (indicators lamps, audible warnings, etc). They are
characterized by a high switching capacity and an average durability 5 times greater
than that of traditional interface modules, which incorporate standard relays.

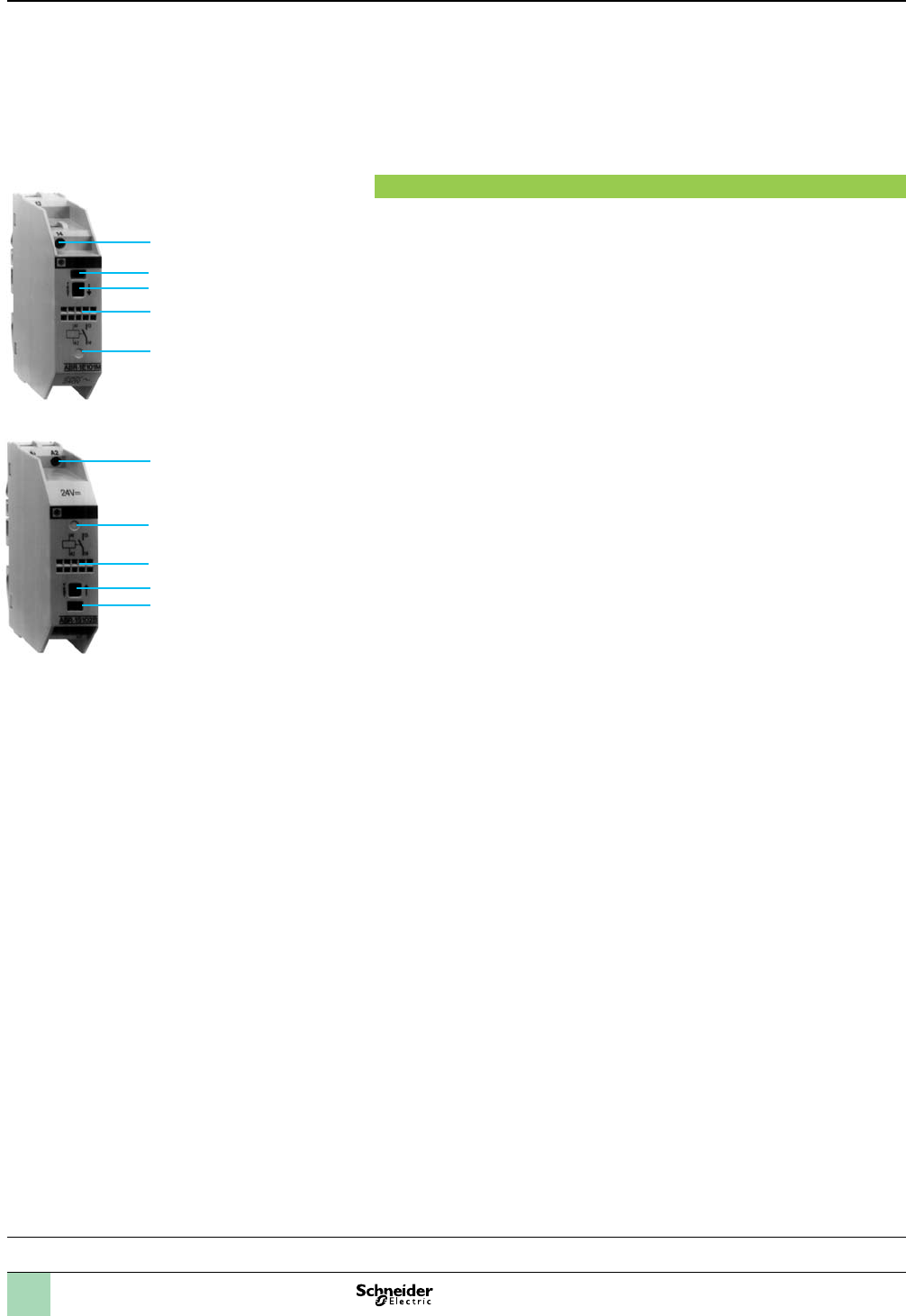

1 Override contacts by pressing button (not holding it down) for a simple and quick
test during installation or maintenance operations on the installation
2 Green indicator showing the mechanical position of the contacts
3 LED indicating the control signal state
4 Channel identication : 5 individual characters for AB1-R/G or one AB1-SA2
marker tag
5 Connection by screw clamp terminal enabling easy attachment of 2 wires per
terminal. The layout of the connection terminals for both families (input and output)
is designed for rational wiring and a clear separation between the incoming
(processing) and outgoing (power and process control) circuits.
5
2
1
4
3
5
3
4
1
2
Introduction:
page 56
Characteristics:
pages 57 and
58
Curves:
page 59
Product selector:
page 60
Dimensions, Wiring diagrams:
page 61
Introduction
6
1
2
3
4
5
6
7
8
9
10
57
Interfaces 6
For discrete signals
Electromechanical interface modules

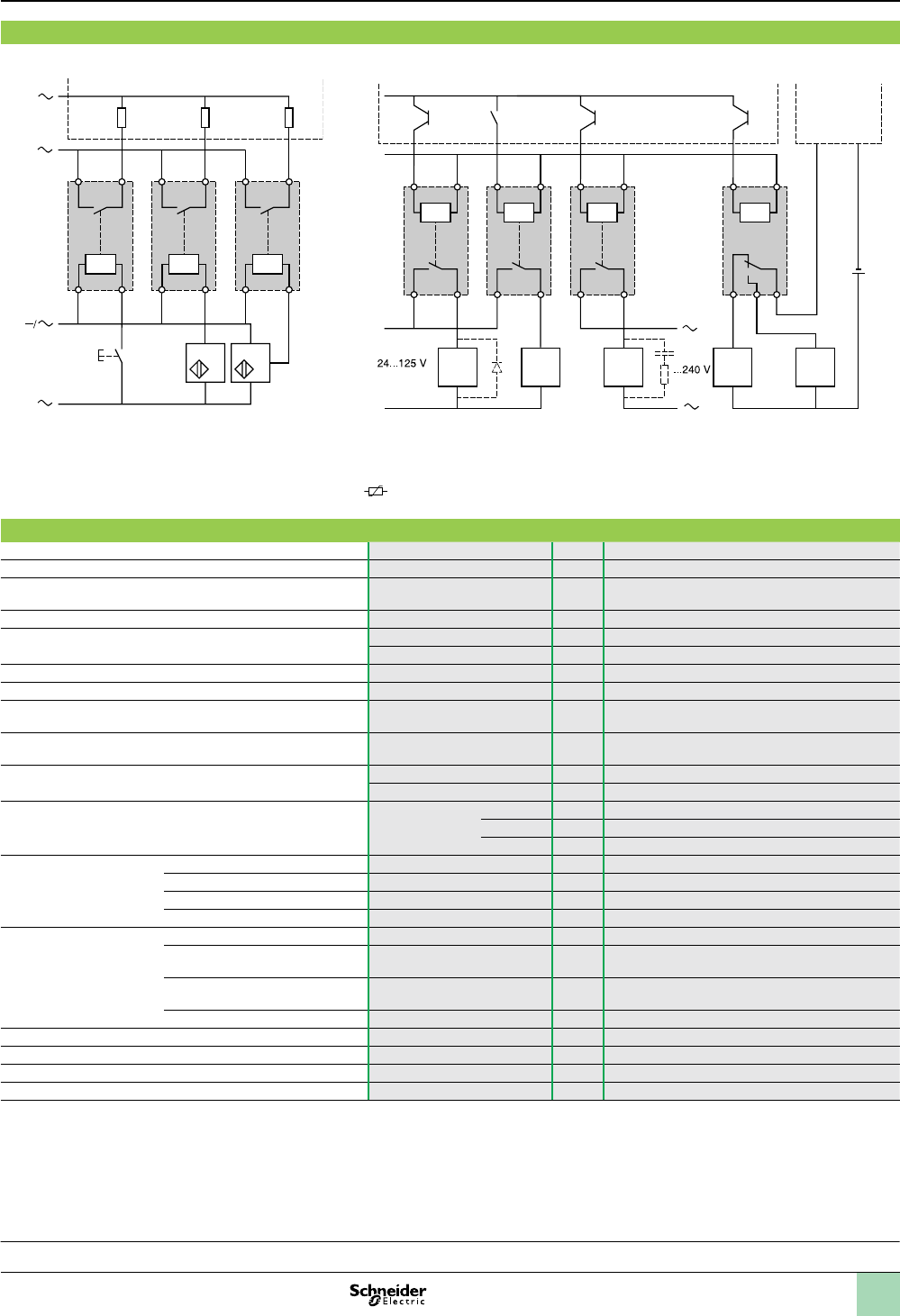

Examples of applications with PLCs
(1) Essential on inductive loads (can be replaced with peak limiter ).
–
/
+
/
–
+
A2
A1
A2
A1
A2
A1
A2
A1
Pushbuttons
Series contacts
2-wire
sensors
3-wire
sensors
Pushbuttons
Series contacts
2-wire
sensors
PLC
Positive logic discrete inputs
–/
+/
–
+
24...125 V ...240 V
A1
A2
(1) (1)
A1
A2
A1
A2
PLC
Positive logic transistor (or relay) outputs
Environment
Conforming to standards IEC 60947-1, UL 508, CSA C22.2 No. 14
Product certications UL, CSA, BV, LROS, DNV
Degree of protection Conforming to IEC 529
(protection against direct contact)
IP 00
Protective treatment “TC”
Flame resistance Conforming to IEC 695-2-1 Incandescent wire °C 850
Conforming to UL 94 V0
Shock resistance Conforming to IEC 68-2-27 Semi-sinusoidal waves 11 ms 50 gn
Vibration resistance Conforming to IEC 68-2-6 10…55 Hz 6 gn
Resistance to electrostatic
charges
Conforming to IEC 801-2 Level 3 kV 8
Resistance to rapid
transients
Conforming to IEC 801-4 On power supply kV 2
On I/O kV 1
Resistance to shock
waves
Conforming to IEC 255-4 Waveform
1.2/50 ms ; 0.5 J U ≤ 50 V kV 0.5
U > 50 V kV 2.5
Cross-sections which
may be connected
Flexible wire with no cable end 1 or 2-wire mm20.6…2.5
Flexible wire with cable end 1 or 2-wire mm20.34…2.5
Rigid cable 1-wire mm20.27…4
2-wire mm20.27…2.5
Operating position Any
Ambient air temperature
around the device
Unrestricted operation °C - 5…+ 40
Permissible at Un °C - 20…+ 60
Storage °C - 40…+ 70
Operating altitude m ≤ 3000
Installation category Conforming to IEC 947-1 II
Degree of pollution Conforming to IEC 947-5-1 3
Mounting Standard DIN rails
Introduction:
page 56
Characteristics:
pages 57 and
58
Curves:
page 59
Product selector:
page 60
Dimensions, Wiring diagrams:
page 61
Characteristics
6
1
2
3
4
5
6
7
8
9
10
58
Interfaces 6
For discrete signals
Electromechanical interface modules
Control circuit characteristics (40°C ambient temperature)
Type of interface ABR
1Sp02B
ABR
1ppp8B
ABR
1ppp8E
ABR
1Ep12F
ABR
1ppp1F
ABR
1Ep11M
ABR
1Ep01M
Rated voltage (Uc) Vc 24 z 24 z 48 c
110...127
a
115...127
a
230...240
a
230...240
Current frequency Hz – 50/60 50/60 – 50/60 50/60 50/60
Energization threshold (at ± 5 %) V15 16.5 34 75 86 170 164
Maximum operating voltage c / aV30 30 53 140 140 264 264
Maximum drop-out (at ± 5 %) voltage (Uo) c / aV3.2 3.8 8.5 16 34 68 78
Maximum current (Un) c / amA 62 62/55 36/32 15 8 7 5.5
Minimum holding current c / amA 6.6 4.9/5.2 4.7/5.4 1.5 2.4 2 1.5
Maximum dissipated power 50 Hz/60 Hz W1.5 1.5 1.5 1.5 1.5 1.5 1.5
Disappearance of voltage
maximum time up to which contact is maintained
ms 3 8 10 10 6 5 6
Display of control circuit by LED No Yes Yes Yes Yes Yes No
Built-in protection reversed polarity Yes Yes Yes Yes – – –
Contact characteristics
Type of interface ABR1Epppp ABR1Spppp
Maximum switching voltage a V252 252
c V125 125
Maximum rated
operating voltage Ue
Conforming to IEC 947-5-1 a V230 230
c V125 125
Operating current frequency Hz 50/60 50/60
Thermal current Ith Conforming to IEC 947-1 A2 12
Rated operating
current (Ie)
per 1 million operating
cycles
Conforming to IEC 947-5-1
Ue : a 230 V
AC12 A2 4
AC13 A1 1
AC14 A1 1
AC15 A1 1
Conforming to IEC 947-5-1
Ue : c 24 V
DC12 A2 5
DC13 A1 1
Minimum switching capacity mA 3 3
Minimum switching voltage V 17 17
Protection against
short-circuits
For Ik ≤ 2.5 kA (a) and ≤ 100 A (c)
Type and value of recommended fuse
AgG/gF : 16 gG/gF : 16
Low power switching
performance of contacts
(17 V - 5 mA)
Number of interruptions
per “n” million operating cycles
10
-8
10
-8
Other characteristics
Operating time
at Un and at 20 °C
Between energization of coil and
closing of N/O contact
ms ≤ 12
Between energization of coil and
opening of N/C contact
ms ≤ 12
Between de-energization of coil and
opening of N/O contact
ms ≤ 12
Between de-energization of coil and
closing of N/C contact
ms ≤ 12
Duration of bounce ms ≤ 3
Contact bridging times
between contact “N/C”
and “N/O”
Maximum make before break or break
before make time
ms 1
Maximum operating
rate
At no-load Hz 6
At Ie Hz 0.5
Mechanical durability
in millions of operating
cycles
ABR-1 (1 N/O or 2 N/O) ≥ 20 million
ABR-1 (1 C/O or 1 N/C + 1 N/O) ≥ 10 million
Rated isolation voltage Conforming to IEC 947-1 V250
Conforming to VDE 0110 group C V250
Insulation test voltage
for 1 min.
Between coil circuit and contact circuits kV 4
Between wired interface and ground kV 2.5
Between independent contacts kV 1.5
Introduction:
page 56
Characteristics:
pages 57 and
58
Curves:
page 59
Product selector:
page 60
Dimensions, Wiring diagrams:
page 61
Characteristics (continued)
6
1
2
3
4
5
6
7
8
9
10
59
Interfaces 6
For discrete signals
Electromechanical interface modules
Electrical durability of contacts
Test conditions : in accordance with standard IEC 947-5-1 set up for rated control voltage, operating rate : 1800 cycles/hour. (0.5 Hz).
a.c. loads
AC-12 : control of resistive loads and isolated solid
state loads via optocoupler
cos j ≥ 0.9
AC-13 : control of isolated solid state loads
via transformer
cos j ≥ 0.65
AC-14 : control of weak electromagnetic loads of
electromagnets ≤ 72 VA
make: cos j = 0.3
break: cos j = 0.3
AC-15 : control of electromagnetic loads of
electromagnets > 72 VA
make: cos j = 0.7
break: cos j = 0.4
1 24 V
2 48 V
3 127 V
4 230 V
d.c. loads
1 24 V
2 48 V
3 127 V
DC-12 : control of resistive loads and isolated solid
state loads via optocoupler
L/R ≤ 1 ms
DC-13 : control of electromagnets
L/R ≤ 2 x (Ue x Ie) in ms.
Ue: rated operating voltage
Ie: rated operating current
5
4
3
2
1
12345
(A)
6
0
0
3
4
2
6
Operating cycles in millions
5
4
3
2
1
12345
(A)
6
0
0
6
3
1
4
2
Operating cycles in millions
2
1
0,5 1 1,5 2 2,5
(A)
3
0
0
3
1
2
3
4
Operating cycles in millions
5
4
3
2
1
0
12345
(A)
2
3
6
6
0
1
Operating cycles in millions
2
1
0,5 1 1,5 2 2,5
(A)
3
0
0
3
3
1
2
Operating cycles in millions
Introduction:
page 56
Characteristics:
pages 57 and
58
Curves:
page 59
Product selector:
page 60
Dimensions, Wiring diagrams:
page 61
Curves
6
1
2
3
4
5
6
7
8
9
10
60

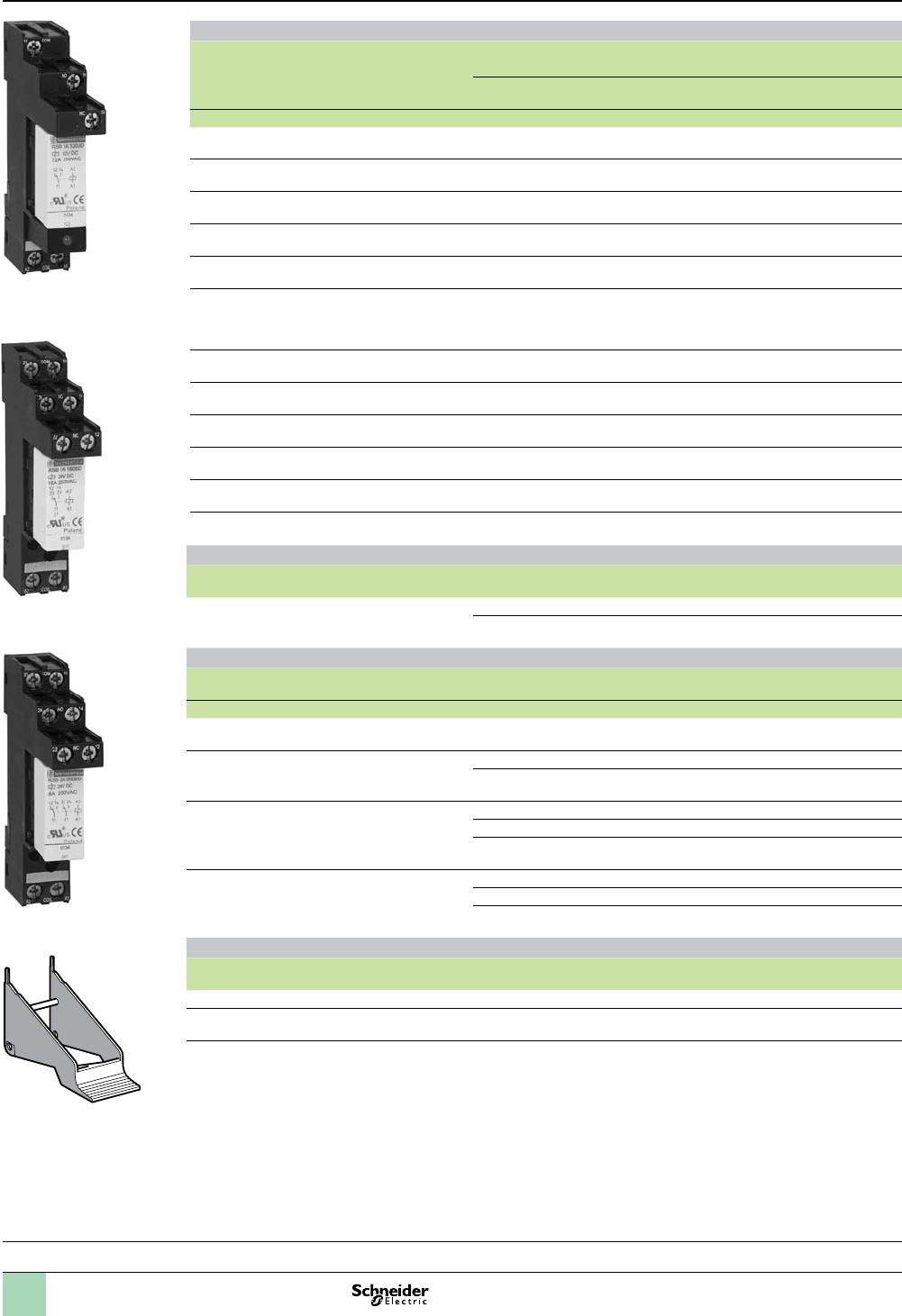

Interfaces 6
For discrete signals
Electromechanical interface modules
Control circuit: a.c. or d.c.

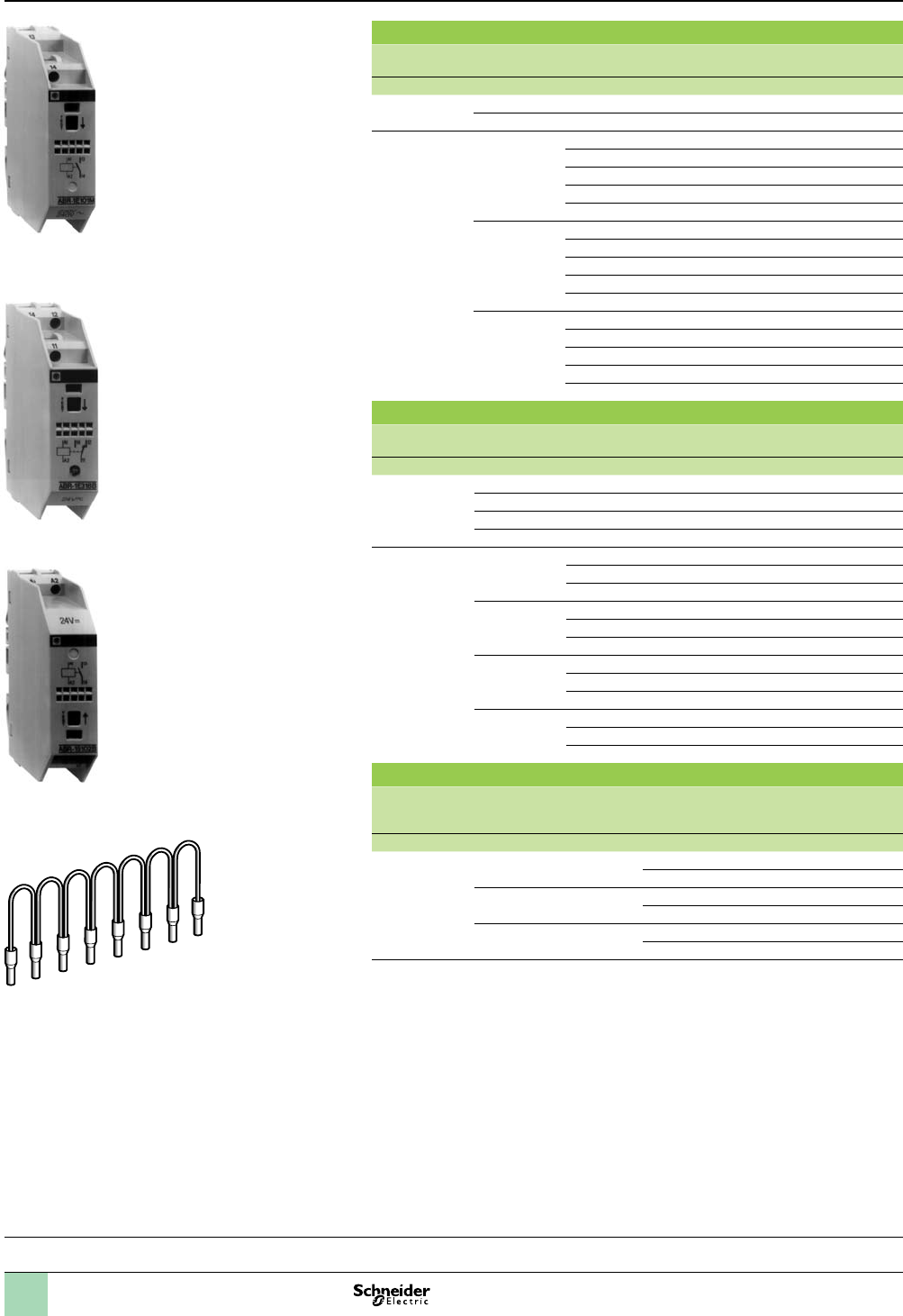

Input interface modules (1) (17.5 mm pitch)
Display Contact
Conguration
Control circuit Catalog number Weight
V kg
Mechanical (2) 1 N/O a 230/240 ABR1E101M 0.090
1 C/O a 230/240 ABR1E301M 0.090
Mechanical (2)
+ LED (3)
1 N/O z 24 ABR1E118B 0.095
z 48 ABR1E118E 0.095
c 110...127 (4) ABR1E112F 0.095
a 115...127 ABR1E111F 0.095
a 230/240 ABR1E111M 0.095
2 N/O z 24 ABR1E418B 0.095
z 48 ABR1E418E 0.095
c 110...127(4) ABR1E412F 0.095
a 115...127 ABR1E411F 0.095
a 230/240 ABR1E411M 0.095
1 C/O z 24 ABR1E318B 0.095
z 48 ABR1E318E 0.095
c 110...127(4) ABR1E312F 0.095
a 115...127 ABR1E311F 0.095
a 230/240 ABR1E311M 0.095
Output terminals-relays
(1)
(17.5 mm pitch)
Display Contact
Conguration
Control circuit Catalog
number
Weight
V kg
Mechanical (2) 1 N/O c 24 ABR1S102B 0.090
2 N/O c 24 ABR1S402B 0.090
1 C/O c 24 ABR1S302B 0.090
1 N/C + 1 N/O c 24 ABR1S602B 0.090
Mechanical (2)
+ LED (3)
1 N/O z 24 ABR1S118B 0.095
z 48 ABR1S118E 0.095
a 115...127 ABR1S111F 0.095
2 N/O z 24 ABR1S418B 0.095
z 48 ABR1S418E 0.095
a 110 ABR1S411F 0.095
1 C/O z 24 ABR1S318B 0.095
z 48 ABR1S318E 0.095
a 110 ABR1S311F 0.095
1 N/C + 1 N/O z 24 ABR1S618B 0.095
z 48 ABR1S618E 0.095
a 110 ABR1S611F 0.095
Commoning links
Description For common Color Distance
between
wire ends
Catalog number Weight
cm kg
Commoning
links in modules
8 x 1 mm
2
Coil White 12 ABFC08R12W 0.020
2ABFC08R02W 0.010
aRed 12 ABFC08R12R 0.020
2ABFC08R02R 0.010
cBlue 12 ABFC08R12B 0.020
2ABFC08R02B 0.010
(1) Connection by screw-clamp.
(2) By green mechanical indicator light for contact(s) activated electrically or mechanically by
pressing the test button.
(3) By green LED illuminated when control signal is present.
(4) With polarization (+ on A1, - on A2).
ABR1E101M
ABR1E318B
ABR1S102B
ABFC08Rppp
Introduction:
page 56
Characteristics:
pages 57 and
58
Curves:
page 59
Product selector:
page 60
Dimensions, Wiring diagrams:
page 61
Product selector
6
1
2
3
4
5
6
7
8
9
10
61
Interfaces 6
For discrete signals
Electromechanical interface modules
Dimensions (mm):
ABR 1E ABR 1S
Wiring diagrams
c 24 V or a 230 V interfaces with mechanical indication
1 N/O 1 C/O 2 N/O 1 N/C + 1 N/O
z 24 V or z 48 V interfaces with mechanical indication + LED
1 N/O 1 C/O 2 N/O 1 N/C + 1 N/O
c / a 110 V or a 230 V interfaces with mechanical indication + LED
1 N/O 1 C/O 2 N/O 1 N/C + 1 N/O
78
75
70,5
17,5
74
63
78
75
70,5
17,5
74
63
A2
1314
A1
11
14
12
A2
A1
1314
2324
A2
A1
2324
1112
A2
A1
A1
1314
A2
11
14
12
A2
A1
1314
2324
A2
A1
2324
1112
A1
A2
1314
A1
(
+
)
A2
11
14
12
A1
(+)
A2
1314
2324
A1
(+)
A2
2324
1112
A1
(+)
A2
Introduction:
page 56
Characteristics:
pages 57 and
58
Curves:
page 59
Product selector:
page 60
Dimensions, Wiring diagrams:
page 61
Dimensions,
Wiring diagrams
6
1
2
3
4
5
6
7
8
9
10
62

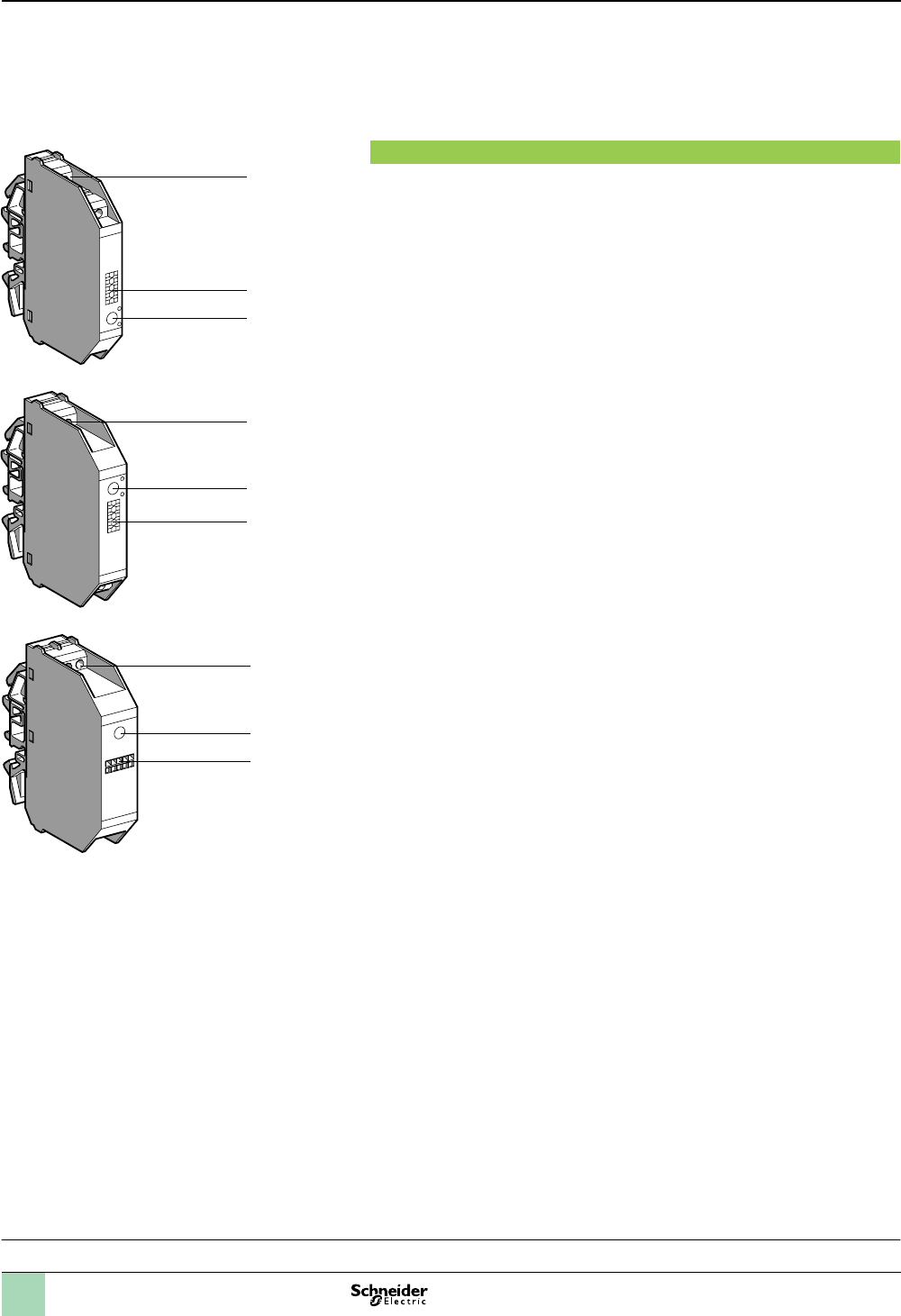

Introduction
ABR-2 electromechanical interface modules complement the ABR-1 range.
They are characterized by micro relay technology which allows reduced dimensions
and very low switching levels (TTL, HCMOS, analog signals).
The ABR-2 family is in the form of slim compact modules, 9.5 mm wide for input
interface modules, 12 mm wide for output interface modules and 17.5 mm wide for
very low level switching products.
Description
The ABR-2 includes 3 families:
Input interfaces (9.5 mm pitch)
Input interfaces are designed for switching input signals to a processor and are
characterized by their advanced contact reliability: less than 1 interruption per
100 million operating cycles at c 17 V, 5 mA.
They have increased immunity to current leakages ≤ 2 mA, and a wide coil voltage
range (0.7 to 1.25 Un).
Output interfaces (12 mm pitch)
Output interfaces are designed for the control of preactuators (contactors, solenoid
valves, etc) for signalling devices (indicators lamps, audible warnings etc). They are
characterized by a high switching capacity and an advanced immunity to current
leakages ≤ 2 mA. A lower cost version without LED signalling is available.
Low level switching input and output interfaces (17.5 mm pitch)
with 1 C/O contact.
These interfaces are designed for switching logic (TTL or HCMOS) and
analog signals.
Warning: never switch inductive loads with this type of interface.
The front panel of the ABR-2 electromechanical interface module includes:
1 LED indicating the control signal state
2 Channel identication : 5 individual characters for AB1-R/G or 1 AB1-SA2
marker tag
3 Connection by screw clamp terminal enabling easy attachment of 2 wires per
terminal. The layout of the connection terminals for both families (input and output)
is designed for rational wiring and a clear separation between the incoming
(processing) and outgoing (power and process control) circuits.
3
2
1
3
2
1
ABR-2SB312B
ABR2SB312B-PRO-3-B
3
2
1
Introduction:
page 62
Characteristics:
pages 63 and
64
Curves:
page 65
Product selector:
page 66
Dimensions, Wiring diagrams:
page 67
Interfaces
For discrete signals
Slim electromechanical interface modules
1
2
3
4
5
6
7
8
9
10
63
Characteristics

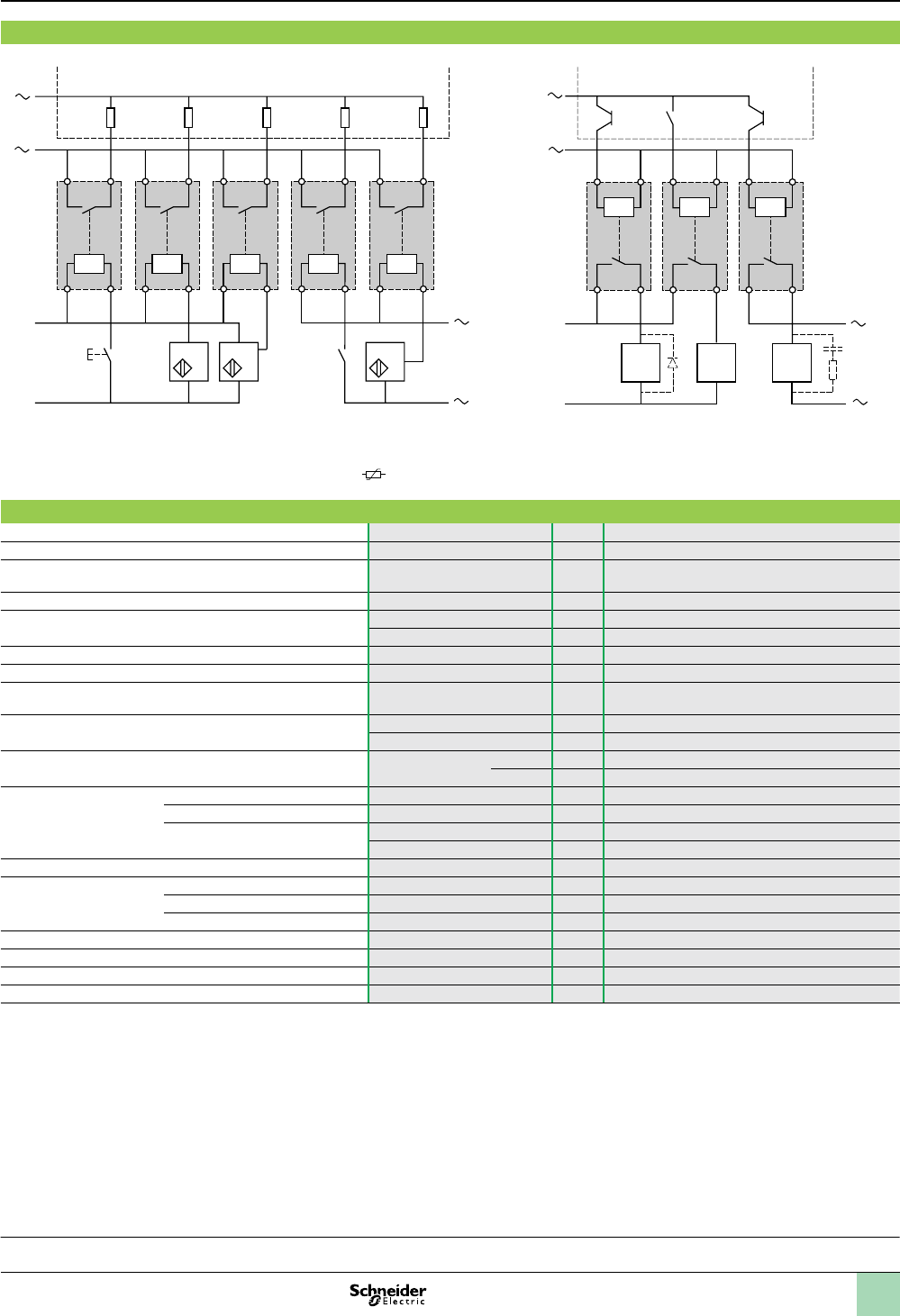

Examples of applications with PLCs
(1) Essential on inductive loads (can be replaced with peak limiter ).
–
/
+
/
+
/
13
14
13
14
13
14
A1
A2
A1
A2
A1
A2
PLC
Positive logic discrete inputs
Pushbuttons
Series contacts
2-wire
sensors
3-wire
sensors
ABR2Epppp
Process
power
supply
Processing
power
supply
–
+
–
+
A1
A2
(1) (1)
C1
A1
A2
A1
A2
13
14
13
14
13
14
A1
A2
12
14
C2
OV
11
PLC
Positive logic transistor (or relay) outputs
PLC
Analogue inputs
Channel X
Analog
sensors
ABR2Spppp ABR2SB12B
Environment
Conforming to standards IEC 60947-1, UL 508, CSA C22.2 No. 14
Product certications UL, CSA, BV, LROS, DNV
Degree of protection Conforming to IEC 529
(protection against direct contact)
IP 20
Protective treatment “TC”
Flame resistance Conforming to IEC 695-2-1 Incandescent wire °C 960
Conforming to UL 94 V0
Shock resistance Conforming to IEC 68-2-27 Semi-sinusoidal waves 11 ms 30 gn
Vibration resistance Conforming to IEC 68-2-6 10…150 Hz 3 gn
Resistance to electrostatic
discharges
Conforming to IEC 801-2 Level 3 kV 8
Resistance to
electromagnetic elds
Conforming to IEC 801-3 Level 3 ; 27…1000 MHz V/m 10
Resistance to rapid
transients
Conforming to IEC 801-4
Level 3
On power supply kV 2
On I/O kV 1
Resistance to shock
waves
Conforming to IEC 947-1 Waveform
1.2/50 ms ; 0.5 J
U < 50 V kV 0.5
U < 150 V kV 1.5
U < 300 V kV 2.5
Cross-sections which
may be connected
Flexible wire with no cable end 1 or 2-wire mm20.6…2.5
Flexible wire with cable end 1 or 2-wire mm20.34…2.5
Rigid cable 1-wire mm20.27…4
Operating position Any
Ambient air temperature Unrestricted operation °C - 5…+ 40
Operation from 0.85...1.1 Us
(assigned voltage)
°C - 5…+ 55
Operation restricted to Us
(assigned voltage)
°C - 25…+ 70 (2)
Storage °C - 40…+ 80
Operating altitude m ≤ 3000
Installation category Conforming to IEC 947-1 II
Degree of pollution Conforming to IEC 947-1 2
Mounting Standard DIN rails
(2) Leave space of 8 mm between ABR-2S1ppp for an ambient temperature ≥ 55 °C
Introduction:
page 62
Characteristics:
pages 63 and
64
Curves:
page 65
Product selector:
page 66
Dimensions, Wiring diagrams:
page 67
Interfaces
For discrete signals
Slim electromechanical interface modules
1
2
3
4
5
6
7
8
9
10
64
Characteristics (continued)
Control circuit characteristics (40°C ambient temperature)
Type of interface ABR
2E112B
ABR
2E112E
ABR
2E115F
ABR
2E116F
ABR
2E111M
ABR
2S112B
ABR
2S102B
ABR
2pB312B (1)
Rated voltage (Us) Vc 24 c 48 z
115…127
z
120...127
a
230...240
c 24 c 24 c 24
Current frequency Hz – – 50 60 50/60 – – –
Energization threshold V 16.9 37.3 93 97 186 16.9 14.5 16.9
Maximum operating voltage V 28.8 57.6 140 140 264 28.8 28.8 28.8
Maximum drop-out voltage (Uo) V3.8 8.5 25.4 25.4 48 3.8 2 3.8
Maximum current (at Us) mA 19.5 11 14 16 15 28 18 23
Minimum holding current mA 2 2 2.5 2.5 2.5 2 1.3 2
Maximum dissipated power (at Us) 50 Hz W– – 0.66 – 0.54 – – –
60 Hz W0.45 0.52 – 0.73 0.77 0.64 0.43 0.55
Disappearance of voltage
maximum time up to which contact is maintained
ms 1 1 10 10 10 1 5 1
Display of control circuit by LED Yes Yes Yes Yes Yes Yes No Yes
Built-in protection reversed polarity Yes Yes – – – Yes Yes Yes
Contact characteristics (40°C ambient temperature)
Type of interface ABR2Epppp ABR2S112B ABR2S102B ABR2pB312B (1)
Contact conguration 1 N/O 1 N/O 1 N/O 1 C/O
Maximum rated
operating voltage
(Ue max)
Conforming to IEC 947-5-1 a V127 230 230 48
c V100 120 120 48
Maximum switching voltage a V140 250 250 60
c V125 150 150 60
Operating current frequency Hz 50/60 50/60 50/60 50/60
Thermal current Ith Conforming to IEC 947-1 A1 5 5 0.05
Rated operating
current (Ie)
for 1 million operating
cycles
Conforming to IEC 947-5-1
Ue max
AC12 A133–
AC14 A0.5 1 1 –
AC15 A0.5 1 1 –
Conforming to IEC 947-5-1
Ue : c 24 V
DC12 A1 1.7 1.7 –
DC13 A1 1.5 1.5 –
Minimum switching current mA 1 5 5 0.01
Minimum switching voltage V 5 5 5 0.01
Protection against
short-circuits
For Ik ≤ 1 kA (a) and ≤ 100 A (c)
Type and value of recommended fuse
Type : quick-blow fuse with high breaking capacity
A2 6.3 6.3 0.4
Low level contact
performance (17 V, 5 mA)/
ABR-2pB (30 mV, 10 µA)
Number of interruptions
per “n” million operating cycles
1 per 100 million
Other characteristics
Maximum operating
time
at Us (bounce included)
Between energization of coil
and closing of N/O contact
cms 10 10 10 6
ams 30 – – –
Between energization of coil and
opening of N/C contact
ms –––6
Between de-energization of coil
and opening of N/O contact
cms 6 12 5 6
ams 30 – – –
Between de-energization of coil and
closing of N/C contact
ms –––6
Maximum duration of bounce ms 5552
No make before break
guaranteed between
“N/C” and “N/O” contacts
Maximum make
before break or break
before make time
On energization ms –––5
On de-energization ms –––2
Maximum operating
rate
At no-load Hz 10 10 10 10
At Ie Hz 0.5 0.5 0.5 –
Mechanical durability
in millions of operating cycles
20 10 10 20
Rated insulation
voltage
Conforming to IEC 947-1 V300 300 300 300
Conforming to VDE 0110 group C V250 250 250 250
Insulation test voltage
for 1 min
Coil circuit/contact circuits kV rms 2 4 4 1.5
Wired interface/ground kV rms 2.5 2.5 2.5 2.5
Between open contacts kV rms 0.75 1 1 1
(1) Do not switch inductive loads.
Introduction:
page 62
Characteristics:
pages 63 and
64
Curves:
page 65
Product selector:
page 66
Dimensions, Wiring diagrams:
page 67
Interfaces
For discrete signals
Slim electromechanical interface modules
1
2
3
4
5
6
7
8
9
10
65
Curves
Electrical durability of contacts (ABR 2S)
Test conditions : in accordance with standard IEC 947-5-1 set up for rated control voltage.
a.c. loads
1 24 V
2 48 V
3 115 V
4 230 V
AC12 : control of resistive loads and isolated solid state
loads via optocoupler
cos j ≥ 0.9
AC14 : control of weak electro-magnetic loads of
electro-magnets y 72 VA
make : cos j = 0.3
break : cos j = 0.3
AC15 : control of electro-magnetic loads of
electro-magnets > 72 VA
make : cos j = 0.7
break : cos j = 0.4
d.c. loads
1 24 V
2 48 V
3 115 V
DC12 : control of resistive loads and isolated solid state
loads via optocoupler
L/R ≤ 1 ms
DC13 : control of electro-magnets
L/R ≤ 2 x (Ue x Ie) in ms.
Ue : rated operating voltage
Ie : rated operating current
(with a load protection diode)
5
4
3
2
1
12345
(A)
6
0
0
3
4
2
6
1
Operating cycles in millions
2
1
0,5 1 1,5 2 2,5
(A)
3
0
0
3
2
4
3
1
Operating cycles in millions
2
1
0,51 1,52 2,5
(A)
3
0
0
3
1
23
Operating cycles in millions
2
1
0
0,5 1 1,5 2 2,5
(A)
2
3
3
3
0
1
Operating cycles in millions
Introduction:
page 62
Characteristics:
pages 63 and
64
Curves:
page 65
Product selector:
page 66
Dimensions, Wiring diagrams:
page 67
Interfaces
For discrete signals
Slim electromechanical interface modules
1
2
3
4
5
6
7
8
9
10
66

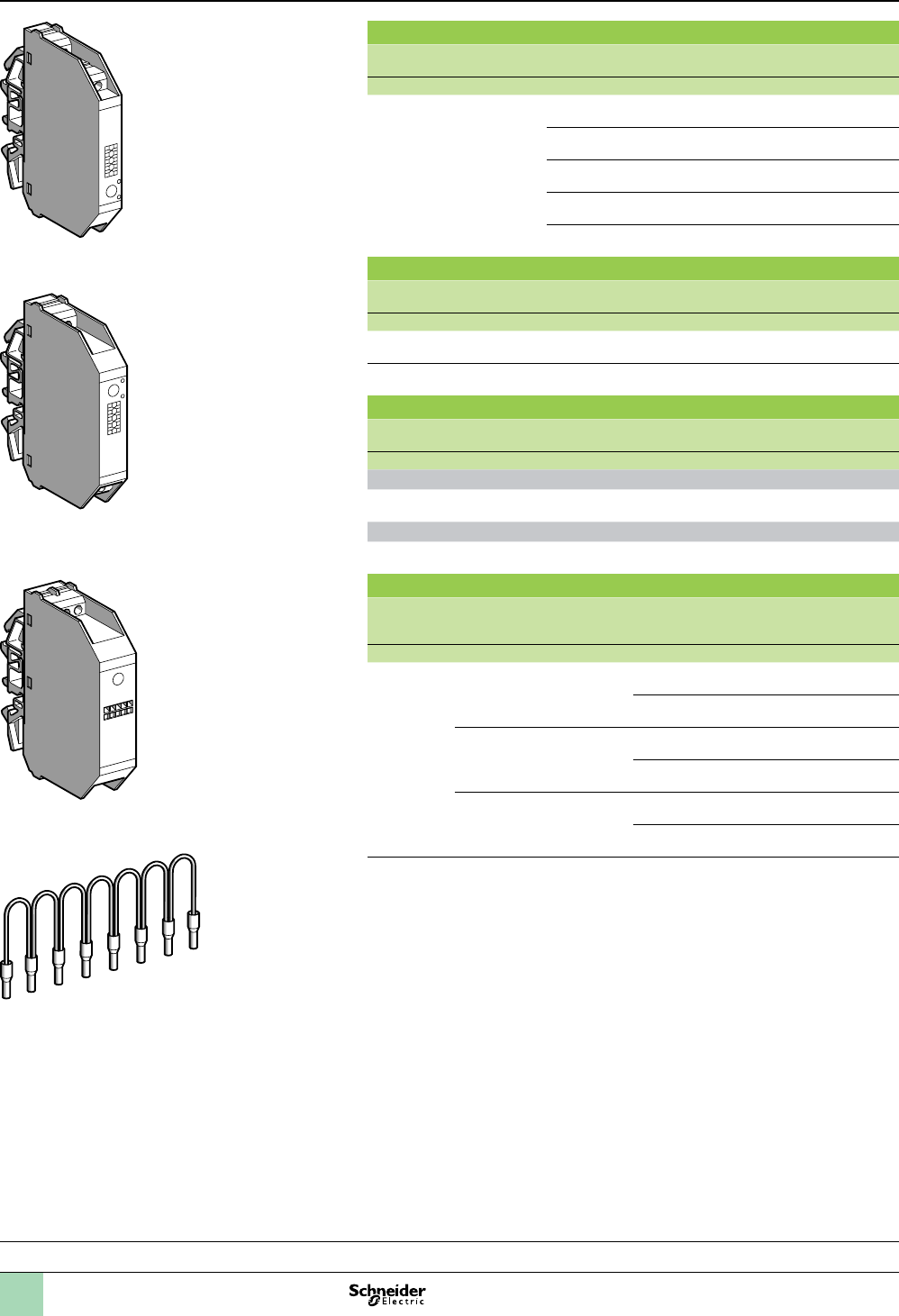

Product selector
Input modules (9.5 mm pitch)
Indication Contact
Conguration
Control circuit Sold in
lots of
Catalog number Weight
V kg
With LED 1 N/O c 24 5ABR2E112B 0.032
c 48 5ABR2E112E 0.032
a 115...127 (50 Hz) 5ABR2E115F 0.035
a 120...127 (60 Hz) 5ABR2E116F 0.035
a 230...240 (50/60 Hz) 5ABR2E111M 0.036
Output modules (12 mm pitch)
Indication Contact
Conguration
Control circuit Sold in
lots of
Catalog number Weight
V kg
Without 1 N/O c 24 5ABR2S102B 0.040
With LED 1 N/O c 24 5ABR2S112B 0.041
Modules for very low level switching (17.5 mm pitch)
Indication Contact
Conguration
Control circuit Catalog number Weight
V kg
Input
With LED 1 C/O (1) c 24 ABR2EB312B 0.048
Output
With LED 1 C/O (1) c 24 ABR2SB312B 0.048
Flexible comb accessories
Description For common Color Distance
between
wire ends
Catalog number Weight
cm kg
Flexible
comb
modularity
8 x 1 mm
2
Coil White 12 ABFC08R12W 0.020
2ABFC08R02W 0.010
aRed 12 ABFC08R12R 0.020
2ABFC08R02R 0.010
cBlue 12 ABFC08R12B 0.020
2ABFC08R02B 0.010
(1) Not for use with inductive loads.
ABR2E112B
ABR2S112B
ABR2EB112B
ABFC08Rppp
Introduction:
page 62
Characteristics:
pages 63 and
64
Curves:
page 65
Product selector:
page 66
Dimensions, Wiring diagrams:
page 67
Interfaces
For discrete signals
Slim electromechanical interface modules
Control circuit: a.c. or d.c.
1
2
3
4
5
6
7
8
9
10
67
Dimensions,
Wiring diagrams
Dimensions (mm):
ABR2E11pp ABR2S1p2B
ABR2EB312B ABR2SB312B
Circuit diagrams
ABR2E112B (c 24 V) ABR2E112E (c 48 V) ABR2E11pF/M (a 115...240 V)
ABR2S102B (c 24 V) ABR2S112B (c 24 V) ABR2pB312B (c 24 V)
78
75
70,5
9,5
74
78
75
70,5
12
74
78
75
70,5
63
17,5
74
78
75
70,5
63
17,5
74
+
A1
–A2
13 14
+
A1
–A2
14
13
A1
– A2
13 14
13
14
+
A1
–A2
13
14
+
A1
–A2
14
11
12
+
A1
–A2
Introduction:
page 62
Characteristics:
pages 63 and
64
Curves:
page 65
Product selector:
page 66
Dimensions, Wiring diagrams:
page 67
Interfaces
For discrete signals
Slim electromechanical interface modules
1
2
3
4
5
6
7
8
9
10
68
Interfaces 6
For discrete signals
Slim solid-state interface modules
The ABS-2 solid-state interface relays are supplied in the form of compact modules
which appear identical to the ABR-2 electromechanical family.
They are designed for interfacing discrete digital control signals exchanged within an
automated system between the processor (PLC, numerical controller, etc) and the
other components (contactors, solenoid valves, indicator lamps, proximity sensors).
They are suitable for use in equipment which requires the benets of electronic
technology: a high operating rate, enhanced durability, silent operation.
These products are notable for their high performance and excellent adaptation to
industrial environments. They also conform to the most recent IEC standards.
Composition
The ABS-2 range includes 2 families:
Input interfaces
The 9.5 mm wide input interfaces are designed for switching input signals to
processors. They offer a wide choice of electrical isolation between signals due to
the wide range of input voltages from c 5 V to a 230 V.
Output interfaces
Output interfaces are designed for the control of preactuators (contactors, solenoid
valves, etc) for the signalling devices (indicator lamps, audible warnings, etc).
Two widths are available, 9.5 and 17.5 mm, depending on the switched current.
The 17.5 mm version includes a 9.5 mm interface and an integrated 8 mm spacer.
This device can, with its increased ventilation, switch high levels of currents.
The front panel of the ABS-2 slim solid-state interface modules includes:
1 LED indicating the state of the control signal.
2 Channel identication : 5 individual characters for AB1-/G or one AB1-SA2 marker
tag.
3 Connection by screw clamp terminal enabling easy attachment of 2 wires per
terminal.
The layout of the connection terminals for both families (input and output) is
designed for rational wiring and a clear separation between the incoming
(processing) and outgoing (power and process control) circuits.
4 Integrated spacer.
3
2
1
ABS2INTERSORT-PRO-3-B
3
2
1
ABS-2
ABS2-PRO-3-B
3
2
1
4
Introduction:
page 68
Characteristics:
pages 69 to
71
Product selector, curves:
page 72
Dimensions, Wiring diagrams:
page 73
Introduction
6
1
2
3
4
5
6
7
8
9
10
69
Interfaces 6
For discrete signals
Slim solid-state interface modules
Examples of applications with PLCs
Interfacing PLC discrete inputs
Interfacing PLC discrete outputs
–
+
–
+
14
13
14
13
ABS - 2E
13
14
PNP 115/
230 V
13
14
13
14A1
A2
A1
A2
A1
A2
A1
A2
A1
A2
PLC
Positive logic discrete inputs
Pushbuttons
Series contacts
2-wire
sensors
3-wire
sensors
Pushbuttons
Series contacts
2-wire
sensors
Process
power supply
Processing
power supply
–
+
–
+
A1
A2
A1
A2
A1
A2
ABS - 2S
F
13
14
13
14
13
14
PLC
Positive logic transistor (or relay) outputs
Environment
Conforming to standards IEC 60947-1, UL 508, CSA C22.2 No. 14
Product certications UL, CSA, BV, LROS, DNV
Degree of protection Conforming to IEC 529
(protection against direct contact)
IP 20
Protective treatment “TC”
Flame resistance Conforming to IEC 695-2-1 Incandescent wire °C 960
Conforming to UL 94 V0
Shock resistance Conforming to IEC 68-2-27 Semi-sinusoidal waves 11 ms 30 gn
Vibration resistance Conforming to IEC 68-2-6 10…150 Hz 5 gn
Resistance to electrostatic
discharges
Conforming to IEC 801-2 Level 3 kV 8
Resistance to
electromagnetic elds
Conforming to IEC 801-3 Level 3 ; 27…1000 MHz V/m 10
Resistance to rapid
transients
Conforming to IEC 801-4
Level 3
On power supply kV 2
On I/O kV 1
Resistance to shock
waves
Conforming to IEC 947-1 Waveform
1.2/50 ms ; 0.5 J
U < 50 V kV 0.5
U < 150 V kV 1.5
U < 300 V kV 2.5
Cross-sections which
may be connected
Flexible wire with no cable end 1 or 2-wire mm20.6…2.5
Flexible wire with cable end 1 or 2-wire mm20.34…2.5
Rigid cable 1-wire mm20.27…4
Operating position Any
Ambient air temperature
around the device
Unrestricted operation °C - 5…+ 55
Operation at Us °C - 25…+ 70
Storage °C - 40…+ 80
Operating altitude m ≤ 300
Installation category Conforming to IEC 947-1 II
Degree of pollution Conforming to IEC 947-1 2
Mounting Standard DIN rails
Introduction:
page 68
Characteristics:
pages 69 to
71
Product selector, curves:
page 72
Dimensions, Wiring diagrams:
page 73
Characteristics
6
1
2
3
4
5
6
7
8
9
10
70
Interfaces 6
For discrete signals
Slim solid-state interface modules
Control circuit characteristics (55°C ambient temperature)
Type of interface ABS
2EC01EA
ABS
2EC01EB
ABS
2EC01EE
ABS
2EA01EF
ABS
2EA02EF
ABS
2EA01EM
ABS
2EA02EM
Rated voltage Us cV5 24 48 – – – –
aV– – – 115/127
50 Hz
120/127
60 Hz
230/240
50 Hz
230/240
60 Hz
Maximum voltage cVNegative
logic
6 (TTL)
28.8 57.6 – – – –
aV– – – 140 140 264 264
Maximum current at Us cmA 13.6 12 10.5 – – – –
amA – – – 14 17 12.5 15
State 1 cV3.75 16.9 36 – – – –
mA 4.5 7.7 7.5 – – – –
aV– – – 86.3 90 173 173
mA – – – 8.4 9.7 7.9 9.3
State 0 cV2 5.6 10.8 – – – –
mA 0.09 2 2 – – – –
aV– – – 25.4 25.4 48 48
mA – – – 2.5 2.5 2.5 2.5
State 1 display Yes Yes Yes Yes Yes Yes Yes
Internal protection reversed polarity Yes Yes Yes – – – –
Output circuit characteristics
Rated operating voltage Ue cV5...48
Min/max voltage cV2/60
Min/max current switched mA 1/50
Maximum residual current at state 0 mA 0.1
Maximum volt drop at state 1 V 1
Internal protection Reversed polarity
External protection Against short-circuits for Ik ≤ 100 A (c)
Quick-blow fuse, ref. : HA21 0.25 A or equivalent
Other characteristics
Type of interface ABS
2EC01EA
ABS
2EC01EB
ABS
2EC01EE
ABS
2EA01EF
ABS
2EA02EF
ABS
2EA01EM
ABS
2EA02EM
Time delay characteristics
Response time max Ue ≤ 30 V Ie ≥ 5 mA
0 V 1 ms 0.05 0.05 0.05 10 10 10 10
1 V 0 ms 0.4 0.4 0.4 20 20 20 20
Maximum switching rate
Duty cycle 50 %
Ue ≤ 30 V Ie ≥ 5 mA
Hz 1000 1000 1000 25 25 25 25
Rated insulation voltage Conforming to IEC 947-1 : 300 V
Conforming to VDE 0110 : 250 V group C
Insulation test voltage
for 1 minute
I/O kVrms 4
Wired interface/ground kVrms 2.5
Introduction:
page 68
Characteristics:
pages 69 to
71
Product selector, curves:
page 72
Dimensions, Wiring diagrams:
page 73
Characteristics (continued)
6
1
2
3
4
5
6
7
8
9
10
71
Interfaces 6
For discrete signals
Slim solid-state interface modules
Control circuit characteristics (55°C ambient temperature)
Type of interface ABS2SC01EB ABS2SC02EB ABS2SA01MB ABS2SA02MB
Rated voltage Us cV24 24
Maximum voltage V 28.8 28.8
Maximum current at Us mA 12 13.6
State 1 V 16.9 16.9
mA 7.7 8.3
State 0 V 5.6 5.3
mA 2 2
State 1 display Yes Yes
Internal protection reversed polarity Yes Yes
Output circuit characteristics
Rated operating voltage Ue V c 5...48 c 5...48 a 24...240 a 24...240
Maximum voltage V c 57.6 c 57.6 a 264 a 264
Maximum continuous current (Ith) (1)
at 40 °C
A2 3 2.3 3
Rated operating voltage (Ie)
Conforming to IEC 947-5-1
Single/touching product
at 55 °C vertical position
ADC12 1.5/0.9 2.5/2.2 AC12 1.9/0.5 2.1/1.5
ADC13 1.5/0.9 2.5/2.2 AC13 1.6/0.5 1.6/1.5
ADC14 0.6/0.6 0.6/0.6 AC14 1.6/0.5 1.6/1.5
A– – – AC15 1/0.5 1/1
Minimum current c/amA 1 10
Maximum residual current c/amA 1 2.5
Maximum volt drop V 1.5 3 (Ie ≥ 10 mA)
1.5 (Ie ≥ 100 mA)
“0 crossing” voltage V – 50 peak
Solid-state dV/dt V/ms– 500
Internal protection Reversed polarity
External protection Against short-circuits for Ik ≤ 1 kA (a) and ≤ 100 A (c)
Quick-blow fuse with high breaking capacity: 3.15 A
Other characteristics
Maximum response time
at Ie Š 10 mA
0 V 1 ms 0.05 10 (50 Hz) ; 8 (60Hz)
1 V 0 ms 0.6 10 (50 Hz) ; 8 (60Hz)
Maximum switching rate At 55 °C ; at Ie: module alone
duty cycle 40 %
Hz DC13 6 6 AC13 0.6 0.7
Hz DC14 1 3 AC14 0.6 0.7
Hz – – – AC15 0.6 0.7
On resistive load
duty cycle 50 %
Hz 700 50
Rated operating voltage Conforming to IEC 947-1 : z 300 V
Conforming to VDE 0110 : 250 V group C
Rated Insulation voltage
for 1 minute
I/O kVrms 4
Wired interface/ground kVrms 2.5
(1) See temperature derating curves.
Introduction:
page 68
Characteristics:
pages 69 to
71
Product selector, curves:
page 72
Dimensions, Wiring diagrams:
page 73
Characteristics (continued)
6
1
2
3
4
5
6
7
8
9
10
72

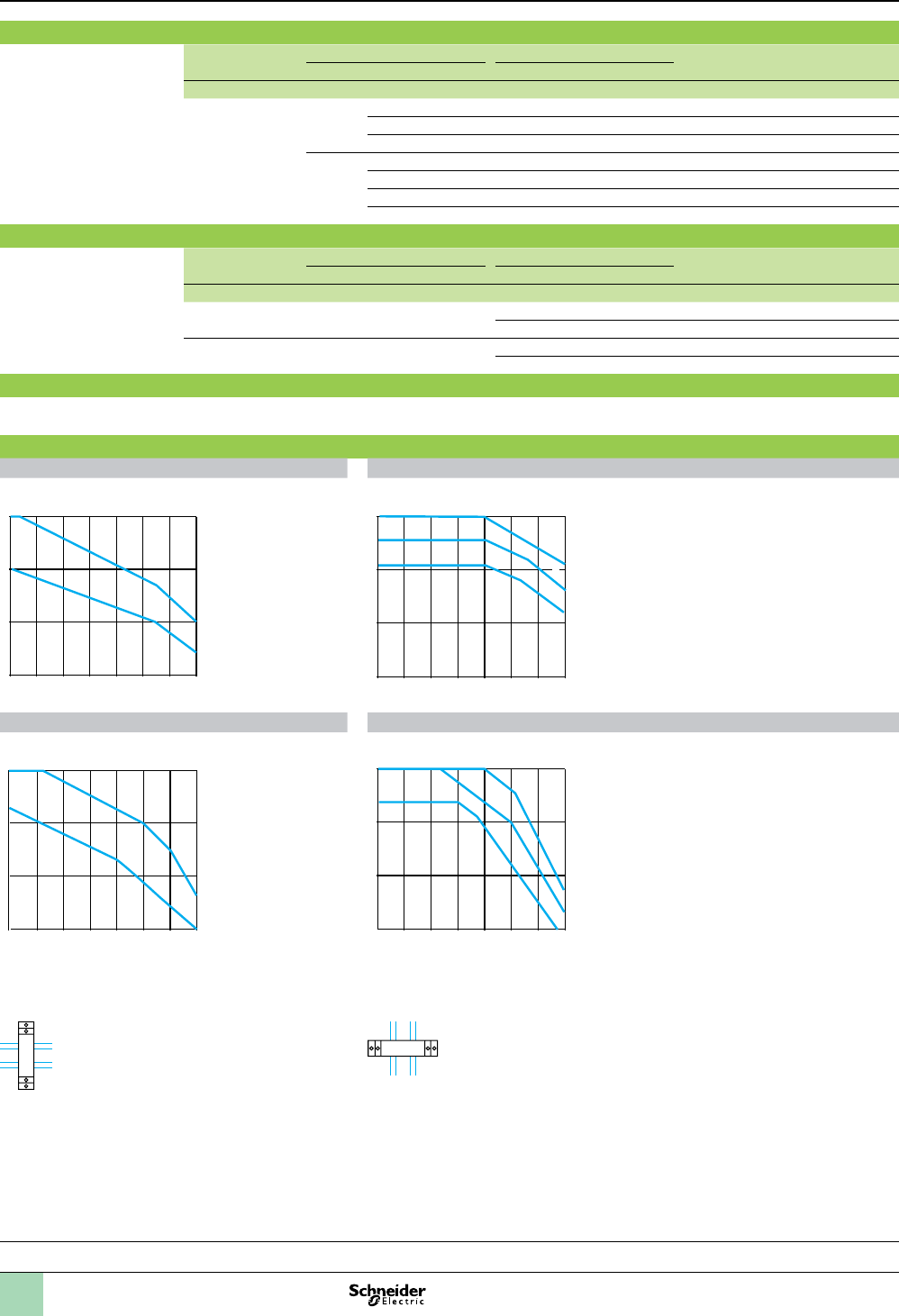

Interfaces 6
For discrete signals
Slim solid-state interface modules
Solid-state input modules
Width Input circuit Output circuit Sold in
lots of
Catalog number Weight
Current Nominal voltage Current Nominal voltage
mm V V kg
9.5 c5c5…48 5ABS2EC01EA 0.029
24 c5…48 5ABS2EC01EB 0.029
48 c5…48 5ABS2EC01EE 0.029
a115…127 (50 Hz) c5…48 5ABS2EA01EF 0.032
120…127 (60 Hz) c5…48 5ABS2EA02EF 0.032
230…240 (50 Hz) c5…48 5ABS2EA01EM 0.033
230…240 (60 Hz) c5…48 5ABS2EA02EM 0.033
Solid-state output modules
Width Input circuit Output circuit Sold in
lots of
Catalog number Weight
Current Nominal voltage Current Nominal voltage
mm V A V kg
9.5 c24 c 2 24…48 5ABS2SC01EB 0.034
a 2.3 24…230 5ABS2SA01MB 0.034
17.5 c24 c 3 24…48 1ABS2SC02EB 0.043
a 3 24…230 1ABS2SA02MB 0.044
Accessories
For connecting commons, use ABFC08ppp exible combs (Please consult your Regional Sales Ofces).
Temperature derating curve for solid-state output modules Uc = Us = c 24 V
ABS2SC01EB d.c. ABS2SC02EB d.c.
ABS2SA01MB a.c. ABS2SA02MB a.c.
1 Vertical module alone or adjacent to modules with
low heat dissipation.
2 Horizontal module alone or adjacent to modules with
low heat dissipation.
3 Vertical module mounted with 2 modules with
identical heat dissipation on both sides.
4 Horizontal module mounted with 2 modules with
identical heat dissipation on both sides.
10 20 30 40 50 60 70
1
2
3
1/2
00
3/4
Ie (A)
T °C ambient
10 20 30 40 50 60 70
1
2
3
1/2
00
4
3
Ie (A)
T °C ambient
10 20 30 40 50 60 70
1
2
3
1/2
00
3/4
Ie (A)
T °C ambient
10 20 30 40 50 60 70
1
2
3
1/2
00
4
3
Ie (A)
T °C ambient
Introduction:
page 68
Characteristics:
pages 69 to
71
Product selector, curves:
page 72
Dimensions, Wiring diagrams:
page 73
Product selector,
Curves
6
1
2
3
4
5
6
7
8
9
10
73
Interfaces 6
For discrete signals
Slim solid-state interface modules

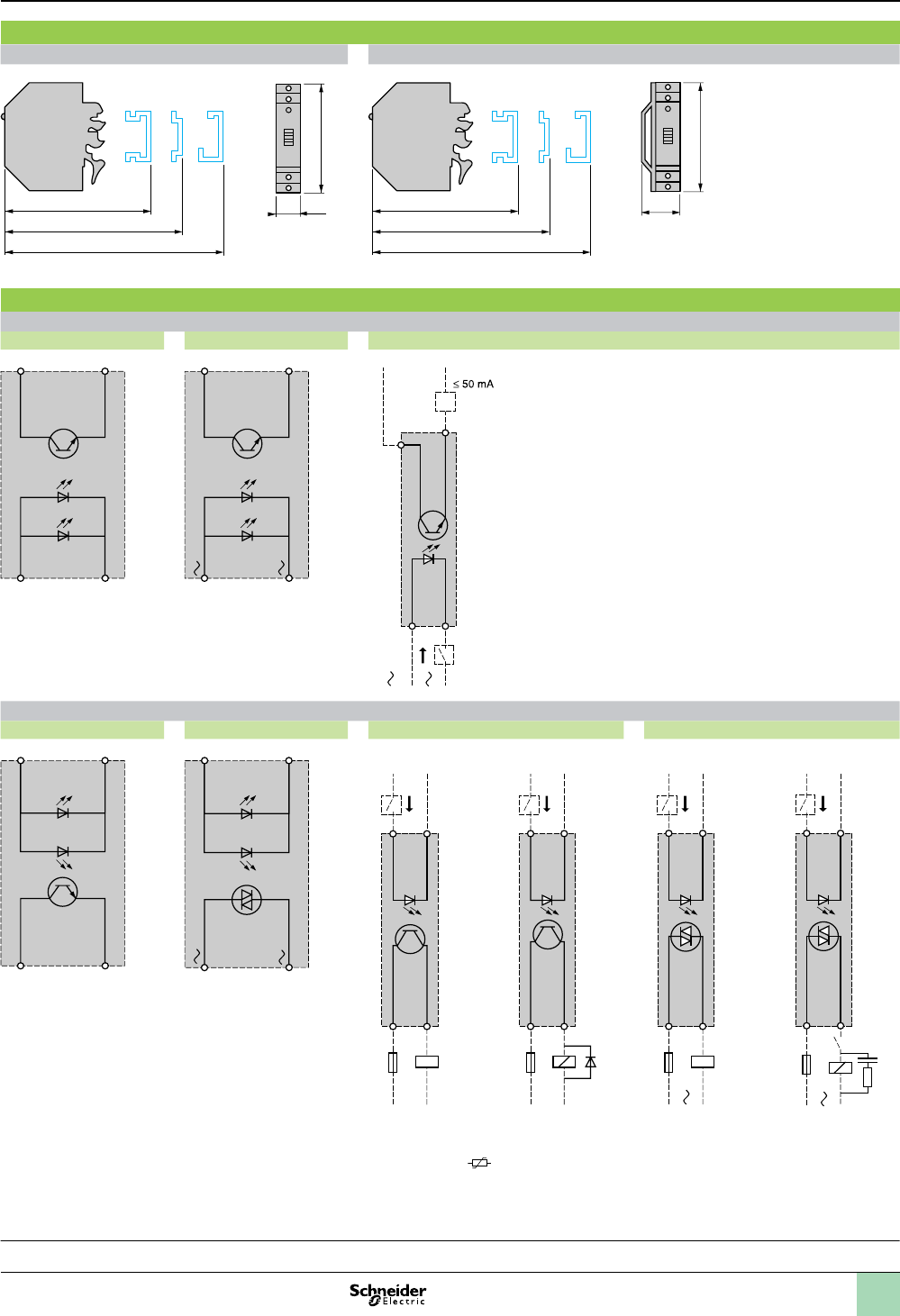

Dimensions (mm):
ABS2E/ABS 2Sp01pp ABS2Sp02pp
Circuit diagrams
Solid-state input modules
ABS2ECpppp ABS2EApppp ABS2Epppp
Solid-state output modules
ABS2SC0pEB ABS2SA0pMB ABS2SC0pEB ABS2SA0pMB
F: fuse DF1 SS133.2
(1) or peak limiter
78
75
70,5
74
9,5
78
75
70,5
17,5
74
+
A1
–
A2
+
13
–
14
A1
A2
+
13
–
14
14
13
A2
A1
+
–
5…48 V
+
–
+
13
–
14
+
A1
–
A2
13
14
+
A1
–
A2
14
13
A2
A1
+
–
+
–
– F
5-24 V
Resistive load
14
13
A2
A1
+
–
+
–
– F
5-24 V
(1)
Inductive load
14
13
A2
A1
+
–
– F
5-24 V
Resistive load
14
13
A2
A1
+
–
– F
5-24 V
(1)
Inductive load
Introduction:
page 68
Characteristics:
pages 69 to
71
Product selector, curves:
page 72
Dimensions, Wiring diagrams:
page 73
Dimensions,
Wiring diagrams
6
1
2
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
9
10
7474

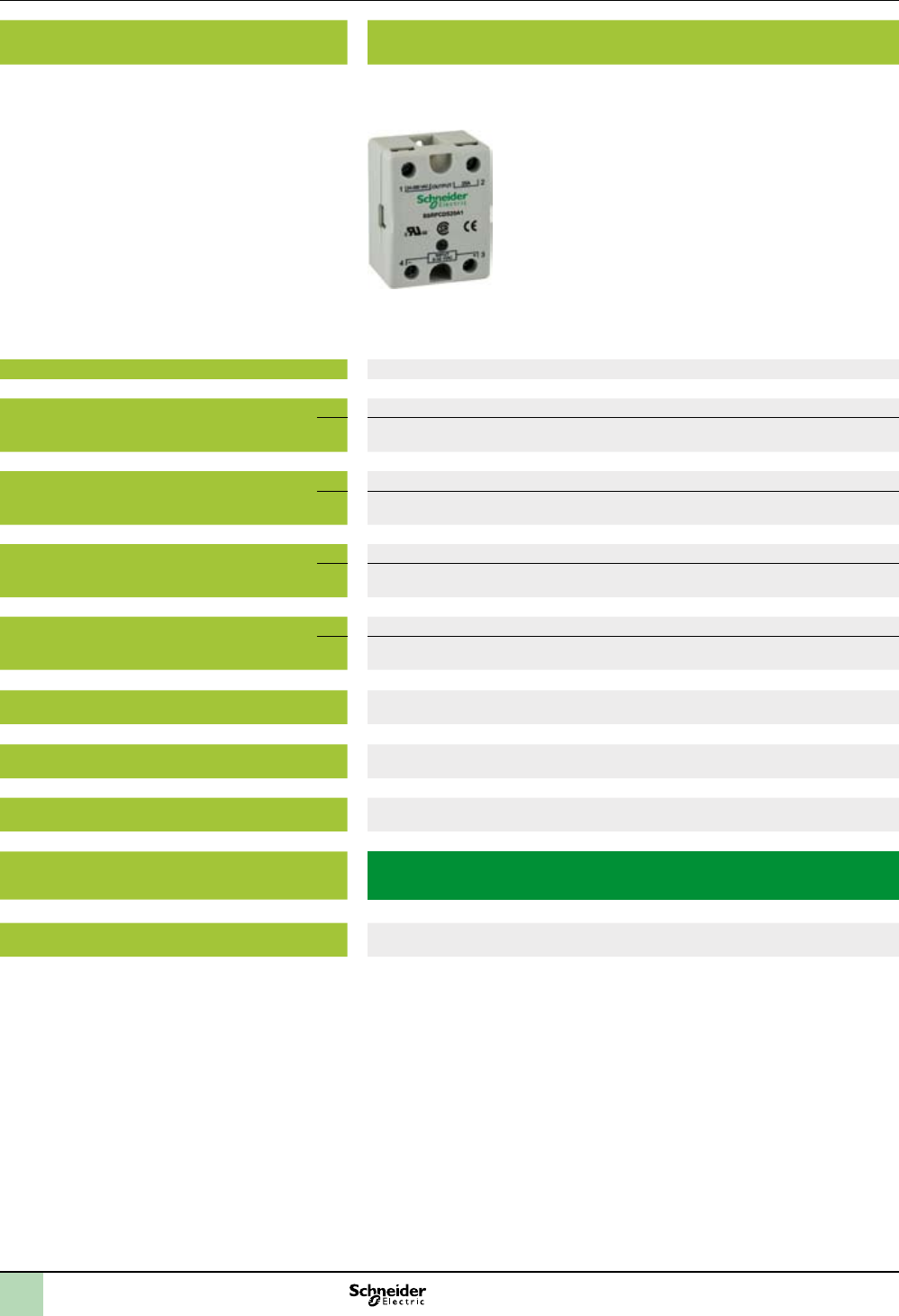

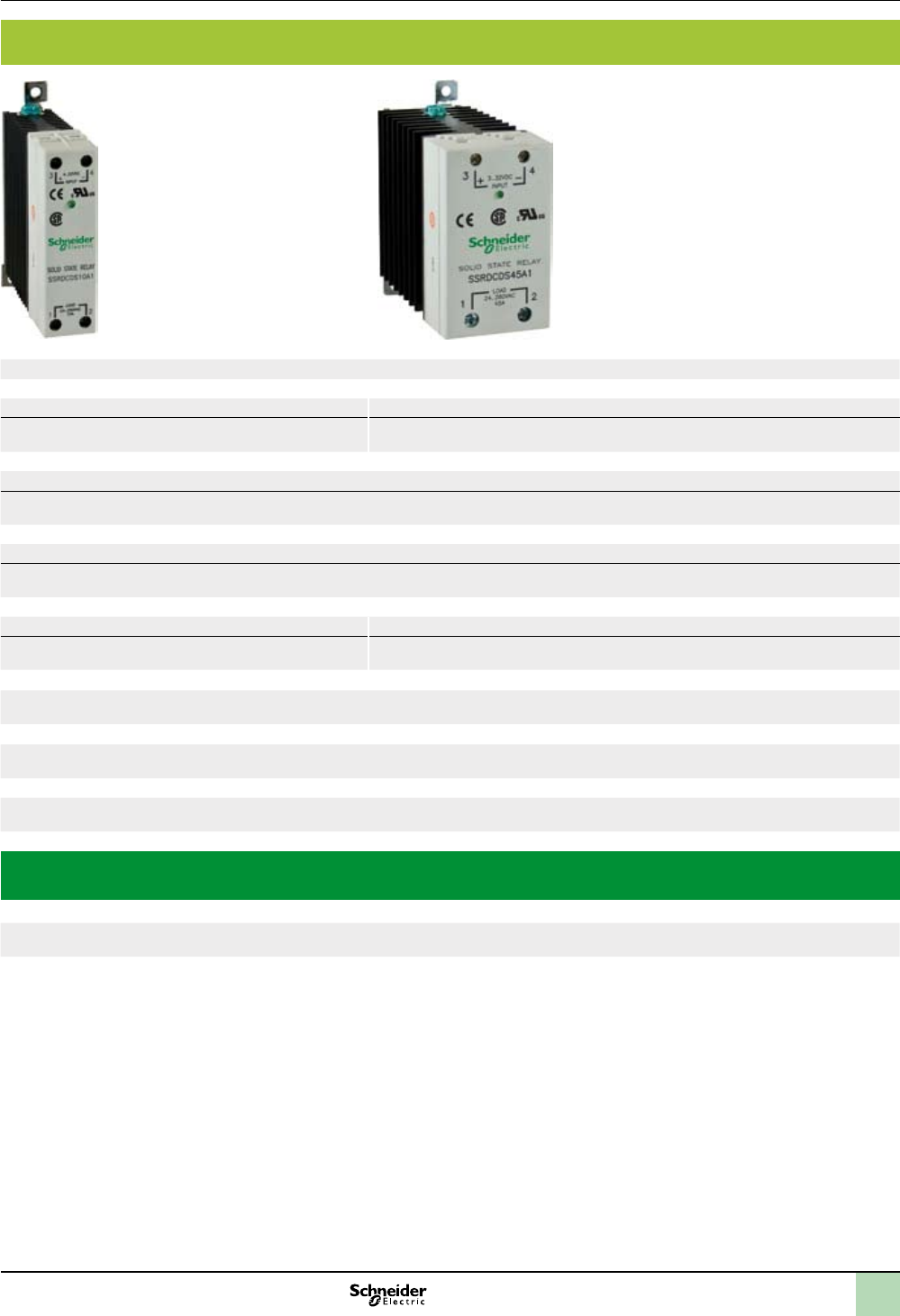

Selection guide Zelio® Solid State Relays
SSR solid state relays
Applications Panel mounted DIN rail mounted
Contact type 1 N/O SPST contact 1 N/O SPST contact
Control voltage ranges a90…280 V 90…280 V 90…140 V
c 3…32 V, 3.5…32 V 4…32 V 3…32 V
Operating voltages a24…280 V, 48…530 V, 48…660 V 24…280 V
c 0…100 V
Type of switching aZero voltage switching Zero voltage switching
c DC switching
Current a10, 25, 50, 75, 90, 125 A 10, 20, 30 A 45 A
c 12, 25, 40
Degree of protection IP20 IP20
LED indication Yes Yes
Cooling Thermal protection or with heat sink accessory Built-in heat sink
Solid state relay type
SSRP SSRD
Page 76 76
2
1
3
4
5
6
7
8
9
10
7575
Applications Panel mounted DIN rail mounted
Contact type 1 N/O SPST contact 1 N/O SPST contact
Control voltage ranges a90…280 V 90…280 V 90…140 V
c 3…32 V, 3.5…32 V 4…32 V 3…32 V
Operating voltages a24…280 V, 48…530 V, 48…660 V 24…280 V
c 0…100 V
Type of switching aZero voltage switching Zero voltage switching
c DC switching
Current a10, 25, 50, 75, 90, 125 A 10, 20, 30 A 45 A
c 12, 25, 40
Degree of protection IP20 IP20
LED indication Yes Yes
Cooling Thermal protection or with heat sink accessory Built-in heat sink
Solid state relay type
SSRP SSRD
Page 76 76
2
1
3
4
5
6
7
8
9
10
7676

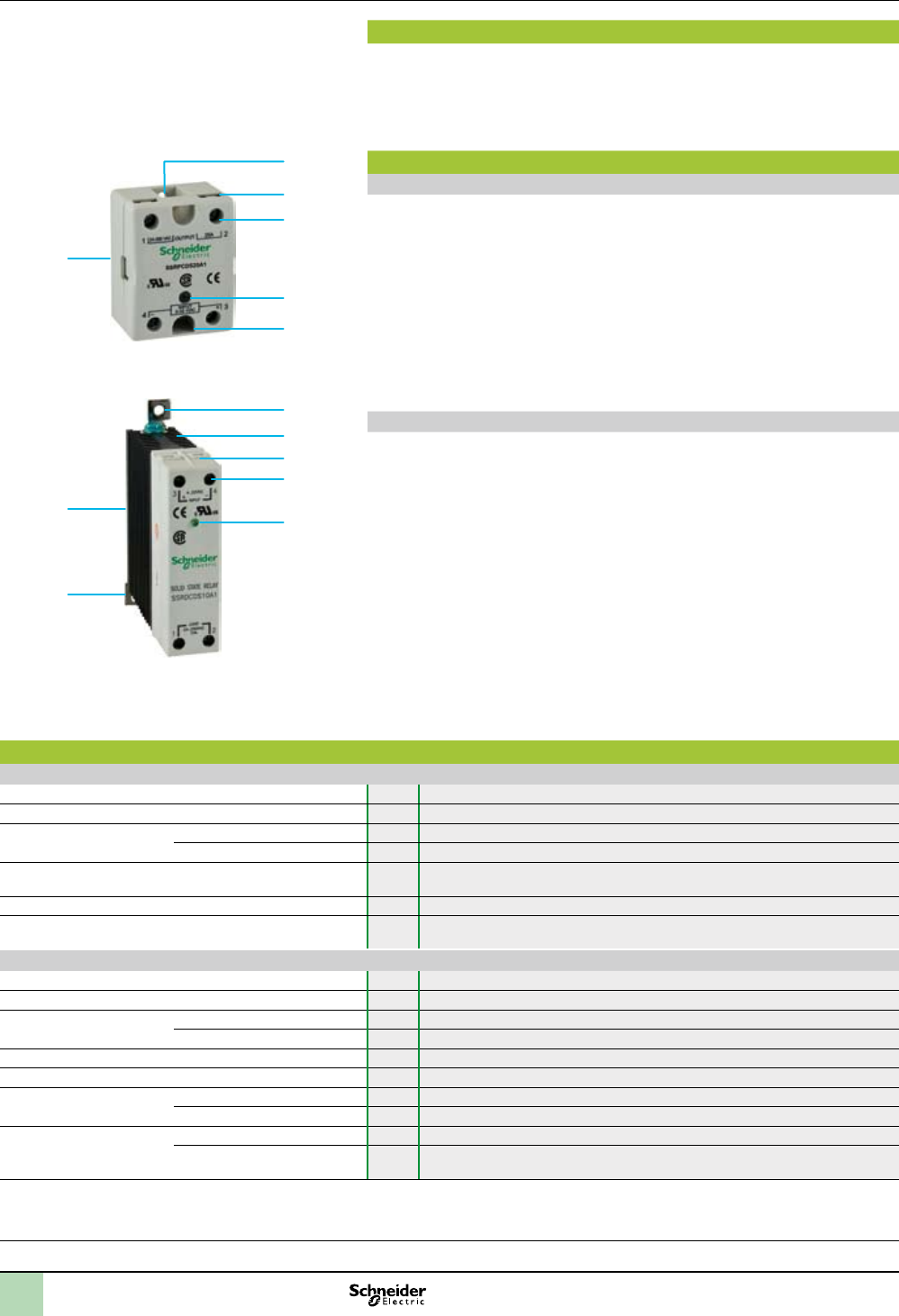

Introduction,
description,
general characteristics
Zelio® Solid State Relays
SSR solid state relays
Introduction
The SSR solid state relay range includes:
relays for panel mounting: bSSRP.
relays for DIN rail mounting: bSSRD.
Description
SSRP relays for panel mounting
2 x Ø 4.9 holes for mounting.1
Connection terminals.2
Connection terminal screws.3
Input voltage indicator LED, green.4
Thermal interface which must be via the back of the product.5
SSRD relays for DIN rail mounting
Lugs for plate mounting.1
Built-in heat sink.2
Connection terminals.3
Connection terminal screws.4
Input voltage indicator LED, green.5
Bracket for mounting on 35 mm DIN6 rail.
Introduction:
page 76
Characteristics:
pages 76 to 78
Product selector:
page 79
Dimensions:
page 80
Curves:
pages 80 and 81
1
2
4
1
5
3
1
2
5
6
1
4
3
General characteristics
SSRP solid state relays, panel mounting
Product certications UR E258297, CSA LR 40787, IEC 60950-1, IEC 62314
Product marking e
Ambient air temperature
around the device
Storage °C - 40…+ 80
Operation °C - 40…+ 125
Encapsulation Thermally conductive epoxy
Degree of protection IP20 (with cover), IP00 (without cover)
Terminal screw torque Nm Inputs: 1.1 (screw: Ø 3.5 / length 6 mm)
Outputs: 2.2 (screw: Ø 4 / length 7.4 mm)
SSRD solid state relay, DIN rail mounting
Product certications UR E258297, CSA LR 40787, IEC 60950-1, IEC 62314
Product marking e
Ambient air temperature
around the device
Storage °C - 40…+ 80
Operation °C - 40…+ 125
Encapsulation Thermally conductive epoxy
Degree of protection IP20
Terminal screw torque 10…30 A relays Nm Inputs: 0.6…0.7 / Outputs: 0.6…0.7
45 A relays Nm Inputs: 0.6…0.7 / Outputs: 1.1…1.7
Max. wire size 10…30 A relays Inputs: 5.3 mm2 - AWG 10 / Outputs: 5.3 mm2 - AWG 10
45 A relays Inputs: 3.3 mm2 - AWG 12 / Outputs: 8.4 mm2 - AWG 8
2
1
3
4
5
6
7
8
9
10
7777
Characteristics (continued) Zelio® Solid State Relays
SSR solid state relays
Panel mounting
SSRP solid state relays, panel mounting
Relay type SCR output, Zero voltage switching SSRPCDS10A1 SSRPCDS25A1 SSRPCDS50A1
Input specication
Control voltage range c V3…32 3…32 3…32
Maximum turn-on voltage c V3 3 3
Maximum turn-off voltage c V1.0 1.0 1.0
Maximum typical input current mA 10 at c 12 V 10 at c 12 V 10 at c 12 V
Output specication
Operating voltage a V 24…280 24…280 24…280
Load current range A 0.15 …10 0.15…25 0.15…50
Transient overvoltage Vpk 600 600 600
Maximum surge current (16.6 ms) Apk 120 250 625
Maximum On-state voltage drop at rated current Vrms 1.6 1.6 1.6
Thermal resistance junction to base plate °C/W 1.48 1.02 0.63
Maximum I²t for fusing (8.3 ms) A²sec 60 260 1620
Maximum off-state leakage current at rated voltage mA 1.0 1.0 1.0
Minimum off-sate dv/dt at maximum rated voltage V/µsec 500 500 500
Maximum turn-on time Cycle 1/2 1/2 1/2
Maximum turn-off time Cycle 1/2 1/2 1/2
Relay type SCR output, Zero voltage switching SSRPCDS75A2 SSRPCDS90A3 SSRPCDS125A3
Input specication
Control voltage range c V 3…32 3…32 3…32
Maximum turn-on voltage c V3 3 3
Maximum turn-off voltage c V1.0 1.0 1.0
Typical input current mA 10 at c 12 V 10 at c 12 V 10 at c 12 V
Output specication
Operating voltage a V48…530 48…660 48…660
Load current range A 0.15…75 0.25…90 0.25…125
Transient overvoltage Vpk 1200 1200 1200
Maximum surge current (16.6 ms) Apk 1110 1350 2000
Maximum On-state voltage drop at rated current Vrms 1.6 1.7 1.7
Thermal resistance junction to base plate °C/W 0.31 0.28 0.22
Maximum I²t for fusing (8.3 ms) A²sec 4150 6000 12 700
Maximum off-state leakage current at rated voltage mA 1.0 1.0 1.0
Minimum off-sate dv/dt at maximum rated voltage V/µsec 500 500 500
Maximum turn-on time Cycle 1/2 1/2 1/2
Maximum turn-off time Cycle 1/2 1/2 1/2
Relay type SCR output, Zero voltage switching SSRPP8S10A1 SSRPP8S25A1 SSRPP8S50A1
Input specication
Operating voltage a V90…280 90…280 90…280
Maximum turn-on voltage Vrms 90 90 90
Maximum turn-off voltage Vrms 10 10 10
Typical input current mA 6 at 120 Vrms 6 at 120 Vrms 6 at 120 Vrms
Output specication
Operating voltage a V24…280 24…280 24…280
Load current range A 0.15…10 0.15…25 0.15…50
Transient overvoltage Vpk 600 600 600
Maximum surge current (16.6 ms) Apk 400 600 850
Maximum On-state voltage drop at rated current Vrms 1.6 1.6 1.6
Thermal resistance junction to base plate °C/W 1.48 1.02 0.63
Maximum I²t for fusing (8.3 ms) A²sec 60 260 1620
Maximum off-state leakage current at rated voltage mA 10 max. 10 max 10 max
Minimum off-sate dv/dt at maximum rated voltage V/µsec 500 500 500
Maximum turn-on time ms 10 max. 10 max. 10 max.
Maximum turn-off time ms 40 max. 40 max. 40 max.
Relay type Mosfet output SSRPCDM12D5 SSRPCDM25D5 SSRPCDM40D5
Input specication
Control voltage range (input voltage) c V3.5…32 3.5…32 3.5…32
Maximum turn-on voltage c V3.5 3.5 3.5
Maximum turn-off voltage c V1.0 1.0 1.0
Typical input current mA 1.6 (c 5 V), 28 (c 32 V) 1.6 (c 5 V), 28 (c 32 V) 1.6 (c 5 V), 28 (c 32 V)
Output specication
Control voltage range c V0…100 0…100 0…100
Load current range A 12 25 40
Minimum load current mA 0 0 0
Maximum surge current (16.6 ms) Apk 28 51 106
Maximum On-state voltage drop at rated current Vpk 1.6 2.1 2.1
Thermal resistance junction to base plate °C/W 1.34 0.83 0.83
Maximum off-state leakage current at rated voltage mA 0.2 0.3 0.3
On-state resistance Ω0.13 0.05 0.05
Maximum turn-on time µsec 100 100 100
Maximum turn-off time msec 1.0 1.0 1.0
2
1
3
4
5
6
7
8
9
10
7878
Characteristics (continued) Zelio® Solid State Relays
SSR solid state relays
Panel mounting (continued)
DIN rail mounting
SSRP solid state relays, panel mounting (continued)
Relay type SCR output, Zero voltage switching SSRPP8S75A2 SSRPP8S90A3 SSRPP8S125A3
Input specication
Operating voltage a V90…280 90…280 90…280
Maximum turn-on voltage Vrms 90 90 90
Maximum turn-off voltage Vrms 10 10 10
Typical input current mA 6 at 120 Vrms 6 at 120 Vrms 6 at 120 Vrms
Output specication
Operating voltage a V48…530 48…660 48…660
Load current range A 0.15…75 0.25…90 0.25…125
Transient overvoltage Vpk 1200 1200 1200
Maximum surge current (16.6 ms) Apk 1110 1350 2000
Maximum On-state voltage drop at rated current Vrms 1.6 1.7 1.7
Thermal resistance junction to base plate °C/W 0.31 0.28 0.22
Maximum I²t for fusing (8.3 ms) A²sec 4150 6000 12 700
Maximum off-state leakage current at rated voltage mA 10 max. 5 max. 5 max.
Minimum off-sate dv/dt at maximum rated voltage V/µsec 500 500 500
Maximum turn-on time ms 10 max. 10 max. 10 max.
Maximum turn-off time ms 40 max. 40 max. 40 max.
SSRD solid state relay, DIN rail mounting
Relay type SCR output, Zero voltage switching SSRDP8S10A1 SSRDP8S20A1 SSRDP8S30A1 SSRDF8S45A1
Input specication
Operating voltage a V90…280 90…280 90…280 90…140
Maximum turn-on voltage Vrms 90 90 90 90
Maximum turn-off voltage Vrms 10 10 10 10
Typical input current mA 2 (120 Vrms),
4 (240 Vrms)
2 (120 Vrms),
4 (240 Vrms)
2 (120 Vrms),
4 (240 Vrms)
15 (120 Vrms)
Output specication
Operating voltage a V24…280 24…280 24…280 24…280
Load current range A 10 20 30 45
Transient overvoltage Vpk 600 600 600 600
Maximum surge current (16.6 ms) Apk 120 250 625 625
Maximum On-state voltage drop at rated current Vrms 1.6 1.6 1.6 1.6
Maximum I²t for fusing (8.3 ms) A²sec 60 260 1620 1620
Maximum off-state leakage current at rated voltage mA 10 10 10 10
Minimum off-sate dv/dt at maximum rated voltage V/µsec 500 500 500 500
Maximum turn-on time ms 10 max. 10 max. 10 max. 10 max.
Maximum turn-off time ms 40 max. 40 max. 40 max. 40 max.
Relay type SCR output, Zero voltage switching SSRDCDS10A1 SSRDCDS20A1 SSRDCDS30A1 SSRDCDS45A1
Input specication
Control voltage range c V 4…32 4…32 4…32 3…32
Maximum turn-on voltage c V4.0 4.0 4.0 4.0
Maximum turn-off voltage c V1.0 1.0 1.0 1.0
Typical input current mA 8…12 8…12 8…12 17
Output specication
Operating voltage a V24…280 24…280 24…280 24…280
Load current range A 10 20 30 45
Transient overvoltage Vpk 600 600 600 600
Maximum surge current (16.6 ms) Apk 120 250 625 625
Maximum On-state voltage drop at rated current Vrms 1.6 1.6 1.6 1.6
Maximum I²t for fusing (8.3 ms) A²sec 60 260 1620 1620
Maximum off-state leakage current at rated voltage mA 10 10 10 10
Minimum off-sate dv/dt at maximum rated voltage V/µsec 500 500 500 500
Maximum turn-on time Cycle 1/2 1/2 1/2 1/2
Maximum turn-off time Cycle 1/2 1/2 1/2 1/2
2
1
3
4
5
6
7
8
9
10
7979

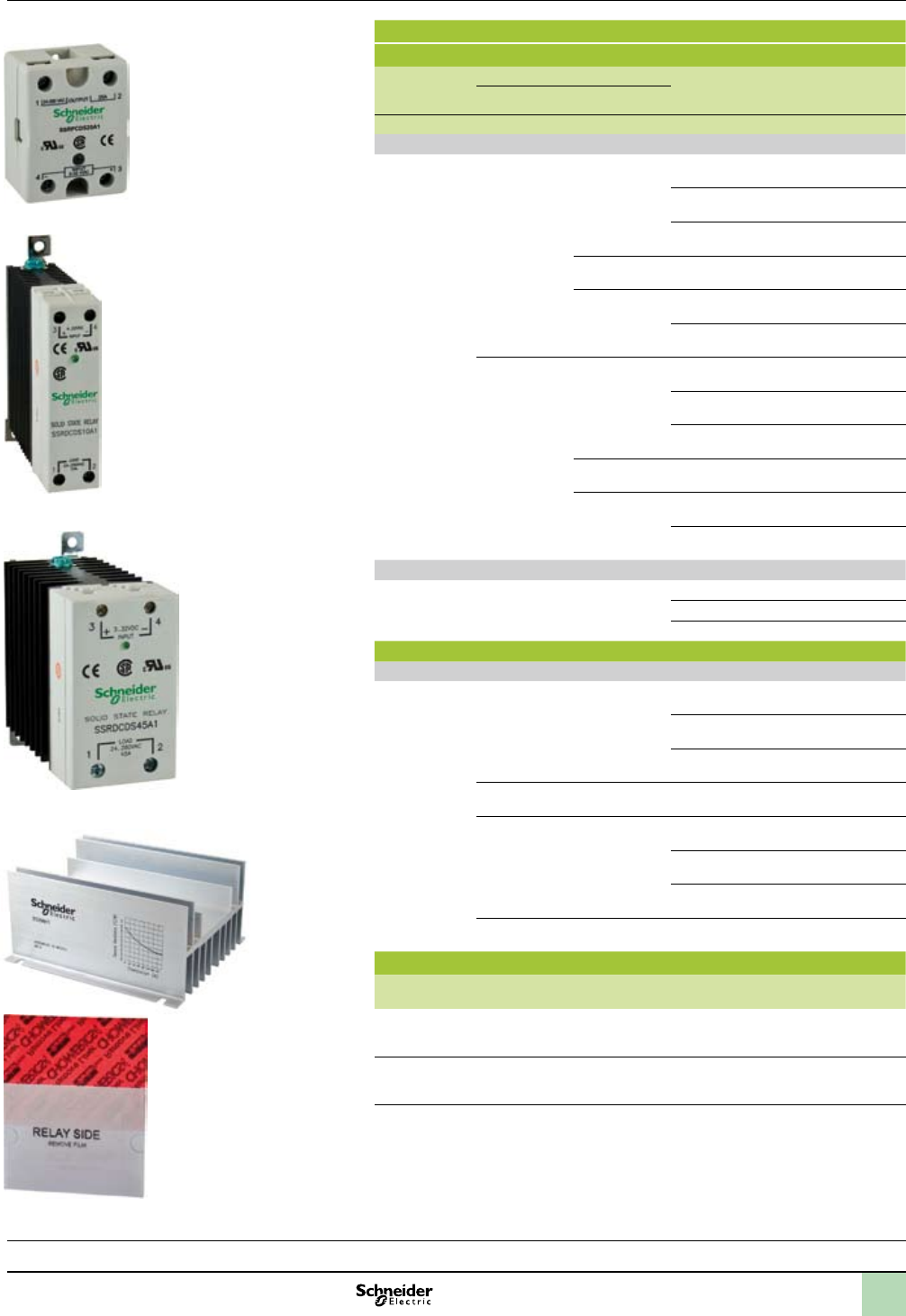

Product selector Zelio® Solid State Relays
SSR solid state relays
Introduction:
page 76
Characteristics:
pages 76 to 78
Product selector:
page 79
Dimensions:
page 80
Curves:
pages 80 and 81
Solid state relays, 1 N/O SPST contact
Panel mounting b
Switching Voltage range Load
current
range
Catalog
numbers
Weight
Input Output
V V A kg
SCR output
Zero voltage
switching
c 3…32 a 24…280 10 SSRPCDS10A1 0.113
25 SSRPCDS25A1 0.113
50 SSRPCDS50A1 0.113
a 48…530 75 SSRPCDS75A2 0.113
a 48…660 90 SSRPCDS90A3 0.113
125 SSRPCDS125A3 0.113
a 90…280 a 24…280 10 SSRPP8S10A1 0.113
25 SSRPP8S25A1 0.113
50 SSRPP8S10A1 0.113
a 48…530 75 SSRPP8S75A2 0.113
a 48…660 90 SSRPP8S90A3 0.113
125 SSRPP8S125A3 0.113
Mosfet output
DC switching c 3.5…32 c 0…100 12 SSRPCDM12D5 0.113
25 SSRPCDM25D5 0.113
40 SSRPCDM40D5 0.113
DIN rail mounting b
SCR output
Zero voltage
switching
a 90…280 a 24…280 10 SSRDP8S10A1 0.272
20 SSRDP8S20A1 0.272
30 SSRDP8S30A1 0.272
a 90…140 a 24…280 45 SSRDF8S45A1 0.482
c 4…32 a 24…280 10 SSRDCDS10A1 0.272
20 SSRDCDS20A1 0.272
30 SSRDCDS30A1 0.272
c 3…32 a 24…280 45 SSRDCDS45A1 0.482
Accessories for panel mounted relays
Description For use
with 10…50A relays (1)
Catalog
numbers
Weight
kg
Heat sink SSR PP8Spppp,
SSR PCDSpppp,
SSR PCDMpppp
SSRAH1 0.487
Thermal interface
Sold in lots of 10
SSR PP8Spppp,
SSR PCDSpppp,
SSR PCDMpppp
SSRAT1 0.011
(1) for load current range 75, 90 and 125 A relays, please contact your Customer Care Center.
SSR PCDS25A1
SSR DCDS10A1
SSR DCDS45A1
SSR AH1
SSR AT1
2
1
3
4
5
6
7
8
9
10
8080

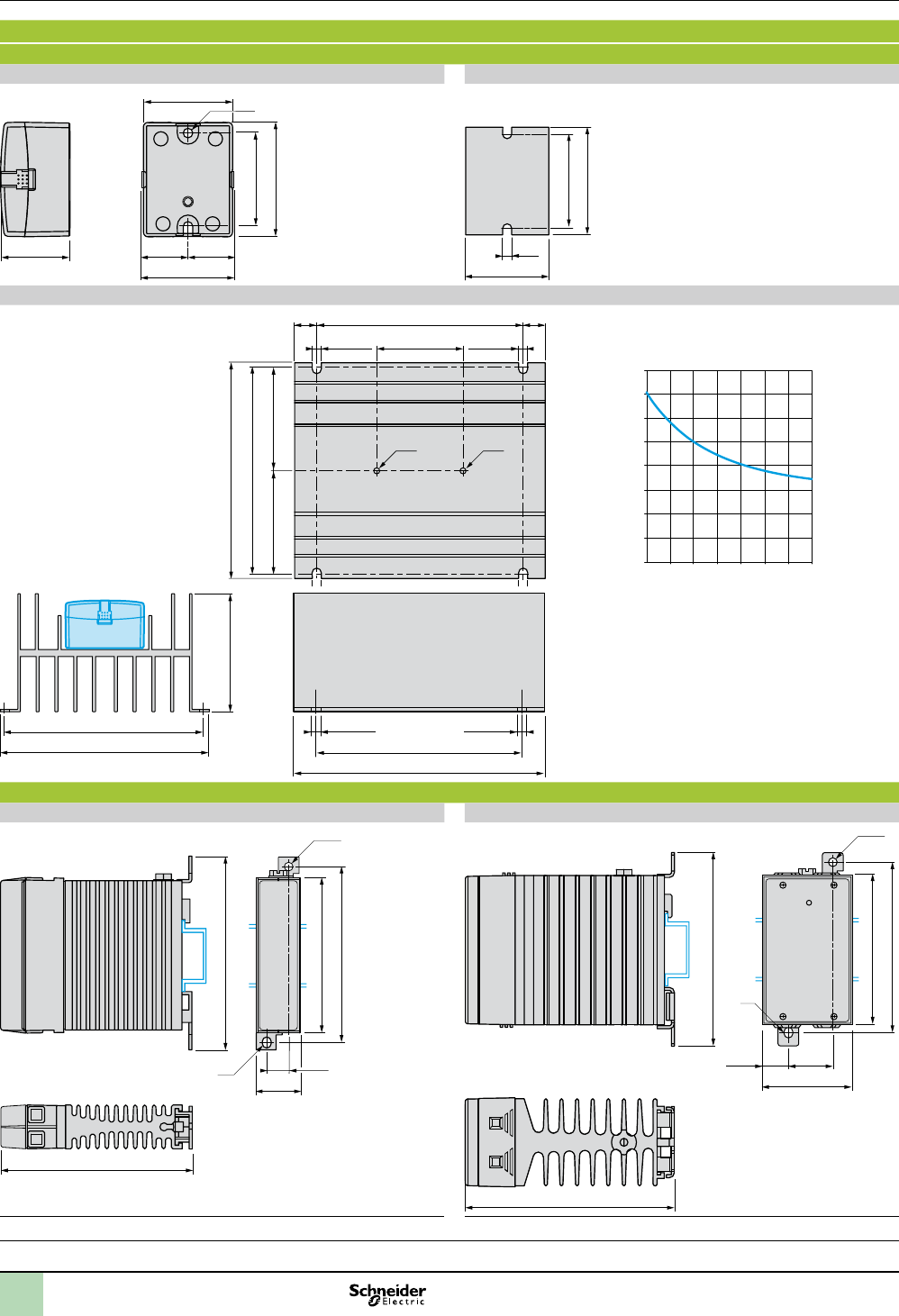

Dimensions,
curves
Zelio® Solid State Relays
SSR solid state relays
Introduction:
page 76
Characteristics:
pages 76 to 78
Product selector:
page 79
Dimensions:
page 80
Curves:
pages 80 and 81
Solid state relays, 1 N/O SPST contact
Panel mounting b
Solid state relays SSRP Thermal interface SSRAT1
35,5
47,2
45,5
23,6 23,6
58,4
47,6 ±0,5
(1)
(1) Ø4,9 ±0,25 hole
47,7
4,6
55,1
42,4
Heat sink SSRAH1
115,8 ±0,5
66
47,6 ±0,5 4,6 ±0,25
114,3 ±0,5
120,6
139,7
114,3 ±0,5
4,6 ±0,25 4,6 ±0,25
115,8
57,957,9
4,6 ±0,25
120,6
M4 M4
Heat sink dissipation curve
Thermal resistance (°C/W)
1,0
0,9
0,8
0,6
0,7
0,4
0,5
0,2
0,3
020406080 100 120 140
Dissipation (W)
DIN b rail mounting
10…30 A relays 45 A relays
22,5
98,8
80
89,7
11,2
(2)
(1)
97,7
Ø4,4
Ø4,4
22,6
106,7
45,5
13,15
(2)
98,8
76,2
87,4
(1)
(1) 35 mm DIN rail. (2) Ø 4.4 x 5.5 elongated hole (1) 35 mm DIN rail. (2) Ø 4.4 x 5.5 elongated hole
2
1
3
4
5
6
7
8
9
10
8181

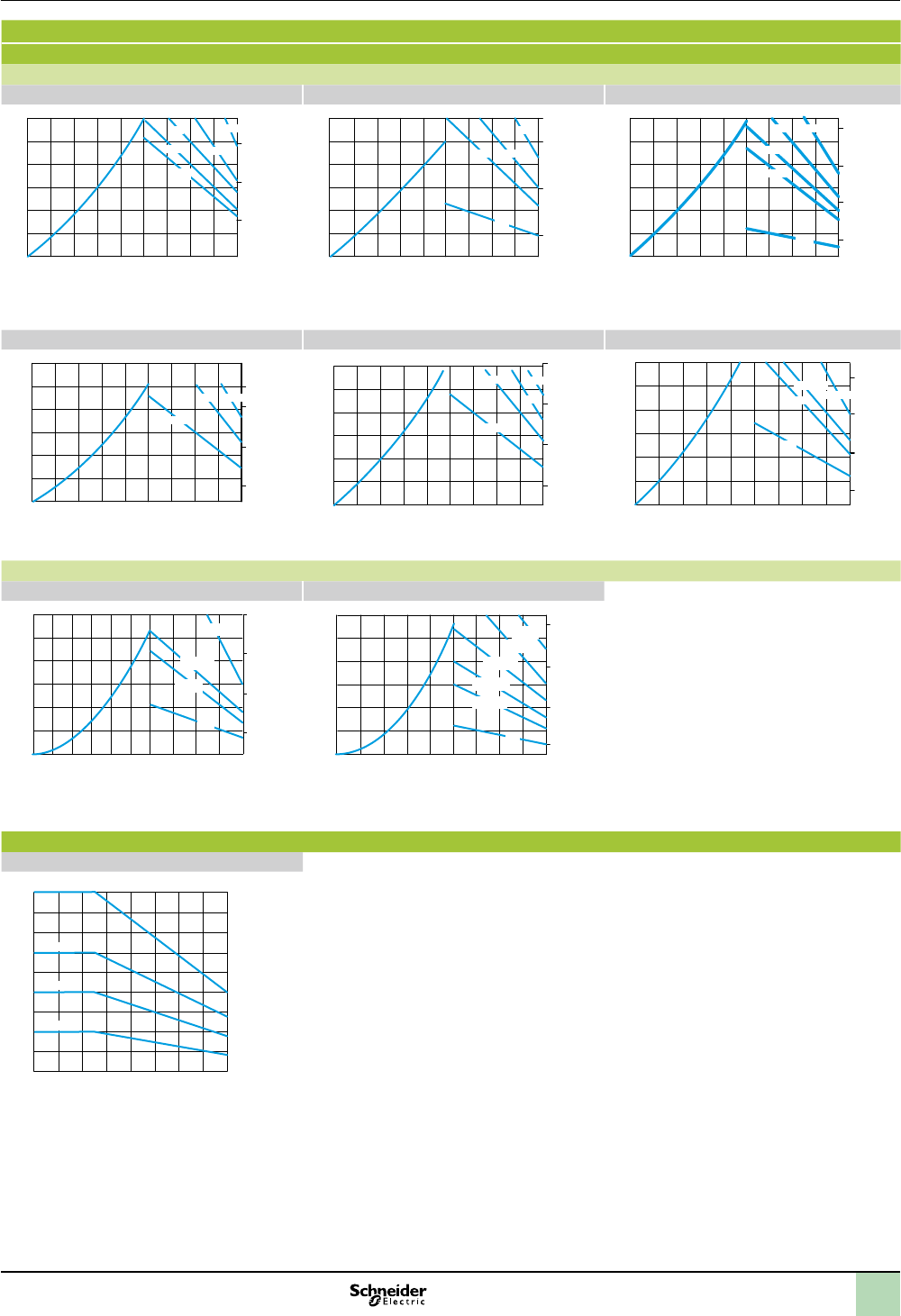

Curves Zelio® Solid State Relays
SSR solid state relays
Thermal derating curves
Panel mounting bSSRP relays
SCR output v
10 A relays 25 A relays 50 A relays
0
236810 20 40 60 80
4
120
115
110
8
12
3°C/W
5°C/W
7°C/W
9°C/W
(1)
Load current (Arms) Max ambient temperature
(°C)
Power dissipation
Base plate temperature (°C)
0
5
10
15
20
25
30
510 15 20 25 20 40 60 80
120
110
100
95
1°C/W
2°C/W
3°C/W
(1)
Load current (Arms) Max ambient temperature
(°C)
Power dissipation
Base plate temperature (°C)
0
10 20 30 40 50 20 40 60 80
20
120
100
90
40
60
110
1°C/W
2°C/W
0,5°C/W
1,5°C/W
(1)
Load current (Arms) Max ambient temperature
(°C)
Power dissipation
Base plate temperature (°C)
(1) No heat sink (1) No heat sink (1) No heat sink
75 A relays 90 A relays 125 A relays
0
15 30 45 60 75 20 40 60 80
40
120
110
95
80
120
100
0,3°C/W0,5°C/W
1°C/W
Load current (Arms) Max ambient temperature
(°C)
Power dissipation
Base plate temperature (°C)
0
20 40 60 80 020406080
40
120
110
95
80
120
100
0,2°C/W
0,4°C/W
1°C/W
0,5°C/W
Load current (Arms) Max ambient temperature
(°C)
Power dissipation
Base plate temperature (°C)
0
30 60 90 120 020406080
40
120
110
90
80
120
160
100
0,2°C/W
0,4°C/W
0,5°C/W
1°C/W
Load current (Arms) Max ambient temperature
(°C)
Power dissipation
Base plate temperature (°C)
Mosfet output v
12 A relays 25 and 40 A relays
Load current (Arms) Max ambient temperature
(°C)
Power dissipation
Base plate temperature (°C)
24
16
8
20
12
4
0
24 10812620406080
90
120
100
110
6ºC/W
2ºC/W
4ºC/W
(1)
Load current (Arms) Max ambient temperature
(°C)
Power dissipation
Base plate temperature (°C)
90
60
30
0
816324024 20 40 60 80
120
80
100
140
1ºC/W
2ºC/W
0,2ºC/W
0,5ºC/W
1,5ºC/W
(1)
(1) No heat sink (1) No heat sink
5 bRail mounting SSRD relays
10…45 A relays
20
15
25
30
35
40
45
10
5
200406080
45 A
20 A
10 A
30 A
Output current (Arms)
Ambient temperature (°C)
ART. 960361
DIA3ED2090304EN-US
Schneider Electric USA Inc. http://www.schneider-electric.us/
80 01 Knightdale Blvd.
Knightdale, NC 275 45
Tel: 919-266-3671
19 Waterman Avenue
Toronto, Ontario M4B 1Y2
Tel: 416-752-8020
The information provided in this documentation contains general descriptions and/or technical
characteristics of the per formance of the products contained herein. This documentation is not
intended as a substitute for and is not to be used for determining suitability or reliability of these
products for specic user applications. It is the duty of any such user or integrator to perform the
appropriate and complete risk analysis, evaluation and testing of the products with respect to the
relevant specic application or use thereof. Neither Schneider Electric nor any of its afliates or
subsidiaries shall be responsible or liable for misuse of the information contained herein.
Please note: not all parts listed in this catalog are available in all countries.
Design: Schneider Electric
Photos: Schneider Electric
©2010 Schneider Electric. All rights reserved. 06/2010
Electromechanical and solid-state Zelio® Relays
2010
