OVERVIEW
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Milbank Overview
Energy At Work since 1927
Milbank builds solutions that move power for the residential, commercial, industrial, utility and transportation
sectors. Milbank combines more than 85 years of expertise in electrical engineering design and manufacturing
with a commitment to develop and globally implement sustainable, integrated power solutions. Milbank’s
portfolio includes electric metering systems, PowerGen™ wind and solar solutions, and portable power. A third-
generation, family-owned business, Milbank is headquartered in Kansas City, Mo. For more information, please
visit milbankworks.com.
Milbank meter sockets have set the standard for quality since
1927. With a 99.97% quality performance, thousands of
active products to meet your utility’s requirements and tens of
millions of sockets installed across the globe, our products help
keep energy at work. And with 22 stocking locations across the
U.S., and our OneSERT program to help during emergency
situations, our meter sockets are ready to go, wherever the job
may be.
Milbank’s standby and portable generators give you the peace
of mind of living life uninterrupted during increasingly frequent
power outages caused by severe weather, high demand and
other situations. Our electric vehicle supply equipment, wind
turbines and power management systems give you reliable and
sustainable ways to reduce both your energy costs and your
impact on the environment.
When it comes to commercial and industrial products, Milbank
has it covered! We offer a complete line of junction boxes,
telephone cabinet covers, transformer cabinets, wireways,
pushbutton enclosures, consoles and thermal management
products. We specialize in custom-built enclosures and are
more than happy to design a solution for your specific project.
Our commercial meter pedestals are easy to install, fast, safe
and secure, and completely customizable.
METERING
POWERGEN
COMMERCIAL & INDUSTRIAL
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
3
TABLE OF
CONTENTS
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Table of Contents
Air Conditioner Disconnects
30 & 60 amp AC disconnects ........................................................................................................................................... 5
60 amp AC disconnect with 20 amp GFCI receptacle ....................................................................................................... 6
Hot tub disconnects .......................................................................................................................................................... 7
Single Position Sockets
125 amps, 4 terminals, ringless ......................................................................................................................................... 8
200 amps, 4 terminals, ringless ......................................................................................................................................... 9
125 amps, 5 & 7 terminals, lever bypass, ringless .......................................................................................................... 10
200 amps, 4–7 terminals, lever bypass, ringless ....................................................................................................... 11–12
320 amps, 4–7 terminals, lever bypass, ringless ....................................................................................................... 13–15
600 amps (480A continuous), 4 & 7 terminals, bolt-in bypass, ringless .................................................................... 16–17
Meter Mains
200 amps, 4 terminals, with load center, ringless ........................................................................................................... 18
Multi-Position
100 amps, 4 terminals, ringless ....................................................................................................................................... 19
150 amps, 4 terminals, ringless ....................................................................................................................................... 20
200 amps, 4 terminals, ringless ....................................................................................................................................... 21
200 amps, 5 & 7 terminals, lever bypass, ringless .................................................................................................... 22–23
Transformer Rated
20 amps, 6 & 13 terminals, ringless ................................................................................................................................ 24
Current transformer cabinets, type 3R ........................................................................................................................... 25
Pedestals
100–200 amps, 4 terminals, meter main with load center pedestal.......................................................................... 26–27
Replacement parts & accessories .............................................................................................................................. 28–29
RV surface mount power outlets and power outlet pedestals .................................................................................. 30–31
Replacement parts & accessories .............................................................................................................................. 32–37
Commercial pedestals ............................................................................................................................................... 38–39
Miscellaneous
Generators ...................................................................................................................................................................... 40
Electric vehicle supply equipment .................................................................................................................................. 41
Accessories ............................................................................................................................................................... 42–44
Reference information .............................................................................................................................................. 45–48
Index ............................................................................................................................................................................... 49
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
CATALOG
NUMBER
LOGIC
Catalog Number Logic
How our product catalog numbers are derived
U7040-RL-TG-KK-5T9-BL-AUT
Milbank
drawing
number
Utility
specific
designation
TG: Triplex ground
QG: Quadplex ground
5th terminal designation
5T6: installed at 6:00
5T9: installed at 9:00
U: UL Listed
S: Non-UL Listed
UAP: UL, aluminum,
painted KK: Horn bypass BL: Barrel lock

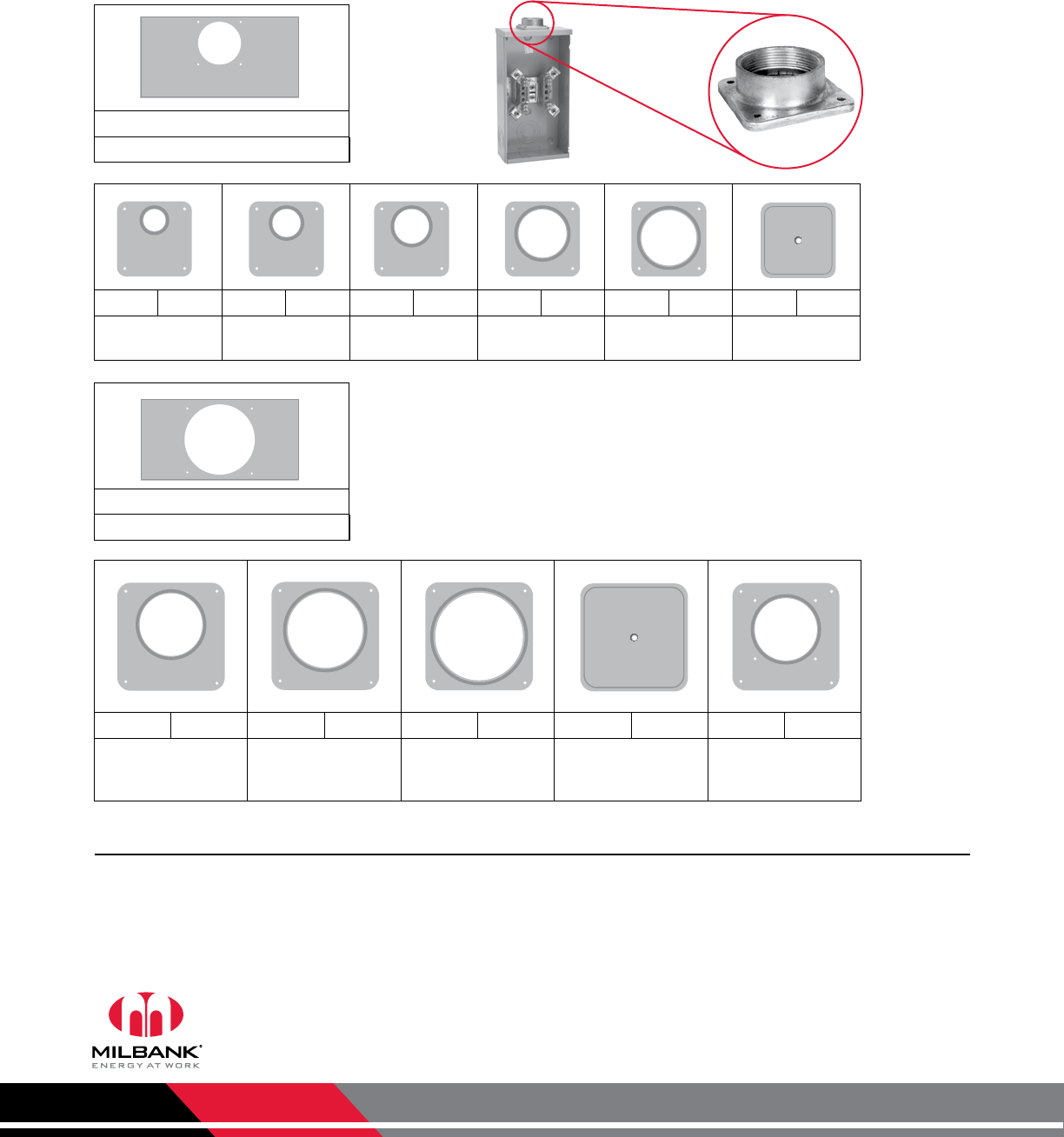

Hub Openings & Closing Plates
-O Blank top
-RL Small hub opening
-R Large hub opening
-XL Small closing plate
-X Large closing plate
-RXL Large hub opening
adapted to small
closing plate
-RRL Large hub opening
adapted to small hub
opening
-PXL Closing plate packed
inside
-WL 1” hub
-YL 1¼” hub
-ZL 1½” hub
-DL 2” hub
-EL 2½” hub
-F 3” hub
-G 3½” hub
-H 4” hub
U2448-X-QG-5T9-K3-BLG-ARE
Milbank
drawing
number
Utility
specific
designation
TG: Triplex ground
QG: Quadplex ground
5th terminal designation
5T6: installed at 6:00
5T9: installed at 9:00
U: UL Listed
S: Non-UL Listed
UAP: UL, aluminum,
painted
Lugs (1Ø or 3Ø,
350 or 600 kcmil
Single: K1, K3, K5, K7
Twin: K2, K4, K6, K8
BLG: Barrel lock /
guard provision
4
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
5
AC
DISCONNECTS
Air Conditioner Disconnects
30 & 60 Amps | Fusible & Non-Fusible
Milbank’s air conditioner disconnect has a removable hinged cover which makes wiring a breeze. Our compact
design meets all wire bending space requirements in the NEC and, also, complies with Article 440-14 in the
NEC. To ensure the safest conditions, we designed our disconnect pullouts to be removable so they may be
reinstalled in the off position. Another safety feature is the padlock provision on the front cover. As with all
Milbank products, our enclosure is constructed of G90U galvanized steel and finished with an attractive, light
gray, baked powder coating. Our state of the art finish combines epoxy and polyester hybrid resins into a hybrid
powder coating which is then electrostatically applied. This offers a durable, nonfading finish.
Catalog
Number Amps Type Max
H.P.
Weight
(lbs.)
Line/Load
Wire Range Ground Wire
Range CU/AL
Dimensions Wire Rating
CU AL D" W" H" CU °C AL °C
U3802 60 Non-Fusible 10 3.25 #14-#2 #12-#2 #14-4 21⁄25 71⁄260°/75° 60°/75°
U3812 60 Non-Auto 10 3.25 #14-#2 #12-#2 #14-4 21⁄25 71⁄260°/75° 60°/75°
U3832 30 Fusible 3 2.5 #14-#3 #14-#3 #14-3 21⁄85 7 60°/75° 60°/75°
U3862 60 Fusible 10 3.3 #14-#3 #14-#3 #14-3 21⁄85 9 60°/75° 60°/75°
30–60 Amps | 1Ø 240 VAC | Air Conditioner Disconnects
Notes
• UL listed as Enclosed Pullout Switch
• Type 3R rainproof
• One-inch concentric knockouts

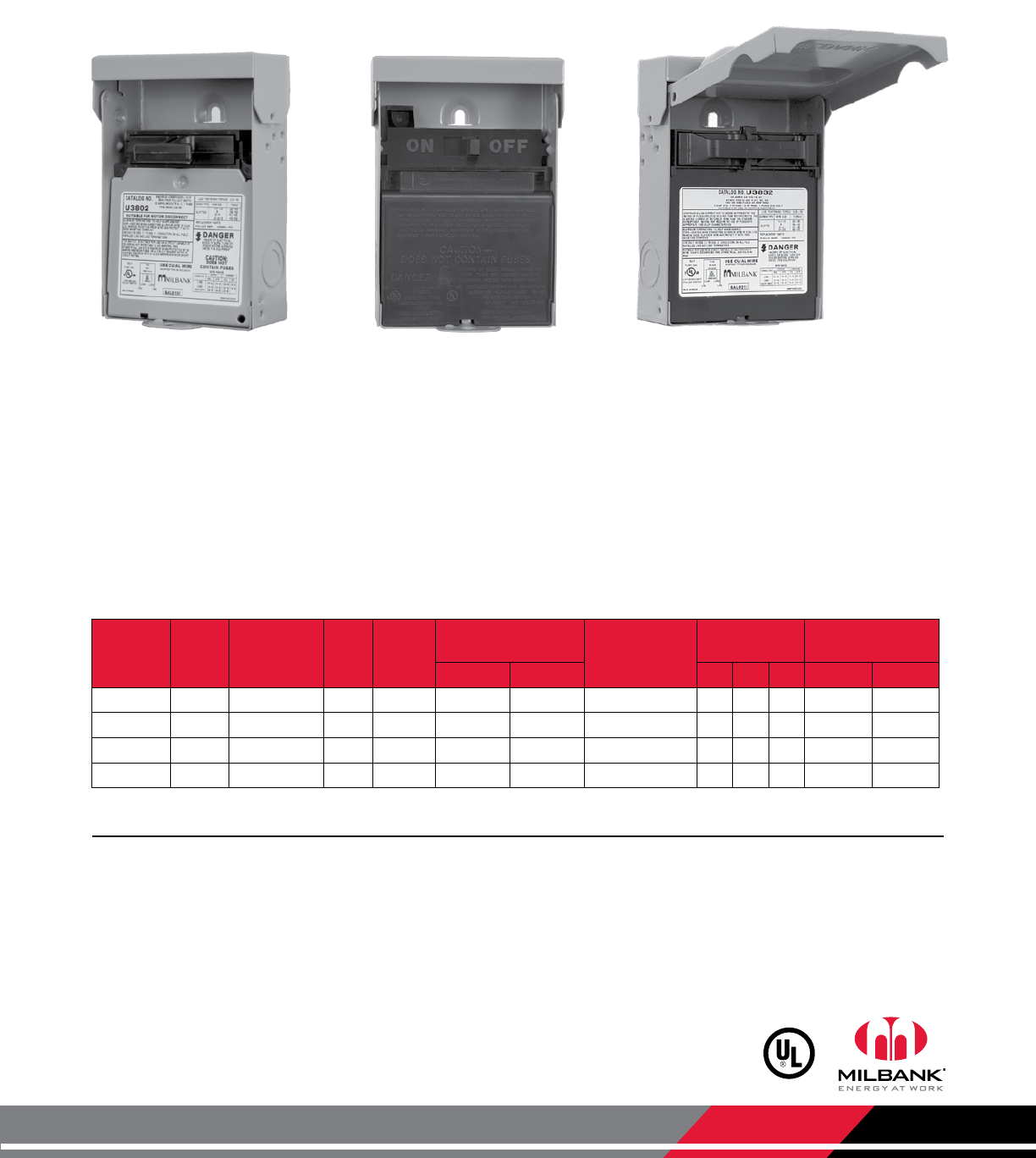

U3832U3812U3802
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
6Air Conditioner Disconnects
60 Amps | With 20 Amp GFCI Receptacle
6
Catalog
Number Type Max
H.P.
Weight
(lbs.)
Line/Load
Wire Range Ground
Wire Range
CU/AL
Dimensions Wire Rating
CU AL D" W" H" CU °C AL °C
U3822-20GWR Non-Fusible 10 6 #14-#2 #12-#2 #14-4 44⁄551⁄472⁄560°/75° 60°/75°
60 Amps | 1Ø, 240 VAC | Air Conditioner Disconnect with GFCI Receptacle
Notes
• Disconnect Pullouts: To ensure the safest conditions, Milbank disconnect pullouts are reversible so they may be reinstalled
in the OFF position.
• Padlock Provision: All units are designed with a padlock provision on the cover for security.
• *In-Use Cover: Cover is rated as an in-use cover (cover may be closed with cords plugged into receptacle).
• Meets NEC #210.63 requirements
• UL listed as Power Outlet
• Type 3R enclosure
• In-use cover*
• Duplex ground connector
• 1" concentric knockouts
• 1Ø, 240 volt
• 60 amp, non-fused
• 20 amp GFCI receptacle
• Reset/test button
• Weather and tamper resistant
• Meets NEC #406.8 requirements
Specifications
U3822-20GWR
AC
DISCONNECTS
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
7
hOT TUB
DISCONNECTS
Hot Tub Disconnects
Type 3R Enclosures
U4881-O-50GB U4881-O-60GB
Catalog
Number
Breaker
Amps Type Weight
(lbs.)
Line/Load
Wire Range Ground
Wire Range
CU/AL
Dimensions
CU AL D" W" H"
U4881-O — Breaker Provision 7 #14-1/0 #14-1/0 #14-1/0 33⁄471⁄281⁄2
U4881-O-50GB 50 Breaker 8 #14-1/0 #14-1/0 #14-1/0 33⁄471⁄281⁄2
U4881-O-60GB 60 Breaker 8 #14-1/0 #14-1/0 #14-1/0 33⁄471⁄281⁄2

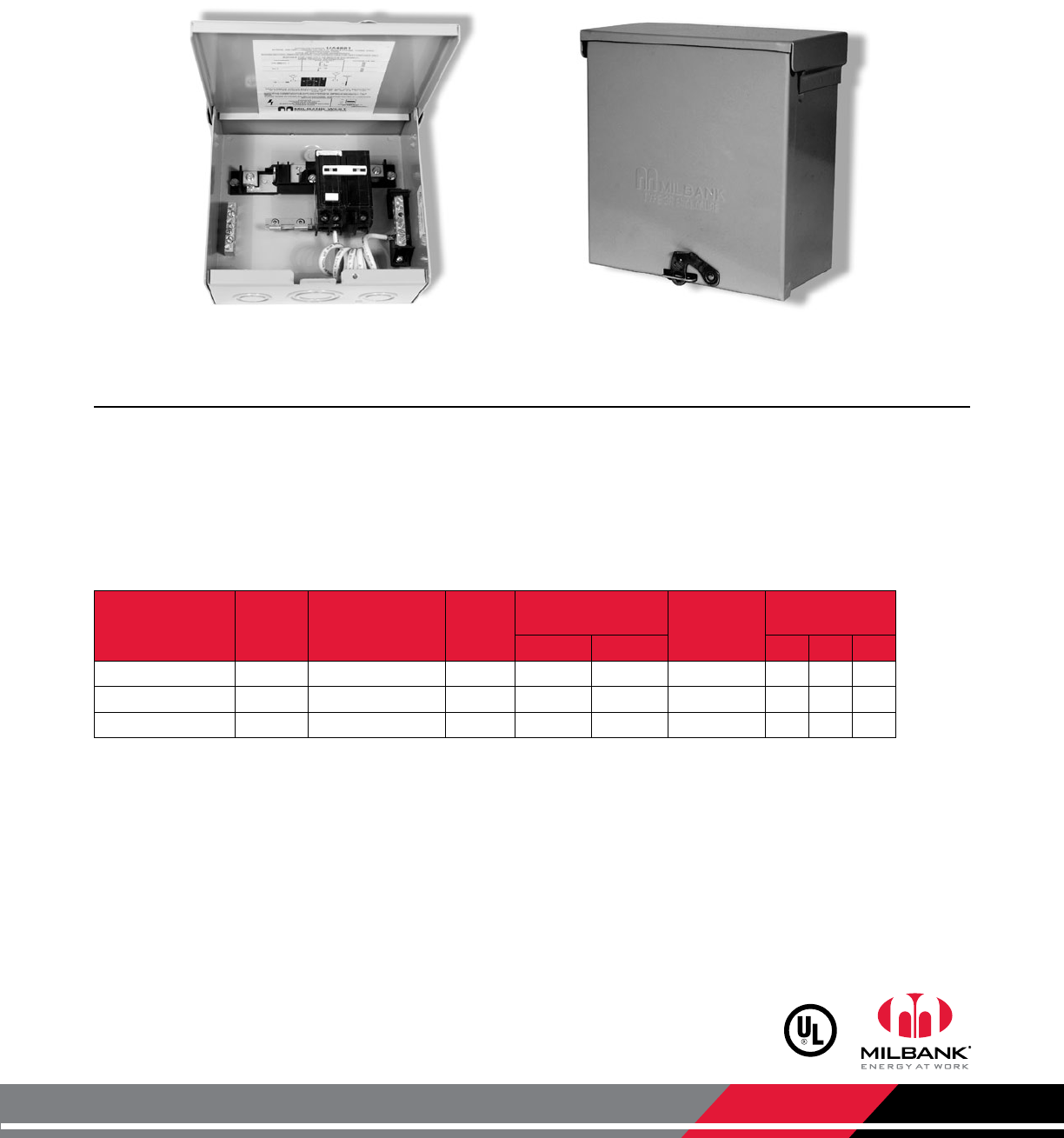

100 Amps | Hot Tub Disconnect or Sub Panel Breaker Enclosure | Type 3R
Specifications
• 240 volt ground fault protection
• UL listed, Type 3R rainproof
• 2-pole, 50 or 60 amp GFCI breaker protection
• Compact size
• Three or four wire installation
• 1Ø, 120/240 VAC
• Standard package of 12
• Two extra one-pole breaker spaces
• 100 amp overall rating
• Easy to install
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
8
FMG
APPROVED
1
2
3
4
3
2
125 AMP
SINGLE
POSITION
SOCKETS
Single Position Sockets
125 Amps | 4 Terminals | Ringless | 600 VAC
8435

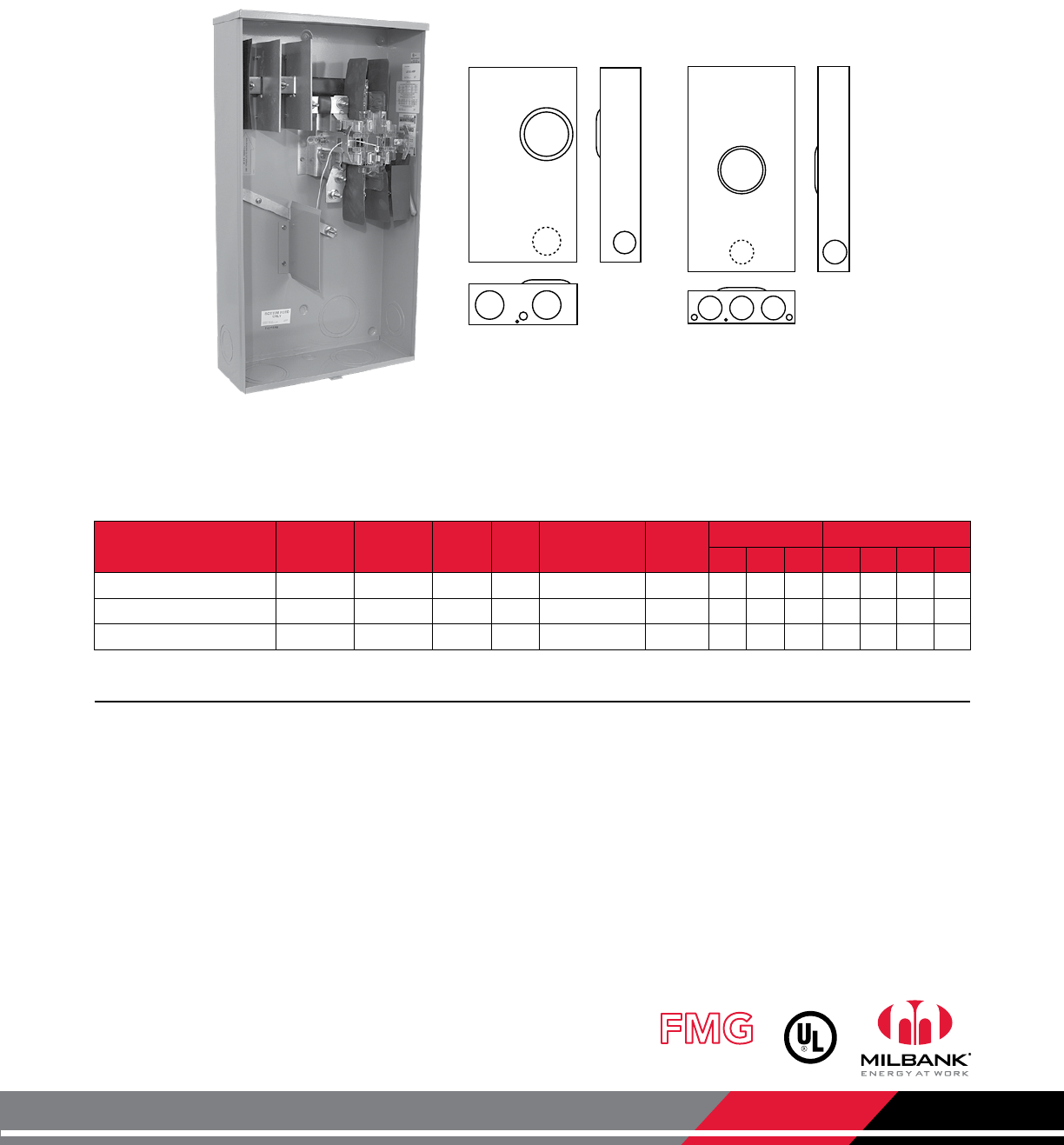

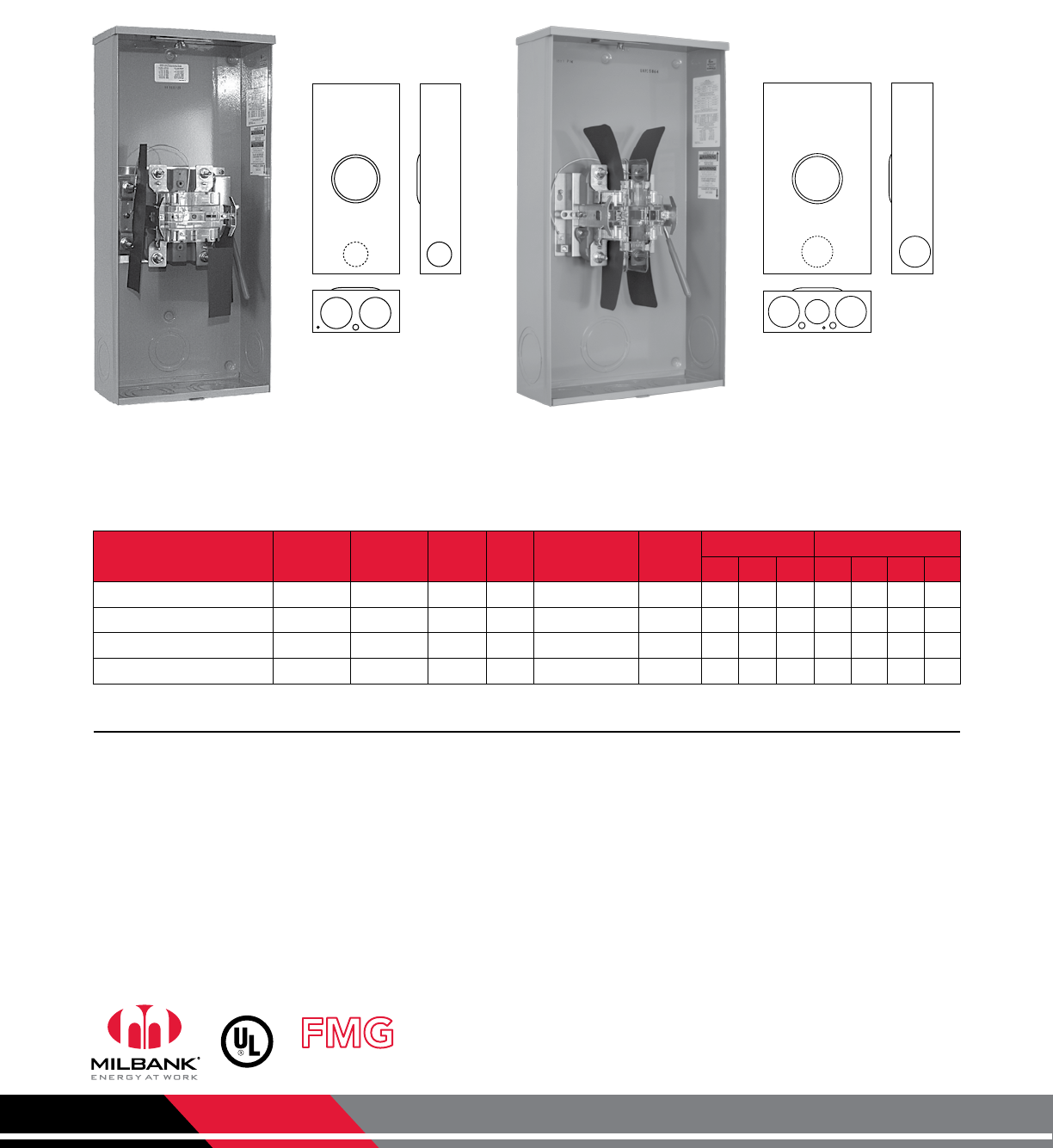

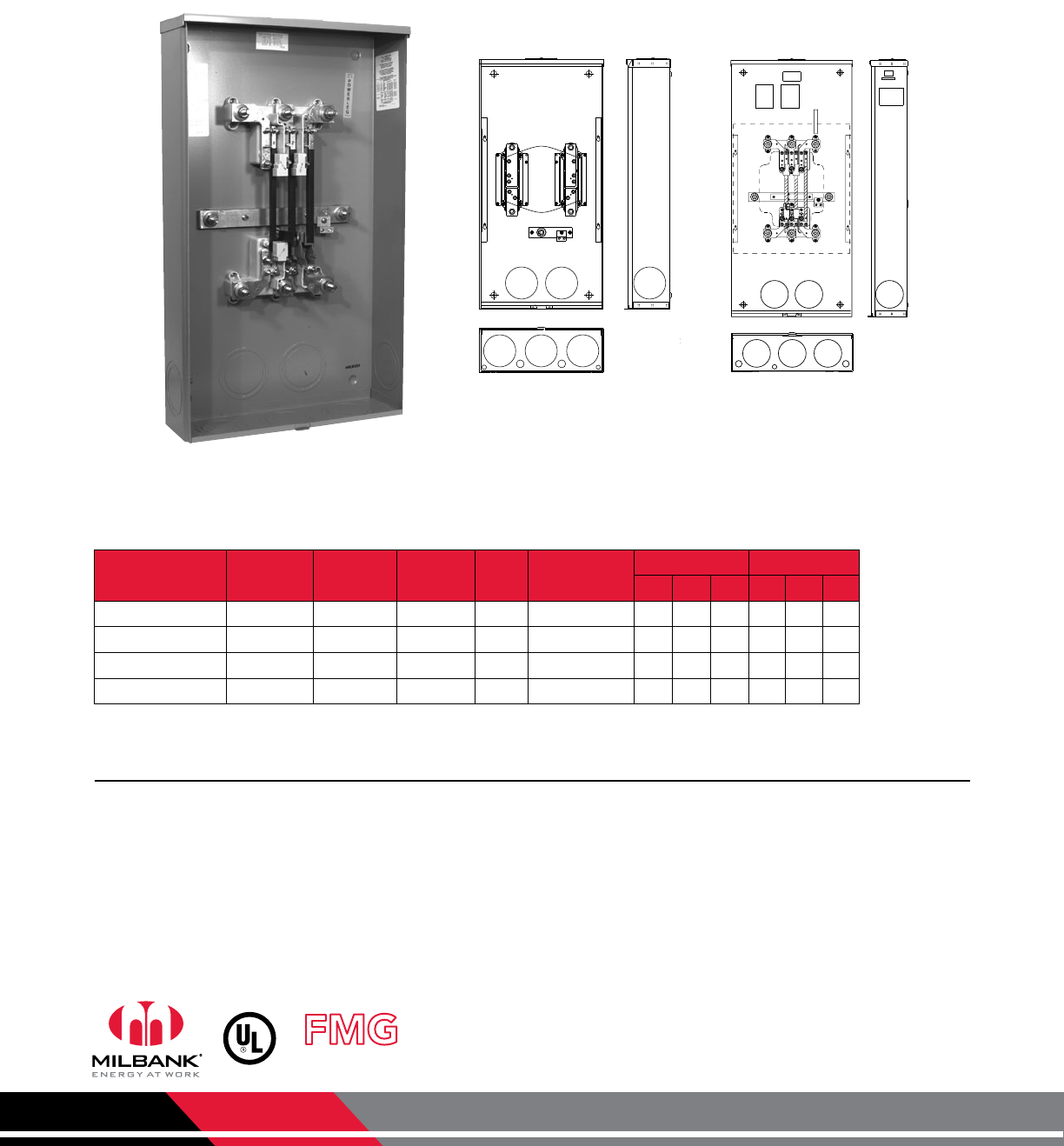

U8435-XL-TG-HSP
Notes
• Fifth Terminal: For field-installed fifth terminal, order catalog number 5T8K2.
• Connectors: Extruded aluminum connectors are tin plated. Units are supplied with a triplex ground.
• Hubs: For proper hub selection, see hub suffix chart on accessories page.
Catalog
Number Material Service Hub Connectors CU/AL Bypass Dimensions Knockouts
Line Load D" W" H" 1 2 3 4
U8435-XL-TG-HSP Steel OH C.P. #6-2/0 #6-2/0 None 35⁄16 8 111⁄22 11⁄211⁄41⁄4
UAP8435-XL-TG-HSP Aluminum OH C.P. #6-2/0 #6-2/0 None 35⁄16 8 111⁄22 11⁄211⁄41⁄4
125 Amps | 4 Terminals | Ringless | Single Position | 1Ø3W
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
9
FMG
APPROVED
200 AMP
SINGLE
POSITION
SOCKETS

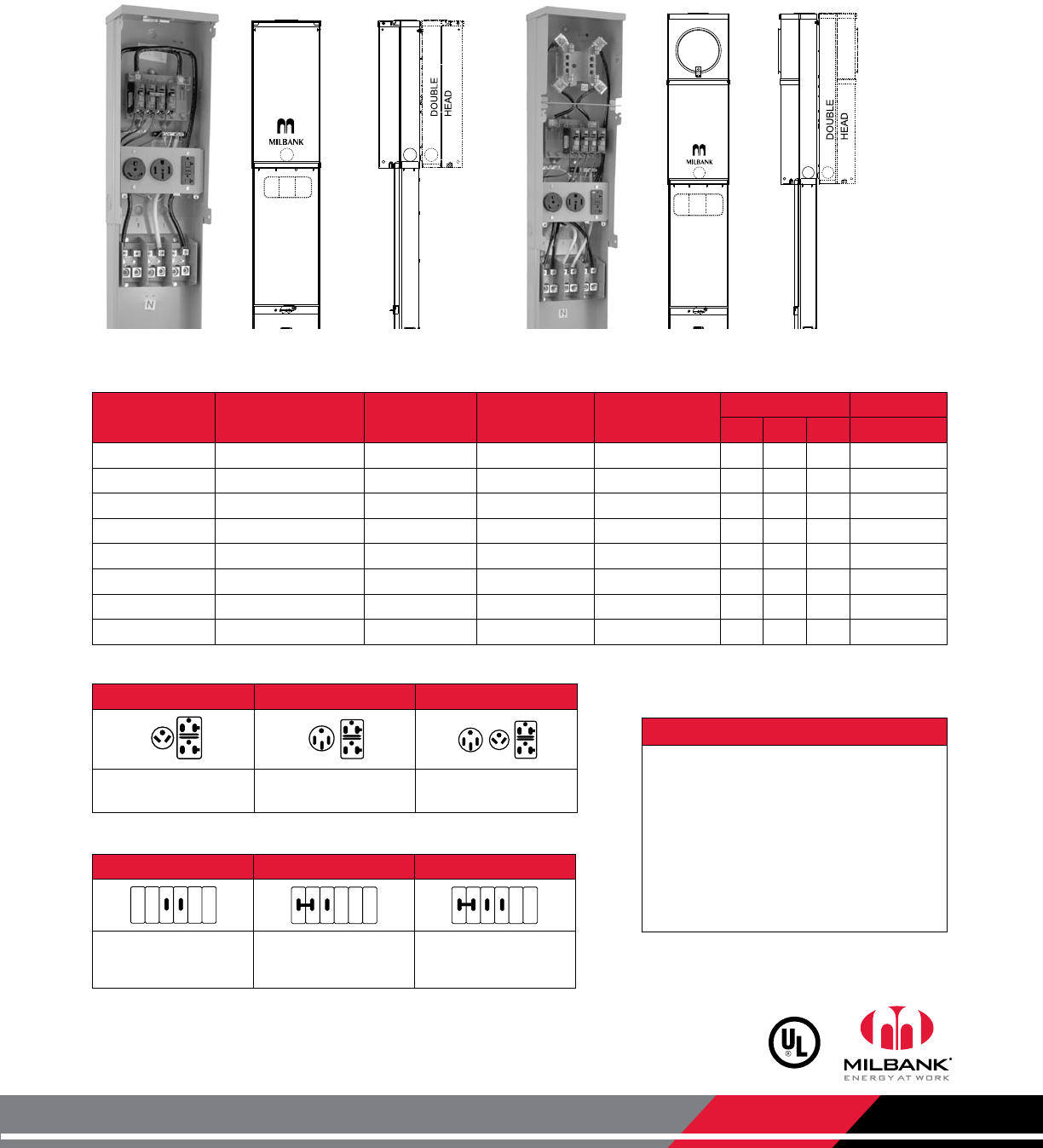

Single Position Sockets
200 Amps | 4 Terminals | Ringless | 600 VAC

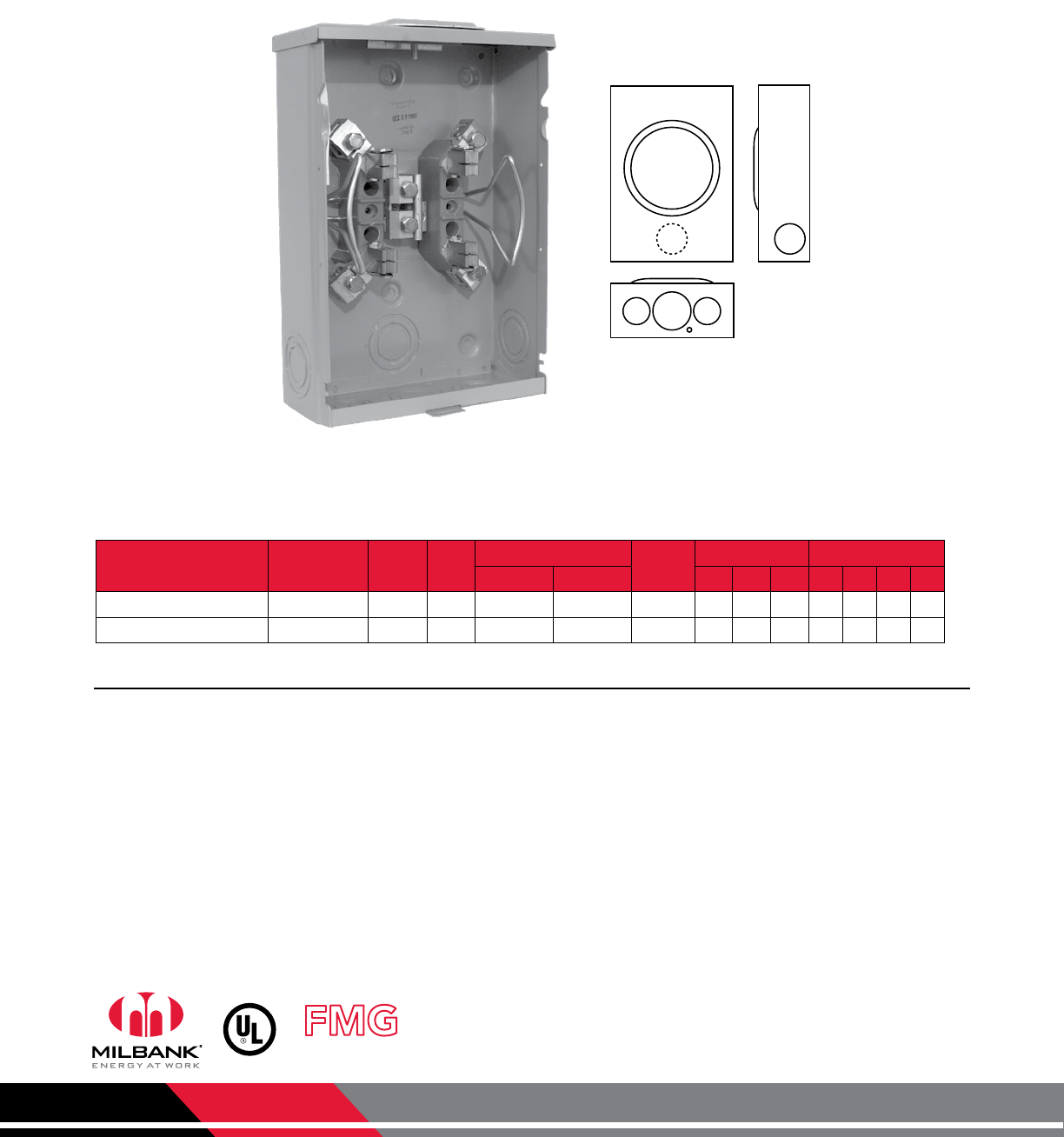

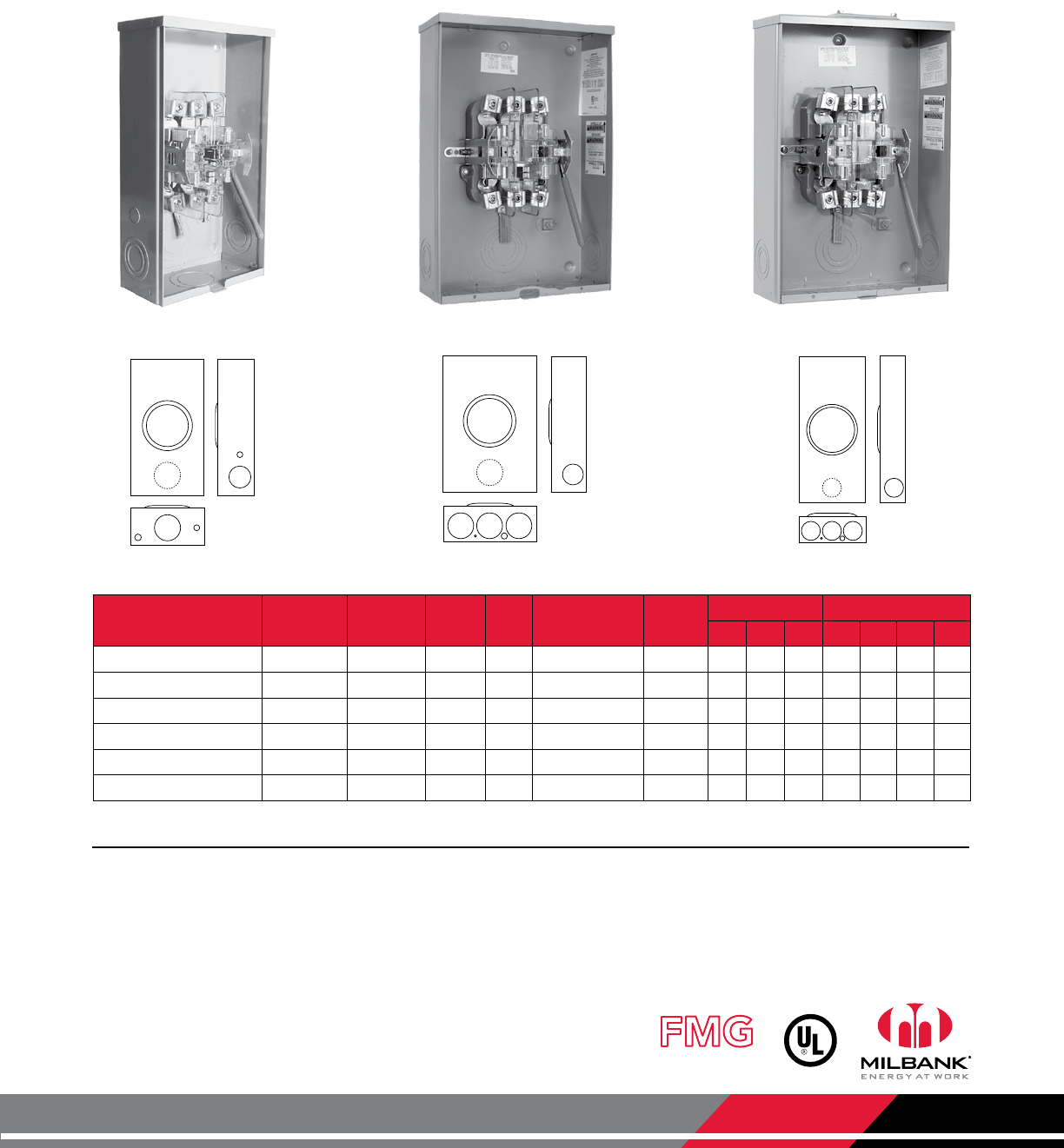

7021 1980
3850
7040
Notes
• Hubs: For proper hub selection, see the hub suffix chart on the accessories page.
• Fifth Terminal: For field-installed fifth terminal, order catalog number K5T.
• Connectors: Extruded aluminum connectors are tin plated. Units are supplied with a triplex ground.
Catalog Number Material Service Hub Connectors CU/AL Bypass Dimensions Knockouts
Line Load D" W" H" 1 2 3 4 5
U7021-RL-TG-HSP Steel OH H.O. #6-350 #6-350 None 41⁄88 151⁄221⁄21⁄4,1⁄21⁄4— —
UAP7021-RL-TG-HSP Aluminum OH H.O. #6-350 #6-350 None 41⁄88 151⁄221⁄21⁄4,1⁄21⁄4— —
U3850-XL-TG-HSP-PL Steel OH/UG C.P. #6-350 #6-350 None 41⁄213 151⁄43 21⁄211⁄21⁄4,1⁄21⁄4
U7040-XL-TG-HSP Steel OH/UG C.P. #6-350 #6-350 None 41⁄811 151⁄221⁄21⁄4,1⁄21⁄4— —
UAP7040-XL-TG-HSP Aluminum OH/UG C.P. #6-350 #6-350 None 41⁄811 151⁄221⁄21⁄4,1⁄21⁄4— —
U7040-O-TG-HSP Steel UG Blank #6-350 #6-350 None 41⁄811 151⁄221⁄21⁄4,1⁄21⁄4— —
UAP7040-O-TG-HSP Aluminum UG Blank #6-350 #6-350 None 41⁄811 151⁄221⁄21⁄4,1⁄21⁄4— —
U1980-O-HSP Steel UG Blank #6-350 #6-350 None 41⁄213 151⁄43 21⁄211⁄21⁄4,1⁄21⁄4
200 Amps | 4 Terminals | Ringless | Single Position | 1Ø3W
U3850-XL-TG-HSP-PLU7021-RL-TG-HSP U7040-O-TG-HSP U1980-O-HSP
12
2
3
45
2
12
3
1 1 11
1
2 3
1 1
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
10
FMG
APPROVED
125 AMP
LEVER
BYPASS
SOCKETS

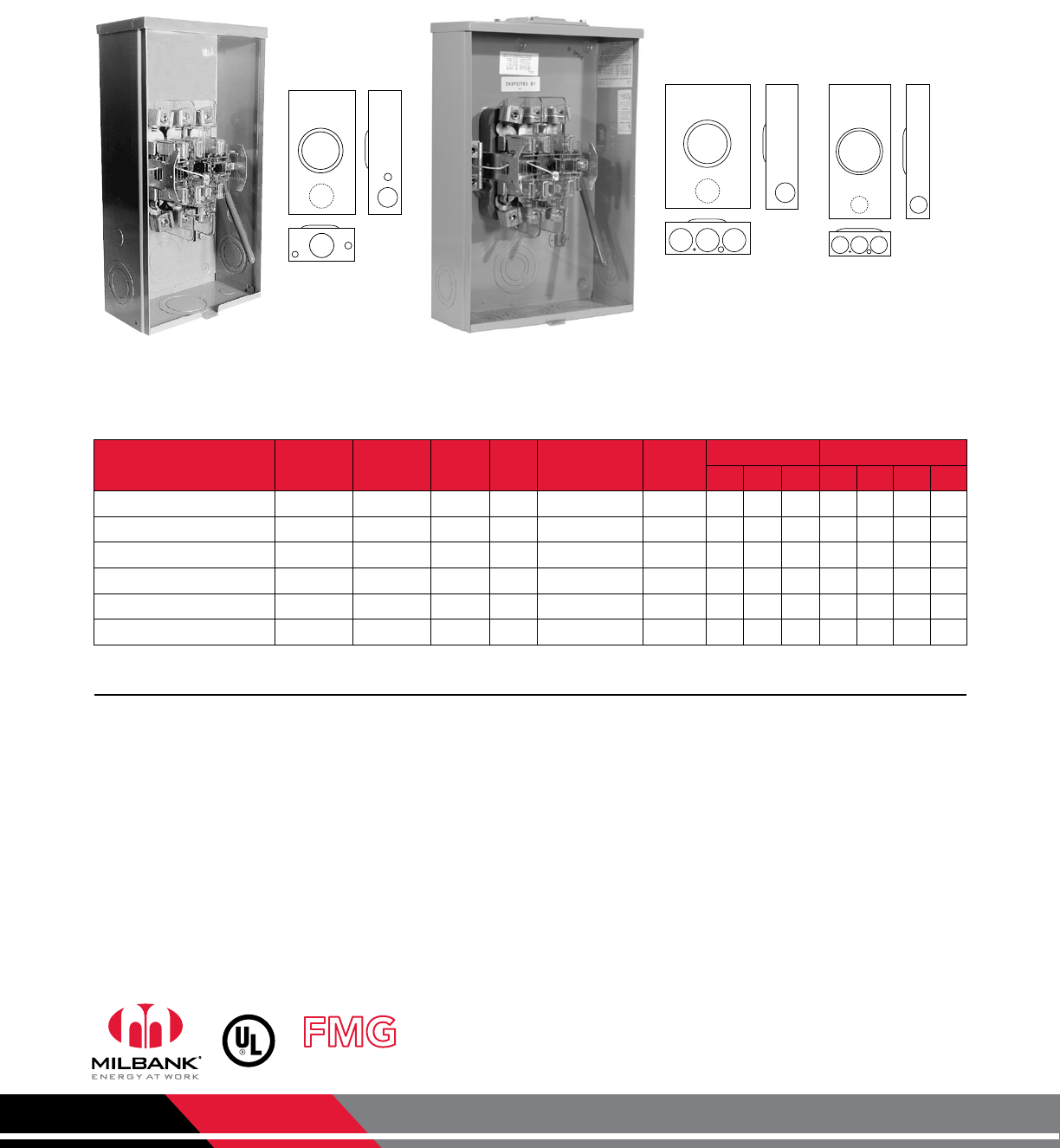

Lever Bypass Single Position
125 Amps | 5 & 7 Terminals | Ringless | 600 VAC
U3505-XL-TG-HSP
3505
3506
Notes
• Hubs: For proper hub selection, see the hub suffix chart on the accessories page.
• Lever Bypass: The lever supplies clamping action and operates bypass device.
• Connectors: Extruded aluminum connectors are tin plated.
Catalog Number Material Terminals Service Hub Connectors CU/AL Bypass Dimensions Knockouts
Line Load D" W" H" 1 2 3
U3505-XL-TG-HSP Steel 5 OH/UG C.P. #6-2/0 #6-2/0 Lever 47⁄810 181⁄221⁄4,1⁄21⁄4
UAP3505-XL-TG-HSP Aluminum 5 OH/UG C.P. #6-2/0 #6-2/0 Lever 47⁄810 181⁄221⁄4,1⁄21⁄4
U3506-XL-TG-HSP Steel 7 OH/UG C.P. #6-2/0 #6-2/0 Lever 47⁄810 181⁄221⁄4,1⁄21⁄4
UAP3506-XL-TG-HSP Aluminum 7 OH/UG C.P. #6-2/0 #6-2/0 Lever 47⁄810 181⁄221⁄4,1⁄21⁄4
125 Amps | Ringless | Lever Bypass | Single Position
11
1
23
11
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
11
FMG
APPROVED
Lever Bypass Single Position
200 Amps | 4 & 5 Terminals | Ringless | 600 VAC
9550 9551
9801 3296
Notes
• Hubs: For proper hub selection, see the hub suffix chart on the accessories page.
• Lever Bypass: The lever supplies clamping action and operates bypass device.
• Fifth Terminal: For field installed fifth terminal on the U9801, order K3866.
• Isolated Neutral: For field-installed isolated neutral, order K1047 for U9801.
• Connectors: Extruded aluminum connectors are tin plated. For the U3296-X stud-type unit, order connector kits separately.
Order two kits to cover both line and load side: K1539 (350 kcmil) or K1540 (600 kcmil.) See accessories page.
Catalog Number Material Terminals Service Hub Connectors
CU/AL Bypass Dimensions Knockouts
D" W" H" 1 2 3 4
U9801-X-HSP Steel 4 OH/UG C.P. #6-350 Lever 47⁄813 19 3 21⁄21⁄4,1⁄21⁄4
U9550-RRL-QG-HSP Steel 5 OH H.O. #6-350 Lever 47⁄810 181⁄23 21⁄21⁄4,1⁄21⁄4
U9551-X-QG-HSP Steel 5 OH/UG C.P. #6-350 Lever 47⁄813 19 3 21⁄21⁄4,1⁄21⁄4
UAP9551-X-QG-HSP Aluminum 5 OH/UG C.P. #6-350 Lever 47⁄813 19 3 21⁄21⁄4,1⁄21⁄4
U3296-X-HSP Steel 5 OH/UG C.P. 3⁄8"x16 Studs Lever 47⁄813 281⁄431⁄4,1⁄21⁄4—
UAP3296-X-HSP Aluminum 5 OH/UG C.P. 3⁄8"x16 Studs Lever 47⁄813 281⁄431⁄4,1⁄21⁄4—
200 Amps | Ringless | Lever Bypass | Single Position | 1Ø3W
U9550-RRL-QG-HSP
1
1
2
3
3
4
U9551-X-QG-HSP
1 1
1
23
1 1
U9801-X-HSP
12
34
1 1 1
200 AMP
LEVER
BYPASS
SOCKETS
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
12
FMG
APPROVED
Notes
• Hubs: For proper hub selection, see the hub suffix chart on the accessories page.
• Lever Bypass: The lever supplies clamping action and operates bypass device.
• Isolated Neutral: For field-installed isolated neutral for U9701, order K1047.
• Connectors: Extruded aluminum connectors are tin plated. For the U3306 stud-type unit, order connector kits separately.
Order 2 kits to cover both line and load side: K3082 (350 kcmil) or K3441 (600 kcmil.) See accessories page.
Catalog Number Material Terminals Service Hub Connectors
CU/AL Bypass Dimensions Knockouts
D" W" H" 1 2 3 4
U9700-RRL-QG-HSP Steel 7 OH H.O. #6-350 Lever 47⁄810 181⁄23 21⁄23⁄41⁄4,1⁄2
UAP9700-RRL-QG-HSP Aluminum 7 OH H.O. #6-350 Lever 47⁄810 181⁄23 21⁄23⁄41⁄4,1⁄2
U9701-X-QG-HSP Steel 7 OH/UG C.P. #6-350 Lever 47⁄813 19 3 21⁄21⁄4,1⁄21⁄4
UAP9701-X-QG-HSP Aluminum 7 OH/UG C.P. #6-350 Lever 47⁄813 19 3 21⁄21⁄4,1⁄21⁄4
U3306-X-HSP Steel 7 OH/UG C.P. 3⁄8" x 16 Studs Lever 47⁄813 281⁄431⁄4,1⁄21⁄4—
UAP3306-X-HSP Aluminum 7 OH/UG C.P. 3⁄8" x 16 Studs Lever 47⁄813 281⁄431⁄4,1⁄21⁄4—
200 Amps | 7 Terminals | Ringless | Lever Bypass | Single Position | 3Ø4W
200 AMP
LEVER
BYPASS
SOCKETS
Lever Bypass Single Position
200 Amps | 7 Terminals | Ringless | 600 VAC
1
1
2
3
3
4
U9700-RRL-QG-HSP U9701-X-QG-HSP
1
34
1 1 1
2
1
1 1 1
23
1
9700 9701 3306
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
13
FMG
APPROVED
Notes
• Hubs: For proper hub selection, see the hub suffix chart on the accessories page.
• Lever Bypass: The lever supplies clamping action and operates bypass device.
• Connectors: Extruded aluminum connectors are tin plated. Order two connector kits to cover both line and load. See
accessories page.
Catalog Number Material Terminals Service Hub Connectors
CU/AL Bypass Dimensions Knockouts
D" W" H" 1 2 3 4
U2124-O-HSP Steel 4 UG Blank 3⁄8" x 16 Studs Lever 53⁄416 30 4 31⁄211⁄4
UAP2124-O-HSP Aluminum 4 UG Blank 3⁄8" x 16 Studs Lever 53⁄416 30 4 31⁄211⁄4
320 Amps | 4 Terminals | Ringless | Lever Bypass | Single Position | 1Ø3W
Lever Bypass Single Position
320 Amps | 4 Terminals | Ringless | 600 VAC
U2124-O-HSP
2124
320 AMP
LEVER
BYPASS
SOCKETS
1 1
2 2
34
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
FMG
APPROVED
14
320 AMP
LEVER
BYPASS
SOCKETS
Lever Bypass Single Position
320 Amps | 5 Terminals | Ringless | 600 VAC
Notes
• Hubs: For proper hub selection, see the hub suffix chart on the accessories page.
• Lever Bypass: The lever supplies clamping action and operates bypass device.
• Connectors: Extruded aluminum connectors are tin plated. Order two connector kits to cover both line and load. See
accessories page.
• U5864: The U5864 will not accept twin lugs (the K1540 connector will accept 2 conductors 1/0–250 max).
Catalog Number Material Terminals Service Hub Connectors
CU/AL Bypass Dimensions Knockouts
D" W" H" 1 2 3 4
U3949-X-HSP Steel 5 OH C.P. 3⁄8" x 16 Studs Lever 6 13 281⁄44 3 1⁄4,1⁄21⁄4
UAP3949-X-HSP Aluminum 5 OH C.P. 3⁄8" x 16 Studs Lever 6 13 281⁄44 3 1⁄4,1⁄21⁄4
U5864-X-HSP Steel 5 OH/UG C.P. 3⁄8" x 16 Studs Lever 6 16 281⁄44 3 1⁄4,1⁄21⁄4
UAP5864-X-HSP Aluminum 5 OH/UG C.P. 3⁄8" x 16 Studs Lever 6 16 281⁄44 3 1⁄4,1⁄21⁄4
320 Amps | 5 Terminals | Ringless | Lever Bypass | Single Position | 1Ø3W
U3949-X-HSP U5864-X-HSP
1 1
2 2
34
3949
1 1
1 12
3 34
5864
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
15
FMG
APPROVED
Lever Bypass Single Position
320 Amps | 7 Terminals | Ringless | 600 VAC
320 AMP
LEVER
BYPASS
SOCKETS
Notes
• Hubs: For proper hub selection, see the hub suffix chart on the accessories page.
• Lever Bypass: The lever supplies clamping action and operates bypass device.
• Connectors: Extruded aluminum connectors are tin plated. Order two connector kits to cover both line and load. See
accessories page.
• U3566: The U3566 will not accept an isolated neutral kit (neutral: hex nut #701309-SC inside meter can).
Catalog Number Material Terminals Service Hub Connectors
CU/AL Bypass Dimensions Knockouts
D" W" H" 1 2 3 4
U2120-O-HSP Steel 7 UG Blank 3⁄8" x 16 Studs Lever 61⁄2173⁄4313⁄44311⁄4
U3566-X-HSP Steel 7 OH/UG C.P. 1⁄2" x 13 Studs Lever 6 201⁄4383⁄44 3 1⁄4,1⁄21⁄4
UAP3566-X-HSP Aluminum 7 OH/UG C.P. 1⁄2" x 13 Studs Lever 6 201⁄4383⁄44 3 1⁄4,1⁄21⁄4
320 Amps | 7 Terminals | Ringless | Lever Bypass | Single Position | 3Ø4W
U2120-O-HSP
2120
1
3
4
1
2
1
2 23
1 1 1
11
3566
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
16
FMG
APPROVED
600 AMP
BOLT-IN
BYPASS
SOCKETS
Bolt-In Bypass Single Position
600 Amps (480A Cont.) | 4 & 7 Terminals | Ringless
U4667-X-8528
1 1
2 2 3
1
111
1 1 1
1
2 23
1 1
4664 4667
Catalog
Number
Approved
Utilities Material Terminals Hub Ground Lug Dimensions Knockouts
D" W" H" 1 2 3
U4667-X-8528 FP&L Steel 7 C.P. 1/0-2/0 6 201⁄443 4 1⁄2,3⁄41⁄4
UA4667-X-8529 FP&L Aluminum 7 C.P. 1/0-2/0 6 201⁄443 4 1⁄2,3⁄41⁄4
U4667-XT-9526 FP&L Steel 7 (2) C.P. 1/0-2/0 6 201⁄443 4 1⁄2,3⁄41⁄4
UA4667-XT-9527 FP&L Aluminum 7 (2) C.P. 1/0-2/0 6 201⁄443 4 1⁄2,3⁄41⁄4
600 Amps (480A Cont.) | Ringless | Bolt-In Bypass | Single Position
Notes
• Hubs: The -X unit is supplied with a large closing plate in the top. The -XT units are supplied with 2 large closing plates in
the top. For proper hub selection, see the hub suffix chart on the accessories page.
• Isolated Neutral Kit: For an isolated neutral on the 7-terminal sockets, order catalog number Z708312-MO.
• Connectors: The 4-terminal units require a total of 5 connectors. The 7-terminal units require a total of 8 connectors. The
7-terminal units are supplied with two ground lugs. Order line and load connectors as extra. See chart on next page for
ordering information.
• Bolt-In Bypass: These units offer a provision for a utility-supplied bolt-in bypass.
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
17
600 AMP
BOLT-IN
BYPASS
SOCKETS
Bolt-In Bypass Single Position

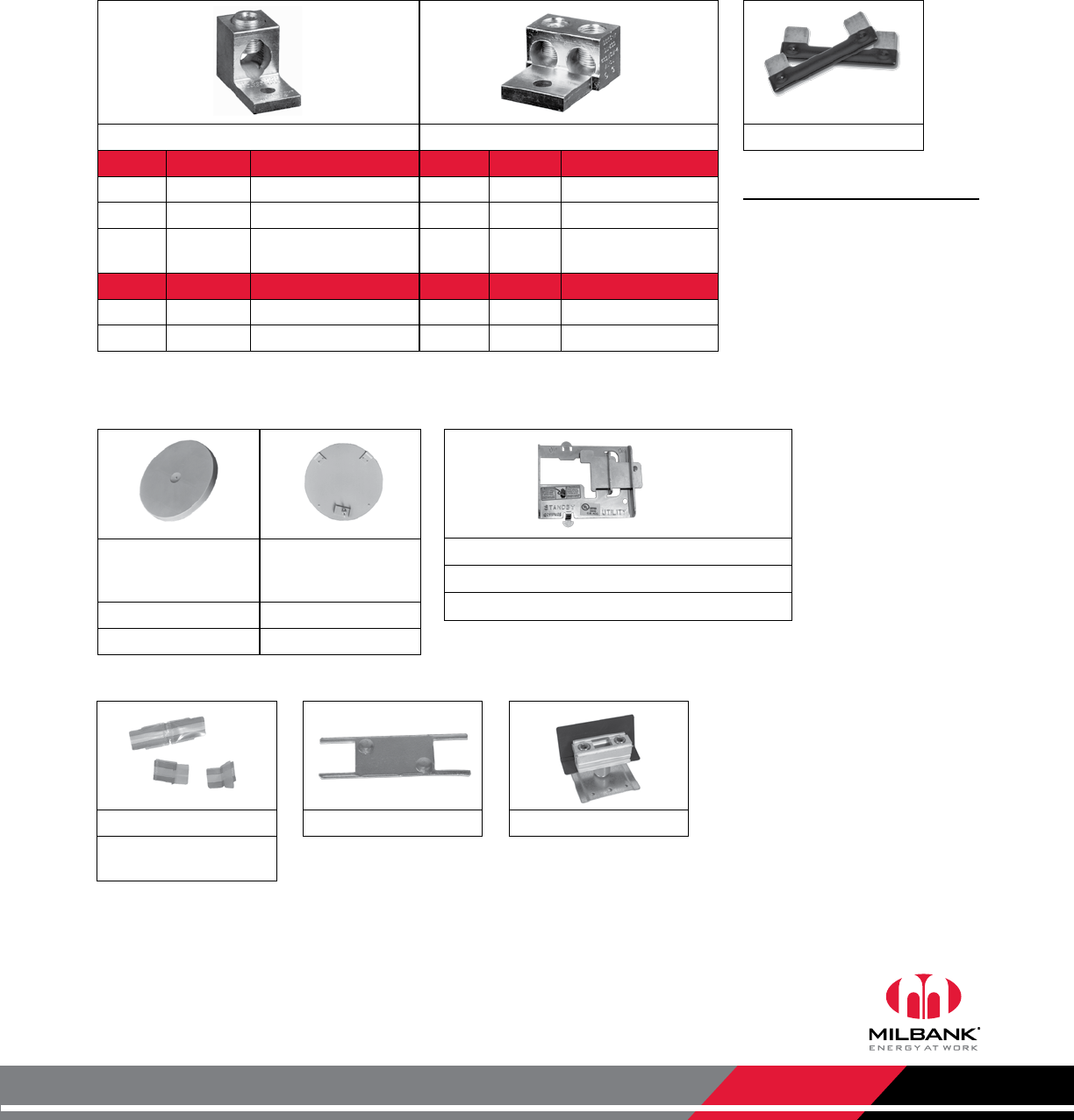

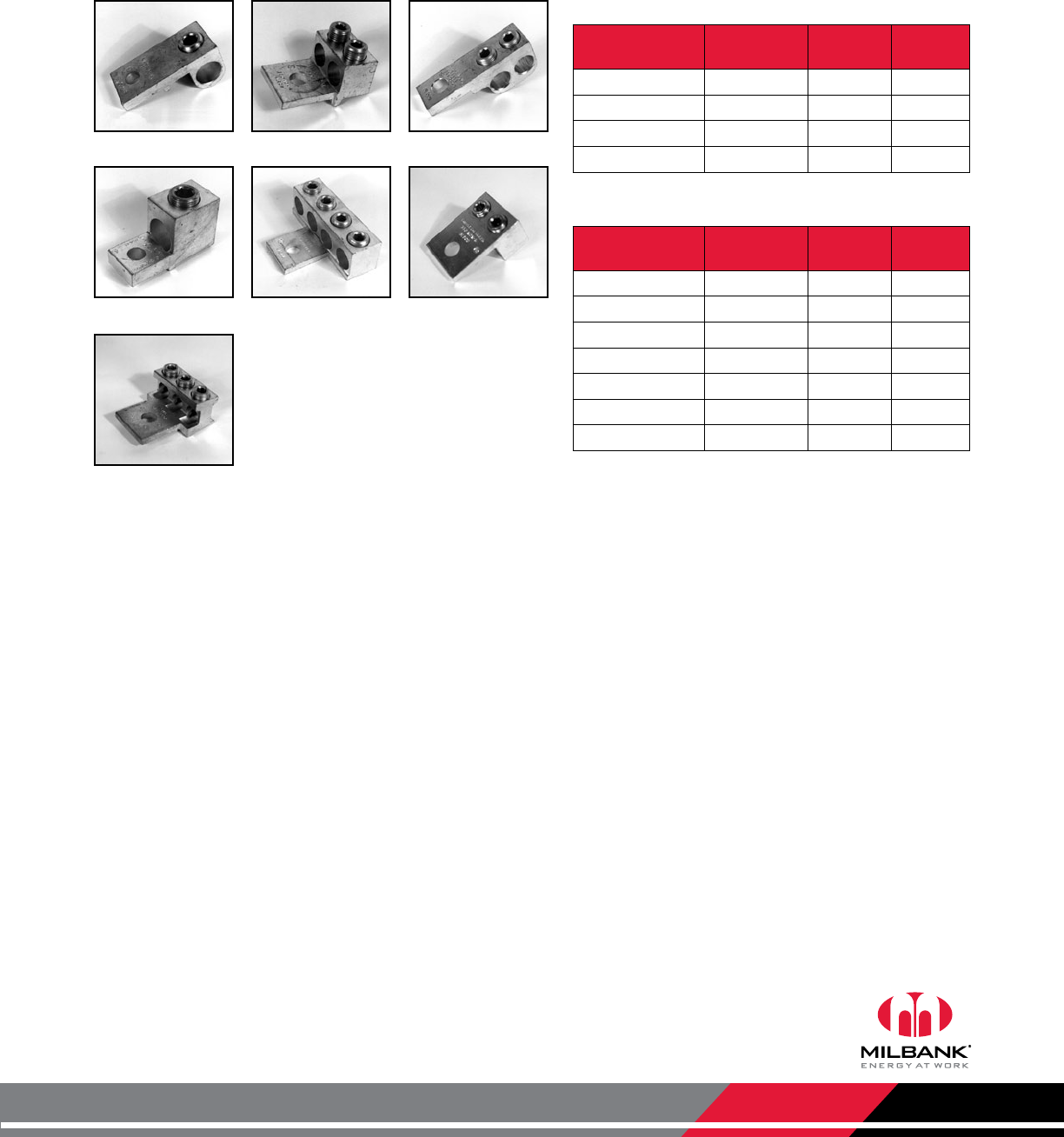

Connector Kits
Z703916-AC
Z703921-AC
Z708145-AC
Z703918-AC
Z705420-AC
Z703919-AC
Z705456-AC
Catalog
Number Wire Range Type Wire
Entry
Z703917-AC #6-350 Twin Side
Z704693-AC #2-500 Twin Side
Z705456-AC #6-350 Twin Rear
Z705420-AC #6-350 Quad Rear
Catalog
Number Wire Range Type Wire
Entry
Z703916-AC 3/0-800 Single Side
Z703921-AC 3/0-800 Single Front
Z703918-AC #4-350 Twin Front
Z703919-AC #6-350 Twin Side
Z704693-AC #2-500 Twin Side
Z704694-AC #4-500 Twin Front
Z708145-AC #6-250 Triple Front
4 Terminal, 1Ø3W Connector Kits
7 Terminal, 3Ø4W Connector Kits
Bolt-on type lugs for Milbank stud type meter
mounting devices are made of 6061-T6
aluminum to provide high strength and high
conductivity. All lugs are tinplated to ensure
low contact resistance and to reduce corrosion.
Allen or hex head pressure screws are furnished
to provide excellent conductor spread for
maximum binding action with the lug.
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
18

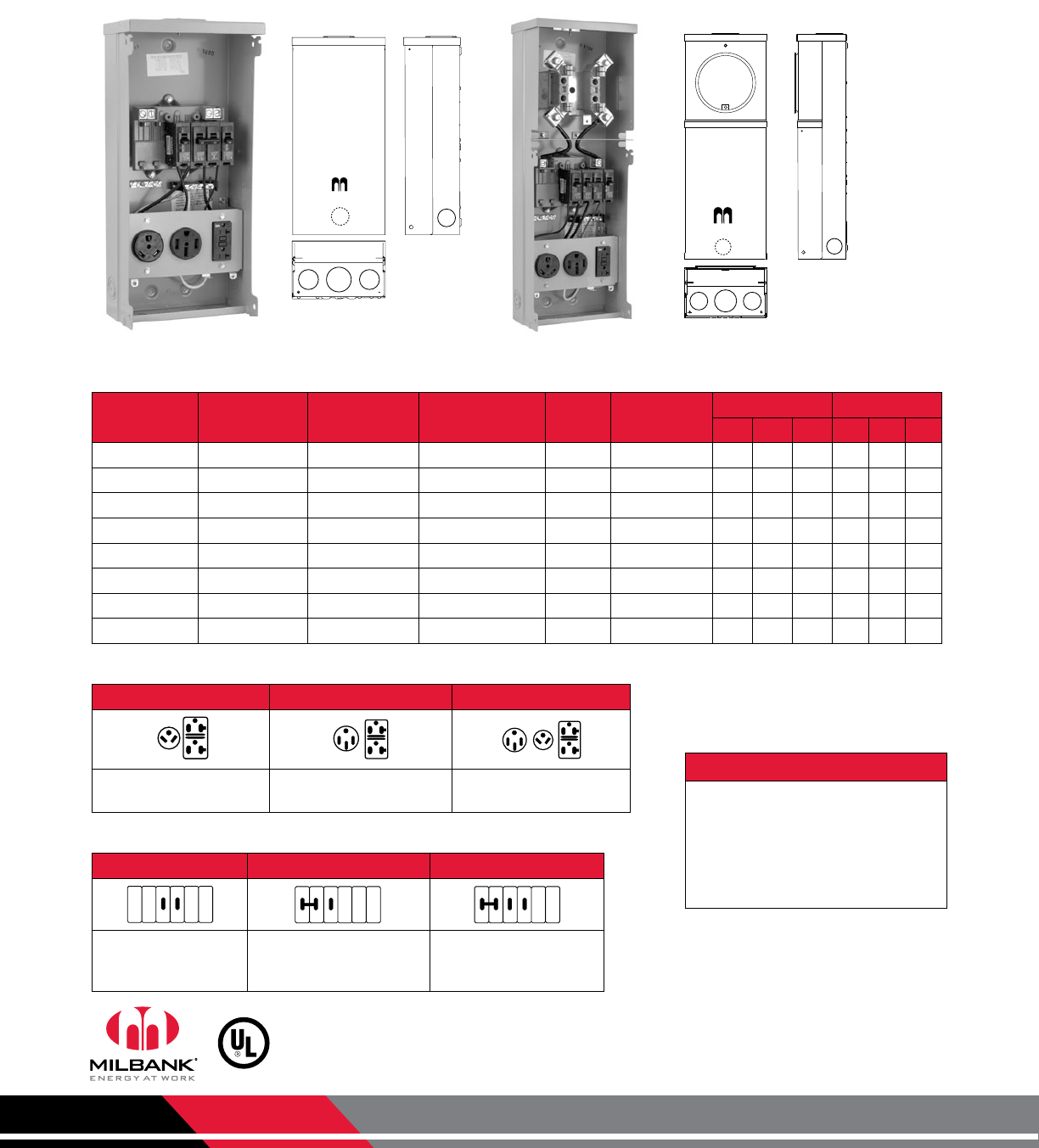

200 AMP
METER MAIN
WITh LOAD
CENTER
Meter Main with Load Center
200 Amps | 4 Terminals | Ringless | 120/240 VAC
5024
UAP5024-XL-FMG
Catalog Number Material Service Hub Connectors
CU/AL - Line Bypass Dimensions Knockouts
D" W" H" 1 2 3 4 5 6
UAP5024-XL-FMG Aluminum OH/UG C.P. #6-350 None 41⁄2141⁄824 3 21⁄22 1 1⁄2,3⁄41⁄4,1⁄2
Manufacturer Compatible Models AIC
Rating
Siemens QN, QNR, QP 10K
Cutler-Hammer BR, HQP, QPGF 10K
G.E. TQL, THQL-GF 10K
Square D Homeline 10K
200 Amps | 4 Terminals | Ringless | Meter Main | 1Ø3W
Breaker Chart
Notes
• Bussing: Load side bus bars and circuit breaker interior are made from plated copper.
• Wireway: Provided with underground pull section wireway with removable cover.
• Breakers: Breaker section has provision for six double pole “plug-in” type circuit breakers. All circuit breakers will be
parallel. To comply with NEC wire bending space requirements the maximum breaker amperage is 200 amps restricted to
3/0 copper conductor.
1 2
33
4 5
5
6
63
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
19
FMG
APPROVED
100 AMP
MULTI-POSITION
SOCKETS
Multi-Position Sockets
100 Amps | 4 Terminals | Ringless | 300 VAC

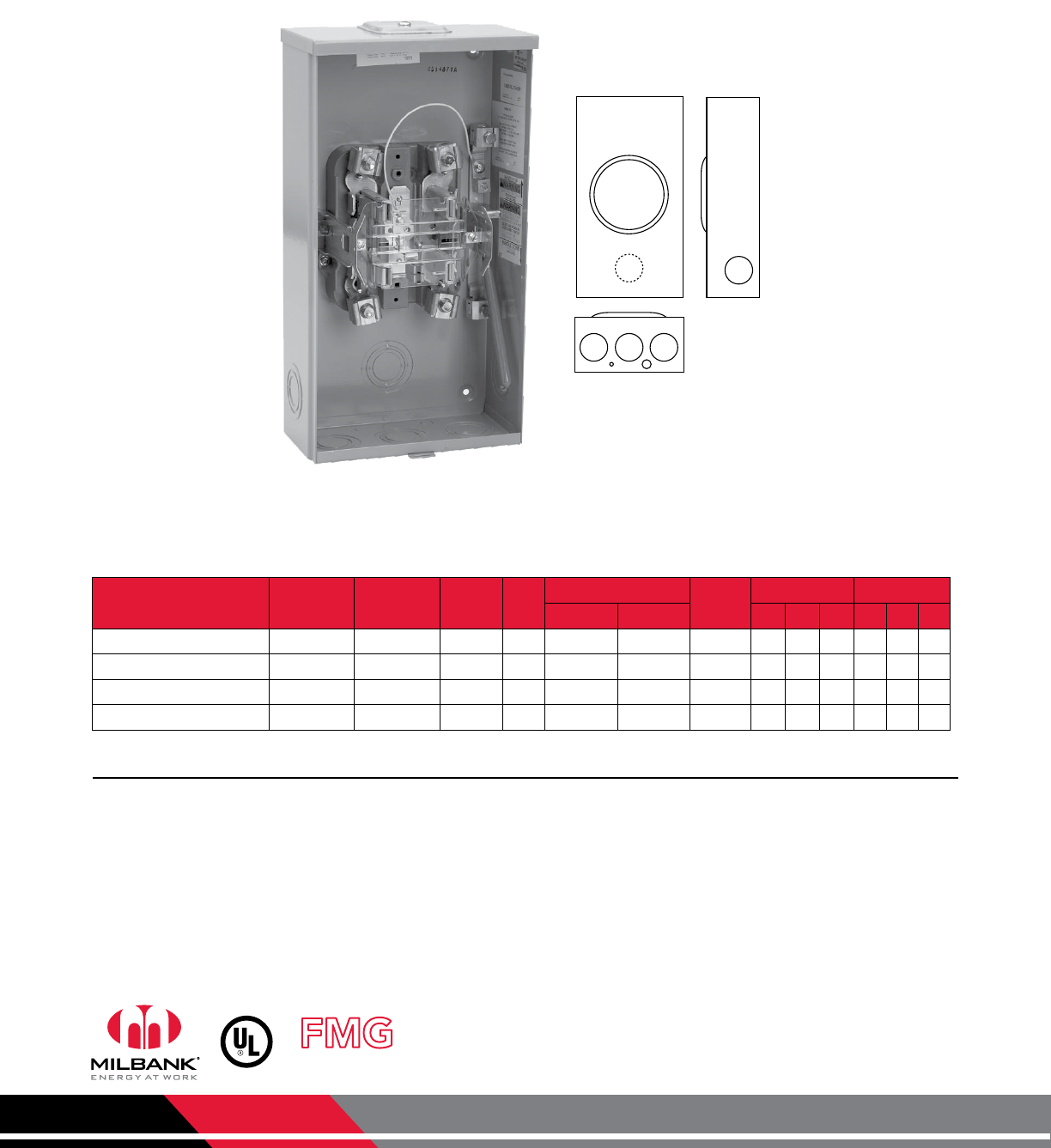

U3492-XL-HSP
1 2 2
2
33
22
1
2
3 3
2 2
2 2 2
2
1 2
3 3 3 3 3 3
2 2 2
2 2 2 2 2
1
1 2 2 2 2 2
2
3 3
2222 2
11 1
2
3 3
2 2 2 2 2 2
222222
3492
3495 3496
3493 3494
Catalog
Number Positions Hub Connectors CU/AL Bypass Dimensions Knockouts
Line Load D" W" H" 1 2 3
U3492-XL-HSP 2 C.P. #6-350 #6-2/0 None 41⁄2205⁄16 16 21⁄221⁄4,1⁄2
U3493-XL-HSP 3 C.P. #6-350 #6-2/0 None 41⁄2281⁄216 21⁄221⁄4,1⁄2
U3494-XL-HSP 4 C.P. #6-350 #6-2/0 None 41⁄24011⁄16 16 21⁄221⁄4,1⁄2
U3495-XL-HSP 5 C.P. #6-350 #6-2/0 None 41⁄2487⁄816 21⁄221⁄4,1⁄2
U3496-XL-HSP 6 C.P. #6-350 #6-2/0 None 41⁄2571⁄16 16 21⁄221⁄4,1⁄2
100 Amps/Position | 4 Terminals | Ringless | Multi-Position | 1Ø3W
Notes
• Hubs: Units are supplied with closing plate at each end. For proper hub selection, see the hub suffix chart on the
accessories page.
• Fifth Terminal Kit: For field-mounted fifth terminal, order catalog number 5T8K2 in the 6 o’clock position.
• Connectors: Extruded aluminum connectors are tin plated. Bonding ground is furnished.
• Bussing: Units include 5⁄16" x 1 aluminum bussing.
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
20
FMG
APPROVED
150 AMP
MULTI-POSITION
SOCKETS
Multi-Position Sockets
150 Amps | 4 Terminals | Ringless | 300 VAC

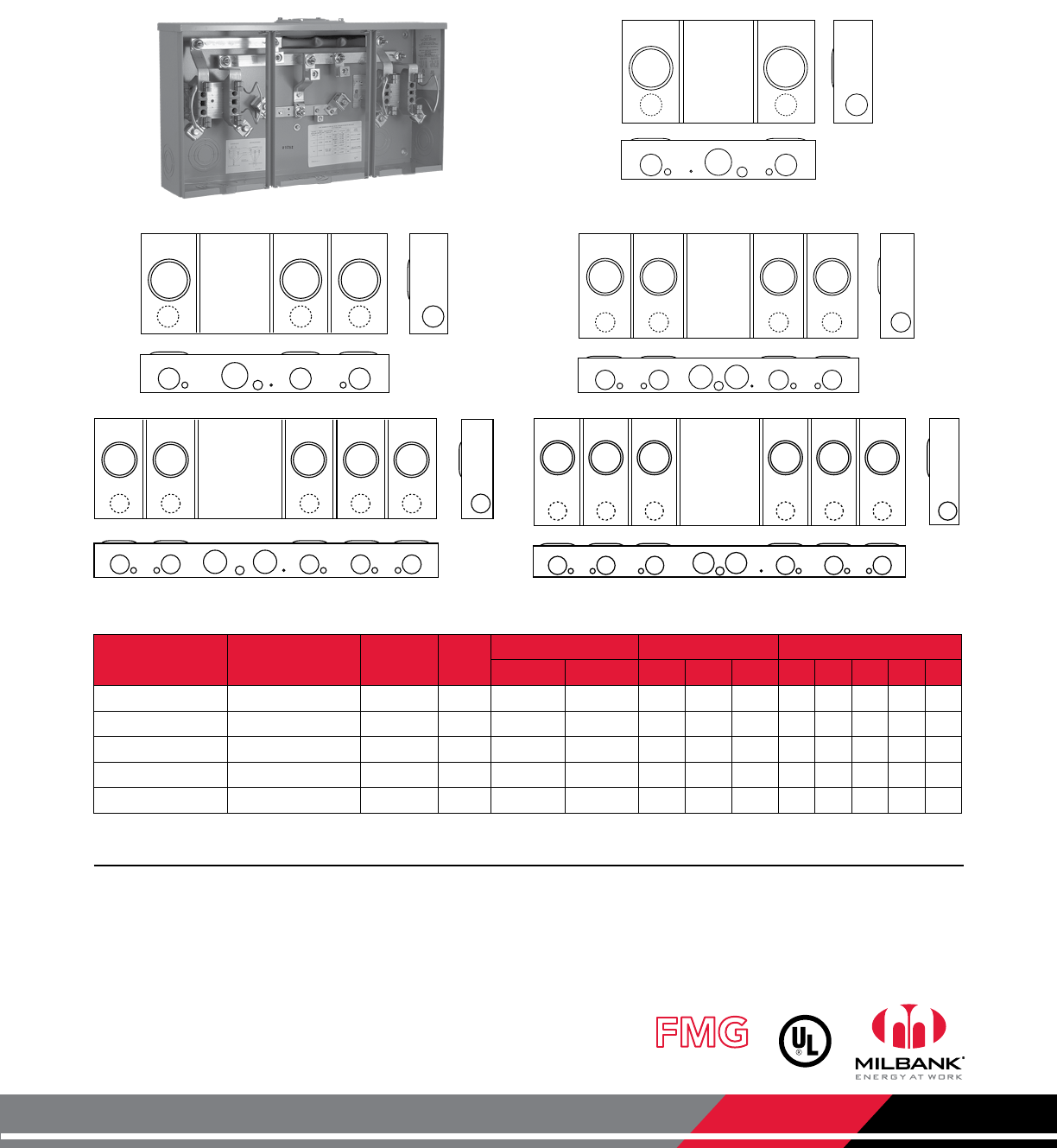

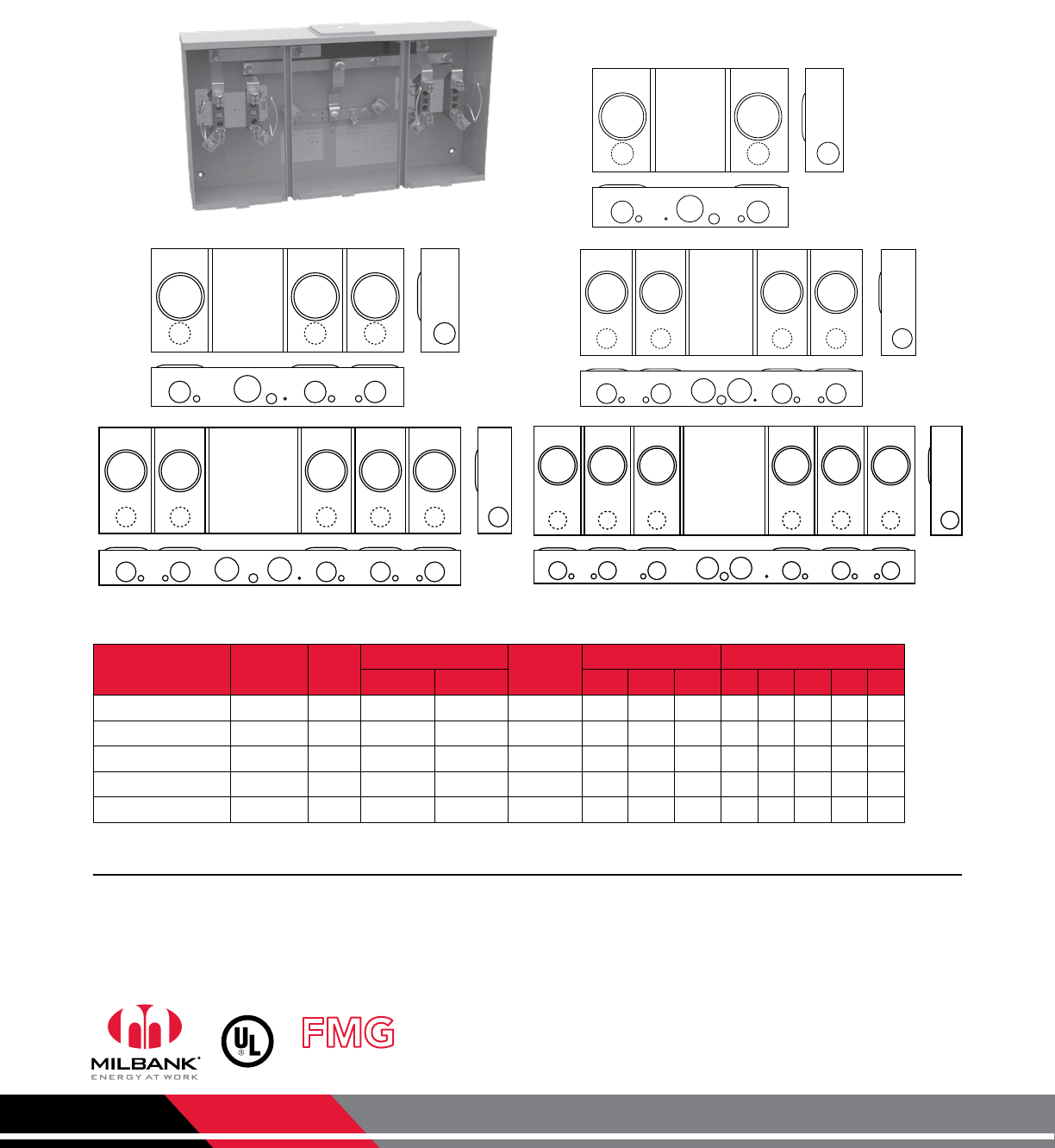

U1232-X-HSP
Catalog
Number Positions Hub Connectors CU/AL Bypass Dimensions Knockouts
Line Load D" W" H" 1 2 3 4 5
U1232-X-HSP 2 C.P. Studs #6-350 None 51⁄8261⁄214 3 21⁄211⁄21⁄4
U1233-X-HSP 3 C.P. Studs #6-350 None 51⁄83411⁄16 14 3 21⁄211⁄21⁄4
U1234-X-HSP 4 C.P. Studs #6-350 None 51⁄8427⁄816 3 21⁄211⁄21⁄4
U1235-X-HSP 5 C.P. Studs #6-350 None 51⁄8547⁄816 3 21⁄211⁄21⁄4
U1236-X-HSP 6 C.P. Studs #6-350 None 51⁄8631⁄16 18 3 21⁄211⁄21⁄4
150 Amps/Position | 4 Terminals | Ringless | Multi-Position | 1Ø3W
Notes
• Fifth Terminal Kit: For field-mounted fifth terminal, order catalog number K5T.
• Connectors: Line wire section is supplied with 3⁄8”-16 studs with hex head nuts and captive Belleville washers. Order
connector kits separately. One kit per unit. See accessories page.
13
4 4
5
2
2 2 2
2
1
2 2 2 2
3
44
5
4
2 2 2 1
2 2 2 2 2
23
4 4 4 4
5
2 2 2
1
1
22 222
2 2 3
4 4 4
54 4
222
2
11
2 2
3
4 4 4 4
54 4
2 2 2 2
2 2 2 2 2 2
2
1
1233
1232
1234
1235 1236
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
21
FMG
APPROVED
200 AMP
MULTI-POSITION
SOCKETS
Multi-Position Sockets
200 Amps | 4 Terminals | Ringless | 300 VAC
1
2 2
3
4 5 4
2 22
1
244
5
3
2 2 2 2
2 2 1
2 2 32
52
22222
4 4 4 4
1
1 1
2 2 2 2 2
2 22222
3
4 4 4 4
541
222
2 2 2 2
2 2 2
2 2 2
1
3
4 4
54 444
Steel
Catalog Number
Aluminum
Catalog Number Positions Hub Connectors CU/AL Dimensions Knockouts
Line Load D" W" H" 1 2 3 4 5
U1252-X-HSP UAP1252-X-HSP 2 C.P. Studs #6-350 51⁄8261⁄214 3 21⁄211⁄21⁄4
U1253-X-HSP UAP1253-X-HSP 3 C.P. Studs #6-350 51⁄83411⁄16 14 3 21⁄211⁄21⁄4
U1254-X-HSP UAP1254-X-HSP 4 C.P. Studs #6-350 51⁄8427⁄816 3 21⁄211⁄21⁄4
U1255-X-HSP UAP1255-X-HSP 5 C.P. Studs #6-350 51⁄8547⁄816 3 21⁄211⁄21⁄4
U1256-X-HSP UAP1256-X-HSP 6 C.P. Studs #6-350 51⁄8631⁄16 18 3 21⁄211⁄21⁄4
200 Amps/Position | 4 Terminals | Ringless | Multi-Position | 1Ø3W
Notes
• Hubs: Units are supplied with closing plates. For proper hub selection, see the hub suffix chart on the accessories page.
• Fifth Terminal Kit: For field-mounted fifth terminal, order catalog number K5T.
• Connectors: Line wire section is supplied with 3/8”-16 studs with hex head nuts and captive Belleville washers. Order
connector kits separately. One kit per unit. See accessories page

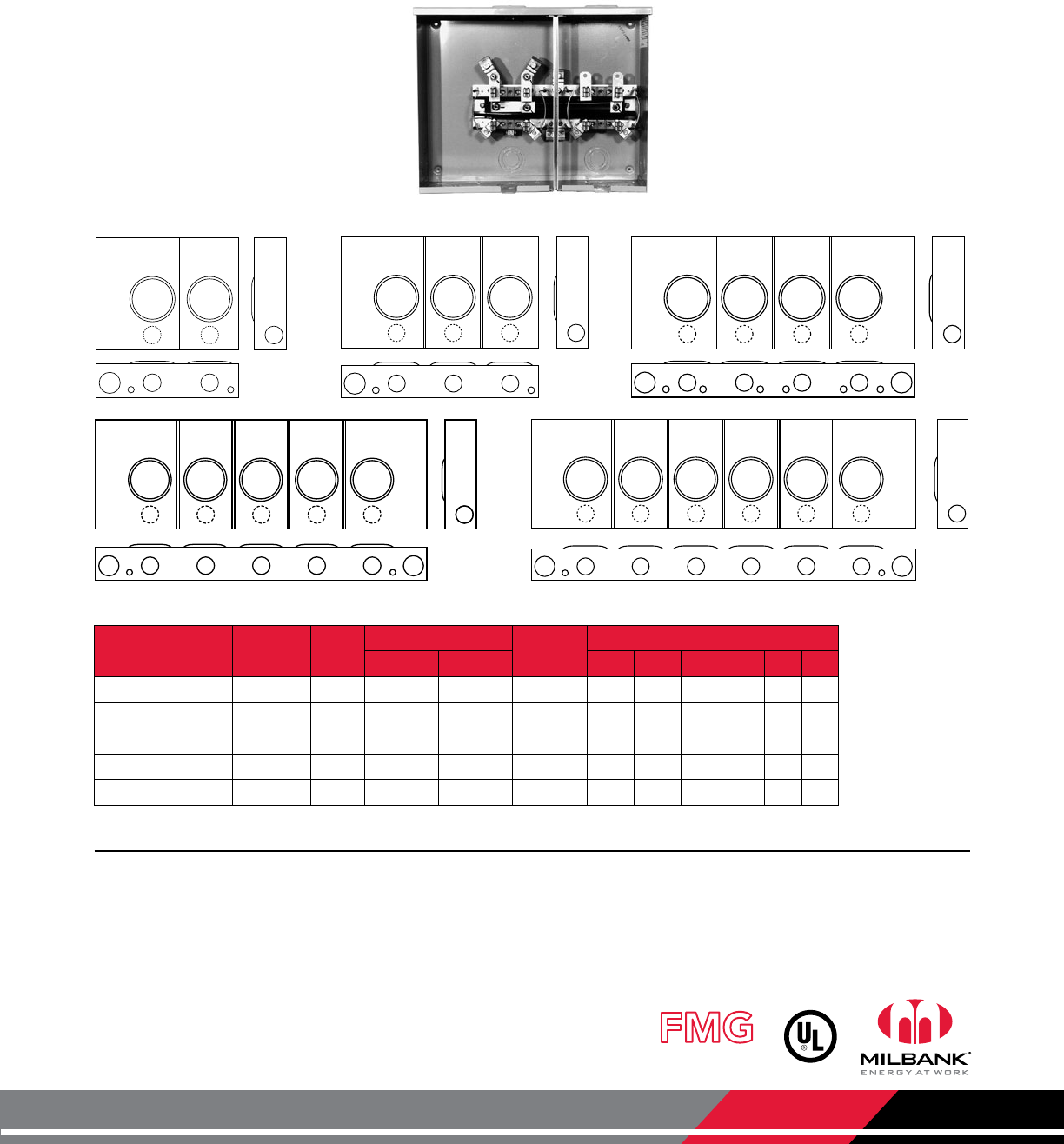

U1252-X-HSP
1252
1253 1254
1255 1256
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
22
FMG
APPROVED
200 AMP
MULTI-POSITION
SOCKETS

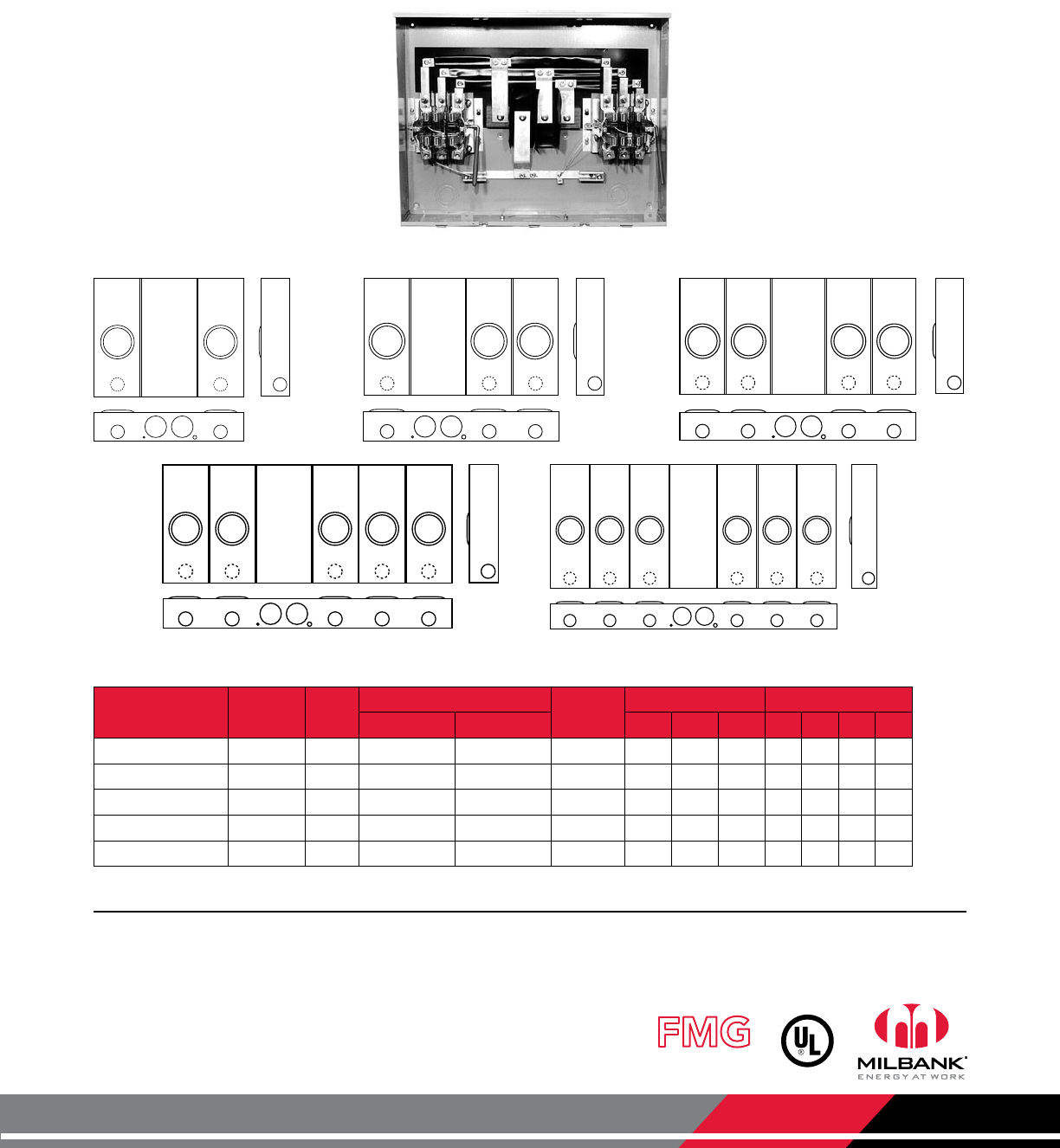

Multi-Position Sockets
200 Amps | 5 Terminals | Ringless | 600 VAC
Catalog
Number Positions Hub Connectors CU/AL Bypass Dimensions Knockouts
Line Load D" W" H" 1 2 3 4
U2872-XT-HSP 2 (2) C.P. 3⁄8"-16 Studs #6-350 Lever 6 321⁄8251⁄44 21⁄21⁄4,1⁄21⁄4
U2873-XT-HSP 3 (2) C.P. 3⁄8"-16 Studs #6-350 Lever 6 423⁄16 251⁄44 21⁄21⁄4,1⁄21⁄4
U2874-XT-HSP 4 (2) C.P. 3⁄8"-16 Studs #6-350 Lever 6 521⁄4251⁄44 21⁄21⁄4,1⁄21⁄4
U2875-XT-HSP 5 (2) C.P. 3⁄8"-16 Studs #6-350 Lever 6 625⁄16 251⁄44 21⁄21⁄4,1⁄21⁄4
U2876-XT-HSP 6 (2) C.P. 3⁄8"-16 Studs #6-350 Lever 6 723⁄8311⁄44 21⁄21⁄4,1⁄21⁄4
200 Amps/Position | 5 Terminals | Ringless | Multi-Position | 1Ø
Notes
• Hubs: Units are supplied with two closing plates. For proper hub selection, see the hub suffix chart on the accessories page.
• Bypass: Lever supplies clamping action on meter spades and also operates bypass device.
• Connectors: For line side connector kits, order separately. Order one kit per unit. See accessories page.

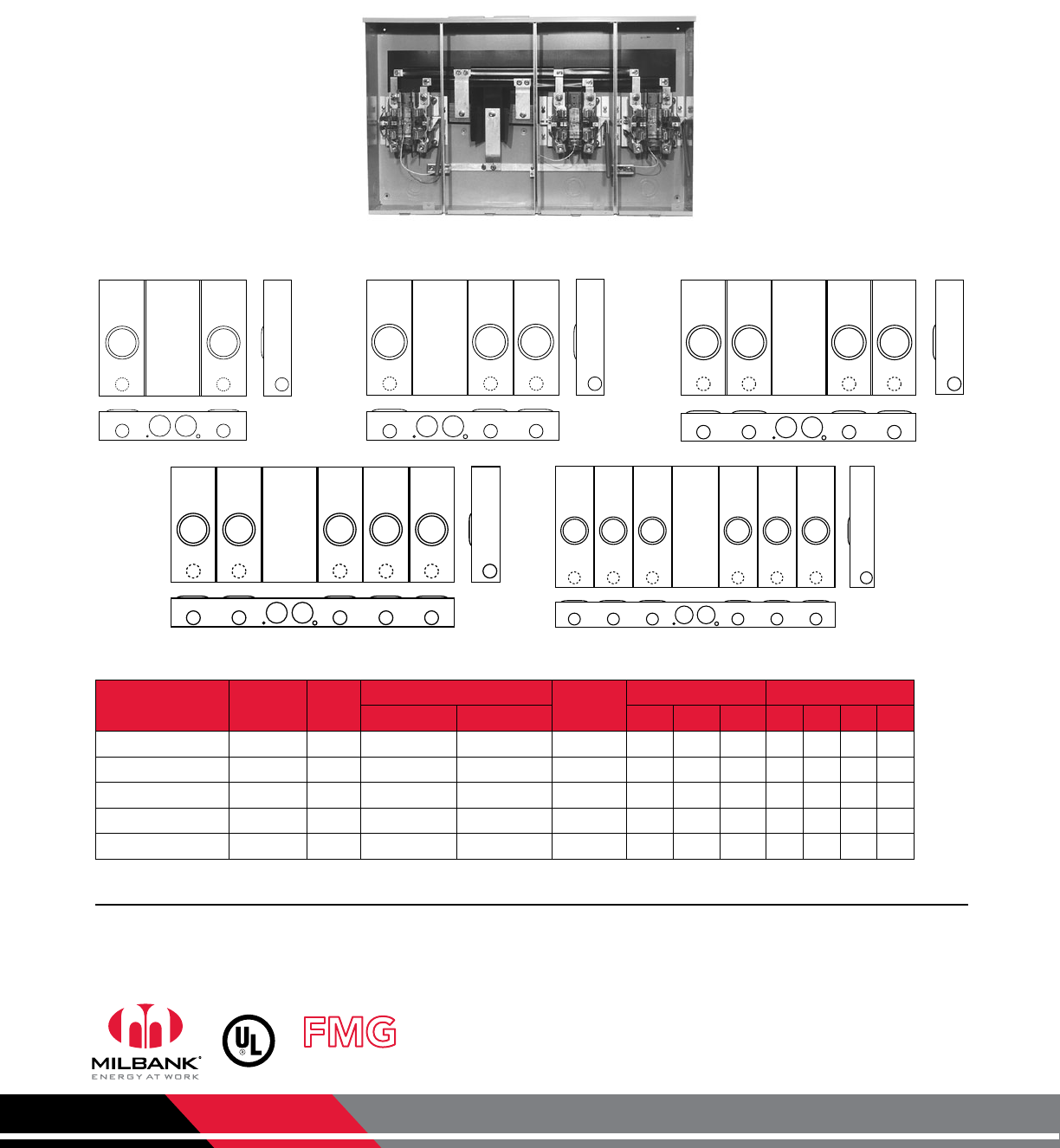

U2873-XT-HSP
2872 2873 2874
2875 2876
2
2 2
34 1 1
2 2 2 2
2
1 1 34 2
2
2 2 2 2 2 2
2 2 2
1 1 34 2
2
2 2 2 2 2
2 2 1 1 34 2 2 2
22 2
1 1 34
2 2 2 2 2
2 2 2 2 2 2
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
23
FMG
APPROVED
200 AMP
MULTI-POSITION
SOCKETS
Multi-Position Sockets
200 Amps | 7 Terminals | Ringless | 600 VAC
2
2 2
34 1 1
2 2 2 2
2
1 1 34 2
2
2 2 2 2 2 2
2 2 2
1 1 34 2
2
2 2 2 2 2
2 2 1 1 34 2 2 2
22 2
1 1 34
2 2 2 2 2
2 2 2 2 2 2
U2732-XT-HSP
Catalog
Number Positions Hub Connectors CU/AL Bypass Dimensions Knockouts
Line Load D" W" H" 1 2 3 4
U2732-XT-HSP 2 (2) C.P. 3⁄8"-16 Studs #6-350 Lever 6 321⁄8251⁄44 21⁄21⁄4,1⁄21⁄4
U2733-XT-HSP 3 (2) C.P. 3⁄8"-16 Studs #6-350 Lever 6 423⁄16 251⁄44 21⁄21⁄4,1⁄21⁄4
U2734-XT-HSP 4 (2) C.P. 3⁄8"-16 Studs #6-350 Lever 6 521⁄4251⁄44 21⁄21⁄4,1⁄21⁄4
U2735-XT-HSP 5 (2) C.P. 3⁄8"-16 Studs #6-350 Lever 6 625⁄16 251⁄44 21⁄21⁄4,1⁄21⁄4
U2736-XT-HSP 6 (2) C.P. 3⁄8"-16 Studs #6-350 Lever 6 723⁄8311⁄44 21⁄21⁄4,1⁄21⁄4
200 Amps/Position | 7 Terminals | Ringless | Multi-Position | 3Ø4W
Notes
• Hubs: Units are supplied with two closing plates. For proper hub selection, see the hub suffix chart on the accessories page.
• Bypass: Lever supplies clamping action on meter spades and also operates bypass device.
• Connectors: For line side connector kits, order separately. Order one kit per unit. See accessories page.
2732 2733 2734
2735 2736
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
24
20 AMP
TRANSFORMER
RATED SOCKETS
Transformer Rated Sockets
20 Amps | 6–13 Terminals | Ringless
1
3
2111
1
6078
6079
1
2
3111
1
4427
1
1 1
2
Catalog Number Approving
Utilities Terminals Material Hub Dimensions Knockouts
D" W" H" 1 2 3
UAPC4511-O-TS0324 FP&L 6 Q6 Aluminum Blank 41⁄812 20 11⁄41⁄4,1⁄2—
UAPC4512-O-TS0325 FP&L 13 TUV Aluminum Blank 41⁄812 20 11⁄41⁄4,1⁄2—
U4427-XL-21 TECO 13 Steel C.P. 41⁄812 20 11⁄21⁄4,1⁄21⁄4
UC6078-XL-21-PGN Duke 8 Steel C.P. 41⁄812 20 11⁄21⁄4,1⁄21⁄4
UC6079-XL-21-PGN Duke 13 Steel C.P. 41⁄812 20 11⁄21⁄4,1⁄21⁄4
20 Amps | Instrument Rated Meter Sockets | Ringless

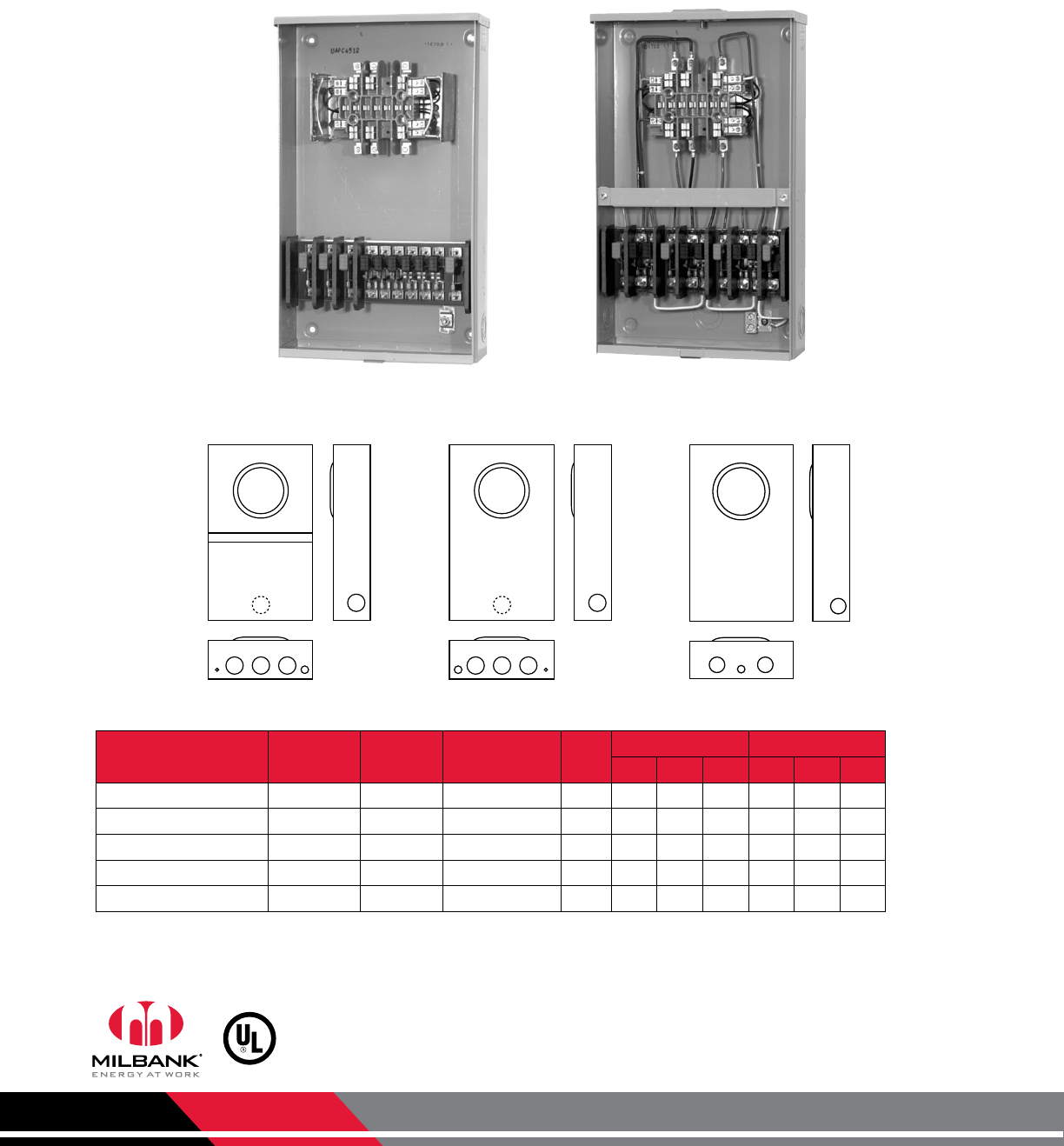

UAPC4512-O-TS0325 U4427-XL-21
4511
4512
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
25
CURRENT
TRANSFORMER
CABINETS
Current Transformer Cabinets
Type 3R
Catalog Number Approving
Utilities Material Max # of
Conduits
Max # & Size
Conductors
Dimensions
D" W" H"

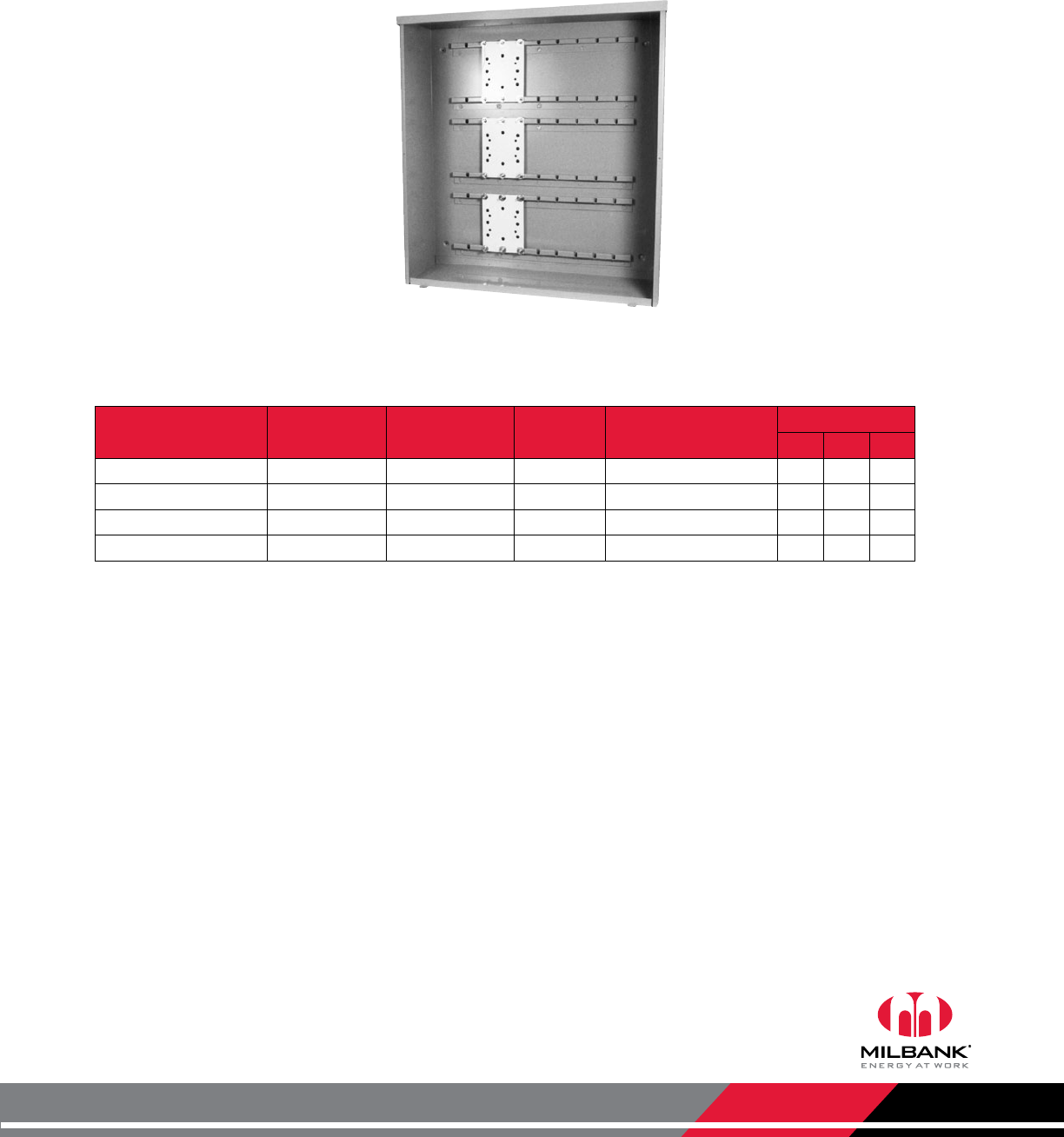

323412-SC3RA-SP FP&L, Duke TC-3 Aluminum 4 (4") 8 (600C) or 8 (400A) 12 32 34
304614-SC3RA-SP FP&L, Duke TC-5 Aluminum 4 (4") 16 (600C) or 16 (400A) 141⁄230 46
363612-CT3RXA-SP1 TECO Aluminum 4 (4") 8 (600C) or 8 (400A) 12 36 36
303012-CT3RA-WB TECO Aluminum 4 (4") 8 (600C) or 8 (400A) 12 30 30
Current Transformer Cabinets
323412-SC3RA-SP
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
26
FMG
APPROVED
METER MAIN
W/ LOAD CENTER
PEDESTAL

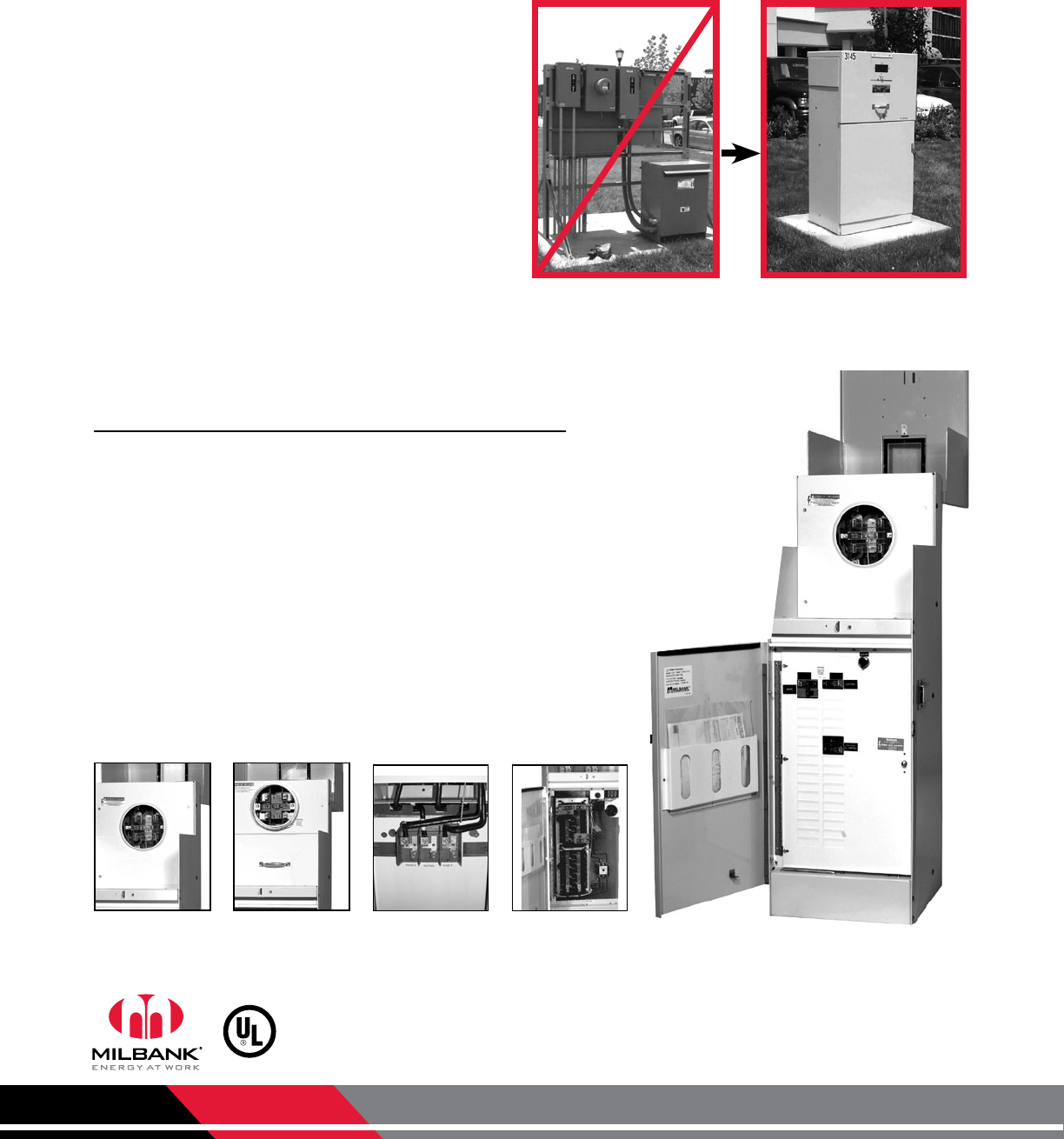

Meter Main w/ Load Center Pedestal
100–200 Amps | 4 Terminals | Ringless | 120/240 VAC
24”
27.5”
50”
80”
Grade Level
1
1
2 2
3 3
1
1
9.875”
4.13”
16.07”

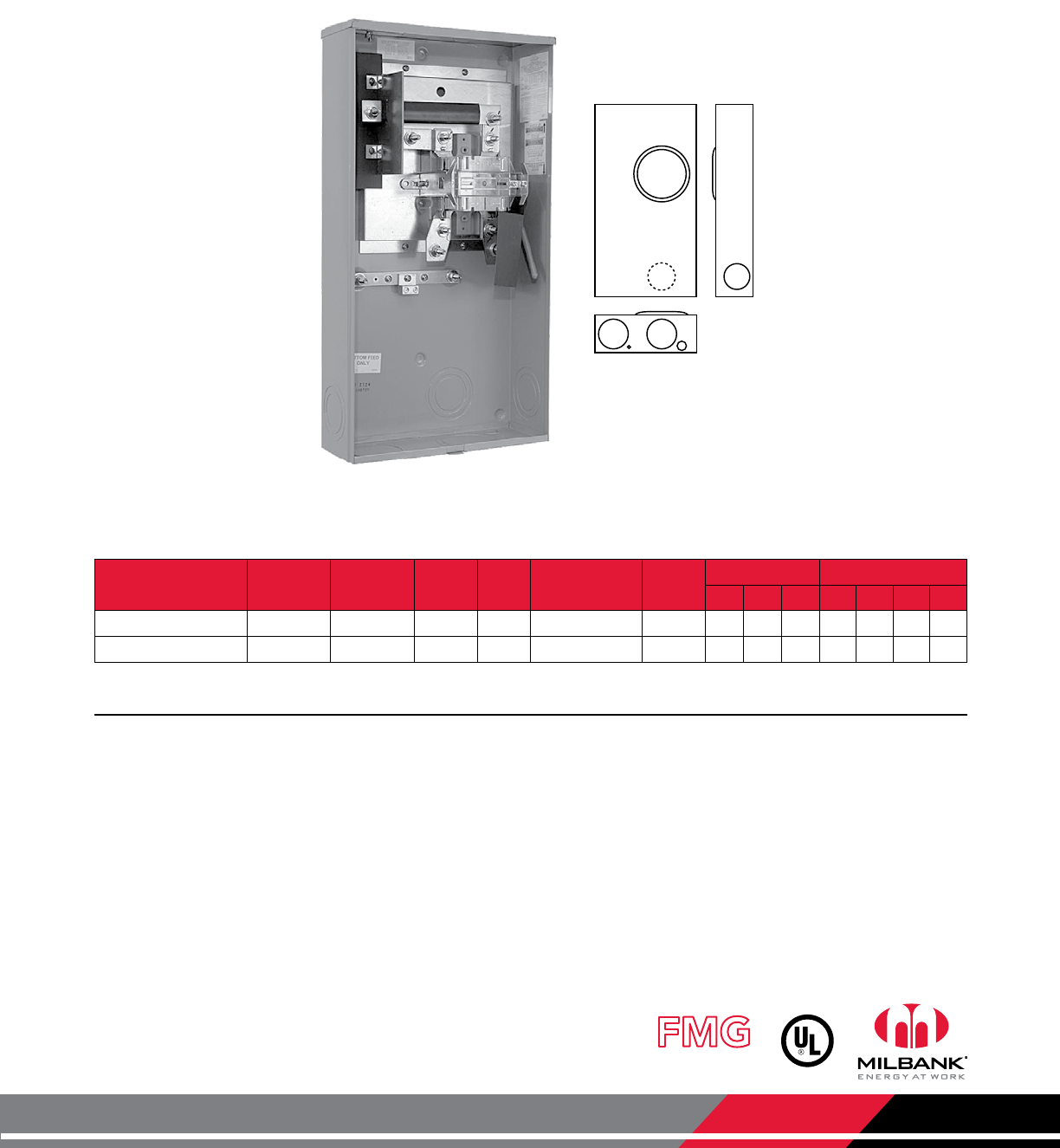

U5136-O-200S-FMG
Specifications
• Conforms to Florida Meter Group requirements when K5415 stabilizer foot is installed.
• UL listed File E90945
• 200 amp maximum, 120/240 V, 1Ø3W
• Ringless type meter socket with stainless steel latch
• Short circuit withstand rating 10 KAIC, 22 KAIC available. Consult factory.
• Type 3R construction for durable outdoor use
• ASA 61 grey polyester powder coat finish
• Wire terminations accept copper or aluminum conductors
• Line & Neutral: (2) #6-350 kcmil per phase, Line Ground: (4) #14-1/0
• Load (CB): 2/0 to 300 kcmil per pole
• Load neutral: (1) #6-350 kcmil
• Load ground: (2) #14-1/0, (4) #14/6
• Commercial grade, plug-in main circuit breaker. Available in 100, 125, 150 & 200 AMP. Type UQFP-M.
• 4 circuit plated copper interior accepts (2) 2-pole or (4) 1-pole standard plug-in type circuit breakers. Branch circuit rated to
125 amp max. Acceptable manufacturers: Milbank, Cutler-Hammer, GE or Siemens
5136
5137
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
27
FMG
APPROVED
METER MAIN
W/ LOAD CENTER
PEDESTAL
Meter Main w/ Load Center Pedestal
100–200 Amps | 4 Terminals | Ringless | 120/240 VAC
Notes

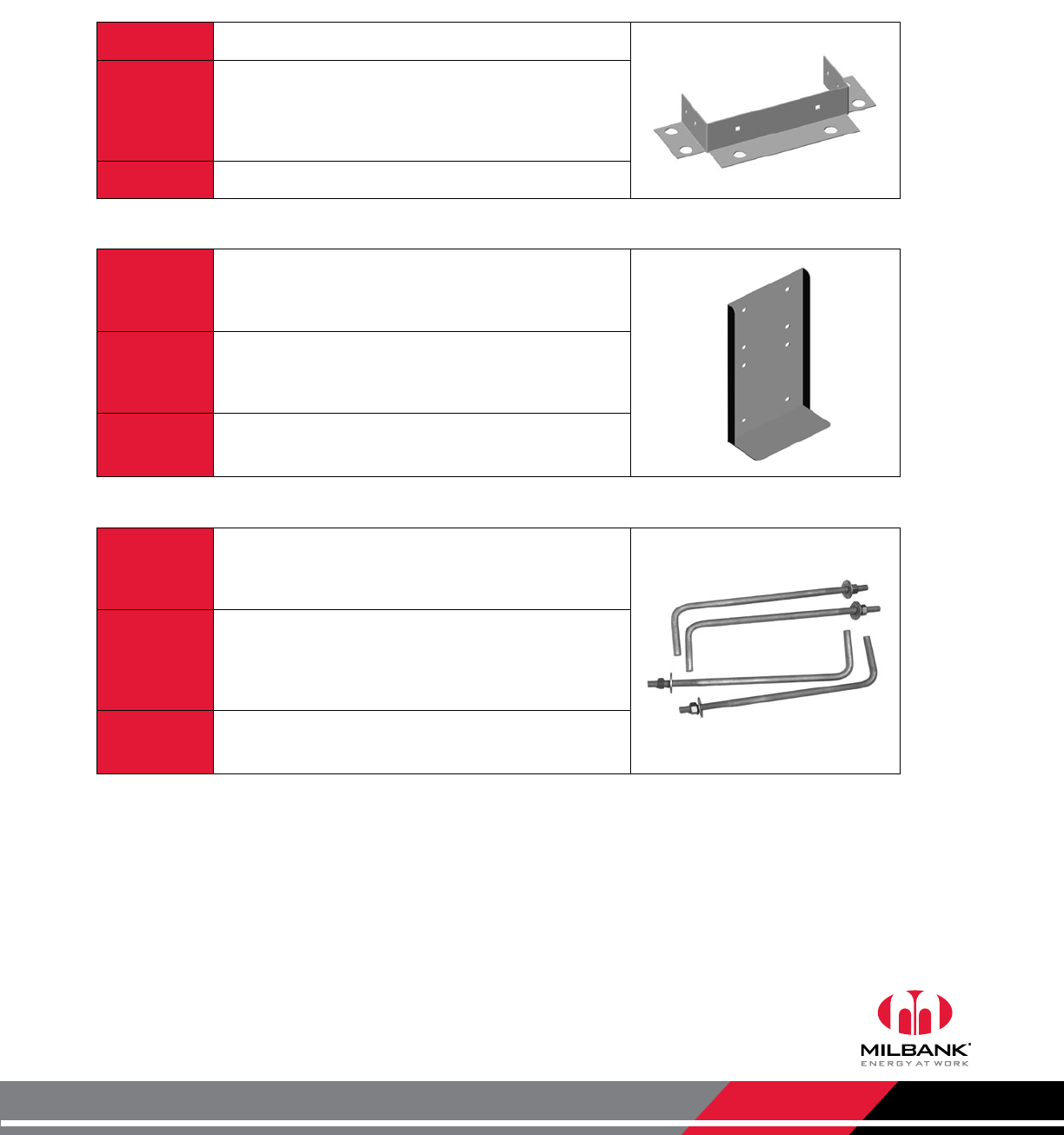

• Parallel to Series Conversion: For field converting from parallel wired to series wired order K5194.
• Fifth Terminal: For field installed fifth terminal, order K5T.
• Stabilizer Foot: For field installed stabilizer foot, order K5415.
• Penta Bolt Locking: For field installed pedestal fronts penta bolt locking, order K5039.
• Receptacles: Consult factory for installed receptacle assemblies.
• Pad Mount Units: Pad mount pedestals are available. Order U5138 (single meter) or U5139 (double meter) prefix. K5035
pad mount kit required. Order separately.
Catalog Number Powerheads Amps Main Breaker Interior Dimensions Knockouts
D" W" H" 1 2 3
U5136-O-100S-FMG Single 100 UQFP-M-100 (Series) 4 circuit 101⁄410 80 2 1⁄2,3⁄41⁄4
U5136-O-125S-FMG Single 125 UQFP-M-125 (Series) 4 circuit 101⁄410 80 2 1⁄2,3⁄41⁄4
U5136-O-150S-FMG Single 150 UQFP-M-150 (Series) 4 circuit 101⁄410 80 2 1⁄2,3⁄41⁄4
U5136-O-200S-FMG Single 200 UQFP-M-200 (Series) 4 circuit 101⁄410 80 2 1⁄2,3⁄41⁄4
U5136-O-100P-FMG Single 100 UQFP-M-100 (Parallel) 4 circuit 101⁄410 80 2 1⁄2,3⁄41⁄4
U5136-O-125P-FMG Single 125 UQFP-M-100 (Parallel) 4 circuit 101⁄410 80 2 1⁄2,3⁄41⁄4
U5136-O-150P-FMG Single 150 UQFP-M-100 (Parallel) 4 circuit 101⁄410 80 2 1⁄2,3⁄41⁄4
U5136-O-200P-FMG Single 200 UQFP-M-100 (Parallel) 4 circuit 101⁄410 80 2 1⁄2,3⁄41⁄4
U5136-O-FMG Single — Breaker provision 4 circuit 101⁄410 80 2 1⁄2,3⁄41⁄4
U5137-O-100S-FMG Double 100 (2) UQFP-M-100 (Series) 4 circuit 161⁄14 10 80 2 1⁄2,3⁄41⁄4
U5137-O-125S-FMG Double 125 (2) UQFP-M-125 (Series) 4 circuit 161⁄14 10 80 2 1⁄2,3⁄41⁄4
U5137-O-150S-FMG Double 150 (2) UQFP-M-150 (Series) 4 circuit 161⁄14 10 80 2 1⁄2,3⁄41⁄4
U5137-O-200S-FMG Double 200 (2) UQFP-M-200 (Series) 4 circuit 161⁄14 10 80 2 1⁄2,3⁄41⁄4
U5137-O-100P-FMG Double 100 (2) UQFP-M-100 (Parallel) 4 circuit 161⁄14 10 80 2 1⁄2,3⁄41⁄4
U5137-O-125P-FMG Double 125 (2) UQFP-M-100 (Parallel) 4 circuit 161⁄14 10 80 2 1⁄2,3⁄41⁄4
U5137-O-150P-FMG Double 150 (2) UQFP-M-100 (Parallel) 4 circuit 161⁄14 10 80 2 1⁄2,3⁄41⁄4
U5137-O-200P-FMG Double 200 (2) UQFP-M-100 (Parallel) 4 circuit 161⁄14 10 80 2 1⁄2,3⁄41⁄4
U5137-O-FMG Double — Breaker provision 4 circuit 161⁄14 10 80 2 1⁄2,3⁄41⁄4
20 Amps | Instrument Rated Meter Sockets | Ringless
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
28
REPLACEMENT
PARTS &
ACCESSORIES

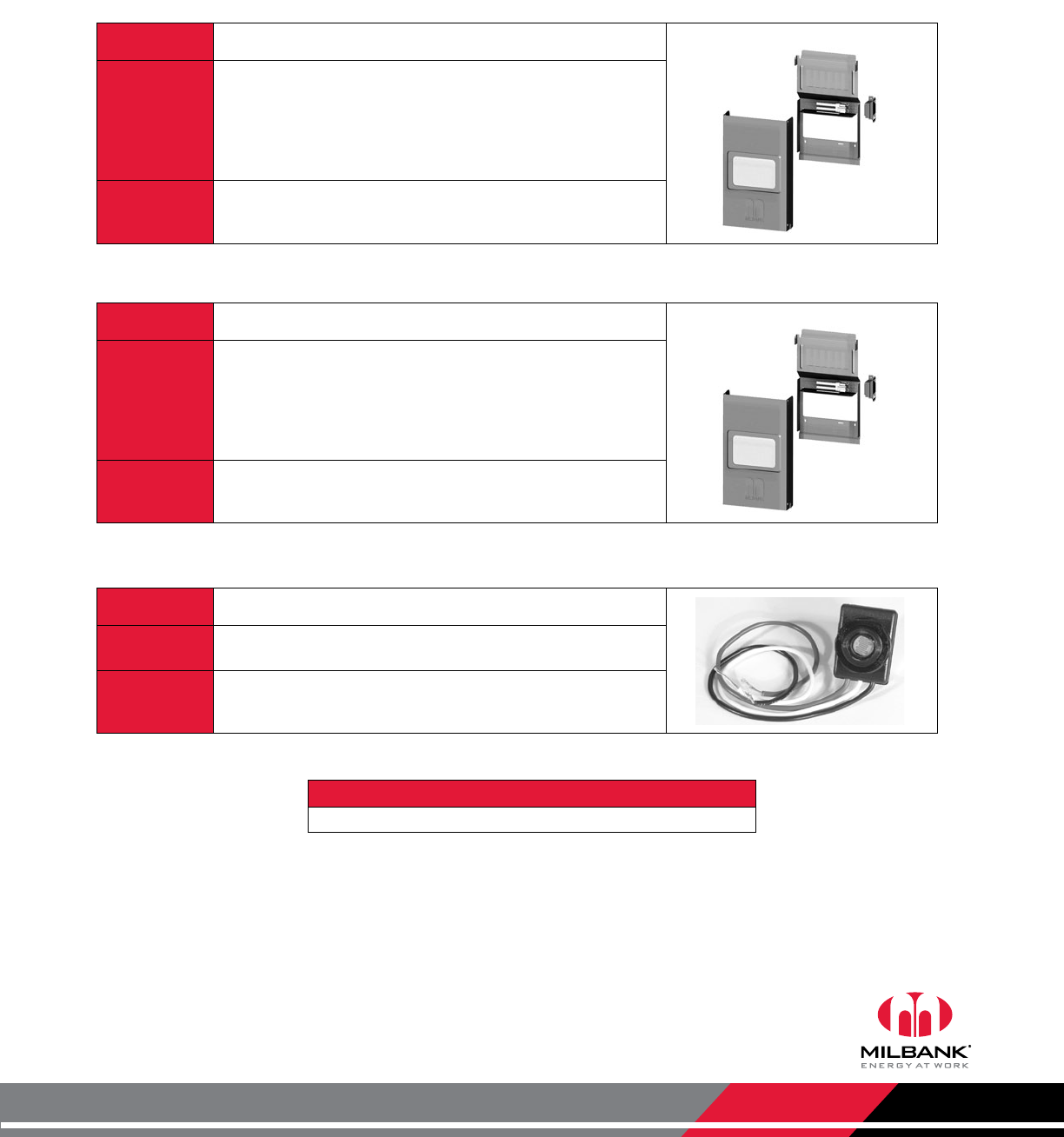

Replacement Parts & Accessories
For U5136–U5139 Pedestals
K5935-36GR K5935-54 K5935-2/1450
Z1115081
Lug landing base
Z819294-SC
With receptacle openings
Z1139163
Without receptacle openings
Z1102270
Hinged cover
K5935-41 K5935-10GR K5935-11GR
K5935-41
1139075 (1)
1000062 (4)
K5935-10GR
1139076 (1)
1000062 (4)
K5935-11GR
1139077 (1)
1000062 (4)
K5935-36GR
1139078 (1)
1000062 (4)
K5935-54
1139079 (1)
1000062 (4)
K5935-2/1450
1141151 (1)
1000062 (4)
K5935-41
1139075 (1)
1000062 (4)
K5935-10GR
1139076 (1)
1000062 (4)
K5935-11GR
1139077 (1)
1000062 (4)
K5935-36GR
1139078 (1)
1000062 (4)
K5935-54
1139079 (1)
1000062 (4)
K5935-2/1450
1141151 (1)
1000062 (4)
K5935-41
1139075 (1)
1000062 (4)
K5935-10GR
1139076 (1)
1000062 (4)
K5935-11GR
1139077 (1)
1000062 (4)
K5935-36GR
1139078 (1)
1000062 (4)
K5935-54
1139079 (1)
1000062 (4)
K5935-2/1450
1141151 (1)
1000062 (4)
K5935-41
1139075 (1)
1000062 (4)
K5935-10GR
1139076 (1)
1000062 (4)
K5935-11GR
1139077 (1)
1000062 (4)
K5935-36GR
1139078 (1)
1000062 (4)
K5935-54
1139079 (1)
1000062 (4)
K5935-2/1450
1141151 (1)
1000062 (4)
K5935-41
1139075 (1)
1000062 (4)
K5935-10GR
1139076 (1)
1000062 (4)
K5935-11GR
1139077 (1)
1000062 (4)
K5935-36GR
1139078 (1)
1000062 (4)
K5935-54
1139079 (1)
1000062 (4)
K5935-2/1450
1141151 (1)
1000062 (4)
K5935-41
1139075 (1)
1000062 (4)
K5935-10GR
1139076 (1)
1000062 (4)
K5935-11GR
1139077 (1)
1000062 (4)
K5935-36GR
1139078 (1)
1000062 (4)
K5935-54
1139079 (1)
1000062 (4)
K5935-2/1450
1141151 (1)
1000062 (4)
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
29
REPLACEMENT
PARTS &
ACCESSORIES
Replacement Parts & Accessories
For U5136–U5139 Pedestals

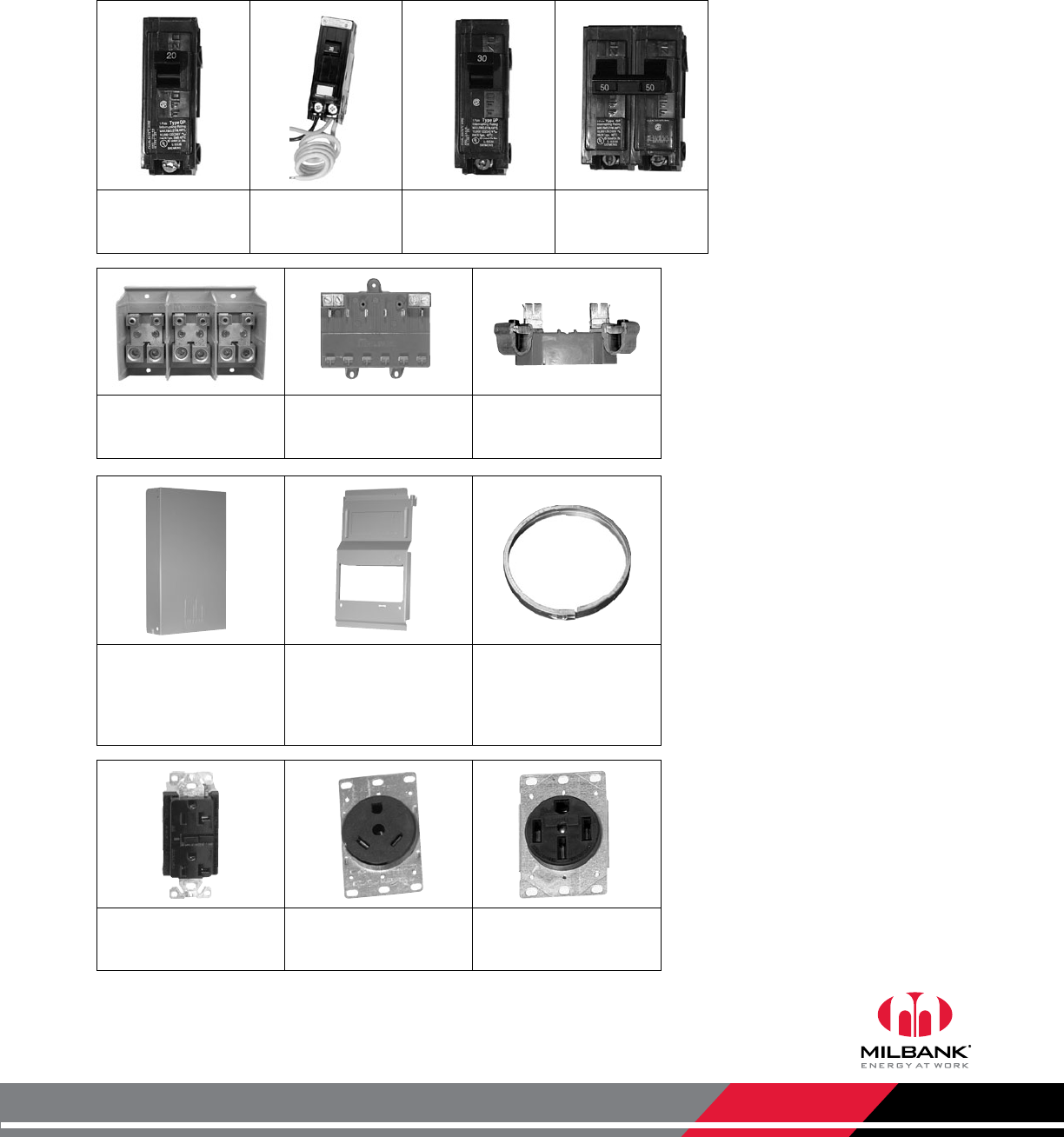

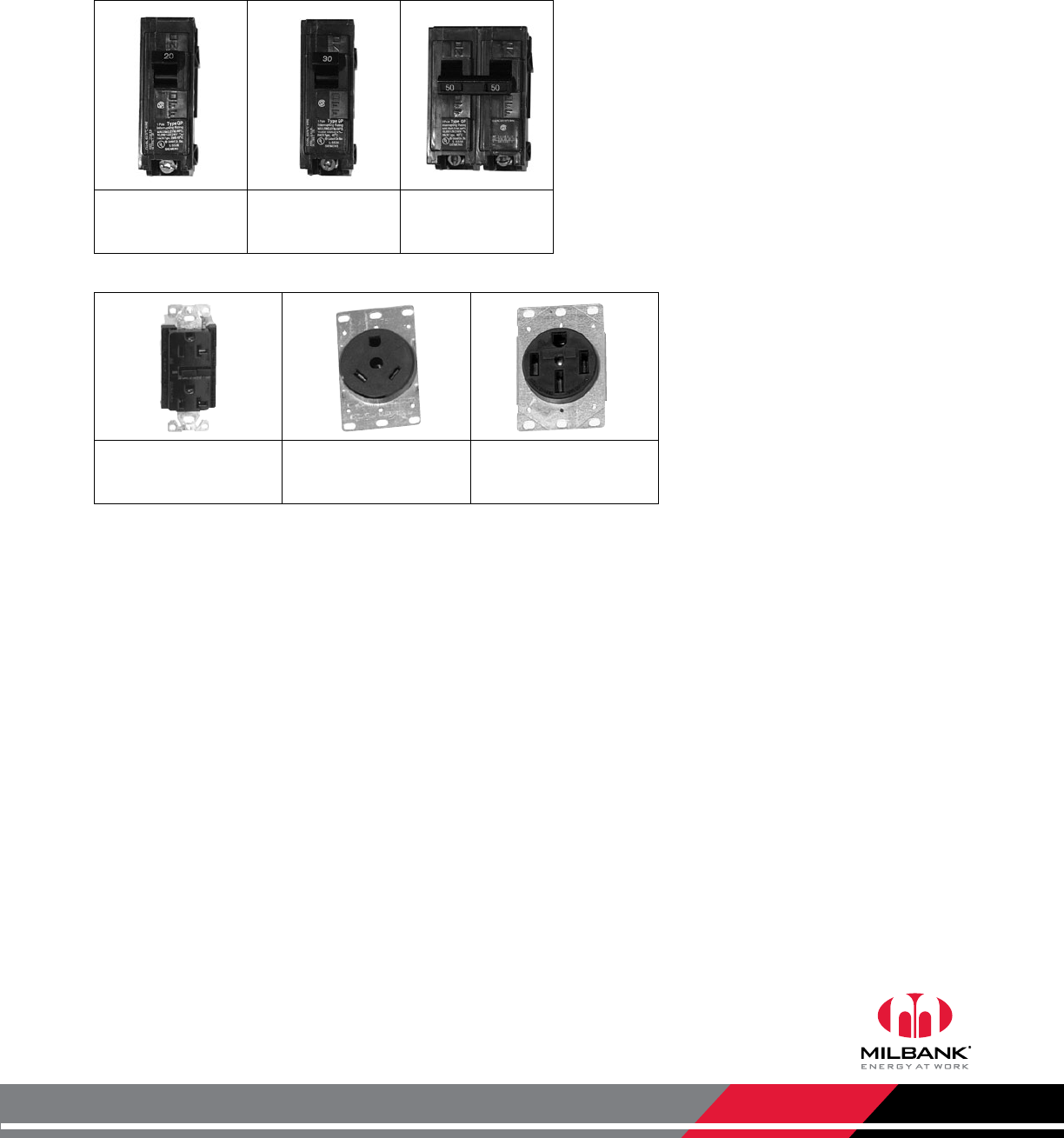

Q120
20 amp, 1 pole
circuit breaker
Q130
30 amp, 1 pole
circuit breaker
Q250
50 amp, 2 pole
circuit breaker
Z708080-MO
20 amp GFI receptacle
NEMA 5-20GR
Z701776-MO
30 amp receptacle
NEMA TT-30
Z708767-MO
50 amp receptacle
NEMA 14-50R
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
30
SURFACE
MOUNT
POWER
OUTLETS

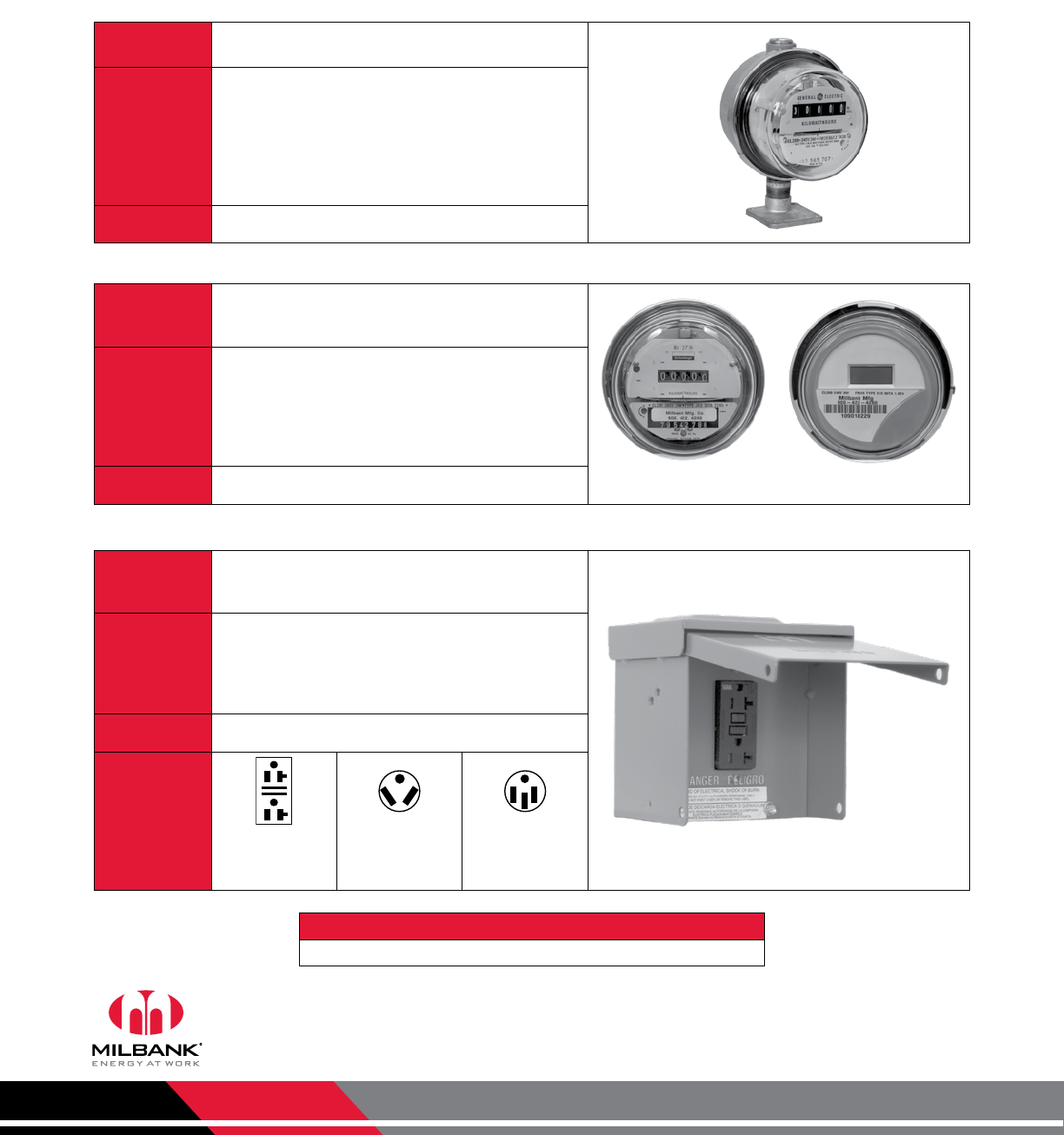

Surface Mount Power Outlet
Millennium Series | 120/240 VAC
125 Amps | Surface Mount Power Outlets
Receptacle Configurations
Circuit Breaker Configurations
Catalog
Number
Metered/
Unmetered
Receptacle
Configuration
Circuit Breaker
Configuration
Loop
Feed
Connectors -
Line
Dimensions Knockouts
D" W" H" 1 2 3
U5000-XL Unmetered — — Yes (2) 1/0-#12 51⁄291⁄8191⁄42 11⁄211⁄4
U5000-XL-41 Unmetered A X Yes (2) 1/0-#12 51⁄291⁄8191⁄42 11⁄211⁄4
U5000-XL-55 Unmetered B Y Yes (2) 1/0-#12 51⁄291⁄8191⁄42 11⁄211⁄4
U5000-XL-75 Unmetered C Z Yes (2) 1/0-#12 51⁄291⁄8191⁄42 11⁄211⁄4
U5100-XL Metered — — No #6-250 51⁄291⁄825 2 11⁄211⁄4
U5100-XL-41 Metered A X No #6-250 51⁄291⁄825 2 11⁄211⁄4
U5100-XL-55 Metered B Y No #6-250 51⁄291⁄825 2 11⁄211⁄4
U5100-XL-75 Metered C Z No #6-250 51⁄291⁄825 2 11⁄211⁄4
122
33
5000
A B C
(1) TT30R, (1) 5-20R GFI
(1) 14-50R, (1) 5-20R GFI
(1) 14-50R, (1) TT30R,
(1) 5-20R GFI
X Y Z
(1) 30A, 1P, 120V
(1) 20A, 1P, 120V
(1) 50A, 2P, 120/240V
(1) 20A, 1P, 120V
(1) 50A, 2P, 120/240V
(1) 30A, 1P, 120V
(1) 20A, 1P, 120V
1
33
22
5100
NOTE
These units are typically used
for submetering applications.
Contact factory for additional
configurations not shown here.
U5000-XL-75 U5100-XL-75
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
31

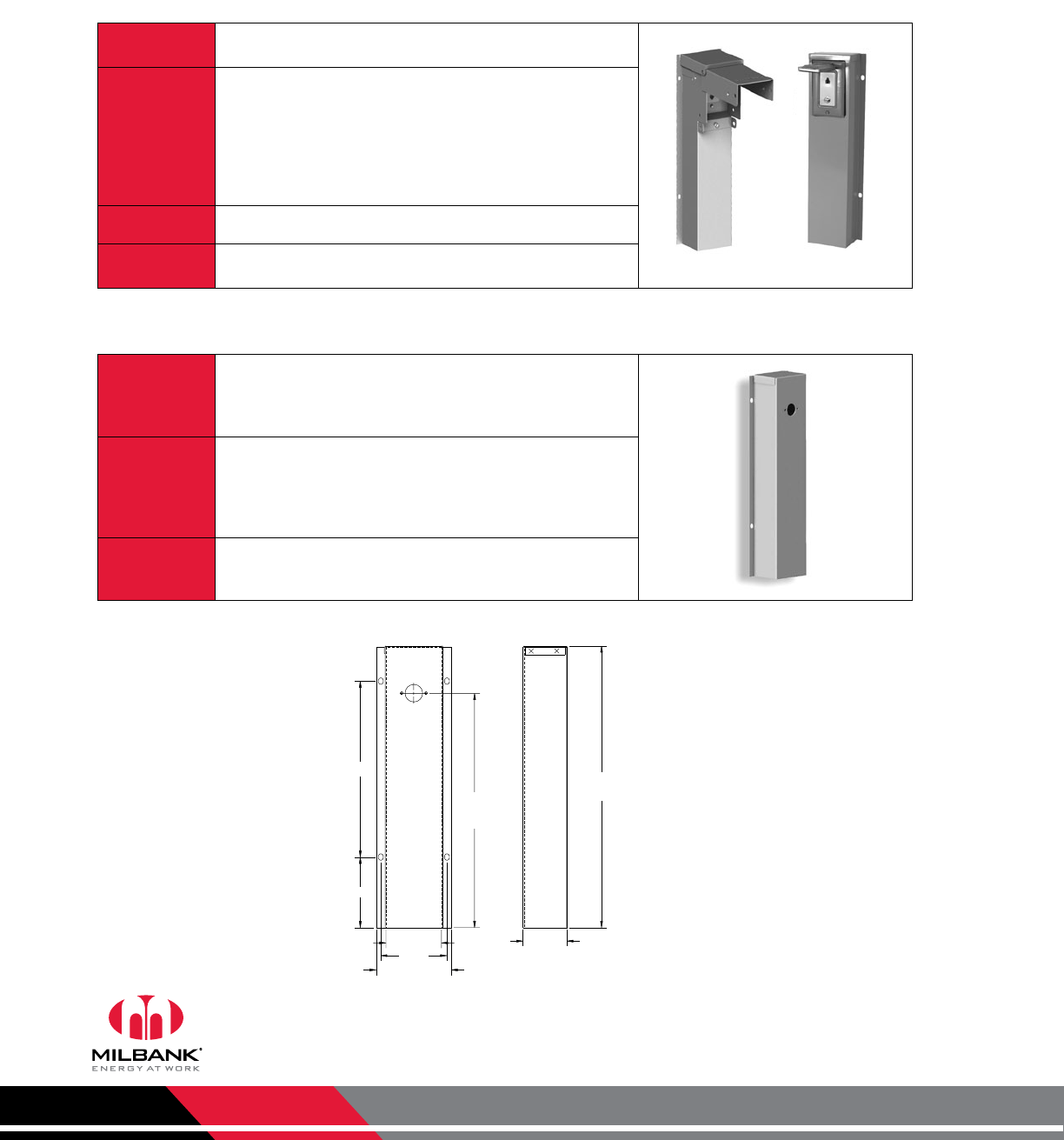

Power Outlet Pedestals
Millennium Series | 120/240 VAC
POWER
OUTLET
PEDESALS
125 Amps | Power Outlet Pedestals | Direct Burial
Receptacle Configurations
Circuit Breaker Configurations
Catalog
Number
Double Head
Catalog Number
Metered/
Unmetered
Receptacle
Configuration
Circuit Breaker
Configuration
Dimensions Knockouts
D" W" H" 1
U5200-XL U5220-XL Unmetered — — 59⁄16 91⁄8641⁄211⁄4
U5200-XL-41 U5220-XL-41 Unmetered A X 59⁄16 91⁄8641⁄211⁄4
U5200-XL-55 U5220-XL-55 Unmetered B Y 59⁄16 91⁄8641⁄211⁄4
U5200-XL-75 U5220-XL-75 Unmetered C Z 59⁄16 91⁄8641⁄211⁄4
U5300-O U5320-O Metered — — 59⁄16 91⁄8701⁄411⁄4
U5300-O-41 U5320-O-41 Metered A X 59⁄16 91⁄8701⁄411⁄4
U5300-O-55 U5320-O-55 Metered B Y 59⁄16 91⁄8701⁄411⁄4
U5300-O-75 U5320-O-75 Metered C Z 59⁄16 91⁄8701⁄411⁄4
A B C
(1) TT30R,
(1) 5-20R GFI
(1) 14-50R,
(1) 5-20R GFI
(1) 14-50R, (1) TT30R,
(1) 5-20R GFI
X Y Z
(1) 30A, 1P, 120V
(1) 20A, 1P, 120V
(1) 50A, 2P, 120/240V
(1) 20A, 1P, 120V
(1) 50A, 2P, 120/240V
(1) 30A, 1P, 120V
(1) 20A, 1P, 120V
12 2
5200
5220
U5200-XL-75 U5300-O-75
12 2
5300
5320
NOTE
These units are typically used for
submetering applications.
Contact factory for additional
configurations not shown here.
Pad mount is available. Contact
factory for information.
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
32
REPLACEMENT
RECEPTACLE
PLATES

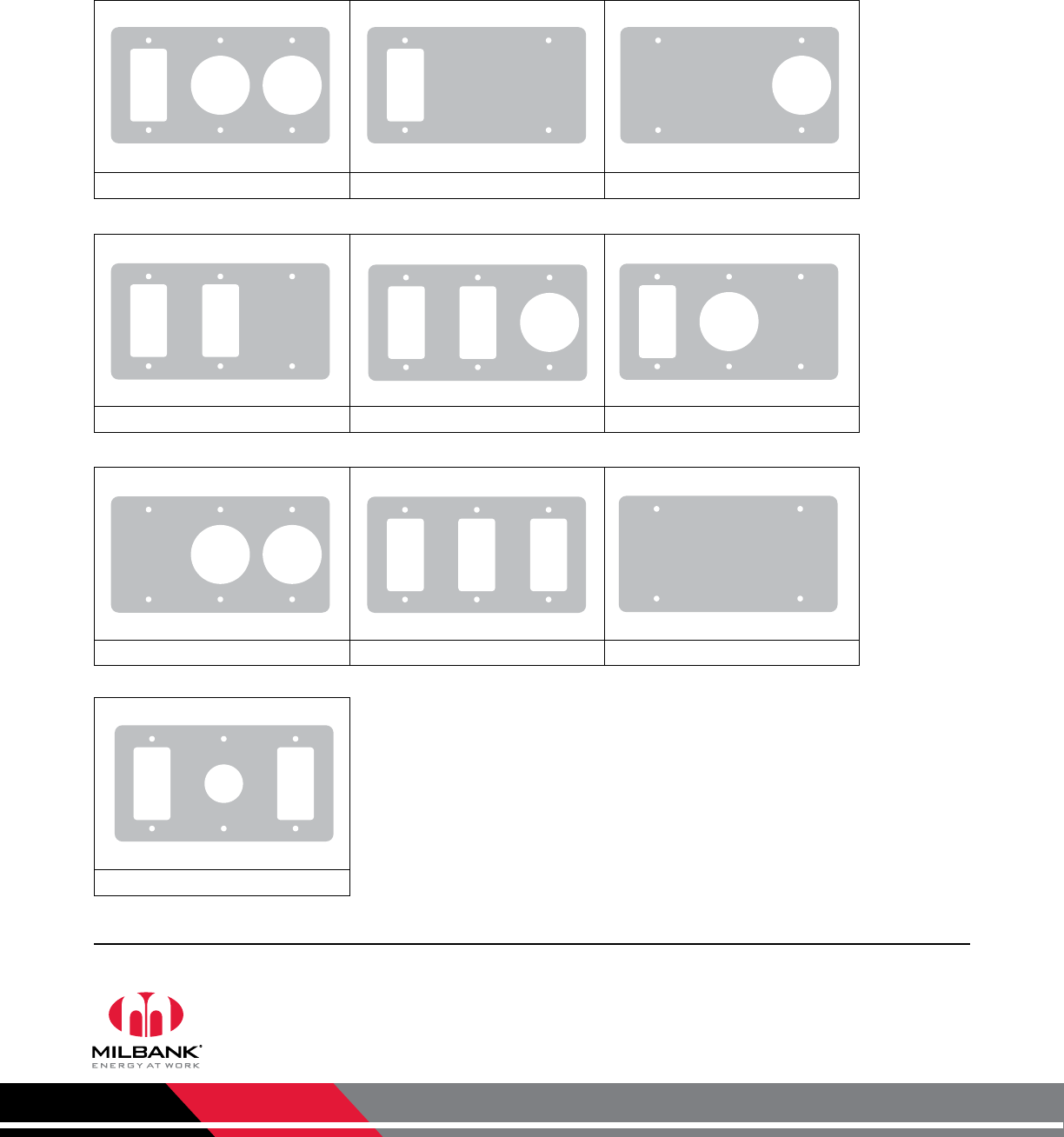

Replacement Receptacle Plates
For Millennium Series Products

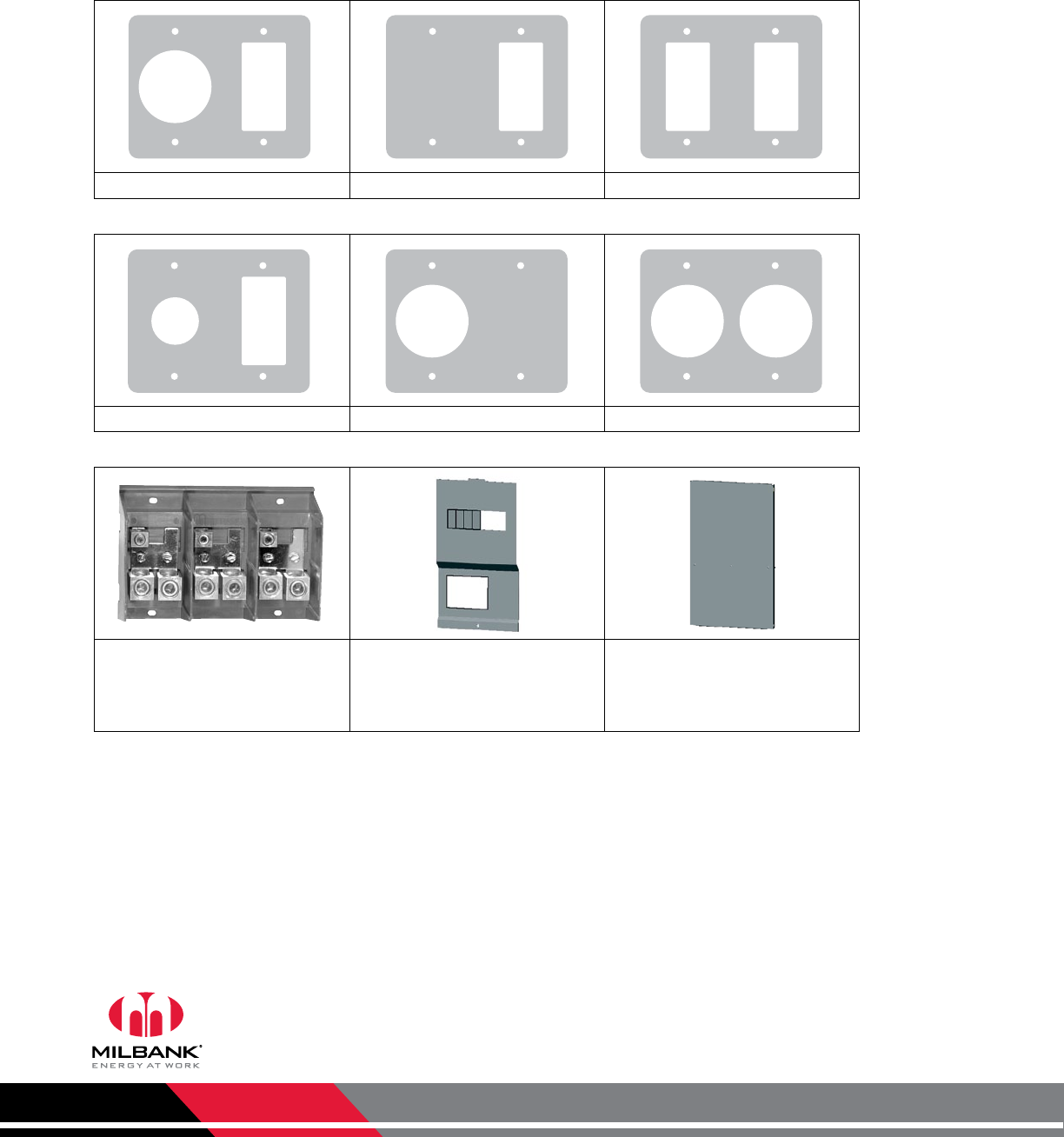

K5920-38
K5920-75
1138745 (1)
1000062 (6)
K5920-10GR
1138746 (1)
1000062 (4)
K5920-41
1138751 (1)
1000062 (6)
K5920-11GR
1138749 (1)
1000062 (6)
K5920-54
1138747 (1)
1000062 (4)
K5920-BLANK
1138753 (1)
1000062 (4)
K5920-522
1138750 (1)
1000062 (6)
K5920-58
1138752 (1)
1000062 (6)
K5920-111GR
1138963 (1)
1000062 (6)
K5920-38
1138967 (1)
1000062 (4)
K5920-58 K5920-111GR K5920-BLANK
K5920-75
1138745 (1)
1000062 (6)
K5920-10GR
1138746 (1)
1000062 (4)
K5920-41
1138751 (1)
1000062 (6)
K5920-11GR
1138749 (1)
1000062 (6)
K5920-54
1138747 (1)
1000062 (4)
K5920-BLANK
1138753 (1)
1000062 (4)
K5920-522
1138750 (1)
1000062 (6)
K5920-58
1138752 (1)
1000062 (6)
K5920-111GR
1138963 (1)
1000062 (6)
K5920-38
1138967 (1)
1000062 (4)
K5920-75
1138745 (1)
1000062 (6)
K5920-10GR
1138746 (1)
1000062 (4)
K5920-41
1138751 (1)
1000062 (6)
K5920-11GR
1138749 (1)
1000062 (6)
K5920-54
1138747 (1)
1000062 (4)
K5920-BLANK
1138753 (1)
1000062 (4)
K5920-522
1138750 (1)
1000062 (6)
K5920-58
1138752 (1)
1000062 (6)
K5920-111GR
1138963 (1)
1000062 (6)
K5920-38
1138967 (1)
1000062 (4)
K5920-11GR K5920-522 K5920-41
K5920-75
1138745 (1)
1000062 (6)
K5920-10GR
1138746 (1)
1000062 (4)
K5920-41
1138751 (1)
1000062 (6)
K5920-11GR
1138749 (1)
1000062 (6)
K5920-54
1138747 (1)
1000062 (4)
K5920-BLANK
1138753 (1)
1000062 (4)
K5920-522
1138750 (1)
1000062 (6)
K5920-58
1138752 (1)
1000062 (6)
K5920-111GR
1138963 (1)
1000062 (6)
K5920-38
1138967 (1)
1000062 (4)
K5920-75
1138745 (1)
1000062 (6)
K5920-10GR
1138746 (1)
1000062 (4)
K5920-41
1138751 (1)
1000062 (6)
K5920-11GR
1138749 (1)
1000062 (6)
K5920-54
1138747 (1)
1000062 (4)
K5920-BLANK
1138753 (1)
1000062 (4)
K5920-522
1138750 (1)
1000062 (6)
K5920-58
1138752 (1)
1000062 (6)
K5920-111GR
1138963 (1)
1000062 (6)
K5920-38
1138967 (1)
1000062 (4)
K5920-75
1138745 (1)
1000062 (6)
K5920-10GR
1138746 (1)
1000062 (4)
K5920-41
1138751 (1)
1000062 (6)
K5920-11GR
1138749 (1)
1000062 (6)
K5920-54
1138747 (1)
1000062 (4)
K5920-BLANK
1138753 (1)
1000062 (4)
K5920-522
1138750 (1)
1000062 (6)
K5920-58
1138752 (1)
1000062 (6)
K5920-111GR
1138963 (1)
1000062 (6)
K5920-38
1138967 (1)
1000062 (4)
K5920-75 K5920-10GR K5920-54
K5920-75
1138745 (1)
1000062 (6)
K5920-10GR
1138746 (1)
1000062 (4)
K5920-41
1138751 (1)
1000062 (6)
K5920-11GR
1138749 (1)
1000062 (6)
K5920-54
1138747 (1)
1000062 (4)
K5920-BLANK
1138753 (1)
1000062 (4)
K5920-522
1138750 (1)
1000062 (6)
K5920-58
1138752 (1)
1000062 (6)
K5920-111GR
1138963 (1)
1000062 (6)
K5920-38
1138967 (1)
1000062 (4)
K5920-75
1138745 (1)
1000062 (6)
K5920-10GR
1138746 (1)
1000062 (4)
K5920-41
1138751 (1)
1000062 (6)
K5920-11GR
1138749 (1)
1000062 (6)
K5920-54
1138747 (1)
1000062 (4)
K5920-BLANK
1138753 (1)
1000062 (4)
K5920-522
1138750 (1)
1000062 (6)
K5920-58
1138752 (1)
1000062 (6)
K5920-111GR
1138963 (1)
1000062 (6)
K5920-38
1138967 (1)
1000062 (4)
K5920-75
1138745 (1)
1000062 (6)
K5920-10GR
1138746 (1)
1000062 (4)
K5920-41
1138751 (1)
1000062 (6)
K5920-11GR
1138749 (1)
1000062 (6)
K5920-54
1138747 (1)
1000062 (4)
K5920-BLANK
1138753 (1)
1000062 (4)
K5920-522
1138750 (1)
1000062 (6)
K5920-58
1138752 (1)
1000062 (6)
K5920-111GR
1138963 (1)
1000062 (6)
K5920-38
1138967 (1)
1000062 (4)
• For application details, consult factory.
Notes
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
33
LIGhTING
ACCESSORIES
Lighting Accessories
For Millennium Series Products
Internal Light Kits for Unmetered Power Outlets (U5000 & U5200)
Internal Light Kits for Metered Power Outlets (U5100 & U5300)
Photoelectric Light Control Kit
Application Internal light kit for unmetered power outlets
Features
Includes 5-watt fluorescent lamp socket, ballast, lamp shield
and opaque hinge cover lens. Factory wired to 20 amp GFI
circuit. May be wired to separate 20 amp circuit breaker.
Order Q120 separately.
Cover on unmetered power outlet is 191⁄8" in height.
Ordering
Order with -L suffix (after catalog number) for factory installed.
Order catalog number K5411 for field installed.
Application Internal light kit for metered power outlets
Features
Includes 5-watt fluorescent lamp socket, ballast, lamp shield
and opaque hinge cover lens. Factory wired to 20 amp GFI
circuit. May be wired to separate 20 amp circuit breaker. Order
Q120 separately.
Cover on unmetered power outlet is 151⁄4" in height.
Ordering
Order with -L suffix (after catalog number) for factory installed.
Order catalog number K5412 for field installed.
Application Photoelectric light control kit for K5411 and K5412 light kits.
Features 2.5 amp, 120 volt photo electrical control wired in series with
K5411 and K5412 light kits.
Ordering
Order with -LPC suffix for factory installed light and PE control.
Order catalog number K5413 for field installed.
WARNING!
Always disconnect power prior to installing these devices.
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
34
TELECOM AND
PEDESTAL
ACCESSORIES
Telecom and Pedestal Accessories
For Millennium Series Products
Telephone and Cable TV Kit
Water Shroud with Hardware
Application Mounts to rear of pedestal series U5200 and U5300. May
also be adaptable to a wooden or similar structure.
Features
Single: 16" galvenized raceway, (1) RJ11 telephone jack
and (1) Type F coaxial CATV jack.
Dual: 16" galvenized raceway, (2) RJ11 telephone jacks
and (1) Type F coaxial CATV jack.
Includes mounting hardware and instructions.
Ordering Single line telephone and cable TV kit order K4709-02.
Note Conrm acceptability with Cable TV and Telephone
provider before ordering or installing these devices.
Application Used to cover water pipe and provide means to mount
hose bib to rear of pedestal.
Features
Includes mounting hardware and instructions.
Matches K4709 kits when mounted side-by-side.
Ordering Order catalog number K4709-WS.
K4709-02-3R K4709-02
10
4
3 5/32 ID
3 3/4
4 9/32 OD ref
2 1/2 OD
13 5/16
16 OD
4709
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
35
PEDESTAL
MOUNTING
ACCESSORIES
Pedestal Mounting Accessories
For Millennium Series Products
Field-Installed Pad Mount Kit
Stabilizer Foot with Hardware
Anchor Bolt Kit
Application Field installed pad mount kit with (6) 3⁄4" mounting holes.
Features
Includes 1⁄4-20 stainless steel hardware to attach pad
mount base to post.
Anchor bolt kit sold separately (order catalog number
K5421).
Ordering Order catalog number K5410.
Application Stabilizes direct burial type posts in unstable soil
conditions.
Features Includes 1⁄4-20 hardware to attach to U5200 and U5300
pedestals.
Ordering Order catalog number K5415.
Application Concrete anchor bolt kit designed to attach pad mount
base to concrete.
Features
(4) sets of zinc-plated 5⁄8-11 x 10" bolt with 2" toe.
Includes nut and flat washer.
Ordering Order catalog number K5421.
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
36
METERING &
RECEPTACLE
ACCESSORIES
Metering & Receptacle Accessories
For Millennium Series Products
Field-Installed Meter Kits
E-Z Read Watt-Hour Meter
Single Receptacle Only Power Outlet
Application Field installed meter kit for U5000 and U5200
power outlets.
Features
100 amp cast meter socket, CL200 E-Z Read Meter,
sealing ring, security seal, 1" Milbank hub, nipple
and mounting screws.
See CL200 for Watt-hour meter specification.
Ordering Order catalog number K4800-01.
Application
200 amp E-Z read watt-hour meter designed to be
field installed on the U5100 and U5300 metered
power outlets.
Features
200 amp form 2S 120/240 volt.
Numeric readout in full kilowatt increments. No
“tenths” dial. Analog and digital readout options.
Remanufactured within 1% accuracy.
Ordering Order catalog number CL200 or CL200-D.
Application
Overhead/underground power outlet receptacle,
suitable for RV, temporary service, campground,
marina and boatyard equipment.
Features
Type 3R, 120/240 volt single phase.
Lockable cover.
Breaker not included (in receptacle box).
Ordering Order catalog number from chart below.
Receptacle
Options P-10GWR
20A 5-20GR
120V GFI
P-13
30A TT-30R
120V
P-54
50A 14-50R
120/240V
WARNING!
Always disconnect power prior to installing these devices.
CL200 CL200-D
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
37
REPLACEMENT
PARTS &
ACCESSORIES
Replacement Parts & Accessories
For Millennium Series Products
Q120
20 amp, 1 pole
circuit breaker
708784-MO
20 amp, 1 pole
GFI circuit breaker
Q130
30 amp, 1 pole
circuit breaker
Q250
50 amp, 2 pole
circuit breaker
Z918466-AC
Lug landing base
Z917602-AC
Circuit breaker base
(6-circuit)
Z915141-AC
Left or right meter block
assembly
Z918449-AC
(19" unmetered)
Z918447-AC
(15” metered)
Hinge cover
Z818052-SC
(19" unmetered)
Z818480-SC
(15" metered)
Deadfront
MR-2
Snap action sealing ring
Z708080-MO
20 amp GFI receptacle
NEMA 5-20GR
Z701776-MO
30 amp receptacle
NEMA TT-30
Z708767-MO
50 amp receptacle
NEMA 14-50R
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
38
COMMERCIAL
PEDESTALS

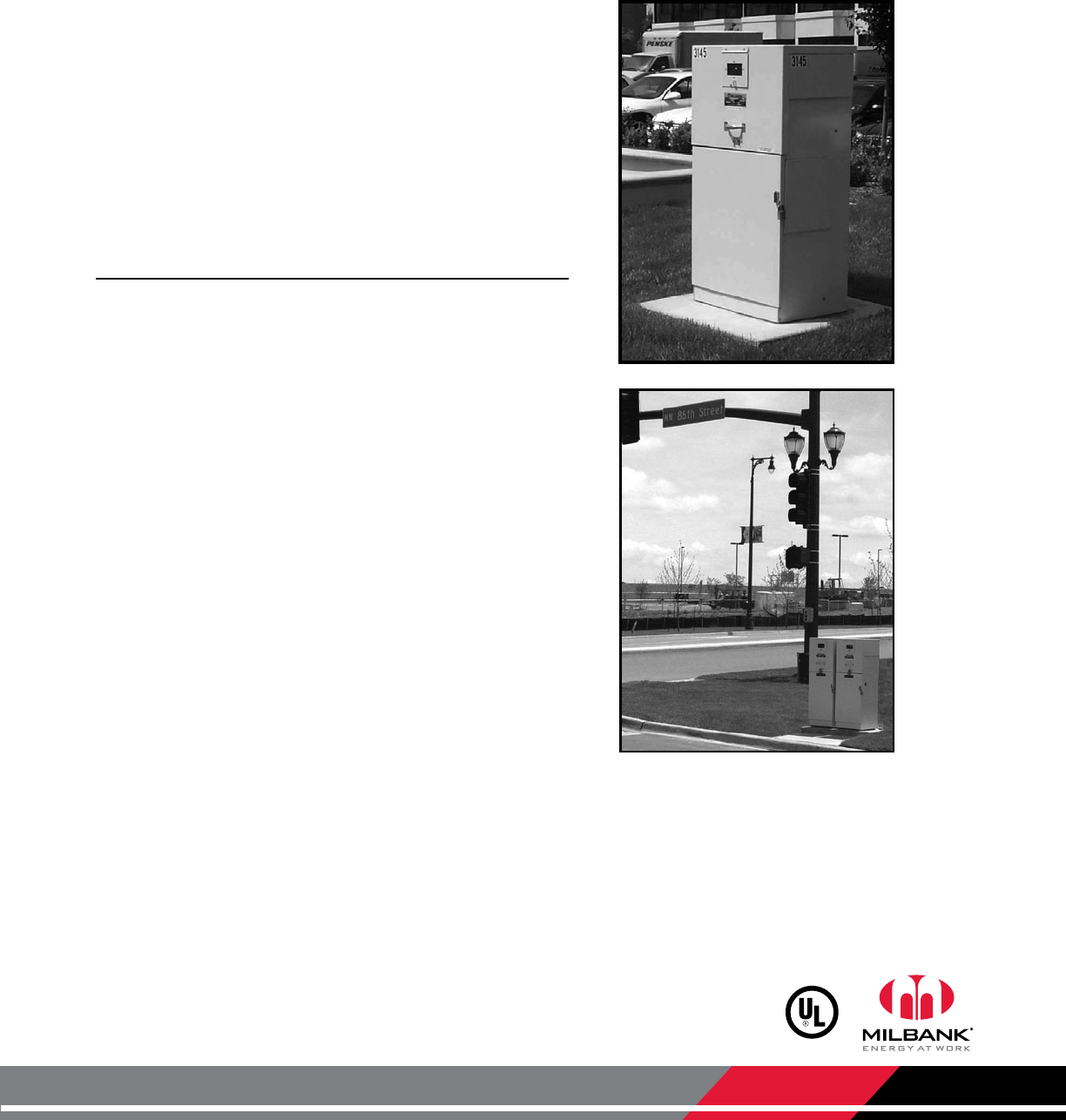

Commercial Pedestals
Attractive | Easy to Install | Secure | Cost-Effective
Milbank Commercial Pedestals are pad-mounted,
weatherproof electrical enclosures consisting of
a utility pull section with optional meter socket,
and a customer section containing distribution and
control equipment. Milbank Commercial Pedestals
are an attractive, secure, easy to install and cost-
effective solution when underground remote
site power distribution and control equipment is
required, replacing unsightly and inefficient strut and
backboard structures.
UL-listed as Industrial Control Equipment (File E113855)
Strut and backboard Commercial pedestal
• Type 3R rainproof, vandal-resistant cabinet of polyurethane
powder-coated steel (aluminum or stainless steel also available)
• UL-listed as enclosed industrial control equipment (UL508)
• Isolated lockable & sealable utility metering and lug landing
sections
• Lockable customer section for distribution and control equipment
with internal deadfront
• Print pocket inside customer section door contains wiring
schematics and installation instructions
• Most load centers are UL-listed for use with various
manufacturers’ circuit breakers
• All stainless steel external hardware (screws, bolts, hinges,
handles, hasps and sealing screws)
Standard Features
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
39
COMMERCIAL
PEDESTALS
Commercial Pedestals
Attractive | Easy to Install | Secure | Cost-Effective
These units are ideal for controlling and metering:
• Traffic signals
• Street lighting
• Irrigation and sprinkler systems
• Cell towers and telephone vaults
• Pump stations
• Temporary power for fairgrounds, swap meets, outdoor markets,
portable offices, holiday lights, etc.
• Outdoor lighting for athletic fields, tennis and basketball courts,
parking lots, landscaping and subdivision entrances, etc.
• Meter sockets: ring type or ringless, up to 400 amp
• Main and branch breakers or T fuses
• Distribution: copper load centers and panel boards
• Clocks, timers and relays
• Photoelectric cells and controls
• Power receptacles: pin and sleeve, twist lock or straight blade
• Contactors: definite purpose, electrical or mechanically held, IEC
and mercury types
• Surge protection and lightning arrestors
• Reserve inlet generator receptacle with interlocked circuit breakers
• Motor starters and relays
• Push button controls
• Thermostat controls, fans and heating strips
• Power blocks and terminal blocks
• Steel, aluminum and plywood backboards
• Transformers
• Interlock devices for circuit breakers
• Available in steel, aluminum (unpainted, painted or anodized) or
stainless steel construction with powder-coated finish available in
eight standard colors or special-ordered RAL colors
• Available for applications up to 400 amp, 120V, 208V, 240V, 277V,
480V - 1Ø or 3Ø
Available Factory-Installed Options
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
40

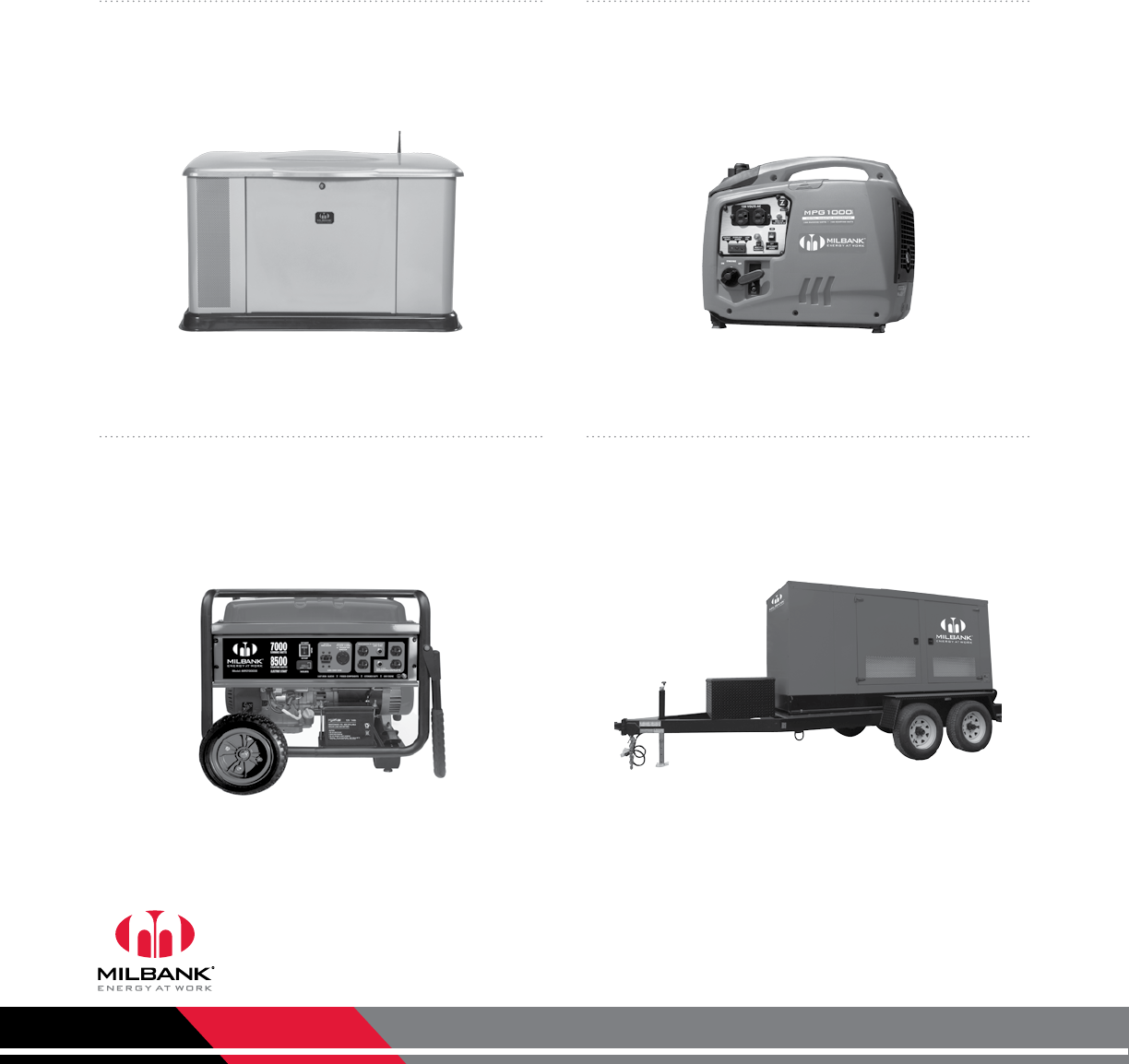

GENERATORS Generators
Home Standby & Portable
Home Standby Generators
• 8, 10 & 12 kW vertical air-cooled
• 17 & 20 kW horizontal air-cooled
• 30, 48 ,60 & 62kW horizontal liquid-cooled
Portable Generators
• 5500–7500W options available
• Manual and electric start options
• 3-year limited parts & labor warranty
Inverter Generators
• Small footprint
• Light weight
• Quiet operation
Industrial Generators
• 9–500kW units available
• Diesel and gaseous options
• Custom-built trailers for maximum mobility
With over 85 years in the electrical distribution industry, Milbank is proud to offer quality
home standby, portable and industrial generator systems.
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
41
ELECTRIC
VEhICLE
SUPPLY
EqUIPMENT

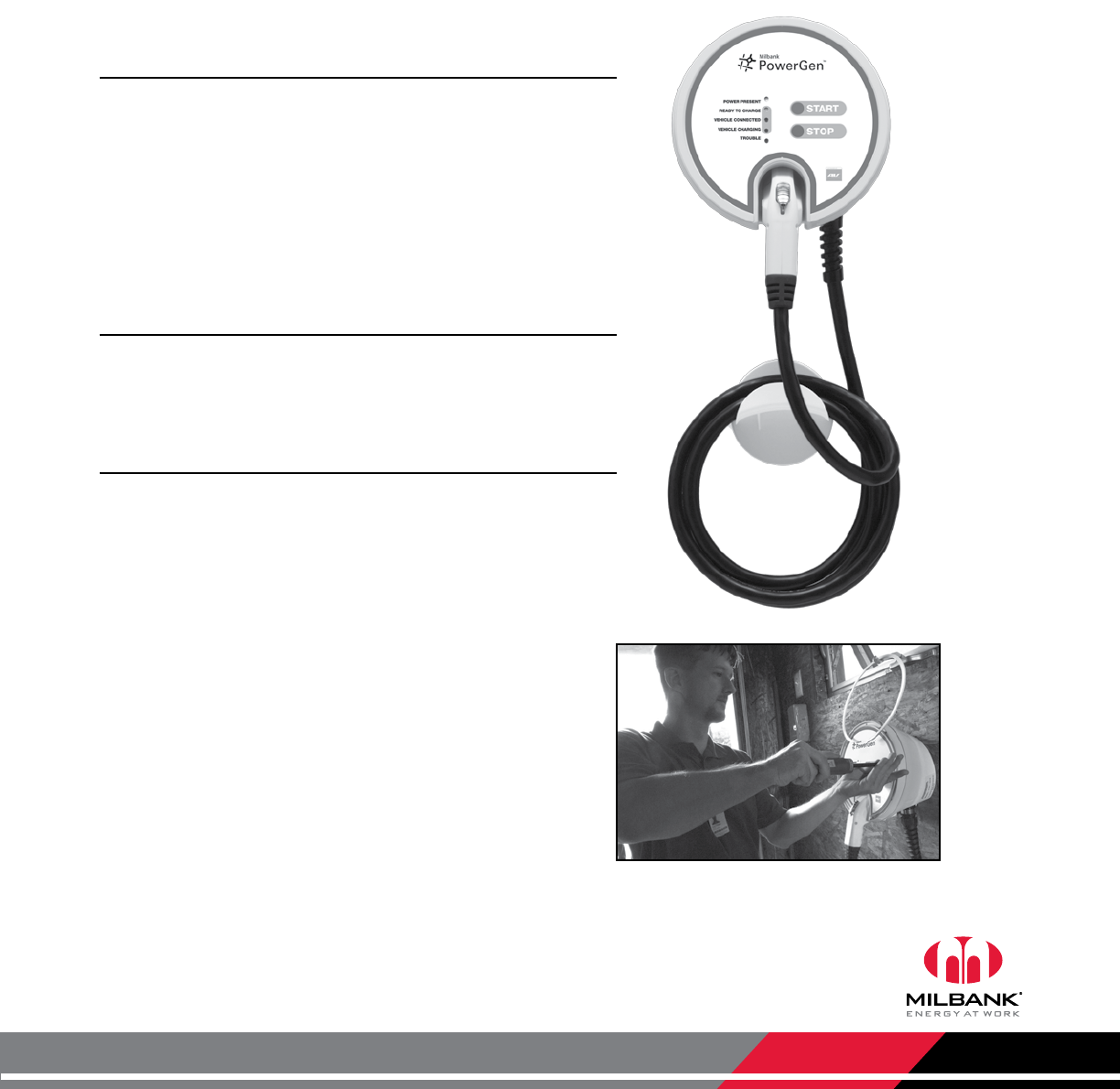

Electric Vehicle Supply Equipment
Milbank | Driving the Future of Power
From a wall-mounted single dock unit in a residential garage, to a citywide municipal
integration, our scalable, flexible, reliable solution is designed for effectiveness in virtually any
installation scenario.
Level II Models
MEVSE-RS—Residential, single wall mounted; overnight at-home
charging.
MEVSE-RS Dual—Pedestal mounted with two ports; ideal for multi-
family and high-traffic commercial parking lots.
MEVSE-RS+—Available in single, dual and quad configurations with
the addition of programmable, smart charging capabilities; allows
communication with the grid for charging when energy consumption
is low; allows connectivity to GPRS.
Level III Models
DC Fast Charge — Stations feature JARI/TEPCO connectors and
CHAdeMO certification; practical networking and payment options;
available from 30-60kW models suitable for public and fleet usage;
charges in 15-30 minutes.
Suitable EV Station Locations
• Shopping malls
• Theatres
• Municipal buildings
• Central business districts
• Entertainment districts
• Stadiums & arenas
• Rest areas
• Truck stops / travel plazas
• Camping / RV parks
• Restaurants
• Parking garages
• Public curbside parking
• Ofce buildings
• Single-family residences
• Multi-unit residences
• Airports
• Hotels
• Casinos
• Anywhere people park for extended periods of time
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
Accessories
Hubs and Closing Plates
-R
Large hub opening
-WL A7514 -YL A7515 -ZL A7516 -DL A7517 -EL A7518 -XL A7551
1" hub 11⁄4" hub 11⁄2" hub 2" hub 21⁄2" hub Small closing
plate
-F A8110 -G A8111 -H A8112 -X A9064 -RRL S8324
3" hub 31⁄2" hub 4" hub Large closing plate Large hub opening
adapted to small
hub oepning
-RL
Small hub opening
Notes
• Suffix: Add to catalog number for factory installation of hub.
• Packaging: Individually packed units for field installation.
• Abbreviations: H.O. (hub opening), C.P. (closing plate).
42
ACCESSORIES
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
43
ACCESSORIES
Accessories
Connector Kits, Closing Kits & Generator Interlock
Connector Kits — For Use with 3⁄8"-16 Stud Type Units Only
Closing Covers
Single Twin
Suffix Part # (3 per set) - 1Ø Suffix Part # (3 per set) - 1Ø
K1 K1539 6-350 K2 K1350 6-350
K3 K1540 4-600 or (2) 1/0-250* K2L K1350L 6-350 (non rotating)
K3L K1540L 4-600 or (2) 1/0-250*
(non rotating) K4 K1541 4-600
Suffix Part # (4 per set) - 3Ø Suffix Part # (4 per set) - 3Ø
K5 K3082 6-350 K6 K3442 6-350
K7 K3441 4-600 or (2) 1/0-250* K8 K3083 4-600
Meter Closing Plate
(Ring Type / Ring-
less)
Metal Closing Plate
(For Ringless Sock-
ets)
6003 - Grey Plastic CP-21
6116 - Clear Plastic
K8180 (sold in pairs)
K5815 - large QN with small frame Q
K5820 - large frame QN with large frame QN
K5830 - small frame Q to small frame Q
Bypass Link
Generator Interlock
K1047
K4802M5-144
Do not use with
lever bypass sockets
Isolated Neutral Kit
Anti-Inversion ClipDisconnect Sleeve
Note
Consult factory for proper
connector kits for studded meter
sockets.
*For (2) 1/0-250, conductors must be of same size.
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
44
ACCESSORIES Accessories

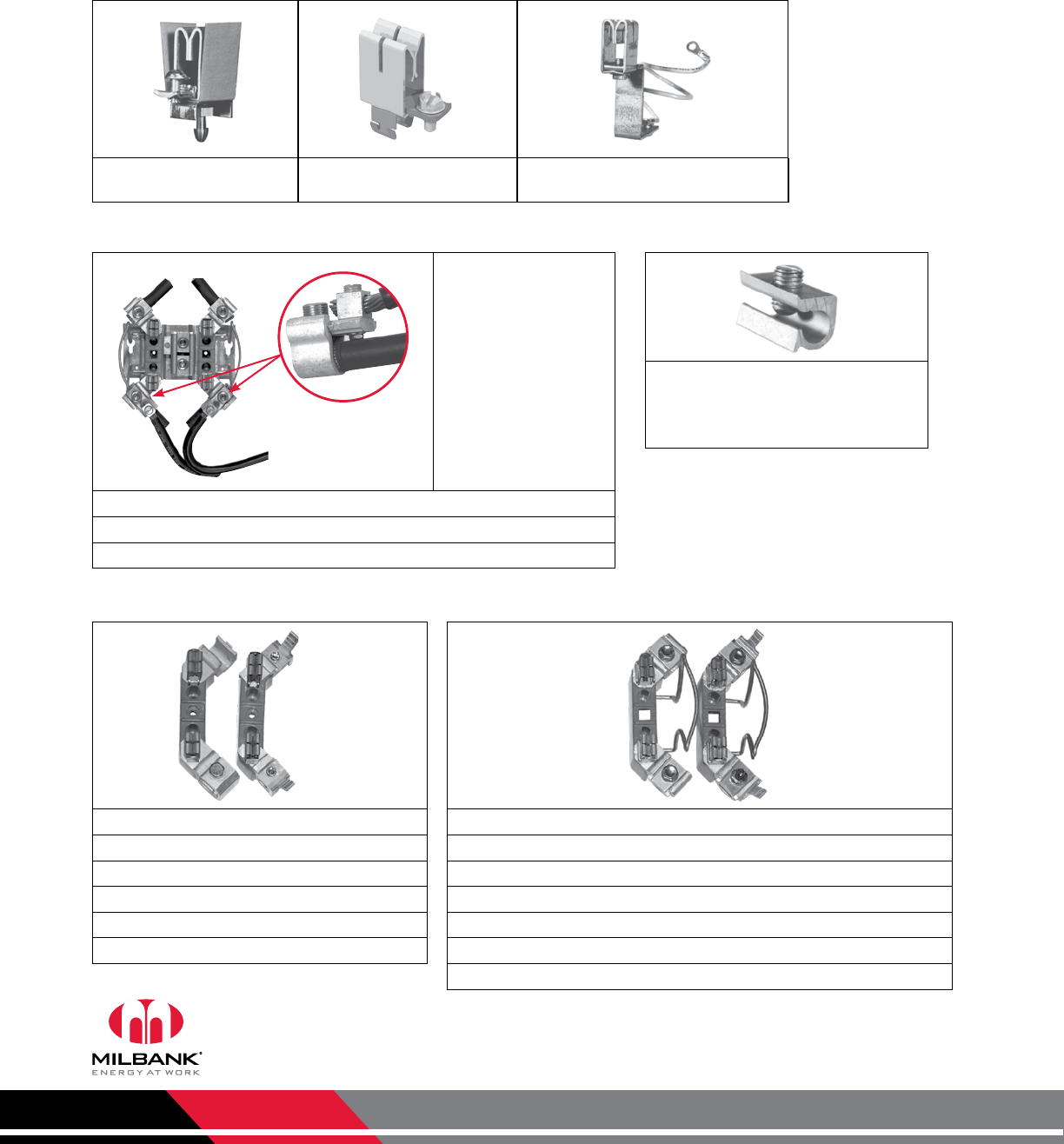

Fifth Terminals, Tap Connectors & Block Assemblies
K1190
(For factory installed triplex ground,
add suffix -TG to catalog number)
Fifth Terminals
Tap Connectors (3 per set)
100 Amp Blocks (single sockets only) 200 Amp Blocks (single sockets only)
5T8K2 - 100-200 Amp
“Plug-In”
K5T - 200 Amp
(Block with Square Hole)
K3865 - Heavy Duty Jaw Clamping
(K3866 without Neutral Wire)
Replaces the load or
line side slide-in nut
assembly on Milbank
200 amp sockets.
Allows for a 100 amp
tap location in addition
to the #6-350 kcmil
load-side connector.
K5022 includes safety
barrier extensions for
applications over 300
VAC. Three lugs per kit.
K4977-INT - Internal Hex
K4977-EXT - External Hex
K5022-INT - Internal Hex (set of 4 w/ barrier)
BL7474 - Block Assembly
BL7499 - Horn Bypass Block Assembly
Z904486-AO - Slotted Nut Assembly
Z903274-AO - Horn Bypass Nut Assembly
Z802965-AC - Neutral without Nut
Z901925-AC - Hex Nut Set Screw
K4527 - Internal Hex Block Assembly (w/ meter support)
K4528 - External Hex Block Assembly (w/ meter support)
K4529 - Internal Hex Horn Bypass Block Assembly (w/ meter support)
K4530 - External Hex Horn Bypass Block Assembly (w/ meter support)
Z916265-AO - Internal Nut Assembly
Z916264-AO - External Nut Assembly
Z814898-AC - Neutral without Nut
Triplex Ground
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
45
K4527 - Internal Hex Block Assembly (w/ meter support)
K4528 - External Hex Block Assembly (w/ meter support)
K4529 - Internal Hex Horn Bypass Block Assembly (w/ meter support)
K4530 - External Hex Horn Bypass Block Assembly (w/ meter support)
Z916265-AO - Internal Nut Assembly
Z916264-AO - External Nut Assembly
Z814898-AC - Neutral without Nut
WATThOUR
METER FORMS

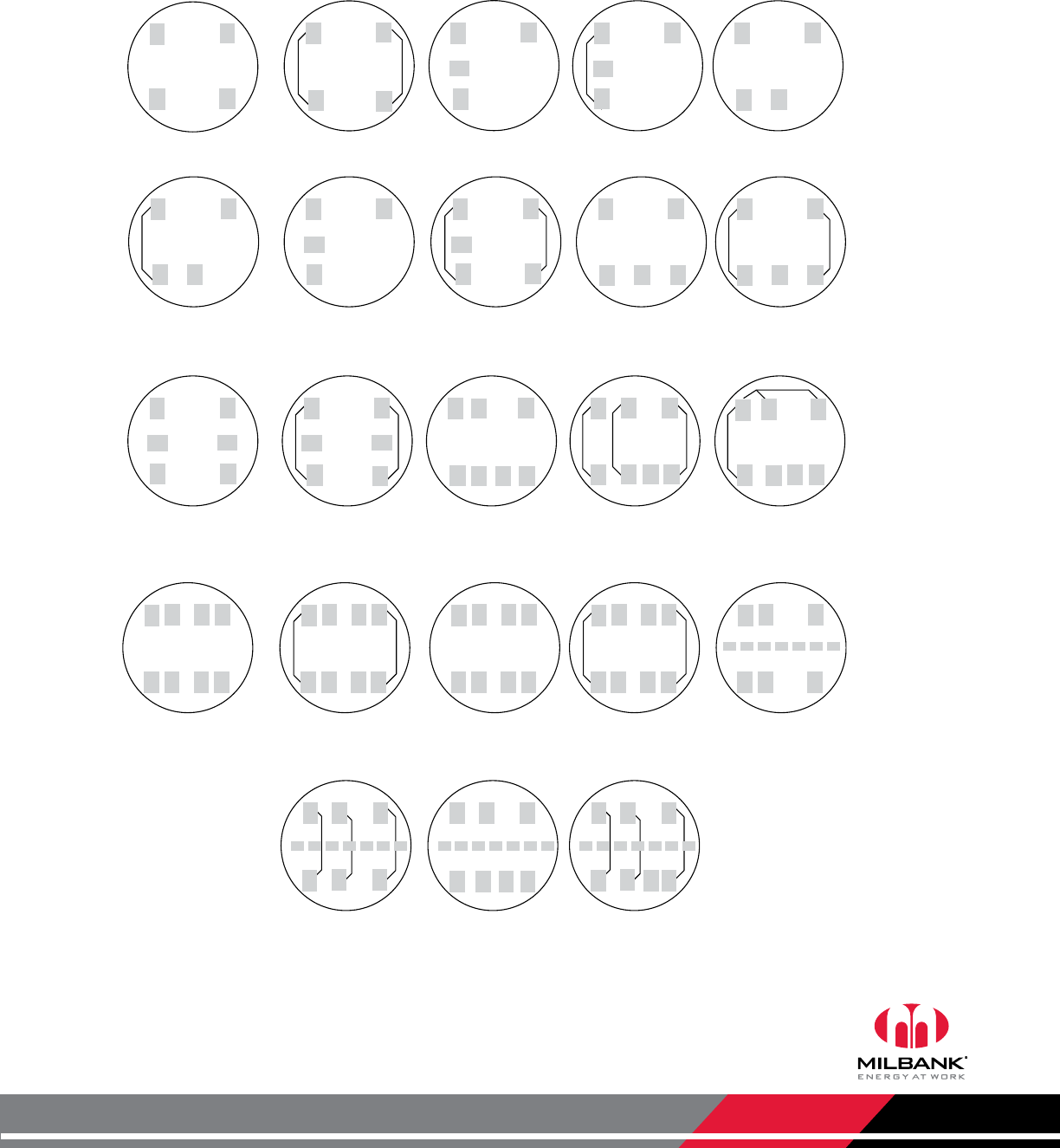

Watthour Meter Forms
Standard Forms | Transformer Rated or Self-Contained
SC SC TR TR TR
TR SC SC SC SC
TR TR SC SC TR
TR TR SC SC TR
TR TR TR
2 and 3-WIRE FORMS
1S & 2S
2 and 3-WIRE FORMS
1S & 2S with BYPASS
2-WIRE FORM 3S
5th Term. 9 o'clock
2-WIRE FORM 3S
with BYPASS
2-WIRE FORM 3S
5th Te rm.6 o'clock
2-WIRE FORM 3S
with BYPASS
2 ELEMENT
3-WIRE NETWORK
FORM 12S 5th
TERM. 9 o'clock
2 ELEMENT 3-WIRE
NETWORK FORM 12S
with BYPASS
5th Term. 9 o'clock
2 ELEMENT 3-WIRE
NETWORK FORM 12S
with BYPASS
5th Te rm. 6 o'clock
2 ELEMENT
3-WIRE NETWORK
FORM 12S 5th
TERM. 6 o'clock
3-WIRE FORM 4S 3-WIRE FORM 4S
WITH BYPASS
2 or 3 ELEMENT
3∅4W Y or ∆
Y FORM 14S
∆ FORM 15S
2 or 3 ELEMENT
3∅4W Y or ∆
FORMS 14S & 15S
with BYPASS
2 ELEMENT
3∅4W Y or ∆
Y FORM 7S
∆ FORM 24S
with BYPASS
2 ELEMENT
2∅3W, 2∅4W, 3∅3W
FORM 5S
2 ELEMENT 2∅3W,
2∅4W, 3∅3W
FORM 5S with
BYPASS
2 ELEMENT
2∅3W, 2∅4W, 3∅3W
FORM 13S
2 or 3 ELEMENT
2∅3W, 2∅4W, 3∅3W
FORM 13S with
BYPASS
2 or 3 ELEMENT
3∅4W Y or ∆
Y FORM 9S
∆ FORM 8S
2 or 3 ELEMENT
3∅4W Y or ∆
FORMS 8S & 9S
with BYPASS
2 ELEMENT
3∅4W Y
FORM 6S
2 ELEMENT
3∅4W Y
FORM 6S
with BYPASS
TR = TRANSFORMER RATED
SC = SELF CONTAINED
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
46

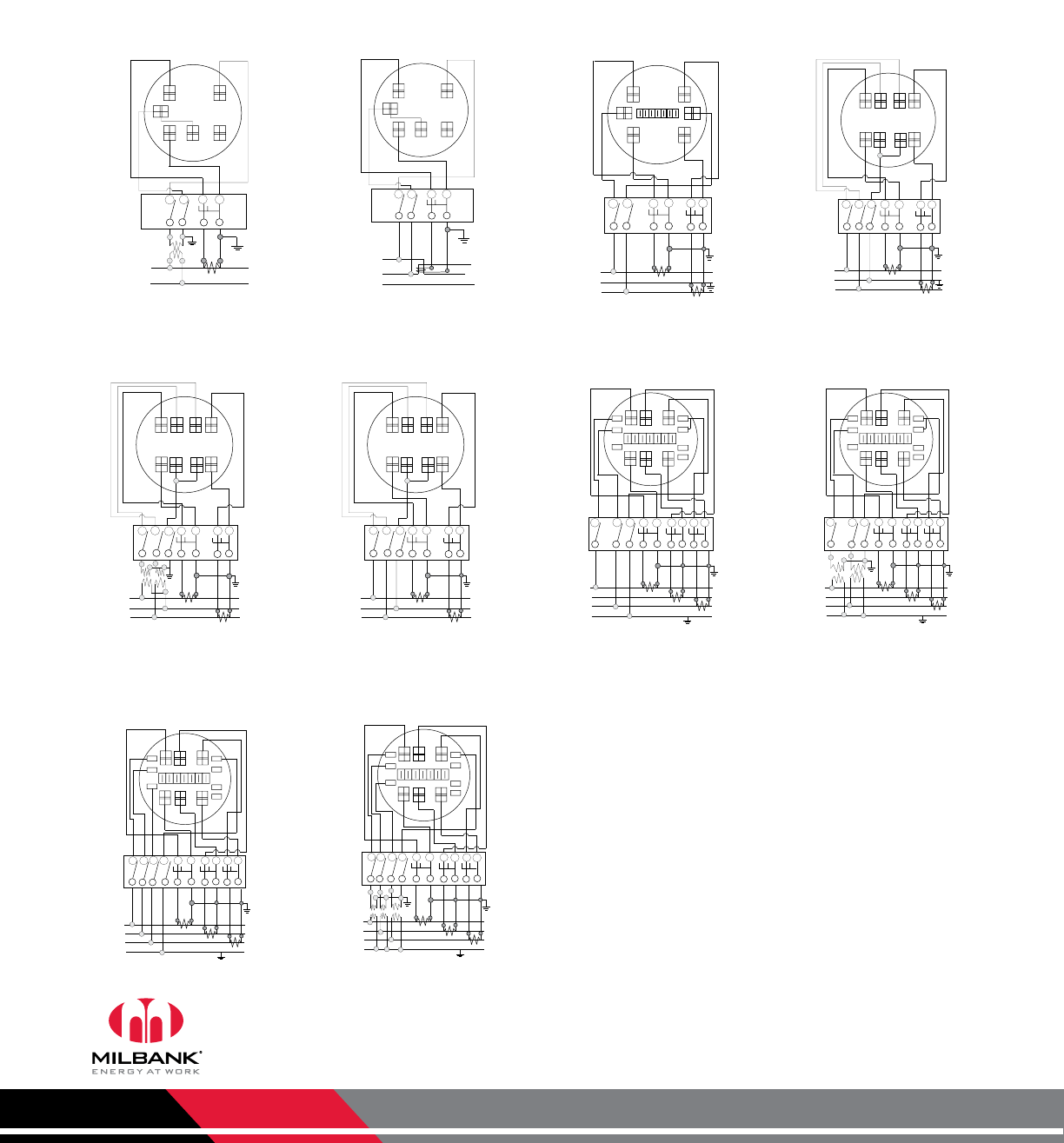

METER
FORMS
Meter Forms
Reference Information
+
+
I
LINE
(BONDED)
N
C.T.
LOAD
2++
DIAGRAM D
P
1
P
2
C+
1C
2
C+
2
PN
C
1
C.T.
DIAGRAM D
1∅3W or 3W Network with 2 C.T.’s
2 Stator Meter - Form 5S
8T Socket, Test Switch #TS07-0105
+
+
1
LINE
C.T.
LOAD
2
P
1
C+
1
++
3
+
+
PT PT
DIAGRAM E
P
3
P2
C
1
C+
3
C
3
C.T.
DIAGRAM E
3∅3W “∆” with 2 P.T.’s & 2 C.T.’s
2 Stator Meter - Form
5S
8T Socket, Test Switch #TS07-0105
+
+
1
LINE
C.T.
LOAD
2
P
1
C+
1
++
3
DIAGRAM F
P
3
P2
C
1
C+
3
C
3
C.T.
DIAGRAM F
3∅3W “∆” with 2 C.T.’s
2 Stator Meter - Form 5S
8T Socket, Test Switch #TS07-
0105
+
+
C.T.
LOAD
P
1
+
+
P
3
P
N
C+
C+
C.T.
C.T.
++
(BONDED)
DIAGRAM G
CC
C+
C
1
LINE
2
3
N
DIAGRAM G
3∅4W “Y” with 3 C.T.’s
2
1
⁄
2
Stator Meter - Form 6S
13T Socket, Test Switch #TS10-0109
+
+
1
LINE
C.T.
LOAD
2
P
1
+
+
3
P
3
PN
C+
N
C.T.
C.T.
++
(BONDED)
++
PT
PT
++
DIAGRAM H
C
C+
C+
C
C
DIAGRAM H
3∅4W “Y” with 2 P.T.’s & 3 C.T.’s
2
1
⁄
2
Stator Meter - Form 6S
13T Socket, Test Switch #TS10-0109
+
+
1
LINE
C.T.
LOAD
2
P
1
+
+
3
P
3
P
N
C+
N
C.T.
C.T.
++
(BONDED)
P
2
DIAGRAM I
C
C+
C
C+
C
DIAGRAM I
3∅4W “Y” or “∆” with 3 C.T.’s
“Y” 3 Stator Meter - Form 9S
“∆” 2 Stator Meter -
Form 8S
13T Socket, Test Switch #TS10-0109
+
+
1
LINE
C.T.
LOAD
2
P
1
+
+
3
PN
C+
N
C.T.
C.T.
+
+
(BONDED)
++
PT PT
+
+
P3
PT
++
DIAGRAM J
P
2
C
C+
C
C+
C
DIAGRAM j
3∅4W “Y” with 3 P.T.’s & 3 C.T.’s
3 Stator Meter - Form 9S
13T Socket, Test Switch #TS10-0109
DIAGRAM A
(ALT.LOC.)
+
+
+
+
I
LINE
(BONDED)
NC.T. LOAD
P
1
P
N
C+
1C1
P.T.
DIAGRAM A
1∅2W with 1 P.T. & 1 C.T.
Single Stator Meter(2W1∅) - Form 3S
5T Socket, Test Switch #TS04-0101
(ALT.LOC.)
+
+
I
LINE
(BONDED)
NC.T. LOAD
2
DIAGRAM B
P
1
P
N
C+
1
C
1
DIAGRAM B
1∅3W with 1 C.T.
Single Stator Meter (2W1∅) - Form 3S
5T Socket, Test Switch #TS04-0101
+
+
I
LINE
(BONDED)
N
C.T.
LOAD
2
P
1
P2C+
1C+
2
C
2
C+
2
++
DIAGRAM C
C.T.
DIAGRAM C
1∅3W with 2 C.T.’s
Single Stator Meter (3W1∅) - Form 4S
6T Socket, Test Switch #TS07-0105
Prewiring: If standard factory prewiring is required,
refer to wiring diagrams on this page. Determine
appropriate diagram and send a copy with order.
If custom factory prewiring is required, specify on
order. Be sure to include meter socket catalog
number, test switch make and catalog number,
meter form number and provide a copy of your
wiring diagram.
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
47
ENERGIzATION
OF ELECTRICAL
EqUIPMENT
Energization of Electrical Equipment
Important Information for Installers
Before Energizing
A. Give equipment a thorough visual examination to determine that:
1) No shipping or installation damage exists.
2) Proper clearances have been maintained.
3) All connections have been made.
4) Equipment is clean and dry.
B. Make a thorough examination to:
1) Verify tightness of all bolted connections (see table below).
2) Manually operate all circuit breakers, switches, relays, etc.
3) Check rigidity of all mountings, bus bars and components.
4) Use test equipment to check continuity of circuitry and integrity of insulation.
C. All switches and circuit breakers should be in the “off” position.
D. Verify that manual meter bypass (if applicable) is in non-bypass position.
E. Install cover and/or close doors.
F. If installation is not being energized at this time, follow “after-energizing” steps listed below. These steps will secure the installation in
case of accidental energization.
When Energizing
A. Use caution and follow established safety procedures:
1) Wear safety apparel.
2) Use safety equipment.
3) Take action to prevent injury to yourself and others in the event of failure of the installation.
4) Take action to prevent/decrease damage to property in the event of failure of the installation.
5) If you are unsure how to safely energize the installation, get someone who is knowledgeable to do it.
After Energizing
A. Secure the installation:
1) To prevent accidental contact with energized parts, cover all openings with approved filler devices.
2) To prevent unauthorized access, secure all covers and/or doors with approved security devices.
3) Attach/post information to advise others of potential hazards associated with the installation.
Important Note
In addition to national and local electrical codes, many utilities have specific requirements for metering equipment. Always consult the serving
utility for their specifications and requirements prior to ordering or installing Milbank meter mounting equipment.
* Interior labels
typically indicate
the required
torque for wire
connectors and
studs, and should
be referenced first.
CU: Copper
AL: Aluminum
Nominal
Size
joint Description Head Type Torque
(Inch Lbs.)
Screw Nut
10 Brass Brass Nut or Extruded Hole All 20-25 inch lbs.
10 Steel Copper or Aluminum Busbar ≤ 1/8" All 25-30 inch lbs.
10 Steel Steel Nut or Extruded Hole; CU or AL Busbar > 1/8" All 30-35 inch lbs.
12 Steel Aluminum Extruded Hole All 30-35 inch lbs.
12 Steel Steel Nut or Extruded Hole All 40-50 inch lbs.
1/4 Steel Aluminum Extruded Hole All 40-50 inch lbs.
1/4 Steel Steel Nut or Extruded Hole; CU or AL Busbar All 50-60 inch lbs.
5/16 Steel Aluminum Extruded Hole Hex 60-70 inch lbs.
5/16 Steel Steel Nut or Extruded Hole; CU or AL Busbar Hex 100-150 inch lbs.
3/8 Steel Steel Nut Hex 150-200 inch lbs.
1/2 Steel Steel Nut Hex 200-250 inch lbs.
Recommended Torque for General Applications*
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
48
MATERIALS
& FINIShES
Materials & Finishes
Reference Information
Materials
Finish
Ratings & Compliance
The meter equipment listed in this catalog is made of galvanized steel (AISI* G90) to afford the best possible weather proofing.
*American Iron and Steel Institute.
Steel Quality
16 gauge, galvanized, sheet: 1 1/4 oz./ sq.ft. class zinc-coated. (AISI G90)
14 gauge, galvanized, sheet: 1 1/4 oz./ sq.ft. class zinc-coated.
Steel Sheet
Wire-Terminals: Alloy; 6061-T6, Tin-plated for CU/AL wire.
Bus Bar: Alloy; 6101-O & 6063-O
Aluminum Extrusion
3000 series aluminum sheet, H14, or 5052 series aluminum sheet, H32. Where applicable thicknesses range from .064–.125
Aluminum Sheet
Electrolytic copper with tin plating in most applications.
Copper Sheet & Bus
• In most units, support bases for current-carrying components are molded from fiberglass reinforced high-strength, track resistant,
thermoset polyester molding compounds.
• Clear or black safety shields and polarity barriers are molded from high-strength, track resistant, polycarbonate molding compounds.
• Various sheet insulating materials, as appropriate for the application are utilized in the fabrication of flat, formed and punched component
parts and barriers.
Insulating Materials
Light gray state-of-the-art electrostatically applied powder paint offers a durable, non-fading finish. For further information concerning the
chemical analysis of the weather resistant finish, please contact the factory.
Process
Zinc-coated with a chromate dip.
Metal Fastners
All Milbank electrical enclosures in this catalog are rated “Type 3R Enclosure” unless specified otherwise on the product’s page. All
enclosures with a UL designation are constructed per the appropriate UL Standard and may be installed per the National Electric Code.
UL procedure files associated with the UL Standards are listed as follows: Meter Sockets (UL 414, File E30202), Test Switches (UL 414, File
E62531), Power Outlets (UL 231, File E90945), Panelboards (UL 67, File E32628) and Pullout Switches (UL 1429, File E133062). Additional
standards are utilized as applicable: Meter Sockets (ANSI C12.7), Test Switches (ANSI C12.9) and Panelboards (NEMA PB-1).
Ratings & Compliance
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
49
INDEx
Index
303012-CT3RA-WB ..........25
304614-SC3RA-SP ............25
323412-SC3RA-SP ............25
363612-CT3RXA-SP1 ........25
5T8K2 ...............................44
6003..................................43
6116..................................43
708784-MO ......................37
A7514 ...............................42
A7515 ...............................42
A7516 ...............................42
A7517 ...............................42
A7518 ...............................42
A7551 ...............................42
A8110 ...............................42
A8111 ...............................42
A8112 ...............................42
A9064 ...............................42
BL7474 .............................44
BL7499 .............................44
CL200 ...............................36
CP-21 ................................ 43
K1047 ...............................43
K1190 ...............................44
K1350 ...............................43
K1350L .............................43
K1539 ...............................43
K1540 ...............................43
K1540L .............................43
K1541 ...............................43
K3082 ...............................43
K3083 ...............................43
K3441 ...............................43
K3442 ...............................43
K3865 ...............................44
K3866 ...............................44
K4527 ...............................44
K4528 ...............................44
K4529 ...............................44
K4530 ...............................44
K4709-02 ..........................34
K4709-02-3R ..................... 34
K4800-01 ..........................36
K4802 ...............................43
K4977-EXT ........................44
K4977-INT ........................44
K5022-INT ........................44
K5410 ...............................35
K5411 ...............................33
K5412 ...............................33
K5413 ...............................33
K5415 ...............................35
K5421 ...............................35
K5815 ...............................43
K5820 ...............................43
K5830 ...............................43
K5920-10GR .....................32
K5920-111GR ...................32
K5920-11GR .....................32
K5920-38 ..........................32
K5920-41 ..........................32
K5920-522 ........................32
K5920-54 ..........................32
K5920-58 ..........................32
K5920-75 ..........................32
K5920-BLANK ..................32
K5935-10GR .....................28
K5935-11GR .....................30
K5935-2/1450 ................... 28
K5935-36GR .....................28
K5935-41 ..........................28
K5935-54 ..........................28
K5T ...................................44
K8180 ...............................43
M5-144 .............................43
MR-2 .................................37
P-10GWR ..........................36
P-13 ..................................36
P-54 ..................................36
Q120.................................29
Q120.................................37
Q130.................................29
Q130.................................37
Q250.................................29
Q250.................................37
S8324................................42
U1232-X-HSP .................... 20
U1233-X-HSP .................... 20
U1234-X-HSP .................... 20
U1235-X-HSP .................... 20
U1236-X-HSP .................... 20
U1252-X-HSP .................... 21
U1253-X-HSP .................... 21
U1254-X-HSP .................... 21
U1255-X-HSP .................... 21
U1256-X-HSP .................... 21
U1980-O-HSP .....................9
U2120-O-HSP ...................15
U2124-O-HSP ...................13
U2732-XT-HSP ..................23
U2733-XT-HSP ..................23
U2734-XT-HSP ..................23
U2735-XT-HSP ..................23
U2736-XT-HSP ..................23
U2872-XT-HSP ..................22
U2873-XT-HSP ..................22
U2874-XT-HSP ..................22
U2875-XT-HSP ..................22
U2876-XT-HSP ..................22
U3296-X-HSP .................... 11
U3306-X-HSP .................... 12
U3492-XL-HSP ..................19
U3493-XL-HSP ..................19
U3494-XL-HSP ..................19
U3495-XL-HSP ..................19
U3496-XL-HSP ..................19
U3505-XL-TG-HSP ............ 10
U3506-XL-TG-HSP ............ 10
U3566-X-HSP .................... 15
U3802 .................................5
U3812 .................................5
U3822-20GWR ....................6
U3832 .................................5
U3850-XL-TG-HSP-PL ......... 9
U3862 .................................5
U3949-X-HSP .................... 14
U4427-XL-21 .....................24
U4667-X-8528 ..................16
U4667-XT-9526 ................. 16
U4881-O ............................. 7
U4881-O-50GB ...................7
U4881-O-60GB ...................7
U5000-XL .......................... 30
U5000-XL-41 .....................30
U5000-XL-55 .....................30
U5000-XL-75 .....................30
U5100-XL .......................... 30
U5100-XL-41 .....................30
U5100-XL-55 .....................30
U5100-XL-75 .....................30
U5136-O-100P-FMG ........27
U5136-O-100S-FMG ........27
U5136-O-125P-FMG ........27
U5136-O-125S-FMG ........27
U5136-O-150P-FMG ........27
U5136-O-150S-FMG ........27
U5136-O-200P-FMG ........27
U5136-O-200S-FMG ........27
U5136-O-FMG .................. 27
U5137-O-100P-FMG ........27
U5137-O-100S-FMG ........27
U5137-O-125P-FMG ........27
U5137-O-125S-FMG ........27
U5137-O-150P-FMG ........27
U5137-O-150S-FMG ........27
U5137-O-200P-FMG ........27
U5137-O-200S-FMG ........27
U5137-O-FMG .................. 27
U5200-XL .......................... 31
U5200-XL-41 .....................31
U5200-XL-55 .....................31
U5200-XL-75 .....................31
U5220-XL .......................... 31
U5220-XL-41 .....................31
U5220-XL-55 .....................31
U5220-XL-75 .....................31
U5300-O ........................... 31
U5300-O-41 ...................... 31
U5300-O-55 ...................... 31
U5300-O-75 ...................... 31
U5320-O ........................... 31
U5320-O-41 ...................... 31
U5320-O-55 ...................... 31
U5320-O-75 ...................... 31
U5864-X-HSP .................... 14
U5882-X-HSP .................... 24
U5883-X-HSP .................... 24
U5884-X-HSP .................... 24
U5885-X-HSP .................... 24
U5886-X-HSP .................... 24
U5902-X-HSP .................... 24
U5903-X-HSP .................... 24
U5904-X-HSP .................... 24
U5905-X-HSP .................... 24
U5906-X-HSP .................... 24
U7021-RL-TG-HSP ..............9
U7040-O-TG-HSP ...............9
U7040-XL-TG-HSP .............. 9
U8435-XL-TG-HSP .............. 8
U9550-RRL-QG-HSP .........11
U9551-X-QG-HSP ............. 11
U9700-RRL-QG-HSP .........12
U9701-X-QG-HSP ............. 12
U9801-X-HSP .................... 11
UA4667-X-8529 ................16
UA4667-XT-9527 ..............16
UAP1252-X-HSP ...............21
UAP1253-X-HSP ...............21
UAP1254-X-HSP ...............21
UAP1255-X-HSP ...............21
UAP1256-X-HSP ...............21
UAP2124-O-HSP ..............13
UAP3296-X-HSP ...............11
UAP3306-X-HSP ...............12
UAP3505-XL-TG-HSP .......10
UAP3506-XL-TG-HSP .......10
UAP3566-X-HSP ...............15
UAP3949-X-HSP ...............14
UAP5024-XL-FMG ............18
UAP5864-X-HSP ...............14
UAP7021-RL-TG-HSP..........9
UAP7040-O-TG-HSP ..........9
UAP7040-XL-TG-HSP .........9
UAP8435-XL-TG-HSP .........8
UAP9551-X-QG-HSP ........11
UAP9700-RRL-QG-HSP ....12
UAP9701-X-QG-HSP ........12
UAPC4511-O-TS0324 .......24
UAPC4512-O-TS0325 .......24
UC6078-XL-21-PGN .........24
UC6079-XL-21-PGN .........24
Z1102270..........................29
Z1115081..........................29
Z1139163..........................29
Z701776-MO ....................29
Z701776-MO ....................37
Z703916-AC .....................17
Z703917-AC .....................17
Z703918-AC .....................17
Z703919-AC .....................17
Z703921-AC .....................17
Z704693-AC .....................17
Z704693-AC .....................17
Z704694-AC .....................17
Z705420-AC .....................17
Z705456-AC .....................17
Z708080-MO ....................29
Z708080-MO ....................37
Z708145-AC .....................17
Z708767-MO ....................29
Z708767-MO ....................37
Z802965-AC .....................44
Z814898-AC .....................44
Z818052-SC ...................... 37
Z818480-SC ...................... 37
Z819294-SC ...................... 28
Z901925-AC .....................44
Z903274-AO ..................... 44
Z904486-AO ..................... 44
Z915141-AC .....................37
Z916264-AO ..................... 44
Z916265-AO ..................... 44
Z917602-AC .....................37
Z918447-AC .....................37
Z918449-AC ....................37
Z918466-AC .....................37
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
50
NOTES Notes
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com
Utility requirements for this equipment may vary. Always consult the serving
utility for their requirements before ordering or installing equipment.
51
NOTES
Notes
Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 877.483.5314 | milbankworks.com FLORIDA 12-13

Navigation menu
