3453A NX Network Bridge Module
2017-11-16
: Pdf 3453A Nx Network Bridge Module 3453A_NX_Network_Bridge_Module spec products hba
Open the PDF directly: View PDF
.
Page Count: 2
3453A 072117
701 Millennium Blvd. | Greenville, SC 29607 | (864) 678-1000 | (866) 898-0131 - fax www.hubbellcontrolsolutions.com
Copyright © 2017 Hubbell Control Solutions, a division of Hubbell Lighting, Inc. All rights reserved. All product and company names, logos and product
identiers are trademarks ™ or registered trademarks ® of Hubbell Lighting, Inc. or their respective owners. Use of them does not necessarily imply any
aliation with or endorsement by such respective owners.
Page 1
Project Name
Catalog No. Date

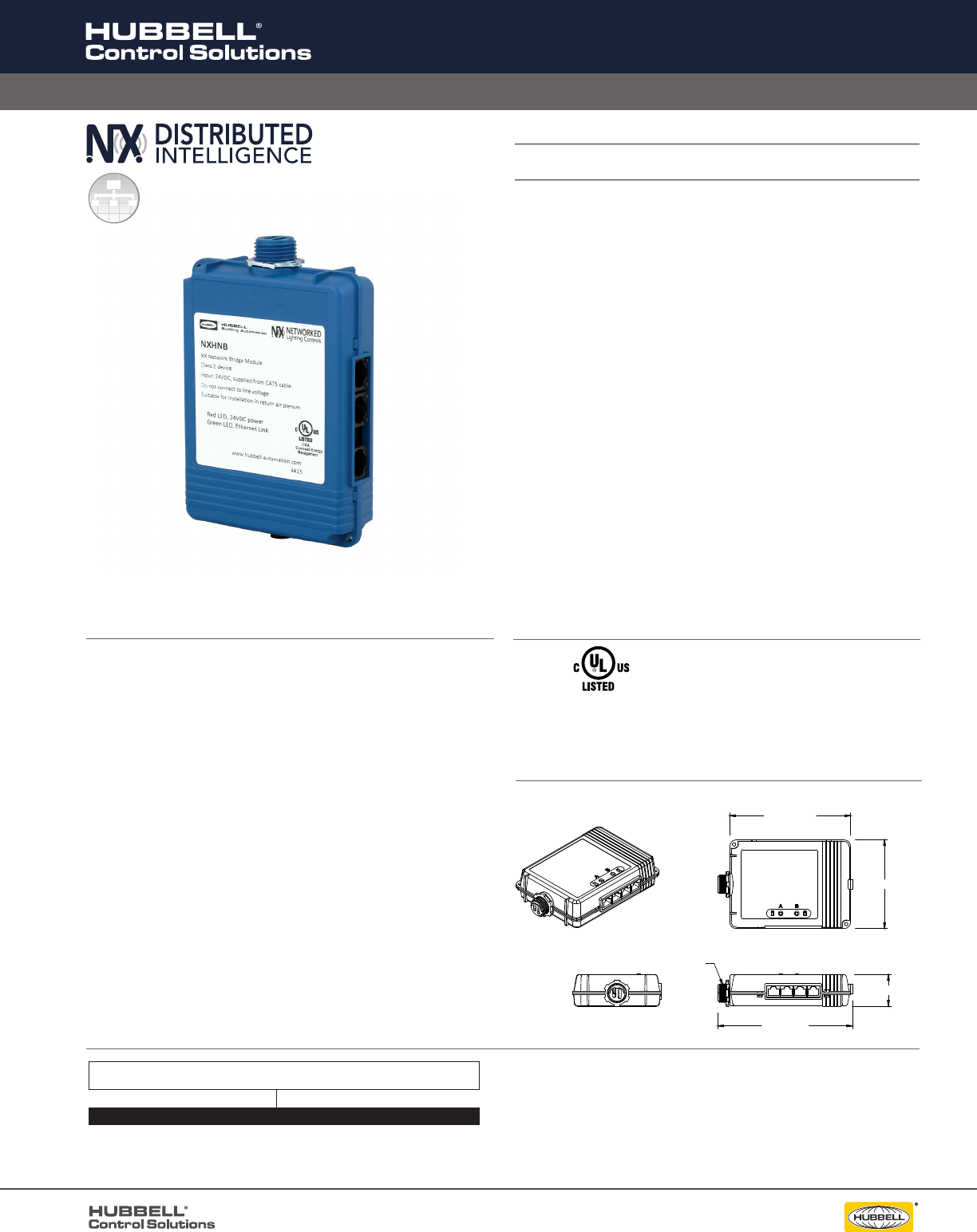

NXHNB SERIES
Network Bridge Module
• NXHNB2 uses standard CAT5e patch cable for plug-in connection
to SmartPORT™ on Room Controller
• In and out RJ-45 connections provided for HubbNET CAT5e
network cable
• Up to 100m of CAT5 cable between bridges
• Self powered by the HubbNET network
• Provides high speed communication link with NX Area Controller
• Low voltage device: 12/24VDC
The NX Network Bridge Module is a key component used in setting
up a NX Distributed Lighting Control Network comprised of NX Room
Controllers. The NXHNB2 provides a wired connection between a
stand-alone NX Room Controller lighting control zone and the HubbNET™
network. Bridge connection allows discovery of a pre-congured zone of
lighting control devices by the NX Area Controller for display, monitoring
and control through the web browser user interface.
Dimensional Data
Product Features
TITLE
24
COMPLIANCE
NETWORK
Ordering Information
Compliance and Certication
NXHNB2
MODEL
NXHNB2 Bridge module for wired connection between one
Room Controller zone and the HubbNET™ network
5.25”
(133.35)
⁄ NST
5.84”
(148.3)
3.85” (97.81)
1.37” (34.8)
NXHNB2
3453A 0702117
701 Millennium Blvd. | Greenville, SC 29607 | (864) 678-1000 | (866) 898-0131 - fax www.hubbellcontrolsolutions.com
Copyright © 2017 Hubbell Control Solutions, a division of Hubbell Lighting, Inc. All rights reserved. All product and company names, logos and product
identiers are trademarks ™ or registered trademarks ® of Hubbell Lighting, Inc. or their respective owners. Use of them does not necessarily imply any
aliation with or endorsement by such respective owners.
Page 2
701 Millennium Blvd. | Greenville, SC 29607 | (864) 678-1000 | (866) 898-0131 - fax www.hubbellcontrolsolutions.com
Copyright © 2017 Hubbell Control Solutions, a division of Hubbell Lighting, Inc. All rights reserved. All product and company names, logos and product
identiers are trademarks ™ or registered trademarks ® of Hubbell Lighting, Inc. or their respective owners. Use of them does not necessarily imply any
aliation with or endorsement by such respective owners.
Page 2
701 Millennium Blvd. | Greenville, SC 29607 | (864) 678-1000 | (866) 898-0131 - fax www.hubbellcontrolsolutions.com
Copyright © 2017 Hubbell Control Solutions, a division of Hubbell Lighting, Inc. All rights reserved. All product and company names, logos and product
identiers are trademarks ™ or registered trademarks ® of Hubbell Lighting, Inc. or their respective owners. Use of them does not necessarily imply any
aliation with or endorsement by such respective owners.
Page 2
NXHNB SERIES Network Bridge Module

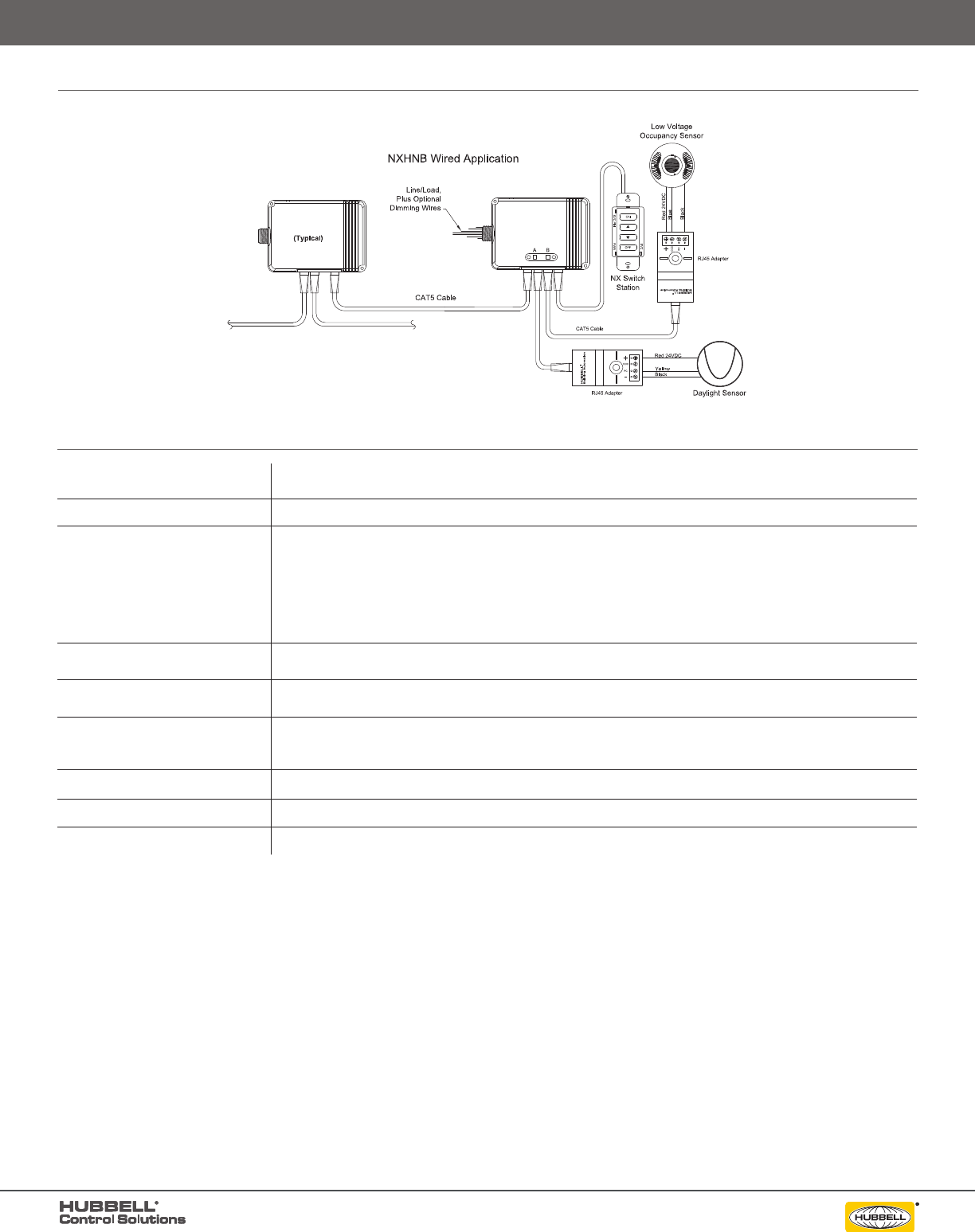

Wiring Diagrams
HubbNET™ Network
NX™ Bridge Module
NX™ Room
Controller
(Typical)
Electrical Rating Input 50mA @12/24 volts DC, supplied by room controller SmartPort
Network HubbNET, Ethernet IEEE803i, 10BASE-T, PoE Mode B
RJ45 Ports
SmartPort (one)
12/24 volts DC
RS485 communication
HubbNET (two)
24 volts DC
Two port Ethernet PoE switch, in - out
Operating Environment Operating Temperature: 0° to 40°
Relative humidity (non-condensing): 0 to 95%
Construction Housing GSM UL Rated 94 HB Plastic
Plenum rated Complies with requirements for use in plenum
Size and Weight Size
5.75"L x 3.85"W x 1.30"H
Weight: 3 oz
Color: Blue
Mounting Mounts directly to a junction box through an extended 1/2” chase nipple, mechanical only, no electrical connection
Certications Title 24, c UL us
Warranty Five-year limited
General Specications
NXHNB2
