Online: L-com.com | Toll Free: 800-343-1455 | E-mail: sales@L-com.com | Fax: 978-689-9484

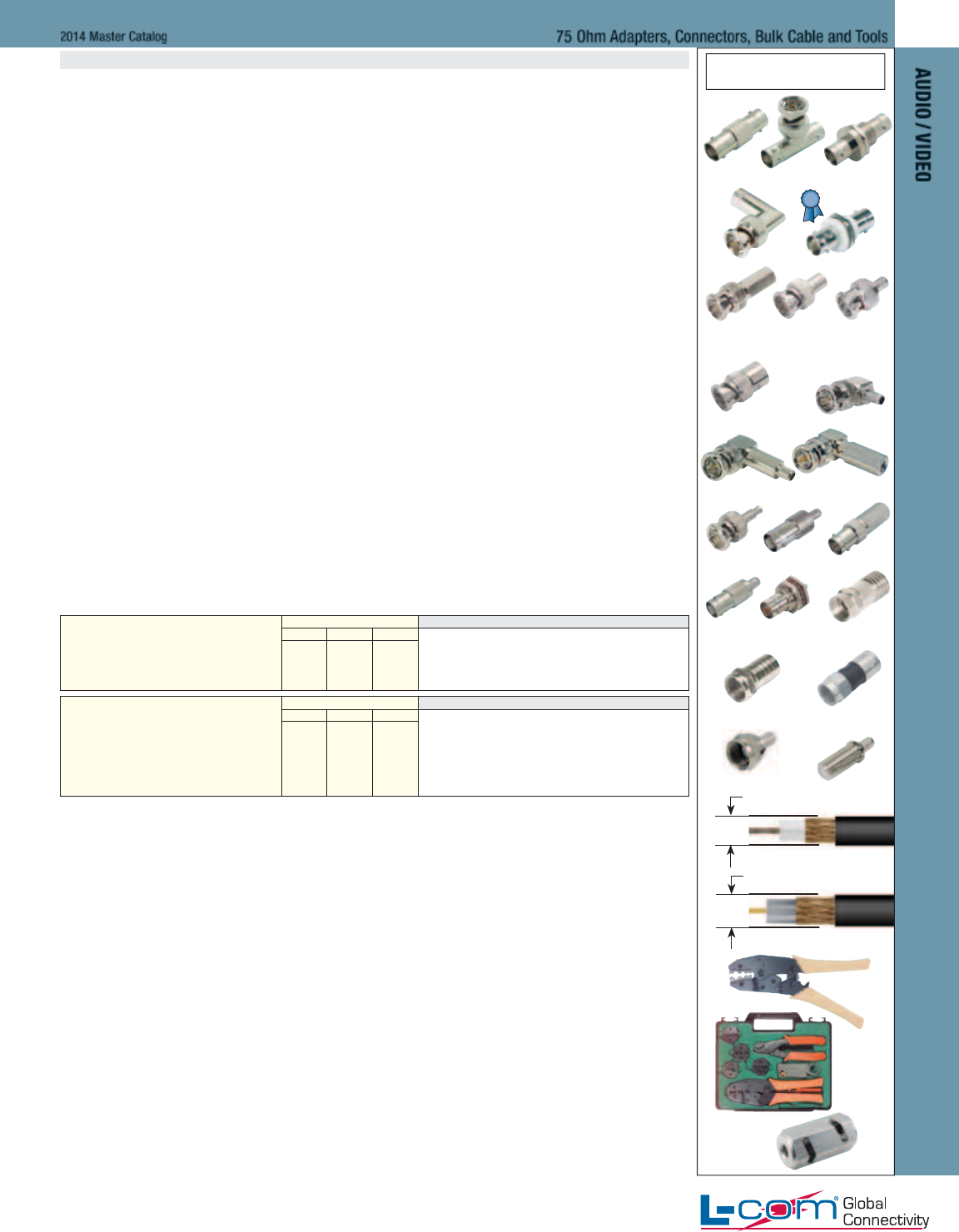

2014 Master Catalog 147
AUDIO / VIDEO
75 Ohm Adapters, Connectors, Bulk Cable and Tools
Item # Description Cable Type Attachment 1-9 10-24 25-99 100+
True 75 Ohm BNC Within Series Adapters - To Precisely Match All 75 Ohm Coaxial Cables
BA016 Coaxial Adapter, BNC Female / Female (Splice) 3.20 3.01 2.82 CALL
BA019 Coaxial T Adapter, BNC Female / Female / Female 5.35 5.03 4.71 CALL
BA035 Coaxial T Adapter, BNC Female / Male / Female 5.35 5.03 4.71 CALL
BA036 Coaxial Adapter, BNC Female / Female Bulkhead 5.35 5.03 4.71 CALL
BA038 Coaxial Adapter, BNC Male / 90° Female 5.35 5.03 4.71 CALL
BA039 Coaxial Adapter, BNC Female / Female Bulkhead, Insulated 6.10 5.73 5.37 CALL
BNC Coaxial Connectors, 75 Ohm
BAC026 BNC Male RG6 Twist On 3.60 3.38 3.17 CALL
BAC032 BNC Male RG6 Crimp (2 Pc) 3.55 3.34 3.12 CALL
BAC029 BNC Male RG6 Crimp (3 Pc) 3.55 3.34 3.12 CALL
BAC042 BNC Male RG6-Q Crimp 2.45 2.30 2.16 CALL
BAC024 BNC Male RG59 Twist On 3.60 3.38 3.17 CALL
BAC027 BNC Male RG59 (23 AWG C.C.) Crimp 3.55 3.34 3.12 CALL
BAC027A BNC Male RG59 (20 AWG C.C.) Crimp 3.55 3.34 3.12 CALL
BAC028 BNC Male RG59 Plenum Crimp (3 Pc) 3.55 3.34 3.12 CALL
BAC030 BNC Male RG59 Crimp (2 Pc) 3.55 3.34 3.12 CALL
BAC031 BNC Male RG59 Plenum Crimp (2 Pc) 3.55 3.34 3.12 CALL
BAC033 BNC Male RG59 Solder 4.70 4.42 4.14 CALL
BAC543 BNC Male, Right Angle RG59 Crimp 5.15 4.84 4.53 CALL
BAC706 BNC Male, Right Angle RG59 / 6 Crimp 6.25 5.88 5.50 CALL
BAC985 BNC Male, Right Angle RG59 / 6 Twist On 6.35 5.97 5.59 CALL
BAC836A-59 BNC Male RG59 / 6 Crimp 3.00 2.82 2.64 CALL
BAC551 BNC Male, Right Angle RG179 / RG187 Crimp 5.70 5.36 5.02 CALL
BAC836B-87 BNC Male RG187 / CTL Crimp 3.00 2.82 2.64 CALL
BAC516 BNC Female RG6 Crimp 4.35 4.09 3.83 CALL
BAC014 BNC Female RG59 Twist On 4.35 4.09 3.83 CALL
BAC908-59 BNC Female RG59 / 6 Crimp 4.35 4.09 3.83 CALL
BAC552 BNC Female Bulkhead RG59 Crimp 5.80 5.45 5.10 CALL
BAC550 BNC Female Bulkhead RG179 Crimp 4.40 4.14 3.87 CALL
Type F Coaxial Connectors, 75 Ohm
BAC-CFS6U Type F Male, Indoor RG6 Crimp 1.10 1.03 0.97 CALL
BAC529 Type F Male, Indoor / Outdoor RG6 Crimp 1.40 1.32 1.23 CALL
BAC-EX6 Type F Male RG6 Compression 1.65 1.55 1.45 CALL
BAC-CFS59U Type F Male, Indoor RG59 Crimp 1.10 1.03 0.97 CALL
BAC530 Type F Male, Indoor / Outdoor RG59 Crimp 1.40 1.32 1.23 CALL
BAC-EX59 Type F Male RG59 Compression 1.65 1.55 1.45 CALL
AFM-1700 Type F Male Low-Loss 195-Series, RG58 Crimp 3.55 3.27 2.98 CALL
BAC520 Type F Female RG59 Crimp 3.10 2.91 2.73 CALL
BAC535 Type F Female Bulkhead RG179 / RG187 Crimp 2.80 2.63 2.46 CALL
BA016 BA036
BA038
Best Seller
BA039
BAC024
BAC026
BAC030
BAC031
BAC032
BAC042
BAC027(A)
BAC028
BAC029
BAC033
BAC706
BAC836
BAC985
BAC014
BAC908
BAC516
BAC550
BAC543
BAC-EX6
BAC-EX59
BAC520
AFM-1700
BAC-CFS6U
BAC-CFS59U
BAC529
BAC530
75 Ohm Impedance
Ø.240 in. (6.1mm)
Nominal RG59A / U
75 Ohm Impedance
Ø.270 in. (6.9mm)
Nominal RG6 / U
Deluxe Full Cycle Ratchet with Hex Crimping Tools
Your choice of seven similar crimp tools equipped with specific die sets to perform a wide variety of crimping functions to fit your needs.
HT301A Deluxe Crimp Tool with .256", .213" and .068" Hex Die 35.95 34.51 33.07 CALL
HT301C Deluxe Crimp Tool with .319", .256", .213" and .068" Hex Die 44.95 43.15 41.35 CALL
HT301D Deluxe Crimp Tool with .324", .256", .213" and .068" Hex Die 44.95 43.15 41.35 CALL
HT301G Deluxe Crimp Tool with .255", .213", .137", .100", .069" .043" Hex Die 41.95 40.27 38.59 CALL
HT301J Deluxe Crimp Tool with .178", .151", .128", .078", .068" .042" Hex Die 41.95 40.27 38.59 CALL
HT230A Deluxe Crimp Tool with .255", .213", .187" and .068" Hex Die 39.95 38.35 36.75 CALL
HT-CRIMP02 Deluxe Crimp Tool with .028", .039", .047", .100", .128" and .151" Hex Die 27.95 26.83 25.71 CALL
HT-CRIMP03 Deluxe Crimp Tool with .100", .128" and .429" Hex Die 39.95 38.35 36.75 CALL
HT-CRIMP04 Deluxe Crimp Tool with .068", .213", .256" and .324" Hex Die 27.95 26.83 25.71 CALL
HT-CRIMP600 Deluxe Crimp Tool with .610" Hex Die 33.95 32.59 31.23 CALL
Deluxe Full Cycle Ratchet Crimp Tool Kit
Housed in rugged, high impact cases these handy deluxe ratchet crimp and strip tool kits can satisfy most coaxial crimping needs. These kits
include ratchet tool, interchangeable dies, cable cutter and rotary cable stripper. See L-com.com for complete kit contents.
HT330K Deluxe Crimp Tool Kit, for use with RG Type Cable 159.95 153.55 147.15 CALL
HT-KIT-01 Deluxe Crimp Tool Kit, for use with Low-Loss and RG Type Cable 100.80 96.77 92.74 CALL
Rotary Coaxial Cable Strippers for 400/600 Series
Quickly and accurately cut and trim the coaxial jacket, shield and inner insulation in two easy steps. Just insert the un-stripped end of the coax
cable into the tool, spin clockwise 4 or 5 times, then insert into other end of tool, spin clockwise 4 or 5 times again and pull off the
unwanted portion.
HT-STRIP400-1 Coax Cable Stripper for 400-Series Cable 61.95 59.47 56.99 CALL
HT-STRIP600-1 Coax Cable Stripper for 600-Series Cable 67.95 65.23 62.51 CALL
HT-STRIP-B1 Replacement Blades for HT-STRIP400-1/HT-STRIP600-1 8.95 8.59 8.23 CALL
HT301A
HT330K
HT-STRIP400-1
BA035
RG59A / U
• Center Conductor: 22 (7x30) AWG bare copper
• Shielding: Bare copper braid (95% coverage)
• Insulation: Foam polyethylene
• Jacket: Black PVC
• Operating Temperature: -40°C - +80°C
NOMINAL ATTENUATION Item # Description List
MHz db / 100ft db / 100m RG59A-100 RG59A / U, 100ft (30.5m) coil 26.20
RG59A-500 RG59A / U, 500ft (152.4m) spool 104.95
RG59A-1K RG59A / U, 1,000ft (304.8m) spl. 209.95
100
200
400
1000
3.0
4.5
6.6
10.9
9.8
14.8
21.7
35.8
RG6 / U
• Center Conductor: 18 AWG solid bare copper
covered steel
• Shielding: Inner foil (100% coverage); Outer, copper
braid (60% coverage)
• Insulation: Foam Polyethylene
• Jacket: Black PVC
• Operating Temperature: -40°C - +80°C
NOMINAL ATTENUATION Item # Description List
MHz db / 100ft db / 100m RG6-100 RG6 / U, 100ft (30.5m) coil 15.70
RG6-500 RG6 / U, 500ft (152.4m) spool 78.70
RG6-1K RG6 / U, 1,000ft (304.8m) spool 178.50
100
200
400
1000
2.1
3.1
4.5
7.3
6.9
10.2
14.8
23.9
RG59A and RG6 Bulk Cable
Many more connector and adapter
options available. Go to L-com.com
