THE CONTRACTOR’S

CHOICE

A Complete Line of Residential Non-Metallic Electrical Outlet Boxes

Designed and Manufactured by Professionals for the Professional Electrical Contractor

Allied Moulded Products, Inc.

Bryan, OH 43506

ph: 800-722-2679

fax: 800-237-7269

Find out more about us online at:

www.alliedmoulded.com

Available Through:

2014

FIBERGLASS BOXES FOR RESIDENTIAL CONSTRUCTION

FIBERGLASS:

THE DIFFERENCE IS ELEMENTAL

Like so many of the products Allied Moulded creates, our robust fiberglassBOX™ series of impact-resistant,

high strength fiberglass reinforced polyester (FRP) wall boxes were specifically designed with the electrical

contractor in mind. Fire-resistant, soundproof and air-sealed, these hard-working yet lightweight fiberglass

boxes don’t have the same installation limitations as PVC boxes. This eliminates the need for costly additional

materials and labor—and provides you with the long-term savings you’re looking for in your wall applications.

To learn more, visit alliedmoulded.com.

222 North Union Street

Bryan, Ohio 43506

(419) 636.4217

(419) 636.2450

FAX

Fire Rated

FOR MORE APPLICATIONS

Industry Exclusive Fire Rating Turns

Up the Heat on the Competition

Sound Resistant

WITHOUT ADDITIONAL MATERIALS

Sound Transmission Class Rating

Quietly Saves You Even More

Air-Sealed

FOR ENERGY EFFICIENCY

Increased Energy Savings,

Reduced Installation Costs

ALLM084 Product Catalog Inside Covers_8.5x11_01.indd 1 11/14/13 1:54 PM

The more

you install,

the more

you save.

Electrical contractors wiring

multi-family buildings save the most.

Forget putty pads. Forget mineral wool. Forget about being

limited to a single electrical box in a stud cavity. Unlike their

metal or PVC counterparts, Allied Moulded FiberglassBOX

™

wall boxes can be placed a mere three inches apart* —

with no additional fire protection — and still meet the fire

safety standards outlined in the International Building Code.

They’re also suitable for use in STC rated common walls

without additional sound pads. Testing has shown STC rated

common walls are not negatively impacted with Allied Moulded

FiberglassBOX

™

products installed.

What does that mean for you? More flexibility in electrical

design. Easier standardization in multi-family construction.

Lower material and labor costs. And the benefits keep stacking

up with every Allied Moulded FiberglassBOX

™

box you use.

We’ve packed some big savings into a very small space.

To learn more and see our UL documentation, visit

www.alliedmoulded.com.

*Suitable for installation in 2HR wall assemblies:

All 52 – U300 series walls, non-load bearing steel

stud walls and staggered stud wall assemblies

INDUSTRY EXCLUSIVE

FIRE & SOUND

222 North Union Street

Bryan, Ohio 43506

(419) 636.4217

(419) 636.2450

FAX

ALLM084 Product Catalog Inside Covers_8.5x11_01.indd 2 11/14/13 1:54 PM

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com 1

Table of Contents ...................................................................................................................................................................... 1

Wiring Size Cubic Inch Requirements ...................................................................................................................................... 2

berglass

BOX

™ Features ......................................................................................................................................................... 3

Reduction In Horizontal Box Separation In Fire Rated Walls ................................................................................................... 4

Frequently Asked Questions ..................................................................................................................................................... 5

Speed “K” Klamp™................................................................................................................................................................... 6

Attachment Codings ................................................................................................................................................................. 7

Residential Switch & Outlet Boxes (ﬁberglass

BOX

™)

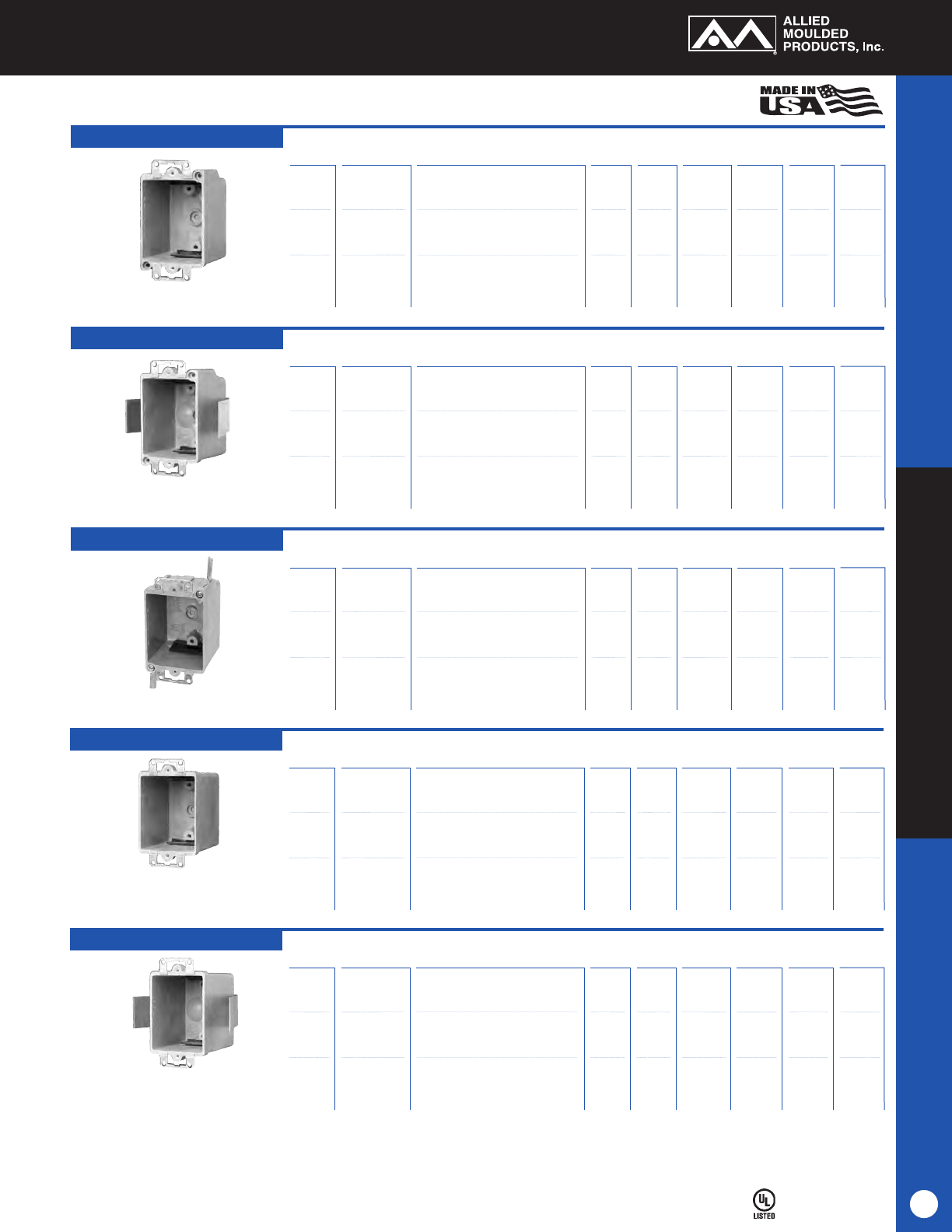

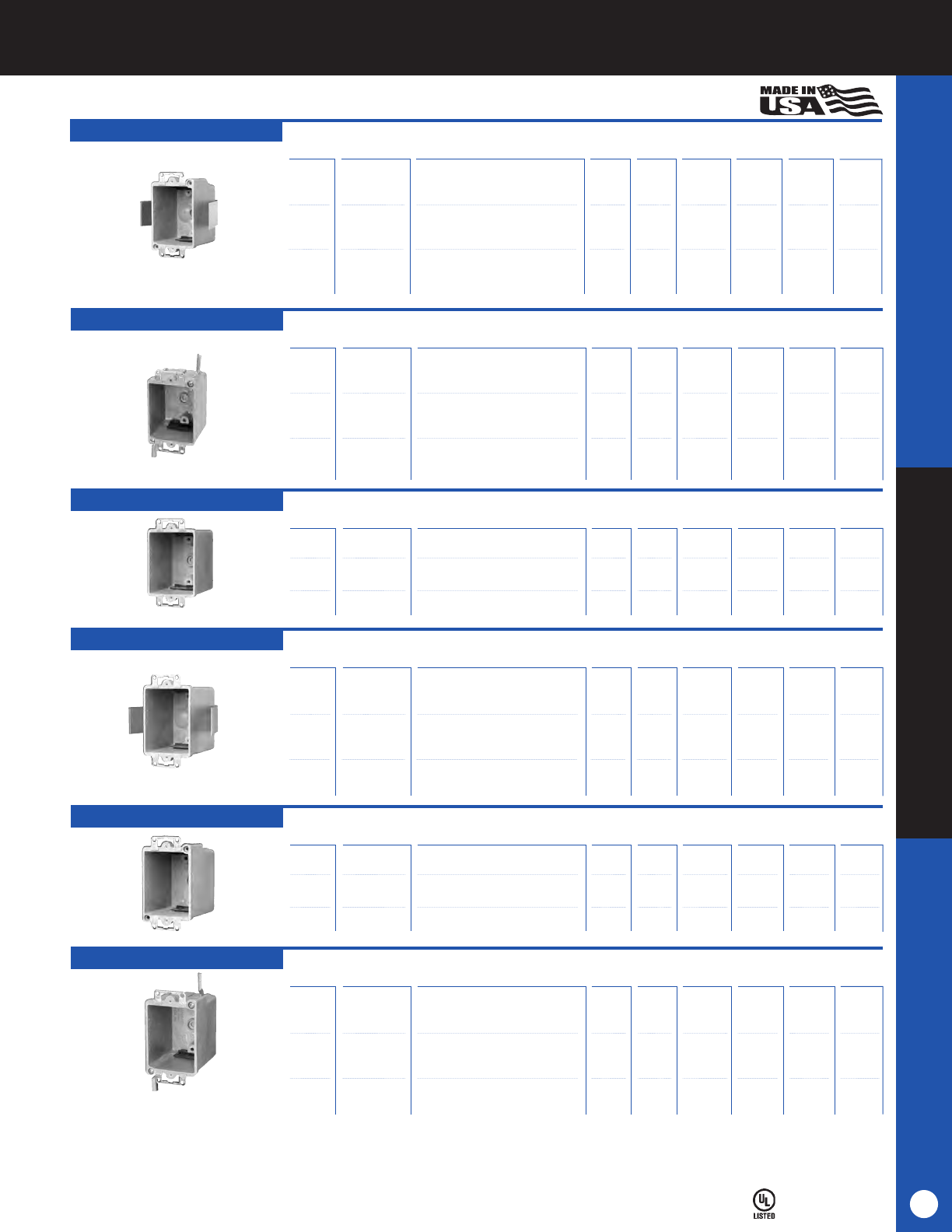

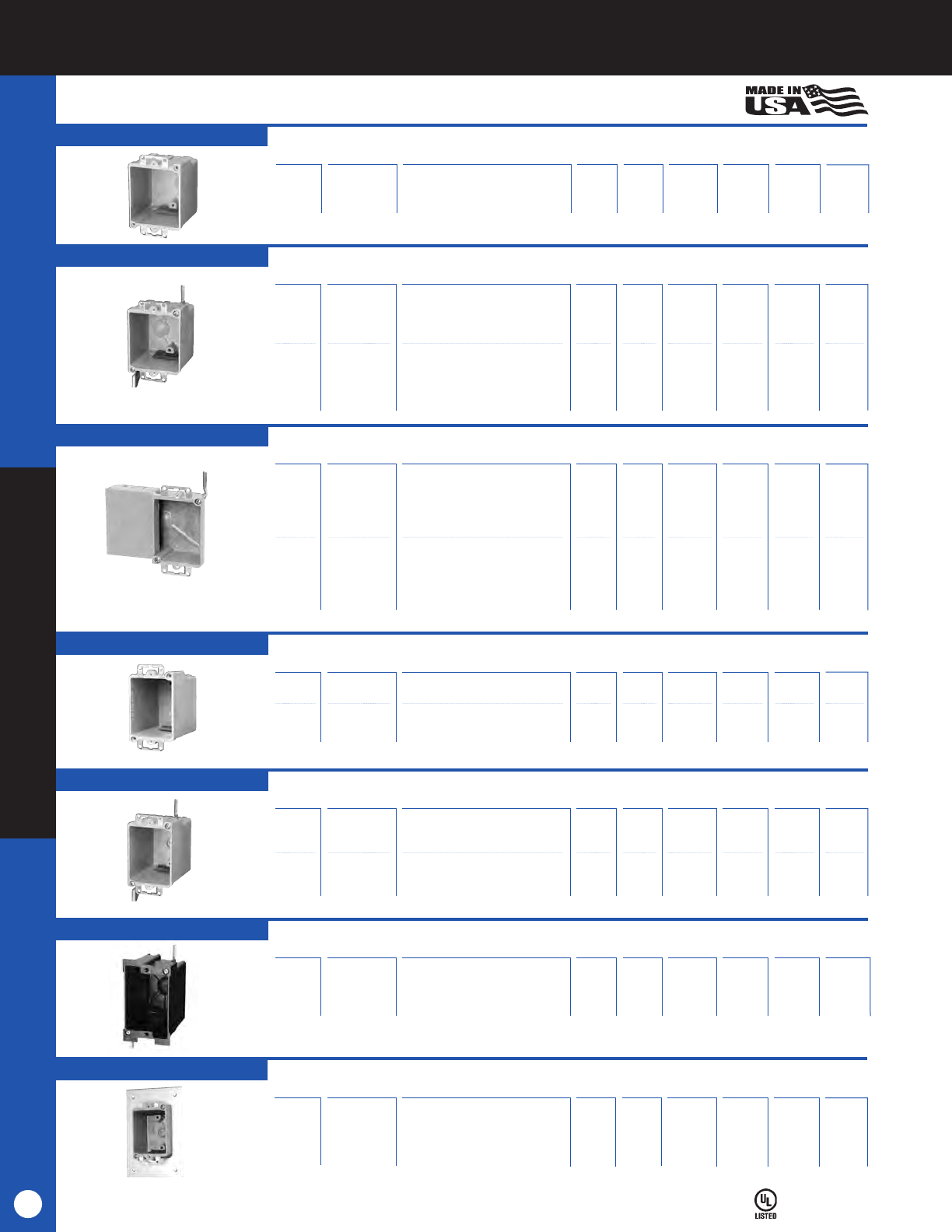

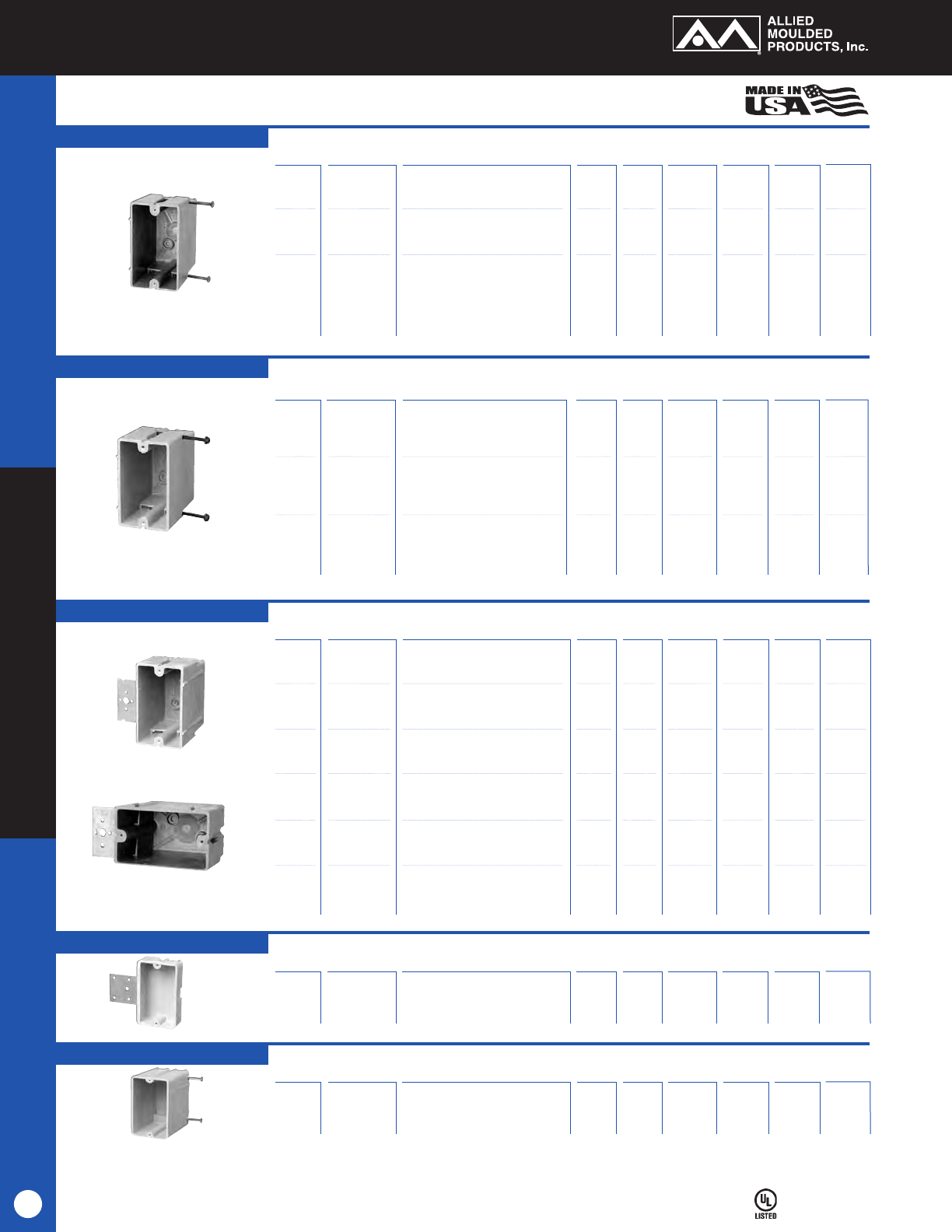

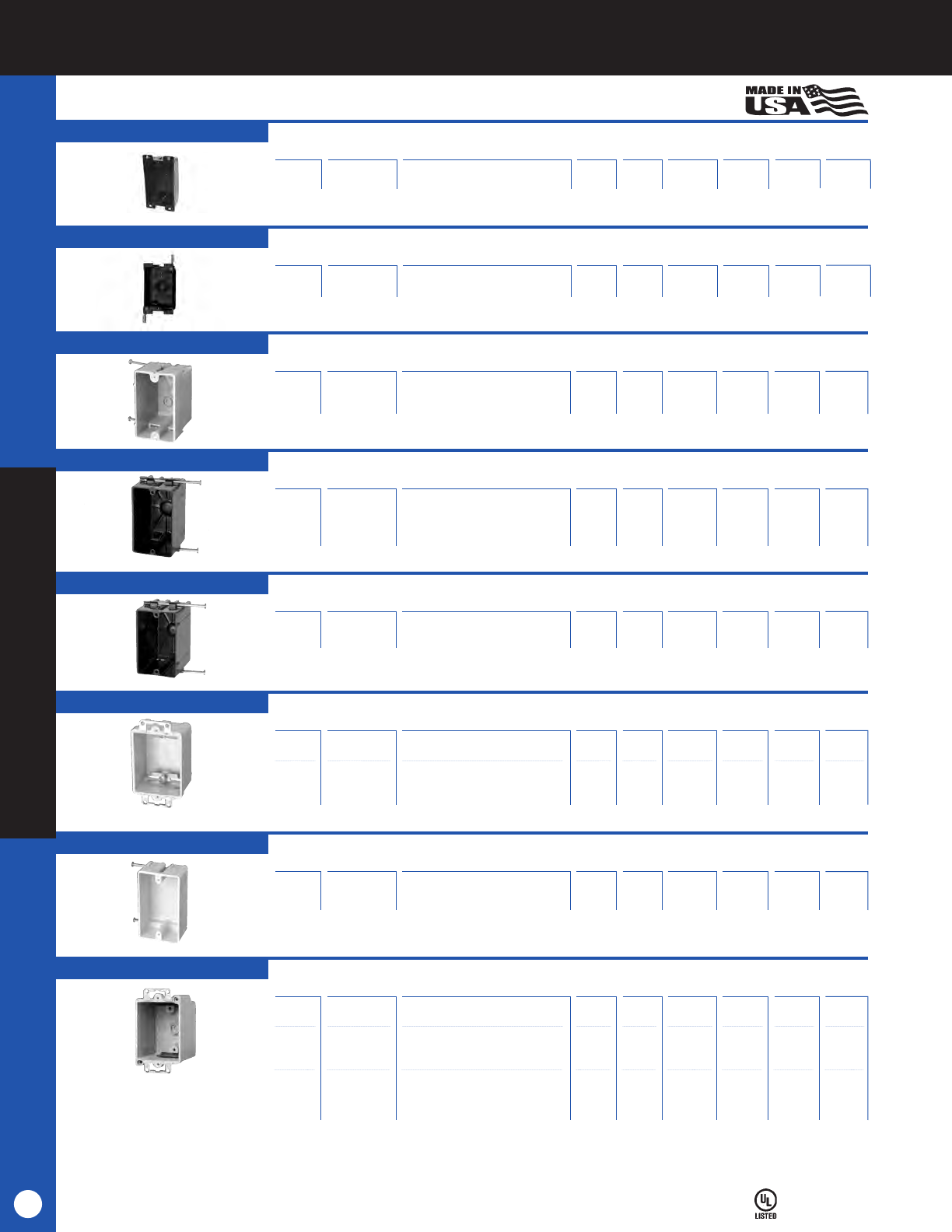

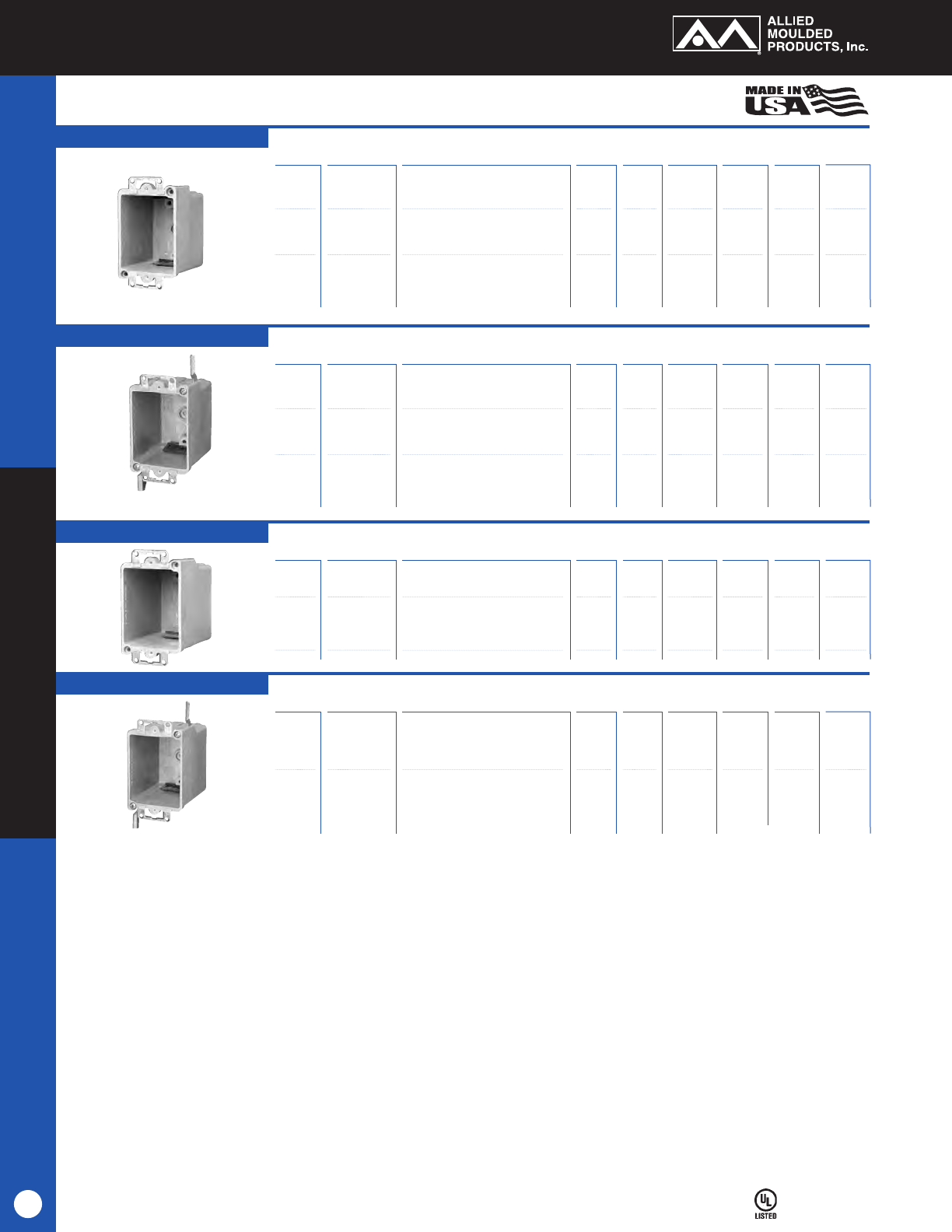

Single Gang .......................................................................................................................................................................... 8-10

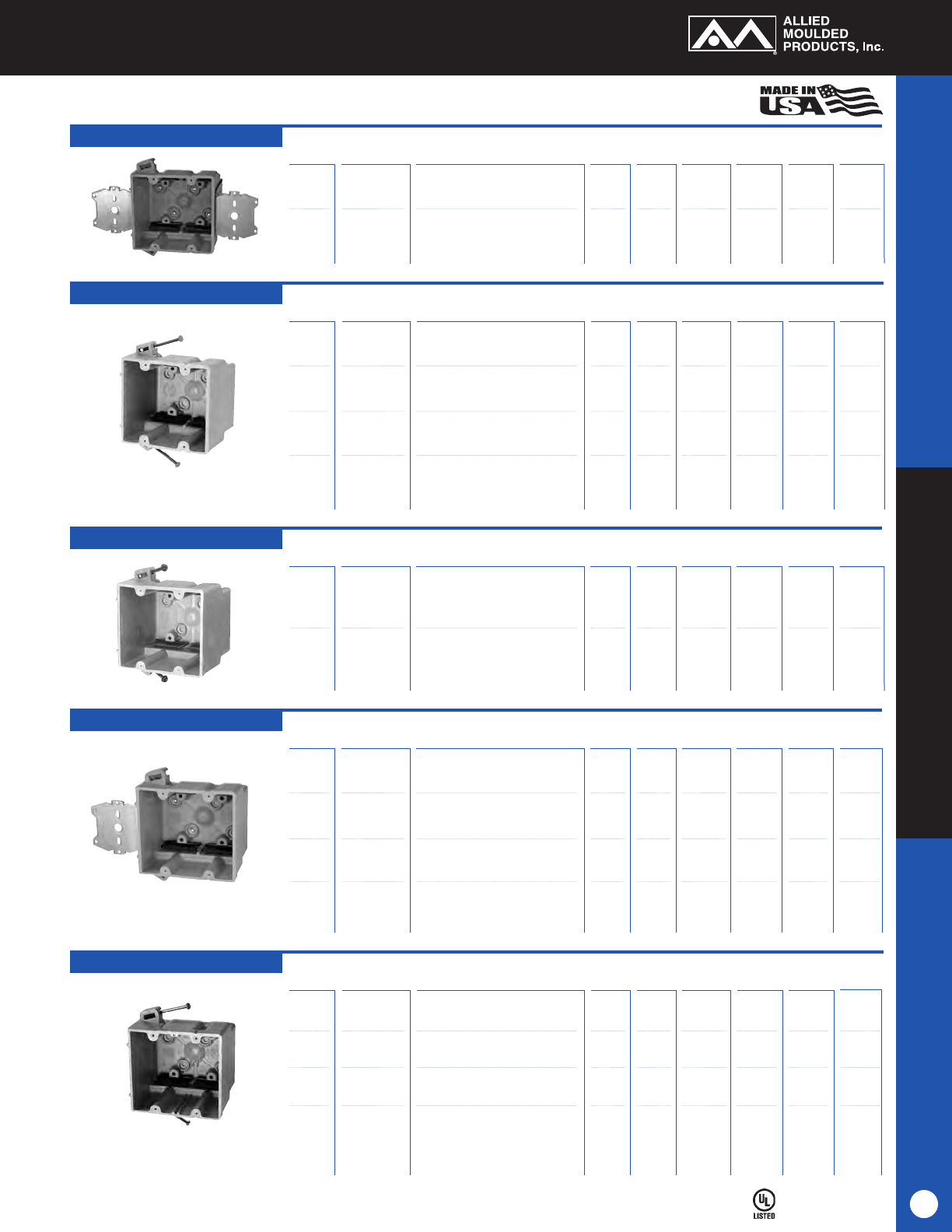

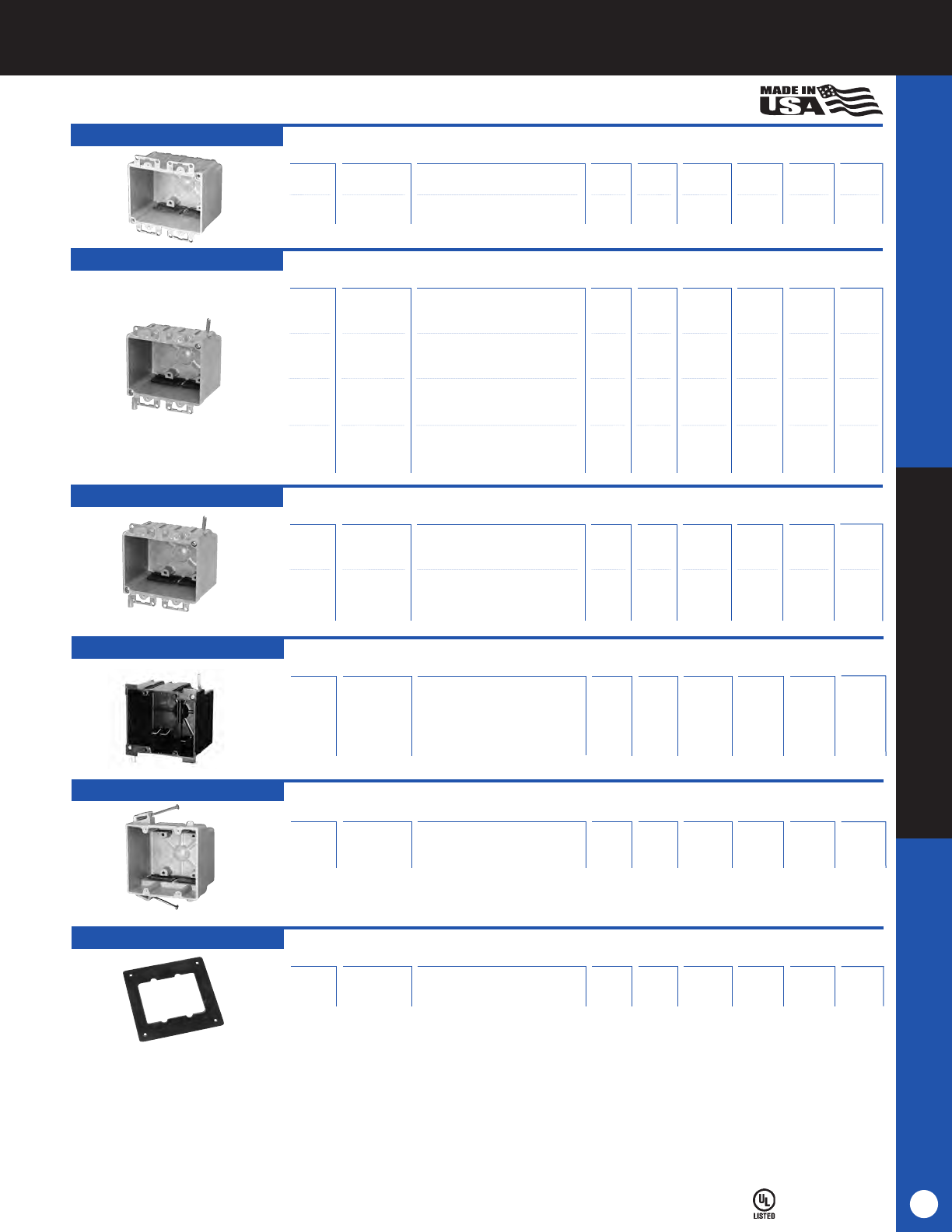

Two Gang ........................................................................................................................................................................... 11-12

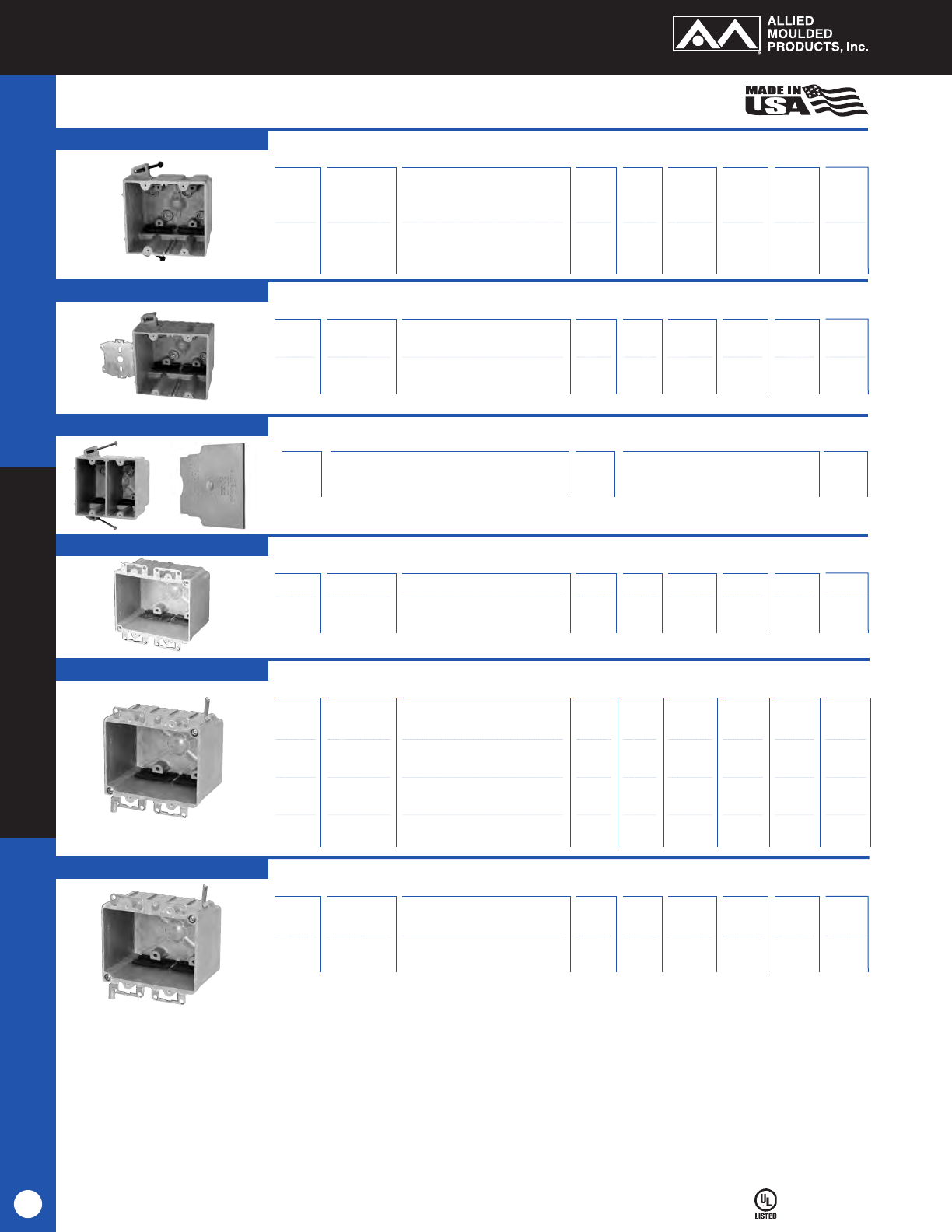

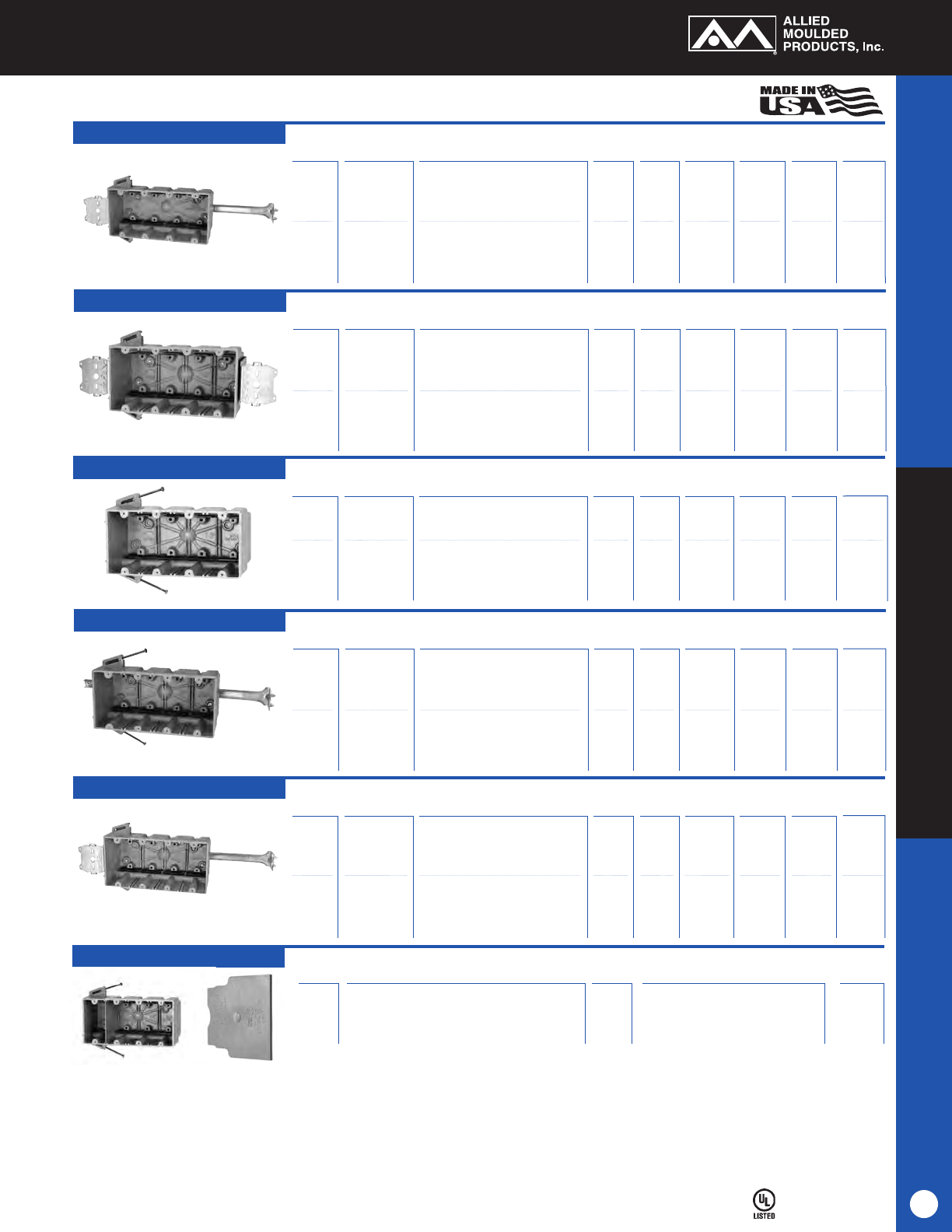

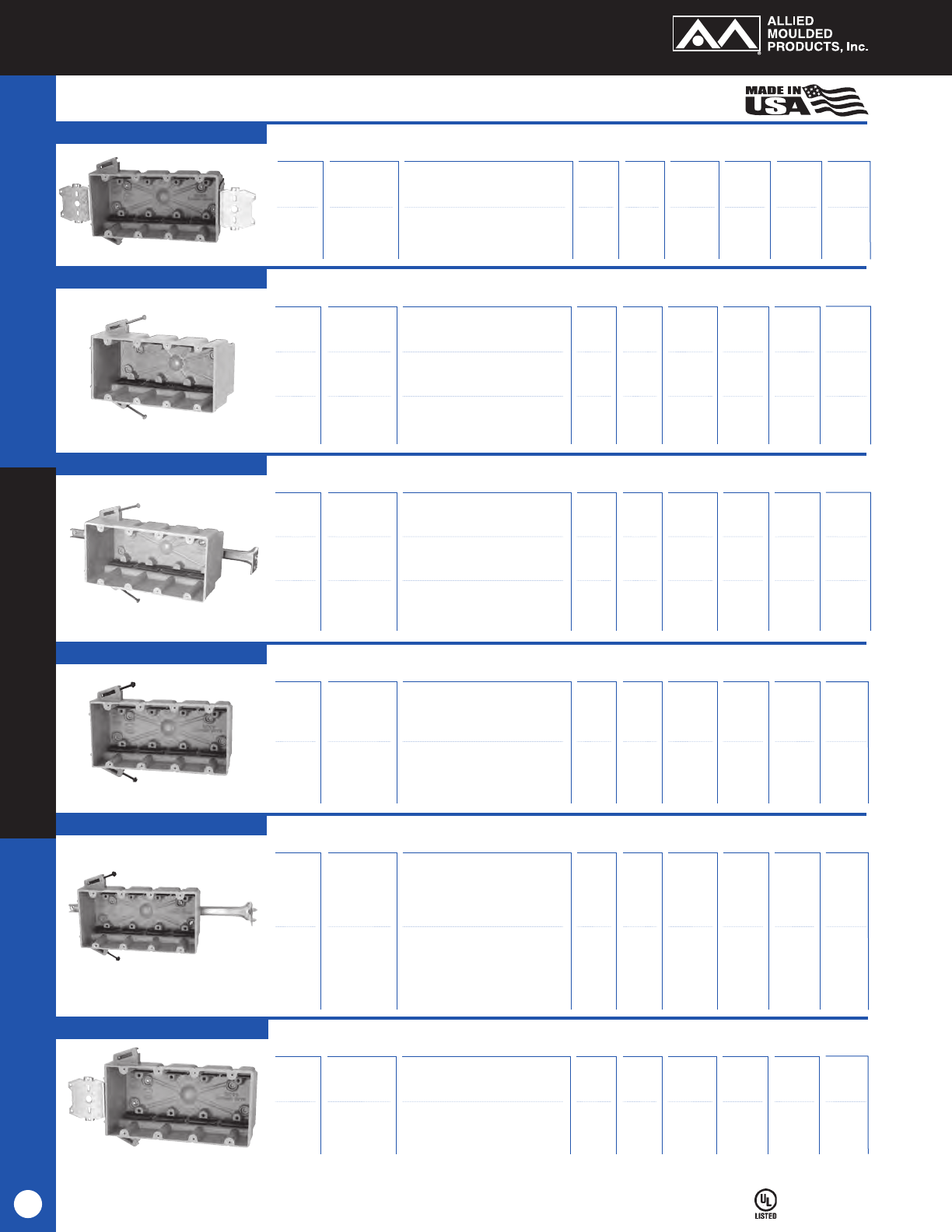

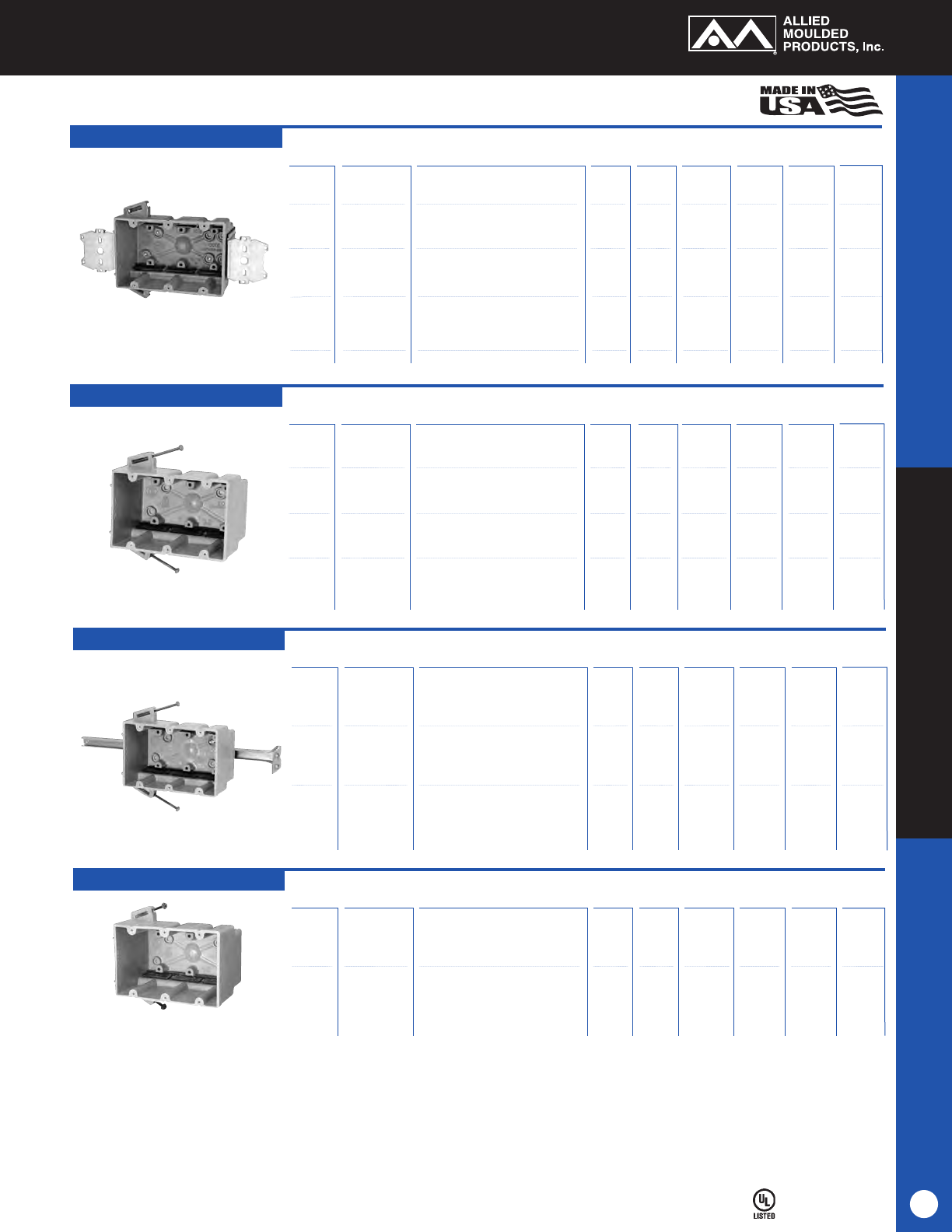

Three Gang ......................................................................................................................................................................... 13-15

Four Gang .......................................................................................................................................................................... 16-18

Five Gang ................................................................................................................................................................................ 18

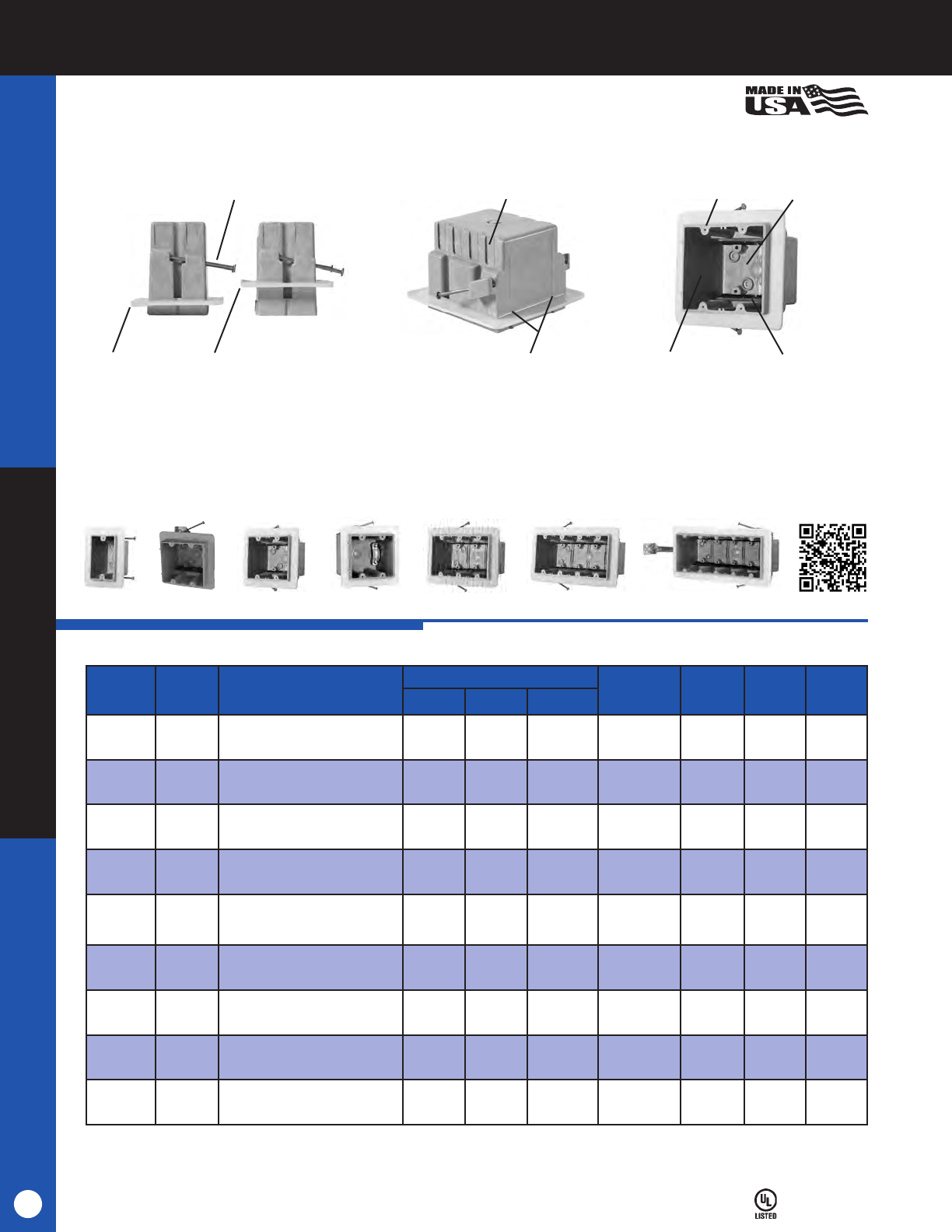

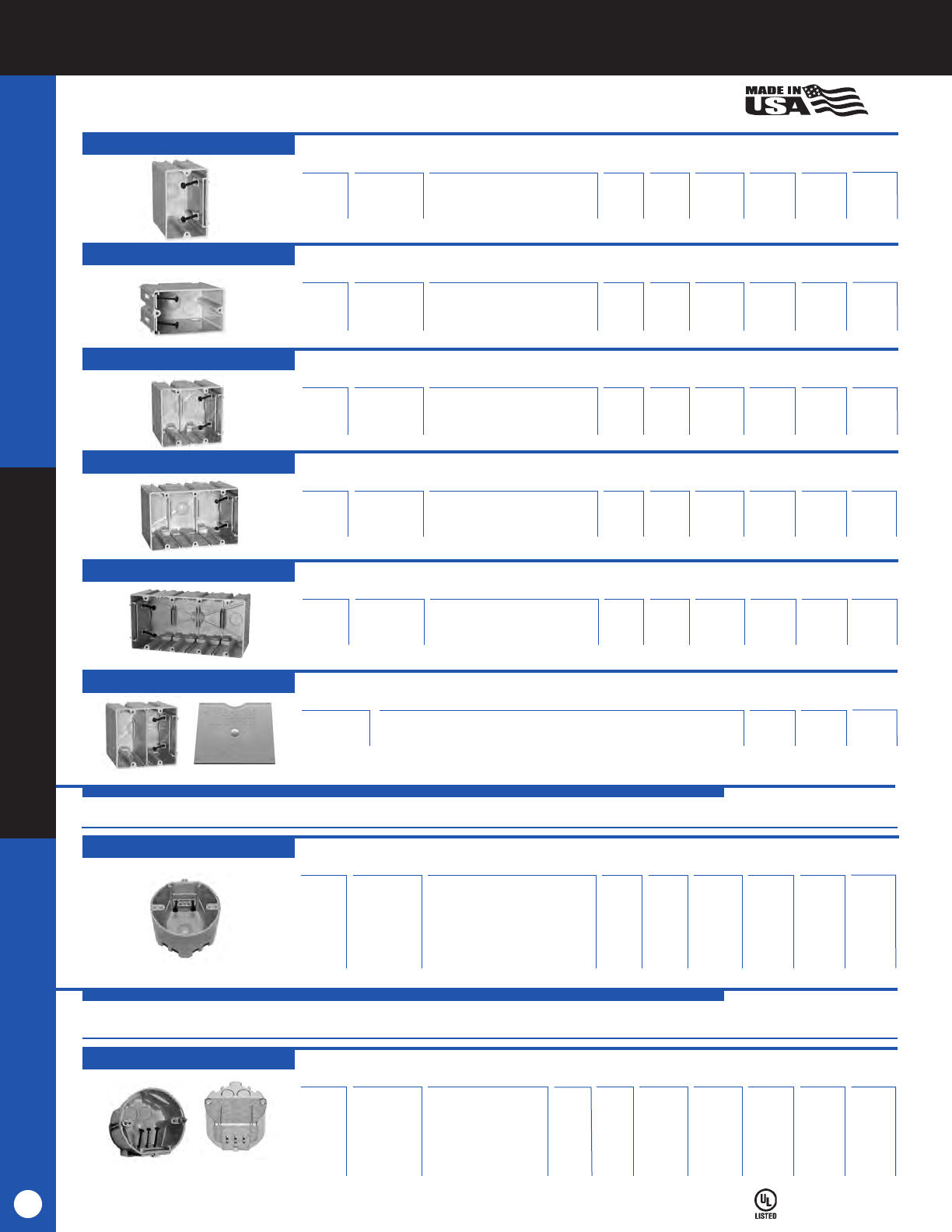

SLIDERBOX® product and installation instructions ........................................................................................................... 19-21

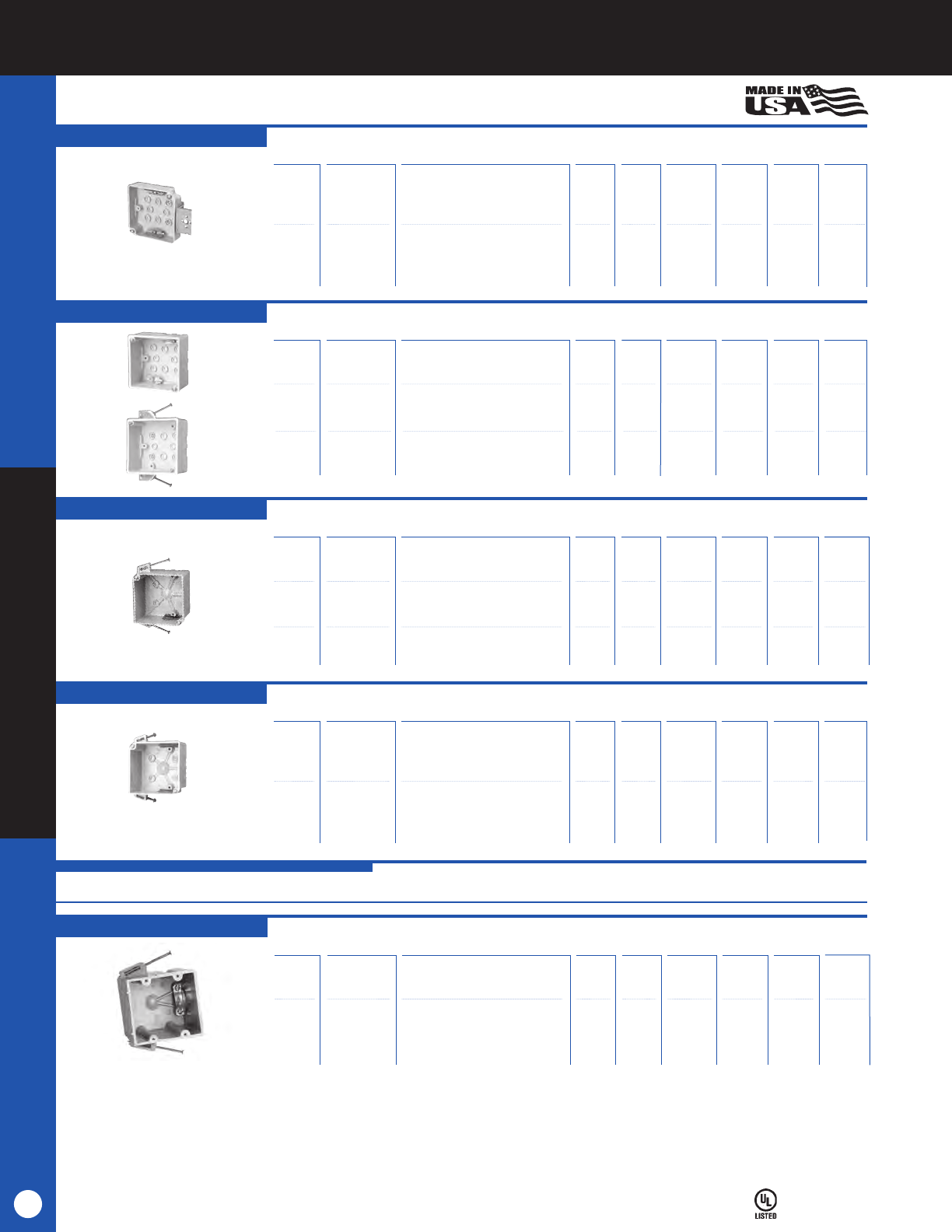

Square Junction Boxes ........................................................................................................................................................... 22

Range/Dryer Receptacle Box .................................................................................................................................................. 22

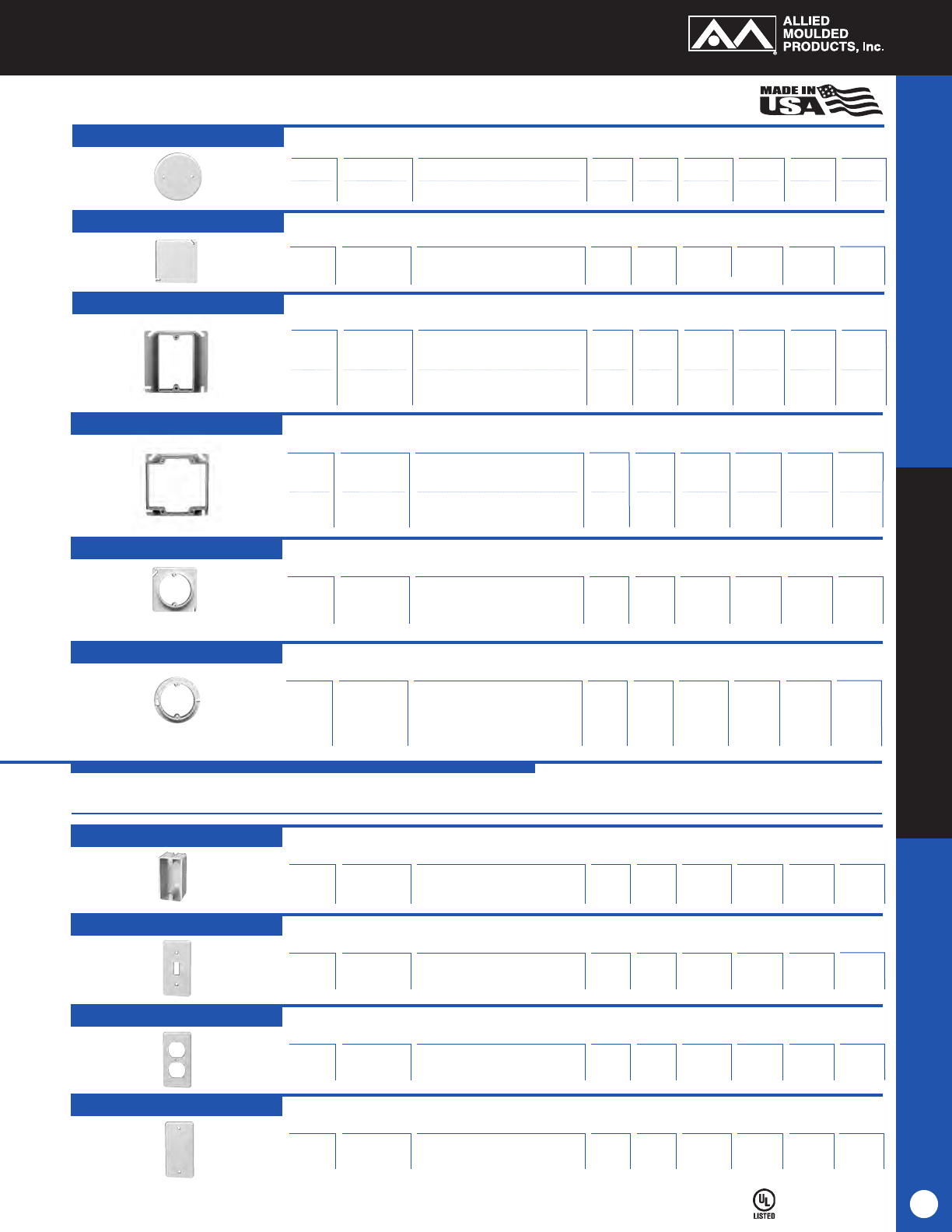

Plaster Rings and Covers........................................................................................................................................................ 23

Handy Box and Covers ........................................................................................................................................................... 23

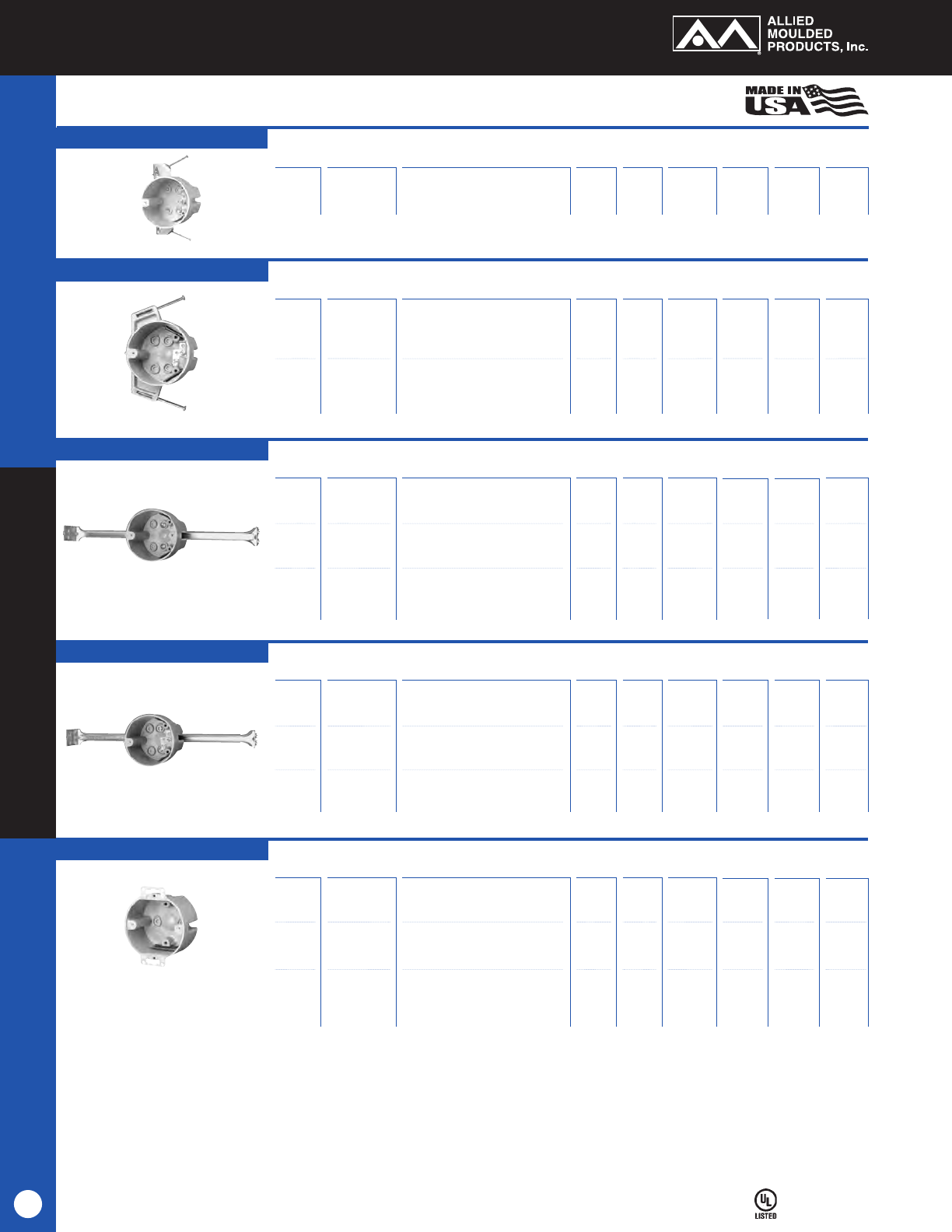

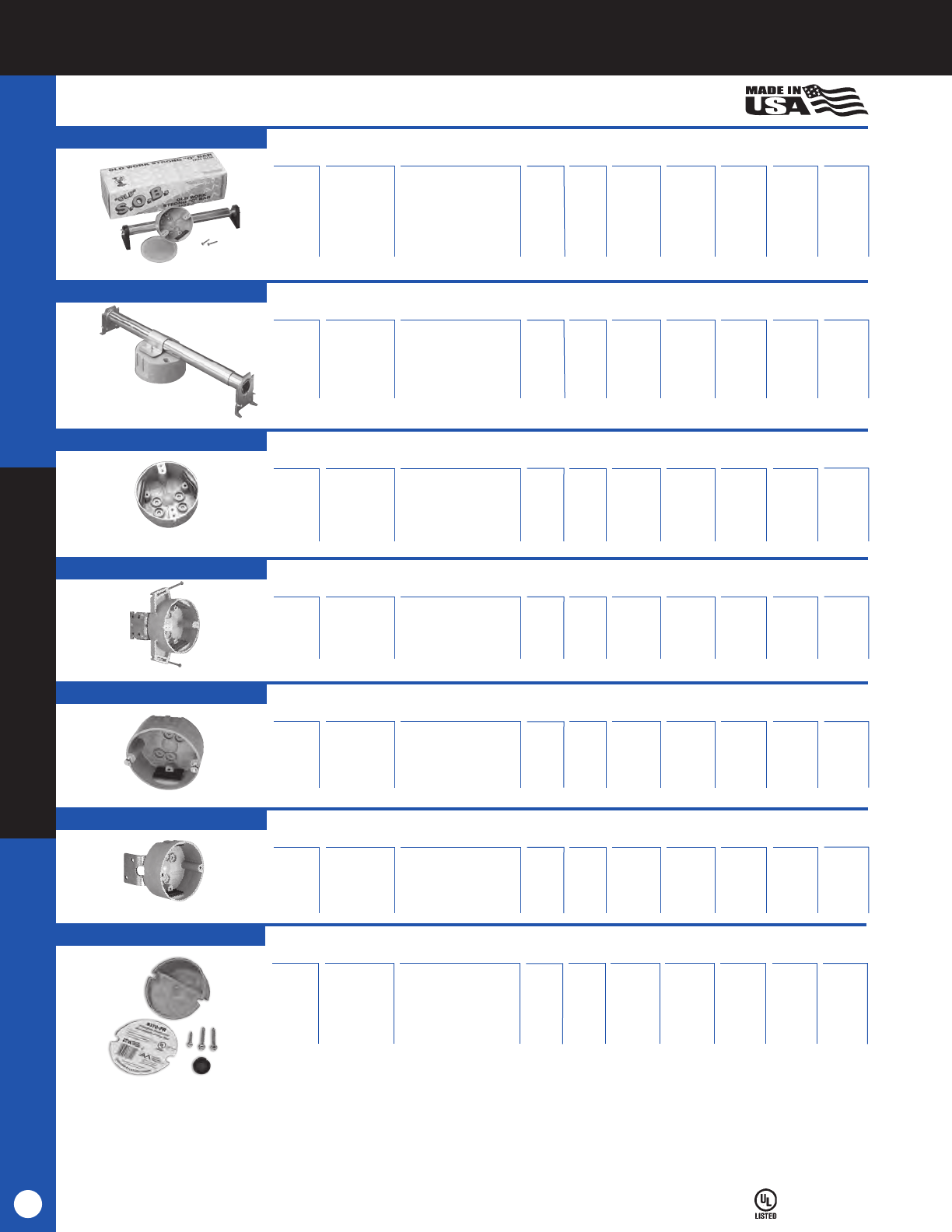

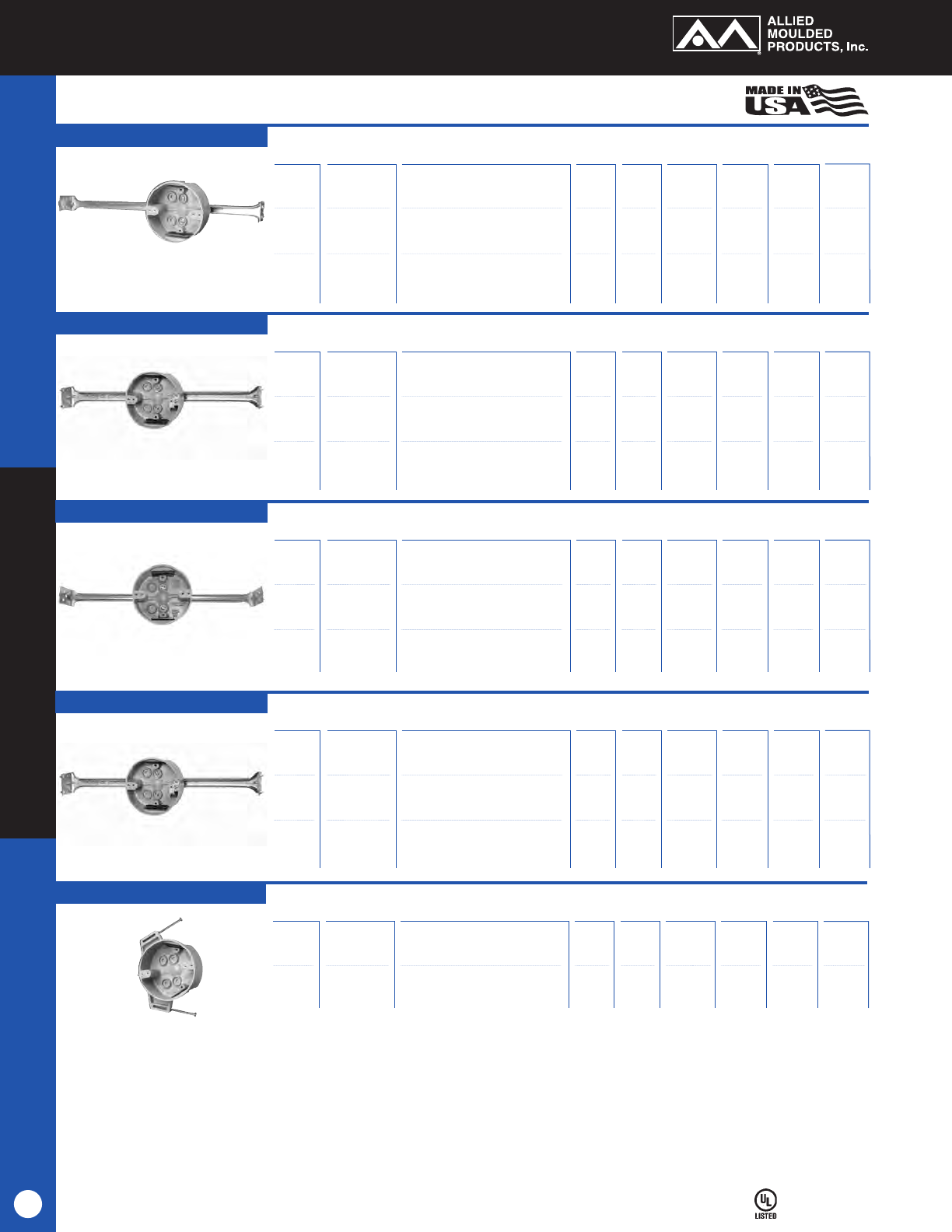

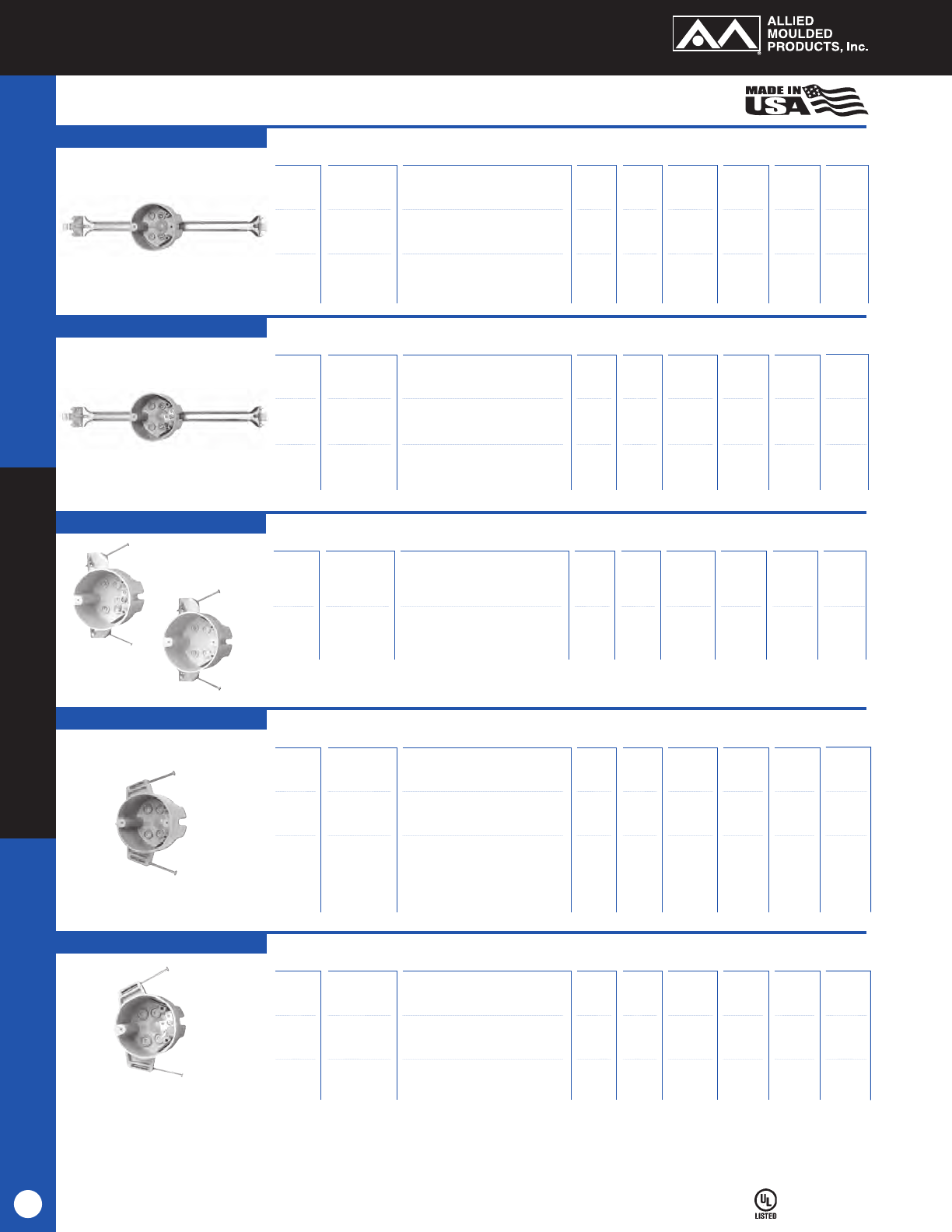

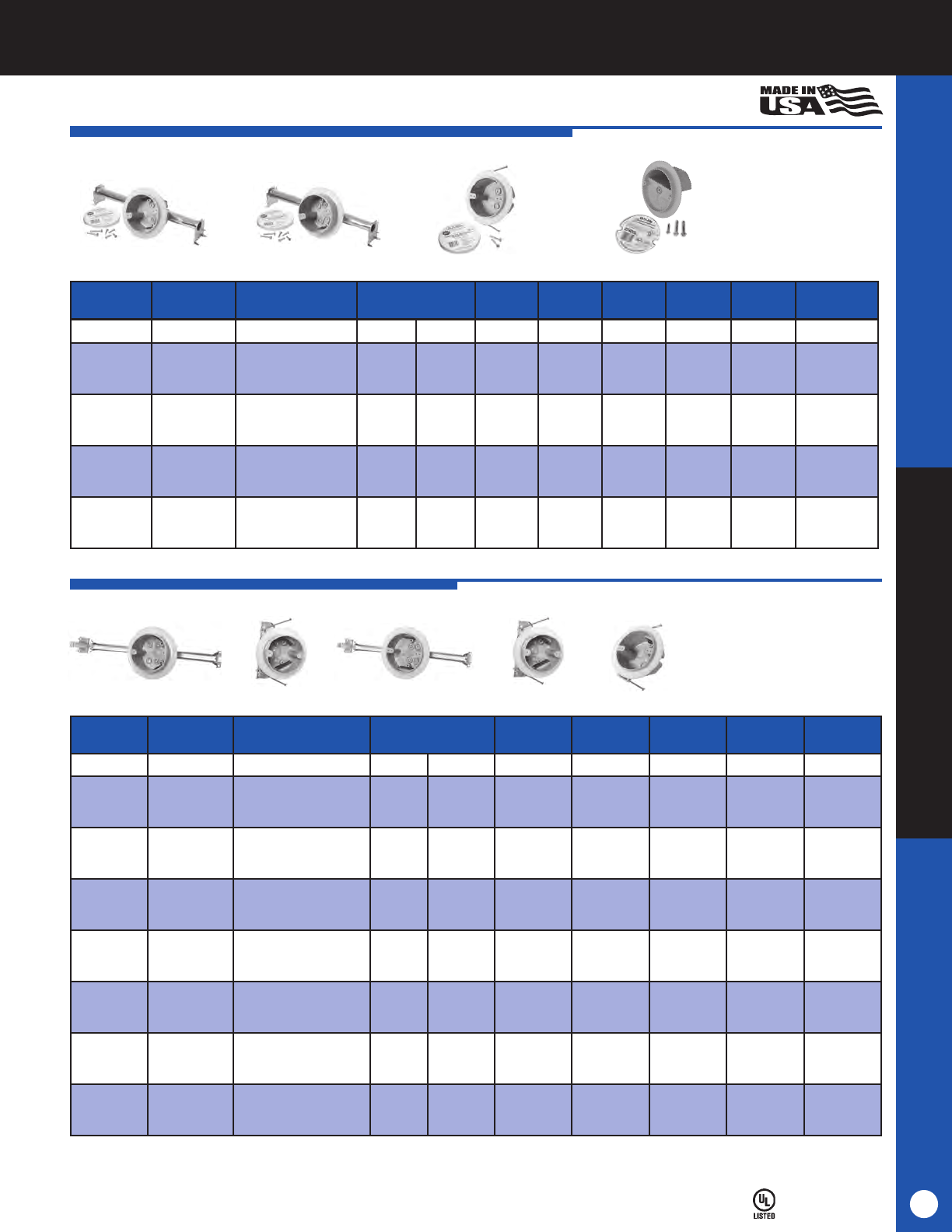

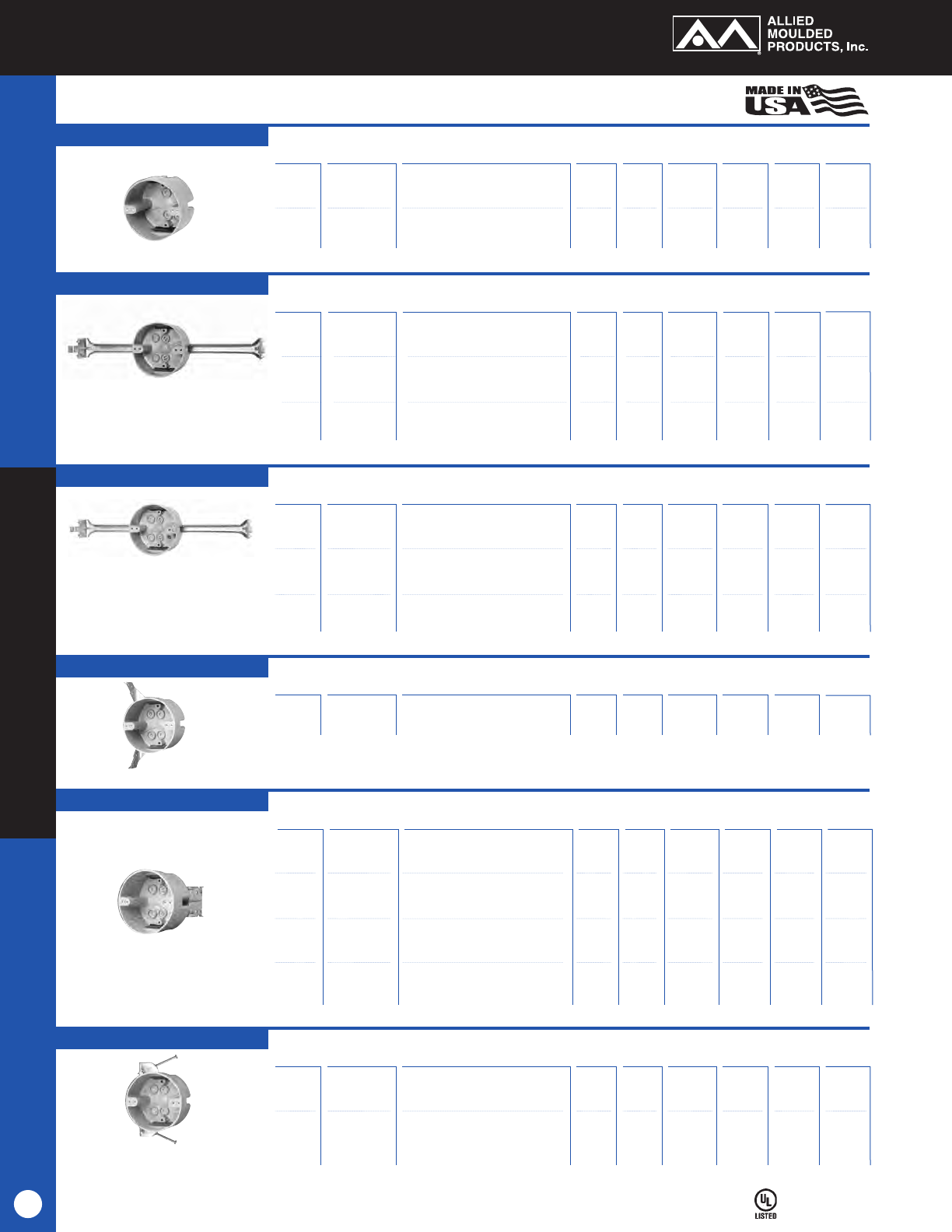

3-1/2” Round Ceiling Boxes .............................................................................................................................................. 24-27

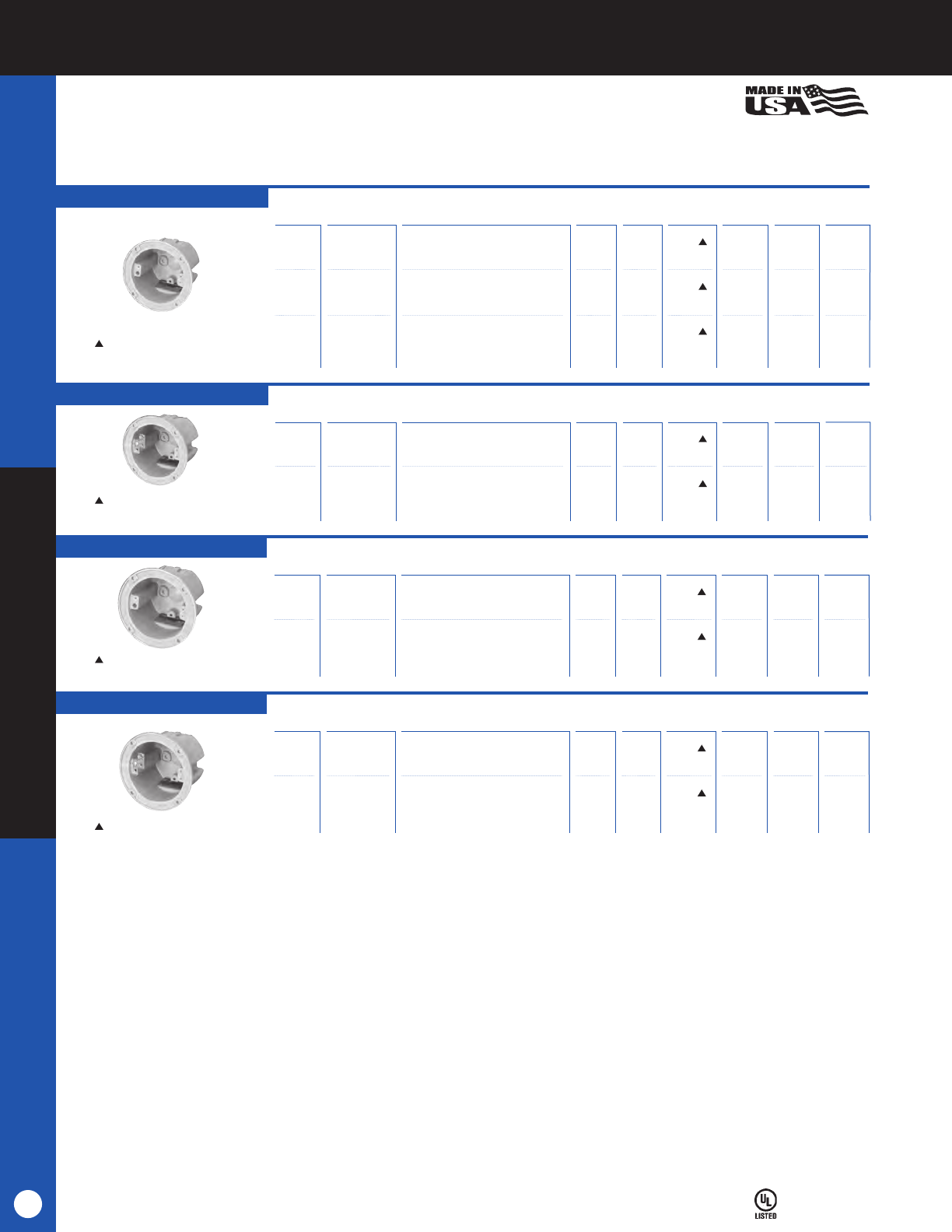

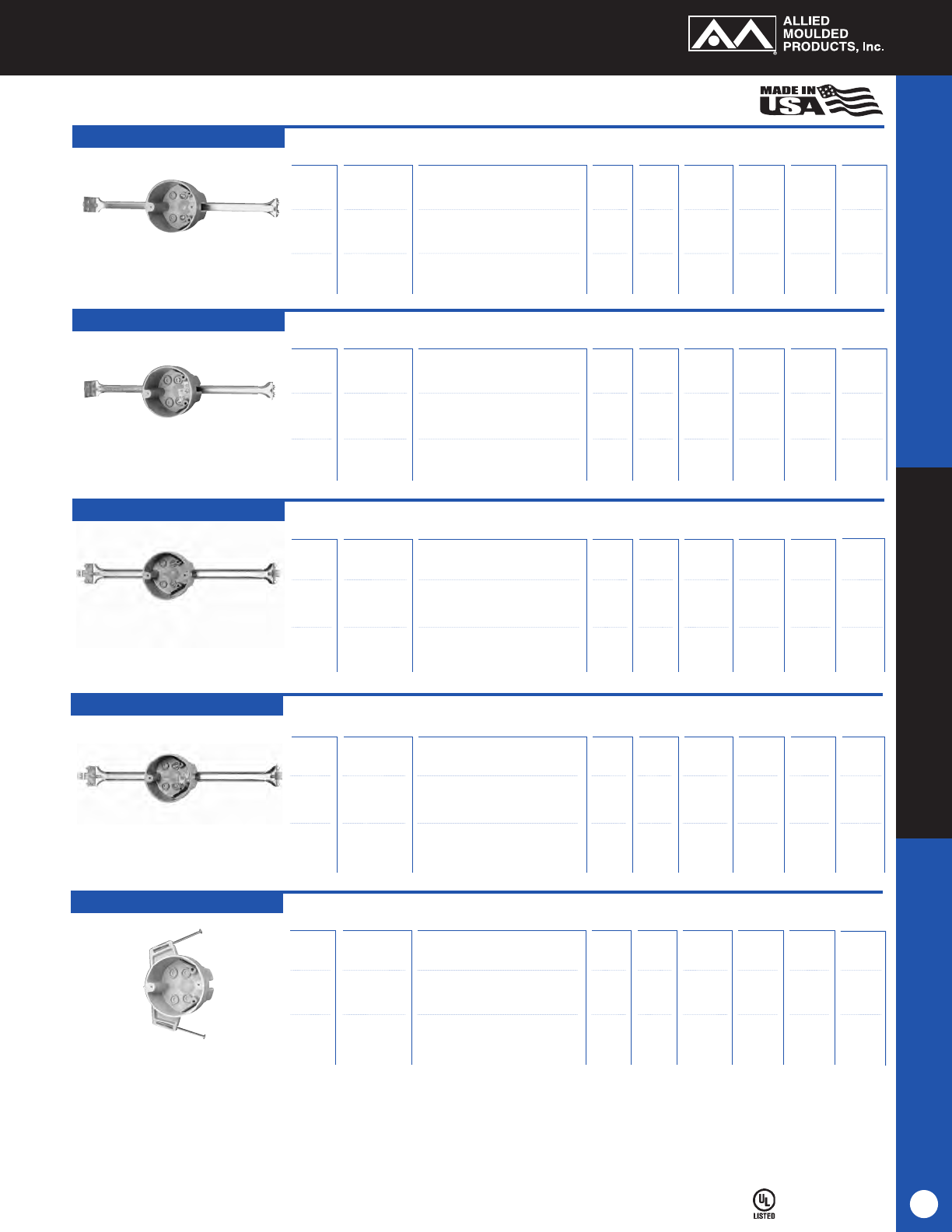

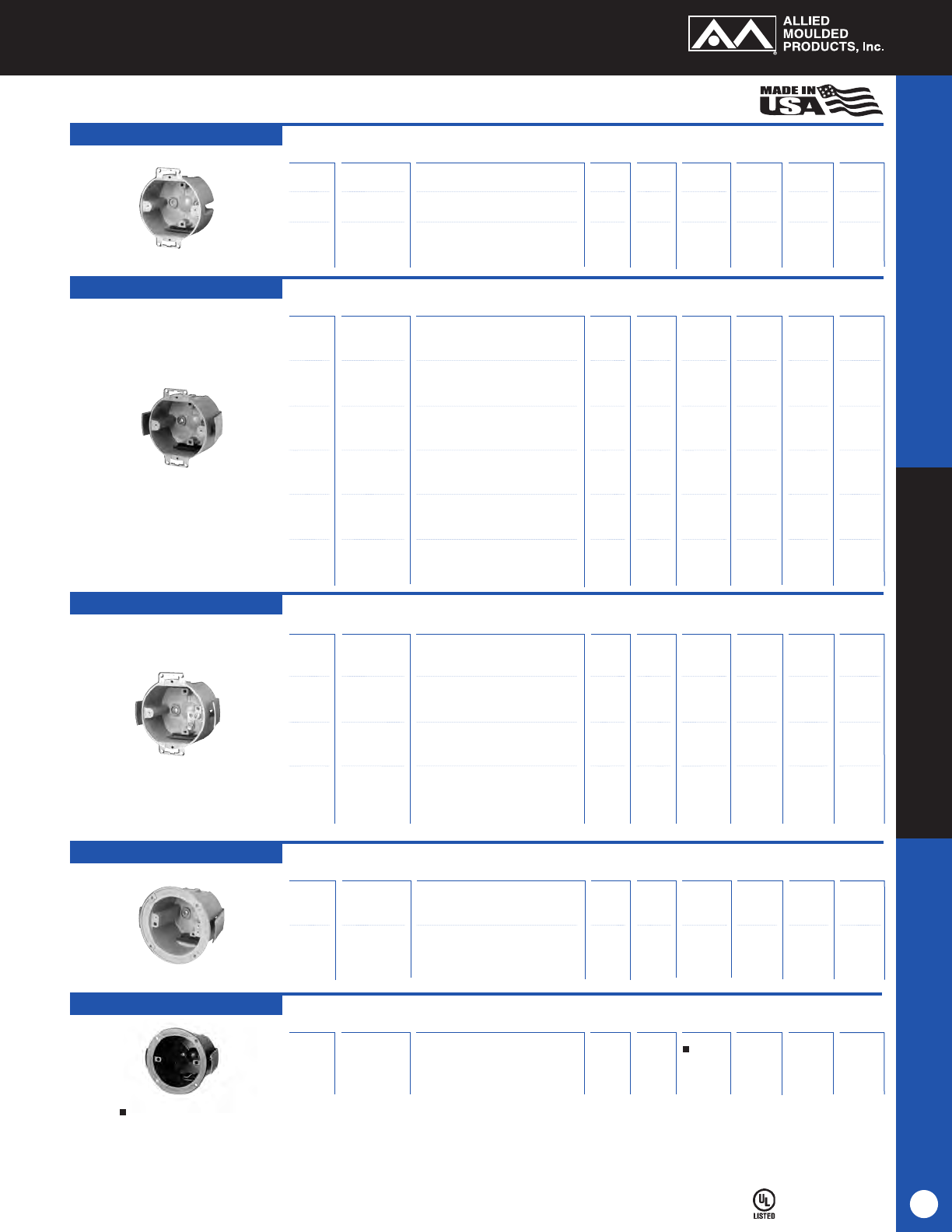

4” Round Ceiling Boxes ..................................................................................................................................................... 28-30

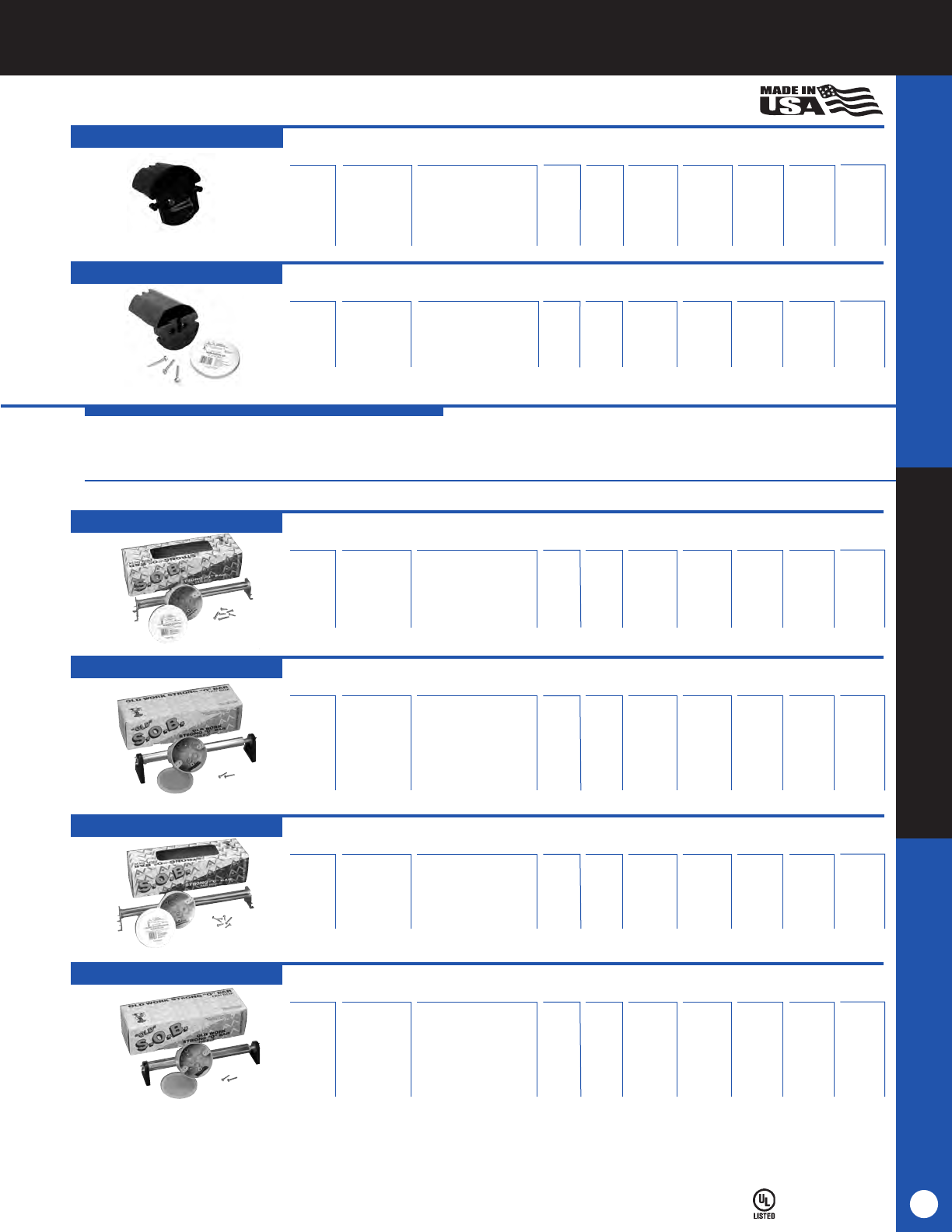

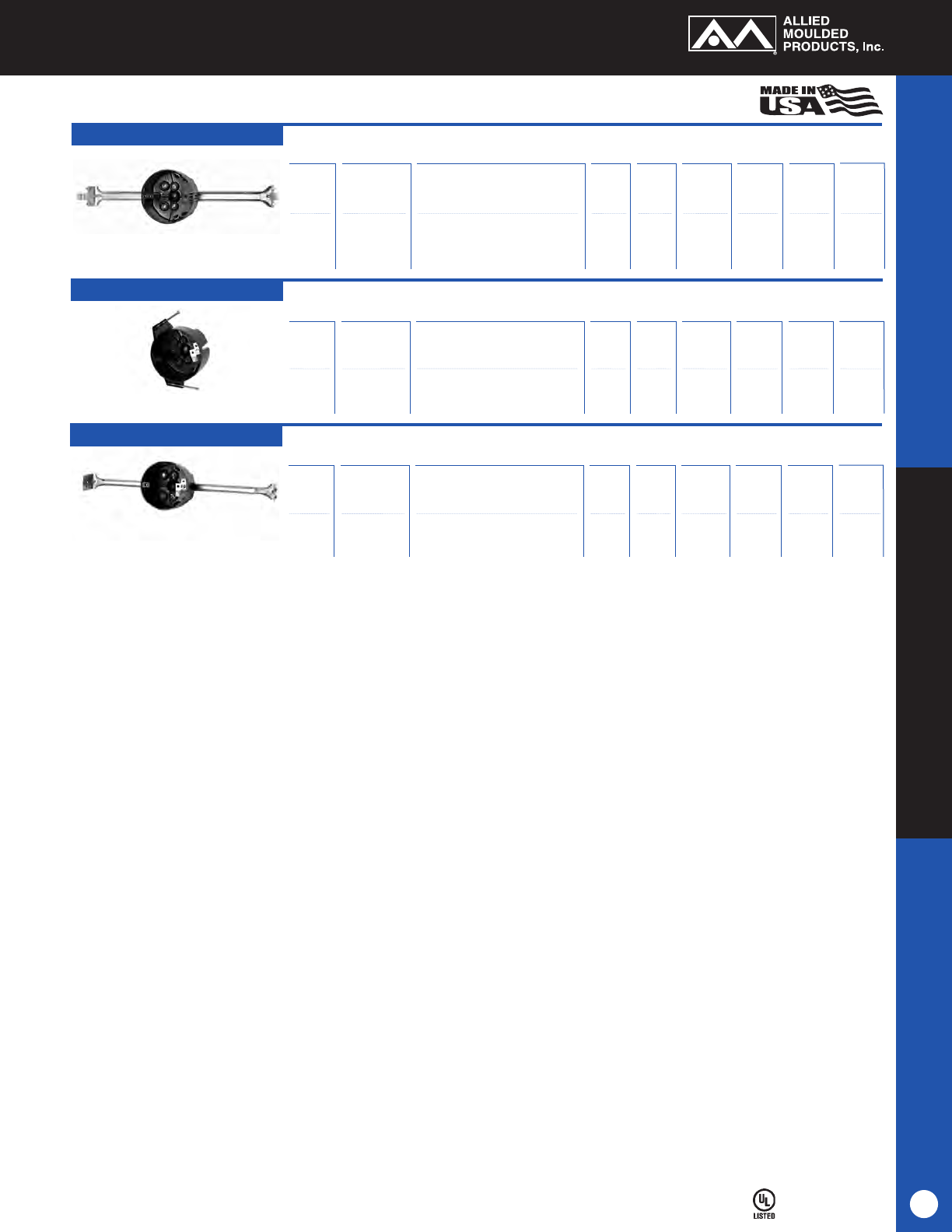

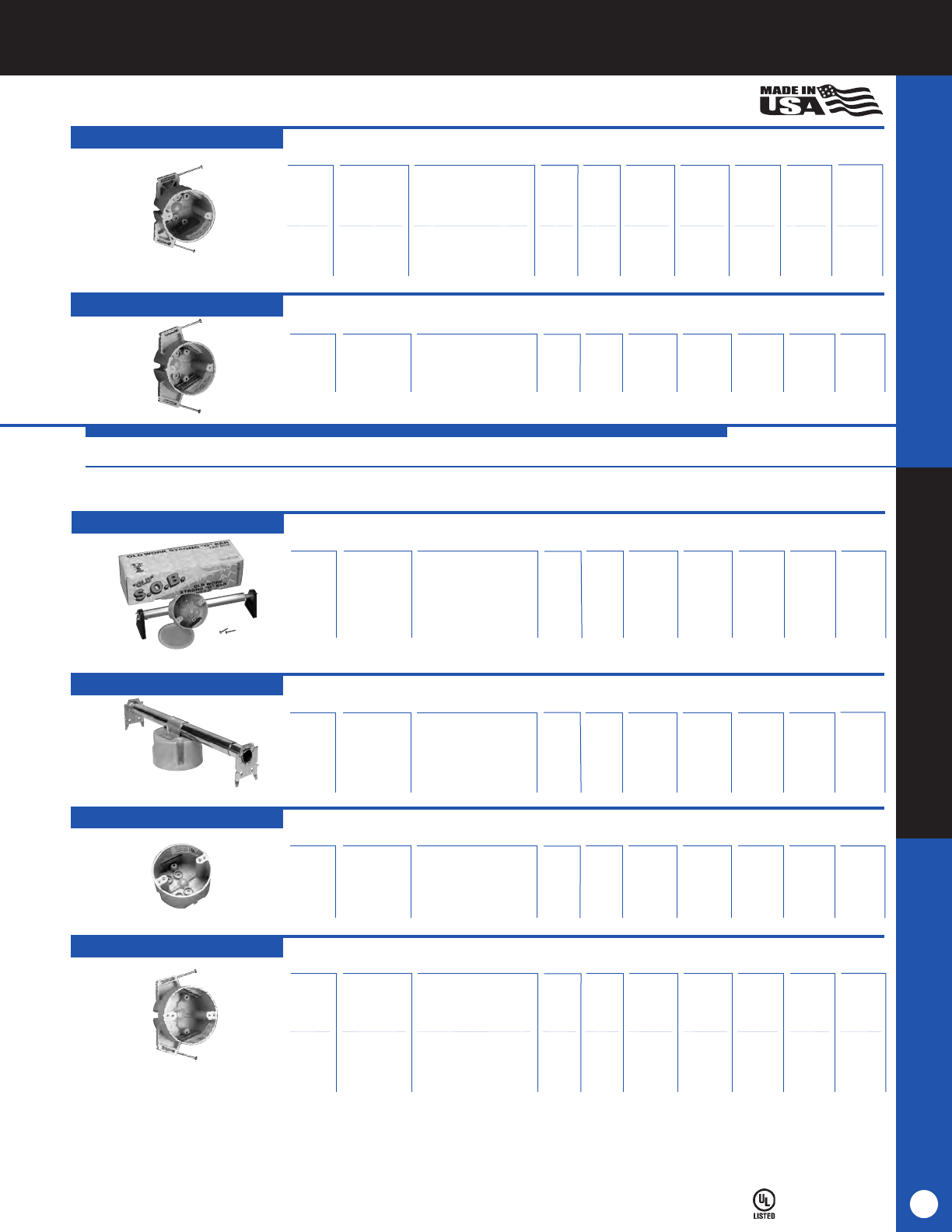

Fan and Fixture Support Boxes ......................................................................................................................................... 31-33

Vapor Seal Air-Sealed Electrical Boxes ............................................................................................................................. 34-35

Residential Switch & Outlet Boxes (ﬂex

BOX

®)

ex

BOX

® Features ................................................................................................................................................................... 36

Single Gang ............................................................................................................................................................................. 37

Two Gang ................................................................................................................................................................................ 38

Three Gang .............................................................................................................................................................................. 38

Four Gang ............................................................................................................................................................................... 39

Square Junction Boxes ........................................................................................................................................................... 39

Plaster Rings and Cover ......................................................................................................................................................... 40

3-1/2” Round Ceiling Boxes ................................................................................................................................................... 40

4” Round Ceiling Boxes .......................................................................................................................................................... 41

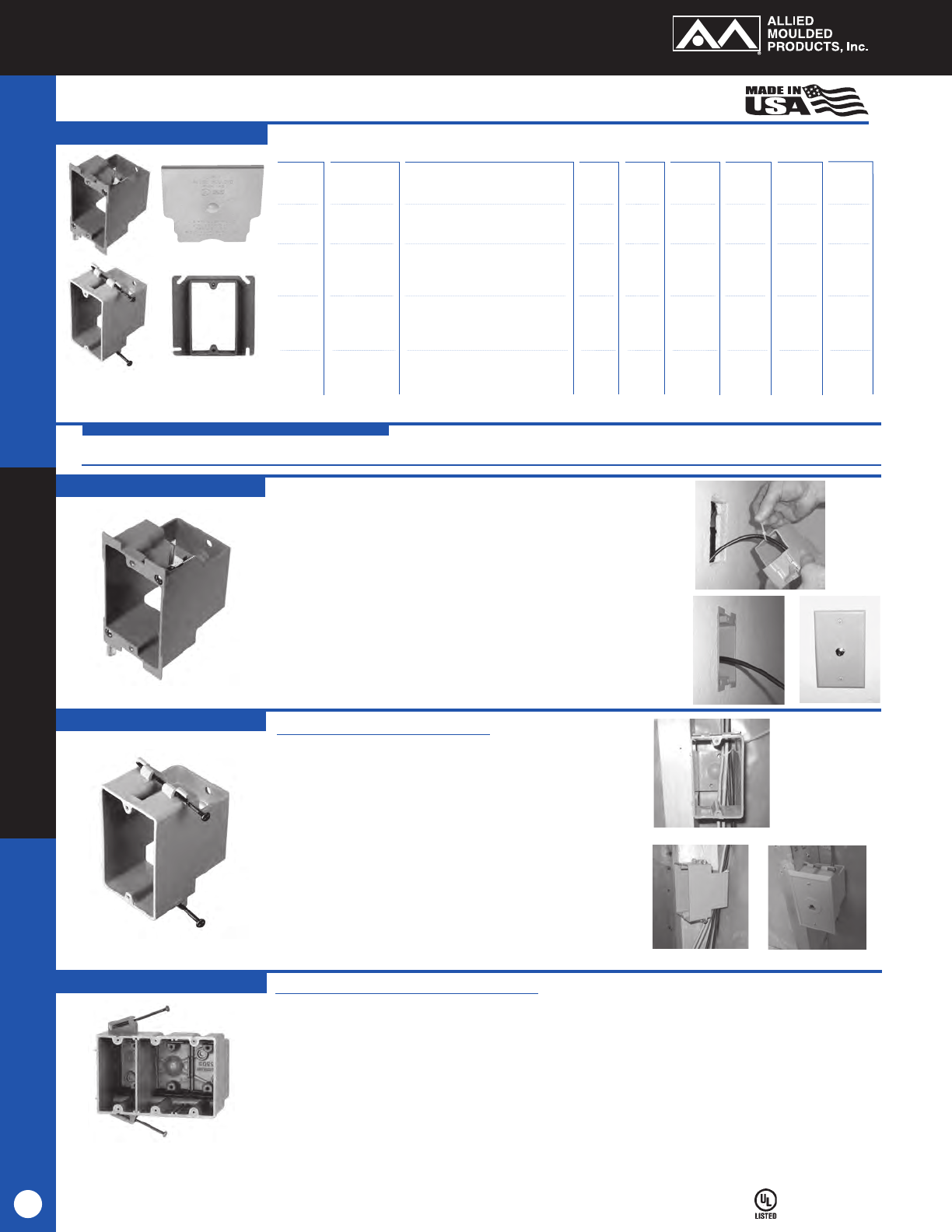

Old Work/Manufactured Housing Boxes

Single Gang ........................................................................................................................................................................ 42-44

Two Gang ................................................................................................................................................................................ 45

Three Gang .............................................................................................................................................................................. 46

3-1/2” Round Ceiling Boxes .............................................................................................................................................. 47-48

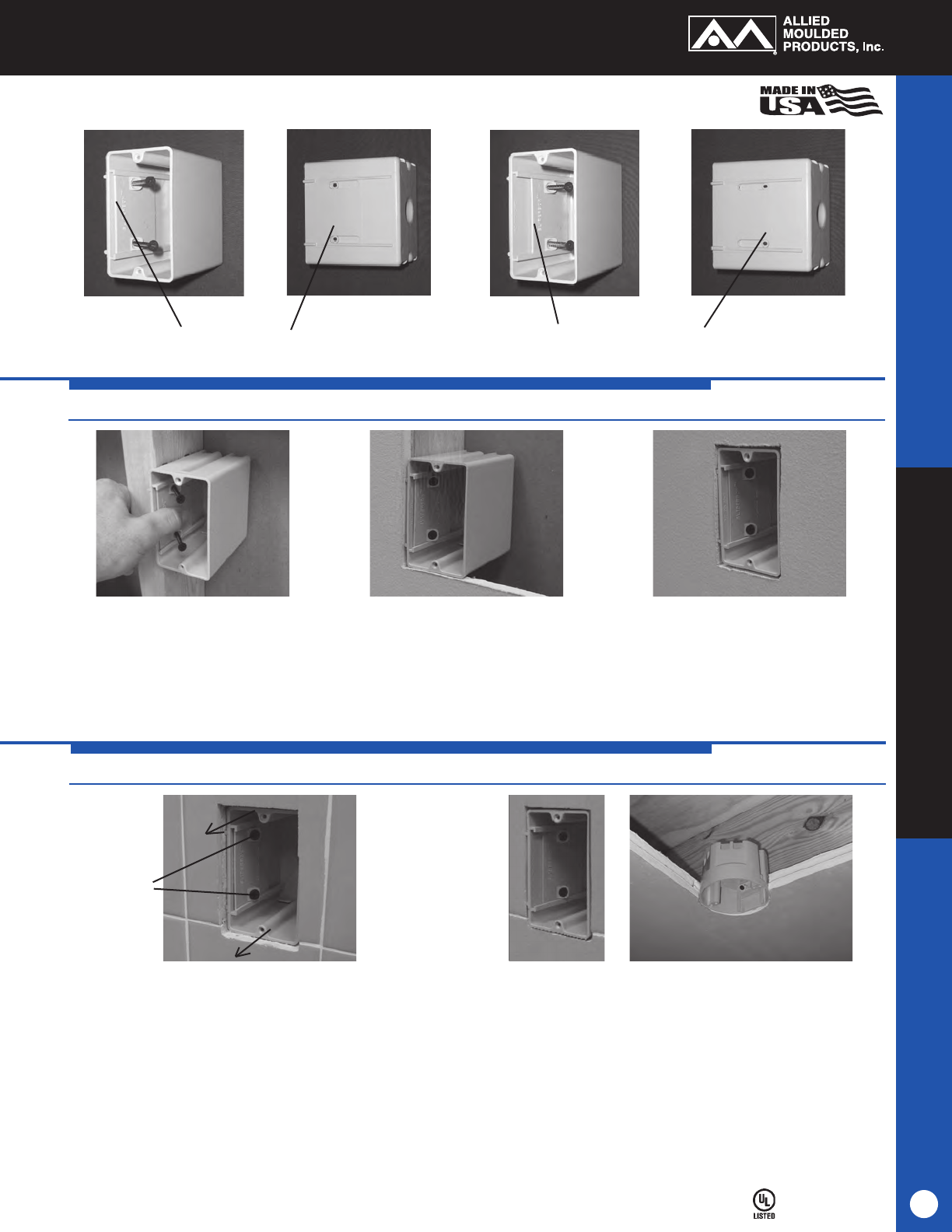

Installation Instructions (Old Work Boxes) ........................................................................... 49

Structured Cable/Low Voltage............................................................................................................ 50

Accessories

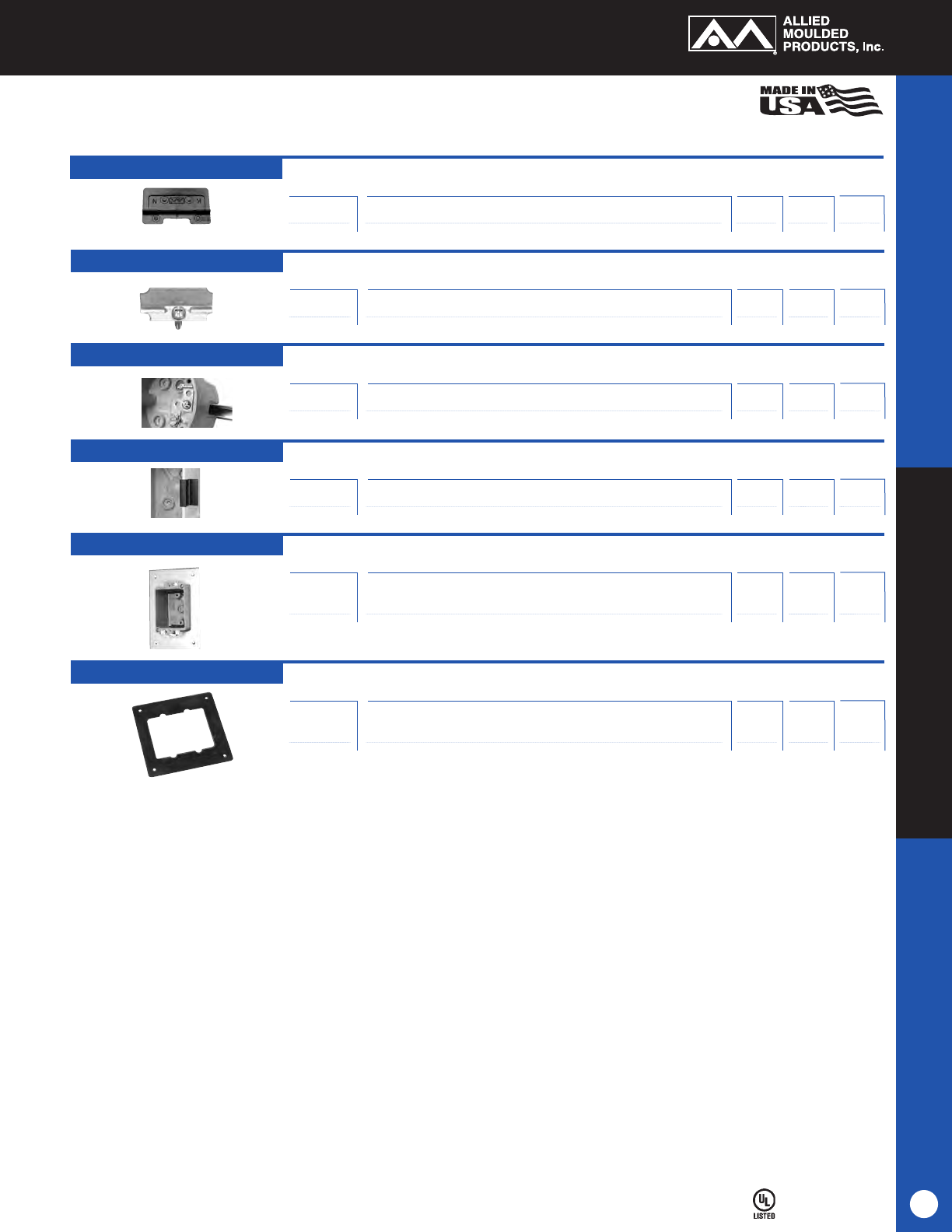

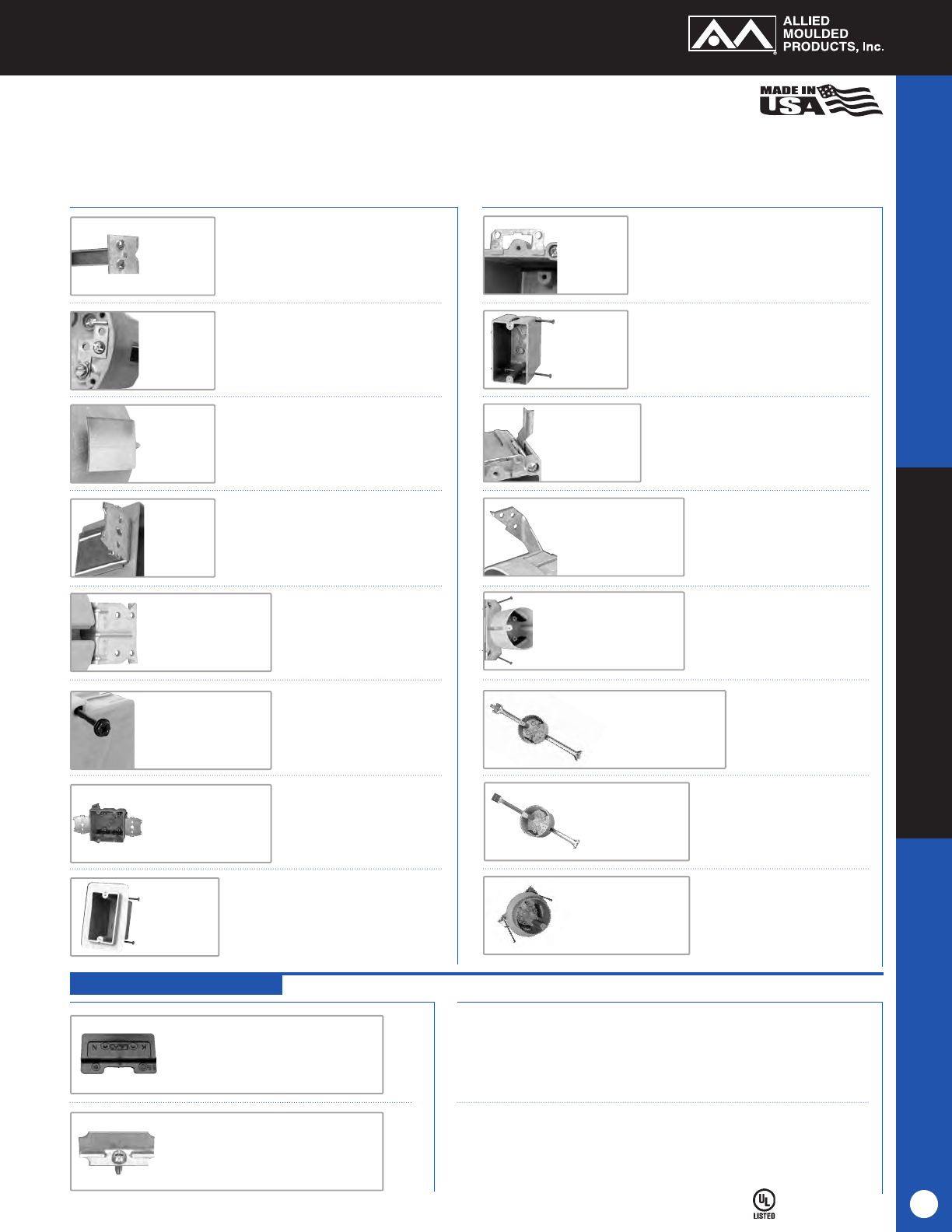

Speed “K” Klamps™, “C” Wire Clamps, Ground Straps, Panel Stops, Templates ............................................................... 51

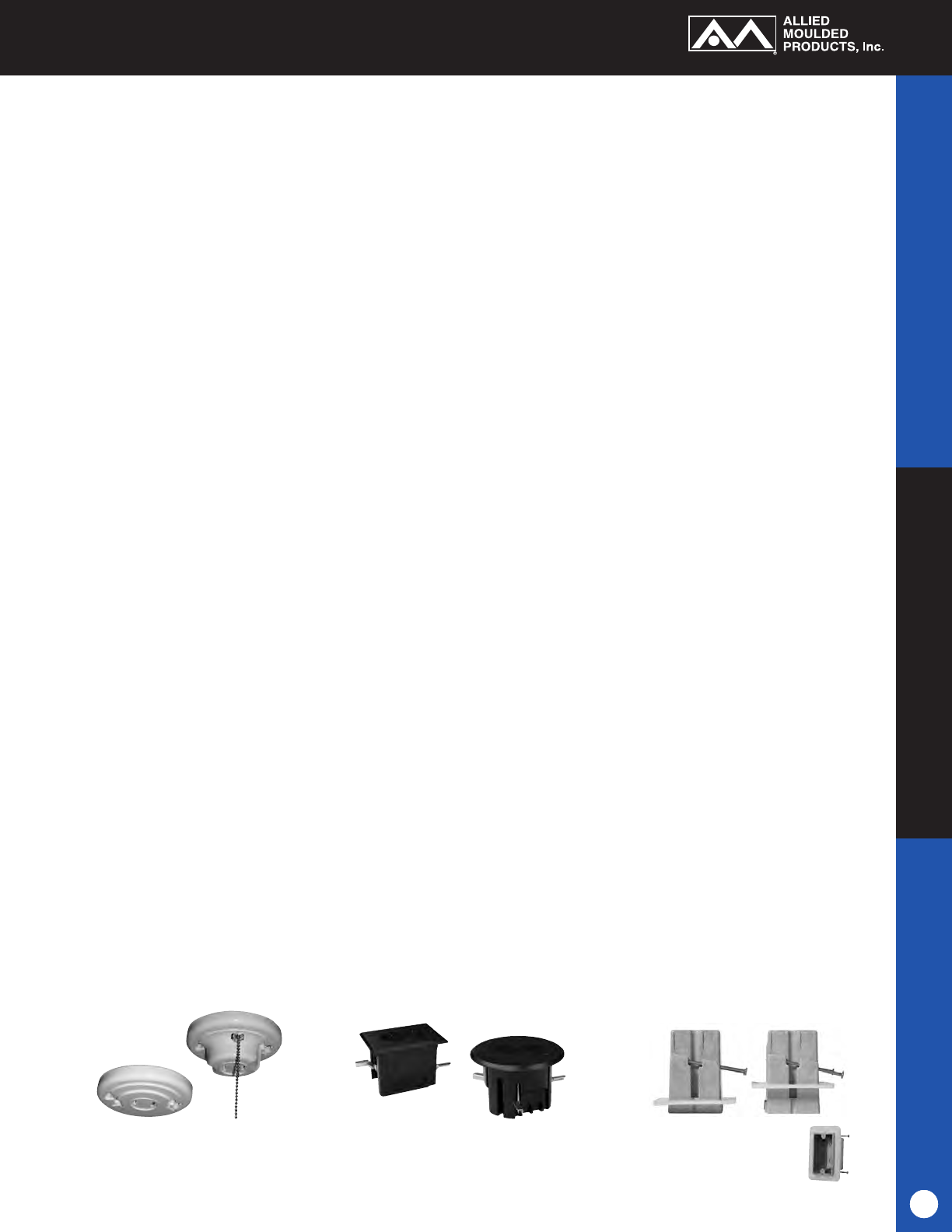

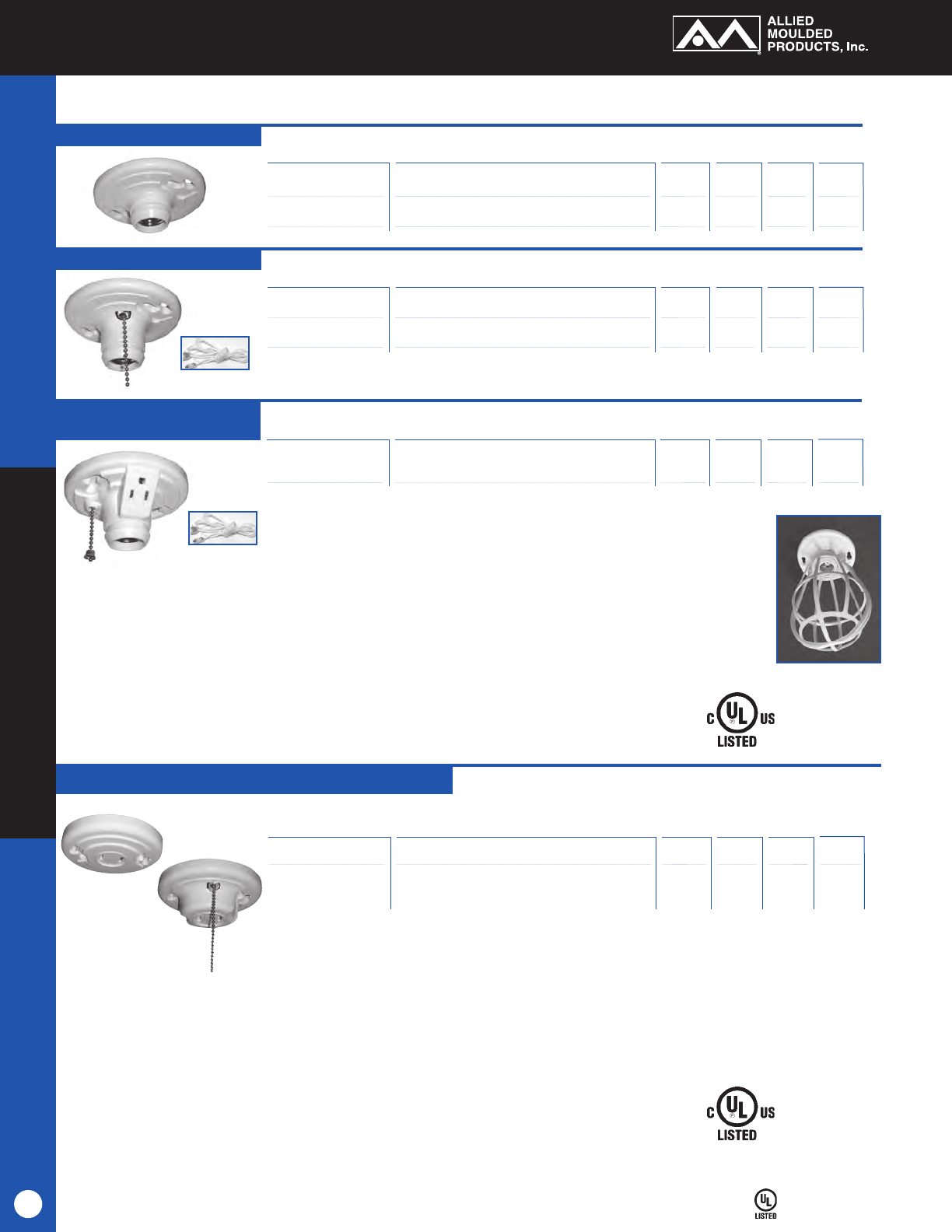

Lampholders (Incandescent & GU-24 2-PIN Base) ...................................................... 52

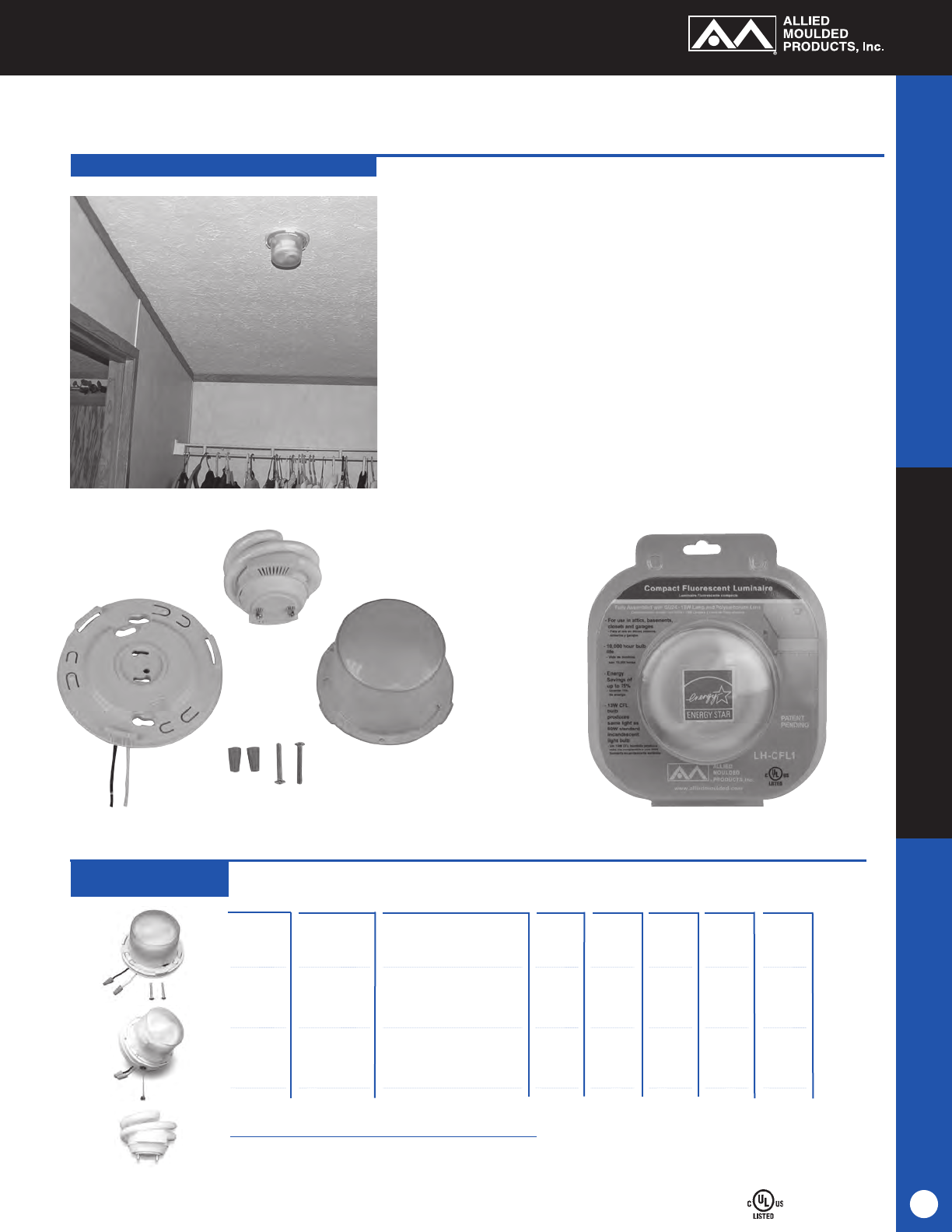

CFL-Compact Fluorescent Luminaire ......................................................................................... 53

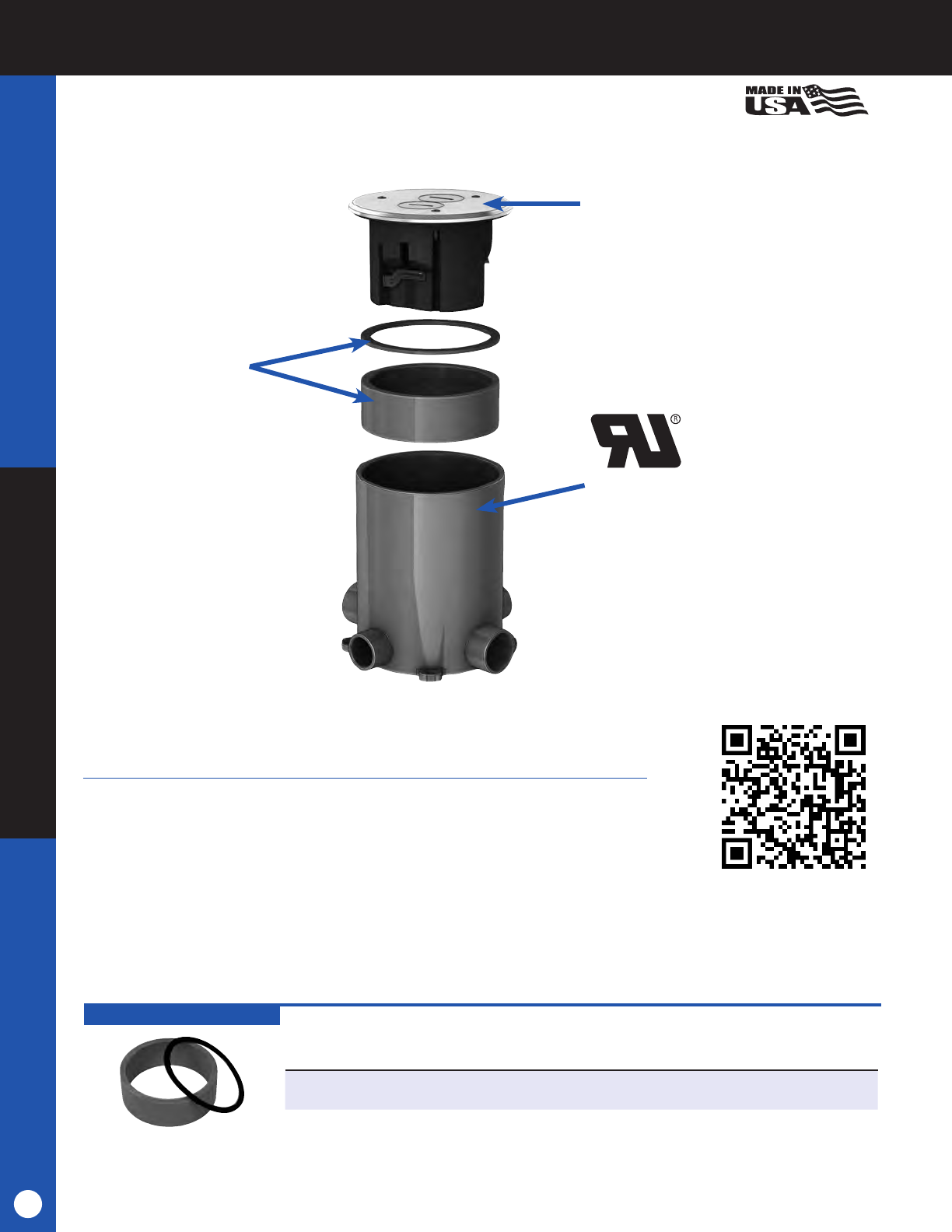

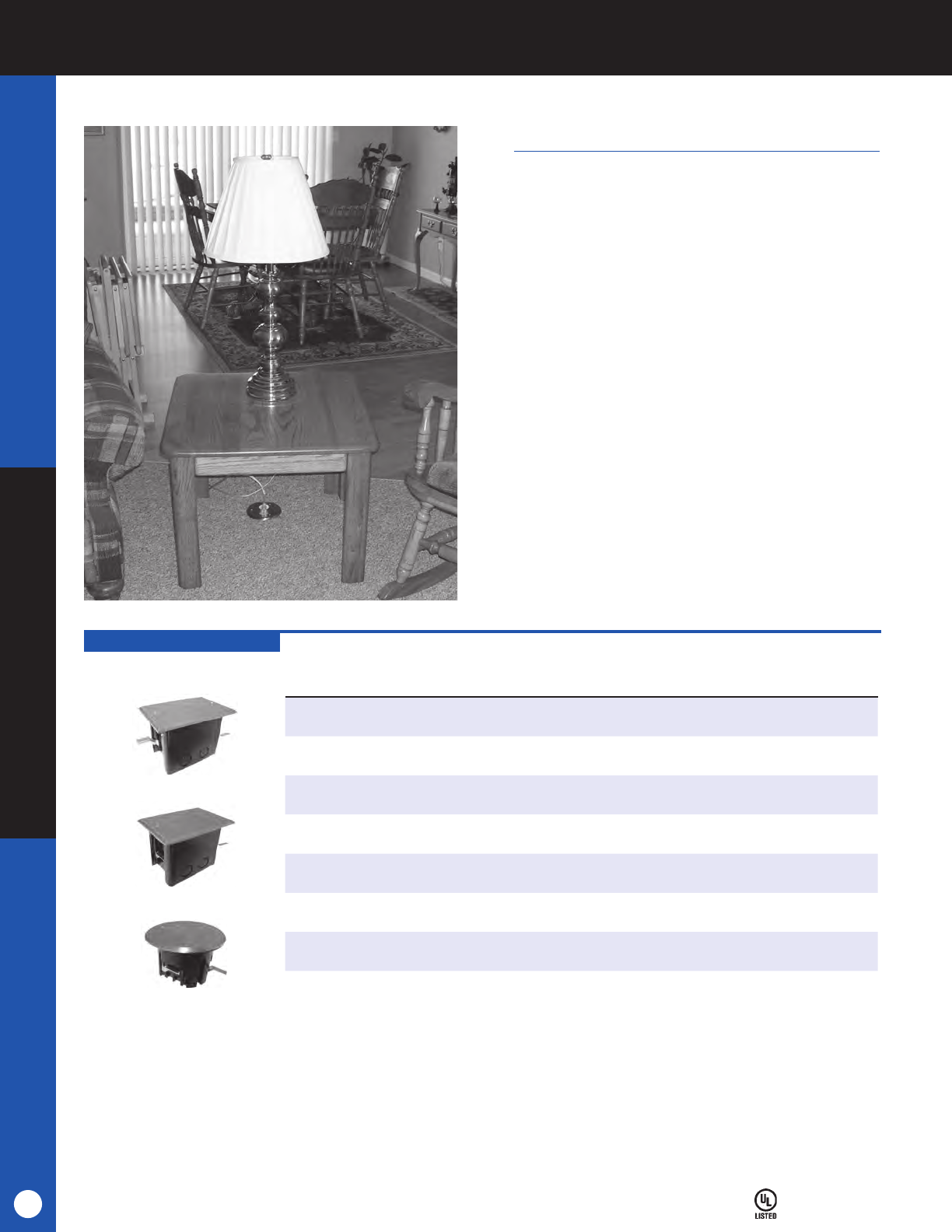

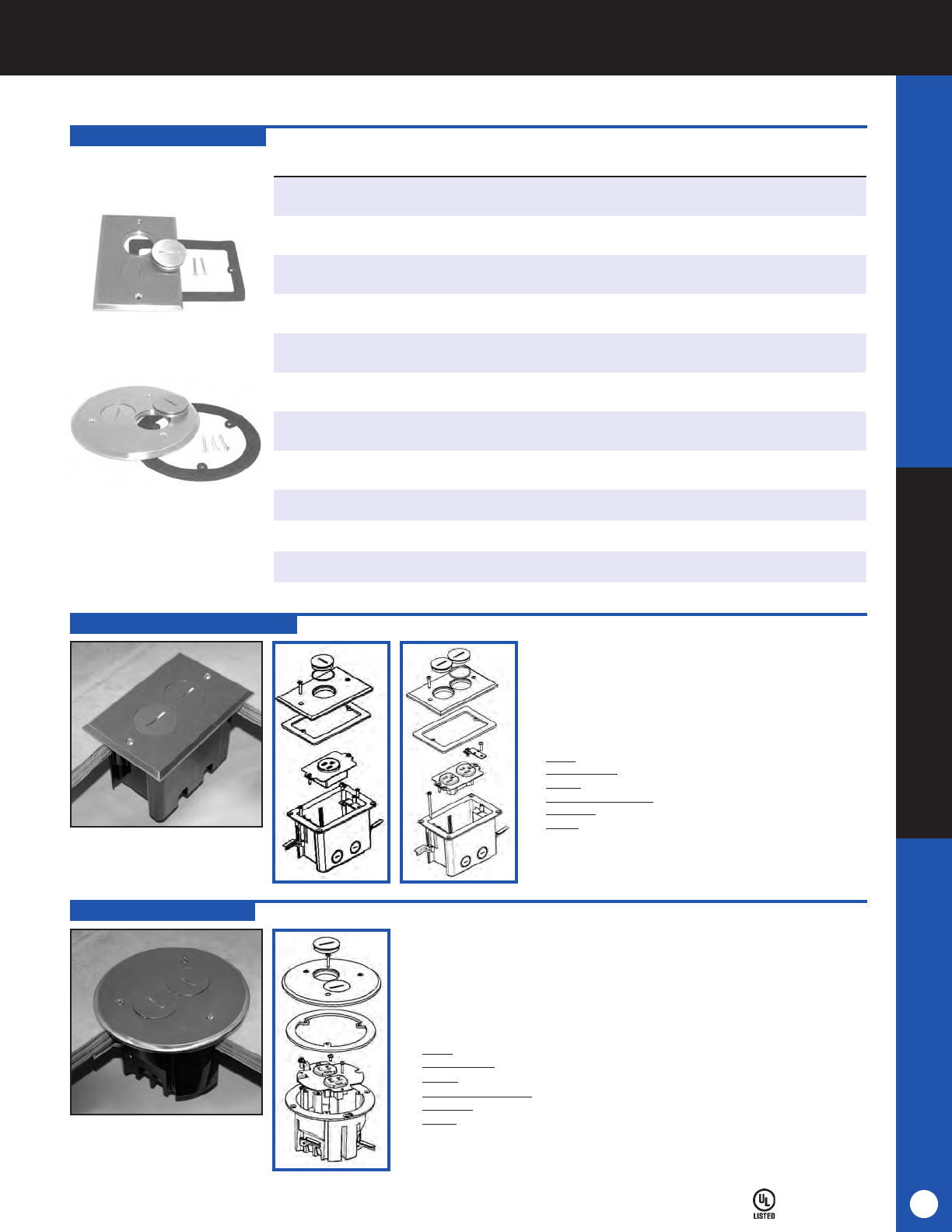

Floor Boxes .......................................................................................................................................................... 54-56

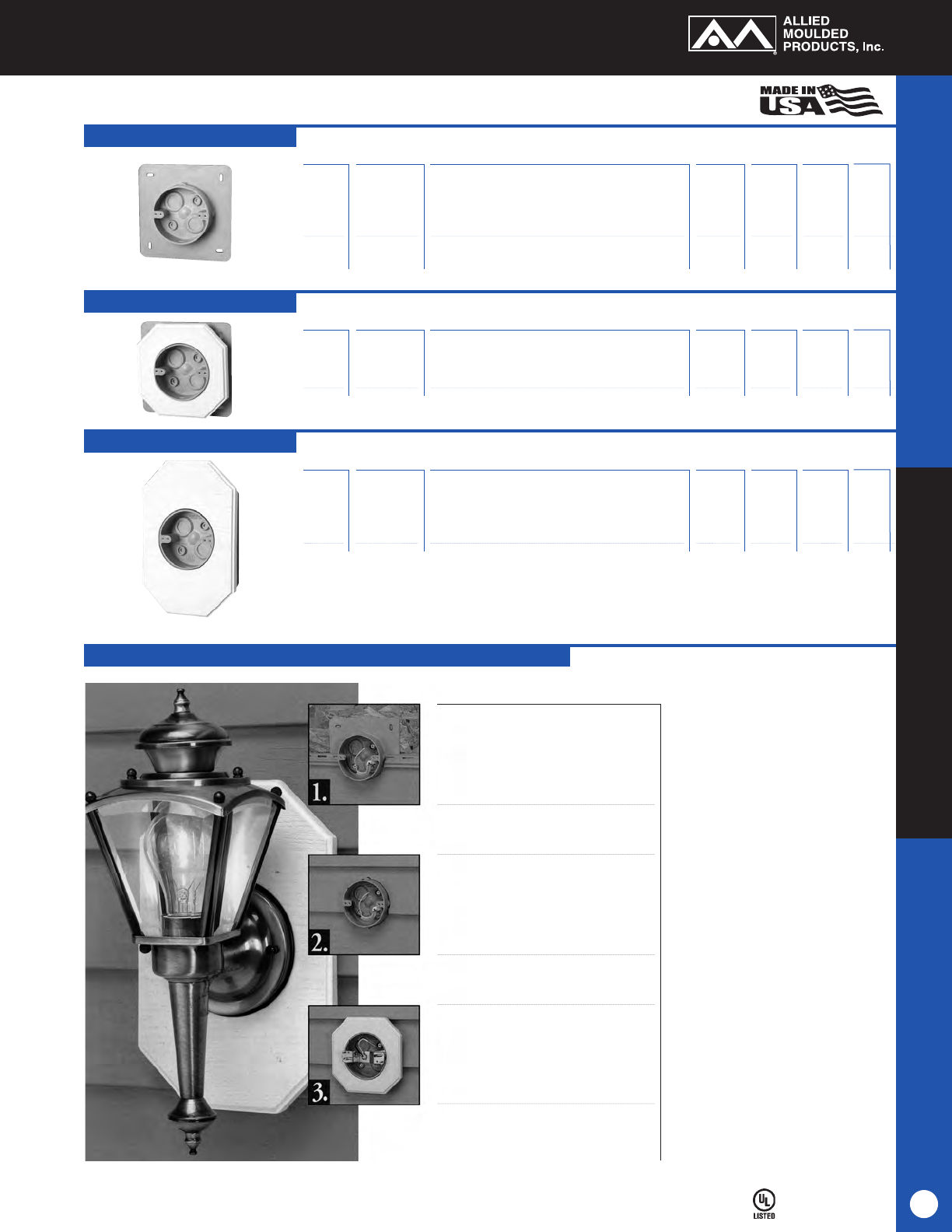

PARA-form® Siding Boxes ............................................................................................................................ 57

Competitor Cross Reference

Fiberglass Box, Thermoplastic Boxes, Adjustable Boxes, Paddle Fan Support, Vapor Seal ........................................... 58-63

Index ............................................................................................................................................................................ 63-64

New/Featured Products:

GU-24 2-pin base Lampholders

Page 52

Dark Bronze-Plated Floor Boxes

Page 54

Table of Contents

Vapor Seal Boxes

Page 34-35

“V” Single “V2” DoubleFB-2DB, FB-3DBLH-21WP, LH-22WP

2Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

Allied boxes are designed for use with 14-2 through 10-3 non-metallic sheathed cable with ground.

To figure cu. in. requirements, make allowance of 2 conductors for each device and 1 for clamps, 1 for ground wire.

Number Cu. In. Req’d Cu. In. Req’d Cu. In. Req’d

of Conductors for No. 14 Wire for No. 12 Wire for No. 10 Wire

1 2.00 2.25 2.50

2 4.00 4.50 5.00

3 6.00 6.75 7.50

4 8.00 9.00 10.00

5 10.00 11.25 12.50

6 12.00 13.50 15.00

7 14.00 15.75 17.50

8 16.00 18.00 20.00

9 18.00 20.25 22.50

10 20.00 22.50 25.00

11 22.00 24.75 27.50

12 24.00 27.00 30.00

13 26.00 29.25 32.50

14 28.00 31.50 35.00

15 30.00 33.75 37.50

16 32.00 36.00 40.00

17 34.00 38.25 42.50

18 36.00 40.50 45.00

19 38.00 42.75 47.50

20 40.00 45.00 50.00

Wiring Size

Wiring Size:

Cubic Inch Requirements

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

• Non-corrosive

• Non-conductive-no ground required

• Non-distorting in high heat

• Will not melt

• Shatter resistant in cold temperatures

• Lightweight

• Heat insulator

2-Hour Wall and Ceiling Fire Classification

All Allied Moulded fiberglass boxes, including our 5305 five gang, are classified by Underwriters Laboratories for use

in 2-hour rated walls or ceilings. During an actual fire test set up in a UL® laboratory, Allied boxes passed all of the test

criteria outlined in UL® Standard 263 for both walls and ceilings.

Backed by even more UL® testing, the horizontal box separation requirement outlined in the Uniform Building Code™

can be reduced to as little as three inches without using any additional fire resistive protection. Allied Moulded fiberglass

boxes, up to and including two three-gangs, can be mounted in the same stud cavity of fire rated walls with absolutely

no additional fire resistant protection needed. In fact, only Allied has documentation covering all 52 U300 Series wall

configurations, eliminating the need for additional putty pads, mineral wool insulation or alternate construction saving the

contractor both time and money. See pages 4 and 5 for more information.

Look for our classification CEYY “Outlet Boxes and Fittings Classified for Fire Resistance” on our web site at www.

alliedmoulded.com or in the UL® online certification directory at www.ul.com. Additional documentation from these testing

processes is available for examination upon request.

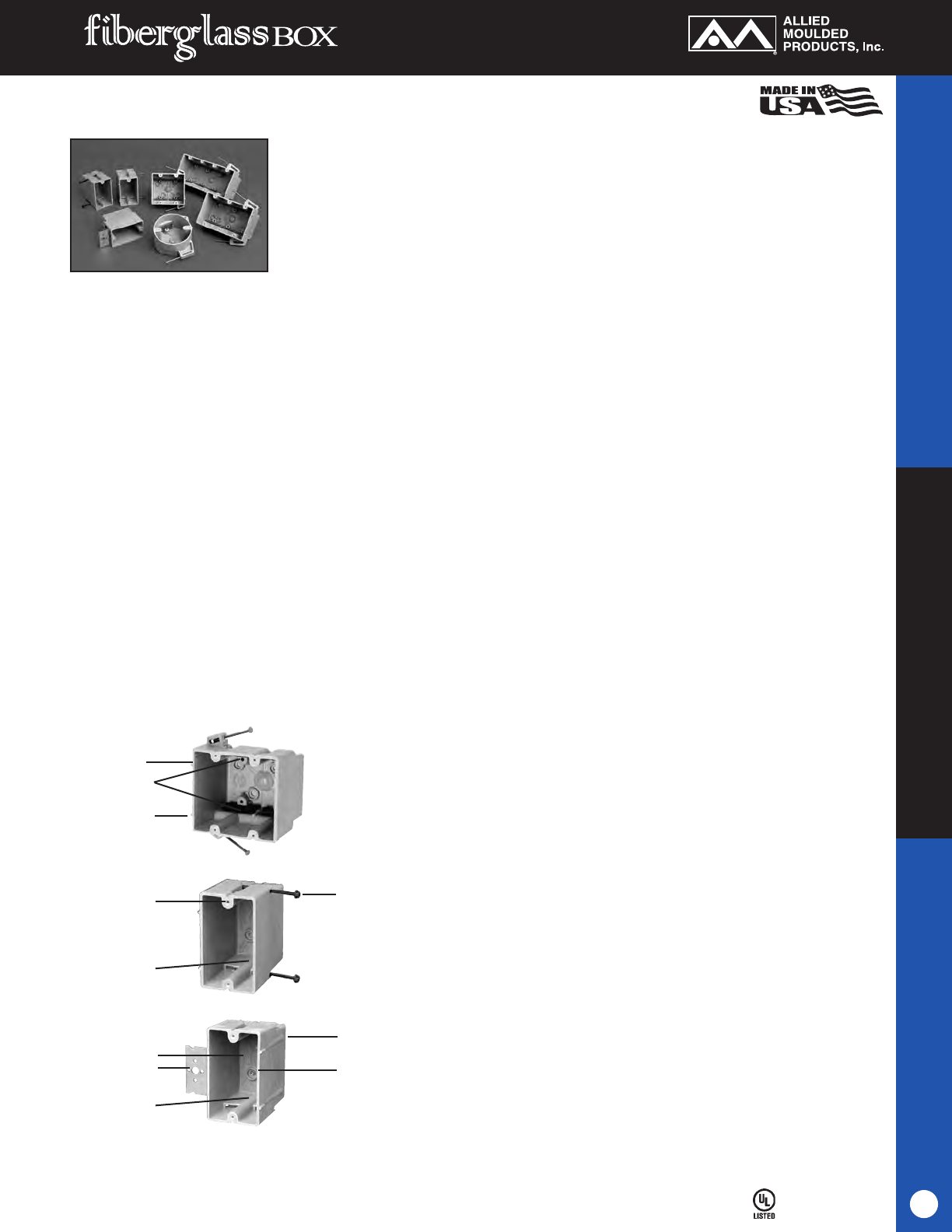

Labor Saving Features

With innovative products designed for the electrical contractor, Allied offers the largest, most complete line of box sizes and

attachment brackets in the industry for a wide variety of applications. A few of the most popular attachments are:

1. The “S” snap bracket or a “W” wing bracket for secure old work box installation.

2. “BH” and 16” adjustable bar hangers for maximum support of ceiling boxes used for fixture support.

3. “Z” brackets with metal spurs to fasten wall boxes to wood or steel studs.

4. The “B” adjustable stabilizing bar, available on 2, 3, 4 or 5 gang boxes, for more secure mounting used

in conjunction with nails or “Z” brackets.

A. Offset gauge marks on box give positive stop

for the proper wall thickness.

B. Bright common nails or pierce-point screws fit securely

in specially designed supports and are angled for

easy installation.

C. Tapered and machine tapped device holes allow device screw

to be started by hand and speed installation time with high

torque screwdrivers.

D. Cubic inch capacity clearly marked and easy for contractor

and inspector to locate and identify.

E. Proudly UL® listed.

F. Knockouts on fiberglass boxes are complete, reducing drafts

and easily removed with wire for no tools installation.

G. Leveling ribs position face of box parallel to wall surface.

“

Z” brackets are designed to securely hold box to wood or

steel studs. Brackets also provide proper 1/4” or 1/2” offset.

I. 2-Hour Fire Rated clearly marked for easy inspector

identification.

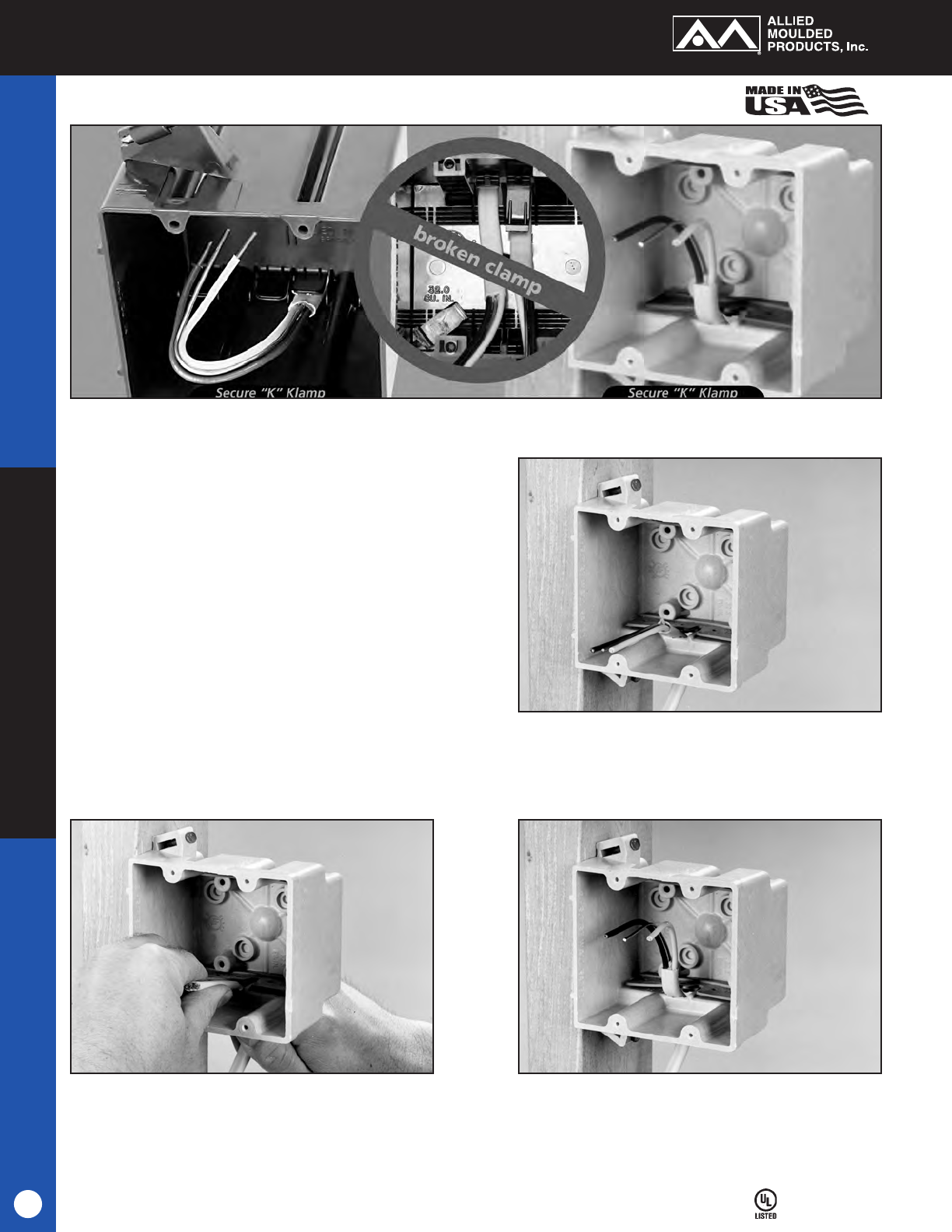

J. Non-metallic Speed “K” Klamps™ dependably secure wire

in box. Should a knockout be inadvertently opened and not

used, the Speed “K” Klamp™ is considered sufficient closure

of the opening per UL®.

Allied Moulded switch and outlet boxes are molded of impact-resistant, high-strength

fiberglass reinforced thermoset polyester material. Our fiberglass

BOX

™ “Premier

Series” line of products was created for the electrical contractor looking for non-metallic

outlet boxes with “hard box” characteristics. Allied Moulded’s fiberglass

BOX

line offers

the following advantages.

ﬁberglass

BOX

™ Features

™ Features:

4Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

Thermoplastic

Boxes Allied Fiberglass Boxes

NOT RATED

for use in

same stud cavity

NOT RATED

for use in

same stud cavity

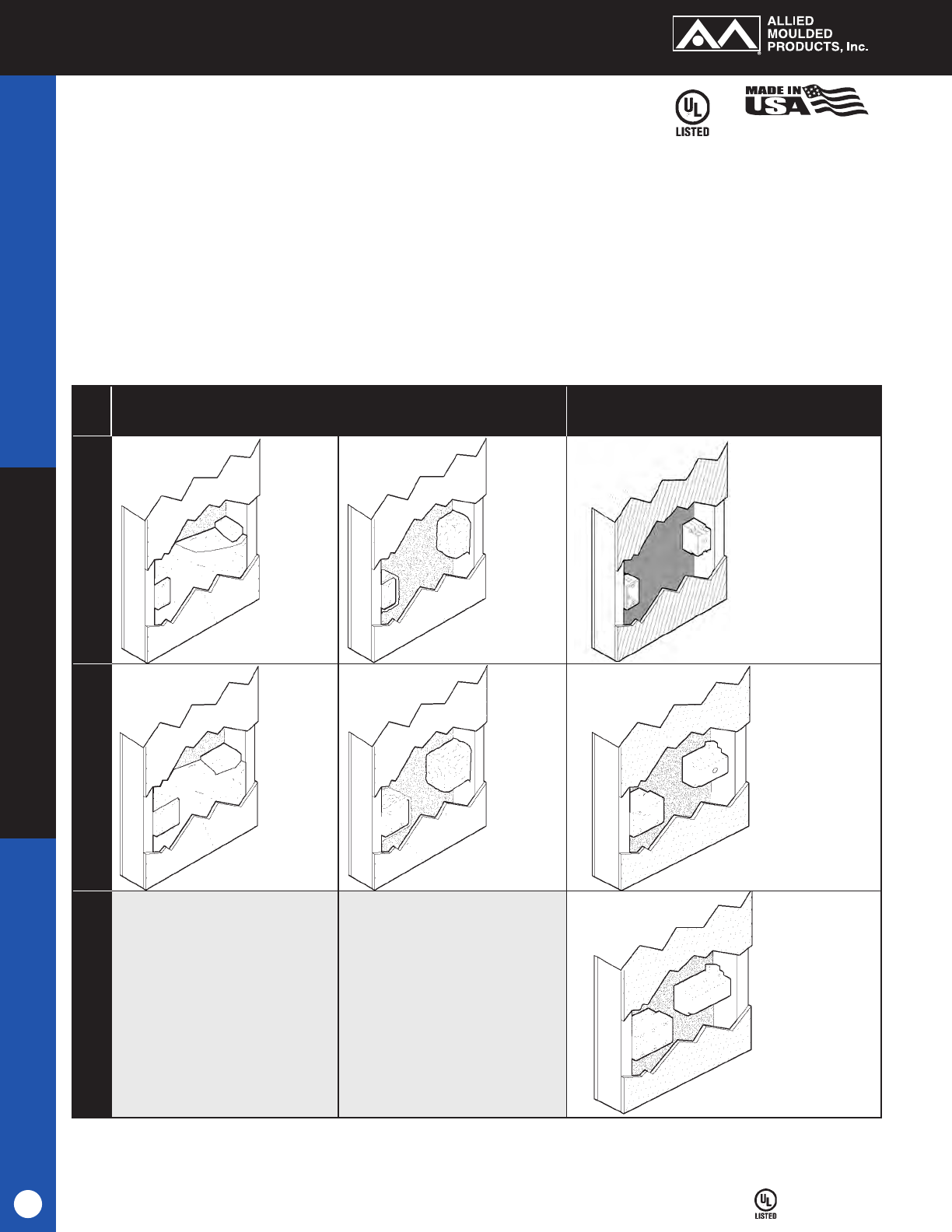

We’ve been telling you for years that Allied fiberglass outlet boxes can truly take the heat. Now there’s solid proof backed by

Underwriters Laboratories test results. When penetrating all U300 Series fire resistive wall assemblies (including staggered stud)

with Allied outlet boxes, up to and including our three gang, you can now mount two boxes in the same stud cavity on opposite

sides of the wall without using any additional protection. That’s right–no mineral wool batt or putty pads needed to insulate the

box. Absolutely no additional fire resistant protection required! Prime application examples include a wall between multi-

family dwellings.

In this or any other application, Allied Moulded outlet boxes are proven so reliable you can feel confident using them for all your

outlet box needs. Look for our classification CEYY “Outlet Boxes and Fittings Classified for Fire Resistance” on our web site at

www.alliedmoulded.com or in the UL® online certification directory at www.ul.com. Additional documentation from these testing

processes is available for examination upon request.

*Up to and including three gang boxes

COMPETITION

2 BOXES SAME

STUD CAVITY

MINERAL WOOL

BATT REQUIRED

COMPETITION

2 BOXES SAME

STUD CAVITY

MINERAL WOOL

BATT REQUIRED

ALLIED

2 BOXES SAME STUD

CAVITY NO ADDITIONAL

FIRE RESISTIVE

MATERIAL REQUIRED

ALLIED

2 BOXES SAME STUD

CAVITY NO ADDITIONAL

FIRE RESISTIVE

MATERIAL REQUIRED

ALLIED

2 BOXES SAME STUD

CAVITY NO ADDITIONAL

FIRE RESISTIVE

MATERIAL REQUIRED

COMPETITION

2 BOXES SAME

STUD CAVITY

PUTTY PADS

REQUIRED

COMPETITION

2 BOXES SAME

STUD CAVITY

PUTTY PADS

REQUIRED

Now you can mount Allied Moulded outlet boxes* in the

same stud cavity without any additional fire resistive protection!

We Can Stand the Heat:

We Can Stand the Heat

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

1. In what type of construction would this rating apply?

This rating applies where non-metallic sheathed cable is used and walls are constructed of wood and non load bearing steel studs

and gypsum.

2. If the box is marked with a 2-hour wall rating, is this the same thing?

A box that is marked with 2-hour wall rating means that you can install the box in a 2-hour fire resistive wall or walls with less than

2-hour rating. To find out details of the installation, you must read the instructions found in the UL® Fire Resistive Directory or from

the UL® card provided by the manufacturer.

The Directory or UL® card describes the following:

a. Those boxes suitable for use in the wall by basic model number

b. The maximum size opening in square inches

c. The maximum openings in total square inches per 100 square feet

d. The maximum clearance around the box

e. The type construction of the wall assembly – “wood studs and gypsum”

f. The wall designs such as “U-300 Series” meaning all wall designs found in the UL Fire Resistive Directory from

U-301 through U-370, including those staggered stud designs and separated wall designs

g. Horizontal separation when mounted on opposite sides of the wall

h. Cover plate material (when limited)

3. What is the maximum size box that can go into the same stud cavity?

Paragraph #2 of the card states for those fire resistive wall designs with or without insulation, the maximum size box is a 3 gang 3300,

3303, 9313 (22.0 sq. in.). These boxes can be mounted in all U-300 Series walls with a horizontal separation of three inches when

boxes are mounted on opposite sides of the wall. Note: This does include staggered stud construction.

4. Does this rating apply to staggered stud configuration?

Yes. U-300 Series walls have both staggered stud designs in addition to separated type walls.

5. Will I still need to use mineral wool or fiberglass insulation?

The wall assembly design dictates the need for insulation. The wall design does not change when penetrated by Allied Moulded

outlet boxes.

6. What if I am actually putting double drywall in the middle to help with sound?

If the wall is constructed of wood studs and gypsum board and is a 2-hour or less fire resistive rated, the penetration with an

Allied Moulded outlet box will not cause the wall to be derated as long as it is installed according to instructions.

7. Can I put the boxes back to back?

The Fire Resistive card says the boxes must be separated by three inches horizontal separation but not back to back.

8. Do you still have to caulk the knockouts that are penetrated by the wire?

Boxes were tested with non-metallic sheathed cable installed. No caulk is necessary where knockouts are penetrated by the

non-metallic sheathed cable.

9. If I accidentally open a knockout I do not need, do I need to caulk it?

The National Electrical Code requires all unused open knockouts to be closed. Allied Moulded’s Speed “K” Klamp™ is an accepted

means of closing the knockout (documentation available upon request). Open unused knockouts in boxes without Speed “K”

Klamps™ would need to be closed.

10. Is there a rating that relates to vertical separation?

Not to our knowledge.

11. Does this apply to ceiling configurations, as well?

The instructions for ceiling penetrations are found on the same documentation as the wall boxes; however,

the instructions are different.

12. Does this apply to low voltage devices?

The fire resistive rating is for Allied Moulded boxes penetrating fire resistive walls classified at 2 hours or less. What is placed inside

the box is covered by the National Electrical Code and does not affect the fire resistive rating of the box.

13. Which inspector will be enforcing this code? Electrical or Building or Fire?

Minimum horizontal box separation is a requirement of the applicable building code. Generally, the electrical inspector will view the

installation first, but final compliance falls on the building inspector.

Please contact our Technical Support Department for clarification on this listing or to address any further questions.

Frequently Asked Questions

Frequently Asked Questions:

Reduction in Horizontal Box Separation

in Fire Resistance Rated Walls

6Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

1. Remove the knockout and prepare the conductors

to enter the box per NEC.

2. Insert the conductors from the outside of the box

into the appropriate knockout and OVER THE

TOP of the Speed “K” Klamp™ until the outer jacket

extends at least 1/2” past the top of the klamp.

3. Bend wire 90° over Speed “K” Klamp™.

4. Pull wire from outside of box to ensure Speed “K”

Klamp™ engagement.

Punching through the knockouts on ordinary electrical boxes

often requires a screwdriver and leads to damaged clamps that

compromise a box’s safety and code compliance.* But Allied

Moulded’s Speed “K” Klamps™ eliminate the risk and problem

of broken clamps. Fast, easy entry knockouts can be pushed

through with the wire. No tools required. No broken clamps.

It’s a one-two punch that leaves the competition down for

the count.

Allied offers a unique non-metallic wire clamping system

featuring UL® listing, faster installation, and a no cost way

of meeting National Electrical Code requirements. Should a

knockout be inadvertently opened and not used, the Speed

“K” Klamp™ is considered sufficient closure of the opening per

UL®. Documentation is available upon request.

Virtually eliminate clamp breakage during knockout • Easy “no tools” installation • Secures wires quickly and dependably

*Reference 2008 NEC 314.17(C)

Speed “K” Klamp™

Speed “K” Klamp™:

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

Attachment Codings

We want it to be as easy as possible for you to locate the right outlet boxes to meet your needs. Most Allied Moulded

boxes can be manufactured with these letter coded components. For example, steel stud screws may be ordered when

applicable by adding the suffix “SS” to the basic catalog number, i.e., 1098-SS.

BThe adjustable stabilizing bar is available

on the 3, 4 and 5 gang boxes and used in

conjunction with Nails or Z hangers.

GThe grounding strap on outlet boxes permits

the lighting fixture to be grounded when

necessary. Available on round boxes. NNails are installed as fastening devices.

Fetter ring nails, when offered, allow for

extra strength when nailed into stud or joist.

SSnap bracket pushes through opening in

wallboard, then snaps out on the back side. W When wing bracket screws are tightened, the

box is drawn firmly against the wall.

ZThe “Z” hanger which mounts on stud face

has spurs to secure the hanger to wood

and steel studs. HF “HF” hanger which mounts flush on

the side of the stud, has spurs which

hold the hanger to the stud for easier

nailing.

HL “HL” hanger which mounts on

the side of the stud or joist, has

spurs which hold the hanger to

the joist for easier nailing. HN With the “HN” hanger, application

is quick and easy because nails

are installed.

SS Pierce point sheet metal screws

are installed for easy penetration

of non-load bearing steel studs

22 gauge or lighter.

2Z “Z” hangers are installed

on both sides of the box.

V“V” Polyurethane seal for use in single

sheet drywall applications.

16 “16” bar hanger is specifically

designed for box location in

max 16” joist spacing.

Catalog numbers with the suffix “K” indicates factory

installed non-metallic Speed Klamps™.

Catalog numbers with the suffix “C” indicate factory installed

wire clamps. The number following the “C” indicates the

number of wire clamps i.e., “C4” = 4 wire clamps.

Metal ears are securely molded

into the box.

SPEED “K” KLAMP™

“C” CLAMP

Factory Installed Clamps

Attachment Codings:

Component Descriptions and Ordering Information

“BH” Bar Hanger adjustable

bar assembly for either

16” or 24” joist spacing.

V2 “V2” Polyurethane seal for use in

double 5/8” drywall applications.

8Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 7 for Attachment Coding descriptions

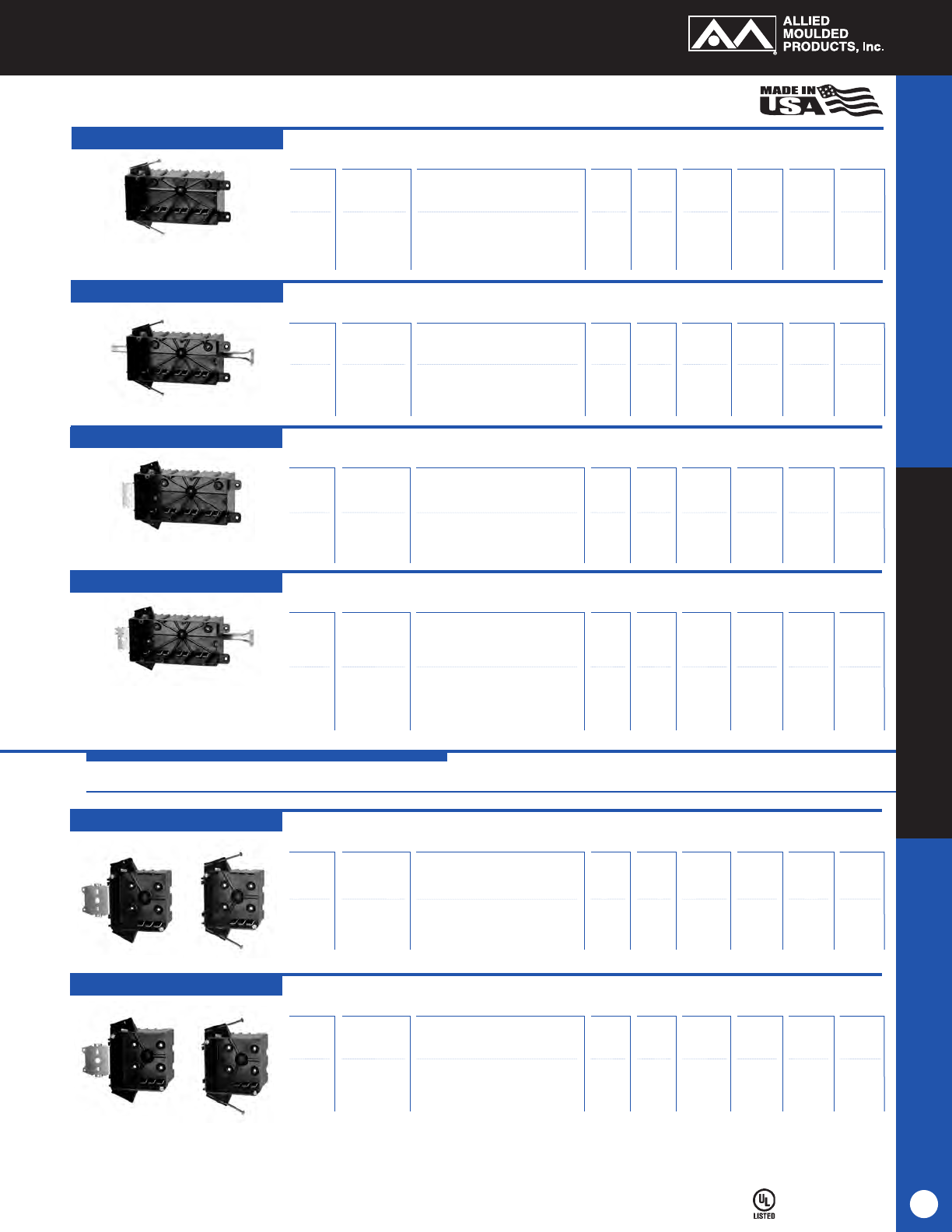

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

6.0 9303-H

Side mount hanger, 1/4”

1-1/16 2-1/4 3-5/8 10021 100 20

offset, not UL® listed

9303-H

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

20.5 9327-N

Back nails

3-1/4 2-3/8 3-5/8 10195 50 17

9327-N

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

18.0 1096-SS

Steel stud screws for use with

3 2-1/4 3-13/16 24421 100 31

non-load bearing studs 22 gauge

or lighter

20.5 1098-SS

Steel stud screws for use with

3-1/4 2-1/4 3-13/16 25009 100 34

non-load bearing studs 22 gauge

or lighter

22.5 1099-SS*

Steel stud screws for use with

3-9/16 2-1/4 3-3/4 26001 100 39

non-load bearing studs 22 gauge

or lighter

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

18.0 1096-N

Internal mid-nails

3 2-1/4 3-13/16 24414 100 31

20.5 1098-N

Angled mid-nails

3-1/4 2-1/4 3-13/16 25001 100 34

22.5 1099-N*

Angled mid-nails

3-9/16 2-1/4 3-3/4 26000 100 39

22.5 1099-NRED

Same as 1099-N but molded in red

3-9/16 2-1/4 3-3/4 96500 24 9

for fire circuts

Series Nail-On

Series Steel Stud Screws

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

18.0 1096-Z2

1/4” offset, “Z” hanger

3 2-1/4 3-13/16 24402 50 26

18.0 1096-Z4

1/2” offset, “Z” hanger

3 2-1/4 3-13/16 24406 50 26

20.5 1098-Z2*

1/4” offset, “Z” hanger

3-1/4 2-1/4 3-13/16 25030 50 27

(Top photo)

20.5 1098-Z4

1/2” offset, “Z” hanger

3-1/4 2-1/4 3-13/16 25040 50 27

20.5 1098-Z4H*

1/2” offset, horizontal mount

3-1/4 2-1/4 3-13/16 25025 50 27

(Btm photo)

“Z” hanger

22.5 1099-Z4

1/2” offset, “Z” hanger

3-9/16 2-1/4 3-3/4 26003 50 29

Series “Z” Hanger

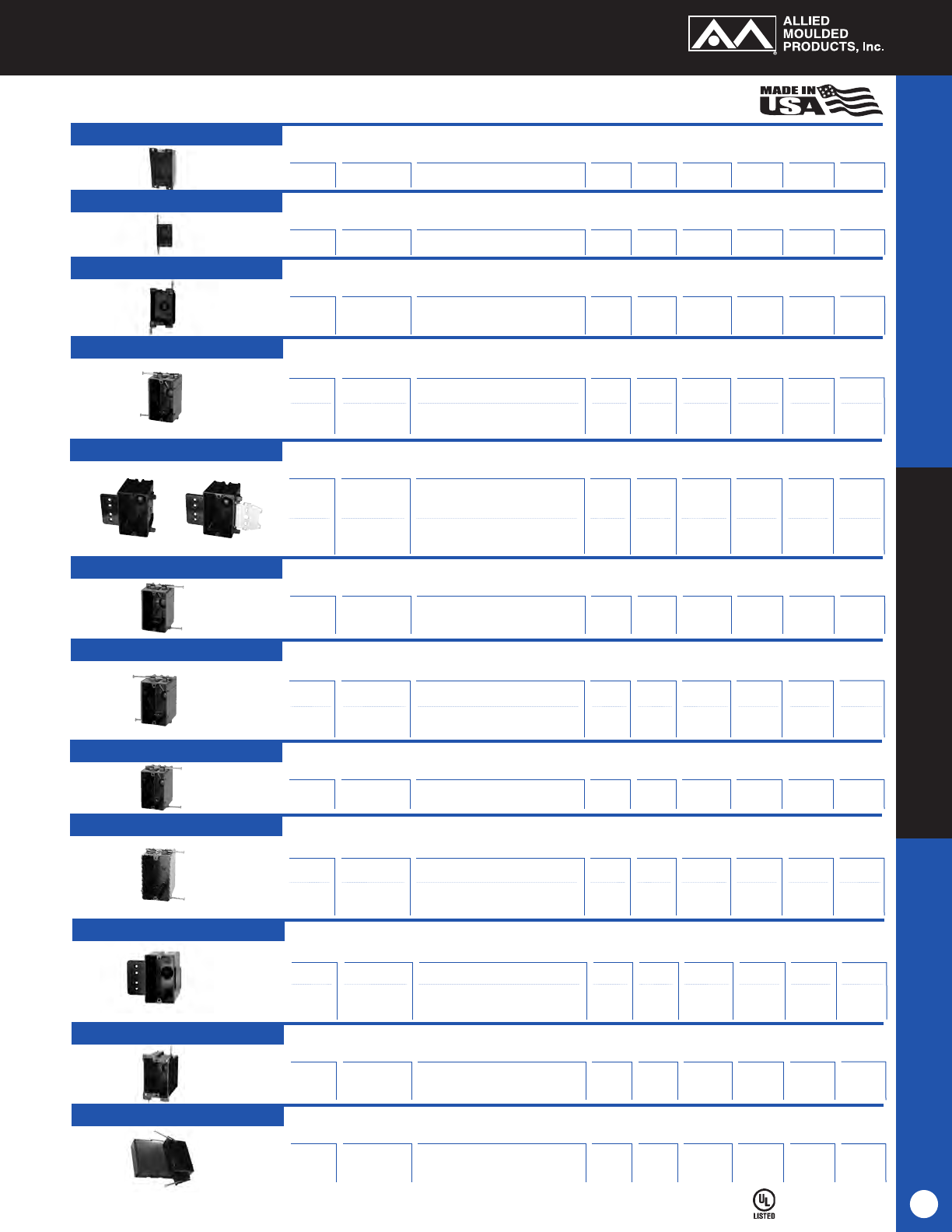

Single Gang:

Residential Switch or Receptacle Box

Unless otherwise noted.

ﬁberglass

BOX

™ Single Gang

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 7 for Attachment Coding descriptions

ﬁberglass

BOX

™ Single Gang

Series 9331-E Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

14.0 9331-E

Ears, Speed Klamps™- bulk packed

2-1/2 2-3/8 3-1/4 10235 100 27

14.0 9331-EC2

Ears, 2 wire clamps-

2-1/2 2-3/8 3-1/4 10236 100 31

factory installed

14.0 9331-EK*

Ears, Speed Klamps™-

2-1/2 2-3/8 3-1/4 10239 100 28

factory installed

Series 9331-ES Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

14.0 9331-ES

Ears, snap bracket, Speed Klamps™-

2-1/2 2-3/8 3-1/4 10242 50 21

bulk packed

14.0 9331-ESC2

Ears, snap bracket, 2 wire clamps-

2-1/2 2-3/8 3-1/4 10244 50 23

factory installed

14.0 9331-ESK*

Ears, snap bracket, Speed Klamps™-

2-1/2 2-3/8 3-1/4 10243 50 21

factory installed

Series 9331-EW Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

14.0 9331-EW

Ears, wing brackets, Speed Klamps™

2-1/2 2-3/8 3-1/4 38500 100 30

bulk packed

14.0 9331-EWC2 Ears, wing brackets, 2 wire clamps- 2-1/2 2-3/8 3-1/4 38510 100 33

factory installed

14.0 9331-EWK*

Ears, wing brackets, Speed Klamps™-

2-1/2 2-3/8 3-1/4 38511 100 30

factory installed

Series 9361-E Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

16.0 9361-E

Ears, Speed Klamps™-bulk packed

2-7/8 2-3/8 3-1/4 10555 100 29

16.0 9361-EC2

Ears, 2 wire clamps-

2-7/8 2-3/8 3-1/4 10560 100 32

factory installed

16.0 9361-EK*

Ears, Speed Klamps™-

2-7/8 2-3/8 3-1/4 10561 100 29

factory installed

Series 9361-ES Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

16.0 9361-ES

Ears, snap bracket, Speed Klamps™-

2-7/8 2-3/8 3-1/4 10562 50 22

bulk packed

16.0 9361-ESC2 Ears, snap bracket, 2 wire clamps- 2-7/8 2-3/8 3-1/4 10564 50 24

factory installed

16.0 9361-ESK*

Ears, snap bracket, Speed Klamps™-

2-7/8 2-3/8 3-1/4 10566 50 22

factory installed

Single Gang:

Residential Switch or Receptacle Box

10 Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 7 for Attachment Coding descriptions

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

18.0 9368-EW

Ears, wing brackets,

3-3/16 2-3/8 3-1/4 76002 100 34

Speed Klamps™-

bulk packed

18.0 9368-EWK*

Ears, wing brackets,

3-3/16 2-3/8 3-1/4 76001 100 34

Speed Klamps™-

factory installed

Series 9363-E Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

16.0 9363-E

Ears, Speed Klamps™-

2-7/8 2-3/8 3-1/4 10570 100 30

bulk packed

16.0 9363-EC2

Ears, 2 wire clamps-

2-7/8 2-3/8 3-1/4 10571 100 32

factory installed

16.0 9363-EK*

Ears, Speed Klamps™-

2-7/8 2-3/8 3-1/4 10576 100 30

factory installed

Series 9363-EW Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

16.0 9363-EW

Ears, wing brackets, Speed Klamps™-

2-7/8 2-3/8 3-1/4 10572 100 32

bulk packed

16.0 9363-EWC2

Ears, wing brackets, 2 wire clamps-

2-7/8 2-3/8 3-1/4 10573 100 35

factory installed

16.0 9363-EWK*

Ears, wing brackets, Speed Klamps™-

2-7/8 2-3/8 3-1/4 10578 100 32

factory installed

Series 9368-E Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

18.0 9368-E

Ears, Speed Klamps™-bulk packed

3-3/16 2-3/8 3-1/4 76000 100 31

18.0 9368-EK*

Ears, Speed Klamps™-

3-3/16 2-3/8 3-1/4 76003 100 32

factory installed

Series 9368-EW

Single Gang:

Residential Switch or Receptacle Box

ﬁberglass

BOX

™ Single Gang

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 7 for Attachment Coding descriptions

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

32.5 2300-SS

Steel stud screws for use with

3 4 3-3/4 12202 50 29

non-load bearing studs 22 gauge

or lighter, Speed Klamps™-bulk packed

32.5 2300-SSK*

Steel stud screws for use with

3 4 3-3/4 12203 50 29

non-load bearing studs 22 gauge

or lighter, Speed Klamps™-factory installed

Series 2300-2Z2 Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

32.5 2300-2Z2

1/4” offset, “Z” hanger each side

3 4 3-3/4 12500 12 13

of box, Speed Klamps™-bulk packed

32.5 2300-2Z2K*

1/4” offset, “Z” hanger each side

3 4 3-3/4 12501 12 13

of box, Speed Klamps™-factory installed

Series 2300-SS

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

32.5 2300-N

Angled mid-nails, Speed Klamps™-

3 4 3-3/4 12125 50 29

bulk packed

32.5 2300-NC2

Angled mid-nails, 2 wire clamps-

3 4 3-3/4 12135 50 30

factory installed

32.5 2300-NC4

Angled mid-nails, 4 wire clamps-

3 4 3-3/4 12145 50 30

factory installed

32.5 2300-NK*

Angled mid-nails, Speed Klamps™-

3 4 3-3/4 12127 50 29

factory installed

Series 2300-N

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

32.5 2300-Z2

1/4” offset, “Z” hanger,

3 4 3-3/4 12400 50 38

Speed Klamps™-bulk packed

32.5 2300-Z2K*

1/4” offset, “Z” hanger,

3 4 3-3/4 12401 50 38

Speed Klamps™-factory installed

32.5 2300-Z4

1/2” offset, “Z” hanger,

3 4 3-3/4 12700 50 38

Speed Klamps™-bulk packed

32.5 2300-Z4K

1/2” offset, “Z” hanger,

3 4 3-3/4 12701 50 38

Speed Klamps™-factory installed

Series 2300-Z2

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

37.0 2302-N

Angled mid-nails,

3-7/16 4 3-3/4 13060 50 31

Speed Klamps™-bulk packed

37.0 2302-NC2

Angled mid-nails, 2 wire clamps-

3-7/16 4 3-3/4 13065 50 33

factory installed

37.0 2302-NC4

Angled mid-nails, 4 wire clamps-

3-7/16 4 3-3/4 13070 50 34

factory installed

37.0 2302-NK*

Angled mid-nails, Speed Klamps™-

3-7/16 4 3-3/4 13075 50 32

factory installed

2302-NKRED Same as 2302-NK but molded in red

96501 12 8

for fire circuits

Series 2302-N

Two Gang:

Residential Switch or Receptacle Box

ﬁberglass

BOX

™ Two Gang

12 Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 7 for Attachment Coding descriptions

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

37.0 2302-SS

Steel stud screws for use with

3-7/16 4 3-3/4 13080 50 33

non-load bearing studs 22 gauge

or lighter, Speed Klamps™-bulk packed

37.0 2302-SSK*

Steel stud screws for use with

3-7/16 4 3-3/4 13081 50 33

non-load bearing studs 22 gauge

or lighter, Speed Klamps™-factory installed

Series 2302-SS

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

37.0 2302-Z4

1/2” offset, “Z” hanger,

3-7/16 4 3-3/4 13082 50 40

Speed Klamps™-bulk packed

37.0 2302-Z4K*

1/2” offset, “Z” hanger,

3-7/16 4 3-3/4 13083 50 40

Speed Klamps™-factory installed

Series 2302-Z4

Catalog Component UPC# Std. Std. Pkg.

Number Description 85339 Pkg. Qty. Wt. (lb.)

LVP-1

Low voltage divider plate for use with 2302, 3303,

80000 50. Consists of five (5) packages 2

4304, 5305 Series and 9314 only.

of 10 pieces each.

See 2008 NEC 800.133(A)(1)(c).

Low Voltage Partition

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

28.0 9312-E

Ears, Speed Klamps™-bulk packed

2-3/4 4-1/8 3-1/4 10064 50 23

28.0 9312-EK*

Ears, Speed Klamps™-factory installed

2-3/4 4-1/8 3-1/4 29112 50 24

Series 9312-E

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

28.0 9312-EW

Ears, wing brackets,

2-3/4 4-1/8 3-1/4 29100 50 25

Speed Klamps™-bulk packed

28.0 9312-EWC2

Ears, wing brackets, 2 wire clamps-

2-3/4 4-1/8 3-1/4 29110 50 26

factory installed

28.0 9312-EWC4

Ears, wing brackets, 4 wire clamps-

2-3/4 4-1/8 3-1/4 29120 50 28

factory installed

28.0 9312-EWK*

Ears, wing brackets, Speed Klamps™-

2-3/4 4-1/8 3-1/4 29111 50 25

factory installed

Series 9312-EW

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

32.5 9329-EW

Ears, wing brackets, Speed Klamps™-

3-1/4 4-1/8 3-1/4 10801 50 25

bulk packed

32.5 9329-EWK*

Ears, wing brackets, Speed Klamps™-

3-1/4 4-1/8 3-1/4 10802 50 25

factory installed

Series 9329-EW

Two Gang:

Residential Switch or Receptacle Box

ﬁberglass

BOX

™ Two Gang

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 7 for Attachment Coding descriptions

ﬁberglass

BOX

™ Three Gang

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

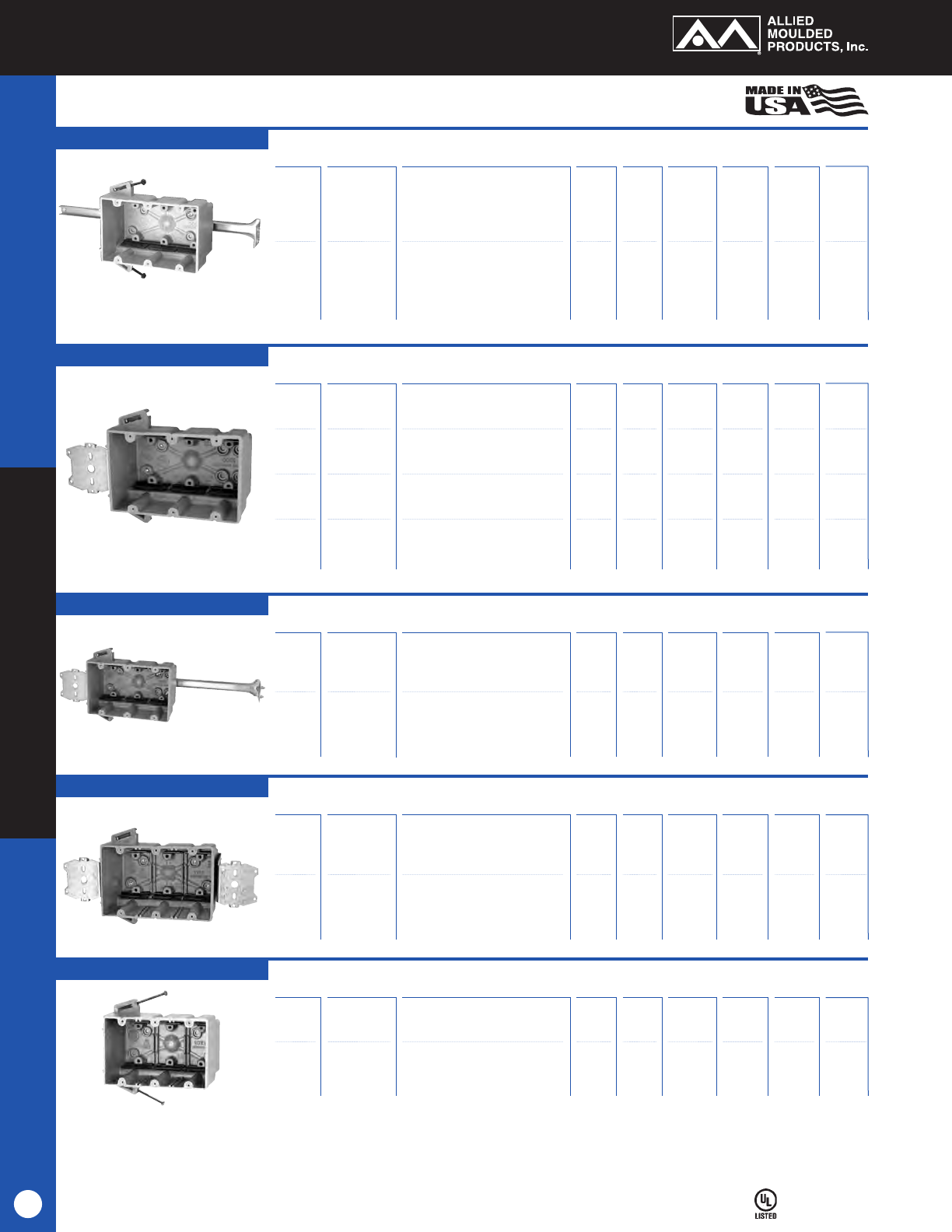

46.0 3300-NB

Angled mid-nails, adj.

3 5-11/16 3-3/4 14210 20 21

stabilizing bar, Speed

Klamps™-bulk packed

46.0 3300-NBC3

Angled mid-nails, adj.

3 5-11/16 3-3/4 14225 20 21

stabilizing bar, 3 wire

clamps-factory installed

46.0 3300-NBK*

Angled mid-nails, adj.

3 5-11/16 3-3/4 14212 20 21

stabilizing bar, Speed

Klamps™-factory installed

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

46.0 3300-2Z2

1/4” offset, “Z” hanger each side

3 5-11/16 3-3/4 14700 25 27

of box, Speed Klamps™-bulk packed

46.0 3300-2Z2K*

1/4” offset, “Z” hanger each side of

3 5-11/16 3-3/4 14702 25 27

box, Speed Klamps™-factory installed

46.0 3300-2Z4

1/2” offset, “Z” hanger each side of

3 5-11/16 3-3/4 15120 25 27

box, Speed Klamps™-bulk packed

46.0 3300-2Z4K

1/2” offset, “Z” hanger each side of

3 5-11/16 3-3/4 15121 25 27

box, Speed Klamps™-factory installed

Series 3300-2Z

Series 3300-N Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

46.0 3300-N

Angled mid-nails, Speed

3 5-11/16 3-3/4 14175 20 15

Klamps™-bulk packed

46.0 3300-NC3

Angled mid-nails, 3 wire

3 5-11/16 3-3/4 14190 20 16

clamps-factory installed

46.0 3300-NC6

Angled mid-nails, 6 wire

3 5-11/16 3-3/4 14205 20 18

clamps-factory installed

46.0 3300-NK*

Angled mid-nails, Speed

3 5-11/16 3-3/4 14177 20 16

Klamps™-factory installed

Series 3300-NB

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

46.0 3300-SS

Steel stud screws for use with

3 5-11/16 3-3/4 14522 20 16

non-load bearing studs 22 gauge or

lighter, Speed Klamps™-bulk packed

46.0 3300-SSK*

Steel stud screws for use

3 5-11/16 3-3/4 14524 20 16

with non-load bearing studs 22 gauge

or lighter, Speed Klamps™-factory installed

Series 3300-SS

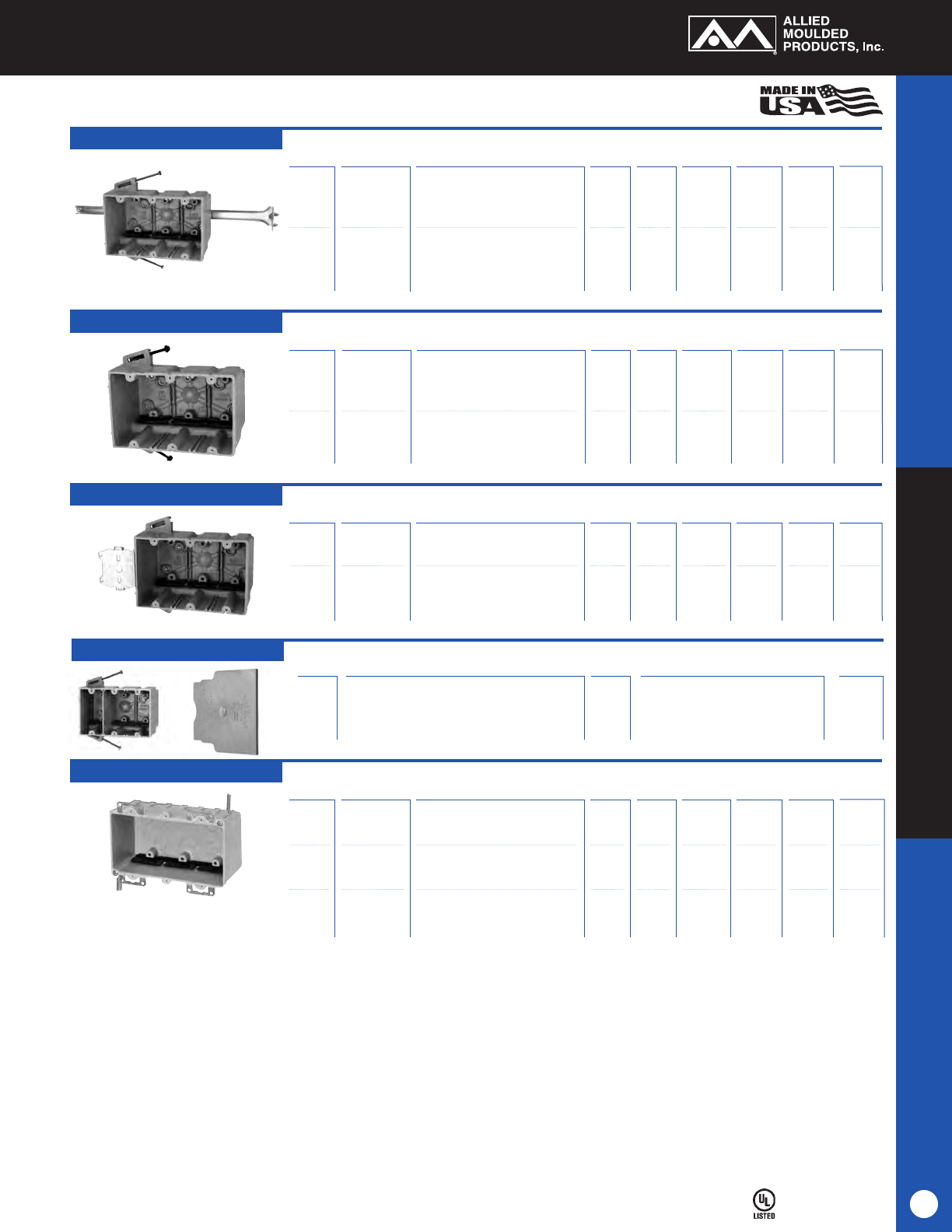

Three Gang:

Residential Switch or Receptacle Box

14 Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 7 for Attachment Coding descriptions

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

46.0 3300-Z2

1/4” offset, “Z” hanger,

3 5-11/16 3-3/4 14560 25 23

Speed Klamps™-bulk packed

46.0 3300-Z2K*

1/4” offset, “Z” hanger, Speed

3 5-11/16 3-3/4 14562 25 24

Klamps™-factory installed

46.0 3300-Z4

1/2” offset, “Z” hanger,

3 5-11/16 3-3/4 14980 25 23

Speed Klamps™-bulk packed

46.0 3300-Z4K

1/2” offset, “Z” hanger, Speed

3 5-11/16 3-3/4 15017 25 23

Klamps™-factory installed

Series 3300-Z

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

46.0 3300-Z2B

1/4” offset, “Z” hanger, adj.

3 5-11/16 3-3/4 14595 20 25

stabilizing bar, Speed Klamps™-

bulk packed

46.0 3300-Z2BK*

1/4” offset, “Z” hanger, adj.

3 5-11/16 3-3/4 14597 20 25

stabilizing bar, Speed Klamps™-

factory installed

Series 3300-Z2B

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

56.5 3303-2Z4

1/2” offset, “Z” hanger each

3-5/8 5-11/16 3-3/4 15222 25 32

side of box, Speed Klamps™-

bulk packed

56.5 3303-2Z4K*

1/2” offset, “Z” hanger each

3-5/8 5-11/16 3-3/4 15223 25 32

side of box, Speed Klamps™-

factory installed

Series 3303-2Z4

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

56.5 3303-N

Angled mid-nails, Speed

3-5/8 5-11/16 3-3/4 15200 20 17

Klamps™-bulk packed

56.5 3303-NK*

Angled mid-nails, Speed Klamps™-

3-5/8 5-11/16 3-3/4 15201 20 18

(Top photo)

factory installed

Series 3303-N

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

46.0 3300-SSB

Steel stud screws for use with

3 5-11/16 3-3/4 14521 20 21

non-load bearing studs

22 gauge or

lighter, adj. stabilizing bar, Speed

Klamps™-bulk packed

46.0 3300-SSBK*

Steel stud screws for use with

3 5-11/16 3-3/4 14523 20 22

non-load bearing studs

22 gauge or

lighter, adj. stabilizing bar, Speed

Klamps™-factory installed

Series 3300-SSB

Three Gang:

Residential Switch or Receptacle Box

ﬁberglass

BOX

™ Three Gang

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 7 for Attachment Coding descriptions

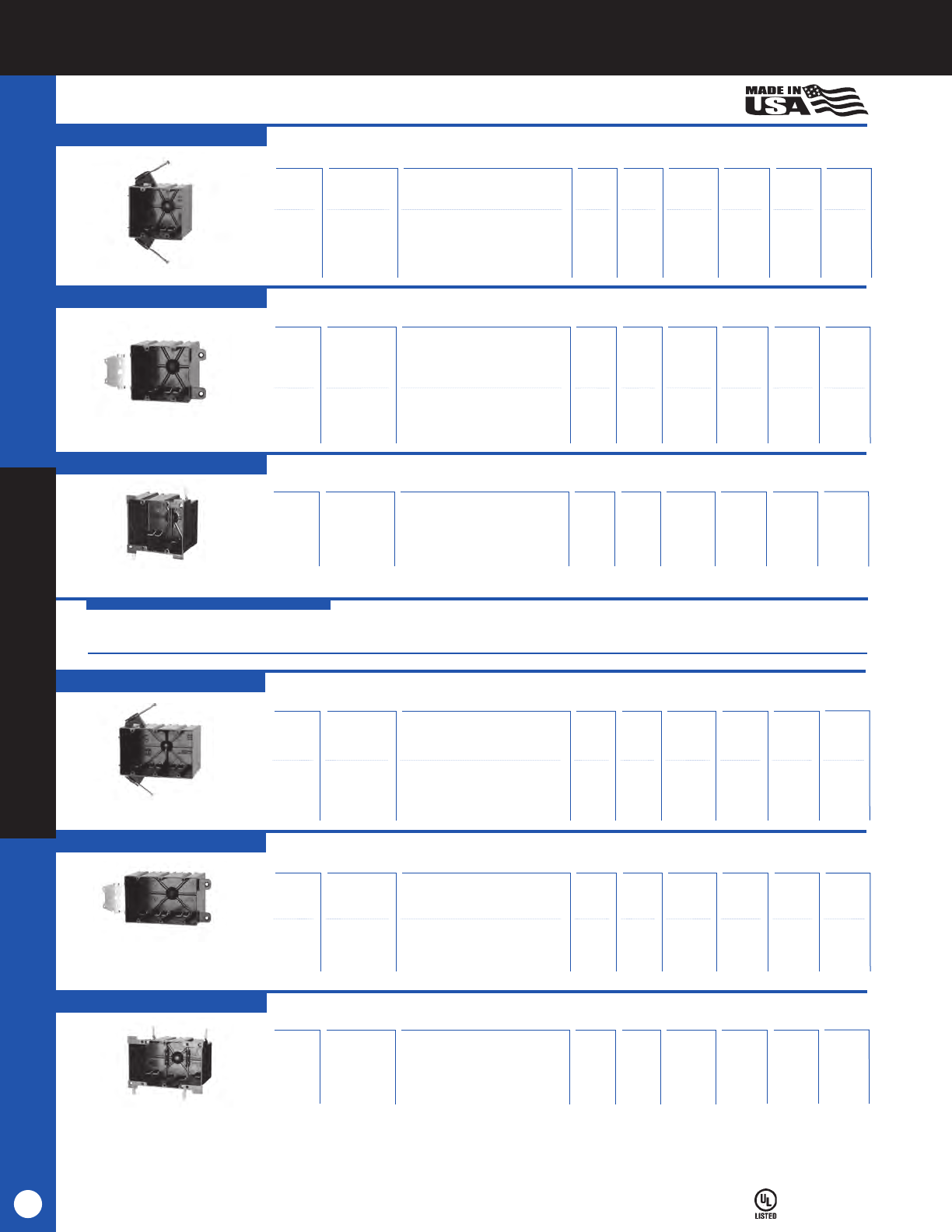

ﬁberglass

BOX

™ Three Gang

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

56.5 3303-NB

Angled mid-nails, adj.

3-5/8 5-11/16 3-3/4 15207 20 23

stabilizing bar, Speed

Klamps™-bulk packed

56.5 3303-NBK*

Angled mid-nails, adj.

3-5/8 5-11/16 3-3/4 15208 20 23

stabilizing bar, Speed

Klamps™-factory installed

Series 3303-NB

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

56.5 3303-Z4 1/2” offset, “Z” hanger, 3-5/8 5-11/16 3-3/4 15205 20 22

Speed Klamps™-bulk packed

56.5 3303-Z4K* 1/2” offset, “Z” hanger, Speed 3-5/8 5-11/16 3-3/4 15206 20 22

Klamps™-factory installed

Series 3303-Z4

Catalog Component UPC# Std. Std. Pkg.

Number Description 85339 Pkg. Qty. Wt. (lb.)

LVP-1

Low voltage divider plate for use with 2302, 3303,

80000 50 2

4304, 5305 Series and 9314 only.

Consists of five (5) packages

See 2008 NEC 800.133(A)(1)(c).

of 10 pieces each.

Low Voltage Partition

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

42.5 9313-EW

Ears, wing brackets, Speed

2-7/8 5-15/16 3-1/4 10093 25 16

Klamps™-bulk packed

42.5 9313-EWC3

Ears, wing brackets, 3 wire clamps-

2-7/8 5-15/16 3-1/4 10095 25 17

factory installed

42.5 9313-EWK*

Ears, wing brackets, Speed

2-7/8 5-15/16 3-1/4 10094 25 16

Klamps™-factory installed

Series 9313-EW

Series 3303-SS Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

56.5 3303-SS

Steel stud screws for use with

3-5/8 5-11/16 3-3/4 15203 20 17

non-load bearing studs 22 gauge

or lighter, Speed Klamps™-bulk packed

56.5 3303-SSK*

Steel stud screws for use with

3-5/8 5-11/16 3-3/4 15204 20 17

non-load bearing studs 22 gauge

or lighter, Speed Klamps™-factory installed

Three Gang:

Residential Switch or Receptacle Box

16 Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 7 for Attachment Coding descriptions

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

60.0 4300-2Z2

1/4” offset, “Z” hanger each side

3 7-1/2 3-3/4 16905 12 15

of box, Speed Klamps™-bulk packed

60.0 4300-2Z2K*

1/4” offset, “Z” hanger each side

3 7-1/2 3-3/4 16907 12 16

of box, Speed Klamps™-factory installed

Series 4300-2Z2

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

60.0 4300-N

Angled mid-nails,

3 7-1/2 3-3/4 16225 20 18

Speed Klamps™-bulk packed

60.0 4300-NC4

Angled mid-nails, 4 wire clamps-

3 7-1/2 3-3/4 16245 20 20

factory installed

60.0 4300-NK*

Angled mid-nails, Speed Klamps™-

3 7-1/2 3-3/4 16226 20 19

factory installed

Series 4300-N

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

60.0 4300-NB

Angled mid-nails, adj. stabilizing

3 7-1/2 3-3/4 16270 20 25

bar, Speed Klamps™-bulk packed

60.0 4300-NBC4

Angled mid-nails, adj. stabilizing

3 7-1/2 3-3/4 16290 20 25

bar, 4 wire clamps-factory installed

60.0 4300-NBK*

Angled mid-nails, adj. stabilizing

3 7-1/2 3-3/4 16271 20 24

bar, Speed Klamps™-factory installed

Series 4300-NB

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

60.0 4300-SS

Steel stud screws for use with

3 7-1/2 3-3/4 16233 20 19

non-load bearing studs 22 gauge

or lighter , Speed Klamps™-bulk packed

60.0 4300-SSK*

Steel stud screws for use with

3 7-1/2 3-3/4 16232 20 19

non-load bearing studs 22 gauge

or lighter, Speed Klamps™-factory installed

Series 4300-SS

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

60.0 4300-SSB

Steel stud screws for use with

3 7-1/2 3-3/4 16229 20 26

non-load bearing studs 22 gauge

or lighter, adj. stabilizing bar, Speed

Klamps™-bulk packed

60.0 4300-SSBK*

Steel stud screws for use with

3 7-1/2 3-3/4 16234 20 27

non-load bearing studs 22 gauge

or lighter, adj. stabilizing bar, Speed

Klamps™-factory installed

Series 4300-SSB

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

60.0 4300-Z2

1/4” offset, “Z” hanger, Speed

3 7-1/2 3-3/4 16725 12 14

Klamps™-bulk packed

60.0 4300-Z2K*

1/4” offset, “Z” hanger, Speed

3 7-1/2 3-3/4 16906 12 14

Klamps™-factory installed

Series 4300-Z2

Four Gang:

Residential Switch or Receptacle Box

ﬁberglass

BOX

™ Four Gang

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 7 for Attachment Coding descriptions

Catalog Component UPC# Std. Std. Pkg.

Number Description 85339 Pkg. Qty. Wt. (lb.)

LVP-1

Low voltage divider plate for use with 2302, 3303,

80000 50 2

4304, 5305 Series, and 9314 only.

Consists of five (5) packages

See 2008 NEC 800.133(A)(1)(c).

of 10 pieces each.

Low Voltage Partition

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

60.0 4300-Z2B

1/4” offset, “Z” hanger, adj.

3 7-1/2 3-3/4 16770 6 9

stabilizing bar, Speed Klamps™-

bulk packed

60.0 4300-Z2BK*

1/4” offset, “Z” hanger, adj.

3 7-1/2 3-3/4 16771 6 9

stabilizing bar, Speed Klamps™-

factory installed

Series 4300-Z2B

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

75.0 4304-2Z4

1/2” offset, “Z” hanger

3-9/16 7-1/2 3-3/4 17560 12 17

each side of box, Speed

Klamps™-bulk packed

75.0 4304-2Z4K* 1/2” offset, “Z” hanger, 3-9/16 7-1/2 3-3/4 17561 12 17

each side of box, Speed

Klamps™-factory installed

Series 4304-2Z4

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

75.0 4304-N

Angled mid-nails,

3-9/16 7-1/2 3-3/4 17550 20 22

Speed Klamps™-bulk packed

75.0 4304-NK*

Angled mid-nails, Speed

3-9/16 7-1/2 3-3/4 17551 20 22

Klamps™-factory installed

Series 4304-N

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

75.0 4304-NB

Angled mid-nails, adj.

3-9/16 7-1/2 3-3/4 17552 20 28

stabilizing bar, Speed

Klamps™-bulk packed

75.0 4304-NBK*

Angled mid-nails, adj.

3-9/16 7-1/2 3-3/4 17553 20 28

stabilizing bar, Speed

Klamps™-factory installed

Series 4304-NB

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

75.0 4304-Z4B

1/2” offset, “Z” hanger,

3-9/16 7-1/2 3-3/4 17554 6 10

adj. stabilizing bar, Speed

Klamps™-bulk packed

75.0 4304-Z4BK*

1/2” offset, “Z” hanger,

3-9/16 7-1/2 3-3/4 17555 6 10

adj. stabilizing bar, Speed

Klamps™-factory installed

Series 4304-Z4B

ﬁberglass

BOX

™ Four Gang

Four Gang:

Residential Switch or Receptacle Box

18 Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

See page 7 for Attachment Coding descriptions

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

70.0 9314-EWK

Ears, wing brackets, 1/2” knockouts

3-9/16 7-11/16 3-3/4 31800 6 7

Speed Klamps™ – factory installed

Series 9314-EWK

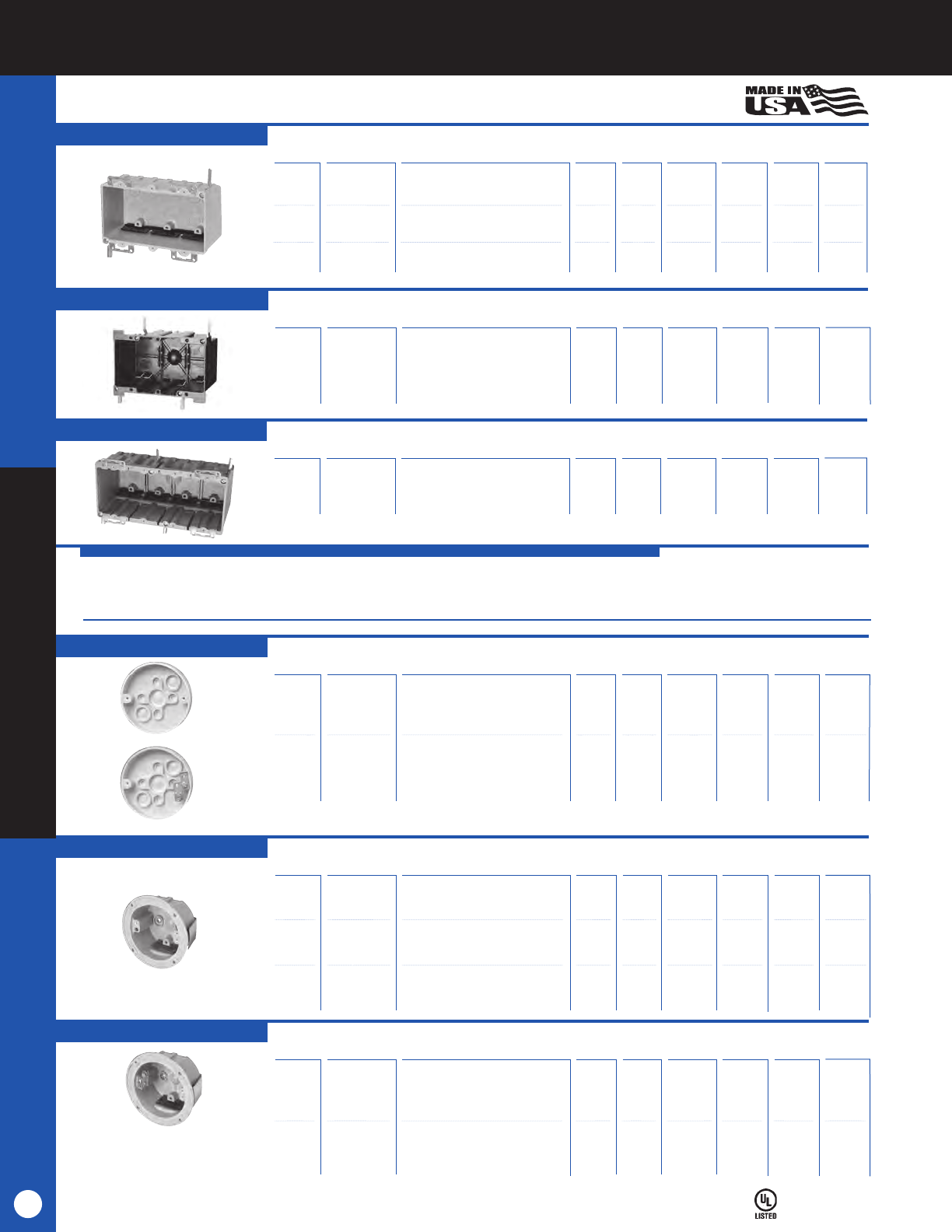

Four Gang:

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

94.0 5305-NK

Angled mid-nails, Speed

3-9/16 9-7/16 3-3/4 18001 6 8

Klamps™-factory installed

5305-NK

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

94.0 5305-NBK

Angled mid-nails, adj.

3-9/16 9-7/16 3-3/4 18002 6 10

stabilizing bar, Speed

Klamps™-factory installed

5305-NBK

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

94.0 5305-Z4BK

1/2” offset, “Z” hanger,

3-9/16 9-7/16 3-3/4 18003 6 11

adj. stabilizing bar, Speed Klamps™

-factory installed

5305-Z4BK

Catalog Component UPC# Std. Std. Pkg.

Number Description 85339 Pkg. Qty. Wt. (lb.)

LVP-1

Low voltage divider plate for use with 2302, 3303,

80000 50 2

4304, 5305 Series, and 9314 only.

Consists of five (5) packages

See 8005 NEC 800.133(A)(1)(c).

of 10 pieces each.

Low Voltage Partition

Five Gang:

Residential Switch or Receptacle Box

ﬁberglass

BOX

™ Four Gang / Five Gang

Catalog Component UPC# Std. Std. Pkg.

Number Description 85339 Pkg. Qty. Wt. (lb.)

LVP-1

Low voltage divider plate for use with 2302, 3303,

80000 50 2

4304, 5305 Series, and 9314 only.

Consists of five (5) packages

See 8005 NEC 800.133(A)(1)(c).

of 10 pieces each.

Low Voltage Partition

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

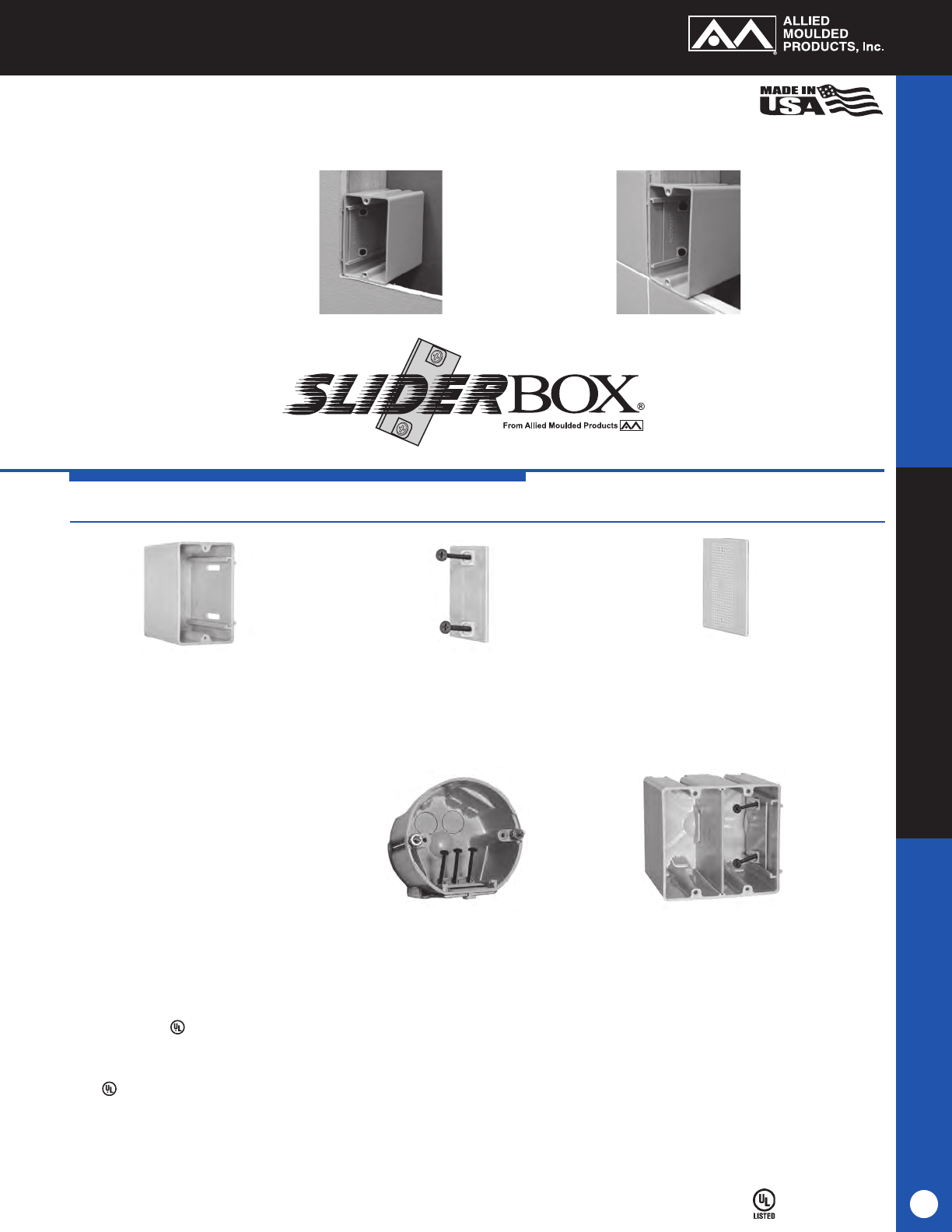

Un-like Other Adjustable

Boxes, With SLIDERBOX®

There’s No Need To

Remove Or Relocate

Mounting Screws To

Re-position The Box.

SLIDERBOX®:

Non-Metallic Adjustable Wall Box for Both New & Old Work Construction

SLIDERBOX®

SLIDERBOX® Features

SLIDERBOX®

Installed with

1/2” Drywall

SLIDERBOX®

Adjusted for

Additional

Ceramic Tile

- Slots retain slider plate and guide it in a

straight motion.

- Internal rails guide slider plate for

smooth mounting adjustability in wall

substrates from 1/2” to 1 3/8” thick,

and ceiling substrates from 1/2” to 1

5/32”.

- Square corner design allows easy wall

cut-in (Old work applications).

- Molded spline device holes for quick

device screw installation in wall boxes

and machine tapped threads for ceiling

fixture support in round ceiling boxes.

- Allied Moulded exclusive patented

(U.S. Pat. #6365831 B1) molded in

Speed KlampsTM in multi-gang and

ceiling boxes.

- Molded of engineering grades of

non-metallic thermoplastic.

- SB-2, SB-3 are listed for

2HR fire resistive walls

- SB-1, SB-1H, SB-CB and SB-CBFR

are listed for 2HR fire resistive walls

and ceilings.

- Slider plate holds screws in ready

position to enable contractor to mount

boxes faster.

- Patent #7,855,338 design allows for

adjustments in new or old work

installations.

- Fan support product has steel bracket

and mounting bolts for secure paddle

fan mounting.

- Heavy-duty non-slip pad to ensure

box and slider assembly solidly hold

mounted position.

- Tested to hold 50 lbs. hung on box to

simulate power cord pull-out strength.

- Multi-gang boxes consist of

internal holding slots for LVP-2 low

voltage partitions and dual voltage

applications.

20 Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

Cu. In. Catalog Component D W Fan Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating Rating 85339 Pkg. Qty. Wt. (lb.)

25.0

SB-CBFR

Internal steel stud/wood

2-3/4 4 70 lb. 90 lb. 94506 12 9

screws, molded-in

Speed KlampsTM, two 1/2”

knockouts, paddle fan

mounting bracket and screws

4/O Fan Box

Residential Switch or Receptacle Box

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

25.0 SB-CB

Internal steel stud/wood screws,

molded-in

2-3/4 4 50 lb. 94505 12 4

*model shown

Speed KlampsTM, two 1/2” knockouts

25.0 SB-CBG

Internal steel stud/wood screws,

molded-in

2-3/4 4 50 lb. 94507 12 4

Speed KlampsTM, two 1/2” knockouts,

ground strap

4/O Ceiling Box

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

23.0 SB-1

Internal steel stud/wood screws,

3-9/16 2-5/16 3-3/4 94500 48 13

1/2” knockout

Single Gang

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

23.0 SB-1H

Internal steel stud/wood screws,

3-9/16 3-3/4 2-5/16 94503 12 4

1/2” knockout

Horizontal Mount Box

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

42.0 SB-2

Internal steel stud/wood screws, molded-in

3-9/16 4 3-3/4 94501 24 9

Speed KlampsTM, two 1/2” knockouts

Two Gang

Three Gang Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

61.0 SB-3

Internal steel stud/wood screws, molded-in

3-9/16 5-13/16 3-3/4 94502 6 3

Speed KlampsTM, two 1/2” knockouts

Four Gang Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

74.8 SB-4

Internal steel stud/wood screws, molded-in

3-9/16 7-5/8 3-3/4 94504 6 4

Speed KlampsTM, two 1/2” knockouts

Note: not UL classified for fire resistive walls

Catalog Component UPC# Std. Std.

Pkg.Number Description 85339 Pkg. Qty. Wt. (lb.)

LVP-2

Low voltage divider plate for use with SB-2, SB-3, and SB-4

80005 50** 3

Note: consists of 5 packages of 10 pieces each

Low Voltage Partition

4” Diameter Round Outlet

4” Diameter Paddle Fan and Fixture Support

SLIDERBOX® Products New and Old Work Construction Boxes

SLIDERBOX®

Unless otherwise noted.

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

SLIDERBOX® Installation

Slider plate in full forward position sets box for 1/2” drywall. Slider plate retracted sets box in fully adjusted forward

position for maximum wall substrate thickness of 1 3/8”.

1. Position slider plate forward

so box will mount in its normal

position for nominal drywall

thickness.

2. Attach SLIDERBOX® to wood

stud by driving screws in tight.

3. Wires should be installed and

drywall hung and trimmed

according to building code.

4. SLIDERBOX® will be mounted

flush with drywall at this

point.

1. Once additional wall substrate is applied,

the SLIDERBOX® will need to be adjusted

flush to the new surface.

2. Make sure there is clearance around the

box prior to adjustment.

3. Loosen the two mounting screws until box

moves freely in the slider mechanism and

will slide forward.

4. Grab box interior or the installed wire and

pull forward until top edge is flush with the

new surface.

5. Re-tighten the slider plate mounting screws.

6. Install wire device and cover plate.

Loosen

Installation Instructions:

Adjust Box for Additional Wall Substrate:

SLIDERBOX®

22 Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 7 for Attachment Coding descriptions

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

16.0 9339-Z+1

“Z” hanger, flush with face

1-1/4 4-1/4 4-1/4 10314 50 21

of plaster ring, wire

clamps-bulk packed

16.0 9339-Z+1C2*

“Z” hanger, flush with face

1-1/4 4-1/4 4-1/4 10318 50 22

of plaster ring, 2 wire

clamps-factory installed

Series 9339-Z+1

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

27.3 9342-C2*

4” square junction box,

2-1/4 4 4 10346 50 25

(Top photo)

2 wire clamps-factory installed

27.3 9342-HN*

Nail-on “HN” hanger,

2-1/4 4 4 10342 50 32

(Btm photo)

wire clamps-bulk packed

27.3 9342-HF

“HF” hanger,

2-1/4 4 4 10348 50 30

wire clamps-bulk packed

Series 9342

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

32.3 9343-N

Nails, Speed Klamps™-

2-1/2 4-1/16 4-1/16 10370 50 26

bulk packed

32.3 9343-NC2

Nails, 2 wire clamps-

2-1/2 4-1/16 4-1/16 57150 50 27

factory installed

32.3 9343-NK*

Nails, Speed Klamps™-

2-1/2 4-1/16 4-1/16 10374 50 26

factory installed

Series 9343-N

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

32.3 9343-SS

Steel stud screws for use with

2-1/2 4-1/16 4-1/16 10375 50 27

non-load bearing studs 22 gauge

or lighter, Speed Klamps™-bulk packed

32.3 9343-SSK*

Steel stud screws for use with

2-1/2 4-1/16 4-1/16 10376 50 27

non-load bearing studs 22 gauge

or lighter, Speed Klamps™-factory installed

Series 9343-SS

Square Junction Boxes / Range and Receptacle Box:

Range/Dryer Receptacle

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

42.0 RD-42*

Fetter ring nails, internal wire

3-15/16 4 3-3/4 12907 24 22

clamp-factory installed, knockout

42.0 RD-42SS

Steel Stud Screws for use with non-

3-15/16 4 3-3/4 12905 24 22

load bearing studs 22 gauge or lighter,

internal wire clamp-factory installed,

knockout

Note: Knockout accomodates #8 and #6 gauge wire.

Series RD-42

ﬁberglass

BOX

™ Square Junction Boxes

For use with 2-position devices

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown

Handy Box and Covers

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

12.8 9318

Handy box surface mounted box with

2 2-1/4 4-3/16 10140 100 29

side and bottom romex cable openings

9318

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

9319

Handy box switch cover,

– 2-1/4 4-1/4 10145 100 8

not UL® listed

9319

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

9320

Handy box duplex outlet cover,

– 2-3/16 4-1/4 10146 100 7

not UL® listed

9320

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

9322

Handy box blank cover,

– 2-3/16 4-3/16 10148 100 7

not UL® listed

9322

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

9315

Round blank cover

– 4-3/4 dia. – 10130 100 15

9315-WH*

Round blank cover, white

– 4-3/4 dia. – 10133 100 15

Series 9315

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

9344

Square blank cover, use with series

– 4 4 10360 100 15

9339, 9342, and 9343 only

9344

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

4.2 9345*

Single gang plaster ring,

5/8 4 4 10361 100 7

1/2” offset

5.1 9345-58

Single gang plaster ring, 5/8” offset

3/4 4 4 10372 50 4

use with series 9339, 9342, and 9343 only

Series 9345 Thermoplastic

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

6.7 9346*

Two gang plaster ring,

5/8 4 4 10362 50 4

1/2” offset

8.1 9346-58

Two gang plaster ring, 5/8” offset

3/4 4 4 10390 50 4

use with series 9339, 9342, and 9343 only

Series 9346 Thermoplastic

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

4.3 9348

Round plaster ring, reduces

5/8 4 dia. – 10366 100 11

4” dia. outlet box to 3” dia.

opening, 1/2” offset, use with

series 9350, 9351, 9364, and 9365

9348

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

4.8 9347

Square plaster ring, reduces

11/16 4-1/16 4-1/16 10364 50 7

to 3/0 outlet, 1/2” offset, use with

series 9339, 9342, and 9343 only

9347

ﬁberglass

BOX

™ Plaster Rings,

Handy Box and Covers

Plaster Rings and Covers:

Unless otherwise noted.

24 Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 7 for Attachment Coding descriptions

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

20.5 9335-HNGK*

Nail-on “HN” hanger, ground strap,

2-15/16 3-1/2 50 lb. 41823 50 28

(Top photo)

Speed Klamps™-factory installed

20.5 9335-HNK*

Nail-on “HN” hanger, Speed

2-15/16 3-1/2 50 lb. 41824 50 28

(Btm photo)

Klamps™-factory installed

Series 9335-HN

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

20.5 9335-N

Fetter ring nails, Speed Klamps™-

2-7/8 3-1/2 50 lb. 41160 50 24

bulk packed

20.5 9335-NC2

Fetter ring nails, 2 wire clamps-

2-7/8 3-1/2 50 lb. 41170 50 25

factory installed

20.5 9335-NK*

Fetter ring nails, Speed Klamps™-

2-7/8 3-1/2 50 lb. 41162 50 24

factory installed

9335-NKRED

Same as 9335-NK but molded in red

96503 12 6

for fire circuts

Series 9335-N

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

20.5 9335-NG

Fetter ring nails, ground strap,

2-7/8 3-1/2 50 lb. 41180 50 25

Speed Klamps™-bulk packed

20.5 9335-NGC2

Fetter ring nails, ground strap,

2-7/8 3-1/2 50 lb. 41190 50 26

2 wire clamps-factory installed

20.5 9335-NGK*

Fetter ring nails, ground strap,

2-7/8 3-1/2 50 lb. 41182 50 25

Speed Klamps™-factory installed

Series 9335-NG

3-1/2” Dia. Round Outlet:

Residential Units

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

20.5 9335-BH

16” to 24” adj. bar hanger,

2-15/16 3-1/2 50 lb. 88100 24 32

Speed Klamps™-

bulk packed

20.5 9335-BHC2

16” to 24” adj. bar hanger,

2-15/16 3-1/2 50 lb. 88116 24 32

2 wire clamps -

factory installed

20.5 9335-BHK*

16” to 24” adj. bar hanger,

2-15/16 3-1/2 50 lb. 88101 24 32

Speed Klamps™-

factory installed

Series 9335-BH

For 16” to 24” on center joist applications

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

20.5 9335-BHG

16” to 24” adj. bar hanger, ground strap,

2-15/16 3-1/2 50 lb. 88102 24 32

Speed Klamps™-bulk packed

20.5 9335-BHGC2

16” to 24” adj. bar hanger, ground strap,

2-15/16 3-1/2 50 lb. 88117 24 32

2 wire clamps-factory installed

20.5 9335-BHGK*

16” to 24” adj. bar hanger, ground strap,

2-15/16 3-1/2 50 lb. 88103 24 32

Speed Klamps™-factory installed

Series 9335-BHG

For 16” to 24” on center joist applications

ﬁberglass

BOX

™ 3-1/2” Dia. Round Outlet

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 7 for Attachment Coding descriptions

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

16.0 9336-N

Fetter ring nails, Speed Klamps™-

2-3/8 3-1/2 50 lb. 10270 50 21

bulk packed

16.0 9336-NC2

Fetter ring nails, 2 wire clamps-

2-3/8 3-1/2 50 lb. 10276 50 22

factory installed

16.0 9336-NK*

Fetter ring nails, Speed Klamps™-

2-3/8 3-1/2 50 lb. 10271 50 21

factory installed

Series 9336-N

ﬁberglass

BOX

™ 3-1/2” Dia. Round Outlet

3-1/2” Dia. Round Outlet:

Residential Units

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

20.5 9335-16

16” bar hanger,

2-15/16 3-1/2 50 lb. 41280 24 20

Speed Klamps™-bulk packed

20.5 9335-16C2

16” bar hanger, 2 wire

2-15/16 3-1/2 50 lb. 41290 24 25

clamps-factory installed

20.5 9335-16K*

16” bar hanger,

2-15/16 3-1/2 50 lb. 41281 24 21

Speed Klamps™-factory installed

Series 9335-16

For max 16” on center joist applications only

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

20.5 9335-16G

16” bar hanger, ground strap,

2-15/16 3-1/2 50 lb. 41300 24 20

Speed Klamps™-bulk packed

20.5 9335-16GC2

16” bar hanger, ground strap,

2-15/16 3-1/2 50 lb. 41310 24 25

2 wire clamps-factory installed

20.5 9335-16GK*

16” bar hanger, ground strap,

2-15/16 3-1/2 50 lb. 41301 24 21

Speed Klamps™-factory installed

Series 9335-16G

For max 16” on center joist applications only

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

16.0 9336-BH

16”-24” adj. bar hanger,

2-3/8 3-1/2 50 lb. 88104 24 30

Speed Klamps™-

bulk packed

16.0 9336-BHC2

16”-24” adj. bar hanger,

2-3/8 3-1/2 50 lb. 88118 24 31

2 wire clamps-

factory installed

16.0 9336-BHK*

16”-24” adj. bar hanger,

2-3/8 3-1/2 50 lb. 88105 24 30

Speed Klamps™-

factory installed

Series 9336-BH

For 16” to 24” on center joist applications

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

16.0 9336-BHG

16”-24” adj. bar hanger, ground strap,

2-3/8 3-1/2 50 lb. 88106 24 30

Speed Klamps™-bulk packed

16.0 9336-BHGC2

16”-24” adj. bar hanger, ground strap,

2-3/8 3-1/2 50 lb. 88119 24 31

2 wire clamps-factory installed

16.0 9336-BHGK*

16”-24” adj. bar hanger, ground strap,

2-3/8 3-1/2 50 lb. 88107 24 31

Speed Klamps™-factory installed

Series 9336-BHG

For 16” to 24” on center joist applications

26 Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 7 for Attachment Coding descriptions

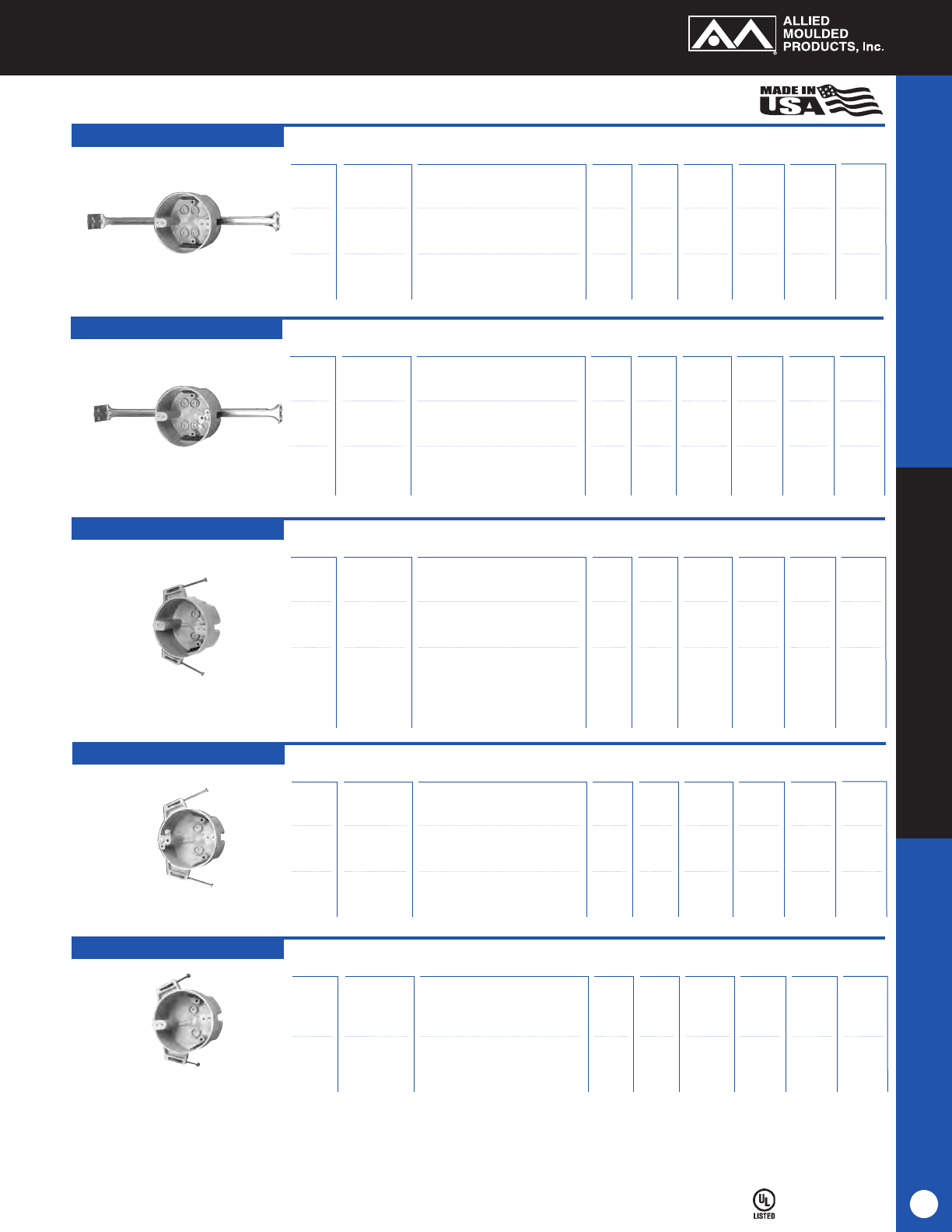

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

16.0 9336-NG

Fetter ring nails,

2-3/8 3-1/2 50 lb. 10280 50 21

ground strap, Speed Klamps™-

bulk packed

16.0 9336-NGK*

Fetter ring nails,

2-3/8 3-1/2 50 lb. 10281 50 22

ground strap, Speed Klamps™-

factory installed

Series 9336-NG

3-1/2” Dia. Round Outlet:

Residential Units

ﬁberglass

BOX

™ 3-1/2” Dia. Round Outlet

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

16.0 9336-HNGK

Nail-on “HN” hanger, ground strap,

2-3/8 3-1/2 50 lb. 10341 50 26

Speed Klamps™-factory installed

9336-HNGK

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

14.0 9338-E

Ears, Speed Klamps™-

2 3-1/2 15 lb. 46000 50 14

bulk packed

14.0 9338-EK*

Ears, Speed Klamps™-

2 3-1/2 15 lb. 46001 50 15

factory installed

14.0 9338-EKT

Ears, Speed Klamps™-

2 3-1/2 15 lb. 46038 50 15

factory installed, tapped

device holes

Series 9338-E

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

16.0 9336-16G

16” bar hanger, ground strap,

2-3/8 3-1/2 50 lb. 10279 24 19

Speed Klamps™-factory installed

16.0 9336-16GC2

16” bar hanger, ground strap,

2-3/8 3-1/2 50 lb. 10274 24 21

2 wire clamps-factory installed

16.0 9336-16GK*

16” bar hanger, ground strap,

2-3/8 3-1/2 50 lb. 10286 24 20

Speed Klamps™-factory installed

Series 9336-16G

For max 16” on center joist applications only

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

16.0 9336-16

16” bar hanger, Speed Klamps™ -

2-3/8 3-1/2 50 lb. 10273 24 19

bulk packed

16.0 9336-16C2

16” bar hanger, 2 wire clamps -

2-3/8 3-1/2 50 lb. 98300 24 21

factory installed

16.0 9336-16K*

16” bar hanger, Speed Klamps™ -

2-3/8 3-1/2 50 lb. 10284 24 20

factory installed

Series 9336-16

For max 16” on center joist applications only

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 7 for Attachment Coding descriptions

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

14.0 9338-ESG

Ears, snap bracket,

2 3-1/2 15 lb. 46020 50 21

ground strap, Speed

Klamps™-bulk packed

14.0 9338-ESGC2

Ears, snap bracket,

2 3-1/2 15 lb. 46030 50 22

ground strap, 2 wire

clamps-factory installed

14.0 9338-ESGK*

Ears, snap bracket,

2 3-1/2 15 lb. 46021 50 21

ground strap, Speed

Klamps™-factory installed

14.0 9338-ESGKT

Ears, snap bracket,

2 3-1/2 15 lb. 46043 50 21

ground strap, Speed

Klamps™-factory installed,

“

”

tapped device holes

Series 9338-ESG

ﬁberglass

BOX

™ 3-1/2” Dia. Round Outlet

3-1/2” Dia. Round Outlet:

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

14.0 9338-ES

Ears, snap bracket,

2 3-1/2 15 lb. 46005 50 20

Speed Klamps™-

bulk packed

14.0 9338-ESC2

Ears, snap bracket,

2 3-1/2 15 lb. 46015 50 22

2 wire clamps-

factory installed

14.0 9338-ESC2T

Ears, snap bracket,

2 3-1/2 15 lb. 46041 50 22

2 wire clamps-

factory installed,

“

”

tapped device holes

14.0 9338-ESK*

Ears, snap bracket,

2 3-1/2 15 lb. 46006 50 20

Speed Klamps™-

factory installed

14.0 9338-ESKT

Ears, snap bracket,

2 3-1/2 15 lb. 46040 50 21

Speed Klamps™-

factory installed,

“

”

tapped device holes

14.0 9338-EST

Ears, snap bracket,

2 3-1/2 15 lb. 46039 50 20

“T” tapped device holes,

Speed Klamps™-bulk packed

Series 9338-ES

Residential Units

28 Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 7 for Attachment Coding descriptions

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

22.5 9350-HN

“HN” hanger, Speed Klamps™ –

2-7/16 4 50 lb. 10460 50 30

bulk packed

22.5 9350-HNK*

“HN” hanger, Speed Klamps™ –

2-7/16 4 50 lb. 10462 50 30

factory installed

Series 9350-HN

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

22.5 9350-HFK

“HF” hanger, Speed Klamps™ –

2-7/16 4 50 lb. 10419 50 28

factory installed

9350-HFK

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

22.5 9350

Bottom mount, Speed Klamps™ –

2-7/16 4 50 lb. 10420 50 21

bulk packed

22.5 9350-K*

Bottom mount, Speed Klamps™ –

2-7/16 4 50 lb. 10418 50 22

factory installed

Series 9350

Series 9350-HL Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

22.5 9350-HL

“HL” hanger, Speed Klamps™ –

2-7/16 4 50 lb. 10424 50 27

bulk packed

22.5 9350-HLC2

“HL” hanger, 2 wire clamps –

2-7/16 4 50 lb. 10425 50 29

factory installed

22.5 9350-HLK*

“HL” hanger, Speed Klamps™ –

2-7/16 4 50 lb. 62094 50 27

factory installed

22.5 9350-HLGK

“HL” hanger, ground strap

2-7/16 4 50 lb. 10443 50 28

Speed Klamps™ – factory installed

4” Dia. Round Outlet:

Residential Units

ﬁberglass

BOX

™ 4” Dia. Round Outlet

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

22.5 9350-BH

16”-24” adj. bar hanger,

2-7/16 4 50 lb. 88108 24 32

Speed Klamps™ – bulk packed

22.5 9350-BHC2

16”-24” adj. bar hanger,

2-7/16 4 50 lb. 88120 24 33

2 wire clamps – factory installed

22.5 9350-BHK*

16”-24” adj. bar hanger,

2-7/16 4 50 lb. 88109 24 32

Speed Klamps™ – factory installed

Series 9350-BH

For 16” to 24” on center joist applications

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

22.5 9350-BHG

16”-24” adj. bar hanger, ground strap,

2-7/16 4 50 lb. 88110 24 32

Speed Klamps™ – bulk packed

22.5 9350-BHGC2

16”-24” adj. bar hanger, ground strap,

2-7/16 4 50 lb. 88121 24 33

2 wire clamps – factory installed

22.5 9350-BHGK*

16”-24” adj. bar hanger, ground strap,

2-7/16 4 50 lb. 88111 24 32

Speed Klamps™ – factory installed

Series 9350-BHG

For 16” to 24” on center joist applications

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 7 for Attachment Coding descriptions

Series 9351-N Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

22.5 9351-N

Fetter ring nails, Speed Klamps™ –

2-7/16 4 50 lb. 10475 50 25

bulk packed

22.5 9351-NC2

Fetter ring nails, 2 wire clamps –

2-7/16 4 50 lb. 65190 50 26

factory installed

22.5 9351-NK*

Fetter ring nails, Speed Klamps™ –

2-7/16 4 50 lb. 10476 50 26

factory installed

9351-NKRED

Same as 9351-NK but molded in red

96502 25 12

for fire circuts

ﬁberglass

BOX

™ 4” Dia. Round Outlet

4” Dia. Round Outlet:

Residential Units

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

2.5 9350-16

16” bar hanger, Speed Klamps™ –

2-7/16 4 50 lb. 10426 24 24

bulk packed

22.5 9350-16C2

16” bar hanger, 2 wire clamps –

2-7/16 4 50 lb. 10427 24 24

factory installed

22.5 9350-16K*

16” bar hanger, Speed Klamps™ –

2-7/16 4 50 lb. 62224 24 24

factory installed

Series 9350-16

Series 9351-NG Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

22.5 9351-NG

Fetter ring nails, ground strap,

2-7/16 4 50 lb. 65210 50 25

Speed Klamps™ – bulk packed

22.5 9351-NGC2

Fetter ring nails, ground strap,

2-7/16 4 50 lb. 65220 50 27

2 wire clamps – factory installed

22.5 9351-NGK*

Fetter ring nails, ground strap,

2-7/16 4 50 lb. 65212 50 25

Speed Klamps™ – factory installed

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

22.5 9351-SS

Steel stud screws for use with non-

2-7/16 4 50 lb. 65991 50 24

load bearing studs 22 gauge or

lighter, Speed Klamps™ – bulk packed

22.5 9351-SSK*

Steel stud screws for use with non-

2-7/16 4 50 lb. 65992 50 24

load bearing studs 22 gauge or

lighter, Speed Klamps™ – factory installed

Series 9351-SS

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

22.5 9350-16G

16” bar hanger, ground strap,

2-7/16 4 50 lb. 10448 24 24

Speed Klamps™ – bulk packed

22.5 9350-16GC2*

16” bar hanger, ground strap,

2-7/16 4 50 lb. 10456 24 24

2 wire clamps – factory installed

22.5 9350-16GK*

16” bar hanger, ground strap,

2-7/16 4 50 lb. 10449 24 24

Speed Klamps™ – factory installed

Series 9350-16G

For max 16” on center joist applications only

30 Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 7 for Attachment Coding descriptions

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

15.0 9365-N

Fetter ring nails, Speed Klamps™ –

1-11/16 4 50 lb. 10630 50 21

bulk packed

15.0 9365-NK*

Fetter ring nails, Speed Klamps™ –

1-11/16 4 50 lb. 75391 50 21

factory installed

Series 9365-N

4” Dia. Round Outlet:

Residential Units

ﬁberglass

BOX

™ 4” Dia. Round Outlet

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

15.0 9364-BH

16”-24” adj. bar hanger,

1-11/16 4 50 lb. 88112 24 29

Speed Klamps™ – bulk packed

15.0 9364-BHC2

16”-24” adj. bar hanger,

1-11/16 4 50 lb. 88122 24 30

2 wire clamps – factory installed

15.0 9364-BHK*

16”-24” adj. bar hanger,

1-11/16 4 50 lb. 88113 24 29

Speed Klamps™ – factory installed

Series 9364-BH

For 16”- 24” on center joist applications

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

15.0 9364-BHG

16”-24” adj. bar hanger, ground strap

1-11/16 4 50 lb. 88114 24 30

Speed Klamps™ – bulk packed

15.0 9364-BHGC2

16”-24” adj. bar hanger, ground strap

1-11/16 4 50 lb. 88123 24 31

2 wire clamps – factory installed

15.0 9364-BHGK*

16”-24” adj. bar hanger, ground strap

1-11/16 4 50 lb. 88115 24 30

Speed Klamps™ – factory installed

Series 9364-BHG

For 16”- 24” on center joist applications

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

15.0 9364-16

16” bar hanger, Speed Klamps™ –

1-11/16 4 50 lb. 10590 24 20

bulk packed

15.0 9364-16C2

16” bar hanger, 2 wire clamps –

1-11/16 4 50 lb. 10591 24 20

factory installed

15.0 9364-16K*

16” bar hanger, Speed Klamps™ –

1-11/16 4 50 lb. 98302 24 20

factory installed

Series 9364-16

For max 16” on center joist applications only

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

15.0 9364-16G

16” bar hanger, ground strap

1-11/16 4 50 lb. 10610 24 20

Speed Klamps™ – bulk packed

15.0 9364-16GC2

16” bar hanger, ground strap

1-11/16 4 50 lb. 10611 24 20

2 wire clamps – factory installed

15.0 9364-16GK*

16” bar hanger, ground strap

1-11/16 4 50 lb. 98303 24 20

Speed Klamps™ – factory installed

Series 9364-16G

For max 16” on center joist applications only

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 7 for Attachment Coding descriptions

Cu. In. Catalog Component D W Fan Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating Rating 85339 Pkg. Qty. Wt. (lb.)

20.5 9335-NKFR*

3-1/2” dia. side fetter

2-7/8 3-1/2 35 lb. 50 lb. 41202 50 25

ring nail mount, Speed

Klamps™-factory installed

20.5 9335-NFR

3-1/2” dia. side fetter

2-7/8 3-1/2 35 lb. 50 lb. 41201 50 26

ring nail mount, Speed

Klamps™-bulk packed

Series 9335-NFR

4” Diameter Fan and Fixture Support

Cu. In. Catalog Component D W Fan Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating Rating 85339 Pkg. Qty. Wt. (lb.)

22.5

9350-FRBKOW

4” dia. Strong “O” Bar

2-7/16 4 35 lb. 50 lb. 10472 20 49

hanger for old work

applications, Speed Klamps™-

factory installed, individual

point-of-purchase carton

9350-FRBKOW

Cu. In. Catalog Component D W Fan Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating Rating 85339 Pkg. Qty. Wt. (lb.)

22.5 9350-FRBKB

4” dia. Strong “O” Bar

2-7/16 4 35 lb. 50 lb. 10465 20 32

hanger, Speed Klamps™-

factory installed,

bulk packed

9350-FRBKB

Cu. In. Catalog Component D W Fan Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating Rating 85339 Pkg. Qty. Wt. (lb.)

16.0 9336-NKFR

3-1/2” dia. side fetter

2-3/8 3-1/2 35 lb. 50 lb. 10305 50 22

ring nail mount, Speed

Klamps™-factory installed

9336-NKFR

Cu. In. Catalog Component D W Fan Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating Rating 85339 Pkg. Qty. Wt. (lb.)

22.5 9350-KFR

4” dia. bottom mount,

2-7/16 4 35 lb. 50 lb. 10459 50 25

Speed Klamps™-factory

installed, mounting

hardware included

9350-KFR

Cu. In. Catalog Component D W Fan Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating Rating 85339 Pkg. Qty. Wt. (lb.)

22.5 9351-NKFR*

4” dia. side fetter ring nail

2-7/16 4 35 lb. 50 lb. 65002 50 27

mount, Speed Klamps™-

factory installed

22.5 9351-NFR

4” dia. side fetter ring nail

2-7/16 4 35 lb. 50 lb. 65001 50 27

mount, Speed Klamps™-

bulk packed

Series 9351-NFR

Fan and Fixture Support

3-1/2” Dia. Fan and Fixture Support:

Residential Units

For 16”- 24” on center joist applications

32 Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 7 for Attachment Coding descriptions

Cu. In. Catalog Component D W Fan Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating Rating 85339 Pkg. Qty. Wt. (lb.)

15.0

9364-FRBKOW

4” dia. Strong “O” Bar 1-11/16

4 35 lb. 50 lb. 70424 20 48

hanger for old work

applications, Speed Klamps™-

factory installed, individual

point-of-purchase carton

9364-FRBKOW

Cu. In. Catalog Component D W Fan Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating Rating 85339 Pkg. Qty. Wt. (lb.)

15.0 9364-FRBKB

4” dia. Strong “O” Bar

1-11/16

4 35 lb. 50 lb. 70423 20 39

hanger, Speed Klamps™-

factory installed, bulk

packed

9364-FRBKB

Cu. In. Catalog Component D W Fan Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating Rating 85339 Pkg. Qty. Wt. (lb.)

15.0 9364-KFR

4” dia. bottom mount,

1-11/16

4 35 lb. 50 lb. 10620 50 25

Speed Klamps™-factory

installed, mounting

hardware included

9364-KFR

Cu. In. Catalog Component D W Fan Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating Rating 85339 Pkg. Qty. Wt. (lb.)

15.0 9365-NKFR

4” dia. side fetter ring nail

1-11/16

4 35 lb. 50 lb. 75392 50 23

mount, “HL” hanger, Speed

Klamps™-factory installed

9365-NKFR

Cu. In. Catalog Component D W Fan Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating Rating 85339 Pkg. Qty. Wt. (lb.)

16.0 9369-FB

4” dia. surface mount,

1-3/4 4 35 lb. 50 lb. 76500 25 11

Speed Klamps™-factory

installed, mounting

hardware included

9369-FB

Cu. In. Catalog Component D W Fan Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating Rating 85339 Pkg. Qty. Wt. (lb.)

16.0 9369-FBH

4” dia. side mount hanger,

1-3/4 4 35 lb. 50 lb. 76501 25 17

Speed Klamps™-factory

installed, mounting

hardware included

9369-FBH

4” Dia. Fan and Fixture Support:

Fan and Fixture Support

Cu. In. Catalog Component D W Fan Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating Rating 85339 Pkg. Qty. Wt. (lb.)

8.0 9370-FR

4” dia. pan fan box,

1-1/2

4 70 lb. 110 lb. 76600 50 13

1/2” deep base, “pop-in” overall

cable clamp,

mounting

hardware included

9370-FR

For 16”- 24” on center joist applications

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 7 for Attachment Coding descriptions

Point-of-Purchase Fan and

Fixture Support

Cu. In. Catalog Component D W Fan Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating Rating 85339 Pkg. Qty. Wt. (lb.)

16.5 9373-FR

4” dia. thermoplastic fan

6 4 70 lb. 110 lb. 78254 40 15

box,

1/2” deep base, overall

Speed Klamps™-molded in,

mounting hardware included

9373-FR

Cu. In. Catalog Component D W Fan Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating Rating 85339 Pkg. Qty. Wt. (lb.)

22.5 9350-FRBK

4” dia. Strong “O” Bar

2-7/16 4 35 lb. 50 lb. 10464 20 39

hanger, Speed Klamps™-

factory installed, individual

point-of-purchase carton

9350-FRBK

Cu. In. Catalog Component D W Fan Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating Rating 85339 Pkg. Qty. Wt. (lb.)

15.0 9364-FRBK

4” dia. Strong “O” Bar

1-11/16

4 35 lb. 50 lb. 10618 20 39

hanger, Speed Klamps™-

factory installed, individual

point-of-purchase carton

9364-FRBK

Cu. In. Catalog Component D W Fan Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating Rating 85339 Pkg. Qty. Wt. (lb.)

22.5

9350-FRBKOW

4” dia. Strong “O” Bar

2-7/16 4 35 lb. 50 lb. 10472 20 49

hanger for old work

applications, Speed Klamps™-

factory installed, individual

point-of-purchase carton

9350-FRBKOW

Cu. In. Catalog Component D W Fan Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating Rating 85339 Pkg. Qty. Wt. (lb.)

15.0

9364-FRBKOW

4” dia. Strong “O” Bar

1-11/16

4 35 lb. 50 lb. 70424 20 48

hanger for old work

applications, Speed Klamps™-

factory installed, individual

point-of-purchase carton

9364-FRBKOW

Cu. In. Catalog Component D W Fan Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating Rating 85339 Pkg. Qty. Wt. (lb.)

14.0 9375-FR

4” dia. thermoplastic fan

3-13/16

4 70 lb. 110 lb. 79291 24 7

box,

1/2” deep base, overall

Speed Klamps™-molded in,

two 1/2” knockouts,

mounting hardware included

9375-FR

Fan and Fixture Support

4” Dia. Fan and Fixture Support:

For 16”- 24” on center joist applications

34 Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

See page 7 for Attachment Coding descriptions - •“V2” for use in double 5/8” drywall applications

Vapor Seal: Air-Sealed Electrical Boxes

Vapor Seal

Switch or Receptacle Boxes

Material and Labor Saving Features

With innovative products designed for the electrical contractor, Allied offers a complete line of wall and ceiling boxes for use in energy efﬁcient

homes to aid in sealing up the exterior walls per construction methods outlined in 402.4 of the 2009 International Energy Conservation Code.

U.S. Patent #6,908,003 B2

A. Patented ﬂexible polyurethane ﬂange available for sealing box to air/

vapor barrier. Flange products “V” are for single drywall and “V2”

are for double drywall applications.

B. Bright common nails ﬁt securely in specially designed supports and

are angled for easy installation.

C. Tapered and machine tapped device holes allow device screw to

be started by hand and speed installation time with high torque

screwdrivers.

D. Cubic inch capacity clearly marked and easy for contractor and inspector to

locate and identify.

E. Proudly UL® listed.

F. Knockouts on ﬁberglass boxes are complete, reducing drafts and easily removed

with wire for no tools installation.

G. Leveling ribs position face of box parallel to wall surface.

I. 2-Hour Fire Rated clearly marked for easy inspector identiﬁcation.

J. Patented non-metallic Speed “K” Klamps™ dependably secure wire in box.

A (V) A (V2)

FCD, E

Catalog

Number

Cubic Inch

Wire

Capacity

Component

Description

Outside Dimensions (min ﬂange dim.) Wall Substrate

Offset

UPC #

85339

Standard

Pkg. Qty.

Standard

Pkg.

Wt.(lbs.)

Depth Width Height

1099-NV 22.5 Single gang, angled mid-nails,

knockouts 3-9/16 2-1/4

(3-1/2)

3-3/4

(5) 1/2 - 5/8 26007 48 21

1099-NV2•22.5 Single gang, angled mid-nails,

knockouts 3-9/16 2-1/4

(3-1/2)

3-3/4

(5) 1 - 1 1/4 26015 48 21

2302-HNKV2•37.0 “HN” hanger, Speed Klamps™ factory

installed, knockouts 3-7/16 4

(5-1/4)

3-3/4

(5) 1 - 1 1/4 92711 48 36

2302-NKV 37.0 Two gang, angled mid-nails, Speed

Klamps™ factory installed, knockouts 3-7/16 4

(5-1/4)

3-3/4

(5) 1/2 - 5/8 13077 48 33

RD-42V 42.0

Range/dryer receptacle box,

fetter ring nails, clamp for #6/#8 AWG

factory installed

3-13/16 4

(5-1/4)

3-3/4

(5) 1/2 - 5/8 12906 24 23

3303-NKV 56.5 Three gang, angled mid-nails,

Speed Klamps™ factory installed 3-5/8 5-11/16

(7)

3-3/4

(5) 1/2 - 5/8 15209 18 18

4304-NKV 75.0 Four gang, angled mid-nails,

Speed Klamps™ factory installed 3-9/16 7-1/2

(8-3/4)

3-3/4

(5) 1/2 - 5/8 17558 18 22

5305-NKV 94.0 Five gang, angled mid-nails,

Speed Klamps™ factory installed 3-9/16 9-1/4

(10-1/2)

3-3/4

(5) 1/2 - 5/8 18011 6 8

5305-NBKV 94.0 Five gang, angled mid-nails, stabilizer

bar, Speed Klamps™ factory installed 3-9/16 9-1/4

(10-1/2)

3-3/4

(5) 1/2 - 5/8 18012 6 10

Note: all dimensions are inches unless speciﬁed otherwise.

1099-NV 2302-HNKV2 2302-NKV RD-42V 3303-NKV 4304-NKV 5305-NBKV Scan for more

information.

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

9335-BHKV2 9335-HNKV2 9350-BHKV 9350-HNKV2 9351-NKV

Number Wire Capacity Description Depth Diameter Rating (lbs) Offset 85339 Pkg. Qty. Pkg. Wt. (lbs.)

9335-BHKV2•20.5

16” to 24” adj. bar hanger,

Speed Klamps™

factory installed

2-15/16 3-1/2

(4-3/4) 50 1 - 1-1/4 88125 18 25

9335-HNKV2•20.5

“HN” hanger,

Speed Klamps™

factory installed

2-15/16 3-1/2

(4-3/4) 50 1 - 1-1/4 88126 50 30

9350-16KV 22.5

16” bar hanger,

Speed Klamps™

factory installed

2-7/16 4

(5-1/4) 50 1/2 - 5/8 98301 24 24

9350-BHKV 22.5

16” to 24” adj. bar hanger,

Speed Klamps™

factory installed

2-7/16 4

(5-1/4) 50 1/2 - 5/8 88124 18 26

9350-BHKV2•22.5

16” to 24” adj. bar hanger,

Speed Klamps™

factory installed

2-7/16 4

(5-1/4) 50 1 - 1-1/4 10484 18 25

9350-HNKV2•22.5

“HN” hanger,

Speed Klamps™

factory installed

2-7/16 4

(5-1/4) 50 1 - 1-1/4 10485 50 30

9351-NKV 22.5

Fetter ring nails,

Speed Klamps™

factory installed

2-7/16 4

(5-1/4) 50 1/2 - 5/8 65811 48 26

Catalog Cubic Inch Component Outside Dimensions

(ﬂange dim.) Fixture Ceiling

Substrate UPC # Standard Standard

Number Wire Capacity Description Depth Diameter Rating (lbs) Rating (lbs) Offset 85339 Pkg. Qty. Pkg. Wt. (lbs.)

9350-FRBKBV 22.5

Strong “O” Bar hanger,

Speed Klamps™

factory installed

2-7/16 4

(5-1/4) 35 50 1/2 - 5/8 10471 18 31

9350-FRBKBV2•22.5

Strong “O” Bar hanger,

Speed Klamps™

factory installed

2-7/16 4

(5-1/4) 35 50 1 - 1 1/4 10482 18 31

9351-NKFRV 22.5

Fetter ring nails,

Speed Klamps™

factory installed

2-7/16 4

(5-1/4) 35 50 1/2 - 5/8 65810 48 28

9371-FRV 12.0

4” dia. pan fan box,

½” deep pan, Speed

Klamps™ factory installed

2-7/8

overall

(5-1/4) 70 110 1/2 - 5/8 92705 24 9

Catalog Cubic Inch Component Outside Dimensions

(ﬂange dim.) Fan Fixture Ceiling

Substrate UPC # Standard Standard

9350-FRBKBV 9350-FRBKBV2 9351-NKFRV 9371-FRV

NOTE: All dimensions are inches unless speciﬁed otherwise.

See page 7 for Attachment Coding descriptions - •“V2” for use in double 5/8” drywall applications

Vapor Seal

Vapor Seal: Air-Sealed Electrical Boxes

Round Fan and Fixture Support Boxes

Round Fixture Support Boxes

NOTE: All dimensions are inches unless speciﬁed otherwise.

36 Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

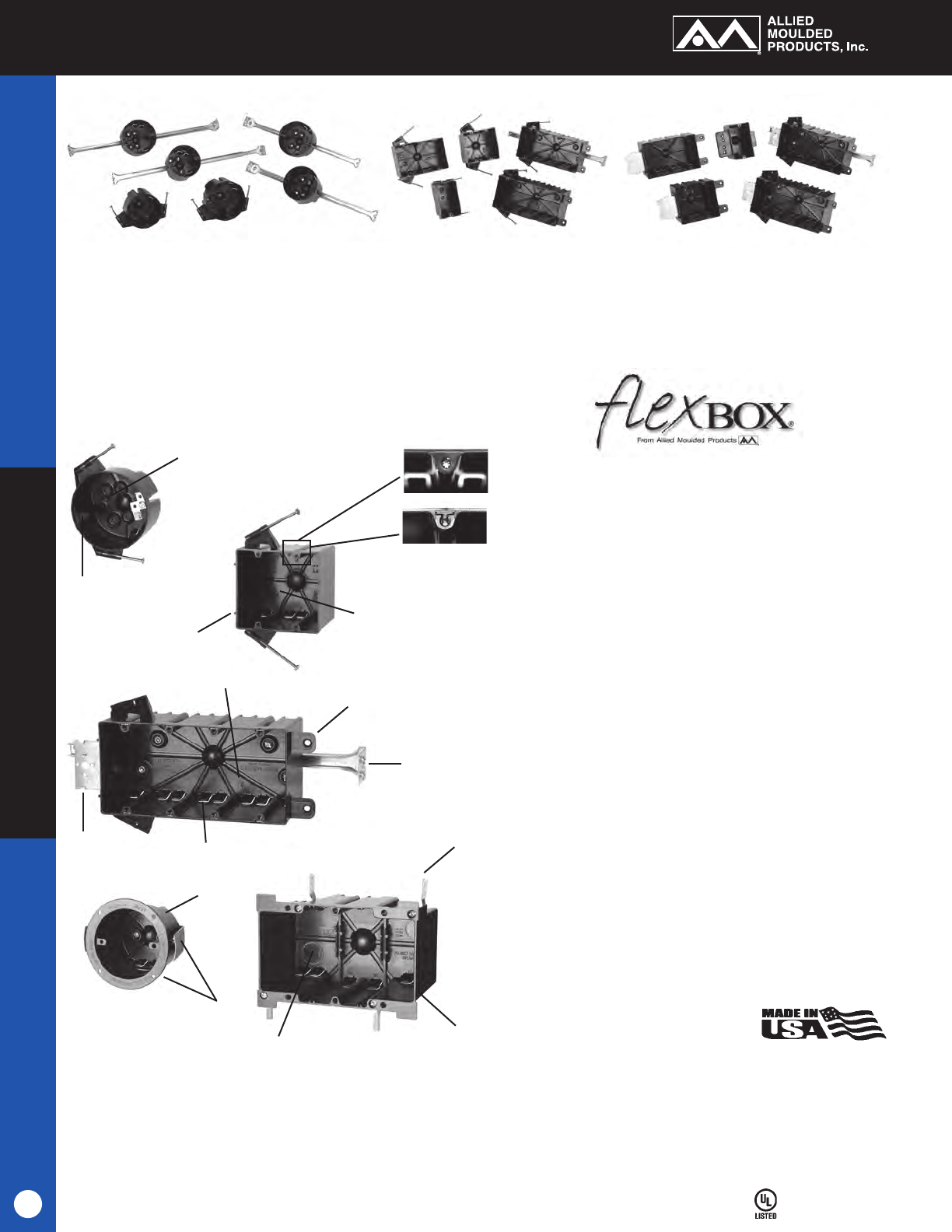

Material Characteristics

Allied Moulded ex

BOX

® switch and outlet boxes are molded of engineering grades of non-metallic thermoplastic materials.

Our ex

BOX

line of products was created for the electrical contractor looking for non-metallic outlet boxes with “soft box”

characteristics. Allied Moulded’s ex

BOX

line offers the following material advantages:

• Non-corrosive • Non-conductive • Splined thread holes – wall boxes

• Light weight • No accessory clamps • Machine tapped holes – ceiling boxes

A. Patented #6,365,831 B1 integral Speed Klamps.™

B. Molded thread device holes for wall boxes.

a. Optional Quick Thread™ device holes.

C. Machine tapped thread holes for secure fixture

installation.

D. Proudly UL“ listed

E. 2-Hour Fire Rated clearly marked for easy inspector

identification.

F. Large cubic inch capacity clearly marked and easy

for contractor and inspector to locate and identify.

G. Stabilizing bracket for maximum support and flush

face alignment of wall boxes.

H. Molded wallboard tabs for securing multi-gang

boxes on the opposite end of the framing stud.

I. Wall box face brackets for steel or wood stud

construction.

J. Offset gauge marks on box give positive stop for the

proper wall thickness.

K. Square corner design for easy wall cut-in.

L. Steel wing brackets for secure box mounting.

M. 1/2” knockouts in multi-gang old work boxes for use

with wire/conduit connectors.

N. Molded flange and steel snap bracket for secure old

work box installation.

O. Round exterior for easy wall cut-in.

Flexbox® Attachment Codings

B – Stabilizer bracket N – Nail on mounting

G – Ground strap H – Face bracket for steel and wood stud mounting

R – Reverse nail mounting option QT – Quick Thread™ device hole option

BH – Adjustable bar hanger for 16” to 24” joist spacing 16 – Bar hanger max 16” joist spacing

Labor Saving Features

ﬂex

BOX

® Features:

Residential Units

ﬂex

BOX

® Features

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

22.5 P-122OW

Single gang, ears, wing brackets,

3-3/4 2-3/8 3-3/4 24913 48 13

molded-in Speed Klamps™

P-122OW

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

24.0 P-122SC Patented,

angled mid-nails, four

1-3/4 2-5/16 3-3/4 24914 24 9

wire knockouts,

2 recessed buttons

P-122SC

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

8.0 P-108E

Single gang, ears

1-1/4 2-3/8 3-3/4 24917 24 3

P-108E

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

8.0 P-108H

Side bracket mount

1-1/4 2-3/8 3-3/4 24918 24 3

P-108H

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

16.0 P-116OW

Single gang, ears, wing brackets,

2-5/8 2-3/8 3-11/16 24915 48 9

1/2 Knockout

P-116OW

* Indicates model shown • See page 36 for Attachment Coding descriptions

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

18.0 P-181RK

Single gang, reverse nails,

2-5/8 2-5/16 3-3/4 24398 100 20

molded-in Speed Klamps™

P-181RK

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

24.0 P-241H*

Single gang, face bracket mount

3-9/16 2-5/16 3-3/4 24907 50 12

24.0 P-241HQT

Single gang, Quick Thread™

3-9/16 2-5/16 3-3/4 24908 50 12

device holes

Series P-241H

ﬂex

BOX

® Single Gang

Single Gang:

Residential Switch or Receptacle Box

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

20.5 P-201R

Single gang, reverse nails

3-1/16 2-5/16 3-3/4 24901 100 23

P-201R

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

24.0 P-241*

Single gang, angled nails

3-9/16 2-5/16 3-3/4 24903 100 26

24.0 P-241QT

Single gang, angled nails

3-9/16 2-5/16 3-3/4 24904 100 26

Quick Thread™ device holes

Series P-241

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

20.5 P-201*

Single gang, angled nails

3-1/16 2-5/16 3-3/4 24900 100 22

20.5 P-201QT

Single gang, angled nails,

3-1/16 2-5/16 3-3/4 24909 100 23

Quick Thread™ device holes

Series P-201

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

18.0 P-181*

Single gang, angled mid-nails

2-5/8 2-5/16 3-3/4 24391 100 20

18.0 P-181QT

Single gang, angled mid-nails,

2-5/8 2-5/16 3-3/4 24399 100 20

Quick Thread™ device holes

Series P-181

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

18.0 P-181H

Single gang, face bracket mount,

2-5/8 2-5/16 3-3/4 24916 48 11

½” NM knockout

18.0 P-181HZ

Single gang, face bracket mount

2-5/8 2-5/16 3-3/4 24919 36 11

½” NM knockout, “Z” hanger

P-181H

38 Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 36 for Attachment Coding descriptions

Three Gang: Residential Switch or Receptacle Box

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

63.0 P-643*

Three gang, angled nails,

3-9/16 5-13/16 3-3/4 46302 20 9

molded-in Speed Klamps™

63.0 P-643QT

Three gang, angled nails,

3-9/16 5-13/16 3-3/4 46301 20 9

Quick Thread™ device holes,

molded-in Speed Klamps™

Series P-643

Series P-643H Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

63.0 P-643H*

Three gang, face bracket side mount

3-9/16 5-13/16 3-3/4 46303 20 11

hanger, molded-in Speed Klamps™

63.0 P-643HQT

Three gang, face bracket side mount

3-9/16 5-13/16 3-3/4 46304 20 11

Quick Thread™ device holes,

molded-in Speed Klamps™

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

43.0 P-442*

Two gang, angled nails, molded-in

3-9/16 4 3-3/4 44000 50 17

Speed Klamps™, two ½” knockouts

43.0 P-442QT

Two gang, angled nails,

3-9/16 4 3-3/4 44001 50 17

Quick Thread™ device holes,

molded-in Speed Klamps™, two

½” knockouts

Series P-442

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

43.0 P-442H*

Two gang, face bracket side mount

3-9/16 4 3-3/4 44002 50 18

hanger, molded-in Speed Klamps™

two

½” knockouts

43.0 P-442HQT

Two gang, face bracket side mount

3-9/16 4 3-3/4 44003 50 21

hanger, Quick Thread™ device holes,

Speed Klamps™, two ½” knockouts

Series P-442H

Two Gang: Residential Switch or Receptacle Box

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

40.0 P-240OW

Two gang, wing brackets, ears,

3-3/8 4-1/8 3-11/16 24912 24 8

molded-in Speed Klamps™, two

1/2” knockouts, use LVP-2 partition

for dual voltage applications

P-240OW

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

55.0 P-352OW

Three gang, wing brackets, ears,

3-3/8 5-15/16 3-11/16 33201 12 5

molded-in Speed Klamps™,

1/2” knockouts, use LVP-2 partition

for dual voltage applications

P-352OW

ﬂex

BOX

® Two Gang/Three Gang

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 36 for Attachment Coding descriptions

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

74.8 P-764H*

Four gang, face bracket side mount

3-1/4 7-5/8 3-3/4 94064 12 7

hanger, molded-in Speed Klamps™

74.8 P-764HQT

Four gang, face bracket side mount

3-1/4 7-5/8 3-3/4 94065 12 8

hanger, Quick Thread™ device holes,

molded-in Speed Klamps™

Series P-764H

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

74.8 P-764HB*

Four gang, face bracket side mount

3-1/4 7-5/8 3-3/4 94066 6 5

hanger, molded-in Speed Klamps™

stabilizer bracket

74.8 P-764HBQT

Four gang, face bracket side mount

3-1/4 7-5/8 3-3/4 94067 6 5

hanger, Quick Thread™ device

holes, molded-in Speed Klamps™,

stabilizer bracket

Series P-764HB

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

20.5 PJ-20N

4” square junction box, 20.5 cu. in.,

1-5/8 4 4 99001 48 12

angled nails, molded-in Speed Klamps™

20.5 PJ-20H

4” square junction box, 20.5 cu. in.,

1-5/8 4 4 99000 48 15

face bracket side mount hanger,

molded-in Speed Klamps™

Series PJ-20

Series PJ-32 Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

32.5 PJ-32N

4” square junction box, 32.5 cu. in.,

2-1/2 4 4 99003 48 13

angled nails, molded-in Speed Klamps™

32.5 PJ-32H

4” square junction box, 32.5 cu. in.,

2-1/2 4 4 99002 48 17

face bracket side mount hanger,

molded-in Speed Klamps™

4” Square Junction Boxes:

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

74.8 P-764*

Four gang, angled nails,

3-1/4 7-5/8 3-3/4 94060 20 10

molded-in Speed Klamps™

74.8 P-764QT

Four gang, angled nails,

3-1/4 7-5/8 3-3/4 94063 20 10

Quick Thread™ device holes,

molded-in Speed Klamps™

Series P-764

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

74.8 P-764B*

Four gang, angled nails, molded-in

3-1/4 7-5/8 3-3/4 94061 20 14

Speed Klamps™, stabilizer bracket

74.8 P-764BQT

Four gang, angled nails, Quick Thread™

3-1/4 7-5/8 3-3/4 94062 20 14

device holes, molded-in Speed Klamps™,

stabilizer bracket

Series P-764B

ﬂex

BOX

® Four Gang/

4” Square Junction Box

Four Gang:

Residential Switch or Receptacle Box

* not UL classified for fire resistive walls

Unless otherwise noted.

40 Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 36 for Attachment Coding descriptions

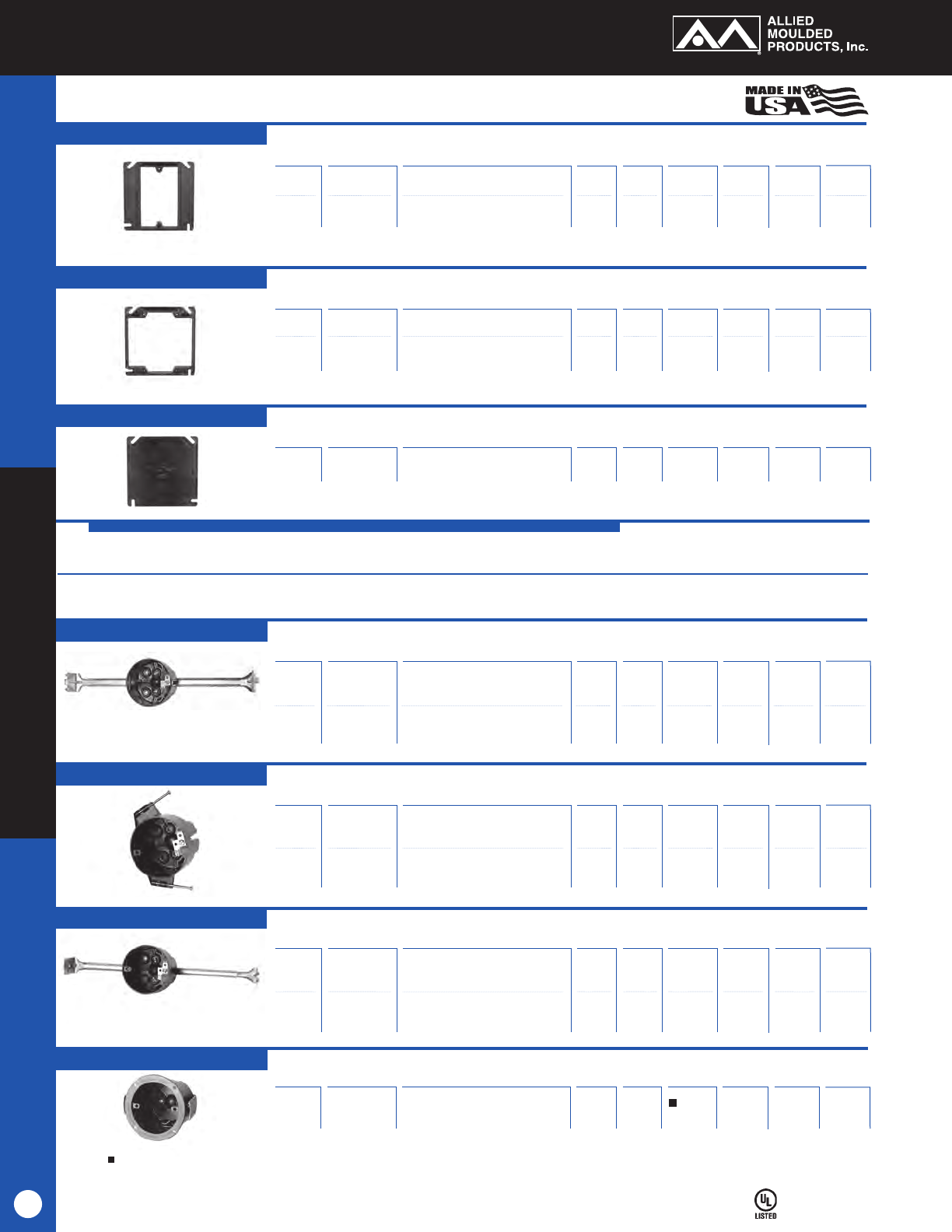

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

4.2 PJ-4S1*

Single gang plaster ring, 1/2” offset

5/8 4 4 99004 100 7

5.1 PJ-4S2

Single gang plaster ring, 5/8” offset

3/4 4 4 99005 50 5

Series PJ-4S

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

6.7 PJ-4T1*

Two gang plaster ring, 1/2” offset

5/8 4 4 99006 50 4

8.1 PJ-4T2

Two gang plaster ring, 5/8” offset

3/4 4 4 99007 50 4

Series PJ-4T

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

0.0 PJ-4B

Square blank cover

– 4 4 99008 100 8

PJ-4B

3-1/2” Dia. Round Outlet:

Residential Units

Plaster Rings and Cover:

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

21.0 PC213-BH

16”-24” adj. bar hanger, molded-in

2-13/16 3-1/2 50 lb. 98030 24 27

Speed Klamps™

21.0 PC213-BHG*

16”-24” adj. bar hanger, ground strap,

2-13/16 3-1/2 50 lb. 98031 24 27

molded-in Speed Klamps™

Series PC213-BH

For 16”-24” on center joist applications

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

21.0 PC213-N

Angled Fetter ring nails,

2-13/16 3-1/2 50 lb. 98011 50 11

molded-in Speed Klamps™

21.0 PC213-NG*

Angled Fetter ring nails, ground

2-13/16 3-1/2 50 lb. 98012 50 12

strap, molded-in Speed Klamps™

Series PC213-N

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

21.0 PC213-16

16” bar hanger,

2-13/16 3-1/2 50 lb. 98304 24 16

molded-in Speed Klamps™

21.0 PC213-16G*

16” bar hanger, ground strap

2-13/16 3-1/2 50 lb. 98305 24 16

molded-in Speed Klamps™

Series PC213-16

For 16” on center joist applications only

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

21.5 PC223OW

Flange, snap bracket, molded-in

2-13/16 3-1/2 98028 24 9

Speed Klamps™

PC223OW

Meets NEC for wall applications

ﬂex

BOX

® Plaster Rings/

3-1/2” Dia. Round Outlets

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 36 for Attachment Coding descriptions

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

23.0 PC234-N

Angled Fetter ring nails,

2-15/16 4 50 lb. 98025 50 11

molded-in Speed Klamps™

23.0 PC234-NG*

Angled Fetter ring nails, ground

2-15/16 4 50 lb. 98026 50 12

strap, molded-in Speed Klamps™

Series PC234-N

ﬂex

BOX

® 4” Dia. Round Outlet

4” Dia. Round Outlet:

Residential Units

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

23.0 PC234-BH*

16”-24” adj. bar hanger,

2-15/16 4 50 lb. 98032 24 26

molded-in Speed Klamps™

23.0 PC234-BHG

16”-24” adj. bar hanger, ground

2-15/16 4 50 lb. 98033 24 27

strap, molded-in Speed Klamps™

Series PC234-BH

For 16”-24” on center joist applications

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

23.0 PC234-16

16” bar hanger,

2-15/16 4 50 lb. 98306 24 16

molded-in Speed Klamps™

23.0 PC234-16G*

16” bar hanger, ground strap,

2-15/16 4 50 lb. 98307 24 16

molded-in Speed Klamps™

Series PC234-16

For max 16” on center joist applications only

42 Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 7 for Attachment Coding descriptions

Single Gang: Old Work/Manufactured Housing Boxes

Single Gang - Old Work

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

8.0 P-108E

Single gang, ears

1-1/4 2-3/8 3-3/4 24917 24 3

Series P-108E

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

16.0 P-116OW

Single gang, ears, wing brackets

2-5/8 2-3/8 3-11/16 24915 48 9

Series P-116OW

Cu. In. Catalog Component Outside Dimensions UPC# Std. Std. Pkg.

Volume Number Description D W H 85339 Pkg. Qty. Wt. (lb.)

18.0 1096-NR

Reverse nails

3 2-1/4 3-13/16 24413 100 31

1096-NR

Cu. In. Catalog Component Outside Dimensions UPC# Std. Std. Pkg.

Volume Number Description D W H 85339 Pkg. Qty. Wt. (lb.)

12.0 9324-N

Nails

1-3/4 2-3/8 4-1/8 10165 100 27

9324-N

Cu. In. Catalog Component Outside Dimensions UPC# Std. Std. Pkg.

Volume Number Description D W H 85339 Pkg. Qty. Wt. (lb.)

20.5 P-201R

Flexbox® single gang, reverse nails

3-1/16 2-5/16 3-3/4 24901 100 23

P-201R

Cu. In. Catalog Component Outside Dimensions UPC# Std. Std. Pkg.

Volume Number Description D W H 85339 Pkg. Qty. Wt. (lb.)

9.0 9301-E

Ears, wire clamps-bulk packed

1-3/4 2-3/8 3-1/4 10010 100 22

9.0 9301-EC2*

Ears, 2 wire clamps-factory

1-3/4 2-3/8 3-1/4 10011 100 25

installed

Series 9301-E

Cu. In. Catalog Component Outside Dimensions UPC# Std. Std. Pkg.

Volume Number Description D W H 85339 Pkg. Qty. Wt. (lb.)

14.0 9331-E

Ears, Speed Klamps™-bulk packed

2-1/2 2-3/8 3-1/4 10235 100 27

14.0 9331-EC2

Ears, 2 wire clamps-factory

2-1/2 2-3/8 3-1/4 10236 100 31

installed

14.0 9331-EK*

Ears, Speed Klamps™-factory

2-1/2 2-3/8 3-1/4 10239 100 28

installed

Series 9331-E

Cu. In. Catalog Component Outside Dimensions UPC# Std. Std. Pkg.

Volume Number Description D W H 85339 Pkg. Qty. Wt. (lb.)

18.0 P-181RK

Flexbox® single gang,

2-5/8 2-5/16 3-3/4 24398 100 20

reverse nails, molded-in

Speed Klamps™

P-181RK

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 7 for Attachment Coding descriptions

Cu. In. Catalog Component Outside Dimensions UPC# Std. Std. Pkg.

Volume Number Description D W H 85339 Pkg. Qty. Wt. (lb.)

14.0 9331-EW

Ears, wing brackets, Speed Klamps™

2-1/2 2-3/8 3-1/4 38500 100 30

-bulk packed

14.0 9331-EWC2

Ears, wing brackets, 2 wire

2-1/2 2-3/8 3-1/4 38510 100 33

clamps-factory installed

14.0 9331-EWK*

Ears, wing brackets, Speed Klamps™

2-1/2 2-3/8 3-1/4 38511 100 30

-factory installed

Series 9331-EW

Cu. In. Catalog Component Outside Dimensions UPC# Std. Std. Pkg.

Volume Number Description D W H 85339 Pkg. Qty. Wt. (lb.)

16.0 9363-EW

Ears, wing brackets, Speed

2-7/8 2-3/8 3-1/4 10572 100 32

Klamps™-bulk packed

16.0 9363-EWC2

Ears, wing brackets, 2 wire

2-7/8 2-3/8 3-1/4 10573 100 35

clamps-factory installed

16.0 9363-EWK*

Ears, wing brackets, Speed

2-7/8 2-3/8 3-1/4 10578 100 32

Klamps™-factory installed

Series 9363-EW

Cu. In. Catalog Component Outside Dimensions UPC# Std. Std. Pkg.

Volume Number Description D W H 85339 Pkg. Qty. Wt. (lb.)

16.0 9361-E

Ears, Speed Klamps™-bulk packed

2-7/8 2-3/8 3-1/4 10555 100 29

16.0 9361-EC2

Ears, 2 wire clamps-factory installed

2-7/8 2-3/8 3-1/4 10560 100 32

16.0 9361-EK*

Ears, Speed Klamps™-factory installed

2-7/8 2-3/8 3-1/4 10561 100 29

Series 9361-E

Cu. In. Catalog Component Outside Dimensions UPC# Std. Std. Pkg.

Volume Number Description D W H 85339 Pkg. Qty. Wt. (lb.)

16.0 9363-E

Ears, Speed Klamps™-bulk packed

2-7/8 2-3/8 3-1/4 10570 100 30

16.0 9363-EC2

Ears, 2 wire clamps-factory installed

2-7/8 2-3/8 3-1/4 10571 100 32

16.0 9363-EK*

Ears, Speed Klamps™-factory installed

2-7/8 2-3/8 3-1/4 10576 100 30

Series 9363-E

Cu. In. Catalog Component Outside Dimensions UPC# Std. Std. Pkg.

Volume Number Description D W H 85339 Pkg. Qty. Wt. (lb.)

16.0 9361-ES

Ears, snap bracket, Speed

2-7/8 2-3/8 3-1/4 10562 50 22

Klamps™-bulk packed

16.0 9361-ESC2

Ears, snap bracket, 2 wire

2-7/8 2-3/8 3-1/4 10564 50 24

clamps-factory installed

16.0 9361-ESK*

Ears, snap bracket, Speed

2-7/8 2-3/8 3-1/4 10566 50 22

Klamps™-factory installed

Series 9361-ES

Cu. In. Catalog Component Outside Dimensions UPC# Std. Std. Pkg.

Volume Number Description D W H 85339 Pkg. Qty. Wt. (lb.)

14.0 9331-ES

Ears, snap bracket,

2-1/2 2-3/8 3-1/4 10242 50 21

Speed Klamps™-bulk packed

14.0 9331-ESC2

Ears, snap bracket, 2 wire

2-1/2 2-3/8 3-1/4 10244 50 23

clamps-factory installed

14.0 9331-ESK*

Ears, snap bracket, Speed

2-1/2 2-3/8 3-1/4 10243 50 21

Klamps™-factory installed

Series 9331-ES

Single Gang - Old Work

Single Gang: Old Work/Manufactured Housing Boxes

44 Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 7 for Attachment Coding descriptions

Cu. In. Catalog Component Outside Dimensions UPC# Std. Std. Pkg.

Volume Number Description D W H 85339 Pkg. Qty. Wt. (lb.)

18.0 9366-EK

Wide body box, ears,

2-3/4 2-3/4 3-1/4 77003 100 32

Speed Klamps™-factory installed

9366-EK

Cu. In. Catalog Component Outside Dimensions UPC# Std. Std. Pkg.

Volume Number Description D W H 85339 Pkg. Qty. Wt. (lb.)

18.0 9368-EW

Ears, wing brackets, Speed

3-3/16 2-3/8 3-1/4 76002 100 34

Klamps™-bulk packed

18.0 9368-EWK*

Ears, wing brackets, Speed

3-3/16 2-3/8 3-1/4 76001 100 34

Klamps™-factory installed

Series 9368-EW

Cu. In. Catalog Component Outside Dimensions UPC# Std. Std. Pkg.

Volume Number Description D W H 85339 Pkg. Qty. Wt. (lb.)

16.0 9367-E

Side cube box, ears,

1-11/16 2-3/8 3-1/4 75600 50 16

Now UL® listed

open

4-15/16

overall

16.0 9367-EW*

Side cube box, ears, wing brackets,

1-11/16 2-3/8 3-1/4 75601 50 17

Now UL® listed

open

4-15/16

overall

Series 9367

Cu. In. Catalog Component Outside Dimensions UPC# Std. Std. Pkg.

Volume Number Description D W H 85339 Pkg. Qty. Wt. (lb.)

18.0 9368-E

Ears, Speed Klamps™-bulk packed

3-3/16 2-3/8 3-1/4 76000 100 31

18.0 9368-EK*

Ears, Speed Klamps™-factory

3-3/16 2-3/8 3-1/4 76003 100 32

installed

Series 9368-E

Cu. In. Catalog Component Outside Dimensions UPC# Std. Std. Pkg.

Volume Number Description D W H 85339 Pkg. Qty. Wt. (lb.)

18.0 9366-EW

Wide body box, ears, wing

2-3/4 2-3/4 3-1/4 77001 100 34

brackets, Speed Klamps™-bulk

packed

18.0 9366-EWK*

Wide body box, ears, wing

2-3/4 2-3/4 3-1/4 77002 100 34

brackets, Speed Klamps™-

factory installed

Series 9366-EW

Cu. In. Catalog Component Outside Dimensions UPC# Std. Std. Pkg.

Volume Number Description D W H 85339 Pkg. Qty. Wt. (lb.)

– 1TP

Metal template for single gang old

– – – 88015 1 1

work box: 9331-E Series,

9363-E Series, 9368-E Series

Template

Single Gang: Old Work/Manufactured Housing Boxes

Unless otherwise noted.

Single Gang - Old Work

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

22.5 P-122OW Flexbox®

Single gang, ears,

3-3/4 2-3/8 3-3/4 24913 48 13

wing brackets, molded-in

Speed Klamps™

P-122OW

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 7 for Attachment Coding descriptions

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

40.0 P-240OW Flexbox®

Two gang, ears, wing

3-3/8 4-1/8 3-11/16 24912 24 8

brackets, molded-in

Speed Klamps™,

1/2” knockouts, use LVP-2 partition

for dual voltage applications

P-240OW

Cu. In. Catalog Component Outside Dimensions UPC# Std. Std. Pkg.

Volume Number Description D W H 85339 Pkg. Qty. Wt. (lb.)

28.0 9312-E

Ears, Speed Klamps™-bulk packed

2-3/4 4-1/8 3-1/4 10064 50 23

28.0 9312-EK*

Ears, Speed Klamps™-factory installed

2-3/4 4-1/8 3-1/4 29112 50 24

Series 9312-E

Cu. In. Catalog Component Outside Dimensions UPC# Std. Std. Pkg.

Volume Number Description D W H 85339 Pkg. Qty. Wt. (lb.)

28.0 9312-EW

Ears, wing brackets, Speed

2-3/4 4-1/8 3-1/4 29100 50 25

Klamps™-bulk packed

28.0 9312-EWC2

Ears, wing brackets, 2 wire

2-3/4 4-1/8 3-1/4 29110 50 26

clamps-factory installed

28.0 9312-EWC4

Ears, wing brackets, 4 wire

2-3/4 4-1/8 3-1/4 29120 50 28

clamps-factory installed

28.0 9312-EWK*

Ears, wing brackets, Speed

2-3/4 4-1/8 3-1/4 29111 50 25

Klamps™-factory installed

Series 9312-EW

Cu. In. Catalog Component Outside Dimensions UPC# Std. Std. Pkg.

Volume Number Description D W H 85339 Pkg. Qty. Wt. (lb.)

32.5 9329-EW

Ears, wing brackets, Speed

3-1/4 4-1/8 3-1/4 10801 50 25

Klamps™-bulk packed

32.5 9329-EWK*

Ears, wing brackets, Speed

3-1/4 4-1/8 3-1/4 10802 50 25

Klamps™-factory installed

Series 9329-EW

Cu. In. Catalog Component Outside Dimensions UPC# Std. Std. Pkg.

Volume Number Description D W H 85339 Pkg. Qty. Wt. (lb.)

30.0 9372-NMHK

Nails, 3/16” panel stops,

2-3/4 4 3-3/4 10683 50 26

Speed Klamps™-factory installed

9372-NMHK

Cu. In. Catalog Component Outside Dimensions UPC# Std. Std. Pkg.

Volume Number Description D W H 85339 Pkg. Qty. Wt. (lb.)

– 2TP

Metal template for two gang old

– – – 88016 1 1

work box: 9312-E Series, 9329-E Series

Template

Two Gang - Old Work

Two Gang: Old Work/Manufactured Housing Boxes

46 Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 7 for Attachment Coding descriptions

3-1/2” Round Wall Boxes:

Old Work/Manufactured Housing Boxes

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

3.5 9304*

Fixture mounting holes on 2-3/4”

5/8 3-3/8 – 10025 100 13

(Top photo)

centers, not UL® listed.

See NEC 2008 410.10.

3.5 9304-G*

Fixture mounting holes on 2-3/4”

5/8 3-3/8 – 10026 100 14

(Btm photo)

centers, ground strap, not UL®

listed. See NEC 2008 410.10.

Series 9304

Unless otherwise noted.

Three Gang: Old Work/Manufactured Housing Boxes

Cu. In. Catalog Component Outside Dimensions UPC# Std. Std. Pkg.

Volume Number Description D W H 85339 Pkg. Qty. Wt. (lb.)

42.5 9313-EW

Ears, wing brackets, Speed

2-7/8 5-15/16 3-1/4 10093 25 16

Klamps™-bulk packed

42.5 9313-EWC3

Ears, wing brackets, 3 wire

2-7/8 5-15/16 3-1/4 10095 25 17

clamps-factory installed

42.5 9313-EWK*

Ears, wing brackets, Speed

2-7/8 5-15/16 3-1/4 10094 25 16

Klamps™-factory installed

Series 9313-EW

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

55.0 P-352OW Flexbox®

Three gang, ears, wing

3-3/8 5-15/16 3-11/16 33201 12 5

brackets, molded-in Speed Klamps™

1/2” knockouts, use LVP-2 partition

for dual voltage applications

P-352OW

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

14.0 9305-S

3/0 box with flange, snap bracket,

1-3/4 3-1/2 15 lb. 27350 50 22

Speed Klamps™-bulk packed

14.0 9305-SC2

3/0 box with flange, snap bracket,

1-3/4 3-1/2 15 lb. 27360 50 23

2 wire clamps-factory installed

14.0 9305-SK*

3/0 box with flange, snap bracket,

1-3/4 3-1/2 15 lb. 27351 50 21

Speed Klamps™-factory installed

Series 9305-S

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

14.0 9305-SG

3/0 box with flange, snap bracket,

1-3/4 3-1/2 15 lb. 27370 50 23

ground strap, Speed Klamps™-

bulk packed

14.0 9305-SGK*

3/0 box with flange, snap bracket,

1-3/4 3-1/2 15 lb. 27371 50 23

ground strap, Speed Klamps™-

factory installed

Series 9305-SG

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

70.0 9314-EWK

Ears, wing brackets, 1/2” knockouts

3-9/16 7-11/16 3-3/4 31800 6 7

Speed Klamps™ – factory installed

NOTE: LVP-1 voltage divider can be used with 9314-EWK.

Series 9314-EWK

Three Gang/3-1/2” Round

Wall Boxes - Old Work

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 7 for Attachment Coding descriptions

3-1/2” Round Wall Boxes - Old Work

3-1/2” Round Wall Boxes:

Old Work/Manufactured Housing Boxes

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

14.0 9338-E

Ears, Speed Klamps™-bulk packed

2 3-1/2 15 lb. 46000 50 14

14.0 9338-EK*

Ears, Speed Klamps™-factory installed

2 3-1/2 15 lb. 46001 50 15

14.0 9338-EKT

Ears, Speed Klamps™-factory

2 3-1/2 15 lb. 46038 50 15

installed, “T” tapped device holes

Series 9338-E

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

14.0 9338-ES

Ears, snap bracket, Speed Klamps™-

2 3-1/2 15 lb. 46005 50 20

bulk packed

14.0 9338-ESC2

Ears, snap bracket, 2 wire clamps-

2 3-1/2 15 lb. 46015 50 22

factory installed

14.0 9338-ESC2T

Ears, snap bracket, 2 wire clamps-

2 3-1/2 15 lb. 46041 50 22

factory installed, “T” tapped device holes

14.0 9338-ESK*

Ears, snap bracket, Speed Klamps™-

2 3-1/2 15 lb. 46006 50 20

factory installed

14.0 9338-ESKT

Ears, snap bracket, Speed Klamps™-

2 3-1/2 15 lb. 46040 50 21

factory installed, “T” tapped device holes

14.0 9338-EST

Ears, snap bracket, “T” tapped device

2 3-1/2 15 lb. 46039 50 20

holes, Speed Klamps™-bulk packed

Series 9338-ES

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

14.0 9338-ESG

Ears, snap bracket, ground strap,

2 3-1/2 15 lb. 46020 50 21

Speed Klamps™-bulk packed

14.0 9338-ESGC2

Ears, snap bracket, ground strap,

2 3-1/2 15 lb. 46030 50 22

2 wire clamps-factory installed

14.0 9338-ESGK*

Ears, snap bracket, ground strap,

2 3-1/2 15 lb. 46021 50 21

Speed Klamps™-factory installed

14.0 9338-ESGKT

Ears, snap bracket, ground strap,

2 3-1/2 15 lb. 46043 50 21

Speed Klamps™-factory installed,

“T” tapped device holes

Series 9338-ESG

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

22.0 9355-S

3/0 box with flange, snap bracket,

2-3/4 3-1/2 15 lb. 10480 50 26

Speed Klamps™- bulk packed

22.0 9355-SK*

3/0 box with flange, snap bracket,

2-3/4 3-1/2 15 lb. 68292 50 26

Speed Klamps™-factory installed

Series 9355-S

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

21.5 PC223OW Flexbox®

3/0 box with flange,

2-13/16 3-1/2

98028 24 9

snap bracket, molded-in

Speed Klamps™

Series PC2230W

Meets NEC for wall applications

48 Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

* Indicates model shown • See page 7 for Attachment Coding descriptions

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

22.0 9355

3/0 box with flange, Speed Klamps™-

2-3/4 3-1/2 50 lb. 10490 50 19

bulk packed

22.0 9355-K*

3/0 box with flange, Speed

2-3/4 3-1/2 50 lb. 68291 50 19

Klamps™-factory installed

Series 9355

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

22.0 9355-G

3/0 box with flange, ground strap,

2-3/4 3-1/2 50 lb. 10491 50 21

Speed Klamps™-bulk packed

22.0 9355-GK*

3/0 box with flange, ground strap,

2-3/4 3-1/2 50 lb. 68091 50 21

Speed Klamps™-factory installed

Series 9355-G

3-1/2” Round Ceiling Fixture Support Boxes:

Old Work/Manufactured Housing Boxes

50 lb ceiling fixture rating when bottom

mounted per installation instructions

50 lb ceiling fixture rating when bottom

mounted per installation instructions

Series 9305-G Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

14.0 9305-G

3/0 box with flange, ground strap,

1-3/4 3-1/2 50 lb. 10031 50 17

Speed Klamps™-bulk packed

14.0 9305-GK*

3/0 box with flange, ground strap,

1-3/4 3-1/2 50 lb. 10036 50 17

Speed Klamps™-factory installed

50 lb ceiling fixture rating when bottom

mounted per installation instructions

Cu. In. Catalog Component D W Fixture UPC# Std. Std. Pkg.

Volume Number Description Rating 85339 Pkg. Qty. Wt. (lb.)

14.0 9305

3/0 box with flange, Speed

1-3/4 3-1/2 50 lb. 10030 50 15

Klamps™-bulk packed

14.0 9305-C2

3/0 box with flange, 2 wire

1-3/4 3-1/2 50 lb. 10032 50 17

clamps-factory installed

14.0 9305-K*

3/0 box with flange, Speed

1-3/4 3-1/2 50 lb. 10034 50 16

Klamps™-factory installed

Series 9305

50 lb ceiling fixture rating when bottom

mounted per installation instructions

3-1/2” Round Boxes - Old Work

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

Installation Instructions for 3-1/2” Round Boxes

Installation Instructions for Three Gang Boxes

Installation Instructions for Two Gang Boxes

Installation Instructions for Single Gang Boxes

Installation Instructions

Installation Instructions:

Old Work Single Gang Boxes with “E” Ears

Part Numbers: 9331-EK, 9363-EK, 9368-EK

The Allied Moulded 9331-EK, 9363-EK and 9368-EK

can be mounted two ways, either through the holes in

the metal plaster ears or through the hole provided in

the bottom of the box.

Ear Mount Instructions

1. Cut an opening in the wall to comply with NEC

314-20. Allied Moulded Products’ template #1TP is

designed to provide the guide for such a hole and

allows 1/16” clearance around the outside of the

box.

2. Using two (2) #8 sheet metal screws at least 3/4” in

length, attach the box to the substrate. One screw

should be located at each end of the box. UL® has

tested these boxes in 3/8” thick plywood which

is the substrate used for their standard test. The

strength of the substrate must be equal to 3/8”

thick plywood.

3. If the wall assembly is not accessible from the

back side to complete the wiring, the wires must

be secured to the box with Speed Klamps™ before

installing the box in the wall assembly.

Bottom Mount Instructions

1. Cut an opening in the wall to comply with NEC 314-20.

Allied Moulded Products’ template #1TP is designed

to provide the guide for such a hole and allows 1/16”

clearance around the outside of the box.

2. Secure mounting block scab in wall.

3. Using one (1) #8 sheet metal screw at least 3/4” in

length, mount box to the scab through the hole in the

bottom of the box. UL® has tested these boxes in 3/8”

thick plywood which is the substrate used for their

standard test. The strength of the scab must be equal

to 3/8” thick plywood.

4. If the wall assembly is not accessible from the back

side to complete the wiring, the wires must be secured

to the box with Speed Klamps™ before installing the

box in the wall assembly.

Old Work Single Gang Boxes with “W” Wing Brackets

Part Numbers: 9331-EWK, 9363-EWK, 9368-EWK, P-122OW

The Allied Moulded 9331-EWK, 9363-EWK* and 9368-

EWK are mounted identically. (1a.) P-122OW (1b.)

1a. Cut an opening in the wall to comply with NEC

314-20. Allied Moulded Products’ template #1TP is

designed to provide the guide for such a hole and

allows 1/16” clearance around the outside of the

box.

1b. Cut an opening in the wall to comply with NEC

314-20. Using the box as a template, place the

box open face against the wall surface where the

box is to be installed. Draw a line along each long

side and each short side stopping at the molded

ears. Remove the box and with a straight edge,

complete the rectangle. Cut along the line of the

rectangle using the appropriate tools.

2. Insert box into opening. Tighten wing screws to

secure box to wall substrate. UL® has tested these

boxes in 3/8” thick plywood which is the substrate

used for their standard test. The strength of the

substrate must be equal to 3/8” thick plywood.

3. If the wall assembly is not accessible from the

back side to complete the wiring, the wires must

be secured to the box with Speed Klamps™ before

installing the box in the wall assembly.

*Allied Moulded Products has had the 9363-EW style box tested in

wall assemblies that use 5/16” thick gypsum board covering. This

test was conducted by a testing laboratory that has been evaluated

by BOCA as an independent testing and inspection agency for

manufactured buildings. This report is available upon request.

Old Work Two Gang with “W” Wing Brackets

Part Numbers: 9312-EWK, 9329-EWK (1a.), P-240OW (1b.)

1a. Cut an opening in the wall to comply with NEC

314-20. Allied Moulded Products’ template #2TP is

designed to provide the guide for such a hole and

allows 1/16” clearance around the outside of the box.

1b. Cut an opening in the wall to comply with NEC

314-20. Using the box as a template, place the box

open face against the wall surface where the box

is to be installed. Draw a line along each long side

and each short side stopping at the molded ears.

Remove the box and with a straight edge, complete

the rectangle. Cut long the line of the rectangle

using the appropriate tools.

2. Insert box into opening. Tighten wing screws to

secure box to wall substrate. UL® has tested these

boxes in 3/8” thick plywood which is the substrate

used for their standard test. The strength of the

substrate must be equal to 3/8” thick plywood.

3. If the wall assembly is not accessible from the

back side to complete the wiring, the wires must

be secured to the box with Speed Klamps™ before

installing the box in the wall assembly.

Part Numbers: 9372-NMHK

1. Locate and position leveling rib on surface of box

to the framing member. This will position box at a

depth of 7/16 to 1/2 inch.

2. Hold box at desired position and drive nails into stud

with hammer.

3. Install non-metallic sheathed cable through

knockout.

Part Numbers: 9305-K, 9355-K, PC223OW

The Allied Moulded 9305-K and 9355-K can be

mounted two ways, either through the holes in the

ﬂange or through the holes provided in the bottom of

the box.

Flange Mount Instructions

1. Cut a 3-5/8” diameter circular hole in the wall or

ceiling board. The box diameter is nominally

3-1/2” and the 3-5/8” diameter hole allows 1/16”

clearance around the outside of the box.

2. Using two (2) #8 sheet metal screws at least 3/4”

in length, attach the box to the substrate through

two (2) of the holes provided diagonally across

from each another. Note: Wall substance must be

capable of supporting the box with the rated load.

3. If the wall assembly is not open to the back side to

complete the wiring, the wires must be secured to

the box with Speed Klamps™ before installing the

box in the wall assembly.

Bottom Mount Instructions

1. Cut a 3-5/8” diameter circular hole in the wall or

ceiling board. The box diameter is nominally

3-1/2” and the 3-5/8” diameter hole allows 1/16”

clearance around the outside of the box.

2. Secure mounting block scab in wall. For a 9305-

K, the scab is to be installed 1-13/16” from the

substrate surface into the wall section. A 9355-K

would require the scab to mounted in the wall section

2-13/16” from the substrate surface. A PC223OW

would require the scab to be mounted 2 13/16” from

the substrate surface into the wall section.

3. Using two (2) #8 sheet metal screw at least 3/4” in

length, mount box to the scab through the two (2) holes

in the bottom of the box.Note: Wall substance must be

capable of supporting the box with the rated load.

4. If the wall assembly is not accessible from the

back side to complete the wiring, the wires must

be secured to the box with Speed Klamps™ before

installing the box in the wall assembly.

Old Work Round Boxes with “S” Snap Bracket

(Wall applications)

Part Numbers: 9305-SK, 9338-ESK, 9355-SK,

PC223OW

1. Cut a 3-5/8” diameter circular hole in the wall

board. The box diameter is nominally 3-1/2” and

the 3-5/8” diameter hole allows 1/16” clearance

around the outside of the box.

2. Insert box into opening. Bracket will automatically

compress and snap back into position. Tighten snap

bracket screws until bracket is drawn snug to the

back of the wallboard. Note: Wall substance must

be capable of supporting the box with the rated

load.

3. If the wall assembly is not accessible from the

back side to complete the wiring, the wires must

be secured to the box with Speed Klamps™ before

installing the box in the wall assembly.

Old Work Three Gang Box with “W” Wing Brackets

Part Numbers: 9313-EWK (1a.), P-352OW (1b.)

1a. Cut an opening in the wall to comply with NEC 314-20.

1b. Cut an opening in the wall to comply with NEC

314-20. Using the box as a template, place the

box open face against the wall surface where the

box is to be installed. Draw a line along each long

side and each short side stopping at the molded

ears. Remove the box and with a straight edge,

complete the rectangle. Cut along the line of the

rectangle using the appropriate tools.

2. Insert box into opening. Tighten wing screws to

secure box to wall substrate. UL® has tested these

boxes in 3/8” thick plywood which is the substrate

used for their standard test. The strength of the

substrate must be equal to 3/8” thick plywood.

3. If the wall assembly is not accessible from the

back side to complete the wiring, the wires must

be secured to the box with Speed Klamps™ before

installing the box in the wall assembly.

50 Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

LVB-1 Features and Benefits

• New work structured cable box

• Sturdy construction with “box like”

strength and rigidity

• Eliminates need to modify single gang box

• Open back for generous cable bend radius

• Easy nail-on mounting design

• Holes on back provide a means to wire tie

the cable allowing cable accessibility later (fig. A)

• Open back channel to store and protect

cable during drywall phase (fig. B)

• US Patents D531,128 and 7,179,994

LVP-1/LVP-2 Features and Benefits

• Separates line and low voltage within the same electrical box

• Use LVP-1 with Allied Moulded’s deep series 2302, 3303, 4304, 5305, and 9314

fiberglass boxes

• Use LVP-2 with Allied Moulded’s Flexbox® Old Work boxes

P-240OW & P-352OW and SLIDERBOX® Products

• Allows for a reduced number of wall box installations

• Fast, easy and convenient to install

• Complies with article 800.133(A)(1)(c) from 2008 NEC

• For low voltage applications in fire rated walls. Utilize the

LVP-1 partition with the Allied Moulded deep series fiberglass

wall boxes which carry the industry exclusive rating for

reduced horizontal separation in the same stud cavity

fig. A

fig. B

LVBOW-1

LVB-1

LVP-1, LVP-2 & LVPR-1

Features and Benefits:

LVBOW-1 Features and Benefits

• Old work structured cable box

• Sturdy construction with “box like” strength and rigidity

• Molded thread device holes provide for secure

mounting of structured cable devices and cover plates

• Eliminates the need to modify single gang outlet boxes

• Open back design for generous cable bend radius

• Holes in back section provide a means to

secure the cable allowing cable accessibility later (fig. A)

• U.S. Patents D531,128 and 7,179,994

fig. A

LVP-1

Structured Cable/Low Voltage:

Cu. In. Catalog Component D W H UPC# Std. Std. Pkg.

Volume Number Description 85339 Pkg. Qty. Wt. (lb.)

---- LVBOW-1

Single gang, old work, structured

3-1/16 2-5/16 3-11/16 80003 24 4

cable box with ears and wings

---- LVB-1

Single gang, angled mid-nails,

2-3/4 2-1/4 3-3/4 80002 48 8

structured cable box

---- LVPR-1

Single gang plaster ring, 1/2” offset,

1/2 4 4 80001 50 4

structured cable bracket for steel or

wood stud face mounting

---- LVP-1*

Low voltage divider plate for use

---- ---- ---- 80000 50* 2

with 2302, 3303, 4304, 5305

Series and 9314 only.

---- LVP-2*

Low voltage divider plate for use with

---- ---- ---- 80005 50* 3

P-240OW, P-352OW

, SB-2, SB-3,

and SB-4

* Consists of 5 packages of 10 pieces each

Low Voltage Partition

Structured Cable/Low Voltage

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

Accessories

Accessories:

Catalog Component UPC# Std. Std. Pkg.

Number Description 85339 Pkg. Qty. Wt. (lb.)

1K-100

Single Speed Klamp™

88011 100 1

Single Speed Klamp™

Catalog Component UPC# Std. Std. Pkg.

Number Description 85339 Pkg. Qty. Wt. (lb.)

WIRE CLAMP

Wire clamp with screw

88010 100 2

Wire Clamp

Catalog Component UPC# Std. Std. Pkg.

Number Description 85339 Pkg. Qty. Wt. (lb.)

GRD STRAP

Ground strap with screw

88020 100 2

Ground Strap

Catalog Component UPC# Std. Std. Pkg.

Number Description 85339 Pkg. Qty. Wt. (lb.)

50PANST

Panel stop to square up box in misaligned walls

17546 50 1

Panel Stop

Catalog Component UPC# Std. Std. Pkg.

Number Description 85339 Pkg. Qty. Wt. (lb.)

1TP

Metal template for single gang old work box:

88015 1 1

9331-E Series, 9363-E Series, 9368-E Series

Single Gang Template

Catalog Component UPC# Std. Std. Pkg.

Number Description 85339 Pkg. Qty. Wt. (lb.)

2TP

Metal template for two gang old work box:

88016 1 1

9312-E Series, 9329-E Series

Two Gang Template

Bulk Clamps, Ground Straps, Panel Stops,

Low Voltage Partition, Templates

52 Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

Catalog Component Outside UPC# Std. Std. Pkg.

Number Description Diameter 85339 Pkg. Qty. Wt. (lb.)

LH-21WP*

GU24 Keyless lampholder with wire leads, 75W/250V

4-7/8 99583 48 13

LH-22WP*

GU24 pull chain lampholder with wire leads, 75W/250V

4-7/8 99584 48 13

3’ pull cord

**not intended for use with GU24/incandescent adapter designs

Lampholders:

GU 24 Lampholders

All models

accept various

manufacturers’ bulb

protective cages.

Catalog Component Outside UPC# Std. Std. Pkg.

Number Description Diameter 85339 Pkg. Qty. Wt. (lb.)

LH-11P*

Keyless lampholder, 660W/250V, 4 terminal screws

4-9/16 87000 48 13

LH-11WP

Keyless lampholder with wire leads, 660W/250V

4-9/16 87001 48 13

Keyless MEDIUM BASE

Catalog Component Outside UPC# Std. Std. Pkg.

Number Description Diameter 85339 Pkg. Qty. Wt. (lb.)

LH-13P*

Lampholder,

660W/250V,

3’ pull cord,

4-9/16 87004 48 15

grounded outlet, (125VAC/15A)

Pull Chain with

Grounded Outlet

Catalog Component Outside UPC# Std. Std. Pkg.

Number Description Diameter 85339 Pkg. Qty. Wt. (lb.)

LH-12P*

Lampholder

660W/250V,

3’ pull cord, 2 terminal screws

4-9/16 87002 48 14

LH-12WP

Lampholder with wire leads,

660W/250V,

3’ pull cord

4-9/16 87003 48 14

Pull Chain

* Indicates model shown

LAMPHOLDER FEATURES:

• UL® listed file #E68415

• Mounting slots accept 3-½” or 4” outlet

boxes

• Lamp rated 660 watts (max.)

• Made of UV and heat-resistant thermoset

material

• Nickel-plated brass screw shell and

includes corrosion-resistant steel hardware

LAMPHOLDER

3MHN

Lampholders

Designed in USA

Made in China

• Accepts most manufacturers’ bulb

protective cages

• For use in commercial, industrial,

residential and agricultural lighting

applications as permitted by local code

• All lmodels are individually polybagged

GU 24 LAMPHOLDER FEATURES:

• Listed per UL ® 496

• Mounting slots accept 3-½” or 4” outlet

boxes

• Lampholder rated 75 Watts, 250 Volts

• Made of UV and heat-resistant

polycarbonate material

• Will accept industry standard lamps with

GU 24 pin design (**see note above)

• For use in commercial, industrial,

residential and agricultural lighting

applications as permitted by local code

• All lmodels are individually polybagged

• Title 24 compliant for installation of

lampholders in California LAMPHOLDER

3MHN

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

• For use in attics, basements, closets and garages

• Energy savings of up to 75% compared to

incandescent bulbs

• 10,000 hour lamp life

• Fully assembled with GU24 - 13W lamp and

polycarbonate lens

• 13W CFL lamp produces same light as 60W standard

incandescent light bulb

• Lens securely locks to base with spring-loaded tabs

• Lamp Base mounts to most 3 1/2” and 4” ceiling boxes

Supplied with compact fluorescent bulb, mounting screws, and wire nuts. Prepackaged in a blister pack with bi-lingual installation instructions.

Compact Fluorescent Luminaire

LH-CFL1

Luminaire Design Features

CF Luminaire Bulb

Wattage

Catalog

Number

Component

Description

Base

Dia.

UPC#

85339 Pkg. Qty.

Asm.

Height

13 W LH-CFL1

Compact fluorescent luminaire

with wire leads (mounting

screws included)

5.06” 3.04” 87005 12 8

13 W LH-CFL2

Compact fluorescent luminaire

with wire leads and pull chain

(mounting screws included)

5.06” 3.82” 87006 12 11

Std. Pkg.

Wt. (lbs.)

Compact Flourescent Luminaire

Designed in USA

Made in China

Replacement Lamp Part Numbers:

MaxLite; MLS13FUSWW, 13 Watt, GU24 fixture base, M.O.L. = 2.52”

TCP; 33213SSP, 13 Watt, GU24 fixture base, M.O.L. = 2.3”

Golo; GU241327, 13 Watt, GU24 fixture base, M.O.L. = 2.36”

13 W 33213SSP

replacement

lamp

Squat or low-profile compact

fluorescent lamp, GU24 base

— 2.3”

(M.O.L.)

see

note

NOTE: UPC# 762148091735

54 Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

Floor Box Assemblies: Wood Floor Cut-In Application

Floor Box Assemblies

FLOOR BOX FEATURES:

• Designed for use in wood oor construction and

can be installed with multiple oor substrate

materials (ceramic, hardwood, laminate, or carpet)

• Optional cover material types: brushed brass, dark

bronze, or nickel plated brass

• Cover plug screws seal water tight and allow

assembly to meet UL 514C scrub-water exclusion

test

• TR Tamper Resistant receptacle; 15 amp 125 volt

with ground (NEMA cong. 5-15R)

• Extra deep wiring capacity 24.5 cu. in.

• UL listed in accordance with the requirements for

oor boxes in Article 314.27 of the NEC

• Provisions for cable entry through molded-in

Speed ClampsTM or 1/2” KO’s

• Steel wing brackets for secure installation

• Basic rectangular or round exterior prole for quick

and easy cut-in installation

Designed in USA

Made in China

FB Series

Cu. In.

Volume

Catalog

Number Component Description

UPC#

85339

Std. Pkg.

Qty.

Std. Wt.

(lb.)

24.5 FB-1

Rectangular box, brass cover, simplex device, flange and wing

bracket mount

94123 6 8

24.5 FB-1N

Rectangular box, nickel-plated cover, simplex device, flange and

wing bracket mount

94128 6 8

24.5 FB-2

Rectangular box, brass cover, duplex device, flange and wing

bracket mount

94124 6 8

24.5 FB-2DB

Rectangular box, dark bronze-plated cover, duplex device, flange

and wing bracket mount

99601 6 8

24.5 FB-2N

Rectangular box, dark bronze-plated cover, duplex device, flange

and wing bracket mount

99601 6 8

24.5 FB-3

Round box, brass cover, duplex device, flange and wing bracket

mount

94125 6 9

24.5 FB-3DB

Round box, dark bronze-plated cover, duplex device, flange and

wing bracket mount

99603 6 9

24.5 FB-3N

Round box, nickel-plated cover, duplex device, flange and wing

bracket mount

94130 6 9

FLOOR BOX

714L

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

Floor Box Assemblies

Floor Box Assemblies: Wood Floor Cut-In Application

FLOOR BOX

714L

Floor Box Accessories

NOTE: Cover kit part numbers above are only approved for use with Allied Moulded ﬂoor boxes.

*Represents picture shown

Rectangular Floor Box Specs

Round Floor Box Specs

• Cut-in hole size: 2.625” x 4.437”

• Box size (no ange): 3.5” (D) x 2.498” (W) x 4.312” (H)

• Flange outside dimension: 3.250” x 4.883”

• Cover dimension: 0.217” (D) x 3.5” (W) x 5.125“ (H)

• Box wire capacity: 24.5 cu. in.

• (2) 1/2” KO’s on bottom and (2) 1/2” KO’s on the side wall

• (2) molded-in Speed ClampsTM for NM cable

• Part material types:

Cover: brushed brass, nickel-plated brass or dark bronze-plated

Threaded plug: matches cover with nitrile O-ring

Gasket: closed-cell rubber

Box screws and wings: galvanized steel

Dust plate: galvanized steel

Device: UL listed residential grade w/ copper terminals & brass ground

• Receptacle rating: 15 amp, 125V tamper resistant with ground

(Article 406 of the NEC; requirements for Tamper Resistant

receptacles in dwellings)

• Assembly meets UL 514C scrub-water exclusion test

• Cut-in hole size: 4.0” Dia. (standard hole saw size)

• Box size (no ange): 3.0” (Deep) x 3.936” dia.

• Flange outside dimension: 5.0” dia.

• Cover dimension: 5.25” dia. x 0.217” thickness

• Box wire capacity: 24.5 cu. in.

• (2) 1/2” KO’s on bottom

• (4) molded-in Speed ClampsTM for NM cable

• Part material types:

Cover: brushed brass, nickel-plated brass or dark bronze-plated

Threaded plug: matches cover with nitrile O-ring

Gasket: closed-cell rubber

Box screws and wings: galvanized steel

Dust plate: galvanized steel

Device: nonmetallic with copper terminals and brass ground

• Receptacle rating: 15 amp, 125V tamper resistant with ground

(Article 406 of the NEC; requirements for Tamper Resistant

receptacles in dwellings)

• Assembly meets UL 514C scrub-water exclusion test

FB-2

FB-3N

Catalog Number Component Description

UPC#

85339

Std. Pkg.

Qty.

Std. Wt.

(lb.)

FB-1CVR

Rectangular simplex brass cover, plug with O-ring, cover seal,

mounting screws

94131 1 1

FB-1NCVR

Rectangular simplex nickel-plated cover, plug with O-ring, cover

seal, mounting screws

94132 1 1

FB-2CVR*

Rectangular duplex brass cover, 2 plugs with O-rings, cover seal,

mounting screws

94133 1 1

FB-2NCVR

Rectangular duplex nickel-plated cover, 2 plugs with O-rings, cover

seal, mounting screws

94134 1 1

FB-2DBCVR

Rectangular duplex dark bronze-plated cover, 2 plugs with O-rings,

cover seal, mounting screws

99602 1 1

FB-3CVR*

Round duplex brass cover, 2 plugs with O-rings, cover seal,

mounting screws

94135 1 1

FB-3DBCVR

Round duplex dark bronze-plated cover, 2 plugs with O-rings, cover

seal, mounting screws

99604 1 1

FB-3NCVR

Round duplex nickel-plated cover, 2 plugs with O-rings, cover seal,

mounting screws

94136 1 1

FB-BRPLG

Threaded brass plug with O-ring

94137 1 1

FB-DBPLG

Threaded dark bronze-plated plug with O-ring

99605 1 1

FB-NPLG

Threaded nickel-plated plug with O-ring

94138 1 1

Designed in USA

Made in China

56 Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

Floor Box Concrete Adapter Kits

Floor Box Concrete Adapter Kits:

BENEFITS of using Concrete Adapter Kit

with Allied Moulded Floor Box Assemblies:

• Installed oor box assembly meets UL514C scrub water exclusion test

• Quick and easy installation with fewer oor box and device components

• Floor box comes with a standard TR tamper resistance receptacle; 15 amp,

125 volt with ground (NEMA cong. 5-15R)

• Allied Moulded lfoor box assemblies can be adapted to many standard PVC

concrete junction boxes

Concrete Adapter Kit

Catalog

Number Component Description

UPC#

85339

Std. Pkg.

Qty.

Std. Wt.

(lb.)

FB-CAK

Concrete Adapter Kit contains adapter sealing gasket, adapter ring, and

detailed installation instructions

99479 6 3

For use in adapting FB-3, FB-3DB and FB-3N

residential ﬂoor box assemblies to standard

industry concrete junction boxes

Scan QR code for

more information.

Concrete Adapter Kit

Includes:

• Adapter sealing gasket

• Adapter ring

• Detailed installation

instructions

Allied Moulded Products, Inc.

Floor Box Assemblies:

• FB-3 (Brass)

• FB-3DB (Dark Bronze-plated Brass)

• FB-N (Nickel-plated Brass)

UL® recognized for use with

Round PVC Concrete Junction Boxes

with an inside diameter of

4-½” - 4-9/16”.

These include, but are not limited to,

the following:

• Cantex, 5133758/5133760)

• Carlon, E971FB

• Ipex/Sceptor, FB 076954

• Kraloy, FB 078876

• Lew, FB/FBLEW

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

PARA-form® Siding Boxes

Cu. In. Catalog Component Fixture UPC# Std. Std.

Volume Number Description Rating 85339 Pkg. Qty. (lb.)

12.0 AC9500

One-piece 4” dia. x 1-1/4” high round outlet box with

15 lb. 09500 20 11

7” square mounting flange, construction prevents water

from running behind box, “pop-in” non-metallic

sheathed cable clamp included

12.0 AC9500BULK

Same as AC9500 above

15 lb. 09503 50 28

AC9500

Cu. In. Catalog Component Fixture UPC# Std. Std.

Volume Number Description Rating 85339 Pkg. Qty. (lb.)

12.0 AC9501

One (1) AC9500 outlet box and one (1) siding installation

15 lb. 09501 20 14

block, outside dim.: 6-1/2” x 6-1/2”, 4” dia. opening,

“pop-in” non-metallic sheathed cable clamp included

AC9501

Cu. In. Catalog Component Fixture UPC# Std. Std.

Volume Number Description Rating 85339 Pkg. Qty. (lb.)

12.0 AC9502

One (1) AC9500 outlet box and one (1) siding installation

15 lb. 09502 12 11

block, accommodates larger fixture base, outside dim.:

6-7/8” x 10-3/4”, 4” dia. opening, “pop-in” non-

metallic sheathed cable clamp included

AC9502

Mount electrical box to exterior wall and

feed wiring through knockout prior to siding.

Affix mounting brackets, and caulk

around box after siding is installed.

Fit PARA-form block to siding box

and install light fixture.

Mounting outside light fixtures is now as easy as one-two-three!

PARA-form® Siding Boxes:

58 Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

Cross Reference

Premium Series – “Hard Box” Fiberglass Boxes

Allied Moulded

ﬁberglass

BOX

™

Thomas & Betts Cantex

(EZ BOX®)

Pass & Seymour

(Slater)Carlon® PH (Phenolic) Carlon® PC (Bowers)

Carlon® PVC (Zip Blue, Super BLUE)

1096-N 1040/2000/1240 118-N B118A EZ18SN P118R

1096-NR N/A N/A N1-710-M N/A N/A

1096-SS N/A N/A N/A EZ18SNZ S118RS

1096-Z2 2030-702 118-LB N/A N/A S118S25

1096-Z4 2000-738/2030-502 118-LB B118B N/A S118S50

1098-N 1250-UB 120-N B120A EZ20SN/EZ20SB N/A

1098-SS 1250-UB-S N/A N/A EZ20SNZ N/A

1098-Z4H N/A N/A N/A N/A PH1-22-B

1098-Z2 N/A N/A N/A N/A N/A

1098-Z4 1250-112 N/A N/A N/A N/A

1099-N 1260 122-N B122A/BH122A/RN-23 EZ23SN P122R

1099-NRED N/A N/A N/A EZ20SNAR N/A

1099-SS 1260-S N/A N/A EZ23SNZ S122RS

1099-Z4 N/A N/A N/A EZ20SB S122S50/P122C

2300-N/NK 1052 234-N B232A/BH235A/SN236/SN234 EZ32DN S235RAC

2300-HFK 7002-2 N/A N/A N/A N/A

2300-SS/SSK 1052CS N/A N/A EZ32DNZ N/A

2300-Z2/Z2K 2002-738 N/A B232B N/A N/A

2300-2Z2/2Z2K N/A 234-LB SB2-236-FS N/A S235S50AC

2300-Z4/Z4K N/A N/A N/A N/A N/A

2302-N/NK 1072-C N/A BH235A/SN241/SN236 EZ48DN N/A

2302-SS/SSK SS241 N/A N/A EZ48DNZ 5235RACS

2302-Z4/Z4K N/A N/A N/A N/A N/A

2302-NKRED N/A N/A N/A N/A N/A

3300-N/NK 1043/C 345-N B344A/BH353A EZ44TN N/A

3300-NB/NBK N/A N/A N/A N/A N/A

3300-SS/SSK N/A N/A BH353S/ SS357 EZ44TNZ N/A

3300-SSB/SSBK N/A N/A N/A N/A N/A

3300-Z2/Z2K N/A N/A SS357 N/A N/A

3300-Z2B/Z2BK N/A N/A N/A N/A N/A

3300-Z4/Z4K N/A N/A N/A N/A N/A

3300-2Z2/2Z2K N/A 345-LB SB2-357-FS N/A S354S50AC

3300-2Z4/2Z4K N/A N/A N/A N/A N/A

3303-N/NK 1063/C N/A BH353A EZ74TN S354RAC

3303-NB/NBK N/A N/A N/A N/A N/A

3303-SS/SSK 1063-CS N/A BH353S EZ74TNZ S354RACS

3303-Z4/Z4K N/A N/A SB357 N/A S354S50AC

3303-2Z4/2Z4K N/A N/A N/A N/A N/A

4300-N/NK 2004 N/A B455A/BH464A EZ55QNB S468RAC

4300-NB/NBK 7074BH/2004BH 460-SB B455AH EZ55QNB N/A

4300-SS/SSK N/A N/A BH464S EZ55QNBZ S468RACS

4300-SSB/SSBK N/A N/A N/A EZ55QNBZ N/A

4300-Z2/Z2K N/A N/A N/A N/A N/A

4300-Z2B/Z2BK N/A N/A N/A N/A N/A

4300-2Z2/2Z2K 2004-238/2004-238-02 460-LB N/A N/A S468S50AC

4300-Z4/Z4K N/A N/A N/A N/A N/A

4304-N/NK N/A N/A BH464A N/A N/A

Cross Reference

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

Cross Reference

Premium Series – “Hard Box” Fiberglass Boxes

Allied Moulded

ﬁberglass

BOX

™

Thomas & Betts Cantex

(EZ BOX®)

Pass & Seymour

(Slater)Carlon® PH (Phenolic) Carlon® PC (Bowers)

Carlon® PVC (Zip Blue, Super BLUE)

4304-NB/NBK N/A N/A N/A N/A N/A

4304-Z4B/Z4BK N/A N/A N/A N/A N/A

4304-2Z4/2Z4K N/A N/A N/A N/A N/A

5305-NBK N/A N/A N/A N/A N/A

5305-NK N/A N/A N/A N/A N/A

5305-Z4BK N/A N/A N/A N/A N/A

9301-E 7060 108-E B108R EZ08SF N/A

9303-H 9050-702 N/A B108B EZ08SB N/A

9304 3060 N/A N/A N/A N/A

9304-G N/A N/A N/A N/A N/A

9305-K 3030 N/A N/A N/A N/A

9305-G/GK 3030-40 N/A N/A N/A N/A

9305-S/SK 3030-902/3080-9 N/A N/A N/A N/A

9305-SG/SGK 3020-9-40/3020-902-40 N/A N/A N/A N/A

9312-E/EK N/A N/A N/A N/A N/A

9312-EW/EWK 6062-402 N/A B225R EZ25DO N/A

9313-EW/EWK 6063-402 N/A B355R N/A S3-52-W

9314-EWK N/A N/A B468R N/A N/A

9315-WH 4062/WHITE 4R-B E460R EZYKL N/A

9318 N/A N/A B112HB N/A N/A

9319 N/A N/A HB15W N/A N/A

9320 N/A N/A HB1DP N/A N/A

9322 N/A N/A HB1BL N/A N/A

9324-N 2070 N/A N1614 N/A N/A

9327-N 6090/7010 N/A E1614 N/A N/A

9329-EW/EWK 7010-8 232-OW B225R/BH234R N/A S232W

9331-E/EK 6090/7010 N/A E1614 N/A N/A

9331-ES/ESK 7010-8 N/A N/A N/A N/A

9331-EW/EWK 6090-402 114-OW B114R EZ14SO N/A

9335-N/NK 3190/3190C N/A B518A EZ18CN C118RAC

9335-NG/NGK 3190-40-PC N/A B518P EZ18CNG C118RGAC

9335-NKRED N/A 3R-16-N-RED N/A EZ18CNAR N/A

9335-HNK/HNGK 3090-N-40 N/A N/A N/A N/A

9335-16/16K 3190-C-94 N-321-C-94 N/A N/A N/A

9335-16G/16GK N/A N-321-GC-94 N/A N/A N/A

9335-BH/BHK 3190-C-94 N-321-C-95 N/A N/A S118HAC

9335-BHG/BHGK N/A N-321-GC-95 N/A N/A S118HGAC

9336-N/NK 3090-N 3R16N N/A N/A N/A

9336-NG/NGK 3090-N40 3R16NGP N/A N/A N/A

9336-16/16K 3090-94/3090-94-SQ N/A N/A N/A N/A

9336-16G/16GK 3090-94-40 N/A N/A N/A N/A

9336-BH/BHK 3090-95/3090-95-SQ 3R-16-BH N/A N/A SN/A

9336-BHG/BHGK 3090-95-40 3R-16-BHGP N/A N/A N/A

9338-E/EK 3080 N/A N/A N/A N/A

60 Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

Cross Reference

Premium Series – “Hard Box” Fiberglass Boxes

Allied Moulded

ﬁberglass

BOX

™

Thomas & Betts Cantex

(EZ BOX®)

Pass & Seymour

(Slater)Carlon® PH (Phenolic) Carlon® PC (Bowers)

Carlon® PVC (Zip Blue, Super BLUE)

9338-ES/ESK 3080-9/3080-9-PC 3R16OW BH614R N/A N/A

9338-ESG/ESGK 3080-9-40 3R16OWGP B432R/BH614RP N/A N/A

9339-Z+1/9339-Z+1C2 1/2/4020 N/A 45-812C EZ18XN N/A

9342-HF N/A N/A N/A N/A N/A

9342-HN N/A N/A N/A N/A N/A

9343-N/NK 4000-02 4S32N B432A EZ32XN S4435RAC

9343-SS/SSK 4000-02 N/A N/A N/A N/A

9344 4041 4SB A400 EZXKL N/A

9345 4042-12 4S1G A410 EZ03SXA RC1

9345-58 N/A N/A A411 EZ04ES N/A

9346 4022-12 4S2G A420 EZ06DXA RC2

9346-58 N/A N/A A421 EZ08ED N/A

9347 4043-12 N/A N/A N/A N/A

9348 4061 N/A A471 EZ03YC N/A

9350-K N/A N/A N/A N/A N/A

9350-HFK N/A N/A N/A N/A N/A

9350-HL/HLK 4070-302 N/A B620L N/A S120JAC

9350-HN/HNK 4070-NO2 N/A N/A N/A N/A

9350-16/16K 4070-94/4070-9402 N-423-C-94-V BH525H N/A N/A

9350-16G/16GK N/A N-423-GC-94-V BH525HP N/A N/A

9350-BH/BHK 4070-95/4070-9502/4070-95-PC N-423-C-95-V N/A EZ20CH S120HAC

9350-BHG/BHGK 4070-95-40 N-423-GC-95-V N/A EZ20CHG S120HGAC

9351-N/NK 4170/4170PC 4R20N B520A/BH525A/N423C EZ20CN S120RAC

9351-NG/NGK 4070-N-40 4R20NGP B520P/BH525P/N423GC EZ20CNG S120RGAC

9351-NKRED N/A N/A N/A EZ20CNAR N/A

9351-SS/SSK 4070-N-S N/A BH525S/B618R N/A N/A

9355-K 3000 N/A N/A N/A C118-WAC

9355-G/GK 3000-02-40 N/A N/A N/A C118WGAC

9355-S/SK/SGK 3000-902-40 N/A B618R EZ18CO/EZ18COG C118WAC

9361-E/EK N/A N/A N/A N/A N/A

9361-ES/ESK 7010-8/7020-8 N/A E168 N/A N/A

9363-E/EK 6060-02 N/A N/A N/A N/A

9363-EW/EWK 6010-402/6060-402 114-OW/118-OW N/A N/A N/A

9364-16/16K 4060-9402 N/A N/A N/A N/A

9364-16G/16GK N/A N/A N/A N/A N/A

9364-BH/BHK 4060-9502 N/A N/A N/A N/A

9364-BHG/BHGK N/A N/A N/A N/A N/A

9365-N/NK 4160-C N/A N40712RC N/A N/A

9366-E N/A N/A N/A N/A N/A

9366-EW/EWK N/A N/A BHMBR N/A N/A

9367-E 6000-402 N/A B117RSW N/A N/A

9367-EW 6000-402 N/A B117RSW N/A N/A

9368-E/EK N/A N/A N/A N/A N/A

9368-EW/EWK 6070-4/E214 118-OW B120R/BH118R/E214 N/A S118W

9372-NMHK N/A N/A N21614MNC/N21614RNC N/A N/A

RD-42 RD-30 N/A B234ADJC/RDS-30 N/A P242RRD

RD-42SS N/A N/A N/A N/A P242SRD

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

Cross Reference

Basic Series – “Soft Box” Thermoplastic Boxes

Thomas & Betts

Allied Moulded

ﬂex

BOX

™

Carlon® PC Black

Polycarbonate

Carlon® PVC

(Zip Blue, Super BLUE)

Cantex

(EZ BOX®) Pass & Seymour (Slater)

P-108E N/A B108R-UPC EZ08SF P108W

P-108H N/A B108B-UPC EZ08SB P108N

P-116OW 114-OW B114R-UPC/BH118R EZ14SO P116W

P-122OW 118-OW B120R EZ21SO S122W

P-122SC N/A SNO-18-M N/A N/A

P-181 118-N (18") B118A (18") EZ18SN (18") P118R

P-181H 118-LB B118B-UPC EZ20SB S118S50

P-181HZ N/A N/A N/A N/A

P-181QT N/A N/A EZ18SNU S118R

P-181RK N/A N1-710-M N/A P1-18-RN (18")

P-201 120-N (20.3") B120A (20")/BH122A EZ20SN (20") P122R

P-201QT 120-N-FS (20.3) N/A EZ20SNU (20") S1-18-R (18")

P-201R N/A RN-23 N/A P122RN

P-201RQT N/A N/A N/A N/A

P-240OW 232-OW B225R/BH234R EZ25DO S2-32-W

P-241 122-N (22.5") B122A (22") EZ23SN (23") P1-22-R (22.5")

P-241H 122-LB (22.5") N/A EZ20SB P122C

P-241HQT 122-LBP (22.5") N/A N/A S1-22-S50 (22.5")

P-241QT 122-N-FS (22.5") N/A EZ23SNU (23") S1-22-R (22.5")

P-241R N/A N/A N/A P1-22-RN (22.5")

P-241RQT N/A N/A N/A N/A

P-352OW N/A B355R N/A S3-52-W

P-442 234-N (34") B232A (32")/BH235A EZ32DN (32")/EZ48DN P2-35-RAC (35")

P-442H 234-LB (34") B232B (32") N/A N/A

P-442HQT 234-LBP (34") N/A N/A S2-35-S50AC (35")

P-442QT 234-NP (34") N/A EZ32DNU S2-35-RAC (35")

P-643 345-N (45") B344A (44")/BH353A EZ44TN (44") S3-54-RAC (54")

P-643H 345-LB (45") SB-357 EZ74TN S354S50AC

P-643HQT N/A N/A N/A S3-54-S50AC (54")

P-643QT N/A N/A N/A S3-54-RAC (54")

P-764 N/A BH464A N/A S468RAC

P-764B 460-SB-24 (60") B455A EZ55QNB (55") N/A

P-764BQT N/A N/A N/A N/A

P-764H 460-LB (60") N/A N/A N/A

P-764HB N/A B455AH N/A N/A

P-764HBQT N/A N/A N/A N/A

P-764HQT N/A N/A N/A N/A

P-764QT N/A N/A N/A S4-68-RAC (68")

PC213-16 N-321-C-94 N/A N/A N/A

PC213-16G N-321-GC-94 N/A N/A N/A

PC213-BH N-321-C-95 N/A N/A C118HAC

PC213-BHG N-321-GC-95 N/A N/A C118HAGAC

PC213-N 3R-16-N (16") B518A (18") EZ18CN (18") C1-18-RAC (18")

PC213-NG 3R-16-NGP (16") B518P (18") EZ18CNG (18") C1-18-RGAC (18")

PC223OW N/A B618R/BH614R EZ18CO C1-18WAC

PC223OW-G N/A B618RP EZ18COG C1-18WGAC

PC234-16 N-423-C-94-V B620H-UPC N/A N/A

62 Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

Cross Reference

Basic Series – “Soft Box” Thermoplastic Boxes

Thomas & Betts

Allied Moulded

ﬂex

BOX

™

Carlon® PC Black

Polycarbonate

Carlon® PVC

(Zip Blue, Super BLUE)

Cantex

(EZ BOX®) Pass & Seymour (Slater)

PC234-16G N-423-GC-94-V B620HG-UPC N/A N/A

PC234-BH N-423-C-95-V B620K/BH525H EZ20CH S120HAC

PC234-BHG N-423-GC-95-V B620KG-UPC/BH525HP EZ20CHG S120HGAC

PC234-N N-423-C-V B520A (20.5")/BH525A EZ20CN (20") S1-20-RAC (20.2")

PC234-NG N-423-GC-V B520P (20.5")/BH525P EZ20CNG (20") S1-20-RGAC (20.2")

PJ-20H N/A B418A EZ18XN S44-21-SAC

PJ-20N N/A B418A EZ18XN S44-21-RAC

PJ-32H N/A B432A EZ32XN S44-35-SAC

PJ-32N 4S-32-N B432A EZ32XN S44-35-RAC

PJ-4B A400 A400 EZXKL 4SBC

PJ-4S1 A410 A410 EZ03SXA RC-1

PJ-4S2 A411 A411 EZ04ES N/A

PJ-4T1 A420 A420 EZ06DXA RC-2

PJ-4T2 A421 A421 EZ08ED N/A

Paddle Fan Support Products

Allied Moulded

Westinghouse

Arlington Raco Unity Mfg.

Carlon®

PC (T&B)

Steel City

(T&B)

Carlon®

PH (T&B)

Reiker

(P&S)

Slater

(P&S)

Crouse-

Hinds

9335-NFR/NKFR N/A FB417S/

FBS420S N/A N/A N/A N/A N/A N/A N/A N/A

9336-NFR/NKFR 01040-11 FBS415S N/A N/A N/A N/A N/A N/A N/A N/A

9350-FR/KFR N/A FB423/FBS420 7120/299 VQB B720-SHK 54171-CFB CFB-16 44400/55528 S1-6-FAN N/A

9350-FRBK/FRBKB N/A N/A 927/928 VQH N/A N/A 4070-CFB-BHL 65521/85502 N/A N/A

9350-FRBKOW N/A FBRS420R 934 VQFH N/A N/A N/A 22200 N/A N/A

9351-NFR/NKFR 01240-11 FB417S 294-1 N/A BH525L/

BH525LP 54171-F-CFB 4170-CFB 55020/55025 S1-20-RFAN TP16511

9364-FRBK/ FRBKB 01525/ 01100/

01010 FBRS415 925/926 VQH/

V304R-18N MB715H 54151CFB-BHL N/A 55501 N/A TP315

9364-FRBKOW N/A N/A 935 N/A MB715RH 54151CFB-

BHL-OW N/A 33310/83300 N/A TP379

9364-KFR 01050-11 FBS426 N/A N/A N/A N/A N/A 33303/55505 N/A TP275

9365-NFR/-NKFR 01250-11 N/A N/A N/A BH525L N/A N/A 55015/33303 N/A N/A

9369-FB 01020-11 FBS426 296-1 N/A MB715S 54151-CFB N/A N/A N/A TP275

9369-FBH 01250 FBS415S N/A N/A N/A N/A N/A N/A N/A TP16507

9370-FR 01030 FB407 N/A N/A N/A N/A N/A N/A S1-09-FAN N/A

9373-FR 02000 FB443 7120 N/A CFB-16 N/A N/A N/A S1-16-FAN TP1300

9375-FR 02525 FB442/FB412 7120 N/A CFB-12 N/A N/A N/A N/A TP1300

Adjustable Box Products

Allied Moulded

SLIDERBOX®

Arlington Industries Inc.

ONE-

BOX™ & IN/OUT™ BOX

Carlon®

PVC Adjust-A-Box™

Carlon®

Steel Adjust-A-Box™

Smart Box Inc.

Smart Box

SB-1 F101 / FA101 / FAS423 B121ADJ MB120ADJ MSB1G

SB-1H F101H B121ADJH N/A MSBHZ

SB-2 F102 / FA102 B234ADJ / B234ADJC MB238ADJ MSB2G

SB-3 F103 / FA103 B349ADJ N/A MSB3G

SB4 F104 / FA104 N/A N/A MSB4G

SB-CB N/A N/A N/A MSBRND

SB-CBG N/A N/A N/A N/A

SB-CBFR FBS1423 N/A N/A MSBFAN

Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

Cross Reference | Index

Vapor Seal Box Products

Allied Moulded Carlon® PC AIRFOIL, INC

Arlington

Industries, Inc. Nutek Hubbell

1099-NV FN-23 SG-1 F101F / FN101F F-WSW 2011FBA

1099-NV2 N/A N/A FN101FD N/A N/A

2302-HNKV2 N/A N/A FN102FD N/A N/A

2302-NKV FN-236-V/NG-236-V SG-2 F102F / FN102F 2-FWSW 2002FBA

3303-NKV FN-354-V/NG-354-V N/A F103F / FN103F 3-FWSW 2003FBA

4304-NKV FN-460-V/NG-460-V N/A F104F / FN104F N/A N/A

5305-NKV N/A N/A N/A N/A N/A

5305-NBKV N/A N/A N/A N/A N/A

9335-BHKV2 N/A N/A N/A N/A N/A

9335-HNKV2 N/A N/A N/A N/A N/A

9350-16KV N/A N/A N/A N/A N/A

9350-BHKV N/A N/A N/A N/A N/A

9350-BHKV2 N/A N/A N/A N/A N/A

9350-HNKV2 N/A RD-1 FN440F F-WOCT 2008FBA

9350-FRBKBV N/A N/A FBR415F N/A N/A

9350-FRBKBV2 N/A N/A FBR425F N/A N/A

9351-NKV FN-426-C-V N/A FN430F N/A N/A

9351-NKFRV FN-CFB FR-1 FB426F N/A N/A

9371-FRV CFB-16-F N/A FB442F N/A 7120VB

RD-42V N/A N/A N/A F-WRD N/A

Catalog No. Pg. Catalog No. Pg. Catalog No. Pg. Catalog No. Pg. Catalog No. Pg. Catalog No. Pg.

1096-N 8

1096-NR 42

1096-SS 8

1096-Z2 8

1096-Z4 8

1098-N 8

1098-SS 8

1098-Z2 8

1098-Z4 8

1098-Z4H 8

1099-N 8

1099-NRED 8

1099-NV 34

1099-NV2 34

1099-SS 8

1099-Z4 8

1K-100 51

1TP 44, 51

2300-2Z2 11

2300-2Z2K 11

2300-N 11

2300-NC2 11

2300-NC4 11

2300-NK 11

2300-SS 11

2300-SSK 11

2300-Z2 11

2300-Z2K 11

2300-Z4 11

2300-Z4K 11

2302-HNKV2 34

2302-N 11

2302-NC2 11

2302-NC4 11

2302-NK 11

2302-NKRED 11

2302-NKV 34

2302-SS 12

2302-SSK 12

2302-Z4 12

2302-Z4K 12

2TP 45, 51

3300-2Z2 13

3300-2Z2K 13

3300-2Z4 13

3300-2Z4K 13

3300-N 13

3300-NB 13

3300-NBC3 13

3300-NBK 13

3300-NC3 13

3300-NC6 13

3300-NK 13

3300-SS 13

3300-SSB 14

3300-SSBK 14

3300-SSK 13

3300-Z2 14

3300-Z2B 14

3300-Z2BK 14

3300-Z2K 14

3300-Z4 14

3300-Z4K 14

3303-2Z4 14

3303-2Z4K 14

3303-N 14

3303-NB 15

3303-NBK 15

3303-NK 14

3303-NKV 34

3303-SS 15

3303-SSK 15

3303-Z4 15

3303-Z4K 15

33213SSP 53

4300-2Z2 16

4300-2Z2K 16

4300-N 16

4300-NB 16

4300-NBC4 16

4300-NBK 16

4300-NC4 16

4300-NK 16

4300-SS 16

4300-SSB 16

4300-SSBK 16

4300-SSK 16

4300-Z2 16

4300-Z2B 17

4300-Z2BK 17

4300-Z2K 16

4304-2Z4 17

4304-2Z4K 17

4304-N 17

4304-NB 17

4304-NBK 17

4304-NK 17

4304-NKV 34

4304-Z4B 17

4304-Z4BK 17

50PANST 51

5305-NBK 18

5305-NBKV 34

5305-NK 18

5305-NKV 34

5305-Z4BK 18

9301-E 42

9301-EC2 42

9303-H 8

9304 46

9304-G 46

9305 48

9305-C2 48

9305-G 48

9305-GK 48

9305-K 48

9305-S 46

9305-SC2 46

9305-SG 46

9305-SGK 46

9305-SK 46

9312-E 12, 45

9312-EK 12, 45

9312-EW 12, 45

9312-EWC2 12, 45

9312-EWC4 12, 45

9312-EWK 12, 45

9313-EW 15, 46

9313-EWC3 15, 46

9313-EWK 15, 46

9314-EWK 18, 46

9315 23

9315-WH 23

9318 23

9319 23

9320 23

9322 23

9324-N 42

9327-N 8

9329-EW 12, 45

9329-EWK 12, 45

9331-E 9, 42

9331-EC2 9, 42

9331-EK 9, 42

INDEX

64 Allied Moulded Products, Inc., Bryan, OH 43506 • ph: 800-722-2679 • fax: 800-237-7269 • www.alliedmoulded.com

Index

Catalog No. Pg. Catalog No. Pg. Catalog No. Pg. Catalog No. Pg. Catalog No. Pg. Catalog No. Pg.

9331-ES 9, 43

9331-ESC2 9, 43

9331-ESK 9, 43

9331-EW 9, 43

9331-EWC2 9, 43

9331-EWK 9, 43

9335-16 25

9335-16C2 25

9335-16G 25

9335-16GC2 25

9335-16GK 25

9335-16K 25

9335-BH 24

9335-BHC2 24

9335-BHG 24

9335-BHGC2 24

9335-BHGK 24

9335-BHK 24

9335-BHKV2 35

9335-HNGK 24

9335-HNK 24

9335-HNKV2 35

9335-N 24

9335-NC2 24

9335-NFR 31

9335-NG 24

9335-NGC2 24

9335-NGK 24

9335-NK 24

9335-NKRED 24

9335-NKFR 31

9336-16 26

9336-16C2 26

9336-16G 26

9336-16GC2 26

9336-16GK 26

9336-16K 26

9336-BH 25

9336-BHGC2 25

9336-BHGK 25

9336-BHK 25

9336-BHC2 25

9336-BHG 25

9336-HNGK 26

9336-N 25

9336-NC2 25

9336-NG 26

9336-NGK 26

9336-NK 25

9336-NKFR 31

9338-E 26, 47

9338-EK 26, 47

9338-EKT 26, 47

9338-ES 27, 47

9338-ESC2 27, 47

9338-ESC2T 27, 47

9338-ESG 27, 47

9338-ESGC2 27, 47

9338-ESGK 27, 47

9338-ESGKT 27, 47

9338-ESK 27, 47

9338-ESKT 27, 47

9338-EST 27, 47

9339-Z+1 22

9339-Z+1C2 22

9342-C2 22

9342-HF 22

9342-HN 22

9343-N 22

9343-NC2 22

9343-NK 22

9343-SS 22

9343-SSK 22

9344 23

9345 23

9345-58 23

9346 23

9346-58 23

9347 23

9348 23

9350 28

9350-16 29

9350-16C2 29

9350-16G 29

9350-16GC2 29

9350-16GK 29

9350-16K 29

9350-16KV 35

9350-BH 28

9350-BHC2 28

9350-BHG 28

9350-BHGC2 28

9350-BHGK 28

9350-BHK 28

9350-BHKV 35

9350-BHKV2 35

9350-FRBK 33

9350-FRBKB 31

9350-FRBKBV 35

9350-FRBKBV2 35

9350-FRBKOW 31, 33

9350-HFK 28

9350-HL 28

9350-HLC2 28

9350-HLGK 28

9350-HLK 28

9350-HN 28

9350-HNK 28

9350-HNKV2 35

9350-K 28

9350-KFR 31

9351-N 29

9351-NC2 29

9351-NFR 31

9351-NG 29

9351-NGC2 29

9351-NGK 29

9351-NK 29

9351-NKRED 29

9351-NKFR 31

9351-NKFRV 35

9351-NKV 35

9351-SS 29

9351-SSK 29

9355 48

9355-G 48

9355-GK 48

9355-K 48

9355-S 47

9355-SK 47

9361-E 9, 43

9361-EC2 9, 43

9361-EK 9, 43

9361-ES 9, 43

9361-ESC2 9, 43

9361-ESK 9, 43

9363-E 10, 43

9363-EC2 10, 43

9363-EK 10, 43

9363-EW 10, 43

9363-EWC2 10, 43

9363-EWK 10, 43

9364-16 30

9364-16K 30

9364-16C2 30

9364-16G 30

9364-16GC2 30

9364-16GK 30

9364-BH 30

9364-BHK 30

9364-BHC2 30

9364-BHG 30

9364-BHGC2 30

9364-BHGK 30

9364-FRBK 33

9364-FRBKB 32

9364-FRBKOW 32, 33

9364-KFR 32

9365-N 30

9365-NK 30

9365-NKFR 32

9366-EK 44

9366-EW 44

9366-EWK 44

9367-E 44

9367-EW 44

9368-E 10, 44

9368-EK 10, 44

9368-EW 10, 44

9368-EWK 10, 44

9369-FB 32

9369-FBH 32

9370-FR 32

9371-FRV 35

9372-NMHK 45

9373-FR 33

9375-FR 33

AC9500 57

AC9501 57

AC9502 57

FB-1 54

FB-1CVR 55

FB-1N 54

FB-1NCVR 55

FB-2 54

FB-2CVR 55

FB-2DB 54

FB-2DBCVR 55

FB-2N 54

FB-2NCVR 55

FB-3 54

FB-3CVR 55

FB-3DB 54

FB-3DBCVR 55

FB-DBPLG 55

FB-3N 54

FB-3NCVR 55

FB-BRPLG 55

FB-CAK 56

FB-NPLG 55

GRD STRAP 51

LH-11P 52

LH-11WP 52

LH-12P 52

LH-12WP 52

LH-13P 52

LH-21WP 52

LH-22WP 52

LH-CFL1 53

LH-CFL2 53

LVB-1 50

LVBOW-1 50

LVP-1 12, 15, 17, 18, 50

LVP-2 20, 50

LVPR-1 50

P-108E 37, 42

P-108H 37

P-116OW 37, 42

P-122SC 37

P-1220W 37, 44

P-181 37

P-181H 37

P-181HZ 37

P-181QT 37

P-181RK 37, 42

P-201 37

P-201QT 37

P-201R 37, 42

P-240OW 38, 45

P-241 37

P-241H 37

P-241HQT 37

P-241QT 37

P-352OW 38, 46

P-442 38

P-442H 38

P-442HQT 38

P-442QT 38

P-643 38

P-643H 38

P-643HQT 38

P-643QT 38

P-764 39

P-764B 39

P-764BQT 39

P-764H 39

P-764HB 39

P-764HBQT 39

P-764HQT 39

P-764QT 39

PC213-16 40

PC213-16G 40

PC213-BH 40

PC213-BHG 40

PC213-N 40

PC213-NG 40

PC223OW 40, 47

PC234-16 41

PC234-16G 41

PC234-BH 41

PC234-BHG 41

PC234-N 41

PC234-NG 41

PJ-20H 39

PJ-20N 39

PJ-32H 39

PJ-32N 39

PJ-4B 40

PJ-4S1 40

PJ-4S2 40

PJ-4T1 40

PJ-4T2 40

RD-42 22

RD-42SS 22

RD-42V 34

SB-1 20

SB-1H 20

SB-2 20

SB-3 20

SB-4 20

SB-CB 20

SB-CBFR 20

SB-CBG 20

WIRE CLAMP 51

FIBERGLASS BOXES FOR RESIDENTIAL CONSTRUCTION

FIBERGLASS:

THE DIFFERENCE IS ELEMENTAL

Like so many of the products Allied Moulded creates, our robust fiberglassBOX™ series of impact-resistant,

high strength fiberglass reinforced polyester (FRP) wall boxes were specifically designed with the electrical

contractor in mind. Fire-resistant, soundproof and air-sealed, these hard-working yet lightweight fiberglass

boxes don’t have the same installation limitations as PVC boxes. This eliminates the need for costly additional

materials and labor—and provides you with the long-term savings you’re looking for in your wall applications.

To learn more, visit alliedmoulded.com.

222 North Union Street

Bryan, Ohio 43506

(419) 636.4217

(419) 636.2450

FAX

Fire Rated

FOR MORE APPLICATIONS

Industry Exclusive Fire Rating Turns

Up the Heat on the Competition

Sound Resistant

WITHOUT ADDITIONAL MATERIALS

Sound Transmission Class Rating

Quietly Saves You Even More

Air-Sealed

FOR ENERGY EFFICIENCY

Increased Energy Savings,

Reduced Installation Costs

ALLM084 Product Catalog Inside Covers_8.5x11_01.indd 1 11/14/13 1:54 PM

The more

you install,

the more

you save.

Electrical contractors wiring

multi-family buildings save the most.

Forget putty pads. Forget mineral wool. Forget about being

limited to a single electrical box in a stud cavity. Unlike their

metal or PVC counterparts, Allied Moulded FiberglassBOX

™

wall boxes can be placed a mere three inches apart* —

with no additional fire protection — and still meet the fire

safety standards outlined in the International Building Code.

They’re also suitable for use in STC rated common walls

without additional sound pads. Testing has shown STC rated

common walls are not negatively impacted with Allied Moulded

FiberglassBOX

™

products installed.

What does that mean for you? More flexibility in electrical

design. Easier standardization in multi-family construction.

Lower material and labor costs. And the benefits keep stacking

up with every Allied Moulded FiberglassBOX

™

box you use.

We’ve packed some big savings into a very small space.

To learn more and see our UL documentation, visit

www.alliedmoulded.com.

*Suitable for installation in 2HR wall assemblies:

All 52 – U300 series walls, non-load bearing steel

stud walls and staggered stud wall assemblies

INDUSTRY EXCLUSIVE

FIRE & SOUND

222 North Union Street

Bryan, Ohio 43506

(419) 636.4217

(419) 636.2450

FAX

ALLM084 Product Catalog Inside Covers_8.5x11_01.indd 2 11/14/13 1:54 PM

THE CONTRACTOR’S

CHOICE

A Complete Line of Residential Non-Metallic Electrical Outlet Boxes

Designed and Manufactured by Professionals for the Professional Electrical Contractor

Allied Moulded Products, Inc.

Bryan, OH 43506

ph: 800-722-2679

fax: 800-237-7269

Find out more about us online at:

www.alliedmoulded.com

Available Through:

2014

361363 Catalog

108150-Attachment 108150-Attachment 108150-Attachment 085339 Batch7 unilog cesco-content

Navigation menu

Versions of this User Manual:

Views

Navigation
