A-1

Liquid Tight

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABC

NMLT905 54578 1/2 1/2 10 50 2.331 .605 3.389

NMLT907 54579 3/4 3/4 10 50 2.682 .670 3.645

NMLT9010 54104 11525 2.874 .708 4.107

Add suffix “BL” to Catalog # when ordering in black, for example

NMLT905BL. Factory order only. Minimum quantities required.

PATENTED. ADDITIONAL PATENTS PENDING. B

A

C

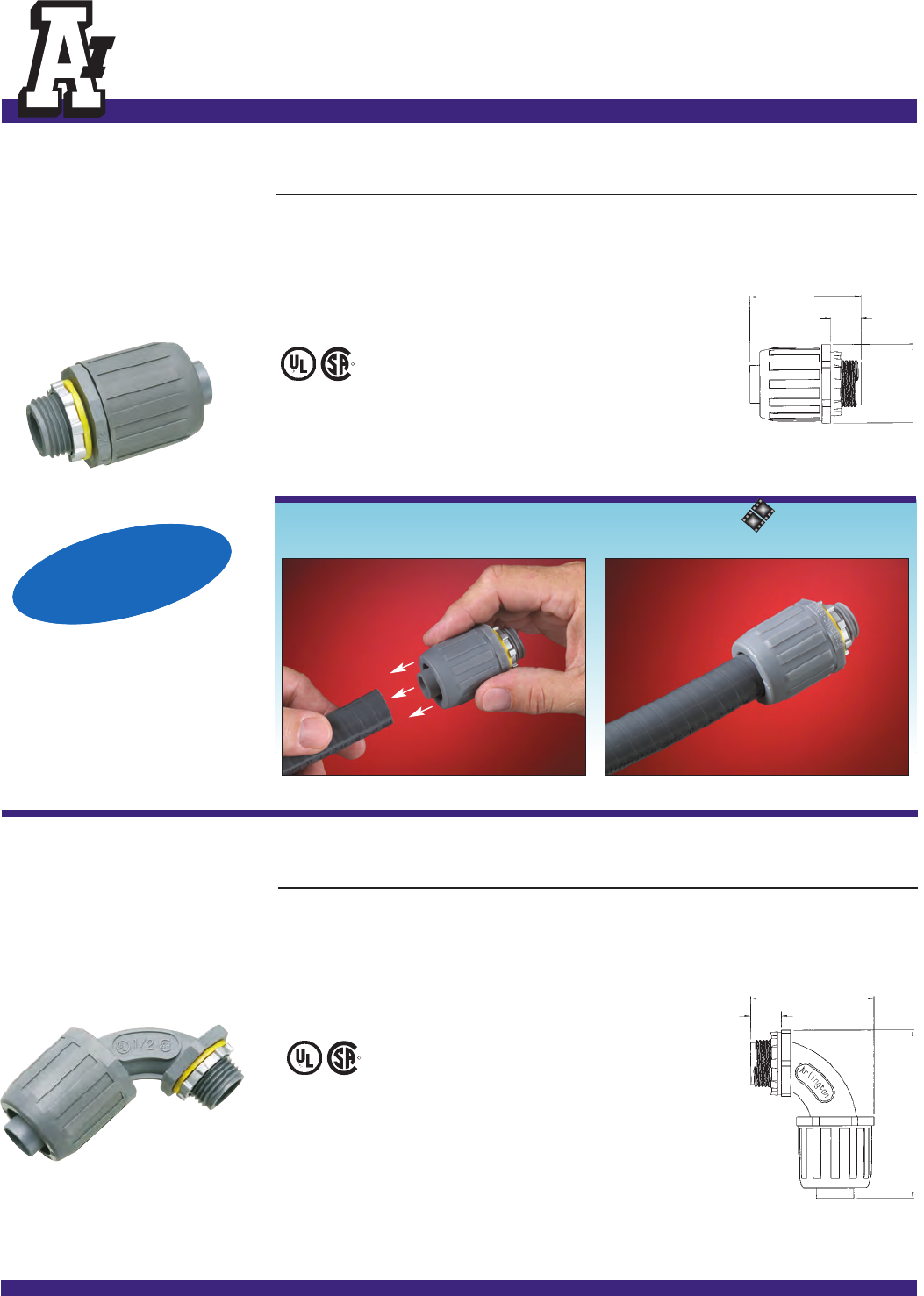

SNAP2IT®

Non-Metallic

Connectors

For use with non-metallic

liquid-tight conduit, type B only.

Push on installation. Produced

from UV rated plastic for long

outdoor life.

90° SNAP2IT®

Non-Metallic

Connectors

For use with non-metallic

liquid-tight conduit, type B only.

Push on installation. Produced

from UV rated plastic for

long outdoor life.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABC

NMLT5 54576 1/2 1/2 25 100 2.376 .619 1.420

NMLT7 54577 3/4 3/4 10 50 2.425 .670 1.664

NMLT10 54102 11 525 2.530 .708 1.856

Add suffix “BL” to Catalog # when ordering in black, for example

NMLT5BL. Factory order only. Minimum quantities required.

PATENTED. ADDITIONAL PATENTS PENDING.





E60812 LR49636 C

A

B

E60812 LR49636

PUSHES ONTO

CONDUIT...NO TOOLS!

Installation Instructions

To install, simply PUSH ON to conduit. That’s it!

•Competitively priced

•Fast and easy installation

•Provides a super-secure, liquid-tight seal

•Removable and reusable!

Fast and easy installation (see above)

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

For a video installation

demonstration visit our

website @aifittings.com





A

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG AB C

LT905A 24233 1/2 1/2 10 50 2.409 .683 3.389

LT907A 35089 3/4 3/4 10 50 2.772 .760 3.645

LT9010A 35090 11525 2.964 .798 4.107

PATENTED.

ADDITIONAL PATENTS PENDING.

With Insulated Throat

A-2 Liquid Tight

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Fast and easy installation

(see page A-1)

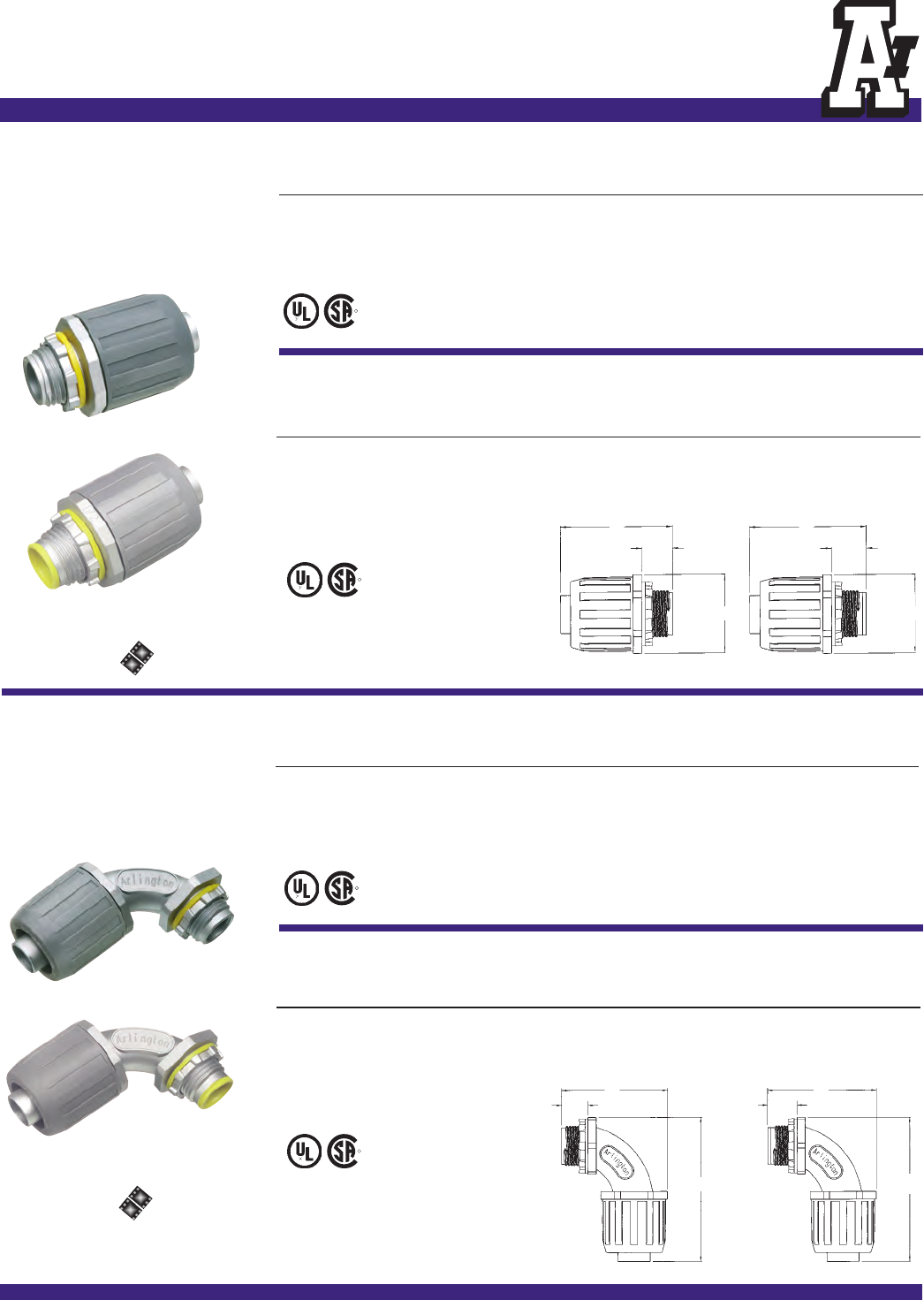

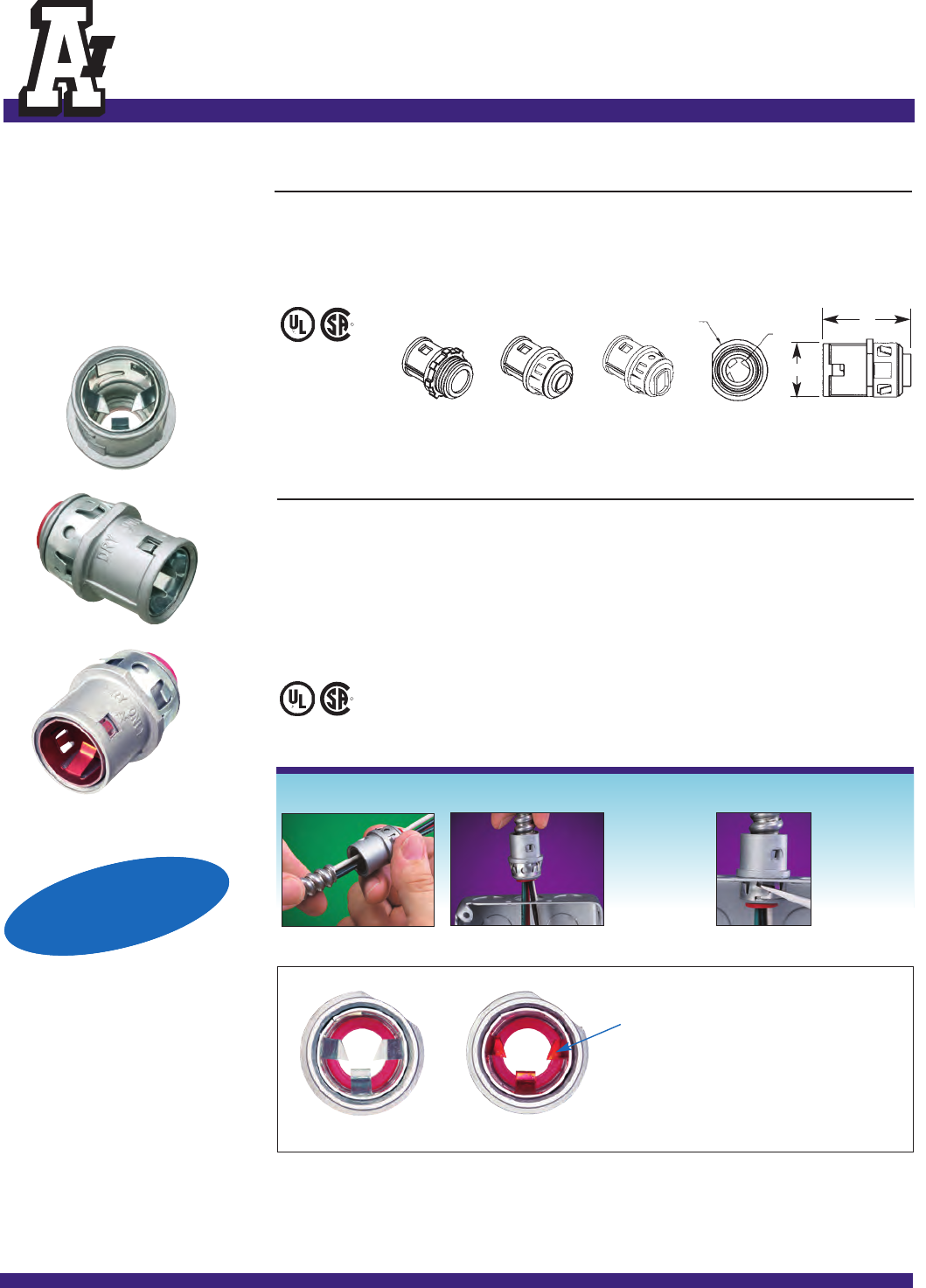

SNAP2IT®

Zinc Connectors

For use with metallic and

non-metallic liquid-tight

conduit, type B. Push on

installation.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG AB C

LT5 32502 1/2 1/2 25 100 2.376 .619 1.420

LT7 32503 3/4 3/4 10 50 2.425 .670 1.664

LT10 32102 11 525 2.495 .708 1.890

PATENTED. ADDITIONAL PATENTS PENDING.

E60812 LR49636

C

A

B

C

A

B

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABC

LT905 32504 1/2 1/2 10 50 2.331 .605 3.389

LT907 32505 3/4 3/4 10 50 2.682 .670 3.645

LT9010 32104 11525 2.874 .708 4.107

PATENTED. ADDITIONAL PATENTS PENDING.

90° SNAP2IT®

Zinc Connectors

For use with metallic and

non-metallic liquid-tight

conduit, type B. Push on

installation.

E60812 LR49636

B

C

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG AB C

LT5A 35085 1/2 1/2 25 100 2.454 .697 1.420

LT7A 35086 3/4 3/4 10 50 2.515 .760 1.664

LT10A 35087 11525 2.620 .798 1.890

PATENTED.

ADDITIONAL PATENTS PENDING.

With Insulated Throat

E60812 LR49636

E60812 LR49636

LT5

LT905

LT905A

LT5A

LT5 LT5A

LT905

A

B

C

LT905A

aifittings.com

Fast and easy installation

(see page A-1) aifittings.com

New!

New!

















One-Piece

Screw-In Liquid

Tight Connectors

For use with metallic and

non-metallic liquid-tight

conduit, type B only.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG AB

LTSC50 35405 1/2 1/2 25 100 .525 1.535

LTSC75 35408 3/4 3/4 25 100 .525 1.535

PATENTED.

E60812 LR49636

B

A

• Costs 20% less than multi-piece fittings

• Fast and easy screw-on installation

• One-piece, low profile construction

• Built-in gasket maintains liquid-tight seal

TM

A-3

Liquid Tight

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG AB CD

NMLT590 03900 1/2 1/2 10 50 3.165 2.435 3.594 2.007

NMLT790 03902 3/4 3/4 10 50 3.875 2.900 4.200 2.623

Add suffix “BL” to Catalog # when ordering in black, for example

NMLT590BL. Factory order only. Minimum quantities required.

PATENT PENDING.

SNAP2IT®

Zero to 90™

Non-Metallic

Connectors

For use with non-metallic

liquid-tight conduit, type B only.

Push on installation.

Produced from UV rated

plastic for long outdoor life. E60812 LR49636

B

AC

D

PUSHES ONTO

CONDUIT...NO TOOLS!

Adjusts

for ALL ANGLES...

from 0° to 90°!

To adjust the angle

simply loosen the

center nut, twist to

the correct angle,

and retighten.









A-4 Liquid Tight

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

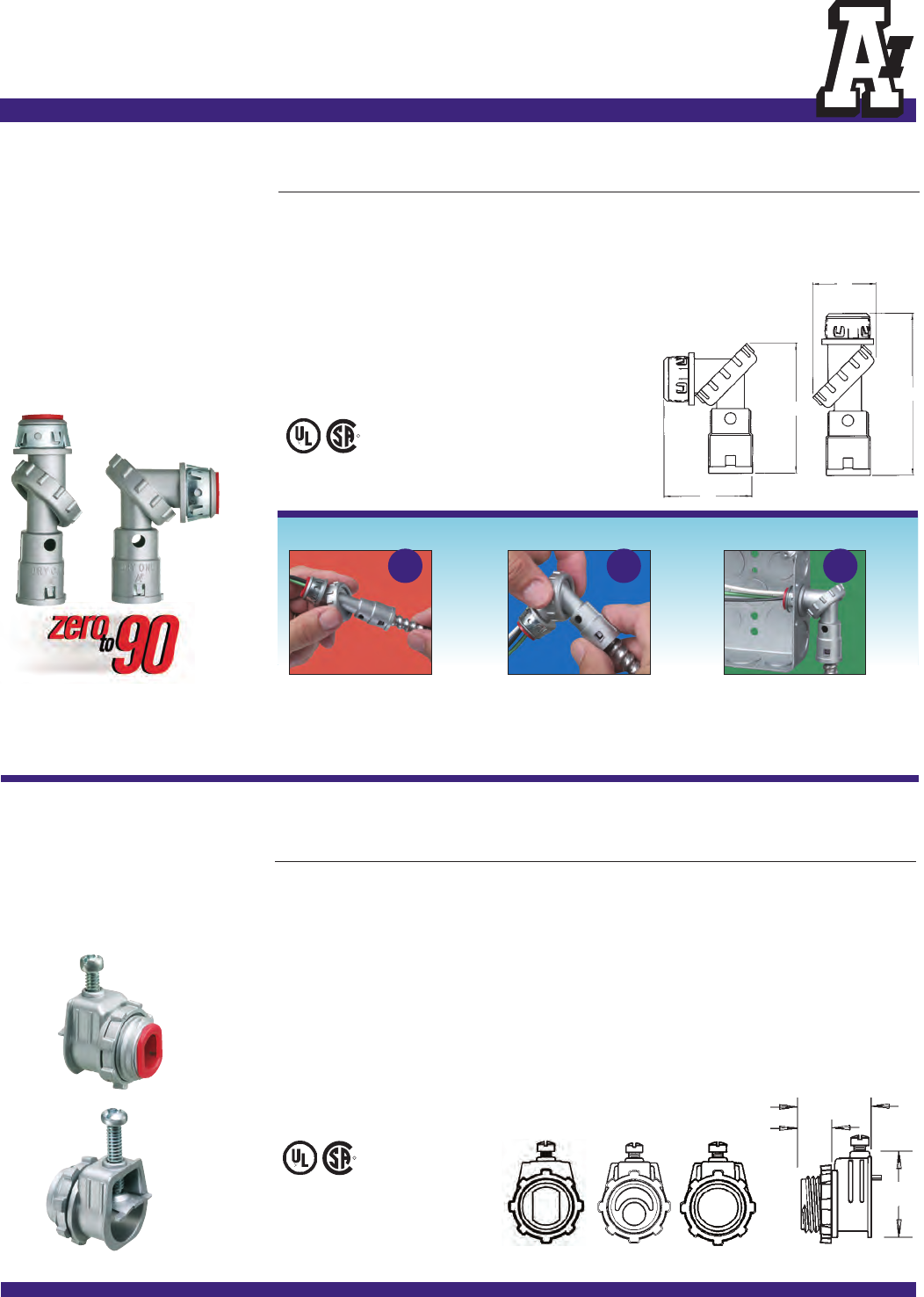

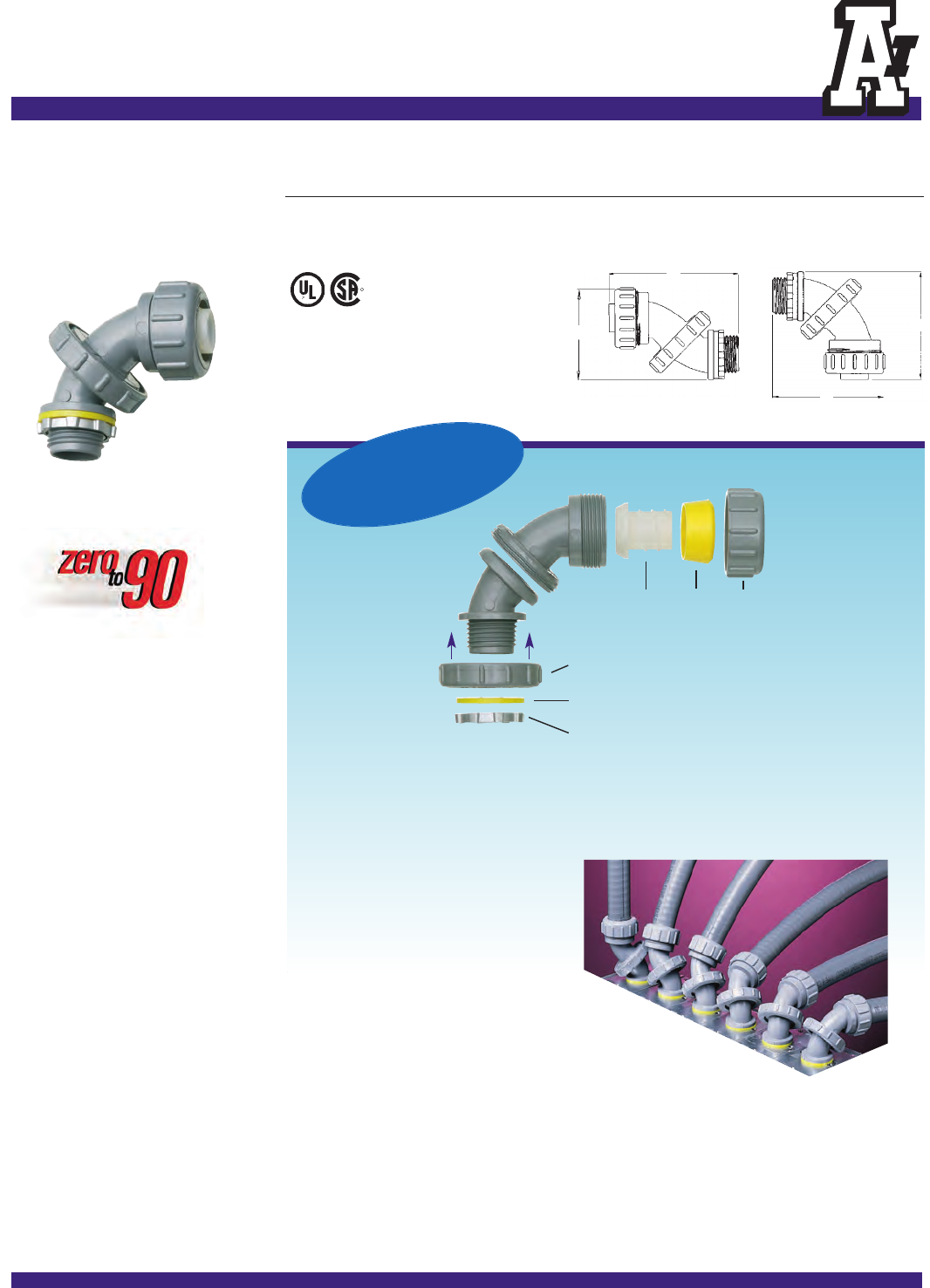

Zero to 90™

Connectors

For use with non-metallic

liquid-tight conduit, type B only.

Produced from UV rated

plastic for long outdoor life.

CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG ABCD

NMLT5090 06240 1/2 10 50 2.765 1.945 2.324 2.387

NMLT7590 06260 3/4 10 50 3.540 2.590 3.250 2.820

PATENTED. ADDITIONAL PATENTS PENDING.

E60812 LR49636

D

C

A

B

COSTS THE SAME

AS OUR “REGULAR”

90° FITTING!

Installation Instructions

Arlington’s no-spin ferrule allows the Zero to 90 connector to be secured to the conduit while fully

assembled. To install, simply loosen the tightening nut and screw onto conduit. A positive liquid-tight

seal is formed by the pressure sensitive internal gland as the nut is tightened. The sealing ring assures a

liquid-tight seal between the fitting and box.

Ferrule

Center Nut

loosen to adjust angle

Sealing Ring forms liquid-tight seal

between fitting and box

Locknut

Internal

Gland Tightening

Nut

TM

Adjusts

for ALL ANGLES...

from 0° to 90°!

To adjust the angle simply

loosen the center nut, twist

to the correct angle, and retighten.





A-5

Liquid Tight

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Straight

Non-Metallic

Connectors

For use with non-metallic

liquid-tight conduit, type B only.

Produced from UV rated plastic

for long outdoor life.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABC

NMLT38 54380 3/8 1/2 25 100 1.425 .535 1.421

NMLT50 54500 1/2 1/2 25 100 1.425 .535 1.421

NMLT75 54750 3/4 3/4 10 50 1.475 .550 1.583

NMLT100 54100 11525 1.950 .670 1.925

NMLT125 04223 1-1/4 1-1/4 5 25 2.217 .645 2.418

NMLT150 04222 1-1/2 1-1/2 2 10 2.155 .660 2.700

NMLT200 04221 22210 2.400 .670 3.360

Add suffix “BL” to Catalog # when ordering in black, for example NMLT50BL.

C

B

Screw-On 90°

Non-Metallic

Connectors

For use with non-metallic

liquid-tight conduit, type B only.

Produced from UV rated plastic

for long outdoor life.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABC

NMSC9038 21003 3/8 1/2 25 100 2.100 .535 2.442

NMSC9050 21007 1/2 1/2 25 100 2.100 .535 2.504

NMSC9075 21009 3/4 3/4 20 100 2.455 .535 2.831

Add suffix “BL” to Catalog # when ordering in black, for example NMSC9050BL.

PATENTED.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABC

NMSC38 21005 3/8 1/2 25 100 1.350 .535 1.241

NMSC50 21000 1/2 1/2 25 100 1.440 .535 1.234

NMSC75 21010 3/4 3/4 25 100 1.515 .535 1.520

Add suffix “BL” to Catalog # when ordering in black,

for example NMSC50BL.

PATENTED.

A

C

B

A

B

A

Screw-On Straight

Non-Metallic

Connectors

For use with non-metallic

liquid-tight conduit, type B only.

Produced from UV rated plastic

for long outdoor life.

E60812 LR49636

E60812 LR49636

E60812 LR49636

C

Conduit threads onto ferrule and up inside the outer body. The inside taper squeezes down on the outside of

conduit for a superior liquid-tight seal. The cut portion of the conduit does not show, giving a more attractive

finished appearance. Also for use with flexible non-metallic tubing. These connectors screw on easily by hand

and are removable with pliers.

Conduit threads onto ferrule and up inside the outer body.

The inside taper squeezes down on the outside of conduit for a

superior liquid-tight seal. The cut portion of the conduit does not

show, giving a more attractive finished appearance. Also for use

with flexible non-metallic tubing. These connectors screw on

easily by hand and are removable with pliers.

Note: Screw connector onto the

conduit until it stops. If the fitting is

not in alignment with the knockout,

you may unscrew the fitting up to

one full turn for adjustment.

Installation Instructions

Arlington’s reusable Liquid-Tight Fittings may be secured to conduit while fully assembled

because of our no-spin ferrule. Simply loosen nut, and screw onto conduit. A positive

liquid-tight seal is provided by our pressure sensitive internal gland when the nut is

tightened. A liquid-tight seal is also assured between the fitting and box by a sealing ring.













A-6 Liquid Tight

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

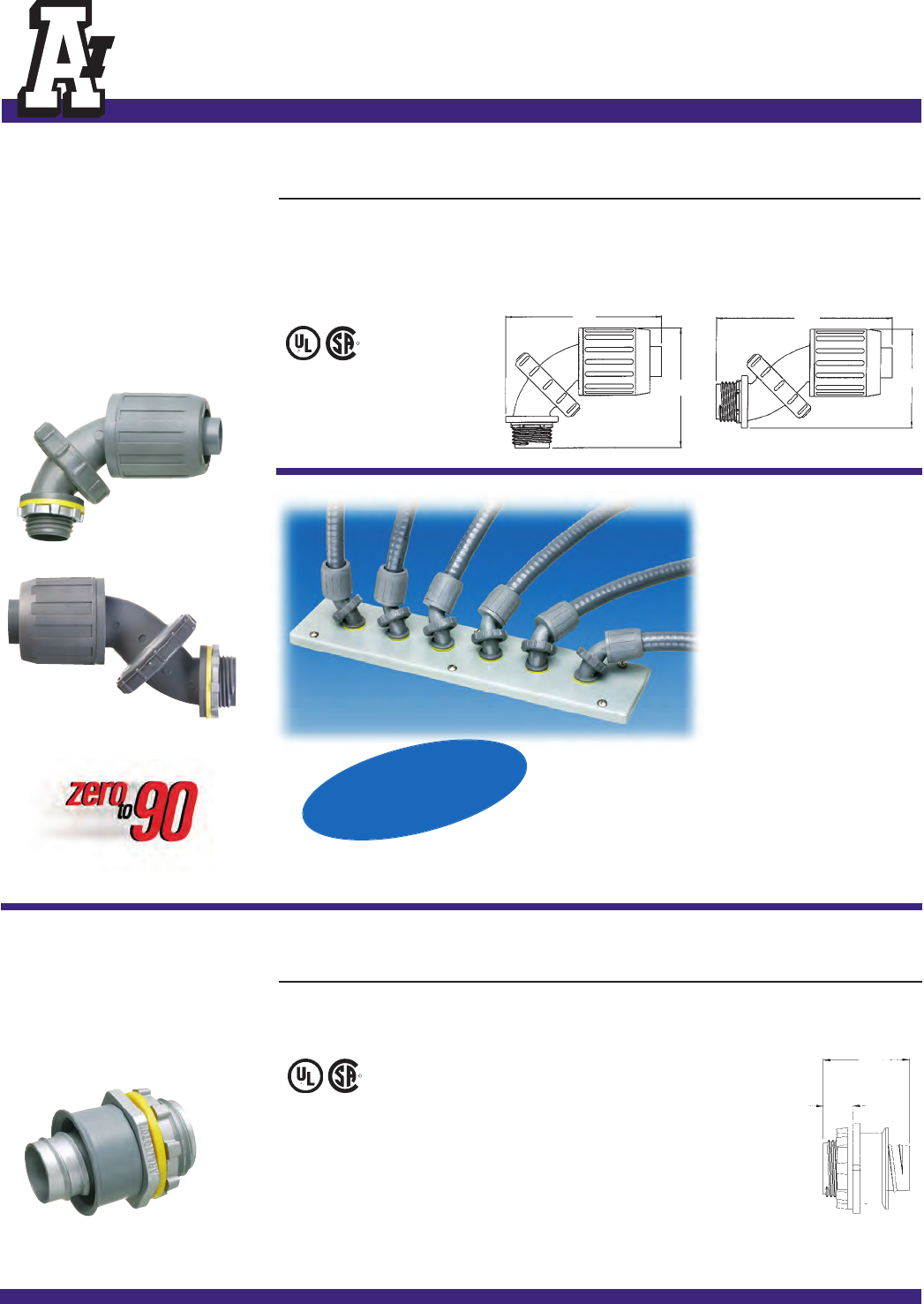

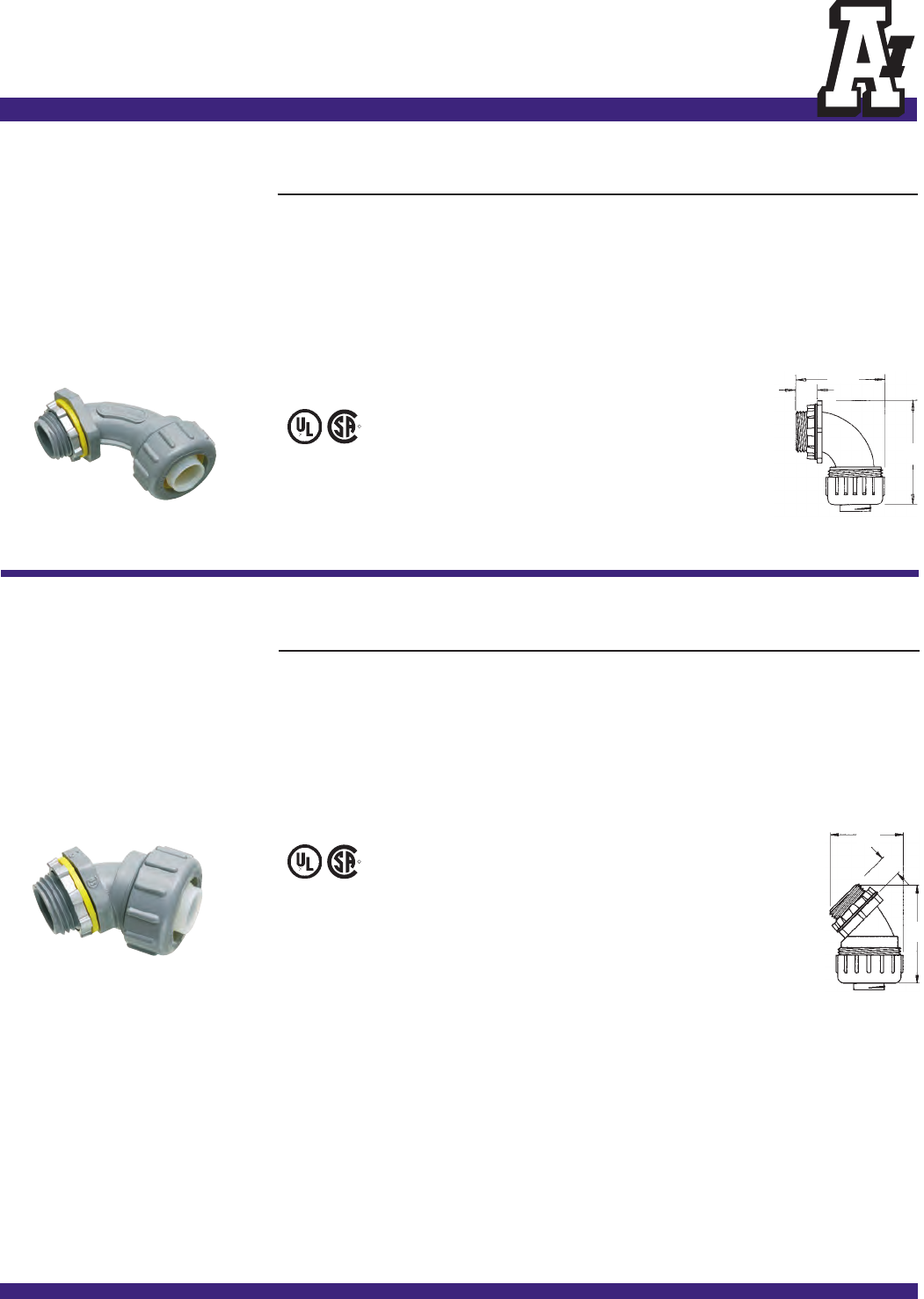

45° Non-Metallic

Connectors

For use with non-metallic

liquid-tight conduit, type B only.

45° connector provides a

smooth, gradual radius bend.

Wiring is easily pulled or

pushed through fitting and there

are no sharp edges to strip

wire. Produced from UV rated

plastic for long outdoor life.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABC

NMLT4538 54538 3/8 1/2 10 50 1.550 .562 1.862

NMLT4550 54550 1/2 1/2 10 50 1.596 .562 1.975

NMLT4575 54575 3/4 3/4 10 50 1.820 .545 2.237

NMLT45100 54110 11525 2.200 .630 2.990

NMLT45125 54125 1-1/4 1-1/4 5 25 2.710 .645 3.420

NMLT45150 54150 1-1/2 1-1/2 2 10 2.960 .660 3.675

NMLT45200 54200 22210 3.500 .670 4.060

Add suffix “BL” to Catalog # when ordering in black, for example NMLT4550BL. A

C

B

E60812 LR49636

90° Non-Metallic

Connectors

For use with non-metallic

liquid-tight conduit, type B only.

90° connector provides a

smooth, gradual radius bend.

Wiring is easily pulled or

pushed through fitting and there

are no sharp edges to strip

wire. Produced from UV rated

plastic for long outdoor life.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABC

NMLT9038 54903 3/8 1/2 10 50 2.325 .562 2.440

NMLT9050 54905 1/2 1/2 10 50 2.325 .562 2.440

NMLT9075 54907 3/4 3/4 10 50 2.550 .545 2.840

NMLT90100 54901 11525 3.150 .630 3.922

NMLT90125 54912 1-1/4 1-1/4 5 25 4.440 .645 4.650

NMLT90150 54915 1-1/2 1-1/2 2 10 4.510 .660 4.810

NMLT90200 54920 22210 5.062 .670 5.320

Add suffix “BL” to Catalog # when ordering in black,

for example NMLT9050BL.

C

A

B

E60812 LR49636









A-7

Liquid Tight

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

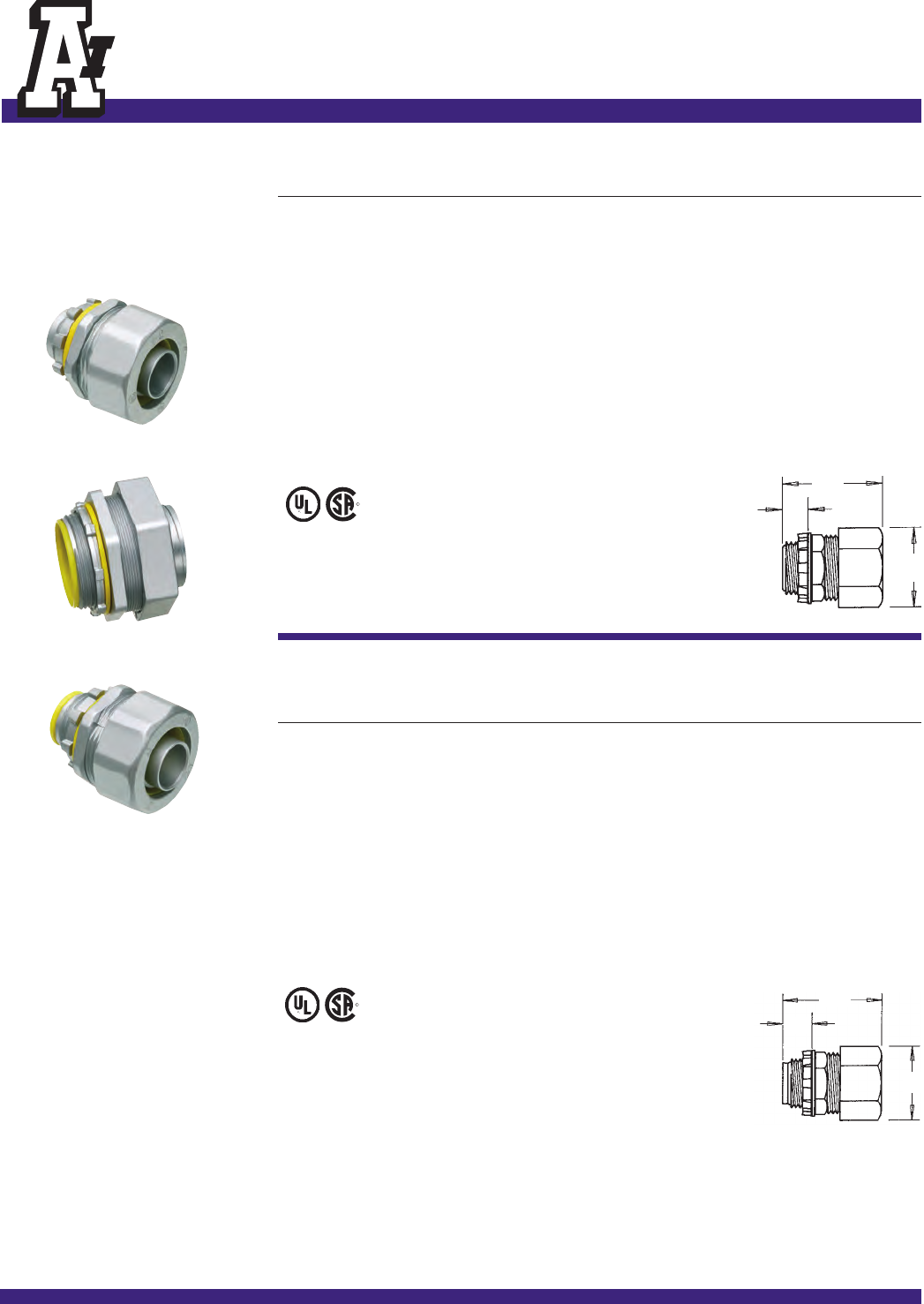

Straight Zinc

Die-Cast

Connectors

For use with metallic and

non-metallic liquid-tight

conduit, type B only.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABC

LT38 32380 3/8 1/2 25 100 1.440 .510 1.260

LT50 32500 1/2 1/2 25 100 1.440 .520 1.385

LT75 32750 3/4 3/4 10 50 1.562 .500 1.720

LT100 32100 11525 1.825 .593 1.900

LT125 32125 1-1/4 1-1/4 5 25 2.068 .625 2.176

LT150 32150 1-1/2 1-1/2 2 10 2.008 .625 2.507

LT200 32200 22210 2.103 .593 3.178

LT250* 32250 2-1/2 2-1/2 113.269 .980 4.218

LT300* 32300 33114.060 1.070 4.919

LT350* 32350 3-1/2 3-1/2 114.115 1.065 5.520

LT400* 32400 44114.323 1.139 5.948

*Provided with insulated throat.

LT50

LT250

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABC

LT38A 32381 3/8 1/2 25 100 1.533 .493 1.260

LT50A 32501 1/2 1/2 25 100 1.593 .613 1.385

LT75A 32751 3/4 3/4 10 50 1.656 .593 1.720

LT100A 32101 11525 1.935 .686 1.900

LT125A 32121 1-1/4 1-1/4 5 25 2.168 .639 2.290

LT150A 32151 1-1/2 1-1/2 2 10 2.101 .680 2.633

LT200A 32201 22210 2.196 .686 3.156

LT250 32250 2-1/2 2-1/2 113.269 .980 4.218

LT300 32300 33114.060 1.070 4.919

LT350 32350 3-1/2 3-1/2 114.115 1.065 5.520

LT400 32400 44114.323 1.139 5.948

With Insulated Throat

C

B

A

C

B

A

LT50A

E60812 LR49636

E60812 LR49636









A-8 Liquid Tight

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

B

C

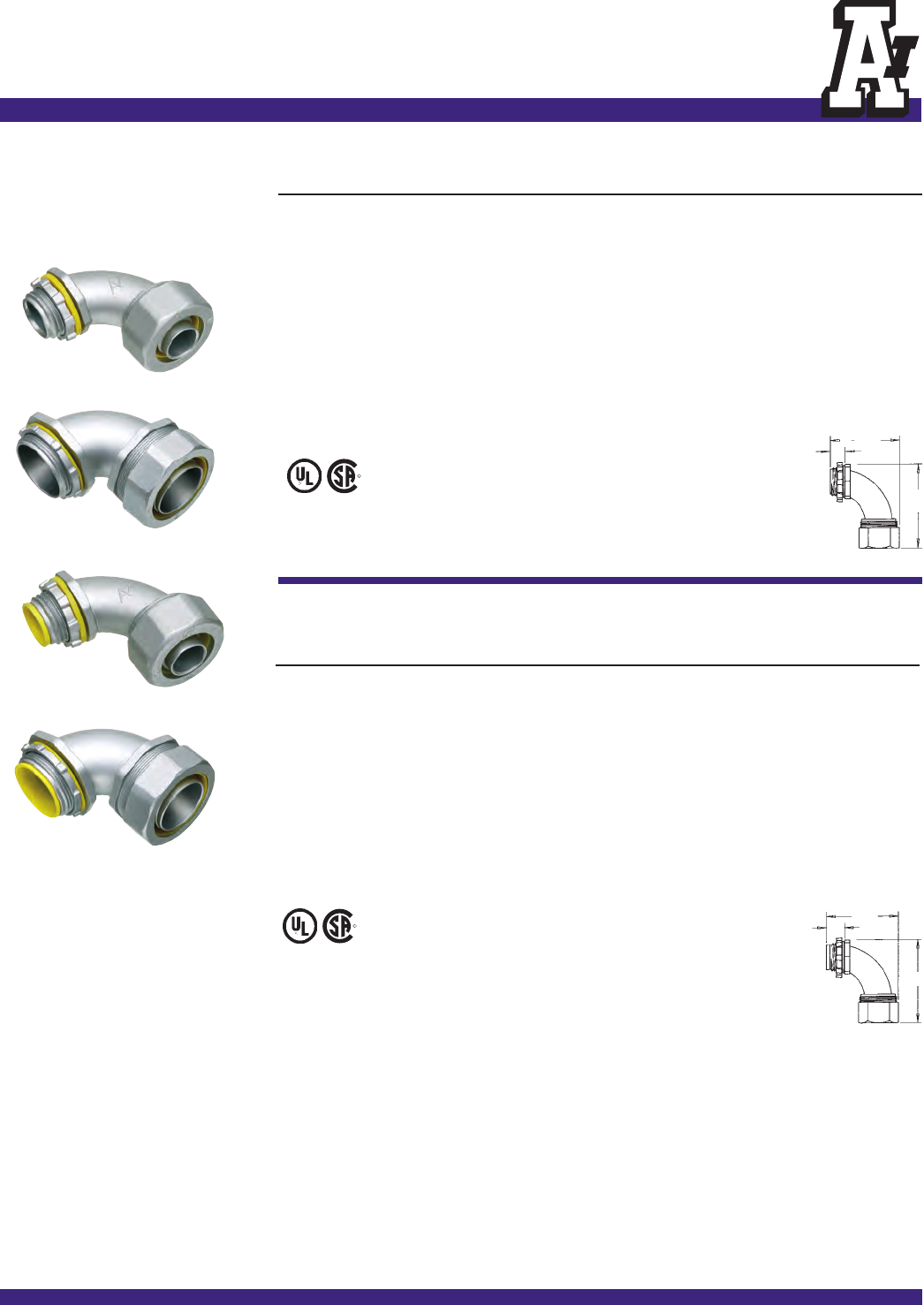

90° Zinc Die-Cast

Connectors

For use with metallic and

non-metallic liquid-tight

conduit, type B only.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABC

LT9038 32938 3/8 1/2 10 50 2.062 .520 2.340

LT9050 32950 1/2 1/2 10 50 2.128 .525 2.312

LT9075 32970 3/4 3/4 10 50 2.515 .510 2.664

LT90100 32910 11525 2.758 .675 3.640

LT90125 32913 1-1/4 1-1/4 2 10 3.362 .700 3.912

LT90150 32915 1-1/2 1-1/2 2 10 3.500 .604 4.368

LT90200 32920 22210 4.106 .680 4.865

LT90250* 32925 2-1/2 2-1/2 115.500 .870 6.225

LT90300* 32930 33116.000 .950 6.720

LT90350* 32935 3-1/2 3-1/2 116.625 .950 7.450

LT90400* 32940 44117.000 .950 8.000

*Provided with insulated throat.

LT9050

LT90150

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG AB C

LT9038A 32931 3/8 1/2 10 50 2.137 .595 2.340

LT9050A 32951 1/2 1/2 10 50 2.203 .595 2.312

LT9075A 32971 3/4 3/4 10 50 2.590 .585 2.664

LT90100A 32911 11525 2.906 .750 3.640

LT90125A 32912 1-1/4 1-1/4 2 10 3.473 .775 3.912

LT90150A 32955 1-1/2 1-1/2 2 10 3.575 .679 4.368

LT90200A 32921 22210 4.206 .755 4.865

LT90250 32925 2-1/2 2-1/2 115.000 .945 6.225

LT90300 32930 33116.000 1.025 6.720

LT90350 32935 3-1/2 3-1/2 116.625 1.025 7.450

LT90400 32940 44117.000 1.025 8.000

A

LT9050A

LT90150A

C

B

A

With Insulated Throat

E60812 LR49636

E60812 LR49636









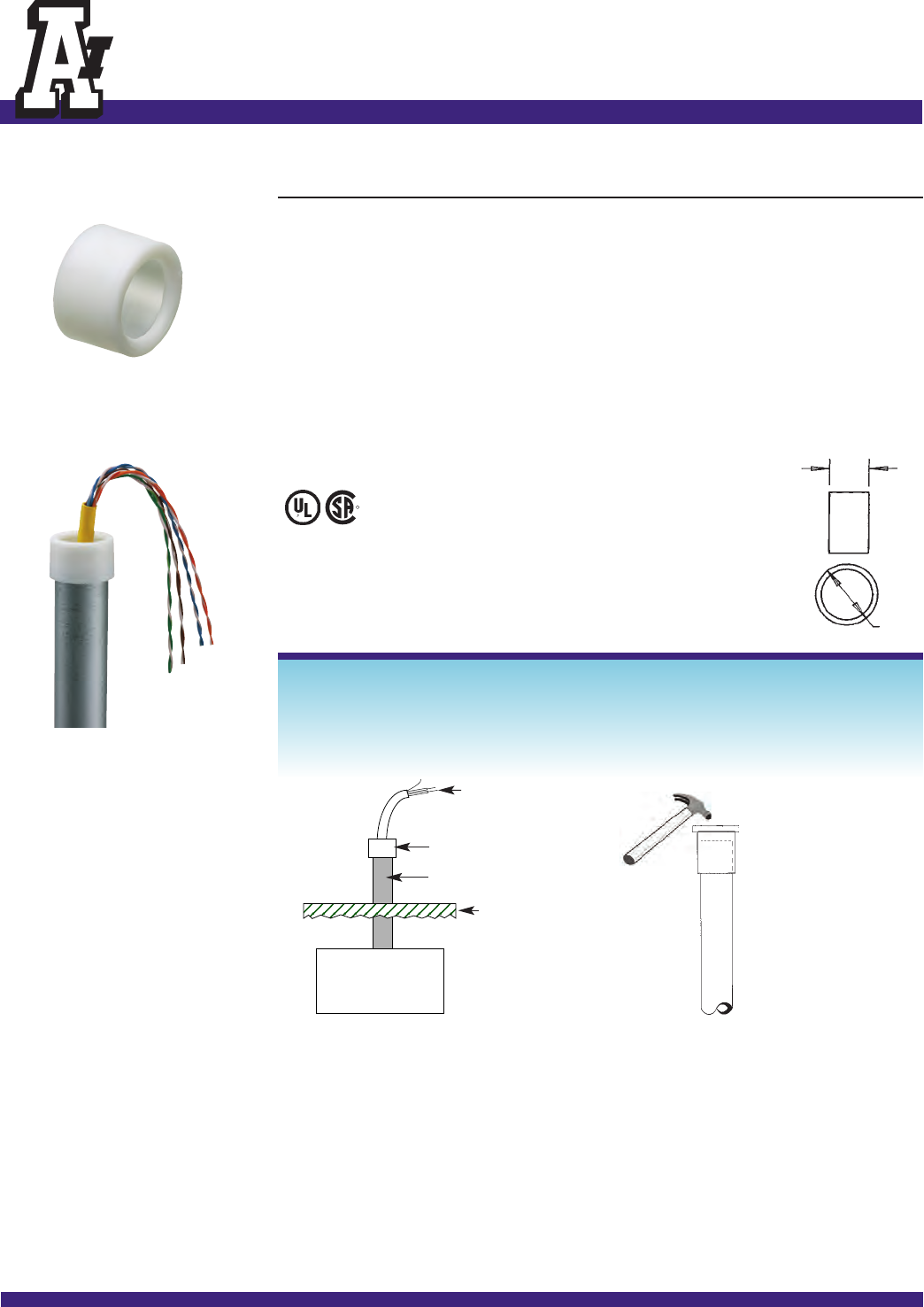

B-1

EMT

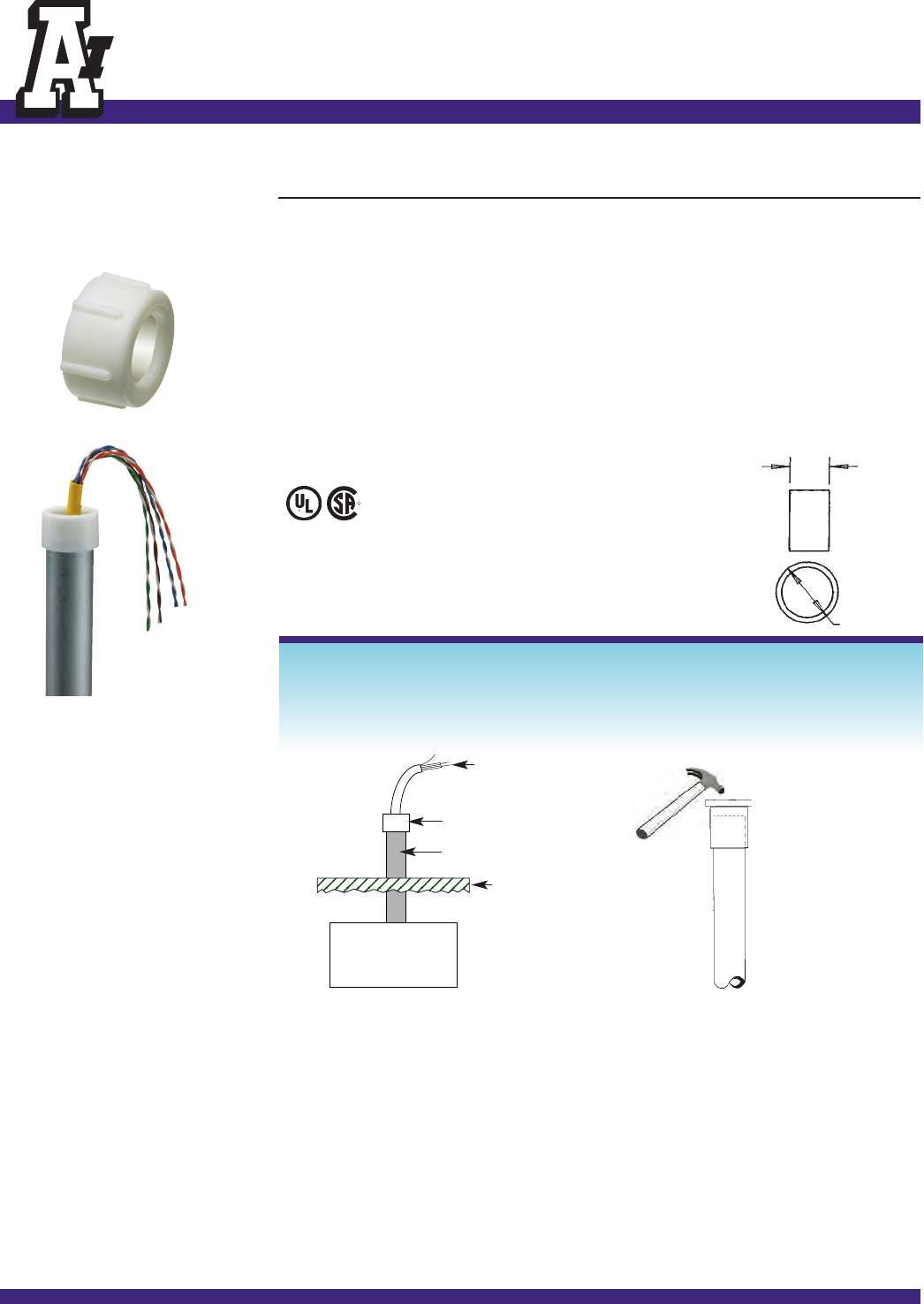

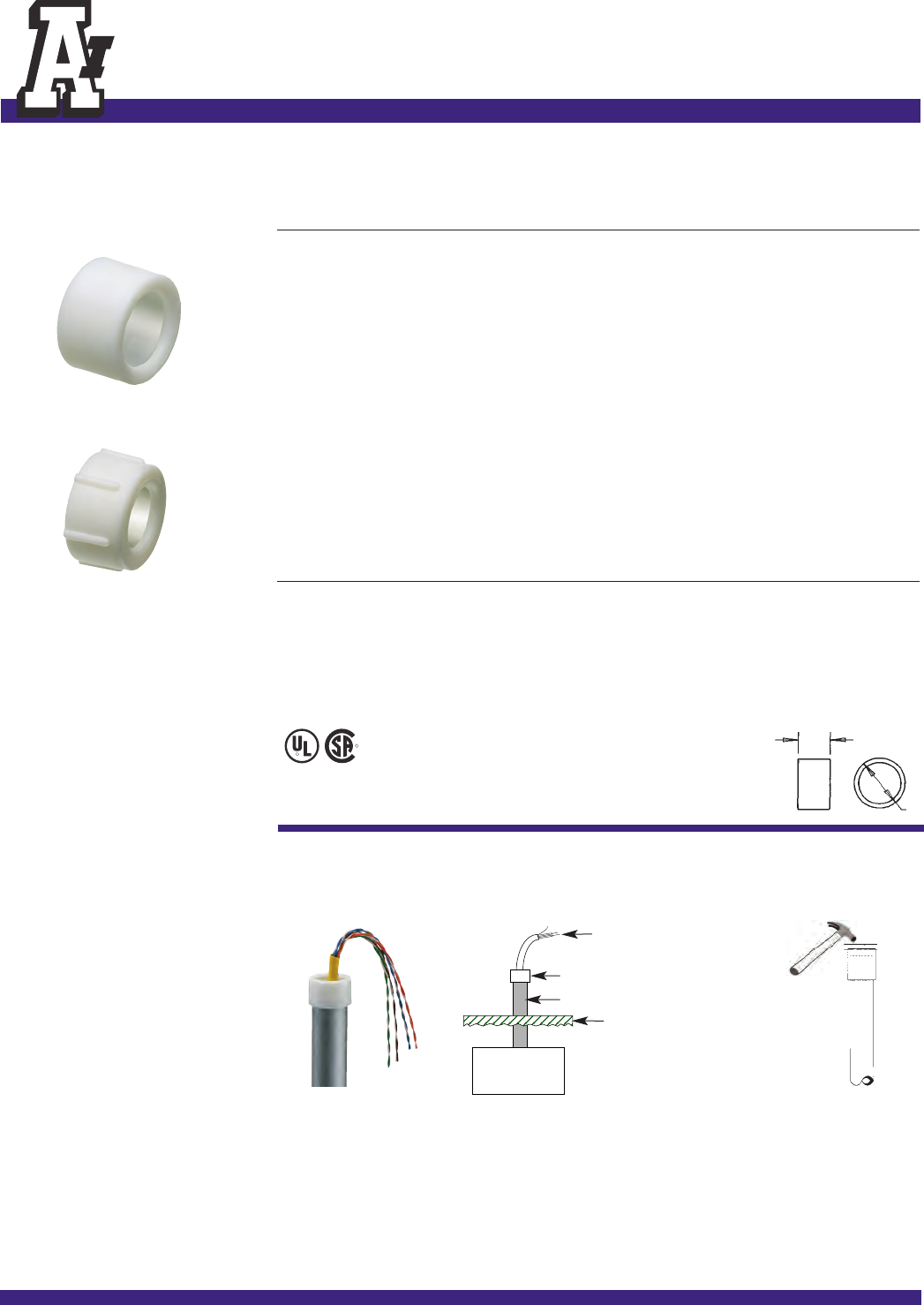

Insulating Bushings

Press fit. Holds firmly in place

while pulling cables.

CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG AB

EMT50 12200 1/2 100 1000 .531 .840

EMT75 12205 3/4 100 1000 .531 1.056

EMT100 12220 1 100 100 .625 1.280

EMT125 12225 1-1/4 100 100 .625 1.660

EMT150 12230 1-1/2 100 100 .625 1.915

EMT200 12235 2 50 50 .625 2.377

EMT250* 12240 2-1/2 25 25 1.225 3.062

EMT300* 12245 3 25 25 1.225 3.690

EMT350* 12250 3-1/2 25 25 1.231 4.187

EMT400* 12255 4 25 25 1.233 4.815

Refer to page I-1 for Rigid Insulating Bushings size 1/2" through 4".

*Can also be used for rigid, IMC, and PVC rigid conduit.

Arlington’s EMT Insulating Bushings protect cables from abrasion by EMT. Examples: Power,

Cable TV, computer datalines, telephone/modem, audio/video cables, alarm systems, security

systems. EMT is often used to protect cables where damage could occur in a house or building.

E105706 LR49636

Meets 2008 NEC code requirements for

300-15(c) protection. Listed for use in

environmental air handling spaces per

2008 NEC code requirements 300-22(c).

A

B

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Example:

Telephone cable

protected by EMT

insulating

bushing.





Place board over EMT bushing

and tap onto

Rigid or EMT with hammer.

Non-metallic

sheathed cable

Arlington's

EMT insulating bushing

Non-structural

ceiling

Surface mounted

panel or box

EMT

B-2 EMT

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

EMT 2-Piece

Connector

Zinc die-cast.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG AB

L20 32000 1/2 1/2 50 250 .770 1.107

A

B

E20643 LR49636





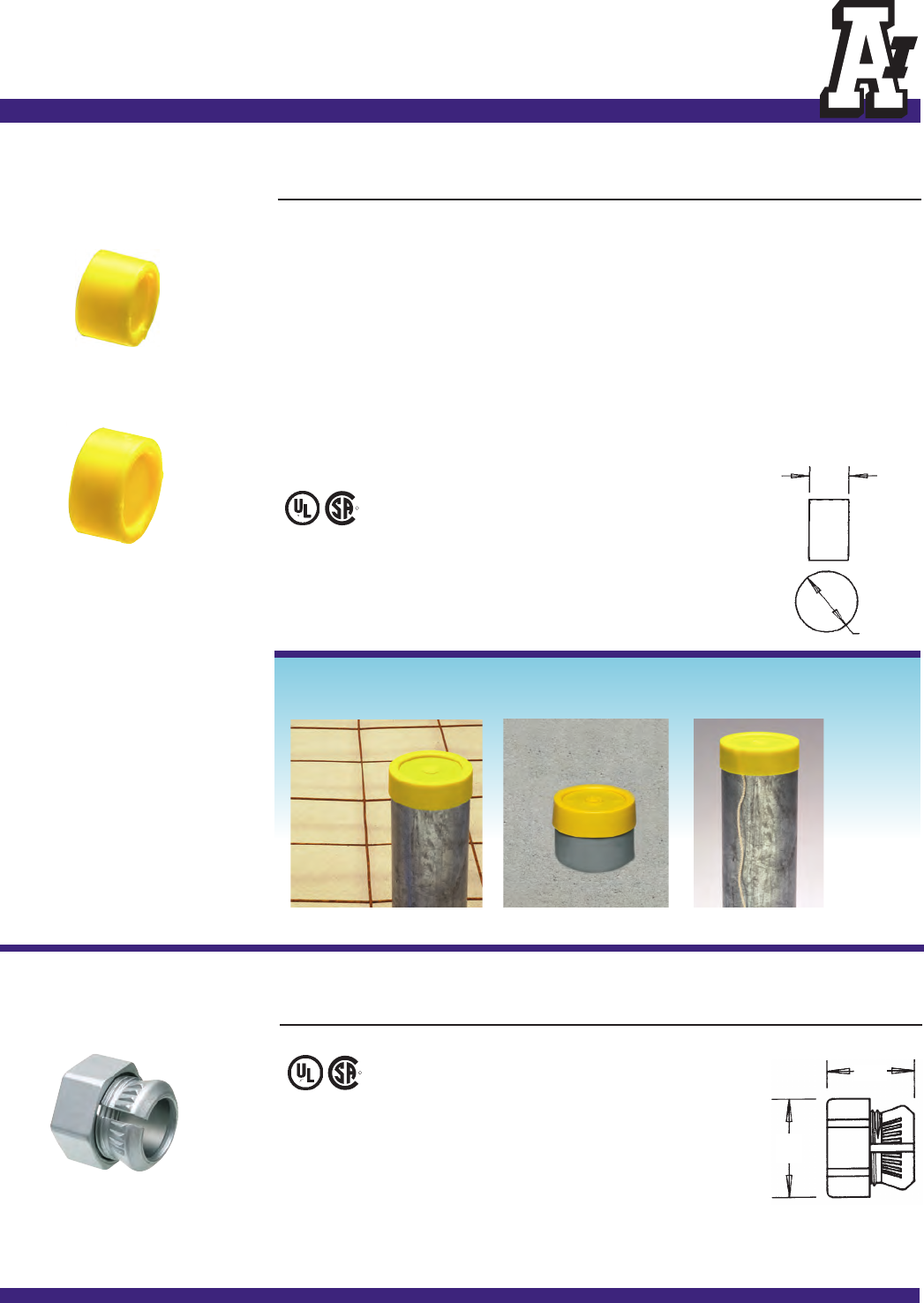

Conduit Caps

Conduit cap and insulating

bushing.

CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG AB

EMT50C 12203 1/2 100 1000 .531 .840

EMT75C 12204 3/4 100 1000 .531 1.056

EMT100C 12207 1 100 100 .625 1.280

EMT125C 12209 1-1/4 100 100 .625 1.660

EMT150C 12211 1-1/2 100 100 .625 1.915

EMT200C 12213 2 50 50 .625 2.377

EMT250C* 12215 2-1/2 25 25 1.225 3.062

EMT300C* 12217 3 25 25 1.225 3.690

EMT350C* 12219 3-1/2 25 25 1.231 4.187

EMT400C* 12221 4 25 25 1.233 4.815

Refer to page I-1 for Rigid Insulating Bushings size 1/2" through 4".

*Can also be used for rigid, IMC, and PVC rigid conduit.

E105706 LR49636

A





B

EMT50C

EMT75C

Use this capped version to seal off conduit during concrete pours. Then remove

cap/seal with razor knife or use screwdriver to punch hole in cap. (EMT300C)

String can

be used to

aid

removal.

B-3

EMT

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABC

800A 80010 1/2 1/2 50 500 1.240 .470 1.076

801A 80110 3/4 3/4 25 250 1.483 .449 1.300

802A 80210 1120 100 1.643 .550 1.550

803A 80310 1-1/4 1-1/4 10 60 2.023 .729 1.935

804A* 80410 1-1/2 1-1/2 10 60 2.293 .800 2.195

805A* 80510 22530 2.630 .840 2.650

806A*† 80610 2-1/2 2-1/2 12 12 3.030 .920 3.280

807A*† 80710 3312 12 3.468 1.030 3.910

8075A*† 80711 3-1/2 3-1/2 663.600 1.088 4.465

808A*† 80810 44663.758 1.100 4.984

Add suffix “RH” for Robertson Head Screws.

*Concrete tight when taped.

†Listed for use with steel and aluminum EMT, IMC, and rigid conduit.

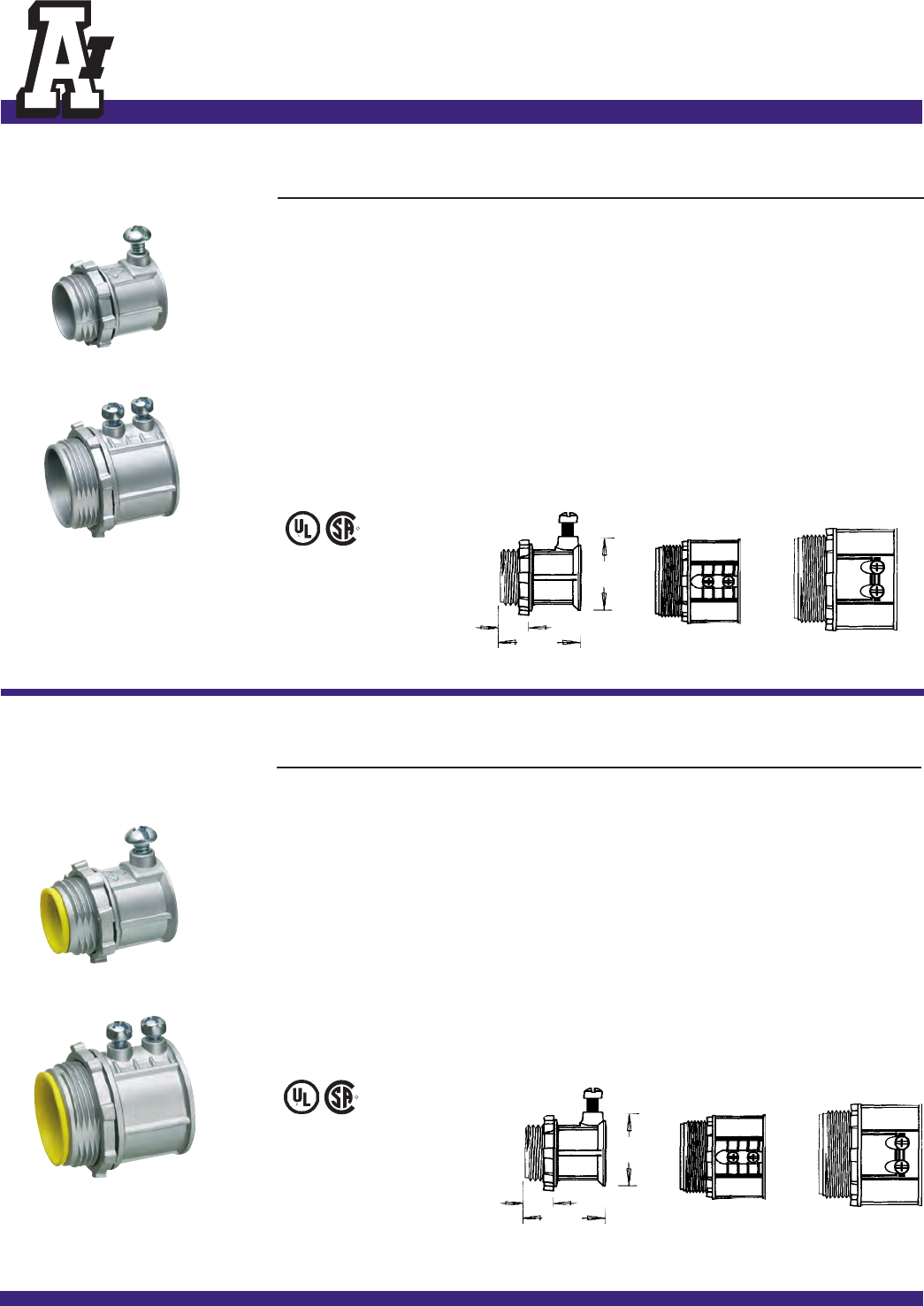

EMT Set-Screw

Connectors

Concrete tight. Zinc die-cast.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABC

800 00800 1/2 1/2 50 500 1.143 .375 1.076

801 00801 3/4 3/4 25 250 1.390 .350 1.300

802 00802 1120 200 1.550 .460 1.550

803 00803 1-1/4 1-1/4 10 60 1.930 .636 1.935

804* 00804 1-1/2 1-1/2 10 60 2.200 .707 2.175

805* 00805 22530 2.535 .750 2.650

806*† 00806 2-1/2 2-1/2 12 12 2.930 .830 3.300

807*† 00807 3312 12 3.330 .930 3.910

8075*† 08075 3-1/2 3-1/3 663.500 1.000 4.465

808*† 00808 44663.665 1.000 4.984

Add suffix “RH” for Robertson Head Screws.

*Concrete tight when taped.

†Listed for use with steel and aluminum EMT, IMC, and rigid conduit.

800

803

2-1/2" - 4"

1-1/4" - 2"

1/2" - 1"

A

B

C

E20643 LR49636

EMT Set-Screw

Connectors with

Insulated Throat

Concrete tight. Zinc die-cast.

800A

803A

E20643 LR49636

2-1/2" - 4"

1-1/4" - 2"

1/2" - 1"

A

B

C









B-4 EMT

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

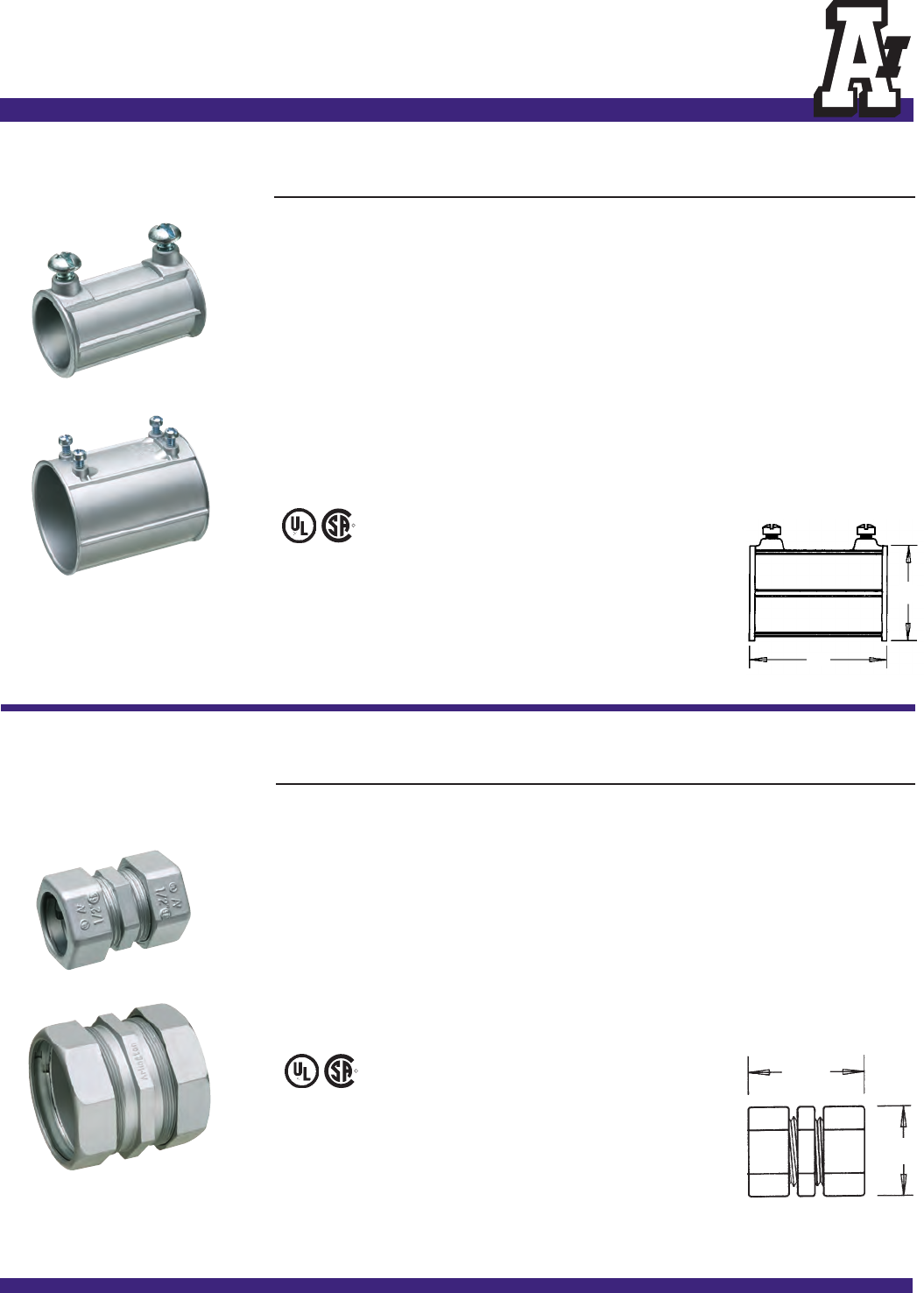

EMT Set-Screw

Couplings

Concrete tight. Zinc die-cast.

CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG AB

810 00810 1/2 50 500 .950 1.560

811 00811 3/4 25 250 1.145 1.869

812 00812 1 15 150 1.435 2.000

813 00813 1-1/4 20 120 1.828 2.500

814* 00814 1-1/2 10 60 2.075 2.890

815* 00815 2530 2.535 2.567

816*† 00816 2-1/2 12 12 3.280 4.000

817*† 00817 3 12 12 3.910 4.500

8175*† 08175 3-1/2 664.460 4.814

818*† 00818 4664.984 5.269

Add suffix “RH” for Robertson Head Screws.

*Concrete tight when taped.

†Listed for use with steel and aluminum EMT, IMC, and rigid conduit.

810

816 A

B

E20643 LR49636

EMT Compression

Couplings

UL listed concrete tight. CSA

listed concrete tight/rain tight.

Zinc die-cast.

830

CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG AB

830 00830 1/2 50 500 1.550 1.080

831 00831 3/4 25 250 1.615 1.313

832 00832 1 15 150 1.692 1.616

833 00833 1-1/4 10 100 2.160 2.080

834 00834 1-1/2 10 60 2.290 2.380

835 00835 2 10 60 2.600 2.910

836* 00836 2-1/2 12 12 3.070 3.470

837* 00837 3 12 12 3.300 4.133

838* 00838 3-1/2 663.330 4.775

839* 00839 4663.445 5.300

*Listed for use with steel and aluminum EMT, IMC, and rigid conduit.

836

B

A

E20643 LR49636









B-5

EMT

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

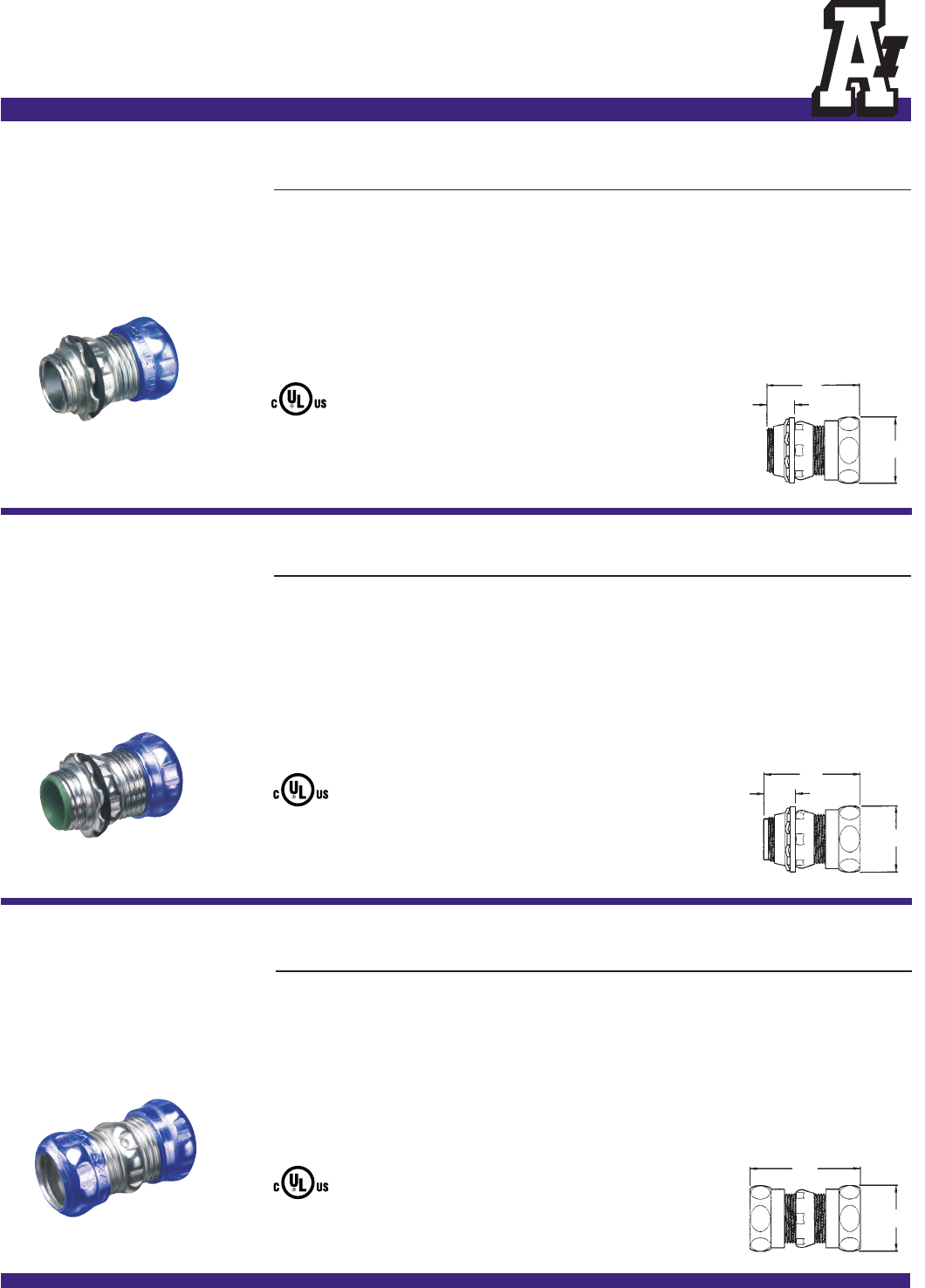

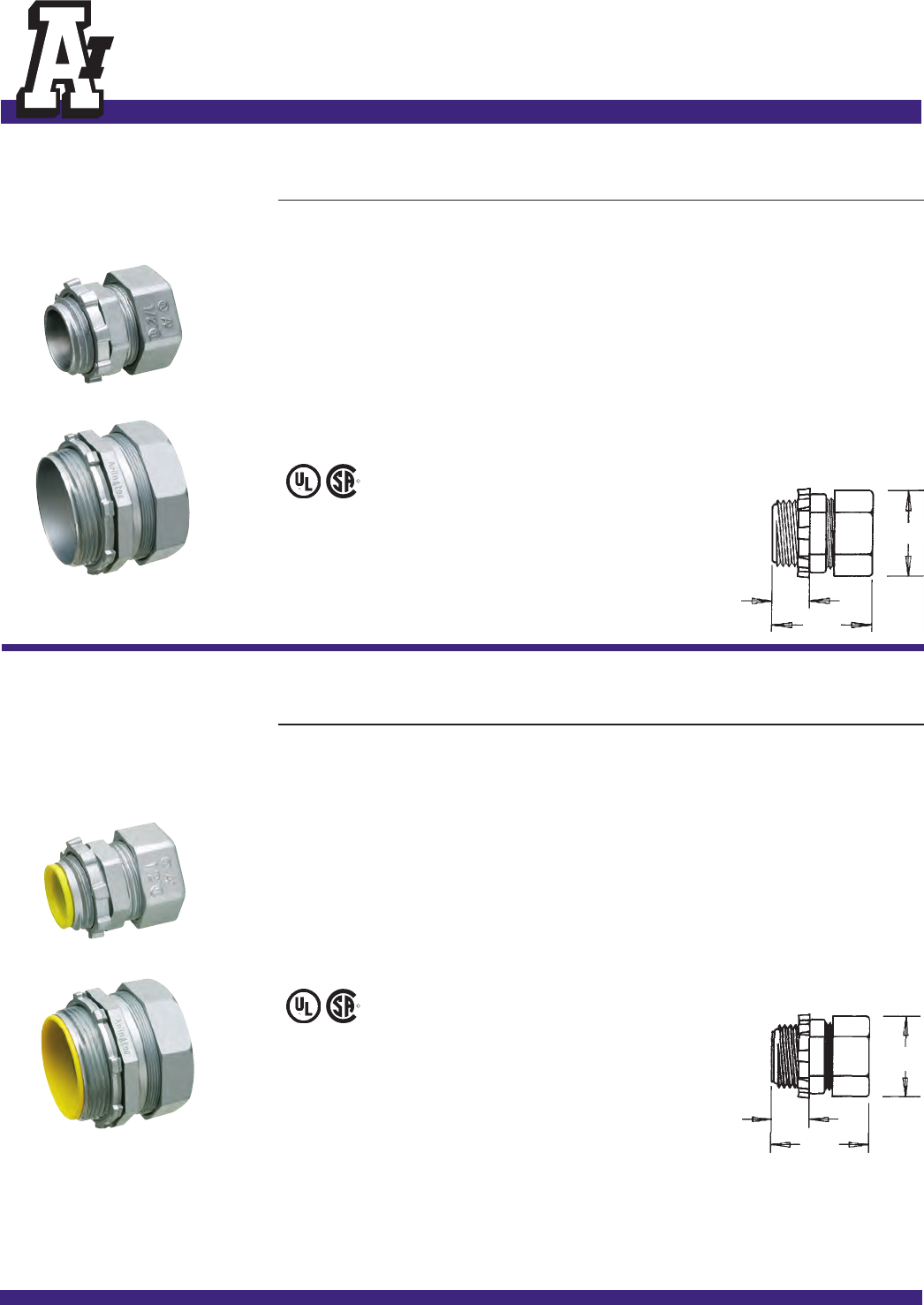

EMT Compression

Connectors

UL listed concrete tight. CSA

listed concrete tight.

Zinc die-cast.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABC

820 00820 1/2 1/2 50 500 1.235 .349 1.080

821 00821 3/4 3/4 25 250 1.350 .453 1.313

822 00822 1115 60 1.525 .538 1.616

823 00823 1-1/4 1-1/4 5 25 1.878 .600 2.080

824 00824 1-1/2 1-1/2 10 100 2.020 .607 2.380

825 00825 2210 60 1.995 .645 2.910

826* 00826 2-1/2 2-1/2 12 12 2.775 .860 3.470

827* 00827 3312 12 2.847 .998 4.133

828* 00828 3-1/2 3-1/2 662.800 .998 4.775

829* 00829 44663.000 1.007 5.300

*Listed for use with steel and aluminum EMT, IMC, and rigid conduit.

820

826

B

EMT Compression

Connectors with

Insulated Throat

UL listed concrete tight. CSA

listed concrete tight.

Zinc die-cast.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABC

820A 82010 1/2 1/2 50 500 1.346 .442 1.080

821A 82110 3/4 3/4 25 250 1.443 .546 1.313

822A 82210 1115 60 1.620 .631 1.616

823A 82310 1-1/4 1-1/4 5 25 1.971 .693 2.080

824A 82410 1-1/2 1-1/2 10 100 2.120 .700 2.380

825A 82510 2210 60 2.088 .738 2.910

826A* 82610 2-1/2 2-1/2 12 12 2.870 .953 3.470

827A* 82710 3312 12 2.940 1.091 4.133

828A* 82810 3-1/2 3-1/2 662.900 1.091 4.775

829A* 82910 44663.150 1.100 5.300

*Listed for use with steel and aluminum EMT, IMC, and rigid conduit.

820A

826A

C

B

A

E20643 LR49636

E20643 LR49636

C

A









B-6 EMT

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

B

C

B

A

EMT Rain Tight

Compression

Couplings

UL listed rain tight and

concrete tight. Steel. Blue

compression nuts help identify

these products as raintight.

CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG AB

830RT 82030 1/2 50 50 1.890 1.125

831RT 82031 3/4 50 50 2.052 1.375

832RT 82032 1 25 25 2.219 1.688

833RT 82033 1-1/4 10 10 2.558 2.063

834RT 82034 1-1/2 10 10 2.587 2.250

835RT 82035 2 10 10 2.746 2.750

836RT 00865 2-1/2 12 12 4.207 3.625

837RT 00866 3 12 12 4.500 4.250

838RT 00867 3-1/2 665.025 4.688

839RT 00868 4665.460 5.188

EMT Rain Tight

Compression

Connectors

UL listed rain tight and

concrete tight. Steel. Blue

compression nuts help identify

these products as raintight.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABC

820RT 82020 1/2 1/2 50 50 1.608 .437 1.125

821RT 82021 3/4 3/4 50 50 1.657 .437 1.375

822RT 82022 1125 25 1.823 .500 1.688

823RT 82023 1-1/4 1-1/4 10 10 2.103 .625 2.063

824RT 82024 1-1/2 1-1/2 10 10 2.191 .625 2.250

825RT 82025 2210 10 2.298 .688 2.750

826RT 83005 2-1/2 2-1/2 12 12 3.548 .750 3.625

827RT 83006 3312 12 3.628 .875 4.250

828RT 83007 3-1/2 3-1/2 663.834 .937 4.688

829RT 83008 44664.135 .937 5.188

E200730

C

B

A

EMT Rain Tight

Compression

Connectors with

Insulated Throat

UL listed rain tight and

concrete tight. Steel. Blue

compression nuts help identify

these products as raintight.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABC

820ART 82045 1/2 1/2 50 50 1.670 .500 1.125

821ART 82046 3/4 3/4 50 50 1.719 .500 1.375

822ART 82047 1125 25 1.885 .563 1.688

823ART 82048 1-1/4 1-1/4 10 10 2.166 .688 2.063

824ART 82049 1-1/2 1-1/2 10 10 2.253 .688 2.250

825ART 82050 2210 10 2.360 .750 2.750

826ART 83000 2-1/2 2-1/2 12 12 3.610 .813 3.625

827ART 83001 3312 12 3.690 .938 4.250

828ART 83002 3-1/2 3-1/2 663.896 1.000 4.688

829ART 83003 44664.197 1.000 5.188

A

E200730

E200730

B-7

EMT

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

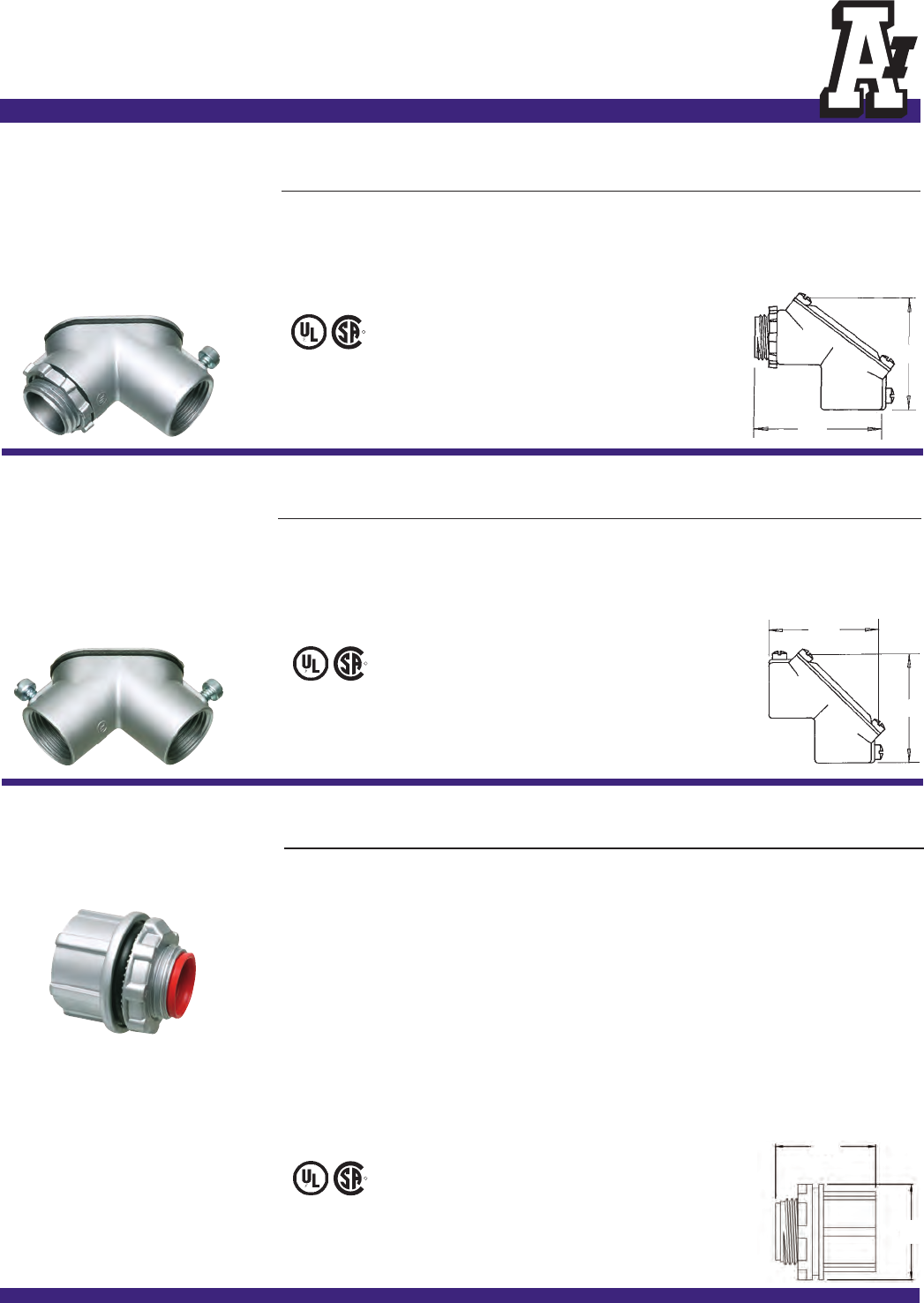

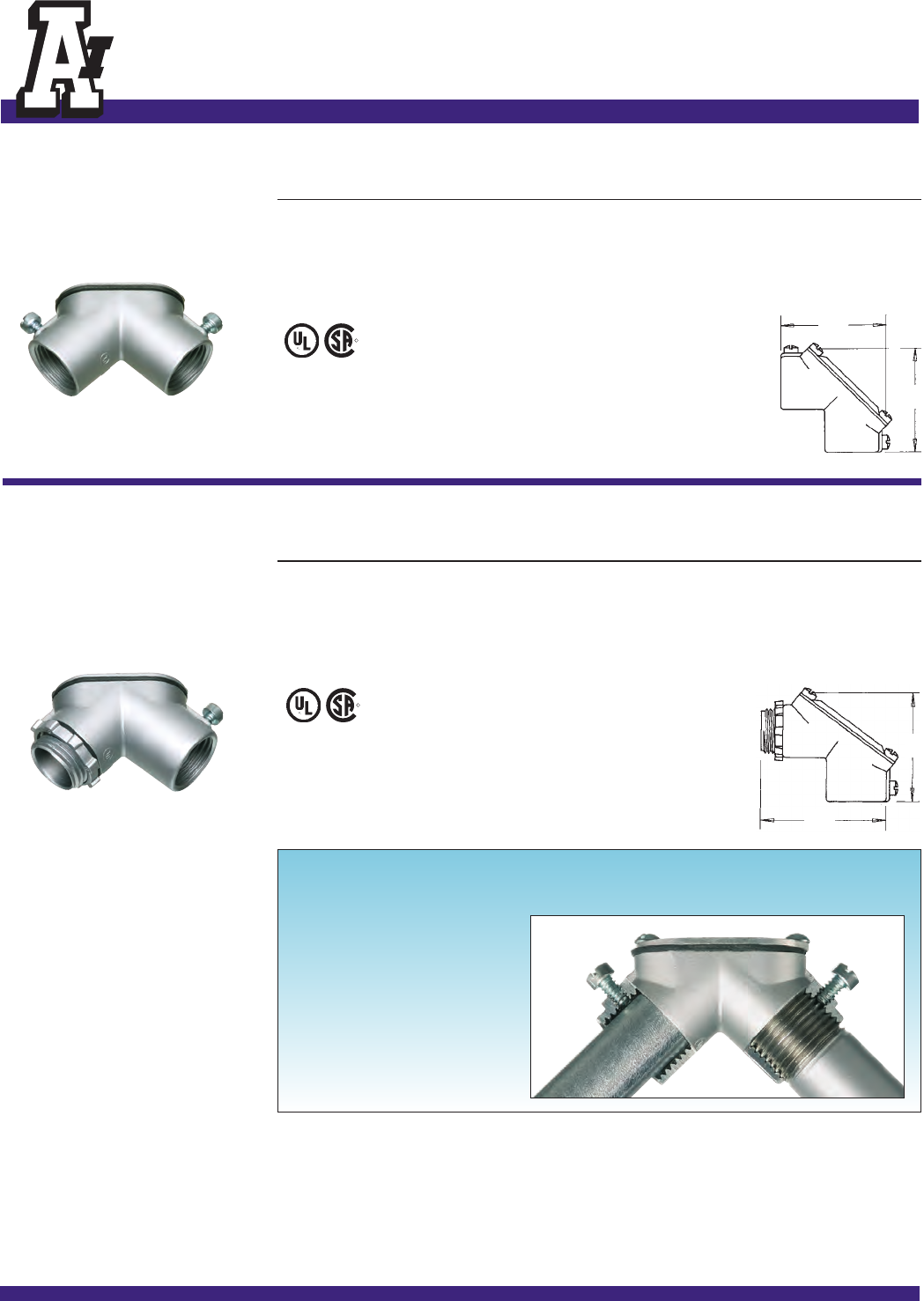

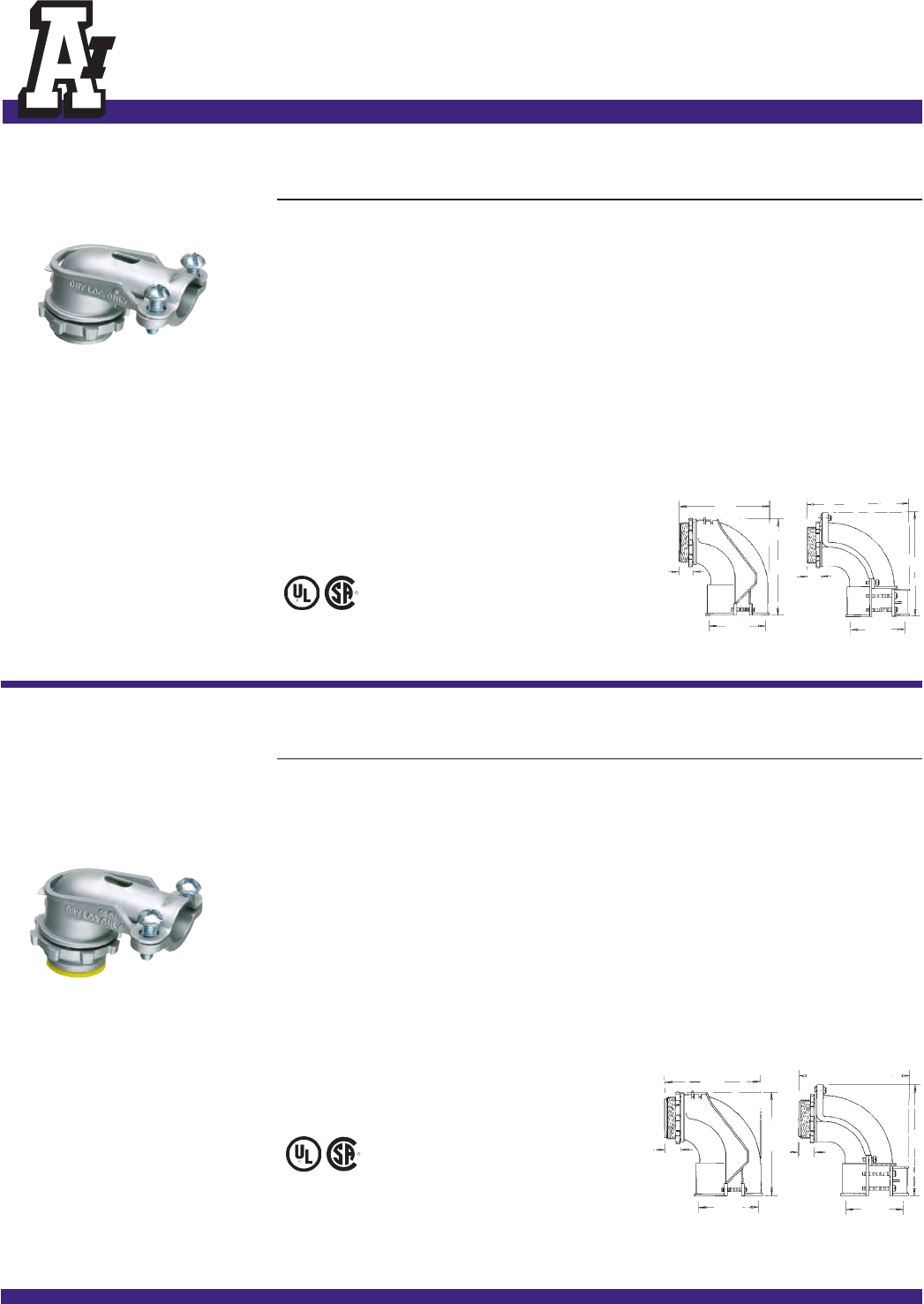

Combination

Threaded Rigid

and Set-Screw EMT

90° pulling elbows with cover

and gasket. Zinc die-cast.

CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG AB

HL5000 83105 1/2 10 100 2.150 2.150

HL7500 83175 3/4 5 50 2.300 2.300

HL100 50171 1525 3.040 3.040

HL125 50173 1-1/4 2 10 3.900 3.900

See hub illustration below.

CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG AB

9100 91005 1/2 5 50 2.030 1.945

9110 91100 3/4 5 50 2.260 2.140

9120 50165 1525 2.610 2.610

9130 50167 1-1/4 2 10 3.037 3.037

See hub illustration below.

Arlington’s combination hubs are

threaded for rigid and include set-

screws for EMT. The set-screws

may be used for rigid, but are not

necessary. They are listed rain tight

with rigid and concrete tight when

taped for EMT. These products can

also be used for EMT to rigid.

Hub Illustration

For Combination Threaded and Set-Screw Pull Elbows

Combination

Threaded Rigid

and Set-Screw

EMT To Box

90° pulling elbows with cover

and gasket. Zinc die-cast.

A

B

B

A

E20643 LR49636

E20643 LR49636









B-8 EMT

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

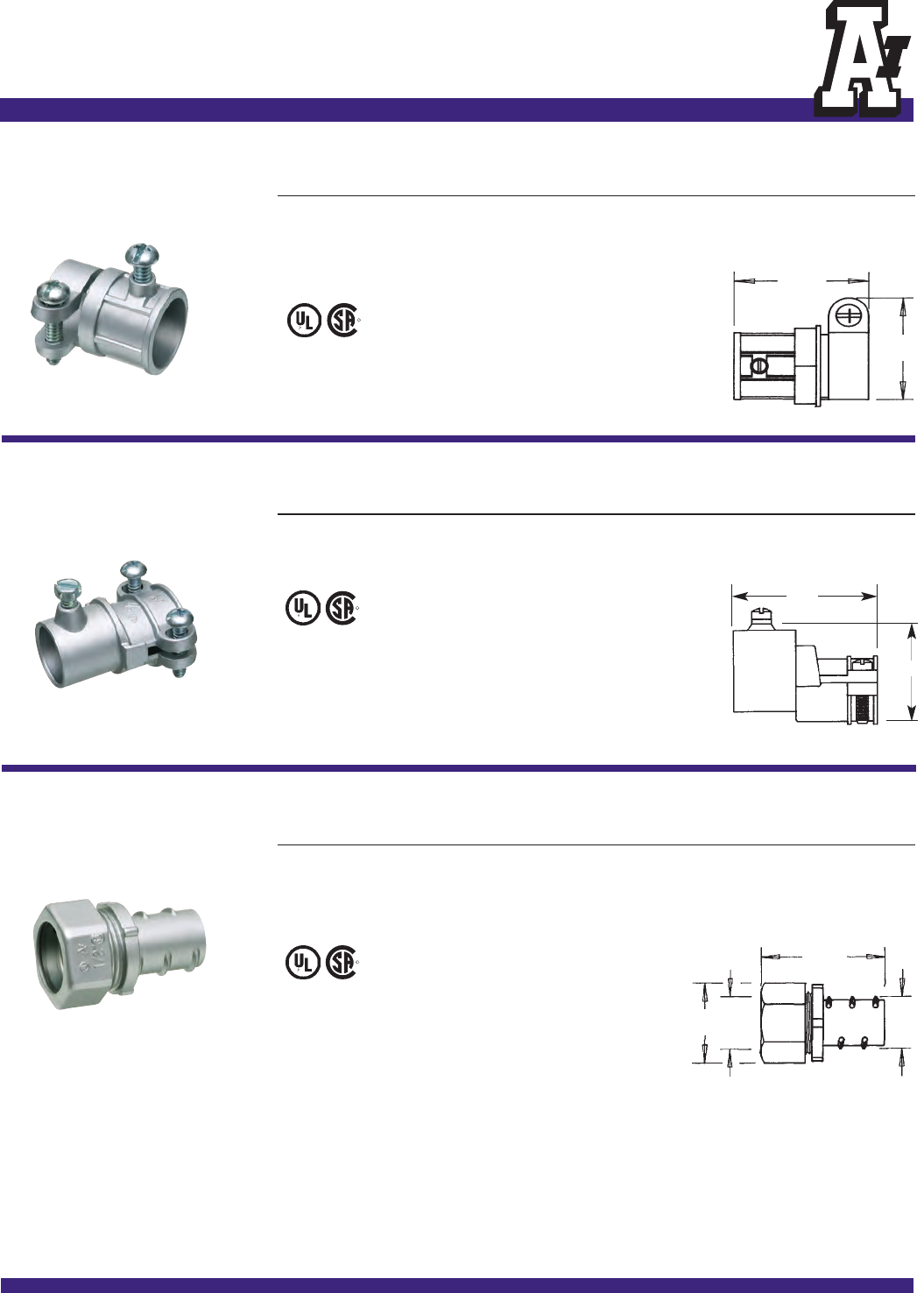

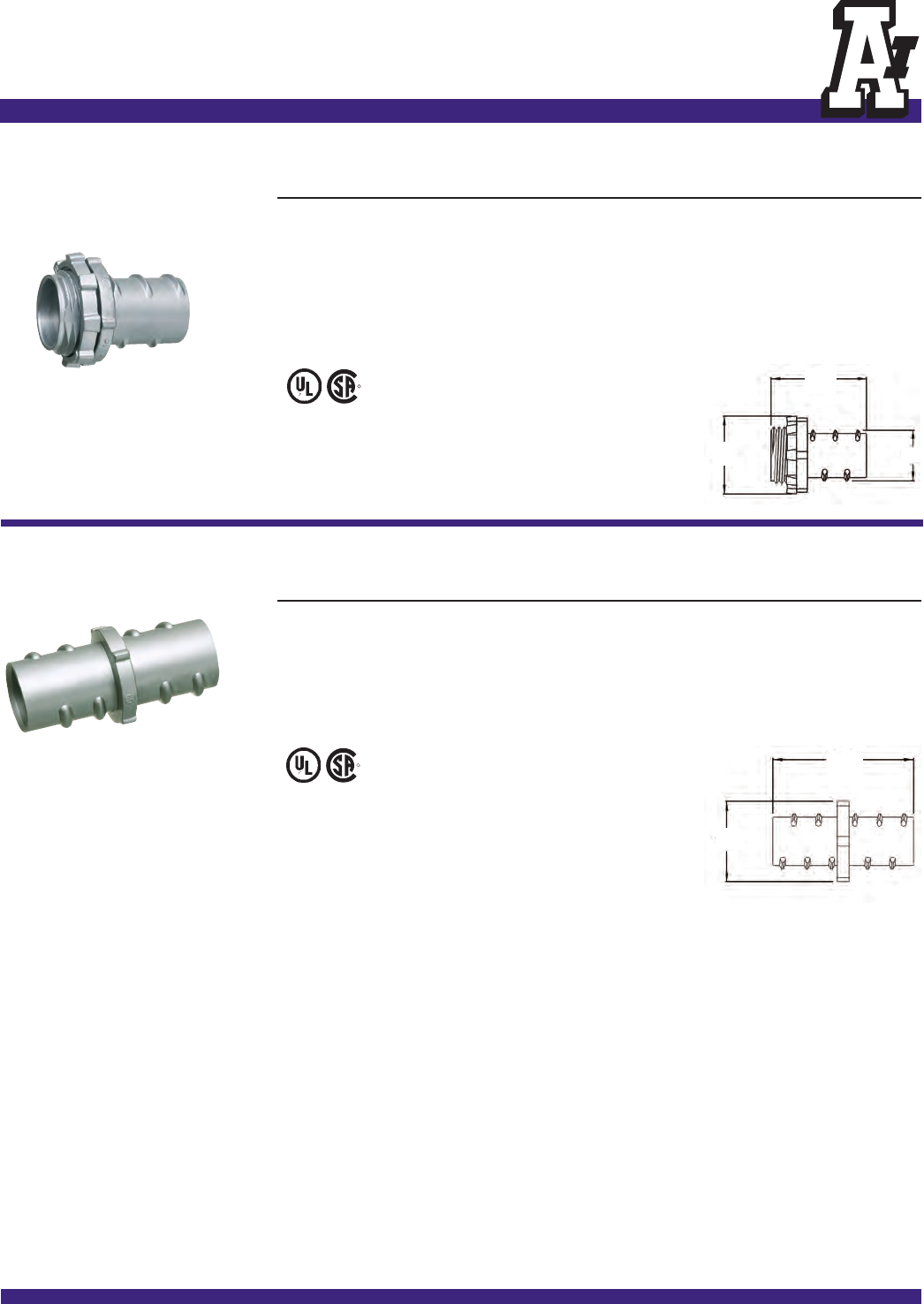

Combination

Couplings

EMT to Flex. Zinc die-cast.

CATALOG UPC/DCI/NAED EMT FLEX UNIT STD DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABRANGE

860* 00860 1/2 3/8 50 500 1.300 1.156 .530-.620

861 00861 1/2 1/2 25 250 1.645 1.363 .850-.910

862 00862 3/4 3/4 25 100 1.975 1.553 1.100-1.130

*CSA only. A

B

E60812 LR49636

Combination

Couplings

EMT set-screw to Flex. Zinc

die-cast.

CATALOG UPC/DCI/NAED EMT FLEX UNIT STD DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABRANGE

8600* 08600 1/2 3/8 50 500 1.162 1.090 .530-.620

8610 08610 1/2 1/2 50 500 1.736 1.170 .850-.910

8620 08620 3/4 3/4 25 100 1.934 1.360 1.100-1.130

8630 08630 1110 40 2.290 1.625 1.255-1.375

*CSA only.

8610

8610-8630

8600

8600

A

B

E60812 LR49636

A

B

CATALOG UPC/DCI/NAED EMT FLEX UNIT STD DIM DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCD

GF860 76860 1/2 3/8 25 100 1.504 .445 .725 1.060

GF861 76861 1/2 1/2 25 250 1.345 .715 .725 1.060

GF862 76862 3/4 3/4 25 250 1.745 .946 .950 1.305

GF863 80173 1125 100 1.895 1.125 1.170 1.625

GF864 80175 1-1/4 1-1/4 10 40 2.500 1.420 1.340 2.100

Combination

Couplings

EMT compression to screw-in

flexible metal conduit. Zinc

die-cast.

B

A

C

I.D.

D

E60812 LR49636













B-9

EMT

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

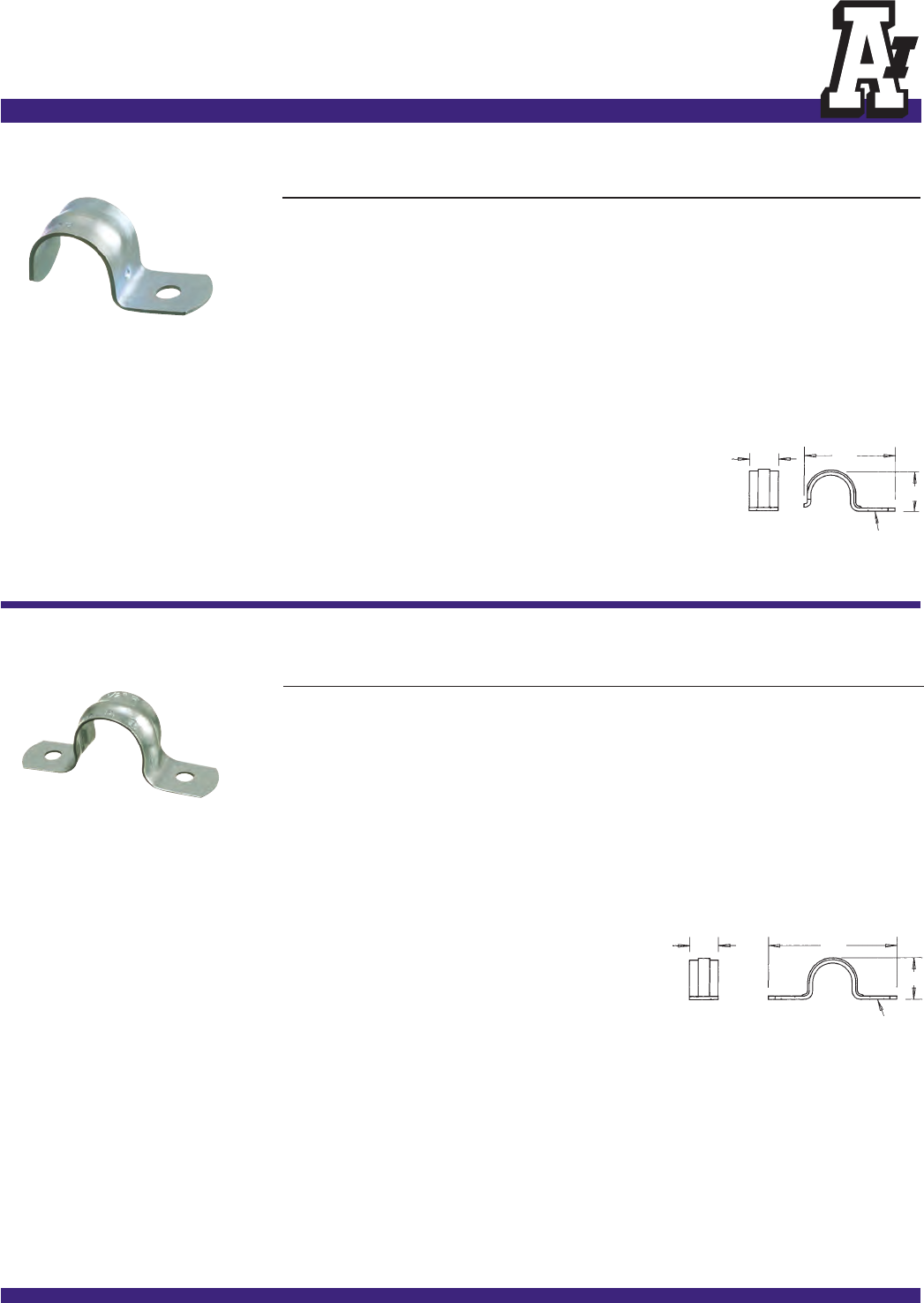

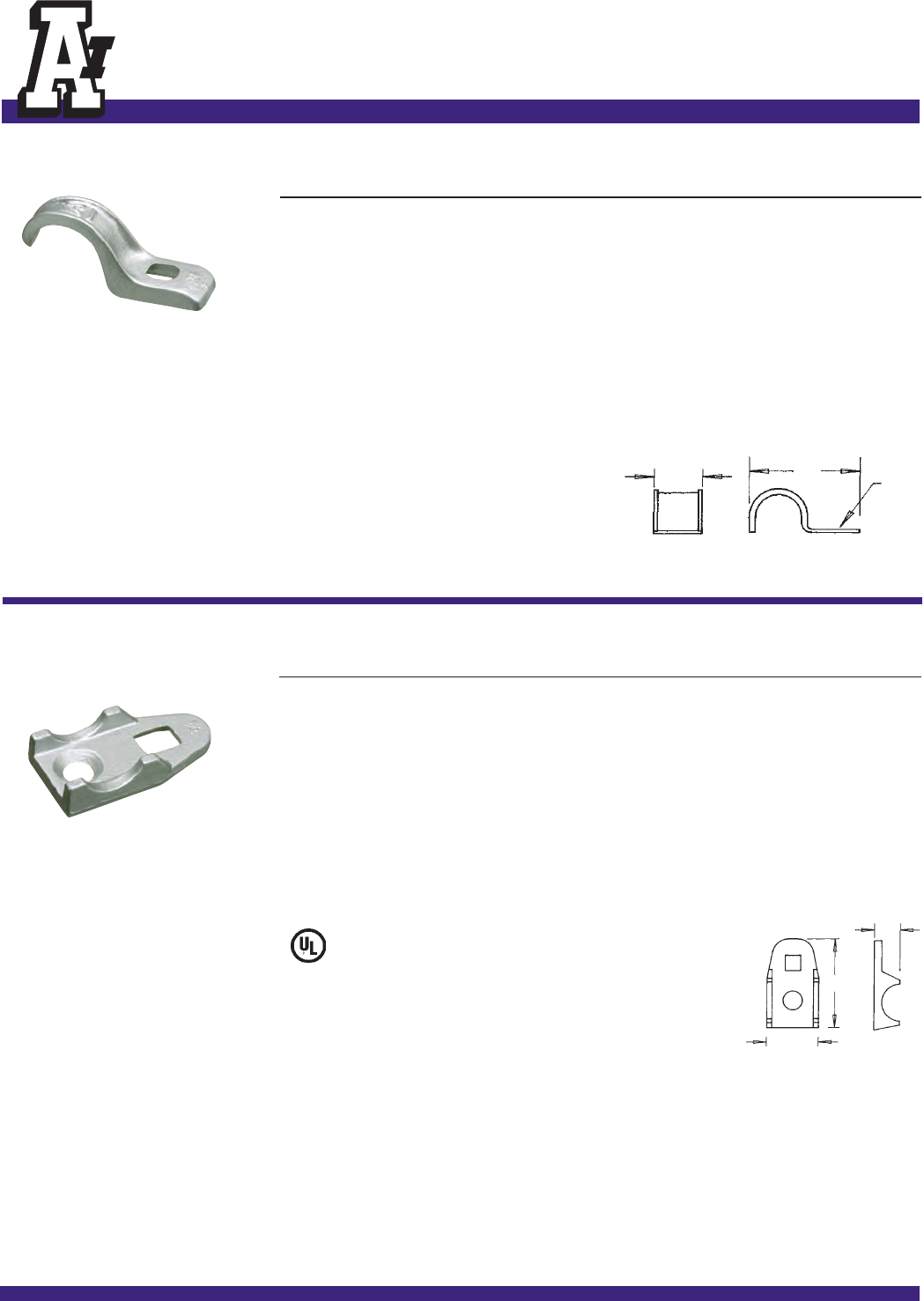

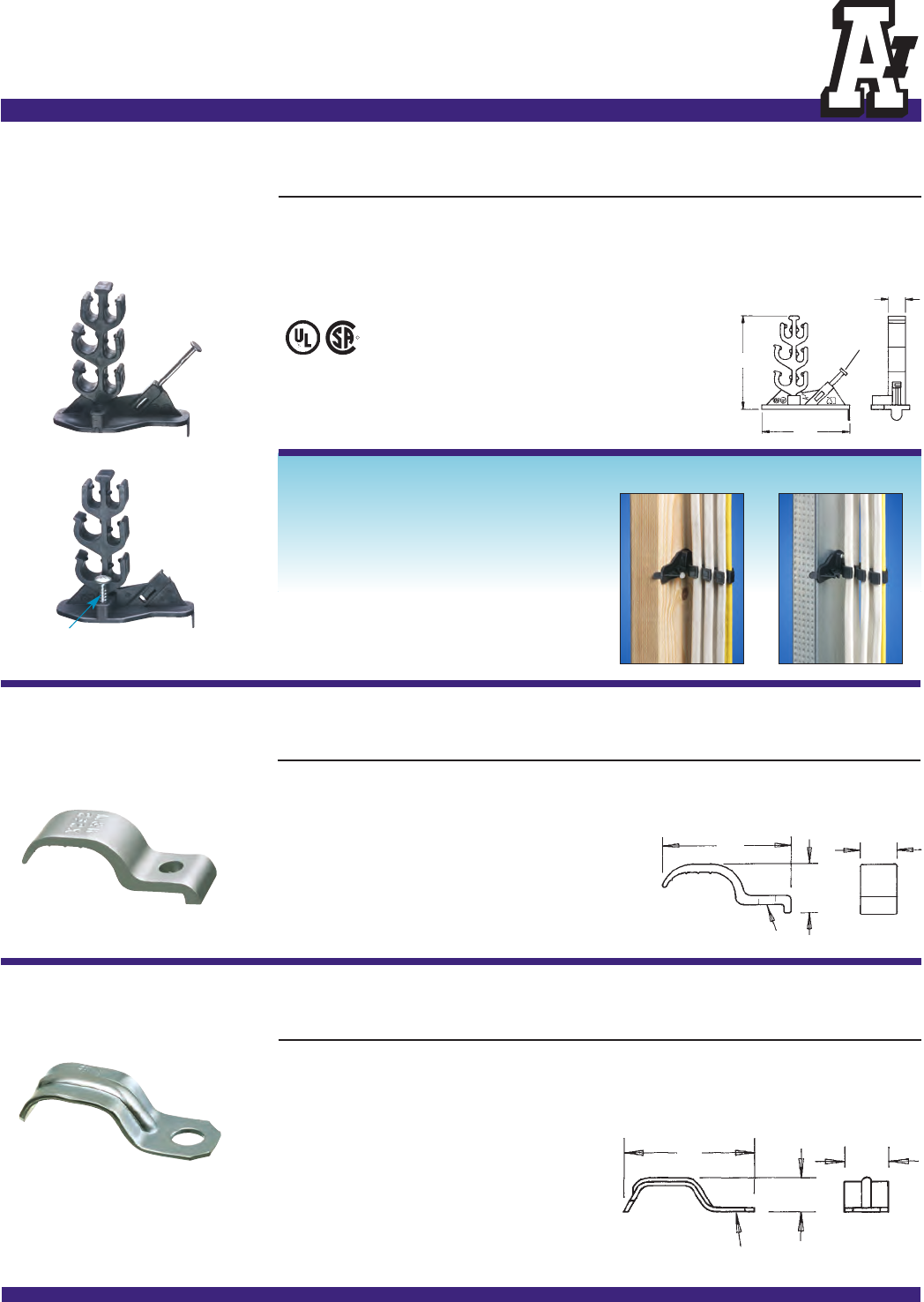

Heavy-Duty

1-Hole EMT Straps

Plated steel, Click-on.

CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG ABCD

370 00370 1/2 100 1000 1.700 .700 .562 .250

371 00371 3/4 100 1000 1.935 .975 .625 .250

372 00372 1 50 500 2.210 1.090 .750 .312

373 00373 1-1/4 25 250 2.800 1.540 .875 .375

374 00374 1-1/2 25 100 3.140 1.790 1.000 .375

375 00375 2 25 100 3.890 2.150 1.125 .437

346 00346 2-1/2 25 25 4.927 2.958 1.250 .562

347 00347 3 25 25 5.560 3.441 1.250 .562

348 00348 3-1/2 10 10 6.337 3.951 1.250 .562

349 00349 4 10 10 6.811 4.441 1.250 .562

E186443 LR104691

A

B

D

C

HOLE

SIZE

2-Hole EMT Straps

Plated steel, Click-on. CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG ABCD

360 00360 1/2 100 1000 2.200 .790 .562 .187

361 00361 3/4 50 500 2.700 .980 .625 .187

362 00362 1 50 250 2.975 1.185 .688 .187

363 00363 1-1/4 50 250 3.650 1.535 .750 .258

364 00364 1-1/2 25 250 4.250 1.670 .875 .258

365 00365 2 25 250 4.775 2.300 1.000 .375

356 00356 2-1/2 25 100 5.850 2.855 1.000 .375

357 00357 3 25 25 6.460 3.425 1.000 .375

358 00358 3-1/2 10 10 7.300 3.925 1.000 .375

359 00359 4 10 10 7.895 4.390 1.000 .375

A

B

D

C

HOLE SIZE





C-1 NM Cable

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

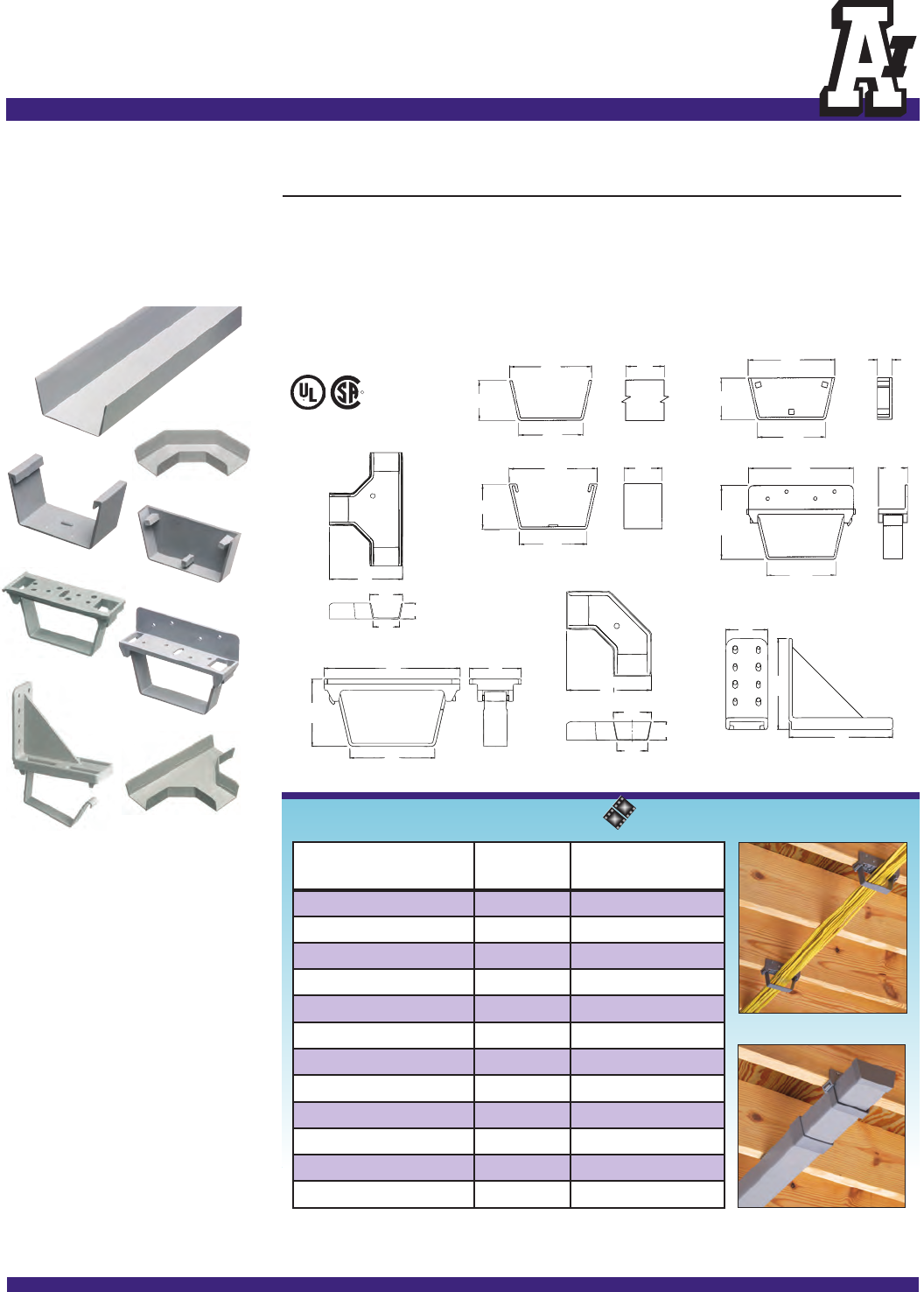

CABLEWAY™

Cable Runway

Support System

Cable support system for either

power or low voltage cable.

For new construction or retrofit.

Non-metallic.

CATALOG UPC/DCI/NAED DESCRIPTION STD DIM DIM DIM DIM

NUMBER MFG #01 8997 PKG AB CD

T205 38060 Wire Tray - 5 ft. Lengths 10 4.150 2.000 3.380 60.000

T23A 38065 Angle 10 4.160 2.000 3.380 9.280

T23C 38061 Coupling 10 4.630 2.380 3.570 2.000

T23E 38062 End Cap 10 4.570 2.190 3.570 .760

T23F 38066 Flat Surface Bracket 25 5.750 2.850 3.600 2.190

T23H 38063 Support Bracket 25 5.500 3.880 3.620 1.500

T23T 38067 Tee 10 4.160 2.000 3.380 9.280

T23W 38068 Wall Mount Bracket 10 2.410 5.240 5.970 -

PATENTS PENDING.

Features and Benefits

• Secure, UL Listed as a cable

support system

• For power or low voltage cable

• Support brackets attach directly

to framing members, without

structural damage

• Time saving system – no holes

to drill through joists

• Brackets hold cables in place –

open the bracket for easier cable

insertion

• Slide-on trough protects and

covers cable

• Install additional trough sections

as needed and join them

together with couplings

• Push-on end caps complete the

job

New!

T23C

T23F

T23W

T205

T23C

T23E

T23H

T205

B

C

A

B

C

D

DD

A

B

C

A

D

B

C

A

Wire Fill Chart

Rated for a maximum load of

6 lbs/linear foot of runway.

E161207 LR49636

For a video demonstration go to...

aifittings.com/cableway_video/Cableway.html





T23A

T23T

T23H

T23E

B

CA

T23T

T23F

T23A

T23W

A

B

C

D

A

B

D

CB

D

A

C

NM Cable w/ Copper

Conductors

Fill Units

Per Cable

(or) Total Cables

of One Size

14/2 1 ea. 40

14/3 1.25 ea. 32

14/4 1.5 ea. 26

12/2 1.5 ea. 26

12/3 1.75 ea. 22

12/4 2 ea. 20

10/2 2 ea. 20

10/3 2.25 ea. 17

8/2 2.25 ea. 17

8/3 2.50 ea. 16

6/2 2.75 ea. 14

6/3 3 ea. 13

C-2

NM Cable

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCRANGE

841ST 80068 3/8 1/2 100 1000 .510 .912 .920 .225-.612

Refer to pages C-12 and C-13 for complete cable ranges.

SNAP-TITE®products have been tested and listed by UL in accordance with UL’s ground fault

requirements. For additional information see page 6.

PATENTED.

SNAP-TITE®

Connectors

With spring steel clip. For NM

• SE • MC • Flex • AC cable.

For steel and aluminum

jacketed cables. Zinc die-cast.

NM Cable

Connector

For NM cable. Zinc die-cast.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCRANGE

840ST 80070 3/8 1/2 100 1000 .485 .879 .858 .225-.612

8400ST 80074 3/8 1/2 100 1000 .485 .879 .858 .225-.612

Refer to pages C-12 and C-13 for complete cable ranges.

SNAP-TITE®products have been tested and listed by UL in accordance with UL’s ground fault

requirements. For additional information see page 6.

For connectors that cost less and install faster see page C-8.

PATENTED.

E28474 LR49636

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG AB C RANGE

841 00841 3/8 1/2 100 1000 .422 .825 1.105 .225-.612

Refer to pages C-12 and C-13 for complete cable ranges.

For connectors that cost less and install faster see page C-8.

840ST 8400ST

840ST

8400ST

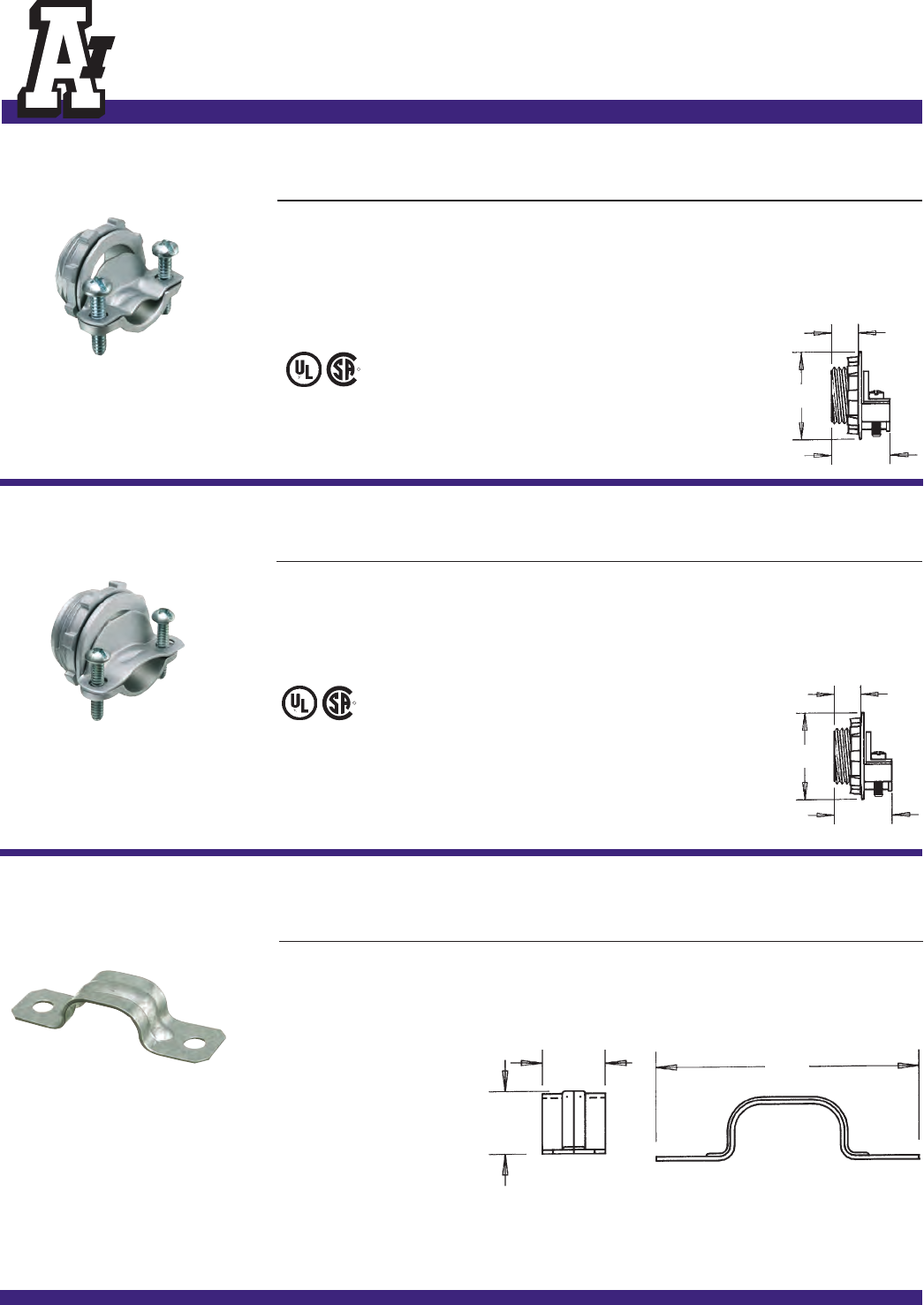

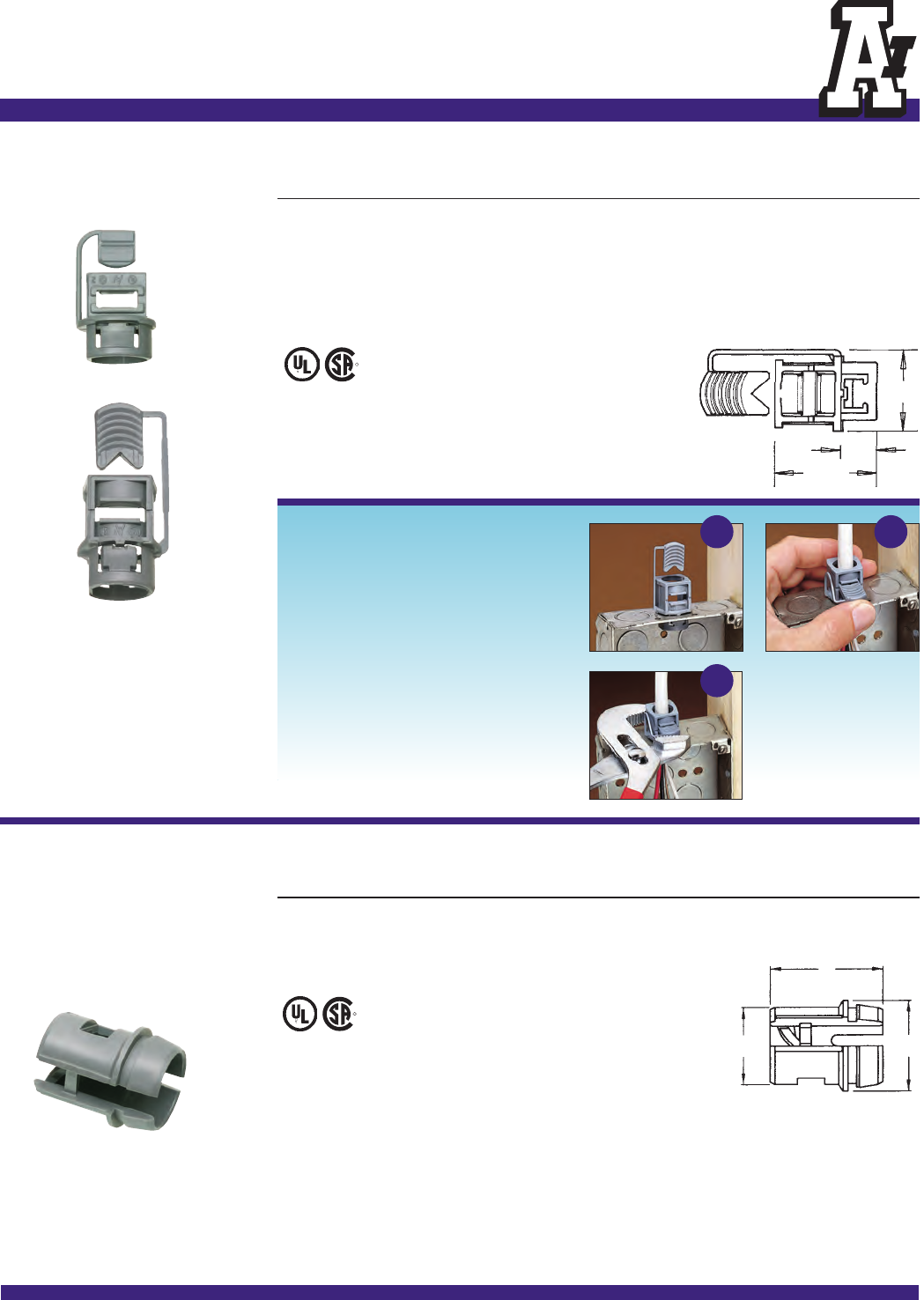

SNAP-TITE®

Connector

With spring steel clip. For NM

cable. Zinc die-cast.

A

C

B

A

B

C

A

B

C

E28474 LR49636

E28474 LR49636













C-3 NM Cable

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

SNAP-TITE®

Connector

With spring steel clip.

For NM • SE cable.

Zinc die-cast.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG AB CRANGE

842ST 80084 3/4 3/4 50 500 .510 1.070 1.200 .300-.780

SNAP-TITE®products have been tested and listed by UL in accordance with UL’s ground fault

requirements. For additional information see page 6.

PATENTED.

E28474 LR49636

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG AB CRANGE

840† 00840 3/8 1/2 100 1000 .422 .825 1.105 .225-.612

8400† 08400 3/8 1/2 100 1000 .422 .825 1.105 .225-.612

8401† 08401 3/8 1/2 100 1000 .422 .825 1.105 .225-.612

8402 08402 3/4 3/4 50 500 .533 1.093 1.395 .375-.780

Refer to pages C-12 and C-13 for complete cable ranges.

*Listed for MC only. UL# E123751.

†For connectors that cost less

and install faster see page C-8.

8400

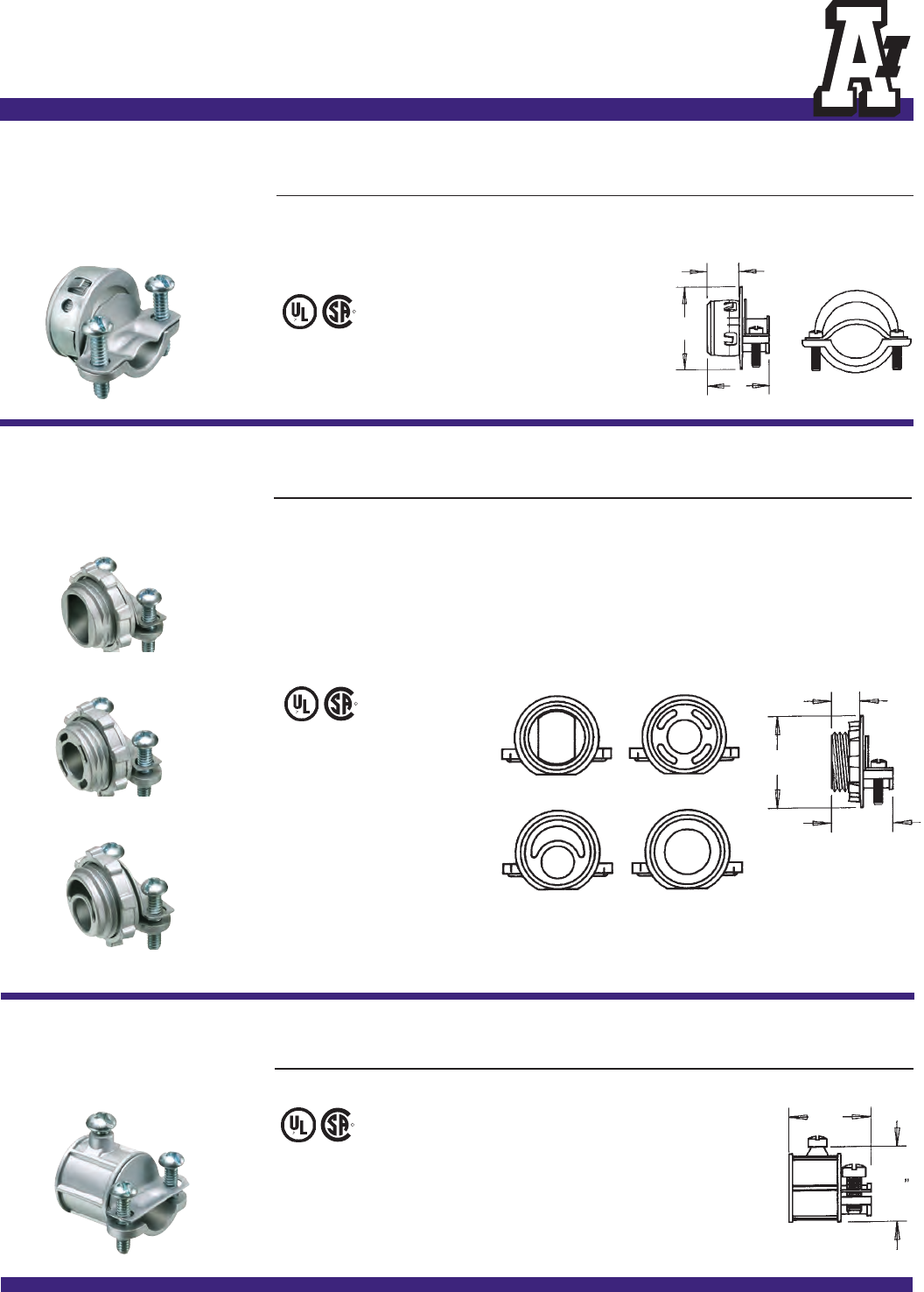

Cable Connectors

For NM • SE • MC • AC cable.

For steel and aluminum

jacketed cables. Zinc die-cast.

840

8400

8401

E28474 LR49636

840

8402

8401

A

C

B

A

C

B

Combination

Coupling

EMT to NM. Zinc die-cast.

CATALOG UPC/DCI/NAED EMT UNIT STD DIM DIM CABLE

NUMBER MFG #01 8997 SIZE PKG PKG ABRANGE

8600 08600 1/2 50 500 1.162 1.090 .250-.612

E60812 LR49636

A

B













C-4

NM Cable

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

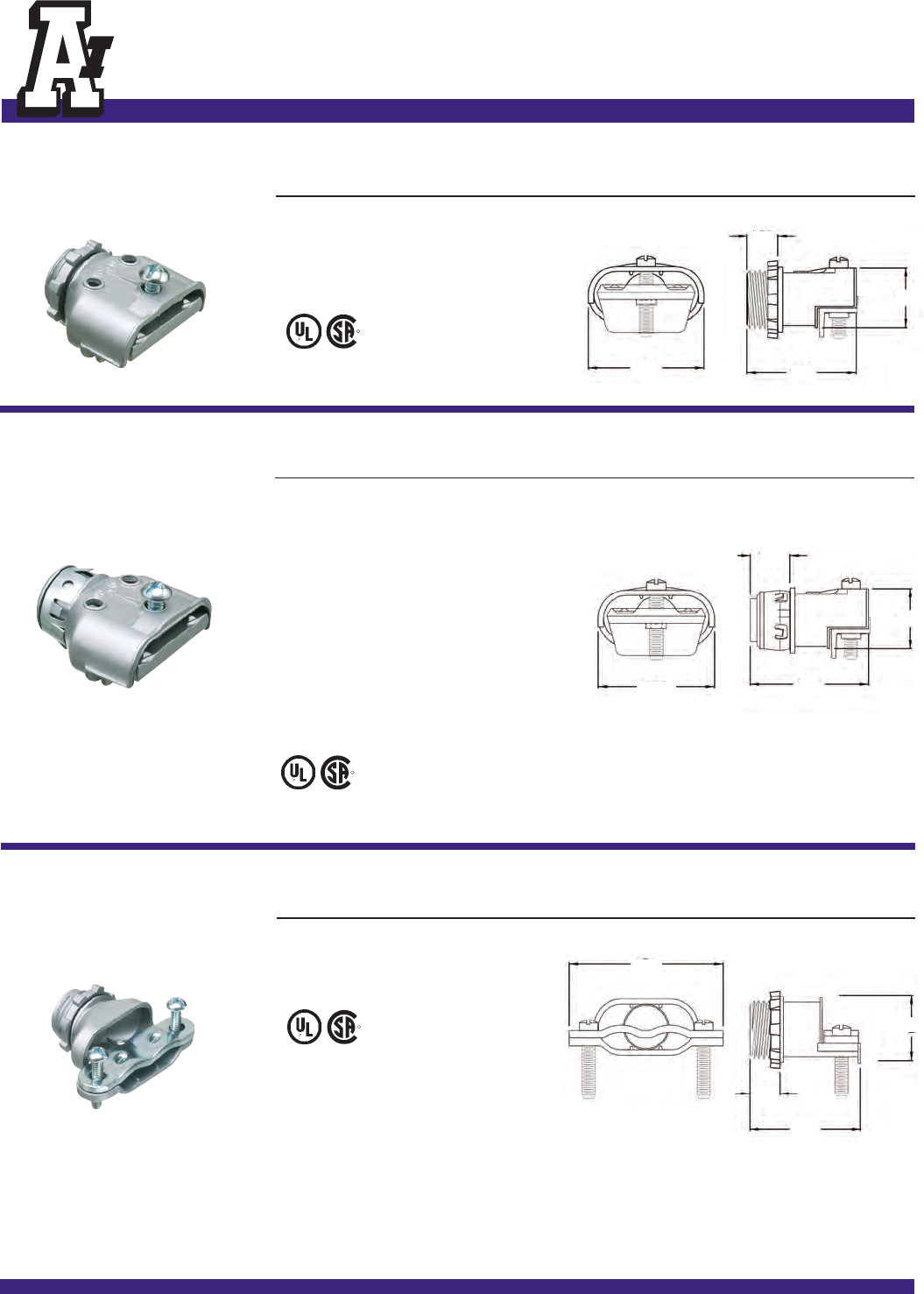

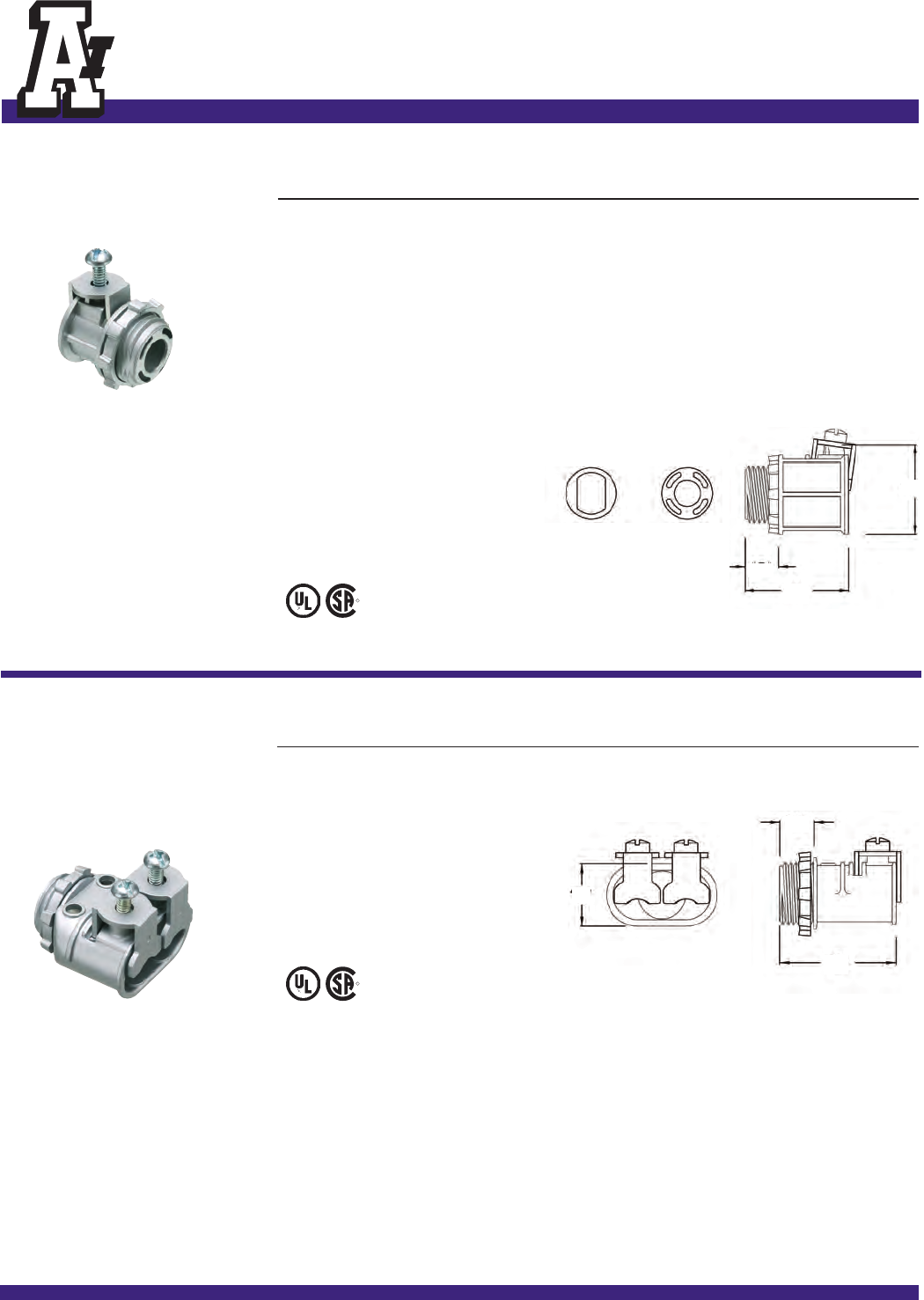

Cable Connectors

For NM • SE cable.

Zinc die-cast.

Cable Connectors

For NM • SEU cable. Zinc

die-cast.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM MAX

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCOPENING

842 00842 3/4 3/4 50 500 .481 1.000 1.375 .730

843 00843 1125 250 .780 1.284 1.670 .850

844 00844 1-1/4 1-1/4 10 100 .710 1.312 2.030 .900

848* 00848 1-1/2 1-1/2 10 50 .817 1.453 2.300 .960

849* 00849 2210 50 .823 1.590 2.900 .960

*UL# E66990 - Service entrance ONLY.

E28474 LR49636

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM MAX

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCOPENING

842 00842 3/4 3/4 50 500 .481 1.000 1.375 .730

843S 84310 1125 250 .780 1.284 1.670 .970

844S 84410 1-1/4 1-1/4 10 100 .710 1.312 2.030 1.160

848S 84810 1-1/2 1-1/2 10 50 .817 1.453 2.300 1.420

849S 84910 2210 50 .823 1.590 2.900 1.750

E28474 LR49636

A

C

B

A

C

B

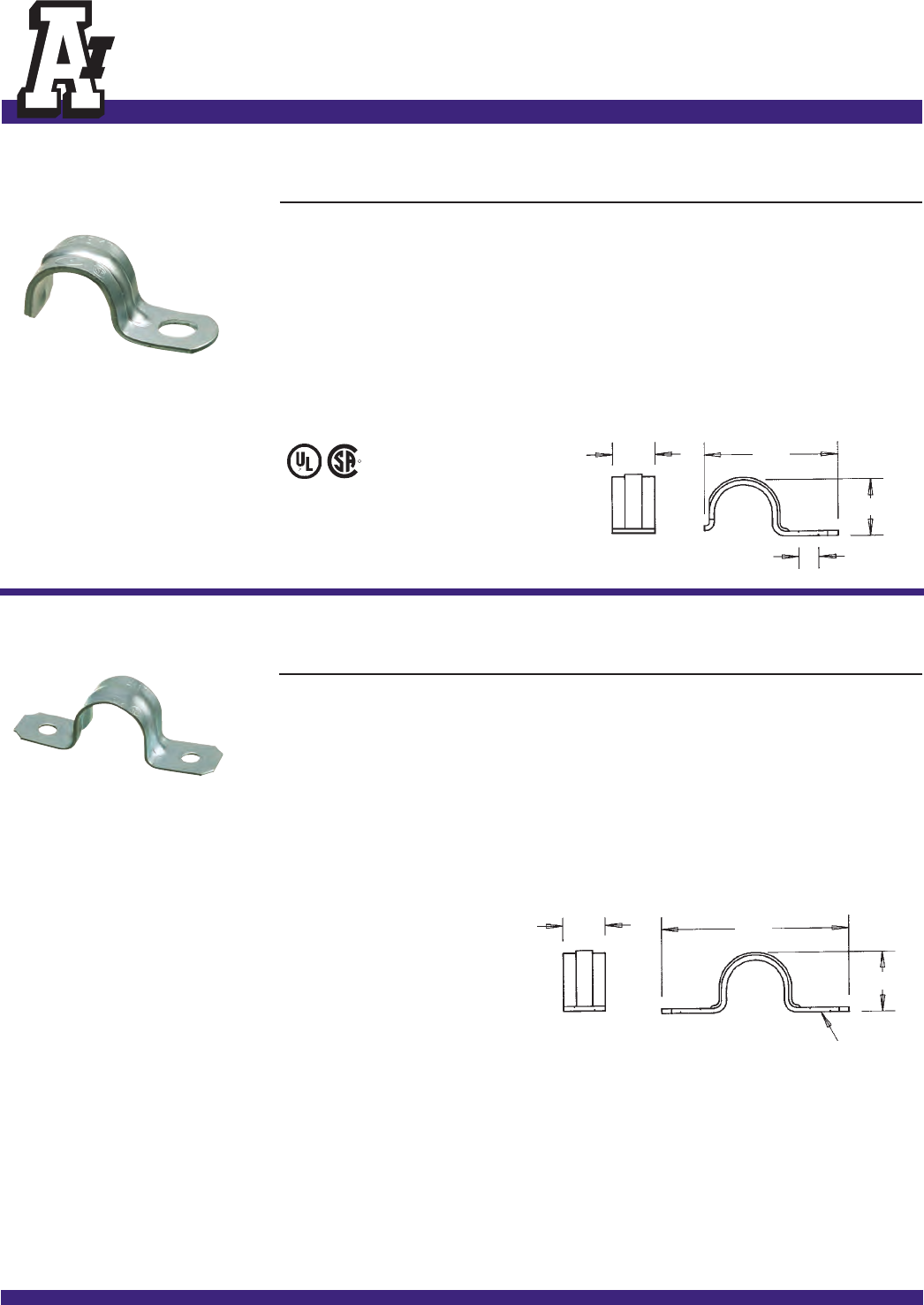

2-Hole Cable

Straps

For SEU cable. Plated steel.

CATALOG UPC/DCI/NAED WIRE UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG ABC

C STRAP 37500 8/3-3/3 50 200 2.410 .750 .470

E STRAP 43625 2/3 50 200 1.080 .750 .575

H STRAP 82990 1/0-2/0 50 200 3.183 .755 .750

K STRAP 83770 3/0, 4/0 50 200 3.500 .755 .890

A

B

C









C-5 NM Cable

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

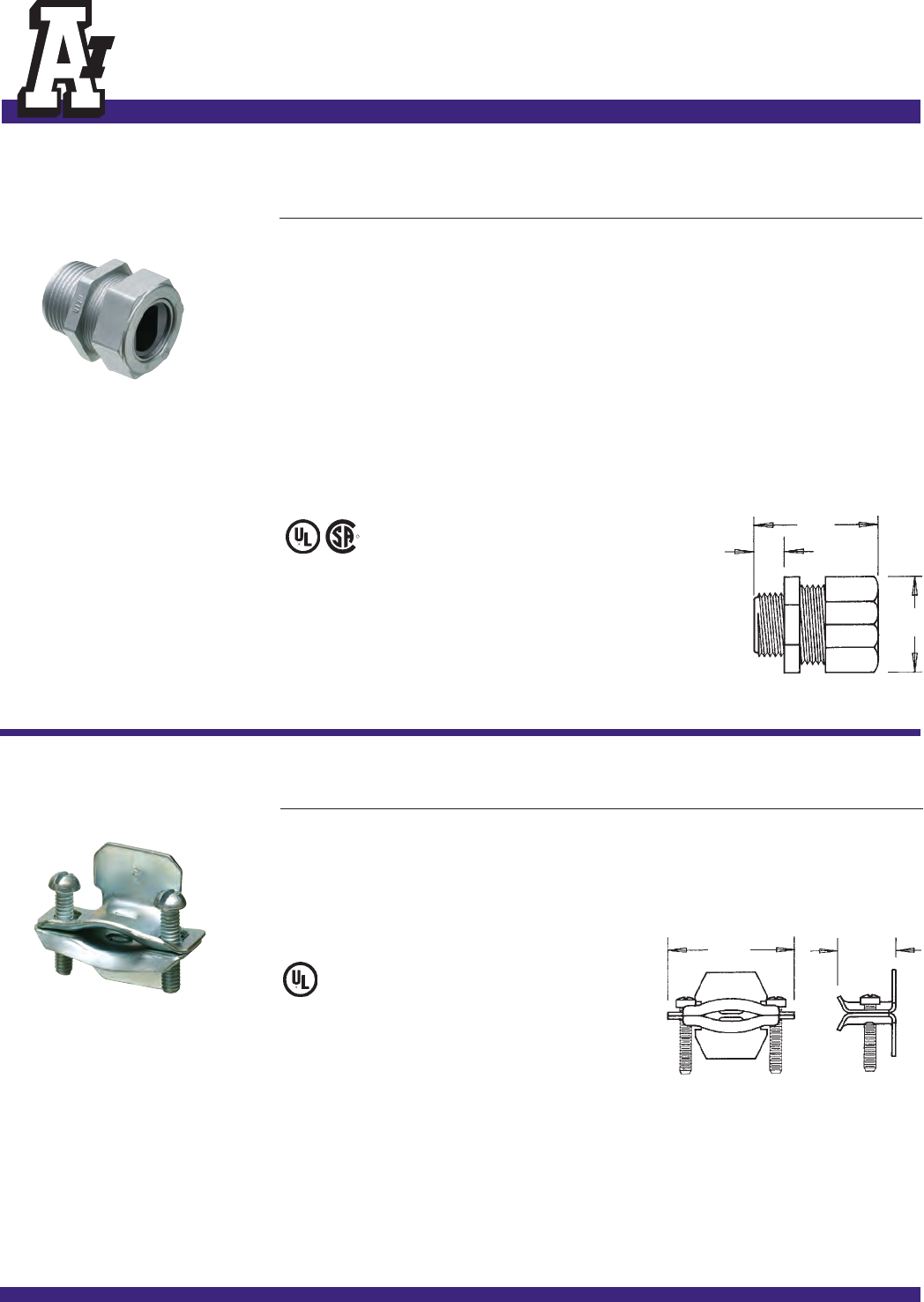

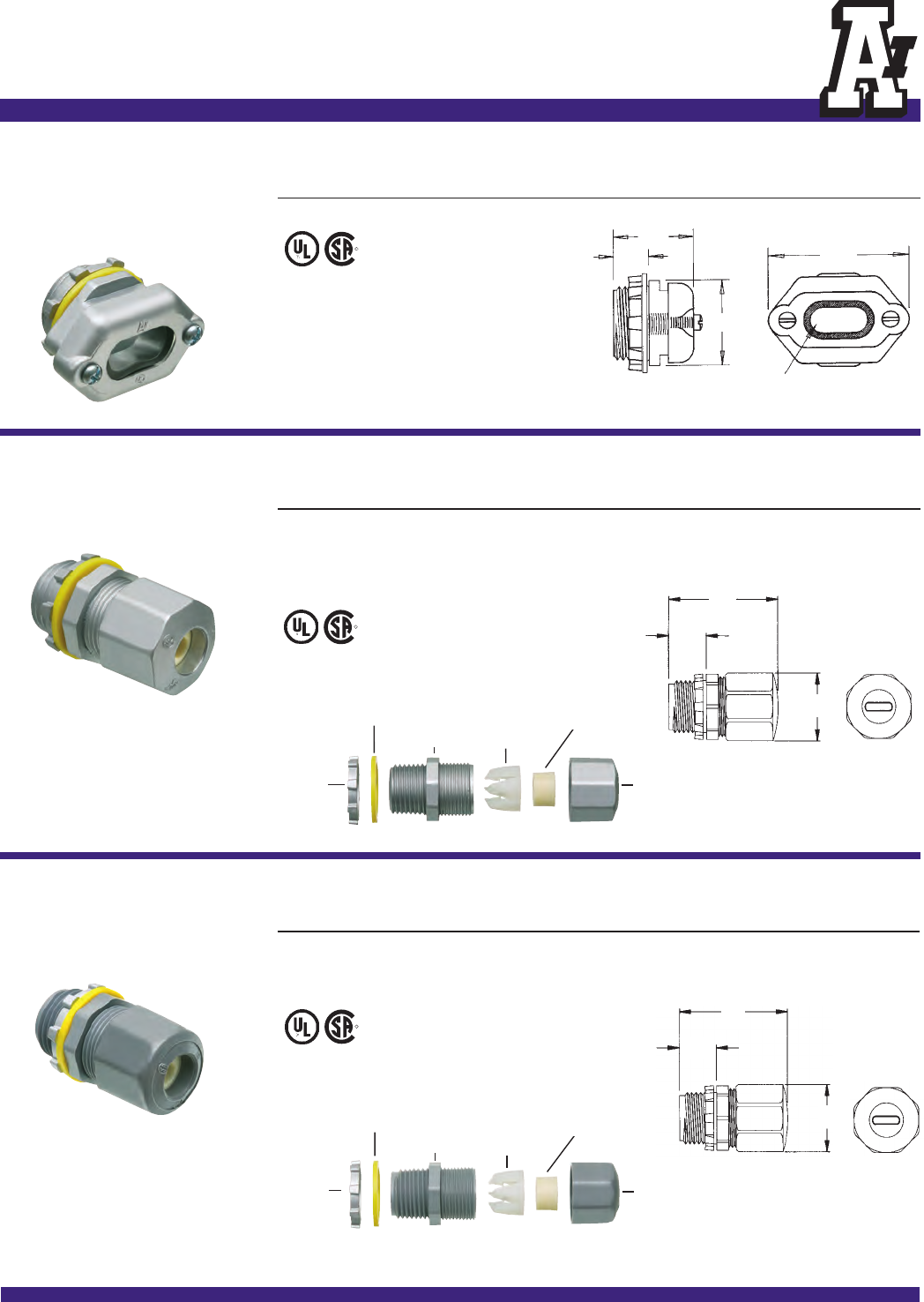

Gland-Type Service

Entrance Cable

Connectors

Twin screw type. Zinc die-cast.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG AB C D RANGE

WC1001 53101 11150 1.400 .615 1.500 2.230 .630 x 1.000

E66990 LR49636

A

B

C

D

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCRANGE

UF50 36500 1/2 1/2 25 100 1.792 .630 1.042 14/2-12/2

UF75 51302 3/4 3/4 10 50 1.792 .630 1.042 14/3-10/2

Low profile design to fit the new smaller UF cables as well as standard sizes.

PATENTED.

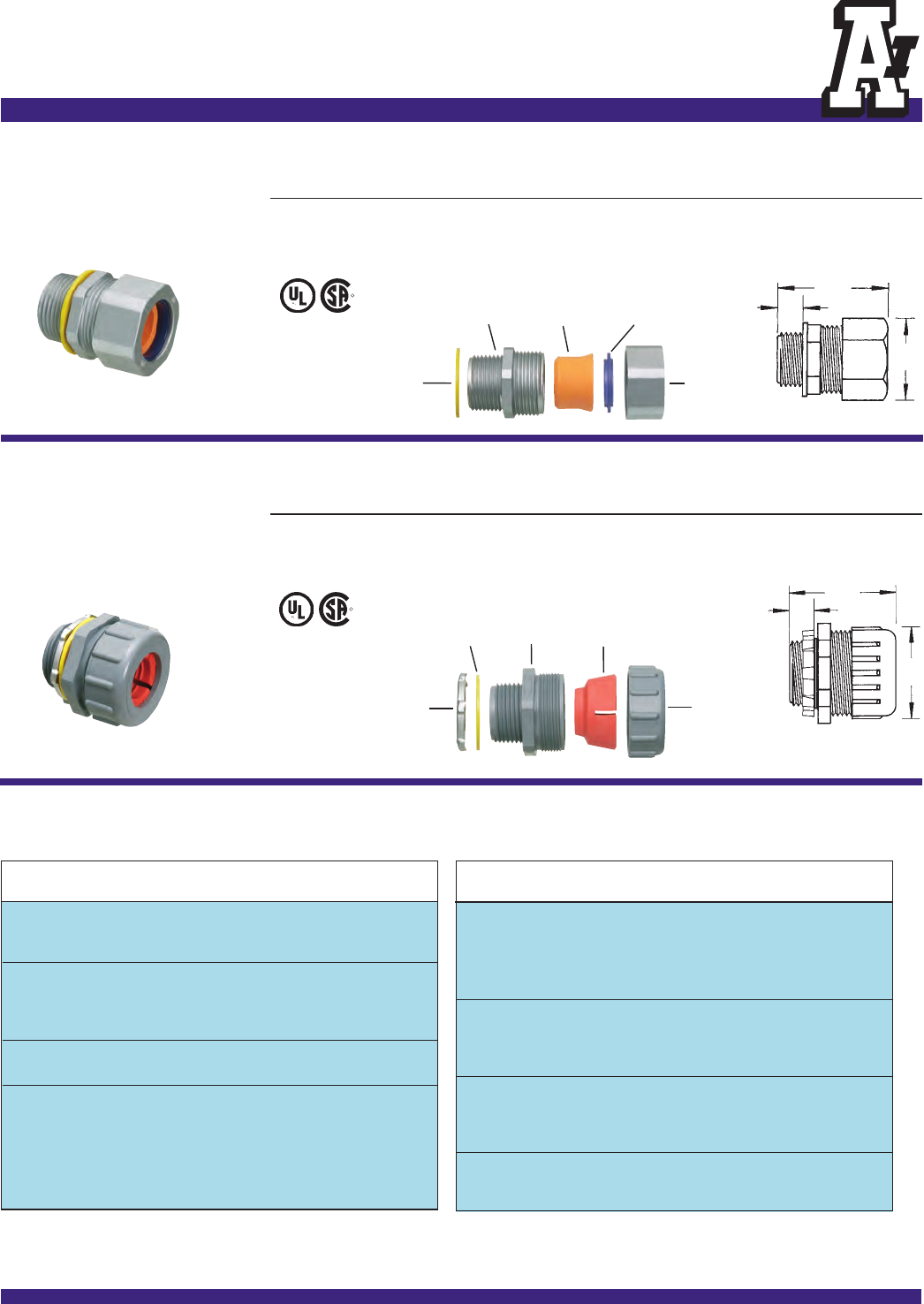

UF Connectors

Compression type for

underground feeder cable.

Zinc die-cast.

E28474 LR49636

A

B

C

OPENING

ZINC

LOCKNUT

POLYETHYLENE

SEALING RING ZINC

BODY

NYLON

GRIPPER

SANTOPRENE®

GROMMET

ZINC

NUT

Non-Metallic

UF Connectors

Compression type for

underground feeder cable.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCRANGE

NMUF50 55040 1/2 1/2 25 100 1.792 .630 1.042 14/2-12/2

NMUF75 54367 3/4 3/4 10 50 1.792 .630 1.042 14/3-10/2

Low profile design to fit the new smaller UF cables as well as standard sizes.

E28474 LR49636

C

B

A

ZINC

LOCKNUT

POLYETHYLENE

SEALING RING NYLON

BODY

NYLON

GRIPPER

SANTOPRENE®

GROMMET

NYLON

NUT













C-6

NM Cable

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CATALOG UPC/DCI/NAED TRADE DIM DIM DIM GROMMET GROMMET INSULATED UNINSULATED STD

NUMBER MFG #01 8997 SIZE ABCOPENING OPENING CONDUCTOR CONDUCTOR PKG

MAX ID MIN ID SIZE AWG SIZE AWG

WC1004 53104 1 1.970 .750 1.775 .56 x .82 .44 x .81 4-7 4 50

WC1006 53106 1 1.970 .750 1.775 .50 x .77 .40 x .71 6-7 6 50

WC1008 53108 1 1.970 .750 1.775 .40 x .67 .32 x .50 8-1 8 50

WC1252 53125 1-1/4 1.943 .750 1.916 .59 x .98 .51 x .93 2-7 2 50

WC1252N 53122 1-1/4 1.943 .750 1.916 .66 x 1.10 .57 x 1.05 1-19 2 50

WC1501 53151 1-1/2 2.390 .750 2.500 .70 x 1.18 .65 x 1.10 1/0-19 1/0 10

WC1502 53152 1-1/2 2.390 .750 2.500 .86 x 1.36 .70 x 1.20 2/0-19 2/0 10

WC2001 53201 2 2.420 .750 2.500 .70 x 1.18 .65 x 1.10 1/0-19 1/0 10

WC2002 53202 2 2.420 .750 2.500 .85 x 1.35 .70 x 1.20 2/0-19 2/0 10

WC2003 53203 2 2.420 .750 2.500 .86 x 1.38 .75 x 1.30 3/0-19 3/0 10

WC2004 53204 2 2.420 .750 2.850 1.03 x 1.59 .88 x 1.42 4/0-19 4/0 10

WC2004N 53205 2 2.420 .750 2.500 1.11 x 1.75 .94 x 1.58 4/0-19 4/0 10

Gland-Type

Service Entrance

Cable Connectors

Zinc die-cast.

E66990 LR49636

B

C

E28474

NM Cable

Connectors

Plated steel.

CATALOG UPC/DCI/NAED WIRE UNIT STD DIM DIM MIN/MAX

NUMBER MFG #01 8997 SIZE PKG PKG ABOPENING

BT50* 24050 14/2-8-3 100 1000 1.500 .720 .250-.600

BT75* 24075 8/2-6/2 50 500 1.764 .811 .124-.934

BT125 24125 2/0-3/0 25 250 2.245 .842 .275-.900

BT150 24150 4/0 20 200 2.705 .835 .275-.900

*UL only.

Refer to pages C-12 and C-13 for complete cable ranges. AB





A

C-7 NM Cable

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Non-Metallic

Push-In Connectors

For NM and flexible cord.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABC

NM840 54840 3/8 1/2 100 1000 1.031 .375 .965

NM841 54841 1/2 1/2 50 500 1.340 .475 1.125

NM842 54842 3/4 3/4 25 250 1.510 .475 1.200

NM843 54843 1125 250 1.637 .475 1.500

NM844 50175 1-1/4 1-1/4 10 100 2.085 .475 2.012

Refer to pages C-12 and C-13 for complete cable ranges.

NM841

E28474 LR49636

NM840

Installation Instructions

1. Disconnect electrical power.

Push the connector into knockout.

2. Install required cables or cords.

3. Place wedge in connector

slot and lock tight with a pair

of pliers. Tightened wedge

provides strong, positive grip.

A

B

C

1

3

2

Non-Metallic

Cable Connectors

For non-metallic sheathed

cable. One piece construction.

Listed for 1 or 2 cables. Holds

cables securely and handles a

wide range of cable sizes.

E28474 LR49636 B

A

C

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABC

NM74 54510 3/8 1/2 100 1000 1.289 1.029 .875

NM75 54513 3/4 3/4 25 250 1.289 1.271 1.117

Refer to pages C-12 and C-13 for complete cable ranges.

PATENTED.









C-8

NM Cable

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABC

NM94 05488 3/8 1/2 250 1000 1.010 .450 .096

NM940 72156 3/8 1/2 100 1000 1.010 .450 .096

NM95 10956 3/4 3/4 50 500 1.293 .597 .096

NM96 72158 1125 250 1.648 .683 .156

Refer to pages C-12 and C-13 for complete cable ranges.

PATENTED.

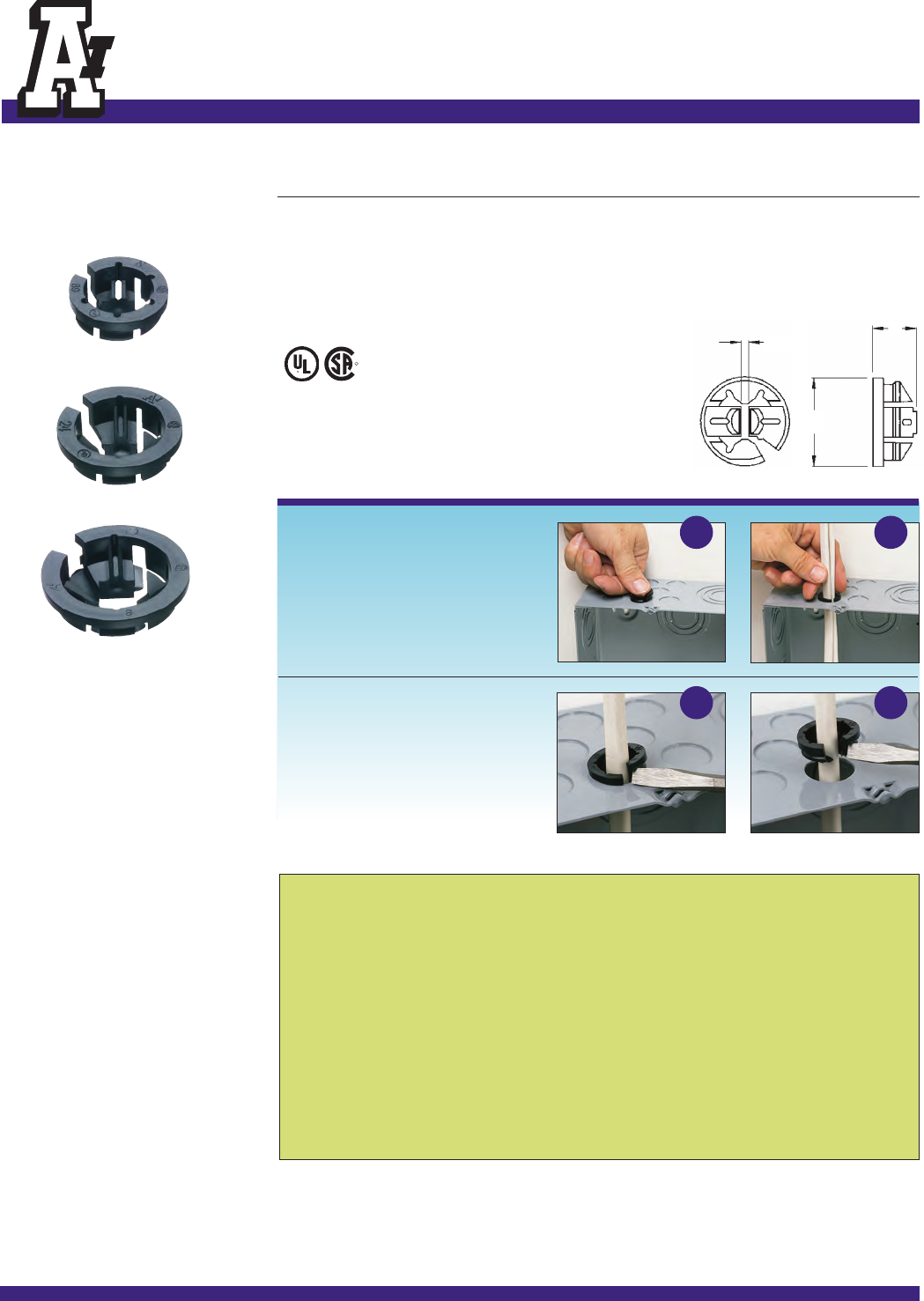

Black Button™

Non-Metallic

Push-In Connectors

For NM cable.

E28474 LR49636

The Black Button is not only

the lowest cost NM connector

on the market, but offers the

fastest method of installing

single or multiple cables.

For multiple cable installations:

• Two cables may be inserted

together or individually.

• A second cable may be

added without removing the

first.

Plus, the NM94 meets UL and

CSA requirements for single or

multiple cables.

Installation Instructions

1. Disconnect electrical power.

Insert connector into knockout.

2. Push non-metallic sheathed

cable into the connector to

desired length.

Removal

If necessary, the NM94 series may

be removed with a screwdriver.

1. Slip screwdriver under NM

connector and twist.

2. NM94 pops out of the knockout.

Reduce your Labor Costs!

Arlington’s NM94 costs just 6¢ to install.

Compare this to 16¢ for NM841 and 40¢ for 841*.

• Listed for both 1 or 2 cables.

• Installs easily... snaps into KO using light finger pressure.

• Cables insert without a struggle for a smooth installation.

• Holds wires securely - meets and exceeds UL pullout tests.

• Simple to remove with a twist of a screwdriver.

• Arlington’s Black Button™ is the lowest cost NM cable connector available today.

* Labor costs are based on a rate of $30.00 per hour.

A

B

C

1 2

1 2

NM94

NM95

NM96





C-9 NM Cable

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

E161207 LR49636

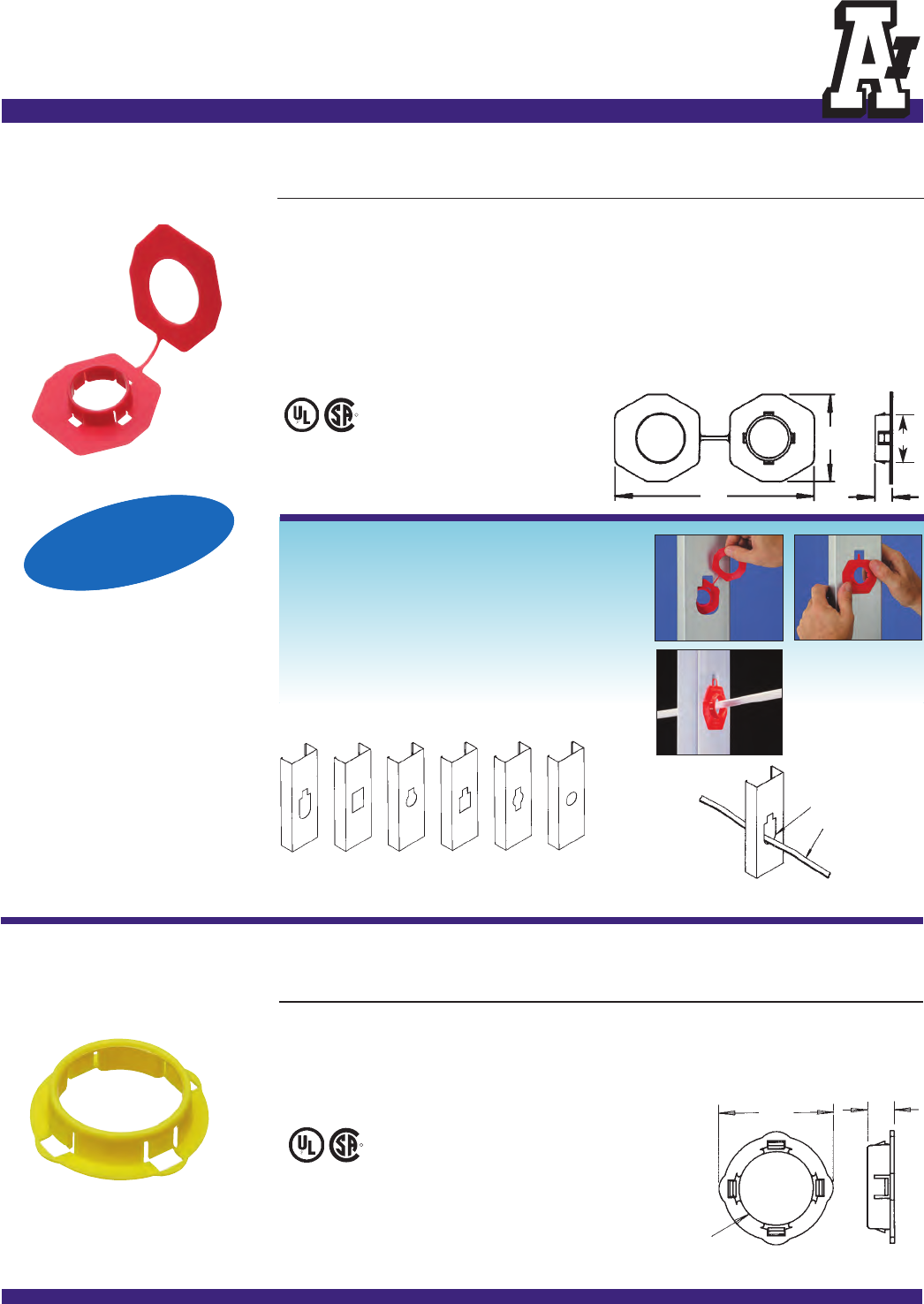

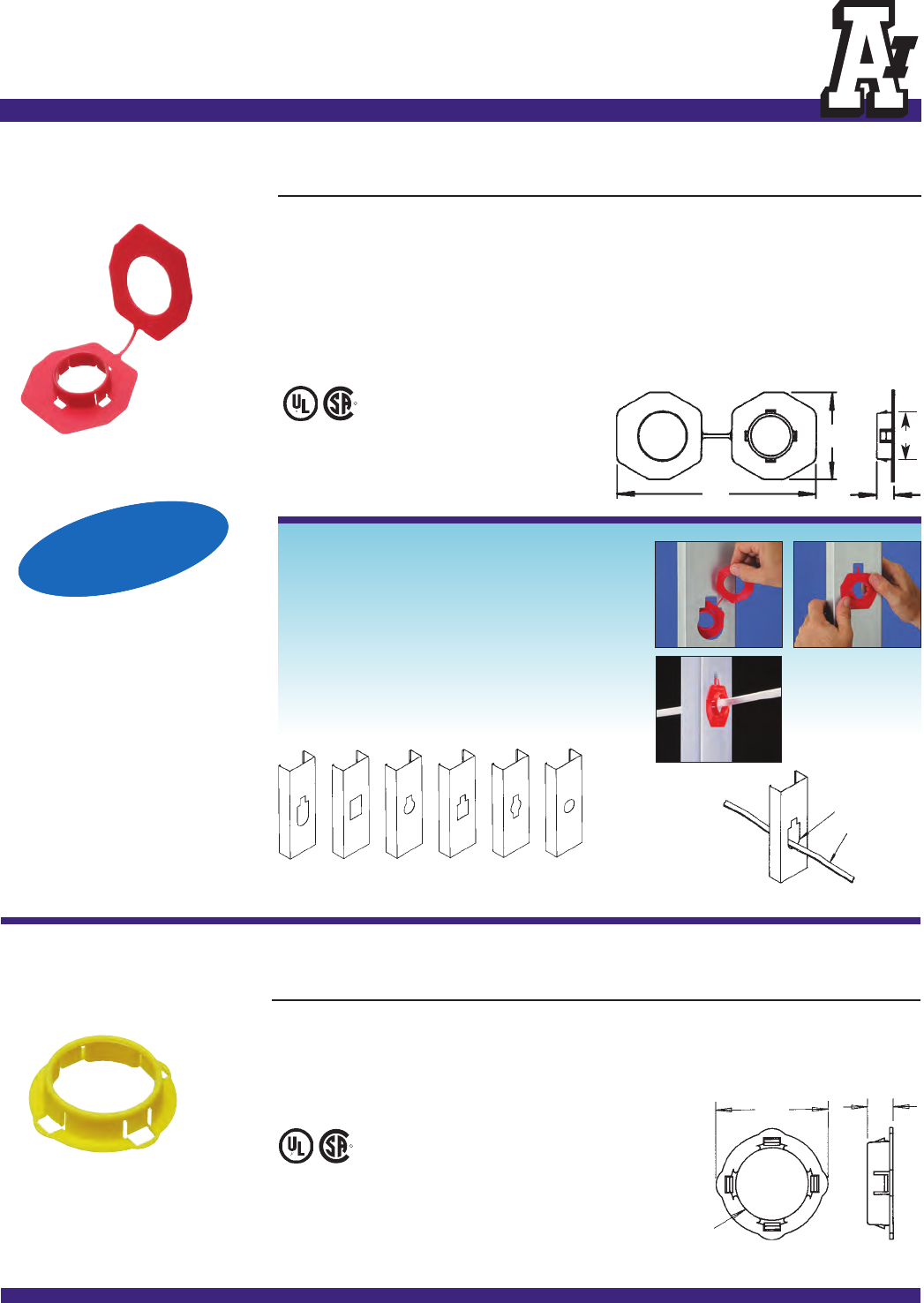

Non-Metallic

Bushings for Metal

Studs

CATALOG UPC/DCI/NAED STUD STD DIM DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG ABCD

SB13 40115 2 x 4 500 5.670 2.500 .505 1.300

SB130 40130 2 x 4 100 5.670 2.500 .505 1.300

These bushings fit existing irregular shaped holes in metal studs, alleviating the need to punch

holes in metal studs, weakening the structural member. Use these bushings to comply with

paragraph 300-4(b)(1) of the 2005 NEC code which states that: “In both exposed and concealed

locations where nonmetallic-sheathed cables pass through either factory or field punched, cut, or

drilled slots or holes in metal members, the cable shall be protected by bushings or grommets

covering all metal edges and securely fastened in the opening prior to installation of the cable.”

PATENTED.

Common hole configurations in metal studs.

CODE VIOLATION

SHARP EDGE

NM CABLE

Installation Instructions

To install these bushings in an irregular shaped hole,

pass one end of the joined connector through the hole

in the stud. Snap the bushing and the washer ends

together. There’s no need to separate the two halves.

If a punched hole is required, the SB13 can be

installed in a standard 1" trade size, round punched

hole (1-3/8" diameter). Snap the bushing end into the

hole.

12

3

A

B

C

WASHER BUSHING

FITS A

STANDARD 1"

KNOCKOUT

D

Note: See page M-9 for larger sizes.

Non-Metallic

Bushings for Metal

Studs

CATALOG UPC/DCI/NAED TRADE STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG ABC

SB1 18001 1/2 1000 .940 .470 .700

SB10 18010 1/2 100 .940 .470 .700

SB3 18050 1 1000 1.750 .400 1.150

SB30 18053 1 100 1.750 .400 1.150

E161207 LR49636

A

C

B









C-10

NM Cable

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

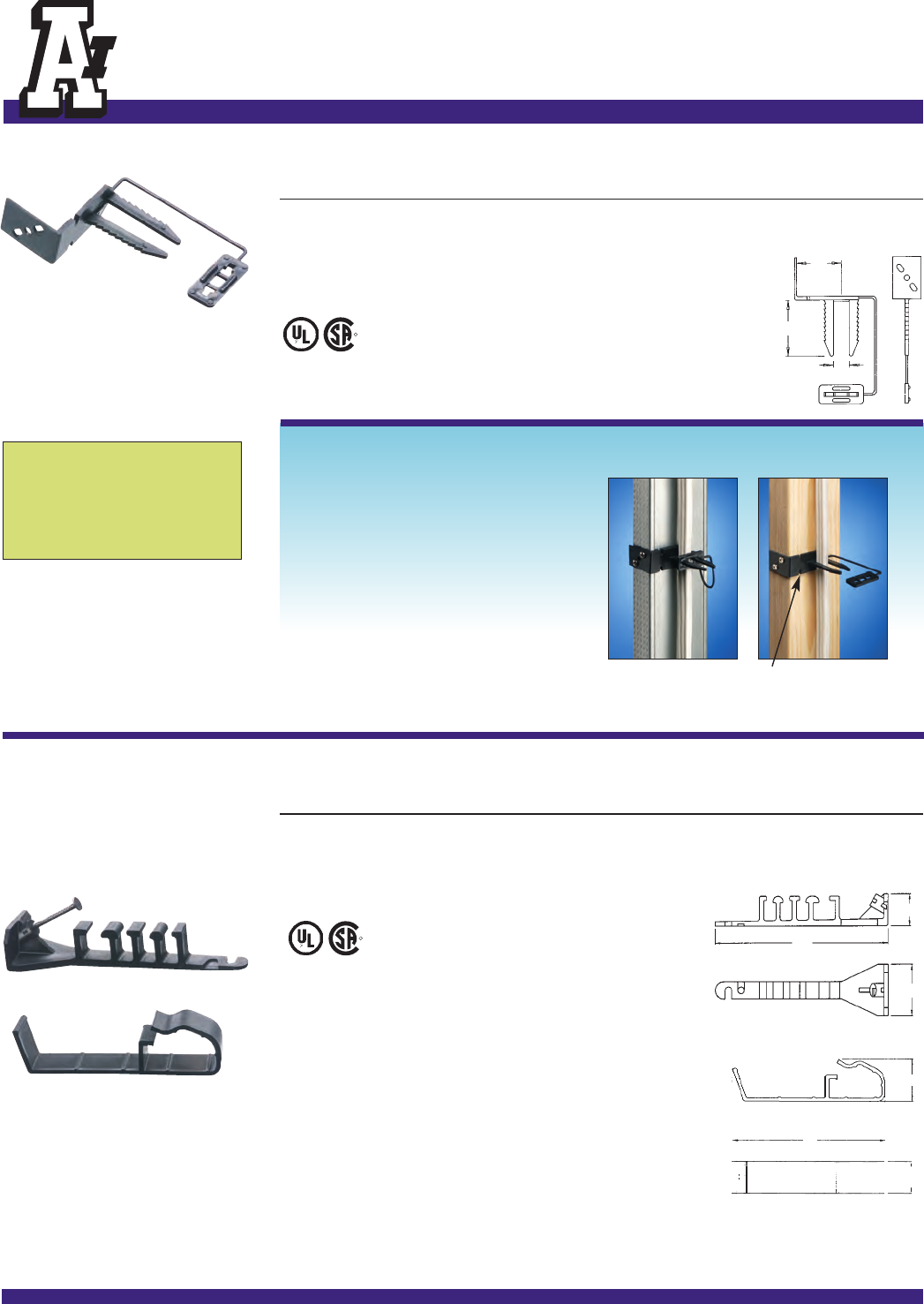

CS6 Cable Support CATALOG UPC/DCI/NAED STD DIM DIM DIM

NUMBER MFG #01 8997 PKG ABC

CS6 71006 500 1.750 2.000 .563

CS60 71060 100 1.750 2.000 .563

E161207 LR49636

E161207 LR49636

Note: For position only. For support clips for AC/MC cable see NM310

on page E-22.

PATENTED.

Metal Stud Wood Stud

Alternate fastening

option: Use staple

Installation Instructions

Simply position the CS6 in the desired

location and insert a sheet metal screw into

a steel or wood stud or use a nail in a wood

stud. Cable or cables can then be placed

between serrated forks. Install mating

washer over serrated forks to secure

cable/cables.

CS7 Holds...

• Up to five runs of 12/2 non-metallic sheathed cable.

• Up to eight runs of Cat 5 cable.

• Up to four runs of Cat 6 cable.

• Up to five runs of coaxial cable.

CS4 Holds...

• One 14/3 to one 10/3

• Three 14/2 W/G to three 10/3

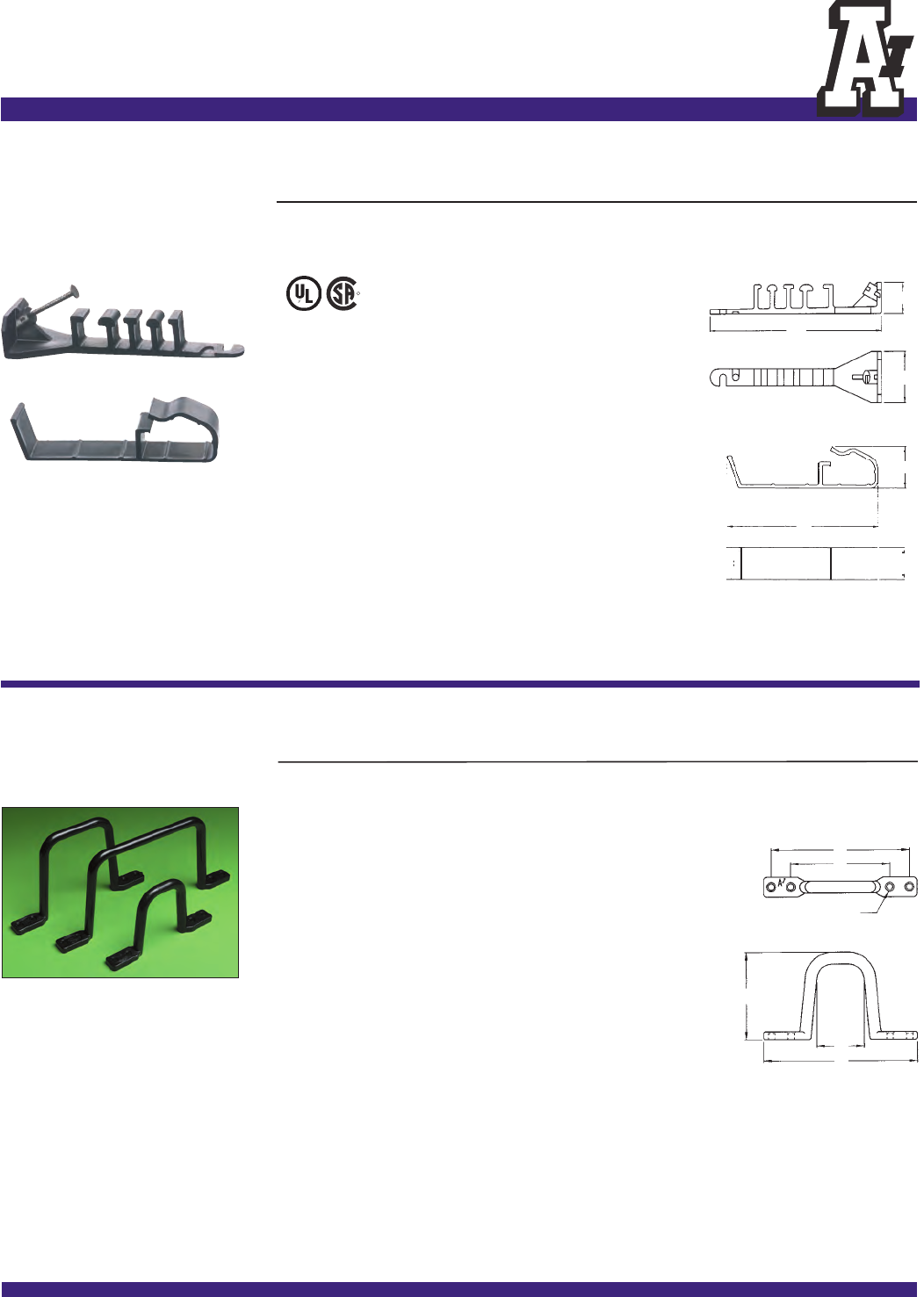

Cable Standoffs

Positions non-metallic

sheathed cable, phone/data

cable, and coaxial cable.

Installs with a screw or nail.

Nail included with CS4.

CATALOG UPC/DCI/NAED STD DIM DIM DIM

NUMBER MFG #01 8997 PKG ABC

CS4 50174 100 4.100 .750 1.200

CS7* 71007 100 3.490 .880 .740

*UL and CSA only

Note: For position only.

A

B

C

A

B

C

A

B

C

Holds...

Six 14/2 NM cables or

Five 12/2 NM cables or

Four 10/2 NM cables or

One 14/2 to 10/2 MC/AC cable

CS7

CS4

CS4

CS7

Features and Benefits

• Positions cables at a safe distance from nailing surface

• CS4 provides a neat, organized cable installation and

prevents tangles

• CS7 positions cable 2" from a furring strip or 2x4 stud

• CS7 features positive lock to keep cables in place

• Positions both flat and round NM cables

• Complies with 2005 NEC Article 300-4d









C-11 NM Cable

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CS2 & CS20SC

Cable Supports

Supports up to four 14/2 - 10/2

flat (any combination) and two

14/3 - 10/3 (any combination)

NM cables.

CATALOG UPC/DCI/NAED UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG ABC

CS2 71002 500 500 2.650 2.530 .500

CS20 71020 100 100 2.650 2.530 .500

CS20SC 71025 100 100 2.704 2.563 .500

CS20BAG 71022 25 100 2.650 2.530 .500

PATENTED. ADDITIONAL PATENTS PENDING.

E161207 LR49636

CS2, CS20

NAIL

#8 self-tapping sheet metal screw

D HOLE SIZE

1-Hole Aluminum

Straps

For service entrance cable.

Aluminum.

CATALOG UPC/DCI/NAED WIRE UNIT STD DIM DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG ABCD

3232 32320 3 #8 to 3 #4 100 1000 2.078 .775 .600 .265

3282 03282 3 #1/0 to 3 #2/0 100 1000 2.488 .940 .720 .265

3284 32840 3 #3/0 to 3 #4/0 100 1000 2.710 1.218 1.000 .325

CS20SC

Installation Instructions

To install the CS2:

Position the CS2 in the desired location on a

wood stud and drive in nail. Insert cable or

cables.

To install the CS20SC:

Position the CS20SC in the desired location on a

wood or metal stud and tighten self-tapping

screw. Insert cable or cables.

CS2 on Wood Stud

C

B

A

A

B

C

1-Hole Steel Straps

For service entrance cable.

Plated steel.

CATALOG UPC/DCI/NAED WIRE UNIT STD DIM DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG ABCD

301 00301 8/3-3/3 100 1000 1.687 .442 .565 .265

303 00303 2/3 100 1000 1.830 .530 .575 .265

313S 00133 1, 1/0 or 2/0 100 1000 2.472 .770 1.000 .325

314S 00014 3/0, 4/0 100 1000 2.790 .920 1.000 .330

A

B

D HOLE SIZE

C

CS20SC on Metal Stud





C-12

NM Cable

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

FITTINGS CABLE RANGE TYPE

BT50 1-14/2 to 1-8/3 NM

2-12/3 NM

4-14/2 NM

841, 841ST 1-14/2 & 1-14/3 1-14/2 to 10/2 NM

1-14/2 & 1-12/3 1-14/3 to 10/3 NM

1-12/2 & 1-14/3 2-14/2 to 10/2 NM

1-12/2 & 1-12/3 1-14/2 & 1-12/2 NM

2-14/2 & 1-14/3 1-14/2 & 1-10/2 NM

2-14/2 & 1-12/3 1-12/2 & 1-10/2 NM

3-14/2 NM

NM74 1-14/2 to 1-10/2 2-14/2 to 2-10/2 NM

1-14/3 to 1-10/3 2-14/3 NM

NM94 1-14/2 to 1-10/2 2-14/2 to 2-10/2 1-14/2 and 1-12/2 NM

1-14/3 to 1-10/3 2-14/3 to 2-12/3 1-14/2 and 1-10/2 NM

1-12/2 and 1-10/2 NM

1-14/3 and 1-12/3 NM

NM840 1-14/2 to 1-10/2 NM

NM841 1-14/2 to 6/2 2-14/2 to 10/2 NM

1-14/3 to 10/3 2-14/2 & 1-14/3 NM

1-14/2 & 1-12/2 2-14/2 & 1-12/3 NM

1-14/2 & 1-10/2 2-14/2 & 1-12/2 NM

1-12/2 & 1-10/2 2-14/2 & 1-10/2 NM

1-14/2 & 1-14/3 2-14/3 NM

1-14/2 & 1-12/3 3-14/2 NM

1-12/2 & 1-14/3 1-14/2 & 2-12/2 NM

1-12/2 & 1-12/3 1-14/2 & 2-10/2 NM

1-8/2 & 1-14/2 1-6/2 NM

1-8/2 & 1-12/2 NM

840, 840ST 1-14/2 to 10/2 NM

8400, 8400ST 1-14/3 to 10/3 NM

8401 2-14/2 to 10/2 NM

1-14/2 & 1-12/2 NM

1-14/2 & 1-10/2 NM

1-12/2 & 1-10/2 NM

BT75 1-8/2 to 1-6/2 NM

842, 842ST 2-14/3 to 2-10/3 NM

NM842* 1-8/3 to 1-6/3 NM

1-14/3 & 1-12/3 NM

*Also listed for the combinations of NM842 on next page. 1-14/3 & 1-10/3 NM

1-12/3 & 1-10/3 NM

1-8/2 to 1-4/2 SE

Continued next page

1/2" KO

3/4" KO

C-13 NM Cable

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

FITTINGS CABLE RANGE TYPE

8402 2-10/2 1-8/2 to 1-6/2 NM

3-14/2 to 3-10/2 2-14/3 to 2-10/3 NM

1-8/3 to 1-6/3 NM

1-14/3 & 1-12/3 NM

1-14/3 & 1-10/3 NM

1-12/3 & 1-10/3 NM

1-8/2 to 1-4/2 SE

1-.530 to .570 x .840 to .930 1-.640 SE

1-.375 to .685 2-.448 Flex Cord

1-.550 & 1-.375 Flex Cord

NM75 1-6/2 1-8/2 1-10/2 2-14/2 2-10/2 NM

1-6/3 1-8/3 1-10/3 2-12/2 2-10/3 NM

NM95 1-14/2 to 1-6/2 2-14/2 to 2-10/2 1-14/2 and 1-12/2 NM

1-14/3 to 1-6/3 2-14/3 to 2-10/3 1-14/2 and 1-10/2 NM

1-12/2 and 1-10/2 NM

1-14/3 and 1-12/3

NM842 3 to 4 14/2 to 10/2 plus any combination thereof. 2-10/2 & 1-14/3 to 2-10/2 & 1-12/3 NM

2-14/3 & 1-14/2 to 2-14/3 & 1-10/2 1-14/2 & 1-12/2 & 1-14/3 NM

3-14/3 to 3-12/3 1-14/2 & 1-10/2 & 1-14/3 NM

2-14/3 & 1-12/3 1-14/2 & 1-12/2 & 1-12/3 NM

2-12/3 & 1-14/3 to 2-12/3 & 1-10/2 1-14/2 & 1-10/2 & 1-12/3 NM

2-14/2 & 1-14/3 to 2-14/2 & 1-10/3 1-12/3 & 1-14/2 NM

2-12/2 & 1-14/3 to 2-12/2 & 1-10/3 1-12/3 & 1-8/2 NM

843, 843S 2-10/3 to 2-8/3 1-6/2 to 1-4/2 1-10/3 & 1-8/2 NM, SE

1-6/2 & 1-8/2 1-8/3 to 1-4/3 1-10/3 & 1-8/2 NM, SE

2-6/2 to 1-8/3 2-10/3 to 2-8/2 2-8/2 NM, SE

2-8/3 & 1-6/2 1-8/3 to 1-6/3 1-4/3 NM, SE

3-8/2 to 3-6/2 1-12/3 & 1-8/2 1-12/3 & 1-10/3 NM, SE

NM843 2-10/3 and 2-8/2 1-8/3 to 1-4/3 3 to 6 14/3 NM

1-8/3 and 2-6/2 NM

2-8/3 and 1-6/2 NM

Any combination of above with minimum Outer Diameter of .580 and a maximum Outer Diameter of .960.

NM96 1-4/3 to 8/3 1-6/2 to 4/2 NM

NM844 1-4/3 to 1-6/3 NM

2-6/3 to 2-10/3 NM

4-10/2 NM

10-12/2 NM

9-14/2 Flex Cord

1-.750 Flex Cord

1-.580 x .950

1" KO

1-1/4" KO

A

B

C

D-1

Cord Grips

CATALOG UPC/DCI/NAED TRADE CORD UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE RANGE PKG PKG ABC

LPCG503* 50350 1/2 .100-.300 25 100 1.792 .630 1.042

LPCG50W 32875 1/2 .200-.472 25 100 1.792 .630 1.042

LPCG50** 80086 1/2 .200-.472 25 100 1.792 .630 1.042

LPCG507 50354 1/2 .385-.750 25 100 2.178 .517 1.305

LPCG753* 50760 3/4 .100-.300 10 50 1.963 .570 1.042

LPCG754 50762 3/4 .240-.472 10 50 1.963 .570 1.305

LPCG757 36100 3/4 .385-.750 10 50 2.250 .600 1.305

50LPCGBAG† 55080 1/2 .100-.472 - 500 1.792 .630 1.042

75LPCGBAG† 55082 3/4 .100-.472 - 100 1.963 .570 1.305

*LPCG503 and LPCG753: UL not applicable for .100 - .240 wire diameter-----wire strength will

not meet UL’s 35 lb. pullout test requirement for the fitting.

**LPCG50: UL not applicable for .200 to .240 wire diameter-----wire strength will not meet UL’s

35 lb. test requirement for the fitting.

†Includes UF grommet 14/2 to 12/2. Bags not available in black.

When ordering in black, add suffix “BL” to catalog #.

When ordering in white, add suffix “W” to catalog #.

Low-Profile Strain

Relief Cord

Connectors

Zinc die-cast. Liquid-tight •

Oil-tight. Furnished with

sealing ring and locknut.

Low-Profile Strain

Relief Cord

Connectors

Non-metallic. Liquid-tight •

Oil-tight. Furnished with

sealing ring and locknut.

Arlington’s Low Profile Cord Connector has a unique grommet with gripping fingers. These connectors

have the largest cord range in the industry — so there are fewer items to stock. A liquid-tight seal and

superior pullout resistance is accomplished by just tightening the nut. A sealing ring is furnished to

assure a liquid-tight seal when installing in non-threaded openings.

CATALOG UPC/DCI/NAED TRADE CORD UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE RANGE PKG PKG ABC

LPCG503Z* 50352 1/2 .100-.300 25 100 1.792 .630 1.042

LPCG50Z** 36110 1/2 .200-.472 25 100 1.792 .630 1.042

LPCG507Z 50356 1/2 .385-.750 25 100 2.178 .517 1.305

LPCG753Z* 36105 3/4 .100-.300 10 50 1.963 .570 1.042

LPCG754Z 50764 3/4 .240-.472 10 50 1.963 .570 1.305

LPCG757Z 50766 3/4 .385-.750 10 50 2.250 .600 1.305

*LPCG503Z and LPCG753Z: UL not applicable for .100 - .240 wire diameter-----wire strength will

not meet UL’s 35 lb. pullout test requirement for the fitting.

**LPCG50Z: UL not applicable for .200 to .240 wire diameter-----wire strength will not meet UL’s

35 lb. test requirement for the fitting.

PATENTED.

A

C

E105706 LR49636

E105706 LR49636

ZINC

LOCKNUT

POLYETHYLENE

SEALING RING ZINC

BODY

NYLON

GRIPPER

SANTOPRENE®

GROMMET

ZINC

NUT

ZINC

LOCKNUT

POLYETHYLENE

SEALING RING NYLON

BODY

NYLON

GRIPPER

SANTOPRENE®

GROMMET

NYLON

NUT

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

B









PATENTED.

WHITE SEALING

RING MATCHES

PRODUCT

D-2 Cord Grips

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Strain Relief Cord

Connectors

Liquid-tight • Oil-tight.

Furnished with sealing ring.

Zinc die-cast.

CATALOG UPC/DCI/NAED TRADE CORD STD DIM DIM DIM GROMMET

NUMBER MFG #01 8997 SIZE RANGE PKG ABCCOLOR

CG100750 30750 1 .625-.750 5 2.125 .650 1.370 ORANGE

CG100875 30875 1 .750-.875 5 2.150 .750 1.370 BLACK

CG1001000 31000 1 .875-1.000 5 2.150 .772 1.370 PURPLE

Colorgrip®Strain

Relief Cord

Connector

Non-metallic • Liquid-tight •

Oil-tight. Furnished with

sealing ring and locknut.

CATALOG UPC/DCI/NAED TRADE CORD UNIT STD DIM DIM DIM GROMMET

NUMBER MFG #01 8997 SIZE RANGE PKG PKG ABCCOLOR

NMCG100750 55000 1 .625-.750 5 30 1.800 .688 1.931 ORANGE

NMCG100875 55002 1 .750-.875 5 30 1.839 .671 1.931 BLACK

When ordering in black, add suffix “BL” to Catalog #.

Cable Chart for Arlington Cord Grip Fittings

Check outside wire diameter or manufacturer’s specifications for dimensions.

A

B

C

A

B

C

E105706 LR49636

E105706 LR49636

ZINC

LOCKNUT

POLYETHYLENE

SEALING RING

ZINC

BODY

POLYETHYLENE

SEALING RING

PVC

BODY

SANTOPRENE®

GROMMET

SANTOPRENE®

GROMMET

COMPRESSION

RING

ZINC

NUT

PVC

NUT

CABLE COMMUNICATION SJ & S & SJTO STO

RANGE & CONTROL WIRE SJO SO

.100 to .200 22-2 to 14-1

14-1

12-1

.200 to .300 22-2 18-2 18-2 18-2 18-2

20-2 to 20-4 18-3 18-3 18-3 18-3

18-2 16-2 16-2 16-2

18-3 16-4 16-4

.300 to .385 16-3 16-3

14-2

.385 to .472 16-4 16-2 to 16-4 16-4 18-4

14-2 to 14-4 14-2 14-3 16-3

12-2 14-4 14-2

12-3 12-3

12-4

CABLE SJ & S & SJTO STO

RANGE SJO SO

.472 to .625 12-4 14-3 10-2 to 10-4 14-3

10-2 to 10-4 14-4 14-4

12-2 to 12-4 12-2 to 12-4

10-3 10-2

8-2 10-3

.625 to .750 10-4 12-4 10-4 12-4

10-2 to 10-4 10-2 to 10-4

8-2

8-3

.750 to .875 8-4

8-5

6-2

6-3

.875 to 1.000 6-4 6-4

4-2 4-3

4-3









CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCDRANGE

40AST 00041 3/8 1/2 50 500 1.410 .850 .405 1.000 .485-.612

400AST 40347 3/8 1/2 50 500 1.280 .850 .400 1.000 .485-.612

Refer to chart on page E-26 for a list of cable types.

Concrete tight when taped.

Flexible metal conduit, CSA listed with anti-short bushing (UL not applicable).

SNAP-TITE®and SNAP2IT®products have been tested and listed by UL in accordance with

UL’s ground fault requirements. For additional information see page 6.

PATENTED. ADDITIONAL PATENTS PENDING.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCDRANGE

38AST* 00070 3/8 1/2 50 500 1.410 .850 .405 1.000 .405-.612

38A* 00038 3/8 1/2 50 500 1.410 .850 .405 1.000 .405-.612

380ST 00381 3/8 1/2 50 500 1.280 .850 .400 1.000 .405-.612

380AST* 00382 3/8 1/2 50 500 1.280 .850 .400 1.000 .405-.612

*Provided with insulated throat.

E-1

Flex • AC • MC

380AST

E18304 LR49636

E18304 LR49636

SNAP2IT Connectors are EASY to Install... And EASY to Remove...

RED TINTING means

‘OPEN TANG’ Design!

It gives you more room inside the fitting

for easy insertion of wires.

The redesigned front end makes it easier

than ever to snap the fitting into box!

COMPARE...

SNAP2IT®

Connectors

Zinc die-cast. For MC/HCF steel

and aluminum cable • AC/HCF

steel and aluminum cable •

Flexible metal conduit steel and

aluminum (regular and reduced

wall) • MC cable continuous

corrugated aluminum.

FOR

EASIER MC/AC

INSTALLATIONS...

38AST38A

DC

B

A

38AST

Using a

screwdriver,

lift the ring

and twist

off.

With Insulated Throat and Red Tinted Inside Clip

38AST

40AST

Just snap

onto cable

and snap

into box!

NO TOOLS!

• Safe and fast installations

•Saves about 17 seconds

per fitting!

• Competitively priced 38AST 40AST

See

3810AST to 7510AST

on Page E-2









Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

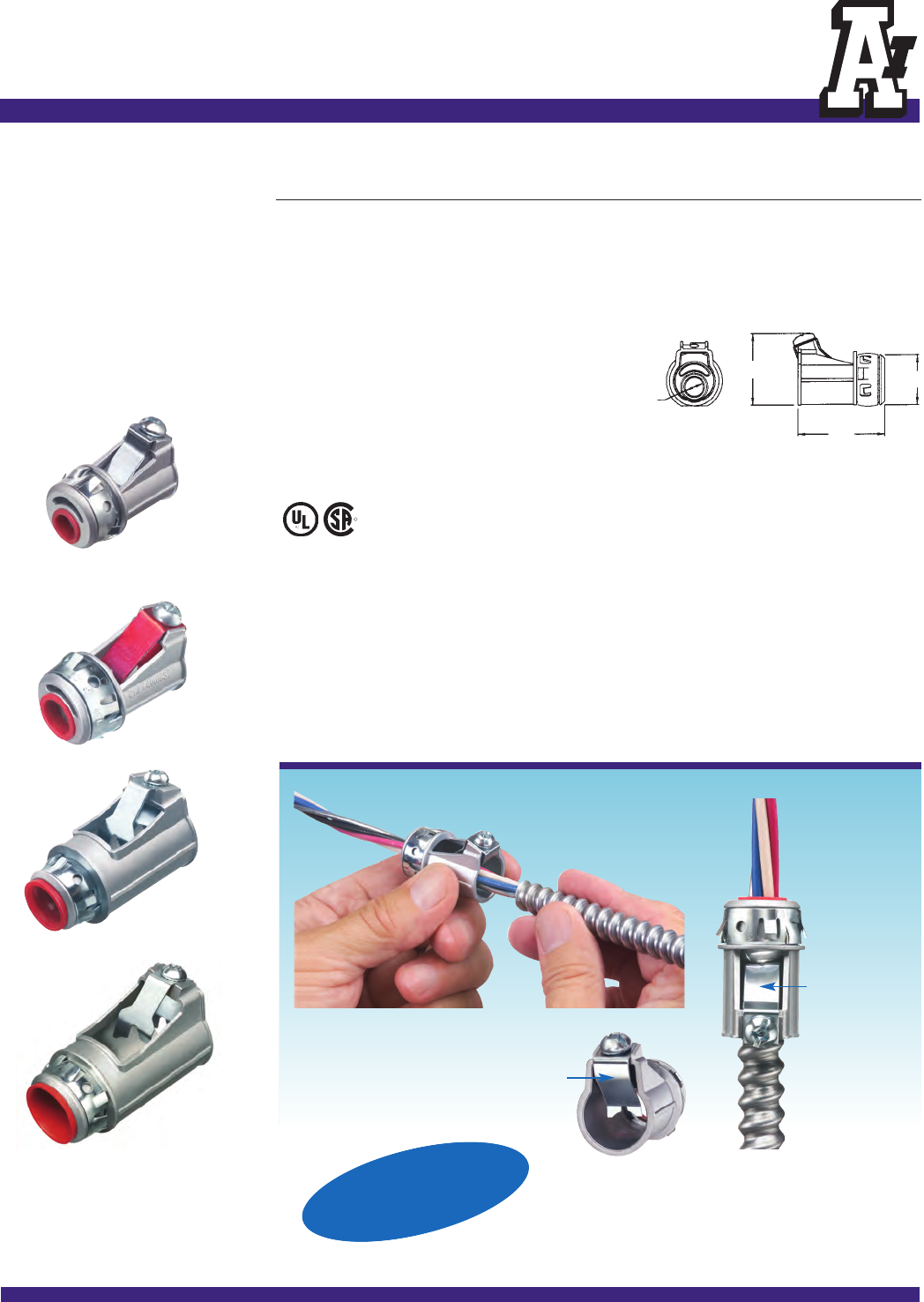

E-2 Flex • AC • MC

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCDRANGE

3810AST 00385 3/8 1/2 50 500 1.473 1.179 .840 .316 .370-.490

4010AST† 40355 3/8 1/2 50 500 1.473 1.244 .840 .404 .405-.612

5010AST 00517 1/2 1/2 25 250 2.210 1.514 .840 .614 .590-.920

7510AST 55090 3/4 3/4 25 25 2.496 1.709 1.058 .828 .895-1.110

†Provided with red tinted inside clip so you can differentiate a

3810AST from a 4010AST.

Refer to chart on page E-26 for a list of cable types.

Refer to chart on page E-27 for MCI-A cable ranges.

Concrete tight when taped.

SNAP-TITE®and SNAP2IT® products have been tested

and listed by UL in accordance with UL’s ground fault requirements.

For additional information see page 6.

PATENT PENDING.

E18304 LR49636

A

C

D

B

Easy cable insertion – Tight, secure hold!

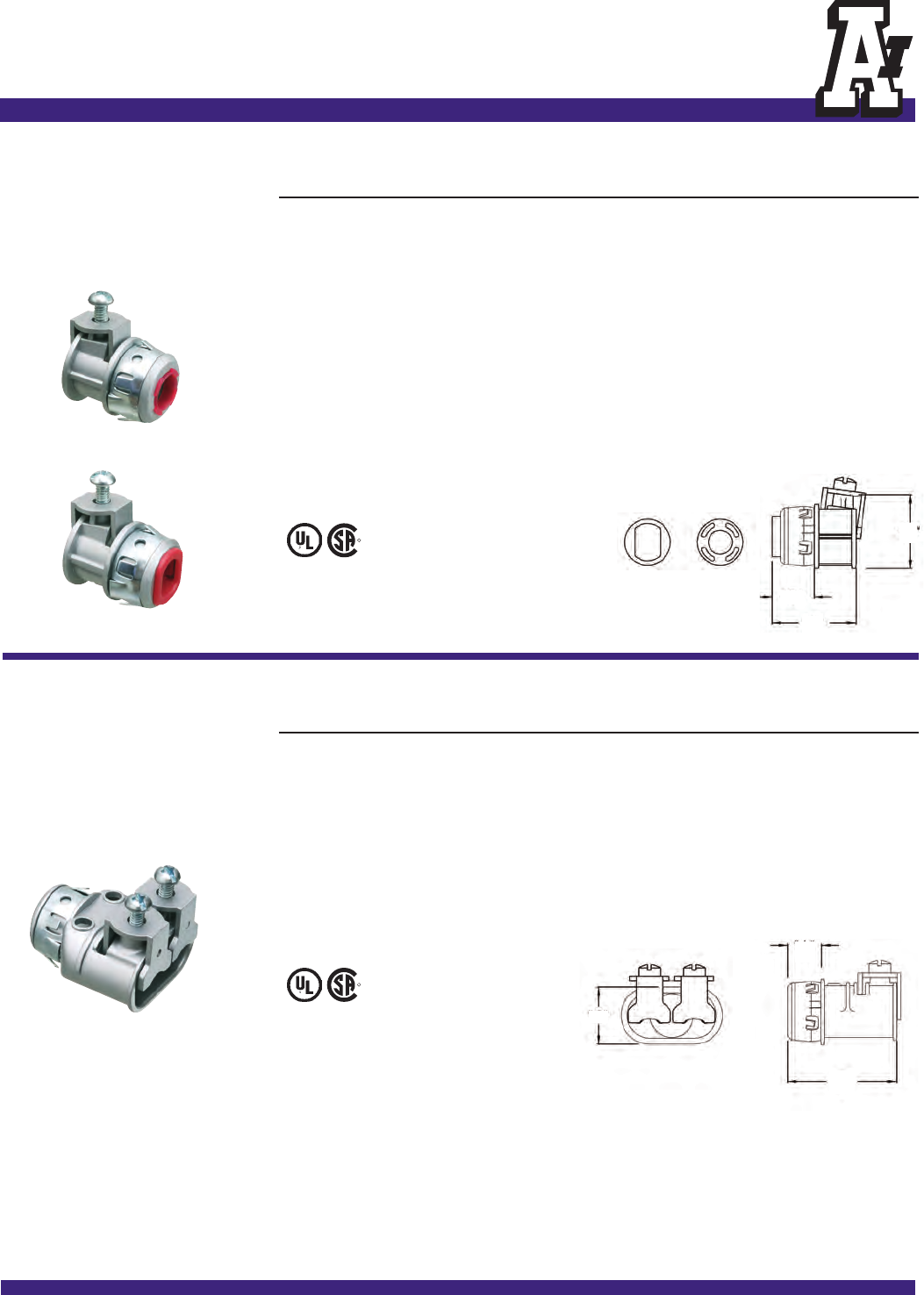

SNAP2IT®

Connectors with

Insulated Throat

Zinc die-cast. For MC/HCF steel

and aluminum cable • AC/HCF

steel and aluminum cable •

Flexible metal conduit steel and

aluminum (regular and reduced

wall) • MC cable continuous

corrugated aluminum • MCI-A

steel and aluminum cable.

New!

3810AST

4010AST

Features and Benefits

• Installs as fast and costs the same as our other SNAP2ITfittings, but cable insertion is

even easier!

• Simply snap the cable into the fitting and snap it into the box... no tools needed! The

screw only holds the clip in place.

• Widest cable ranges – accommodates cable from 14/2 to 10/4.

• Super-secure – the angled, two-prong clip locks down on MC cable so there’s no chance

of pullout.

• Cable is removable. Simply loosen the screw on top.

Back View

Note angled,

two-prong

clip

Top View

Clip holds

cable firmly

in place

FOR THE

WIDEST TOTAL

CABLE RANGES





5010AST

7510AST

E-3

Flex • AC • MC

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

*Provided with insulated throat.

†Provided with insulated throat and red tinted inside clips.

See comparison on page E-1.

Refer to chart on page E-26 for a list of cable types.

Concrete tight when taped.

SNAP-TITE®and SNAP2IT®products have been tested

and listed by UL in accordance with UL’s ground fault

requirements. For additional information see page 6.

PATENTED. ADDITIONAL PATENTS PENDING.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCDRANGE

3838ST 10935 3/8 1/2 25 100 1.912 1.738 .970 .620 (2).405-.612

3838AST* 36230 3/8 1/2 25 100 1.772 1.605 .840 .620 (2).405-.612

4040AST† 40351 3/8 1/2 25 100 1.772 1.605 .840 .620 (2).485-.612

E18304 LR49636

AC

D

B

No Tools Required...Fully Assembled!

Snap cables into connector and snap assembly into box or fixture.

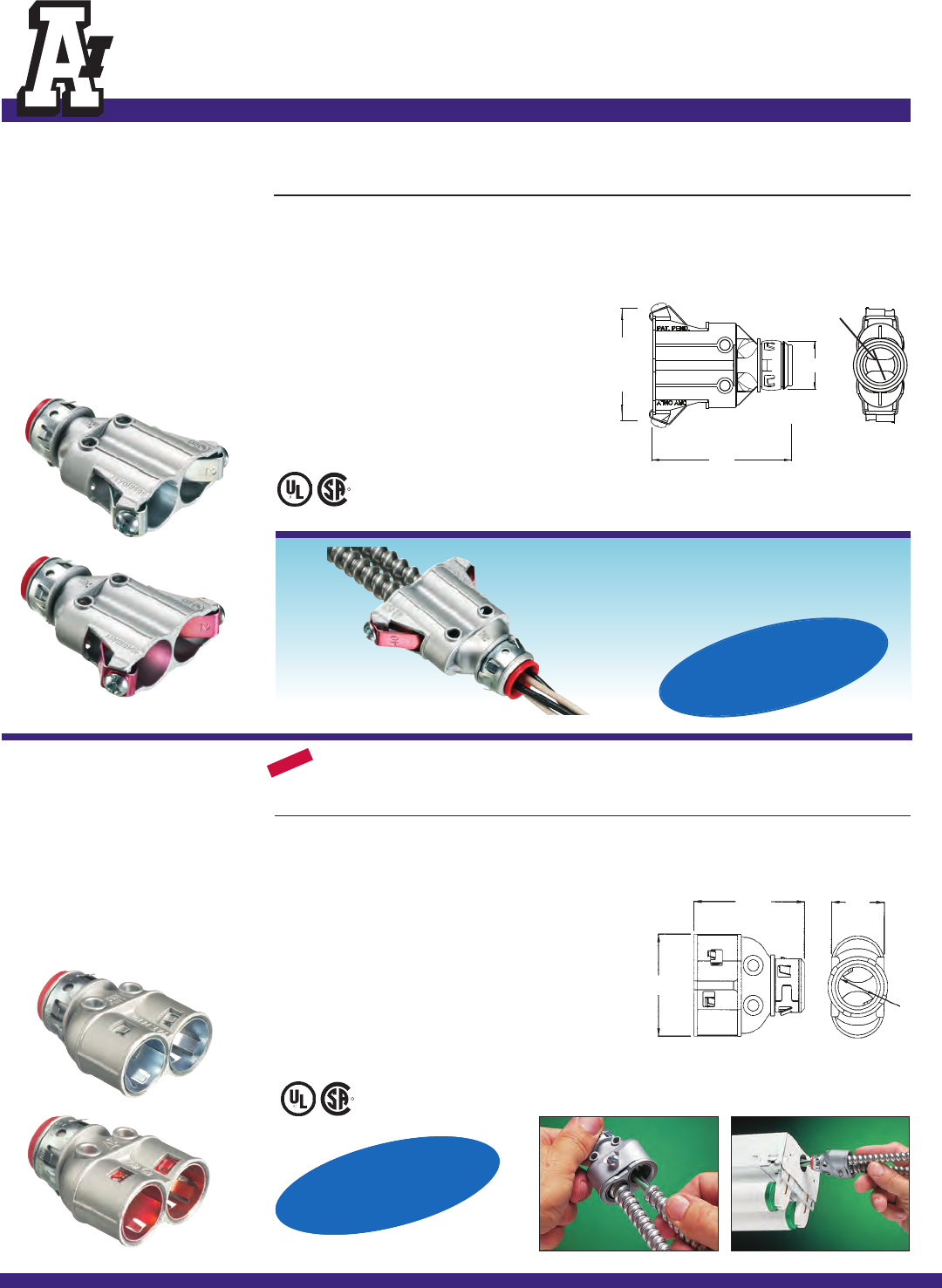

SNAP2IT®Duplex

Connectors

Zinc die-cast. For MC/HCF steel

and aluminum cable • AC/HCF

steel and aluminum cable •

Flexible metal conduit steel and

aluminum (regular and reduced

wall) • MC cable continuous

corrugated aluminum.

383810AST

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCDRANGE

383810AST 10937 3/8 1/2 25 100 2.398 2.035 .840 .624 (2).370-.490

404010AST† 40533 3/8 1/2 25 100 2.398 2.165 .840 .624 (2).405-.612

505010AST 50720 1/2 3/4 25 25 3.054 2.717 1.058 .810 (2).590-.920

404010AST

3838AST

4040AST

†Provided with red tinted inside clips so you can

differentiate a 383810AST from a 404010AST.

Refer to chart on page E-26 for a list of cable types.

Refer to chart on page E-27 for MCI-A cable ranges.

Concrete tight when taped.

SNAP-TITE®and SNAP2IT®products have been

tested and listed by UL in accordance with UL’s

ground fault requirements.

For additional information see page 6.

PATENT PENDING.

E18304 LR49636

A

C

D

B

SNAP2IT®Duplex

Connectors with

Insulated Throat

Zinc die-cast. For MC/HCF steel

and aluminum cable • AC/HCF

steel and aluminum cable •

Flexible metal conduit steel and

aluminum (regular and reduced

wall) • MC cable continuous

corrugated aluminum • MCI-A

cable.

New!

Secure hold – Easy cable insertion!

FOR THE

WIDEST TOTAL

CABLE RANGES

Simply snap the cable into the fitting and

snap it into the box...no tools needed!

The screw only holds

the clip in place.

FOR EASIER MC/AC

INSTALLATIONS...

See

383810AST & 404010AST

(Above)

NewDESIGN!









E-4 Flex • AC • MC

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCDRANGE

3890AST 03890 3/8 1/2 25 250 3.081 1.222 2.480 1.688 .405-.612

4090AST† 04090 3/8 1/2 25 250 3.081 1.222 2.480 1.688 .485-.612

5090AST† 05090 1/2 1/2 25 250 3.460 1.222 2.455 1.878 .860-.920

†Provided with red tinted inside clip. See comparison on page E-1.

Refer to chart on page E-26 for a list of cable types.

Concrete tight when taped.

SNAP-TITE®and SNAP2IT® products have been tested

and listed by UL in accordance with UL’s ground fault

requirements. For additional information see page 6.

PATENTED. ADDITIONAL PATENTS PENDING.

Zero to 90™

SNAP2IT®

Connectors with

Insulated Throat

Zinc die-cast. For MC/HCF steel

and aluminum cable • AC/HCF

steel and aluminum cable •

Flexible metal conduit steel and

aluminum (regular and reduced

wall) • MC cable continuous

corrugated aluminum.

E18304 LR49636

A

C

D

B

TM

Adjusts for

ALL ANGLES...

from 0° to 90°!

Installation Instructions...

Snap cable into fitting

until it stops. Rotate cable

clockwise to lock in place.

Loosen nut to adjust

angle of fitting. Wires bend

automatically — without

crimping or damage to wire.

Tighten nut. Snap

assembly into the KO.

1 2 3

Saves over a minute on

installation per connector

when compared with a

traditional locknut fitting!





“Take All”

Connectors

Single screw saddle type.

For NM • Flex • AC • MC

steel and aluminum jacketed

cables. Zinc die-cast.

L15A

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM CABLE END STOP

NUMBER MFG #01 8997 SIZE SIZE PKG PKG AB CRANGE DIAMETER

L15A* 80040 3/8 1/2 50 500 .984 .420 1.032 .460-.585 .340 x .430

L16†‡ 80060 3/8 1/2 50 500 .923 .375 1.208 .405-.650 .400 x .580

L160‡ 02416 3/8 1/2 50 500 .954 .412 1.092 .370-.690 .312

L17 34278 1/2 1/2 50 250 1.500 .462 1.416 .630-.890 .620

L18 34282 3/4 3/4 25 125 1.400 .390 1.750 .820-1.040 .818

L19 34287 1125 125 1.640 .443 2.048 1.100-1.400 1.030

*Provided with insulated throat.

†Listed for flexible cord.

‡Also for MCI-A cable. Refer to page E-27 for cable ranges.

Refer to chart on page E-25 for a list of cable types.

Concrete tight when taped.

PATENTED. ADDITIONAL PATENTS PENDING

E60812 LR49636

L15A L17 - L19L160 L16

L16

A

B

C





E-5

Flex • AC • MC

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM CABLE END STOP

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCRANGE DIAMETER

L15AST* 80044 3/8 1/2 50 500 1.125 .575 1.025 .460-.585 .340 x .430

L16ST†‡ 80064 3/8 1/2 50 500 1.050 .510 1.208 .290-.670 .400 x .580

L160ST‡ 80065 3/8 1/2 50 500 1.032 .483 1.092 .370-.510 .312

L17ST 33905 1/2 1/2 50 250 1.500 .510 1.416 .630-.890 .620

L18ST 33915 3/4 3/4 25 125 1.500 .510 1.758 .820-1.040 .818

L19ST 08650 1125 125 1.675 .510 2.048 1.100-1.400 1.030

*Provided with insulated throat.

†Listed for flexible cord.

‡Also for MCI-A cable. Refer to page E-27 for cable ranges.

Refer to chart on page E-25 for a list of cable types.

Concrete tight when taped.

SNAP-TITE®products have been tested and listed by UL in accordance with

UL’s ground fault requirements. For additional information see page 6.

PATENTED. ADDITIONAL PATENTS PENDING.

“Take All”

SNAP-TITE®

Connectors

With spring steel clip. Single

screw saddle type. For NM •

Flex • AC • MC steel and

aluminum jacketed cables.

Zinc die-cast.

L15AST

E60812 LR49636

L17ST - L19ST

L17ST - L19ST L15AST - L16ST

L15AST L160ST

L16ST A

B

C

B

A

C





CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCRANGE

845ST 80092 3/8 1/2 100 1000 .942 .510 .905 .445-.630

Refer to chart on page E-24 for a list of cable types.

Concrete tight when taped.

Not suitable for aluminum jacketed cables or aluminum flexible metal conduit.

SNAP-TITE®products have been tested and listed by UL in accordance with

UL’s ground fault

requirements. For additional information see page 6.

PATENTED.

E60812 LR49636

Set-Screw

SNAP-TITE®

Connectors

With spring steel clip. For steel

only • Flex • AC • MC cable.

Zinc die-cast.

B

C

A

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCRANGE

845 00845 3/8 1/2 100 1000 .812 .905 .380 .445-.630

845R 08459 3/8 1/2 100 1000 .812 .905 .380 .445-.630

Refer to chart on page E-24 for a list of cable types.

Concrete tight when taped.

Not suitable for aluminum jacketed cables or

aluminum flexible metal conduit.

Set-Screw

Connectors

For steel only • Flex • AC • MC

cable. Zinc die-cast.

E60812 LR49636

845 845R

B

A

C









E-6 Flex • AC • MC

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

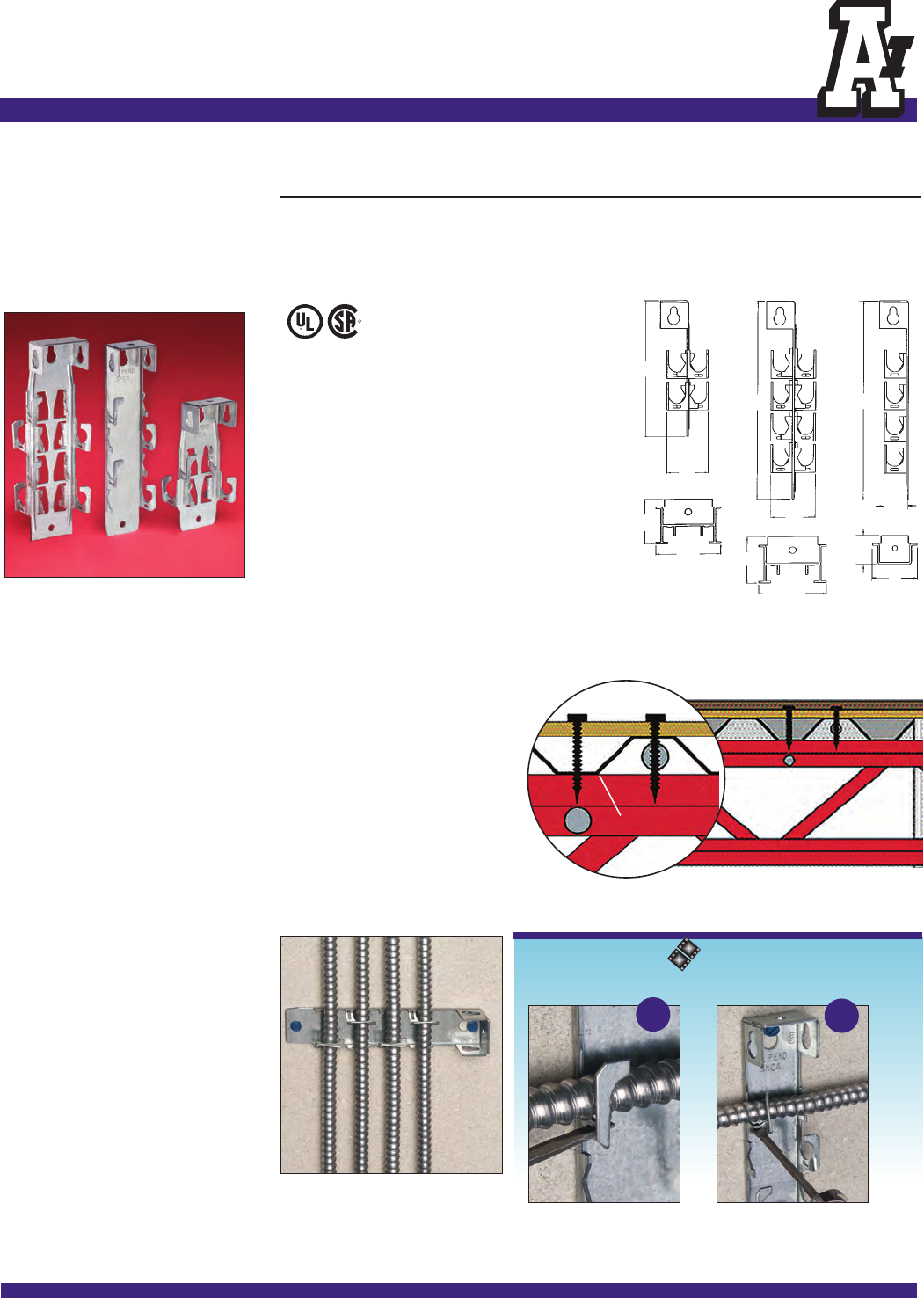

SMC4F

Steel Cable

Hangers

For Flex • MC • AC • HCF

cable. One-piece, galvanized

steel cable hangers mount

many ways on a variety of

surfaces.

SMC4

SMC8 SMC4F

CATALOG UPC/DCI/NAED UNIT STD DIM DIM DIM DIM CABLE

NUMBER MFG #01 8997 PKG PKG ABC DCAPACITY

SMC4 42305 25 25 5.120 1.670 2.380 1.750 4

SMC8 42307 25 25 7.500 1.670 2.380 1.750 8

SMC4F 42315 25 25 7.500 .750 1.640 1.060 4

PATENT PENDING.

E161207 LR49636

Need photo of

SMC4F in use

Features and Benefits

• Saves money...use SMC steel

hangers in place of cable tray

• Each cable is held in place

independently, so there’s no

bundling of cables or derating of

conduit

• Accepts a wide range of cables...

.375 - .625

• Mounts on concrete block walls

or ceilings and screw mounts on

metal or wood studs

• SMC4F also mounts on drop

wire

• Attach with beam clamp,

threaded rod, or with screws

• Meets NEC 2008 paragraphs

300.4(E), 320.30 , 320.30(A),

330.30, 330.30(C), and 300.4(E),

348.30(A,B).

• Listed to position, support, and

secure 14/2 to 10/4 cables – as

required by NEC 2008 330-30.

Installation

Instructions...

Bend tab over cable,

locking it securely in

place.

12

Mounts in Many Ways!

SMC8 supports and

FIRMLY SECURES up to

eight cables to comply

with NEC 2008.

SMC4F

Available in three styles to

secure 14/2-10/4 cables:

SMC8 holds up to 8 cables

SMC4 holds up to 4 cables

SMC4F mounts flat —

holds up to 4 cables on one side

A

C

D

B

SMC8

A

C

D

B

SMC4

A

C

D

B





Cable Decking

For a video installation

demonstration visit our website @

aifittings.com

Insert screwdriver

through slot.

Code Compliant

Arlington’s steel MC cable

hangers meet the NEW

REQUIREMENTS of NEC

300.4(e)

Installing MC or AC metal

jacketed cables under

corrugated metal roof decking.

The outer surface of cable must

be 1-1/2” from the underside of

the decking. Our SMC hangers

exceed this.

E-7

Flex • AC • MC

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM CABLE END STOP

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABRANGE DIAMETER

4200 04200 3/8 1/4 25 25 1.040 .920 .225-.612 .380

Refer to chart on page E-24 for a list of cable types.

Concrete tight when taped.

Twin Screw

All-Purpose

Connector

For Flex • AC • MC • NM

cable. Zinc die-cast.





LR49636 E135384

The 4200...

•Allows you to securely hold cables in low profile

height fixtures with 1/4" knockouts.

•Fits both standard round 1/4" KO (17/32"

diameter) and 5/8" diameter KO with flats.

• Is furnished with 1/4-18 n.p.s. fixture nut for easy

tightening.

• Is recommended for use with non-metallic

sheathed cable, AC, flexible metal conduit, MC

cable both steel and aluminum jacketed.

• Is primarily for use with low silhouette under-

cabinet fluorescent fixtures.

• Normally only one fitting is supplied with

lighting fixtures. Additional connectors are needed

when multiple fixtures are wired in-line.

B

A

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM CABLE END STOP

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCRANGE DIAMETER

4201 04201 1/2 1/2 25 250 1.437 1.100 .609 .630-.810 .615

4202 04202 3/4 3/4 20 200 1.500 1.275 .815 .830-1.090 .820

4203 04203 1110 50 1.740 1.619 .985 1.000-1.365 .985

4204 04204 1-1/4 1-1/4 5 25 1.625 1.875 .3751 1.385-1.640 1.365

Refer to chart on page E-24 for a list of cable types.

Concrete tight when taped.

Add suffix “A” to catalog number for insulated throat.

Twin Screw

All-Purpose

Connectors

For Flex • AC • MC • NM

cable. Zinc die-cast.

E60812 LR49636

C

A

B





E-8 Flex • AC • MC

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Cable Connectors

AC • MC • NM • SE.

Zinc die-cast.

CATALOG UPC/DCI/NAED KO UNIT STD DIM DIM DIM CABLE END STOP

NUMBER MFG #01 8997 SIZE PKG PKG AB CRANGE DIAMETER

840‡ 00840 1/2 100 1000 .350 .825 1.085 .225-.612 .400 x .580

8400‡ 08400 1/2 100 1000 .350 .825 1.085 .225-.612 .400

8401 08401 1/2 100 1000 .500 .825 1.085 .225-.612 .375

8402 08402 3/4 50 500 .533 1.093 1.386 .525-.780 .620

8403* 08403 1 25 250 .428 1.072 1.500 .780-.980 .840

8404* 08404 1-1/4 10 100 .490 1.144 1.872 1.050-1.345 1.030

8405* 08405 1-1/2 10 50 .625 1.357 2.120 1.410-1.633 1.390

8407* 08407 2 10 50 .652 1.434 2.594 1.640-2.040 1.750

8408* 72166 2-1/2 - 10 .968 1.965 3.235 1.950-2.480 1.924

8409* 72168 3- 51.125 2.180 3.890 2.420-3.070 2.390

8410* 72170 3-1/2 -51.125 2.284 4.392 2.860-3.600 2.830

*Listed for MC only. UL# E123751.

‡Also for MCI-A cable. Refer to page E-27 for cable ranges.

Refer to chart on page E-24 for a list of cable types.

Refer to E-9 for new MC cable connectors with our largest cable ranges.

Concrete tight when taped.

E123751 LR49636

840 8400 8401 8402-8410

A

B

C

840

8400

8401

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM CABLE END STOP

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCRANGE DIAMETER

840ST 80070 3/8 1/2 100 1000 .510 .985 .912 .225-.612 .400 x .580

8400ST 80074 3/8 1/2 100 1000 .510 .985 .912 .225-.612 .375

Refer to chart on page E-24 for a list of cable types.

Refer to chart on page E-27 for MCI-A cable ranges.

Concrete tight when taped.

SNAP-TITE®products have been tested and listed by UL in accordance with

UL’s ground fault requirements. For additional information see page 6.

PATENTED.

SNAP-TITE®

Connectors

With spring steel clip.

Zinc die-cast. For NM • SE •

MC • Flex • AC steel and

aluminum jacketed cables •

MCI-A cable.

840ST

8400ST

E18304 LR49636

A

C

B

840ST 8400ST









E-9

Flex • AC • MC

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

E18304 LR49636

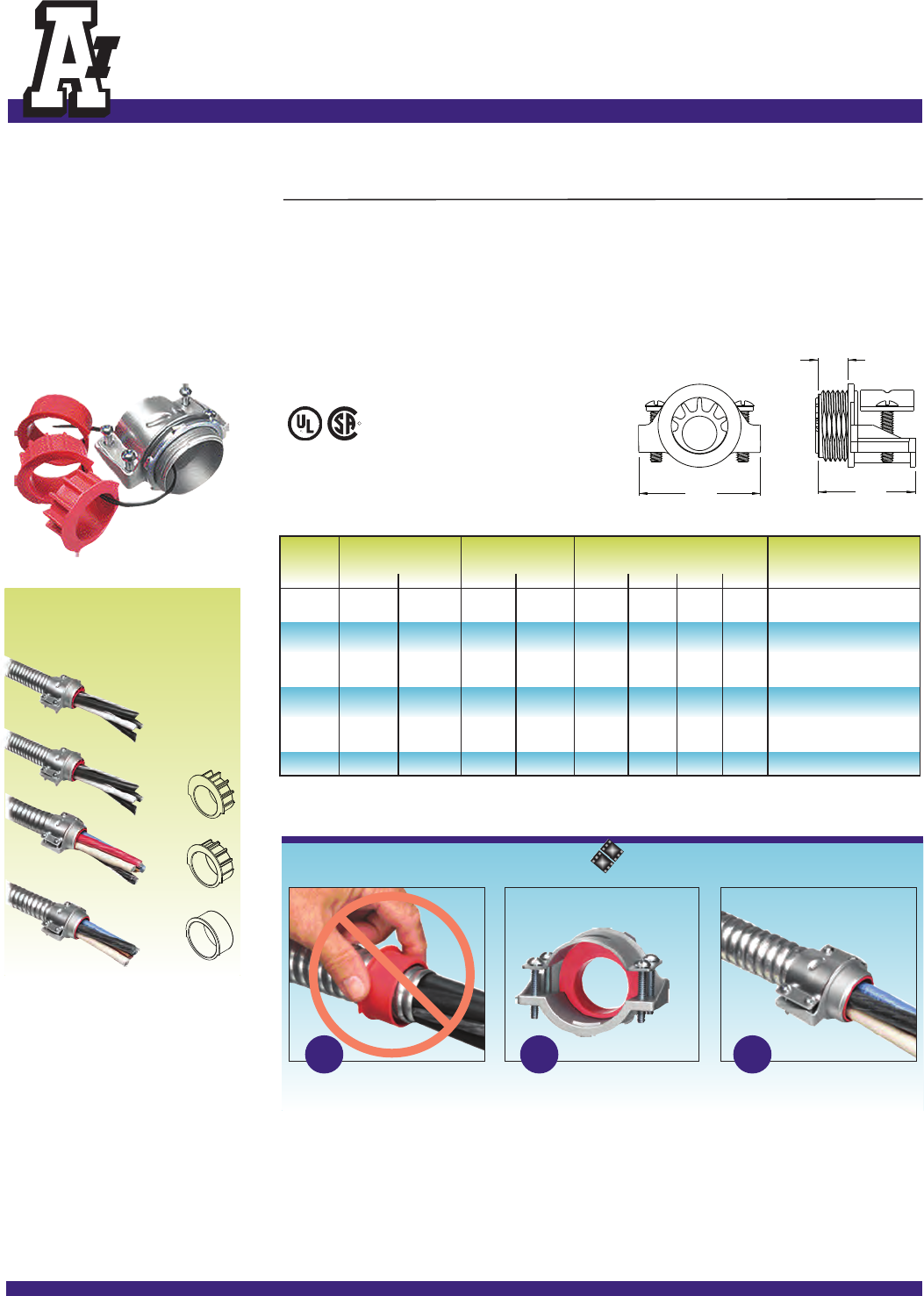

Cable

Connectors

Zinc die-cast. For MC/HCF steel

and aluminum cable • AC/HCF

steel and aluminum cable •

Flexible metal conduit steel and

aluminum (regular and reduced

wall) • MC cable continuous

corrugated aluminum • MCI-A

cable.

CATALOG UPC/DCI/NAED TRADE KO UNIT/STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG ABC

8412 08412 1120 1.756 .541 2.144

8413 08413 1-1/4 1-1/4 20 2.156 .683 2.568

8414 08414 1-1/2 1-1/2 10 2.466 .790 3.086

8415 00583 2210 2.899 .792 3.696

8416 08416 2-1/2 2-1/2 5 3.218 .906 4.250

8417 08417 3353.281 .972 5.000

Refer to chart on page E-25 for a list of cable types.

Concrete tight when taped.

PATENTS PENDING.

A

B

C

Features and Benefits

• Low cost – saves time and money!

• Fast and Easy to install. There’s

no need to remove the strap...just

loosen the screws and insert the

bushing that works best with the

cables you’re installing.

• Our zinc die-cast fittings cost

much less than steel or malleable

iron fittings

• Reduces inventory – comes with

additional end stop bushings!

• Built-in end stop in fitting

31 2

No need to remove strap – simply

loosen the screws and insert end stop

bushing, if necessary. Slip connector

onto MC cable. Retighten screws on

strap.

If you are using an end stop bushing,

determine which one to use by sizing

it to the cable bundle (not the metal

jacket). Incorrect size shown above.

The metal jacket should never go

through the end stop.

Insert the appropriate end stop

bushing, making sure that the

half-moon shape is positioned at

the top of the connector.

New!

Installation Instructions

Each fitting has an end

stop, but comes with

additional end stop

bushings to

accommodate

several

cable

sizes!

Catalog Cable Wire Bundle Conductor Size

Number # of Conductors*

Min. Max. Min. Max. Fitting ABC (AWG/KCMIL)

8412 .780 1.120 .660 1.000 1.018 .625 .750 .870 6/3, 6/4, 4-3, 4-4,

2-3, 2-4, 1-3

8413 1.000 1.460 .870 1.370 1.361 .782 1.032 1.132 2-3, 2-4, 1-3, 1-4, 1/0-3,

1/0-4, 2/0-3, 2/0-4, 3/0-3

8414 1.360 1.770 1.250 1.590 1.587 1.175 1.277 1.382 2/0-4, 3/0-3, 3/0-4, 4/0-3,

4/0-4, 250-3, 250-4

8415 1.700 2.200 1.550 2.050 2.060 1.562 1.750 1.875 250-4, 300-4, 350-3,

350-4, 500-3

8416 2.100 2.700 1.950 2.400 2.462 1.979 2.194 – 500-3, 500-4, 600-3,

600-4, 750-3

8417 2.500 3.300 2.350 3.000 3.081 2.404 2.662 – 600-4, 750-3, 750-4

Outer Diameter Outer Diameter

Throat Diameter

Fitting/Bushings (A,B,C)

For a video installation demonstration visit

our website @ aifittings.com

* Examples of 3- and 4-conductor cables. Cable dimensions vary dramatically between manufacturers. It is recommended that cable

O.D. (outer diameter) be measured to ensure proper cable-to-fitting installation.

A

B

C





E-10 Flex • AC • MC

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM CABLE END STOP

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCRANGE DIAMETER

L421A 34212 1/2 1/2 25 250 1.500 .451 1.420 .850-.910 .620

L422A 34213 3/4 3/4 25 250 1.586 .471 1.570 1.100-1.135 .820

L423A 34214 1110 100 1.800 .591 1.860 1.255-1.375 .940

L424A 34215 1-1/4 1-1/4 5 50 1.972 .692 2.240 1.550-1.610 1.240

L425A 34216 1-1/2 1-1/2 5 50 2.187 .672 2.640 1.810-1.895 1.460

L426A 34217 22530 2.612 .752 3.155 2.260-2.485 1.935

L427A 42700 2-1/2 2-1/2 552.983 .983 3.810 2.770-2.950 2.440

L428A 42800 331 63.963 1.078 4.320 3.170-3.560 2.980

L429A 42900 3-1/2 3-1/2 164.358 1093 4.860 3.630-4.155 3.478

L4210A 42100 441 64.653 1.093 5.415 4.030-4.635 3.977

Refer to chart on page E-23 for a list of cable types.

Concrete tight when taped.

Squeeze

Connectors with

Insulated Throat

For Flex • AC • MC cable.

Zinc die-cast.

Sizes 3/8" - 2" are

manufactured as

shown above.

Sizes 2-1/2" - 4" are

manufactured as shown

above.

E60812 LR49636

Squeeze

Connectors

For Flex • AC • MC cable.

Zinc die-cast.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM CABLE END STOP

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCRANGE DIAMETER

L42 34200 3/8 1/2 50 500 .937 .460 1.155 .530-.620 .400

L420* 34021 3/8 1/2 50 500 1.032 .460 1.155 .530-.620 .400 x .580

L421 34210 1/2 1/2 25 250 1.439 .420 1.420 .850-.910 .620

L422 34220 3/4 3/4 25 250 1.555 .440 1.570 1.100-1.135 .820

L423 34230 1110 100 1.770 .560 1.860 1.255-1.375 .940

L424 34240 1-1/4 1-1/4 5 50 1.910 .630 2.240 1.550-1.610 1.240

L425 34250 1-1/2 1-1/2 5 50 2.125 .610 2.640 1.810-1.895 1.460

L426 34260 22530 2.550 .690 3.155 2.260-2.485 1.935

L427 34270 2-1/2 2-1/2 552.890 .890 3.810 2.770-2.950 2.440

L428 34280 33163.870 .985 4.320 3.170-3.560 2.980

L429 34290 3-1/2 3-1/2 164.265 1.000 4.860 3.630-4.155 3.478

L4210 34211 44164.560 1.000 5.415 4.030-4.635 3.977

*L420 not listed for flexible metal conduit.

Refer to chart on page E-23 for a list of cable types.

Refer to E-9 for new MC cable connectors with

our largest cable ranges.

Concrete tight when taped.

L42

L421

L427

Sizes 3/8" - 2" are

manufactured as shown

above.

L420 L42

E60812 LR49636

Sizes 2-1/2" - 4" are

manufactured as shown

above.

A

C

B

B

C

A









E-11

Flex • AC • MC

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCDRANGE

846ST‡ 80050 3/8 1/2 25 250 1.635 .510 .888 1.654 .150-.612

846AST* 80052 3/8 1/2 25 250 1.728 .603 .888 1.654 .150-.612

*Provided with insulated throat.

‡Also for MCI-A cable.

Refer to page E-27 for cable ranges.

Refer to chart on page E-24 for a list

of cable types.

Concrete tight when taped.

SNAP-TITE®products have been tested

and listed by UL in accordance with UL’s

ground fault requirements. For additional

information see page 6.

PATENTED.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCD RANGE

846SS 80054 3/8 1/2 25 250 1.562 .437 .888 2.200 .210-.612

Refer to chart on page E-24 for a list

of cable types.

Concrete tight when taped.

E60812 LR49636

C

A

B

D

Duplex Connector

Zinc die-cast. Single screw for

Flex • AC • MC • NM cable •

MCI-A cable.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCDRANGE

846 00846 3/8 1/2 25 250 1.542 .437 .888 1.672 .150-.612

Refer to chart on page E-24 for a list

of cable types.

Refer to chart on page E-27 for MCI-A

cable ranges. Concrete tight when taped.

E60812 LR49636

Duplex

SNAP-TITE®

Connectors

Single screw for Flex • AC •

MC • NM cable. Zinc die-cast.

E60812 LR49636

A

C

B

Duplex Connector

Twin screw with steel strap.

Zinc die-cast. For Flex • NM •

AC • MC steel and aluminum

jacketed cables.













D

B

C

A

D

E-12 Flex • AC • MC

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

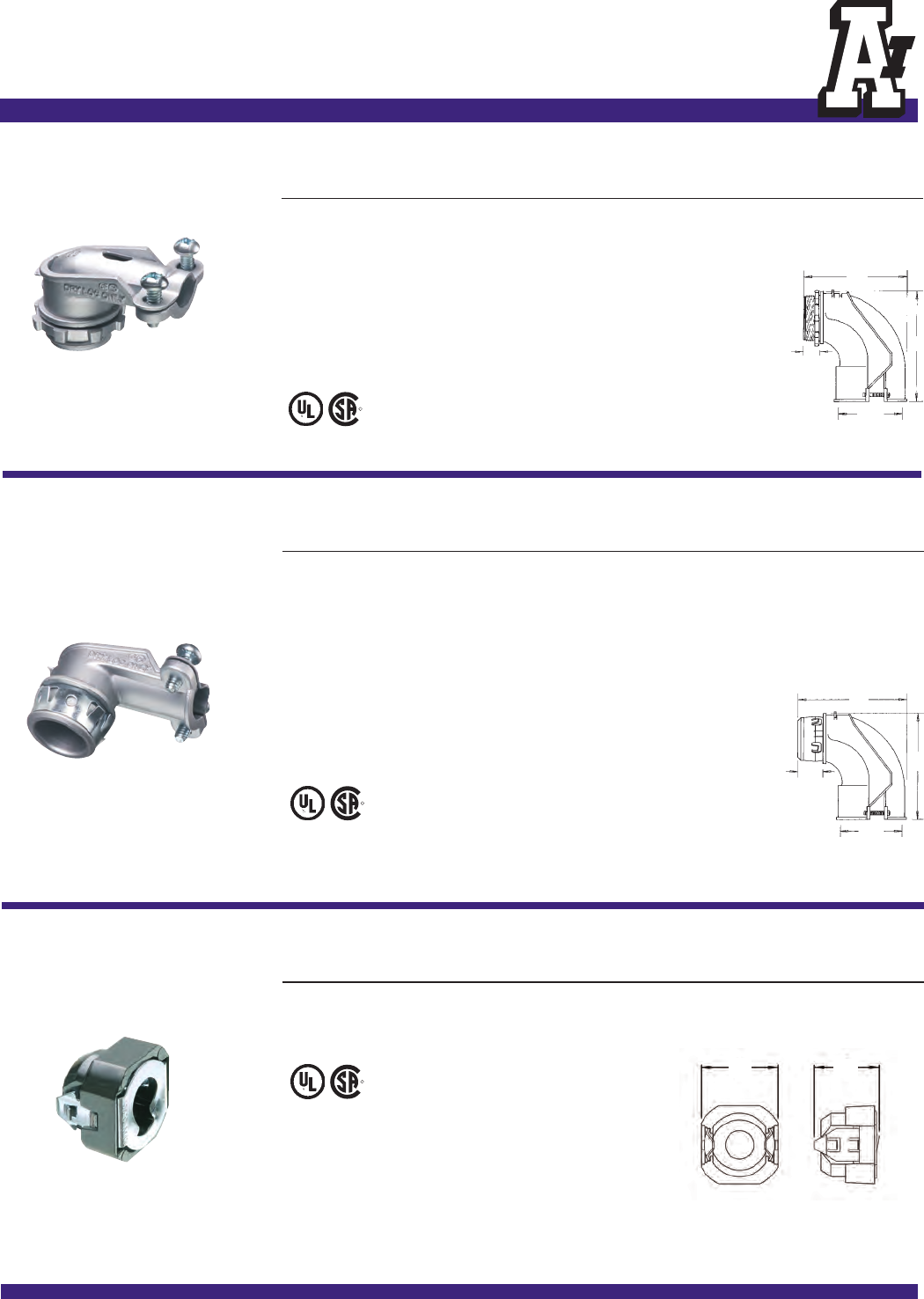

90° Duplex

SNAP-TITE®

Connector

Zinc die-cast. Twin screw for

NM • Flex • AC • MC steel and

aluminum jacketed cables •

MCI-A cable.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCDRANGE

84690ST 58230 3/8 1/2 10 100 1.087 1.707 1.965 .458 .512-.612

Refer to chart on page E-24 for a list of cable types.

Refer to chart on page E-27 for MCI-A cable ranges.

Concrete tight when taped.

SNAP-TITE®products have been tested

and listed by UL in accordance with

UL’s ground fault requirements.

For additional information see page 6.

PATENTED.

E20643 LR49636

90° Duplex

Connector

Zinc die-cast. Twin screw for

Flex • NM • AC • MC steel and

aluminum jacketed cables •

MCI-A cable.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCDRANGE

84690 00090 3/8 1/2 10 100 1.087 1.707 1.965 .379 .512-.612

Refer to chart on page E-24 for a list of cable types.

Refer to chart on page E-27 for MCI-A cable ranges.

Concrete tight when taped.

E60812 LR49636

A

B

D

C

A

B

D

C

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM CABLE END STOP

NUMBER MFG #01 8997 SIZE SIZE PKG PKG AB C RANGE DIAMETER

L48 34800 1/2 1/2 25 250 1.470 .450 1.260 .625-.915 .620

L49 34900 3/4 3/4 20 200 1.540 .450 1.500 .820-.910 .815

Refer to chart on page E-24 for a list of cable types.

Concrete tight when taped.

Set-Screw

Connectors

For Flex • AC • MC cable.

Zinc die-cast. Not for use with

aluminum jacketed cables.

E60812 LR49636

A

B

C













E-13

Flex • AC • MC

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCRANGE

SG3838 17383 3/8 1/2 25 100 .452 1.526 .780 (2) .445-.612

SG3838A* 36205 3/8 1/2 25 100 .512 1.586 .780 (2) .445-.612

*Provided with insulated throat.

Refer to chart on page E-24 for a

list of cable types.

Refer to chart on page E-27 for MCI-A

cable ranges.

Concrete tight when taped.

With independent securing of the cables,

you can use two different size cables.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM CABLE END STOP

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCRANGE DIAMETER

SG38‡ 18065 3/8 1/2 50 500 1.000 .400 1.077 .405-.612 .400

SG38A*‡ 80138 3/8 1/2 50 500 1.090 .490 1.077 .405-.612 .400

SG380‡ 18060 3/8 1/2 50 500 1.000 .400 1.077 .405-.612 .400 x .580

SG380A*‡ 80140 3/8 1/2 50 500 1.090 .490 1.077 .405-.612 .400 x .580

SG40‡ 01740 7/16 1/2 50 500 1.480 .480 1.125 .530-.790 .620

SG50‡ 07500 1/2 1/2 50 500 1.480 .480 1.277 .710-.910 .620

SG50A*‡ 37501 1/2 1/2 50 500 1.511 .511 1.277 .710-.910 .620

SG75 18075 3/4 3/4 20 200 1.435 .450 1.470 .840-11.10 .820

SG75A* 17751 3/4 3/4 20 200 1.466 .481 1.470 .840-1.110 .820

*Provided with insulated throat.

‡Also for MCI-A cable.

Refer to page E-27 for cable ranges.

Refer to chart on page E-25 for a

list of cable types.

Concrete tight when taped.

For cables smaller than .405" see L16

and L16ST on page E-5.

SADDLEGRIP®

Connectors

For aluminum and steel Flex •

AC • MC cable. Zinc die-cast.

SG380 SG38

E60812 LR49636

Duplex

SADDLEGRIP®

Connectors

Zinc die-cast. For aluminum

and steel Flex • AC • MC

cable • MCI-A cable.

E60812 LR49636

C

B

A

A

B

C









E-14 Flex • AC • MC

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM CABLE END STOP

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCRANGE DIAMETER

SG38AST*‡ 80144 3/8 1/2 50 500 1.203 .555 1.077 .405-.612 .400

SG380AST*‡ 80148 3/8 1/2 50 500 1.145 .555 1.077 .405-.612 .400 x .580

SG50ST‡ 80150 1/2 1/2 50 500 1.458 .510 1.235 .710-.910 .620

SG50AST*‡ 17501 1/2 1/2 50 500 1.145 .555 1.277 .710-.910 .620

SG75ST 18080 3/4 3/4 20 200 1.495 .510 1.570 .840-1.110 .820

SG75AST* 17755 3/4 3/4 20 200 1.540 .555 1.570 .840-1.110 .820

*Provided with insulated throat.

‡Also for MCI-A cable. Refer to page E-27 for cable ranges.

Refer to chart on page E-25 for a list of cable types.

Concrete tight when taped.

For cables smaller than .405" see L16 and L16ST on page E-5.

SNAP-TITE®products have been tested and listed by UL in accordance with

UL’s ground fault requirements. For additional information see page 6.

PATENTED.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG AB C RANGE

SG3838ST 80152 3/8 1/2 25 100 .455 1.560 .780 (2) .445-.612

SG3838AST* 36210 3/8 1/2 25 100 .605 1.610 .780 (2) .445-.612

*Provided with insulated throat.

Refer to chart on page E-24 for a list of cable types.

Refer to chart on page E-27 for MCI-A cable ranges.

Concrete tight when taped.

With independent securing of the cables, you can use two different size cables.

SNAP-TITE®products have been tested and listed by UL in accordance with UL’s ground fault

requirements. For additional information see page 6.

PATENTED.

SADDLEGRIP®

SNAP-TITE®

Connectors

For aluminum and steel Flex •

AC • MC cable. Zinc die-cast.

MCI-A cable.

SG38AST

SG380AST

E60812 LR49636

SG380AST SG38AST

E60812 LR49636

Duplex

SADDLEGRIP®

SNAP-TITE®

Connectors

Zinc die-cast. For aluminum

and steel Flex • AC • MC

cable • MCI-A cable.

A

B

C

A

B

C









E-15

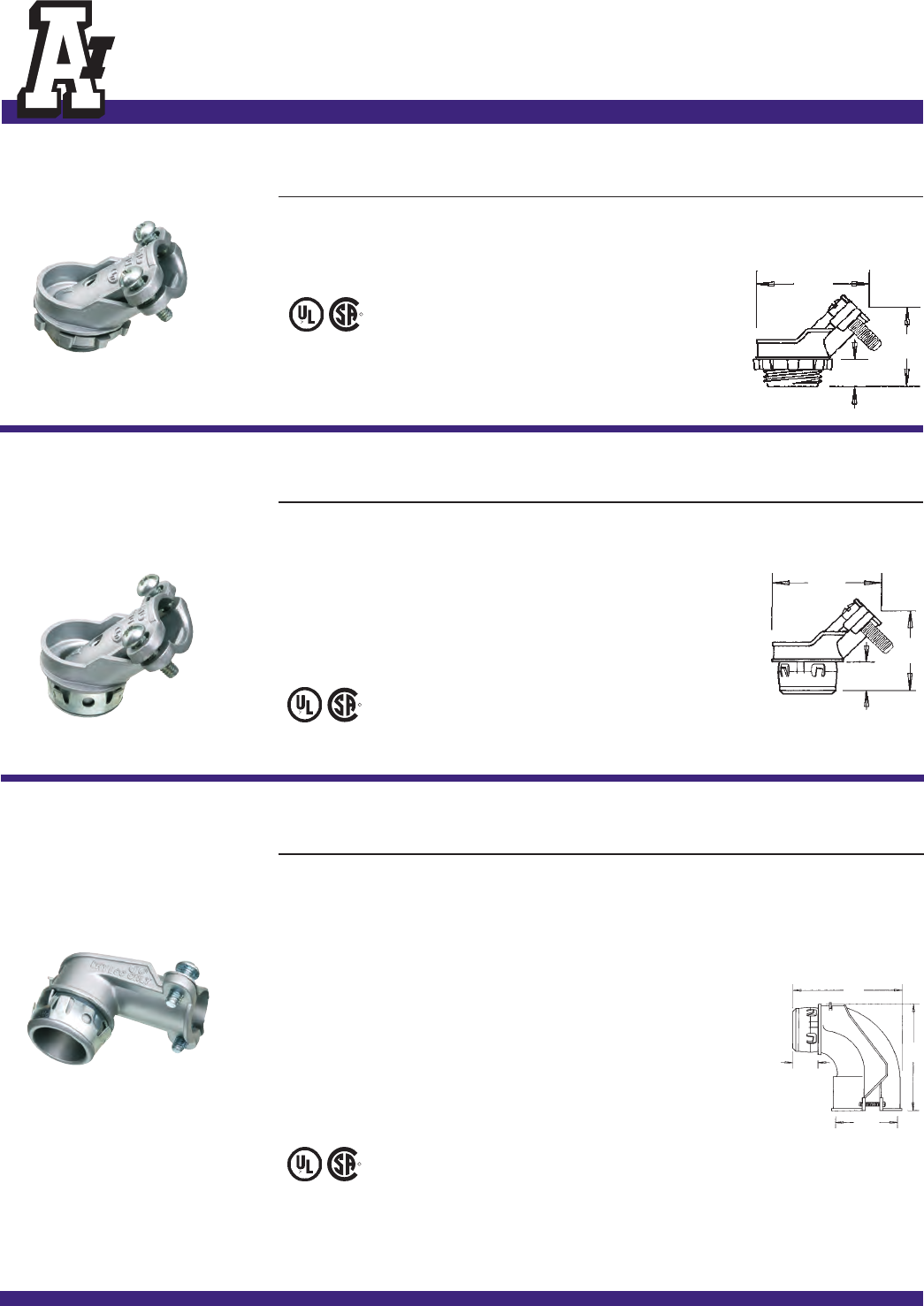

Flex • AC • MC

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM CABLE END STOP

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCRANGE DIAMETER

4501ST 06002 3/8 1/2 50 500 .382 1.132 1.588 .445-.612 .620

4502ST 06004 1/2 1/2 25 250 .382 1.150 1.775 .620-.895 .635

Refer to chart on page E-24 for a list of cable types.

Concrete tight when taped.

SNAP-TITE®products have been tested and listed by UL

in accordance with UL’s ground fault requirements. For additional

information see page 6.

PATENTED.

45° SNAP-TITE®

Connectors

With spring steel clip.

For aluminum and steel Flex •

AC • MC cable. Zinc die-cast.

E60812 LR49636

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM CABLE END STOP

NUMBER MFG #01 8997 SIZE SIZE PKG PKG AB CRANGE DIAMETER

4501 04501 3/8 1/2 50 500 .382 1.132 1.588 .445-.612 .620

4502 04502 1/2 1/2 25 250 .382 1.150 1.775 .620-.895 .635

Refer to chart on page E-24 for a list of cable types.

Concrete tight when taped.

45° Connectors

For aluminum and steel Flex •

AC • MC cable. Zinc die-cast.

E60812 LR49636

C

B

A

A

C

B

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCRANGE

850ST 80154 3/8 1/2 50 500 1.540 .430 1.800 .440-.750

850AST* 80156 3/8 1/2 50 500 1.600 .490 1.775 .440-.750

851ST‡ 80158 1/2 1/2 25 250 1.600 .430 2.140 .642-1.075

851AST*‡ 80160 1/2 1/2 25 250 1.651 .490 2.145 .648-1.081

*Provided with insulated throat.

‡Also for MCI-A cable.

Refer to page E-27 for cable ranges.

Refer to chart on page E-23 for a list of cable types.

Concrete tight when taped.

SNAP-TITE®products have been tested and listed by UL

in accordance with UL’s ground fault requirements. For additional

information see page 6.

PATENTED.

90° SNAP-TITE®

Connectors

With spring steel clip.

For aluminum and steel Flex •

AC • MC cable. Zinc die-cast.

MCI-A cable.

E18304 LR49636

CABLE

RANGE

C

A

B













E-16 Flex • AC • MC

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCRANGE

85‡ 00893 3/8 1/2 50 500 1.370 .340 1.800 .370-.510

85A* 12510 3/8 1/2 50 500 1.432 .400 1.800 .370-.510

*Provided with insulated throat.

‡Also for MCI-A cable.

Refer to page E-27 for cable ranges.

Refer to chart on page E-24 for a list of cable types.

Concrete tight when taped.

PATENT PENDING.

90° Connectors

For aluminum and steel

Flex • AC • MC cable.

Zinc die-cast. MCI-A cable.

E18304 LR49636

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCRANGE

85ST‡ 00894 3/8 1/2 50 500 1.540 .430 1.800 .370-.510

85AST* 12511 3/8 1/2 50 500 1.600 .490 1.800 .370-.510

*Provided with insulated throat.

‡Also for MCI-A cable. Refer to page E-27 for cable ranges.

Refer to chart on page E-24 for a list of cable types.

Concrete tight when taped.

SNAP-TITE®products have been tested and listed by UL in accordance

with UL’s ground fault requirements. For additional information see

page 6.

PATENT PENDING.

90° SNAP-TITE®

Connectors

With spring steel clip.

For aluminum and steel Flex •

AC • MC cable. Zinc die-cast.

MCI-A cable.

E18304 LR49636

CABLE

RANGE

C

A

B

CABLE

RANGE

A

C

B

Screw-On Snap-In

Connectors

Spring steel clip with non-

metallic body. Screws onto

3/8" Flex.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG AB

GFSC38 20737 3/8 1/2 50 500 1.005 .785

GFSC38B 20739 3/8 1/2 - 1000 1.005 .785

For flexible metal conduit only.

E60812 LR49636

AB

Snaps into KO with 50% less force!













E-17

Flex • AC • MC

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG AB CRANGE

850‡ 00850 3/8 1/2 50 500 1.370 .340 1.800 .440-.750

851‡ 00851 1/2 1/2 25 250 1.780 .410 2.140 .635-1.085

852 00852 3/4 3/4 15 150 2.065 .500 2.346 .830-1.380

853 00853 1110 50 2.560 .500 2.896 1.330-1.570

854 00854 1-1/4 1-1/4 5 25 2.812 .500 3.080 1.625-1.940

855 00855 1-1/2 1-1/2 1 10 4.875 .750 6.050 1.400-2.400

856 00856 22110 4.875 .750 6.050 1.400-2.400

857† 00857 2-1/2 2-1/2 116.125 .875 7.187 2.600-3.100

858† 00858 33116.700 1.031 7.875 3.100-3.640

859† 00859 3-1/2 3-1/2 117.500 1.031 9.400 3.380-4.220

8510† 08510 44118.700 1.031 10.200 3.730-4.550

†Malleable.

‡Also for MCI-A cable.

Refer to page E-27 for cable ranges.

Refer to chart on page E-23 for a list of cable types.

Concrete tight when taped.

90° Connectors

For aluminum and steel Flex •

AC • MC cable. Zinc die-cast.

MCI-A cable.

CABLE

RANGE

E18304 LR49636

CABLE

RANGE

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABC RANGE

850A‡ 85010 3/8 1/2 50 500 1.432 .400 1.800 .440-.750

851A‡ 85110 1/2 1/2 25 250 1.510 .400 2.260 .635-1.085

852A 85210 3/4 3/4 15 150 2.096 .531 2.380 .830-1.380

853A 85310 1110 50 2.622 .687 2.080 1.330-1.570

854A 85410 1-1/4 1-1/4 5 25 3.222 .687 3.080 1.625-1.940

855A 85510 1-1/2 1-1/2 1 10 4.968 .843 6.050 1.400-2.400

856A 85610 22110 4.968 .843 6.050 1.400-2.400

857A† 08571 2-1/2 2-1/2 116.218 .968 7.187 2.600-3.100

858A† 08581 33116.793 1.125 7.875 3.100-3.640

859A† 08591 3-1/2 3-1/2 118.810 1.125 9.400 3.380-4.220

8510A† 85101 44118.793 1.125 10.200 3.730-4.550

†Malleable.

‡Also for MCI-A cable.

Refer to page E-27 for cable ranges.

Refer to chart on page E-23 for a list of cable types.

Concrete tight when taped.

90° Connectors

with Insulated

Throat

For aluminum and steel Flex •

AC • MC cable. Zinc die-cast.

MCI-A cable.

E18304 LR49636

CABLE

RANGE

CABLE

RANGE

A

C

B

A

C

B

A

C

B

A

C

B

850 - 856 857 - 8510

850A - 856A 857A - 8510A









E-18 Flex • AC • MC

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABC

GF38 76380 3/8 1/2 50 500 1.340 .470 1.140

GF50 76500 1/2 1/2 50 250 1.340 .710 1.140

GF75 76750 3/4 3/4 25 250 1.565 .930 1.390

GF100 76100 1125 100 1.700 1.125 1.580

GF125 76125 1-1/4 1-1/4 10 40 2.120 1.410 2.115

GF150 76150 1-1/2 1-1/2 10 40 2.406 1.695 2.370

GF200 76200 22520 2.570 2.190 2.890

Screw-In Coupling

For flexible metal conduit.

Zinc die-cast.

CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG AB

GFC50 76350 1/2 25 250 2.200 1.160

GFC75 76375 3/4 25 250 2.200 2.200

GFC100 76340 1 10 100 2.312 1.406

GFC125 76360 1-1/4 10 100 3.125 2.125

GFC150 76370 1-1/2 5 50 3.186 2.375

GFC200 76372 2330 4.125 2.937

E60812 LR49636

Screw-In

Connectors

For flexible metal conduit.

Zinc die-cast.

E60812 LR49636

B

A

A

B

C









E-19

Flex • AC • MC

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

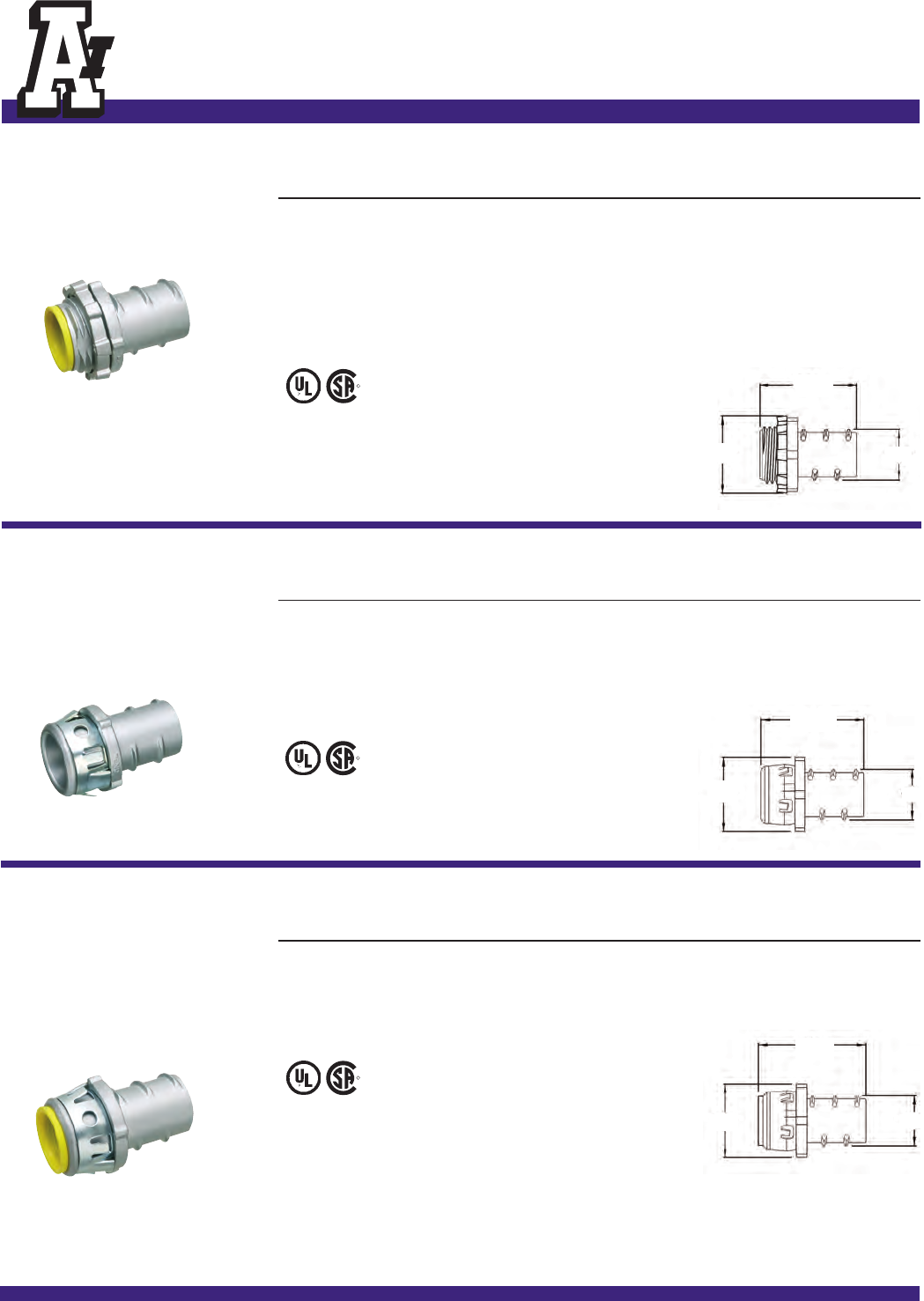

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABC

GF38A 76381 3/8 1/2 50 500 1.371 .470 1.140

GF50A 76501 1/2 1/2 50 250 1.450 .710 1.140

GF75A 76751 3/4 3/4 25 250 1.596 .930 1.390

GF100A 76101 1125 100 1.992 1.125 1.685

GF125A 76251 1-1/4 1-1/4 10 40 2.182 1.410 2.115

GF150A 76151 1-1/2 1-1/2 10 40 2.372 1.695 2.370

GF200A 76201 22520 2.663 2.190 2.890

E60812 LR49636

Screw-In

Connectors with

Insulated Throat

For flexible metal conduit.

Zinc die-cast.

C

A

B

Screw-In

SNAP-TITE®

Connectors

With spring steel clip.

For flexible metal conduit.

Zinc die-cast.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABC

GF38ST 80162 3/8 1/2 50 500 1.470 .475 1.055

GF50ST 80166 1/2 1/2 50 250 1.468 .720 1.055

GF75ST 80170 3/4 3/4 25 250 1.694 .940 1.350

SNAP-TITE®products have been tested and listed by UL in accordance with UL’s ground fault

requirements. For additional information see page 6.

PATENTED.

E60812 LR49636 C

A

B

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABC

GF38AST 80164 3/8 1/2 50 500 1.456 .480 1.045

GF50AST 80168 1/2 1/2 50 250 1.456 .727 1.045

SNAP-TITE®products have been tested and listed by UL in accordance with UL’s ground fault

requirements. For additional information see page 6.

PATENTED.

Screw-In

SNAP-TITE®

Connectors with

Insulated Throat

With spring steel clip.

For flexible metal conduit.

Zinc die-cast.

E60812 LR49636

B

C

A













E-20 Flex • AC • MC

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CATALOG UPC/DCI/NAED EMT FLEX UNIT STD DIM DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABCD

GF860 76860 1/2 3/8 25 100 1.535 .445 .725 1.060

GF861 76861 1/2 1/2 25 250 1.345 .715 .725 1.060

GF862 76862 3/4 3/4 25 250 1.700 .935 .935 1.305

GF863 80173 1125 100 1.895 1.125 1.070 1.625

Combination

Coupling

EMT compression to flexible

metal conduit. Zinc die-cast.

E60812 LR49636

Combination

Coupling

EMT set-screw to Flex.

Zinc die-cast.

CATALOG UPC/DCI/NAED EMT FLEX UNIT STD DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG AB RANGE

8610 08610 1/2 1/2 50 500 1.736 1.242 .850-.910

8620 08620 3/4 3/4 25 100 1.934 1.242 1.100-1.135

8630 08630 1110 40 2.285 1.700 1.255-1.375

E60812 LR49636

CATALOG UPC/DCI/NAED EMT FLEX UNIT STD DIM DIM CABLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG ABRANGE

860* 00860 1/2 3/8 50 500 1.280 1.140 .530-.620

861 00861 1/2 1/2 25 250 1.645 1.340 .850-.910

862 00862 3/4 3/4 25 100 1.975 1.535 1.100-1.130

*CSA only.

Combination

Coupling

EMT set-screw to Flex.

Zinc die-cast.

E60812 LR49636

A

B

A

B

DC

I.D.

A

B













E-21

Flex • AC • MC

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

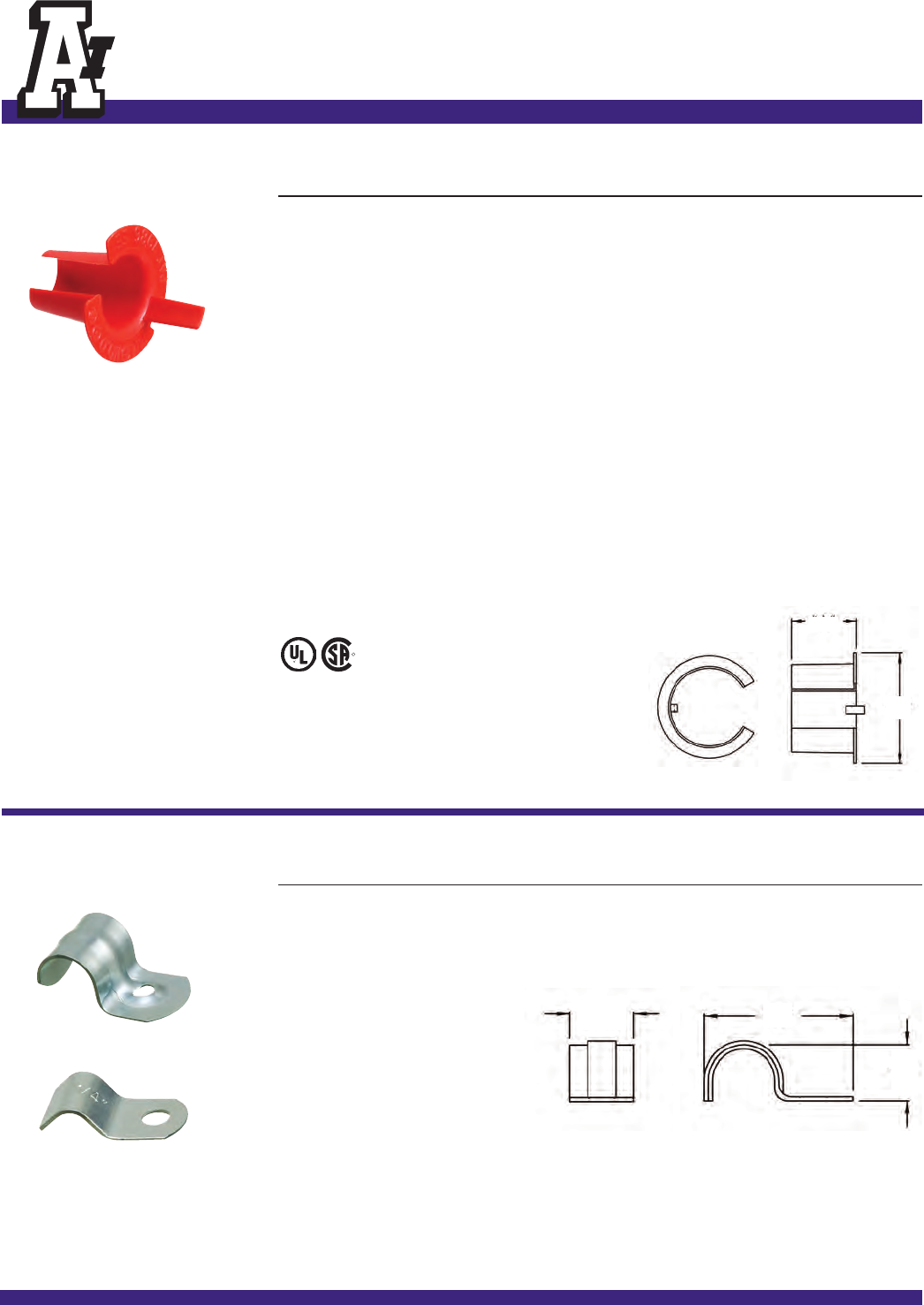

1-Hole AC/MC

Strap

Plated steel.

CATALOG UPC/DCI/NAED CABLE CABLE UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 RANGE SIZES PKG PKG ABC

310 00310 .503-.580 14/4, 14/3, 12/4 100 1000 1.285 .550 .750

12/3, 10/3, 10/2, 12/2

311 84174 .200-.320 #4 and #2 100 1000 1.125 .210 .500

bare copper

310

311

CATALOG UPC/DCI/NAED TRADE CABLE STD DIM DIM

NUMBER MFG #01 8997 SIZE SIZES PKG AB

AS0 10500 5/16" 14/2, 14/3, 12/2 100/BAG .590 .680

AS1 10510 3/8" 14/4, 12/3, 6/1, 4/1 100/BAG .630 .758

AS2 10520 7/16" 12/4, 10/2, 10/3, 2/1 50/BAG .680 .920

AS3 10530 1/2" 10/4, 8/2, 8/3, 1/1 50/BAG .770 1.130

AS4 10540 3/4" 8/4, 6/2, 6/3, 6/4, 4/2, 4/3 50/BAG .880 1.340

AS5 06052 1" 3-1, 2-1, 2-1/10, 1-300MCM, 1-350MCM 25/BAG 1.038 1.460

1-400MCM, 1-450MCM, 1-500MCM

AS6 06054 1-1/4" 4-1, 4-1/10, 4-2/0, 3-1/0, 3-2/0 10/BAG 1.100 1.720

3-3/0, 2-2/0, 2-3/0, 2-4/0

1-600MCM, 1-650MCM, 1-700MCM

1-750MCM, 1-800MCM, 1-900MCM

AS7 06056 1-1/2" 4-3/0, 4-4/0, 3-4/0 10/BAG 1.162 2.175

3-250MCM, 3-300MCM, 2-250MCM

2-300MCM, 2-350MCM, 1-1000MCM

AS8 06058 2 to 2-1/2" 4-250MCM, 4-300MCM, 4-350MCM 10/BAG 1.330 2.625

4-400MCM, 4-450MCM, 4-500MCM

3-350MCM, 3-400MCM, 3-450MCM

3-500MCM, 2-400MCM, 2-450MCM

2-500MCM

Anti-Short

Bushings

Plastic.

B

A

A

B

C

E62807 LR49636





E-22 Flex • AC • MC

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG AB

GF850 85000 1/2 1/2 25 100 1.975 1.820

90° Connectors

For flexible metal conduit.

Screw in type with sliding

cover. Zinc die-cast.

E60812 LR49636

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG AB

GF850ST 84850 1/2 1/2 25 100 1.969 1.969

SNAP-TITE®products have been tested and listed by UL in accordance with UL’s ground fault

requirements. For additional information see page 6.

PATENTED.

90° SNAP-TITE®

Connectors

With spring steel clip.

For flexible metal conduit.

Screw-in type with sliding

cover. Zinc die-cast.

SLIDING

COVER

E60812 LR49636

A

B

A

B

Stackable AC/MC/

Flex Cable Strap

Holds AC • MC • Flex cable

securely centered on wood or

metal studs...14/2, 14/3,

14/4, 12/2, 12/3, 12/4,

10/2, 10/3.

CATALOG UPC/DCI/NAED UNIT STD DIM DIM DIM CABLE

NUMBER MFG #01 8997 PKG PKG ABCRANGE

NM310 54010 100 1000 1.345 1.224 .750 .420-.600

PATENTED.

E161207 LR49636

A

B

C

CABLE RANGE

The easy to use ‘Stackable’ Cable Strap holds up

to 5 runs of cable!

• Meets 2008 NEC Codes 320.30, 330.30, and 348.30

• Meets requirements of proposed UL standard 2239 for

support of conduit and cable

• Includes screw for attaching to wood or metal studs

• Listed for use in environmental air handling spaces per

2008 NEC code requirement 300-22(c).

Screw to the stud,

then add as many as

you need!

Listed for support, not just

positioning!













SLIDING

COVER

E-23

Flex • AC • MC

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Style

90° Two Screw

Clamp Type Connectors

Squeeze Connectors

Flexible Metal

Conduit (FMC)

Armored

Cable

(AC)

Metal Clad

Cable (MC)

AC/

MC

85 1/2 .370 - .510 .620 1••••••••••

85ST 1/2 .370 - .510 .620 1••••••••••

85A 1/2 .370 - .510 .560 1•••• • •••• • •

85AST 1/2 .370 - .510 .560 1•••• • •••• • •

850 1/2 .440 - .750 .620 1••••••••••

850A 1/2 .440 - .750 .560 1•••• • •••• • •

850ST 1/2 .440 - .750 .620 1••••••••••

850AST 1/2 .440 - .750 .560 1•••• • •••• • •

851 1/2 .635 - 1.085 .620 1•••••••••

851A 1/2 .635 - 1.085 .560 1•••• • •••• •

851ST 1/2 .635 - 1.085 .620 1•••••••••

851AST 1/2 .635 - 1.085 .560 1•••• • •••• •

852 3/4 .830 - 1.380 .825 1•••••••••

852A 3/4 .830 - 1.380 .765 1•••• • •••• •

853 1 1.330 - 1.570 1.025 1•••••••••

853A 1 1.330 - 1.570 .974 1•••• • •••• •

854 1-1/4 1.625 - 1.940 1.375 1•••••••••

854A 1-1/4 1.625 - 1.940 1.294 1•••• • •••• •

855 1-1/2 1.400 - 2.400 1.575 1•••••••••

855A 1-1/2 1.400 - 2.400 1.532 1•••• • •••• •

856 2 1.400 - 2.400 2.030 1•••••••••

856A 2 1.400 - 2.400 2.007 1•••• • •••• •

857 2-1/2 2.600 - 3.100 2.450 1•••• ••

857A 2-1/2 2.600 - 3.100 2.425 1•••• • • •

858 3 3.100 - 3.640 3.140 1•••• ••

858A 3 3.100 - 3.640 3.050 1•••• • • •

859 3-1/2 3.380 - 4.220 3.540 1•••• ••

859A 3-1/2 3.380 - 4.220 3.960 1•••• • • •

8510 4 3.730 - 4.550 3.540 1•••• ••

8510A 4 3.730 - 4.550 3.960 1•••• • • •

L42 1/2 .530 - .620 .400 1••••••••••

L420 1/2 .530 - .620 .400 x .580 1••••••

L421 1/2 .850 - .910 .620 1•••••••••

L421A 1/2 .850 - .910 .620 1•••• • •••• •

L422 3/4 1.100 - 1.135 .820 1•••••••••

L422A 3/4 1.100 - 1.135 .820 1•••• • •••• •

L423 1 1.255 - 1.375 .940 1•••••••••

L423A 1 1.255 - 1.375 .940 1•••• • •••• •

L424 1-1/4 1.550 - 1.610 1.240 1•••••••••

L424A 1-1/4 1.550 - 1.610 1.240 1•••• • •••• •

L425 1-1/2 1.810 - 1.895 1.460 1•••••••••

L425A 1-1/2 1.810 - 1.895 1.460 1•••• • •••• •

L426 2 2.260 - 2.485 1.935 1•••••••••

L426A 2 2.260 - 2.485 1.935 1•••• •

L427 2-1/2 2.770 - 2.950 2.440 1••••

L427A 2-1/2 2.770 - 2.950 2.440 1•••• •

L428 3 3.170 - 3.560 2.980 1••••

Cable Types

Part Number

ST = SNAP-TITE®

KO Size

Outer Armor

Diameter

Flex MC/AC

Throat Diameter

Number of Cables

Insulated Throat

Steel

Aluminum

Reduced Wall

Aluminum

Steel

Reduced Wall Steel

Steel

Aluminum

Aluminum Continuous

Corrugated

Healthcare Facilities

Aluminum Corrugated

(Continued next page)

E-24 Flex • AC • MC

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Style

Squeeze Connectors

(Continued)

Clamp Type

Two Cable Connectors

Set Screw

Connectors

SADDLEGRIP®

Duplex Connectors

Two Screw

Clamp Type

Connectors

Off Center

Set Screw Type

Flexible Metal

Conduit (FMC)

Armored

Cable

(AC)

Metal Clad

Cable (MC)

L428A 3 3.170 - 3.560 2.980 1•••• •

L429 3-1/2 3.630 - 4.155 3.478 1••••

L429A 3-1/2 3.630 - 4.155 3.478 1•••• •

L4210 4 4.030 - 4.635 3.977 1••••

L4210A 4 4.030 - 4.635 3.977 1•••• •

846 1/2 .370 - .612 .630 2••••••••••

846ST 1/2 .370 - .612 .630 2••••••••••

846AST 1/2 .370 - .612 .560 2•••• • •••• • •

846SS 1/2 .370 - .612 .630 2••••••••••

84690 1/2 .370 - .612 .630 2••••••••••

84690ST 1/2 .370 - .612 .630 2••••••••••

L48 1/2 .625 - .915 .630 1•• ••

L49 3/4 .820 - .910 .845 1•• ••

SG3838 1/2 .430 - .612 .630 2••••••••••

SG3838A 1/2 .430 - .612 .620 2•••• • •••• • •

SG3838ST 1/2 .430 - .612 .620 2••••••••••

SG3838AST 1/2 .430 - .612 .620 2•••• • •••• • •

4200 1/4 .370 - .612 .380 1•••••••••

4201 1/2 .630 - .810 .615 1•••••••••

4202 3/4 .830 - .1.090 .820 1•••••••••

4203 1 1.000 - 1.365 .985 1•••••••••

4204 1-1/4 1.385 - 1.640 1.365 1•••••••••

4501 1/2 .445 - .612 .620 1••••••••••

4501ST 1/2 .445 - .612 .620 1••••••••••

4502 1/2 .620 - .895 .635 1••••••••••

4502ST 1/2 .620 - .895 .635 1••••••••••

840 1/2 .370 - .612 .400 x .580 1••••••••••

840ST 1/2 .370 - .612 .400 x .580 1••••••••••

8400 1/2 .370 - .612 .400 1••••••••••

8400ST 1/2 .370 - .612 .375 1••••••••••

8401 1/2 .410 - .612 .375 1•••••••••

•

8402 3/4 .525 - .780 .620 1••••••••••

8403 1 .790 - .980 .840 1•••

8404 1-1/4 1.050 - 1.345 1.030 1•••

8405 1-1/2 1.410 - 1.633 1.390 1•••

8407 2 1.640 - 2.040 1.610 1•••

84075 2 1.640 - 2.040 1.743 1•••

8408 2-1/2 1.950 - 2.480 1.924 1•••

8409 3 2.420 - 3.070 2.390 1•••

8410 3-1/2 2.860 - 3.600 2.830 1•••

845 1/2 .445 - .630 .400 x .580 1•••

845ST 1/2 .445 - .630 .400 x .580 1•••

845R 1/2 .445 - .630 .375 1•• ••

Part Number

ST = SNAP-TITE®

KO Size

Outer Armor

Diameter

Flex MC/AC

Throat Diameter

Number of Cables

Insulated Throat

Steel

Aluminum

Reduced Wall

Aluminum

Steel

Reduced Wall Steel

Steel

Aluminum

Aluminum Continuous

Corrugated

Aluminum Corrugated

AC/

MC

Healthcare Facilities

Cable Types (Continued)

E-25

Flex • AC • MC

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Style

Single Screw

Clamp Type

Straight SADDLEGRIP®

Connectors

Multi End Stop

Set Screw

Connectors

Flexible Metal

Conduit (FMC)

Armored

Cable

(AC)

Metal Clad

Cable (MC)

L16 1/2 .370 - .670 .400 x.580 1••••••••••

L16ST 1/2 .370 - .670 .400 x.580 1••••••••••

L160 1/2 .370 - .510 .312 1••••••••••

L160ST 1/2 .370 - .510 .312 1••••••••••

L15A 1/2 .460 - .585 .340 x.430 1•••• • •••• • •

L15AST 1/2 .460 - .585 .340 x.510 1•••• • •••• • •

L17 1/2 .630 - .890 .620 1••••••••••

L17ST 1/2 .630 - .890 .620 1••••••••••

L18 3/4 .820 - 1.040 .818 1••••••••••

L18ST 3/4 .820 - 1.040 .818 1••••••••••

L19 1 1.100 - 1.400 1.030 1••••••••••

L19ST 1 1.100 - 1.400 1.030 1••••••••••

SG38 1/2 .430 - .612 .395 1•••••••••

•

SG38A 1/2 .430 - .612 .400 1•••• • •••• • •

SG38AST 1/2 .430 - .612 .400 1•••• • •• • • •

SG380 1/2 .430 - .612 .400 x.580 1••••••••••

SG380A 1/2 .430 - .612 .340 x.510 1•••• • •••• • •

SG380AST 1/2 .430 - .612 .340 x.510 1•••• • •••• • •

SG40 1/2 .530 - .790 .630 1••••••••••

SG50 1/2 .710 - .910 .630 1••••••••••

SG50A 1/2 .710 - .910 .560 1•••• • •••• • •

SG50ST 1/2 .710 - .910 .630 1••••••••••

SG50AST 1/2 .710 - .910 .560 1•••• • •••• • •

SG75 3/4 .840 - 1.110 .845 1••••••••••

SG75A 3/4 .840 - 1.110 .845 1•••• • •••• • •

SG75ST 3/4 .840 - 1.110 .845 1••••••••••

SG75AST 3/4 .840 - 1.110 .765 1•••• • •••• • •

8412 1 .780 - 1.120

.625 -1.018

1•••••••• •

8413 1-1/4 1.000 - 1.460

.782 -1.361

1•••••••• •

8414 1-1/2 1.360 - 1.770 1

.175 -1.587

1•••••••• •

8415 2 1.700 - 2.200 1

.562 -2.060

1•••••••• •

8416 2-1/2 2.100 - 2.700 1

.979 -2.462

1•••••••• •

8417 3 2.500 - 3.300 2

.404 -3.081

1•••••••• •

Part Number

ST = SNAP-TITE®

KO Size

Outer Armor

Diameter

Flex MC/AC

Throat Diameter

Number of Cables

Insulated Throat

Steel

Aluminum

Reduced Wall

Aluminum

Steel

Reduced Wall Steel

Steel

Aluminum

Aluminum Continuous

Corrugated

Aluminum Corrugated

AC/

MC

Healthcare Facilities

Cable Types (Continued)

E-26 Flex • AC • MC

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Style

SNAP2IT®Connectors

Push-In Type

Flexible Metal

Conduit (FMC)

Armored

Cable

(AC)

Metal Clad

Cable (MC)

38A 1/2 .405 - .612 .405 1•••• • •••• • •

38AST 1/2 .405 - .612 .405 1•••• • •••• • •

380AST 1/2 .405 - .612 .400 1•••• • •••• • •

380ST 1/2 .405 - .612 .400 1••••••••••

3810AST 1/2 .370 - .490 .316 1•••• • •••• • •

383810AST

1/2 .370 - .490 .624 2•••• • •••• • •

3838AST 1/2 .405 - .612 .620 2•••• • •••• • •

3838ST 1/2 .405 - .612 .620 2••••••••••

3890AST 1/2 .405 - .612 .405 1•••• • •••• • •

400AST 1/2 .485 - .612 .400 1•••• • •••• • •

4010AST 1/2 .405 - .612 .404 1•••• • •••• • •

404010AST

1/2 .405 - .612 .624 2•••• • •••• • •

40AST 1/2 .485 - .612 .405 1•••• • •••• • •

4040AST 1/2 .485 - .612 .620 2•••• • •••• • •

4090AST 1/2 .485 - .612 .405 1•••• • •••• • •

5010AST 1/2 .590 - .920 .614 1•••• • •••• • •

505010AST

1/2 .590 - .920 .810 2•••• • •••• • •

5090AST 1/2 .860 - .920 .405 1•••• • •••• • •

7510AST 1/2 .895 - 1.110 .828 1•••• • •••• • •

Part Number

ST = SNAP-TITE®

KO Size

Outer Armor

Diameter

Flex MC/AC

Throat Diameter

Number of Cables

Insulated Throat

Steel

Aluminum

Reduced Wall

Aluminum

Steel

Reduced Wall Steel

Steel

Aluminum

Aluminum Continuous

Corrugated

Aluminum Corrugated

AC/

MC

Healthcare Facilities

Cable Types (Continued)

E-27

Flex • AC • MC

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Style

90° Two Screw

Clamp Type Connectors

Clamp Type

Two Cable Connectors

SADDLEGRIP®

Duplex Connectors

Two Screw

Clamp Type

Connectors

Single Screw

Clamp Type

Connectors

Straight SADDLEGRIP®

Connectors

SNAP2IT®Connectors

Push-In Type

Part Number

ST = SNAP-TITE®

KO Size

Cable Range

Steel

End Stop Diameter

Number of Cables

Insulated Throat

Aluminum

Steel

MCI-A Cable Ranges

Cable Range

Aluminum

HCF

85 1/2 .370 - .520 .405 - .580 -1 •••

85ST 1/2 .370 - .520 .405 - .580 -1 •••

850 1/2 .440 -.595 .440 -.595 -1 •••

850A 1/2 .440 -.595 .440 -.595 -1••••

851 1/2 .680 - .770 .680 - .770 -1 •••

851A 1/2 .680 - .770 .680 - .770 -1••••

851ST 1/2 .680 - .770 .680 - .770 -1 •••

851AST 1/2 .680 - .770 .680 - .770 -1••••

846 1/2 .370 - .612 .405 - .580 -2 •••

846ST 1/2 .370 - .612 .405 - .580 -2 •••

84690 1/2 .370 - .510 .405 - .580 -2 •••

84690ST 1/2 .370 - .510 .405 - .580 -2 •••

SG3838 1/2 .430 - .580 .430 - .580 -2 •••

SG3838A 1/2 .430 - .580 .430 - .580 -2••••

SG3838ST 1/2 .430 - .580 .430 - .580 -2 •• •

SG3838AST

1/2 .430 - .580 .430 - .580 -2••• •

840 1/2 .370 - .612 .370 - .612 .400 1•••

840ST 1/2 .370 - .612 .370 - .612 .400 1•••

8400 1/2 .370 - .612 .370 - .612 .400 1•••

8400ST 1/2 .370 - .612 .370 - .612 .400 1•••

L16 1/2 .405 - .650 .405 - .650 .400 1•••

L16ST 1/2 .405 - .650 .405 - .650 .400 1•••

L160 1/2 .370 - .690 .405 - .690 .305 1•••

L160ST 1/2 .370 - .690 .405 - .690 .305 1•••

SG38 1/2 .430 - .520 .430 - .580 .400 1•••

SG38A 1/2 .430 - .580 .430 - .580 .400 1• •• •

SG38AST 1/2 .430 - .580 .430 - .580 .400 1• •• •

SG380 1/2 .430 - .580 .430 - .580 .400 1•••

SG380A 1/2 .430 - .580 .430 - .580 .400 1• •• •

SG380AST 1/2 .430 - .580 .430 - .580 .400 1• •• •

SG40 1/2 .630 - .770 NA .600 1••

SG50 1/2 .680 - .850 NA .620 1••

SG50A 1/2 .680 - .850 NA .620 1• • •

SG50AST 1/2 .680 - .850 NA .620 1• • •

SG50ST 1/2 .680 - .850 NA .620 1••

3810AST 1/2 .370 - .490 .405 - .490 .310 1• •• •

383810AST

1/2 .370 - .490 .405 - .580 .310 2• •• •

4010AST 1/2 .405 - .612 .405 - .580 .400 1• •• •

404010AST

1/2 .405 - .612 .405 - .580 .400 2• •• •

5010AST 1/2 .590 - .920 .590 - .920 .540 1• •• •

505010AST

3/4 .590 - .920 .590 - .920 .540 2• •• •

7510AST 3/4 .895 - 1.110 .895 - 1.110 .776 1• •• •

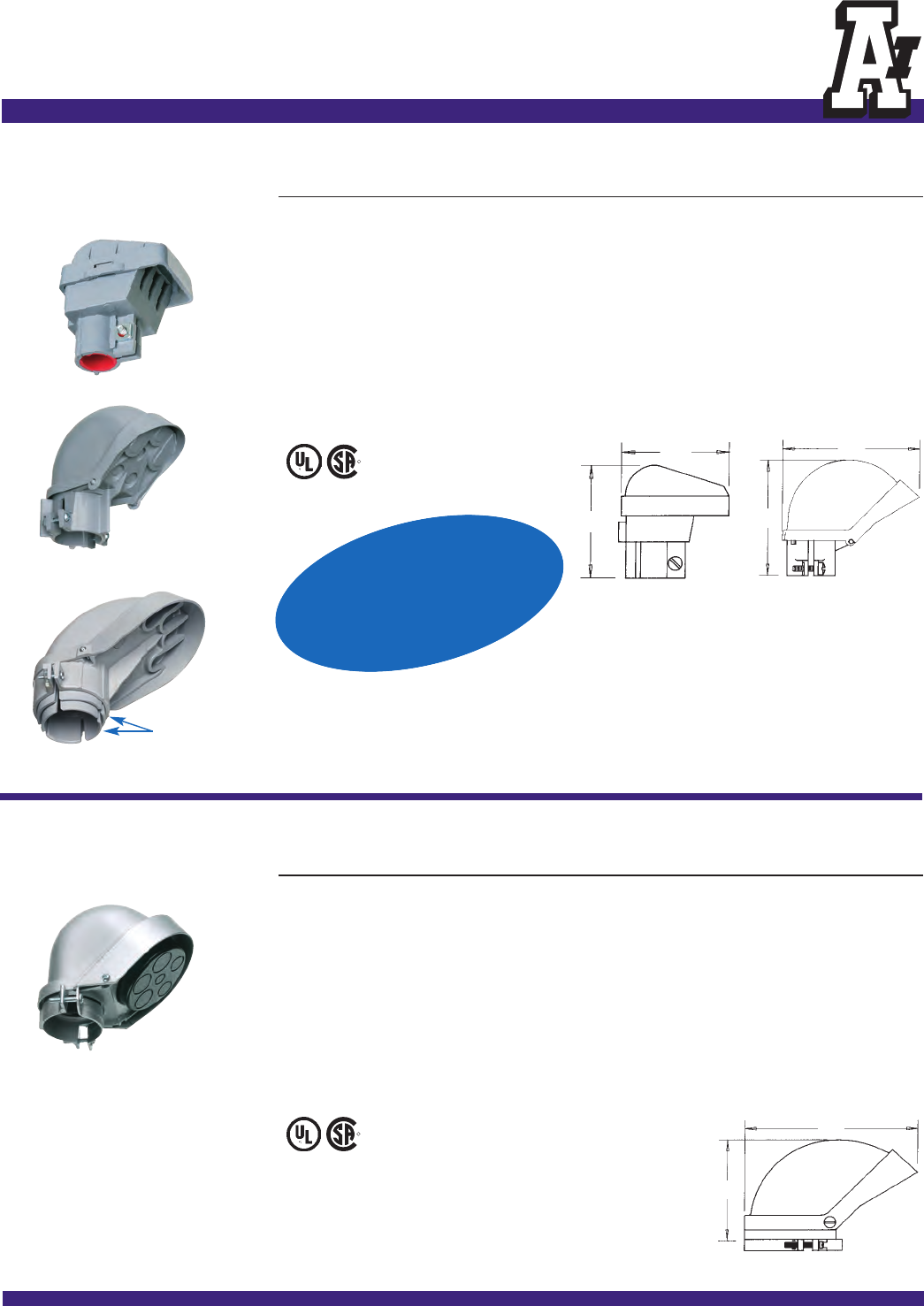

F-1 Mast Parts

Entrance Caps

Clamp-On Type

For rigid • IMC • EMT.

CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM HOLE

NUMBER MFG #01 8997 SIZE PKG PKG AB SIZES

140 00140 1/2 10 10 2.60 2.68 (4).30

141 00141 3/4 10 10 2.72 3.80 (2).38 (3).40

142 00142 1 10 10 3.11 3.32 (2).44 (3).50

143 00143 1-1/4 5 25 3.20 4.46 (2).42 (3).63

144 00144 1-1/2 3 15 4.34 4.85 (2).60 (3).75

145 00145 2 10 10 4.55 6.62 (2).75 (3)1.00 (1).53

146 00146 2-1/2 117.80 9.74 (3)1.31 (3).87 (1).99

147 00147 3118.00 10.50 (3)1.73 (4)1.10

148 00148 3-1/2 119.25 12.50 (3)1.73 (4)1.10

149 00149 4119.25 12.50 (3)1.73 (4)1.10

E105706 LR49636

PVC Entrance Caps

For rigid • IMC • EMT • Rigid

PVC. Sizes 1/2 - 2" include

adapter sleeve for EMT.

CATALOG UPC/DCI/NAED TRADE MAST STD DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG AB

PVC100 73100 1/2 1/2 25 2.630 2.900

PVC101 73101 3/4 3/4 25 3.340 3.150

PVC102 73102 1120 3.340 3.360

PVC103 73103 1-1/4 1-1/4 10 4.125 3.530

PVC104 73104 1-1/2 1-1/2 10 4.145 3.770

PVC105 73105 22 57.790 6.660

PVC129 73129 2 2-1/2 1 7.750 6.660

PVC106 12512 2-1/2 2-1/2 1 9.790 7.620

PVC109* 12513 4 3, 3-1/2, 4 1 12.650 9.070

*Includes adapters for 3” and 3-1/2”

E105706 LR49636

A

B

A

B

A

B

PVC100 - PVC104

PVC100 - PVC104 PVC105 - PVC129

PVC105, PVC106, & PVC129

PVC109

For 3” conduit use both

sleeves. For 3-1/2”

conduit use the larger

adapter sleeve.

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646









PVC109

PRICED LIKE A 3”. SIZED LIKE

OUR 4” ALUMINUM CAP (149).

SAVES MONEY WHEN USED

WITH A 3-1/2” OR 4”

MAST SIZE.

Mast Parts

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

F-2

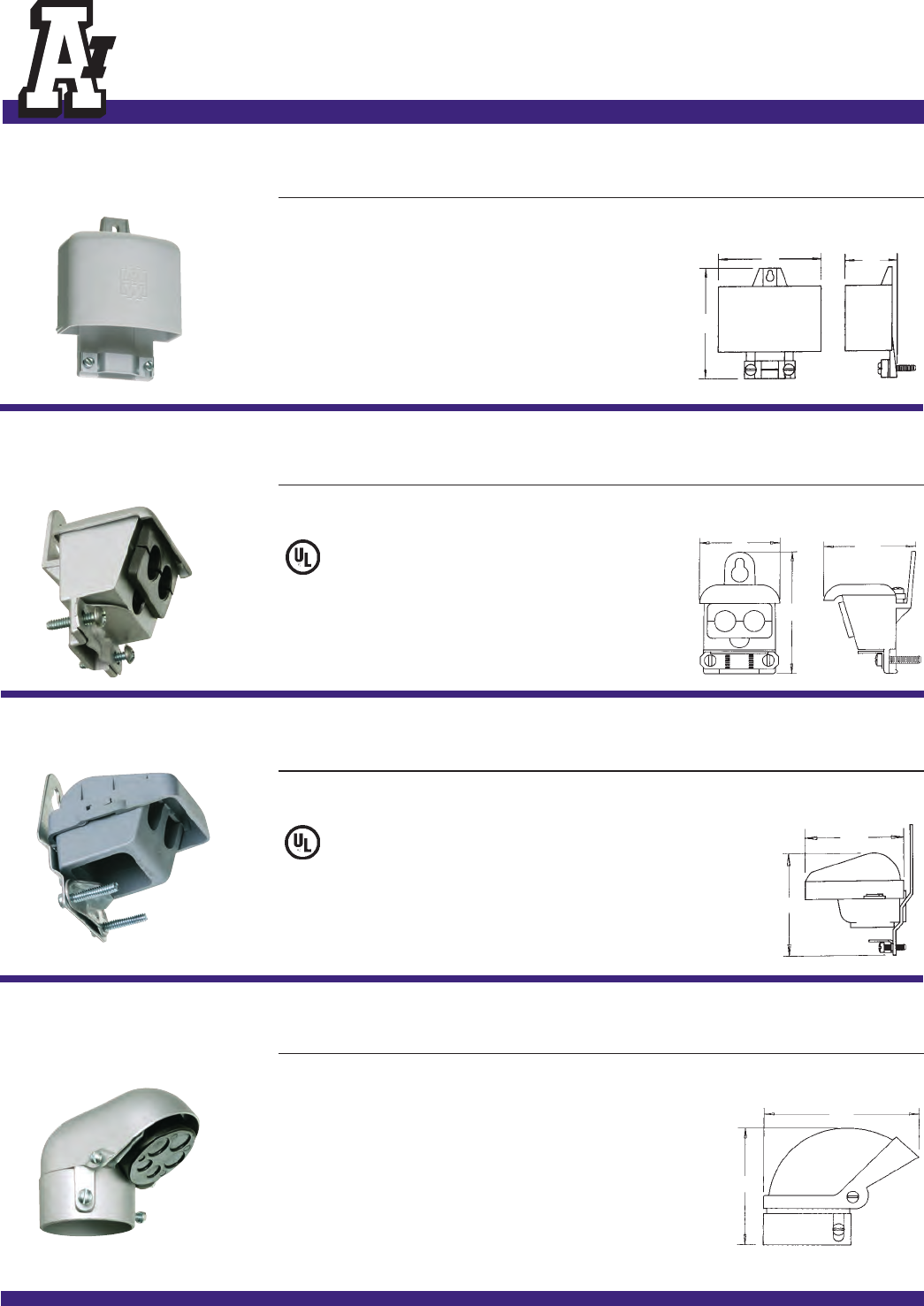

Service Entrance

Hoods

Non-metallic.

CATALOG UPC/DCI/NAED WIRE STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG ABC

EH200 58201 (3) 1/0 to (3) 2/0 1 4.250 6.000 2.000

EH201 43630 (3) 1/0 to (3) 4/0 1 6.000 6.187 2.500

Service Entrance

Cable Caps

Zinc die-cast.

CATALOG UPC/DCI/NAED WIRE STD DIM DIM DIM HOLE

NUMBER MFG #01 8997 SIZE PKG ABCSIZES

660 00660 7/8" Diam. Max. 50 2.060 2.970 2.260 (2).58

662 00662 1/0 to 4/0 10 3.180 4.520 3.600 (2).80

E66990

PVC Entrance Caps

With galvanized steel strap. CATALOG UPC/DCI/NAED WIRE STD DIM DIM HOLE

NUMBER MFG #01 8997 SIZE PKG ABSIZES

PVC660 73660 (2) 3, 6, 4, 2 50 2.700 2.520 (2).53

PVC662 73662 (2) 1/0 to (2) 4/0 10 4.125 3.750 (2).69

E66990

Mast Reducer

Entrance Caps

Set-screw type.

CATALOG UPC/DCI/NAED MAST CAP UNIT STD DIM DIM HOLE

NUMBER MFG #01 8997 SIZE SIZE PKG PKG AB SIZES

128 00128 2 1-1/4 164.020 4.842 (2).43, (3).63

129 00129 2-1/2 2165.236 6.506 (1).53, (2).75, (3)1.00

A

B

C

A

B

C

A

B

A

B

F-3 Mast Parts

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CATALOG UPC/DCI/NAED WIRE STD DIM DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG AB CD

663 00663 (3)#4 to (3)#2 10 .875 1.200 2.750 2.965

664 00664 (3) 3/0 to (3) 4/0 10 2.475 1.850 6.250 3.725

CATALOG UPC/DCI/NAED WIRE STD DIM DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG AB CD

SP360 17360 1/2 EMT & 3/4 EMT 10 .812 2.593 2.421 .218

SP362 17361 1 EMT & 3/3 SEU 10 1.250 3.000 2.500 .218

SP363 17362 1-1/4 EMT & 2/3 SEU 10 1.650 3.812 2.625 .218

SP364 17363 1-1/2 EMT & 4/0 SEU 10 1.750 3.562 3.750 .281

SP365 17364 2 EMT 10 2.312 4.093 4.125 .281

CATALOG UPC/DCI/NAED WIRE UNIT STD DIM DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG ABCD

PVC85 00085 (3)#4 to (3)#0 10 100 1.188 1.093 3.093 2.970

A

C

B

D

BD

HOLE SIZE

C

A

A

C

B

D

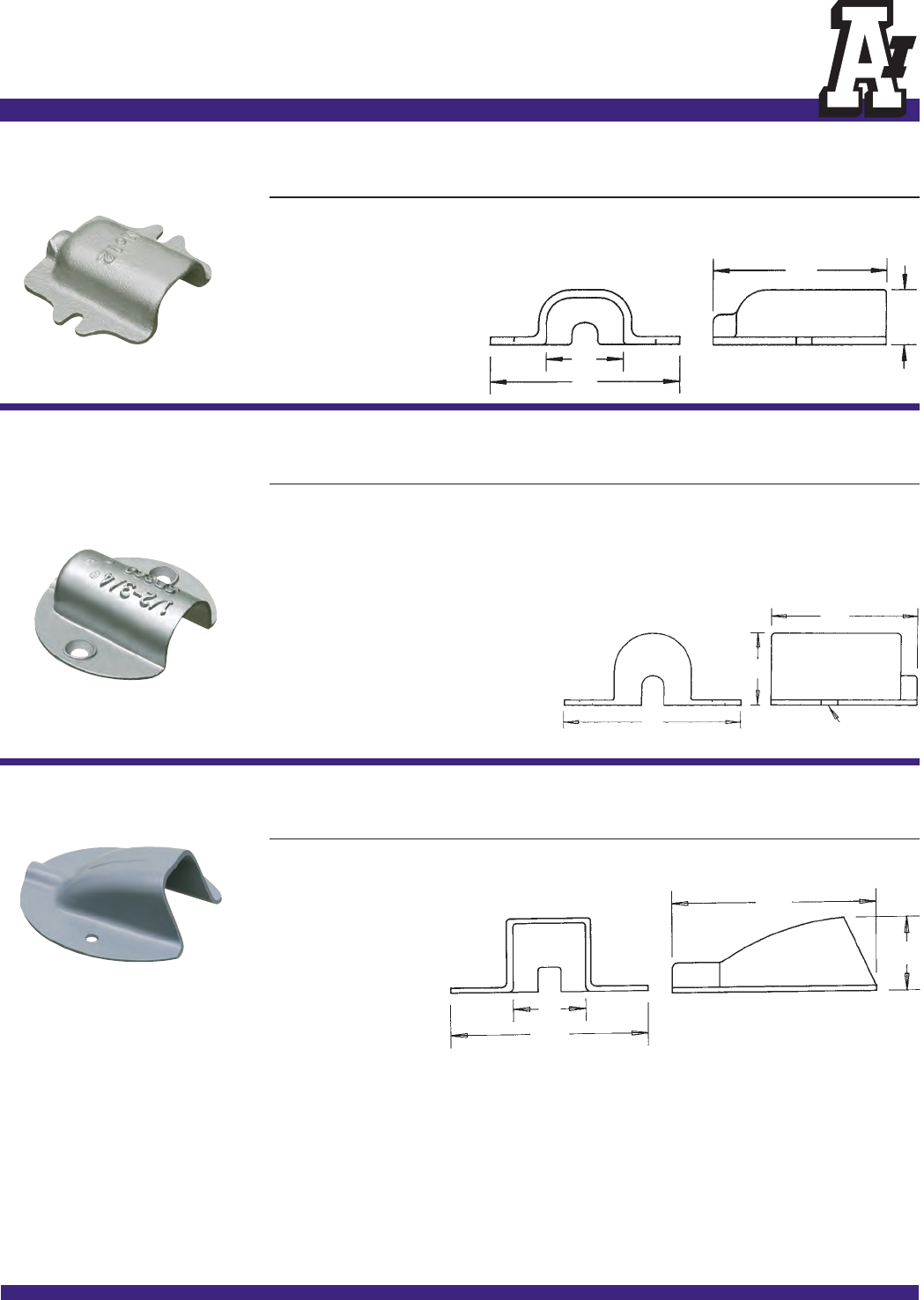

Sill Plates

With screws and compound.

Cast aluminum.

Sill Plates with

Duct Seal and

Wood Screws

Zinc die-cast. For EMT • SEU

cable.

PVC Sill Plates

With screws and compound.

F-4

Mast Parts

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

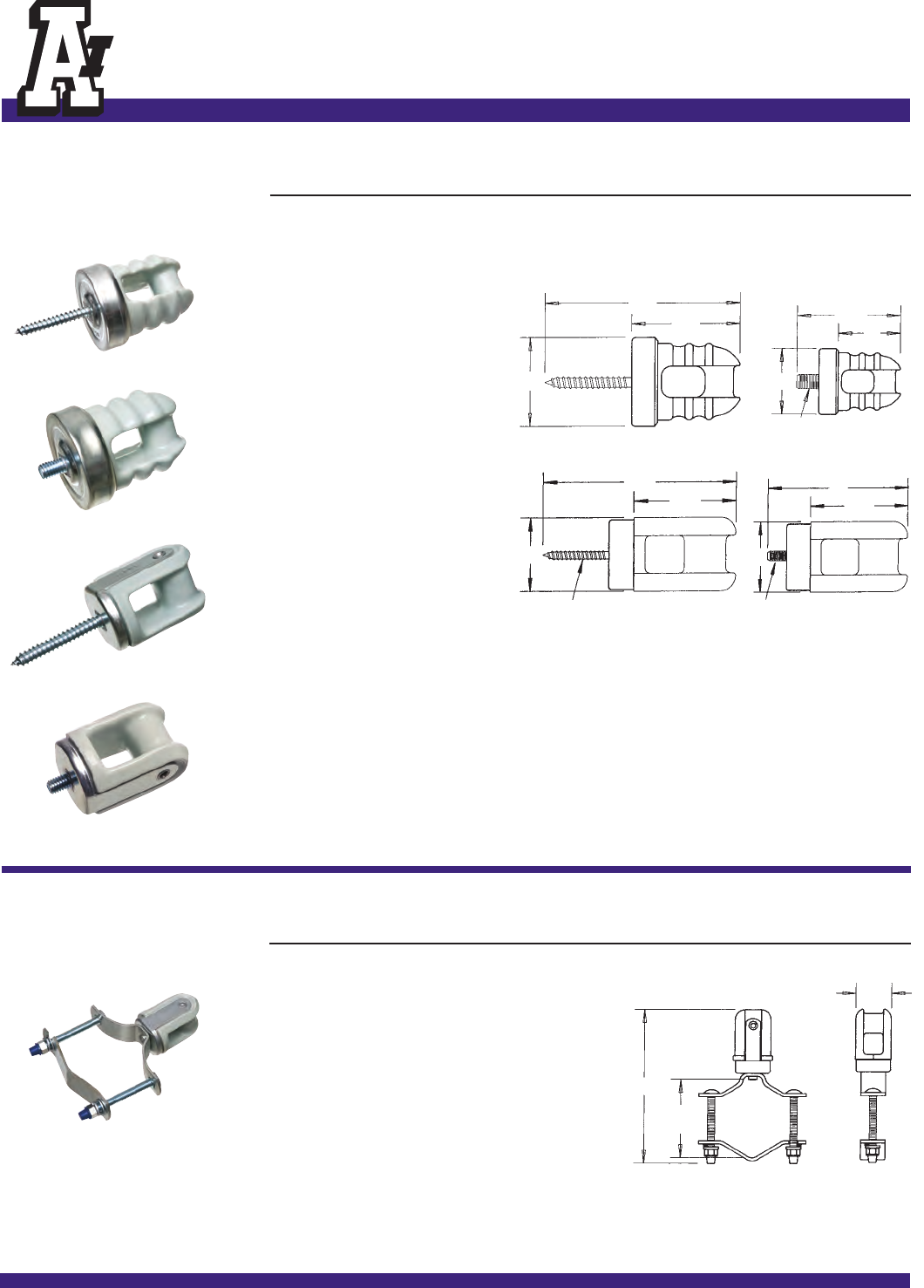

CATALOG UPC/DCI/NAED SCREW STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG ABC

612 00612 2-1/4 Lag 5 4.750 2.750 2.250

613 00613 3/8 x 1/2 Match Screw 5 3.350 2.750 2.250

616 00616 2-1/4 Lag 5 5.615 3.200 1.750

617 00617 3/8 x 1/2 Match Screw 5 3.775 3.200 1.750

617

UL/CSA NOT APPLICABLE

LAG SCREW

612 613

616 617

MACHINE SCREW

MACHINE SCREW

CATALOG UPC/DCI/NAED CONDUIT STD DIM DIM MIN MAX

NUMBER MFG #01 8997 SIZE PKG AB

610 00610 1-1/4 to 3 5 1.875 7.625 1.620 3.930

UL/CSA NOT APPLICABLE

MIN.

MAX.

A

B

C

A

B

C

A

B

C

A

C

B

A

B

Porcelain Wire

Holder

With solid rivet through head.

Porcelain and galvanized

steel.

612

613

616

Porcelain Wire

Holder

With steel clip. Fits 1-1/4" to

3" pipe.

F-5 Mast Parts

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

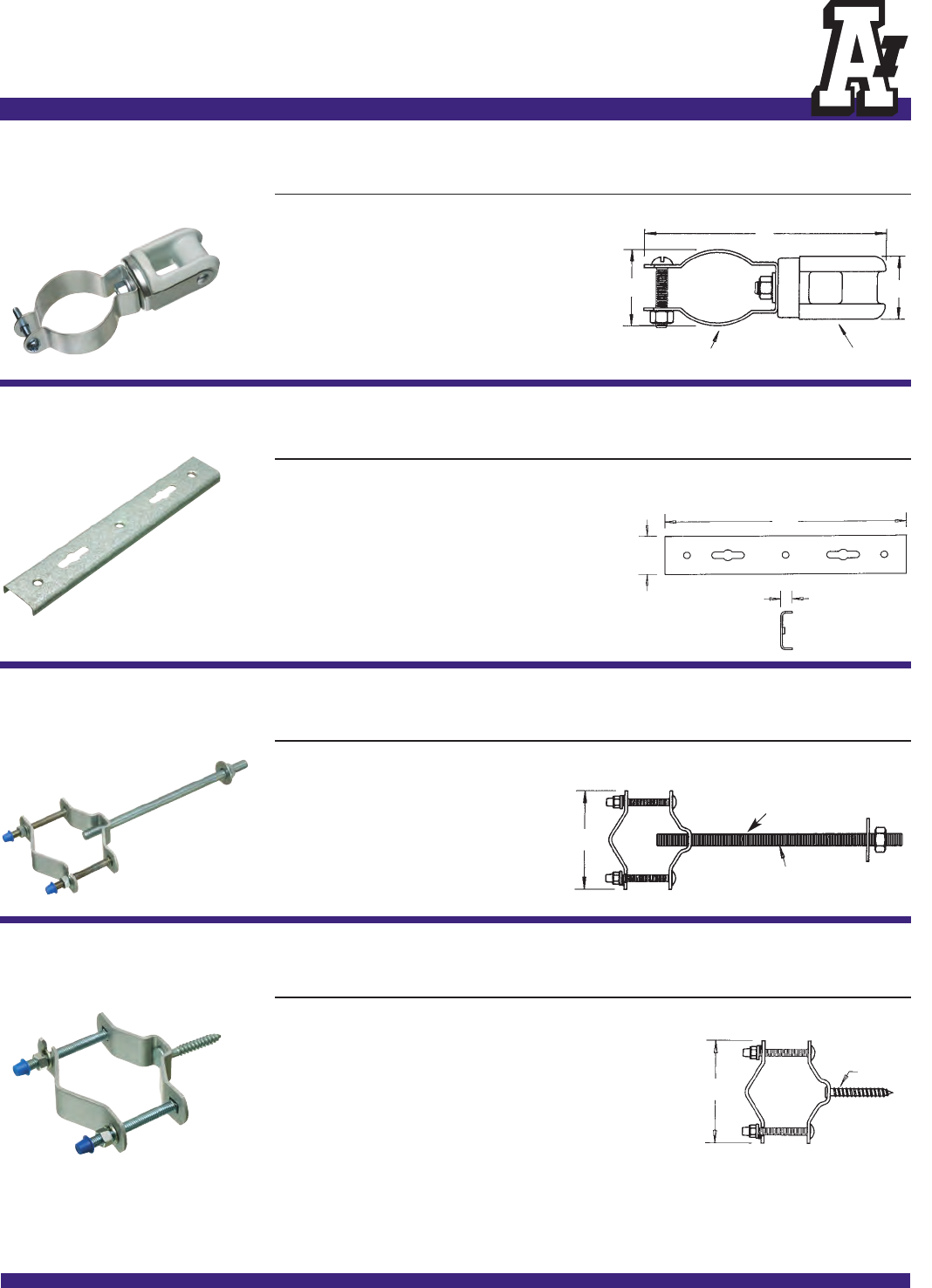

Porcelain Wire

Holder

With hanger. Fits 2" rigid or 2"

EMT.

CATALOG UPC/DCI/NAED CONDUIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG ABC

645 00645 257.062 2.450 1.750

2050 617

UL/CSA NOT APPLICABLE

Channel Bar

11" long galvanized. CATALOG UPC/DCI/NAED DESCRIPTION STD DIM DIM DIM

NUMBER MFG #01 8997 PKG ABC

611 00611 For two or three 5 11.000 .525 1.750

617’s or 613’s

UL/CSA NOT APPLICABLE

Universal Pipe

Support

10" bolt.

CATALOG UPC/DCI/NAED MAST STD

NUMBER MFG #01 8997 SIZE PKG

615 00615 1-1/4 to 3 5

LENGTH = 10"

1/2" THREAD

UL/CSA NOT APPLICABLE

CATALOG UPC/DCI/NAED MAST STD

NUMBER MFG #01 8997 SIZE PKG

620 00620 1-1/4 to 3 5

Universal Pipe

Support

UL/CSA NOT APPLICABLE

2.25"

LAG BOLT

A

BC

A

C

B

5.350"

5.350"

F-6

Mast Parts

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

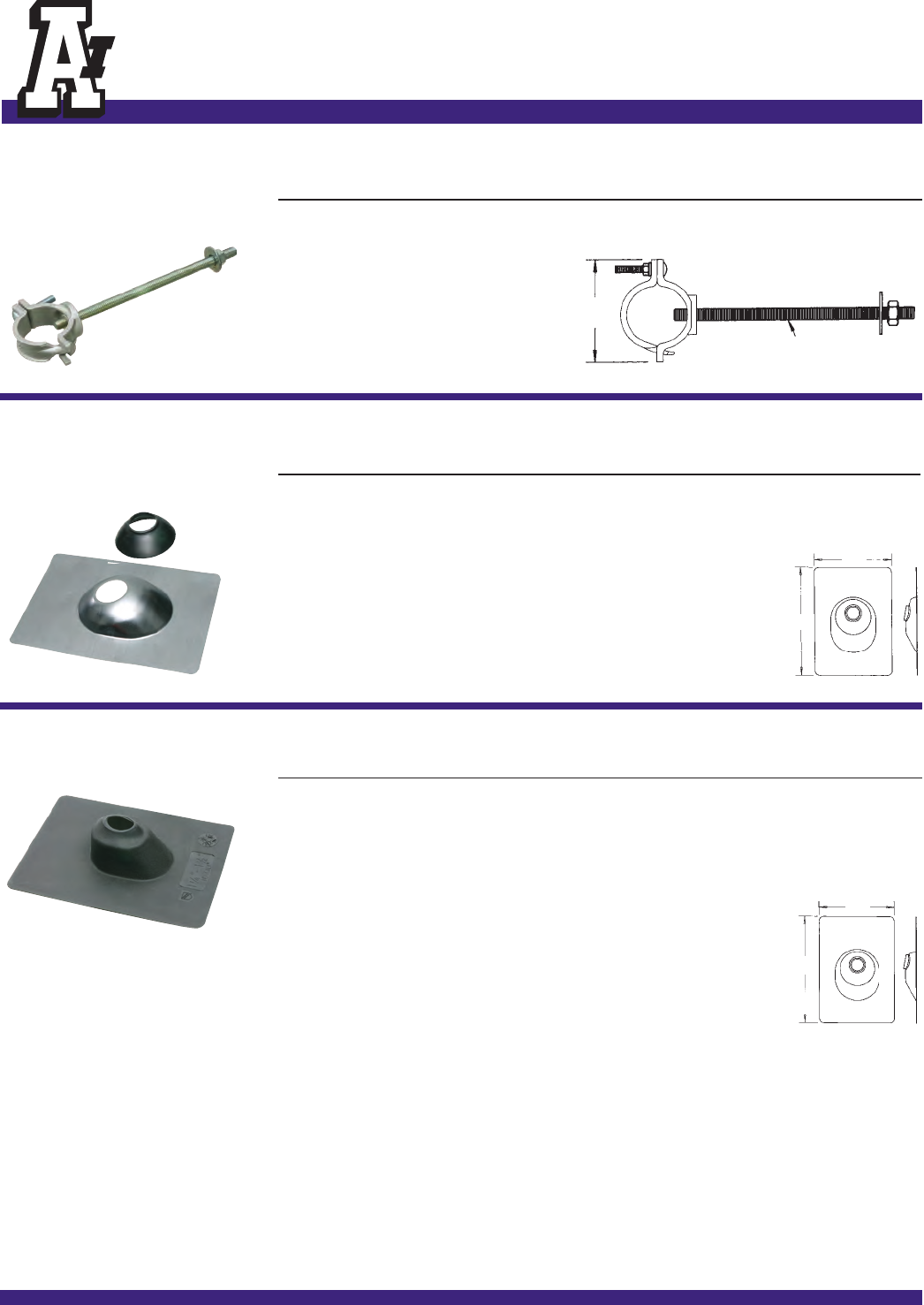

CATALOG UPC/DCI/NAED MAST STD

NUMBER MFG #01 8997 SIZE PKG

2350 02350 25

2850 28550 2-1/2 5

CATALOG UPC/DCI/NAED TRADE STD DIM DIM

NUMBER MFG #01 8997 SIZE PKG AB

624 00624 1-1/4 to 1-1/2 10 10.750 12.500

625 00625 2 10 10.750 14.500

626 00626 2-1/2 10 10.750 14.500

Universal Pipe

Support

10" bolt. Sand cast aluminum

with steel screw.

UL/CSA NOT APPLICABLE

4.300"

LENGTH = 10"

Roof Flashing

Galvanized steel with

neoprene seal. 10-3/4" x

14-1/2" x 22 gauge.

UL/CSA NOT APPLICABLE

CATALOG UPC/DCI/NAED TRADE STD DIM DIM

NUMBER MFG #01 8997 SIZE PKG AB

634 00634 1-1/4 to 1-1/2 12 9.000 11.500

635 00635 2 12 9.000 11.500

636 00636 2-1/2 12 9.000 11.500

637 00637 3 12 10.000 13.500

639 00639 4 12 11.500 14.000

Roof Flashing

All neoprene. Black, one-piece

design.

UL/CSA NOT APPLICABLE

A

B

A

B

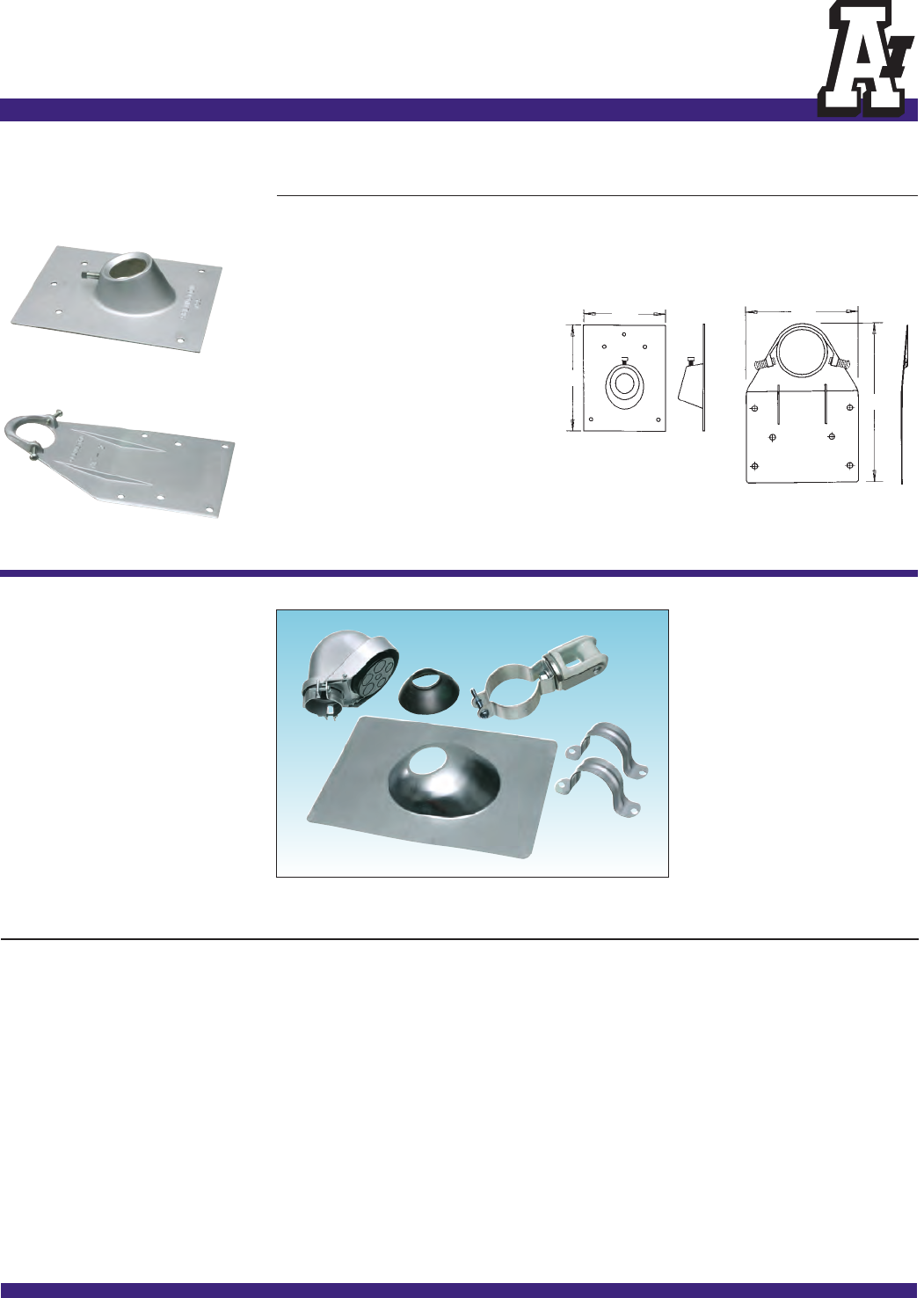

F-7 Mast Parts

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Mast Kits

Service entrance mast kits

provide an assortment of S.E.

mast components for installing

overhead service drops in

residential or commercial

buildings using conduit.

CATALOG UPC/DCI/NAED TRADE STD ENTRANCE ROOF WIRE STRAPS LAG BOTTOM AMPERE

NUMBER MFG #01 8997 SIZE PKG CAP FLASHING HOLDER BOLTS REDUCER SERVICE

MK200 42200 21145 625 - (2) 345 (2) 3/8 x 3 650 125-150-200

MK200WH 42205 21145 625 645 (2) 355 --125-150-200

MK200ASF 42210 21145 625 - (2) 345 (2) 3/8 x 3 - 125-150-200

MK200PS 32044 21145 625 (1) 610, (1) 620 ---125-150-200

MK250ASF 42250 2-1/2 1 129 626 - (2) 346 (2) 1/2 x 4 651 125-150-200

MK250ASFX 42255 2-1/2 1 129 626 (2) 615, (1) 610 ---125-150-200

MK250A 32027 2-1/2 1 129 626 - (2) 356 --125-150-200

CATALOG UPC/DCI/NAED TRADE STD DIM DIM

NUMBER MFG #01 8997 SIZE PKG AB

723 00723 1-1/4 10 7.250 9.500

724 00724 1-1/2 10 9.000 11.000

725 00725 259.000 11.000

726 00726 1-1/4 to 2 10 7.750 15.000

Roof Flashing

Cast aluminum. Includes

set-screw(s) to secure pipe

and compound.

UL/CSA NOT APPLICABLE

723

726

MK200WH

A

B

A

B

723

726

G-1

Grounding

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

E75814 LR49636

Features and Benefits

• Meets 2008 NEC Ground

Requirements

• GB5 has four termination points

one more than required by

250.94 of the 2008 NEC

• Available in Zinc and Bronze

• Handles multiple hookups of

communications systems –

for instance phone, cable TV, or

a satellite dish

• Fast, simple installation on

grounding conductor

• Plastic cover is textured and

paintable for good looks

Installation Instructions

Intersystem

Grounding

Bridges

Available in zinc or bronze.

Provides reliable intersystem

bonding between power and

communication grounding

systems. Comes with textured,

paintable, white cover. Cover is

UV rated plastic for long

outdoor life.

CATALOG UPC/DCI/NAED DESCRIP. UNIT STD DIM DIM DIM DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG ABCDEF

GB5 76095 Zinc 1 10 3.383 1.409 .872 4.398 1.836 1.497

GBB5 76096 Bronze 1 10 3.383 1.409 .872 4.398 1.836 1.497

GBB50 09725 Bronze 1 10 3.383 1.409 .872 4.398 1.836 1.497

PATENTS PENDING.

A

D

E

F

B

C

New!

1 2

3

Attach grounding bridge to substrate.

(Mounting screws not provided.)

Insert grounding electrode conductor

into the lay in lug. Tighten screw.

Finish by attaching the cover.

Good looks, a great finish.

Lay in lug

Screw

Screwdriver

For a video installation demonstration visit our website

@ aifittings.com

GB5

GB5

GBB5

Cable Range

• Four termination points for #4-#14

(solid or stranded)

• Attaches to conductor with “Lay in” style lug

with cable range of #6-#2

• GBB50 has larger cable range of #6-#1/0

GBB50





G-2 Grounding

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

E75814 LR49636

Features and Benefits

• Meets 2008 NEC Ground

Requirements

• GB5P has four termination

points – one more than required

by 250.94 of the 2008 NEC

• Available in Zinc and Bronze

• Handles multiple hookups of

communications systems –

for instance phone, cable TV, or

a satellite dish

• Fast, simple installation on

grounding conductor

• Plastic cover is textured and

paintable for good looks

Installation Instructions

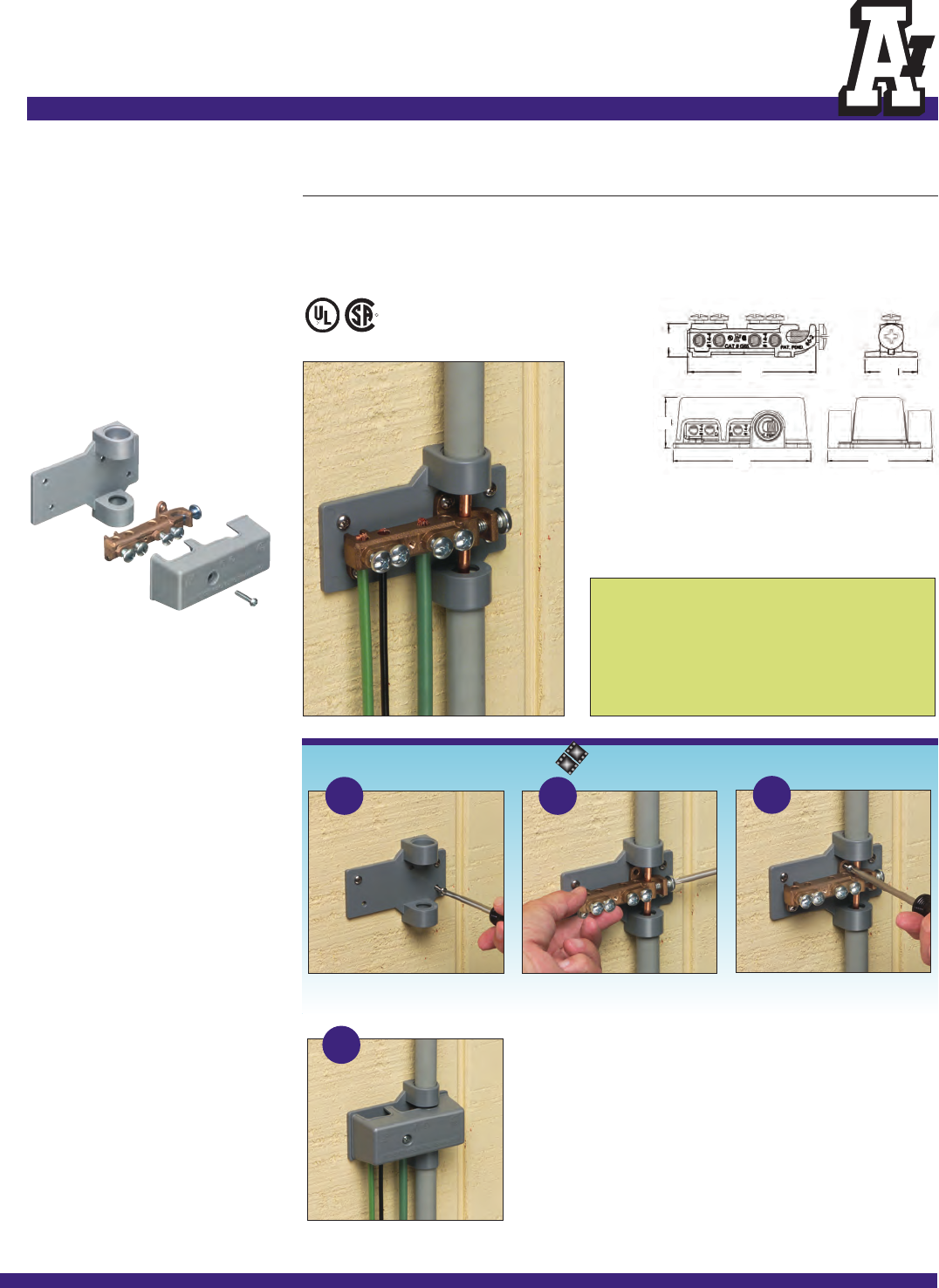

Intersystem

Grounding Bridges

with PVC Adapter

Available in zinc or bronze.

Provides reliable intersystem

bonding between power and

communication grounding

systems. Comes with a PVC

adapter for 1/2” PVC pipe.

Cover is UV rated plastic for

long outdoor life.

CATALOG UPC/DCI/NAED DESCRIP. UNIT STD DIM DIM DIM DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG ABCDEF

GB5P 09720 Zinc 1 10 3.383 1.409 .872 1.653 4.575 3.461

GBB5P 09721 Bronze 1 10 3.383 1.409 .872 1.653 4.575 3.461

GBB50P 09726 Bronze 1 10 3.383 1.409 .872 1.653 4.575 3.461

PATENTS PENDING.

New!

1 2

3

Mount conduit adapter plate in desired

location using three Screws (Mounting

screws not provided.)

Insert grounding electrode conductor

into the lay in lug. Tighten screw.

Finish by attaching the cover.

Good looks, a great finish.

For a video installation demonstration visit our website

@ aifittings.com

GBB5P

GBB5P

Cable Range

• Four termination points for #4-#14

(solid or stranded)

• Attaches to conductor with “Lay in” style lug

with cable range of #6-#2

• GBB50P has larger cable range of #6-#1/0

2

Insert grounding electrode conductor

into the lay in lug. Tighten screw.

A

D

EF

B

C





G-3

Grounding

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

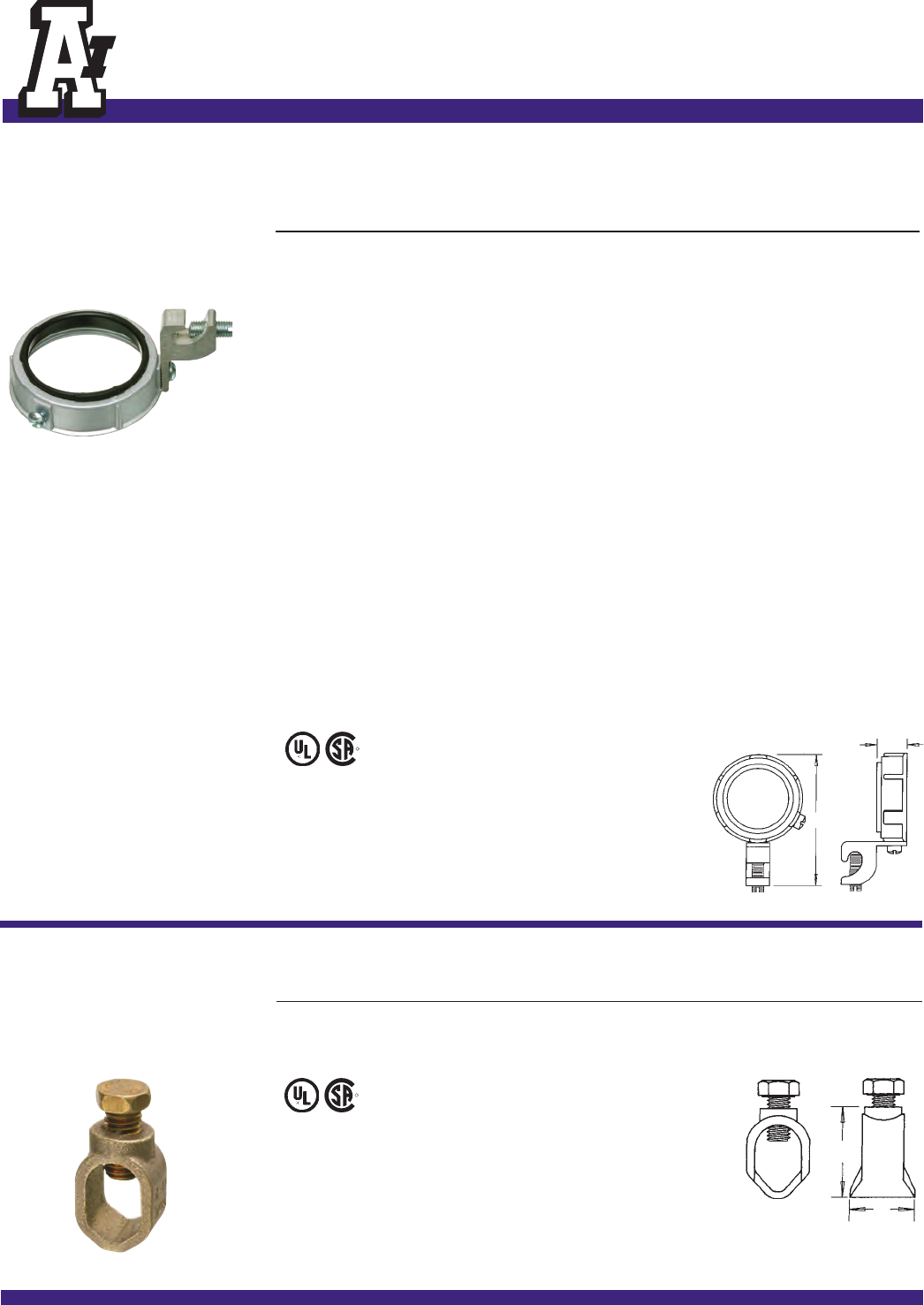

Insulated Metal

Grounding

Bushings

With dual rated CU-AL

C-clamp grounding lug. Zinc

die-cast. 150° C rated.

E75814 LR49636

CATALOG UPC/DCI/NAED TRADE GROUND WIRE UNIT STD DIM DIM THREADS/

NUMBER MFG #01 8997 SIZE MIN MAX PKG PKG ABINCH

450 00450 1/2 14 4 25 100 1.896 .475 14

451 00451 3/4 14 4 25 100 2.082 .520 14

452 00452 1 14 4 25 100 2.364 .575 11-1/2

453 00453 1-1/4 14 4 20 80 2.702 .635 11-1/2

453100 01453 1-1/4 14 1/0 20 20 2.702 .635 11-1/2

454 00454 1-1/2 14 2 20 80 3.120 .760 11-1/2

454100 01454 1-1/2 14 1/0 20 20 3.120 .760 11-1/2

455 00455 2 14 2 10 50 3.650 .755 11-1/2

455100 01455 2 14 1/0 10 10 3.650 .755 11-1/2

456 00456 2-1/2 14 2/0 5 20 4.705 .960 8

456250 01456 2-1/2 6 250MCM 10 10 4.705 .960 8

457 00457 3 14 2/0 5 20 5.275 .920 8

457250 01457 36250MCM 10 10 5.275 .920 8

458 00458 3-1/2 14 2/0 5 20 6.266 .930 8

458250 01458 3-1/2 6 250MCM 556.266 .930 8

459 00459 4 14 2/0 5 20 6.268 .950 8

459250 01459 46250MCM 556.268 .950 8

4591 04591 582/0 557.050 .990 8

4591250 45912 52250MCM 557.050 .990 8

4592 04592 682/0 558.125 .975 8

4592250 45922 62250MCM 558.125 .975 8

Threaded Type

A

B

Ground Rod

Clamps

Conductor range 8 sol.-2 str.

Approved for direct burial.

Solid brass alloy with bronze

screw.

CATALOG UPC/DCI/NAED ROD UNIT STD DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG AB

780 00780 1/2 25 25 1.250 .875

781 00781 5/8 25 100 1.275 .593

782 00782 3/4 25 25 1.445 1.030

E75814 LR49636

A

B









G-4 Grounding

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CATALOG UPC/DCI/NAED TRADE STD DIM DIM

NUMBER MFG #01 8997 SIZE PKG AB

GL50 77050 1/2 50 .220 1.250

GL75 77075 3/4 25 .255 1.450

GL100 77100 1 50 .255 1.720

GL125 77125 1-1/4 50 .255 2.020

GL150 77150 1-1/2 50 .250 2.535

GL200 77200 2 25 .250 2.950

GL250 77250 2-1/2 10 .280 3.530

GL300 77300 3 10 .295 4.330

GL350 77350 3-1/2 5 .300 4.490

GL400 77400 45.300 5.395

Grounding

Locknuts

For rigid conduit. Zinc die-cast.

E75814 LR49636

Ground Clamp

With solid brass hubs.

For rigid conduit.

CATALOG UPC/DCI/NAED PIPE HUB UNIT STD DIM MIN MAX

NUMBER MFG #01 8997 SIZE SIZE PKG PKG A

730B 73020 1/2 to 1 1/2 5 50 2.250 .550 1.795

MIN/MAX

GROUNDING SCREW

E75814 LR49636

CATALOG UPC/DCI/NAED PIPE WIRE UNIT STD DIM DIM MIN MAX

NUMBER MFG #01 8997 SIZE RANGE PKG PKG AB

720S 72010 1/2 to 1 8-2 25 250 2.225 .310 .550 1.575

Note: Zinc grounding and bonding products are not UL or CSA with color plated brass.

Bare Wire Ground

Clamp

Zinc die-cast. Brass color

plated.

MIN/MAX

BA

A

A

B









G-5

Grounding

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Bare Wire Ground

Clamp

Solid brass with brass screws.

CATALOG UPC/DCI/NAED PIPE WIRE UNIT STD DIM DIM MIN MAX

NUMBER MFG #01 8997 SIZE RANGE PKG PKG AB

720BBS 72022 1/2 to 1 10-2 25 250 2.430 .310 .500 1.380

E75814 LR49636

MIN/MAX

CATALOG UPC/DCI/NAED PIPE WIRE UNIT STD DIM DIM MIN MAX

NUMBER MFG #01 8997 SIZE RANGE PKG PKG AB

720Z 72080 1/2 to 1 8-2 25 250 2.225 .550 .545 1.575

CATALOG UPC/DCI/NAED PIPE WIRE UNIT STD DIM DIM MIN MAX

NUMBER MFG #01 8997 SIZE RANGE PKG PKG AB

720B 72020 1/2 to 1 10-2 25 250 2.430 .310 .500 1.380

721B 00722 1-1/4 to 2 10-2 5 20 3.600 .310 1.390 3.000

722B 07222 2-1/2 to 4 10-2 116.350 .310 2.700 5.900

723B 07232 4-1/2 to 6 10-2 118.500 .310 4.500 8.400

Bare Wire Ground

Clamp

Zinc die-cast.

E75814 LR49636

Bare Wire Ground

Clamps

Solid brass with steel screws.

E75814 LR49636

MIN/MAX

MIN/MAX

A

B

A

B

A

B













G-6 Grounding

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Bare Wire Ground

Clamp

Solid bronze with bronze

screws. Approved for direct

burial.

CATALOG UPC/DCI/NAED PIPE WIRE UNIT STD DIM DIM MIN MAX

NUMBER MFG #01 8997 SIZE RANGE PKG PKG AB

720DB 00721 1/2 to 1 10-2 25 250 2.275 .312 .675 1.850

E75814 LR49636

MIN/MAX

A

B

Bare Wire

Ground Clamp

with Closed Lug

Solid bronze with stainless

steel screws. Approved for

direct burial on rebar, pipe,

tubing, and rod.

CATALOG UPC/DCI/NAED PIPE WIRE UNIT STD DIM DIM MIN MAX

NUMBER MFG #01 8997 SIZE RANGE PKG PKG AB

718DB 72000 3/8 to 1 8-4/0 10 10 2.350 .620 .330 1.500

E198108

MIN/MAX

A

B

Bare Wire

Ground Clamp

with Open Lug

Solid bronze with stainless

steel screws. Approved for

direct burial on rebar, pipe,

tubing, and rod.

CATALOG UPC/DCI/NAED PIPE WIRE UNIT STD DIM MIN MAX

NUMBER MFG #01 8997 SIZE RANGE PKG PKG A

719DB 72001 3/8 to 1 8-4/0 10 10 2.588 .360 1.125

E198108

MIN/MAX

A





G-7

Grounding

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Bare Wire

Ground Clamp

with Open Lug

Solid bronze with stainless

steel screws. Approved for

direct burial on rebar, pipe,

tubing, and rod.

CATALOG UPC/DCI/NAED PIPE WIRE UNIT STD DIM MIN MAX

NUMBER MFG #01 8997 SIZE RANGE PKG PKG A

717DB 12514 3/8 to 1 10-2 25 250 2.230 .275 1.500

E198108

MIN/MAX

A

Compression

Connectors for

Terminating

Grounding

Electrodes

Compression connector for

terminating grounding

connectors to metal

enclosures.

CATALOG UPC/DCI/NAED STD DIM DIM DIM DIM DIM

NUMBER MFG #01 8997 PKG AB CDE

KC4 83665 10 1.806 .520 1.208 .198 .160

KC6 83667 10 1.740 .500 1.213 .154 .130

E225971

A

B

CE

D

KC4

KC6

Features and Benefits

• A new alternative for bonding and grounding

separately derived systems, panelboards, and

enclosures

• Eliminates the need for installing lugs on the frames

of load centers

• Provides adequate strain relief for grounding

electrode conductors

H-1

Conduit Bodies

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

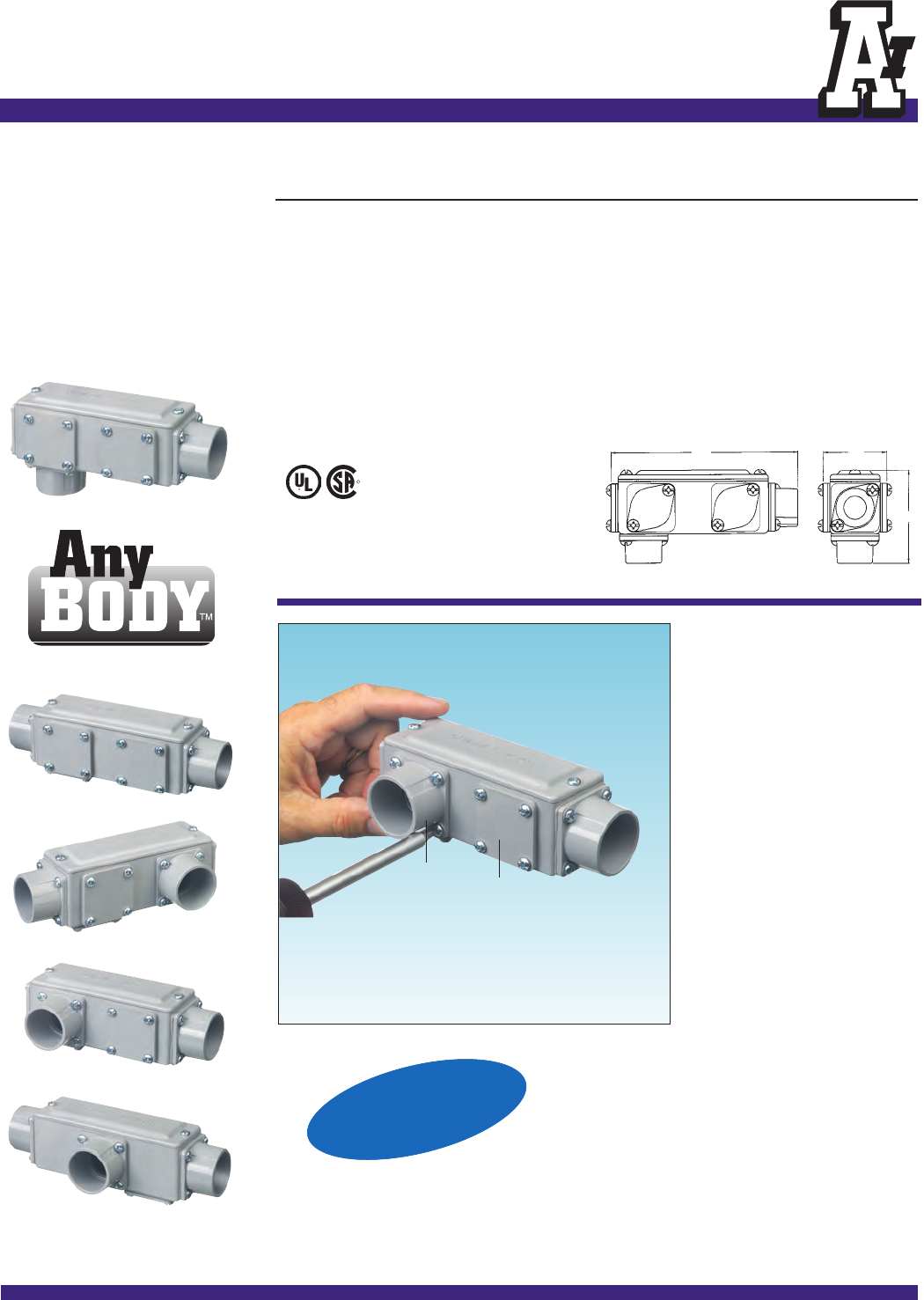

AnyBODY™

Conduit Bodies

Copper-free aluminum die-

cast. Five conduit bodies in

one! Ships as an LB, but

converts to a T, LL, LR, or C.

Switch covers and threaded

flanges as needed to create

the style you need.

CATALOG UPC/DCI/NAED TRADE CUBIC UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE INCHES PKG PKG ABC

930 17900 1/2 4.80 10 10 5.111 2.520 1.670

931 17901 3/4 7.80 10 10 5.640 2.770 2.020

932 17902 1 11.50 556.530 3.280 2.160

933 17903 1-1/4 32.30 2 10 8.550 4.020 2.980

934 17904 1-1/2 32.30 2 10 8.550 4.020 2.980

935 17905 2 69.50 1510.730 4.670 3.500

Refer to page H-2 for flange illustration.

PATENT PENDING.

Threaded only for IMC or rigid.

Combination threaded IMC or rigid and set-screw EMT.

E48106 LR49636

CATALOG UPC/DCI/NAED TRADE CUBIC UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE INCHES PKG PKG ABC

936 17906 2-1/2 175.50 1113.900 5.970 4.800

937 17907 3 175.50 1114.340 6.400 4.800

938 17908 3-1/2 334.00 1116.840 7.330 5.840

939 17909 4 334.00 1116.840 7.330 5.840

PATENT PENDING.

930 ships as LB

Converts to a...

C

A

B

C

E48106 LR49636

LR

T

LL

Features and Benefits

• Meets NEC 2008 Section 314.16

Paragraph (C) (2) for Conduit

Bodies with Splices, Taps, or

Devices

• Convenient and easy to use

• Saves the time, space, and cost

of stocking five different conduit

bodies (LB, T, LL, LR, C)

• 1/2" to 2" sizes are combination

EMT/rigid — they’re threaded

for rigid, but also have a set-

screw for use with EMT

• Includes threaded flanges for

three openings

• Volume and wire fill marked

inside bodies

• Recessed O-rings under covers

and flanges

930

1/2" AnyBODY

Showing

Conversion to LR

Threaded

Flange

1. Remove cover plate.

2. Remove threaded flange.

3. Reinstall cover plate and flange in the appropriate

opening to convert AnyBODY to the desired

configuration.

Screwdriver Cover

Plate

COMPETITIVELY

PRICED WITH LBs

&

NO

EXTRA COST

FOR Ts









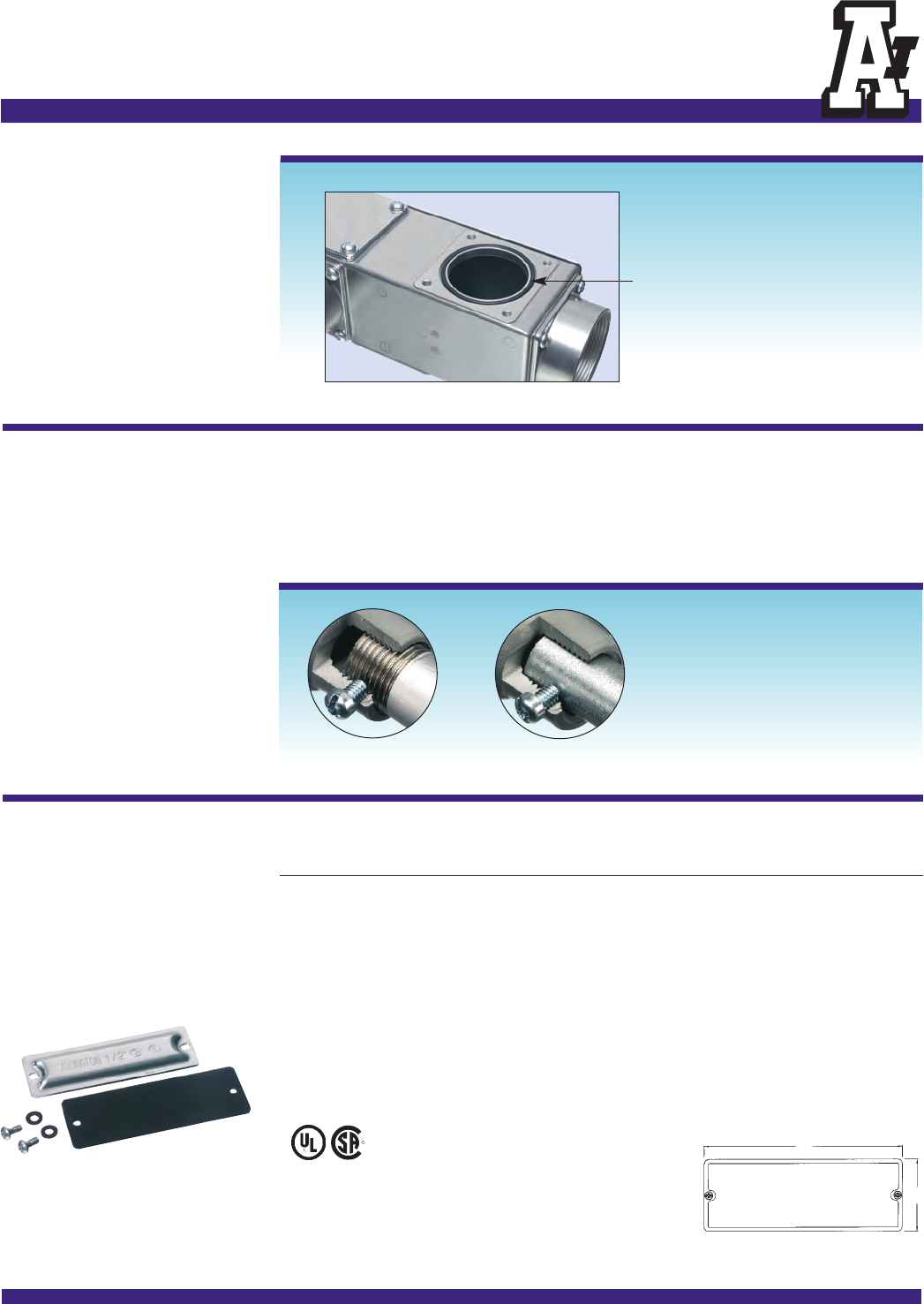

H-2 Conduit Bodies

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

AnyBODY™conduit bodies, #’s 930 through 935, whether in T, LB, C, LR, or LL configurations

have combination flanges which are threaded for rigid and include set-screws for EMT.

The set-screws may be used for rigid, but are not necessary. They are listed raintight with rigid

and concrete-tight for EMT. These products can also be used for EMT to rigid.

Shown with Rigid Shown with EMT

Flange Illustration Combination Threaded and Set-Screw Conduit Bodies

CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG AB

930CG 16500 1/2 114.140 1.380

931CG 16501 3/4 114.600 1.720

932CG 16502 1115.250 1.860

933CG 16503 1-1/4 117.200 2.600

934CG 16504 1-1/2 117.200 2.600

935CG 16505 2119.440 3.130

936CG 93605 2-1/2 1112.50 4.360

937CG 93705 31112.500 4.360

938CG 93805 3-1/2 1115.000 5.400

939CG 93905 41115.000 5.400

E48106 LR49636

AnyBODY™

Cover and

Gasket Kits

Replacement kits for the

AnyBODY Series. Includes

aluminum cover, neoprene

gasket, and two combination

screws.

Recessed O-Ring

Illustration

A

B

(Note: cover removed)

Seated O-rings on all

Metallic AnyBODY™

Conduit Bodies

maintain liquid-tight

seal!





H-3

Conduit Bodies

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

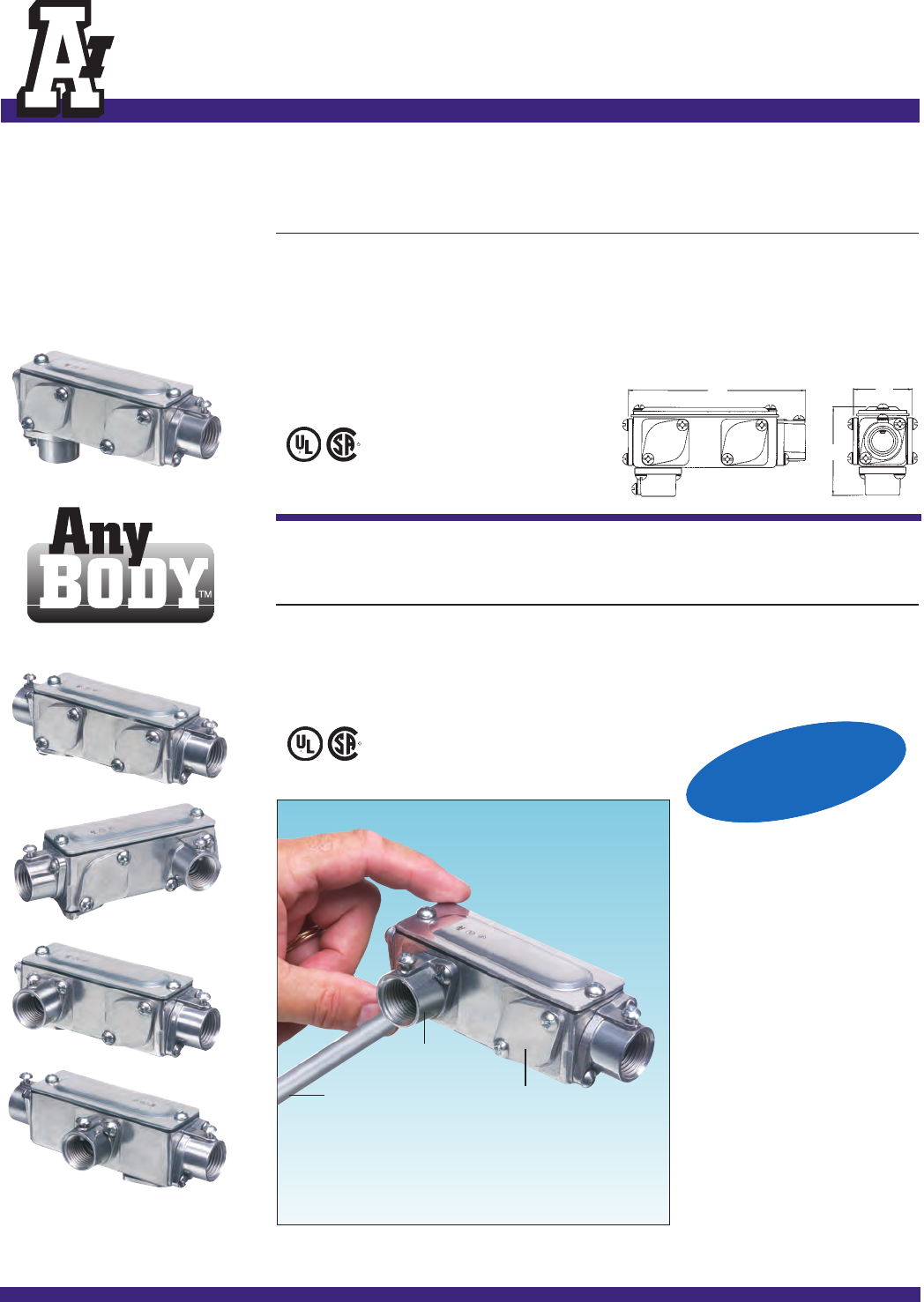

CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG ABC

920SLB 92013 1/2 10 10 3.155 1.450 1.178

921SLB 92113 3/4 10 10 3.470 1.650 1.360

922SLB 92213 1554.180 1.915 1.723

923SLB 92313 1-1/4 555.515 2.320 2.164

924SLB 92413 1-1/2 226.095 2.410 2.420

925SLB 92513 2210 6.595 2.975 2.835

Service Entrance

SLB Conduit

Bodies

With aluminum cover and

velumoid gasket. Copper-free

aluminum die-cast.

Threaded for IMC or rigid.

A

B

C

Set-Screw

AnyBODY™

Conduit Bodies

for EMT or Rigid

Copper-free aluminum die-

cast. Five conduit bodies in

one! Ships as an LB, but

converts to a T, LL, LR, or C.

Switch covers and flanges as

needed to create the style you

need.

CATALOG UPC/DCI/NAED TRADE CUBIC UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE INCHES PKG PKG ABC

16 16400 2-1/2 175.50 1114.340 6.390 4.800

17 16401 3 175.50 1114.340 6.400 4.800

18 16402 3-1/2 334.00 1116.840 7.330 5.840

19 16403 4 334.00 1116.840 7.330 5.840

Refer to page H-2 for flange illustration.

PATENT PENDING.

For set-screw sizes 1/2" - 2" see page H-1.

A

B

C

E48106 LR49636

Features and Benefits

• Meets NEC 2008 Section 314.16

Paragraph (C) (2) for Conduit

Bodies with Splices, Taps, or

Devices

• Convenient and easy to use

• Saves the time, space, and cost

of stocking five different conduit

bodies (LB, T, LL, LR, C)

• Includes flanges for three

openings

• Volume and wire fill marked

inside bodies

• Recessed O-rings under covers

and flanges

16

2-1/2" AnyBODY

Converted from

LB to LR

Set-screw

Flange

1. Remove cover plate.

2. Remove set-screw flange.

3. Reinstall cover plate and flange in the appropriate

opening to convert AnyBODY to the desired configuration.

Cover

Plate

COMPETITIVELY

PRICED WITH LBs

&

NO

EXTRA COST

FOR Ts





H-4 Conduit Bodies

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Non-Metallic

AnyBODY™

Conduit Bodies

Non-metallic. Five conduit

bodies in one! Ships as an LB,

but converts to a T, LL, LR, or

C. Switch covers and flanges

as needed to create the style

you need. Includes cover,

foam gaskets, and screws.

CATALOG UPC/DCI/NAED TRADE CUBIC UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE INCHES PKG PKG ABC

930NM 12500 1/2 4.50 10 10 5.150 2.560 1.750

931NM 12501 3/4 8.50 10 10 5.670 2.800 2.100

932NM 12502 1 12.00 556.560 3.260 2.240

933NM 12503 1-1/4 33.50 2 10 8.510 3.910 3.000

934NM 12504 1-1/2 33.50 2 10 8.510 3.910 3.000

935NM 12505 2 65.30 2 10 10.840 4.710 3.630

936NM 12506 2-1/2 194.00 1114.440 6.470 4.980

937NM 12507 3 194.00 1114.560 6.600 4.980

938NM 12508 3-1/2 369.00 1117.170 7.610 6.090

939NM 12509 4 369.00 1117.250 7.690 6.090

PATENT PENDING. A

B

C

E170558 LR49636

Features and Benefits

• Meets NEC 2008 Section 314.16

Paragraph (C) (2) for Conduit

Bodies with Splices, Taps, or

Devices

• Convenient and easy to use

• Saves the time, space, and cost

of stocking five different conduit

bodies (LB, T, LL, LR, C)

• Includes flanges for three

openings

• Volume and wire fill marked

inside bodies

• Using standard PVC cement,

AnyBODY glues onto pipe for

easy installation

• AnyBODY NM Cover and Gasket

Kits available soon

• All gaskets are secured and

maintain a liquid-tight seal

935NM

2" AnyBODY

Showing

Conversion to LR

Set-screw

Flange

1. Remove cover plate.

2. Remove flange.

3. Reinstall cover plate and flange in the appropriate

opening to convert AnyBODY to the desired configuration.

Cover

Plate

930NM shown

935NM ships as LB

Converts to a...

C

LR

T

LL

COMPETITIVELY

PRICED WITH LBs

&

NO

EXTRA COST

FOR Ts





Place board over

bushing and tap onto

Rigid or EMT with hammer.

I-1

Rigid • IMC

Insulating

Bushings

For Rigid • IMC. Press fit.

Holds firmly in place while

pulling cables.

CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG AB

RGD50 51930 1/2 100 1000 .531 .989

RGD75 51932 3/4 100 1000 .531 1.185

RGD100 51933 1 100 100 .625 1.542

RGD125 51934 1-1/4 100 100 .625 1.891

RGD150 51935 1-1/2 100 100 .625 2.062

RGD200 51936 2 50 50 .625 2.655

EMT250* 12240 2-1/2 25 25 1.225 3.062

EMT300* 12245 3 25 25 1.225 3.690

EMT350* 12250 3-1/2 25 25 1.231 4.187

EMT400* 12255 4 25 25 1.233 4.815

See page B-1 for EMT Insulating Bushings size 1/2" through 4".

*Can also be used for EMT.

E105706 LR49636

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Non-metallic

sheathed cable

Arlington's

Rigid insulating bushing

Non-structural

ceiling

Surface mounted

panel or box

Arlington’s Rigid Insulating Bushings protect cables from abrasion by rigid. Examples: Power,

Cable TV, computer datalines, telephone/modem, audio/video cables, alarm systems, security

systems. Rigid is often used to protect cables where damage could occur in a house or building.

Meets 2008 NEC code requirements

for 300-15(c) protection. Listed for

use in environmental air handling

spaces per 2008 NEC code

requirements 300-22(c).

Rigid

A

B

Example:

Telephone cable

protected by Rigid

insulating

bushing.





I-2 Rigid • IMC

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CATALOG UPC/DCI/NAED EMT UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG ABC

501L 50130 1/2 100 1000 .900 .800 1.055

502L 50230 3/4 50 500 .900 .800 1.300

503L 50330 1 25 100 .900 .770 1.670

Long Conduit

Nipples

Zinc die-cast.

E60812 LR49636

A

B

C





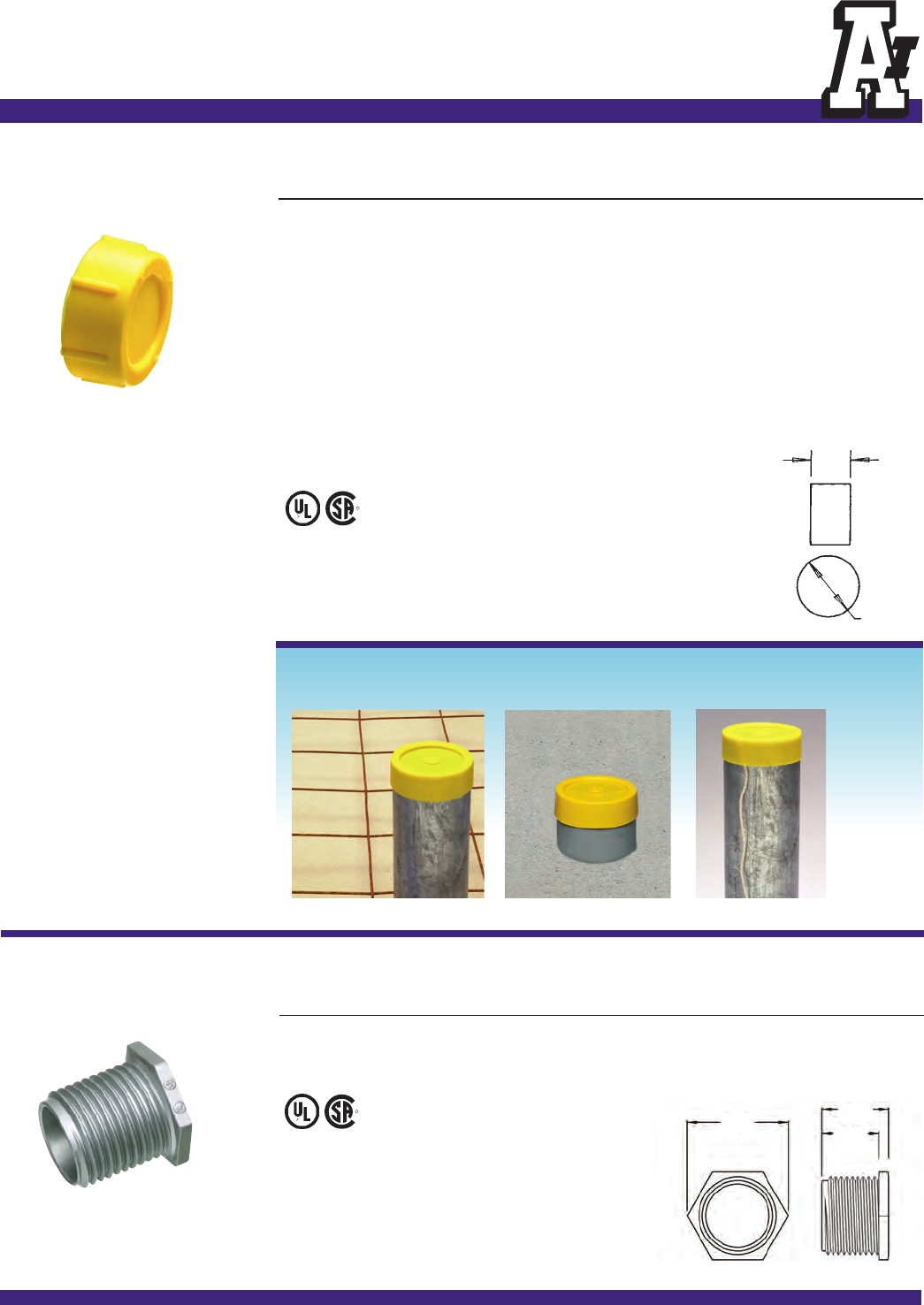

Conduit Caps

Conduit cap and insulating

bushing.

CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG AB

RGD50C 51937 1/2 100 1000 .531 .840

RGD75C 51938 3/4 100 1000 .531 1.056

RGD100C 51939 1 100 100 .625 1.280

RGD125C 51940 1-1/4 100 100 .625 1.660

RGD150C 51941 1-1/2 100 100 .625 1.915

RGD200C 51942 2 50 50 .625 2.377

EMT250C* 12215 2-1/2 25 25 1.225 3.062

EMT300C* 12217 3 25 25 1.225 3.690

EMT350C* 12219 3-1/2 25 25 1.231 4.187

EMT400C* 12221 4 25 25 1.233 4.815

See page B-1 for EMT Insulating Bushings size 1/2" through 4".

*Can also be used for EMT.

E105706 LR49636

A





B

RGD200C

Use this capped version to seal off conduit during concrete pours. Then remove

cap/seal with razor knife or use screwdriver to punch hole in cap. (EMT300C)

String can

be used to

aid

removal.

I-3

Rigid • IMC

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG ABC

501 00501 1/2 100 1000 .585 .425 1.050

502 00502 3/4 50 500 .614 .514 1.310

503 00503 1 25 100 .654 .518 1.616

504 00504 1-1/4 10 100 .810 .578 1.978

505 00505 1-1/2 10 100 .835 .613 2.410

506 00506 2 10 50 .888 .676 2.945

507 00507 2-1/2 10 30 1.200 .876 3.555

508 00508 3 10 10 1.375 1.008 4.390

509 00509 3-1/2 10 10 1.375 1.008 4.925

510 00510 4551.375 1.011 5.420

511* 00511 5111.700 1.232 5.812

512* 00512 6112.000 1.500 7.000

* Malleable.

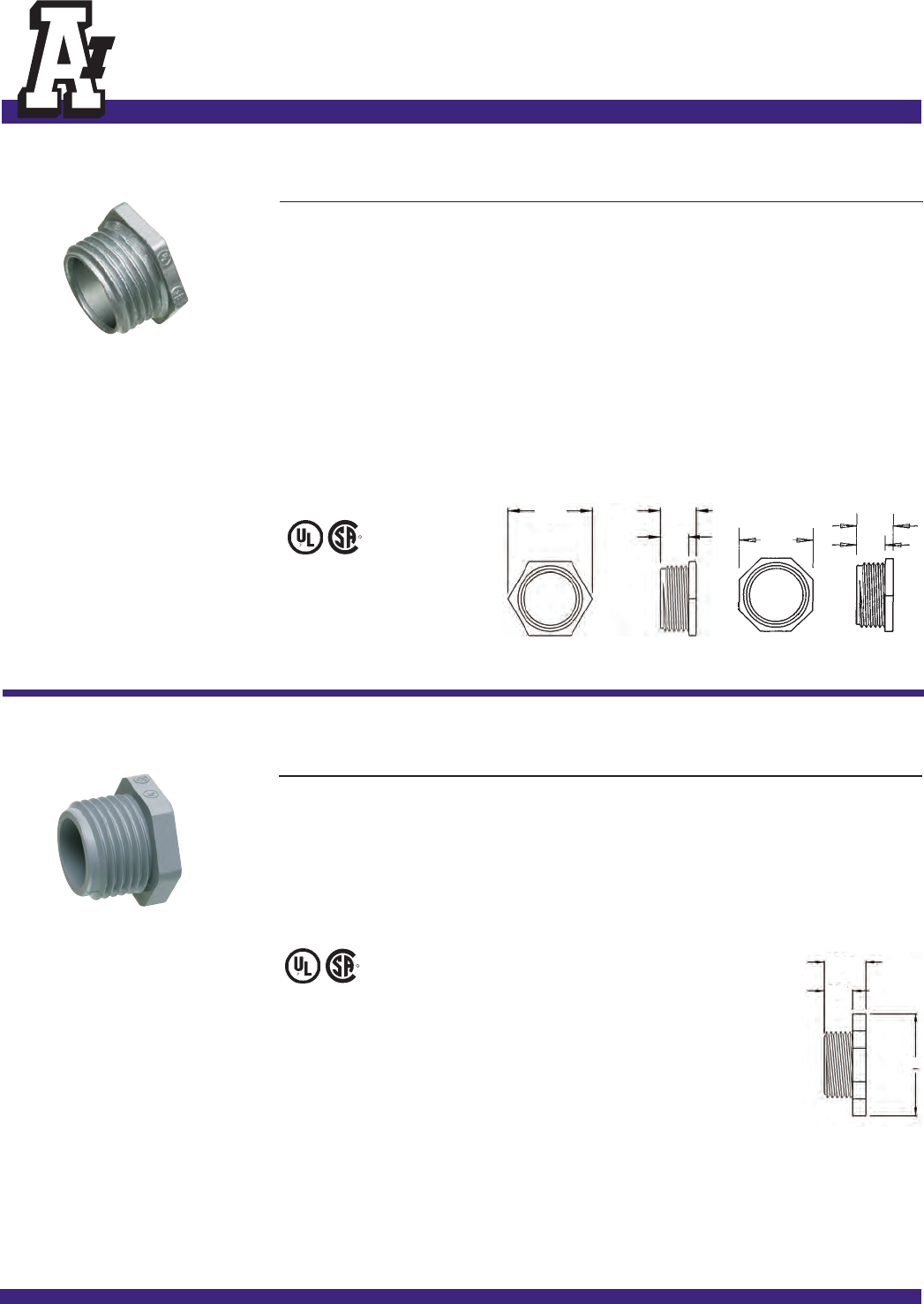

Conduit Nipples

Zinc die-cast.

A

B

C

C

A

B

501-510 511, 512

E60812 LR49636





CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG ABC

NM501 54501 1/2 100 1000 .754 .654 1.047

NM501EL 54584 1/2 100 1000 1.884 1.784 .946

NM502 54502 3/4 50 500 .779 .534 1.300

NM503 54503 1 25 100 .900 .575 1.592

NM504 54504 1-1/4 10 100 .900 .575 2.415

NM505 54505 1-1/2 10 100 .912 .662 2.623

NM506 54506 2 10 50 .975 .570 3.096

Conduit Nipples

Non-metallic.

E60812 LR49636

A

B

C





I-4 Rigid • IMC

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

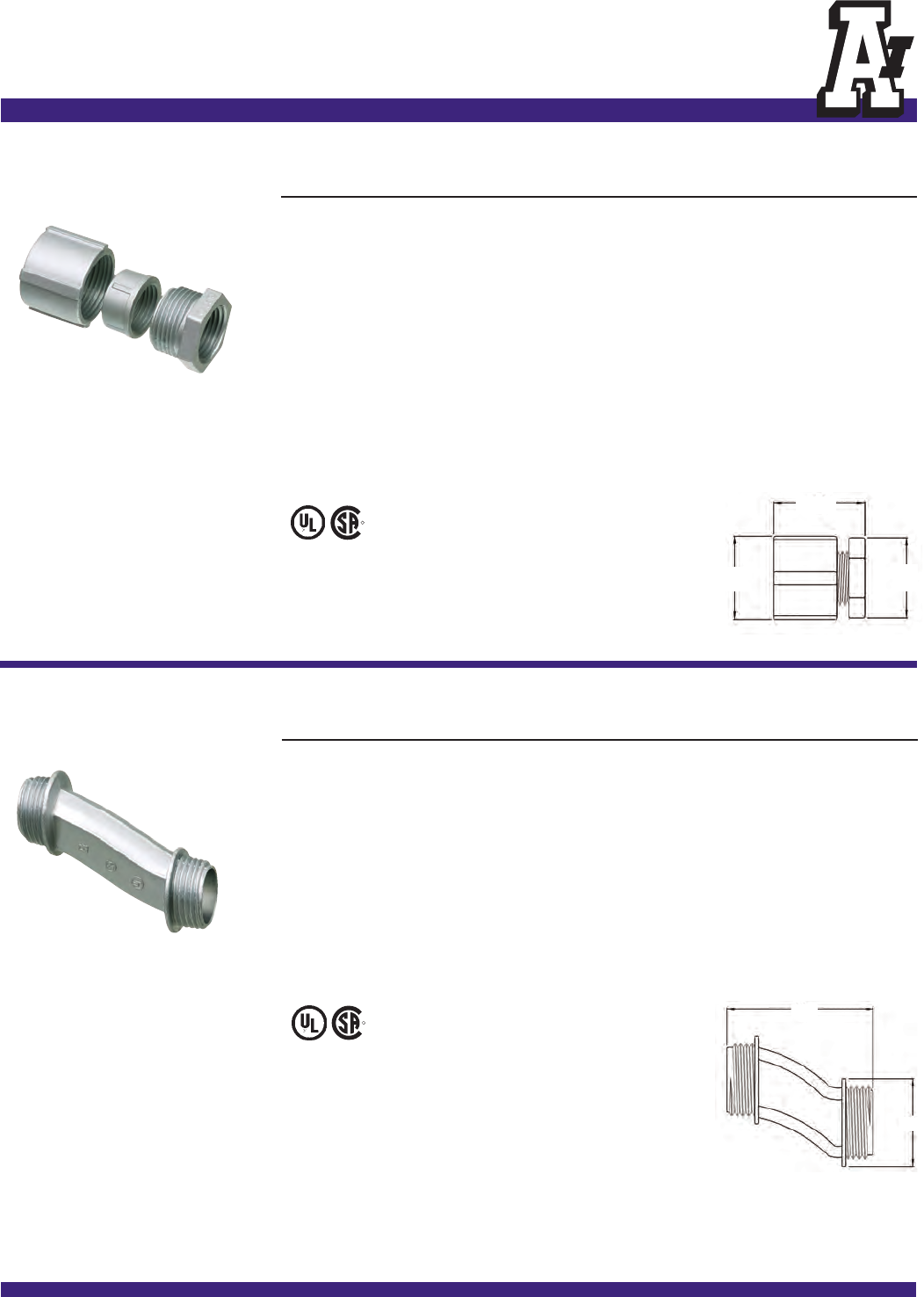

3-Piece Coupling

Rigid • IMC

Zinc die-cast.

CATALOG UPC/DCI/NAED TRADE STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG ABC

200 00200 1/2 50 1.430 1.310 1.250

201 00201 3/4 50 1.520 1.610 1.560

202 00202 1 25 1.700 2.125 2.100

203 00203 1-1/4 25 2.125 2.400 2.415

204 00204 1-1/2 25 2.125 2.890 2.940

205 00205 2 20 2.360 3.400 3.500

206 00206 2-1/2 10 2.520 4.030 4.390

207 00207 352.580 4.620 4.930

208 00208 3-1/2 5 2.645 5.350 5.425

209 00209 423.420 5.870 5.780

210* 00210 514.375 7.000 7.000

211* 00211 614.375 8.250 8.250

*Malleable

E60812 LR49636

A

C

B

3/4" Offset

Nipples

Zinc die-cast.

CATALOG UPC/DCI/NAED TRADE KO UNIT STD DIM DIM

NUMBER MFG #01 8997 SIZE SIZE PKG PKG AB

6A2 61200 1/2 1/2 20 200 2.460 1.000

6A3 61300 3/4 3/4 10 100 2.560 1.220

6A4 61400 1110 100 2.535 1.525

6A5 61500 1-1/4 1-1/4 10 40 2.937 1.910

6A6 61600 1-1/2 1-1/2 10 40 3.080 2.125

6A7 61700 2210 10 3.145 2.665

6A8* 61800 2-1/2 2-1/2 223.970 3.280

6A9* 61900 33114.420 3.795

6A10* 64000 3-1/2 3-1/2 115.000 4.477

6A11* 64002 44115.000 4.960

*Malleable

E60812 LR49636

A

B









I-5

Rigid • IMC

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

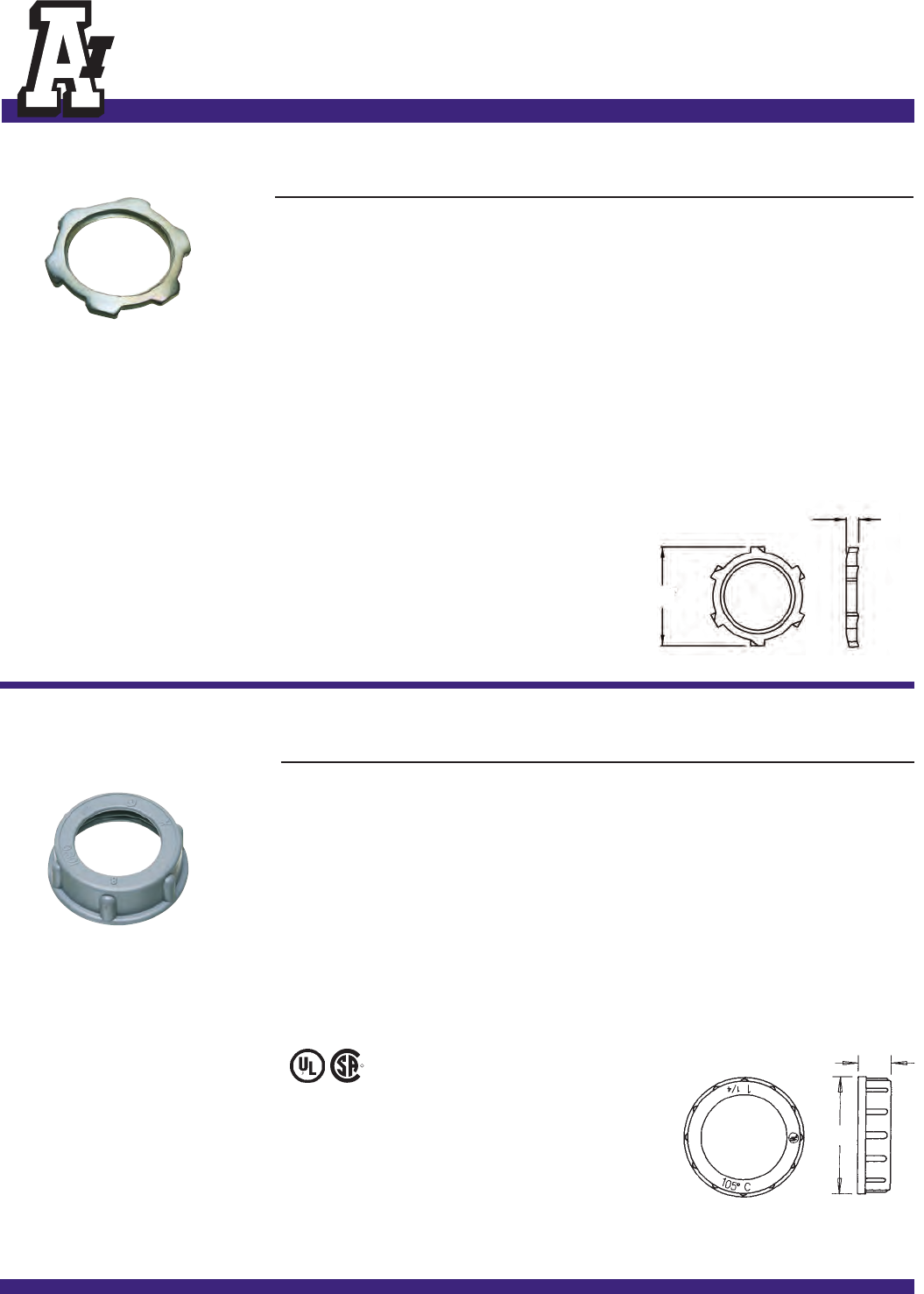

CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG AB

401 00401 1/2 200 2000 1.125 .130

402 00402 3/4 100 1000 1.383 .140

403 00403 1 100 1000 1.730 .160

404 00404 1-1/4 50 250 2.080 .187

405 00405 1-1/2 50 250 2.376 .187

406 00406 2 25 250 2.890 .250

407 00407 2-1/2 30 30 3.470 .250

408 00408 3 25 25 4.165 .250

409 00409 3-1/2 25 25 4.700 .275

410 00410 4 25 25 5.320 .275

411 00411 5 10 10 6.487 .450

412 00412 6 10 10 7.830 .450

Conduit Locknuts

Plated steel.

A

B

CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG AB

440 00440 1/2 100 1000 1.050 .365

441 00441 3/4 100 1000 1.280 .390

442 00442 1 50 500 1.632 .490

443 00443 1-1/4 25 250 1.986 .535

444 00444 1-1/2 25 250 2.160 .550

445 00445 2 25 125 2.680 .600

446 00446 2-1/2 10 100 3.150 .635

447 00447 3 10 50 3.800 .725

448 00448 3-1/2 10 50 4.275 .725

449 00449 4 10 50 4.775 .750

4491 04491 5556.350 .975

4492 04492 6 557.475 .975

Plastic Insulating

Bushings

105° C rated.

E105706 LR49636

A

B





I-6 Rigid • IMC

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Combination

Threaded Rigid

and Set-Screw EMT

to Box

90° pulling elbows with cover

and gasket. Zinc die-cast.

CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG AB

9100 91005 1/2 5 50 2.030 1.945

9110 91100 3/4 5 50 2.260 2.140

9120 50165 1525 2.610 2.610

9130 50167 1-1/4 2 10 3.037 3.037

See hub illustration below.

E20643 LR49636 A

B

Combination

Threaded Rigid

and Set-Screw EMT

90° Pulling Elbow

90° pulling elbows with cover

and gasket. Zinc die-cast.

CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG AB

HL5000 83105 1/2 10 100 2.120 2.120

HL7500 83175 3/4 5 50 2.380 2.380

HL100 50171 1525 3.040 3.040

HL125 50173 1-1/4 2 10 3.900 3.900

See hub illustration above.

E20643 LR49636

A

B









Watertight

Conduit Hubs

For rigid • IMC conduit. With

insulated throat. Zinc die-cast.

CATALOG UPC/DCI/NAED TRADE STD DIM DIM

NUMBER MFG #01 8997 SIZE PKG AB

WH1 58100 1/2 10 1.325 1.325

WH2 58200 3/4 10 1.450 1.512

WH3 58300 1 10 1.450 1.790

WH4 58400 1-1/4 5 1.575 2.295

WH5 58500 1-1/2 2 1.700 2.450

WH6 58600 221.700 2.875

WH7 58700 2-1/2 1 2.045 3.325

WH8 58800 312.150 4.040

WH9 58900 3-1/2 1 2.420 4.550

WH10 58101 412.420 5.030

WH11* 58103 513.000 6.750

WH12* 58105 613.085 7.600

*Malleable.

E60812 LR49636

A

B





I-7

Rigid • IMC

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

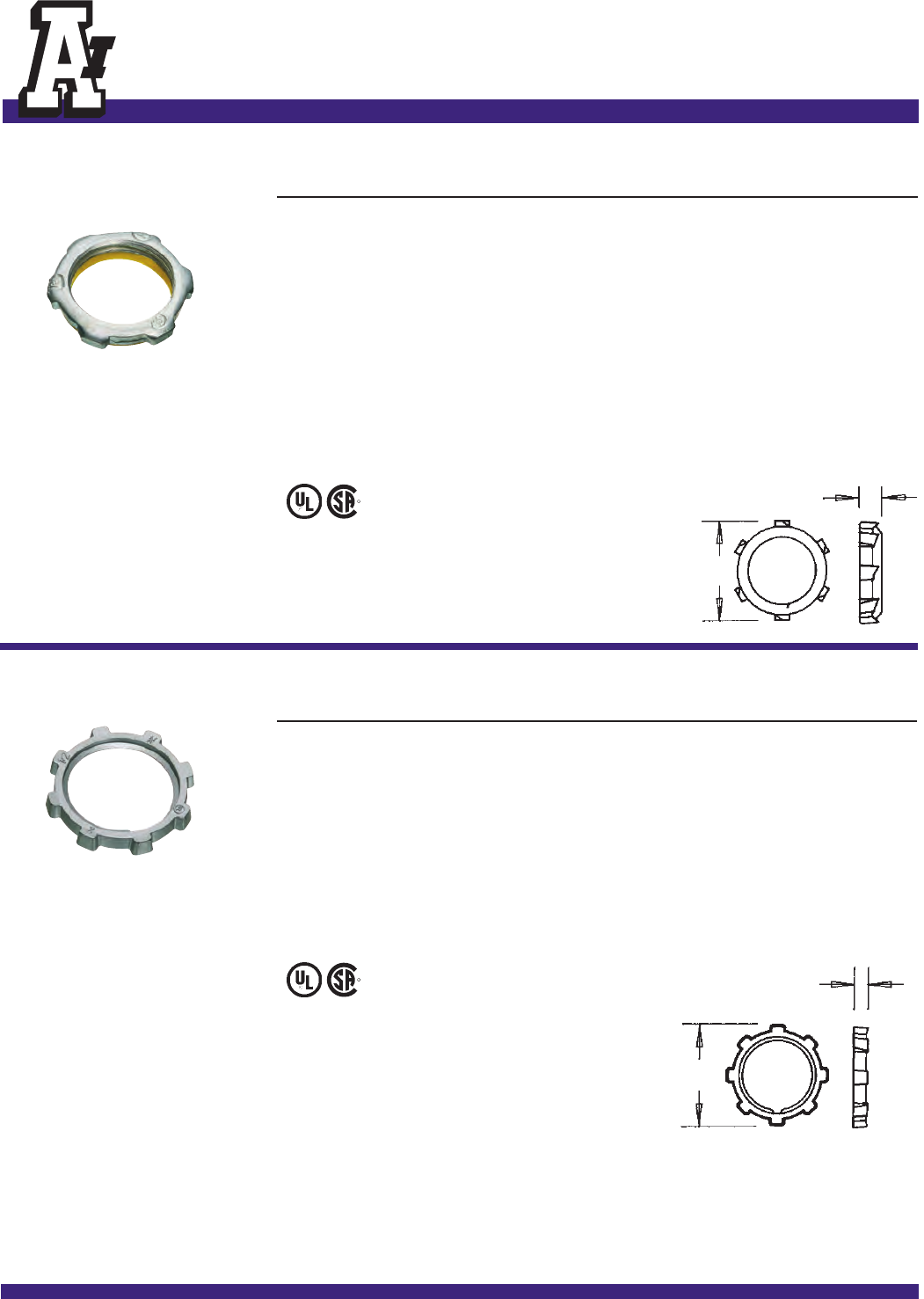

CATALOG UPC/DCI/NAED TRADE STD DIM DIM

NUMBER MFG #01 8997 SIZE PKG AB

SL50 13500 1/2 50 1.125 .230

SL75 13750 3/4 50 1.375 .240

SL100 13100 1 25 1.715 .260

SL125 13125 1-1/4 25 2.065 .300

SL150 13150 1-1/2 25 2.375 .300

SL200 13200 2 25 2.885 .350

SL250 13250 2-1/2 10 3.450 .350

SL300 13300 3 10 4.125 .350

SL350 13350 3-1/2 10 4.675 .375

SL400 13400 4 10 5.225 .375

SL500 13501 5 10 6.487 .550

SL600 13600 6 10 7.830 .550

Steel Sealing

Locknut

With PVC molded seal.

E60812 LR49636

Die-Cast Locknuts

Cast thread. Zinc die-cast. CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG AB

DLN1 43510 1/2 200 2000 1.100 .160

DLN2 43520 3/4 100 1000 1.387 .160

DLN3 43530 1 100 500 1.685 .190

DLN4 43540 1-1/4 50 250 2.115 .190

DLN5 43550 1-1/2 50 250 2.370 .190

DLN6 43560 2 25 250 2.885 .190

DLN7 43570 2-1/2 60 60 3.450 .250

DLN8 43580 3 50 50 4.190 .250

DLN9 43590 3-1/2 50 50 4.700 .250

DLN10 43511 4 30 30 5.300 .250

E60812 LR49636

A

A

B

B









I-8 Rigid • IMC

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CATALOG UPC/DCI/NAED SIZE UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG ABC

RW1 95100 3/4 x 1/2 250 1000 .870 1.420 .035

RW2 95200 1 x 1/2 100 400 .870 1.710 .035

RW3 95300 1 x 3/4 100 400 1.060 1.710 .035

RW4 95400 1-1/4 x 1/2 200 200 .870 2.080 .035

RW5 95500 1-1/4 x 3/4 200 200 1.060 2.080 .035

RW6 95600 1-1/4 x 1 200 200 1.380 2.080 .035

RW7 95700 1-1/2 x 1/2 100 100 .870 2.635 .035

RW8 95800 1-1/2 x 3/4 100 100 1.060 2.635 .035

RW9 95900 1-1/2 x 1 100 100 1.335 2.635 .035

RW10 95101 1-1/2 x 1-1/4 100 100 1.690 2.635 .035

RW11 95110 2 x 1/2 50 50 .870 3.265 .035

RW12 95120 2 x 3/4 50 50 1.060 3.265 .035

RW13 95130 2 x 1 50 50 1.335 3.265 .035

RW14 95140 2 x 1-1/4 50 50 1.690 3.265 .035

RW15 95150 2 x 1-1/2 50 50 1.935 3.265 .035

RW16 95160 2-1/2 x 1/2 50 50 .870 3.265 .035

RW17 95170 2-1/2 x 3/4 50 50 1.060 3.265 .035

RW18 95180 2-1/2 x 1 50 50 1.370 3.265 .035

RW19 95190 2-1/2 x 1-1/4 50 50 1.750 3.265 .035

RW20 95201 2-1/2 x 1-1/2 50 50 1.935 3.265 .035

RW21 95210 2-1/2 x 2 50 50 2.425 3.265 .035

RW22 95220 3 x 1/2 25 25 .870 4.490 .040

RW23 95230 3 x 3/4 25 25 1.060 4.490 .040

RW24 95240 3 x 1 25 25 1.360 4.490 .045

RW25 95250 3 x 1-1/4 25 25 1.750 4.490 .040

RW26 95260 3 x 1-1/2 25 25 1.935 4.490 .040

RW27 95270 3 x 2 25 25 2.425 4.490 .040

RW28 95280 3 x 2-1/2 25 25 2.940 4.490 .040

RW29 95290 3-1/2 x 1/2 10 10 .870 5.000 .060

RW30 95301 3-1/2 x 3/4 10 10 1.060 5.000 .060

RW31 95310 3-1/2 x 1 10 10 1.360 5.000 .060

RW32 95320 3-1/2 x 1-1/4 10 10 1.750 5.000 .060

RW33 95330 3-1/2 x 1-1/2 10 10 1.935 5.000 .060

RW34 95340 3-1/2 x 2 10 10 2.425 5.000 .060

RW35 95350 3-1/2 x 2-1/2 10 10 2.920 5.000 .060

RW36 95360 3-1/2 x 3 10 10 3.560 5.000 .060

RW37 95370 4 x 1/2 10 10 .870 5.500 .065

RW38 95380 4 x 3/4 10 10 1.060 5.500 .065

RW39 95390 4 x 1 10 10 1.360 5.500 .065

RW40 95401 4 x 1-1/4 10 10 1.715 5.500 .065

RW41 95410 4 x 1-1/2 10 10 1.970 5.500 .065

RW42 95420 4 x 2 10 10 2.435 5.500 .065

RW43 95430 4 x 2-1/2 10 10 2.920 5.500 .065

RW44 95440 4 x 3 10 10 3.560 5.500 .065

RW45 95450 4 x 3-1/2 10 10 4.050 5.500 .065

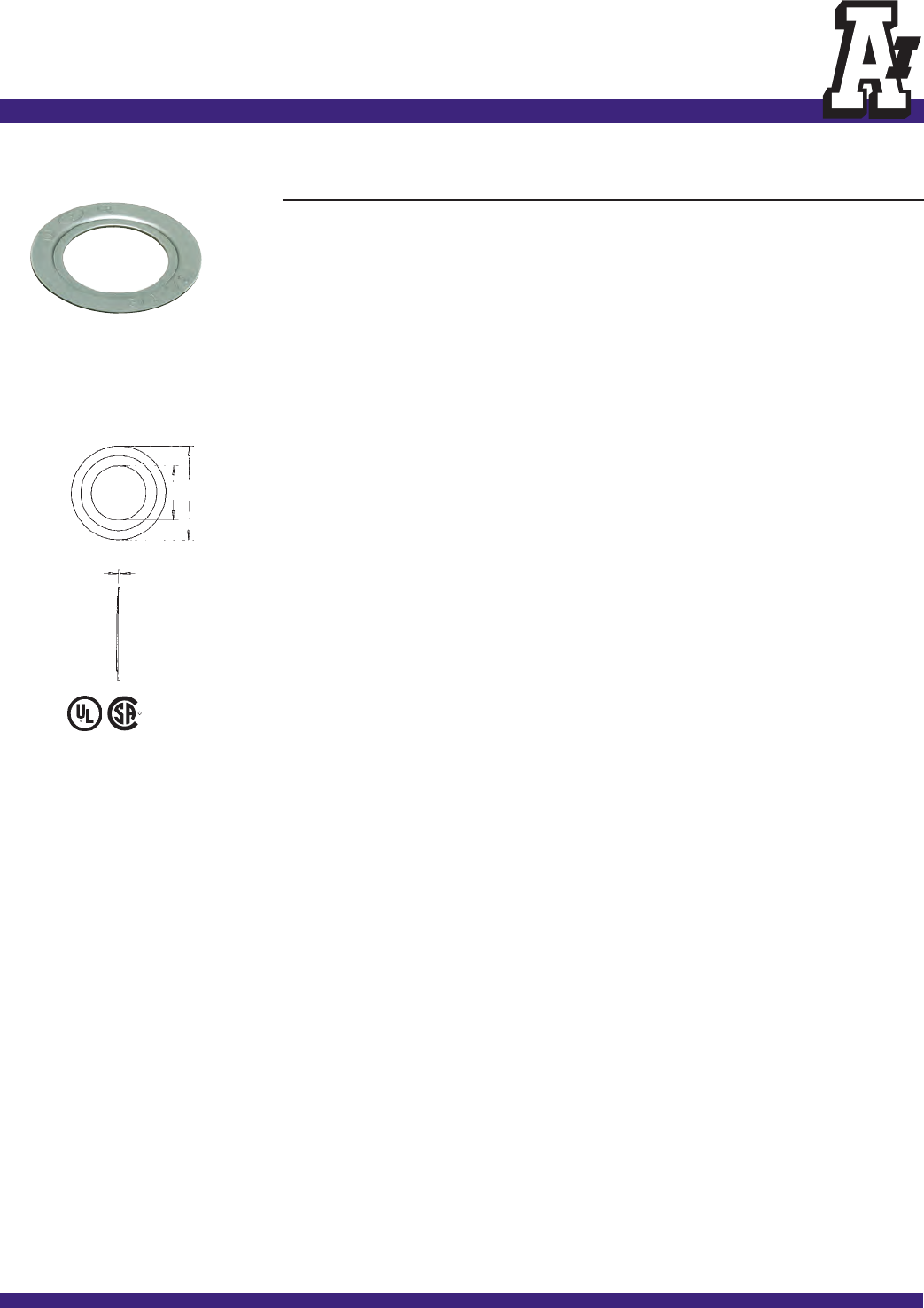

Reducing Washers

Plated steel.

Note: A bonding jumper is

recommended when using reducing

washers to provide a reliable

grounding/bonding path.

B

C

A

E181788 LR104691





I-9

Rigid • IMC

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

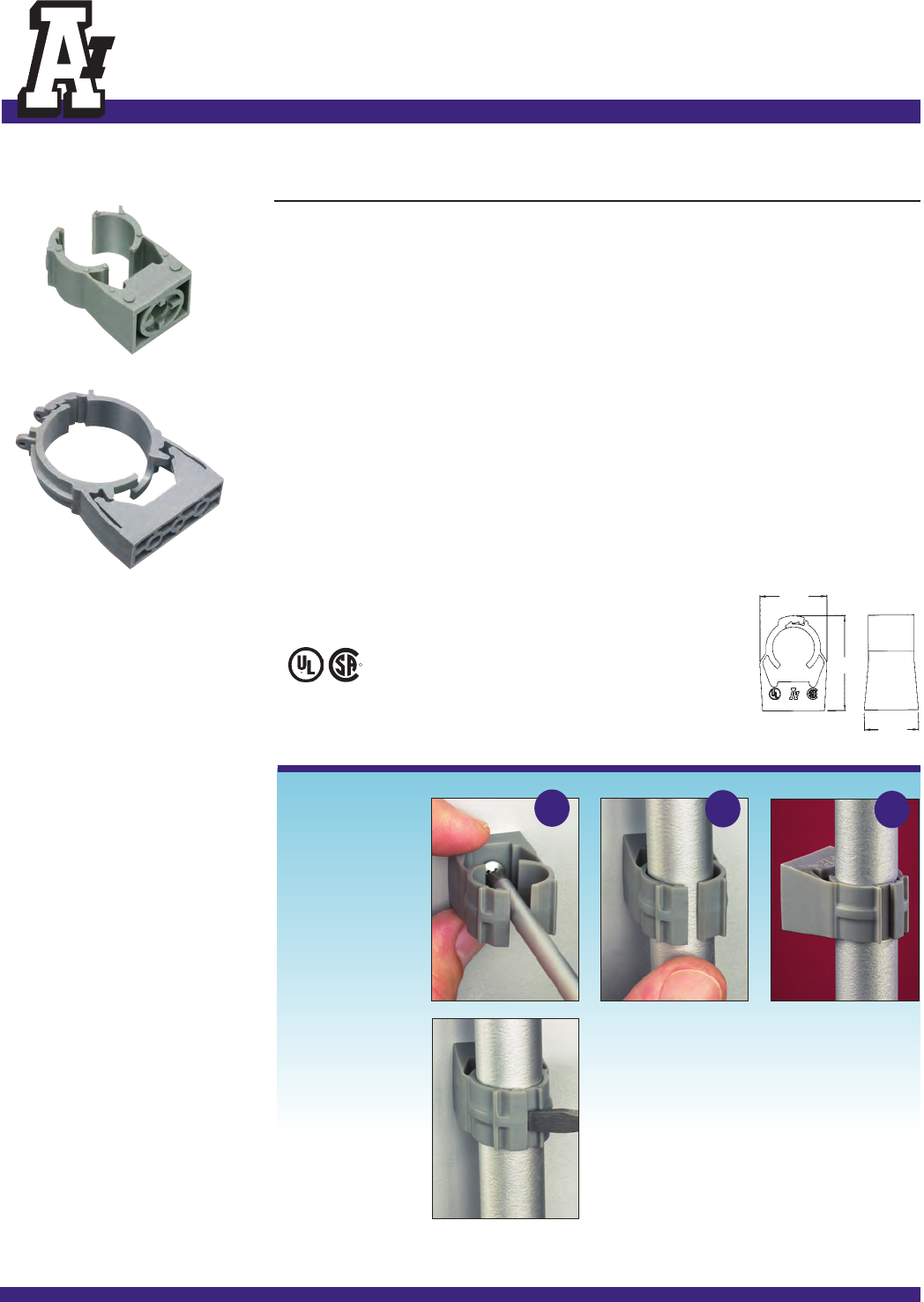

Pipe Hangers

One-piece, non-metallic.

UV rated.

CATALOG UPC/DCI/NAED RIGID EMT LT FLEX ENT COPPER COPPER STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE* SIZE SIZE SIZE SIZE TUBING PIPE PKG AB C

NM1900 54514 --5/16 --1/2 - 100 .844 .668 1.270

NM2000 54515 - 1/2 3/8 -- - 3/8 100 .992 .795 1.412

NM2005 54525 1/2 - 1/2 1/2 1/2 - 1/2 100 1.077 .795 1.588

NM2010 54516 - 3/4 ---3/4 - 100 1.178 .800 1.667

NM2015 54526 3/4 - 3/4 3/4 3/4 - 3/4 100 1.277 .800 1.826

NM2020 54517 -1---1 -100 1.377 .790 1.983

NM2025 54518 1-111- 1100 1.582 .830 2.180

NM2030 54528 - 1-1/4 ---1-1/4 - 100 1.700 .820 2.346

NM2040 54519 1-1/4 1-1/2 ---1-1/2 1-1/4 100 1.830 .830 2.523

NM2045 54544 1-1/2 - 1-1/2 1-1/2 --1-1/2 100 2.212 .860 2.846

NM2150 54547 -----2 -50 2.640 .910 3.100

NM2050 54520 2222- - 250 3.020 .910 3.470

NM2060 54521 2-1/2 2-1/2 2-1/2 2-1/2 -- -50 3.460 1.115 5.095

NM2070 54522 3333- - -25 4.224 1.362 6.153

NM2080 54523 3-1/2 3-1/2 3-1/2 3-1/2 -- -25 4.720 1.548 7.000

NM2090 54524 4444- - -10 5.365 1.743 7.850

*Rigid sizes also same for IMC and PVC.

For additional information on QuickLATCH plumbing applications call

or visit our website.

Features and Benefits

• Saves 25 seconds per

installation...over 20¢ at

$30.00 per hour labor rate

• Costs the same as a steel pipe

hanger with bolt and nut

• Conduit snaps into place, locking

automatically

• Accommodates thinwall, rigid

conduit, PVC conduit, or copper

• Mounts horizontally or vertically

• UV rated for outdoor application

• Corrosion resistant

• Listed for use in environmental air

handling spaces per 2008 NEC

code requirement 300-22(c)

• 2-1/2" to 4" hangers feature tabs

with openings for the optional

securing of a cable tie

E161207 LR49636

Quick

LATCH™

Use it anywhere you

would use a pipe

hanger!

Installation

Instructions

1. Mount to wall, strut,

stud, or threaded

rod up to 1/4-20

2. Press pipe down

firmly into

QuickLATCH to

lock it in place

3. That’s it!

123

To Remove...

Use a screwdriver to

lift tab.

NM2000

A

B

C

NM2080





I-10 Rigid • IMC

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

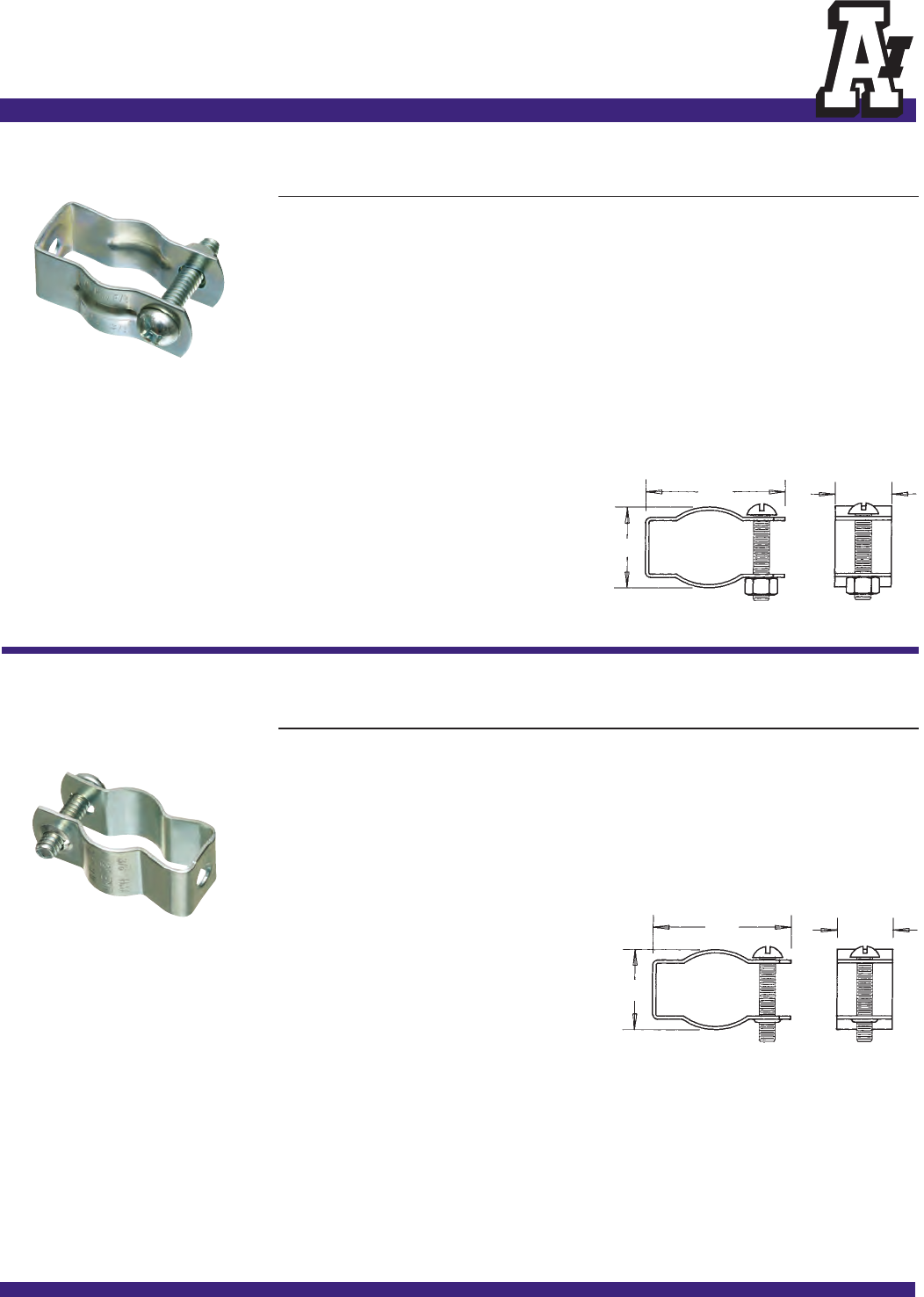

Pipe Hangers

With bolt and nut. Plated steel. CATALOG UPC/DCI/NAED TRADE RIGID EMT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE SIZE PKG ABC

2000 02000 0 3/8 x 1/2 1/2 100 1.875 .990 .750

2010 02010 1 3/4 3/4 100 2.175 1.260 .875

2020 02020 21 1100 2.370 1.295 .875

2025 02025 2-1/2 to 3 1-1/4 1-1/4 to 1-1/2 100 3.175 1.965 .875

2040 02040 4 1-1/2 - 100 3.780 2.220 1.065

2050 02050 52 250 4.100 2.450 1.210

2060 02060 6 2-1/2 2-1/2 50 4.800 3.180 1.240

2070 02070 73 325 5.375 3.750 1.250

2080 02080 8 3-1/2 3-1/2 25 6.187 4.187 1.270

2090 02090 94 410 6.240 4.430 1.270

Pipe Hangers

With formed thread in one end

of the hanger, nut not

required. Plated steel.

CATALOG UPC/DCI/NAED TRADE RIGID EMT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE SIZE SIZE PKG ABC

2200 22000 0 3/8 x 1/2 1/2 100 1.875 .990 .750

2210 22100 1 3/4 3/4 100 2.175 1.260 .875

2220 22200 211100 2.370 1.295 .875

2225 22250 2-1/2 - 1-1/4 100 3.175 1.965 .875

2230 22300 3 1-1/4 1-1/2 100 3.255 1.875 .875

2240 22400 4 1-1/2 - 100 3.780 2.220 1.065

2250 22500 52250 4.100 2.450 1.210

A

B

C

A

B

C

I-11

Rigid • IMC

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

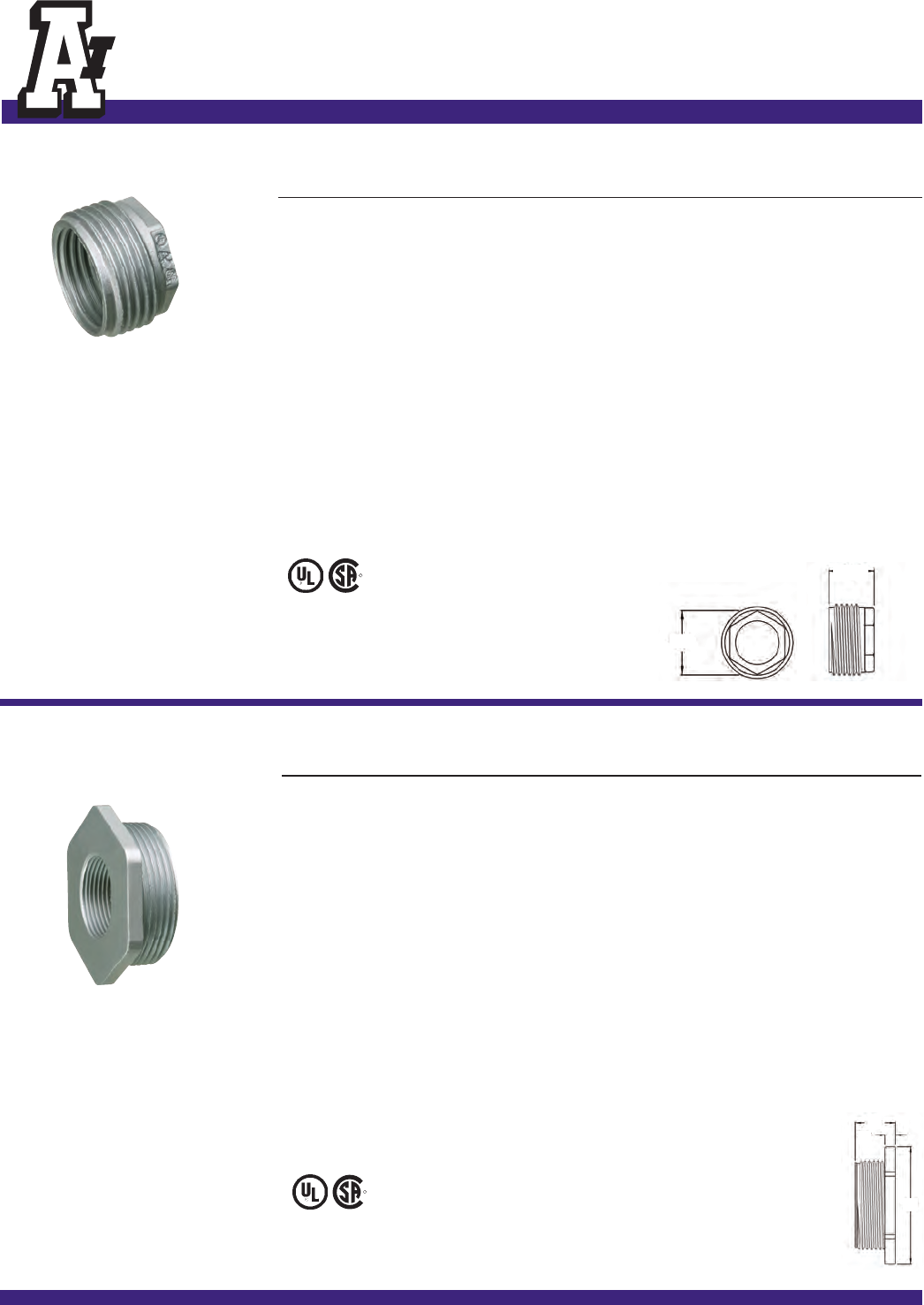

CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG ABC

1274 01274 2-1/2 x 1-1/4 552.090 .430 2.845

1275 01275 2-1/2 x 1-1/2 551.125 .430 2.820

1276 01276 2-1/2 x 2 551.200 .300 3.485

1283 01283 3 x 1 551.785 .500 4.075

1284 01284 3 x 1-1/4 552.100 .410 3.445

1285 01285 3 x 1-1/2 552.020 .440 3.460

1286 01286 3 x 2 552.000 .400 3.380

1287 01287 3 x 2-1/2 551.390 .375 4.395

1296 01296 3-1/2 x 2 221.905 .565 4.575

1297 01297 3-1/2 x 2-1/2 222.020 .450 3.945

1298 01298 3-1/2 x 3 221.385 .380 4.920

1307 01307 4 x 2-1/2 222.070 .570 5.250

1308 01308 4 x 3 221.775 .500 5.250

1309 01309 4 x 3-1/2 221.400 .375 5.420

Reducing bushings are rain tight in threaded hubs.

Also, reducing bushings, unlike reducing washers, maintain

grounding path and are able to pass UL high current testing.

E60812 LR49636

Larger Reducing

Bushings

Zinc die-cast.

A

B

C

CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG AB

522 00522 3/4 x 1/2 50 500 .650 .920

523 00523 1 x 1/2 25 100 .715 1.125

524 00524 1 x 3/4 25 100 .715 1.125

525 00525 1-1/4 x 1/2 25 25 .820 1.470

526 00526 1-1/4 x 3/4 25 25 .820 1.470

527 00527 1-1/4 x 1 25 25 .820 1.470

528 00528 1-1/2 x 1/2 25 25 .850 1.700

529 00529 1-1/2 x 3/4 25 25 .850 1.700

530 00530 1-1/2 x 1 25 25 .850 1.700

531 00531 1-1/2 x 1-1/4 25 25 .850 1.700

532 00532 2 x 1/2 10 10 .970 2.230

533 00533 2 x 3/4 10 10 .970 2.230

534 00534 2 x 1 10 10 .970 2.230

535 00535 2 x 1-1/4 10 10 .970 2.230

536 00536 2 x 1-1/2 10 10 .970 2.230

Reducing Bushings

Zinc die-cast.

E60812 LR49636

A

B









I-12 Rigid • IMC

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

2-Hole Rigid Straps

Snap-on type. Plated steel. CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG ABCD

350 00350 1/2 50 500 2.440 .900 .620 .200

351 00351 3/4 50 500 2.810 1.060 .690 .200

352 00352 1 25 250 3.350 1.365 .750 .275

353 00353 1-1/4 25 100 4.110 1.700 .865 .275

354 00354 1-1/2 25 100 4.450 1.960 .940 .275

355 00355 2 25 150 5.350 2.240 .995 .325

356 00356 2-1/2 25 25 6.025 2.855 .985 .345

357 00357 3 25 25 6.460 3.425 .995 .345

358 00358 3-1/2 10 10 7.300 3.925 .990 .345

359 00359 4 10 10 7.895 4.435 .995 .345

A

C

B

D

HOLE

SIZE

1-Hole Rigid Straps

Snap-on type. Plated steel. CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG ABCD

340 00340 1/2 50 500 1.915 .875 .625 .250

341 00341 3/4 50 500 2.230 1.050 .750 .250

342 00342 1 25 250 2.615 1.295 .875 .312

343 00343 1-1/4 25 100 2.975 1.630 .875 .375

344 00344 1-1/2 25 100 3.660 1.860 1.000 .437

345 00345 2 25 100 4.150 2.240 1.125 .562

346 00346 2-1/2 25 25 4.927 2.958 1.245 .550

347 00347 3 25 25 5.560 3.441 1.250 .550

348 00348 3-1/2 10 10 6.337 3.951 1.250 .575

349 00349 4 10 10 6.811 4.441 1.240 .575

CA

B

D

HOLE

SIZE

I-13

Rigid • IMC

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

1-Hole Straps

For rigid conduit. Malleable. CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG ABC

3100 03100 1/2 50 500 1.437 .625 .312

3101 03101 3/4 50 500 1.750 .750 .312

3102 03102 1 25 500 2.125 .937 .312

3103 03103 1-1/4 25 250 2.375 1.062 .437

3104 03104 1-1/2 25 250 2.750 1.062 .500

3105 03105 2 25 150 3.937 1.250 .562

3106 03106 2-1/2 25 25 3.937 1.250 .562

3107 03107 3 25 25 5.187 1.750 .562

3108 03108 3-1/2 10 10 5.562 2.125 .750

3109 03109 4 10 10 6.500 2.250 .750

Clamp Back

Spacer

Malleable.

CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG ABC

CB1 30100 1/2 50 500 2.062 1.000 .500

CB2 30105 3/4 50 500 2.375 1.062 .500

CB3 30110 1 25 500 3.00 1.250 .562

CB4 30115 1-1/4 25 250 3.500 1.500 .653

CB5 30120 1-1/2 25 250 4.000 1.600 .812

CB6 30125 2 25 150 4.750 2.000 .986

CB7 30130 2-1/2 25 25 5.800 2.437 .812

CB8 30135 3 25 25 6.687 2.625 .875

CB9 30140 3-1/2 10 10 7.125 2.875 1.062

CB10 30145 4 10 10 8.875 3.062 1.062

C

A

B

B

A

C

E186443

HOLE

SIZE

J-1 Weatherproof

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

GARD-N-POST™

GARD-N-POST™

19.5" & 26"

Supports for

Outdoor

Light Fixtures

57/489'22/4-'2/-.9,/=9:7+

'4*57*+;/)+85:9*5578

#$7'9+*62'89/),57254-

5:9*5572/,+5:7454)./66/4-

)52578

CATALOG UPC/DCI/NAED DESCRIPTION UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG AB C

GP19B 77086 Black 168.110 3.361 19.500

GP19BR 77087 Bronze 168.110 3.361 19.500

GP19G 77088 Green 168.110 3.361 19.500

GP19W 77089 White 168.110 3.361 19.500

GP26B 77090 Black 168.110 3.361 26.000

GP26BR 77092 Bronze 168.110 3.361 26.000

GP26G 77094 Green 168.110 3.361 26.000

GP26W 77096 White 168.110 3.361 26.000

Add suffix “GC” to Catalog # when ordering in Canada, for example GP19BGC.

PATENTED. ADDITIONAL PATENTS PENDING.

A

C

B

  

Install one or two

GFCI Wiring Devices with

Weatherproof Cover...

Or add the Low Voltage Separator and

run Low Voltage on one side and Power

on the other!

See page J-10 for our

Outdoor Light Fixtures

designed for the

GARD-N-POST line!

Comes complete with...

Installed 3/4" x 1/2" NPT metal reducing bushing, locknut with copper ground wire for

fixture installation, (2) blank device plates, gaskets & screws, plug for top hole (when

fixture is not installed), low voltage separator, and removable KO plate.

Features and Benefits

• Molded-in color is permanent – unlike painted posts

where lawn equipment chips the color off

• Openings on both sides of the post for back-to-back power

• Low voltage separator provided for Power use on one side

and Low Voltage on the other (phone, security, & cable TV)

• Built-in stabilizers need no assembly and provide rigid support

• GP19’s stabilizers offer greater use of above ground height

• GP26’s taller design provides additional height for wiring devices

and increased burial depth

• Angle cut post for easy access to underground wiring

• (2) 1/2" KOs for a UL Listed enclosure

OPENINGS ON BOTH SIDES!

POWER LOW

VOLTAGE

GP19B

GP26G

CSA listed with grounding lug.

R

J-2

Weatherproof

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

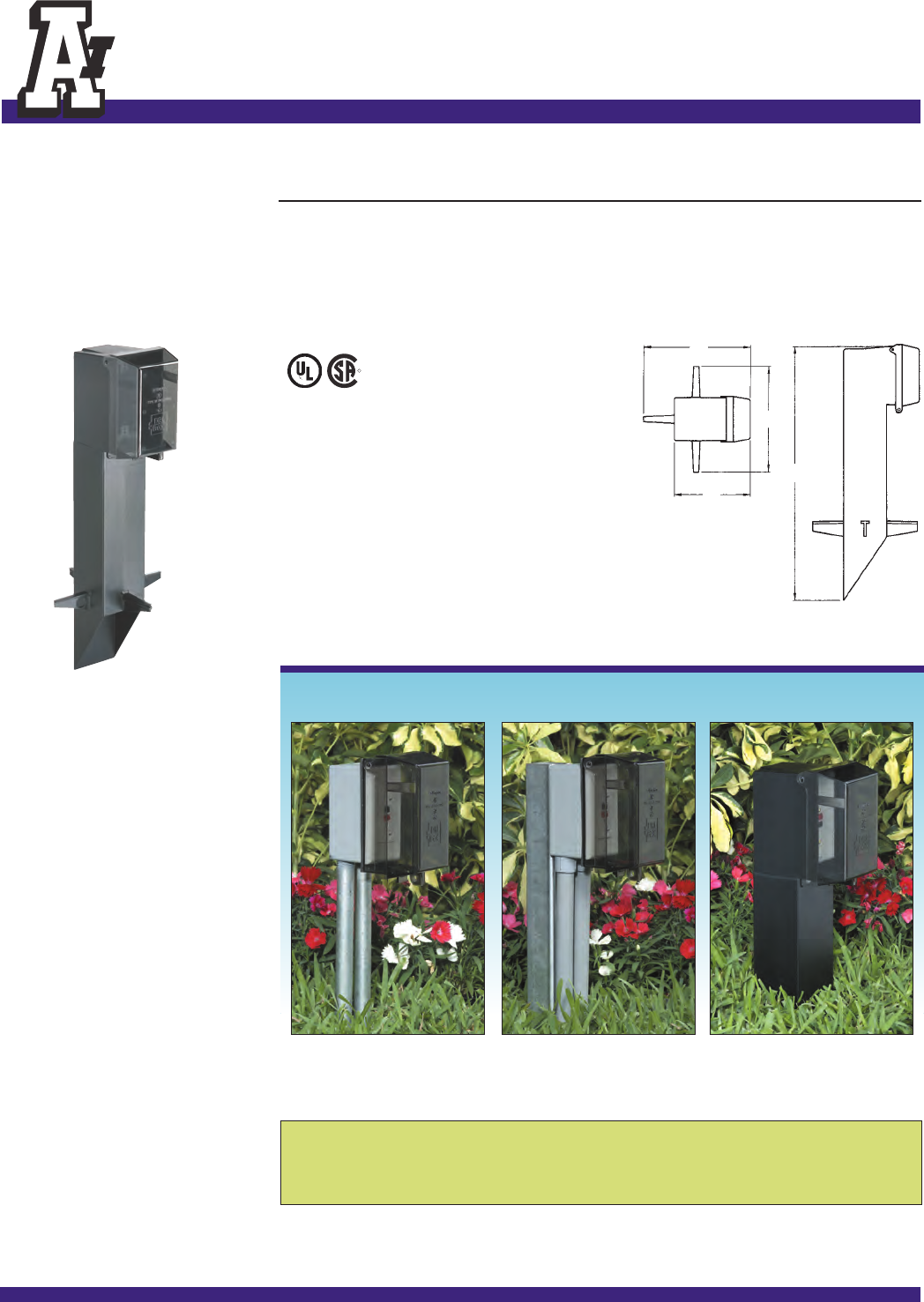

GARD-N-POST™

GARD-N-POST™

Features and Benefits

• Molded-in color is permanent – unlike painted posts

where lawn equipment chips the color off

• Includes clear cover for weatherproof

while-in-use, GFCI and duplex wall plates

• Installed cover, no gasket necessary

• Meets NEC box support requirements

• Built-in stabilizers need no assembly and provide rigid support

• Code approved installation

• No chipping...colorant runs throughout the product

19.5" Low-Profile

Enclosure with

Built-in Cover

57:8+</9.'*+;/)+

+'9:7+8)2+'7<+'9.+76755,/4

:8+)5;+7#$7'9+*62'89/),57

254-5:9*5572/,+5:7

454)./66/4-)52578

CATALOG UPC/DCI/NAED DESCRIPTION UNIT STD DIM DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG ABC D

GPD19B 77020 Black 167.761 6.269 8.177 19.500

GPD19BR 77021 Bronze 167.761 6.269 8.177 19.500

GPD19G 77022 Green 167.761 6.269 8.177 19.500

GPD19W 77023 White 167.761 6.269 8.177 19.500

Add suffix “GC” to Catalog # when ordering in Canada, for example GPD19BGC.

PATENTED. ADDITIONAL PATENTS PENDING.

A

B

D

C

  

Why Install Boxes This Way...

Compare!

When You Can Have a

Great Looking, Long-

Lasting Job Like This!

Comes with...

Built-in weatherproof-while-in-use cover, standard duplex & GFCI cover plates, and

removable KO plate.

CSA listed with grounding lug.

R

J-3 Weatherproof

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

GARD-N-POST™

GARD-N-POST™

Features and Benefits

• Molded-in color is permanent – unlike painted posts

where lawn equipment chips the color off

• Openings on both sides of the post for back-to-back power

• Low voltage separator provided for Power use on one side

and Low Voltage on the other (phone, security, & cable TV)

• Perfect for wood decks, boat docks, and concrete walkways

• Includes Arlington’s Large Louvered Pagoda Light Fixture, see page J-8

• Makes a very low cost bollard

• Kit includes everything needed for installation, except anchor bolts,

caulking, and bulb.

• (2) combination KOs for a UL Listed enclosure

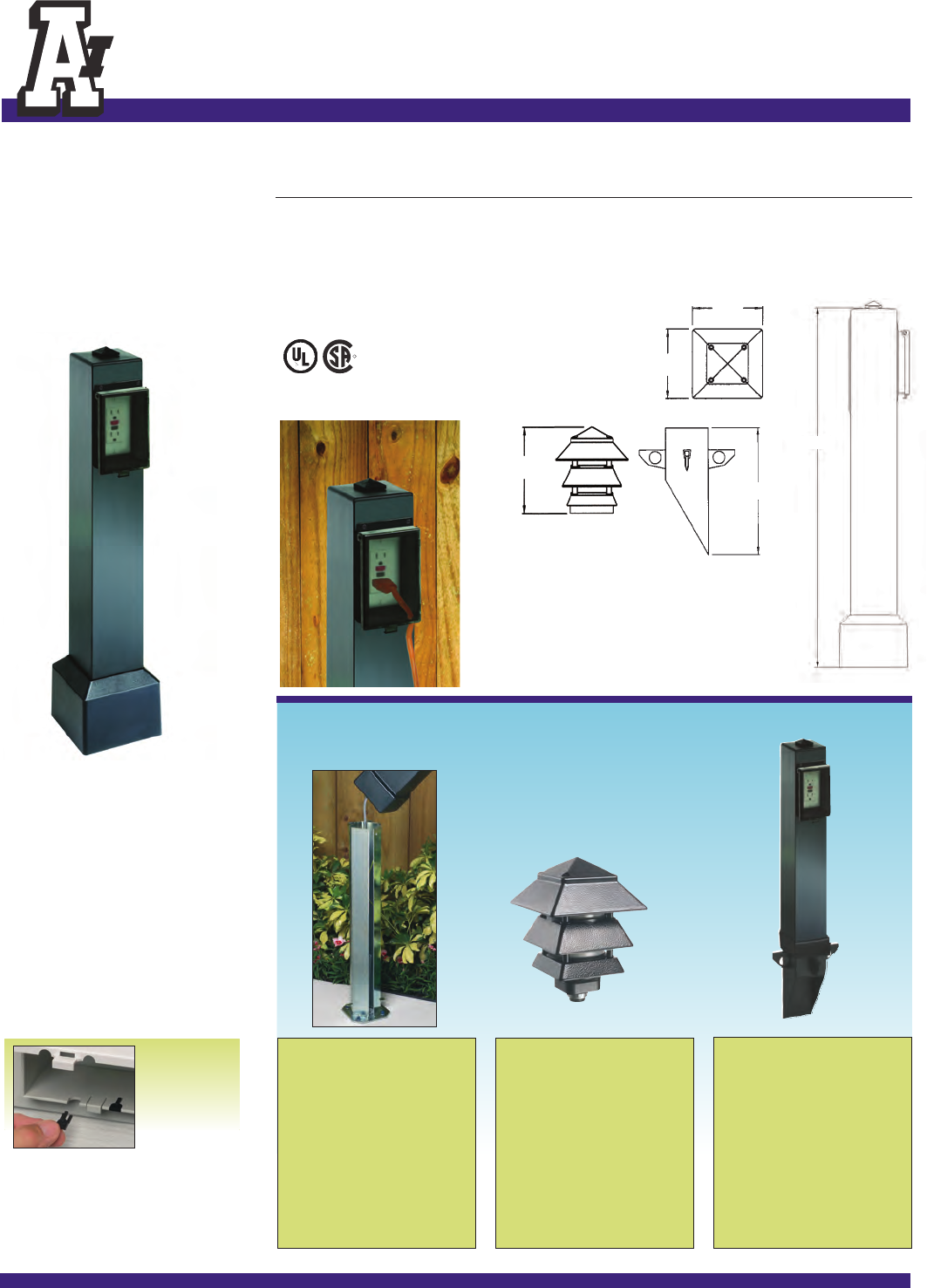

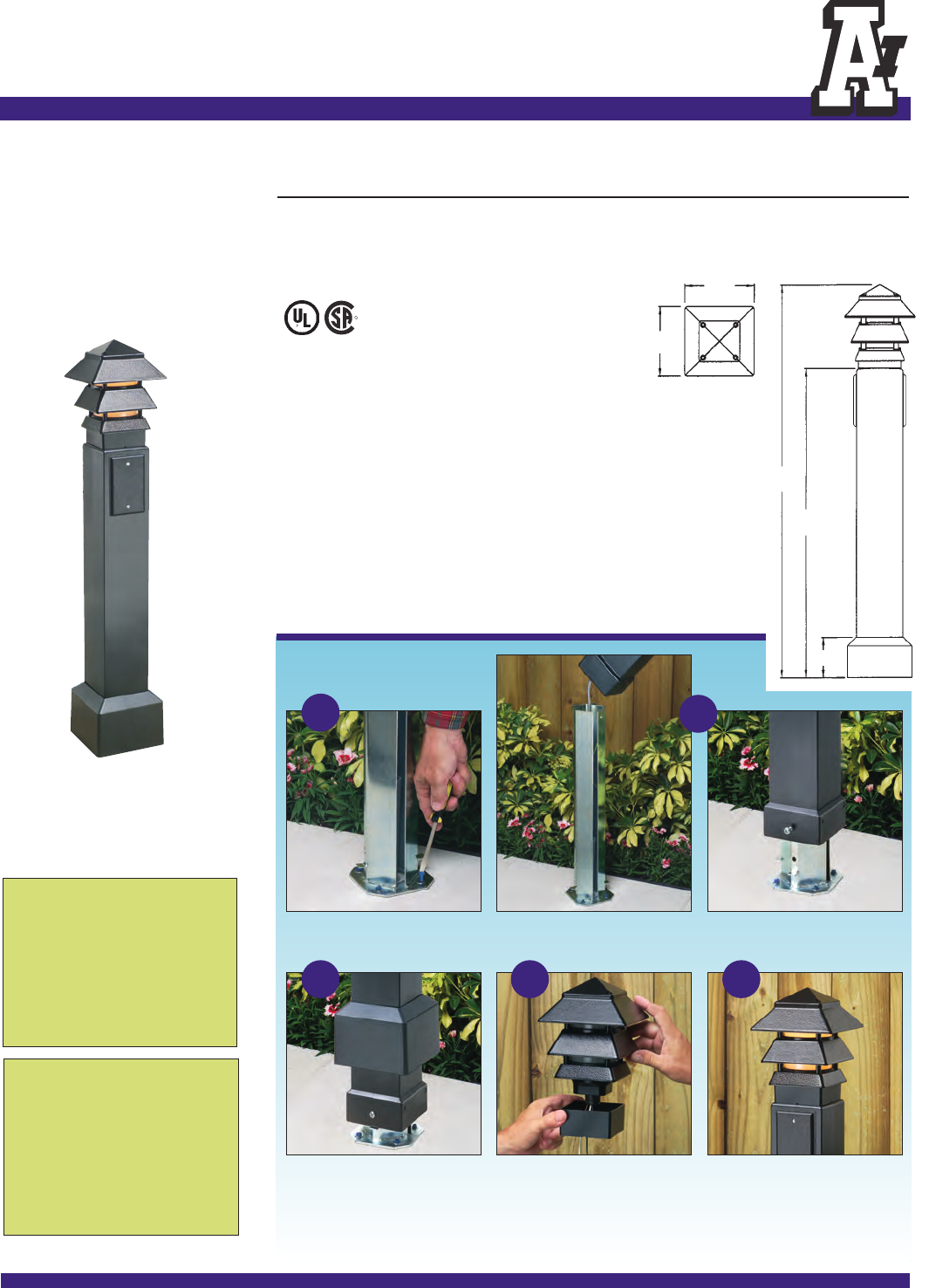

35"

GARD-N-POST™

Bollard Kit

 !" </9.6'-5*'

89>2+2/-.9,/=9:7+/4)2:*+*

589/8#$7'9+*62'89/),57

254-5:9*5572/,+"<5

454)./66/4-)52578

CATALOG UPC/DCI/NAED DESCRIPTION UNIT STD DIM DIM DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG ABC D E

GPBK35B 77040 Black 116.070 6.070 35.000 27.000 3.500

GPBK35BR 77041 Bronze 116.070 6.070 35.000 27.000 3.500

Add suffix “GC” to Catalog # when ordering in Canada, for example GPBK35BGC.

PATENTED. ADDITIONAL PATENTS PENDING

  

A

B

Recommended anchors

(not included)...

Concrete: (4) 3/8" x 2-1/2

Tapcons®

Cast-In-Place Concrete:

(4) 3/8" anchor bolts

Wood Deck: (4) 3/8" bolts with

nuts and washers

Kit comes with...

GARD-N-POST & metal

stabilizer, boot, pagoda light

fixture & decorative spacer,

(2) blank device plates with

gaskets & screws, low voltage

separator, and removable KO

plate with screws.

Tapcons®is a registered trademark of

ITW Buildex.

CSA listed with grounding lug.

Installation

Instructions

2

1

Metal support post attaches

easily to surface.

The non-metallic

GARD-N-POST

slides over the support post.

Place decorative curb over

GARD-N-POST. Slide it down

to cover the installation.

Press fit spacer to base of

lamp.

Install pagoda light to post with

locknut inside the top of the

post. Wire fixture.

Both posts are held firmly in

place with the supplied screws.

C

D

E

3 4 5

R

J-4

Weatherproof

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

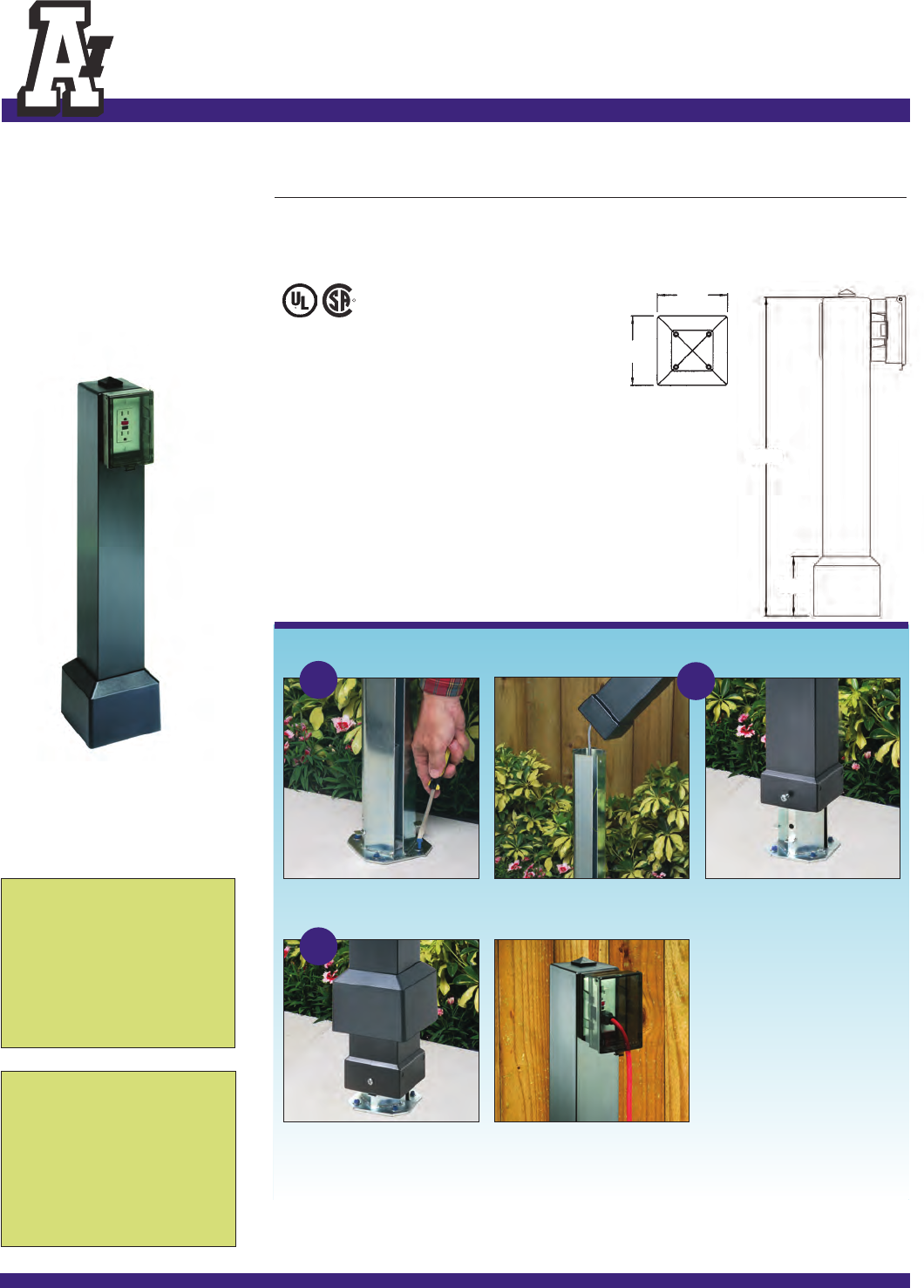

GARD-N-POST™

GARD-N-POST™

Features and Benefits

• Molded-in color is permanent – unlike painted posts

where lawn equipment chips the color off

• Openings on both sides of the post for back-to-back power

• Low voltage separator provided for Power use on one side and

Low Voltage on the other (phone, security, & cable TV)

• Perfect for wood decks, boat docks, and concrete walkways

• Kit includes everything needed for installation,

except anchor bolts, and caulking.

• Includes Arlington’s IN-AND-OUT™cover see page J-25

• (2) combination KOs for a UL Listed enclosure

28"

GARD-N-POST™

Enclosure

 !" </9.<+'9.+7

6755,<./2+/4:8+)5;+7

589/8#$7'9+*62'89/),57

254-5:9*5572/,+

CATALOG UPC/DCI/NAED DESCRIPTION UNIT STD DIM DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG ABC D

GPBK28B 76090 Black 116.070 6.070 28.500 5.000

PATENTED. ADDITIONAL PATENTS PENDING

Add suffix “GC” to Catalog # when ordering in Canada, for example GPBK28BGC.

  

Recommended anchors

(not included)...

Concrete: (4) 3/8" x 2-1/2

Tapcons®

Cast-In-Place Concrete:

(4) 3/8" anchor bolts

Wood Deck: (4) 3/8" bolts with

nuts and washers

Kit comes with...

GARD-N-POST & metal

stabilizer, boot, IN-AND-OUT™

cover, (2) blank device plates

with gaskets & screws, low

voltage separator, and

removable KO plate with

screws.

Tapcons®is a registered trademark of

ITW Buildex.

CSA listed with grounding lug.

Installation Instructions

2

1

Metal support post attaches

easily to surface.

The non-metallic

GARD-N-POST

slides over the support post.

Place decorative curb over

GARD-N-POST. Slide it down

to cover the installation.

Finished with GFCI installation.

(GFCI not included)

Both posts are held firmly in

place with the supplied screws.

C

D

3

R

A

B

New!

J-5 Weatherproof

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

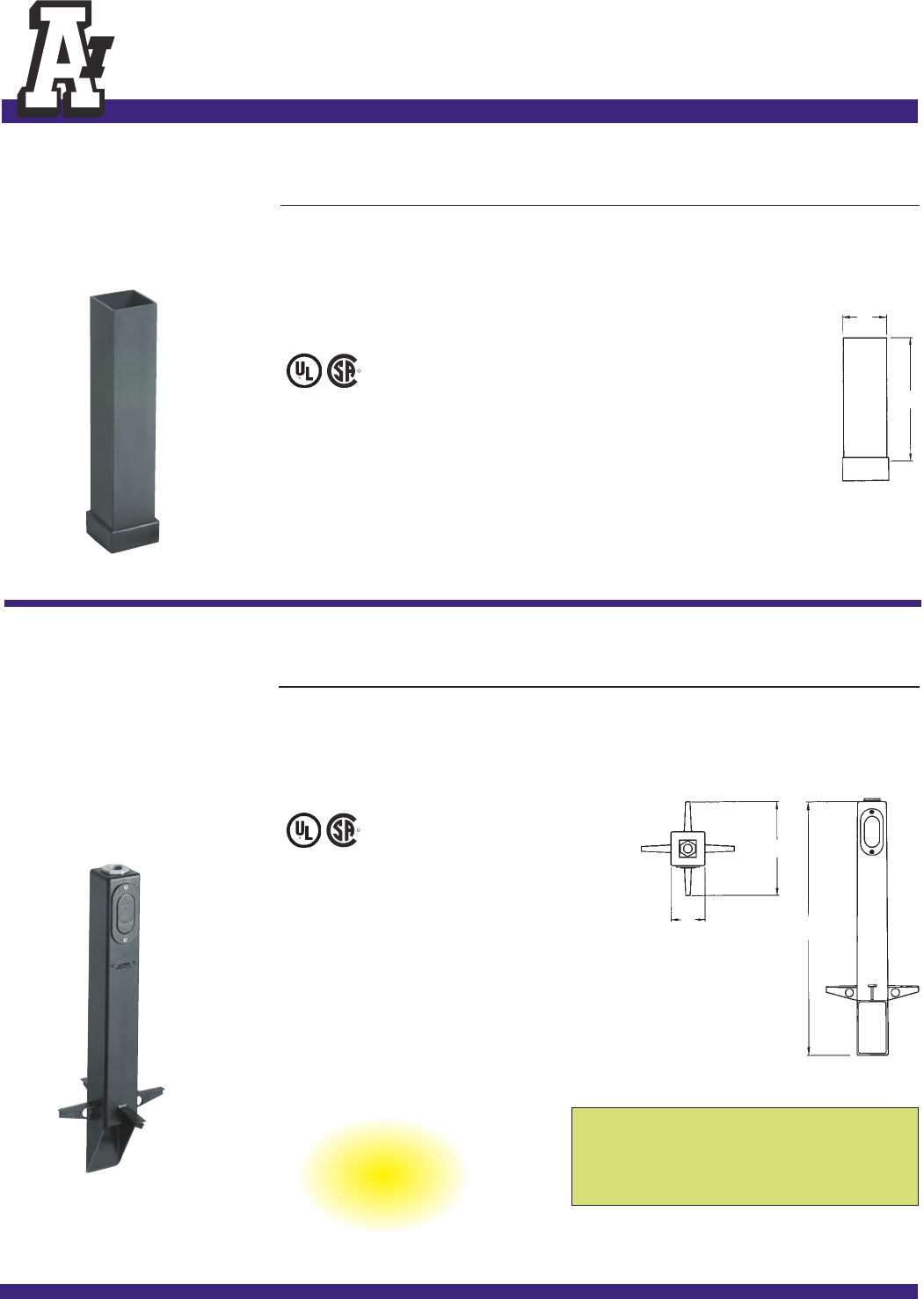

GARD-N-POST™

GARD-N-POST™

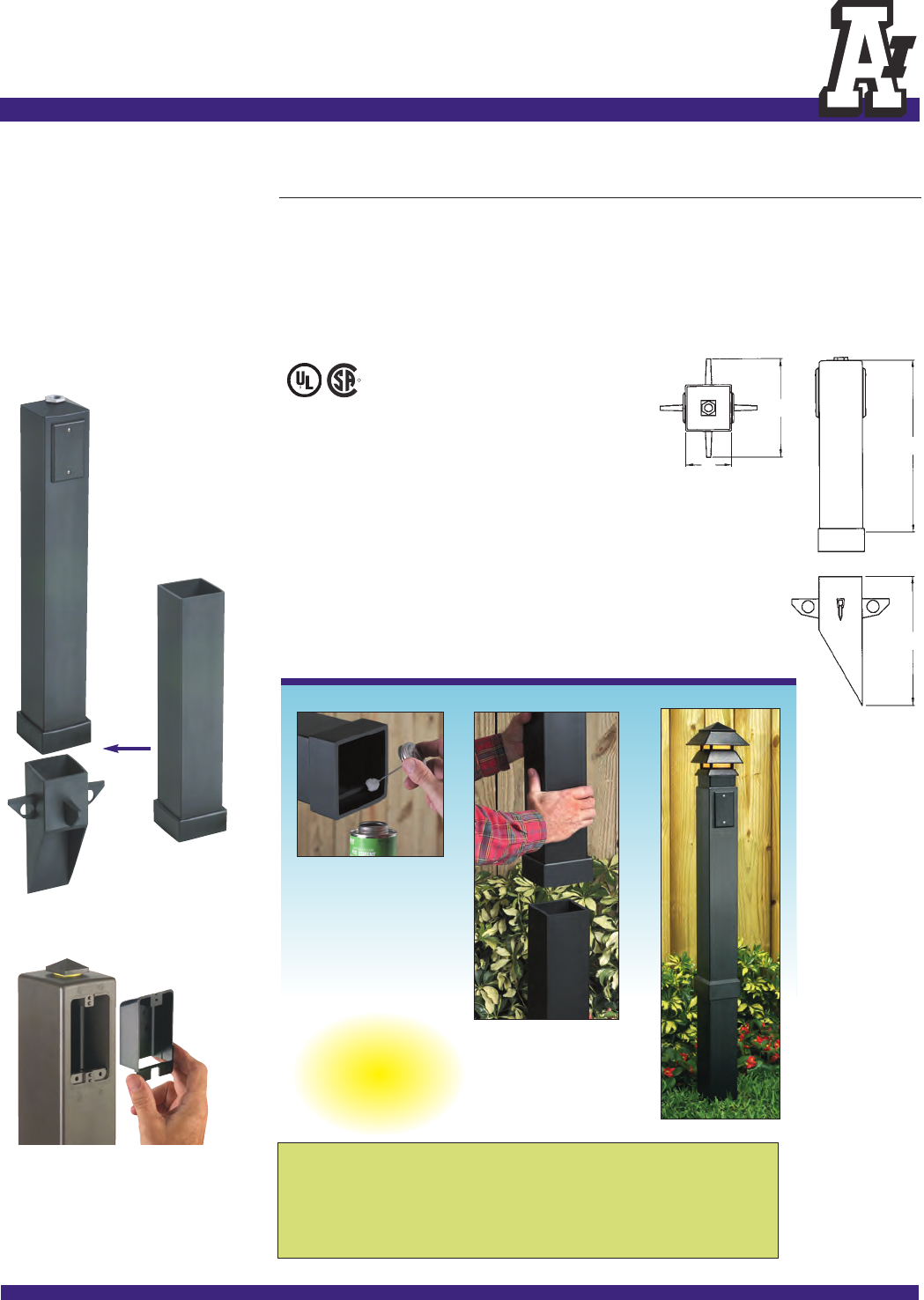

37" GARD-N-POST™

Support for

Outdoor

Light Fixtures

"<56/+)+8:6+79'22

 !"@!:665798

35892/-.9,/=9:7+8'4*57

</7/4-*+;/)+8#$7'9+*

62'89/),57254-5:9*5572/,+

5:7454)./66/4-)52578

CATALOG UPC/DCI/NAED DESCRIPTION UNIT STD DIM DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG ABC D

GP37B 76153 Black 149.000 4.000 25.000 12.000

GP37BR 76154 Bronze 149.000 4.000 25.000 12.000

GP37G 76156 Green 149.000 4.000 25.000 12.000

GP37W 76155 White 149.000 4.000 25.000 12.000

Add suffix “GC” to Catalog # when ordering in Canada, for example GP37BGC.

See GPX18 Extender (optional) on page J-6.

PATENTED. ADDITIONAL PATENTS PENDING.

A

B

D

C

  

Comes complete with...

Installed 3/4" x 1/2" NPT metal reducing bushing, locknut with copper

ground wire for fixture installation, (2) blank device plates, gaskets &

screws, plug for top hole (when fixture is not installed), low voltage

separator, and removable KO plate.

2-Piece GP37B

GARD-N-POST

37" Height

Optional

GPX18B

Extender

18" Height

2-Piece SUPER TALL GARD-N-POST

To make our tallest

GARD-N-POST even

taller use the

Extender (see J-8).

To assemble

(with or without

the Extender)

use standard

PVC cement.

To assemble

(with or without

the Extender)

use standard

PVC cement.

Features and Benefits

• Molded-in color is permanent – unlike painted posts

where lawn equipment chips the color off

• Openings on both sides of the post for back-to-back power

• Low voltage separator provided for Power use on one side

and Low Voltage on the other (phone, security, & cable TV)

• Built-in stabilizers need no assembly and provide rigid support

• Angle cut post for easy access to underground wiring

• (2) combination KOs for a UL Listed enclosure

• May be field modified for time clocks and disconnects

See page J-10 for our

Outdoor Light Fixtures

designed for the

GARD-N-POST line!

Add the Low Voltage

Separator to run Low

Voltage on one side and

Power on the other!

CSA listed with grounding lug.

R

J-6

Weatherproof

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

GARD-N-POST™

GARD-N-POST™

Features and Benefits

• Molded-in color is permanent –

unlike painted posts where lawn

equipment chips the color off

• Recessed IN BOX™ with

weatherproof-in-use cover

• GPBK31B and GPBK38B are

perfect for wood decks, boat

docks, and concrete walkways

• GP40B uses Arlington’s optional

18” extender

• UL Listed enclosure

IN BOX™

GARD-N-POST™

Enclosure

 !" </9.<+'9.+7

6755,<./2+/4:8+)5;+7

589/8#$7'9+*62'89/),57

254-5:9*5572/,+

CATALOG UPC/DCI/NAED DESCRIPTION UNIT STD DIM DIM DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG AB C DE

GPBK31B* 76091 Black w/out Light 115.962 5.962 31.381 --

GPBK38B* 76130 Black w/ Light 115.962 5.962 31.381 8.000 -

GP40B 76132 Black w/o Metal Support 115.962 5.962 31.381 - 12.000

*See note on J-3 for recommended anchors

PATENTED. ADDITIONAL PATENTS PENDING

  

CSA listed with grounding lug.

C

R

GPBK31B Kit comes

with...

GARD-N-POST™ &

IN BOX™, metal stabilizer,

boot, (1) blank cover plate

with gasket & screws, 2

bug plugs, removable KO

plate, 3/4” x 1/2” NPT

metal reducing bushing,

and installation screws.

GPBK38B Kit comes

with...

GARD-N-POST™ &

IN BOX™, metal stabilizer,

GPP60LB, boot, (1) blank

cover plate with gasket &

screws, 2 bug plugs,

removable KO plate, and

installation screws.

GP40B Kit comes

with...

GARD-N-POST &

IN BOX™, (1) blank cover

plate with gasket &

screws, 3/4” x 1/2” NPT

metal reducing bushing, 2

bug plugs, removable KO

plate, and installation

screws.

E

A

B

D

GPP60LB

See J-10

Installation

Instructions

Bug Plugs ship

installed in all

IN BOX styles

to seal unused

cord hole

openings.

GPBK31B

Included with GPBK38B

GP40B

Coming

Soon!

J-7 Weatherproof

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

GARD-N-POST™

GARD-N-POST™

9" Post/Deck

Mount Support

for Outdoor

Light Fixtures

"<56/+)+5:49835892/-.9

,/=9:7+8'4*57'</7/4-

*+;/)+54'=658957*+)1

#$7'9+*62'89/),57254-

5:9*5572/,+5:7454)./66/4-

)52578

CATALOG UPC/DCI/NAED DESCRIPTION UNIT STD DIM DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG ABCD

GPD9B 76161 Black 163.375 3.375 9.000 .250

GPD9BR 76162 Bronze 163.375 3.375 9.000 .250

GPD9G 76164 Green 163.375 3.375 9.000 .250

GPD9W 76163 White 163.375 3.375 9.000 .250

PATENTED. ADDITIONAL PATENTS PENDING.

A

B

D

C

  

Comes complete with...

Installed 3/4" x 1/2" NPT metal reducing bushing, locknut with copper

ground wire for fixture installation, blank device plate, gasket &

screws, plug for top hole (when fixture is not installed), removable KO

plate, and mounting base.

Install on a 4x4 post...or a dock!

GPD9B shown

with light

fixture GPP60B

Features and Benefits

• Molded-in color is permanent – unlike painted posts

where lawn equipment chips the color off

• (2) 1/2" KOs for a UL Listed enclosure

• Metal grounding bushing assembly included

See page J-10 for our

Outdoor Light Fixtures

designed for the

GARD-N-POST line!

CSA listed with grounding lug.

R

J-8

Weatherproof

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

GARD-N-POST™

GARD-N-POST™

Optional 18"

Extender for

37"/40” Support

**95/4/4)7+3+498

,57+;+4357+.+/-.9:695

B

A

  

CATALOG UPC/DCI/NAED DESCRIPTION UNIT STD DIM DIM

NUMBER MFG #01 8997 PKG PKG AB

GPX18B 76157 Black 1418.000 4.000

GPX18BR 76158 Bronze 1418.000 4.000

GPX18G 76160 Green 1418.000 4.000

GPX18W 76159 White 1418.000 4.000

Use with GP37 on page J-5.or GP40B on page J-6

PATENTED. ADDITIONAL PATENTS PENDING.

Features and Benefits

• Molded-in color is permanent – unlike

painted posts where lawn equipment chips

the color off

• Streamline design...one of our most

competitively priced 19.5" GARD-N-POSTs

• Removable 1/2" KO in cover for

photocell installation

• Metal bushing with ground wire for 2-

or 3-wire fixtures

• Resists damage from lawn equipment

19.5" Low-Profile

Support Just for

Outdoor Light

Fixtures

57:8+</9.2/-.9,/=9:7+8

+=)2:8/;+2>))5335*'9+8

3589,/=9:7+89>2+8#$7'9+*

62'89/),57254-5:9*5572/,+

5:7454)./66/4-)52578

CATALOG UPC/DCI/NAED DESCRIPTION UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG AB C

GPL19B 77000 Black 167.125 2.250 19.500

GPL19BR 77001 Bronze 167.125 2.250 19.500

GPL19G 77002 Green 167.125 2.250 19.500

GPL19W 77003 White 167.125 2.250 19.500

PATENTED. ADDITIONAL PATENTS PENDING.

A

C

B

  

Comes complete with...

Access panel cover, gasket, installed 3/4" x 1/2"

NPT metal grounding bushing and locknut with

copper ground wire for fixture installation.

Use the Extender to make the 37"/40” GARD-N-POST

even taller: add one 18" Extender for a 55" height; add a

second Extender for 73"! For even more options, the

GPX18 may be cut (top end only) to any desired height!

When assembling the Extender with GP37 (see J-5) use

standard PVC cement.

See page J-10 for our

Outdoor Light Fixtures

designed for the

GARD-N-POST line!

CSA listed with grounding lug.

R

R

J-9 Weatherproof

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

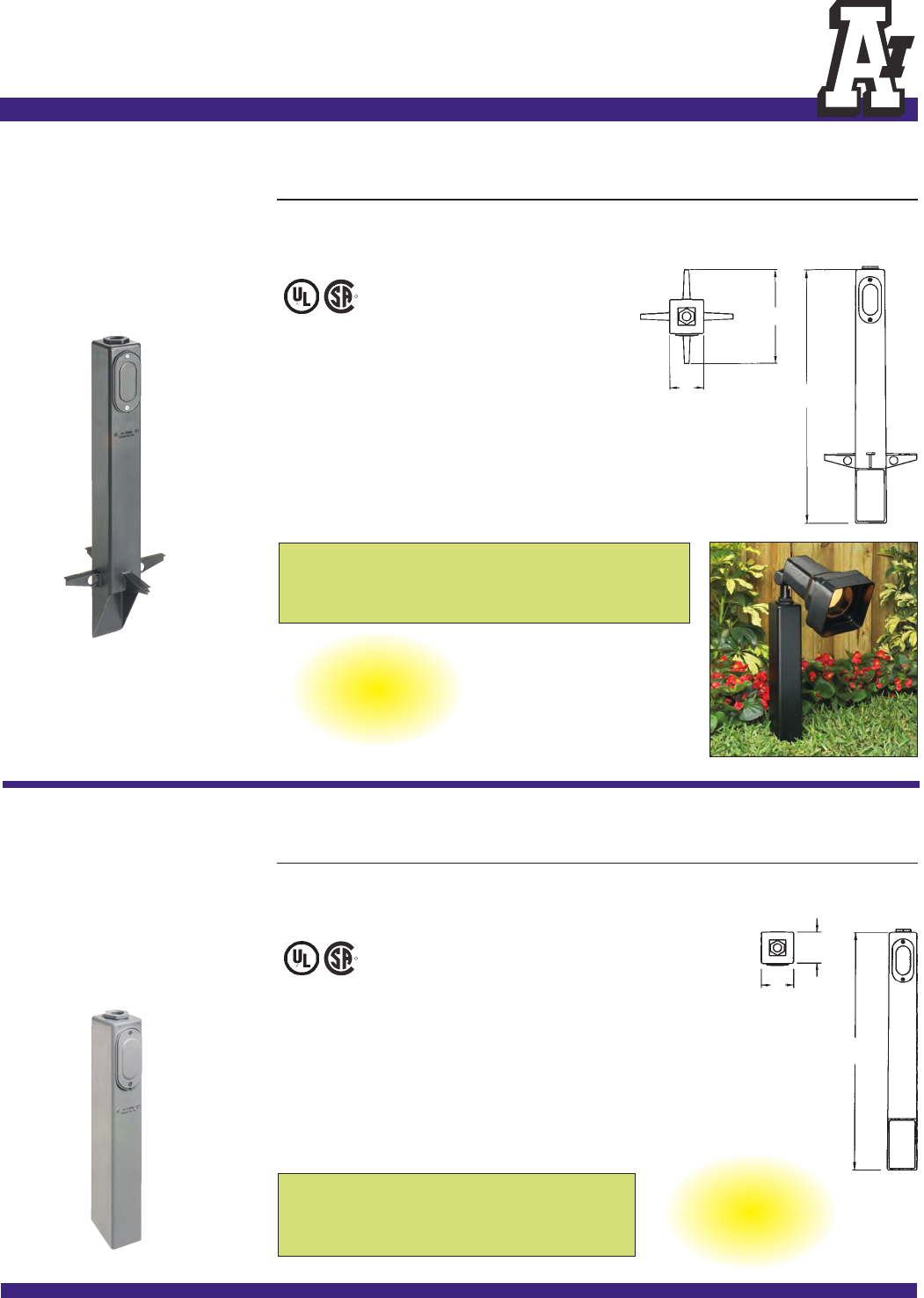

GARD-N-POST™

GARD-N-POST™

Features and Benefits

• Molded-in color is permanent – unlike painted posts

where lawn equipment chips the color off

• Streamline design...one of our most competitively

priced 19.5" GARD-N-POSTs

• Designed for 3-wire light fixtures

• Comes with a 3/4" NPT threaded opening and an installed 3/4" x 1/2"

non-metallic reducing bushing for use with 1/2" or 3/4" NPT fixtures.

• Installed cover

19.5" Low-Profile

Support Just for

3-Wire Outdoor

Light Fixtures

543+9'22/)(:8./4-+=)2:8/;+2>

,57</7+2/-.9,/=9:7+8#$7'9+*

62'89/),57254-5:9*5572/,+

CATALOG UPC/DCI/NAED DESCRIPTION UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG AB C

GPLN19B 76190 Black 167.125 2.250 19.500

GPLN19BR 76192 Bronze 167.125 2.250 19.500

PATENTED. ADDITIONAL PATENTS PENDING.

A

C

B

  

Comes complete with...

Access panel cover, gasket, installed 3/4" x 1/2" NPT

non-metallic bushing for fixture installation.

See page J-10 for our

Outdoor Light Fixtures

designed for the

GARD-N-POST line!

CSA listed with grounding lug.

GPLN19B

shown with

light fixture

GPI75B

Features and Benefits

• Streamline design...our most competitively priced GARD-N-POST

• Designed for 3-wire light fixtures

• Comes with a 3/4" NPT threaded opening, and an installed 3/4" x 1/2"

non-metallic reducing bushing for use with 1/2" or 3/4" NPT fixtures.

• Installed cover

• Molded-in color is permanent – unlike painted posts

where lawn equipment chips the color off

15" Low-Profile

Support Just for

3-Wire Outdoor

Light Fixtures

543+9'22/)(:8./4-

+=)2:8/;+2>,57</7+2/-.9

,/=9:7+8#$7'9+*62'89/),57

254-5:9*5572/,+

CATALOG UPC/DCI/NAED DESCRIPTION STD DIM DIM DIM

NUMBER MFG #01 8997 PKG AB C

GPLN15B 76205 Black 10 2.250 2.250 15.000

GPLN15GR 76181 Gray 10 2.250 2.250 15.000

PATENTS PENDING.

A

C

B

  

Comes complete with...

Access panel cover, gasket, installed 3/4" x 1/2"

NPT non-metallic bushing for fixture installation.

See page J-10 for our

Outdoor Light Fixtures

designed for the

GARD-N-POST line!

CSA listed with

grounding lug.

R

R

J-10

Weatherproof

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

GARD-N-POST™

GARD-N-POST™

Features and Benefits

• Complements Arlington’s GARD-N-POST line

• Powder coated color match

• Made for heavy-duty commercial &

residential applications

• Energy-saving, 13 Watt fluorescent bulbs

included with GPF13

• Supplied with 1/2" NPT fixture

• Perfect for illuminating signs, flagpoles,

walkways, buildings, dwellings, driveways,

yards, and recreational areas

• Adds safety and security

PERFECT FOR THE

GARD-N-POST!

Landscape

Light Fixtures

+)57'9/;+</7+2/-.9,/=9:7+8

,575:7 !"@2/4+

53+8/49<5'997')9/;+)52578

CATALOG UPC/DCI/NAED COLOR BULB KO UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG ABC

GPI75B* 77042 Black Up to 75 Watt, Flood 1/2 144.062 4.062 8.135

GPI75BR* 77043 Bronze Up to 75 Watt, Flood 1/2 144.062 4.062 8.135

GPF13B† 77044 Black 13 Watt, Fluorescent 1/2 148.500 6.300 5.300

GPF13BR† 77045 Bronze 13 Watt, Fluorescent 1/2 148.500 6.300 5.300

*Uses (maximum) a 75 Watt PAR 16 or a 50 Watt PAR 20

halogen bulb. Bulb not included.

†Uses two 13 Watt fluorescent bulbs (included).

Bulb #PL-S27.

AC

B



Features and Benefits

• Complements Arlington’s GARD-N-POST line

• Powder coated color match

• Made for heavy-duty commercial & residential applications

• 3/4" NPT fixture with locking nut

• Made for incandescent, halogen, and energy-saving

compact fluorescent bulbs. (Bulbs not included.)

• Perfect for illuminating signs, flagpoles, walkways, buildings,

dwellings, driveways, yards, and recreational areas

• Adds safety and security

Pagoda-Style

Landscape

Light Fixtures

+)57'9/;+6'-5*'89>2+

</7+2/-.9,/=9:7+8,575:7

 !"@2/4+:7'(2+

)'89'2:3/4:353+8/49<5

'997')9/;+)52578

CATALOG UPC/DCI/NAED DESCRIPTION UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG ABC

GPP60B 77046 Black 144.750 4.750 8.573

GPP60BR 77047 Bronze 144.750 4.750 8.573

GPP60LB 04605 Black 146.070 6.070 8.573

GPP60LBR 04606 Bronze 146.070 6.070 8.573

Note: Uses (maximum) a 40 Watt halogen, 40 Watt incandescent,

or a 14 Watt fluorescent bulb. Bulb not included.

A

B

C

3/4" NPT



A

B

C

GPI75

GPF13 1/2" NPT

GPI75B

GPF13B

2-Lamp Fixture

GPP60BR

GPP60LB

J-11 Weatherproof

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

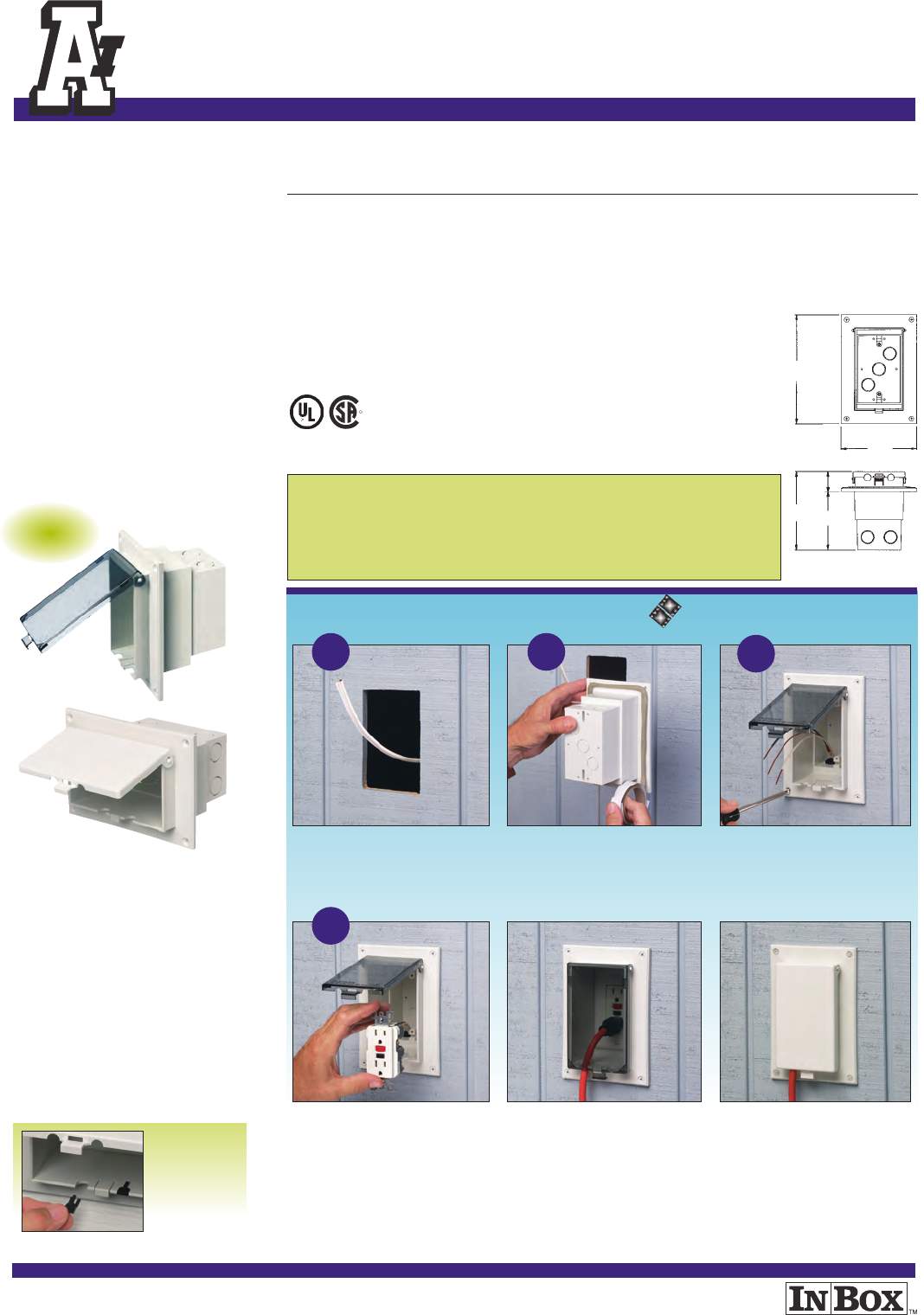

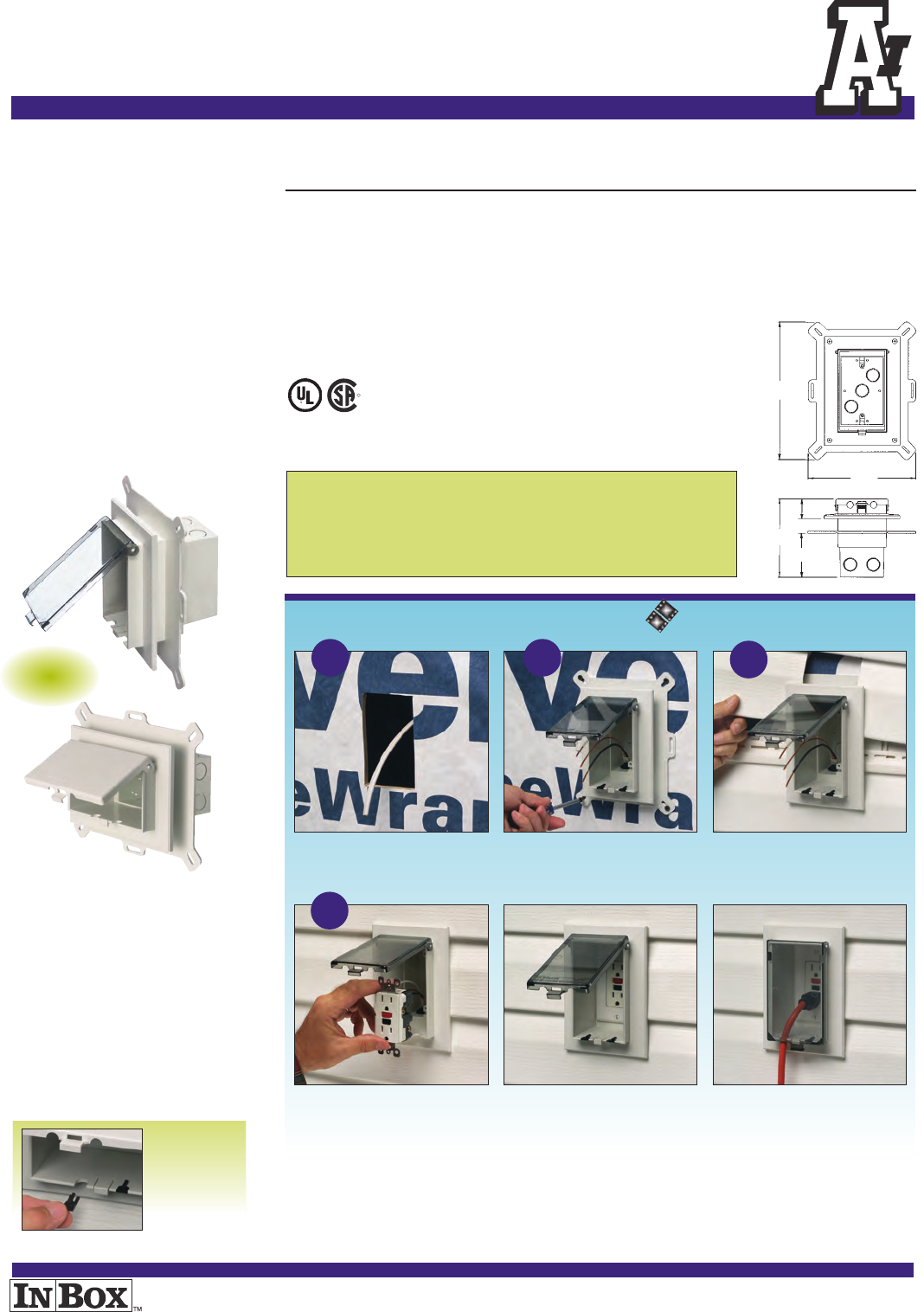

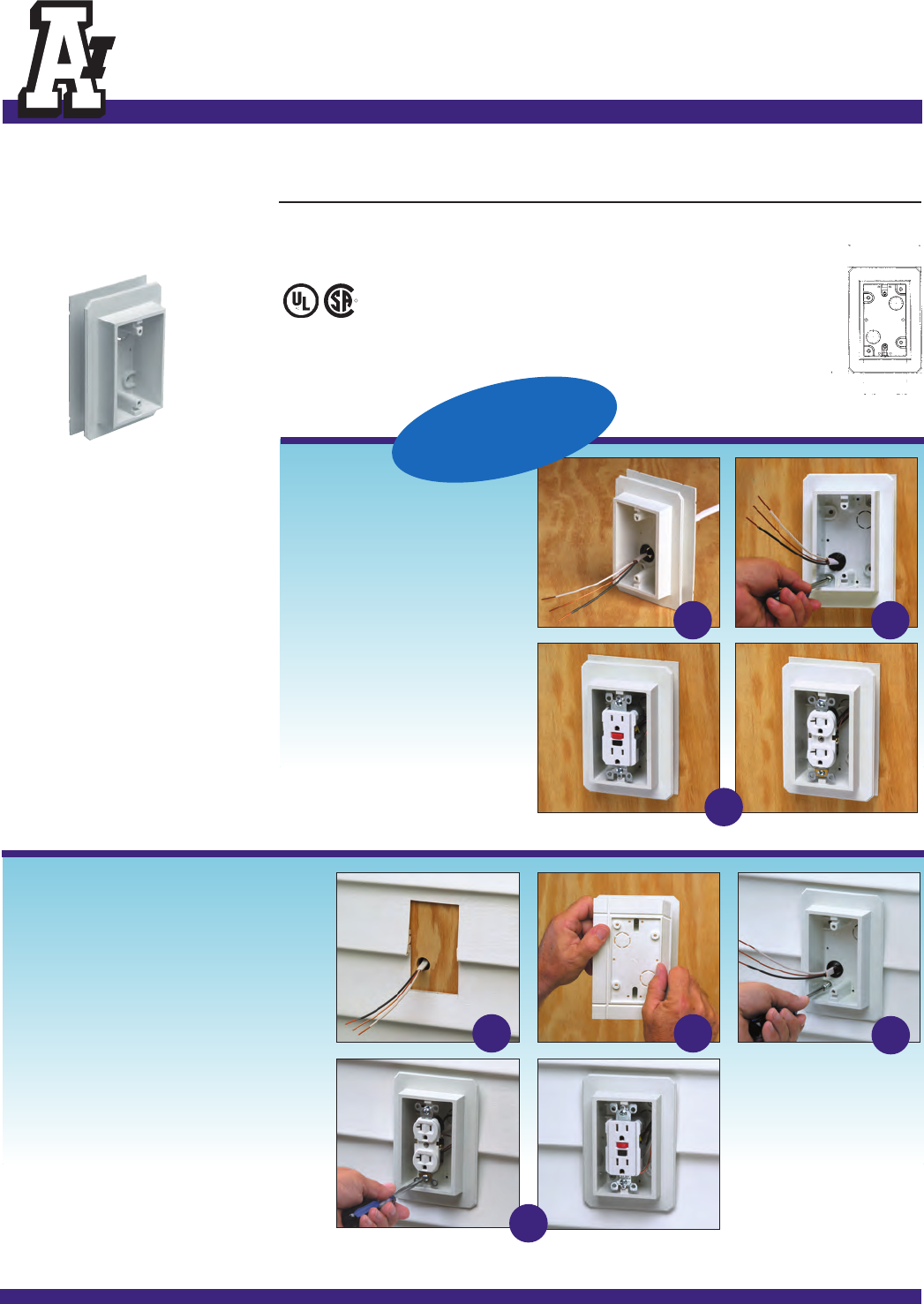

Low Profile

IN BOX™for

New Vinyl Siding

Construction

4+6/+)+7+)+88+*+2+)97/)'2

(5=</9.<+'9.+76755,/4:8+

)5;+7,574+<8/*/4-

'662/)'9/548543+9'22/)

)5;+7'4*('8+))+6983589

8/4-2+-'4-</7/4-*+;/)+8'4*

:8+889'4*'7*/4*557<'22

62'9+857')5;+762'9+

5='4*<./9+)5;+7'7+

9+=9:7+*6'/49'(2+#$7'9+*

62'89/),57254-5:9*5572/,+

CATALOG UPC/DCI/NAED ORIENTATION/ SIDING UNIT STD DIM DIM DIM DIM DIM

NUMBER MFG #01 8997 COVER COLOR TYPE PKG PKG AB CDE

DBVS1C 14317 Vertical/Clear All Types 149.058 7.012 5.160 1.313 2.879

DBVS1W 14318 Vertical/White All Types 149.058 7.012 5.160 1.313 2.879

DBHS1C 77600 Horizontal/Clear All Types 147.012 9.058 5.160 1.313 2.879

DBHS1W 77602 Horizontal/White All Types 147.012 9.058 5.160 1.313 2.879

Add suffix “GC” to Catalog # when ordering in Canada, for example DBVS1CGC.

Replacement covers available on page J-26.

Two-Gang style available on page J-17.

PATENTED. ADDITIONAL PATENTS PENDING.

A

B

C

D

E

  

Features and Benefits

• IN BOX’s one-piece assembly

replaces the installation of an

electrical box, siding block, and

bubble cover assembly

• Installs in the wall, so less of it

shows outside

• Outer flange covers cut ends of

siding

• Install option: Cover is removable

for easier device installation

• No gaskets required

Installation Instructions

1 2 3

Cut a 3-1/4" x 5-1/2" hole in

substrate. Pull wiring.

Install NM cable connector and

wire, attach IN BOX to

substrate.

4

Install wiring device per

manufacturer’s instructions,

Local and National Electrical

Codes.

Accepts most single gang

wiring devices and uses a

standard indoor wall plate.

Completed installation with

weatherproof-in-use cover.

DBVS1C shown.

Install siding, inserting the cut

ends of the siding under the

outer flange of the IN BOX.

Note: Meets 2008 NEC Section 406-8; for the protection

of exterior outlets which require the use of a weatherproof

while-in-use cover for all outdoor 15 or 20 AMP

receptacles.

WEATHERPROOF-IN-USE

DBVS1C

22 cu. in.

DBHS1W

IN BOX for new siding includes...

Box with weatherproof-in-use cover; installed bug plugs;

(1) standard duplex and (1) standard GFCI face plate; installation

screws; and (1) NM cable connector.

Bug Plugs ship

installed in all

IN BOX styles

to seal unused

cord hole

openings.

See page

J-17 for our

NEW 2-Gang

style!

For a video installation demonstration

visit our website @ aifittings.com

R

J-12

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

A

B

C

Low Profile

IN BOX™for

New Construction

Stucco, Textured

Surfaces, and

Rigid Siding

4+6/+)+7+)+88+*+2+)97/)'2

(5=</9.<+'9.+76755,/4:8+

)5;+7,5789:))55;+73'8547>

57<55*)54897:)9/54285,57

)+3+49/9/5:8,/(+77/-/*2'6

8/*/4-543+9'22/))5;+7'4*

('8+))+69835898/4-2+

-'4-</7/4-*+;/)+8'4*:8+8

89'4*'7*/4*557<'2262'9+857

')5;+762'9+5='4*

<./9+)5;+7'7+9+=9:7+*

6'/49'(2+#$7'9+*62'89/),57

254-5:9*5572/,+

CATALOG UPC/DCI/NAED ORIENTATION/ UNIT STD DIM DIM DIM DIM DIM

NUMBER MFG #01 8997 COVER COLOR PKG PKG AB CDE

DBVM1C 14315 Vertical/Clear 149.058 7.012 5.160 1.805 3.222

DBVM1W 14316 Vertical/White 149.058 7.012 5.160 1.805 3.222

DBHM1C 77608 Horizontal/Clear 147.012 9.058 5.160 1.805 3.222

DBHM1W 77610 Horizontal/White 147.012 9.058 5.160 1.805 3.222

Add suffix “GC” to Catalog # when ordering in Canada, for example DBVM1CGC.

Replacement covers available on page J-26.

Two-Gang style available on page J-17.

PATENTED. ADDITIONAL PATENTS PENDING.

  

Features and Benefits

• One-piece assembly replaces the

installation of an electrical box and

bubble cover assembly

• Installs in the wall, so less of it

shows outside

• Holes in flange allow stucco to

bond firmly

• Install option: Cover is removable for

easier device installation

Installation Instructions for New Masonry Construction

1 32 4

Make a 3-1/4" x 5-1/2" hole in

block. Pull wiring through plastic

block bushing and opening in

block. Block bushing mounts to

interior side of block.

Install NM cable connector and

wire. Attach recessed IN BOX

to block. Holes in flange allow

stucco to bond firmly.

Completed installation with

weatherproof-in-use cover.

DBVM1C shown.

Cutaway

Showing IN BOX

and plastic

block bushing

mounted in

concrete block

Install wiring device per manu-

facturer’s instructions, Local,

and National Electrical Codes.

Accepts most devices and a

standard indoor wall plate.

WEATHERPROOF-IN-USE

DBVM1C

DBHM1W

IN BOX

Stucco

Mounts

to block

NM cable connector

NM cable

Block bushing

Cable

(Ready for assembly of furring strips and drywall)

Washer

Note: Meets 2008 NEC Section 406-8; for the protection of exterior outlets

which require the use of a weatherproof while-in-use cover for all outdoor

15 or 20 AMP receptacles.

Bug Plugs ship

installed in all

IN BOX styles

to seal unused

cord hole

openings.

IN BOX for new stucco, textured surfaces, and rigid

siding includes...Box with weatherproof-in-use cover; installed

bug plugs; (1) standard duplex and (1) standard GFCI face plate;

(1) NM cable connector; block bushing with washer; and an

in-place, disposable mud cover.

22 cu. in.

Note: Additional Installation Methods shown on page J-13.

D

E

See page

J-17 for our

NEW 2-Gang

style! aifittings.com

R

Weatherproof

J-13

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Installation Instructions for Wood Substrate Stucco

1 32 4

Make a 3-1/4" x 5-1/2" hole in

plywood. Pull wiring through

opening.

Install NM cable connector and

wire. Attach recessed IN BOX

to plywood.

IN BOX is ready for stucco. Install wiring device per manu-

facturer’s instructions, Local,

and National Electrical Codes.

Accepts most devices and a

standard indoor wall plate.

DBVM1W shown.

Installation Instructions for New Rigid Siding - Method 1

1 32 4

Install NM cable connector and

wire. Attach IN BOX to stud.

Install moisture barrier around

IN BOX per manufacturer’s

instructions.

Cut rigid siding to fit around

IN BOX. Caulk around box.

Install wiring device per manu-

facturer’s instructions, Local,

and National Electrical Codes.

Accepts most devices and a

standard indoor wall plate.

DBVM1W shown.

Installation Instructions for New Rigid Siding - Method 2

1 32 4

Make a 3-1/4" x 5-1/2" hole in

plywood. Pull wiring through

opening.

Install NM cable connector and

wire. Attach recessed IN BOX

to substrate, then install

moisture barrier around box as

shown above in Method 1.

Cut rigid siding to fit around

IN BOX. Caulk around box.

Install wiring device per manu-

facturer’s instructions, Local,

and National Electrical Codes.

Accepts most devices and a

standard indoor wall plate.

DBVM1W shown.

Additional New Construction Installation Methods for the DBVM1 & DBHM1 series. aifittings.com

Weatherproof

J-14

Weatherproof

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

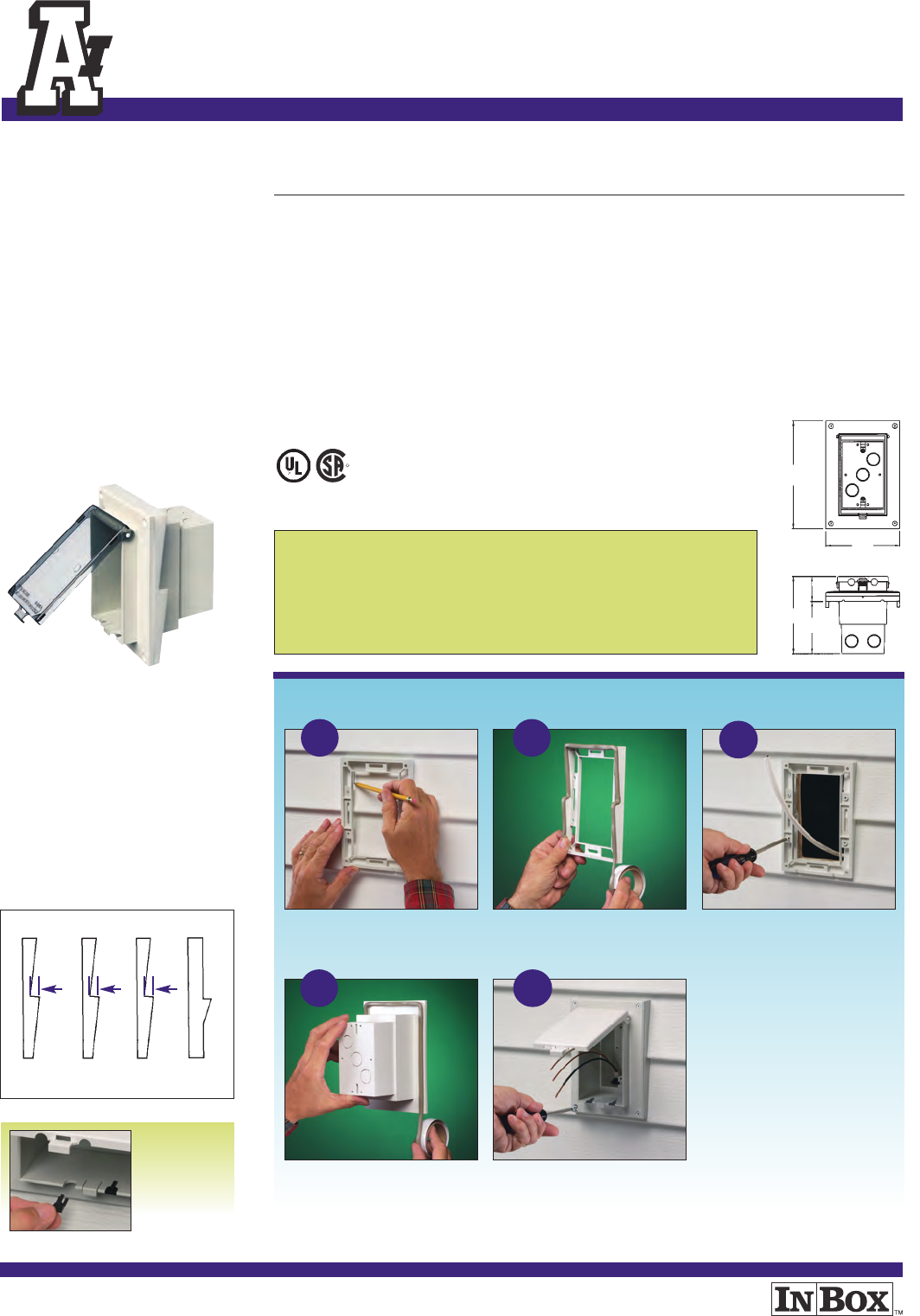

Low Profile

IN BOX™for

Retrofit Siding

Construction

+)+88+*+2+)97/)'2(5=</9.

<+'9.+76755,/4:8+)5;+7,57

+=/89/4-8/*/4-)54897:)9/54

543+9'22/))5;+7'4*('8+

))+69835898/4-2+-'4-

</7/4-*+;/)+8'4*:8+8

89'4*'7*/4*557<'2262'9+857

')5;+762'9+5='4*

<./9+)5;+7'7+9+=9:7+*

6'/49'(2+#$7'9+*62'89/),57

254-5:9*5572/,+

CATALOG UPC/DCI/NAED ORIENTATION/ SIDING UNIT STD DIM DIM DIM DIM DIM

NUMBER MFG #01 8997 COVER COLOR TYPE/STYLE PKG PKG ABCDE

DBVR131C 14370 Vertical/Clear 1/4" or 5/16" Lap 147.186 4.934 5.160 1.567 3.539

DBVR131W 14375 Vertical/White 1/4" or 5/16" Lap 147.186 4.934 5.160 1.567 3.539

DBVR141C 14371 Vertical/Clear 1/2" Lap 147.186 4.934 5.160 1.577 3.361

DBVR141W 14376 Vertical/White 1/2" Lap 147.186 4.934 5.160 1.577 3.361

DBVR151C 14372 Vertical/Clear 5/8" Lap 147.186 4.934 5.160 1.582 3.241

DBVR151W 14377 Vertical/White 5/8" Lap 147.186 4.934 5.160 1.582 3.241

DBVR171C 14373 Vertical/Clear Dutch Lap 147.186 4.934 5.160 1.689 3.417

DBVR171W 14378 Vertical/White Dutch Lap 147.186 4.934 5.160 1.689 3.417

*Add suffix “GC” to Catalog # when ordering in Canada, for example DBVR131CGC.

Replacement covers available on page J-26.

PATENTED. ADDITIONAL PATENTS PENDING.

  

Features and Benefits

• IN BOX’s one-piece assembly

replaces the installation of an

electrical box, siding block, and

bubble cover assembly

• Installs in the wall, so less of it

shows outside

• Install option: Cover is removable

for easier device installation

• No gaskets required

WEATHERPROOF-IN-USE

A

B

C

D

E

DBVR131C

DBVR141

1/2" LAP

DBVR131

1/4" &

5/16" LAP

DBVR151

5/8" LAP

DBVR171

DUTCH

LAP

5/8"1/2"

1/4"

&

5/16"

Siding Profiles

Bug Plugs ship

installed in all

IN BOX styles

to seal unused

cord hole

openings.

22 cu. in.

IN BOX for retrofit siding includes...

Box with weatherproof-in-use cover, installed bug plugs, siding

profile adapter plate, (1) standard duplex and (1) standard GFCI face

plate, (2) sets installation screws, (1) NM cable connector, and

(2) rolls of caulk.

Installation Instructions for Existing Siding

1 2a 2b

Using the siding profile adapter

plate as a template, cut hole in

existing siding. Pull wiring.

Apply caulk around edges of back

of adapter. Press onto siding.

3a 3b

Apply caulk to reverse side of

IN BOX flange.

Install NM cable connector and

wire, then attach with provided

long screws. Trim excess caulk as

needed. Install wiring device per

manufacturer’s instructions, Local

and National Electrical Codes.

Attach adapter to siding with

provided short screws. Trim

excess caulk as needed.

Note: Meets 2008 NEC

Section 406-8; for the

protection of exterior

outlets which require the

use of a weatherproof

while-in-use cover for all

outdoor 15 or 20 AMP

receptacles.

R

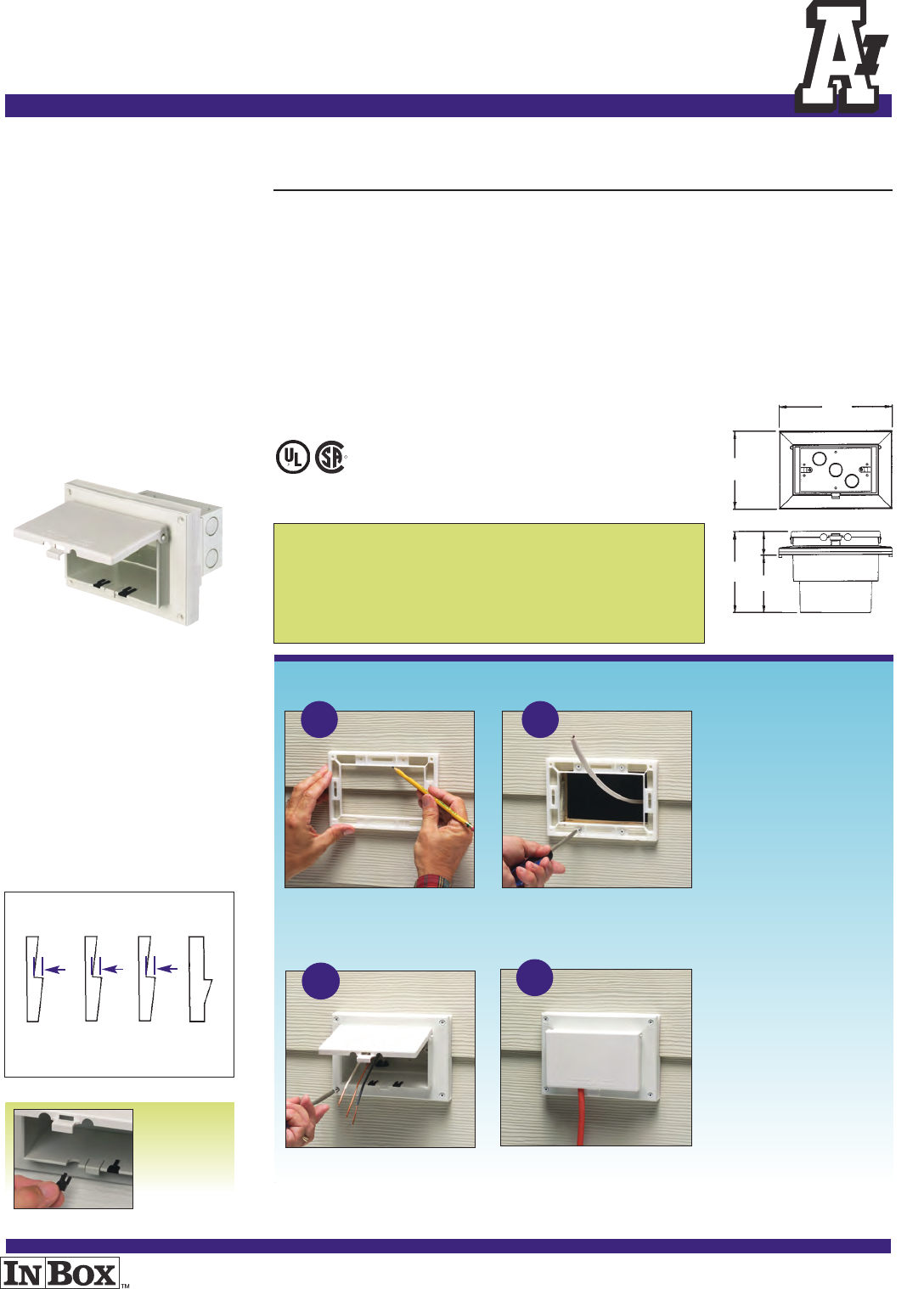

J-15 Weatherproof

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

B

DBHR141

1/2" LAP

DBHR131

1/4" &

5/16" LAP

DBHR151

5/8" LAP

DBHR171

DUTCH

LAP

5/8"

1/2"

1/4"

&

5/16"

Siding Profiles

Low Profile

IN BOX™for

Retrofit Siding

Construction

+)+88+*+2+)97/)'2(5=</9.

<+'9.+76755,/4:8+)5;+7,57

+=/89/4-8/*/4-)54897:)9/54

543+9'22/))5;+7'4*('8+

))+69835898/4-2+-'4-

</7/4-*+;/)+8'4*:8+8

89'4*'7*/4*557<'2262'9+857

')5;+762'9+5='4*

<./9+)5;+7'7+9+=9:7+*

6'/49'(2+#$7'9+*62'89/),57

254-5:9*5572/,+

CATALOG UPC/DCI/NAED ORIENTATION/ SIDING UNIT STD DIM DIM DIM DIM DIM

NUMBER MFG #01 8997 COVER COLOR TYPE/STYLE PKG PKG ABCDE

DBHR131C 77612 Horizontal/Clear

1/4" or 5/16" Lap

144.934 7.186 5.160 1.567 3.539

DBHR131W 77614 Horizontal/White

1/4" or 5/16" Lap

144.934 7.186 5.160 1.567 3.539

DBHR141C 77616 Horizontal/Clear 1/2" Lap 144.934 7.186 5.160 1.577 3.361

DBHR141W 77618 Horizontal/White 1/2" Lap 144.934 7.186 5.160 1.577 3.361

DBHR151C 77620 Horizontal/Clear 5/8" Lap 144.934 7.186 5.160 1.582 3.241

DBHR151W 77622 Horizontal/White 5/8" Lap 144.934 7.186 5.160 1.582 3.241

DBHR171C 77624 Horizontal/Clear Dutch Lap 144.934 7.186 5.160 1.689 3.417

DBHR171W 77626 Horizontal/White Dutch Lap 144.934 7.186 5.160 1.689 3.417

*Add suffix “GC” to Catalog # when ordering in Canada, for example DBHR131WGC.

Replacement covers available on page J-26.

PATENTED. ADDITIONAL PATENTS PENDING.

  

Features and Benefits

• IN BOX’s one-piece assembly

replaces the installation of an

electrical box, siding block, and

bubble cover assembly

• Installs in the wall, so less of it

shows outside

• Install option: Cover is removable

for easier device installation

• No gaskets required

WEATHERPROOF-IN-USE

A

C

Bug Plugs ship

installed in all

IN BOX styles

to seal unused

cord hole

openings.

22 cu. in.

IN BOX for retrofit siding includes...

Box with weatherproof-in-use cover, installed bug plugs, siding

profile adapter plate, (1) standard duplex and (1) standard

GFCI face plate, (2) sets installation screws, (1) NM cable

connector, and (2) rolls of caulk.

Installation Instructions for Existing Siding

1 2

3

Using the siding profile adapter

plate as a template, cut hole in

existing siding. Pull wiring.

Apply caulk around edges of back of adapter

(see page J-14, step 2a). Press onto siding. Attach

adapter to siding with provided short screws.

Trim excess caulk as needed.

4

Install wiring device per manufacturer’s

instructions, Local and National Electrical

Codes. Completed installation with

weatherproof-in-use cover. DBHR131W shown.

Apply caulk to reverse side of IN BOX

flange (see page J-14, step 3a).

Install NM cable connector and wire,

then attach with provided long

screws. Trim excess caulk as needed.

Note: Meets 2008 NEC

Section 406-8; for the

protection of exterior

outlets which require the

use of a weatherproof

while-in-use cover for all

outdoor 15 or 20 AMP

receptacles.

DBHR131W

D

E

R

J-16

Weatherproof

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Low Profile

IN BOX™for Flat

Surface Retrofit

Construction

4+6/+)+7+)+88+*+2+)97/)'2

(5=</9.<+'9.+76755,/4:8+

)5;+7,57,2'98:7,')+8/4

+=/89/4-)54897:)9/5454

3+9'22/))5;+7'4*('8+

))+69835898/4-2+-'4-

</7/4-*+;/)+8'4*:8+8

89'4*'7*/4*557<'2262'9+857'

)5;+762'9+5='4*

<./9+)5;+7'7+9+=9:7+*

6'/49'(2+#$7'9+*62'89/),57

254-5:9*5572/,+

CATALOG UPC/DCI/NAED ORIENTATION/ UNIT STD DIM DIM DIM DIM DIM

NUMBER MFG #01 8997 COVER COLOR PKG PKG AB CD E

DBVR1C 14313 Vertical/Clear 147.186 4.934 5.160 1.313 3.847

DBVR1W 14314 Vertical/White 147.186 4.934 5.160 1.313 3.847

DBHR1C 77604 Horizontal/Clear 144.934 7.186 5.160 1.313 3.847

DBHR1W 77606 Horizontal/White 144.934 7.186 5.160 1.313 3.847

Add suffix “GC” to Catalog # when ordering in Canada, for example DBVR1CGC.

Replacement covers and siding profiles to convert for use on

existing siding available on page J-26.

Two-Gang style available on page J-17.

PATENTED. ADDITIONAL PATENTS PENDING.

  

Features and Benefits

• IN BOX’s one-piece assembly

replaces the installation of an

electrical box and bubble cover

assembly

• Installs in the wall, so less of it

shows outside

• Use the retrofit IN BOX on plywood,

T-111, and other flat surfaces.

• Install option: Cover is removable

for easier device installation

• No gaskets required

Installation Instructions

1 2 3

Cut a 3-1/4" x 5-1/2" hole in

substrate. Pull wiring.

Apply the supplied caulk

around back edges of flange.

Install NM cable connector and

wire, then press onto surface.

4

Accepts most single gang

wiring devices, and uses a

standard indoor wall plate.

DBVR1C shown.

DBVR1W shown.

IN BOX Saves Time.

Looks Great!

Attach IN BOX with stainless

steel screws (provided).

Install wiring device per

manufacturer’s instructions,

Local and National Electrical

Codes.

WEATHERPROOF-IN-USE

A

B

CE

D

DBVR1C

DBHR1W

Note: Meets 2008 NEC Section 406-8; for the protection of exterior outlets

which require the use of a weatherproof while-in-use cover for all outdoor

15 or 20 AMP receptacles.

Bug Plugs ship

installed in all

IN BOX styles

to seal unused

cord hole

openings.

IN BOX for retrofit, flat surfaces includes...

Box with weatherproof-in-use cover; installed bug plugs; (1) standard

duplex and (1) standard GFCI face plate; (1) set installation screws;

(1) NM cable connector; and (1) roll of caulk.

22 cu. in.

See page

J-17 for our

NEW 2-Gang

style!

For a video installation demonstration

visit our website @ aifittings.com

R

J-17 Weatherproof

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

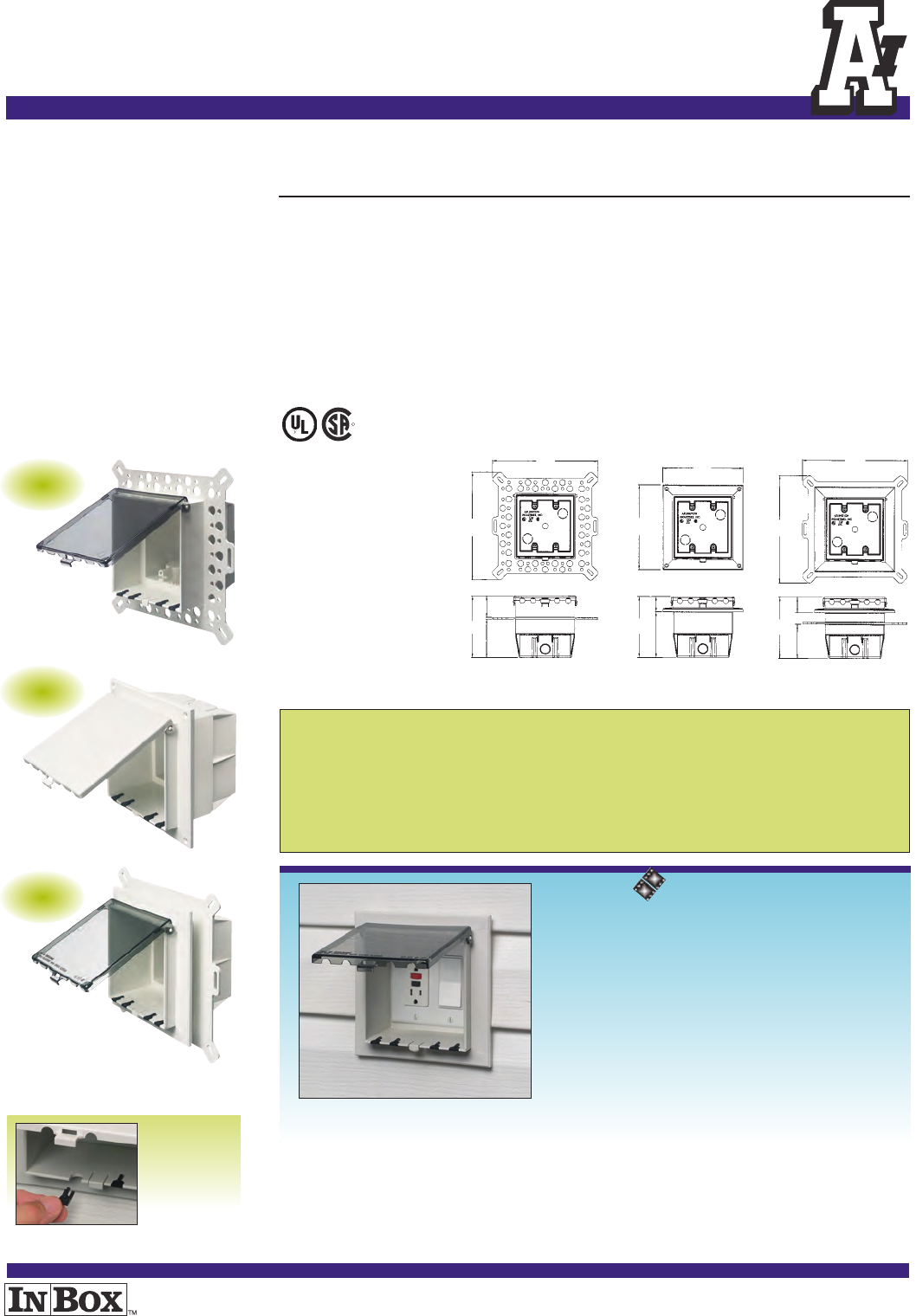

Two-Gang,

Low Profile

IN BOX™

"<5-'4-7+)+88+*+2+)97/)'2

(5=</9.<+'9.+76755,/4:8+

)5;+7,57,2'98:7,')+8

3'8547>7+975,/9'4*8/*/4-

)54897:)9/548++(+25<,57

675*:)9:8+543+9'22/)

)5;+7'4*('8+489'2289<5

5:92+9857)53(5*+;/)+85=

'4*<./9+)5;+7'7+9+=9:7+*

6'/49'(2+#$7'9+*62'89/),57

254-5:9*5572/,+

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM DIM DIM DIM

NUMBER MFG #01 8997 COVER COLOR PKG PKG ABCDE

DBVM2C 03962

2-Gang, Vertical / Clear

149.058 8.992 5.142 1.805 3.222

DBVM2W 03963

2-Gang, Vertical / White

149.058 8.992 5.142 1.805 3.222

DBVR2C 03964

2-Gang, Vertical / Clear

147.159 6.888 5.142 1.295 3.847

DBVR2W 03965

2-Gang, Vertical / White

147.159 6.888 5.142 1.295 3.847

DBVS2C 03960

2-Gang, Vertical / Clear

149.058 8.992 5.142 1.313 2.879

DBVS2W 03961

2-Gang, Vertical / White

149.058 8.992 5.142 1.313 2.879

Add suffix “GC” to Catalog # when ordering in Canada, for example DBVM2CGC.

Two-Gang, replacement covers available on page J-25.PATENTED.

ADDITIONAL PATENTS PENDING.

  

Features and Benefits

• IN BOX’s one-piece assembly replaces the

installation of an electrical box and bubble

cover assembly

• Installs in the wall, so less of it shows outside

• No gaskets required

• For flat surfaces, vinyl siding, stucco over

masonry or wood (with or without lath), and

retrofit

• Install an outlet and a switch, or two switches

in one location

• Includes 1/2" and 3/4" NM cable connectors

and a two-gang rectangular device plate

New!

WEATHERPROOF-IN-USE

A

B

C

D

E

DBVM2C -

Masonry & textured surfaces

See pages

J-12 & 13

for more

information.

See page

J-14 for more

information.

See page

J-11 for more

information.

DBVR2W - Flat surfaces

DBVS2C - Vinyl siding

DBVS2

34.0 cu. in.

A

B

C

D

E

DBVR2

34.0 cu. in.

A

B

C

D

E

DBVM2

34.0 cu. in.

Note: Meets 2008 NEC Section 406-8; for the protection of exterior outlets

which require the use of a weatherproof while-in-use cover for all outdoor

15 or 20 AMP receptacles.

Bug Plugs ship

installed in all

IN BOX styles

to seal unused

cord hole

openings.

Two-Gang IN BOX includes...

Box with weatherproof-in-use cover; installed bug plugs; (1) decorator wall plate; and

(2) NM cable connectors.

DBVM2 also includes a block bushing with washer; and an in-place, disposable mud cover.

DBVR2 also includes (1) set installation screws; and (1) roll of caulk.

DBVS2 also includes (1) set installation screws.

Completed installation,

DBVS2C shown.

For a video installation demonstration

visit our website @ aifittings.com

R

J-18

Weatherproof

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

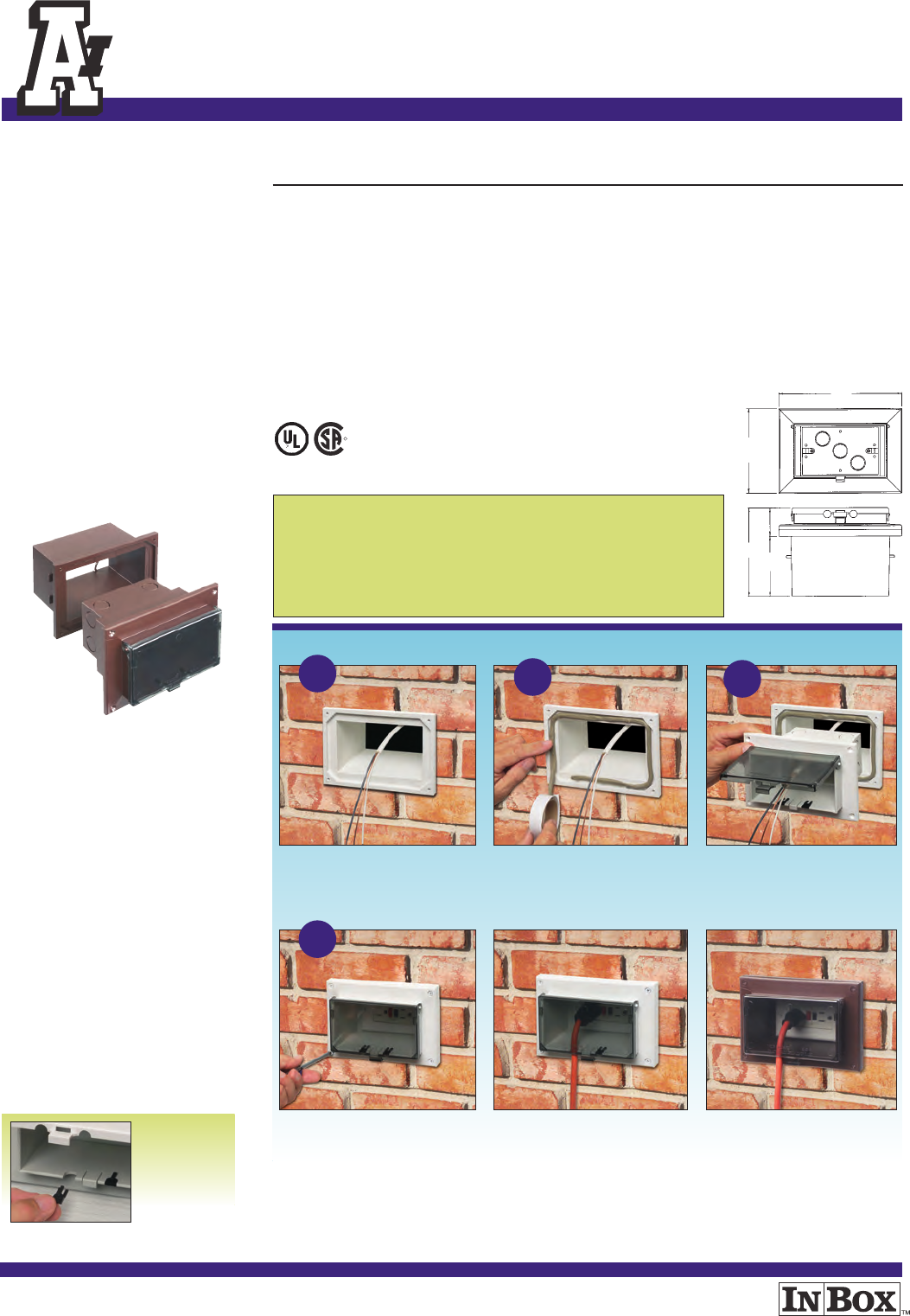

Low Profile

IN BOX™with

Adapter Sleeve

for New Brick

Construction

+)+88+*+2+)97/)'2(5=</9.

<+'9.+76755,/4:8+)5;+7,57

4+<(7/)1)54897:)9/544)2:*+8

'6759+)9/;+'*'69+782++;+9.'9

1++683579'75:9543+9'22/)

)5;+7'4*('8+))+6983589

8/4-2+-'4-</7/4-*+;/)+8'4*

:8+889'4*'7*/4*557<'2262'9+8

57')5;+762'9+%./9+

(5='4*)5;+7'7+9+=9:7+*

6'/49'(2+#$7'9+*62'89/),57

254-5:9*5572/,+

CATALOG UPC/DCI/NAED ORIENTATION/ UNIT STD DIM DIM DIM DIM DIM

NUMBER MFG #01 8997 COLOR PKG PKG ABCDE

DHB1C 54880 Horiz./Clear Cover/White Box 1 4 4.934 7.186 5.283 1.658 3.625

DHB1W 54882 Horiz./White Cover/White Box 144.934 7.186 5.283 1.658 3.625

DHB1BRC 54881 Horiz./Clear Cover/Brown Box 144.934 7.186 5.283 1.658 3.625

DHB1BR 54875 Horiz./Brown Cover/Brown Box 144.934 7.186 5.283 1.658 3.625

DVB1C 43609 Vertical/Clear Cover/White Box 147.186 4.934 5.283 1.658 3.625

DVB1W 43620 Vertical/White Cover/White Box 147.186 4.934 5.283 1.658 3.625

DVB1BRC 43608 Vertical/Clear Cover/Brown Box 147.186 4.934 5.283 1.658 3.625

DVB1BR 43595 Vertical/Brown Cover/Brown Box 147.186 4.934 5.283 1.658 3.625

Add suffix “GC” to Catalog # when ordering in Canada, for example DHB1CGC.

Replacement covers available on page J-26.

PATENTED. ADDTIONAL PATENTS PENDING.

  

Features and Benefits

• IN BOX’s one-piece assembly

replaces the installation of an

electrical box and bubble cover

assembly

• Adapter sleeve, with loops in

back for tying off cable, keeps

mortar out of the box while brick

mason works

• The clean IN BOX slips into the

sleeve for easy installation!

• Built-in anchor tabs seat IN BOX

sleeve into mortar for a super

secure installation

• Installs in the wall, so less of it

shows outside

• Install option: Cover is removable

for easier device installation

• No gaskets required

A

B

C

D

E

DHB1BRC

22 cu. in.

Note: Meets 2008 NEC Section 406-8; for the protection of exterior outlets which require

the use of a weatherproof while-in-use cover for all outdoor 15 or 20 AMP receptacles.

Bug Plugs ship

installed in all

IN BOX styles

to seal unused

cord hole

openings.

IN BOX for new brick includes...

Box with weatherproof-in-use cover, adapter sleeve, installed

bug plugs, (1) standard duplex and (1) standard GFCI face plate,

installation screws, (1) NM cable connector, and (1) roll of caulk,

disposable mud cover.

Installation Instructions

123

Mortar in adapter sleeve. Pull

wire and tie off to loop in

adapter sleeve.

When ready to complete...

apply supplied caulk as shown

and press around edges of

adapter sleeve.

4

Accepts most single gang

wiring devices, and uses a

standard indoor wall plate.

DHB1C shown.

Weatherproof-in-use.

DHB1BRC shown.

IN BOX Saves Time.

Looks Great!

Install the supplied NM cable

connector and wire. Insert the

clean IN BOX into the sleeve.

Attach IN BOX with screws

provided. Install wiring device

per manufacturer’s

instructions, Local and

National Electrical Codes.

R

WEATHERPROOF-IN-USE

J-19 Weatherproof

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Features and Benefits

• IN BOX replaces the installation of an electrical box

and bubble cover assembly

• Installs in the wall, so less of it shows outside

• No gaskets required

• Use the retrofit IN BOX on plywood, T-111, and other

flat surfaces

• Install option: Cover is removable for easier device installation

• White, non-metallic portion and white cover are textured/paintable

• Grounding wire provided

• For use with metal raceway systems

• Two-hour fire rating

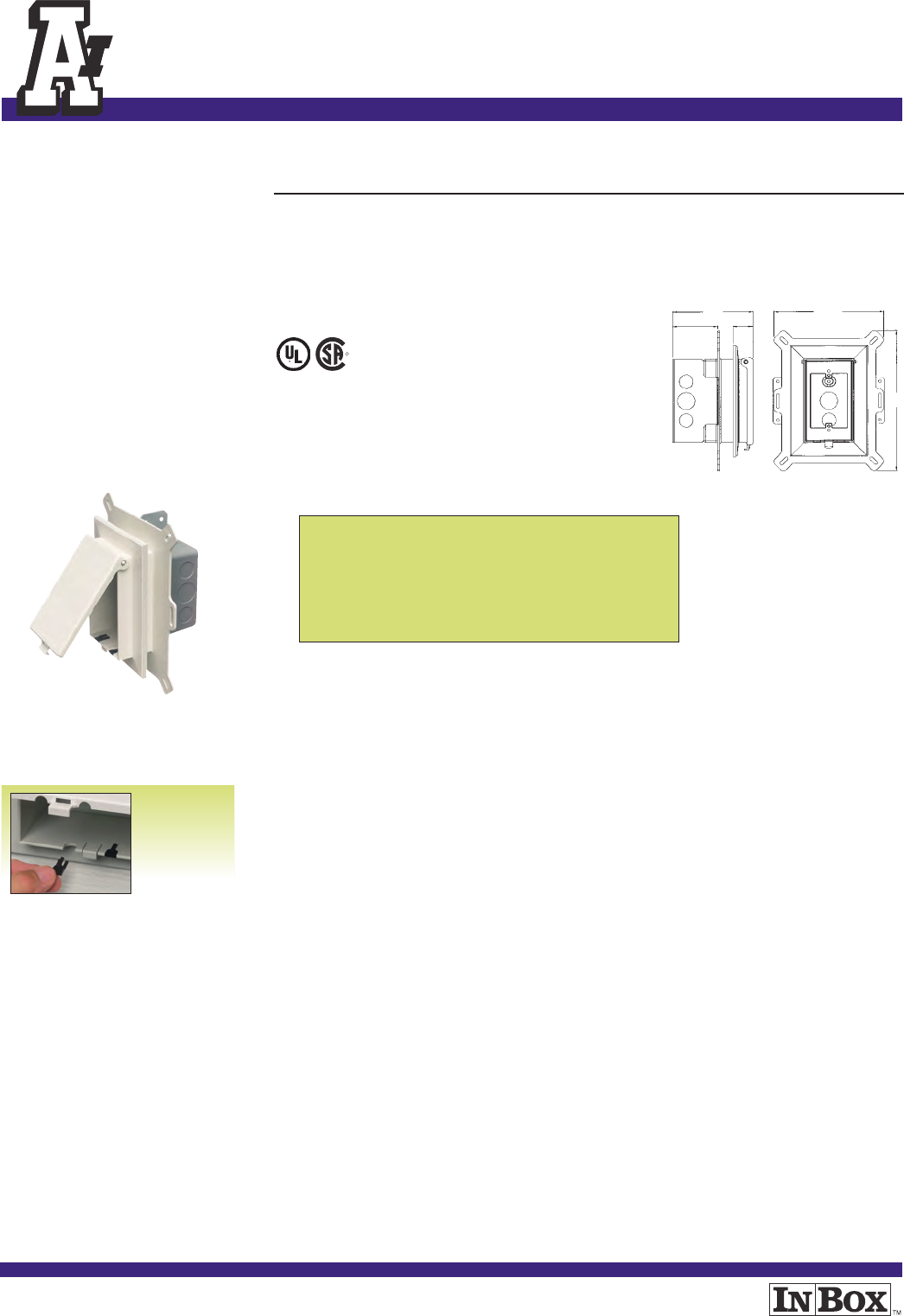

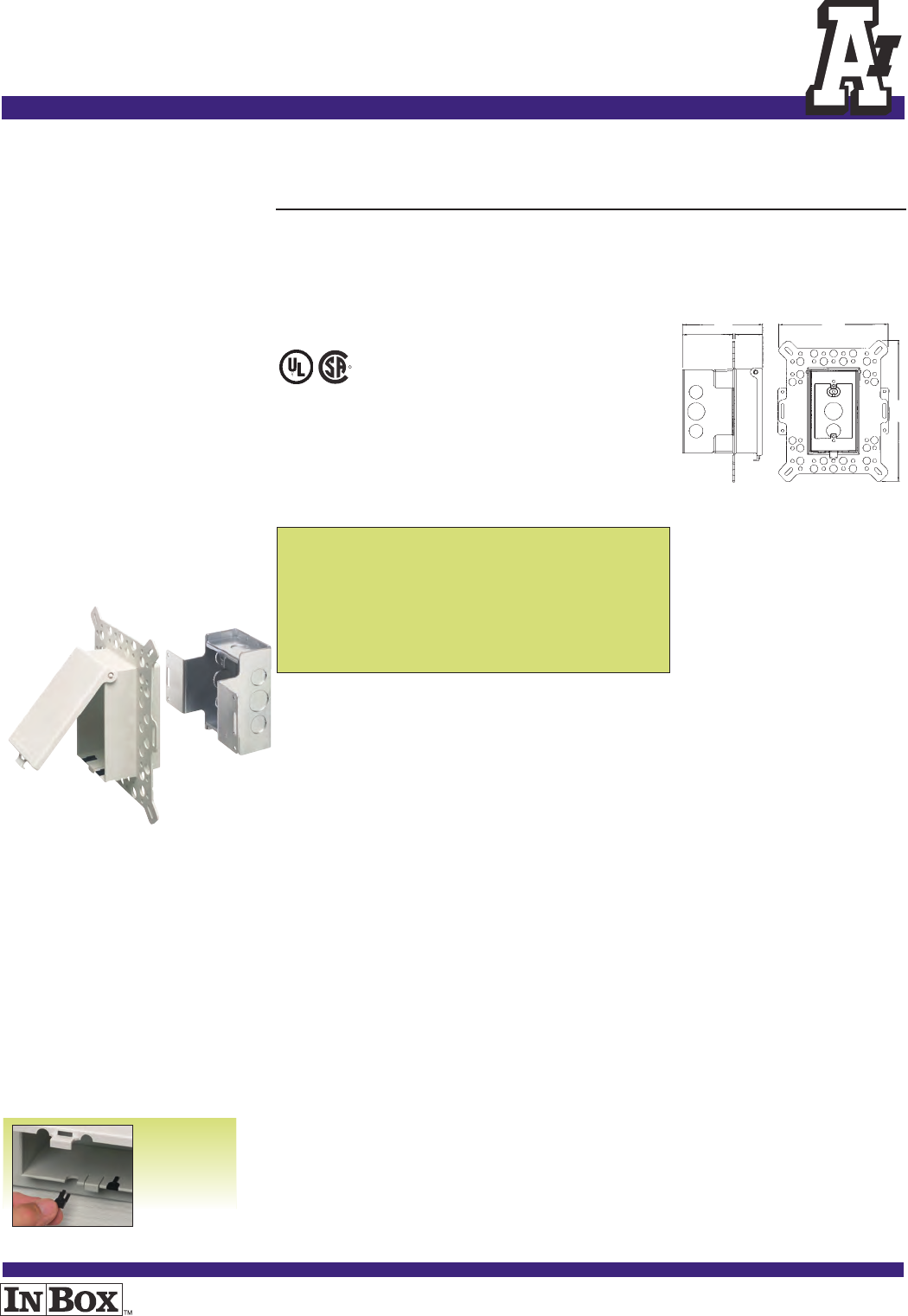

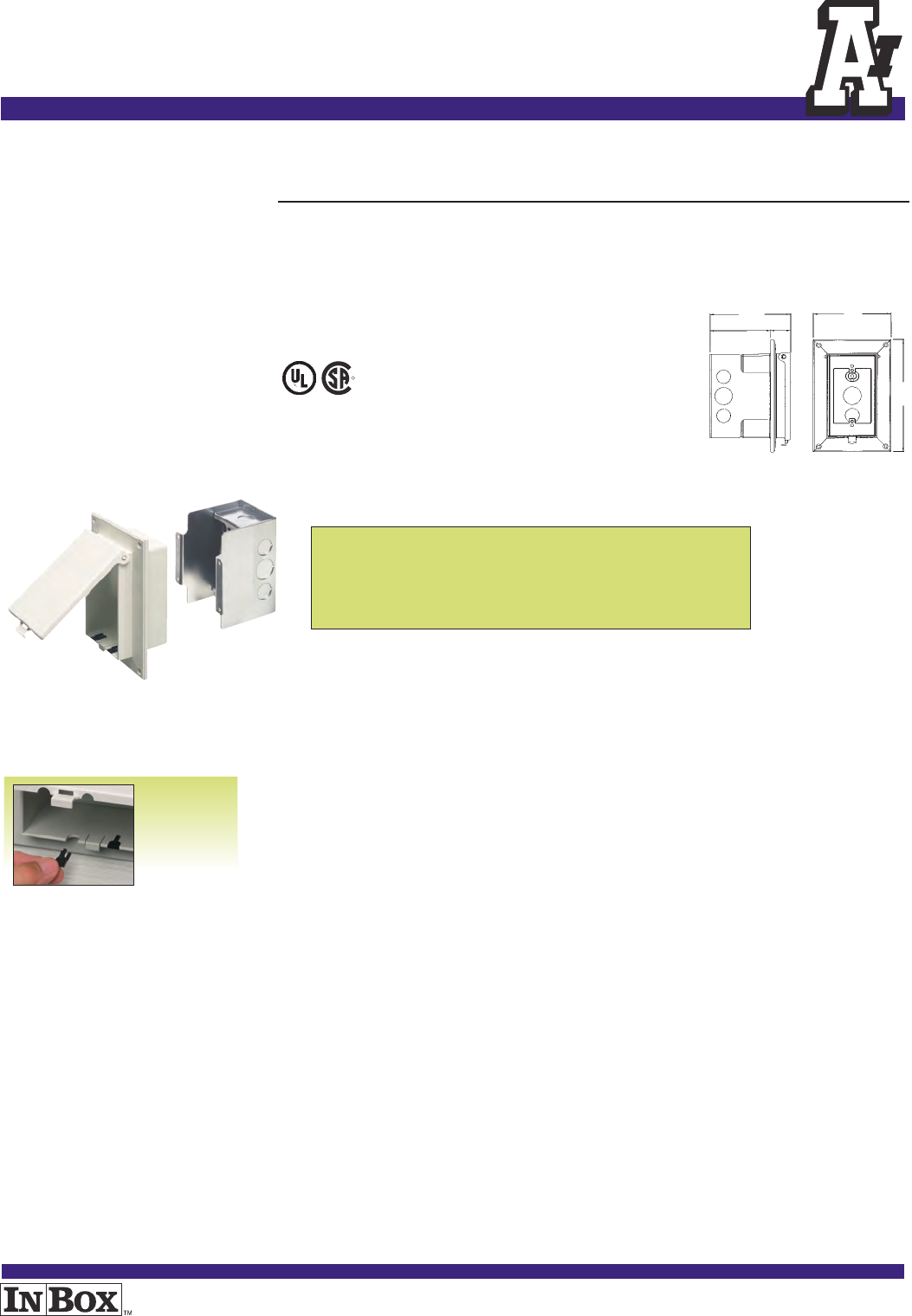

Low Profile

IN BOX™with

Metal Box for Flat

Surface Retrofit

Construction

+)+88+*3+9'22/)+2+)97/)'2(5=

</9.4543+9'22/)<+'9.+76755,

/4:8+)5;+7,57,2'98:7,')+8/4

+=/89/4-)54897:)9/54))+698

35898/4-2+-'4-</7/4-*+;/)+8

'4*:8+889'4*'7*/4*557<'22

62'9+857')5;+762'9+

543+9'22/)6579/54'4*)5;+78

'7+#$7'9+*62'89/),57254-

5:9*5572/,+

CATALOG UPC/DCI/NAED ORIENTATION/ UNIT STD DIM DIM DIM DIM DIM

NUMBER MFG #01 8997 COVER COLOR PKG PKG AB CD E

DSBVR1C 09654 Vertical/Clear 147.196 4.937 5.129 1.283 3.846

DSBVR1W 09655 Vertical/White 147.196 4.937 5.129 1.283 3.846

DSBHR1C 09656 Horizontal/Clear 144.937 7.196 5.129 1.283 3.846

DSBHR1W 09657 Horizontal/White 144.937 7.196 5.129 1.283 3.846

Replacement covers and siding profiles to convert for

use on existing siding available on page J-26.

PATENTED. ADDITIONAL PATENTS PENDING.

  

New!

WEATHERPROOF-IN-USE

I

N BOX for retrofit, flat surfaces includes...

Metallic box with non-metallic, weatherproof-in-use cover;

installed bug plugs; (1) standard duplex and (1) standard GFCI

face plate; (1) set installation screws; and (1) roll of caulk.

A

B

C

D

E

25.0 cu. in.

Note: Meets 2008 NEC Section 406-8; for the

protection of exterior outlets which require the use

of a weatherproof while-in-use cover for all outdoor

15 or 20 AMP receptacles.

Bug Plugs ship

installed in all

IN BOX styles

to seal unused

cord hole

openings.

R

J-20

Weatherproof

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Low Profile

IN BOX™with

Metal Box for

New Vinyl Siding

Construction

+)+88+*3+9'22/)+2+)97/)'2(5=

</9.4543+9'22/)<+'9.+76755,

/4:8+)5;+7,574+<8/*/4-

'662/)'9/548))+6983589

8/4-2+-'4-</7/4-*+;/)+8'4*

:8+889'4*'7*/4*557<'2262'9+8

57')5;+762'9+

543+9'22/)6579/54'4*)5;+78

'7+#$7'9+*62'89/),57254-

5:9*5572/,+

CATALOG UPC/DCI/NAED ORIENTATION/ SIDING UNIT STD DIM DIM DIM DIM DIM

NUMBER MFG #01 8997 COVER COLOR TYPE PKG PKG AB CDE

DSBVS1C 09650 Vertical/Clear All Types 149.058 7.012 5.129 1.283 2.878

DSBVS1W 09651 Vertical/White All Types 149.058 7.012 5.129 1.283 2.878

DSBHS1C 09652 Horizontal/Clear All Types 147.012 9.058 5.129 1.283 2.878

DSBHS1W 09653 Horizontal/White All types 147.012 9.058 5.129 1.283 2.878

Replacement covers available on page J-26.

PATENTED. ADDITIONAL PATENTS PENDING.

A

B

C

D

E

  

Features and Benefits

• IN BOX replaces the installation of an electrical box, siding

block, and bubble cover assembly

• Installs in the wall, so less of it shows outside

• Outer flange covers cut ends of siding

• Install option: Cover is removable for easier device installation

• White, non-metallic portion and white cover are textured/paintable

• Grounding wire provided

• For use with metal raceway systems

• Two-hour fire rating

New!

Note: Meets 2008 NEC Section 406-8; for the

protection of exterior outlets which require the use

of a weatherproof while-in-use cover for all outdoor

15 or 20 AMP receptacles.

WEATHERPROOF-IN-USE

25.0 cu. in.

IN BOX for new siding includes...

Metallic box with non-metallic, weatherproof-in-use

cover; installed bug plugs; (1) standard duplex and

(1) standard GFCI face plate; and (1) set installation

screws.

Bug Plugs ship

installed in all

IN BOX styles

to seal unused

cord hole

openings.

R

J-21 Weatherproof

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Features and Benefits

• IN BOX replaces the installation of an electrical box and

bubble cover assembly

• Installs in the wall, so less of it shows outside

• No gaskets required

• Holes in flange allow stucco to bond firmly

• Install option: Cover is removable for easier device installation

• White, non-metallic portion and white cover are textured/paintable

• Grounding wire provided

• For use with metal raceway systems

• Two-hour fire rating

Low Profile

IN BOX™with

Metal Box for

New Construction

Stucco, Textured

Surfaces, and

Rigid Siding

+)+88+*3+9'22/)+2+)97/)'2

(5=</9.4543+9'22/)

<+'9.+76755,/4:8+)5;+7,57

89:))55;+73'8547>57<55*

)54897:)9/54285,57

)+3+49/9/5:8,/(+77/-/*2'6

8/*/4-))+69835898/4-2+

-'4-</7/4-*+;/)+8'4*:8+8

89'4*'7*/4*557<'2262'9+857'

)5;+762'9+543+9'22/)

6579/54'4*)5;+78'7+#$7'9+*

62'89/),57254-5:9*5572/,+

CATALOG UPC/DCI/NAED ORIENTATION/ UNIT STD DIM DIM DIM DIM DIM

NUMBER MFG #01 8997 COVER COLOR PKG PKG AB CDE

DSBVM1C 09642 Vertical/Clear 149.058 7.012 5.129 1.775 3.221

DSBVM1W 09646 Vertical/White 149.058 7.012 5.129 1.775 3.221

DSBHM1C 09643 Horizontal/Clear 147.012 9.058 5.129 1.775 3.221

DSBHM1W 09648 Horizontal/White 147.012 9.058 5.129 1.775 3.221

Replacement covers available on page J-26.

PATENTED. ADDITIONAL PATENTS PENDING.

  

New!

WEATHERPROOF-IN-USE

IN BOX for new stucco, textured surfaces,

and rigid siding includes...Metallic box with

non-metallic, weatherproof-in-use cover; installed bug

plugs; (1) standard duplex and (1) standard GFCI face

plate; block bushing with washer; and an in-place,

disposable mud cover.

Note: Meets 2008 NEC Section 406-8; for the

protection of exterior outlets which require the use

of a weatherproof while-in-use cover for all outdoor

15 or 20 AMP receptacles.

Bug Plugs ship

installed in all

IN BOX styles

to seal unused

cord hole

openings.

A

B

C

D

E

25.0 cu. in.

DSBVM1W

R

J-22

Weatherproof

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Features and Benefits

• IN BOX replaces the installation of

an electrical box and bubble cover

assembly

• Installs in the wall, so less of it

shows outside

• No gaskets required

• Install option: Cover is removable

for easier device installation

• White, non-metallic portion and

white cover are textured/paintable

• Grounding wire provided

• For use with metal raceway systems

• Two-hour fire rating

Low Profile

IN BOX™with

Metal Box and

Adapter Sleeve

for New Brick

Construction

+)+88+*3+9'22/)+2+)97/)'2

(5=</9.4543+9'22/)

<+'9.+76755,/4:8+)5;+7,57

4+<(7/)14)2:*+8'6759+)9/;+

'*'69+782++;+9.'91++68

3579'75:9))+69835898/4-2+

-'4-</7/4-*+;/)+8'4*:8+8

89'4*'7*/4*557<'2262'9+857'

)5;+762'9+543+9'22/)

6579/54'4*)5;+78'7+#$7'9+*

62'89/),57254-5:9*5572/,+

  

New!

WEATHERPROOF-IN-USE

IN BOX for new brick includes...

Metallic box with non-metallic, weatherproof-in-use

cover; installed bug plugs; adapter sleeve;

(1) standard duplex and (1) standard GFCI face plate;

(1) set installation screws; (1) NM cable connector;

an in-place, disposable mud cover; and (1) roll of

caulk.

Note: Meets 2008 NEC Section 406-8; for the

protection of exterior outlets which require the use

of a weatherproof while-in-use cover for all outdoor

15 or 20 AMP receptacles.

Bug Plugs ship

installed in all

IN BOX styles

to seal unused

cord hole

openings.

A

B

C

D

E

25.0 cu. in.

CATALOG UPC/DCI/NAED ORIENTATION/ UNIT STD DIM DIM DIM DIM DIM

NUMBER MFG #01 8997 COLOR PKG PKG ABCDE

DSHB1C 43610 Horiz./Clear Cover/White Box 144.937 7.196 5.283 1.283 4.000

DSHB1W 43611 Horiz./White Cover/White Box 144.937 7.196 5.283 1.283 4.000

DSHB1BRC 43612 Horiz./Clear Cover/Brown Box 144.937 7.196 5.283 1.283 4.000

DSHB1BR 43613 Horiz./Brown Cover/Brown Box 144.937 7.196 5.283 1.283 4.000

Replacement covers available on page J-26.

PATENTED. ADDITIONAL PATENTS PENDING.

Weatherproof-in-use.

DSHB1BRC shown.

IN BOX Saves Time. Looks Great!

DSHB1C

R

J-23 Weatherproof

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CATALOG UPC/DCI/NAED ORIENTATION/ UNIT STD DIM DIM DIM DIM DIM

NUMBER MFG #01 8997 COVER COLOR PKG PKG AB CDE

DBVME1C 77645 Vertical/Clear 148.000 5.750 4.950 2.461 2.567

DBVME1W 77646 Vertical/White 148.000 5.750 4.950 2.461 2.567

Add suffix “GC” to Catalog # when ordering in Canada, for example DVBME1CGC.

Replacement covers available on page J-26.

PATENTED. ADDITIONAL PATENTS PENDING. 22 cu. in.

Low Profile

IN BOX™for

1-1/2"

Wall Systems

+)+88+*+2+)97/)'2(5=</9.

<+'9.+76755,/4:8+)5;+7,57

<'228>89+38/4)2:*/4-

,5'3543+9'22/))5;+7'4*

('8+))+69835898/4-2+

-'4-</7/4-*+;/)+8'4*:8+8

89'4*'7*/4*557<'2262'9+857

')5;+762'9+5='4*

<./9+)5;+7'7+9+=9:7+*

6'/49'(2+#$7'9+*62'89/),57

254-5:9*5572/,+

  

Features and Benefits

• IN BOX’s one-piece assembly

replaces the installation of an

electrical box and bubble cover

assembly

• Fewer parts to handle – save on

materials and labor.

• Installs in the wall, so less of it

shows outside

• Features a fixed, built-in flange,

large enough to eliminate the

need for a separate flashing.

• Install option: Cover is removable

for easier device installation

• No gaskets required

WEATHERPROOF-IN-USE

A

B

C

D

E

DBVME1W

Saves Time – Looks Great!

Cover ships with

disposable mud cover

Low profile IN BOX

for a neat, clean look

Note: Meets 2008 NEC Section 406-8; for the protection of exterior outlets

which require the use of a weatherproof while-in-use cover for all outdoor

15 or 20 AMP receptacles.

Bug Plugs ship

installed in all

IN BOX styles

to seal unused

cord hole

openings.

IN BOX for 1-1/2" wall systems includes...

Box with weatherproof-in-use cover, installed bug plugs,

(1) standard duplex and (1) standard GFCI face plate,

(1) NM cable connector, and disposable mud cover.

R

J-24

Weatherproof

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Low Profile

IN BOX™for

Foam Wall

Systems

+)+88+*+2+)97/)'2(5=</9.

<+'9.+76755,/4:8+)5;+7

*0:89'(2+95,/9'4>,5'3

(5'7*9./)14+88543+9'22/)

)5;+7'4*('8+))+6983589

8/4-2+-'4-</7/4-*+;/)+8'4*

:8+889'4*'7*/4*557<'22

62'9+857')5;+762'9+

5='4*<./9+)5;+7'7+

9+=9:7+*6'/49'(2+#$7'9+*

62'89/),57254-5:9*5572/,+

CATALOG UPC/DCI/NAED ORIENTATION/ UNIT STD DIM DIM DIM DIM D

NUMBER MFG #01 8997 COVER COLOR PKG PKG ABCMIN/MAX

DBVMA1C 77632 Vertical/Clear 149.058 7.012 5.160 .250 - 5.000

DBVMA1W 77634 Vertical/White 149.058 7.012 5.160 .250 - 5.000

Add suffix “GC” to Catalog # when ordering in Canada, for example DBVMA1CGC.

Replacement covers available on page J-26.

PATENTED. ADDITIONAL PATENTS PENDING.

  

Features and Benefits

• IN BOX’s one-piece assembly

replaces the installation of an

electrical box and bubble cover

assembly

• Adjustable flange depth fits any

foam board thickness or custom

finish in concrete block and

stucco applications

• Installs in the wall, so less of it

shows outside

• Adjusts for finishes from 1/4" to

2-1/2" thick – in walls, from

2-3/4" to 5" deep

• Install option: Cover is removable

for easier device installation

• No gaskets required

WEATHERPROOF-IN-USE

A

B

C

D

DBVMA1W

22 cu. in.

Note: Meets 2008 NEC Section 406-8; for the protection of exterior outlets

which require the use of a weatherproof while-in-use cover for all outdoor

15 or 20 AMP receptacles.

Bug Plugs ship

installed in all

IN BOX styles

to seal unused

cord hole

openings.

IN BOX for foam wall systems includes...

Box with weatherproof-in-use cover, installed bug plugs,

(1) standard duplex and (1) standard GFCI face plate,

(4) installation screws, (1) NM cable connector, and an in-place,

disposable mud cover.

Remove

screw.

Adjust flange depth.

Insert screw in the

appropriate opening

to hold flange

securely in place.

Flange in position for thin foam

board or finish thickness

Flange depth opened to

accommodate thicker foam

board or finishes

The flange

depth adjusts

to fit any foam

thickness!

1/2" foam

board

2" foam

board

R

J-25 Weatherproof

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Low Profile

IN-AND-OUT™

COVERS for

New or Existing

Construction

5<675,/2+<.+4459/4:8+'4*

'*++6+7<+'9.+76755,/4:8+

)5;+7<.+4)57*/862:--+*/4

543+9'22/))5;+7'4*('8+

53+8/4)2+'7579+=9:7+*

6'/49'(2+<./9+#$7'9+*62'89/)

,57254-5:9*5572/,+

CATALOG UPC/DCI/NAED ORIENTATION/ UNIT STD DIM DIM DIM C DIM DIM

NUMBER MFG #01 8997 COVER COLOR PKG PKG ABIN OUT DE

60VC 00682 Vertical/Clear 146.274 3.752 1.670 3.005 --

60VW 00680 Vertical/White 146.274 3.752 1.670 3.005 --

61VC 00683 Vertical/Clear 146.274 3.752 1.795 3.130 5.561 4.250

61VW 00681 Vertical/White 146.274 3.752 1.795 3.130 5.561 4.250

60HC 00686 Horizontal/Clear 144.192 5.836 1.670 3.005 --

60HW 00684 Horizontal/White 144.192 5.836 1.670 3.005 --

61HC 00687 Horizontal/Clear 144.192 5.836 1.795 3.130 4.250 5.561

61HW 00685 Horizontal/White 144.192 5.836 1.795 3.130 4.250 5.561

PATENTS PENDING.

B

AD

E

C

  

Features and Benefits

• Low profile when not in use –

weatherproof-while-in-use

•IN position provides a sealed box to

keep bugs out

• Extends quickly and easily into the

OUT position to accommodate a plug

• Fits over all boxes or openings in

new or existing projects

• The 61 Series has an installed,

oversized base for large openings or

a 3.5" round outlet box

• Installed gaskets

• Install option: Cover is removable for

easier device installation

• Vertical and horizontal styles

Installation Instructions

123

Feed device through opening

(cover is removable for easier

access).

To close: Bow out sides of

extended cover and push in.

For a video demonstration go to...

aifittings.com/InandOutCoverFINAL.html

IN for GOOD LOOKS and

to stay bug free...

(60VW shown)

OUT to PLUG IN for

weatherproof-in-use!

(61HW shown)

Install plate and the installation

is done!

Install wiring device per manu-

facturer’s instructions, Local and

National Electrical Codes using

the pre-drilled holes in base.

Note: Meets 2008 NEC Section 406-8;

for the protection of exterior outlets

which require the use of a

weatherproof while-in-use cover for

all outdoor 15 or 20 AMP receptacles.

WEATHERPROOF-IN-USE

60VC 60V

61V

61 Series base shown

separately for dimensional

purposes only.

IN AND OUT COVER includes...

Low profile cover, (1) standard duplex

and (1) standard GFCI face plate,

installation screws, and installed

gaskets.

R

For a video installation demonstration

visit our website @ aifittings.com

J-26

Weatherproof

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 COVER COLOR PKG PKG ABC

DBVC 77640 Single-Gang, Vertical / Clear 10 10 5.650 3.420 .370

DBVW 77642 Single-Gang, Vertical / White 10 10 5.650 3.420 .370

DBHC 77650 Single-Gang, Horizontal / Clear 10 10 3.420 5.650 .370

DBHW 77652 Single-Gang, Horizontal / White 10 10 3.420 5.650 .370

DBV2C 13009 2-Gang, Vertical / Clear 10 10 5.650 5.410 .370

DBV2W 13010 2-Gang, Vertical / White 10 10 5.650 5.410 .370

IN BOX™

Replacement

Covers

+62')+3+49)5;+78852*

8+6'7'9+2>2+'7/8459

6'/49'(2+'4*<./9+/8

9+=9:7+*6'/49'(2+#$7'9+*

62'89/),57254-5:9*5572/,+

DBVC DBV2W

A

B

C

New!

Weatherproof

Box Holder

&/4)*/+)'89'4*4543+9'22/)

CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG ABCD

FS50 61050 1/2 25 25 .380 1.550 1.125 .860

FS75 61075 3/4 25 25 .380 1.550 1.125 .860

NMFS50* 54050 1/2 25 25 .380 1.550 1.125 .860

NMFS75* 54075 3/4 25 25 .380 1.550 1.125 .860

*UV rated non-metallic body.

Note: Can be used as an external means of support to meet

the requirements of 2008 NEC Section 314-23.

 

Assembly Instructions

Just screw the box support into the electrical box;

the entire assembly is held secure with a 1/2" rigid

steel conduit or water pipe.

Other Uses

• Stubbing up electrical enclosures above concrete

slabs with rigid pipe.

• Suspending electrical boxes with rigid pipe

between bar joists.

• Suspending fire alarms (smoke detectors) with

rigid pipe between bar joists.

• Can be used for installation of equipment where a

rigid pipe can be used for a holding means and a

1/2" knockout is present for attachment.

Arlington’s

Box Support

1/2" Rigid Pipe

Ground Level

B

A

C

D

R

J-27 Weatherproof

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

WEATHERPROOF-IN-USE

DRI-BOX®Adapters

with Non-Metallic

Cover and Base

"./8'*'69+7</22'))+69'4>

</7/4-*+;/)+'4*89'4*'7*

8/?+<'2262'9+52578)2+'7

'4*9+=9:7+*6'/49'(2+<./9+

#$7'9+*62'89/),57254-

5:9*5572/,+

CATALOG UPC/DCI/NAED COLOR UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG ABC

DBPV1* 17852 White 146.313 3.375 2.940

DBPV1C* 17840 Clear 146.313 3.375 2.940

DBPH1* 17853 White 144.000 5.685 2.940

DBPH1C* 17845 Clear 144.000 5.685 2.940

DBP2 17855 White 146.313 5.250 2.940

DBP2C 17857 Clear 146.313 5.250 2.940

DBP21D 17849 White 146.313 5.250 4.175

DBP21DC 17848 Clear 146.313 5.250 4.175

*Includes (1) standard duplex and (1) GFCI face plate.

PATENTED. ADDITIONAL PATENTS PENDING.

  

Installation Instructions

Remove the cover by expanding ear tabs over the pivot pins. To replace the cover, simply snap

over the pivot pins.

DBPV1/DBPV1C:

VERTICAL MOUNT, SINGLE GANG

DBPH1/DBPH1C:

HORIZONTAL MOUNT, SINGLE GANG

DBP2/DBP2C/DBP21D/DBP21DC:

VERTICAL MOUNT, TWO GANG

Arlington’s DRI-BOX®Adapter comes with both standard duplex and GFCI plates for added

convenience, but works with any standard plastic or metal wall plate. Our DRI-BOX®meets

OSHA lockout/tagout requirements using a standard padlock.

Note: Meets 2008 NEC Section 406-8; for the protection of exterior outlets which require

the use of a weatherproof while-in-use cover for all outdoor 15 or 20 AMP receptacles.

Pivot pin

Gasket

Provision for

padlock

A

B

C

DBPV1C

NOTE: It is not required to remove the cover for installation.

All Single Gang

include both

Standard Duplex &

GFCI face plates

Standard

receptacle/switch

not included

R

K-1

Siding Mounting Blocks

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Siding Box Kits

3561337,9)57-'%013827-2+

3**-;785)6%2(5)')47%'0)6

326-()(6758'785)6!%-27%&0)

#$5%7)(40%67-'*35032+

387(3350-*)

NOTE: 8081

is not

flanged.

.375

Box Depth:

1.125

15.5

cu. in.

Box Depth:

1.125

15.5

cu. in.

 "

CATALOG UPC/DCI/NAED SIDING USES UNIT STD STYLE

NUMBER MFG #01 8997 TYPE PKG PKG

8081* 80812 All Types Fixtures, Devices 25 25 w/o Flange

8081F* 80814 All Types Fixtures, Devices 25 25 w/ Flange

8082F* 32240 1/2" or Less Fixtures, Devices 25 25 w/ Flange

8081FC 10939 All Types Fixtures, Devices 25 25 Cover Only

8081FB* 10941 All Types Fixtures, Devices 25 25 Box Only

*Add suffix “GC” to Catalog # when ordering in Canada, for example 8081FGC.

PATENTED. ADDITIONAL PATENTS PENDING.

.895

6.5

6.5

8081F, 8081 8082F

Installation Instructions AFTER Siding is Up...

Without Flange (8081 & 8081DBL)

For Installation Instructions ‘AFTER Siding is Up’

see Below. For Installation Instructions ‘BEFORE

Siding is Up’ see Page K-2.

Disconnect electrical

power. Place box section

in desired location and

pencil outline onto

siding.

Cut along pencil line

with razor knife and

remove vinyl siding.

Mount box section to

substrate. Caulk as

required.

Place siding block over

box section (8081

shown).

Connect wires and

install fixture per

manufacturer’s

instructions.

8081F

8081FC

8081FB

8081

8082F (for 1/2" or less)

NOTE: 8081F, 8081FDBL, 8082F, 8091F, and 8091FDBL may also be installed when siding is

already up – Score and break off flanges before step one (below).

Features and Benefits

• UL Listed electrical box

• Works on all siding types –

Before or After the siding is up!

• Flanges may be removed for retrofit

work

• Textured, paintable surface

• NM cable connector included

6.5

6.5

1 2 3

4 5





K-2 Siding Mounting Blocks

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Installation Instructions BEFORE Siding is Up...

With Flange (8081F, 8081FDBL, 8082F, 8091F, & 8091FDBL)

4.Attach cover.

5.Connect the wires and install

the fixture per manufacturer’s

instructions.

The All-in-One

Electrical Box and Cover

Siding block cover is placed over

the electrical box.

The rectangular hole provides

access to the wire connections.

Siding Box Kits

3561337,9)57-'%013827-2+

3**-;785)6%2(6326-()(

6758'785)6!%-27%&0)#$5%7)(

40%67-'*35032+387(3350-*)

.925

Box Depth:

1.625

24.5

cu. in.

3.Install siding around box

section and caulk as required.

2.Disconnect electrical power.

Pull the wire through the

knockout of your choice.

1.Before siding is installed,

using the flanged style, screw

the box to the wall using the

holes provided in the flange.

8091F

8091FC

8091FB

6.5

6.5

For Installation Instructions ‘BEFORE Siding is

Up’ see Below. For Installation Instructions

‘AFTER Siding is Up’ see Page K-1.

 "

CATALOG UPC/DCI/NAED SIDING USES UNIT STD STYLE

NUMBER MFG #01 8997 TYPE PKG PKG

8091F* 17856 All Types GFCIs, Fixtures 25 25 w/ Flange

8091FC 10946 All Types GFCIs, Fixtures 10 10 Cover Only

8091FB* 10945 All Types GFCIs, Fixtures 10 10 Box Only

*Add suffix “GC” to Catalog # when ordering in Canada, for example 8091FGC.

PATENTED. ADDITIONAL PATENTS PENDING.

Features and Benefits

• UL Listed electrical box

• Works on all siding types –

Before or After the siding is up!

• Flanges may be removed for retrofit

work

• Textured, paintable surface

• NM cable connector included

• Works with fixtures and receptacles,

but is deeper for use with GFCIs





K-3

Siding Mounting Blocks

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Siding Box Kit

With MEGA

Mounting Plate

38277,)0%5+)67'3%',0%146

32%006-(-2+7<4)6:-7,7,)

6785(< 3827-2+!0%7)

7>6%2)0)'75-'%0&3;%2('39)5

%00-232)!%-27%&0)#$5%7)(

40%67-'*35032+387(3350-*)  "

Installation Instructions

1. Disconnect electrical power. Insert provided NM

cable connector through the KO of your choice

and pull wires through.

2. Box section mounts to substrate. Caulk as

required.

3. Place MEGA Plate over box section and install

large fixture per manufacturer’s instructions.

Features and Benefits

• Provides a solid mount for extra large fixtures

• UL Listed electrical box

• Use up or down to fit any mounting hole configuration

• Flanges may be removed for retrofit work

• Deep design to accommodate GFCIs

CATALOG UPC/DCI/NAED SIDING USES UNIT STD STYLE

NUMBER MFG #01 8997 TYPE PKG PKG

8091FDBL 24168 All Types GFCIs, Extra Large Fixtures 10 10 w/ Flange

8091FDBLC 10947 All Types GFCIs, Extra Large Fixtures 10 10 Cover Only

Add suffix “GC” to Catalog # when ordering in Canada, for example 8091FDBLGC

PATENTED. ADDITIONAL PATENTS PENDING.

Box

Depth:

1.625

24.5

cu. in.

.925

13.5

7.125

Siding Box Kits

3561337,9)57-'%013827-2+

3*0%5+)*-;785)6326-()(

6758'785)6!%-27%&0)#$5%7)(

40%67-'*35032+387(3350-*)

NOTE:

8081DBL

is not flanged.

.895

Box Depth:

1.125

15.5

cu. in.

8081FDBL

6.5

10.5

 "

CATALOG UPC/DCI/NAED SIDING USES UNIT STD STYLE

NUMBER MFG #01 8997 TYPE PKG PKG

8081DBL 80813 All Types Large Fixtures 25 25 w/o Flange

8081FDBL 80815 All Types Large Fixtures 25 25 w/ Flange

8081FDBLC 10943 All Types Large Fixtures 10 10 Cover Only

Add suffix “GC” to Catalog # when ordering in Canada, for example 8081DBLGC

PATENTED. ADDITIONAL PATENTS PENDING.

For Installation Instructions ‘AFTER Siding is Up’

see Page K-1. For Installation Instructions

‘BEFORE Siding is Up’ see Page K-2.

Features and Benefits

• UL Listed electrical box

• Works on all siding types —

Before or After the siding is up!

• Flanges may be removed for retrofit

work

• Textured, paintable surface

• NM cable connector included

• Perfect for installation of large fixtures

Note:

Canadian orders ship with

grounding lug.

8081DBL









K-4 Siding Mounting Blocks

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

 "

Siding Mounting

Kits with

Built-in Box

3561337,9)57-'%013827-2+3*

0-+,7*-;785)632%006-(-2+7<4)6

-7-2'08()613827-2+&03'/:-7,

&8-07-2)0)'75-'%0&3;'%&0)

'322)'735%2(6'5):6

!%-27%&0)#$5%7)(40%67-'*35

032+387(3350-*)

CATALOG UPC/DCI/NAED SIDING UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 TYPE PKG PKG ABC

8131 08131 1/4" & 5/16" 1 10 4" Diameter 6.625 6.625

Siding & Shingles x 1/2" Deep

8141 10751 1/2" Lap 1 10 4" Diameter 6.625 6.625

x 1/2" Deep

8141DBL 54524 1/2" Lap Double 1 10 4" Diameter 6.900 10.200

x 1/2" Deep

8151 10753 5/8" Lap 1 10 4" Diameter 6.625 6.625

x 1/2" Deep

8161 08161 Flat Surfaces 1 10 4" Diameter 6.625 6.625

x 1/2" Deep

8171 10757 Dutch Lap 1 10 4" Diameter 6.625 6.625

x 1/2" Deep

Add suffix “GC” to Catalog # when ordering in Canada, for example 8141GC.

PATENTED. ADDITIONAL PATENTS PENDING.

A

B

C

6.8 cu. in.

A

B

C

6.8 cu. in.

Features and Benefits

• Mounts light fixtures on all

siding types, including T-111,

HardiePlank®Lap Siding, and flat

surfaces

• Fast and easy to install...after

siding is up

• Textured, paintable surface

• NM cable connector included

• Built-in electrical box design

ensures UL listed installation

Installation Instructions on Siding

1 2 3

Select location for light fixture

and caulk opening around

cable.

Remove knockout from

electrical box and insert cable

connector. Push cable through

connector and position

mounting block onto siding.

Secure mounting block with

provided screws. Install fixture

per manufacturer’s instructions.

8141

1/2" LAP

8131

1/4" &

5/16" LAP

8151

5/8" LAP

8161

FLAT

8171

DUTCH LAP

5/8"1/2"

8141DBL

1/2" LAP

1/2"

1/2"

1/4"

&

5/16"

8131, 8141,

8151, 8161,

8171

8141DBL

8141

8141DBL

HardiePlank®Lap Siding is a trademark of the

James Hardie International Finance B.V.





K-5

Siding Mounting Blocks

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

MEGA Siding

Plate

#6)7,)!73'329)57

3'7%+32%06-=)'39)5673

'39)56*3513827-2+

0%5+)*-;785)635'3%',0%146

#$5%7)(40%67-'*35032+

387(3350-*)

CATALOG UPC/DCI/NAED SIDING UNIT STD DIM DIM DIM DIM DIM

NUMBER MFG #01 8997 TYPE PKG PKG ABCDE

8100LP 10749 All Types 1 10 .783 13.500 7.125 5.125 4.105

PATENTED.

A

C

B

D

E

Features and Benefits

• Accommodates light fixtures with mounting brackets up to 12"

• To center fixtures, use slotted mounting screw holes to provide

adjustments up to 1”

• Provides a smooth, secure mounting surface for large fixtures

• Instantly converts a previously installed octagonal siding block

to a MEGA Siding Plate

• Features alignment mounting slots to guarantee the MEGA Siding

Plate will stay securely in position

Installation Instructions

The 8100LP MEGA Siding Plate is designed to

install directly over the existing mounting block

for installations of large light fixtures. If screw

holes are offset, simply rotate the 8100LP 180°.

SUPER MEGA

Siding Plate

329)576);-67-2+3'7%+32%0

&03'/*35-267%00%7-323*);75%

0%5+)0-+,7*-;785)635'3%',

0%146!%-27%&0)#$5%7)(

40%67-'*35032+387(3350-*)

CATALOG UPC/DCI/NAED SIDING UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 TYPE PKG PKG ABC

8100MLP 10752 All Types 1 10 .838 16.000 8.500

PATENT PENDING. A

C

B

Features and Benefits

• Supports light fixtures with canopies up to 8" wide x 15-1/2" tall

• To center fixtures, use slotted mounting screw holes to provide

adjustments up to 2”

• Fits over all Arlington’s octagonal siding blocks and 8091F

• Provides a sturdy, extra large mounting surface

Installation Instructions

Use with an existing mounting block. Disconnect

electrical power. Align slots and secure the

8100MLP to the siding block. Install extra large

fixture per manufacturer’s instructions. If screw

holes are offset, simply rotate the 8100MLP 180°.

For use with Arlington’s Siding Blocks ...

•8091F •8131 •8141 •8141DBL

•8151 •8161 •8171

For use with Arlington’s Siding Blocks ...

•8131 •8141 •8141DBL

•8151 •8161 •8171

K-6 Siding Mounting Blocks

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Features and Benefits

• Provides a secure, attractive and

time saving way to install dryer

vents on new siding

• Installs before siding is up and

fits 1/2" and 5/8" step, and dutch

lap siding

• Textured, paintable surface

• Overhang covers cut ends of

siding for a clean, neat look

• Easy to install – provides an

attractive, flush-look mounting

DV1 Installation Instructions on Siding

Dryer Vent

Mounting Block

Kit

321)7%00-'(5<)59)27

13827-2+&03'/*352):

'326758'7-32-7-2'08()6%03:

453*-0)0389)57<4),33(%

62%473+)7,)5(-%1)7)5;

%081-28178&)%2(%6-(-2+

&03'/:-7,&8-07-2',%22)0

3035!%-27%&0):,-7)#$5%7)(

40%67-'*35032+387(3350-*)

CATALOG UPC/DCI/NAED SIDING UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 TYPE PKG PKG ABC

DV1 43607 All Types 117.226 7.226 1.738

*DV1JH 43615 All Types 557.226 7.226 1.738

*Installed like DV1 except cut hole to accommodate 2” vacuum pipe.

A

B

C

1 2 3

Cut hole in substrate with a

4-1/2" diameter hole saw.

Insert vent tube into opening.

4

Install siding. Overhang on

vent flange hides cut ends of

siding.

DV1 Dryer Vent Mounting Block.

The finished installation

looks great!

Use screws to mount dryer

vent to substrate through

flanges.

EASY TO INSTALL...

BEFORE THE SIDING!

New!

DV1

K-7

Siding Mounting Blocks

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Weatherproof

FS Outlet Box

35-267%00-2+()9-')632%00

6-(-2+7<4)6!%-27%&0)

#$5%7)(40%67-'*35032+

387(3350-*)

CATALOG UPC/DCI/NAED SIDING UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 TYPE PKG PKG AB C

FS8091F 17304 All Types 10 10 4.511 6.558 2.656

Add suffix “GC” to Catalog # when ordering in Canada, for example FS8091FGC.

PATENTED.

A

B

C

Features and Benefits

• Costs less...one-piece design

• For use with all single-gang

devices, including GFCIs

• Installs before or after siding is

installed. Remove break-away

flanges for installation on

previously sided structures.

• Can be installed vertically or

horizontally

• For all types of siding

• Textured, paintable surface.

• UL listed

19.4 cu. in.

BEFORE siding is up...

1. Disconnect electrical power.

Remove knockout. Insert cable

connector. Pull NM cable through

connector.

2. Attach outlet box to substrate

with (2) screws.

3. Install device, FS8091F works

with all single gang devices.

Complete installation with code

required weatherproof while-in-use

cover.

1 2

3

AFTER siding is up...

1. Disconnect electrical power. Cut hole in

siding.

2. Break flanges off the back of the FS8091F.

Remove knockout. Insert cable connector

in KO, then pull NM cable through

connector.

3. Attach outlet box to substrate with (2)

screws.

4. Install single gang device (standard or

GFCI). Complete installation with code

required weatherproof while-in-use cover.

1 2

4

3

Installation Instructions

GFCI Standard Outlet

GFCI

Standard Outlet

EASY TO INSTALL...

BEFORE OR AFTER

THE SIDING!

Costs Less Than Our 8081F and 8091F Siding Boxes.

 "

Note:

Canadian orders ship with

grounding lug.





K-8 Siding Mounting Blocks

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CATALOG UPC/DCI/NAED SIDING UNIT STD DIM DIM DIM DIM

NUMBER MFG #01 8997 TYPE PKG PKG AB C D

8141F 10761 All Types 10 10 6.652 6.652 4.125" Diameter 1.126

x 1/2" Deep

Siding

Mounting Block

3827-2+&03'/:-7,&8-07-2

)0)'75-'%0&3;*3561337,

9)57-'%013827-2+3*0-+,7

*-;785)632%006-(-2+7<4)6

!%-27%&0)#$5%7)(40%67-'*35

032+387(3350-*)

Features and Benefits

• Installs before or after siding is installed.

Remove break-away flanges for installation

on previously sided structures.

• One-piece design

• Textured, paintable surface

• NM cable connector included

BEFORE siding is up...

1. Remove knockout from 8141F. Insert cable

connector. Pull NM cable through connector.

2. Attach block to substrate with (2) screws

mounted diagonally.

3. Install fixture according to manufacturer’s

instructions.

AFTER siding is up...

1. Cut hole in siding.

2. Break flanges off the back of the 8141F.

Remove knockout. Insert cable connector

in KO, then pull NM cable through connector.

3. Attach mounting block to substrate with

(2) screws.

4. Install fixture according to manufacturer’s

instructions.

Installation Instructions

EASY TO INSTALL...

BEFORE OR AFTER

THE SIDING!

A

B

C

D

6.8 cu. in.

 "

CATALOG UPC/DCI/NAED SIDING UNIT STD DIM DIM DIM DIM

NUMBER MFG #01 8997 TYPE PKG PKG ABCD

FR420F 09615 Flat 10 10 6.750 6.750 4.000 1.986

PATENT PENDING.

Flange Box for

1/2" or 1-1/4"

Surfaces

0%2+)(5)9)56-&0)&3;*357:3

(-**)5)27()47,6%'/4%2)0

:35/632)-7,)5)2(3*7,)&3;

*35&37,35()47,6

352):'326758'7-32 #6)*35

13827-2+'3%',0-+,7632

678''3%2(35*0%76-(-2+

B

D

A

C

Features and Benefits

• Wall mount – one-piece design for new installations

• Up to a 10 lb. fixture rating

• Ships with 1-1/4" box depth for foam/stucco applications

• Easily converts to 1/2" box depth by removing and reinstalling back plate

• The fixed flange is large enough to eliminate the need for a separate flashing

• No gasket needed to seal box from air infiltration

• Large 20 cubic inch volume

• Made of high strength polycarbonate

 "

20.0 cu. in.

Flange

Box

Back

Panel

Back

Panel

1.25" .50"

Flange

Box

s

s

Assembly Options

Flange of box can be offset locating back panel to

opposite side of box, as shown.









Add suffix “GC” to Catalog # when ordering in Canada, for example 8141FGC.

PATENTED.

K-9

Siding Mounting Blocks

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Weatherproof

FS Boxes

2)4-)')'326758'7-32

)0)'75-'%0&3;4539-()6%'0)%2

:)%7,)54533*#-67)(

-267%00%7-32))4()6-+2*35

6!%-27%&0)#$5%7)(

40%67-'*35032+387(3350-*)

CATALOG UPC/DCI/NAED SIDING UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 TYPE/STYLE PKG PKG ABC

FS8141 17340 1/2" Lap 25 25 5.093 3.312 2.056

FS8151 17341 5/8" Lap 25 25 5.093 3.312 2.056

FS8161 17342 Flat Surfaces 25 25 5.093 3.312 2.056

FS8171 17343 Dutch Lap 25 25 5.093 3.312 2.056

A

B

C

FS8141

1/2" LAP

FS8151

5/8" LAP

FS8161

FLAT

FS8171

DUTCH LAP

Installation Instructions

Features and Benefits

• Provides a solid, attractive, UL Listed installation

• Accommodates GFCI, switches, and outlets

• For use with all siding types...1/2", 5/8", dutch lap, and

flat surfaces

Add suffix “GC” to Catalog # when ordering in Canada, for example FS8141GC.

PATENTED.

2

18.6 cu. in.

1

 "

Remove KO from FS Box and

insert NM cable connector. Push

cable through connector and

position box onto siding.

Mount box to siding and install

your choice of either a GFCI,

Switch or Duplex receptacle.

Complete installation

with code required

weatherproof

while-in-use cover.





 "

IN for Brick

Features and Benefits

• Installation is fast and easy – it looks great too

• Versatile depth adjustment for 1-1/2" to 5" thick stone

or brick exterior wall finishes

• Textured, paintable face plate

• For fixtures up to 10 lbs.

• Includes box, flange, face plate, (4) #6 x 1/2" screws,

(4) #8 x 1-1/4" screws, and an NM94 cable connector.

Non-Metallic

Fixture Box for

Stone or Brick

(.867%&0)()47,*-;785)&3;*35

2):6732)35&5-'/(.867673*-7

%2);7)5-35:%00*-2-6,*531

737,-'/3035

!%-27%&0):,-7)*%')40%7)

%')40%7)-6#$5%7)(40%67-'

*35032+387(3350-*)

BC

Keyway

Flange Fixture

box

Depth adjustment holes

Face plate

with

adjustment

screw

slots





22.0 cu. in.

CATALOG UPC/DCI/NAED UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG ABC

8141ALP 10767 116.625 10.200 6.750

Add suffix “GC” to Catalog # when ordering in Canada, for example 8141ALPGC.

PATENT PENDING. A

K-10 Siding Mounting Blocks

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CATALOG UPC/DCI/NAED SIDING UNIT STD DIM DIM DIM DIM

NUMBER MFG #01 8997 TYPE PKG PKG AB C D

MM10 42278 All Types 10 10 .750 1.125 10.000 7.000

MM18 42280 All Types 10 10 .750 1.125 17.625 15.875

MM23 42282 All Types 10 10 .750 1.125 23.000 17.625

PATENTED.

Meter

Mounting Bases

2)4-)')'326758'7-32

!%-27%&0)%2+%&0)#$5%7)(

40%67-'*35032+387(3350-*)

A

B

Installation Instructions...

BEFORE siding is up

Installs before or after the siding is up

and works with any siding type!

Rotate all illustrated combinations 90°

for additional surface mounting options.

Features and Benefits

• Provides a smooth, flat

mounting surface

• Provides a 1" overhang to

cover siding

• Gangable to accommodate

most meter sizes

• Break off flanges for retrofit

work

D

C

MM10

14"

10"

20"

7"

MM10

MM10

MM10

35.25"

15.875"

MM18

MM18

31.75"

17.625"

MM18

MM18

46"

17.625"

MM23

MM23

35.25"

23"

MM23

MM23

38.875"

17.625"

MM23

MM18

Fasten to substrate through

‘notched flanges’.

Siding butts to edge of

Meter Base, overlapping the

‘notched flanges’.

Meter Base mounting surface

provides a 1" overhang to

cover cut ends of siding.

Gangable Meter Base

Combinations...

MM18MM18 MM23 MM18

MM18

MM23

MM10 mounting block

also mounts disconnects,

time clocks, cable TV

boxes, and more!

Note: For support, meter

mounting nails or screws must

penetrate through mounting

base into substrate.

Seal joint channel with Arlington’s DSC1 duct sealing compound. See page M-14.

tt

K-11

Siding Mounting Blocks

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

 "

Outlet Box

with Threaded

Openings

321)7%00-'3870)7&3;:-7,

7:37,5)%()(34)2-2+673%((

%237,)53870)7&3;0%7)535*0%7

685*%')635%006-(-2+7<4)6

!%-27%&0)#$5%7)(40%67-'*35

032+387(3350-*)

CATALOG UPC/DCI/NAED SIDING UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 TYPE PKG PKG ABC

FS8131T 00870 1/4" & 5/16" Rigid 1 10 5.562 3.720 2.100

FS8141T 00871 1/2" Lap 1 10 5.562 3.720 2.100

FS8151T 00872 5/8" Lap 1 10 5.562 3.720 2.100

FS8161T 00873 Flat Surfaces 1 10 5.562 3.720 2.100

FS8171T 00874 Dutch Lap 1 10 5.562 3.720 2.100

Add suffix “GC” to Catalog # when ordering in Canada, for example FS8131TGC.

PATENTS PENDING.

A

B

C

18.0 cu. in.

Features and Benefits

• Threaded openings offer

convenience when installing

additional outlet boxes

• Fast and easy to install...after

siding is up

• Textured, paintable surface

• Includes (2) 1/2" NPT plugs

• Saves time. Convenient!

• Also see our new round fixture

boxes with threaded openings.

1 2 3

Pull wire and attach box to flat

surface.

Use the threaded opening(s)

and PVC conduit to install

additional outlet boxes.

Shown

with

Arlington’s

60VW

IN and

OUT™

Cover

(sold

separately)

.

Installation Instructions on Siding - 8171TR shown

1 2

Pull wire and attach box to

siding surface.

Use the threaded opening(s)

and PVC conduit to install

additional outlet boxes.

FS8141T

1/2" LAP

FS8131T

1/4" &

5/16" LAP

FS8151T

5/8" LAP

FS8171T

DUTCH LAP

5/8"1/2"1/4"

&

5/16"

FS8161T

FS8161T

FS8171T

Installation Instructions on Flat Surfaces -

FS8161T

3

Shown

with

Arlington’s

60VW

IN and

OUT™

Cover

(sold

separately)

.

Add another outlet,

the easy way!





K-12 Siding Mounting Blocks

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

 "

Siding Mounting

Kits with

Threaded Openings

321)7%00-'*-;785)&3;:-7,

7:37,5)%()(34)2-2+673%((

%237,)5*-;785)353870)70%7)5

35*0%7685*%')635%006-(-2+

7<4)6!%-27%&0)#$5%7)(

40%67-'*35032+387(3350-*)

CATALOG UPC/DCI/NAED SIDING UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 TYPE PKG PKG ABC

8131TR 00875 1/4" & 5/16" Rigid 1 10 3.937 Diameter 6.720 6.719

x 1.203 Deep

8141TR 00876 1/2" Lap 1 10 3.937 Diameter 6.720 6.719

x 1.203 Deep

8151TR 00877 5/8" Lap 1 10 3.937 Diameter 6.720 6.719

x 1.203 Deep

8161TR 00878 Flat Surfaces 1 10 3.937 Diameter 6.720 6.719

x 1.203 Deep

8171TR 00879 Dutch Lap 1 10 3.937 Diameter 6.720 6.719

x 1.203 Deep

Add suffix “GC” to Catalog # when ordering in Canada, for example 8131TRGC.

PATENTS PENDING.

A

B

C

11.5 cu. in.

Features and Benefits

• Threaded openings offer

convenience when adding another

fixture or outlet

• Box allows for the installation of

conduit horizontally or vertically

• Fast and easy to install...after

siding is up

• Textured, paintable surface

• Includes NM cable connector,

(4) screws, and (2) 1/2" NPT

plugs

• Saves time. Convenient!

• Also see our new threaded

opening outlet boxes

Installation Instructions on Flat Surfaces - 8161TR

1 2

Pull wire and attach box to flat

surface. Use threaded

opening(s) and PVC conduit

to install additional fixture(s).

Install fixture(s) (per

manufacturer’s instructions).

Perfect for adding security or

flood lights.

Installation Instructions on Siding - 8171TR shown

1 2

Pull wire and attach box to

siding surface.

Use threaded opening(s) and

PVC conduit to install additional

fixture(s). Install fixture(s) (per

manufacturer’s instructions).

Shown with our new threaded

opening outlet box, FS8171T.

8141TR

1/2" LAP

8131TR

1/4" &

5/16" LAP

8151TR

5/8" LAP

8171TR

DUTCH LAP

5/8"1/2"1/4"

&

5/16"

8161TR

8161TR

8171TR

Add another fixture

or outlet box,

the easy way!





Installation Instructions

E253895 LR49636

LV1 LV1

For Low Voltage

Fire Alarm

Installations too!

LV2

Low Voltage

Mounting

Brackets

Single through 4-gang brackets

for installations on existing

construction. Designed to install

 

AB

CD

AB

CD

E

L-1

Communications

E

Arlington’s LV2, for existing

construction, and LVMB2, for

new construction (see pg.

L-16), can also be used for

the installation of fire alarms.

Features and Benefits

• Non-metallic – better than

metal and costs less too!

• For communications, cable

TV, computer wiring.

• CAT 5 listed

• Adjusts to fit 1/4" to 1"

thick wallboard, paneling,

or drywall

• Bracket is its own template

for cut out

• Mounting wings hold

bracket securely against

wall when screws are

tightened

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

LV2

CATALOG UPC/DCI/NAED UNIT STD DIM DIM DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG ABCDE

LV1 58175 10 100 5.460 4.250 2.500 1.690 1/4"-1"

LV2 10952 5 50 5.460 4.250 4.185 1.750 1/4"-1"

LV3 09600 5 50 5.570 4.250 6.000 1.700 1/4"-1"

LV4 09601 5 50 5.570 4.250 7.810 1.700 1/4"-1"

Dim E refers to wall thickness adjustment.

PATENTED.

New!

R

LV3

LV4

Locate bracket postion. Level. Trace inside of

LV1 and cut on the outside of the line.

L-2 Communications

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

E253895 LR49636

Features and Benefits

• Easiest and fastest installation of

class 2 low voltage wiring devices

• Faster than our LV1 mounting

bracket, LV1RP installs in less

than a minute with a hole saw!

• Single-gang LV1RP installs with a

3.5" hole saw and 2-gang LV2RP

installs with a 4.5" hole saw

• Paintable front surface (optional)

• Adjusts to fit 1/4" to 1-1/2" wall

thicknesses

• Mounting wings hold bracket

securely against wall when

screws are tightened

• Finishes with any standard, mid-

size, or maximum wall plate

• Easy to level – even after it’s

installed

• Allows for easy access to cables.

Reach through the opening to

pull cables from behind the wall.

Installation Instructions

Low Voltage

Mounting Brackets

Single and 2-gang brackets for

installations on existing

construction. Designed to install

.

Provides fast installation with

a hole saw.

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT/STD DIM DIM DIM

NUMBER MFG #01 8997 INSTALL METHOD PKG ABC

LV1RP 58179 Single-Gang/ 25 5.625 3.875 2.053

3.5" diam. hole saw

LV2RP 58183 2-Gang/ 10 5.250 5.375 2.135

4.5" diam. hole saw

PATENTS PENDING.

A

B

C

New!

1 2 3

Determine mounting bracket

location. Cut opening with a hole

saw; 3.5" for single-gang LV1RP,

4.5" for the 2-gang LV2RP.

Pull cables from behind the wall.

(Easy access to cables is another

reason to use Arlington’s new low

voltage mounting brackets!)

Insert mounting bracket into the

opening. Rotate as necessary to

level. Shown with single-gang

LV1RP.

4 5 6

Tighten screws. Mounting wings

hold mounting bracket securely

against drywall – No wobble once

it is installed!

If desired, paint front surface to

match wall (photo 5a). Install low

voltage device.

Finish with any single-gang wall

plate. (Front surface shown

unpainted.)

For a video installation demonstration visit our website

@ aifittings.com

LV1RP

LV2RP

FOR THE FASTEST, EASIEST

INSTALLATIONS...

LESS THAN A MINUTE!

R

5a

L-3

Communications

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Round

Low Voltage

Mounting Bracket

Round style bracket for

installations on existing

construction. Designed to

install 



CATALOG UPC/DCI/NAED DESCRIPTION UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG AB C

LVR1 58185 Round 25 25 4.375 2.125 1/4" - 1-1/2"

PATENT PENDING.

A

B

E253895 LR49636

Features and Benefits

• Non-metallic – better than metal and costs less too

• Adjusts to fit 1/4" to 1-1/2" thick wallboard, paneling,

or drywall

• Mounting wings hold bracket securely against wall

when screws are tightened

• Thin front lip seats better on drywall – keeps wall plate flush to wall

New!

C

Low Profile Low

Voltage Mounting

Bracket

Single gang for use with 1/4”

or 5/8” drywall installed on

cast concrete or concrete

block walls with furring strips

 



CATALOG UPC/DCI/NAED DESCRIPTION UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG ABC

LV1LP 58177 Single Gang 10 100 4.260 2.500 1.200

LV2LP 23102 2-Gang 5 50 4.260 4.185 1.200

A

B

E253895 LR49636

Features and Benefits

• Non-metallic – better than metal and costs less too

• Bracket is its own template for cut out

• Adjusts to fit 1/4" to 5/8" thick wallboard, paneling, or drywall

• For communications, cable TV, computer wiring

• Mounting wings hold bracket securely against wall

when screws are tightened

New!

C

Heavy Duty

Bracket with Four

Mounting Wings

Two-gang Mounting Bracket

for installations on existing

construction. Designed to

install  



CATALOG UPC/DCI/NAED DESCRIPTION UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG ABC

LV2HD 20010 2-gang 5 25 4.250 4.185 1.700

PATENT PENDING.

A

B

E253895 LR49636

Features and Benefits

• Mounting wings hold bracket securely against wall

when screws are tightened

• For communications, cable TV, computer wiring

• Adjusts to fit 1/4" to 1" thick wallboard, paneling, or

drywall

• Bracket is its own template for cut out

New!

C

R

R

R

PATENT

PENDING.

LV1LP

L-4 Communications

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

E253895 LR49636

Features and Benefits

• Non-metallic

• Suitable for old or new work

• Quick and easy installation and it’s

recessed so connectors don’t

extend past the wall surface

• Adjusts to fit 1/4" to 1-1/2" wall

thicknesses

• Mounting wings hold bracket

securely against wall when

screws are tightened

• Recessed bracket includes loops

for tie-off; two attachable

knockouts; one device plate; one

trim plate; and four screws

Installation Instructions - Existing Wall

Recessed

Low Voltage

Mounting Brackets

Single through 4-gang brackets

for retrofit or new construction.

Available in paintable white

(trim plate) and black. Designed

to install  



CATALOG UPC/DCI/NAED DESCRIPTION UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG ABC

LVU1W 00285 Single Gang/White 146.698 4.200 2.000

LVU1BL 00286 Single Gang/Black 146.698 4.200 2.000

LVU2W 20011 2-Gang/White 146.698 6.012 2.048

LVU2BL 20014 2-Gang/Black 146.698 6.012 2.048

LVU3W 20012 3-Gang/White 116.818 7.930 2.048

LVU3BL 20015 3-Gang/Black 116.818 7.930 2.048

LVU4W 20013 4-Gang/White 116.818 9.742 2.048

LVU4BL 20016 4-Gang/Black 116.818 9.742 2.048

PATENTS PENDING.

A

B C

New!

1 2 3 4

Determine bracket location.

Using bracket without trim

plate as a template. Level.

Mark. Cut hole.

Attach trim plate to

bracket with supplied

screws. Insert bracket

assembly into opening.

Tighten

mounting wing

screws to hold

bracket securely

against wall board.

Installation Instructions - New Work

12 3

Option: Insert knockouts in

openings (back) if installing

conduit. Knockouts fit 3/4"

(as shipped) and 1" (break

out center).

Mount bracket to stud.

Note positioning tabs and

loops for tying off cable.

Finished installation.

LVU1W shown.

Connectors stay inside

this recessed low voltage

mounting bracket.

Option: Attach 3/4" or 1"

conduit as desired (3/4"

shown).

LVU1W

LVU1BL

LVU1

For a video installation demonstration

visit our website @ aifittings.com

Tabs

Loop

t

R

L-5

Communications

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

LVS1 Features and Benefits

• Non-metallic

• Built-in loop to tie off cable

• Eliminates pushback

• Comes complete with nails

parked in place ready to install!

• Installs in 25% less time than

steel or plastic mud rings

• Nail-on (“N” styles) for

wood studs

• Screw-on (“S” styles) for

metal studs

Nail or Screw On

Low Voltage

Mounting Brackets

for New Construction

Single through 4-gang brackets

for the installation of 

 

CATALOG UPC/DCI/NAED UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG ABC

LVN1 00261 50 50 2.810 4.170 1.500

LVN2 00275 25 25 5.492 4.170 1.500

LVN3 00277 10 10 7.804 4.170 1.500

LVN4 00278 10 10 9.615 4.170 1.500

LVS1 00262 50 50 2.810 4.170 1.500

LVS2 00280 25 25 5.492 4.170 1.500

LVS3 00282 10 10 7.804 4.170 1.500

LVS4 00283 10 10 9.615 4.170 1.500

PATENTED. ADDITIONAL

PATENTS PENDING. AA

BB

E253895 LR49636

CC

LOWER COST THAN

STEEL MUD RINGS

LVN2

LVN1 LVS2

R

LVN3

LVS4

LVS1 LVS2

LVN1 LVN2

New!

L-6 Communications

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

DBK88C - Weatherproof keypad enclosure!

Weatherproof,

Non-Metallic

Keypad Enclosures

Keypad cover protects

against moisture and weather.

Accommodates single or

double-gang boxes and most

keypad styles. Heavy-duty,

white enclosure with paintable

white or clear plastic cover.

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 COVER COLOR PKG PKG ABC

DBK88C 77662 Clear 158.140 8.480 1.810

DBK88W 77663 White, Paintable 158.140 8.480 1.810

PATENT PENDING.

B

A

C

New!

DBK88C

DBK88W

Features and Benefits

• Provides keypad protection (weatherproof with closed

cover/vertical mounting)

• Versatile mounting, our keypad enclosure mounts horizontally

or vertically

• Suitable for indoor or outdoor use

• Can be mounted, with or without a box, on flat surfaces for low

voltage keypads

• Includes gasket

• Universal hole pattern accommodates most keypads and single,

2-gang, or 4x4 boxes!

• Lockable cover

(keypad not

included)

Non-Metallic

Wire Bushings

for Class 2 Wire

For installation of low voltage

wire through wall finish.

Covers cut edges of opening.

Paintable. Designed to install





CATALOG UPC/DCI/NAED UNIT STD DIM DIM DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG ABCDE

WB500 52950 100 100 .500 .750 .281 .875 .400

WB875 52951 100 100 .875 .750 .281 1.250 .750

WB112 52952 50 50 1.125 .750 .281 1.500 1.000

WB200 52953 50 50 2.000 .750 .281 2.500 1.875

PATENT PENDING.

B

A

Hole Size

C

DE

Features and Benefits

• Provides a great-looking job and easy, smooth insertion

of cable through wall

• Quick installation with a drill bit or a hole saw

• Easy entry and exit of low voltage cable or speaker wire

through wall

• The attractive way to finish cut edges

New!

WB200

WB112

WB875

WB500

L-7

Communications

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

New!

Features and Benefits

• Use metallic boxes where metal raceways

are required

• Perfect for flat screen plasma/LCD

televisions

• For new or existing construction

• Recessed, so plugs do not protrude

from wall

• Trim ring covers cut edge of drywall

• Trim ring (TVB613) and cover

(TVB613C) are textured/paintable

• (2) low voltage mounts are built-in

• Low voltage separator provided for

built-in 2-gang device box so power and

low voltage can be combined

CATALOG UPC/DCI/NAED Description UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG ABC

TVB613* 09630 4-gang w/ white 117.000 17.000 3.880

trim plate

TVB613BL* 09634 4-gang w/ black 117.000 17.000 3.880

trim plate

TVBS613 09633 4-gang steel w/ 117.000 17.000 3.880

white trim plate

TVBS613BL 09660 4-gang steel w/ 117.000 17.000 3.880

black trim plate

TVB613C 09631 white cover 117.000 17.000 .127

*Add suffix “GC” to Catalog # when ordering in Canada, for example TVB613GC.

PATENTED. ADDITIONAL PATENTS PENDING.

A

B

C

Note: Receptacle

and cover plates

are not included.

E170558 LR49636

TVB613

TVB613

26.0 cu.in.

TVB613C

A

B

C

R

TVBS613

TVB613C

Recessed TV BOX™

for Power and

Low Voltage

Non-metallic and metallic,

combination power and low

voltage box. For power and

phone/cable/speaker/surround

sound installations.

TVB613

TVB613C

TVBS613

L-8 Communications

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Features and Benefits

• Recessed combo box allows you

to mount LCD/plasma TVs and

other system components flush

against the wall

• For new work...Use supplied

screws to install on stud. For

convenience, box positioning

tabs are set for 1/2" or 5/8" drywall

• Trim plate is textured/paintable

and covers edges of cut wall

surface

• Mounting wings hold bracket

securely against wall when

screws are tightened

• For walls up to 1-1/2" thick

• Use with Arlington’s SCOOP™

series entrance hoods and plates

(see pages L-9 to L-11)

Multiple Gang

Recessed TV BOX™

for Power and

Low Voltage

For new or existing

construction. Non-metallic,

recessed combo boxes for

power  low voltage

for class 2 wiring of satellite or

cable TV, speakers, etc.

CATALOG UPC/DCI/NAED DESCRIPTION UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG AB C

TVBU505* 09680 2-Gang, White, (1) Power / (1) LV 146.942 6.254 3.750

TVBU505BL* 09681 2-Gang, Black, (1) Power/ (1) LV 146.942 6.254 3.750

TVBR505K* 09682 Kit, 2-Gang, White, (1) Power/ (1) LV 146.942 6.254 3.750

TVBU507 09661 3-Gang, White, (1) Power/ (2) LV 147.930 6.818 3.875

TVBU507BL 09662 3-Gang, Black, (1) Power/ (2) LV 147.930 6.818 3.875

Add suffix “GC” to Catalog # when ordering in Canada, for example TVBU505GC.

*Optional box covers available on page N-12.

PATENTED. ADDITIONAL PATENTS PENDING.

E170558 LR49636

New!

TVBU507

18.0 cu. in.

TVBU507

TVBU507BL Installation Instructions -

New Work (TVBU507 shown)

1 2 3 4

Attach box to stud. Use

tabs for proper positioning

of box depth. See 2.

Photo B - Screws

Positioning tabs are set

for 1/2” or 5/8” drywall.

Attach paintable trim plate

with screws provided.

See Photo B.

Tighten mounting wing

screws to pull the box

securely against the wall

board. See Photo B.

Retrofit Work (TVBU507 shown)

For a video installation demonstration

visit our website @ aifittings.com

A

BC

TVBR505K Kit includes:

Recessed combo box;

(1) tamper-resistant duplex receptacle;

(2) SCOOPs™: (1) CEDH1 & (1) CED13;

and (1) wall plate.

1 2 3 4

Using box, without trim

plate as a template, mark

location. Cut hole.

Attach trim plate to box.

See Photo B. Pull

wire/cables. Install box

assembly in opening.

Tighten mounting wing

screws to pull the box

securely against the wall

board. See Photo B.

TVBU505 with power

in one side; low voltage

in the other. CED13 (page

L-11) used to secure wall

plate to box.

Trim

plate

screws

Mounting

wing

screws

Includes...

Recessed combo box; (1) trim plate; (1) decorator style cover plate; and installation screws.

R

L-9

Communications

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CE2 with SCOOP facing IN CE2 with SCOOP facing OUT

Easy to Install!

THE SCOOP™

Reversible,

Non-Metallic Cable

Entrance Plates

for Existing Cable

Protects cable and provides

installation versatility.

Non-rusting, paintable plastic.

Designed to install 

 

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 PLATE COLOR PKG PKG ABC

CE1 10460 Single-Gang/White 25 25 2.853 4.620 1.513

CE1BL 10470 Single-Gang/Black 25 25 2.853 4.620 1.513

CE2 10461 2-Gang/White 25 25 4.562 4.620 1.759

CE2BL 10471 2-Gang/Black 25 25 4.562 4.620 1.759

CEH1 10480 HORZ SCOOP PLT/WHT 25 25 4.620 2.853 1.500

CEH1BL 10481 HORZ SCOOP PLT/BLK 25 25 4.620 2.853 1.500

Includes screws that match plate color.

PATENT PENDING.

CE2 CE1

CEH1

Features and Benefits

• Reversible for installation

versatility – Use it facing IN or

OUT!

• Offers both cable protection and

good looks

• Best way to cover existing cable

New!

Each of our SCOOPs mounts directly to the wall with drywall screws.

For added support, mount to one of Arlington’s low voltage mounting brackets; LV1

to LV4.

For a video installation demonstration

visit our website @ aifittings.com

LV1* LV2*

*Note: LV1 through LV4 are available on L-1

CER2

BB

AA

CC

CER1

L-10 Communications

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CER2 with Scoop facing OUT

& lower plate removed.

CER2 with Scoop facing

OUT. Lower plate secured.

Easy to Install!

THE SCOOP™

Reversible,

Non-Metallic Cable

Entrance Plates

for Existing Cable

Protects cable and provides

installation versatility.

Removable lower plate for

easier access to cables that

are already run. Non-rusting,

paintable plastic. Designed to

install  



CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 PLATE COLOR PKG PKG ABC

CER1 10473 Single-Gang/White 25 25 2.853 4.620 1.513

CER1BL 10475 Single-Gang/Black 25 25 2.853 4.620 1.513

CER2 10474 2-Gang/White 25 25 4.562 4.625 1.759

CER2BL 10476 2-Gang/Black 25 25 4.562 4.625 1.759

Includes screws that match plate color.

PATENT PENDING.

CER2

BB

AA

CC

CER1

CER2

Features and Benefits

• Reversible for installation

versatility – Use it facing IN or

OUT!

• Offers both cable protection and

good looks

• Best way to cover existing cable

• Lower plate is removable for

easier and quicker access to

cables that are already run

New!

CER1

CER1BL

Each of our SCOOPs mounts directly to the wall with drywall screws.

For added support, mount to one of Arlington’s low voltage mounting brackets; LV1

to LV4.

*Note: LV1 through LV4 are available on L-1

L-11

Communications

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Easy to Install!

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 PLATE COLOR PKG PKG ABC

CED1 10465 Single-Gang/White 25 25 1.450 4.112 1.708

CED1BL 10472 Single-Gang/Black 25 25 1.450 4.112 1.708

CED13 13000 Single-Gang/White 25 25 1.450 4.112 .410

CED13BL 13005 Single-Gang/Black 25 25 1.450 4.112 .410

CEDH1 10478 Single-Gang, Horiz./White 25 25 1.450 4.112 1.510

CEDH1BL 10479 Single-Gang, Horiz./Black 25 25 1.450 4.112 1.510

Includes(2) #6 screws.

PATENT PENDING. C

CED1 CED1BL

CED13

New!

Installation Instructions

Use one or more of Arlington’s low

voltage mounting brackets (LV1 - LV4

not supplied) to install CED Series.

CED1

For a video installation demonstration

visit our website @ aifittings.com

Features and Benefits

• Reversible for installation

versatility – Use it facing

IN or OUT!

• Protects low voltage cable

against damage

• Best way to run cable where you

need it

• CED13 provides widest opening

for cables with large connectors

B

C

CED13

LV1* LV3*

LV4*

LV2*

CED1

*Note: LV1 through LV4 are available on L-1

CEDH1

CED13

CEDH1

B

CEDH1

B

THE SCOOP™

Reversible,

Non-Metallic Cable

Entrance Plates

for Existing Cable

Cable entrance hood for use

with decorator style wall

plates. Protects cable and

provides installation versatillity.

Designed to install 

 

C

A

A

A

L-12 Communications

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Features and Benefits

• Neatly installs power and phone/cable outlets together,

in one location

• Saves time and money

• For wood stud installation, LVD2 features parked in place

nails ready for use

• For metal stud installation, LVD2 features screw holes on either side of the

front flange (screws not included)

• Protects cable from damage

• For raceway, the low voltage side provides a combo 1/2" and 3/4" KO

• Two hour fire rating

Power and Low

Voltage Box for

New Construction

Non-metallic, combination power

and low voltage box. For power,

phone/cable, and fiber optic

installations.

CATALOG UPC/DCI/NAED UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG ABC

LVD2 10957 25 25 3.625 5.360 5.000

See page L-4 for Arlington’s

Power & Cable/Phone Duplex Covers.

PATENT PENDING.

A

B

E20643

C

COMPETITIVELY

PRICED!

For New Construction

Simple,

Nail On

Installation...

or Screw

onto Metal

Stud!

20.2

cu. in.

Power Low Voltage

Features and Benefits

• Neatly installs power and phone/cable outlets together, in one location

• Saves time and money...competitively priced!

• Fast and easy installation...bracket is its own template for cut out

• Adjusts to fit 1/4" to 1-1/2" thick wallboard, paneling, or drywall

• For raceway, the low voltage side provides a combo 1/2" and 3/4" KO

• Protects cable from damage

• Mounting wings hold bracket securely against wall when screws are

tightened

• Includes installed NM connector on power side

• Two hour fire rating

Power and Low

Voltage Box for

Existing Construction

Non-metallic, combination power

and low voltage box. For power,

phone/cable, and fiber optic

installations.

CATALOG UPC/DCI/NAED UNIT STD DIM DIM

NUMBER MFG #01 8997 PKG PKG AB

LVDR2 01000 25 25 4.250 4.185

See page L-4 for Arlington’s Power & Cable/Phone Duplex Covers.

PATENT PENDING.

A

B

E20643

17.0

cu. in.

Power

Low Voltage

L-13

Communications

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CAM-LIGHT™ B0X

for Suspended

Ceilings

Offers a great way to install

fixtures and smoke detectors

(and more) on a suspended

ceiling, drywall ceiling or wall.

A

B

C

New!

Installation Instructions -

FL430 for Fixtures

1 2 3 4

Cut hole in a ceiling grid

with 4" hole saw. 4-1/2” for

steel.

Install CAM-LIGHT™ box.

Rotate to desired position.

Tighten mounting wing

screws.

Add drop wire to loop.

Attach to framing member

above.

To Complete: Using the

appropriate KO (1/2" or 3/4")

install NM94 cable

connector (supplied) and

pull cable. Install fixture per

manufacturer’s instructions.

For a video installation demonstration

visit our website @ aifittings.com

E253895

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 CUBIC INCH PKG PKG ABC

FL430* 09740 Non-Metallic / 27.0 1 10 7.380 3.085 1.331

FL430S 09741 Steel / 17.0 1 10 7.345 2.375 1.688

*Add suffix “GC” to Catalog # when ordering in Canada, for example FL430GC.

Box includes 12’ of drop wire, and box. Non-metallic box also includes (2) NM94 cable

connectors.

PATENT PENDING.

FL430

Features and Benefits

• Designed to install fixtures and

more to a suspended ceiling

panel – fast with a 4" hole saw

• Rated up to 50 lbs on a

suspended ceiling (or drywall

ceiling) in combination with the

drop wire for support

• Rated up to 10 lbs on a drywall

ceiling without drop wire (not for

fixtures)

• Rated up to 7 lbs on walls

• Drop wire provides overhead

support.

• Mounting wings hold bracket

securely against wall when

screws are tightened

• Box may be turned to any angle

for proper inline positioning of

exit signs and direct lighting

• White, non-metallic, paintable

flange

• Steel version for use where

metal raceways are required

• Steel version installs with

4-1/2” hole saw

• Boxes have 1/2" and 3/4"

knockouts

• To install a security camera on

this box check out our CAM-KIT™

camera mounting kit (SC5) on

page L-15

FL430S

L-14 Communications

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

56

Add bracket to the box

using screws provided.

With camera mounted,

install the mounting plate

to the box by placing it on

the bracket and turning

clockwise to lock. Install

set screw.

Attach camera to

mounting plate (screws

provided). Box fits any

camera hole pattern

because YOU drill the

holes in the appropriate

location in the flange.

Finished installation.

Features and Benefits

• Designed to install security

cameras to a suspended ceiling

panel – fast with a 4" hole saw

• Rated up to 50 lbs on a

suspended ceiling (or drywall

ceiling) in combination with the

drop wire for support

• Rated up to 10 lbs on a drywall

ceiling without drop wire

• Rated up to 7 lbs on walls

• For security cameras, it fits any

hole pattern because you drill the

holes in the appropriate location

in the flange, cameras with

mounting holes set wider than

4.5” apart install directly to the

box flange

• Mounting wings hold bracket

securely against wall when

screws are tightened

• White, non-metallic, paintable

flange

• Steel version for use where metal

raceways are required

• Steel version installs with

4-1/2” hole saw

• 1/2" and 3/4" knockouts

• Box rotates in either direction for

proper camera position

New!

Installation Instructions -

FLC430 for Security Cameras

1 2 3

Cut hole in a ceiling grid

with 4" hole saw. 4-1/2” for

steel.

Install CAM-BOX™ kit.

Rotate to desired position.

Tighten mounting wing

screws.

Add drop wire to loop.

Attach to framing member

above.

For a video installation demonstration

visit our website @ aifittings.com

E253895

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM DIM DIM DIM

NUMBER MFG #01 8997 CUBIC INCH PKG PKG AB CDE

FLC430* 09742 Non-Metallic / 27.0 1 10 7.380 3.085 1.331 5.564 .703

FLC430S 09743 Steel / 17.0 1 10 7.345 2.375 1.688 5.564 .703

*Add suffix “GC” to Catalog # when ordering in Canada, for example FLC430GC.

Kit includes 12’ of drop wire, box, bracket, mounting plate, and installation screws. Non-metallic

box also includes (2) NM94 cable connectors.

PATENT PENDING.

CAM-BOX™ KIT

for Installations of

a Security Camera

For installation of most security

cameras on suspended

ceilings, drywall ceiling, exterior

soffits, or wall.

For camera installations on

existing boxes, check out

our CAM-KIT™ camera

mounting kit on page L-15

4

FLC430

D

E

A

B

C

L-15

Communications

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CAM-KIT™

Security camera mounting kit.

Universal bracket mounts to

3-1/2” and 4” round or octagon

boxes and single-gang device

boxes. Also fits FL430 CAM-

LIGHT™ BOX.

CATALOG UPC/DCI/NAED UNIT STD DIM DIM DIM DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG ABCDEF

SC5 18058 1 20 4.875 5.564 .703 5.375 .750 .718

Includes 5” plastic mounting plate, camera mounting bracket and mounting screws.

PATENTS PENDING.

E253895 LR49636

SC5

R

New!

Features and Benefits

• Fits any camera hole pattern.

• Low cost.

• Installs in less than two minutes.

• Installs cameras with a base

diameter up to 4-1/2”

Installation Instructions -

SC5 for Security Cameras

1 2 3

For a video installation demonstration

visit our website @ aifittings.com

4

Use your camera base as a

template and drill holes.

Attach camera to

mounting plate (screws

provided).

Mount the bracket to the

existing box using screws

provided.

With camera mounted,

install the mounting plate to

the box by placing it on the

bracket and turning

clockwise to lock. Install set

screw.

Finished installation.

D

E

F

D

E

L-16 Communications

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

A

Low Voltage

Mounting

Brackets for New

Construction

Designed to install 

 

Mounts vertical or horizontal

on wood or metal studs.

CATALOG UPC/DCI/NAED UNIT STD DIM DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG ABCD

LVH1 10979 50 50 4.552 3.187 2.000 1.205

LVH1K 10984 50 50 4.552 3.187 2.000 1.205

PATENTED. ADDITIONAL

PATENTS PENDING.

LVH1 LVH1K

A

B

E253895 LR49636

C

D

B

C

D

Features and Benefits

• Non-metallic

• Sturdy tabs provide extra-secure

vertical or horizontal mounting

of class 2, low voltage wiring.

• Convenient wire tie-off through slot at top

• Versatile LVH1K permits the use of 3/4" EMT or a 1" fitting.

• Costs 20% less than metal extension rings!

LVH1 LVH1K

R

Low Voltage

Mounting

Brackets for New

Construction

Designed to install 

 

CATALOG UPC/DCI/NAED UNIT STD DIM DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG ABCD

LVMB1 14364 10 100 4.158 3.147 1.970 .375

LVMB2 14365 5 50 4.158 4.842 1.970 .375

PATENTED.

LVMB1

LVMB2

A

B

3/4"

TRADE

SIZE

3/4"

TRADE

SIZE

C

A

B

E253895 LR49636

C

DD

Features and Benefits

• Non-metallic

• For communications, cable TV,

computer wiring

• Cat 5 listed

• Permits the use of 3/4" EMT

• Works with 1/2" or 5/8" drywall

• Available in single or

double-gang models

LVMB1 LVMB2

R

L-17

Communications

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

THE LOOP™

Hanger for communications

cable support. For CAT 5, 6,

7 cable and fiber optic cable.

E161207 LR49636

CATALOG UPC/DCI/NAED LOOP # CAT 5 UNIT STD DIM DIM LOAD

NUMBER MFG #01 8997 SIZE CABLES PKG PKG ABRATING

TL20 38084 2" 60 100 100 11.375 .652 25

TL25 38085 2-1/2" 100 50 50 12.250 1.500 25

TL50 38086 5" 300 25 25 22.500 5.000 75

TL20P* 38087 2" 60 100 100 11.375 .652 25

TL25P* 38088 2-1/2" 100 50 50 12.250 1.500 25

TL50P* 38089 5" 300 25 25 22.500 5.000 75

*“P” indicates UV Rated.

PATENTED.

B

A

Features and Benefits

• Easy to use...cheaper than trays!

• Flexible and non-metallic

• Holds 2" to 5" diameter bundle of CAT 5 or

fiber optic cable — without damaging the cable.

• Available with or without UV rating

• Versatile mounting — rotates to any angle!

• TL25 holds the same amount of cable as a J-hook, at half the cost! TL50

TL20

TL50

TL50 holds up to a 5"

diameter bundle of

CAT 5 or fiber optic

cable! Single Hanger

1. Single LOOP mounted

parallel to beam.

2. Single LOOP mounted

perpendicular to beam.

(TL50 shown)

1 2

Multiple Hangers

3. Stacked — perpendicular

mounting

4. Stacked — parallel

mounting

(TL50 shown)

3 4

A

B

TL20 TL25

Listed for use in environmental air

handling spaces per 2008 NEC code

requirements 300-22(c).

See Section M

for Beam Clamps

TM

R

L-18 Communications

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

“D” Rings

Non-conductive. Smooth

bearing surfaces for easy

wire management.

CATALOG UPC/DCI/NAED WIRING STD DIM DIM DIM DIM DIM

NUMBER MFG #01 8997 SPACE PKG ABCDE

D22 40022 2.25 x 2 100 2.756 4.867 4.381 3.137 1.498

D33 40033 3.25 x 3.25 100 3.768 6.117 5.631 4.387 2.553

D35 40035 3.25 x 5 100 3.730 8.268 7.782 6.538 4.711

Features and Benefits

• Designed with two mounting holes per side for

several mounting methods

• Will not damage conductor insulation

A

E

B

C

D

Hole for #10 Screw (4) Places 

E161207 LR49636

CS7 Holds...

• Up to five runs of 12/2 non-metallic sheathed cable.

• Up to eight runs of Cat 5 cable.

• Up to four runs of Cat 6 cable.

• Up to five runs of coaxial cable.

CS4 Holds...

• One 14/3 to one 10/3

• Three 14/2 W/G to three 10/3

Cable Standoffs

Positions non-metallic

sheathed cable, phone/data

cable, and coaxial cable.

Installs with a screw or nail.

Nail included with CS4.

CATALOG UPC/DCI/NAED STD DIM DIM DIM

NUMBER MFG #01 8997 PKG ABC

CS4 50174 100 4.100 .750 1.200

CS7 71007 100 3.490 .880 .740

Note: For position only.

A

B

C

A

B

C

CS7

CS4

CS4

CS7

Features and Benefits

• Positions cables at a safe distance from nailing surface

• CS4 provides a neat, organized cable installation and

prevents tangles

• CS7 positions cable 2" from a furring strip or 2x4 stud

• CS7 features positive lock to keep cables in place

• Positions both flat and round NM cables

• Complies with 2005 NEC Article 300-4d

R

L-19

Communications

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Insulating

Bushings

Press fit. Holds firmly in place

when pulling cables.

CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG AB

EMT50 12200 1/2 100 1000 .531 .840

EMT75 12205 3/4 100 1000 .531 1.056

EMT100 12220 1 100 100 .625 1.280

EMT125 12225 1-1/4 100 100 .625 1.660

EMT150 12230 1-1/2 100 100 .625 1.915

EMT200 12235 2 50 50 .625 2.377

EMT250* 12240 2-1/2 25 25 1.225 3.062

EMT300* 12245 3 25 25 1.225 3.690

EMT350* 12250 3-1/2 25 25 1.231 4.187

EMT400* 12255 4 25 25 1.233 4.815

*Can also be used with Rigid.

Arlington’s Insulating Bushings protect cables from abrasion by the conduit. Examples: Power,

Cable TV, computer datalines, telephone/modem, audio/video cables, alarm systems, security

systems. Conduit is often used to protect cables where damage could occur in a house or building.

R

R

E105706 LR49636

CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG AB

RGD50 51930 1/2 100 1000 .531 .989

RGD75 51932 3/4 100 1000 .531 1.185

RGD100 51933 1 100 100 .625 1.542

RGD125 51934 1-1/4 100 100 .625 1.891

RGD150 51935 1-1/2 100 100 .625 2.062

RGD200 51936 2 50 50 .625 2.655

For use with EMT.

For use with Rigid.

Place board over bushing

and tap onto EMT or Rigid

with hammer.

Communications cable

Arlington's insulating bushing

Non-structural ceiling

Surface mounted

panel or box

Example: Telephone

cable protected by EMT

insulating bushing.

EMT or Rigid

A

B

Meets 2008 NEC code requirements

for 300-15(c) protection. Listed for

use in environmental air handling

spaces per 2008 NEC code

requirements 300-22(c).

EMT50

RGD50

L-20 Communications

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

E161207 LR49636

Non-Metallic

Bushings for Metal

Studs

CATALOG UPC/DCI/NAED STUD STD DIM DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG ABCD

SB13 40115 2 x 4 500 5.670 2.500 .505 1.300

SB130 40130 2 x 4 100 5.670 2.500 .505 1.300

These bushings fit existing irregular shaped holes in metal studs, alleviating the need to punch

holes in metal studs, weakening the structural member. Use these bushings to comply with

paragraph 300-4(b)(1) of the 2008 NEC code which states that: “In both exposed and concealed

locations where nonmetallic-sheathed cables pass through either factory or field punched, cut, or

drilled slots or holes in metal members, the cable shall be protected by bushings or grommets

covering all metal edges and securely fastened in the opening prior to installation of the cable.”

Common hole configurations in metal studs.

PATENTED.

CODE VIOLATION

SHARP EDGE

NM CABLE

Installation Instructions

To install these bushings in an irregular shaped hole,

pass one end of the joined connector through the hole

in the stud. Snap the bushing and the washer ends

together. There’s no need to separate the two halves.

If a punched hole is required, the SB13 can be

installed in a standard 1" trade size, round punched

hole (1-3/8" diameter). Snap the bushing end into the

hole.

12

3

A

B

C

WASHER BUSHING

D

FITS A

STANDARD 1"

KNOCKOUT

R

M-1

Miscellaneous

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Features and Benefits

• Bracket has oversized clearance

holes that assure proper bonding

between the fitting and the box

• Easy-to-install and provides secure

fastening and rigid box support

• Mounts to metal, wood, block, or

brick with a variety of fasteners

• Pre-drilled holes line up with holes

in 4x4 metal box

• For use with all types of raceway

systems

•B44 overcomes violations of

2008 NEC 300.11 (A) and 314.23

(A and B)

Installation Instructions

Steel Stand-Off

Bracket

20 gauge steel stand-off

bracket provides rigid support

and spacing for a 4x4 metal

box installed with all types of

raceway systems. Complies

with 2008 NEC – Overcomes

code violations. Provides box

support independent of conduit.

CATALOG UPC/DCI/NAED DESCRIPTION UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG ABC

B44 00101 20 Gauge Steel 25 25 4.500 2.100 3.770

PATENT PENDING.

A

B

C

New!

1

Place B44 on metal stud and mark

EMT.

2

EMT marked and ready to cut.

3

Attach B44 stand-off bracket to metal

stud through holes in base.

4

EMT “floats” in clearance hole to

assure proper bonding between box

and fitting.

Completed installation.

The box is supported by the

B44 stand-off bracket,

not the conduit!

5

Install locknut on EMT fitting.

6

Attach 4x4 metal box to the stand-off

bracket with screws (not provided)

through pre-drilled holes in bracket.

B44 overcomes

violations of

2008 NEC

300.11 (A) and

314.23 (A and B)

For a video installation demonstration

visit our website @ aifittings.com

B44

M-2 Miscellaneous

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

M-2

Problem...

Electrical box set back

from wall surface.

SOLUTION...

To install without removing device wires, tilt the

device through the BE1 at a slight angle,

straighten it and tighten the screws!

Pull wires

through,

then press

the BE1

firmly into

the electrical

box.

Attach wires

to receptacle.

Then tighten

screws for a

level, fully

supported,

code

compliant

installation.

BE1 Installation Instructions

Two Hour Fire Rating

1 2

Box Extenders

Levels and supports the

wiring device where the box is

set back from the wall surface.

Extends the box up to 1-1/2".

CATALOG UPC/DCI/NAED UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG ABC

BE1 40160 25 250 2.313 4.188 1.813

BE1BAG 51905 1 100 2.313 4.188 1.813

BE2 48960 25 25 4.100 4.188 1.813

BE3 48967 10 10 5.937 4.188 1.813

BE4 48968 10 10 7.749 4.188 1.813

BE1BAG includes two #6 x 2" long screws.

PATENTED. ADDITIONAL PATENTS PENDING.

BE1 BE2

B

AA

C

BE1

BE2

Features and Benefits

• Allows the contractor to comply with 2008 NEC

Article 314.20

• Levels and supports the wiring device where the box

is set back from the wall surface (adjusts up to a

1-1/2" box extension)

• Works in handy boxes and 4" square electrical boxes

with plaster rings for single switches or receptacle

• Functions with all standard devices, switches, and

GFCIs

• Manufactured from 105°C continuous use 94V0 rated

flame retardant plastic for safer installations

E170558 LR49636

HEAVY-DUTY

PLASTIC, UL LISTED!





BE4 BE3

M-3

Miscellaneous

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Slip Meter Riser

Fitting

Designed to create an

expansion joint in the

installation of an electrical

service entrance.

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 STYLE PKG PKG ABC

NM2520 54565 2” K.O. size 10 10 3.329 2.625 3.276

PATENT PENDING.

A

B

C

New!

Features and Benefits

• Fast, easy underground service installations

• Protects cable from freeze/thaw flexion and ground

movement

• Meets 2008 NEC 300.7(B) and 300.5(J)

E170558 LR49636





Installation Instructions

Glue NM2520 onto 2-1/2” PVC conduit.

Slip 2-1/2” conduit over 2” non-metallic

conduit coming from the ground (PVC

conduit not supplied).

Attach the NM2520 to the bottom of the

meter enclosure. 2 to 2-1/2” meter riser

fitting holds conduit firmly in place

(locknut is not suplied).

Fixture Hanger

For hanging static load items

requiring drop wire support.

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 STYLE PKG PKG ABC

FH50 06881 Fixture Hanger for hanging 50 50 .688 1.166 1.000

fixtures, etc up to 50 lbs

PATENT PENDING.

A

B

C

New!

Features and Benefits

• Supports up to 50 lbs

• Low profile base

• No tools needed

• Snaps into knockout

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM DIM DIM DIM

NUMBER MFG #01 8997 STYLE PKG PKG ABCDE

BES1 48976 Single Gang / White 1 10 5.117 3.336 .625 2.850 1.850

Each unit pack includes two installation screws

PATENT PENDING.

M-4 Miscellaneous

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Non-Metallic

Box Extender

Install over a shallow box and

allows you to install larger

devices: Adds 5/8”

BES1

E170558 LR49636





New!

BES2

C

B

A

B

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 STYLE PKG PKG ABC

BES2 48977 White End Connector 1 10 5.117 2.574 .625

BES2C 48979 White Coupler Connector 1 25 1.127 1.812 .525

Each unit pack includes four installation screws

PATENT PENDING.

Non-Metallic

Box Extender

Install over a shallow box and

allows you to install larger

devices: Adds 5/8”

E170558 LR49636





B

C

A

D

E

New!

Features and Benefits

• Adds 5.3 cubic inches to existing box volume

• No need to remove existing shallow box

• Allows you to install larger devices such as GFCI’s in shallow

boxes

• Finishes with any standard or mid-size wall plate

• Paintable

BES2C

Features and Benefits

• BES2 adds 10.5 cubic inches to existing box volume

• BES2C pair adds an additional gang and 3.5 cubic inches

• No need to remove existing shallow box

• Allows you to install larger devices such as GFCI’s in shallow

boxes

• Finishes with any standard or mid-size wall plate

• Paintable

A

C

M-5

Miscellaneous

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM

NUMBER MFG #01 8997 STYLE PKG PKG AB

DR1 01551 1/2" DRIVE RING 100 1000 1/2” 1-1/4”

DR2 01552 5/8" DRIVE RING 50 500 5/8” 1-3/8”

DR3 01553 7/8" DRIVE RING 50 500 7/8” 1-3/8”

DR4 01554 1 1/4" DRIVE RING 25 250 1-1/4” 1-7/8”

PATENT PENDING.

Drive Rings

Made of corrosion-resistant

galvanized steel, this series of

drive rings provides sturdy

support for wire and cable.

A

B

New!

Features and Benefits

• Can be used on outside walls, inside walls, wood studs and

utility poles

• Quick and easy to install, fastens to surface by using a hammer

• Loop is open making it easy to insert or remove cable.

• Size is measurement between loops.

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 STYLE PKG PKG ABC

DW50 06880 Fixture Support for 10 10 .562 .687 1.250

fixtures, etc up to 50 lbs

PATENT PENDING.

Wire Grabber™

Kit

When hanging fixture boxes,

fixtures, cable tray and other

static load items requiring

drop wire support.

B

New!

C

A

Features and Benefits

• Includes 12 ft of drop wire and two “Wire Grabber™”

• Costs less than other similar products

• 50 lb weight rating

• Tighten “Wire Grabber™” with Philips screwdriver

• Faster installation for Industrial and Commercial

applications (Electrical) fixtures, cable tray and bus

bar (HVAC), rectanglular, oval or spiral ducting.

E161207

DR1

DR2

DR3

DR4

M-6 Miscellaneous

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Box Covers

Covers 4" round or octagonal

boxes. Non-metallic. Will not

rust.

CATALOG UPC/DCI/NAED BOX UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG ABC

CP40 15040 4" 1 40 3.500 4.750 .150

C

A

B

Features and Benefits

• Paintable to blend with any wall or ceiling

• Comes complete with white painted screws to blend

with cover

• Reusable and flexible

• Will not rust or discolor

E170558 LR49636

Ceiling Box

Extender

For set back ceiling boxes.

Fits 3-1/2" and 4" round or

octagonal boxes.

CATALOG UPC/DCI/NAED UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG AB C

BE1R 40161 25 25 4.850 4.350 1.500

PATENTED.

A

B

C

Ceiling box is set

back from surface.

Non-conductive BE1R

Box Extender installs

easily and extends box

flush with ceiling

surface.

Problem... SOLUTION...

Proceed with fixture

installation. Flexible,

plastic BE1R protects

against wire damage.

Fixture is installed and

a level, code compliant

installation is

complete!

Installation Instructions

1

23

FIXTURE BAR FIRMLY

SUPPORTED for EASIER

CANOPY INSTALLATION!

Features and Benefits

• Complies with 2008 NEC Article 314.20

• Extends box up to 1-1/2" to bring it level with ceiling surface

• Trims to accommodate shallow boxes or to avoid obstructions

• Manufactured from 105°C continuous use 94V0 rated flame

retardant plastic for safer installations

HEAVY-DUTY

PLASTIC, UL LISTED!





M-7

Miscellaneous

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

B

A

Installation Instructions

Back the screws out enough

to slip the bracket on.

For box

attachment

without

removing

screws

For box

attachment

using

screws

provided

Use the opening in the bracket most

suitable for your ceiling condition...

‘A’ for flat ceilings, push post into

opening to seat cover;

‘B’ for uneven or textured ceilings, screw

threaded post into opening until tight.

Ceiling Box Cover

Covers unused 3-1/2" and 4"

round and octagonal boxes

prior to the installation of a fan

or fixture. Non-rusting,

paintable plastic.

CATALOG UPC/DCI/NAED BOX UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG ABC

CP3540 54090 3-1/2 & 4" 1/Bag 50 Bags .437 5.390 .812

Two #8-32 x 3/4" flat head screws and bracket are included.

PATENTED.

A

BC

5.020

BRACKET

Mounting screws are

invisible on the ceiling

Screw threaded

post into

Opening ‘B’

for uneven or

textured ceilings

Push into

Opening ‘A’ for

flat ceilings

For Flat and Uneven Ceilings...

COVERS

PAN BOXES!

Improved Features

• Deeper cover works with pan boxes without the need to cut

the post

• Use #8 screws provided or back out existing screws to accept

notched bracket

• Bracket has two separate cover mounting options. Threaded post

pushes in, for flat ceilings, or screws on for textured/uneven ceilings.

Benefits

• Attractive cover. Screws don’t show on the ceiling

• Plastic eliminates the scratches you get with painted metal covers

• Covers poorly cut drywall

1 2

B

A

E170558 LR49636

Threaded

Post





M-8 Miscellaneous

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Non-Metallic

Bushings for Metal

Studs

CATALOG UPC/DCI/NAED TRADE STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG ABC

SB1 18001 1/2 1000 .940 .470 .700

SB10 18010 1/2 100 .940 .470 .700

SB3 18050 1 1000 1.750 .400 1.150

SB30 18053 1 100 1.750 .400 1.150

Note: See page M-9 for larger sizes.

E161207 LR49636

B

A

C

SB3

Non-Metallic

Bushings for Metal

Studs

CATALOG UPC/DCI/NAED STUD STD DIM DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG ABCD

SB13 40115 2 x 4 500 5.670 2.500 .505 1.300

SB130 40130 2 x 4 100 5.670 2.500 .505 1.300

These bushings fit existing irregular shaped holes in metal studs, alleviating the need to punch

holes in metal studs, weakening the structural member. Use these bushings to comply with

paragraph 300-4(b)(1) of the 2008 NEC code which states that: “In both exposed and concealed

locations where nonmetallic-sheathed cables pass through either factory or field punched, cut, or

drilled slots or holes in metal members, the cable shall be protected by bushings or grommets

covering all metal edges and securely fastened in the opening prior to installation of the cable.”

Common hole configurations in metal studs.

PATENTED.

CODE VIOLATION

SHARP EDGE

NM CABLE

Installation Instructions

To install these bushings in an irregular shaped hole,

pass one end of the joined connector through the hole

in the stud. Snap the bushing and the washer ends

together. There’s no need to separate the two halves.

If a punched hole is required, the SB13 can be

installed in a standard 1" trade size, round punched

hole (1-3/8" diameter). Snap the bushing end into the

hole.

12

3

A

B

C

WASHER BUSHING

D

FITS A

STANDARD 1"

KNOCKOUT

E161207 LR49636









M-9

Miscellaneous

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Snap-In Blanks

Plated steel. For knockouts. CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG AB

900 00900 1/2 100 1000 1.070 .310

901 00901 3/4 50 50 1.235 .310

902 00902 1 50 50 1.480 .310

903 00903 1-1/4 25 25 1.800 .310

904 00904 1-1/2 25 25 2.215 .360

905 00905 2 20 20 2.675 .360

AB

Snap-In Blanks

All plastic. For knockouts.

Grey color.

CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG AB

NM900* 54000 1/2 100 1000 1.015 .468

NM901† 54001 3/4 50 50 1.250 .468

NM902† 54002 1 50 50 1.500 .468

NM903† 54003 1-1/4 25 25 1.906 .468

NM904† 54004 1-1/2 25 25 2.156 .468

NM905† 54005 2 20 20 2.750 .750

*UL and CSA listed.

†UL recognized.

These items cost less than steel snap-in blanks,

and provide a safer installation. A metal blank in

a plastic box or enclosure is not grounded and

could become a shock hazard. B

A

E105706 LR49636 E15331

Snap-In Bushings

For knockouts. All-plastic,

snap-in type.

CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG ABC

4400 04400 1/2 100 1000 1.140 .679 .505

4401 04401 3/4 100 1000 1.420 .900 .505

4402 04402 1 50 500 1.770 1.157 .505

4403 04403 1-1/4 25 250 2.281 1.509 .505

4404 04404 1-1/2 25 250 2.598 1.748 .505

4405 04405 2 20 200 2.919 2.223 .563

4406 04409 2-1/2 20 200 3.421 2.725 .563

A

C

B

E178435 LR49636









M-10 Miscellaneous

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Beam Clamps

Malleable iron. Plated. CATALOG UPC/DCI/NAED STATIC LOAD TRADE UNIT STD DIM THREADED

NUMBER MFG #01 8997 RATING SIZE PKG PKG A ROD SIZE

MBC25 34810 125 LBS. 1 25 100 .772 1/4-20

MBC25A 42321 125 LBS. 1 25 100 .772 10-24

MBC26 42326 300 LBS. 1-1/2 50 50 .878 5/16-18

MBC27 42327 300 LBS. 2 50 50 .878 3/8-16

MBC28 42328 600 LBS. 2-1/2 25 25 1.108 1/2-13

A

Beam Clamps

Plated steel. CATALOG UPC/DCI/NAED STATIC LOAD TRADE UNIT STD DIM THREADED

NUMBER MFG #01 8997 RATING SIZE PKG PKG A ROD SIZE

BC25 23250 75 LBS. 1 25 100 .608 1/4-20

BC38 23380 200 LBS. 2 25 100 .930 3/8-16

A

Safety Plate

Flat 16 gauge steel. CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG ABC D

SP100 17100 1-1/2 x 2-3/4 100 600 2.750 1.500 .475 .155

B

C

A

D

CATALOG UPC/DCI/NAED UNIT STD

NUMBER MFG #01 8997 SIZE CTN CTN

JC12 13120 1/2 100 ft 100 ft

Jack Chain

Zinc-plated steel. 100 feet per

steel reel. Maximum load limit

25 lbs.

M-11

Miscellaneous

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Concrete Pipe

Sleeves

Provides an economical

method of sleeving through

concrete pour allowing cable

or conduit to easily run from

one floor to the next. Color -

black.

CATALOG UPC/DCI/NAED DESCRIPTION FITS STD DIM DIM DIM

NUMBER MFG #01 8997 PKG ABC

CPS15 72150 For 1-1/2" hole 1" pipe 10 8.500 1.625 3.125

CPS20 10960 For 2" hole 1-1/2" pipe 10 8.500 2.125 3.625

CPS30 72152 For 3" hole 2" pipe 10 8.500 3.125 4.625

CPS40 10962 For 4" hole 3" pipe 10 8.500 4.125 5.625

CPS50 72154 For 5" hole 4" pipe 10 8.500 5.125 6.625

CPS60 10964 For 6" hole 5" pipe 10 8.500 6.125 7.625

B

C

A

R15221

Duct Seal

Compound

Asbestos-free, non-drying, non-

toxic, permanently soft.

CATALOG UPC/DCI/NAED TRADE UNIT STD

NUMBER MFG #01 8997 SIZE PKG PKG

DSC1 43600 1 LB 1 50

DSC5 43605 5 LB 1 10

Features and Benefits

• Stackable for extra deep pours

• Venting prevents sleeves from

sticking together when wet

• Plastic

Features and Benefits

• Adheres to most clean, dry surfaces

• Will not adversely affect plastic materials or corrode metals

Adjustable

Throat Liners

To be installed in fittings after

conduit, fitting and wire are in

place. Allows installation to

meet local electrical code.

Non-metallic.

CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG AB

4001 04001 1/2 25 100 .670 .900

4002 04002 3/4 25 100 .710 1.220

4003 04003 1 25 100 .880 1.450

4004 04004 1-1/4 10 40 1.015 1.735

4005 04005 1-1/2 10 40 1.015 2.050

4006 04006 2 10 40 1.250 2.312

E26807

A

B

M-12 Miscellaneous

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Switch Box

Supports

Galvanized steel.

CATALOG UPC/DCI/NAED UNIT STD DIM DIM MATERIAL

NUMBER MFG #01 8997 PKG PKG AB DIM

SBS 18055 100 1000 5.135 2.135 .020

UL/CSA NOT APPLICABLE A

B

S-Hooks

Plated steel. Maximum load

limit 25 lbs.

CATALOG UPC/DCI/NAED UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG ABC

SH1 18100 1-1/4-.106 100 100 1.225 .605 .106

SH2 18200 1-1/2-.135 100 100 1.531 .975 .185

BC

A

CATALOG UPC/DCI/NAED TRADE UNIT STD DIM DIM DIM DIM

NUMBER MFG #01 8997 SIZE PKG PKG ABCD

260 00260 1/2 25 250 .855 .375 1.120 .100

260ST 06000 1/2 25 250 1.056 .478 1.105 .100

PATENTED.

SNAP-TITE®products have been tested and listed by UL in accordance

with UL’s ground fault requirements. For additional information see page 6.

A

B

C

D

E60812 LR49636

260 260ST

Box-to-Box Locknut

and SNAP-TITE®

Connectors

Zinc die-cast.





N-1 Fan/Specialty Boxes

ONE-BOX™

Non-Metallic

Outlet Boxes

For new or retrofit construction.

CATALOG UPC/DCI/NAED DESCRIPTION UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 / CU. IN. PKG PKG ABC

F101 43626 Single Gang Vert. / 22.5 50 50 2.280 3.720 3.510

F101H 43634 Single Gang Horiz. / 22.5 25 25 3.720 2.280 3.500

F102 43640 2-Gang Vert. / 42.0 25 25 4.110 3.740 3.510

F102D 43544 Voltage Divider 25 25 .233 3.560 3.400

F103 43641 3-Gang Vert. / 61.0 25 25 5.930 3.740 3.510

F104 43642 4-Gang Vert. / 80.0 10 10 7.740 3.740 3.510

PATENTED. OTHER

PATENTS PENDING.

Features and Benefits

• For a variety of wall thicknesses

– the ONE-BOX is removable,

adjustable, and remountable

even after the wall is in place

• Fast and easy to install

• Mounts directly to a wood or

steel stud for a super secure

installation

• Angled screws inside the

ONE-BOX affix it firmly to the

stud – it has no “wings”

so there’s no wobble

• For both power and low voltage

applications with the F102D

voltage divider installed

• Two hour fire rating

E170558

New!

F101

F101H

F102D

F102

F103

F104

F101 Installation Instructions - NEW CONSTRUCTION

F101 Installation Instructions - RETROFIT

Attach ONE-BOX to wood or steel stud

with captive installation screws. If the

box is too far forward or back, simply

back the screws out and reposition.

Pull wire through the

knockout connector.

(Ships with installed

NM cable connector.)

1 2

For old work, position ONE-BOX

adjacent to stud. Use box as the

template to cut hole.

Pull wire. Insert ONE-BOX. Mount ONE-BOX directly to

stud with shipped in place

screws.

1 2 3

MOUNTS DIRECTLY TO

WOOD OR STEEL STUD

B

C

A

F101

22.5

cu. in.

B

C

A

F104

80.0

cu. in.

B

C

A

F102D

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

N-2 Fan/Specialty Boxes

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 STYLE PKG PKG ABC

FBS1423 75202 2-3/8" Box Depth/23.0 Cu. In. 10 10 3.572 4.250 2.375

Mounts on Side of Joist

Refer to chart on page N-15 for load ratings and number of

single conductors.

PATENTS PENDING.

Steel ONE-BOX™

Designed for new construction

or retrofit, side-mounts to a

joist for a super secure, fan-

rated installation - with no

wobble.

Features and Benefits

• Fast, easy installation.

• Tabs for 1/2” positioning

• Installation screws ship captive

• Installed NM cable connector

• UL rated 70 lb. fan/fixture; CSA

rated 50 lb.fan/fixture

E48106 LR49636

B

AC





Adjustable Steel

Outlet Box

Adjustable for wall thicknesses

up to 1-1/2”. It’s perfect for use

when the final wall thickness is

unknown. Mounts directly to

a wood or steel stud.

A

D

B

C

CATALOG UPC/DCI/NAED DESCRIPTION UNIT STD DIM DIM DIM DIM

NUMBER MFG #01 8997 / CU. IN. PKG PKG ABCD

FAS423 04255 Single Gang / 21.5 10 10 3.760 1.970 4.109 3.530

FAS423C 04257 Single Gang / 21.5 10 10 3.760 1.970 4.109 3.530

/ includes 4010AST

Connector (not installed)

PATENT PENDING.

Features and Benefits

• Fast and easy to install

• Mounts directly to a wood or steel stud for a super secure installation

• For a variety of wall thicknesses

• Adjustable (up to 1") even after drywall is installed

• Adjusts to comply with the 2008 NEC Article 314.0

• Angled box allows for easy one-handed cable insertion

• Formed tabs are preset for 1/2” wall thickness

21.5 cu. in.

E48106 LR49636





FAS423 FAS423C

New!

New!

NEW CONSTRUCTION RETROFIT

N-3

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Fan/Specialty Boxes

Non-Metallic

Outlet Box for

New Construction

Adjustable for wall thicknesses

from 1/4” to 1-1/2”. It’s perfect

for use when the final wall

thickness is unknown. Mounts

directly to a wood or steel stud.

CATALOG UPC/DCI/NAED DESCRIPTION UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 / CU. IN. PKG PKG ABC

FA101 04241 Single Gang / 21.0 25 25 3.720 2.299 3.875

FA102 04242 2-Gang / 43.5 10 10 3.720 4.111 3.875

FA102D 04245 Voltage Divider 25 25 3.531 3.775 .109

FA103 04243 3-Gang / 65.0 10 10 3.720 5.923 3.875

FA104 04244 4-Gang / 87.0 10 10 3.720 7.735 3.875

PATENTED. OTHER

PATENTS PENDING.

Features and Benefits

• Fast and easy to install

• No more set back boxes - IN/OUT

BOX depth adjusts before OR

after the wall finish is done

• Depth adjustment screw is

accessible even after the wall

finish is in place

• Secure installation - Mounts to

wood or steel studs in new

construction

• Complies with 2008 NEC, 314.20

for set back boxes

•FA102D low voltage separator for

use with multiple gang versions

E170558

New!

FA101

FA102D

FA102

FA103

FA104

FA101 Installation Instructions - NEW CONSTRUCTION

Attach IN/OUT BOX to wood or

steel stud with captive

installation screws. Feed the

wires through the knockout.

1 2

MOUNTS DIRECTLY TO

WOOD OR STEEL STUD

B

A

FA101

C

If the box is too far forward or

back, simply adjust the depth

by turning the screw.

C

A

B

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

N-4 Fan/Specialty Boxes

Installation Instructions

1

Determine size of stud. Bracket is

preset for a 2x6 stud with 1/2" wall

finish thickness. Attach box to wood

or metal stud with the captive screws

inside the box. F101S shown.

2

Installation on a 2x6 metal stud is

shown. Install cable. There’s no in and

out movement of the box because the

bracket’s far side standoff braces

against the drywall.

If using on a 2x4 stud bend the

bracket away from the box to

accommodate the smaller stud.

F101SC on a 2x4 metal stud shown.

F101S

F101SC

Secure

Installation!

No in-and-out

wobbling once

the box is

installed.

Steel ONE-BOX™

Outlet Boxes

Steel plated outlet boxes for

residential or light commercial,

new construction. Mounts

directly to a metal or wood

stud for a secure installation.

CATALOG UPC/DCI/NAED DESCRIPTION UNIT STD DIM DIM DIM DIM

NUMBER MFG #01 8997 / CU. IN. PKG PKG AB CD

F101S 12519 Single Gang / 24.0 10 10 6.000 3.500 2.380 2.337

F101SC 43635 Single Gang / 24.0 10 10 4.800 3.500 3.740 2.380

/ includes 4010AST

Connector (not installed)

PATENT PENDING.

B

New!

C

A

Features and Benefits

• Mounts directly to a wood or

metal stud for a super secure

installation

• Ships preset for 2x6 studs with

1/2" wall finish thickness

• Adjustable for 2x4s – just bend

bracket along scoreline

• Bracket also adjusts to fit wall

finish thicknesses other than 1/2"

• Captive, angled screws provided

inside the ONE-BOX affix it firmly

to the stud

• The far side bracket standoff

braces against the drywall to

prevent box movement

• Extra large 24.0 cubic inch box

capacity

• Formed tabs are preset for 1/2"

wall thickness

• Angled box allows for easy,

one-handed cable insertion

•F101SC includes the 4010AST

SNAP2IT®connector (not

installed)

E170558 LR49636

Loosen screw to adjust bracket

for wall finish thickness,

if NOT 1/2".

D

F101S

B

C

A

D

F101SC





N-5

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Fan/Specialty Boxes

Small Diameter

Sconce Boxes

for Retrofit

Construction

Non-metallic, 3-1/4" diameter

sconce/fixture boxes with large

interior volume. 6.8 cu. in.

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 ATTACHMENT PKG PKG ABC

FSC3212R 43633 Retrofit / Screws, Bracket 25 25 4.280 3.250 1.240

PATENTS PENDING.

Features and Benefits

• Ready to use, easy to install

• No loose parts – totally

self-contained

• Ships with installed NM cable

connector and captive fixture

bracket installation screws

• Small diameter allows most

sconce light canopies to cover

the box, hiding it completely

• For retrofit construction: sconce

lights up to 3 lbs.

E170558

6.8

cu. in.

B

C

A

FSC3212R

FSC3212R

Cut hole in drywall. Insert box and bracket. Box is secured

by tightening screws that pull bracket against drywall.

FITS DOUBLE DRYWALL OR UP TO 1.90".

FSC3212R - RETROFIT

Installation Instructions

USE THIS BOX TO

CENTER A SCONCE LIGHT

OVER A MIRROR!

ONE-BOX™

Non-Metallic

Outlet Box with

Flange

Versatile, non-conductive

outlet box for new

construction. Mounts directly

to a wood or steel stud.

CATALOG UPC/DCI/NAED DESCRIPTION UNIT STD DIM DIM DIM DIM

NUMBER MFG #01 8997 / CU. IN. PKG PKG ABCD

F101F 12520 Single Gang / 21.0 25 25 5.990 4.500 3.510 .240

PATENT PENDING.

B

C

D

A

21.0 cu. in.

Features and Benefits

• Fast and easy to install

• Mounts directly to a wood or steel stud for a super secure

installation

• Angled screws provided inside the ONE-BOX affix it firmly

to the stud

• Flange forms a protective barrier against air infiltration

• Comes with (1) roll of caulk

• Two hour fire rating

E170558

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

N-6 Fan/Specialty Boxes

Sconce Box for

New Construction

22.2 Cu. In. Volume

Non-metallic, 3-1/4" diameter

sconce/fixture box with our

largest interior volume. Nail-on

style.

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 ATTACHMENT PKG PKG ABC

FSC3232 12524 New Const. / Nail-On 25 25 3.730 3.250 3.250

PATENT PENDING.

Features and Benefits

• Ready to use, easy to install

• 22.2 cubic inch SUPER-SIZE capacity

• No loose parts – totally self-contained

• Ships with installed NM cable connector and captive fixture

bracket installation screws

• Small diameter allows most sconce light canopies to cover

the box, hiding it completely

• For sconce lights up to 5 lbs.

• Two hour fire rating

E170558

17.6 cu. in.

22.2 cu. in.

B

C

D

A

B

C

A

INCREASED VOLUME

CAPACITY!

Features and Benefits

• Ready to use, easy to install

• 17.6 cu. inch SUPER-SIZE capacity

• No loose parts – self-contained

• Ships with installed NM cable

connector and captive fixture

bracket installation screws

• Saves time – installs with a 3-1/4"

standard hole saw

• Saw teeth cut a path through the

drywall for the device screws and

hold the device firmly in place

• Rated for light duty 3 lb. fixtures

• Two hour fire rating

HOLE SAW BOX™

for Device

Retrofit Construction

17.6 Cu. In. Volume

Non-metallic, 3-1/4" diameter

sconce/device box for existing

construction. Fits duplex

receptacles and most GFCIs.

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM DIM DIM

NUMBER MFG #01 8997 ATTACHMENT PKG PKG ABCD

FSC3227R 12525 Retrofit / Screws, Bracket 25 25 4.100 3.220 2.780 1.540

PATENT PENDING.

Installation Instructions

Cut hole with a 3-1/4" standard

hole saw and pull wire. Push box

through drywall. Built-in “teeth”

create a path for device screws.

Pull NM cable through

installed connector. Tighten

bracket screws inside box to

seat bracket securely against

drywall.

Install device (GFCI shown)

and provided maxi-size cover

plate.

1 2 3

SAVES TIME!

Quick, super-easy

installation with

a hole saw.

E170558

N-7

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Fan/Specialty Boxes

CAM-LIGHT™ B0X

for Suspended

Ceilings

Offers a great way to install

fixtures and smoke detectors

(and more) on a suspended

ceiling, drywall ceiling or wall.

A

B

C

New!

Installation Instructions -

FL430 for Fixtures

1 2 3 4

Cut hole in a ceiling grid

with 4" hole saw. 4-1/2” for

steel.

Install CAM-LIGHT™ box.

Rotate to desired position.

Tighten mounting wing

screws.

Add drop wire to loop.

Attach to framing member

above.

To Complete: Using the

appropriate KO (1/2" or 3/4")

install NM94 cable connector

(supplied) and pull cable.

Install fixture per

manufacturer’s instructions.

For a video installation demonstration

visit our website @ aifittings.com

E253895 LR49636

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 CUBIC INCH PKG PKG ABC

FL430* 09740 Non-Metallic / 27.0 1 10 7.380 3.085 1.331

FL430S 09741 Steel / 24.0 1 10 7.345 2.375 1.688

*Add suffix “GC” to Catalog # when ordering in Canada, for example FL430GC.

Box includes 12’ of drop wire, and box. Non-metallic box also includes (2) NM94 cable

connectors.

PATENT PENDING.

FL430

Features and Benefits

• Designed to install fixtures and

more to a suspended ceiling

panel – fast with a 4" hole saw

• Rated up to 50 lbs on a

suspended ceiling (or drywall

ceiling) in combination with the

drop wire for support

• Rated up to 10 lbs on a drywall

ceiling without drop wire (not for

fixtures)

• Rated up to 7 lbs on walls

• Mounting wings hold box securely

against ceiling or wall when

screws are tightened

• Box may be turned to any angle

for proper inline positioning of

exit signs and direct lighting

• White, non-metallic, paintable

flange

• Steel version for use where

metal raceways are required

• Steel version installs with

4-1/2” hole saw

• Boxes have 1/2" and 3/4"

knockouts

• To install a security camera on

this box check out our CAM-KIT™

camera mounting kit (SC5) on

page L-15





FL430S

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

N-8 Fan/Specialty Boxes

E170558 LR49636

Features and Benefits

• Non-metallic and steel versions in

red are ideal for installations of fire

alarms or signaling devices

• 1/2" and 3/4" knockouts

• Spring clip holds box securely

against wall when screws are

tightened

• Weight rating: 6 lbs. for walls;

10 lbs. for ceilings

• Non-metallic boxes include

(2) NM94 cable connectors

Typical Installation of Low Voltage

Fire Alarm Box using Red 4x4 Box

Non-Metallic

and Plated Steel

4x4 Boxes

For retrofit construction. Screw

hole patterns for 4x4 and

2-gang devices. Available in

non-metallic (black and red

plastic) and plated steel

versions.

New!

1 2

Determine position of

device. Cut hole. Pull

wire(s) through appropriate

knockout (connector).

Install box in opening.

FSR404RD shown.

Install fire alarm (or other

device) through the screw

holes in the box.

Typical Installation of Device using

Steel or Black Plastic 4x4 Box

1

Determine position of

device. Cut hole. Pull

wire(s) through appropriate

knockout (connector).

Install box in opening.

FSR404S shown.

Install devices through the

screw holes in the box.

FSR404BL

FSR404RD

FSR404S

FSR404SRD

FSR404BL, FSR404RD

27.5 cu.in. FSR404S, FSR404SRD

33.0 cu.in.

For wall

thicknesses up

to 1-1/4" –

field modify

bracket for

thicknesses

greater than

1-1/4".

2





Using two boxes...

Remove ears... Position...

Drill and tap...

Add

switch box support...

Eliminate all this!...

A

B

C

A

B

C

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT/STD DIM DIM DIM

NUMBER MFG #01 8997 BOX COLOR PKG ABC

FSR404BL 00596 Plastic 4x4 Box, Red 25 4.250 4.185 2.796

FSR404RD 00598 Plastic 4x4 Box, Black 25 4.250 4.185 2.796

FSR404S* 00597 Steel 4x4 Box, Plated 25 4.250 4.185 2.815

FSR404SRD* 00599 Steel 4x4 Box, Red 25 4.250 4.185 2.815

FSR404SD* 00600 Steel 4x4 Box, Divider 25 3.581 .141 2.750

*CSA listed.

PATENT PENDING.

FSR404SD

AB

C

N-9

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Fan/Specialty Boxes

E170558

Features and Benefits

• Three openings for nails or screws

position box to accommodate

varying wall thicknesses or drywall

layers

• Each box provides (2) #6 screw

holes for device installation,

(2) #8 screw holes for fixture

installation, and (1) NM94 cable

connector

• Ceiling-rated for up to 50 lbs.

• Wall-rated for up to 10 lbs.

• Ships with two nails (FDN23) or

two screws (FDS23) in the center

holes, perfect for most standard

wall thickness installations

• FDM23, with securing tabs,

includes box only (no attachment

devices)

• Includes wall thickness indicator to

help you position box properly on

the stud or rafter

• Installs devices or fixtures

• Two hour fire rating

FDM23 Installation in Brick (Masonry) Wall

Non-Metallic

RAYS BOX™

For fixtures and devices on

fire-rated walls and ceilings.

New construction. Use on wood

or metal studs with single-layer

or double drywall.

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT/STD DIM DIM DIM

NUMBER MFG #01 8997 ATTACHMENT PKG ABC

FDM23 37840 New Const. / Mortar In 50 3.650 2.402 3.875

FDN23 37842 New Const. / Nail-On 50 3.650 2.402 3.875

FDS23 40190 New Const. / Screw-On 50 3.650 2.402 3.875

PATENT PENDING.

A

B

C

New!

1 2

Pull cable through installed NM cable

connector. (NM94 cable connector

included with each box.)

Mortar in box. Built-in tabs set in the

mortar hold the box securely in place.

3 4

RAYS BOX installed flush with

masonry surface, ready for

installation of device or fixture.

Outlet installed. Caulk as required

around the outdoor cover. Shown

with Arlington’s IN AND OUT™Cover.

See page J-25.

FDS23

FDS23 - Screw-On FDN23 - Nail-On

23.0 cu.in.

For single-layer

drywall and

fire-rated walls

and ceilings

with up to

two layers of

5/8" drywall

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

N-10 Fan/Specialty Boxes

E170558 LR49636

Features and Benefits

• Easiest and fastest installation of

a device in a retrofit project

• Single-gang FD1RP installs with a

3.5" hole saw and 2-gang FD2RP

installs with a 4.5" hole saw

• Textured paintable front surface

• Adjusts to fit 1/4" to 1-1/2" wall

thicknesses

• Mounting wings hold bracket

securely against wall when

screws are tightened

• Finishes with any standard,

mid-size, or maximum wall plate

• Secure, level device installation

• Includes an installed NM cable

connector

Installation Instructions

One-Piece,

Non-Metallic Boxes

Single and 2-gang boxes for

retrofit installations.

Provides fast installation with

a hole saw.

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT/STD DIM DIM DIM

NUMBER MFG #01 8997 INSTALL METHOD PKG ABC

FD1RP 75229 Single-Gang / 18.0 cu. in. 25 5.635 3.885 3.085

/ 3.5" diam. hole saw

FD2RP 75301 2-Gang / 31.0 cu. in. 10 5.704 5.454 2.938

/ 4.5" diam. hole saw

Add suffix “GC” to Catalog # when ordering in Canada, for example FD1RPGC.

PATENTS PENDING.

A

B

C

New!

1 2 3

Determine box location. Cut

opening with a hole saw; 3.5" for

single-gang FD1RP, 4.5" for the

2-gang FD2RP.

Pull cable(s) from behind the

wall. (Easy cable access is

another reason to use Arlington’s

FDRP boxes.)

Push cable through connector.

Insert box into the opening.

Shown with single-gang FD1RP.

4 5 6

Level the box. Tighten the

mounting “wing” screws to pull

the box snug against the drywall.

If desired, paint front surface to

match wall. Install device.

Finish with any standard or

mid-size wall plate. (Front surface

shown unpainted.)

For a video installation demonstration visit our website

@ aifittings.com

FD1RP

FD2RP

FD2RP

install

complete!





N-11

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Fan/Specialty Boxes

Features and Benefits

• Recessed combo box allows you

to mount LCD/plasma TVs and

other system components flush

against the wall

• Secure and attractive installation

• Trim plate is textured/paintable

and covers edges of cut wall

surface

• Mounting wings hold bracket

securely against wall when

screws are tightened

• For walls up to 1-1/2" thick

• Usable with Arlington’s SCOOP™

series entrance hoods and plates

(see pages L-9 to L-11)

Multiple Gang

Recessed TV BOX™

for Power and

Low Voltage

For new or existing

construction. Non-metallic,

recessed combo boxes for

power and low voltage

for class 2 wiring of satellite or

cable TV, speakers, etc.

CATALOG UPC/DCI/NAED DESCRIPTION UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 PKG PKG AB C

TVBU505* 09680 2-Gang, White, (1) Power / (1) LV 146.942 6.254 3.750

TVBU505BL* 09681 2-Gang, Black, (1) Power/ (1) LV 146.942 6.254 3.750

TVBR505K* 09682 Kit, 2-Gang, White, (1) Power/ (1) LV 146.942 6.254 3.750

TVBU507 09661 3-Gang, White, (1) Power/ (2) LV 147.930 6.818 3.875

TVBU507BL 09662 3-Gang, Black, (1) Power/ (2) LV 147.930 6.818 3.875

Add suffix “GC” to Catalog # when ordering in Canada, for example TVBU505GC.

*Optional box covers available on page N-12.

PATENTED. ADDITIONAL PATENTS PENDING.

E170558 LR49636

New!

TVBU507

18.0 cu. in.

TVBU507BL

Installation Instructions -

New Work (TVBU507 shown)

1 2

Attach box to stud. Use

tabs for proper positioning

of box depth. See Photo A.

Positioning tabs Attach paintable trim plate

with screws provided.

See Photo B.

OPTIONAL

for new work

Tighten mounting wing

screws for added box

stability.

See Photo B below.

Retrofit Work (TVBU507 shown)

For a video installation demonstration

visit our website @ aifittings.com

A

BC

TVBR505K Kit includes:

Recessed combo box;

(1) tamper-resistant duplex receptacle;

(2) SCOOPs™: (1) CEDH1 & (1) CED13;

and (1) wall plate.

2

Using box as a template

(without trim plate), mark

location. Cut drywall.

Attach trim plate to box.

See Photo B. Install box

assembly in opening.

Tighten mounting wing

screws to pull the box

securely against the wall

board. See Photo B.

Finished

installation.

TVBU507 -

Power in

one side;

low voltage

in two

openings.

Trim plate screws Mounting wing screws

Includes...

Recessed combo box; (1) trim plate; (1) decorator style cover plate; and installation screws.

R

A

B

TVBU507

1

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

N-12 Fan/Specialty Boxes

DVFR1W

DVFR2W

Features and Benefits

• Recessed box allows items,

such as furniture, to be placed

closer to the wall

• Plugs don’t extend past the

wall like a regular box

• Trim plate is textured/paintable

• For power or low voltage

applications

• Mounting wings hold bracket

securely against wall when

screws are tightened

A

B

Recessed

Indoor IN BOX™

for New & Retrofit

Construction

Non-metallic, recessed

electrical box with trim plate.

Accepts most single gang

wiring devices and uses

standard indoor wall plates or

a GFCI cover plate.

CATALOG UPC/DCI/NAED DESCRIPTION UNIT STD DIM DIM DIM DIM DIM DIM

NUMBER MFG #01 8997 / CU.IN. PKG PKG ABCDEF

DVFR1W† 14330 Single Gang / 21.0 144.200 6.698 .750 3.301 5.926 3.875

DVFR1BL† 14329 Single-Gang, Black / 21.0 144.200 6.698 .750 3.301 5.926 3.875

DVFR2W*† 14331 2-Gang, White / 34.0 146.012 6.698 .750 5.112 5.926 3.875

DVFR2BL*† 14335 2-Gang, Black / 34.0 146.012 6.698 .750 5.112 5.926 3.875

DVFRC 14337 Paintable, White Cover 10 10 6.012 6.698 1.017 ---

DVFRBLC 14336 Black Cover 10 10 6.012 6.698 1.017 ---

*Includes Voltage Separator for power and/or low voltage.

†Add suffix “GC” to Catalog # when ordering in Canada, for example DVFR1WGC.

PATENTED. ADDITIONAL PATENTS PENDING.

E170558 LR49636

New!

Single Gang Indoor IN BOX includes...

Recessed box, trim plate, (1) standard duplex

and (1) standard GFCI face plate, (1) NM94

cable connector, (2) mounting screws, and

(2) installation screws.

DVFR1W

21.0 cu. in.

D

E

F

New Work…

Screws provided for

fast and easy

mounting to stud

Attractive! DVFR1W

shown.

Optional box cover.

DVFRC shown.

A

B

C

DVFRC is for use with

Arlington’s boxes...

•DVFR1W •DVFR1BL

•DVFR2W •DVFR2BL

•LVU1W •LVU1BL

•LVU2W •LVU2BL

•TVBU505 •TVBU505BL

•TVBU505K

DVFRBLC

C





Box positioning tabs

are set for 1/2” or 5/8”

drywall.

N-13

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Fan/Specialty Boxes

Features and Benefits

• Recessed, indoor box allows flat

screen TVs, furniture, and

countertop items to be mounted

or placed flush against the wall

• Plugs and/or connectors don’t

extend past the wall

• Trim plate is textured/paintable

and covers edges of cut wall

surface

• Mounting wings hold bracket

securely against wall when

screws are tightened

• Tab guides provided for proper

positioning of box on stud for

1/2" or 5/8" drywall

Recessed

Indoor IN BOX™

for New & Retrofit

Construction

Non-metallic, recessed

electrical box with trim plate.

For power or low voltage.

CATALOG UPC/DCI/NAED DESCRIPTION UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 / CU.IN. PKG PKG ABC

DVFR3W 14340 3-Gang, White / 49.3 117.930 6.818 3.8

DVFR3BL 14341 3-Gang, Black / 49.3 117.930 6.818 3.875

DVFR4W 14342 4-Gang, White / 64.5 119.742 6.818 3.875

DVFR4BL 14343 4-Gang, Black / 64.5 119.742 6.818 3.875

Add suffix “GC” to Catalog # when ordering in Canada, for example DVFR3WGC.

Includes Voltage Separator for power and/or low voltage.

PATENTED. ADDITIONAL PATENTS PENDING.

E170558 LR49636

New!

Indoor IN BOX includes...Recessed box & trim plate; DVFR1: (1) standard duplex &

(1) standard GFCI face plate; DVFR2: (1) standard GFCI face plate & (1) low voltage separator;

DVFR1/DVFR2: (2) mounting screws, (2) trim plate installation screws, & (1) NM94 (1/2");

DVFR3/DVFR4: (2) mounting screws, (4) trim plate installation screws, (2) NM94 (1/2"),

(1) NM95 (3/4"), (1) decorator style wall plate, & (1) low voltage separator.

DVFR3W

DVFR4W

Installation Instructions -

New Work (DVFR4W shown)

12

Mount box to stud. Use

tabs for proper positioning

of box for 1/2" wall finish.

See Photo A.

Attach paintable trim plate

with screws provided.

OPTIONAL

for new work

Tighten mounting wing

screws for added box

stability.

See Photo B below.

Retrofit Work (DVFR3W shown)

12

Using box, without trim

plate as a template, mark

location. Cut hole. Attach

trim plate to box with

supplied screws. Pull

wire(s). Insert box into hole.

Tighten mounting wing

screws to pull the box

securely against the wall

board (up to 1-1/2").

See Photo B at right.

Insert voltage separator if

installing power and low

voltage Class 2 wiring.

For a video installation demonstration

visit our website @ aifittings.com

R

AC

B

Positioning tabs

A

Trim plate screws Mounting wing screws

B

Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

N-14 Fan/Specialty Boxes

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM

NUMBER MFG #01 8997 STYLE PKG PKG AB

FBS405 76185 For 1/2" or 5/8" Drywall 25 25 .570 4.250

6.0 Cu. In.

FBS407 76187 For 5/8" Drywall 25 25 .660 4.250

8.0 Cu. In.

FBS405T* 40500 For 1/2" or 5/8" Drywall 25 25 .570 4.250

6.0 Cu. In.

FBS407T* 40700 For 5/8" Drywall 25 25 .720 4.250

8.0 Cu. In.

*Fan/fixture mounting bracket attaches to box through threaded

openings using provided #10 screws.

Refer to chart on page N-28 for load ratings and number of single

conductors.

PATENTS PENDING.

Steel Pan

Fan & Fixture

Mounting Boxes

Ceiling fan/fixture pan boxes

mount directly to a joist for a

secure installation. Steel box.

Note: Install fan or fixture (not included) in accordance with manufacturer’s instructions

and all local applicable electrical codes, using the parked screws provided.

Features and Benefits

• No loose parts to misplace –

totally self-contained!

• Center screw is shipped-in-place

• Competitively priced

• Protective plastic tips on the

installation screws for added

safety

• Plated steel finish

• Combination hex/Phillips head

screws for easy installation with

power screwdrivers

• Fan/fixture installation screws

are “parked”...ready for easy

fan/fixture bracket installation!

• UL rated: 70 lb. fan, 200 lb.

fixture; CSA rated: 50 lb.

fan/fixture

Each fan/fixture box includes...

Installation screws, installed NM cable connector, mud cover,

additional KOs, and two screws for fan/fixture bracket

installation (screwed in place until removed by installer).

E48106 LR49636

B

A

FBS405 Installation Instructions

Install FBS405 on joist using

shipped-in-place screw near

center of box.

Drill (2) 1/8" diameter holes

into joist through the

elongated openings on each

side of box. Remove the (2)

long screws noted above to

mount the fan/fixture bracket.

Mount the fan/fixture bracket

into the drilled holes. And

you’re ready to install the fan

or fixture.

123

Remove

parked-in-

place

screws to

mount

bracket

FBS405

FBS405T

B

A





N-15

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Fan/Specialty Boxes

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM DIM DIM

NUMBER MFG #01 8997 STYLE PKG PKG ABCD

FBS415 75204 1-1/2" Box Depth/14.6 Cu. In. 25 25 4.250 3.572 1.500 –

Mounts Under Joist

FBS420 75200 2" Box Depth/20.0 Cu. In. 25 25 4.250 3.572 2.000 –

Mounts Under Joist

FBS415S 75206 1-1/2" Box Depth/14.6 Cu. In. 25 25 4.250 3.572 2.500 6.000

Mounts on Side of Joist

FBS420S 75202 2" Box Depth/20.0 Cu. In. 25 25 4.250 3.572 2.500 6.000

Mounts on Side of Joist

Refer to chart on page N-28 for load ratings and number of

single conductors.

PATENTS PENDING.

Steel, Octagonal

Fan & Fixture Joist

Mounting Boxes

Ceiling fan/fixture boxes mount

directly to a joist for a super-

secure installation. Two styles.

Ships ready-to-install.

Features and Benefits

• No loose parts to misplace –

totally self-contained!

• Combination hex/Phillips head

screws for easy installation with

power screwdrivers.

• FBS415/FBS420 are UL rated:

70 lb. fan, 200 lb. fixture;

CSA rated: 50 lb. fan/fixture

• FBS415S/FBS420S are UL rated:

70 lb. fan/fixture; CSA rated:

50 lb.fan/fixture

Each fan/fixture box includes...

Installed NM cable connector, mud cover, multiple KOs, four

installation screws parked-in-place (ready for installer), and

two screws for fan/fixture bracket installation (screwed in

place until removed by installer).

BD

E48106 LR49636

A

C

B

A

C

Note: Install fan or fixture (not included) in accordance with

manufacturer’s instructions and all local applicable electrical

codes, using the parked screws provided.

FBS415/FBS420

Mount UNDER Joist

FBS415S/FBS420S

Mount on SIDE of Joist

FBS415

FBS415

FBS415S

FBS415S





Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

N-16 Fan/Specialty Boxes

Installation Instructions

for 1/2" Ceilings

Steel Fan &

Fixture Mounting

Box with Adjustable

Mounting Bracket

for New

Construction

Heavy-duty, plated steel

fan/fixture box with fully

adjustable mounting bracket.

Adjusts from 16" to 24" o.c.

spacing.

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM

NUMBER MFG #01 8997 STYLE PKG PKG AB

FBRS415 72250 For up to 1-1/4" 10 10 4.000 2.658

ceiling thickness

15.6 Cu. In.

For fan/fixture BOX dimensions,

refer to FBS415 on page N-15.

Refer to chart on page N-28 for

load ratings and number of

single conductors.

PATENT PENDING.

A

For Joist or Rafters 16" to 24" on center

B

Mounts easily and securely between

joists...adjusts from 16" to 24" o.c.

Bend bracket

along the

scorelines for

3/4", 1", or

1-1/4"

ceiling

depths!

E48106 LR49636

Features and Benefits

• No loose parts to misplace

• Heavy-duty plated steel

construction eliminates fan

wobble

• Versatile 16" to 24" on-center

positioning

• Bracket preset for 1/2" ceiling

thicknesses

• Works on ceilings up to 1-1/4"

thick – fully adjustable! For

ceiling material greater than 5/8",

convenient indicator marks allow

you to bend the bracket at the

scoreline matching your ceiling

depth for a flush ceiling

installation.

• Locator tabs included for

installation ease

• Fan/fixture installation screws

are “parked”...ready for easy

fan/fixture bracket installation!

• UL rated: 70 lb. fan/fixture at

24" o.c. and 110 lb. fan/fixture at

16" o.c.; CSA rated: 50 lb.

fan/fixture

1. Nail “tooth” to joist to

temporarily hold bracket in

place.

2. Remove parked screws

provided on each side of

bracket and use them to

attach bracket to joists.

3. Use provided box screw to

adjust box position from

16" to 24" on-center

between joists.

4. Use provided parked

fan/fixture installation

screws to install fan/fixture

mounting bracket.

(Installation of drywall not shown.)

12

4

3

FBRS415 includes...

Box/bracket, screws to adjust box position, installed NM cable connector & mud cover,

multiple KOs, four installation screws parked-in-place (ready for installer), and two screws

for fan/fixture bracket installation (screwed in place until removed by installer).

Note: Install fan or fixture

(not included) in accordance with

manufacturer’s instructions and all

local applicable electrical codes,

using the parked screws provided.





For a video installation demonstration

visit our website @ aifittings.com

N-17

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Fan/Specialty Boxes

Steel Fan &

Fixture Box with

Adjustable

Mounting Bracket

for Existing

Construction

Heavy-duty, plated steel

fan/fixture box with fully

adjustable mounting bracket

for retrofit installations. Adjusts

from 16" to 24" o.c. spacing.

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 STYLE PKG PKG ABC

FBRS420R 75325 2" Box Depth 1 10 3.563 3.438 13.979

20.0 Cu. In.

For fan/fixture BOX dimensions, refer to

FBS420 on page N-15.

Refer to chart on page N-28 for load

ratings and number of single conductors.

PATENT PENDING.

A

For Joist or Rafters 16" to 24" on center

B

C

E48106 LR49636

FBRS420R includes...

Box/bracket, screws to adjust box position, installed NM cable connector, multiple KOs, and

two screws for fan/fixture bracket installation (screwed in place until removed by installer).

Features and Benefits

• No parts to lose – installation

and adjustment screws ship

parked in place

• Installs quickly and securely

between joists or rafters

16" to 24" o.c.

• Fan/fixture installation screws

are “parked”...ready for easy

fan/fixture bracket installation!

• UL rated: 35 lb. fan, 50 lb.

fixture; CSA rated: 50 lb.

fan/fixture

Note: Install fan or fixture

(not included) in accordance with

manufacturer’s instructions and all

local applicable electrical codes,

using the parked screws provided.

Installation Instructions

1 2 3

1. Cut a 4-1/16" diameter hole

in ceiling. Remove box from

sled and fit mounting

bracket into hole. Position

bracket between joists, with

bracket resting on the ceiling.

2. Tighten the hex bar with a

wrench to secure bracket

between joists. As the hex

bar is tightened, bracket

ends bite into the joists,

holding the unit secure.

3. Pull cable through installed

NM cable connector.

Reattach box, and center it

in hole. Attach fan/fixture

bracket with supplied

screws.





Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

N-18 Fan/Specialty Boxes

Note: Install fan or fixture

(not included) in accordance with

manufacturer’s instructions and all

local applicable electrical codes,

using the parked screws provided.

Steel Fan &

Fixture Box Kits

for Suspended

Ceilings

Plated steel fan/fixture box with

adjustable mounting bar.

For mounting a fan or fixture on

a suspended ceiling grid.

FS420SCL and FS427SCL for

fixtures only.

A

CB

E48106 LR49636

FBRS420SC includes...

Box/bracket assembly with turnbuckle, screws to adjust box position, installed NM cable

connector, multiple KOs, 12' heavy-duty chain, two “S” hooks, and two screws for

fan/fixture bracket installation (screwed in place until removed by installer).

Features and Benefits

• Installs quickly and securely –

saves 30 minutes of installation

time

• Ships fully assembled

• Comes preset for a 24" grid

• No parts to lose – installation

and adjustment screws ship

parked in place

• FBRS420SC features breakable,

mounting clips to lower box

position for ceiling tiles that

extend below the grid

• FBRS420SC has “parked”

fan/fixture installation screws –

ready for easy fan/fixture bracket

installation!

• FBRS420SC is UL rated: 35 lb.

fan, 50 lb. fixture; CSA rated:

50 lb. fan/fixture

• FS420SCL is UL and CSA rated:

50 lb. fixture

• FS427SCL is UL and CSA rated:

50 lb. fixture

FBRS420SC Installation Instructions

12

1. Cut a 4-1/16" diameter hole

in the center of a 24" ceiling

tile. Place box over hole.

Snap plastic ends of support

bar over the ceiling grid.

NOTE:

CHAIN MUST

BE CENTERED

OVER BOX.

2. Use the “S” hooks provided to

attach chain to turnbuckle, and

chain to the overhead support.

Use turnbuckle to apply tension

to the chain, so it supports the

weight of fan.

3

3. Pull cable through installed

NM cable connector and

remove captive screws for

fan/fixture bracket installation.

To

Mount Box

Off-Center:

Loosen screws

and slide box

into position.

FBRS420SC Installation Option

FS420SCL





CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 STYLE PKG PKG AB C

FBRS420SC*† 75300 For Suspended Ceilings 1 10 4.805 8.343 Varies

2" Box Depth / 20.0 Cu. In.

FS420SCL 12526 For Suspended Ceilings 1 10 3.041 3.982 25.000

2" Box Depth / 20.0 Cu. In.

FS427SCL 12537 For Suspended Ceilings 1 10 3.222 3.500 24.000

1-1/2" Box Depth / 30.0 Cu. In.

*Listed for use in environmental air handling spaces per 2008 NEC code requirements 300-22(c).

†For fan/fixture BOX dimensions, refer to FBS420 on page N-15.

Refer to chart on page N-28 for load ratings and number of single conductors.

PATENT PENDING.

FS427SCL

New!

Installation with FL430

is even faster and it

costs less than our

FS420SCL fixture box

with adjustable

bracket.

See L-13 or N-7.

N-19

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Fan/Specialty Boxes

Note: Install fan or fixture

(not included) in accordance with

manufacturer’s instructions and all

local applicable electrical codes,

using the parked screws provided.

Steel Fan &

Fixture Pan Box

with Adjustable

Mounting Bracket

for Wood I-Joists

in Existing

Construction

Heavy-duty, plated steel

fan/fixture box with fully

adjustable mounting bracket.

For retrofit installations on

wood I-beams or rafters set

16 to 24 inches on-center.

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 STYLE PKG PKG ABC

FBRS407R 72248 For 1/2" or 5/8" Drywall 1 10 3.620 2.098 13.25

8.0 Cu. In.

For fan/fixture BOX dimensions, refer to

FBS407T on page N-14.

Refer to chart on page N-28 for load

ratings and number of single conductors.

PATENT PENDING.

A

For Joist or Rafters 16" to 24" on center

B

C

E48106 LR49636

FBRS407R includes...

Box/bracket, screws to adjust box position, installed NM cable connector, multiple KOs, and

two screws for fan/fixture bracket installation (screwed in place until removed by installer).

Features and Benefits

• No parts to lose – installation

and adjustment screws ship

parked in place

• Installs quickly and securely on

wood I-beams

• Position the box anywhere along

the bracket to center the

fan/fixture in the room

• Fan/fixture installation screws

are “parked”...ready for easy

fan/fixture bracket installation!

• UL rated: 35 lb. fan, 50 lb. fixture;

CSA rated: 50 lb. fan/fixture

Installation Instructions

1 2 3

1. Cut a 4-3/8" diameter hole

in ceiling. Remove pan box

from sled and fit mounting

bracket into hole, positioning

between wood I-joists with

feet resting on ceiling.

2. Loosen sled screws and

slide over to access hex

bar. (Note: no need to

remove sled.)

3. Tighten hex bar with a

wrench to embed points

and secure between

I-joists.

4

4. Tighten sled to hex in center of hole.

Pull cable through NM cable con-

nector and remount box. Attach fan/

fixture bracket with supplied screws.

Cut away showing

FBRS407R installed

between wood I-beams





Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

N-20 Fan/Specialty Boxes

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 STYLE PKG PKG ABC

FB417S 72171 For up to 1-1/2" 25 25 4.563 3.500 4.279

ceiling thickness

(Including drywall on furring strips or hat channel)

20.0 Cu. In.

FB417SLP 72199 For 1/2" to 5/8" 25 25 6.625 2.906 4.570

ceiling thicknesses only

20.0 Cu. In.

Refer to chart on page N-28 for load ratings and number of single conductors.

PATENT PENDING.

Nail On Fan &

Fixture Boxes

with Steel

Mounting Bracket

Plastic box with steel mounting

bracket for fast and easy

nail on installation to a single

or double joist.

Note: Install fan or fixture

(not included) in accordance with

manufacturer’s instructions and all

local applicable electrical codes,

using the parked screws provided.

Features and Benefits

• No loose parts to misplace – totally self-contained!

• FB417S features convenient indicator marks for 1/2", 5/8", and 3/4" ceiling thicknesses

• Works well on single or double wood joists

• Fan/fixture installation screws are “parked”...ready for easy fan/fixture bracket installation!

• FB417SLP also works with wood and manufactured I-beams

• Two hour fire rating

• UL rated: 70 lb. fan/fixture; CSA rated: 50 lb. fan/fixture

Each fan/fixture box includes...

Plastic box with steel mounting bracket, installed NM cable connector, mud cover, second

KO, two parked-in-place bracket nails, and two fan/fixture bracket installation screws

(screwed in place until removed by installer).

B

E170558 LR49636

AC

Saves Time!

Nails to the Joist for a

Super Secure Installation!

All photos shown with FB417S

SINGLE JOIST

DOUBLE JOIST

Nails to

Nails to

A

B

C

FB417S

FB417S

FB417SLP -

Low Profile

FB417SLP





N-21

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Fan/Specialty Boxes

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 STYLE PKG PKG ABC

FB405 72185 For 1/2" or 5/8" Drywall 25 25 2.315 .570 4.250

6.0 Cu. In.

FB4050* 28101 For 1/2" or 5/8" Drywall 100 100 2.315 .570 4.250

6.0 Cu. In.

FB407 72177 For 5/8" Drywall 25 25 2.315 .660 4.250

8.0 Cu. In.

FB4070* 28102 For 5/8" Drywall 100 100 2.315 .660 4.250

8.0 Cu. In.

*Bulk packing for lower cost.

Refer to chart on page N-28 for load ratings and number of

single conductors.

PATENTED. ADDITIONAL PATENTS PENDING.

Fan & Fixture

Mounting Boxes

Ceiling fan/fixture pan boxes.

Note: Install fan or fixture

(not included) in accordance with

manufacturer’s instructions and all

local applicable electrical codes,

using the parked screws provided.

Features and Benefits

• No loose parts to misplace –

totally self-contained!

• Fan/fixture installation screws are

“parked”...ready for easy

fan/fixture bracket installation!

• Works well on double joists or

wood I-beams

• Combination hex/Phillips head

screws for easy installation with

power screwdrivers

• Two hour fire rating

• UL rated: 70 lb. fan, 200 lb. fixture;

CSA rated: 50 lb. fan/fixture

Each fan/fixture box includes...

A ready-to-tighten center screw, installed NM cable connector,

mud cover, second KO, and two screws for fan/fixture bracket

installation (screwed in place until removed by installer).

Each fan/fixture box includes...

A ready-to-tighten center screw, installed NM cable connector,

mud cover, second KO, and two screws for fan/fixture bracket

installation (screwed in place until removed by installer).

B

E170558 LR49636

A

C

FB412

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 STYLE PKG PKG ABC

FB412 72189 Pan Box 25 25 3.000 1.250 4.250

14.4 Cu. In.

FB423 72190 Press-On Box 25 25 3.000 1.250 4.250

19.5 Cu. In.

Refer to chart on page N-28 for load ratings and number of

single conductors.

PATENTED. ADDITIONAL PATENTS PENDING.

Fan & Fixture

Mounting Boxes

Boxes accommodate 1/2" or

5/8" drywall with 3/4" furring

strips or hat channel.

B

E170558 LR49636 A

C

B

A

Note: Install fan or fixture

(not included) in accor-

dance with manufacturer’s

instructions and all local

applicable electrical codes,

using the parked screws

provided.

FB412

FB423

FB412

FB423

Features and Benefits

• No loose parts to misplace – totally self-contained!

• For use with 1/2" or 5/8" drywall with 3/4" furring

strips or hat channel

• Also for double 5/8" drywall

• Attaches securely to joist through shipped-in-place

center screw

• Two hour fire rating

• UL rated: 70 lb. fan; 200 lb. fixture;

CSA rated: 50 lb. fan/fixture









Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

N-22 Fan/Specialty Boxes

Press-On

Fan & Fixture

Mounting Boxes

The fastest, easiest way to

mount fans and fixtures.

Ships ready-to-install!

Installation Instructions

Note: Install fan or fixture

(not included) in accordance with

manufacturer’s instructions and all

local applicable electrical codes,

using the parked screws provided.

FB415

Features and Benefits

• No loose parts to misplace –

totally self-contained!

• Gripping tangs press-hold to the

joist while you reach for your

screwdriver

• Comes with NM connector

installed and mud cover in

place

• Fan/fixture installation screws

are “parked”...ready for

easy fan/fixture bracket

installation!

• FB426F’s flanged design forms a

protective barrier against air

infiltration

• Two hour fire rating

• UL rated: 70 lb. fan, 200 lb.

fixture; CSA rated: 50 lb.

fan/fixture

Each fan/fixture box includes...

Press-on box with ready-to-tighten center screw, installed NM cable

connector, mud cover, second KO, and two screws for fan/fixture

bracket installation (screwed in place until removed by installer).

FB426F also includes (1) roll of caulk.

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 STYLE PKG PKG ABC

FB415 72167 For 1/2" or 5/8" Drywall 25 25 2.250 .500 4.250

10.3 Cu. In.

FB4150* 72182 For 1/2" or 5/8" Drywall 100 100 2.250 .500 4.250

10.3 Cu. In.

FB426 72179 For 1/2" or 5/8" Drywall 25 25 2.625 .500 4.250

16.0 Cu. In.

FB426F 12521 For 1/2" or 5/8" Drywall 25 25 2.625 .475 4.250

16.0 Cu. In.

*Bulk packing for lower cost.

Refer to chart on page N-28 for load ratings and number

of single conductors.

PATENTED. ADDITIONAL PATENTS PENDING.

E170558 LR49636

1. Press box onto

joist. Gripping

tangs hold the

box in place

temporarily.

2. Tighten center

screw to

secure to joist.

3. Push NM cable

through

connector.

4. Remove two

long, “parked”

screws for

installation of

bracket.

5. Use the screws

to install

fan/fixture

bracket

through the

oval slots in

the box,

directly into the

joist.

12

5

4

3

C

B

A

FB415

FB426F





N-23

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Fan/Specialty Boxes

Fan & Fixture

Mounting Box

Our deepest L-shaped

fan/fixture box mounts

securely to single or double

joists with a shipped-in-place

center screw.

Installation Instructions

Note: Install fan or fixture

(not included) in accordance with

manufacturer’s instructions and all

local applicable electrical codes,

using the parked screws provided.

C

B

A

Features and Benefits

• No loose parts to misplace –

totally self-contained!

• Arlington’s deepest fan box!

• Easy wire access

• Locator posts assure proper

positioning of fan/fixture bracket

• Fan/fixture installation screws

are “parked”...ready for

easy fan/fixture bracket

installation!

• Two hour fire rating

• UL rated: 70 lb. fan, 200 lb.

fixture; CSA rated: 50 lb.

fan/fixture

FB444 includes...

A ready-to-tighten center screw, installed NM cable connector,

mud cover, multiple KOs, and two screws for fan/fixture

bracket installation (screwed in place until removed by

installer).

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 STYLE PKG PKG ABC

FB444 72187 For 1/2" or 5/8" Drywall 25 25 5.330 4.000 4.716

25.6 Cu. In.

Refer to chart on page N-28 for load ratings and number

of single conductors.

PATENT PENDING.

E170558 LR49636

1 2 3

4

OPT

1. Position box

alongside joist.

Tighten center screw,

mounting box to joist.

Optional

If necessary, the

bottom of the box

can be opened to

access wires.

4. Pull wires through

knockout. (Installation

of drywall not

shown.)

2. Position mounting

bracket over locator

posts to assure

proper position.

3. Remove captive bracket

installation screws. Use

them to mount fan/fixture

bracket.

Locator posts for positioning of

bracket installation screws





Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

N-24 Fan/Specialty Boxes

Fan & Fixture

Mounting Boxes

Our lowest cost L-shaped

fan/fixture boxes mount

securely to single or double

joists with a shipped-in-place

center screw.

Installation Instructions

Note: Install fan or fixture (not included) in accordance

with manufacturer’s instructions and all local applicable

electrical codes, using the parked screws provided.

C

DB

A

Features and Benefits

• No loose parts to misplace –

totally self-contained!

• Locator posts assure proper

positioning of fan/fixture bracket

• Competitively priced

• Fan/fixture installation screws

are “parked”...ready for

easy fan/fixture bracket

installation!

• Two hour fire rating

• UL rated: 70 lb. fan, 200 lb.

fixture; CSA rated: 50 lb.

fan/fixture

Each fan/fixture box includes...

A ready-to-tighten center screw, installed NM cable connector,

mud cover, multiple KOs, and two screws for fan/fixture

bracket installation (screwed in place until removed by

installer).

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM DIM DIM

NUMBER MFG #01 8997 STYLE PKG PKG ABCD

FB442 72194 For 1/2" or 5/8" Drywall 25 25 4.236 3.773 4.250 3.273

13.4 Cu. In.

FB443 72197 For 1/2" or 5/8" Drywall 25 25 4.236 5.071 4.250 4.571

17.96 Cu. In.

Refer to chart on page N-28 for load ratings and number

of single conductors.

PATENT PENDING.

E170558 LR49636

1 2 3

1. Position box alongside

joist. Tighten center screw,

mounting box to joist.

2. Position mounting bracket

over locator posts to

assure proper position.

Pull wires through KO.

3. Remove captive bracket

installation screws. Use them

to mount fan/fixture bracket.

(Installation of drywall not

shown.)

Locator posts for positioning of

bracket installation screws





N-25

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Fan/Specialty Boxes

Fan & Fixture

Mounting Boxes

for New

Construction

Mounts fans and fixtures on

sloped or cathedral ceilings.

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM DIM DIM

NUMBER MFG #01 8997 STYLE PKG PKG ABCD

FB450 75240 Fits Sloped Ceilings 168.000 8.000 9.729 3.875

up to 45° - 14.5 Cu. In.

FB900 75250 Fits Cathedral Ceilings 168.000 8.000 6.364 3.875

80°, Plus - 14.5 Cu. In.

Refer to chart on page N-28 for load ratings and number of single conductors.

PATENTED.

ADDITIONAL PATENTS

PENDING.

FB450

Installation Instructions

Install the FB450 on the

2x8 using the

(2) #8 x 1-1/2" long

parked screws provided.

Trim a 2x8,

approximately 18" long.

Allow the panel to extend

9-11" past the FB450.

Install the FB900 in the

center of the cut 2x4

using the (2) #8 x 1-1/2"

long parked screws

provided.

Cut a 2x4 approximately

14" long to span the

pitched rafters.

Note: Install fan or fixture

(not included) in accordance with

manufacturer’s instructions and all

local applicable electrical codes,

using the parked screws provided.

Position the 2x4 with the

FB900 attached to the

angled rafters, keeping

bottom of box level, and

the short sides of the box

touching the angled

rafters. Nail or screw the

assembly, spanning both

angled rafters.

Score and trim the FB450

as necessary, keeping

bottom of box level.

(Short side needs to

touch rafter.) Trim wood

as necessary to butt it to

rafter. Nail or screw

assembly to rafter.

Push the cable through

the installed cable

connector in the electrical

box.

Push the cable through

the installed cable

connector in the electrical

box.

FB900FB450

A

B

D

C

C

B

D

A

Features and Benefits

• No loose parts to misplace –

totally self-contained!

• Large, 8" square mounting

surface handles newer fans with

larger canopies

• Installs quickly and securely

• FB900 has taller sides to fit

cathedral ceilings with angles

greater than 80°

• Paintable, textured finish

• Fan/fixture installation screws

are “parked”...ready for easy

fan/fixture bracket installation!

• UL rated: 70 lb. fan, 200 lb.

fixture; CSA rated: 50 lb.

fan/fixture

Each fan/fixture box includes...

Mounting block with built-in electrical box, installed

NM94 cable connector, two installation screws ready to

tighten, and two parked-in-place fan/fixture bracket

installation screws (ready for installer).

FB900

FB450

FB900

E170558 LR49636

FB450 FB900

THE SIMPLE WAY TO

A GREAT FINISH!





Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

N-26 Fan/Specialty Boxes

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM

NUMBER MFG #01 8997 STYLE PKG PKG AB

FBX900 75224 Adjustable. Fits Cathedral 112.300 13.200

Ceilings 80°, plus

14.5 Cu. In.

For fan/fixture BOX information, refer to

FB900 on page N-25.

Refer to chart on page N-28 for load ratings

and number of single conductors.

PATENTED. ADDITIONAL

PATENTS PENDING.

Fan & Fixture

Mounting Box

with Adjustable

Brackets for

New Construction

Mounts fans and fixtures on

cathedral ceilings between two

framing members for perfect

centering within room.

E170558 LR49636

Features and Benefits

• Expandable brackets hold box

securely between joists –

no need to cut and nail 2x4s to

center the fan or fixture

• Allows fans/fixtures to be

perfectly centered within room

• Large, 8" square mounting

surface handles newer fans with

larger canopies

• No loose parts to misplace –

totally self-contained!

• Installs quickly and securely

• Includes a template to level and

position brackets between rafters

• Taller sides fit cathedral ceilings

with angles greater than 80°

• Paintable, textured finish

• Fan/fixture installation screws

are “parked”...ready for easy

fan/fixture bracket installation!

• UL rated: 70 lb. fan/fixture;

CSA rated: 50 lb. fan/fixture

B

Adjustable from 1'-2" to 2'-0"

A

Note: Install fan or fixture

(not included) in accordance with

manufacturer’s instructions and all

local applicable electrical codes,

using the parked screws provided.

FBX900 includes...

Expandable brackets with mounting

screws, screws to adjust box position,

mounting block with built-in electrical

box, installed NM94 cable connector,

and two parked-in-place fan/fixture

bracket installation screws (ready for

installer).

Installation Instructions

For proper

fan/fixture

installation, use

supplied template

to level and

position brackets

between rafters.

Remove captive

screws on sides

of brackets and

use to attach

FBX900 assembly

to rafters.

Loosen the

screws noted

above. Slide box

to center it

between rafters.

Tighten screws.

Install wires.

Cut and position

drywall to fit

around the box.

(Note: captive

screws in box.)

Install fan or

fixture per

manufacturer’s

instructions using

captive

installation

screws.

1

32

Remove and use these

screws to attach

bracket ends to rafters

Loosen these

screws to

expand brackets

and position box

between rafters

“Tooth” holds brackets

temporarily in place on

rafter





N-27

Arlington Industries, Inc. www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

Fan/Specialty Boxes

Note: Install fan or fixture (not included) in accordance with manufacturer’s instructions

and all local applicable electrical codes, using the parked screws provided.

CATALOG UPC/DCI/NAED DESCRIPTION/ UNIT STD DIM DIM DIM

NUMBER MFG #01 8997 STYLE PKG PKG ABC

MB8 42330 Flat Mount 1 10 8.000 3.792 .740

6.1 Cu. In.

Refer to chart on page N-28 for load ratings and number

of single conductors.

PATENTED.

8'' Mounting

Block

With built-in box for fan and

fixture installations.

1. Locate the ceiling joist using a stud finder or similar device. Drill a hole

approximately 1/2" in diameter, in the ceiling next to the joist. Remove

desired knockout. Insert the cable connector into the opening. Pull the

NM cable through the connector.

2. Using the #8 x 1-1/2" wood screws provided, mount the MB8 to the

joist (through the ceiling).

3. Install the fixture or fan mounting bar (provided with the fixture or fan)

directly to the joist with the (2) #10 x 3" wood screws and lock washers

provided. Wire the fixture or fan following the instructions included with

the product.

Installation Instructions

Features and Benefits

• Ceiling medallion and electrical

box combined

• Supports flood lights, smoke

detectors, fans, light fixtures –

any fixture needing a safe,

strong installation.

• UV rated plastic

• For interior or exterior use

• Mounts directly to soffit or

ceiling joist without the need to

cut ceiling drywall

• Paintable

• UL rated: 70 lb. fan, 200 lb.

fixture; CSA rated: 50 lb.

fan/fixture

MB8 includes...

Two #10 x 3" wood screws, one #8 x 1-1/2" wood screw,

two KOs, and one NM94 non-metallic cable connector.

A

B

C

Joist

or

Stud

E170558 LR49636





Arlington Industries, Inc.

www.aifittings.com • E-mail: sales@aifittings.com

800/233-4717 • FAX 570/562-0646

N-28 Fan/Specialty Boxes

Fan/Fixture Box Rating and # of Single Conductors

UL CSA UL FIXTURE CSA FIXTURE

CATALOG CUBIC FAN LOAD FAN LOAD STATIC STATIC # OF SINGLE CONDUCTORS

NUMBER INCHES RATING RATING RATING RATING #14 #12 #10

(LBS.) (LBS.) (LBS.) (LBS.)

FB405 6.0 70 50 200 50 3——

FB4050 6.0 70 50 200 50 3——

FB407 8.0 70 50 200 50 433

FB4070 8.0 70 50 200 50 433

FB412 14.4 70 50 200 50 765

FB415 10.3 70 50 200 50 544

FB4150 10.3 70 50 200 50 544

FB417S 20.0 70 50 70 50 10 88

FB417SLP 20.0 70 50 70 50 10 88

FB423 19.5 70 50 200 50 987

FB426 16.0 70 50 200 50 876

FB426F 16.0 70 50 200 50 876

FB442 13.4 70 50 200 50 644

FB443 17.96 70 50 200 50 877

FB444 25.6 70 50 200 50 13 11 10

FB450 14.5 70 50 200 50 765

FB900 14.5 70 50 200 50 765

FBRS407R 8.0 35 50 50 50 433

FBRS415 15.6 70 @ 24" o.c. 50 90 @ 24" o.c. 50 766

110 @ 16" o.c. 150 @ 16" o.c.

FBRS420R

20.0 35 50 50 50 10 88

FBRS420SC

20.0 35 50 50 50 10 88

FBS405 6.0 70 50 200 50 3——

FBS405T 6.0 70 50 200 50 3——

FBS407 8.0 70 50 200 50 433

FBS407T 8.0 70 50 200 50 433

FBS415 14.6 70 50 200 50 766

FBS415S 14.6 70 50 70 50 766

FBS420 20.0 70 50 200 50 10 88

FBS420S 20.0 70 50 70 50 10 88

FBX900 14.5 70 50 70 50 765

MB8 6.1 70 50 200 50 3——

or or
