Music Distribution and Home Theater Systems
Music Distribution and Home Theater Systems

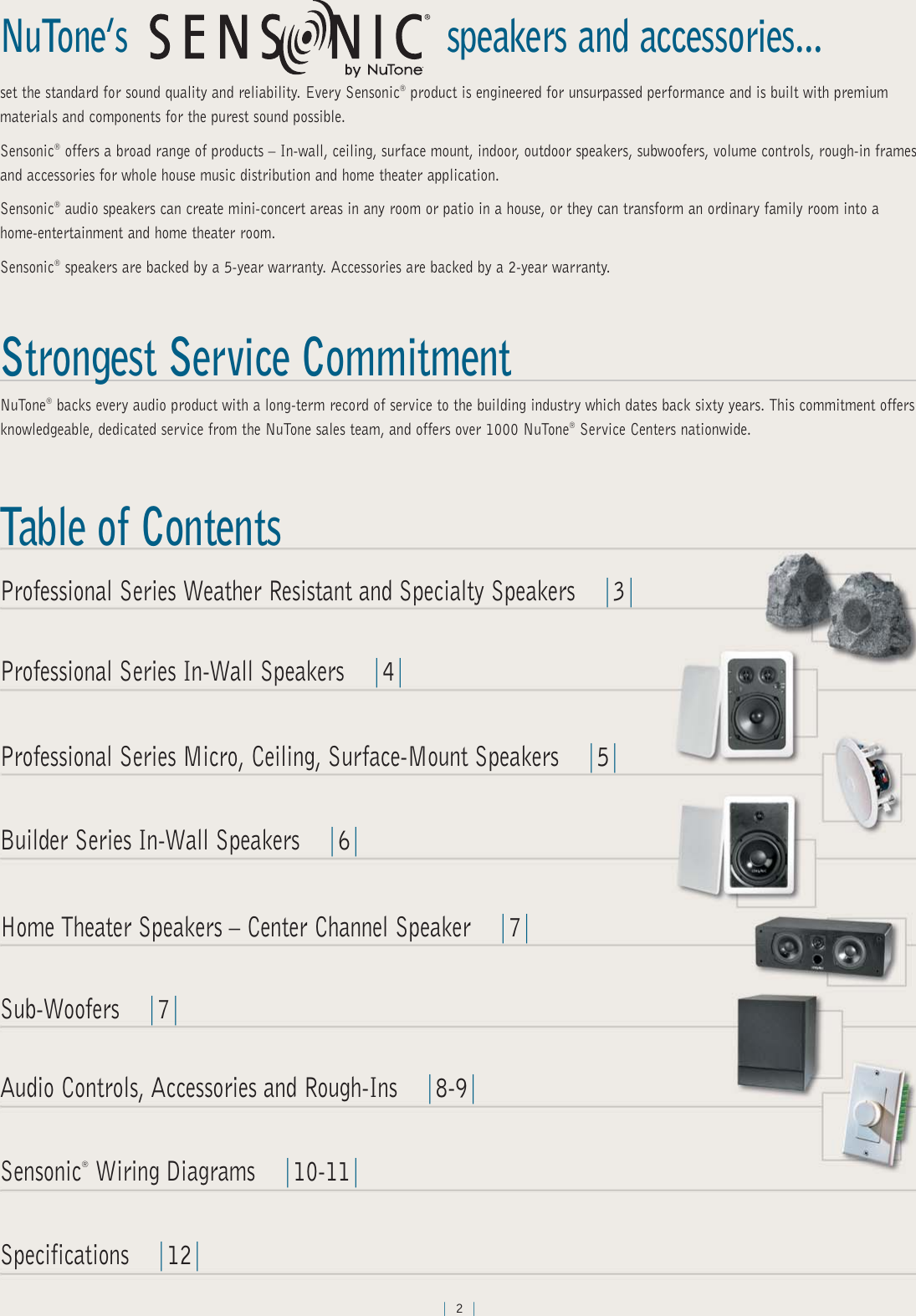

| 2 |
Professional Series Weather Resistant and Specialty Speakers |3|
Professional Series Micro, Ceiling, Surface-Mount Speakers |5|
Professional Series In-Wall Speakers |4|
Builder Series In-Wall Speakers |6|
Sub-Woofers |7|
Sensonic
®

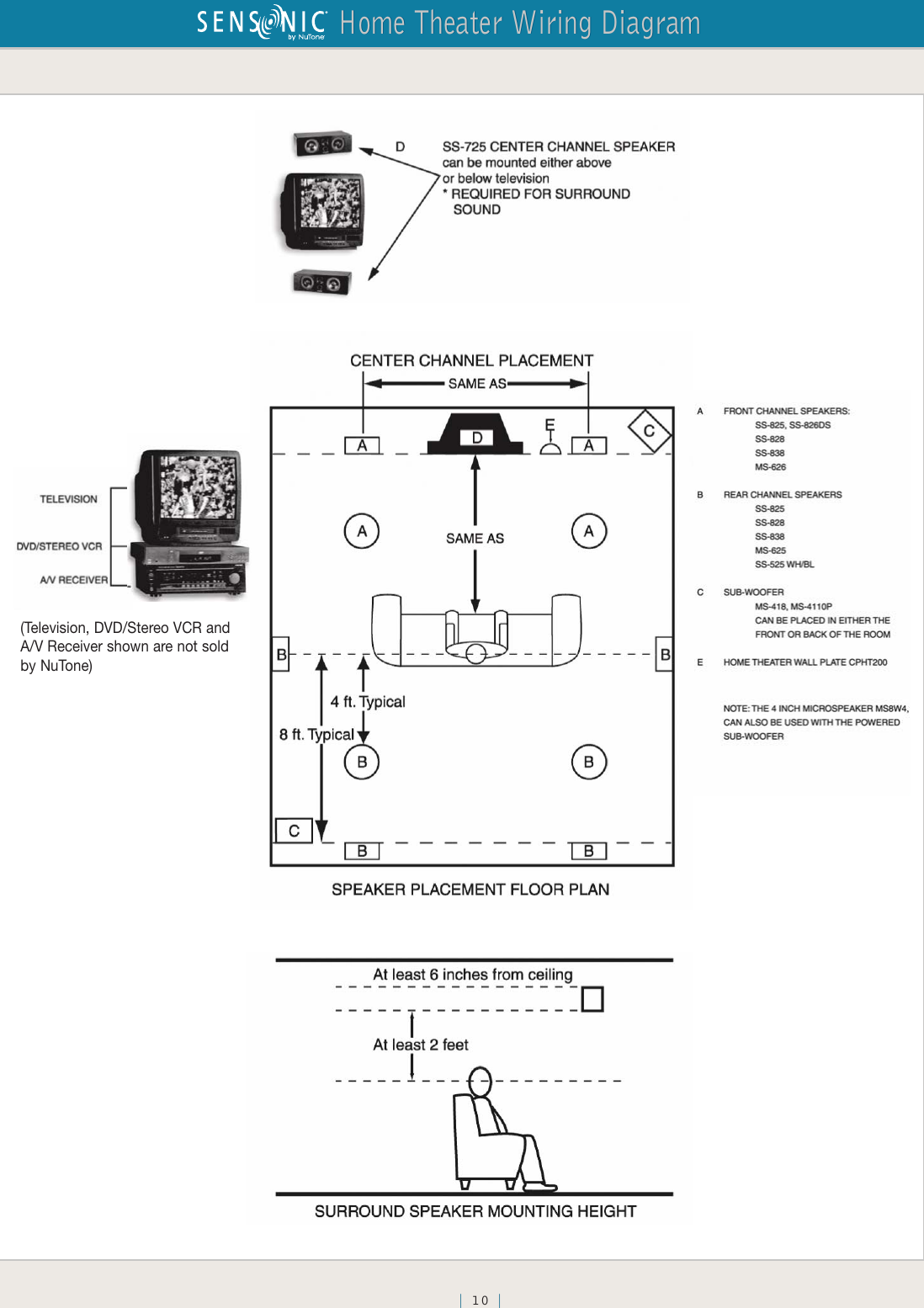

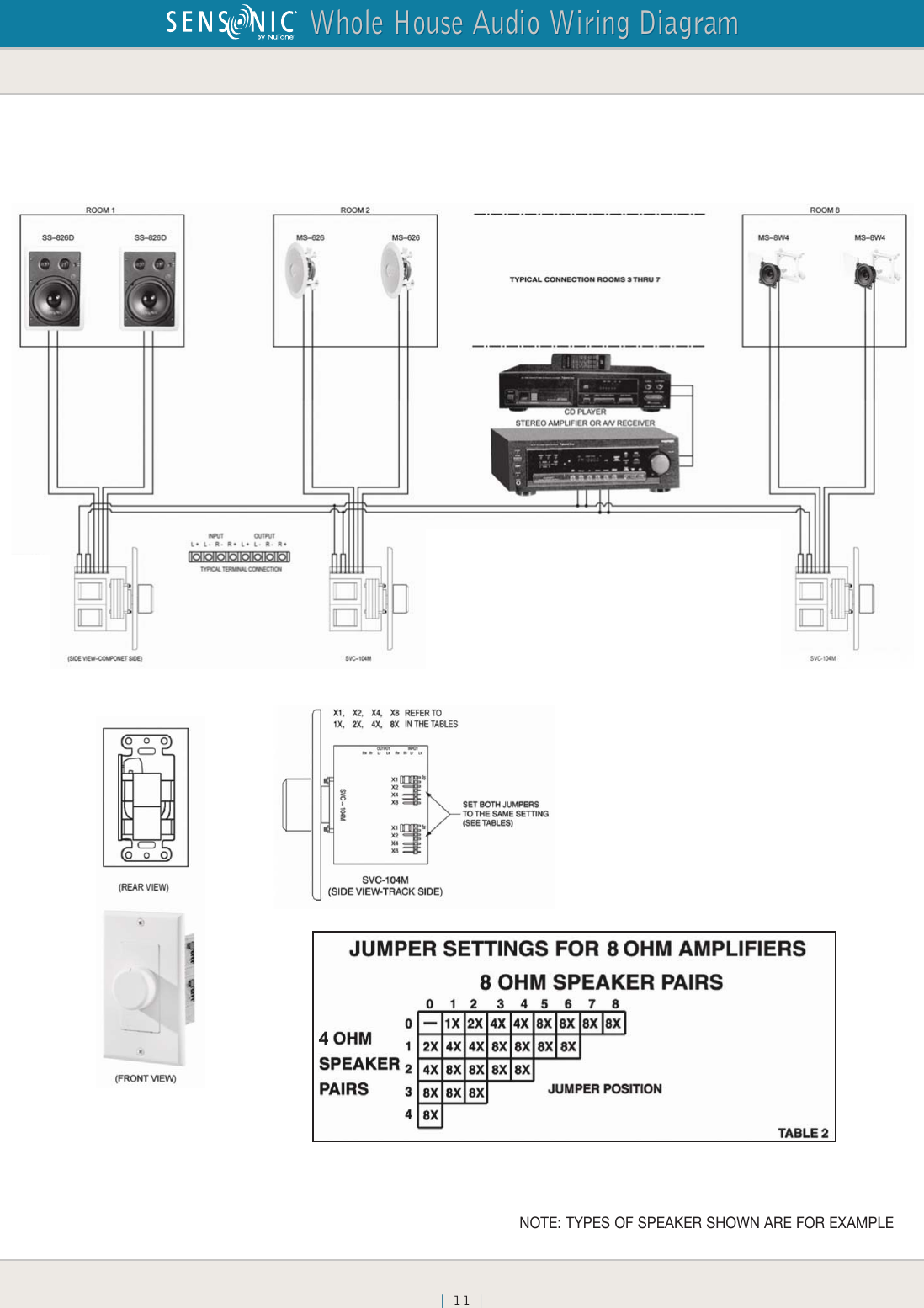

Wiring Diagrams |10-11|

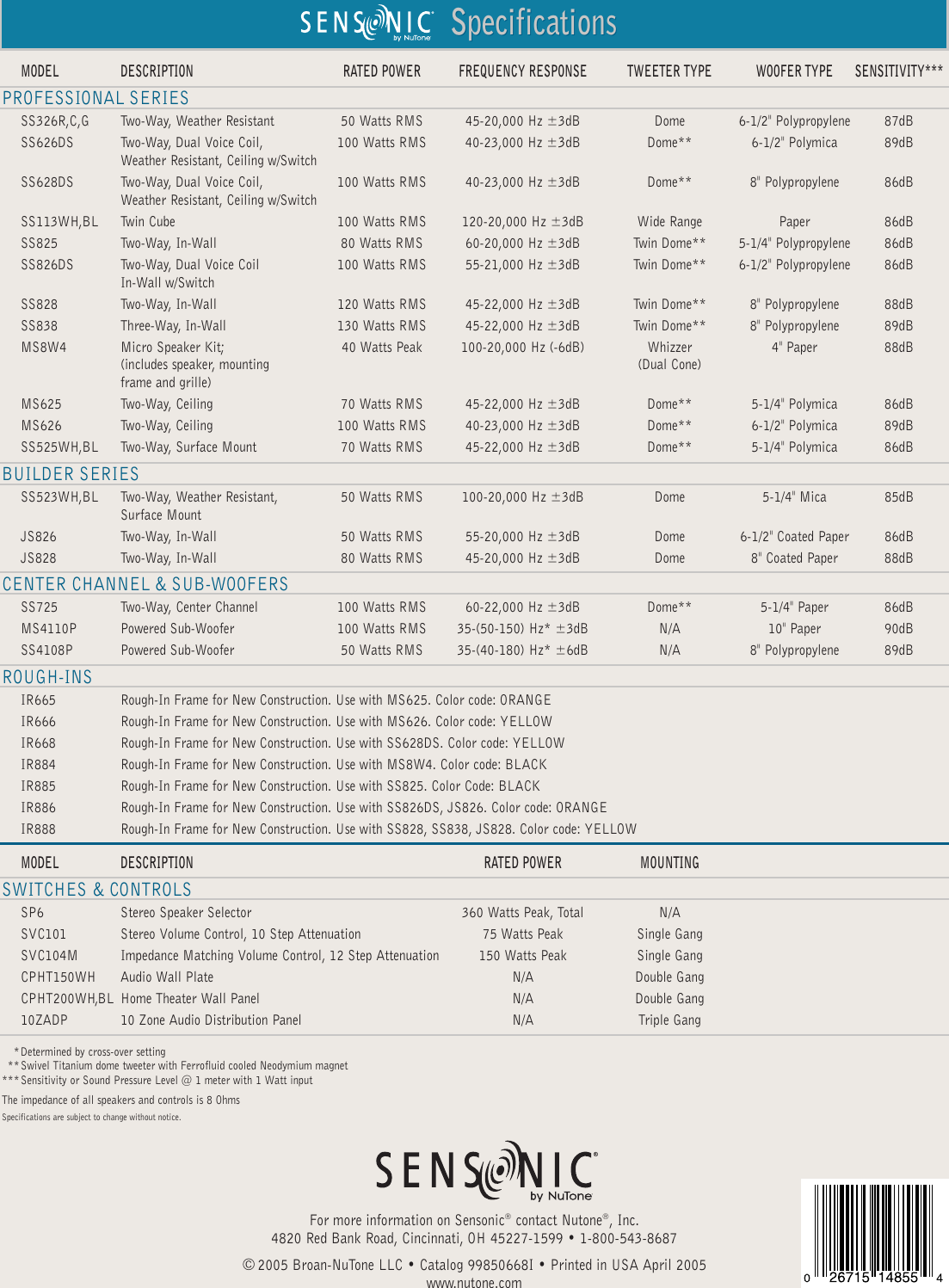

Specifications |12|
Home Theater Speakers – Center Channel Speaker |7|

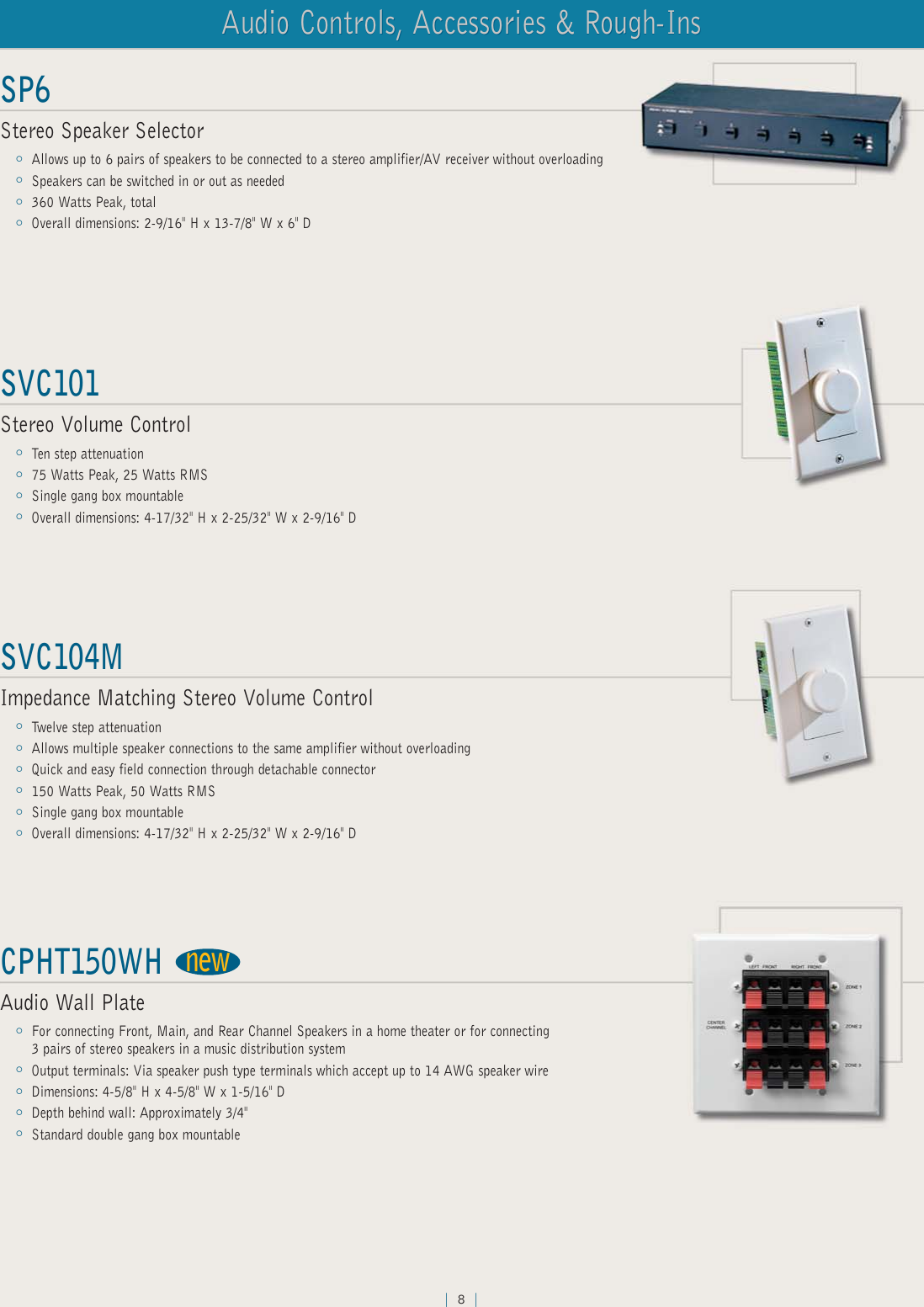

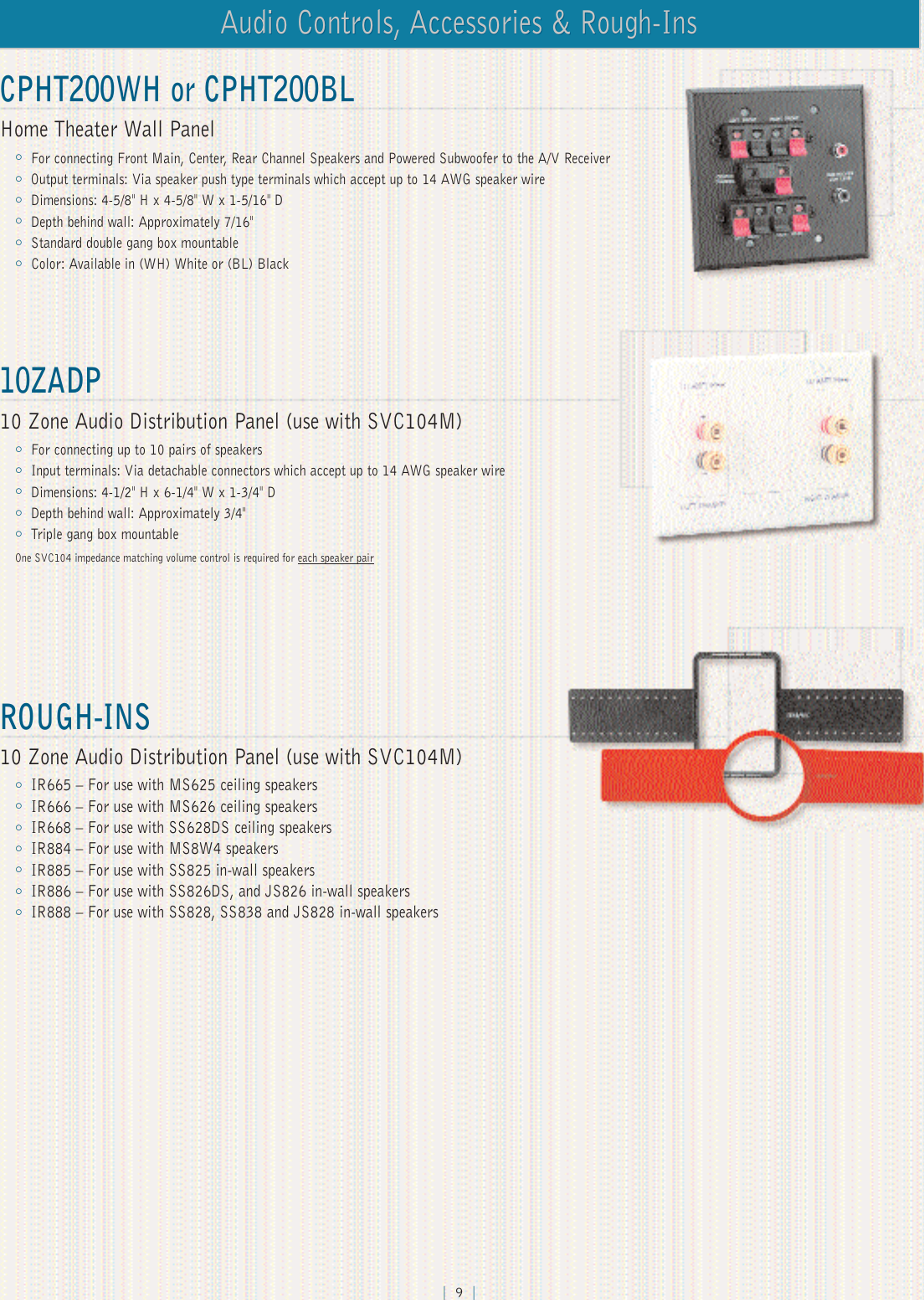

Audio Controls, Accessories and Rough-Ins |8-9|
Table of Contents
Strongest Service Commitment
NuTone®backs every audio product with a long-term record of service to the building industry which dates back sixty years. This commitment offers
knowledgeable, dedicated service from the NuTone sales team, and offers over 1000 NuTone®Service Centers nationwide.
NuTone’s speakers and accessories...
set the standard for sound quality and reliability. Every Sensonic®product is engineered for unsurpassed performance and is built with premium
materials and components for the purest sound possible.
Sensonic®offers a broad range of products – In-wall, ceiling, surface mount, indoor, outdoor speakers, subwoofers, volume controls, rough-in frames
and accessories for whole house music distribution and home theater application.
Sensonic®audio speakers can create mini-concert areas in any room or patio in a house, or they can transform an ordinary family room into a
home-entertainment and home theater room.
Sensonic®speakers are backed by a 5-year warranty. Accessories are backed by a 2-year warranty.

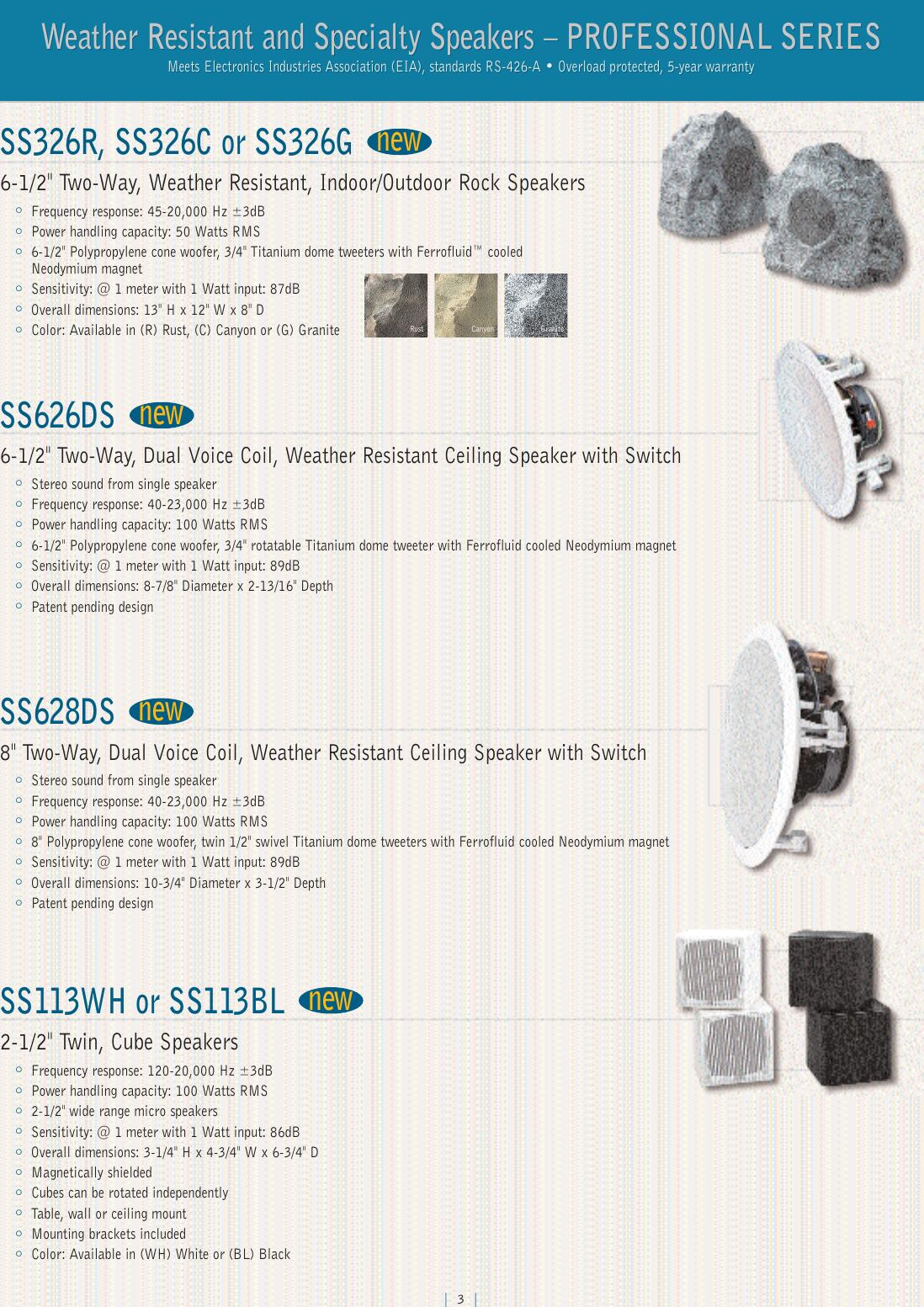

| 3 |
6-1/2" Two-Way, Weather Resistant, Indoor/Outdoor Rock Speakers
°
Frequency response: 45-20,000 Hz ±3dB
°
Power handling capacity: 50 Watts RMS
°
6-1/2" Polypropylene cone woofer, 3/4" Titanium dome tweeters with Ferrofluid™ cooled
Neodymium magnet
°
Sensitivity: @ 1 meter with 1 Watt input: 87dB
°
Overall dimensions: 13" H x 12" W x 8" D
°
Color: Available in (R) Rust, (C) Canyon or (G) Granite
6-1/2" Two-Way, Dual Voice Coil, Weather Resistant Ceiling Speaker with Switch
°
Stereo sound from single speaker
°
Frequency response: 40-23,000 Hz ±3dB
°
Power handling capacity: 100 Watts RMS
°
6-1/2" Polypropylene cone woofer, 3/4" rotatable Titanium dome tweeter with Ferrofluid cooled Neodymium magnet
°
Sensitivity: @ 1 meter with 1 Watt input: 89dB
°
Overall dimensions: 8-7/8" Diameter x 2-13/16" Depth
°
Patent pending design
SS626DS
8" Two-Way, Dual Voice Coil, Weather Resistant Ceiling Speaker with Switch
°
Stereo sound from single speaker
°
Frequency response: 40-23,000 Hz ±3dB
°
Power handling capacity: 100 Watts RMS
°
8" Polypropylene cone woofer, twin 1/2" swivel Titanium dome tweeters with Ferrofluid cooled Neodymium magnet
°
Sensitivity: @ 1 meter with 1 Watt input: 89dB
°
Overall dimensions: 10-3/4" Diameter x 3-1/2" Depth
°
Patent pending design
2-1/2" Twin, Cube Speakers
°
Frequency response: 120-20,000 Hz ±3dB
°
Power handling capacity: 100 Watts RMS
°
2-1/2" wide range micro speakers
°
Sensitivity: @ 1 meter with 1 Watt input: 86dB
°
Overall dimensions: 3-1/4" H x 4-3/4" W x 6-3/4" D
°
Magnetically shielded
°
Cubes can be rotated independently
°
Table, wall or ceiling mount
°
Mounting brackets included
°
Color: Available in (WH) White or (BL) Black
SS326R, SS326C or SS326G
SS628DS
SS113WH or SS113BL
Weather Resistant and Specialty Speakers – PROFESSIONAL SERIES
Meets Electronics Industries Association (EIA), standards RS-426-A
•
Overload protected, 5-year warranty
Weather Resistant and Specialty Speakers – PROFESSIONAL SERIES
Meets Electronics Industries Association (EIA), standards RS-426-A
•
Overload protected, 5-year warranty
Rust Canyon Granite
new
new
new
new
| 4 |

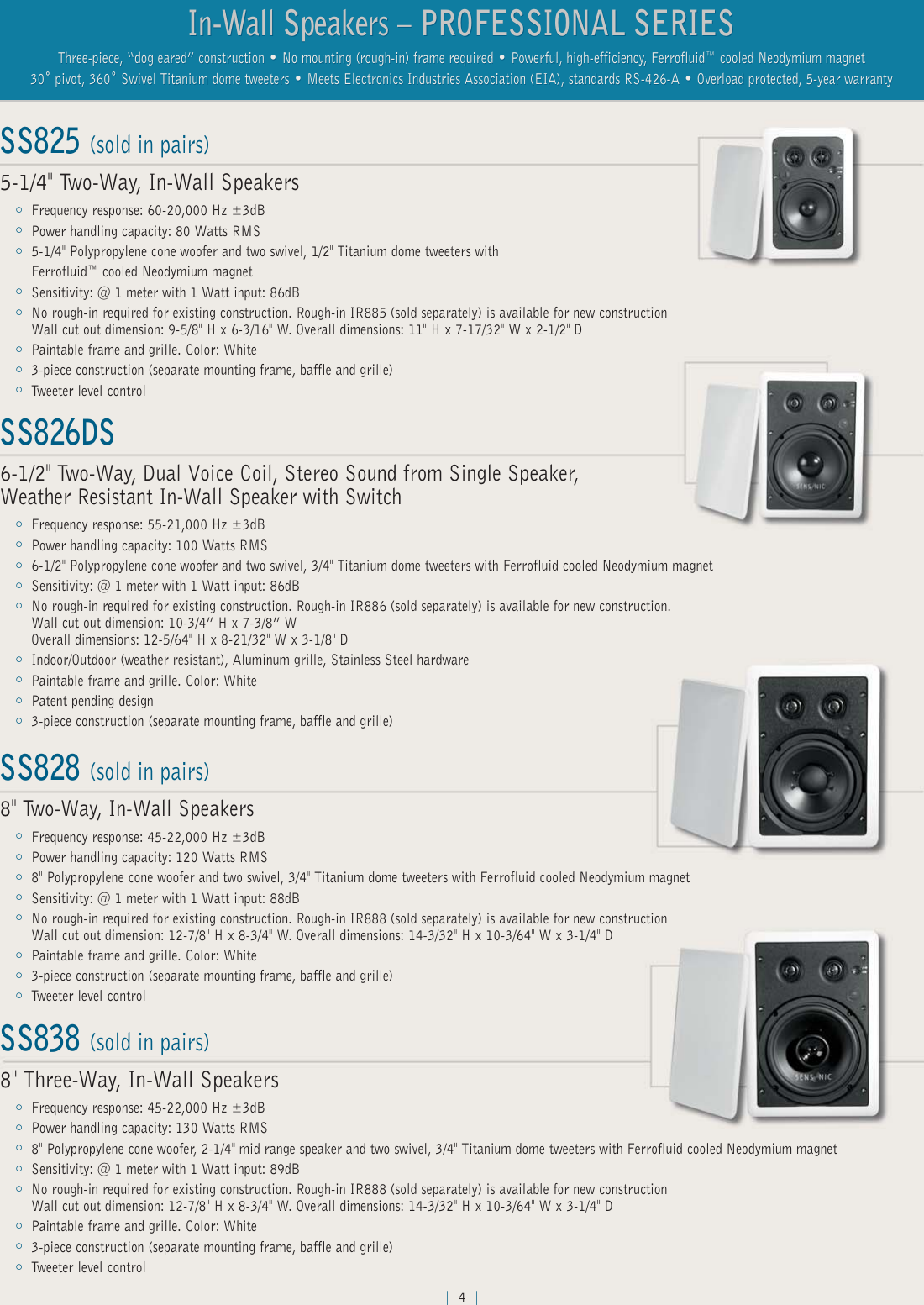

5-1/4" Two-Way, In-Wall Speakers
°
Frequency response: 60-20,000 Hz ±3dB
°
Power handling capacity: 80 Watts RMS
°
5-1/4" Polypropylene cone woofer and two swivel, 1/2" Titanium dome tweeters with
Ferrofluid™ cooled Neodymium magnet
°
Sensitivity: @ 1 meter with 1 Watt input: 86dB
°
No rough-in required for existing construction. Rough-in IR885 (sold separately) is available for new construction
Wall cut out dimension: 9-5/8" H x 6-3/16" W. Overall dimensions: 11" H x 7-17/32" W x 2-1/2" D
°
Paintable frame and grille. Color: White
°
3-piece construction (separate mounting frame, baffle and grille)
°
Tweeter level control
6-1/2" Two-Way, Dual Voice Coil, Stereo Sound from Single Speaker,
Weather Resistant In-Wall Speaker with Switch
°
Frequency response: 55-21,000 Hz ±3dB
°
Power handling capacity: 100 Watts RMS
°
6-1/2" Polypropylene cone woofer and two swivel, 3/4" Titanium dome tweeters with Ferrofluid cooled Neodymium magnet
°
Sensitivity: @ 1 meter with 1 Watt input: 86dB
°
No rough-in required for existing construction. Rough-in IR886 (sold separately) is available for new construction.
Wall cut out dimension: 10-3/4” H x 7-3/8” W
Overall dimensions: 12-5/64" H x 8-21/32" W x 3-1/8" D
°
Indoor/Outdoor (weather resistant), Aluminum grille, Stainless Steel hardware
°
Paintable frame and grille. Color: White
°
Patent pending design
°
3-piece construction (separate mounting frame, baffle and grille)
SS826DS
8" Two-Way, In-Wall Speakers
°
Frequency response: 45-22,000 Hz ±3dB
°
Power handling capacity: 120 Watts RMS
°
8" Polypropylene cone woofer and two swivel, 3/4" Titanium dome tweeters with Ferrofluid cooled Neodymium magnet
°
Sensitivity: @ 1 meter with 1 Watt input: 88dB
°
No rough-in required for existing construction. Rough-in IR888 (sold separately) is available for new construction
Wall cut out dimension: 12-7/8" H x 8-3/4" W. Overall dimensions: 14-3/32" H x 10-3/64" W x 3-1/4" D
°
Paintable frame and grille. Color: White
°
3-piece construction (separate mounting frame, baffle and grille)
°
Tweeter level control
8" Three-Way, In-Wall Speakers
°
Frequency response: 45-22,000 Hz ±3dB
°
Power handling capacity: 130 Watts RMS
°
8" Polypropylene cone woofer, 2-1/4" mid range speaker and two swivel, 3/4" Titanium dome tweeters with Ferrofluid cooled Neodymium magnet
°
Sensitivity: @ 1 meter with 1 Watt input: 89dB
°
No rough-in required for existing construction. Rough-in IR888 (sold separately) is available for new construction
Wall cut out dimension: 12-7/8" H x 8-3/4" W. Overall dimensions: 14-3/32" H x 10-3/64" W x 3-1/4" D
°
Paintable frame and grille. Color: White
°
3-piece construction (separate mounting frame, baffle and grille)
°
Tweeter level control
SS825 (sold in pairs)
SS828 (sold in pairs)
SS838 (sold in pairs)
In-Wall Speakers – PROFESSIONAL SERIES
Three-piece, “dog eared” construction
•
No mounting (rough-in) frame required
•
Powerful, high-efficiency, Ferrofluid™ cooled Neodymium magnet
30˚ pivot, 360˚ Swivel Titanium dome tweeters
•
Meets Electronics Industries Association (EIA), standards RS-426-A
•
Overload protected, 5-year warranty
In-Wall Speakers – PROFESSIONAL SERIES
Three-piece, “dog eared” construction
•
No mounting (rough-in) frame required
•
Powerful, high-efficiency, Ferrofluid™ cooled Neodymium magnet
30˚ pivot, 360˚ Swivel Titanium dome tweeters
•
Meets Electronics Industries Association (EIA), standards RS-426-A
•
Overload protected, 5-year warranty

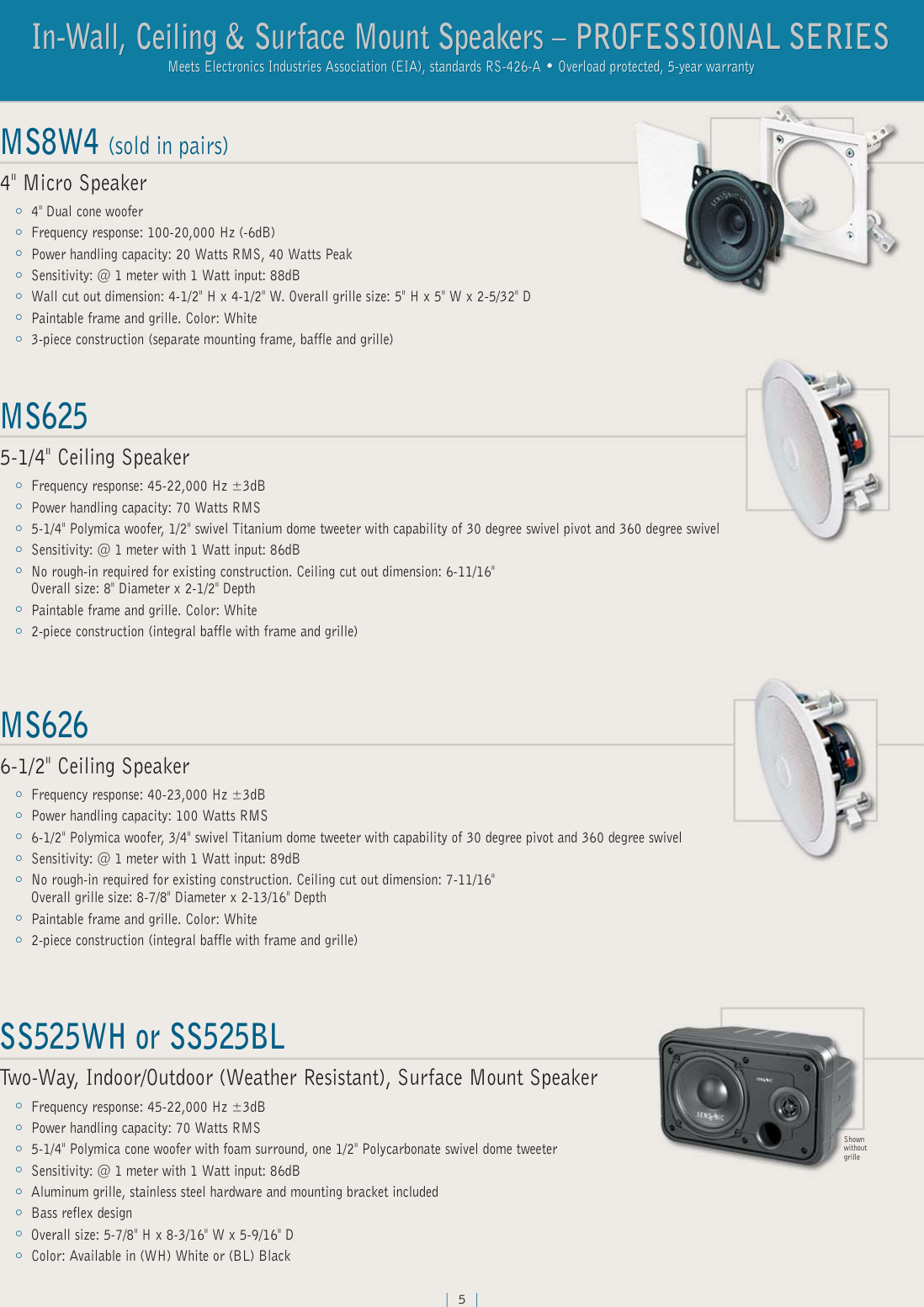

4" Micro Speaker
°
4" Dual cone woofer
°
Frequency response: 100-20,000 Hz (-6dB)
°
Power handling capacity: 20 Watts RMS, 40 Watts Peak
°
Sensitivity: @ 1 meter with 1 Watt input: 88dB
°
Wall cut out dimension: 4-1/2" H x 4-1/2" W. Overall grille size: 5" H x 5" W x 2-5/32" D
°
Paintable frame and grille. Color: White
°
3-piece construction (separate mounting frame, baffle and grille)
5-1/4" Ceiling Speaker
°
Frequency response: 45-22,000 Hz ±3dB
°
Power handling capacity: 70 Watts RMS
°
5-1/4" Polymica woofer, 1/2" swivel Titanium dome tweeter with capability of 30 degree swivel pivot and 360 degree swivel
°
Sensitivity: @ 1 meter with 1 Watt input: 86dB
°
No rough-in required for existing construction. Ceiling cut out dimension: 6-11/16"
Overall size: 8" Diameter x 2-1/2" Depth
°
Paintable frame and grille. Color: White
°
2-piece construction (integral baffle with frame and grille)
MS625
6-1/2" Ceiling Speaker
°
Frequency response: 40-23,000 Hz ±3dB
°
Power handling capacity: 100 Watts RMS
°
6-1/2" Polymica woofer, 3/4" swivel Titanium dome tweeter with capability of 30 degree pivot and 360 degree swivel
°
Sensitivity: @ 1 meter with 1 Watt input: 89dB
°
No rough-in required for existing construction. Ceiling cut out dimension: 7-11/16"
Overall grille size: 8-7/8" Diameter x 2-13/16" Depth
°
Paintable frame and grille. Color: White
°
2-piece construction (integral baffle with frame and grille)
Two-Way, Indoor/Outdoor (Weather Resistant), Surface Mount Speaker
°
Frequency response: 45-22,000 Hz ±3dB
°
Power handling capacity: 70 Watts RMS
°
5-1/4" Polymica cone woofer with foam surround, one 1/2" Polycarbonate swivel dome tweeter
°
Sensitivity: @ 1 meter with 1 Watt input: 86dB
°
Aluminum grille, stainless steel hardware and mounting bracket included
°
Bass reflex design
°
Overall size: 5-7/8" H x 8-3/16" W x 5-9/16" D
°
Color: Available in (WH) White or (BL) Black
MS8W4 (sold in pairs)
MS626
SS525WH or SS525BL
In-Wall, Ceiling & Surface Mount Speakers – PROFESSIONAL SERIES
Meets Electronics Industries Association (EIA), standards RS-426-A
•
Overload protected, 5-year warranty
In-Wall, Ceiling & Surface Mount Speakers – PROFESSIONAL SERIES
Meets Electronics Industries Association (EIA), standards RS-426-A
•
Overload protected, 5-year warranty
| 5 |
Shown
without
grille

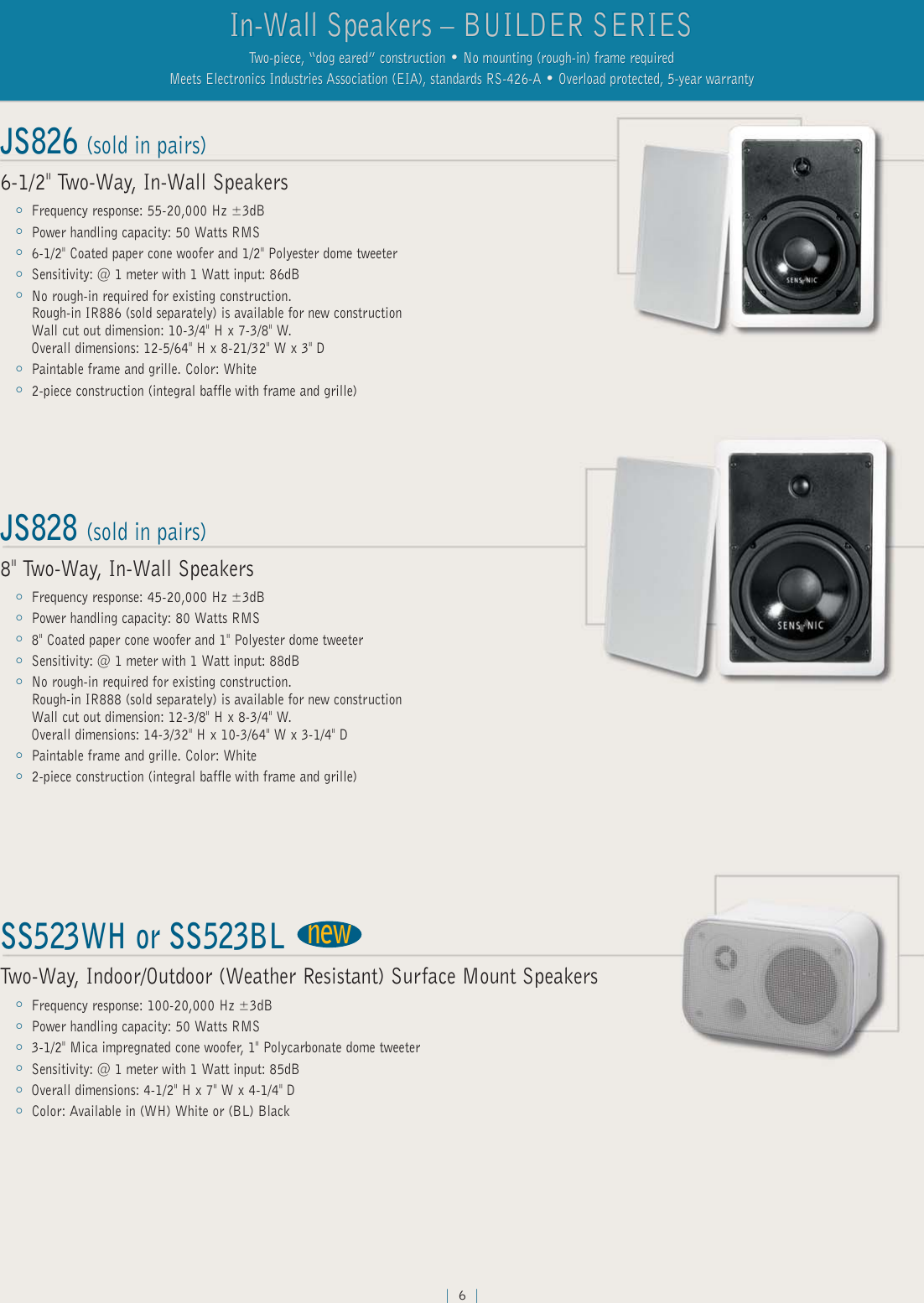

6-1/2" Two-Way, In-Wall Speakers
°
Frequency response: 55-20,000 Hz ±3dB
°
Power handling capacity: 50 Watts RMS
°
6-1/2" Coated paper cone woofer and 1/2" Polyester dome tweeter
°
Sensitivity: @ 1 meter with 1 Watt input: 86dB
°
No rough-in required for existing construction.
Rough-in IR886 (sold separately) is available for new construction
Wall cut out dimension: 10-3/4" H x 7-3/8" W.
Overall dimensions: 12-5/64" H x 8-21/32" W x 3" D
°
Paintable frame and grille. Color: White
°
2-piece construction (integral baffle with frame and grille)
8" Two-Way, In-Wall Speakers
°
Frequency response: 45-20,000 Hz ±3dB
°
Power handling capacity: 80 Watts RMS
°
8" Coated paper cone woofer and 1" Polyester dome tweeter
°
Sensitivity: @ 1 meter with 1 Watt input: 88dB
°
No rough-in required for existing construction.
Rough-in IR888 (sold separately) is available for new construction
Wall cut out dimension: 12-3/8" H x 8-3/4" W.
Overall dimensions: 14-3/32" H x 10-3/64" W x 3-1/4" D
°
Paintable frame and grille. Color: White
°
2-piece construction (integral baffle with frame and grille)
JS828 (sold in pairs)
Two-Way, Indoor/Outdoor (Weather Resistant) Surface Mount Speakers
°
Frequency response: 100-20,000 Hz ±3dB
°
Power handling capacity: 50 Watts RMS
°
3-1/2" Mica impregnated cone woofer, 1" Polycarbonate dome tweeter
°
Sensitivity: @ 1 meter with 1 Watt input: 85dB
°
Overall dimensions: 4-1/2" H x 7" W x 4-1/4" D
°
Color: Available in (WH) White or (BL) Black
SS523WH or SS523BL
JS826 (sold in pairs)
In-Wall Speakers – BUILDER SERIES
Two-piece, “dog eared” construction
•
No mounting (rough-in) frame required
Meets Electronics Industries Association (EIA), standards RS-426-A
•
Overload protected, 5-year warranty
In-Wall Speakers – BUILDER SERIES
Two-piece, “dog eared” construction
•
No mounting (rough-in) frame required
Meets Electronics Industries Association (EIA), standards RS-426-A
•
Overload protected, 5-year warranty
| 6 |
new

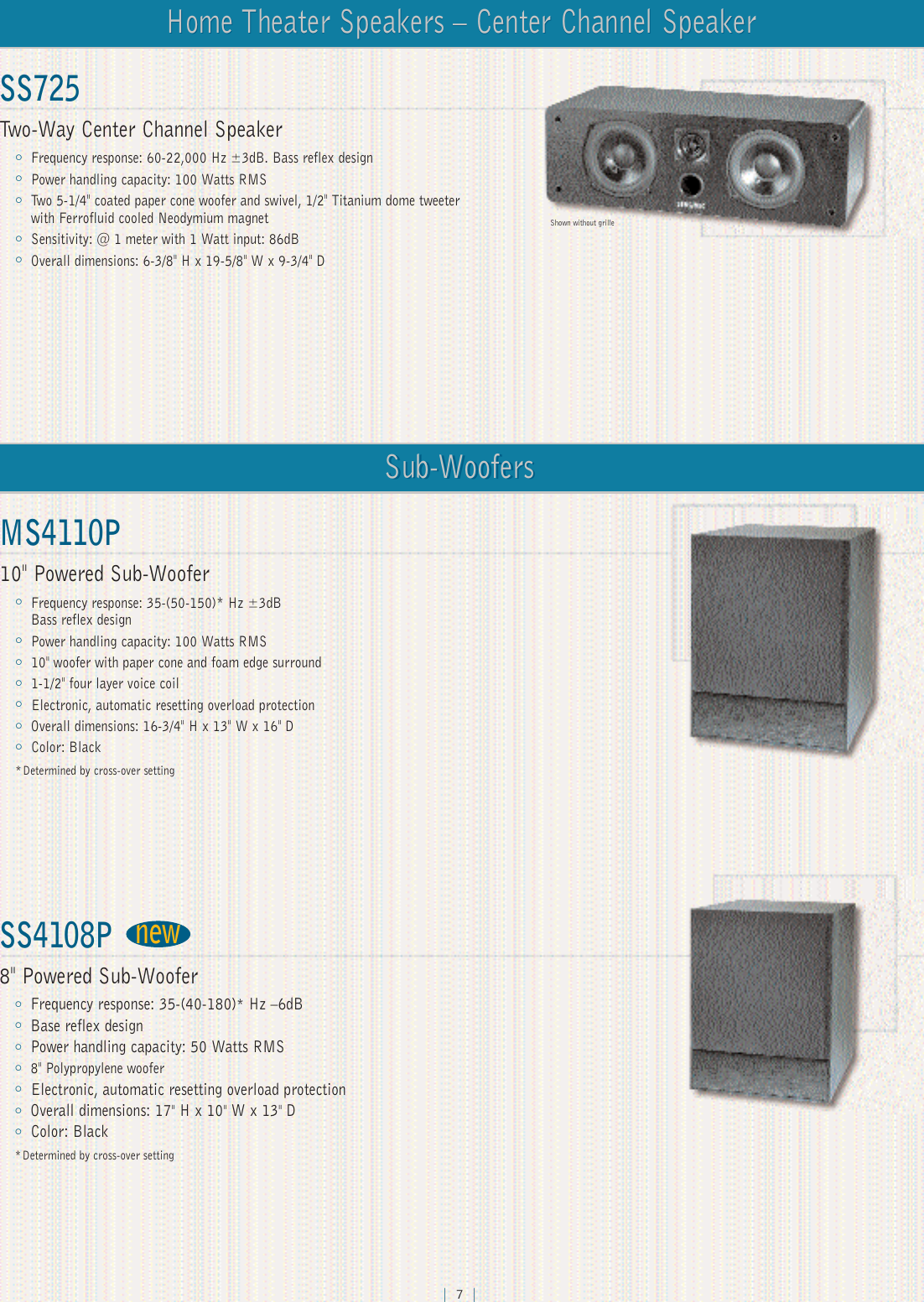

Two-Way Center Channel Speaker
°
Frequency response: 60-22,000 Hz ±3dB. Bass reflex design
°
Power handling capacity: 100 Watts RMS
°
Two 5-1/4" coated paper cone woofer and swivel, 1/2" Titanium dome tweeter
with Ferrofluid cooled Neodymium magnet
°
Sensitivity: @ 1 meter with 1 Watt input: 86dB
°
Overall dimensions: 6-3/8" H x 19-5/8" W x 9-3/4" D
10" Powered Sub-Woofer
°
Frequency response: 35-(50-150)* Hz ±3dB
Bass reflex design
°
Power handling capacity: 100 Watts RMS
°
10" woofer with paper cone and foam edge surround
°
1-1/2" four layer voice coil
°
Electronic, automatic resetting overload protection
°
Overall dimensions: 16-3/4" H x 13" W x 16" D
°
Color: Black
*Determined by cross-over setting
SS725
MS4110P
Home Theater Speakers – Center Channel Speaker
Home Theater Speakers – Center Channel Speaker
Sub-Woofers
Sub-Woofers
8" Powered Sub-Woofer
°
Frequency response: 35-(40-180)*Hz –6dB
°
Base reflex design
°
Power handling capacity: 50 Watts RMS
°
8" Polypropylene woofer
°
Electronic, automatic resetting overload protection
°
Overall dimensions: 17"H x 10"W x 13"D
°
Color: Black
*Determined by cross-over setting
SS4108P
| 7 |
Shown without grille
new
| 8 |
Stereo Speaker Selector
°
Allows up to 6 pairs of speakers to be connected to a stereo amplifier/AV receiver without overloading
°
Speakers can be switched in or out as needed
°
360 Watts Peak, total
°
Overall dimensions: 2-9/16" H x 13-7/8" W x 6" D
Impedance Matching Stereo Volume Control
°
Twelve step attenuation
°
Allows multiple speaker connections to the same amplifier without overloading
°
Quick and easy field connection through detachable connector
°
150 Watts Peak, 50 Watts RMS
°
Single gang box mountable
°
Overall dimensions: 4-17/32" H x 2-25/32" W x 2-9/16" D
SVC104M
Audio Wall Plate
°
For connecting Front, Main, and Rear Channel Speakers in a home theater or for connecting
3 pairs of stereo speakers in a music distribution system
°
Output terminals: Via speaker push type terminals which accept up to 14 AWG speaker wire
°
Dimensions: 4-5/8" H x 4-5/8" W x 1-5/16" D
°
Depth behind wall: Approximately 3/4"
°
Standard double gang box mountable
SP6
CPHT150WH
Audio Controls, Accessories & Rough-Ins
Audio Controls, Accessories & Rough-Ins
Stereo Volume Control
°
Ten step attenuation
°
75 Watts Peak, 25 Watts RMS
°
Single gang box mountable
°
Overall dimensions: 4-17/32" H x 2-25/32" W x 2-9/16" D
SVC101
new
| 9 |
Home Theater Wall Panel
°
For connecting Front Main, Center, Rear Channel Speakers and Powered Subwoofer to the A/V Receiver
°
Output terminals: Via speaker push type terminals which accept up to 14 AWG speaker wire
°
Dimensions: 4-5/8" H x 4-5/8" W x 1-5/16" D
°
Depth behind wall: Approximately 7/16"
°
Standard double gang box mountable
°
Color: Available in (WH) White or (BL) Black
CPHT200WH or CPHT200BL
Audio Controls, Accessories & Rough-Ins
Audio Controls, Accessories & Rough-Ins
10 Zone Audio Distribution Panel (use with SVC104M)
°
For connecting up to 10 pairs of speakers
°
Input terminals: Via detachable connectors which accept up to 14 AWG speaker wire
°
Dimensions: 4-1/2" H x 6-1/4" W x 1-3/4" D
°
Depth behind wall: Approximately 3/4"
°
Triple gang box mountable
One SVC104 impedance matching volume control is required for each speaker pair
10ZADP
10 Zone Audio Distribution Panel (use with SVC104M)
°
IR665 – For use with MS625 ceiling speakers
°
IR666 – For use with MS626 ceiling speakers
°
IR668 – For use with SS628DS ceiling speakers
°
IR884 – For use with MS8W4 speakers
°
IR885 – For use with SS825 in-wall speakers
°
IR886 – For use with SS826DS, and JS826 in-wall speakers
°
IR888 – For use with SS828, SS838 and JS828 in-wall speakers
ROUGH-INS
| 10 |
(Television, DVD/Stereo VCR and
A/V Receiver shown are not sold
by NuTone)
| 10 |
Home Theater Wiring Diagram
Home Theater Wiring Diagram
| 11 |
Whole House Audio Wiring Diagram
Whole House Audio Wiring Diagram
NOTE: TYPES OF SPEAKER SHOWN ARE FOR EXAMPLE
MODEL DESCRIPTION RATED POWER FREQUENCY RESPONSE TWEETER TYPE WOOFER TYPE SENSITIVITY***
PROFESSIONAL SERIES
SS326R,C,G Two-Way, Weather Resistant 50 Watts RMS 45-20,000 Hz ±3dB Dome 6-1/2" Polypropylene 87dB
SS626DS Two-Way, Dual Voice Coil, 100 Watts RMS 40-23,000 Hz ±3dB Dome** 6-1/2" Polymica 89dB
Weather Resistant, Ceiling w/Switch
SS628DS Two-Way, Dual Voice Coil, 100 Watts RMS 40-23,000 Hz ±3dB Dome** 8" Polypropylene 86dB
Weather Resistant, Ceiling w/Switch
SS113WH,BL Twin Cube 100 Watts RMS 120-20,000 Hz ±3dB Wide Range Paper 86dB
SS825 Two-Way, In-Wall 80 Watts RMS 60-20,000 Hz ±3dB Twin Dome** 5-1/4" Polypropylene 86dB
SS826DS Two-Way, Dual Voice Coil 100 Watts RMS 55-21,000 Hz ±3dB Twin Dome** 6-1/2" Polypropylene 86dB
In-Wall w/Switch
SS828 Two-Way, In-Wall 120 Watts RMS 45-22,000 Hz ±3dB Twin Dome** 8" Polypropylene 88dB
SS838 Three-Way, In-Wall 130 Watts RMS 45-22,000 Hz ±3dB Twin Dome** 8" Polypropylene 89dB
MS8W4 Micro Speaker Kit; 40 Watts Peak 100-20,000 Hz (-6dB) Whizzer 4" Paper 88dB
(includes speaker, mounting (Dual Cone)
frame and grille)
MS625 Two-Way, Ceiling 70 Watts RMS 45-22,000 Hz ±3dB Dome** 5-1/4" Polymica 86dB
MS626 Two-Way, Ceiling 100 Watts RMS 40-23,000 Hz ±3dB Dome** 6-1/2" Polymica 89dB
SS525WH,BL Two-Way, Surface Mount 70 Watts RMS 45-22,000 Hz ±3dB Dome** 5-1/4" Polymica 86dB
BUILDER SERIES
SS523WH,BL Two-Way, Weather Resistant, 50 Watts RMS 100-20,000 Hz ±3dB Dome 5-1/4" Mica 85dB
Surface Mount
JS826 Two-Way, In-Wall 50 Watts RMS 55-20,000 Hz ±3dB Dome 6-1/2" Coated Paper 86dB
JS828 Two-Way, In-Wall 80 Watts RMS 45-20,000 Hz ±3dB Dome 8" Coated Paper 88dB
CENTER CHANNEL & SUB-WOOFERS
SS725 Two-Way, Center Channel 100 Watts RMS 60-22,000 Hz ±3dB Dome** 5-1/4" Paper 86dB
MS4110P Powered Sub-Woofer 100 Watts RMS 35-(50-150) Hz* ±3dB N/A 10" Paper 90dB
SS4108P Powered Sub-Woofer 50 Watts RMS 35-(40-180) Hz* ±6dB N/A 8" Polypropylene 89dB
ROUGH-INS
IR665 Rough-In Frame for New Construction. Use with MS625. Color code: ORANGE
IR666 Rough-In Frame for New Construction. Use with MS626. Color code: YELLOW
IR668 Rough-In Frame for New Construction. Use with SS628DS. Color code: YELLOW
IR884 Rough-In Frame for New Construction. Use with MS8W4. Color code: BLACK
IR885 Rough-In Frame for New Construction. Use with SS825. Color Code: BLACK
IR886 Rough-In Frame for New Construction. Use with SS826DS, JS826. Color code: ORANGE
IR888 Rough-In Frame for New Construction. Use with SS828, SS838, JS828. Color code: YELLOW
MODEL DESCRIPTION RATED POWER MOUNTING
SWITCHES & CONTROLS
SP6 Stereo Speaker Selector 360 Watts Peak, Total N/A
SVC101 Stereo Volume Control, 10 Step Attenuation 75 Watts Peak Single Gang
SVC104M Impedance Matching Volume Control, 12 Step Attenuation 150 Watts Peak Single Gang
CPHT150WH Audio Wall Plate N/A Double Gang
CPHT200WH,BL Home Theater Wall Panel N/A Double Gang
10ZADP 10 Zone Audio Distribution Panel N/A Triple Gang
*Determined by cross-over setting
**Swivel Titanium dome tweeter with Ferrofluid cooled Neodymium magnet
***Sensitivity or Sound Pressure Level @ 1 meter with 1 Watt input
The impedance of all speakers and controls is 8 Ohms
Specifications are subject to change without notice.
Specifications
Specifications
For more information on Sensonic
®
contact Nutone
®
, Inc.
4820 Red Bank Road, Cincinnati, OH 45227-1599 • 1-800-543-8687
©
2005 Broan-NuTone LLC • Catalog 99850668I • Printed in USA April 2005
www.nutone.com
