2012 COLLECTION
INTRODUCTION . . . . . . . . . . . . . . . . . 2
CEILING FANS
CANDELIER . . . . . . . . . . . . . . . . . . . . . . . . . 8
ORNATE . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
TRADITIONAL . . . . . . . . . . . . . . . . . . . . . . 20
TRANSITIONAL . . . . . . . . . . . . . . . . . . . . . 36
CONTEMPORARY . . . . . . . . . . . . . . . . . . . 60
LOW PROFILE . . . . . . . . . . . . . . . . . . . . . . 78
DÉCOR SPECIFIC . . . . . . . . . . . . . . . . . . . 88
OUTDOOR / INDOOR . . . . . . . . . . . . . . . . 96
PRESTIGE® EXCLUSIVE . . . . . . . . . . . . . . . 112
ACCESSORIES . . . . . . . . . . . . . . . . . 120
TABLE OF CONTENTS
ICON LEGEND
INCLUDES DOWNLIGHT
INCLUDES UPLIGHT
OR ACCENT LIGHT
INCLUDES XLP MOTOR
INCLUDES XLP MOTOR
ETL WET RATED FAN
ETL DAMP RATED FAN
ENERGY STAR® QUALIFIED
COMPATIBLE WITH
EXCLUSIVE BLADES
COMPATIBLE WITH
STANDARD-STYLE BLADES
COMPATIBLE WITH
BADGE-STYLE BLADES
SPECIAL FEATURES
BLADES
LIGHTING
BULLETCOLORADODURANTAINSWORTH GALLERY
HOLLISTON DC
WHAT’S NEW
The Casablanca collection represents the successful synergy of elegance, versatility, effi ciency, endurance and
comfort. Each ceiling fan is created with an eye for timeless design, assembled with care from high-quality parts
and engineered for superior energy effi ciency to be a classic fi xture in a home that is enjoyed for generations.
THE WORLD’S FINEST CEILING FANS™
Casablanca’s latest introductions include a variety of new ceiling fan collections in an array of timeless styles that
will add a breath of fresh air to every room of your home—indoors and out!
BOTTOM PLATE
The bottom plate encloses the lower
part of the motor housing. Casablanca
uses a variety of materials including
solid die-cast virgin zinc, heavy-gauge
deep-drawn steel, and structurally
reinforced resin for enhanced beauty,
protection, and quiet operation.
PERMA•LOCK™
The Perma•Lock™ system connects
the fan to the downrod. Casablanca’s
3
/4"-diameter Perma•Lock™ design
provides improved appearance and stable
connection. This works in perfect
combination with the patented Hang•Tru®
canopy. (See pages 138–139 for more details.)
SWITCH HOUSING
The switch housing encloses primary
fan controls. It features heavy-duty,
die-cast virgin zinc or steel for
exceptional durability. In addition,
the exclusive design allows for easy
installation of Casablanca light fi xtures,
providing a fi nished, integrated look.
BLADES
Unrivaled in the industry, Casablanca’s
blades are crafted with six layers of wood
in a cross-laminated pattern and fi nished
with two outer layers of real furniture-
grade wood veneer for lasting beauty
and durability. Some Casablanca fans
feature carved wood blades for
exceptional design detail.
MOTOR HOUSING
Casablanca offers die-cast and steel
construction, for unmatched motor
durability. The housing’s plated or
handpainted fi nish stays bright and
beautiful throughout decades of use,
with no more care required than
dusting with a soft cloth.
BLADE HOLDERS
Casablanca’s blade holders provide
an essential link between blades and
motor. The blade holders are made of
heavy-duty, reinforced die-cast virgin
zinc and are tested thoroughly for
reliable performance.
1 42 53 6
QUALITY IN EVERY DETAIL
™
Casablanca stands alone in its approach to the design, engineering and manufacturing of ceiling fans. We have made a
long-term commitment to quality and invite you to compare the features of a Casablanca fan with any competitive product.
Every detail is given meticulous attention—from design to components and manufacturing to ease of installation. Casablanca’s
attention to detail adds value to every fan, providing unprecedented performance for the life of your investment.
XLP-2000™ and XLP-2100™
The workhorses of the Casablanca
product line for more than 10 years and
used in a number of top-selling models.
These motors deliver exceptional
performance and noise-free operation
for the life of the fan.
XLP PLUS®
An enhanced version of the XLP motor,
it is larger and more powerful than any
competing motor in its class and is
utilized in bigger fans and those with
longer blade spans.
XTR200™
Strikes the perfect balance between
power and effi ciency and is utilized on
higher-end, indoor/outdoor models to
provide maximum movement.
DIRECT DRIVE™
Designed and engineered for specifi c
applications to work fl awlessly for the
life of the fan. Many Direct Drive™
models are ENERGY STAR® qualifi ed.
DC
Don’t let the size fool you. This high-
effi ciency permanent magnet direct current
motor is extremely powerful. It’s ENERGY
STAR® qualifi ed and four to fi ve times
more effi cient than typical fan motors.
MOTOR
Rather than buy “off the shelf” generic motors, Casablanca designs, engineers, and
manufactures motors that provide power and quiet operation for a variety of applications.
1
2
4
3
6
5
EVERY CASABLANCA FAN IS BACKED BY
120-DAY IN-HOME SERVICE
Should your Casablanca fan not meet your satisfaction, we will send a trained representative to your home to service it. Simply
call us at 1-800-715-0393 for referral to your local Authorized Service Center. If In-Home Service is not available in your area,
Casablanca offers pre-paid freight to make it easy for you to send the fan to the Casablanca Factory Service Center. It will be
repaired and returned to you at no charge.
Casablanca’s Comprehensive Warranty, the most extensive in the ceiling fan industry, also includes:
LIFETIME MOTOR WARRANTY
All Casablanca fan motors, even on Damp- and Wet-rated models, are guaranteed for life.
ONE-YEAR PARTS AND ELECTRONICS WARRANTY
Each fan includes a one-year warranty on fi nish, component parts, accessories and electronics.
With this extensive coverage, you can enjoy the beauty, quality, and performance of your
Casablanca products for decades to come.
BEAUTY HAS NEVER BEEN SO EFFICIENT
Casablanca is dedicated to creating fans that work smarter, not harder, so that each element is fi ne-tuned to contribute to
overall savings in energy costs. The powerful Casablanca motors move more cubic feet of air per minute (CFM) while using
signifi cantly less energy. Fan blades are set at the optimum pitch to provide maximum airfl ow at each speed setting. Even at
the highest setting, each fan consumes about the same amount of power as a 100-watt light bulb.
Many Casablanca fans are ENERGY STAR® qualifi ed and provide even greater energy effi ciency (look for the
ENERGY STAR logo throughout this catalog). Specifi c fan models are equipped with highly effi cient compact
fl uorescent bulbs, and are California 24 compliant for maximum energy savings.
For your convenience, we’ve include this informational energy chart on every ceiling fan page:
38" to 48" ceiling fans have airfl ow effi ciencies ranging from approximately 71 to 86 cubic feet per minute per watt at high speed.
49" to 60" ceiling fans have airfl ow effi ciencies ranging from approximately 51 to 176 cubic feet per minute per watt at high speed.
MONEY–SAVING TIP: Operating a fan in an empty room wastes energy, so turn it off when leaving the room.
Electricity Use:
XX w
Airfl ow Effi ciency:
XX cfm/w
Airfl ow:
X,XXX cfm
EV
ER
Y
CA
SA
BL
AN
CA
F
AN
I
S
BA
CK
ED
B
Y
120-DAY IN-HOME SERVICE
Should
y
our Casablanca fan not meet
y
our satisfaction, we will send a trained re
p
resentative to
y
our home to service it. Sim
p
l
y
ll t18007150393f f lt l lA th i dS i C t IfI H S i i t il bl i
BEAUTY HAS NEVER BEEN SO EFFICIEN
Casablanca is dedicated to cre
ating
fans that work smarter, not harder, so that each element is fi ne-tuned to contr
overall savin
g
s in ener
g
y costs. The powerful Casablanca motors move more cubic feet of air per minute (CFM) whi
si
g
nifi cantly less ener
g
y. Fan blades are set at the optimum pitch to provide maximum airfl ow at each speed settin
g
th hi h t tti h f b t th t f 100 tt li ht b lb
CANDELIER
ORNATE
TRADITIONAL
TRANSITIONAL
CONTEMPORARY
LOW PROFILE
DÉCOR SPECIFIC
OUTDOOR / INDOOR
PRESTIGE® EXCLUSIVE
CEILING FANS
Candelier™ II ceiling fan
10 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 11
FEATURES
• XLP-2000™ motor / lifetime motor warranty
• 48" diameter / 30" blade span / 20º blade pitch
• Set of 3 exclusive Candelier Dark Walnut blades included
• Includes uplight with 48 LED fl ickering bulbs and 48 candles
• Includes eight 10-watt halogen downlights with bulbs
• Minimum 9' ceiling required
• Includes exclusive hanging system
• Low Ceiling Adapter (LCA) is not compatible
• Sloped Ceiling Adapter (SCA) is not compatible
CANDELIER™ II
Add the warm, intimate ambience of candlelight to a spacious room with the Candelier II ceiling fan. The fi xture’s ingenious design features
48 candles in varying heights and colors nestled around an Oil-Rubbed Bronze ring that houses a sleek, three-blade ceiling fan. Candles are
fi tted with LED bulbs that effectively capture the natural fl ickering motion and incandescent glow of real candles.
DIMENSIONS
A: 24.37"
B: 24.37"
C: 4.82"
D: 10.93"
E: 8.00"
CONTROL
C16G73L
Oil-Rubbed Bronze fi xture and motor with
Candelier Dark Walnut blades
CANDELIER
NEW: Long-life LED fl ickering bulbs
Direct•Touch® (L)
W-74DL (included)
Four-speed wall control with
full-range light dimming,
reversing and CFL mode.
Independent uplight and
downlight operation.
Direct•Touch®
W-75DL (optional)
Four-speed remote control
with full-range light dimming,
reversing and CFL mode.
Independent uplight and
downlight operation.
ENERGY INFORMATION AT HIGH SPEED
Electricity Use:
22 w
Airfl ow Effi ciency:
90.3 cfm/w
Airfl ow:
2,004 cfm
CANDELIER
ORNATE
TRADITIONAL
TRANSITIONAL
CONTEMPORARY
LOW PROFILE
DÉCOR SPECIFIC
OUTDOOR / INDOOR
PRESTIGE® EXCLUSIVE
CEILING FANS
Victorian® ceiling fan
14 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 15
ORNATE
FEATURES
• XLP-2000™ motor / lifetime motor warranty
• 54" or 46" blade span / 15º blade pitch
• 4- or 5-blade confi guration
• Multiple blade fi nish choices available (blades sold separately)
FEATURES
• XLP-2000™ motor / lifetime motor warranty
• 54" blade span / 14º blade pitch
• Set of 4 exclusive blades included
• Low Ceiling Adapter (LCA) is not compatible
• Requires additional hanging support (included)
• Minimum 9' ceiling required—uses 12" downrod (included)
• Extra-long downrods require outer sleeve (see pages 138–139)
• Decorative canopy cover may not be used if installed on a
sloped ceiling or with a Sloped Ceiling Adapter (SCA)
COMPATIBLE LIGHT FIXTURES
Group A Light Fixtures (see pages 128–131)
Group B Light Fixtures (see pages 131–133)
6344Z
Antique Brass motor shown with
BB21-WD Dark Walnut blades,
K164A-4 fi tter with G911 Teck Antique side glass
VICTORIAN®19TH CENTURY®
ENERGY INFORMATION AT HIGH SPEED ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS DIMENSIONS
A: 11.50"
B: 13.50"
C: 3.00"
D: 13.00"
E: 5.60"
A: 22.00"
B: 28.50"
C: 6.75"
D: 10.50"
E: 5.60"
Electricity Use:
122 w
Electricity Use:
108 w
Airfl ow Effi ciency:
51 cfm/w
Airfl ow Effi ciency:
56.2 cfm/w
Airfl ow:
6,250 cfm
Airfl ow:
6,050 cfm
CONTROLS CONTROLS
Inteli•Touch3® (Z)
W-85 (included)
Six-speed wall control with
full-range light dimming
and reversing.
Inteli•Touch3® (Z)
W-85 (included)
Six-speed wall control with
full-range light dimming
and reversing.
Inteli•Touch3®
W-65 (optional)
Six-speed remote control with
LCD display screen, full-range
light dimming and reversing.
Includes wall plate bracket.
Inteli•Touch3®
W-65 (optional)
Six-speed remote control with
LCD display screen, full-range
light dimming and reversing.
Includes wall plate bracket.
This is where it all began…the original Casablanca fan. The Victorian series marries classic turn-of-the-century appeal with contemporary
innovation and convenience. The richness of the ornate design is enhanced with badge-style blade holders. Optimum performance is
achieved with a 15° blade pitch.
In the electric era of the 1800s, fans were characterized by spiral ceiling rods and centrally placed blade holders. The 19th Century fan pays
tribute to these early traditions and adds elements of classic gaslight designs. The intricate, ornate patterns recall decorative infl uences of
cast metal parts and tin-type moldings reminiscent of the period.
6373Z
Oil-Rubbed Bronze
motor shown with
B103 Walnut blades
Shown without
light fi xture
99U69Z
Burnished Brass motor with
Mahogany veneer blades and optional
exclusive KG99A-69 light fi xture
KG99A
19th Century Exclusive
Four-Light CFL Fixture
with Vianne Glass
56 watts
Available fi nishes:
Burnished Brass (-69)
see accessories
page 123 for
blade options
16 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 17
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 54" blade span / 14º blade pitch
• Set of 5 exclusive carved featherwood blades included
• Integrated 75-watt uplight with fi ve 15w bulbs included
• Integrated 100-watt downlight with two 50w T4 halogen bulbs included
• Low Ceiling Adapter (LCA) is not compatible
FEATURES
• XLP-2000™ motor / lifetime motor warranty
• 54" or 46" blade span / 15º blade pitch
• 4- or 5-blade confi guration
• Multiple blade fi nish choices available (blades sold separately)
• Low Ceiling Adapter (LCA) is not compatible
• Minimum 10' ceiling required
• Requires additional hanging support (included)
COMPATIBLE LIGHT FIXTURES
Group A Light Fixtures (see pages 128–131)
Group B Light Fixtures (see pages 131–133)
C27G546H
Brushed Cocoa motor with
Reclaimed Antique blades
6992D
Burnished Bronze motor shown
with B102 Mahogany blades,
K4C-92 light fi tter and
G911 Teck Antique side glass
ALESSANDRIA™
NEW ORLEANS CENTENNIAL®
ENERGY INFORMATION AT HIGH SPEED ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS DIMENSIONS
A: 11.88"
B: 17.57"
C: 3.00"
D: 13.74"
E: 7.0 0"
A: 26.00"
B: 28.00"
C: 3.00"
D: 13.00"
E: 5.60"
Electricity Use:
75 w
Electricity Use:
103 w
Airfl ow Effi ciency:
80 cfm/w
Airfl ow Effi ciency:
58.1 cfm/w
Airfl ow:
6,000 cfm
Airfl ow:
6,005 cfm
CONTROL
Prime•Touch® (H)
W-505 (included)
Three-speed hand-held remote with full-range light dimming,
reversing and wall plate bracket.
With a rich fi nish and exquisite detailing that echo the medallions and paneling of neoclassical architecture, the Alessandria ceiling fan is a
timeless accent for the home. The fan’s carved featherwood blades and fully dimmable lighting with Scavo glass add Old World warmth,
elegance and comfort to interior settings. The New Orleans Centennial is a faithful replica of a 100-year-old ceiling fan discovered in the French Quarter of New Orleans.
The elaborate cast motor housing and lacy, scroll brackets re-create the wonderful ambience of a Southern parlor in a time gone by.
C27G700H
Normandy motor with
Reclaimed Antique blades
6944D
Antique Brass motor shown with
B522 Antique Oak blades
ORNATE
see accessories
page 123 for
blade options
CONTROLS
3-Speed
Pullchain (D)
(included)
Adapt•Touch™
W-52 (optional)
Three-speed remote control
with full-range light dimming.
Includes wall plate bracket.
18 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 19
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 56" blade span / 15° blade pitch
• Set of 5 exclusive blades included
• Integrated 75-watt uplight with fi ve 15w bulbs included
• Integrated 100-watt downlight with two 50w T4 halogen bulbs included
• 13" decorative and 5" standard downrods included
• Decorative downrod accent included
• Sloped Ceiling Adapter (SCA) is not compatible without part 192220XX
• Low Ceiling Adapter (LCA) is not compatible
FEATURES
• XLP-2000™ motor / lifetime motor warranty
• 52" or 44" blade span / 14º blade pitch
• 5-blade confi guration
• Multiple blade fi nish choices available (blades sold separately)
• Includes matching no-light cap
• Requires additional hanging support (included)
• Low Ceiling Adapter (LCA) is not compatible
C32G611L
Northern Sienna motor
with Walnut blades
C5S63Z
Tuscan Sunset motor shown with
B103 Walnut blades and optional
exclusive KGC5-63 light fi xture
VICENTE
BAROLO®
ENERGY INFORMATION AT HIGH SPEED ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS DIMENSIONS
A: 20.07"
B: 25.67"
C: 3.36"
D: 14.17"
E: 7.61 "
A: 12.00"
B: 17.80"
C: 3.36"
D: 14.17"
E: 7.61 "
A: 11.00"
B: 13.00"
C: 3.00"
D: 13.00"
E: 5.60"
Electricity Use:
84 w
Electricity Use:
104 w
Airfl ow Effi ciency:
77.9 cfm/w
Airfl ow Effi ciency:
58.2 cfm/w
Airfl ow:
6,537 cfm
Airfl ow:
6,059 cfm
CONTROLS CONTROLS
Direct•Touch® (L)
W-74DL (included)
Four-speed wall control with
full-range light dimming,
reversing and CFL mode.
Independent uplight and
downlight operation.
Direct•Touch®
W-75DL (optional)
Four-speed remote control
with full-range light dimming,
reversing and CFL mode.
Independent uplight and
downlight operation.
With grandeur reminiscent of a beautiful Spanish fountain, or hermosa fuente, the Vicente makes a dramatic statement in even the largest
rooms. When embellished with its decorative 13-inch downrod, its fl ourishes command your attention. But it’s the fan’s performance that
holds you enthralled. With its artisan-quality craftsmanship, the Barolo ceiling fan is equally suited for an elegant villa or today’s Mediterranean-style homes.
The ornate hand-carved look and embossed grape motif housing conceal a powerful XLP-2000™ motor that is guaranteed for life.
Shown without decorative
downrod accent as required
for mounting on 8' ceilings
Shown without
light fi xture
ORNATE
KGC5
Barolo Exclusive
Three-Light
Center-Stem
Incandescent Fixture
with Amber Glass
180 watts (three 60w candelabra bulbs)
Available fi nishes:
Tuscan Sunset (-63) (Amber glass)
see accessories
page 123 for
blade options
13" DOW NROD 5" DOWNROD
Inteli•Touch3® (Z)
W-85 (included)
Six-speed wall control with
full-range light dimming
and reversing.
Inteli•Touch3®
W-65 (optional)
Six-speed remote control with
LCD display screen, full-range
light dimming and reversing.
Includes wall plate bracket.
CANDELIER
ORNATE
TRADITIONAL
TRANSITIONAL
CONTEMPORARY
LOW PROFILE
DÉCOR SPECIFIC
OUTDOOR / INDOOR
PRESTIGE® EXCLUSIVE
CEILING FANS
Panama® DC ceiling fan
22 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 23
TRADITIONAL
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 60" blade span / blade pitch TBD
• Set of 5 blades included
• Includes low-ceiling hanging option
• Low Ceiling Adapter (LCA) is not compatible
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 60" blade span / blade pitch TBD
• Set of 5 blades included
• Includes three-light fi tter with three medium-based CFL bulbs
• Includes low-ceiling hanging option
• Low Ceiling Adapter (LCA) is not compatible
60" AINSWORTH 60" AINSWORTH GALLERY
It’s all in the details. Painstakingly meticulous columns grace the motor housing to create a sophisticated, timeless look. A quality room fan at
an excellent value. The same classic architectural style of the Ainsworth with a simple yet tasteful bowl light fi xture. The perfect complement to any room.
Comes with remote control.
CONTROLS
CONTROLS
4-Speed
Pullchain (G)
(included)
COMPATIBLE LIGHT FIXTURES
Group B Light Fixtures (see pages 131–133)
FINISH OPTIONS
70320 Cottage White motor with Cottage White blades
70321 Brushed Cocoa motor with reversible Dark Walnut /
Distressed Walnut veneer blades
70322 Provence Crackle motor with reversible Smoked Walnut /
Espresso veneer blades
FINISH OPTIONS
70330 Cottage White motor with Cottage White blades and
Snowfl ake Linen glass
70331 Onyx Bengal motor with reversible Distressed Walnut /
Dark Walnut veneer blades and Toffee glass
70332 Basque Black motor with reversible Smoked Walnut /
Espresso veneer blades and Champagne Scavo glass
70322
Provence Crackle motor with
reversible Smoked Walnut /
Espresso veneer blades
70331
Onyx Bengal motor with reversible
Distressed Walnut / Dark Walnut
veneer blades and Toffee glass
70332
Basque Black motor with
reversible Smoked Walnut /
Espresso veneer blades and
Champagne Scavo glass
Flex•Touch® (L) (included)
Four-speed wall control with full-range
light dimming, reversing and CFL mode.
ENERGY INFORMATION AT HIGH SPEED
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS
DIMENSIONS
Not available at time of print.
Not available at time of print.
Not available at time of print.
Not available at time of print.
COMING
SOON
24 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 25
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 54" blade span / blade pitch TBD
• Set of 5 blades included
• Includes low-ceiling hanging option
• Low Ceiling Adapter (LCA) is not compatible
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 54" blade span / blade pitch TBD
• Set of 5 blades included
• Includes three-light fi tter with three medium-based CFL bulbs
• Includes low-ceiling hanging option
• Low Ceiling Adapter (LCA) is not compatible
70303
Basque Black motor with
reversible Dark Walnut /
Espresso veneer blades
54" AINSWORTH 54" AINSWORTH GALLERY
The simple, timeless beauty of the Ainsworth in just the size you’re looking for.
A truly distinguished look at just the right size. Complete with our ornate three-light fi xture—one of Casablanca’s fi nest.
ENERGY INFORMATION AT HIGH SPEED
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS
DIMENSIONS
Not available at time of print.
Not available at time of print.
Not available at time of print.
Not available at time of print.
70311
Onyx Bengal motor with reversible
Distressed Walnut / Dark Walnut
veneer blades and Toffee glass
70312
Basque Black motor with
reversible Dark Walnut /
Espresso veneer blades
TRADITIONAL
CONTROLS
CONTROLS
4-Speed
Pullchain (G)
(included)
4-Speed
Pullchain (G)
(included)
COMPATIBLE LIGHT FIXTURES
Group B Light Fixtures (see pages 131–133)
FINISH OPTIONS
70301 Cottage White motor with Cottage White blades
70302 Brushed Cocoa motor with reversible Dark Walnut /
Distressed Walnut veneer blades
70303 Basque Black motor with reversible Dark Walnut /
Espresso veneer blades
FINISH OPTIONS
70310 Cottage White motor with Cottage White blades
70311 Onyx Bengal motor with reversible Distressed Walnut /
Dark Walnut veneer blades and Toffee glass
70312 Basque Black motor with reversible Dark Walnut /
Espresso veneer blades
70303
Basque
Black motor with
reversible Dark Walnut
/
Es
p
resso veneer
bl
ades
TRADITIONAL
26 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 27
6672G / 6672Z
Architectural White motor
shown with B204
Architectural White blades
66668Z
Tuscan Bronze motor shown
with B515 Walnut blades
6622G / 6622Z
Bright Brass motor
shown with B515
Walnut blades
6611G / 6611Z
Snow White motor
shown with B561
Matte Snow White blades
6644G / 6644Z
Antique Brass motor
shown with B515
Walnut blades
6632G / 6632Z
Weathered Copper motor
shown with B210
Relic blades
66546G / 66546Z
Brushed Cocoa motor
shown with B521-WD
Dark Walnut blades
6699G / 6699Z
Classic White motor
shown with B537
Classic White blades
6688G / 6688Z
Matte Black motor
shown with B588
Matte Black blades
6673G / 6673Z
Oil-Rubbed Bronze motor
shown with B206
Dark Cherry blades
FEATURES
• XLP-2000™ motor / lifetime motor warranty
• 50" or 42" blade span / 15° blade pitch
• 4- or 5-blade confi guration
• Multiple blade fi nish choices available (blades sold separately)
• Offered with Inteli•Touch3® six-speed control or 4-Speed pullchain
COMPATIBLE LIGHT FIXTURES
Group A Light Fixtures (see pages 128–131)
Group B Light Fixtures (see pages 131–133)
6645G / 6645Z
Brushed Nickel motor shown with
B202 Mahogany blades
PANAMA®
The fi rst fi ve-bladed fan in the industry, the Panama is an American classic. The traditional styling works with virtually any setting. It’s also
one of the quietest ceiling fans available. Custom design your Panama by adding your choice of blades, light fi xtures and glass. Defi ne your
personal style with 11 motor fi nish options.
ENERGY INFORMATION AT HIGH SPEED
PANAMA XLP 4-SPEED
PANAMA INTELI•TOUCH3®
DIMENSIONS
A: 11.76"
B: 12.68"
C: 3.00"
D: 12.00"
E: 5.60"
Electricity Use:
106 w
Electricity Use:
104 w
Airfl ow Effi ciency:
49.3 cfm/w
Airfl ow Effi ciency:
59 cfm/w
Airfl ow:
5,226 cfm
Airfl ow:
6,153 cfm
CONTROLS
TRADITIONAL
see accessories
page 122 for
blade options 4-Speed
Pullchain (G)
(included)
Adapt•Touch™
W-52 (optional)
Three-speed remote control
with full-range light dimming.
Includes wall plate bracket.
Inteli•Touch3® (Z)
W-85 (included)
Six-speed wall control with
full-range light dimming
and reversing.
Inteli•Touch3®
W-65 (optional)
Six-speed remote control with
LCD display screen, full-range
light dimming and reversing.
Includes wall plate bracket.
28 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 29
FEATURES
• DC motor / lifetime motor warranty
• 54" blade span / 15° blade pitch
• Set of 5 exclusive blades included FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 50" or 42" blade span / 15° blade pitch
• 4- or 5-blade confi guration
• Multiple blade fi nish choices available (blades sold separately)
• Low ceiling adapter (LCA) is not compatible
COMPATIBLE LIGHT FIXTURES
Group A Light Fixtures (see pages 128–131)
Group B Light Fixtures (see pages 131–133)
COMPATIBLE LIGHT FIXTURES
Group A Light Fixtures (see pages 128–131)
Group B Light Fixtures (see pages 131–133)
C6611L
Snow White motor shown with
B561 Matte Snow White blades
PANAMA® DC PANAMA® ENERGY STAR
ENERGY INFORMATION AT HIGH SPEED ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS DIMENSIONS
A: 11.22"
B: 12.13"
C: 3.00"
D: 12.00"
E: 5.60"
A: 12.00"
B: 13.38"
C: 3.40"
D: 12.00"
E: 7.61 "
Electricity Use:
30 w
Electricity Use:
76 w
Airfl ow Effi ciency:
235.34 cfm/w
Airfl ow Effi ciency:
76.8 cfm/w
Airfl ow:
6,942 cfm
Airfl ow:
5,973 cfm
CONTROL CONTROLS
DC 6-speed (B) (included)
Six-speed control with full-range light dimming and reversing.
A new spin on the original fi ve-bladed fan, the Panama DC features a larger, 54-inch span and our extremely powerful DC motor. That
means it can accommodate a larger room with higher effi ciency—and it’s ENERGY STAR–qualifi ed. A new, true classic. The tried-and-true ceiling fan with a modern-day twist, our standard Panama design with Direct Drive™ motor is ENERGY STAR–qualifi ed.
It moves air up to 20 percent more effi ciently, which helps you conserve energy, save money and protect the environment. Think that feels
good? Wait until you turn it on.
C66U45B
Brushed Nickel motor
with reversible Walnut /
Burnt Walnut veneer blades
C6645L
Brushed Nickel motor
shown with B521-WD
Dark Walnut blades
C66U11B
Snow White motor with
Matte Snow White blades
C66546L
Brushed Cocoa motor
shown with B515
Walnut blades
TRADITIONAL
see accessories
page 122 for
blade options Direct•Touch® (L)
W-74SL (included)
Four-speed wall control with
full-range light dimming,
reversing and CFL mode.
Direct•Touch®
W-75SL (optional)
Four-speed remote control
with full-range light dimming,
reversing and CFL mode.
C66U546B
Brushed Cocoa motor with reversible
Walnut / Burnt Walnut veneer blades
30 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 31
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 52" or 42" blade span / 13º blade pitch
• Set of 5 reversible blades included
• ETL Damp-rated model available (see page 105)
COMPATIBLE LIGHT FIXTURES
Group B Light Fixtures (see pages 131–133)
84U45D (52") / 74U45D (42")
Brushed Nickel motor with reversible
Platinum / Cherrywood blades
FOUR SEASONS® III
Casablanca quality, excellent value, and luxury of fi nish and control choice make the Four Seasons III the best ceiling fan in its class.
Traditional in styling, this versatile fan offers selection and features worthy of the Casablanca name.
DIMENSIONS
A: 10.75"
B: 12.75"
C: 3.00"
D: 11.50"
E: 5.60"
CONTROLS
84U4D (52")
Antique Brass motor with
reversible Antique Oak /
Bleached Oak blades
84U9D (52")
Classic White motor with
reversible Classic White /
Bleached Oak blades
84U72D (52")
Architectural White motor
with reversible Architectural
White / Bleached Oak blades
TRADITIONAL
84U11D (52") / 74U11D (42")
Snow White motor with
reversible Snow White /
Bleached Oak blades
84U73D (52") / 74U73D (42")
Oil-Rubbed Bronze motor
with reversible Walnut /
Antique Oak blades
3-Speed
Pullchain (D)
(included)
WRF3-XX
(optional)
Three-speed remote control
with full-range light dimming
and reversing.
Adapt•Touch™
W-52 (optional)
Three-speed remote control
with full-range light dimming.
Includes wall plate bracket.
Note: Must use accessory control to operate accessory light fi xtures without a pullchain.
ENERGY INFORMATION AT HIGH SPEED
52" BLADE
42" BLADE
Electricity Use:
59.5 w
Electricity Use:
68 w
Airfl ow Effi ciency:
69.5 cfm/w
Airfl ow Effi ciency:
74 . 3 cfm/w
Airfl ow:
4,134 cfm
Airfl ow:
5,114 cfm
Note: Energy Star rating applies to 52" models only.
32 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 33
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 52" blade span / 13º blade pitch
• Set of 5 reversible blades included
• Includes 120-watt incandescent downlight with three 40w bulbs
84G73D
Oil-Rubbed Bronze motor with reversible
Dark Walnut / Teak blades
FOUR SEASONS® III GALLERY
With its integrated bowl light fi xture, the value-added Four Seasons III Gallery fan brings illumination as well as comfort to interior settings.
Reversible blades double your decorative options.
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS
A: 13.00"
B: 25.00"
C: 3.00"
D: 11.50"
E: 5.60"
Electricity Use:
80 w
Airfl ow Effi ciency:
63.8 cfm/w
Airfl ow:
5,100 cfm
84G11D
Snow White motor with
reversible Bleached Oak /
Matte Snow White blades
84G45D
Brushed Nickel motor with
reversible Dark Walnut /
Mahogany blades
TRADITIONAL
CONTROLS
3-Speed
Pullchain (D)
(included)
Adapt•Touch™
W-52 (optional)
Three-speed remote control
with full-range light dimming.
Includes wall plate bracket.
34 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 35
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 50" or 42" blade span / 16º blade pitch
• 5-blade confi guration
• Multiple blade fi nish choices available (blades sold separately)
COMPATIBLE LIGHT FIXTURES
Group A Light Fixtures (see pages 128–131)
Group B Light Fixtures (see pages 131–133)
49546D
Brushed Cocoa motor shown
with B515 Walnut blades
CONCENTRA™
Casablanca’s hallmark of quality and performance continues with this fan. The Concentra features a fresh design well-suited for both
traditional and transitional room settings.
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS
A: 11.00"
B: 12.75"
C: 3.00"
D: 11.50"
E: 5.60"
Electricity Use:
83.2 w
Airfl ow Effi ciency:
71.7 cfm/w
Airfl ow:
5,969 cfm
4973D
Oil-Rubbed Bronze motor shown
with B562 Teak blades
4911D
Snow White motor shown
with B561 Matte Snow White blades
4999D
Classic White motor shown
with B537 Classic White blades
4988D
Matte Black motor shown
with B588 Matte Black blades
4972D
Architectural White
motor shown with
B204 Architectural
White blades
4945D
Brushed Nickel motor shown
with B201 Maple blades
4944D
Antique Brass motor
shown with B206 Dark
Cherry blades, K2AA
fi tter and G220
Italian textured glass
CONTROLS
TRADITIONAL
see accessories
page 122 for
blade options
3-Speed
Pullchain (D)
(included)
Adapt•Touch™
W-52 (optional)
Three-speed remote control
with full-range light dimming.
Includes wall plate bracket.
CANDELIER
ORNATE
TRADITIONAL
TRANSITIONAL
CONTEMPORARY
LOW PROFILE
DÉCOR SPECIFIC
OUTDOOR / INDOOR
PRESTIGE® EXCLUSIVE
CEILING FANS

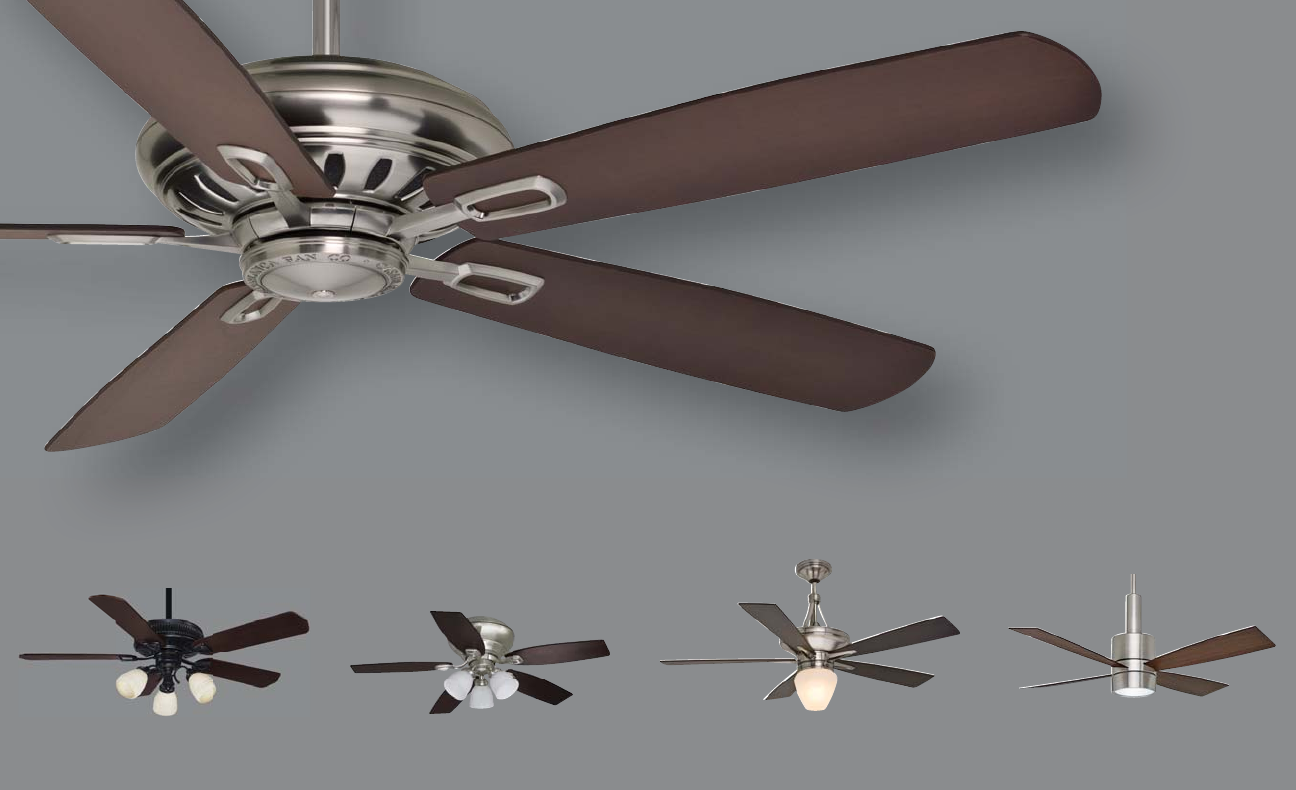

Holliston™ DC ceiling fan
38 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 39
CONTROLS
TRANSITIONAL
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 60" blade span / 14º blade pitch
• Set of 5 exclusive veneer blades included
• Includes 26-watt medium-base CFL downlight
• Minimum 9' ceiling required
• Low ceiling adapter (LCA) is not compatible
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 68" blade span / 13º blade pitch
• Set of 5 exclusive blades included
• Integrated 90-watt uplight with six 15w bulbs included
• Integrated 120-watt downlight with three 40w bulbs included
• Minimum 9' ceiling required
• Requires additional hanging support (included)
• Low Ceiling Adapter (LCA) is not compatible
C15G624L
Bullion Black motor with Espresso blades
and Gold Dust glass bowl fi xtures
COLORADO VENETO®
ENERGY INFORMATION AT HIGH SPEED ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS DIMENSIONS
A: 21.10"
B: 30.23"
C: 3.40"
D: 14.00"
E: 7.60"
A: 17.75"
B: 25.75"
C: 3.40"
D: 19.70"
E: 7.60"
Electricity Use:
94 w
Electricity Use:
101 w
Airfl ow Effi ciency:
74. 2cfm/w
Airfl ow Effi ciency:
73 cfm/w
Airfl ow:
6,944 cfm
Airfl ow:
7,2 96 cfm
CONTROLS
Inspired by the state known for its snow-capped summits and vast blue skies, the natural beauty of Colorado is fi ttingly at home in large
rooms with 9-foot ceilings or higher. Sixty-inch veneer blades and a full-function wall control also put this majestic fan at the peak of value.
This elegant fan says “Benvenuto” to every person who encounters its distinctive warmth. With a rich Bullion Black fi nish and hand-crafted
fl uted glass, the Veneto gives your great room a touch of Italy, no matter where you live.
C42G546L
Brushed Cocoa motor with reversible
Walnut / Burnt Walnut blades
C42G45L
Brushed Nickel motor with reversible
Walnut / Burnt Walnut blades
Direct•Touch® (L)
W-74SL (included)
Four-speed wall control with
full-range light dimming,
reversing and CFL mode.
Direct•Touch®
W-75SL (optional)
Four-speed remote control
with full-range light dimming,
reversing and CFL mode.
Direct•Touch® (L)
W-74DL (included)
Four-speed wall control with
full-range light dimming,
reversing and CFL mode.
Independent uplight and
downlight operation.
Direct•Touch®
W-75DL (optional)
Four-speed remote control
with full-range light dimming,
reversing and CFL mode.
Independent uplight and
downlight operation.
40 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 41
FEATURES
• XLP Plus® motor / lifetime motor warranty
• 60" blade span / 15º blade pitch
• Set of 5 exclusive blades included
• Integrated 42-watt incandescent uplight with bulbs included
• Sloped Ceiling Adapter (SCA) is not compatible without
part 192220XX (see pages 138–139); fan works on
ceiling slope up to 32˚ without any adapter
• Low Ceiling Adapter (LCA) is not compatible
COMPATIBLE LIGHT FIXTURES
Group A Light Fixtures (see pages 128–131)
Group B Light Fixtures (see pages 131–133)
HOLLISTON™
The Holliston ceiling fan combines classic style with ultimate performance and convenience. The next-generation XLP Plus® motor, accented
with a custom-designed canopy and halo uplight, is controlled via radio frequency with Casablanca’s new Inteli•Touch3® wall control.
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS
A: 11.80"
B: 13.40"
C: 2.80"
D: 13.90"
E: 6.70"
Electricity Use:
115 w
Airfl ow Effi ciency:
56 cfm/w
Airfl ow:
6,494 cfm
C31U73Z
Oil-Rubbed Bronze motor
with Walnut blades
C31U97Z
Antique Pewter motor with
Dark Walnut blades
C31U11Z
Snow White motor with Hi-Gloss
Snow White blades, shown with
K4SA-11 four-light fi tter and
G917 White Satin side glass
C31U45Z
Brushed Nickel motor
with Clove blades
C31U199Z
Chrome motor with
Espresso blades
TRANSITIONAL
C31U624Z
Bullion Black motor with
Reclaimed Antique blades, shown
with KGC12A-624 four-light fi xture
CONTROLS
Inteli•Touch3® (Z)
W-84 (included)
Six-speed wall control with
full-range light dimming
and reversing. Independent
uplight and downlight
operation.
Inteli•Touch3®
W-64 (optional)
Six-speed remote control with
LCD display screen, full-range
light dimming and reversing.
Independent uplight and
downlight operation. Includes
wall plate bracket.
42 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 43
CONTROL
DC 6-speed (B) (included)
Six-speed control with full-range light dimming and reversing.
FEATURES
• DC motor / lifetime motor warranty
• 60" blade span / 15º blade pitch
• Set of 5 exclusive blades included
• Sloped Ceiling Adapter (SCA) is not compatible without
part 192220XX (see pages 138–139); fan works on
ceiling slope up to 32˚ without any adapter
• Low Ceiling Adapter (LCA) is not compatible
HOLLISTON™ DC
Truly, the Holliston DC is a fi nely detailed fan with big-picture perspective. Ideal for large rooms, our new DC motor makes it one of the
quietest, most energy-effi cient fans available. So you conserve energy, save money and help protect the environment—staying comfortable
all the while.
TRANSITIONAL
C31U45B
Brushed Nickel motor with reversible
Walnut / Burnt Walnut veneer blades
COMPATIBLE LIGHT FIXTURES
Group A Light Fixtures (see pages 128–131)
Group B Light Fixtures (see pages 131–133)
Electricity Use:
32 w
Airfl ow Effi ciency:
221.9 cfm/w
Airfl ow:
7,10 2 cfm
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS
A: 11.68"
B: 13.14"
C: 2.80"
D: 13.90"
E: 6.70"
C31U11B
Snow White motor
shown with
Matte Snow White blades
C31U546B
Brushed Cocoa motor
shown with reversible
Walnut / Burnt Walnut
veneer blades
44 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 45
C38U11K
Snow White motor with
Snow White blades
C38U45K
Brushed Nickel motor with
reversible Clove / Dark Walnut blades
C38U73K
Oil-Rubbed Bronze motor with
reversible Walnut / Dark Walnut blades
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 54" blade span / 14º blade pitch
• Set of 5 exclusive blades included
• Die-cast metal bottom cap
• Sloped Ceiling Adapter (SCA) is not compatible without
part 192220XX (see pages 138–139)
• Low Ceiling Adapter (LCA) is not compatible
ACADEMY
The smart-looking Academy teaches an important lesson in design fl exibility. Its transitional styling combined with a wide selection of fi nish
options make this ceiling fan a scholarly choice for living rooms, great rooms, bedrooms or almost any other room in the house.
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS
A: 12.00"
B: 14.50"
C: 3.00"
D: 13.70"
E: 6.70"
Electricity Use:
75 w
Airfl ow Effi ciency:
79 cfm/w
Airfl ow:
5,878 cfm
CONTROLS
TRANSITIONAL
C38U199K
Chrome motor with reversible
Espresso / Walnut blades
COMPATIBLE LIGHT FIXTURES
Group A Light Fixtures (see pages 128–131)
4-Speed
Pullchain (K)
(included)
Adapt•Touch™
W-52 (optional)
Three-speed remote control
with full-range light dimming.
Includes wall plate bracket.
46 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 47
C38G199K
Chrome motor with reversible
Espresso / Walnut blades
C38G45K
Brushed Nickel motor with reversible
Clove / Dark Walnut blades
C38G11K
Snow White motor with
Snow White blades
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 54" blade span / 14º blade pitch
• Set of 5 exclusive blades included
• Integrated 120-watt downlight with three 40w bulbs included
• Low Ceiling Adapter (LCA) is not compatible
ACADEMY GALLERY
Talk about your overachievers. The Academy Gallery takes honors for best all-around with transitional styling, a wide selection of fi nish
options and an integrated light bowl fi xture.
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS
A: 12.00"
B: 19.50"
C: 3.00"
D: 13.70"
E: 6.70"
Electricity Use:
75 w
Airfl ow Effi ciency:
79 cfm/w
Airfl ow:
5,878 cfm
CONTROLS
TRANSITIONAL
C38G73K
Oil-Rubbed Bronze motor with
reversible Walnut / Dark Walnut blades
4-Speed
Pullchain (K)
(included)
Adapt•Touch™
W-52 (optional)
Three-speed remote control
with full-range light dimming.
Includes wall plate bracket.
48 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 49
C21G45H
Brushed Nickel motor with
Dark Cherry blades
C21G97H
Antique Pewter motor with
Rosewood blades
C21G667H
Cherry Bronze motor with
Reclaimed Antique blades
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 54" blade span / 14º blade pitch
• Set of 5 exclusive carved featherwood blades included
• Integrated 75-watt incandescent uplight with fi ve 15w bulbs included
• Integrated 100-watt downlight with two 50w T4 halogen bulbs included
• Low Ceiling Adapter (LCA) is not compatible
WHITMAN™
With its versatile design and quality craftsmanship, the Whitman ceiling fan brings year-round comfort and seamless performance to almost
any room in the home. The fan incorporates carved featherwood blades reminiscent of the woodwork on fi ne cabinetry and a fully dimmable
uplight and downlight that add gentle ambience.
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS
A: 11.76"
B: 17.26"
C: 2.70"
D: 13.10"
E: 7.0 0"
Electricity Use:
70 w
Airfl ow Effi ciency:
80.4 cfm/w
Airfl ow:
5,627 cfm
CONTROL
TRANSITIONAL
C21G546H
Brushed Cocoa motor with Walnut blades
Prime•Touch® (H)
W-505 (included)
Three-speed hand-held remote with full-range light dimming,
reversing and wall plate bracket.
50 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 51
3811Z
Snow White motor shown with
B611 Hi-Gloss Snow White blades
3873Z
Oil-Rubbed Bronze motor shown with
Dark Cherry blades
38546Z
Brushed Cocoa motor shown with
Walnut blades
FEATURES
• XLP-2000™ motor / lifetime motor warranty
• 55" blade span / 14º blade pitch
• 5-blade confi guration (exclusive blades sold separately)
• Integrated 100-watt downlight with one T4 halogen bulb included
• Low Ceiling Adapter (LCA) is not compatible
BEL AIR®
The popular Bel Air is the essence of Casablanca beauty. The housing and halogen light form a design continuum, helping to create a
compelling and sophisticated presence. Uniquely cast blade holders lend a classic yet transitional look.
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS
A: 9.25"
B: 13.90"
C: 3.00"
D: 12.25"
E: 5.60"
Electricity Use:
119 w
Airfl ow Effi ciency:
60.5 cfm/w
Airfl ow:
7,174 cfm
CONTROLS
TRANSITIONAL
3845Z
Brushed Nickel motor shown with
B615 Hi-Gloss Cherrywood blades
EXCLUSIVE BLADE OPTIONS
B611 Hi-Gloss Snow White
B615 Hi-Gloss Cherrywood
B618 Mahogany
B619 Dark Cherry
B621 Dark Walnut
B622 Walnut
Inteli•Touch3® (Z)
W-85 (included)
Six-speed wall control with
full-range light dimming
and reversing.
Inteli•Touch3®
W-65 (optional)
Six-speed remote control with
LCD display screen, full-range
light dimming and reversing.
Includes wall plate bracket.
52 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 53
FEATURES
• XLP-2000™ motor / lifetime motor warranty
• 55" blade span / 14º blade pitch
• 5-blade confi guration (exclusive blades sold separately)
• Integrated 180-watt halo uplight and 100-watt halogen downlight
with bulbs included
• Uplight and downlight can be controlled independently
• Low Ceiling Adapter (LCA) is not compatible
• Minimum 9' ceiling required
• Requires additional hanging support (included)
BEL AIR® HALO
Inspired by Casablanca’s original Bel Air ceiling fan, the Bel Air Halo is one of Casablanca’s most elegant offerings. Projecting a warm glow
onto the ceiling, it creates a mood of subtle sophistication. Rope detailing adds further refi nement to this stunning fan.
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS
A: 13.25"
B: 18.50"
C: 3.00"
D: 15.50"
E: 5.60"
Electricity Use:
119 w
Airfl ow Effi ciency:
60.5 cfm/w
Airfl ow:
7,174 cfm
CONTROLS
TRANSITIONAL
38DH546Z
Brushed Cocoa motor shown with
B621 Dark Walnut blades
EXCLUSIVE BLADE OPTIONS
B611 Hi-Gloss Snow White
B615 Hi-Gloss Cherrywood
B618 Mahogany
B619 Dark Cherry
B621 Dark Walnut
B622 Walnut
38DH73Z
Oil-Rubbed Bronze motor shown
with B619 Dark Cherry blades
38DH45Z
Brushed Nickel motor shown with
B615 Hi-Gloss Cherrywood blades
Will be discontinued in 2012.
Inteli•Touch3® (Z)
W-84 (included)
Six-speed wall control with
full-range light dimming
and reversing. Independent
uplight and downlight
operation.
Inteli•Touch3®
W-64 (optional)
Six-speed remote control with
LCD display screen, full-range
light dimming and reversing.
Independent uplight and
downlight operation. Includes
wall plate bracket.
54 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 55
46U546D/M
Brushed Cocoa motor with reversible
Dark Walnut / Walnut blades
46U45D/M
Brushed Nickel motor with reversible
Mahogany / Dark Walnut blades
46U4D/M
Antique Brass motor with reversible
Walnut / Medium Oak blades
46U26D/M
Navajo White motor with reversible
Teak / Dark Cherry blades
46U73D/M
Oil-Rubbed Bronze
motor with reversible
Teak / Dark Cherry blades
TRANSITIONAL
46U11D/M
Snow White motor with reversible Hi-Gloss
Snow White / Matte Snow White blades
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 52" blade span / 16º blade pitch
• Set of 5 reversible blades included
CAPISTRANO®
Subtle sophistication is a dominant theme in today’s decor. Nothing complements this attitude like the Capistrano, with a soft, sculpted look
and the nautical suggestion of seashells.
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS
A: 11.10"
B: 12.75"
C: 3.00"
D: 12.60"
E: 5.60"
Electricity Use:
89 w
Airfl ow Effi ciency:
75.2 cfm/w
Airfl ow:
6,691 cfm
CONTROLS
COMPATIBLE LIGHT FIXTURES
Group A Light Fixtures (see pages 128–131)
Group B Light Fixtures (see pages 131–133)
3-Speed
Pullchain (D)
(included)
Adapt•Touch™
W-52 (optional)
Three-speed remote control
with full-range light dimming.
Includes wall plate bracket.
Versa•Touch 2® (M)
W-73 (included)
Three-speed wall control with full-range light dimming and reversing.
Includes wall plate bracket.
56 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 57
6411Z
Snow White motor shown with
B511 Hi-Gloss Snow White blades,
K1CA-11 halogen light fi tter
and G110 Opal glass
6445Z
Brushed Nickel motor shown with
B508 Matte Black blades,
K134A-45 three-light fi tter
and G912 White Satin side glass
FEATURES
• XLP-2000™ motor / lifetime motor warranty
• 52" or 44" blade span / 15º blade pitch
• 4- or 5-blade confi guration
• Multiple blade fi nish choices available (blades sold separately)
METROPOLITAN™
A deeply sculpted die-cast housing accented by bold, round blade badges gives the Metropolitan its fresh, progressive look.
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS
A: 12.00"
B: 12.20"
C: 3.00"
D: 12.00"
E: 5.60"
Electricity Use:
119 w
Airfl ow Effi ciency:
50.5 cfm/w
Airfl ow:
6,003 cfm
TRANSITIONAL
6444Z
Antique Brass motor shown
with B541 Cherrywood blades
COMPATIBLE LIGHT FIXTURES
Group A Light Fixtures (see pages 128–131)
Group B Light Fixtures (see pages 131–133)
CONTROLS
see accessories
page 123 for
blade options
Inteli•Touch3® (Z)
W-85 (included)
Six-speed wall control with
full-range light dimming
and reversing.
Inteli•Touch3®
W-65 (optional)
Six-speed remote control with
LCD display screen, full-range
light dimming and reversing.
Includes wall plate bracket.
58 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 59
95546D/Z
Brushed Cocoa motor shown with
B111 Relic blades
9545Z
Brushed Nickel motor shown with
B507 Teak blades
9573D/Z
Oil-Rubbed Bronze motor shown with
Teak blades and Shaker 4-light fi xture
FEATURES
• XLP-2000™ motor / lifetime motor warranty
• 52" or 44" blade span / 15º blade pitch
• 4- or 5-blade confi guration
• Multiple blade fi nish choices available (blades sold separately)
• Requires additional hanging support (included)
BRESCIA®
The Brescia fan brings warmth and beauty to any room setting. For an Arts and Crafts–inspired look, select richly toned wood blades and a
mica light fi xture.
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS
A: 11.30"
B: 12.60"
C: 3.00"
D: 14.00"
E: 5.60"
Electricity Use:
116 w
Airfl ow Effi ciency:
56.9 cfm/w
Airfl ow:
6,591 cfm
TRANSITIONAL
9532Z
Weathered Copper motor shown with
BB21-WD Dark Walnut blades and
optional exclusive KG1N mica light fi xture
COMPATIBLE LIGHT FIXTURES
Group A Light Fixtures (see pages 128–131)
Group B Light Fixtures (see pages 131–133)
CONTROLS
see accessories
page 123 for
blade options
KG1N
Brescia Exclusive
Incandescent Mica Fixture
180 watts (three 60w candelabra bulbs)
Available fi nishes:
Weathered Copper (-32)
Brushed Nickel (-45)
Brushed Cocoa (-546)
3-Speed
Pullchain (D)
(included)
Adapt•Touch™
W-52 (optional)
Three-speed remote control
with full-range light dimming.
Includes wall plate bracket.
Inteli•Touch3® (Z)
W-85 (included)
Six-speed wall control with
full-range light dimming
and reversing.
Inteli•Touch3®
W-65 (optional)
Six-speed remote control with
LCD display screen, full-range
light dimming and reversing.
Includes wall plate bracket.
CANDELIER
ORNATE
TRADITIONAL
TRANSITIONAL
CONTEMPORARY
LOW PROFILE
DÉCOR SPECIFIC
OUTDOOR / INDOOR
PRESTIGE® EXCLUSIVE
CEILING FANS
Tercera™ ceiling fan
62 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 63
CONTEMPORARY
3268Z
Graphite motor shown with
B32-68 Graphite blades and
STLHC-68 no-light cap
3232Z
Weathered Copper motor shown with
B32-DC Dark Cherry blades
3211Z
Snow White motor shown with
B32-11 Hi-Gloss Snow White blades
3272Z
Architectural White motor
shown with B32-MP
Maple blades
3212Z
Glossy Black motor shown with
B32-12 Hi-Gloss Black blades
FEATURES
• XLP-2000™ motor / lifetime motor warranty
• 54" blade span / 14º blade pitch
• 5-blade confi guration / exclusive blades sold separately
• Integrated 100-watt downlight with one T4 halogen bulb included
• No-light cap option sold separately (STLHC-xx);
not available in -72 fi nish
• Low Ceiling Adapter (LCA) is not compatible
• Requires additional hanging support (included)
3245Z
Brushed Nickel motor shown with
B32-DW Dark Walnut blades
STEALTH®
In the spirit of contemporary design, form follows function in fl uid contours, swept-wing blades and integrated halogen lighting.
This original classic appeals to many tastes because of its timeless beauty and selection of fi nish options.
ENERGY INFORMATION AT HIGH SPEED
A: 10.75"
B: 13.25"
C: 3.00"
D: 11.50"
E: 5.60"
Electricity Use:
110 w
Airfl ow Effi ciency:
55.6 cfm/w
Airfl ow:
6,115 cfm
CONTROLS
DIMENSIONS
BLADE OPTIONS
B32-11 Snow White
B32-12 Glossy Black
B32-68 Graphite
B32-72 Architectural White
B32-79 Platinum
B32-DC Dark Cherry
B32-DW Dark Walnut
B32-MG Mahogany
B32-MP Maple
B32-TK Teak
Inteli•Touch3® (Z)
W-85 (included)
Six-speed wall control with
full-range light dimming
and reversing.
Inteli•Touch3®
W-65 (optional)
Six-speed remote control with
LCD display screen, full-range
light dimming and reversing.
Includes wall plate bracket.
64 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 65
C45G695B
Alpha Bronze motor with
Dark Cherry blades
CONTEMPORARY
FEATURES
• DC-165 motor / lifetime motor warranty
• 54" blade span / 14º blade pitch
• Set of 5 exclusive blades included
• Integrated 100-watt downlight with one T4 halogen bulb included
• No-light cap option sold separately (STLHC-xx);
not available in -695 fi nish
• Low Ceiling Adapter (LCA) is not compatible
• Requires additional hanging support (included)
STEALTH® DC
Now more than ever, the Stealth DC lives up to its name, featuring our quietest motor yet. Casablanca’s new DC technology is also extremely
powerful and highly effi cient—four to fi ve times more than other motors. So while the fan may be quiet, the news won’t be for long.
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS
A: 10.75"
B: 13.25"
C: 3.00"
D: 11.50"
E: 5.60"
Electricity Use:
31 w
Airfl ow Effi ciency:
211 cfm/w
Airfl ow:
6,554 cfm
CONTROL
C45G45B
Brushed Nickel motor with
Dark Walnut blades
C45G11B
Snow White motor with
Hi-Gloss Snow White blades
DC 6-speed (B) (included)
Six-speed control with full-range light dimming and reversing.
66 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 67
C43G546L
Brushed Cocoa motor
with reversible Walnut /
Burnt Walnut blades
C43G11L
Snow White motor
with Snow White blades
Shown without
downrod cover
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 54" blade span / 14º blade pitch
• Set of 4 exclusive reversible blades included
• Includes 2.5" and 12" downrods
• Integrated 100-watt downlight with one R7S halogen bulb included
• Minimum 9' ceiling required when using downrod cover
• Requires additional hanging support (included)
• Low Ceiling Adapter (LCA) is not compatible
C43G45L
Brushed Nickel motor with reversible
Walnut / Burnt Walnut blades
BULLET
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS USING 12 " DOWNROD
A: 21.22"
B: 24.77"
C: 3.18"
D: 8.08"
E: 7.02 "
Electricity Use:
68 w
Airfl ow Effi ciency:
87 cfm/w
Airfl ow:
5,983 cfm
CONTROLS
Inspired by the world-famous train, the Bullet is all about speed. This powerful performer moves a lot of air with maximum style.
For unmatched performance in spacious loft environments, get on board.
Direct•Touch®
W-74SL (included)
Four-speed wall control with
full-range light dimming,
reversing and CFL mode.
Direct•Touch®
W-75SL (optional)
Four-speed remote control
with full-range light dimming,
reversing and CFL mode.
CONTEMPORARY
68 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 69
CONTEMPORARY
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 52" blade span / 14º blade pitch
• Set of 5 exclusive ABS blades included
• Integrated 100-watt dimmable downlight with
two 50w T4 halogen bulbs included
• Low Ceiling Adapter (LCA) is not compatible
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 52" blade span / 15º blade pitch
• Set of 3 exclusive blades included
• Integrated 100-watt dimmable downlight with
two 50w T4 halogen bulbs included
• Requires additional hanging support (included)
• Low Ceiling Adapter (LCA) is not compatible
C39G199L
Chrome motor shown with
Matte Snow White blades
C22G11L
Snow White motor with
Glossy Snow White blades
ANTION TERCERA™
ENERGY INFORMATION AT HIGH SPEED ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS DIMENSIONS
A: 11.74"
B: 16.08"
C: 3.40"
D: 18.06"
E: 7.61 "
A: 11.94"
B: 14.35"
C: 3.37"
D: 12.94"
E: 7.61 "
Electricity Use:
68 w
Electricity Use:
63.3 w
Airfl ow Effi ciency:
81.4 cfm/w
Airfl ow Effi ciency:
86.5 cfm/w
Airfl ow:
5,551 cfm
Airfl ow:
5,476 cfm
CONTROLS CONTROLS
You may have to look twice to notice the Antion. But you’ll be glad you did. With its frosted white glass bowl and artfully curved white blades,
the Antion blends into any contemporary environment, beautifully.
Tercera may mean “third,” but it should be fi rst on your list for a small or medium-sized room. With its sleek triple-blade confi guration and
vintage curves, this contemporary classic combines the best of old and new.
C22G45L
Brushed Nickel motor with reversible
Espresso / Walnut blades
Direct•Touch® (L)
W-74SL (included)
Four-speed wall control with
full-range light dimming,
reversing and CFL mode.
Direct•Touch® (L)
W-74SL (included)
Four-speed wall control with
full-range light dimming,
reversing and CFL mode.
Direct•Touch®
W-75SL (optional)
Four-speed remote control
with full-range light dimming,
reversing and CFL mode.
Direct•Touch®
W-75SL (optional)
Four-speed remote control
with full-range light dimming,
reversing and CFL mode.
70 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 71
93045M
Brushed Nickel motor with reversible
Platinum / Maple blades
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 54" blade span / 15º blade pitch
• Set of 3 exclusive reversible blades included
• Integrated 100-watt downlight with one T4 halogen bulb included
• No-light cap option available (S3C-xx)
• Low Ceiling Adapter (LCA) is not compatible
• Sloped Ceiling Adapter (SCA) is compatible with purchase of
part 192220xx (see pages 138–139)
S3®
The S3 fan, inspired by a European sports coupe, features a sleek three-blade confi guration. The choice of contemporary fi nishes
includes Brushed Nickel, Graphite, and Snow White. Exceptional value is further reinforced with integrated halogen lighting and the
Versa•Touch2® control system.
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS
A: 9.80"
B: 14.00"
C: 2.67"
D: 10.20"
E: 7.0 0"
Electricity Use:
86 w
Airfl ow Effi ciency:
89.8 cfm/w
Airfl ow:
7,4 40 cfm
CONTROL
CONTEMPORARY
93011M
Snow White motor with reversible
Snow White / Maple blades
TRIDENT®
Casablanca’s Trident ceiling fan epitomizes clean contemporary design and seamless performance. Its streamlined three-blade confi g u r a t i o n ,
integrated halogen light and matching no-light cap have been engineered to echo the agile grace of an airplane propeller.
TRIH-68
Graphite motor with reversible
Dark Cherry / Graphite blades
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 54" blade span / 14º blade pitch
• Set of 3 exclusive reversible blades included
• Integrated 100-watt downlight with one T4 halogen bulb included
• Optional no-light cap included
• Low Ceiling Adapter (LCA) is not compatible
DIMENSIONS
A: 11.83"
B: 16.75"
C: 3.00"
D: 8.17"
E: 7.70"
ENERGY INFORMATION AT HIGH SPEED
Electricity Use:
72 w
Airfl ow Effi ciency:
92.7 cfm/w
Airfl ow:
6,694 cfm
TRIH-11
Snow White motor with
reversible Maple /
Snow White blades
TRIH-45
Brushed Nickel motor
with reversible Platinum /
Maple blades, shown with
optional no-light cap
CONTROL
Prime•Touch® (H)
W-505 (included)
Three-speed hand-held remote with full-range light dimming,
reversing and wall plate bracket.
Versa•Touch 2® (M)
W-72 (included)
Three-speed wall control with full-range light dimming and reversing.
Includes wall plate bracket.
72 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 73
C17G199A
Chrome motor with
Matte Snow White blades
FEATURES
• XLP Plus® motor / lifetime motor warranty
• 52" blade span / 13º blade pitch
• Set of 5 exclusive blades included
• Integrated 90-watt uplight with six 15w bulbs included
• Integrated 100-watt downlight with two 50w T4 halogen bulbs included
• Uplight and downlight can be controlled independently
• Low Ceiling Adapter (LCA) is not compatible
• Requires additional hanging support (included)
VITA™
With its angled planes and streamlined curves, the distinctive Vita is the fi rst contemporary offering from Casablanca to include an uplight,
which casts a soft, incandescent glow on the ceiling. Additional lighting is provided by a halogen-lit center bowl that indirectly illuminates a
glass outer ring.
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS
A: 11.76"
B: 16.47"
C: 2.67"
D: 16.00"
E: 7.0 0"
Electricity Use:
120 w
Airfl ow Effi ciency:
57.6 cfm/w
Airfl ow:
6,885 cfm
CONTROL
CONTEMPORARY
C17G546A
Brushed Cocoa motor with
Mahogany blades
Advan•Touch® (A)
W-63 (included)
Six-speed wall control with LCD display screen, full-range light
dimming and reversing. Independent uplight and downlight operation.
Includes wall plate bracket.
MODENA® II
The streamlined curves, contemporary styling and quality craftsmanship that are hallmarks of classic Italian design have been incorporated
into the Modena II. This graceful fan features an integrated halogen light and Dynamic Blade™ engineering with injection-molded ABS blades.
C10G8M
Matte Black motor with
Mahogany blades
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 47" blade span / patented Dynamic Blade™ engineering
• Set of 5 exclusive injection-molded ABS blades included
• Integrated 100-watt downlight with one T4 halogen bulb included
• Sloped Ceiling Adapter (SCA) is not compatible without
part 192220xx (see pages 138–139)
• Low Ceiling Adapter (LCA) is not compatible
DIMENSIONS
A: 11.83"
B: 16.75"
C: 3.00"
D: 8.17"
E: 7.70"
ENERGY INFORMATION AT HIGH SPEED
Electricity Use:
72 w
Airfl ow Effi ciency:
81 cfm/w
Airfl ow:
5,832 cfm
CONTROL
Versa•Touch 2® (M)
W-72 (included)
Three-speed wall control with full-range light dimming and reversing.
Includes wall plate bracket.
C10G11M
Snow White motor with
Snow White blades
C17G667A
Cherry Bronze motor
with Mahogany blades
74 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 75
CONTEMPORARY
STAR™STARLET™
Art and engineering converge in the graphic silhouette and aerodynamic performance of the Star ceiling fan. This sleek model features a
streamlined three-blade confi guration, integrated halogen downlight and sweeping 52-inch blade span, bringing comfort and style to
contemporary interiors.
The Starlet adds an element of sculptural design and effi cient performance to smaller-scale contemporary spaces. With its fl uid contours,
integrated halogen downlight, powerful motor and clean cutaway detailing, this fan is an ideal choice for hallways, dressing areas and other
compact quarters.
C28G12M
Glossy Black motor and blades
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 52" blade span / 15º blade pitch
• Set of 3 exclusive injection-molded ABS blades included
• Integrated 75-watt halogen downlight with bulb included
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 36" blade span / 15º blade pitch
• Set of 3 exclusive injection-molded ABS blades included
• Integrated 75-watt halogen downlight with bulb included
DIMENSIONS DIMENSIONS
A: 11.77"
B: 14.35"
C: 2.67"
D: 8.09"
E: 7.0 0"
A: 11.77"
B: 14.35"
C: 2.67"
D: 8.09"
E: 7.0 0"
ENERGY INFORMATION AT HIGH SPEED
Electricity Use:
67 w
Airfl ow Effi ciency:
84 cfm/w
Airfl ow:
5,640 cfm
ENERGY INFORMATION AT HIGH SPEED
Electricity Use:
50 w
Airfl ow Effi ciency:
62 cfm/w
Airfl ow:
3,074 cfm
C28G11M
Snow White motor and blades
C29G12M
Glossy Black motor and blades
C29G11M
Snow White motor and blades
CONTROL CONTROL
Versa•Touch 2® (M)
W-72 (included)
Three-speed wall control with full-range light dimming and reversing.
Includes wall plate bracket.
Versa•Touch 2® (M)
W-72 (included)
Three-speed wall control with full-range light dimming and reversing.
Includes wall plate bracket.
76 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 77
CONTEMPORARY
LE GRANDE™
MALIBU STAR®
Spacious environments with high ceilings present special needs for proper air circulation, regardless of the season. Casablanca answers
these requirements with the Le Grande, a fan with exceptional air movement, unique contemporary styling and lasting beauty.
The refreshing design of the Malibu Star will captivate your imagination. A bicycle sprocket serves as the hub, and the nautical look results
from the airy silk fabric blades tensioned by fi berglass fi shing rods. This large fan will become the focal point of any room.
85U32M
Weathered Copper motor with Mahogany
blades, shown with optional exclusive
KG1M-32 halogen bullet light fi xture
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 62" blade span / 14º blade pitch
• Set of 3 exclusive blades included
• Ultra high-performance design
• Low Ceiling Adapter (LCA) is not compatible
FEATURES
• XLP-2000™ motor / lifetime motor warranty
• 84" blade span / 15º blade pitch
• Set of 5 exclusive silk blades included
• Chrome hardware accents
• Low Ceiling Adapter (LCA) is not compatible
• Minimum 9' ceiling required
• Uses 12" downrod (included)
DIMENSIONS DIMENSIONS
A: 11.96"
B: 16.23"
C: 3.00"
D: 8.69"
E: 5.60"
A: 21.00"
B: 23.00"
C: 3.00"
D: 6.25"
E: 5.60"
ENERGY INFORMATION AT HIGH SPEED
Electricity Use:
86 w
Airfl ow Effi ciency:
78 cfm/w
Airfl ow:
6,674 cfm
ENERGY INFORMATION AT HIGH SPEED
Electricity Use:
109 w
Airfl ow Effi ciency:
47.4 cfm/w
Airfl ow:
5,170 cfm
23B002
Snow White motor with
MS2 White blades
CONTROL CONTROLS
COMPATIBLE LIGHT FIXTURES
Group A Light Fixtures (see pages 128–131)
Group B Light Fixtures (see pages 131–133)
KG1M
Le Grande Exclusive
Halogen Bullet Fixture
100 watts
Available fi nishes:
Weathered Copper (-32)
Versa•Touch 2® (M)
W-72 (included)
Three-speed wall control with full-range light dimming and reversing.
Includes wall plate bracket.
Adapt•Touch™
W-52 (optional)
Three-speed remote control
with full-range light dimming.
Includes wall plate bracket.
Adapt•Touch™
W-81 (included)
Four-speed wall control with
full-range light dimming.
CANDELIER
ORNATE
TRADITIONAL
TRANSITIONAL
CONTEMPORARY
LOW PROFILE
DÉCOR SPECIFIC
OUTDOOR / INDOOR
PRESTIGE® EXCLUSIVE
CEILING FANS
Isotope® ceiling fan
80 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 81
LOW PROFILE
70355
Alpha Bronze motor with reversible
Walnut / Smoked Walnut veneer
blades and Tea Stain glass
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 54" blade span / blade pitch TBD
• Set of 5 reversible blades included
• Includes bowl light kit with two medium-based CFL bulbs
54" DURANT
Modern yet versatile, the Durant works well with any décor. Unmatched value that’s perfect for rooms with low ceilings.
CONTROLS
4-Speed
Pullchain (G)
(included)
FINISH OPTIONS
70355 Alpha Bronze motor with reversible Walnut /
Smoked Walnut veneer blades and Tea Stain glass
70356 Brushed Nickel motor with reversible Walnut /
Burnt Walnut blades and White cased glass
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS
Not available at time of print.
Not available at time of print.
70351
Brushed Nickel motor with reversible
Walnut / Burnt Walnut blades
and White cased glass
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 44" blade span / blade pitch TBD
• Set of 5 reversible blades included
• Includes bowl light kit with two medium-based CFL bulbs
44" DURANT
The transitional, modest styling of the Durant at a size that keeps your options open. One of our best values.
CONTROLS
4-Speed
Pullchain (G)
(included)
FINISH OPTIONS
70350 Alpha Bronze motor with reversible Walnut /
Smoked Walnut veneer blades and Tea Stain glass
70351 Brushed Nickel motor with reversible Walnut /
Burnt Walnut blades and White cased glass
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS
Not available at time of print.
Not available at time of print.
82 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 83
C30G11H
Snow White motor with
Hi-Gloss Snow White blades
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 52" blade span / 14º blade pitch
• Set of 5 exclusive blades included
• Integrated 100-watt downlight with one T4 halogen bulb included
• Not suitable for installation on a sloped ceiling
• Low Ceiling Adapter (LCA) is not compatible
52" ISOTOPE®
Superior air circulation meets contemporary design in the Isotope ceiling fan. With its low profi le and swept-wing blade confi guration,
this sleek fan is an ideal choice for fl ush-mount installation in interiors with lower ceilings.
CONTROL
LOW PROFILE
C30G546H
Brushed Cocoa motor with
Espresso blades
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS
A: 9.50"
B: 12.80"
C: N/A
D: 10.20"
E: 7.70"
Electricity Use:
74 w
Airfl ow Effi ciency:
57.5 cfm/w
Airfl ow:
4,251 cfm
Prime•Touch® (H)
W-505 (included)
Three-speed hand-held remote with full-range light dimming,
reversing and wall plate bracket.
C30G45H
Brushed Nickel motor with
Espresso blades
84 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 85
C35G11L
Snow White motor with
Hi-Gloss Snow White blades
C35G707L
Iron Ore motor with
Carbon Fiber blades
C35G546L
Brushed Cocoa motor with
Espresso blades
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 44" blade span / 14º blade pitch
• Set of 5 exclusive blades included
• Integrated 100-watt downlight with one T4 halogen bulb included
• Not suitable for installation on a sloped ceiling
• Low Ceiling Adapter (LCA) is not compatible
44" ISOTOPE®
This smaller blade version allows you to take the sleek, contemporary styling and superior functionality of the Isotope to almost any room in
your home. A superior option for fl ush-mount installation in lower ceilings.
CONTROLS
LOW PROFILE
C35G45L
Brushed Nickel motor with
Walnut blades
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS
A: 9.50"
B: 12.80"
C: N/A
D: 10.20"
E: 7.70"
Electricity Use:
73 w
Airfl ow Effi ciency:
53.6 cfm/w
Airfl ow:
3,915 cfm
Direct•Touch® (L)
W-74SL (included)
Four-speed wall control with
full-range light dimming,
reversing and CFL mode.
Direct•Touch®
W-75SL (optional)
Four-speed remote control
with full-range light dimming,
reversing and CFL mode.
86 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 87
72U11D (42") / 82U11D (52")
Snow White motor with reversible
Snow White / Bleached Oak blades
82U4D
Antique Brass motor with reversible
Antique Oak / Bleached Oak blades
82U72D
Architectural White motor with
reversible Architectural White /
Bleached Oak blades
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 52" or 42" blade span / 12º blade pitch
• Set of 5 reversible blades included
• Low Ceiling Adapter (LCA) is not compatible
• Remote control adaptable (order control WRF3-xx)
FOUR SEASONS® III HUGGER
With its low-profi le, versatile design, the Four Seasons III Hugger is an ideal solution for homes or offi ces with ceilings less than eight feet
high. Add a light fi xture for even more functionality.
82U45D
Brushed Nickel motor with reversible
Mahogany / Dark Walnut blades
LOW PROFILE
COMPATIBLE LIGHT FIXTURES
Group B Light Fixtures (see pages 131–133)
CONTROLS
ENERGY INFORMATION AT HIGH SPEED
52" BLADE SPAN
42" BLADE SPAN
DIMENSIONS
A: 7.0 0"
B: 8.00"
C: N/A
D: 11.00"
E: 5.60"
Electricity Use:
62 w
Electricity Use:
67 w
Airfl ow Effi ciency:
38.7 cfm/w
Airfl ow Effi ciency:
31.8 cfm/w
Airfl ow:
2,400 cfm
Airfl ow:
2,126 cfm
Note: Must use accessory control to operate light fi xtures without a pullchain.
3-Speed
Pullchain (D)
(included)
WRF3-XX
(optional)
Three-speed remote control
with full-range light dimming
and reversing.
CANDELIER
ORNATE
TRADITIONAL
TRANSITIONAL
CONTEMPORARY
LOW PROFILE
DÉCOR SPECIFIC
OUTDOOR / INDOOR
PRESTIGE® EXCLUSIVE
CEILING FANS
Mission® ceiling fan
90 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 91
DÉCOR SPECIFIC
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 56" blade span / 13º blade pitch
• Set of 4 exclusive blades included
• Integrated 120-watt downlight with two 60w candelabra bulbs included
• Low Ceiling Adapter (LCA) is not compatible
• Sloped Ceiling Adapter (SCA) is not compatible without
part 19222055 (see pages 138–139)
• Requires additional hanging support (included)
P4M55H
Amber Bronze motor with
reversible Mahogany /
Medium Oak blades
and Amber shade
BUNGALOW™
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS
A: 11.00"
B: 17.00"
C: 3.00"
D: 14.00"
E: 7.70"
Electricity Use:
73 w
Airfl ow Effi ciency:
84.6 cfm/w
Airfl ow:
6,193 cfm
CONTROL
Like the Craftsman-style struc tures that inspired it, the Bungalow ceiling fan brings simplicity, beauty and effi ciency to today’s homes.
Its geometric detailing, illuminated motor housing with art glass shades, and reversible custom blades combine style and practicality.
FEATURES
• XLP-2100™ motor / lifetime motor warranty
• 56" blade span / 13º blade pitch
• Set of 5 exclusive blades included
• Integrated 120-watt incandescent downlight with
two 60w bulbs included
• Low Ceiling Adapter (LCA) is not compatible
• Sloped Ceiling Adapter (SCA) is not compatible without
part 192220xx (see pages 138–139)
• Requires additional hanging support (included)
97032Z
Weathered Copper motor with
Teak blades and Amber shade
MISSION®
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS
A: 11.00"
B: 15.40"
C: 3.00"
D: 13.90"
E: 7.70"
Electricity Use:
102 w
Airfl ow Effi ciency:
60.5 cfm/w
Airfl ow:
6,162 cfm
CONTROLS
Simplicity. Craftsmanship. Elegance. The Mission fan captures the original inspiration of the Arts and Crafts movement. Share in this historic
period of home decoration with a Casablanca masterpiece that reveals geometric design elements, genuine art glass and natural metal fi nishes.
97052Z
Bronze Patina motor with
Teak blades and Amber shade
Prime•Touch® (H)
W-505 (included)
Three-speed hand-held remote with full-range light dimming,
reversing and wall plate bracket
Inteli•Touch3® (Z)
W-85 (included)
Six-speed wall control with
full-range light dimming
and reversing.
Inteli•Touch3®
W-65 (optional)
Six-speed remote control with
LCD display screen, full-range
light dimming and reversing.
Includes wall plate bracket.
92 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 93
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 64" blade span / 14º blade pitch
• Set of 3 exclusive blades included
• Matching fi nial included for no-light option
• Minimum 9' ceiling required
• Low Ceiling Adapter (LCA) is not compatible
• Requires additional hanging support (included)
• Uses 6" downrod (included)
MARRAKESH®
For centuries, people have been fascinated by the sumptuous textures and graceful architecture of Moroccan design. With its exotic
embellishments, the Marrakesh ceiling fan is an authentic refl ection of this rich cultural tradition. Use the included ornamental fi nial,
or add the optional hand-blown glass light fi xture.
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS
A: 13.25"
B: 20.00"
C: 4.00"
D: 19.75"
E: 5.60"
Electricity Use:
92 w
Airfl ow Effi ciency:
85 cfm/w
Airfl ow:
7,8 52 cfm
CONTROL
DÉCOR SPECIFIC
89U546M
Brushed Cocoa motor with reversible
Dark Walnut / Walnut blades, shown with
optional exclusive KG89-546 halogen light fi xture
89U97M
Antique Pewter motor with
Mahogany blades
KG89
Marrakesh Exclusive
Halogen Fixture with Scavo Shade
100 watts
Available fi nishes:
Antique Pewter (-97)
Brushed Cocoa (-546)
Versa•Touch 2® (M)
W-72 (included)
Three-speed wall control with full-range light dimming and reversing.
Includes wall plate bracket.
94 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 95
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 52" blade span / 15º blade pitch
• Set of 5 exclusive ABS blades included
• Requires additional hanging support (included)
C23U73K
Oil-Rubbed Bronze motor with
Natural Split Bamboo ABS blades, shown
with optional exclusive KG87 light fi xture
KEY LARGO® II
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS
A: 12.30"
B: 13.01"
C: 2.83"
D: 13.14"
E: 5.56"
Electricity Use:
80 w
Airfl ow Effi ciency:
69 cfm/w
Airfl ow:
5,510 cfm
CONTROLS
Casablanca brings the laid-back pace of the Florida Keys indoors with the Key Largo II fan. Featuring cane-style stitched bamboo detailing on the
motor housing and blade holders, and ABS blades that replicate split bamboo, the Key Largo II is a charming example of British West Indies style.
Shown without
light fi xture
KG87
Key Largo II Exclusive
Three-Light Integrated Fixture
with Bamboo-Look Accents
180 watts (three 60w candelabra bulbs)
Available fi nishes:
Oil-Rubbed Bronze (-73)
4-Speed
Pullchain (K)
(included)
Adapt•Touch™
W-52 (optional)
Three-speed remote control
with full-range light dimming.
Includes wall plate bracket.
DÉCOR SPECIFIC
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 56" blade span / 15º blade pitch
• Set of 5 exclusive reversible blades included
• Integrated 120-watt downlight with two 60w bulbs included
• Optional no-light fi nial included
P2G61H
French Crème motor with reversible
Classic White / Maple blades and light
fi xture with glass bowl
LA FLEUR®
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS
A: 12.00"
B: 22.00"
C: 3.00"
D: 12.00"
E: 5.60"
Electricity Use:
69 w
Airfl ow Effi ciency:
86 cfm/w
Airfl ow:
5,909 cfm
The design of the La Fleur ceiling fan was inspired by the belief that comfortable, lived-in environments can be elegant, too. Delicate
embellishments on the blade irons and optional light fi xture and vintage-inspired styling add a deliciously feminine touch.
P2G546H
Brushed Cocoa motor
with reversible Walnut /
Dark Walnut blades,
shown with no-light fi nial
CONTROL
Prime•Touch® (H)
W-505 (included)
Three-speed hand-held remote with full-range light dimming,
reversing and wall plate bracket.
CANDELIER
ORNATE
TRADITIONAL
TRANSITIONAL
CONTEMPORARY
LOW PROFILE
DÉCOR SPECIFIC
OUTDOOR / INDOOR
PRESTIGE® EXCLUSIVE
CEILING FANS
Atria™ ceiling fan
98 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 99
FEATURES
• XTR200™ 30mm motor / lifetime motor warranty
• 60" blade span / 14º blade pitch
• Modular confi guration for maximum versatility
• Set of 5 exclusive outdoor blades sold separately
• Moisture-resistant motor and enclosed housing
• Stainless steel hardware
• ETL rated for wet locations (use only wet-rated
light fi xtures for use in wet locations)
• Minimum 9' ceiling required
• Low Ceiling Adapter (LCA) is not compatible
• Requires additional hanging support (included)
HERITAGE™
During the Industrial Revolution, innovations in manufacturing enabled artisans to create furniture from cast iron. The Heritage fan incorporates
many of the design details featured in antique castings, including vertical ribbing on its motor housing, raised type on the switch cap and a
custom cobblestone texture on the fan body, cap and inset portions of the blade medallions.
The ETL Wet-rated Heritage is available in two fi nishes. The optional exclusive Wet-rated light kits include a beveled-glass lantern suitable
for illuminating large spaces.
CONTROLS
OUTDOOR / INDOOR
C19500K
Aged Bronze motor shown with BL-ADK-RA Adirondack
outdoor carved featherwood blades in Reclaimed Antique
and optional exclusive KGC10A-500 light fi xture
C19546K
Brushed Cocoa motor shown
with BL-ADK-RA Adirondack
outdoor carved featherwood
blades in Reclaimed Antique and
optional KGC12A-546 light fi xture
C19500K shown
without light fi xture
KGC10A
Heritage Exclusive
Outdoor Beveled-Glass
Halogen Lantern
100 watts
ETL Rated for wet locations
Available fi nishes:
Aged Bronze (-500)
Brushed Cocoa (-546)
WET
4-Speed Pullchain (K)
(included)
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS
A: 13.30"
B: 13.40"
C: 2.90"
D: 16.00"
E: 5.60"
Electricity Use:
96.4 w
Airfl ow Effi ciency:
82.3 cfm/w
Airfl ow:
7,93 2 cfm
COMPATIBLE LIGHT FIXTURES
Group A Light Fixtures (see pages 128–131)
Heritage Exclusive Light Fixture KGC10A
Adapt•Touch™
W-52 (optional—indoor only)
Three-speed remote control
with full-range light dimming.
Includes wall plate bracket.
100 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 101
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 52" blade span / 12º blade pitch
• Multiple All-Weather blade fi nish choices available
(blades sold separately)
• ETL rated for damp or humid locations
• Low Ceiling Adapter (LCA) is not compatible
COMPASS POINT
Amazing how something so simple can add so much to a room. One of our most unique designs. Built to last outside, making it a fi ne choice
for covered porches and sunrooms. Available in two distinct fi nishes.
OUTDOOR / INDOOR
70340
Cottage White motor shown with
new accessory blades—coming soon
70341
Maiden Bronze motor shown with
new accessory blades—coming soon
ENERGY INFORMATION AT HIGH SPEEDBLADE OPTIONS SOLD SEPERATELY
DIMENSIONS
Not available at time of print.Coming soon.
Not available at time of print.
DAMP
CONTROL
4-Speed
Pullchain (K)
(included)
102 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 103
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 52" or 44" blade span / 16º blade pitch
• Multiple All-Weather blade fi nish choices available
(blades sold separately)
• ETL rated for wet locations (use only wet-rated light
fi xtures for use in wet locations)
• Stainless steel hardware / moisture-resistant motor
• Low Ceiling Adapter (LCA) is not compatible when
used in wet locations
LANAI®
Casablanca takes originality and elegance outdoors with the ETL Wet-rated Lanai. With blade holders highlighted by a tropical-inspired
shell design, the Lanai adds warmth and casual comfort to decks, patios, sunrooms and verandas.
CONTROLS
OUTDOOR / INDOOR
7926D
Navajo White motor shown with
B719 Classic White All-Weather ABS blades
79669D
Restoration Bronze motor shown
with B718 Matte Black
All-Weather ABS blades
7946D
Rustic Iron motor shown
with Matte Black blades
7911D
Snow White motor shown
with B717 Matte Snow White blades
COMPATIBLE LIGHT FIXTURES
Group A Light Fixtures (see pages 128–131)
Group B Light Fixtures (see pages 131–133)
WET
ENERGY INFORMATION AT HIGH SPEED
52" BLADE
44" BLADE
DIMENSIONS
A: 11.10"
B: 12.75"
C: 3.00"
D: 12.60"
E: 5.60"
Electricity Use:
85 w
Electricity Use:
90 w
Airfl ow Effi ciency:
67 cfm/w
Airfl ow Effi ciency:
75 cfm/w
Airfl ow:
5,663 cfm
Airfl ow:
6,790 cfm
see accessories
page 123 for
blade options
3-Speed
Pullchain (D)
(included)
Adapt•Touch™
W-52 (optional—indoor only)
Three-speed remote control with
full-range light dimming. Includes
wall plate bracket.
104 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 105
OUTDOOR / INDOOR
FEATURES
• XTR200™ 30mm motor / lifetime motor warranty
• ETL rated for damp or humid locations
• 68" blade span / 11º blade pitch
• Set of 5 exclusive outdoor carved featherwood blades included
• Integrated 120-watt uplight with eight 15w bulbs included
• Integrated 100-watt downlight with two 50w T4 halogen bulbs included
• Moisture-resistant motor / stainless steel hardware
• Minimum 9' ceiling required
• Low Ceiling Adapter (LCA) is not compatible
• Requires additional hanging support (included)
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 52" blade span / 13º blade pitch
• Set of 5 exclusive All-Weather ABS blades included
• ETL rated for damp or humid locations
• Use only Damp- or Wet-rated light fi xtures in damp locations
• Moisture-resistant motor / stainless steel hardware
• Low Ceiling Adapter (LCA) is not compatible
C18G500F
Aged Bronze motor shown with
Reclaimed Antique blades
83U46D
Rustic Iron motor with Rustic Iron
All-Weather ABS blades
ATRIA™
FOUR SEASONS® III OUTSIDER
ENERGY INFORMATION AT HIGH SPEED ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS DIMENSIONS
A: 23.40"
B: 28.80"
C: 3.00"
D: 17.10"
E: 5.60"
A: 10.75"
B: 12.75"
C: 3.00"
D: 11.50"
E: 5.60"
Electricity Use:
93 w
Electricity Use:
60 w
Airfl ow Effi ciency:
97.4 cfm/w
Airfl ow Effi ciency:
90.7 cfm/w
Airfl ow:
9,042 cfm
Airfl ow:
5,439 cfm
CONTROL CONTROLS
Make a statement of graceful refi nement on a grand scale with the Damp-rated Atria ceiling fan. The faux alabaster motor housing includes
an uplight and a downlight that illuminate the entire fan body with a warm, ambient glow.
The Four Seasons III Outsider ceiling fan brings lasting comfort and value to indoor and outdoor home environments all year round.
This versatile fan combines traditional styling with an ETL Damp rating.
83U11D
Snow White motor with
White All-Weather ABS blades
DAMP
DAMP
COMPATIBLE LIGHT FIXTURES
Group B Light Fixtures (see pages 131–133)
W-81 (included)
Four-speed wall control with full-range light dimming.
No reversing function.
3-Speed
Pullchain (D)
(included)
Adapt•Touch™
W-52 (optional—indoor only)
Three-speed remote control with
full-range light dimming.
Note: Must use accessory control to operate light fi xtures without a pullchain.
106 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 107
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 31" blade span / 25º blade pitch (optimized for maximum air movement)
• Set of 6 exclusive All-Weather ABS blades included
• ETL rated for damp or humid locations
• Moisture-resistant motor / stainless steel hardware
• Use only Damp- or Wet-rated light fi xtures in damp locations
• Low Ceiling Adapter (LCA) is not compatible when used in damp or
humid locations
WAILEA®
The ETL Damp-rated Wailea fan, inspired by Casablanca’s popular Capistrano and Lanai fans, is perfectly suited for small spaces.
This 31-inch-wide fan is ideal for bathrooms, laundry rooms, walk-in closets and kitchens where ventilation is needed.
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS
A: 11.34"
B: 11.93"
C: 3.00"
D: 8.50"
E: 5.60"
Electricity Use:
51 w
Airfl ow Effi ciency:
61.9 cfm/w
Airfl ow:
3,127 cfm
CONTROLS
OUTDOOR / INDOOR
COMPATIBLE LIGHT FIXTURES
Group A Light Fixtures (see pages 128–131)
Group B Light Fixtures (see pages 131–133)
DAMP
41U11D
Snow White motor with
Snow White All-Weather ABS blades
41U546D
Brushed Cocoa motor with
Brushed Cocoa All-Weather
ABS blades
41U45D
Brushed Nickel motor with
Matte Black All-Weather
ABS blades
41U46D
Rustic Iron motor with
Rustic Iron All-Weather
ABS blades
3-Speed
Pullchain (D)
(included)
Adapt•Touch™
W-52 (optional—indoor only)
Three-speed remote control with
full-range light dimming. Includes
wall plate bracket.
108 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 109
4726D
Navajo White motor shown with
B719 Classic White All-Weather ABS blades
OUTDOOR / INDOOR
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 52" or 44" blade span / 15º blade pitch
• 5-blade confi guration
• Multiple All-Weather blade fi nish choices available (blades sold separately)
• ETL rated for damp or humid locations
• Use only Damp- or Wet-rated light fi xtures in damp locations
• Stainless steel hardware / moisture-resistant motor
• Low Ceiling Adapter (LCA) is not compatible when used in damp or
humid locations
ESTRADA®
CONTROLS
Casablanca creates fans for every environment and mood. The Estrada is casual and colorful, with wrought iron trim inserts that harmonize with
outdoor furniture décor. ETL Damp-rated, the Estrada is specially adapted for humid locations.
4746D
Rustic Iron motor shown with
B722 Rustic Iron All-Weather ABS blades
DAMP
COMPATIBLE LIGHT FIXTURES
Group A Light Fixtures (see pages 128–131)
Group B Light Fixtures (see pages 131–133)
ENERGY INFORMATION AT HIGH SPEED
52" BLADE
44" BLADE
DIMENSIONS
A: 13.00"
B: 13.75"
C: 3.00"
D: 12.00"
E: 5.60"
Electricity Use:
82 w
Electricity Use:
89 w
Airfl ow Effi ciency:
63.7 cfm/w
Airfl ow Effi ciency:
75.3 cfm/w
Airfl ow:
5,238 cfm
Airfl ow:
6,734 cfm
see accessories
page 123 for
blade options
3-Speed
Pullchain (D)
(included)
Adapt•Touch™
W-52 (optional—indoor only)
Three-speed remote control with
full-range light dimming. Includes
wall plate bracket.
110 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 111
OUTDOOR / INDOOR
FEATURES
• Direct Drive™ motor / lifetime motor warranty
• 50" or 42" blade span / 16º blade pitch
• Multiple All-Weather blade fi nish choices available (blades sold separately)
• ETL rated for damp or humid locations
• Use only Damp- or Wet-rated light fi xtures in outdoor or damp locations
• Stainless steel hardware / moisture-resistant motor
• Low Ceiling Adapter (LCA) is not compatible when used in damp or
humid locations
FEATURES
• XTR200™ 30mm motor / lifetime motor warranty
• ETL rated for damp or humid locations
• 60" blade span / 14º blade pitch
• Set of 5 exclusive outdoor carved featherwood blades included
• Moisture-resistant motor / stainless steel hardware
• Integrated 150-watt uplight with six 25w bulbs included
• Integrated 100-watt downlight with two 50w T4 halogen bulbs included
• Low Ceiling Adapter (LCA) is not compatible
• Requires additional hanging support (included)
77546D
Brushed Cocoa motor shown
with B420 Walnut blades
C20G624F
Bullion Black motor with
Reclaimed Antique blades
UTOPIAN®
CONTINENTAL
™
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS
A: 11.80"
B: 16.90"
C: 3.00"
D: 16.20"
E: 5.60"
Electricity Use:
100 w
Airfl ow Effi ciency:
80.4 cfm/w
Airfl ow:
8,021 cfm
CONTROL
The versatile Utopian fan is ideally suited for humid environments. Smooth contours and simple lines provide a clean, progressive look that
enhances décor without distraction. For bathrooms, kitchens and verandas, the Utopian is the perfect choice.
Casablanca brings the grand formality of the Beaux Arts period to today’s homes with the Continental ceiling fan. This Damp-rated fan’s faux
alabaster light fi xtures and botanical motif beautifully complement cast iron and aluminum outdoor furniture.
7745D
Brushed Nickel motor
shown with
B818 Matte Black
All-Weather ABS blades
7711D
Snow White motor shown
with B817 Matte Snow
White All-Weather
ABS blades
COMPATIBLE LIGHT FIXTURES
Group A Light Fixtures (see pages 128–131)
Group B Light Fixtures (see pages 131–133)
DAMP
4-Speed (F)
W-81 (included)
Four-speed wall control with dual-rotary system for full-range
light dimming and speed control.
DAMP CONTROLS
ENERGY INFORMATION AT HIGH SPEED
50" BLADE
42" BLADE
DIMENSIONS
A: 12.20"
B: 12.22"
C: 3.00"
D: 10.29"
E: 5.60"
Electricity Use:
77 w
Electricity Use:
86 w
Airfl ow Effi ciency:
69.3 cfm/w
Airfl ow Effi ciency:
76.7 cfm/w
Airfl ow:
5,357 cfm
Airfl ow:
6,611 cfm
see accessories
page 123 for
blade options 3-Speed
Pullchain (D)
(included)
Adapt•Touch™
W-52 (optional — indoor only)
Three-speed remote control with
full-range light dimming. Includes
wall plate bracket.
CEILING FANS
60" Fellini® ceiling fan
CANDELIER
ORNATE
TRADITIONAL
TRANSITIONAL
CONTEMPORARY
LOW PROFILE
DÉCOR SPECIFIC
OUTDOOR / INDOOR
PRESTIGE® EXCLUSIVE
114 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 115
PRESTIGE® EXCLUSIVE
FEATURES
• 188 x 25 mm motor
• 72" blade span / 14° blade pitch
• Set of 5 exclusive blades included
• Flush / standard / angled mounting
• Remote control features speed, reversing
and dimming functions
FEATURES
• 188 x 25 mm motor
• 60" blade span / 15° blade pitch
• Set of 5 hand-carved wood blades included
• Flush / standard / angled mounting
• Remote control features speed, reversing and dimming functions
28484
Cocoa motor with Walnut Regal-Style
hand-carved wood blades
72" FELLINI® 60" FELLINI®
DIMENSIONS
DIMENSIONS
A: 16.60"
B: 13.80"
C: 3.00"
D: 14.20"
E: 7.20"
A: 16.60"
B: 13.20"
C: 3.00"
D: 14.20"
E: 7.20"
A: 14.95"
B: 13.42"
C: 3.07"
D: 14.20"
E: 7.61 "
Electricity Use:
74 w
Electricity Use:
101 w
Electricity Use:
88 w
Airfl ow Effi ciency:
73 cfm/w
Airfl ow Effi ciency:
68 cfm/w
Airfl ow Effi ciency:
95 cfm/w
Airfl ow:
5,439 cfm
Airfl ow:
6,940 cfm
Airfl ow:
8,500 cfm
CONTROL CONTROL
With a 72-inch blade span, this is the Fellini® à fantastico! Whether you prefer a model with tapered distressed wood blades or go for the
tropical touch of hand-carved palm leaves, you’ll enjoy a very grand fan indeed.
A 60-inch blade span makes this edition of the Fellini® ideal for a wide variety of rooms. Hand-carved wood blades enrich the fan’s
character, while subtle fi nishing touches please the eye without overwhelming the beholder.
28488
Cocoa motor with tapered Distressed Cherry /
Distressed Dark Walnut Veneer blades
Three-speed remote control with
full-spectrum light dimming and
reversing. Includes wall bracket.
Three-speed remote control with
full-spectrum light dimming and
reversing. Includes wall bracket.
21215
Provence Crackle motor with
Aged Oak hand-carved wood blades
ENERGY INFORMATION AT HIGH SPEED
ENERGY INFORMATION AT HIGH SPEED
28484
28484
21215
21215
Note: Product has Hunter Prestige® packaging. Note: Product has Hunter Prestige® packaging.
116 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 117
FEATURES
• 172 x 18 mm AirMax® Motor
• 60" blade span / 15° blade pitch
• Set of 3 exclusive blades included
• Standard / angled mounting
• For use on nine foot or higher ceilings
• Remote control features speed, reversing and dimming functions
TRIBECA®
From a loft in Soho to a gallery in Frisco, the Tribeca® is at home wherever the love of industrially infl uenced urban design fl ourishes.
Sleek and minimalist, its impressive blade span moves air with maximum style.
ENERGY INFORMATION AT HIGH SPEED
DIMENSIONS
A: 17.33"
B: 15.70"
C: 2.60"
D: 6.60"
E: 6.20"
Electricity Use:
73 w
Airfl ow Effi ciency:
81 cfm/w
Airfl ow:
5,942 cfm
2 8 1 2 2
Graphite motor with reversible
Graphite / Light Cherry blades
28120
Satin White motor with
Satin White blades
28121
Brushed Nickel motor with reversible
Maple Veneer / Graphite blades
Tribeca® Exclusive
Bowl CFL Light Fixture
100 watts
Available fi nishes:
Graphite (26167)
Satin White (26168)
Brushed Nickel (26169)
PRESTIGE® EXCLUSIVE
CONTROL
Three-speed remote control with
full-spectrum light dimming and
reversing. Includes wall bracket.
Note: Product has Hunter Prestige® packaging. Note: Product has Hunter Prestige® packaging.
FEATURES
• 172 x 20 mm motor
• 55" and 56" blade span / 12° blade pitch
• Set of 5 exclusive hand-carved wood blades included
• Flush / standard / angled mounting
• Extra-slow fourth speed
28537
56" Sand motor with Shimmering Sand
hand-carved wood blades
CORONADO™
DIMENSIONS
A: 13.84"
B: 12.35"
C: 2.77"
D: 9.17 "
E: 7.17 "
A: 13.73"
B: 12.18"
C: 3.15"
D: 9.21"
E: 7.17 "
Electricity Use:
83 w
Electricity Use:
84 w
Airfl ow Effi ciency:
71 cfm/w
Airfl ow Effi ciency:
79 cfm/w
Airfl ow:
5,904 cfm
Airfl ow:
6,607 cfm
CONTROL
The crisp, compact motor housing of the CoronadoTM stays simple in order to showcase the fan’s stunning selection of tropical, carved wood
blades. What better way to bring your fantasy of lush palms and tropical breezes to life?
4-Speed
Pullchain (K)
(included)
28522
55" Amber Bronze motor with Cherry
hand-carved wood Banana Leaf blades
ENERGY INFORMATION AT HIGH SPEED
28537
28522
28537 28522
118 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 119
PRESTIGE® EXCLUSIVE
FEATURES
• 188 x 25 mm motor
• 52" and 54" blade span / 16° blade pitch
• Set of 5 exclusive outdoor blades included
• ETL rated for damp or humid locations
• Standard / angled mounting
CHARTHOUSE®
With its delightfully simple styling, the Charthouse® brings the airy feel of a secluded beach house to any room. Choose the blade and fi nish
combination that’s just your style and let this fan take you away from it all.
DIMENSIONS
A: 13.10"
B: 11.91"
C: 3.31"
D: 12.50"
E: 7.13 "
CONTROLS
DAMP
26489
54" Ne w Bronze motor with reversible
Bamboo / Rattan weatherproof plastic blades
26487
52" W hite motor with reversible
White Beadboard / White
weatherproof plastic blades
26488
52" Weathered Bronze motor
with Teak blades
3-Speed
Pullchain (D)
(included)
Note: Product has Hunter Prestige® packaging.
Electricity Use:
76 w
Airfl ow Effi ciency:
76 cfm/w
Airfl ow:
5,805 cfm
ENERGY INFORMATION AT HIGH SPEED
26489
Electricity Use:
76 w
Electricity Use:
76 w
Airfl ow Effi ciency:
79 cfm/w
Airfl ow Effi ciency:
81 cfm/w
Airfl ow:
5,974 cfm
Airfl ow:
6,156 cfm
26487
26488
BLADES
STANDARD-STYLE BLADES
BADGE-STYLE BLADES
ALL-WEATHER BLADES
SOUTH SEAS BLADE COLLECTION
AVALON BLADE SYSTEM
BEADBOARD BLADE COLLECTION
LIGHT FIXTURES
CONCERT BREEZE LIGHT FIXTURE
CONTROL OPTIONS
HANGING SYSTEM
ACCESSORIES
Holliston™ ceiling fan
with KGC12A light fi xture
122 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 123
COMPATIBLE FAN COLLECTIONS
Concentra and Panama
17" BLADE FINISHES
B304 Teak
B306 Mahogany
B307 Architectural White
B514 Walnut
B523 Hi-Gloss Snow White
B543 Matte Snow White
B544 Antique Oak
21" BLADE FINISHES
B201 Maple
B202 Mahogany
B204 Architectural White
B206 Dark Cherry
B207 Medium Oak
B210 Relic
B213 Oil-Rubbed Bronze
B515 Walnut
B537 Classic White
B545 Antique Oak
B561 Matte Snow White
B562 Teak
B564 Cherrywood
B567 Hi-Gloss Rosewood
B583 Hi-Gloss Snow White
B588 Matte Black
BS21-WD Dark Walnut
STANDARD-STYLE BLADES
Our standard blades are anything but, with specially constructed plywood layers to eliminate warping and a variety of stain and
paint options. Blades are not for use in damp or wet locations.
ACCESSORIES
17" BLADE FINISHES
B416 Cherrywood
B419 Matte Snow White
B420 Walnut
COMPATIBLE FAN COLLECTIONS
Barolo, Brescia, Capistrano, Metropolitan, New Orleans and Victorian.
Compatible with Estrada, Lanai and Utopian when used in a dry location.
21" BLADE FINISHES
B101 Maple
B102 Mahogany
B103 Walnut
B107 Dark Cherry
B108 Medium Oak
B111 Relic
B500 Navajo White
B507 Teak
B508 Matte Black
B509 Matte Snow White
B511 Hi-Gloss Snow White
B522 Antique Oak
B541 Cherrywood
BB21-WD Dark Walnut
BADGE-STYLE BLADES
All the same exceptional features as our standard fan blades, but compatible with even more fan styles. Blades are not for use in
damp or wet locations.
124 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 125
17" BADGE-STYLE
BLADE FINISHES
B817 Matte Snow White
B818 Matte Black
B821 Weathered Pine
B826 Dark Walnut
COMPATIBLE FANS
Estrada
Lanai
Utopian
21" BADGE-STYLE
BLADE FINISHES
B717 Matte Snow White
B718 Matte Black
B719 Classic White
B721 Weathered Pine
B722 Rustic Iron
B726 Dark Walnut
COMPATIBLE FANS
Estrada
Lanai
Utopian
DIMENSIONS
20 5
/8" length
9" maximum width
COMPATIBLE FANS
Badge: Capistrano, Metropolitan
Standard: Concentra, Four Seasons III, Panama
BADGE-STYLE
BLADE FINISHES
B28B-MG Mahogany
B28B-WH White
STANDARD-STYLE
BLADE FINISHES
B28S-MG Mahogany
B28S-TK Teak
ALL-WEATHER BLADES SOUTH SEAS BLADE COLLECTION™
Built exclusively for outdoor environments, these high-quality blades made with durable ABS plastic will withstand the elements,
retaining their beauty for years to come.
South Seas blades bring the option of tropical styling to any room. Blades are constructed with the highest quality materials and
not only look great, but also provide optimum air movement at any fan speed.
ACCESSORIES
Mahogany WhiteTeak
126 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 127
FEATURES
• 62" blade span / 18˚ blade pitch
• 29" long, 10" maximum width
• Ripstop nylon sailcloth blades
• Urethane coated with UV inhibitors
• Special hardware included
• Not for use with Low Ceiling Adapter (LCA)
BLADE FINISHES
BBB21-72 Architectural White
BBB21-72D Distressed Architectural White
COMPATIBLE FANS
Capistrano
Metropolitan
BLADE FINISHES
BL31W-11 White rod with White fabric
COMPATIBLE FANS
Panama
COMPATIBLE
LIGHT FIXTURES
K1KA, K164A, K4BA, K164F
BEADBOARD BLADE COLLECTIONAVALON® BLADE SYSTEM
Beadboard blades add cottage-style comfort and charm to any compatible fan model. Their signature design draws its inspiration from
vintage paneling. Not for use in damp or wet locations.
Avalon blades bring the option of nautical styling to a range of fan series. Blades are fabricated with ripstop sailcloth and tensioned by
fi berglass fi shing rods. Truly a Casablanca classic.
Architectural
White
Distressed
Architectural
White
ACCESSORIES
White
128 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 129
COMPLETE LIGHT FIXTURES — GROUP A
INCLUDE FITTER AND GLASS
LIGHT FIXTURES — GROUP A
ACCESSORIES
K4BA*
Four-Light Integrated CFL Bullet Fixture
52 watts
Available fi nishes:
Snow White (-11)
Brushed Nickel (-45)
Oil-Rubbed Bronze (-73)
KG2LA
Outdoor Incandescent Fixture
120 watts (two 60w candelabra bulbs)
ETL Rated for wet locations
Available fi nishes:
Snow White (-11)
Navajo White (-26)
Rustic Iron (-46)
Brushed Cocoa (-546)
Restoration Bronze (-669)
KG2WWA
Outdoor Incandescent Fixture
120 watts (two 60w candelabra bulbs)
ETL Rated for wet locations
Available fi nishes:
Classic White (-9)
KGC12A*
Outdoor Four-Light Integrated
CFL Fixture
56 watts
ETL Rated for wet locations
Available fi nishes:
Brushed Cocoa (-546)
Bullion Black (-624)
LOW-PROFILE FITTERS AND GLASS — GROUP A
*Bulbs included with this light kit do not dim. If this light kit is
installed on a fan with a light dimming function, then bulbs
capable of dimming need to be purchased separately.
K1CA
Integrated Halogen Fitter
100 watts
Available fi nishes:
Classic White (-9)
Snow White (-11)
Brushed Nickel (-45)
Oil-Rubbed Bronze (-73)
Antique Pewter (-97)
Chrome (-199)
Bullion Black (-624)
G107
White Marble Low-Profi le Glass
Use with K1CA or K2CA fi tter (sold separately)
G108
Scavo Low-Profi le Glass
Use with K1CA or K2CA fi tter (sold separately)
G110
Opal Low-Profi le Glass with Accent
Use with K1CA or K2CA fi tter (sold separately)
G109
White Frosted Low-Profi le Glass
Use with K1CA or K2CA fi tter (sold separately)
K2CA
Integrated Incandescent Fitter
120 watts (two 60w candelabra bulbs)
Available fi nishes:
Bright Brass (-2)
Antique Brass (-4)
Matte Black (-8)
Classic White (-9)
Snow White (-11)
Navajo White (-26)
Brushed Nickel (-45)
Architectural White (-72)
Oil-Rubbed Bronze (-73)
Brushed Cocoa (-546)
K2C Integrated Incandescent Fitter
120 watts (two 60w candelabra bulbs)
Available fi nishes:
Weathered Copper (-32)
Rustic Iron (-46)
Tuscan Bron ze (- 6 6 8)
G106
Seashell Low-Profi le Glass
Use with K1CA or K2CA fi tter (sold separately)
K2CA-45 two-light fi xture with G108 Scavo
Glass shown on Panama motor in Brushed
Nickel (6645G) with B562 Teak blades
FPO
130 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 131
THUMBSCREW GLASS — GROUPS A & B
**Not compatible with KXXXF CFL fi xtures.
ACCESSORIES
K4SA*
Four-Light CFL Fitter for 2 1
/4" Glass
56 watts
Available fi nishes:
G414
2 1
/4" Side Glass
Frosted Tulip
G912**
2 1
/4" Side Glass
Opal Matte
G418
2 1
/4" Side Glass
Frosted Deco
G420
2 1
/4" Side Glass
Frosted Drapes
G911**
2 1
/4" Side Glass
Teck Antique
Complete light fi xtures include White glass unless indicated otherwise.
SOCKET-RING FITTER AND GLASS — GROUP A
K44TA*
Contemporary Four-Light
CFL Fitter
56 watts
Available fi nishes:
CSG2
2 1
/4" Side Glass with Square Shape
Amber Speckled
CSG7
2 1
/4" Side Glass with Bell Shape
Amber Linen
CSG16
2 1
/4" Side Glass
White
CSG5
2 1
/4" Side Glass with Bell Shape
White Cased
CSG15
2 1
/4" Side Glass
Opal
THUMBSCREW FITTERS — GROUP A
Bright Brass (-2)
Antique Brass (-4)
Matte Black (-8)
Classic White (-9)
Snow White (-11)
Weathered Copper (-32)
Brushed Nickel (-45)
Architectural White (-72)
Oil-Rubbed Bronze (-73)
Brushed Cocoa (-546)
Bullion Black (-624)
Antique Brass (-4)
Snow White (-11)
Brushed Nickel (-45)
Architectural White (-72)
Oil-Rubbed Bronze (-73)
Chrome (-199)
K4SA Four-light fi tter with G418 glass
shown on Brescia motor (9745) with
Hi-Gloss Snow White blades
G914**
2 1
/4" Side Glass
Nuage Blanc Satin
*Bulbs included with this light kit do not dim. If this light kit is
installed on a fan with a light dimming function, then bulbs
capable of dimming need to be purchased separately.
G606**
2 1
/4" Side Glass
Diamond- and
Flower-Cut Crystal
132 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 133
BOWL FITTER AND BOWLS — GROUP B
COMPLETE LIGHT FIXTURES — GROUP B
INCLUDE FITTER AND GLASS
ACCESSORIES
K2AA
Center-Stem CFL Fitter for Center Bowl
Glass (medium base sockets)
28 watts
G208
White Marble Glass Bowl
Use with K2AA fi tter (sold separately).
Bright Brass, Antique Brass, Snow White,
Brushed Nickel, Chrome, Antique Pewter
and Bullion Black fi nials included
G213
Italian Leaf Glass Bowl
Use with K2AA fi tter (sold separately)
Snow White and Brushed Nickel
fi nials included
Not for use with pullchain models unless equipped with
optional controls.
THUMBSCREW FITTERS AND 4" CENTER GLASS — GROUP B
K1KA*
CFL Fitter for 4" Center Glass
Only for use with G501 and G502 glass
14 watts
ETL Rated for damp locations
Available fi nishes:
Snow White (-11)
Brushed Nickel (-45)
Rustic Iron (-46)
Architectural White (-72)
Oil-Rubbed Bronze (-73)
G501
4" White Center Glass
Opal Schoolhouse
(K1K fi xture sold separately)
G502
4" White Center Glass
Opal Mushroom
(K1K fi xture sold separately)
†Fluorescent can only be used on pullchain fans; Energy Star® rated.
ºIncludes pullchain switch (not shown).
K4C
Ornate Four-Arm Center-Stem
Incandescent Fitter for 2 1
/4" Glass
240 watts
Available fi nishes:
Burnished Bronze (-92)
K164A*º / K164F*†º
Four-Light Straight-Arm Center-Stem
Fitter for 2 1
/4" Glass
K164A – CFL / 56 watts
Available fi nishes:
Antique Brass (-4)
Snow White (-11)
Brushed Nickel (-45)
Architectural White (-72)
Oil-Rubbed Bronze (-73)
K164F – CFL / 52 watts
(200 watt equivalent light output)
Available fi nishes:
Antique Brass (-4)
Classic White (-9)
Brushed Nickel (-45)
K134A*º
Four-Arm Center-Stem Swivel
CFL Fitter for 2 1
/4" Glass
56 watts
Available fi nishes:
Bright Brass (-2)
Antique Brass (-4)
Snow White (-11)
Brushed Nickel (-45)
Oil-Rubbed Bronze (-73)
THUMBSCREW FITTERS — GROUP B
LIGHT FIXTURES — GROUP B
KG4WA*º
Shaker Four-Light CFL Fixture
56 watts
Available fi nishes:
Snow White / Frosted glass (-11)
Brushed Nickel / Frosted glass (-45)
Oil-Rubbed Bronze / Frosted glass (-73)
Brushed Cocoa / Amber glass (-546)
KG1KAº
Center-Stem Incandescent Pan Fixture
White Frosted Glass
80 watts (two 40w candelabra bulbs)
Available fi nishes:
Antique Brass (-4)
Classic White (-9)
Snow White (-11)
Brushed Nickel (-45)
Architectural White (-72)
Oil-Rubbed Bronze (-73)
* Bulbs included with this light kit do not dim. If this light kit is
installed on a fan with a light dimming function, then bulbs
capable of dimming need to be purchased separately.
DAMP
* Bulbs included with this light kit do not dim. If this light kit is
installed on a fan with a light dimming function, then bulbs
capable of dimming need to be purchased separately.
ºIncludes pullchain switch (not shown).
134 – CASABLANCAFANCO.COM CASABLANCAFANCO.COM – 135
FEATURES
• Mounts to most Casablanca ceiling fans or directly to ceiling
• CSLK-11 and CSLK-73 rated for damp locations
• CSLK-45 rated for indoor use only
• Compatible with many audio sources such as MP3 players, televisions
and stereos
• Remote control included for separate operation of light and audio functions
• Integrated 120-watt bowl light fi xture
• Includes three 40w candelabra bulbs
FINISHES
CSLK-11 Snow White (Swirled Marble glass)
CSLK-73 Oil-Rubbed Bronze (Italian Amber Scavo glass)
CSLK-45 Brushed Nickel (Swirled Marble glass)
COMPATIBLE FANS
Academy
Brescia*
Capistrano*
Concentra
Estrada
Heritage*†
Key Largo II
Lanai
Panama*
Utopian
Wailea
CONCERT BREEZE LIGHT FIXTURE
A light fi xture and sound system all in one, the Concert Breeze mounts to most Casablanca fans, or directly to your ceiling. This
groundbreaking Soundolier® technology utilizes an exclusive 2.4 GHz wireless system that’s easily adapted to your television, stereo, MP3
player or any other audio source for 360 degrees of high-defi nition sound.
CONTROL
ACCESSORIES
CSLK-73
Oil-Rubbed Bronze Concert Breeze
Light Fixture shown on Panama 6673G
Soundolier® Remote
To ensure things stay on the “cool” side, the system’s hand-held
credit-card–style wireless remote is a sleek addition to any technology
seeker’s desire to control the room’s mood—both through sound volume
and light brightness level.
DAMP INDOOR
CSLK-11
Snow White Concert Breeze Light Fixture
shown mounted to ceiling
CSLK-11
CSLK-73
CSLK-45
*Pullchain models only.
†Compatible when used in indoor or damp locations only.
CASABLANCAFANCO.COM – 137136 – CASABLANCAFANCO.COM
CONTROL OPTIONS
With simple two-wire installation and intuitive Integrated Controls designed exclusively for—and included with—specifi c fan models,
Casablanca fans are easy to install and even easier to use. The Integrated Controls include such features as adjustable fan speed
and direction settings, lighting levels, and even home security, for total environmental enhancement.
INTEGRATED CONTROLS
Inteli•Touch3® (W-84 Dual Light, W-85 Single Light)
This sophisticated wall-mounted system controls six fan speeds (in either the forward or reverse direction) and full-range light
dimming for perfect room comfort and ambience. Safe-Exit™ provides 20 seconds of gradual light dimming, showing you
safely to the door. Home-Safe™ is a home security feature that controls lights in an irregular sequence, making a home appear
occupied. The Fan Minder™ feature incrementally reduces fan speed, maintaining comfort at night. The Light Minder™ feature
saves energy by turning lights off automatically after two hours.
Advan•Touch® (W-63 Dual Light)
Wall-mounted or hand-held, Advan•Touch combines a user-friendly design with a large LCD display and intuitive controls for
fan and lighting with programmable features. Advanced programmable features include Safe-Exit™ and Home-Safe.™ Use
one Advan•Touch to control several fans, or purchase an extra control to operate one fan from different locations. Includes
wall plate bracket.
Versa•Touch2® (W-72 Single Light)
The refi ned Versa•Touch2 hand-held remote provides three forward and reverse fan speeds, full-spectrum light dimming and
memory and has an optional wall plate bracket. Versa•Touch2 may be used alone to control several fans, or purchase extra
controls to operate a single fan from different locations. Includes wall plate bracket.
Direct•Touch® (W-74SL, W-74DL)
Simple and straightforward, the Direct•Touch wall-mounted control offers four forward and reverse fan speeds, plus
full-spectrum light dimming and advanced programmable features including Safe-Exit™, Home-Safe™, Fan Minder™ and Light
Minder™. Includes CFL mode.
Prime•Touch® (W-505)
This hand-held remote for select fans provides three forward and reverse fan speeds, full-spectrum light dimming and
memory. Includes wall plate bracket.
ACCESSORIES
ACCESSORY CONTROLS
Single and Dual Rotary Controls (W-41, W-81)
Optional accessory for 3-speed and 4-speed models with XTR200™ and XLP-2000™ motors. Provides four separate fan
speeds, an industry exclusive. Noise-free circuitry and quiet operation (Almond and White included). Dual rotary control
W-81 also provides full-range light dimming and requires third wire for installation.
Single and Dual Slide Controls (W-24W, W-28A, W-28W)
Optional accessory for 3-speed and 4-speed models. Provides four fan speeds. Noise-free circuitry and quiet operation. Not
for use on XTR200™ motors. (Almond or White). Dual slide control W-28A and W-28W also provide full-range light dimming
and require third wire for installation.
Casablanca also offers a complete line of optional accessory controls, which allow homeowners to optimize the functionality of their fans based
upon personal preferences. The Adapt•Touch™ control adds remote control convenience for 3-speed and 4-speed Casablanca fans with a
Hang•Tru® canopy. Casablanca also offers wall-mounted accessory controls for both fan and light control with either slide or rotary operation.
W-41 W-81
W-28W-24
W-74 DLW-74 SL
DC 6-speed
Six-speed control with full-range light dimming and reversing.
Direct•Touch® (W-75SL, W-75DL)
Simple and straightforward, the Direct•Touch remote control offers four forward and reverse fan speeds, plus full-spectrum
light dimming and advanced programmable features including Safe-Exit™, Home-Safe™, Fan Minder™ and Light Minder™.
Includes a CFL mode.
W-75SL W-75DL
WRF3-XX
Three-speed remote control with full-range light dimming and reversing. Compatible with Four Seasons III and
Four Seasons III Hugger.
Inteli•Touch3® (W-64 Dual Light, W-65 Single Light)
This sophisticated wall-mounted system controls six fan speeds (in either the forward or reverse direction) and full-range
light dimming for perfect room comfort and ambience. Safe-Exit™ provides 20 seconds of gradual light dimming, showing
you safely to the door. Home-Safe™ is a home security feature that controls lights in an irregular sequence, making a home
appear occupied. Includes wall plate bracket.
Adapt•Touch™ (W-52)
Add remote control convenience to Casablanca 3-speed and 4-speed models. Adapt•Touch easily converts new or existing
Casablanca 3-Speed and 4-Speed pullchain models equipped with a Hang•Tru® canopy to remote control operation.
Features include three fan speeds, instant off and full-range light dimming (on models equipped with a light fi xture), all from
the palm of your hand. The hand-held remote includes a switch plate bracket for wall mounting, and the receiver is quickly
installed in the Hang•Tru® canopy. Use one Adapt•Touch to control several fans, or purchase extra controls to operate a fan
from different locations. Note: The W-52 is not recommended for use in outdoor locations.
CASABLANCAFANCO.COM – 139138 – CASABLANCAFANCO.COM
HANGING SYSTEM
Casablanca makes installation a do-it-yourself, one-person operation. Casablanca’s patented Hang-Tru® hanging system supports the fan
from the ceiling, leaving both hands free to make wiring connections. The self-centering ball makes sure the fan hangs straight, even on
ceilings with up to 32-degree slope (for greater slopes, use a Sloped Ceiling Adapter).
Casablanca’s threaded Perma•Lock™ downrod locks the fan permanently in place and is the sturdiest, easiest to install downrod on the
market. Higher ceilings? Casablanca offers optional downrods in lengths up to 96" to satisfy virtually any installation requirement.
EXTRAS INCLUDED
Everything you need is included with your Casablanca fan, including light bulbs, batteries for remotes, and even a handy screwdriver.
Casablanca delivers "Quality In Every Detail.™"
ACCESSORIES
Low Ceiling Adapter (LCA)
Sloped Ceiling Adapter (SCA)
Note: For best performance and appearance, an extension downrod should be used with your Casablanca fan when installing on a high or sloped ceiling. Casablanca offers extension
downrods in lengths up to 8' (96"). The chart lists the most common ceiling heights and suggested downrod lengths. For safety reasons, the fan blades must be a minimum of 7 feet
above the fl oor. For more information, see your Casablanca dealer.
Gallery Edition models include coordinating blades, light fi xture and glass. Fans with the notation "Requires Additional Hanging Support" are packaged with the necessary hardware.
EXTENSION DOWNROD LENGTHS (MODEL PL*XX)
6", 12", 18", 24", 36", 48", 60", 72" and 96" (*= fi nish to match fan, xx= downrod length). See ceiling height/downrod length guide below.
PERMA•LOCK™ DOWNRODS
SUGGESTED EXTENSION DOWNRODS
Academy
Academy Gallery
Alessandria (5” std.)
Antion
Atria (4" std.)
Barolo
Bel Air
Bel Air Halo (7" std.)
Brescia
Bungalow (3" std.)
Candelier II (9" std.)
Capistrano
Colorado (12" std.)
Concentra
Continental
Estrada
Four Seasons III
Four Seasons III Gallery
Four Seasons III Outsider
Heritage (5" std.)
Holliston (3" std.)
Key Largo II (3" std.)
La Fleur (5” std.)
Lanai
Le Grande
Malibu Star (12" std.)
Marrakesh (6" std.)
Metropolitan
Mission
Modena II
New Orleans Centennial
19th Century (12" std.)
Panama
S3
Star
Starlet
Stealth
Tercera
Trident
Utopian
Veneto (11" std.)
Verrazano (6" std.)
Vicente (11" std.)
Victorian
Vita (5" std.)
Wailea
Whitman (5" std.)
SLOPED CEILING ADAPTER (SCA-P)
Use Model SCA-P for slopes from 32 degrees to 56 degrees.
If using the SCA-P with Academy, Academy Gallery, Bungalow, Holliston, Mission,
Modena II, S3, Star, Starlet, Verrazano, Vita or Whitman, you must purchase a
Hang-Tru® canopy (Part #192220xx); specify fi nish to match fan. Use hanger pack
included with fan.
LOW CEILING ADAPTER (LCA-*)
LCA-* (limited fi nishes). Reduces fan height by 3 1
/2" from standard downrod
(3" for Direct Drive models). (Canopy measures 2"H x 6.25" diameter.)
NOT for use with Academy, Academy Gallery, Alessandria, Atria, Barolo, Bel Air,
Bel Air Halo, Bungalow, Candelier II, Continental, Four Seasons III Hugger,
Holliston, Isotope, La Fleur, Le Grande, Malibu Star, Marrakesh, Mission, Modena II,
New Orleans Centennial, 19th Century, Panama Halo, S3, Siena, Silhouette II,
Stealth, Trident, Vermont, Verrazano, Vita, Whitman, or Wilderness fans or Avalon
blades. Also not for use with Cottage Wet, Estrada, Four Seasons III Outsider,
Heritage, Lanai, Panama Damp, Utopian, or Wailea when installed in a damp or wet
location.
19TH CENTURY OUTER SLEEVE (RS69XX)
Sleeve must be ordered with appropriate extension pipe:
8" sleeve for 12" pipe, 14" sleeve for 18" pipe, 20" sleeve for 24" pipe, 26" sleeve for 30" pipe, 32" sleeve for 36" pipe, 44" sleeve for 48" pipe, 56" sleeve for 60"
pipe, 68" sleeve for 72" pipe.
FAN MODELS
8'
Standard 6" 12" 18" 24" 36" 48" 60" 72" 96"
10'
9'
11' 12' 13' 14' 15' 16' 18'
CEILING HEIGHT
DOWNROD LENGTH
CASABLANCAFANCO.COM – 141140 – CASABLANCAFANCO.COM
WHERE TO BUY
To experience The Casablanca Difference, visit an authorized Casablanca dealer in your area and discover the abundance of style, fi nish,
function and accessory options that have made the Casablanca name synonymous with the World’s Finest Ceiling Fans™.
Our dealers’ trained Casablanca specialists work with customers to select or build a product that is a seamless fi t with each individual’s
lifestyle and environment. And Casablanca’s customer support team and nationwide network of Authorized Service Centers are just a
phone call or a click away.
To fi nd a retailer near you or shop online, call 1-800-715-0393 toll-free, or visit www.CasablancaFanCo.com.
7130 GOODLETT FARMS, SUITE 400
MEMPHIS, TN 38016
1.800.715.0393
WWW.CASABLANCAFANCO.COM
TWELVE DOLLARS
PRINTED IN THE U.S.A.
©2012 CASABLANCA FAN COMPANY
SR-1324
