morelectricheating.com

REPLACEMENT

PARTS CATALOG

This catalog contains part numbers for the most common replacement parts for QMARK heaters shown in the Table of Contents.

Additional parts for these heaters may be available - consult factory for availability. Parts for QMARK heaters not listed in the Table of

Contents may be available - consult factory for availability.

NOTE: Parts longer than 8’ in length cannot ship UPS. Consult factory for shipping information.

TABLE OF CONTENTS

OBSOLETE PRODUCTS

ZGC-QRPCO 12/07

BASEBOARD

Baseboard Accessories ..................................2

CBD ................................................................3

HBB ................................................................3

QMK (2500 Series) ........................................2

QMKC..............................................................2

WALL HEATERS

AWH4000 (WH SERIES) ................................4

B2400 ..........................................................42

B2451 ..........................................................42

CFWF ..............................................................6

CRA (C SERIES)..............................................7

CWH1000........................................................5

CWH3000........................................................5

ECP ................................................................6

EFQ ................................................................6

GFR ................................................................6

LFK..................................................................5

SED ................................................................6

QFG (G SERIES)..............................................7

SPECIALITY HEATERS

QTS ................................................................7

WHT................................................................8

FDI ..................................................................8

CEILING HEATERS

CDF ................................................................9

EFF ..................................................................9

QCH ................................................................8

UNIT HEATERS

MUH..............................................................11

MUH35..........................................................14

MWUH5004 ..................................................10

IUH................................................................10

CU900 ..........................................................15

CHPR25 ........................................................15

CONVECTORS

DBA ..............................................................18

SHA ..............................................................18

KCJ ..............................................................16

QDB ..............................................................20

CPH ..............................................................19

CSH ..............................................................19

DSH ..............................................................19

ST ................................................................17

RADIANT

RCC ..............................................................20

FRP/FRS........................................................22

HRK ..............................................................22

BRM..............................................................21

CRN ..............................................................20

ARL ..............................................................21

CHRR ............................................................23

BUILDER PRODUCTS

BATH VENTS ................................................37

WHOLE HOUSE FANS ..................................41

RESIDENTIAL CEILING FANS........................43

IRONING CENTERS ......................................43

CENTRAL VACS ............................................40

ROOF VENTILATORS ....................................42

INDUSTRIAL PRODUCTS

AIR CIRCULATORS ......................................34

DRUM BLOWERS ........................................33

MODULAR LOADING DOCK ..........................33

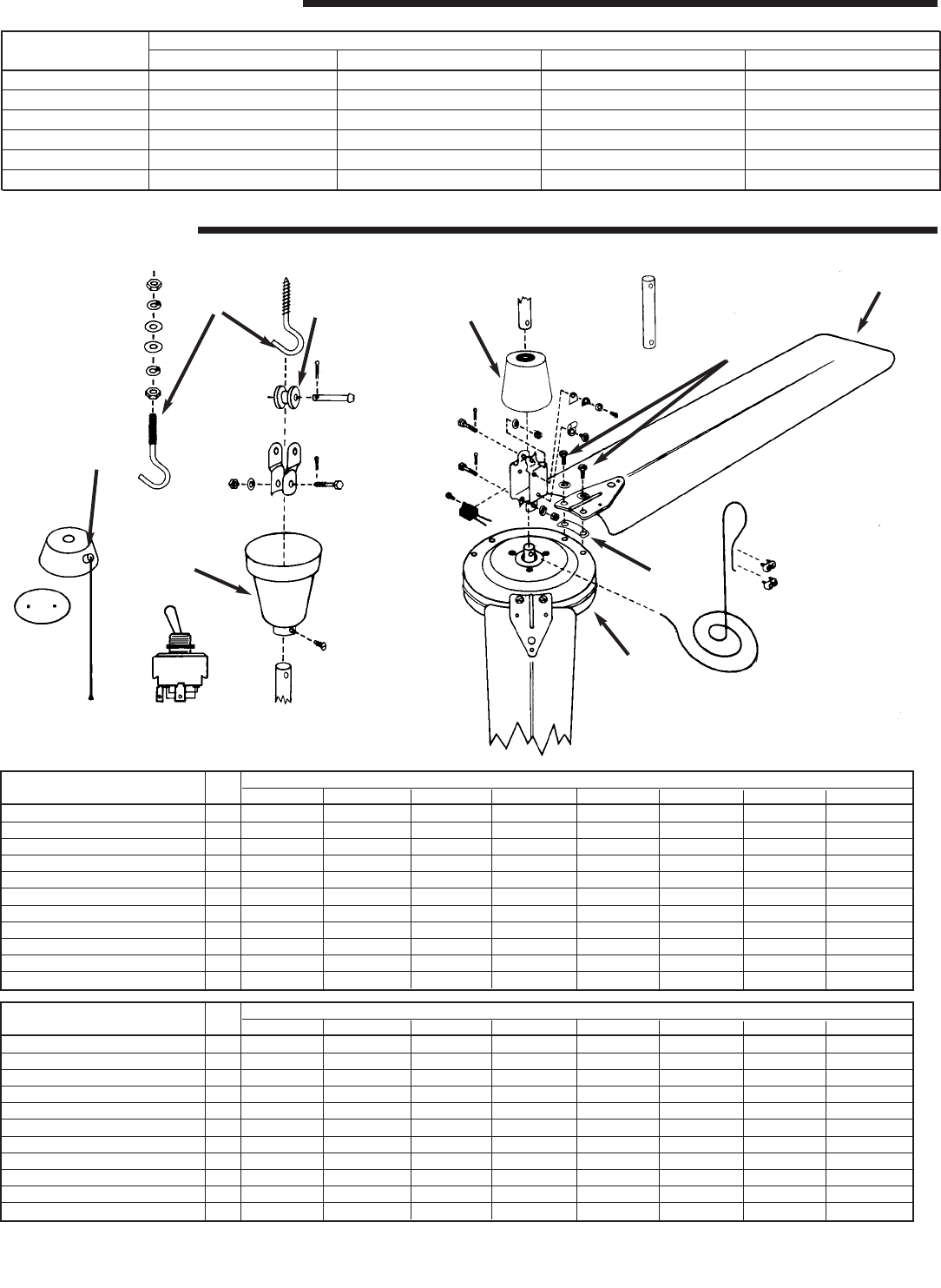

COMMERCIAL CEILING FANS ......................32

WALL/BENCH MOUNT ..................................33

POWER CATS................................................40

EXHAUST FANS ............................................41

ROOF VENTS ................................................41

AIR CURTAINS..............................................35

LPE ..............................................................42

PORTABLE

BPH4A ..........................................................15

PH4/PH5 ......................................................15

WALL HEATERS

AFA ..............................................................31

AWH3000........................................................4

CWH2000......................................................26

QD ................................................................26

QVP ..............................................................31

A2500 ..........................................................41

C Series ........................................................25

G Series ........................................................25

UNIT HEATERS

CU-A ............................................................28

CU-B ............................................................28

VUH ..............................................................27

VUH-A ..........................................................27

CONVECTORS

KD/KS ..........................................................30

ADB ..............................................................20

APH ..............................................................20

ASH ..............................................................20

RADIANT

QRH ..............................................................21

RDO ..............................................................30

BATH VENTS

TC Series ......................................................37

AIR CIRCULATORS

LCHHD24......................................................34

LCHXN24 ......................................................34

LCHIN24 ......................................................34

LCHHD30......................................................34

LCHXN30 ......................................................34

LCHIN30 ......................................................34

POWER CATS

400XLH ........................................................40

ROOF VENTS

MPV200........................................................41

AIR CURTAINS

HIGH VOLUME..............................................36

OTHER

LDH ..............................................................24

LSH ..............................................................24

TSH ..............................................................30

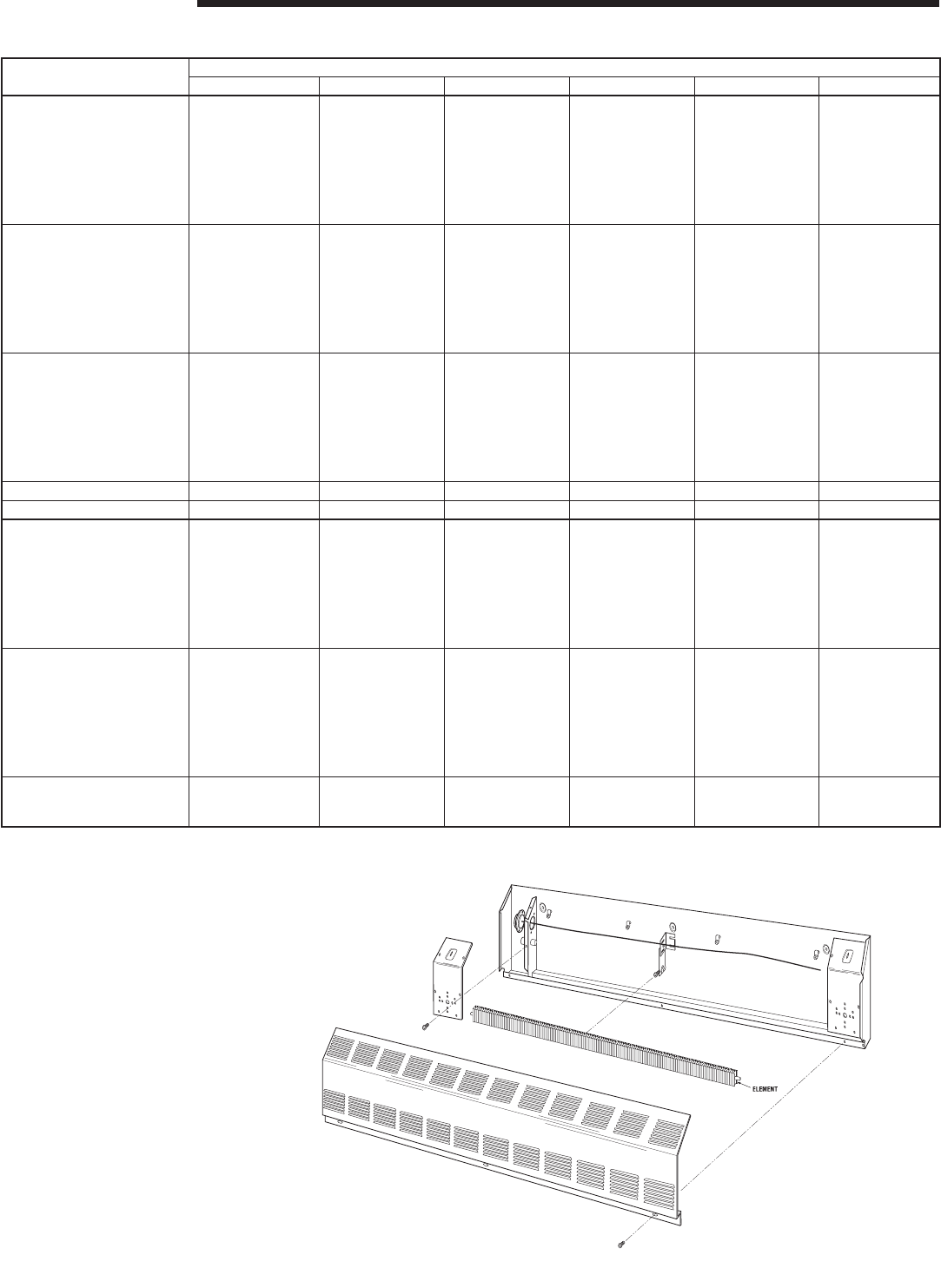

2500, QMK & QMKC

Key

No. Description Part Number

1 Front Cover: QMK/2500 QMKC

2’ 1402-2122-027 —

2’6” 1402-2122-020 1402-2122-040

3’ 1402-2122-021 1402-2122-041

4’ 1402-2122-022 1402-2122-042

5’ 1402-2122-023 1402-2122-043

6’ 1402-2122-024 1402-2122-044

8’ 1402-2122-025 1402-2122-045

10’ 1402-2122-026 1402-2122-046

2 Linear Limits: Standard High Altitude Standard High Altitude

2’ 4520-2018-000 4520-2019-000 4520-2018-000 4520-2019-000

2’6” 4520-2018-001 4520-2019-001 4520-2018-001 4520-2019-001

3’ 4520-2018-002 4520-2019-002 4520-2018-002 4520-2019-002

4’ 4520-2018-003 4520-2019-003 4520-2018-003 4520-2019-003

5’ 4520-2018-004 4520-2019-004 4520-2018-004 4520-2019-004

6’ 4520-2018-005 4520-2019-005 4520-2018-005 4520-2019-005

8’ 4520-2018-006 4520-2019-006 4520-2018-006 4520-2019-006

10’ 4520-2018-007 4520-2019-007 4520-2018-007 4520-2019-007

3 Junction Box Cover:

Northern White (NWD) 1402-2261-000

Navajo White (WC) 1402-2261-001

Fawn 63602-190-05

Fawn A & B 63602-190-01

4 Element (250 watts/ft.): 120V 208V 240V 277V 240/277V

2’ 1802-2056-003 1802-2056-002 1802-2056-001 1802-2056-000 —

2’6” 1802-2056-007 1802-2056-006 1802-2056-005 1802-2056-004 —

3’ 1802-2056-011 1802-2056-010 1802-2056-009 1802-2056-008 —

4’ 1802-2044-017 1802-2044-016 1802-2044-015 1802-2044-014 —

5’ 1802-2044-023 1802-2044-022 1802-2044-021 1802-2044-020 —

6’ 1802-2044-029 1802-2044-028 1802-2044-027 1802-2044-026 —

8’ — 1802-2044-034 1802-2044-033 1802-2044-032 —

10’ — 1802-2044-038 1802-2044-037 1802-2044-036 —

Element (188 watts/ft.):

3’ 1802-2056-013 ———1802-2056-012

4’ 1802-2044-019 ———1802-2056-018

5’ 1802-2044-025 ———1802-2056-024

6’ 1802-2044-031 ———1802-2056-030

8’ —— — —1802-2056-035

10’ —— — —1802-2056-039

— Thermostat, Single Pole 5813-2009-000

— Thermostat, Double Pole 5813-2010-000

— Knob, S.P. Therm., White 42521-032-10

— Knob, S.P. Therm., Fawn 42521-032-01

— Knob, D.P. Therm., White 42521-032-08

— Knob, D.P. Therm., Fawn 42521-032-02

BASEBOARDS

BASEBOARD & CONVECTOR ACCESSORIES

Part Number

Model Number Knobs Thermostats

T1 3301-2011-000 5813-2014-000

T2 3301-2011-000 5813-2015-000

T1A 3301-2014-006 410127001

T2A 3301-2020-004 410128001

T4 482053000 41029001

T4A 3301-2014-006 410129001

T5A 3301-2020-004 41013001

TA1AW 42521-032-10 5813-2009-000

TA2AW 42521-032-08 5813-2010-000

"Click" on part number to view price and availability

www.morelectricheating.com

BASEBOARDS

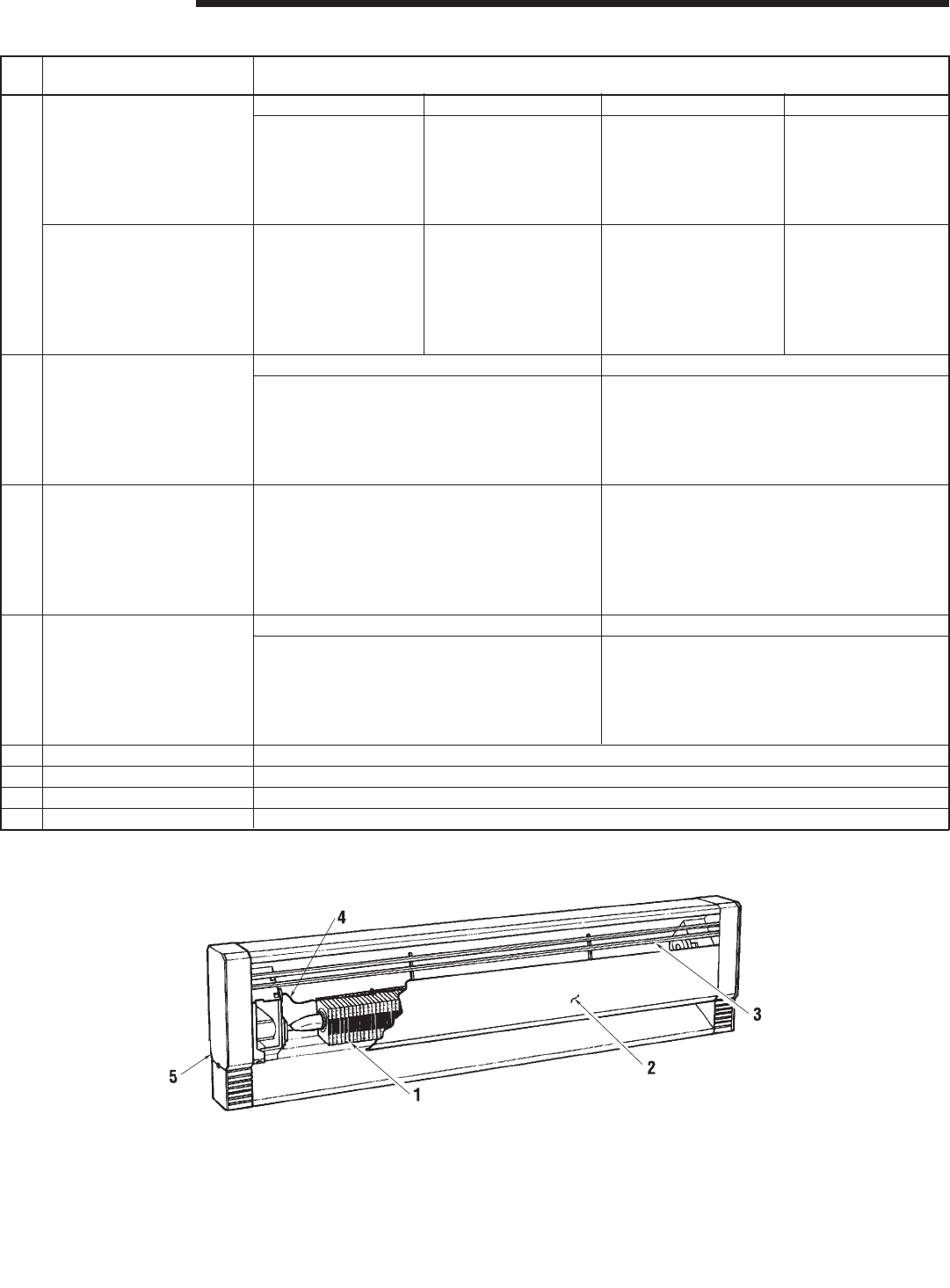

HBB & CBD

Key

No. Description Part Number

1 Element (HBB): 120V 208V 240V 277V

28” 1802-2068-000 1802-2068-005 1802-2068-011 1802-2068-017

34” 1802-2068-001 1802-2068-006 1802-2068-012 1802-2068-018

46” 1802-2068-002 1802-2068-007 1802-2068-013 1802-2068-019

58” 1802-2068-003 1802-2068-008 1802-2068-014 1802-2068-020

70” 1802-2068-004 1802-2068-009 1802-2068-015 1802-2068-021

96” — 1802-2068-010 1802-2068-016 1802-2068-022

Element (CBD):

28” 1802-2056-007 1802-2063-006 1802-2063-005 1802-2063-004

34” 1802-2056-011 1802-2063-010 1802-2063-009 1802-2063-008

46” 1802-2063-017 1802-2063-016 1802-2063-015 1802-2063-014

58” 1802-2063-023 1802-2063-022 1802-2063-021 1802-2063-020

70” 1802-2094-015 1802-2063-028 1802-2063-027 1802-2063-026

96” — 1802-2063-034 1802-2063-033 1802-2063-032

2 Front Cover: HBB CBD

28” 1402-2066-000 1402-2066-010

34” 1402-2066-001 1402-2066-011

46” 1402-2066-002 1402-2066-012

58” 1402-2066-003 1402-2066-013

70” 1402-2066-004 1402-2066-014

94” 1402-2066-005 1402-2066-015

3 Grille:

28” 2501-2012-006 2501-2012-006

34” 2501-2012-007 2501-2012-007

46” 2501-2012-007 2501-2012-007

58” 2501-2012-009 2501-2012-009

70” 2501-2012-010 2501-2012-010

94” 2501-2012-011 2501-2012-011

4 Linear Limit: HBB CBD

28” 410122002 4520-2018-001

34” 410122003 4520-2018-002

46” 410122004 4520-2018-003

58” 410122005 4520-2018-004

70” 410122006 4520-2018-005

94” 410122008 4520-2018-006

5 End Cap 1800-2022-000

— Thermostat, Single Pole 5813-2014-000

— Thermostat, Double Pole 5813-2015-000

— Knob, Thermostat 3301-2011-000

"Click" on part number to view price and availability

www.morelectricheating.com

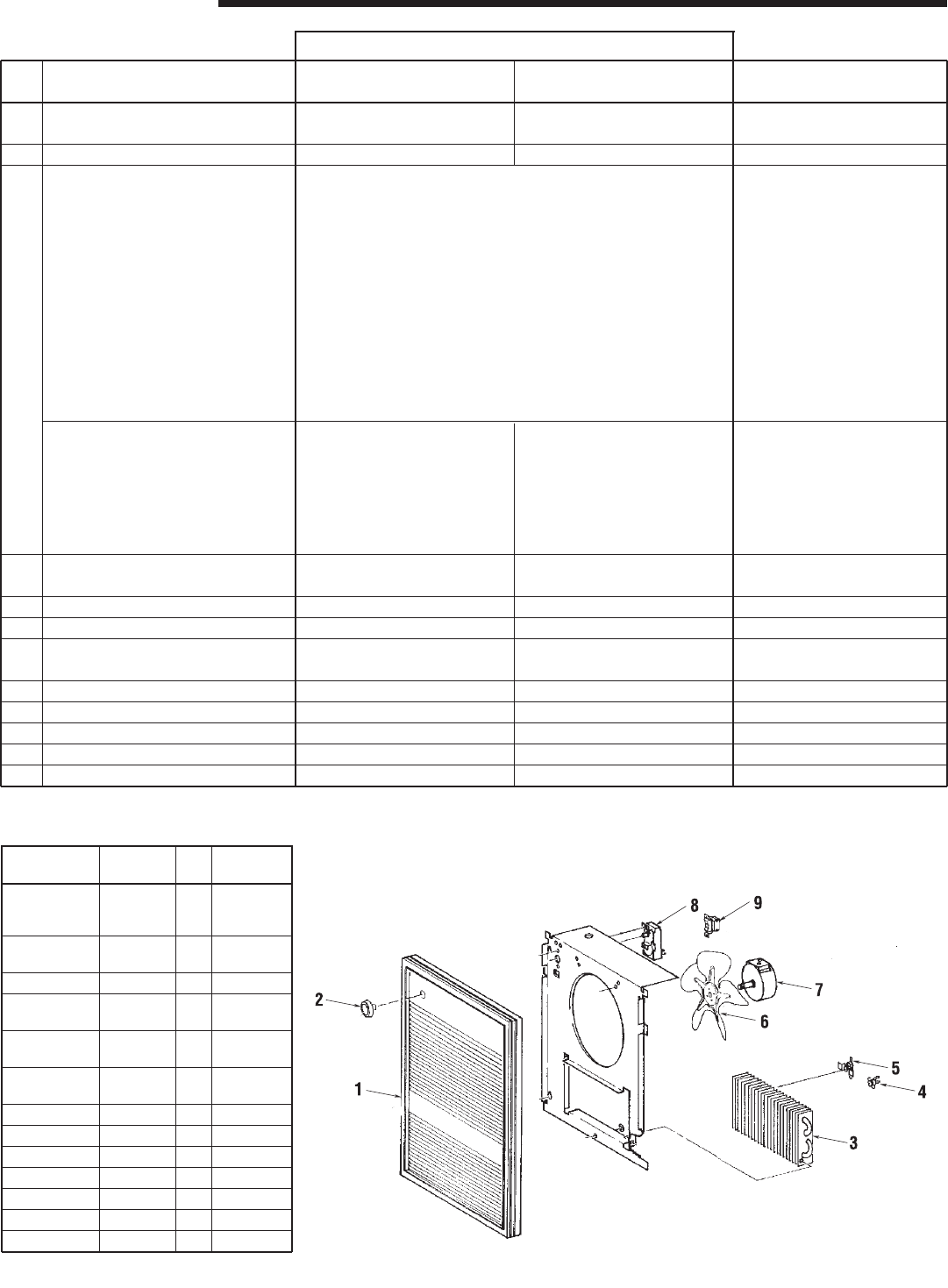

WALL HEATERS

Reference Data

Catalog

Number Volts Ph. Watts

AWH-4208, -3208 1 2000

AWH-4408, -3408 208 1 4000

AWH-44083 3 4000

AWH-4204, -3204 208/240 1 1500/2000

AWH-4404, -3404 1 3000/4000

AWH-44043 240 3 4000

AWH-4207, -3207 240/277 1 1500/2000

AWH-4407, -3407 1 3000/4000

AWH-4157, -3157 277 1 1500

AWH-4307, -3307 1 3000

AWH-4508 208 1 4800

AWH-45083 3 4800

AWH-4504,-3504 208/240 1 3600/4800

AWH-45043 240 3 4800

AWH-4507, -3507 240/270 1 3600/4800

AWH-4503 347 1 4800

AWH-4506 600 1 4800

AWH4303 347 1 3000

AWH4306 600 3 3000

AWH Part Number

Key AWH-3000/4000 WH SERIES

No. Description AWH-3000-2/4000-2 C &D series

1 Grille Assembly : 3000 Models 2501-2003-008 2501-2004-008 STANDARD 2501-2003-007

4000 Models 2501-2003-007 2501-2004-007 N. WHITE 2501-2003-005

2 Knob 3301-2002-003 3301-2002-003 —

3 Element, 1-Phase:

208V; 2000W 302015801 —

208V; 4000W (2 Req.d) 302012807 302012807

208/240V; 1500/2000W (2 Req.d) 302015802 —

208/240V; 3000/4000W 302012808 302012808

240/277V; 1500/2000W 302015803 —

240/277V; 3000/4000W 302012809 302012809

277V; 1500W (2 Req.d) 302015806 —

277V; 3000W 302012806 302012806

208V; 4800W 302012007 1802-2075-801

208/240V; 3600/4800W 302012810 302012810

240/277V; 3600/4800W 302012811 302012811

347V; 4800W — 302012823

600V; 4800W — 302012824

Element, 3-Phase:

208V; 4000W — 1802-2075-800 1802-2075-800

208/240V; 3000/4000W — 1802-2075-802 1802-2075-802

208V; 4800W — 1802-2075-801 1802-2075-801

208/240V; 3600/4800W — 1802-2075-803 1802-2075-803

347V; 3000W ——302012819

600V; 3000W ——302012820

4 Limit 410169001 — —

Manual Limit — 4520-2027-000 4520-2027-000

5 Fan Delay 410074000 410074000 410074000

6 Fan Blade 490030103 490030103 490030103

7 Motor :208V 3900-2002-500 3900-2010-000 3900-2010-000

208/240V 3900-2002-501 3900-2010-001 3900-2010-001

8 Thermostat 410168002 410168002 410168002

9 Disconnect 410170001 410170001 410170001

— Button, Plug 4506-0033-001 4506-0033-001 —

— Relay: 208/240V — 5018-2017-000 —

— Fan Delay, 3-Phase — 4520-2024-000 4520-2024-000

"Click" on part number to view price and availability

www.morelectricheating.com

CWH1000 & CWHDSAG Series

Part Number

Description CWH1101DS CWH1151DS CWH1201DS CWH1202DS CWH1157DS CWH1207DS CWH1208DS

Parts Bag 1205-2004-003 1205-2004-003 1205-2004-003 1205-2004-003 1205-2004-003 1205-2004-003 1205-2004-003

Grille* 2501-2058-000 2501-2058-000 2501-2058-000 2501-2058-000 2501-2058-000 2501-2058-000 2501-2058-000

Element 302023801 302023802 302023808 302023805 302023803 302023806 302023804

Light 3510-2008-003 3510-2008-003 3510-2008-003 3510-2008-002 3510-2008-002 3510-2008-002 3510-2008-002

Fan Delay 410074000 410074000 410074000 410074000 410074000 410074000 410074000

Hi Limit 410143000 410143000 410143000 410143000 410143000 410143000 410143000

Dis. Switch 5216-2021-000 5216-2021-000 5216-2021-000 5216-2021-000 5216-2021-000 5216-2021-000 5216-2021-000

Blade 490061001 490061001 490061001 490061001 490061001 490061001 490061001

Motor 490062001 490062001 490062001 490062003 490062004 490062004 490062002

TStat 5813-2001-000 5813-2001-000 5813-2022-000 5813-2001-000 5813-2001-000 5813-2001-000 5813-2001-000

* CWHDSAG Series units architectural grille is 2501-2075-000.

LFK

Key Part Number

No. Description 204 204 A

1 Front Cover 1402-2152-000 1402-2239-000

2 Motor: 208V 3900-2010-000 3900-2010-000

240V 3900-2010-001 3900-2010-001

3 Manual Limit 4520-2027-000 4520-2027-000

4 Fan Delay 410074000 410074000

5 Thermostat 5813-2027-000 5813-2027-000

6 Element: 208V/2000W 302015801 302015801

240V/2000W 302015802 302015802

277V/2000W 302015803 302015803

277V/3000W 302012806 302012806

208V/4000W 302012807 302012807

240V/4000W 302012808 302012808

240V/3000W 302012809 302012809

240V/4800W 302012810 302012810

277V/4800W 302012811 302012811

347V/3000W 302012819 302012819

600V/3000W 302012820 302012820

347V/4000W 302012821 302012821

600V/4000W 302012822 302012822

347V/4800W 302012823 302012823

7 Fan Blade 490030103 490030103

8 Knob 3301-2030-001 3301-2030-001

WALL HEATERS

Reference Data

Catalog

Number Volts Watts

LFK-204 240/208 2000/1500

LFK-304 240 3000

LFK-404 240/208 4000/3000

LFK-484 240/208 4800/3600

Catalog

Number Volts Ph. Watts

CWH-3157 277 1 1500

CWH-3307 1 3000

CWH-3508 208 1 4800

CWH-35083 3 4800

CWH-3504 208/ 1 3600/4800

240

CWH-35043 240 3 4800

CWH-3507 240/ 1 3600/4800

277

Reference Data

Catalog

Number Volts Ph. Watts

CWH-3208 1 2000

CWH-3408 208 1 4000

CWH-34083 3 4000

CWH-3204 208/ 1 1500/2000

CWH-3404 240 1 3000/4000

CWH-34043 240 3 4000

CWH-3207 240/ 1 1500/2000

CWH-3407 277 1 3000/4000

CWH-3000

Key Part Number

No. Description CWH-3000 CWH-3000-A CWH-3000BNW

1 Knob 3301-2016-000 3301-2016-000 3301-2016-000

2 Grille 2501-2019-000 2501-2019-000 2501-2019-001

3 Element: 208V/2000W 302015801 302015801 302015801

208V/4000W 302012807 302012807 302012807

240V/2000W 302015802 302012802 302012802

240V/4000W 302012808 302012808 302012808

277V/2000W 302015803 302015803 302015803

277V/4000W 302012809 302012809 302012809

277V/1500W 302015806 302015806 302015806

277V/3000W 302012806 302012806 302012806

240V/4800W 302012810 302012810 302012810

277V/4800W 302012811 302012811 302012811

4 High Limit 410169001 ——

Manual Limit — 4520-2013-000 4520-2027-000

5 Fan Delay 410074000 410074000 410074000

6 Fan Blade 490030103 490030103 490030103

7 Motor: 208V 3900-2002-500 3900-2002-000 3900-2010-000

240V 3900-2002-501 3900-2002-001 3900-2010-001

277V 3900-2002-501 3900-2002-001 3900-2010-001

8 Thermostat 410168002 410168002 5813-2059-000

9 Disconnect 410170001 410170001 410170001

– Parts Bag 1205-2027-000 1205-2027-000 1205-2027-000

"Click" on part number to view price and availability

www.morelectricheating.com

WALL HEATERS

ECP

Part Number

Description ECP1024 ECP1524

Front Cover, Assembled 1016-0042-500 1016-0042-500

Plug Connector 2701-2029-000 2701-2029-000

Element 302012808 302012803

Safety Limit 4520-2025-001 4520-2025-001

CFWF

Key Part

No. Description Number

1 Top Front Panel 1402-2312-000

2 Bottom Front Panel 1402-2313-000

3 Top Trim Panel 5806-2004-000

4 Motor 3900-2036-000

5 Relay 5018-2017-001

6 Transformer 5814-0003-000

7 Safety High Limit 4520-2053-000

8 Heating Element Assy 1802-2117-000

9 Fan Blade 1210-2009-000

10 Pilot Light 3510-2018-000

EFQ

Model Part Number

Number Element (2pcs) Thermostat Fan Delay (2pcs) Manual Reset (2pcs) Grille Motor (2pcs) Fan Blades (2pcs) Transformer

Q6008 302012808 5813-0023-000 410074000 4520-2027-000 2501-2027-000 3900-2010-000 490030103 —

Q6004 302012809 5813-0023-000 410074000 4520-2027-000 2501-2027-000 3900-2010-001 490030103 —

Q6007 302012806 5813-0023-000 410074000 4520-2027-000 2501-2027-000 3900-2010-001 490030103 —

Q6003 302012819 410168002 410074000 4520-2027-000 2501-2027-000 3900-2010-001 490030103 490015017

Q60048 302012825 410168002 410074000 4520-2027-000 2501-2027-000 3900-2010-001 490030103 490015022

Q6006 302012820 410168002 410074000 4520-2027-000 2501-2027-000 3900-2010-001 490030103 490015013

Q8008 302012807 5813-0023-000 410074000 4520-2027-000 2501-2027-000 3900-2010-000 490030103 —

Q8004 302012808 5813-0023-000 410074000 4520-2027-000 2501-2027-000 3900-2010-001 490030103 —

Q8007 302012809 5813-0023-000 410074000 4520-2027-000 2501-2027-000 3900-2010-001 490030103 —

Q8003 302012821 410168002 410074000 4520-2027-000 2501-2027-000 3900-2010-001 490030103 492215017

Q80048 302012826 410168002 410074000 4520-2027-000 2501-2027-000 3900-2010-001 490030103 490015022

Q8006 302012822 410168002 410074000 4520-2027-000 2501-2027-000 3900-2010-001 490030103 490015013

Note: Disconnect Switch for all units is 5216-2025-000

GFR

Key Part Number

No. Description R-1500 & T2 R-2004 & T2 R-2404 & T2

1 Grille 2501-2026-000 2501-2026-000 2501-2026-000

2 Element 302023802 302023805 302023809

3 Blower Assembly 1225-2000-000 1225-2000-001 1225-2002-001

4 Wattage Board 1249-2005-000 1249-2005-000 1249-2005-000

A Models 1249-2005-000 1249-2005-000 1249-2005-000

5 Light 3510-2010-000 3510-2010-000 3510-2010-000

6 High Limit 4520-2025-000 4520-2025-000 4520-2025-001

7 Knob 3301-2014-004 3301-2014-004 3301-2014-004

8 S.P. Thermostat 410129001 410129001 410129001

D.P. Thermostat 410130001 410130001 410130001

9 High Limit* 410143000 410143000 4520-2029-000 *Only on models built 1997- present.

SED

SED1012C SED1024C SED1512 SED2024 SED1512CR

Thermostat 410130001 410130001 410130001 410130001 –

Grille 2501-2054-001 2501-2054-001 2501-2054-000 2501-2054-000 2501-2054-001

Motor 3900-2037-000 3900-2037-001 3900-2037-000 3900-2037-001 3900-2037-000

Hi Limit 4520-2055-000 4520-2055-000 4520-2055-000 4520-2055-000 4520-2055-000

Light 3510-2017-002 3510-2017-003 3510-2017-002 3510-2017-003 3510-2017-002

Parts Bag 1205-2049-500 1205-2049-500 1205-2049-500 1205-2049-501 1205-2049-002

Fan Blade 1210-2008-000 1210-2008-000 1210-2008-000 1210-2008-000 1210-2008-000

Element 1802-2124-003 1802-2124-005 1802-2124-000 1802-2124-005 1802-2124-000

"Click" on part number to view price and availability

www.morelectricheating.com

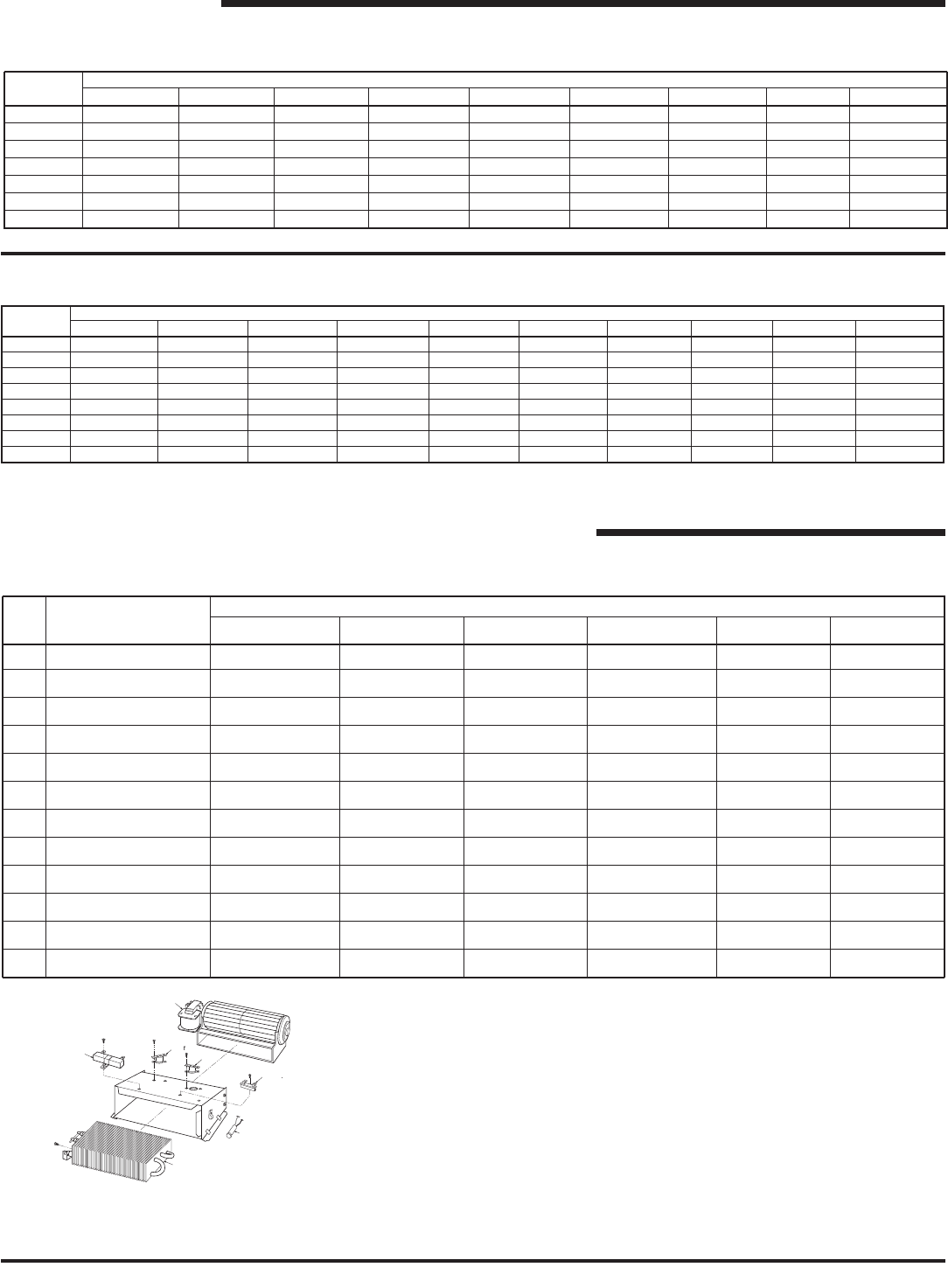

WALL HEATERS

G Series

Model Part Number

Number Parts Bag Blower ASM. Clip-n-Fit Element ASM. Grille Light HI Limit T-Stat Knob

G1512IFMB 1205-2031-001 1225-2000-000 1249-2005-000 1802-2125-000 2501-2046-000 3510-2017-001 4520-2059-000 ——

G2024IFMB 1205-2031-001 1225-2000-001 1249-2005-000 1802-2125-502 2501-2046-000 3510-2017-001 4520-2059-000 ——

G2224IFMB 1205-2031-001 1225-2002-001 1249-2005-000 1802-2125-001 2501-2046-000 3510-2017-001 4520-2059-000 ——

G2028IFB 1205-2031-001 1225-2002-001 — 1802-2124-001 2501-2046-000 3510-2017-001 4520-2059-000 ——

G1512T2MB 1205-2031-000 1225-2000-001 1249-2005-000 — 2501-2046-000 3510-2017-000 4520-2059-000 410130001 3301-2040-001

G2024T2MB 1205-2031-000 1225-2000-001 1249-2005-000 1802-2125-002 2501-2046-000 3510-2017-001 4520-2059-000 1410130001 3301-2040-001

G224T2MB 1205-2031-000 1225-2002-001 1249-2005-000 1802-2125-001 2501-2046-000 3510-2017-001 4520-2059-000 1410130001 3301-2040-001

C Series

Model Part Number

Number Parts Bag Blade Element Light Grille Motor HI Limit Thermal Fuse T-Stat Clip-n-Fit

C1012IFAA 1205-2044-000 1210-2008-000 1802-2124-103 3510-2017-000 2501-2065-000 3900-2017-000 4520-2059-000 4520-2030-000 ——

C1512IFB 1205-2044-002 1210-2008-000 1802-2127-000 3510-2017-002 2501-2065-000 3900-2017-000 4520-2059-000 4520-2030-000 ——

C2028IFB 1205-2044-002 1210-2008-000 1802-2127-001 3510-2017-003 2501-2065-000 3900-2035-000 4520-2059-000 4520-2030-000 ——

C2024IFB 1205-2044-002 1210-2008-000 1802-2127-005 3510-2017-003 2501-2065-000 3900-2017-001 4520-2059-000 4520-2030-000 — 1249-2005-000

C222IFB 1205-2044-002 1210-2008-000 1802-2127-002 3510-2017-003 2501-2065-000 3900-2035-000 4520-2059-000 4520-2030-000 — 1249-2005-000

C1512T2B 1205-2044-001 1210-2008-000 1802-2127-000 3510-2017-002 2501-2065-000 3900-2017-000 4520-2059-000 4520-2030-000 5813-2090-000 1249-2005-000

C2024T2B 1205-2044-001 1210-2008-000 1802-2127-005 3510-2017-003 2501-2065-000 3900-2017-001 4520-2059-000 4520-2030-000 5813-2090-000 1249-2005-000

C2224T2B 1205-2044-001 1210-2008-000 1802-2127-002 3510-2017-003 2501-2065-000 3900-2035-000 4520-2059-000 4520-2030-000 5813-2090-000 1249-2005-000

QTS

Key Part Number

No. Description QTS1500 QTS1500A QTS1504 QTS1504A QTS1100A QTS1104

1 Element Assembly 302023802 302023802 302023806 302023806 302023811 302023803

2 Resistor ——————

3 Motor Assembly 1225-2002-000 1225-2002-001 1225-2002-001 1225-2002-001 1225-2002-000 1225-2002-001

4 Limit 4520-2031-000 4520-2031-000 4520-2031-000 4520-2031-000 4520-2031-000 4520-2031-000

5 Fan Delay 1414-2020-000 1414-2020-000 1414-2020-000 1414-2020-000 1414-2020-000 1414-2020-000

6 Thermal Cutoff 4520-2030-000 4520-2030-000 4520-2030-000 4520-2030-000 4520-2030-000 4520-2030-000

7 Pilot Light 3510-2008-004 3510-2010-000 3510-2010-001 3510-2010-001 3510-2010-000 3510-2010-001

8 Grille 2501-2039-000 2501-2039-000 2501-2039-000 2501-2039-000 2501-2039-000 2501-2039-000

9 Socket Assembly 5220-2003-001 5220-2003-001 5220-2003-000 5220-2003-000 5220-2003-001 5220-2003-000

10 Plug Assembly — 480044001 — 480044001 480044002 480044001

11 Thermostat 410129001 410129001 410129001 410129001 ——

12 Knob 3301-2020-006 3301-2020-006 3301-2020-006 3301-2020-006 ——

FLOOR DROP-IN/KICKSPACE/PUMP HOUSE

"Click" on part number to view price and availability

www.morelectricheating.com

CEILING HEATERS

QCH (U-Series)

Description Part Number

Element: 120V/1000W 302023801

208V/2000W 302023804

240V/2000W 302023805

277V/2000W 302023806

120V/1500W 302023802

Motor: 120V 490062001

208V 490062002

240V 490062003

277V 490062004

Fan Delay 410074000

High Limit 410143000

Fan Blade 490061001

Disconnect 410170001

Grille 1402-2121-000

Plastic Cover* 1402-2119-000

* Two required

Reference Data

Catalog Model

Number Volts Watts Number

QCH-1101 120 1000 U1000

QCH1208 208 2000 U2008

QCH-1202 240/208 2000/1500 U2004

QCH1207 277/240 2000/1500 U2007

QCH1151 120 1500 U1500

FDI

Part Number

FDI FDI14154MB FDI14157M1 I 1504 I 1500

Description 120/208/240V 277V 120/208/240V 277V

Grille 2501-5016-001 2501-5016-001 2501-5016-001 2501-5016-001 2501-5016-001 2501-5016-001

Screen 5227-5000-001 5227-5000-001 5227-5000-001 5227-5000-001 5227-5000-001 5227-5000-001

Fan Blade 1210-0046-000 1210-0046-000 1210-0046-000 1210-0046-000 1210-0046-000 1210-0046-000

Motor 3900-0544-000 3900-0545-000 3900-0544-000 3900-0545-000 3900-2025-001 3900-2025-000

High Limit 4520-5015-000 4520-5015-000 4520-5015-000 4520-5015-000 4520-5015-001 4520-5015-001

Thermal Fuse —— — —4520-2041-000 4520-2041-000

Plug 4506-2006-000 4506-2006-000 4506-2006-001 4506-2006-001 4506-2015-000 —

Receptacle 5005-2000-000 5005-2000-000 5005-2000-000 5005-2000-000 ——

Element (4 Req’d.) 1802-5032-000 1802-5032-001 1802-5032-000 1802-5032-001 1802-5032-004 1802-5032-000

Thermostat 5813-2052-001 5813-2052-001 5813-2052-001 5813-2052-001 5813-2052-002 5813-5052-002

T-Bracket 1215-5045-001 1215-5045-001 1215-5045-001 1215-5045-001 ——

T-Clip 1403-5020-000 1403-5020-000 1403-5020-000 1403-5020-000 ——

Buzzer (2 Req’d.) ——2714-2001-001 2714-2001-001 2714-2001-001 2714-2001-001

Socket —— — —5220-2003-001 5220-2003-001

WHT

Part Number

Description HT

Element 1802-2091-000

Thermostat 5813-2062-000

Knob 3301-2020-006

Reference Data

Catalog

Number Volts Watts

120 500

WHT-500 240 500

208 375

FLOOR DROP-IN/KICKSPACE/PUMP HOUSE

"Click" on part number to view price and availability

www.morelectricheating.com

CEILING HEATERS

EFF

Key

No. Description Part Number

1 Grille 1402-2149-000

2 Motor: 208V 3900-2002-500

240V 3900-2002-501

277V 3900-2002-501

3 High Limit 410169001

4 Fan Delay 1414-2039-000

5 Disconnect 410170001

6 Element: 277V/1500W 302015806

208V/2000W 302015801

240V/2000W 302015802

277V/2000W 302015803

277V/3000W 302012806

208V/4000W 302012807

240V/4000W 302012808

277V/4000W 302012809

240V/4800W 302012810

277V/4800W 302012811

347V/3000W 302012819

347V/4000W 302012821

347V/4800W 302012823

600V/3000W 302012820

600V/4800W 302012822

600V/4800 302012824

7 Fan Blade 490030103

Transformer 347V 490015017

600V 490015013

Reference Data

Catalog

Number Volts Watts

EFF-2008 208 2000

EFF-4008 4000

EFF-2004 208/240 1500/2000

EFF-4004 3000/4000

EFF-2007 240/277 1500/2000

EFF-4007 3000/4000

EFF-1507 277 1500

EFF-3007 3000

EFF-4804 208/240 3600/4800

EFF-4807 208/277 3600/4800

EFF-3003 347 3000

EFF-4003 4000

EFF-3006 600 3000

EFF-4006 4000

EFF-4803 347 4800

EFF-4806 600 4800

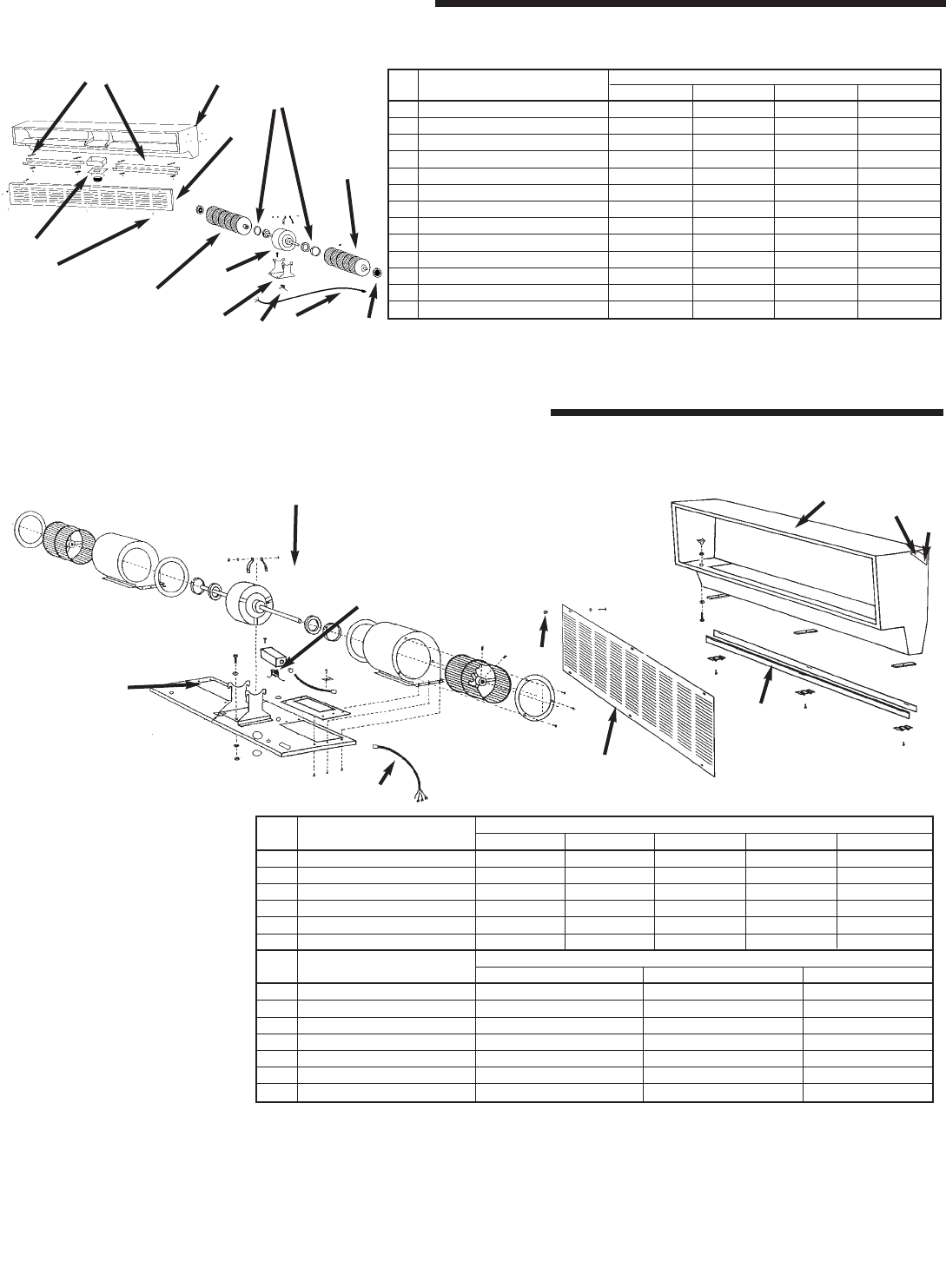

CDF

Key

No. Description Part Number

1 Element (2 Req’d.):

277V/2500W 302012814

240V/2500W 302012813

208V/2500W 302012812

277V/2000W 302012803

240V/2000W 302012802

208V/2000W 302012801

2 Fan Delay 410074000

3 Fan Blade 1210-2000-000

4 Motor: 277V 3900-2011-001

240/208V 3900-2011-000

5 High Limit 4520-0011-000

6 Contactor: 277V 5018-0004-103

240/208V 5018-0004-102

8 Outlet Grille (2 Req’d.) 2501-2020-001

9 Louver Guides (REA) (2 Req’d.) 1215-2059-000

Louver Guides (SEA) (2 Req’d.) 1215-2059-001

Reference Data

Catalog

Number Volts Watts KW

CDF-548 208 1-3

CDF-542 240 1-3 4/3/2

CDF-547 277 1

CDF-558 208 1-3

CDF-552 240 1-3 5/3.8/2.5

CDF-557 277 1

SURFACE

MOUNTING

ENCLOSURE,

TYPE SEA

RECESS

MOUNTING

ENCLOSURE,

TYPE REA

"Click" on part number to view price and availability

www.morelectricheating.com

UNIT HEATERS

IUH

Model Part Number

No. Motor Element Fan Blade High Limit Fuse Transformer Contactor Capacitor

IUH520 3900-2008-000 302006804 1210-2017-000 410027000* ——— —

IUH524 3900-2008-000 302006807 1210-2017-000 410027000* ——— —

IUH548 3900-2008-000 302006807 1210-2017-000 410027000* — 200176902 5018-0004-102 —

IUH560 3900-2008-000 302006839 1210-2017-000 410027000* — 200176903 5018-0004-102 —

IUH720 3900-2008-000 302006809 1210-2017-000 410027000 ——5018-0004-102 —

IUH724 3900-2008-000 302006810 1210-2017-000 410027000 ——5018-0004-102 —

IUH727 3900-2008-001 302006811 1210-2017-000 410027000 ——5018-0004-103 —

IUH748 3900-2008-000 302006810 1210-2017-000 410027000 — 200176902 5018-0004-102 —

IUH760 3900-2008-000 302006840 1210-2017-000 410027000 — 200176903 5018-0004-102 —

IUH1020 490059004 302006812 490011001 410027000 481001003* — 5018-0005-006 —

IUH1024 490059004 302006813 490011001 410027000 481001003* — 5018-0005-006 —

IUH1027 490059004 302006814 490011001 410027000 — 490015009 5018-0005-006 —

IUH1048 490059004 302006813 490011001 410027000 — 490015010 5018-0005-006 —

IUH1060 490059004 302006841 490011001 410027000 — 490015012 5018-0005-006 —

IUH1520 490059004 302006813 490011001 410027000* 481001006** — 5018-0005-006 —

IUH1524 490059004 302006814 490011001 410027000* 481001006** — 5018-0005-006 —

IUH1527 490059004 302006812 490011001 410027000* 481001023** 490015009 5018-0005-006 —

IUH1548 490059004 302006814 490011001 410027000* — 490015010 5018-0005-006 —

IUH1560 490059004 302006842 490011001 410027000* — 490015012 5018-0005-006 —

IUH2048 490059004 302006813 490011002 410027000* — 490015010 5018-0005-006 —

IUH2060 490059004 302006841 490011002 410027000* — 490015012 5018-0005-006 —

IUH2548 490059006 302006829* 490013001 410027000* — 490015008 5018-0005-006 1432-0002-003

IUH2560 490059006 302006843* 490013001 410027000* — 490015015 5018-0005-006 1432-0002-003

IUH3048 490059006 302006822* 490013002 410027000* — 490015008 5018-0005-006 1432-0002-003

IUH3060 490059006 302006844* 490013002 410027000* — 490015015 5018-0005-006 1432-0002-003

* Two Needed.

** Six Needed.

Common Data

Model Part Number

No. Fan Delay Control Fuse

All 410148000 481001003

Models

MWUH5004

Key

No. Description Part Number

1 Element 302006807

2 Motor 3900-2008-000

3 Fan Delay Control 410148000

4 High Temperature Limit Control 410027000

5 Thermostat 5813-2050-000

6 Thermostat Knob 3301-2014-006

7 Motor Mount 1215-2235-003

8 Fan Blade 1210-2000-000

9 Ceiling Bracket 310876002

10 Wire Guard 312056802

11 Louver 3503-2004-009

– Louver Spring 5208-7005-001

12 Bezel Assemply 1219-2015-000

13 Cover (Access Door) 310104902

14 Cover Wrap Assebly 200193902

15 Control Box Assembly 200161902

16 Power Terminal Block 5823-0004-005

"Click" on part number to view price and availability

www.morelectricheating.com

UNIT HEATERS

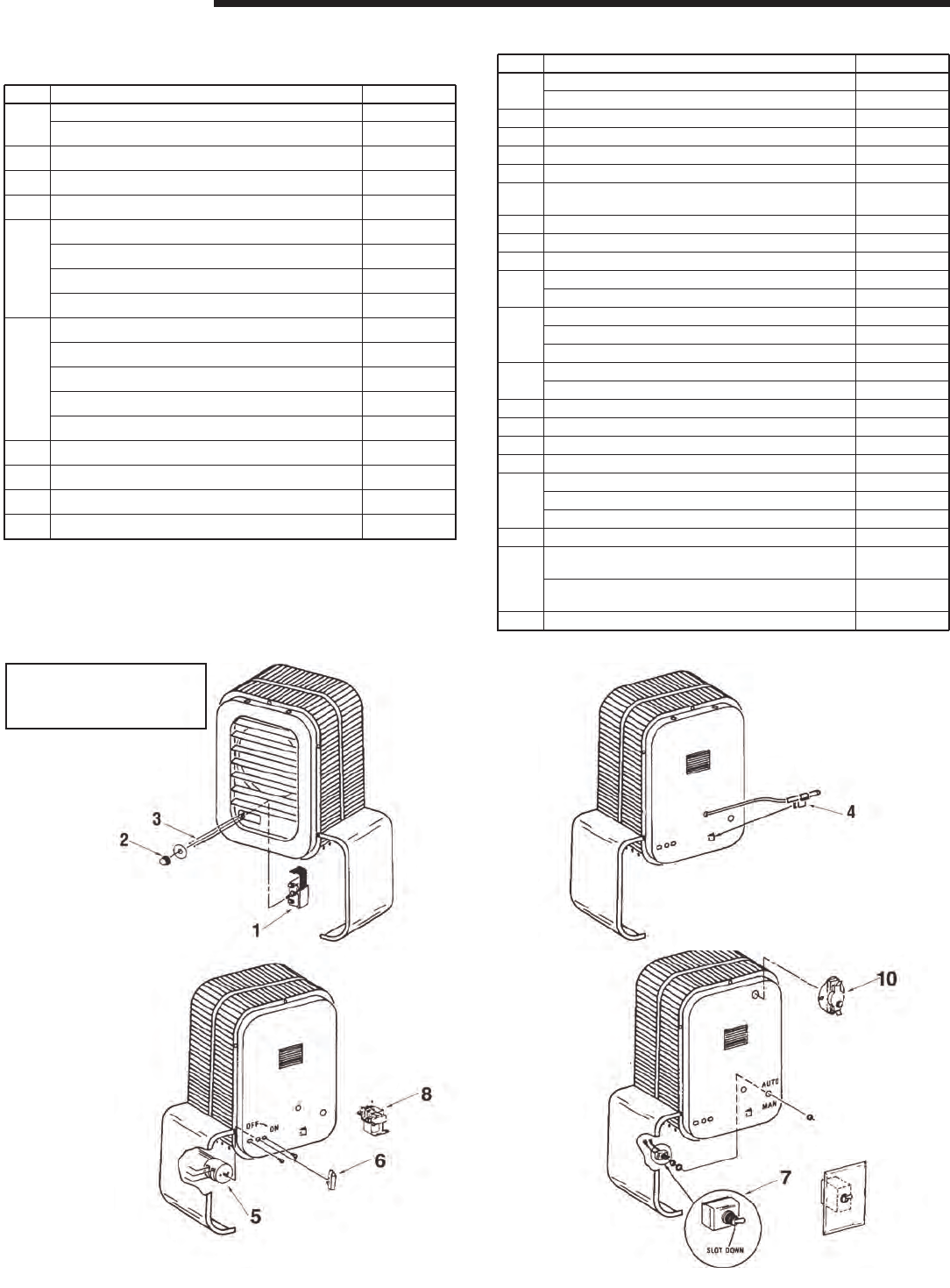

Key No. Description Part Number

1 Thermostat, One Pole (MT-1) 5813-0036-000

Thermostat, Two Stage (MT-2) 5813-0035-000

2 Knob, Thermostat 3301-2020-006

3 Screws, Fl. Hd., 6-32 x 1/4 5202-7009-021

4 Clip, Thermostat 1403-0041-000

5 Switch, 25A, OEM DS25

Switch, 25A, K & N DS25

Switch, 63A, OEM 5216-2039-000

Switch 25A, Electro 5216-0200-000

6 Knob, 25A, OEM “T1” OEM “T1”

Knob, 25A, K & N K & N S1B 6001

Knob, 63A, OEM OEM “S4”

Knob, 63A, K & N K & N S2B G001

Knob, Electro EI 141747

7 Switch, Toggle, 600V 5216-2011-000

8 Relay, Fan, 24V Coil RFS2

9 Switch Assembly 5216-0199-000

10 Manual Reset Limit 4520-2028-000

Key No. Description Part Number

1 Spring, Element (used on MUH03 thru MUH-20 only) 5208-0073-000

Spring, Element (used on MUH-25 thru MUH-50 only) 5208-0073-001

2 Spring, Capillary Tube 5208-0072-000

3 Spring, Element Retainer 5208-0074-000

4 Switch (used on MUH-25 thru MUH-50 only) 5216-2054-000

5 Insulator (used on MUH-25 thru MUH-50 only) —

6 Bracket Extension

(used on MUH-15, MUH-20, MUH-40 and MUH-50 only) 1215-0282-000

7 Switch Bracket 1215-0256-000

8 Fan Delay 4520-0010-000

14 Speed Nut 4100-7036-026

15 Bracket, Captive Screw (used on MUH-03 thru MUH-20 only) 1215-0291-000

Bracket, Captive Screw (used on MUH-25 thru MUH-50 only) 1215-0289-000

17 Protector, Linear Limit (used on MUH03 thru MUH05 only) 4520-0011-000

Protector, Linear Limit (used on MUH-07 thru MUH-20 only) 4520-0011-001

Protector, Linear Limit (used on MUH-25 thru MUH-50 only) 4520-0011-002

20 Clamp (used on MUH-20 thru MUH-50 only) —

Bracket, Mounting Capacitor (used on MUH-20-8 only) 1215-0314-000

22 Terminal Lug (used on MUH-07 thru MUH-50 only) 3504-7002-001

25 Bushing (used on MUH-20 thru MUH-50 only) 25221-60131

26 Washer, Ground (used on MUH03 thru MUH05 only) 6401-0084-000

27 Screw, Ground (used on MUH03 thru MUH05 only) 21424-17128

28 Louver (used on MUH03 thru MUH05 only) 3503-2004-006

Louver (used on MUH-07 thru MUH-20 only) 3503-2004-007

Louver (used on MUH-25 thru MUH-50 only) 3503-2004-008

29 Spring, Louver 5208-7005-001

32 Terminal Block, 3-Phase (used on MUH05-21, MUH-07-02,

and MUH-10-2 only) 5823-0003-000

Terminal Block, 3-Phase (used on MUH05-81, MUH-07-8,

and MUH-15-8 only) 5823-0003-000

33 Terminal Doublers (used where required) 5819-0031-000

MUH

Built-in Controls

BUILT-IN CONTROLS —

Made-to-Order Units Only

SINGLE-POLE

THERMOSTAT, TWO-STAGE

THERMOSTAT, HEAT

RECOVERY THERMOSTAT

POWER

DISCONNECT

SWITCH

SUMMER

FAN

SWITCH

Heater Replacement Parts (Chart on pg. 13)

"Click" on part number to view price and availability

www.morelectricheating.com

UNIT HEATERS

MUH (Con’t.)

UNIT HEATERS
9 10 11 12 13 16 18 19 21
Model No. Back Case Transformer** Motor Fan Blade Cover Front Case Element Assy. Element Guard Capacitor
MUH03-21 1425-2004-000 – 3900-2002-506 1210-2000-000 1402-0336-000 1425-0009-005 1802-0087-5 00 2504-0011-001 –
MUH03-41 1425-2004-000 5814-0003-002 3900-2005-000 1210-2000-000 1402-0336-000 1425-0009-005 1802-0087-002 2504-0011-001 –
MUH03-71 1425-2004-000 – 3900-2002-507 1210-2000-000 1402-0336-000 1425-0009-005 1802-0087-001 2504-0011-001 –
MUH03-81 1425-2004-000 – 3900-2002-506 1210-2000-000 1402-0336-000 1425-0009-005 1802-0087-024 2504-0011-001 –
MUH05-21 1425-2004-000 – 3900-2002-506 1210-2000-000 1402-0336-000 1425-0009-005 1802-0087-535 2504-0011-001 –
MUH05-41 1425-2004-000 5814-0003-002 3900-2005-000 1210-2000-000 1402-0336-000 1425-0009-005 1802-0087-005 2504-0011-001 –
MUH05-71 1425-2004-000 – 3900-2002-507 1210-2000-000 1402-0336-000 1425-0009-005 1802-0087-504 2504-0011-001 –
MUH05-81 1425-2004-000 – 3900-2002-506 1210-2000-000 1402-0336-000 1425-0009-005 1802-0087-534 2504-0011-001 –
MUH-07-2 1425-0010-004 5814-0003-000 3900-2014-004 1210-0090-000 1402-0339-000 1425-0009-006 1802-0087-506 2504-0013-000 –
MUH-07-4 1425-0010-004 5814-0003-002 3900-0347-005 1210-0090-000 1402-0339-000 1425-0009-006 1802-0087-508 2504-0013-000 –
MUH-07-7 1425-0010-004 5814-0003-001 3900-2014-004 1210-0090-000 1402-0339-000 1425-0009-006 1802-0087-507 2504-0013-000 –
MUH-07-8 1425-0010-004 5814-0003-000 3900-2014-004 1210-0090-000 1402-0339-000 1425-0009-006 1802-0087-531 2504-0013-000 –
MUH-10-2 1425-0010-004 5814-0003-000 3900-2014-004 1210-0090-000 1402-0339-000 1425-0009-006 1802-0087-531 2504-0013-000 –
MUH-10-4 1425-0010-004 5814-0003-002 3900-0347-005 1210-0090-000 1402-0339-000 1425-0009-006 1802-0087-011 2504-0013-000 –
MUH-10-7 1425-0010-004 5814-0003-001 3900-2014-004 1210-0090-000 1402-0339-000 1425-0009-006 1802-0087-510 2504-0013-000 –
MUH-10-8 1425-0010-004 5814-0003-000 3900-2014-004 1210-0090-000 1402-0339-000 1425-0009-006 1802-0087-536 2504-0013-000 –
MUH-15-2 1425-0014-000 5814-0003-000 3900-0361-500 1210-0090-001 1402-0339-001 1425-0009-009 1802-0087-512 2504-0012-000 –
MUH-15-4 1425-0014-000 5814-0003-002 3900-0361-501 1210-0090-001 1402-0339-001 1425-0009-009 1802-0087-508 2504-0012-000 –
MUH-15-8 1425-0014-000 5814-0003-000 3900-0361-002 1210-0090-001 1402-0339-001 1425-0009-009 1802-0087-537 2504-0012-000 –
MUH-20-2 1425-0013-000 5814-0003-000 3900-0362-000 1210-0096-000 1402-0339-001 1425-0009-011 1802-0087-537 2504-0012-000 1432-0002-003
MUH-20-4 1425-0013-000 5814-0003-002 3900-0362-001 1210-0096-000 1402-0339-001 1425-0009-011 1802-0087-011 2504-0012-000 1432-0002-003
MUH-20-8 1425-0013-000 5814-0003-000 3900-0362-002 1210-0096-000 1402-0339-001 1425-0009-011 1802-0087-526 2504-0012-000 1432-0002-003
MUH-25-2 1425-0011-003 5814-0003-000 3900-0364-000 1210-0098-000 1402-0340-000 1425-0012-003 1802-0087-516 2504-0014-000 1432-0002-003
MUH-25-4 1425-0011-003 5814-0003-002 3900-0363-500 1210-0098-000 1402-0340-000 1425-0012-003 1802-0087-517 2504-0014-000 1432-0002-003
MUH-30-2 1425-0011-003 5814-0003-000 3900-0364-000 1210-0098-000 1402-0340-000 1425-0012-003 1802-0087-518 2504-0014-000 1432-0002-003
MUH-30-4 1425-0011-003 5814-0003-002 3900-0363-500 1210-0098-000 1402-0340-000 1425-0012-003 1802-0087-519 2504-0014-000 1432-0002-003
MUH-30-8 1425-0011-003 5814-0003-000 3900-0364-000 1210-0098-000 1402-0340-000 1425-0012-003 1802-0087-528 2504-0014-000 1432-0002-001
MUH-40-2 1425-0011-001 5814-0003-000 3900-0350-000 1210-0097-000 1402-0340-001 1425-0012-002 1802-0087-520 2504-0015-000 1432-0002-004
MUH-40-4 1425-0011-001 5814-0003-002 3900-0350-001 1210-0097-000 1402-0340-001 1425-0012-002 1802-0087-521 2504-0015-000 1432-0002-004
MUH-50-2 1425-0011-001 5814-0003-000 3900-0350-000 1210-0097-000 1402-0340-001 1425-0012-002 1802-0087-522 2504-0015-000 1432-0002-004
MUH-50-4 1425-0011-001 5814-0003-002 3900-0350-001 1210-0097-000 1402-0340-001 1425-0012-002 1802-0087-523 2504-0015-000 1432-0002-004
MUH-50-8 1425-0011-001 5814-0003-000 3900-0350-002 1210-0097-000 1402-0340-001 1425-0012-002 1802-0087-530 2504-0015-000 1432-0002-004
23 24 30 31 34 35
Model No. Relay*** Insulator Terminal Block, Power Terminal Block, Control Fuse Block Fuse
MUH03-21 ––5823-0004-000 5823-0001-000 ––
MUH03-41 5018-0004-100 2900-0030-000 5823-0004-000 5823-0002-000 ––
MUH03-71 – 2900-0030-000 5823-0004-000 5823-0001-000 ––
MUH03-81 ––5823-0004-000 5823-0001-000 ––
MUH05-21 ––5823-0004-000 5823-0001-000 ––
MUH05-41 5018-0004-100 2900-0030-000 5823-0004-000 5823-0002-000 ––
MUH05-71 – 2900-0030-000 5823-0004-000 5823-0001-000 ––
MUH05-81 ––5823-0004-000 5823-0001-000 ––
MUH-07-2 5018-0003-000 – 5823-0004-000 5823-0002-000 ––
MUH-07-4 5018-0004-100 2900-0030-000 5823-0004-000 5823-0002-000 ––
MUH-07-7 5018-0003-000 2900-0030-000 5823-0004-000 5823-0002-000 ––
MUH-07-8 5018-0003-000 – 5823-0004-000 5823-0002-000 ––
MUH-10-2 5018-0003-000 – 5823-0004-000 5823-0002-000 ––
MUH-10-4 5018-0004-100 2900-0030-000 5823-0004-000 5823-0002-000 ––
MUH-10-7 5018-0003-000 2900-0030-000 5823-0004-000 5823-0002-000 ––
MUH-10-8 5018-0004-100 – 5823-0004-000 5823-0002-000 ––
MUH-15-2 5018-0005-004 – 5823-0004-001 5823-0002-000 ––
MUH-15-4 5018-0004-100 2900-0030-000 5823-0004-000 5823-0002-000 ––
MUH-15-8 5018-0005-004 – 5823-0004-003 5823-0002-000 2025-0002-000 2019-0007-010
MUH-20-2 5018-0006-000 – 5823-0004-002 5823-0002-000 ––
MUH-20-4 5018-0004-100 2900-0030-000 5823-0004-000 5823-0002-000 ––
MUH-20-8 5018-0005-004 – 5823-0004-002 5823-0002-000 2025-0002-000 2019-0007-008
MUH-25-2 5018-0005-004 – 5823-0004-002 5823-0002-000 480030004 2019-7008-077
MUH-25-4 5018-0005-004 2900-0030-000 5823-0004-001 5823-0002-000 ––
MUH-30-2 5018-0005-004 – 5823-0004-003 5823-0002-000 480030004 2019-7008-079
MUH-30-4 5018-0005-004 2900-0030-000 5823-0004-001 5823-0002-000 ––
MUH-30-8 5018-0006-000 – 5823-0005-000 5823-0002-000 480030004 2019-7008-080
MUH-40-2 5018-0005-004 – 5823-0005-000 5823-0002-000 480030004 2019-7008-078
MUH-40-4 * 2900-0030-000 5823-0004-002 5823-0002-000 ——
MUH-50-2 5018-0005-004 – 5823-0005-000 5823-0002-000 480030004 2019-7008-079
MUH-50-4 * 2900-0030-000 5823-0004-002 5823-0002-000 **** ****
MUH-50-8 5018-0006-000 – 5823-0005-000 5823-0002-000 482028000 2019-7008-080
* Two relays are used: 35A relay P/N 5018-0004-100 and 40A relay P/N 5018-0005-004.
** 24V secondary shown. For 120V secondary, increase last digit by 3. (i.e. for MUH03-41, 24V secondary use 5814-0003-002; for 120V secondary use 5814-0003-005.)
*** 24V H.C. shown. For 120 H.C., increase last digit by 1. (i.e.: for MUH03-41, 24V H.C. use 5018-0004-100; for 120V H.C. use 5018-0004-101.
**** Two fuse blocks are used 2025-0001-000 (30A), 2025-7004-000 Fuses: 2019-7002-008 (30A), 2019-7002-012 (50A)
MUH (Con’t.)
13
"Click" on part number to view price and availability
www.morelectricheating.com

Key Part Number

No. Description PH5HWA PH5HWAB PH5HWAC

1 Guard 2504-0011-001 2504-0011-001 2504-0011-001

2 Element (3 Req’d.) 1802-0087-532 1802-0087-532 1802-0087-532

3 Rocker Switch S99814893A000 S99814893A000 S99814893A000

4 Grille —— —

Front Case 1425-2002-001 1402-2154-001 1402-2154-001

5 Indicator Light 3510-2007-000 3510-2007-000 3510-2007-000

6 Knob 3301-2000-000 3301-2000-000 3301-2000-000

7 Thermostat 5813-2018-000 5813-2018-000 5813-2018-000

8 Manual Limit 4520-2017-000 4520-2017-000 4520-2017-000

— Fan Delay ——4520-0010-000

9 Terminal Block 5823-0003-001 5823-0003-001 5823-0003-001

10 Control Cover 1402-0336-000 1402-0336-000 1402-0336-000

11 Stand Knob (2 Req’d.) 3301-2018-000 3301-2018-000 3301-2018-000

12 Stand 5210-2000-004 5210-2000-004 5210-2000-004

13 Fan Blade 1210-2000-000 1210-2000-000 1210-2000-000

14 Motor 3900-2002-506 3900-2002-506 3900-2002-506

15 Back Case — 1425-2005-002 1425-2005-002

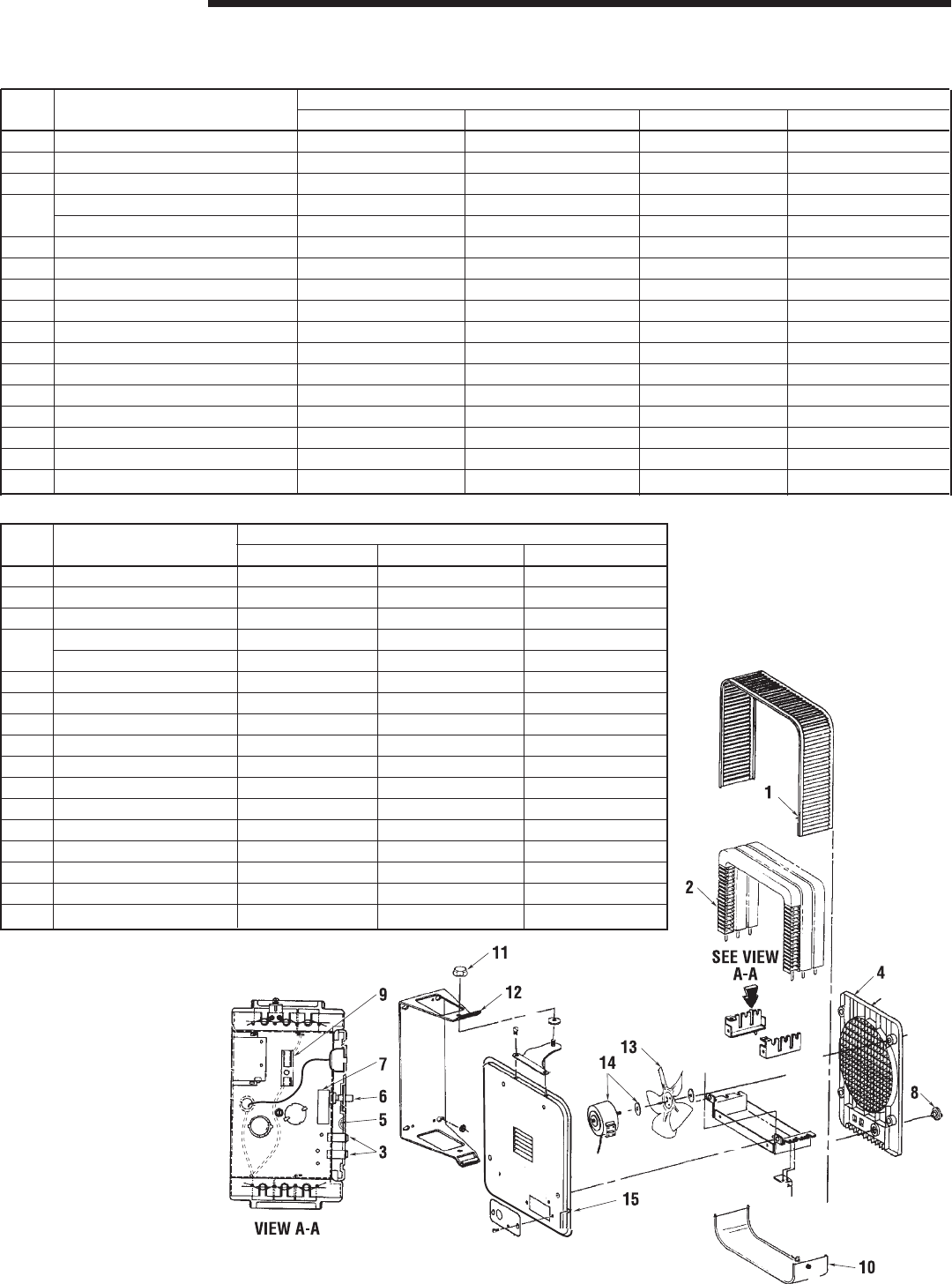

UNIT HEATERS

MUH-35, PH4 & PH5

Key Part Number

No. Description MUH-35B MUH-35C PH4A PH4AB

1 Guard 2504-0011-001 2504-0011-001 2504-0011-001 2504-0011-001

2 Element (3 Req’d.) 1802-0087-532 1802-0087-532 1802-0087-038 1802-0087-038

3 Rocker Switch S99814893A000 S99814893A000 S99814893A000 S99814893A000

4 Grille 1402-2154-001 1402-2154-001 — 1402-2154-001

Front Case ——1425-2002-001 —

5 Indicator Light 3510-2007-000 3510-2007-000 3510-2007-000 3510-2007-000

6 Knob 3301-2012-001 3301-2012-001 3301-2012-001 3301-2012-001

7 Thermostat 5813-2018-000 5813-2018-000 5813-2018-000 5813-2018-000

8 Manual Limit 4520-2017-000 4520-2017-000 4520-2017-000 4520-2017-000

— Fan Delay — 4520-0010-000 ——

9 Terminal Block 5823-0003-001 5823-0003-001 5823-0003-001 5823-0003-001

10 Control Cover 1402-0336-000 1402-0336-000 1402-0336-000 1402-0336-000

11 Stand Knob (2 Req’d.) 3301-2018-000 3301-2018-000 3301-2018-000 3301-2018-000

12 Stand 5210-2000-004 5210-2000-004 5210-2000-004 5210-2000-004

13 Fan Blade 1210-2000-000 1210-2000-000 1210-2000-000 1210-2000-000

14 Motor 3900-2002-506 3900-2002-506 3900-2002-506 3900-2002-506

15 Back Case 1425-2005-002 1425-2005-002 — 1425-2007-000

"Click" on part number to view price and availability

www.morelectricheating.com

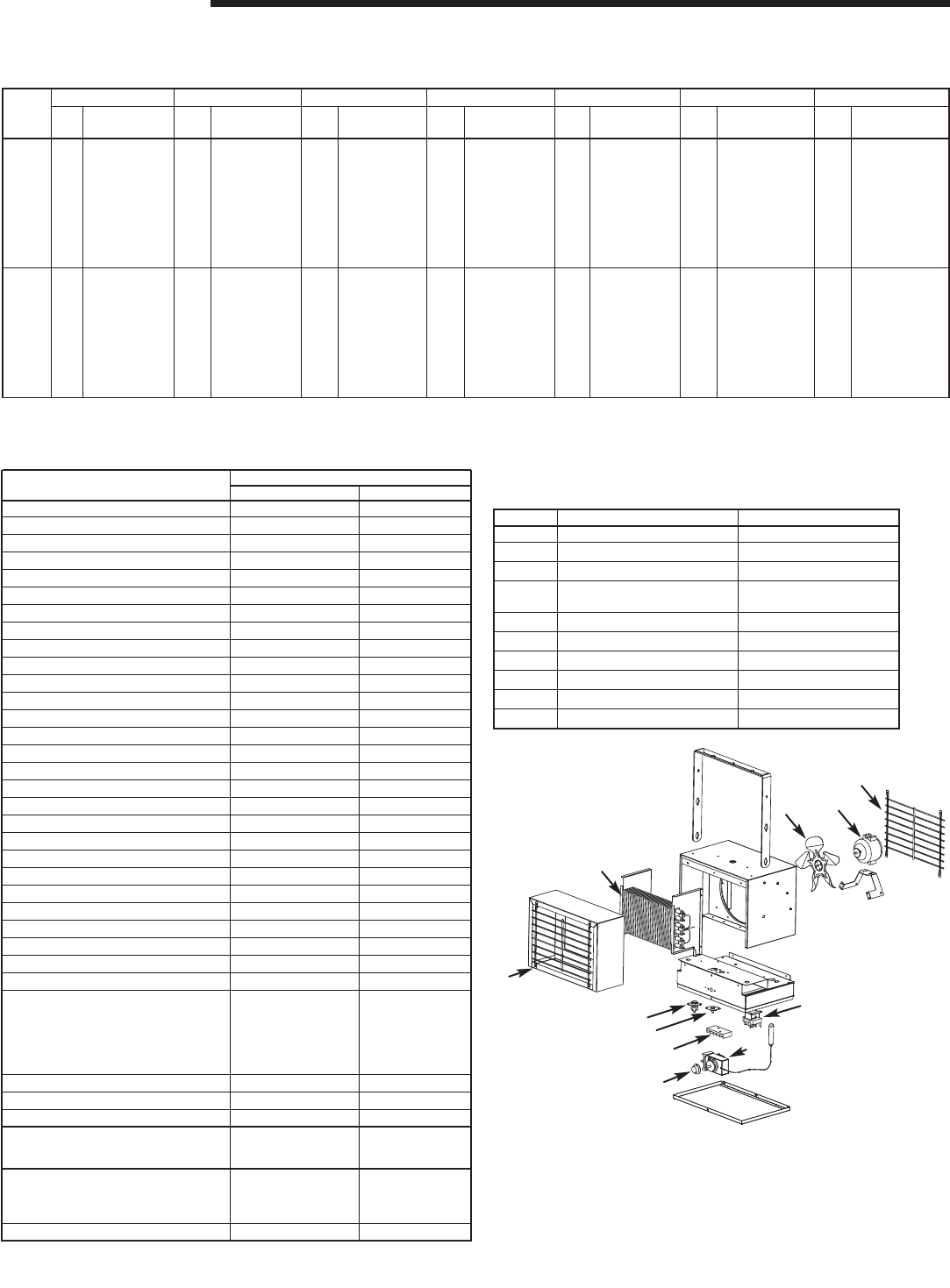

UNIT HEATERS

CU 900

Element Part Numbers

208V 240V 277V 347V 380V 480 600V

No. Part No. Part No. Part No. Part No. Part No. Part No. Part

Model Req. Number Req. Number Req. Number Req. Number Req. Number Req. Number Req. Number

935

2kW 1 1802-2083-100 1 1802-2083-101 1 1802-2083-114 1 1802-2083-103 1 1802-2083-101 1 1802-2083-114 1 1802-2083-108

3kW 1 1802-2083-107 1 1802-2083-108 1 1802-2083-116 1 1802-2083-105 1 1802-2083-108 1 1802-2083-116 1 1802-2083-105

4kW 1 1802-2083-106 1 1802-2083-107 1 1802-2083-108 1 1802-2083-109 1 1802-2083-107 1 1802-2083-108 1 1802-2083-109

5kW 1 1802-2083-110 1 1802-2083-111 1 1802-2083-120 1 1802-2083-113 1 1802-2083-111 1 1802-2083-120 1 1802-2083-113

6kW 2 1802-2083-107 2 1802-2083-108 2 1802-2083-116 2 1802-2083-105 2 1802-2083-108 2 1802-2083-116 2 1802-2083-105

7kW 1 1802-2083-106 1 1802-2083-107 1 1802-2083-116 1 1802-2083-105 1 1802-2083-107 1 1802-2083-116 1 1802-2083-105

1 1802-2083-107 1 1802-2083-108 1 1802-2083-108 1 1802-2083-109 1 1802-2083-108 1 1802-2083-108 1 1802-2083-109

8kW 1 1802-2083-107 1 1802-2083-108 1 1802-2083-116 1 1802-2083-105 1 1802-2083-108 1 1802-2083-116 1 1802-2083-105

1 1802-2083-110 1 1802-2083-111 1 1802-2083-120 1 1802-2083-113 1 1802-2083-111 1 1802-2083-114 1 1802-2083-113

945

4kW 2 1802-2083-100 2 1802-2083-101 2 1802-2083-114 2 1802-2083-103 2 1802-2083-101 2 1802-2083-114 2 1802-2083-103

6kW 2 1802-2083-107 2 1802-2083-108 2 1802-2083-116 2 1802-2083-105 2 1802-2083-108 2 1802-2083-116 2 1802-2083-105

8kW 2 1802-2083-106 2 1802-2083-107 2 1802-2083-108 2 1802-2083-109 2 1802-2083-107 2 1802-2083-108 2 1802-2083-109

10kW 2 1802-2083-110 2 1802-2083-111 2 1802-2083-120 2 1802-2083-113 2 1802-2083-111 2 1802-2083-120 2 1802-2083-113

12kW 4 1802-2083-107 4 1802-2083-108 4 1802-2083-116 4 1802-2083-105 4 1802-2083-108 4 1802-2083-116 4 1802-2083-105

14kW 2 1802-2083-106 2 1802-2083-107 2 1802-2083-116 2 1802-2083-105 2 1802-2083-107 2 1802-2083-116 2 1802-2083-105

2 1802-2083-107 2 1802-2083-108 2 1802-2083-108 2 1802-2083-109 2 1802-2083-108 2 1802-2083-108 2 1802-2083-109

16kW 2 1802-2083-107 2 1802-2083-108 2 1802-2083-116 2 1802-2083-105 2 1802-2083-108 2 1802-2083-116 2 1802-2083-105

2 1802-2083-110 2 1802-2083-111 2 1802-2083-112 2 1802-2083-113 2 1802-2083-111 2 1802-2083-114 2 1802-2083-113

CU 900

Parts Common to All Heaters

Part Number

Description Model 935 Model 945

Auto High Limit 410105000 410105000

Blower Wheel 490047001 490047001

Damper Motor 490050001 490050001

Damper Rheostat 410104001 410104001

Damper Rheostat Knob 482084001 482084001

Damper Rocker Switch 410131001 410131001

End Panel 1800-2050-000 1800-2050-000

Fan Auto-Relay (120V) 410101003 410101003

Fan Auto-Relay (24V) 410101001 410101001

Fan Auto-On Switch 5216-2029-001 5216-2029-001

Fan Delay Relay (120V) 410171002 410171002

Fan Delay Relay (24V) 410171001 410171001

Filter (Permanent) 2010-7009-006 2010-7009-007

Filter (Throw-away) 2010-7008-006 2010-7008-007

Front Cover 4513-2116-001 4513-2116-002

Fnt. Cover Interlock Switch 5216-2028-000 5216-2028-000

Fnt. Cover Lock-key Lock 3500-2000-001 3500-2000-001

Fnt. Cover Lock-screw Slot 3500-2000-000 3500-2000-000

Tamper Proof Key 3500-2000-002 3500-2000-002

High-Low Switch 5216-2029-000 5216-2029-000

Louvered Panel N. Gray 4513-2114-001 4513-2114-002

Manual High Limit 4513-2017-000 4513-2017-000

Motor Fuse 481001017 481001017

Night Set-back Relay 410101001 410101001

On-Off Switch 5216-2029-001 5216-2029-001

Plug Button 4506-2012-000 4506-2012-000

Power Relay (120V) 410101003 410101003

Power Relay (24V) 410101001 410101001

Power Transformer PRI SEC

277V 240V 490015007 490015007

347V 240V 490015020 490015020

480/380V 220/208V 490015023 490015023

550/480V 240/208 490015025 490015025

600V 240V 490015026 490015026

Thermostat SPST 410127001 410127001

Thermostat 2STG 5813-2008-000 5813-2008-000

Thermostat Knob 3301-2020-001 3301-2020-001

Motors

Single Shaft 3900-2032-000 3900-2032-000

Double Shaft 3900-2033-000 3900-2033-000

Disconnect Switch

30 Amp 5216-2033-000 5216-2033-000

60 Amp 5216-2033-001 5216-2033-001

100 Amp 5216-2033-002 5216-2033-002

Disconnect Switch Mounting Plate 4503-2066-001 4503-2066-001

CHPR25

Key No. Description Part Number

1 Fan Blade 1210-2017-000

2. Time Delay 410171003

3 High Limit 1414-2037-000

4. Motor - 3900-2008-000

6 watt unit bearing

5. Relay 1414-2038-000

6. Terminal Block 5823-0004-000

7. Thermostat 5813-2091-000

8. Thermostat Knob 3301-2053-000

9. Wire Guard 312056-000

10. Element 302006807

"Click" on part number to view price and availability

www.morelectricheating.com

16
KCJ
Model Element Limit Switch Thermostat Front Cover Top JB Cover Bottom JB Cover Relay
KCJ400 1802-2056-003 4520-2018-000 5216-0124-000 5813-0024-000 1402-2192-006 1402-2193-000 1402-2190-000 N/A
KCJ408 1802-2056-002 4520-2018-000 5216-0124-000 5813-0024-000 1402-2192-006 1402-2193-000 1402-2190-000 N/A
KCJ404 1802-2056-001 4520-2018-000 5216-0124-000 5813-0024-000 1402-2192-006 1402-2193-000 1402-2190-000 N/A
KCJ407 1802-2056-000 4520-2018-000 5216-0124-000 5813-0024-000 1402-2192-006 1402-2193-000 1402-2190-000 N/A
KCJ500 1802-2044-043 4520-2018-001 5216-0124-000 5813-0024-000 1402-2192-001 1402-2193-000 1402-2190-000 N/A
KCJ508 1802-2044-042 4520-2018-001 5216-0124-000 5813-0024-000 1402-2192-001 1402-2193-000 1402-2190-000 N/A
KCJ504 1802-2044-041 4520-2018-001 5216-0124-000 5813-0024-000 1402-2192-001 1402-2193-000 1402-2190-000 N/A
KCJ507 1802-2044-040 4520-2018-001 5216-0124-000 5813-0024-000 1402-2192-001 1402-2193-000 1402-2190-000 N/A
KCJ750 1802-2044-011 4520-2018-002 5216-0124-000 5813-0024-000 1402-2192-002 1402-2193-000 1402-2190-000 N/A
KCJ758 1802-2044-010 4520-2018-002 5216-0124-000 5813-0024-000 1402-2192-002 1402-2193-000 1402-2190-000 N/A
KCJ754 1802-2044-009 4520-2018-002 5216-0124-000 5813-0024-000 1402-2192-002 1402-2193-000 1402-2190-000 N/A
KCJ757 1802-2044-008 4520-2018-002 5216-0124-000 5813-0024-000 1402-2192-002 1402-2193-000 1402-2190-000 N/A
KCJ753 1802-2044-210 4520-2018-002 5216-2054-000 5813-0024-000 1402-2192-002 1402-2193-000 1402-2190-000 410043006
KCJ1000 1802-2044-017 4520-2018-003 5216-0124-000 5813-0024-000 1402-2192-003 1402-2193-000 1402-2190-000 N/A
KCJ1008 1802-2044-016 4520-2018-003 5216-0124-000 5813-0024-000 1402-2192-003 1402-2193-000 1402-2190-000 N/A
KCJ1004 1802-2044-015 4520-2018-003 5216-0124-000 5813-0024-000 1402-2192-003 1402-2193-000 1402-2190-000 N/A
KCJ1007 1802-2044-014 4520-2018-003 5216-0124-000 5813-0024-000 1402-2192-003 1402-2193-000 1402-2190-000 N/A
KCJ1003 1802-2044-216 4520-2018-003 5216-2054-000 5813-0024-000 1402-2192-003 1402-2193-000 1402-2190-000 410043006
KCJ1006 1802-2044-217 4520-2018-003 5216-2054-000 5813-0024-000 1402-2192-003 1402-2193-000 1402-2190-000 410043007
KCJ1250 1802-2044-023 4520-2018-004 5216-0124-000 5813-0024-000 1402-2192-004 1402-2193-000 1402-2190-000 N/A
KCJ1258 1802-2044-022 4520-2018-004 5216-0124-000 5813-0024-000 1402-2192-004 1402-2193-000 1402-2190-000 N/A
KCJ1254 1802-2044-021 4520-2018-004 5216-0124-000 5813-0024-000 1402-2192-004 1402-2193-000 1402-2190-000 N/A
KCJ1257 1802-2044-020 4520-2018-004 5216-0124-000 5813-0024-000 1402-2192-004 1402-2193-000 1402-2190-000 N/A
KCJ1253 1802-2044-222 4520-2018-004 5216-2054-000 5813-0024-000 1402-2192-004 1402-2193-000 1402-2190-000 410043006
KCJ1256 1802-2044-223 4520-2018-004 5216-2054-000 5813-0024-000 1402-2192-004 1402-2193-000 1402-2190-000 410043007
KCJ1500 1802-2044-029 4520-2018-005 5216-0124-000 5813-0024-000 1402-2192-005 1402-2193-000 1402-2190-000 N/A
KCJ1508 1802-2044-028 4520-2018-005 5216-0124-000 5813-0024-000 1402-2192-005 1402-2193-000 1402-2190-000 N/A
KCJ1504 1802-2044-027 4520-2018-005 5216-0124-000 5813-0024-000 1402-2192-005 1402-2193-000 1402-2190-000 N/A
KCJ1507 1802-2044-026 4520-2018-005 5216-0124-000 5813-0024-000 1402-2192-005 1402-2193-000 1402-2190-000 N/A
KCJ1503 1802-2044-228 4520-2018-005 5216-2054-000 5813-0024-000 1402-2192-005 1402-2193-000 1402-2190-000 410043006
KCJ1506 1802-2044-229 4520-2018-005 5216-2054-000 5813-0024-000 1402-2192-005 1402-2193-000 1402-2190-000 410043007
KCJ2008 1802-2044-034 4520-2018-006 5216-0124-000 5813-0024-000 1402-2192-007 1402-2193-000 1402-2190-000 N/A
KCJ2004 1802-2044-033 4520-2018-006 5216-0124-000 5813-0024-000 1402-2192-007 1402-2193-000 1402-2190-000 N/A
KCJ2007 1802-2044-032 4520-2018-006 5216-0124-000 5813-0024-000 1402-2192-007 1402-2193-000 1402-2190-000 N/A
KCJ2003 1802-2044-234 4520-2018-006 5216-2054-000 5813-0024-000 1402-2192-007 1402-2193-000 1402-2190-000 410043006
KCJ2006 1802-2044-235 4520-2018-006 5216-0124-000 5813-0024-000 1402-2192-007 1402-2193-000 1402-2190-000 410043007
CONVECTORS
"Click" on part number to view price and availability
www.morelectricheating.com

CONVECTORS

Part Number

Description 120V 208V 240V 277V 347V 600V

Element (125 watts/ft.):

28” 1802-2001-085 1802-2001-086 1802-2001-048 1802-2001-049 ——

3’ 1802-2001-087 1802-2001-088 1802-2001-054 1802-2001-055 1802-2001-220 —

4’ 1802-2001-089 1802-2001-090 1802-2001-060 1802-2001-061 1802-2001-230 —

5’ 1802-2001-091 1802-2001-092 1802-2001-066 1802-2001-067 1802-2001-240 1802-2001-241

6’ 1802-2001-093 1802-2001-094 1802-2001-072 1802-2001-073 1802-2001-250 1802-2001-251

8’ — 1802-2001-095 1802-2001-077 1802-2001-078 1802-2001-260 1802-2001-261

10’ — 1802-2001-096 1802-2001-081 1802-2001-082 1802-2001-270 1802-2001-271

Element (188 watts/ft.)

28” 1802-2001-005 1802-2001-002 1802-2001-001 1802-2001-000 ——

3’ 1802-2001-011 1802-2001-008 1802-2001-007 1802-2001-006 1802-2001-216 —

4’ 1802-2001-017 1802-2001-014 1802-2001-013 1802-2001-012 1802-2001-226 1802-2001-227

5’ 1802-2001-023 1802-2001-020 1802-2001-019 1802-2001-018 1802-2001-236 1802-2001-237

6’ 1802-2001-029 1802-2001-026 1802-2001-025 1802-2001-024 1802-2001-246 1802-2001-247

8’ — 1802-2001-032 1802-2001-031 1802-2001-030 1802-2001-256 1802-2001-257

10’ — 1802-2001-036 1802-2001-035 1802-2001-034 1802-2001-266 1802-2001-267

Element (250 watts/ft.)

28” 1802-2001-004 1802-2001-003 1802-2001-002 1802-2001-001 1802-2001-202 —

3’ 1802-2001-010 1802-2001-009 1802-2001-008 1802-2001-007 1802-2001-214 —

4’ 1802-2001-016 1802-2001-015 1802-2001-014 1802-2001-013 1802-2001-224 1802-2001-225

5’ 1802-2001-022 1802-2001-021 1802-2001-020 1802-2001-019 1802-2001-234 1802-2001-235

6’ 1802-2001-028 1802-2001-027 1802-2001-026 1802-2001-025 1802-2001-244 1802-2001-245

8’ — 1802-2001-033 1802-2001-032 1802-2001-031 1802-2001-254 1802-2001-255

10’ — 1802-2001-037 1802-2001-036 1802-2001-035 1802-2001-264 1802-2001-265

Junction Box Cover 1402-2250-000 1402-2250-000 1402-2250-000 1402-2250-000 1402-2250-000 1402-2250-000

Disconnect Switch 5216-2006-000 5216-2006-000 5216-2006-000 5216-2006-000 5216-2006-000 5216-2006-000

Front Cover

28” 1402-2251-000 1402-2251-000 1402-2251-000 1402-2251-000 1402-2251-000 1402-2251-000

3’ 1402-2251-001 1402-2251-001 1402-2251-001 1402-2251-001 1402-2251-001 1402-2251-001

4’ 1402-2251-002 1402-2251-002 1402-2251-002 1402-2251-002 1402-2251-002 1402-2251-002

5’ 1402-2251-003 1402-2251-003 1402-2251-003 1402-2251-003 1402-2251-003 1402-2251-003

6’ 1402-2251-004 1402-2251-004 1402-2251-004 1402-2251-004 1402-2251-004 1402-2251-004

8’ 1402-2251-005 1402-2251-005 1402-2251-005 1402-2251-005 1402-2251-005 1402-2251-005

10’ 1402-2251-006 1402-2251-006 1402-2251-006 1402-2251-006 1402-2251-006 1402-2251-006

Limit

28” 4520-2018-001 4520-2018-001 4520-2018-001 4520-2018-001 4520-2018-001 4520-2018-001

3’ 4520-2018-002 4520-2018-002 4520-2018-002 4520-2018-002 4520-2018-002 4520-2018-002

4’ 4520-2018-003 4520-2018-003 4520-2018-003 4520-2018-003 4520-2018-003 4520-2018-003

5’ 4520-2018-004 4520-2018-004 4520-2018-004 4520-2018-004 4520-2018-004 4520-2018-004

6’ 4520-2018-005 4520-2018-005 4520-2018-005 4520-2018-005 4520-2018-005 4520-2018-005

8’ 4520-2018-006 4520-2018-006 4520-2018-006 4520-2018-006 4520-2018-006 4520-2018-006

10’ 4520-2018-007 4520-2018-007 4520-2018-007 4520-2018-007 4520-2018-007 4520-2018-007

Thermostats

Single Pole 5813-0023-000 —————

Double Pole 5813-0024-000 —————

"Click" on part number to view price and availability

www.morelectricheating.com

CONVECTORS

DBA/SHA

Part Number

Description 120V 208V 240V 277V

*Element (100 watts/ft.)

28” Heater 1802-2001-047 1802-2001-048 1802-2001-049 1802-2001-050

3’ 1802-2001-053 1802-2001-054 1802-2001-055 1802-2001-056

4’ 1802-2001-059 1802-2001-060 1802-2001-061 1802-2001-062

5’ 1802-2001-065 1802-2001-066 1802-2001-067 1802-2001-068

6’ 1802-2001-071 1802-2001-072 1802-2001-073 1802-2001-074

8’ — 1802-2001-077 1802-2001-078 1802-2001-079

10’ — 1802-2001-081 1802-2001-082 1802-2001-083

*Element (125 watts/ft.)

28” Heater 1802-2001-085 1802-2001-086 1802-2001-048 1802-2001-049

3’ 1802-2001-087 1802-2001-088 1802-2001-054 1802-2001-055

4’ 1802-2001-089 1802-2001-090 1802-2001-060 1802-2001-061

5’ 1802-2001-091 1802-2001-092 1802-2001-066 1802-2001-067

6’ 1802-2001-093 1802-2001-094 1802-2001-072 1802-2001-073

8’ — 1802-2001-095 1802-2001-077 1802-2001-078

10’ — 1802-2001-096 1802-2001-081 1802-2001-082

*Element (150 watts/ft.)

28” Heater 1802-2001-051 1802-2001-001 1802-2001-000 1802-2001-052

3’ 1802-2001-057 1802-2001-007 1802-2001-006 1802-2001-058

4’ 1802-2001-063 1802-2001-013 1802-2001-012 1802-2001-064

5’ 1802-2001-069 1802-2001-019 1802-2001-018 1802-2001-070

6’ 1802-2001-075 1802-2001-025 1802-2001-024 1802-2001-076

8’ — 1802-2001-031 1802-2001-030 1802-2001-080

10’ — 1802-2001-035 1802-2001-034 1802-2001-084

*Element (188 watts/ft.)

28” Heater 1802-2001-005 1802-2001-002 1802-2001-001 1802-2001-000

3’ 1802-2001-011 1802-2001-008 1802-2001-007 1802-2001-006

4’ 1802-2001-017 1802-2001-014 1802-2001-013 1802-2001-012

5’ 1802-2001-023 1802-2001-020 1802-2001-019 1802-2001-018

6’ 1802-2001-029 1802-2001-026 1802-2001-025 1802-2001-024

8’ — 1802-2001-032 1802-2001-031 1802-2001-030

10’ — 1802-2001-036 1802-2001-035 1802-2001-034

*Element (250 watts/ft.)

28” Heater 1802-2001-004 1802-2001-003 1802-2001-002 1802-2001-001

3’ 1802-2001-010 1802-2001-009 1802-2001-008 1802-2001-007

4’ 1802-2001-016 1802-2001-015 1802-2001-014 1802-2001-013

5’ 1802-2001-022 1802-2001-021 1802-2001-020 1802-2001-019

6’ 1802-2001-028 1802-2001-027 1802-2001-026 1802-2001-025

8’ — 1802-2001-033 1802-2001-032 1802-2001-031

10’ — 1802-2001-037 1802-2001-036 1802-2001-035

Linear Limit

28” Heater 4520-0007-007 4520-0007-007 4520-0007-007 4520-0007-007

3’ 4520-0007-008 4520-0007-008 4520-0007-008 4520-0007-008

4’ 4520-0007-009 4520-0007-009 4520-0007-009 4520-0007-009

5’ 4520-0007-010 4520-0007-010 4520-0007-010 4520-0007-010

6’ 4520-0007-011 4520-0007-011 4520-0007-011 4520-0007-011

8’ 4520-0007-012 4520-0007-012 4520-0007-012 4520-0007-012

10’ 4520-0007-013 4520-0007-013 4520-0007-013 4520-0007-013

* 1, 2, or 3 elements may be required. Voltage and wattage are stamped on end of elements. Divide the wattage by the heater length (feet) to determine watts/foot of element. Then use this data to

determine part number of heating element.

Built-in Controls (Optional)

Part

Description Number

Disconnect Switch 410170001

Thermostat: 2-Stage 5813-0023-000

1-Pole 5813-0024-000

2-Pole 5813-0023-000

Transformer Relay: 120V R13700002B001

208V R13700002B002

240V R13700002B003

277V R13700002B004

Power Relay: 24V 5018-2006-000

120V 5018-2006-001

208V/240V 5018-2006-002

277V 5018-2006-003

"Click" on part number to view price and availability

www.morelectricheating.com

ADB/ASH/CSH/DSH/APH/CPH/DPH

Part Number

Description 120V 208V 240V 277V

*Element (125 watts/ft.)

28” Heater 1802-2001-085 1802-2001-086 1802-2001-048 1802-2001-049

3’ 1802-2001-087 1802-2001-088 1802-2001-054 1802-2001-055

4’ 1802-2001-089 1802-2001-090 1802-2001-060 1802-2001-061

5’ 1802-2001-091 1802-2001-092 1802-2001-066 1802-2001-067

6’ 1802-2001-093 1802-2001-094 1802-2001-072 1802-2001-073

8’ — 1802-2001-095 1802-2001-077 1802-2001-078

10’ — 1802-2001-096 1802-2001-081 1802-2001-082

*Element (188 watts/ft.)

28” Heater 1802-2001-005 1802-2001-002 1802-2001-001 1802-2001-000

3’ 1802-2001-011 1802-2001-008 1802-2001-007 1802-2001-006

4’ 1802-2001-017 1802-2001-014 1802-2001-013 1802-2001-012

5’ 1802-2001-023 1802-2001-020 1802-2001-019 1802-2001-018

6’ 1802-2001-029 1802-2001-026 1802-2001-025 1802-2001-024

8’ — 1802-2001-032 1802-2001-031 1802-2001-030

10’ — 1802-2001-036 1802-2001-035 1802-2001-034

*Element (250 watts/ft.)

28” Heater 1802-2001-004 1802-2001-003 1802-2001-002 1802-2001-001

3’ 1802-2001-010 1802-2001-009 1802-2001-008 1802-2001-007

4’ 1802-2001-016 1802-2001-015 1802-2001-014 1802-2001-013

5’ 1802-2001-022 1802-2001-021 1802-2001-020 1802-2001-019

6’ 1802-2001-028 1802-2001-027 1802-2001-026 1802-2001-025

8’ — 1802-2001-033 1802-2001-032 1802-2001-031

10’ — 1802-2001-037 1802-2001-036 1802-2001-035

Overload Protector:

28” Heater 4520-0007-007

3’ 4520-0007-008

4’ 4520-0007-009

5’ 4520-0007-010

6’ 4520-0007-011

8’ 4520-0007-012

10’ 4520-0007-013

* 1, 2, or 3 elements may be required. Voltage and wattage are stamped on end of elements. Divide the wattage by the heater length (feet) to determine watts/foot of element. Then use this data to

determine part number of heating element.

Built-in Controls (Optional)

Key Part

No. Description Number

1 Master Control: 208V/240V 1414-0038-000

277V 1414-0038-001

2 Slave: 208V/240V 1414-0039-000

277V 1414-0039-001

3 SCR Thermostat 5813-0017-000

Key Part

No. Description Number

1 Mercury Relay: 1-Pole, 30A, 24V Coil 5018-7050-001

1-Pole, 60A, 24V Coil 5018-7049-001

1-Pole, 30A, 120V Coil 5018-7050-002

1-Pole, 60A, 120V Coil 5018-7049-002

1-Pole, 30A, 208V Coil 5018-7050-003

1-Pole, 60A, 208V Coil 5018-7049-003

1-Pole, 30A, 240V Coil 5018-7050-004

1-Pole, 60A, 240V Coil 5018-7049-004

1-Pole, 30A, 277V Coil 5018-7050-005

1-Pole, 60A, 277V Coil 5018-7049-005

2 Circuit Breaker: 2-Pole, 30A 1226-7009-013

2-Pole, 60A 1226-7009-010

3-Pole, 30A 1226-7009-005

3-Pole, 60A 1226-7009-002

3 24V Transformer: –

208V Primary 490026001

240V Primary 490026001

277V Primary 490026002

4 Disconnect Switch 5216-0124-000

5 Thermostat: 1-Pole 5813-0024-000

2-Stage 5813-0023-000

6 Pneumatic Control 5216-7027-001

— Transformer Relay: 120V R13700002B001

208V R13700002B002

240V R13700002B003

277V R13700002B004

— Power Relay: 24V 5018-2021-000

120V 5018-2017-001

208V/240V 5018-2021-002

277V 5018-2021-003

CONVECTORS

"Click" on part number to view price and availability

www.morelectricheating.com

RCC Model C & D

Key Part Number

No. Description 120V 208V 240V 277V

* Parts Kit Model C 3303-2031-000 (Includes: Hanging brackets & end caps)

Model D 3303-2032-000 (Includes: Hanging brackets & end caps)

Thermostat 410129001

Knob 3301-2020-006

Note: Replace heater if element is needel.

Reference Data

Catalog Length

Number Volts Watts (Inches)

RCC-4512 120

RCC-4508 208 450 34

RCC-4524 240

RCC-6012 120

RCC-6008 208

RCC-6024 240 600 47

RCC-6027 277

RCC-7512 120

RCC-7508 208

RCC-7524 240 750 59

RCC-7527 277

RCC-9012 120

RCC-9008 208

RCC-9024 240 900 71

RCC-9027 277

RCC-10512 120

RCC-10508 208

RCC-10524 240 1050 83

RCC-10527 277

RCC-12012 120

RCC-12008 208

RCC-12024 240 1200 94

RCC-12027 277

RCC-15008 208

RCC-15024 240 1500 118 1/4

RCC-15027 277

RCC-18008 208

RCC-18024 240 1800 132

RCC-18027 277

QRH

Description Part Number

Element:

QRH16-91S-208 3512-7000-009

QRH16-91S-240 3512-7000-003

QRH16-91S-277 3512-7000-012

QRH25-91S-480 3512-7000-004

DRP

Description Part Number

Element (2 Req’d.):

DRP326S8 3512-7000-009

DRP326S2 3512-7000-003

DRP326S7 3512-7000-012

DRP506S4 3512-7000-004

CRN Model B

Description Part Number

Element:

CRN1011 1802-7077-001

CRN1081 1000 Watts 1802-7077-002

CRN1021 1802-7077-003

CRN1511 1802-7077-004

CRN1581 1802-7077-005

CRN1521 1500 Watts 1802-7077-006

CRN1571 1802-7077-007

CRN1531 1802-7077-008

CRN2001 1802-7077-009

CRN2021 2000 Watts 1802-7077-010

CRN2071 1802-7077-011

CRN2031 1802-7077-012

CRN2501 1802-7077-013

CRN2521 2500 Watts 1802-7077-014

CRN1571 1802-7077-015

CRN1531 1802-7077-016

INFRARED HEATERS

CONVECTORS

QDB

Part Number

Description Model QDB3 (564 Watts) Model QDB4 (752 Watts) Model QDB5 (940 Watts)

Element (188 watts/ft.):

120V 1802-2016-012 1802-2016-020 1802-2016-030

208V 1802-2016-010 1802-2016-024 1802-2016-034

240V 1802-2016-011 1802-2016-025 1802-2016-035

277V 1802-2016-013 1802-2016-021 1802-2016-031

Model QDB3 (300 Watts) Model QDB4 (400 Watts) Model QDB5 (500 Watts)

Element (100 watts/ft.):

120V 1802-2016-014 1802-2016-016 1802-2016-026

208V 1802-2016-006 1802-2016-017 1802-2016-027

240V 1802-2016-007 1802-2016-018 1802-2016-028

277V 1802-2016-015 1802-2016-019 1802-2016-029

Front Cover 310124008 310124009 310124010

Top Grille Assembly 310817903 310817904 310817905

Linear Limit 410122003 410122004 410122005

Terminal Box Cover 310527001

Element Hanger Clip 402020000

"Click" on part number to view price and availability

www.morelectricheating.com

BRM4500

Key Part

No. Description Number

1 *Heating Element: 4500 Watt

208 Volt HE45208

240 Volt HE45240

480 Volt HE45480

* Includes reflector insert and element hardware.

INFRARED HEATERS

NOTE: PRIOR TO SEPTEMBER 2003 REPLACED WITH B SERIES

BRM6000

Key Part

No. Description Number

1 *Heating Element: 2000 Watt

208 Volt HE20208

240 Volt HE20240

480 Volt HE20480

* Includes reflector insert and element hardware.

BRM13500

Key Part

No. Description Number

1 *Heating Element: 4500 Watt

208 Volt HE45208

240 Volt HE45240

480 Volt HE45480

* Includes reflector insert and element hardware.

BRM Series B

Key Part

No. Description Number

1 *Heating Element: 2000 Watt

BRM2081 1802-7076-002

BRM2021 1802-7076-003

BRM2041 1802-7076-005

BRM2061 1802-7076-006

1 *Heating Element: 4500 Watt

BRM4581 1802-7076-007

BRM4521 1802-7076-008

BRM4541 1802-7076-010

BRM4561 1802-7076-011

1 *Heating Element: 6000 Watt

BRM6083 1802-7076-002

BRM6023 1802-7076-003

BRM6071 1802-7076-004

BRM6043 1802-7076-005

BRM6063 1802-7076-006

1 *Heating Element: 13500 Watt

BRM13583 1802-7076-007

BRM13523 1802-7076-008

BRM13571 1802-7076-009

BRM13543 1802-7076-010

BRM13563 1802-7076-011

ARL4500

Key Part

No. Description Number

1 *Heating Element: 4500 Watt

208 Volt HE 45208

240 Volt HE 45240

480 Volt HE 45480

* Includes reflector insert (No. 2) and element hardware (No. 7).

ARL6000

Key Part

No. Description Number

1 *Heating Element: 2000 Watt

208 Volt HE 20208

240 Volt HE 20240

480 Volt HE 20480

* Includes reflector insert (No. 2) and element hardware (No. 7).

ARL13500

Key Part

No. Description Number

1 *Heating Element: 4500 Watt

208 Volt HE 45208

240 Volt HE 45240

480 Volt HE 45480

* Includes reflector insert (No. 2) and element hardware (No. 7).

** Includes protective grille (item 8).

ARL Series B

Key Part

No. Description Number

1 Heating Element: 1500 Watt 1802-7076-001

1 Heating Element: 2000 Watt

ARL2081 1802-7076-002

ARL2021 1802-7076-003

ARL2071 1802-7076-004

ARL2041 1802-7076-005

ARL2061 1802-7076-006

1 Heating Element: 4500 Watt

ARL4581 1802-7076-007

ARL4521 1802-7076-008

ARL4571 1802-7076-009

ARL4541 1802-7076-010

ARL4561 1802-7076-011

"Click" on part number to view price and availability

www.morelectricheating.com

INFRARED HEATERS

RP / RS - 2 Element

Key Part Number

No. Description RP/RS024 RP/RS033 RP/RS046

1 Reflector 30 Degree Sym. 5007-2010-000 5007-2010-001 5007-2010-002

60 Degree Sym. 5007-2009-000 5007-2009-001 5007-2009-002

60 Degree Asym. 5007-2011-000 5007-2011-001 5007-2011-002

90 Degree Sym. 5007-2009-000 5007-2009-001 5007-2009-002

2 Terminal Block (4 Req’d.) 1224-0049-000 1224-0049-000 1224-0049-000

3 Element Terminal Bush. (4 Req’d.) 1213-0070-000 1213-0070-000 1213-0070-000

Parts Bag 1205-2046-000 1205-2046-000 1205-2046-000

RK4 & RK5

RK Series Terminal CoverLong Terminal Cover Short Element Quartz Reflector Chain Jack 2 Req. “S” Hook 4 Req.

JRK41512 1402-2275-000 1402-2275-001 1802-2113-501 5007-2013-000 1404-2000-001 2706-2000-000

JRK42020 1402-2275-000 1402-2275-001 1802-2113-509 5007-2013-000 1404-2000-001 2706-2000-000

JRK42024 1402-2275-000 1402-2275-001 1802-2113-510 5007-2013-000 1404-2000-001 2706-2000-000

JRK42027 1402-2275-000 1402-2275-001 1802-2113-511 5007-2013-000 1404-2000-001 2706-2000-000

JRK42034 1402-2275-000 1402-2275-001 1802-2113-512 5007-2013-000 1404-2000-001 2706-2000-000

JRK42048 1402-2275-000 1402-2275-001 1802-2113-513 5007-2013-000 1404-2000-001 2706-2000-000

JRK42060 1402-2275-000 1402-2275-001 1802-2113-514 5007-2013-000 1404-2000-001 2706-2000-000

JRK53020 1402-2275-000 1402-2275-001 1802-2113-515 5007-2013-001 1404-2000-001 2706-2000-000

JRK53024 1402-2275-000 1402-2275-001 1802-2113-516 5007-2013-001 1404-2000-001 2706-2000-000

JRK53027 1402-2275-000 1402-2275-001 1802-2113-517 5007-2013-001 1404-2000-001 2706-2000-000

JRK53034 1402-2275-000 1402-2275-001 1802-2113-518 5007-2013-001 1404-2000-001 2706-2000-000

JRK53048 1402-2275-000 1402-2275-001 1802-2113-519 5007-2013-001 1404-2000-001 2706-2000-000

JRK53060 1402-2275-000 1402-2275-001 1802-2113-520 5007-2013-001 1404-2000-001 2706-2000-000

RP / RS - 3 Element

Key Part Number

No. Description RP/RS024 RP/RS033 RP/RS046

1 Reflector 30 Degree Sym. 5007-2017-000 5007-2017-001 5007-2017-002

60 Degree Sym. 5007-2016-000 5007-2016-001 5007-2016-002

60 Degree Asym. 5007-2018-000 5007-2018-001 5007-2018-002

90 Degree Sym. 5007-2016-000 5007-2016-001 5007-2016-002

2 Terminal Block (4 Req’d.) 1224-0049-000 1224-0049-000 1224-0049-000

3 Element Terminal Bush. (4 Req’d.) 1213-0070-000 1213-0070-000 1213-0070-000

Parts Bag 1205-2046-000 1205-2046-000 1205-2046-000

"Click" on part number to view price and availability

www.morelectricheating.com

RR4 & RR5

Key Part Number

No. Description RR4 RR5

1 Element 1802-2113-501 1802-2113-516

2 Chain Jet 4 ft (2 Req’d.) 1404-2000-001 1404-2000-001

3 “S” Hook (4 Req’d.) 2706-2000-000 2706-2000-000

4 Wire Guard 2504-2016-000 2504-2016-001

5 Cord Set 1420-2016-000 1420-2016-001

RR105 / RR110

Key Part Number

No. Description RR105 RR110

1 Element 1802-2119-500 1802-2119-500

2 Chain Jet 4 ft (2 Req’d.) 1404-2000-001 1404-2000-001

3 “S” Hook (4 Req’d.) 2706-2000-000 2706-2000-000

4 Wire Guard 2504-2017-000 2504-2017-000

5 Cord Set 1420-2016-000 1420-2016-003

6 Ceramic Block (2 Req’d.) 1224-2006-000 -

Ceramic Block (4 Req’d.) - 1224-2006-000

7 Toggle Switch (2 Req’d.) - 410024000

RR220 / RR357

Key Part Number

No. Description RR220 RR357

1 Element 1802-0070-509 1802-0070-550

2 Chain Jet 4 ft (2 Req’d.) 1404-2000-001 1404-2000-001

3 “S” Hook (4 Req’d.) 2706-2000-000 2706-2000-000

4 Wire Guard 2504-2015-000 2504-2014-000

5 Cord Set 1420-2016-002 1420-2017-000

6 Terminal Block (4 Req’d.) 1224-0049-000 -

Terminal Block (8 Req’d.) - 1224-0049-000

7 Element Terminal Bush. (4 Req’d.) 1213-0070-000 -

Element Terminal Bush. (8 Req’d.) - 1213-0070-000

8 Toggle Switch (2 Req’d.) 5216-2011-000 5216-2011-000

INFRARED HEATERS

"Click" on part number to view price and availability

www.morelectricheating.com

OBSOLETE STORAGE HEATERS

(Some parts may be obsolete and no longer available)

LDH

Replacement Parts Identification

Description Part Number LDH200 LDH300 LDH400 LDH500 LDH600 LDH750

Top Panel 1402-2266-VAR 000 000 001 002 002 003

End Panel 1800-2057-000 ––––––

Front Panel 1402-2310-VAR 004 004 005 006 006 007

Grille 1016-0011-VAR 000 000 001 002 002 003

Wall Bracket 1215-2148-000 ––––––

Charge Ctrl. Knob 3301-2045-001 ––––––

Charge Ctrl. 1414-2024-001 ––––––

Fan Assembly (R) 1225-2009-001 –––––2 pcs

Fan Assembly (L) 1225-2008-001 n/a n/a ––––

High Limit Safety Ctrl. 4520-2046-000 ––––––

Power Relay 5018-2006-002 1pc 1pc 1pc 2pcs 2pcs 2pcs

Charge Resistor 5017-2004-000 ––––––

Pilot Light 3510-2015-000 ––––––

Lens for Pilot Light 3508-2001-000 ––––––

Element (3 per htr.) 1802-2108-VAR 000 001 002 004 005 n/a

Element (3 per htr.) 1802-2137-000 n/a n/a n/a n/a n/a 3 pcs

LSH Replacement Parts Identification

LSH751 LSH850 LSH151 LSH170 LSH250 LSH340

Description 750 Watts 850 Watts 1500 Watts 1700 Watts 2500 Watts 3400 Watts

Input Knob 3301-2048-004 3301-2048-004 3301-2048-004 3301-2048-004 3301-2048-004 3301-2048-004

Output Knob 3301-2048-003 3301-2048-003 3301-2048-003 3301-2048-003 3301-2048-003 3301-2048-003

Charge Control 1414-2021-000 1414-2021-000 1414-2021-000 1414-2021-000 1414-2021-000 1414-2021-000

Heating Element 1802-2023-000 1802-2015-000 1802-2023-000 1802-2015-000 1802-2015-000 1802-2015-000

Terminal Block 5823-2008-000 5823-2008-000 5823-2008-000 5823-2008-000 5823-2008-000 5823-2008-000

Thermal Cutout 4520-2049-000 4520-2049-000 4520-2049-000 4520-2049-000 4520-2049-000 4520-2049-000

Front Cover 1402-2260-800 1402-2260-800 1402-2260-801 1402-2260-801 1402-2260-802 1402-2260-803

Pilot Light 3510-2015-001 3510-2015-000 3510-2015-001 3510-2015-000 3510-2015-000 3510-2015-000

"Click" on part number to view price and availability

www.morelectricheating.com

25
OBSOLETE WALL HEATERS
(Some parts may be obsolete and no longer available)
G Series
Model Part Number
Number Parts Bag Blower ASM. Clip-n-Fit Element ASM. Grille Light HI Limit T-Stat Knob
G1512IF 1205-2031-000 1225-2000-000 — 1802-2124-000 2501-2046-000 3510-2017-000 4520-2059-000 ——
G1512IFMA 1205-2031-001 1225-2000-000 1249-2005-000 — 2501-2046-000 3510-2017-000 4520-2059-000 ——
G2024IF 1205-2031-001 1225-2000-001 — 1802-2124-005 2501-2046-000 3510-2017-001 4520-2059-000 ——
G2024IFMA 1205-2031-001 1225-2000-001 1249-2005-000 — 2501-2046-000 3510-2017-001 4520-2059-000 ——
G2224IF 1205-2031-001 1225-2000-001 ——2501-2046-000 3510-2017-001 4520-2059-000 ——
G2224IFMA 1205-2031-001 1225-2002-001 1249-2005-000 — 2501-2046-000 3510-2017-001 4520-2059-000 ——
G2028IF 1205-2031-001 1225-2000-001 ——2501-2046-000 3510-2017-001 4520-2059-000 ——
G2028IFMA 1205-2031-001 1225-2002-001 ——2501-2046-000 3510-2017-001 4520-2059-000 ——
G1512T2M 1205-2031-000 1225-2000-001 1249-2005-000 — 2501-2046-000 3510-2017-000 4520-2059-000 410130001 3301-2040-001
G2024T2M 1205-2031-000 1225-2000-001 1249-2005-000 — 2501-2046-000 3510-2017-001 4520-2059-000 410130001 3301-2040-001
G2024T2MA 1205-2031-000 1225-2000-001 1249-2005-000 — 2501-2046-000 3510-2017-001 4520-2059-000 410130001 3301-2040-001
G2224T2M 1205-2031-000 1225-2000-001 1249-2005-000 — 2501-2046-000 3510-2017-001 4520-2059-000 1410130001 3301-2040-001
G2224T2MA 1205-2031-000 1225-2002-001 1249-2005-000 — 2501-2046-000 3510-2017-001 4520-2059-000 1410130001 3301-2040-001
C Series
Model Part Number
Number Parts Bag Blade Element Light Grille Motor HI Limit Thermal Fuse T-Stat Clip-n-Fit
C1012IF 1205-2044-000 1210-2008-000 — 3510-2017-000 2501-2065-000 3900-2017-000 4520-2059-000 4520-2030-000 ——
C1012IFA 1205-2044-000 1210-2008-000 1802-2124-003 3510-2017-000 2501-2065-000 3900-2017-000 4520-2059-000 4520-2030-000 ——
C1012IFAA 1205-2044-000 1210-2008-000 1802-2124-103 3510-2017-000 2501-2065-000 3900-2017-000 4520-2059-000 4520-2030-000 ——
C1512IF 1205-2044-000 1210-2008-000 1802-2124-000 3510-2017-000 2501-2065-000 3900-2017-000 4520-2059-000 4520-2030-000 ——
C1512IFA 1205-2044-000 1210-2008-000 1802-2124-000 3510-2017-000 2501-2065-000 3900-2017-000 4520-2059-000 4520-2030-000 ——
C1512IFAA 1205-2044-000 1210-2008-000 1802-2124-000 3510-2017-000 2501-2065-000 3900-2017-000 4520-2059-000 4520-2030-000 ——
C2028IF 1205-2044-000 1210-2008-000 — 3510-2017-001 2501-2065-000 3900-2035-000 4520-2059-000 4520-2030-000 ——
C2028IFA 1205-2044-000 1210-2008-000 1802-2124-001 3510-2017-001 2501-2065-000 3900-2035-000 4520-2059-000 4520-2030-000 ——
C0724IF 1205-2044-000 1210-2008-000 1802-2124-004 3510-2017-001 2501-2065-000 3900-2017-001 4520-2059-000 4520-2030-000 ——
C0724IFA 1205-2044-000 1210-2008-000 1802-2124-004 3510-2017-001 2501-2065-000 3900-2017-001 4520-2059-000 4520-2030-000 ——
C1024IF 1205-2044-000 1210-2008-000 1802-2124-005 3510-2017-001 2501-2065-000 3900-2017-001 4520-2059-000 4520-2030-000 ——
C1024IFA 1205-2044-000 1210-2008-000 1802-2124-005 3510-2017-001 2501-2065-000 3900-2017-001 4520-2059-000 4520-2030-000 ——
C1524IF 1205-2044-000 1210-2008-000 1802-2124-004 3510-2017-001 2501-2065-000 3900-2017-001 4520-2059-000 4520-2030-000 ——
C1524IFA 1205-2044-000 1210-2008-000 1802-2124-004 3510-2017-001 2501-2065-000 3900-2017-001 4520-2059-000 4520-2030-000 ——
C2024IF 1205-2044-000 1210-2008-000 1802-2124-005 3510-2017-001 2501-2065-000 3900-2017-001 4520-2059-000 4520-2030-000 ——
C2024IFA 1205-2044-000 1210-2008-000 1802-2124-005 3510-2017-001 2501-2065-000 3900-2017-001 4520-2059-000 4520-2030-000 ——
C2224IF 1205-2044-000 1210-2008-000 — 3510-2017-001 2501-2065-000 3900-2035-000 4520-2059-000 4520-2030-000 — 1249-2005-000
C2224IFA 1205-2044-000 1210-2008-000 1802-2124-002 3510-2017-001 2501-2065-000 3900-2035-000 4520-2059-000 4520-2030-000 — 1249-2005-000
C0512T2 1205-2044-001 1210-2008-000 — 1802-2017-000 2501-2065-000 3900-2017-000 4520-2059-000 4520-2030-000 410130001 1249-2005-000
C0512T2A 1205-2044-001 1210-2008-000 1802-2124-003 3510-2017-000 2501-2065-000 3900-2017-000 4520-2059-000 4520-2030-000 410130001 1249-2005-000
C0512T2AA 1205-2044-001 1210-2008-000 1802-2124-100 3510-2017-000 2501-2065-000 3900-2017-000 4520-2059-000 4520-2030-000 410130001 1249-2005-000
C1012T2 1205-2044-001 1210-2008-000 — 3510-2017-000 2501-2065-000 3900-2017-000 4520-2059-000 4520-2030-000 410130001 1249-2005-000
C1012T2A 1205-2044-001 1210-2008-000 1802-2124-003 3510-2017-000 2501-2065-000 3900-2017-000 4520-2059-000 4520-2030-000 410130001 1249-2005-000
C1012T2AA 1205-2044-001 1210-2008-000 1802-2124-103 3510-2017-000 2501-2065-000 3900-2017-000 4520-2059-000 4520-2030-000 410130001 1249-2005-000
C1515T2 1205-2044-001 1210-2008-000 1802-2124-000 3510-2017-000 2501-2065-000 3900-2017-000 4520-2059-000 4520-2030-000 410130001 1249-2005-000
C1512T2A 1205-2044-001 1210-2008-000 1802-2124-000 3510-2017-000 2501-2065-000 3900-2017-000 4520-2059-000 4520-2030-000 410130001 1249-2005-000
C1512T2AA 1205-2044-001 1210-2008-000 1802-2124-100 3510-2017-000 2501-2065-000 3900-2017-000 4520-2059-000 4520-2030-000 410130001 1249-2005-000
CRA1024T2 1205-2044-001 1210-2008-000 1802-2124-005 3510-2017-001 2501-2065-000 3900-2017-000 4520-2059-000 4520-2030-000 410130001 1249-2005-000
C1024T2A 1205-2044-001 1210-2008-000 1802-2124-005 3510-2017-001 2501-2065-000 3900-2017-001 4520-2059-000 4520-2030-000 410130001 1249-2005-000
C1524T2 1205-2044-001 1210-2008-000 1802-2124-004 3510-2017-001 2501-2065-000 3900-2017-001 4520-2059-000 4520-2030-000 410130001 1249-2005-000
C1524T2A 1205-2044-001 1210-2008-000 1802-2124-004 3510-2017-001 2501-2065-000 3900-2017-001 4520-2059-000 4520-2030-000 410130001 1249-2005-000
C2024T2 1205-2044-001 1210-2008-000 1802-2124-005 3510-2017-001 2501-2065-000 3900-2017-001 4520-2059-000 4520-2030-000 410130001 1249-2005-000
C2024T2A 1205-2044-001 1210-2008-000 1802-2124-005 3510-2017-001 2501-2065-000 3900-2017-001 4520-2059-000 4520-2030-000 410130001 1249-2005-000
C2224T2 1205-2044-001 1210-2008-000 — 3510-2017-001 2501-2065-000 3900-2035-000 4520-2059-000 4520-2030-000 410130001 1249-2005-000
C2224T2A 1205-2044-001 1210-2008-000 1802-2124-002 3510-2017-001 2501-2065-000 3900-2035-000 4520-2059-000 4520-2030-000 410130001 1249-2005-000
"Click" on part number to view price and availability
www.morelectricheating.com

OBSOLETE WALL HEATERS

(Some parts may be obsolete and no longer available)

CWH-2000

Key Part Number

No. Description CWH-2000 CWH-2000-A CWH-2000-DS CWH-2000-B CWH-2000-BWW

1 Knob 3301-2001-000 3301-2001-000 3301-2001-000 3301-2001-000 3301-2001-000

2 Grille 2501-2001-001 2501-2001-001 2501-2001-001 2501-2001-001 2501-2001-001

3 Fan Blade 490061001 490061001 490061001 490061001 490061001

4 High Limit 410143000 ——410143000 410143000

Manual Reset — 4520-2015-000 4520-2015-000 — 4520-2015-000

5 Thermostat** 5813-2001-000 5813-2001-000 5813-2001-000 5813-2001-000 5813-2001-000

6 Motor: 120V 490062001 490062001 490062001 490062001 490062001

208V 490062002 490062002 490062002 490062002 490062002

240V 490062003 490062003 490062003 490062003 490062003

277V 490062004 490062004 490062004 490062004 490062004

7 Element: 120V/1000W 302023801 302023801 302023801 302023801 302023801

120V/1500W 302023802 302023802 302023802 302023802 302023802

120V/1800W 302023808 302023808 302023808 302023808 302023808

208V/2000W 302023804 302023804 302023804 302023804 302023804

240V/2000W 302023805 302023805 302023805 302023805 302023805

277V/1500W 302023803 302023803 302023803 302023803 302023803

277V/2000W 302023806 302023806 302023806 302023806 302023806

8 Fan Delay 410074000 1414-2009-000 1414-2009-000 410074000 410074000

9 Disconnect 410170001 410170001 410170001 410170001 410170001

— Parts Bag* 1205-2004-000 1205-2004-000 1205-2004-000 1205-2004-000 1205-2004-000

* Parts Bag includes knob, hole plug, & grille screws. ** Use 5813-2022-000 thermostat for CWH2201.

Reference Data

Catalog

Number Volts Watts

CWH-2101 120 1000

CWH-2151 120 1500

CWH-215DS

CWH-2201 120 1800

CHW-2208 208 2000

CWH-2202 208/ 1500

CWH-2202DS 240 2000

CWH-2157 240/ 1125

277 1500

CWH-2207 240/ 1500

CWH-2207DS 277 2000

Key

No. Description Part Number

1 Thermostat 5813-2072-001

2 Grille White 2501-2032-000

Chrome 2501-2033-000

3 Motor: 120V —

240V 3900-2022-000

4 Hi Limit —

5 Pilot lite 120V —

240V —

6 Knob White 3301-2026-000

Black 3301-2027-000

Reference Data

Catalog

Number Volts Watts

QD1151C 120 1500

QD1154C 240 1500

QD1104C 240 2000

"Click" on part number to view price and availability

www.morelectricheating.com

27
VUH & VUH-A
Key Part Number
No. Description 10kW 15kW 20kW 25kW 30kW 40kW 50kW 75kW 100kW
1 Elements:
(No. Req’d. per Heater): (1) (1) (1) (2) (2) (2) (4) (6) (6)
208V 302016001 302016006 302016011 302016013 302016006 302016011 302016014 302016014 —
240V 302016002 302016007 302016006 302016001 302016007 302016006 302016015 302016015 302016014
277V 302016003 302016008 302016007 —— —— ——
480V 302016004 302016009 302016012 302016001 302016007 302016006 302016015 302016015 302016014
550V 302016005 302016010 302016009 302016004 302016010 302016009 302016016 302016016 302016015
Element Bracket 310143001 310143001 310143001 310144001 310144001 310144001 310144001 310146001 310146001
6 Fan Delay, Control 410126000 410126000 410126000 410126000 410126000 410126000 410061000 410061000 410061000
High Limit Control 410029000 410029000 410029000 410029000 410029000 410029000 410029000 410029000 410029000
7 Transformer:
277V 200126901 200126901 200126902 —— —— ——
480V/550V 200126903 200126904 490015003 490015005 490015003 490015003 490015004 200126907 200126907
10 Contactor: —— —— — —50180005002 50180005002 50180005002
208V/240V 50180005006 50180005006 50180005006 50180005002 50180005002 50180005002 410022009* 410022009* 410022009*
277V 50180005006 50180005006 50180005006 —— —— ——
———— — — — ——
480V 50180005006 50180005006 50180005006 50180005002 50180005002 50180005002 410022009* 50180005006 50180005006
———— — — — ——
550V 50180005006 50180005006 50180005006 50180005002 50180005002 50180005002 410022009* 410022009* 50180005006
13 Control Terminal Block:
208V/240V/277V 480031002 480031002 480031002 480031002 480031002 480031004 480031004 480031004 480031004
480V 480031002 480031002 480031002 480031002 480031002 480031002 480031002 480031004 480031004
550V 480031002 480031002 480031002 480031002 480031002 480031002 480031002 480031002 480031004
Power Terminal Block:
208V 480033001 480033001 480034001 480033002 480034002 480034002 480034001 480027001 —
240V 480033001 480033001 480034001 480033002 480033002 480034002 480034002 480027001 480027001
277V 480033001 480033001 480033001 —— —— ——
480V/550V 480033001 480033001 480033001 480033002 480033002 480033002 480033002 480034002 480034002
Power Terminal Mounting
Bracket 310155001 310155001 310155001 310155001 310155001 310155001 310181001 310181001 310181001
14 Fan Motor:
VUH: 208V/240V 490044002 200202901 200202901 200202901 200202901 200202901 490021001 490021003 490021003
480V/550V 200202901 200202901 200202901 200202901 200202901 200202901 490021001 490021003 490021003
VUH-A 490044002 490044002 —— — — — — —
Motor Mounting Angle —— —— —310305902 310305901 310306901 310306901
Motor Mounting Assembly 310305901 310305901 310305901 310305902 310305902 480029002 480029002 490029003 490029003
15 Fan Blade
VUH ** ** 490019001 490020000 490020000 490020000 490022000 490023000 490023000
VUH-A 490018002 490019002 —— — — — — —
Fan Blade Snap Ring 482027004 482027004 —— — —482027002 482027003 482027003
17 Control Fuse Block:
208V/240V 480030002 — 480030002 480030002 480030002 480030002 480030002 480030002 480030002
277V 480035001 — 480035001 —— —— ——
480V/550V — 480030006 480030006 480030006 480030006 480030006 480030006 480030006 480030006
Control Fuse:
208V/240V 481001004 — 481001004 481001004 481001004 481001004 481001005 481001005 481001005
277V 481001017 — 481001017 —— —— ——
480V/550V — 481001018 481001018 481001018 481001018 481001018 481001019 481001019 481001019
Terminal Cover, Inner 310142001P 310142001P 310142001P 310154001P 310154001P 310154001P 310154001P 310147001P 310147001P
Terminal Cover, Outer 310141001P 310141001P 310141001P 310141002P 310141002P 310141002P 310145001P 310145002P 310145002P
Power Fuse Block:
208V/240V — 480030003 480030004 480030004 480030004 480030004 480030004 480030004 480030004
277V — 480035000 480035000 —— —— ——
480V/550V —— —— — —480030005 480030005 —
Power Fuse:
208V/240V — 481001012 481001012 481001012 481001012 481001012 481001012 481001012 481001012
277V — 481001016 481001016 —— —— ——
480V/550V —— —— — —481001020 481001020 481001020
19 Motor Capacitor 1432-0002-003 1432-0002-003 1432-0002-003 1432-0002-003 1432-0002-003 —— ——
* 4-Pole Contactor
**NOTE: Fan blade for 10 and 15kW VUH is no longer available. In order to replace fan blade, motor must also be replaced using the blade and motor for the VUH-A as listed above.
OBSOLETE HEATERS
(Some Parts May Be Obsolete and No Longer Available)
"Click" on part number to view price and availability
www.morelectricheating.com

Model CU-B

Part Number

Fintube Heating Element (Retangular Aluminum Fin) Filters

Cabinet 277V & 480V 480V

Series Qty. 208V 240V 4-Wire 3-Wire Throwaway Reusable

1200 2

1300 3

1400 4 1802-0103-001 1802-0103-002 1802-0103-003 1802-0103-004 2010-7008-001 2010-7009-001

1500 5

1600 6

2200 2

2300 3

2400 4 1802-0103-005 1802-0103-006 1802-0103-007 1802-0103-008 2010-7008-002 2010-7009-002

2500 5

2600 6

3200 2

3300 3

3400 4 1802-0103-009 1802-0103-010 1802-0103-011 1802-0103-012 2010-7008-003 2010-7009-003

3500 5

3600 6

4200 2

4300 3

4400 4 1802-0103-013 1802-0103-014 1802-0103-015 1802-0103-016 2010-7008-004 2010-7009-004

4500 5

4600 6

5200 2

5300 3

5400 4 1802-0103-017 1802-0103-018 1802-0103-019 1802-0103-020 2010-7008-005 2010-7009-005

5500 5

5600 6

Model CU-A

Part Number

Filters

Cabinet

Series Qty. Throwaway Reusable

1200 2

1300 3

1400 4 2010-7008-001 2010-7009-001

1500 5

1600 6

2200 2

2300 3

2400 4 2010-7008-002 2010-7009-002

2500 5

2600 6

3200 2

3300 3

3400 4 2010-7008-003 2010-7009-003

3500 5

3600 6

4200 2

4300 3

4400 4 2010-7008-004 2010-7009-004

4500 5

4600 6

5200 2

5300 3

5400 4 2010-7008-005 2010-7009-005

5500 5

5600 6

OBSOLETE HEATERS

(Some Parts May Be Obsolete and No Longer Available)

"Click" on part number to view price and availability

www.morelectricheating.com

OBSOLETE HEATERS

(Some Parts May Be Obsolete and No Longer Available)

Circuit Breakers

Voltage No. of Part

Rating Poles Amps Number

15 4520-7009-014

20 4520-7009-015

25 4520-7009-016

30 4520-7009-017

2 35 4520-7009-018

40 4520-7009-019

45 4520-7009-020

50 4520-7009-021

240 60 4520-7009-022

15 4520-7009-008

20 4520-7009-004

25 4520-7009-010

30 4520-7009-005

3 35 4520-7009-011

40 4520-7009-006

45 4520-7009-012

50 4520-7009-001

60 4520-7009-007

15 4520-7008-013

20 4520-7008-014

25 4520-7008-015

30 4520-7008-016

2 35 4520-7008-017

40 4520-7008-018

480 50 4520-7008-020

60 4520-7008-021

15 4520-7008-005

20 4520-7008-006

3 25 4520-7008-008

30 4520-7008-001

35 4520-7008-009

40 4520-7008-007

CU (Con’t.)

Model CU-B & CU-A

Part Number

High Limit

Cabinet Blower Bearing Fan All Except CUI Model

Series Wheel Shaft (2 Each) Coupling Motor CUI Model Only

1200 - 1600 6406-7001-001 —— —3900-0558-000 4520-0011-007 4520-0011-008

2200 - 2600 6406-7001-001 —— —3900-0559-000 4520-0011-007 4520-0011-008

3200 - 3600 6406-7001-002 5217-7007-001 2011-7017-000 1410-7003-001 3900-0563-000 4520-0011-008 4520-0011-009

4200 - 4600 6406-7001-002 5217-7007-002 2011-7017-000 1410-7003-001 3900-0563-000 4520-0011-008 4520-0011-009

5200 - 5600 6406-7001-002 5217-7007-003 2011-7017-000 1410-7003-001 3900-0563-000 4520-0011-008 4520-0011-009

Parts Common to All Models

Description Part Number

Fan Delay Relay (24V, 120V, and 240V) CUBFDRK

Selector Switch 5216-0302-000

Integral Thermostat 1414-0084-000

Step-Down Transformer 5814-7013-003

Buck-Boost Transformer 490015007

Summer Fan Switch 5216-0302-000

*Contactors, CU-B

2 Pole/30 Amp, 24V Holding Coil 5018-0003-000

2 Pole/30 Amp, 120V Holding Coil 5018-0003-001

2 Pole/30 Amp, 208V/240V Holding Coil 5018-0003-002

3 Pole/35 Amp, 24V Holding Coil 5018-0005-004

3 Pole/35 Amp, 120V Holding Coil 5018-0005-005

3 Pole/35 Amp, 208V/240V Holding Coil 5018-0005-006

*Contactors, CU-A

3 Pole/30 Amp, 24V Holding Coil 5018-0004-100

3 Pole/30 Amp, 120V Holding Coil 5018-0004-101

3 Pole/ 30 Amp, 208V/240V Holding Coil 5018-0004-102

3 Pole/50 Amp0, 24 Holding Coil 5018-0006-000

3 Pole/50 Amp, 120V Holding Coil 5018-0006-001

3 Pole/50 Amp, 208V/240V Holding Coil 5018-0006-002

*See Installation Instructions for Selection Chart or Consult Factory.

Control Transformer R

Primary Secondary Part

Voltage Voltage Number

240 24 5814-0021-000

240 120 5814-0021-001

208 24 5814-0021-002

208 120 5814-0021-003

Reference Data

HOW TO ORDER

RATING SERIES PRODUCT NUMBERS

The last group of four numbers describe the Unit Size, Heating Capacity Voltage Rating and

Type of Control:

Number of Fans and Cabinet Series are indicated by the first number.

1–One Fan Series 1000 Cabinet

2–Two Fans Series 2000 Cabinet

3–Three Fans Series 3000 Cabinet

4–Four Fans Series 4000 Cabinet

5–Five Fans Series 5000 Cabinet

Number of Fintube Heating Elements and the corresponding Unit Heating Capacity are

indicated by the second number.

Cabinet Series

1000 2000 3000 4000 5000

2Element 2.0kW 4.0kw 5.3kW 6.7kW 8.0kW

3Element 3.0kW 6.0kW 8.0kW 10.0kW 12.0kW

4Element 4.0kW 8.0kW 10.7kW 13.3kW 16.0kW

5Element 5.0kW 10.0kW 13.3kW 16.7kW 20.0kW*

6Element 6.0kW 12.0kW 16.0kW 20.0kW 24.0kW*

Not available in all voltages. See table on page 2.

Electric Power Supply for the heating Circuit is indicated by the third number as follows:

1–208V Single Phase 4–240V Three Phase 7–480V Three Phase 3 Wire

2–208V Three Phase 5–277V Single Phase 8–347V Single Phase

3–240V Single Phase 6–480V Three Phase 4 Wire 9–600V Three Phase

Control Supply and Circuit are defined by the fourth number.

NOTE: A thermostat either integral or remote, must be used for proper operation of heater.

For Use Only

Thermostat Voltage Supply With Models

0- Integral 120 External CUC, CUF, CUW

1- Integral 24 External CUC, CUF, CUW

2- Integral 208/240* Internal CUC, CUF, CUW

3- Remote 120 External All Models

4- Remote 24 External All Models

5- Remote 208/240* Internal All Models

6- Remote 24 Internal All Models

7- Remote 120 Internal All Models

8- Integral 24 Internal CUC, CUF, CUW

9- Integral 120 Internal CUC, CUF, CUW

*Control Voltage is 208 VAC on units with 208 VAC Heating Circuit.

MODEL LETTER

The letter “B” at the end of the catalog number designates the unit as a “B” model.

EXAMPLE:

CUW-STB-4661 B

4 Fans (Series 4000 Cabinet) Model

6 Fintube Elements (20kW)

480V 3 Phase 4 Wire

Integral thermostat and 24V control, externally supplied

"Click" on part number to view price and availability

www.morelectricheating.com

OBSOLETE HEATERS

(Some Parts May Be Obsolete and No Longer Available)

Repair Parts (After 1993)

Key Part

No. Description Number

3 Spot High Limit 410027000

Opt. Thermostat, 1-Pole 410112000

6 Opt. Thermostat, 2-Pole 410113000

Opt. Disconnect, KSS2 5216-7016-001 Optional Relay (Prior to 1993) (See NOTE 4)

Identification Number Coil Voltage Part

on Relay 60 Cycle A.C. Number

134-60103-301 24 5018-2006-000

134-60203-301 120 5018-2006-001

134-60303-301 208/240 5018-2006-002

134-62303-301 277 5018-2006-003

Repair Parts (Prior to 1993)

Description Part Number

Thermostat (See NOTE 2) 5813-7023-001

Disconnect Switch (See NOTE 3) 5216-7016-001

KD/KS

Key Unit Part Number

No. Size Watts 208V 240V 277V

Elements (After 1993) (250 Watts/Ft. – See NOTE 1)

24” — 1802-2016-001 1802-2016-003 1802-2016-003

Cabinet

136” — 1802-2016-009 1802-2016-010 1802-2016-011

Cabinet

48” — 1802-2016-023 1802-2016-024 1802-2016-024

Cabinet

NOTE 1: 500 W/Ft. units require 2 elements; 750 W/Ft. units require 3 elements;

1000 W/Ft. units require 4 elements.

NOTE 2: With suffix “T” added to catalog number.

NOTE 3: With suffix “S” added to catalog number.

NOTE 4: With suffix “R” added to catalog number.

Parts Common to All Heaters

Key Part

No. Description Number

1 Fan Assembly, Right 9193-0016-001

2 Bushing, Ceramic Element 9032-0007-000

3 Regulator, Fluid 5028-2000-000

— Hollow Wall Anchor 5202-2002-000

TSH

Elements Part Numbers

Key Used on Qty. Part

No. Description Catalog No. Req’d. Number

6 Element:

666W, 240V TSH204 3 1802-2084-000

1000W, 240V TSH304 3 1802-2084-001

1335W, 240V TSH404 3 1802-2084-002

1666W, 240V TSH504 3 1802-2084-003

1000W, 240V TSH604 6 1802-2084-004

833W, 240V TSH754 6 1802-2084-005

12 1250W, 240V 2 1802-2084-006

6 Element:

666W, 208V TSH208 3 1802-2084-007

1000W, 208V TSH308 3 1802-2084-008

1335W, 208V TSH408 3 1802-2084-009

1666W, 208V TSH508 3 1802-2084-010

1000W, 208V TSH608 6 1802-2084-015

833W, 208V TSH758 6 1802-2084-012

12 1250W, 208V 2 1802-2084-013

}

RDO

Key Part Number

No. Description RDO26 RDO35 RDO48

1 Reflector: 60/90° Sym. 5007-2000-000 5007-2000-001 5007-2000-002

30° Sym. 5007-2001-000 5007-2001-001 5007-2001-002

60/90° Asym. 5007-2002-000 5007-2002-001 5007-2002-002

30° Asym. 5007-2003-000 5007-2003-001 5007-2003-002

2 Insulator (4 Req’d.) –––

3 Terminal Block (4 Req’d.) 1224-0049-000 1224-0049-000 1224-0049-000

4 Element Term. Bush. (4 Req’d.) 1213-0070-000 1213-0070-000 1213-0070-000

Elements are available - see factory.

"Click" on part number to view price and availability

www.morelectricheating.com

OBSOLETE HEATERS

(Some Parts May Be Obsolete and No Longer Available)

Reference Data

Catalog

Number Volts Watts

AFA-0500-IF 120 500

AFA-0504-IF 240 550

AFA-0750-IF 120 750

AFA-0754-IF 240 750

AFA-1000-IF 120 1000

AFA-1004-IF 240 1000

AFA-1500-IF 120 1500

AFA-1504-IF 240 1500

AFA-2004-IF 240 2000

AFA-2404-IF 240 2400

Catalog

Number Volts Watts

AFA-0504-T2 240 500

AFA-1000-T2 120 1000/500

AFA-1500-T2 120 1500/750

AFA-1504-T2 240 1500/750

AFA-2004-T2 240 2000/1000

AFA-2404-T2 240 2400/1200

# Rq’d Part # Watts Date Code

2 4520-2023-000 500-2400 0791-0293

1 4520-2016-000 500-1500 0393-0494

1 4520-2023-000 2000-2400 0393-0494

1 4520-2016-001 1500-2000 0594-0495

1 4520-2016-002 2400 0994-0495

1 4520-2023-000 1000-2400 0595-current

1 4520-2023-001 500-750 0595-current

Limit Chart

AFA

Key Part Number

No. Description AFA- - -IF AFA- - -T2 AFA- - -TA AFA- - -T2BNW

1 Wiring Cover — 1402-2127-000 1402-2127-001 1402-2125-004

2 Grille, Frame ———‚ 2501-2015-004

3 Fan Blade 1210-2004-000 1210-2004-000 1210-2004-000 1210-2004-000

4 Element: 120V; 500/1000W ————

120V; 750/1500W ————

240V; 750/1500W 1802-2021-003 1802-2021-003 1802-2021-003 1802-2021-003

240V; 550/1000/2000W 1802-2021-004 1802-2021-004 1802-2021-004 1802-2021-004

240V; 2400W 1802-2021-004 1802-2021-004 1802-2021-004 1802-2021-004

5 Motor: 120VAC 3900-2017-000 3900-2017-000 3900-2017-000 3900-2017-000

240VAC 3900-2017-001 3900-2017-001 3900-2017-001 3900-2017-001

6 Limit: 500/1500W 4520-2016-000 4520-2016-000 4520-2016-000 4520-2023-000

2000W 4520-2016-001 4520-2016-001 4520-2016-001 4520-2023-000

2400W 4520-2016-002 4520-2016-002 4520-2016-002 4520-2023-000

7 Grille, Outlet ———2501-2016-002

8 Thermostat — 5813-2015-000 5813-2001-000 5813-2053-000

9 Knob — 3301-2014-000 3301-2014-000 3301-2014-000

10 Element Bracket (Plastic) ————

QVP

Key Part Number

No. Description VP QVP-A QVP-B QVP-C

1 Motor: 120V 42528-052-01 42528-052-01 42528-052-01 42528-052-01

208V 42528-052-02 42528-052-02 42528-052-02 42528-052-02

240V 42528-052-03 42528-052-03 42528-052-03 42528-052-03

2 Element: 120V

208V

240V

3 High Limit (2 Req’d.) 1414-2000-000 1414-2000-000 — 4520-2025-000

Manual Reset (2 Req’d.) ——4520-2012-000 —

4 Bearing Assy. 1209-2000-000 1209-2000-000 1209-2000-000 1209-2000-000

5 Blower Wheel 42528-050-01 42528-050-01 42528-050-01 42528-050-01

6 Grille — 42528-057-03 42528-057-03 42528-057-03

— Warning Light (2 Req’d.) ———3510-2008-001

Reference Data

Wattages –

Catalog All models are

Number Volts field adaptable for:

750W

QVP1222 120

1100W

QVP2022 208 1500W

QVP2422 240 2220W

Elements not available

"Click" on part number to view price and availability

www.morelectricheating.com

CEILING FANS

Key Part Number

No. Description Qty. 3620-1 4820-1 4820-1B 5600-1LC 4820-3 5600-3 5610-1 6010-1

1 Motor Assembly 1 9M3620-1A 9M4820-1A 9M4820-1BA 9M5600-1LCA 9M4820-3 9M5600-3A 2100130A 2100131A

2 Blades (set of three) 1 9B3620-1 9B4820-1 9B4820-1B 9B5600-1LC 9B4820-3 9B5600-3 9B5611-1 9B6011-1

3 Blade Screws 6 9F2900-20A 9F2900-20A 9F2900-20A 9F2900-20A 9F2900-20A 9F2900-20A 9F2900-20A 9F2900-20A

4 Blade Pads 3 9F2900-19A 9F2900-19A 9F2900-19A 9F2900-19A 9F2900-19A 9F2900-19A 9F2900-19A 9F2900-19A

5 J Hook Set 1 9F2900-01 9F2900-01 9F2900-01 9F2900-01 9F2900-01 9F2900-01 9F2900-01 9F2900-01

6 Rubber Roller 1 9F2900-04A 9F2900-04A 9F2900-04A 9F2900-04A 9F2900-04A 9F2900-04A 9F2900-04A 9F2900-04A

7 Upper Canopy 1 9F2900-07A 9F2900-07A 9F2900-07AB 9F2900-07A 9F2900-07A 9F2900-07A 3100039A 3100039A

8 Lower Canopy 1 9F2900-08A 9F2900-08A 9F2900-08AB 9F2900-08A 9F2900-08A 9F2900-08A 3100042A 3100042A

9 3-Speed Switch w/ Cord 1----9F2900-26 9F2900-26 --

10 Reversing Toggle Switch 1--------

11 Reversing Switch Plate 1--------

J-Hook Set and Motor Assembly also contain miscellaneous hardware pieces.

Ref Part Number

No. Description Qty. 5600-1 5600-1B 5601-1 5600-2 5600-7 6000-1 6001-1 5630-1RDP

1 Motor Assembly 1 9M5600-1 9M5600-1M 9M5601-1 9M5600-2 9M5600-7 9M6000-1 9M6001-1 9M5630-1R

2 Blades (set of three) 1 9B5600-1 9B5600-1B 9B5601-1 9B5600-2 9B5600-7 9B6000-1 9B6001-1 9B5630-1R

3 Blade Screws 6 9F2900-20A 9F2900-20A 9F2900-20A 9F2900-20A 9F2900-20A 9F2900-20A 9F2900-20A 9F2900-20A

4 Blade Pads 3 9F2900-19A 9F2900-19A 9F2900-19A 9F2900-19A 9F2900-19A 9F2900-19A 9F2900-19A 9F2900-19A

5 J Hook Set 1 9F2900-01 9F2900-01 9F2900-01 9F2900-01 9F2900-01 9F2900-01 9F2900-01 9F2900-01

6 Rubber Roller 1 9F2900-04A 9F2900-04A 9F2900-04A 9F2900-04A 9F2900-04A 9F2900-04A 9F2900-04A 9F2900-04A

7 Upper Canopy 1 9F2900-07A 9F2900-07AB 9F029 9F2900-07A 9F2900-07A 9F2900-07A 9F029 9F2900-07A

8 Lower Canopy 1 9F2900-08A 9F2900-08AB 9F030 9F2900-08A 9F2900-08A 9F2900-08A 9F030 9F2900-08A

9 3-Speed Switch w/ Cord 1--------

10 Reversing Toggle Switch 1-------9FP005

11 Reversing Switch Plate 1-------9F2GX54-73

WALL THERMOSTATS

Part Number

Model Number Tan Cover White Cover Tan Knob White Knob

T100 — 1402-2003-016 3301-2004-007 3301-2004-007

T200 1402-2003-009 1402-2003-017 3301-2004-008 3301-2004-008

WR651 —— — —

WR652 —— — —

M601 2038-2000-000 2038-2000-001 3301-2022-000 3301-2022-001

M602 2038-2000-000 2038-2000-001 3301-2022-000 3301-2022-001

"Click" on part number to view price and availability

www.morelectricheating.com

AIR CIRCULATORS

DRUM BLOWERS

Part Number

Description MVB36B MVB42B IHD36B IHD42B IHD48B MVB30D MVB36D

Motor 3900-2068-000 3900-2068-000 3900-2068-000 3900-2068-000 517-083 1010MB 517-133

Blade 1210-2028-000 1210-2025-001 1210-2028-000 1210-2025-001 1016-0044-001 1210-2026-000 1210-2012-000

Bearing 3764 3764 8526-8006 8526-8006 8526-8006 N/A N-A

Drive Pulley 2594 4507-2009-000 2594 2594 1802 N/A N-A

Pulley 1064 612-015 1064 1804 1804 N/A N-A

Guard 2794 3293 2794 3293 3294 3466 2794

Wheel 869-007 869-007 1105 1105 1105 869-007 869-007

Foot 334-091-B 334-090-B 334-091-B 334-090-B 1016-0043 334-092-B 334-091-B

Axle 1017-0003-000 1017-0003-000 1017-0002-001 1017-0002-001 1017-0002-001 1017-0003-000 1017-0003-000

Belt 2341 4160 2341 1230-0006-000 1230-0007-000 N/A N-A

Shaft 682-269 682-269 5217-2006-000 5217-2006-000 5217-2006-000 N/A N-A

Switch 5216-2052-000 5216-2052-000 5216-2052-000 5216-2052-000 5216-2052-000 N/A N-A

MODULAR LOAD DOCK FAN/LIGHT SYSTEM

Part Number

Description LD24A LD40A LD60A

Arm / Box 3296 1726 1723

Arm N/A 1722 1727

Wall Brkt 1215-2247-001 1215-2247-001 1215-2247-001

Cord 1771 1771 1771

Terminal Block 1770 1770 1770

LDMF MODULAR FAN

Part Number

Description LDMF

Motor 517-084-BL

Blade 1210-2013-000

Guard Front 372-067-C

Guard Rear 372-054-C

Switch 5216-2059-000

Cord 1782

Yoke 1363

LDML MODULAR LIGHT

Part Number

Description LDML

Light Assy. 1182

WALL/BENCH MOUNT CIRCULATORS

Part Number

Description N12

Motor. 3900-2067-000

Blade 1210-2027-001

Guard Front 372-045-OP

Guard Rear 372-046-OP

Switch 4425

"Click" on part number to view price and availability

www.morelectricheating.com

AIR CIRCULATORS

Model Description

24ACH(A)

1210-2014-000 BLADE

1950 GUARD (FRONT OR REAR)

1010MPI MOTOR

5216-2059-000 SWITCH

1420-2033-000 CORD

24ACHO(A)

1210-2014-000 BLADE

1950 GUARD (FRONT OR REAR)

517-107 MOTOR

5216-2059-000 SWITCH

1420-2033-000 CORD

1010MP-O-1 OSCILLATING ARM

1010MP-O-2 GEAR BOX

MACH30(A)

1210-2026-000 BLADE

1677 GUARD (FRONT OR REAR)

517-076 MOTOR

5216-2059-000 SWITCH

1420-2033-000 CORD

LCHHD24 - OBSOLETE

LCCLIN2419BL 24” 19D BLADE

LIN24G-F GUARD-FRONT

LIN24G-R GUARD-REAR

3900-2064-000 1/4 HP 3SPD MOTOR

5216-2059-000 SWITCH

1420-2033-000 CORD

LCHHD24-O

LIN24G-F 24” GUARD-FRONT

LIN24G-R 24” GUARD-REAR

1210-2014-000 24” 17D BLADE

3900-2057-000 1/4 HP 3SPD MTR-OSC

5216-2059-000 SWITCH

1420-2033-000 CORD

LPOM OSCILLATING MECHANISM

LCHXN24 - OBSOLETE

1210-2035-000 24” 22D BLADE

LIN24G-F 30” GUARD-FRONT

LIN24G-R 30” GUARD-REAR

3900-2016-000 1/2 HP 2SPD MOTOR

1420-2033-000 CORD

LCHHD24-7 277 VOLT

1210-2014-000 24" 17D BLADE

LIN24G-F 24" GUARD-FRONT

LIN24G-R 24" GUARD-REAR

3900-2048-000 1/4 HP 277V MOTOR

5216-2059-000 SWITCH

1420-2013-000 CORD, NO PLUG

LCHWD24 WASHDOWN

LCCLIN2419BL 24” 19D BLADE

LINZ24G-F 24” GUARD-FRONT

LINZ24G-R 24” GUARD-REAR

3900-2063-000 1/3 HP 120V WD MOTOR

LP054 SWITCH AIR ACTUATED

LP055 SWITCH SQUEEZE BULB

LCHIN24 - OBSOLETE

1210-2014-000 24” 17D BLADE

LPM2025U 1/4 HP 2SPD MOTOR

5216-2059-000 SWITCH

1420-2021-000 CORD

LCHHD24-2 220 VOLT

1210-2014-000 24” 17D BLADE

LIN24G-F GUARD-FRONT

LIN24G-R GUARD-REAR

3900-2047-000 1/4 HP 220V MOTOR

5216-2059-000 SWITCH

1420-2013-000 CORD, NO PLUG

30ACH(A)

1210-2026-000 BLADE

1677 GUARD (FRONT OR REAR)

1010MPI MOTOR

5216-2059-000 SWITCH

1420-2033-000 CORD

Model Description

30ACH0(A)

1210-2026-000 BLADE

372-083 GUARD (FRONT OR REAR)

517-107 MOTOR

5216-2059-000 SWITCH

1420-2033-000 CORD

1010MP-O-1 OSCILLATING ARM

1010MP-O-2 GEAR BOX

AF30H(A)

1210-2026-000 BLADE

372-079-Y GUARD (FRONT OR REAR)

517-132-Y MOTOR

389-034-Y HINGE PIN

1420-2033-000 CORD

LCHHD30 - OBSOLETE

LCCLIN30BL 30” 14D BLADE

LIN30G-F GUARD-FRONT

LIN30G-R GUARD-REAR

3900-2064-000 1/4 HP 3SPD MOTOR

5216-2059-000 SWITCH

1420-2033-000 CORD

LCHHD30-O

LIN30G-F 30" GUARD-FRONT

LIN30G-R 30" GUARD-REAR

1210-2026-000 30" 11D BLADE

3900-2057-000 1/4 HP 3SPD MTR-OSC

5216-2059-000 SWITCH

1420-2033-000 CORD

LPOM OSCILLATING MECHANISM

LCHXN30 - OBSOLETE

LCCLIN3016BL 30” 18D BLADE

LIN30G-F GUARD-FRONT

LIN30G-R GUARD-REAR

3900-2061-000 1/2 HP 2SPD MOTOR

1420-2033-000 CORD

LCHHD30-7 277 VOLT

1210-2026-000 30” 11D BLADE

LIN30G-F 30” GUARD-FRONT

LIN30G-R 30” GUARD-REAR

3900-2048-000 1/4 HP 277V MOTOR

5216-2059-000 SWITCH

1420-2013-000 CORD, NO PLUG

LCHWD30 WASHDOWN

LCCLIN30BL 30” 14D BLADE

LINZ30G-F 30” GUARD-FRONT ZINC

LINZ30G-R 30” GUARD-REAR ZINC

3900-2063-000 1/3 HP 120V WD MOTOR

LP054 SWITCH AIR ACTUATED

LP055 SWITCH SQUEEZE BULB

LCHIN30 - OBSOLETE

1210-2026-000 30” 11D BLADE

LPM2025U 1/4 HP 2SPD MOTOR

5216-2059-000 SWITCH

1420-2021-000 CORD

LCHHD30-2 220 VOLT

1210-2026-000 30” 11D BLADE

LIN30G-F 30” GUARD-FRONT

LIN30G-R 30” GUARD-REAR

3900-2047-000 1/4 HP 220V MOTOR

5216-2059-000 SWITCH

1420-2013-000 CORD, NO PLUG

24HDHA

1210-2035-000 BLADE

1950 GUARD

3900-2061-000 MOTOR

1420-2033-000 CORD

30HDHA

LCCLIN3016BL BLADE

1677 GUARD

3900-2061-000 MOTOR

1420-2033-000 CORD

MACH24

1210-2014-000 BLADE

1950 GUARD

517-076 MOTOR

1420-2033-000 CORD

"Click" on part number to view price and availability

www.morelectricheating.com

AIR CURTAINS - LOW PROFILE

812 11

3(6CT)

Key Part Number

No. Description CLP3600 CLP4200 CLP4800 CLP6000

1 Cabinet CLPC36 CLPC42 CLPC48 CLPC60

2 Cabinet Intake Grille CLPIG36A CLPIG42A CLPIG48A CLPIG60A

3 Cabinet Intake Grille Knurled Nut AP0002 AP0002 AP0002 AP0002

4 Cabinet Louver Kit ————

5 Rocker Switch C1220 C1220 C1220 C1220

6 Motor Assembly — CLPM1108A CLPM1108A CLPM1125A

7 Resilient Motor Ring Kit ————

8 Motor Mount ————

9 Blower Wheel-Left — CLPBW42 CLPBW48 CLPBW60

10 Blower Wheel-Right — CLPBW42 CLPBW48 CLPBW60

11 Bearing Housing CLP002 CLP002 CLP002 CLP002

12 Capacitor ————

13 Power Cord ————

Key Part Numbers for Cabinets (length)

No. Description 36" 38" 42" 48" 60"

1 Cabinet box assembly 1016-0096-000 1016-0096-001 1016-0096-002 1016-0096-003 1016-0096-004

2 Cabinet Intake Grille 1016-0093-000 1016-0093-001 1016-0093-002 1016-0093-003 1016-0093-004

3 Cabinet Intake grill knurled nut AP0002 AP0002 AP0002 AP0002 AP0002

4 Cabinet louver kit ACL36 ACL38 ACL42 ACL48 ACL60

5 Electric box Assy 1016-0107-101 1016-0107-101 1016-0107-101 1016-0107-101 1016-0107-101

6 Electric box cover 1402-2364-000 1402-2364-000 1402-2364-000 1402-2364-000 1402-2364-000

Part Numbers for Motor Blower Assemblies

1/4HP 1/2HP 3/4HP

7 Motor/Blower Assembly

120V 1-ph ACMB125 ACMB150 ACMB175

220V 1-ph ACMB225 ACMB250 ACMB275

208-230/460V 3-ph ACMB325 ACMB350 ACMB375

8 Rocker switch C1220 C1220 C1220

9 Cord, female plug ACWS616 ACWS616 ACWS616

10 Capacitor ACCP1025 ACCP1025 ACCP1075

AIR CURTAINS - ENVIRONMENT SERIES

"Click" on part number to view price and availability

www.morelectricheating.com

AIR CURTAINS - HIGH VELOCITY

AIR CURTAINS - HIGH VOLUME - OBSOLETE

Key Part Numbers for Cabinets (length)

No. Description 36" 38" 42" 48" 60"

1 Cabinet box assembly 1016-0096-000 1016-0096-001 1016-0096-002 1016-0096-003 1016-0096-004

2 Cabinet Intake Grille 1016-0093-000 1016-0093-001 1016-0093-002 1016-0093-003 1016-0093-004

3 Cabinet Intake grill knurled nut AP0002 AP0002 AP0002 AP0002 AP0002

4 Cabinet louver kit ACL36 ACL38 ACL42 ACL48 ACL32

5 Electric box Assembly 1016-0107-101 1016-0107-101 1016-0107-101 1016-0107-101 1016-0107-101

6 Electric box cover 1402-2364-000 1402-2364-000 1402-2364-000 1402-2364-000 1402-2364-000

Part Numbers for Motor Blower Assemblies

1HP 1-1/2HP 3HP

7 Motor/Blower Assembly ACMB300 ACMB305 ACMB330

8 Cord, female plug ACWS616 ACWS614 ACWS614

Key Part Number

No. Description WRS SERIES WRE SERIES

1 Cabinet Intake grill knurled nut AP0002 AP0002

2 Motor Assembly HVM3200 HVM3300

3 Blower wheel-right 1225-2014-000 1225-2015-000

4 Blower wheel-left 1225-2014-001 1225-2015-001

5 Motor/blower pan HVMP2 HVMP3

6 Electrical Junction Box 1217-2067-000 1217-2067-000

"Click" on part number to view price and availability

www.morelectricheating.com

AIR CURTAINS - 3-PHASE ELECTRICALLY HEATED

Key Part Numbers for Cabinets (length)

No. Description 36" 42" 48" 60"

1 Cabinet Intake Grille 1016-0096-000 1016-0096-000 1016-0096-000 1016-0096-000

2 Electric Box Cover APMG36 APMG42 APMG48 APMG32

3 Front Control Panel AP0002 AP0002 AP0002 AP0002

6 Cabinet Assembly ACL36 ACL42 ACL48 ACL32

8 Intake Grille Knurled Nut ACEB ACEB ACEB ACEB

Part Numbers for Motor Blower Assemblies

1/2 HP 3/4 HP 1 HP 3 HP

4 Motor/Blower Assembly 208-230/460 3-Phase ACMB350 (d) ACMB375 (d) ACMB300 (d) ACMB330 (d)

Part Numbers for Element Assemblies

5 Heaters Element Set 240/208 Volt (b) 480 Volt

8 Kilowatt 1802-2133-000 1802-2133-003

12 Kilowatt 1802-2133-001 1802-2133-004

15 Kilowatt 1802-2133-002 (a) n/a

16 Kilowatt n/a 1802-2133-005

Part Numbers For Control Panel

7 Main Control Panel Total Heater KW 240V/3 PH 208V/3 PH 480V/3 PH

Double Cabinet, All motors 24 or 30KW 4513-2185-000

Double Cabinet, 3 HP motors 16KW 4513-2185-000

Triple Cabinet, All motors 24, 36, or 45KW 4513-2186-000

Double Cabinet, All motors 18 or 22.5KW 4513-2185-001 *

Double Cabinet, 3 HP 12KW 4513-2185-001 *

Triple Cabinet, All motors 18, 27 or 33.75KW 4513-2186-001 *

Single Cabinet, All motors 8, 12 or 16KW 4513-2184-000

Double Cabinet, All motors 16, 24, 32KW 4513-2184-000

Triple Cabinet, 1/2HP, 3/4HP, & 1HP 24 or 36KW 4513-2184-000

Triple Cabinet, 3 HP motors 24KW 4513-2184-000

Triple Cabinet, 1/2HP, 3/4HP & 1 HP 48KW 4513-2187-000

Triple Cabinet, 3HP motors 36 or 48KW 4513-2187-000

*Notes (a) Maximum wattage of heater element set at 240 Volts is 15KW instead of 16KW.

(b) Wattage rating of heater element set at 208 Volts is 75% of wattage rating at 240 Volts

(c) Only Control Panels 4513-2184-000, 4513-2185-000, 4513-2186-000 and 4513-2187-000 are stocked. The 001 and 002 variations required only the re-wiring of

the primary of the control transforer for the correct supply voltage. Refer to wiring diagram for correct transformer tap connections.

(d) Specify voltage supply for motors so it can be wired correctly from factory

"Click" on part number to view price and availability

www.morelectricheating.com

BUILDER PRODUCTS

Part Number Description

A535 &A564

8767-8178 MOTOR (A564)

8528-8128 FAN BLADE (A564)

1230-8205 THERMAL LIMIT

8683-8279 GRILLE ASSEMBLY

8869-0023 SPRINGS (2 required)

645

GM5O MOTOR/IMPELLER

8663-8052 FILTER

991-337-W GRILLE & BOLT

068-041-W BOLT

646

GM5O MOTOR/IMPELLER

8663-8052 FILTER

357-089-W GRILLE

460-010-W LENS

A647, MM647, A647B, MM647B

GM5O MOTOR/IMPELLER

991-630 DUCT ADAPTER

8536-0100 MOUNTING BRACKET

733-218 SPRING (2required)

991-616-W GRILLE ASSEMBLY (A647/A647B)

357-105-W GRILLE ASSEMBLY (MM647/B)

761, 763 & 765 - OBSOLETE

7163-9678 MOTOR (761)

7163-9676 MOTOR (763)

7163-9677 MOTOR (765)

8710-8019 IMPELLER

991-613 DUCT ADAPTER

526-102 MOTOR SCROLL

357-115-W GRILLE ASSEMBLY

733-218 SPRINGS (2 required)

680FRD, 650FRD, 610FRD

Z680FRD BLOWER / MOTOR ASSM 680FRD

Z650FRD BLOWER / MOTOR ASSM 650FRD

Z610FRD BLOWER / MOTOR ASSM 610FRD

2501-2064-000 GRILLE

1215-2284-000 BRACKET

FL165 FUSE LINK

Part Number Description

MM648 & MM748

GM5O MOTOR/IMPELLER (MM648)

GM70 MOTOR/IMPELLER (MM748)

991-630 DUCT ADAPTER

357-106-W GRILLE ASSEMBLY

733-218 SPRING (2 required)

A664IC & MM664IC

GM50 MOTOR/IMPELLER

991-615 DUCT ADAPTER

8536-0100 MOUNTING BRACKET

733-218 SPRING (2 required)

3508-2002-000 LENS (MM664IC)

357-116-W GRILLE ASSEMBLY (A664IC)

357-106-W GRILLE ASSEMBLY (MM664IC)

460-010-W LENS (A664IC)

MM667IC & MM667ICF

GM70 MOTOR/IMPELLER

991-615 DUCT ADAPTER

8536-0100 MOUNTING BRACKET

733-218 SPRING (2 required)

357-106-W GRILLE ASSEMBLY

3508-2002-000 LENS COVER

6104-8019 BALLAST (MM667ICF)

768IC & 770IC OBSOLETE

7163-9676 MOTOR (768IC)

7163-9677 MOTOR (770IC)

8710-8019 IMPELLER

991-613 DUCT ADAPTER

526-102 MOTOR SCROLL

357-117-W GRILLE ASSEMBLY

460-010-W LENS

6100

7163-9673 MOTOR

8710-8023 IMPELLER

991-613 DUCT ADAPTER

991-688 GRILLE ASSEMBLY

733-218 SPRINGS (2 required)

6060

8767-8238 MOTOR

8710-8021 IMPELLER

991-613 DUCT ADAPTER

991-688 GRILLE ASSEMBLY

733-218 SPRINGS (2 required)

"Click" on part number to view price and availability

www.morelectricheating.com

BUILDER PRODUCTS

Part Number Description

6080

7173-0174 MOTOR

8710-8023 IMPELLER

991-613 DUCT ADAPTER

991-688 GRILLE ASSEMBLY

733-218 SPRINGS (2 required)

6100RL

7163-9673 MOTOR

8710-8023 IMPELLER

991-613 DUCT ADAPTER

1016-0077-000 GRILLE ASSEMBLY

733-218 SPRINGS (2 required)

3508-2003-000 LENS

991-591 REFLECTOR ASSEMBLY

3519-0004-000 LAMPHOLDER

7100H & 7150H - OBSOLETE

7163-9674 MOTOR (7100)

7163-9675 MOTOR (7150H)

8710-8017 IMPELLER

991-613 DUCT ADAPTER

991-611-W GRILLE ASSEMBLY

733-218 SPRINGS (2 required)

7100LH & 7150LH - OBSOLETE

7163-9674 MOTOR (7100)

7163-9675 MOTOR (7150)

8710-8017 IMPELLER

991-613 DUCT ADAPTER

991-608-W GRILLE ASSEMBLY

733-218 SPRINGS (2 required)

8738-8017 LENS

8826-8040 REFLECTOR ASSEMBLY

8504-8476 LAMPHOLDER

7100A, 7100LA, 7150A, & 7150LA

7163-9674 MOTOR (7100A & 7100LA)

7163-9675 MOTOR (7150A & 7150LA)

8710-8017 IMPELLER

1016-0091-000 DUCT ADAPTER

991-611-W GRILLE ASSEMBLY (7100A & 7150A)

991-608-W GRILLE ASSEMBLY (7100 & 7150LA)

733-218 SPRINGS (2 required)

1016-0119-000 REFLECTOR ASY (7100LA & 7100LA)

8504-8476 LAMPHOLDER (7100A & 7100LA)

3508-2003-000 LENS (7100LA & 7150LA)

8090A, 8090LA, 8100A, & 8100LA

3900-2066-000 MOTOR (8090A & 8090LA)

7163-9674 MOTOR (8100A & 8100LA)

8710-8017 IMPELLER

1016-0091-000 DUCT ADAPTER

1016-0137-000 GRILLE ASY (8090A & 8100A)

1016-0136-000 GRILLE ASY (8090LA & 8100LA)

733-218 SPRINGS (2 required)

1016-0119-000 REFLECTOR ASY (8090LA & 8100LA)

8504-8476 LAMPHOLDER (8090LA & 8100LA)

8738-8017 LENS (8090LA & 8100LA)

6060RL

8767-8238 MOTOR

8710-8021 IMPELLER

1016-0077-000 DUCT ADAPTER

991-689 GRILLE ASSEMBLY

733-218 SPRING (2 required)

3508-2003-000 LENS

991-591 REFLECTOR ASSEMBLY

3519-0004-000 LAMPHOLDER

Part Number Description

6080RL

7173-0174 MOTOR

8710-8023 IMPELLER

991-613 DUCT ADAPTER

1016-0077-000 GRILLE ASSEMBLY

733-218 SPRING (2 required)

3508-2003-000 LENS

991-591 REFLECTOR ASSEMBLY

3519-0004-000 LAMPHOLDER

7100, 7130, 7150, 8090 & 8100 - OBSOLETE

7163-9674 MOTOR (7100 & 8100)

3900-2066-000 MOTOR (8090)

7163-9673 MOTOR (7130)

7163-9675 MOTOR (7150)

8710-8017 IMPELLER

991-613 DUCT ADAPTER(7100 )

1016-0091-000 DUCT ADAPTER(8090 & 8100 )

991-611-W GRILLE ASSEMBLY

733-218 SPRINGS (2 required)

7100L, 7150L, 8090L & 8100L - OBSOLETE

7163-9674 MOTOR (7100L& 8100L)

7163-9675 MOTOR (7150L)

8710-8017 IMPELLER

991-613 DUCT ADAPTER (7100L & 7150L)

991-608-W GRILLE ASSEMBLY

733-218 SPRINGS (2 required)

8738-8017 LENS

1016-0119-000 REFLECTOR ASSEMBLY

8504-8476 LAMPHOLDER

3900-2066-000 MOTOR (8090L)

1016-0091-000 DUCT APTAPTER (8090L & 8100L)

8060ES, 8080ES, 8100ES, & 8140ES

3900-2079-000 MOTOR (8060ES & 8100ES)

3900-2080-000 MOTOR (8080ES & 8140ES)

8710-8017 IMPELLER

1016-0091-000 DUCT ADAPTER

1016-0137-000 GRILLE ASY (ALL)

733-218 SPRINGS (2 required)

8060FL, 8080FL, 8100FL, 8140FL

3900-2079-000 MOTOR (8060FL & 8100FL)

3900-2080-000 MOTOR (8080FL & 8140FL)

8710-8017 IMPELLER

1016-0091-000 DUCT ADAPTER

1016-0136-000 GRILLE ASY

1016-0119-000 REFLECTOR ASY

8504-8097 LAMPHOLDER (2 required)

8738-8017 LENS, GLASS

1228-2002-000 BALLAST ASSY (2 required)

3510-2019-001 13 WATT LAMP

8100ESH & 8100FLH

3900-2079-000 MOTOR

8710-8017 IMPELLER

1016-0091-000 DUCT ADAPTER

1016-0136-000 GRILLE ASY (8100FLH)

1016-0137-000 GRILLE ASY (8100ESH)

1016-0119-000 REFLECTOR ASSY (8100FLH)

8504-8097 LAMPHOLDER (2 required)(8100FLH)

8738-8017 LENS, GLASS (8100FLH)

1228-2002-000 BALLAST ASSY (2 required)

3510-2019-001 13 WATT LAMP

1414-2032-000 HUMIDISTAT

1414-2031-000 TIMER

"Click" on part number to view price and availability

www.morelectricheating.com

BUILDER PRODUCTS

Part Number Description

1001 & 1001BR

7163-9763 MOTOR

8710-8023 IMPELLER

991-613 DUCT ADAPTER

357-114-W GRILLE (1001)

357-114-OP GRILLE (1001BR)

733-218 SPRINGS (2 required)

460-011-W LENS

1001F

7163-9763 MOTOR

8710-8023 IMPELLER

991-613 DUCT ADAPTER

357-114-W GRILLE (1001)

733-218 SPRINGS (2 required)

8738-8019 LENS

6104-8020 BALLAST

6102-8023 FLUORESCENT BULB

MM698F

8767-8130 MOTOR - VENT

3900-2076-000 MOTOR - HEATER

8710-8016 IMPELLER

1016-0082-000 GRILLE ASSY - COMPLETE

8528-8052 BLADE

460-014-W LENS

991-614 DUCT ADAPTER

1016-0073-000 HEATER SECTION

1016-0084-000 CONTROL ASSY - COMPLETE

6104-8019 BALLAST

6102-8023 FLUORESCENT BULB

1100W

8767-8126 MOTOR - VENT

8767-8132 MOTOR - HEATER

8710-8016 IMPELLER - VENT

8710-8015 IMPELLER - HEATER

8504-8628 ELEMENT ASSEMBLY

8631-8009 DAMPER

8671-8031 THERMAL FUSE

8683-8172 GRILLE ASSEMBLY

460-009-W LENS

8587-8169 CONTROL ASSEMBLY

CV6

55130-1 GRILLE

56343-0 MOTOR

56334-0 IMPELLER

56327-0 GRILLE SPRING (EA.)

56326-0 GRILLE BUTTON (EA.)

CV8

55131-1 GRILLE

56344-0 MOTOR

56335-0 IMPELLER

56327-0 GRILLE SPRINGS (EA.)

56326-0 GRILLE BUTTON (EA.)

CV81

55131-1 GRILLE

56345-0 MOTOR

56335-0 IMPELLER

56327-0 GRILLE SPRINGS (EA.)

56326-0 GRILLE BUTTON (EA.)

Part Number Description

782W

8767-8238 MOTOR

8710-8021 IMPELLER

991-613 DUCT ADAPTER

357-114-W GRILLE ASSEMBLY

733-218 SPRINGS (2 required)

460-011-W LENS

MM698 & MM698WC

8767-8130 MOTOR - VENT

3900-2076-000 MOTOR - HEATER

8710-8016 IMPELLER

1016-0080-000 GRILLE ASSEMBLY - COMPLETE

8528-8052 BLADE

460-014-W LENS

991-614 DUCT ADAPTER

1016-0073-000 HEATER SECTION - COMPLETE

1016-0084-000 CONTROL ASSEMBLY (MM698WC)

MM728NL

3900-2049-000 MOTOR - VENT

3900-2076-000 MOTOR -HEATER

313-076 IMPELLER

1016-0080-000 GRILLE ASSEMBLY - COMPLETE

8528-8052 BLADE

460-014-W LENS

991-614 DUCT ADAPTER

1016-0073-000 HEATER SECTION - COMPLETE

1016-0084-000 CONTROL ASSEMBLY

5007-2024-000 REFLECTOR ASSEMBLY

B560

8767-8172 MOTOR - VENT

8710-8016 IMPELLER

8631-8009 DAMPER

1230-8205 THERMAL LIMIT

8683-8279 GRILLE ASSEMBLY

8869-0023 SPRINGS (2 required)

CV10

55132-1 GRILLE

56346-0 MOTOR

56367-0 IMPELLER

56327-0 GRILLE SPRINGS (EA.)

56326-0 GRILLE BUTTON (EA.)

CV101

55133-1 GRILLE

56347-0 MOTOR

56335-0 IMPELLER

56327-0 GRILLE SPRINGS (EA.)

56326-0 GRILLE BUTTON (EA.)

CV12

55133-1 GRILLE

56350-0 MOTOR

56335-0 IMPELLER

56327-0 GRILLE SPRINGS (EA.)

56326-0 GRILLE BUTTON (EA.)

"Click" on part number to view price and availability

www.morelectricheating.com

BUILDER PRODUCTS

Part Number Description

B660W

8767-8172 MOTOR - VENT

8767-8178 MOTOR - HEATER

8710-8016 IMPELLER - VENT

8528-8128 BLADE - HEAT

8631-8009 DAMPER

1230-8205 THERMAL LIMIT

8683-8307 GRILLE ASSEMBLY

8869-0023 SPRINGS (2 required)

790L

8767-8233 MOTOR

8528-8075 BLADE

8683-8061 GRILLE (without hole)

8683-8062 GRILLE (with hole)

6107-8073 SWITCH ASSEMBLY

899L

8767-8232 MOTOR

8528-8026 BLADE

8683-8320 GRILLE (with hole)

0887-0009 SPRING

0899-0008 KNOB

8504-8341 SHUTTER

8683-8320 SWITCH

Part Number Description

B674W

8767-8178 MOTOR

8528-8128 BLADE - HEAT

1230-8205 THERMAL LIMIT

8683-8307 GRILLE ASSEMBLY

8869-0023 SPRINGS (2 required)

Part Number Description

760L

8767-8233 MOTOR

8528-0039 BLADE

8683-8295 GRILLE ASSEMBLY

0899-0008 KNOB

898L & 899L

8767-8232 MOTOR

8528-8026 BLADE

8683-8295 GRILLE (898L)

8683-8320 GRILLE (899L)

0887-0009 SPRING

0899-0008 KNOB

8862-8023 SHUTTER

1047 & 1080

7163-9672 MOTOR

8528-8152 BLADE

8683-8323 GRILLE (1047)

8683-8309 GRILLE (1080)

0899-0008 KNOB

0810-0288 SWITCH

Part Number Description

400XLH POWER CAT - OBSOLETE

357-102-B GRILLE

8690-8004 HANDLE (TOP)

8690-8005 HANDLE (BOTTOM)

CVS125 CENTRAL VAC

140222 MOTOR

110153 FILTER BAG

135023 MOTOR BRUSHES

100500 CIRCUIT BOARD

CVS 230 & 240 ELECTRIC POWER

BRUSH (MODEL 045332)

155435 TOP/BOTTOM WAND

155501 BELT

155528 BRUSH ROLLER

155506 MOTOR

155517 CORD

CVS 200, 230 & 240 ACCESSORIES

045183 COMBO FLOOR/RUG TOOL

045134 BARE FLOOR TOOL

045153 UPHOLSTERY TOOL

045161 DUSTING BRUSH

045141 CREVICE TOOL

045039 HOSE RACK

045108 PLASTIC WAND (2 required)

Part Number Description

1200XL POWER CAT

7126-1094 MOTOR

8710-8007 IMPELLER

1432-0002-001 CAPACITOR

6107-8090 SWITCH

8685-8046 GUARD

8690-8004 HANDLE (TOP)

8690-8005 HANDLE (BOTTOM)

CVS 135 CENTRAL VAC

140243 MOTOR

315251 ROCKER SWITCH

110153 FILTER BAG

135017 MOTOR BRUSHES

100550 CIRCUIT BOARD

CVS 115 CENTRAL VAC

140220 MOTOR

110156 FILTER BAG

135022 MOTOR BRUSHES

100550 CIRCUIT BOARD

CVS 210 TURBO BRUSH

(MODEL 045214)

160151 DRIVE BELT

160152 ROLLER BRUSH

160161 TURBINE (COMPLETE)

"Click" on part number to view price and availability

www.morelectricheating.com

BUILDER PRODUCTS

Part Number Description

1235, 1235P, 2435, 2435P, 1535,

1535W, 1535BR HEATERS

1235-0007 MOTOR

1235-0008 BLADE

6101-8741 ELEMENT ASSEMBLY

8541-8054 LIMIT SWITCH

1230-8194 THERMOSTAT

8671-8036 THERMAL FUSE (2435, 2435P)

6112-8050 KNOB

1235-0037 SCREEN (1235, 2435)

1235-8046 SCREEN (1235P, 2435P)

8683-8270 GRILLE (1535)

8683-8351 GRILLE (1535BR)

8683-8352 GRILLE (1535W)

A2520T, A2530T, A2540T HEATERS

8767-8036 MOTOR

8528-8019 BLADE

1230-8232 THERMOSTAT

6107-8018 3 POSITION SWITCH

8541-8056 LIMIT SWITCH

8671-8037 THERMAL FUSE

8683-8272 GRILLE

6112-8048 KNOB

8521-8118 BAG ASSEMBLY

6101-8751 ELEMENT ASSEMBLY (A2520T)

6101-8752 ELEMENT ASSEMBLY (A2530T)

6101-8753 ELEMENT ASSEMBLY (A2540T)

A24DD WHOLEHOUSE FAN

7126-3438 MOTOR

8528-8150 BLADE

1432-0002-001 CAPACITOR

8587-8129 CONTROL ASSEMBLY

8680-8027 GASKET

1205-2054-000 BAG ASSEMBLY

2438 WHOLEHOUSE FAN

7126-3436 MOTOR

8528-8147 BLADE

1432-0002-004 CAPACITOR

8587-8129 CONTROL ASSEMBLY

8680-8027 GASKET

1205-2054-000 BAG ASSEMBLY

8944-8024 SHEAVE - 4”

8944-8025 SHEAVE - 5”

9707-8053 V-BELT

8787-8159 PANEL

Part Number Description

1250 & 1250P HEATER

8767-8114 MOTOR

8528-8016 BLADE

8671-8031 THERMAL FUSE

6101-8744 ELEMENT ASSEMBLY

8850-8022 SCREEN

B2451 & B2452 HEATERS

8767-8035 120V MOTOR

8767-8036 240V MOTOR

991-313 BLADE

1230-8206 THERMOSTAT

6107-8018 3 POSITION SWITCH

8541-8055 LIMIT SWITCH

6101-8741 ELEMENT ASSEMBLY (B2451)

6101-8472 ELEMENT ASSEMBLY (B2452)

8683-8275 GRILLE

6112-8048 KNOB

8521-8118 BAG ASSEMBLY

A20DD WHOLEHOUSE FAN

7126-3441 MOTOR

8528-8069 BLADE

1432-0002-001 CAPACITOR

790-194 SWITCH

8680-8027 GASKET

1205-2054-000 BAG ASSEMBLY

30DDWS WHOLEHOUSE FAN

517-091 MOTOR

8528-8146 BLADE

6100-8026 CAPACITOR

6107-8109 SWITCH

8680-8027 GASKET

1205-2054-000 BAG ASSEMBLY

3038R WHOLEHOUSE FAN

7126-3439 MOTOR

8528-8148 BLADE

1432-0002-004 CAPACITOR

8587-8129 CONTROL ASSEMBLY

8680-8027 GASKET

1205-2054-000 BAG ASSEMBLY

8944-8023 SHEAVE - 3.5”

8944-8026 SHEAVE - 6”

9707-8054 V-BELT

8787-8159 PANEL

"Click" on part number to view price and availability

www.morelectricheating.com

BUILDER PRODUCTS

Part Number Description

3638R WHOLEHOUSE FAN

7126-3440 MOTOR

8528-8149 BLADE

6100-8026 CAPACITOR

8587-8133 CONTROL

8680-8027 GASKET

1205-2054-000 BAG ASSEMBLY

8944-8022 SHEAVE - 3”

8944-8027 SHEAVE - 7”

9707-8055 V-BELT

8787-8159 PANEL

AGV14 GABLE VENTILATOR

7163-9739 MOTOR

8528-8142 BLADE

8541-8051 THERMOSTAT

GV16 GABLE VENTILATOR

8767-8241 MOTOR

8528-8118 BLADE

1230-8192 THERMOSTAT

6100-8036 CAPACITOR

LPE12 SERIES COMMERCIAL

VENTILATOR

3808 MOTOR

991-285 BLADE

372-082 GUARD

2961 MT. KIT (GUARD)

441-229-B KNOB

16000 SWITCH

991-718-G ASSEMBLY FRAME (LPE12V)

2644 SHUTTER (LPE12S)

LPE22V COMMERCIAL

VENTILATOR

3900-2040-000 MOTOR

1210-2029-000 BLADE

372-089-C GUARD

991-724-G ASSEMBLY FRAME

LPE24 SERIES COMMERCIAL

VENTILATOR

3900-2040-000 MOTOR

1210-2014-000 BLADE

372-087-C GUARD

2961 MT. KIT (GUARD)

3534 SHUTTER (LPE24S)

Part Number Description

MPV200 ROOF VENTILATOR - OBSOLETE

8767-8233 MOTOR

8528-8026 BLADE

8541-8051 THERMOSTAT

ASRV14 ROOF VENTILATOR

7163-9739 MOTOR

8528-8142 BLADE

230-386 DOME

8541-8051 THERMOSTAT

RV16 ROOF VENTILATOR

8767-8241 MOTOR

8528-8041 BLADE

8591-8426 DOME

1230-8192 THERMOSTAT

LPE16 SERIES COMMERCIAL

VENTILATOR

517-103 MOTOR

1210-2033-000 BLADE

372-086-C GUARD

2961 MT. KIT (GUARD)

441-229-B KNOB

16000 SWITCH

1106301 ASSEMBLY FRAME (LPE16V)

2649 SHUTTER (LPE16S)

LPE30 SERIES COMMERCIAL

VENTILATOR

3900-2040-000 MOTOR

1210-2026-000 BLADE

372-088-C GUARD

2969 MT. KIT (GUARD)

991-562 SHUTTER (LPE30S)

"Click" on part number to view price and availability

www.morelectricheating.com

BUILDER PRODUCTS

Part Number Description

110 & 112 IRONING CENTERS

1205-2055-000 BAG ASSEMBLY

8765-8003 MAGNETIC CATCH

8691-8011 HANGER ROD

8786-8019 COVER PAD

6107-8107-B ROCKER SWITCH (112 only)

6107-8116 MOMENT SWITCH (112 only)

6112-8039 KNOB (112 only)

8587-8189 TIMER (112 only)

8665-8421 LIGHT FIXTURE (112 only)

994BR CEILING FAN

245-043-BP SWITCH CUP ASSEMBLY

8502-8019 BLADE ARM

8790-8251 OAK/CHERRY BLADE

093-404 MOUNTING BRACKET

1016-0070-000 HUB

8521-8105 BAG ASSEMBLY

994PFRUST CEILING FAN

245-044-RUST SWITCH CUP ASSEMBLY

8502-8044 BLADE ARM

8502-8048 TRIM CAP

8790-8247 BROWN BLADE

093-404 MOUNTING BRACKET

1016-0070-000 HUB

8521-8116 BAG ASSEMBLY

A300 POWER CAT -OBSOLETE-

7163-5987 MOTOR

8710-8022 IMPELLER

6102-8009 LAMP

6107-8099 SWITCH

357-104-B GRILLE

8828-8040 O-RING

Part Number Description

994AB CEILING FAN

245-043-ABR SWITCH CUP ASSEMBLY

8502-8018 BLADE ARM

8790-8251 OAK/CHERRY BLADE

093-404 MOUNTING BRACKET

1016-0070-000 HUB

8521-8105 BAG ASSEMBLY

994AN CEILING FAN

245-043-ALD SWITCH CUP ASSEMBLY

8502-8021 BLADE ARM

8790-8185 ALMOND BLADE

093-404 MOUNTING BRACKET

1016-0070-000 HUB

8521-8105 BAG ASSEMBLY

994W CEILING FAN

245-043-W SWITCH CUP ASSEMBLY

8502-8035 BLADE ARM

8790-8248 WHITE BLADE

093-404 MOUNTING BRACKET

1016-0070-000 HUB

8521-8105 BAG ASSEMBLY

994WBR CEILING FAN

245-043-BP SWITCH CUP ASSEMBLY

8502-8019 BLADE ARM

8790-8232 WHITE BLADE

093-404 MOUNTING BRACKET

1016-0070-000 HUB

8521-8116 BAG ASSEMBLY

994PFW CEILING FAN

245-044-W SWITCH CUP ASSEMBLY

8502-8045 BLADE ARM

8502-8049 TRIM CAP

8790-8246 WHITE BLADE

093-404 MOUNTING BRACKET

1016-0070-000 HUB

8521-8116 BAG ASSEMBLY

"Click" on part number to view price and availability

www.morelectricheating.com

ZGC QRPCO 2002 391228 Catalog

136535-Catalog 136535-Catalog 136535-Catalog Batch9 unilog cesco-content

770IC Qmark_Parts__Links

Navigation menu

Versions of this User Manual:

Views

Navigation
