Open the PDF directly: View PDF PDF.
Page Count: 36

900MHz MATV Splitters ........................B1
1GHz 90dB F-Splitters ..........................B1
1GHz 130dB F-Splitters ........................B2
1GHz 130dB One-Side Splitters.............B2
1GHz 90dB Vertical F-Splitters..............B3
1GHz 130dB Vertical Splitters ...............B4
1GHz 130dB Digital Splitters.................B5
2.4GHz Satellite Splitters .....................B6
1GHz Directional Couplers....................B7

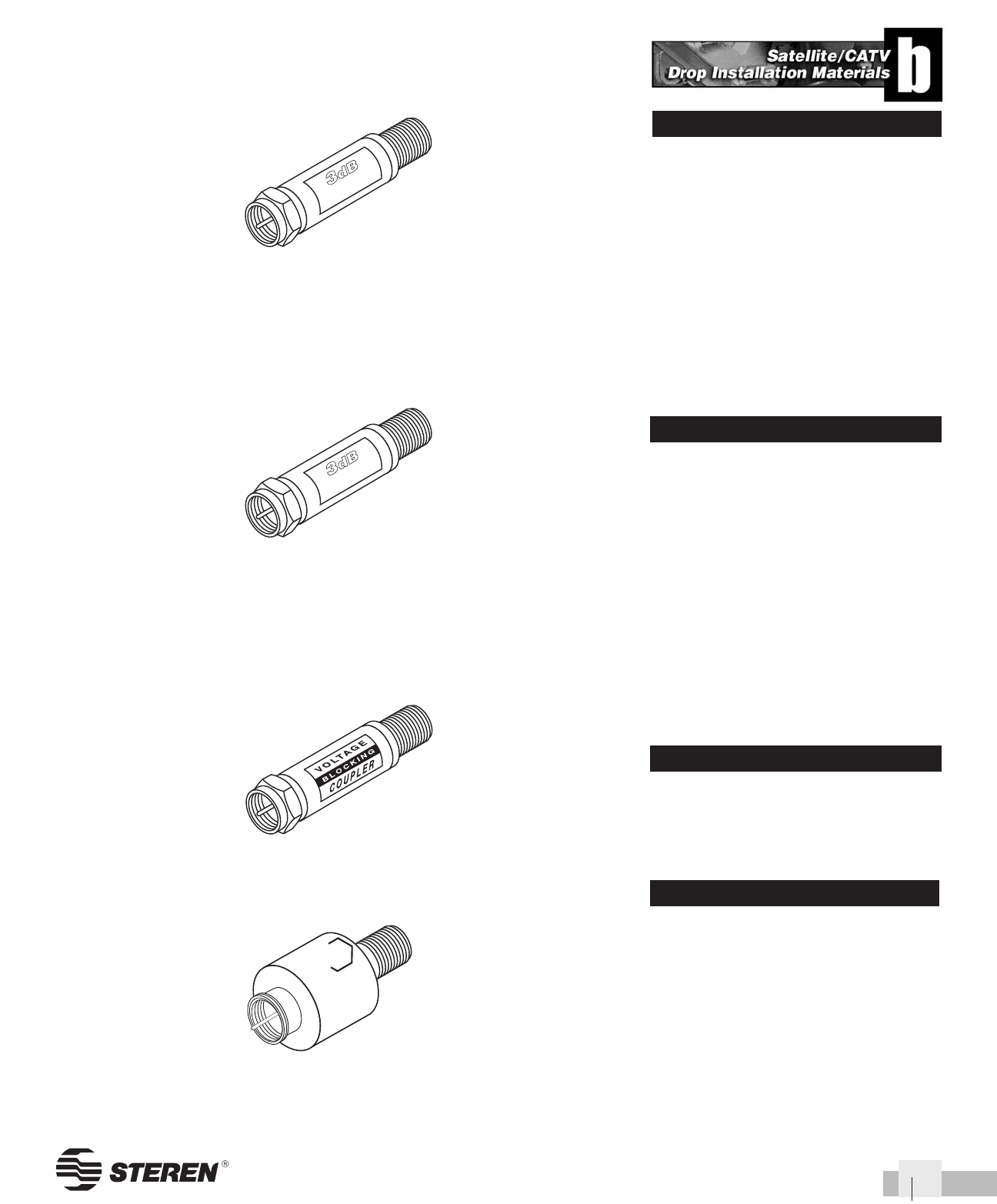

Inline Attenuator Pads..........................B8
Inline DC Passing Attenuators...............B8
Voltage Blocking Coupler .....................B8
Coaxial Surge Protector........................B8
Satellite Diplexer-Mixers......................B9
Band Separator-Combiners ...................B9
Signal Combiners ................................B9

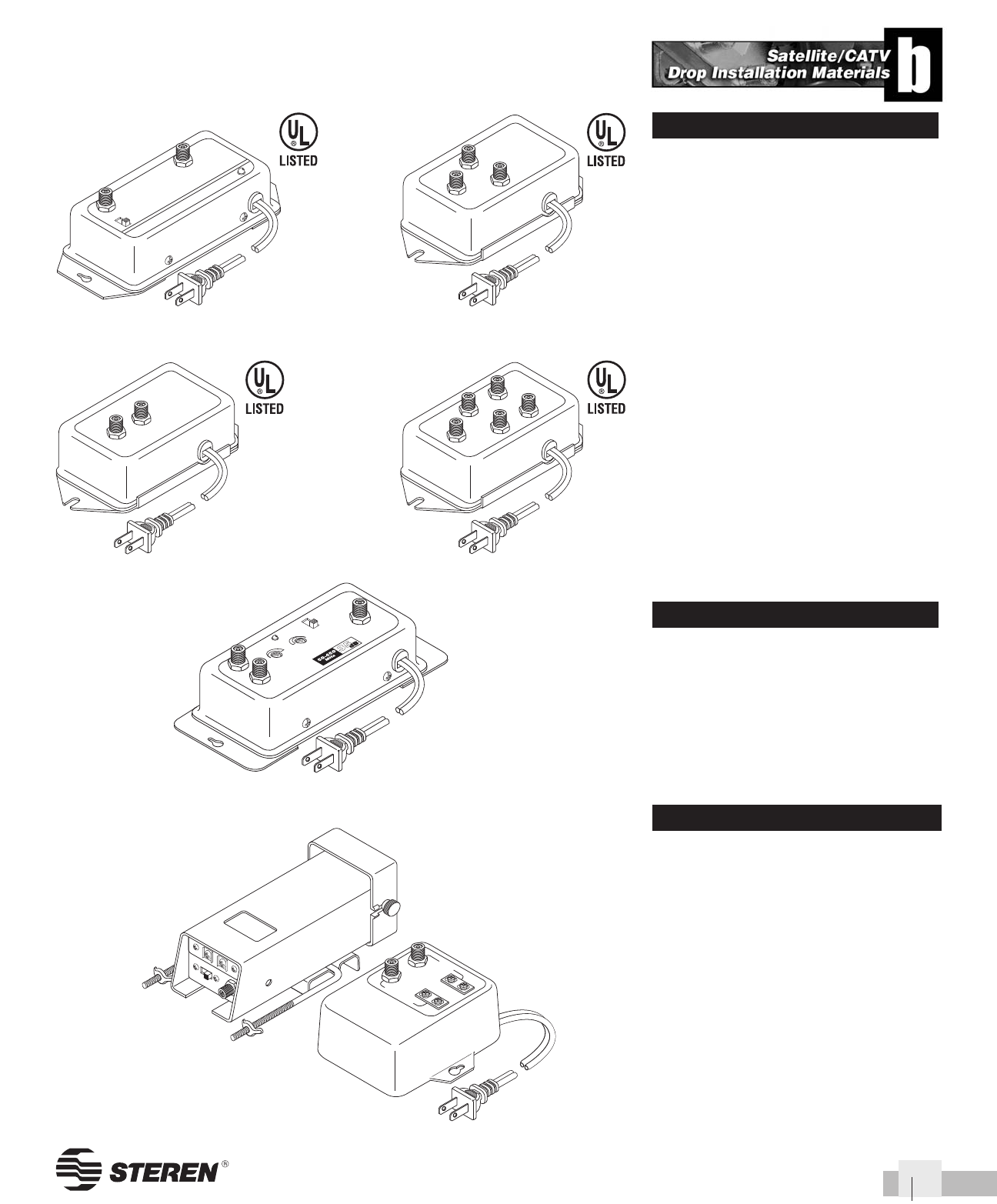

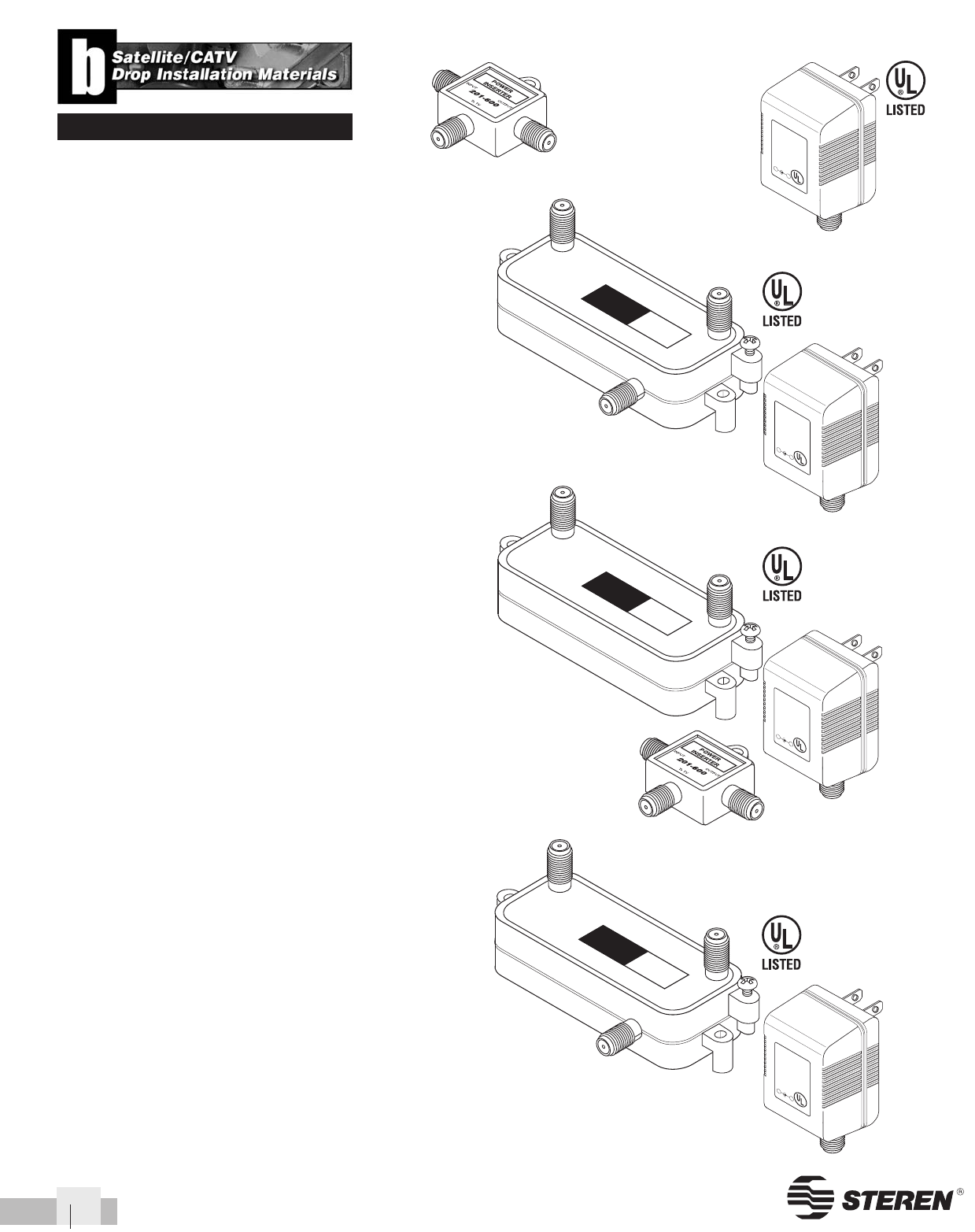

CATV Amplifiers .................................B10
Mast-Mount Video Amplifier ...............B10
CATV Distribution Amplifier ................B10
1 GHz CATV Drop Amplifiers ...............B11

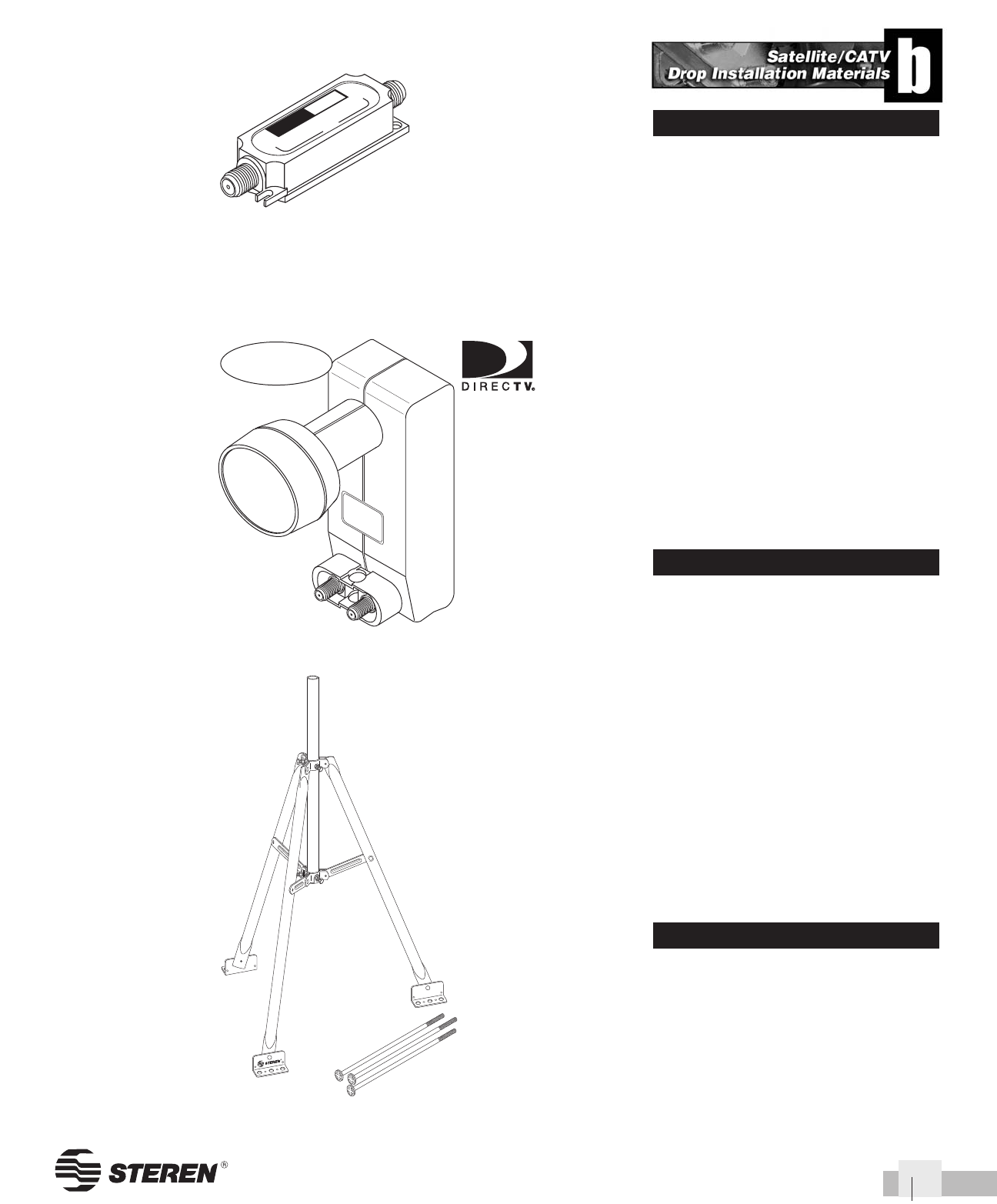

Satellite Inline Amplifiers...................B12
DSS Circular Ku-Band LNBF................B12
Satellite Antenna Tripod .....................B12

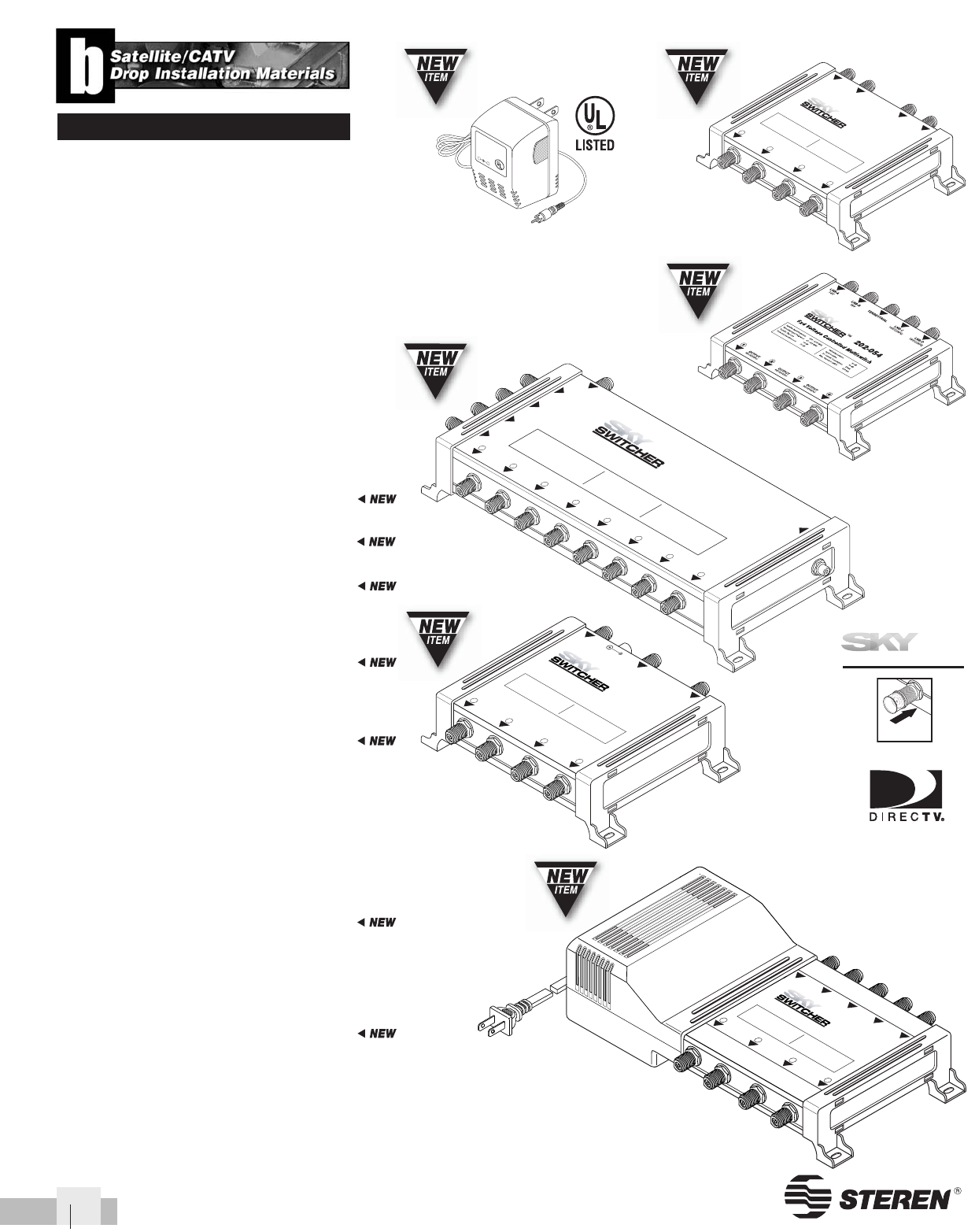

Satellite Multiswitches .......................B13
DSS Tone-Controlled Switch ...............B13
22kHz Satellite Multiswitches .............B14
SkySwitcher™Multiswitches...............B15
Cascade Multiswitches .......................B16
SkySwitcher™Cascade Amp ...............B16

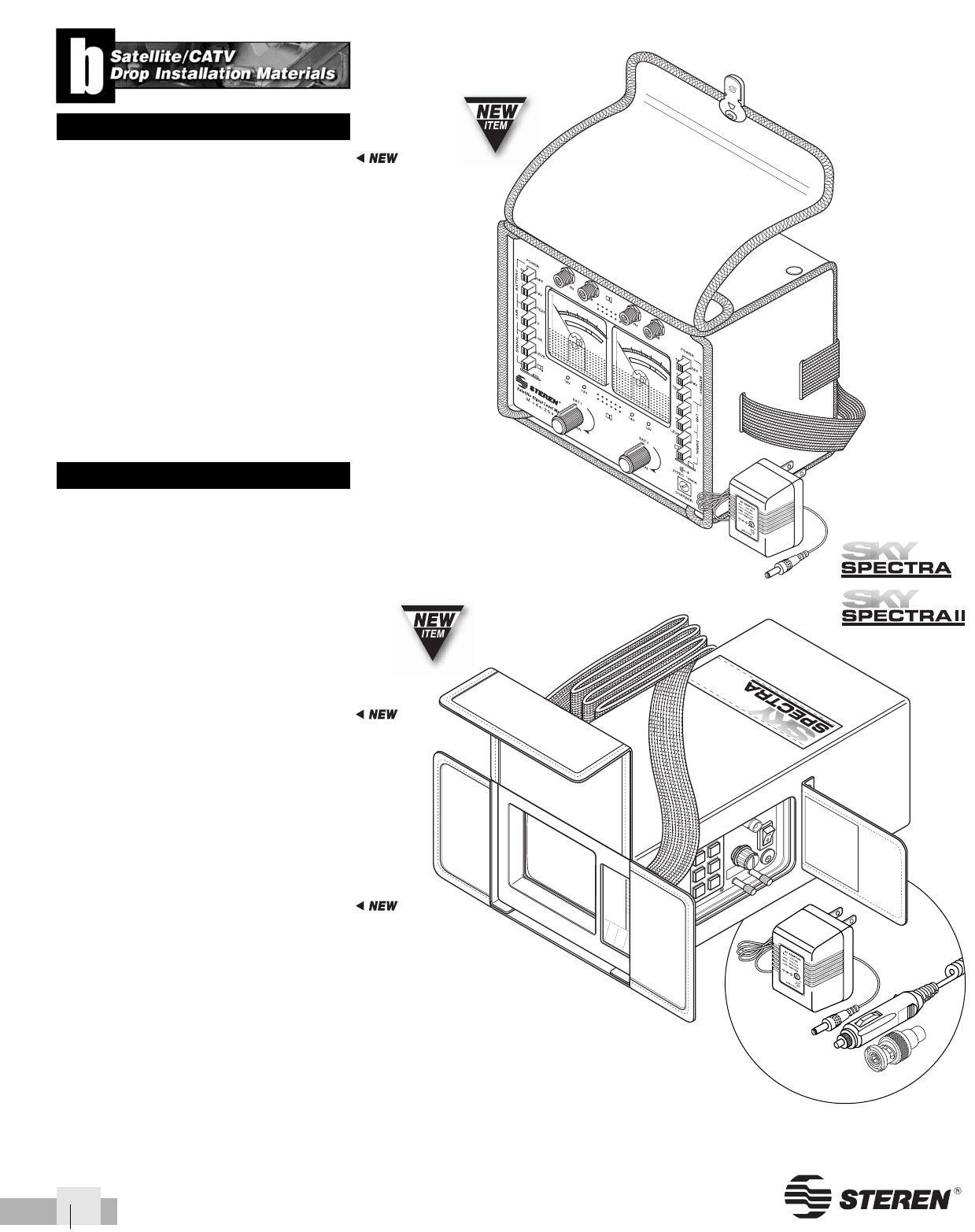

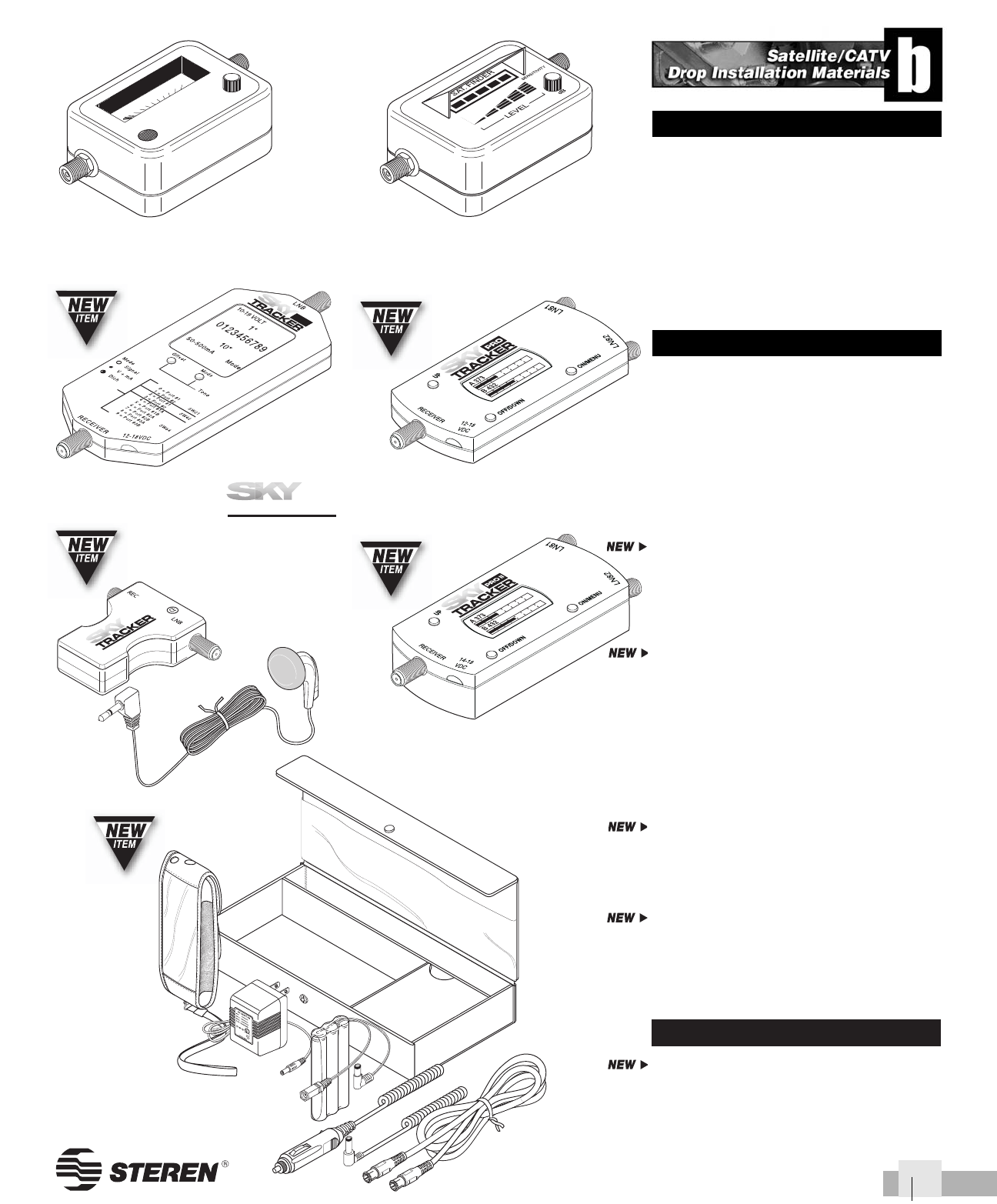

Dual Satellite Signal Level Meter........B17
SkySpectra™Analyzers.......................B17
Satellite Finder Meters.......................B18
SkyTracker™Signal Meters.................B18
SkyTracker™Satellite Finder...............B18

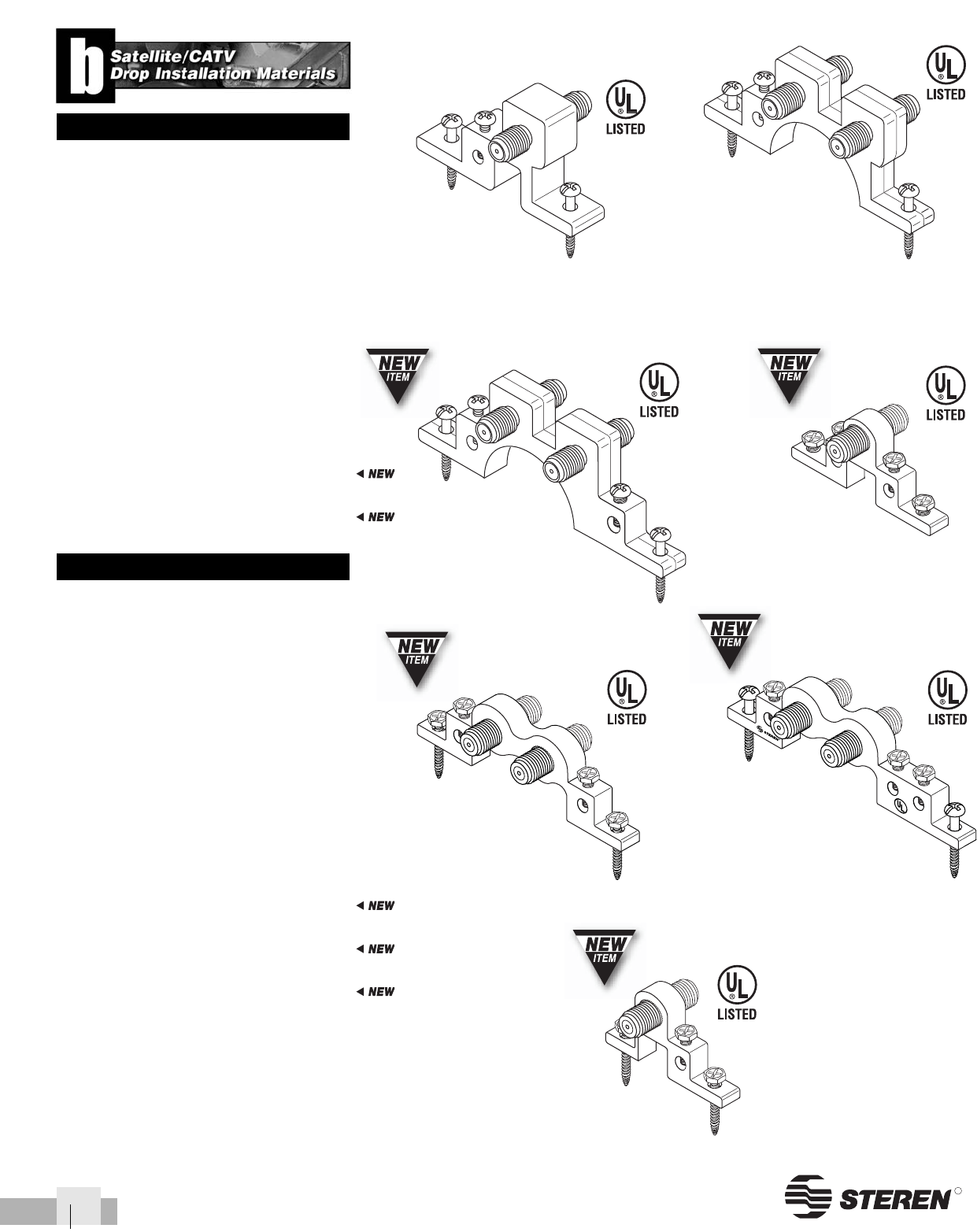

F Ground Blocks.................................B19
Premium F Ground Blocks ..................B19

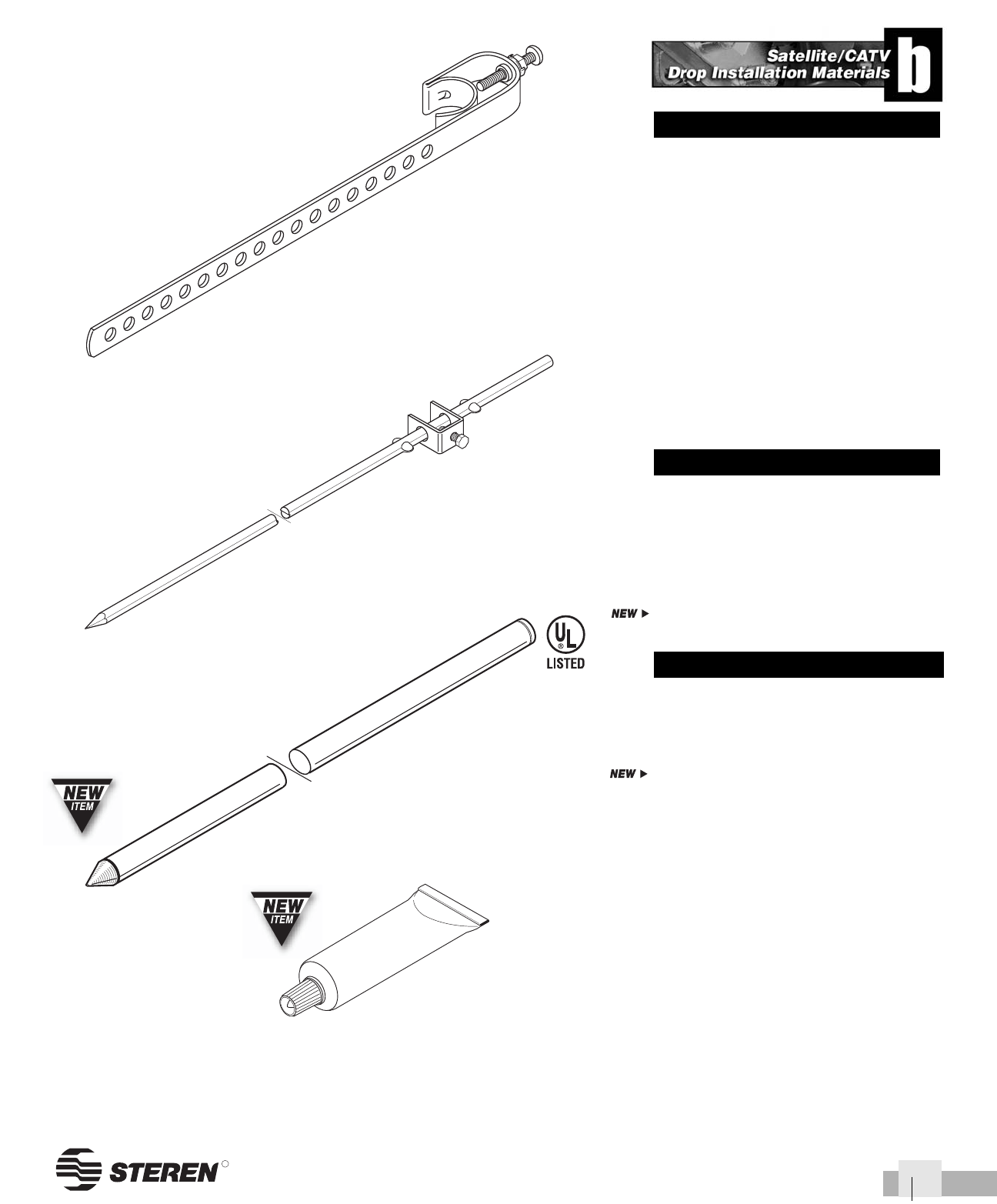

Ground Straps....................................B20
Grounding Rods .................................B20
Silicone Compounds...........................B20
Grounding Hardware ..........................B21
Split-Bolt Ground Connectors ..............B21
Aluminum Grounding Wire..................B21
Copper Grounding Wire ......................B21
Galvanized Poleline Hardware ............B22
Stainless Steel Lashing Wire ..............B22
Anchor Kit..........................................B23
Hex Head Mounting Screws ................B23
Mounting Anchors ..............................B23

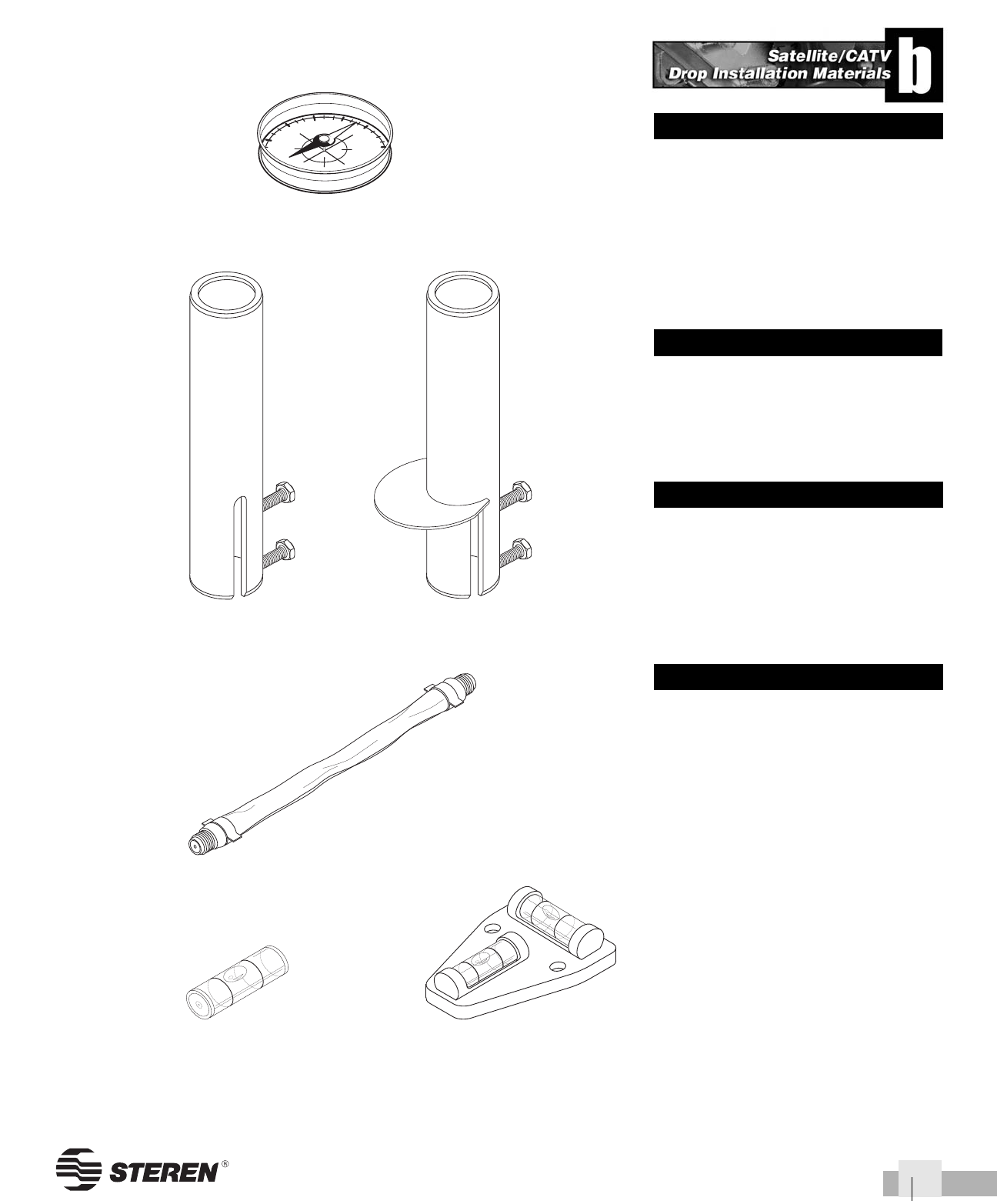

DSS Quick Pipe Adapters....................B24
Dish Positioning Compass ..................B24
F-F Flat Through Cable .......................B24
Satellite Dish Levels ..........................B24

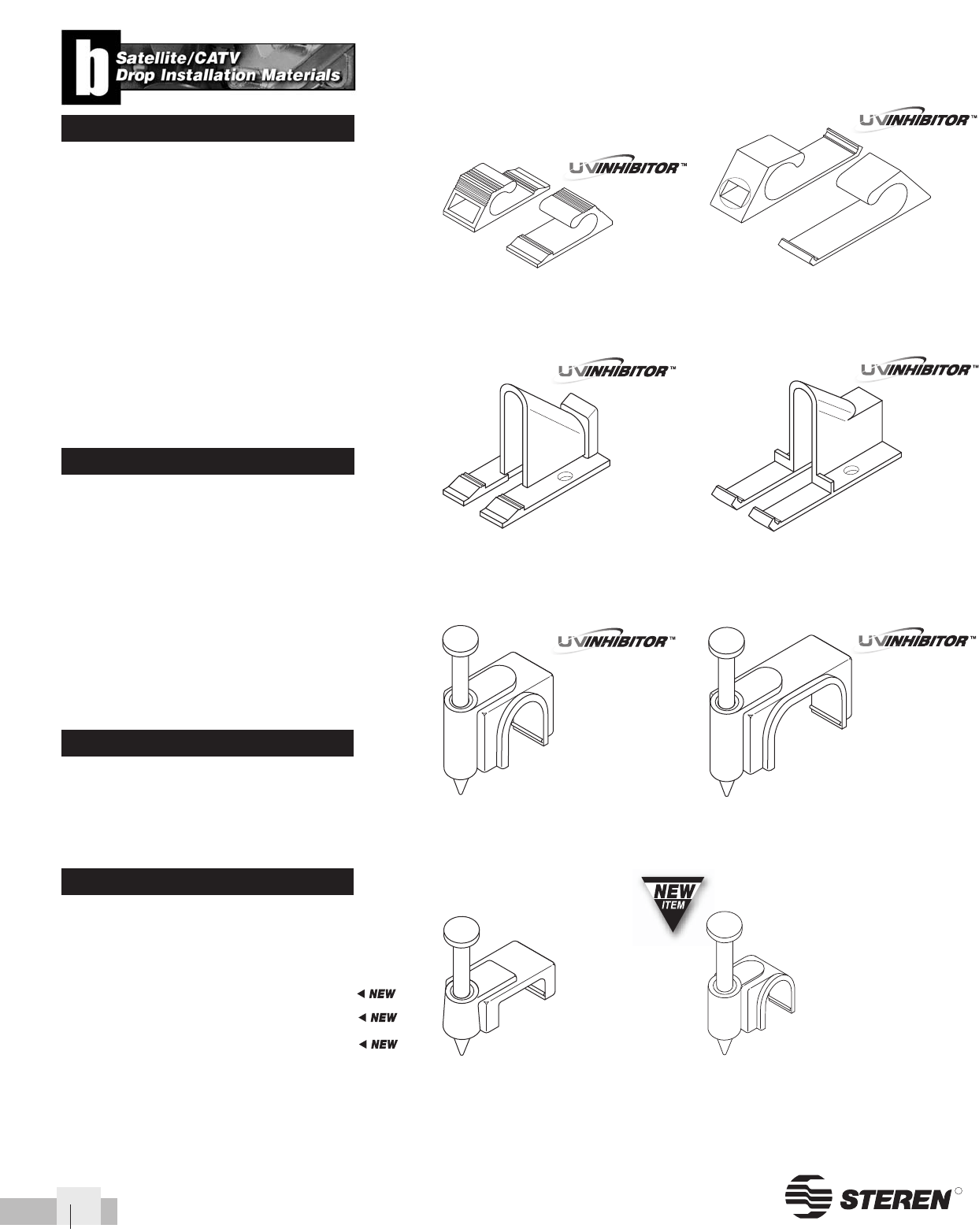

Cable Siding Clips..............................B25
Coaxial Cable Clips ............................B25
Flat-Cable Clips .................................B25
Ground Wire Clips..............................B25
Grip-Clip™Mounting Clips..................B26
Nylon Cable Clamps ...........................B26
Metal Cable Clamps ...........................B26

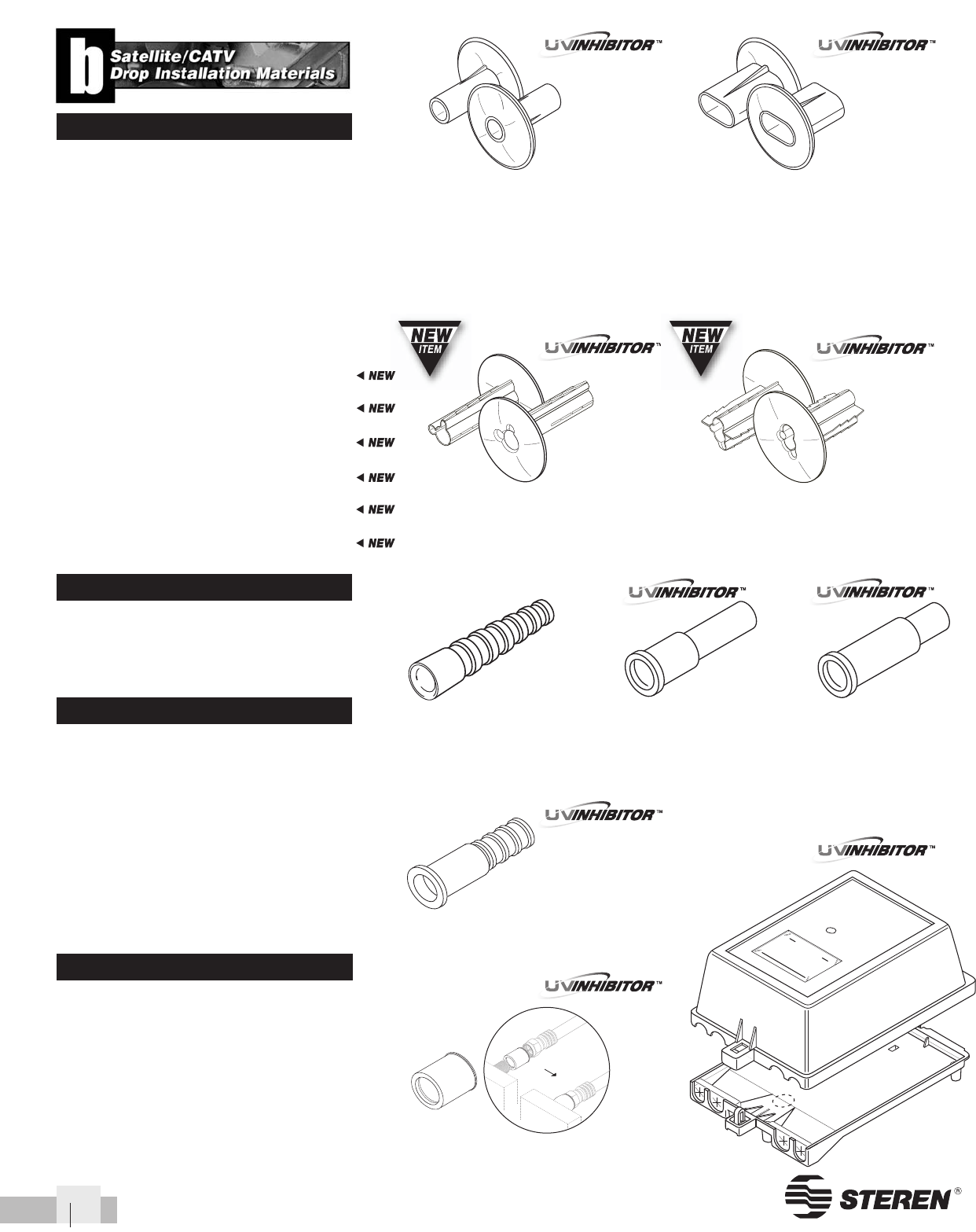

Feed-Through Bushings ......................B27
Cable Strain-Relief Boots ...................B27
Weather Boots ...................................B27
Box Service Enclosure ........................B27

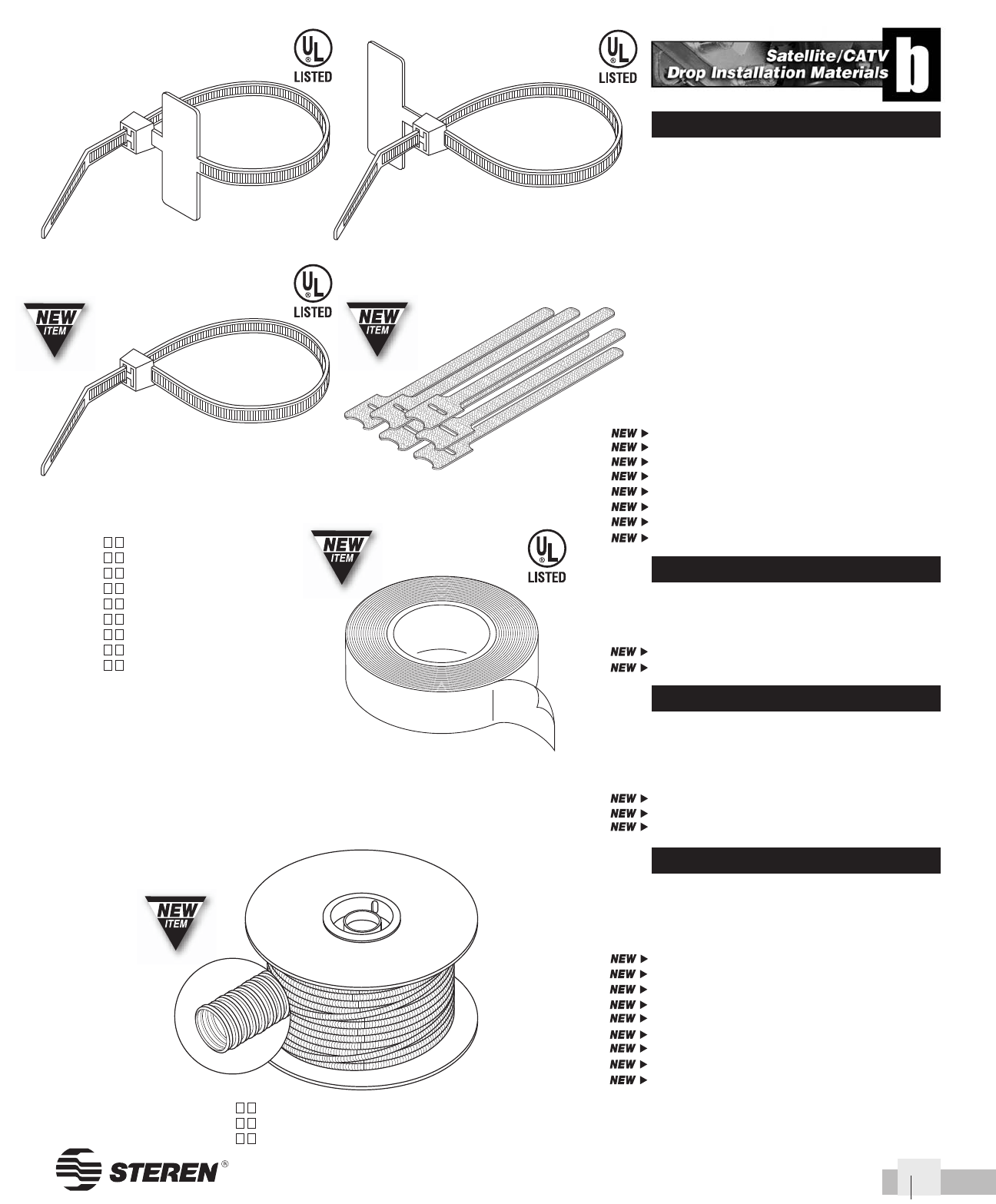

Self-Locking Cable Ties......................B28
Hook-and-Loop Wire Ties ...................B28
Electrical Tape ...................................B28
Split Wire Conduit..............................B28

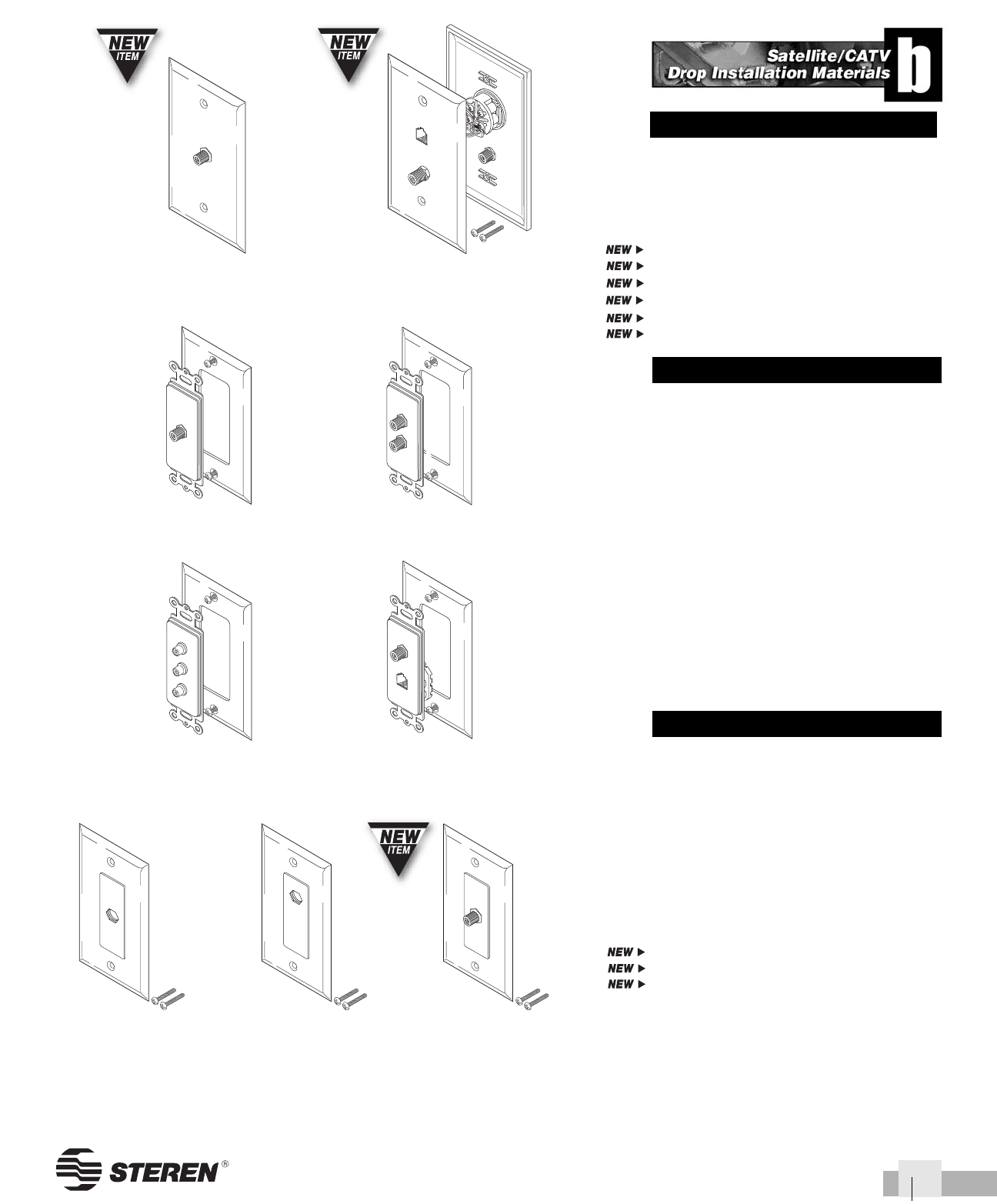

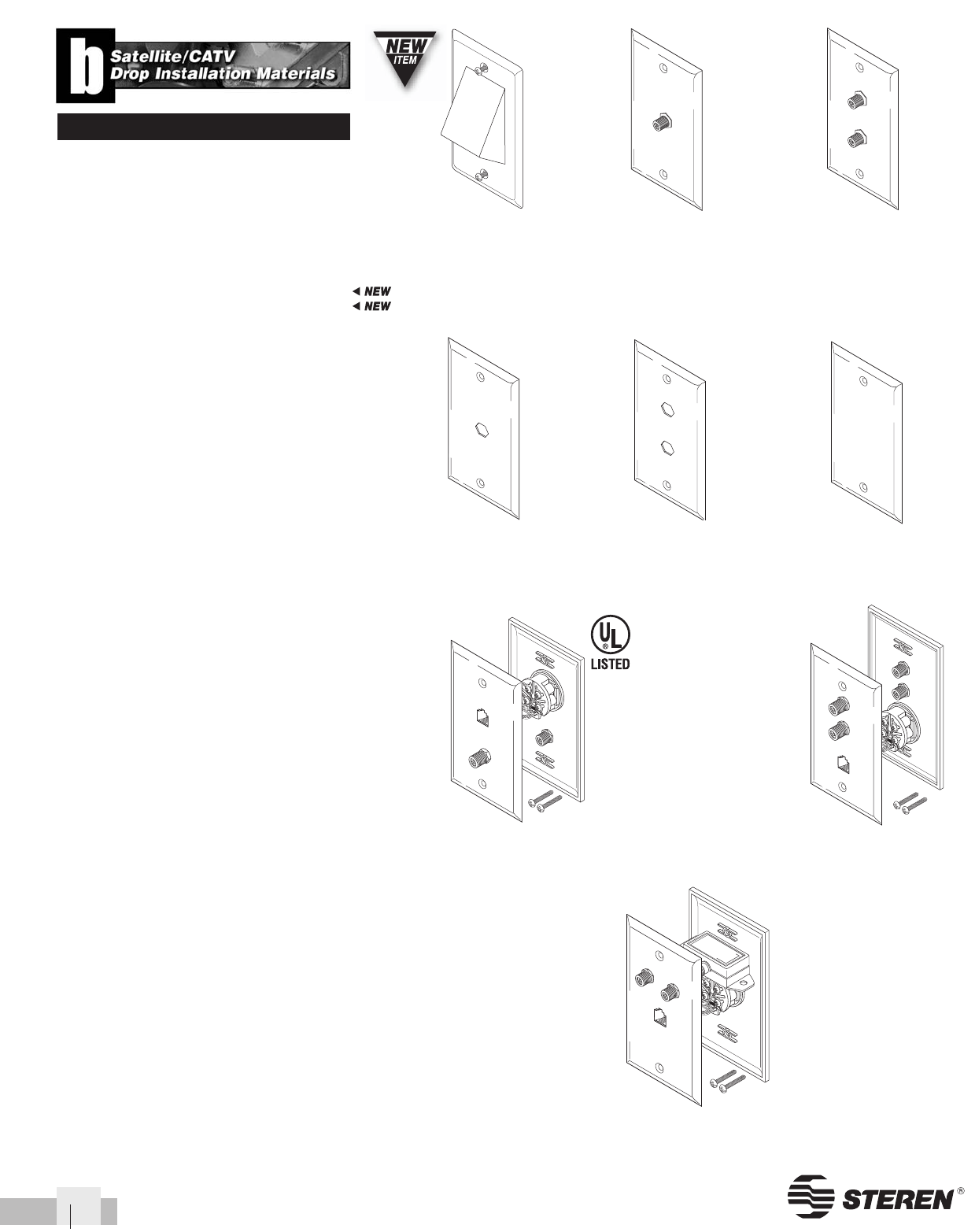

TV-Telephony Wall Plates...................B29
Mid-Size Telephony Wall Plates..........B30
Decorator-Style Wall Plates ................B30
Economy Decorator Wall Plates ..........B30

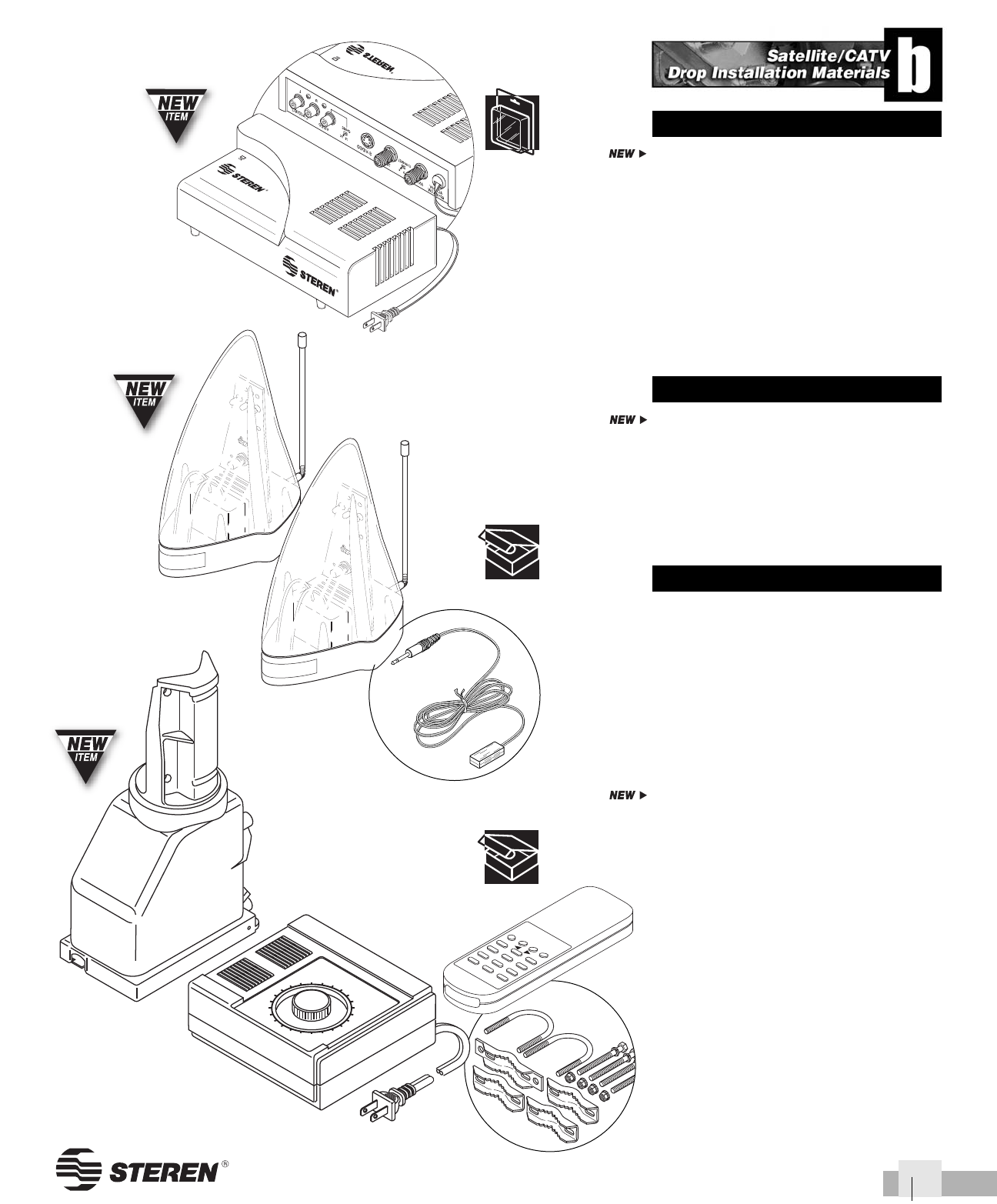

Audio-Video Senders..........................B31
Wireless Security Camera ..................B31
Audio-Video RF Modulator..................B32
Remote Signal Extender .....................B32
TV Antenna Rotators...........................B32

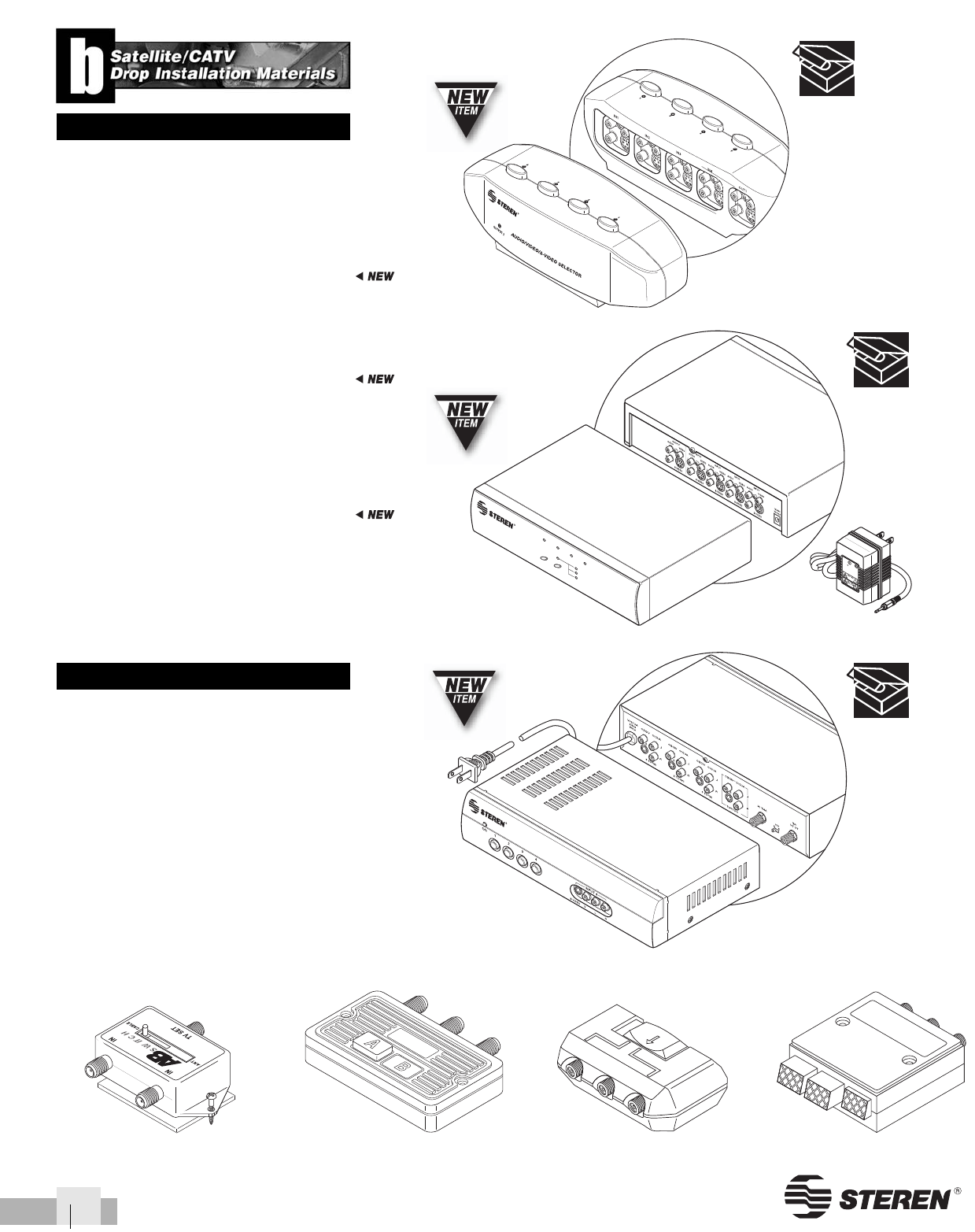

Audio-Video Selectors........................B33
Coaxial Switches................................B33

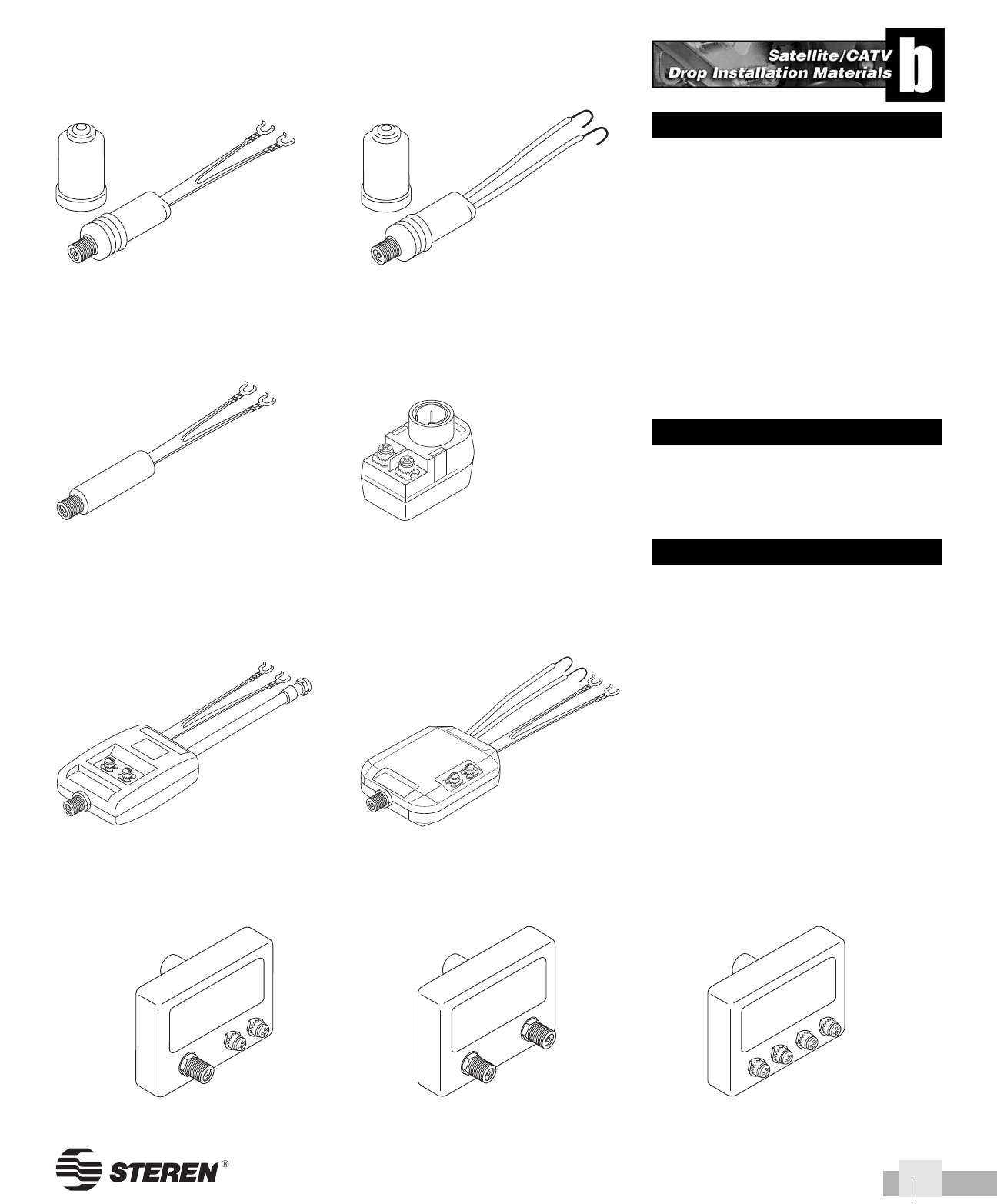

Matching Transformers.......................B34
Band Separators ................................B34
Signal Combiners...............................B34

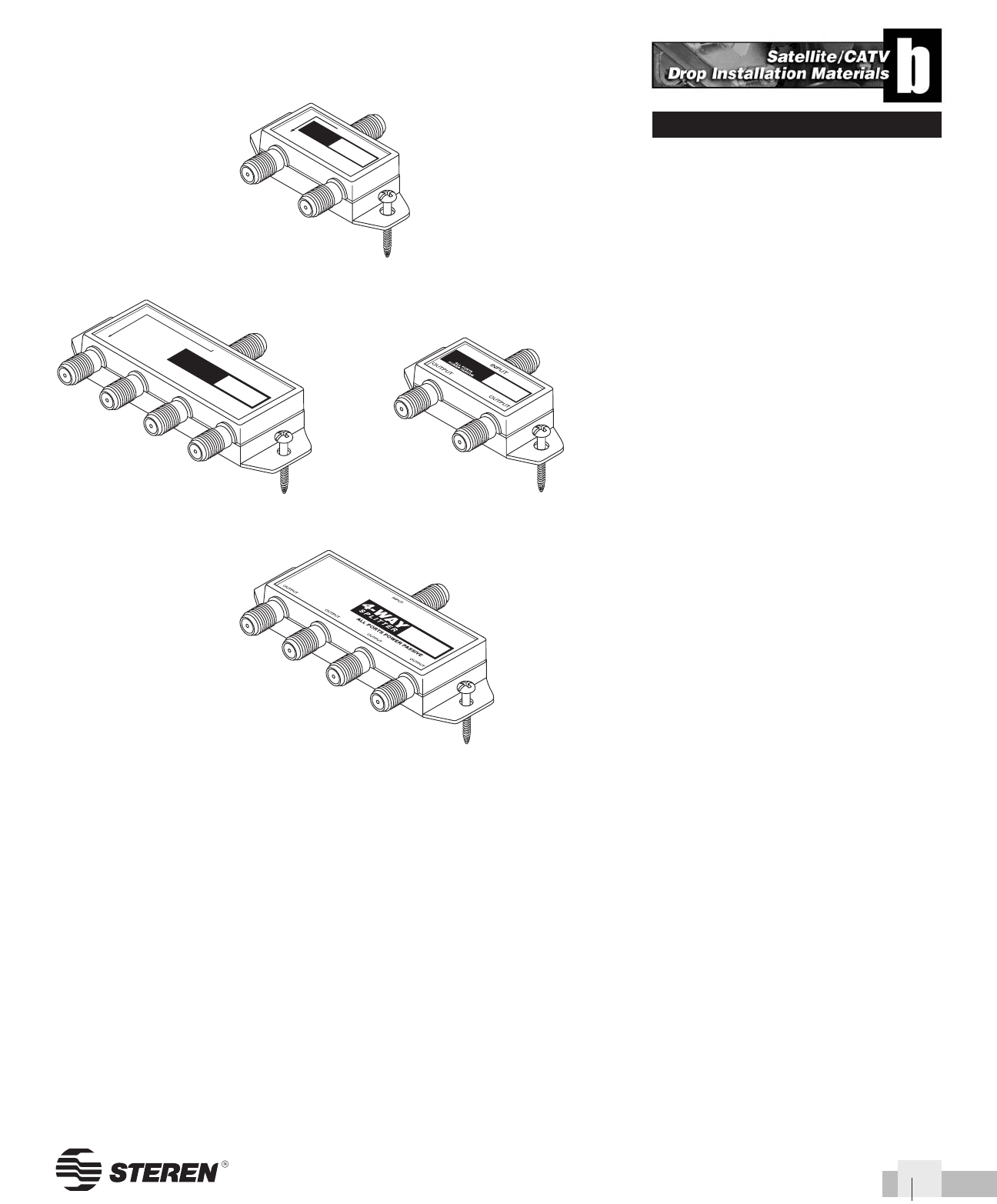

5-900MHz 75ΩMATV Low-Cost F Splitters
Suitable for Consumer MATV Applications
DC Power-Passing – Epoxy-Sealed Back-Cover
Anti-Corrosion Plating – Zinc-Alloy Cast Housing
Mounting Tabs with Screws – Cast-In Ground Block
200-202 2-Way 900MHz F Mini-Splitter
200-203 3-Way 900MHz F Mini-Splitter
200-204 4-Way 900MHz F Mini-Splitter
200-206 6-Way 900MHz F-Splitter
200-208 8-Way 900MHz F-Splitter
200-212 2-Way 900MHz F Mini-Splitter – Gold
200-213 3-Way 900MHz F Mini-Splitter – Gold
200-214 4-Way 900MHz F Mini-Splitter – Gold
200-222 2-Way 900MHz F-Splitter
200-223 3-Way 900MHz F-Splitter
200-224 4-Way 900MHz F-Splitter
5-1000MHz 75ΩHigh-Isolation F-Splitters
Capacitor-Coupled DC Power Blocked All Ports
90dB min RFI Shielding – Epoxy-Sealed Back-Cover
High-Performance Printed-Board Circuitry
Improved Hum Modulation and Intermodulation
Yellow-Chromate Plating – Zinc-Alloy Cast Housing
3/8˝ Precision Machined F-Connector Threads
Mounting Tabs with Screws – Cast-In Ground Block
1˝ centered F-ports accommodate security tools
SCTE Compliant SC IPS SP 202, 203;
SC IPS TP 406, 409; SCTE 29, 48, 04
201-201 3-Way Balanced 1GHz 90dB F-Splitter
Insertion Loss 6.7dB max.
Port-Port Isolation 27dB min.
Input Return Loss 24dB min.
201-202 2-Way 1GHz 90dB F-Splitter
Insertion Loss 4.5dB max.
Port-Port Isolation 31dB min.
Input Return Loss 20dB min.
201-203 3-Way 1GHz 90dB F-Splitter
Insertion Loss 3.9/7.7dB max.
Port-Port Isolation 25dB min.
Input Return Loss 26dB min.
201-204 4-Way 1GHz 90dB F-Splitter
Insertion Loss 7.7dB max.
Port-Port Isolation 28dB min.
Input Return Loss 25dB min.
1GHz 90dB F-Splitters
900MHz MATV Splitters
© 2004 Steren Electronics International, LLC
B 1
1GHz
INPUT
-WA
Y SPLITTER
OUTPUT OUTPUT OUTPUT
200-203
5-900 MHz
200-202 2-Way Mini
200-212 2-Way Mini Gold
200-222 2-Way
200-204 4-Way Mini
200-214 4-Way Mini Gold
200-224 4-Way
200-206 6-Way
INPUT
2-WA
Y SPLITTER
OUTPUT OUTPUT
200-202
5-900 MHz
200-203 3-Way Mini
200-213 3-Way Mini Gold
200-223 3-Way
4-WAY SPLITTER
OUTPUT INPUT OUTPUT
OUTPUT OUTPUT
200-204
5-900 MHz
1GHz
6 WAY SPLITTER
8 WAY SPLITTER
201-202 2-Way 1GHz 90dB
201-204 4-Way 1GHz 90dB
1GHz
INPUT
OUTPUT OUTPUT OUTPUT
-4.0dB
-7.5dB
-7.5dB
201-201
5-1000 MHz
1GHz1GHz
3-WAY
SPLITTER
ISOLATION
9090dB
dB
201-201 3-Way Balanced 1GHz 90dB
201-203 3-Way 1GHz 90dB
TESTED
Chromate Plated
Epoxy-Sealed
DC Blocked
200-208 8-Way
1GHz
INPUT
OUTPUT OUTPUT OUTPUT
-3.5dB
-7.0dB
-7.0dB
201-221
5-1000 MHz
3-WAY
SPLITTER
ISOLATION
1GHz1GHz
11
3030dB
dB

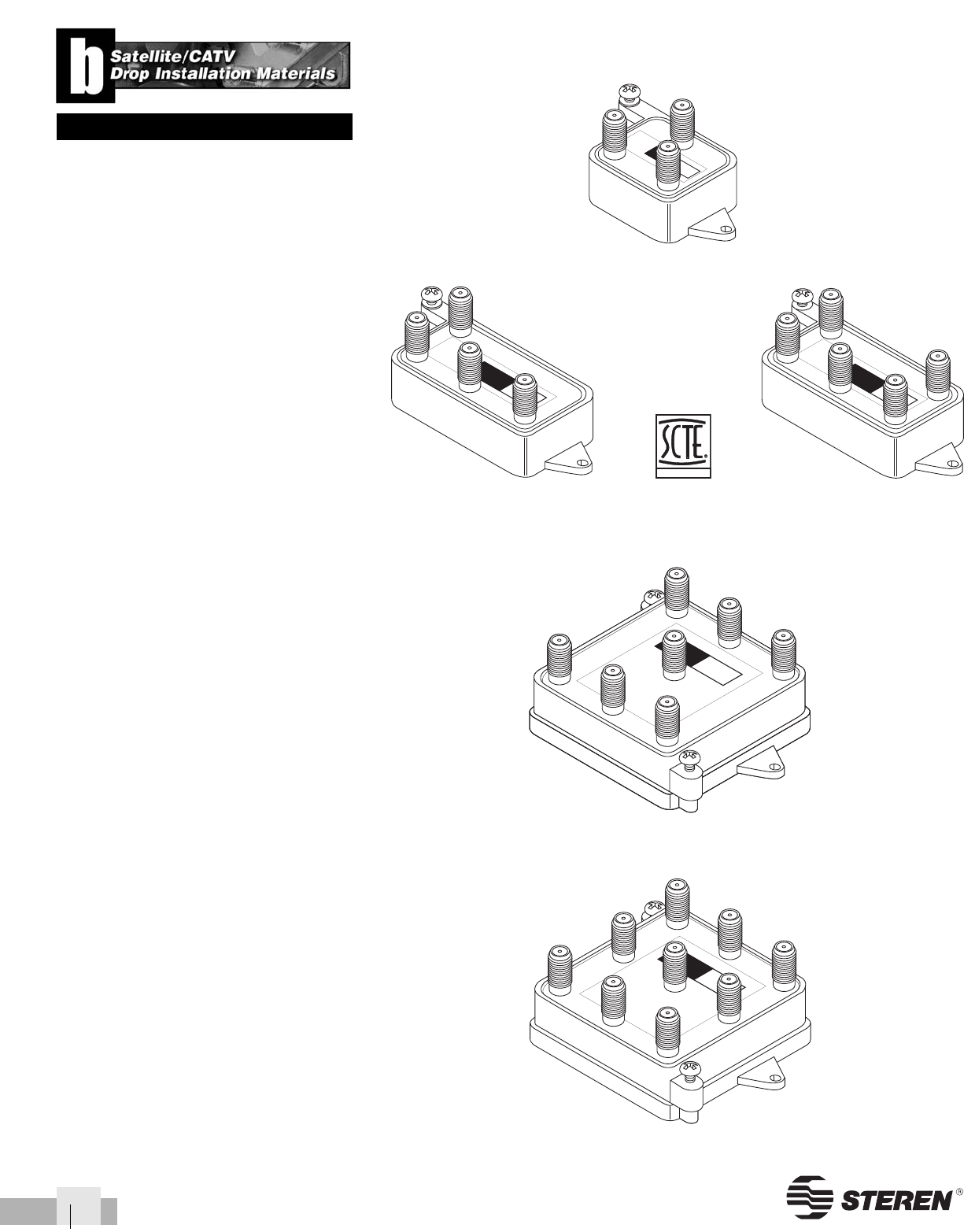

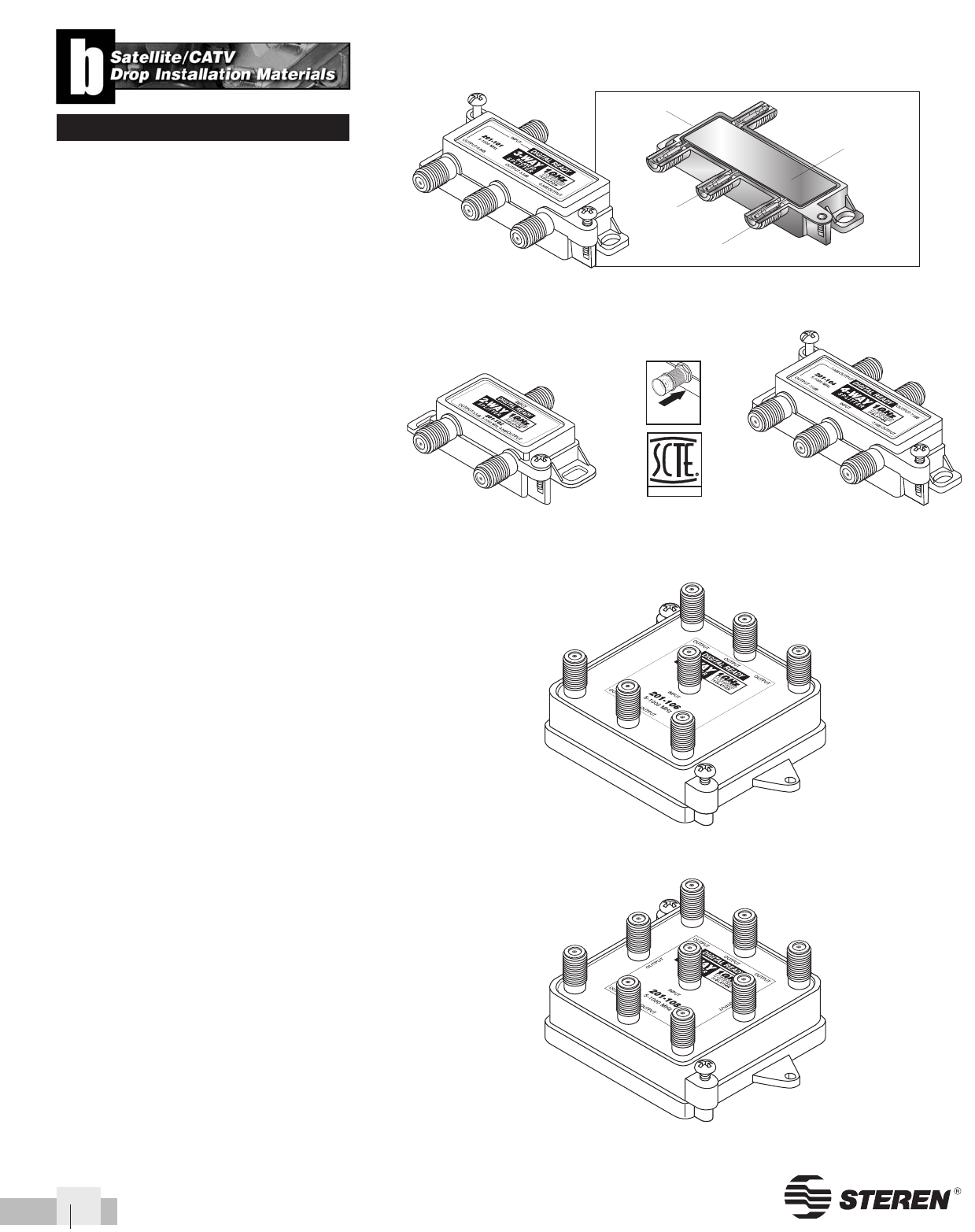

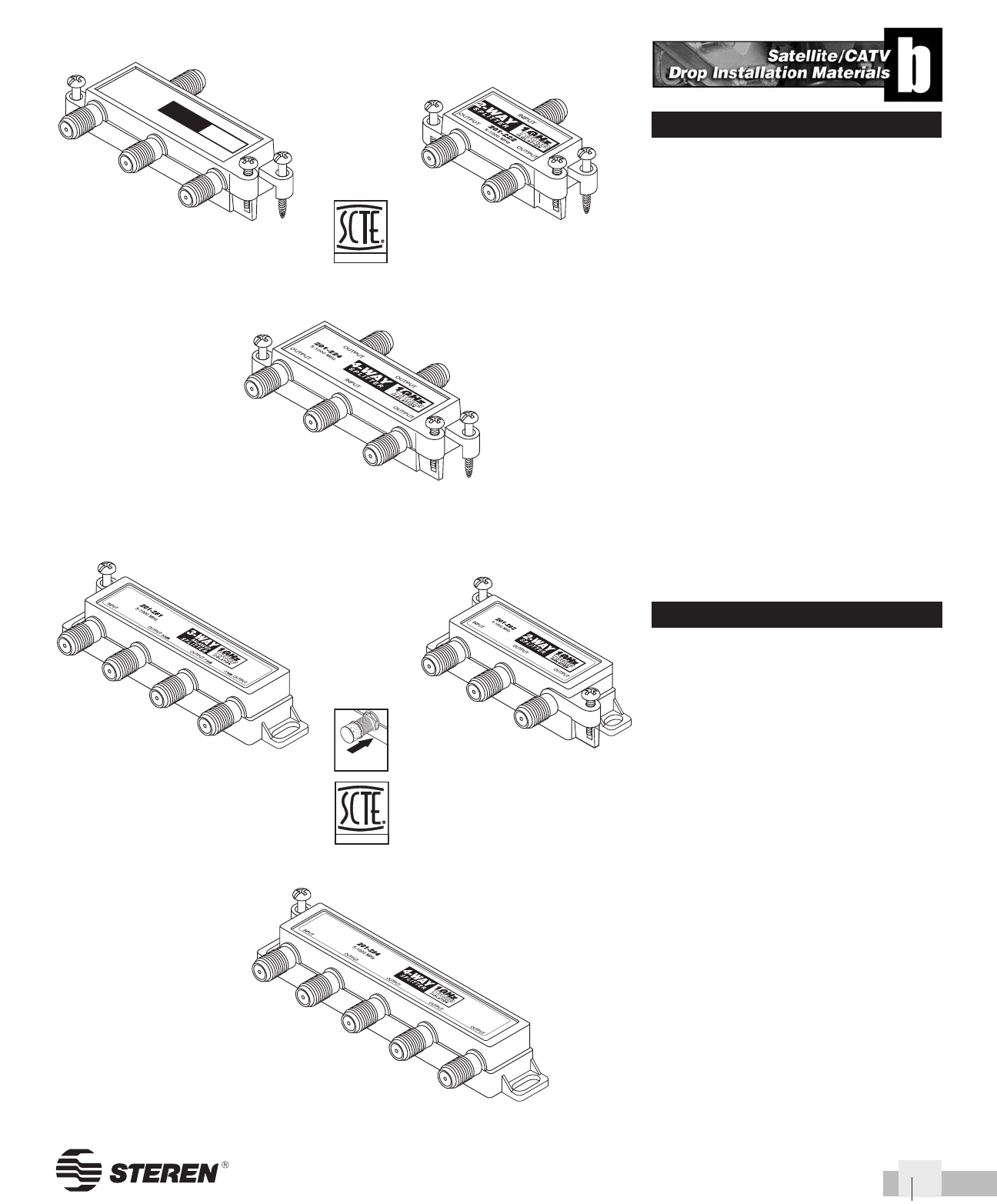

5-1000MHz 75ΩHighest Isolation F-Splitters
Capacitor-Coupled DC Power Blocked All Ports
Soldered-Back Cover 130dB min. RFI Shielding
High-Performance Printed-Board Circuitry
>-100dB Low Intermodulation Distortion
Anti-Corrosion Silver-Plated Zinc-Alloy Cast Housing
3/8˝ Precision Machined F-Connector Threads
Mounting Tabs with Screws – Cast-In Ground Block
1˝ centered F-ports accommodate security tools
SCTE Compliant SC IPS SP 202, 203;
SC IPS TP 406, 409; SCTE 29, 48, 04
201-221 3-Way Balanced 1GHz 130dB F-Splitter
Insertion Loss 6.5dB max.
Port-Port Isolation 28dB min.
Input Return Loss 20dB min.
201-222 2-Way 1GHz 130dB F-Splitter
Insertion Loss 4.2dB max.
Port-Port Isolation 31dB min.
Input Return Loss 23dB min.
201-223 3-Way 1GHz 130dB F-Splitter
Insertion Loss 3.8/7.7dB max.
Port-Port Isolation 32dB min.
Input Return Loss 20dB min.
201-224 4-Way 1GHz 130dB F-Splitter
Insertion Loss 7.0dB max.
Port-Port Isolation 27dB min.
Input Return Loss 24dB min.
5-1000MHz 75ΩHighest Isolation F-Splitters
Horizontal One-Sided Input and Output Ports
One-sided port design allows close mounting in
lock-boxes for easy access of cable connections
Tongue-and-Groove Housing – Fully Water Resistant
Soldered-Back Cover 130dB min. EMI-RFI Shielding
Capacitor-Coupled DC Power Blocked All Ports
High-Performance Printed-Board Circuitry
>-100dB Low Intermodulation Distortion
Mounting Tabs with Screws – Cast-In Ground Block
Anti-Corrosion Nickel-Plated Zinc-Alloy Cast Housing
3/8˝ Precision Machined F-Port Threads
1˝ centered F-ports accommodate security tools
SCTE Compliant SC IPS SP 202, 203;
SC IPS TP 406, 409; SCTE 29, 48, 04
Supplied with protective F-port plastic caps
201-281 3-Way Balanced 1GHz 130dB F-Splitter
Insertion Loss 6.5dB max.
Port-Port Isolation 29dB min.
Input Return Loss 25dB min.
201-282 2-Way 1GHz 130dB F-Splitter
Insertion Loss 3.8dB max.
Port-Port Isolation 30dB min.
Input Return Loss 21dB min.
201-283 3-Way 1GHz 130dB F-Splitter
Insertion Loss 3.8/7.8dB max.
Port-Port Isolation 28dB min.
Input Return Loss 23dB min.
201-284 4-Way 1GHz 130dB F-Splitter
Insertion Loss 7.7dB max.
Port-Port Isolation 25dB min.
Input Return Loss 22dB min.
1GHz 130dB One-Side Splitters
1GHz 130dB F-Splitters
© 2004 Steren Electronics International, LLC B 2
201-222 2-Way 1GHz 130dB
201-224 4-Way 1GHz 130dB
201-221 3-Way Balanced 1GHz 130dB
201-223 3-Way 1GHz 130dB
201-281 3-Way Balanced 1GHz 130dB
201-283 3-Way 1GHz 130dB
201-282 2-Way 1GHz 130dB
201-284 4-Way 1GHz 130dB
Nickel Plated
Soldered Back
DC Blocked
COMPLIANT
Silver Plated
Soldered Back
DC Blocked
COMPLIANT
Protective
Port Caps

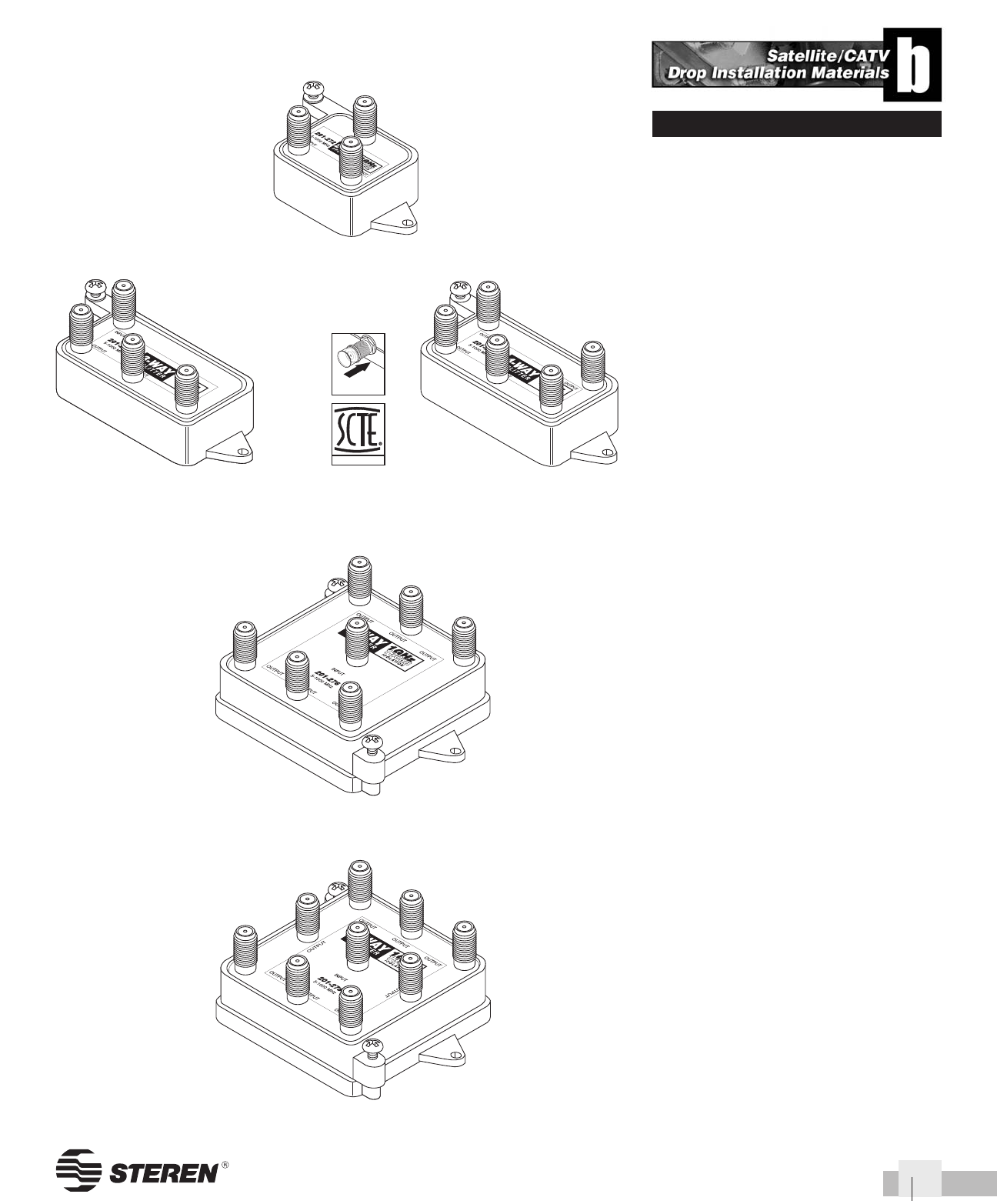

5-1000MHz 75ΩHigh Isolation F-Splitters
Vertical port design allows close mounting in
lock boxes for easy access of cable connections
Capacitor-Coupled DC Power Blocked All Ports
90dB min RFI Shielding – Epoxy-Sealed Back-Cover
High-Performance Printed-Board Circuitry
Improved Hum Modulation and Intermodulation
Yellow-Chromate Plating – Zinc-Alloy Cast Housing
3/8˝ Precision Machined F-Connector Threads
Mounting Tabs with Screws – Cast-In Ground Block
1˝ centered F-ports accommodate security tools
SCTE Compliant SC IPS SP 202, 203;
SC IPS TP 406, 409; SCTE 29, 48, 04
201-261 3-Way Balanced 1GHz 90dB F-Splitter
Insertion Loss 6.2dB max.
Port-Port Isolation 33dB min.
Input Return Loss 21dB min.
201-262 2-Way 1GHz 90dB F-Splitter
Insertion Loss 4.0dB max.
Port-Port Isolation 28dB min.
Input Return Loss 25dB min.
201-263 3-Way 1GHz 90dB F-Splitter
Insertion Loss 4.0/7.2dB max.
Port-Port Isolation 32dB min.
Input Return Loss 25dB min.
201-264 4-Way 1GHz 90dB F-Splitter
Insertion Loss 7.1dB max.
Port-Port Isolation 27dB min.
Input Return Loss 26dB min.
201-266 6-Way 1GHz 90dB F-Splitter
Insertion Loss 10.5dB max.
Port-Port Isolation 25dB min.
Input Return Loss 18dB min.
201-268 8-Way 1GHz 90dB F-Splitter
Insertion Loss 11.2dB max.
Port-Port Isolation 30dB min.
Input Return Loss 26dB min.
1GHz 90dB Vertical F-Splitters
© 2004 Steren Electronics International, LLC
B 3
INPUT
201-263
5-1000 MHz
3-WAY
SPLITTER
1GHz1GHz
OUTPUT OUTPUT OUTPUT
OUTPUT
OUTPUT
INPUT
OUTPUT
8-WAY
SPLITTER ISOLATION
1GHz1GHz
90
90dBdB
201-266
5-1000 MHz
OUTPUT OUTPUT OUTPUT
OUTPUT
OUTPUT
INPUT
OUTPUT
8-WAY
SPLITTER
ISOLATION
1GHz1GHz
90
90dBdB
201-266
5-1000 MHz
OUTPUT OUTPUT OUTPUT
OUTPUT
OUTPUT
INPUT
OUTPUT
8-WAY
SPLITTER
ISOLATION
1GHz1GHz
90
90dBdB
201-266
5-1000 MHz
OUTPUT OUTPUT OUTPUT
OUTPUT
INPUT
OUTPUT
8-WAY
SPLITTER
ISOLATION
1GHz1GHz
9090dBdB
OUTPUT
201-268
5-1000 MHz
OUTPUT OUTPUT OUTPUT
OUTPUT
OUTPUT
OUTPUT
OUTPUT
201-264
5-1000 MHz
4-
SPLITTER
11
00
OUTPUT INPUT OUTPUT
201-261 3-Way Balanced 1GHz 90dB
201-263 3-Way 1GHz 90dB
201-262 2-Way 1GHz 90dB
201-264 4-Way 1GHz 90dB
201-266 6-Way 1GHz 90dB
201-268 8-Way 1GHz 90dB
TESTED
Chromate Plated
Epoxy-Sealed
DC Blocked
201-276 6-Way 1GHz 130dB
5-1000MHz 75ΩHighest Isolation F-Splitters
Vertical port design allows close mounting in
lock boxes for easy access of cable connections.
Capacitor-Coupled DC Power Blocked All Ports
Soldered-Back Cover 130dB min. RFI Shielding
High-Performance Printed-Board Circuitry
>-100dB Low Intermodulation Distortion
Anti-Corrosion Silver-Plated Zinc-Alloy Cast Housing
3/8˝ Precision Machined F-Connector Threads
Mounting Tabs with Screws – Cast-In Ground Block
1˝ centered F-ports accommodate security tools
SCTE Compliant SC IPS SP 202, 203;
SC IPS TP 406, 409; SCTE 29, 48, 04
Supplied with Protective F-Port Plastic Caps
201-271 3-Way Balanced 1GHz 130dB F-Splitter
Insertion Loss 6.2dB max.
Port-Port Isolation 34dB min.
Input Return Loss 21dB min.
201-272 2-Way 1GHz 130dB F-Splitter
Insertion Loss 3.9dB max.
Port-Port Isolation 27dB min.
Input Return Loss 25dB min.
201-273 3-Way 1GHz 130dB F-Splitter
Insertion Loss 4.0/7.1dB max.
Port-Port Isolation 32dB min.
Input Return Loss 24dB min.
201-274 4-Way 1GHz 130dB F-Splitter
Insertion Loss 7.2dB max.
Port-Port Isolation 26dB min.
Input Return Loss 27dB min.
201-276 6-Way 1GHz 130dB F-Splitter
Insertion Loss 10.3dB max.
Port-Port Isolation 26dB min.
Input Return Loss 18dB min.
201-278 8-Way 1GHz 130dB F-Splitter
Insertion Loss 11.4dB max.
Port-Port Isolation 31dB min.
Input Return Loss 27dB min.
1GHz 130dB Vertical Splitters
© 2004 Steren Electronics International, LLC B 4
201-271 3-Way Balanced 1GHz 130dB
201-273 3-Way 1GHz 130dB
201-272 2-Way 1GHz 130dB
201-274 4-Way 1GHz 130dB
201-278 8-Way 1GHz 130dB
Silver Plated
Soldered Back
DC Blocked
COMPLIANT
Protective
Port Caps
Premium 1GHz 130dB Digital Ready Splitters
Broadband and CATV 5-1000MHz 75ΩSplitters
Suitable for Hybrid Distribution Networks, HDTV,
Voice, Data, Modem and Digital Converter Applications
Gold-Plated Beryllium-Copper Two-Prong Contacts
Reduced Aperture Flat-Ended Ports
High-Performance Printed Board Circuitry
Tongue-and-Groove Housing
All Ports DC Power Capacitor-Blocked
Low Intermodulation Hum
Soldered-Back Cover 130dB min. EMI-RFI Shielding
Anti-Corrosion Silver-Plated Zinc-Alloy Cast Housing
3/8˝ Precision Machined F-Port Threads
1˝ centered F-ports accommodate security tools
SCTE Compliant SC IPS SP 202, 203;
SC IPS TP 406, 409; SCTE 29, 48, 04
Supplied with Protective F-Port Plastic Caps
201-101 3-Way Balanced 1GHz 130dB F-Splitter
Insertion Loss 6.2dB max.
Port-Port Isolation 37dB min.
Input Return Loss 26dB min.
201-102 2-Way Balanced 1GHz 130dB F-Splitter
Insertion Loss 4.0dB max.
Port-Port Isolation 37dB min.
Input Return Loss 24dB min.
201-103 3-Way Unbalanced 1GHz 130dB F-Splitter
Insertion Loss 4.0/7.2dB max.
Port-Port Isolation 36dB min.
Input Return Loss 27dB min.
201-104 4-Way Balanced 1GHz 130dB F-Splitter
Insertion Loss 7.1dB max.
Port-Port Isolation 35dB min.
Input Return Loss 24dB min.
201-106 6-Way Balanced 1GHz 130dB F-Splitter
Vertical Port Configuration
Insertion Loss 10.2dB max.
Port-Port Isolation 28dB min.
Input Return Loss 25dB min.
201-108 8-Way Balanced 1GHz 130dB F-Splitter
Vertical Port Configuration
Insertion Loss 11dB max.
Port-Port Isolation 35dB min.
Input Return Loss 24dB min.
1GHz 130dB Digital Splitters
© 2004 Steren Electronics International, LLC
B 5
201-101 3-Way Balanced 1GHz 130dB
201-103 3-Way 1GHz 130dB
201-102 2-Way 1GHz 130dB 201-104 4-Way 1GHz 130dB
201-106 6-Way 1GHz 130dB
201-108 8-Way 1GHz 130dB
High Performance
Printed Board Circuitry
Silver-Plated Zinc-Alloy Cast Housing
Gold-Plated
Beryllium-Copper
Contacts
Flat-Ended Ports
Flat Ports
Two-Prong Contacts
Soldered Back
Silver-Plated
DC Blocked
COMPLIANT
Protective
Port Caps
40-2400MHz 75ΩHigh-Frequency F-Splitters
Suitable for Analog and Digital Satellite Applications
90dB min RFI Shielding – Epoxy-Sealed Back-Cover
High-Performance Printed-Board Circuitry
Improved Hum Modulation and Intermodulation
Yellow-Chromate Plating – Zinc-Alloy Cast Housing
3/8˝ Precision Machined F-Connector Threads
Mounting Tabs with Screws – Cast-In Ground Block
DC Power Passing to One or All Ports for
Remote LNB-Powering Applications and
Powering Antenna Pre-Amplifier from Headend
F-ports accommodate security tools
201-232 2-Way 2.4GHz 90dB Satellite-Splitter
DC Power Passing to One Port
Insertion Loss 4.4dB max.
Port-Port Isolation 12dB min.
Input Return Loss 12dB min.
201-234 4-Way 2.4GHz 90dB Satellite-Splitter
DC Power Passing to One Port
Insertion Loss 8.8dB max.
Port-Port Isolation 20dB min.
Input Return Loss 12dB min.
201-242 2-Way 2.4GHz 90dB Satellite-Splitter
DC Power Passing to All Ports
DC Power Forward Bias
Insertion Loss 4.6dB max.
Port-Port Isolation 15dB min.
Input Return Loss 30dB min.
201-244 4-Way 2.4GHz 90dB Satellite-Splitter
DC Power Passing to All Ports
DC Power Forward Bias
Insertion Loss 7.9dB max.
Port-Port Isolation 20dB min.
Return Loss 8dB min.
2.4GHz Satellite Splitters
© 2004 Steren Electronics International, LLC B 6
201-232 2-Way 2.4GHz 1-Port DC-Passing
201-242 2-Way 2.4GHz DC-Passing
201-234 4-Way 2.4GHz 1-Port DC-Passing
40-2400MHz
201-242
2.4GHz
90
90dBdB
ISOLATION
SPLITTER
2-WAY
OUTPUT
OUTPUT
INPUT
2-WAY
POWER PAS S
SPLITTER
ISOLATION
2.4GHz
9090dB
dB
40-2400MHz
201-232
INPUT
OUTPUT OUTPUT
OUTPUT OUTPUT
4-WAY
POWER PASS
SPLITTER
40-2400MHz
201-2342.4GHz
9090dBdB
ISOLATION
201-244 4-Way 2.4GHz DC-Passing
2.4GHz
9090dB
dB
ISOLATION
40-2400MHz
201-244
Chromate Plated
Epoxy Sealed
DC Power Passing to One or All Ports
5-1000MHz 75ΩDirectional Couplers
90dB min RFI Shielding – Epoxy-Sealed Back-Cover
High Isolation of Reflected Signals
Printed-Board Circuitry – 2-Way System Compatible
Anti-Corrosion Plating – Zinc-Alloy Cast Housing
3/8˝ Precision Machined F-Connector Threads
Capacitor-Coupled DC Power Blocked All Ports
T-Type or Wall-Plate Mount Configurations
201-306 6dB T-Type Directional Coupler
201-309 9dB T-Type Directional Coupler
201-312 12dB T-Type Directional Coupler
201-316 16dB T-Type Directional Coupler
201-320 20dB T-Type Directional Coupler
201-324 24dB T-Type Directional Coupler
201-327 27dB T-Type Directional Coupler
201-330 30dB T-Type Directional Coupler
201-356 6dB Plate-Mount Directional Coupler
201-359 9dB Plate-Mount Directional Coupler
201-362 12dB Plate-Mount Directional Coupler
201-366 16dB Plate-Mount Directional Coupler
201-370 20dB Plate-Mount Directional Coupler
201-374 24dB Plate-Mount Directional Coupler
201-377 27dB Plate-Mount Directional Coupler
201-380 30dB Plate-Mount Directional Coupler
1GHz Directional Couplers
© 2004 Steren Electronics International, LLC
B 7
201-306 6dB
201-309 9dB
201-312 12dB
201-316 16dB
201-320 20dB
201-324 24dB
201-327 27dB
201-330 30dB
201-356 6dB
201-359 9dB
201-362 12dB
201-366 16dB
201-370 20dB
201-374 24dB
201-377 27dB
201-380 30dB
INPUT
201- 356
5-1000 MHz
1GHz
66
dBdB
OUTPUT
TAP
Specifications
T
ap
Value
(dB)
Insertion
Loss
(max./dB)
Isolation
Output-T
ap
(dB)
Return
Loss
(nom./dB)
6
9
12
16
20
24
27
30
2.2
1
1
1
0.5
0.5
0.5
0.5
26
28
35
35
40
40
40
40
15
16
20
20
20
20
20
20
Chromate Plated
Epoxy Sealed
DC Blocked
0-1750MHz Female-to-Male Inline Attenuators
Monolithic Ceramic Printed-Board Circuitry
Nickel-Plated Machined Brass Construction
22-Gauge Spring-Steel Center – Tolerance 5%
Return Loss 20dB typical
201-403 3dB Inline Attenuator Pad
201-406 6dB Inline Attenuator Pad
201-408 8dB Inline Attenuator Pad
201-410 10dB Inline Attenuator Pad
201-412 12dB Inline Attenuator Pad
201-416 16dB Inline Attenuator Pad
201-420 20dB Inline Attenuator Pad
0-1750MHz Female-to-Male Inline Attenuators
DC Power Passing
Monolithic Ceramic Printed-Board Circuitry
Nickel-Plated Machined Brass Construction
22-Gauge Spring-Steel Center – Tolerance 5%
Return Loss 20dB typical
201-503 3dB Inline DC-Passing Attenuator
201-506 6dB Inline DC-Passing Attenuator
201-508 8dB Inline DC-Passing Attenuator
201-510 10dB Inline DC-Passing Attenuator
201-512 12dB Inline DC-Passing Attenuator
201-516 16dB Inline DC-Passing Attenuator
201-520 20dB Inline DC-Passing Attenuator
201-500 5-1750MHz DC Blocking Coupler
Female-to-Male – Insertion Loss 0.3dB
Return Loss 16dB Typical
22-Gauge Spring-Steel Center
Nickel-Plated Machined Brass
201-590 SurgeStop™ Coaxial Surge Protector
Provides lightning protection for satellite
receivers, CATV converters, TVs, VCRs
10,000MΩProtection – Self-Resetting
Response Time 100 ns
Surge Resistance ~0Ω
Frequency Range 5-2150MHz
Power Passing Capability:
10A 50VDC 36VAC RMS
Insertion Loss: <0.2dB Video –1500MHz
Return loss (75Ω):
16dB (VSWR 1.38) Video – 500 MHz
14dB (VSWR 1.50) 500-1500 MHz
Coaxial Surge Protector
Voltage Blocking Coupler
Inline DC Passing Attenuators
Inline Attenuator Pads
© 2004 Steren Electronics International, LLC B 8
201-590
10.000 Megaohms
5.000 Amps Max
100nS Response
SURGE
STOP
201-590
0-1750 MHz
ATTENUATOR
201-403 3dB
201-406 6dB
201-408 8dB
201-410 10dB
201-412 12dB
201-416 16dB
201-420 20dB
201-500
201-503 3dB DC Power Passing
201-506 6dB DC Power Passing
201-508 8dB DC Power Passing
201-510 10dB DC Power Passing
201-512 12dB DC Power Passing
201-516 16dB DC Power Passing
201-520 20dB DC Power Passing
0-1750 MHz
ATTENUATOR
SATELLITE DIPLEXER
COMBINER SPLITTER
POWER PASS
BS-1F SAT
VHF-VHF-FM
VHF-VHF-FM BS-1F SAT
5-2400MHz
201-254
5-2400MHz Satellite Splitter-Combiners
Separates or combines off-air TV-antenna and
satellite signals from or onto a single feed-line
High-Performance SMD Printed-Board Circuitry
Anti-Corrosion Nickel-Plated Zinc-Alloy Cast Housing
90dB min. RFI Shielding – Epoxy-Sealed Back-Cover
3/8˝ Precision Machined F-Connector Threads
DC Power Passing to One Port 500mA max.
Insertion Loss VHF-UHF 0.5dB – Satellite 1.5dB
Isolation VHF 25dB – UHF 20dB – Satellite 23dB
Return Loss VHF 18dB – UHF 10dB – Satellite 12dB

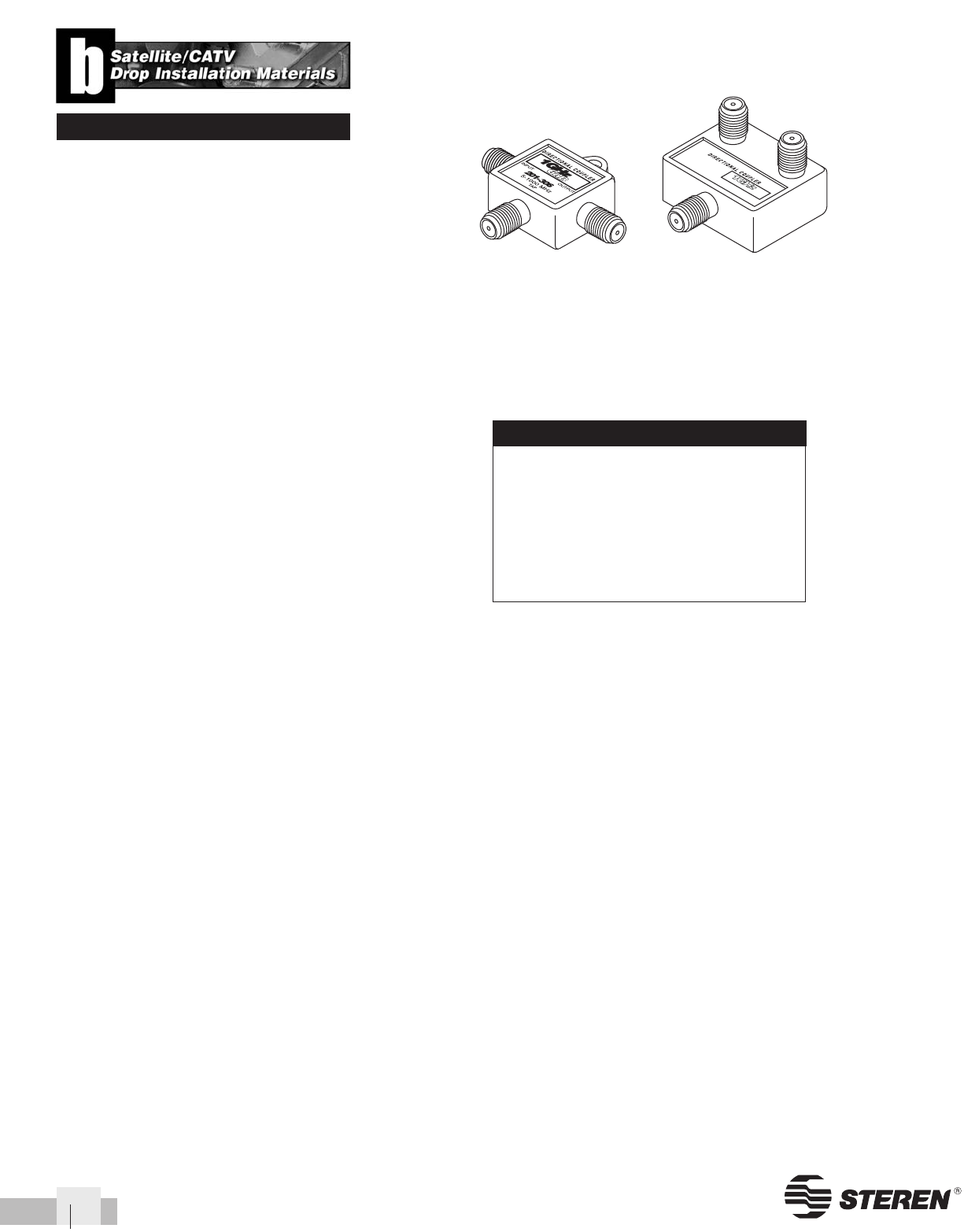

201-252 5-2400MHz TV-Satellite Diplexer
Dimensions 13/8˝(W) x 2˝(H) x 1˝(D)
Nickel-Plated Zinc-Cast Housing
201-254 5-2400MHz TV-Satellite Mini-Diplexer
Dimensions 11/2˝(W) x 5/8˝(H) x 1˝(D)
Chromate-Plated Zinc-Cast Housing
3/8˝ Precision Machined F-Connector Threads
Epoxy Sealed Back Cover
Yellow Chromate-Plated Zinc-Alloy Cast Housing
Filters and mixes VHF and UHF signals, allowing
mixing of multiple antennas onto single cable
Reduces harmonics and out-of-band interference
DC Power Passing All Ports
Insertion Loss 0.5dB max.
Port-Port Isolation 20dB min.
Input Return Loss 25-30dB min.
201-602 VHF Band High-Low Separator-Combiner
Separates and isolates or combines
VHF low (54-108MHz) from
VHF high (175-216MHz) signals for
clean insertion into amplifiers
201-604 UHF-VHF Bands Separator-Combiner
Separates and isolates or combines
VHF (54-216MHz) from
UHF (407-809MHz) signals for
clean insertion into amplifiers
Cost-Effective High-Quality Signal Combiners
Used with multiple TV sets for decoded programming
Precision-tuned 6-stage bandpass-bandstop filters
provide 6MHz carrier-free environment for
locally originated channel insertion
High Skirt Selectivity – Sharp Frequency Cut Off
Easy Balancing Adjustment Tuning
High Unwanted Signal Attenuation
Rejection Depth >25dB – Insertion Loss 3dB
Adjacent Channel Loss 5.5dB
Adjustable Balancing Attenuators
F-Type Connectors
Dimensions 33/8˝(W) x 33/4˝(H) x 11/8˝(D)
201-030 Channel 3 Signal Combiner
201-040 Channel 4 Signal Combiner

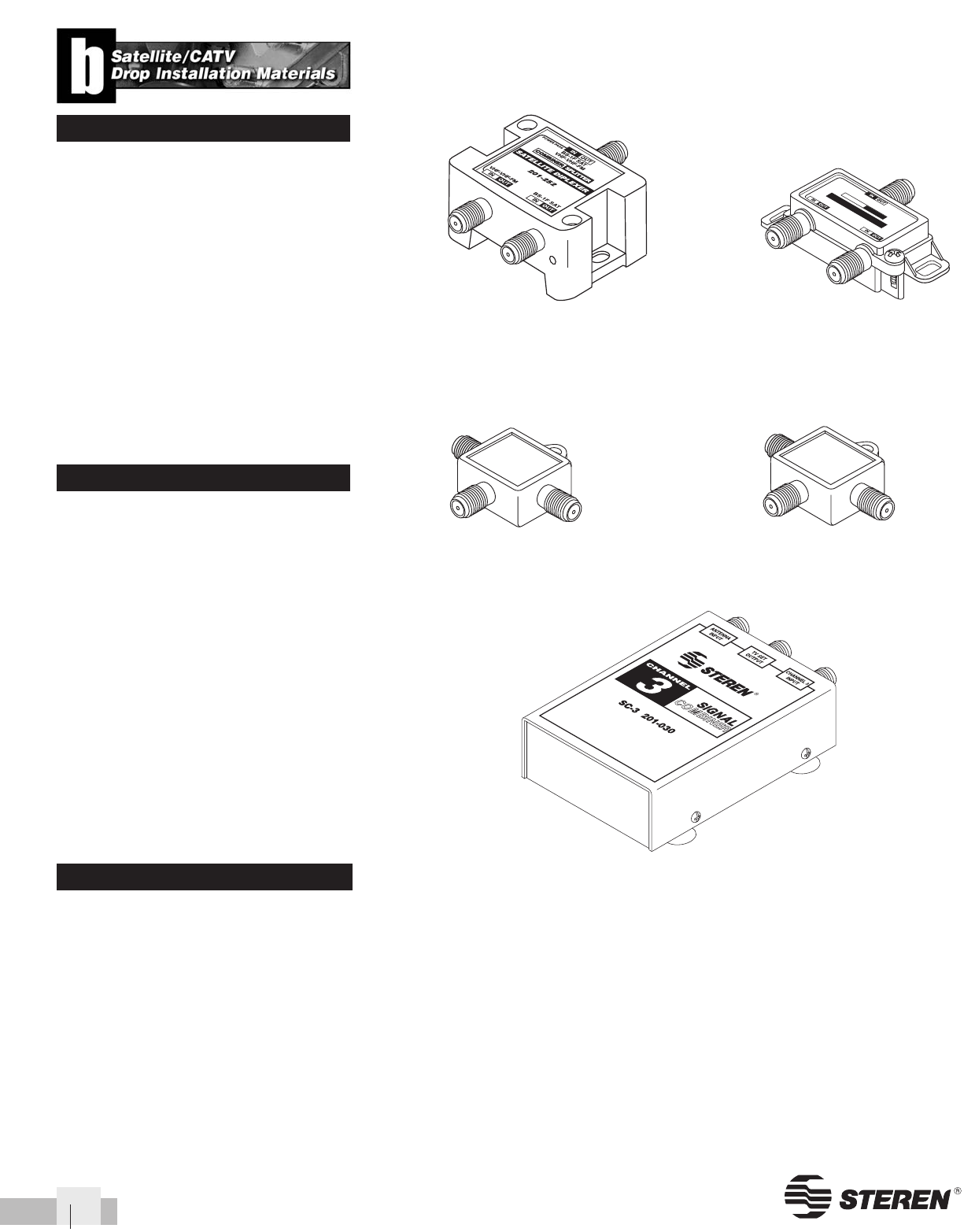

Signal Combiners
Band Separator-Combiners
Satellite Diplexer-Mixers
© 2004 Steren Electronics International, LLC
B 9
201-254
201-252
VHF
LOW
VHF HIGH-LOW
SEPARATOR-COMBINER
201-602
LINE
VHF
HIGH
201-602
VHF
VHF -VHF
SEPARATOR-COMBINER
201-604
LINE
VHF
201-604
5-2400MHz
201-030 Channel-3
201-040 Channel-4
UHF/VHF/FM Broadband Amplifiers
Low-Noise – Heavy-Gauge Shielded Case
Bandwidth 54-890MHz – Impedance 75Ω
117 VAC 60Hz Power Source – UL Listed
200-651 25dB Broadband Amplifier
Switchable FM Attenuation Trap
FM Rejection-20dB at 88-108MHz
VHF Gain 25dB – UHF Gain 21dB
VHF Noise 6dB – UHF Noise 8dB
Flatness Response ±2dB
On-Off Indicator Light
65/8˝(W) x 13/8˝(H) x 31/8˝(D)
200-652 6dB 2-Output Broadband Amplifier
VHF Gain 6dB – UHF Gain 3dB
Flatness Response ±2dB
31/2˝(W) x 11/2˝(H) x 21/4˝(D)
200-656 10dB Broadband Amplifier
VHF Gain 10dB – UHF Gain 7dB
Flatness Response ±2dB
31/2˝(W) x 11/2˝(H) x 21/4˝(D)
200-700 3dB 4-Output Broadband Amplifier
VHF Gain 3dB – UHF Gain 0dB
Flatness Response ±2dB
31/2˝(W) x 11/2˝(H) x 21/4˝(D)
200-670 35dB CATV Distribution Amplifier
Bandwidth 47-450MHz
Band Flatness ±1.5dB
Input Return Loss 14dB
Slope Control Adjustment 0-10dB
Gain Control Adjustment 0-15dB
Test Port -20dB
Shielded Metal Housing
65/8˝(W) x 13/8˝(H) x 31/8˝(D)
200-660 28dB Mast-Mount Signal Booster
Low-Noise – Lightning Protection
VHF Gain 28dB – UHF Gain 22dB
54-890 MHz UHF-VHF FM
117VAC 60Hz Power Supply
Input Impedance 75-300Ω
Output Impedance 75-300Ω
Booster 2˝(W) x 51/4˝(H) x 11/2˝(D)
Power Supply 3˝(W) x 15/8˝(H) x 4˝(D)
Mast-Mount Video Amplifier
CATV Distribution Amplifier
CATV Amplifiers
© 2004 Steren Electronics International, LLC B 10
3dB
OUT
UHF/VHF/FM
4-WAY AMPLIFIER
MODEL 200-700
OUT
10dB
OUT
UHF/VHF/FM
10 dB Amplifier
MODEL 200-655
IN
200-700 3dB200-656 10dB
200-651 25dB
INPUT
IN
OUTPUT
OUT
117V
60HZ
UHF/VHF/FM
25dB Video Distribution Amplifier
FM TRAP
25dB
200-652 6dB
6dB
OUT
UHF/VHF/FM
2-WAY AMPLIFIER
MODEL 200-652
OUT
15dB
INPUT
OUTPUT
ATTENUATION
-10dB
TEST
0dB
-10dB
0dB
0dB
GAIN TILT
CA
TV DISTRIBUTION AMPLIFIER
200-670
110V - 3W
HIGH OUTPUT
200-670 35dB
300–75
To TV
75 300
To Amplifier
28dB
200-660 28dB
Indoor Home-Apartment CATV Drop Amplifiers
Compensate for long cable drops or multiple TV sets
Bandwidth 5-1000MHz – Low Noise Circuitry
151 Channel Capable – Superior Gain Flatness
Return Loss 12-14dB min. – Noise 6dB Typical
Dist X-Mod -70dBmV – CTB -65dBmV
Soldered-Back Cover 130dB min. EMI-RFI Shielding
Anti-Corrosion Tin-Plated Zinc-Alloy Cast Housing
Precision Machined F-Connector Threads
Mounting Tabs with Screws – Cast-In Ground Block
Supplied with 120VAC-12VDC 150mA Transformer
201-600 Power Insertion Coupler
201-601 F-Port Power Inserter UL Transformer
UL 6-Watt 120VAC-12VDC 150mA
201-615 10dB Drop Amplifier
Max. Output +25dBmV
Includes 12VDC 150mA transformer
201-620 20dB Drop Amplifier
Max. Output +30dBmV
Includes 12VDC 150mA transformer
201-625 10dB Power-Insertion Drop Amplifier
Max. Output +25dBmV
Includes 12VDC 150mA transformer
Includes 201-600 power inserter
201-630 20dB Power-Insertion Drop Amplifier
Max. Output +30dBmV
Includes 12VDC 150mA transformer
Includes 201-600 power inserter
201-635 10dB 2-Way-Passive Drop Amplifier
5-40 MHz Passive Return Path
Forward Gain 10dB±1dB 40-1000MHz
Reverse Gain -0.6dB 5-40MHz
Max. Output +25dBmV
Includes 12VDC 150mA transformer
201-640 20dB 2-Way-Passive Drop Amplifier
5-40 MHz Passive Return Path
Forward Gain 20±1dB 40-1000MHz
Reverse Gain -0.6dB 5-40MHz
Max. Output +30dBmV
Includes 12VDC 150mA transformer
201-645 10dB 2-Way-Active Drop Amplifier
5-40 MHz Active Return Path
Forward-Reverse Gain 10±1dB
Max. Output +25dBmV
Includes 12VDC 150mA transformer
201-650 20dB 2-Way-Active Drop Amplifier
5-40 MHz Active Return Path
Forward-Reverse Gain 10±1dB
Max. Output +30dBmV
Includes 12VDC 150mA transformer
1GHz CATV Drop Amplifiers
© 2004 Steren Electronics International, LLC
B 11
AC/DC CONVERTER
201-601
INPUT 120VAC 60Hz 6W
OUTPUT 12VDC 150mA
®
LISTED
6G06
E186736
-
+
201-615 10dB
201-620 20dB
OUTPUT
INPUT
10dB
1GHz1GHz
201-625
54-1000 MHz
DROP AMPLIFIER
AC/DC CONVERTER
201-601
INPUT 120VAC 60Hz 6W
OUTPUT 12VDC 150mA
®
LISTED
6G06
E186736
-
+
OUTPUT
INPUT
DC12V
INTPUT
10dB
1GHz
1GHz
201-635
54-1000 MHz
DROP AMPLIFIER
201-635 10dB 2-Way-Passive
201-640 20dB 2-Way-Passive
201-645 10dB 2-Way-Active
201-650 20dB 2-Way-Active
AC/DC CONVERTER
INPUT 120VAC 60Hz 6W
OUTPUT 12VDC 150mA
®
LISTED
6G06
E186736
-
+
201-625 10dB
201-630 20dB
OUTPUT
INPUT
DC12V
INTPUT
10dB
1GHz
1GHz
201-615
54-1000 MHz
DROP AMPLIFIER
AC/DC CONVERTER
201-601
INPUT 120VAC 60Hz 6W
OUTPUT 12VDC 150mA
®
LISTED
6G06
E186736
-
+
201-601
201-600
High-Quality Satellite IF Inline Amplifiers
Suitable for DBS or Satellite Applications
Power Requirements 12-18VDC 45mA
Impedance 75Ω– Frequency 40-2250MHz
DC Pass-Through Current 500mA max.
Output Level 105dBµV max.
Low Noise 5dB – Input Return Loss 6dB
High-Performance SMD Board Circuitry
Precision Machined F-Connector Threads
Nickel-Plated Zinc-Alloy Cast Housing
201-605 16-20dB Sloped 950-2250MHz Amplifier
Sloped-Gain for Long-Cable Runs
Solder-Backed Back Cover Plate
201-608 20dB 40-2250MHz Inline Amplifier
Terrestrial TV-Satellite Applications
Solder-Backed Cover Plate
201-609 16-20dB Sloped 40-2250MHz Amplifier
Sloped-Gain for Long-Cable Runs
Terrestrial TV-Satellite Applications
Solder-Backed Cover Plate
201-610 20dB 950-2250MHz Inline Amplifier
Solder-Backed Back Cover Plate
200-582 DirecTV Dual-Feed DSS LNBF
Genuine DirecTV Replacement
True-Circular Polarized LNBF
High Performance and Stability
DirecTV/Dish Network 300 Compatible
Fits rectangular RCA Tube or
D-Tube arm-dishes except Sony and
Hughes plastic mounts
Excellent Noise Attenuation and
Cross Polarization
Harsh-Environment – Weatherproof
RF Input Frequency 12.2-12.7 GHz
IF Output Frequency 950-1450MHz
LO Stability 11.25GHz ±2MHz @22°C,
11.25GHz ±4MHz @-35-52°C
Converter Gain 50-62dB±0.5dB max.
Converter Noise 0.9dB typ., 1.1dB max.
Output VSWR 75Ω2.0:1 max.
Power 10.5-14VDC RHP
Power 15.5-21VDC LHP
221-120 Satellite Antenna T
ripod Tower Base
Swing-Up Easy Installation
Fits DirecTV/Dish Network antennas
Zinc-Plated 16-Gauge T
ubular Steel
Legs O.D. 11/4˝ – Mast O.D. 15/8˝
Black Oxide Steel Mounting Screws
0.10˝ Thick Yellow-Chromate and
Cold Rolled Steel Support Arms
311/4˝ (W) x 451/2˝ (H) x 255/8˝ (D)
Satellite Antenna Tripod
DSS Circular Ku-Band LNBF
Satellite Inline Amplifiers
© 2004 Steren Electronics International, LLC B 12
201-605 16-20dB Sloped 950-2250MHz
201-608 20dB 40-2250MHz
201-609 16-20dB Sloped 40-2250MHz
201-610 20dB 950-2250MHz
201-605
450-2050 MHz
16-20dB
T
O
LBN
2GHz2GHz
INLINE
AMPLIFIER
20
20dBdB
T
O
RECEIVER
15 VDC
200-582 Dual
Genuine DirecTV
Replacement
221-120 Satellite Antenna T
ripod

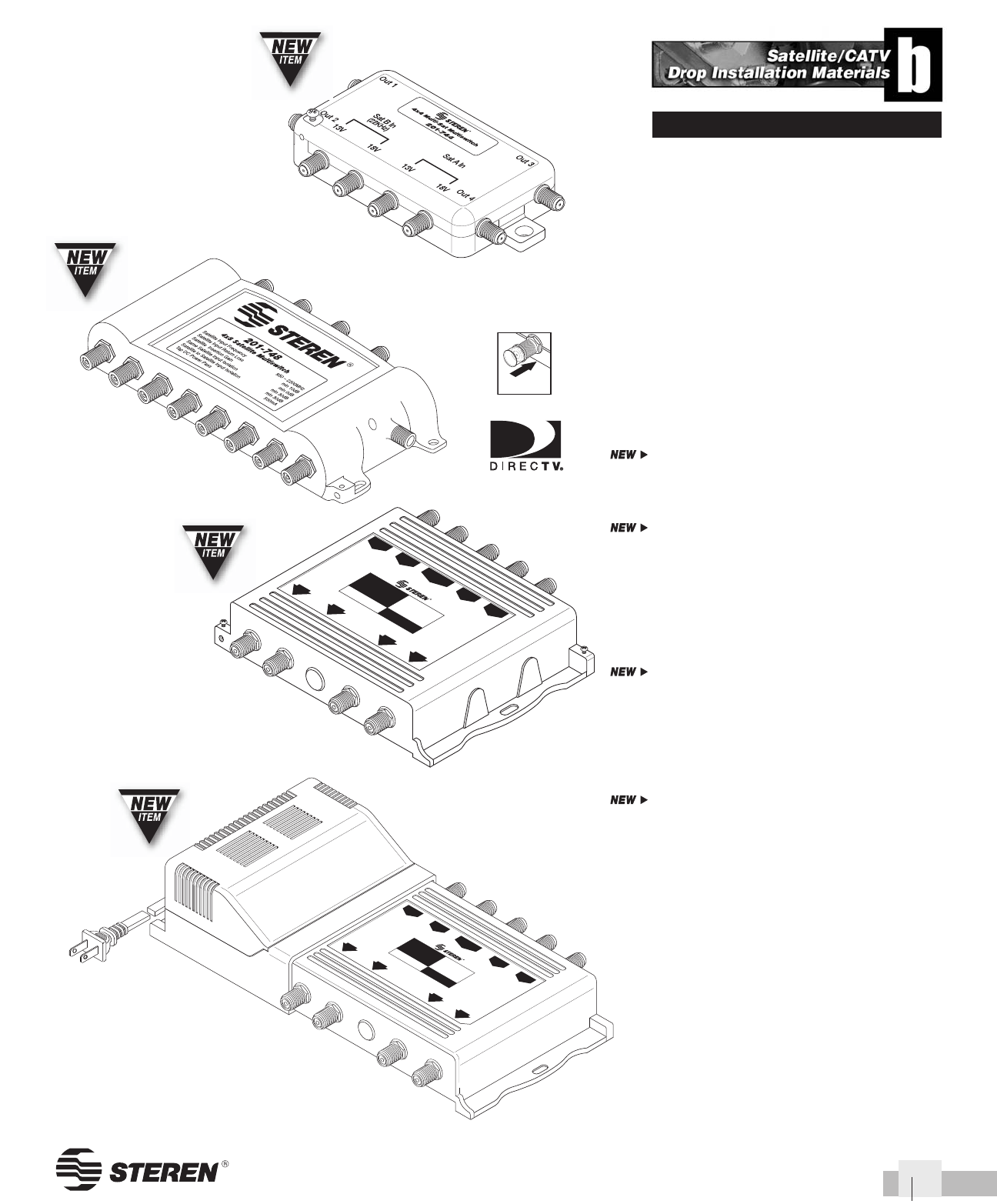

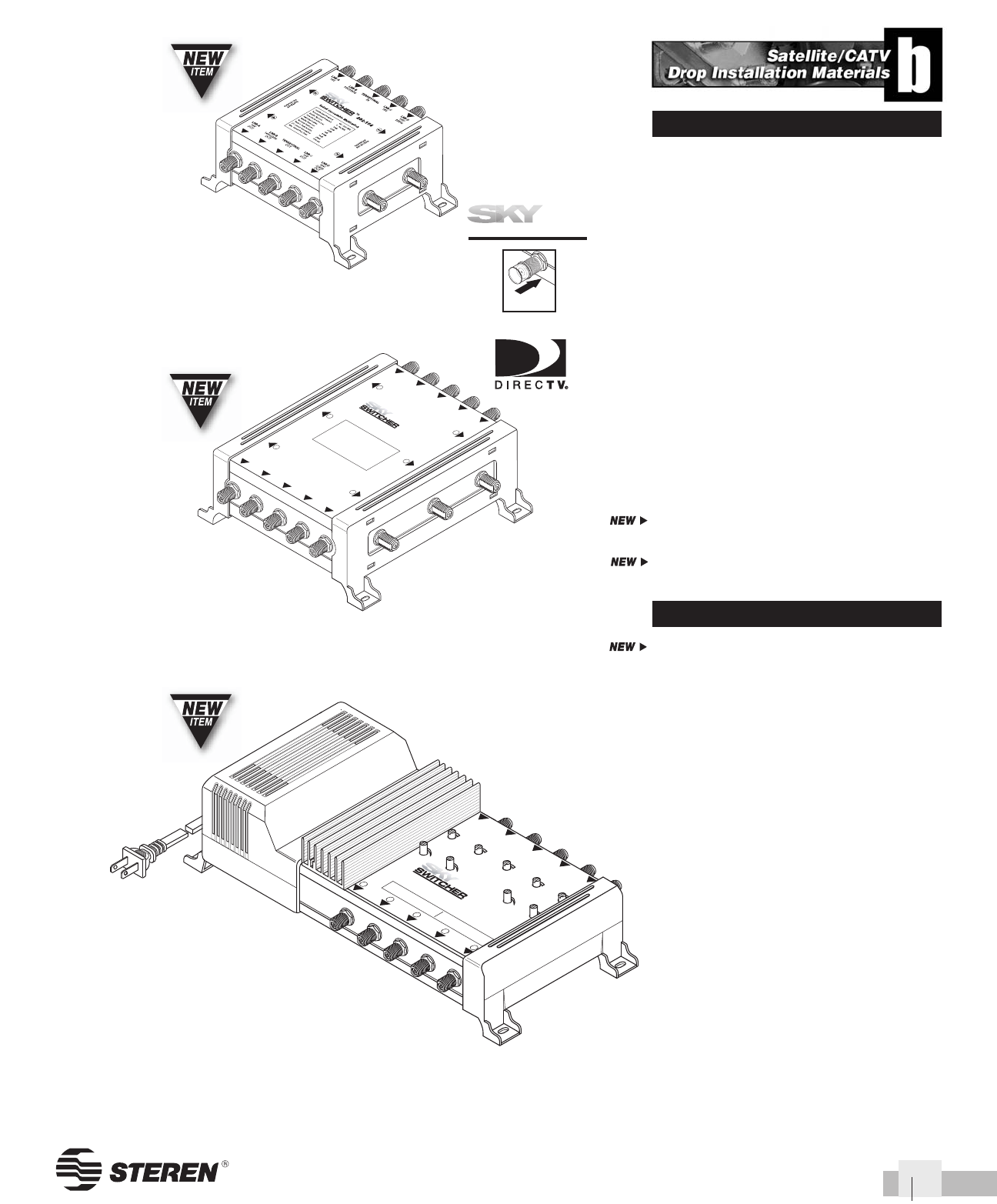

Multi-Receiver Satellite Multiswitches
Designed for Residential and Commercial Applications
Multiswitch allows independent operation of
multiple satellite receivers using a single dish
Combines 2 satellite LNB and 1 off-air
TV antenna inputs to any satellite receiver
Routes any input to any output using
13-14V vertical or 17-18V horizontal polarities
SMD Multiple-Layered Printed Circuit Board Design
High-Performance Pin-Diode Signal Switching
Precision Machined F-Connector Threads
Impedance 75Ω– 60mA DC Current Consumption
Current Pass 500mA max.
Terrestrial Ports Frequency 5-862MHz
Satellite Port Frequency 950-2200MHz
Supplied with Protective F-Port Plastic Caps
201-734 3x4 Satellite Multiswitch
Isolation 14dB – Return Loss 8dB
Insertion Loss 5dB Sat, 4dB Terr
57/8˝(W) x 31/8˝(H) x 11/8˝(D)
201-735 3x4 Compact Satellite Mini-Multiswitch
Isolation 20dB – Return Loss 8dB
Insertion Loss 7dB Sat, 12dB Terr
39/16˝(W) x 7/8˝(H) x 25/8˝(D)
201-736 3x4 High Performance Multiswitch
Isolation 35dB – Return Loss 10dB
Insertion Loss: 3dB Sat, 2.1dB Terr
53/8˝(W) x 21/2˝(H) x 1˝(D)
201-738 3x8 Satellite Multiswitch
Isolation 30dB – Return Loss 8dB
Insertion Loss: 6dB Sat, 15dB Terr
Optional 18VDC 500mA Power Supply
Sold Separately (201-739)
53/4˝(W) x 4˝(H) x 11/8˝(D)
201-739 18VDC 500mA Power Supply
Powers 201-738, 202-134
201-740 22kHz Tone-Controlled Auto Switch
DirecTV
, DVB, 4DTV Compatible
Used in signal routing in DSS, Ku, C,
digital and analog environments
Switches between two separate LNB
feeds on the same or separate dishes
SMD Printed Circuit Board Design
High-Performance Pin-Diode Switching
Nickel-Plated Zinc-Alloy Cast Housing
Weather-Proof Sealed Construction
Precision Machined F-Connector Threads
Frequency Range 47-2250MHz
Impedance 75Ω– Insertion Loss 2dB
Switching Isolation 25dB
Input Isolation 30dB – Return Loss 8dB
DC Pass Through Current 500mA max.
DC Current Consumption 15mA
3˝(W) x 3˝(H) x 13/8˝(D)
DSS Tone-Controlled Switch
Satellite Multiswitches
© 2004 Steren Electronics International, LLC
B 13
OUTPUT
RECEIVERS
LNB-A
14V-22KHz
LNB-B
18V
201-740
(22KHz)
47-2250 MHz
AC/DC CONVERTER
201-739
INPUT 110VAC60Hz
OUTPUT 18VDC 500mA
®
LISTED
6G06
E186736
-+
x
x
40-2150 MHZ
OUTPUT
RECEIVER
1
40-2150 MHZ
OUTPUT
RECEIVER
2
40-2150 MHZ
OUTPUT
RECEIVER
3
40-2150 MHZ
OUTPUT
RECEIVER
4
INPUT
40-860 MHZ
INPUT
950-2150 MHZ
INPUT
950-2150 MHZ
TERRESTRIAL
ANTENNA
LNB B
13V-14V
LNB A
17V-18V
40-2150 MHZ
3-INPUT
VOLTAGE-CONTROLLED
SWITCHER
201-734
47-2050 MHZ
OUTPUT
RECEIVER
1
47-2050 MHZ
OUTPUT
RECEIVER
2
47-2050 MHZ
OUTPUT
RECEIVER
3
47-2050 MHZ
OUTPUT
RECEIVER
4
INPUT
47-860 MH
Z
INPUT
950-2050 MH
Z
INPUT
950-2050 MH
Z
TERRESTRIAL
ANTENNA
LNB B
13V-14V
LNB A
17V-18V
47-2050 MHZ
OUTPUT
RECEIVER
7
47-2050 MHZ
OUTPUT
RECEIVER
8
47-2050 MHZ
OUTPUT
RECEIVER
5
47-2050 MHZ
OUTPUT
RECEIVER
6
40-2150 MHZ
x
x
3-INPUT
VOL
TAG
E-CONTR
OLLED
SWITCHER
201-738
DC 18V
201-740
201-734 3x4
40-2150 MH
Z
OUTPUT
RECEIVER
1
40-2150 MH
Z
OUTPUT
RECEIVER
2
40-2150 MH
Z
OUTPUT
RECEIVER
3
40-2150 MH
Z
OUTPUT
RECEIVER
4
INPUT
40-860 MHZ
TERRESTRIAL
ANTENNA
INPUT
950-2150 MHZ
LNB B
13V-14V
INPUT
950-2150 MHZ
LNB A
13V/14V
40-2150 MHZ
x
x
3-INPUT
VOLTAGE-CONTROLLED
SWITCHER
201-735
201-735 3x4 Compact
201-739
201-738 3x8
HDTV
201-736 3x4 High-Performance
Protective
Port Caps
22kHz Heavy-Duty Multi-LNB Multiswitches
Designed for Residential and Commercial Applications
Suitable for HDTV and DirecTV-Para-Todos Feeds
Multiswitch allows independent operation of
multiple satellite receivers using a single dish
Combines up to 4 satellite LNB inputs and
1 off-air TV antenna input to any satellite receiver
Routes any LNB input to any output using
13-14V vertical or 17-18V horizontal polarities and
0-22kHz set at the receiver
SMD Multiple-Layered Printed Circuit Board Design
High-Performance Pin-Diode Signal Switching
Heavy-Duty Cast Aluminum Housing
Precision Machined F-Connector Threads
Terrestrial Ports Frequency 5-862MHz
Satellite Port Frequency 950-2200MHz – 75ΩImped.
Supplied with Protective F-Port Plastic Caps
201-744 4x4 Dish Mount Satellite Multiswitch
Insertion Loss 5dB
Isolation 30dB – Return Loss 9dB
6˝(W) x 21/2˝(H) x 1˝(D)
201-748 4x8 Satellite Multiswitch
22kHz Tone Output Suitable for
DirecTV Phase III System
Insertion Gain 0dB min.
Isolation 30dB – Return Loss 10dB
DC Current Consumption 30mA
Current Pass 500mA max.
71/2˝(W) x 31/4˝(H) x 13/8˝(D)
202-550 5x4 Satellite Multiswitch
Isolation 40dB – Return Loss 10dB
Insertion Loss: 10dB Sat, 16dB Terr
Rejection: 20dB Sat, 30dB Terr
DC Current Consumption 60mA
Current Pass 500mA max.
57/8˝(W) x 41/2˝(H) x 11/4˝(D)
202-557 5x4 Amplified Satellite Multiswitch
Isolation 40dB – Return Loss 10dB
Insertion Loss 3dB max.
Noise Figure: 8dB Sat, 6dB T
err
Rejection: 20dB Sat, 30dB Terr
Sat Output Level 100dBµV @35dB IMA3
T
err Output Level 100dBµV @60dB IMA3
Power Consumption 26W
Current Pass 700mA max.
22kHz generated internally:
5mVpp@18VDC – 10mVpp@13VDC
95/8˝(W) x 41/2˝(H) x 11/4˝(D)
22kHz Satellite Multiswitches
© 2004 Steren Electronics International, LLC B 14
202-550 5x4
202-557 5x4 Amplified
950-2050 MHZ
OUTPUT
RECEIVER
1
950-2050 MHZ
OUTPUT
RECEIVER
2
950-2050 MHZ
OUTPUT
RECEIVER
3
950-2050 MHZ
OUTPUT
RECEIVER
4
5-860
TERRESTRIAL
ANTENNA
INPUT
950-2050 MHZ
LNB D
18V-22KHz
INPUT
950-2050 MHZ
LNB A
14V
INPUT
950-2050 MHZ
LNB B
14V-22KHz
INPUT
950-2050 MHZ
LNB C
18V
5-2150 MHZ
5-INPUT
VOLTAGE-CONTROLLED
SWITCHER
202-557
AC POWERED
MULTISWITCH
5 4
x
x
201-744 4x4
201-748 4x8
AB
47-2150 MHZ
OUTPUT
RECEIVER
1
47-2150 MHZ
OUTPUT
RECEIVER
2
47-2150 MHZ
OUTPUT
RECEIVER
3
47-2150 MHZ
OUTPUT
RECEIVER
4
INPUT
47-860 MHZ
INPUT
950-2150 MHZ
INPUT
TERRESTRIAL
ANTENNA
950-2150 MHZ
LNB B
18V
LNB A
14V
INPUT
950-2150 MHZ
LNB D
18V/22KHz
INPUT
950-2150 MHZ
LNB C
14V/22KHz
47-2150 MHZ
5-INPUT
VOLTAGE-CONTROLLED
SWITCHER
202-550
5 4
x
x
MULTISWICH
HDTV
Protective
Port Caps
Premium Grade Multi-Receiver Multiswitches
Designed for professional commercial installations
Multiswitch allows independent operation of
multiple satellite receivers using a single dish
Combines up to 4 satellite LNB inputs and
1 off-air TV antenna input to any satellite receiver
Routes any LNB input to any output using
13-14V vertical or 17-18V horizontal
polarities and 0-22kHz set at the receiver
Suitable for HDTV and DirecTV Para-Todos Feeds
SMD Multiple-Layered Printed Circuit Board Design
High-Performance Pin-Diode Signal Switching
Tin-Plated Steel Housing – Plastic Mounting Feet
Precision Machined F-Connector Threads
Impedance 75Ω– Current Pass 500mA max.
DC Current Consumption 50-60mA
Terrestrial Ports Frequency 5-862MHz
Satellite Port Frequency 950-2200MHz
Supplied with Protective F-Port Plastic Caps
201-739 18VDC 500mA Power Supply
Powers 201-738, 202-134
201-749 24VDC 600mA Power Supply
Powers 202-058 5x8 multiswitch
202-044 4x4 SkySwitcher™Multiswitch
Isolation 35dB – Return Loss 8dB
Insertion Loss 10 dB max.
53/4˝ (W) x 4˝ (H) x 15/8˝ (D)
202-054 5x4 SkySwitcher™Multiswitch
Isolation 35dB – Return Loss 8dB
Insertion Loss 10dB Sat, 20dB Terr
53/4˝(W) x 4˝(H) x 15/8˝ (D)
202-058 5x8 SkySwitcher™ Multiswitch
Isolation 50dB – Return Loss 8-10dB
Insertion Loss 10dB Sat, 20dB T
err
Rejection 25-28dB – Flatness ±2dB
Noise Figure Sat 5dB Terr 6dB
Sat Output Level 85dBµV@35dB IMA3
Terr Output Level 92dBµV@35dB IMA3
Optional 24VDC 600mA Power Supply
Sold Separately (201-749)
101/4˝ (W) x 4˝ (H) x 15/8˝ (D)
202-134 3x4 SkySwitcher™Multiswitch
Isolation 25dB – Return Loss 10dB
Insertion Loss 10dB Sat, 20dB T
err
Optional 18VDC 500mA Power Supply
Sold Separately (201-739)
53/4˝ (W) x 4˝ (H) x 15/8˝ (D)
202-254 5x4 SkySwitcher™ Amplified Multiswitch
Isolation 40dB – Insertion Loss 3dB max.
Rejection 20dB Sat, 30dB Terr
Noise Figure Sat 8dB Terr 6dB
Sat Output 100dBµV @35dB IMA3
Terr Output 99dBµV @60dB IMA3
Current Pass 700mA Maximum
9˝ (W) x 4˝ (H) x 21/4˝ (D)
SkySwitcher™Multiswitches
© 2004 Steren Electronics International, LLC
B 15
202-058 5x8
SWITCHER
TM
202-054 5x4
12345678
OUTPUT
RECEIVERS
OUTPUT
RECEIVERS
OUTPUT
RECEIVERS
OUTPUT
RECEIVERS
OUTPUT
RECEIVERS
OUTPUT
RECEIVERS
OUTPUT
RECEIVERS
202-058
5x8 Voltage Controlled Multiswitch
DC 24V
LNB-A
14V
LNB-D
18V/22MHZ
LNB-B
18V
LNB-C
14V/22MHZ
TERRESTRIAL
Satellite Input Frequency 95
0 – 2200 MHz
Ter restrial Input Frequency 47
– 862 MHz
Satellite Tap Loss 10
dB
Ter restrial Insertion Loss 8 dB
Switching Isolation 25
dB
DC Current Consumption 60
mA
Max. Current to LNB’s 50
0 mA
External DC Input 24V
TM
202-254 5x4 Amplified
202-134 3x4
201-739 18VDC 500mA
201-749 24VDC 600mA
AC/DC CONVERTER
201-749
INPUT 110VAC 60Hz
OUTPUT 24VDC 600mA
®
LISTED
6G06
E186736
-+
202-044 4x4
1234
OUTPUT
RECEIVERS
OUTPUT
RECEIVERS
OUTPUT
RECEIVERS
LNB-A
14V
LNB-B
18V
LNB-C
14V/22kHz
LNB-D
18V/22kHz
202-044
4x4 Voltage Controlled Multiswitch
Satellite Input Frequency 950 - 2200 MHz
Satellite Tap Loss 10 dB
Switching Isolation 30 dB
Input Isolation 35 dB
DC Current Consumption 25mA
Max. Current to LNB's 500 mA
TM
LNB-A
14V
LNB-B
18V
TERRESTRIAL LNB-C
14V/22kHz
LNB-D
18V/22kHz
1234
OUTPUT
RECEIVERS
OUTPUT
RECEIVERS
OUTPUT
RECEIVERS
202-254
5x4 Amplified Multiswitch
Satellite Input Frequency 950 - 2200 MHz
Ter restrial Input Frequency 47
- 862 MHz
Satellite Tap Loss 10 dB
Ter restrial Insertion Loss 18 dB
Switching Isolation 30 dB
Input Isolation 35 dB
DC Current Consumption 25mA
Max. Current to LNB's 500 mA
TM
1234
OUTPUT
RECEIVERS
OUTPUT
RECEIVERS
OUTPUT
RECEIVERS
LNB-A
14V
TERRESTRIAL LNB-B
18V
202-134
3x4 Satellite Multiswitch
Satellite Input Frequency 950 - 2200 MHz
Ter res trial Input
Frequency 47 - 862
MHz
Satellite
Tap Loss 4
dB
Ter res trial Insertion Loss 13
dB
Switching Isolation 20 dB
Input Isolation 35
dB
Max. Current to LNB's 50
0 mA
External DC Input 18V
DC18V
TM
HDTV
Protective
Port Caps
SkySwitcher™ 22kHz Cascade Multiswitches
Designed for MDU networks over 20 subscribers
Multiswitch allows independent operation of
multiple satellite receivers using a single dish
Combines 4 satellite LNB inputs and
1 off-air TV antenna input to any satellite receiver
Routes any LNB input to any output using
13-14V vertical or 17-18V horizontal polarities and
0-22kHz set at the receiver
Suitable for HDTV and DirecTV Para-Todos Feeds
SMD Multiple-Layered Printed Circuit Board Design
High Performance Pin-Diode Signal Switching
Tin-Plated Steel Housing – Plastic Mounting Feet
Precision Machined F-Connector Threads
Impedance 75Ω– Current Pass 1500mA max.
DC Current Consumption 25mA
Terrestrial Ports Frequency 5-862MHz
Satellite Port Frequency 950-2200MHz
Isolation 30dB min. – Tap Loss 16-23dB
Trunk Loss 3-5dB – Return Loss 8-13dB
Supplied with Protective F-Port Plastic Caps
202-154 5x5x4 Cascade Multiswitch
51/2˝ (W) x 4˝ (H) x 17/8˝ (D)
202-156 5x5x6 Cascade Multiswitch
51/2˝ (W) x 55/8˝ (H) x 17/8˝ (D)
202-355 5x5 SkySwitcher™ Cascade Amplifier
Supports Cascade Multiswitch Networks
Amplifies 4 Satellite LNB Inputs and
1 Off-Air TV Antenna Input
Independent Gain-Tilt Controls
Tin-Plated Steel Housing
Plastic Mounting Feet
Machined F-Connector Threads
Impedance 75Ω
Terrestrial Ports Frequency 5-862MHz
Satellite Port Frequency 5-2200MHz
Gain 12-18dB Sat, 20dB Terr
Flatness ±2dB – Rejection 40dB
Noise Figure 7-15dB Sat, 7dB T
err
Sync Level Adjust 0-10dB
Sat Output 115dBµV @35dB IMA3
Terr Output 111dBµV @60dB IMA3
Current Pass 1500mA max.
Power Consumption 13W
Supplied with Protective F-Port Caps
71/2˝ (W) x 33/4˝ (H) x 21/2˝ (D)
SkySwitcher™Cascade Amp
Cascade Multiswitches
© 2004 Steren Electronics International, LLC B 16
202-154 5x5x4
202-355 5x5 Amplifier
246
531
OUTPUT
RECEIVERS
OUTPUT
RECEIVERS
OUTPUT
RECEIVERS
OUTPUT
RECEIVERS
LNB-A
14V
LNB-B
14V/22kHz
LNB-A
OUT
LNB-B
OUT
TERRESTRIAL
OUT
LNB-C
OUT
LNB-D
OUT
TERRESTRIAL
IN
LNB-C
18V
LNB-D
18V/
22kHz
202-156
5x5x6 Cascade Multiswitch
Satellite Input Frequency 950 - 2200 MHz
T
errestrial Input Frequency 5 - 862 MHz
Satellite T
ap Loss 15dB
T
errestrial Insertion Loss 24dB
Switching Isolation 24dB
Satellite T
runk Loss 4dB
T
errestrial T
runk Loss 5dB
T
runk to T
runkIsolation 30dB
DCCurrent Consumption 25mA
Max. Current Pass T
runk1500 mA
TM
202-156 5x5x6
- + - + - + - + - +
Gain
-20dB
+ -
+ - + - + -
LNB-A
14V
LNB-B
18V
TERRESTRIAL
IN
LNB-C
14V/22kHz
LNB-D
18V/22
202-355
5x5 Satellite-Amplifier
Satellite Input Frequency 950 - 2200 MHz
Ter res trial Input Frequency 47
- 860 MHz
LNB Power 400 mA
13
245
OUTPUT
RECEIVERS
OUTPUT
RECEIVERS
OUTPUT
RECEIVERS
OUTPUT
RECEIVERS
TM
SWITCHER
TM
HDTV
Protective
Port Caps
203-510 Dual Satellite Signal Level Meter
Simultaneously measures adjusts and
monitors two satellite LNBs
Provides accurate alignment of
altitude, elevation and tilt-skew
Amplified broadband detector and
variable gain controls allow detection
of wide range of input levels
Audio tones enable rough signal detection
Meter deflection for precise signal acquisition
Meters can be independently switched
between level, current, voltage and
22kHz tone measurement
Frequency Range 950-2150MHz
Impedance 75Ω– Insertion Loss 4.5dB
Internal Rechargeable Battery 100mA 11hrs
Battery Life 500 Charge/Discharge Cycles
Includes 24VDC 100mA transformer
Includes custom carrying case
71/2˝(W) x 57/8˝(H) x 51/4˝(D)
Weight: 3.0-lbs
Professional Digital Spectrum Analyzers
Precisely aligns and tunes satellite and TV antennas
Lightweight – 41/2˝ Black and White Monitor
64x128 LCD Screen for Menus/Help Functions
Multi-TV/Audio Compatible NTSC, PAL, SECAM
Microprocessor-Controlled Operation
100 Spectrum Signature Memory Storage
RS232 PC Connection – Windows 95/98
Impedance 75Ω– BNC Connectors
12VDC Internal Rechargeable Battery
Custom Nylon Carrying Case
Includes 120VAC 13.5VDC 3.2A transformer,
car charger, PC software and cable, BNC-plug to
IEC PAL jack adapter and owners manual
203-610 SkySpectra™ Satellite Dish Analyzer
Full Spectrum 920-2150MHz
Input Level 35dBµV min, 90dBµV max
Spectrum Zoom to 250MHz
Digital BER, QPSK, S/N ratio
LNB 13-18V – 22kHz Tone Switch
DiSEqC 1.0,1.1,1.2, Toneburst On/Off
Ku/C-band Normal/Inverted Video
Audio Bandwidth 5.5-8.5 MHz
High Resolution ± 2 dB at 20°C
12VDC 3.5Ah 1-Hour Battery
8˝(W) x 41/2˝(H) x 121/4˝(D)
Weight: 11.1-lbs
203-615 SkySpectra-II™ TV-Aerial Analyzer
Full Spectrum 2-900MHz
Input Level 110dBµV Picture
Input Level 120dBµV Spectrum
CATV-Internet Return Path 5-65MHz
Spectrum Zoom to 13MHz
High Resolution ± 1dB at 20°C
12VDC 7Ah 2-Hour Battery
8˝(W) x 41/2˝(H) x 121/4˝(D)
Weight: 13.3-lbs
SkySpectra™Analyzers
Dual Satellite Signal Level Meter
© 2004 Steren Electronics International, LLC
B 17
203-510
203-610 Satellite Dish Analyzer
203-615 TV-Aerial Analyzer
Battery
Signal
Tun ing
Expanded
Band I/II
Offset
Audio
13/18V
22 kHz
Inverted
SAT
LOOK
MARK III
Volume Tuning
0#
9
6
8
5
Instruction:
#. Audio on/off.
1. Picture/Invert.
2. Spectrum.
3. Expanded spectrum.
4. Tuning, display 00-99
5. Signal strength, display 00-99
6. Battery condition, Lo, 0-9, Hi.
7. Signal strength offset, on/off
8. Loudspeaker, on/off
9. Freq. band I/II
0. 13/18v.
*. 22 KHz on/off
TM
0
5
1
0
0
1
0
2
0
0
4
0
2
0
4
0
0
8
0
5
0
1
5
3
0
0
6
0
2
0
0
5
1
0
0
1
0
2
0
0
4
0
2
0
4
0
0
8
0
5
0
1
5
3
0
0
6
0
2
0
R
E
C
H
A
R
G
E
G
O
O
D
R
E
C
H
A
R
G
E
G
O
O
D
TM
TM
Highly Sensitive Meters with Built-In Buzzer
Durable ABS Plastic Housing
Built-in Buzzer with Pitched Tone for Alignment Reference
Front Panel Sensitivity Control
RF and DC Pass-Through – 75Ω950-2050MHz Input
Sensitivity 7mV@55dB – LNB Gain 3-Carrier C/N 15dB
Input Level -25 to -75dBm – LNB Gain 52-60dB
Power Requirements 13-18VDC
Requires 6dB attenuator for 60-65dB LNB gain
200-992 Analog Pocket Satellite Finder
200-993 LED Bar-Graph Pocket Satellite Finder
Hand-Held SkyTracker™ Signal Meters
For Precise Satellite Position Location
Dish Network®and DirecTV®Compatible
Compact Design – Microprocessor Controlled
High Sensitivity for Receiving Weak Signals
Attenuation Adjustment for Strong Signals
Visual/Audio Readout for Hands-Free Operation
Precision Machined F-Connector Ports
Built-in Beeper, Volt/mA Meter
Short Circuit Protection with Fuse
75ΩImpedance – Input Frequency 950-2150MHz
Optional Accessories Kit – CE Approved
203-620 SkyTracker™ Plus Single-LNB Meter
LED and Audio Indicators
Identifies DiSEqC and 22kHz
Powered by Receiver or DC Supply
Meter Ranges 10-20V, 0-500mA
Input level 20-100 dBµV
53/4˝ (W) x 21/4˝ (H) x 3/4˝ (D)
203-630 SkyTracker™ Pro Dual-LNB Meter
Measures 2 LNBs simultaneously
LCDs and Selectable On/Off Tone
Identifies DiSEqC, 22kHz, 13/18V, mA
Can be set up as a two-way switch
Runs DiSEqC 1.2/SatScan actuator
Transmits 22 kHz, DiSEqC to LNB
Powered by Receiver or DC Supply
Meter Ranges 0-30V, 0-900mA
Input level 20-100 dBµV
Optional Carrying Case and Battery
53/4˝(W) x 21/4˝(H) x 3/4˝(D)
203-640 SkyTracker™ Pro-II Dual-LNB Meter
Same as 203-630 with Internal Battery
Includes AC, cigarette lighter adapter
Includes leather case and strap
Input level 40-100 dBµV
53/4˝(W) x 21/4˝(H) x 11/2˝(D)
203-635 SkyTracker™ Accessories Kit
Rechargeable External Battery Pack
AC and Car Cigarette Lighter Adapter
6´ RG6 Quick Connect Patch Cable
Leather Carrying Case and Strap
Compartment for 203-620 or 203-630
91/2˝(W) x 45/8˝(H) x 17/8˝(D)
203-650 SkyTracker™ Beeper Satellite Finder
Suitable for RV with Satellite Dish
Automatic Attenuation Adjustment
Pitch Tone Indicator – Includes earbud
SkyTracker™Signal Meters
Satellite Finder Meters
© 2004 Steren Electronics International, LLC B 18
200-993
0 1 2 3 4 5 6 7 8 9 10
SATELLITE FINDER
950-2250 MHz
dB
200-992
203-620
203-635
203-640 Powered
203-650
PROPRO
PLUS
203-630
TRACKER
TM
SkyTracker™Satellite Finder
Used in CATV or satellite subscriber grounding
Weather-Resistant Zinc-Alloy Cast Housing
Cast-In F-Connector Ports – Anticorrosion Overcoat
3/16˝ grounding holes accept AWG8 wire
Includes mounting screws – UL Listed
200-271 900MHz Single F Ground Block
1 Ground Screw – Yellow-Chromate
200-272 900MHz Dual F Ground Block
1 Ground Screw – Yellow-Chromate
200-273 900MHz Dual F Ground Block
2 Ground Screws – Yellow-Chromate
200-274 1GHz Single F Ground Block
1 Ground Screw – Yellow-Chromate
200-275 1GHz Dual F Ground Block
1 Ground Screw – Yellow-Chromate
200-278 2.5GHz Single F Ground Block
2 Ground Screws – Nickel Plated
200-279 2.5GHz Dual F Ground Block
2 Ground Screws – Nickel Plated
High-Performance F Grounding Blocks
Used in CATV or satellite subscriber grounding
Designed for high-frequency broadband network and
distribution system applications to 3GHz
Weather-Resistant Zinc-Alloy Cast Housing
Blue-Zinc Anticorrosion-Plated Housing
Precision Machined CDA360 Brass F Port Inserts
Thick-Nickel Anticorrosion-Plated F Ports
Flat-ended small-aperture F-ports meet
SCTE IPS-SP-407 standard for improved
contact and high return loss
360° Round Seizing Center Contact for
High Spring-Tension for Repeat Insertions
High 8-Ampere DC Continuous Current Capacity
Insertion Loss 0.025dB typical
3/16˝ grounding holes accept AWG8 wire
Includes mounting screws – UL Listed
200-270 3GHz Dual F Ground Block
3-Ground Screws – Blue-Zinc Plated
200-276 3GHz Single F Ground Block
1 Ground Screw – Blue-Zinc Plated
200-277 3GHz Dual F Ground Block
2 Ground Screws – Blue-Zinc Plated
Premium F Ground Blocks
F Ground Blocks
R
© 2004 Steren Electronics International, LLC
B 19
200-272 900MHz Economy 1-Ground
200-275 1GHz 1-Ground
200-273 900MHz Economy 2-Ground
200-278 2.5 GHz 2-Ground
200-271 900MHz Economy 1-Ground
200-274 1GHz 1-Ground
200-277 3GHz 2-Ground
200-279 2.5GHz 2-Ground
200-276 3 GHz 1-Ground
200-270 3GHz 3-Ground
R
R
®
CUS LISTED
E237043
E237043
E237043
E237043
E237043 E237043
E237043
R
© 2004 Steren Electronics International, LLC B 20
200-280 8˝ Galvanized
200-283 10˝ Galvanized
200-286 8˝ Copper
200-288 10˝ Copper
200-291 5/8˝ - 8 feet
Solid Copper or Galvanized Steel Ground Straps
Provide low resistance ground connection for
grounding CATV, satellite or telephone drops
Adjustable Easy-Install for Permanent
Connection to Water Pipes or Service Masts to
AWG10-14 Ground Wire – Weather Resistant
G90 galvanized steel meets salt test ASTM-B117
200-280 8˝ Galvanized Ground Strap
Suitable for 1/2˝-2˝ Diameter Pipe
200-283 10˝ Galvanized Ground Strap
Suitable for 1/2˝-21/2˝ Diameter Pipe
200-286 8˝ Copper Ground Strap
Suitable for 1/2˝-2˝ Diameter Pipe
200-288 10˝ Copper Ground Strap
Suitable for 1/2˝-21/2˝ Diameter Pipe
Copper-Bonded Steel Grounding Rods
3/8˝ or 5/8˝ High-Strength Carbon-Steel
Cold-Drawn for Increased Strength
Conical tapered point eases soil penetration
200-290 4´ Universal 3/8˝ Grounding Rod
Includes Hex-Bolt Ground Clamp
200-291 8´ Universal 5/8˝ Grounding Rod
UL Listed – Grounding and Bonding
200-995 1oz. Clear Silicone RTV Compound
Cures to a tough resilient rubber texture
Seals and insulates to prevent
water penetration and galvanic corrosion
200-996 3oz. Clear Silicone RTV Compound
Cures to a tough resilient rubber texture
Seals and insulates to prevent
water intrusion and corrosion
200-998 5.3oz. Silicone Grease Compound
Non-Curing All-Purpose Water Repellent
Seals cable-connector junctions to
prevent water intrusion and corrosion
Silicone Compounds
Grounding Rods
Ground Straps
200-995 1oz. Silicone Adhesive RTV
200-996 3oz. Silicone Adhesive RTV
200-998 5.3oz. Silicone Grease
200-290 3/8˝ - 4 feet
E237043
SILICONE
COMPOUND
High-Strength Bonding Ground Clamps
Corrosion-Resistant Cast Zinc or Copper Alloy
Zinc-Plated Steel Screws
200-230 AWG10 I-Beam Ground-Clamp Bonds
Copper Wire to Steel Structure
200-292 3/8˝ Acorn-type Ground-Rod Clamp
200-294 5/8˝Acorn-type Ground-Rod Clamp
200-295 Cast-Pipe Bronze Ground-Clamp
Bonds Bare Copper Wire to
Galvanized or Copper Water Pipe
Use with 1/2˝-13/8˝ Diameter Pipe
200-296 Cast-Pipe Steel Ground-Clamp
Bonds Bare Copper Wire to
Galvanized or Copper Water Pipe
Use with 1/2˝-13/8˝ Diameter Pipe
200-297 Ground Lug
200-298 Meter-Pan Flat Bonding Connector
200-299 Meter-Pan Bonding Connector
Used in bonding meter-pan metal
Frame to AWG10-14 Ground Wire
Galvanized Steel Construction
Stainless Steel Green Ground Screw
High-Clamping Force Split-Bolt Connectors Suitable
for Copper or Copperweld Connections Constructed of
High-Strength Corrosion-Resistant Copper-Bronze Alloy
200-244 No.4 Split-Bolt Connector
8-4 Solid Equal Main and Tap
200-246 No. 6 Split-Bolt Connector
10-6 Solid Equal Main and Tap
200-248 No. 8 Split-Bolt Connector
16-8 Solid Equal Main and Tap
200-902 25´ AWG8 Aluminum Grounding Wire
Suitable Conducting Material for
Communications System Grounding
Copper Wire for All Grounding Applications
Conductor Uncoated Per ASTM B3
Gasoline, Oil, Heat, Moisture Resistant
4 Mil Thick (nom.) Clear Outer Jacket
0.5mm Thick (nom.) PVC Insulation
Meets or exceeds all applicable ASTM specs
Meets or exceeds NEC grounding requirements
600 VAC–UL Listed
230-010GR 500´ AWG10 Solid Copper Wire
Green Jacket– 2 Spools/Case
230-012BK 500´ AWG12 Solid Copper Wire
Black Jacket – 4 Spools/Case
Copper Grounding Wire
Aluminum Grounding Wire
Split-Bolt Ground Connectors
Grounding Hardware
© 2004 Steren Electronics International, LLC
B 21
200-230 200-292 3/8˝
200-294 5/8˝
200-299
200-295 Bronze
200-296 Steel
200-297
200-244 No.4
200-246 No. 6
200-248 No. 8 200-902 25´ AWG8 Aluminum
E195812
230-010GR 500´ AWG10 Copper Green
230-012BK 500´ AWG12 Copper Black
200-298

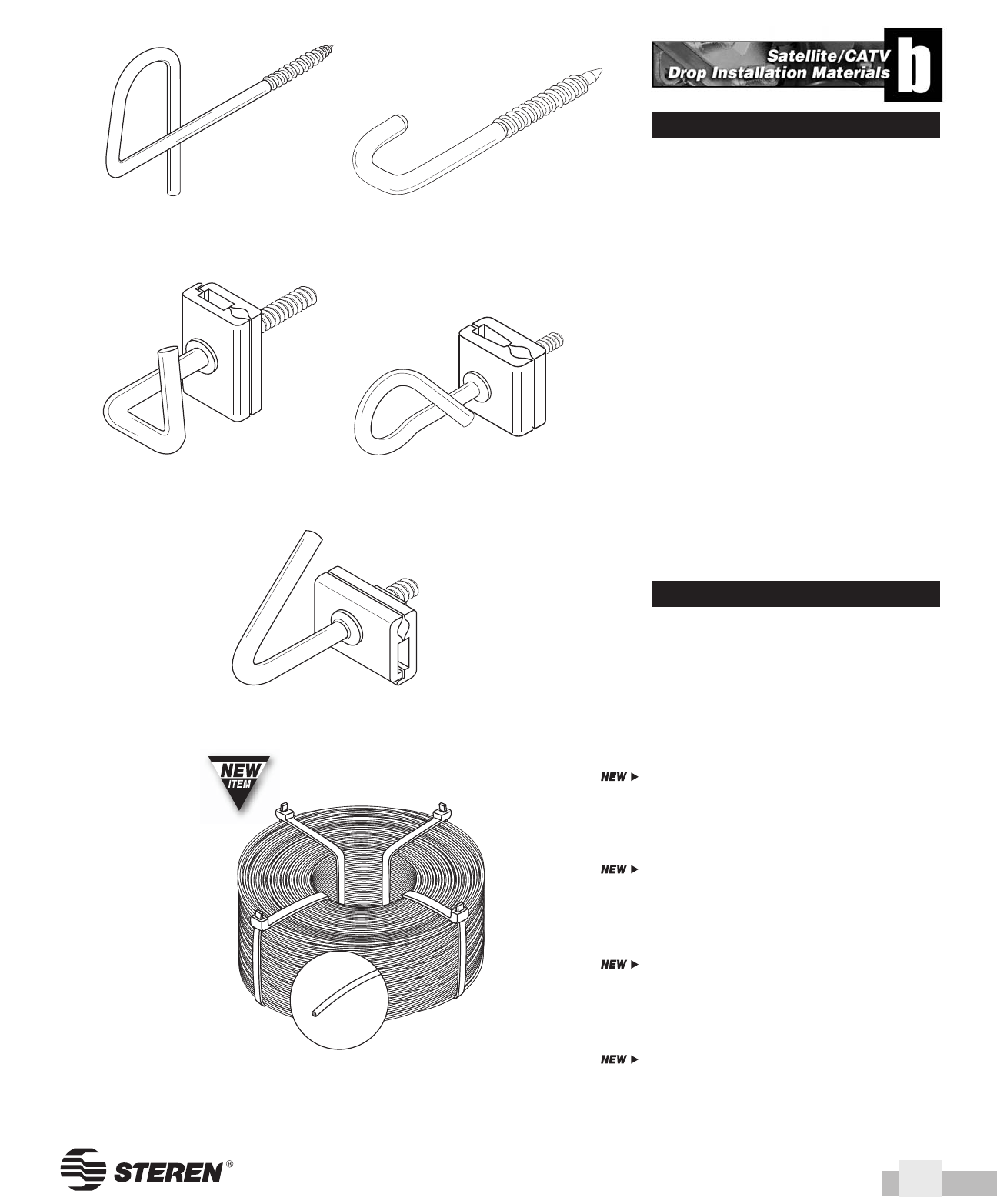

High-Quality Drop Line Hardware Suitable for
Telephony, CATV, Wireless Cable Applications
High-Strength Cast Aluminum Jaw Clamps
Corrosion-Resistant Galvanized Steel Bolts
200-232 P House Hook
Secures CATV drop line to
subscriber´s house or building
Threaded Shank Suitable for
Installation in Wood or Masonry
200-234 J Drive Hook
Supports drop-wire clamp to
pole in the absence of house hooks
Threaded Shank Suitable for
Installation in Wood or Masonry
200-236 O-Span Clamp
Provides drop-wire take-offs from
strand and relieves drop-wire tension
Used with 1/4˝ to 3/8˝ messenger strands
200-238 Q-Span Clamp
Provides drop-wire take-offs from
strand and relieves drop-wire tension
Used with 1/4˝ to 3/8˝ messenger strands
200-240 C-Span Clamp
Provides drop-wire take-offs from
strand and relieves drop-wire tension
Holds cable away from obstacles
Used with 1/4˝ to 3/8˝ messenger strands
Finest Quality Annealed Stainless Steel Lashing Wire
Used to Support Overhead Telecom Cables
Corrosion and Oxidation Resistant
Kink-Free – Consistent Tension
Meets AT&T AT-7153 Standard Wax Coated
Conforms to ASTM A580 and A555 standards
Straight Hub Package for Use with Class-C and
Class-D Commercial Lashers
Coil Dimensions 51/2-61/2˝ O.D. – 15/8-17/8˝ I.D.
Packaged 4 Plastic-Tie Wraps – 6 Coils per Box
230-030 1600´ 302-Grade 0.038˝ Diameter
Nickel-Alloy Stainless Steel Wire
Non-Magnetic Austenitic Non-Harding
Elongation 40% min.– Avg. Break 115-lbs
Tensile Strength 95-125kpsi
Net Weight 6.3-lbs.
230-035 1200´ 302-Grade 0.045˝ Diameter
Nickel-Alloy Stainless Steel Wire
Non-Magnetic Austenitic Non-Harding
Elongation 40% min. – Avg. Break 165-lbs
Tensile Strength 95-125kpsi
Net Weight 6.4-lbs.
230-040 1200´ 430-Grade 0.045˝ Diameter
Chromium-Alloy Stainless Steel Wire
Magnetic Thermally Non-Harding
Elongation 15% min. – Avg. Break 125-lbs
Tensile Strength 75-95kpsi
Net Weight 6.6-lbs.
230-045 1200´ 316-Grade 0.045˝ Diameter
Nickel-Molybdenum-Alloy Stainless Steel
Non-Magnetic Austenitic Non-Harding
Elongation 40% min. – Avg. Break 145-lbs
Tensile Strength 95-120kpsi
Net Weight 6.6-lbs.
Stainless Steel Lashing Wire
Galvanized Poleline Hardware
© 2004 Steren Electronics International, LLC B 22
200-232 200-234
200-236 200-238
200-240
230-030 #302 - 0.038˝ ø1600´
230-035 #302 - 0.045˝ ø1200´
230-040 #430 - 0.045˝ ø1200´
230-045 #316 - 0.045˝ ø1200´
© 2004 Steren Electronics International, LLC
B 23
220-515 6-8 x 1˝
220-520 1/4˝ x 21/2˝
220-525 1/4˝ x 3˝
220-510 10-12 x 1˝
220-500 1/4˝
220-425 1/4˝-20 3˝
220-322 1˝ x 11/2˝
1/4 BOLT 1/2 DRILL
220-210 5/16˝ x 11/2˝
220-215 5/16˝ x 2˝
220-220 5/16˝ x 21/2˝
220-225 5/16˝ x 3˝
220-110 1/4˝ x 11/2˝
220-115 1/4˝ x 2˝
220-120 1/4˝ x 21/2˝
220-125 1/4˝ x 3˝
220-100
220-100 Anchor Kit with Anchors, Screws, Bit
Clear Plastic Container with Clasp Closure
Cut-out Handle for Pegboard Hanging
100 pcs. 8-10 x 1” Mounting Anchors
100 pcs. #8 Steel Mounting Screws
1 pc. 1/4˝ Masonry Drill Bit
65/16˝ (W) x 33/8˝ (H) x 11/2˝(D)
220-110 1/4˝ x 11/2˝ Hex Head Lag Screw
220-115 1/4˝ x 2˝ Hex Head Lag Screw
220-120 1/4˝ x 21/2˝ Hex Head Lag Screw
220-125 1/4˝ x 3˝ Hex Head Lag Screw
220-210 5/16˝ x 11/2˝ Hex Head Lag Screw
220-215 5/16˝x 2˝ Hex Head Lag Screw
220-220 5/16˝x 21/2˝ Hex Head Lag Screw
220-225 5/16˝ x 3˝ Hex Head Lag Screw
220-322 1˝ x 11/2˝ Hex Head Sheet Metal Screw
220-425 1/4˝ - 20 3˝ Phillips Panhead Screw
220-500 Lead Double Expansion Anchor 1/4˝
Use 1/2˝ Drill Bit
220-510 Plastic Mounting Anchor 10-12 x 1˝
Use 1/4˝ Drill Bit
220-515 Plastic Mounting Anchor 6-8 x 1˝
Use 3/16˝ Drill Bit
220-520 Plastic Mounting Anchor 1/4˝x 21/2˝
Use 5/16˝ Drill Bit
220-525 Plastic Mounting Anchor 1/4˝ x 3˝
Use 5/16˝ Drill Bit
Mounting Anchors
Hex Head Mounting Screws
Anchor Kit
© 2004 Steren Electronics International, LLC B 24
8˝-Length Pipe Adapters for Satellite Dishes
Adapts C-Band and PrimeStar pipes for 18˝ dishes
Powder-Coated Durable Finish
200-904 15/8˝ DSS Easy-Install Pipe Adapter
Suitable for 27/8˝ to 41/2˝ ID Pipes
200-908 15/8˝ DSS Easy-Install Pipe Adapter with
Protective Water-Cover Lip
Suitable for 27/8˝ ID Pipes
Powder-Coated Durable Finish, Length 8˝
Direction Finding Compass – Plastic
DSS Installation-Kit Component
Used in Initial Dish Positioning
200-990 35mm Direction Finding Compass
200-994 44mm Plastic Direction Finding Compass
205-090WH 8˝ White Flat F-F 75ΩJumper
Cable Thickness 3/32˝
Eliminates drilling through walls and
conveniently runs under or
over windows and doors
Mounting Adhesive-Taped Back
Nickel-Plated Brass F Connectors
Soft Waterproof White PVC Jacket
10x30mm Satellite Dish Levels Used in Installation
200-989 10 x 30mm Single Satellite Dish Level
200-991 10 x 30mm Dual Satellite Dish Level
Plastic Housing with Underside Magnet
Satellite Dish Levels
F-F Flat Through Cable
Dish Positioning Compass
DSS Quick Pipe Adapters
200-990 35mm
200-994 44mm
200-904 200-908
N
30
S
W
240
300
330
E
NW
S
E
N
E
S
W
205-090WH 8-inch
200-989 200-991
R
© 2004 Steren Electronics International, LLC
B 25
Available in Four Styles and Sizes for Attaching Coaxial
Cable to Horizontal or Vertical Aluminum or Vinyl Siding
High-Impact Plastic in Black or Clear
UV Inhibitor™ protects from ultra-violet-ray damage
200-951BK Horizontal RG59 Black Cable Clip
200-951CL Horizontal RG59 Clear Cable Clip
200-952BK Horizontal RG6 Black Vinyl-Siding
200-952CL Horizontal RG6 Clear Vinyl-Siding
200-953BK Vertical RG59 Black Siding Clip
200-953CL Vertical RG59 Clear Siding Clip
200-954BK Vertical RG6 Black Vinyl-Siding
200-954CL Vertical RG6 Clear Vinyl-Siding
6-7mm Coaxial Nail-In Fasteners
Attaches to wood, concrete, brick, masonry, plaster
Zinc-Plated Pre-Inserted Hardened Steel Nail
High-Impact Plastic
200-955 RG59 Black Clips – 3/4˝ Nail – f6mm
200-956 RG59 White Clips – 3/4˝ Nail– f6mm
200-960 RG6 Black Clips –1˝ Nail– f7mm
200-961 RG6 White Clips –1˝ Nail– f7mm
200-962BL RG6 Dual Black Clips –1˝ Nail– f7mm
200-962WH RG6 Dual White Clips –1˝ Nail– f7mm
300-954 White Plastic Nail-In Fasteners
Suitable for 4C Flat Modular Cable
Pre-Installed 1˝ Carbon-Steel Nails
Suitable for Wood, Plaster,
Mortar or Concrete Block
AWG10-14 Ground Wire Clip
Attaches to wood, concrete, brick, masonry and plaster
Zinc-Plated Pre-Inserted Hardened Steel Nail
High-Impact Plastic
300-955BK Ground Wire Clip – Black
300-955GY Ground Wire Clip – Grey
300-955WH Ground Wire Clip – White
Ground Wire Clips
Flat-Cable Clips
Coaxial Cable Clips
Cable Siding Clips
200-951BK Black
200-951CL Clear
200-952BK Black
200-952CL Clear
200-953BK Black
200-953CL Clear
200-962BL RG6-Dual Black
200-962WH RG6-Dual White
200-955 RG59 Black
200-956 RG59 White
200-960 RG6 Black
200-961 RG6 White
Price/100 Price/100
200-954BK Black
200-954CL Clear
300-954 Modular Clip 300-955BK Black
300-955GY Grey
300-955WH White
Price/100
R
© 2004 Steren Electronics International, LLC B 26

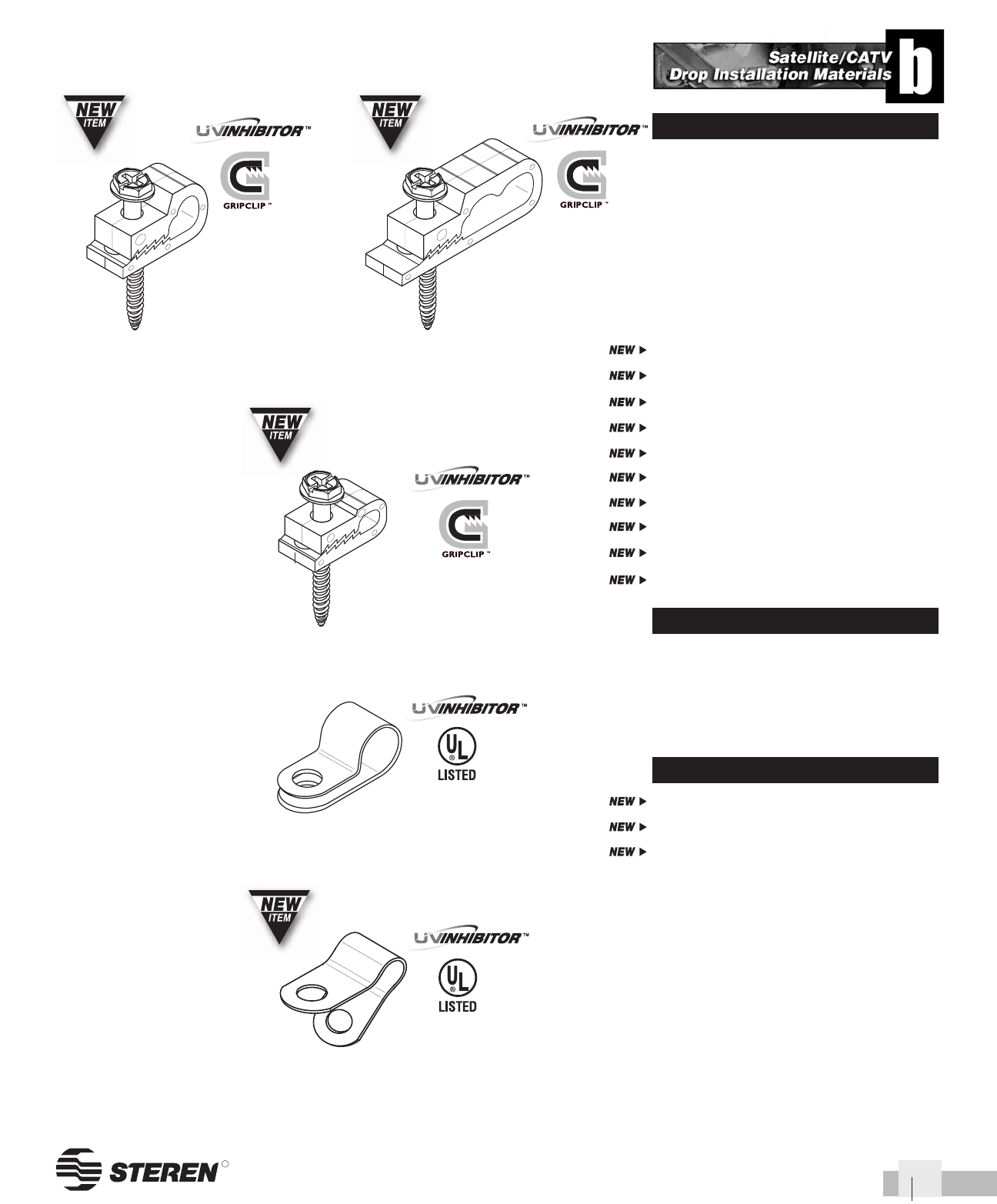

Grip-Clip™ Cable Mounting Clips
Automatically adjust to coaxial wire size
Provide strain relief without pinching or damage
Prevent signal loss and protect the installation
Pre-loaded screws and integral automatic ratchet
mechanism allow for easy, one-handed installation
High Impact Durable Polyethylene Construction
UV Inhibitor™ protects from ultra-violet-ray damage
Various Sizes for Telecommunications Wire and
Series 6 and 59 Coax, Single and Dual, with and
without Messenger Wire
200-963BK Single Coax Grip-Clip™,Black
200-963GY Single Coax Grip-Clip™, Grey
200-963IV Single Coax Grip-Clip™, Ivory
200-963WH Single Coax Grip-Clip™, White
200-964BK Dual Coax Grip-Clip™, Black
200-964GY Dual Coax Grip-Clip™, Grey
200-964IV Dual Coax Grip-Clip™, Ivory
200-964WH Dual Coax Grip-Clip™, White
200-965BK Ground Wire Grip-Clip™, Black
200-965WH Ground Wire Grip-Clip™, White
Clear Virgin 6/6 Nylon-UL94V2 Self Extinguishing Clamps
400-505CL 1/4˝ Cable Clamp – 3/8˝ Wide
400-510CL 3/8˝ Cable Clamp – 1/2˝ Wide
400-515CL 1/2˝ Cable Clamp – 1/2˝ Wide
400-520 AWG10 Ground Aluminum Cable-Clip
400-525 Series 6 Cable Aluminum Cable-Clip
400-530 Steel E-Drop Cable Clip
Metal Cable Clamps
Nylon Cable Clamps
Grip-Clip™Mounting Clips
200-965BK Black
200-965WH White
200-963BK Black
200-963GY Grey
200-963IV Ivory
200-963WH White
200-964BK Black
200-964GY Grey
200-964IV Ivory
200-964WH White
400-505 1/4˝
400-510 3/8˝
400-515 1/2˝
400-520 AWG10 Ground – Price/100
400-525 Series-6 – Price/100
400-530 E-Drop – Price/50
STEREN
STEREN
Price/100 Price/100
Price/100
Price/100
STEREN
Seals wall openings – Secures and protects cable
Impact-Resistant ABS Plastic Construction
Acid-resistant UV Inhibitor™ protects bushing from
ultraviolet-ray damage
200-982BK RG59 Black Bushing
200-986BK RG6 Black Bushing
200-986CL RG6 Clear-Natural Bushing
200-986IV RG6 Ivory Bushing
200-986WH RG6 White Bushing
200-988BK RG6-Dual Black Bushing
200-988CL RG6 Dual Clear-Natural Bushing
200-988IV RG6-Dual Ivory Bushing
200-984BK RG6 Black Bushing with
Ground and Messenger Knockouts
200-984CL RG6 Clear Bushing with
Ground and Messenger Knockouts
200-984WH RG6 White Bushing with
Ground and Messenger Knockouts
200-985BK RG6-Dual Black Bushing with
Ground and Messenger Knockouts
200-985CL RG6-Dual Clear Bushing with
Ground and Messenger Knockouts
200-985WH RG6-Dual White Bushing with
Ground and Messenger Knockouts
Slip-On Insulated Strain-Relief Covers
Protects and supports cable to prevent breakage
200-970BK RG58 Black Cable Boot
200-972BK RG59 Black Cable Boot
Tapered-Inner-Diameter Weather Boots
Suitable for Regular-Tri-Quad Shield Series 6 and 59
Coaxial Cable – Flexible Rubber Construction
UV-Inhibitor™ Ultraviolet-Ray Resistant
200-974BK 2˝ Short Boot – Tapered I.D. 61/2-11mm
200-975BK 21/2˝ Long Boot – Tapered I.D. 61/2-11mm
200-976BK 2˝ Ribbed Short Boot – Tapered I.D.
7-12mm
200-978 F Weather Rubber Seal
Slips over F jacks to cover and
protect connection joint
3/8˝ Diameter BlackRubber
220-710 Weather-Resistant Service Enclosure
Provides secure enclosure for
mounting splitters and terminating coax
Weatherproof HDPE Construction with
UV Inhibitor for Added Durability
Padlock Eyelet for Added Security
Generous 3/4˝ x 1/2˝ Entrance Slots
Accommodates multiple cables and
allows for future expansion
Removable Cover for Easy Access
Mounts flat or on a pole using
screw, cable tie or U-bolt slots
61/4˝(W) x 83/4˝(H) x 23/4˝(D)
Box Service Enclosure
Weather Boots
Cable Strain-Relief Boots
Feed-Through Bushings
© 2004 Steren Electronics International, LLC
B 27
200-982BK RG59 Black
200-986BK RG6 Black
200-986CL RG6 Clear
200-986IV RG6 Natural-Ivory
200-986WH RG6 White
200-984BK RG6 KO Black
200-984CL RG6 KO Clear
200-984WH RG6 KO White
200-985BK RG6-Dual KO Black
200-985CL RG6-Dual KO Clear
200-985WH RG6-Dual KO White
200-988BK RG6-Dual Black
200-988CL RG6-Dual Clear
200-988IV RG6-Dual Natural-Ivory
200-974BK 2˝
200-976BK 2˝ Ribbed
200-970BK RG58 Black
200-972BK RG59 Black
200-978
WARNING
UNAUTHORIZED USE OF CABLE
SERVICES PROHIBITED.
VIOLATORS ARE SUBJECT TO
CIVIL AND CRIMINAL ACTION.
200-975BK 21/2˝
220-710
400-604CL 3.9˝ 18-lbs Clear
Self-Locking Tie-Wraps
Bent Finger-Grip Tip Clear Virgin Nylon 6/6
UL94V2 Self Extinguishing
400-604CL 3.9˝ Clear 18-lbs Marker-Tie
400-605CL 4.3˝ Clear 18-lbs Marker-Tie
400-708CL 8˝ Clear 120-lbs Heavy Duty Tie
400-712CL 12˝ Clear 120-lbs Heavy Duty Tie
400-715CL 15˝ Clear 120-lbs Heavy Duty Tie
400-804BK 4˝ Black 18-lbs Cable-Tie
400-804CL 4˝ Clear 18-lbs Cable-Tie
400-806BK 6˝ Black 18-lbs Cable-Tie
400-806CL 6˝ Clear 18-lbs Cable-Tie
400-808BK 8˝ Black 18-lbs Cable-Tie
400-808CL 8˝ Clear 18-lbs Cable-Tie
400-812BK 12˝ Black 40-lbs Cable-Tie
400-812CL 12˝ Clear 40-lbs Cable-Tie
400-815BK 15˝ Black 40-lbs Cable-Tie
400-815CL 15˝ Clear 40-lbs Cable-Tie
400-828BK 8˝ Black 50-lbs Cable-Tie
400-828CL 8˝ Clear 50-lbs Cable-Tie
400-832BK 12˝ Black 50-lbs Cable-Tie
400-832CL 12˝Clear 50-lbs Cable-Tie
400-835BK 15˝ Black 50-lbs Cable-Tie
400-835CL 15˝ Clear 50-lbs Cable-Tie
400-841BK 21˝ Black 50-lbs Cable-Tie
400-841CL 21˝Clear 50-lbs Cable-Tie
Nylon Strap for Tying Cable – 8˝ Length
Hook side instantly attaches to loop side
Easy to Reopen and Reclose
400-858BK Hook-and-Loop Wire Tie – Black
400-858BL Hook-and-Loop Wire Tie – Blue
Weather-Resistant Black PVC Electrical Tape
3/4˝ Wide 0.18mm Thick
400-904BK 60´ Black Non-UL Electrical Tape
400-905BK 60´ Black UL Electrical Tape
400-905BL 60´ Blue UL Electrical Tape
400-905GR 60´ Green UL Electrical Tape
400-905WH 60´ White UL Electrical Tape
PVC split corrugated tubing protects wiring from
abrasion and sunlight – Organizes wire connections
Eliminates clutter – Split for Easy Wire Insertion
Black Plastic Spool
400-910BE 1/2˝Beige Wire Conduit – 100ft.
400-910BK 1/2˝Black Wire Conduit – 100ft.
400-910GY 1/2˝Grey Wire Conduit – 100ft.
400-915BE 3/4˝ Beige Wire Conduit – 100ft.
400-915BK 3/4˝ Black Wire Conduit – 100ft.
400-915GY 3/4˝ Grey Wire Conduit – 100ft.
400-920BE 1˝ Beige Wire Conduit – 50ft.
400-920BK 1˝ Black Wire Conduit – 50ft.
400-920GY 1˝ Grey Wire Conduit – 50ft.
Split Wire Conduit
Electrical Tape
Hook-and-Loop Wire Ties
Self-Locking Cable Ties
© 2004 Steren Electronics International, LLC B 28
400-904BK 60´ Non-UL Black
400-905BK 60´ UL Black
400-905BL 60´ UL Blue
400-905GR 60´ UL Green
400-905WH 60´ UL White
Price/100
Price/100
400-605CL 4.3˝ 18-lbs Clear
400-708CL 8˝ 120-lbs Clear
400-712CL 12˝ 120-lbs Clear
400-715CL 15˝ 120-lbs Clear
400-804 4˝ 18-lbs Black, Clear
400-806 6˝ 18-lbs Black, Clear
400-808 8˝ 18-lbs Black, Clear
400-812 12˝ 40-lbs Black, Clear
400-815 15˝ 40-lbs Black, Clear
400-828 8˝ 50-lbs Black, Clear
400-832 12˝ 50-lbs Black, Clear
400-835 15˝ 50-lbs Black, Clear
400-841 21˝ 50-lbs Black, Clear
400-910 1/2˝ Beige, Black, Grey
400-915 3/4˝ Beige,Black, Grey
400-920 1˝ Beige, Black, Grey
400-858BK 8˝ Black
400-858BL 8˝ Blue
Price/100 Price/10
Modular TV and TV-Telephony Standard Wall Plates
3-6µ˝ Gold Plated Telephony Contacts
High-performance F81 splices (200-058) used in
2.5GHz version plates
High-Impact ABS Plastic – Flush-Mount Smooth Finish
Supplied with Matching Color Mounting Screws
23/4˝(W) x 41/2˝(H)
200-250IV Satellite Ribbon Ivory Cable Plate
200-250WH Satellite Ribbon White Cable Plate
200-251AL TV Almond F-Jack Plate
200-251IV TV Ivory F-Jack Plate
200-251WH TV White F-Jack Plate
200-252AL TV Almond Dual F-Jack Plate
200-252IV TV Ivory Dual F-Jack Plate
200-252WH TV White Dual F-Jack Plate
200-254AL TV Almond 1-Hole Wall Plate
200-254BR TV Brown 1-Hole Wall Plate
200-254IV TV Ivory 1-Hole Wall Plate
200-254WH TV White 1-Hole Wall Plate
200-256BR TV Brown 2-Hole Wall Plate
200-256IV TV Ivory 2-Hole Wall Plate
200-256WH TV White 2-Hole Wall Plate
200-258BR Blank Brown Cover Plate
200-258IV Blank Ivory Cover Plate
200-258WH Blank White Cover Plate
200-267AL TV Almond F-Jack Plate – 2.5GHz
200-267BR TV Brown F-Jack Plate – 2.5GHz
200-267IV TV Ivory F-Jack Plate – 2.5GHz
200-267WH TV White F-Jack Plate – 2.5GHz
200-268AL TV Almond Dual F-Jack – 2.5GHz
200-268BR TV Brown Dual F-Jack – 2.5GHz
200-268IV TV Ivory Dual F-Jack – 2.5GHz
200-268WH TV White Dual F-Jack – 2.5GHz
300-234AL 4C Almond Tel-TV Jack
300-234IV 4C Ivory Tel-TV Jack
300-234WH 4C White Tel-TV Jack
300-235AL 4C Almond Tel-TV Jack – 2.5GHz
300-235BR 4C Brown Tel-TV Jack – 2.5GHz
300-235IV 4C Ivory Tel-TV Jack – 2.5GHz
300-235WH 4C White Tel-TV Jack – 2.5GHz
300-237IV 4C Ivory 2xTV Phone Wall Plate
300-237WH 4C White 2xTV Phone Wall Plate
300-238AL 4C Almond 2xTV Phone – 2.5GHz
300-238BR 4C Brown 2xTV Phone – 2.5GHz
300-238IV 4C Ivory 2xTV Phone – 2.5GHz
300-238WH 4C White 2xTV Phone – 2.5GHz
300-240IV 4C Ivory DSS Diplexer Wall Plate
Uses Steren Mini-Diplexer 201-254
300-240WH 4C White DSS Diplexer Wall Plate
Uses Steren Mini-Diplexer 201-254
301-234AL 4C Tel-TV Almond Jack UL
301-234IV 4C Tel-TV Ivory Jack UL
301-234WH 4C Tel-TV White Jack UL
TV-Telephony Wall Plates
© 2004 Steren Electronics International, LLC
B 29
300-240IV 4C Ivory Diplexer
300-240WH 4C White Diplexer
ANT. SAT
.
DC PASS
40-2050MHz
IN/OUT
TV SATELLITE
200-258BR Brown
200-258IV Ivory
200-258WH White
200-256BR Brown
200-256IV Ivory
200-256WH White
200-254AL Almond
200-254BR Brown
200-254IV Ivory
200-254WH White
200-250IV Ivory
200-250WH White
300-234AL 4C Almond
300-234IV 4C Ivory
300-234WH 4C White
300-235AL 2.5GHz Almond
300-235BR 2.5GHz Brown
300-235IV 2.5GHz Ivory
300-235WH 2.5GHz White
301-234AL 4C Almond UL
301-234IV 4C Ivory UL
301-234WH 4C White UL
Rear
Front
200-251AL Almond
200-251IV Ivory
200-251WH White
200-267AL 2.5GHz Almond
200-267BR 2.5GHz Brown
200-267IV 2.5GHz Ivory
200-267WH 2.5GHz White
200-252AL Almond
200-252IV Ivory
200-252WH White
200-268AL 2.5GHz Almond
200-268BR 2.5GHz Brown
200-268IV 2.5GHz Ivory
200-268WH 2.5GHz White
300-237IV 4C Ivory
300-237WH 4C White
300-238AL 2.5GHz Almond
300-238BR 2.5GHz Brown
300-238IV 2.5GHz Ivory
300-238WH 2.5GHz White
Modular TV and TV-Telephony Mid-Size Wall Plates
3-6µ˝ Gold Plated Contacts – High-Impact ABS Plastic
Flush-Mount Smooth Finish
Supplied with Matching Color Mounting Screws
31/8˝(W) x 47/8˝(H)
200-411AL TV Almond Mid-Size Plate w/Coupler
200-411IV TV Ivory Mid-Size Plate w/Coupler
200-411WH TV White Mid-Size Plate w/Coupler
300-233AL 4C Almond Tel-TV Jack Mid-Size
300-233IV 4C Ivory Tel-TV Jack Mid-Size
300-233WH 4C White Tel-TV Jack Mid-Size
Single Gang Decorator-Style Flush Plates
Mounted in Standard Electrical Boxes
3-6µ˝ Gold Plated Modular Jack Contacts
High-Impact ABS Plastic Mounting Bracket
Supplied with Matching-Color Mounting Screws
23/4˝(W) x 41/2˝(H)
200-253IV TV Ivory Decorator F-Jack – Gold
200-253WH TV White Decorator F-Jack – Gold
200-255IV TV Ivory Decorator Dual F – Gold
200-255WH TV White Decorator Dual F – Gold
200-260IV 3-RCA Ivory Decorator – Gold
Yellow-Red-White Jack Insulators
200-260WH 3-RCA White Decorator – Gold
Yellow-Red-White Jack Insulators
300-103IV 4C Ivory Tel-TV Decorator Jack
Gold-Plated F81 Connector
300-103WH 4C White Tel-TV Decorator Jack
Gold-Plated F81 Connector
Single-Piece Flush-Mount TV Wall Plates
High-Impact ABS Plastic with Mounting Hardware
23/4˝(W) x 41/2˝(H)
200-261BR TV Brown 1-Hole Economy Plate
200-261IV TV Ivory 1-Hole Economy Plate
200-261WH TV White 1-Hole Economy Plate
200-263IV TV Ivory Offset-Hole Economy Plate
200-263WH TV White Offset-Hole Economy Plate
200-265BR F81 Brown Economy Plate
200-265IV F81 Ivory Economy Plate
200-265WH F81 White Economy Plate
200-266BR 1GHz F81 Brown Economy Plate
200-266IV 1GHz F81 Ivory Economy Plate
200-266WH 1GHz F81 White Economy Plate
Economy Decorator Wall Plates
Decorator-Style Wall Plates
Mid-Size TV-Telephony Plates
© 2004 Steren Electronics International, LLC B 30
200-260IV Ivory-Gold
200-260WH White-Gold 300-103IV 4C Ivory-Gold
300-103WH 4C White-Gold
200-255IV Ivory-Gold
200-255WH White-Gold
200-253IV Ivory-Gold
200-253WH White-Gold
200-261BR Brown
200-261IV Ivory
200-261WH White
200-263IV Ivory
200-263WH White
200-265BR Brown
200-265IV Ivory
200-265WH White
200-266BR 1GHz Brown
200-266IV 1GHz Ivory
200-266WH 1GHz White
200-411AL Mid-Size Almond
200-411IV Mid-Size Ivory
200-411WH Mid-Size White
300-233AL Mid-Size Almond
300-233IV Mid-Size Ivory
300-233WH Mid-Size White
AC/DC ADAPTOR
C
-
+
E206094
US!LISTED
84!VA
CLASS!2!POWER!SUPPL
Y
MODEL!!:!!!!!!IA0077U
Cat.No.!!!:ILD41-120500
INPUT!!!!:AC120V!!!60!Hz
OUTPUT:DC12V!!!!!500A
POLARITY:
!!!!!!!MADE!IN!CHINA
AC/DC ADAPTOR
C
-
+
E206094
US!LISTED
84!VA
CLASS!2!POWER!SUPPL
Y
MODEL!!:!!!!!!IA0077U
Cat.No.!!!:ILD41-120500
INPUT!!!!:AC120V!!!60!Hz
OUTPUT:DC12V!!!!!500A
POLARITY:
!!!!!!!MADE!IN!CHINA
AC/DC ADAPTOR
C
-
+
E206094
US!LISTED
84!VA
CLASS!2!POWER!SUPPL
Y
MODEL!!:!!!!!!IA0077U
Cat.No.!!!:ILD41-120500
INPUT!!!!:AC120V!!!60!Hz
OUTPUT:DC12V!!!!!500A
POLARITY:
!!!!!!!MADE!IN!CHINA

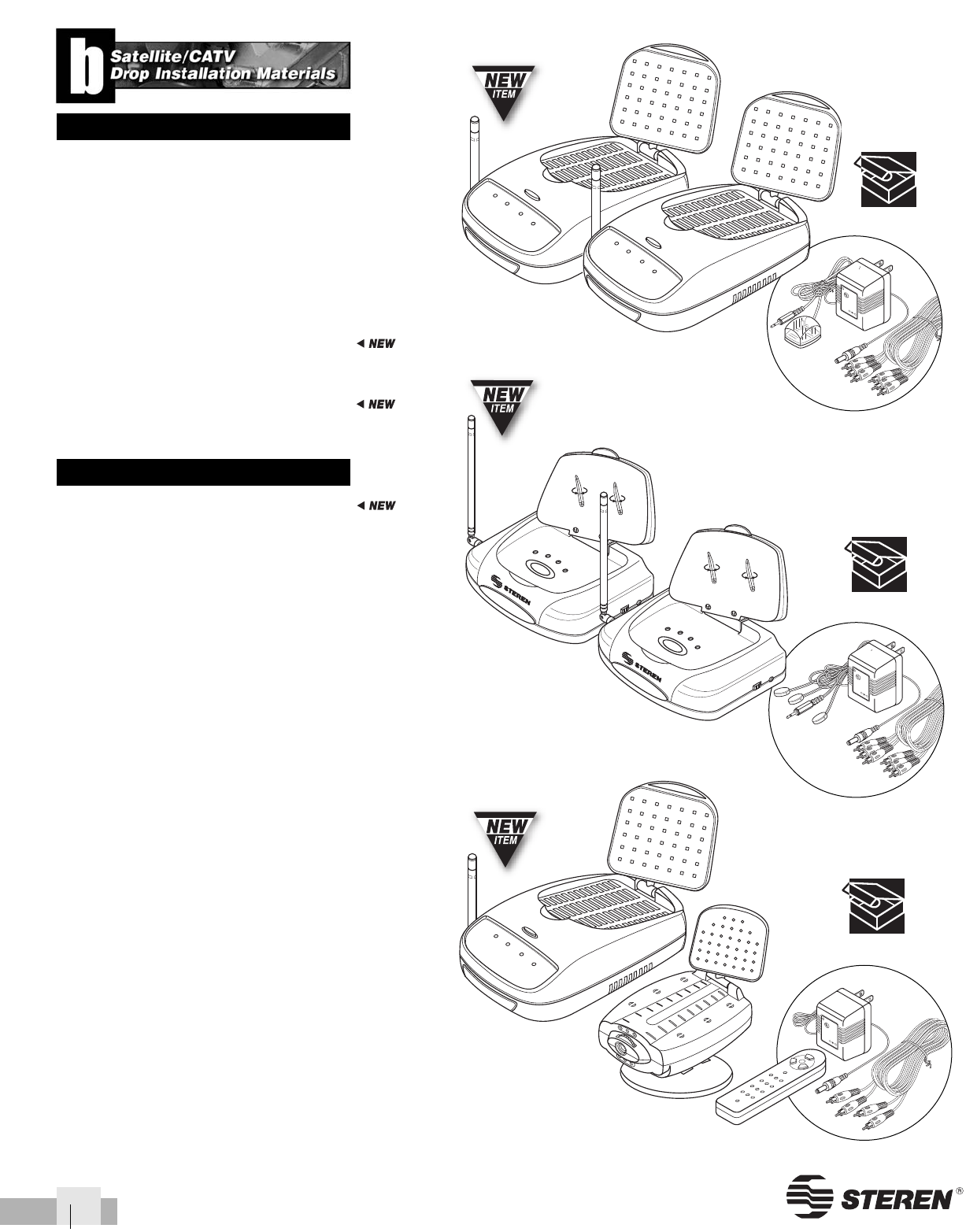

Premium Wireless Audio-Video Signal Extenders
Work with CATV system – Eliminate wire runs
Transmit audio and video signals to a remote
monitor – 2.4GHz wide-band FM high frequency
reduces interference from other cordless devices
Supplied with Sender and Receiver Units
Includes Remote Control Repeater
LED Channel Indicators – Directional Antenna
150´ Remote Control Range – 300´ Operational
Range – Includes power unit and RCA cables
203-010 4-Channel A/V Sender
Includes 12VDC 350mA transformer
2˝(H) x 43/4˝(W) x 71/8˝(D)
203-015 Mini 4-Channel A/V Sender
Includes 9VDC 230mA transformer
11/3˝(H) x 31/2˝(W) x 43/4˝(D)
203-035 Wireless Color Security Camera
System – Transmits through walls,
ceilings, floors
Conveniently monitors households,
offices, pools, hot tubs on any TV
4-Channel Wideband FM Modulation
for Crisp and Clear Audio and Video
High Gain Directional Transmit Antenna
2.4GHz Transmit Frequency
510x492 Pixels – LED indicators
Infrared remote control included
Auto/Manual Channel Selection
Includes 12VDC 500mA transformer
325´ Range Maximum Open Area
Receiver: 21/8˝(H) x 41/3˝(W) x 7˝ (D)
Camera: 17/8˝(H) x 4˝(W) x 51/2˝(D)
Wireless Security Camera
Audio-Video Senders
© 2004 Steren Electronics International, LLC
B 31
203-010
203-015
CAUTION:
Tra nsmitter Receiver
CHANNEL
1234
OFF ON IR
CAUTION:
Tra nsmitter Receiver
CHANNEL
1234
OFF ON IR
CHANNEL
2073R
2.4GHz
WIRELESS RE
CEIVER
1234
203-035
CHANNEL
SENDER
203-010(S)
1234
CHANNEL
RECEIVER
203-010(R)
1234
Display-Boxed
Display-Boxed
Display-Boxed
203-101 Audio-Video RF Modulator
Connects RCA and S-Video inputs
from DVD players, camcorders,
video game system consoles or any
A/V equipment to an F-type output
Suitable for Older TV Sets not
Equipped with RCA or S-Video Inputs
RF Output Channels 3&4
RF Output Impedance 75Ω
Video Input Impedance 75/1kΩ
Audio Input Impedance 13±3kΩ
TV-ANT Insertion Loss 2dB @ 806MHz
Power Source 120VAC 60Hz 4.5W
57/8˝ (W) x 17/8˝ (H) x 3˝(D)
203-020 Remote Control Signal Extender
Use with any IR signal remote
Remote to Transmitter Range 15´
Operational Range 180´
Frequency 35-41kHz
Low attenuation
LEDs indicate signals detected
120VAC 1W
23/4˝ (W) x 31/2˝ (H) x 43/4˝ (D)
Outdoor TV Antenna Rotator Systems
Aims off-air antenna precisely at signal source,
reducing interference
Suitable for 11/2˝-13/4˝ Masts
Motor Torque 160lb-in – 1-RPM
Maximum Vertical Load 100-lbs
Power Source 117VAC 60Hz 62W
Includes mounting hardware
Supplied With or Without Remote Control Unit
Requires 20-gauge 3-conductor cable
Controller 7˝ (W) x 23/8˝ (H) x 53/4˝ (D)
Rotator 61/2˝(W) x 111/2˝ (H) x 31/2˝ (D)
200-600 Antenna Rotator without Remote
200-603 Antenna Rotator with Remote
TV Antenna Rotators
Remote Signal Extender
Audio-Video RF Modulator
© 2004 Steren Electronics International, LLC B 32
203-101
203-020
N
ANT
EN N A
R O
TA TO
R
S
E
E
200-600 Without Remote
200-603 With Remote
ABC
DEF
GHI
JKL
INITIAL MEMORY
Stereo Audio-Video S-VHS 203-101
RF MODULATOR
Display-Boxed
Blister-Packaged
R
E
C
E
I
V
E
R
T
R
A
N
S
M
I
T
T
E
R
Display-Boxed
© 2004 Steren Electronics International, LLC
B 33
200-320200-315
200-460
200-465
200-345
200-470
R
R
R
DONOTOPEN
LISTED
15US
E104014
AC-DAADAPTOR
MODEL:MW41-1250
INPUT:120VAC60Hz10W
OUTPUT:12VDC
CURRENT:DC500mAMAX
CABLE
DBS DVD
AUTO
VCR
SCAN
AUTO
MANUAL
SELECTMODE
AUTOMATIC
A/V SOURCE SELECTOR
200-310
CABLE A TV CABLE B
HI ISOLATION
CABLE SWITCH
VCR TV ANT
Automatic and Manual Audio-Video Selectors
Connect 4 audio-video sources to a single TV set
Suitable for DVD Players, DVRs/PVRs, VCRs,
Camcorders, Video Game System Consoles
Manual or automatic controls switch between
various sources, eliminating the need for
multiple monitors
200-460 Manual Audio Video Selector
4 Push-Button Source Selectors
Color-Coded Inputs with Gold-
Plated S-Video, Composite Video
and Stereo Jacks
71/2˝(W) x 21/2˝(H) x 3˝(D)
200-465 Automatic Audio Video Selector
4 S-Video and Composite Video Inputs
Automatically redirects signal to
display active signal source
Indicators display signal source and
select/auto-scan
Includes 12VDC 200mA transformer
93/4˝(W) x 23/8˝(H) x 61/4˝(D)
200-470 Manual A/V Selector Modulator
4 S-Video and Composite Video Inputs
Integrated Ch 3/4 RF Modulator
Designed to convert separate
audio and video signals into
a single VHF-TV signal (Ch 3 or 4)
viewable on most TV sets
Includes 120VAC 4.5W transformer
91/3˝(W) x 51/8˝(H) x 17/8˝(D)
Used to switch between 2 or 3 input sources
Hardware and Adhesive Pad Included
75ΩInputs – 75ΩOutput
Bandwidth 5-900MHz UHF-VHF-FM
200-310 2-Way Slide Switch – Low Cost
60dB Isolation Diecast Housing
200-315 2-Way Push-Button Switch
90dB High Isolation
Heavy Duty Die-Cast Inner Housing
Solid Push-Button Constant-Contact
200-320 2-Way Slide Switch
75dB Isolation – Shielded Housing
200-345 3-Way Push-Button Switch
60dB Isolation – Shielded Housing
Coaxial Switches
Audio-Video Selectors
ANTENNA/CABLE SWITCH
B TV A
AABBCC
Display-Boxed
Display-Boxed
Display-Boxed
75/300ΩImpedance Matching Baluns
Bandwidth 5-900 MHz UHF-VHF-FM
200-490 Indoor-Outdoor 75-300ΩBalun
Sealed Molded PVC Construction
300ΩTwin-Wire Leads
Protective Weather Boot Included
200-495 Indoor-Outdoor 75-300ΩBalun
Sealed Molded PVC Construction
AWG16 Solid Hook Terminals
Protective Weather Boot Included
200-500 Indoor 75-300ΩBalun
200-505 Indoor 75-300ΩBalun – Gold
200-510 Quick-Connect 300-75ΩBalun
Insulation Piercing Screws
200-610 3-Band Separator – 75ΩInput
300ΩUHF-FM – 75ΩVHF
200-635 3-Band Separator – 75ΩInput 300Ω
UHF-VHF-FM Outputs
200-640 2-Band Combiner – 75ΩOutput
75Ω/VHF 300Ω/UHF Inputs
200-643 2-Band Combiner – 75ΩOutput
75ΩUHF-VHF Inputs
200-645 2-Band Combiner – 75ΩOutput
300ΩUHF-VHF Inputs
Signal Combiners
Band Separators
Matching Transformers
© 2004 Steren Electronics International, LLC B 34
SIGNAL
SEPARATOR-COMBINER
UHF
OUT-IN
VHF
OUT-IN
IN-OUT
200-640
OUTPUT UHF
VHF
INPUT
200-490
200-510
200-610
OUTPUT
VHF UHF
INPUT
200-645
200-635
200-640
SIGNAL
SEPARATOR-COMBINER
UHF
OUT-IN
VHF
OUT-IN
IN-OUT
200-645
SIGNAL
SEPARATOR-COMBINER
UHF
OUT-IN
VHF
OUT-IN
IN-OUT
200-643
200-643
200-495
200-500 Nickel Connector
200-505 Gold Connector
Product Index XXX-XXX – XXX-XXX
© 2004 Steren Electronics International, LLC
B 35
Notes

Navigation menu
