Lutze Flexible Cable And Wire Management For Industrial Automation
2014-09-04
: Pdf 407039-Attachment 407039-Attachment 010906 Batch7 unilog
Open the PDF directly: View PDF
.
Page Count: 96
USA Cable Solutions
Lutze Flexible Cable and Wire Management
for Industrial Automation
Control Cable
Flexible Tray-ER Cable
High Flexing Cable
Motor & VFD Cable
Ethernet Cable
Cable Fittings and Accessories
NPT, PG, Metric Fittings
Connectivity
Cable Solutions
Flexible and continuous flexing cables for
machine control and power distribution
applications. Wire management for industrial
automation.
Cabinet Solutions
Lutze LSC Wiring System saves space, time and
cost. LSC is an aluminum frame that replaces the
traditional back panel and wire duct for mounting
and wiring of electrical components in a control
enclosure. LSC shortens wiring times and
improves heat dissipation.
Automation Solutions
Lutze offers din rail mountable compact power
supplies, industrial Ethernet switches, and
intelligent circuit protection with the Lutze
LOCC-Box.
Transportation Solutions
Lutze supplies high-tech electronic modules for
railway applications. Lutze control modules are
proven to be long lasting and highly reliable in
applications with extended temperature range,
vibration and other harsh external influences.
Lutze Product Overview
32116-Lutze Flex_cover.qxp:Layout 1 1/4/13 8:20 AM Page 2
From products to solutions!
Cable Solutions Automation Solutions Cabinet Solutions
1
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:47 AM Page 1
Table of Contents
Flexible Tray and Control Cable
PVC Unshielded,Control TC-ER A308................................................................................ 6-7
PVC Shielded,Control TC-ER A309....................................................................................... 8
PVC Unshielded,TC-ER with Blue Conductors A325............................................................. 9
PVC Unshielded,TC-ER A322 ............................................................................................. 10
PVC Shielded,TC-ER A321 ................................................................................................. 11
PUR Unshielded,Control A124 ............................................................................................ 12
PVC Unshielded,Control 108xxxA ....................................................................................... 13
VFD and Motor Cable
PVC Shielded,DRIVEFLEX® XLPE VFD Cable, TC-ER A216............................................. 14
PVC Shielded,DRIVEFLEX® XLPE VFD Servo I Motor Cable, TC-ER A217....................... 15
PVC Shielded,DRIVEFLEX® XLPE VFD Servo II Motor Cable, TC-ER A218...................... 16
PVC Shielded,DRIVEFLEX® XLPE VFD 3 Symmetrical Grounds, TC-ER A219 ................. 17
PVC Shielded,0.6 kV Motor Cable, TC-ER A116 & Composite Motor Cable, TC-ER A117.. 18
Electronic Cable
PVC Unshielded,Electronic PLTC A303 .............................................................................. 19
PVC Shielded,Electronic PLTC A313................................................................................... 20
PVC Shielded,Electronic TP PLTC A314 ............................................................................. 21
Hook Up Wire
PVC Single Conductor, Multi-Norm ............................................................................... 22-23
Bus and Network Cable
Network and Ethernet Cable PVC Shielded ....................................................................... 24
Bus Cable Shielded ............................................................................................................ 25
Flexible Cables
Lutze Silflex®for Flexible and Stationary Applications and
DRIVEFLEX® VFD cable
21-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:47 AM Page 2
Table of Contents
Control Cable
PVC Unshielded,Control A138.............................................................................................28
PVC Shielded,Control A139 ................................................................................................. 29
PUR Unshielded,Control .....................................................................................................30
PUR Shielded,Control .........................................................................................................31
Motor Cable
PUR Unshielded,0.6/1kV Motor Cable ................................................................................32
PUR Shielded,0.6/1kV Motor Cable ....................................................................................33
PUR Shielded,0.6/1kV Composite Motor Cable, Control Pairs .............................................34
PUR Shielded,Kombi (Feedback) Cable ..............................................................................35
PUR Unshielded,0.6/1kV Single Conductor Motor Cable ....................................................36
PUR Shielded,0.6/1kV Single Conductor Motor Cable ........................................................37
Electronic Cable
PUR Unshielded, Electronic Cable .......................................................................................38
PUR Shielded,Electronic Cable............................................................................................39
PUR Shielded,Electronic Cable, TP .....................................................................................40
Bus and Network Cable
PUR Shielded,Bus Cable .....................................................................................................41
PUR Shielded,Network and Ethernet Cable .........................................................................42

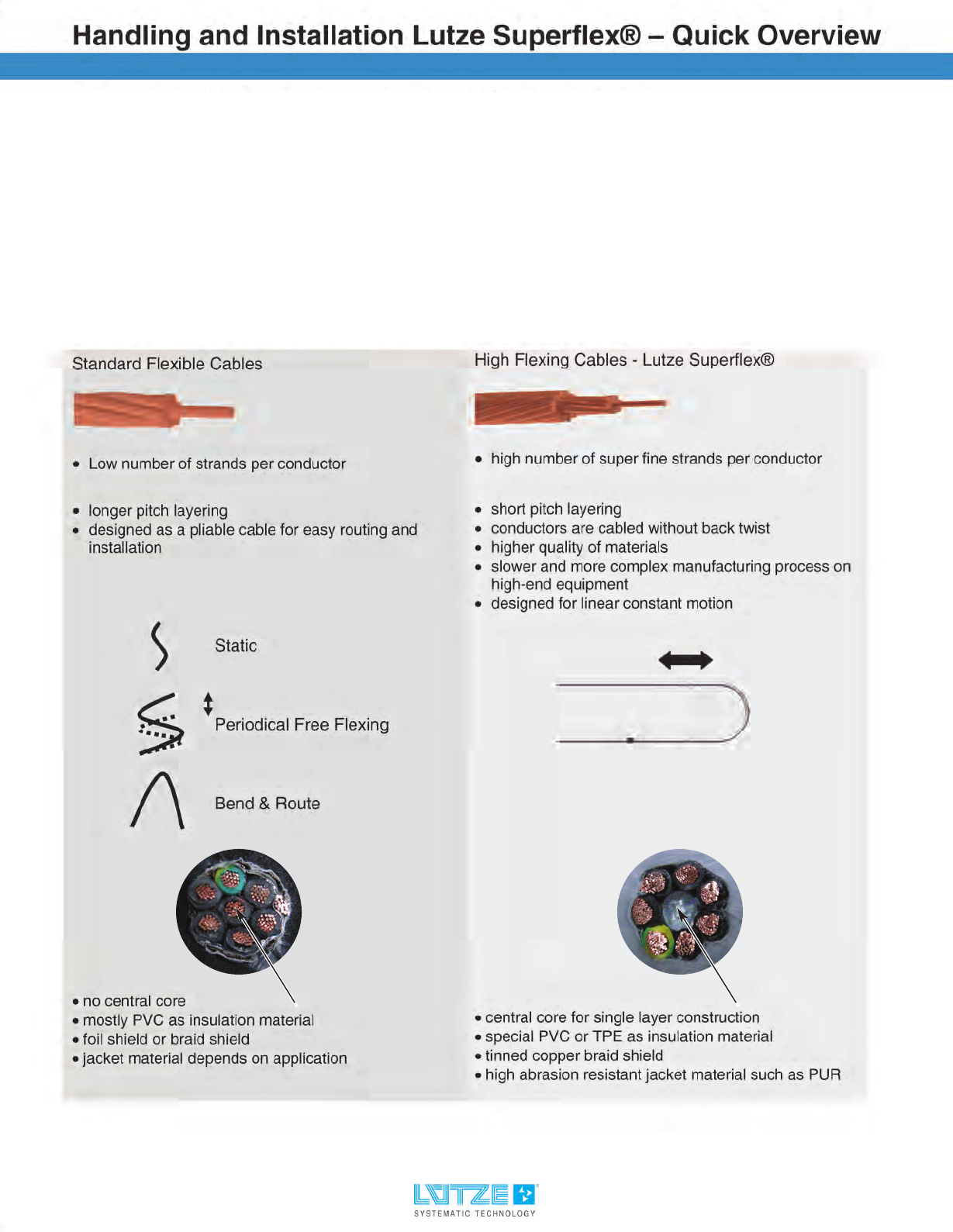

High Flexing Cables
Lutze Superflex®,Superflex®Plus for
Linear Continuous Moving/Flexing Applications, C-track
3
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 3
41-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 4
Flexible Cables
Lutze Silflex® for Flexible and Stationary Applications and
DRIVEFLEX® VFD Cable
5
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 5
Lutze Silflex® Control-ER PVC, Unshielded
Flexible Control and Tray Cable
with UL/TC-ER/WTTC/ITC-ER/PLTC-ER/MTW/CSA/CE Approvals
Application
xMulti-conductor cable for tray and control applications, with
exposed run (open wiring) approval
xMachine tools, machine and plant construction, HVAC
technology, assembly and production lines, and other industrial
applications
xCompliant with NFPA 79 requirements
xTC-ER for use on machines and in cable trays without conduit,
which can reduce material and labor costs (AWG 18 and larger)
xWTTC – wind turbine tray cable rating for use in wind power
generation (AWG 18 and larger)
xPTLC-ER – power limited tray cable exposed run
xITC-ER – instrumentation tray cable
xDry, damp or wet locations
Characteristics
xFlexible design with Nylon for crush impact resistance per UL
1277 and easy installation
xSpecially formulated jacket for oil resistance
xGray jacket for control cable applications according to DESINA
xNon-wicking fillers
xSunlight resistant
xDirect burial (AWG 18 and larger)
xTalc free
xSilicone free
Technical Data
Voltage AWG 20
600V UL MTW
300V PLTC
AWG 18 and larger
600V UL TC/MTW
1000V WTTC
Temperature -40°C - +90°C static
Bending radius 4 x cable OD
Conductor marking Black with white numbers and one
green/yellow ground
*no ground included
Approvals
AWG specific approvals
UL/AWM/CSA/CE
AWM Style 20886
(UL) Type MTW or DP-1
Class 1 Div. 2 per NEC
Art. 336, 392, 501
C(UL) TC and CIC FT4
UL 1277
Oil Res II
RoHS
AWG 20
PLTC-ER and ITC-ER
AWG 18 to AWG 12
TC-ER and WTTC
PLTC-ER and ITC-ER
AWG 10 and larger
TC-ER and WTTC
Construction
xFlexible fine wire stranded bare copper conductors
xPVC/Nylon insulation
xOil resistant gray PVC jacket
Part No. Description OD - Ø OD - Ø Weight Copper
No. of conductors
incl. ground
ca. mm inches Lbs/Mft Lbs/Mft
A3082003
A3082004
A3082005
A3082007
A3082012
A3082018
A3082025
A3081802
A3081803
A3081804
A3081805
A3081807
A3081809
A3081812
A3081818
A3081825
A3081834
A3081841
A3081850
A3081602
A3081603
A3081604
A3081605
A3081607
A3081609
A3081612
A3081618
A3081625
A3081634
A3081641
A3081403
A3081404
A3081405
A3081407
A3081409
A3081412
A3081418
A3081425
AWG 20 (10/30)
3
4
5
7
12
18
25
AWG 18 (19/30)
2*
3
4
5
7
9
12
18
25
34
41
50
AWG 16 (26/30)
2*
3
4
5
7
9
12
18
25
34
41
AWG 14 (41/30)
3
4
5
7
9
12
18
25
6.8
7.3
7.9
8.5
10.8
12.5
17.1
7.0
7.5
8.1
8.8
9.5
10.8
12.1
14.9
17.2
18.9
22.8
23.1
7.7
8.1
8.7
9.5
10.2
12.0
13.4
16.4
19.0
22.3
25.0
8.8
9.6
10.4
11.3
13.1
15.5
18.2
20.9
0.268
0.287
0.313
0.335
0.426
0.492
0.672
0.276
0.296
0.320
0.346
0.373
0.425
0.477
0.587
0.677
0.744
0.896
0.910
0.305
0.21
0.347
0.377
0.406
0.473
0.527
0.647
0.748
0.876
0.983
0.348
0.378
0.410
0.445
0.516
0.610
0.715
0.825
41
49
57
70
110
152
229
46
54
65
82
102
128
157
240
314
404
520
630
53
66
77
98
122
159
196
294
391
541
670
87
108
125
164
213
283
404
537
9
13
16
22
38
56
79
12
18
24
30
42
54
72
108
151
205
248
302
16
24
32
40
57
73
98
147
204
278
335
38
51
64
89
115
154
231
321
RoHS
Specifications are subject to change without prior notice
61-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 6
Lutze Silflex® Control-ER PVC, Unshielded
Flexible Control and Tray Cable
with UL/TC-ER/WTTC/ITC-ER/PLTC-ER/MTW/CSA/CE Approvals
Application
xMulti-conductor cable for tray and control applications, with
exposed run (open wiring) approval
xMachine tools, machine and plant construction, HVAC
technology, assembly and production lines, and other industrial
applications
xCompliant with NFPA 79 requirements
xTC-ER for use on machines and in cable trays without conduit,
which can reduce material and labor costs (AWG 18 and larger)
xWTTC – wind turbine tray cable rating for use in wind power
generation (AWG 18 and larger)
xPTLC-ER – power limited tray cable exposed run
xITC-ER – instrumentation tray cable
xDry, damp or wet locations
Characteristics
xFlexible design with Nylon for crush impact resistance per UL
1277 and easy installation
xSpecially formulated jacket for oil resistance
xGray jacket for control cable applications according to DESINA
xNon-wicking fillers
xSunlight resistant
xDirect burial (AWG 18 and larger)
xTalc free
xSilicone free
Technical Data
Voltage AWG 20
600V UL MTW
300V PLTC
AWG 18 and larger
600V UL TC/MTW
1000V WTTC
Temperature -40°C - +90°C static
Bending radius 4 x cable OD
Conductor marking Black with white numbers and one
green/yellow ground
*no ground included
Approvals
AWG specific approvals
UL/AWM/CSA/CE
AWM Style 20886
(UL) Type MTW or DP-1
Class 1 Div. 2 per NEC
Art. 336, 392, 501
C(UL) TC and CIC FT4
UL 1277
Oil Res II
RoHS
AWG 20
PLTC-ER and ITC-ER
AWG 18 to AWG 12
TC-ER and WTTC
PLTC-ER and ITC-ER
AWG 10 and larger
TC-ER and WTTC
Construction
xFlexible fine wire stranded bare copper conductors
xPVC/Nylon insulation
xOil resistant gray PVC jacket
Part No. Description OD - Ø OD - Ø Weight Copper
No. of conductors
incl. ground
ca. mm inches Lbs/Mft Lbs/Mft
A3081203
A3081204
A3081205
A3081207
A3081003
A3081004
A3081005
A3080803
A3080804
A3080805
A3080603
A3080604
A3080605
A3080404
A3080204
AWG 12 (65/30)
3
4
5
7
AWG 10 (105/30)
3
4
5
AWG 8 (168/30)
3
4
5
AWG 6 (266/30)
3
4
5
AWG 4 (413/30)
4
AWG 2 (665/30)
4
9.8
11.1
12.1
14.1
12.6
14.6
15.8
17.1
18.9
22.4
18.9
21.7
24.1
27.9
32.2
0.382
0.437
0.475
0.556
0.495
0.573
0.623
0.672
0.744
0.874
0.744
0.853
0.949
1.098
1.727
122
150
183
255
182
239
288
319
398
477
427
535
735
927
1352
63
84
105
147
97
130
162
161
214
268
254
339
425
514
874
RoHS
Specifications are subject to change without prior notice
7
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 7
Lutze Silflex® (C) Control-ER PVC, Shielded
Flexible Shielded Control and Tray Cable
with UL/TC-ER/WTTC/ITC-ER/PLTC-ER/MTW/ CSA/CE Approvals
Application
xMulti-conductor cable for tray and control applications, with
exposed run (open wiring) approval
xMachine tools, machine and plant construction, HVAC
technology, assembly and production lines, and other industrial
applications
xCompliant with NFPA 79 requirements
xTC-ER for use on machines and in cable trays without conduit,
which can reduce material and labor costs (AWG 18 and
larger)
xWTTC – wind turbine tray cable rating for use in wind power
generation (AWG 18 and larger)
xPTLC-ER – power limited tray cable exposed run
xITC-ER – instrumentation tray cable
xDry, damp or wet locations
Characteristics
xFlexible design with Nylon for crush impact resistance per UL
1277 and easy installation
xSpecially formulated jacket for oil resistance
xGray jacket for control cable applications according to DESINA
xNon-wicking fillers
xSunlight resistant
xDirect burial (AWG 18 and larger)
xTalc free
xSilicone free
Technical Data
Voltage AWG 20
600V UL MTW
300V PLTC
AWG 18 and larger
600V UL TC/MTW
1000V WTTC
Temperature -40°C - +90°C static
Bending radius 6 x cable OD
Conductor marking Black with white numbers and one
green/yellow ground
*no ground included
Approvals
AWG specific approvals
UL/AWM/CSA/CE
AWM Style 20886
(UL) Type MTW or DP-1
Class 1 Div. 2 per NEC
Art. 336, 392, 501
C(UL) TC and CIC FT4
UL 1277
Oil Res II
RoHS
AWG 20
PLTC-ER and ITC-ER
AWG 18 to AWG 12
TC-ER and WTTC
PLTC-ER and ITC-ER
AWG 10 and larger
TC-ER and WTTC
Construction
xFlexible fine wire stranded bare copper conductors
xPVC/Nylon insulation
xShielded with foil tape, tinned copper braid and drain wire
xOil resistant gray PVC jacket
Part No. Description OD - Ø OD - Ø Weight Copper
No. of conductors
incl. ground
ca. mm inches Lbs/Mft Lbs/Mft
A3092003
A3092004
A3092005
A3092007
A3092012
A3092018
A3092025
A3091802
A3091803
A3091804
A3091805
A3091807
A3091812
A3091818
A3091825
A3091602
A3091603
A3091604
A3091605
A3091607
A3091612
A3091618
A3091625
A3091403
A3091404
A3091405
A3091407
A3091412
A3091203
A3091204
A3091205
A3091004
AWG 20 (10/30)
3
4
5
7
12
18
25
AWG 18 (19/30)
2*
3
4
5
7
12
18
25
AWG 16 (26/30)
2*
3
4
5
7
12
18
25
AWG 14 (41/30)
3
4
5
7
12
AWG 12 (65/30)
3
4
5
AWG 10 (105/30)
4
7.5
8.0
8.6
9.1
11.4
13.9
15.8
7.7
7.9
8.7
9.1
10.0
12.8
15.5
18.0
8.3
8.8
9.4
10.2
10.8
14.0
16.9
19.6
9.4
10.3
11.1
12.2
16.1
10.8
11.6
12.7
15.1
0.295
0.316
0.337
0.360
0.450
0.549
0.621
0.306
0.310
0.343
0.357
0.395
0.505
0.610
0.710
0.328
0.345
0.370
0.400
0.425
0.550
0.665
0.770
0.370
0.406
0.435
0.480
0.635
0.425
0.457
0.500
0.594
57
65
74
93
131
197
246
59
68
84
94
119
187
266
360
68
87
99
116
144
227
326
441
109
128
155
198
315
150
173
215
284
22
25
28
37
56
78
104
24
30
38
44
58
91
131
177
30
39
49
57
75
121
174
233
57
74
85
113
182
88
112
133
171
RoHS
Specifications are subject to change without prior notice
81-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 8
Lutze Silflex® Tray-ER Blue PVC, Unshielded
Flexible Control and Tray Cable
with UL/TC-ER/CSA/CE Approvals, Blue Conductors for 24V Applications
Application
xMulti-conductor cable for tray applications, with
exposed run (open wiring) approval
xMachine tools, machine and plant construction, HVAC
technology, assembly and production lines, and other
industrial applications
xAutomotive applications with 24 Volt
xMTW rating as required per NFPA 79 for machine tool
wiring
xTC-ER for use on machines and in cable trays without
conduit
xDry, damp and wet conditions
Characteristics
xFlexible design with Nylon for crush impact resistance
per UL 1277 and easy installation
xSpecially formulated jacket for oil resistance
xNon-wicking fillers
xSunlight resistant
xDirect burial
xUL Type TC-Exposed Run
xTalc free
xSilicone free
Technical Data
Voltage 600V UL TC
1000V UL AWM
Temperature -40°C - +90°C static
Bending radius 4 x cable OD
Conductor marking Blue with white numbers;
and one green/yellow ground;
No. 2 is white with a blue
stripe
*** only two blue with white
numbers and one
green/yellow ground, no
white with a blue stripe
Approvals UL Type TC-ER
UL/CSA/CE
UL AWM
(UL) Type MTW or DP-1
Class 1, Div. 2 per NEC
Art. 336, 392, 501
C(UL) TC
CIC FT4
UL1277
Oil res I, UL 83
RoHS
Construction
xFlexible fine wire stranded bare copper conductors
xPVC/Nylon insulation
xOil resistant gray PVC jacket
Part No. Description OD - Ø OD - Ø Weight Copper
No. of conductors
incl. ground
ca. mm inches Lbs/Mft Lbs/Mft
A3251803
A3251807
A3251812
A3251819
A3251825
A3251837
A3251603
A3251607
A3251612
A3251619
A3251625
A3251404
A3251204
AWG 18 (19/30)
3***
7
12
19
25
37
AWG 16 (26/30)
3***
7
12
19
25
AWG 14 (41/30)
4
AWG 12 (65/30)
4
7.5
9.4
12.1
14.8
17.2
20.1
8.2
10.4
14.1
16.3
18.7
9.6
11.1
0.295
0.370
0.476
0.583
0.677
0.791
0.323
0.409
0.555
0.642
0.736
0.378
0.437
57
100
171
254
322
417
65
125
220
285
397
102
143
18
42
72
114
150
223
24
57
98
155
204
51
83
Specifications are subject to change without prior notice
RoHS
9
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 9
Lutze Silflex® Tray-ER PVC, Unshielded
Flexible Tray Cable with UL/TC-ER/WTTC/MTW/CSA/CE Approvals
Application
xMulti-conductor cable for tray applications, with
exposed run (open wiring) approval
xCompliant with NFPA 79 for machine tool wiring
xTC-ER for use with cable trays without conduit,which
can reduce material and labor costs
xMachine tools, machine and plant construction, HVAC
technology, assembly and production lines, and other
industrial applications
xWTTC – wind turbine tray cable rating for use in wind
power generation
xDry, damp and wet locations
Characteristics
xFlexible design with Nylon for crush impact resistance
per UL 1277 and easy installation
xSpecially formulated jacket for oil resistance
xNon-wicking fillers
xSunlight resistant
xDirect burial
xUL Type TC-Exposed Run
xTalc free
xSilicone free
Technical Data
Voltage 600V UL TC
1000V WTTC
Temperature -40°C - +90°C static
Bending radius 4 x cable OD
Conductor marking Black with white numbers and
one green/yellow ground
*no ground included
Approvals UL Type TC-ER
UL/CSA/CE
UL AWM
(UL) Type MTW or DP-1
WTTC
Class 1, Div. 2 per NEC
Art. 336, 392, 501
C(UL) TC
CIC FT4
UL1277
Oil Res II
RoHS
Construction
xFlexible fine wire stranded bare copper conductors
xPVC/Nylon insulation / THHN – THWN
xOil resistant black PVC jacket
Part No. Description OD - Ø OD - Ø Weight Copper
No. of conductors
incl. ground
ca. mm inches Lbs/Mft Lbs/Mft
A3221803
A3221804
A3221805
A3221807
A3221812
A3221818
A3221825
A3221602
A3221603
A3221604
A3221605
A3221607
A3221612
A3221618
A3221625
A3221403
A3221404
A3221405
A3221407
A3221412
A3221203
A3221204
A3221205
A3221207
A3221003
A3221004
A3221005
A3220804
A3220805
A3220604
A3220404
A3220204
AWG 18 (19/30)
3
4
5
7
12
18
25
AWG 16 (26/30)
2*
3
4
5
7
12
18
25
AWG 14 (41/30)
3
4
5
7
12
AWG 12 (65/30)
3
4
5
7
AWG 10 (105/30)
3
4
5
AWG 8 (168/30)
4
5
AWG 6 (266/30)
4
AWG 4 (413/30)
4
AWG 2 (665/30)
4
7.5
8.1
8.8
9.5
12.1
14.9
17.2
7.9
8.1
8.7
9.5
12.2
13.4
16.4
19.0
8.8
9.6
10.4
11.3
15.5
9.8
11.1
12.1
14.1
12.6
14.6
15.8
18.9
22.4
21.7
27.9
32.3
0.296
0.320
0.346
0.373
0.477
0.587
0.677
0.311
0.321
0.347
0.377
0.406
0.527
0.647
0.748
0.348
0.378
0.410
0.445
0.610
0.382
0.437
0.475
0.556
0.495
0.573
0.623
0.744
0.874
0.853
1.098
1.272
54
65
82
102
157
240
314
53
66
77
98
122
196
294
391
87
108
125
164
283
122
150
183
255
182
239
288
398
477
535
927
1352
18
24
30
42
72
108
151
16
24
32
40
57
98
147
204
38
51
64
89
154
63
84
105
147
97
130
162
214
268
339
514
874
RoHS
Specifications are subject to change without prior notice
10 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 10
Lutze Silflex® (C) Tray-ER PVC, Shielded
Flexible Shielded Tray Cable with UL/TC-ER/WTTC/MTW/CSA/CE Approvals
Application
xShielded multi-conductor cable for tray applications,
with exposed run (open wiring) approval
xCompliant with NFPA 79 for machine tool wiring
xTC-ER for use with cable trays without conduit, which
can reduce material and labor costs
xMachine tools, machine and plant construction, HVAC
technology, assembly and production lines, and other
industrial applications
xWTTC – wind turbine tray cable rating for use in wind
power generation
xDry, damp and wet locations
Characteristics
xFlexible design with Nylon for crush impact resistance
per UL 1277 and easy installation
xSpecially formulated jacket for oil resistance
xSunlight resistant
xDirect burial
xUL Type TC-Exposed Run
xTalc free
xSilicone free
Technical Data
Voltage 600V UL TC
1000V WTTC
Temperature -40°C - +90°C static
Bending radius 6 x cable OD
Conductor marking Black with white numbers and
one green/yellow ground
Approvals UL Type TC-ER
UL/CSA/CE
UL AWM
(UL) Type MTW or DP-1
WTTC
Class 1, Div. 2 per NEC
Art. 336, 392, 501
C(UL) TC
CIC FT4
UL1277
Oil Res II
RoHS
Construction
xFlexible fine wire stranded bare copper conductors
xPVC/Nylon insulation
xShielded with foil tape, tinned copper braid and drain
wire
xOil resistant black PVC jacket
Part No. Description OD - Ø OD - Ø Weight Copper
No. of conductors
incl. ground
ca. mm inches Lbs/Mft Lbs/Mft
A3211803
A3211804
A3211805
A3211807
A3211812
A3211818
A3211825
A3211603
A3211604
A3211605
A3211607
A3211612
A3211618
A3211625
A3211403
A3211404
A3211407
A3211412
A3211203
A3211205
A3211005
AWG 18 (19/30)
3
4
5
7
12
18
25
AWG 16 (26/30)
3
4
5
7
12
18
25
AWG 14 (41/30)
3
4
5
7
12
AWG 12 (65/30)
3
5
AWG 10 (105/30)
5
7.9
8.7
9.1
10.0
12.8
15.5
18.0
8.8
9.4
10.2
10.8
14.0
16.9
19.6
9.4
10.3
11.1
12.2
16.1
10.8
12.7
15.8
0.310
0.343
0.357
0.395
0.505
0.610
0.710
0.345
0.370
0.400
0.425
0.550
0.665
0.770
0.370
0.406
0.435
0.480
0.635
0.425
0.500
0.622
68
84
94
119
187
266
360
87
99
116
144
227
326
441
109
128
155
198
315
150
215
330
30
38
44
58
91
131
177
39
49
57
75
121
174
233
57
74
85
113
182
88
133
203
RoHS
Also see Driveflex® A216 cable series with four (4) conductor configuration,
PVC Shielded, 0.6/1kV VFD Motor cable, TC-ER rated.
Specifications are subject to change without prior notice
A3211405
11
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 11
Lutze Silflex® N PUR, Unshielded
Flexible Control Cable with UL/CSA/CE Approvals
Application
xMulti-conductor cable for machine tools, handling
equipment, machine and plant construction, transport
and conveying technology
Characteristics
xFlexible for easy installation
xPUR jacket for highest oil and abrasion resistance
xNon-wicking fillers
xTalc free
xSilicone free
Technical Data
Voltage 600V UL AWM
Temperature -40°C - +80°C
Bending radius 4 x cable OD
Conductor marking Black with white numbers and
one green/yellow ground
Approvals UL/CSA/CE
Oil Res II
RoHS
Construction
xFlexible fine wire stranded bare copper conductors
xPVC insulation
xExtremely oil resistant gray PUR jacket
Part No. Description OD - Ø OD - Ø Weight Copper
No. of conductors
incl. ground
ca. mm inches Lbs/Mft Lbs/Mft
A1241803
A1241804
A1241805
A1241807
A1241812
A1241818
A1241825
A1241603
A1241604
A1241605
A1241607
A1241612
A1241618
A1241625
A1241404
A1241407
A1241412
A1241204
AWG 18 (19/30)
3
4
5
7
12
18
25
AWG 16 (26/30)
3
4
5
7
12
18
25
AWG 14 (41/30)
4
7
12
AWG 12 (65/30)
4
6.5
7.4
7.5
8.6
11.2
13.1
15.4
7.2
7.8
8.4
9.6
11.5
14.7
17.4
9.7
11.5
16.2
12.2
0.254
0.289
0.296
0.339
0.440
0.515
0.605
0.282
0.305
0.331
0.378
0.443
0.580
0.684
0.380
0.452
0.636
0.480
39
50
60
79
135
191
254
52
67
82
109
190
265
356
102
190
295
162
15
20
25
35
60
90
125
24
32
40
57
97
147
204
51
89
153
83
RoHS
Specifications are subject to change without prior notice
12 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 12
Lutze Silflex® N PVC, Unshielded
Flexible Control Cable with UL/CSA/CE Approvals
Application
xMulti-conductor control cable for machine and plant
construction, HVAC technology, assembly and
production lines, and many other industrial applications
xEasy strip design specially suited for cable assemblies
Characteristics
xMost flexible design without Nylon for easy stripping
and easy installation
xEasy routing and bending due to flexibility
xSpecially formulated gray PVC jacket for oil resistance
xResistant to mineral oils, coolants and solvents
xNon-wicking fillers
Technical Data
Voltage 600V UL AWM
Temperature -40°C - +90°C static
Bending radius 4 x cable OD
Conductor marking Black with white numbers and
one green/yellow ground;
*no ground included
Approvals UL AWM Style 2587
UL-VW-1
CSA AWM, I/II A/B FT4
CE
Oil Res II
RoHS
Construction
xFlexible fine wire stranded bare copper conductors
xPVC insulation
xOil resistant gray PVC jacket
xOther jacket colors available
Part No. Description OD - Ø OD - Ø Weight Copper
No. of conductors
incl. ground
ca. mm inches Lbs/Mft Lbs/Mft
108349A
108350A
108351A
108352A
108353A
108354A
108355A
108356A
108401A
108357A
108358A
108359A
108360A
108392A
108361A
108362A
108363A
108391A
108372A
108373A
108374A
108375A
108393A
108376A
108377A
108378A
108380A
108381A
108382A
108383A
108384A
108385A
108386A
AWG 20 (10/30)
2*
3
4
5
7
12
18
25
AWG 18 (16/30)
2*
3
4
5
7
9
12
18
25
AWG 16 (26/30)
2*
3
4
5
7
9
12
18
25
AWG 14 (41/30)
3
4
5
7
12
18
25
5.7
6.0
6.5
7.2
8.8
10.8
12.8
15.0
6.5
6.7
7.2
7.7
9.1
11.7
12.0
13.8
16.0
6.9
7.4
8.0
8.7
10.3
13.0
13.8
15.5
18.0
8.9
9.8
10.9
13.4
16.9
19.7
23.7
0.226
0.235
0.255
0.282
0.345
0.424
0.505
0.592
0.254
0.263
0.285
0.305
0.360
0.460
0.473
0.543
0.630
0.270
0.290
0.316
0.341
0.406
0.511
0.543
0.610
0.708
0.352
0.384
0.430
0.529
0.666
0.774
0.935
27
31
38
46
65
103
153
206
34
41
51
63
82
119
142
198
263
41
55
69
84
112
159
198
274
366
82
103
130
183
307
433
598
6.5
10
12
16
22
38
56
88
10
15
20
25
35
45
60
90
125
16
24
32
40
57
73
97
147
204
38
51
63
89
153
230
320
RoHS
Specifications are subject to change without prior notice
13
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 13
Lutze DRIVEFLEX®XLPE (C) PVC, Shielded
Flexible VFD & Motor Supply Cable with UL/TC-ER/WTTC/CSA/CE Approvals
Application
xShielded multi-conductor cable for VFD and Motor
applications to connect power from drives to motors
xCable design for harsh industrial environments and
operating conditions with high noise levels
xXLPE thick wall insulation with low capacitance, ideal
for applications with high voltage spikes and long
cable runs
xCompliant with NFPA 79 for wiring of industrial
machinery
xTC-ER for use with cable trays without conduit,
which can reduce material and labor costs
xWTTC – wind turbine tray cable rating for use in wind
power generation
xDry, damp or wet conditions
Characteristics
xFlexible XLPE conductor design
xNon-wicking fillers
xEffective dual layer shield for EMC compliance
xSpecially formulated jacket for oil resistance and easy
strip design
xLow capacitance cable
xRound cable – seals well with circular connectors
xSunlight resistant
xDirect burial
xUL Type TC-Exposed Run
xTalc free and silicone free
Technical Data
Voltage 600V UL TC
1000V Flexible VFD Servo cable
90C
1000V WTTC
Temperature -40°C - +90°C static
Bending radius 6 x cable OD
Conductor marking Black with white numbers and
one green/yellow ground
Approvals UL Type TC-ER
UL/AWM/CSA/CE
UL DP-1
Flexible VFD Servo cable
WTTC
Class 1, Div. 2 per NEC
Art. 336, 392, 501
C(UL) TC
CIC FT4
UL 1277
Oil res II
Wet/Dry
MSHA
RoHS
Construction
xFlexible fine wire stranded tinned copper conductors
for improved electrical characteristics and reduced
oxidation
xXLPE insulation RHW-2, Wet/Dry
x6KLHOGHG ZLWK IRLO WDSH WLQQHG FRSSHU EUDLG ZLWK
optical coverage, and drain wire
xFlexible, oil resistant black PVC jacket
Part No. Description OD - Ø OD - Ø Weight Copper
No. of conductors
incl. ground
ca. mm inches Lbs/Mft Lbs/Mft
A2161604
A2161404
A2161204
A2161004
A2160804
A2160604
A2160404
A2160204
AWG 16 (26/30)
4
AWG 14 (41/30)
4
AWG 12 (65/30)
4
AWG 10 (105/30)
4
AWG 8 (168/30)
4
AWG 6 (266/30)
4
AWG 4 (413/30)
4
AWG 2 (665/30)
4
12.4
14.2
15.6
17.8
23.5
25.7
29.3
33.7
0.490
0.560
0.615
0.700
0.925
1.010
1.155
1.325
149
200
262
359
603
763
1,126
1,559
57
80
128
186
295
425
632
997
RoHS
Specifications are subject to change without prior notice
14 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 14
Lutze DRIVEFLEX®XLPE (C) Servo I PVC, Shielded
Flexible Composite VFD, Servo & Motor Supply Cable with one Control Pair and UL/TC-
ER/WTTC/CSA/CE Approvals
Application
xShielded multi-conductor cable for VFD, Servo and
Motor applications to connect power from drives to
motors
xCable design for harsh industrial environments and
operating conditions with high noise levels
xXLPE thick wall insulation with low capacitance, ideal
for applications with high voltage spikes and long
cable runs
xCompliant with NFPA 79 for wiring of industrial
machinery
xTC-ER for use with cable trays without conduit,
which can reduce material and labor costs
xWTTC – wind turbine tray cable rating for use in wind
power generation
xDry, damp or wet conditions
Characteristics
xFlexible XLPE conductor design
xNon-wicking fillers
xEffective dual layer shield for EMC compliance
xSpecially formulated jacket for oil resistance and easy
strip design
xLow capacitance cable
xSunlight resistant
xDirect burial
xUL Type TC-Exposed Run
xTalc free and silicone free
Technical Data
Voltage 600V UL TC
1000V Flexible VFD Servo cable
90C
1000V WTTC
Temperature -40°C - +90°C static
Bending radius 6 x cable OD
Conductor marking Black with white numbers and
one green/yellow ground
Approvals UL Type TC-ER
UL/AWM/CSA/CE
UL DP-1
Flexible VFD Servo cable
WTTC
Class 1, Div. 2 per NEC
Art. 336, 392, 501
C(UL) TC
CIC FT4
UL 1277
Oil res II
Wet/Dry
RoHS, REACH
Construction
xFlexible fine wire stranded tinned copper conductors
for improved electrical characteristics and reduced
oxidation
xXLPE insulation, Wet/Dry
(4C RHW-2, 1 Pair XHHW-2)
xShielded with foil tape, tinned copper braid ZLWK
optical coverage, and drain wire
xFlexible, oil resistant black PVC jacket
WITH ONE SHIELDED CONTROL PAIR
Part No. Description OD - Ø OD - Ø Weight Copper
No. of conductors
incl. ground
ca. mm inches Lbs/Mft Lbs/Mft
A2171604
A2171404
A2171204
A2171004
A2170804
A2170604
A2170404
A2170204
AWG 16 (26/30)
1TSP AWG18 (19/30)
4+1pair
AWG 14 (41/30)
1TSP AWG16 (26/30)
4+1pair
AWG 12 (65/30)
1TSP AWG16 (26/30)
4+1pair
AWG 10 (105/30)
1TSP AWG14 (41/30)
4 + 1 pair
AWG 8 (168/30)
1TSP AWG14 (41/30)
4 + 1 pair
AWG 6 (266/30)
1TSP AWG14 (41/30)
4 + 1 pair
AWG 4 (413/30)
1TSP AWG14 (41/30)
4 + 1 pair
AWG 2 (665/30)
1TSP AWG14 (41/30)
4 + 1 pair
15.7
16.8
18.3
20.6
26.0
27.8
31.0
35.3
0.620
0.650
0.720
0.810
1.025
1.095
1.220
1.390
228
265
335
420
713
873
1,142
1,579
90
117
160
218
321
453
651
1,010
RoHS
Specifications are subject to change without prior notice
15
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 15
Lutze DRIVEFLEX®XLPE (C) Servo II PVC, Shielded
Flexible Composite VFD, Servo & Motor Supply Cable with two Control Pairs and UL/TC-
ER/WTTC/CSA/CE Approvals
Application
xShielded multi-conductor cable for VFD, Servo and
Motor applications to connect power from drives to
motors
xCable design for harsh industrial environments and
operating conditions with high noise levels
xXLPE thick wall insulation with low capacitance, ideal
for applications with high voltage spikes and long
cable runs
xCompliant with NFPA 79 for wiring of industrial
machinery
xTC-ER for use with cable trays without conduit,
which can reduce material and labor costs
xWTTC – wind turbine tray cable rating for use in wind
power generation
xDry, damp or wet conditions
Characteristics
xFlexible XLPE conductor design
xNon-wicking fillers
xEffective dual layer shield for EMC compliance
xSpecially formulated jacket for oil resistance and easy
strip design
xLow capacitance cable
xSunlight resistant
xDirect burial
xUL Type TC-Exposed Run
xTalc free and silicone free
Technical Data
Voltage 600V UL TC
1000V Flexible VFD Servo
cable 90C
1000V WTTC
Temperature -40°C - +90°C static
Bending radius 6 x cable OD
Conductor marking Black with white numbers and
one green/yellow ground
Approvals UL Type TC-ER
UL/AWM/CSA/CE
UL DP-1
Flexible VFD Servo cable
WTTC
Class 1, Div. 2 per NEC
Art. 336, 392, 501
C(UL) TC
CIC FT4
UL 1277
Oil res II
Wet/Dry
RoHS, REACH
Construction
xFlexible fine wire stranded tinned copper conductors
for improved electrical characteristics and reduced
oxidation
xXLPE insulation, Wet/Dry
(4C RHW-2, 2 Pairs XHHW-2)
xShielded with foil tape, tinned copper EUDLG ZLWK
optical coverage, and drain wire
xFlexible, oil resistant black PVC jacket
WITH TWO SHIELDED CONTROL PAIRS
Part No. Description OD - Ø OD - Ø Weight Copper
No. of conductors
incl. ground
ca. mm inches Lbs/Mft Lbs/Mft
A2181604
A2181404
A2181204
A2181004
A2180804
AWG 16 (26/30)
2TSP AWG18 (19/30)
4 + 2 pairs
AWG 14 (41/30)
2TSP AWG16 (26/30)
4 + 2 pairs
AWG 12 (65/30)
2TSP AWG16 (26/30)
4 + 2 pairs
AWG 10 (105/30)
2TSP AWG14 (41/30)
4 + 2 pairs
AWG 8 (168/30)
2TSP AWG14 (41/30)
4 + 2 pairs
17.8
19.3
20.2
23.6
27.7
0.699
0.760
0.795
0.930
1.090
278
330
388
553
785
113
149
187
261
364
Specifications are subject to change without prior notice
RoHS
16 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 16
Lutze DRIVEFLEX®3 Symmetrical Grounds, Shielded
Flexible Composite VFD, Servo & Motor Supply Cable with Three Symmetrical Grounds and
UL 2kV Voltage Rating
Application
xShielded VFD and Servo-Motor cable to connect
power from drives to motors
xThree insulated symmetrical grounds design helps to
reduce stray currents
xCable design for harsh industrial environments and
operating conditions with high noise levels
x2 kV rated XLPE thick wall insulation with low
capacitance, ideal for applications with high voltage
spikes and long cable runs
xCompliant with NFPA 79 for wiring of industrial
machinery
xTC-ER for use with cable trays without conduit,
which can reduce material and labor costs
xWTTC – wind turbine tray cable rating for use in wind
power generation
xDry, damp or wet conditions
Characteristics
xFlexible XLPE conductors
xThree symmetrical grounds (PE)
xNon-wicking fillers
xEffective dual layer shield for best EMC results
xSpecially formulated jacket for oil resistance and easy
strip design
xLow capacitance cable
xSunlight resistant
xDirect burial
xUL Type TC-Exposed Run
xTalc free and silicone free
Technical Data
Voltage 2000V Flexible VFD Servo cable
90C
1000V WTTC
Temperature -40°C - +90°C static
Bending radius 7.5 x cable OD
Conductor marking Black with white numbers and
three green/yellow ground
Approvals UL Type Flexible VFD Servo
Cable
UL Types WTTC, TC-ER
C(UL) TC CIC control cable FT4
CE
Class 1, Div. 2 per NEC
Art. 336, 392, 501
UL 1277, UL2277
Oil res II
Wet/Dry
RoHS, REACH
Construction
xFlexible fine wire stranded tinned copper conductors
for improved electrical characteristics and reduced
oxidation
xXLPE insulation, Wet/Dry
3C RHW-2 (Power), 3C XHHW-2 (Grounds/PE)
x6KLHOGHG ZLWK IRLO WDSH WLQQHG FRSSHU EUDLG ZLWK
optical coverage, and drain wire
xFlexible, oil resistant black PVC jacket
WITH THREE SYMMETRICAL GROUNDS
Part No. Description OD - Ø OD - Ø Weight Copper
No. of conductors
incl. ground
ca. mm inches Lbs/Mft Lbs/Mft
A2190603
A2190403
A2190203
A2190103
A2191/003
A2192/003
A2193/003
A2194/003
AWG 6 (206/29)
AWG12 (50/29)
3C + 3PE
AWG 4 (322/29)
AWG12 (50/29)
3C + 3PE
AWG 2 (511/29)
AWG10 (80/29)
3C + 3PE
AWG 1 (644/29)
AWG8 (128/29)
3C + 3PE
1/0 (812/29)
AWG8 (128/29)
3C + 3PE
2/0 (1022/29)
AWG8 (128/29)
3C + 3PE
3/0 (1288/29)
AWG6 (206/29)
3C + 3PE
4/0 (1638/29)
AWG6 (206/29)
3C + 3PE
31.4
32.6
34.9
39.2
43
45.8
51
59
1.234
1.281
1.374
1.543
1.693
1.803
2.008
2.321
960
1118
1433
1860
2299
2700
3148
4120
416
573
860
1105
1323
1595
2032
2432
Specifications are subject to change without prior notice
RoHS
17
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 17
Lutze Silflex® N (C) Motor PVC, Shielded
Flexible Motor Cable with UL/TC-ER/WTTC/MTW/CSA/CE Approvals
Application
xShielded multi-conductor cable for Motor applications
to connect power to 3-phase motors
xCable design for harsh industrial environments and
operating conditions with high noise levels
xDue to semi-conductive layer suitable for applications
with high voltage spikes in short to medium cable runs
(see Driveflex® A216/A217 series for long cable runs
or use with VFDs)
xCompliant with NFPA 79 for machine tool wiring
xTC-ER for use with cable trays without conduit,
which can reduce material and labor costs
xWTTC – wind turbine tray cable rating for use in wind
power generation
xDry, damp and wet locations
Characteristics
xFlexible design with Nylon for crush impact resistance
per UL 1277 and easy installation
xVery round cable with reduced cable diameter
xSpecially formulated jacket for oil resistance
xSemi-conductive layer reduces corona effects, thus
increasing the reliability and lifetime
xNon-wicking fillers
xSunlight resistant
xDirect burial
xUL Type TC-Exposed Run
xTalc free
xSilicone free
Technical Data
Voltage 600V UL TC
1000V WTTC
Temperature -40°C - +90°C static
Bending radius 6 x cable OD
Conductor marking Black with white numbers and
one green/yellow ground
Approvals UL Type TC-ER
UL/AWM/CSA/CE
UL MTW or DP-1
WTTC
Class 1, Div. 2 per NEC
Art. 336, 392, 501
C(UL) TC
CIC FT4
UL 1277
Oil Res II
RoHS
Construction
xFlexible fine wire stranded tinned copper conductors
for improved electrical characteristics and reduced
oxidation
xPVC/Nylon insulation with semi-conductive layer
xShielded with foil tape, tinned copper braid and drain
wire
xOil resistant PVC jacket
Part No. Description OD - Ø OD - Ø Weight Copper
No. of conductors
incl. ground
ca. mm inches Lbs/Mft Lbs/Mft
A1161804
A1161604
A1161404
A1161204
A1161004
A1171604
A1171404
A1171204
A1171004
AWG 18 (19/30)
4
AWG 16 (26/30)
4
AWG 14 (41/30)
4
AWG 12 (65/30)
4
AWG 10 (105/30)
4
AWG 16 (26/30)
(4C/AWG 16 +
(1 pair AWG 18))
AWG 14 (41/30)
(4C/AWG 14 +
(1 pair AWG 18))
AWG 12 (65/30)
(4C/AWG 12 +
(1 pair AWG 16))
AWG 10 (105/30)
(4C/AWG 10 +
(1 pair AWG 14))
9.7
10.2
11.4
12.8
16.7
12.8
14.5
16.0
19.1
0.384
0.402
0.448
0.503
0.658
0.504
0.569
0.631
0.753
96
112
151
203
320
151
202
264
373
38
49
74
112
171
69
93
139
207
RoHS
Specifications are subject to change without prior notice
Available in orange jacket upon request.
Larger AWG available through special order or refer to
Driveflex® A216 VFD cable series.
WITH ONE SHIELDED CONTROL PAIR
Larger AWG available through special order or refer to
Driveflex® A217 VFD cable series.
18 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 18
Lutze Electronic PLTC PVC, Unshielded
Flexible Electronic Cable with UL/CSA/CE/PLTC Approvals
Application
xIndustrial grade PLTC electronic cable for machine
tools, process instrumentation and controls, computer
peripherals, HVAC technology, assembly and
production lines, low voltage interconnect and other
industrial applications including installation in cable
trays
Characteristics
xFlexible for easy installation
xEasy strip design
xColor coded conductors
xSpecially formulated jacket for oil resistance
xPremium durability
xExtended temperature range
xUL listed and NFPA 79 compliant
Technical Data
Voltage 300V
Temperature -25°C - +105°C
Bending radius 4 x cable OD
Conductor marking See tables
Approvals UL Type PLTC
CMG
AWM Style 2464
UL VW-1
CSA FT4
AWM II A/B
CE
Meets NEC 725, 760, 800
Class I Div. 2 (PLTC use only)
Oil Res II
RoHS
Construction
xFlexible stranded tinned copper conductors
xPVC insulation
xOil resistant gray premium PVC jacket
Part No. Description OD - Ø OD - Ø Weight Copper
No. of conductors ca. mm inches Lbs/Mft Lbs/Mft
A3032202
A3032203
A3032204
A3032206
A3032208
A3032210
A3032215
A3032220
A3032225
A3032002
A3032003
A3032004
A3032006
A3032008
A3032010
A3032015
A3032020
A3032025
AWG 22 (19/34)
2
3
4
6
8
10
15
20
25
AWG 20 (19/32)
2
3
4
6
8
10
15
20
25
4.4
4.6
4.9
5.6
6.0
7.2
7.9
8.7
10.4
4.9
5.2
5.6
6.5
7.2
8.2
11.3
12.7
14.0
0.172
0.180
0.193
0.222
0.238
0.282
0.310
0.341
0.408
0.195
0.204
0.220
0.254
0.282
0.323
0.446
0.500
0.551
20
24
28
38
45
55
75
93
124
27
35
41
58
76
94
136
182
222
4
7
9
14
19
24
35
47
59
7
11
15
22
30
37
56
75
94
Color Code Table AWG 22
1- Black
2- Brown
3- Red
4- Orange
5- Yellow
6- Green
7- Blue
8- Purple
9- Gray
10- White
11- White Black
12- White Brown
13- White Red
14- White Orange
15- White Yellow
16- White Green
17- White Blue
18- White Purple
19- White Gray
20- White Black
Brown
21- White Black
Red
22- White Black
Orange
23- White Black
Yellow
24- White Black
Green
25- White Black
Blue
Color Code Table AWG 20
1- Black
2- Red
3- White
4- Green
5- Orange
6- Blue
7- Brown
8- Yellow
9- Purple
10- Gray
11- Pink
12- Tan
13- Red Green
14- Red Yellow
15- Red Black
16- White Black
17- White Red
18- White Green
19- White Yellow
20- White Blue
21- White Brown
22- White Orange
23- White Gray
24- White Purple
25- White Black Red
RoHS
Specifications are subject to change without prior notice
19
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 19
Lutze Electronic PLTC PVC, Shielded
Shielded Flexible Electronic Cable with UL/CSA/CE/PLTC Approvals
Application
xDouble shielded industrial grade PLTC electronic
cable for machine tools, process instrumentation and
controls, computer peripherals, HVAC technology,
assembly and production lines, low voltage
interconnect and other industrial applications including
installation in cable trays
Characteristics
xFlexible for easy installation
xEasy strip design
xColor coded conductors
xSpecially formulated jacket for oil resistance
xPremium durability
xExtended temperature range
xUL listed and NFPA 79 compliant
Technical Data
Voltage 300V
Temperature -25°C - +105°C
Bending radius 6 x cable OD
Conductor marking See tables
Approvals UL Type PLTC
CMG
AWM Style 2464
UL VW-1
CSA FT4
AWM II A/B
CE
Meets NEC 725, 760, 800
Class I Div. 2 (PLTC use only)
Oil Res II
RoHS
Construction
xFlexible stranded tinned copper conductors
xShielded with foil tape, tinned copper braid and full
size drain wire
xPVC insulation
xOil resistant gray premium PVC jacket
Part No. Description OD - Ø OD - Ø Weight Copper
No. of conductors ca. mm inches Lbs/Mft Lbs/Mft
A3132202
A3132203
A3132204
A3132206
A3132208
A3132210
A3132215
A3132220
A3132225
A3132002
A3132003
A3132004
A3132006
A3132008
A3132010
A3132015
A3132020
A3132025
AWG 22 (19/34)
2
3
4
6
8
10
15
20
25
AWG 20 (19/32)
2
3
4
6
8
10
15
20
25
5.2
5.4
5.7
6.5
6.6
8.0
8.9
9.7
11.2
6.4
6.5
7.2
8.5
8.9
10.4
12.3
13.5
14.8
0.172
0.180
0.193
0.222
0.238
0.282
0.310
0.341
0.408
0.210
0.221
0.238
0.289
0.331
0.379
0.446
0.500
0.551
28
33
37
48
57
68
91
120
148
40
49
56
80
94
115
174
209
254
11
15
18
24
30
36
50
62
77
17
22
27
37
46
55
76
97
118
Color Code Table AWG 22
1- Black
2- Brown
3- Red
4- Orange
5- Yellow
6- Green
7- Blue
8- Purple
9- Gray
10- White
11- White Black
12- White Brown
13- White Red
14- White Orange
15- White Yellow
16- White Green
17- White Blue
18- White Purple
19- White Gray
20- White Black Brown
21- White Black Red
22- White Black Orange
23- White Black Yellow
24- White Black Green
25- White Black Blue
Color Code Table AWG 20
1- Black
2- Red
3- White
4- Green
5- Orange
6- Blue
7- Brown
8- Yellow
9- Purple
10 Gray
11- Pink
12- Tan
13- Red Green
14- Red Yellow
15- Red Black
16- White Black
17- White Red
18- White Green
19- White Yellow
20- White Blue
21- White Brown
22- White Orange
23- White Gray
24- White Purple
25- White Black Red
RoHS
Specifications are subject to change without prior notice
20 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 20
Lutze Electronic (C) PLTC PVC TP, Shielded
Shielded Flexible Electronic Cable with twisted pairs and UL/CSA/CE/PLTC Approvals
Application
xDouble shielded industrial grade PLTC electronic
cable for machine tools, process instrumentation and
controls, computer peripherals, HVAC technology,
assembly and production lines, low voltage
interconnect and other industrial applications including
installation in cable trays
Characteristics
xFlexible for easy installation
xEasy strip design
xColor coded conductors
xConductors twisted in pairs
xSpecially formulated jacket for oil resistance
xPremium durability
xExtended temperature range
xUL listed and NFPA 79 compliant
Technical Data
Voltage 300V
Temperature -25°C - +105°C
Bending radius 6 x cable OD
Conductor marking See table
Approvals UL Type PLTC
CMG
AWM Style 2464
UL VW-1
CSA FT4
AWM II A/B
CE
Meets NEC 725, 760, 800
Class I Div. 2 (PLTC use only)
Oil Res II
RoHS
Construction
xFlexible stranded tinned copper conductors
xShielded with foil tape, tinned copper braid and full
size drain wire
xPVC insulation
xOil resistant gray premium PVC jacket
Part No. Description OD - Ø OD - Ø Weight Copper
No. of pairs ca. mm inches Lbs/Mft Lbs/Mft
A3142202
A3142204
A3142206
A3142208
A3142210
A3142212
A3142216
A3142002
A3142004
A3142006
A3142008
A3142010
A3142012
A3142016
AWG 22 (19/34)
1
2
3
4
5
6
8
AWG 20 (19/32)
1
2
3
4
5
6
8
5.2
6.5
7.4
7.6
8.5
8.9
9.6
6.1
8.1
9.1
9.6
10.6
11.8
12.6
0.203
0.257
0.290
0.301
0.335
0.349
0.376
0.242
0.320
0.358
0.376
0.419
0.463
0.498
32
46
60
68
76
84
102
44
64
84
96
113
144
172
12
21
26
31
37
43
54
18
30
38
47
55
66
84
Color Code Table
AWG 22 Pair#
1- White
Black
2- White
Brown
3- White
Red
4- White
Orange
5- White
Yellow
6- White
Green
7- White
Blue
8- White
Purple
Color Code Table
AWG 20 Pair#
1- Black Red
2- Black White
3- Black Green
4- Black Blue
5- Black Brown
6- Black Yellow
7- Black Orange
8- Red Green
RoHS
Specifications are subject to change without prior notice
21
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 21
Lutze Single Conductor Hook Up Wire, Multi-Norm
Flexible Single Conductor Hook Up Wire with UL/CSA/CE/MTW and HAR Approvals
Application
xMulti-rated single-conductor cable for wiring of
cabinets and use in electrical and electronic
equipment
xSpecially suited for use in Europe (HAR) and North
America (UL MTW + CSA TEW)
xMTW rating compliant with NFPA 79 for machine
tool wiring
Characteristics
xFine stranding class 5, per VDE 0295
xVery flexible for easy installation
Technical Data
Nominal voltage H05V2-K 300/500 V,
H07V2-K 450/750 V,
UL 600 V, style 1015
Test voltage 3000V
Bending radius Fixed: 5 x cable OD
Temperature Flexible -5 to +105°C
Fixed -40 to + 105°C
H05/H07 up to +90°C
Conductor stranding Fine wire, tinned copper per
VDE 0295 class 5,
IEC 60228 class 5
Insulation resistance 20 Mxkm
Approvals HAR: HD 21.3 S3
- H05V-. $:*
- H07V-. $:*
UL 1063 MTW Listed
UL AWM 1015
CSA TEW
RoHS compliant
Put ups AWG 19 – AWG 12
100m (328 ft) carton or ring
500m (1,640 ft) reel upon
request
AWG 10 and larger
Cuts of any length up to
1,000m (3,280 ft) reel
Construction
xFlexible stranded tinned copper conductors
xPVC insulation according to UL 1581, class 43 heat
and humidity resistant
xFlame retardant and self extinguishing per UL VW-
1, IEC 60332-1
xFree from silicone and other varnish damaging
substances
xRoHS compliant
xConditionally resistant to oils, solvents, acids and
bases
More colors and sizes upon request. Please call
us for information!
Part No. Description OD - Ø OD - Ø Weight Copper
Color ca. mm inches Lbs/Mft Lbs/Mft
A61900
A61901
A61902
A61903
A61904
A61914
A61800
A61801
A61802
A61803
A61804
A61814
A61844
A61600
A61601
A61602
A61603
A61604
A61605
A61614
A61615
A61644
A61400
A61401
A61402
A61403
A61404
A61405
A61414
A61200
A61201
A61000
A61001
A60800
A60801
AWG 19 / 0.75 mm2
H05V2-K
*UHHQ<HOORZ
Black
Blue
Brown
Red
Dark Blue
AWG 18 / 1.0 mm2
H05V2-K
*UHHQ<HOORZ
Black
Blue
Brown
Red
Dark Blue
White/Blue
AWG 16 / 1.5 mm2
H07V2-K
*UHHQ<HOORZ
Black
Blue
Brown
Red
White
Dark Blue
Blue/White
White/Blue
AWG 14 / 2.5 mm2
H07V2-K
*UHHQ<HOORZ
Black
Blue
Brown
Red
White
Dark Blue
AWG 12 / 4.0 mm2
H07V2-K
*UHHQ<HOORZ
Black
AWG 10/ 6.0 mm2
H07V2-K
*UHHQ<HOORZ
Black
AWG 8 / 10 mm2
H07V2-K
*UHHQ<HOORZ
Black
2.7
2.7
2.7
2.7
2.7
2.7
2.9
2.9
2.9
2.9
2.9
2.9
2.9
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.7
3.7
3.7
3.7
3.7
3.7
3.7
4.3
4.3
4.8
4.8
6.8
6.8
0.106
0.106
0.106
0.106
0.106
0.106
0.114
0.114
0.114
0.114
0.114
0.114
0.114
0.130
0.130
0.130
0.130
0.130
0.130
0.130
0.130
0.130
0.145
0.145
0.145
0.145
0.145
0.145
0.145
0.169
0.169
0.189
0.189
0.267
0.267
9
9
9
9
9
9
10
10
10
10
10
10
10
14
14
14
14
14
14
14
14
14
21
21
21
21
21
21
21
31
31
44
44
76
76
5
5
5
5
5
5
6
6
6
6
6
6
6
10
10
10
10
10
10
10
10
10
16
16
16
16
16
16
16
25
25
39
39
64
64
Specifications are subject to change without prior notice
RoHS HAR
22 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 22
Lutze Single Conductor Hook Up Wire, Multi-Norm
Flexible Single Conductor Hook Up Wire with UL/CSA/CE/MTW and HAR Approvals
Application
xMulti-rated single-conductor cable for wiring of
cabinets and use in electrical and electronic
equipment
xSpecially suited for use in Europe (HAR) and North
America (UL MTW + CSA TEW)
xMTW rating compliant with NFPA 79 for machine
tool wiring
Characteristics
xFine stranding class 5, per VDE 0295
xVery flexible for easy installation
xMTW rated
Technical Data
Nominal voltage H05V2-K 300/500 V,
H07V2-K 450/750 V,
UL 600 V, style 1015
Test voltage 3000V
Bending radius Fixed: 5 x cable OD
Temperature Flexible -5 to +105°C
Fixed -40 to + 105°C
H05/H07 up to +90°C
Conductor stranding Fine wire, tinned copper per
VDE 0295 class 5,
IEC 60228 class 5
Insulation resistance 20 Mxkm
Approvals HAR: HD 21.3 S3
- H05V-. $:*
- H07V-. $:*
UL 1063 MTW Listed
UL AWM 1015
CSA TEW
RoHS compliant
Put ups AWG 19 – AWG 12
100m (328 ft) carton or ring
500m (1,640 ft) reel upon
request
AWG 10 and larger
Cuts of any length up to
1,000m (3,280 ft) reel
Construction
xFlexible stranded tinned copper conductors
xPVC insulation according to UL 1581, class 43 heat
and humidity resistant
xFlame retardant and self extinguishing per UL VW-
1, IEC 60332-1
xFree from silicone and other varnish damaging
substances
xRoHS compliant
xConditionally resistant to oils, solvents, acids and
bases
More colors and sizes upon request. Please call
us for information!
Part No. Description OD - Ø OD - Ø Weight Copper
Color ca. mm inches Lbs/Mft Lbs/Mft
A60600
A60601
A60400
A60401
A60200
A60201
A60100
A60101
A67000
A67001
A69500
A69501
AWG 6 / 16 mm2
X07V2-K
*UHHQ<HOORZ
Black
AWG 4 / 25 mm2
H07V2-K
*UHHQ<HOORZ
Black
AWG 2 / 35 mm2
H07V2-K
*UHHQ<HOORZ
Black
AWG 1 / 50 mm2
X07V2-K
*UHHQ<HOORZ
Black
AWG 2/0 / 70 mm2
X07V2-K
*UHHQ<HOORZ
Black
AWG 3/0 / 95 mm2
X07V2-K
*UHHQ<HOORZ
Black
8.6
8.6
10
10
11
11
14
14
15.6
15.6
17.8
17.8
0.338
0.338
0.394
0.394
0.433
0.433
0.511
0.511
0.614
0.614
0.701
0.701
126
126
180
180
247
247
347
347
475
475
629
629
103
103
161
161
225
225
322
322
452
452
613
613
Specifications are subject to change without prior notice
RoHS HAR
23
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 23
Lutze ETHERNET/ProfiNet Network Cable (C), Shielded PVC
Flexible ETHERNET Network Cable with UL/CSA/CE Approvals
Application
xFlexible Industrial Field Network cable for Fast Ethernet
applications
xUL listed and compliant with NFPA 79 2007
requirements
Characteristics
xShielded for optimal data integrity in industrial
environments
xSilicone/Talc free
Technical Data
Impedance 100 -10% (1-100 MHz)
Loop Resistance
AWG22
AWG24
AWG26
<110 NP
NP
<273 NP
Operating
capacitance
<50 pF/m
Nominal Voltage 250V
Test Voltage 1500V
Temperature
Moving
Fixed
-5°C - & &0*
-30°C - & &0*
Bending radius fixed 6 x cable OD
Approvals UL/CSA/CE
CMG
UL 1581
UL VW-1
CSA FT4
IEC 60332-1
Meets NEC 800
RoHS
Construction
xBare copper conductor per AWG
xPolyolefin insulation
xCAT 5H overall foil and tinned copper braid shield
xCAT 6a twisted conductor pairs individually shielded
with foil and overall tinned copper braid shield
xGreen PVC jacket
Part No. Description OD - Ø OD - Ø Weight Copper
No. of conductors ca. mm inches Lbs/Mft Lbs/Mft
CAT 5 100 MHz, SF/UQP, UL600V AWM, CMG, PLTC
Industrial Ethernet, ProfiNet, EtherCAT
104301 (2x2x0.22 Ø)
(2 pair AWG 22/1)
STAR QUAD Type A
:+<( 2*%8
6.5 0.256 24.8 24.8
104307 (2x2x0.22 Ø)
(2 pair AWG 22/7)
STAR QUAD Type B
:+<( 2*%8
6.5 0.256 24.8 20.8
CAT 5e 100 MHz, SF/UTP, CMG
Industrial Ethernet, Ethernet IP
104335 (4x2xAWG 26/7 StC)
:+%8 %8 :+2*
2* :+*1 *1
:+%1 %1
6.3 0.248 36.2 20
104336 (4x2xAWG 24/7 StC)
:+%8 %8 :+2*
2* :+*1 *1
:+%1 %1
7.6 0.299 44.9 37
CAT 6a 500 MHz, S/FTP, CMG
Industrial Ethernet, Ethernet IP, Gigabit Ethernet
104338 (4x(2xAWG26/7)St)C
:+%8 %8 :+2*
2* :+*1 *1
:+%1 %1
6.4 0.252 35.5 22
CAT 7 600 MHz, S/FTP, CMG
Industrial Ethernet, Ethernet IP, 10 Gigabit Ethernet
104331 (4x(2xAWG26/7)St)C
:+%8 %8 :+2*
2* :+*1 *1
:+%1 %1
7.0 0.276 41.9 22
RoHS
Specifications are subject to change without prior notice
24 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 24
Lutze BUS (C), Shielded
Flexible Bus Cable with International Approvals
Application
xFlexible Bus and Network cable for wiring of industrial
bus systems
Technical Data
Approvals
See each cable
Temperature
See each cable
Bending radius
See each cable
Characteristics
xSpecially formulated jacket for oil resistance
xRoHS compliant
xProfibus and CAN-BUS Purple PVC Jacket
Thin (104280):
xAWG 22 pair – 0¶ NP 39& Insulation)
xAWG 24 pair – 0¶ NP )3( ,QVXODWLRQ
Thick (104281):
xAWG 16 pair – 0¶ NP 39& ,QVXODWLRQ
xAWG 18 pair – 0¶ NP )3( ,QVXODWLRQ
Part No.
Description
OD - Ø
OD - Ø
Weight
Copper
No. of conductors
ca. mm
inches
Lbs/Mft
Lbs/Mft
Profibus
,PSHGDQFH /RRS UHVLVWDQFH NP 0XWXDO FDSDFLWDQFH S)P
8/ OLVWHG &0* Cand 8/ $:0 20201 60C600V
Temp.: 0RYLQJ -5C - +70C
Fixed -30C - +80C
Bend. radius: 0RYLQJ D x 12
Fixed D x 6
104344 (1x2x0.64 Ø)
(1 pair AWG 24)
5' *1
0.311 36 17
Profibus FC
(Insulation Displacement Connection)
,PSHGDQFH /RRS UHVLVWDQFH NP
8/ OLVWHG &0* Cand 8/ $:0 C600V
Temp.: 0RYLQJ -5C - +70C
Fixed -30C - +80C
Bend. radius: 0RYLQJ D x 12
Fixed D x 6
104293 (1x2x0.64 Ø)
(1 pair AWG 22)
5' *1
solid conductors
8.0 61.0 13
CAN-BUS
Impedance: 100 or 120 /RRS UHVLVWDQFH NP
8/ recognized 80C9 ,(& -1
Temp.: 0RYLQJ -5C - +70C
Fixed -30C - +80C
Bend. radius: 0RYLQJ D x 12
Fixed D x 6
104205
104206
(1x2x0.$:*
:+%1
(2x2x0.$:*
:+%1*<<(
4.7
7.0
0.185
0.276
36
17
16
ODVA DeviceNet™
*UD\ 39& MDFNHW 9 8/ &ODVV &0 &/ &6$ ,,, $ 2'9$ &ODVV
8/ 9HUWLFDO 7UD\ )ODPH
Temp.: 0RYLQJ -20C - +80C
Fixed -40C - +80C
Bend. radius: 0RYLQJ D x 12
Fixed D x 6
104280
104281
((2xAWG 22) +
(2xAWG 24))
((2xAWG 16) +
(2xAWG 18))
7.1
12.2
0.280
0.480
41
108
57
144
ASI BUS
<HOORZ RU EODFN 73( MDFNHW /RRS UHVLVWDQFH PP
Temp.: 0RYLQJ -5C - +70C
Fixed -30C - +70C
104216
104217
AWG 16 / 1.5 mm2
&$:*
&$:*
<HOORZ
Black
73(
73(
45.6
45.6
28
28.8
Specifications are subject to change without prior notice
RoHS
RoHS
RoHS
RoHS
RoHS
25
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 25
Notes
26
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 26
High Flexing Cables
Lutze Superflex®, Superflex® Plus for Continuously Moving/Flexing Applications, C-track
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 27
Lutze Superflex® N PVC, Unshielded
High Flexing Control Cable with UL/CSA/CE Approvals
Application
xSuitable for control, monitoring and instrumentation
applications with continuous flexing cycles
xFor flexing applications such as C-tracks and other
applications where linear flexing occurs
xCompatible with all major brand C-tracks
Characteristics
xExtremely small cable ODs due to special
TPE High Glide Insulation compliant with UL
xTPE/PVC combination for high performance flexing
and longer cable runs
xLow capacitance
xVery flexible with superfine stranding
xSpecially formulated PVC jacket per UL Class 43
xNon-wicking fillers
xAbrasion, high wear and tear resistance
xHydrolysis, microbe and decompose resistant
xTalc free
xSilicone free
xDry and wet conditions
Technical Data
Voltage 600V UL AWM
Test voltage 3000 V
Insulation resistance 0LQ 0ȍ [ NP
Temperature Moving -5 - +90°C
Fixed -40 - +90°C
Bending radius Moving 7.5 x cable OD
Fixed 4 x cable OD
Conductor marking Black with white numbers
and one green/yellow
ground
Burning behavior Flame-retardant per UL
VW-1, DIN EN 50265-2-1
Oil resistance 4D100C, UL Oil res 80°C
and DIN EN 60811-2-1
Approvals cUL AWM Styles
10429/20207
CSA AWM I/II AB 80C
600V FT1, CE
Construction
xBare copper super finely stranded per DIN VDE
0295 Class 6 or IEC 60228 Class 6
xHGI insulation based on TPE
xOptimized construction for flexing applications
xConductors cabled with fleece wrap
xSpecial high strength PVC Jacket per UL class 43 /
VDE 0207 TM5, oil resistant
xGray Jacket RAL 7001
Part No. Description
No. of conductors
incl. ground
OD - Ø
ca. mm
OD - Ø
inches
Weight
Lbs/Mft
Copper
Lbs/Mft
A1382003
A1382004
A1382005
A1382007
A1382012
A1382018
A1382025
A1381803
A1381804
A1381805
A1381807
A1381812
A1381818
A1381825
A1381834
A1381841
A1381850
A1381603
A1381604
A1381605
A1381607
A1381612
A1381618
A1381625
A1381404
A1381405
A1381407
A1381204
A1381207
AWG 20 / 0.5 mm
2
3
4
5
7
12
18
25
AWG 18 / 1.0 mm2
3
4
5
7
12
18
25
34
41
50
AWG 16 / 1.5 mm2
3
4
5
7
12
18
25
AWG 14 / 2.5 mm2
4
5
7
AWG 12 / 4 mm2
4
7
5.7
6.1
6.7
7.7
9.3
10.7
12.5
6.6
7.2
7.8
9.1
10.8
12.7
15.1
16.8
19.0
21.3
7.2
7.8
8.6
10.1
12.4
14.5
16.8
9.1
10.0
12.1
10.7
14.0
0.224
0.240
0.264
0.303
0.366
0.421
0.492
0.260
0.283
0.307
0.358
0.425
0.500
0.594
0.661
0.750
0.839
0.283
0.307
0.339
0.398
0.488
0.571
0.661
0.358
0.394
0.476
0.421
0.551
29.5
35.5
41.5
52.9
77.7
108.5
146.0
44.2
54.3
63.6
83.1
126.6
178.9
243.2
318.3
325.1
331.7
57.6
71.0
84.4
111.2
172.9
245.9
335.7
106.5
126.6
169.5
154.1
252.6
9.8
13
16
23
39
59
82
13
20
27
33
46
80
119
166
272
332
30
39
49
69
118
177
246
65
82
114
105
183
RoHS
High performance linear flexing cable, compliant with NFPA 79, 2012
Edition Article 12.9 special cables and conductors.
Specifications are subject to change without prior notice
1-800-447-2371 www.lutze.com
28
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 28
Lutze Superflex® N (C) PVC, Shielded
High Flexing Control Cable with UL/CSA/CE Approvals
Application
xBraid shielded, multi-conductor high flexing cable
suitable for control, monitoring and instrumentation
applications with continuous flexing in C-track
xMachine tools, gantry robots, conveyors and other
continuous motion applications in industrial
environments
xFor flexing applications such as C-tracks and other
applications where linear flexing occurs
xCompatible with all major brand C-tracks
Characteristics
xExtremely small cable ODs due to special
TPE High Glide Insulation compliant with UL
xSub-Jacket for increased flex life in high
performance flexing and long cable runs
xLow capacitance
xVery flexible with superfine stranding
xSpecially formulated PVC jacket per UL Class 43
xNon-wicking fillers
xAbrasion, high wear and tear resistance
xHydrolysis, microbe and decompose resistant
xTalc free
xSilicone free
xDry and wet conditions
Technical Data
Voltage 600V UL AWM
Test voltage 3000 V
Insulation resistance 0LQ 0ȍ [NP
Temperature Moving -5 - +90°C
Fixed -40 - +90°C
Bending radius Moving 10 x cable OD
Fixed 6 x cable OD
Conductor marking Black with white numbers
and one green/yellow
ground
Burning behavior Flame-retardant per UL
VW-1, DIN EN 50265-2-1
FT1
Oil resistance 4D100C, UL Oil res 80°C
and DIN EN 60811-2-1
Approvals cUL AWM Styles
10429/2570
CSA AWM I/II A/B 80C
600V FT1, CE
Construction
xBare copper super finely stranded per DIN VDE
0295 Class 6 or IEC 60228 Class 6
xHGI insulation based on TPE
xOptimized construction for flexing applications
xConductors cabled with fleece wrap
xPVC Sub-Jacket
xTinned copper braid shield
xSpecial high strength PVC Jacket per UL class 43 /
VDE 0207 TM5, oil resistant
xGray Jacket RAL 7001
Part No. Description
No. of conductors
incl. ground
OD - Ø
ca. mm
OD - Ø
inches
Weight
Lbs/Mft
Copper
Lbs/Mft
A1392003
A1392004
A1392005
A1392007
A1392012
A1392018
A1392025
A1391803
A1391804
A1391805
A1391807
A1391812
A1391818
A1391825
A1391834
A1391603
A1391604
A1391605
A1391607
A1391612
A1391618
A1391625
A1391404
A1391405
A1391407
A1391204
A1391207
AWG 20 / 0.5 mm
2
3
4
5
7
12
18
25
AWG 18 / 1.0 mm2
3
4
5
7
12
18
25
34
AWG 16 / 1.5 mm2
3
4
5
7
12
18
25
AWG 14 / 2.5 mm2
4
5
7
AWG 12 / 4 mm2
4
7
7.4
7.8
8.5
9.7
11.3
13.1
15.1
8.2
8.8
9.6
11
13
14.9
17.6
19.4
8.8
9.6
10.4
11.9
14.1
16.2
19.4
11
11.9
13.6
12.6
15.9
0.292
0.307
0.333
0.382
0.444
0.516
0.593
0.323
0.347
0.378
0.431
0.512
0.587
0.691
0.765
0.346
0.378
0.411
0.469
0.556
0.638
0.764
0.433
0.469
0.537
0.496
0.625
54
60
71
94
129
176
202
71
83
103
133
189
260
318
399
88
109
128
165
239
336
431
155
179
216
214
311
21
25
29
43
64
93
119
32
40
54
70
110
161
224
291
44
60
72
95
151
224
312
90
109
143
135
222
RoHS
High performance linear flexing cable, compliant with NFPA 79, 2012
Edition Article 12.9 Special cables and Conductors.
Specifications are subject to change without prior notice
29
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 29
Lutze Superflex® Plus N PUR, Unshielded
High Flexing Control Cable with UL/CSA/CEApprovals
Application
xMulti-conductor cable for robots, handling equipment,
machine tools, C-tracks and applications with extremely
rough operating conditions
xFor the most demanding flexing applications such as C-
tracks and linear flexing
xCompatible with all major brand C-tracks
Characteristics
xSuperfine stranding per Class 6 for continuous moving
applications
xExtremely small cable ODs due to special
TPE High Glide Insulation compliant with UL
xReduced friction
xPUR jacket
xHighest level of resistance against cooling fluids,
greases and oils
xAbrasion and hydrolysis resistant, low water absorption
xDry and wet conditions
xUV resistant
xNon-wicking fillers
xSilicone/Talc free
Technical Data
Voltage 300/600V UL AWM
Temperature Moving -25°C - +80°C
Fixed -40°C - +80°C
Bending radius Moving 7.5 x cable OD
Fixed 4 x cable OD
Conductor marking Black with white numbers and
one green/yellow ground;
*no ground included
Isolation resistance MLQ 0 [NP
Approvals UL/CSA/CE
Halogen free per DIN
EN 50264-1, EN 50267-2-1,
EN 60684-2
Flame-retardant per DIN
EN 50265-2-1, IEC 60332-1
UL VW-1
FT 1
Oil Res II
RoHS
Construction
xBare copper super finely stranded per DIN VDE 0295
Class 6 or IEC 60228 Class 6
xHGI insulation based on TPE
xExtremely oil resistant gray PUR jacket
Part No. Description OD - Ø OD - Ø Weight Copper
No. of conductors
incl. ground
ca. mm inches Lbs/Mft Lbs/Mft
113431
113441
113442
113443
113444
113446
113438
113447
113484
113400
113433
113401
113402
113403
113404
113405
113485
113406
113412
113407
113408
113409
113410
113411
113483
113415
113416
113417
113426
113479
AWG 20 / 0.5 mm2
300V UL AWM
2*
3
4
5
7
12
18
25
AWG 18 / 1.0 mm2
300V UL AWM
2*
3
4
5
7
12
18
25
AWG 16 / 1.5 mm2
600V UL AWM
2*
3
4
5
7
12
18
25
AWG 14 / 2.5 mm2
600V UL AWM
3
4
5
7
12
18
4.7
4.9
5.2
5.6
6.6
8.0
9.0
10.8
5.8
6.1
6.6
7.2
8.7
10.1
11.6
14.1
6.8
8.0
8.3
9.1
10.0
12.6
14.9
17.6
9.2
9.9
10.7
12.6
15.5
17.6
0.185
0.193
0.205
0.220
0.260
0.315
0.354
0.425
0.228
0.240
0.260
0.283
0.343
0.398
0.457
0.555
0.268
0.315
0.327
0.360
0.394
0.496
0.587
0.693
0.362
0.390
0.421
0.496
0.610
0.693
18.1
21.4
27.5
36.9
42.9
64.3
92.5
121.9
31.5
33.5
48.2
57.0
77.1
120.6
180.9
227.1
51.6
52.3
63.7
77.1
117.3
177.6
240.5
348.4
81.1
95.8
117.3
164.2
261.3
389.3
7
10
13
16
23
40
59
82
13
20
27
34
46
80
119
166
19
30
40
50
69
118
178
247
49
66
82
114
192
294
halogen-free
RoHS
Specifications are subject to change without prior notice
30 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 30
Lutze Superflex® Plus N (C) PUR, Shielded
High Flexing Control Cable with UL/CSA/CE Approvals
Application
xMulti-conductor cable for robots, handling equipment,
machine tools, C-tracks and applications with extremely
rough operating conditions
xFor the most demanding flexing applications such as C-
tracks and linear flexing
xCompatible with all major brand C-tracks
Characteristics
xSuperfine stranding per Class 6 for continuous moving
applications
xExtremely small cable ODs due to special
TPE High Glide Insulation compliant with UL
xReduced friction
xPUR jacket
xHighest level of resistance against cooling fluids,
greases and oils
xAbrasion and hydrolysis resistant, low water absorption
xDry and wet conditions
xUV resistant
xNon-wicking fillers
xTalc free
Technical Data
Voltage 300/600V UL AWM
Temperature Moving -25°C - +80°C
Fixed - 40°C - +80°C
Bending radius Moving 10 x cable OD
Fixed 6 x cable OD
Conductor marking Black with white numbers and
one green/yellow ground
Isolation resistance 0LQ 0 [ NP
Approvals UL/CSA/CE
Halogen free per DIN
EN 50264-1, EN 50267-2-1,
EN 60684-2
Flame-retardant per DIN
EN 50265-2-1, IEC 60332-1
UL VW-1
FT 1
Oil Res II
RoHS
Construction
xBare copper super finely stranded per DIN VDE 0295
Class 6 or IEC 60228 Class 6
xHGI insulation based on TPE
xTPE subjacket for long flex life
xTinned copper braid shield
xExtremely oil resistant gray PUR jacket
Part No. Description OD - Ø OD - Ø Weight Copper
No. of conductors
incl. ground
ca. mm inches Lbs/Mft Lbs/Mft
113300
113347
113301
113302
113303
113304
113305
113312
113324
113313
113314
113315
113316
113317
113318
113331
113319
113320
113321
113322
113323
113341
113332
113339
113340
113344
113342
AWG 20 / 0.5 mm2
300V UL AWM
3
4
5
7
12
18
25
AWG 18 / 1.0 mm2
300V UL AWM
3
4
5
7
12
18
25
AWG 16 / 1.5 mm2
600V UL AWM
3
4
5
7
12
18
25
AWG 14 / 2.5 mm2
600V UL AWM
3
4
5
7
12
18
6.3
6.9
7.3
8.2
9.7
11.0
11.7
7.8
8.3
8.9
10.1
11.5
13.1
15.8
9.5
10.5
11.3
13.2
14.7
16.7
19.7
10.1
11.7
12.6
14.4
17.1
19.9
0.248
0.272
0.287
0.323
0.382
0.433
0.461
0.307
0.327
0.350
0.398
0.453
0.516
0.622
0.374
0.413
0.445
0.484
0.563
0.650
0.764
0.398
0.461
0.496
0.567
0.673
0.783
41.0
46.2
53.1
65.9
91.4
129.0
167.3
61.1
71.2
82.0
104.8
161.3
217.7
295.7
80.6
94.7
118.3
163.3
235.2
326.6
454.3
125.0
160.6
186.8
241.9
365.2
526.6
18
22
26
34
53
80
107
30
38
46
61
103
147
204
42
58
70
93
147
217
310
64
86
105
142
236
356
halogen-free
RoHS
Specifications are subject to change without prior notice
31
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 31
Lutze Superflex® Plus N PUR 0.6/1kV, Unshielded
High Flexing Motor Cable with UL/CSA/CE Approvals
Application
xHigh flexible multi-conductor cable for continuous moving
applications such as machine tools, handling equipment
and processing machines
xDesigned for demanding industrial C-track applications
xCompatible with all major brand C-tracks
Characteristics
xSuperfine stranding per Class 6 for continuous moving
applications
xTPE conductor insulation
xLow capacitance
xPUR jacket
xHighest level of resistance against cooling fluids,
greases and oils
xAbrasion and hydrolysis resistant, low water absorption
xUV resistant
xNon-wicking fillers
xSilicone/Talc free
Technical Data
Voltage 1000V UL AWM
U0/U 0.6/1kV
Temperature Moving -25°C - +80°C
Fixed -40°C - +80°C
Bending radius Moving 7.5 x cable OD
Fixed 4 x cable OD
Conductor marking Black with white numbers and
one green/yellow ground
Isolation resistance 0LQ 0 [ NP
Approvals UL/CSA/CE
UL VW-1
CSA FT1
IEC 60332-1
Halogen free per DIN
EN 50264-1, EN 50267-2-1,
EN 60684-2
Oil Res II
RoHS
Construction
xBare copper super finely stranded per DIN VDE 0295
Class 6 or IEC 60228 Class 6
xHGI insulation based on TPE
xExtremely oil resistant black PUR jacket
Part No. Description OD - Ø OD - Ø Weight Copper
No. of conductors
incl. ground
ca. mm inches Lbs/Mft Lbs/Mft
111370
111371
111372
111373
111374
111375
111376
111377
111378
AWG 16 / 1.5 mm2
4
AWG 14 / 2.5 mm2
4
AWG 12 / 4 mm2
4
AWG 10 / 6 mm2
4
AWG 8 / 10 mm2
4
AWG 6 / 16 mm2
4
AWG 4 / 25 mm2
4
AWG 2 / 35 mm2
4
AWG 1 / 50 mm2
4
7.7
9.3
10.8
12.9
15.5
18.8
23.7
26.6
31.8
0.303
0.366
0.425
0.508
0.610
0.740
0.933
1.041
1.252
81.1
95.8
156.1
219.8
351.8
663.3
804.0
1,239.5
1,641.5
39
64
103
155
257
411
643
901
1,286
halogen-free
RoHS DESINA
Specifications are subject to change without prior notice
32 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 32
Lutze Superflex® Plus N (C) PUR 0.6/1kV, Shielded
High Flexing Motor Cable 0.6/1kV, Shielded, Orange
Application
xHigh flexing Servo Motor, Motor and VFD Cable for C-
tracks and applications with extremely rough operating
conditions and oil exposure
xDesigned for demanding industrial C-track applications
xCompatible with all major brand C-tracks
Characteristics
xSuperfine stranding per Class 6 for continuous moving
applications
xTPE conductor insulation
xLow capacitance
xPUR jacket
xHighest level of resistance against cooling fluids,
greases and oils
xAbrasion and hydrolysis resistant, low water absorption
xUV resistant
xNon-wicking fillers
xSilicone/Talc free
Technical Data
Voltage 1000V UL AWM
U0/U 0.6/1kV
Temperature Moving -25°C - +80°C
Fixed -40°C - +80°C
Bending radius Moving 10 x cable OD
Fixed 6 x cable OD
Conductor marking Black with white numbers and
one green/yellow ground
Isolation resistance 0LQ 0 [ NP
Approvals UL/CSA/CE
UL VW-1
CSA FT1
IEC 60332-1
Halogen free per DIN
EN 50264-1, EN 50267-2-1,
EN 60684-2
Oil Res II
RoHS
Construction
xBare copper super finely stranded per DIN VDE 0295
Class 6 or IEC 60228 Class 6
xHGI insulation based on TPE
xTinned copper braid shield
xExtremely oil resistant orange PUR jacket
Part No. Description OD - Ø OD - Ø Weight Copper
No. of conductors
incl. ground
ca. mm inches Lbs/Mft Lbs/Mft
111460
111461
111462
111463
111464
111465
111466
111467
111468
AWG 16 / 1.5 mm2
4
AWG 14 / 2.5 mm2
4
AWG 12 / 4 mm2
4
AWG 10 / 6 mm2
4
AWG 8 / 10 mm2
4
AWG 6 / 16 mm2
4
AWG 4 / 25 mm2
4
AWG 2 / 35 mm2
4
AWG 1 / 50 mm2
4
8.0
9.6
11.1
13.4
16.7
19.7
25.4
28.3
32.9
0.315
0.378
0.437
0.528
0.657
0.776
1.000
1.114
1.295
78.4
115.9
164.2
244.6
367.8
568.8
870.3
1,133.6
1,636.1
52
80
126
194
302
476
737
1,012
1,427
halogen-free
RoHS DESINA
Specifications are subject to change without prior notice
33
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 33
Lutze Superflex® Plus (C) PUR 0.6/1kV, Shielded
High Flexing Composite Motor Cable with UL/CSA/CE/DESINA Approvals
Application
xHigh flexing multi-conductor cable for VFD and Motor
applications with one or two control pairs such as
Siemens and Indramat
xDesigned for demanding C-track applications
xCompatible with all major brand C-tracks
Characteristics
xSuperfine stranding per Class 6 for continuous moving
applications
xTPE conductor insulation
xReduced friction
xPUR jacket
xLow capacitance
xHighest level of resistance against cooling fluids,
greases and oils
xAbrasion and hydrolysis resistant, low water absorption
xUV resistant
xNon-wicking fillers
xSilicone/Talc free
Technical Data
Voltage 1000V UL AWM
U0/U 0.6/1kV
Temperature Moving -25°C - +80°C
Fixed -40°C - +80°C
Bending radius Moving 10 x cable OD
Fixed 6 x cable OD
Conductor marking Black with white numbers and
one green/yellow ground
Approvals UL/CSA/CE
UL VW-1
CSA FT1
IEC 60332-1
Halogen free per DIN
EN 50264-1, EN 50267-2-1,
EN 60684-2
Oil Res II
RoHS
Construction
xBare copper super finely stranded per DIN VDE 0295
Class 6 or IEC 60228 Class 6
xHGI insulation based on TPE
xTinned copper braid shield
xExtremely oil resistant orange PUR jacket
WITH ONE CONTROL PAIR
Part No. Description OD - Ø OD - Ø Weight Copper
No. of conductors
incl. ground
ca. mm inches Lbs/Mft Lbs/Mft
111420
111421
111422
111423
111424
111425
111426
111427
AWG 16 / 1.5 mm2
(4C/AWG 16 +
(1 pair AWG 16))
AWG 14 / 2.5 mm2
(4C/AWG 14 +
(1 pair AWG 16))
AWG 12 / 4 mm2
(4C/AWG 12 +
(1 pair AWG 16))
AWG 10 / 6 mm2
(4C/AWG 10 +
(1 pair AWG 16))
AWG 8 / 10 mm2
(4C/AWG 8 +
(1 pair AWG 16))
AWG 6 / 16 mm2
(4C/AWG 6 +
(1 pair AWG 16))
AWG 4 / 25 mm2
(4C/AWG 4 +
(1 pair AWG 16))
AWG 2 / 35 mm2
(4C/AWG 2 +
(1 pair AWG 16))
10.5
12.1
13.6
15.5
18.3
21.4
25.7
29.9
0.413
0.476
0.535
0.614
0.720
0.843
1.012
1.177
140.7
157.5
214.4
288.1
455.6
576.2
914.6
1,259.6
91
117
170
230
338
517
771
1,052
WITH TWO CONTROL PAIRS
111271
111272
111280
111281
111282
111276
AWG 16 / 1.5 mm
2
(4C/AWG 16 +
2(TSP AWG 19))
AWG 14 / 2.5 mm2
(4C/AWG 14 +
2(TSP AWG 19))
AWG 12 / 4 mm2
(4C/AWG 12 +
2(TSP AWG 16))
AWG 10 / 6 mm2
(4C/AWG 10 +
2(TSP AWG 16))
AWG 8 / 10 mm2
(4C/AWG 8 +
2(TSP AWG 16))
AWG 6 / 16 mm2
(4C/AWG 6 +
2(TSP AWG 16))
12.5
13.5
16.0
17.9
19.8
23.2
0.492
0.531
0.630
0.705
0.780
0.913
170.9
213.7
304.2
361.8
492.5
712.9
109
144
227
265
399
551
halogen-free
RoHS DESINA
Specifications are subject to change without prior notice
34 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 34
Lutze Superflex® Plus (C) PUR Kombi (Feedback), Shielded
High Flexing Composite Feedback Cable with UL/CSA/CE/DESINA Approvals
Application
xHigh flexing composite cable for continuous moving
feedback applications, gantry robots, machine tools
and plant construction
xDesigned for demanding C-track applications
xCompatible with all major brand C-tracks
Characteristics
xSuperfine stranding per Class 6 for continuous
moving applications
xPUR jacket TPE conductor insulation for use in
extremely harsh operating conditions
xLow capacitance
xHighest level of resistance against cooling fluids,
greases and oils
xAbrasion and hydrolysis resistant, low water
absorption
xUV resistant
xNon-wicking fillers
xSilicone/Talc free
Technical Data
Voltage 300V UL AWM
Temperature Moving -25°C - +80°C
Fixed -40°C - +80°C
Bending radius Moving 12 x cable OD
Fixed 6 x cable OD
Conductor marking DIN 47100 if not specified
Approvals UL/CSA/CE
UL VW-1
CSA FT1
IEC 60332-1
Halogen free per DIN
EN 50264-1, EN 50267-2-1
EN 60684-2
Oil Res II
RoHS
Construction
xSuper finely stranded per DIN VDE 0295 Class 6 or
IEC 60228 Class 6
xTPE insulation
xTinned copper braid shield
xExtremely oil resistant orange or green PUR jacket
TP=Twisted Pair
TSP=Twisted Shielded Pair
Part No. Description OD -Ø OD -Ø Weight Copper
No. of conductors
incl. ground
ca. mm inches Lbs/Mft Lbs/Mft
ORANGE JACKET (for Indramat)
110941
110940
(2x1.0 + 4x2x0.25)
(2C/AWG 18 +
4 TP AWG 24)
1.0: WH; BN 0.25: BN,GN;
GY,PK; BU,VT; RD,BK
(9x0.5)
(9C/AWG 20)
8.3
8.8
0.326
0.346
67
83.8
42
40
GREEN JACKET (for Siemens)
111455
111456
111457
111458
111459
(4x0.5 + 4x2x0.14)
(4C/AWG 20 +
4 TP AWG 26)
0.5: WH; BU; WH/GN; BN/GN
0.14: YE,VT; GY,PK; WH,GN;
BN,GN
(4x0.5 + 4x2x0.38)
(4C/AWG 20 +
4 TP AWG 21)
0.5: WH/BU; WH/BK; WH/RD;
WH/YE
0.38: BK,BN; RD,OG;
GN,YE; BU,VT
(2x0.5+3x(2x0.14) +
4x0.23+4x0.14)
(2C/AWG 20 + 3 TSP
AWG 26 + 4C/AWG 24 +
4C/AWG 26)
0.5: BN/BU; BN/RD
0.23: GN/BK; GN/RD; BN/YE;
BN/GY
(0.14): BK,BN; RD,OG; YE,GN
0.14: BU; GY; WH/BK; WH/YE
(2x0.5 + 3x(2x0.14) +
4x0.14)
(2C/AWG 20 + 3 TSP
AWG 26 + 4C/AWG 26)
0.5: BN/BU; BN/RD
(0.14): BK,BN; RD,OG; YE,GN
0.14: BU; GY; WH/BK; WH/YE
(2x(0.5) + 3x(2x0.14))
(2C/AWG 20 + 3 TSP
AWG 26)
0.5: BK; RD
0.14: BK,BN; RD,OG; GN,YE
8.0
9.2
10.3
8.5
8.7
0.315
0.362
0.405
0.334
0.343
60.3
88.4
102.5
81.7
69.7
33
58
62
41
50
RoHS DESINA
Specifications are subject to change without prior notice
halogen-free
35
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 35
Lutze Superflex® Plus PUR 0.6/1kV, Unshielded
High Flexing Single Conductor Motor Cable 0.6/1kV, Unshielded
Application
xPerformance flexing cable, specifically suitable for
machine and device construction for transport and
conveyor technology
xAs motor supply or ground conductor
xOptimally suited for C-tracks in extremely harsh
operating conditions
xCompatible with all major brand C-tracks
Characteristics
xFlame-retardant, self-extinguishing
xVery good alternating bending strength
xGood pressure and roll-over resistance
xSuperfine stranding per Class 6 for continuous moving
applications
xTPE insulation with very high break through resistance
xPUR jacket for highest level of resistance against cooling
fluids, greases and oils
xAbrasion and hydrolysis resistant, low water absorption
xUV resistant
xSilicone/Talc free
Technical Data
Voltage
Test voltage
U0/U 0.6/1kV
4000V
Temperature Moving -25°C - +80°C
Fixed -40°C - +80°C
Bending radius Moving 7.5 x cable OD
Fixed 4 x cable OD
Isolation resistance MiQ0 [ NP
Approvals UL/CSA/CE
UL VW-1
CSA FT1
IEC 60332-1
Oil Res II
RoHS
Construction
xBare copper super finely stranded per DIN VDE 0295
class 6 or IEC 60228 class 6
xTPE insulation
xExtremely oil resistant black PUR jacket
Part No. Description OD - Ø OD - Ø Weight Copper
No. of conductors
incl. ground
ca. mm inches Lbs/Mft Lbs/Mft
111126
111127
111128
111129
111130
111131
111132
111133
AWG8/01C /
1x10.00 mm2
AWG6/01C /
1x16.00 mm2
AWG4/01C /
1x25.00 mm2
AWG2/01C /
1x35.00 mm2
AWG1/01C /
1x50.00 mm2
AWG2/0/01C /
1x70.00 mm2
AWG3/0/01C /
1x95.00 mm2
AWG4/0/01C /
1x120.00 mm2
8.4
9.8
11.4
13.4
15.2
16.6
19.2
22.2
0.331
0.386
0.449
0.528
0.598
0.654
0.756
0.874
93
138
206
290
384
526
701
874
62
99
157
219
321
433
597
806
RoHS
Specifications are subject to change without prior notice
halogen-free
36 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 36
Lutze Superflex® Plus PUR 0.6/1kV, Shielded
High Flexing Single Conductor Motor Cable 0.6/1kV, Shielded
Application
xPerformance flexing cable, specifically suitable for
machine and device construction for transport and
conveyor technology
xAs motor supply or ground conductor
xOptimally suited for C-tracks in extremely harsh
operating conditions
xCompatible with all major brand C-tracks
Characteristics
xFlame-retardant, self-extinguishing
xVery good alternating bending strength
xGood pressure and roll-over resistance
xSuperfine stranding per Class 6 for continuous moving
applications
xTPE insulation with very high break through resistance
xPUR jacket for highest level of resistance against cooling
fluids, greases and oils
xAbrasion and hydrolysis resistant, low water absorption
xUV resistant
xSilicone/Talc free
Technical Data
Voltage
Test Voltage
U0/U 0.6/1kV
4000V
Temperature Moving -25°C - +80°C
Fixed -40°C - +80°C
Bending radius Moving 7.5 x cable OD
Fixed 4 x cable OD
Isolation resistance Min 20M [ NP
Approvals UL/CSA/CE
UL VW-1
CSA FT1
IEC 60332-1
Oil Res II
RoHS
Construction
xBare copper super finely stranded per DIN VDE 0295
Class 6 or IEC 60228 Class 6
xTPE insulation
xTinned copper braid shield
xExtremely oil resistant black PUR jacket
Part No. Description OD - Ø OD - Ø Weight Copper
No. of conductors
incl. ground
ca. mm inches Lbs/Mft Lbs/Mft
111289
111290
111291
111292
111293
111294
111295
111296
(AWG 8/01C) /
(1x10.00 mm2)
(AWG 6/01C) /
(1x16.00 mm2)
(AWG 4/01C) /
(1x25.00 mm2)
(AWG 2/01C) /
(1x35.00 mm2)
(AWG 1/01C) /
(1x50.00 mm2)
(AWG 2/0/01C) /
(1x70.00 mm2)
(AWG 3/0/01C) /
(1x95.00 mm2)
(AWG 4/0/01C) /
(1x120.00 mm2)
9.5
11.0
13.5
15.1
17.1
20.1
22.6
25.6
0.374
0.433
0.531
0.594
0.673
0.791
0.890
1.008
122
167
217
303
436
599
788
973
81
121
183
250
356
473
657
884
RoHS
Specifications are subject to change without prior notice
halogen-free
37
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 37
Lutze Superflex® Tronic PUR, Unshielded
High Flexing Electronic Cable with UL/CSA/CE Approvals
Application
xMulti-conductor cable for robots, handling equipment,
machine tools, C-tracks and applications with extremely
rough operating conditions
xFor the most demanding flexing applications such as C-
tracks and linear flexing
xCompatible with all major brand C-tracks
Characteristics
xSuperfine stranding per Class 6 for continuous moving
applications
xPUR jacket and TPE conductor insulation for use in
extremely harsh operating conditions
xHighest level of resistance against cooling fluids,
greases and oils
xAbrasion and hydrolysis resistant, low water absorption
xDry and wet conditions
xUV resistant
xSilicone/Talc free
Technical Data
Voltage 300V UL AWM
Temperature Moving -25°C - +80°C
Fixed -40°C - +80°C
Bending radius Moving 10 x cable OD
Fixed 6 x cable OD
Conductor marking Color coded per DIN EN
50334 or DIN 47100
Isolation resistance Min 20M [ NP
Approvals UL/CSA/CE
UL VW-1
CSA FT1
IEC 60332-1
Halogen free per DIN
EN 50264-1, EN 50267-2-1,
EN 60684-2
Oil Res II
RoHS
Construction
xBare copper super finely stranded per DIN VDE 0295
Class 6 or IEC 60228 Class 6
xTPE insulation
xExtremely oil resistant gray PUR jacket
Part No. Description OD -Ø OD -Ø Weight Copper
No. of conductors ca. mm inches Lbs/Mft Lbs/Mft
117039
117040
117041
117042
117043
117044
117028
117046
117047
117048
117049
117050
117051
117052
117053
117029
117055
117056
AWG 24 / 0.25 mm2
2x0.25
3x0.25
4x0.25
5X0.25
7x0.25
10x0.25
15x0.25
18x0.25
25x0.25
AWG 22 / 0.34 mm2
2x0.34
3x0.34
4x0.34
5x0.34
7x0.34
10x0.34
15x0.34
18x0.34
25x0.34
3.8
4.0
4.3
4.7
5.4
6.2
7.0
7.5
8.8
4.0
4.2
4.5
4.9
5.7
6.6
7.5
7.9
9.3
0.150
0.157
0.170
0.185
0.213
0.244
0.276
0.295
0.346
0.157
0.165
0.177
0.193
0.224
0.260
0.295
0.311
0.366
12
14
17
19
25
33
46
53
71
13
16
19
23
30
40
56
64
86
3
5
7
8
11
16
24
29
40
6
7
9
11
15
20
30
38
52
halogen-free
RoHS
Specifications are subject to change without prior notice
38 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 38
Lutze Superflex® Tronic (C) PUR, Shielded
High Flexing Electronic Cable with UL/CSA/CE Approvals
Application
xMulti-conductor cable for robots, handling equipment,
machine tools, C-tracks and applications with extremely
rough operating conditions
xFor the most demanding flexing applications such as C-
tracks and linear flexing
xCompatible with all major brand C-tracks
Characteristics
xSuperfine stranding per Class 6 for continuous moving
applications
xPUR jacket and TPE conductor insulation for use in
extremely harsh operating conditions
xHighest level of resistance against cooling fluids,
greases and oils
xAbrasion and hydrolysis resistant, low water absorption
xDry, wet and damp conditions
xUV resistant
xSilicone/Talc free
Technical Data
Voltage 300V UL AWM
Temperature Moving -25°C - +80°C
Fixed -40°C - +80°C
Bending radius Moving 12 x cable OD
Fixed 6 x cable OD
Conductor marking Color coded per DIN EN
50334 or DIN 47100
Isolation resistance Min 20M [ NP
Approvals UL/CSA/CE
UL VW-1
CSA FT1
IEC 60332-1
Halogen free per DIN
EN 50264-1, EN 50267-2-1,
EN 60684-2
Oil Res II
RoHS
Construction
xBare copper super finely stranded per DIN VDE 0295
Class 6 or IEC 60228 Class 6
xTPE insulation
xTinned copper braid shield
xExtremely oil resistant gray PUR jacket
Part No. Description OD -Ø OD -Ø Weight Copper
No. of conductors ca. mm inches Lbs/Mft Lbs/Mft
117099
117100
117101
117102
117103
117104
117123
117106
117107
117108
117109
117110
117111
117112
117113
117124
117115
117116
AWG 24 / 0.25 mm2
(2x0.25)
(3x0.25)
(4x0.25)
(5x0.25)
(7x0.25)
(10x0.25)
(15x0.25)
(18x0.25)
(25x0.25)
AWG 22 / 0.34 mm2
(2x0.34)
(3x0.34)
(4x0.34)
(5x0.34)
(7x0.34)
(10x0.34)
(15x0.34)
(18x0.34)
(25x0.34)
4.2
4.4
4.7
5.1
5.8
6.6
7.5
7.9
9.2
4.4
4.6
4.9
5.3
6.1
7.0
7.9
8.3
9.8
0.165
0.173
0.185
0.201
0.228
0.260
0.295
0.311
0.362
0.173
0.181
0.193
0.207
0.240
0.276
0.311
0.327
0.386
18
20
24
27
34
43
58
65
85
20
23
27
31
39
50
68
77
107
9
11
13
15
21
28
40
43
57
10
13
16
19
25
34
50
54
77
halogen-free
RoHS
Specifications are subject to change without prior notice
39
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 39
Lutze Superflex® Tronic (C) PUR TP, Shielded
High Flexing Electronic Cable with UL/CSA/CE Approvals
Application
xMulti-conductor cable for robots, handling equipment,
machine tools, C-tracks and applications with extremely
rough operating conditions
xFor the most demanding flexing applications such as C-
tracks and linear flexing
xCompatible with all major brand C-tracks
Characteristics
xSuperfine stranding per Class 6 for continuous moving
applications
xPUR jacket and TPE conductor insulation for use in
extremely harsh operating conditions
xHighest level of resistance against cooling fluids,
greases and oils
xAbrasion and hydrolysis resistant, low water absorption
xDry, wet and damp conditions
xUV resistant
xNon-wicking fillers
xSilicone/Talc free
Technical Data
Voltage 300V UL AWM
Temperature Moving -25°C - +80°C
Fixed -40°C - +80°C
Bending radius Moving 12 x cable OD
Fixed 6 x cable OD
Conductor marking Color coded per DIN EN
50334 or DIN 47100 for
twisted pairs
Isolation resistance Min 20M [ NP
Approvals UL/CSA/CE
UL VW-1
CSA FT1
IEC 60332-1
Halogen free per DIN
EN 50264-1, EN 50267-2-1,
EN 60684-2
Oil Res II
RoHS
Construction
xBare copper super finely stranded per DIN VDE 0295
Class 6 or IEC 60228 Class 6
xTPE insulation
xOverall tinned copper braid shield
xExtremely oil resistant gray PUR jacket
Part No. Description OD - Ø OD - Ø Weight Copper
No. of conductors ca. mm inches Lbs/Mft Lbs/Mft
117170
117171
117172
117173
117177
117174
117175
117176
AWG 24 / 0.25 mm2
(2x2x0.25)
2TP AWG 24
(3x2x0.25)
3TP AWG 24
(4x2x0.25)
4TP AWG 24
(5x2x0.25)
5TP AWG 24
(6x2x0.25)
6TP AWG 24
(8x2x0.25)
8TP AWG 24
(10x2x0.25)
10 TP AWG 24
(12x2x0.25)
12 TP AWG 24
TP=Twisted Pair
6.3
6.6
6.8
7.4
8.1
9.4
10.5
11.0
0.248
0.260
0.268
0.291
0.319
0.370
0.413
0.433
38.9
46.2
50.9
67.7
84.4
101.2
121.9
132.7
15
19
23
27
32
40
53
61
halogen-free
RoHS
Specifications are subject to change without prior notice
40 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 40
Lutze Superflex® BUS (C) PUR, Shielded
High Flexing Bus Cable with UL/CSA/CE Approvals
Application
xHigh flexing Bus and Network cable for Profibus,
Devicenet and CAN Bus applications
xDesigned for demanding C-track applications
Characteristics
xSuperfine stranding for continuous moving
applications
xPUR jacket for use in extremely harsh operating
conditions
xHighest level of resistance against cooling fluids,
greases and oils
xAbrasion and hydrolysis resistant, low water
absorption
xUV resistant
xSilicone/Talc free
Technical Data
Temperature Moving -20°C - +80°C
Fixed -40°C - +80°C
Bending radius Moving 12 x cable OD
Fixed 6 x cable OD
Approvals UL/CSA/CE
UL VW-1
CSA FT1
IEC 60332-1
Halogen free per DIN
EN 50264-1, EN 50267-2-1
EN 60684-2
Oil Res II
RoHS
Construction
xFlexible superfine wire stranding
xPolyethylene (PE) conductor insulation
xTinned copper braid shield
xExtremely oil resistant PUR jacket
Part No. Description OD -Ø OD -Ø Weight Copper
No. of conductors ca. mm inches Lbs/Mft Lbs/Mft
104265
104275
(1x2x0.64 Ø)
(1 pair AWG 24)
RD,GN
(3x0.75 + 1x2x0.64 Ø)
(3C/AWG 19 + 1 pair AWG 24)
0.64: RD,GN
0.75: GN/YE; BU; BK;
8.0
9.8
0.315
0.386
37
97
16
44
Profibus FC (Insulation Displacement Connection )
ImpedaQFH ±15%, Mutual capacitance: <30 pF/m
104287 (1x2x0.64 Ø)
(1 pair AWG 24)
RD,GN
8.0 0.315 37 13
DeviceNet™
,PSHGDQFH ,Mutual capacitance: <40 pF/m
104289
104279
((2x0.34) + (2x0.22))
((1pair AWG 22) +
(1 pair AWG 24))
0.22: BU,WH
0.34: RD,BK
((2x1.5) + (2x0.75))
((1 pair AWG 16) +
(1 pair AWG 19))
0.75: BU,WH
1.5: RD,BK
6.8
11.9
0.268
0.469
57
97
19
14
CAN-BUS
Impedance: 100- , Mutual capacitance: <60 pF/m
104270 (2x2x0.25)
(2 pair AWG 24)
WH,BN; GN,YE
6.0 0.236 39 16
halogen-free
RoHS DESINA
Profibus
,PSHGDQFH ,Mutual capacitance: <30 pF/m
Specifications are subject to change without prior notice
41
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 41
Lutze Superflex® Ethernet Network Cable (C) PUR, Shielded
High Flexing Ethernet Network Cable with UL/CSA/CE Approvals
Application
xHigh flexing industrial field network cable for fast
ETHERNET applications
xDesigned for demanding C-track applications
xCompatible with all major brand C-tracks
Characteristics
xShielded for optimal data integrity in industrial environments
xSilicone/Talc free
Technical Data
Impedance 100 -10% (1-100 MHz)
Loop Resistance
AWG22/7
AWG23/19
AWG24/19
AWG26/19
<110 NP
NP
NP
<280 NP
Operating
capacitance
<50 pF/m
Nominal Voltage 250V
Test Voltage 1500V
Temperature
Moving
Fixed
-25°C - &
-40°C - &
Bending radius
Moving
Fixed
12 x cable OD
6 x cable OD
Approvals UL/CSA AWM
CE
UL VW-1
CSA FT1
IEC 60332-1
Oil Res II
RoHS
Construction
xBare copper conductor per AWG
xPolyolefin insulation
xTinned copper braid with >85% coverage
xExtremely oil resistant PUR jacket
Part No. Description OD - Ø OD - Ø Weight Copper
No. of conductors ca. mm inches Lbs/Mft Lbs/Mft
CAT 5 100 MHz, SF/UTP, UL 300V AWM, Purple jacket
Industrial Ethernet
104245 (2 pair AWG 24/19)
STAR QUAD
WH,BN; GN,YE
6.1 0.240 43.6 25
CAT 5 100 MHz, SF/UQP, UL 30V AWM, Green Jacket
Industrial Ethernet, ProfiNet, EtherCAT, UL CMX 75°C
104303 (2x2xAWG22/7)
StC
WH,BU; YE,OG
6.1 0.256 40.9 21
104304 (2x2xAWG23/19)
StC
WH,BU; YE,OG
6.6 0.269 50.3 25
CAT 5e 100 MHz, S/UTP, UL 300V AWM, Green jacket
Industrial Ethernet, Ethernet IP
104337 (4 pair AWG 24/19)
WH/BU,BU
WH/OG,OG
WH/GN,GN
WH/BN,BN
7.8 0.307 57 29
CAT 6 250 MHz, SF/UTP, UL 300V AWM, Green jacket
Cross core element for improved flexing, Gigabit Ethernet,
UL CMX 75°C
(4x2xAWG26/19)
WH/BU,BU
WH/OG,OG
WH/GN,GN
WH/BN,BN
7.8 0.307 35 22
halogen-free
Specifications are subject to change without prior notice
DESINA RoHS
DESINA RoHS
DESINA RoHS
DESINA RoHS
42
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 42
104347
43
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 43
Lutze TOP-T Fittings NPT
Plastic NPT
Characteristics:
xIntegrated strain relief
xWide sealing and clamping range
xEasy to install
xTemperature range -30°C - +80°C/
-22°F - +176°F
xMax temporary temperature
up to +150°C/+300°F
xProtection class IP68
Fitting Specifications:
Connecting thread NPT
Material Polyamide 6
Seal Neoprene
Color Black RAL 9005
Gray RAL 7001
Part No. Thread Clamping Clamping TL D/SW TD H
Range Ø inch Range Ø mm mm mm mm mm
FPNPT38B
FPNPT12B
FPNPT34B
FPNPT10B
FPNPT38G
FPNPT12G
FPNPT34G
FPNPT10G
FPNPT38B-R
FPNPT12B-R
FPNPT34B-R
FPNPT10B-R
BLACK
NPT 3/8”
NPT 1/2”
NPT 3/4”
NPT 1”
GRAY
NPT 3/8”
NPT 1/2”
NPT 3/4”
NPT 1”
REDUCED
CLAMPING
RANGE
NPT 3/8”
NPT 1/2”
NPT 3/4”
NPT 1”
0.197-0.394
0.394-0.551
0.511-0.709
0.709-0.984
0.197-0.394
0.394-0.551
0.511-0.709
0.709-0.984
0.118-0.276
0.276-0.472
0.354-0.630
0.472-0.787
5-10
10-14
13-18
18-25
5-10
10-14
13-18
18-25
3-7
7-12
9-16
12-20
15
15
15
18
15
15
15
18
15
15
15
18
22
27
33
42
22
27
33
42
22
27
33
42
16.5
20.7
25.9
32.4
16.5
20.7
25.9
32.4
16.5
20.7
25.9
32.4
28
31
35
40
28
31
35
40
28
31
35
40
Specifications are subject to change without prior notice
44 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 44
Lutze TOP-T Fittings PG
Plastic PG
Characteristics:
xIntegrated strain relief
xWide sealing and clamping range
xEasy to install
xTemperature range -30°C - +80°C/
-22°F - +176°F
xMax temporary temperature
up to +150°C/+300°F
xProtection class IP68
Fitting Specifications:
Connecting thread PG as per DIN
40430
Material Polyamide 6
Seal Neoprene
Color Black RAL 9005
Gray RAL 7001
Part No. Thread Clamping Clamping TL D/SW TD H
Range Ø inch Range Ø mm mm mm mm mm
FPPG7B
FPPG9B
FPPG11B
FPPG13B
FPPG16B
FPPG21B
FPPG29B
FPPG36B
FPPG42B
FPPG48B
FPPG7G
FPPG9G
FPPG11G
FPPG13G
FPPG16G
FPPG21G
FPPG29G
FPPG36G
FPPG42G
FPPG48G
FPPG7G-R
FPPG9G-R
FPPG11G-R
FPPG13G-R
FPPG16G-R
FPPG21G-R
FPPG29G-R
FPPG36G-R
BLACK
PG 7
PG 9
PG 11
PG 13.5
PG 16
PG 21
PG 29
PG 36
PG 42
PG 48
GRAY
PG 7
PG 9
PG 11
PG 13.5
PG 16
PG 21
PG 29
PG 36
PG 42
PG 48
REDUCED
CLAMPING
RANGE
PG 7
PG 9
PG 11
PG 13.5
PG 16
PG 21
PG 29
PG 36
0.118-0.256
0.157-0.315
0.197-0.394
0.236-0.472
0.394-0.551
0.512-0.709
0.709-0.984
0.866-1.260
1.181-1.496
1.339-1.732
0.118-0.256
0.157-0.315
0.197-0.394
0.236-0.472
0.394-0.551
0.512-0.709
0.709-0.984
0.866-1.260
1.181-1.496
1.339-1.732
0.079-0.197
0.079-0.236
0.118-0.276
0.197-0.354
0.276-0.472
0.354-0.630
0.472-0.787
0.787-1.024
3-6.5
4-8
5-10
6-12
10-14
13-18
18-25
22-32
30-38
34-44
3-6.5
4-8
5-10
6-12
10-14
13-18
18-25
22-32
30-38
34-44
2-5
2-6
3-7
5-9
7-12
9-16
12-20
20-26
8
8
8
9
10
11
11
13
13
14
8
8
8
9
10
11
11
13
13
14
8
8
8
9
10
11
11
13
15
19
22
24
27
33
42
53
60
65
15
19
22
24
27
33
42
53
60
65
15
19
22
24
27
33
42
53
13
16
19
21
23
29
37
47
54
59
13
16
19
21
23
29
37
47
54
59
13
16
19
21
23
29
37
47
22
25
28
29
31
35
40
49
49
49
22
25
28
29
31
35
40
49
49
49
22
25
28
29
31
35
40
49
Specifications are subject to change without prior notice
45
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 45
Lutze TOP-T Fittings Metric
Plastic Metric
Characteristics:
xIntegrated strain relief
xWide sealing and clamping range
xEasy to install
xManufactured according to EN 50262
requirements
xTemperature range -30°C - +80°C/
-22°F - +176°F
xMax temporary temperature
up to +150°C/+300°F
xProtection class IP68
Fitting Specifications:
Connecting thread Metric as per EN
60423
Material Polyamide 6
Seal Neoprene
Color Black RAL 9005
Gray RAL 7001
Part No. Thread Clamping Clamping TL D/SW TD H
Range Ø inch Range Ø mm mm mm mm mm
FPM12B
FPM16B
FPM20B
FPM25B
FPM32B
FPM40B
FPM50B
FPM63B
FPM12G
FPM16G
FPM20G
FPM25G
FPM32G
FPM40G
FPM50G
FPM63G
FPM12G-R
FPM16G-R
FPM20G-R
FPM25G-R
FPM32G-R
FPM40G-R
FPM50G-R
FPM63G-R
BLACK
M12x1.5
M16x1.5
M20x1.5
M25x1.5
M32x1.5
M40x1.5
M50x1.5
M63x1.5
GRAY
M12x1.5
M16x1.5
M20x1.5
M25x1.5
M32x1.5
M40x1.5
M50x1.5
M63x1.5
REDUCED
CLAMPING
RANGE
M12x1.5
M16x1.5
M20x1.5
M25x1.5
M32x1.5
M40x1.5
M50x1.5
M63x1.5
0.118-0.256
0.197-0.394
0.315-0.551
0.512-0.709
0.709-0.984
0.866-1.260
1.181-1.496
1.339-1.732
0.118-0.256
0.197-0.394
0.315-0.551
0.512-0.709
0.709-0.984
0.866-1.260
1.181-1.496
1.339-1.732
0.079-0.197
0.118-0.276
0.276-0.472
0.354-0.630
0.472-0.787
0.787-1.024
0.984-1.220
1.142-1.378
3-6.5
5-10
10-14
13-18
18-25
22-32
30-38
34-44
3-6.5
5-10
10-14
13-18
18-25
22-32
30-38
34-44
2-5
3-7
7-12
9-16
12-20
20-26
25-31
29-35
8
10
10
10
18
18
18
18
8
10
10
10
18
18
18
18
8
10
10
10
18
18
18
18
15
22
27
33
42
53
60
65
15
22
27
33
42
53
60
65
15
22
27
33
42
53
60
65
12
16
20
25
32
40
50
63
12
16
20
25
32
40
50
63
12
16
20
25
32
40
50
63
22
28
31
35
40
49
49
49
22
28
31
35
40
49
49
49
22
28
31
35
40
49
49
49
Specifications are subject to change without prior notice
46 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 46
Lutze TOP-T Locknuts Plastic
Plastic NPT, PG and Metric
Characteristics:
xHexagonal locknut for secure tightening of plastic
cable fittings and accessories
xEasy to install
xTemperature range -30°C - +80°C/
-22°F - +176°F
xMax temporary temperature
up to +150°C/+300°F
Locknut Specifications:
Material Polyamide 6, 30% glass fiber
reinforced
Color Black RAL 9005
Gray RAL 7001
Please note the following specification change:
Locknuts with Flange design starting Spring 2010.
Flange is imprinted with locknut size for easy
identification.
Part No. Thread ØD SW H
mm mm mm
LPNPT38B
LPNPT12B
LPNPT34B
LPNPT10B
LPNPT38G
LPNPT12G
LPNPT34G
LPNPT10G
LPPG7B
LPPG9B
LPPG11B
LPPG13B
LPPG16B
LPPG21B
LPPG29B
LPPG36B
LPPG42B
LPPG48B
LPPG7G
LPPG9G
LPPG11G
LPPG13G
LPPG16G
LPPG21G
LPPG29G
LPPG36G
LPPG42G
LPPG48G
LPM12B
LPM16B
LPM20B
LPM25B
LPM32B
LPM40B
LPM50B
LPM63B
LPM12G
LPM16G
LPM20G
LPM25G
LPM32G
LPM40G
LPM50G
LPM63G
NPT BLACK
NPT 3/8”
NPT 1/2”
NPT 3/4”
NPT 1”
NPT GRAY
NPT 3/8”
NPT 1/2”
NPT 3/4”
NPT 1”
PG BLACK
PG 7
PG 9
PG 11
PG 13.5
PG 16
PG 21
PG 29
PG 36
PG 42
PG 48
PG GRAY
PG 7
PG 9
PG 11
PG 13.5
PG 16
PG 21
PG 29
PG 36
PG 42
PG 48
METRIC BLACK
M12x1.5
M16x1.5
M20x1.5
M25x1.5
M32x1.5
M40x1.5
M50x1.5
M63x1.5
METRIC GRAY
M12x1.5
M16x1.5
M20x1.5
M25x1.5
M32x1.5
M40x1.5
M50x1.5
M63x1.5
25
30.5
37.5
46.5
25
30.5
37.5
46.5
21
24
26
29
33
39
50
66
73
78
21
24
26
29
33
39
50
66
73
78
19.5
24.2
28.6
35.0
46.1
55.3
66.1
82.5
19.5
24.2
28.6
35.0
46.1
55.3
66.1
82.5
22
27
33
47
22
27
33
47
19
22
24
27
30
36
46
60
65
70
19
22
24
27
30
36
46
60
65
70
18
22
26
32
41
50
60
75
18
22
26
32
41
50
60
75
5
5
5
6
5
5
5
6
5
5
5
6
6
7
7
8
8
8
5
5
5
6
6
7
7
8
8
8
5
5
6
6
7
7
8
8
5
5
6
6
7
7
8
8
Specifications are subject to change without prior notice
47
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:48 AM Page 47
Lutze TOP-T Fittings Reducer and Enlarger
Plastic Metric Reducer and PG Reducer Plastic PG Enlarger
Metric Reducer Characteristics:
xReduction of threaded or clearance holes to smaller
thread size
xTemperature range -30°C - +100°C /
-22°F - +212°F
xMaterial Polyamide PA6 GF30
xInternal/External thread Metric as per EN 60423
xColor Gray RAL 7035
PG Reducer Characteristics:
xReduction of threaded or clearance holes to smaller
thread size
xTemperature range -30°C - +100°C /
-22°F - +212°F
xMaterial Polyamide PA6 GF30
xInternal/External thread PG as per DIN 40430
xColor Gray RAL 7035
PG Enlarger Characteristics:
xEnlarger of threaded or clearance holes to larger thread
size
xFiber glass reinforced
xTemperature range -30°C - +100°C /
-22°F - +212°F
xMaterial Polyamide PA6 GF30
xInternal/External thread PG as per DIN 40430
xColor Gray RAL 7035
Part No. Thread
Thread
SW L L1
G
G1
mm mm mm
600550
600551
600553
600554
600557
600558
600561
600562
600565
600566
600607
600604
600605
600606
600351
600352
600353
600355
600356
600357
600358
600359
METRIC
REDUCER
M20x1.5
M20x1.5
M25x1.5
M25x1.5
M32x1.5
M32x1.5
M40x1.5
M40x1.5
M50x1.5
M50x1.5
PG REDUCER
PG 13.5
PG 21
PG 29
PG 36
PG ENLARGER
PG 7
PG 9
PG 11
PG 13.5
PG 16
PG 21
PG 29
PG 36
M12x1.5
M16x1.5
M16x1.5
M20x1.5
M20x1.5
M25x1.5
M25x1.5
M32x1.5
M32x1.5
M40x1.5
PG 9
PG 16
PG 21
PG 29
PG 9
PG 11
PG 13.5
PG 16
PG 21
PG 29
PG 36
PG 42
24
24
32
32
36
36
46
46
55
55
24
32
39
50
19
22
24
27
33
43
50
60
12
12
14
14
16
16
16
16
18
18
9
16
18
24
20.5
22.5
24
27
29
33
38
40
8
8
8
8
10
10
10
10
12
12
6
11
12
18
8
8
8
9
9
10
10
12.5
Specifications are subject to change without prior notice
48 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 48
Lutze TOP-T Fittings NPT
Metal NPT
Characteristics:
xIntegrated strain relief
xAnti-twist design
xWide sealing and clamping range
xEasy to install
xTemperature range -40°C - +100°C /
-40°F - +212°F
xProtection class IP68
Fitting Specifications:
Design allows for shield termination
Connecting thread NPT
Material Brass, nickel plated
Clamping insert Polyamide 6
Sealing ring Neoprene
O-ring NBR
Part No. Thread Clamping Clamping TL SW1 SW2 H
Range Ø
inch
Range Ø
mm
mm mm mm mm
FMNPT38
FMNPT12
FMNPT34
FMNPT10
NPT
NPT 3/8”
NPT 1/2”
NPT 3/4”
NPT 1”
0.157-0.315
0.236-0.472
0.512-0.709
0.709-0.984
4-8
6-12
13-18
18-25
11.5
13
13
13
20
22
30
40
20
22
30
43
23
25.5
34
43
Specifications are subject to change without prior notice
49
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 49
Lutze TOP-T Fittings PG
Metal PG
Characteristics:
xIntegrated strain relief
xAnti-twist design
xWide sealing and clamping range
xEasy to install
xTemperature range -40°C-+100°C
-40°F-+212°F
xProtection class IP68
Fitting Specifications:
Connecting thread PG as per DIN 40430
Material Brass, nickel plated
Clamping insert Polyamide 6
Sealing ring Neoprene
O-ring NBR
Part No. Thread Clamping Clamping TL SW1 SW2 H
Range Ø
inch
Range Ø
mm
mm mm mm mm
FMPG7
FMPG9
FMPG11
FMPG13
FMPG16
FMPG21
FMPG29
FMPG36
FMPG42
FMPG48
FMPG7-L
FMPG9-L
FMPG11-L
FMPG13-L
FMPG16-L
FMPG21-L
FMPG29-L
PG
PG 7
PG 9
PG 11
PG 13.5
PG 16
PG 21
PG 29
PG 36
PG 42
PG 48
LONG
THREAD
PG 7
PG 9
PG 11
PG 13.5
PG 16
PG 21
PG 29
0.118-0.256
0.157-0.315
0.197-0.394
0.236-0.472
0.394-0.551
0.512-0.709
0.709-0.984
0.866-1.260
1.181-1.496
1.339-1.732
0.118-0.256
0.157-0.315
0.197-0.394
0.236-0.472
0.394-0.551
0.512-0.709
0.709-0.984
3-6.5
4-8
5-10
6-12
10-14
13-18
18-25
22-32
30-38
34-44
3-6.5
4-8
5-10
6-12
10-14
13-18
18-25
6
6
6
6.5
6.5
7.2
8
9
12
14
10
10
10
10
10
12
12
14
17
20
22
24
30
40
50
58
64
14
17
20
22
24
30
40
14
17
20
22
24
30
40
50
58
64
14
17
20
22
24
30
40
21.8
22.6
25.3
24.1
27.5
31.2
39.3
47.2
47.7
52.0
21.8
22.6
25.3
24.1
27.5
31.2
39.3
Specifications are subject to change without prior notice
50 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 50
Lutze TOP-T Fittings Metric
Metal Metric
Characteristics:
xIntegrated strain relief
xAnti-twist design
xWide sealing and clamping range
xEasy to install
xTemperature range -40°C - +100°C /
-40°F - +212°F
xProtection class IP68
Fitting Specifications:
Connecting thread Metric as per EN
60423
Material Brass, nickel plated
Clamping insert Polyamide 6
Sealing ring Neoprene
O-ring NBR
Part No. Thread Clamping Clamping TL SW1 SW2 H
Range Ø
inch
Range Ø C mm mm mm mm
FMM12
FMM16
FMM20
FMM25
FMM32
FMM40
FMM50
FMM63
FMM12-L
FMM16-L
FMM20-L
FMM25-L
FMM32-L
FMM40-L
FMM50-L
FMM63-L
METRIC
M12x1.5
M16x1.5
M20x1.5
M25x1.5
M32x1.5
M40x1.5
M50x1.5
M63x1.5
LONG
THREAD
M12x1.5
M16x1.5
M20x1.5
M25x1.5
M32x1.5
M40x1.5
M50x1.5
M63x1.5
0.118-0.256
0.157-0.315
0.236-0.472
0.394-0.551
0.512-0.709
0.709-0.984
0.866-1.260
1.339-1.732
0.118-0.256
0.157-0.315
0.236-0.472
0.394-0.551
0.512-0.709
0.709-0.984
0.866-1.260
1.339-1.732
3-6.5
4-8
6-12
10-14
13-18
18-25
22-32
34-44
3-6.5
4-8
6-12
10-14
13-18
18-25
22-32
34-44
6
7
8
8
9
9
9
14
12
12
12
12
15
15
15
18
14
17
22
24
30
40
50
64
14
17
22
24
30
40
50
64
14
18
22
27
34
43
55
68
14
18
22
27
34
43
55
68
21.5
23
24.3
27.6
31.2
38.5
47.3
50.3
21.5
23
24.3
27.6
31.2
38.5
47.3
50.3
Specifications are subject to change without prior notice
51
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 51
Lutze TOP-T Fittings Metric EMC
Metal Metric EMC (Electro Magnetic Compatibility)
Characteristics:
xFor shielded cable
xIntegrated strain relief
xAnti-twist design
xWide sealing and clamping range
xEasy to install
xTemperature range -20°C - +100°C /
+14°F - +212°F
xProtection class IP68
Fitting Specifications:
Connecting thread Metric as per EN
60423
Dome nut Brass CuZn39Pb3,
nickel plated
Clamping insert Polyamide PA6 V-2
Sealing ring Polychloroprene-
Nitrile rubber
CR/NBR
Gland body Brass CuZn39Pb3,
nickel plated
O-ring NBR
Part No. Thread Clamping Clamping L SW1 SW2 H
ARange Ø
inch
Range Ø
mm
mm mm mm mm
FMM12-C
FMM16-C
FMM20-C
FMM25-C
FMM32-C
FMM40-C
FMM50-C
EMC
M12x1.5
M16x1.5
M20x1.5
M25x1.5
M32x1.5
M40x1.5
M50x1.5
0.118-0.236
0.197-0.354
0.354-0.512
0.433-0.630
0.551-0.827
0.748-1.063
0.945-1.378
3-6
5-9
9-13
11-16
14-21
19-27
24-35
5
5
6
7
8
8
9
14
17
22
27
34
43
55
14
17
22
27
34
43
55
25
30
33.5
36.5
38
41
49.5
Specifications are subject to change without prior notice
52 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 52
Lutze TOP-T Fittings EMC2 Metric and NPT
Metal EMC2 (Electro Magnetic Compatibility), Quick Installation
Characteristics:
xAdapts to different size cable shields
x360° shield termination
xIntegrated strain relief
xWide sealing and clamping range
xFast and easy to install
xTemperature range -40°C - +100°C /
-40°F - +212°F
xProtection class IP68
Fitting Specifications:
Connecting thread Metric as per EN
60423
Material Brass, nickel plated
Clamping insert Polyamide 6
Sealing ring Neoprene
O-ring NBR
Long thread EMC2 fittings
available through special order.
Please contact us.
Part No. Thread Clamping Clamping TL SW1 SW2 H
Range Ø
Inches
Range Ø
mm
mm mm mm mm
FMM12-C2
FMM16-C2
FMM20-C2
FMM25-C2
FMM32-C2
FMM40-C2
FMM50-C2
FMM63-C2
FMNPT38-C2
FMNPT12-C2
FMNPT34-C2
FMNPT10-C2
METRIC
M12x1.5
M16x1.5
M20x1.5
M25x1.5
M32x1.5
M40x1.5
M50x1.5
M63x1.5
NPT
NPT 3/8”
NPT 1/2”
NPT 3/4"
NPT 1”
0.118-0.256
0.197-0.394
0.236-0.472
0.433-0.669
0.590-0.827
0.748-1.102
1.063-1.496
1.339-1.732
0.197-0.394
0.236-0.472
0.512-0.709
0.709-0.984
3-6.5
5-10
6-12
11-17
15-21
19-28
27-38
34-44
5-10
6-12
13-18
18-25
6
7
8
8
8
9
9
14
11.5
13
13
13
14
20
22
27
34
43
58
64
20
22
30
40
14
20
22
27
34
43
58
68
20
22
30
40
21.5
25.3
26.5
32.7
36.3
44.5
51.5
52.9
40.5
38.3
47.4
55.2
Specifications are subject to change without prior notice
53
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 53
Lutze TOP-T Locknuts Metal
Metal PG, Metric and EMC Metric
Characteristics:
xHexagonal locknut for secure tightening of cable
fittings and accessories
xTemperature range up to +200°C/+392°F
Locknut Specifications:
Material Brass, nickel plated
Due to tapered NPT thread, we recommend using
plastic locknuts with metal NPT fittings if locknut is
required.
EMC Cutting Teeth Metric:
xFor secure tightening of EMC cable fittings
xTo cut through paint layers or powder coatings
ensuring optimal contact
xIncreased vibration resistance
Part No. Thread ØD SW H
mm mm mm
LMPG7
LMPG9
LMPG11
LMPG13
LMPG16
LMPG21
LMPG29
LMPG36
LMPG42
LMPG48
LMM12
LMM16
LMM20
LMM25
LMM32
LMM40
LMM50
LMM63
600460
600461
600462
600463
600464
600465
600466
PG
PG 7
PG 9
PG 11
PG 13.5
PG 16
PG 21
PG 29
PG 36
PG 42
PG 48
METRIC
M12x1.5
M16x1.5
M20x1.5
M25x1.5
M32x1.5
M40x1.5
M50x1.5
M63x1.5
EMC - CUTTING
TEETH METRIC
M12x1.5
M16x1.5
M20x1.5
M25x1.5
M32x1.5
M40x1.5
M50x1.5
16.5
19.8
23.1
25.3
28.6
35.2
45.1
56.1
66.0
70.4
16.5
20.9
26.4
33
39.6
50.6
66
77
16.5
20.9
26.4
33
39.7
50.6
66
15
18
21
23
26
32
41
51
60
64
15
19
24
30
36
46
60
70
15
19
24
30
36
46
60
2.8
2.8
3
3
3
3.5
4.0
5.0
5.0
5.5
2.8
3.0
3.5
4.0
5.0
5.0
5.0
6.0
4.5
4.5
5.5
5.5
5.5
6.0
6.0
Specifications are subject to change without prior notice
54 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 54
Metal PG and Metric Reducer
PG Reducer Characteristics:
xReduction of threaded or clearance holes to smaller
thread size
xTemperature range -30°C - +100°C /
-22°F - +212°F
xReduction Brass, nickel plated
xInternal/External thread PG as per DIN 40430
Metric Reducer Characteristics:
xReduction of threaded or clearance holes to smaller
thread size
xTemperature range -30°C - +100°C /
-22°F - +212°F
xReduction Brass, nickel plated
xInternal/External thread Metric as per EN 60423
Part No.
Thread
Thread SW LL1
G
G1 mm mm mm
600400
600411
600401
600408
600402
600409
600410
600403
600413
600414
600404
600407
600405
600412
600406
600416
600220
600221
600222
600223
600224
600225
600226
600227
600228
600229
600230
PG
PG 9
PG 11
PG 11
PG 13.5
PG 13.5
PG 16
PG 16
PG 16
PG 21
PG 21
PG 21
PG 29
PG 29
PG 36
PG 36
PG 42
METRIC
M16x1.5
M20x1.5
M20x1.5
M25x1.5
M25x1.5
M32x1.5
M32x1.5
M40x1.5
M40x1.5
M50x1.5
M50x1.5
PG 7
PG 7
PG 9
PG 9
PG 11
PG 9
PG 11
PG 13.5
PG 11
PG 13.5
PG 16
PG 16
PG 21
PG 21
PG 29
PG 36
M12x1.5
M12x1.5
M16x1.5
M16x1.5
M20x1.5
M20x1.5
M25x1.5
M25x1.5
M32x1.5
M32x1.5
M40x1.5
17
20
20
22
22
24
24
24
30
30
30
39
39
50
50
57
18
24
24
28
28
34
34
45
45
55
55
8.5
8.5
8.5
9
9
9.5
9.5
9.5
10
10
10
11.5
11.5
12.5
12.5
14
8.5
9
9
10
10
11.5
11.5
11.5
11.5
14
14
6
6
6
6.5
6.5
6.5
6.5
6.5
7
7
7
8
8
9
9
10
6.0
6.5
6.5
7
7
8
8
8
8
10
10
Specifications are subject to change without prior notice
Lutze TOP-T Fittings Reducer
55
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 55
Lutze TOP-T Fittings Adapter
Metric to NPT Adapters
Adapter METRIC to NPT Characteristics:
xAdapter from metric to NPT thread
xTemperature range up to +200°C/ +392°F
xAdapter Brass CuZn39Pb3,
nickel-plated
xExternal thread Metric as per EN 60423
xInternal thread NPT
Part No.
Thread
Thread L H Da Di
A
Bmm mm mm mm
AMM16-12
AMM20-12
AMM25-34
AMM32-34
AMM32-10
METRIC
TO NPT
M16x1.5
M20x1.5
M25x1.5
M32x1.5
M32x1.5
NPT 1/2”
NPT 1/2”
NPT 3/4”
NPT 3/4”
NPT 1”
6.5
6.5
7
8
8
25
25
28
26
33
24
24
30
37
38
11
15
18
23
27
Specifications are subject to change without prior notice
56 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 56
Lutze TOP-T Fittings Accessories
Multihole Insert TPE PG, Metric, NPT
Characteristics:
xMultiple hole insert for two or more
cables in one fitting
xReplaces the existing rubber insert
to offer multiple hole installation
xSuitable for plastic and metal
fittings
xSolid inserts can be drilled to suit
any application
xMinimum quantity 100 pcs/package
Insert Specifications:
Material TPE
Part No. Fits
Size
Fits
Size
Fits
Size
Outer- Ø Number of
Cables
PG Metric NPT mm x Ø mm
600626
600627
600541
600628
600629
600635
600636
600542
600638
600639
600640
600637
600630
600543
600641
600644
600631
600643
600646
600633
600544
600645
600647
600642
600632
600648
600651
600653
600649
600652
600634
600545
600656
600654
600655
600546
PG 9
PG 9
PG 9
PG 11
PG 11
PG 11
PG 11
PG 11
PG 13.5
PG 13.5
PG 13.5
PG 13.5
PG 13.5
PG 13.5
PG 16
PG 16
PG 16
PG 16
PG 16
PG 16
PG 16
PG 16
PG 16
PG 16
PG 16
PG 21
PG 21
PG 21
PG 21
PG 21
PG 21
PG 21
PG 29
PG 29
PG 29
PG 29
M16 (metal only)
M16 (metal only)
M16 (metal only)
M16 (plastic only)
M16 (plastic only)
M16 (plastic only)
M16 (plastic only)
M16 (plastic only)
M20
M20
M20
M20
M20
M20
M25
M25
M25
M25
M25
M25
M25
M32
M32
M32
M32
3/8”
3/8”
3/8”
3/8”
3/8”
1/2"
1/2"
1/2"
1/2"
1/2"
1/2"
1/2"
1/2"
1/2"
1/2"
1/2"
3/4"
3/4"
3/4"
3/4"
3/4"
3/4"
3/4"
1”
1”
1”
1”
10
10
10
13
13
13
13
13
15
15
15
15
15
15
17
17
17
17
17
17
17
17
17
17
17
22
22
22
22
22
22
22
29.5
29.5
29.5
29.5
2 x 3.0
4 x 3.0
0 x 0.0
2 x 4.0
2 x 4.5
3 x 4.0
3 x 5.0
0 x 0.0
2 x 4.5
2 x 5.0
2 x 6.0
3 x 4.0
3 x 5.0
0 x 0.0
2 x 4.0
2 x 6.0
3 x 4.0
3 x 5.0
4 x 6.0
5 x 4.0
0 x 0.0
3 x 6.0
3 x 6.5
4 x 4.0
4 x 5.0
2 x 7.0
2 x 8.0
2 x 9.0
3 x 7.0
3 x 8.0
4 x 7.0
0 x 0.0
5 x 8.5
6 x 5.0
8 x 5.0
0 x 0.0
Specifications are subject to change without prior notice
57
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 57
Lutze EMC Cabinet Accessories
EMC rails with shield and strain relief options within the control cabinet
EMC Rail
Characteristics:
xMaterial
xStorage Temperature
xOperational
Temperature
Formed sheet metal
-30°C - +90°C,
-22°F - +194°F
-5°C - +80°C,
+23°F - +176°F
Part No. EMC Rail Type Dimensions
WxHxL in mm
No. of shield
points
Weight in
grams
346813
346812
EMVS 04-55813
EMVS 03-46812
15x32x1,155
21.5x75x1,173
55
46
466
1,169
Mounting Bracket
Characteristics:
x346814
x346860
Standard M5 thread
Standard M8 thread
Part No. Mounting
bracket type
Dimensions
WxHxL in mm
Suitable for
Rail
Weight in
grams
346814
346860
HW-EMVS 04
HW-EMVS 03
29.8x14x24
18x80x65
346813
346812
8
98
Shield Clamp
Characteristics:
xMaterial
xTemperature range
Sheet steel
0°C - +60°C,
+32°F - +140°F
Part No. Shield Clamp
Type
Cable Clamping
Range mm
Length in
mm
Weight in
grams
330089
330071
330072
330073
EMVSK 12
EMVFSK1
EMVFSK2
EMVFSK3
0-12
12 – 20
20 – 30
30 – 50
36
42
55
74
2.5
3
5
7
Strain Relief
Characteristics:
xFits rails
xMaterial
xHexagon screw
xBottom clip use is
optional
346812, 346813
Galvanized Steel
Slotted
Part No. Strain Relief
Type
Cable Clamping
Range mm
Thread Weight in
grams
331000
331001
331002
331003
331004
KS0
KS1
KS2
KS3
KS4
8- 12
12 - 16
16 - 22
34 - 40
52 - 58
M6
M6
M6
M6
M8
30
32
35
68
60
Part No. Metal Tie Wrap
Type
Length mm Material Weight in
grams
Metal Tie Wrap
Characteristics: Stainless Steel 330060 KSE 250 Stainless
Steel
30
Specifications are subject to change without prior notice
58 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 58
Lutze EMC Cabinet Accessories
Assembly of EMC rails with shield termination and strain relief options
System advantages at a glance:
xProvides shield termination and strain relief within the control cabinet
xEasy to install
xZip ties can be used with both rails if desired
1. Choose EMC rail based on application requirements.
Lutze EMC rails can be used in any control cabinet either with traditional set up or
together with Lutze LSC-Wiring system.
Determine application requirements:
xEMC shielding required only, choose narrower rail 346813
xFor both EMC shielding and strain relief needs, choose wider rail 346812
xCut rail to desired length to fit your cabinet
2. Choose appropriate brackets to install the rail inside the cabinet.
xUse mounting brackets 346814 to secure rail 346813. Uses standard M5
bolts.
xUse mounting brackets 346860 to secure rail 346812. Rail can be mounted
into the cabinet in two different ways: see pictures to the left. Mounting
holes, 8.5 mm, to be made by the user.
3. Choose appropriate shield clamps.
xDetermine the desired shielding clamp
4. Select optional strain relief if required in the application.
xRail 346813 provides shield termination or strain relief
xRail 346812 provides combined shield termination and strain relief
346814
346813
Specifications are subject to change without prior notice
346812
346860
330089
330071 - 330073
331000
-
331004
59
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 59
Lutze Cablefix Vario
Modular Strain Relief System, with plastic or aluminum frame for cable assemblies
Characteristics:
xFrame material
xProtection class
Polished Aluminum or
Polyamide 66 (GF30)
IP65
Part No. Frame Type Dimensions
WxHxD in mm
No. of Small
VK Inserts
No. of Large
VG Inserts
606050
606051
606001
606002
606004
606005
606007
PLASTIC
KKLR1
KKLR2
ALUMINUM
AKLR1
AKLR2
AKLR4
AKLR5
AKLR7
136 x 71 x 30
164 x 71 x 30
108 x 68 x 30
148 x 68 x 30
148 x 108 x 30
188 x 78 x 30
188 x 118 x 30
4
6
4
6
12
8
16
2
3
2
3
6
4
8
Small (VK) Insert
Characteristics:
xMaterial
xTemperature range
xResistance
TPE
-40°C - +135°C,
-40°F - +275°F
UV, ozone, oils and fuels,
acids and dyes, solvents
and salt water
Part No. Type Small VK Clamping
Range mm
No of Holes
606150
606151
606152
606153
606154
606155
606156
606157
606158
606159
606160
VK0
VK4
VK5
VK6
VK7
VK8
VK9
VK10
VK12
VK14
VK16
SOLID
4 – 4.5
4.5 – 5.5
5.5 – 6.5
6.5 – 7.5
7.5 – 8.5
8.5 – 9.5
9.5 – 10.5
10.5 – 12.5
12.5 – 14.5
14.5 – 16.5
0
14
8
8
5
5
3
3
2
2
2
Large (VG) Insert
Characteristics:
xMaterial
xTemperature range
xResistance
TPE
-40 - +135°C,
-40°F - +275°F
UV, ozone, oils and fuels,
acids and dyes, solvents
and salt water
Part No. Type Large VG Clamping
Range mm
No of Holes
606200
606201
606202
606203
606204
606205
606206
606207
606208
606209
VG0
VG18
VG20
VG22
VG24
VG26
VG28
VG30
VG32
VG34
SOLID
16.5 – 18.5
18.5 – 20.5
20.5 – 22.5
22.5 – 24.5
24.5 – 26.5
26.5 – 28.5
28.5 – 30.5
30.5 – 32.5
32.5 – 34.5
0
2
1
1
1
1
1
1
1
1
Blanking Plug
Characteristics:
xMaterial PA6 (GF15)
Gray
Part No. Fits Insert Part
No.
Type Outer Dia.
mm
Length mm
606250
606251
606252
606253
606254
606255
606256
606257
606258
606259
606260
606151
606152
606153
606154
606155
606156
606157
606158
606159
606160
606201
BL4
BL5
BL6
BL7
BL8
BL9
BL10
BL12
BL14
BL16
BL18
4
5
6
7
8
9
10
12
14
16
18
30
30
30
30
30
30
30
30
30
30
30
Specifications are subject to change without prior notice
60 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 60
Lutze Cablefix Vario
Assembly of Modular Strain Relief System
1. Choose aluminum or plastic frame.
The Cablefix Vario features outstanding material characteristics for harsh industrial
environments and a high sealing protection of IP65. Every frame ships with an
included drill pattern for proper mounting to the cabinet.
The plastic frames are made of reinforced polyamide 66 with brass support. The
aluminum version is made entirely of solid polished aluminum.
Cablefix Vario offers strain relief options for cable ranges from 4.5 to 34.5 mm in
diameter. The versatile system is ideal for installations and retrofitting, and offers
proper strain relief for already connectorized cables. This is a great advantage over
conventional solutions with standard cable fittings.
2. Choose appropriate inserts for the selected frame.
Example:
606050 can hold either
x4inserts type VK or
x2inserts type VG
x2VK inserts replace 1 VG insert
.
xThe tongue and groove design makes combining different inserts quick
and easy.
xThe slotted design allows easy installation by sliding the assembled cables
in from the side.
3. Select appropriately sized blanking plugs for unused holes.
Once all unused holes are plugged, the system provides a protection rating IP65.
The rubber components do not require the use of grease, which is advantageous
over other similar systems.
The advantages at a glance:
xMinimum space requirement
xSimple insertion of rubber inserts due to tongue and groove design
xVery versatile
xAllows future expansion
xIdeal for retrofitting of existing cabinets
Specifications are subject to change without prior notice
61
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 61
Lutze Fittings Cablefix
Cablefix
Characteristics:
xIntegrated strain relief in one direction
xEasy to install: cable pushes easily into position, locks
itself and it can no longer be pulled out unless the clamp
is released
xAn integrated seal protects up to IP55
xIndividual cables can be easily loosened and replaced for
troubleshooting, maintenance or retrofitting
xMix & Match: interlocking seal allows for any combination
of the three different cablefix versions to custom fit it to
your application
xBlanking plugs are supplied to seal unused holes
Fitting Specifications:
Material Polyamide PA
Temperature range -30°C - +70°C /
22°F - +212°F
Halogen-free Yes
Burning behavior Polyamide plate according to
UL 94 V2
Silicone free Yes
Enclosure wall thickness maximum 3 mm
Protection class IP55
Seal NBR60 oil resistant
Part No. Type Dimensions
(WxHxD)
Cut out
W x H
Number of Cables
x
Cable Ø
mm mm mm
600320
600321
600347
1xB/V
1xS/A
1xST
50.0 x 50.0 x 10.0
50.0 x 50.0 x 10.0
50.0 x 50.0 x 10.0
46 x 46
46 x 46
46 x 46
2 x 6.1-8.8 + 2 x 7.8-10.7
8 x 3.8-6.3
6 x 6.3-8.9
Specifications are subject to change without prior notice
62 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 62
63
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 63
Lutze Network Connectivity Products
Industrial Network Connectors
Application
xIndustrial Ethernet connectivity
Characteristics
xStandard 22.5 mm cut out installation
xFemale / Female 1:1
xGold-plated 8 pin (4 pair) connection
xEasy to install
Technical Data
Temperature -25°C - +70°C/
-13°F - +158°F
Protection class IP65 cap closed,
IP20 in inserted operation
Shielding 360º
Contact material CuSN, gold-plated
Rated current 1.5A
Dimensions (DxD) 29.5 mm x 29 mm
Approvals UL
NEMA UL Type 12
RJ45 Panel Pass Through
Part No. Description Transmission
Performance
Color
492075
491075
RJ45 F/F 8/8 Cat.5e
RJ45 F/F 8/8 Cat.6
100 MHz
250 MHz
gray
gray
Application
xIndustrial Ethernet connectivity
Characteristics
xInsulation Displacement Connector (IDC)
xZinc die-cast metal housing
xQuick connect technology
xAdequate for Power over Ethernet
xEasy to install
Technical Data
Temperature -40°C - +70°C/
-40°F - +158°F
Transmission
frequency
10 Gigabits/s
Rated current Max 1.0A per contact
Shielding 360º
Contact material Spring steel 0.8 mgold-
plated
Fits cable ODs AWG 27-22
Approvals UL
RJ45 IDC Industrial Connector
Part No. Description Transmission
Performance
Color code
490128
490129
RJ45 – M 8 pol. Cat.6a
RJ45 – M 8 pol. Cat.6a
10 Gigabit/sec
10 Gigabit/sec
T568B
T568A
Specifications are subject to change without prior notice
64 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 64
Lutze Network Connectivity Products
Industrial Network Connectors
Application
xIndustrial Ethernet connectivity
Characteristics
x17 mm cut out installation
xFemale / Female 4:4 or 8:8
xEasy to install
Technical Data
Temperature -25°C - +85°C/
-13°F - +185°F
Protection class IP 67 in inserted operation
Rated current Max 1.0A per contact
Shielding 360°
Contact material gold-plated phosphor bronze
Dimensions 29.5 x 29 mm
M12 / RJ45 Panel Pass Through
Part No. Description No.
Poles
Transmission
Performance
490105
490106
490107
490108
M12 / RJ45 F/F 90° Cat.5
M12 / RJ45 F/F 180° Cat.5
M12 / RJ45 F/F 90° Cat.5e
M12 / RJ45 F/F 180° Cat.5e
4
4
8
8
100 Megabit/sec
100 Megabit/sec
1Gigabit/sec
1Gigabit/sec
Application
xIndustrial USB connectivity
Characteristics
xAvailable with or without cord
x8different cords lengths
xStandard 22.5 mm cut out
xFemale / Female 1:1 or Female / Male 1:1
xBackwards compatible with USB 2.0
xEasy to install
Technical Data
Temperature -25°C - +70°C/
-13°F - +158°F
IP Rating IP65 cap closed,
IP20 in inserted operation
Shielding yes
Transmission
Performance
5Gigabit/sec
Contact material CuSN, gold-plated
Rated current 900 mA per contact
Bending radius 15 x cable OD
Dimensions (DxD) 29.5 mm x 29 mm
Approvals UL
NEMA UL Type 12
USB 3.0 “SuperSpeed” Panel Connector
Part No.
Description
Cord
Length
490112
490113.0030
490113.0060
490113.0080
490113.0150
490113.0200
490113.0300
490113.0500
USB 3.0 A/A F/F
USB 3.0 A/A F/M
USB 3.0 A/A F/M
USB 3.0 A/A F/M
USB 3.0 A/A F/M
USB 3.0 A/A F/M
USB 3.0 A/A F/M
USB 3.0 A/A F/M
N/A
0.3 m / 11.8”
0.6 m / 32.6”
0.8 m / 31.5”
1.5 m / 59.0”
2.0 m / 78.7”
3.0 m / 118.0”
5.0 m / 196.8”
Specifications are subject to change without prior notice
65
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 65
Technical Overview
Conductor Stranding 67
Conductor Markings 68-69
Ampacity Chart 70
Motor, VFD and Servo Cable Selection by Horsepower 71
Lutze DRIVEFLEX® VFD and Motor Cable 72
NFPA 79, 2012 Edition 73
ETHERNET – Overview 74-76
Superflex® High Flexing Cable Cycle Ratings 77
Lutze Superflex® Handling and Installation, Quick Overview 78-79
Thread Tables and Torque Recommendations for Cable Fittings 80
Protection Class Designation 81
Fittings Selection Chart 82-87
Part Number Index 88-90
66
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 66
Lutze Technical Overview
Conductor Stranding according to DIN VDE 0295/IEC 60228
The number of strands is non-binding and may vary slightly to meet specified wire resistance. The VDE 0296 determines only the
maximum diameter of the single wire that is required for compliance with the maximum wire resistance at 20°C.
Conductor Stranding Class K according to ASTM B172
Size AWG Class K Stranding
20 10/AWG30
18 16/AWG30
16 26/AWG30
14 41/AWG30
12 65/AWG30
10 104/AWG30
9133/AWG30
8 168/AWG30
7210/AWG30
6 266/AWG30
5336/AWG30
4 420/AWG30
3532/AWG30
2 665/AWG30
1836/AWG30
1/0 1,064/AWG30
2/0 1,323/AWG30
3/0 1,666/AWG30
4/0 2,107/AWG30
Cross section
mm
Fine stranded conductor
class 5 per VDE 0295
Superfine stranded conductor
class 6 per VDE 0295
0.14
18x0.10
0.25 14x0.15
32x0.10
0.34 19x0.15
42x0.10
0.38 12x0.20
21x0.15
0.50 16x0.20
28x0.15
0.75 24x0.20
42x0.15
1.00 32x0.20
56x0.15
1.50 30x0.25
84x0.15
2.50 50x0.25
140x0.15
4 56x0.30
224x0.15
684x0.30
192x0.20
10 80x0.40
320x0.20
16 128x0.40
512x0.20
25 200x0.40
800x0.20
35 280x0.40
1120x0.20
50 400x0.40
705x0.30
70 356x0.50
990x0.30
95 485x0.50
1340x0.30
120 614x0.50
1690x0.30
150 765x0.50
2123x0.30
185 944x0.50
1470x0.40
240 1225x0.50
1905x0.40
300 1530x0.50
2385x0.40
67
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 67
Lutze Technical Overview
Conductor Marking According to DIN 47100
No. Base/ring colors No. Base/ring colors No. Base/ring colors No. Base/ring colors
1white WH 16 yellow/brown 31 green/blue 46 brown
2brown BN 17 white/grey 32 yellow/blue 47 green
3green GN 18 grey/brown 33 green/red 48 yellow
4yellow YE 19 white/pink 34 yellow/red 49 grey
5grey GY 20 pink/brown 35 green/black 50 pink
6pink PK 21 white/blue 36 yellow/black 51 blue
7blue BU 22 brown/blue 37 grey/blue 52 red
8red RD 23 white/red 38 pink/blue 53 black
9black BK 24 brown/red 39 grey/red 54 violet
10 violet VT 25 white/black 40 pink/red 55 grey/pink
11 grey/pink 26 brown/black 41 grey/black 56 red/blue
12 red/blue 27 grey/green 42 pink/black 57 white/green
13 white/green 28 yellow/grey 43 blue/black 58 brown/green
14 brown/green 29 pink/green 44 red/black 59 white/yellow
15 white/yellow 30 yellow/pink 45 white 60 yellow/brown
61 white/grey
Conductor Marking According to DIN 47100 for Twisted Pairs (TP)
Pair No. Conductor A & B Pair No. Conductor A/B Pair No. Conductor A/B Pair No. Conductor A/B
1white & brown 4 blue & red 7 white/green & brown/green 10 white/pink & pink/brown
2 green & yellow 5 black & violet 8 white/yellow & yellow/brown 11 white/blue & brown/blue
3grey & pink 6grey/pink & red/blue 9white/grey & grey/brown 12 white/red & brown/red
Color Chart for Hook Up Wire
Color Abbreviation Lutze Color No. RAL No.
black BK 01 9005
blue BU 02 5015
red RD 04 3000
brown BN 03 8003
green/yellow GN/YE 00 6018/1021
orange OG 09 2003
dark blue DBU 14 5010
blue/white BU/WH 15 5015/9010
white/blue WH/BU 44 9010/5015
68 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 68
Lutze Technical Overview
Conductor Marking for Lutze Electronic cables
AWG 22 AWG 20
1- Black 1- Black
2- Brown 2- Red
3- Red 3- White
4- Orange 4- Green
5- Yellow 5- Orange
6- Green 6- Blue
7- Blue 7- Brown
8- Purple 8- Yellow
9- Gray 9- Purple
10- White 10- Gray
11- White Black 11- Pink
12- White Brown 12- Tan
13- White Red 13- Red Green
14- White Orange 14- Red Yellow
15- White Yellow 15- Red Black
16- White Green 16- White Black
17- White Blue 17- White Red
18- White Purple 18- White Green
19- White Gray 19- White Yellow
20- White Black Brown 20- White Blue
21- White Black Red 21- White Brown
22- White Black Orange 22- White Orange
23- White Black Yellow 23- White Gray
24- White Black Green 24- White Purple
25- White Black Blue 25- White Black Red
AWG 22 AWG 20
1- White Black 1- Black Red
2- White Brown 2- Black White
3- White Red 3- Black Green
4- White Orange 4- Black Blue
5- White Yellow 5- Black Brown
6- White Green 6- Black Yellow
7- White Blue 7- Black Orange
8- White Purple 8- Red Green
Electronic PLTC A313, A303
Electronic TP PLTC A314
69
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 69
Lutze Technical Overview
NEC Table 310.16 NEC Table 310.15(B)(2)A
Allowable Ampacities of Insulated Conductors Rated 0 Through 2000 Volts, 60°C - 90°C
(140°F -194°F),
Adjustment Factors for more than
three current carrying conductors in
Raceway or cable
Not More Than Three Current-Carrying Conductors in Raceway, Cable, or Earth (Directly
Buried), Based on Ambient Temperature of 30°C (86°F)
Temperature Rating of Conductor
Number of
Current-
Carrying
Conductors 1
Percent of Values in
Tables 310.15(B)
through 310.15(B)(19)
as Adjusted for
Ambient Temperature
if Necessary
60°C
75°C
90°C
(140°F)
(167°F)
(194°F)
Types TW, UF
Types RHW, THHW,
THW, THWN,
XHHW, USE, ZW
Types TBS, SA, SIS,
FEP, FEPB, MI, RHH,
RHW-2, THHN, THHW,
THW-2, THWN-2, USE-
2, XHH, XHHW, XHHW-
2, ZW-2
4-6 80
7-9 70
10-20 50
21-30 45
Size AWG or kcmil
COPPER
31-40
40
40 and above
35
18
–
–
14
1
Number of conductors
Is the total number of
conductors in the
raceway or cable
adjusted in accordance
with 310.15(B)(5)
and (6)
16
–
–
18
14**
15
20
25
12**
20
25
30
10**
30
35
40
8
40
50
55
6
55
65
75
4
70
85
95
3
5
100
115
2
95
115
130
1
110
130
145
1/0
125
150
170
2/0
145
175
195
3/0
165
200
225
4/0
195
230
260
* Refer to 310.15(b)(2) for the ampacity correction factors where the ambient temperature is other
than 30°c (86°f)
* Refer to 240.4(d) for conductor overcurrent protection limitations
CORRECTION FACTORS
Ambient
Temp.
(°C)
For ambient temperatures other than 30°C (86°F), multiply the allowable
ampacities shown above by the appropriate factor shown below.
Ambient
Temp.
(°F)
21-25
1.08
1.05
1.04
1.08
1.05
1.04
70-77
26-30
1
1
1
1
1
1
78-86
31-35
0.91
0.94
0.96
0.91
0.94
0.96
87-95
36-40
0.82
0.88
0.91
0.82
0.88
0.91
96-104
41-45
0.71
0.82
0.87
0.71
0.82
0.87
105-113
46-50
0.58
0.75
0.82
0.58
0.75
0.82
114-122
51-55
0.41
0.67
0.76
0.41
0.67
0.76
123-131
56-60
–
0.58
0.71
–
0.58
0.71
132-140
61-70
–
0.33
0.58
–
0.33
0.58
141-158
71-80
–
–
0.41
–
–
0.41
159-176
Jacket/Insulation Max Temp. °C
Abrasion
resistance
Oil resistance Weather resistance
Polyurethane
PUR
80
++
++
++
Polyvinylchloride
PVC
90
+
+
+
Thermoplastic Elastomere
TPE
90
++
++
+
HGI Thermoplastic Elastomere
HGI
90
++
++
++
Polyethylene
PE
80
0
0
+
Foam Polyethylene
FPE
80
0
0
+
Cross-linked Polyethylene
XLPE
90
++
++
++
All values shown are guidelines. Values may not meet NEC requirements.
Please check your local code requirements.
Ampacity Chart
70 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 70
Lutze Technical Overview
Simplified Motor, VFD and Servo Cable Selection by Horsepower (HP)
Part# Amps AWG (POWER) 230V-3Ø 460V-3 Ø 575V-3 Ø
A2161604 4C 18 16 AWG NA NA NA
A2161404 4C 25 14 AWG 5 HP 10 HP 15 HP
A2161204 4C 30 12 AWG 7.5 HP 15 HP 20 HP
A2161004 4C 40 10 AWG 10 HP 20 HP 30 HP
A2160804 4C 55 8AWG 15 HP 30 HP 40 HP
A2160604
A2190603
4C
3C 75 6AWG 20 HP 40 HP 50 HP
A2160404
A2190403
4C
3C 95 4AWG 25 HP 50 HP 60 HP
A2160204
A2190203
4C
3C 130 2AWG 40 HP 75 HP 100 HP
A2190103 3C 145 1AWG 40 HP 75 HP 100 HP
A2191/003 3C 170 1/0 50 HP 100 HP 125 HP
A2192/003 3C 195 2/0 60 HP 125 HP 150 HP
A2193/003 3C 225 3/0 60 HP 150 HP 150 HP
A2194/003 3C 260 4/0 75 HP 150 HP 200 HP
Number of current carrying conductors is three (3) + green/yellow ground(s)
Part# Amps AWG (POWER) 230V-3Ø 460V-3 Ø 575V-3 Ø
A2171604 4C+1TSP 14 16 AWG NA NA NA
A2171404 4C+1TSP 20 14 AWG 5 HP 10 HP 10 HP
A2171204 4C+1TSP 24 12 AWG 5HP 10 HP 15 HP
A2171004 4C+1TSP 32 10 AWG 7.5 HP 15 HP 20 HP
A2170804 4C+1TSP 44 8AWG 10 HP 25 HP 30 HP
A2170604 4C+1TSP 60 6AWG 15 HP 30 HP 40 HP
A2170404 4C+1TSP 76 4AWG 20 HP 40 HP 50 HP
A2170204 4C+1TSP 104 2AWG 30 HP 60 HP 75 HP
Number of current carrying conductors is five (5) + 1 green/yellow ground
Part# Amps AWG (POWER) 230V-3Ø 460V-3 Ø 575V-3 Ø
A2181604 4C+2TSP 12.5 16 AWG NA NA NA
A2181404 4C+2TSP 17.5 14 AWG 3 HP 10 HP 10 HP
A2181204 4C+2TSP 21 12 AWG 5HP 10 HP 10 HP
A2181004 4C+2TSP 28 10 AWG 7.5 HP 15 HP 20 HP
A2180804 4C+2TSP 38.5 8AWG 10 HP 20 HP 25 HP
Number of current carrying conductors is seven (7) + 1 green/yellow ground
Notes:
Type of Motor is design B
Class of Service is continuous
Duty-Cycle Service is continuous
Conductor is copper 90°C
Ambient temperature is 26-30°C
Values are based on 2011 NEC 430.250 multiplied x 1.25
Ampacities are based on 2011 NEC 310.15 (B)(16) 90°
Cables with Signal pair(s) have been de-rated in accordance to 2011 NEC 310.15(B)(3)(a)
*All values given are calculated based on 2011 NEC. For actual amperage consult your Motor/Drive manual and your local code restrictions. This
guideline is simplified in order to select cable sizes. This document has no legal meaning, the interpretation of the NEC code has to be verified by
the Authority Having Jurisdiction (AHJ).
71
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 71
Lutze Technical Overview
Lutze DRIVEFLEX® VFD and Servo Motor Cable
A Variable Frequency Drive (VFD) is a device designed
for alteration of a motor’s rotational speed by changing
the frequency and the voltage of the electrical power
supplied to it. In this manner, the rotational speed can
be adjusted within a wide range from standstill to
above the nominal rotation speed at 60 hertz.
The second main feature of a VFD is that it offers
motor torque control. To avoid overload of the motor,
the torque has to decrease when running the motor at
higher speeds and vice versa. In VFD applications the
constant frequency of 60 hertz in a sinusoidal
waveform is altered into a variable frequency as shown
in the Illustration.
The use of VFD technology poses high demands on
the cable connecting the motor to the drive. Standard
600V control cable does not meet the requirements of
VFD applications, thus causing operating malfunctions
and may result in premature cable failure. High
switching frequencies and harmonic waves cause high
capacitive charging current and overvoltage spikes well
beyond the 600V rating of standard control cables.
These problems put tremendous stress on cables and
the stress even increases further the longer the
distance between drive and motor.
Another stress factor is called “corona discharge
effect”. Insulated conductors have very small gaps
between the copper strands and the insulation material
caused by the irregular surface of stranded conductors.
This can lead to an uncontrolled corona discharge
across these gaps and break down the insulation over
time. This problem is well known in medium voltage
applications. Lutze offers a premium solution to
address the different requirements for VFD and motor
cable:
Lutze DRIVEFLEX® VFD and Servo Cable
A premium solution with XLPE insulation
XLPE is an insulation material with very low
capacitance offering superior electrical characteristics
for use as a VFD cable, especially in long cable runs.
The XLPE insulation is a thermo-set material with a
very high voltage breakdown level, thus inherently
addressing the corona discharge effect and making it
the premium insulation for any type of drive application.
XLPE insulation is recommended by most drive
manufacturers, and Lutze DRIVEFLEX® exceeds the
VFD cable requirements by Rockwell™ as stated in the
“Wiring and Grounding Guidelines for Pulse Width
Modulated (PWM) AC Drives” document. The extra
thick insulation offers a 1000V rating per UL. A foil and
braid shield combination with drain wire ensures
compliance with EMC requirements. Lutze
DRIVEFLEX® XLPE is the most flexible XLPE cable in
its class - offering easy stripping & installation, thus
saving time and money.
DRIVEFLEX® has also been evaluated as flexible VFD
and Servo cable and is UL listed for use on Drives and
Servos, as well as tray cable exposed run (TC-ER).
The DRIVEFLEX® cable family includes many different
configurations compatible with many standard Drive
and Servo Systems. For more information, please visit
www.driveflex.com.
72 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 72
Lutze Technical Overview
NFPA 79, 2012 Edition
NFPA 79 is the electrical standard for Industrial Machinery in the USA. The 2012 edition has again a
number of significant updates implemented which affect cable. The NFPA 79 is a standard published by the
National Fire Protection Agency, the same Agency that publishes the National Electric Code (a.k.a. NEC or
NFPA 70).
The NFPA 79 has special provisions addressing safe wiring practices for industrial machinery such as
machine tools. The new 2012 edition allows the use of appliance wiring material (type AWM) to be used
with Industrial machinery again. The use of such cable had been prohibited under the previous edition 2007
and this change had caused a lot hardship for most machine manufacturers, which is now resolved.
NFPA 79 still prefers listed cable types to be used. These cables carry a NRTL listed logo such as the “UL
listed” logo. It should be noted that cables can have dual or multi ratings and carry both marks, UL
recognized and UL listed along with other marks, the listing will prevail.
Permitted:
Appliance Wiring Material is regulated by UL 758 and carries the recognized logo:
Now permitted:
In order to use AWM type cable on Industrial machinery and be compliant with NFPA 79 AWM, the cable
must accommodate the provisions stated in article 12.9 “Special Cables and Conductors” of the NFPA 2012
edition.
It is sufficient to comply with one of the sections in sections 12.9.2.1 through 12.9.2.3 instead of meeting
their requirements in combination. For example:
1. It is permissible to use AWM cable or conductors if part of a listed assembly.
2. Or it is permissible to use AWM cable or conductors if specified for use with approved equipment
and in accordance with the equipment manufacturer’s instructions. One example would be a Servo
Drive system with a cable assembly made per the Servo-Drive System Manufacturer’s specification
and installed per the manufacturer’s instructions.
3. Or it is permissible to use AWM cable or conductors if compliant with 12.9.2.3 and the modifications
as described. These modifications will allow those types of AWM cables which are suitable for
industrial use by their nature. However, it will control the misuse of AWM cables which do not meet
industrial application requirements, e.g. voltage rating, insulation thickness, oil resistance, etc.
All Lutze AWM cables are designed for use in industrial environments and the AWM style and voltage rating
is clearly marked on each cable jacket. However, for field installation it will still be safest to rely on cable that
is UL listed and verified for the intended use. UL listed cable will make it easier to evaluate a machine in the
field and will therefore remain a very important choice for most machine builders in the USA. UL listed cable
will also eliminate the need for documentation that the use of AWM cable may require.
Please contact your Lutze representative on questions regarding our offering on UL listed and UL
recognized cable to help you be compliant with the latest standards for industrial machinery.
Lutze offers listed types with MTW, TC-ER, PLTC and CM marks. Cables with these markings are
considered listed types and are always permitted to be used in NFPA 79 compliant applications.
73
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 73
90
80
70
60
50
40
30
20
10
0
ETHERNET – Overview
1) Correct Handling and Installation of Network Copper Cable
Do not subject cable to tension
Do not kink the cable
Do not bend the cable more than 90º (See individual specifications for bending radius)
Strip the cable as short as possible
Do not crush cable when fastening
Do not untwist the conductor pairs by more than 0.5 inch
Terminate the shielding on both ends
2) Lutze ETHERNET Cable
We recommend shielded industrial Ethernet cable, such as Lutze ETHERNET cable, for use in industrial
environment to ensure secure connectivity.
Motors and other electrical noise producing devices are often located in close proximity to network cabling.
EMI (Electro Magnetic Interference) and RFI (Radio Frequency Interference) can distort data transmission
on copper-based network cable. To lessen or eliminate interference, called alien-crosstalk, the use of
shielded industrial cable and connectors is recommended.
Available Lutze Ethernet Cables:
S/UTP SF/UTP S/FTP
Susceptibility for Interference
some low low
104337 CAT 5e 104245 CAT 5
104301 CAT 5
104303 CAT 5
104304 CAT 5
104307 CAT 5
104335 CAT 5e
104336 CAT 5e
104347 CAT 6
104331 CAT 7
104338 CAT 6
Shield effectiveness
S/UTP SF/UTP
S/FTP
High end shielded cables provide outstanding
electrical characteristics.
3) Key for Twisted Pair Cables according to ISO/IEC-11801 (2002)E
XX/YZZ
XX for the outer shielding /Yfor the pair shielding ZZ for the pair arrangement
U= unshielded /U= Unshielded TP = twisted pair (regular)
F= foiled shield / F= foiled shield QP = quad pair (star quad)
S= braided shield /S= braided shield
SF = braided and foiled shield /
In order to utilize EMI/RFI shielding, the shield must be properly terminated at both ends!
a
74 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 74
ETHERNET – Overview
4) ProfiNet Star Quad Design and Termination
The star quad is a specific low-impedance cable configuration.
Four conductors are twisted on a common axis. The conductors across from each other make a pair.
In Figure 1 the pairs are as follows:
Pair 1:
Conductor A Conductor D
Pair 2
Conductor C Conductor B
Other terminations than in Figure 1 lead to interferences, decreased connectivity or no connectivity at all.
5) Pin Assignment and Installation
RJ45 is the most common Ethernet connector and is available both shielded and unshielded.
All pins of the RJ45 connector are used for 1000 Mbit/s (4-pair transmission). Four pins are used for 10/100 Mbit/s
(2-pair transmission).
According to the EN 50173 standard, two color codes are defined for installation: T568A and T568B.
It makes no difference which color code is used, however the same code should be used consistently throughout
the entire installation. Mixing up the two color codes will result in malfunctions.
Pin assignment RJ 45 - Color code according to EN 50173 – hard wiring:
ETHERNET CABLES
Star Quad (ProfiNet) Regular Twisted Pair
PIN# 100BASE-TX Color Code 10BASE-T, 100BASE-TX 1000BASE-T Color Code T568A Color Code T568B
1Transmit+ yellow Transmit+ BI_DA+ (Bidirectional) WH/GN WH/OG
2Transmit- orange Transmit- BI_DA- (Bidirectional) GN OG
3Receive+ white Receive+ BI_DB+ (Bidirectional) WH/OG WH/GN
4- - BI_DC+ (Bidirectional) BU BU
5- - BI_DC- (Bidirectional) WH/BU WH/BU
6Receive- blue Receive- BI_DB- (Bidirectional) OG GN
7- - BI_DD+ (Bidirectional) WH/BN WH/BN
8- - BI_DD- (Bidirectional) BN BN
Figure 1
75
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 75
ETHERNET – Overview
6) ETHERNET Categories and Classes
ProfiNet®CAT 5 CAT 5ECAT 6 CAT 6ACAT 7
Class DD DeE EaF
Construction
2pair
(AWG 22)
2pair
(AWG 24, AW G 26)
4pair
(AWG 24, AW G 26)
4pair
(26 AWG)
4pair
(26 AWG)
4pair
(26 AWG)
Speed 10/100
Mbit/s
10/100
Mbit/s
10/100/1000
Mbit/s
10/100/1000
Mbit/s
10/100/1000/10000
Mbit/s
10/100/1000/10000
Mbit/s
LAN
Applications
(max)
10BASE-T (2 pair)
100BASE-TX (2 pair)
10BASE-T (2 pair)
100BASE-TX (2 pair)
10BASE-T (2 pair)
100BASE-TX (2 pair)
1000BASE-T (4 pair)
10BASE-T
100BASE-TX
1000BASE-T
10GBASE-T
10BASE-T
100BASE-TX
1000BASE-T
10GBASE-T
10BASE-T
100BASE-TX
1000BASE-T
10GBASE-T
Nominal
impedance
100 Ohms 100 Ohms 100 Ohms 100 Ohms 100 Ohms 100 Ohms
Bandwidth 100 MHz 100 MHz 100 MHz 250 MHz 500 MHz 600 MHz
Max length 328 ft (10BASE-T)
328 ft (100BASE-TX)
328 ft (10BASE-T)
328 ft (100BASE-TX)
328 ft (10BASE-T)
328 ft (100BASE-TX)
328 ft (1000BASE-T)
328 ft (10BASE-T)
328 ft (100BASE-TX)
328 ft (1000BASE-T)
328 ft (10BASE-T)
328 ft (100BASE-TX)
328 ft (1000BASE-T
328 ft (10GBASE-T
328
ft (10BASE-T)
328 ft (100BASE-TX)
328 ft (1000BASE-T)
328 ft (10GBASE-T)
CAT
compatibility
CAT 5 CAT 5 CAT 5 CAT 5, CAT 5e CAT 5, CAT 6 CAT 5, CAT 6, CAT 6A
ISO/IEC
standard --
ISO/IEC 11801
ISO/IEC 11801 ISO/IEC 11801 Amendment 1 to
ISO/IEC 11801 ISO/IEC 11801
ANSI/TIA
standard -
-ANSI/TIA-568-B ANSI/TIA-568-C.2 ANSI/TIA-568-C.2 ANSI/TIA-568-C.2
Not recognized
Specifications are subject to change without prior notice
76 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 76
Lutze Technical Overview
Superflex® High Flexing Cable Cycle Ratings
Lutze Superflex® cables are special high flexing cables which are manufactured for use in applications with extreme flexing
conditions in drag chains installed on modern machine tools with linear motors. Lutze has experience for over 35 years in the
leading development and manufacturing of high flexing cables for use in continuous moving applications.
Lutze Superflex® Plus PUR is designed for high performance flexing or longer C-tracks. Lutze Superflex® Plus PUR will always
contain high grade materials such as High Glide TPE insulation and PUR jackets for high performance application in modern high
speed machine tools.
Lutze Superflex® N is designed for moderate to higher performance flexing in short to medium length C-tracks.
Lutze Superflex® N is available in different performance grades with materials ranging from PVC/Nylon insulation to High Glide
Insulation (TPE) insulation and is typically offered with PVC or PUR jackets.
High flexing cables require special handling and installation techniques and are different from standard control cables. To ensure
the longest possible life span for your cable, it is crucial to follow installation procedures precisely.
Cable Type Traveling distances Bending Radius Speed Acceleration Cycles
Superflex® PLUS PUR
High Glide TPE
insulation
PUR Jacket
for 20,000,000 cycles:
<16 ft / 5 m >10 Ø <3m/s <5m/s² 20,000,000
for 10,000,000 cycles:
<67 ft / 20 m > 7 Ø < 5m/s <10 m/s² 10,000,000
for 2,000,000 cycles:
<328 ft / 100 m > 7 Ø < 5m/s <10 m/s² 2,000,000
Superflex® PLUS (C) PUR
High Glide TPE
insulation
Sub Jacket
PUR outer Jacket
for 20,000,000 cycles:
<16 ft / 5 m >12 Ø <3m/s <5m/s² 20,000,000
for 10,000,000 cycles:
<67 ft / 20 m >10 Ø <5m/s <10 m/s² 10,000,000
for 2,000,000 cycles:
<328 ft / 100 m >10 Ø <5m/s <10 m/s² 2,000,000
Superflex® N
High Glide TPE
Insulation
PVC and Alloy Jackets
A138 series
for 10,000,000 cycles:
<16 ft / 5 m >12 Ø <3m/s <5m/s² 10,000,000
for 5,000,000 cycles:
<49 ft / 15 m >10 Ø <5m/s <10 m/s² 5,000,000
Superflex® N (C)
High Glide TPE
Insulation
Fleece wrap or Sub
Jackets
PVC and Alloy Jackets
A139 series
for 10,000,000 cycles:
<16 ft / 5 m >15 Ø <3m/s <5m/s² 10,000,000
for 5,000,000 cycles:
<49 ft / 15 m >12 Ø <5m/s <10 m/s² 5,000,000
The data in this table shows actual application parameters and accomplished cycles in independent tests. Flexing cycle performance can only be
compared by looking at all the data. A rating of “millions of operations” is meaningless if the distance, speed and bend radius is unknown.
77
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 77
1) Selecting Cables for Continuous Motion Applications – C-Tracks
We recommend special high flexing cables such as Lutze Superflex® cables, for use in C-tracks to ensure long life
times:
xLutze Superflex® cable is proven to be compatible with all major brands of C-tracks.
xLutze Superflex® N is designed for moderate flexing in short to medium length C-tracks.
xLutze Superflex® Plus PUR is designed for high performance flexing or longer C-tracks.
High Flexing Cables such as Lutze Superflex® cables, are different from standard flexible cables:
78 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:49 AM Page 78
79
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:50 AM Page 79
Lutze Technical Overview
Thread Tables for Lutze Cable Fittings - NPT, PG, Metric
NPT Pitch
mm
Outside Diameter
mm
Number of Threads
per Unit Length
Clearance Hole
mm
NPT 3/8”
NPT 1/2”
NPT 3/4”
NPT 1”
1.411
1.814
1.814
2.208
17.055
21.223
26.568
33.227
18
14
14
11.5
17.0
22
29
33.5
PG
to DIN 40430
Pitch
mm
Outside Diameter
mm
Core Diameter
mm
Clearance Hole
mm
PG7
PG9
PG11
PG13
PG16
PG21
PG29
PG36
PG42
PG48
1.270
1.410
1.410
1.410
1.410
1.588
1.588
1.588
1.588
1.588
12.5
15.2
18.6
20.4
22.5
28.3
37.0
47.0
54.0
59.3
11.28
13.86
17.26
19.06
21.16
26.78
35.48
45.48
52.48
57.78
12.7
15.4
18.8
20.7
22.8
28.6
37.4
47.5
54.5
59.8
Metric
to EN 60423
Pitch
mm
Outside Diameter
mm
Core Diameter
mm
Clearance Hole
mm
M12x1.5
M16x1.5
M20x1.5
M25x1.5
M32x1.5
M40x1.5
M50x1.5
M63x1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
12
16
20
25
32
40
50
63
10.5
14.5
18.5
23.5
30.5
38.5
48.5
61.5
12.2
16.2
20.2
25.2
32.2
40.2
50.2
63.2
Torque Recommendations for Lutze Cable Fittings - Plastic and Metal Dome Nuts
Nominal Size
Recommended Torque in Nm Recommended Torque in Nm
Plastic
Metal
NPT 3/8”
NPT 1/2”
NPT 3/4”
NPT 1”
PG7
PG9
PG11
PG13.5
PG16
PG21
PG29
PG36
PG42
PG48
M12x1.5
M16x1.5
M20x1.5
M25x1.5
M32x1.5
M40x1.5
M50x1.5
M63x1.5
2.5
3.0
5.0
5.0
2.5
3.75
3.75
3.75
5.0
7.5
7.5
7.5
7.5
7.5
1.0
2.5
4.0
6.0
7.0
7.5
8.0
9.0
4.5
5
7.0
7.0
6.25
6.25
6.25
6.25
7.5
10.0
10.0
10.0
10.0
10.0
5
5
7.5
10
15
18
20
20
The specified values are recommended for achieving the protection class IP68 at 5 bar. Please choose the suitable torque for the material and cable
application. The actual crush resistance of each cable must be considered. The values shown are for reference only.
80 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:50 AM Page 80
Lutze Technical Overview
Protection Class Designation according to EN 60529
The protection of electrical equipment through corresponding enclosure is specified with code letters and code numbers. This
protection class designation consists of the letters "IP" and two code numbers from 0 to 8. The first code number stands for the
protection against contact and foreign substances, the second number specifies the degree of protection against water.
The higher the respective code number is, the higher the offered protection. The protection class for each product is specified
in the respective technical information.
For example:
IP 65 Code letter IP IP
First code number 6 corresponds to: Protection against entrance of dust
Second code number 5 corresponds to: Protection against sprayed water
For protection against contact and foreign substances
First code
number
Protection scope designation Explanation
0No protection No special protection of persons from accidental contact with standing or moving
parts under voltage. No protection of the equipment against entry of solid foreign
substances.
1 1 Protection against foreign
substances > 50 mm
Protection against accidental contact of large area surfaces of standing and
internally moving parts under voltage, e.g. with the hand, but no protection
against intentional access to these parts. Protection against entry of solid foreign
substances with a diameter larger than 50 mm.
2Protection against foreign
substances
>12 mm voltage
Protection against contact by the fingers of standing or internally moving parts
under voltage. Protection against entry of solid foreign substances with a
diameter larger than 12 mm.
3 Protection against foreign
substances
>2.5 mm tools
Protection against contact of standing or internally moving parts under voltage
with, wires or similar of a thickness larger than 2.5 mm. Protection against entry
of solid foreign substances with a diameter larger than 2.5 mm.
4Protection against foreign
substances
> 1 mm
Protection against contact of standing or internally moving parts under voltage
with tools, wires or similar of a thickness larger than 1 mm. Protection against
entry of solid foreign substances with a diameter larger than 1 mm.
5 Protection against dust
accumulation
Full protection against contact of standing or internally moving parts under
voltage moving parts under voltage. Protection against dust accumulation. The
entry of dust is not fully prevented but the dust may not enter in such quantities
that the functioning is impaired.
6Protection against dust
accumulation
Full protection against contact of standing or internally moving parts under
voltage moving parts under voltage. Protection against entry of dust.
For water protection
Second code
number
Protection scope designation Explanation
0No protection No special protection.
1 Protection against vertically falling
dripping water
Water drops that fall vertically may not have any damaging effect.
2Protection against dripping water
falling at an angle
Water drops that fall at an arbitrary angle of up to 15° to vertical may not have
any damaging effect.
3 Protection against sprayed water Water that falls in an arbitrary angle up to 60° to vertical may not have a
damaging effect.
4Protection against splashed water Water that is splashed from all directions against the equipment may not have a
damaging effect.
5 Protection against water projected
from a nozzle
Water projected from a nozzle that is aimed at the equipment from all directions
may not have any damaging effect.
6Protection against flooding Water may not enter into the equipment in damaging amounts during temporary
flooding (e.g. by heavy seas)
7 Protection against immersion Water may not enter in damaging amounts if the equipment is immersed in water
for the defined pressure and time conditions.
8Protection against submersion Water may not enter in damaging amounts if the equipment is submerged in
water for the defined pressure and indefinite amount of time.
81
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:50 AM Page 81
Lutze Fittings Selection Chart
To complete the part number for plastic fittings, add color code B for Black or G for Gray at the end.
Part# Plastic NPT
Plastic
PG
Plastic
Metric
Metal
NPT
Metal
PG
Metal
Metric Part# Plastic
NPT
Plastic
PG
Plastic
Metric
Metal
NPT
Metal
PG
Metal
Metric
104205 FPNPT38B-R FPPG7 FPM12 FMNPT38 FMPG7 FMM12 111378 N/A FPPG36 FPM40 N/A FMPG36 FMM40
104206 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 111420 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
104207 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 111421 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20
104245 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 111422 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20
104264 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 111423 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
104265 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 111424 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32
104270 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 111425 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32
104275 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 111426 N/A FPPG36 FPM40 N/A FMPG36 FMM40
104279 FPNPT12 FPPG16 FPM20 FMNPT12 FMPG16 FMM20 111427 N/A FPPG36 FPM40 N/A FMPG36 FMM40
104280 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 111455 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16
104281 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20 111456 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
104287 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 111457 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
104289 FPNPT38 FPPG9 FPM12 FMNPT38 FMPG9 FMM12 111458 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
104293 FPNPT38 FPPG9 FPM16 FMNPT12 FMPG9 FMM16 111459 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
104301 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 111460 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16
104303 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 111461 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
104304 FPNPT38 FPPG9 FPM12 FMNPT38 FMPG9 FMM12 111462 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
104307 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 111463 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20
104331 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 111464 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
104335 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 111465 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32
104336 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 111466 N/A FPPG36 FPM40 N/A FMPG36 FMM40
104337 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 111467 N/A FPPG36 FPM40 N/A FMPG36 FMM40
104338 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 111468 N/A FPPG42 FPM50 N/A FMPG42 FMM50
104344 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 113300 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12
104347 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 113301 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16
110940 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 113302 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
110941 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 113303 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
111126 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 113304 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
111127 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 113305 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
111128 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 113312 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16
111129 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20 113313 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
111130 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25 113314 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
111131 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25 113315 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
111132 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32 113316 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20
111133 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32 113317 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
111289 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 113318 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
111290 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 113319 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
111291 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20 113320 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20
111292 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25 113321 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
111293 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25 113322 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
111294 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32 113323 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32
111295 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32 113324 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
111296 N/A FPPG36 FPM40 N/A FMPG36 FMM40 113331 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
111370 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 113332 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
111371 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 113339 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20
111372 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 113340 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
111373 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20 113341 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
111374 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25 113342 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32
111375 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32 113344 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
111376 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32 113347 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16
111377 N/A FPPG36 FPM40 N/A FMPG36 FMM40 113400 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12
82 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:50 AM Page 82
Lutze Fittings Selection Chart
Part# Plastic NPT
Plastic
PG
Plastic
Metric
Metal
NPT
Metal
PG
Metal
Metric Part#
Plastic
NPT
Plastic
PG
Plastic
Metric
Metal
NPT
Metal
PG
Metal
Metric
113401 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 117102 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12
113402 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 117103 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12
113403 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 117104 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12
113404 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 117106 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16
113405 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25 117107 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
113406 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 117108
FPNPT38B-
R
FPPG7 FPM12 FMNPT38 FMPG7 FMM12
113407 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 117109
FPNPT38B-
R
FPPG7 FPM12 FMNPT38 FMPG7 FMM12
113408 FPNPT38 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 117110 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12
113409 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20 117111 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12
113410 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25 117112 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12
113411 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25 117113 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16
113412 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 117115 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
113415 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 117116 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
113416 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 117123 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16
113417 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20 117124 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16
113426 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25 117170 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12
113431 FPNPT38B-R FPPG7 FPM12 FMNPT38 FMPG7 FMM12 117171 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12
113433 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 117172 FPNPT38 FPPG9 FPM12 FMNPT38 FMPG9 FMM12
113438 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 117173 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16
113441 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 117174 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
113442 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 117175 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
113443 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 117176 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
113444 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 117177 FPNPT38 FPPG9 FPM16 FMNPT12 FMPG9 FMM16
113446 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 108349A FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12
113447 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 108350A FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12
113479 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25 108351A FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12
113483 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 108352A FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16
113484 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 108353A FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
113485 FPNPT38 FPPG9 FPM12 FMNPT38 FMPG9 FMM12 108354A FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
117028 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 108355A FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20
117029 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 108356A FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
117035 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 108357A FPNPT38 FPPG9 FPM12 FMNPT38 FMPG9 FMM12
117039 FPNPT38B-R FPPG7 FPM12 FMNPT38 FMPG7 FMM12 108358A FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16
117040 FPNPT38B-R FPPG7 FPM12 FMNPT38 FMPG7 FMM12 108359A FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16
117041 FPNPT38B-R FPPG7 FPM12 FMNPT38 FMPG7 FMM12 108360A FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
117042 FPNPT38B-R FPPG7 FPM12 FMNPT38 FMPG7 FMM12 108361A FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20
117043 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 108362A FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20
117044 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 108363A FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
117046 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 108372A FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16
117047 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 108373A FPNPT38 FPPG9 FPM16 FMNPT12 FMPG9 FMM16
117048 FPNPT38B-R FPPG7 FPM12 FMNPT38 FMPG7 FMM12 108374A FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
117049 FPNPT38B-R FPPG7 FPM12 FMNPT38 FMPG7 FMM12 108375A FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
117050 FPNPT38B-R FPPG7 FPM12 FMNPT38 FMPG7 FMM12 108376A FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20
117051 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 108377A FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
117052 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 108378A FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
117053 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 108380A FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
117055 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 108381A FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
117056 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 108382A FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
117099 FPNPT38B-R FPPG7 FPM12 FMNPT38 FMPG7 FMM12 108383A FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20
117100 FPNPT38B-R FPPG7 FPM12 FMNPT38 FMPG7 FMM12 108384A FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
117101 FPNPT38B-R FPPG7 FPM12 FMNPT38 FMPG7 FMM12 108385A FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32
83
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:50 AM Page 83
Lutze Fittings Selection Chart
To complete the part number for plastic fittings, add color code B for Black or G for Gray at the end.
Part# Plastic NPT
Plastic
PG
Plastic
Metric
Metal
NPT
Metal
PG
Metal
Metric Part# Plastic
NPT
Plastic
PG
Plastic
Metric
Metal
NPT
Metal
PG
Metal
Metric
108386A FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32 A1381834 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
108391A FPNPT38 FPPG9 FPM12 FMNPT38 FMPG9 FMM12 A1381841 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32
108392A FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 A1381850 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32
108393A FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20 A1382003 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12
108401A FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 A1382004 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12
A1161004 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25 A1382005 FPNPT38 FPPG9 FPM12 FMNPT38 FMPG9 FMM12
A1161204 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20 A1382007 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16
A1161404 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 A1382012 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
A1161604 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 A1382018 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
A1161804 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 A1382025 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20
A1171004 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM40 A1391204 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM25
A1171204 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM32 A1391207 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM32
A1171404 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM32 A1391404 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
A1171604 FPNPT12 FPPG16 FPM20 N/A FMPG16 FMM25 A1391405 FPNPT12 FPPG16 FPM20 FMNPT12 FMPG16 FMM25
A1241204 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20 A1391407 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM25
A1241404 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 A1391603 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM20
A1241407 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 A1391604 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM20
A1241412 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25 A1391605 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
A1241603 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 A1391607 FPNPT12 FPPG16 FPM20 FMNPT12 FMPG16 FMM25
A1241604 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 A1391612 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM32
A1241605 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 A1391618 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM32
A1241607 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 A1391625 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM40
A1241612 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 A1391803 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM20
A1241618 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25 A1391804 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM20
A1241625 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25 A1391805 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM20
A1241803 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 A1391807 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
A1241804 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 A1391812 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM25
A1241805 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 A1391818 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM32
A1241807 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 A1391825 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM32
A1241812 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 A1391834 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM40
A1241818 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20 A1392003 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16
A1241825 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25 A1392004 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16
A1381204 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 A1392005 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM20
A1381207 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25 A1392007 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM20
A1381404 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 A1392012 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
A1381405 FPNPT38 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 A1392018 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM25
A1381407 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20 A1392025 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM32
A1381603 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 A2160204 N/A FPPG42 FPM50 N/A FMPG42 FMM50
A1381604 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 A2160404 N/A FPPG36 FPM40 N/A FMPG36 FMM50
A1381605 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 A2160604 N/A FPPG36 FPM40 N/A FMPG36 FMM50
A1381607 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 A2160804 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM40
A1381612 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20 A2161004 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM32
A1381618 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25 A2161204 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM32
A1381625 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25 A2161404 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM32
A1381803 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 A2161604 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM25
A1381804 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 A2170204 N/A FPPG42 FPM50 N/A FMPG42 FMM63
A1381805 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 A2170404 N/A FPPG36 FPM40 N/A FMPG36 FMM50
A1381807 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 A2170604 N/A FPPG36 FPM40 N/A FMPG36 FMM50
A1381812 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 A2170804 N/A FPPG36 FPM40 N/A FMPG36 FMM50
A1381818 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20 A2171004 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM40
A1381825 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25 A2171204 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM40
84 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:50 AM Page 84
Lutze Fittings Selection Chart
Part# Plastic NPT
Plastic
PG
Plastic
Metric
Metal
NPT
Metal
PG
Metal
Metric Part# Plastic
NPT
Plastic
PG
Plastic
Metric
Metal
NPT
Metal
PG
Metal
Metric
A2171404 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM32 A3081605 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
A2171604 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM32 A3081607 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
A2180804 N/A FPPG36 FPM40 N/A FMPG36 FMM50 A3081609 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20
A2181004 FPNPT10 FPPG29 FPM40 FMNPT10 FMPG29 FMM40 A3081612 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20
A2181204 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM40 A3081618 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
A2181404 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM40 A3081625 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32
A2181604 FPNPT34 FPPG29 FPM25 FMNPT34 FMPG21 FMM32 A3081634 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM40
A3032002 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 A3081641 FPNPT10 FPPG36 FPM40 FMNPT10 FMPG36 FMM40
A3032003 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 A3081802 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16
A3032004 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 A3081803 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16
A3032006 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 A3081804 FPNPT38 FPPG9 FPM16 FMNPT12 FMPG9 FMM16
A3032008 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 A3081805 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
A3032010 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 A3081807 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
A3032015 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 A3081809 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
A3032020 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20 A3081812 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20
A3032025 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25 A3081818 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
A3032202 FPNPT38B-R FPPG7 FPM12 FMNPT38 FMPG7 FMM12 A3081825 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
A3032203 FPNPT38B-R FPPG7 FPM12 FMNPT38 FMPG7 FMM12 A3081834 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32
A3032204 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 A3081841 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32
A3032206 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 A3081850 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32
A3032208 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 A3082003 FPNPT38 FPPG9 FPM12 FMNPT38 FMPG9 FMM12
A3032210 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 A3082004 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16
A3032215 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 A3082005 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16
A3032220 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 A3082007 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
A3032225 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 A3082012 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
A3080204 N/A FPPG48 FPM60 N/A FMPG48 FMM63 A3082018 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20
A3080404 N/A FPPG36 FPM40 N/A FMPG36 FMM40 A3082025 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
A3080603 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32 A3091004 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
A3080604 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32 A3091203 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
A3080605 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32 A3091204 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
A3080803 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25 A3091205 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20
A3080804 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32 A3091403 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
A3080805 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32 A3091404 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
A3081003 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20 A3091405 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
A3081004 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25 A3091407 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20
A3081005 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25 A3091412 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
A3081203 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 A3091602 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM20
A3081204 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 A3091603 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
A3081205 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20 A3091604 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
A3081207 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25 A3091605 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
A3081403 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 A3091607 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
A3081404 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 A3091612 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20
A3081405 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 A3091618 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
A3081407 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 A3091625 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32
A3081409 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20 A3091802 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16
A3081412 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25 A3091803 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16
A3081418 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32 A3091804 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
A3081425 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32 A3091805 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
A3081602 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 A3091807 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
A3081603 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 A3091812 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20
A3081604 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 A3091818 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
85
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:50 AM Page 85
Lutze Fittings Selection Chart
To complete the part number for plastic fittings, add color code B for Black or G for Gray at the end.
Part# Plastic NPT
Plastic
PG
Plastic
Metric
Metal
NPT
Metal
PG
Metal
Metric Part# Plastic
NPT
Plastic
PG
Plastic
Metric
Metal
NPT
Metal
PG
Metal
Metric
A3091825 FPNPT10 FPPG21 FPM25 FMNPT10 FMPG21 FMM25 A3211605 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
A3092003 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 A3211607 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
A3092004 FPNPT38 FPPG9 FPM16 FMNPT12 FMPG9 FMM16 A3211612 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20
A3092005 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 A3211618 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
A3092007 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 A3211625 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32
A3092012 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 A3211803 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16
A3092018 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20 A3211804 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
A3092025 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25 A3211805 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
A3132002 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 A3211807 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
A3132003 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 A3211812 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20
A3132004 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 A3211818 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
A3132006 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 A3211825 FPNPT10 FPPG21 FPM25 FMNPT10 FMPG21 FMM25
A3132008 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 A3220103 N/A FPPG42 FPM50 N/A FMPG42 FMM50
A3132010 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 A3220204 N/A FPPG42 FPM50 N/A FMPG42 FMM50
A3132015 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 A3220404 N/A FPPG36 FPM40 N/A FMPG36 FMM40
A3132020 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20 A3220604 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32
A3132025 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25 A3220804 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32
A3132202 FPNPT38B-R FPPG7 FPM12 FMNPT38 FMPG7 FMM12 A3220805 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32
A3132203 FPNPT38B-R FPPG7 FPM12 FMNPT38 FMPG7 FMM12 A3221003 FPNPT12 FPPG16 FPM20 N/A FMPG16 FMM25
A3132204 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 A3221004 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
A3132206 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 A3221005 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
A3132208 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 A3221203 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
A3132210 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 A3221204 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
A3132215 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 A3221205 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20
A3132220 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 A3221207 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
A3132225 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 A3221403 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
A3142002 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 A3221404 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
A3142004 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM20 A3221405 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
A3142006 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM20 A3221407 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
A3142008 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM20 A3221412 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
A3142010 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 A3221602 FPNPT38 FPPG13 FPM16 FMNPT12 FMPG11 FMM20
A3142012 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 A3221603 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
A3142016 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM25 A3221604 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
A3142202 FPNPT38 FPPG7 FPM12 FMNPT38 FMPG7 FMM12 A3221605 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
A3142204 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 A3221607 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
A3142206 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 A3221612 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20
A3142208 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16 A3221618 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
A3142210 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM20 A3221625 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32
A3142212 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM20 A3221803 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16
A3142216 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM20 A3221804 FPNPT38 FPPG9 FPM16 FMNPT12 FMPG9 FMM16
A3211005 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM32 A3221805 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
A3211203 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 A3221807 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
A3211205 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20 A3221812 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20
A3211403 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 A3221818 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
A3211404 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 A3221825 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
A3211405 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20 A3251204 FPNPT12 FPPG16 FPM20 FMNPT12 FMPG13 FMM20
A3211407 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20 A3251404 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
A3211412 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25 A3251603 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
A3211602 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM20 A3251607 FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
A3211603 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 A3251612 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
A3211604 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16 A3251619 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
86 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:50 AM Page 86
Lutze Fittings Selection Chart
Part# Plastic
NPT
Plastic
PG
Plastic
Metric
Metal
NPT
Metal
PG
Metal
Metric Part# Plastic
NPT
Plastic
PG
Plastic
Metric
Metal
NPT
Metal
PG
Metal
Metric
A3251625 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32
A3251803 FPNPT38 FPPG9 FPM16 FMNPT38 FMPG9 FMM16
A3251807 FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
A3251812 FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20
A3251819 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
A3251825 FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
A3251837 FPNPT10 FPPG29 FPM32 FMNPT10 FMPG29 FMM32
A601XX FPNPT12 FPPG16 FPM20 FMNPT34 FMPG16 FMM20
A602XX FPNPT12 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
A604XX FPNPT38 FPPG13 FPM20 FMNPT12 FMPG13 FMM20
A606XX FPNPT38 FPPG11 FPM16 FMNPT12 FMPG11 FMM16
A608XX FPNPT38 FPPG9 FPM12 FMNPT38 FMPG9 FMM12
A610XX FPNPT38B-R FPPG7 FPM12 FMNPT38 FMPG7 FMM12
A612XX FPNPT38B-R FPPG7 FPM12 FMNPT38 FMPG7 FMM12
A614XX FPNPT38B-R FPPG7 FPM12 N/A FMPG7 FMM12
A616XX FPNPT38B-R FPPG7 FPM12 N/A FMPG7 FMM12
A618XX N/A FPPG7G-R FPM12G-R N/A N/A N/A
A619XX N/A FPPG7G-R FPM12G-R N/A N/A N/A
A6700X FPNPT34 FPPG21 FPM25 FMNPT34 FMPG21 FMM25
A6950X FPNPT10B-R FPPG29G-
RFPM32G-R FMNPT34 FMPG21 FMM32
87
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:50 AM Page 87
m
Nu
rt
a
P
x
e
d
n
r I
e
mb
t
ar
P
#
e
ag
P
5
10420
25
6
10420
25
7
10420
25
10421
6
25
7
10421
25
5
10424
42
4
10426
25
5
10426
41
0
10427
41
5
10427
41
t#
r
a
P
e
ag
P
t#
r
a
P
8
11137
32
9
11340
0
11142
34
0
11341
1
11142
34
1
11341
2
11142
34
2
11341
3
11142
34
5
11341
4
11142
34
6
11341
5
11142
34
7
11341
6
11142
34
6
11342
7
11142
34
1
11343
5
11145
35
3
11343
e
ag
P
t#
r
a
P
a
P
30
2
11717
40
30
3
11717
40
30
4
11717
40
30
5
11717
40
30
6
11717
40
30
7
11717
40
30
0
33006
58
30
1
33007
58
30
2
33007
58
30
3
33007
58
e
ag
t#
r
a
P
e
ag
P
t #
r
a
P
1
60040
55
60064
2
60040
55
60064
3
60040
55
60064
4
60040
55
60064
5
60040
55
60064
6
60040
55
60064
7
60040
55
60064
8
60040
55
60065
9
60040
55
60065
0
60041
55
60065
#
e
ag
P
3
4
57
4
4
57
5
4
57
6
4
57
7
4
57
8
4
57
9
4
57
1
5
57
2
5
57
3
5
57
9
10427
41
0
10428
25
1
10428
25
7
10428
41
9
10428
41
3
10429
25
1
10430
24
3
10430
42
4
10430
42
7
10430
24
1
10433
24
6
11145
35
8
11343
7
11145
35
1
11344
8
11145
35
2
11344
9
11145
35
3
11344
0
11146
33
4
11344
1
11146
33
6
11344
2
11146
33
7
11344
3
11146
33
9
11347
4
11146
33
3
11348
5
11146
33
4
11348
6
11146
33
5
11348
30
9
33008
58
30
0
33100
58
30
1
33100
58
30
2
33100
58
30
3
33100
58
30
4
33100
58
30
2
34681
58
30
3
34681
58
30
4
34681
58
30
0
34686
58
30
5
49010
65
1
60041
55
60065
2
60041
55
60065
3
60041
55
60065
4
60041
55
60600
6
60041
55
60600
0
60046
54
60600
1
60046
54
60600
6
2
0046
54
60600
3
60046
54
60605
4
60046
54
60605
5
60046
54
60615
4
5
57
5
5
57
6
5
57
1
0
60
2
0
60
4
0
60
5
0
60
7
0
60
0
5
60
1
5
60
0
5
60
1
10433
24
5
10433
24
6
10433
24
7
10433
42
1043
38
24
4
10434
25
7
10434
42
0
11094
35
1
1
1094
35
6
11112
36
7
11112
36
8
11112
36
6
11146
33
5
11348
7
11146
33
8
11702
8
11146
33
9
11702
0
11330
31
9
11703
1
11330
31
0
11704
2
11330
31
1
11704
3
11330
31
2
11704
4
11330
31
3
11704
5
11330
31
4
11704
2
11331
31
6
11704
3
11331
31
7
11704
4
11331
31
8
11704
30
5
49010
65
38
6
49010
65
38
7
49010
65
38
8
49010
65
38
2
49011
65
38
3
49011
30
00
.
65
38
0
3.
49011
0
06
65
38
0
3.
49011
0
08
65
38
0
3.
49011
0
15
65
38
0
3.
49011
0
20
65
38
00
03
3.
49011
65
38
00
05
3.
49011
65
5
60046
54
60615
6
60046
54
606
1
1
60054
57
60615
2
60054
57
60615
3
60054
57
60615
4
60054
57
60615
5
60054
57
60615
6
60054
57
60615
0
60055
48
60615
1
60055
48
60615
3
60055
48
60616
4
60055
48
60620
0
5
60
51
60
2
5
60
3
5
60
4
5
60
5
5
60
6
5
60
7
5
60
8
5
60
9
5
60
0
6
60
0
0
60
8
11112
36
111
29
1
36
0
11113
36
1
11113
36
2
11113
36
3
11113
36
1
11127
34
2
11127
34
6
11127
34
0
11128
34
1
11128
34
2
11128
34
4
11331
31
8
11704
5
11331
31
9
11704
6
11331
31
0
11705
7
11331
31
1
11705
8
11331
31
2
11705
11331
9
31
3
11705
0
11332
31
5
11705
1
11332
31
6
11705
2
11332
31
9
11709
3
11332
31
0
11710
4
11332
31
1
11710
1
11333
31
2
11710
38
00
05
3.
49011
65
38
8
49012
64
38
9
49012
64
38
5
49107
64
38
5
49207
64
38
0
60022
55
38
1
60022
55
38
2
60022
55
39
3
60022
55
39
4
60022
55
39
5
60022
55
39
6
60022
55
4
60055
48
60620
7
60055
48
60620
8
60055
48
60620
1
60056
48
60620
2
60056
48
60620
5
60056
48
60620
6
60056
48
60620
4
60060
48
60620
5
60060
48
60620
6
60060
48
60620
7
60060
48
60625
6
60062
57
60625
0
0
60
1
0
60
2
0
60
3
0
60
4
0
60
5
0
60
6
0
60
7
0
60
8
0
60
9
0
60
0
5
60
1
5
60
2
11128
34
9
11128
37
0
11129
37
1
11129
37
2
11129
37
3
11129
37
4
11129
37
5
11129
37
6
11129
37
0
11137
32
1
11137
32
2
11137
32
1
11333
31
2
11710
2
11333
31
3
11710
9
11333
31
4
11710
0
11334
31
6
11710
1
11334
31
7
11710
2
11334
31
8
11710
4
11334
31
9
11710
7
11334
31
0
11711
0
11340
30
1
11711
1
11340
30
2
11711
2
11340
30
3
11711
3
11340
30
5
11711
39
6
60022
55
39
7
60022
55
39
8
60022
55
39
9
60022
55
39
0
60023
55
39
0
60032
62
39
1
60032
62
39
7
60034
62
39
1
60035
48
39
2
60035
48
39
3
60035
48
39
5
60035
48
6
60062
57
60625
7
60062
57
60625
8
60062
57
60625
9
60062
57
60625
0
60063
57
60625
1
60063
57
60625
2
60063
57
60625
3
60063
57
60625
4
60063
57
6
0625
5
60063
57
60626
6
60063
57
10834
7
60063
57
10835
1
5
60
2
5
60
3
5
60
4
5
60
5
5
60
6
5
60
7
5
60
8
5
60
9
5
60
0
6
60
9A
4
13
0A
5
13
2
11137
32
3
11137
32
4
11137
32
5
11137
32
6
11137
32
7
11137
32
3
11340
30
5
11711
4
11340
30
6
11711
5
11340
30
3
11712
6
11340
30
4
11712
7
11340
30
0
11717
8
11340
30
1
11717
39
5
60035
48
39
6
60035
48
39
7
60035
48
39
8
60035
48
40
9
60035
48
40
0
60040
55
7
60063
57
10835
8
60063
57
10835
9
60063
57
10835
0
60064
57
10835
1
60064
57
10835
2
60064
57
10835
0A
5
13
1A
5
13
2A
5
13
3A
5
13
4A
5
13
5A
5
13
88 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:50 AM Page 88
m
Nu
rt
a
P
x
e
d
n
r I
e
mb
t#
r
a
P
P
6A
10835
1
7A
10835
1
8A
10835
1
9A
10835
1
0A
10836
1
1A
10836
1
2A
10836
1
3A
10836
1
2A
10837
1
3A
10837
1
e
ag
P
t#
r
a
P
e
ag
P
3
1381604
A
28
A
3
1381605
A
28
A
3
1381607
A
28
A
3
1381612
A
28
A
3
1381618
A
28
A
3
1381625
A
28
A
3
1381803
A
28
A
3
1381804
A
28
A
3
1381805
A
28
A
3
1381807
A
28
A
t#
r
a
P
e
ag
P
t#
r
a
P
2170404
A
15
3081418
A
2170604
A
15
3081425
A
2170804
A
15
3081602
A
2171004
A
15
3081603
A
2171204
A
15
3081604
A
2171404
A
15
3081605
A
2171604
A
15
3081607
A
2180804
A
16
3081609
A
2181004
A
16
3081612
A
2181204
A
16
3081618
A
e
ag
P
t #
r
a
P
e
ag
P
18
6
3092005
A
8
25
6
3092007
A
8
02
6
3092012
A
8
03
6
3092018
A
8
04
6
3092025
A
8
05
6
3132002
A
20
07
6
3132003
A
20
09
6
3132004
A
20
12
6
3132006
A
20
18
6
3132008
A
20
e
t#
r
a
P
e
ag
P
3221004
A
10
3221005
A
10
3221203
A
10
3221204
A
10
3221205
A
10
3221207
A
10
3221403
A
10
3221404
A
10
3221405
A
10
3221407
A
10
4A
10837
1
5A
10837
1
6A
10837
1
7A
10837
1
8A
10837
1
0A
10838
1
1A
10838
1
2A
10838
1
3A
10838
1
4A
10838
1
5A
10838
1
3
1381812
A
28
A
3
1381818
A
28
A
3
1381825
A
28
A
3
1381834
A
28
A
3
1381841
A
28
A
3
1381850
A
28
A
3
1382003
A
28
A
3
1382004
A
28
A
3
1382005
A
28
A
3
1382007
A
28
A
3
1382012
A
28
A
2181404
A
16
3081625
A
2181604
A
16
3081634
A
2190103
A
17
3081641
A
2190203
A
17
3081802
A
2190403
A
17
3081803
A
2190603
A
17
3081804
A
003
2191/
A
17
3081805
A
003
2192/
A
17
3081807
A
003
2193/
A
17
3081809
A
003
2194/
A
17
3081812
A
3032002
A
19
3081818
A
25
6
3132010
A
20
34
6
3132015
A
20
41
6
3132020
A
20
02
6
3132025
A
20
03
6
3132202
A
20
04
6
3132203
A
20
05
6
3132204
A
20
07
6
3132206
A
20
09
6
3132208
A
20
12
6
3132210
A
20
18
6
3132215
A
20
3221412
A
10
3221602
A
10
3221603
A
10
3221604
A
10
3221605
A
10
3221607
A
10
3221612
A
10
3221618
A
10
3221625
A
10
3221803
A
10
3221804
A
10
1
6A
10838
1
1A
10839
1
2A
10839
1
3A
10839
1
1A
10840
1
1161004
A
1
1161204
A
1
1161404
A
1
1161604
A
1
1161804
A
1
1171004
A
1
3
28
3
1382018
A
28
A
3
1382025
A
28
A
3
1391204
A
29
A
3
1391207
A
29
A
3
1391404
A
29
A
8
1391405
A
29
A
8
1391407
A
29
A
8
1391603
A
29
A
8
1391604
A
29
A
8
1391605
A
29
A
8
1391607
A
29
A
19
3032003
A
19
3081825
A
3032004
A
19
3081834
A
3032006
A
19
3081841
A
3032008
A
19
3081850
A
3032010
A
19
3082003
A
3032015
A
19
3082004
A
3032020
A
19
3082005
A
3032025
A
19
3082007
A
3032202
A
19
3082012
A
3032203
A
19
3082018
A
3032204
A
19
3082025
A
6
20
25
6
3132220
A
20
34
6
3132225
A
20
41
6
3142004
A
21
50
6
3142008
A
21
03
6
3142012
A
21
04
6
3142016
A
21
05
6
3142204
A
21
07
6
3142208
A
21
12
6
3142212
A
21
18
6
3142216
A
21
25
6
3211005
A
11
10
3221805
A
10
3221807
A
10
3221812
A
10
3221818
A
10
3221825
A
10
3251204
A
9
3251404
A
9
3251603
A
9
3251607
A
9
3251612
A
9
3251619
A
9
1171004
A
1
1171204
A
1
1171404
A
1
1171604
A
1
1241204
A
1
1241404
A
1
1241407
A
1
1241412
A
1
1241603
A
1
1241604
A
1
1241605
A
1
1241607
A
1
8
1391607
A
29
A
8
1391612
A
29
A
8
1391618
A
29
A
8
1391625
A
29
A
2
1391803
A
29
A
2
1391804
A
29
A
2
1391805
A
29
A
2
1391807
A
29
A
2
1391812
A
29
A
2
1391818
A
29
A
2
1391825
A
29
A
2
1391834
A
29
A
3032204
A
19
3082025
A
3032206
A
19
3091004
A
3032208
A
19
3091203
A
3032210
A
19
3091204
A
3032215
A
19
3091205
A
3032220
A
19
3091403
A
3032225
A
19
3091404
A
3080204
A
7
3091405
A
3080404
A
7
3091407
A
3080603
A
7
3091412
A
3080604
A
7
3091602
A
3080605
A
7
3091603
A
25
6
3211005
A
11
04
8
3211203
A
11
03
8
3211205
A
11
04
8
3211403
A
11
05
8
3211404
A
11
03
8
3211405
A
11
04
8
3211407
A
11
05
8
3211412
A
11
07
8
3211603
A
11
12
8
3211604
A
11
02
8
3211605
A
11
03
8
3211607
A
11
3251619
A
9
3251625
A
9
3251803
A
9
3251807
A
9
3251812
A
9
3251819
A
9
3251825
A
9
3251837
A
9
60100
A
23
60101
A
23
60200
A
23
60201
A
23
1241607
A
1
1241612
A
1
1241618
A
1
1241625
A
1
1241803
A
1
1241804
A
1
1241805
A
1
1241807
A
1
1241812
A
1
1241818
A
1
1241825
A
1
1381204
A
2
2
1391834
A
29
A
2
1392003
A
29
A
2
1392004
A
29
A
2
1392005
A
29
A
2
1392007
A
29
A
2
1392012
A
29
A
2
1392018
A
29
A
2
1392025
A
29
A
2
2160204
A
14
A
2
2160404
A
14
A
2
2160604
A
14
A
28
2160804
A
14
A
3080605
A
7
3091603
A
3080803
A
7
3091604
A
3080804
A
7
3091605
A
3080805
A
7
3091607
A
3081003
A
7
3091612
A
3081004
A
7
3091618
A
3081005
A
7
3091625
A
3081203
A
7
3091802
A
3081204
A
7
3091803
A
3081205
A
7
3091804
A
3081207
A
7
3091805
A
3081403
A
6
3091807
A
03
8
3211607
A
11
04
8
3211612
A
11
05
8
3211618
A
11
07
8
3211625
A
11
12
8
3211803
A
11
18
8
3211804
A
11
25
8
3211805
A
11
02
8
3211807
A
11
03
8
3211812
A
11
04
8
3211818
A
11
05
8
3211825
A
11
07
8
3220204
A
10
60201
A
23
60400
A
23
60401
A
23
60600
A
23
60601
A
23
60800
A
22
60801
A
22
61000
A
22
61001
A
22
61200
A
22
61201
A
22
61400
A
22
1381204
A
2
1381207
A
2
1381404
A
2
1381405
A
2
1381407
A
2
1381603
A
2
28
2160804
A
14
A
28
2161004
A
14
A
28
2161204
A
14
A
28
2161404
A
14
A
28
2161604
A
14
A
28
2170204
A
15
A
3081403
A
6
3091807
A
3081404
A
6
3091812
A
3081405
A
6
3091818
A
3081407
A
6
3091825
A
3081409
A
6
3092003
A
3081412
A
6
3092004
A
07
8
3220204
A
10
12
8
3220404
A
10
18
8
3220604
A
10
25
8
3220804
A
10
03
8
3220805
A
10
04
8
3221003
A
10
61400
A
22
61401
A
22
61402
A
22
61403
A
22
61404
A
22
61405
A
22
89
1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:50 AM Page 89
m
Nu
rt
a
P
x
e
d
n
r I
e
mb
t#
r
a
P
e
ag
P
61414
A
22
61600
A
22
61601
A
22
61602
A
22
61603
A
22
61604
A
22
61605
A
22
61614
A
22
61615
A
22
61644
A
22
t#
r
a
P
e
ag
P
r
a
P
0
M5
M
F
-
L
51
P
F
3
M6
M
F
51
P
F
3
M6
M
F
-
C2
53
P
F
3
M6
M
F
-
L
51
P
F
0
1
T
P
N
M
F
49
P
F
0
1
T
P
N
M
F
-
C2
53
P
F
2
1
T
P
N
M
F
49
P
F
2
1
T
P
N
M
F
-
C2
53
P
F
4
3
T
P
N
M
F
49
P
F
4
3
T
P
N
M
F
-
C2
53
P
F
t#
r
e
ag
P
t #
r
a
P
B
4
3
PT
N
44
25G
M
P
L
B
4
3
PT
N
-
R
44
32B
M
P
L
G
4
3
PT
N
44
32G
M
P
L
B
8
3
PT
N
44
40B
M
P
L
B
8
3
PT
N
-
R
44
40G
M
P
L
G
8
3
PT
N
44
50B
M
P
L
B
1
1
PG
45
50G
M
P
L
G
1
1
PG
45
63B
M
P
L
G
1
1
PG
-
R
45
63G
M
P
L
B
3
1
PG
45
0
1
PT
PN
L
e
ag
P
47
47
47
47
47
47
47
47
47
B
0
47
A
61800
22
61801
A
22
61802
A
22
61803
A
22
61804
A
22
61814
A
22
61844
A
22
61900
A
22
61901
A
22
61902
A
22
61903
A
22
8
3
T
P
N
M
F
49
P
F
8
3
T
P
N
M
F
-
C2
53
P
F
1
1
G
P
M
F
50
P
F
1
1
G
P
M
F
-
L
50
P
F
3
1
G
P
M
F
50
P
F
3
1
G
P
M
F
-
L
50
P
F
6
1
G
P
M
F
50
P
F
6
1
G
P
M
F
-
L
50
P
F
1
2
G
P
M
F
50
P
F
1
2
G
P
M
F
-
L
50
P
F
9
2
G
P
M
F
50
P
F
G
3
1
PG
45
0
1
PT
PN
L
G
3
1
PG
-
R
45
2
1
PT
PN
L
B
6
1
PG
45
2
1
PT
PN
L
G
6
1
PG
45
4
3
PT
PN
L
G
6
1
PG
-
R
45
4
3
PT
PN
L
B
1
2
PG
45
8
3
PT
PN
L
G
1
2
PG
45
8
3
PT
PN
L
G
1
2
PG
-
R
45
B
1
1
PPG
L
B
9
2
PG
45
G
1
1
PPG
L
G
9
2
PG
45
B
3
1
PPG
L
G
9
2
PG
-
R
45
PPG
L
13G
G
0
47
B
2
47
G
2
47
B
4
47
G
4
47
B
8
47
G
8
47
B
47
G
47
B
47
G
47
22
61904
A
22
61914
A
22
67000
A
23
67001
A
23
69500
A
23
69501
A
23
6
MM1
A
-
12
56
0
MM2
A
-
12
56
5
MM2
A
-
34
56
2
MM3
A
-
10
56
2
MM3
A
-
34
56
50
9
2
G
P
M
F
-
L
50
P
F
6
3
G
P
M
F
50
P
F
2
4
G
P
M
F
50
P
F
8
4
G
P
M
F
50
P
F
7
G
P
M
F
50
P
F
7
G
P
M
F
-
L
50
P
F
9
G
P
M
F
50
P
F
9
G
P
M
F
-
L
50
P
F
12B
M
P
F
46
P
F
12G
M
P
F
46
P
F
12G
M
P
F
-
R
46
P
F
45
B
6
3
PG
45
B
6
1
PPG
L
G
6
3
PG
45
G
6
1
PPG
L
G
6
3
PG
-
R
45
B
1
2
PPG
L
B
2
4
PG
45
G
1
2
PPG
L
G
2
4
PG
45
B
9
2
PPG
L
B
8
4
PG
45
G
9
2
PPG
L
G
8
4
PG
45
B
6
3
PPG
L
B
7
PG
45
G
6
3
PPG
L
G
7
PG
45
B
2
4
PPG
L
G
7
PG
-
R
45
G
2
4
PPG
L
B
9
PG
45
B
8
4
PPG
L
47
B
47
G
47
B
47
G
47
B
47
G
47
B
47
G
47
B
47
G
47
B
47
2
MM3
A
34
56
2
M1
M
F
51
2
M1
M
F
-
C
52
2
M1
M
F
-
C2
53
2
M1
M
F
-
L
51
6
M1
M
F
51
6
M1
M
F
-
C
52
6
M1
M
F
-
C2
53
6
M1
M
F
-
L
51
0
M2
M
F
51
0
M2
M
F
-
C
52
0
M2
M
F
-
C2
53
12G
M
P
F
R
46
P
F
16B
M
P
F
46
P
F
16G
M
P
F
46
P
F
16G
M
P
F
-
R
46
M
L
20B
M
P
F
46
M
L
20G
M
P
F
46
M
L
20G
M
P
F
-
R
46
M
L
25B
M
P
F
46
M
L
25G
M
P
F
46
M
L
25G
M
P
F
-
R
46
M
L
32B
M
P
F
46
M
L
32G
M
P
F
46
M
L
B
9
PG
45
B
8
4
PPG
L
G
9
PG
45
G
8
4
PPG
L
G
9
PG
-
R
45
B
7
PPG
L
2
M1
M
54
G
7
PPG
L
6
M1
M
54
B
9
PPG
L
0
M2
M
54
G
9
PPG
L
5
M2
M
5
4
2
M3
M
54
0
M4
M
54
0
M5
M
54
3
M6
M
54
1
1
G
P
M
54
B
47
G
47
47
G
47
47
G
47
0
M2
M
F
C2
53
0
M2
M
F
-
L
51
5
M2
M
F
51
5
M2
M
F
-
C
52
5
M2
M
F
-
C2
53
5
M2
M
F
-
L
51
2
M3
M
F
51
2
M3
M
F
-
C
52
2
M3
M
F
-
C2
53
2
M3
M
F
-
L
51
F
0
M4
M
51
0
M4
M
F
-
C
52
32G
M
P
F
46
M
L
32G
M
P
F
-
R
46
M
L
40B
M
P
F
46
M
L
40G
M
P
F
46
M
L
40G
M
P
F
-
R
46
M
L
50B
M
P
F
46
M
L
50G
M
P
F
46
M
L
50G
M
P
F
-
R
46
M
L
63B
M
P
F
46
M
L
63G
M
P
F
46
M
L
63G
M
P
F
-
R
46
P
L
B
0
1
PT
PN
F
44
P
L
1
1
G
P
M
54
3
1
G
P
M
54
6
1
G
P
M
54
1
2
G
P
M
54
9
2
G
P
M
54
6
3
G
P
M
54
2
4
G
P
M
54
8
4
G
P
M
54
7
G
P
M
54
9
G
P
M
54
12B
M
47
12G
M
47
0
M4
M
F
-
C
52
0
M4
M
F
-
C2
53
0
M4
M
F
-
L
51
0
M5
M
F
51
0
M5
M
F
-
C
52
0
M5
M
F
-
C2
53
B
0
1
PT
PN
F
44
P
L
B
0
1
PT
PN
F
-
R
44
P
L
G
0
1
PT
PN
F
44
P
L
B
2
1
PT
PN
F
44
P
L
B
2
1
PT
PN
F
-
R
44
P
L
G
2
1
PT
PN
F
44
P
L
12G
M
47
16B
M
47
16G
M
47
20B
M
47
20G
M
47
2
M
5B
47
90 1-800-447-2371 www.lutze.com
32116-Lutze layout.qxp:Layout 1 1/4/13 7:50 AM Page 90
Lutze DRIVEFLEX® XLPE (C) PVC,
Shielded A216
Flexible VFD & Motor Supply Cable with 4 conductors including one full
size ground. Suitable for all generic drive applications with classic three
phase wiring.
Lutze DRIVEFLEX® XLPE (C) Servo I PVC,
Shielded A217
Flexible VFD & Motor Supply Cable with 4 conductors including one full
size ground, plus one twisted shielded pair for feedback. Suitable for servo
systems such as Rockwell, Siemens etc., which require one control pair.
Lutze DRIVEFLEX® XLPE (C) Servo II PVC,
Shielded A218
Flexible VFD & Motor Supply Cable with 4 conductors including one full
size ground, plus two twisted shielded pairs for feedback. Suitable for
servo systems such as Rockwell, Indramat etc., which require two control
pairs.
Lutze DRIVEFLEX® XLPE (C) Symmetrical Grounds PVC,
Shielded A219
Flexible VFD & Motor Supply Cable with 3 symmetrical grounds.
The symmetry in the conductor design reduces motor frame voltage
induced by high motor current. Symmetrical ground cable is recommended
by ABB and Rockwell for larger horsepower motors.
32116-Lutze layout.qxp:Layout 1 1/4/13 7:51 AM Page 91
32116-Lutze layout.qxp:Layout 1 1/4/13 7:51 AM Page 92
Cable Solutions
Flexible and continuous flexing cables for
machine control and power distribution
applications. Wire management for industrial
automation.
Cabinet Solutions
Lutze LSC Wiring System saves space, time and
cost. LSC is an aluminum frame that replaces the
traditional back panel and wire duct for mounting
and wiring of electrical components in a control
enclosure. LSC shortens wiring times and
improves heat dissipation.
Automation Solutions
Lutze offers din rail mountable compact power
supplies, industrial Ethernet switches, and
intelligent circuit protection with the Lutze
LOCC-Box.
Transportation Solutions
Lutze supplies high-tech electronic modules for
railway applications. Lutze control modules are
proven to be long lasting and highly reliable in
applications with extended temperature range,
vibration and other harsh external influences.
Lutze Product Overview
32116-Lutze Flex_cover.qxp:Layout 1 1/4/13 8:20 AM Page 2
Lutze Flexible Cable and Wire Management
for Industrial Automation
Control Cable
Flexible Tray-ER Cable
High Flexing Cable
Motor & VFD Cable
Ethernet Cable
Cable Fittings and Accessories
NPT, PG, Metric Fittings
Connectivity
www.lutze.com
LUTZE INC.
13330 South Ridge Drive
Charlotte, NC 28273
Tel.: (704) 504-0222
Fax: (704) 504-0223
info@lutze.com
From products
to solutions!
¾Flexible Cable and
Wire Management
¾Compact Power
Supplies
¾Lutze LSC-Wiring
Systems
¾Ethernet
Connectivity
¾Interface
Technology
¾Lutze LOCC-Box
Current Control
1-800-447-2371
USA Cable Solutions
L
M120413
USA Cable Solutions
32116-Lutze Flex_cover.qxp:Layout 1 1/4/13 8:20 AM Page 1
